Fire Protection General Products Catalogue

Tyco Fire & Building Products

is a leading

manufacturer and distributor of water-based fire

suppression systems and components, offering one of

the broadest lines of fire protection system equipment

worldwide.

Continually expanding its capabilities through aggressive

research and product development, it provides its

customers effective fire protection and construction

solutions for residential, commercial, industrial, and

institutional buildings. Tyco Fire & Building Products

serves a diverse group of specifiers, including architects,

engineers, contractors, and associated industries with a

nationwide network of distribution and manufacturing

facilities. Tyco takes pride in the introduction of new and

innovative products, technologies and product application

extensions.

With over 150 years in the industry, Tyco Fire & Building

Products is uniquely qualified to provide and develop

cost effective solutions customized to any building

configuration and fire protection application. Our patented

solutions provide significant performance advantages with

lower installation and maintenance costs.

Tyco Fire & Building Products also offers the

industry’s most complete fire protection design

software package through its SprinkCAD® programs.

TA B L E O F CON T E N T S

AUTOMATIC SPRINKLERS

Standard Spray Sprinklers . . . . . . . . . . . . . . . . .7 – 10

Extended Coverage Sprinklers . . . . . . . . . . . . .11 – 16

Storage Sprinklers. . . . . . . . . . . . . . . . . . . . . . .17 – 22

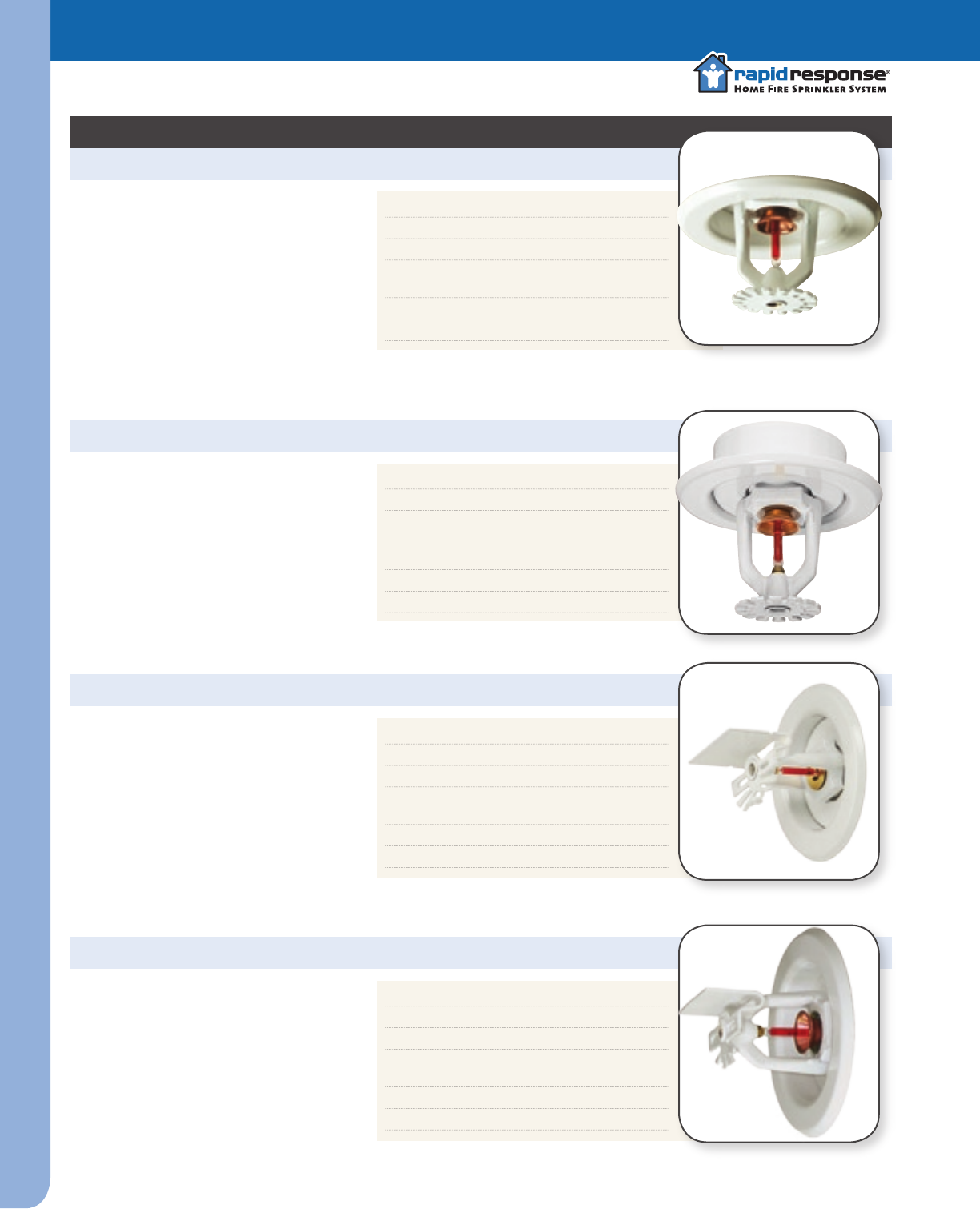

Rapid Response™ Sprinklers . . . . . . . . . . . . . .23 – 26

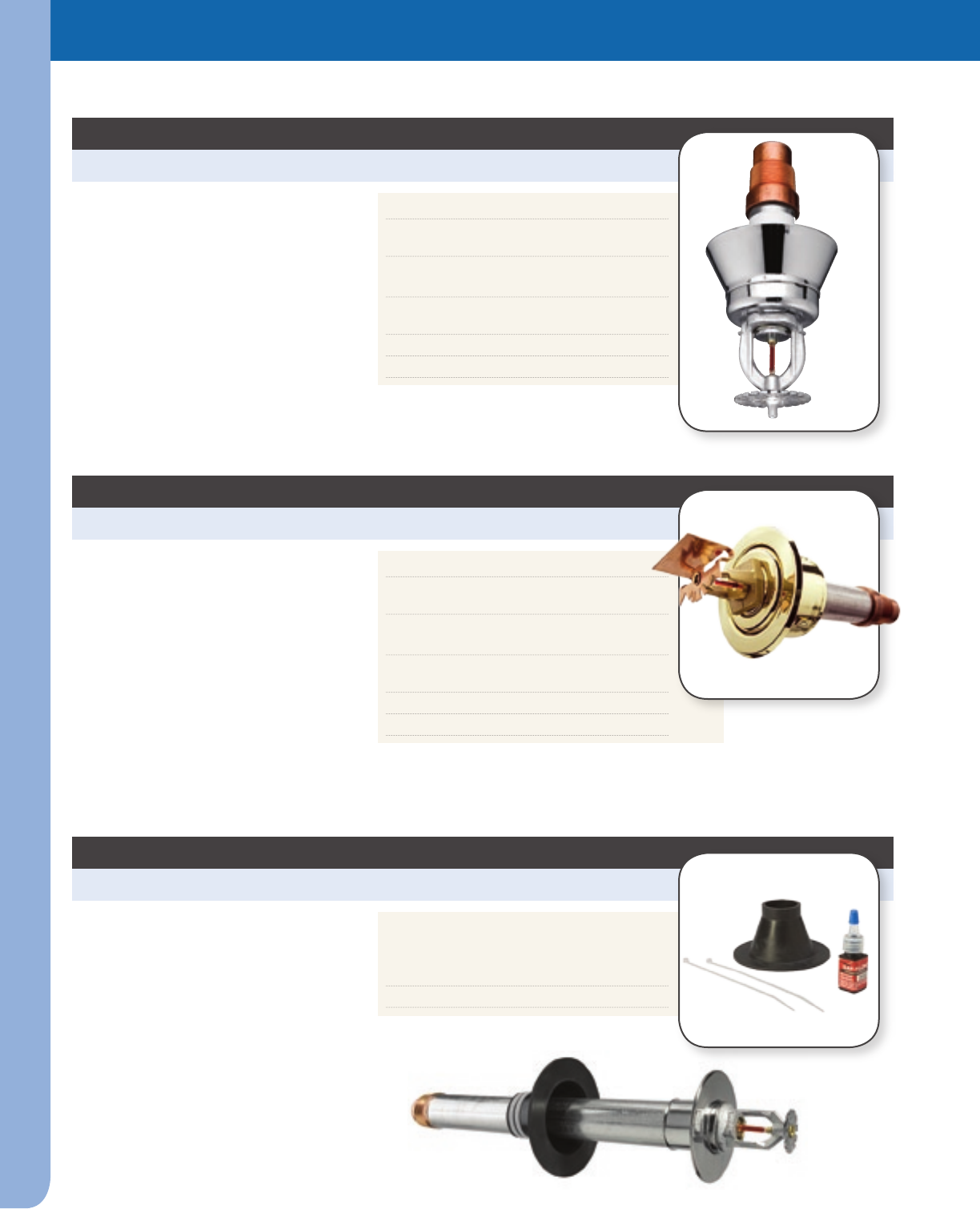

Dry Sprinklers .........................27 – 30

Special Purpose Sprinklers . . . . . . . . . . . . . . . .31 – 36

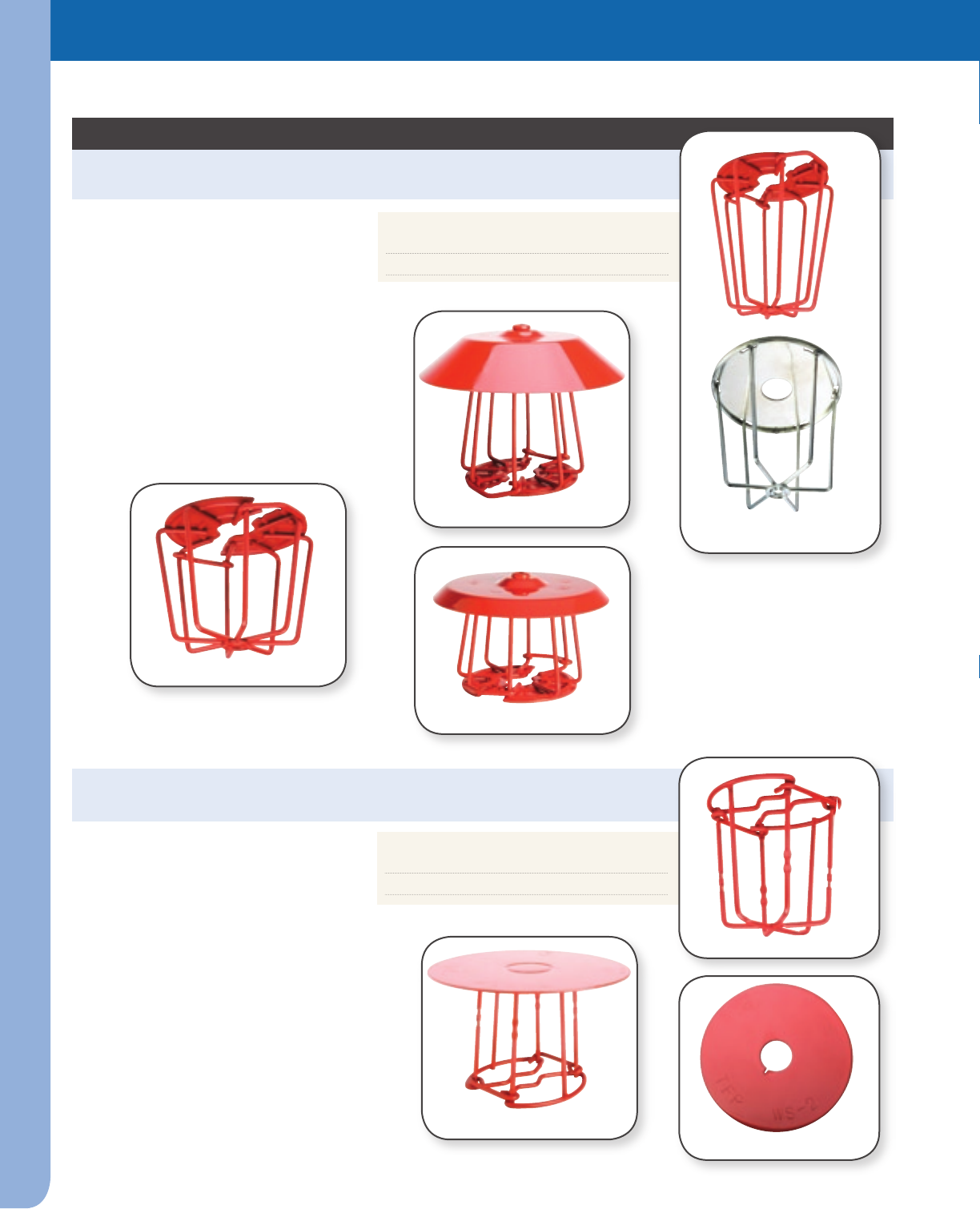

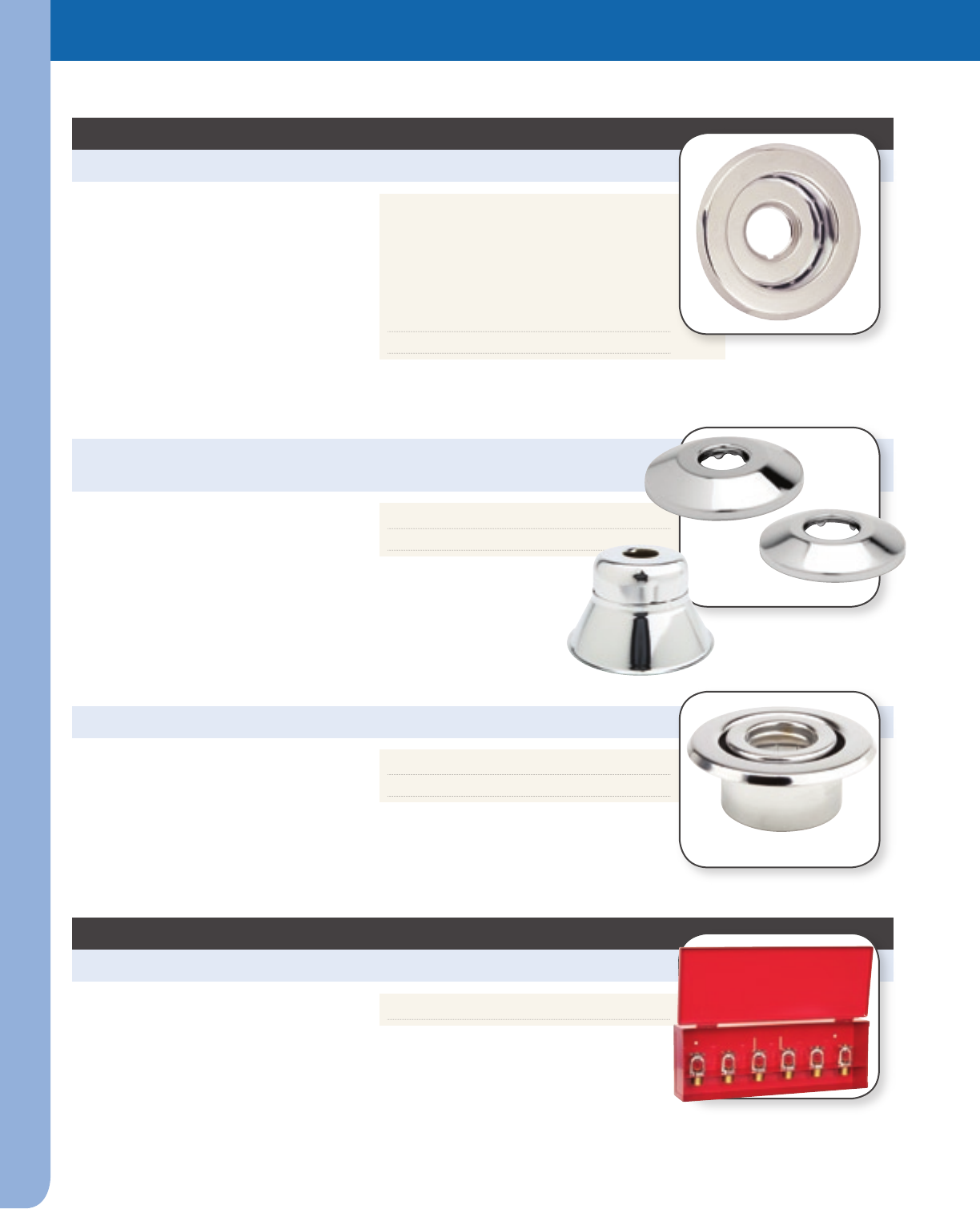

Sprinkler Accessories . . . . . . . . . . . . . . . . . . . .37 – 38

Nozzles & Nozzle Accessories . . . . . . . . . . . . .39 – 42

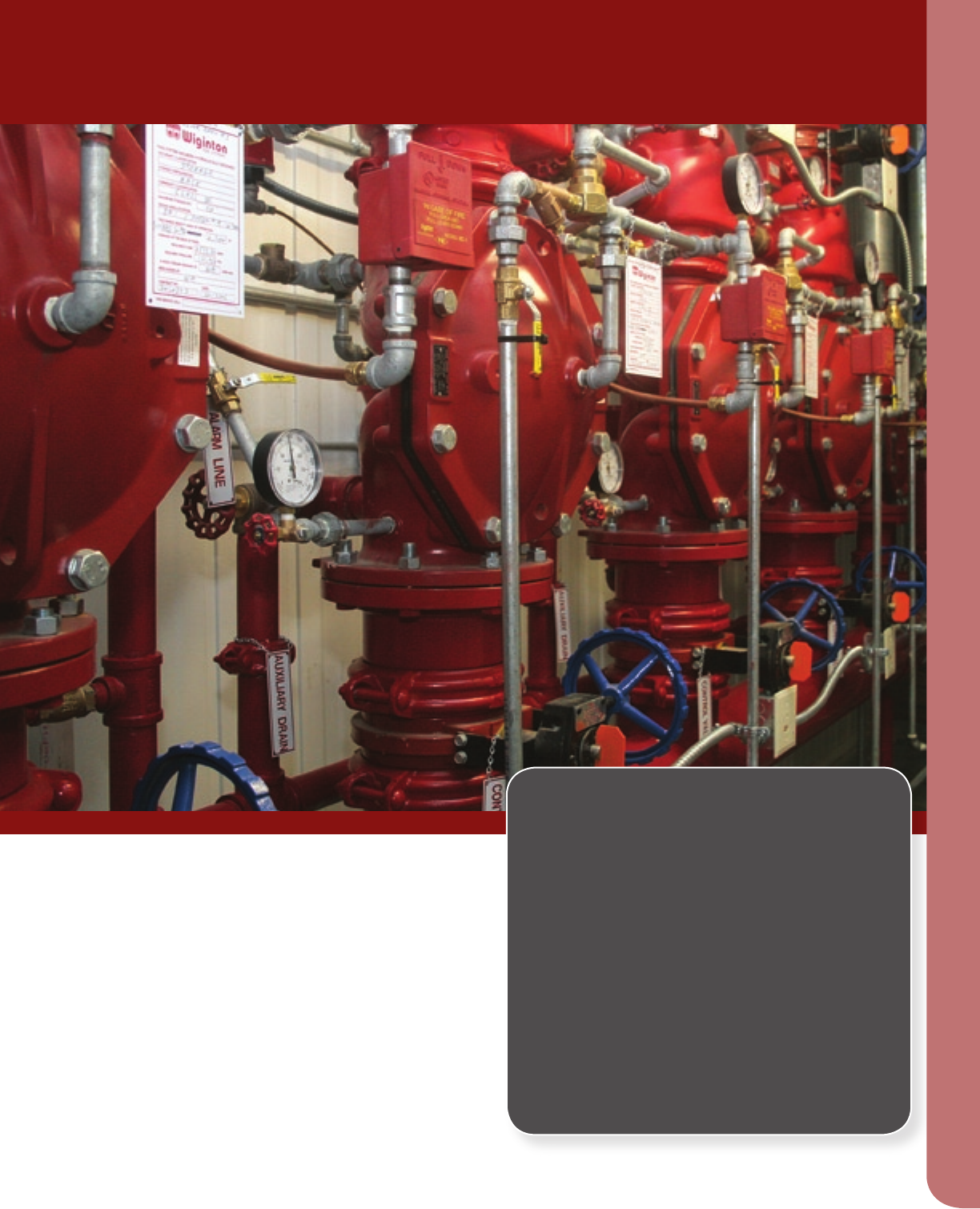

SYSTEM VALVES & DEVICES

Wet System Valves & Devices . . . . . . . . . . . . .43 – 46

Dry System Valves & Devices. . . . . . . . . . . . . .47 – 50

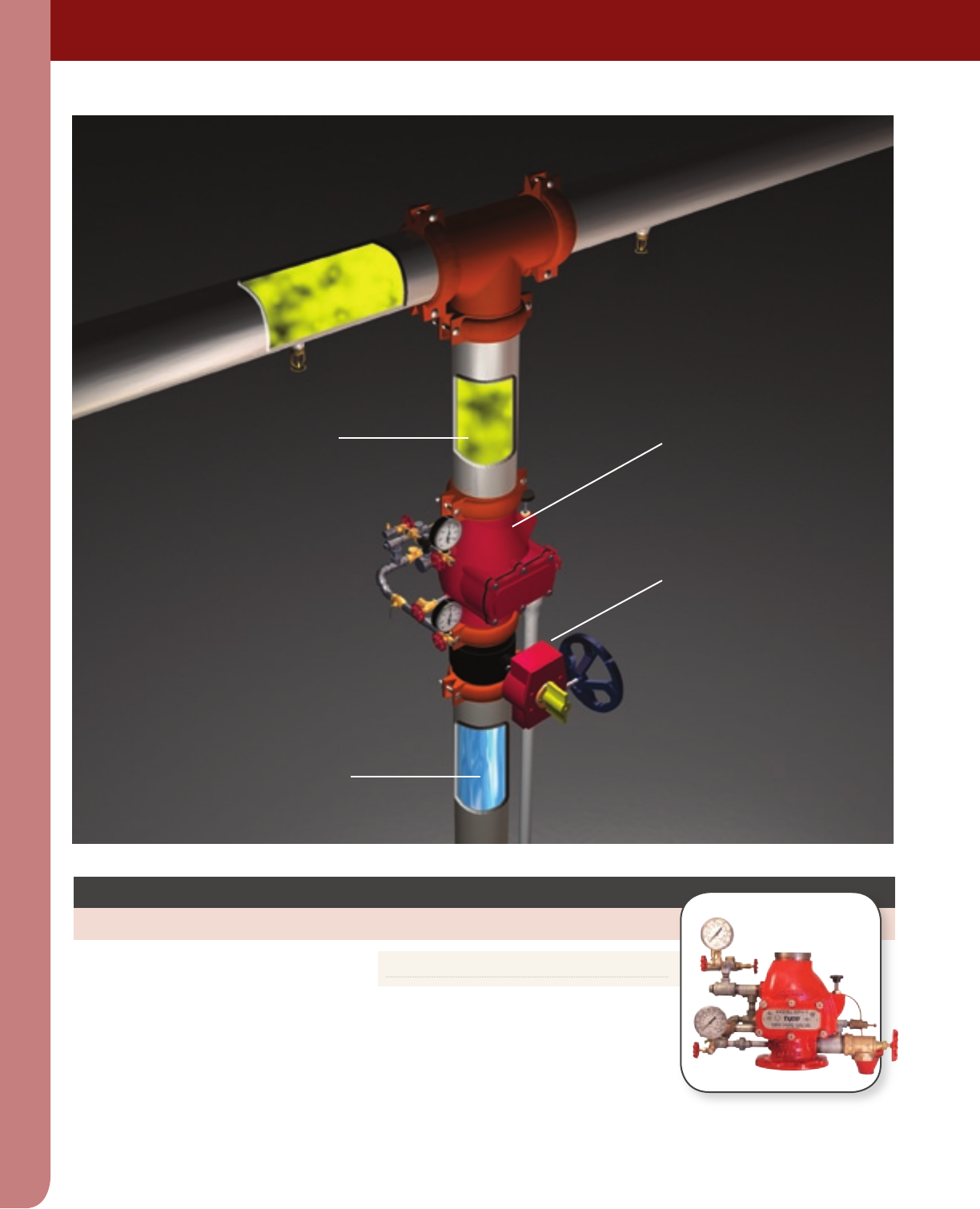

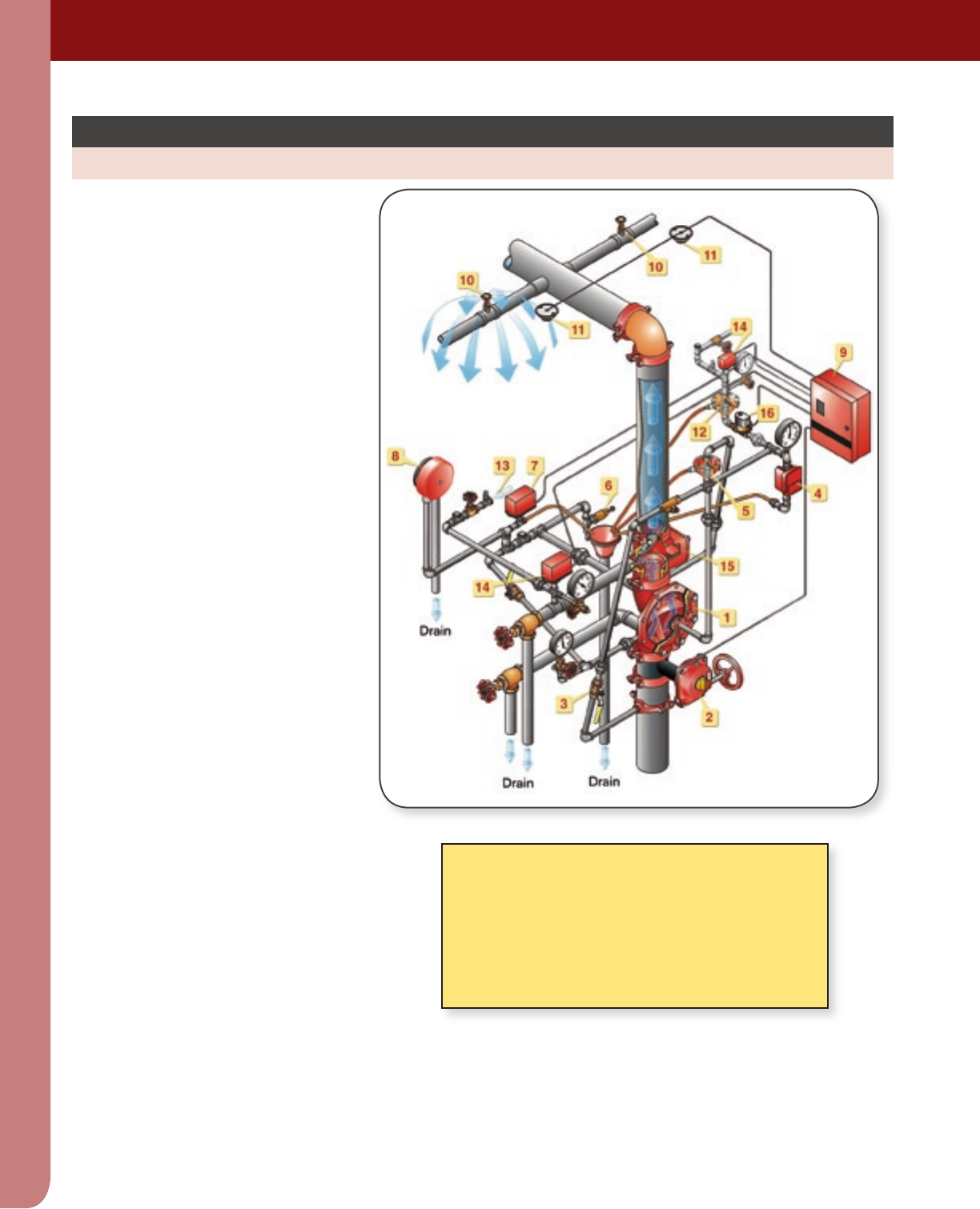

Deluge & Preaction Systems . . . . . . . . . . . . . .51 – 56

General Purpose Valves . . . . . . . . . . . . . . . . . .57 – 60

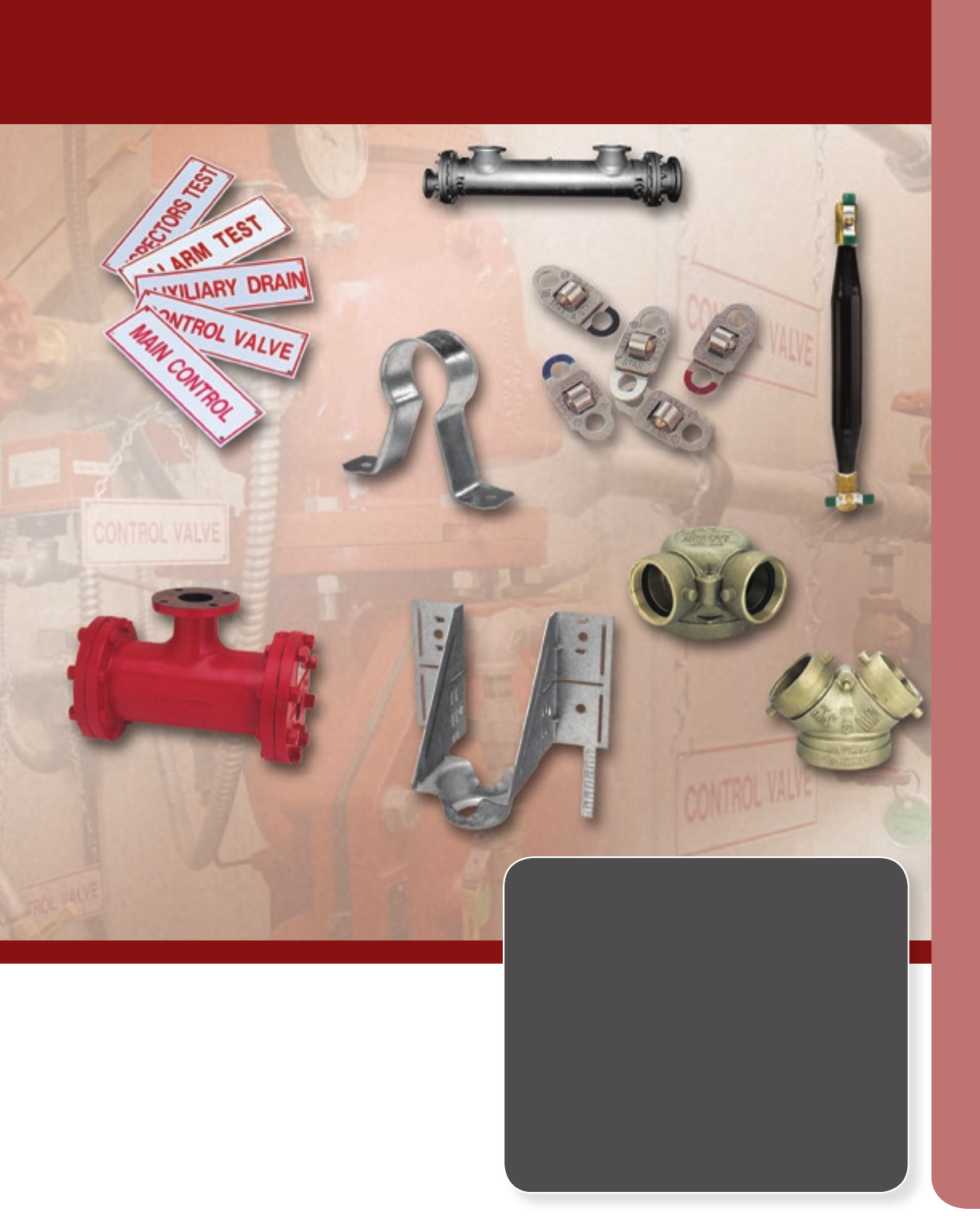

Specialty Items.........................61 – 64

PIPING & ELECTRICAL PRODUCTS

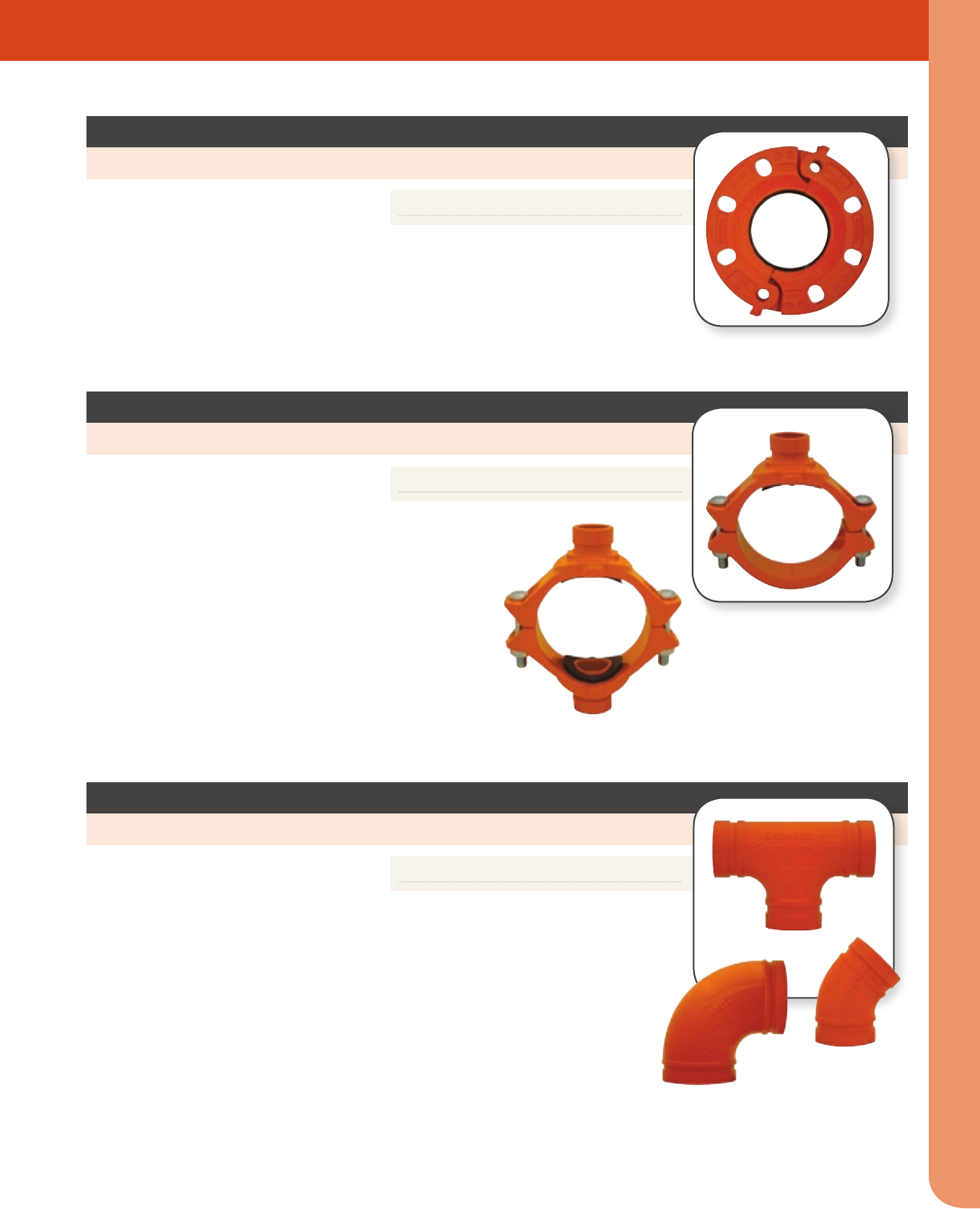

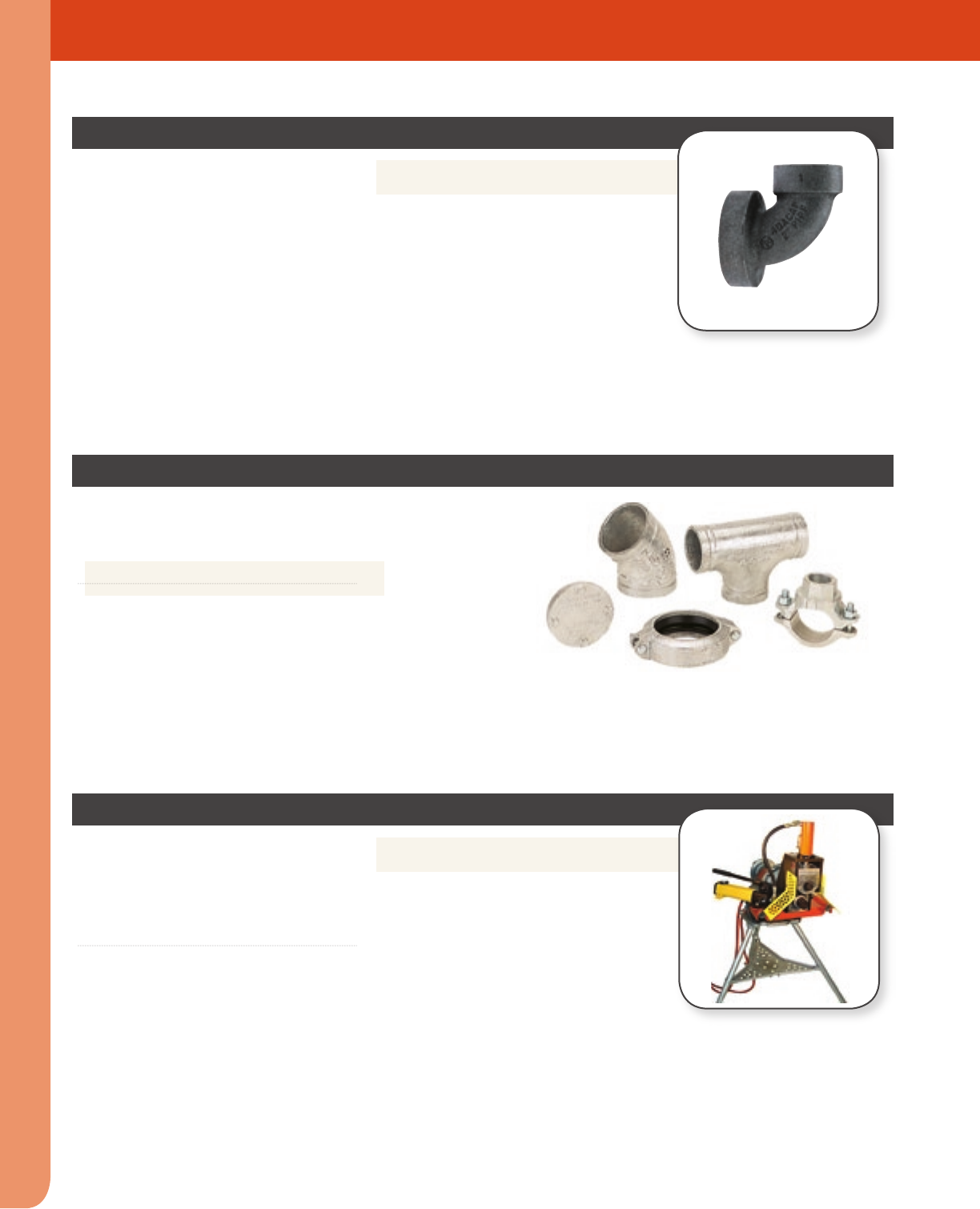

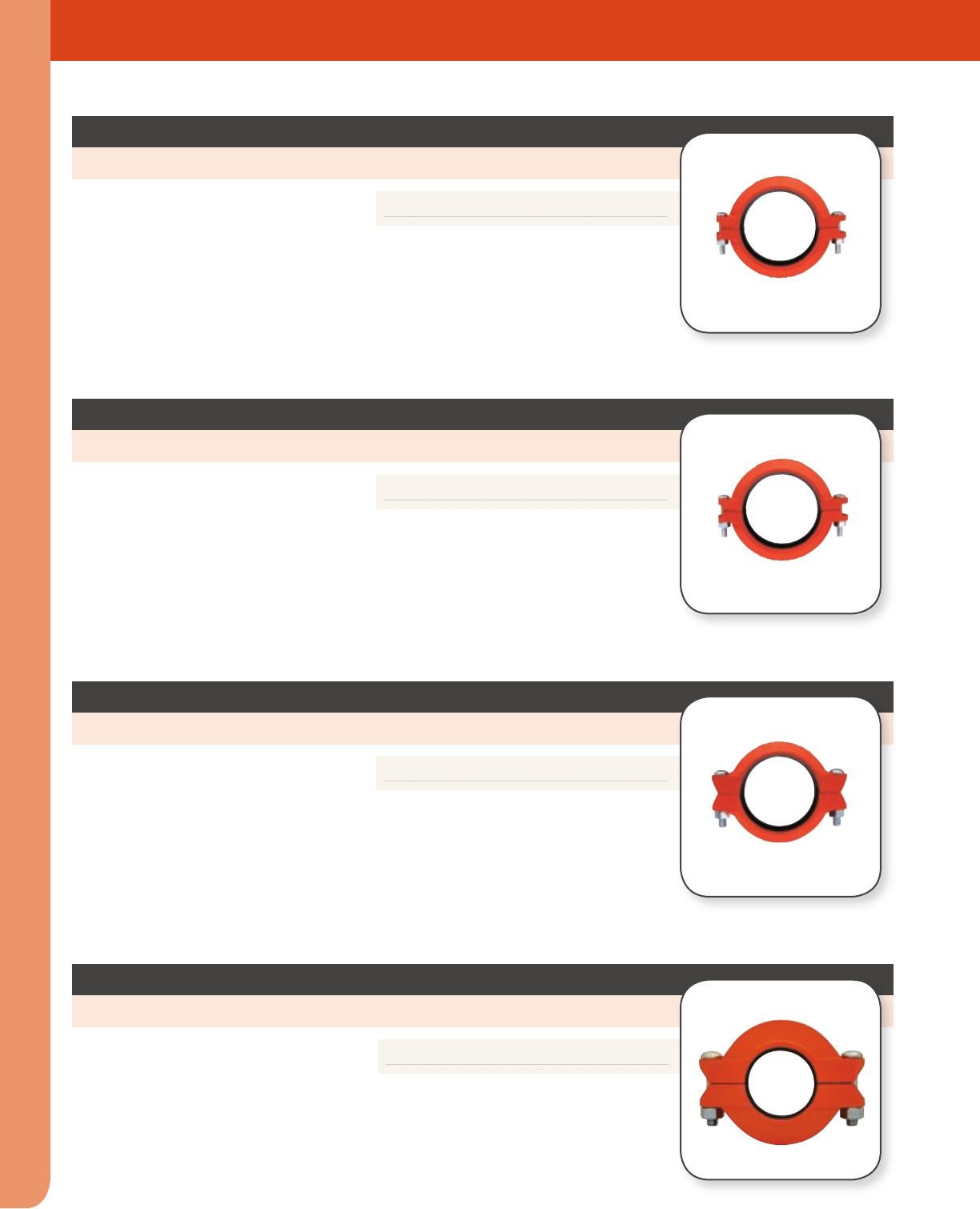

Grooved Piping Products . . . . . . . . . . . . . . . . .65 – 68

CPVC Pipe & Fittings. . . . . . . . . . . . . . . . . . . .69 – 70

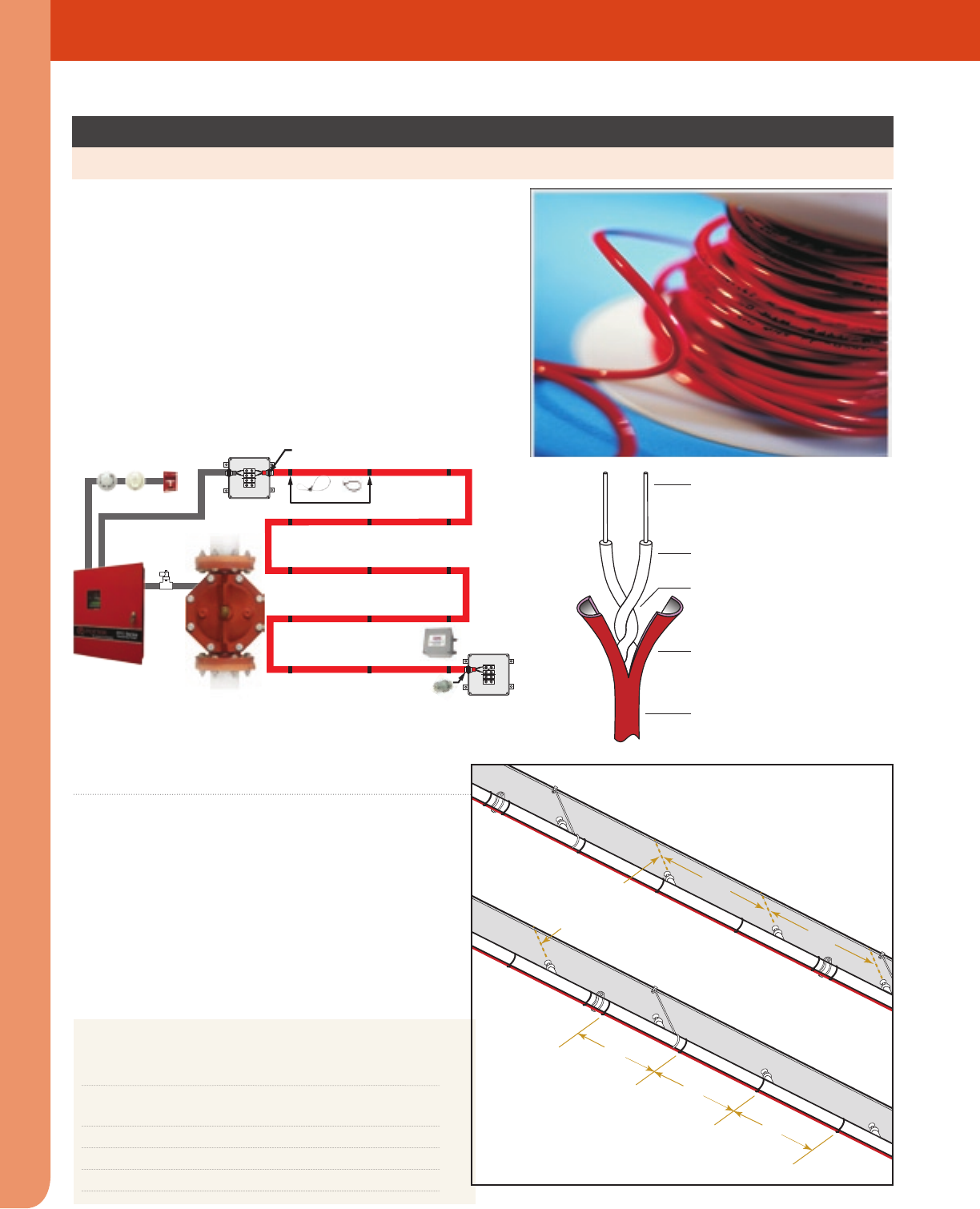

Electrical Devices . . . . . . . . . . . . . . . . . . . . . . .71 – 76

SPECIALTY SYSTEMS

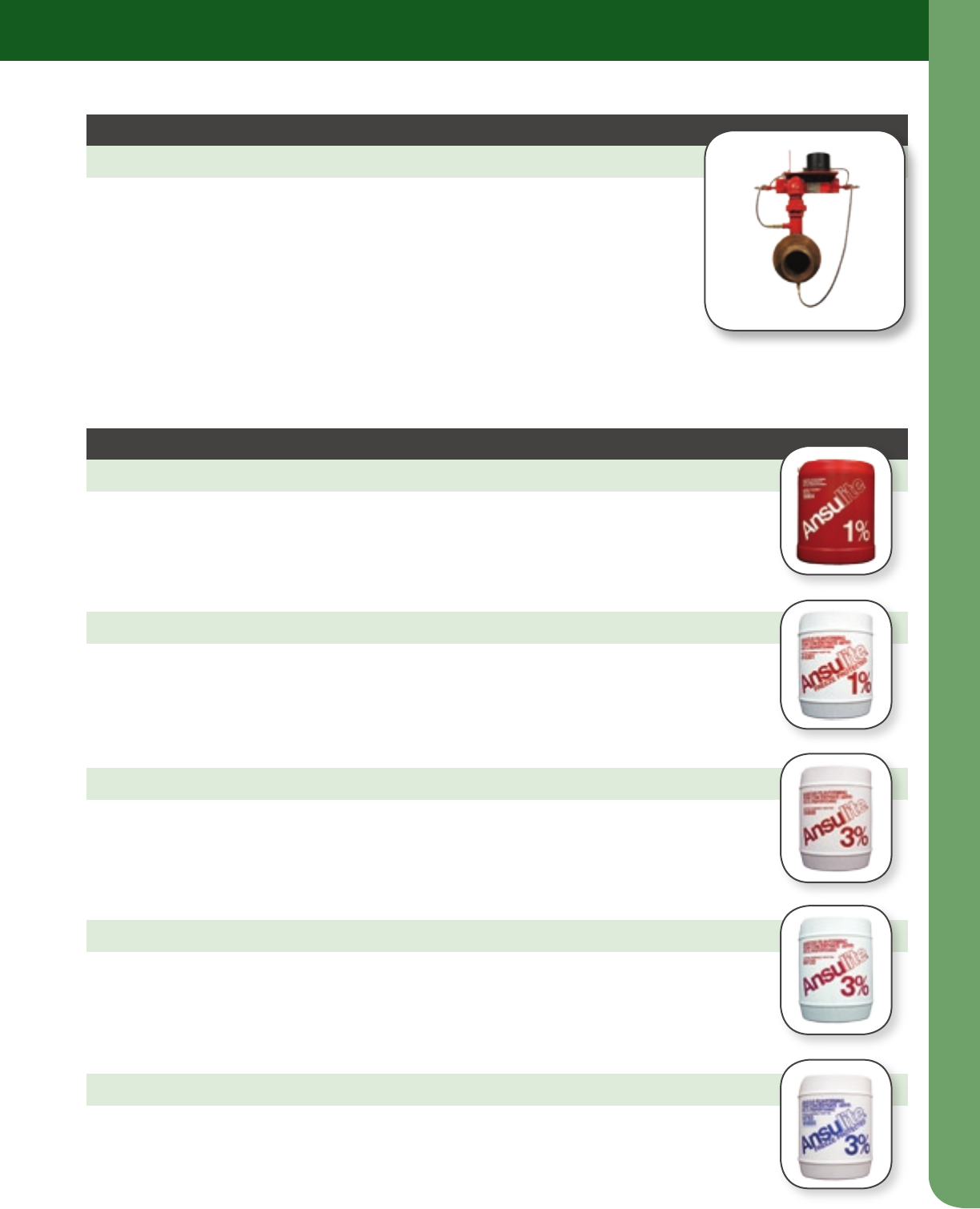

Foam Systems..........................77 – 82

Aquamist® Systems .....................83 – 85

In 1881, industry pioneer Frederick

Grinnell patented the first “sensitive”

automatic fire sprinkler incorporating a

number of features still found in modern

day units. Since that time, many of the

major advancements in fire

sprinkler technology can

be attributed to Grinnell

and other leading names

in the industry that are

now part of Tyco Fire &

Building Products.

The history of our company

is one of tremendous growth

through organic development

and acquisition with over 150 years in the industry,

to create a single powerful global resource for owners,

and those to whom they turn for engineering advice and

support. Today our company is proud to

be associated with our corporate and

legacy brands that continue to operate

on the cutting edge of fire protection

innovation, mechanical applications and

product performance.

We stand behind every product we manufacture

by offering the industry’s only 10-year limited

warranty*, that’s up to ten times longer than our

competitors’ warranties.

(Full warranty details can be found on all of our

current product technical data sheets, or at our

website at www.tyco-fire.com.)

All metric measurements throughout this catalog are based on

U.S. standard-to-metric conversions. Metric specifications may

vary from country to country.

LEADING THE WAY FOR MORE THAN 150 YEARS

T YCO FIRE & BUILDING PRODUCTS

4FIRE PROTEC TION General Products Catalog TYCO FIRE & BUILDING PRODUCTS

We Cover All The Action

In addition, Tyco Fire & Building Products provides

turnkey Engineered Systems’ a choice of fully integrated

solutions focused on specialty applications in Europe, the

Middle East, the Americas, and Asia/Pacific, including:

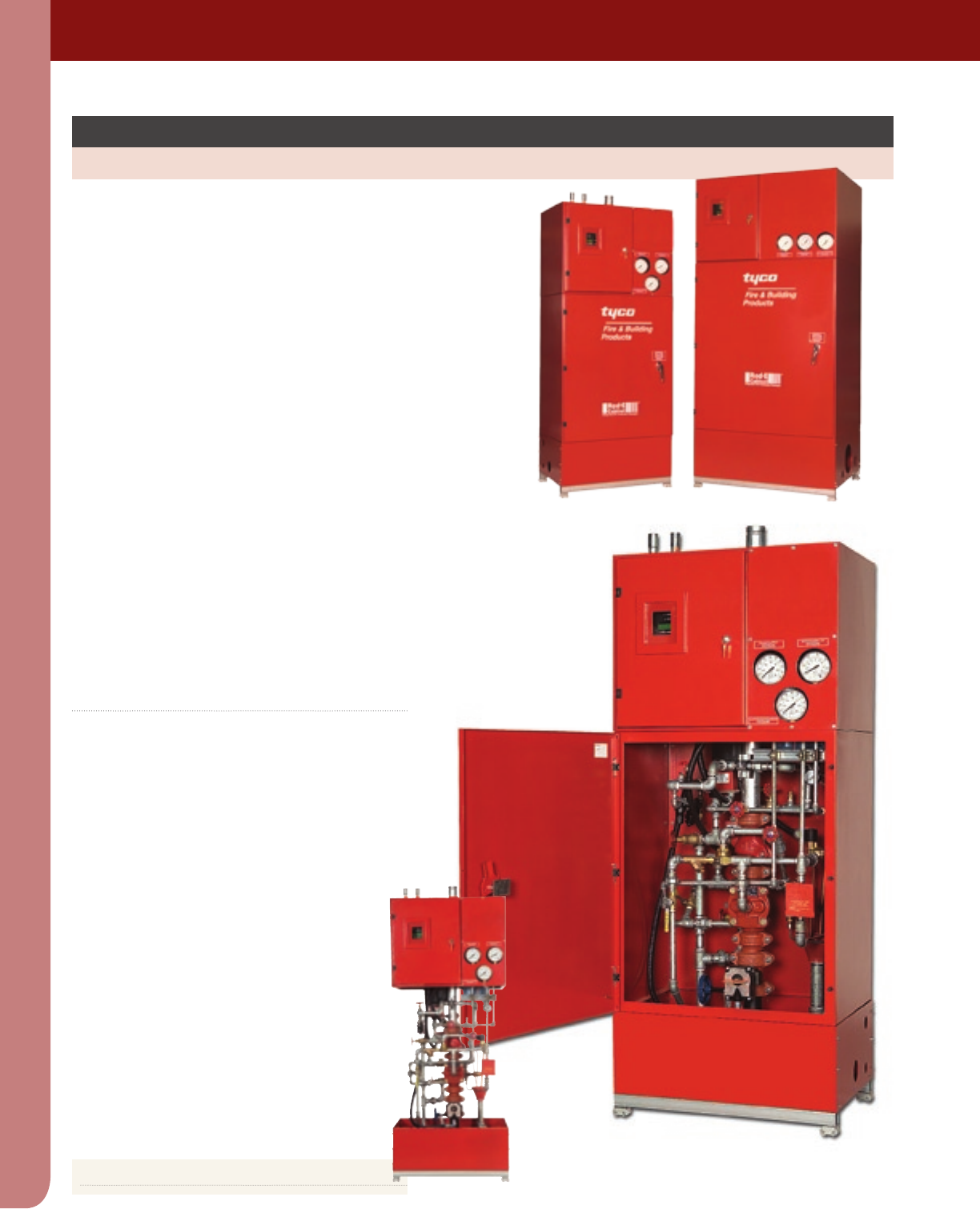

• Pump/Valve Skid Packages

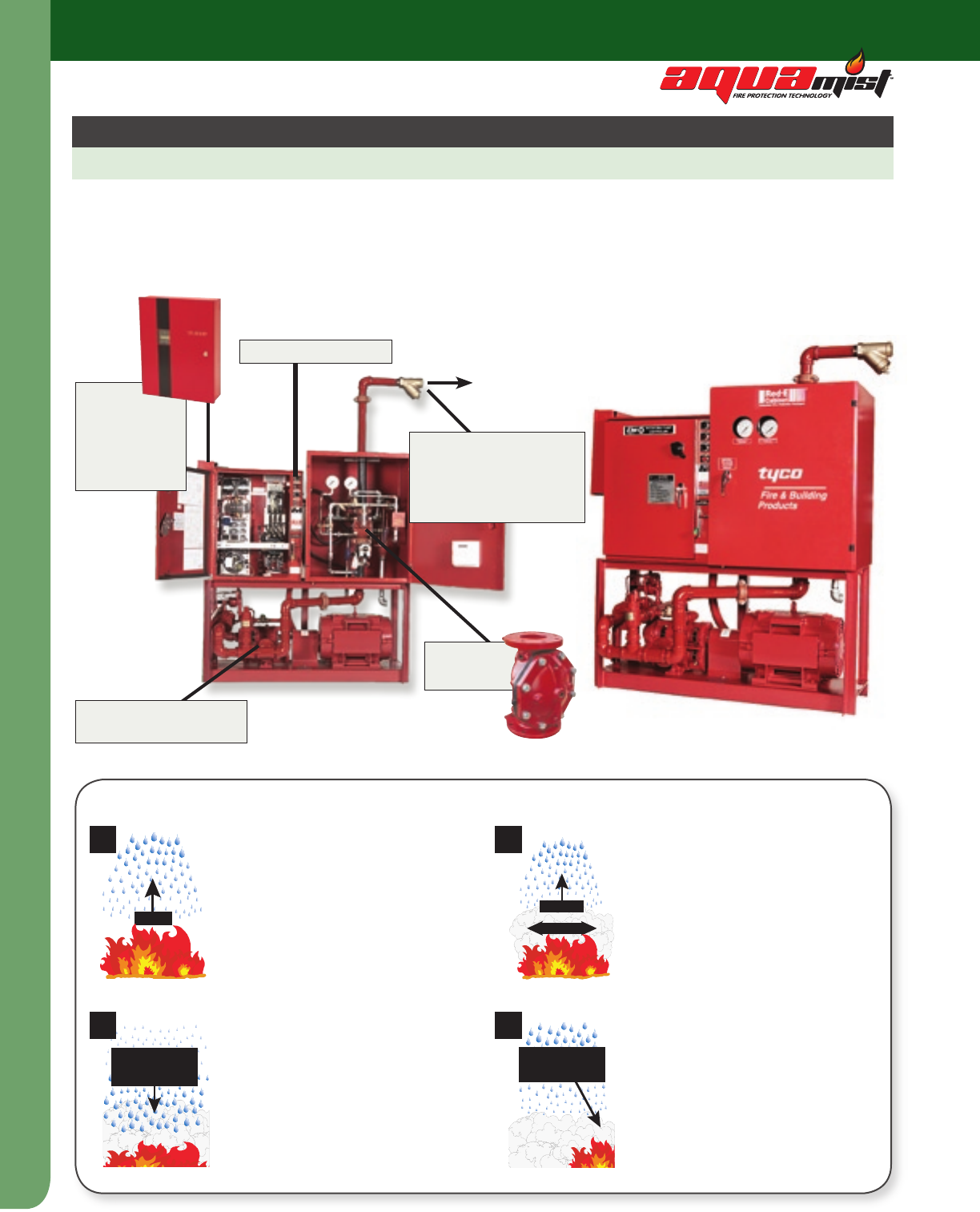

• Water Mist Systems for Fire Protection

• Valve Packages for Seawater and Harsh

Environments

Tyco Fire & Building Products has made a commitment

to the world-class performance of its products and,

as a result, has received independent approvals and

certifications from industry agencies globally.

Our state-of-the-art international manufacturing facilities

have all been granted ISO 9000 approvals, and are

routinely audited by independent testing agencies for

quality and conformance. We also participate in more

than 70 National Fire Protection Association committees

and a number of international standards and

code-making bodies.

Best-in-class solutions start with best-in-class technology,

and only Tyco Fire & Building Products offers more of

both. That’s how we are able to simplify installation

and improve the performance of fire protection and

mechanical systems, providing the owner with the

lowest installed cost. Here are just some of the

industry-leading technologies we have developed:

• Storage Fire Protection Solutions such as K-14,

K-25 and K-17 ESFR Technology. It was the first

of the ESFR technology, and we pioneered it.

• Extended Coverage Ordinary and Light Hazard

Fire Sprinkler Technology

• The First Residential Sprinklers for Life Safety

Purposes

• Electronic Quick Opening Accelerator for Dry

Sprinkler Systems

• Back-to-Back CPVC Fittings for Residential Fire

Protection

• Sprinkler System Design Software (SprinkCAD)

and Fluid Delivery Time Calculation Software

THE INDUSTRY LEADER

Underwriters

Laboratories Inc.

Underwriters

Laboratories Inc.

for use in Canada

Scientific

Services

Laboratory

Verband der

Schadenversicherer

Factory Mutual

Research

Corporation

Loss Prevention

Certification Board

in association with

AB & Lloyds

FM

TYCO FIRE & BUILDING PRODUCTS F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo g 5

TYCO FIRE & BUILDING PRODUCTS

TYCO FIRE & BUILDING PRODUCTS F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo g 7

STANDARD SPRAY SPRINKLERS

Standard Spray Sprinklers are comprised of two

responses: standard and quick. Together they offer a wide

range of sprinklers from which to choose when designing

a standard coverage fire sprinkler system.

Quick Response Sprinklers are designed with a

3mm bulb or small nickel link to react more quickly at

the specified temperature. They are available in pendent,

upright, recessed, concealed, vertical sidewall, and

horizontal sidewall styles.

The narrow profile bulbs and attractive finishes of the

Series TY-FRB provide specifiers with a wide variety of

sprinklers for use in quick response applications. The

versatile Quick Response TY-FRL Series provides the

specifier with a solder type sprinkler for most commercial

and industrial applications.

Standard Response Sprinklers are intended for use

in fire sprinkler systems designed in accordance with the

installation rules recognized by the applicable Listing or

Approval agency. There are two types or response elements:

bulb and solder.

Series TY-B bulb type sprinklers are available in a variety of

attractive finishes that blend well with their surroundings.

When in service, a small bubble in the fluid contained in

the bulb compensates for normal temperature changes.

When heated, the fluid in the bulb expands and shatters

the bulb, allowing water to be discharged.

Series TY-L solder type sprinklers employ a link whose

two sections are joined by solder with a predetermined

temperature rating. Heat absorbed by the link is conducted

directly to the soldered joint. When the solder melts, the

link springs apart, releasing water that strikes the sprinkler

deflector.

• Office

Buildings

• Banks

• Factories

• Libraries

• Theaters

• Light &

Ordinary

Hazard

Occupancies

• Schools

APPLICATIONS:

STANDARD SPRAY SPRINKLERS

AutomAtic SprinklerS

STANDARD SPRAY SPRINKLERS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

8

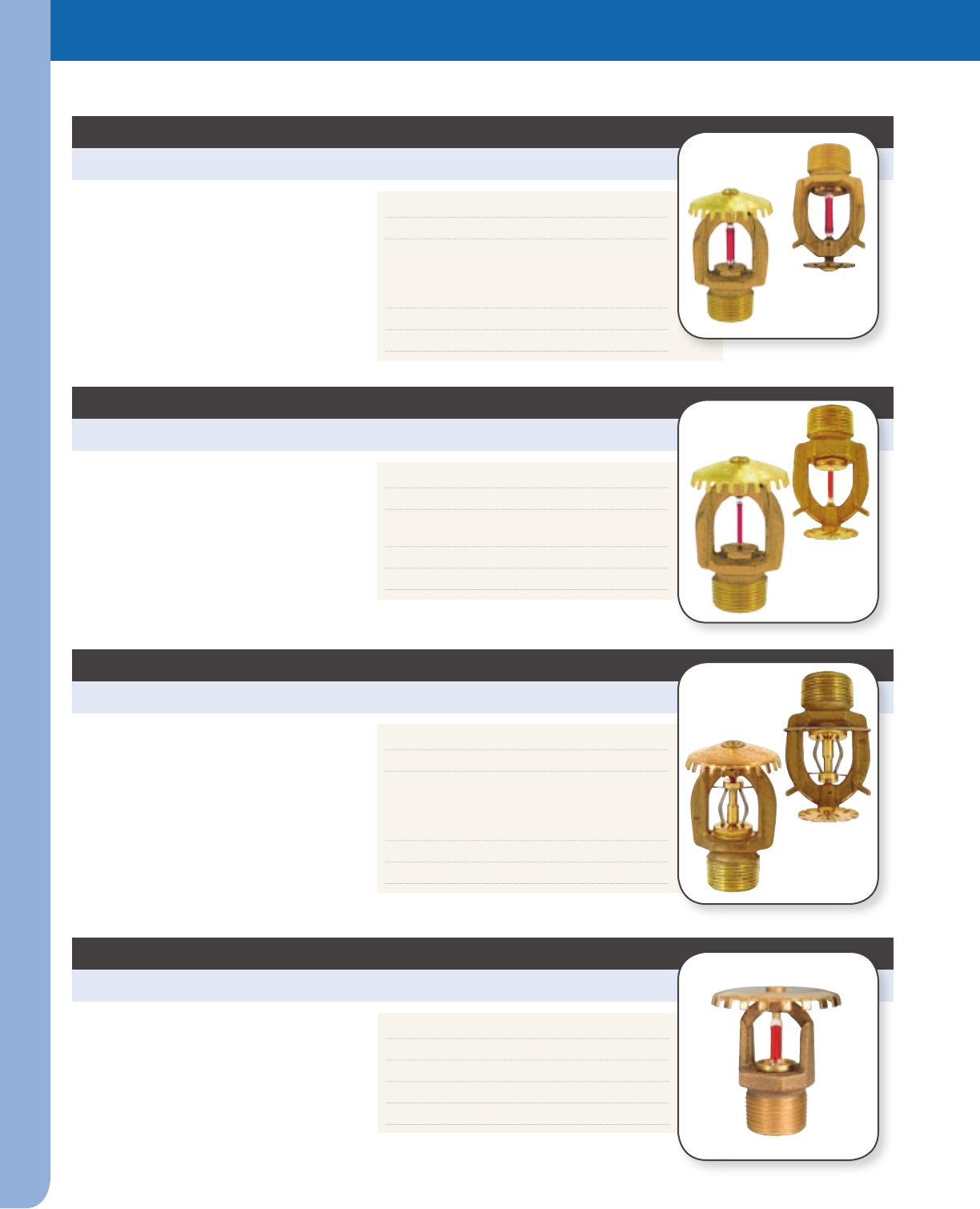

K FACTOR K=2.8 (40,3) • K=4.2 (60,5)

K=5.6 (80,6) • K=8.0 (115,2)

THREAD SIZE 1⁄2" NPT • 3⁄4" NPT

ESCUTCHEON Style 10 • Style 20

Style 30 • Style 40

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester,

Lead Coated

SIN TY1131, TY1231, TY2131,

TY2231, TY3131, TY3231,

TY4131, TY4231, TY4831,

TY4931

TECH DATA TFP171

K FACTOR K=5.6 (80,6),

K=8.0 (115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

ESCUTCHEON Style 10 • Style 40

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester,

Lead Coated, Wax Coated,

Wax over Lead Coated

SIN TY3151, TY3251, TY4151,

TY4251, TY4851, TY4951

TECH DATA TFP151

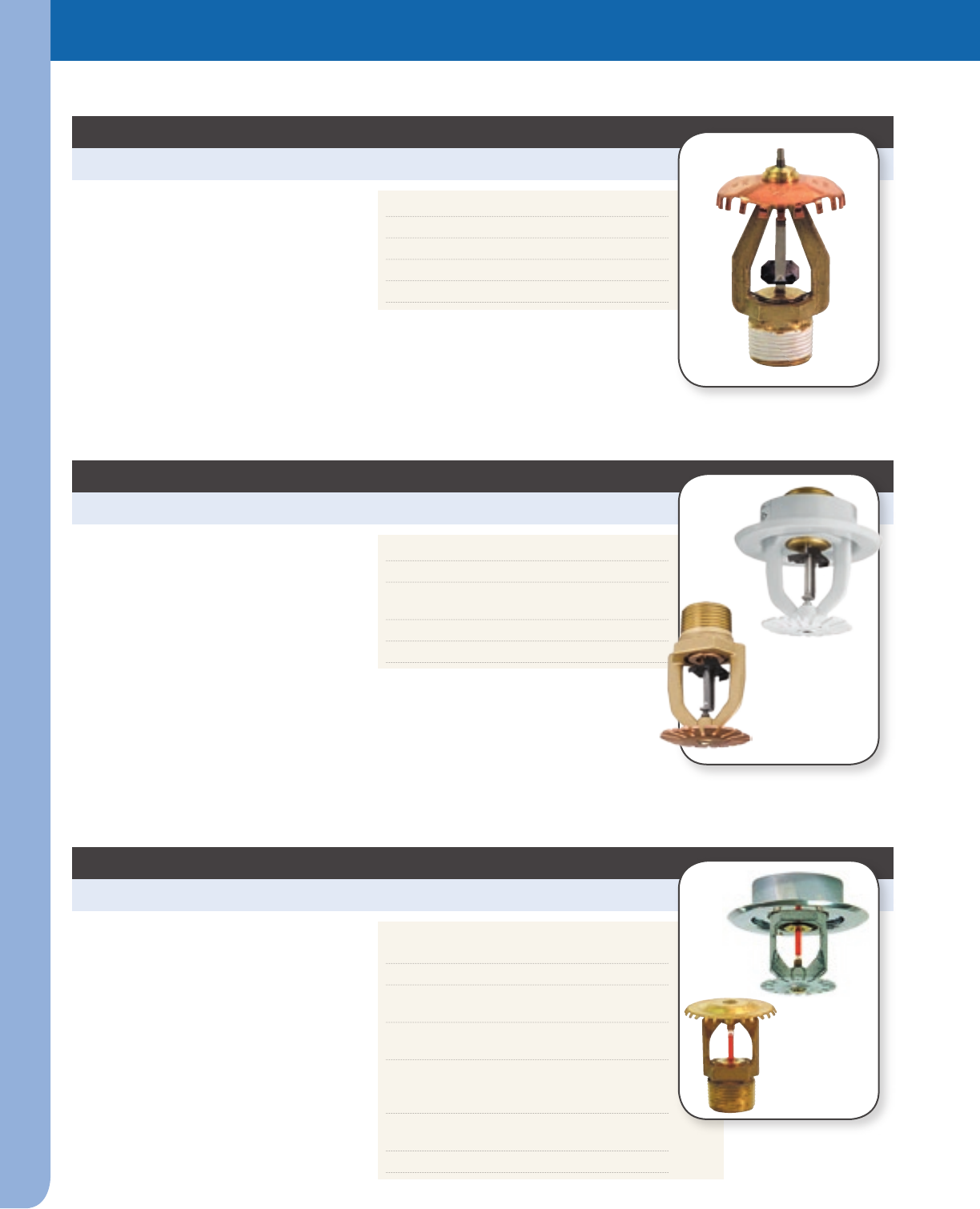

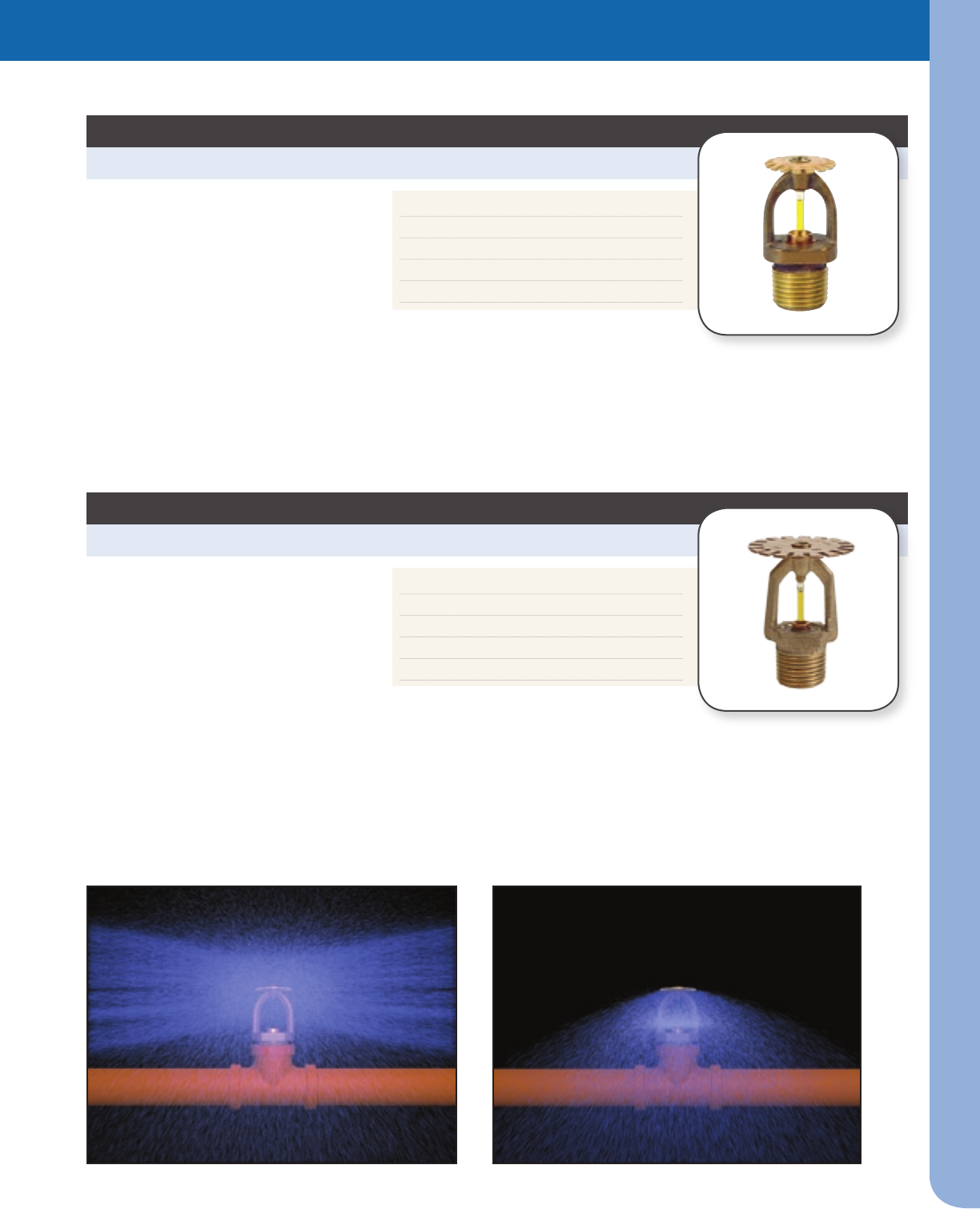

• All hazard

• 5 mm bulb

• Discharges a hemispherical water spray

pattern in the area beneath the sprinkler

• Small frame, narrow profile bulb

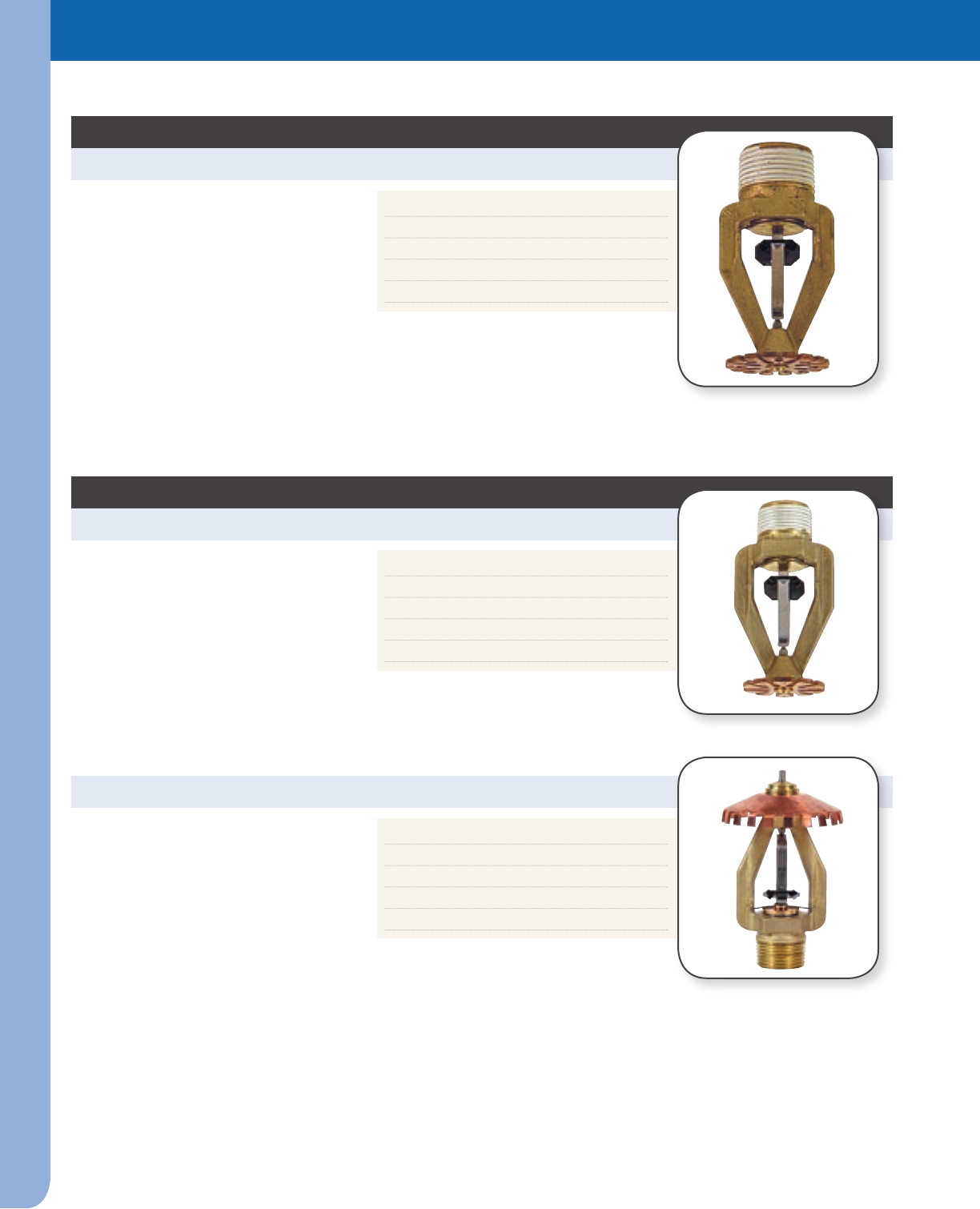

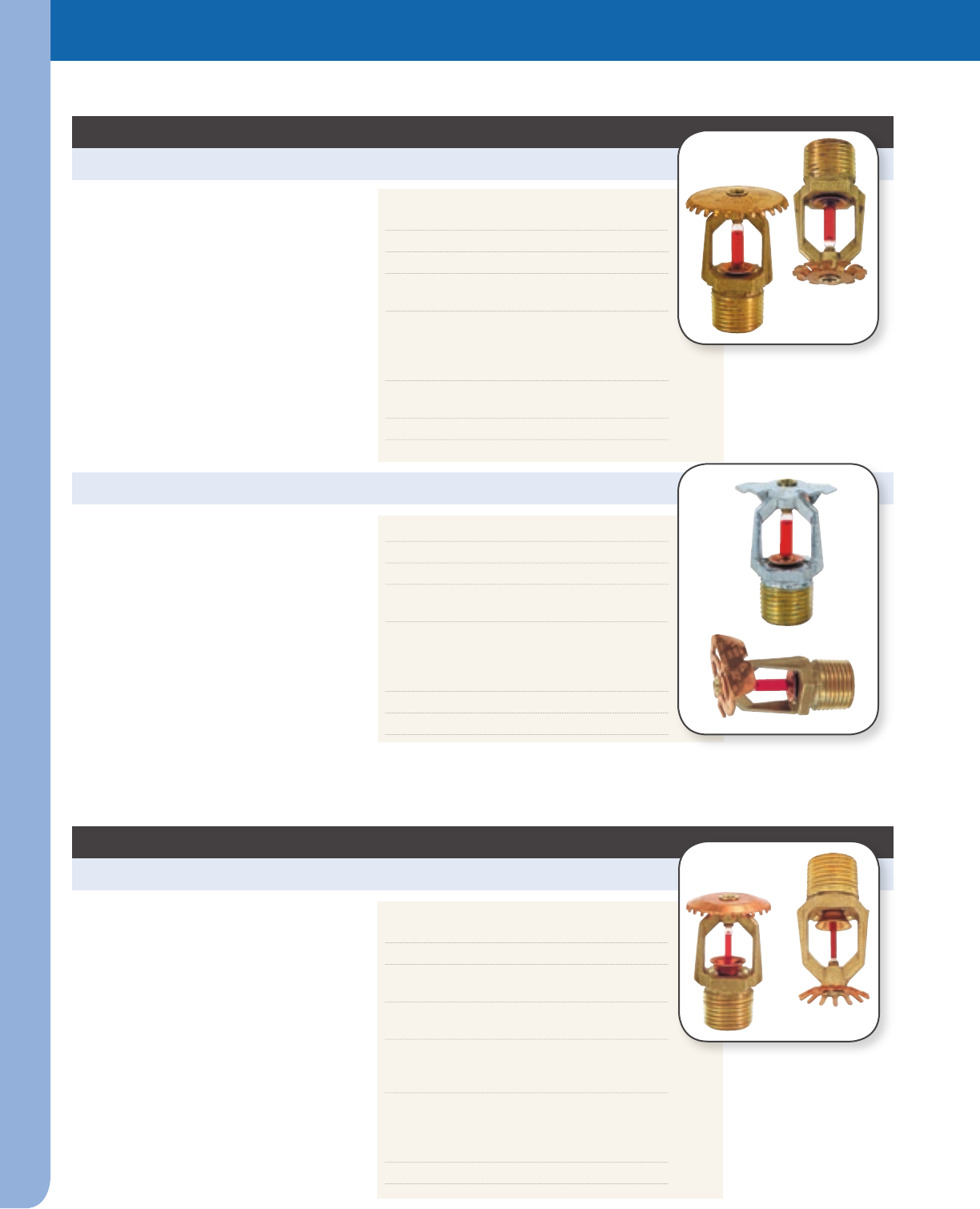

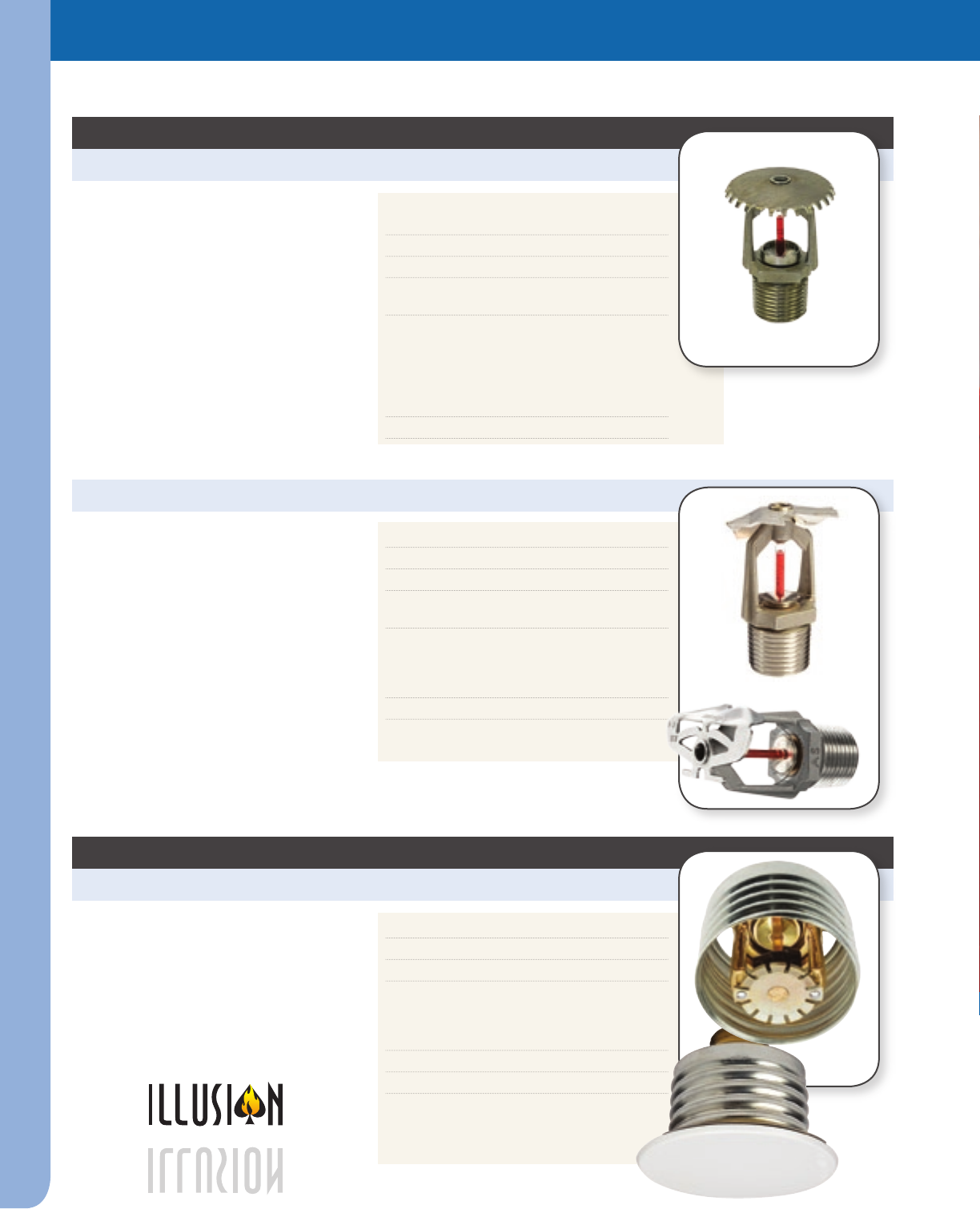

T Y - B

Upright, Pendent & Recessed Pendent

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 10

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester,

Lead Coated, Wax Coated,

Wax over Lead Coated

SIN TY3351, TY3451

TECH DATA TFP161

Horizontal, Recessed Horizontal & Vertical Sidewall

• Light hazard/Ordinary hazard

• 5 mm bulb

• Small frame

• Unique deflector design of the horizontal

sidewall sprinkler results in smaller profile

• Designed for installation along a wall or on

the side of a beam just beneath a smooth

ceiling

• Water discharge is directed primarily outward

and downward in a quarter spherical pattern

• Special deflector on the vertical sidewall

sprinkler allows it to be installed in either a

pendent or upright position • Sidewall sprinklers are often used in lieu

of standard pendent or upright sprinklers

due to building construction, economic

considerations, or aesthetics

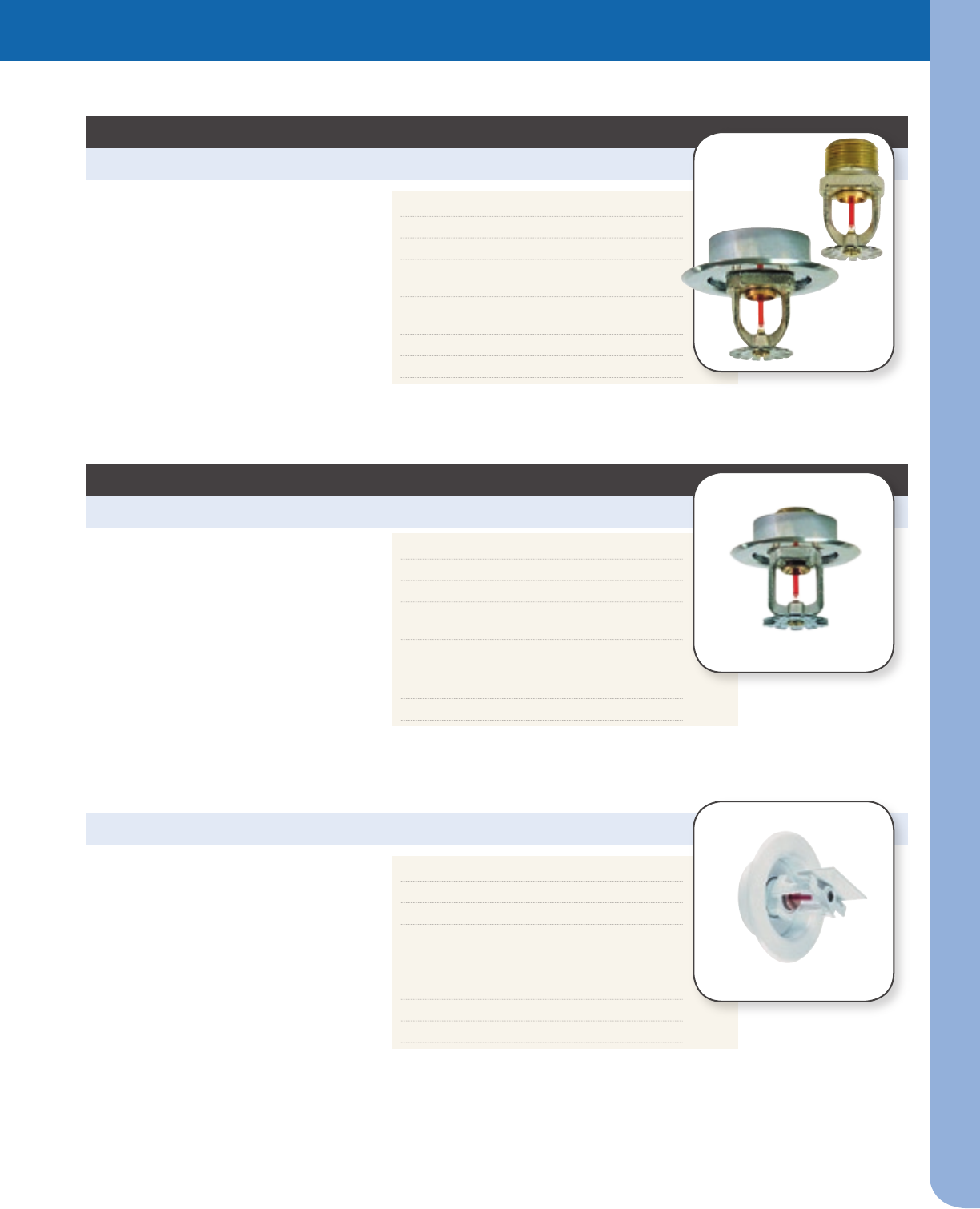

TY-FRB

Upright, Pendent & Recessed Pendent

• Light hazard/Ordinary hazard

light hazard K=2.8 (40,3)

• 3 mm bulb

• Hemispherical water spray pattern in the

area beneath the sprinkler

• Small frame and narrow profile bulb enhance

appearance

Standard Spray SprinklerS

AutomAtic SprinklerS

STANDARD SPRAY SPRINKLERS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

9F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo gTYCO FIRE & BUILDING PRODUCTS

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2"

SPRINKLER FINISH Cover Plate: Chrome

Plated, Natural Brass

Plated, White Polyester

Painted, Custom

SIN TY3551, TY3531

TECH DATA TFP181

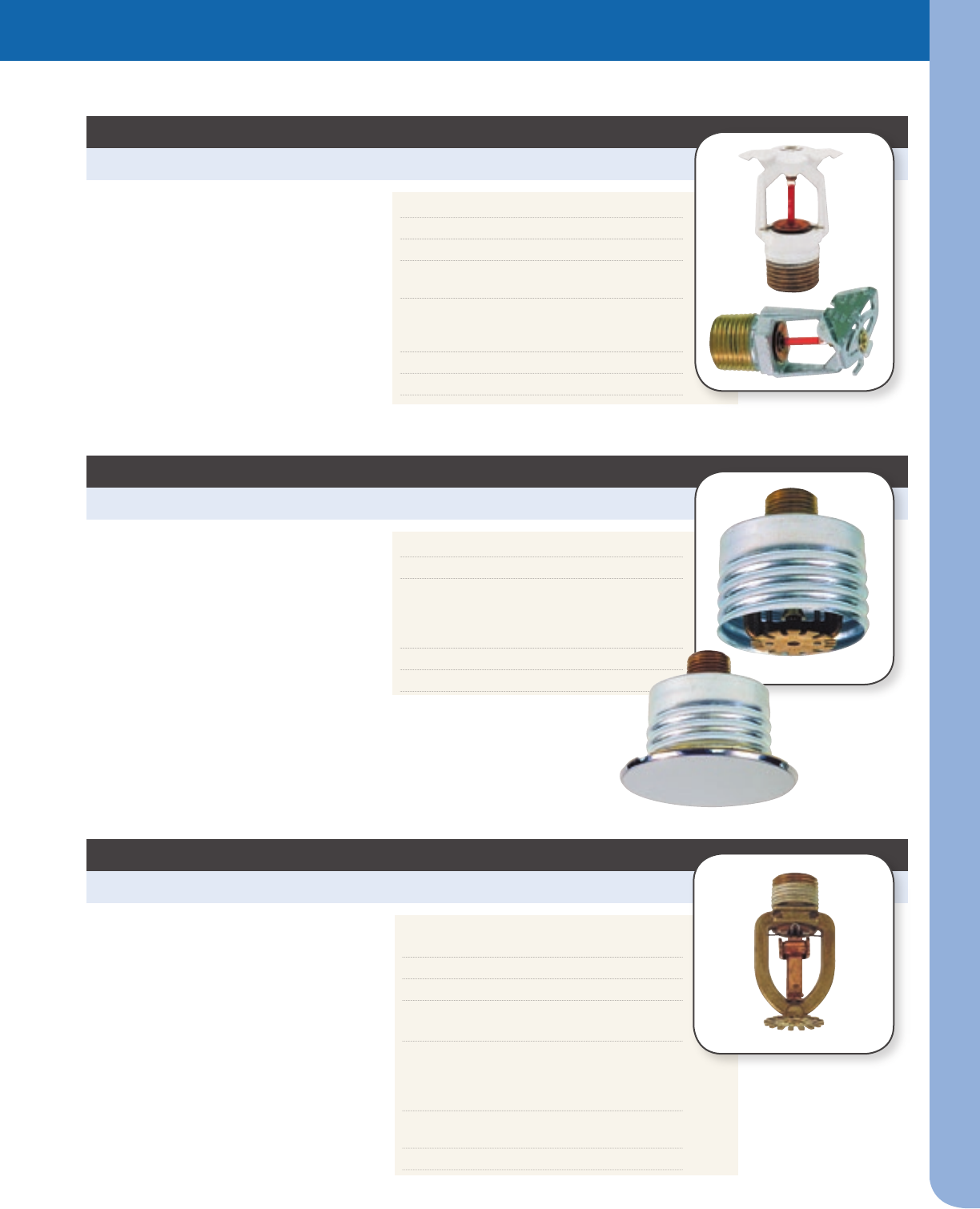

R F I I “R o Y a l F lu s h I I ”

Pendent Concealed

• Light hazard/Ordinary hazard

• 5 mm bulb (standard)

3 mm bulb (quick)

• Concealed in an enclosed escutcheon plate

with flat cover for use in those applications

where aesthetics is a primary consideration

• Separable, two-piece design of the mounting

cup and cover plate allows installation of the

sprinklers and pressure testing of the fire

protection system prior to installation of a

suspended ceiling or application of the finish

coating to a fixed ceiling

• Internally threaded closure with

1⁄2" (12,7 mm) of adjustment

• Available with optional dust

and air seal

TY-FRB

Horizontal, Recessed Horizontal Sidewall & Vertical Sidewall

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 10 • Style 20

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester,

Lead Coated

SIN TY3331, TY3431

TECH DATA TFP176

• Light hazard/Ordinary hazard

• 3 mm bulb

• Designed for use in applications where

aesthetics must be considered or where

building construction makes the installation

of standard pendent or upright sprinklers

impractical

• Vertical sidewall sprinkler can be installed in

either the pendent or upright position along

a wall or the side of a beam and just below a

smooth ceiling

K FACTOR K=5.6 (80,6) • K=8.0

(115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

ESCUTCHEON Style 20 • Style 30

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, Lead Coated, Wax

Coated, Wax over Lead

Coated

SIN TY3111, TY3211, TY4111

TY4211, TY4811, TY4911

TECH DATA TFP110

• All hazards

• Solder type

• Discharges a hemispherical water spray

pattern in the area beneath the sprinkler

T Y - l

Upright, Pendent & Recessed Pendent

STANDARD SPRAY SPRINKLERS

AutomAtic SprinklerS

STANDARD SPRAY SPRINKLERS

• Solder type

• Light hazard/Ordinary hazard

• Designed for compact installation along a

wall or on the side of a beam just beneath a

smooth ceiling

• Generally used in lieu of pendent or upright

sprinklers because of aesthetics, building

construction or economic considerations

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Natural Brass, Chrome

Plated

SIN TY3321

TECH DATA TFP140

Horizontal Sidewall

• Solder type

• Light hazard/Ordinary hazard

• Features separable escutcheon with

3⁄8" vertical adjustment

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON FINISH Chrome Plated, White

Polyester, Black

SPRINKLER FINISH Chrome Plated, White

Polyester, Black

SIN TY3261

TECH DATA TFP190

TY-QRF

Flush Pendent

K FACTOR K=2.8 (40,3) • K=5.6 (80,6)

K=8.0 (115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

ESCUTCHEON Style 20

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated

SIN TY1121, TY1221, TY3121

TY3221, TY4121, TY4221

TECH DATA TFP130

• Light hazard/Ordinary hazard

light hazard K=2.8 (40,3)

• Solder type

• Typically used in hotels, motels, office

buildings and other commercial and

industrial applications

TY-FRl

Upright, Pendent & Recessed Pendent

T Y - l

Horizontal Sidewall

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Natural Brass, Chrome

Plated, Lead Coated, Wax

Coated, Wax over Lead

Coated

SIN TY3311

TECH DATA TFP120

• Light hazard / Ordinary hazard

• Solder type

• Suited for hotels, nursing homes and

hospitals

• Design allows piping to be confined to

corridors, closets or service areas

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

10

EXTENDED COVERAGE SPRINKLERS

TYCO FIRE & BUILDING PRODUCTS F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo g 11

Extended Coverage Sprinklers are intended for the

protection of areas larger than those specified in standard

installation rules and for specific light, ordinary, or extra

hazard occupancies. Extended coverage sprinklers are

available in both standard response (EC) and quick

response (QR-EC). They are available in upright, pendent,

horizontal sidewall and recessed horizontal sidewall. These

sprinklers are typically used in hotels, restaurants, office

buildings, warehouses, and other areas where it is desirable

to reduce the overall number of required sprinklers.

• Office

Buildings

• Hotels

• Hospitals

• Libraries

• High-Piled

Storage

• “Big-Box”

Retailing

APPLICATIONS:

EXTENDED COVERAGE SPRINKLERS

EXTENDED COVERAGE

SPRINKLERS

EXTENDED COVERAGE SPRINKLERS

AutomAtic SprinklerS

EXTENDED COVERAGE SPRINKLERS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

12

K FACTOR K=11.2 (161,3), K=14.0

(201,6)

THREAD SIZE

3⁄4" NPT

ESCUTCHEON Style 30 • Style 40 • Style

60

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester,

Lead Coated

SIN TY5137, TY5237, TY6137,

TY6237

TECH DATA TFP220

• Light hazard/Ordinary hazard

• 3 mm bulb

• Nominal K=11.2 designed for coverage

applications of 14' x 14' (4,3 m x 4,3 m)

up to 20' x 20' (6,1 m x 6,1 m)

• Nominal K=14.0 designed for coverage

applications of 16' x 16' (4,9 m x 4,9 m)

up to 20' x 20' (6,1 m x 6,1 m)

• Low profile glass bulb spray sprinklers

E C - 1 1 & E C - 14

Upright, Pendent & Recessed Pendent

K FACTOR K=16.8 (241,9)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Natural Brass, White

Polyester, Chrome Plated

SIN TY7228

TECH DATA TFP215

E C - 1 7

Pendent & Recessed Pendent

• Solder type

• Extended coverage for higher density

applications

• Recessed configuration is ideal for retail

applications

• Maximum 196 sq. ft./sprinkler spacing

(14 ft. x 14 ft. spacing)

• Can reduce the number of installed

sprinklers by nearly 50%

• Hydraulic calculations based on actual

spacing (sxl rule)

• Intended for area/density applications

of 0.25 gpm/sq. ft. and higher

K FACTOR K=25.2 (362,9)

THREAD SIZE 1" NPT or ISO 7-R1

SPRINKLER FINISH Natural Brass

SIN TY9128

TECH DATA TFP213

E C - 2 5

Upright

• All hazard

• Solder type

• Extended coverage area/density

• Deflector design allows maximum coverage

area of 14' X 14' (4,3m X 4,3m)

• For use in high density applications such

as “big box” retailing, extra hazard, and

high-piled storage occupancies

• Minimum operating pressure of

7 psi (0,48 bar)

extended coverage SprinklerS

AutomAtic SprinklerS

EXTENDED COVERAGE SPRINKLERS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

13FI R E P R OT E C T IO N Gen e ral Produ c t s Catal o gTYCO FIRE & BUILDING PRODUCTS

K FACTOR K=8.0 (115,2)

THREAD SIZE

3⁄4" NPT

ESCUTCHEON Style 30 • Style 40

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY4232

TECH DATA TFP223

• Light hazard

• 3 mm bulb

• Covers areas as large as

20' x 20' (6,1 m x 6,1 m)

E C - 8

Pendent & Recessed Pendent

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 50

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY3232

TECH DATA TFP228

• Light hazard

• 3 mm bulb

• Coverage up to

20' x 20' (6,1 m x 6,1 m)

E C - 5

Pendent & Recessed Pendent

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 50

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY3302

TECH DATA TFP298

• Light hazard

• 3 mm bulb

• Coverage up to

16' x 24' (4,9 m x 7,3 m)

Horizontal Sidewall & Recessed Horizontal Sidewall

EXTENDED COVERAGE SPRINKLERS

AutomAtic SprinklerS

EXTENDED COVERAGE SPRINKLERS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

14

K FACTOR K=5.6 (80,6) •K=8.0 (115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

SPRINKLER FINISH Natural Brass, Chrome

Plated

SIN TY3322, TY4322

TECH DATA TFP280

TY-FRl

Horizontal Sidewall

• Light hazard

• Solder type

• K=5.6 for QR-EC coverage areas up to

16' x 20' (4,9 m x 6,1 m) and

18' x 16' (5,5 m x 4,9 m)

• K=8.0 for EC and QR-EC coverage areas up

to 16' x 24' (4,9 m x 7,3 m)

• QR-EC coverage areas up to 20' x 16'

(6,1 m x 4,9 m)

K FACTOR K=5.6 (80,6) • K=8.0

(115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

ESCUTCHEON Style 10 • Style 20

Style 30 • Style 40

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, White

Polyester, Chrome Plated

SIN TY3332, TY4332

TECH DATA TFP296

• Light hazard

• 3 mm bulb

• Two-piece escutcheon converts sidewall

sprinklers into low profile sprinkler

assemblies with coverage areas up to

16' x 22' (4,9 m x 6,7 m) for K=5.6 and

16' x 24' (4,9 m x 7,3 m) for K=8.0

• Provides 3⁄4" NPT (19,1 mm) of horizontal

adjustment from the flush sidewall position

TY-FRB

Horizontal & Recessed Horizontal Sidewall

K FACTOR K=11.2 (161,3)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY5332, TY5337

TECH DATA TFP230

E l o s W - 20/s W - 2 4

Horizontal Sidewall

• Ordinary hazard

• 3 mm bulb

• Utilizes an Extra Large Orifice (ELO) that

allows low water pressure requirements,

while providing the flow required for

extended coverage

• SW-20 Listed to a 16'-0" (4,9 m) wide and a

20'-0" (6,1 m) throw maximum coverage area

• SW-24 Listed to a 16'-0" (4,9 m) wide and a

24'-0" (7,3 m) throw maximum coverage area

extended coverage SprinklerS

AutomAtic SprinklerS

EXTENDED COVERAGE SPRINKLERS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

15FI R E P ROT E C T IO N Gene ral Produ c t s Ca talo gTYCO FIRE & BUILDING PRODUCTS

K FACTOR K=11.2 (161,3)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Cover Plate:

Chrome Plated, Brushed

Chrome Plated, Brass

Plated, Bright Brass, White

Painted, Bright White, Off

White, Custom

SIN TY5522

TECH DATA TFP250

• Light hazard

• Covers 400 sq. ft. (37,2 m2) using less

pressure than a standard 1⁄2" (12,7 mm)

sprinkler at 225 sq. ft. (20,3 mm)

• Available with optional dust and air seal

• Concealed in an enclosed escutcheon plate

with flat cover for use in those applications

where aesthetics is a primary consideration

E l o C

Concealed Pendent

K FACTOR K=8.0 (115,2)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Bright White, Chrome

Plated, Custom

SIN TY4332

TECH DATA TFP265

ChEC

Concealed Horizontal Extended Coverage Sidewall

• Light hazard

• 3 mm bulb

• Attractive concealed contour

• Coverage up to 16' x 22' (4,9 m x 6,7 m)

• Lowest flows & pressures allowed by

NFPA 13

• 1⁄2" adjustment

• Push on / thread off option

• 12" maximum deflector distance from ceiling

• No “Slots” in cover plate

K FACTOR K=5.6 (80.6)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Cover Plate:

Chrome Plated, Brass

Plated, White Painted,

Custom

SIN TY3532

TECH DATA TFP260

R F I I ( R o Y a l F l u s h I I )

Concealed Pendent

• Light hazard

• 3 mm bulb

• Maximum 18' x 18' (5,5 m x 5,5 m) QR Listing

• Concealed in an enclosed escutcheon plate

with flat cover for use in those applications

where aesthetics is a primary consideration

• Separable, two-piece design of the mounting

cup and cover allows installation of the

sprinklers and pressure testing of the fire

protection system prior to installation of a

suspended ceiling or application of the finish

coating to a fixed ceiling

• Internally threaded closure with 1⁄2"

(12,7 mm) of adjustment

STORAGE SPRINKLERS

FPC Full Page Ad_PATHS.pdf 10/2/07 11:18:38 AM

C

M

Y

CM

MY

CY

CMY

K

FPC Full Page Ad_PATHS.pdf 4/24/08 9:03:42 AM

TYCO FIRE & BUILDING PRODUCTS F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo g 17

STORAGE SPRINKLERS

Storage Sprinklers are intended for use in specific

applications, including the protection of high-piled and

rack storage of a variety of finished goods. These sprinklers

can provide more water at lower pressures or more water

over a greater area of coverage. In many instances, use of

the storage sprinklers can eliminate the need for additional

in-rack sprinklers.

Intermediate level (in-rack) sprinklers are designed for use

in rack storage sprinkler systems, where their thermally

sensitive elements must be shielded from the water spray of

higher elevation sprinklers that could operate during a fire.

Intermediate Level Sprinklers are also used in applications

such as beneath open gridded catwalks. These sprinklers

are intended for use in fire sprinkler systems designed in

accordance with the standard installation rules recognized

by the applicable Listing or Approval agency (e.g., FM

approval and UL Listing is based on NFPA requirements).

• High-Piled

Storage

• In-Rack Storage

• Warehouse

• High Challenge

Occupancies

APPLICATIONS:

STORAGE SPRINKLERS

AutomAtic SprinklerS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

18

K FACTOR K=16.8 (241,9)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Natural Brass

SIN TY7126

TECH DATA TFP316

• Early Suppression, Fast Response (ESFR)

• Solder type

• Primarily designed for use in ceiling only

sprinkler systems

• Use of this sprinkler is especially

advantageous as a means of eliminating

the use of in-rack sprinklers when protecting

rack storage arrangements

• Unique, upright design and large

K Factor overcome many pendent

obstruction problems

Upright

K FACTOR K=16.8 (241,9)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Natural Brass

SIN TY7226

TECH DATA TFP315

• Early Suppression, Fast Response (ESFR)

• Solder type

• Primarily designed for use in ceiling only

sprinkler systems

• Use of this sprinkler is especially

advantageous as a means of eliminating the

use of in-rack sprinklers when protecting

rack storage arrangements

• Operates at lower pressure than ESFR-1

E s F R - 1 7

Pendent

K FACTOR K=25.2 (362,9)

THREAD SIZE 1" NPT or ISO 7-R1

SPRINKLER FINISH Natural Brass

SIN TY9226

TECH DATA TFP312

E s F R - 2 5™

Pendent

• Early Suppression, Fast Response (ESFR)

• Solder type

• Designed for the protection of rack storage

• Eliminates many of the requirements for

in-rack sprinklers

• Materials may be stored up to 40' (12,2 m)

high, in buildings up to 45' (13,7 m)

• Direct attack on burning fuel by improved

heavy sprinkler discharge

• Patented frame design substantially reduces

the frame shadow effects that often produce

non-uniformity in spray pattern

• Novel orifice seal and unique fast response

link design are the very latest in sprinkler

technology

STORAGE SPRINKLERS

Storage SprinklerS

AutomAtic SprinklerS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

19FI R E P ROT E C T IO N General Produc ts Cat alogTYCO FIRE & BUILDING PRODUCTS

K FACTOR K=16.8 (241,9)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Natural Brass

SIN TY7151, TY7251

TECH DATA TFP332

• 5 mm bulb

• Very large orifice sprinkler for use in

high challenge storage occupancies

• Low-pressure requirement can save cost by

reducing branch line size, taking advantage

of maximized spacing, and upgrading

existing densities

• Can operate at pressures as low as

7 psi (0,48 bar)

K 17 - 2 3 1

Pendent & Upright

K FACTOR K=16.8 (241,9)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Natural Brass

TECH DATA Contact TFBP for details

• 5 mm bulb

• Control mode sprinkler

• 286°F/141°C

Upright, Specific Application Control Mode, 286° F

K FACTOR K=16.8 (241,9)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Natural Brass

SIN TY7153

TECH DATA TFP330

u lT R a K - 17

Upright, Specific Application Control Mode

• 5 mm bulb

• Control mode sprinkler

• 155°F/68°C & 200°F/93°C

• Full-scale fire testing has shown that the

Ultra K17 can control fires with commodities

up to Group A plastics, and eliminate the

need for in-rack sprinklers

• Reduced end head pressures often eliminate

the need for a fire pump

• Approved for storage heights of

25' (7,6 m) and building heights to

30' (9,1 m)

K FACTOR K=14.0 (201,6)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Natural Brass

SIN TY6226

TECH DATA TFP318

EsFR-1

Pendent

• Early Suppression, Fast Response (ESFR)

• Solder type

• Designed for the protection of rack storage

• Eliminates many of the requirements for

in-rack sprinklers

• Direct attack on burning fuel by improved

heavy sprinkler discharge • Patented frame design substantially reduces

the frame shadow effects that often produce

non-uniformity in spray pattern

STORAGE SPRINKLERS

AutomAtic SprinklerS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

20

K FACTOR K=11.2 (161,3)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

SPRINKLER FINISH Natural Brass, Chrome

Plated, Lead Coated, Wax

Coated, Wax over Lead

Coated

SIN TY5111, TY5211, TY5811

TECH DATA TFP340

• Solder type

• Extra large orifice sprinklers proven for

storage occupancies through full-scale fire

testing

• Designed to control high challenge fires

with relatively low required pressures

E l o - 2 3 1

Pendent & Upright

K FACTOR K=11.2 (161,3)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Natural Brass, Chrome

Plated

SIN TY5131, TY5231

TECH DATA TFP344

• 3 mm bulb

• Extra large orifice sprinklers proven for

storage occupancies through full-scale

fire testing

• Designed to control high challenge fires

with relatively low required pressures

E l o - 2 3 1 F R B

Pendent & Upright

K FACTOR K=11.2 (161,3)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

SPRINKLER FINISH Natural Brass, Chrome

Plated, Lead Coated, Wax

Coated, Wax over Lead

Coated

SIN TY5151, TY5251, TY5851

TECH DATA TFP342

• 5 mm bulb

• Extra large orifice sprinklers proven for

storage occupancies through full-scale

fire testing

• Designed to control high challenge fires

with relatively low required pressures

E l o - 2 3 1 B

Pendent & Upright

K FACTOR K=11.2 (161,3)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Natural Brass

SIN TY5153

TECH DATA TFP335

• 5 mm bulb

• Control mode sprinkler

• Designed for the protection of high-piled

storage

• Can provide a higher level of protection

than standard spray sprinklers

• Can provide an advantage by eliminating

in-rack sprinklers

l d " L a r g e D r o p "

Upright

STORAGE SPRINKLERS

Storage SprinklerS

AutomAtic SprinklerS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

21F I RE P ROT EC T I ON G ener al Pro ducts Cat alogTYCO FIRE & BUILDING PRODUCTS

K FACTOR K=5.6 (80,6) • K=8.0

(115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

SPRINKLER FINISH Natural Brass, Lead Coated,

Wax Coated, Wax over

Lead Coated

SIN TY3153, TY3251, TY4153,

TY4251

TECH DATA TFP351

• 5 mm bulb

• Intermediate level (in-rack) with shield

• Factory assembled unit having an integral

water shield

• Used where sprinkler guards are not required

T Y - B

Pendent & Upright, Intermediate Level

K FACTOR K=5.6 (80,6) • K=8.0

(115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

SPRINKLER FINISH Natural Brass, Lead Coated

SIN TY3133, TY3231, TY4133,

TY4231

TECH DATA TFP356

• 3 mm bulb

• Intermediate level with shield

• Factory assembled unit having an integral

water shield

• Used where sprinkler guards are not required

TY-FRB

Pendent & Upright, Intermediate Level

K FACTOR K=5.6 (80,6) • K=8.0

(115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

SPRINKLER FINISH Natural Brass

SIN TY3113, TY3211, TY4113,

TY4211

TECH DATA TFP350

• Solder type

• Intermediate level with shield

• Factory assembled unit having an integral

water shield

• Used where sprinkler guards are not required

T Y - l

Pendent & Upright, Intermediate Level

K FACTOR K=5.6 (80,6) • K=8.0

(115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

SPRINKLER FINISH Natural Brass, Chrome

Plated

SIN TY3123, TY3221, TY4123,

TY4221

TECH DATA TFP355

• Solder type

• Intermediate level with shield

• Factory assembled unit having an integral

water shield.

• Used where sprinkler guards are not required

TY-FRl

Pendent & Upright, Intermediate Level

STORAGE SPRINKLERS

AutomAtic SprinklerS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

22

• Designed for use with Series ELO-231,

ELO-231B, or ELO-231FRB Sprinklers that

may be located in areas that make them

susceptible to mechanical or physical

damage

• Rugged guard design to minimize possible

damage to sprinklers

• Shields are for use in storage racks or

beneath grated mezzanine, or other areas

requiring the sprinklers to be shielded from

possible discharge from sprinklers above

• Can be used with either 1⁄2" or 3⁄4" NPT

sprinklers

spRInKlER guaRds

Model G1 & G4 Sprinkler Guards

Model G1/S1 & G4/S3 Guards with Shields

FINISHES Red Painted,

Chrome

TECH DATA TFP780

• Designed for use with specific types of Series

TY-B, TYFRB, TY-L, and TY-FRL Sprinklers

that may be located in areas that make

them susceptible to mechanical or physical

damage

• Rugged guard design to minimize possible

damage to sprinklers

• Shields are for use in storage racks or

beneath grated mezzanine, or other areas

requiring the sprinklers to be shielded from

possible discharge from sprinklers above

• Can be used with either 1⁄2" or 3⁄4" NPT

sprinklers

G1

G4/S3 with Shield

G4

S1

Model G2 Sprinkler Guard, Model WS-2 Shield, and

Model WSG-2 Sprinkler Guard with Shield

FINISHES Red Painted,

Chrome

TECH DATA TFP782

WSG-2 with Shield

G2

WS-2 Shield

RAPID RESPONSE™ SPRINKLERS

TYCO FIRE & BUILDING PRODUCTS F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo g 23

RAPID RESPONSE™ SPRINKLERS

Rapid Response™ Home Fire Sprinkler Systems

• Developed specifically for residential occupancies

• The most complete system on the market today

from a single manufacturer

• Features BlazeMaster® CPVC pipe and fittings,

making installation quick, easy, flexible, and

affordable

• Tyco’s exclusive ten-year limited warranty lets you

install with confidence

• Product line meets all NFPA standards

• Components are all UL listed for residential

installations

Residential Sprinklers offer the optimum design and

flow characteristics for all residential applications. With

k-factors as low as 4.2, the flow requirements are the lowest

• Single Family

Homes

• Apartments

• Student

Housing

• Hotels

• Beamed

Ceilings

• Sloped Ceilings

APPLICATIONS:

in the industry. Other advantages are listings for beam

ceilings and for sloped ceilings to an 8:12 pitch. These

unique features avoid obstruction to the sprinkler's

discharge pattern without adding additional sprinklers.

We can match any Sherwin Williams color

for sprinklers with this icon.

RAPID RESPONSE™ SPRINKLERS

AutomAtic SprinklerS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

24

Horizontal & Recessed Horizontal Sidewall

K FACTOR K=4.4 (63,4)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 20

SPRINKLER FINISH White Polyester, Chrome

Plated, Natural Brass

SIN TY2334

TECH DATA TFP412

• 3 mm bulb type

• Used in wet pipe residential sprinkler

systems for one/two-family dwellings and

mobile homes per NFPA 13D, wet pipe

residential occupancies up to and including

four stories in height per NFPA 13R and in

wet pipe sprinkler systems for the residential

portions of any occupancy per NFPA 13

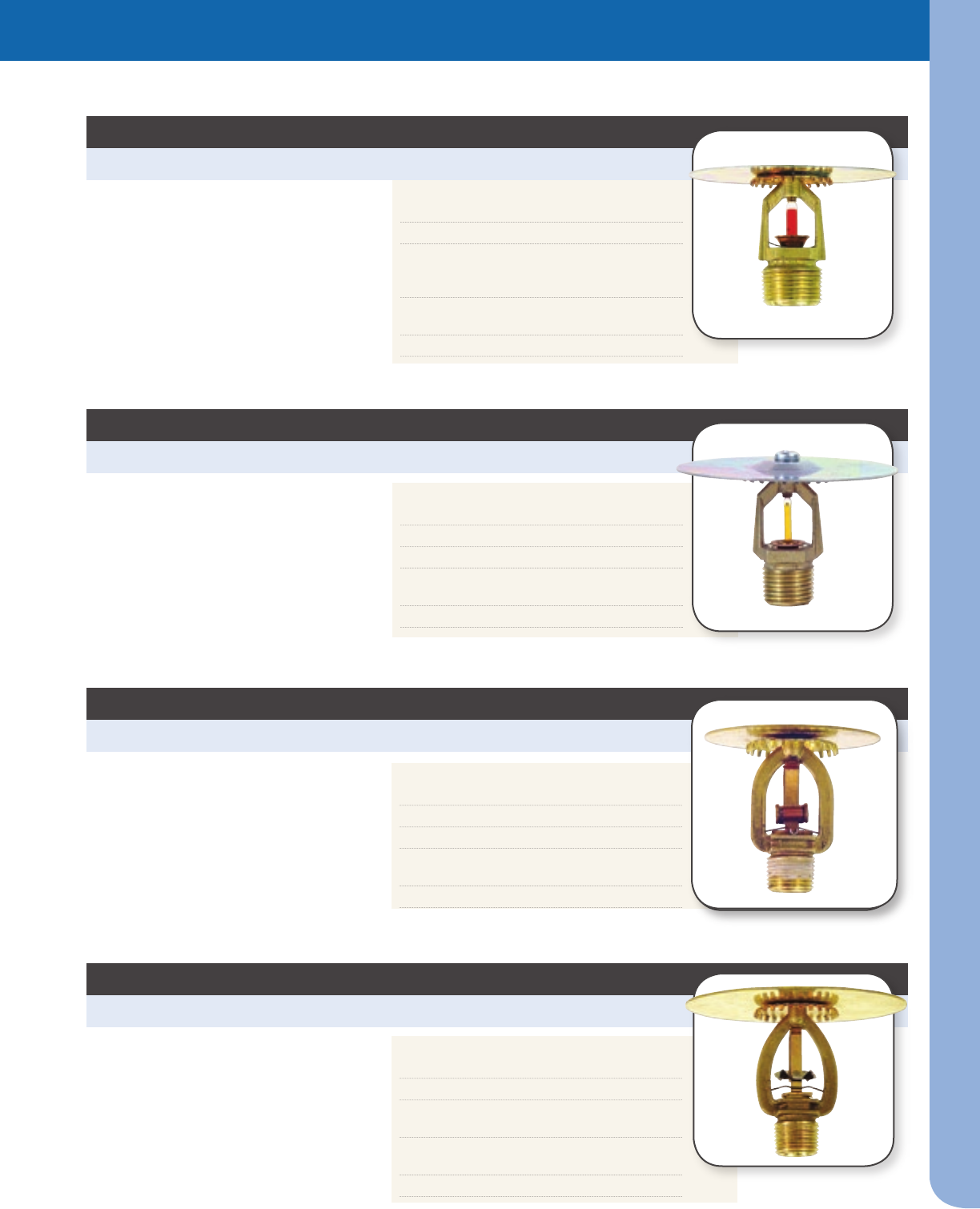

Pendent & Recessed Pendent

K FACTOR K=3.0 (43,2)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 20

SPRINKLER FINISH White Polyester, Chrome

Plated, Natural Brass

SIN TY1234

TECH DATA TFP402

• 3 mm bulb type

• Used in wet pipe residential sprinkler

systems for one/two-family dwellings and

mobile homes per NFPA 13D, in wet pipe

residential occupancies up to and including

four stories in height per NFPA 13R and in

wet pipe sprinkler systems for the residential

portions of any occupancy per NFPA 13

lFII

Pendent & Recessed Pendent

K FACTOR K=4.9 (70,6)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 20

SPRINKLER FINISH White Polyester, Chrome

Plated, Natural Brass

SIN TY2234

TECH DATA TFP400

• 3 mm bulb type

• Approved for special applications with

beamed ceilings

• Used in wet pipe residential sprinkler

systems for one/two-family dwellings and

mobile homes per NFPA 13D, wet pipe

residential occupancies up to and including

four stories in height per NFPA 13R and in

wet pipe sprinkler systems for the residential

portions of any occupancy per NFPA 13

Horizontal & Recessed Horizontal Sidewall

K FACTOR K=4.2 (60,5)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 20

SPRINKLER FINISH White Polyester, Chrome

Plated, Natural Brass

SIN TY1334

TECH DATA TFP410

• 3 mm bulb type

• Used in wet pipe residential sprinkler

systems for one/two-family dwellings and

mobile homes per NFPA 13D, wet pipe

residential occupancies up to and including

four stories in height per NFPA 13R and in

wet pipe sprinkler systems for the residential

portions of any occupancy per NFPA 13

RAPID RESPONSE™ SPRINKLERS

rapid reSponSe™ SprinklerS

AutomAtic SprinklerS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

25F I R E P RO T EC T I ON G ener al Products Cat alogTYCO FIRE & BUILDING PRODUCTS

Domed Plate Concealed Pendent

K FACTOR K=4.9 (70,6)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 20

SPRINKLER FINISH Cover Plate:

Flat White, Bright White,

Chrome, Custom

SIN TY2234

TECH DATA TFP450

• 3 mm bulb type

• Can be used for horizontal and sloped

ceilings

• Used in wet pipe residential sprinkler

systems for one/two-family dwellings and

mobile homes per NFPA 13D, in wet pipe

residential occupancies up to and including

four stories in height per NFPA 13R and in

wet pipe sprinkler systems for the residential

portions of any occupancy per NFPA 13 • Cover plate conceals sprinkler components

above the ceiling

Flush Pendent and Horizontal Sidewall

K FACTOR K=4.2 (60,5)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON FINISH White, Chrome, Black,

Antique Brass

SPRINKLER FINISH White, Chrome, Black,

Antique Brass

SIN TY2284, TY2384

TECH DATA TFP420, TFP425

• Solder type

• Pendent model is approved for special

applications with beamed ceilings

• Used in wet pipe residential sprinkler

systems for one/two-family dwellings and

mobile homes per NFPA 13D, in wet pipe

residential occupancies up to and including

four stories in height per NFPA 13R, and in

wet pipe sprinkler systems for the residential

portions of any occupancy per NFPA 13

lFII

Flat Plate Concealed Pendent

K FACTOR K=4.9 (70,6)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Cover Plate:

Flat White, Bright White,

Chrome, Custom

SIN TY3596

TECH DATA TFP442

• Solder type

• Used in wet pipe residential sprinkler

systems for one/two-family dwellings and

mobile homes per NFPA 13D, in wet pipe

residential occupancies up to and including

four stories in height per NFPA 13R, and in

wet pipe sprinkler systems for the residential

portions of any occupancy per NFPA 13

• Cover plate conceals sprinkler components

above the ceiling

K FACTOR K=4.2 (60,5)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Cover Plate:

Flat White, Bright White,

Chrome, Custom

SIN TY2596

TECH DATA TFP440

• Solder type

• Can be used for horizontal and

sloped ceilings

• Used in wet pipe residential sprinkler

systems for one/two-family dwellings and

mobile homes per NFPA 13D and in wet pipe

residential sprinkler systems for residential

occupancies up to and including four stories

in height per NFPA 13R

Flat Plate Concealed Pendent

• Cover plate conceals sprinkler components

above the ceiling

RAPID RESPONSE™ SPRINKLERS

AutomAtic SprinklerS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

26

lFII • nFpa 13 opTImIzEd spRInKlERs

The large orifice 6.9 K, 5.8 K and 5.6 K sprinklers are primarily intended for residential use where there is a 0.1 gpm/sq. ft. density

NFPA 13 design requirement, and are generally used for installations in excess of four stories. They are optimized for residential

applications where this higher water-flow demand is required, and can meet those requirements with less pressure and smaller

pipe sizes.

Pendent, Recessed Pendent & Domed Concealed

K FACTOR K=5.8 (83,5)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 20

SPRINKLER FINISH White Polyester, Chrome

Plated, Natural Brass

SIN TY4334

TECH DATA TFP417

• 3 mm bulb type

• Can be used for horizontal and

sloped ceilings

Horizontal & Recessed Horizontal Sidewall Sprinklers

Horizontal & Recessed Horizontal Sidewall

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON Style 20

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY3334

TECH DATA TFP415

• 3 mm bulb type

• Can be used for horizontal and sloped

ceilings

K FACTOR K=6.9 (99,4)

THREAD SIZE

3⁄4" NPT

ESCUTCHEON Style 30

ESCUTCHEON FINISH White, Chrome, Brass

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

COVER PLATE FINISH Flat White, Bright White,

Chrome, Custom

SIN TY4234

TECH DATA TFP408

• 3 mm bulb type

• Used in wet pipe sprinkler systems for

the residential portions of any occupancy

per NFPA 13

DRY SPRINKLERS

TYCO FIRE & BUILDING PRODUCTS F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo g 27

DRY SPRINKLERS

Dry Sprinklers have been specifically designed for areas in

which the sprinkler may be subjected to freezing conditions.

These sprinklers have been developed for use in all standard

applications, as well as multiple unique scenarios. TFBP Dry

Sprinklers are available in both quick and standard response,

and come in a variety of finishes. These features, and the

advanced engineering in the development of these sprinklers,

offer the industry the most complete line of dry sprinklers

available. Most models are listed in lengths up to 4'-0". The

extended escutcheon option has up to 3" of adjustment.

• Unheated Warehouses

• Freezing Conditions

• Loading Docks

• Covered Exterior Platforms

APPLICATIONS:

DRY SPRINKLERS

AutomAtic SprinklerS

DRY SPRINKLERS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

28

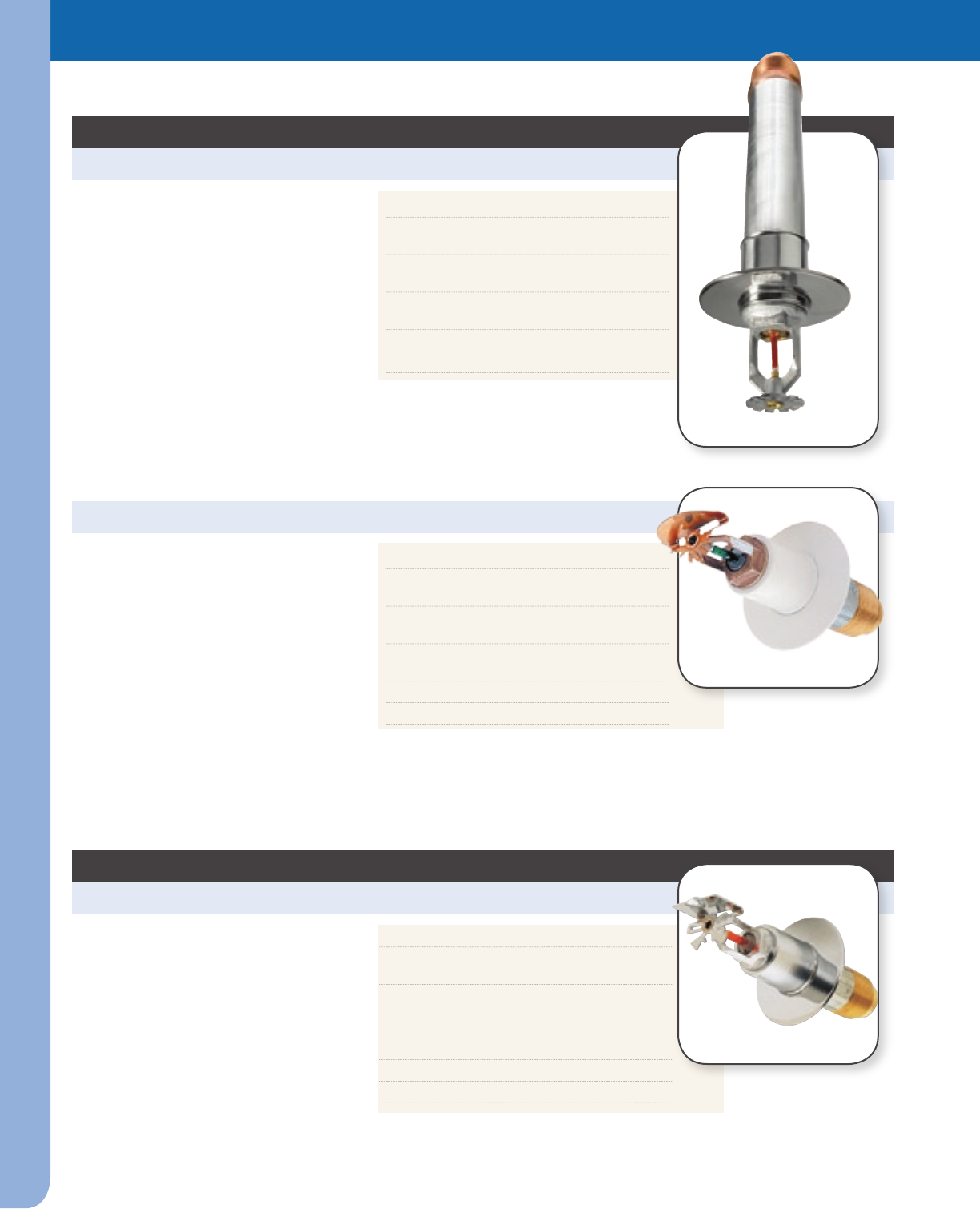

• EC light hazard

• 3 mm bulb

• Lengths up to 48" (1220 mm)

• Designed for use in light hazard occupancy

applications requiring a dry sprinkler to

cover areas up to

16’ x 20’ (4,9 m x 6,1 m) or

18’ x 16’ (5,5 m x 4,9 m)

• Special assembly provides a seal at the

main pipe to prevent water from entering

the sprinkler assembly until the sprinkler

operates

K FACTOR K=5.6 (80,6)

INLET THREAD 1" NPT (Standard Order)

CONNECTION ISO 7-R1

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY3338, TY3358

TECH DATA TFP520

d s - 1

Extended Coverage Horizontal Sidewall

K FACTOR K=5.6 (80,6)

INLET THREAD 1" NPT (Standard Order)

CONNECTION ISO 7-R1

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY3235, TY3135, TY3335

TECH DATA TFP510

Pendent, Upright & Horizontal Sidewall

• Standard coverage

• Light hazard/Ordinary hazard

• 3 mm bulb

• Lengths to 48" (1220 mm)

• Designed for use in applications where

sprinklers and/or connecting piping may

be exposed to freezing conditions, or the

sprinkler system is seasonally drained

• Special assembly provides a seal at the

main pipe to prevent water from entering

the sprinkler assembly until the sprinkler

operates

• Designed for use in applications requiring

dry sprinklers, or where building

construction or aesthetic considerations

make the installation of dry horizontal

sidewall sprinklers more desirable than the

dry pendent type

HSW Shown

K FACTOR K=5.6 (80,6)

INLET THREAD 1" NPT (Standard Order)

CONNECTION ISO 7-R1

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY3255, TY3155, TY3355

TECH DATA TFP500

d s - 1

Pendent, Upright & Horizontal Sidewall

• Standard coverage

• All hazards (light hazards, horizontal

sidewall)

• 5 mm bulb

• Lengths to 48" (1220 mm)

• Designed for use in applications where

sprinklers and/or connecting piping may

be exposed to freezing conditions, or the

sprinkler system is seasonally drained

• Special assembly provides a seal at the

main pipe to prevent water from entering

the sprinkler assembly until the sprinkler

operates

• Designed for use in applications requiring dry

sprinklers, or where building construction or

aesthetic considerations make the installation

of dry horizontal sidewall sprinklers more

desirable than the dry pendent type

Pendent Shown

dry SprinklerS

AutomAtic SprinklerS

DRY SPRINKLERS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

29FI R E P ROT E C T IO N General Produc ts Cat alogTYCO FIRE & BUILDING PRODUCTS

K FACTOR K=5.6 (80,6)

INLET THREAD 1" NPT (Standard Order)

CONNECTION ISO 7-R1

SPRINKLER FINISH Cover Plate:

Chrome Plated, Brass

Plated, White Painted,

Custom

SIN TY3539

TECH DATA TFP518

• EC light hazard/EC ordinary hazard

• 3 mm bulb

• Lengths to 48" (1220 mm)

• Designed for use in applications where

sprinklers and/or connecting piping may

be exposed to freezing conditions, or the

sprinkler system is seasonally drained

• Special assembly provides a seal at the

main pipe to prevent water from entering

the sprinkler assembly until the sprinkler

operates

ds-ECC

Extended Coverage Concealed Pendent

K FACTOR K=11.2 (161,3)

INLET THREAD 1" NPT (Standard Order)

CONNECTION ISO 7-R1

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY5255, TY5235

TECH DATA TFP530

d s - 2

Pendent

• Standard coverage

• All hazard (standard response)

• Light hazard/Ordinary hazard

(quick response)

• 3 mm and 5 mm bulb

• Extra large orifice

• Lengths to 48" (1220 mm)

• Designed for use in applications where

sprinklers and/or connecting piping may

be exposed to freezing conditions, or the

sprinkler system is seasonally drained • Special assembly provides a seal at the

main pipe to prevent water from entering

the sprinkler assembly until the sprinkler

operates

K FACTOR K=5.6 (80,6)

INLET THREAD 1" NPT (Standard Order)

CONNECTION ISO 7-R1

SPRINKLER FINISH Cover Plate:

Chrome Plated, Brass

Plated, White Painted,

Custom

SIN TY3535, TY3555

TECH DATA TFP515

ds-C

Concealed Pendent

• Standard coverage

• All hazard (standard response)

• Light hazard/ordinary hazard

(quick response)

• 3 mm and 5 mm bulb

• Lengths to 48" (1220 mm)

• Designed for use in applications where

sprinklers and/or connecting piping may

be exposed to freezing conditions, or the

sprinkler system is seasonally drained • Special assembly provides a seal at the

main pipe to prevent water from entering

the sprinkler assembly until the sprinkler

operates

DRY SPRINKLERS

AutomAtic SprinklerS

DRY SPRINKLERS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

30

K FACTOR K=11.2 (161,3)

INLET THREAD 1" NPT (Standard Order)

CONNECTION ISO 7-R1

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY5339

TECH DATA TFP550

d s - 3

Extended Coverage Horizontal Sidewall

• EC ordinary hazard

• 3 mm bulb

• Lengths to 48" (1220 mm)

• Designed for use in applications where

sprinklers and/or connecting piping may

be exposed to freezing conditions, or the

sprinkler system is seasonally drained

• Ideal for Exterior Loading Docks and Covered

Areas and can eliminate the need for dry or

anti-freeze systems

• Special assembly provides a seal at the

main pipe to prevent water from entering

the sprinkler assembly until the sprinkler

operates

INCLUDES 1 Boot, 2 Strap Ties, and

1/3 oz. of Adhesive

(quantity of adhesive is

sufficient for installing 1 Boot)

TECH DATA TFP591

d s B - 2

Dry Sprinkler Boot (For Use With TFP Dry Type Sprinklers)

• Helps to close the air gap created by the

clearance hole through a wall or ceiling

through which the dry type sprinkler has

penetrated

• Intended for use with clearance holes

through freezer ceiling structures

• Helps to stop the air exchange between the

inside and outside of the freezer (or any other

type of similar construction) to help prevent

transfer of moist air into the freezer space

• Provides the added feature of eliminating the

occurrence of cracking of some commonly

used sealants, where the cracking of these

sealants subsequently allows the passage of

moist air

K FACTOR K=11.2 (161,3)

INLET THREAD 1" NPT (Standard Order)

CONNECTION ISO 7-R1

ESCUTCHEON FINISH White Coated, Chrome

Plated, Brass Plated

SPRINKLER FINISH Natural Brass, Chrome

Plated, White Polyester

SIN TY5238

TECH DATA TFP540

• EC light hazard/EC ordinary hazard

• 3 mm bulb

• Extra large orifice

• Lengths to 48" (1220 mm)

• Designed for use in applications where

sprinklers and/or connecting piping may

be exposed to freezing conditions, or the

sprinkler system is seasonally drained

• Special assembly provides a seal at the

main pipe to prevent water from entering

the sprinkler assembly until the sprinkler

operates

d s - 2

Extended Coverage Pendent

SPECIAL PURPOSE SPRINKLERS

TYCO FIRE & BUILDING PRODUCTS F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo g 31

SPECIAL PURPOSE SPRINKLERS

Special Purpose Sprinklers are intended for use

in specific applications, including the protection of

combustible concealed spaces and areas subject to corrosion.

Also, these installations may need consideration for more

water at lower pressures, or more water over a greater area.

• Attic Spaces

• Retail Windows

• High Security

Institutions

• Minimal Water

Damage

Conditions

• High

Temperature

Conditions

• Corrosive

Conditions

APPLICATIONS:

SPECIAL PURPOSE SPRINKLERS

The Tyco® ILLUSION™ 11.2 K-factor sprinkler is designed

specifically for Las Vegas' standards. A fast response, extra

large orifice concealed pendant sprinkler, the ILLUSION™

is perfect for casino atriums, exhibit halls and retail areas

with over 25' ceilings heights; blending in so well they give

the illusion they aren't even there.

We Cover All The Action

SPECIAL PURPOSE SPRINKLERS

AutomAtic SprinklerS

SPECIAL PURPOSE SPRINKLERS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

32

Attic Plus

(AP)

K FACTOR K=4.2 (60,5), K=5.6 (80,60),

K=8.0 (115,2)

THREAD SIZE

1⁄2" NPT

3⁄4" NPT

SPRINKLER FINISH Natural Brass

SIN TY4180, TY4181, TY4182 TY3180,

TY3181, TY3182 TY2180, TY2181,

TY2182 TY3183, TY3184, TY3185

TY3187, TY3190, TY2190

TECH DATA TFP610

• “Specific Application Sprinklers for Protecting

Attics”

• 3 mm bulb or solder type

• Provides a tested method of protecting an attic

• Provides a specific cost advantage by reducing

the amount of piping required

• Cover attics to 60’-0" wide with a single line of

piping, eliminating the need for as many as five

branch lines

• Saves up to 80% of the piping that would

be required with standard sprinklers while

providing a higher level of protection

aT T I C

BB (Back-to-Back), SD (Single Directional), HIP, & AP (Attic Plus)

Back-To-Back Application

Back-To-Back

Hip Application

Single Directional

Application

Single

Directional

Hip

WITH AP

AREA 2

SPRINKLERS

AREA 1

WITH BB

SPRINKLERS

AREA 3

WITH AP

SPRINKLERS

15'-0" (4,6 m)

MINIMUM

SEPARATION

STAGGERED

SPACING WHEN

MORE THAN

ONE ROW

Spray Patterns

BB

HIP

SD

AP

Attic

Plus

Special purpoSe SprinklerS

AutomAtic SprinklerS

SPECIAL PURPOSE SPRINKLERS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

33FIR E PR OTE C T I ON Gen eral Prod uc ts Catal ogTYCO FIRE & BUILDING PRODUCTS

K FACTOR K=2.8 (40,3)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Natural Brass

SIN TY1189

TECH DATA TFP630

• 3 mm bulb

• Specific application sprinklers

• Provides protection of light hazard

combustible, as well as

non-combustible, concealed spaces

requiring sprinkler protection

• Meets NFPA® Requirements for Specialty

Listed Sprinklers in Combustible Concealed

Spaces

• Allows the use of BlazeMaster® CPVC pipe

in combustible concealed areas with the

benefit of superior sprinkler protection for

Wood truss spaces

C C 1

Combustible Concealed Space Sprinklers™,, Upright

Combustible Concealed

Sprinkler Discharge Pattern

Standard Spray

Sprinkler Discharge Pattern

K FACTOR K=4.2 (60,5) • K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Natural Brass

SIN TY2189, TY3189

TECH DATA TFP632

C C 2

Combustible Concealed Space Sprinklers™,, Upright

• 3 mm bulb

• Specific application sprinklers

• Provides protection of specific light

hazard combustible, as well as

non-combustible, concealed spaces

requiring sprinkler protection

• Meets NFPA® Requirements for Specialty

Listed Sprinklers in Combustible Concealed

Spaces

• Allows the use of BlazeMaster® CPVC pipe

in combustible concealed areas with the

benefit of superior sprinkler protection for

Wood truss spaces

• Can be used on steel dry pipe sprinkler

systems

• Increased spacing from 10 ft. (3,1 m) to

12 ft. (3,7 m)

• Increased coverage area from 100 ft2

(9,3 m2) to 144 ft2 (13,4 m2)

SPECIAL PURPOSE SPRINKLERS

AutomAtic SprinklerS

SPECIAL PURPOSE SPRINKLERS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

34

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH White Polyester Coated,

Chrome Plated, Natural

Brass

SIN TY3388, TY3488

TECH DATA TFP620

W s ™

Window Sprinklers, Horizontal & Pendent Vertical Sidewall

• 3 mm bulb

• Specific application sprinklers

• Only UL tested sprinklers that can protect

glazing in a wall or window and allow it to

maintain its mechanical equivalent rating

up to two hours

• First sprinklers to be UL/C-UL Listed, ICC-ES,

and ULC Listed & Approved for maintaining a

rated assembly

• Pendent allows installation farther away from

the glass than the sidewall

• Sidewall permits the window mullion to

act as a baffle, allowing the sprinklers to be

spaced closely together, if necessary

• Provides the only UL tested option when

seeking wall fire ratings when using

tempered or heat strengthened glass

K FACTOR K=5.6 (80,6)

INLET THREAD

1⁄2" NPT

CONNECTION

ESCUTCHEON FINISH Chrome Plated

SPRINKLER FINISH Chrome Plated

SIN TY3291

TECH DATA TFP652

T F p m a x

Institutional Pendent

• Light hazard/Ordinary hazard

• 2.5 mm bulb

• Designed to provide maximum solutions

to the unique fire protection needs of

institutional facilities

• For use in correctional, detention, and

mental health care facilities

• Vandalizing, moving, or disassembling the

sprinkler results in activation and a water

flow alarm

• Low breakaway weight

• Flush mount escutcheons

• 175 psi (12,1 bar)

K FACTOR K=5.6 (80,6)

INLET THREAD

1⁄2" NPT

CONNECTION

ESCUTCHEON FINISH Chrome Plated

SPRINKLER FINISH Chrome Plated

SIN TY3391

TECH DATA TFP656

Institutional Horizontal Sidewall

• Light hazard/Ordinary hazard

• 2.5 mm bulb

• Designed to provide maximum solutions

to the unique fire protection needs of

institutional facilities

• For use in correctional, detention, and

mental health care facilities

• Vandalizing, moving, or disassembling the

sprinkler results in activation and a water

flow alarm

• Low breakaway weight

• Flush mount escutcheons

• 175 psi (12,1 bar)

Special purpoSe SprinklerS

AutomAtic SprinklerS

SPECIAL PURPOSE SPRINKLERS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

35FI R E P R OT E C T IO N Gene ral Produ c t s Ca talo gTYCO FIRE & BUILDING PRODUCTS

K FACTOR K=5.6 (80,6)

INLET THREAD

1⁄2" NPT

CONNECTION

ESCUTCHEON FINISH Chrome Plated

SPRINKLER FINISH Chrome Plated

SIN TY3290

TECH DATA TFP650

• All hazard

• Solder type

• Low breakaway weight

• Flush mount escutcheons

• 175 psi (12,1 bar)

T F p p h 2

Institutional Pendent

K FACTOR K=5.6 (80,6)

INLET THREAD

1⁄2" NPT

CONNECTION

ESCUTCHEON FINISH Chrome Plated

SPRINKLER FINISH Chrome Plated

SIN TY3390

TECH DATA TFP654

• Light hazard/Ordinary hazard

• Solder type

• Low breakaway weight

• Flush mount escutcheons

• 175 psi (12,1 bar)

T F p p h 5

Institutional Horizontal Sidewall

• Standard coverage

• All hazard

• 11 mm bulb

• Extra-high and ultra-high temperature

ratings and corrosion resistant coatings

• Temperature Ratings to 650°F (343°C)

available

K FACTOR K=5.6 (80,6) • K=8.0 (115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

SPRINKLER FINISH Natural Brass, Chrome

Plated, Lead Coated

SIN TY3191, TY3296, TY4191 ,

TY4292

TECH DATA TFP690

IssuE d QuaRTzoId®

High Temperature, Upright & Pendent

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Natural Brass, White

Polyester Coated, Gray

Teflon® Coated

SIN TY3030

TECH DATA TFP1388

• 3 mm bulb

• Fixed-temperature, heat detector intended

for wet or dry pilot release service

• Can be used for pilot line service, instead of

standard sprinklers, to activate deluge and

preaction systems equipped with either wet

or dry pilot line detection

• Corrosion resistant assembly option for

outdoor applications (Teflon® coated)

• Maximum 40 ft. x 40 ft. spacing

F T R - 1

Fixed Temperature Release

SPECIAL PURPOSE SPRINKLERS

AutomAtic SprinklerS

SPECIAL PURPOSE SPRINKLERS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

36

SPRINKLER ACCESSORIES

K FACTOR K=5.6 (80,6) • K=8.0

(115,2)

THREAD SIZE

1⁄2" NPT • 3⁄4" NPT

ESCUTCHEON STYLE Style 10 • Style 40

SPRINKLER FINISH Stainless Steel, SMO,

Titanium

SIN TY8191, TY8291, TY9191

TY9291, TY8181, TY8281

TY9181, TY9281, TY8192

TY8292, TY8182, TY8282

TY8193, TY8293, TY8183

TY8283

TECH DATA TFP680

• TY-B: 5 mm diameter heat sensitive glass

bulb, standard response

• TY-FRB: 3 mm diameter heat sensitive glass

bulb, quick response

• Corrosion resistant, standard coverage spray

sprinklers designed for use in commercial

occupancies where corrosive atmospheres

may exist

• Alternate materials of construction (Stainless

Steel, SMO, or Titanium) are utilized to

extend the life of a sprinkler beyond that

which might be expected of copper alloy

sprinklers exposed to corrosive atmospheres

T Y - B & T Y - F R B (AlternAte MAteriAls Of COnstruCtiOn)

Upright & Pendent Sprinklers

3mm bulb shown

K FACTOR K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

ESCUTCHEON STYLE Style 10

SPRINKLER FINISH Stainless Steel, SMO,

Titanium

SIN TY8391, TY8491, TY8381,

TY8481, TY8382, TY8482,

TY8393, TY8493, TY8383,

TY8483

TECH DATA TFP680

• TY-B: 5 mm diameter heat sensitive glass

bulb, standard response

• TY-FRB: 3 mm diameter heat sensitive glass

bulb, quick response

• Corrosion resistant, standard coverage spray

sprinklers designed for use in commercial

occupancies where corrosive atmospheres

may exist

• Alternate materials of construction (Stainless

Steel, SMO, or Titanium) are utilized to

extend the life of a sprinkler beyond that

which might be expected of copper alloy

sprinklers exposed to corrosive atmospheres

Vertical, Horizontal & Recessed Horizontal Sidewall Sprinklers

3mm bulb shown

K FACTOR K=11.2 (161,3)

THREAD SIZE 3⁄4" NPT

ESCUTCHEON STYLE Style 10 • Style 40

SPRINKLER FINISH Cover Plate:

Chrome, Brass,

Signal White, Grey White,

Pure White, Custom

SIN TY5521

TECH DATA TFP184

• Extra large orifice/Special hazard

• Coverage per NFPA 13

• Available with optional dust and air seal

• The ILLUSION is concealed in an enclosed

escutcheon plate with flat cover for use in

those applications where architecturally

sensitive areas such as casinos, hotel lobbies,

office buildings, churches and restaurants

IllusIon™

Concealed Standard Coverage Pendent Sprinklers

We Cover All The Action

TYCO FIRE & BUILDING PRODUCTS F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo g 37

Sprinkler Accessories are for use with the sprinklers

and nozzles described in this catalog. Escutcheons are

referenced by a style number and are available in brass,

chrome or white finish. Please refer to the technical data

sheet for additional information and a listing of what

finishes are available.

SPRINKLER ACCESSORIES

• Improve

Appearance

• Conceal

Clearance Holes

• Onsite Emergency

Storage Supply

• Protection from

Mechanical or

Physical Damage

APPLICATIONS:

SPRINKLER ACCESSORIES

AutomAtic SprinklerS

SPRINKLER ACCESSORIES

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

38

FINISHES Carbon steel chrome

plated, white coated,

or brass plated. Series

300 stainless steel

white coated or plain

unpolished.

(Other colors available on

request.)

TECH DATA TFP770

EsCuTChEon plaTEs

Pendent & Sidewall Recessed Escutcheons

• Styles 10, 20, 30, 40 & 50

• Consists of a mounting plate and closure for

finished appearance in ceilings or soffits

• Maximum 1⁄2" to 3⁄4" NPT adjustment

• Intended for use in areas with finished

ceilings or walls, and the adjustment

provided by these escutcheons reduces

the accuracy to which fixed piping to the

sprinklers must be cut, while providing a

decorative recessed sprinkler installation

• Primarily designed for use with standard

spray, quick response sprinklers and the

Designer residential sidewall sprinklers

• Available for use with 1⁄2" or 3⁄4" NPT sprinkler

heads

FINISHES Chrome, White, Brass

TECH DATA TFP778

Style 60, Two-Piece Flush Escutcheon

• Used to improve the overall appearance of

the sprinkler installation by concealing the

clearance holes required for wall or ceiling

installation

• Deep, two-piece, adjustable

• Available for 3⁄4" NPT Style 60

TECH DATA TFP785

spRInKlER hEad CaBInET

3, 6 or 12 Capacity

• Provides storage for spare sprinklers

and sprinkler wrench

• Spare sprinklers facilitate the prompt

replacement of operated or damaged

sprinklers and return of fire protection

system to service as soon as possible

FINISHES Chrome, White, Brass

TECH DATA TFP777

Style 65, One-Piece Flat Escutcheon

Style 401, Two-Piece Adjustable Escutcheon

• Used to improve the overall appearance of

the sprinkler installation by concealing the

clearance holes required for wall or ceiling

installation

• Deep, two-piece, adjustable

• Available for 1⁄2" and 3⁄4" NPT

Style 65

Style 401

NOZZLES & ACCESSORIES

TYCO FIRE & BUILDING PRODUCTS F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo g 39

NOZZLES & ACCESSORIES

Nozzles & Nozzle Accessories are designed for use in

a variety of special hazard applications. Their uses include,

but are not limited to, exposure protection, fire control,

fire extinguishment, and explosion prevention. Many types

of nozzles may be required to provide a properly designed

special hazard fire protection system.

• Flammable

Liquid Tanks

& Operations

• Equipment or

Processes that

Require Special

Designs

• Cable Trays

• Clean Rooms

• Computer

Rooms

• Conveyors

• Cut-Off Rooms

• Engine Test Cells

• Flammable

Liquid Storage

• Food Processing

• Fuel Storage

• Gas Turbines

• Historic Sites &

Museums

• Industrial

Process

Equipment

• Machining

Centers

• Ferries

• Offshore

Platforms

• Telecom

• Transformers

• Vapor

Suppression

APPLICATIONS:

NOZZLES & ACCESSORIES

NOZZLES AND ACCESSORIES

AutomAtic SprinklerS

NOZZLES AND ACCESSORIES

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

40

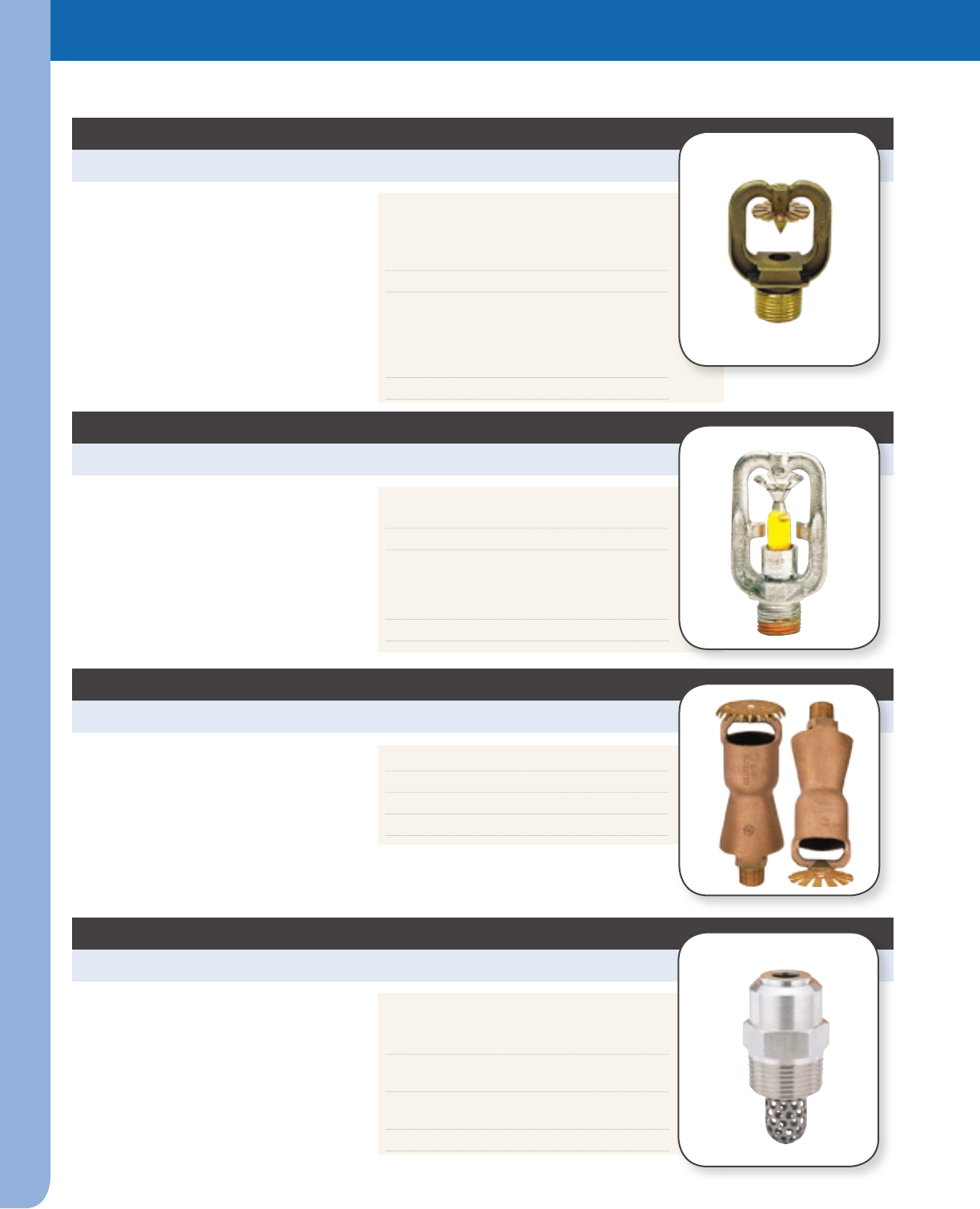

K FACTOR K=1.2 (17,3) • K=1.8 (25,9)

K=2.3 (33,1) • K=3.0 (43,2)

K=4.1 (59,0) • K=5.6 (80,6)

K=7.2 (108,7)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Bronze: Natural Finish,

Teflon Coated, Lead

Coated, Chrome Plated,

or Natural Finish

Stainless Steel

TECH DATA TFP802

d 3

Protectospray® Nozzle

• Designed for use in water spray fixed systems

for fire protection applications

• Open orifice design type for use in deluge

systems

• Nozzles are external deflector types that

discharge a filled cone of water droplets at

relatively low velocity

• Spray angles available: 65°, 80°, 95°, 110°,

125°, 140°, 160°, and 180°

K FACTOR K=1.4 (20,2), K=2.8 (40,3)

K=5.6 (80,6)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Bronze: Natural Finish,

Lead Coated, Chrome

Plated, Corrosion proof

Wax Coated

TECH DATA TFP800

E a - 1

Automatic Protectospray® Nozzle

• Bulb type frangible element for use in closed

head systems

• Discharges a filled cone of water droplets at

relatively low velocity

• Spray angles available: 65°, 80°, 95°, 110°,

125°, 140°, 160°, and 180°

K FACTOR K=3.0 (43,2)

THREAD SIZE

1⁄2"

SPRINKLER FINISH Natural Bronze

TECH DATA TFP840

B - 1

Foam-Water Sprinkler

• Air aspirating foam-water nozzles

• Pendent & upright styles

• Open nozzle for use in NFPA 16 foam

sprinkler system

K FACTOR K=1.6 (23,0) • K=1.8 (26,0)

K=2.8 (40,3) • K=4.6 (66,2)

K=5.5 (79,2) • K=6.0 (86,4)

THREAD SIZE 1"

11⁄4" (only K=6.4)

SPRINKLER FINISH Natural Brass or

Stainless Steel

TECH DATA TFP815

h V ” H i g H V e l o c i t y ”

Spray Nozzle

• Open, directional spray nozzles

• Designed for use in fixed water spray fire

protection systems where a high velocity

water application is needed, such as the

protection of flammable liquids, electrical

transformers, circuit breakers, oil-fired

boilers and lube oil systems

• Available in six different orifice sizes

• Produces a solid conical spray pattern

• Available in six angle spray patterns

nozzleS and acceSSorieS

AutomAtic SprinklerS

NOZZLES AND ACCESSORIES

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

41FI R E P ROT E C T IO N Gene ral Produ c t s Ca talo gTYCO FIRE & BUILDING PRODUCTS

K FACTOR K=0.24 (3,5)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Stainless Steel

TECH DATA TD1174

a m 10 aQ u a m I s T ®

Open Type

• Open mist nozzles

• Designed for use in water mist protection

systems protecting flammable liquids and

turbine bearings

• Minimal water demand, approximately

3.1 GPM/nozzle at 170psi (11,73 LPM at

11,6 bar)

• Mist represents latest in fire protection

technology

• For use in “low pressure” mist applications

• Minimum operating pressure is 170 psi

(11,6 bar)

K FACTOR K=0.24 (3,5)

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Stainless Steel

TECH DATA TD1173

a m 4 a Q u a m I s T ®

Open Type

• Open, directional mist nozzles

• Listed and Approved for the protection of

flammable liquid hazards (UL/FM)

• Approved for protection of gas turbines (FM)

• Maximum ceiling height, 26' 3" (8 m)

• Compartment volume –

- UL - 56,500 ft3 (1,600 m3)

– FM - 45,203 ft3 (1,280 m3)

• Maximum utilization of water for flammable

liquid fire protection

• Nozzle coverage: maximum 172 ft2 (16 m2)

• Nozzle pressure: 185 to 250 psi

(12,8 to 17,2 bar)

K FACTOR 4.7 lpm/bar 1/2,

0.33 gpm/psi 0.5

THREAD SIZE

1⁄2" NPT

SPRINKLER FINISH Brass, Chrome Plated,

White Polyester

TECH DATA TD1172

a m 24 aQ u a m I s T ®

Open Type

• Listed and Approved for Marine Type

Approved by Lloyds, USCG, DNV, American

Bureau of Shipping, MCA, Germanischer

Lloyd, Bureau Veritas

• Intended Applications – IMO Mandated

Local Application System for Protection of

Class A Machinery Spaces

• Maximum Distance between nozzles (to

plane of protection) - Vertical Clearance

Nozzle Spacing

– 1 m to 3.5 m nozzles - 4.0 meter spacing

– 3.5 m to 5.0 m nozzles - 3.5 meter spacing

– 5.0 m to 10.0 m nozzles - 3.0 meter spacing

• Nozzle pressure: 175-250 psi (12,1 to

17,2 bar)

NOZZLES AND ACCESSORIES

AutomAtic SprinklerS

NOZZLES AND ACCESSORIES

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

42

K FACTOR K=2.0(28,8) • K=2.3(33,1)

K=2.7(38,9) • K=2.6(37,4)

K=4.6(66,2) • K=5.1(73,4)

THREAD SIZE

3⁄4"

SPRINKLER FINISH Brass

TECH DATA TFP810

F 822 T h R u F 834 m u l s I F Y R E ®

Directional Spray Nozzles, Open, High Velocity

• Two configurations: basic Mulsifyre Nozzle

and Mulsifyre Nozzle with Model F880

Dust Cap

• Available in six different models provide

a wide range of orifice sizes and water

distribution characteristics

• Air aspirating foam-water nozzles, for use

with all types of foam (required for

Non-AFFF type foams)

• Designed for use in water spray fixed systems

for fire protection applications where a high

velocity water application may be required

• Pendent & upright designs

• Open nozzle for use on deluge systems

CoolIng ToWER nozzlE

Type 1 and 2

K FACTOR K=2.9 (41,76)

THREAD SIZE

3⁄4" NPT

SPRINKLER FINISH Stainless Steel

TECH DATA TFP830

• Intended for use in fire protection systems

for cross flow cooling towers with

combustible fill sections

• Open nozzle design for use in water spray

deluge system

• Installed under the distribution basin, they

discharge water in a relatively narrow,

elongated spray pattern

• Type 1 has a waterway designed for use in

towers with diffusion decks, Type 2 for those

without diffusion decks

BloW-oFF plugs

Plugs for Protectospray® Nozzles or Open Sprinklers

K FACTOR K=5.6 (80) • K=8.0 (115)

TECH DATA TFP890

• Intended for use in applications where

protection is required against infestation

or accumulation of debris within the orifice

of an open Protectospray Nozzle or open

sprinkler

• Blow-Off Plugs are designed for both indoor

or outdoor use

43FI R E P ROT E C T IO N Gene ral Produ c t s Ca talo gTYCO FIRE & BUILDING PRODUCTS F I R E P RO T E C T IO N Gene ral Produ c t s Ca talo gTYCO FIRE & BUILDING PRODUCTS

Wet Pipe Sprinkler Systems are designed for use in

applications where the temperature is maintained above

freezing. In such systems, the entire piping network is fully

pressurized so that water is discharged from a sprinkler head

immediately after actuation.

Alarm check valves or water flow detectors are used to

actuate local and remote alarms. Applications include

heated warehouses, factories, hospitals, stores, shopping

centers and residential settings such as apartment or

condominium complexes, and single family residences.

WET SYSTEM VALVES & DEVICES

• Heated

Warehouses

• Factories

• Hospitals

• Stores

• Shopping Centers

• Apartment or

Condominium

Complexes

• Single Family

Residences

APPLICATIONS:

W E T S YS TE M VA LV ES & D E V IC ES

wet system valves & devices

system valves & Devices

W E T S YS TE M VA LV ES & D E V IC ES

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

44

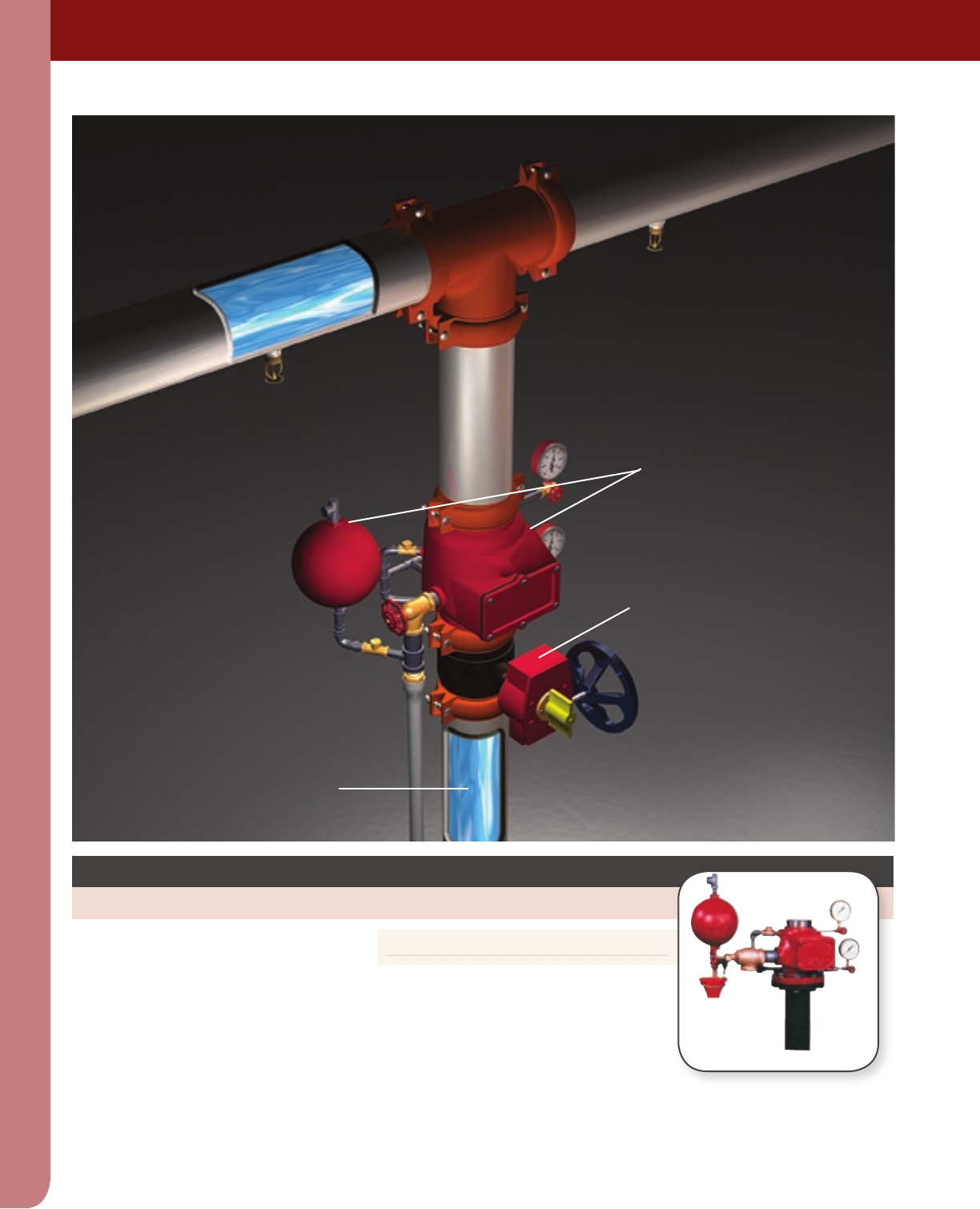

TECH DATA TFP910

• 21⁄2" (DN65) Alarm Valves may be installed

vertically

• 4", 6", and 8" (DN100, DN150, and DN200)

Alarm Valves may be installed vertically or

horizontally

• Groove x Groove, Flange x Flange,

Flange x Groove Alarm Valves are divided

seat ring, rubber-faced clapper, check type,

water flow alarm valves

• For use in wet pipe (automatic sprinkler) fire

protection systems

• Automatically actuates electrically and/or

hydraulically operated alarms when there

A V - 1

Alarm Valve

is a steady flow equivalent to the discharge

rate for one or more sprinklers

• Optional Retard Chamber used in

installations subject to variable pressure

(generally associated with public water

supplies) to help prevent false alarms

• Available pre-assembled with modular trim

to provide a quick and convenient method

for trimming valve risers. Contact TFBP for

details

• Maximum rated working pressure is

300 psi (20,7 bar)

AV-1 Alarm Valve

Butterfly Valve to

Control Water Supply

to System

Water Supply

wet system valves & devices

system valves & Devices

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

45F I R E P RO T E C T ION Gene ral Produ c t s Catalo gTYCO FIRE & BUILDING PRODUCTS

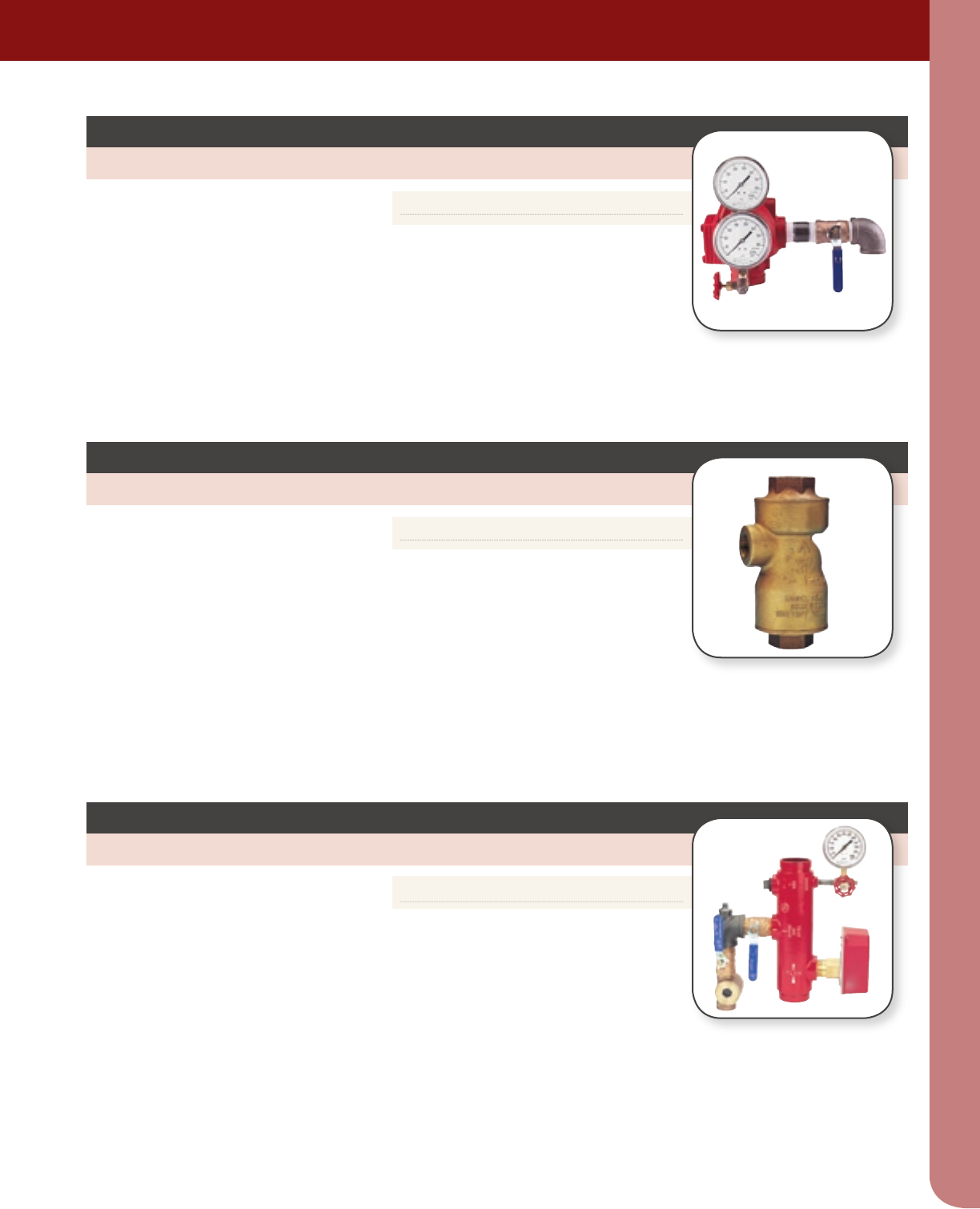

TECH DATA TFP950

• Sizes 2" (DN50) through 8" (DN200)

• Intended for use in a wet type automatic

sprinkler system riser

• Furnished with grooved ends that are

compatible with grooved pipe and

couplings

• Can be installed with ANSI class 150 or 300

Flanges utilizing flange adapters

C V - 1 F R

Riser Check Valve

• Designed with a removable cover for ease

of field maintenance

• Standard seal is grade “E" EPDM

• Maximum rated working pressure is

300 psi (20,7 bar)

W E T S YS TE M VA LV ES & D E V IC ES

TECH DATA TFP980

TECH DATA TFP960 & TFP962

• 1" (DN25) size is designed for single family

demand (NFPA 13D)

• During the design of a residential sprinkler

system, domestic water use should be taken

into consideration unless the domestic

supply can be stopped when a sprinkler

operates

• When a sprinkler operates, water supply is

automatically diverted from the domestic

system to the sprinkler system

• Eliminates the need for pumps, pressurized

storage tanks, or electrically operated

domestic shutoff valves

RSV-1

Residential Domestic Shutoff Valve

• 513D (13D) and 513D/R (13D/R):

– Available sizes: 1", 1-1/2", and 2"

(DN25, DN40, and DN50)

– Provides the necessary water flow

alarm, pressure gauge, and drain

equipment in a single assembly for use

in NFPA 13D or 13R residential sprinkler

systems

• 513 (13):

– Available sizes: 1-1/2" thru 6"

(DN40 thru DN150)

– Provides the necessary water flow

alarm, pressure gauge, alarm test

orifice, drain, and sight glass equipment

in a single assembly for use in NFPA 13

sprinkler systems

RiSeR MAniFoldS

513D (13D), 513D/R (13D/R) and 513 (13)

• Valve automatically resets after the fire

protection system is returned to normal

service

• Maximum rated working pressure is

175 psi (12,1 bar)

• Available in different configurations and

variety of sizes allowing a cost effective

and easy transition to check valves, control

valves, and system piping

• May be installed either horizontally (flow

switch on top) or vertically (flow going up)

• Maximum rated working pressure is

175 psi (12,1 bar)

wet system valves & devices

system valves & Devices

W E T S YS TE M VA LV ES & D E V IC ES

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

46

TECH DATA Contact TFBP for details

TECH DATA TFP921

• Sizes 1"- 2" (25-50 mm)

• Compact, pre-assembled, ready to install

sprinkler riser

• Brass construction for use in potable water

supply

• Integral test and drain assembly, flow

switch with retard mechanism, 300 psi

gauge, and check valve

• Compact size allows for easy installation

between 2" x 4" (50-100 mm) studs

ReSi-RiSeR

Residential

• Hydraulically operated outdoor alarm for

use with appropriate fire protection system

valves (alarm, dry, deluge)

• Supplied by dedicated outlet in valve trim

line or retard chamber

• Uses energy-efficient lightweight impeller

design capable of producing very high

sound level

• Corrosion-resistant aluminum alloy gong,

gong-mount, and water motor housing

• Delrin bearings - do not require lubrication

- for long life

• May be mounted on any type of wall

WMA-1

Water Motor Alarm

• Molded mounting points allow for fast

and easy left or right hand installation

• Available with or without pressure relief

valve or flow switch retard mechanism

features

• Maximum rated working pressure is

175 psi (12,1 bar)

• Can accommodate range of wall

thicknesses from 2" to 18" (50 to 450 mm)

• Furnished with approved 3⁄4" (20 mm)

Y-strainer for use in alarm line

• Maximum rated working pressure is

300 psi (20,7 bar)

DRY SYSTEM VALVES & DEVICES

47FI RE PR OTE C T I ON Gen era l Prod uc ts C ata l ogTYCO FIRE & BUILDING PRODUCTS

DRY SYSTEM VALVES & DEVICES

Accessory items, such as dry pipe valve accelerators that

increase the speed of system operation, and pressure

switches used to activate electric alarms, may be used to

enhance the system.

Dry Pipe Sprinkler Systems are designed for

applications where piping and sprinklers are subjected to

freezing temperatures, such as unheated warehouses,

parking garages, store windows, attic spaces, or loading

docks. Valves for the system, however, must be installed

in areas not subject to freezing, as this portion of the

system does contain water. Pipe lines to the sprinklers

are usually pressurized with air, but nitrogen can be used.

When pressure in the system is lost by actuation of a

sprinkler head, the dry pipe valve trips, activates alarms,

and releases water into the system. The system may be

equipped with automatic or manual air supply controls and

air supervisory devices with appropriate trouble alarms.

• Unheated

Warehouses

• Parking

Garages

• Store Windows

• Attic Spaces

• Loading Docks,

& Other Areas

Exposed To

Freezing

Temperatures

APPLICATIONS:

D R Y S Y S TE M VALVE S & D E VI C E S

dry system valves & devices

system valves & Devices

D R Y S Y S TE M VALVE S & D E VI C E S

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

48

TECH DATA TFP1020

• Available sizes: 21⁄2" (DN65), 3" (DN80),

4" (DN100) and 6" (DN150)

• External reset differential dry pipe valves

• Available as Flange x Flange, Flange x

Groove, or Groove x Groove

• Unique, offset clapper design minimizes

valve size and weight

• Used to supply sprinkler installations in

which sprinklers are subjected to freezing

conditions (40˚F / 4˚C or less)

d P V - 1

Dry Pipe Valve – 21⁄2" thru 6"

Butterfly Valve to

Control Water Supply

to System

DPV-1 Dry Pipe Valve

Water Supply

• Rated for use at a maximum service

pressure of 250 psi (17.2 bar)

• Listings and Approvals: UL, C-UL, and FM

Air

d ry s yst e m va lv e s & d e v i c e s

system valves & Devices

D R Y S Y S TE M VALVE S & D E VI C E S

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

49F I R E P RO T E C T ION Gene ral Produ c t s Catalo gTYCO FIRE & BUILDING PRODUCTS

TECH DATA TFP1112

TECH DATA TFP1100

• Designed for use with Model DPV-1 dry

pipe valves

• Speeds operation of the dry pipe valve

upon loss of air pressure

• Automatically adjusts to small or slow

changes in system pressure but trips upon

a rapid and steady drop in pressure

• Designed to trip when system air pressure

drops at a rate exceeding approximately

1 psi/minute (0.07 bar/min)

• Upon tripping, it transmits system air

pressure to the intermediate chamber of

the dry pipe valve, which neutralizes the

differential pressure holding the valve

closed and opens the waterway clapper

A C C - 1

Dry Pipe Valve Accelerator

• Maximum working air pressure

70 psi (4,8 bar)

• Quick opening device intended to reduce

the time for dry pipe valve operation

following the operation of one or more

automatic sprinklers

• Automatically adjusts to both small and

slow changes in system pressure, but trips

with a steady drop in pressure (as in the

case of sprinkler operation)

• Can be used to retro-fit existing

mechanical accelerators

• Fully assembled package includes switch,

solenoid, control panel, and accelerator

trim pipe and fittings

• Built-in low and high pressure alarm

supervision

QRS

Electronic Accelerator

• Rated for use at a maximum water supply

pressure of 250 psi (17,2 bar) and a

maximum system air (or nitrogen) pressure

of 70 psi (4,8 bar)

• Listings and Approvals:

UL, ULC, FM, LPC, SSL, and VdS

• Operation of the dry pipe valve within

four seconds -independent of various

combinations of system initial air pressures,

system volumes, or sprinkler K Factors

• Proven electronic release technology as

used for electrically operated deluge and

preaction systems

• Battery back-up in the event of primary

power failure

• Eliminates re-setting problems often

incurred with traditional mechanical

accelerators

• Listings and Approvals: UL, FM

dry system valves & devices

system valves & Devices

D R Y S Y S TE M VALVE S & D E VI C E S

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

50

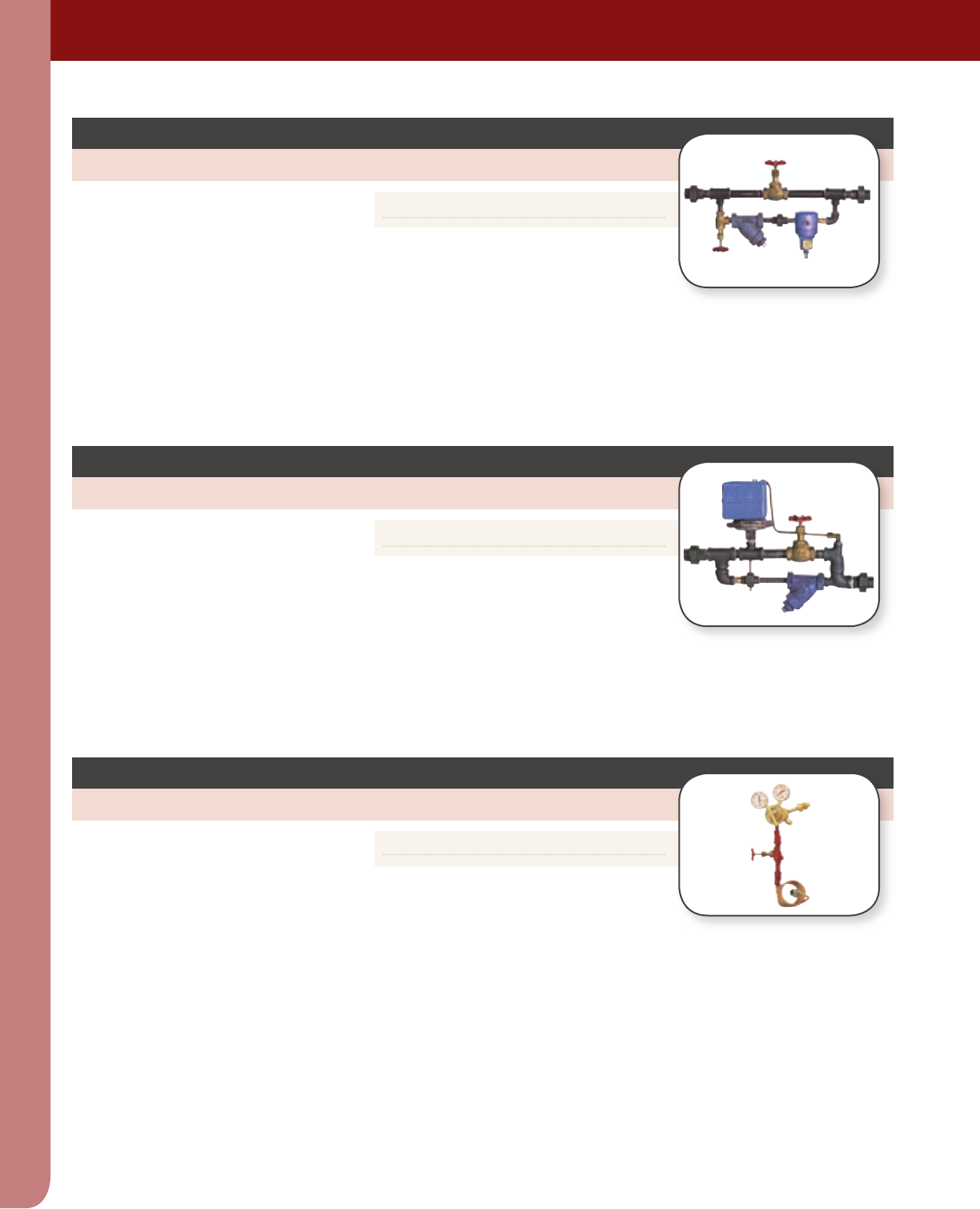

TECH DATA TFP1221

TECH DATA TFP1231

TECH DATA TFP1241

• Field adjustable

• Used in systems where compressed air

source is available

• Used in systems in which the air supply is

at a higher pressure than is desired for a

sprinkler system or dry pilot line system

• Listings and Approvals:

UL, ULC, and FM

AMd-1

Air Maintenance Device, Pressure Reducing Type

• Field adjustable

• Used in conjunction with a small,

non-tank-mounted air compressor

• Monitors sprinkler system or dry pilot line

detection for deluge system air pressure

and automatically cycles the compressor

to maintain system pressure within preset

limits

• Listings and Approvals:

UL, ULC, and FM

AMd-2

Air Maintenance Device, Compressor (small w/o tank) Control Type

• Field adjustable

• Used in conjunction with a cylinder of

high pressure nitrogen to control the

nitrogen pressure in a sprinkler system

or a dry pilot line detection for deluge

systems

• Listings and Approvals:

UL, ULC, and FM

AMd-3

Nitrogen Maintenance Device, High Pressure (Cylinder) Reducing Type

DELUGE & PREACTION SYSTEMS

51F I RE P ROT EC T I ON G eneral Pro ducts Cat alogTYCO FIRE & BUILDING PRODUCTS

DELUGE & PREACTION SYSTEMS

Deluge Systems are normally used in special hazard

installations where water must be applied to an entire area

for protection. They use open sprinklers or spray nozzles

attached to a piping system connected to a water supply

through the deluge valve. The deluge valve is used to control

water flow into deluge, preaction, and special types of fire

protection systems in response to a fire. This valve is opened

by a fire detection system installed in the same areas.

Preaction Systems are used to protect areas where water

damage from damaged sprinklers or piping must be avoided.

A prealarm of a possible fire allows time for alternate fire

extinguishment prior to a sprinkler discharge. They are

designed for applications such as refrigerated areas that

require maximum protection against inadvertent operation

of the sprinkler system.

• Flammable

Liquid

Handling

• Storage Areas

for Valuable

Artifacts

• Aircraft Hangars

• High-Hazard

Installations

Using Water as

Extinguishing

Agent

• Computer

Rooms

• Libraries

• Archives

• Refrigerated

Areas

APPLICATIONS:

DELUGE & PREACTION SYSTEMS

deluge & preaction systems

system valves & Devices

DELUGE & PREACTION SYSTEMS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

52

Deluge fire protection systems are normally

used in special hazard installations where

an entire area application of water or foam

is required for protection. Applications may

include flammable liquid handling and

storage areas, aircraft hangars, and other

high-hazard installations where water is

the most effective extinguishing agent.

Deluge systems employ open sprinklers or

spray nozzles attached to a piping system.

The system is connected to a water supply

through the deluge valve. This valve is

opened by the operation of a fire detection

system installed in the same areas as the

open sprinklers or nozzles. Deluge systems

may be activated by wet or dry pilot

sprinklers, or electric detectors. When the

deluge valve opens, water flows into the

piping system and discharges from all open

sprinklers and nozzles.

Legend:



1

 DelugeValve(DV-5)



2

 IsolationValve



3

 DiaphragmSupplyValve



4

 ManualControlStation



5

 AutomaticShut-offValve



6

 AutomaticDrainValve

 



7

 PressureSwitch



8

 WaterMotorGong



9

 ReleasingPanel

10

 SprayNozzle

11

 Smoke/HeatDetector

12

 SolenoidValve

deluge SySteMS

Electric Actuation

deluge & preaction systems

system valves & Devices

DELUGE & PREACTION SYSTEMS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

53FI R E P R OT E C T I ON Gen eral Prod u c ts Catal ogTYCO FIRE & BUILDING PRODUCTS

Single inteRloCk PReACtion SySteMS

Electric/Electric Actuation

Single interlock preaction systems are used

to protect areas where there is danger of

serious water damage that might result from

damaged automatic sprinklers or piping.

Typically, such areas include computer

rooms, storage areas for valuable artifacts,

libraries and archives. Also, preaction

systems are effectively used to protect

properties where a prealarm of a possible

fire condition may allow time for fire

extinguishment by alternate suppression

means, prior to a sprinkler discharge. In

the event the fire cannot otherwise be

extinguished, the preaction sprinkler

system will then perform as the primary fire

protection system.

Single interlock preaction systems

employ automatic sprinklers attached to

a piping system containing 10 psi (0,7 bar)

supervisory pressure, with a supplemental

electric fire detection system installed in

the same area as the sprinklers. Preaction

systems with 10 psi (0,7 bar) supervisory

pressure may also be activated by either

wet or dry pilot sprinklers instead of electric

detectors. Actuation of the fire detection

system from a fire opens the deluge valve,

allowing water to flow into the sprinkler

piping system and to be discharged only

from those sprinklers that have been

operated by heat over the fire. Loss of

supervisory pressure from the system

piping as a result of damaged sprinklers or

broken piping will activate a trouble alarm

to indicate impairment of the system. The

deluge valve will not open due to loss of

supervisory pressure.

Legend:

 1

 DelugeValve(DV-5)



2

 IsolationValve



3

 DiaphragmSupplyValve



4

 ManualControlStation



5

 AutomaticShut-offValve



6

 AutomaticDrainValve



7

 PressureSwitchWater



8

 WaterMotorGong



9

 ReleasingPanel

10

 Sprinkler

11

 Smoke/HeatDetector

12

 SolenoidValve

13

 AirSupplyInlet

14

 PressureSwitch(Air)

15

 CheckValve

deluge & preaction systems

system valves & Devices

DELUGE & PREACTION SYSTEMS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

54

Double interlock preaction systems

are designed for applications such

as refrigerated areas that require the

maximum degree of protection against

an inadvertent operation that could result

in unnecessary flooding of the sprinkler

system piping.

The double interlock system consists of a

deluge valve and swing check valve with

releasing trim featuring both a solenoid

valve and a dry pilot actuator in a series

configuration. The swing check valve

isolates the body of the deluge valve

from the system air or nitrogen pressure

that holds the dry pilot actuator closed.

The solenoid valve remains closed until

it is electrically energized by a deluge

releasing panel that responds to the

operation of a fire detection device.

In order to actuate the double interlock

preaction system, two independent

events, caused by a fire condition, must

occur. The sprinkler system piping must

lose air or nitrogen pressure due to the

operation of one or more sprinklers, and

the deluge releasing panel must energize

and open the solenoid valve upon the

operation of a fire detection device.

The double interlock system will operate

only when both the dry pilot actuator

and the solenoid valve are open at the

same time. Opening of the dry pilot

actuator only (for example: a forklift truck

accidentally dislodges a sprinkler) or of

the solenoid valve only (for example:

accidental operation of an electric manual

pull station) will cause an alarm, and will

not trip the system or flood the sprinkler

system piping.

Legend:



1

DelugeValve(DV-5)



2

 IsolationValve



3

DiaphragmSupplyValve



4

 ManualControlStation



5

 FSV(Fail-SafeValve)



6

 AutomaticDrainValve



7

 PressureSwitchWater



8

 WaterMotorGong

 



9

 ReleasingPanel

10

 Sprinkler

11

 Smoke/HeatDetector

12

 PneumaticActuator

13

 AirSupplyInlet

14

 PressureSwitch(Air)

15

 CheckValve

16

 SolenoidValve

double inteRloCk PReACtion SySteMS

Pneumatic/Electric Actuation

deluge & preaction systems

system valves & Devices

DELUGE & PREACTION SYSTEMS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

55FI R E P R OT E C T IO N Gen e ral Produ c t s Catal o gTYCO FIRE & BUILDING PRODUCTS

d V - 5

Deluge Valve, External Resetting Diaphragm Style – 11/2" thru 8"

Model DV-5 Deluge Valves are diaphragm type valves designed for

vertical or horizontal installation for fire protection system service.

They are used as “automatic water control valves" in deluge, preaction,

and special types of fire protection systems such as foam-water

systems. When properly trimmed, the DV-5 Valves provide actuation of

fire alarms upon system operation.

The unique diaphragm style design of the DV-5 Valve allows external

resetting. Deluge or preaction systems can be reset without having

to open a valve handhole cover and manually reposition a clapper

or latch mechanism. Simply repressurizing the diaphragm chamber

resets the valve.

The one-piece, diaphragm style design of the DV-5 allows standard

internal and external coating of the valve to provide corrosion

resistance. The internal corrosion resistance offered by the Rilsan

coating makes the DV-5 suitable for most seawater and brackish

water supplies when utilized in deluge systems. The external

corrosion resistance of the Rilsan coating permits the use of the DV-5

in corrosive atmospheres associated with many types of industrial

processing plants and outdoor installations.

TECH DATA TFP1305

• Available sizes:

11⁄2" (DN40), 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150), and 8" (DN200)

• Vertical or horizontal installation

• One internal working part

• No linkage or clapper assembly

• Light weight ductile iron body

• Available with deluge and single & double interlock preaction trim

• Internally & externally coated

• Features external resetting

• Diaphragm operation

• For most seawater & brackish water supplies

• For deluge, preaction & foam systems

• Available as Flange x Flange, Flange x Groove, or

Groove x Groove body styles

• Rated for 250 psi service

• Listings and Approvals: UL, C-UL, FM, VdS

deluge & preaction systems

system valves & Devices

DELUGE & PREACTION SYSTEMS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

56

TECH DATA TFP1300

• The Red-E-Cabinet has been designed to

readily incorporate 11⁄2" (DN40), 2" (DN50),

3" (DN80), 4" (DN100) & 6" (DN200) valve risers

for the following types of systems:

- Deluge System – Electric Actuation

- Single Interlock Preaction System

- Double Interlock Preaction System

• Aesthetically pleasing appearance

• Professionally assembled

• Minimal installation time

• Internally pre-wired

• UL/ULC/FM components

• Custom manufactured

• Model DV-5 deluge valve (standard)

• All gauges and panel display are visible

externally

• UL, C-UL Listed, FM Approved

• The Red-E-Cabinet is constructed of 14 gauge

steel, and is free-standing. The standard paint

finish is bright red

The Red-E-Cabinet is a pre-assembled fire protection valve package

enclosed within a free-standing cabinet designed to occupy minimal

floor space and to provide an aesthetically pleasing enclosure for

a fire protection valve riser. The entire package is pre-wired and

the water inlet and outlets to the valve riser are grooved to ease

installation. The valve package includes the system (manual) shut-off

control valve, automatic water control valve, as well as water flow

and supervisory switches where system air pressure is required for

either supervision or automatic water control valve actuation. An air

compressor and associated controls are also provided.

Integral to the Red-E-Cabinet door is a control panel and back-up

batteries for providing electrical alarm, supervisory, and trouble

functions. All switches within the cabinet are pre-wired to the

control panel, making the electrical connections for power, detection

circuits, and alarms the only remaining electrical connections to

complete the system.

In addition to the integral control panel, windows have been provided

in the Red-E-Cabinet door for viewing the releasing panel functions

and essential system pressure gauges. A lock for the control panel

access door is standard, and a lock for the cabinet door is optional.

All Four Side Panels

Easily Removed For

Ease of Maintenance

Red-e-CAbinet®

Integrated Fire Protection Packages

GENERAL PURPOSE VALVES

57FI RE P R OTE C T I ON Ge n era l Prod uc ts C ata l ogTYCO FIRE & BUILDING PRODUCTS

GENERAL PURPOSE VALVES

General Purpose Valves are for use in fire protection

service applications where it is necessary to prevent reverse

flow, or where system shut-off or sectional control is desired

for closing a fire protection system after operation, or to

facilitate testing.

• Prevention of

Reverse Flow

• System

Shut-Off or

Sectional

Control

• Closure of Fire

Protection

After Operation

• Facilitation of

Testing

APPLICATIONS:

GENERAL PURPOSE VALVES

general purpose valves

system valves & Devices

GENERAL PURPOSE VALVES

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

58

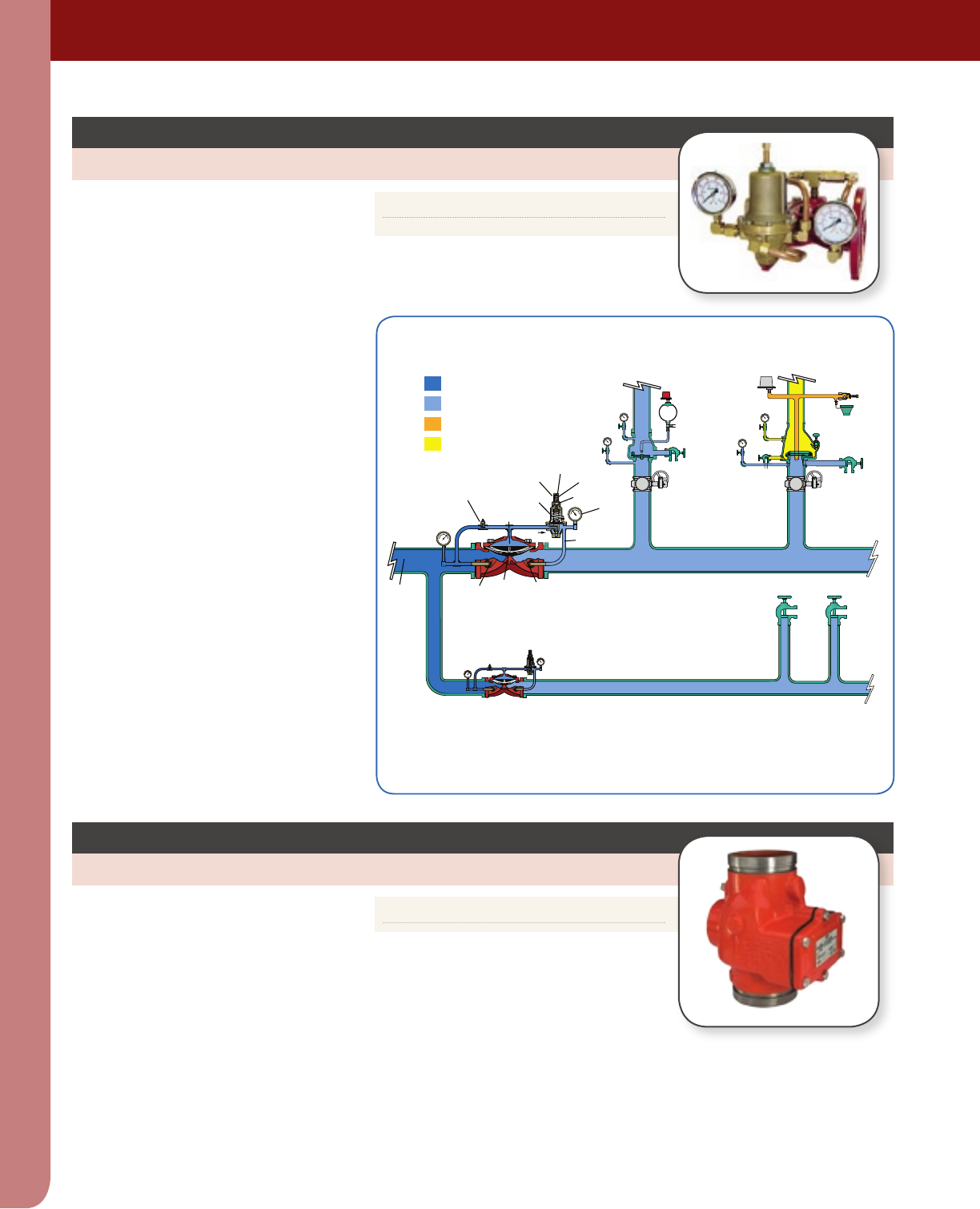

TECH DATA TFP1580

TECH DATA TFP1550

• Can be installed either vertically or

horizontally

• Available with threaded, flanged, and cut

groove inlet and outlet connections

• Grooved connections are suitable for

use with grooved pipe couplings that

are listed or approved for fire protection

service

• One piece, one moving part diaphragm

• In-line service (for maintenance)

• Pilot valve provides for any outlet “set

pressure”, i.e., 80 to 150 psi (5,5 to 10,3 bar)

• Rated for use at a maximum pressure of

125 psi (8,6 bar)

• Factory outlet “set pressure” of

250 psi (17,2 bar)

• Field outlet “set pressure” range of

80 to 150 psi (5,5 to 10,3 bar)

• Listings and Approvals: UL, & FM

PRV-1

Pressure Regulating Valve – 2" thru 8" (DN50 thru DN200)

• Can be installed either vertically or

horizontally

• Cut groove inlet and outlet connections

• Suitable for use with grooved pipe

couplings that are listed or approved for

fire protection service

• Rated for use at a maximum pressure of

300 psi (20,7 bar)

• Listings and Approvals: UL, ULC, FM

C V - 1 F

Grooved Check Valve – 2" thru 10" (DN50 thru DN250)

MAIN

HEADER

Water in

200 psi

HOSE

STATIONS

DRY PIPE

SPRINKLER

RISER

WET PIPE

SPRINKLER

RISER

PRV-1

Water out, reduced pressure 125 psi

Needle Valve

(Factory Set, Do Not Adjust)

Pilot

Valve

Regulating

Spring

Tamper

Cap

Adjusting

Screw

Outlet

Pressure

Gauge

Inlet

Pressure

Gauge

Inlet

Cavity

Outlet

Cavity

Diaphragm

Chamber

Sensing

Line

Exit Flow

Diaphragm

Locknut

Supply Water under High pressure

Air - Open to Atmosphere

Air - Under Pressure

Model PRV-1 Pressure Regulating Valve

Supply Water under Lower pressure

Automatic

Drain Valve

AD-1

Drain

Reset

Knob

Supply

Pressure

Gauge

Supply

Pressure

Gauge

Outlet

Pressure

Gauge

Air Supply

Pressure

Gauge

Main

Control Valve

(Normally Open)

Main

Control Valve

(Normally Open)

Main

Drain Valve

(Normally Closed)

Main

Drain Valve

(Normally Closed) Lower

Drain Valve

(Normally Closed)

To

Automatic

Sprinklers

To

Automatic

Sprinklers

Waterflow

Pressure Alarm

Waterflow

Pressure Alarm

Retard

Chamber

0RGHO3593UHVVXUH5HJXODWLQJ9DOYH

7KLVV\VWHPLVVKRZQLQVWDOOHGDQGUHDG\IRURSHUDWLRQ7KHUHDUHWZR359µVVKRZQLQOLQH

WRUHGXFHSUHVVXUH7KHWRSODUJHU359LVXVHGWRUHGXFHSUHVVXUHEHIRUHWKHVSULQNOHUULVHUV7KH

VHFRQG359LVXVHGWRUHGXFHZDWHUSUHVVXUHIRU)LUH'HSDUWPHQWFRQQHFWLRQV

general purpose valves

system valves & Devices

GENERAL PURPOSE VALVES

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

59FI R E P R OT E C T IO N Gene ral Produ c t s Catal o gTYCO FIRE & BUILDING PRODUCTS

TECH DATA TFP1510

bFV-n

Grooved Butterfly Valve – 21⁄2" thru 10" (DN65 thru DN250)

• Indicating type valves provide visual

indication of whether the valve is open or

closed

• Cut groove inlet and outlet connections

• Suitable for use with grooved pipe

couplings that are listed or approved for

fire protection service

• Rated for use at a maximum pressure of

300 psi (20,7 bar), or 175 psi (12,0 bar) for

the 10" model

• Listings and Approvals:

UL, ULC, FM, Calif. State Fire Marshall

TECH DATA TFP1515

Wafer Butterfly Valve – 2" thru 12" (DN50 thru DN300)

• Indicating type valves provide visual

indication of whether the valve is open

or closed

• Wafer connections

• Suitable for use installation between

ANSI Class 125 or 150 flanges without

the need for flange gaskets

• Rated for use at a maximum pressure

of 250 psi (17,2 bar)

• Listings and Approvals:

UL, ULC, FM, Calif. State Fire Marshall

TECH DATA TFP1520

Lug Butterfly Valve – 2" thru 12" (DN50 thru DN300))

• Indicating type valves provide visual

indication of whether the valve is open or

closed

• Lug connections

• Suitable for use installation between

ANSI Class 125 or 150 flanges without the

need for flange gaskets

• Rated for use at a maximum pressure of 250

psi (17,2 bar), or for dead end service the

maximum pressure is 200 psi (13,8 bar)

• Listings and Approvals:

UL, ULC, FM, Calif. State Fire Marshall

general purpose valves

system valves & Devices

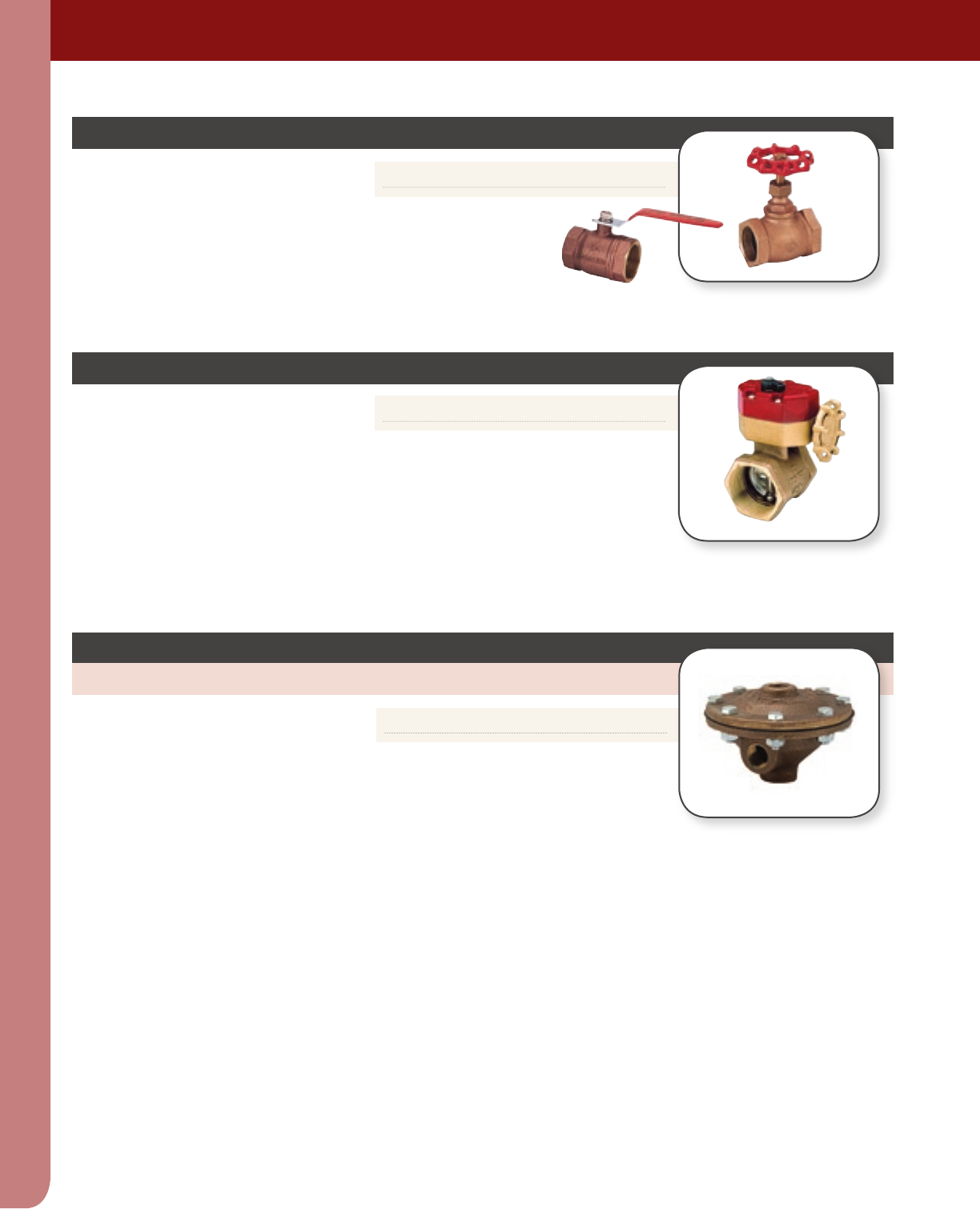

GENERAL PURPOSE VALVES

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

60

TECH DATA Contact TFBP for details

• Designed for general service such as

shut-off, throttling, or drain valves

• Provide positive shut-off under normal

operating conditions

tRiM VAlVeS

• Bronze body butterfly valves are designed

specifically for fire protection applications

• Models are available in 2" and 21⁄2" NPT

• Feature slow closure that substantially

minimizes water hammer

• May be used as sectional or small system

control valves where a distinct visual

indication of the valve status is required

butteRFly VAlVeS “butteRbAll"

• BB-SCS01 has built in tamper resistant SPDT

switch for use where proprietary or central

station supervision of open position of

valve is required

• Rated for use at a maximum service

pressure of 175 psi (12,1 bar)

• Listings and Approvals: UL, ULC, and FM

TECH DATA TFP1380

• Dry Pilot Actuator is an auxiliary releasing

device

• Designed for Preaction Valves having

double interlock electric/pneumatic

release

• Rated for use at a maximum water

supply pressure of 250 psi (17,2 bar)

and a maximum system air (or nitrogen)

pressure of 50 psi (12,1 bar)

d P - 1

Dry Pilot Actuator

• Listings and Approvals: UL, ULC, FM, and

LPCB

61FI R E P ROT E C T IO N Gene ral Produc ts Cat alogTYCO FIRE & BUILDING PRODUCTS

Specialty Items complement the components used in

fire protection systems. These special items help create the

ideal configuration for any protection usage.

SPECIALTY ITEMS

• Automatic

Quarterly Flow

Switch Tests Per

NFPA 25

• Automatic

Actuation of

Electric &/or

Hydraulic

Alarms

• Reduce

Accidental

Manual

Shut-Off &

Unnecessary

Fire Dept.

Dispatch

• Eliminate

Expelled Water

FEATURES:

SPECIALTY ITEMS

specialty items

system valves & Devices

SPECIALTY ITEMS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

62

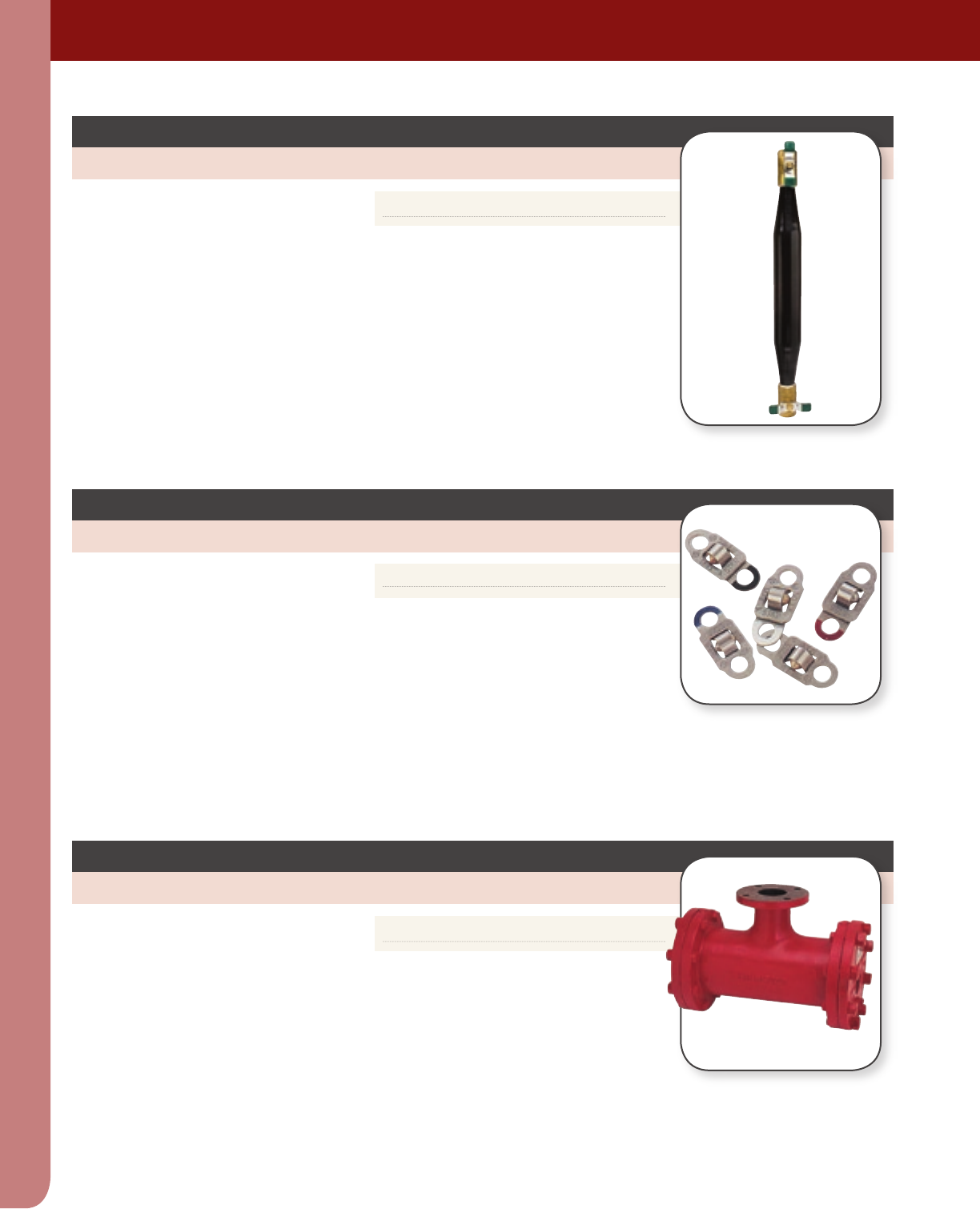

TECH DATA Contact TFBP for details

TECH DATA TFP1610

TECH DATA TFP1640 & TFP1642

M o d e l A & b - 1

Pipe Line Strainers

dd-1 (dRuM dRiP)

Wiliag™ Condensate Drain

Model Fl-1

Fusible Links – 50 lb.

• Ready to install

• No power machine for repair

• No power machine required for cutting

pipe and making fittings

• Eliminates potential leaks

• Eliminates labor of fabrication

• Classic look of a professional job

• Heat-activated releasing device designed

for installation in mechanically operated

systems requiring a positive acting release

mechanism

• Used extensively as releasing devices in

restaurants and industrial fire protection

systems, as well as in heat-activated

counterbalanced systems such as fire

doors, dampers and kitchen chemical

systems

• Consists of fusible alloy sealed in the

center of a bronze tube by a stainless

steel ball

• Model A available sizes:

– 3" (DN80), 4" (DN100), 6" (DN150),

8" (DN200) and 10" (DN250)

• Model B-1 available sizes:

– 3" (DN80), 4" (DN100), 6" (DN150),

and 8" (DN200)

• Available sizes:

– 6" x 6" (150 mm x 150 mm)

– 8" x 8" (200 mm x 200 mm)

– 8" with 2 - 6" outlets (200 mm with

2 - 150 mm outlets)

– 10" x 8" with 2 - 8" outlets

(250 mm with 2 - 200 mm outlets)

• Net weight only 6.25 lbs.

• Overall length 24" (615 mm)

• Turning radius 2.5" (64 mm)

• When the alloy melts, the fusible assembly

compresses, allowing it to eject from

between the two-piece strut, strut assembly

separates, activating the intended fire

protection system or device

• Releasing mechanism rated for 5-lbs. to

50-lbs. loads

• Listings and Approvals: UL and FM

• Compact, lightweight, welded assembly

with flanged inlet, outlet and flushing

connection

• Corrosion resistant Type 304 stainless

steel screen especially designed for low

pressure loss

• Rated for use in services up to

175 psi (12,1 bar)

• Listings and Approvals:

UL, C-UL and FM

Model B shown

specialty items

system valves & Devices

SPECIALTY ITEMS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

63FI R E P ROT E C T IO N Gene ral Produ c t s Ca talo gTYCO FIRE & BUILDING PRODUCTS

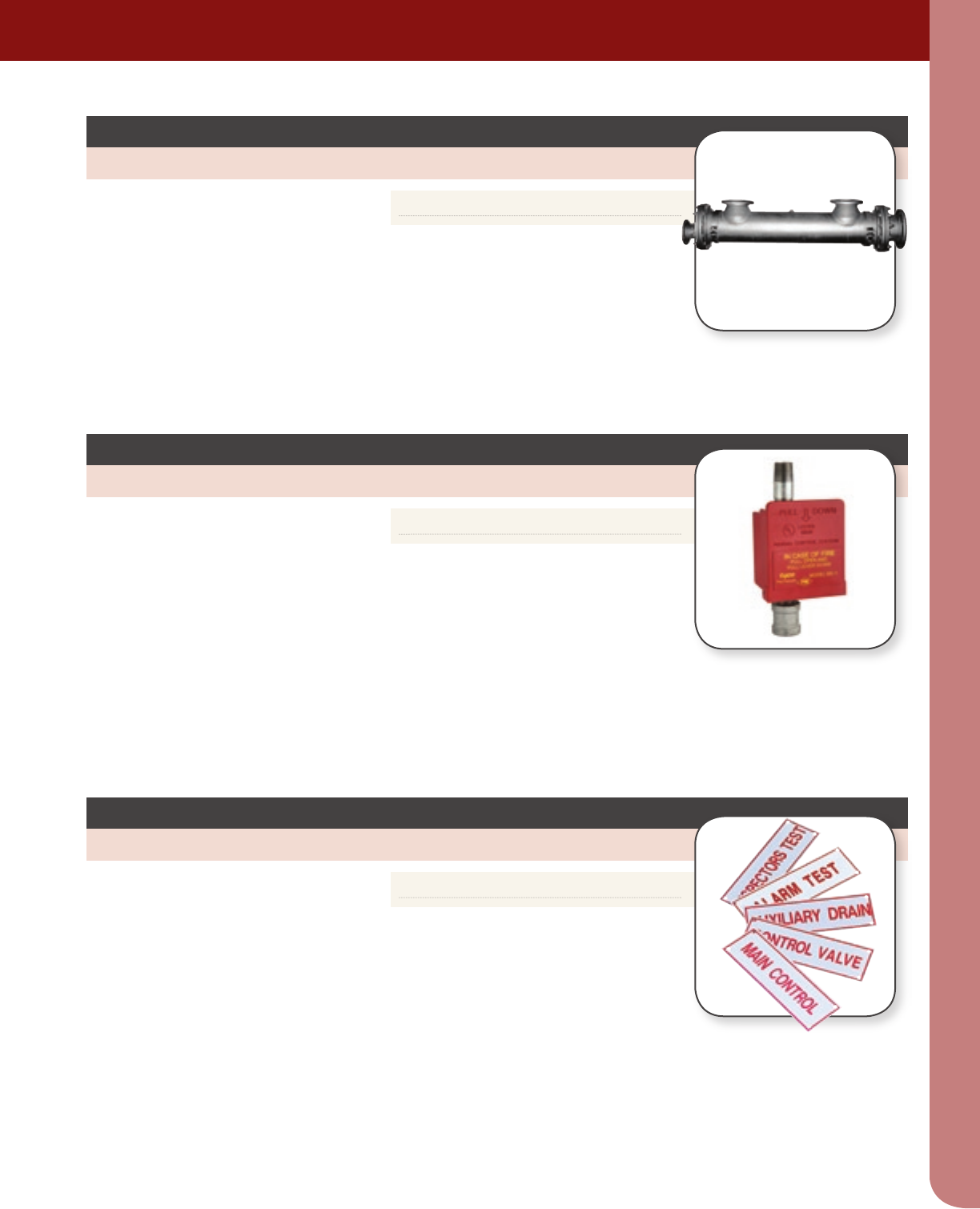

TECH DATA TFP1644

TECH DATA TFP1615

Model C

Pipe Line Strainer

SignS

Identification Signs

• Available sizes:

– 6" x 6" (DN150 x DN150)

– 8" x 8" (DN200 x DN200)

– 8" (DN200) with 2 - 6" outlets

(2 - 150 mm)

– 10" (DN250) x 8" (DN200) with 2 - 8"

outlets (2 - 200 mm)

• Compact lightweight welded hot dipped

galvanized assembly with flanged inlet,

outlet and flushing connection

• Designed to provide information to the

end user about the sprinkler system and

its components

• Available with a variety of wording

combinations to meet the signage

requirements of NFPA 13

• Corrosion resistant Type 304 stainless

steel screen especially designed for

low pressure loss

• Rated for use in services up to

250 psi (17.2 bar)

• Listings and Approvals:

UL, C-UL and FM

TECH DATA TFP1382

Model MC-1

Manual Control Station

• Provides a tamper resistant means for

emergency release

• Interconnection with the valves may be

direct via hydraulic (wet) pilot line or

indirect via pneumatic (dry) pilot line to a

Model DP-1 Dry Pilot Actuator

• Rated for use in services up to

250 psi (17.2 bar)

• Listings and Approvals:

UL, C-UL and FM

specialty items

system valves & Devices

SPECIALTY ITEMS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

64

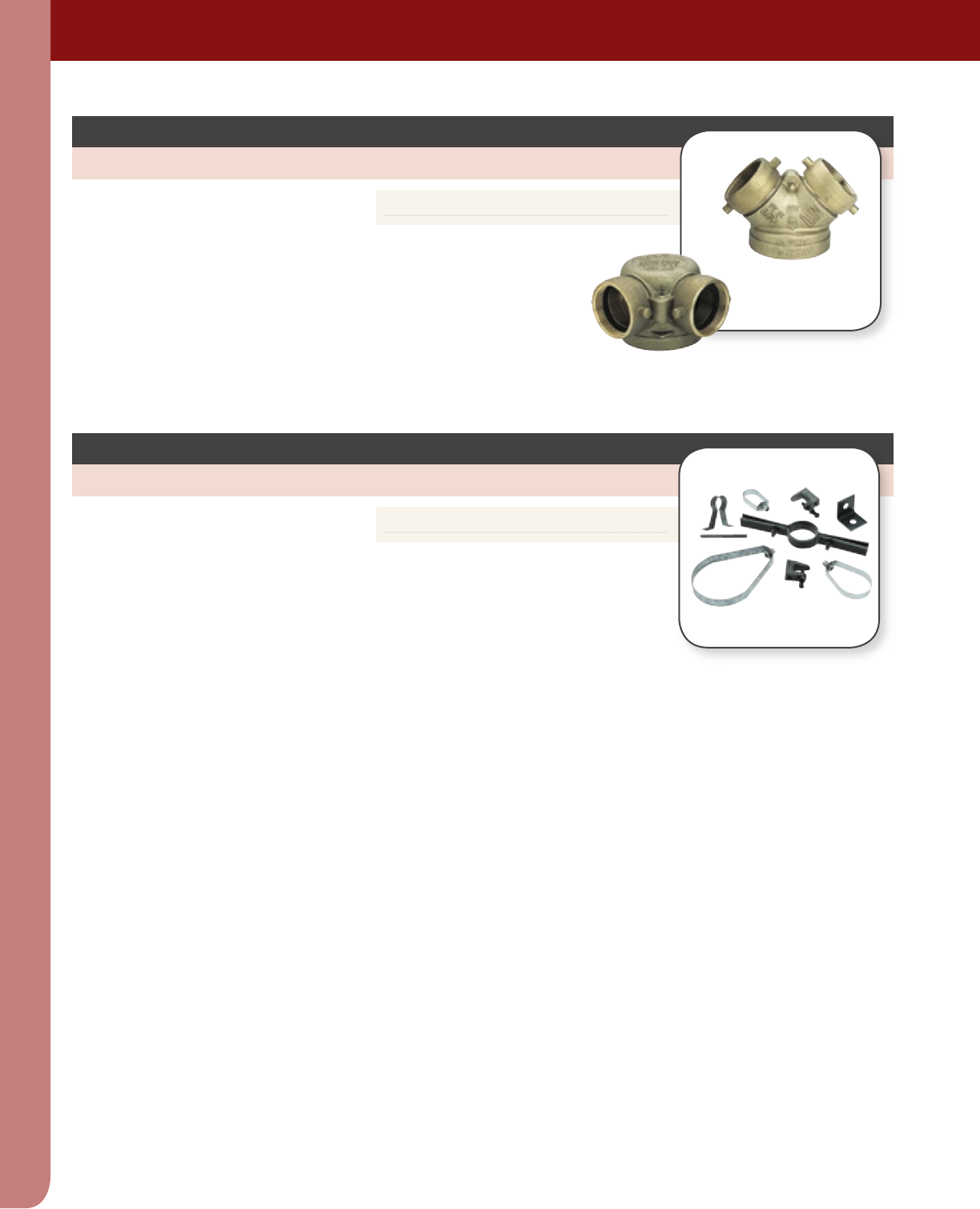

TECH DATA Contact TFBP for details

HAngeRS

Pipe Hangers

• A full-line of pipe hangers for every fire

protection need

• Manufactured to meet the quality

standards that the industry demands

• Meet the requirements of NFPA 13

TECH DATA Contact TFBP for details

FiRe dePARtMent ConneCtionS

Straight & 90° Fire Department Connections

• Designed for fire department use to

increase water pressure and volume

to automatic sprinkler system or

standard-pipe system

• Available in both 90° side outlet pattern

and the straight through siamese pattern

65FI R E P RO T E C T IO N General Produc ts Cat alogTYCO FIRE & BUILDING PRODUCTS

Grooved Piping Products are designed for use in fire

protection systems and eliminate the need for screwed,

welded, or flanged connections. They provide several

economic advantages for connecting pipe and fittings

when compared to welded or flanged systems. Grooved

Piping Products also make field modifications easy, as

couplings and fittings can be rotated, added, changed, or

eliminated as necessary. Available in a wide range of sizes

and configurations. TFBP makes a full line of grooved

domestic and import products for fire protection.

GROOVED PIPING PRODUCTS

• Easy Field

Modifications

• Quickly

Joining Steel

Pipe without

Welding

• Rigid Connec-

tions for Long

Runs & Risers

• Retro-fitting &

System Repair

• Dampening

Noise &

Vibration

Transmission

FEATURES:

65

GROOVED PIPING PRODUCTS

grooved piping products

piping & electrical Devices

GROOVED PIPING PRODUCTS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

66

TECH DATA TFP1830

TECH DATA TFP1850

TECH DATA TFP1854

TECH DATA TFP1820

• Available sizes: 1

1⁄4"

(DN32) through

12" (DN300)

• Provides the needed flexibility to

accommodate differential movement

• Capable of pressures up to 300 psig

(2068 kPa) depending on pipe size and

wall thickness

• Standard Grade A pre-lubed gasket

F i g u R e 705

Flexible Coupling

• Available sizes: 11⁄4" (DN32) through

12" (DN300)

• Specifically designed to provide rigidity in

grooved piping systems

• Recommended for dry pipe and freezer

applications

• Capable of pressures up to 500 psig

(3447 kPa) depending on pipe size and

wall thickness

F i g u R e 772

Rigid Coupling - Patented

• Available sizes: 1

1⁄4"

(DN32) through

8" (DN200)

• Specifically designed to provide rigidity in

grooved piping systems

• Capable of pressures up to 300 psig

(2069 kPa) depending on pipe size and

wall thickness

• Standard Grade A pre-lubricated gasket

F i g u R e 577

Rigid Coupling - Patented

• Available sizes: 2" x 11⁄2" (DN50 x DN40)

through 8" x 6" (DN200 x DN150)

• Allows easy transition between two

different pipe sizes and replaces two

couplings and a reducing fitting

• Faster and easier than threading,

welding or using flanges

F i g u R e 716

Flexible Reducing Coupling

• Standard Grade A pre-lubricated gasket

• Also available with tri-seal Grade "E"

gasket for dry pipe fire protection systems,

vacuum systems, and freezer applications

• Also available with tri-seal Grade E gasket

for dry pipe fire protection systems, vacuum

systems, and freezer applications

grooved piping products

piping & electrical Devices

GROOVED PIPING PRODUCTS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

67FI RE PR OTE C T I ON Gen era l Prod uc ts C ata l ogTYCO FIRE & BUILDING PRODUCTS

TECH DATA TFP1880

TECH DATA TFP1860

• Available sizes: 2" (DN50) through 12"

(DN300)

• Allows a direct transition from flanged

components to a grooved piping system

• Bolt patterns conform to ANSI Class 125

and 150 standards

FiguRe 71

Flange Adapter

• Threaded or grooved outlet

• May be used for any tee connection where

a threaded or grooved outlet is needed

• Can be configured as a cross when

necessary

F i g u R e 730

Mechanical Tees & Crosses

TECH DATA TFP1810

gRooVed FittingS

Elbows, Tees, Caps & Crosses

• Provide an economical and efficient

method of changing direction, adding

an outlet, reducing or capping grooved

piping systems

• Cast grooved fittings provide full flow

characteristics

• Full back stop behind the groove to ensure

proper coupling engagement and rigidity

• Wide range of grooved fabricated fittings

also available

• Full flow standard end-to-end

dimensions

• Fully listed and approved for fire

protection use

• 300 psi pressure rated

• 90° elbows and tees are also available

in the “short pattern" style

grooved piping products

piping & electrical Devices

GROOVED PIPING PRODUCTS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

68

• Available in 1⁄2", 3⁄4" and 1" outlets

• Used to install the last sprinkler on

grooved branch line piping or as a

drain fitting

• End-of-the-line sprinkler fittings eliminate

the need for an end cap and female outlet

• Can be turned down for end of line drain

A d AC A P ®

• Galvanized grooved piping products are

also available

TECH DATA Contact TFBP for details

gAlVAnized PRoduCtS

• Large assortment of roll groovers available

• Automatic and portable roll groovers for

1" through 24" pipe

TECH DATA Contact TFBP for details

Roll gRooVeRS

CPVC PIPE & FITTINGS

69FI R E P RO T E C T IO N G eneral Produc ts Cat a logTYCO FIRE & BUILDING PRODUCTS

CPVC PIPE & FITTINGS

TFBP CPVC Pipe & Fittings manufactured with

Lubrizol's BlazeMaster® compound are listed by

Underwriters Laboratories, Inc. for use in:

• Light hazard occupancies as defined in the

Standard for Installation of Fire Sprinkler Systems,

NFPA 13

• Residential occupancies as defined in the Standard

for Installation of Fire Sprinkler Systems in

Residential Occupancies to Four Stories in Height,

NFPA 13R

• Residential occupancies as defined in the Standard

for Fire Sprinkler Systems In One and Two Family

Dwellings and Manufactured Homes, NFPA 13D

• Blazemaster Pipe and Fittings are listed and

approved for use in the widest range of

applications for any CPVC fire sprinkler systems

• CPVC pipe and fittings

• Pipe available in sizes 3⁄4" through 3" in 10' and

15' lengths (Tech Data: IH-1900)

• Fittings available in a wide range of designs,

in sizes 3⁄4" through 3"

• Elbows, tees, crosses, couplings, sprinkler head

adapters (SHA’s), reducing tees, reducing bushings,

CPVC to grooved couplings

• Light Hazard

& Residential

Occupancies

• Unfinished

Basements

• Underground

Water Pressure

Service

• Connections to

Copper & Steel

Piping

• Resistance

of Sweating,

Condensation

& MIC

APPLICATIONS:

CPVC PIPE & FITTINGS

cpvc pipe & threaded fittings

piping & electrical Devices

CPVC PIPE & THREADED FITTINGS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

70

TECH DATA IH-1900

CPVC PiPe & FittingS

• Pipe available in sizes 3⁄4" through 3" in 10’

and 15’ lengths

• Manufactured with Lubrizol's

BLAZEMASTER® compound

• Fittings available in a wide range of

designs and sizes 3⁄4" through 3"

• Included in the TFBP line of

BLAZEMASTER® CPVC products

• Allows two sidewall sprinklers to be

piped from one fitting

• Ideal when the CPVC piping is located

in a 31⁄2" (2" x 4") vertical wall, eliminating

the need for extra nipples, fittings and

sprinkler head adapters typically

associated with supplying two rooms

with the same pipe

bACk-to-bACk FittingS

• Available sizes: 3⁄4" through 2"

• Transition to BLAZEMASTER pipe from

traditional copper tube for plumbing

services

• Transition to steel or BLAZEMASTER

CPVC Fire Sprinkler System piping from

traditional copper tube for plumbing

services is fast, easy, and readily available

in the most complete fire sprinkler

package in the industry

CPVC to CoPPeR Fitting

• “No Block Hanger" is a two hole strap that

eliminates blocking to the beam when

hanging CPVC pipe

• Positions the face of the pipe 11⁄2" off the

face of the joist

• Headset hanger is designed to hang CPVC

pipe and for the proper placement of the

sprinkler before the ceiling is installed

• Provides vertical restraint, eliminating

need for additional hangers

• BLAZEMASTER Caulk and Walk® Firestop

CPVC HAngeRS & SuPPlieS

• Specially designed and dimensioned to

enable the sidewall sprinklers to be

recessed with 1⁄2" or 5⁄8" sheet-rock

wall covering

• One-Step CPVC Cement specifically

formulated for use with BlazeMaster pipe

and fittings

ELECTRICAL DEVICES

71FI RE P R OT E C T I ON G e nera l Pro d uc ts Cata logTYCO FIRE & BUILDING PRODUCTS

GROOVED PIPING PRODUCTS

ELECTRICAL DEVICES

Electrical Devices (alarm and supervisory) allow

sprinkler and other fire protection systems to be interfaced

with hydraulic or electronic alarm systems so that upon

activation of the system, an electrical or mechanical signal

activates an audible or visible alarm or computerized

notification device.

• Easier to

Install, Set &

Maintain than

Mechanical

Accelerators

• Operation of

the Dry Pipe

Valve within

Four Seconds

• Proven Electric

Release

Technology

• Built-in

High & Low

Pressure Alarm

Supervision

• Battery Back-

up in the Event

of Primary

Power Failure

FEATURES:

ELECTRICAL DEVICES

electrical devices

piping & electrical Devices

ELECTRICAL DEVICES

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

72

TECH DATA Contact TFBP for details

bAll VAlVe WitH SuPeRViSoRy SWitCH

Ball Valve with Tamper & Alarm Switch

V S R W Ate R F l o W A l A R M S W i t C H

Flow & Pressure Switch

• Available sizes:

2" (DN50) through 8" (DN200)

• Vane type waterflow switch for use on

wet sprinkler systems

• Actuated with a minimum flow of

10 gallons per minute

• Available pipe sizes:

1" (DN25), 11⁄4" (DN32), 11⁄2" (DN40) or

2" (DN50)

• Vane type waterflow switch for use on

wet sprinkler systems

• May also be used as a sectional water flow

detector on large systems

• Installs directly into a threaded tee

VSR WAteRFloW AlARM SWitCH FoR SMAll PiPe

Flow & Pressure Switch

• Designed to detect a pressure increase or

decrease in fire sprinkler systems

• PS40 switches are primarily used to

monitor low air pressure conditions in

dry systems

• PS10 switch is appropriate for water flow

detection

Model PS10/PS40 PReSSuRe AlARM SWitCH

Flow & Pressure Switch

• Utilizes a 1⁄2" ball valve in combination

with a switch assembly

• Switch assembly enclosed in a tamper

resistant NEMA 4 (water resistant)

enclosure

• Retard delay is an adjustable feature that

can be set from 0 to 90 seconds

• Flow condition must exist for the period of

time necessary to overcome the selected

delay period

electrical devicecs

piping & electrical Devices

ELECTRICAL DEVICES

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

73FI R E P ROT E C T IO N Gene ral Produc t s Ca talo gTYCO FIRE & BUILDING PRODUCTS

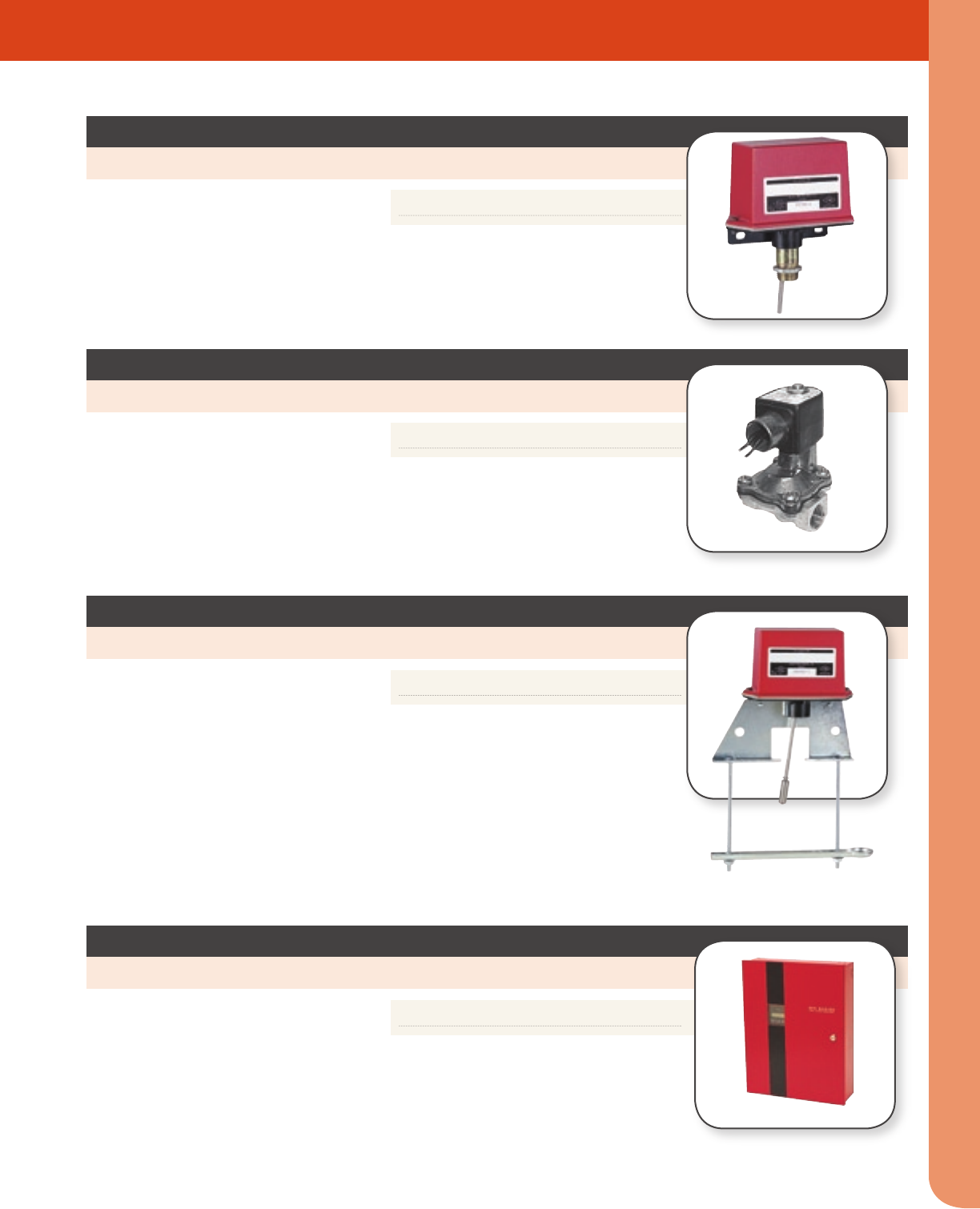

TECH DATA TFP2180

TECH DATA Contact TFBP for details

Solenoid VAlVe

For Releasing Service – 1⁄2" (DN15)

oSy-Su

Tamper & Alarm Switch

PCVS ContRol VAlVe SuPeRViSoRy SWitCH

Tamper & Alarm Switch

• Used in conjunction with an electric

releasing panel that is listed or approved

(as appropriate) for fire protection

releasing service, and where the releasing

panel is operated by listed or approved

(as appropriate) electric fire detectors

• Available in a variety of voltages for both

normal and hazardous locations

• Used to monitor the open position of an

OS&Y (outside screw and yoke) type

gate valve

• Mounts conveniently to most OS&Y

valves ranging in size from 2" (DN50)

to 12" (DN300)

• Can be used on some valves as small as 1⁄2"

• Circulates single sprinkler flow and allows

testing of flow switch without external

discharge of water - replaces traditional

Inspector's test procedure

• Weather proof and tamper resistant switch

for monitoring the open position of post

indicator, butterfly and other types of fire

sprinkler/control valves

TECH DATA Contact TFBP for details

4410- R C

Releasing Panel

• Provides the interface between detection

system, deluge or single or double

interlocked preaction valve, and signaling

circuit and devices in electrically actuated

fire protection systems

• Separate supervisory zone provided for

electronic supervision of valve position,

low pressure, and other critical fire

protection functions

• Can be used in single zone, cross zone,

sequential or cross/sequential electric

deduction systems

• Has programming capability

• Listings and Approvals: UL and FM

electrical devices

piping & electrical Devices

ELECTRICAL DEVICES

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

74

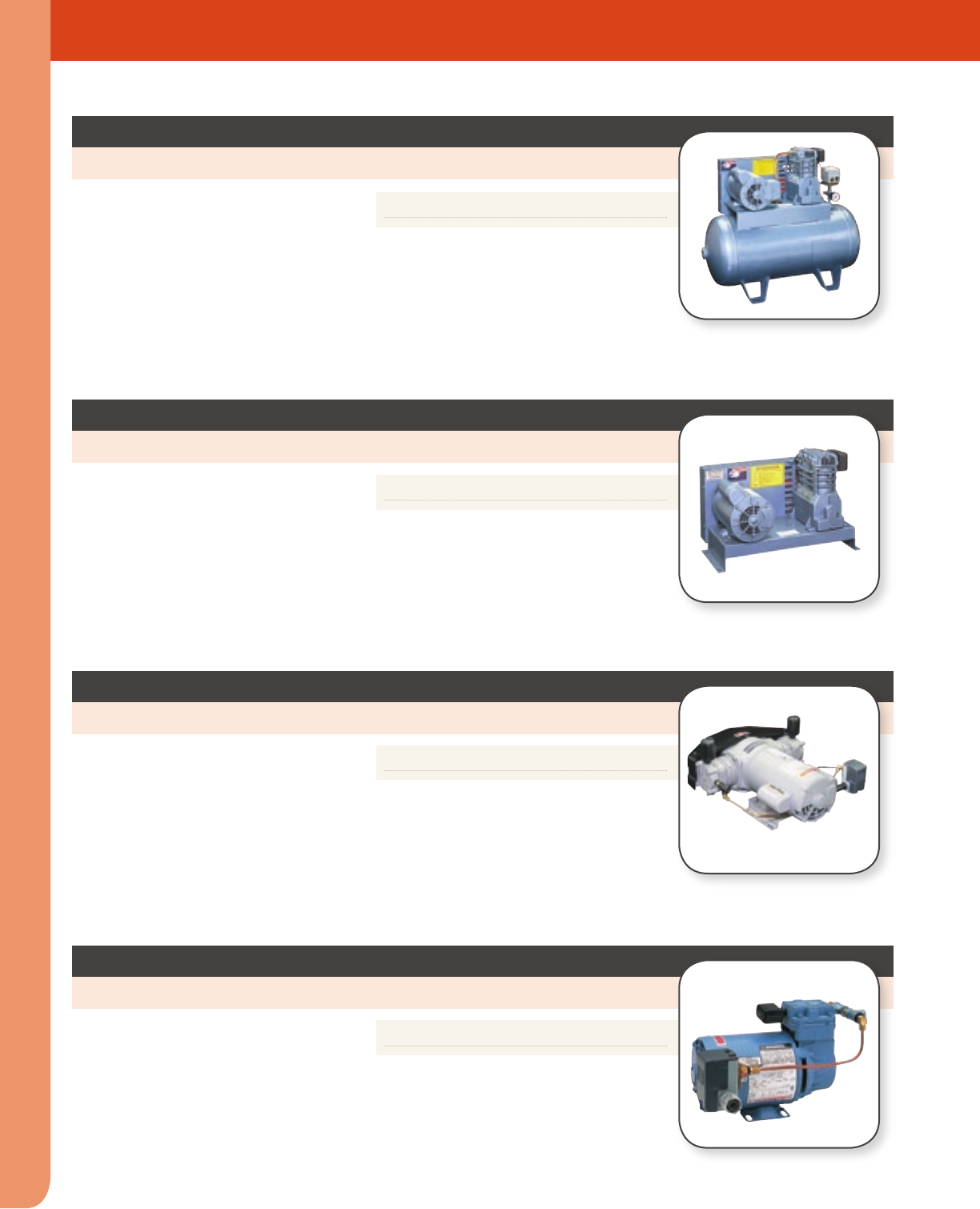

M o d e l g 16A C 8 12

Automatic Supervisory Air Supply

RiSeR Mounted AiR CoMPReSSoR

Fully Automatic

bASe Mounted AiR CoMPReSSoR

For Dry Pipe Sprinkler Systems

tAnk Mounted AiR CoMPReSSoR

For Dry Pipe Sprinkler Systems

TECH DATA Contact TFBP for details

TECH DATA TFP1620

• Designed for the same high-performance

as base mounted units

• Compressor is mounted on an air tank

to offer further ease of installation and

availability

• Automatic and safety features are built

into the unit, reducing installation costs

• Designed for high volume (cubic feet of

air per minute) at the moderate pressures

required for the system

• Sized properly, these will fill the system to

40 PSIG of air pressure in approximately

30 minutes as required in NFPA 13

• Fully automatic and are designed for easy

installation

• Special mounting kits with U-bolts are

available to facilitate riser mounting

• Sized properly, these compressors will fill

a system to 40 PSIG within 30 minutes as

required in NFPA 13

• Supplies and maintains air in single

interlock preaction fire protection systems

having a nominal supervisory air pressure

of 10 psi (0.7 bar)

• Can be mounted on the floor, on a wall, or

to the system riser using optional brackets

• Listings and Approvals: UL

• Multiple dry systems may be supplied from

a single compressor tank that is a constant

source of air

• This is the recommended air supply

method for all dry pipe sprinkler systems

electrical devicecs

piping & electrical Devices

ELECTRICAL DEVICES

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

75FI RE P ROT EC T I ON G eneral Pro ducts Cat alogTYCO FIRE & BUILDING PRODUCTS

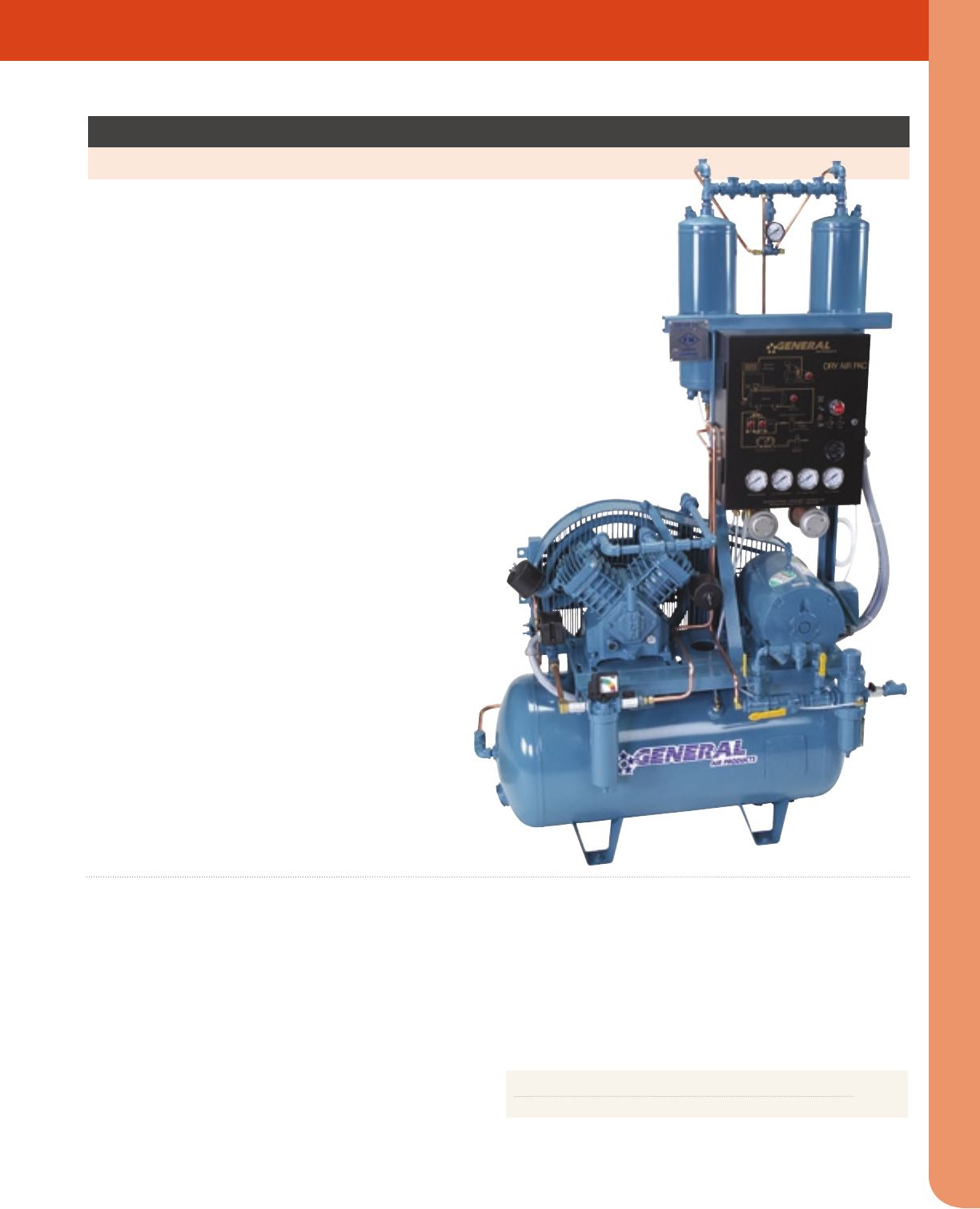

dAP SeRieS

Dry Air Pac™

TECH DATA Contact TFBP for details

• Combination after filter and regulator

• A separate port is provided for attachment of a

dewpoint-monitoring device

• Oversized mufflers

• Fully integrated control panel

• Compact air cooled after cooler

• Prefilter with differential pressure

• Vibration pads

• The Dry Air Pac™ comes fully charged with desiccant so that

no on-site desiccant installation is required at startup

• Separate desiccant fill and drain ports are provided to allow

re-charging of the dryer tanks without disassembly of the

dryer component piping

General’s DAP Series Dry Air Pac™ is an FM Approved, twin tower regenerative

dryer / compressor package. This turnkey system is designed to provide the

sprinkler system with moisture free air to a -40°F Dew Point. The air compressor is

designed to fill the sprinkler system in accordance with NFPA 13 standards, as well

as provide the higher pressure needed to allow the twin tower regenerative dryer

to function properly.

Prior to entering the regenerative air dryer, an air cooled aftercooler cools the

compressor’s hot discharge air to a maximum 100°F. A coalescing prefilter with

differential pressure gauge removes oil vapor and other contaminants that can

destroy the desiccant in the dryer towers. A combination particulate filter and

regulator prevents downstream migration of desiccant dust while regulating air

pressure to the sprinkler system.

The Dry Air Pac™ is controlled by one integrated control

panel complete with flow diagram display, 120 volt control

circuit with indicating lights for tower drying, drain valve

activation and compressor operation, along with panel

mounted hour meter, separate drain valve duration and

interval controls, drain valve on/off switch and panel control

on/off switch. Four panel-mounted pressure gauges are

provided for receiver, outlet and drying tower pressures.

Purge set pressure gauge is separately mounted and

conveniently located at the purge valve for ease of setting

the purge flow.

All components are pre-piped, pre-tested, and pre-wired

for ease of mechanical and electrical installation on site. Each

unit includes a UL Listed, FM Approved Air Maintenance

Device. -100°F dew point is achievable - consult factory for

details.

Applications for the Dry Air Pac™ include, but are not limited

to Freezer Rooms, Cold Storage Warehouses, Attic Spaces

and Parking Garages.

• A coalescing filter, with integral differential pressure gauge,

removes oil and water droplets prior to entry to into the

desiccant dryer

• The single stage compressor allows for maximum efficiency.

Standard equipment includes intercooler, oil fill/breather, oil

sight glass and easily removable drain plug

• UL, C-UL Listed, FM Approved

electrical devices

piping & electrical Devices

ELECTRICAL DEVICES

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

76

FOAM SYSTEMS

lHd

Linear Heat Detection Cable

TEMPERATURE

RANGE 155° F (68°C) (typical temperature)

172° F (78°C), 190° F (88°C)

220° F (105°C)

AVAILABLE

JACKET MATERIAL Polyproplene, PVC, Nylon

RESISTANCE .05 ohms/ft resistance per twisted pair

RF TESTED Up to 10,000 linear ft.

TECH DATA Contact TFBP for details

• Ideal for double interlock preaction detection

• Install up to 10,000 linear feet per zone

• Compatible with any conventional releasing panel listed

for fire

• Can detect heat anywhere along the entire length of cable

• Multiple alarm temperatures can be incorporated in the

same zone

• Easy to add a module

• Lower material & installation cost

• UL, C-UL Listed, FM Approved

The Linear Heat Detection (LHD) cable is a combination of

advanced polymer and digital technologies which can be used on

any panel, and can detect heat anywhere along its entire length.

At the core of the LHD cable is a twisted pair of extremely low

resistance, tri-metallic conductors, sheathed in new advanced

thermal polymers. These polymers are chemically engineered to

break down at specific fixed temperatures allowing the twisted

conductors to make contact and initiate an alarm. The polymer

used for the protective outer coating of LHD cable is chemical

resistant and UV protected. This allows the LHD cable be used in a

wide variety of installations and special hazard applications.

Linear Heat Detection Cable allows a Quell designed fire sprinkler

system to be more efficient by quickly recognizing the fire, and

conveying the information back to the fire alarm panel.

Tri-Metallic Core:

Steel provides tensile strength

Copper Increase conductivity

Tin for corrosion resistance

Advanced Polymer Thermal

Reactant Sheathing

No Protective Tape Required

Chemical and UV Resistant

Polymer Outer Covering

Wire O.D. 1⁄8”

Spot

Detection

Sollenoid

Valve

Alarm/Release

Leader Wires

Releasing

Min. 18 AWG 18,000 ft.

Junction Box Cable Strain Relief Connectors

Thermo Cable®

Maximum 10,000 Feet of LHD Cable Per Zone

Cable Strain Relief Connectors

DV-5

Deluge/Preaction Valve

Potter® Electronic

Series PFC-4410-RC

Releasing Panel

J-Box or

ELR-Box

LHD Cable Secured to the Sprinkler Pipe

by Cable Ties Every 3 - 5 ft.

Loop Cable Ties

or other approved fastener

3-5 ft.

LHD Cable Secured

to the Sprinkler Pipe with

Guide Wire Every 3-5 ft.

Ultra K17

Upright Sprinkler

Spaced 10 ft. Apart

10 ft.

77F I R E P RO T E C T ION Gene ral Produ c t s Ca talo gTYCO FIRE & BUILDING PRODUCTS

• Class B

Hydrocarbon

Fuel Fires Such

as Crude Oils,

Gasoline, Diesel

Fuels & Aviation

Fuels

• Class B Polar

Solvent Fuel fires

such as Methyl

Alcohol, Acetone

& Ethyl Alcohol

• Loading Racks

• Aircraft

Hangars

• Refineries

• Marine Vessels

• Warehouses

• Special Class A

Foam

Concentrates

for Use with

Municipal

and Forest

Firefighting

Hardware &

Apparatus

APPLICATIONS:

Foam-Water Systems most commonly use

the balanced pressure proportioning method for

flammable liquid fire protection applications. They

are designed to accurately control the flow of a

foam liquid concentrate into a water stream over a

wide range of flow rates and pressures. Two basic

types, bladder tanks and pump systems, require the

foam concentrate pressure to be balanced with the

water pressure at the proportioner which meters

the proper amount of foam concentrate into the

water stream. The resulting foam solution is piped

to discharge devices protecting the hazard area.

FOAM SYSTEMS

F OA M S YS T E M S

foam systems

specialty systems

F OA M S YS T E M S

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

78

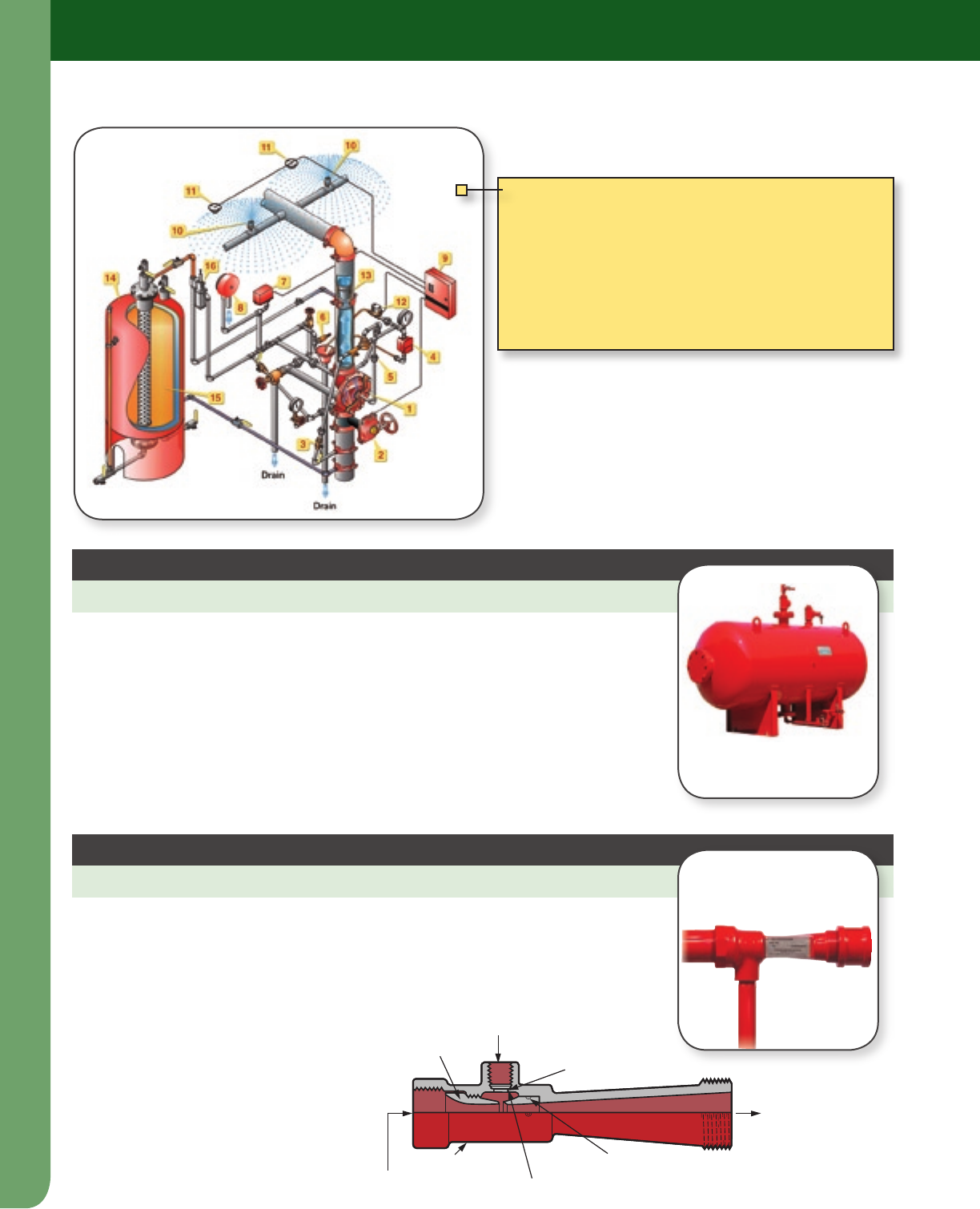

PRoPoRtioneR

2" and 21⁄2" In-Line Proportioner

• Elastomeric bladder stores foam liquid

concentrate discharged by incoming

water applying pressure to the bladder

• Both vertical and horizontal models are

available

• Internal tank perforated center tube

provides improved agent discharge

blAddeR tAnkS

Foam Bladder Tanks

Legend:



1

 DelugeValve(DV-5)



2

 IsolationValve



3

 DiaphragmSupplyValve



4

 ManualControlStation



5

 AutomaticShut-offValve



6

 AutomaticDrainValve



7

 PressureSwitch



8

 WaterMotorGong



 9

 ReleasingPanel

 10

SprayNozzle

 11

Smoke/HeatDetector

 12

SolenoidValve

 13

FoamProportioner

 14

FoamBladderTank

 15

FoamConcentrate

 16

HydraulicBallValve

• Each proportioner consists of a body, inlet

nozzle, and metering orifice, all of which

are corrosion-resistant brass

• The proportioner body is designed with a

female NPT threaded inlet and a male NPT

threaded outlet in sizes of 2" or 21⁄2"

• Clearly marked on the proportioner body

are the flow direction arrow, as well as the

type and percentage of concentrate for

which the proportioner was designed

• The inlet nozzle is secured by a stainless

steel retaining ring

300 gal (1136 L) Horizontal

Tank Shown

• Foam concentrate capacities from

50 to 1500 gal (190 to 5678 L)

• Red standard system paint or coated with

an epoxy “CR” red finish for use in marine

or corrosive environments

• Standard or pre-piped tanks with

proportioner for ease of installation

• The metering orifice is sized according to

the type and percentage of concentrate

used and is also secured with a stainless

steel retaining ring)

001185

BODY THROAT

JET

METERING ORIFICE

WATER

INLET

FOAM

SOLUTION

DISCHARGE

RETAINING RING

FOAM CONCENTRATE

INLET

foam systems

specialty systems

F OA M S YS T E M S

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

79FI R E P R OT E C T IO N Gene ral Produ c t s Ca talo gTYCO FIRE & BUILDING PRODUCTS

in-line PRoPoRtioneR

In-Line Proportioner Pump System

FoAM AgentS

ANSULITE® 1% AFFF Concentrate

• For use on Class B hydrocarbon fuel fires such as crude oils, gasoline, diesel fuels and aviation fuels. Aspirated

or nonaspirated discharge devices. 1% solution in fresh, salt or hard water. 1% premix in fresh or potable

water. UL Listed.

ANSULITE® 1% Freeze-Protected AFFF Concentrate

• For use on Class B hydrocarbon fuel fires such as crude oils, gasoline, diesel fuels and aviation fuels. Aspirated

or nonaspirated discharge devices. 1% solution in fresh, salt or hard water. 1% premix in fresh or potable

water. Concentrate is freeze protected to –20 °F (–29 °C). UL Listed.

ANSULITE® 3% AFFF Concentrate (AFC-3-A)

• For use on Class B hydrocarbon fuel fires such as crude oils, gasoline, diesel fuels, and aviation fuels.

Aspirated or nonaspirated discharge devices. 3% solution in fresh, salt or hard water. 3% premix in fresh or

potable water. UL Listed.

ANSULITE® PREMIUM 3% AFFF Concentrate MIL SPEC (AFC-5-A)

• For use on Class B hydrocarbon fuel fires such as crude oils, gasoline, diesel fuels and aviation fuels. Aspirated

or nonaspirated discharge devices. 3% solution in fresh, salt or hard water. 3% premix in fresh or potable

water. UL Listed. On QPL under U.S. Military Specification MILF- 24385F.

ANSULITE® 3% Freeze-Protected AFFF Concentrate

• For use on Class B hydrocarbon fuel fires such as crude oils, gasoline, diesel fuels and aviation fuels. Aspirated

or nonaspirated discharge devices. 3% solution in fresh, salt or hard water. 3% premix in fresh or potable

water. Concentrate is freeze protected to –20 °F (–29 °C). UL Listed.

• Maintains an equal pressure in the foam

concentrate and water inlets to the

proportioner. This allows the proportioner

to be used over a wide range of flows

and pressures. It responds quickly and

accurately to changes in the water inlet

pressures and flow rates

• Spool valve design ensures accurate

pressure regulation and rapid response to

changes in flow demand

• Six standard sizes

• Brass foam concentrate piping with

stainless steel trim accessories

• Standard for use in marine applications and

other corrosive environments

• Nameplates for valve identification

• Choice of unpainted brass or standard red

paint finish

• Used with an atmospheric foam

concentrate tank and a positive

displacement foam concentrate pump

foam systems

specialty systems

F OA M S YS T E M S

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

80

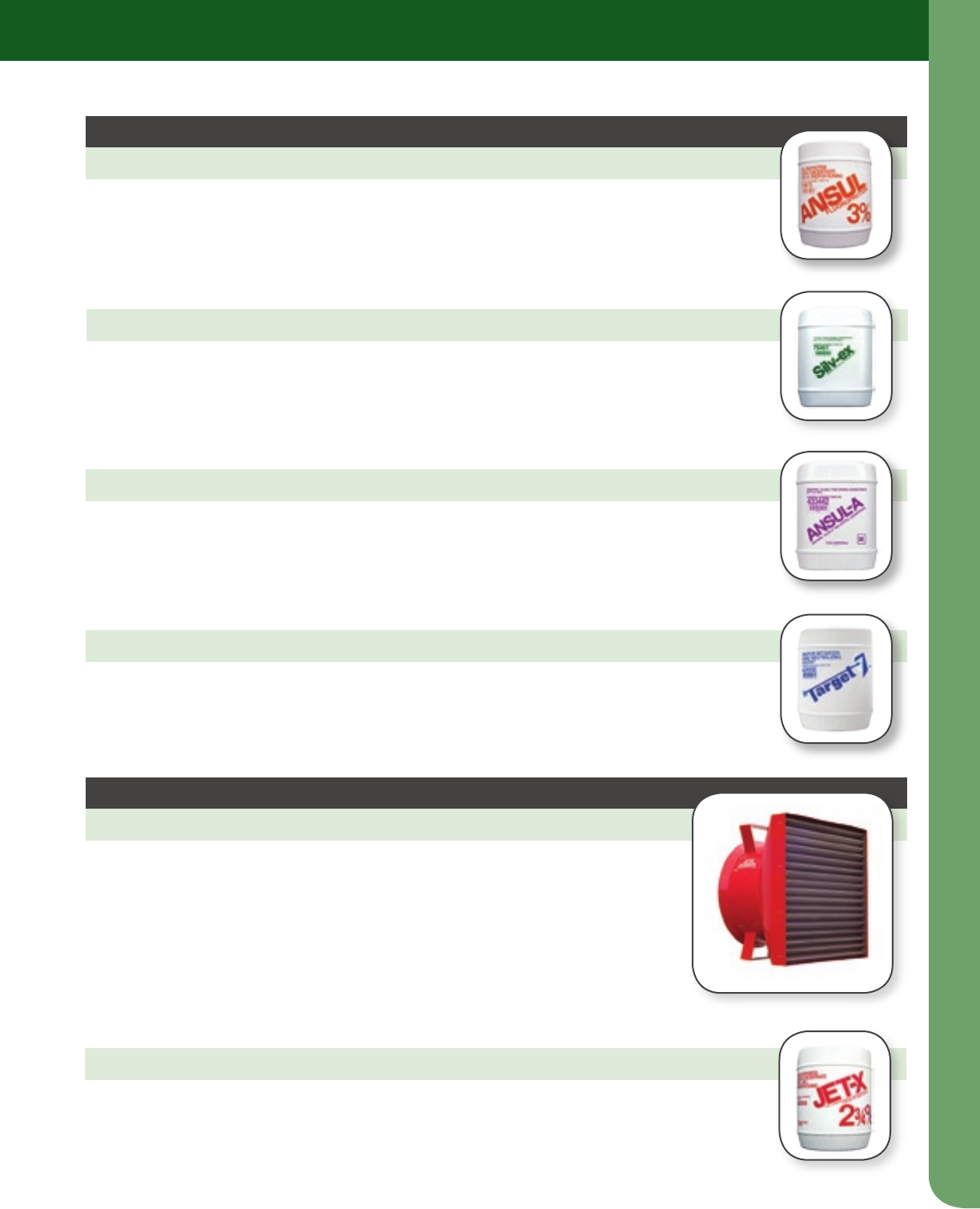

F o A M A g e n t S ( C o n t. )

ANSULITE® 6% AFFF Concentrate (AFC-3)

• For use on Class B hydrocarbon fuel fires such as crude oils, gasoline, diesel fuels and aviation fuels. Aspirated

or nonaspirated discharge devices. 6% solution in fresh, salt or hard water. 6% premix in fresh or potable

water. UL Listed.

ANSULITE® ARC Alcohol-Resistant 3%/6% AFFF Concentrate

• For use on Class B fuel fires: 3% concentrate on hydrocarbon fuels such as gasoline, fuel oil, etc. and 6% on

polar solvent (water miscible) fuels such as methyl alcohol, acetone, MTBE, etc. Aspirated or nonaspirated

discharge devices. 3%/6% solution in fresh, salt or hard water. 3%/6% premix in fresh or potable water.

UL Listed and FM Approved.

ANSULITE® PREMIUM 6% AFFF Concentrate MIL SPEC (AFC-5)

• For use on Class B hydrocarbon fuel fires such as crude oils, gasoline, diesel fuels and aviation fuels. Aspirated

or nonaspirated discharge devices. 6% solution in fresh, salt or hard water. 6% premix in fresh or potable

water. UL Listed. On QPL under U.S. Military Specification MILF- 24385F.

ANSULITE® 3X3 Low Viscosity Alcohol-Resistant AFFF Concentrate

• Superior firefighting performance on Class B fuel fires. Used as 3% concentrate on BOTH hydrocarbon fuels

such as gasoline, fuel oil, etc., and polar solvent (water miscible) fuels such as methyl alcohol, acetone, MTBE,

etc. Low viscosity formula enhances performance with in-line eductors, balanced pressure systems and

built-in systems on firefighting vehicles. Aspirated or nonaspirated discharge devices. 3% solution in fresh,

salt or hard water. 3% premix in fresh water. UL Listed, FM and USCG Approved.

3% Regular Protein Foam Concentrate

• For use on Class B hydrocarbon fuel fires such as crude oils, gasoline, diesel fuels and aviation fuels. Must be

used with air aspirating type discharge devices. 3% solution in fresh, salt or hard water. UL Listed.

ANSULITE® ARC 3 or 6 Freeze Protected

• Freeze Protected ANSULITE® ARC is intended for use as a 3% or 6% proportioned solution, depending on the

type of fuel hazad. Fresh or salt water can be used to create the foam water solution. The foam concentrate

may be stored at temperatures down to 0 °F (–18 °C) without freezing. If stored below the minimum use

temperature, freezing may occur. If freezing does occur, thaw and remix the concentrate prior to use.

foam systems

specialty systems

F OA M S YS T E M S

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

81F I RE P R OT E C T I ON G e nera l Pro d uc ts Cata logTYCO FIRE & BUILDING PRODUCTS

ANSUL-A™ Municipal “Class A" Fire Control Concentrate

• ANSUL-A foam concentrate is formulated using fluorine-free surfactants to perform on Class A combustible

materials. ANSUL-A is compatible for use in compressed air foam systems (CAFS) over the use range of 0.1%

to 1.0%. The minimum storage temperature for this concentrate is 20 °F (–6.7 °C).

TARGET-7™ Vapor Mitigation & Neutralizing Agent

• For use on highly toxic chemicals like chlorine dioxide and titanium tetrachloride. Mitigates dangerous vapor

releases and simultaneously neutralizes (with the addition of an acidic or caustic agent, depending on the

application) the spilled material without causing additional vapor release.

JET-X® 2 3⁄4% High-Expansion Foam Concentrate

• For use on Class A, B and LNG fires. Capable of total flooding large rooms and enclosures when used with

JET-X high expansion generators at 200:1 to 1000:1 expansion ratios (2 3⁄4% concentration). Also used with

medium-expansion equipment at 50:1 to 200:1 expansion ratios (2% concentration). Used only with air

aspirating foam discharge devices. UL Listed and FM Approved.

SILV-EX® “Class A" Fire Control Concentrate

• Makes water at least five times more effective on many Class A deep-seated applications including wild

fires and fires found in structures, paper, tires, and coal. Proportioned from 0.1% to 1% in fresh brackish

or sea water; as a premix in fresh or potable water for long-term storage. Delivered using aspirating and

nonaspirating discharge devices, compressed air foam systems or dropped from fixed or rotary wing aircraft.

Approved by U.S. Forest Service.

F o A M A g e n t S ( C o n t. )

3% Fluoroprotein Foam Concentrate

• For use on Class B hydrocarbon fuel fires such as crude oils, gasoline, diesel fuels and aviation fuels. Must be

used with air aspirating type discharge devices. 3% solution in fresh, salt or hard water. UL Listed.

• Water-powered. Designed to deliver

JET-X® high expansion foam with a

maximum output capacity of 24,000 cfm

(680 cu. m/min.) The generators are of

steel construction with a water powered

motor and stainless steel foam screen

HigH-exPAnSion FoAM PRoduCtS

JET-X® High-Expansion Foam Generators

• No electrical power is required

• The generators come in various sizes and

are used for both portable and fixed-system

applications

foam systems

specialty systems

F OA M S YS T E M S

TECH DATA TFP344

ADDITIONAL INFO Page 20

TECH DATA TFP340

ADDITIONAL INFO Page 20

TECH DATA TFP130

ADDITIONAL INFO Page 10

TECH DATA TFP800

ADDITIONAL INFO Page 40

TECH DATA TFP151

ADDITIONAL INFO Page 8

TECH DATA TFP171

ADDITIONAL INFO Page 8

TECH DATA TFP342

ADDITIONAL INFO Page 20

e l o - 2 3 1 b

Pendent & Upright

t y - b

Upright & Pendent

ty-FRb

Upright & Pendent

e A - 1

Automatic Protectospray™

Nozzle

e l o - 2 3 1 F R b

Pendent & Upright

e l o - 2 3 1

Pendent & Upright

ty-FRl

Upright & Pendent

TECH DATA TFP840

ADDITIONAL INFO Page 40

d 3

Protectospray™ Nozzle

b - 1

1⁄2" Foam-Water Sprinkler

TECH DATA TFP802

ADDITIONAL INFO Page 40

APPRoVed diSCHARge deViCeS FoR uSe WitH FoAM ConCentRAteS

TECH DATA TFP2005

Foam liquid concentrates are suitable for use on fires involving

ordinary hydrocarbon petroleum products, and some foam

liquid concentrates may also be suitable for use on fires

involving polar solvent fuels. The fire protection system

designer first identifies the fuel load and selects the foam liquid

concentrate according to its ability to be used for a given fuel

load. Upon selecting the foam liquid concentrate, the designer

then selects equipment, including discharge devices, based

on listing/approval compatibility of the equipment with the

concentrate.

Discharge devices fall into one of four categories:

• Foam-water sprinklers

• Foam-water spray nozzles

• Non-aspirating spray nozzles

• Standard sprinklers

AQUAMIST® SYSTEMS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

82

83FI R E P ROT E C T IO N General Produc ts Cat alogTYCO FIRE & BUILDING PRODUCTS

AQUAMIST® SYSTEMS

AQUAMIST® Systems utilize the newest and

most unique nozzles developed and approved for

fire protection. They offer an alternative to gaseous,

foam, and heavy density sprinkler systems. By

utilizing a higher pressure than a normal sprinkler

system, but a 50-80% lower water flow, the

AquaMist Systems use less water more effectively,

reduce pipe sizes and labor costs, and minimize

cleanup and water damage.

AQUAMIST® SYSTEMS

83FI R E P ROT E C T IO N General Produc ts Cat alogTYCO FIRE & BUILDING PRODUCTS

• Cable Trays

• Clean Rooms

• Computer Rooms

• Conveyors

• Cut-Off Rooms

• Engine Test Cells

• Flammable Liquid

Storage

• Food Processing

• Fuel Storage

• Gas Turbines

• Historic Sites &

Museums

• Industrial Process

Equipment

• Machining Centers

• Ferries

• Offshore Platforms

• Telecommunications

• Transformers

• Vapor Suppression

APPLICATIONS:

aquamist® systems

specialty systems

AQUAMIST® SYSTEMS

TYCO FIRE & BUILDING PRODUCTSFIRE PROTEC TION General Products Catalog

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

84

“MCC" MiSt ContRol CenteR WitH Red-e CAbinet®

Pre-Assembled Fire Pump, Controller, Deluge Valve Cabinet & Releasing Panel

The “MCC" Pump Skid Package is the self-contained control

center of the AquaMist® System. The compact skid unit

has been professionally designed and assembled to ease

system installation and to meet the most stringent project

requirements.

• Power must be provided for the control cabinet and

pump controller

• Detection circuits must be installed and wired to the

control cabinet

• An adequate water supply must be piped to the pump

supply piping inlet

PFC4410

Singlezone,

crosszone,

orsequential

crosszone

releasingpanel

VariablePressure

AquaMistFirePump

DV-5Deluge

Valve

FirePumpController

RequiredOutletStrainer

Thepipe,fittings,hangers

andAquaMistnozzlesare

tobeconnectedtothe

straineroutlet.

To System

How the AquaMist System Works

• Evaporation (heat extraction) is a

function of surface area of droplets

• Reducing droplet size increases

surface area

• Increase in surface area allows for

larger cooling effect for a given flow

• Water converts to vapor expanding by

a factor of 1650 times

• Oxygen is displaced and diluted,

thereby blocking it from the fuel

source

• Higher heat level causes a faster

vaporization

HEAT

OXYGEN

VAPOR

LARGER DROPS

PENETRATE TO

BURNING SURFACE

• Fire extinguishment is improved with

direct contact of water droplets

• This type of extinguishment is

normally associated with standard

sprinklers

• Important part of operation if

ventilation is a factor and Class A

combustibles are present

BLOCKS RADIANT

HEAT AND

COOLS GASSES

• Small water droplets tend to remain

suspended

• The expanding mist will expand and

cool the gases and other fuels in the

area

• Blocks the transfer of radiant heat

to the adjacent combustibles and

pre-wets them

1 2

3 4

aquamist® systems

specialty systems

AQUAMIST® SYSTEMS

Always refer to the product’s Technical Data Sheet for a complete description of all Listing and Approval criteria, design parameters, installation instructions, care and maintenance guidelines, and our limited warranty.

85F I RE P ROT EC T I ON G e neral Pro ducts Cat alogTYCO FIRE & BUILDING PRODUCTS

K FACTOR 0.33 Gpm/psi 0.5,

(4,71 Lpm/bar 1/2)

THREAD SIZE

1⁄2"

NPT

FINISH Stainless Steel

TECH DATA TD1172

K FACTOR K=0.24 (3,5)

THREAD SIZE

1⁄2"

NPT

FINISH Stainless Steel

TECH DATA TD1174

K FACTOR K=0.24 (3,5)

THREAD SIZE

1⁄2"

NPT

FINISH Stainless Steel

TECH DATA TD1173

A M 10 AQ u A M i S t ®

Open Type Mist Nozzle

• Open spray nozzles

• Designed for use in water mist protection

systems protecting flammable liquids and

turbine bearings

• Minimal water demand, approximately

3.1 GPM/nozzle at 170 psi (11,73 lpm at

11,6 bar)

• Mist represents latest in fire protection

technology

• For use in “low pressure" mist applications

• Minimum operating pressure is 170 psi

(11,6 bar)

A M 4 A Q u A M i S t ®

Open Type Mist Nozzle

• Open spray nozzles

• Listed and Approved for the protection of

flammable liquid hazards (UL/FM)

• Approved for protection of gas turbines (FM)

• Maximum ceiling height, 26' 3" (8 m)

• Compartment volume:

– UL - 56,500 ft3 (1,600 m3)

– FM - 45,203 ft3 (1,280 m3)

• Maximum utilization of water for flam-

mable liquid fire protection

• Nozzle coverage: maximum 172 ft2 (16 m2)

• Nozzle pressure: 185 to 250 psi

(12,8 to 17,2 bar)

A M 24 AQ u A M i S t ®

Automatic Type Mist Nozzle

• Listed and Approved for marine type

approved by Lloyds, USCG, DNV, American

Bureau of Shipping, MCA, Germanischer

Lloyd, Bureau Veritas

• Intended applications – IMO mandated

local application system for protection of

class a machinery spaces

• Maximum distance between nozzles

(to plane of protection) - vertical clearance

nozzle spacing

– 1m to 3.5m nozzles - 13.1' (4,0 m)

spacing

– 3.5m to 5.0m nozzles - 11.5' (3,5 m)

spacing

– 5.0 m to 10.0 m nozzles - 9.8' (3,0 m)

spacing

• Pendent & upright designs

• Open nozzle for use on deluge systems

• Nozzle pressure: 175-250 psi

(12,07 - 17,24 bar)

index

4410-RC ...........................73

ACC-1 ..............................49

ADACAP® ..........................68

AM10 AQUAMIST . . . . . . . . . . . . . . . 41, 85

AM24 AQUAMIST . . . . . . . . . . . . . . . 41, 85

AM4 AQUAMIST . . . . . . . . . . . . . . . . 41, 85

AMD-1 .............................50

AMD-2 .............................50

AMD-3 .............................50

AP “Attic Plus” ......................32

Approved Discharge Devices for use

with Foam Concentrates . . . . . . . . . .82

Aquamist® Systems . . . . . . . . . . . . . .83-85

Attic ...............................32

AV-1 ...............................44

B-1 ............................40, 82

Back-to-Back Fittings . . . . . . . . . . . . . . .70

Ball Valve with Supervisory Switch . . .72

Base Mounted Air Compressor . . . . . .74

BB “Back-to-Back” . . . . . . . . . . . . . . . . . . .32

BFV-N .............................59

Bladder Tanks ......................78

Blow-Off Plugs .....................42

Butterfly Valves “Butterball” . . . . . . . . .60

CC1 ................................33

CC2 ................................33

CHEC ..............................15

Cooling Tower Nozzle . . . . . . . . . . . . . . .42

CPVC Hangers & Supplies . . . . . . . . . . .70

CPVC Pipe & Fittings . . . . . . . . . . . . .69-70

CPVC Pipe & Fittings . . . . . . . . . . . . . . . .70

CPVC to Copper Fitting . . . . . . . . . . . . .70

CV-1F ..............................58

CV-1FR .............................45

D3 .............................40, 82

DAP Series “Dry Air Pac™” . . . . . . . . . . .75

DD-1 (Drum Drip) . . . . . . . . . . . . . . . . . .62

Deluge & Preaction Systems . . . . .51-56

Deluge Systems ....................52

Double Interlock Preaction Systems .54

DP-1 ...............................60

DPV-1 ..............................48

Dry Sprinklers ......................27

Dry Systems Valves & Devices . . . .47-50

DS-1 ...............................28

DS-2 ...........................29, 30

DS-3 ...............................30

DSB-2 ..............................30

DS-C ...............................29

DS-ECC ............................29

DV-5 ...............................55

EA-1 ........................... 40, 82

EC-11 & EC-14 ......................12

EC-17 ..............................12

EC-25 ..............................12

EC-5 ...............................13

EC-8 ...............................13

Electrical Devices . . . . . . . . . . . . . . . .71-76

ELO SW-20/SW-24 . . . . . . . . . . . . . . . . . .14

ELO-231 .......................20, 82

ELO-231 FRB . . . . . . . . . . . . . . . . . . . 20, 82

ELO-231B ......................20, 82

ELOC ..............................15

Escutcheon Plates . . . . . . . . . . . . . . . . . .38

ESFR-1 .............................19

ESFR-17 ............................18

ESFR-25™ ..........................18

Extended Coverage Sprinklers . . .11-15

F822 thru F834 Mulsifyre® . . . . . . . . . . .42

Figure 577 .........................66

Figure 705 .........................66

Figure 71. . . . . . . . . . . . . . . . . . . . . . . . . . .67

Figure 716 .........................66

Figure 730 .........................67

Figure 772 .........................66

Fire Department Connections . . . . . . .64

Foam Agents ....................79-81

Foam Systems . . . . . . . . . . . . . . . . . . .77-82

FTR-1 ..............................35

Galvanized Products . . . . . . . . . . . . . . . .68

General Purpose Valves . . . . . . . . . .57-60

Grooved Fittings . . . . . . . . . . . . . . . . . . .67

Grooved Piping Products . . . . . . . .65-68

Hangers ...........................64

High-Expansion Foam Products . . . . .81

HIP ................................32

HV “High Velocity” . . . . . . . . . . . . . . . . . .40

ILLUSION™ .........................36

In-Line Proportioner . . . . . . . . . . . . . . . .79

Issue D Quartzoid . . . . . . . . . . . . . . . . . .35

K17-231 ............................19

LD “Large Drop” . . . . . . . . . . . . . . . . . . . .20

LFII .............................24-25

LFII NFPA 13 Optimized Sprinklers . . .26

LHD Linear Heat Detection Cable . . . .76

MCC Mist Control Center with RED-E-

Cabinet ..........................84

Model A & B-1 ......................62

Model C. . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Model FL-1 .........................62

Model G16AC812 . . . . . . . . . . . . . . . . . . .74

Model MC-1 ........................63

Model PS10/PS40 Pressure

alarm Switch .....................72

Nozzles & Accessories . . . . . . . . . . . .39-42

OSY-SU ............................73

PCVS Control Valve Supervisory

Switch ...........................73

Proportioner .......................78

PRV-1 ..............................58

QRS ................................49

Rapid Response™ Sprinklers . . . . . .23-26

Red-E-Cabinet® .....................56

Resi-Riser ..........................46

RFII (Royal Flush II) . . . . . . . . . . . . . . 9, 15

Riser Manifolds .....................45

Riser Mounted Air Compressor . . . . . .74

Roll Groovers .......................68

RSV-1 ..............................45

SD “Single Directional” . . . . . . . . . . . . . .32

Signs ..............................63

Single Interlock Preaction Systems . .53

Solenoid Valve .....................73

Special Purpose Sprinklers . . . . . . .31-36

Specialty Items . . . . . . . . . . . . . . . . . .61-64

SprinkCAD® ........................87

Sprinkler Accessories . . . . . . . . . . . .37-38

Sprinkler Guards . . . . . . . . . . . . . . . 22, 38

Sprinkler Head Cabinet . . . . . . . . . . . . .38

Standard Spray Sprinklers . . . . . . . . .7-10

Tank Mounted Air Compressor . . . . . .74

TFP MAX ...........................34

TFP PH2 ............................35

TFP PH5 ............................35

Trim Valves .........................60

TY-B ......................8, 21, 36, 82

TY-B & TY-FRB (Alternate Materials

of Construction). . . . . . . . . . . . . . . . . .36

TY-FRB . . . . . . . . . . . . . . 8, 9, 14, 21, 36, 82

TY-FRL . . . . . . . . . . . . . . . . . . 10, 14, 21, 82

TY-L .........................9, 10, 21

TY-QRF ............................10

Ultra K-17 ..........................19

VSR Waterflow Alarm Switch . . . . . . . .72

Wet Systems Valves & Devices . . . .43-46

WMA-1 ............................46

WS™ ...............................34

SprinkCAD ®

The Next Generation of SprinkCAD Design Software

Complete Fire Sprinkler System Design Programs Built

Upon the Industry-Leading CAD Graphics Program

SprinkCALC ™

Advanced Hydraulic Calculations

Welcome to the newest and most advanced hydraulic

calculation program available today... SprinkCALC

The first program to be listed by Underwriters Laboratories

and Factory Mutual specification tested for the calculation

of dry type systems per NFPA® requirements

SprinkFDT ™

www.sprinkcad.com

SprinkCODE ™

Interactive NFPA 13® Code Selector

Whether it's an estimate or the final design, this Code

Expert is an essential member of your staff

SprinkSLIC ™

Complete Fire Sprinkler Stock Listing

The name of the game is "PIPE ON THE JOB" and

Stocklisting is the bridge between design and installation

www.tyco-fire.com

www.tyco-rapidresponse.com

www.grinnell.com

Europe & Middle East: www.tycobuilding.com

Asia: www.tyco-fire.com.cn

Australia: www.tycobuilding.com.au

NORTH AMERICAN &

WORLDWIDE HEADQUARTERS

Tyco Fire & Building Products

451 N. Cannon Avenue

Lansdale, PA 19446

Tel: 215-362-0700, 800-523-6512

Fax: 215-362-5385

LATIN AMERICA

Regional Headquarters

South America, Central America &

Caribbean

1802 S.W. 2nd Street

Pompano Beach, FL 33069

Tel: 954-781-0866

Fax: 954-781-9330

EUROPE & MIDDLE EAST

Regional Headquarters

Kopersteden 1, NL-7547 TJ

Enschede

P.O. Box 198, 7500 AD

Enschede, The Netherlands

Tel: 31-53-428-4444

Fax: 31-53-428-3377

ASIA

Regional Headquarters

No. 45 Tuas Avenue 9

Singapore 639189

Tel: 65-6861-1655

Fax: 65-6861-1312

AUSTRALIA

Regional Headquarters

567 Somerville Road

Sunshine, VIC 3020

Tel: 13-00-725-688

Fax: (61) 3-9933-6204

Fire Protection General Products Catalogue

Navigation menu

Versions of this User Manual:

Views

Navigation
