Distinction in the World of Engine Governing & System Controls
genset controls & accessories digital management engine systems magnetic pickups custom control systems actuators
Product Catalog
ACTUATORS..................................................................3-7
THROTTLE BODY ..............................................3
INTEGRATED PUMP MOUNTED...................4
INTEGRATED ENGINE MOUNTED................5
UNIVERSAL...........................................................6
ACCESSORIES......................................................7

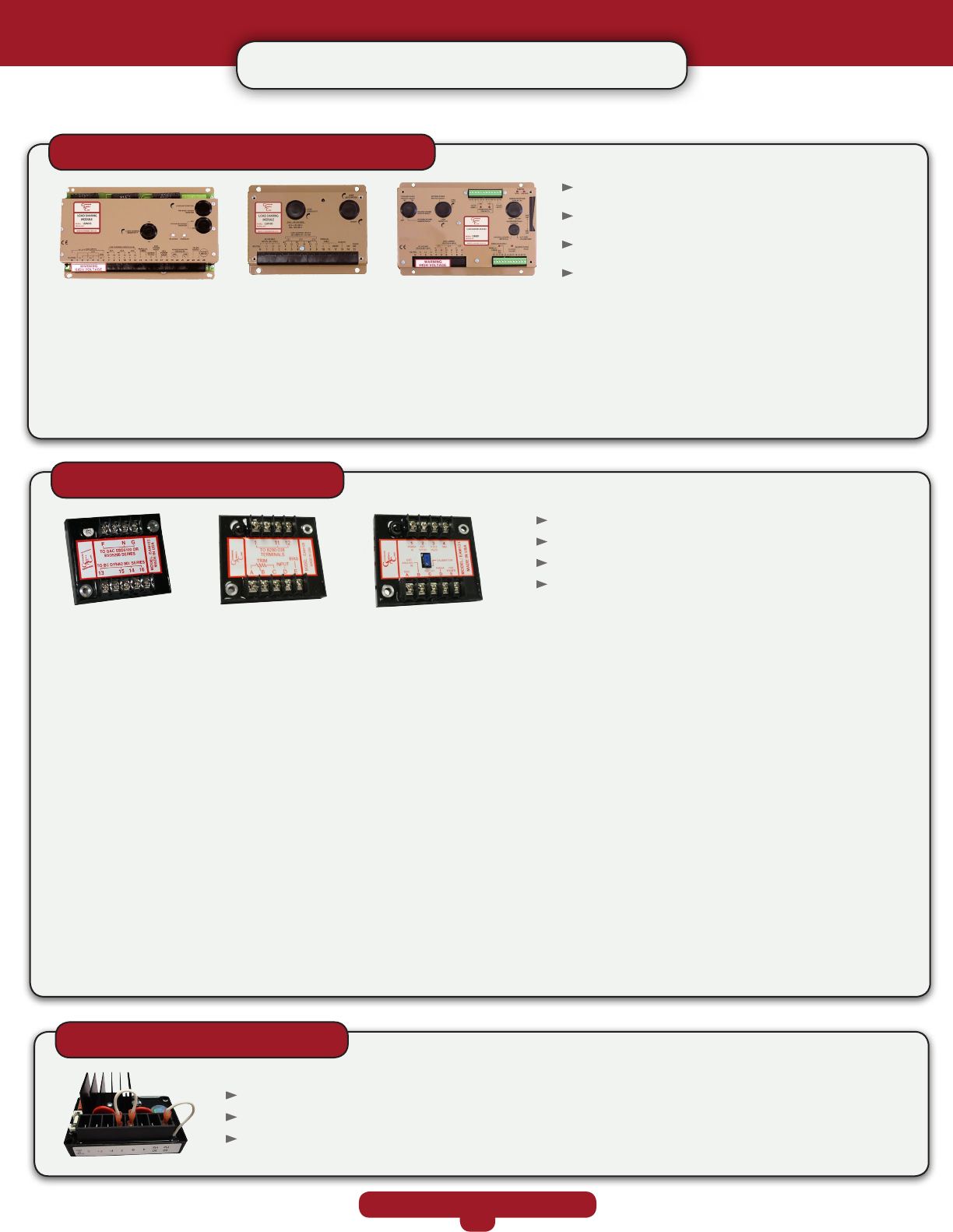

GOVERNORS..............................................................8-12
DIGITAL..................................................................8
ANALOG........................................................10,11

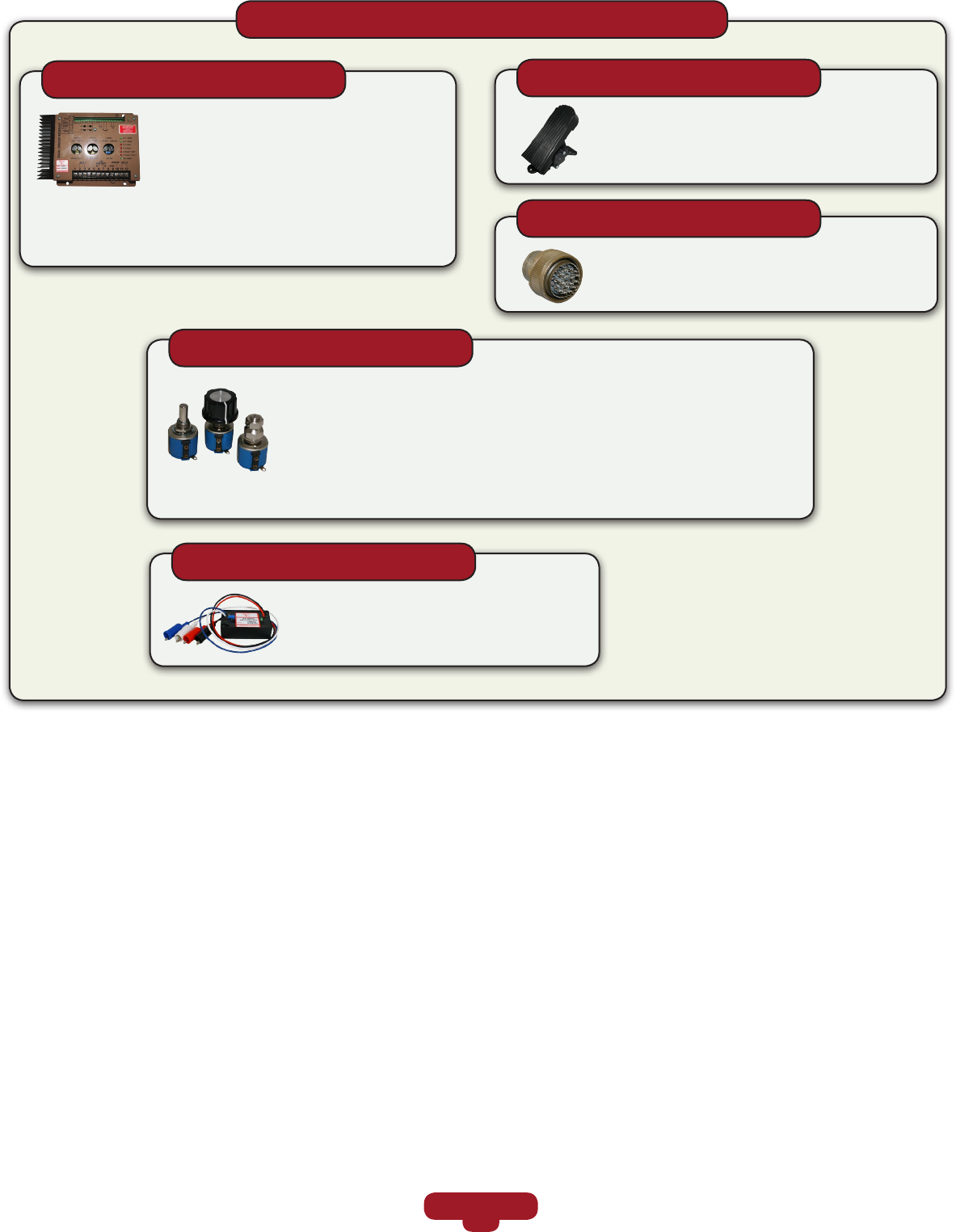

ACCESSORIES................................................9,12

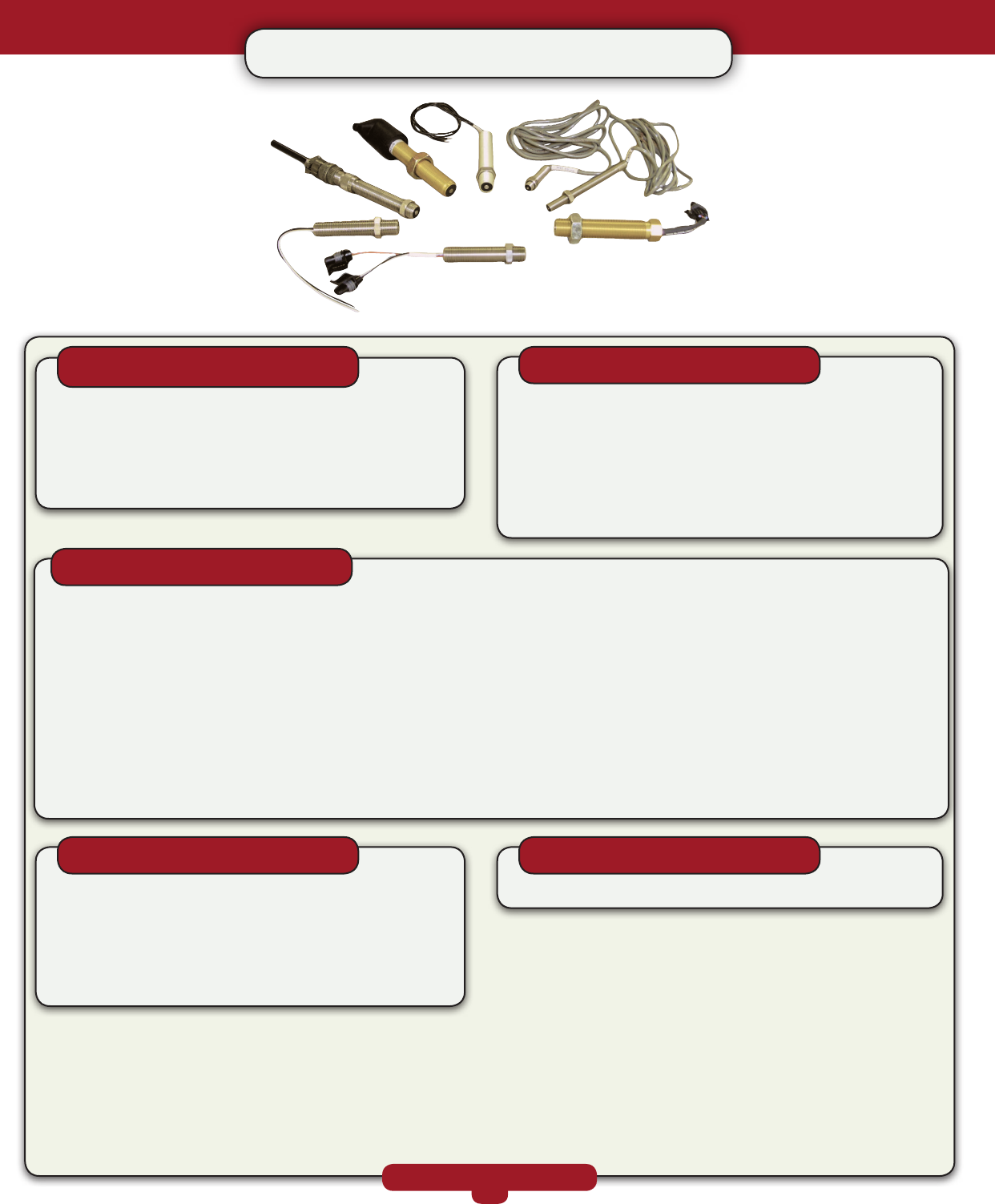

MAGNETIC SPEED PICKUP..................................13-14
ACCESSORIES....................................................14
GENERATOR ACCESSORIES.....................................15
INSTRUMENTATION.....................................................16
ACCESSORIES....................................................17

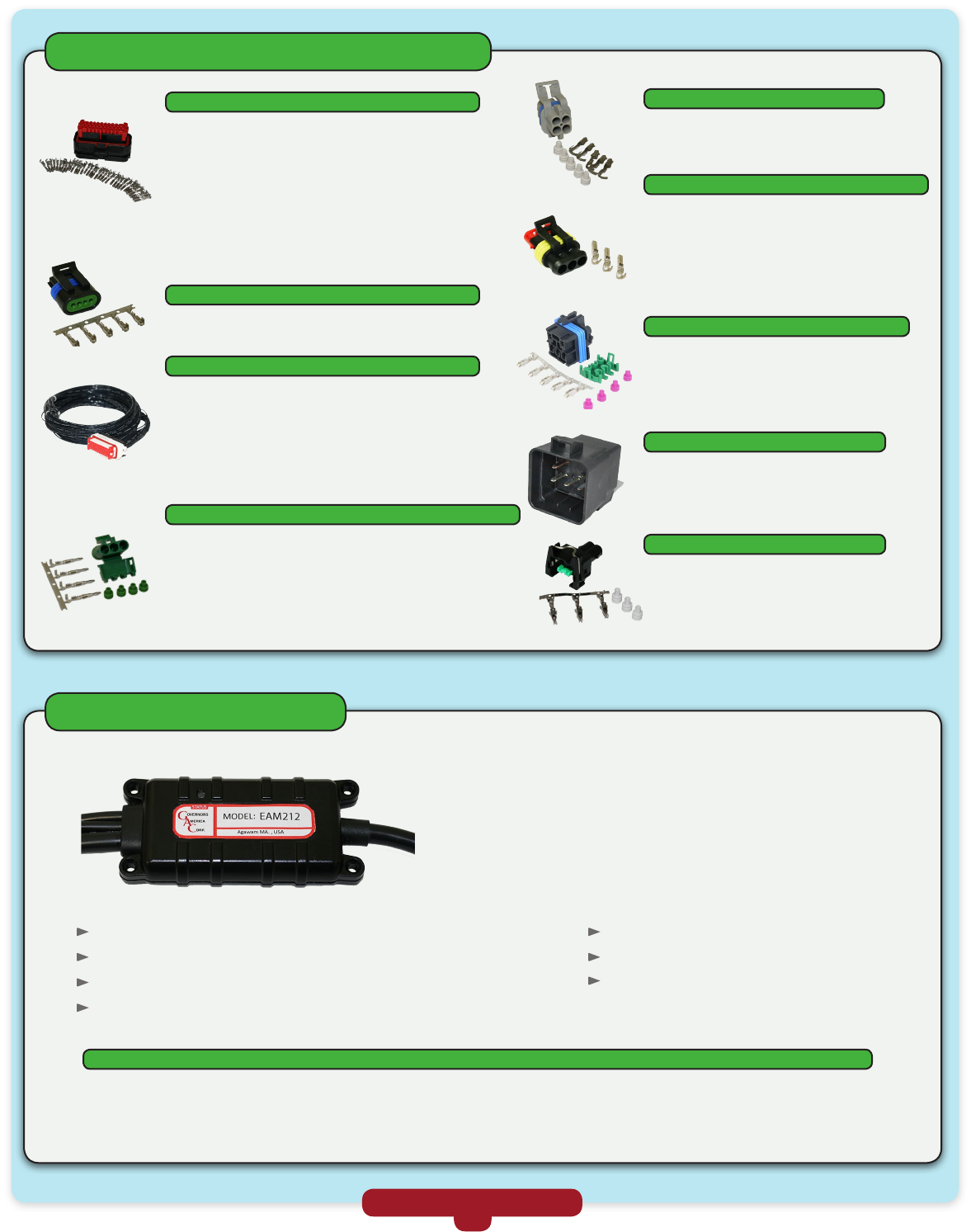

FUEL IGNITION MANAGEMENT........... ...........18,19

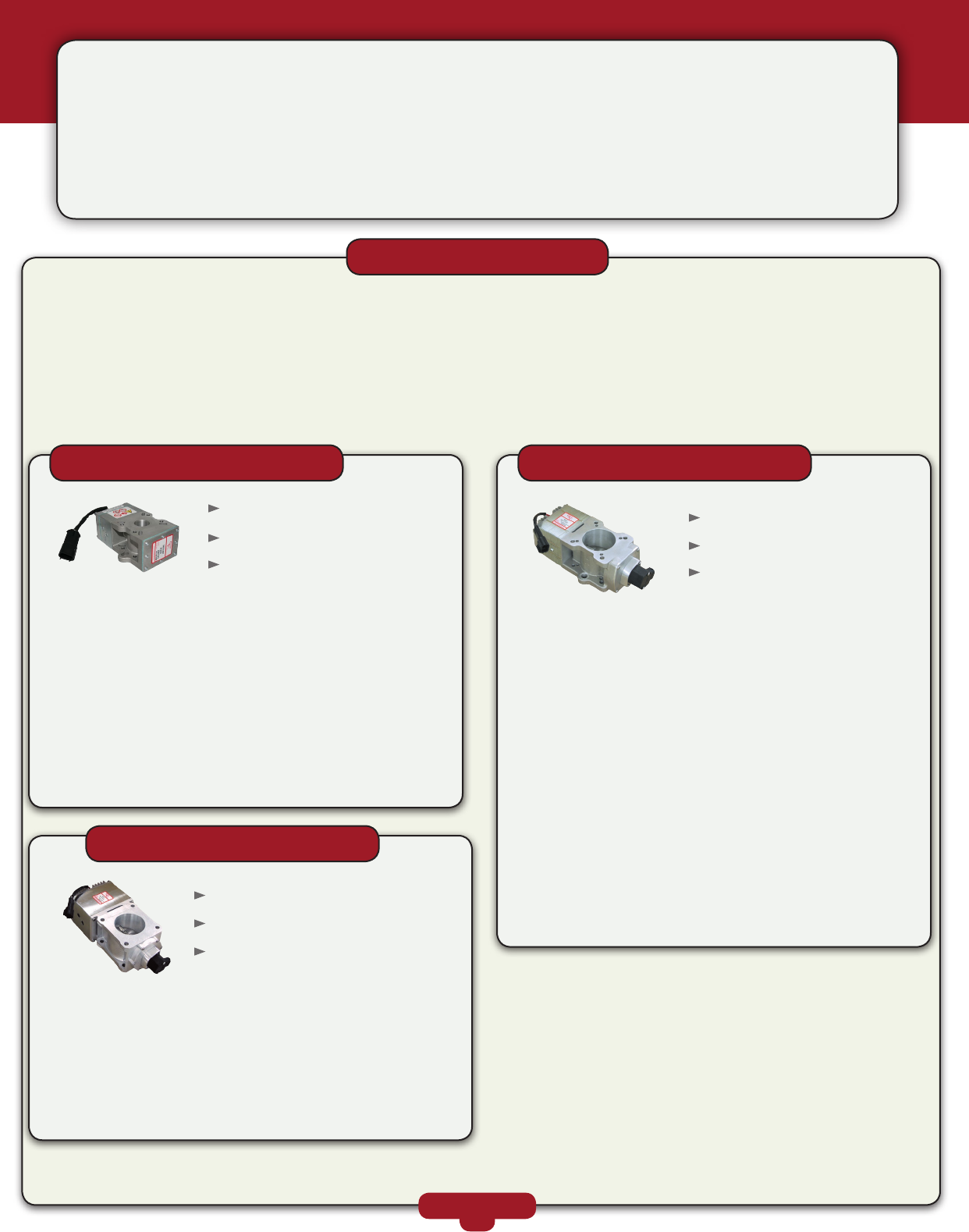

ACTUATORS
When a GAC actuator is installed on an engine and electronically connected to compatible GAC governing system
components, a high performance speed control system results. The design baseline for GAC actuators incorporates fast
responses, multi-voltage usage, and proven reliability to allow for more precise control. All of GAC actuators are easy
to install with no maintenance required.
DESIGNED TO OUT LIVE THE LIFE OF THE ENGINE
12 or 24 VDC
25mm to 40mm Bore Size
Packard Connector
The ATB Series integral throttle body electric actuators are designed to control the air or air/fuel mixture to a gas
or gaseous-fueled engine. They are typically used to control an engine by working in tandem with a conventional
fuel mixer. The design baseline for the ATB Series incorporates fast response and proven reliability to allow for
ecient and more precise control. The ATB Series actuator directly drives the integrated throttle plate. Internal
return springs provide for a normally closed valve for fail-safe operation. This ensures that the throttle plate
returns to the minimum fuel position when the actuator becomes de-energized. Available with throttle plate
position feedback sensor, higher temperature rating, or internal sealing for turbo-charged applications.
ATB T1 Series
ATB251T1N-12 or -24
ATB251T1F-12 or -24
ATB301T1N-12 or -24
ATB301T1F-12 or -24
ATB351T1N-12 or -24
ATB351T1F-12 or -24
ATB401T1N-12 or -24
ATB401T1F-12 or -24
25mm
25mm / Position Feedback Sensor
30mm
30mm / Position Feedback Sensor
35mm
35mm / Position Feedback Sensor
40mm
40mm / Position Feedback Sensor
12 or 24 VDC
45mm to 65mm Bore Size
Packard Connector
ATB452T2N-12 or -24
ATB452T2N14-12 or -24
ATB452T2F14-12 or -24
ATB552T2N-12 or -24
ATB552T2N14-12 or -24
ATB552T2F14-12 or -24
ATB652T2N-12 or -24
ATB652T2N2-12 or -24
ATB652T2N124-12 or -24
ATB652T2N14-12 or -24
ATB652T2F14-12 or -24
45mm
45mm / High Temperature / Sealed
45mm / Position Feedback Sensor /
High Temperature / Sealed
55mm
55mm / High Temperature / Sealed
55mm / Position Feedback Sensor /
High Temperature / Sealed
65mm
65mm / Mechanical Position Indicator
65mm / High Temperature / Sealed
Mechanical Position Indicator
65mm / High Temperature / Sealed
65mm / Position Feedback Sensor /
High Temperature / Sealed
ATB T2 Series
ACTUATORS
3
* Call GAC for sizes 95mm and above
12 or 24 VDC
75mm Bore Size
Packard Connector
ATB753T3N4-12 or -24
ATB753T3N24-12 or -24
ATB753T3N14-12 or -24
ATB753T3N124-12 or -24
ATB753T3F14-12 or -24
75mm / Sealed
75mm / Mechanical Position Indicator / Sealed
75mm / High Temperature / Sealed
75mm / High Temperature / Sealed /
Mechanical Position Indicator
75mm / Position Feedback Sensor / Sealed
High Temperature
ATB T3 Series
THROTTLE BODY
For Stanadyne ‘D’ Series Pumps
For Delphi DPG Pumps
12 or 24 VDC
100 Series
ADC100-12 or -24
ADD103B-12 or -24
ADE103B-12 or -24
Stanadyne ‘D’ Series Pump / Commercial
Connector
Delphi DPG / DP210G Pumps / Packard
Connector / Mating Connector
Delphi DPG / DP210G Pumps / Packard
Connector with Mating Connector Harness
For Bosch ‘P’ and A Pumps
Connects Directly to the Fuel Rack
Manual Shut-O Mechanism
12 or 24 VDC
ADD175A-12 or -24
ADE175A-12 or -24
ADD176A-12 or -24
ADE176A-12 or -24
ADE176AA-12 or -24
Bosch ‘P Pump / Packard Connector
Bosch ‘P Pump / Packard Connector
with Mating Connector
Bosch A Pump / Left Hand Rack /
Packard Connector
Bosch A Pump / Left Hand Rack /
Packard Connector with Mating Connector
Bosch A Pump / Left Hand Rack /
Packard Connector with Mating Connector /
Cold Start Assist
175/176 Series
Bosch ‘P’ 3000 - 7000 Fuel Injection
Pump
Controls Pumps on Engines up to
12-Cylinders
Manual Shut-O Mechanism Bosch ‘P’ 9 and10 Pumps
Control Pumps on Engines up to
16 Cylinders
24 VDC
ACB275H
ACE275H-24
ACE275HD-24
ACE275J-24
ACE275K
ACE295-24
ACE295F-24
Multi VDC / MIL Connector
24 VDC / Packard Connector
24 VDC / Packard Connector / Heavy Duty Bearing
Retention
24 VDC / High Torque Return Spring with
Oil Drain Fitting
24 VDC / Heavy Duty Bearing Retention /
Packard Connector / Position Feedback Sensor
Packard Connector
Packard Connector / Position Feedback Sensor
275 Series
295 Series

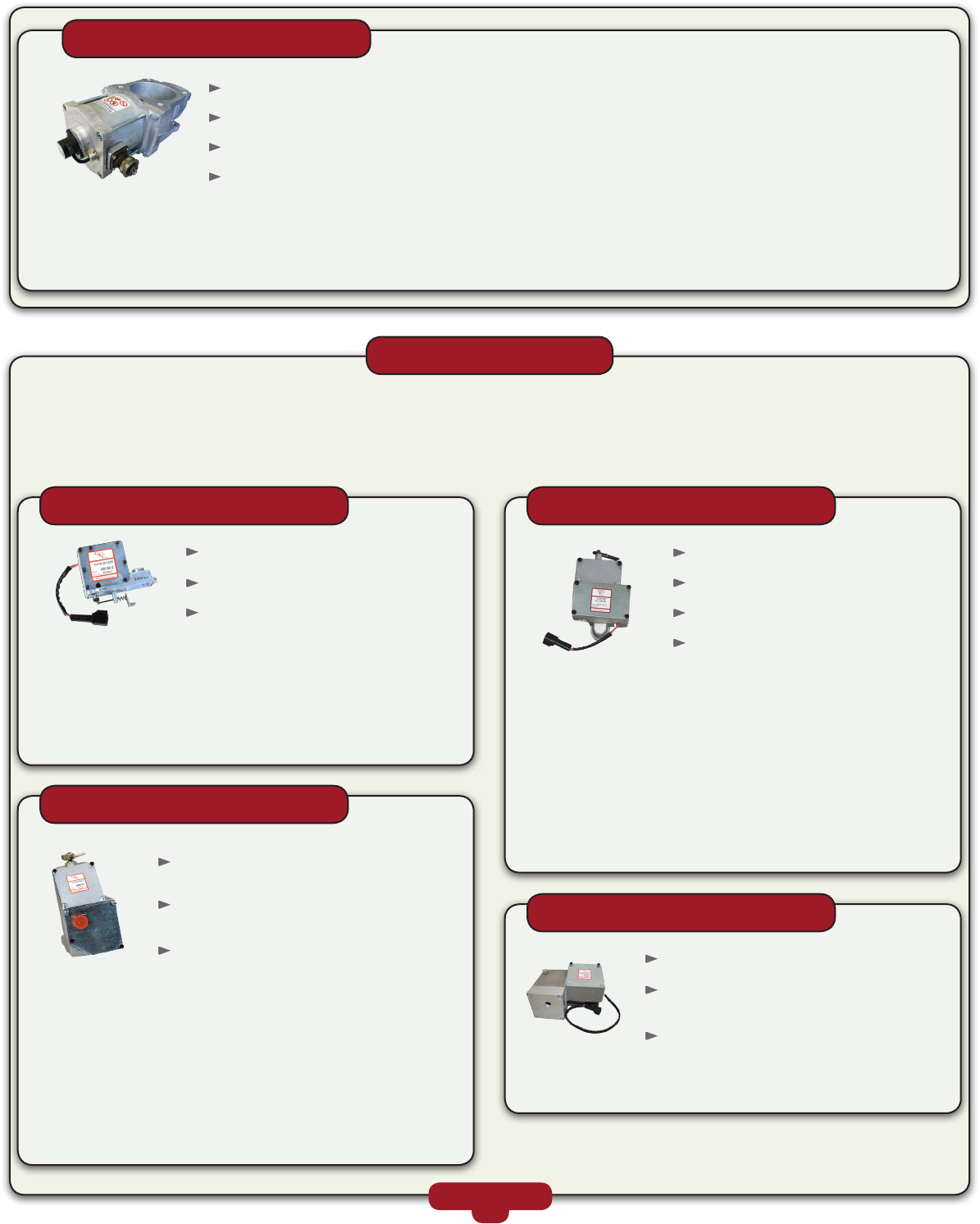

PUMP MOUNTED
ACTUATORS
4
GAC’s Pump Mounted Actuators are eld proven proportional actuators designed to mount directly to
fuel injection pumps to achieve an integrated proportional servo fuel package. Since the design has
no sliding parts and its components are sealed; outstanding reliability results with no maintenance re-
quired.
ATB95T4N14-12 or -24
ATB95T4N124-12 or -24
ATB95T4F14-12 or -24
ATB85T4N14-12 or -24
ATB85T4N124-12 or -24
ATB85T4F14-12 or -24
95mm / Sealed
95mm / Sealed / Mechanical Position Indicator
95mm / Sealed / Position Feedback Sensor
85mm / Sealed
85mm / Sealed / Mechanical Position Indicator
85mm / Sealed / Position Feedback Sensor
ATB110T4N4-12 or -24
ATB110T4N124-12 or -24
ATB110T4F14-12 or -24
ATB120T4N14-12 or -24
ATB120T4N124-12 or -24
ATB120T4F14-12 or -24
110mm / Sealed
110mm / Sealed / Mechanical Position Indicator
110mm / Sealed / Position Feedback Sensor
120mm / Sealed
120mm / Sealed / Mechanical Position Indicator
120mm / Sealed / Position Feedback Sensor
12 or 24 VDC
85mm to 120mm Bore Size
Packard Connector
High Temperature
ATB T4 Series
For Deutz 1011 Engines
For 2,3, and 4 Cylinder.
12 or 24 VDC
110 Series
ACD110-12 or -24
ACE110-12 or -24
Deutsch Connector
Deutsch Connector with Mating Connector
12 or 24 VDC
Deutz 1012/1013 & 2012 Engines
Volvo 520/720 Engines
ADD180G-12 or -24 Packard Connector with Mating Connector
180 Series
Pull Electrical Linear Actuators
Mounts Directly to Engines Fuel Pump
Utilizes Precision Linear Ball Bearings instead of Bushings
ALR160-S03-12 or -24
ALR190-I03-12 or -24
ALR190-I04-12 or -24
ALR190-K04-12 or -24
ALR190-KM03-12 or -24
ALR190-KV2403-12 or -24
ALR190-KV3073-12 or -24
ALR190-KV3307-12 or -24
ALR190-M04-12 or -24
ALR190-P04-12 or -24
ALR190-Y03-12 or -24
ALR190-Y04-12 or -24
12 or 24 VDC / Spade Connector / Shibaura Series
12 or 24 VDC / Spade Connector / Isuzu L-Series 3LB1 3LD1 3LD2 4LE1 4LE2
12 or 24 VDC / Packard Connector / Isuzu L-Series 3LB1 3LD1 3LD2 4LE1 4LE2
12 or 24 VDC / Packard Connector / Kubota Super 5 Series D905, D1005,
D1105, D1105-T, V1305, V1505, V1505-T 3300 Series 3800
12 or 24 VDC / Packard Connector / M03 Engines
12 or 24 VDC / Packard Connector / V2403 Engines
12 or 24 VDC / Packard Connector / V3073 Engines
12 or 24 VDC / Packard Connector / V3307 Engines
12 or 24 VDC / Packard Connector / Mitsubishi L-Series L2E L3E,
S3L Series S3L, S4L Series S4L S4L2
12 or 24 VDC / Packard Connector / Perkins 404 700
12 or 24 VDC / Spade Connector / Yanmar TNV Series 2TNV70 3TNV70
3TNV76 3TNV82A 3TNV84 3TNV84T 3TNV88 4TNV84 4TNV94L 4TNV88
4TNV98 4TNV98T / Isuzu C-Series 2CA 3CA 3CB 3CD 3CDT
12 or 24 VDC / Packard Connector / Yanmar TNV Series 2TNV70 3TNV70
3TNV76 3TNV82A 3TNV84 3TNV84T 3TNV88 4TNV84 4TNV94L 4TNV88
4TNV98 4TNV98T / Isuzu C-Series 2CA 3CA 3CB 3CD 3CDT
ALR Series

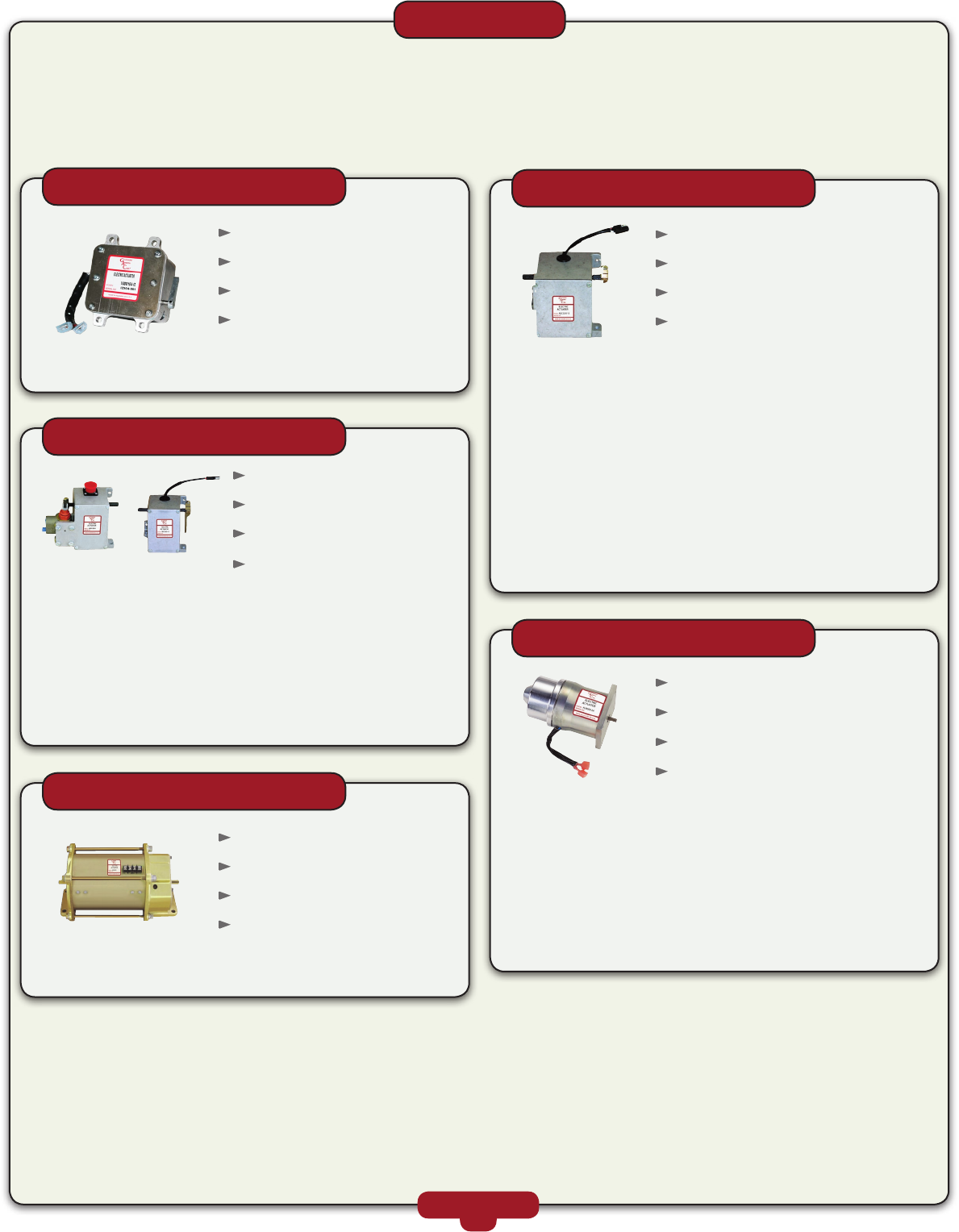

ENGINE MOUNTED
ACTUATORS
5
GAC’s Engine Mounted Actuators exhibit a high quality construction design for high temperature applica-
tions and are uniquely optimized to outperform externally mounted electric actuators and other competitive
designs. Since GAC’s fast responding fuel control design has no sliding parts and its components are sealed;
outstanding reliability results with no maintenance required.
Rotary Actuators
Sized for Engines up to 150 hp
1.0 lb-ft Torque
For Small Inline Fuel Pumps or
Carburetors
120 Series
ACB120
ADB120
ADB120E4
ADC120S -12 or -24
Multi VDC / MIL Connector / 25° Rotation
Multi VDC / MIL Connector / 25° Rotation
Multi VDC / MIL Connector / Fuel Metering /
Cummins PT Fuel System
12 or 24 VDC / Commercial Connector /
25 ° Rotation / Serrated Shaft
2.2 lb-ft Torque
25° Rotation
< 45 msec Response
For Multi-Plunger Fuel Pumps &
Carburetors
ACB225
ADB225
ADC225S -12 or -24
ADC225GS -12 or -24
ADC225JS -12 or -24
ADC225KS -12 or -24
Multi VDC / MIL Connector
Multi VDC / MIL Connector / Diecast Housing
12 or 24 VDC / Commercial Connector /
Serrated Shaft
12 or 24 VDC / Commercial Connector /
Serrated Shaft / Lesser Rate Return Spring
12 or 24 VDC / Commercial Connector /
Serrated Shaft / Greater Rate Return Spring
12 or 24 VDC / Commercial Connector /
Serrated Shaft / High Temperature Applications
225 Series
Push Linear Actuators
High Quality Antifriction Bearings
Replaces Competitive Models
22mm Stroke
Rotary Actuator
12.0 lb-ft Torque
< 80 msec Response
Sized for engines from
400 - 1800 hp
ALN025-12 or -24
ALN025A-12 or -24
ALN050-12 or -24
ALN050A-12 or -24
ACB2001
12 or 24 VDC / 0.25 ft.lb. / Spade Connector
12 or 24 VDC / 0.25 ft.lb. / Spade Connector /
Clevis Kit
12 or 24 VDC / 0.50 ft.lb. / Spade Connector
12 or 24 VDC / 0.50 ft.lb. / Spade Connector /
Clevis Kit
24 VDC / 12.0 Max lb-ft Torque / 35 ° Rotation
ALN Series
2001 Series
Briggs & Straton Engines
Kohler 12 - 30 HP Engines
<25 msec Response
Environmentally Sealed
ADD104-12 12 VDC / 0.29 lb-ft Torque / Male Spade
104 Series

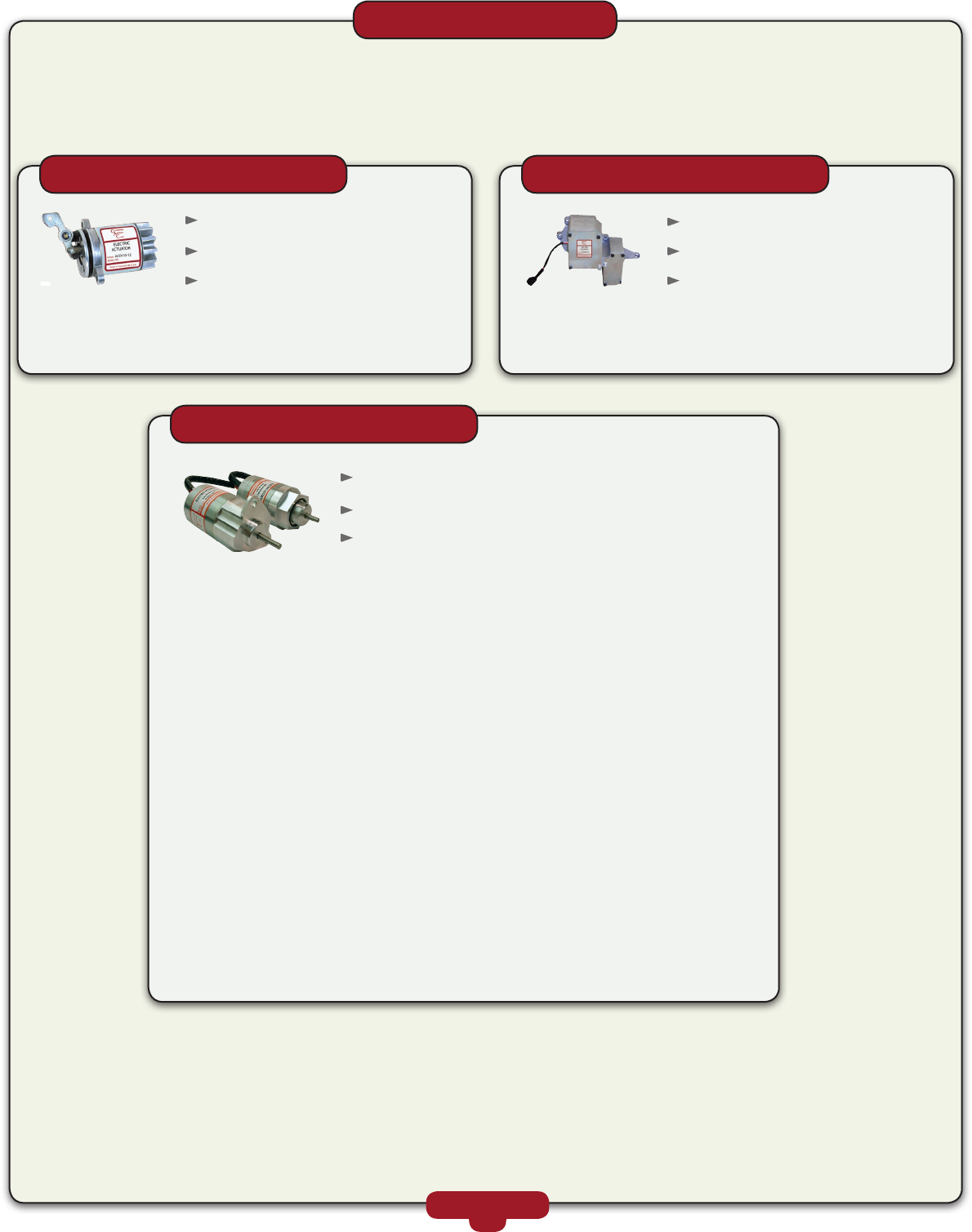

UNIVERSAL
ACTUATORS
6
GAC’s Universal actuators are proportional electro servo designed for mechanical actuation of fuel
system control levers. They exhibit GAC’s uniquely optimized fuel control and will outperform externally
mounted electric actuators. GAC’s sealed integral actuators are simple to install and possess no sliding
parts, resulting in outstanding reliability and no maintenance required.

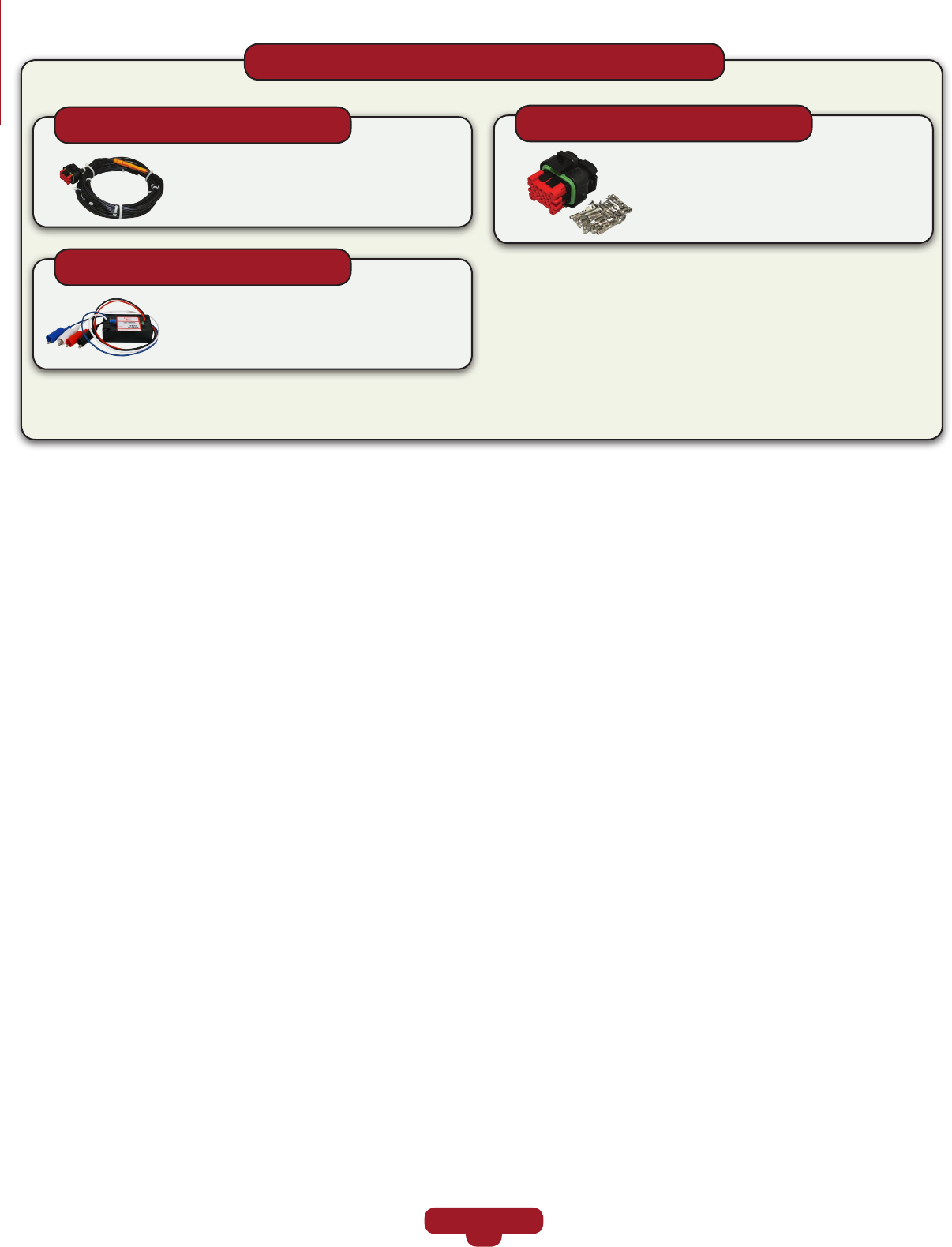

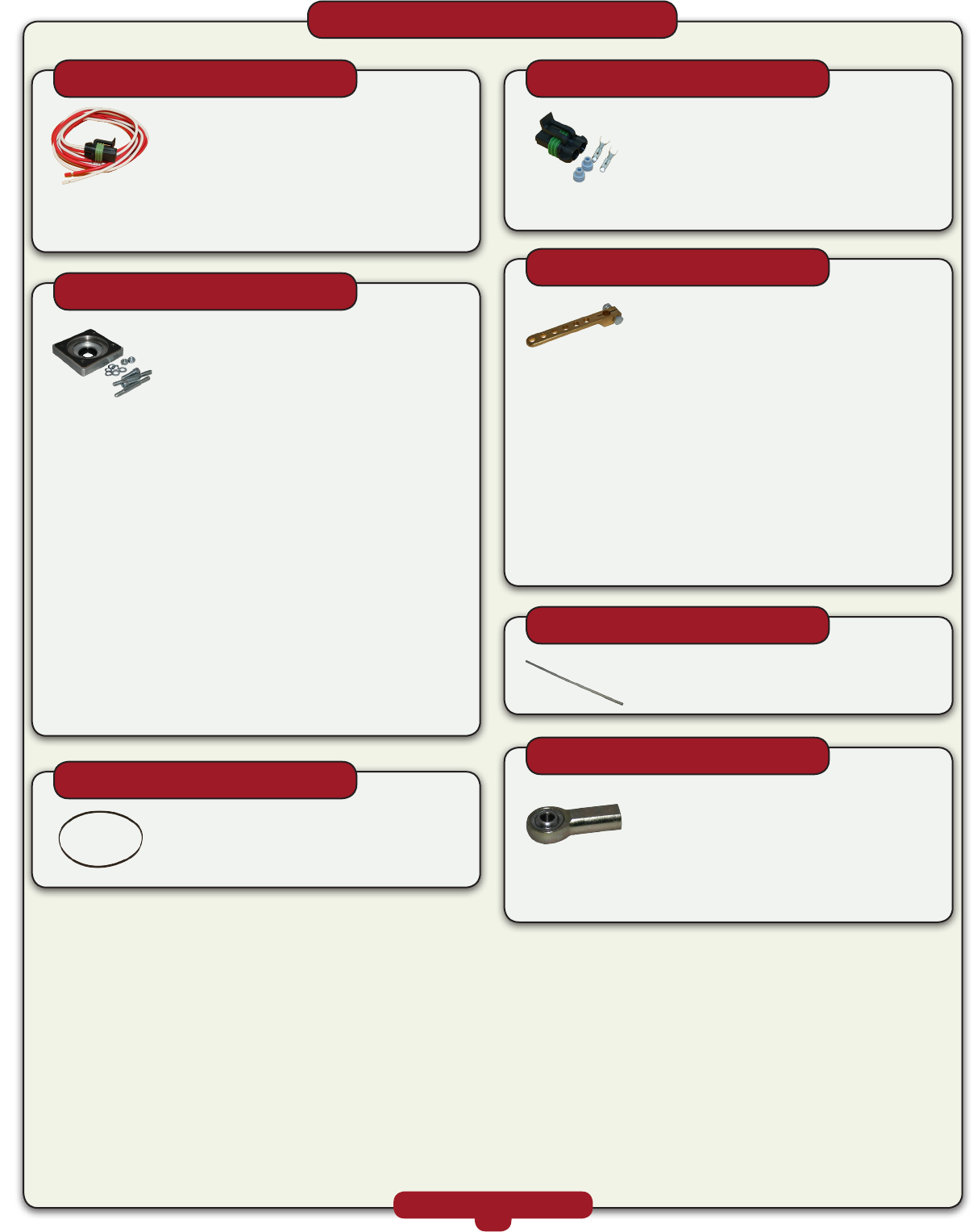

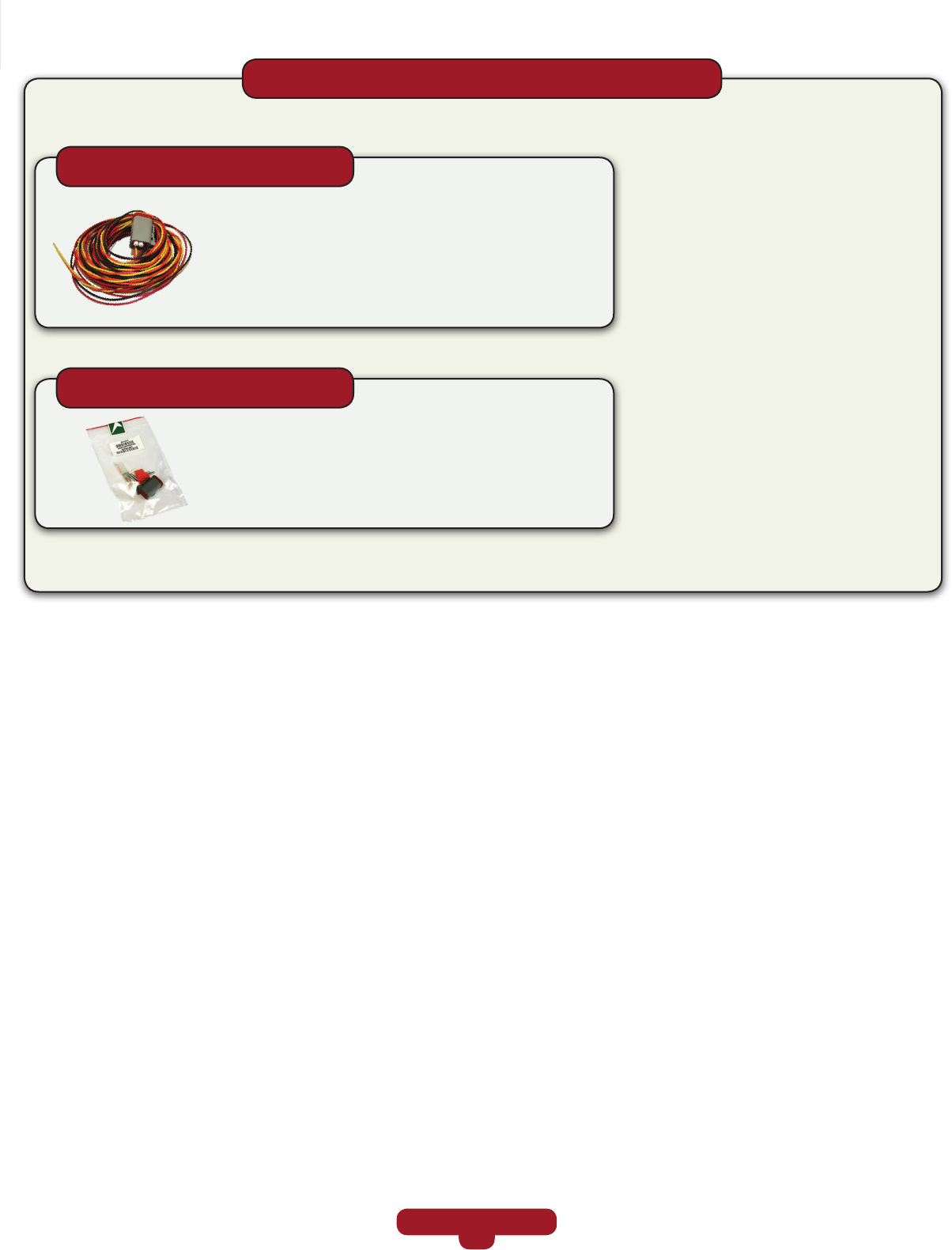

ACCESSORIES - ACTUATORS
ACTUATOR ACCESSORIES
7
CH1203
CH1210
CH1212
CH1215
CH1515
BR100
BR101
BR200
BR201
BR300
BR400
RD100
RD102
KT130
KT153
KT175-RS-R
KT176A
KT231J
KT232J
KT275
KT276
KT278
KT278-1
KT283
KT295
KT289
LE1100-3
LE1200-3
LE1400-1
LE1400-2
LE1400-4
LE1500-1
LE1500-2
LE2000
EC1000
EC1010
EC1120
EC1300
EC1515
Actuator - 12’ - 6 pin MIL Connector
ACB/ADB Actuators (MIL)
Actuator - 12’ - 90° Connector (MIL)
Actuator - 30’ - 6 pin MIL Connector
Packard - Actuator Mating Half
AB Position Sensor Mating Half - 6’ Shielded /
Feedback Sensor
3/16” I.D. - 10-32 Thread
3/16” I.D. - 10-32 Left Hand Thread
1/4” I.D. - ¼-28 Thread
1/4” I.D. - ¼-28 Left Hand Thread
M5 I.D. and Thread
M6 I.D. and Thread
¼ - 28 (Price per Inch of Length)
¼ - 28 - Precut to 12”
ALN Series Actuators
ACE175A Series - Motorpal Pump
PP4M10P1N13021
ADD175 Series / Bosch A Pump /
Right Hand Rack
ADE176A Series - Bosch A Pump
Bosch RSV - Left Side - Used With ALN050
Bosch RSV - Right Side
ACB275 - Bosch 3000 Pump / Camshaft
Bearing Kit
ACB275 - Bosch 7000 Pump / Camshaft
Bearing Kit
ACB275 Actuators - RB RP21 with RB Plate
ACB275 Actuators - RP21
ACD175 BYC ‘P’ Pump
ACE295 Actuators
ADD175 - Bosch ‘P Pump /
Governor Only
4.8” - ADC Actuators - 3/16” Holes /
Smooth Shaft
4.8” - ACB/ADB Actuators - 1/4” Holes /
Serrated Shaft
4.3” - ACB/ADB Actuators - 3/16” Holes /
Serrated Shaft
4.3” - ACB/ADB Actuators - 1/4” Holes /
Serrated Shaft
3.3” - ACB/ADB Actuators - 1/4” Holes /
Smooth Shaft
4.3” - ADC Actuators - 3/16” Holes /
Smooth Shaft
4.3” - ADC Actuators - 1/4” Holes /
Smooth Shaft
4.4” - ACB2001 - M8 Holes
Actuator Straight / Military Style Connector
Actuator 90° / Military Style Connector
110 Series - Mating Half
Packard - Electric Actuator
AB Feedback Sensor Mating Half Connector
Cable Harnesses
Bearing Rod Ends
Threaded Rod
Installation Kits Levers
Mating Connectors
GA102
HW13-001
KT6724
Mounting Gasket for 100 Series
5 Star Torx Bit / Stanadyne
Fuel Valve Only / ADB120E4
Service Items
Custom Specic Installation Kits Available, Contact GAC

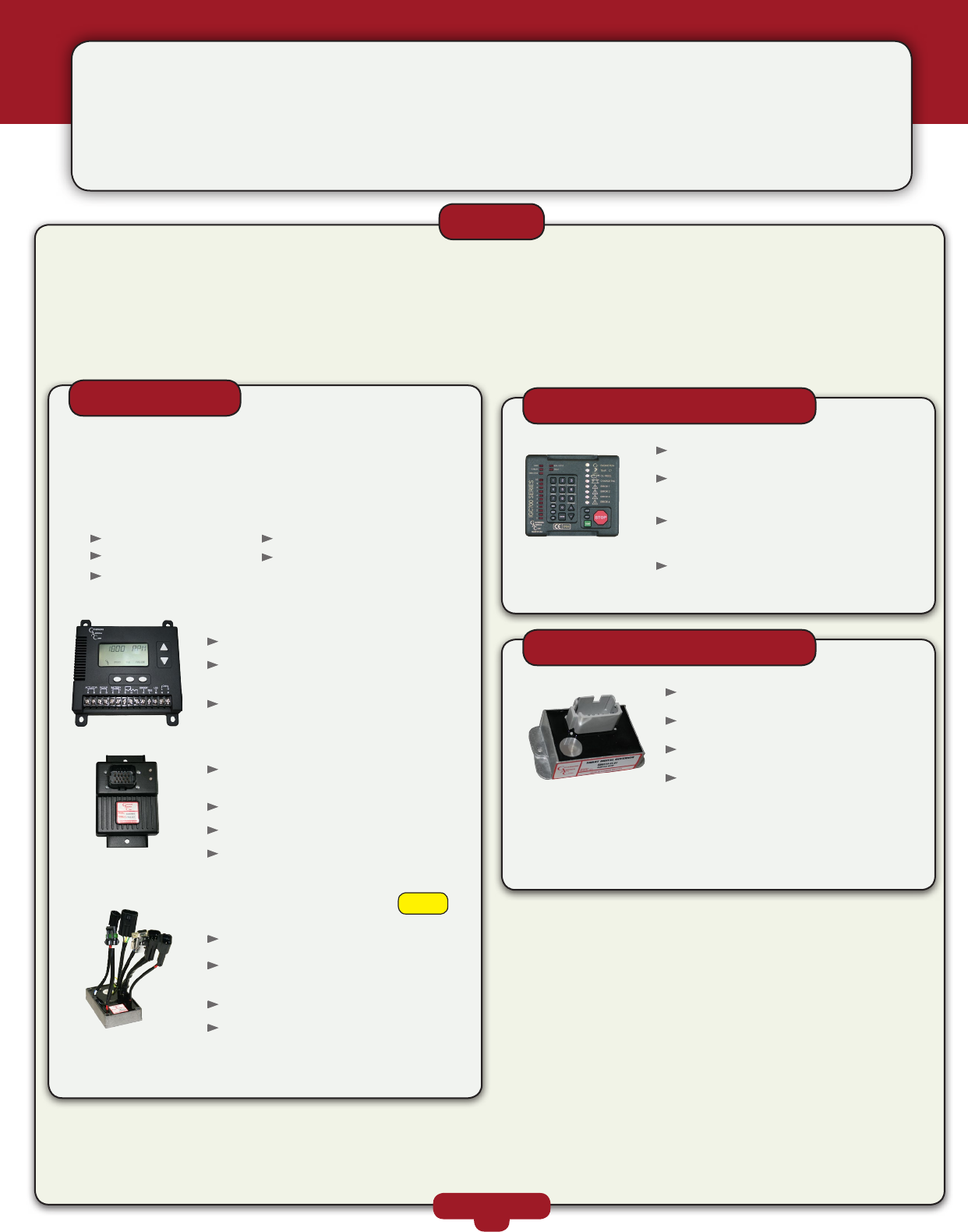

Governors
GAC’s Speed Control Units are precise speed controls designed and manufactured in various congurations to meet
application requirements using the latest analog and digital control technologies. Reverse battery polarity and fail-safe
protection in the event of loss of speed sensor signal or battery voltage is incorporated in every GAC Speed Control Unit.
A wide variety of application needs can be satised with GAC’s constant or variable speed governing, in isochronous or
droop operation. All circuit boards are hard potted or conformally coated to be vibration and moisture resistant.
EDG Series
NEW!
Smart Digital Governor
Three Fixed and 1 Variable Speed
Overspeed Shutdown Protection
SmartVU PC Software
SDG514-01-01
SDG524-01-01
(CE) Deutsch Connector / Resistive (10K Potentiometer)
Variable Speed Input
(CE) Deutsch Connector / 0-5 VDC Variable Speed Input
SDG Series
Integrated Governor & Engine Control
Fixed Speeds plus Variable
Speed Range
LED Bar Graph for Set-Up &
Troubleshooting
Non Volatile EEPROM Memory
IGC745-02-04 Integrated Governor Engine Control
IGC
Digital
GOVERNORS
8
GAC digital governors are solid state microprocessor based speed control unit that oer precise
(+/- 0.25%) speed control with fast response to transient load changes in isochronous and droop
modes. GAC digital governors are highly reliable and not subject to drift. This suitable replacement for
any mechanical governor is well built to withstand the harshest of engine environments. Its designed
to regulate the engine speed on diesel and gas reciprocating engines for generator sets, mechanical
drives , pumps, and compressors.
Simple LCD User Interface
Fast Set-up with 5 Push Buttons,
No Potentiometers
A Near Drop in Replacement for ESD5500E
No Analog Drift
Variable Speed Governing
GAC AUX/Load Sharing
Overspeed Sensing
Adjustable Starting Fuel Strategy
(Black Smoke Reduction)
Multiple PID Control for Full Tuning of
Operating Range
IP67 Sealed Case and Connector
RS232 and CAN J1939 Communications
SmartVU PC Software
These governors are based on GAC’s revolutionary EDGe™
algorithm, incorporating all of the features and performance
of GAC analog governors along with the stability, accuracy,
exibility and communication capabilities digital controls
are known for.
EDG5500
EDG6000
EDG6010-DM
Directly Mounts to 175/176 Actuators
Multiple PID Control for Full Tuning of
Operating Range
Sealed Electronics & Flying Leads
RS232 and CAN J1939 Communications

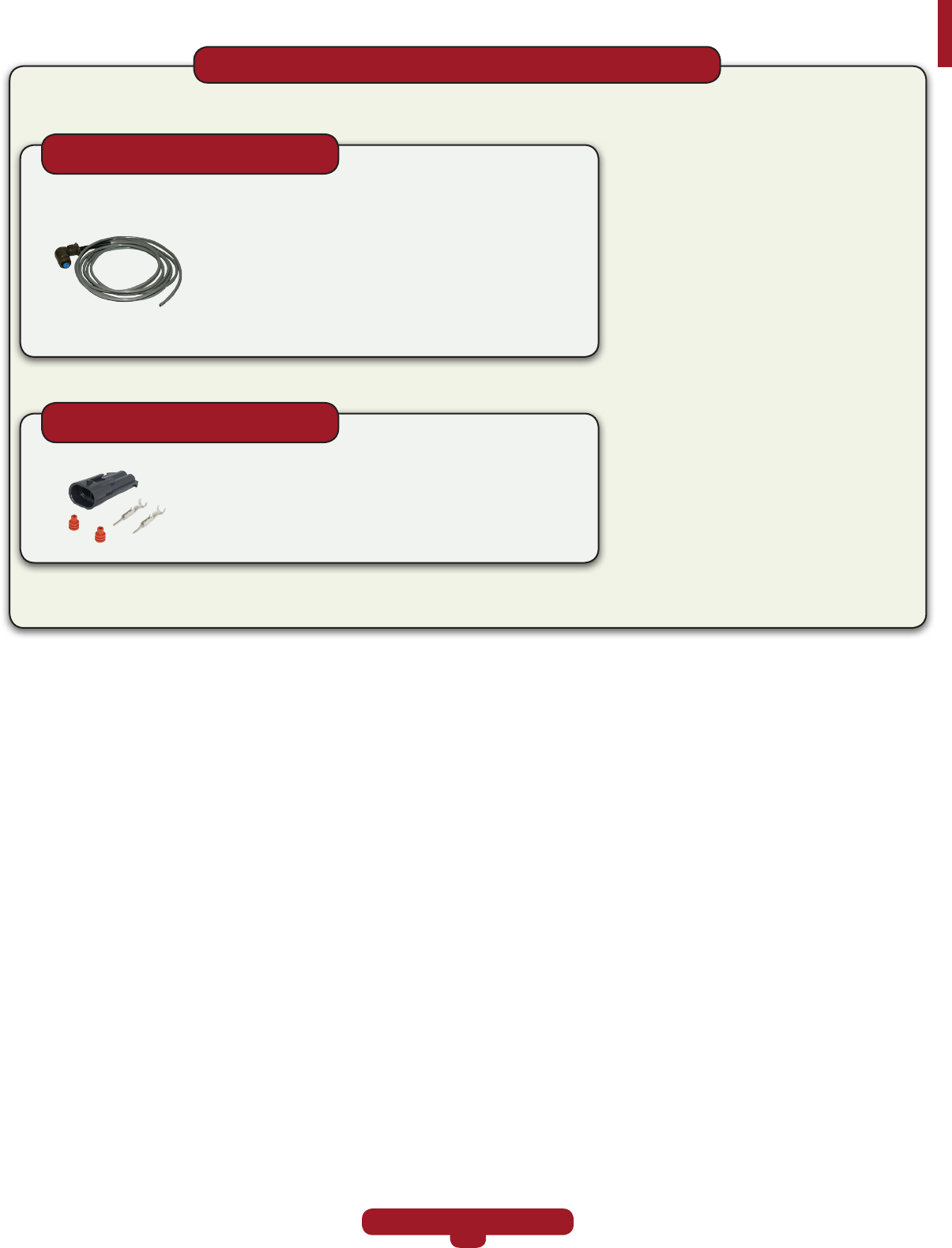

CH1330
CH1520
Cable Harness for the SDG514 / SDG524
Cable Harness for the EDG6000
Cable Harnesses
TSE050
TSE307
Magnetic Speed Pickup Simulator
EDG6000 Programming Interface
Test Equipment
EC1330
EC1502
EC1528
Deutsch 12 pos. Mating Connector
for SDG514 / SDG524
14-Pin Mating Connector for EDG6000
Connector Kit for EDG6010-DM
Mating Connectors
ACCESSORIES - GOVERNORS - DIGITAL
GOVERNORS
9
12 or 24 VDC
Isochronous Operation
Adjustable PID Fuctions
ESD2110 Multi VDC Standard Unit
ESD2100
12 or 24 VDC
Isochronous Operation
Steady State Stability
Reverse Voltage Protected
Gain Adjustment
ESD1000-12 or -24
ESD1100-12 or -24
(CE) Standard Unit
(CE) Terminal Strip
ESD1000 Series
Dynamic Control Circuit
Idle Function
Lower Gain Adjustable
Anti Wind-Up Circuit
ESD2401-12 or -24
ESD2402-12 or -24
(CE) Standard Unit / Idle Speed Adjustment /
Designed for Non-Feedback GAC Actuators
(CE) Light Force / Idle Speed Adjustment /
Designed for Non-Feedback GAC Actuators
ESD2400 Series
Transient Voltage Protection
Expanded Speed Range to 9400Hz
8:1 Speed Range Control
Removal Jumpers for
Expanded Range
ESD2210-12 or -24
ESD2241-24
ESD2244-12 or -24
(CE) Hard Potted
24 VDC Standard Unit with Idle Circuit
(CE) Hard Potted / Light Force
ESD2200 Series
GOVERNORS
10
12 or 24 VDC Operation
Reverse Voltage Protection
Overspeed Test Function
SSW674
SSW675
SSW676
One Element / Speed Switch / Tachometer Output / Factory
Adjusted For Most Applications
Two Element / Speed Switch / Tachometer Output /
Overspeed to 10000Hz
Three Element / Speed Switch / Tachometer Output
SSW Series
Analog
Electronic Speed Control
Wide Speed Control Units
12 - 32 VDC
ESC Series
ESC61C-7
ESC61C-17
ESC63C-7
ESC63C-17
ESC63C-23
Standard Unit / MIL Connector
Variable Speed / MIL Connector / 12-32 VDC
Standard Unit
Variable Speed / 12-32 VDC
Idle-Run Feature / 12-32 VDC
Isochronous Speed Control
Full PID Setting
Designed to Govern from Frequency
Signal of an AC Generator
No Magnetic Speed Pickup Needed
ECC328-12 (CE) 12 VDC / Light Force
ECC Series
12 VDC
Adjustable PID Functions
Foot Pedal
ESD2349-12
ESD2351-12
ESD2352-12
(CE) 12 VDC / O Road / Variable Speed / Foot Pedal
12 VDC / Operates with Williams Foot Pedal
12 VDC / Operates with Morse Foot Pedal
ESD2300 Series
Switchable Droop Control
Soft Coupling
Overspeed Control Switch
Auxiliary Output
ESD5500E
ESD5520E
ESD5522E
ESD5524E
ESD5526E
ESD5528E
ESD5553
(CE) Standard Unit / Isochronous, Variable &
Droop Operation / Speed Ramping / Starting Fuel Control /
Enhanced Droop Control
(CE) Light Force / Isochronous, Variable & Droop Operation /
Speed Ramping / Starting Fuel Control / Adjustable Speed
Ramping Control
(CE) Light Force / EFC Forward Acting / Enhanced Droop /
Isochronous, Variable & Droop Operation / Speed Ramping /
Starting Fuel Control / Dead Time Compensation
(CE) For use with SLM100 Smoke Limiting Module /
Isochronous, Variable & Droop Operation / Speed Ramping /
Starting Fuel Control / Anti Wind-Up Circuit
(CE) For use with Small Bore T1 & T2 ATB Gas Applications / Anti
Wind-Up Circuit / Isochronous, Variable & Droop Operation /
Speed Ramping / Starting Fuel Control / Soft Coupling /
(CE) For use with Large Bore T3 & T4 ATB Gas Applications Anti
Wind-Up Circuit / Isochronous, Variable & Droop Operation /
Speed Ramping / Starting Fuel Control / Soft Coupling
(CE) Standard Unit / Isochronous, Variable &
Droop Operation / Speed Ramping / Starting Fuel Control /
Enhanced Droop Control / Load Sharing Interface /
Overspeed Switch
ESD5500E Series
Crank Termination Circuit
Overspeed with LED
Fuel Ramping Control
Auxilary Output
ESD5550
ESD5570
(CE) Single Element Speed Switch / Isochronous, Variable &
Droop Operation / Speed Ramping / Starting Fuel Control /
Soft Coupling / Gain Adjustment 33:1 / Transient Voltage
Protection
(CE) Single Element Speed Switch / Light Force / Isochronous,
Variable & Droop Operation / Speed Ramping / Starting Fuel
Control / Soft Coupling / Integrated Wind-Up Protection
ESD5550/5570 Series
GOVERNORS
11

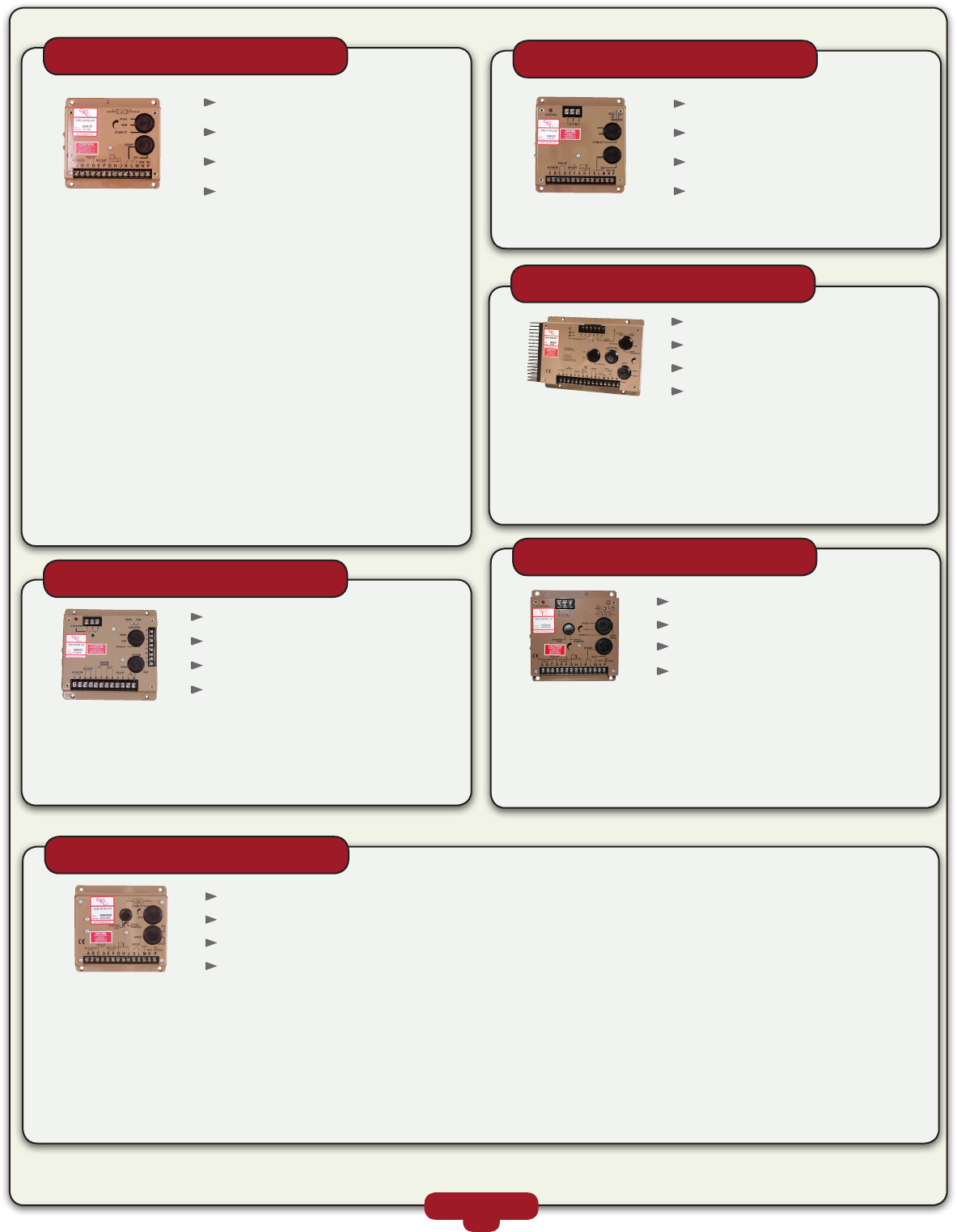

ESD5330
ESD5340
Isochronous, Variable & Droop Operation / 2 Element Speed
Switch / Speed Ramping / Starting Fuel Control / Dual Gain /
Unique Actuator Power Drive Circuit / Soft Coupling
Dynamic Starting Aid Equipped / Isochronous, Variable &
Droop Operation / 2 Element Speed Switch / Speed Ramping
/ Starting Fuel Control / Dual Gain / Unique Actuator Power
Drive Circuit / Soft Coupling
ESD5300 Series
Power Driver Circuit
Adjustable PID Functions
Idle Speed Adjustment
Auxiliary Accessory Outputs
Adjustable PID Functions
Actuator Loop Control
Two Speed or Variable Speed
Overspeed Control
ESD5402
ESD5403
24 VDC / Isochronous, Variable & Droop Operation /
Designed for Feedback Actuator Operation
Use with AB Sensor Feedback Actuators / Isochronous,
Variable & Droop Operation / Designed for Feedback
Actuator Operation
ESD5400 Series
Speed Anticipation Circuit
Adjustable PID Functions
Reverse Voltage Protection
Overspeed Contact
ESD5221 10 Amp Relay Output / Isochronous, Variable & Droop
Operation / Single Element Speed Switch
ESD5221
10 VDC Supply for Accessories
Adjustable PID Functions
Switchable Droop and Idle Control
Auxiliary Power Supply
ESD5111
ESD5111T
ESD5119
ESD5120
ESD5131
ESD5143
ESD5150
ESD5159
ESD5160
ESD5161
(CE) Standard Unit / Isochronous, Variable &
Droop Operation / Variable Speed Trim Range
(CE) Temperature Compensated / Isochronous, Variable &
Droop Operation / Dead Time Compensation
(CE) EFC Reverse Acting / Isochronous, Variable &
Droop Operation / Adustable Droop Range / Light Force
(CE) Light Force / Isochronous, Variable & Droop Operation
(CE) Soft Coupling Option / Isochronous, Variable &
Droop Operation
Enhanced Speed Detector Circuit / Speed Range to 10.5 KHz
Same As ESD5111 / 4-20 mA Output
Same As ESD5111 / Extended Frequency Range 14 KHz
Same as ESD5119 / Extended Speed Range
(CE) Expanded Auxilary Input Range
ESD5100 Series
RSC671
RSC672
SLM100
DDM101
DFM100
Ramp Generator - Ramp Up / Down
- Programmable
Ramp Generator - Ramp Up / Down
Generator Set Applications
Smoke Limiting Module
Dual Driver Module
Dual Fuel Module
Modules
FP201
FP202
Foot Pedal / Vertical Mount
Foot Pedal / Horizontal Mount
Foot Pedals
EC1200 ESC61C - Straight
Mating Connector
GOVERNORS
12
ACCESSORIES - GOVERNORS - ANALOG
TP501
TP502
TP503
TP504
TP508
TP509
TP510
TP511
TP521
1 Turn - 5K with Knob
10 Turn - 5K with Knob
10 Turn - 5K with Locking Shaft
1Turn - 20K with Knob / Droop Control
10 Turn - 20K with Locking Shaft
10 Turn - 20K with Knob
10 Turn - 1K
10 Turn - 10K
Multiple Variable Speed Control /
Vernier Dial
Potentiometers
TSE050
TSE307
Magnetic Speed Pickup Simulator
EDG6000 Programming Interface
Test Equipment
Magnetic Speed Pickups
3/8 - 24 UNF Threaded
MSP6729
MSP6730
MSP6731
MSP6742
6’ Shielded Cable / 2.5”
6’ Shielded Cable / 1.5”
6’ Shielded Cable / 4”
1’ Shielded Cable / 2.7”
M16 x 1.5 Threaded
MSP6714
MSP6715
MSP6723
MSP6723C
3” Without Mating Half Connector / Military Style Connector
3” With Mating Half Connector / Weather Boot /
Military Style Connector
3” With 3” Leads / Automotive Connector
3” With 3” Leads / Automotive Connector /
Mating Half Connector
MSP6724
MSP6724C
MSP6734
MSP6735
MSP6744
3.5” With 3” Leads / Automotive Connector
3.5” With 3” Leads / Automotive Connector /
Mating Half Connector
3.5” With 4” Leads
3.5” With 3” Leads / Packard Connector
2.29” With 8/32 Stud Terminals / 1200 Ohms
3/4 - 16 UNF Threaded
MSP6741 3.25” With 9” Leads / Packard Connector
M18 x 1.5 Threaded
MAGNETIC SPEED PICKUPS
13
MSP674
MSP675
MSP676
MSP677
MSP678
MSP679
MSP6710
MSP6719
MSP6720
MSP6721
MSP6721C
MSP6728
MSP6728C
MSP6732
MSP6732C
MSP6743
3” Without Mating Half Connector / High Output
3” With 7” Leads
5’ With 12” Leads
3” Without Mating Half Connector / Military Style Connector
5” Without Mating Half Connector / Military Style Connector
3” Mating Half Connector / Weather Boot /
Military Style Connector
5” Mating Half Connector / Weather Boot /
Military Style Connector
2.375” With 12” Leads
4” With 6” Leads
3” With 3” Leads / Automotive Connector
3” With 3” Leads / Automotive Connector / Mating Half
Connector
3” With 10” Leads / Packard Connector
3” With 10” Leads / Packard Connector / Mating Half Connector
3” With 4” Leads / Dual Output / Dual Packard Connectors
3” With 4” Leads / Dual Output / Dual Packard Connectors /
Mating Half Connector
3.75” With 8/32 Stud Terminals / 1200 Ohms
5/8 - 18 UNF Threaded
Cable Harnesses
Mating Connectors
CH1204
CH1205
CH1206
CH1207
CH1208
CH1211
CH1219
EC1100
EC1110
EC1350
EC1518
MSP677/678 - 10’ Shielded - Straight Connector (MIL)
MSP677/678 - 10’ Shielded - 90° Connector
MSP6721/6724 and ADC Actuators - 4’ Unshielded
MSP6721/6724/6723 - 10’ Shielded (Automotive)
MSP675 - 10’ Shielded
MSP677/678 - 27’ Shielded - Straight Connector (MIL)
Packard - Sensors Mating Half - 10’ Shielded
MSP677 with Straight Cable Clamp & Weather Boot
MSP677 with 90° Cable Clamp
Mating Packard Speed Sensor
Mating Connector for MSP6741
MAGNETIC SPEED PICKUPS
14
ACCESSORIES - MAGNETIC SPEED PICKUPS
GENERATOR ACCESSORIES
15
Generator Accessories
Load Sharing and Synchronizing
LAM100
LSM100
LSM201N
LSM201
LSM672N
LSM672
SYC6714
Load Anticipation Module / Hard Potted
Isochronous Load Sharing / Load Anticipation / Droop
24 VDC / Isochronous Load Sharing / Power Monitors /
Power Ramping
(CE) 24 VDC / Isochronous Load Sharing / Power Monitors /
Power Ramping
24 VDC / Isochronous Load Sharing / Forward-Reverse Power Monitors /
Extra Filtering
(CE) 24 VDC / Isochronous Load Sharing / Forward-Reverse Power Monitors
(CE) Multi VDC / Automatic Synchronizer With Sync Check Relay
All Electric Sensing
Accurately Measures True Power
Load Anticipation and Droop Adjustment
Small Compact Size
EAM116
EAM120-12 or -24
EAM121-24
EAM122-12
EAM122-24
EAM125
EAM126
EAM127-24
EAM131
EAM208
EAM210
PCI105
PRC100A
VMA100
Universal / 1.2x0-5VDC, 1x0-10VDC, 1x4 20mA / 0.0-5VDC
Woodward 2302A / 12 or 24 VDC
Woodward Load Sharing & Synchronizing - GAC
Including DEC2 / 12 or 24VDC
Volvo EMS / 12 VDC
Volvo EMS / 24 VDC
Deutz Position Interface Module
Voltage / Current Interface Module
Interface Module Scania S6 (EMS) EFI SY / 24 VDC
Universal / 4 -20mA Output
DC Generator / Current Transformer / 200 Amp /
0-8 VDC Output
Cummins / 100% Duty Cycle / DC Generator
50-60 Hertz Module
Generator Voltage Matching Module
Generator Voltage Matching Module
Interface Modules
Multi Voltage Units
Adjustable PID
Idle Speed Adjustment
Auxiliary Accessory Inputs
Regulation Accuracy ±0.5% Steady State
Low Voltage Build-Up, 6VAC
Over Voltage and Internal Fuse Protection
CVR63-4R
CVR63-6
Commercial Voltage Regulator / 4A 63V Field
Commercial Voltage Regulator / 6A 63V Field
Voltage Regulators
Cummins EFC
B.C. Dyna 1 & 8000 / 24 VDC
B.C. Dyna 1 & 8000 / 12 VDC
B.C. Load Sharing to GAC Speed Control Units
DDEC 3 Controller
GAC Load Sharing To Heinzmann KG6-04/10-04
Cummins Digital (3081313)
KCL (3873583)
Woodward (8290-038) / 12VDC
Woodward (8290-038) / 24VDC
Cummins ST30
MTU M-DEC
CAT HEUI
Deutz EMR - 12 or 24 VDC
Perkins 1306-E87 7M351
EAM100
EAM101
EAM101-12
EAM103
EAM104
EAM105
EAM106
EAM107
EAM108
EAM108-12
EAM110
EAM111
EAM113
EAM114-12 or -24
EAM115

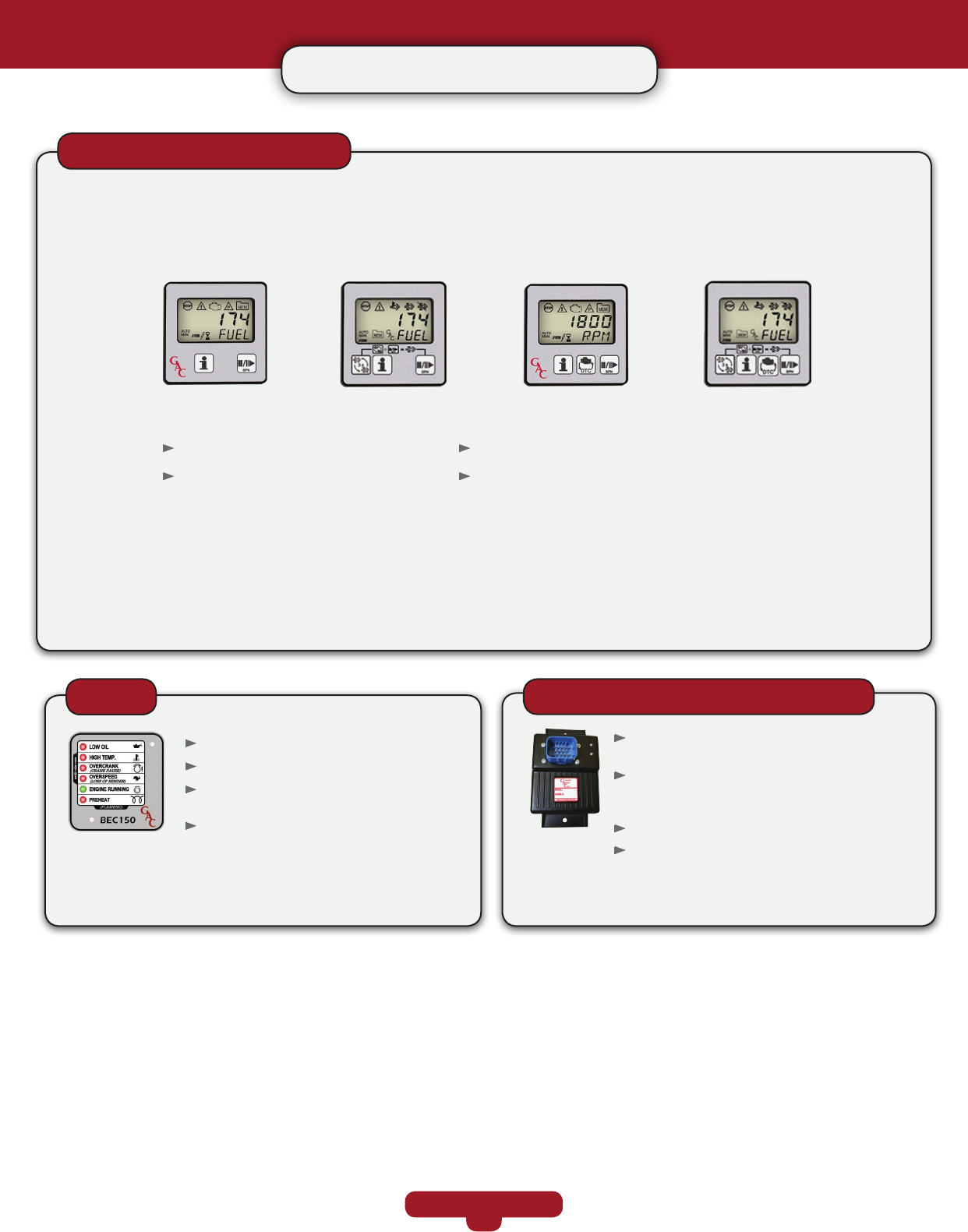

INSTRUMENTATION
16
Instrumentation
Wide Temperature Range
Built-in CAN bus Termination Resistor
Self Contained, No Conguration Software Required
Customizable Overlay with OEM Logos
J1939 Data Readers
JDR050
JDR050-IV
JDR100
JDR100-IV
J1939 Diagnostic Trouble Code Reader
J1939 Diagnostic Trouble Code Reader / Tier IV Diesel Particulate Filter Capability
J1939 Diagnostic Trouble Code Reader / 6 Live Engine Parameters
J1939 Diagnostic Trouble Code Reader / 7 Live Engine Parameters / Tier IV Diesel Particulate Filter Capability
GAC’s low-cost JDR series of J1939 data readers allow users to monitor trouble codes and standard engine
parameters. More advanced models support Tier IV engines with diesel particulate lters. Harsh applica-
tions are no match for JDR’s rugged design. With installation and setup a breeze, users will be monitoring
engine vital signs and conguring parameters in no-time.
JDR050 JDR100JDR050-IV JDR100-IV
BEC
BEC100
BEC150
Basic Engine Mounting and Protection
Basic Engine Mounting and Protection / Preheat
Cost Eective Engine Control Solution
Five Onboard LED Indicators
Six Lamp Output Terminals & One
Dual Function Input/Output Terminal
Built-In Crank Pause &
Overspeed Switch
Converts Analog Inputs and Outputs J1939
Messages for Non-Electronic Engines
Standard Messages for: Oil Pressure, Coolant
Temp, Fuel Engine Speed and Fuel Level
Outputs
Outputs Diagnostic Trouble Codes (DTC)
OEM Denable Messages and Sender Curves
ECA050
ECA100
4 Resistive Inputs / Ground Sense
4 Resistive Inputs / Ground Sense / Mag Speed Pickup / +5VDC
ECA - Analog to CAN Adapter
INSTRUMENTATION
17
Cable Harnesses
Mating Connector
CH417-4572
CH418-4572
EC1331
JDR / 15’ Cable Harness / Mating Connector /
Built-in CAN bus Termination Jumper
JDR / 15’ Cable Harness / Mating Connector /
Built-in CAN bus without Termination Jumper
Deutsch DT06-6S Mating Connector, Pins /
Plugs for the JDR
ACCESSORIES - INSTRUMENTATION

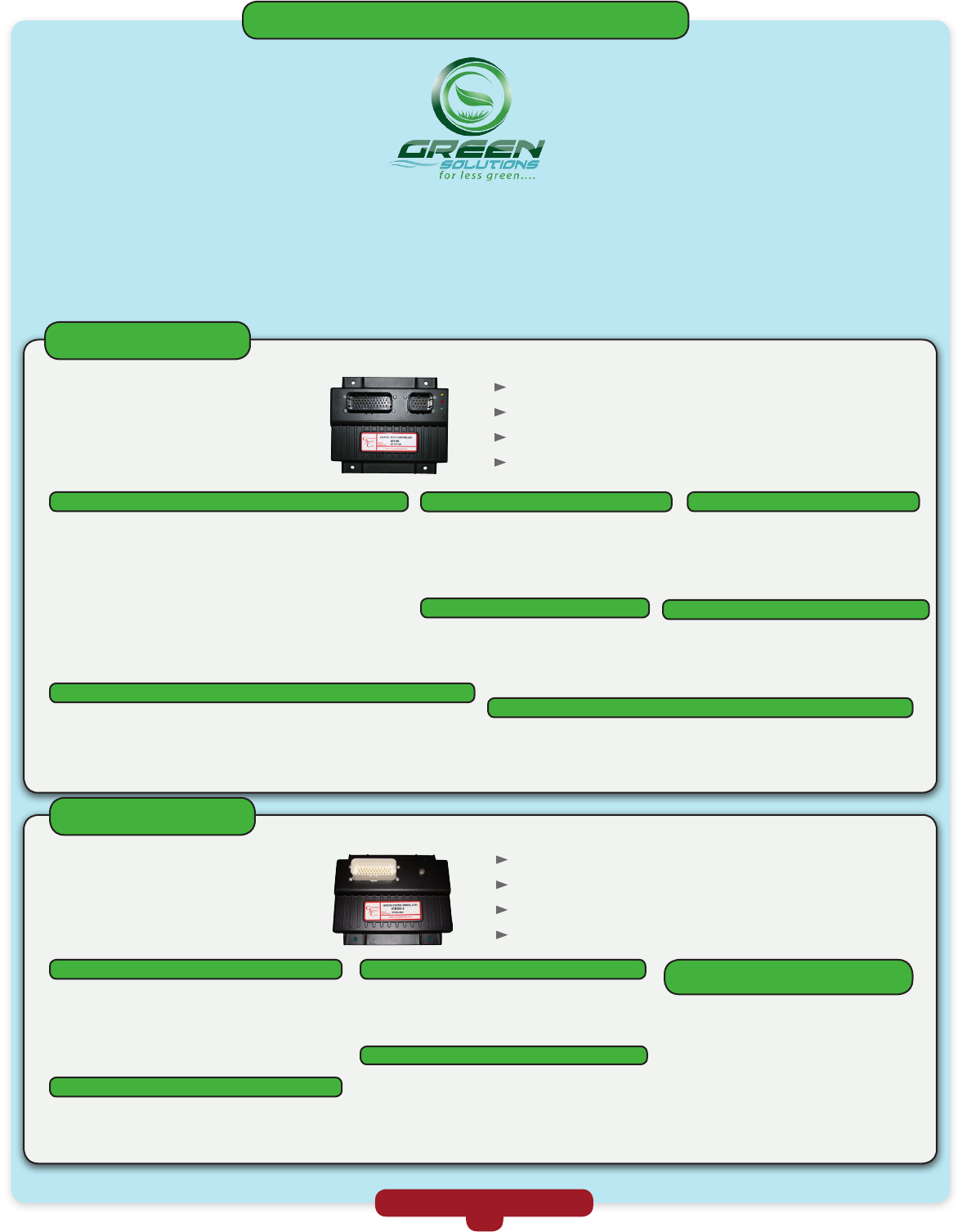

GASEOUS FUELED SYSTEMS
18
FIMS500 Fuel Ignition Management
The Air-Fuel Ratio (AFR) 200 Series and the Ignition Control Module (ICM) 200 Series controllers are part of GACs comprehensive
Fuel and Ignition Management System (FIMS) for gaseous-fueled, spark-ignited engines. The AFR200 performs closed-loop air-fuel
ratio control using an exhaust oxygen sensor for feedback, in addition to providing a built-in engine speed governor with GAC’s
proprietary EDGe algorithm. Easy to congure, simple to install, and built for the extreme environments of industrial engines;
GAC’s AFR200 series delivers. When coupled with the Ignition Control Module (ICM) 200 series controller, the combination forms
the FIMS500 platform.
AFR200 Series
Integrated Venturi Mixer / Control
Built-in Engine Speed Governor for GAC ATBs
3 Fixed Speeds, 1 Variable Speed, 1 Auxiliary Speed Trim
GAC SmartVU Software
AFR200
AFR201
AFR210
AFR211
One Oxygen Sensor Input
Two Oxygen Sensor Inputs
One Oxygen Sensor Input and
EGT (Type-K) Input
Two Oxygen Sensor Inputs and
EGT (Type-K) Input
ICM200 Series
Up to 8 or 16 Cylinders Sequential
Supports Camshaft / Crankshaft Engine Position Sensors
Fixed Timing or With In-Field Global Trim Capability
Two Optional Variable Timing Maps
ICM200-4
ICM200-6
ICM200-8
ICM200-12
4 Output Channels Maximum
6 Output Channels Maximum
8 Output Channels Maximum
12 Output Channels Maximum
GR104
GR105
24-1, 68mm, Trigger Wheel
24-1, 150mm, Trigger Wheel
Timing Trigger Wheels
SCI100
SCI101
SCI102
SCI103
Variable Reluctance / 90° Connector
Variable Reluctance / Straight Connector
Hall Eect / Pigtail Connector
Hall Eect / 90° Connector
Engine Position Sensors
CL602
CL603
Single Output, Sequential Firing
Dual Output, Wasted-Spark Firing
Ignition Coils
SPM200-1B
SPM201-2B
MAP, 1-Bar
MAP, 2-Bar
SPM202-3B MAP, 3-Bar
Manifold Absolute Pressure Sensors -
Engine Load Sensor for ICM
SPG100-001
SPG100-002
SPW100
Iridium Tip Spark Plug
ISpark Plug /
Turbocharge Lean Burn Application
Single Ignition Wire Lead, Performance
Spark Plugs & Wires
SPM200-1B
SPM201-2B
MAP, 1-Bar
MAP, 2-Bar
SPM202-3B MAP, 3-Bar
Manifold Absolute Pressure Sensors - Engine Load Sensor for AFR
SPO100
STC101
STE101
Oil Pressure Sensor, 150 PSI, 2 Terminal, Ring Posts
Coolant Temperature Sensor, 250°F, Spade Terminals
Exhaust Gas Temperature Sensor, Type K
Thermocouple with Connectors
Engine Monitoring Sensors - Used for Engine Protection by the AFR
MXSB##-STM
MXMB##-STM
MXLB##-STM
Size 20 - 30, Small Bore, T1 Bolt Pattern /
MXSB20-STM, MXSB22-STM, MXSB24-STM,
MXSB26-STM, MXSB28-STM, MXSB30-STM
Size 40 - 50, Medium Bore, T2 Bolt Pattern /
MXMB40-STM, MXMB42-STM, MXMB44-STM,
MXMB46-STM, MXMB48-STM, MXMB50-STM
Size 75 - 120, Large Bore, T3 & T4 Bolt Pattern /
MXLB75-STM, MXLB85-STM, MXLB95-STM,
MXLB110-STM, MXLB120-STM
MC Series - Venturi Mixer and Fuel Control Valve Assembly
SOX102
SOX103
12V, 4-Wire, Narrow-Band,
With Heater
12 or 24V, 2-Wire, Narrow-Band,
No Heater
Oxygen Sensors - Feedback Sensor for AFR
VFC103 In-Line Fuel Control Valve Only
Fuel Valve Only
MX30
MX50
MX60
MX75
MX85
30mm Mixer
50mm Mixer
60mm Mixer
75mm Mixer
85mm Mixer
Venturi Mixers Only
RPR102
RPR103
RPR104
3/4” Fittings / 1 PSI Maximum
1” Fittings / 1 PSI Maximum
1” Fittings / 5 PSI Maximum
Zero Pressure Gas Regulators
GASEOUS FUELED SYSTEMS
19
Mating Connector Kits & Harnesses
Lean Burn for the AFR
EC1507 MX Series Stepper Motor, 4-Terminal*
MX Series Fuel Valve Mating Connector Kit
EC1501
EC1502
CH1519
CH1520
AFR200 Series, Connector 1,
35-Terminal (All)*
AFR200 Series, Connector 2,
14-Terminal (201/211 Only)
AFR200 Series, Harness Kit,
35-Terminal, Flying Leads (All)
AFR200 Series, Harness Kit, 14-Terminal,
Flying Leads (201/211 Only)
AFR200 Series Mating Connector Kits & Harnesses
EC1500
CH1521
CH1522
ICM200 Series, 35-Terminal
ICM200 Series, Harness Kit,
35-Terminal, Flying Leads*
Basic ICM200-6 Harness,
19-Terminal, Flying Leads
ICM200 Series Mating Connector Kit & Harnesses
RLY02-1009
RLY02-1011
12V, Normally Open
24V, Normally Open
Power Relays
EC1505
EC1506
EC1516
Fuse Holder, 2-Terminal
Relay Holder, 5-Terminal*
Serial Port DB9-F, 9-Terminal
Miscellaneous Component Connector Kits
EC1503
EC1504
EC1518
EC1519
SCI102, 3-Terminal*
SCI100, 2-Terminal
SCI101, 2-Terminal
SCI103, 3-Terminal
Engine Position Sensor Mating Connector Kits
EC1508
EC1520
SOX102, 12V, 4-Terminal*
SOX103, 24V, 2-Terminal
Oxygen Sensor Mating Connector Kits
EC1509
EC1510
EC1511
CH1523
HW11-025
EAM212
SOX104
SPM200-1B, Green, 3-Terminal*
SPM201-2B, Orange, 3-Terminal
SPM202-3B, Black, 3-Terminal
EAM212 Lean Burn Adapter Controller Harness
Installation Spacer, Threaded, for SOX104 O2 Sensor Assembly
Lean Burn Adapter
O2 Sensor Assembly, LSU4.2
Manifold Absolute Pressure Sensor Mating Connector Kits
Kit Includes:
EC1504
EC1517
CL602, 2-Terminal*
CL601, 3-Terminal
Ignition Coil Mating Connector Kits
The GAC KT317WB-AFR, ready to use lean burn adapter kit for the
FIMS500 AFR2XX Series controllers determines how rich or lean
an engine is running at any load and compensates for changes
in temperature and sensor condition. Performance and opera-
tional settings are adjusted and viewed in real time using GAC’s
SmartVU software.
Plug and Play Lean Burn Solution for GAC FIMS500 Fuel Management System
Wide Band LSU 4.1 Sensor Included
0.5 to 1.5 λ Range
Acurate Wideband to Narrow Band Conversion
Integrated Dual-Color Status LED (Green/Red)
Sensor Cable Harnessing Incorporated
Positive Lock Connectors for All Connections
* image shown
GAC (Yantai) Electronic Control Co. Ltd.
USA
Governor America Corp.
720 Silver Street
Agawam, MA 01001
T: 413.233.1888
F: 413.789.7736
www.governors-america.com
info@governors-america.com
Hongan Industrial Park, Building 19
No. 2 Guangzhou Road
Yantai Economic Development Area
Yantai, Shandong, China
T: +86-535-6949851
F: +86-535-6949229
info@gac-china.com
CHINA
PMB7040 D

Navigation menu
