Automatic road
barriers
for passages
of up to
3.75 m / 12.3 ft
Gard
A new concept of
automatic barrier
Innovation and design for
all-inclusive safety: these are the
most recent additions to the Gard
barrier line family. Soft contours
and rounded corners to counteract
the “sail effect” for a barrier that
incorporates perfectly into a
diversity of installation settings.
230V A.C. Barriers
G4041 Automatic barrier in galvanized and painted steel with 230V A.C. operator with control panel.
G4041I Automatic barrier in brushed AISI 304 stainless steel with 230V A.C. operator with control panel.
230V A.C. Electronics
ZG5 Plus control panel.
ZG6 Basic control panel.
RSE Function management control board for ZG5.
24V D.C. Barriers
G4040 Automatic barrier in galvanized and painted steel with 24V D.C. operator with control panel.
G4040I Automatic barrier in satin-finish AISI 304 stainless steel with 24V D.C. operator with control panel.
24V D.C. Electronics
ZL38 Control board fitted to take Came radio frequency cards.
LB38 Emergency battery card.
The range
new
© Came DEP5620 06/2007
The data and information shown in this catalogue are subject to change without the obligation to give prior notice by Came cancelli automatici S.p.A.
www.came.it - info@came.it

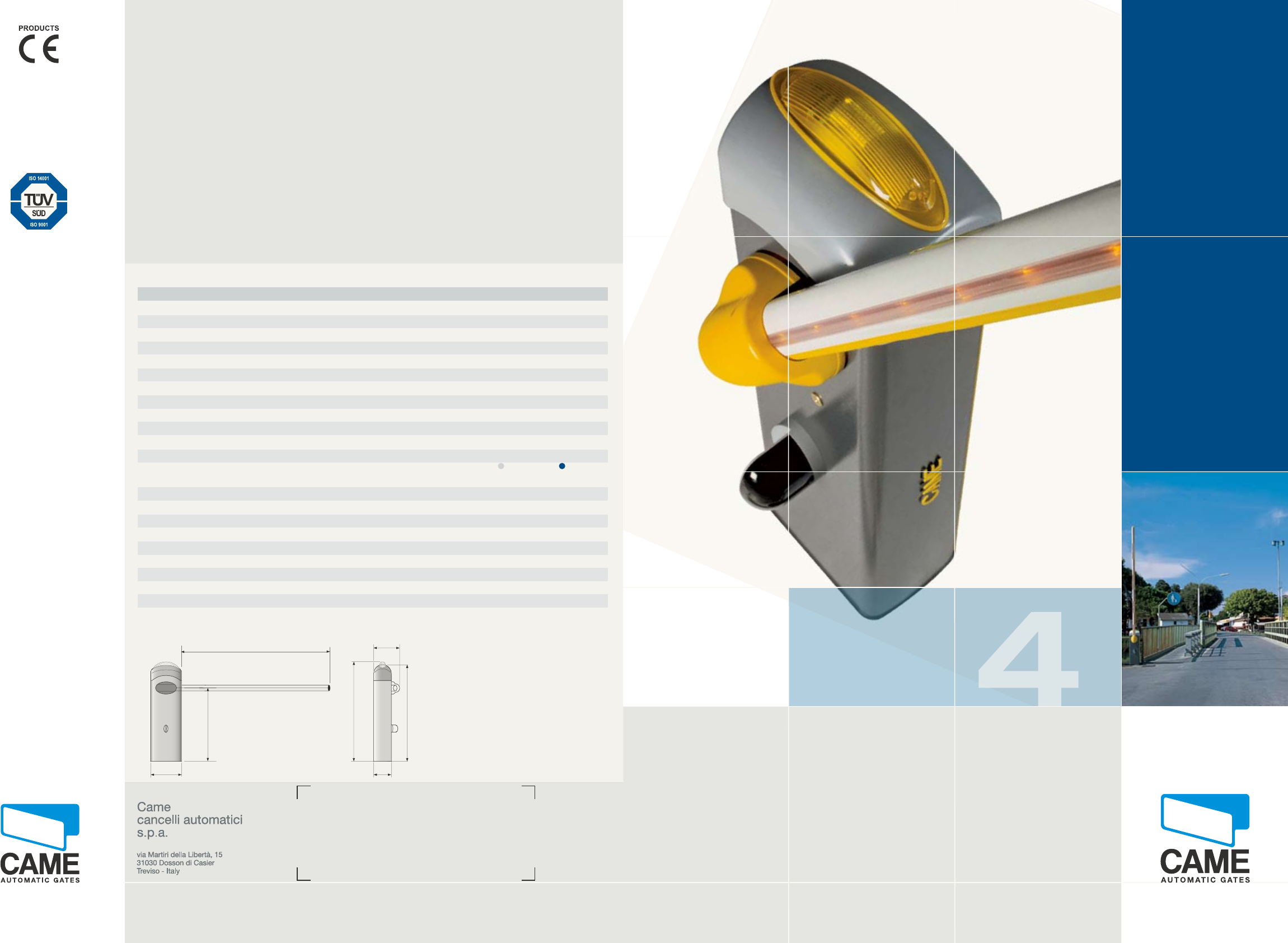

General information
Dimensions
320
884
1204
217
340
1173
Up to 3,75 / m 12, 3 ft
Made in Italy
For its quality processes
management Came Cancelli
Automatici is ISO 9001:2000
certified, and for its
environmental management
it is ISO 14001 certified.
Came designs and
manufactures entirely
in Italy.
Technical features
230V A.C. 24V D.C.
Composition of the bar Max opening clearance m ft
Bar with shock-resistant profile 3,75 12,3
Bar with shock-resistant profile and luminous cord 3,75 12,3
Bar with rack 3,75 12,3
Bar with luminous cord and rack 3,75 12,3
Bar with shock-resistant profile and mobile barrier support 3,75 12,3
Bar with shock-resistant profile, luminous cord and mobile barrier support 3,75 12,3
Bar with rack and mobile barrier support 3,50 11,5
Bar with luminous cord, rack and mobile barrier support 3,50 11,5
Type
Protection rating
Power supply (V)
Motor power supply (V)
Power (W)
Current draw (A)
Reduction ratio (i)
Max torque (Nm)
Opening time (s)
Duty cycle (%)
Operating temperature (°C)
Cabinet colour
Cover colour
G4041 / G4041I
IP54
230 A.C 50/60Hz
230 A.C 50/60Hz
250
2,2
1/202
220
4
30
-20 ÷ +55
Grey textured metal finish 0530837
RAL 9006
G4040 /G4040I
IP54
230 A.C 50/60Hz
24 D.C.
300
15
1/202
600
2 ÷ 6
intensive use
-20 ÷ +55
Grey textured metal finish 0530837
RAL 9006
Gard4
Designed for a range of large openings up to 3,75 m / 12,3 ft, the new Gard
barriers are the ideal solution for control of roads and parking areas for
industrial and public use.
The Gard series is available in the 230V A.C. motor and the 24V D.C.
motor versions.
Automatic
road barriers

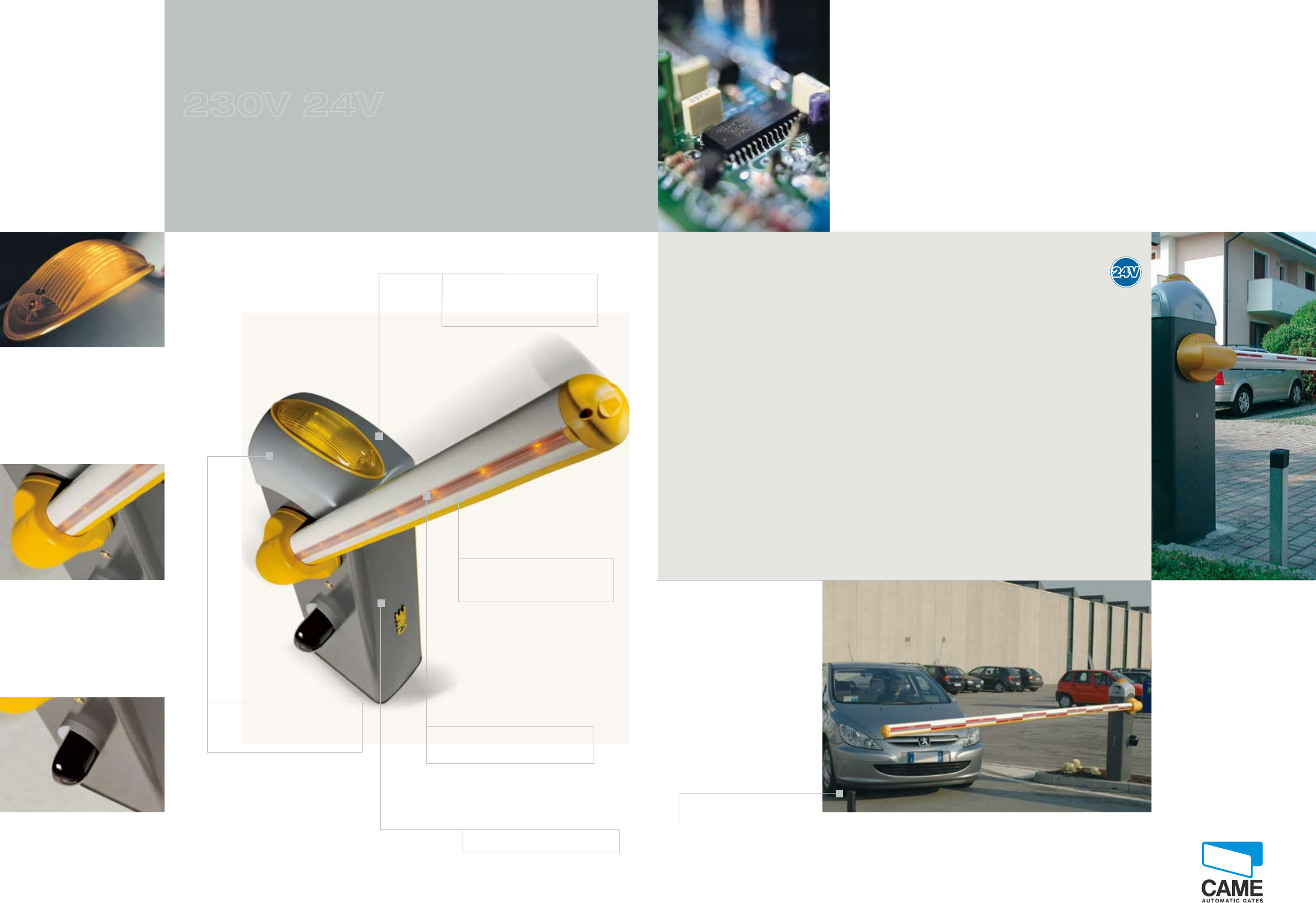

The new series offers
many new features, all
marked by innovation
A blend of design and modern
technology of illumination.
The exclusive incorporated flashing
light with a lighted LED diffuser
needs no special maintenance and
ensures complete visibility of the
warning light.
The protective guard on the
bar is a standard feature.
Protects the user from possible risk
when the bar is in rotation.
Perfectly integrable.
The safety photocells are applied
directly onto the bar and integrate
harmoniously and aesthetically with
the system.
Command electronics.
Protected by a die-cast aluminium
guard, it is positioned to make
any type of intervention extremely
practical.
Maximum safety.
An electronic contact automatically
interrupts the power supply voltage
as soon as the inspection door is
opened.
Luminous cord.
Superior visibility of the arm and maxi-
mum durability of the light fixtures.
Global entry control
The Gard series automatic barrier system can be connected to many of the Came access
control systems that allow identification, memorization, and entry and exit only to authorized
personnel. The equipment can also be integrated with a global access control system for
specific departments in a company or the services offered by a collective structure and
apartment blocks.
The Gard series barriers are constructed with next-generation electronics
that guarantee total control of the automatic system, improving
and increasing the usual safety and control functions, such as:
> Comprehensive AUTOTEST of all the safety devices
connected to the system prior to activating the motor (electronic autotest).
> Electronic control of the movement
of the bar with obstacles detection (anti-crushing function).
> Safety feature even when the bar is stationary
all controls are invalidated if an obstacle is detected by the safety devices.
The 230V electronics
Streets, parking areas, collective areas or simply specific functional and
security needs of the system can call for the use of a Gard system with
24V technology.
> Frequent blackouts
The electronics of a Gard 24V system automatically recognizes a lack of power and
activates emergency operation with special auxiliary batteries.
> Keep speed in check
For total service, the 24V electronics enables the operating speed to be adjusted depending
on whether the situation requires faster or slower openings and closings.
> Intensive traffic
The low-voltage motor ensures operation of the barrier for intensive traffic conditions,
such as streets, parking areas and other areas entailing constant, intensive operation.
> Rapid transit
The 24V technology regulates the barrier opening time between 8 and 4 seconds.
The advantages of 24V barriers
Also available as
a set or with
synchronous action
Thanks to the additional
RSE card the barriers
can be installed
facing each other or
be synchronised with
the “compass” function
at the same access
point.
Round tubular bar.
For maximum reduction of the sail
effect ensuring correct functioning
even in areas subject to high winds.
Differentiated sensitivity spring.
For exceptional balancing of the bar.
