- Geant4 User's Guide for Application Developers
- Table of Contents
- Chapter 1. Introduction
- Chapter 2. Getting Started with Geant4 - Running a Simple Example
- 2.1. How to Define the main() Program
- 2.2. How to Define a Detector Geometry
- 2.3. How to Specify Materials in the Detector
- 2.3.1. General Considerations
- 2.3.2. Define a Simple Material
- 2.3.3. Define a Molecule
- 2.3.4. Define a Mixture by Fractional Mass
- 2.3.5. Define a Material from the Geant4 Material Database
- 2.3.6. Define a Material from the Base Material
- 2.3.7. Print Material Information
- 2.3.8. Access to Geant4 material database
- 2.4. How to Specify Particles
- 2.5. How to Specify Physics Processes
- 2.6. How to Generate a Primary Event
- 2.7. Geant4 General Particle Source
- 2.8. How to Make an Executable Program
- 2.9. How to Set Up an Interactive Session
- 2.10. How to Execute a Program
- 2.11. How to Visualize the Detector and Events
- Chapter 3. Toolkit Fundamentals

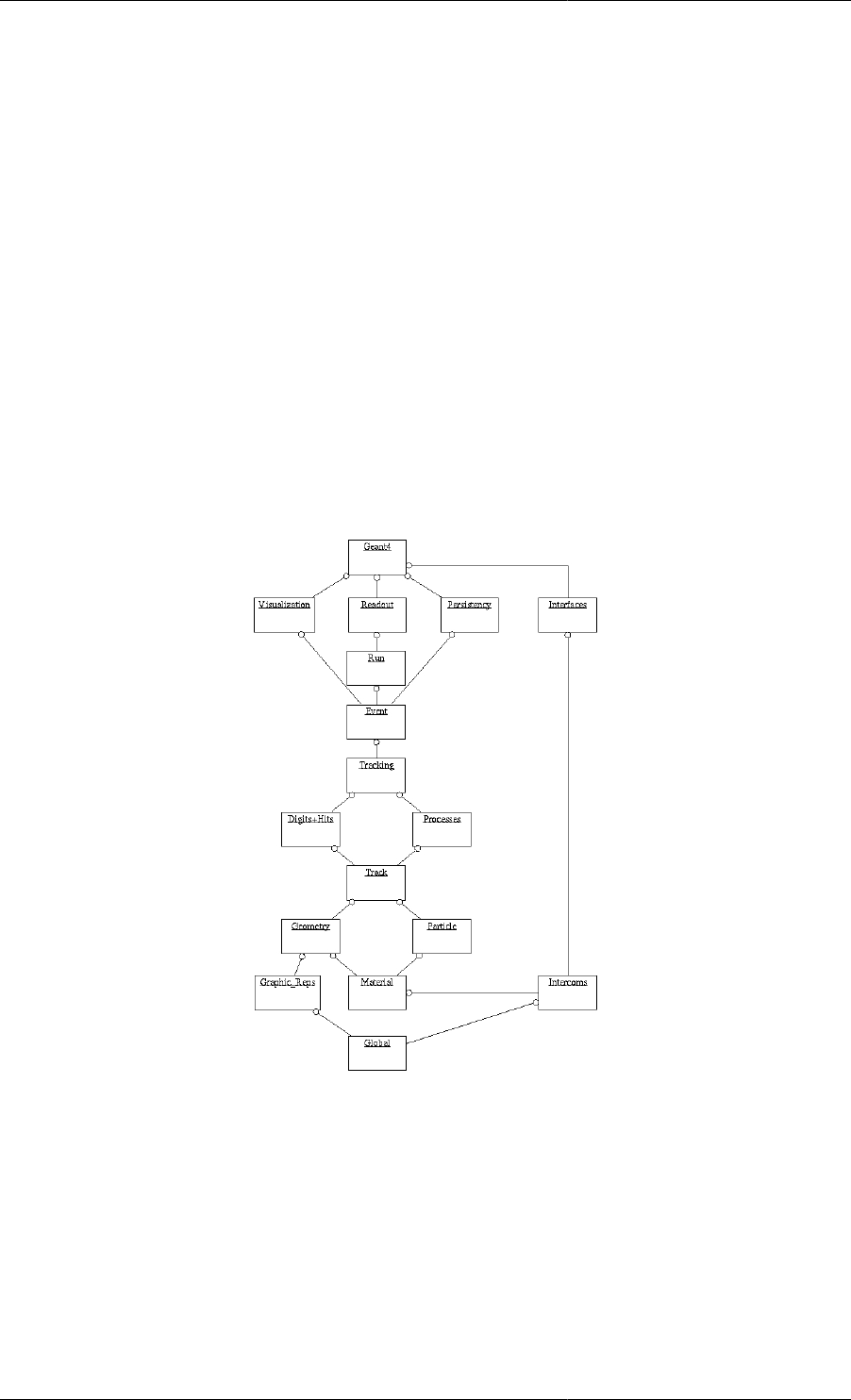

- 3.1. Class Categories and Domains
- 3.2. Global Usage Classes
- 3.3. System of units
- 3.4. Run
- 3.5. Event
- 3.6. Event Generator Interface
- 3.7. Event Biasing Techniques
- 3.7.1. Scoring, Geometrical Importance Sampling and Weight Roulette
- 3.7.2. Physics Based Biasing
- 3.7.3. Adjoint/Reverse Monte Carlo
- 3.7.4. Generic Biasing
- Chapter 4. Detector Definition and Response
- 4.1. Geometry
- 4.1.1. Introduction
- 4.1.2. Solids
- 4.1.3. Logical Volumes
- 4.1.4. Physical Volumes
- 4.1.5. Touchables: Uniquely Identifying a Volume
- 4.1.6. Creating an Assembly of Volumes
- 4.1.7. Reflecting Hierarchies of Volumes
- 4.1.8. The Geometry Navigator
- 4.1.9. A Simple Geometry Editor
- 4.1.10. Converting Geometries from Geant3.21
- 4.1.11. Detecting Overlapping Volumes
- 4.1.12. Dynamic Geometry Setups
- 4.1.13. Importing XML Models Using GDML
- 4.1.14. Importing ASCII Text Models
- 4.1.15. Saving geometry tree objects in binary format
- 4.2. Material
- 4.3. Electromagnetic Field
- 4.3.1. An Overview of Propagation in a Field
- 4.3.2. Practical Aspects
- 4.3.2.1. Creating a Magnetic Field for a Detector
- 4.3.2.2. Creating a Field for a Part of the Volume Hierarchy
- 4.3.2.3. Creating an Electric or Electromagnetic Field
- 4.3.2.4. Choosing a Stepper
- 4.3.2.5. How to Adjust the Accuracy of Propagation
- 4.3.2.6. Reducing the number of field calls to speed-up simulation
- 4.3.2.7. Choosing different accuracies for the same volume
- 4.3.2.8. Parameters that must scale with problem size
- 4.3.2.9. Known Issues
- 4.3.3. Spin Tracking
- 4.4. Hits
- 4.5. Digitization
- 4.6. Object Persistency
- 4.7. Parallel Geometries
- 4.8. Command-based scoring
- 4.1. Geometry
- Chapter 5. Tracking and Physics
- 5.1. Tracking
- 5.2. Physics Processes
- 5.2.1. Electromagnetic Interactions
- 5.2.1.1. Electromagnetic Processes
- 5.2.1.2. Low Energy Electromagnetic Library
- 5.2.1.3. Production Cuts
- 5.2.1.4. Angular Generators
- 5.2.1.5. Electromagnetics secondary biasing
- 5.2.1.6. Livermore Data Based Models
- 5.2.1.7. ICRU73 Based Ion Model
- 5.2.1.8. Penelope2008 Based Models
- 5.2.1.9. Very Low energy Electromagnetic Processes (Geant4-DNA extension)
- 5.2.1.10. Atomic Deexcitation
- 5.2.1.11. Very Low energy Electromagnetic Processes in Silicon for microelectronics application (Geant4-MuElec extension)
- 5.2.1.12. New Compton model by Monash U., Australia
- 5.2.1.13. Multi-scale Processes
- 5.2.2. Hadronic Interactions
- 5.2.3. Particle Decay Process
- 5.2.4. Gamma-nuclear and Lepto-nuclear Processes
- 5.2.5. Optical Photon Processes
- 5.2.6. Parameterization
- 5.2.6.1. Generalities:
- 5.2.6.2. Overview of Parameterisation Components
- 5.2.6.3. The G4VFastSimulationModel Abstract Class
- 5.2.6.4. The G4FastSimulationManager Class:
- 5.2.6.5. The G4FastSimulationManagerProcess Class
- 5.2.6.6. The G4GlobalFastSimulationManager Singleton Class
- 5.2.6.7. Parameterisation Using Ghost Geometries
- 5.2.6.8. Gflash Parameterization
- 5.2.6.9. Using the Gflash Parameterisation
- 5.2.7. Transportation Process
- 5.2.1. Electromagnetic Interactions
- 5.3. Particles
- 5.4. Production Threshold versus Tracking Cut
- 5.5. Cuts per Region
- 5.6. Physics Table
- 5.7. User Limits
- 5.8. Track Error Propagation
- 5.9. Exotic Physics
- Chapter 6. User Actions
- Chapter 7. Communication and Control
- Chapter 8. Visualization
- 8.1. Introduction to Visualization
- 8.2. Adding Visualization to Your Executable
- 8.3. The Visualization Drivers
- 8.3.1. Availability of drivers on the supported systems
- 8.3.2. OpenGL
- 8.3.3. Qt
- 8.3.4. OpenInventor
- 8.3.5. OpenInventor Extended Viewer
- 8.3.6. HepRepFile
- 8.3.7. HepRepXML
- 8.3.8. DAWN
- 8.3.9. Remote Visualization with the DAWN-Network Driver
- 8.3.10. VRML
- 8.3.11. RayTracer
- 8.3.12. gMocren
- 8.3.13. Wt (WARNING: this driver is experimental and should be used with caution)
- 8.3.14. Visualization of detector geometry tree
- 8.3.15. GAG Tree
- 8.3.16. XML Tree
- 8.4. Controlling Visualization from Commands
- 8.4.1. Scene, scene handler, and viewer
- 8.4.2. Create a scene handler and a viewer: /vis/open command
- 8.4.3. Create an empty scene: /vis/scene/create command
- 8.4.4. Visualization of a physical volume: /vis/drawVolume command
- 8.4.5. Visualization of a logical volume: /vis/specify command
- 8.4.6. Visualization of trajectories: /vis/scene/add/trajectories command
- 8.4.7. Visualization of hits: /vis/scene/add/hits command
- 8.4.8. Visualization of Scored Data
- 8.4.9. HepRep Attributes for Hits
- 8.4.10. Basic camera workings: /vis/viewer/ commands
- 8.4.11. Declare the end of visualization for flushing: /vis/viewer/flush command
- 8.4.12. End of Event Action and End of Run Action: /vis/viewer/endOfEventAction and /vis/viewer/endOfRunAction commands
- 8.4.13. HepRep Attributes for Trajectories
- 8.4.14. How to save a view.
- 8.4.15. How to save a view to an image file
- 8.4.16. Culling
- 8.4.17. Cut view
- 8.4.18. Multithreading commands
- 8.5. Controlling Visualization from Compiled Code
- 8.5.1. G4VVisManager
- 8.5.2. Visualization of detector components
- 8.5.3. Visualization of trajectories
- 8.5.4. Enhanced trajectory drawing
- 8.5.5. HepRep Attributes for Trajectories
- 8.5.6. Visualization of hits
- 8.5.7. HepRep Attributes for Hits
- 8.5.8. Visualization of text
- 8.5.9. Visualization of polylines and tracking steps
- 8.5.10. Visualization User Action
- 8.5.11. Standalone Visualization
- 8.6. Visualization Attributes
- 8.7. Enhanced Trajectory Drawing
- 8.8. Trajectory Filtering
- 8.9. Polylines, Markers and Text
- 8.10. Making a Movie
- Chapter 9. Analysis
- 9.1. Introduction
- 9.2. Analysis Manager Classes
- 9.3. Analysis Reader Classes
- 9.4. Accumulables
- 9.5. g4tools
- Chapter 10. Examples
- 10.1. Introduction
- 10.2. Basic Examples
- 10.3. Extended Examples
- 10.3.1. Extended Example Summary
- 10.3.1.1. Analysis
- 10.3.1.2. Common
- 10.3.1.3. Biasing
- 10.3.1.4. Electromagnetic
- 10.3.1.5. Error Propagation
- 10.3.1.6. Event Generator
- 10.3.1.7. Exotic Physics
- 10.3.1.8. Fields
- 10.3.1.9. Geant3 to Geant4
- 10.3.1.10. Geometry
- 10.3.1.11. Hadronic
- 10.3.1.12. Medical Applications
- 10.3.1.13. Optical Photons
- 10.3.1.14. Parallel Computing
- 10.3.1.15. Parameterisations
- 10.3.1.16. Persistency
- 10.3.1.17. Polarisation
- 10.3.1.18. Radioactive Decay
- 10.3.1.19. Run & Event
- 10.3.1.20. Visualization
- 10.3.1. Extended Example Summary
- 10.4. Advanced Examples
- 10.5. Novice Examples
- Appendix . Appendices
- Bibliography
Geant4 User's Guide for
Application Developers
Version: geant4 10.3
Publication date 9 December 2016
Geant4 Collaboration
![](asset-2.png)
Geant4 User's Guide for Application Developers
by Geant4 Collaboration
Version: geant4 10.3
Publication date 9 December 2016
![](asset-3.png)
iii
Table of Contents
1. Introduction .............................................................................................................................. 1
1.1. Scope of this manual ....................................................................................................... 1
1.2. How to use this manual ................................................................................................... 1
2. Getting Started with Geant4 - Running a Simple Example ................................................................ 2
2.1. How to Define the main() Program .................................................................................... 2
2.1.1. A Sample main() Method .................................................................................... 2
2.1.2. G4RunManager .................................................................................................. 2
2.1.3. User Initialization and Action Classes ...................................................................... 4
2.1.4. G4UImanager and UI CommandSubmission ........................................................... 5
2.1.5. G4cout and G4cerr ........................................................................................... 6
2.2. How to Define a Detector Geometry .................................................................................. 6
2.2.1. Basic Concepts ..................................................................................................... 6
2.2.2. Create a Simple Volume ........................................................................................ 6
2.2.3. Choose a Solid ..................................................................................................... 6
2.2.4. Create a Logical Volume ....................................................................................... 7
2.2.5. Place a Volume .................................................................................................... 7
2.2.6. Create a Physical Volume ...................................................................................... 7
2.2.7. Coordinate Systems and Rotations ........................................................................... 8
2.3. How to Specify Materials in the Detector ............................................................................ 8
2.3.1. General Considerations .......................................................................................... 8
2.3.2. Define a Simple Material ....................................................................................... 8
2.3.3. Define a Molecule ................................................................................................ 9
2.3.4. Define a Mixture by Fractional Mass ....................................................................... 9
2.3.5. Define a Material from the Geant4 Material Database ................................................. 9
2.3.6. Define a Material from the Base Material ................................................................ 10
2.3.7. Print Material Information .................................................................................... 10
2.3.8. Access to Geant4 material database ........................................................................ 10
2.4. How to Specify Particles ................................................................................................ 10
2.4.1. Particle Definition ............................................................................................... 10
2.4.2. Range Cuts ........................................................................................................ 12
2.5. How to Specify Physics Processes .................................................................................... 13
2.5.1. Physics Processes ................................................................................................ 13
2.5.2. Managing Processes ............................................................................................ 14
2.5.3. Specifying Physics Processes ................................................................................ 14
2.6. How to Generate a Primary Event .................................................................................... 15
2.6.1. Generating Primary Events ................................................................................... 15
2.6.2. G4VPrimaryGenerator ......................................................................................... 17
2.7. Geant4 General Particle Source ........................................................................................ 17
2.7.1. Introduction ....................................................................................................... 17
2.7.2. Configuration ..................................................................................................... 18
2.7.3. Macro Commands ............................................................................................... 21
2.7.4. Example Macro File ............................................................................................ 26
2.8. How to Make an Executable Program ............................................................................... 27
2.8.1. Using CMake to build Applications: Geant4Config.cmake .......................................... 27
2.8.2. Using Geant4Make to build Applications: binmake.gmk ............................................ 35
2.9. How to Set Up an Interactive Session ............................................................................... 37
2.9.1. Introduction ....................................................................................................... 37
2.9.2. A Short Description of Available Interfaces ............................................................. 37
2.9.3. How to Select Interface in Your Applications .......................................................... 40
2.10. How to Execute a Program ............................................................................................ 41
2.10.1. Introduction ...................................................................................................... 41
2.10.2. 'Hard-coded' Batch Mode .................................................................................... 41
2.10.3. Batch Mode with Macro File ............................................................................... 42
2.10.4. Interactive Mode Driven by Command Lines ......................................................... 43
2.10.5. General Case .................................................................................................... 44
![](asset-4.png)
Geant4 User's Guide for
Application Developers
iv
2.11. How to Visualize the Detector and Events ....................................................................... 46
2.11.1. Introduction ...................................................................................................... 46
2.11.2. Visualization Drivers ......................................................................................... 46
2.11.3. How to Incorporate Visualization Drivers into an Executable .................................... 46
2.11.4. Writing the main() Method to Include Visualization ............................................. 47
2.11.5. Sample Visualization Sessions ............................................................................. 48
2.11.6. For More Information on Geant4 Visualization ....................................................... 48
3. Toolkit Fundamentals ............................................................................................................... 49
3.1. Class Categories and Domains ......................................................................................... 49
3.1.1. What is a class category? ..................................................................................... 49
3.1.2. Class categories in Geant4 .................................................................................... 49
3.2. Global Usage Classes ..................................................................................................... 50
3.2.1. Signature of Geant4 classes .................................................................................. 51
3.2.2. The HEPRandom module in CLHEP ...................................................................... 51
3.2.3. The HEPNumerics module ................................................................................... 54
3.2.4. General management classes ................................................................................. 55
3.3. System of units ............................................................................................................. 56
3.3.1. Basic units ......................................................................................................... 56
3.3.2. Input your data ................................................................................................... 57
3.3.3. Output your data ................................................................................................. 58
3.3.4. Introduce new units ............................................................................................. 58
3.3.5. Print the list of units ............................................................................................ 58
3.4. Run ............................................................................................................................. 58
3.4.1. Basic concept of Run ........................................................................................... 58
3.4.2. Geant4 as a state machine .................................................................................... 61
3.4.3. User's hook for state change ................................................................................. 61
3.4.4. Customizing the Run Manager .............................................................................. 62
3.4.5. Managing worker thread ...................................................................................... 64
3.5. Event ........................................................................................................................... 64
3.5.1. Representation of an event .................................................................................... 64
3.5.2. Structure of an event ........................................................................................... 65
3.5.3. Mandates of G4EventManager .......................................................................... 65
3.5.4. Stacking mechanism ............................................................................................ 65
3.6. Event Generator Interface ............................................................................................... 66
3.6.1. Structure of a primary event ................................................................................. 66
3.6.2. Interface to a primary generator ............................................................................. 66
3.6.3. Event overlap using multiple generators .................................................................. 68
3.7. Event Biasing Techniques ............................................................................................... 68
3.7.1. Scoring, Geometrical Importance Sampling and Weight Roulette ................................. 68
3.7.2. Physics Based Biasing ......................................................................................... 75
3.7.3. Adjoint/Reverse Monte Carlo ................................................................................ 79
3.7.4. Generic Biasing .................................................................................................. 83
4. Detector Definition and Response ............................................................................................... 90
4.1. Geometry ..................................................................................................................... 90
4.1.1. Introduction ....................................................................................................... 90
4.1.2. Solids ................................................................................................................ 90
4.1.3. Logical Volumes ............................................................................................... 110
4.1.4. Physical Volumes .............................................................................................. 112
4.1.5. Touchables: Uniquely Identifying a Volume ........................................................... 121
4.1.6. Creating an Assembly of Volumes ....................................................................... 123
4.1.7. Reflecting Hierarchies of Volumes ....................................................................... 125
4.1.8. The Geometry Navigator .................................................................................... 127
4.1.9. A Simple Geometry Editor ................................................................................. 133
4.1.10. Converting Geometries from Geant3.21 ............................................................... 134
4.1.11. Detecting Overlapping Volumes ......................................................................... 136
4.1.12. Dynamic Geometry Setups ................................................................................ 139
4.1.13. Importing XML Models Using GDML ................................................................ 140
4.1.14. Importing ASCII Text Models ........................................................................... 140
![](asset-5.png)
Geant4 User's Guide for
Application Developers
v
4.1.15. Saving geometry tree objects in binary format ...................................................... 140
4.2. Material ..................................................................................................................... 140
4.2.1. General considerations ....................................................................................... 140
4.2.2. Introduction to the Classes .................................................................................. 141
4.2.3. Recipes for Building Elements and Materials ......................................................... 142
4.2.4. The Tables ....................................................................................................... 145
4.3. Electromagnetic Field ................................................................................................... 145
4.3.1. An Overview of Propagation in a Field ................................................................. 145
4.3.2. Practical Aspects ............................................................................................... 146
4.3.3. Spin Tracking ................................................................................................... 151
4.4. Hits ........................................................................................................................... 152
4.4.1. Hit .................................................................................................................. 152
4.4.2. Sensitive detector .............................................................................................. 154
4.4.3. G4SDManager .................................................................................................. 155
4.4.4. G4MultiFunctionalDetector and G4VPrimitiveScorer .......................... 155
4.4.5. Concrete classes of G4VPrimitiveScorer ....................................................... 158
4.4.6. G4VSDFilter and its derived classes ................................................................. 160
4.4.7. Muiltiple sensitive detectors associated to a single logical-volume .............................. 160
4.5. Digitization ................................................................................................................. 161
4.5.1. Digi ................................................................................................................ 161
4.5.2. Digitizer module ............................................................................................... 161
4.6. Object Persistency ........................................................................................................ 162
4.6.1. Persistency in Geant4 ......................................................................................... 162
4.6.2. Using Root-I/O for persistency of Geant4 objects .................................................... 163
4.7. Parallel Geometries ...................................................................................................... 163
4.7.1. A parallel world ................................................................................................ 163
4.7.2. Defining a parallel world .................................................................................... 164
4.7.3. Layered mass geometry ...................................................................................... 165
4.8. Command-based scoring ............................................................................................... 166
4.8.1. Introduction ...................................................................................................... 166
4.8.2. Defining a scoring mesh ..................................................................................... 166
4.8.3. Drawing scores ................................................................................................. 167
4.8.4. Writing scores to a file ....................................................................................... 167
5. Tracking and Physics .............................................................................................................. 168
5.1. Tracking ..................................................................................................................... 168
5.1.1. Basic Concepts ................................................................................................. 168
5.1.2. Access to Track and Step Information ................................................................... 169
5.1.3. Handling of Secondary Particles .......................................................................... 171
5.1.4. User Actions .................................................................................................... 171
5.1.5. Verbose Outputs ............................................................................................... 171
5.1.6. Trajectory and Trajectory Point ........................................................................... 171
5.2. Physics Processes ........................................................................................................ 172
5.2.1. Electromagnetic Interactions ................................................................................ 175
5.2.2. Hadronic Interactions ......................................................................................... 188
5.2.3. Particle Decay Process ....................................................................................... 198
5.2.4. Gamma-nuclear and Lepto-nuclear Processes ......................................................... 200
5.2.5. Optical Photon Processes .................................................................................... 201
5.2.6. Parameterization ................................................................................................ 209
5.2.7. Transportation Process ....................................................................................... 216
5.3. Particles ..................................................................................................................... 216
5.3.1. Basic concepts .................................................................................................. 216
5.3.2. Definition of a particle ....................................................................................... 216
5.3.3. Dynamic particle ............................................................................................... 219
5.4. Production Threshold versus Tracking Cut ....................................................................... 220
5.4.1. General considerations ....................................................................................... 220
5.4.2. Set production threshold (SetCut methods) .......................................................... 220
5.4.3. Apply cut ......................................................................................................... 220
5.4.4. Why produce secondaries below threshold in some processes? ................................... 221
![](asset-6.png)
Geant4 User's Guide for
Application Developers
vi
5.4.5. Cuts in stopping range or in energy? .................................................................... 221
5.4.6. Summary ......................................................................................................... 221
5.4.7. Special tracking cuts .......................................................................................... 221
5.5. Cuts per Region .......................................................................................................... 223
5.5.1. General Concepts .............................................................................................. 223
5.5.2. Default Region ................................................................................................. 223
5.5.3. Assigning Production Cuts to a Region ................................................................. 223
5.6. Physics Table .............................................................................................................. 224
5.6.1. General Concepts .............................................................................................. 224
5.6.2. Material-Cuts Couple ......................................................................................... 224
5.6.3. File I/O for the Physics Table .............................................................................. 224
5.6.4. Building the Physics Table ................................................................................. 225
5.7. User Limits ................................................................................................................. 225
5.7.1. General Concepts .............................................................................................. 225
5.7.2. Processes co-working with G4UserLimits .............................................................. 225
5.8. Track Error Propagation ................................................................................................ 226
5.8.1. Physics ............................................................................................................ 226
5.8.2. Trajectory state ................................................................................................. 227
5.8.3. Trajectory state error .......................................................................................... 228
5.8.4. Targets ............................................................................................................ 228
5.8.5. Managing the track propagation ........................................................................... 229
5.8.6. Limiting the step ............................................................................................... 230
5.9. Exotic Physics ............................................................................................................. 231
5.9.1. Physics ............................................................................................................ 231
5.9.2. Material ........................................................................................................... 231
5.9.3. Geometry ......................................................................................................... 231
6. User Actions ......................................................................................................................... 232
6.1. Mandatory User Actions and Initializations ...................................................................... 232
6.1.1. G4VUserDetectorConstruction ................................................................ 232
6.1.2. Physics Lists .................................................................................................... 232
6.1.3. User Action Initialization .................................................................................... 235
6.2. Optional User Actions .................................................................................................. 236
6.2.1. Usage of User Actions ....................................................................................... 236
6.2.2. Killing Tracks in User Actions and Energy Conservation .......................................... 240
6.3. User Information Classes .............................................................................................. 240
6.3.1. G4VUserEventInformation .................................................................................. 240
6.3.2. G4VUserTrackInformation .................................................................................. 240
6.3.3. G4VUserPrimaryVertexInformation and G4VUserPrimaryTrackInformation ................ 241
6.3.4. G4VUserRegionInformation ................................................................................ 241
6.4. Multiple User Actions .................................................................................................. 242
6.4.1. Exceptions ....................................................................................................... 242
7. Communication and Control ..................................................................................................... 243
7.1. Built-in Commands ...................................................................................................... 243
7.2. User Interface - Defining New Commands ....................................................................... 243
7.2.1. G4UImessenger ................................................................................................. 243
7.2.2. G4UIcommand and its derived classes .................................................................. 244
7.2.3. An example messenger ....................................................................................... 248
7.2.4. How to control the output of G4cout/G4cerr .......................................................... 250
8. Visualization ......................................................................................................................... 252
8.1. Introduction to Visualization .......................................................................................... 252
8.1.1. What Can be Visualized ..................................................................................... 252
8.1.2. You have a Choice of Visualization Drivers ........................................................... 252
8.1.3. Choose the Driver that Meets Your Needs ............................................................. 254
8.1.4. Controlling Visualization .................................................................................... 254
8.1.5. Visualization Details .......................................................................................... 255
8.2. Adding Visualization to Your Executable ......................................................................... 255
8.2.1. Installing Visualization Drivers ............................................................................ 255
8.2.2. How to Realize Visualization Drivers in an Executable ............................................ 255
![](asset-7.png)
Geant4 User's Guide for
Application Developers
vii
8.2.3. Visualization Manager ........................................................................................ 256
8.2.4. How to Write the main() Function .................................................................... 256
8.3. The Visualization Drivers .............................................................................................. 258
8.3.1. Availability of drivers on the supported systems ..................................................... 258
8.3.2. OpenGL ........................................................................................................... 259
8.3.3. Qt ................................................................................................................... 260
8.3.4. OpenInventor .................................................................................................... 260
8.3.5. OpenInventor Extended Viewer ........................................................................... 261
8.3.6. HepRepFile ...................................................................................................... 262
8.3.7. HepRepXML .................................................................................................... 264
8.3.8. DAWN ............................................................................................................ 265
8.3.9. Remote Visualization with the DAWN-Network Driver ............................................ 265
8.3.10. VRML ........................................................................................................... 266
8.3.11. RayTracer ....................................................................................................... 268
8.3.12. gMocren ......................................................................................................... 269
8.3.13. Wt (WARNING: this driver is experimental and should be used with caution) .............. 270
8.3.14. Visualization of detector geometry tree ................................................................ 272
8.3.15. GAG Tree ...................................................................................................... 273
8.3.16. XML Tree ...................................................................................................... 273
8.4. Controlling Visualization from Commands ....................................................................... 275
8.4.1. Scene, scene handler, and viewer ......................................................................... 275
8.4.2. Create a scene handler and a viewer: /vis/open command .................................... 275
8.4.3. Create an empty scene: /vis/scene/create command ...................................... 276
8.4.4. Visualization of a physical volume: /vis/drawVolume command .......................... 276
8.4.5. Visualization of a logical volume: /vis/specify command .................................. 277
8.4.6. Visualization of trajectories: /vis/scene/add/trajectories command ............ 277
8.4.7. Visualization of hits: /vis/scene/add/hits command ..................................... 278
8.4.8. Visualization of Scored Data ............................................................................... 278
8.4.9. HepRep Attributes for Hits ................................................................................. 279
8.4.10. Basic camera workings: /vis/viewer/ commands ............................................ 279
8.4.11. Declare the end of visualization for flushing: /vis/viewer/flush command ........ 281
8.4.12. End of Event Action and End of Run Action: /vis/viewer/endOfEventAc-
tion and /vis/viewer/endOfRunAction commands ............................................. 282
8.4.13. HepRep Attributes for Trajectories ..................................................................... 282
8.4.14. How to save a view. ........................................................................................ 282
8.4.15. How to save a view to an image file ................................................................... 283
8.4.16. Culling ........................................................................................................... 284
8.4.17. Cut view ........................................................................................................ 285
8.4.18. Multithreading commands ................................................................................. 286
8.5. Controlling Visualization from Compiled Code ................................................................. 286
8.5.1. G4VVisManager ............................................................................................... 286
8.5.2. Visualization of detector components .................................................................... 286
8.5.3. Visualization of trajectories ................................................................................. 287
8.5.4. Enhanced trajectory drawing ............................................................................... 287
8.5.5. HepRep Attributes for Trajectories ....................................................................... 287
8.5.6. Visualization of hits ........................................................................................... 288
8.5.7. HepRep Attributes for Hits ................................................................................. 290
8.5.8. Visualization of text .......................................................................................... 290
8.5.9. Visualization of polylines and tracking steps .......................................................... 290
8.5.10. Visualization User Action ................................................................................. 292
8.5.11. Standalone Visualization ................................................................................... 293
8.6. Visualization Attributes ................................................................................................. 293
8.6.1. Visibility .......................................................................................................... 294
8.6.2. Colour ............................................................................................................. 294
8.6.3. Forcing attributes .............................................................................................. 296
8.6.4. Other attributes ................................................................................................. 297
8.6.5. Constructors of G4VisAttributes .......................................................................... 297
8.6.6. How to assign G4VisAttributes to a logical volume ................................................. 298
![](asset-8.png)
Geant4 User's Guide for
Application Developers
viii
8.6.7. Additional User-Defined Attributes ...................................................................... 298
8.7. Enhanced Trajectory Drawing ........................................................................................ 299
8.7.1. Default Configuration ........................................................................................ 299
8.7.2. Trajectory Drawing Models ................................................................................. 300
8.7.3. Controlling from Commands ............................................................................... 301
8.7.4. Controlling from Compiled Code ......................................................................... 303
8.7.5. Drawing by time ............................................................................................... 303
8.8. Trajectory Filtering ...................................................................................................... 304
8.8.1. Controlling from Commands ............................................................................... 305
8.8.2. Example commands ........................................................................................... 305
8.8.3. Hit and Digi Filtering ........................................................................................ 305
8.9. Polylines, Markers and Text .......................................................................................... 306
8.9.1. Polylines .......................................................................................................... 306
8.9.2. Markers ........................................................................................................... 306
8.9.3. Text ................................................................................................................ 307
8.10. Making a Movie ........................................................................................................ 308
8.10.1. Using "/vis/viewer/interpolate". .......................................................................... 309
8.10.2. OGLX ........................................................................................................... 309
8.10.3. Qt ................................................................................................................. 310
8.10.4. DAWNFILE ................................................................................................... 310
8.10.5. RayTracerX .................................................................................................... 311
9. Analysis ................................................................................................................................ 312
9.1. Introduction ................................................................................................................ 312
9.2. Analysis Manager Classes ............................................................................................. 312
9.2.1. Analysis Manager .............................................................................................. 312
9.2.2. Files handling ................................................................................................... 313
9.2.3. Histograms ....................................................................................................... 314
9.2.4. Profiles ............................................................................................................ 319
9.2.5. Plotting ............................................................................................................ 322
9.2.6. Ntuples ............................................................................................................ 323
9.2.7. Parallel Processing ............................................................................................. 324
9.2.8. Coexistence of Several Managers ......................................................................... 325
9.2.9. Supported Features and Limitations ...................................................................... 325
9.3. Analysis Reader Classes ............................................................................................... 326
9.3.1. Analysis Reader ................................................................................................ 326
9.3.2. Files handling ................................................................................................... 327
9.3.3. Histograms and Profiles ...................................................................................... 327
9.3.4. Ntuples ............................................................................................................ 328
9.4. Accumulables .............................................................................................................. 328
9.4.1. G4Accumulable<T> ........................................................................................... 329
9.4.2. User defined accumulables .................................................................................. 330
9.5. g4tools ....................................................................................................................... 331
9.5.1. g4tools package ................................................................................................ 331
9.5.2. User API ......................................................................................................... 332
10. Examples ............................................................................................................................ 334
10.1. Introduction ............................................................................................................... 334
10.2. Basic Examples ......................................................................................................... 334
10.2.1. Basic Examples Summary ................................................................................. 334
10.2.2. Basic Examples Macros .................................................................................... 336
10.2.3. Multi-threading ............................................................................................... 337
10.2.4. Example B1 .................................................................................................... 337
10.2.5. Example B2 .................................................................................................... 338
10.2.6. Example B3 .................................................................................................... 339
10.2.7. Example B4 .................................................................................................... 340
10.2.8. Example B5 .................................................................................................... 342
10.3. Extended Examples .................................................................................................... 344
10.3.1. Extended Example Summary ............................................................................. 344
10.4. Advanced Examples ................................................................................................... 349
![](asset-9.png)
Geant4 User's Guide for
Application Developers
ix
10.5. Novice Examples ....................................................................................................... 350
Appendices .............................................................................................................................. 351
1. CLHEP Foundation Library ............................................................................................. 351
2. Geant4Config.cmake CMake Config File ........................................................................... 351
2.1. Usage of Geant4Config.cmake ............................................................................... 351
2.2. Going further with CMake .................................................................................... 356
2.3. Building an Application against a Build of Geant4 ..................................................... 357
3. GNUMake System: Makefiles and Environment Variables ..................................................... 357
3.1. Geant4Make System ............................................................................................. 357
3.2. Environment variables .......................................................................................... 358
3.3. Linking External Libraries with Geant4 ................................................................... 362
4. Development and Debug Tools ......................................................................................... 364
4.1. Unix/Linux ......................................................................................................... 364
4.2. Windows ............................................................................................................ 364
5. Python Interface ............................................................................................................. 364
5.1. Installation .......................................................................................................... 364
5.2. Using Geant4Py .................................................................................................. 365
5.3. Site-modules ....................................................................................................... 366
5.4. Examples ............................................................................................................ 367
6. Geant4 Material Database ................................................................................................ 368
6.1. Simple Materials (Elements) .................................................................................. 368
6.2. NIST Compounds ................................................................................................ 369
6.3. HEP and Nuclear Materials ................................................................................... 379
6.4. Space (ISS) Materials ........................................................................................... 380
6.5. Bio-Chemical Materials ........................................................................................ 380
Bibliography ............................................................................................................................ 382
![](asset-a.png)
1
Chapter 1. Introduction
1.1. Scope of this manual
The User's Guide for Application Developers is the first manual the reader should consult when learning about
Geant4 or developing a Geant4-based detector simulation program. This manual is designed to:
• introduce the first-time user to the Geant4 object-oriented detector simulation toolkit,
• provide a description of the available tools and how to use them, and
• supply the practical information required to develop and run simulation applications which may be used in real
experiments.
This manual is intended to be an overview of the toolkit, rather than an exhaustive treatment of it. Related physics
discussions are not included unless required for the description of a particular tool. Detailed discussions of the
physics included in Geant4 can be found in the Physics Reference Manual. Details of the design and functionality
of the Geant4 classes can be found in the User's Guide for Toolkit Developers.
Geant4 is a completely new detector simulation toolkit written in the C++ language. The reader is assumed to have
a basic knowledge of object-oriented programming using C++. No knowledge of earlier FORTRAN versions of
Geant is required. Although Geant4 is a fairly complicated software system, only a relatively small part of it needs
to be understood in order to begin developing detector simulation applications.
1.2. How to use this manual
A very basic introduction to Geant4 is presented in Chapter 2, "Getting Started with Geant4 - Running a
Simple Example". It is a recipe for writing and running a simple Geant4 application program. New users of
Geant4 should read this chapter first. It is strongly recommended that this chapter be read in conjunction with
a Geant4 system installed and running on your computer. It is helpful to run the provided examples as they are
discussed in the manual. To install the Geant4 system on your computer, please refer to the Installation Guide
for Setting up Geant4 in Your Computing Environment.
Chapter 3, "Toolkit Fundamentals" discusses generalGeant4 issues such as class categories and the physical
units system. It goes on to discuss runs and events, which are the basic units of a simulation.
Chapter 4, "Detector Definition and Response" describes how to construct a detector from customized materials
and geometric shapes, and embed it in electromagnetic fields. It also describes how to make the detector sensitive
to particles passing through it and how to store this information.
How particles are propagated through a material is treated in Chapter 5, "Tracking and Physics". The Geant4
"philosophy" of particle tracking is presented along with summaries of the physics processes provided by the
toolkit. The definition and implementation of Geant4 particles is discussed and a list of particle properties is
provided.
Chapter 6, "User Actions" is a description of the "user hooks" by which the simulation code may be customized
to perform special tasks.
Chapter 7, "Communication and Control" provides a summary of the commands available to the user to control
the execution of the simulation. After Chapter 2, Chapters 6 and 7 are of formeost importance to the new application
developer.
The display of detector geometry, tracks and events may be incorporated into a simulation application by using
the tools described in Chapter 8, "Visualization".
Chapter 9, "Examples" provides a set of basic, novice, extended and advanced simulation codes which may be
compiled and run "as is" from the Geant4 source code. These examples may be used as educational tools or as
base code from which more complex applications are developed.
![](asset-b.png)
2
Chapter 2. Getting Started with Geant4 -
Running a Simple Example
2.1. How to Define the main() Program
2.1.1. A Sample main() Method
The contents of main() will vary according to the needs of a given simulation application and therefore must
be supplied by the user. The Geant4 toolkit does not provide a main() method, but a sample is provided here
as a guide to the beginning user. Example 2.1 is the simplest example of main() required to build a simulation
program.
Example 2.1. Simplest example of main()
#include "G4RunManager.hh"
#include "G4UImanager.hh"
#include "ExG4DetectorConstruction01.hh"
#include "ExG4PhysicsList00.hh"
#include "ExG4ActionInitialization01.hh"
int main()
{
// construct the default run manager
G4RunManager* runManager = new G4RunManager;
// set mandatory initialization classes
runManager->SetUserInitialization(new ExG4DetectorConstruction01);
runManager->SetUserInitialization(new ExG4PhysicsList00);
runManager->SetUserInitialization(new ExG4ActionInitialization01);
// initialize G4 kernel
runManager->Initialize();
// get the pointer to the UI manager and set verbosities
G4UImanager* UI = G4UImanager::GetUIpointer();
UI->ApplyCommand("/run/verbose 1");
UI->ApplyCommand("/event/verbose 1");
UI->ApplyCommand("/tracking/verbose 1");
// start a run
int numberOfEvent = 3;
runManager->BeamOn(numberOfEvent);
// job termination
delete runManager;
return 0;
}
The main() method is implemented by two toolkit classes, G4RunManager and
G4UImanager, and three classes, ExG4DetectorConstruction01, ExG4PhysicsList00 and
ExG4ActionInitialization01, which are derived from toolkit classes. Each of these are explained in the
following sections.
2.1.2. G4RunManager
The first thing main() must do is create an instance of the G4RunManager class. This is the only manager
class in the Geant4 kernel which should be explicitly constructed in the user's main(). It controls the flow of the
program and manages the event loop(s) within a run. If the user wants to make the simulation code multi-threaded,
G4MTRunManager should be instantiated instead of G4RunManager.
When G4RunManager is created, the other major manager classes are also created. They are deleted automat-
ically when G4RunManager is deleted. The run manager is also responsible for managing initialization proce-
![](asset-c.png)
Getting Started with Geant4
- Running a Simple Example
3
dures, including methods in the user initialization classes. Through these the run manager must be given all the
information necessary to build and run the simulation, including
1. how the detector should be constructed,
2. all the particles and all the physics processes to be simulated,
3. how the primary particle(s) in an event should be produced, and
4. any additional requirements of the simulation.
In the sample main() the lines
runManager->SetUserInitialization(new ExG4DetectorConstruction01);
runManager->SetUserInitialization(new ExG4PhysicsList00);
runManager->SetUserInitialization(new ExG4ActionInitialization01);
create objects which specify the detector geometry, physics processes and primary particle, respectively, and pass
their pointers to the run manager. ExG4DetectorConstruction01 is an example of a user initialization
class which is derived from G4VUserDetectorConstruction. This is where the user describes the entire
detector setup, including
• its geometry,
• the materials used in its construction,
• a definition of its sensitive regions and
• the readout schemes of the sensitive regions.
Similarly ExG4PhysicsList01 is derived from G4VUserPhysicsList and requires the user to define
• the particles to be used in the simulation,
• all the physics processes to be simulated.
User can also override the default implementation for
• the range cuts for these particles and
Also ExG4ActionInitialization01 is derived from G4VUserActionInitialization and re-
quires the user to define
• so-called user action classes (see next section) that are invoked during the simulation,
• which includes one mandatory user action to define the primary particles.
The next instruction
runManager->Initialize();
performs the detector construction, creates the physics processes, calculates cross sections and otherwise sets up
the run. The final run manager method in main()
int numberOfEvent = 3;
runManager->beamOn(numberOfEvent);
begins a run of three sequentially processed events. The beamOn() method may be invoked any number of
times within main() with each invocation representing a separate run. Once a run has begun neither the detector
setup nor the physics processes may be changed. They may be changed between runs, however, as described in
Section 3.4.4. More information on G4RunManager in general is found in Section 3.4.
As mentioned above, other manager classes are created when the run manager is created. One of these is the user
interface manager, G4UImanager. In main() a pointer to the interface manager must be obtained
G4UImanager* UI = G4UImanager::getUIpointer();
![](asset-d.png)
Getting Started with Geant4
- Running a Simple Example
4
in order for the user to issue commands to the program. In the present example the applyCommand() method is
called three times to direct the program to print out information at the run, event and tracking levels of simulation.
A wide range of commands is available which allows the user detailed control of the simulation. A list of these
commands can be found in Section 7.1.
2.1.3. User Initialization and Action Classes
2.1.3.1. User Classes
There are two kinds of user classes, user initialization classes and user action classes. User initialization classes are
used during the initialization phase, while user action classes are used during the run. User initialization classes
should be directly set to G4RunManager through SetUserInitialization() method, while user action
classes should de defined in G4VUserActionInitialization class.
2.1.3.2. User Initialization Classes
All three user initialization classes are mandatory. They must be derived from the abstract base classes provided
by Geant4:
•G4VUserDetectorConstruction
•G4VUserPhysicsList
•G4VUserActionInitialization
Geant4 does not provide default behavior for these classes. G4RunManager checks for the existence of these
mandatory classes when the Initialize() and BeamOn() methods are invoked.
As mentioned in the previous section, G4VUserDetectorConstruction requires the user to define the de-
tector and G4VUserPhysicsList requires the user to define the physics. Detector definition will be discussed
in Sections Section 2.2 and Section 2.3. Physics definition will be discussed in Sections Section 2.4 and Section 2.5.
The user action G4VUserPrimaryGeneratorAction requires that the initial event state be defined. Primary
event generation will be discussed in Section 2.8.
G4VUserActionInitialization should include at least one mandatory user action class
G4VUserPrimaryGeneratorAction. All user action classes are descrived in the next section.
Example 2.2. Simplest example of ExG4ActionInitialization01
#include "ExG4ActionInitialization01.hh"
#include "ExG4PrimaryGeneratorAction01.hh"
void ExG4ActionInitialization01::Build() const
{
SetUserAction(new ExG4PrimaryGeneratorAction01);
}
2.1.3.3. User Action Classes
G4VUserPrimaryGeneratorAction is a mandatory class the user has to provide. It creates an instance of
a primary particle generator. ExG4PrimaryGeneratorAction01 is an example of a user action class which
is derived from G4VUserPrimaryGeneratorAction. In this class the user must describe the initial state
of the primary event. This class has a public virtual method named GeneratePrimaries() which will be
invoked at the beginning of each event. Details will be given in Section 2.6. Note that Geant4 does not provide
any default behavior for generating a primary event.
Geant4 provides additional five user hook classes:
•G4UserRunAction
•G4UserEventAction
•G4UserStackingAction
![](asset-e.png)
Getting Started with Geant4
- Running a Simple Example
5
•G4UserTrackingAction
•G4UserSteppingAction
These optional user action classes have several virtual methods which allow the specification of additional proce-
dures at all levels of the simulation application. Details of the user initialization and action classes are provided
in Chapter 6.
2.1.4. G4UImanager and UI CommandSubmission
Geant4 provides a category named intercoms. G4UImanager is the manager class of this category. Using the
functionalities of this category, you can invoke set methods of class objects of which you do not know the pointer.
In Example 2.3, the verbosities of various Geant4 manager classes are set. Detailed mechanism description and
usage of intercoms will be given in the next chapter, with a list of available commands. Command submission
can be done all through the application.
Example 2.3. An example of main() using interactive terminal and visualization. Code
modified from the previous example are shown in blue.
#include "G4RunManager.hh"
#include "G4UImanager.hh"
#ifdef G4UI_USE
#include "G4VisExecutive.hh"
#endif
#include "ExG4DetectorConstruction01.hh"
#include "ExG4PhysicsList00.hh"
#include "ExG4PrimaryGeneratorAction01.hh"
int main()
{
// construct the default run manager
G4RunManager* runManager = new G4RunManager;
// set mandatory initialization classes
runManager->SetUserInitialization(new ExG4DetectorConstruction01);
runManager->SetUserInitialization(new ExG4PhysicsList00);
// set mandatory user action class
runManager->SetUserAction(new ExG4PrimaryGeneratorAction01);
// initialize G4 kernel
runManager->Initialize();
// Get the pointer to the User Interface manager
G4UImanager* UImanager = G4UImanager::GetUIpointer();
if ( argc == 1 ) {
// interactive mode : define UI session
#ifdef G4UI_USE
G4UIExecutive* ui = new G4UIExecutive(argc, argv);
UImanager->ApplyCommand("/control/execute init.mac");
ui->SessionStart();
delete ui;
#endif
}
else {
// batch mode
G4String command = "/control/execute ";
G4String fileName = argv[1];
UImanager->ApplyCommand(command+fileName);
}
// job termination
delete runManager;
return 0;
}
![](asset-f.png)
Getting Started with Geant4
- Running a Simple Example
6
2.1.5. G4cout and G4cerr
Although not yet included in the above examples, output streams will be needed. G4cout and G4cerr are
iostream objects defined by Geant4. The usage of these objects is exactly the same as the ordinary cout and cerr,
except that the output streams will be handled by G4UImanager. Thus, output strings may be displayed on
another window or stored in a file. Manipulation of these output streams will be described in Section 7.2.4. These
objects should be used instead of the ordinary cout and cerr.
2.2. How to Define a Detector Geometry
2.2.1. Basic Concepts
A detector geometry in Geant4 is made of a number of volumes. The largest volume is called the World volume.
It must contain, with some margin, all other volumes in the detector geometry. The other volumes are created and
placed inside previous volumes, included in the World volume. The most simple (and efficient) shape to describe
the World is a box.
Each volume is created by describing its shape and its physical characteristics, and then placing it inside a con-
taining volume.
When a volume is placed within another volume, we call the former volume the daughter volume and the latter
the mother volume. The coordinate system used to specify where the daughter volume is placed, is the coordinate
system of the mother volume.
To describe a volume's shape, we use the concept of a solid. A solid is a geometrical object that has a shape and
specific values for each of that shape's dimensions. A cube with a side of 10 centimeters and a cylinder of radius
30 cm and length 75 cm are examples of solids.
To describe a volume's full properties, we use a logical volume. It includes the geometrical properties of the solid,
and adds physical characteristics: the material of the volume; whether it contains any sensitive detector elements;
the magnetic field; etc.
We have yet to describe how to position the volume. To do this you create a physical volume, which places a copy
of the logical volume inside a larger, containing, volume.
2.2.2. Create a Simple Volume
What do you need to do to create a volume?
• Create a solid.
• Create a logical volume, using this solid, and adding other attributes.
Each of the volume types (solid, logical, and physical) has an associated registry (VolumeStore) which contains
a list of all the objects of that type constructed so far. The registries will automatically delete those objects when
requested; users should not deleted geometry objects manually.
2.2.3. Choose a Solid
To create a simple box, you only need to define its name and its extent along each of the Cartesian axes.
Example 2.4. Creating a box.
G4double world_hx = 3.0*m;
G4double world_hy = 1.0*m;
G4double world_hz = 1.0*m;
G4Box* worldBox
= new G4Box("World", world_hx, world_hy, world_hz);
![](asset-10.png)
Getting Started with Geant4
- Running a Simple Example
7
This creates a box named "World" with the extent from -3.0 meters to +3.0 meters along the X axis, from -1.0 to
1.0 meters in Y, and from -1.0 to 1.0 meters in Z. Note that the G4Box constructor takes as arguments the halfs
of the total box size.
It is also very simple to create a cylinder. To do this, you can use the G4Tubs class.
Example 2.5. Creating a cylinder.
G4double innerRadius = 0.*cm;
G4double outerRadius = 60.*cm;
G4double hz = 25.*cm;
G4double startAngle = 0.*deg;
G4double spanningAngle = 360.*deg;
G4Tubs* trackerTube
= new G4Tubs("Tracker",
innerRadius,
outerRadius,
hz,
startAngle,
spanningAngle);
This creates a full cylinder, named "Tracker", of radius 60 centimeters and length 50 cm (the hz parameter repre-
sents the half length in Z).
2.2.4. Create a Logical Volume
To create a logical volume, you must start with a solid and a material. So, using the box created above, you can
create a simple logical volume filled with argon gas (see Section 2.3) by entering:
G4LogicalVolume* worldLog
= new G4LogicalVolume(worldBox, Ar, "World");
This logical volume is named "World".
Similarly we create a logical volume with the cylindrical solid filled with aluminium
G4LogicalVolume* trackerLog
= new G4LogicalVolume(trackerTube, Al, "Tracker");
and named "Tracker"
2.2.5. Place a Volume
How do you place a volume? You start with a logical volume, and then you decide the already existing volume
inside of which to place it. Then you decide where to place its center within that volume, and how to rotate it. Once
you have made these decisions, you can create a physical volume, which is the placed instance of the volume,
and embodies all of these atributes.
2.2.6. Create a Physical Volume
You create a physical volume starting with your logical volume. A physical volume is simply a placed instance of
the logical volume. This instance must be placed inside a mother logical volume. For simplicity it is unrotated:
Example 2.6. A simple physical volume.
G4double pos_x = -1.0*meter;
G4double pos_y = 0.0*meter;
G4double pos_z = 0.0*meter;
G4VPhysicalVolume* trackerPhys
= new G4PVPlacement(0, // no rotation
![](asset-11.png)
Getting Started with Geant4
- Running a Simple Example
8
G4ThreeVector(pos_x, pos_y, pos_z),
// translation position
trackerLog, // its logical volume
"Tracker", // its name
worldLog, // its mother (logical) volume
false, // no boolean operations
0); // its copy number
This places the logical volume trackerLog at the origin of the mother volume worldLog, shifted by one
meter along X and unrotated. The resulting physical volume is named "Tracker" and has a copy number of 0.
An exception exists to the rule that a physical volume must be placed inside a mother volume. That exception is
for the World volume, which is the largest volume created, and which contains all other volumes. This volume
obviously cannot be contained in any other. Instead, it must be created as a G4PVPlacement with a null mother
pointer. It also must be unrotated, and it must be placed at the origin of the global coordinate system.
Generally, it is best to choose a simple solid as the World volume, the G4Box solid type is used in all basic
examples.
2.2.7. Coordinate Systems and Rotations
In Geant4, the rotation matrix associated to a placed physical volume represents the rotation of the reference
system of this volume with respect to its mother.
A rotation matrix is normally constructed as in CLHEP, by instantiating the identity matrix and then applying a
rotation to it. This is also demonstrated in Example B3.
2.3. How to Specify Materials in the Detector
2.3.1. General Considerations
In nature, general materials (chemical compounds, mixtures) are made of elements, and elements are made of
isotopes. Therefore, these are the three main classes designed in Geant4. Each of these classes has a table as a
static data member, which is for keeping track of the instances created of the respective classes. All three objects
automatically register themselves into the corresponding table on construction, and should never be deleted in
user code.
The G4Element class describes the properties of the atoms:
• atomic number,
• number of nucleons,
• atomic mass,
• shell energy,
• as well as quantities such as cross sections per atom, etc.
The G4Material class describes the macroscopic properties of matter:
• density,
• state,
• temperature,
• pressure,
• as well as macroscopic quantities like radiation length, mean free path, dE/dx, etc.
The G4Material class is the one which is visible to the rest of the toolkit, and is used by the tracking, the
geometry, and the physics. It contains all the information relative to the eventual elements and isotopes of which
it is made, at the same time hiding the implementation details.
2.3.2. Define a Simple Material
In the example below, liquid argon is created, by specifying its name, density, mass per mole, and atomic number.
![](asset-12.png)
Getting Started with Geant4
- Running a Simple Example
9
Example 2.7. Creating liquid argon.
G4double z, a, density;
density = 1.390*g/cm3;
a = 39.95*g/mole;
G4Material* lAr = new G4Material(name="liquidArgon", z=18., a, density);
The pointer to the material, lAr, will be used to specify the matter of which a given logical volume is made:
G4LogicalVolume* myLbox = new G4LogicalVolume(aBox,lAr,"Lbox",0,0,0);
2.3.3. Define a Molecule
In the example below, the water, H2O, is built from its components, by specifying the number of atoms in the
molecule.
Example 2.8. Creating water by defining its molecular components.
G4double z, a, density;
G4String name, symbol;
G4int ncomponents, natoms;
a = 1.01*g/mole;
G4Element* elH = new G4Element(name="Hydrogen",symbol="H" , z= 1., a);
a = 16.00*g/mole;
G4Element* elO = new G4Element(name="Oxygen" ,symbol="O" , z= 8., a);
density = 1.000*g/cm3;
G4Material* H2O = new G4Material(name="Water",density,ncomponents=2);
H2O->AddElement(elH, natoms=2);
H2O->AddElement(elO, natoms=1);
2.3.4. Define a Mixture by Fractional Mass
In the example below, air is built from nitrogen and oxygen, by giving the fractional mass of each component.
Example 2.9. Creating air by defining the fractional mass of its components.
G4double z, a, fractionmass, density;
G4String name, symbol;
G4int ncomponents;
a = 14.01*g/mole;
G4Element* elN = new G4Element(name="Nitrogen",symbol="N" , z= 7., a);
a = 16.00*g/mole;
G4Element* elO = new G4Element(name="Oxygen" ,symbol="O" , z= 8., a);
density = 1.290*mg/cm3;
G4Material* Air = new G4Material(name="Air ",density,ncomponents=2);
Air->AddElement(elN, fractionmass=70*perCent);
Air->AddElement(elO, fractionmass=30*perCent);
2.3.5. Define a Material from the Geant4 Material Database
In the example below, air and water are accessed via the Geant4 material database.
Example 2.10. Defining air and water from the internal Geant4 database.
G4NistManager* man = G4NistManager::Instance();
G4Material* H2O = man->FindOrBuildMaterial("G4_WATER");
G4Material* Air = man->FindOrBuildMaterial("G4_AIR");
![](asset-13.png)
Getting Started with Geant4
- Running a Simple Example
10
2.3.6. Define a Material from the Base Material
It is possible to build new material on base of an existing "base" material. This feature is useful for electromagnetic
physics allowing to peak up for the derived material all correction data and precomputed tables of stopping powers
and cross sections of the base material. In the example below, two methods how to create water with unusual
density are shown.
Example 2.11. Defining water with user defined density on base of G4_WATER.
G4double density;
density = 1.05*mg/cm3;
G4Material* water1 = new G4Material("Water_1.05",density,"G4_WATER");
density = 1.03*mg/cm3;
G4NistManager* man = G4NistManager::Instance();
G4Material* water2 = man->BuildMaterialWithNewDensity("Water_1.03","G4_WATER",density);
2.3.7. Print Material Information
Example 2.12. Printing information about materials.
G4cout << H2O; \\ print a given material
G4cout << *(G4Material::GetMaterialTable()); \\ print the list of materials
In Geant4 examples you all possible ways to build a material.
2.3.8. Access to Geant4 material database
Example 2.13. Geant4 material database may be accessed via UI commands.
/material/nist/printElement Fe \\ print element by name
/material/nist/printElementZ 13 \\ print element by atomic number
/material/nist/listMaterials type \\ print materials type = [simple | compound | hep | all]
/material/g4/printElement elmName \\ print instantiated element by name
/material/g4/printMaterial matName \\ print instantiated material by name
In Geant4 examples you with find all possible ways to build a material.
2.4. How to Specify Particles
G4VUserPhysicsList is one of the mandatory user base classes described in Section 2.1. Within this class
all particles and physics processes to be used in your simulation must be defined. The range cut-off parameter
should also be defined in this class.
The user must create a class derived from G4VuserPhysicsList and implement the following pure virtual
methods:
ConstructParticle(); // construction of particles
ConstructProcess(); // construct processes and register them to particles
The user may also want to override the default implementation of the following virtual method:
SetCuts(); // setting a range cut value for all particles
This section provides some simple examples of the ConstructParticle() and SetCuts() methods. For
information on ConstructProcess() methods, please see Section 2.5.
2.4.1. Particle Definition
Geant4 provides various types of particles for use in simulations:
![](asset-14.png)
Getting Started with Geant4
- Running a Simple Example
11
• ordinary particles, such as electrons, protons, and gammas
• resonant particles with very short lifetimes, such as vector mesons and delta baryons
• nuclei, such as deuteron, alpha, and heavy ions (including hyper-nuclei)
• quarks, di-quarks, and gluon
Each particle is represented by its own class, which is derived from G4ParticleDefinition. (Exception:
G4Ions represents all heavy nuclei. Please see Section 5.3.) Particles are organized into six major categories:
• lepton,
• meson,
• baryon,
• boson,
• shortlived and
• ion,
each of which is defined in a corresponding sub-directory under geant4/source/particles. There is also
a corresponding granular library for each particle category.
2.4.1.1. The G4ParticleDefinition Class
G4ParticleDefinition has properties which characterize individual particles, such as, name, mass,
charge, spin, and so on. Most of these properties are "read-only" and can not be changed directly.
G4ParticlePropertyTable is used to retrieve (load) particle property of G4ParticleDefinition in-
to (from) G4ParticlePropertyData.
2.4.1.2. How to Access a Particle
Each particle class type represents an individual particle type, and each class has a single object. This object can
be accessed by using the static method of each class. There are some exceptions to this rule; please see Section 5.3
for details.
For example, the class G4Electron represents the electron and the member G4Electron::theInstance
points its only object. The pointer to this object is available through the static methods
G4Electron::ElectronDefinition(). G4Electron::Definition().
More than 100 types of particles are provided by default, to be used in various physics processes. In normal
applications, users will not need to define their own particles.
The unique object for each particle class is created when its static method to get the pointer is called at the first
time. Because particles are dynamic objects and should be instantiated before initialization of physics processes,
you must explicitly invoke static methods of all particle classes required by your program at the initialization step.
(NOTE: The particle object was static and created automatically before 8.0 release)
2.4.1.3. Dictionary of Particles
The G4ParticleTable class is provided as a dictionary of particles. Various utility methods are provided,
such as:
FindParticle(G4String name); // find the particle by name
FindParticle(G4int PDGencoding) // find the particle by PDG encoding .
G4ParticleTable is defined as a singleton object, and the static method
G4ParticleTable::GetParticleTable() provides its pointer.
As for heavy ions (including hyper-nuclei), objects are created dynamically by requests from users and processes.
The G4ParticleTable class provides methods to create ions, such as:
G4ParticleDefinition* GetIon( G4int atomicNumber,
![](asset-15.png)
Getting Started with Geant4
- Running a Simple Example
12
G4int atomicMass,
G4double excitationEnergy);
Particles are registered automatically during construction. The user has no control over particle registration.
2.4.1.4. Constructing Particles
ConstructParticle() is a pure virtual method, in which the static member functions for all the particles
you require should be called. This ensures that objects of these particles are created.
WARNING: You must define "All PARTICLE TYPES" which are used in your application, except for heavy
ions. "All PARTICLE TYPES" means not only primary particles, but also all other particles which may appear
as secondaries generated by physics processes you use. Beginning with Geant4 version 8.0, you should keep this
rule strictly because all particle definitions are revised to "non-static" objects.
For example, suppose you need a proton and a geantino, which is a virtual particle used for simulation and which
does not interact with materials. The ConstructParticle() method is implemented as below:
Example 2.14. Construct a proton and a geantino.
void MyPhysicsList::ConstructParticle()
{
G4Proton::ProtonDefinition();
G4Geantino::GeantinoDefinition();
}
Due to the large number of pre-defined particles in Geant4, it is cumbersome to list all the particles by this method.
If you want all the particles in a Geant4 particle category, there are six utility classes, corresponding to each of
the particle categories, which perform this function:
•G4BosonConstructor
•G4LeptonConstructor
•G4MesonConstructor
•G4BarionConstructor
•G4IonConstructor
•G4ShortlivedConstructor.
An example of this is shown in ExN05PhysicsList, listed below.
Example 2.15. Construct all leptons.
void ExN05PhysicsList::ConstructLeptons()
{
// Construct all leptons
G4LeptonConstructor pConstructor;
pConstructor.ConstructParticle();
}
2.4.2. Range Cuts
To avoid infrared divergence, some electromagnetic processes require a threshold below which no secondary will
be generated. Because of this requirement, gammas, electrons and positrons require production threshold. This
threshold should be defined as a distance, or range cut-off, which is internally converted to an energy for individual
materials. The range threshold should be defined in the initialization phase using the SetCuts() method of
G4VUserPhysicsList. Section 5.5 discusses threshold and tracking cuts in detail.
2.4.2.1. Setting the cuts
Production threshold values should be defined in SetCuts() which is a virtual method of the
G4VUserPhysicsList. Construction of particles, materials, and processes should precede the invocation of
SetCuts(). G4RunManager takes care of this sequence in usual applications.
![](asset-16.png)
Getting Started with Geant4
- Running a Simple Example
13
This range cut value is converted threshold energies for each material and for each particle type (i.e. electron,
positron and gamma) so that the particle with threshold energy stops (or is absorbed) after traveling the range cut
distance. In addition, from the 9.3 release ,this range cut value is applied to the proton as production thresholds
of nuclei for hadron elastic processes. In this case, the range cut value does not means the distance of traveling.
Threshold energies are calculated by a simple formula from the cut in range.
Note that the upper limit of the threshold energy is defined as 10 GeV. If you want to set higher threshold energy,
you can change the limit by using "/cuts/setMaxCutEnergy" command before setting the range cut.
The idea of a "unique cut value in range" is one of the important features of Geant4 and is used to handle cut values
in a coherent manner. For most applications, users need to determine only one cut value in range, and apply this
value to gammas, electrons and positrons alike. (and proton too)
The default implemetation of SetCuts() method provides a defaultCutValue member as the unique range
cut-off value for all particle types. The defaultCutValue is set to 1.0 mm by default. User can change this
value by SetDefaultCutValue() The "/run/setCut" command may be used to change the default cut value
interactively.
WARNING: DO NOT change cut values inside the event loop. Cut values may however be changed between runs.
It is possible to set different range cut values for gammas, electrons and positrons by using SetCutValue()
methods (or using "/run/setCutForAGivenParticle" command). However, user must be careful with physics outputs
because Geant4 processes (especially energy loss) are designed to conform to the "unique cut value in range"
scheme.
Beginning with Geant4 version 5.1, it is now possible to set production thresholds for each geometrical region.
This new functionality is described in Section 5.5.
2.5. How to Specify Physics Processes
2.5.1. Physics Processes
Physics processes describe how particles interact with materials. Geant4 provides seven major categories of
processes:
• electromagnetic,
• hadronic,
• transportation,
• decay,
• optical,
• photolepton_hadron, and
• parameterisation.
All physics processes are derived from the G4VProcess base class. Its virtual methods
•AtRestDoIt,
•AlongStepDoIt, and
•PostStepDoIt
and the corresponding methods
•AtRestGetPhysicalInteractionLength,
•AlongStepGetPhysicalInteractionLength, and
•PostStepGetPhysicalInteractionLength
describe the behavior of a physics process when they are implemented in a derived class. The details of these
methods are described in Section 5.2.
The following are specialized base classes to be used for simple processes:
![](asset-17.png)
Getting Started with Geant4
- Running a Simple Example
14
G4VAtRestProcess
Processes with only AtRestDoIt
G4VContinuousProcess
Processes with only AlongStepDoIt
G4VDiscreteProcess
processes with only PostStepDoIt
Another 4 virtual classes, such as G4VContinuousDiscreteProcess, are provided for complex processes.
2.5.2. Managing Processes
The G4ProcessManager class contains a list of processes that a particle can undertake. It has information on
the order of invocation of the processes, as well as which kind of DoIt method is valid for each process in the list.
A G4ProcessManager object corresponds to each particle and is attached to the G4ParticleDefiniton
class.
In order to validate processes, they should be registered with the particle's G4ProcessManager. Process or-
dering information is included by using the AddProcess() and SetProcessOrdering() methods. For
registration of simple processes, the AddAtRestProcess(), AddContinuousProcess() and AddDis-
creteProcess() methods may be used.
G4ProcessManager is able to turn some processes on or off during a run by using the ActivateProcess()
and InActivateProcess() methods. These methods are valid only after process registration is complete, so
they must not be used in the PreInit phase.
The G4VUserPhysicsList class creates and attaches G4ProcessManager objects to all particle classes
defined in the ConstructParticle() method.
2.5.3. Specifying Physics Processes
G4VUserPhysicsList is the base class for a "mandatory user class" (see Section 2.1), in which all physics
processes and all particles required in a simulation must be registered. The user must create a class derived from
G4VUserPhysicsList and implement the pure virtual method ConstructProcess().
For example, if just the G4Geantino particle class is required, only the transportation process need be registered.
The ConstructProcess() method would then be implemented as follows:
Example 2.16. Register processes for a geantino.
void MyPhysicsList::ConstructProcess()
{
// Define transportation process
AddTransportation();
}
Here, the AddTransportation() method is provided in the G4VUserPhysicsList class to register the
G4Transportation class with all particle classes. The G4Transportation class (and/or related classes)
describes the particle motion in space and time. It is the mandatory process for tracking particles.
In the ConstructProcess() method, physics processes should be created and registered with each particle's
instance of G4ProcessManager.
An example of process registration is given in the G4VUserPhysicsList::AddTransportation()
method.
Registration in G4ProcessManager is a complex procedure for other processes and particles because
the relations between processes are crucial for some processes. In order to ease registration procedures,
G4PhysicsListHelper is provided. Users do not care about type of processes (ie. AtRest and/or Discrete and/or
Continuous ) or ordering parameters.
![](asset-18.png)
Getting Started with Geant4
- Running a Simple Example
15
An example of electromagnetic process registration for the gamma is shown below
Example 2.17. Register processes for a gamma.
void MyPhysicsList::ConstructProcess()
{
// Define transportation process
AddTransportation();
// electromagnetic processes
ConstructEM();
}
void MyPhysicsList::ConstructEM()
{
// Get pointer to G4PhysicsListHelper
G4PhysicsListHelper* ph = G4PhysicsListHelper::GetPhysicsListHelper();
// Get pointer to gamma
G4ParticleDefinition* particle = G4Gamma::GammaDefinition();
// Construct and register processes for gamma
ph->RegisterProcess(new G4PhotoElectricEffect(), particle);
ph->RegisterProcess(new G4ComptonScattering(), particle);
ph->RegisterProcess(new G4GammaConversion(), particle);
ph->RegisterProcess(new G4RayleighScattering(), particle);
}
2.6. How to Generate a Primary Event
2.6.1. Generating Primary Events
G4VuserPrimaryGeneratorAction is one of the mandatory classes available for deriving your own con-
crete class. In your concrete class, you have to specify how a primary event should be generated. Actual generation
of primary particles will be done by concrete classes of G4VPrimaryGenerator, explained in the following
sub-section. Your G4VUserPrimaryGeneratorAction concrete class just arranges the way primary parti-
cles are generated.
Example 2.18. An example of a G4VUserPrimaryGeneratorAction concrete class
using G4ParticleGun. For the usage of G4ParticleGun refer to the next subsection.
ExG4PrimaryGeneratorAction01.hh
#ifndef ExG4PrimaryGeneratorAction01_h
#define ExG4PrimaryGeneratorAction01_h 1
#include "G4VUserPrimaryGeneratorAction.hh"
#include "G4ThreeVector.hh"
#include "globals.hh"
class G4ParticleGun;
class G4Event;
class ExG4PrimaryGeneratorAction01 : public G4VUserPrimaryGeneratorAction
{
public:
ExG4PrimaryGeneratorAction01(
const G4String& particleName = "geantino",
G4double energy = 1.*MeV,
G4ThreeVector position= G4ThreeVector(0,0,0),
G4ThreeVector momentumDirection = G4ThreeVector(0,0,1));
~ExG4PrimaryGeneratorAction01();
// methods
virtual void GeneratePrimaries(G4Event*);
private:
// data members
G4ParticleGun* fParticleGun; //pointer a to G4 service class
};
![](asset-19.png)
Getting Started with Geant4
- Running a Simple Example
16
#endif
ExG4PrimaryGeneratorAction01.cc
#include "ExG4PrimaryGeneratorAction01.hh"
#include "G4Event.hh"
#include "G4ParticleGun.hh"
#include "G4ParticleTable.hh"
#include "G4ParticleDefinition.hh"
//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo......
ExG4PrimaryGeneratorAction01::ExG4PrimaryGeneratorAction01(
const G4String& particleName,
G4double energy,
G4ThreeVector position,
G4ThreeVector momentumDirection)
: G4VUserPrimaryGeneratorAction(),
fParticleGun(0)
{
G4int nofParticles = 1;
fParticleGun = new G4ParticleGun(nofParticles);
// default particle kinematic
G4ParticleTable* particleTable = G4ParticleTable::GetParticleTable();
G4ParticleDefinition* particle
= particleTable->FindParticle(particleName);
fParticleGun->SetParticleDefinition(particle);
fParticleGun->SetParticleEnergy(energy);
fParticleGun->SetParticlePosition(position);
fParticleGun->SetParticleMomentumDirection(momentumDirection);
}
//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo......
ExG4PrimaryGeneratorAction01::~ExG4PrimaryGeneratorAction01()
{
delete fParticleGun;
}
//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo......
void ExG4PrimaryGeneratorAction01::GeneratePrimaries(G4Event* anEvent)
{
// this function is called at the begining of event
fParticleGun->GeneratePrimaryVertex(anEvent);
}
//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo......
2.6.1.1. Selection of the generator
In the constructor of your G4VUserPrimaryGeneratorAction, you should instantiate the primary
generator(s). If necessary, you need to set some initial conditions for the generator(s).
In Example 2.18, G4ParticleGun is constructed to use as the actual primary particle generator. Methods of
G4ParticleGun are described in the following section. Please note that the primary generator object(s) you
construct in your G4VUserPrimaryGeneratorAction concrete class must be deleted in your destructor.
2.6.1.2. Generation of an event
G4VUserPrimaryGeneratorAction has a pure virtual method named generatePrimaries().
This method is invoked at the beginning of each event. In this method, you have to invoke the
G4VPrimaryGenerator concrete class you instantiated via the generatePrimaryVertex() method.
You can invoke more than one generator and/or invoke one generator more than once. Mixing up several generators
can produce a more complicated primary event.
![](asset-1a.png)
Getting Started with Geant4
- Running a Simple Example
17
2.6.2. G4VPrimaryGenerator
Geant4 provides three G4VPrimaryGenerator concrete classes. Among these G4ParticleGun and
G4GeneralParticleSource will be discussed here. The third one is G4HEPEvtInterface, which will
be discussed in Section 3.6.
2.6.2.1. G4ParticleGun
G4ParticleGun is a generator provided by Geant4. This class generates primary particle(s) with a given
momentum and position. It does not provide any sort of randomizing. The constructor of G4ParticleGun
takes an integer which causes the generation of one or more primaries of exactly same kinematics. It is
a rather frequent user requirement to generate a primary with randomized energy, momentum, and/or posi-
tion. Such randomization can be achieved by invoking various set methods provided by G4ParticleGun.
The invocation of these methods should be implemented in the generatePrimaries() method of your
concrete G4VUserPrimaryGeneratorAction class before invoking generatePrimaryVertex() of
G4ParticleGun. Geant4 provides various random number generation methods with various distributions (see
Section 3.2).
2.6.2.2. Public methods of G4ParticleGun
The following methods are provided by G4ParticleGun, and all of them can be invoked from the gener-
atePrimaries() method in your concrete G4VUserPrimaryGeneratorAction class.
•void SetParticleDefinition(G4ParticleDefinition*)
•void SetParticleMomentum(G4ParticleMomentum)
•void SetParticleMomentumDirection(G4ThreeVector)
•void SetParticleEnergy(G4double)
•void SetParticleTime(G4double)
•void SetParticlePosition(G4ThreeVector)
•void SetParticlePolarization(G4ThreeVector)
•void SetNumberOfParticles(G4int)
2.6.2.3. G4GeneralParticleSource
For many applications G4ParticleGun is a suitable particle generator. However if you want to generate primary
particles in more sophisticated manner, you can utilize G4GeneralParticleSource, the Geant4 General
Particle Source module (GPS), discussed in the next section (Section 2.7).
2.7. Geant4 General Particle Source
2.7.1. Introduction
The G4GeneralParticleSource (GPS) is part of the Geant4 toolkit for Monte-Carlo, high-energy particle
transport. Specifically, it allows the specifications of the spectral, spatial and angular distribution of the primary
source particles. An overview of the GPS class structure is presented here. Section 2.7.2 covers the configuration
of GPS for a user application, and Section 2.7.3 describes the macro command interface. Section 2.7.4 gives an
example input file to guide the first time user.
G4GeneralParticleSource is used exactly the same way as G4ParticleGun in a Geant4 appli-
cation. In existing applications one can simply change your PrimaryGeneratorAction by globally replacing
G4ParticleGun with G4GeneralParticleSource. GPS may be configured via command line, or macro
based, input. The experienced user may also hard-code distributions using the methods and classes of the GPS
that are described in more detail in a technical note 1 .
The class diagram of GPS is shown in Figure 2.1. As of version 10.01, a split-class mechanism was intro-
duced to reduce memory usage in multithreaded mode. The G4GeneralParticleSourceData class is a
1 General purpose Source Particle Module for Geant4/SPARSET: Technical Note, UoS-GSPM-Tech, Issue 1.1, C Ferguson, February 2000.
![](asset-1b.png)
Getting Started with Geant4
- Running a Simple Example
18
thread-safe singleton which provides access to the source information for the G4GeneralParticleSource
class. The G4GeneralParticleSourceData class can have multiple instantiations of the
G4SingleParticleSource class, each with independent positional, angular and energy distributions as well
as incident particle types. To the user, this change should be transparent.
Figure 2.1. The class diagram of G4GeneralParticleSource.
2.7.2. Configuration
GPS allows the user to control the following characteristics of primary particles:
• Spatial sampling: on simple 2D or 3D surfaces such as discs, spheres, and boxes.
• Angular distribution: unidirectional, isotropic, cosine-law, beam or arbitrary (user defined).
• Spectrum: linear, exponential, power-law, Gaussian, blackbody, or piece-wise fits to data.
• Multiple sources: multiple independent sources can be used in the same run.
As noted above, G4GeneralParticleSource is used exactly the same way as G4ParticleGun in a
Geant4 application, and may be substituted for the latter by "global search and replace" in existing application
source code.
2.7.2.1. Position Distribution
The position distribution can be defined by using several basic shapes to contain the starting positions of the
particles. The easiest source distribution to define is a point source. One could also define planar sources, where
the particles emanate from circles, annuli, ellipses, squares or rectangles. There are also methods for defining 1D
or 2D accelerator beam spots. The five planes are oriented in the x-y plane. To define a circle one gives the radius,
for an annulus one gives the inner and outer radii, and for an ellipse, a square or a rectangle one gives the half-
lengths in x and y.
More complicated still, one can define surface or volume sources where the input particles can be confined to
either the surface of a three dimensional shape or to within its entire volume. The four 3D shapes used within
G4GeneralParticleSource are sphere, ellipsoid, cylinder and parallelepiped.A sphere can be defined simply by
![](asset-1c.png)
Getting Started with Geant4
- Running a Simple Example
19
specifying the radius. Ellipsoids are defined by giving their half-lengths in x, y and z. Cylinders are defined such
that the axis is parallel to the z-axis, the user is therefore required to give the radius and the z half-length. Paral-
lelepipeds are defined by giving x, y and z half-lengths, plus the angles α, θ, and φ (Figure 2.2).

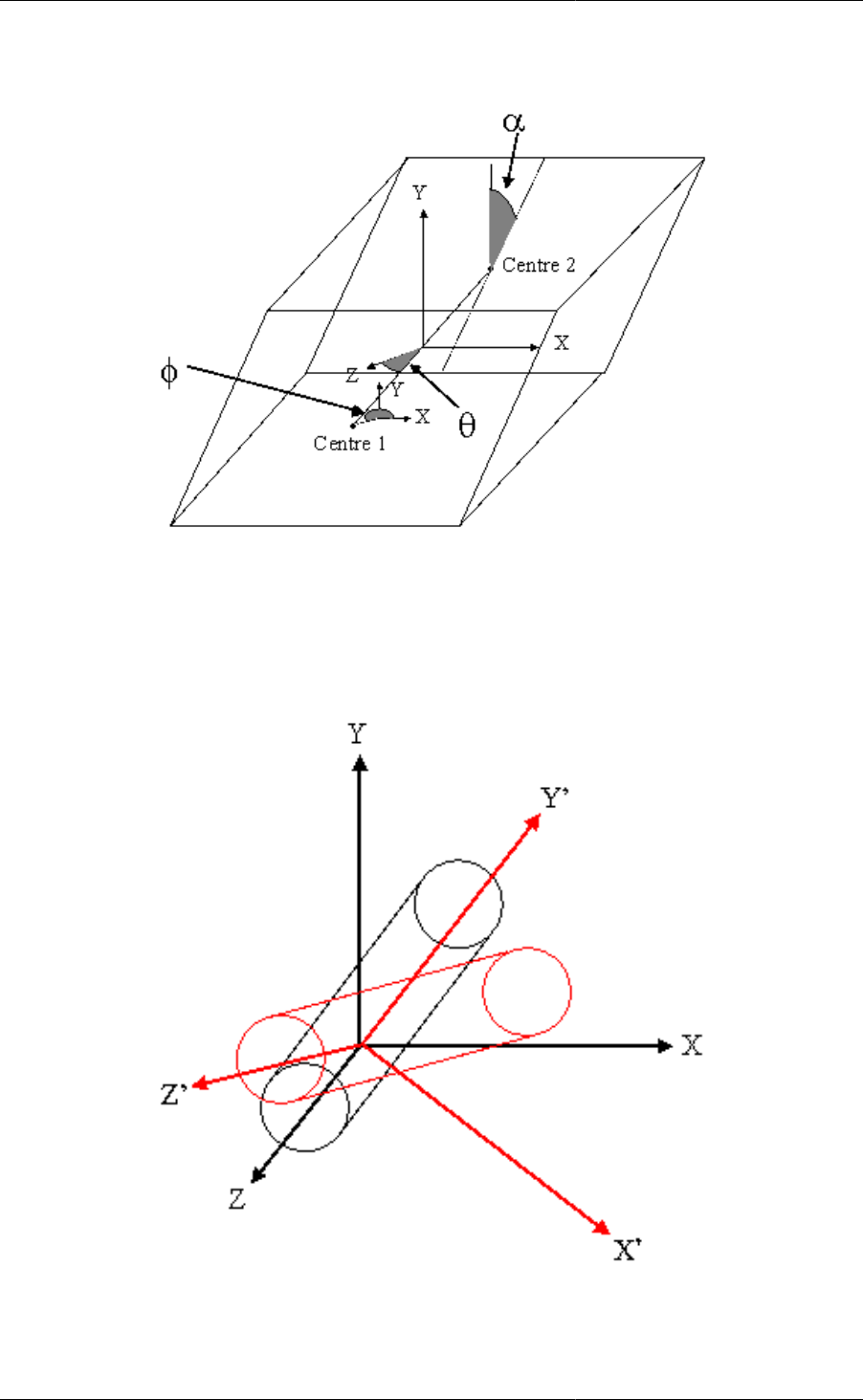

Figure 2.2. The angles used in the definition of a Parallelepiped.
To allow easy definition of the sources, the planes and shapes are assumed to be orientated in a particular direction
to the coordinate axes, as described above. For more general applications, the user may supply two vectors (x' and
a vector in the plane x'-y') to rotate the co-ordinate axes of the shape with respect to the overall co-ordinate system
(Figure 2.3). The rotation matrix is automatically calculated within G4GeneralParticleSource. The starting points
of particles are always distributed homogeneously over the 2D or 3D surfaces, although biasing can change this.
Figure 2.3. An illustration of the use of rotation matrices. A cylinder is defined with its
axis parallel to the z-axis (black lines), but the definition of 2 vectors can rotate it into the
frame given by x', y', z' (red lines).
![](asset-1d.png)
Getting Started with Geant4
- Running a Simple Example
20
2.7.2.2. Angular Distribution
The angular distribution is used to control the directions in which the particles emanate from/incident upon the
source point. In general there are three main choices, isotropic, cosine-law or user-defined. In addition there are
options for specifying parallel beam as well as diversed accelerator beams. The isotropic distribution represents
what would be seen from a uniform 4π flux. The cosine-law represents the distribution seen at a plane from a
uniform 2π flux.
It is possible to bias (Section 2.7.2.4) both θ and φ for any of the predefined distributions, including settin lower
and upper limits to θ and φ. User-defined distributions cannot be additionally biased (any bias should obviously
be incorporated into the user definition).
Incident with zenith angle θ=0 means the particle is travelling along the -z axis. It is important to bear this in
mind when specifying user-defined co-ordinates for angular distributions. The user must be careful to rotate the
co-ordinate axes of the angular distribution if they have rotated the position distribution (Figure 2.3).
The user defined distribution requires the user to enter a histogram in either θ or φ or both. The user-defined
distribution may be specified either with respect to the coordinate axes or with respect to the surface-normal of a
shape or volume. For the surface-normal distribution, θ should only be defined between 0 and π/2, not the usual
0 to π range.
The top-level /gps/direction command uses direction cosines to specify the primary particle direction, as
follows:
Px = - sin θ cos φ
Py = - sin θ sin φ
Pz = - cos θ
Equation 2.1. Direction cosine calculations
2.7.2.3. Energy Distribution
The energy of the input particles can be set to follow several built-in functions or a user-defined one, as shown in
Table 2.1. The user can bias any of the pre-defined energy distributions in order to speed up the simulation (user-
defined distributions are already biased, by construction).
Spectrum Abbre-
viation Functional Form User Parameters
mono-energetic Mono I ∝ #(E-E0) Energy E0
linear Lin I ∝ I0 + m × E Intercept I0, slope m
exponential Exp I ∝ exp(-E/E0) Energy scale-height E0
power-law Pow I ∝ EαSpectral index α
Gaussian Gauss I = (2πσ)-½ exp[-(E-E0)² / #²] Mean energy E0, standard deviation σ
bremsstrahlung Brem I = ∫ 2E² [ h²c² (exp(-E/kT) - 1)]-1 Temperature T
black body Bbody I ∝ (kT)-½ E exp(-E/kT) Temperature T (see note below)
cosmic diffuse
gamma ray Cdg I ∝ [ (E/Eb)α1 + (E/Eb)α2 ]-1 Energy range Emin to Emax; break energy
Eb and indices α1 and α2 are fixed (see
note below)
Table 2.1.
![](asset-1e.png)
Getting Started with Geant4
- Running a Simple Example
21
There is also the option for the user to define a histogram in energy ("User") or energy per nucleon ("Epn") or to
give an arbitrary point-wise spectrum ("Arb")that can be fit with various simple functions. The data for histograms
or point spectra must be provided in ascending bin (abscissa) order. The point-wise spectrum may be differential
(as with a binned histogram) or integral (a cumulative distribution function). If integral, the data must satsify s(e1)
≥ s(e2) for e1 < e2 when entered; this is not validated by the GPS code. The maximum energy of an integral
spectrum is defined by the last-but-one data point, because GPS converts to a differential spectrum internally.
Unlike the other spectral distributions it has proved difficult to integrate indefinitely the black-body spectrum and
this has lead to an alternative approach. Instead it has been decided to use the black-body formula to create a
10,000 bin histogram and then to produce random energies from this.
Similarly, the broken power-law for cosmic diffuse gamma rays makes generating an indefinite integral CDF
problematic. Instead, the minimum and maximum energies specified by the user are used to construct a definite-in-
tegral CDF from which random energies are selected.
2.7.2.4. Biasing
The user can bias distributions by entering a histogram. It is the random numbers from which the quantities are
picked that are biased and so one only needs a histogram from 0 to 1. Great care must be taken when using this
option, as the way a quantity is calculated will affect how the biasing works, as discussed below. Bias histograms
are entered in the same way as other user-defined histograms.
When creating biasing histograms it is important to bear in mind the way quantities are generated from those
numbers. For example let us compare the biasing of a θ distribution with that of a φ distribution. Let us divide
the θ and φ ranges up into 10 bins, and then decide we want to restrict the generated values to the first and last
bins. This gives a new φ range of 0 to 0.628 and 5.655 to 6.283. Since φ is calculated using φ = 2π × RNDM,
this simple biasing will work correctly.
If we now look at θ, we expect to select values in the two ranges 0 to 0.314 (for 0 ≤ RNDM ≤ 0.1) and 2.827 to
3.142 (for 0 ≤ RNDM ≤ 0.9). However, the polar angle θ is calculated from the formula θ = cos-1(1 - 2×RNDM).
From this, we see that 0.1 gives a θ of 0.644 and a RNDM of 0.9 gives a θ of 2.498. This means that the above
will not bias the distribution as the user had wished. The user must therefore take into account the method used
to generate random quantities when trying to apply a biasing scheme to them. Some quantities such as x, y, z and
φ will be relatively easy to bias, but others may require more thought.
2.7.2.5. User-Defined Histograms
The user can define histograms for several reasons: angular distributions in either θ or φ; energy distributions;
energy per nucleon distributions; or biasing of x, y, z, θ, φ, or energy. Even though the reasons may be different
the approach is the same.
To choose a histogram the command /gps/hist/type is used (Section 2.7.3). If one wanted to enter an angular
distribution one would type "theta" or "phi" as the argument. The histogram is loaded, one bin at a time, by using
the /gps/hist/point command, followed by its two arguments the upper boundary of the bin and the weight
(or area) of the bin. Histograms are therefore differential functions.
Currently histograms are limited to 1024 bins. The first value of each user input data pair is treated as the upper
edge of the histogram bin and the second value is the bin content. The exception is the very first data pair the user
input whose first value is the treated as the lower edge of the first bin of the histogram, and the second value is
not used. This rule applies to all distribution histograms, as well as histograms for biasing.
The user has to be aware of the limitations of histograms. For example, in general θ is defined between 0 and π
and φ is defined between 0 and 2π, so histograms defined outside of these limits may not give the user what they
want (see also Section 2.7.2.4).
2.7.3. Macro Commands
G4GeneralParticleSource can be configured by typing commands from the /gps command directory
tree, or including the /gps commands in a g4macro file.
![](asset-1f.png)
Getting Started with Geant4
- Running a Simple Example
22
2.7.3.1. G4ParticleGun equivalent commands
Command Arguments Description and restrictions
/gps/List List available incident particles
/gps/particle name Defines the particle type [default geantino], using
Geant4 naming convention.
/gps/direction Px Py Pz Set the momentum direction [default (1,0,0)] of generat-
ed particles using direction cosines (Equation 2.1).
/gps/energy E unit Sets the energy [default 1 MeV] for mono-energetic
sources. The units can be eV, keV, MeV, GeV, TeV or
PeV. (NB: it is recommended to use /gps/ene/mono in-
stead.)
/gps/position X Y Z unit Sets the centre co-ordinates (X,Y,Z) of the source [de-
fault (0,0,0) cm]. The units can be micron, mm, cm, m
or km. (NB: it is reccomended to use /gps/pos/centre in-
stead.)
/gps/ion Z A Q E After /gps/particle ion, sets the properties
(atomic number Z, atomic mass A, ionic charge Q, exci-
tation energy E in keV) of the ion.
/gps/ionLvl Z A Q lvl After /gps/particle ion, sets the properties
(atomic number Z, atomic mass A, ionic charge Q, Num-
ber of metastable state excitation level (0-9) of the ion.
/gps/time t0 unit Sets the primary particle (event) time [default 0 ns]. The
units can be ps, ns, us, ms, or s.
/gps/polarization Px Py Pz Sets the polarization vector of the source, which does not
need to be a unit vector.
/gps/number N Sets the number of particles [default 1] to simulate on
each event.
/gps/verbose level Control the amount of information printed out by the
GPS code. Larger values produce more detailed output.
Table 2.2.
2.7.3.2. Multiple source specification
Command Arguments Description and restrictions
/gps/source/add intensity Add a new particle source with the specified intensity
/gps/source/list List the particle sources defined.
/gps/source/clear Remove all defined particle sources.
/gps/source/show Display the current particle source
/gps/source/set index Select the specified particle source as the current one.
/gps/source/delete index Remove the specified particle source.
/gps/source/
multiplevertex flag Specify true for simulaneous generation of mutiple ver-
tices, one from each specified source. False [default]
generates a single vertex, choosing one source randomly.
/gps/source/intensity intensity Reset the current source to the specified intensity
/gps/source/
flatsampling flag Set to True to allow biased sampling among the sources.
Setting to True will ignore source intensities. The default
is False.
Table 2.3.
![](asset-20.png)
Getting Started with Geant4
- Running a Simple Example
23
2.7.3.3. Source position and structure
Command Arguments Description and restrictions
/gps/pos/type dist Sets the source positional distribution type: Point [de-
fault], Plane, Beam, Surface, Volume.
/gps/pos/shape shape Sets the source shape type, after /gps/pos/type has
been used. For a Plane this can be Circle, Annulus, El-
lipse, Square, Rectangle. For both Surface or Volume
sources this can be Sphere, Ellipsoid, Cylinder, Para
(parallelpiped).
/gps/pos/centre X Y Z unit Sets the centre co-ordinates (X,Y,Z) of the source [de-
fault (0,0,0) cm]. The units can only be micron, mm, cm,
m or km.
/gps/pos/rot1 R1x R1y R1zDefines the first (x' direction) vector R1 [default (1,0,0)],
which does not need to be a unit vector, and is used
together with /gps/pos/rot2 to create the rotation
matrix of the shape defined with /gps/shape.
/gps/pos/rot2 R2x R2y R2zDefines the second vector R2 in the xy plane [default
(0,1,0)], which does not need to be a unit vector, and
is used tohgether with /gps/pos/rot1 to create the
rotation matrix of the shape defined with /gps/shape.
/gps/pos/halfx len unit Sets the half-length in x [default 0 cm] of the source. The
units can only be micron, mm, cm, m or km.
/gps/pos/halfy len unit Sets the half-length in y [default 0 cm] of the source. The
units can only be micron, mm, cm, m or km.
/gps/pos/halfz len unit Sets the half-length in z [default 0 cm] of the source. The
units can only be micron, mm, cm, m or km.
/gps/pos/radius len unit Sets the radius [default 0 cm] of the source or the outer
radius for annuli. The units can only be micron, mm, cm,
m or km.
/gps/pos/inner_radius len unit Sets the inner radius [default 0 cm] for annuli. The units
can only be micron, mm, cm, m or km.
/gps/pos/sigma_r sigma unit Sets the transverse (radial) standard deviation [default
0 cm] of beam position profile. The units can only be
micron, mm, cm, m or km.
/gps/pos/sigma_x sigma unit Sets the standard deviation [default 0 cm] of beam posi-
tion profile in x-direction. The units can only be micron,
mm, cm, m or km.
/gps/pos/sigma_y sigma unit Sets the standard deviation [default 0 cm] of beam posi-
tion profile in y-direction. The units can only be micron,
mm, cm, m or km.
/gps/pos/paralp alpha unit Used with a Parallelepiped. The angle [default 0 rad] α
formed by the y-axis and the plane joining the centre of
the faces parallel to the zx plane at y and +y. The units
can only be deg or rad.
/gps/pos/parthe theta unit Used with a Parallelepiped. Polar angle [default 0 rad] θ
of the line connecting the centre of the face at z to the
centre of the face at +z. The units can only be deg or rad.
/gps/pos/parphi phi unit Used with a Parallelepiped. The azimuth angle [default
0 rad] φ of the line connecting the centre of the face at z
![](asset-21.png)
Getting Started with Geant4
- Running a Simple Example
24
Command Arguments Description and restrictions
with the centre of the face at +z. The units can only be
deg or rad.
/gps/pos/confine name Allows the user to confine the source to the physical vol-
ume name [default NULL].
Table 2.4.
2.7.3.4. Source direction and angular distribution
Command Arguments Description and restrictions
/gps/ang/type AngDis Sets the angular distribution type (iso [default], cos, pla-
nar, beam1d, beam2d, focused, user) to either isotropic,
cosine-law or user-defined.
/gps/ang/rot1 AR1x AR1y AR1zDefines the first (x' direction) rotation vector AR1 [de-
fault (1,0,0)] for the angular distribution and is not nec-
essarily a unit vector. Used with /gps/ang/rot2 to
compute the angular distribution rotation matrix.
/gps/ang/rot2 AR2x AR2y AR2zDefines the second rotation vector AR2 in the xy plane
[default (0,1,0)] for the angular distribution, which does
not necessarily have to be a unit vector. Used with /
gps/ang/rot2 to compute the angular distribution
rotation matrix.
/gps/ang/mintheta MinTheta unit Sets a minimum value [default 0 rad] for the θ distribu-
tion. Units can be deg or rad.
/gps/ang/maxtheta MaxTheta unit Sets a maximum value [default π rad] for the θ distribu-
tion. Units can be deg or rad.
/gps/ang/minphi MinPhi unit Sets a minimum value [default 0 rad] for the φ distribu-
tion. Units can be deg or rad.
/gps/ang/maxphi MaxPhi unit Sets a maximum value [default 2π rad] for the φ distrib-
ution. Units can be deg or rad.
/gps/ang/sigma_r sigma unit Sets the standard deviation [default 0 rad] of beam direc-
tional profile in radial. The units can only be deg or rad.
/gps/ang/sigma_x sigma unit Sets the standard deviation [default 0 rad] of beam direc-
tional profile in x-direction. The units can only be deg
or rad.
/gps/ang/sigma_y sigma unit Sets the standard deviation [default 0 rad] of beam direc-
tional profile in y-direction. The units can only be deg
or rad.
/gps/ang/focuspoint X Y Z unit Set the focusing point (X,Y,Z) for the beam [default
(0,0,0) cm]. The units can only be micron, mm, cm, m
or km.
/gps/ang/user_coor bool Calculate the angular distribution with respect to the user
definded co-ordinate system (true), or with respect to the
global co-ordinate system (false, default).
/gps/ang/surfnorm bool Allows user to choose whether angular distributions are
with respect to the co-ordinate system (false, default) or
surface normals (true) for user-defined distributions.
Table 2.5.
![](asset-22.png)
Getting Started with Geant4
- Running a Simple Example
25
2.7.3.5. Energy spectra
Command Arguments Description and restrictions
/gps/ene/type EnergyDis Sets the energy distribution type to one of (Table 2.1):
Mono (mono-energetic, default)
Lin (linear)
Pow (power-law)
Exp (exponential)
Gauss (Gaussian)
Brem (bremsstrahlung)
Bbody (black-body)
Cdg (cosmic diffuse gamma-ray)
User (user-defined histogram)
Arb (point-wise spectrum)
Epn (energy-per-nucleon histogram)
/gps/ene/min Emin unit Sets the minimum [default 0 keV] for the energy distri-
bution. The units can be eV, keV, MeV, GeV, TeV or
PeV.
/gps/ene/max Emax unit Sets the maximum [default 0 keV] for the energy distri-
bution. The units can be eV, keV, MeV, GeV, TeV or
PeV.
/gps/ene/mono E unit Sets the energy [default 1 MeV] for mono-energetic
sources. The units can be eV, keV, MeV, GeV, TeV or
PeV.
/gps/ene/sigma sigma unit Sets the standard deviation [default 0 keV] in energy for
Gaussian or Mono energy distributions. The units can be
eV, keV, MeV, GeV, TeV or PeV.
/gps/ene/alpha alpha Sets the exponent # [default 0] for a power-law distrib-
ution.
/gps/ene/temp T Sets the temperature in kelvins [default 0] for black body
and bremsstrahlung spectra.
/gps/ene/ezero E0 Sets scale E0 [default 0] for exponential distributions.
/gps/ene/gradient gradient Sets the gradient (slope) [default 0] for linear distribu-
tions.
/gps/ene/intercept intercept Sets the Y-intercept [default 0] for the linear distribu-
tions.
/gps/ene/biasAlpha alpha Sets the exponent # [default 0] for a biased power-law
distribution. Bias weight is determined from the pow-
er-law probability distribution.
/gps/ene/calculate Prepares integral PDFs for the interally-binned cosmic
diffuse gamma ray (Cdg) and black body (Bbody) distri-
butions.
/gps/ene/emspec bool Allows user to specify distributions are in momentum
(false) or energy (true, default). Only valid for User and
Arb distributions.
/gps/ene/diffspec bool Allows user to specify whether a point-wise spectrum is
integral (false) or differential (true, default). The integral
spectrum is only usable for Arb distributions.
Table 2.6.
![](asset-23.png)
Getting Started with Geant4
- Running a Simple Example
26
2.7.3.6. User-defined histograms and interpolated functions
Command Arguments Description and restrictions
/gps/hist/type type Set the histogram type: predefined biasx [default], biasy,
biasz, biast (angle θ), biasp (angle φ), biaspt (position
θ), biaspp (position φ), biase; user-defined histograms
theta, phi, energy, arb (point-wise), epn (energy per nu-
cleon).
/gps/hist/reset type Re-set the specified histogram: biasx [default], , biasy,
biasz, biast, biasp, biaspt, biaspp, biase, theta, phi, en-
ergy, arb, epn.
/gps/hist/point Ehi Weight Specify one entry (with contents Weight) in a histogram
(where Ehi is the bin upper edge) or point-wise distribu-
tion (where Ehi is the abscissa). The abscissa Ehi must be
in Geant4 default units (MeV for energy, rad for angle).
/gps/hist/file HistFile Import an arbitary energy histogram in an ASCII file.
The format should be one Ehi Weight pair per line
of the file, following the detailed instructions in Sec-
tion 2.7.2.5. For histograms, Ehi is the bin upper edge,
for point-wise distributions Ehi is the abscissa. The ab-
scissa Ehi must be in Geant4 default units (MeV for en-
ergy, rad for angle).
/gps/hist/inter type Sets the interpolation type (Lin linear, Log logarithmic,
Exp exponential, Spline cubic spline) for point-wise
spectra. This command must be issued immediately af-
ter the last data point.
Table 2.7.
2.7.4. Example Macro File
# Macro test2.g4mac
/control/verbose 0
/tracking/verbose 0
/event/verbose 0
/gps/verbose 2
/gps/particle gamma
/gps/pos/type Plane
/gps/pos/shape Square
/gps/pos/centre 1 2 1 cm
/gps/pos/halfx 2 cm
/gps/pos/halfy 2 cm
/gps/ang/type cos
/gps/ene/type Lin
/gps/ene/min 2 MeV
/gps/ene/max 10 MeV
/gps/ene/gradient 1
/gps/ene/intercept 1
/run/beamOn 10000
The above macro defines a planar source, square in shape, 4 cm by 4 cm and centred at (1,2,1) cm. By default
the normal of this plane is the z-axis. The angular distribution is to follow the cosine-law. The energy spectrum is
linear, with gradient and intercept equal to 1, and extends from 2 to 10 MeV. 10,000 primaries are to be generated.
![](asset-24.png)
Getting Started with Geant4
- Running a Simple Example
27

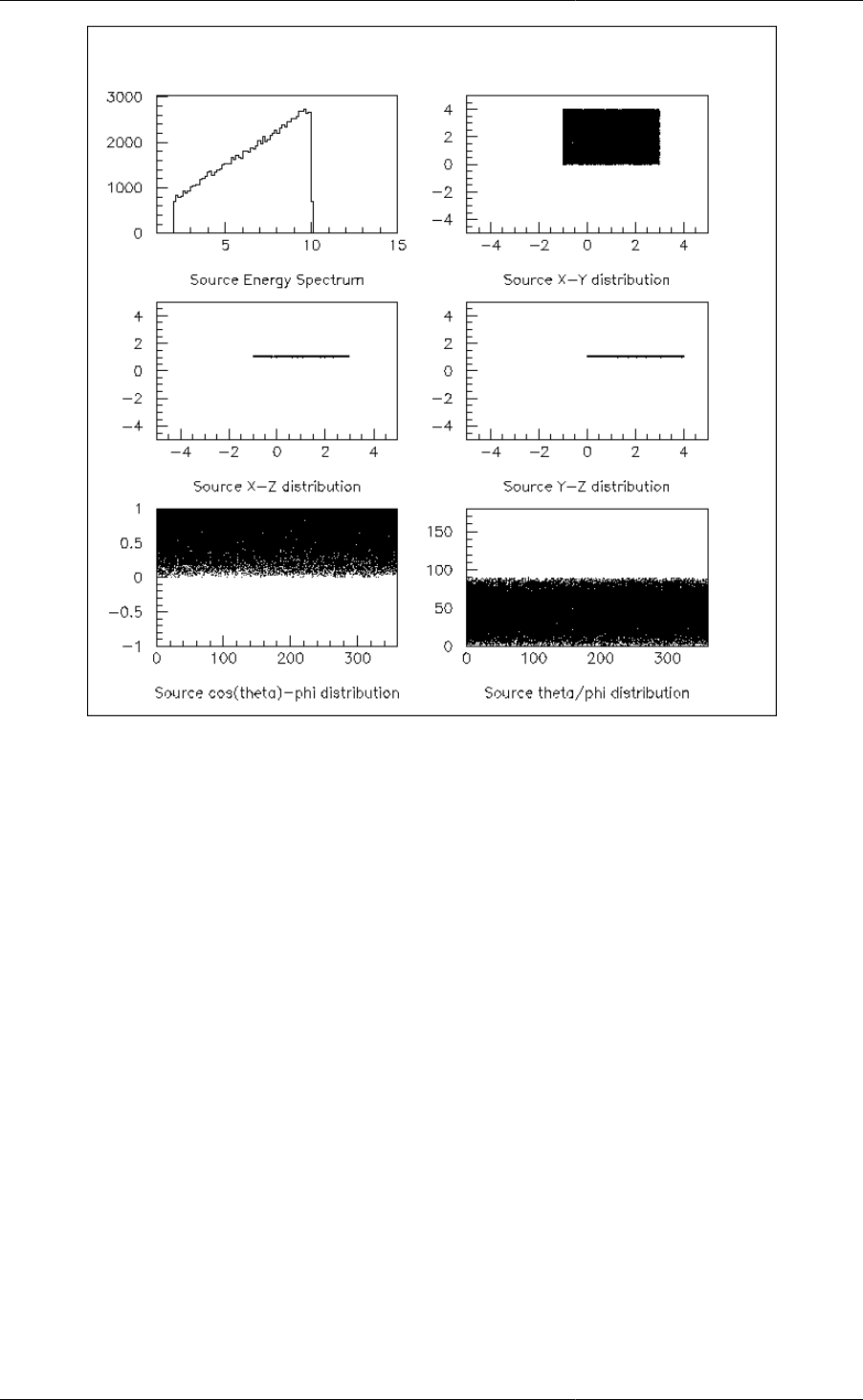

Figure 2.4. Figure 4. Energy, position and angular distributions of the primary particles
as generated by the macro file shown above.
The standard Geant4 output should show that the primary particles start from between 1, 0, 1 and 3, 4, 1 (in cm)
and have energies between 2 and 10 MeV, as shown in Figure 2.4, in which we plotted the actual energy, position
and angular distributions of the primary particles generated by the above macro file.
2.8. How to Make an Executable Program
The code for the user examples in Geant4 is placed in the subdirectory examples of the main Geant4 source
package. This directory is installed to the share/Geant4-X.Y.Z/examples (where X.Y.Z is the Geant4
version number) subdirectory under the installation prefix. In the following sections, a quick overview will be
given on how to build a concrete example, "ExampleB1", which is part of the Geant4 distribution, using CMake
and the older, and now deprecated, Geant4Make system.
2.8.1. Using CMake to build Applications:
Geant4Config.cmake
Geant4 installs a file named Geant4Config.cmake located in:
+- CMAKE_INSTALL_PREFIX
+- lib/
+- Geant4-10.3.0/
+- Geant4Config.cmake
which is designed for use with the CMake scripting language find_package command. Building a Geant4
application using CMake therefore involves writing a CMake script CMakeLists.txt using this and other
![](asset-25.png)
Getting Started with Geant4
- Running a Simple Example
28
CMake commands to locate Geant4 and describe the build of your application against it. Whilst it requires a bit
of effort to write the script, CMake provides a very powerful and flexible tool, especially if you are working on
multiple platforms. It is therefore the method we recommend for building Geant4 applications.
We'll use Basic Example B1, which you may find in the Geant4 source directory under examples/basic/B1,
to demonstrate the use of CMake to build a Geant4 application. You'll find links to the latest CMake documentation
for the commands used throughout, so please follow these for further information. The application sources and
scripts are arranged in the following directory structure:
+- B1/
+- CMakeLists.txt
+- exampleB1.cc
+- include/
| ... headers.hh ...
+- src/
... sources.cc ...
Here, exampleB1.cc contains main() for the application, with include/ and src/ containing the imple-
mentation class headers and sources respectively. This arrangement of source files is not mandatory when building
with CMake, apart from the location of the CMakeLists.txt file in the root directory of the application.
The text file CMakeLists.txt is the CMake script containing commands which describe how to build the
exampleB1 application:
# (1)
cmake_minimum_required(VERSION 2.6 FATAL_ERROR)
project(B1)
# (2)
option(WITH_GEANT4_UIVIS "Build example with Geant4 UI and Vis drivers" ON)
if(WITH_GEANT4_UIVIS)
find_package(Geant4 REQUIRED ui_all vis_all)
else()
find_package(Geant4 REQUIRED)
endif()
# (3)
include(${Geant4_USE_FILE})
include_directories(${PROJECT_SOURCE_DIR}/include)
# (4)
file(GLOB sources ${PROJECT_SOURCE_DIR}/src/*.cc)
file(GLOB headers ${PROJECT_SOURCE_DIR}/include/*.hh)
# (5)
add_executable(exampleB1 exampleB1.cc ${sources} ${headers})
target_link_libraries(exampleB1 ${Geant4_LIBRARIES})
# (6)
set(EXAMPLEB1_SCRIPTS
exampleB1.in
exampleB1.out
init_vis.mac
run1.mac
run2.mac
vis.mac
)
foreach(_script ${EXAMPLEB1_SCRIPTS})
configure_file(
${PROJECT_SOURCE_DIR}/${_script}
${PROJECT_BINARY_DIR}/${_script}
COPYONLY
)
endforeach()
# (7)
install(TARGETS exampleB1 DESTINATION bin)
![](asset-26.png)
Getting Started with Geant4
- Running a Simple Example
29
For clarity, the above listing has stripped out the main comments (CMake comments begin with a "#") you'll find
in the actual file to highlight each distinct task:
1. Basic Configuration
The cmake_minimum_required command simply ensures we're using a suitable version of CMake.
Though the build of Geant4 itself requires CMake 3.3 and we recommend this version for your own projects,
Geant4Config.cmake can support earlier versions from 2.6.4 and the 2.8.X series. The project
command sets the name of the project and enables and configures C and C++ compilers.
2. Find and Configure Geant4
The aforementioned find_package command is used to locate and configure Geant4 (we'll see how
to specify the location later when we run CMake), the REQUIRED argument being supplied so that CMake
will fail with an error if it cannot find Geant4. The option command specifies a boolean variable
which defaults to ON , and which can be set when running CMake via a -D command line argument, or
toggled in the CMake GUI interfaces. We wrap the calls to find_package in a conditional block on
the option value. This allows us to configure the use of Geant4 UI and Visualization drivers by exampleB1
via the ui_all vis_all "component" arguments to find_package . These components and their
usage is described later.
3. Configure the Project to Use Geant4 and B1 Headers
To automatically configure the header path, and force setting of compiler flags and compiler definitions
needed for compiling against Geant4, we use the include command to load a CMake script supplied
by Geant4. The CMake variable named Geant4_USE_FILE is set to the path to this module when Geant4
is located by find_package . We use the include_directories command to add the B1
header directory to the compiler's header search path. The CMake variable PROJECT_SOURCE_DIR
points to the top level directory of the project and is set by the earlier call to the project command.
4. List the Sources to Build the Application
Use the globbing functionality of the file command to prepare lists of the B1 source and header files.
Note however that CMake globbing is only used here as a convenience. The expansion of the glob only
happens when CMake is run, so if you later add or remove files, the generated build scripts will not know
a change has taken place. Kitware strongly recommend listing sources explicitly as CMake automatically
makes the build depend on the CMakeLists.txt file. This means that if you explicitly list the sources in
CMakeLists.txt, any changes you make will be automatically picked when you rebuild. This is most
useful when you are working on a project with sources under version control and multiple contributors.
5. Define and Link the Executable
The add_executable command defines the build of an application, outputting an executable named
by its first argument, with the sources following. Note that we add the headers to the list of sources so that
they will appear in IDEs like Xcode.
After adding the executable, we use the target_link_libraries command to link it with the
Geant4 libraries. The Geant4_LIBRARIES variable is set by find_package when Geant4 is located,
and is a list of all the libraries needed to link against to use Geant4.
6. Copy any Runtime Scripts to the Build Directory
Because we want to support out of source builds so that we won't mix CMake generated files with our actual
sources, we copy any scripts used by the B1 application to the build directory. We use foreach to loop
over the list of scripts we constructed, and configure_file to perform the actual copy.
Here, the CMake variable PROJECT_BINARY_DIR is set by the earlier call to the project
command and points to the directory where we run CMake to configure the build.
7. If Required, Install the Executable
![](asset-27.png)
Getting Started with Geant4
- Running a Simple Example
30
Use the install command to create an install target that will install the executable to a bin directory
under CMAKE_INSTALL_PREFIX.
If you don't intend your application to be installable, i.e. you only want to use it locally when built, you can
leave this out.
This sequence of commands is the most basic needed to compile and link an application with Geant4, and is easily
extendable to more involved use cases such as platform specific configuration or using other third party packages
(via find_package ).
With the CMake script in place, using it to build an application is a two step process. First CMake is run to
generate buildscripts to describe the build. By default, these will be Makefiles on Unix platforms, and Visual
Studio solutions on Windows, but you can generate scripts for other tools like Xcode and Eclipse if you wish.
Second, the buildscripts are run by the chosen build tool to compile and link the application.
A key concept with CMake is that we generate the buildscripts and run the build in a separate directory, the so-
called build directory, from the directory in which the sources reside, the so-called source directory. This is the
exact same technique we used when building Geant4 itself. Whilst this may seem awkward to begin with, it is a
very useful technique to employ. It prevents mixing of CMake generated files with those of your application, and
allows you to have multiple builds against a single source without having to clean up, reconfigure and rebuild.
We'll illustrate this configure and build process on Linux/OS X using Makefiles, and on Windows using Visual
Studio. The example script and Geant4's Geant4Config.cmake script are vanilla CMake, so you should be
able to use other Generators (such as Xcode and Eclipse) without issue.
2.8.1.1. Building ExampleB1 with CMake on Unix with Makefiles
We'll assume, for illustration only, that you've copied the exampleB1 sources into a directory under your home
area so that we have
+- /home/you/B1/
+- CMakeLists.txt
+- exampleB1.cc
+- include/
+- src/
+- ...
Here, our source directory is /home/you/B1, in other words the directory holding the CMakeLists.txt file.
Let's also assume that you have already installed Geant4 in your home area under, for illustration only, /home/
you/geant4-install.
Our first step is to create a build directory in which build the example. We will create this alongside our B1 source
directory as follows:
$ cd $HOME
$ mkdir B1-build
We now change to this build directory and run CMake to generate the Makefiles needed to build the B1 application.
We pass CMake two arguments:
$ cd $HOME/B1-build
$ cmake -DGeant4_DIR=/home/you/geant4-install/lib64/Geant4-10.3.0 $HOME/B1
Here, the first argument points CMake to our install of Geant4. Specifically, it is the directory holding the
Geant4Config.cmake file that Geant4 installs to help CMake find and use Geant4. You should of course
adapt the value of this variable to the location of your actual Geant4 install. This provides the most specific way to
point CMake to the Geant4 install you want to use. You may also use the CMAKE_PREFIX_PATH variable, e.g.
![](asset-28.png)
Getting Started with Geant4
- Running a Simple Example
31
$ cd $HOME/B1-build
$ cmake -DCMAKE_PREFIX_PATH=/home/you/geant4-install $HOME/B1
This is most useful for system integrators as it may be extended with paths to the install prefixes of additional
required software packages and also may be set as an environment variable that CMake will use at configuration
time.
The second argument to CMake is the path to the source directory of the application we want to build. Here it's just
the B1 directory as discussed earlier. You should of course adapt the value of that variable to where you copied
the B1 source directory.
CMake will now run to configure the build and generate Makefiles. On Linux, you will see the output
$ cmake -DGeant4_DIR=/home/you/geant4-install/lib64/Geant4-10.3.0 $HOME/B1
-- The C compiler identification is GNU 4.9.2
-- The CXX compiler identification is GNU 4.9.2
-- Check for working C compiler: /usr/bin/gcc-4.9
-- Check for working C compiler: /usr/bin/gcc-4.9 -- works
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Detecting C compile features
-- Detecting C compile features - done
-- Check for working CXX compiler: /usr/bin/g++-4.9
-- Check for working CXX compiler: /usr/bin/g++-4.9 -- works
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Configuring done
-- Generating done
-- Build files have been written to: /home/you/B1-build
On OS X, you will see slightly different output, but the last three lines should be identical.
If you now list the contents of you build directory, you can see the files generated:
$ ls
CMakeCache.txt exampleB1.in Makefile vis.mac
CMakeFiles exampleB1.out run1.mac
cmake_install.cmake init_vis.mac run2.mac
Note the Makefile and that all the scripts for running the exampleB1 application we're about to build have been
copied across. With the Makefile available, we can now build by simply running make:
$ make -jN
CMake generated Makefiles support parallel builds, so can set N suitable for the number of cores on your machine
(e.g. on a dual core processor, you could set N to 2). When make runs, you should see the output
$ make
Scanning dependencies of target exampleB1
[ 16%] Building CXX object CMakeFiles/exampleB1.dir/exampleB1.cc.o
[ 33%] Building CXX object CMakeFiles/exampleB1.dir/src/B1PrimaryGeneratorAction.cc.o
[ 50%] Building CXX object CMakeFiles/exampleB1.dir/src/B1EventAction.cc.o
[ 66%] Building CXX object CMakeFiles/exampleB1.dir/src/B1RunAction.cc.o
[ 83%] Building CXX object CMakeFiles/exampleB1.dir/src/B1DetectorConstruction.cc.o
[100%] Building CXX object CMakeFiles/exampleB1.dir/src/B1SteppingAction.cc.o
Linking CXX executable exampleB1
[100%] Built target exampleB1
CMake Unix Makefiles are quite terse, but you can make them more verbose by adding the VERBOSE argument
to make:
![](asset-29.png)
Getting Started with Geant4
- Running a Simple Example
32
$ make VERBOSE=1
If you now list the contents of your build directory you will see the exampleB1 application executable has been
created:
$ ls
CMakeCache.txt exampleB1 init_vis.mac run2.mac
CMakeFiles exampleB1.in Makefile vis.mac
cmake_install.cmake exampleB1.out run1.mac
You can now run the application in place:
$ ./exampleB1
Available UI session types: [ GAG, tcsh, csh ]
*************************************************************
Geant4 version Name: geant4-10-03 [MT] (2-December-2016)
<< in Multi-threaded mode >>
Copyright : Geant4 Collaboration
Reference : NIM A 506 (2003), 250-303
WWW : http://cern.ch/geant4
*************************************************************
<<< Reference Physics List QBBC
Visualization Manager instantiating with verbosity "warnings (3)"...
Visualization Manager initialising...
Registering graphics systems...
Note that the exact output shown will depend on how both Geant4 and your application were configured. Further
output and behaviour beyond the Registering graphics systems... line will depend on what UI
and Visualization drivers your Geant4 install supports. If you recall the use of the ui_all vis_all in the
find_package command, this results in all available UI and Visualization drivers being activated in your
application. If you didn't want any UI or Visualization, you could rerun CMake as:
$ cmake -DWITH_GEANT4_UIVIS=OFF -DGeant4_DIR=/home/you/geant4-install/lib64/Geant4-10.3.0 $HOME/B1
This would switch the option we set up to false, and result in find_package not activating any UI or Vi-
sualization for the application. You can easily adapt this pattern to provide options for your application such as
additional components or features.
Once the build is configured, you can edit code for the application in its source directory. You only need to rerun
make in the corresponding build directory to pick up and compile the changes. However, note that due to the use
of CMake globbing to create the source file list, if you add or remove files, you need to rerun CMake to pick up
the changes! This is another reason why Kitware recommend listing the sources explicitly.
2.8.1.2. Building ExampleB1 with CMake on Windows with Visual
Studio
As with building Geant4 itself, the simplest system to use for building applications on Windows is a Visual Studio
Developer Command Prompt, which can be started from Start → All Programs → Visual Studio 2015 → Visual
Studio Tools → Developer Command Prompt for VS2015.
We'll assume, for illustration only, that you've copied the exampleB1 sources into a directory C:\Users\You-
rUsername\Geant4\B1 so that we have
+- C:\Users\YourUsername\Geant4\B1
+- CMakeLists.txt
+- exampleB1.cc
+- include\
+- src\
![](asset-2a.png)
Getting Started with Geant4
- Running a Simple Example
33
+- ...
Here, our source directory is C:\Users\YourUsername\Geant4\B1, in other words the directory holding
the CMakeLists.txt file.
Let's also assume that you have already installed Geant4 in your home area under, for illustration only, C:\Users
\YourUsername\Geant4\geant4_10_03-install.
Our first step is to create a build directory in which build the example. We will create this alongside our B1 source
directory as follows, working from the Visual Studio Developer Command Prompt:
> cd %HOMEPATH%\Geant4
> mkdir B1-build
We now change to this build directory and run CMake to generate the Visual Studio solution needed to build the
B1 application. We pass CMake two arguments:
> cd %HOMEPATH%\Geant4\B1-build
> cmake -DGeant4_DIR=%HOMEPATH%\geant4_10_03-install\lib\Geant4-10.3.0 %HOMEPATH%\Geant4\B1
Here, the first argument points CMake to our install of Geant4. Specifically, it is the directory holding the
Geant4Config.cmake file that Geant4 installs to help CMake find and use Geant4. You should of course
adapt the value of this variable to the location of your actual Geant4 install. As with the examples above, you can
also use the CMAKE_PREFIX_PATH variable.
The second argument is the path to the source directory of the application we want to build. Here it's just the B1
directory as discussed earlier. You should of course adapt the value of that variable to where you copied the B1
source directory.
CMake will now run to configure the build and generate Visual Studio solutions and you will see the output
> cmake -DGeant4_DIR=%HOMEPATH%\geant4_10_03-install\lib\Geant4-10.3.0 %HOMEPATH%\Geant4\B1
-- Building for: Visual Studio 14 2015
-- The C compiler identification is MSVC 19.0.23026.0
-- The CXX compiler identification is MSVC 19.0.23026.0
-- Check for working C compiler using: Visual Studio 14 2015
-- Check for working C compiler using: Visual Studio 14 2015 -- works
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working CXX compiler using: Visual Studio 14 2015
-- Check for working CXX compiler using: Visual Studio 14 2015 -- works
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Configuring done
-- Generating done
-- Build files have been written to: C:/Users/YourUsername/Geant4/B1-build
If you now list the contents of you build directory, you can see the files generated:
> dir /B
ALL_BUILD.vcxproj
ALL_BUILD.vcxproj.filters
B1.sln
B1.vcxproj
B1.vcxproj.filters
CMakeCache.txt
CMakeFiles
cmake_install.cmake
exampleB1.in
exampleB1.out
exampleB1.vcxproj
exampleB1.vcxproj.filters
![](asset-2b.png)
Getting Started with Geant4
- Running a Simple Example
34
init_vis.mac
INSTALL.vcxproj
INSTALL.vcxproj.filters
run1.mac
run2.mac
vis.mac
ZERO_CHECK.vcxproj
ZERO_CHECK.vcxproj.filters
Note the B1.sln solution file and that all the scripts for running the exampleB1 application we're about to build
have been copied across. With the solution available, we can now build by running cmake to drive MSBuild:
> cmake --build . --config Release
Solution based builds are quite verbose, but you should not see any errors at the end. In the above, we have
built the B1 program in Release mode, meaning that it is optimized and has no debugging symbols. As with
building Geant4 itself, this is chosen to provide optimum performance. If you require debugging information for
your application, simply change the argument to RelWithDebInfo. Note that in both cases you must match
the configuration of your application with that of the Geant4 install, i.e. if you are building the application in
Release mode, then ensure it uses a Release build of Geant4. Link and/or runtime errors may result if mixed
configurations are used.
After running the build, if we list the contents of the build directory again we see
> dir /B
ALL_BUILD.vcxproj
ALL_BUILD.vcxproj.filters
B1.sln
B1.vcxproj
B1.vcxproj.filters
CMakeCache.txt
CMakeFiles
cmake_install.cmake
exampleB1.dir
exampleB1.in
exampleB1.out
exampleB1.vcxproj
exampleB1.vcxproj.filters
init_vis.mac
INSTALL.vcxproj
INSTALL.vcxproj.filters
Release
run1.mac
run2.mac
vis.mac
Win32
ZERO_CHECK.vcxproj
ZERO_CHECK.vcxproj.filters
> dir /B Release
exampleB1.exe
...
Here, the Release subdirectory contains the executable, and the main build directory contains all the .mac
scripts for running the program. If you build in different modes, the executable for that mode will be in a directory
named for that mode, e.g. RelWithDebInfo/exampleB1.exe. You can now run the application in place:
> .\Release\exampleB1.exe
Available UI session types: [ Win32, GAG, csh ]
*************************************************************
Geant4 version Name: geant4-10-03 (2-December-2016)
Copyright : Geant4 Collaboration
Reference : NIM A 506 (2003), 250-303
WWW : http://cern.ch/geant4
![](asset-2c.png)
Getting Started with Geant4
- Running a Simple Example
35
*************************************************************
<<< Reference Physics List QBBC
Visualization Manager instantiating with verbosity "warnings (3)"...
Visualization Manager initialising...
Registering graphics systems...
Note that the exact output shown will depend on how both Geant4 and your application were configured. Further
output and behaviour beyond the Registering graphics systems... line will depend on what UI and
Visualization drivers your Geant4 install supports.
Whilst the Visual Studio Developer Command prompt provides the simplest way to build an application, the gen-
erated Visual Studio Solution file (B1.sln in the above example) may also be opened directly in the Visual Stu-
dio IDE. This provides a more comprehensive development and debugging environment, and you should consult
its documentation if you wish to use this.
One key CMake related item to note goes back to our listing of the headers for the application in the call to
add_executable. Whilst CMake will naturally ignore these for configuring compilation of the application,
it will add them to the Visual Studio Solution. If you do not list them, they will not be editable in the Solution
in the Visual Studio IDE.
2.8.2. Using Geant4Make to build Applications:
binmake.gmk
Geant4Make is the Geant4 GNU Make toolchain formerly used to build the toolkit and applications. It is installed
on UNIX systems (except for Cygwin) for backwards compatibility with the Geant4 Examples and your existing
applications which use a GNUmakefile and the Geant4Make binmake.gmk file. However, please note that the
system is now deprecated, meaning that it is no longer supported and may be removed in future releases without
warning. You should migrate your application to be built using CMake via the Geant4Config.cmake script,
or any other build tool of your choice, using the geant4-config program to query the relevant compiler/linker
flags.
The files for Geant4Make are installed under:
+- CMAKE_INSTALL_PREFIX/
+- share/
+- geant4make/
+- geant4make.sh
+- geant4make.csh
+- config/
+- binmake.gmk
+- ...
The system is designed to form a self-contained GNUMake system which is configured primarily by environment
variables (though you may manually replace these with Make variables if you prefer). Building a Geant4 appli-
cation using Geant4Make therefore involves configuring your environment followed by writing a GNUmakefile
using the Geant4Make variables and GNUMake modules.
To configure your environment, simply source the relevant configuration script CMAKE_INSTALL_PREFIX/
share/Geant4-10.3.0/geant4make/geant4make.(c)sh for your shell. Whilst both scripts can be
sourced interactively, if you are using the C shell and need to source the script inside another script, you must
use the commands:
cd CMAKE_INSTALL_PREFIX/share/Geant4-10.3.0/geant4make
source geant4make.csh
or alternatively
source CMAKE_INSTALL_PREFIX/share/Geant4-10.3.0/geant4make/geant4make.csh \\
CMAKE_INSTALL_PREFIX/share/Geant4-10.3.0/geant4make
![](asset-2d.png)
Getting Started with Geant4
- Running a Simple Example
36
In both cases, you should replace CMAKE_INSTALL_PREFIX with the actual prefix you installed Geant4 under.
Both of these commands work around a limitation in the C shell which prevents the script locating itself.
Please also note that due to limitations of Geant4Make, you should not rely on the environment variables
it sets for paths into Geant4 itself. In particular, note that the G4INSTALL variable is not equivalent to
CMAKE_INSTALL_PREFIX.
Once you have configured your environment, you can start building your application. Geant4Make enforces a
specific organization and naming of your sources in order to simplify the build. We'll use Basic Example B1,
which you may find in the Geant4 source directory under examples/basic/B1, as the canonical example
again. Here, the sources are arranged as follows
+- B1/
+- GNUmakefile
+- exampleB1.cc
+- include/
| ... headers.hh ...
+- src/
... sources.cc ...
As before, exampleB1.cc contains main() for the application, with include/ and src/ containing the
implementation class headers and sources respectively. You must organise your sources in this structure with
these filename extensions to use Geant4Make as it will expect this structure when it tries to build the application.
With this structure in place, the GNUmakefile for exampleB1 is very simple:
name := exampleB1
G4TARGET := $(name)
G4EXLIB := true
.PHONY: all
all: lib bin
include $(G4INSTALL)/config/binmake.gmk
Here, name is set to the application to be built, and it must match the name of the file containing the main()
program without the .cc extension. The rest of the variables are structural to prepare the build, and finally the
core Geant4Make module is included. The G4INSTALL variable is set in the environment by the geant4make
script to point to the root of the Geant4Make directory structure.
With this structure in place, simply run make to build your application:
$ make
If you need extra detail on the build, you append CPPVERBOSE=1 to the make command to see a detailed log
of the command executed.
The application executable will be output to $(G4WORKDIR)/bin/$(G4SYSTEM)/exampleB1, where
$(G4SYSTEM) is the system and compiler combination you are running on, e.g. Linux-g++. By default,
$(G4WORKDIR) is set by the geant4make scripts to $(HOME)/geant4_workdir, and also prepends this
directory to your PATH. You can therefore run the application directly once it's built:
$ exampleB1
If you prefer to keep your application builds separate, then you can set G4WORKDIR in the GNUmakefile before
including binmake.gmk. In this case you would have to run the executable by supplying the full path.
Further documentation of the usage of Geant4Make and syntax and extensions for the GNUMakefile is described
in the FAQ and Appendices of the Geant4 User's Guide for Application Developers.
![](asset-2e.png)
Getting Started with Geant4
- Running a Simple Example
37
Please note that the Geant4Make toolchain is provided purely for conveniance and backwards compatibility. We
encourage you to use and migrate your applications to the new CMake and geant4-config tools. Geant4Make
is deprecated in Geant4 10.0 and later.
2.9. How to Set Up an Interactive Session
2.9.1. Introduction
2.9.1.1. Roles of the "intercoms" category
The "intercoms" category provides an expandable command interpreter. It is the key mechanism of Geant4 to re-
alize secure user interactions across categories without being annoyed by dependencies among categories. Geant4
commands can be used in an interactive session, a batch mode with a macro file, or a direct C++ call.
2.9.1.2. User Interfaces to drive the simulation
Geant4 can be controllled by a seriese of Geant4 UI commands. The "intercoms" category provides the abstract
class G4UIsession that processes interactive commands. The concrete implementations of (graphical) user
interface are provided in the "interfaces" category. The strategy realize to adopt various user interface tools, and
allows Geant4 to utilize the state-of-the-art GUI tools such as Motif, Qt, and Java etc. The following interfaces
is currently available;
1. Command-line terminal (dumb terminal and tcsh-like terminal)
2. Xm, Qt, Win32, variations of the above terminal by using a Motif, Qt, Windows widgets
3. GAG, a fully graphical user interface and its network extension GainServer of the client/server type.
Implementation of the user sesssions (1 and 2) is included in the source/interfaces/basic directory.
As for GAG, the front-end class is included in the source/interfaces/GAG directory, while its partner
GUI package MOMO.jar is available under the environments/MOMO directory. MOMO.jar, Java archive file,
contains not only GAG, but also GGE and other helper packages. Supplementary information is available from
the author's web page (see URL below).
GAG, GainServer's client GUI Gain: http://www-geant4.kek.jp/~yoshidah/
2.9.2. A Short Description of Available Interfaces
2.9.2.1. G4UIterminal
This interface opens a session on a command-line terminal. G4UIterminal runs on all supported platforms.
There are two kinds of shells, G4UIcsh and G4UItcsh. G4UItcsh supports tcsh-like readline features (cursor
and command completion) and works on Linux on Mac, while G4UIcsh is a plain standard input (cin) shell that
works on all platforms. The following built-in commands are available in G4UIterminal;
cd, pwd
change, display the current command directory.
ls, lclist commands and subdirectories in the current directory.
history
show previous commands.
!historyID
reissue previous command.
?command
show current parameter values of the command.
![](asset-2f.png)
Getting Started with Geant4
- Running a Simple Example
38
help command
show command help.
exit terminate the session.
G4UItcsh supports user-friendly key bindings a-la-tcsh. G4UItcsh runs on Linux and Mac. The following key-
bindings are supported;
^A move cursor to the top
^B backward cursor ([LEFT] cursor)
^C (except Windows terminal)
abort a run (soft abort) during event processing. A program will be terminated while accepting a user com-
mand.
^D delete/exit/show matched list
^E move cursor to the end
^F forward cursor ([RIGHT] cursor)
^K clear after the cursor
^N next command ([DOWN] cursor)
^P previous command ([UP] cursor)
TAB
command completion
DELbackspace
BS backspace
The example below shows how to set a user's prompt.
G4UItcsh* tcsh = new G4UItcsh();
tcsh-> SetPrompt("%s>");
The following strings are supported as substitutions in a prompt string.
%s current application status
%/ current working directory
%h history number
![](asset-30.png)
Getting Started with Geant4
- Running a Simple Example
39
Command history in a user's session is saved in a file $(HOME)/.g4_hist that is automatically read at the next
session, so that command history is available across sessions.
2.9.2.2. G4UIXm, G4UIQt and G4UIWin32 classes
These interfaces are versions of G4UIterminal implemented over libraries Motif, Qt and WIN32 respectively.
G4UIXm uses the Motif XmCommand widget, G4UIQt the Qt dialog widget, and G4UIWin32 the Windows
"edit" component to do the command capturing. These interfaces are useful if working in conjunction with visu-
alization drivers that use the Xt library, Qt library or the WIN32 one.
A command box is at disposal for entering or recalling Geant4 commands. Command completion by typing "TAB"
key is available in the command box. The shell commands "exit, cont, help, ls, cd..." are also supported. A menu
bar can be customized through the AddMenu and AddButton method. Ex:
/gui/addMenu
test Test
/gui/addButton
test Init /run/initialize
/gui/addButton
test "Set gun" "/control/execute gun.g4m"
/gui/addButton
test "Run one event" "/run/beamOn 1"
G4UIXm runs on Unix/Linux with Motif. G4UIQt run everywhere with Qt. G4UIWin32 runs on Windows.
2.9.2.3. G4UIGAG and G4UIGainServer classes
They are front-end classes of Geant4 which make connections with their respective graphical user interfaces, GAG
(Geant4 Adaptive GUI) via pipe, and Gain (Geant4 adaptive interface for network) via sockets. While GAG must
run on the same system (Windows or Unixen) as a Geant4 application, Gain can run on a remote system (Windows,
Linux, etc.) in which JRE (Java Runtime Environment) is installed. A Geant4 application is invoked on a Unix
(Linux) system and behaves as a network server. It opens a port, waiting the connection from the Gain. Gain has
capability to connect to multiple Geant4 "servers" on Unixen systems at different hosts.
Client GUIs, GAG and Gain have almost similar look-and-feel. So, GAG's functionalities are briefly explained
here. Please refer to the URL previously mentioned for details.
Using GAG, user can select a command, set its parameters and execute it. It is adaptive, in the sense that it reflects
the internal states of Geant4 that is a state machine. So, GAG always provides users with the Geant4 commands
which may be added, deleted, enabled or disabled during a session. GAG does nothing by itself but to play an
intermediate between user and an executable simulation program via pipes. Geant4's front-end class G4UIGAG
must be instantiated to communicate with GAG. GAG runs on Linux and Windows. MOMO.jar is supplied in the
Geant4 source distribution and can be run by a command;
%java -jar /path/to/geant4.10.00/environments/MOMO/MOMO.jar
GAG has following functions.
GAG Menu:
The menus are to choose and run a Geant4 executable file, to kill or exit a Geant4 process and to exit GAG.
Upon the normal exit or an unexpected death of the Geant4 process, GAG window are automatically reset
to run another Geant4 executable.
Geant4 Command tree:
Upon the establishment of the pipe connection with the Geant4 process, GAG displays the command menu,
using expandable tree browser whose look and feel is similar to a file browser. Disabled commands are shown
![](asset-31.png)
Getting Started with Geant4
- Running a Simple Example
40
in opaque. GAG doesn't display commands that are just below the root of the command hierarchy. Direct
type-in field is available for such input. Guidance of command categories and commands are displayed upon
focusing. GAG has a command history function. User can re-execute a command with old parameters, edit
the history, or save the history to create a macro file.
Command Parameter panel:
GAG's parameter panel is the user-friendliest part. It displays parameter name, its guidance, its type(s) (inte-
ger, double, Boolean or string), omittable, default value(s), expression(s) of its range and candidate list(s) (for
example, of units). Range check is done by intercoms and the error message from it is shown in the pop-up
dialog box. When a parameter component has a candidate list, a list box is automatically displayed . When a
file is requested by a command, the file chooser is available.
Logging:
Log can be redirected to the terminal (xterm or cygwin window) from which GAG is invoked. It can be
interrupted as will, in the middle of a long session of execution. Log can be saved to a file independent of the
above redirection . GAG displays warning or error messages from Geant4 in a pop-up warning widget.
2.9.3. How to Select Interface in Your Applications
To choose an interface (G4UIxxx where xxx = terminal,Xm, Win32, Qt, GAG, GainServer)
in your programs, there are two ways.
• Calling G4UIxxx directly :
#include "G4Uixxx.hh"
G4UIsession* session = new G4UIxxx;
session-> SessionStart();
delete session;
Note : For using a tcsh session, G4UIterminal is instantiated like:
G4UIsession* session = new G4UIterminal(new G4UItcsh);
If the user wants to deactivate the default signal handler (soft abort) raised by "Ctr-C", the false flag can be set
in the second argument of the G4UIterminal constructor like;
G4UIsession* session = new G4UIterminal(new G4UItcsh, false).
• Using G4UIExecutive This is more convenient way for choosing a session type, that can select a session
at run-time according to a rule described below.
#include "G4UIExecutive.hh"
G4UIExecutive* ui = new G4UIExecutive(argc, argv);
ui->SessionStart();
delete ui;
G4UIExecutive has several ways to choose a session type. A session is selected in the following rule. Note
that session types are identified by a case-insensitive characters ("qt", "xm", "win32", "gag", "tcsh", "csh").
1. Check the argument of the constructor of G4UIExecutive. You can specify a session like new
G4UIExecutive(argc, argv, "qt");
2. Check environment variables, G4UI_USE_XX (XX= QT, XM, WIN32, GAG, TCSH). Select a session
if the corresponding environment variable is defined. Variables are checked in the order of QT, XM, WIN32,
GAG, TCSH if multiple variables are set.
![](asset-32.png)
Getting Started with Geant4
- Running a Simple Example
41
3. Check ~/.g4sesion. You can specify the default session type and a session type by each application in
that file. The below shows a sample of .g4session.
tcsh # default session
exampleN03 Qt # (application name / session type)
myapp tcsh
hoge csh
4. Guess the best session type according to build session libraries. The order of the selection is Qt, tcsh, Xm.
In any cases, G4UIExecutive checks if a specified session is build or not. If not, it goes the next step. A terminal
session with csh is the fallback session. If none of specified session is available, then it will be selected.
2.10. How to Execute a Program
2.10.1. Introduction
A Geant4 application can be run either in
• `purely hard-coded` batch mode
• batch mode, but reading a macro of commands
• interactive mode, driven by command lines
• interactive mode via a Graphical User Interface
The last mode will be covered in Section 2.9. The first three modes are explained here.
2.10.2. 'Hard-coded' Batch Mode
Below is a modified main program of the basic example B1 to represent an application which will run in batch
mode.
Example 2.19. An example of the main() routine for an application which will run in
batch mode.
int main()
{
// Construct the default run manager
G4RunManager* runManager = new G4RunManager;
// Set mandatory initialization classes
runManager->SetUserInitialization(new B1DetectorConstruction);
runManager->SetUserInitialization(new QGSP_BIC_EMY);
runManager->SetUserAction(new B1PrimaryGeneratorAction);
// Set user action classes
runManager->SetUserAction(new B1SteppingAction());
runManager->SetUserAction(new B1EventAction());
runManager->SetUserAction(new B1RunAction());
// Initialize G4 kernel
runManager->Initialize();
// start a run
int numberOfEvent = 1000;
runManager->BeamOn(numberOfEvent);
// job termination
delete runManager;
return 0;
}
Even the number of events in the run is `frozen`. To change this number you must at least recompile main().
![](asset-33.png)
Getting Started with Geant4
- Running a Simple Example
42
2.10.3. Batch Mode with Macro File
Below is a modified main program of the basic example B1 to represent an application which will run in batch
mode, but reading a file of commands.
Example 2.20. An example of the main() routine for an application which will run in
batch mode, but reading a file of commands.
int main(int argc,char** argv)
{
// Construct the default run manager
G4RunManager* runManager = new G4RunManager;
// Set mandatory initialization classes
runManager->SetUserInitialization(new B1DetectorConstruction);
runManager->SetUserInitialization(new QGSP_BIC_EMY);
runManager->SetUserAction(new B1PrimaryGeneratorAction);
// Set user action classes
runManager->SetUserAction(new B1SteppingAction());
runManager->SetUserAction(new B1EventAction());
runManager->SetUserAction(new B1RunAction());
// Initialize G4 kernel
runManager->Initialize();
//read a macro file of commands
G4UImanager* UI = G4UImanager::GetUIpointer();
G4String command = "/control/execute ";
G4String fileName = argv[1];
UI->ApplyCommand(command+fileName);
// job termination
delete runManager;
return 0;
}
This example will be executed with the command:
> exampleB1 run1.mac
where exampleB1 is the name of the executable and run1.mac is a macro of commands located in the current
directory, which could look like:
Example 2.21. A typical command macro.
#
# Macro file for myProgram
#
# set verbose level for this run
#
/run/verbose 2
/event/verbose 0
/tracking/verbose 1
#
# Set the initial kinematic and run 100 events
# electron 1 GeV to the direction (1.,0.,0.)
#
/gun/particle e-
/gun/energy 1 GeV
/run/beamOn 100
Indeed, you can re-execute your program with different run conditions without recompiling anything.
Digression: many G4 category of classes have a verbose flag which controls the level of 'verbosity'.
Usually verbose=0 means silent. For instance
![](asset-34.png)
Getting Started with Geant4
- Running a Simple Example
43
•/run/verbose is for the RunManager
•/event/verbose is for the EventManager
•/tracking/verbose is for the TrackingManager
• ...etc...
2.10.4. Interactive Mode Driven by Command Lines
Below is an example of the main program for an application which will run interactively, waiting for command
lines entered from the keyboard.
Example 2.22. An example of the main() routine for an application which will run
interactively, waiting for commands from the keyboard.
int main(int argc,char** argv)
{
// Construct the default run manager
G4RunManager* runManager = new G4RunManager;
// Set mandatory initialization classes
runManager->SetUserInitialization(new B1DetectorConstruction);
runManager->SetUserInitialization(new QGSP_BIC_EMY);
runManager->SetUserAction(new B1PrimaryGeneratorAction);
// Set user action classes
runManager->SetUserAction(new B1SteppingAction());
runManager->SetUserAction(new B1EventAction());
runManager->SetUserAction(new B1RunAction());
// Initialize G4 kernel
runManager->Initialize();
// Define UI terminal for interactive mode
G4UIsession * session = new G4UIterminal;
session->SessionStart();
delete session;
// job termination
delete runManager;
return 0;
}
This example will be executed with the command:
> exampleB1
where exampleB1 is the name of the executable.
The G4 kernel will prompt:
Idle>
and you can start your session. An example session could be:
Run 5 events:
Idle> /run/beamOn 5
Switch on tracking/verbose and run one more event:
Idle> /tracking/verbose 1
Idle> /run/beamOn 1
![](asset-35.png)
Getting Started with Geant4
- Running a Simple Example
44
Change primary particle type an run more events:
Idle> /gun/particle mu+
Idle> /gun/energy 10 GeV
Idle> /run/beamOn 1
Idle> /gun/particle proton
Idle> /gun/energy 100 MeV
Idle> /run/beamOn 3
Idle> exit
For the meaning of the machine state Idle, see Section 3.4.2.
This mode is useful for running a few events in debug mode and visualizing them. How to include visualization
will be shown in the next, general case, example.
2.10.5. General Case
All basic examples in the examples/basic subdirectory of the Geant4 source distribution have the following
main() structure. The application can be run either in batch or interactive mode.
Example 2.23. The typical main() routine from the examples directory.
int main(int argc,char** argv)
{
// Construct the default run manager
G4RunManager* runManager = new G4RunManager;
// Set mandatory initialization classes
runManager->SetUserInitialization(new B1DetectorConstruction);
runManager->SetUserInitialization(new QGSP_BIC_EMY);
runManager->SetUserAction(new B1PrimaryGeneratorAction);
// Set user action classes
runManager->SetUserAction(new B1SteppingAction());
runManager->SetUserAction(new B1EventAction());
runManager->SetUserAction(new B1RunAction());
// Initialize G4 kernel
runManager->Initialize();
#ifdef G4VIS_USE
// Initialize visualization
G4VisManager* visManager = new G4VisExecutive;
// G4VisExecutive can take a verbosity argument - see /vis/verbose guidance.
// G4VisManager* visManager = new G4VisExecutive("Quiet");
visManager->Initialize();
#endif
// Get the pointer to the User Interface manager
G4UImanager* UImanager = G4UImanager::GetUIpointer();
if (argc!=1) {
// batch mode
G4String command = "/control/execute ";
G4String fileName = argv[1];
UImanager->ApplyCommand(command+fileName);
}
else {
// interactive mode : define UI session
#ifdef G4UI_USE
G4UIExecutive* ui = new G4UIExecutive(argc, argv);
#ifdef G4VIS_USE
UImanager->ApplyCommand("/control/execute init_vis.mac");
#else
UImanager->ApplyCommand("/control/execute init.mac");
#endif
ui->SessionStart();
delete ui;
#endif
}
![](asset-36.png)
Getting Started with Geant4
- Running a Simple Example
45
// Job termination
// Free the store: user actions, physics_list and detector_description are
// owned and deleted by the run manager, so they should not be deleted
// in the main() program !
#ifdef G4VIS_USE
delete visManager;
#endif
delete runManager;
}
Notice that both user interface and visualization systems are under the control of the compiler preprocessor sym-
bols G4UI_USE and G4VIS_USE. Geant4's CMake support script automatically adds definitions for these sym-
bols to the compiler flags, unless you set the CMake variables G4UI_NONE and G4VIS_NONE before calling
find_package(Geant4). This provides you with a simple system to control the enabling of the user interface
and visualization systems, though you are free to use your own names for the preprocessor symbols if your use
case requires (though you must then add them to the compiler flags yourself). Notice also that, in interactive mode,
few intializations have been put in the macros init_vis.mac, or init_vis.mac, which is executed before
the session start.
Example 2.24. The init.mac macro:
# Macro file for the initialization phase of example B1
# when running in interactive mode without visualization
#
# Set some default verbose
/control/verbose 2
/control/saveHistory
/run/verbose 2
The init_vis.mac macro has just added a line with a call to vis.mac:
# Macro file for the initialization phase of example B1
# when running in interactive mode with visualization
#
# Set some default verbose
#
/control/verbose 2
/control/saveHistory
/run/verbose 2
#
# Visualization setting
/control/execute vis.mac
The vis.mac macro defines a minimal setting for drawing volumes and trajectories accumulated for all events
of a given run:
# Macro file for the visualization setting in the initialization phase
# of the B1 example when running in interactive mode
#
#
# Use this open statement to create an OpenGL view:
/vis/open OGL 600x600-0+0
#
# Draw geometry:
/vis/drawVolume
#
# Specify view angle:
/vis/viewer/set/viewpointThetaPhi 90. 180.
#
# Draw smooth trajectories at end of event, showing trajectory points
# as markers 2 pixels wide:
/vis/scene/add/trajectories smooth
#
# To superimpose all of the events from a given run:
/vis/scene/endOfEventAction accumulate
#
# Re-establish auto refreshing and verbosity:
/vis/viewer/set/autoRefresh true
/vis/verbose warnings
#
![](asset-37.png)
Getting Started with Geant4
- Running a Simple Example
46
# For file-based drivers, use this to create an empty detector view:
#/vis/viewer/flush
Also, this example demonstrates that you can read and execute a macro from another macro or interactively:
Idle> /control/execute mySubMacro.mac
2.11. How to Visualize the Detector and Events
2.11.1. Introduction
This section briefly explains how to perform Geant4 Visualization. The description here is based on the sample
program examples/basic/B1. More details are given in Chapter 8 "Visualization".
2.11.2. Visualization Drivers
The Geant4 visualization system was developed in response to a diverse set of requirements:
1. Quick response to study geometries, trajectories and hits
2. High-quality output for publications
3. Flexible camera control to debug complex geometries
4. Tools to show volume overlap errors in detector geometries
5. Interactive picking to get more information on visualized objects
No one graphics system is ideal for all of these requirements, and many of the large software frameworks into
which Geant4 has been incorporated already have their own visualization systems, so Geant4 visualization was
designed around an abstract interface that supports a diverse family of graphics systems. Some of these graphics
systems use a graphics library compiled with Geant4, such as OpenGL, Qt or OpenInventor, while others involve
a separate application, such as HepRApp or DAWN.
You need not use all visualization drivers. You can select those suitable to your purposes. In the following, for
simplicity, we assume that the Geant4 libraries are built with the Qt driver.
If you build Geant4 using the standard CMake procedure, you include Qt by setting GEANT4_USE_QT to ON.
In order to use the the Qt driver, you need the OpenGL library, which is installed in many platforms by default
and CMake will find it. (If you wish to "do-it-yourself", see Section 8.2.1.) The makefiles then set appropriate C-
pre-processor flags to select appropriate code at compilation time.
If you are using multithreaded mode, from Geant4 version 10.2 event drawing is performed by a separate thread
and you may need to optimise this with special /vis/multithreading comands - see Section 8.4.18.
2.11.3. How to Incorporate Visualization Drivers into an
Executable
Most Geant4 examples already incorporate visualization drivers. If you want to include visualization in your own
Geant4 application, you need to instantiate and initialize a subclass of G4VisManager that implements the pure
virtual function RegisterGraphicsSystems().
The provided class G4VisExecutive can handle all of this work for you. G4VisExecutive is sensitive to the
G4VIS_... variables (that you either set by hand or that are set for you by GNUMake or CMake configuration).
See any of the Geant4 examples for how to use G4VisExecutive.
If you really want to write your own subclass, rather than use G4VisExecutive, you may do so. You will see
how to do this by looking at G4VisExecutive.icc. This subclass must be compiled in the user's domain to
force the loading of appropriate libraries in the right order. A typical extract is:
...
![](asset-38.png)
Getting Started with Geant4
- Running a Simple Example
47
RegisterGraphicsSystem (new G4DAWNFILE);
...
#ifdef G4VIS_USE_OPENGLX
RegisterGraphicsSystem (new G4OpenGLImmediateX);
RegisterGraphicsSystem (new G4OpenGLStoredX);
#endif
...
The G4VisExecutive takes ownership of all registered graphics systems, and will delete them when it is deleted
at the end of the user's job (see below).
If you wish to use G4VisExecutive but register an additional graphics system, XXX say, you may do so either
before or after initializing:
visManager->RegisterGraphicsSytem(new XXX);
visManager->Initialize();
An example of a typical main() function is given below.
2.11.4. Writing the main() Method to Include Visualization
Now we explain how to write a visualization manager and the main() function for Geant4 visualization. In order
that your Geant4 executable is able to perform visualization, you must instantiate and initialize your Visualiza-
tion Manager in the main() function. The typical main() function available for visualization is written in the
following style:
Example 2.25. The typical main() routine available for visualization.
//----- C++ source codes: main() function for visualization
#ifdef G4VIS_USE
#include "G4VisExecutive.hh"
#endif
.....
int main(int argc,char** argv) {
.....
// Instantiation and initialization of the Visualization Manager
#ifdef G4VIS_USE
// visualization manager
G4VisManager* visManager = new G4VisExecutive;
// G4VisExecutive can take a verbosity argument - see /vis/verbose guidance.
// G4VisManager* visManager = new G4VisExecutive("Quiet");
visManager->Initialize();
#endif
.....
// Job termination
#ifdef G4VIS_USE
delete visManager;
#endif
.....
return 0;
}
//----- end of C++
In the instantiation, initialization, and deletion of the Visualization Manager, the use of the macro G4VIS_USE
is recommended as it is set automatically by the CMake and GNUmake support scripts. This allows one easily
to build an executable without visualization, if required, without changing the code (but remember you have
to force recompilation whenever you change the environment). Note that it is your responsibility to delete the
instantiated Visualization Manager by yourself. A complete description of a sample main() function is described
in examples/basic/B1/exampleB1.cc.
![](asset-39.png)
Getting Started with Geant4
- Running a Simple Example
48
2.11.5. Sample Visualization Sessions
Most Geant4 examples include a vis.mac. Run that macro to see a typical visualization. Read the comments in the
macro to learn a little bit about some visualization commands. The vis.mac also includes commented-out optional
visualization commands. By uncommenting some of these, you can see additional visualization features.
2.11.6. For More Information on Geant4 Visualization
See the Chapter 8 "Visualization" part of this user guide.
![](asset-3a.png)
49
Chapter 3. Toolkit Fundamentals
3.1. Class Categories and Domains
3.1.1. What is a class category?
In the design of a large software system such as Geant4, it is essential to partition it into smaller logical units. This
makes the design well organized and easier to develop. Once the logical units are defined independent to each
other as much as possible, they can be developed in parallel without serious interference.
In object-oriented analysis and design methodology by Grady Booch [ Booch1994 ] , class categories are used to
create logical units. They are defined as "clusters of classes that are themselves cohesive, but are loosely coupled
relative to other clusters." This means that a class category contains classes which have a close relationship (for
example, the "has-a" relation). However, relationships between classes which belong to different class categories
are weak, i.e., only limitted classes of these have "uses" relations. The class categories and their relations are
presented by a class category diagram. The class category diagram designed for Geant4 is shown in the figure
below. Each box in the figure represents a class category, and a "uses" relation by a straight line. The circle at an
end of a straight line means the class category which has this circle uses the other category.
Figure 3.1. Geant4 class categories
The file organization of the Geant4 codes follows basically the structure of this class cateogory. This User's Manual
is also organized according to class categories.
In the development and maintenance of Geant4, one software team will be assigned to a class category. This team
will have a responsibility to develop and maintain all classes belonging to the class category.
3.1.2. Class categories in Geant4
The following is a brief summary of the role of each class category in Geant4.
![](asset-3b.png)
Toolkit Fundamentals
50
1. Run and Event
These are categories related to the generation of events, interfaces to event generators, and any secondary
particles produced. Their roles are principally to provide particles to be tracked to the Tracking Management.
2. Tracking and Track
These are categories related to propagating a particle by analyzing the factors limiting the step and applying
the relevant physics processes. The important aspect of the design was that a generalized Geant4 physics
process (or interaction) could perform actions, along a tracking step, either localized in space, or in time, or
distributed in space and time (and all the possible combinations that could be built from these cases).
3. Geometry and Magnetic Field
These categories manage the geometrical definition of a detector (solid modeling) and the computation of
distances to solids (also in a magnetic field). The Geant4 geometry solid modeler is based on the ISO STEP
standard and it is fully compliant with it. A key feature of the Geant4 geometry is that the volume definitions
are independent of the solid representation. By this abstract interface for the G4 solids, the tracking component
works identically for various representations. The treatment of the propagation in the presence of fields has
been provided within specified accuracy. An OO design allows to exchange different numerical algorithms
and/or different fields (not only B-field), without affecting any other component of the toolkit.
4. Particle Definition and Matter
These two categories manage the the definition of materials and particles.
5. Physics
This category manages all physics processes participating in the interactions of particles in matter. The ab-
stract interface of physics processes allows multiple implementations of physics models per interaction or
per channel. Models can be selected by energy range, particle type, material, etc. Data encapsulation and
polymorphism make it possible to give transparent access to the cross sections (independently of the choice
of reading from an ascii file, or of interpolating from a tabulated set, or of computing analytically from a
formula). Electromagnetic and hadronic physics were handled in a uniform way in such a design, opening
up the physics to the users.
6. Hits and Digitization
These two categories manage the creation of hits and their use for the digitization phase. The basic design and
implementation of the Hits and Digi had been realized, and also several prototypes, test cases and scenarios
had been developed before the alpha-release. Volumes (not necessarily the ones used by the tracking) are
aggregated in sensitive detectors, while hits collections represent the logical read out of the detector. Different
ways of creating and managing hits collections had been delivered and tested, notably for both single hits
and calorimetry hits types. In all cases, hits collections had been successfully stored into and retrieved from
an Object Data Base Management System.
7. Visualization
This manages the visualization of solids, trajectories and hits, and interacts with underlying graphical libraries
(the Visualization class category). The basic and most frequently used graphics functionality had been im-
plemented already by the alpha-release. The OO design of the visualization component allowed us to develop
several drivers independently, such as for OpenGL, Qt and OpenInventor (for X11 and Windows), DAWN,
Postscript (via DAWN) and VRML.
8. Interfaces
This category handles the production of the graphical user interface (GUI) and the interactions with external
software (OODBMS, reconstruction etc.).
3.2. Global Usage Classes
The "global" category in Geant4 collects all classes, types, structures and constants which are considered of general
use within the Geant4 toolkit. This category also defines the interface with third-party software libraries (CLHEP,
STL, etc.) and system-related types, by defining, where appropriate, typedefs according to the Geant4 code
conventions.
![](asset-3c.png)
Toolkit Fundamentals
51
3.2.1. Signature of Geant4 classes
In order to keep an homogeneous naming style, and according to the Geant4 coding style conventions, each class
part of the Geant4 kernel has its name beginning with the prefix G4, e.g., G4VHit, G4GeometryManager,
G4ProcessVector, etc. Instead of the raw C types, G4 types are used within the Geant4 code. For the basic
numeric types (int, float, double, etc.), different compilers and different platforms provide different
value ranges. In order to assure portability, the use of G4int, G4float, G4double, G4bool, globally
defined, is preferable. G4 types implement the right generic type for a given architecture.
3.2.1.1. Basic types
The basic types in Geant4 are considered to be the following:
•G4int,
•G4long,
•G4float,
•G4double,
•G4bool,
•G4complex,
•G4String.
which currently consist of simple typedefs to respective types defined in the CLHEP, STL or system libraries.
Most definitions of these basic types come with the inclusion of a single header file, globals.hh. This file also
provides inclusion of required system headers, as well as some global utility functions needed and used within
the Geant4 kernel.
3.2.1.2. Typedefs to CLHEP classes and their usage
The following classes are typedefs to the corresponding classes of the CLHEP (Computing Library for High
Energy Physics) distribution. For more detailed documentation please refer to the CLHEP reference guide and
the CLHEP user manual .
•G4ThreeVector, G4RotationMatrix, G4LorentzVector and G4LorentzRotation
Vector classes: defining 3-component (x,y,z) vector entities, rotation of such objects as 3x3 matrices, 4-com-
ponent (x,y,z,t) vector entities and their rotation as 4x4 matrices.
•G4Plane3D, G4Transform3D, G4Normal3D, G4Point3D, G4Scale3D, and G4Vector3D
Geometrical classes: defining geometrical entities and transformations in 3D space.
3.2.2. The HEPRandom module in CLHEP
The HEPRandom module, originally part of the Geant4 kernel, and now distributed as a module of CLHEP,
has been designed and developed starting from the Random class of MC++, the original CLHEP's HepRandom
module and the Rogue Wave approach in the Math.h++ package. For detailed documentation on the HEPRandom
classes see the CLHEP reference guide and the CLHEP user manual .
Information written in this manual is extracted from the original manifesto distributed with the HEPRandom
package.
The HEPRandom module consists of classes implementing different random ``engines'' and different random
``distributions''. A distribution associated to an engine constitutes a random ``generator''. A distribution class can
collect different algorithms and different calling sequences for each method to define distribution parameters or
range-intervals. An engine implements the basic algorithm for pseudo-random numbers generation.
There are 3 different ways of shooting random values:
1. Using the static generator defined in the HepRandom class: random values are shot using static methods
shoot() defined for each distribution class. The static generator will use, as default engine, a HepJames-
Random object, and the user can set its properties or change it with a new instantiated engine object by using
the static methods defined in the HepRandom class.
![](asset-3d.png)
Toolkit Fundamentals
52
2. Skipping the static generator and specifying an engine object: random values are shot using static methods
shoot(*HepRandomEngine) defined for each distribution class. The user must instantiate an engine
object and give it as argument to the shoot method. The generator mechanism will then be by-passed by
using the basic flat() method of the specified engine. The user must take care of the engine objects he/
she instantiates.
3. Skipping the static generator and instantiating a distribution object: random values are shot using fire()
methods (NOT static) defined for each distribution class. The user must instantiate a distribution object giving
as argument to the constructor an engine by pointer or by reference. By doing so, the engine will be associated
to the distribution object and the generator mechanism will be by-passed by using the basic flat() method
of that engine.
In this guide, we'll only focus on the static generator (point 1.), since the static interface of HEPRandom is the
only one used within the Geant4 toolkit.
3.2.2.1. HEPRandom engines
The class HepRandomEngine is the abstract class defining the interface for each random engine. It implements
the getSeed() and getSeeds() methods which return the `initial seed' value and the initial array of seeds
(if any) respectively. Many concrete random engines can be defined and added to the structure, simply making
them inheriting from HepRandomEngine. Several different engines are currently implemented in HepRandom, we
describe here five of them:
•HepJamesRandom
It implements the algorithm described in ``F.James, Comp. Phys. Comm. 60 (1990) 329'' for pseudo-random
number generation. This is the default random engine for the static generator; it will be invoked by each distri-
bution class unless the user sets a different one.
•DRand48Engine
Random engine using the drand48() and srand48() system functions from C standard library to imple-
ment the flat() basic distribution and for setting seeds respectively. DRand48Engine uses the seed48()
function from C standard library to retrieve the current internal status of the generator, which is represented by
3 short values. DRand48Engine is the only engine defined in HEPRandom which intrinsically works in 32 bits
precision. Copies of an object of this kind are not allowed.
•MixMaxRng
Random number engine implementing the MixMax Matrix Generator of Pseudorandom Numbers generator pro-
posed by ``N.Z.Akopov, G.K.Saviddy and N.G.Ter-Arutyunian, J.Compt.Phy. 97, (1991) 573'' and ``G.Savvidy
and N.Savvidy, J.Comput.Phys. 97 (1991) 566''.
•RanluxEngine
The algorithm for RanluxEngine has been taken from the original implementation in FORTRAN77 by Fred
James, part of the MATHLIB HEP library. The initialisation is carried out using a Multiplicative Congruen-
tial generator using formula constants of L'Ecuyer as described in ``F.James, Comp. Phys. Comm. 60 (1990)
329-344''. The engine provides five different luxury levels for quality of random generation. When instantiating
a RanluxEngine, the user can specify the luxury level to the constructor (if not, the default value 3 is taken).
For example:
RanluxEngine theRanluxEngine(seed,4);
// instantiates an engine with `seed' and the best luxury-level
... or
RanluxEngine theRanluxEngine;
// instantiates an engine with default seed value and luxury-level
...
The class provides a getLuxury() method to get the engine luxury level.
The SetSeed() and SetSeeds() methods to set the initial seeds for the engine, can be invoked specifying
the luxury level. For example:
![](asset-3e.png)
Toolkit Fundamentals
53
// static interface
HepRandom::setTheSeed(seed,4); // sets the seed to `seed' and luxury to 4
HepRandom::setTheSeed(seed); // sets the seed to `seed' keeping
// the current luxury level
•RanecuEngine
The algorithm for RanecuEngine is taken from the one originally written in FORTRAN77 as part of the MATH-
LIB HEP library. The initialisation is carried out using a Multiplicative Congruential generator using formula
constants of L'Ecuyer as described in ``F.James, Comp. Phys. Comm. 60 (1990) 329-344''. Handling of seeds
for this engine is slightly different than the other engines in HEPRandom. Seeds are taken from a seed table
given an index, the getSeed() method returns the current index of seed table. The setSeeds() method
will set seeds in the local SeedTable at a given position index (if the index number specified exceeds the
table's size, [index%size] is taken). For example:
// static interface
const G4long* table_entry;
table_entry = HepRandom::getTheSeeds();
// it returns a pointer `table_entry' to the local SeedTable
// at the current `index' position. The couple of seeds
// accessed represents the current `status' of the engine itself !
...
G4int index=n;
G4long seeds[2];
HepRandom::setTheSeeds(seeds,index);
// sets the new `index' for seeds and modify the values inside
// the local SeedTable at the `index' position. If the index
// is not specified, the current index in the table is considered.
...
The setSeed() method resets the current `status' of the engine to the original seeds stored in the static table
of seeds in HepRandom, at the specified index.
Except for the RanecuEngine, for which the internal status is represented by just a couple of longs, all the other
engines have a much more complex representation of their internal status, which currently can be obtained only
through the methods saveStatus(), restoreStatus() and showStatus(), which can also be statically
called from HepRandom. The status of the generator is needed for example to be able to reproduce a run or an
event in a run at a given stage of the simulation.
RanecuEngine is probably the most suitable engine for this kind of operation, since its internal status can be
fetched/reset by simply using getSeeds()/setSeeds() (getTheSeeds()/setTheSeeds() for the sta-
tic interface in HepRandom).
3.2.2.2. The static interface in the HepRandom class
HepRandom a singleton class and using a HepJamesRandom engine as default algorithm for pseudo-random num-
ber generation. HepRandom defines a static private data member, theGenerator, and a set of static methods
to manipulate it. By means of theGenerator, the user can change the underlying engine algorithm, get and
set the seeds, and use any kind of defined random distribution. The static methods setTheSeed() and get-
TheSeed() will set and get respectively the `initial' seed to the main engine used by the static generator. For
example:
HepRandom::setTheSeed(seed); // to change the current seed to 'seed'
int startSeed = HepRandom::getTheSeed(); // to get the current initial seed
HepRandom::saveEngineStatus(); // to save the current engine status on file
HepRandom::restoreEngineStatus(); // to restore the current engine to a previous
// saved configuration
HepRandom::showEngineStatus(); // to display the current engine status to stdout
...
int index=n;
long seeds[2];
HepRandom::getTheTableSeeds(seeds,index);
// fills `seeds' with the values stored in the global
![](asset-3f.png)
Toolkit Fundamentals
54
// seedTable at position `index'
Only one random engine can be active at a time, the user can decide at any time to change it, define a new one
(if not done already) and set it. For example:
RanecuEngine theNewEngine;
HepRandom::setTheEngine(&theNewEngine);
...
or simply setting it to an old instantiated engine (the old engine status is kept and the new random sequence will
start exactly from the last one previously interrupted). For example:
HepRandom::setTheEngine(&myOldEngine);
Other static methods defined in this class are:
•void setTheSeeds(const G4long* seeds, G4int)
•const G4long* getTheSeeds()
To set/get an array of seeds for the generator, in the case of a RanecuEngine this corresponds also to set/get
the current status of the engine.
•HepRandomEngine* getTheEngine()
To get a pointer to the current engine used by the static generator.
3.2.2.3. HEPRandom distributions
A distribution-class can collect different algorithms and different calling sequences for each method to define
distribution parameters or range-intervals; it also collects methods to fill arrays, of specified size, of random values,
according to the distribution. This class collects either static and not static methods. A set of distribution classes
are defined in HEPRandom. Here is the description of some of them:
•RandFlat
Class to shoot flat random values (integers or double) within a specified interval. The class provides also meth-
ods to shoot just random bits.
•RandExponential
Class to shoot exponential distributed random values, given a mean (default mean = 1)
•RandGauss
Class to shoot Gaussian distributed random values, given a mean (default = 0) or specifying also a deviation
(default = 1). Gaussian random numbers are generated two at the time, so every other time a number is shot,
the number returned is the one generated the time before.
•RandBreitWigner
Class to shoot numbers according to the Breit-Wigner distribution algorithms (plain or mean^2).
•RandPoisson
Class to shoot numbers according to the Poisson distribution, given a mean (default = 1) (Algorithm taken from
``W.H.Press et al., Numerical Recipes in C, Second Edition'').
3.2.3. The HEPNumerics module
A set of classes implementing numerical algorithms has been developed in Geant4. Most of the algorithms and
methods have been implemented mainly based on recommendations given in the books:
• B.H. Flowers, ``An introduction to Numerical Methods In C++'', Claredon Press, Oxford 1995.
• M. Abramowitz, I. Stegun, ``Handbook of mathematical functions'', DOVER Publications INC, New York
1965 ; chapters 9, 10, and 22.
![](asset-40.png)
Toolkit Fundamentals
55
This set of classes includes:
•G4ChebyshevApproximation
Class creating the Chebyshev approximation for a function pointed by fFunction data member. The Chebyshev
polynomial approximation provides an efficient evaluation of the minimax polynomial, which (among all poly-
nomials of the same degree) has the smallest maximum deviation from the true function.
•G4DataInterpolation
Class providing methods for data interpolations and extrapolations: Polynomial, Cubic Spline, ...
•G4GaussChebyshevQ
•G4GaussHermiteQ
•G4GaussJacobiQ
•G4GaussLaguerreQ
Classes implementing the Gauss-Chebyshev, Gauss-Hermite, Gauss-Jacobi, Gauss-Laguerre and Gauss-Le-
gendre quadrature methods. Roots of orthogonal polynomials and corresponding weights are calculated based
on iteration method (by bisection Newton algorithm).
•G4Integrator
Template class collecting integrator methods for generic functions (Legendre, Simpson, Adaptive Gauss, La-
guerre, Hermite, Jacobi).
•G4SimpleIntegration
Class implementing simple numerical methods (Trapezoidal, MidPoint, Gauss, Simpson, Adaptive Gauss, for
integration of functions with signature: double f(double).
3.2.4. General management classes
The `global' category defines also a set of `utility' classes generally used within the kernel of Geant4. These classes
include:
•G4Allocator
A class for fast allocation of objects to the heap through paging mechanism. It's meant to be used by associating
it to the object to be allocated and defining for it new and delete operators via MallocSingle() and
FreeSingle() methods of G4Allocator.
Note: G4Allocator assumes that objects being allocated have all the same size for the type they represent.
For this reason, classes which are handled by G4Allocator should avoid to be used as base-classes for oth-
ers. Similarly, base-classes of sub-classes handled through G4Allocator should not define their (eventually
empty) virtual destructors inlined; such measure is necessary in order also to prevent bad aliasing optimisations
by compilers which may potentially lead to crashes in the attempt to free allocated chunks of memory when
using the base-class pointer or not.
The list of allocators implicitely defined and used in Geant4 is reported here:
- events (G4Event): anEventAllocator
- tracks (G4Track): aTrackAllocator
- stacked tracks (G4StackedTrack): aStackedTrackAllocator
- primary particles (G4PrimaryParticle): aPrimaryParticleAllocator
- primary vertices (G4PrimaryVertex): aPrimaryVertexAllocator
- decay products (G4DecayProducts): aDecayProductsAllocator
- digits collections of an event (G4DCofThisEvent): anDCoTHAllocator
- digits collections (G4DigiCollection): aDCAllocator
- hits collections of an event (G4HCofThisEvent): anHCoTHAllocator
- hits collections (G4HitsCollection): anHCAllocator
- touchable histories (G4TouchableHistory): aTouchableHistoryAllocator
- trajectories (G4Trajectory): aTrajectoryAllocator
- trajectory points (G4TrajectoryPoint): aTrajectoryPointAllocator
- trajectory containers (G4TrajectoryContainer): aTrajectoryContainerAllocator
- navigation levels (G4NavigationLevel): aNavigationLevelAllocator
![](asset-41.png)
Toolkit Fundamentals
56
- navigation level nodes (G4NavigationLevelRep): aNavigLevelRepAllocator
- reference-counted handles (G4ReferenceCountedHandle<X>): aRCHAllocator
- counted objects (G4CountedObject<X>): aCountedObjectAllocator
- HEPEvt primary particles (G4HEPEvtParticle): aHEPEvtParticleAllocator
- electron occupancy objects(G4ElectronOccupancy): aElectronOccupancyAllocator
- "rich" trajectories (G4RichTrajectory): aRichTrajectoryAllocator
- "rich" trajectory points (G4RichTrajectoryPoint): aRichTrajectoryPointAllocator
- "smooth" trajectories (G4SmoothTrajectory): aSmoothTrajectoryAllocator
- "smooth" trajectory points (G4SmoothTrajectoryPoint): aSmoothTrajectoryPointAllocator
- "ray" trajectories (G4RayTrajectory): G4RayTrajectoryAllocator
- "ray" trajectory points (G4RayTrajectoryPoint): G4RayTrajectoryPointAllocator
For each of these allocators, accessible from the global namespace, it is possible to monitor the allocation in
their memory pools or force them to release the allocated memory (for example at the end of a run):
// Return the size of the total memory allocated for tracks
//
aTrackAllocator.GetAllocatedSize();
// Return allocated storage for tracks to the free store
//
aTrackAllocator.ResetStorage();
•G4ReferenceCountedHandle
Template class acting as a smart pointer and wrapping the type to be counted. It performs the reference counting
during the life-time of the counted object.
•G4FastVector
Template class defining a vector of pointers, not performing boundary checking.
•G4PhysicsVector
Defines a physics vector which has values of energy-loss, cross-section, and other physics values of a particle in
matter in a given range of the energy, momentum, etc. This class serves as the base class for a vector having var-
ious energy scale, for example like 'log' (G4PhysicsLogVector) 'linear' (G4PhysicsLinearVector),
'free' (G4PhysicsFreeVector), etc.
•G4LPhysicsFreeVector
Implements a free vector for low energy physics cross-section data. A subdivision method is used to find the
energy|momentum bin.
•G4PhysicsOrderedFreeVector
A physics ordered free vector inherits from G4PhysicsVector. It provides, in addition, a method for the
user to insert energy/value pairs in sequence. Methods to retrieve the max and min energies and values from
the vector are also provided.
•G4Timer
Utility class providing methods to measure elapsed user/system process time. Uses <sys/times.h> and
<unistd.h> - POSIX.1.
•G4UserLimits
Class collecting methods for get and set any kind of step limitation allowed in Geant4.
•G4UnitsTable
Placeholder for the system of units in Geant4.
3.3. System of units
3.3.1. Basic units
Geant4 offers the user the possibility to choose and use the preferred units for any quantity. In fact, Geant4 takes
care of the units. Internally a consistent set on units based on the HepSystemOfUnits is used:
![](asset-42.png)
Toolkit Fundamentals
57
millimeter (mm)
nanosecond (ns)
Mega electron Volt (MeV)
positron charge (eplus)
degree Kelvin (kelvin)
the amount of substance (mole)
luminous intensity (candela)
radian (radian)
steradian (steradian)
All other units are defined from the basic ones.
For instance:
millimeter = mm = 1;
meter = m = 1000*mm;
...
m3 = m*m*m;
...
In the file $CLHEP_BASE_DIR/include/CLHEP/Units/SystemOfUnits.h from the CLHEP installa-
tion, one can find all untis definitions.
One can also change the system of units to be used by the kernel.
3.3.2. Input your data
3.3.2.1. Avoid 'hard coded' data
The user must give the units for the data to introduce:
G4double Size = 15*km, KineticEnergy = 90.3*GeV, density = 11*mg/cm3;
Geant4 assumes that these specifications for the units are respected, in order to assure independence from the units
chosen in the client application.
If units are not specified in the client application, data are implicitly treated in internal Geant4 system units; this
practice is however strongly discouraged.
If the data set comes from an array or from an external file, it is strongly recommended to set the units as soon
as the data are read, before any treatment. For instance:
for (int j=0, j<jmax, j++) CrossSection[j] *= millibarn;
...
my calculations
...
3.3.2.2. Interactive commands
Some built-in commands from the User Interface (UI) also require units to be specified.
For instance:
/gun/energy 15.2 keV
/gun/position 3 2 -7 meter
If units are not specified, or are not valid, the command is refused.
![](asset-43.png)
Toolkit Fundamentals
58
3.3.3. Output your data
You can output your data with the wished units. To do so, it is sufficient to divide the data by the corresponding
unit:
G4cout << KineticEnergy/keV << " keV";
G4cout << density/(g/cm3) << " g/cm3";
Of course, G4cout << KineticEnergy will print the energy in the internal units system.
There is another way to output the data. Let Geant4 choose the most appropriate units for the actual numerical
value of the data. It is sufficient to specify to which category the data belong to (Length, Time, Energy, etc.).
For example
G4cout << G4BestUnit(StepSize, "Length");
StepSize will be printed in km, m, mm, fermi, etc. depending of its actual value.
3.3.4. Introduce new units
If wished to introduce new units, there are two methods:
• You can extend the file SystemOfUnits.h
#include "SystemOfUnits.h"
static const G4double inch = 2.54*cm;
Using this method, it is not easy to define composed units. It is better to do the following:
• Instantiate an object of the class G4UnitDefinition. These objects are owned by the global
G4UnitsTable at construction, and must not be deleted by the user.
new G4UnitDefinition ( name, symbol, category, value )
For example: define a few units for speed
new G4UnitDefinition ( "km/hour" , "km/h", "Speed", km/(3600*s) );
new G4UnitDefinition ( "meter/ns", "m/ns", "Speed", m/ns );
The category "Speed" does not exist by default in G4UnitsTable, but it will be created automatically. The
class G4UnitDefinition is defined in source/global/management/G4UnitsTable.hh.
3.3.5. Print the list of units
You can print the list of units with the static function: G4UnitDefinition::PrintUnitsTable();
or with the interactive command: /units/list
3.4. Run
3.4.1. Basic concept of Run
In Geant4, Run is the largest unit of simulation. A run consists of a sequence of events. Within a run, the detector
geometry, the set up of sensitive detectors, and the physics processes used in the simulation should be kept un-
changed. A run is represented by a G4Run class object. A run starts with BeamOn() method of G4RunManager.
![](asset-44.png)
Toolkit Fundamentals
59
3.4.1.1. Representation of a run
G4Run represents a run. It has a run identification number, which should be set by the user, and the number of
events simulated during the run. Please note that the run identification number is not used by the Geant4 kernel,
and thus can be arbitrarily assigned at the user's convenience.
G4Run has pointers to the tables G4VHitsCollection and G4VDigiCollection. These tables are asso-
ciated in case sensitive detectors and digitizer modules are simulated, respectively. The usage of these tables will
be mentioned in Section 4.4 and Section 4.5.
G4Run has two virtual methods, and thus you can extend G4Run class. In particular if you use Geant4 in mul-
ti-threaded mode and need to accumulate values, these two virtual method must be overwritten to specify how
such values should be collected firstly for a worker thread, and then for the entire run. These virtual methods are
the following.
virtual void RecordEvent(const G4Event*)
Method to be overwritten by the user for recording events in this (thread-local) run. At the end of the imple-
mentation, G4Run base-class method for must be invoked for recording data members in the base class.
void Merge(const G4Run*)
Method to be overwritten by the user for merging local Run object to the global Run object. At the end of the
implementation, G4Run base-class method for must be invoked for merging data members in the base class.
3.4.1.2. Manage the run procedures
G4RunManager manages the procedures of a run. In the constructor of G4RunManager, all of the manager
classes in Geant4 kernel, except for some static managers, are constructed. These managers are deleted in the
destructor of G4RunManager. G4RunManager must be a singleton created in the user's main() program; the
pointer to this singleton object can be obtained by other code using the GetRunManager() static method.
As already mentioned in Section 2.1, all of the user initialization classes defined by the user should be assigned
to G4RunManager before starting initialization of the Geant4 kernel. The assignments of these user classes
are done by SetUserInitialization() methods. All user classes defined by the Geant4 kernel will be
summarized in Chapter 6.
G4RunManager has several public methods, which are listed below.
Initialize()
All initializations required by the Geant4 kernel are triggered by this method. Initializations are:
• construction of the detector geometry and set up of sensitive detectors and/or digitizer modules,
• construction of particles and physics processes,
• calculation of cross-section tables.
This method is thus mandatory before proceeding to the first run. This method will be invoked automatically
for the second and later runs in case some of the initialized quantities need to be updated.
BeamOn(G4int numberOfEvent)
This method triggers the actual simulation of a run, that is, an event loop. It takes an integer argument which
represents the number of events to be simulated.
GetRunManager()
This static method returns the pointer to the G4RunManager singleton object.
GetCurrentEvent()
This method returns the pointer to the G4Event object which is currently being simulated. This method is
available only when an event is being processed. At this moment, the application state of Geant4, which is
explained in the following sub-section, is "EventProc". When Geant4 is in a state other than "EventProc",
this method returns null. Please note that the return value of this method is const G4Event * and thus
you cannot modify the contents of the object.
![](asset-45.png)
Toolkit Fundamentals
60
SetNumberOfEventsToBeStored(G4int nPrevious)
When simulating the "pile up" of more than one event, it is essential to access more than one event at the same
moment. By invoking this method, G4RunManager keeps nPrevious G4Event objects. This method
must be invoked before proceeding to BeamOn().
GetPreviousEvent(G4int i_thPrevious)
The pointer to the i_thPrevious G4Event object can be obtained through this method. A pointer to a
const object is returned. It is inevitable that i_thPrevious events must have already been simulated in
the same run for getting the i_thPrevious event. Otherwise, this method returns null.
AbortRun()
This method should be invoked whenever the processing of a run must be stopped. It is valid for GeomClosed
and EventProc states. Run processing will be safely aborted even in the midst of processing an event. However,
the last event of the aborted run will be incomplete and should not be used for further analysis.
3.4.1.3. Run manager classes for multi-threading mode
G4MTRunManager is the replacement of G4RunManager for multi-threading mode. At the very end of Ini-
tialize() method, G4MTRunManager creates and starts worker threads. The event each thread is tasked is
in first_come_first_served basis, so that event numbers each thread has are not sequential.
G4WorkerRunManager is the local RunManager automatically instantiated by G4MTRunManager to take
care of initialization and event handling of a thread. Both G4MTRunManager and G4WorkerRunManager
are derived classes of G4RunManager base class.
The static method G4RunManager::GetRunManager() returns the following pointer.
• It returns the pointer to the G4WorkerRunManager of the local thread when it is invoked from thread-local
object.
• It returns the pointer to the G4MTRunManager when it is invoked from shared object.
• It returns the pointer to the base G4RunManager if it is used in the sequential mode.
G4RunManager has a method GetRunManagerType() that returns an enum named RMType to indicate
what kind of RunManager it is. RMType is defined as { sequentialRM, masterRM, workerRM }.
From the thread-local object, a static method G4MTRunManager::GetMasterRunManager() is available
to access to G4MTRunManager. From a worker thread, the user may access to, for example, detector construction
(it is a shared class) through this GetMasterRunManager() method.
3.4.1.4. G4UserRunAction
G4UserRunAction is one of the user action classes from which you can derive your own concrete class. This
base class has three virtual methods as follows:
GenerateRun()
This method is invoked at the beginning of the BeamOn() method but after confirmation of the conditions
of the Geant4 kernel. This method should be used to instantiate a user-specific run class object.
BeginOfRunAction()
This method is invoked at the beginning of the BeamOn() method but after confirmation of the conditions
of the Geant4 kernel. Likely uses of this method include:
• setting a run identification number,
• booking histograms,
• setting run specific conditions of the sensitive detectors and/or digitizer modules (e.g., dead channels).
EndOfRunAction()
This method is invoked at the very end of the BeamOn() method. Typical use cases of this method are
• store/print histograms,
![](asset-46.png)
Toolkit Fundamentals
61
• manipulate run summaries.
3.4.2. Geant4 as a state machine
Geant4 is designed as a state machine. Some methods in Geant4 are available for only a certain state(s).
G4RunManager controls the state changes of the Geant4 application. States of Geant4 are represented by the
enumeration G4ApplicationState. It has six states through the life cycle of a Geant4 application.
G4State_PreInit state
A Geant4 application starts with this state. The application needs to be initialized when it is in this state. The
application occasionally comes back to this state if geometry, physics processes, and/or cut-off have been
changed after processing a run.
G4State_Init state
The application is in this state while the Initialize() method of G4RunManager is being invoked.
Methods defined in any user initialization classes are invoked during this state.
G4State_Idle state
The application is ready for starting a run.
G4State_GeomClosed state
When BeamOn() is invoked, the application proceeds to this state to process a run. Geometry, physics
processes, and cut-off cannot be changed during run processing.
G4State_EventProc state
A Geant4 application is in this state when a particular event is being processed. GetCurrentEvent() and
GetPreviousEvent() methods of G4RunManager are available only at this state.
G4State_Quit state
When the destructor of G4RunManager is invoked, the application comes to this "dead end" state. Managers
of the Geant4 kernel are being deleted and thus the application cannot come back to any other state.
G4State_Abort state
When a G4Exception occurs, the application comes to this "dead end" state and causes a core dump. The
user still has a hook to do some "safe" opperations, e.g. storing histograms, by implementing a user concrete
class of G4VStateDependent. The user also has a choice to suppress the occurence of G4Exception
by a UI command /control/suppressAbortion. When abortion is suppressed, you will still get error messages
issued by G4Exception, and there is NO guarantee of a correct result after the G4Exception error message.
G4StateManager belongs to the intercoms category.
3.4.3. User's hook for state change
In case the user wants to do something at the moment of state change of Geant4, the user can create a concrete
class of the G4VStateDependent base class. For example, the user can store histograms when G4Exception
occurs and Geant4 comes to the Abort state, but before the actual core dump.
The following is an example user code which stores histograms when Geant4 becomes to the Abort state. This
class object should be mabe in, for example main(), by the user code. This object will be automatically registered
to G4StateManager at its construction.
Example 3.1. Header file of UserHookForAbortState
#ifndef UserHookForAbortState_H
#define UserHookForAbortState_H 1
#include "G4VStateDependent.hh"
class UserHookForAbortState : public G4VStateDependent
![](asset-47.png)
Toolkit Fundamentals
62
{
public:
UserHookForAbortState(); // constructor
~UserHookForAbortState(); // destructor
virtual G4bool Notify(G4ApplicationState requiredState);
};
Example 3.2. Source file of UserHookForAbortState
#include "UserHookForAbortState.hh"
UserHookForAbortState::UserHookForAbortState() {;}
UserHookForAbortState::~UserHookForAbortState() {;}
G4bool UserHookForAbortState::Notify(G4ApplicationState requiredState)
{
if(requiredState!=Abort) return true;
// Do book keeping here
return true;
}
3.4.4. Customizing the Run Manager
3.4.4.1. Virtual Methods in the Run Manager
G4RunManager is a concrete class with a complete set of functionalities for managing the Geant4 kernel. It
is the only manager class in the Geant4 kernel which must be constructed in the main() method of the user's
application. Thus, instead of constructing the G4RunManager provided by Geant4, you are free to construct your
own RunManager. It is recommended, however, that your RunManager inherit G4RunManager. For this
purpose, G4RunManager has various virtual methods which provide all the functionalities required to handle
the Geant4 kernel. Hence, your customized run manager need only override the methods particular to your needs;
the remaining methods in G4RunManager base class can still be used. A summary of the available methods is
presented here:
public: virtual void Initialize();
main entry point of Geant4 kernel initialization
protected: virtual void InitializeGeometry();
geometry construction
protected: virtual void InitializePhysics();
physics processes construction
public: virtual void BeamOn(G4int n_event);
main entry point of the event loop
protected: virtual G4bool ConfirmBeamOnCondition();
check the kernel conditions for the event loop
protected: virtual void RunInitialization();
prepare a run
protected: virtual void DoEventLoop(G4int n_events);
manage an event loop
protected: virtual G4Event* GenerateEvent(G4int i_event);
generation of G4Event object
protected: virtual void AnalyzeEvent(G4Event* anEvent);
storage/analysis of an event
![](asset-48.png)
Toolkit Fundamentals
63
protected: virtual void RunTermination();
terminate a run
public: virtual void DefineWorldVolume(G4VPhysicalVolume * worldVol);
set the world volume to G4Navigator
public: virtual void AbortRun();
abort the run
3.4.4.2. Customizing the Event Loop
In G4RunManager the event loop is handled by the virtual method DoEventLoop(). This method is imple-
mented by a for loop consisting of the following steps:
1. construct a G4Event object and assign to it primary vertex(es) and primary particles. This is done by the
virtual GeneratePrimaryEvent() method.
2. send the G4Event object to G4EventManager for the detector simulation. Hits and trajectories will be
associated with the G4Event object as a consequence.
3. perform bookkeeping for the current G4Event object. This is done by the virtual AnalyzeEvent()
method.
DoEventLoop() performs the entire simulation of an event. However, it is often useful to split the above three
steps into isolated application programs. If, for example, you wish to examine the effects of changing discriminator
thresholds, ADC gate widths and/or trigger conditions on simulated events, much time can be saved by perform-
ing steps 1 and 2 in one program and step 3 in another. The first program need only generate the hit/trajectory
information once and store it, perhaps in a database. The second program could then retrieve the stored G4Event
objects and perform the digitization (analysis) using the above threshold, gate and trigger settings. These settings
could then be changed and the digitization program re-run without re-generating the G4Events.
3.4.4.3. Changing the Detector Geometry
The detector geometry defined in your G4VUserDetectorConstruction concrete class can be changed
during a run break (between two runs). Two different cases are considered.
The first is the case in which you want to delete the entire structure of your old geometry and build up a com-
pletely new set of volumes. For this case, you need to delete them by yoursef, and let RunManager invokes Con-
struct() and ConstructSDandField() methods of your detector construction once again when Run-
Manager starts the next run.
G4RunManager* runManager = G4RunManager::GetRunManager();
runManager->ReinitializeGeometry();
If this ReinitializeGeometry() is invoked, GeometryHasBeenModified() (discussed next) is au-
tomatically invoked. Presumably this case is rather rare. The second case is more frequent for the user.
The second case is the following. Suppose you want to move and/or rotate a particular piece of your detector
component. This case can easily happen for a beam test of your detector. It is obvious for this case that you need
not change the world volume. Rather, it should be said that your world volume (experimental hall for your beam
test) should be big enough for moving/rotating your test detector. For this case, you can still use all of your detector
geometries, and just use a Set method of a particular physical volume to update the transformation vector as you
want. Thus, you don't need to re-set your world volume pointer to RunManager.
If you want to change your geometry for every run, you can implement it in the BeginOfRunAction() method
of G4UserRunAction class, which will be invoked at the beginning of each run, or, derive the RunInitial-
ization() method. Please note that, for both of the above mentioned cases, you need to let RunManager know
"the geometry needs to be closed again". Thus, you need to invoke
runManager->GeometryHasBeenModified();
![](asset-49.png)
Toolkit Fundamentals
64
before proceeding to the next run. An example of changing geometry is given in a Geant4 tutorial in Geant4
Training kit #2.
3.4.4.4. Switch physics processes
In the InitializePhysics() method, G4VUserPhysicsList::Construct is invoked in order to de-
fine particles and physics processes in your application. Basically, you can not add nor remove any particles during
execution, because particles are static objects in Geant4 (see Section 2.4 and Section 5.3 for details). In addition,
it is very difficult to add and/or remove physics processes during execution, because registration procedures are
very complex, except for experts (see Section 2.5 and Section 5.2). This is why the initializePhysics()
method is assumed to be invoked at once in Geant4 kernel initialization.
However, you can switch on/off physics processes defined in your G4VUserPhysicsList concrete class and
also change parameters in physics processes during the run break.
You can use ActivateProcess() and InActivateProcess() methods of G4ProcessManager any-
where outside the event loop to switch on/off some process. You should be very careful to switch on/off processes
inside the event loop, though it is not prohibited to use these methods even in the EventProc state.
It is a likely case to change cut-off values in a run. You can change defaultCutValue in
G4VUserPhysicsList during the Idle state. In this case, all cross section tables need to be recalculated before
the event loop. You should use the CutOffHasBeenModified() method when you change cut-off values so
that the SetCuts method of your PhysicsList concrete class will be invoked.
3.4.5. Managing worker thread
G4UserWorkerInitialization is an additional user initialization class to be used only for the mul-
ti-threaded mode. The object of this class can be set to G4MTRunManager, but not to G4RunManager.
G4UserWorkerInitialization class has five virtual methods as the user hooks which are invoked at sev-
eral occasions of the life cycle of each thread.
virtual void WorkerInitialize() const
This method is called after the tread is created but before the G4WorkerRunManager is instantiated.
virtual void WorkerStart() const
This method is called once at the beginning of simulation job when kernel classes and user action classes
have already instantiated but geometry and physics have not been yet initialized. This situation is identical
to "PreInit" state in the sequential mode.
virtual void WorkerStartRun() const
This method is called before an event loop. Geometry and physics have already been set up for the thread.
All threads are synchronized and ready to start the local event loop. This situation is identical to "Idle" state
in the sequential mode.
virtual void WorkerRunEnd() const
This method is called for each thread when the local event loop is done, but before the synchronization over
all worker threads.
virtual void WorkerStop() const
This method is called once at the end of simulation job.
3.5. Event
3.5.1. Representation of an event
G4Event represents an event. An object of this class contains all inputs and outputs of the simulated event.
This class object is constructed in G4RunManager and sent to G4EventManager. The event currently being
processed can be obtained via the getCurrentEvent() method of G4RunManager.
![](asset-4a.png)
Toolkit Fundamentals
65
3.5.2. Structure of an event
A G4Event object has four major types of information. Get methods for this information are available in
G4Event.
Primary vertexes and primary particles
Details are given in Section 3.6.
Trajectories
Trajectories are stored in G4TrajectoryContainer class objects and the pointer to this container is stored in
G4Event. The contents of a trajectory are given in Section 5.1.6.
Hits collections
Collections of hits generated by sensitive detectors are kept in G4HCofThisEvent class object and the
pointer to this container class object is stored in G4Event. See Section 4.4 for the details.
Digits collections
Collections of digits generated by digitizer modules are kept in G4DCofThisEvent class object and the
pointer to this container class object is stored in G4Event. See Section 4.5 for the details.
3.5.3. Mandates of G4EventManager
G4EventManager is the manager class to take care of one event. It is responsible for:
• converting G4PrimaryVertex and G4PrimaryParticle objects associated with the current G4Event
object to G4Track objects. All of G4Track objects representing the primary particles are sent to
G4StackManager.
• Pop one G4Track object from G4StackManager and send it to G4TrackingManager. The current
G4Track object is deleted by G4EventManager after the track is simulated by G4TrackingManager,
if the track is marked as "killed".
• In case the primary track is "suspended" or "postponed to next event" by G4TrackingManager, it is sent
back to the G4StackManager. Secondary G4Track objects returned by G4TrackingManager are also
sent to G4StackManager.
• When G4StackManager returns NULL for the "pop" request, G4EventManager terminates the current
processing event.
• invokes the user-defined methods beginOfEventAction() and endOfEventAction() from the
G4UserEventAction class. See Section 6.3 for details.
3.5.4. Stacking mechanism
G4StackManager has three stacks, named urgent, waiting and postpone-to-next-event, which are objects of the
G4TrackStack class. By default, all G4Track objects are stored in the urgent stack and handled in a "last in
first out" manner. In this case, the other two stacks are not used. However, tracks may be routed to the other two
stacks by the user-defined G4UserStackingAction concrete class.
If the methods of G4UserStackingAction have been overridden by the user, the postpone-to-next-event and
waiting stacks may contain tracks. At the beginning of an event, G4StackManager checks to see if any tracks
left over from the previous event are stored in the postpone-to-next-event stack. If so, it attemps to move them to
the urgent stack. But first the PrepareNewEvent() method of G4UserStackingAction is called. Here
tracks may be re-classified by the user and sent to the urgent or waiting stacks, or deferred again to the postpone-to-
next-event stack. As the event is processed G4StackManager pops tracks from the urgent stack until it is empty.
At this point the NewStage() method of G4UserStackingAction is called. In this method tracks from the
waiting stack may be sent to the urgent stack, retained in the waiting stack or postponed to the next event.
Details of the user-defined methods of G4UserStackingAction and how they affect track stack management
are given in Section 6.3.
![](asset-4b.png)
Toolkit Fundamentals
66
3.6. Event Generator Interface
3.6.1. Structure of a primary event
3.6.1.1. Primary vertex and primary particle
The G4Event class object should have a set of primary particles when it is sent to G4EventManager via
processOneEvent() method. It is the mandate of your G4VUserPrimaryGeneratorAction concrete
class to send primary particles to the G4Event object.
The G4PrimaryParticle class represents a primary particle with which Geant4 starts simulating an event.
This class object has information on particle type and its three momenta. The positional and time information of
primary particle(s) are stored in the G4PrimaryVertex class object and, thus, this class object can have one or
more G4PrimaryParticle class objects which share the same vertex. Primary vertexes and primary particles
are associated with the G4Event object by a form of linked list.
A concrete class of G4VPrimaryGenerator, the G4PrimaryParticle object is constructed with either
a pointer to G4ParticleDefinition or an integer number which represents P.D.G. particle code. For the
case of some artificial particles, e.g., geantino, optical photon, etc., or exotic nuclear fragments, which the P.D.G.
particle code does not cover, the G4PrimaryParticle should be constructed by G4ParticleDefinition
pointer. On the other hand, elementary particles with very short life time, e.g., weak bosons, or quarks/gluons,
can be instantiated as G4PrimaryParticle objects using the P.D.G. particle code. It should be noted that,
even though primary particles with such a very short life time are defined, Geant4 will simulate only the particles
which are defined as G4ParticleDefinition class objects. Other primary particles will be simply ignored
by G4EventManager. But it may still be useful to construct such "intermediate" particles for recording the
origin of the primary event.
3.6.1.2. Forced decay channel
The G4PrimaryParticle class object can have a list of its daughter particles. If the parent particle is an
"intermediate" particle, which Geant4 does not have a corresponding G4ParticleDefinition, this parent
particle is ignored and daughters are assumed to start from the vertex with which their parent is associated. For
example, a Z boson is associated with a vertex and it has positive and negative muons as its daughters, these muons
will start from that vertex.
There are some kinds of particles which should fly some reasonable distances and, thus, should be simulated by
Geant4, but you still want to follow the decay channel generated by an event generator. A typical case of these par-
ticles is B meson. Even for the case of a primary particle which has a corresponding G4ParticleDefinition,
it can have daughter primary particles. Geant4 will trace the parent particle until it comes to decay, obeying mul-
tiple scattering, ionization loss, rotation with the magnetic field, etc. according to its particle type. When the parent
comes to decay, instead of randomly choosing its decay channel, it follows the "pre-assigned" decay channel. To
conserve the energy and the momentum of the parent, daughters will be Lorentz transformed according to their
parent's frame.
3.6.2. Interface to a primary generator
3.6.2.1. G4HEPEvtInterface
Unfortunately, almost all event generators presently in use, commonly are written in FORTRAN. For Geant4,
it was decided to not link with any FORTRAN program or library, even though the C++ language syntax itself
allows such a link. Linking to a FORTRAN package might be convenient in some cases, but we will lose many
advantages of object-oriented features of C++, such as robustness. Instead, Geant4 provides an ASCII file interface
for such event generators.
G4HEPEvtInterface is one of G4VPrimaryGenerator concrete class and thus it can be used
in your G4VUserPrimaryGeneratorAction concrete class. G4HEPEvtInterface reads an ASCII
![](asset-4c.png)
Toolkit Fundamentals
67
file produced by an event generator and reproduces G4PrimaryParticle objects associated with a
G4PrimaryVertex object. It reproduces a full production chain of the event generator, starting with primary
quarks, etc. In other words, G4HEPEvtInterface converts information stored in the /HEPEVT/ common
block to an object-oriented data structure. Because the /HEPEVT/ common block is commonly used by almost all
event generators written in FORTRAN, G4HEPEvtInterface can interface to almost all event generators cur-
rently used in the HEP community. The constructor of G4HEPEvtInterface takes the file name. Example 3.3
shows an example how to use G4HEPEvtInterface. Note that an event generator is not assumed to give a
place of the primary particles, the interaction point must be set before invoking GeneratePrimaryVertex()
method.
Example 3.3. An example code for G4HEPEvtInterface
#ifndef ExN04PrimaryGeneratorAction_h
#define ExN04PrimaryGeneratorAction_h 1
#include "G4VUserPrimaryGeneratorAction.hh"
#include "globals.hh"
class G4VPrimaryGenerator;
class G4Event;
class ExN04PrimaryGeneratorAction : public G4VUserPrimaryGeneratorAction
{
public:
ExN04PrimaryGeneratorAction();
~ExN04PrimaryGeneratorAction();
public:
void GeneratePrimaries(G4Event* anEvent);
private:
G4VPrimaryGenerator* HEPEvt;
};
#endif
#include "ExN04PrimaryGeneratorAction.hh"
#include "G4Event.hh"
#include "G4HEPEvtInterface.hh"
ExN04PrimaryGeneratorAction::ExN04PrimaryGeneratorAction()
{
HEPEvt = new G4HEPEvtInterface("pythia_event.data");
}
ExN04PrimaryGeneratorAction::~ExN04PrimaryGeneratorAction()
{
delete HEPEvt;
}
void ExN04PrimaryGeneratorAction::GeneratePrimaries(G4Event* anEvent)
{
HEPEvt->SetParticlePosition(G4ThreeVector(0.*cm,0.*cm,0.*cm));
HEPEvt->GeneratePrimaryVertex(anEvent);
}
3.6.2.2. Format of the ASCII file
An ASCII file, which will be fed by G4HEPEvtInterface should have the following format.
• The first line of each primary event should be an integer which represents the number of the following lines
of primary particles.
• Each line in an event corresponds to a particle in the /HEPEVT/ common. Each line has ISTHEP, IDHEP,
JDAHEP(1), JDAHEP(2), PHEP(1), PHEP(2), PHEP(3), PHEP(5). Refer to the /HEPEVT/
manual for the meanings of these variables.
Example 3.4 shows an example FORTRAN code to generate an ASCII file.
![](asset-4d.png)
Toolkit Fundamentals
68
Example 3.4. A FORTRAN example using the /HEPEVT/ common.
***********************************************************
SUBROUTINE HEP2G4
*
* Convert /HEPEVT/ event structure to an ASCII file
* to be fed by G4HEPEvtInterface
*
***********************************************************
PARAMETER (NMXHEP=2000)
COMMON/HEPEVT/NEVHEP,NHEP,ISTHEP(NMXHEP),IDHEP(NMXHEP),
>JMOHEP(2,NMXHEP),JDAHEP(2,NMXHEP),PHEP(5,NMXHEP),VHEP(4,NMXHEP)
DOUBLE PRECISION PHEP,VHEP
*
WRITE(6,*) NHEP
DO IHEP=1,NHEP
WRITE(6,10)
> ISTHEP(IHEP),IDHEP(IHEP),JDAHEP(1,IHEP),JDAHEP(2,IHEP),
> PHEP(1,IHEP),PHEP(2,IHEP),PHEP(3,IHEP),PHEP(5,IHEP)
10 FORMAT(4I10,4(1X,D15.8))
ENDDO
*
RETURN
END
3.6.2.3. Future interface to the new generation generators
Several activities have already been started for developing object-oriented event generators. Such new generators
can be easily linked and used with a Geant4 based simulation. Furthermore, we need not distinguish a primary
generator from the physics processes used in Geant4. Future generators can be a kind of physics process plugged-
in by inheriting G4VProcess.
3.6.3. Event overlap using multiple generators
Your G4VUserPrimaryGeneratorAction concrete class can have more than one
G4VPrimaryGenerator concrete class. Each G4VPrimaryGenerator concrete class can be accessed
more than once per event. Using these class objects, one event can have more than one primary event.
One possible use is the following. Within an event, a G4HEPEvtInterface class object instantiated with a
minimum bias event file is accessed 20 times and another G4HEPEvtInterface class object instantiated with
a signal event file is accessed once. Thus, this event represents a typical signal event of LHC overlapping 20
minimum bias events. It should be noted that a simulation of event overlapping can be done by merging hits and/or
digits associated with several events, and these events can be simulated independently. Digitization over multiple
events will be mentioned in Section 4.5.
3.7. Event Biasing Techniques
3.7.1. Scoring, Geometrical Importance Sampling and
Weight Roulette
Geant4 provides event biasing techniques which may be used to save computing time in such applications as the
simulation of radiation shielding. These are geometrical splitting and Russian roulette (also called geometrical
importance sampling), and weight roulette. Scoring is carried out by G4MultiFunctionalDetector (see
Section 4.4.4 and Section 4.4.5) using the standard Geant4 scoring technique. Biasing specific scorers have been
implemented and are described within G4MultiFunctionalDetector documentation. In this chapter, it is
assumed that the reader is familiar with both the usage of Geant4 and the concepts of importance sampling. More
detailed documentation may be found in the documents 'Scoring, geometrical importance sampling and weight
roulette' . A detailed description of different use-cases which employ the sampling and scoring techniques can be
found in the document 'Use cases of importance sampling and scoring in Geant4' .
The purpose of importance sampling is to save computing time by sampling less often the particle histories en-
tering "less important" geometry regions, and more often in more "important" regions. Given the same amount
![](asset-4e.png)
Toolkit Fundamentals
69
of computing time, an importance-sampled and an analogue-sampled simulation must show equal mean values,
while the importance-sampled simulation will have a decreased variance.
The implementation of scoring is independent of the implementation of importance sampling. However both share
common concepts. Scoring and importance sampling apply to particle types chosen by the user, which should be
borne in mind when interpreting the output of any biased simulation.
Examples on how to use scoring and importance sampling may be found in examples/extended/biasing.
3.7.1.1. Geometries
The kind of scoring referred to in this note and the importance sampling apply to spatial cells provided by the user.
A cell is a physical volume (further specified by it's replica number, if the volume is a replica). Cells may be
defined in two kinds of geometries:
1. mass geometry: the geometry setup of the experiment to be simulated. Physics processes apply to this geom-
etry.
2. parallel-geometry: a geometry constructed to define the physical volumes according to which scoring and/
or importance sampling is applied.
The user has the choice to score and/or sample by importance the particles of the chosen type, according to mass
geometry or to parallel geometry. It is possible to utilize several parallel geometries in addition to the mass geom-
etry. This provides the user with a lot of flexibility to define separate geometries for different particle types in
order to apply scoring or/and importance sampling.
Note
Parallel geometries should be constructed using the implementation as described in Section 4.7. There
are a few conditions for parallel geometries:
• The world volume for parallel and mass geometries must be identical copies.
• Scoring and importance cells must not share boundaries with the world volume.
3.7.1.2. Changing the Sampling
Samplers are higher level tools which perform the necessary changes of the Geant4 sampling in order to apply
importance sampling and weight roulette.
Variance reduction (and scoring through the G4MultiFunctionalDetector) may be combined arbitrarily
for chosen particle types and may be applied to the mass or to parallel geometries.
The G4GeometrySampler can be applied equally to mass or parallel geometries with an abstract interface
supplied by G4VSampler. G4VSampler provides Prepare... methods and a Configure method:
class G4VSampler
{
public:
G4VSampler();
virtual ~G4VSampler();
virtual void PrepareImportanceSampling(G4VIStore *istore,
const G4VImportanceAlgorithm
*ialg = 0) = 0;
virtual void PrepareWeightRoulett(G4double wsurvive = 0.5,
G4double wlimit = 0.25,
G4double isource = 1) = 0;
virtual void PrepareWeightWindow(G4VWeightWindowStore *wwstore,
G4VWeightWindowAlgorithm *wwAlg = 0,
G4PlaceOfAction placeOfAction =
onBoundary) = 0;
virtual void Configure() = 0;
virtual void ClearSampling() = 0;
virtual G4bool IsConfigured() const = 0;
![](asset-4f.png)
Toolkit Fundamentals
70
};
The methods for setting up the desired combination need specific information:
• Importance sampling: message PrepareImportanceSampling with a G4VIStore and optionally a
G4VImportanceAlgorithm
• Weight window: message PrepareWeightWindow with the arguments:
•*wwstore: a G4VWeightWindowStore for retrieving the lower weight bounds for the energy-space cells
•*wwAlg: a G4VWeightWindowAlgorithm if a customized algorithm should be used
•placeOfAction: a G4PlaceOfAction specifying where to perform the biasing
• Weight roulette: message PrepareWeightRoulett with the optional parameters:
•wsurvive: survival weight
•wlimit: minimal allowed value of weight * source importance / cell importance
•isource: importance of the source cell
Each object of a sampler class is responsible for one particle type. The particle type is given to the constructor
of the sampler classes via the particle type name, e.g. "neutron". Depending on the specific purpose, the Con-
figure() of a sampler will set up specialized processes (derived from G4VProcess) for transportation in the
parallel geometry, importance sampling and weight roulette for the given particle type. When Configure()
is invoked the sampler places the processes in the correct order independent of the order in which user invoked
the Prepare... methods.
Note
• The Prepare...() functions may each only be invoked once.
• To configure the sampling the function Configure() must be called after the G4RunManager has
been initialized and the PhysicsList has been instantiated.
The interface and framework are demonstrated in the examples/extended/biasing directory, with the
main changes being to the G4GeometrySampler class and the fact that in the parallel case the WorldVolume is a
copy of the Mass World. The parallel geometry now has to inherit from G4VUserParallelWorld which also
has the GetWorld() method in order to retrieve a copy of the mass geometry WorldVolume.
class B02ImportanceDetectorConstruction : public G4VUserParallelWorld
ghostWorld = GetWorld();
The constructor for G4GeometrySampler takes a pointer to the physical world volume and the particle type
name (e.g. "neutron") as arguments. In a single mass geometry the sampler is created as follows:
G4GeometrySampler mgs(detector->GetWorldVolume(),"neutron");
mgs.SetParallel(false);
Whilst the following lines of code are required in order to set up the sampler for the parallel geometry case:
G4VPhysicalVolume* ghostWorld = pdet->GetWorldVolume();
G4GeometrySampler pgs(ghostWorld,"neutron");
pgs.SetParallel(true);
Also note that the preparation and configuration of the samplers has to be carried out after the instantiation of
the UserPhysicsList. With the modular reference PhysicsList the following set-up is required (first is for biasing,
the second for scoring):
physicsList->RegisterPhysics(new G4ImportanceBiasing(&pgs,parallelName));
physicsList->RegisterPhysics(new G4ParallelWorldPhysics(parallelName));
If the a UserPhysicsList is being implemented, then the following should be used to give the pointer to the Geom-
etrySampler to the PhysicsList:
![](asset-50.png)
Toolkit Fundamentals
71
physlist->AddBiasing(&pgs,parallelName);
Then to instantiate the biasing physics process the following should be included in the UserPhysicsList and called
from ConstructProcess():
AddBiasingProcess(){
fGeomSampler->SetParallel(true); // parallelworld
G4IStore* iStore = G4IStore::GetInstance(fBiasWorldName);
fGeomSampler->SetWorld(iStore->GetParallelWorldVolumePointer());
// fGeomSampler->PrepareImportanceSampling(G4IStore::
// GetInstance(fBiasWorldName), 0);
static G4bool first = true;
if(first) {
fGeomSampler->PrepareImportanceSampling(iStore, 0);
fGeomSampler->Configure();
G4cout << " GeomSampler Configured!!! " << G4endl;
first = false;
}
#ifdef G4MULTITHREADED
fGeomSampler->AddProcess();
#else
G4cout << " Running in singlethreaded mode!!! " << G4endl;
#endif
pgs.PrepareImportanceSampling(G4IStore::GetInstance(pdet->GetName()), 0);
pgs.Configure();
Due to the fact that biasing is a process and has to be inserted after all the other processes have been created.
3.7.1.3. Importance Sampling
Importance sampling acts on particles crossing boundaries between "importance cells". The action taken depends
on the importance values assigned to the cells. In general a particle history is either split or Russian roulette is
played if the importance increases or decreases, respectively. A weight assigned to the history is changed according
to the action taken.
The tools provided for importance sampling require the user to have a good understanding of the physics in the
problem. This is because the user has to decide which particle types require importance sampled, define the cells,
and assign importance values to the cells. If this is not done properly the results cannot be expected to describe
a real experiment.
The assignment of importance values to a cell is done using an importance store described below.
An "importance store" with the interface G4VIStore is used to store importance values related to cells. In order
to do importance sampling the user has to create an object (e.g. of class G4IStore) of type G4VIStore. The
samplers may be given a G4VIStore. The user fills the store with cells and their importance values. The store
is now a singleton class so should be created using a GetInstance method:
G4IStore *aIstore = G4IStore::GetInstance();
Or if a parallel world is used:
G4IStore *aIstore = G4IStore::GetInstance(pdet->GetName());
An importance store has to be constructed with a reference to the world volume of the geometry used for importance
sampling. This may be the world volume of the mass or of a parallel geometry. Importance stores derive from
the interface G4VIStore:
![](asset-51.png)
Toolkit Fundamentals
72
class G4VIStore
{
public:
G4VIStore();
virtual ~G4VIStore();
virtual G4double GetImportance(const G4GeometryCell &gCell) const = 0;
virtual G4bool IsKnown(const G4GeometryCell &gCell) const = 0;
virtual const G4VPhysicalVolume &GetWorldVolume() const = 0;
};
A concrete implementation of an importance store is provided by the class G4VStore. The public part of the
class is:
class G4IStore : public G4VIStore
{
public:
explicit G4IStore(const G4VPhysicalVolume &worldvolume);
virtual ~G4IStore();
virtual G4double GetImportance(const G4GeometryCell &gCell) const;
virtual G4bool IsKnown(const G4GeometryCell &gCell) const;
virtual const G4VPhysicalVolume &GetWorldVolume() const;
void AddImportanceGeometryCell(G4double importance,
const G4GeometryCell &gCell);
void AddImportanceGeometryCell(G4double importance,
const G4VPhysicalVolume &,
G4int aRepNum = 0);
void ChangeImportance(G4double importance,
const G4GeometryCell &gCell);
void ChangeImportance(G4double importance,
const G4VPhysicalVolume &,
G4int aRepNum = 0);
G4double GetImportance(const G4VPhysicalVolume &,
G4int aRepNum = 0) const ;
private: .....
};
The member function AddImportanceGeometryCell() enters a cell and an importance value into the im-
portance store. The importance values may be returned either according to a physical volume and a replica num-
ber or according to a G4GeometryCell. The user must be aware of the interpretation of assigning importance
values to a cell. If scoring is also implemented then this is attached to logical volumes, in which case the physical
volume and replica number method should be used for assigning importance values. See examples/extend-
ed/biasing B01 and B02 for examples of this.
Note
• An importance value must be assigned to every cell.
The different cases:
•Cell is not in store
Not filling a certain cell in the store will cause an exception.
•Importance value = zero
Tracks of the chosen particle type will be killed.
•importance values > 0
Normal allowed values
•Importance value smaller zero
Not allowed!
3.7.1.4. The Importance Sampling Algorithm
Importance sampling supports using a customized importance sampling algorithm. To this end, the sampler inter-
face G4VSampler may be given a pointer to the interface G4VImportanceAlgorithm:
![](asset-52.png)
Toolkit Fundamentals
73
class G4VImportanceAlgorithm
{
public:
G4VImportanceAlgorithm();
virtual ~G4VImportanceAlgorithm();
virtual G4Nsplit_Weight Calculate(G4double ipre,
G4double ipost,
G4double init_w) const = 0;
};
The method Calculate() takes the arguments:
•ipre, ipost: importance of the previous cell and the importance of the current cell, respectively.
•init_w: the particle's weight
It returns the struct:
class G4Nsplit_Weight
{
public:
G4int fN;
G4double fW;
};
•fN: the calculated number of particles to exit the importance sampling
•fW: the weight of the particles
The user may have a customized algorithm used by providing a class inheriting from
G4VImportanceAlgorithm.
If no customized algorithm is given to the sampler the default importance sampling algorithm is used. This algo-
rithm is implemented in G4ImportanceAlgorithm.
3.7.1.5. The Weight Window Technique
The weight window technique is a weight-based alternative to importance sampling:
• applies splitting and Russian roulette depending on space (cells) and energy
• user defines weight windows in contrast to defining importance values as in importance sampling
In contrast to importance sampling this technique is not weight blind. Instead the technique is applied according
to the particle weight with respect to the current energy-space cell.
Therefore the technique is convenient to apply in combination with other variance reduction techniques such as
cross-section biasing and implicit capture.
A weight window may be specified for every cell and for several energy regions: space-energy cell.
Figure 3.2. Weight window concept
![](asset-53.png)
Toolkit Fundamentals
74
Weight window concept
The user specifies a lower weight bound W_L for every space-energy cell.
• The upper weight bound W_U and the survival weight W_S are calculated as:
W_U = C_U W_L and
W_S = C_S W_L.
• The user specifies C_S and C_U once for the whole problem.
• The user may give different sets of energy bounds for every cell or one set for all geometrical cells
• Special case: if C_S = C_U = 1 for all energies then weight window is equivalent to importance sampling
• The user can choose to apply the technique: at boundaries, on collisions or on boundaries and collisions
The energy-space cells are realized by G4GeometryCell as in importance sampling. The cells are stored in a
weight window store defined by G4VWeightWindowStore:
class G4VWeightWindowStore {
public:
G4VWeightWindowStore();
virtual ~G4VWeightWindowStore();
virtual G4double GetLowerWeitgh(const G4GeometryCell &gCell,
G4double partEnergy) const = 0;
virtual G4bool IsKnown(const G4GeometryCell &gCell) const = 0;
virtual const G4VPhysicalVolume &GetWorldVolume() const = 0;
};
A concrete implementation is provided:
class G4WeightWindowStore: public G4VWeightWindowStore {
public:
explicit G4WeightWindowStore(const G4VPhysicalVolume &worldvolume);
virtual ~G4WeightWindowStore();
virtual G4double GetLowerWeitgh(const G4GeometryCell &gCell,
G4double partEnergy) const;
virtual G4bool IsKnown(const G4GeometryCell &gCell) const;
virtual const G4VPhysicalVolume &GetWorldVolume() const;
void AddLowerWeights(const G4GeometryCell &gCell,
const std::vector<G4double> &lowerWeights);
void AddUpperEboundLowerWeightPairs(const G4GeometryCell &gCell,
const G4UpperEnergyToLowerWeightMap&
enWeMap);
void SetGeneralUpperEnergyBounds(const
std::set<G4double, std::less<G4double> > & enBounds);
private::
...
};
The user may choose equal energy bounds for all cells. In this case a set of upper energy bounds must be given to
the store using the method SetGeneralUpperEnergyBounds. If a general set of energy bounds have been
set AddLowerWeights can be used to add the cells.
Alternatively, the user may chose different energy regions for different cells. In this case the user must provide a
mapping of upper energy bounds to lower weight bounds for every cell using the method AddUpperEbound-
LowerWeightPairs.
Weight window algorithms implementing the interface class G4VWeightWindowAlgorithm can be used to
define a customized algorithm:
class G4VWeightWindowAlgorithm {
public:
G4VWeightWindowAlgorithm();
virtual ~G4VWeightWindowAlgorithm();
![](asset-54.png)
Toolkit Fundamentals
75
virtual G4Nsplit_Weight Calculate(G4double init_w,
G4double lowerWeightBound) const = 0;
};
A concrete implementation is provided and used as a default:
class G4WeightWindowAlgorithm : public G4VWeightWindowAlgorithm {
public:
G4WeightWindowAlgorithm(G4double upperLimitFaktor = 5,
G4double survivalFaktor = 3,
G4int maxNumberOfSplits = 5);
virtual ~G4WeightWindowAlgorithm();
virtual G4Nsplit_Weight Calculate(G4double init_w,
G4double lowerWeightBound) const;
private:
...
};
The constructor takes three parameters which are used to: calculate the upper weight bound (upperLimitFaktor),
calculate the survival weight (survivalFaktor), and introduce a maximal number (maxNumberOfSplits) of copies
to be created in one go.
In addition, the inverse of the maxNumberOfSplits is used to specify the minimum survival probability in case
of Russian roulette.
3.7.1.6. The Weight Roulette Technique
Weight roulette (also called weight cutoff) is usually applied if importance sampling and implicit capture are used
together. Implicit capture is not described here but it is useful to note that this procedure reduces a particle weight
in every collision instead of killing the particle with some probability.
Together with importance sampling the weight of a particle may become so low that it does not change any result
significantly. Hence tracking a very low weight particle is a waste of computing time. Weight roulette is applied
in order to solve this problem.
The weight roulette concept
Weight roulette takes into account the importance "Ic" of the current cell and the importance "Is" of the cell in
which the source is located, by using the ratio "R=Is/Ic".
Weight roulette uses a relative minimal weight limit and a relative survival weight. When a particle falls below
the weight limit Russian roulette is applied. If the particle survives, tracking will be continued and the particle
weight will be set to the survival weight.
The weight roulette uses the following parameters with their default values:
•wsurvival: 0.5
•wlimit: 0.25
•isource: 1
The following algorithm is applied:
If a particle weight "w" is lower than R*wlimit:
• the weight of the particle will be changed to "ws = wsurvival*R"
• the probability for the particle to survive is "p = w/ws"
3.7.2. Physics Based Biasing
Geant4 supports physics based biasing through a number of general use, built in biasing techniques. A utility class,
G4WrapperProcess, is also available to support user defined biasing.
![](asset-55.png)
Toolkit Fundamentals
76
3.7.2.1. Built in Biasing Options
3.7.2.1.1. Primary Particle Biasing
Primary particle biasing can be used to increase the number of primary particles generated in a particular phase
space region of interest. The weight of the primary particle is modified as appropriate. A general implementation
is provided through the G4GeneralParticleSource class. It is possible to bias position, angular and energy
distributions.
G4GeneralParticleSource is a concrete implementation of G4VPrimaryGenerator. To use, instan-
tiate G4GeneralParticleSource in the G4VUserPrimaryGeneratorAction class, as demonstrated
below.
MyPrimaryGeneratorAction::MyPrimaryGeneratorAction() {
generator = new G4GeneralParticleSource;
}
void
MyPrimaryGeneratorAction::GeneratePrimaries(G4Event*anEvent){
generator->GeneratePrimaryVertex(anEvent);
}
The biasing can be configured through interactive commands, as desribed in Section 2.7. Examples are also dis-
tributed with the Geant4 distribution in examples/extended/eventgenerator/exgps.
3.7.2.1.2. Hadronic Leading Particle Biasing
One hadronic leading particle biasing technique is implemented in the G4HadLeadBias utility. This method keeps
only the most important part of the event, as well as representative tracks of each given particle type. So the track
with the highest energy as well as one of each of Baryon, pi0, mesons and leptons. As usual, appropriate weights
are assigned to the particles. Setting the SwitchLeadBiasOn environmental variable will activate this utility.
3.7.2.1.3. Hadronic Cross Section Biasing
Cross section biasing artificially enhances/reduces the cross section of a process. This may be useful for study-
ing thin layer interactions or thick layer shielding. The built in hadronic cross section biasing applies to photon
inelastic, electron nuclear and positron nuclear processes.
The biasing is controlled through the BiasCrossSectionByFactor method in G4HadronicProcess, as demonstrated
below.
void MyPhysicsList::ConstructProcess()
{
...
G4ElectroNuclearReaction * theElectroReaction =
new G4ElectroNuclearReaction;
G4ElectronNuclearProcess theElectronNuclearProcess;
theElectronNuclearProcess.RegisterMe(theElectroReaction);
theElectronNuclearProcess.BiasCrossSectionByFactor(100);
pManager->AddDiscreteProcess(&theElectronNuclearProcess);
...
}
3.7.2.2. Radioactive Decay Biasing
The G4RadioactiveDecay (GRDM) class simulates the decay of radioactive nuclei and implements the fol-
lowing biasing options:
• Increase the sampling rate of radionuclides within observation times through a user defined probability distri-
bution function
![](asset-56.png)
Toolkit Fundamentals
77
• Nuclear splitting, where the parent nuclide is split into a user defined number of nuclides
• Branching ratio biasing where branching ratios are sampled with equal probability
G4RadioactiveDecay is a process which must be registered with a process manager, as demonstrated below.
void MyPhysicsList::ConstructProcess()
{
...
G4RadioactiveDecay* theRadioactiveDecay =
new G4RadioactiveDecay();
G4ProcessManager* pmanager = ...
pmanager ->AddProcess(theRadioactiveDecay);
...
}
Biasing can be controlled either in compiled code or through interactive commands. Radioactive decay biasing
examples are also distributed with the Geant4 distribution in examples/extended/radioactivedecay/exrdm.
To select biasing as part of the process registration, use
theRadioactiveDecay->SetAnalogueMonteCarlo(false);
or the equivalent macro command:
/grdm/analogeMC [true|false]
In both cases, true specifies that the unbiased (analogue) simulation will be done, and false selects biasing.
3.7.2.2.1. Limited Radionuclides
Radioactive decay may be restricted to only specific nuclides, in order (for example) to avoid tracking extremely
long-lived daughters in decay chains which are not of experimental interest. To limit the range of nuclides decayed
as part of the process registration (above), use
G4NucleusLimits limits(aMin, aMax, zMin, zMax);
theRadioactiveDecay->SetNucleusLimits(limits);
or via the macro command
/grdm/nucleusLimits [aMin] [aMax] [zMin] [zMax]
3.7.2.2.2. Geometric Biasing
Radioactive decays may be generated throughout the user's detector model, in one or more specified volumes, or
nowhere. The detector geometry must be defined before applying these geometric biases.
Volumes may be selected or deselected programmatically using
theRadioactiveDecay->SelectAllVolumes();
theRadioactiveDecay->DeselectAllVolumes();
G4LogicalVolume* aLogicalVolume; // Acquired by the user
theRadioactiveDecay->SelectVolume(aLogicalVolume);
theRadioactiveDecay->DeselectVolume(aLogicalVolume);
or with the equivalent macro commands
![](asset-57.png)
Toolkit Fundamentals
78
/grdm/allVolumes
/grdm/noVolumes
/grdm/selectVolume [logicalVolume]
/grdm/deselectVolume [logicalVolume]
In macro commands, the volumes are specified by name, and found by searching the
G4LogicalVolumeStore.
3.7.2.2.3. Decay Time Biasing
The decay time function (normally an exponential in the natural lifetime) of the primary particle may be replaced
with a time profile F(t), as discussed in Section 40.6 of the Physics Reference Manual. The profile function is
represented as a two-column ASCII text file with up to 100 time points (first column) with fractions (second
column).
theRadioactiveDecay->SetSourceTimeProfile(fileName);
theRadioactiveDecay->SetDecayBias(fileName);
/grdm/sourceTimeProfile [fileName]
/grdm/decayBiasProfile [fileName]
3.7.2.2.4. Branching Fraction Biasing
Radionuclides with rare decay channels may be biased by forcing all channels to be selected uniformly (BRBias
= true below), rather than according to their natural branching fractions (false).
theRadioactiveDecay->SetBRBias(true);
/grdm/BRbias [true|false]
3.7.2.2.5. Nuclear Splitting
The statistical efficiency of generated events may be increased by generating multiple "copies" of nuclei in an
event, each of which is decayed independently, with an assigned weight of 1/Nsplit. Scoring the results of tracking
the decay daughters, using their corresponding weights, can improve the statistical reach of a simulation while
preserving the shape of the resulting distributions.
theRadioactiveDecay->SetSplitNuclei(Nsplit);
/grdm/splitNucleus [Nsplit]
3.7.2.3. G4WrapperProcess
G4WrapperProcess can be used to implement user defined event biasing. G4WrapperProcess, which is a process
itself, wraps an existing process. By default, all function calls are forwared to the wrapped process. It is a non-
invasive way to modify the behaviour of an existing process.
To use this utility, first create a derived class inheriting from G4WrapperProcess. Override the methods whose
behaviour you would like to modify, for example, PostStepDoIt, and register the derived class in place of the
process to be wrapped. Finally, register the wrapped process with G4WrapperProcess. The code snippets below
demonstrate its use.
class MyWrapperProcess : public G4WrapperProcess {
...
G4VParticleChange* PostStepDoIt(const G4Track& track,
const G4Step& step) {
![](asset-58.png)
Toolkit Fundamentals
79
// Do something interesting
}
};
void MyPhysicsList::ConstructProcess()
{
...
G4eBremsstrahlung* bremProcess =
new G4eBremsstrahlung();
MyWrapperProcess* wrapper = new MyWrapperProcess();
wrapper->RegisterProcess(bremProcess);
processManager->AddProcess(wrapper, -1, -1, 3);
}
3.7.3. Adjoint/Reverse Monte Carlo
Another powerful biasing technique available in Geant4 is the Reverse Monte Carlo (RMC) method, also known
as the Adjoint Monte Carlo method. In this method particles are generated on the external boundary of the sensitive
part of the geometry and then are tracked backward in the geometry till they reach the external source surface, or
exceed an energy threshold. By this way the computing time is focused only on particle tracks that are contributing
to the tallies. The RMC method is much rapid than the Forward MC method when the sensitive part of the geometry
is small compared to the rest of the geometry and to the external source, that has to be extensive and not beam
like. At the moment the RMC method is implemented in Geant4 only for some electromagnetic processes (see
Section 3.7.3.1.3). An example illustrating the use of the Reverse MC method in Geant4 is distributed within the
Geant4 toolkit in examples/extended/biasing/ReverseMC01.
3.7.3.1. Treatment of the Reverse MC method in Geant4
Different G4Adjoint classes have been implemented into the Geant4 toolkit in order to run an adjoint/reverse
simulation in a Geant4 application. This implementation is illustrated in Figure 3.3. An adjoint run is divided in
a serie of alternative adjoint and forward tracking of adjoint and normal particles. One Geant4 event treats one
of this tracking phase.
Figure 3.3. Schematic view of an adjoint/reverse simulation in Geant4
![](asset-59.png)
Toolkit Fundamentals
80
3.7.3.1.1. Adjoint tracking phase
Adjoint particles (adjoint_e-, adjoint_gamma,...) are generated one by one on the so called adjoint source with
random position, energy (1/E distribution) and direction. The adjoint source is the external surface of a user defined
volume or of a user defined sphere. The adjoint source should contain one or several sensitive volumes and should
be small compared to the entire geometry. The user can set the minimum and maximum energy of the adjoint
source. After its generation the adjoint primary particle is tracked backward in the geometry till a user defined
external surface (spherical or boundary of a volume) or is killed before if it reaches a user defined upper energy
limit that represents the maximum energy of the external source. During the reverse tracking, reverse processes
take place where the adjoint particle being tracked can be either scattered or transformed in another type of adjoint
particle. During the reverse tracking the G4AdjointSimulationManager replaces the user defined primary, run,
stepping, ... actions, by its own actions. A reverse tracking phase corresponds to one Geant4 event.
3.7.3.1.2. Forward tracking phase
When an adjoint particle reaches the external surface its weight, type, position, and direction are registered and a
normal primary particle, with a type equivalent to the last generated primary adjoint, is generated with the same
energy, position but opposite direction and is tracked in the forward direction in the sensitive region as in a forward
MC simulation. During this forward tracking phase the event, stacking, stepping, tracking actions defined by the
user for his forward simulation are used. By this clear separation between adjoint and forward tracking phases,
the code of the user developed for a forward simulation should be only slightly modified to adapt it for an adjoint
simulation (see Section 3.7.3.2). Indeed the computation of the signals is done by the same actions or classes that
the one used in the forward simulation mode. A forward tracking phase corresponds to one G4 event.
3.7.3.1.3. Reverse processes
During the reverse tracking, reverse processes act on the adjoint particles. The reverse processes that are at the
moment available in Geant4 are the:
• Reverse discrete ionization for e-, proton and ions
• Continuous gain of energy by ionization and bremsstrahlung for e- and by ionization for protons and ions
• Reverse discrete e- bremsstrahlung
• Reverse photo-electric effect
• Reverse Compton scattering
• Approximated multiple scattering (see comment in Section 3.7.3.4.3)
It is important to note that the electromagnetic reverse processes are cut dependent as their equivalent forward
processes. The implementation of the reverse processes is based on the forward processes implemented in the G4
standard electromagnetic package.
3.7.3.1.4. Nb of adjoint particle types and nb of G4 events of an adjoint simula-
tion
The list of type of adjoint and forward particles that are generated on the adjoint source and considered in the
simulation is a function of the adjoint processes declared in the physics list. For example if only the e- and gamma
electromagnetic processes are considered, only adjoint e- and adjoint gamma will be considered as primaries. In
this case an adjoint event will be divided in four G4 event consisting in the reverse tracking of an adjoint e-, the
forward tracking of its equivalent forward e-, the reverse tracking of an adjoint gamma, and the forward tracking
of its equivalent forward gamma. In this case a run of 100 adjoint events will consist into 400 Geant4 events. If the
proton ionization is also considered adjoint and forward protons are also generated as primaries and 600 Geant4
events are processed for 100 adjoint events.
3.7.3.2. How to update a G4 application to use the reverse Monte
Carlo mode
Some modifications are needed to an existing Geant4 application in order to adapt it for the use of the reverse
simulation mode (see also the G4 example examples/extended/biasing/ReverseMC01). It consists into the:
• Creation of the adjoint simulation manager in the main code
![](asset-5a.png)
Toolkit Fundamentals
81
• Optional declaration of user actions that will be used during the adjoint tracking phase
• Use of a special physics lists that combine the adjoint and forward processes
• Modification of the user analysis part of the code
3.7.3.2.1. Creation of G4AdjointSimManager in the main
The class G4AdjointSimManager represents the manager of an adjoint simulation. This static class should be
created somewhere in the main code. The way to do that is illustrated below
int main(int argc,char** argv) {
...
G4AdjointSimManager* theAdjointSimManager = G4AdjointSimManager::GetInstance();
...
}
By doing this the G4 application can be run in the reverse MC mode as well as in the forward MC mode. It is
important to note that G4AdjointSimManager is not a new G4RunManager and that the creation of G4RunManager
in the main and the declaration of the geometry, physics list, and user actions to G4RunManager is still needed.
The definition of the adjoint and external sources and the start of an adjoint simulation can be controlled by G4UI
commands in the directory /adjoint.
3.7.3.2.2. Optional declaration of adjoint user actions
During an adjoint simulation the user stepping, tracking, stacking and event actions declared to G4RunManager are
used only during the G4 events dedicated to the forward tracking of normal particles in the sensitive region, while
during the events where adjoint particles are tracked backward the following happen concerning these actions:
• The user stepping action is replaced by G4AdjointSteppingAction that is reponsible to stop an adjoint track when
it reaches the external source, exceed the maximum energy of the external source, or cross the adjoint source
surface. If needed the user can declare its own stepping action that will be called by G4AdjointSteppingAction
after the check of stopping track conditions. This stepping action can be different that the stepping action used
for the forward simulation. It is declared to G4AdjointSimManager by the following lines of code :
G4AdjointSimManager* theAdjointSimManager = G4AdjointSimManager::GetInstance();
theAdjointSimManager->SetAdjointSteppingAction(aUserDefinedSteppingAction);
• No stacking, tracking and event actions are considered by default. If needed the user can declare to
G4AdjointSimManager stacking, tracking and event actions that will be used only during the adjoint tracking
phase. The following lines of code show how to declare these adjoint actions to G4AdjointSimManager:
G4AdjointSimManager* theAdjointSimManager = G4AdjointSimManager::GetInstance();
theAdjointSimManager->SetAdjointEventAction(aUserDefinedEventAction);
theAdjointSimManager->SetAdjointStackingAction(aUserDefinedStackingAction);
theAdjointSimManager->SetAdjointTrackingAction(aUserDefinedTrackingAction);
By default no user run action is considered in an adjoint simulation but if needed such action can be declared to
G4AdjointSimManager as such:
G4AdjointSimManager* theAdjointSimManager = G4AdjointSimManager::GetInstance();
theAdjointSimManager->SetAdjointRunAction(aUserDefinedRunAction);
3.7.3.2.3. Physics list for reverse and forward electromagnetic processes
To run an adjoint simulation a specific physics list should be used where existing G4 adjoint electromagnetic
processes and their forward equivalent have to be declared. An example of such physics list is provided by the
class G4AdjointPhysicsLits in the G4 example extended/biasing/ReverseMC01.
3.7.3.2.4. Modification in the analysis part of the code
The user code should be modified to normalize the signals computed during the forward tracking phase to the
weight of the last adjoint particle that reaches the external surface. This weight represents the statistical weight
![](asset-5b.png)
Toolkit Fundamentals
82
that the last full adjoint tracks (from the adjoint source to the external source) would have in a forward simulation.
If multiplied by a signal and registered in function of energy and/or direction the simulation results will give an
answer matrix of this signal. To normalize it to a given spectrum it has to be furthermore multiplied by a directional
differential flux corresponding to this spectrum The weight, direction, position , kinetic energy and type of the last
adjoint particle that reaches the external source, and that would represents the primary of a forward simulation,
can be gotten from G4AdjointSimManager by using for example the following line of codes
G4AdjointSimManager* theAdjointSimManager = G4AdjointSimManager::GetInstance();
G4String particle_name = theAdjointSimManager->GetFwdParticleNameAtEndOfLastAdjointTrack();
G4int PDGEncoding= theAdjointSimManager->GetFwdParticlePDGEncodingAtEndOfLastAdjointTrack();
G4double weight = theAdjointSimManager->GetWeightAtEndOfLastAdjointTrack();
G4double Ekin = theAdjointSimManager->GetEkinAtEndOfLastAdjointTrack();
G4double Ekin_per_nuc=theAdjointSimManager->GetEkinNucAtEndOfLastAdjointTrack(); // for ions
G4ThreeVector dir = theAdjointSimManager->GetDirectionAtEndOfLastAdjointTrack();
G4ThreeVector pos = theAdjointSimManager->GetPositionAtEndOfLastAdjointTrack();
In order to have a code working for both forward and adjoint simulation mode, the extra code needed in user
actions or analysis manager for the adjoint simulation mode can be separated to the code needed only for the
normal forward simulation by using the following public method of G4AdjointSimManager:
G4bool GetAdjointSimMode();
that returns true if an adjoint simulation is running and false if not.
The following code example shows how to normalize a detector signal and compute an answer matrix in the case
of an adjoint simulation.
Example 3.5. Normalization in the case of an adjoint simulation. The detector signal S
computed during the forward tracking phase is normalized to a primary source of e- with
a differential directional flux given by the function F. An answer matrix of the signal is
also computed.
G4double S = ...; // signal in the sensitive volume computed during a forward tracking phase
//Normalization of the signal for an adjoint simulation
G4AdjointSimManager* theAdjSimManager = G4AdjointSimManager::GetInstance();
if (theAdjSimManager->GetAdjointSimMode()) {
G4double normalized_S=0.; //normalized to a given e- primary spectrum
G4double S_for_answer_matrix=0.; //for e- answer matrix
if (theAdjSimManager->GetFwdParticleNameAtEndOfLastAdjointTrack() == "e-") {
G4double ekin_prim = theAdjSimManager->GetEkinAtEndOfLastAdjointTrack();
G4ThreeVector dir_prim = theAdjointSimManager->GetDirectionAtEndOfLastAdjointTrack();
G4double weight_prim = theAdjSimManager->GetWeightAtEndOfLastAdjointTrack();
S_for_answer_matrix = S*weight_prim;
normalized_S = S_for_answer_matrix*F(ekin_prim,dir);
// F(ekin_prim,dir_prim) gives the differential directional flux of primary e-
}
//follows the code where normalized_S and S_for_answer_matrix are registered or whatever
....
}
//analysis/normalization code for forward simulation
else {
....
}
....
3.7.3.3. Control of an adjoint simulation
The G4UI commands in the directory /adjoint. allow the user to :
![](asset-5c.png)
Toolkit Fundamentals
83
• Define the adjoint source where adjoint primaries are generated
• Define the external source till which adjoint particles are tracked
• Start an adjoint simulation
3.7.3.4. Known issues in the Reverse MC mode
3.7.3.4.1. Occasional wrong high weight in the adjoint simulation
In rare cases an adjoint track may get a wrong high weight when reaching the external source. While this happens
not often it may corrupt the simulation results significantly. This happens in some tracks where both reverse
photo-electric and bremsstrahlung processes take place at low energy. We still need some investigations to remove
this problem at the level of physical adjoint/reverse processes. However this problem can be solved at the level of
event actions or analysis in the user code by adding a test on the normalized signal during an adjoint simulation.
An example of such test has been implemented in the Geant4 example extended/biasing/ReverseMC01 . In this
implementation an event is rejected when the relative error of the computed normalized energy deposited increases
during one event by more than 50% while the computed precision is already below 10%.
3.7.3.4.2. Reverse bremsstrahlung
A difference between the differential cross sections used in the adjoint and forward bremsstrahlung models is
the source of a higher flux of >100 keV gamma in the reverse simulation compared to the forward simulation
mode. In principle the adjoint processes/models should make use of the direct differential cross section to sample
the adjoint secondaries and compute the adjoint cross section. However due to the way the effective differential
cross section is considered in the forward model G4eBremsstrahlungModel this was not possible to achieve for the
reverse bremsstrahlung. Indeed the differential cross section used in G4AdjointeBremstrahlungModel is obtained
by the numerical derivation over the cut energy of the direct cross section provided by G4eBremsstrahlungModel.
This would be a correct procedure if the distribution of secondary in G4eBremsstrahlungModel would match
this differential cross section. Unfortunately it is not the case as independent parameterization are used in
G4eBremsstrahlungModel for both the cross sections and the sampling of secondaries. (It means that in the for-
ward case if one would integrate the effective differential cross section considered in the simulation we would not
find back the used cross section). In the future we plan to correct this problem by using an extra weight correction
factor after the occurrence of a reverse bremsstrahlung. This weight factor should be the ratio between the differ-
ential CS used in the adjoint simulation and the one effectively used in the forward processes. As it is impossible
to have a simple and direct access to the forward differential CS in G4eBremsstrahlungModel we are investigating
the feasibility to use the differential CS considered in G4Penelope models.
3.7.3.4.3. Reverse multiple scattering
For the reverse multiple scattering the same model is used than in the forward case. This approximation makes
that the discrepancy between the adjoint and forward simulation cases can get to a level of ~ 10-15% relative
differences in the test cases that we have considered. In the future we plan to improve the adjoint multiple scattering
models by forcing the computation of multiple scattering effect at the end of an adjoint step.
3.7.4. Generic Biasing
The generic biasing scheme provides facilities for:
• physics-based biasing, to alter the behavior of existing physics processes:
• biasing of physics process interaction occurence,
• biasing of physics process final state production;
• non-physics-based biasing, to introduce or remove particles in the simulation but without affecting the existing
physics processes, with techniques like, but not limited to
• splitting,
• Russian roulette (killing).
Decisions on what techniques to apply are taken on a step by step and inter-step basis, hence providing a lot of
flexibility.
![](asset-5d.png)
Toolkit Fundamentals
84
The scheme has been introduced in 10.0, with new features and some non-backward compatible changes intro-
duced in 10.1 and 10.2; these are documented in Section 3.7.4.4 and Section 3.7.4.5. Parallel geometry capability
has been introduced in 10.3.
3.7.4.1. Overview
The generic biasing scheme relies on two abstract classes, that are meant to model the biasing problems. You
have to inherit from them to create your own concrete classes, or use some of the concrete instances provided (see
Section 3.7.4.3), if they respond to your case. A dedicated process provides the interface between these biasing
classes and the tracking. In case of parallel geometry usage, an other process handles the navigation in these
geometries.
The two abstract classes are:
•G4VBiasingOperation: which represents a simple, or "atomic" biasing operation, like changing a process
interaction occurence probability, or changing its final state production, or making a splitting operation, etc.
For the occurence biasing case, the biasing is handled with an other class, G4VBiasingInteractionLaw,
which holds the properties of the biased interaction law. An object of this class type must be provided by the
occurence biasing operation returned.
•G4VBiasingOperator: which purpose is to make decisions on the above biasing operations to be applied.
It is attached to a G4LogicalVolume and is the pilot of the biasing in this volume. An operator may decide
to delegate to other operators.
An operator acts only in the G4LogicalVolume it is attached to. In volumes with no biasing operator attached,
the usual tracking is applied.
The process acting as interface between the biasing classes and the tracking is:
•G4BiasingProcessInterface: it is a concrete G4VProcess implementation. It interrogates the current
biasing operator, if any, for biasing operations to be applied.
The G4BiasingProcessInterface can either:
• hold a physics process that it wraps and controls: in this case it asks the operator for physics-based biasing
operations (only) to be applied to the wrapped process,
• not hold a physics process: in this case it asks the operator for non-physics-based biasing operations (only):
splitting, killing, etc.
• The G4BiasingProcessInterface class provides many information that can be used by the biasing
operator.
Each G4BiasingProcessInterface provides its identity to the biasing operator it calls, so that the op-
erator has this information but also information of the underneath wrapped physics process, if it is the case.
The G4BiasingProcessInterface can be asked for all other G4BiasingProcessInterface in-
stances at play on the current track. In particular, this allows the operator to get all cross-sections at the current
point (feature available since 10.1). The code is organized in such a way that these cross-sections are all avail-
able at the first call to the operator in the current step.
• To make G4BiasingProcessInterface instances wrapping physics processes, or to insert instances not
holding a physics process, the physics list has to be modified -the generic biasing approach is hence invasive to
the physics list-. The way to configure your physics list and related helper tools are described below.
The process handling parallel geometries is:
•G4ParallelGeometriesLimiterProcess, it is a concrete G4VProcess implementation, which takes
care of limiting the step on the boundaries of parallel geometries.
• A single instance of G4ParallelGeometriesLimiterProcess handles all parallel geometries to be
considered for a particle type.
It collects these geometries by means of myLimiter-
Process->AddParallelWorld("myParallelGeometry") calls.
![](asset-5e.png)
Toolkit Fundamentals
85
Given such a process is attached to a particle type, parallel geometries are hence specified per particle type.
• Attaching an instance of this process to a given particle type, and specifying the parallel geometries to be
considered is eased by the helper tools as explained below.
3.7.4.2. Getting Started
3.7.4.2.1. Examples
Six "Generic Biasing (GB)" examples are proposed (they have been introduced in 10.0, 10.1 and 10.3, two exam-
ples each time):
•examples/extended/biasing/GB01:
• which shows how biasing of process cross-section can be done.
• This example uses the physics-based biasing operation G4BOptnChangeCrossSection de-
fined in geant4/source/processes/biasing/generic. This operation performs the
actual process cross-section change. In the example a first G4VBiasingOperator,
GB01BOptrChangeCrossSection, configures and selects this operation. This operator applies to only
one particle type.
• To allow several particle types to be biased, a second G4VBiasingOperator,
GB01BOptrMultiParticleChangeCrossSection, is implemented, and which holds a
GB01BOptrChangeCrossSection operator for each particle type to be biased. This second operator
then delegates to the first one the handling of the biasing operations.
•examples/extended/biasing/GB02:
• which shows how a "force collision" scheme very close to the MNCP one can be activated.
• This second example has a quite similar approach than the GB01 one, with a G4VBiasingOperator,
QGB02BOptrMultiParticleForceCollision, that holds as many operators than particle types to
be biased, this operators being of G4BOptrForceCollision type.
• This G4BOptrForceCollision operator is defined in source/processes/biasing/generic.
It combines several biasing operations to build-up the needed logic (see Section 3.7.4.3). It can be in particular
looked at to see how it collects and makes use of physics process cross-sections.
•examples/extended/biasing/GB03:
• which implements a kind of importance geometry biasing, using the generic biasing classes.
• The example uses a simple sampling calorimeter. On the boundary of the absorber parts, it does splitting
(killing) if the track is moving forward (backward). As the splitting can be too strong in some cases, falling
into an over-splitting situation, even with a splitting by a factor 2, a technique is introduced to alleviate the
problem : a probability to apply the splitting (killing) is introduced, and with proper tuning of this probability,
the over-splitting can be avoided.
•examples/extended/biasing/GB04:
• which implements a bremsstrahlung splitting. Bremsstrahlung splitting exists in the EM package. In the
present example, it is shown how to implement a similar technique, using the generic biasing classes.
• A biasing operator, GB04BOptrBremSplitting, sends a final state biasing operation,
GB04BOptnBremSplitting, for the bremsstrahlung process. Splitting factor, and options to control the
biasing are available through command line.
•examples/extended/biasing/GB05:
• which illustrates a technique that uses physics cross-sections to determine the splitting[killing] rate in a shield-
ing problem, it is applied to neutrons. This technique is supposed to be an invention, to illustrate a technique
combining physics-based information with splitting/killing.
• In the classical treatment of the shielding problem, the shield is divided in slices at the boundaries of which
particles are splitted[killed] if moving forward[backward]. In the present technique, we collect the cross-
sections of "absorbing/destroying" processes : decay, capture, inelastic. We then use the generic biasing
facilities to create an equivalent of a splitting process, that has a "cross-section" which is the sum of the
previous ones. This process is competing with other processes, as a regular one. When this process wins the
competition, it splits the track, with a splitting factor 2. This splitting is hence occuring at the same rate than
the absorption, resulting in an expected maintained (unweighted) flux.
•GB05BOptrSplitAndKillByCrossSection and
GB05BOptnSplitAndKillByCrossSection are respectively the biasing operator and operation.
The operator collects the absorbing cross-sections at the beginning of the step, passes them to the oper-
![](asset-5f.png)
Toolkit Fundamentals
86
ation, requests it to sample the distance to its next interaction, and returns this operation to the calling
G4BiasingProcessInterface as the operation to be applied in the step.
• The operation interaction distance is then proposed by the calling G4BiasingProcessInterface and,
if being the shortest of the interaction distances, the operation final state generation (the splitting) is applied
by the process.
•examples/extended/biasing/GB06:
• which demonstrates the use of parallel geometries in generic biasing, on a classical shield problem, using
geometry-based importance biasing.
• The mass geometry consists of a single block of concrete; it is overlayed by a parallel geometry defining the
slices used for splitting/killing.
• The navigation capability in the parallel geometry is activated in the main program, by means of the physics
list constructor.
3.7.4.2.2. Setting up the application
For making an existing G4VBiasingOperator used by your application, you have to do two things:
1. Attach the operator to the G4LogicalVolume where the biasing should take place:
You have to make this attachment in your ConstructSDandField() method (to make your application
both sequential and MT-compliant):
Example 3.6. Attachement of a G4VBiasingOperator to a G4LogicalVolume.
We assume such a volume has been created with name "volumeWithBiasing", and
we assume that a biasing operator class MyBiasingOperator has been created,
inheriting from G4VBiasingOperator:
// Fetch the logical volume pointer by name (it is an example, not a mandatory way):
G4LogicalVolume* biasingVolume = G4LogicalVolumeStore::GetInstance()->GetVolume("volumeWithBiasing");
// Create the biasing operator:
MyBiasingOperator* myBiasingOperator = new MyBiasingOperator("ExampleOperator");
// Attach it to the volume:
myBiasingOperator->AttachTo(biasingVolume);
2. Setup the physics list you use to properly include the needed G4BiasingProcessInterface instances.
You have several options for this.
• The easiest way is if you use a pre-packaged physics list (e.g. FTFP_BERT, QGSP...). As such a physics
list is of G4VModularPhysicsList type, you can alter it with a G4VPhysicsConstructor. The
constructor G4GenericBiasingPhysics is meant for this. It can be used, typically in your main
program, as:
Example 3.7. Use of the G4GenericBiasingPhysics physics constructor to
setup a pre-packaged physics list (of G4VModularPhysicsList type). Here we
assume the FTFP_BERT physics list, and we assume that runManager is a pointer
on a created G4RunManager or G4RMTunManager object.
// Instanciate the physics list:
FTFP_BERT* physicsList = new FTFP_BERT;
// Create the physics constructor for biasing:
G4GenericBiasingPhysics* biasingPhysics = new G4GenericBiasingPhysics();
// Tell what particle types have to be biased:
biasingPhysics->Bias("gamma");
biasingPhysics->Bias("neutron");
// Register the physics constructor to the physics list:
physicsList->RegisterPhysics(biasingPhysics);
// Set this physics list to the run manager:
runManager->SetUserInitialization(physicsList);
Doing so, all physics processes will be wrapped, and, for example, the gamma conversion
process, "conv", will appear as "biasWrapper(conv)" when dumping the processes (/parti-
![](asset-60.png)
Toolkit Fundamentals
87
cle/process/dump). An additionnal "biasWrapper(0)" process, for non-physics-based biasing
is also inserted.
Other methods to specifically chose some physics processes to be biased or to insert only
G4BiasingProcessInterface instances for non-physics-based biasing also exist.
• The second way is useful if you write your own physics list, and if this one is not a modular physics list, but
inherits directly from the lowest level abstract class G4VUserPhysicsList. In this case, the above solu-
tion with G4GenericBiasingPhysics does not apply. Instead you can use the G4BiasingHelper
utility class (this one is indeed used by G4GenericBiasingPhysics).
Example 3.8. Use of the G4BiasingHelper utility class to setup a physics list
for biasing in case this physics list is not of G4VModularPhysicsList type but
inherits directly from G4VUserPhysicsList.
// Get physics list helper:
G4PhysicsListHelper* ph = G4PhysicsListHelper::GetPhysicsListHelper();
...
// Assume "particle" is a pointer on a G4ParticleDefinition object
G4String particleName = particle->GetParticleName();
if (particleName == "gamma")
{
ph->RegisterProcess(new G4PhotoElectricEffect , particle);
ph->RegisterProcess(new G4ComptonScattering , particle);
ph->RegisterProcess(new G4GammaConversion , particle);
G4ProcessManager* pmanager = particle->GetProcessManager();
G4BiasingHelper::ActivatePhysicsBiasing(pmanager, "phot");
G4BiasingHelper::ActivatePhysicsBiasing(pmanager, "compt");
G4BiasingHelper::ActivatePhysicsBiasing(pmanager, "conv");
G4BiasingHelper::ActivateNonPhysicsBiasing(pmanager);
}
• A last way to setup the physiscs list is by direct insertion of the G4BiasingProcessInterface
instances, but this requires solid expertise in physics list creation.
In case you also use parallel geometries, you have to make the generic biasing sensitive to these. Assuming you
have created three parallel geometries with names "parallelWorld1", "parallelWorld2" and "par-
allelWorld3" that you want to be active for neutrons, the additionnal calls you have to make compared to
example Example 3.7 above are simply:
Example 3.9. Calls to activate parallel geometry navigation
// -- activate parallel geometries for neutrons:
biasingPhysics->AddParallelGeometry("neutron","parallelWorld1");
biasingPhysics->AddParallelGeometry("neutron","parallelWorld2");
biasingPhysics->AddParallelGeometry("neutron","parallelWorld3");
It is also possible, even though less convenient, to use the G4BiasingHelper
utility class making calls to the static method limiter =
G4BiasingHelper::AddLimiterProcess(pmanager,"limiterProcessName") in addition to
the ones of example Example 3.8 above. This call returns a pointer limiter on the construct-
ed G4ParallelGeometriesLimiterProcess process, setting its name as "limiterProcess-
Name", this pointer has then to be used to specify the parallel geometries to the process : lim-
iter->AddParallelWorld("parallelWorld1")...
3.7.4.3. Existing biasing operations, operator and interaction laws
This is set of biasing operations and one operator available in 10.1, as well as a set of biasing interaction laws.
These are defined in source/processes/biasing/generic. Please note that several examples (Sec-
tion 3.7.4.2.1) also implement dedicated operators and operations.
These classes have been tested for now with neutral particles.
![](asset-61.png)
Toolkit Fundamentals
88
•G4VBiasingOperation classes:
•G4BOptnCloning: a non-physics-based biasing operation that clones the current track. Each of the two
copies is given freely a weight.
•G4BOptnChangeCrossSection: a physics-based biasing operation to change one process cross-section
•G4BOptnForceFreeFlight: a physics-based biasing operation to force a flight with no interaction
through the current volume. This operation is better said a "silent flight": the flight is conducted under a zero
weight, and the track weight is restored at the end of the free flight, taking into account the cumulated weight
change for the non-interaction flight. This special feature is because this class in used in the MCNP-like force
collision scheme G4BOptrForceCollision.
•G4BOptnForceCommonTruncatedExp: a physics-based biasing operation to force a collision inside the
current volume. It is "common" as several processes may be forced together, driving the related interaction
law by the sum of these processes cross-section. The relative natural occurence of processes is conserved.
This operation makes use of a "truncated exponential" law, which is the exponential law limited to a segment
[0,L], where L is the distance to exit the current volume.
•G4VBiasingOperator class:
•G4BOptrForceCollision: a biasing operator that implements a force collision scheme quite close to
the one provided by MCNP. It handles the scheme though the following sequence:
1. The operator starts by using a G4BOptnCloning cloning operation, making a copy of the primary
entering the volume. The primary is given a zero weight.
2. The primary is then transported through to the volume, without interactions. This is done with the oper-
ator requesting forced free flight G4BOptnForceFreeFlight operations to all physics processes.
The weight is zero to prevent the primary to contribute to scores. This flight purpose is to accumulate
the probability to fly through the volume without interaction. When the primary reaches the volume
boundary, the first free flight operation restores the primary weight to its initial weight and all opera-
tions multiply this weight by their weight for non-interaction flight. The operator then abandons here
the primary track, letting it back to normal tracking.
3. The copy of the primary track starts and the track is forced to interact in the volume, using the
G4BOptnForceCommonTruncatedExp operation, itself using the total cross-section to compute
the forced interaction law (exponential law limited to path lenght in the volume). One of the physics
processes is randomly selected (on the basis of cross-section values) for the interaction.
4. Other processes are receiving a forced free flight operation, from the operator.
5. The copy of the primary is transported up to its interaction point. With these operations configured, the
G4BiasingProcessInterface instances have all needed information to automatically compute
the weight of the primary track and of its interaction products.
As this operation starts on the volume boundary, a single force interaction occures: if the track survives the
interaction (e.g Compton process), as it moved apart the boundary, the operator does not consider it further.
•G4VBiasingInteractionLaw classes. These classes describe the interaction law in term of a non-inter-
action probability over a segment of lenght l, and an "effective" cross-section for an interaction at distance l
(see Physics Reference Manual, section generic biasing [to come]). An interaction law can also be sampled.
•G4InteractionLawPhysical: the usual exponential law, driven by a cross-section constant over a step.
The effective cross-section is the cross-section.
•G4ILawForceFreeFlight: an "interaction" law for, precisely, a non-interacting track, with non-inter-
action probability always 1, and zero effective cross-section. It is a limit case of the modeling.
•G4ILawTruncatedExp: an exponential interaction law limited to a segment [0,L]. The non-interaction
probability and effective cross-section depend on l, the distance travelled, and become zero and infinite,
respectively, at l=L.
3.7.4.4. Changes from 10.0 to 10.1
The G4VBiasingOperation class has been evoled to simplify the interface. The changes regard physics-
based biasing (occurence biasing and final state biaising) and are:
• Suppression of the method virtual G4ForceCondition ProposeForceCondition(const
G4ForceCondition wrappedProcessCondition)
• The functionnality has been kept, absorbing the ProposeForceCondition(...) method by the
ProvideOccurenceBiasingInteractionLaw(...) one, which has now the signature:
![](asset-62.png)
Toolkit Fundamentals
89
•virtual const G4VBiasingInteractionLaw* ProvideOccurenceBiasingIn-
teractionLaw( const G4BiasingProcessInterface* callingProcess,
G4ForceCondition& proposeForceCondition) = 0;
• The value of proposeForceCondition passed to the method is the G4ForceCondition value of
the wrapped process, as this was the case with deprecated method ProposeForceCondition(...).
• Suppression of the virtual method "G4bool DenyProcessPostStepDoIt(const
G4BiasingProcessInterface* callingProcess, const G4Track* track, const
G4Step* step, G4double& proposedTrackWeight)":
• This method was used to prevent the wrapped process hold by callingProcess to have its PostStep-
DoIt(...) called, providing a weight for this non-call.
• The method has been removed, but the functionnality still exists, and has been merged and generalized with
the change of the pure virtual ApplyFinalStateBiasing(...) described just after.
• Extra argument G4bool& forceBiasedFinalState added as last argument
of "virtual G4VParticleChange* ApplyFinalStateBiasing( const
G4BiasingProcessInterface* callingProcess, const G4Track* track, const
G4Step* step, G4bool& forceBiasedFinalState) = 0"
• This method is meant to return a final state interaction through the G4VParticleChange. The final state
may be the analog wrapped process one, or a biased one, which comes with its weight correction for biaising
the final state. If an occurence biasing is also at play in the same step, the weight correction for this biasing is
applied to the final state before this one is returned to the stepping. This is the default behavior. This behavior
can be controlled by forceBiasedFinalState:
• If forceBiasedFinalState is left false, the above default behavior is applied.
• If forceBiasedFinalState is set to true, the G4VParticleChange final state will be returned
as is to the stepping, and that, regardless their is an occurence at play. Hence, when setting forceBi-
asedFinalState to true, the biasing operation takes full responsibilty for the total weight (occurence
+ final state) calculation.
• Deletion of G4ILawCommonTruncatedExp, which could be eliminated after better implementation of
G4BOptnForceCommonTruncatedExp operation.
3.7.4.5. Changes from 10.1 to 10.2
Changes in 10.2 derive from the introduction of the track feature G4VAuxiliaryTrackInformation.
They regard essentially the force collision operator G4BOptrForceCollision and related features. These
changes are transparent to the user if using G4BOptrForceCollision and following examples/extend-
ed/biasing/GB02. The information below are provided for developers of biasing classes.
The G4VAuxiliaryTrackInformation functionnality allows to extend the G4Track attributes with an
instance of a concrete class deriving from G4VAuxiliaryTrackInformation. Such an object is registered
to the G4Track using an ID that has to be previously obtained from the G4PhysicsModelCatalog. The
G4VBiasingOperator class defines two new virtual methods, Configure() and ConfigureForWork-
er(), to help with the creation of these ID's at the proper time (see G4BOptrForceCollision as an ex-
ample).
Before 10.2, the G4BOptrForceCollision class was using state variables to make the bookkeeping of the
tracks handled by the scheme. Now this bookkeeping is handled using a G4VAuxiliaryTrackInformation,
G4BOptrForceCollisionTrackData.
To help with the bookkeeping, the base class G4VBiasingOperator was defining a set of methods (Get-
BirthOperation(..), RememberSecondaries(..), ForgetTrack(..)), these have been re-
moved in 10.2 and are easy to overpass with a dedicated G4VAuxiliaryTrackInformation.
![](asset-63.png)
90
Chapter 4. Detector Definition and Response
4.1. Geometry
4.1.1. Introduction
The detector definition requires the representation of its geometrical elements, their materials and electronics
properties, together with visualization attributes and user defined properties. The geometrical representation of
detector elements focuses on the definition of solid models and their spatial position, as well as their logical
relations to one another, such as in the case of containment.
Geant4 uses the concept of "Logical Volume" to manage the representation of detector element properties. The
concept of "Physical Volume" is used to manage the representation of the spatial positioning of detector elements
and their logical relations. The concept of "Solid" is used to manage the representation of the detector element
solid modeling. Volumes and solids must be dynamically allocated using 'new' in the user program; they must not
be declared as local objects. Volumes and solids are automatically registered on creation to dedicated stores; these
stores will delete all objects at the end of the job.
4.1.2. Solids
The Geant4 geometry modeller implements Constructive Solid Geometry (CSG) representations for geometrical
primitives. CSG representations are easy to use and normally give superior performance.
All solids must be allocated using 'new' in the user's program; they get registered to a G4SolidStore at con-
struction, which will also take care to deallocate them at the end of the job, if not done already in the user's code.
All constructed solids can stream out their contents via appropriate methods and streaming operators.
For all solids it is possible to estimate the geometrical volume and the surface area by invoking the methods:
G4double GetCubicVolume()
G4double GetSurfaceArea()
which return an estimate of the solid volume and total area in internal units respectively. For elementary solids the
functions compute the exact geometrical quantities, while for composite or complex solids an estimate is made
using Monte Carlo techniques.
For all solids it is also possible to generate pseudo-random points lying on their surfaces, by invoking the method
G4ThreeVector GetPointOnSurface() const
which returns the generated point in local coordinates relative to the solid. To be noted that this function is not
meant to provide a uniform distribution of points on the surfaces of the solids.
Since release 10.3, solids can be scaled in their dimensions along the Cartesian axes X, Y or Z, by providing a
scale transformation associated to the original solid.
G4ScaledSolid( const G4String& pName,
G4VSolid* pSolid ,
const G4Scale3D& pScale )
4.1.2.1. Constructed Solid Geometry (CSG) Solids
CSG solids are defined directly as three-dimensional primitives. They are described by a minimal set of parameters
necessary to define the shape and size of the solid. CSG solids are Boxes, Tubes and their sections, Cones and
their sections, Spheres, Wedges, and Toruses.
Box:
To create a box one can use the constructor:
![](asset-64.png)
Detector Definition and Response
91
G4Box(const G4String& pName,
G4double pX,
G4double pY,
G4double pZ)
In the picture:
pX = 30, pY = 40, pZ = 60
by giving the box a name and its half-lengths along the X, Y and Z axis:
pX half length in X pY half length in Y pZ half length in Z
This will create a box that extends from -pX to +pX in X, from -pY to +pY in Y, and from -pZ to +pZ in Z.
For example to create a box that is 2 by 6 by 10 centimeters in full length, and called BoxA one should use the
following code:
G4Box* aBox = new G4Box("BoxA", 1.0*cm, 3.0*cm, 5.0*cm);
Cylindrical Section or Tube:
Similarly to create a cylindrical section or tube, one would use the constructor:
G4Tubs(const G4String& pName,
G4double pRMin,
G4double pRMax,
G4double pDz,
G4double pSPhi,
G4double pDPhi)
In the picture:
pRMin = 10, pRMax = 15, pDz = 20
giving its name pName and its parameters which are:
pRMin Inner radius pRMax Outer radius
pDz Half length in z pSPhi Starting phi angle in radi-
ans
![](asset-65.png)
Detector Definition and Response
92
pDPhi Angle of the segment in ra-
dians
Cylindrical Cut Section or Cut Tube:
A cut in Z can be applied to a cylindrical section to obtain a cut tube. The following constructor should be used:
G4CutTubs( const G4String& pName,
G4double pRMin,
G4double pRMax,
G4double pDz,
G4double pSPhi,
G4double pDPhi,
G4ThreeVector pLowNorm,
G4ThreeVector pHighNorm )
In the picture:
pRMin = 12, pRMax = 20, pDz =
30, pSPhi = 0, pDPhi = 1.5*pi,
pLowNorm = (0,-0.7,-0.71),
pHighNorm = (0.7,0,0.71)
giving its name pName and its parameters which are:
pRMin Inner radius pRMax Outer radius
pDz Half length in z pSPhi Starting phi angle in radi-
ans
pDPhi Angle of the segment in ra-
dians
pLowNorm Outside Normal at -z
pHighNorm Outside Normal at +z
Cone or Conical section:
Similarly to create a cone, or conical section, one would use the constructor
G4Cons(const G4String& pName,
G4double pRmin1,
G4double pRmax1,
G4double pRmin2,
G4double pRmax2,
G4double pDz,
G4double pSPhi,
G4double pDPhi)
In the picture:
![](asset-66.png)
Detector Definition and Response
93
pRmin1 = 5, pRmax1 = 10, pRmin2
= 20, pRmax2 = 25, pDz = 40,
pSPhi = 0, pDPhi = 4/3*Pi
giving its name pName, and its parameters which are:
pRmin1 inside radius at -pDz pRmax1 outside radius at -pDz
pRmin2 inside radius at +pDz pRmax2 outside radius at +pDz
pDz half length in z pSPhi starting angle of the seg-
ment in radians
pDPhi the angle of the segment in
radians
Parallelepiped:
A parallelepiped is constructed using:
G4Para(const G4String& pName,
G4double dx,
G4double dy,
G4double dz,
G4double alpha,
G4double theta,
G4double phi)
In the picture:
dx = 30, dy = 40, dz = 60
giving its name pName and its parameters which are:
dx,dy,dz Half-length in x,y,z
alpha Angle formed by the y axis and by the plane joining the
centre of the faces parallel to the z-x plane at -dy and
+dy
theta Polar angle of the line joining the centres of the faces at
-dz and +dz in z
phi Azimuthal angle of the line joining the centres of the
faces at -dz and +dz in z
Trapezoid:
To construct a trapezoid use:
![](asset-67.png)
Detector Definition and Response
94
G4Trd(const G4String& pName,
G4double dx1,
G4double dx2,
G4double dy1,
G4double dy2,
G4double dz)
In the picture:
dx1 = 30, dx2 = 10, dy1
= 40, dy2 = 15, dz = 60
to obtain a solid with name pName and parameters
dx1 Half-length along x at the surface positioned at -dz
dx2 Half-length along x at the surface positioned at +dz
dy1 Half-length along y at the surface positioned at -dz
dy2 Half-length along y at the surface positioned at +dz
dz Half-length along z axis
Generic Trapezoid:
To build a generic trapezoid, the G4Trap class is provided. Here are the two costructors for a Right Angular
Wedge and for the general trapezoid for it:
G4Trap(const G4String& pName,
G4double pZ,
G4double pY,
G4double pX,
G4double pLTX)
G4Trap(const G4String& pName,
G4double pDz, G4double pTheta,
G4double pPhi, G4double pDy1,
G4double pDx1, G4double pDx2,
G4double pAlp1, G4double pDy2,
G4double pDx3, G4double pDx4,
G4double pAlp2)
In the picture:
pDx1 = 30, pDx2 = 40, pDy1 = 40,
pDx3 = 10, pDx4 = 14, pDy2 = 16,
pDz = 60, pTheta = 20*Degree, pPhi =
5*Degree, pAlp1 = pAlp2 = 10*Degree
to obtain a Right Angular Wedge with name pName and parameters:
pZ Length along z
pY Length along y
pX Length along x at the wider side
![](asset-68.png)
Detector Definition and Response
95
pLTX Length along x at the narrower side (plTX<=pX)
or to obtain the general trapezoid:
pDx1 Half x length of the side at y=-pDy1 of the face at -pDz
pDx2 Half x length of the side at y=+pDy1 of the face at -pDz
pDz Half z length
pTheta Polar angle of the line joining the centres of the faces
at -/+pDz
pPhi Azimuthal angle of the line joining the centre of the face
at -pDz to the centre of the face at +pDz
pDy1 Half y length at -pDz
pDy2 Half y length at +pDz
pDx3 Half x length of the side at y=-pDy2 of the face at +pDz
pDx4 Half x length of the side at y=+pDy2 of the face at +pDz
pAlp1 Angle with respect to the y axis from the centre of the
side (lower endcap)
pAlp2 Angle with respect to the y axis from the centre of the
side (upper endcap)
Note on pAlph1/2: the two angles have to be the same due to the planarity condition.
Sphere or Spherical Shell Section:
To build a sphere, or a spherical shell section, use:
G4Sphere(const G4String& pName,
G4double pRmin,
G4double pRmax,
G4double pSPhi,
G4double pDPhi,
G4double pSTheta,
G4double pDTheta )
In the picture:
pRmin = 100, pRmax = 120,
pSPhi = 0*Degree, pDPhi =
180*Degree, pSTheta = 0 De-
gree, pDTheta = 180*Degree
to obtain a solid with name pName and parameters:
pRmin Inner radius
pRmax Outer radius
pSPhi Starting Phi angle of the segment in radians
pDPhi Delta Phi angle of the segment in radians
pSTheta Starting Theta angle of the segment in radians
pDTheta Delta Theta angle of the segment in radians
![](asset-69.png)
Detector Definition and Response
96
Full Solid Sphere:
To build a full solid sphere use:
G4Orb(const G4String& pName,
G4double pRmax)
In the picture:
pRmax = 100
The Orb can be obtained from a Sphere with: pRmin = 0, pSPhi = 0, pDPhi = 2*Pi, pSTheta = 0, pDTheta
= Pi
pRmax Outer radius
Torus:
To build a torus use:
G4Torus(const G4String& pName,
G4double pRmin,
G4double pRmax,
G4double pRtor,
G4double pSPhi,
G4double pDPhi)
In the picture:
pRmin = 40, pRmax = 60, pRtor =
200, pSPhi = 0, pDPhi = 90*degree
to obtain a solid with name pName and parameters:
pRmin Inside radius
pRmax Outside radius
pRtor Swept radius of torus
pSPhi Starting Phi angle in radians (fSPhi+fDPhi<=2PI,
fSPhi>-2PI)
pDPhi Delta angle of the segment in radians
In addition, the Geant4 Design Documentation shows in the Solids Class Diagram the complete list of CSG classes.
Specific CSG Solids
Polycons:
Polycons (PCON) are implemented in Geant4 through the G4Polycone class:
![](asset-6a.png)
Detector Definition and Response
97
G4Polycone(const G4String& pName,
G4double phiStart,
G4double phiTotal,
G4int numZPlanes,
const G4double zPlane[],
const G4double rInner[],
const G4double rOuter[])
G4Polycone(const G4String& pName,
G4double phiStart,
G4double phiTotal,
G4int numRZ,
const G4double r[],
const G4double z[])
In the picture:
phiStart = 1/4*Pi, phiTotal =
3/2*Pi, numZPlanes = 9, rIn-
ner = { 0, 0, 0, 0, 0, 0, 0, 0,
0}, rOuter = { 0, 10, 10, 5 ,
5, 10 , 10 , 2, 2}, z = { 5,
7, 9, 11, 25, 27, 29, 31, 35 }
where:
phiStart Initial Phi starting angle
phiTotal Total Phi angle
numZPlanes Number of z planes
numRZ Number of corners in r,z space
zPlane Position of z planes, with z in increasing order
rInner Tangent distance to inner surface
rOuter Tangent distance to outer surface
r r coordinate of corners
z z coordinate of corners
A Polycone where Z planes position can also decrease is implemented through the G4GenericPolycone class:
G4GenericPolycone(const G4String& pName,
G4double phiStart,
G4double phiTotal,
G4int numRZ,
const G4double r[],
const G4double z[])
where:
phiStart Initial Phi starting angle
phiTotal Total Phi angle
numRZ Number of corners in r,z space
r r coordinate of corners
z z coordinate of corners
Polyhedra (PGON):
Polyhedra (PGON) are implemented through G4Polyhedra:
![](asset-6b.png)
Detector Definition and Response
98
G4Polyhedra(const G4String& pName,
G4double phiStart,
G4double phiTotal,
G4int numSide,
G4int numZPlanes,
const G4double zPlane[],
const G4double rInner[],
const G4double rOuter[] )
G4Polyhedra(const G4String& pName,
G4double phiStart,
G4double phiTotal,
G4int numSide,
G4int numRZ,
const G4double r[],
const G4double z[] )
In the picture:
phiStart = -1/4*Pi, phiTo-
tal= 5/4*Pi, numSide = 3, nun-
ZPlanes = 7, rInner = { 0, 0,
0, 0, 0, 0, 0 }, rOuter = { 0,
15, 15, 4, 4, 10, 10 }, z =
{ 0, 5, 8, 13 , 30, 32, 35 }
where:
phiStart Initial Phi starting angle
phiTotal Total Phi angle
numSide Number of sides
numZPlanes Number of z planes
numRZ Number of corners in r,z space
zPlane Position of z planes
rInner Tangent distance to inner surface
rOuter Tangent distance to outer surface
rr coordinate of corners
zz coordinate of corners
Tube with an elliptical cross section:
A tube with an elliptical cross section (ELTU) can be defined as follows:
G4EllipticalTube(const G4String& pName,
G4double Dx,
G4double Dy,
G4double Dz)
The equation of the surface in x/y is 1.0 = (x/
dx)**2 +(y/dy)**2
In the picture:
![](asset-6c.png)
Detector Definition and Response
99
Dx = 5, Dy = 10, Dz = 20
Dx Half length X Dy Half length Y Dz Half length Z
General Ellipsoid:
The general ellipsoid with possible cut in Z can be defined as follows:
G4Ellipsoid(const G4String& pName,
G4double pxSemiAxis,
G4double pySemiAxis,
G4double pzSemiAxis,
G4double pzBottomCut=0,
G4double pzTopCut=0)
In the picture:
pxSemiAxis = 10, pySemiAxis
= 20, pzSemiAxis = 50, pzBot-
tomCut = -10, pzTopCut = 40
A general (or triaxial) ellipsoid is a quadratic surface which is given in Cartesian coordinates by:
1.0 = (x/pxSemiAxis)**2 + (y/pySemiAxis)**2 + (z/pzSemiAxis)**2
where:
pxSemiAxis Semiaxis in X
pySemiAxis Semiaxis in Y
pzSemiAxis Semiaxis in Z
pzBottomCut lower cut plane level, z
pzTopCut upper cut plane level, z
Cone with Elliptical Cross Section:
A cone with an elliptical cross section can be defined as follows:
G4EllipticalCone(const G4String& pName,
G4double pxSemiAxis,
G4double pySemiAxis,
G4double zMax,
G4double pzTopCut)
In the picture:
pxSemiAxis = 30/75, pySemiAxis =
60/75, zMax = 50, pzTopCut = 25
![](asset-6d.png)
Detector Definition and Response
100
where:
pxSemiAxis Semiaxis in X
pySemiAxis Semiaxis in Y
zMax Height of elliptical cone
pzTopCut upper cut plane level
An elliptical cone of height zMax, with two bases at -pzTopCut and +pzTopCut, semiaxis pxSemiAxis,
and semiaxis pySemiAxis is given by the parametric equations:
x = pxSemiAxis * ( zMax - u ) / u * Cos(v)
y = pySemiAxis * ( zMax - u ) / u * Sin(v)
z = u
Where v is between 0 and 2*Pi, and u between -pzTopCut and +pzTopCut respectively.
Paraboloid, a solid with parabolic profile:
A solid with parabolic profile and possible cuts along the Z axis can be defined as follows:
G4Paraboloid(const G4String& pName,
G4double Dz,
G4double R1,
G4double R2)
The equation for the solid is:
rho**2 <= k1 * z + k2;
-dz <= z <= dz
r1**2 = k1 * (-dz) + k2
r2**2 = k1 * ( dz) + k2
In the picture:
R1 = 20, R2 = 35, Dz = 20
Dz Half length Z R1 Radius at -Dz R2 Radius at +Dz
greater than R1
Tube with Hyperbolic Profile:
A tube with a hyperbolic profile (HYPE) can be defined as follows:
G4Hype(const G4String& pName,
G4double innerRadius,
G4double outerRadius,
G4double innerStereo,
G4double outerStereo,
G4double halfLenZ)
In the picture:
innerStereo = 0.7, outerStereo
= 0.7, halfLenZ = 50, innerRa-
dius = 20, outerRadius = 30
G4Hype is shaped with curved sides parallel to the z-axis, has a specified half-length along the z axis about which
it is centred, and a given minimum and maximum radius.
A minimum radius of 0 defines a filled Hype (with hyperbolic inner surface), i.e. inner radius = 0 AND inner
stereo angle = 0.
![](asset-6e.png)
Detector Definition and Response
101
The inner and outer hyperbolic surfaces can have different stereo angles. A stereo angle of 0 gives a cylindrical
surface:
innerRadius Inner radius
outerRadius Outer radius
innerStereo Inner stereo angle in radians
outerStereo Outer stereo angle in radians
halfLenZ Half length in Z
Tetrahedra:
A tetrahedra solid can be defined as follows:
G4Tet(const G4String& pName,
G4ThreeVector anchor,
G4ThreeVector p2,
G4ThreeVector p3,
G4ThreeVector p4,
G4bool *degeneracyFlag=0)
In the picture:
anchor = {0, 0, sqrt(3)},
p2 = { 0, 2*sqrt(2/3), -1/
sqrt(3) }, p3 = { -sqrt(2), -
sqrt(2/3),-1/sqrt(3) }, p4 =
{ sqrt(2), -sqrt(2/3) , -1/sqrt(3) }
The solid is defined by 4 points in space:
anchor Anchor point
p2 Point 2
p3 Point 3
p4 Point 4
degeneracyFlag Flag indicating degeneracy of points
Extruded Polygon:
The extrusion of an arbitrary polygon (extruded solid) with fixed outline in the defined Z sections can be defined
as follows (in a general way, or as special construct with two Z sections):
G4ExtrudedSolid(const G4String& pName,
std::vector<G4TwoVector> polygon,
std::vector<ZSection> zsections)
G4ExtrudedSolid(const G4String& pName,
std::vector<G4TwoVector> polygon,
G4double hz,
G4TwoVector off1, G4double scale1,
G4TwoVector off2, G4double scale2)
In the picture:
poligon = {-30,-30},{-30,30},
{30,30},{30,-30}, {15,-30},
{15,15},{-15,15},{-15,-30}
![](asset-6f.png)
Detector Definition and Response
102
zsections = [-60,{0,30},0.8],
[-15, {0,-30},1.], [10,
{0,0},0.6], [60,{0,30},1.2]
The z-sides of the solid are the scaled versions of the same polygon.
polygon the vertices of the outlined polygon defined in clock-
wise order
zsections the z-sections defined by z position in increasing order
hz Half length in Z
off1, off2 Offset of the side in -hz and +hz respectively
scale1, scale2 Scale of the side in -hz and +hz respectively
Box Twisted:
A box twisted along one axis can be defined as follows:
G4TwistedBox(const G4String& pName,
G4double twistedangle,
G4double pDx,
G4double pDy,
G4double pDz)
In the picture:
twistedangle = 30*Degree,
pDx = 30, pDy =40, pDz = 60
G4TwistedBox is a box twisted along the z-axis. The twist angle cannot be greater than 90 degrees:
twistedangle Twist angle
pDx Half x length
pDy Half y length
pDz Half z length
Trapezoid Twisted along One Axis:
trapezoid twisted along one axis can be defined as follows:
G4TwistedTrap(const G4String& pName,
G4double twistedangle,
G4double pDxx1,
G4double pDxx2,
G4double pDy,
G4double pDz)
G4TwistedTrap(const G4String& pName,
G4double twistedangle,
G4double pDz,
G4double pTheta,
G4double pPhi,
G4double pDy1,
![](asset-70.png)
Detector Definition and Response
103
G4double pDx1,
G4double pDx2,
G4double pDy2,
G4double pDx3,
G4double pDx4,
G4double pAlph)
In the picture:
pDx1 = 30, pDx2 = 40, pDy1 = 40,
pDx3 = 10, pDx4 = 14, pDy2 = 16,
pDz = 60, pTheta = 20*Degree,
pDphi = 5*Degree, pAlph = 10*De-
gree, twistedangle = 30*Degree
The first constructor of G4TwistedTrap produces a regular trapezoid twisted along the z-axis, where the caps
of the trapezoid are of the same shape and size.
The second constructor produces a generic trapezoid with polar, azimuthal and tilt angles.
The twist angle cannot be greater than 90 degrees:
twistedangle Twisted angle
pDx1 Half x length at y=-pDy
pDx2 Half x length at y=+pDy
pDy Half y length
pDz Half z length
pTheta Polar angle of the line joining the centres of the faces
at -/+pDz
pDy1 Half y length at -pDz
pDx1 Half x length at -pDz, y=-pDy1
pDx2 Half x length at -pDz, y=+pDy1
pDy2 Half y length at +pDz
pDx3 Half x length at +pDz, y=-pDy2
pDx4 Half x length at +pDz, y=+pDy2
pAlph Angle with respect to the y axis from the centre of the
side
Twisted Trapezoid with x and y dimensions varying along z:
A twisted trapezoid with the x and y dimensions varying along z can be defined as follows:
G4TwistedTrd(const G4String& pName,
G4double pDx1,
G4double pDx2,
G4double pDy1,
G4double pDy2,
G4double pDz,
G4double twistedangle)
In the picture:
dx1 = 30, dx2 = 10, dy1
= 40, dy2 = 15, dz = 60,
twistedangle = 30*Degree
where:
![](asset-71.png)
Detector Definition and Response
104
pDx1 Half x length at the surface positioned at -dz
pDx2 Half x length at the surface positioned at +dz
pDy1 Half y length at the surface positioned at -dz
pDy2 Half y length at the surface positioned at +dz
pDz Half z length
twistedangle Twisted angle
Generic trapezoid with optionally collapsing vertices:
An arbitrary trapezoid with up to 8 vertices standing on two parallel planes perpendicular to the Z axis can be
defined as follows:
G4GenericTrap(const G4String& pName,
G4double pDz,
const std::vector<G4TwoVector>& vertices)
In the picture:
pDz = 25 vertices =
{-30, -30}, {-30, 30},
{30, 30}, {30, -30}
{-5, -20}, {-20, 20},
{20, 20}, {20, -20}
In the picture:
pDz = 25 vertices =
{-30,-30}, {-30,30},
{30,30}, {30,-30}
{-20,-20},{-20, 20},
{20,20}, {20, 20}
In the picture:
pDz = 25 vertices =
{-30,-30}, {-30,30},
{30,30}, {30,-30} {0,0},
{0,0}, {0,0}, {0,0}
where:
pDz Half z length
vertices The (x,y) coordinates of vertices
The order of specification of the coordinates for the vertices in G4GenericTrap is important. The first four
points are the vertices sitting on the -hz plane; the last four points are the vertices sitting on the +hz plane.
The order of defining the vertices of the solid is the following:
• point 0 is connected with points 1,3,4
• point 1 is connected with points 0,2,5
• point 2 is connected with points 1,3,6
• point 3 is connected with points 0,2,7
• point 4 is connected with points 0,5,7
• point 5 is connected with points 1,4,6
• point 6 is connected with points 2,5,7
• point 7 is connected with points 3,4,6
Points can be identical in order to create shapes with less than 8 vertices; the only limitation is to have at least one
triangle at +hz or -hz; the lateral surfaces are not necessarily planar. Not planar lateral surfaces are represented by
a surface that linearly changes from the edge on -hz to the corresponding edge on +hz; it represents a sweeping
![](asset-72.png)
Detector Definition and Response
105
surface with twist angle linearly dependent on Z, but it is not a real twisted surface mathematically described by
equations as for the other twisted solids described in this chapter.
Tube Section Twisted along Its Axis:
A tube section twisted along its axis can be defined as follows:
G4TwistedTubs(const G4String& pName,
G4double twistedangle,
G4double endinnerrad,
G4double endouterrad,
G4double halfzlen,
G4double dphi)
In the picture:
endinnerrad = 10, endouterrad =
15, halfzlen = 20, dphi = 90*De-
gree, twistedangle = 60*Degree
G4TwistedTubs is a sort of twisted cylinder which, placed along the z-axis and divided into phi-segments is
shaped like an hyperboloid, where each of its segmented pieces can be tilted with a stereo angle.
It can have inner and outer surfaces with the same stereo angle:
twistedangle Twisted angle
endinnerrad Inner radius at endcap
endouterrad Outer radius at endcap
halfzlen Half z length
dphi Phi angle of a segment
Additional constructors are provided, allowing the shape to be specified either as:
• the number of segments in phi and the total angle for all segments, or
• a combination of the above constructors providing instead the inner and outer radii at z=0 with different z-
lengths along negative and positive z-axis.
4.1.2.2. Solids made by Boolean operations
Simple solids can be combined using Boolean operations. For example, a cylinder and a half-sphere can be com-
bined with the union Boolean operation.
Creating such a new Boolean solid, requires:
• Two solids
• A Boolean operation: union, intersection or subtraction.
• Optionally a transformation for the second solid.
![](asset-73.png)
Detector Definition and Response
106
The solids used should be either CSG solids (for examples a box, a spherical shell, or a tube) or another Boolean
solid: the product of a previous Boolean operation. An important purpose of Boolean solids is to allow the de-
scription of solids with peculiar shapes in a simple and intuitive way, still allowing an efficient geometrical nav-
igation inside them.
The constituent solids of a Boolean operation should possibly avoid be composed by sharing all or part
of their surfaces. This precaution is necessary in order to avoid the generation of 'fake' surfaces due to
precision loss, or errors in the final visualization of the Boolean shape. In particular, if any one of the
subtractor surfaces is coincident with a surface of the subtractee, the result is undefined. Moreover, the
final Boolean solid should represent a single 'closed' solid, i.e. a Boolean operation between two solids
which are disjoint or far apart each other, is not a valid Boolean composition.
The tracking cost for navigating in a Boolean solid in the current implementation, is proportional to
the number of constituent solids. So care must be taken to avoid extensive, unecessary use of Boolean
solids in performance-critical areas of a geometry description, where each solid is created from Boolean
combinations of many other solids.
Examples of the creation of the simplest Boolean solids are given below:
G4Box* box =
new G4Box("Box",20*mm,30*mm,40*mm);
G4Tubs* cyl =
new G4Tubs("Cylinder",0,50*mm,50*mm,0,twopi); // r: 0 mm -> 50 mm
// z: -50 mm -> 50 mm
// phi: 0 -> 2 pi
G4UnionSolid* union =
new G4UnionSolid("Box+Cylinder", box, cyl);
G4IntersectionSolid* intersection =
new G4IntersectionSolid("Box*Cylinder", box, cyl);
G4SubtractionSolid* subtraction =
new G4SubtractionSolid("Box-Cylinder", box, cyl);
where the union, intersection and subtraction of a box and cylinder are constructed.
The more useful case where one of the solids is displaced from the origin of coordinates also exists. In this case
the second solid is positioned relative to the coordinate system (and thus relative to the first). This can be done
in two ways:
• Either by giving a rotation matrix and translation vector that are used to transform the coordinate system of the
second solid to the coordinate system of the first solid. This is called the passive method.
• Or by creating a transformation that moves the second solid from its desired position to its standard position,
e.g., a box's standard position is with its centre at the origin and sides parallel to the three axes. This is called
the active method.
In the first case, the translation is applied first to move the origin of coordinates. Then the rotation is used to rotate
the coordinate system of the second solid to the coordinate system of the first.
G4RotationMatrix* yRot = new G4RotationMatrix; // Rotates X and Z axes only
yRot->rotateY(M_PI/4.*rad); // Rotates 45 degrees
G4ThreeVector zTrans(0, 0, 50);
G4UnionSolid* unionMoved =
new G4UnionSolid("Box+CylinderMoved", box, cyl, yRot, zTrans);
//
// The new coordinate system of the cylinder is translated so that
// its centre is at +50 on the original Z axis, and it is rotated
// with its X axis halfway between the original X and Z axes.
// Now we build the same solid using the alternative method
//
G4RotationMatrix invRot = yRot->invert();
![](asset-74.png)
Detector Definition and Response
107
G4Transform3D transform(invRot, zTrans);
G4UnionSolid* unionMoved =
new G4UnionSolid("Box+CylinderMoved", box, cyl, transform);
Note that the first constructor that takes a pointer to the rotation-matrix (G4RotationMatrix*), does NOT
copy it. Therefore once used a rotation-matrix to construct a Boolean solid, it must NOT be modified.
In contrast, with the alternative method shown, a G4Transform3D is provided to the constructor by value, and
its transformation is stored by the Boolean solid. The user may modify the G4Transform3D and eventually
use it again.
When positioning a volume associated to a Boolean solid, the relative center of coordinates considered for the
positioning is the one related to the first of the two constituent solids.
4.1.2.3. Tessellated Solids
In Geant4 it is also implemented a class G4TessellatedSolid which can be used to generate a generic solid
defined by a number of facets (G4VFacet). Such constructs are especially important for conversion of complex
geometrical shapes imported from CAD systems bounded with generic surfaces into an approximate description
with facets of defined dimension (see Figure 4.1).
Figure 4.1. Example of geometries imported from CAD system and converted to
tessellated solids.
They can also be used to generate a solid bounded with a generic surface made of planar facets. It is important
that the supplied facets shall form a fully enclose space to represent the solid.
Two types of facet can be used for the construction of a G4TessellatedSolid: a triangular facet
(G4TriangularFacet) and a quadrangular facet (G4QuadrangularFacet).
An example on how to generate a simple tessellated shape is given below.
Example 4.1. An example of a simple tessellated solid with G4TessellatedSolid.
// First declare a tessellated solid
//
G4TessellatedSolid solidTarget = new G4TessellatedSolid("Solid_name");
// Define the facets which form the solid
//
G4double targetSize = 10*cm ;
G4TriangularFacet *facet1 = new
G4TriangularFacet (G4ThreeVector(-targetSize,-targetSize, 0.0),
G4ThreeVector(+targetSize,-targetSize, 0.0),
G4ThreeVector( 0.0, 0.0,+targetSize),
ABSOLUTE);
G4TriangularFacet *facet2 = new
G4TriangularFacet (G4ThreeVector(+targetSize,-targetSize, 0.0),
G4ThreeVector(+targetSize,+targetSize, 0.0),
G4ThreeVector( 0.0, 0.0,+targetSize),
![](asset-75.png)
Detector Definition and Response
108
ABSOLUTE);
G4TriangularFacet *facet3 = new
G4TriangularFacet (G4ThreeVector(+targetSize,+targetSize, 0.0),
G4ThreeVector(-targetSize,+targetSize, 0.0),
G4ThreeVector( 0.0, 0.0,+targetSize),
ABSOLUTE);
G4TriangularFacet *facet4 = new
G4TriangularFacet (G4ThreeVector(-targetSize,+targetSize, 0.0),
G4ThreeVector(-targetSize,-targetSize, 0.0),
G4ThreeVector( 0.0, 0.0,+targetSize),
ABSOLUTE);
G4QuadrangularFacet *facet5 = new
G4QuadrangularFacet (G4ThreeVector(-targetSize,-targetSize, 0.0),
G4ThreeVector(-targetSize,+targetSize, 0.0),
G4ThreeVector(+targetSize,+targetSize, 0.0),
G4ThreeVector(+targetSize,-targetSize, 0.0),
ABSOLUTE);
// Now add the facets to the solid
//
solidTarget->AddFacet((G4VFacet*) facet1);
solidTarget->AddFacet((G4VFacet*) facet2);
solidTarget->AddFacet((G4VFacet*) facet3);
solidTarget->AddFacet((G4VFacet*) facet4);
solidTarget->AddFacet((G4VFacet*) facet5);
Finally declare the solid is complete
//
solidTarget->SetSolidClosed(true);
The G4TriangularFacet class is used for the contruction of G4TessellatedSolid. It is defined by three
vertices, which shall be supplied in anti-clockwise order looking from the outside of the solid where it belongs.
Its constructor looks like:
G4TriangularFacet ( const G4ThreeVector Pt0,
const G4ThreeVector vt1,
const G4ThreeVector vt2,
G4FacetVertexType fType )
i.e., it takes 4 parameters to define the three vertices:
G4FacetVertexType ABSOLUTE in which case Pt0, vt1 and vt2 are the
three vertices in anti-clockwise order looking from the
outside.
G4FacetVertexType RELATIVE in which case the first vertex is Pt0, the
second vertex is Pt0+vt1 and the third vertex is
Pt0+vt2, all in anti-clockwise order when looking
from the outside.
The G4QuadrangularFacet class can be used for the contruction of G4TessellatedSolid as well. It is
defined by four vertices, which shall be in the same plane and be supplied in anti-clockwise order looking from
the outside of the solid where it belongs. Its constructor looks like:
G4QuadrangularFacet ( const G4ThreeVector Pt0,
const G4ThreeVector vt1,
const G4ThreeVector vt2,
const G4ThreeVector vt3,
G4FacetVertexType fType )
i.e., it takes 5 parameters to define the four vertices:
G4FacetVertexType ABSOLUTE in which case Pt0, vt1, vt2 and vt3 are
the four vertices required in anti-clockwise order when
looking from the outside.
![](asset-76.png)
Detector Definition and Response
109
G4FacetVertexType RELATIVE in which case the first vertex is Pt0, the
second vertex is Pt0+vt, the third vertex is Pt0+vt2
and the fourth vertex is Pt0+vt3, in anti-clockwise or-
der when looking from the outside.
Importing CAD models as tessellated shapes
Tessellated solids can also be used to import geometrical models from CAD systems (see Figure 4.1). In order to
do this, it is required to convert first the CAD shapes into tessellated surfaces. A way to do this is to save the shapes
in the geometrical model as STEP files and convert them to tessellated (faceted surfaces) solids, using a tool which
allows such conversion. At the time of writing, at least two tools are available for such purpose: STViewer (part of
the STEP-Tools development suite) or FASTRAD. This strategy allows to import any shape with some degree of
approximation; the converted CAD models can then be imported through GDML (Geometry Description Markup
Language) into Geant4 and be represented as G4TessellatedSolid shapes.
Other tools which can be used to generate meshes to be then imported in Geant4 as tessellated solids are:
• InStep - A free STL to GDML conversion tool.
• SALOME - Open-source software allowing to import STEP/BREP/IGES/STEP/ACIS formats, mesh them and
export to STL.
• ESABASE2 - Space environment analysis CAD, basic modules free for academic non-commercial use. Can
import STEP files and export to GDML shapes or complete geometries.
• CADMesh - Tool based on the VCG Library to read STL files and import in Geant4.
• Cogenda - Commercial TCAD software for generation of 3D meshes through the module Gds2Mesh and final
export to GDML.
4.1.2.4. Unified Solids
An alternative implementation for some of the cited geometrical primitives is provided since release 10.0 of
Geant4. The solids included in release 10.2 are: Box, Cons, Polycone, GenericPolycone, Polyhedra, Paraboloid,
Orb, Sphere, Tet, Trd, Trap, GenericTrap, Tubs, Torus, ExtrudedSolid and MultiUnion.
The new G4MultiUnion structure, in particular, allows for the description of a Boolean union of many displaced
solids at once, therefore representing volumes with the same associated material. NOTE: MultiUnion structures
can only be defined for usage with USolids primitives enabled ! An example on how to define a simple MultiUnion
structure is given here:
#include "G4MultiUnion.hh"
// Define two -UBox- shapes
//
G4Box* box1 = new G4Box("Box1", 5.*mm, 5.*mm, 10.*mm);
G4Box* box2 = new G4Box("Box2", 5.*mm, 5.*mm, 10.*mm);
// Define displacements for the shapes
//
G4RotationMatrix rotm = G4RotationMatrix();
G4ThreeVector position1 = G4ThreeVector(0.,0.,1.);
G4ThreeVector position2 = G4ThreeVector(0.,0.,2.);
G4Transform3D tr1 = G4Transform3D(rotm,position1);
G4Transform3D tr2 = G4Transform3D(rotm,position2);
// Initialise a MultiUnion structure
//
G4MultiUnion* munion_solid = new G4MultiUnion("Boxes_Union");
// Add the shapes to the structure
//
munion_solid->AddNode(*box1,tr1);
munion_solid->AddNode(*box2,tr2);
// Finally close the structure
//
munion_solid->Voxelize();
![](asset-77.png)
Detector Definition and Response
110
// Associate it to a logical volume as a normal solid
//
G4LogicalVolume* lvol =
new G4LogicalVolume(munion_solid, // its solid
munion_mat, // its material
"Boxes_Union_LV"); // its name
The code for the USolids primitives originated as part of the AIDA Unified Solids Library and is now integrated
in the VecGeom library (the vectorized geometry library for particle-detector simulation); it is provided for ex-
perimental use and can be activated in place of the original primitives defined in Geant4, by selecting the appro-
priate compilation flag when configuring the Geant4 libraries installation. The installation allows to build against
an external system installation of the VecGeom library, therefore the appropriate installation path must also be
provided during the installation configuration:
-DGEANT4_USE_USOLIDS="all" // to replace all available shapes
-DGEANT4_USE_USOLIDS="box;tubs" // to replace only individual shapes
The original API for all geometrical primitives is preserved.
4.1.3. Logical Volumes
The Logical Volume manages the information associated with detector elements represented by a given Solid and
Material, independently from its physical position in the detector.
G4LogicalVolumes must be allocated using 'new' in the user's program; they get registered to a
G4LogicalVolumeStore at construction, which will also take care to deallocate them at the end of the job,
if not done already in the user's code.
A Logical Volume knows which physical volumes are contained within it. It is uniquely defined to be their mother
volume. A Logical Volume thus represents a hierarchy of unpositioned volumes whose positions relative to one
another are well defined. By creating Physical Volumes, which are placed instances of a Logical Volume, this
hierarchy or tree can be repeated.
A Logical Volume also manages the information relative to the Visualization attributes (Section 8.6) and user-
defined parameters related to tracking, electro-magnetic field or cuts (through the G4UserLimits interface).
By default, tracking optimization of the geometry (voxelization) is applied to the volume hierarchy identified by
a logical volume. It is possible to change the default behavior by choosing not to apply geometry optimization
for a given logical volume. This feature does not apply to the case where the associated physical volume is a
parameterised volume; in this case, optimization is always applied.
G4LogicalVolume( G4VSolid* pSolid,
G4Material* pMaterial,
const G4String& Name,
G4FieldManager* pFieldMgr=0,
G4VSensitiveDetector* pSDetector=0,
G4UserLimits* pULimits=0,
G4bool Optimise=true )
Through the logical volume it is also possible to tune the granularity of the optimisation algorithm to be applied
to the sub-tree of volumes represented. This is possible using the methods:
G4double GetSmartless() const
void SetSmartless(G4double s)
The default smartless value is 2 and controls the average number of slices per contained volume which are used
in the optimisation. The smaller the value, the less fine grained optimisation grid is generated; this will translate
in a possible reduction of memory consumed for the optimisation of that portion of geometry at the price of a
![](asset-78.png)
Detector Definition and Response
111
slight CPU time increase at tracking time. Manual tuning of the optimisation is in general not required, since the
optimal granularity level is computed automatically and adapted to the specific geometry setup; however, in some
cases (like geometry portions with 'dense' concentration of volumes distributed in a non-uniform way), it may be
necessary to adopt manual tuning for helping the optimisation process in dealing with the most critical areas. By
setting the verbosity to 2 through the following UI run-time command:
/run/verbose 2
a statistics of the memory consumed for the allocated optimisation nodes will be displayed volume by volume,
allowing to easily identify the critical areas which may eventually require manual intervention.
The logical volume provides a way to estimate the mass of a tree of volumes defining a detector or sub-detector.
This can be achieved by calling the method:
G4double GetMass(G4bool forced=false)
The mass of the logical volume tree is computed from the estimated geometrical volume of each solid and material
associated with the logical volume and its daughters. Note that this computation may require a considerable amount
of time, depending on the complexity of the geometry tree. The returned value is cached by default and can be
used for successive calls, unless recomputation is forced by providing true for the boolean argument forced
in input. Computation should be forced if the geometry setup has changed after the previous call.
Finally, the Logical Volume manages the information relative to the Envelopes hierarchy required for fast Monte
Carlo parameterisations (Section 5.2.6).
4.1.3.1. Sub-detector Regions
In complex geometry setups, such as those found in large detectors in particle physics experiments, it is useful to
think of specific Logical Volumes as representing parts (sub-detectors) of the entire detector setup which perform
specific functions. In such setups, the processing speed of a real simulation can be increased by assigning specific
production cuts to each of these detector parts. This allows a more detailed simulation to occur only in those
regions where it is required.
The concept of detector Region is introduced to address this need. Once the final geometry setup of the detector
has been defined, a region can be specified by constructing it with:
G4Region( const G4String& rName )
where:
rName String identifier for the detector region
G4Regions must be allocated using 'new' in the user's program; they get registered to a G4RegionStore at
construction, which will also take care to deallocate them at the end of the job, if not done already in the user's code.
A G4Region must then be assigned to a logical volume, in order to make it a Root Logical Volume:
G4Region* emCalorimeter = new G4Region("EM-Calorimeter");
emCalorimeterLV->SetRegion(emCalorimeter);
emCalorimeter->AddRootLogicalVolume(emCalorimeterLV);
A root logical volume is the first volume at the top of the hierarchy to which a given region is assigned. Once the
region is assigned to the root logical volume, the information is automatically propagated to the volume tree, so
that each daughter volume shares the same region. Propagation on a tree branch will be interrupted if an already
existing root logical volume is encountered.
![](asset-79.png)
Detector Definition and Response
112
A specific Production Cut can be assigned to the region, by defining and assigning to it a G4ProductionCut
object
emCalorimeter->SetProductionCuts(emCalCuts);
Section 5.4.2 describes how to define a production cut. The same region can be assigned to more than one root
logical volume, and root logical volumes can be removed from an existing region. A logical volume can have only
one region assigned to it. Regions will be automatically registered in a store which will take care of destroying
them at the end of the job. A default region with a default production cut is automatically created and assigned
to the world volume.
Regions can also become 'envelopes' for fast-simulation; can be assigned user-limits or gener-
ic user-information (G4VUserRegionInformation); can be associated to specific stepping-actions
(G4UserSteppingAction) or have assigned a local magnetic-field (local fields specifically associated to log-
ical volumes take precedence anyhow).
4.1.4. Physical Volumes
Physical volumes represent the spatial positioning of the volumes describing the detector elements. Several tech-
niques can be used. They range from the simple placement of a single copy to the repeated positioning using either
a simple linear formula or a user specified function.
Any physical volume must be allocated using 'new' in the user's program; they get registered to a
G4PhysicalVolumeStore at construction, which will also take care to deallocate them at the end of the job,
if not done already in the user's code.
The simple placement involves the definition of a transformation matrix for the volume to be positioned. Repeated
positioning is defined using the number of times a volume should be replicated at a given distance along a given
direction. Finally it is possible to define a parameterised formula to specify the position of multiple copies of a
volume. Details about these methods are given below.
Note - For geometries which vary between runs and for which components of the old geometry setup are ex-
plicitely -deleted-, it is required to consider the proper order of deletion (which is the exact inverse of the actual
construction, i.e., first delete physical volumes and then logical volumes). Deleting a logical volume does NOT
delete its daughter volumes.
It is not necessary to delete the geometry setup at the end of a job, the system will take care to free the volume
and solid stores at the end of the job. The user has to take care of the deletion of any additional transformation or
rotation matrices allocated dinamically in his/her own application.
4.1.4.1. Placements: single positioned copy
In this case, the Physical Volume is created by associating a Logical Volume with a Rotation Matrix and a Transla-
tion vector. The Rotation Matrix represents the rotation of the reference frame of the considered volume relatively
to its mother volume's reference frame. The Translation Vector represents the translation of the current volume
in the reference frame of its mother volume.
Transformations including reflections are not allowed.
To create a Placement one must construct it using:
G4PVPlacement( G4RotationMatrix* pRot,
const G4ThreeVector& tlate,
G4LogicalVolume* pCurrentLogical,
const G4String& pName,
G4LogicalVolume* pMotherLogical,
G4bool pMany,
G4int pCopyNo,
G4bool pSurfChk=false )
![](asset-7a.png)
Detector Definition and Response
113
where:
pRot Rotation with respect to its mother volume
tlate Translation with respect to its mother volume
pCurrentLogical The associated Logical Volume
pName String identifier for this placement
pMotherLogical The associated mother volume
pMany For future use. Can be set to false
pCopyNo Integer which identifies this placement
pSurfChk if true activates check for overlaps with existing vol-
umes
Care must be taken because the rotation matrix is not copied by a G4PVPlacement. So the user must not modify
it after creating a Placement that uses it. However the same rotation matrix can be re-used for many volumes.
Currently Boolean operations are not implemented at the level of physical volume. So pMany must be false.
However, an alternative implementation of Boolean operations exists. In this approach a solid can be created from
the union, intersection or subtraction of two solids. See Section 4.1.2.2 above for an explanation of this.
The mother volume must be specified for all volumes except the world volume.
An alternative way to specify a Placement utilizes a different method to place the volume. The solid itself is moved
by rotating and translating it to bring it into the system of coordinates of the mother volume. If compared to the
previous construct, the transformation in this case is generated by specifying the same translation with respect to
its mother volume and the inverse of the rotation matrix. This active method can be utilized using the following
constructor:
G4PVPlacement( G4Transform3D solidTransform,
G4LogicalVolume* pCurrentLogical,
const G4String& pName,
G4LogicalVolume* pMotherLogical,
G4bool pMany,
G4int pCopyNo,
G4bool pSurfChk=false )
An alternative method to specify the mother volume is to specify its placed physical volume. It can be used in
either of the above methods of specifying the placement's position and rotation. The effect will be exactly the
same as for using the mother logical volume.
Note that a Placement Volume can still represent multiple detector elements. This can happen if several copies
exist of the mother logical volume. Then different detector elements will belong to different branches of the tree
of the hierarchy of geometrical volumes.
4.1.4.2. Repeated volumes
In this case, a single Physical Volume represents multiple copies of a volume within its mother volume, allowing
to save memory. This is normally done when the volumes to be positioned follow a well defined rotational or
translational symmetry along a Cartesian or cylindrical coordinate. The Repeated Volumes technique is available
for most volumes described by CSG solids.
Replicas:
Replicas are repeated volumes in the case when the multiple copies of the volume are all identical. The coordinate
axis and the number of replicas need to be specified for the program to compute at run time the transformation
matrix corresponding to each copy.
![](asset-7b.png)
Detector Definition and Response
114
G4PVReplica( const G4String& pName,
G4LogicalVolume* pCurrentLogical,
G4LogicalVolume* pMotherLogical, // OR G4VPhysicalVolume*
const EAxis pAxis,
const G4int nReplicas,
const G4double width,
const G4double offset=0 )
where:
pName String identifier for the replicated volume
pCurrentLogical The associated Logical Volume
pMotherLogical The associated mother volume
pAxis The axis along with the replication is applied
nReplicas The number of replicated volumes
width The width of a single replica along the axis of replication
offset Possible offset associated to mother offset along the axis
of replication
G4PVReplica represents nReplicas volumes differing only in their positioning, and completely filling the
containing mother volume. Consequently if a G4PVReplica is 'positioned' inside a given mother it MUST be the
mother's only daughter volume. Replica's correspond to divisions or slices that completely fill the mother volume
and have no offsets. For Cartesian axes, slices are considered perpendicular to the axis of replication.
The replica's positions are calculated by means of a linear formula. Replication may occur along:
•Cartesian axes (kXAxis,kYAxis,kZAxis)
The replications, of specified width have coordinates of form (-
width*(nReplicas-1)*0.5+n*width,0,0)
where n=0.. nReplicas-1 for the case of kXAxis, and are unrotated.
•Radial axis (cylindrical polar) (kRho)
The replications are cons/tubs sections, centred on the origin and are unrotated.
They have radii of width*n+offset to width*(n+1)+offset where n=0..nReplicas-1
•Phi axis (cylindrical polar) (kPhi)
The replications are phi sections or wedges, and of cons/tubs form.
They have phi of offset+n*width to offset+(n+1)*width where n=0..nReplicas-1
The coordinate system of the replicas is at the centre of each replica for the cartesian axis. For the radial case, the
coordinate system is unchanged from the mother. For the phi axis, the new coordinate system is rotated such that
the X axis bisects the angle made by each wedge, and Z remains parallel to the mother's Z axis.
The solid associated via the replicas' logical volume should have the dimensions of the first volume created and
must be of the correct symmetry/type, in order to assist in good visualisation.
ex. For X axis replicas in a box, the solid should be another box with the dimensions of the replications. (same Y
& Z dimensions as mother box, X dimension = mother's X dimension/nReplicas).
Replicas may be placed inside other replicas, provided the above rule is observed. Normal placement volumes
may be placed inside replicas, provided that they do not intersect the mother's or any previous replica's boundaries.
Parameterised volumes may not be placed inside.
Because of these rules, it is not possible to place any other volume inside a replication in radius.
The world volume cannot act as a replica, therefore it cannot be sliced.
![](asset-7c.png)
Detector Definition and Response
115
During tracking, the translation + rotation associated with each G4PVReplica object is modified according to
the currently 'active' replication. The solid is not modified and consequently has the wrong parameters for the
cases of phi and r replication and for when the cross-section of the mother is not constant along the replication.
Example:
Example 4.2. An example of simple replicated volumes with G4PVReplica.
G4PVReplica repX("Linear Array",
pRepLogical,
pContainingMotherBox,
kXAxis, 5, 10*mm);
G4PVReplica repR("RSlices",
pRepRLogical,
pContainingMotherTub,
kRho, 5, 10*mm, 0);
G4PVReplica repZ("ZSlices",
pRepZLogical,
pContainingMotherTub,
kZAxis, 5, 10*mm);
G4PVReplica repPhi("PhiSlices",
pRepPhiLogical,
pContainingMotherTub,
kPhi, 4, M_PI*0.5*rad, 0);
RepX is an array of 5 replicas of width 10*mm, positioned inside and completely filling the volume pointed by
pContainingMotherBox. The mother's X length must be 5*10*mm=50*mm (for example, if the mother's
solid were a Box of half lengths [25,25,25] then the replica's solid must be a box of half lengths [25,25,5]).
If the containing mother's solid is a tube of radius 50*mm and half Z length of 25*mm, RepR divides the mother
tube into 5 cylinders (hence the solid associated with pRepRLogical must be a tube of radius 10*mm, and half
Z length 25*mm); repZ divides the tube into 5 shorter cylinders (the solid associated with pRepZLogical must
be a tube of radius 10*mm, and half Z length 5*mm); finally, repPhi divides the tube into 4 tube segments with
full angle of 90 degrees (the solid associated with pRepPhiLogical must be a tube segment of radius 10*mm,
half Z length 5*mm and delta phi of M_PI*0.5*rad).
No further volumes may be placed inside these replicas. To do so would result in intersecting boundaries due to
the r replications.
Parameterised Volumes:
Parameterised Volumes are repeated volumes in the case in which the multiple copies of a volume can be different
in size, solid type, or material. The solid's type, its dimensions, the material and the transformation matrix can all
be parameterised in function of the copy number, both when a strong symmetry exist and when it does not. The
user implements the desired parameterisation function and the program computes and updates automatically at
run time the information associated to the Physical Volume.
An example of creating a parameterised volume (by dimension and position) exists in basic ex-
ample B2b. The implementation is provided in the two classes B2bDetectorConstruction and
B2bChamberParameterisation.
To create a parameterised volume, one must first create its logical volume like trackerChamberLV below.
Then one must create his own parameterisation class (B2bChamberParameterisation) and instantiate an object of
this class (chamberParam). We will see how to create the parameterisation below.
Example 4.3. An example of Parameterised volumes.
// Tracker segments
![](asset-7d.png)
Detector Definition and Response
116
// An example of Parameterised volumes
// Dummy values for G4Tubs -- modified by parameterised volume
G4Tubs* chamberS
= new G4Tubs("tracker",0, 100*cm, 100*cm, 0.*deg, 360.*deg);
fLogicChamber
= new G4LogicalVolume(chamberS,fChamberMaterial,"Chamber",0,0,0);
G4double firstPosition = -trackerSize + chamberSpacing;
G4double firstLength = trackerLength/10;
G4double lastLength = trackerLength;
G4VPVParameterisation* chamberParam =
new B2bChamberParameterisation(
NbOfChambers, // NoChambers
firstPosition, // Z of center of first
chamberSpacing, // Z spacing of centers
chamberWidth, // chamber width
firstLength, // initial length
lastLength); // final length
// dummy value : kZAxis -- modified by parameterised volume
new G4PVParameterised("Chamber", // their name
fLogicChamber, // their logical volume
trackerLV, // Mother logical volume
kZAxis, // Are placed along this axis
NbOfChambers, // Number of chambers
chamberParam, // The parametrisation
fCheckOverlaps); // checking overlaps
The general constructor is:
G4PVParameterised( const G4String& pName,
G4LogicalVolume* pCurrentLogical,
G4LogicalVolume* pMotherLogical, // OR G4VPhysicalVolume*
const EAxis pAxis,
const G4int nReplicas,
G4VPVParameterisation* pParam,
G4bool pSurfChk=false )
Note that for a parameterised volume the user must always specify a mother volume. So the world volume can
never be a parameterised volume, nor it can be sliced. The mother volume can be specified either as a physical
or a logical volume.
pAxis specifies the tracking optimisation algorithm to apply: if a valid axis (the axis along which the parameter-
isation is performed) is specified, a simple one-dimensional voxelisation algorithm is applied; if "kUndefined" is
specified instead, the default three-dimensional voxelisation algorithm applied for normal placements will be ac-
tivated. In the latter case, more voxels will be generated, therefore a greater amount of memory will be consumed
by the optimisation algorithm.
pSurfChk if true activates a check for overlaps with existing volumes or paramaterised instances.
The parameterisation mechanism associated to a parameterised volume is defined in the parameterisation class
and its methods. Every parameterisation must create two methods:
•ComputeTransformation defines where one of the copies is placed,
•ComputeDimensions defines the size of one copy, and
• a constructor that initializes any member variables that are required.
An example is B2bChamberParameterisation that parameterises a series of tubes of different sizes
Example 4.4. An example of Parameterised tubes of different sizes.
class B2bChamberParameterisation : public G4VPVParameterisation
![](asset-7e.png)
Detector Definition and Response
117
{
...
void ComputeTransformation(const G4int copyNo,
G4VPhysicalVolume *physVol) const;
void ComputeDimensions(G4Tubs& trackerLayer,
const G4int copyNo,
const G4VPhysicalVolume *physVol) const;
...
}
These methods works as follows:
The ComputeTransformation method is called with a copy number for the instance of the parameterisation
under consideration. It must compute the transformation for this copy, and set the physical volume to utilize this
transformation:
void B2bChamberParameterisation::ComputeTransformation
(const G4int copyNo, G4VPhysicalVolume *physVol) const
{
// Note: copyNo will start with zero!
G4double Zposition = fStartZ + copyNo * fSpacing;
G4ThreeVector origin(0,0,Zposition);
physVol->SetTranslation(origin);
physVol->SetRotation(0);
}
Note that the translation and rotation given in this scheme are those for the frame of coordinates (the passive
method). They are not for the active method, in which the solid is rotated into the mother frame of coordinates.
Similarly the ComputeDimensions method is used to set the size of that copy.
void B2bChamberParameterisation::ComputeDimensions
(G4Tubs& trackerChamber, const G4int copyNo, const G4VPhysicalVolume*) const
{
// Note: copyNo will start with zero!
G4double rmax = fRmaxFirst + copyNo * fRmaxIncr;
trackerChamber.SetInnerRadius(0);
trackerChamber.SetOuterRadius(rmax);
trackerChamber.SetZHalfLength(fHalfWidth);
trackerChamber.SetStartPhiAngle(0.*deg);
trackerChamber.SetDeltaPhiAngle(360.*deg);
}
The user must ensure that the type of the first argument of this method (in this example G4Tubs &) corresponds
to the type of object the user give to the logical volume of parameterised physical volume.
More advanced usage allows the user:
• to change the type of solid by creating a ComputeSolid method, or
• to change the material of the volume by creating a ComputeMaterial method. This method can also utilise
information from a parent or other ancestor volume (see the Nested Parameterisation below.)
for the parameterisation.
Example examples/extended/runAndEvent/RE02 shows a simple parameterisation by material. A more
complex example is provided in examples/extended/medical/DICOM, where a phantom grid of cells is
built using a parameterisation by material defined through a map.
Notes
Currently for many cases it is not possible to add daughter volumes to a parameterised volume. Only
parameterised volumes all of whose solids have the same size are allowed to contain daughter volumes.
When the size or type of solid varies, adding daughters is not supported. So the full power of parameterised
volumes can be used only for "leaf" volumes, which contain no other volumes.
![](asset-7f.png)
Detector Definition and Response
118
A hierarchy of volumes included in a parameterised volume cannot vary. Therefore, it is not possible
to implement a parameterisation which can modify the hierachy of volumes included inside a specific
parameterised copy.
For parameterisations of tubes or cons, where the starting Phi and its DeltaPhi angles vary, it
is possible to optimise the regeneration of the trigonometric parameters of the shape, by invoking
SetStartPhiAngle(newPhi, false); SetDeltaPhiAngle (newDPhi), i.e. by specify-
ing with false flag to skip the computation of the parameters which will be later on properly initialised
with the call for DeltaPhi.
For multi-threaded applications, one must be careful in the implementation of the parameterisation func-
tions for the geometrical objects being created in the parameterisation. In particular, when parameterising
by the type of a solid, it is assumed that the solids being parameterised are being declared thread-local
in the user's parameterisation class and allocated just once.
Advanced parameterisations for 'nested' parameterised volumes
A different type of parameterisation enables a user to have the daughter's material also depend on the copy number
of the parent when a parameterised volume (daughter) is located inside another (parent) repeated volume. The
parent volume can be a replica, a parameterised volume, or a division if the key feature of modifying its contents
is utilised. (Note: a 'nested' parameterisation inside a placement volume is not supported, because all copies of a
placement volume must be identical at all levels.)
In such a " nested" parameterisation , the user must provide a ComputeMaterial method that utilises the new
argument that represents the touchable history of the parent volume:
// Sample Parameterisation
class SampleNestedParameterisation : public G4VNestedParameterisation
{
public:
// .. other methods ...
// Mandatory method, required and reason for this class
virtual G4Material* ComputeMaterial(G4VPhysicalVolume *currentVol,
const G4int no_lev,
const G4VTouchable *parentTouch);
private:
G4Material *material1, *material2;
};
The implementation of the method can utilise any information from a parent or other ancestor volume of its
parameterised physical volume, but typically it will use only the copy number:
G4Material*
SampleNestedParameterisation::ComputeMaterial(G4VPhysicalVolume *currentVol,
const G4int no_lev,
const G4VTouchable *parentTouchable)
{
G4Material *material=0;
// Get the information about the parent volume
G4int no_parent= parentTouchable->GetReplicaNumber();
G4int no_total= no_parent + no_lev;
// A simple 'checkerboard' pattern of two materials
if( no_total / 2 == 1 ) material= material1;
else material= material2;
// Set the material to the current logical volume
G4LogicalVolume* currentLogVol= currentVol->GetLogicalVolume();
currentLogVol->SetMaterial( material );
return material;
}
Nested parameterisations are suitable for the case of regular, 'voxel' geometries in which a large number of 'equal'
volumes are required, and their only difference is in their material. By creating two (or more) levels of parame-
terised physical volumes it is possible to divide space, while requiring only limited additional memory for very
fine-level optimisation. This provides fast navigation. Alternative implementations, taking into account the regular
structure of such geometries in navigation are under study.
![](asset-80.png)
Detector Definition and Response
119
Divisions of Volumes
Divisions in Geant4 are implemented as a specialized type of parameterised volumes.
They serve to divide a volume into identical copies along one of its axes, providing the possibility to define an
offset, and without the limitation that the daugthers have to fill the mother volume as it is the case for the replicas.
In the case, for example, of a tube divided along its radial axis, the copies are not strictly identical, but have
increasing radii, although their widths are constant.
To divide a volume it will be necessary to provide:
1. the axis of division, and
2. either
• the number of divisions (so that the width of each division will be automatically calculated), or
• the division width (so that the number of divisions will be automatically calculated to fill as much of the
mother as possible), or
• both the number of divisions and the division width (this is especially designed for the case where the
copies do not fully fill the mother).
An offset can be defined so that the first copy will start at some distance from the mother wall. The dividing copies
will be then distributed to occupy the rest of the volume.
There are three constructors, corresponding to the three input possibilities described above:
• Giving only the number of divisions:
G4PVDivision( const G4String& pName,
G4LogicalVolume* pCurrentLogical,
G4LogicalVolume* pMotherLogical,
const EAxis pAxis,
const G4int nDivisions,
const G4double offset )
• Giving only the division width:
G4PVDivision( const G4String& pName,
G4LogicalVolume* pCurrentLogical,
G4LogicalVolume* pMotherLogical,
const EAxis pAxis,
const G4double width,
const G4double offset )
• Giving the number of divisions and the division width:
G4PVDivision( const G4String& pName,
G4LogicalVolume* pCurrentLogical,
G4LogicalVolume* pMotherLogical,
const EAxis pAxis,
const G4int nDivisions,
const G4double width,
const G4double offset )
where:
pName String identifier for the replicated volume
pCurrentLogical The associated Logical Volume
pMotherLogical The associated mother Logical Volume
pAxis The axis along which the division is applied
nDivisions The number of divisions
width The width of a single division along the axis
![](asset-81.png)
Detector Definition and Response
120
offset Possible offset associated to the mother along the axis
of division
The parameterisation is calculated automatically using the values provided in input. Therefore the dimen-
sions of the solid associated with pCurrentLogical will not be used, but recomputed through the
G4VParameterisation::ComputeDimension() method.
Since G4VPVParameterisation may have different ComputeDimension() methods for each solid type,
the user must provide a solid that is of the same type as of the one associated to the mother volume.
As for any replica, the coordinate system of the divisions is related to the centre of each division for the carte-
sian axis. For the radial axis, the coordinate system is the same of the mother volume. For the phi axis, the new
coordinate system is rotated such that the X axis bisects the angle made by each wedge, and Z remains parallel
to the mother's Z axis.
As divisions are parameterised volumes with constant dimensions, they may be placed inside other divisions,
except in the case of divisions along the radial axis.
It is also possible to place other volumes inside a volume where a division is placed.
The list of volumes that currently support divisioning and the possible division axis are summarised below:
G4Box kXAxis, kYAxis, kZAxis
G4Tubs kRho, kPhi, kZAxis
G4Cons kRho, kPhi, kZAxis
G4Trd kXAxis, kYAxis, kZAxis
G4Para kXAxis, kYAxis, kZAxis
G4Polycone kRho, kPhi, kZAxis
G4Polyhedra kRho, kPhi, kZAxis (*)
(*) - G4Polyhedra:
•kPhi - the number of divisions has to be the same as solid sides, (i.e. numSides), the width will not be taken
into account.
In the case of division along kRho of G4Cons, G4Polycone, G4Polyhedra, if width is provided, it is taken
as the width at the -Z radius; the width at other radii will be scaled to this one.
Examples are given below in listings Example 4.4 and Example 4.5.
Example 4.5. An example of a box division along different axes, with or without offset.
G4Box* motherSolid = new G4Box("motherSolid", 0.5*m, 0.5*m, 0.5*m);
G4LogicalVolume* motherLog = new G4LogicalVolume(motherSolid, material, "mother",0,0,0);
G4Para* divSolid = new G4Para("divSolid", 0.512*m, 1.21*m, 1.43*m);
G4LogicalVolume* childLog = new G4LogicalVolume(divSolid, material, "child",0,0,0);
G4PVDivision divBox1("division along X giving nDiv",
childLog, motherLog, kXAxis, 5, 0.);
G4PVDivision divBox2("division along X giving width and offset",
childLog, motherLog, kXAxis, 0.1*m, 0.45*m);
G4PVDivision divBox3("division along X giving nDiv, width and offset",
childLog, motherLog, kXAxis, 3, 0.1*m, 0.5*m);
•divBox1 is a division of a box along its X axis in 5 equal copies. Each copy will have a dimension in meters
of [0.2, 1., 1.].
•divBox2 is a division of the same box along its X axis with a width of 0.1 meters and an offset of 0.5 meters.
As the mother dimension along X of 1 meter (0.5*m of halflength), the division will be sized in total 1 -
![](asset-82.png)
Detector Definition and Response
121
0.45 = 0.55 meters. Therefore, there's space for 5 copies, the first extending from -0.05 to 0.05 meters
in the mother's frame and the last from 0.35 to 0.45 meters.
•divBox3 is a division of the same box along its X axis in 3 equal copies of width 0.1 meters and an offset
of 0.5 meters. The first copy will extend from 0. to 0.1 meters in the mother's frame and the last from 0.2
to 0.3 meters.
Example 4.6. An example of division of a polycone.
G4double* zPlanem = new G4double[3];
zPlanem[0]= -1.*m;
zPlanem[1]= -0.25*m;
zPlanem[2]= 1.*m;
G4double* rInnerm = new G4double[3];
rInnerm[0]=0.;
rInnerm[1]=0.1*m;
rInnerm[2]=0.5*m;
G4double* rOuterm = new G4double[3];
rOuterm[0]=0.2*m;
rOuterm[1]=0.4*m;
rOuterm[2]=1.*m;
G4Polycone* motherSolid = new G4Polycone("motherSolid", 20.*deg, 180.*deg,
3, zPlanem, rInnerm, rOuterm);
G4LogicalVolume* motherLog = new G4LogicalVolume(motherSolid, material, "mother",0,0,0);
G4double* zPlaned = new G4double[3];
zPlaned[0]= -3.*m;
zPlaned[1]= -0.*m;
zPlaned[2]= 1.*m;
G4double* rInnerd = new G4double[3];
rInnerd[0]=0.2;
rInnerd[1]=0.4*m;
rInnerd[2]=0.5*m;
G4double* rOuterd = new G4double[3];
rOuterd[0]=0.5*m;
rOuterd[1]=0.8*m;
rOuterd[2]=2.*m;
G4Polycone* divSolid = new G4Polycone("divSolid", 0.*deg, 10.*deg,
3, zPlaned, rInnerd, rOuterd);
G4LogicalVolume* childLog = new G4LogicalVolume(divSolid, material, "child",0,0,0);
G4PVDivision divPconePhiW("division along phi giving width and offset",
childLog, motherLog, kPhi, 30.*deg, 60.*deg);
G4PVDivision divPconeZN("division along Z giving nDiv and offset",
childLog, motherLog, kZAxis, 2, 0.1*m);
•divPconePhiW is a division of a polycone along its phi axis in equal copies of width 30 degrees with an
offset of 60 degrees. As the mother extends from 0 to 180 degrees, there's space for 4 copies. All the copies
have a starting angle of 20 degrees (as for the mother) and a phi extension of 30 degrees. They are rotated
around the Z axis by 60 and 30 degrees, so that the first copy will extend from 80 to 110 and the last from
170 to 200 degrees.
•divPconeZN is a division of the same polycone along its Z axis. As the mother polycone has two sections, it
will be divided in two one-section polycones, the first one extending from -1 to -0.25 meters, the second from
-0.25 to 1 meters. Although specified, the offset will not be used.
Note
Divisions for polycone and polyhedra are NOT possible in a multi-threaded application.
4.1.5. Touchables: Uniquely Identifying a Volume
4.1.5.1. Introduction to Touchables
A touchable for a volume serves the purpose of providing a unique identification for a detector element. This can
be useful for description of the geometry alternative to the one used by the Geant4 tracking system, such as a
Sensitive Detectors based read-out geometry, or a parameterised geometry for fast Monte Carlo. In order to create
![](asset-83.png)
Detector Definition and Response
122
a touchable volume, several techniques can be implemented: for example, in Geant4 touchables are implemented
as solids associated to a transformation-matrix in the global reference system, or as a hierarchy of physical volumes
up to the root of the geometrical tree.
A touchable is a geometrical entity (volume or solid) which has a unique placement in a detector description. It is
represented by an abstract base class which can be implemented in a variety of ways. Each way must provide the
capabilities of obtaining the transformation and solid that is described by the touchable.
4.1.5.2. What can a Touchable do?
All G4VTouchable implementations must respond to the two following "requests", where in all cases, by depth
it is meant the number of levels up in the tree to be considered (the default and current one is 0):
1. GetTranslation(depth)
2. GetRotation(depth)
that return the components of the volume's transformation.
Additional capabilities are available from implementations with more information. These have a default imple-
mentation that causes an exception.
Several capabilities are available from touchables with physical volumes:
3. GetSolid(depth) gives the solid associated to the touchable.
4. GetVolume(depth) gives the physical volume.
5. GetReplicaNumber(depth) or GetCopyNumber(depth) which return the copy number of the
physical volume (replicated or not).
Touchables that store volume hierarchy (history) have the whole stack of parent volumes available. Thus it is
possible to add a little more state in order to extend its functionality. We add a "pointer" to a level and a member
function to move the level in this stack. Then calling the above member functions for another level the information
for that level can be retrieved.
The top of the history tree is, by convention, the world volume.
6. GetHistoryDepth() gives the depth of the history tree.
7. MoveUpHistory(num) moves the current pointer inside the touchable to point num levels up the history
tree. Thus, e.g., calling it with num=1 will cause the internal pointer to move to the mother of the current
volume.
WARNING: this function changes the state of the touchable and can cause errors in tracking if applied to
Pre/Post step touchables.
These methods are valid only for the touchable-history type, as specified also below.
An update method, with different arguments is available, so that the information in a touchable can be updated:
8. UpdateYourself(vol, history) takes a physical volume pointer and can additionally take a Nav-
igationHistory pointer.
4.1.5.3. Touchable history holds stack of geometry data
As shown in Sections Section 4.1.3 and Section 4.1.4, a logical volume represents unpositioned detector ele-
ments, and a physical volume can represent multiple detector elements. On the other hand, touchables provide
a unique identification for a detector element. In particular, the Geant4 transportation process and the tracking
system exploit touchables as implemented in G4TouchableHistory. The touchable history is the minimal
set of information required to specify the full genealogy of a given physical volume (up to the root of the geo-
![](asset-84.png)
Detector Definition and Response
123
metrical tree). These touchable volumes are made available to the user at every step of the Geant4 tracking in
G4VUserSteppingAction.
To create/access a G4TouchableHistory the user must message G4Navigator which provides the method
CreateTouchableHistoryHandle():
G4TouchableHistoryHandle CreateTouchableHistoryHandle() const;
this will return a handle to the touchable.
The methods that differentiate the touchable-history from other touchables (since they have meaning only for this
type...), are:
G4int GetHistoryDepth() const;
G4int MoveUpHistory( G4int num_levels = 1 );
The first method is used to find out how many levels deep in the geometry tree the current volume is. The second
method asks the touchable to eliminate its deepest level.
As mentioned above, MoveUpHistory(num) significantly modifies the state of a touchable.
4.1.6. Creating an Assembly of Volumes
G4AssemblyVolume is a helper class which allows several logical volumes to be combined together in an
arbitrary way in 3D space. The result is a placement of a normal logical volume, but where final physical volumes
are many.
However, an assembly volume does not act as a real mother volume, being an envelope for its daughter volumes.
Its role is over at the time the placement of the logical assembly volume is done. The physical volume objects
become independent copies of each of the assembled logical volumes.
This class is particularly useful when there is a need to create a regular pattern in space of a complex component
which consists of different shapes and can't be obtained by using replicated volumes or parametrised volumes
(see also Figure 4.2 reful usage of G4AssemblyVolume must be considered though, in order to avoid cases of
"proliferation" of physical volumes all placed in the same mother.
Figure 4.2. Examples of assembly of volumes.
4.1.6.1. Filling an assembly volume with its "daughters"
Participating logical volumes are represented as a triplet of <logical volume, translation, rotation>
(G4AssemblyTriplet class).
The adopted approach is to place each participating logical volume with respect to the assembly's coordinate
system, according to the specified translation and rotation.
4.1.6.2. Assembly volume placement
An assembly volume object is composed of a set of logical volumes; imprints of it can be made inside a mother
logical volume.
![](asset-85.png)
Detector Definition and Response
124
Since the assembly volume class generates physical volumes during each imprint, the user has no way to specify
identifiers for these. An internal counting mechanism is used to compose uniquely the names of the physical
volumes created by the invoked MakeImprint(...) method(s).
The name for each of the physical volume is generated with the following format:
av_WWW_impr_XXX_YYY_ZZZ
where:
•WWW - assembly volume instance number
•XXX - assembly volume imprint number
•YYY - the name of the placed logical volume
•ZZZ - the logical volume index inside the assembly volume
It is however possible to access the constituent physical volumes of an assembly and eventually customise ID
and copy-number.
4.1.6.3. Destruction of an assembly volume
At destruction all the generated physical volumes and associated rotation matrices of the imprints will be destroyed.
A list of physical volumes created by MakeImprint() method is kept, in order to be able to cleanup the objects
when not needed anymore. This requires the user to keep the assembly objects in memory during the whole job
or during the life-time of the G4Navigator, logical volume store and physical volume store may keep pointers
to physical volumes generated by the assembly volume.
The MakeImprint() method will operate correctly also on transformations including reflections and can be
applied also to recursive assemblies (i.e., it is possible to generate imprints of assemblies including other assem-
blies). Giving true as the last argument of the MakeImprint() method, it is possible to activate the volumes
overlap check for the assembly's constituents (the default is false).
At destruction of a G4AssemblyVolume, all its generated physical volumes and rotation matrices will be freed.
4.1.6.4. Example
This example shows how to use the G4AssemblyVolume class. It implements a layered detector where each
layer consists of 4 plates.
In the code below, at first the world volume is defined, then solid and logical volume for the plate are created,
followed by the definition of the assembly volume for the layer.
The assembly volume for the layer is then filled by the plates in the same way as normal physical volumes are
placed inside a mother volume.
Finally the layers are placed inside the world volume as the imprints of the assembly volume (see Example 4.7).
Example 4.7. An example of usage of the G4AssemblyVolume class.
static unsigned int layers = 5;
void TstVADetectorConstruction::ConstructAssembly()
{
// Define world volume
G4Box* WorldBox = new G4Box( "WBox", worldX/2., worldY/2., worldZ/2. );
G4LogicalVolume* worldLV = new G4LogicalVolume( WorldBox, selectedMaterial, "WLog", 0, 0, 0);
G4VPhysicalVolume* worldVol = new G4PVPlacement(0, G4ThreeVector(), "WPhys",worldLV,
0, false, 0);
// Define a plate
G4Box* PlateBox = new G4Box( "PlateBox", plateX/2., plateY/2., plateZ/2. );
G4LogicalVolume* plateLV = new G4LogicalVolume( PlateBox, Pb, "PlateLV", 0, 0, 0 );
![](asset-86.png)
Detector Definition and Response
125
// Define one layer as one assembly volume
G4AssemblyVolume* assemblyDetector = new G4AssemblyVolume();
// Rotation and translation of a plate inside the assembly
G4RotationMatrix Ra;
G4ThreeVector Ta;
G4Transform3D Tr;
// Rotation of the assembly inside the world
G4RotationMatrix Rm;
// Fill the assembly by the plates
Ta.setX( caloX/4. ); Ta.setY( caloY/4. ); Ta.setZ( 0. );
Tr = G4Transform3D(Ra,Ta);
assemblyDetector->AddPlacedVolume( plateLV, Tr );
Ta.setX( -1*caloX/4. ); Ta.setY( caloY/4. ); Ta.setZ( 0. );
Tr = G4Transform3D(Ra,Ta);
assemblyDetector->AddPlacedVolume( plateLV, Tr );
Ta.setX( -1*caloX/4. ); Ta.setY( -1*caloY/4. ); Ta.setZ( 0. );
Tr = G4Transform3D(Ra,Ta);
assemblyDetector->AddPlacedVolume( plateLV, Tr );
Ta.setX( caloX/4. ); Ta.setY( -1*caloY/4. ); Ta.setZ( 0. );
Tr = G4Transform3D(Ra,Ta);
assemblyDetector->AddPlacedVolume( plateLV, Tr );
// Now instantiate the layers
for( unsigned int i = 0; i < layers; i++ )
{
// Translation of the assembly inside the world
G4ThreeVector Tm( 0,0,i*(caloZ + caloCaloOffset) - firstCaloPos );
Tr = G4Transform3D(Rm,Tm);
assemblyDetector->MakeImprint( worldLV, Tr );
}
}
The resulting detector will look as in Figure 4.3, below:
Figure 4.3. The geometry corresponding to Example 4.7.
4.1.7. Reflecting Hierarchies of Volumes
Hierarchies of volumes based on CSG or specific solids can be reflected by means of the
G4ReflectionFactory class and G4ReflectedSolid, which implements a solid that has been shifted
from its original reference frame to a new 'reflected' one. The reflection transformation is applied as a decompo-
sition into rotation and translation transformations.
The factory is a singleton object which provides the following methods:
G4PhysicalVolumesPair Place(const G4Transform3D& transform3D,
const G4String& name,
![](asset-87.png)
Detector Definition and Response
126
G4LogicalVolume* LV,
G4LogicalVolume* motherLV,
G4bool isMany,
G4int copyNo,
G4bool surfCheck=false)
G4PhysicalVolumesPair Replicate(const G4String& name,
G4LogicalVolume* LV,
G4LogicalVolume* motherLV,
EAxis axis,
G4int nofReplicas,
G4double width,
G4double offset=0)
G4PhysicalVolumesPair Divide(const G4String& name,
G4LogicalVolume* LV,
G4LogicalVolume* motherLV,
EAxis axis,
G4int nofDivisions,
G4double width,
G4double offset);
The method Place() used for placements, evaluates the passed transformation. In case the transformation con-
tains a reflection, the factory will act as follows:
1. Performs the transformation decomposition.
2. Creates a new reflected solid and logical volume, or retrieves them from a map if the reflected object was
already created.
3. Transforms the daughters (if any) and place them in the given mother.
If successful, the result is a pair of physical volumes, where the second physical volume is a placement in a
reflected mother. Optionally, it is also possible to force the overlaps check at the time of placement, by activating
the surfCheck flag.
The method Replicate() creates replicas in the given mother. If successful, the result is a pair of physical
volumes, where the second physical volume is a replica in a reflected mother.
The method Divide() creates divisions in the given mother. If successful, the result is a pair of physical volumes,
where the second physical volume is a division in a reflected mother. There exists also two more variants of this
method which may specify or not width or number of divisions.
Notes
• In order to reflect hierarchies containing divided volumes, it is necessary to explicite-
ly instantiate a concrete division factory -before- applying the actual reflection: (i.e. -
G4PVDivisionFactory::GetInstance();).
• Reflection of generic parameterised volumes is not possible yet.
Example 4.8. An example of usage of the G4ReflectionFactory class.
#include "G4ReflectionFactory.hh"
// Calor placement with rotation
G4double calThickness = 100*cm;
G4double Xpos = calThickness*1.5;
G4RotationMatrix* rotD3 = new G4RotationMatrix();
rotD3->rotateY(10.*deg);
G4VPhysicalVolume* physiCalor =
new G4PVPlacement(rotD3, // rotation
G4ThreeVector(Xpos,0.,0.), // at (Xpos,0,0)
logicCalor, // its logical volume (defined elsewhere)
"Calorimeter", // its name
logicHall, // its mother volume (defined elsewhere)
false, // no boolean operation
0); // copy number
![](asset-88.png)
Detector Definition and Response
127
// Calor reflection with rotation
//
G4Translate3D translation(-Xpos, 0., 0.);
G4Transform3D rotation = G4Rotate3D(*rotD3);
G4ReflectX3D reflection;
G4Transform3D transform = translation*rotation*reflection;
G4ReflectionFactory::Instance()
->Place(transform, // the transformation with reflection
"Calorimeter", // the actual name
logicCalor, // the logical volume
logicHall, // the mother volume
false, // no boolean operation
1, // copy number
false); // no overlap check triggered
// Replicate layers
//
G4ReflectionFactory::Instance()
->Replicate("Layer", // layer name
logicLayer, // layer logical volume (defined elsewhere)
logicCalor, // its mother
kXAxis, // axis of replication
5, // number of replica
20*cm); // width of replica
4.1.8. The Geometry Navigator
Navigation through the geometry at tracking time is implemented by the class G4Navigator. The navigator
is used to locate points in the geometry and compute distances to geometry boundaries. At tracking time, the
navigator is intended to be the only point of interaction with tracking.
Internally, the G4Navigator has several private helper/utility classes:
•G4NavigationHistory - stores the compounded transformations, replication/parameterisation information, and
volume pointers at each level of the hierarchy to the current location. The volume types at each level are also
stored - whether normal (placement), replicated or parameterised.
•G4NormalNavigation - provides location & distance computation functions for geometries containing 'place-
ment' volumes, with no voxels.
•G4VoxelNavigation - provides location and distance computation functions for geometries containing 'place-
ment' physical volumes with voxels. Internally a stack of voxel information is maintained. Private functions
allow for isotropic distance computation to voxel boundaries and for computation of the 'next voxel' in a spec-
ified direction.
•G4ParameterisedNavigation - provides location and distance computation functions for geometries containing
parameterised volumes with voxels. Voxel information is maintained similarly to G4VoxelNavigation, but
computation can also be simpler by adopting voxels to be one level deep only (unrefined, or 1D optimisation)
•G4ReplicaNavigation - provides location and distance computation functions for replicated volumes.
In addition, the navigator maintains a set of flags for exiting/entry optimisation. A navigator is not a singleton
class; this is mainly to allow a design extension in future (e.g geometrical event biasing).
4.1.8.1. Navigation and Tracking
The main functions required for tracking in the geometry are described below. Additional functions are provided
to return the net transformation of volumes and for the creation of touchables. None of the functions implicitly
requires that the geometry be described hierarchically.
•SetWorldVolume()
Sets the first volume in the hierarchy. It must be unrotated and untranslated from the origin.
•LocateGlobalPointAndSetup()
Locates the volume containing the specified global point. This involves a traverse of the hierarchy, requiring the
computation of compound transformations, testing replicated and parameterised volumes (etc). To improve ef-
ficiency this search may be performed relative to the last, and this is the recommended way of calling the func-
![](asset-89.png)
Detector Definition and Response
128
tion. A 'relative' search may be used for the first call of the function which will result in the search defaulting to a
search from the root node of the hierarchy. Searches may also be performed using a G4TouchableHistory.
•LocateGlobalPointAndUpdateTouchableHandle()
First, search the geometrical hierarchy like the above method LocateGlobalPointAndSetup(). Then
use the volume found and its navigation history to update the touchable.
•ComputeStep()
Computes the distance to the next boundary intersected along the specified unit direction from a specified point.
The point must be have been located prior to calling ComputeStep().
When calling ComputeStep(), a proposed physics step is passed. If it can be determined that the first inter-
section lies at or beyond that distance then kInfinity is returned. In any case, if the returned step is greater
than the physics step, the physics step must be taken.
•SetGeometricallyLimitedStep()
Informs the navigator that the last computed step was taken in its entirety. This enables entering/exiting opti-
misation, and should be called prior to calling LocateGlobalPointAndSetup().
•CreateTouchableHistory()
Creates a G4TouchableHistory object, for which the caller has deletion responsibility. The 'touchable'
volume is the volume returned by the last Locate operation. The object includes a copy of the current Naviga-
tionHistory, enabling the efficient relocation of points in/close to the current volume in the hierarchy.
As stated previously, the navigator makes use of utility classes to perform location and step computation functions.
The different navigation utilities manipulate the G4NavigationHistory object.
In LocateGlobalPointAndSetup() the process of locating a point breaks down into three main stages -
optimisation, determination that the point is contained with a subtree (mother and daughters), and determination of
the actual containing daughter. The latter two can be thought of as scanning first 'up' the hierarchy until a volume
that is guaranteed to contain the point is found, and then scanning 'down' until the actual volume that contains
the point is found.
In ComputeStep() three types of computation are treated depending on the current containing volume:
• The volume contains normal (placement) daughters (or none)
• The volume contains a single parameterised volume object, representing many volumes
• The volume is a replica and contains normal (placement) daughters
4.1.8.2. Using the navigator to locate points
More than one navigator object can be created inside an application; these navigators can act independently for
different purposes. The main navigator which is activated automatically at the startup of a simulation program is
the navigator used for the tracking and attached the world volume of the main tracking (or mass) geometry.
The navigator for tracking can be retrieved at any state of the application by messagging the
G4TransportationManager:
G4Navigator* tracking_navigator =
G4TransportationManager::GetInstance()->GetNavigatorForTracking();
This also allows to retrieve at any time a pointer to the world volume assigned for tracking:
G4VPhysicalVolume* tracking_world = tracking_navigator->GetWorldVolume();
The navigator for tracking also retains all the information of the current history of volumes transversed at a precise
moment of the tracking during a run. Therefore, if the navigator for tracking is used during tracking for locating a
generic point in the tree of volumes, the actual particle gets also -relocated- in the specified position and tracking
will be of course affected !
![](asset-8a.png)
Detector Definition and Response
129
In order to avoid the problem above and provide information about location of a point without affecting the track-
ing, it is suggested to either use an alternative G4Navigator object (which can then be assigned to the world-
volume), or access the information through the step.
If the user instantiates an alternative G4Navigator, ownership is retained by the user's code, and the navigator
object should be deleted by that code.
Using the 'step' to retrieve geometrical information
During the tracking run, geometrical information can be retrieved through the touchable handle associated to the
current step. For example, to identify the exact copy-number of a specific physical volume in the mass geometry,
one should do the following:
// Given the pointer to the step object ...
//
G4Step* aStep = ..;
// ... retrieve the 'pre-step' point
//
G4StepPoint* preStepPoint = aStep->GetPreStepPoint();
// ... retrieve a touchable handle and access to the information
//
G4TouchableHandle theTouchable = preStepPoint->GetTouchableHandle();
G4int copyNo = theTouchable->GetCopyNumber();
G4int motherCopyNo = theTouchable->GetCopyNumber(1);
To determine the exact position in global coordinates in the mass geometry and convert to local coordinates (local
to the current volume):
G4ThreeVector worldPosition = preStepPoint->GetPosition();
G4ThreeVector localPosition = theTouchable->GetHistory()->
GetTopTransform().TransformPoint(worldPosition);
Using an alternative navigator to locate points
In order to know (when in the idle state of the application) in which physical volume a given point is located
in the detector geometry, it is necessary to create an alternative navigator object first and assign it to the world
volume:
G4Navigator* aNavigator = new G4Navigator();
aNavigator->SetWorldVolume(worldVolumePointer);
Then, locate the point myPoint (defined in global coordinates), retrieve a touchable handle and do whatever
you need with it:
aNavigator->LocateGlobalPointAndSetup(myPoint);
G4TouchableHistoryHandle aTouchable =
aNavigator->CreateTouchableHistoryHandle();
// Do whatever you need with it ...
// ... convert point in local coordinates (local to the current volume)
//
G4ThreeVector localPosition = aTouchable->GetHistory()->
GetTopTransform().TransformPoint(myPoint);
// ... convert back to global coordinates system
G4ThreeVector globalPosition = aTouchable->GetHistory()->
GetTopTransform().Inverse().TransformPoint(localPosition);
If outside of the tracking run and given a generic local position (local to a given volume in the geometry tree),
it is -not- possible to determine a priori its global position and convert it to the global coordinates system. The
reason for this is rather simple, nobody can guarantee that the given (local) point is located in the right -copy- of
the physical volume ! In order to retrieve this information, some extra knowledge related to the absolute position
![](asset-8b.png)
Detector Definition and Response
130
of the physical volume is required first, i.e. one should first determine a global point belonging to that volume,
eventually making a dedicated scan of the geometry tree through a dedicated G4Navigator object and then
apply the method above after having created the touchable for it.
4.1.8.3. Navigation in parallel geometries
Since release 8.2 of Geant4, it is possible to define geometry trees which are parallel to the tracking geometry
and having them assigned to navigator objects that transparently communicate in sync with the normal tracking
geometry.
Parallel geometries can be defined for several uses (fast shower parameterisation, geometrical biasing, particle
scoring, readout geometries, etc ...) and can overlap with the mass geometry defined for the tracking. The par-
allel transportation will be activated only after the registration of the parallel geometry in the detector descrip-
tion setup; see Section Section 4.7 for how to define a parallel geometry and register it to the run-manager.
The G4TransportationManager provides all the utilities to verify, retrieve and activate the navigators as-
sociated to the various parallel geometries defined.
4.1.8.4. Fast navigation in regular patterned geometries and phan-
toms
Since release 9.1 of Geant4, a specialised navigation algorithm has been introduced to allow for optimal memory
use and extremely efficient navigation in geometries represented by a regular pattern of volumes and particularly
three-dimensional grids of boxes. A typical application of this kind is the case of DICOM phantoms for medical
physics studies.
The class G4RegularNavigation is used and automatically activated when such geometries are defined. It is
required to the user to implement a parameterisation of the kind G4PhantomParameterisation and place
the parameterised volume containing it in a container volume, so that all cells in the three-dimensional grid (voxels)
completely fill the container volume. This way the location of a point inside a voxel can be done in a fast way,
transforming the position to the coordinate system of the container volume and doing a simple calculation of the
kind:
copyNo_x = (localPoint.x()+fVoxelHalfX*fNoVoxelX)/(fVoxelHalfX*2.)
where fVoxelHalfX is the half dimension of the voxel along X and fNoVoxelX is the number of vox-
els in the X dimension. Voxel 0 will be the one closest to the corner (fVoxelHalfX*fNoVoxelX,
fVoxelHalfY*fNoVoxelY, fVoxelHalfZ*fNoVoxelZ).
Having the voxels filling completely the container volume allows to avoid the lengthy computation of Com-
puteStep() and ComputeSafety methods required in the traditional navigation algorithm. In this case, when
a track is inside the parent volume, it has always to be inside one of the voxels and it will be only necessary to
calculate the distance to the walls of the current voxel.
Skipping borders of voxels with same material
Another speed optimisation can be provided by skipping the frontiers of two voxels which the same material
assigned, so that bigger steps can be done. This optimisation may be not very useful when the number of materials
is very big (in which case the probability of having contiguous voxels with same material is reduced), or when the
physical step is small compared to the voxel dimensions (very often the case of electrons). The optimisation can
be switched off in such cases, by invoking the following method with argument skip = 0:
Phantoms with only one material
If you want to describe a phantom of a unique material, you may spare some memory by not filling the set of
indices of materials of each voxel. If the method SetMaterialIndices() is not invoked, the index for all
voxels will be 0, that is the first (and unique) material in your list.
![](asset-8c.png)
Detector Definition and Response
131
G4RegularParameterisation::SetSkipEqualMaterials( G4bool skip );
Example
To use the specialised navigation, it is required to first create an object of type
G4PhantomParameterisation:
G4PhantomParameterisation* param = new G4PhantomParameterisation();
Then, fill it with the all the necessary data:
// Voxel dimensions in the three dimensions
//
G4double halfX = ...;
G4double halfY = ...;
G4double halfZ = ...;
param->SetVoxelDimensions( halfX, halfY, halfZ );
// Number of voxels in the three dimensions
//
G4int nVoxelX = ...;
G4int nVoxelY = ...;
G4int nVoxelZ = ...;
param->SetNoVoxel( nVoxelX, nVoxelY, nVoxelZ );
// Vector of materials of the voxels
//
std::vector < G4Material* > theMaterials;
theMaterials.push_back( new G4Material( ...
theMaterials.push_back( new G4Material( ...
param->SetMaterials( theMaterials );
// List of material indices
// For each voxel it is a number that correspond to the index of its
// material in the vector of materials defined above;
//
size_t* mateIDs = new size_t[nVoxelX*nVoxelY*nVoxelZ];
mateIDs[0] = n0;
mateIDs[1] = n1;
...
param->SetMaterialIndices( mateIDs );
Then, define the volume that contains all the voxels:
G4Box* cont_solid = new G4Box("PhantomContainer",nVoxelX*halfX.,nVoxelY*halfY.,nVoxelZ*halfZ);
G4LogicalVolume* cont_logic =
new G4LogicalVolume( cont_solid,
matePatient, // material is not relevant here...
"PhantomContainer",
0, 0, 0 );
G4VPhysicalVolume * cont_phys =
new G4PVPlacement(rotm, // rotation
pos, // translation
cont_logic, // logical volume
"PhantomContainer", // name
world_logic, // mother volume
false, // No op. bool.
1); // Copy number
The physical volume should be assigned as the container volume of the parameterisation:
param->BuildContainerSolid(cont_phys);
// Assure that the voxels are completely filling the container volume
//
param->CheckVoxelsFillContainer( cont_solid->GetXHalfLength(),
cont_solid->GetyHalfLength(),
cont_solid->GetzHalfLength() );
![](asset-8d.png)
Detector Definition and Response
132
// The parameterised volume which uses this parameterisation is placed
// in the container logical volume
//
G4PVParameterised * patient_phys =
new G4PVParameterised("Patient", // name
patient_logic, // logical volume
cont_logic, // mother volume
kXAxis, // optimisation hint
nVoxelX*nVoxelY*nVoxelZ, // number of voxels
param); // parameterisation
// Indicate that this physical volume is having a regular structure
//
patient_phys->SetRegularStructureId(1);
An example showing the application of the optimised navigation algorithm for phantoms geometries is avail-
able in examples/extended/medical/DICOM. It implements a real application for reading DICOM im-
ages and convert them to Geant4 geometries with defined materials and densities, allowing for different imple-
mentation solutions to be chosen (non-optimised, classical 3D optimisation, nested parameterisations and use of
G4PhantomParameterisation).
4.1.8.5. Run-time commands
When running in verbose mode (i.e. the default, G4VERBOSE set while installing the Geant4 kernel libraries),
the navigator provides a few commands to control its behavior. It is possible to select different verbosity levels
(up to 5), with the command:
geometry/navigator/verbose [verbose_level]
or to force the navigator to run in check mode:
geometry/navigator/check_mode [true/false]
The latter will force more strict and less tolerant checks in step/safety computation to verify the correctness of
the solids' response in the geometry.
By combining check_mode with verbosity level-1, additional verbosity checks on the response from the solids
can be activated.
4.1.8.6. Setting Geometry Tolerance to be relative
The tolerance value defining the accuracy of tracking on the surfaces is by default set to a reasonably small value of
10E-9 mm. Such accuracy may be however redundant for use on simulation of detectors of big size or macroscopic
dimensions. Since release 9.0, it is possible to specify the surface tolerance to be relative to the extent of the world
volume defined for containing the geometry setup.
The class G4GeometryManager can be used to activate the computation of the surface tolerance to be relative
to the geometry setup which has been defined. It can be done this way:
G4GeometryManager::GetInstance()->SetWorldMaximumExtent(WorldExtent);
where, WorldExtent is the actual maximum extent of the world volume used for placing the whole geometry
setup.
Such call to G4GeometryManager must be done before defining any geometrical component of the setup (solid
shape or volume), and can be done only once !
The class G4GeometryTolerance is to be used for retrieving the actual values defined for tolerances, surface
(Cartesian), angular or radial respectively:
G4GeometryTolerance::GetInstance()->GetSurfaceTolerance();
G4GeometryTolerance::GetInstance()->GetAngularTolerance();
![](asset-8e.png)
Detector Definition and Response
133
G4GeometryTolerance::GetInstance()->GetRadialTolerance();
4.1.9. A Simple Geometry Editor
GGE is the acronym for Geant4 Graphical Geometry Editor. GGE aims to assist physicists who have a little
knowledge on C++ and the Geant4 toolkit to construct his or her own detector geometry. In essence, GGE is made
up of a set of tables which can contain all relevant parameters to construct a simple detector geometry. Tables
for scratch or compound materials, tables for logical and physical volumes are provided. From the values in the
tables, C++ source codes are automatically generated.
GGE provides methods to:
1. construct a detector geometry including G4Element, G4Material, G4Solids, G4LogicalVolume,
G4PVPlacement, etc.
2. view the detector geometry using existing visualization system, DAWN
3. keep the detector object in a persistent way, either in GDML format (currently only logical volumes are
supported) or Java serialized format.
4. produce corresponding C++ codes after the norm of Geant4 toolkit
5. make a Geant4 executable, in collaboration with another component of MOMO, i.e., GPE, or Geant4 Physics
Editor.
GGE can be found in the standard Geant4 source package under the directory environments/MO-
MO/MOMO.jar. JRE (Java Run-time Environment) is prerequisite to run MOMO.jar, Java archive file of MO-
MO. MOMO contains GGE, GPE, GAG and other helper tools. Further information is available from the Web
pages below.
MOMO = GGE + GPE + GAG: http://www-geant4.kek.jp/~yoshidah
4.1.9.1. Materials: elements and mixtures
GGE provides the database of elements in the form of the periodic table, from which users can select element(s) to
construct new materials. They can be loaded, used, edited and saved as Java persistent objects or in a GDML file. In
enviroments/MOMO, a pre-constructed database of materials taken from the PDG book, PDG.xml is present.
Users can also create new materials either from scratch or by combining other materials.
• By selecting an element in the periodic table, default values as shown below are copied to a row in the table.
Use Name A Z Density Unit State Temper-
ature Unit Pressure Unit
Use marks the used materials. Only the elements and materials used in the logical volumes are kept in the
detector object and are used to generate C++ constructors.
• By selecting multiple elements in the periodic table, a material from a combination of elements is assigned to
a row of the compound material table. The minimum actions user have to do is to give a name to the material
and define its density.
Use Name Elements Density Unit State Tempera-
ture Unit Pressure Unit
By clicking the column Elements, a new window is open to select one of two methods:
• Add an element, giving its fraction by weight
• Add an element, giving its number of atoms.
4.1.9.2. Solids
The most popular CSG solids (G4Box, G4Tubs, G4Cons, G4Trd) and specific solids (Pcons, Pgons) are sup-
ported. All relevant parameters of such a solid can be specified in the parameter table, which pops up upon se-
lection.
![](asset-8f.png)
Detector Definition and Response
134
Color, or the visualization attribute of a logical volume can be created, using color chooser panel. Users can view
each solid using DAWN.
4.1.9.3. Logical Volume
GGE can specify the following items:
Name Solid Material VisAttribute
The lists of solid types, names of the materials defined in the material tables, and names of user-defined visual-
ization attributes are shown automatically in respective table cell for user's choices.
The construction and assignment of appropriate entities for G4FieldManager and
G4VSensitiveDetector are left to the user.
4.1.9.4. Physical Volume
Geant4 enables users to create a physical volume in different ways; the mother volume can be either a logical or
a physical one, spatial rotation can be either with respect to the volume or to the frame to which the volume is
attached. GGE is prepared for such four combinatorial cases to construct a physical volume.
Five simple cases of creating physical volumes are supported by GGE. Primo, a single copy of a physical volume
can be created by a translation and rotation. Secondo, repeated copies can be created by repeated linear translations.
A logical volume is translated in a Cartesian direction, starting from the initial position, with a given step size.
Mother volume can be either another logical volume or a physical volume.
Name Logi-
calVolume Type and
name of
Mother-
Volume
Many X0, Y0, Z0 Direction StepSize Unit CopyNum-
ber
Third, repeated copies are created by rotation around an axis, placing an object repeatedly on a ``cylindrical''
pattern. Fourth, replicas are created by slicing a volume along a Cartesian direction. Fifth, replicas are created by
cutting a volume cylindrically.
4.1.9.5. Generation of C++ code:
User has to type in a class name to his geometry, for example, MyDetectorConstruction. Then, with a
mouse button click, source codes in the form of an include file and a source file are created and shown in the editor
panel. In this example, they are MyDetectorConstruction.cc and MyDetectorConstruction.hh
files. They reflect all current user modifications in the tables in real-time.
4.1.9.6. Visualization
The whole geometry can be visualized after the compilation of the source code
MyDetectorConstruction.cc with appropriate parts of Geant4. (In particular only the geometry and vi-
sualization, together with the small other parts they depend on, are needed.) MOMO provides Physics Editor to
create standard electromagnetic physics and a minimum main program. See the on-line document in MOMO.
4.1.10. Converting Geometries from Geant3.21
4.1.10.1. Approach
G3toG4 is the Geant4 facility to convert GEANT 3.21 geometries into Geant4. This is done in two stages:
1. The user supplies a GEANT 3.21 RZ-file (.rz) containing the initialization data structures. An executable
rztog4 reads this file and produces an ASCII call list file containing instructions on how to build the
geometry. The source code of rztog4 is FORTRAN.
![](asset-90.png)
Detector Definition and Response
135
2. A call list interpreter (G4BuildGeom.cc) reads these instructions and builds the geometry in the user's
client code for Geant4.
4.1.10.2. Importing converted geometries into Geant4
Two examples of how to use the call list interpreter are supplied in the directory examples/extend-
ed/g3tog4:
1. cltog4 is a simple example which simply invokes the call list interpreter method G4BuildGeom from the
G3toG4DetectorConstruction class, builds the geometry and exits.
2. clGeometry, is more complete and is patterned as for the basic Geant4 examples. It also invokes the call
list interpreter, but in addition, allows the geometry to be visualized and particles to be tracked.
To compile and build the G3toG4 libraries, you need to have set in your environment the variable
G4LIB_BUILD_G3TOG4 at the time of installation. The G3toG4 libraries are not built by default. Then, simply
type
gmake
from the top-level source/g3tog4 directory.
To build the converter executable rztog4, simply type
gmake bin
To make everything, simply type:
gmake global
To remove all G3toG4 libraries, executables and .d files, simply type
gmake clean
4.1.10.3. Current Status
The package has been tested with the geometries from experiments like: BaBar, CMS, Atlas, Alice, Zeus, L3,
and Opal.
Here is a comprehensive list of features supported and not supported or implemented in the current version of
the package:
• Supported shapes: all GEANT 3.21 shapes except for GTRA, CTUB.
•PGON, PCON are built using the specific solids G4Polycone and G4Polyhedra.
• GEANT 3.21 MANY feature is only partially supported. MANY positions are resolved in the G3toG4MANY()
function, which has to be processed before G3toG4BuildTree() (it is not called by default). In order
to resolve MANY, the user code has to provide additional info using G4gsbool(G4String volName,
G4String manyVolName) function for all the overlapping volumes. Daughters of overlapping volumes
are then resolved automatically and should not be specified via Gsbool.
Limitation: a volume with a MANY position can have only this one position; if more than one position is needed
a new volume has to be defined (gsvolu()) for each position.
•GSDV* routines for dividing volumes are implemented, using G4PVReplicas, for shapes:
•BOX, TUBE, TUBS, PARA - all axes;
•CONE, CONS - axes 2, 3;
•TRD1, TRD2, TRAP - axis 3;
•PGON, PCON - axis 2;
•PARA -axis 1; axis 2,3 for a special case
•GSPOSP is implemented via individual logical volumes for each instantiation.
![](asset-91.png)
Detector Definition and Response
136
•GSROTM is implemented. Reflections of hierachies based on plain CSG solids are implemented through the
G3Division class.
• Hits are not implemented.
• Conversion of GEANT 3.21 magnetic field is currently not supported. However, the usage of magnetic field
has to be turned on.
4.1.11. Detecting Overlapping Volumes
4.1.11.1. The problem of overlapping volumes
Volumes are often positioned within other volumes with the intent that one is fully contained within the other.
If, however, a volume extends beyond the boundaries of its mother volume, it is defined as overlapping. It may
also be intended that volumes are positioned within the same mother volume such that they do not intersect one
another. When such volumes do intersect, they are also defined as overlapping.
The problem of detecting overlaps between volumes is bounded by the complexity of the solid model description.
Hence it requires the same mathematical sophistication which is needed to describe the most complex solid topol-
ogy, in general. However, a tunable accuracy can be obtained by approximating the solids via first and/or second
order surfaces and checking their intersections.
In general, the most powerful clash detection algorithms are provided by CAD systems, treating the intersection
between the solids in their topological form.
Detecting overlaps at construction
The Geant4 geometry modeler provides the ability to detect overlaps of placed volumes (normal placements or pa-
rameterised) at the time of construction. This check is optional and can be activated when instantiating a placement
(see G4PVPlacement constructor in Section 4.1.4.1) or a parameterised volume (see G4PVParameterised
constructor in Section 4.1.4.2).
The positioning of that specific volume will be checked against all volumes in the same hierarchy level and its
mother volume. Depending on the complexity of the geometry being checked, the check may require considerable
CPU time; it is therefore suggested to use it only for debugging the geometry setup and to apply it only to the part
of the geometry setup which requires debugging.
The classes G4PVPlacement and G4PVParameterised also provide a method:
G4bool CheckOverlaps(G4int res=1000, G4double tol=0., G4bool verbose=true)
which will force the check for the specified volume, and can be therefore used to verify for overlaps also once
the geometry is fully built. The check verifies if each placed or parameterised instance is overlapping with other
instances or with its mother volume. A default resolution for the number of points to be generated and verified
is provided. The method returns true if an overlap occurs. It is also possible to specify a "tolerance" by which
overlaps not exceeding such quantity will not be reported; by default, all overlaps are reported.
Detecting overlaps: built-in kernel commands
Built-in run-time commands to activate verification tests for the user-defined geometry are also provided:
geometry/test/run
--> to start verification of geometry for overlapping regions
recursively through the volumes tree.
geometry/test/recursion_start [int]
--> to set the starting depth level in the volumes tree from where
checking overlaps. Default is level '0' (i.e. the world volume).
The new settings will then be applied to any recursive test run.
geometry/test/recursion_depth [int]
--> to set the total depth in the volume tree for checking overlaps.
Default is '-1' (i.e. checking the whole tree).
Recursion will stop after having reached the specified depth (the
default being the full depth of the geometry tree).
The new settings will then be applied to any recursive test run.
geometry/test/tolerance [double] [unit]
![](asset-92.png)
Detector Definition and Response
137
--> to define tolerance by which overlaps should not be reported.
Default is '0'.
geometry/test/verbosity [bool]
--> to set verbosity mode. Default is 'true'.
geometry/test/resolution [int]
--> to establish the number of points on surface to be generated
and checked for each volume. Default is '10000'.
geometry/test/maximum_errors [int]
--> to fix the threshold for the number of errors to be reported
for a single volume. By default, for each volume, reports stop
after the first error reported.
To detect overlapping volumes, the built-in UI commands use the random generation of points on surface technique
described above. It allows to detect with high level of precision any kind of overlaps, as depicted below. For
example, consider Figure 4.4:
Figure 4.4. Different cases of placed volumes overlapping each other.
Here we have a line intersecting some physical volume (large, black rectangle). Belonging to the volume are four
daughters: A, B, C, and D. Indicated by the dots are the intersections of the line with the mother volume and the
four daughters.
This example has two geometry errors. First, volume A sticks outside its mother volume (this practice, sometimes
used in GEANT3.21, is not allowed in Geant4). This can be noticed because the intersection point (leftmost
magenta dot) lies outside the mother volume, as defined by the space between the two black dots.
The second error is that daughter volumes A and B overlap. This is noticeable because one of the intersections
with A (rightmost magenta dot) is inside the volume B, as defined as the space between the red dots. Alternatively,
one of the intersections with B (leftmost red dot) is inside the volume A, as defined as the space between the
magenta dots.
Another difficult issue is roundoff error. For example, daughters C and D lie precisely next to each other. It is
possible, due to roundoff, that one of the intersections points will lie just slightly inside the space of the other. In
addition, a volume that lies tightly up against the outside of its mother may have an intersection point that just
slightly lies outside the mother.
Finally, notice that no mention is made of the possible daughter volumes of A, B, C, and D. To keep the code
simple, only the immediate daughters of a volume are checked at one pass. To test these "granddaughter" volumes,
the daughters A, B, C, and D each have to be tested themselves in turn. To make this automatic, a recursive
algorithm is applied; it first tests the target volume, then it loops over all daughter volumes and calls itself.
NOTE: for a complex geometry, checking the entire volume hierarchy can be extremely time consuming.
Using the visualization driver: DAVID
The Geant4 visualization offers a powerful debugging tool for detecting potential intersections of physical vol-
umes. The Geant4 DAVID visualization tool can infact automatically detect the overlaps between the volumes
defined in Geant4 and converted to a graphical representation for visualization purposes. The accuracy of the
graphical representation can be tuned onto the exact geometrical description. In the debugging, physical-volume
surfaces are automatically decomposed into 3D polygons, and intersections of the generated polygons are investi-
gated. If a polygon intersects with another one, physical volumes which these polygons belong to are visualized in
color (red is the default). The Figure 4.5 below is a sample visualization of a detector geometry with intersecting
physical volumes highlighted:
![](asset-93.png)
Detector Definition and Response
138
Figure 4.5. A geometry with overlapping volumes highlighted by DAVID.
At present physical volumes made of the following solids can be debugged: G4Box, G4Cons, G4Para,
G4Sphere, G4Trd, G4Trap, G4Tubs. (Existence of other solids is harmless.)
Visual debugging of physical-volume surfaces is performed with the DAWNFILE driver defined in the visual-
ization category and with the two application packages, i.e. Fukui Renderer "DAWN" and a visual intersection
debugger "DAVID". DAWN and DAVID can be downloaded from the Web.
How to compile Geant4 with the DAWNFILE driver incorporated is described in Section 8.3.
If the DAWNFILE driver, DAWN and DAVID are all working well in your host machine, the visual intersection
debugging of physical-volume surfaces can be performed as follows:
Run your Geant4 executable, invoke the DAWNFILE driver, and execute visualization commands to visualize
your detector geometry:
Idle> /vis/open DAWNFILE
.....(setting camera etc)...
Idle> /vis/drawVolume
Idle> /vis/viewer/update
Then a file "g4.prim", which describes the detector geometry, is generated in the current directory and DAVID
is invoked to read it. (The description of the format of the file g4.prim can be found from the DAWN web site
documentation.)
If DAVID detects intersection of physical-volume surfaces, it automatically invokes DAWN to visualize the de-
tector geometry with the intersected physical volumes highlighted (See the above sample visualization).
If no intersection is detected, visualization is skipped and the following message is displayed on the console:
------------------------------------------------------
!!! Number of intersected volumes : 0 !!!
!!! Congratulations ! \(^o^)/ !!!
------------------------------------------------------
If you always want to skip visualization, set an environmental variable as follows beforehand:
% setenv DAVID_NO_VIEW 1
To control the precision associated to computation of intersections (default precision is set to 9), it is possible to
use the environmental variable for the DAWNFILE graphics driver, as follows:
% setenv G4DAWNFILE_PRECISION 10
If necessary, re-visualize the detector geometry with intersected parts highlighted. The data are saved in a file
"g4david.prim" in the current directory. This file can be re-visualized with DAWN as follows:
![](asset-94.png)
Detector Definition and Response
139
% dawn g4david.prim
It is also helpful to convert the generated file g4david.prim into a VRML-formatted file and perform interactive
visualization of it with your WWW browser. The file conversion tool prim2wrml can be downloaded from the
DAWN web site download pages.
For more details, see the document of DAVID mentioned above.
4.1.12. Dynamic Geometry Setups
Geant4 can handle geometries which vary in time (e.g. a geometry varying between two runs in the same job).
It is considered a change to the geometry setup, whenever for the same physical volume:
• the shape or dimension of its related solid is modified;
• the positioning (translation or rotation) of the volume is changed;
• the volume (or a set of volumes, tree) is removed/replaced or added.
Whenever such a change happens, the geometry setup needs to be first "opened" for the change to be applied and
afterwards "closed" for the optimisation to be reorganised.
In the general case, in order to notify the Geant4 system of the change in the geometry setup, the G4RunManager
has to be messaged once the new geometry setup has been finalised:
G4RunManager::GeometryHasBeenModified();
The above notification needs to be performed also if a material associated to a positioned volume is changed, in
order to allow for the internal materials/cuts table to be updated. However, for relatively complex geometries the
re-optimisation step may be extremely inefficient, since it has the effect that the whole geometry setup will be re-
optimised and re-initialised. In cases where only a limited portion of the geometry has changed, it may be suitable
to apply the re-optimisation only to the affected portion of the geometry (subtree).
Since release 7.1 of the Geant4 toolkit, it is possible to apply re-optimisation local to the subtree of the geometry
which has changed. The user will have to explicitly "open/close" the geometry providing a pointer to the top
physical volume concerned:
Example 4.9. Opening and closing a portion of the geometry without notifying the
G4RunManager.
#include "G4GeometryManager.hh"
// Open geometry for the physical volume to be modified ...
//
G4GeometryManager::OpenGeometry(physCalor);
// Modify dimension of the solid ...
//
physCalor->GetLogicalVolume()->GetSolid()->SetXHalfLength(12.5*cm);
// Close geometry for the portion modified ...
//
G4GeometryManager::CloseGeometry(physCalor);
If the existing geometry setup is modified locally in more than one place, it may be convenient to apply such a
technique only once, by specifying a physical volume on top of the hierarchy (subtree) containing all changed
portions of the setup.
An alternative solution for dealing with dynamic geometries is to specify NOT to apply optimisation for the subtree
affected by the change and apply the general solution of invoking the G4RunManager. In this case, a performance
penalty at run-time may be observed (depending on the complexity of the not-optimised subtree), considering that,
without optimisation, intersections to all volumes in the subtree will be explicitely computed each time.
![](asset-95.png)
Detector Definition and Response
140
NOTE: in multi-threaded runs, dynamic geometries are only allowed for runs consisting only of one event.
4.1.13. Importing XML Models Using GDML
Geometry Description Markup Language (GDML) is a markup language based on XML and suited for the de-
scription of detector geometry models. It allows for easy exchange of geometry data in a human-readable XML-
based description and structured formatting.
The GDML parser is a component of Geant4 which can be built and installed as an optional choice. It allows for
importing and exporting GDML files, following the schema specified in the GDML documentation. The installa-
tion of the plugin is optional and requires the installation of the XercesC DOM parser.
Examples of how to import and export a detector description model based on GDML, and also how to extend the
GDML schema, are provided and can be found in examples/extended/persistency/gdml.
4.1.14. Importing ASCII Text Models
Since release 9.2 of Geant4, it is also possible to import geometry setups based on a plain text description, according
to a well defined syntax for identifying the different geometrical entities (solids, volumes, materials and volume
attributes) with associated parameters. An example showing how to define a geometry in plain text format and
import it in a Geant4 application is shown in examples/extended/persistency/P03. The example also
covers the case of associating a sensitive detector to one of the volumes defined in the text geometry, the case of
mixing C++ and text geometry definitions and the case of defining new tags in the text format so that regions and
cuts by region can be defined in the text file. It also provides an example of how to write a geometry text file from
the in-memory Geant4 geometry. For the details on the format see the dedicated manual.
4.1.15. Saving geometry tree objects in binary format
The Geant4 geometry tree can be stored in the Root binary file format using the Root-I/O technique provided by
in Root. Such a binary file can then be used to quickly load the geometry into the memory or to move geometries
between different Geant4 applications.
See Chapter 4.6 for details and references.
4.2. Material
4.2.1. General considerations
In nature, materials (chemical compounds, mixtures) are made of elements, and elements are made of isotopes.
Geant4 has three main classes designed to reflect this organization. Each of these classes has a table, which is a
static data member, used to keep track of the instances of the respective classes created.
G4Isotope
This class describes the properties of atoms: atomic number, number of nucleons, mass per mole, etc.
G4Element
This class describes the properties of elements: effective atomic number, effective number of nucleons, ef-
fective mass per mole, number of isotopes, shell energy, and quantities like cross section per atom, etc.
G4Material
This class describes the macroscopic properties of matter: density, state, temperature, pressure, and macro-
scopic quantities like radiation length, mean free path, dE/dx, etc.
Only the G4Material class is visible to the rest of the toolkit and used by the tracking, the geometry and the
physics. It contains all the information relevant to its constituent elements and isotopes, while at the same time
hiding their implementation details.
![](asset-96.png)
Detector Definition and Response
141
4.2.2. Introduction to the Classes
4.2.2.1. G4Isotope
A G4Isotope object has a name, atomic number, number of nucleons, mass per mole, and an index in the table.
The constructor automatically stores "this" isotope in the isotopes table, which will assign it an index number. The
G4Isotope objects are owned by the isotopes table, and must not be deleted by user code.
4.2.2.2. G4Element
A G4Element object has a name, symbol, effective atomic number, effective number of nucleons, effective mass
of a mole, an index in the elements table, the number of isotopes, a vector of pointers to such isotopes, and a
vector of relative abundances referring to such isotopes (where relative abundance means the number of atoms
per volume). In addition, the class has methods to add, one by one, the isotopes which are to form the element.
The constructor automatically stores "this" element in the elements table, which will assign it an index number.
The G4Element objects are owned by the elements table, and must not be deleted by user code.
A G4Element object can be constructed by directly providing the effective atomic number, effective number
of nucleons, and effective mass of a mole, if the user explicitly wants to do so. Alternatively, a G4Element
object can be constructed by declaring the number of isotopes of which it will be composed. The constructor will
"new" a vector of pointers to G4Isotopes and a vector of doubles to store their relative abundances. Finally, the
method to add an isotope must be invoked for each of the desired (pre-existing) isotope objects, providing their
addresses and relative abundances. At the last isotope entry, the system will automatically compute the effective
atomic number, effective number of nucleons and effective mass of a mole, and will store "this" element in the
elements table.
A few quantities, with physical meaning or not, which are constant in a given element, are computed and stored
here as "derived data members".
Using the internal Geant4 database, a G4Element can be accessed by atomic number or by atomic symbol ("Al",
"Fe", "Pb"...). In that case G4Element will be found from the list of existing elements or will be constructed using
data from the Geant4 database, which is derived from the NIST database of elements and isotope compositions.
Thus, the natural isotope composition can be built by default. The same element can be created as using the
NIST database with the natural composition of isotopes and from scratch in user code with user defined isotope
composition.
4.2.2.3. G4Material
A G4Material object has a name, density, physical state, temperature and pressure (by default the standard
conditions), the number of elements and a vector of pointers to such elements, a vector of the fraction of mass for
each element, a vector of the atoms (or molecules) numbers of each element, and an index in the materials table.
In addition, the class has methods to add, one by one, the elements which will comprise the material.
The constructor automatically stores "this" material in the materials table, which will assign it an index number.
The G4Material objects are owned by the materials table, and must not be deleted by user code.
A G4Material object can be constructed by directly providing the resulting effective numbers, if the user ex-
plicitly wants to do so (an underlying element will be created with these numbers). Alternatively, a G4Material
object can be constructed by declaring the number of elements of which it will be composed. The constructor
will "new" a vector of pointers to G4Element and a vector of doubles to store their fraction of mass. Finally,
the method to add an element must be invoked for each of the desired (pre-existing) element objects, providing
their addresses and mass fractions. At the last element entry, the system will automatically compute the vector of
the number of atoms of each element per volume, the total number of electrons per volume, and will store "this"
material in the materials table. In the same way, a material can be constructed as a mixture of other materials
and elements.
It should be noted that if the user provides the number of atoms (or molecules) for each element comprising
the chemical compound, the system automatically computes the mass fraction. A few quantities, with physical
meaning or not, which are constant in a given material, are computed and stored here as "derived data members".
![](asset-97.png)
Detector Definition and Response
142
Some materials are included in the internal Geant4 database, which were derived from the NIST database of mate-
rial properties. Additionally a number of materials friquently used in HEP is included in the database. Materials are
interrogated or constructed by their names (Section 6). There are UI commands for the material category, which
provide an interactive access to the database. If material is created using the NIST database by it will consist by
default of elements with the natural composition of isotopes.
4.2.2.4. Final Considerations
The classes will automatically decide if the total of the mass fractions is correct, and perform the necessary checks.
The main reason why a fixed index is kept as a data member is that many cross section and energy tables will
be built in the physics processes "by rows of materials (or elements, or even isotopes)". The tracking gives the
physics process the address of a material object (the material of the current volume). If the material has an index
according to which the cross section table has been built, then direct access is available when a number in such a
table must be accessed. We get directly to the correct row, and the energy of the particle will tell us the column.
Without such an index, every access to the cross section or energy tables would imply a search to get to the correct
material's row. More details will be given in the section on processes.
Isotopes, elements and materials must be instantiated dynamically in the user application; they are automatically
registered in internal stores and the system takes care to free the memory allocated at the end of the job.
4.2.3. Recipes for Building Elements and Materials
Example 4.10 illustrates the different ways to define materials.
Example 4.10. A program which illustrates the different ways to define materials.
#include "G4Isotope.hh"
#include "G4Element.hh"
#include "G4Material.hh"
#include "G4UnitsTable.hh"
int main() {
G4String name, symbol; // a=mass of a mole;
G4double a, z, density; // z=mean number of protons;
G4int iz, n; // iz=nb of protons in an isotope;
// n=nb of nucleons in an isotope;
G4int ncomponents, natoms;
G4double abundance, fractionmass;
G4double temperature, pressure;
G4UnitDefinition::BuildUnitsTable();
// define Elements
a = 1.01*g/mole;
G4Element* elH = new G4Element(name="Hydrogen",symbol="H" , z= 1., a);
a = 12.01*g/mole;
G4Element* elC = new G4Element(name="Carbon" ,symbol="C" , z= 6., a);
a = 14.01*g/mole;
G4Element* elN = new G4Element(name="Nitrogen",symbol="N" , z= 7., a);
a = 16.00*g/mole;
G4Element* elO = new G4Element(name="Oxygen" ,symbol="O" , z= 8., a);
a = 28.09*g/mole;
G4Element* elSi = new G4Element(name="Silicon", symbol="Si", z=14., a);
a = 55.85*g/mole;
G4Element* elFe = new G4Element(name="Iron" ,symbol="Fe", z=26., a);
a = 183.84*g/mole;
G4Element* elW = new G4Element(name="Tungsten" ,symbol="W", z=74., a);
a = 207.20*g/mole;
G4Element* elPb = new G4Element(name="Lead" ,symbol="Pb", z=82., a);
// define an Element from isotopes, by relative abundance
![](asset-98.png)
Detector Definition and Response
143
G4Isotope* U5 = new G4Isotope(name="U235", iz=92, n=235, a=235.01*g/mole);
G4Isotope* U8 = new G4Isotope(name="U238", iz=92, n=238, a=238.03*g/mole);
G4Element* elU = new G4Element(name="enriched Uranium", symbol="U", ncomponents=2);
elU->AddIsotope(U5, abundance= 90.*perCent);
elU->AddIsotope(U8, abundance= 10.*perCent);
cout << *(G4Isotope::GetIsotopeTable()) << endl;
cout << *(G4Element::GetElementTable()) << endl;
// define simple materials
density = 2.700*g/cm3;
a = 26.98*g/mole;
G4Material* Al = new G4Material(name="Aluminum", z=13., a, density);
density = 1.390*g/cm3;
a = 39.95*g/mole;
vG4Material* lAr = new G4Material(name="liquidArgon", z=18., a, density);
density = 8.960*g/cm3;
a = 63.55*g/mole;
G4Material* Cu = new G4Material(name="Copper" , z=29., a, density);
// define a material from elements. case 1: chemical molecule
density = 1.000*g/cm3;
G4Material* H2O = new G4Material(name="Water", density, ncomponents=2);
H2O->AddElement(elH, natoms=2);
H2O->AddElement(elO, natoms=1);
density = 1.032*g/cm3;
G4Material* Sci = new G4Material(name="Scintillator", density, ncomponents=2);
Sci->AddElement(elC, natoms=9);
Sci->AddElement(elH, natoms=10);
density = 2.200*g/cm3;
G4Material* SiO2 = new G4Material(name="quartz", density, ncomponents=2);
SiO2->AddElement(elSi, natoms=1);
SiO2->AddElement(elO , natoms=2);
density = 8.280*g/cm3;
G4Material* PbWO4= new G4Material(name="PbWO4", density, ncomponents=3);
PbWO4->AddElement(elO , natoms=4);
PbWO4->AddElement(elW , natoms=1);
PbWO4->AddElement(elPb, natoms=1);
// define a material from elements. case 2: mixture by fractional mass
density = 1.290*mg/cm3;
G4Material* Air = new G4Material(name="Air " , density, ncomponents=2);
Air->AddElement(elN, fractionmass=0.7);
Air->AddElement(elO, fractionmass=0.3);
// define a material from elements and/or others materials (mixture of mixtures)
density = 0.200*g/cm3;
G4Material* Aerog = new G4Material(name="Aerogel", density, ncomponents=3);
Aerog->AddMaterial(SiO2, fractionmass=62.5*perCent);
Aerog->AddMaterial(H2O , fractionmass=37.4*perCent);
Aerog->AddElement (elC , fractionmass= 0.1*perCent);
// examples of gas in non STP conditions
density = 27.*mg/cm3;
pressure = 50.*atmosphere;
temperature = 325.*kelvin;
G4Material* CO2 = new G4Material(name="Carbonic gas", density, ncomponents=2,
kStateGas,temperature,pressure);
CO2->AddElement(elC, natoms=1);
CO2->AddElement(elO, natoms=2);
density = 0.3*mg/cm3;
pressure = 2.*atmosphere;
temperature = 500.*kelvin;
G4Material* steam = new G4Material(name="Water steam ", density, ncomponents=1,
kStateGas,temperature,pressure);
steam->AddMaterial(H2O, fractionmass=1.);
// What about vacuum ? Vacuum is an ordinary gas with very low density
![](asset-99.png)
Detector Definition and Response
144
density = universe_mean_density; //from PhysicalConstants.h
pressure = 1.e-19*pascal;
temperature = 0.1*kelvin;
new G4Material(name="Galactic", z=1., a=1.01*g/mole, density,
kStateGas,temperature,pressure);
density = 1.e-5*g/cm3;
pressure = 2.e-2*bar;
temperature = STP_Temperature; //from PhysicalConstants.h
G4Material* beam = new G4Material(name="Beam ", density, ncomponents=1,
kStateGas,temperature,pressure);
beam->AddMaterial(Air, fractionmass=1.);
// print the table of materials
G4cout << *(G4Material::GetMaterialTable()) << endl;
return EXIT_SUCCESS;
}
As can be seen in the later examples, a material has a state: solid (the default), liquid, or gas. The constructor
checks the density and automatically sets the state to gas below a given threshold (10 mg/cm3).
In the case of a gas, one may specify the temperature and pressure. The defaults are STP conditions defined in
PhysicalConstants.hh.
An element must have the number of nucleons >= number of protons >= 1.
A material must have non-zero values of density, temperature and pressure.
Materials can also be defined using the internal Geant4 database. Example 4.11 illustrates how to do this for the
same materials used in Example 4.10. There are also UI commands which allow the database to be accessed. The
list of currently avalable material names (Section 6) is extended permanetly.
Example 4.11. A program which shows how to define materials from the internal
database.
#include "globals.hh"
#include "G4Material.hh"
#include "G4NistManager.hh"
int main() {
G4NistManager* man = G4NistManager::Instance();
man->SetVerbose(1);
// define elements
G4Element* C = man->FindOrBuildElement("C");
G4Element* Pb = man->FindOrBuildMaterial("Pb");
// define pure NIST materials
G4Material* Al = man->FindOrBuildMaterial("G4_Al");
G4Material* Cu = man->FindOrBuildMaterial("G4_Cu");
// define NIST materials
G4Material* H2O = man->FindOrBuildMaterial("G4_WATER");
G4Material* Sci = man->FindOrBuildMaterial("G4_PLASTIC_SC_VINYLTOLUENE");
G4Material* SiO2 = man->FindOrBuildMaterial("G4_SILICON_DIOXIDE");
G4Material* Air = man->FindOrBuildMaterial("G4_AIR");
// HEP materials
G4Material* PbWO4 = man->FindOrBuildMaterial("G4_PbWO4");
G4Material* lAr = man->FindOrBuildMaterial("G4_lAr");
G4Material* vac = man->FindOrBuildMaterial("G4_Galactic");
// define gas material at non STP conditions (T = 120K, P=0.5atm)
G4Material* coldAr = man->ConstructNewGasdMaterial("ColdAr","G4_Ar",120.*kelvin,0.5*atmosphere);
// print the table of materials
G4cout << *(G4Material::GetMaterialTable()) << endl;
return EXIT_SUCCESS;
}
![](asset-9a.png)
Detector Definition and Response
145
4.2.4. The Tables
4.2.4.1. Print a constituent
The following shows how to print a constituent:
G4cout << elU << endl;
G4cout << Air << endl;
4.2.4.2. Print the table of materials
The following shows how to print the table of materials:
G4cout << *(G4Material::GetMaterialTable()) << endl;
4.3. Electromagnetic Field
4.3.1. An Overview of Propagation in a Field
Geant4 is capable of describing and propagating in a variety of fields. Magnetic fields, electric fields, electromag-
netic fields, and gravity fields, uniform or non-uniform, can specified for a Geant4 setup. The propagation of tracks
inside them can be performed to a user-defined accuracy.
In order to propagate a track inside a field, the equation of motion of the particle in the field is integrated. In
general, this is done using a Runge-Kutta method for the integration of ordinary differential equations. However,
for specific cases where an analytical solution is known, it is possible to utilize this instead. Several Runge-
Kutta methods are available, suitable for different conditions. In specific cases (such as a uniform field where
the analytical solution is known) different solvers can also be used. In addition, when an approximate analytical
solution is known, it is possible to utilize it in an iterative manner in order to converge to the solution to the
precision required. This latter method is currently implemented and can be used particularly well for magnetic
fields that are almost uniform.
Once a method is chosen that calculates the track's propagation in a specific field, the curved path is broken up into
linear chord segments. These chord segments are determined so that they closely approximate the curved path.
The chords are then used to interrogate the Navigator as to whether the track has crossed a volume boundary.
Several parameters are available to adjust the accuracy of the integration and the subsequent interrogation of the
model geometry.
How closely the set of chords approximates a curved trajectory is governed by a parameter called the miss distance
(also called the chord distance ). This is an upper bound for the value of the sagitta - the distance between the 'real'
curved trajectory and the approximate linear trajectory of the chord. By setting this parameter, the user can control
the precision of the volume interrogation. Every attempt has been made to ensure that all volume interrogations
will be made to an accuracy within this miss distance.
Figure 4.6. The curved trajectory will be approximated by chords, so that the maximum
estimated distance between curve and chord is less than the the miss distance.
In addition to the miss distance there are two more parameters which the user can set in order to adjust the accuracy
(and performance) of tracking in a field. In particular these parameters govern the accuracy of the intersection
![](asset-9b.png)
Detector Definition and Response
146
with a volume boundary and the accuracy of the integration of other steps. As such they play an important role
for tracking.
The delta intersection parameter is the accuracy to which an intersection with a volume boundary is calculated. If
a candidate boundary intersection is estimated to have a precision better than this, it is accepted. This parameter is
especially important because it is used to limit a bias that our algorithm (for boundary crossing in a field) exhibits.
This algorithm calculates the intersection with a volume boundary using a chord between two points on the curved
particle trajectory. As such, the intersection point is always on the 'inside' of the curve. By setting a value for this
parameter that is much smaller than some acceptable error, the user can limit the effect of this bias on, for example,
the future estimation of the reconstructed particle momentum.

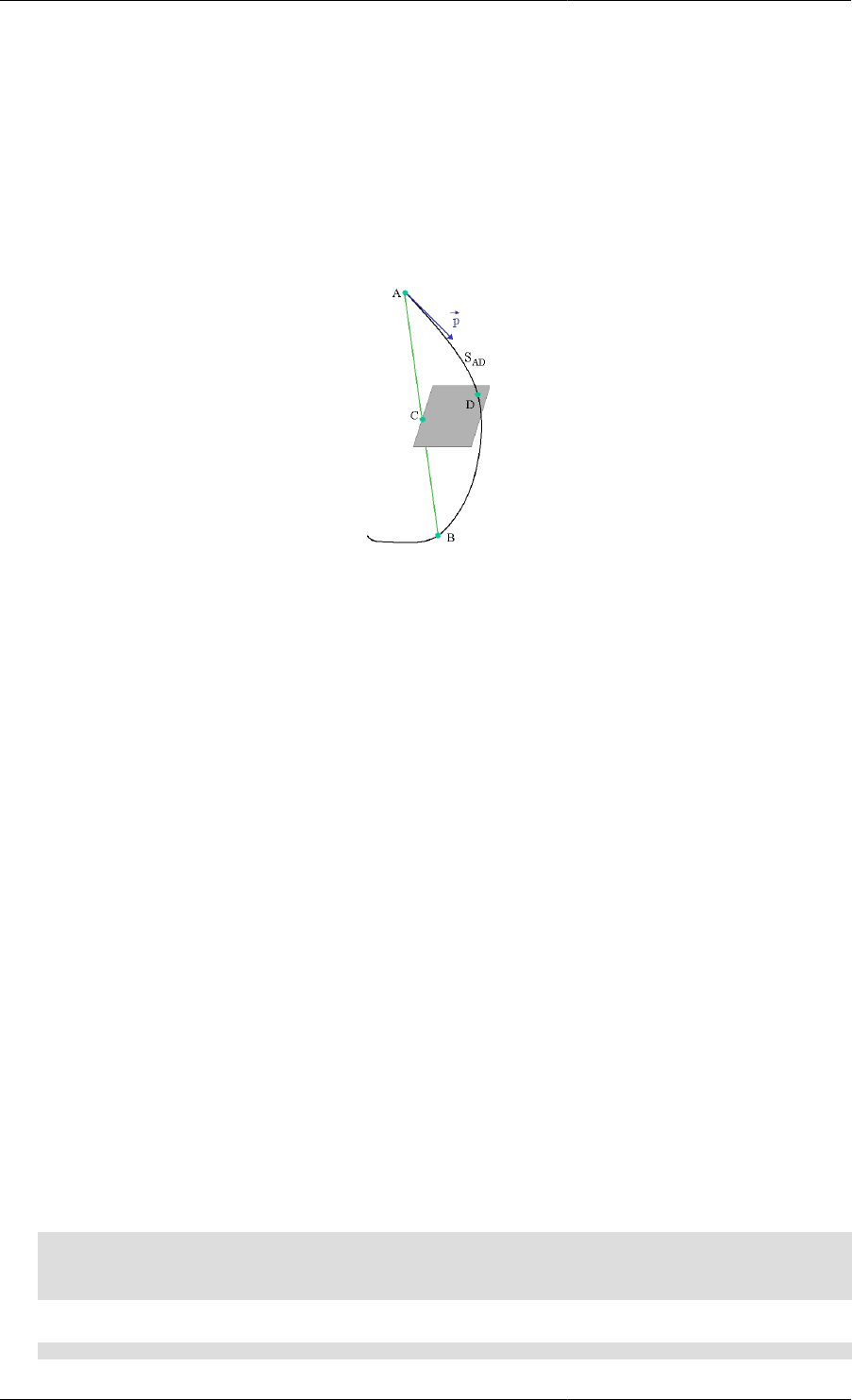

Figure 4.7. The distance between the calculated chord intersection point C and a
computed curve point D is used to determine whether C is an accurate representation of
the intersection of the curved path ADB with a volume boundary. Here CD is likely too
large, and a new intersection on the chord AD will be calculated.
The delta one step parameter is the accuracy for the endpoint of 'ordinary' integration steps, those which do not
intersect a volume boundary. This parameter is a limit on the estimated error of the endpoint of each physics step. It
can be seen as akin to a statistical uncertainty and is not expected to contribute any systematic behavior to physical
quantities. In contrast, the bias addressed by delta intersection is clearly correlated with potential systematic errors
in the momentum of reconstructed tracks. Thus very strict limits on the intersection parameter should be used in
tracking detectors or wherever the intersections are used to reconstruct a track's momentum.
Delta intersection and delta one step are parameters of the Field Manager; the user can set them according to the
demands of his application. Because it is possible to use more than one field manager, different values can be set
for different detector regions.
Note that reasonable values for the two parameters are strongly coupled: it does not make sense to request an
accuracy of 1 nm for delta intersection and accept 100 μm for the delta one step error value. Nevertheless
delta intersection is the more important of the two. It is recommended that these parameters should not differ
significantly - certainly not by more than an order of magnitude.
4.3.2. Practical Aspects
4.3.2.1. Creating a Magnetic Field for a Detector
The simplest way to define a field for a detector involves the following steps:
1. create a field:
G4UniformMagField* magField
= new G4UniformMagField(G4ThreeVector(0.,0.,fieldValue));
2. set it as the default field:
![](asset-9c.png)
Detector Definition and Response
147
G4FieldManager* fieldMgr
= G4TransportationManager::GetTransportationManager()
->GetFieldManager();
fieldMgr->SetDetectorField(magField);
3. create the objects which calculate the trajectory:
fieldMgr->CreateChordFinder(magField);
To change the accuracy of volume intersection use the SetDeltaChord method:
fieldMgr->GetChordFinder()->SetDeltaChord( G4double newValue);
Since 10.0 version, it is also possible to perform all three steps above at once using the
G4GlobalMagFieldMessenger class:
G4ThreeVector fieldValue = G4ThreeVector();
fMagFieldMessenger = new G4GlobalMagFieldMessenger(fieldValue);
fMagFieldMessenger->SetVerboseLevel(1);
The messenger creates the global uniform magnetic field, which is activated (set to the
G4TransportationManager object) only when the fieldValue is non zero vector. The messenger class
setter functions can be then used to change the field value (and activate or inactivate the field again) or the level
of output messages. The messenger also takes care of deleting the field.
As its class name suggests, the messenger creates also UI commands which can be used to change the field value
and the verbose level interactively or from a macro:
/globalField/setValue vx vy vz unit
/globalField/verbose level
4.3.2.2. Creating a Field for a Part of the Volume Hierarchy
It is possible to create a field for a part of the detector. In particular it can describe the field (with pointer
fEmField, for example) inside a logical volume and all its daughters. This can be done by simply creating a
G4FieldManager and attaching it to a logical volume (with pointer, logicVolumeWithField, for example) or
set of logical volumes.
G4bool allLocal = true;
logicVolumeWithField->SetFieldManager(localFieldManager, allLocal);
Using the second parameter to SetFieldManager you choose whether daughter volumes of this logical volume
will also be given this new field. If it has the value true, the field will be assigned also to its daughters, and
all their sub-volumes. Else, if it is false, it will be copied only to those daughter volumes which do not have
a field manager already.
4.3.2.3. Creating an Electric or Electromagnetic Field
The design and implementation of the Field category allows and enables the use of an electric or combined elec-
tromagnetic field. These fields can also vary with time, as can magnetic fields.
Source listing Example 4.12 shows how to define a uniform electric field for the whole of a detector.
Example 4.12. How to define a uniform electric field for the whole of a detector, extracted
from example in examples/extended/field/field02 .
// in the header file (or first)
![](asset-9d.png)
Detector Definition and Response
148
#include "G4EqMagElectricField.hh"
#include "G4UniformElectricField.hh"
...
G4ElectricField* fEMfield;
G4EqMagElectricField* fEquation;
G4MagIntegratorStepper* fStepper;
G4FieldManager* fFieldMgr;
G4double fMinStep ;
G4ChordFinder* fChordFinder ;
// in the source file
{
fEMfield = new G4UniformElectricField(
G4ThreeVector(0.0,100000.0*kilovolt/cm,0.0));
// Create an equation of motion for this field
fEquation = new G4EqMagElectricField(fEMfield);
G4int nvar = 8;
fStepper = new G4ClassicalRK4( fEquation, nvar );
// Get the global field manager
fFieldManager= G4TransportationManager::GetTransportationManager()->
GetFieldManager();
// Set this field to the global field manager
fFieldManager->SetDetectorField(fEMfield );
fMinStep = 0.010*mm ; // minimal step of 10 microns
fIntgrDriver = new G4MagInt_Driver(fMinStep,
fStepper,
fStepper->GetNumberOfVariables() );
fChordFinder = new G4ChordFinder(fIntgrDriver);
fFieldManager->SetChordFinder( fChordFinder );
}
An example with an electric field is examples/extended/field/field02, where the class F02ElectricFieldSetup
demonstrates how to set these and other parameters, and how to choose different Integration Steppers. An example
with a uniform gravity field (G4UniformGravityField) is examples/extended/field/field06.
The user can also create their own type of field, inheriting from G4VField, and an associated Equation of Motion
class (inheriting from G4EqRhs) to simulate other types of fields.
4.3.2.4. Choosing a Stepper
Runge-Kutta integration is used to compute the motion of a charged track in a general field. There are many
general steppers from which to choose, of low and high order, and specialized steppers for pure magnetic fields.
By default, Geant4 uses the classical fourth-order Runge-Kutta stepper, which is general purpose and robust. If
the field is known to have specific properties, lower or higher order steppers can be used to obtain the same quality
results using fewer computing cycles.
In particular, if the field is calculated from a field map, a lower order stepper is recommended. The less smooth
the field is, the lower the order of the stepper that should be used. The choice of lower order steppers includes the
third order stepper G4SimpleHeum, the second order G4ImplicitEuler and G4SimpleRunge, and the
first order G4ExplicitEuler. A first order stepper would be useful only for very rough fields. For somewhat
smooth fields (intermediate), the choice between second and third order steppers should be made by trial and error.
Trying a few different types of steppers for a particular field or application is suggested if maximum performance
is a goal.
The choice of stepper depends on the type of field: magnetic or general. A general field can be an electric or
electromagnetic field, it can be a magnetic field or a user-defined field (which requires a user-defined equation of
motion.) For a general field several steppers are available as alternatives to the default (G4ClassicalRK4):
G4int nvar = 8; // To integrate time & energy
![](asset-9e.png)
Detector Definition and Response
149
// in addition to position, momentum
G4EqMagElectricField* fEquation= new G4EqMagElectricField(fEMfield);
fStepper = new G4SimpleHeum( fEquation, nvar );
// 3rd order, a good alternative to ClassicalRK
fStepper = new G4SimpleRunge( fEquation, nvar );
// 2nd order, for less smooth fields
fStepper = new G4CashKarpRKF45( fEquation );
// 4/5th order for very smooth fields
Specialized steppers for pure magnetic fields are also available. They take into account the fact that a local tra-
jectory in a slowly varying field will not vary significantly from a helix. Combining this in with a variation the
Runge-Kutta method can provide higher accuracy at lower computational cost when large steps are possible.
G4Mag_UsualEqRhs*
fEquation = new G4Mag_UsualEqRhs(fMagneticField);
fStepper = new G4HelixImplicitEuler( fEquation );
// Note that for magnetic field that do not vary with time,
// the default number of variables suffices.
// or ..
fStepper = new G4HelixExplicitEuler( fEquation );
fStepper = new G4HelixSimpleRunge( fEquation );
A new stepper for propagation in magnetic field is available in release 9.3. Choosing the G4NystromRK4 stepper
provides accuracy near that of G4ClassicalRK4 (4th order) with a significantly reduced cost in field evaluation.
Using a novel analytical expression for estimating the error of a proposed step and the Nystrom reuse of the mid-
point field value, it requires only 2 additional field evaluations per attempted step, in place of 10 field evaluations
of ClassicalRK4 (which uses the general midpoint method for estimating the step error.)
G4Mag_UsualEqRhs*
pMagFldEquation = new G4Mag_UsualEqRhs(fMagneticField);
fStepper = new G4NystromRK4( pMagFldEquation );
It is proposed as an alternative stepper in the case of a pure magnetic field. It is not applicable for the simulation of
electric or full electromagnetic or other types of field. For a pure magnetic field, results should be fully compatible
with the results of ClassicalRK4 in nearly all cases. ( The only potential exceptions are large steps for tracks with
small momenta - which cannot be integrated well by any RK method except the Helical extended methods.)
You can choose an alternative stepper either when the field manager is constructed or later. At the construction
of the ChordFinder it is an optional argument:
G4ChordFinder( G4MagneticField* itsMagField,
G4double stepMinimum = 1.0e-2 * mm,
G4MagIntegratorStepper* pItsStepper = 0 );
To change the stepper at a later time use
pChordFinder->GetIntegrationDriver()
->RenewStepperAndAdjust( newStepper );
4.3.2.5. How to Adjust the Accuracy of Propagation
In order to obtain a particular accuracy in tracking particles through an electromagnetic field, it is necessary to
adjust the parameters of the field propagation module. In the following section, some of these additional parameters
are discussed.
When integration is used to calculate the trajectory, it is necessary to determine an acceptable level of numerical
imprecision in order to get performant simulation with acceptable errors. The parameters in Geant4 tell the field
module what level of integration inaccuracy is acceptable.
In all quantities which are integrated (position, momentum, energy) there will be errors. Here, however, we focus
on the error in two key quantities: the position and the momentum. (The error in the energy will come from the
momentum integration).
![](asset-9f.png)
Detector Definition and Response
150
Three parameters exist which are relevant to the integration accuracy. DeltaOneStep is a distance and is roughly
the position error which is acceptable in an integration step. Since many integration steps may be required for a
single physics step, DeltaOneStep should be a fraction of the average physics step size. The next two parameters
impose a further limit on the relative error of the position/momentum inaccuracy. EpsilonMin and EpsilonMax
impose a minimum and maximum on this relative error - and take precedence over DeltaOneStep. (Note: if you
set EpsilonMin=EpsilonMax=your-value, then all steps will be made to this relative precision.
Example 4.13. How to set accuracy parameters for the 'global' field of the setup.
G4FieldManager *globalFieldManager;
G4TransportationManager *transportMgr=
G4TransportationManager::GetTransportationManager();
globalFieldManager = transportMgr->GetFieldManager();
// Relative accuracy values:
G4double minEps= 1.0e-5; // Minimum & value for smallest steps
G4double maxEps= 1.0e-4; // Maximum & value for largest steps
globalFieldManager->SetMinimumEpsilonStep( minEps );
globalFieldManager->SetMaximumEpsilonStep( maxEps );
globalFieldManager->SetDeltaOneStep( 0.5e-3 * mm ); // 0.5 micrometer
G4cout << "EpsilonStep: set min= " << minEps << " max= " << maxEps << G4endl;
We note that the relevant parameters above limit the inaccuracy in each step. The final inaccuracy due to the full
trajectory will accumulate!
The exact point at which a track crosses a boundary is also calculated with finite accuracy. To limit this inaccuracy,
a parameter called DeltaIntersection is used. This is a maximum for the inaccuracy of a single boundary crossing.
Thus the accuracy of the position of the track after a number of boundary crossings is directly proportional to the
number of boundaries.
4.3.2.6. Reducing the number of field calls to speed-up simulation
An additional method to reduce the number of field evaluations is to utilise the new class G4CachedMagneticField
class. It is applicable only for pure magnetic fields which do not vary with time.
G4MagneticField * pMagField; // Your field - Defined elsewhere
G4double distanceConst = 2.5 * millimeter;
G4MagneticField * pCachedMagField= new G4CachedMagneticField( pMagField, distanceConst);
4.3.2.7. Choosing different accuracies for the same volume
It is possible to create a FieldManager which has different properties for particles of different momenta (or de-
pending on other parameters of a track). This is useful, for example, in obtaining high accuracy for 'important'
tracks (e.g. muons) and accept less accuracy in tracking others (e.g. electrons). To use this, you must create your
own field manager which uses the method
void ConfigureForTrack( const G4Track * );
to configure itself using the parameters of the current track. An example of this will be available in examples/ex-
tended/field05.
4.3.2.8. Parameters that must scale with problem size
The default settings of this module are for problems with the physical size of a typical high energy physics setup,
that is, distances smaller than about one kilometer. A few parameters are necessary to carry this information
to the magnetic field module, and must typically be rescaled for problems of vastly different sizes in order to
get reasonable performance and robustness. Two of these parameters are the maximum acceptable step and the
minimum step size.
![](asset-a0.png)
Detector Definition and Response
151
The maximum acceptable step should be set to a distance larger than the biggest reasonable step. If the apparatus
in a setup has a diameter of two meters, a likely maximum acceptable steplength would be 10 meters. A particle
could then take large spiral steps, but would not attempt to take, for example, a 1000-meter-long step in the case
of a very low-density material. Similarly, for problems of a planetary scale, such as the earth with its radius of
roughly 6400 km, a maximum acceptabe steplength of a few times this value would be reasonable.
An upper limit for the size of a step is a parameter of G4PropagatorInField, and can be set by calling its
SetLargestAcceptableStep method.
The minimum step size is used during integration to limit the amount of work in difficult cases. It is possible that
strong fields or integration problems can force the integrator to try very small steps; this parameter stops them
from becoming unnecessarily small.
Trial steps smaller than this parameter will be treated with less accuracy, and may even be ignored, depending
on the situation.
The minimum step size is a parameter of the MagInt_Driver, but can be set in the contstructor of G4ChordFinder,
as in the source listing above.
4.3.2.9. Known Issues
Currently it is computationally expensive to change the miss distance to very small values, as it causes tracks to
be limited to curved sections whose 'bend' is smaller than this value. (The bend is the distance of the mid-point
from the chord between endpoints.) For tracks with small curvature (typically low momentum particles in strong
fields) this can cause a large number of steps
• even in areas where there are no volumes to intersect (something that is expected to be addressed in future
development, in which the safety will be utilized to partially alleviate this limitation)
• especially in a region near a volume boundary (in which case it is necessary in order to discover whether a track
might intersect a volume for only a short distance.)
Requiring such precision at the intersection is clearly expensive, and new development would be necessary to
minimize the expense.
By contrast, changing the intersection parameter is less computationally expensive. It causes further calculation
for only a fraction of the steps, in particular those that intersect a volume boundary.
4.3.3. Spin Tracking
The effects of a particle's motion on the precession of its spin angular momentum in slowly varying external
fields are simulated. The relativistic equation of motion for spin is known as the BMT equation. The equation
demonstrates a remarkable property; in a purely magnetic field, in vacuum, and neglecting small anomalous mag-
netic moments, the particle's spin precesses in such a manner that the longitudinal polarization remains a constant,
whatever the motion of the particle. But when the particle interacts with electric fields of the medium and multi-
ple scatters, the spin, which is related to the particle's magnetic moment, does not participate, and the need thus
arises to propagate it independent of the momentum vector. In the case of a polarized muon beam, for example,
it is important to predict the muon's spin direction at decay-time in order to simulate the decay electron (Michel)
distribution correctly.
In order to track the spin of a particle in a magnetic field, you need to code the following:
1. in your DetectorConstruction
#include "G4Mag_SpinEqRhs.hh"
G4Mag_EqRhs* fEquation = new G4Mag_SpinEqRhs(magField);
G4MagIntegratorStepper* pStepper = new G4ClassicalRK4(fEquation,12);
notice the 12
2. in your PrimaryGenerator
![](asset-a1.png)
Detector Definition and Response
152
particleGun->SetParticlePolarization(G4ThreeVector p)
for example:
particleGun->
SetParticlePolarization(-(particleGun->GetParticleMomentumDirection()));
// or
particleGun->
SetParticlePolarization(particleGun->GetParticleMomentumDirection()
.cross(G4ThreeVector(0.,1.,0.)));
where you set the initial spin direction.
While the G4Mag_SpinEqRhs class constructor
G4Mag_SpinEqRhs::G4Mag_SpinEqRhs( G4MagneticField* MagField )
: G4Mag_EqRhs( MagField )
{
anomaly = 1.165923e-3;
}
sets the muon anomaly by default, the class also comes with the public method:
inline void SetAnomaly(G4double a) { anomaly = a; }
with which you can set the magnetic anomaly to any value you require.
The code has been rewritten (in Release 9.5) such that field tracking of the spin can now be done for charged and
neutral particles with a magnetic moment, for example spin tracking of ultra cold neutrons. This requires the user
to set EnableUseMagneticMoment, a method of the G4Transportation process. The force resulting
from the term, µ⋅∇#, is not yet implemented in Geant4 (for example, simulated trajectory of a neutral hydrogen
atom trapped by its magnetic moment in a gradient B-field.)
4.4. Hits
4.4.1. Hit
A hit is a snapshot of the physical interaction of a track in the sensitive region of a detector. In it you can store
information associated with a G4Step object. This information can be
• the position and time of the step,
• the momentum and energy of the track,
• the energy deposition of the step,
• geometrical information,
or any combination of the above.
G4VHit
G4VHit is an abstract base class which represents a hit. You must inherit this base class and derive your own
concrete hit class(es). The member data of your concrete hit class can be, and should be, your choice.
As with G4THitsCollection, authors of subclasses must declare templated G4Allocators for their class.
They must also implement operator new() and operator delete() which use these allocators.
G4VHit has two virtual methods, Draw() and Print(). To draw or print out your concrete hits, these methods
should be implemented. How to define the drawing method is described in Section 8.9.
![](asset-a2.png)
Detector Definition and Response
153
G4THitsCollection
G4VHit is an abstract class from which you derive your own concrete classes. During the processing of a given
event, represented by a G4Event object, many objects of the hit class will be produced, collected and associ-
ated with the event. Therefore, for each concrete hit class you must also prepare a concrete class derived from
G4VHitsCollection, an abstract class which represents a vector collection of user defined hits.
G4THitsCollection is a template class derived from G4VHitsCollection, and the concrete hit collec-
tion class of a particular G4VHit concrete class can be instantiated from this template class. Each object of a hit
collection must have a unique name for each event.
G4Event has a G4HCofThisEvent class object, that is a container class of collections of hits. Hit collections
are stored by their pointers, whose type is that of the base class.
An example of a concrete hit class
Example 4.14 shows an example of a concrete hit class.
Example 4.14. An example of a concrete hit class.
//============ header file =====================
#ifndef ExN04TrackerHit_h
#define ExN04TrackerHit_h 1
#include "G4VHit.hh"
#include "G4THitsCollection.hh"
#include "G4Allocator.hh"
#include "G4ThreeVector.hh"
class ExN04TrackerHit : public G4VHit
{
public:
ExN04TrackerHit();
~ExN04TrackerHit();
ExN04TrackerHit(const ExN04TrackerHit &right);
const ExN04TrackerHit& operator=(const ExN04TrackerHit &right);
int operator==(const ExN04TrackerHit &right) const;
inline void * operator new(size_t);
inline void operator delete(void *aHit);
void Draw() const;
void Print() const;
private:
G4double edep;
G4ThreeVector pos;
public:
inline void SetEdep(G4double de)
{ edep = de; }
inline G4double GetEdep() const
{ return edep; }
inline void SetPos(G4ThreeVector xyz)
{ pos = xyz; }
inline G4ThreeVector GetPos() const
{ return pos; }
};
typedef G4THitsCollection<ExN04TrackerHit> ExN04TrackerHitsCollection;
extern G4ThreadLocal G4Allocator<ExN04TrackerHit>* ExN04TrackerHitAllocator;
inline void* ExN04TrackerHit::operator new(size_t)
{
if(!ExN04TrackerHitAllocator) ExN04TrackerHitAllocator = new G4Allocator<ExN04TrackerHit>
return (void *) ExN04TrackerHitAllocator->MallocSingle();
}
![](asset-a3.png)
Detector Definition and Response
154
inline void ExN04TrackerHit::operator delete(void *aHit)
{
ExN04TrackerHitAllocator->FreeSingle((ExN04TrackerHit*) aHit);
}
#endif
//============ source file =====================
#include "ExN04TrackerHit.hh"
G4ThreadLocal G4Allocator<ExN04TrackerHit>* ExN04TrackerHit::ExN04TrackerHitAllocator = 0;
... snipped ...
G4Allocator is a class for fast allocation of objects to the heap through the paging mechanism. For details of
G4Allocator, refer to Section 3.2.4. Use of G4Allocator is not mandatory, but it is recommended, espe-
cially for users who are not familiar with the C++ memory allocation mechanism or alternative tools of memory
allocation. On the other hand, note that G4Allocator is to be used only for the concrete class that is not used
as a base class of any other classes. For example, do not use the G4Trajectory class as a base class for a
customized trajectory class, since G4Trajectory uses G4Allocator.
G4THitsMap
G4THitsMap is an alternative to G4THitsCollection. G4THitsMap does not demand G4VHit, but in-
stead any variable which can be mapped with an integer key. Typically the key is a copy number of the volume,
and the mapped value could for example be a double, such as the energy deposition in a volume. G4THitsMap
is convenient for applications which do not need to output event-by-event data but instead just accumulate them.
All the G4VPrimitiveScorer classes discussed in Section 4.4.4 use G4THitsMap.
G4THitsMap is derived from the G4VHitsCollection abstract base class and all objects of this class are
also stored in G4HCofThisEvent at the end of an event. How to access a G4THitsMap object is discussed
in the following section (Section 4.4.4).
4.4.2. Sensitive detector
G4VSensitiveDetector
G4VSensitiveDetector is an abstract base class which represents a detector. The principal mandate of
a sensitive detector is the construction of hit objects using information from steps along a particle track. The
ProcessHits() method of G4VSensitiveDetector performs this task using G4Step objects as input. In
the case of a "Readout" geometry, objects of the G4TouchableHistory class may be used as an optional input.
Your concrete detector class should be instantiated with the unique name of your detector. The name can be
associated with one or more global names with "/" as a delimiter for categorizing your detectors. For example
myEMcal = new MyEMcal("/myDet/myCal/myEMcal");
where myEMcal is the name of your detector. The detector must be constructed in
G4VUserDetectorConstruction::ConstructSDandField() method. It must be assigned to one or
more G4LogicalVolume objects to set the sensitivity of these volumes. SUch assignment must be made in
the same G4VUserDetectorConstruction::ConstructSDandField() method. The pointer should
also be registered to G4SDManager, as described in Section 4.4.3.
G4VSensitiveDetector has three major virtual methods.
ProcessHits()
This method is invoked by G4SteppingManager when a step is composed in the G4LogicalVolume
which has the pointer to this sensitive detector. The first argument of this method is a G4Step object of
the current step. The second argument is a G4TouchableHistory object for the ``Readout geometry''
![](asset-a4.png)
Detector Definition and Response
155
described in the next section. The second argument is NULL if ``Readout geometry'' is not assigned to this
sensitive detector. In this method, one or more G4VHit objects should be constructed if the current step is
meaningful for your detector.
Initialize()
This method is invoked at the beginning of each event. The argument of this method is an object of the
G4HCofThisEvent class. Hit collections, where hits produced in this particular event are stored, can
be associated with the G4HCofThisEvent object in this method. The hit collections associated with the
G4HCofThisEvent object during this method can be used for ``during the event processing'' digitization.
EndOfEvent()
This method is invoked at the end of each event. The argument of this method is the same object as the
previous method. Hit collections occasionally created in your sensitive detector can be associated with the
G4HCofThisEvent object.
4.4.3. G4SDManager
G4SDManager is the singleton manager class for sensitive detectors.
Activation/inactivation of sensitive detectors
The user interface commands activate and inactivate are available to control your sensitive detectors.
For example:
/hits/activate detector_name
/hits/inactivate detector_name
where detector_name can be the detector name or the category name.
For example, if your EM calorimeter is named
/myDet/myCal/myEMcal
/hits/inactivate myCal
will inactivate all detectors belonging to the myCal category.
Access to the hit collections
Hit collections are accessed for various cases.
• Digitization
• Event filtering in G4VUserStackingAction
• ``End of event'' simple analysis
• Drawing / printing hits
The following is an example of how to access the hit collection of a particular concrete type:
G4SDManager* fSDM = G4SDManager::GetSDMpointer();
G4RunManager* fRM = G4RunManager::GetRunManager();
G4int collectionID = fSDM->GetCollectionID("collection_name");
const G4Event* currentEvent = fRM->GetCurrentEvent();
G4HCofThisEvent* HCofEvent = currentEvent->GetHCofThisEvent();
MyHitsCollection* myCollection = (MyHitsCollection*)(HC0fEvent->GetHC(collectionID));
4.4.4. G4MultiFunctionalDetector and
G4VPrimitiveScorer
G4MultiFunctionalDetector is a concrete class derived from G4VSensitiveDetector. Instead of
implementing a user-specific detector class, G4MultiFunctionalDetector allows the user to register
![](asset-a5.png)
Detector Definition and Response
156
G4VPrimitiveScorer classes to build up the sensitivity. G4MultiFunctionalDetector should be
instantiated in the users detector construction with its unique name and should be assigned to one or more
G4LogicalVolumes.
G4VPrimitiveScorer is an abstract base class representing a class to be registered to
G4MultiFunctionalDetector that creates a G4THitsMap object of one physics quantity for an event.
Geant4 provides many concrete primitive scorer classes listed in Section 4.4.5, and the user can also implement
his/her own primitive scorers. Each primitive scorer object must be instantiated with a name that must be unique
among primitive scorers registered in a G4MultiFunctionalDetector. Please note that a primitive scorer
object must not be shared by more than one G4MultiFunctionalDetector object.
As mentioned in Section 4.4.1, each G4VPrimitiveScorer generates one G4THitsMap object per event.
The name of the map object is the same as the name of the primitive scorer. Each of the concrete primitive
scorers listed in Section 4.4.5 generates a G4THitsMap<G4double> that maps a G4double value to its
key integer number. By default, the key is taken as the copy number of the G4LogicalVolume to which
G4MultiFunctionalDetector is assigned. In case the logical volume is uniquely placed in its mother vol-
ume and the mother is replicated, the copy number of its mother volume can be taken by setting the second argu-
ment of the G4VPrimitiveScorer constructor, "depth" to 1, i.e. one level up. Furthermore, in case the key
must consider more than one copy number of a different geometry hierarchy, the user can derive his/her own
primitive scorer from the provided concrete class and implement the GetIndex(G4Step*) virtual method to
return the unique key.
Example 4.15 shows an example of primitive sensitivity class definitions.
Example 4.15. An example of defining primitive sensitivity classes taken from
RE06DetectorConstruction.
void RE06DetectorConstruction::SetupDetectors()
{
G4String filterName, particleName;
G4SDParticleFilter* gammaFilter =
new G4SDParticleFilter(filterName="gammaFilter",particleName="gamma");
G4SDParticleFilter* electronFilter =
new G4SDParticleFilter(filterName="electronFilter",particleName="e-");
G4SDParticleFilter* positronFilter =
new G4SDParticleFilter(filterName="positronFilter",particleName="e+");
G4SDParticleFilter* epFilter = new G4SDParticleFilter(filterName="epFilter");
epFilter->add(particleName="e-");
epFilter->add(particleName="e+");
for(G4int i=0;i<3;i++)
{
for(G4int j=0;j<2;j++)
{
// Loop counter j = 0 : absorber
// = 1 : gap
G4String detName = calName[i];
if(j==0)
{ detName += "_abs"; }
else
{ detName += "_gap"; }
G4MultiFunctionalDetector* det = new G4MultiFunctionalDetector(detName);
// The second argument in each primitive means the "level" of geometrical hierarchy,
// the copy number of that level is used as the key of the G4THitsMap.
// For absorber (j = 0), the copy number of its own physical volume is used.
// For gap (j = 1), the copy number of its mother physical volume is used, since there
// is only one physical volume of gap is placed with respect to its mother.
G4VPrimitiveScorer* primitive;
primitive = new G4PSEnergyDeposit("eDep",j);
det->RegisterPrimitive(primitive);
primitive = new G4PSNofSecondary("nGamma",j);
primitive->SetFilter(gammaFilter);
det->RegisterPrimitive(primitive);
primitive = new G4PSNofSecondary("nElectron",j);
primitive->SetFilter(electronFilter);
det->RegisterPrimitive(primitive);
![](asset-a6.png)
Detector Definition and Response
157
primitive = new G4PSNofSecondary("nPositron",j);
primitive->SetFilter(positronFilter);
det->RegisterPrimitive(primitive);
primitive = new G4PSMinKinEAtGeneration("minEkinGamma",j);
primitive->SetFilter(gammaFilter);
det->RegisterPrimitive(primitive);
primitive = new G4PSMinKinEAtGeneration("minEkinElectron",j);
primitive->SetFilter(electronFilter);
det->RegisterPrimitive(primitive);
primitive = new G4PSMinKinEAtGeneration("minEkinPositron",j);
primitive->SetFilter(positronFilter);
det->RegisterPrimitive(primitive);
primitive = new G4PSTrackLength("trackLength",j);
primitive->SetFilter(epFilter);
det->RegisterPrimitive(primitive);
primitive = new G4PSNofStep("nStep",j);
primitive->SetFilter(epFilter);
det->RegisterPrimitive(primitive);
G4SDManager::GetSDMpointer()->AddNewDetector(det);
if(j==0)
{ layerLogical[i]->SetSensitiveDetector(det); }
else
{ gapLogical[i]->SetSensitiveDetector(det); }
}
}
}
Each G4THitsMap object can be accessed from G4HCofThisEvent with a unique collection ID num-
ber. This ID number can be obtained from G4SDManager::GetCollectionID() with a name of
G4MultiFunctionalDetector and G4VPrimitiveScorer connected with a slush ("/"). G4THitsMap
has a [] operator taking the key value as an argument and returning the pointer of the value. Please note that the []
operator returns the pointer of the value. If you get zero from the [] operator, it does not mean the value is zero,
but that the provided key does not exist. The value itself is accessible with an astarisk ("*"). It is advised to check
the validity of the returned pointer before accessing the value. G4THitsMap also has a += operator in order to
accumulate event data into run data. Example 4.16 shows the use of G4THitsMap.
Example 4.16. An example of accessing to G4THitsMap objects.
#include "ExN07Run.hh"
#include "G4Event.hh"
#include "G4HCofThisEvent.hh"
#include "G4SDManager.hh"
ExN07Run::ExN07Run()
{
G4String detName[6] = {"Calor-A_abs","Calor-A_gap","Calor-B_abs","Calor-B_gap",
"Calor-C_abs","Calor-C_gap"};
G4String primNameSum[6] = {"eDep","nGamma","nElectron","nPositron","trackLength","nStep"};
G4String primNameMin[3] = {"minEkinGamma","minEkinElectron","minEkinPositron"};
G4SDManager* SDMan = G4SDManager::GetSDMpointer();
G4String fullName;
for(size_t i=0;i<6;i++)
{
for(size_t j=0;j<6;j++)
{
fullName = detName[i]+"/"+primNameSum[j];
colIDSum[i][j] = SDMan->GetCollectionID(fullName);
}
for(size_t k=0;k<3;k++)
{
fullName = detName[i]+"/"+primNameMin[k];
colIDMin[i][k] = SDMan->GetCollectionID(fullName);
}
}
}
void ExN07Run::RecordEvent(const G4Event* evt)
{
G4HCofThisEvent* HCE = evt->GetHCofThisEvent();
if(!HCE) return;
![](asset-a7.png)
Detector Definition and Response
158
numberOfEvent++;
for(size_t i=0;i<6;i++)
{
for(size_t j=0;j<6;j++)
{
G4THitsMap<G4double>* evtMap = (G4THitsMap<G4double>*)(HCE->GetHC(colIDSum[i][j]));
mapSum[i][j] += *evtMap;
}
for(size_t k=0;k<3;k++)
{
G4THitsMap<G4double>* evtMap = (G4THitsMap<G4double>*)(HCE->GetHC(colIDMin[i][k]));
std::map<G4int,G4double*>::iterator itr = evtMap->GetMap()->begin();
for(; itr != evtMap->GetMap()->end(); itr++)
{
G4int key = (itr->first);
G4double val = *(itr->second);
G4double* mapP = mapMin[i][k][key];
if( mapP && (val>*mapP) ) continue;
mapMin[i][k].set(key,val);
}
}
}
}
4.4.5. Concrete classes of G4VPrimitiveScorer
With Geant4 version 8.0, several concrete primitive scorer classes are provided, all of which are
derived from the G4VPrimitiveScorer abstract base class and which are to be registered to
G4MultiFunctionalDetector. Each of them contains one G4THitsMap object and scores a simple dou-
ble value for each key.
Track length scorers
G4PSTrackLength
The track length is defined as the sum of step lengths of the particles inside the cell. Bt default, the track
weight is not taken into account, but could be used as a multiplier of each step length if the Weighted()
method of this class object is invoked.
G4PSPassageTrackLength
The passage track length is the same as the track length in G4PSTrackLength, except that only tracks
which pass through the volume are taken into account. It means newly-generated or stopped tracks inside the
cell are excluded from the calculation. By default, the track weight is not taken into account, but could be
used as a multiplier of each step length if the Weighted() method of this class object is invoked.
Deposited energy scorers
G4PSEnergyDeposit
This scorer stores a sum of particles' energy deposits at each step in the cell. The particle weight is multiplied
at each step.
G4PSDoseDeposit
In some cases, dose is a more convenient way to evaluate the effect of energy deposit in a cell than simple
deposited energy. The dose deposit is defined by the sum of energy deposits at each step in a cell divided by
the mass of the cell. The mass is calculated from the density and volume of the cell taken from the methods
of G4VSolid and G4LogicalVolume. The particle weight is multiplied at each step.
Current and flux scorers
There are two different definitions of a particle's flow for a given geometry. One is a current and the other is a
flux. In our scorers, the current is simply defined as the number of particles (with the particle's weight) at a certain
![](asset-a8.png)
Detector Definition and Response
159
surface or volume, while the flux takes the particle's injection angle to the geometry into account. The current and
flux are usually defined at a surface, but volume current and volume flux are also provided.
G4PSFlatSurfaceCurrent
Flat surface current is a surface based scorer. The present implementation is limited to scoring only at the -Z
surface of a G4Box solid. The quantity is defined by the number of tracks that reach the surface. The user must
choose a direction of the particle to be scored. The choices are fCurrent_In, fCurrent_Out, or fCurrent_InOut,
one of which must be entered as the second argument of the constructor. Here, fCurrent_In scores incoming
particles to the cell, while fCurrent_Out scores only outgoing particles from the cell. fCurrent_InOut scores
both directions. The current is multiplied by particle weight and is normalized for a unit area.
G4PSSphereSurfaceCurrent
Sphere surface current is a surface based scorer, and similar to the G4PSFlatSurfaceCurrent. The only differ-
ence is that the surface is defined at the inner surface of a G4Sphere solid.
G4PSPassageCurrent
Passage current is a volume-based scorer. The current is defined by the number of tracks that pass through
the volume. A particle weight is applied at the exit point. A passage current is defined for a volume.
G4PSFlatSurfaceFlux
Flat surface flux is a surface based flux scorer. The surface flux is defined by the number of tracks that reach the
surface. The expression of surface flux is given by the sum of W/cos(t)/A, where W, t and A represent particle
weight, injection angle of particle with respect to the surface normal, and area of the surface. The user must
enter one of the particle directions, fFlux_In, fFlux_Out, or fFlux_InOut in the constructor. Here, fFlux_In
scores incoming particles to the cell, while fFlux_Out scores outgoing particles from the cell. fFlux_InOut
scores both directions.
G4PSCellFlux
Cell flux is a volume based flux scorer. The cell flux is defined by a track length (L) of the particle inside
a volume divided by the volume (V) of this cell. The track length is calculated by a sum of the step lengths
in the cell. The expression for cell flux is given by the sum of (W*L)/V, where W is a particle weight, and
is multiplied by the track length at each step.
G4PSPassageCellFlux
Passage cell flux is a volume based scorer similar to G4PSCellFlux. The only difference is that tracks
which pass through a cell are taken into account. It means generated or stopped tracks inside the volume are
excluded from the calculation.
Other scorers
G4PSMinKinEAtGeneration
This scorer records the minimum kinetic energy of secondary particles at their production point in the volume
in an event. This primitive scorer does not integrate the quantity, but records the minimum quantity.
G4PSNofSecondary
This class scores the number of secondary particles generated in the volume. The weight of the secondary
track is taken into account.
G4PSNofStep
This class scores the number of steps in the cell. A particle weight is not applied.
![](asset-a9.png)
Detector Definition and Response
160
G4PSCellCharge
This class scored the total charge of particles which has stoped in the volume.
4.4.6. G4VSDFilter and its derived classes
G4VSDFilter is an abstract class that represents a track filter to be associated with
G4VSensitiveDetector or G4VPrimitiveScorer. It defines a virtual method
G4bool Accept(const G4Step*)
that should return true if this particular step should be scored by the G4VSensitiveDetector or
G4VPrimitiveScorer.
While the user can implement his/her own filter class, Geant4 version 8.0 provides the following concrete filter
classes:
G4SDChargedFilter
All charged particles are accepted.
G4SDNeutralFilter
All neutral particles are accepted.
G4SDParticleFilter
Particle species which are registered to this filter object by Add("particle_name") are accepted. More
than one species can be registered.
G4SDKineticEnergyFilter
A track with kinetic energy greater than or equal to EKmin and smaller than EKmin is accepted. EKmin and
EKmax should be defined as arguments of the constructor. The default values of EKmin and EKmax are zero
and DBL_MAX.
G4SDParticleWithEnergyFilter
Combination of G4SDParticleFilter and G4SDParticleWithEnergyFilter.
The use of the G4SDParticleFilter class is demonstrated in Example 4.15, where filters which accept gam-
ma, electron, positron and electron/positron are defined.
4.4.7. Muiltiple sensitive detectors associated to a single
logical-volume
From Geant4 Version 10.3 it is possible to attach multiple sensitive detectors to a single geometrical element.
This is achieved via the use of a special proxy class, to which multiple child sensitive detectors are attached:
G4MultiSensitiveDetector . The kernel still sees a single sensitive detector associated to any given
logical-volume, but the proxy will dispatch the calls from kernel to all the attached child sensitive detectors.
When using the G4VUserDetectorConstruction::SetSensitiveDetector(...) utility method
the handling of multiple sensitive detectors is done automatically. Multiple calls to the method passing the same
logical volume will trigger the creation and setup of an instance of G4MultiSensitiveDetector.
For more complex use cases it may be necessary to manually instantiate and setup an instance of
G4MultiSensitiveDetector. For this advanced use case you can refer to the implementation of the
G4VUserDetectorConstruction::SetSensitiveDetector(G4LogicalVolume* logVol,
G4VSensitiveDetector* aSD) utility method.
![](asset-aa.png)
Detector Definition and Response
161
Example 4.17. An example of the use of G4MultiSensitiveDetector.
void MyDetectorConstruction::ConstructSDandField()
{
auto sdman = G4SDManager::GetSDMpointer();
//...
auto mySD = new mySD1("/SD1");
sdman->AddNewDetector(mySD);//Note we explictly add the SD to the manager
SetSensitiveDetector("LogVolName",mySD);
auto mySD2 = new MySD2("/SD2");
sdman->AddNewDetector(mySD2);
//This will trigger atuomatic creation and setup of proxy
SetSensitiveDetector("LogVolName",mySD2);
//...
}
4.5. Digitization
4.5.1. Digi
A hit is created by a sensitive detector when a step goes through it. Thus, the sensitive detector is associated to
the corresponding G4LogicalVolume object(s). On the other hand, a digit is created using information of hits
and/or other digits by a digitizer module. The digitizer module is not associated with any volume, and you have
to implicitly invoke the Digitize() method of your concrete G4VDigitizerModule class.
Typical usages of digitizer module include:
• simulate ADC and/or TDC
• simulate readout scheme
• generate raw data
• simulate trigger logics
• simulate pile up
G4VDigi
G4VDigi is an abstract base class which represents a digit. You have to inherit this base class and derive your own
concrete digit class(es). The member data of your concrete digit class should be defined by yourself. G4VDigi
has two virtual methods, Draw() and Print().
As with G4VHit, authors of subclasses must declare templated G4Allocators for their digit class. They must
also implement operator new() and operator delete() which use these allocators.
G4TDigiCollection
G4TDigiCollection is a template class for digits collections, which is derived from the abstract base class
G4VDigiCollection. G4Event has a G4DCofThisEvent object, which is a container class of collec-
tions of digits. The usages of G4VDigi and G4TDigiCollection are almost the same as G4VHit and
G4THitsCollection, respectively, explained in the previous section.
As with G4THitsCollection, authors of subclasses must declare templated G4Allocators for their col-
lection class. They must also implement operator new() and operator delete() which use these allocators.
4.5.2. Digitizer module
G4VDigitizerModule
G4VDigitizerModule is an abstract base class which represents a digitizer module. It has a pure virtual
method, Digitize(). A concrete digitizer module must have an implementation of this virtual method. The
Geant4 kernel classes do not have a ``built-in'' invocation to the Digitize() method. You have to implement
your code to invoke this method of your digitizer module.
![](asset-ab.png)
Detector Definition and Response
162
In the Digitize() method, you construct your G4VDigi concrete class objects and store them to
your G4TDigiCollection concrete class object(s). Your collection(s) should be associated with the
G4DCofThisEvent object.
G4DigiManager
G4DigiManager is the singleton manager class of the digitizer modules. All of your concrete digitizer modules
should be registered to G4DigiManager with their unique names.
G4DigiManager * fDM = G4DigiManager::GetDMpointer();
MyDigitizer * myDM = new MyDigitizer( "/myDet/myCal/myEMdigiMod" );
fDM->AddNewModule(myDM);
Your concrete digitizer module can be accessed from your code using the unique module name.
G4DigiManager * fDM = G4DigiManager::GetDMpointer();
MyDigitizer * myDM = fDM->FindDigitizerModule( "/myDet/myCal/myEMdigiMod" );
myDM->Digitize();
Also, G4DigiManager has a Digitize() method which takes the unique module name.
G4DigiManager * fDM = G4DigiManager::GetDMpointer();
MyDigitizer * myDM = fDM->Digitize( "/myDet/myCal/myEMdigiMod" );
How to get hitsCollection and/or digiCollection
G4DigiManager has the following methods to access to the hits or digi collections of the currently processing
event or of previous events.
First, you have to get the collection ID number of the hits or digits collection.
G4DigiManager * fDM = G4DigiManager::GetDMpointer();
G4int myHitsCollID = fDM->GetHitsCollectionID( "hits_collection_name" );
G4int myDigiCollID = fDM->GetDigiCollectionID( "digi_collection_name" );
Then, you can get the pointer to your concrete G4THitsCollection object or G4TDigiCollection object
of the currently processing event.
MyHitsCollection * HC = fDM->GetHitsCollection( myHitsCollID );
MyDigiCollection * DC = fDM->GetDigiCollection( myDigiCollID );
In case you want to access to the hits or digits collection of previous events, add the second argument.
MyHitsCollection * HC = fDM->GetHitsCollection( myHitsCollID, n );
MyDigiCollection * DC = fDM->GetDigiCollection( myDigiCollID, n );
where, n indicates the hits or digits collection of the nth previous event.
4.6. Object Persistency
4.6.1. Persistency in Geant4
Object persistency is provided by Geant4 as an optional category, so that the user may run Geant4 with or without
an object database management system (ODBMS).
When a usual (transient) object is created in C++, the object is placed onto the application heap and it ceases to
exist when the application terminates. Persistent objects, on the other hand, live beyond the termination of the
application process and may then be accessed by other processes (in some cases, by processes on other machines).
![](asset-ac.png)
Detector Definition and Response
163

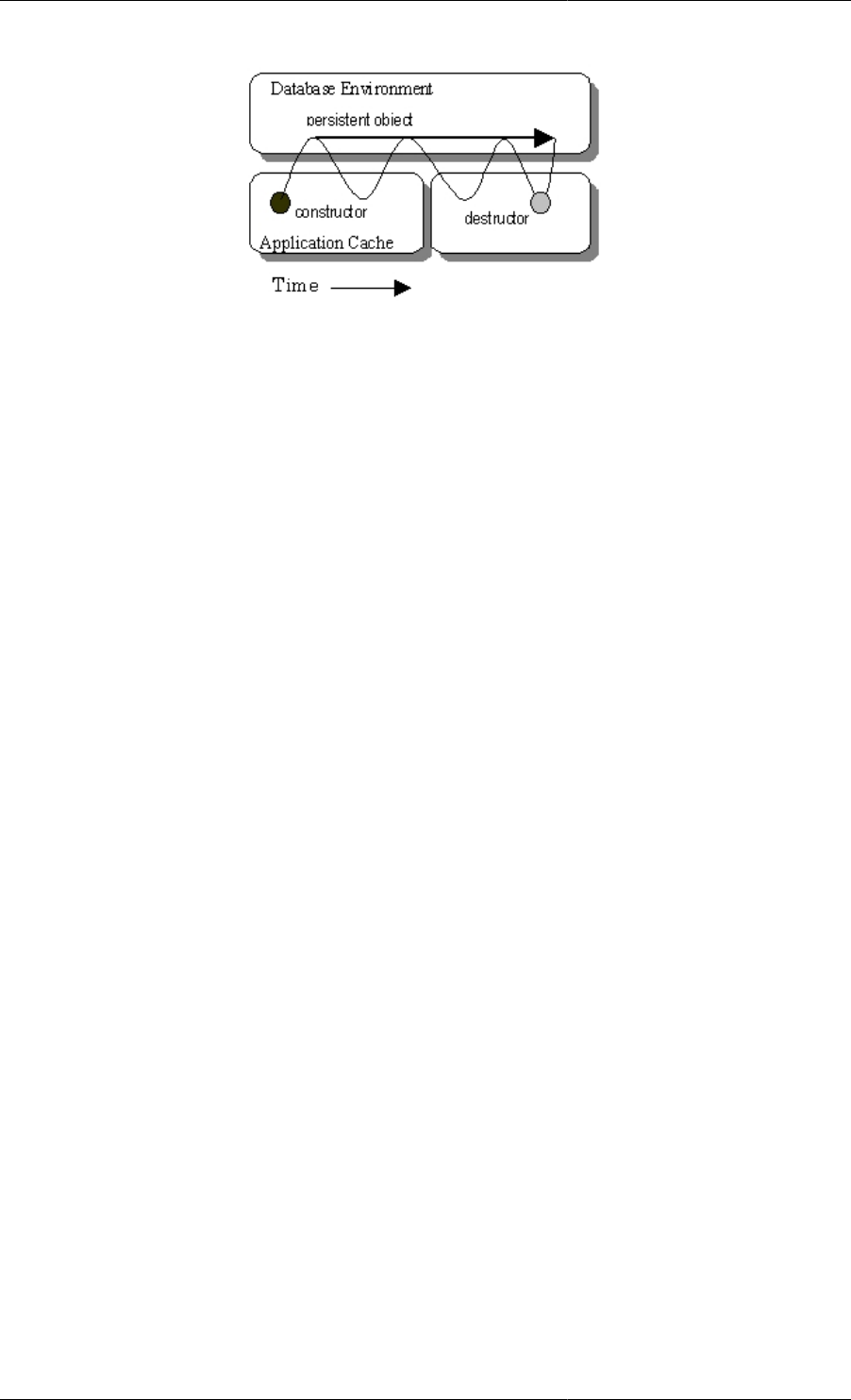

Figure 4.8. Persistent object.
C++ does not have, as an intrinsic part of the language, the ability to store and retrieve persistent objects. Geant4
provides an abstract framework for persistency of hits, digits and events.
Two examples demonstrating an implementation of object persistency using one of the tools accessible through
the available interface, is provided in examples/extended/persistency.
4.6.2. Using Root-I/O for persistency of Geant4 objects
Object persistency of Geant4 objects is also possible by using the Root-I/O features through Root (since release
v6.04/08).
The basic steps that one needs to do in order to use Root-I/O for arbitrary C++ classes is:
1. Generate the dictionary for the given classes from Root (this usually is done by adding the appropriate com-
mand to the makefile)
2. Add initialization of Root-I/O and loading of the generated dictionary for the given classes in the appropriate
part of the code
3. Whenever the objects to be persistified are available, call the WriteObject method of TFile with the
pointer to the appropriate object as argument (usually it is some sort of container, like std::vector con-
taining the collection of objects to be persistified)
The two examples (P01 and P02) provided in examples/extended/persistency demonstrate how to
perform object persistency using the Root-I/O mechanism for storing hits and geometry description.
4.7. Parallel Geometries
4.7.1. A parallel world
Occasionally, it is not straightforward to define geometries for sensitive detectors, importance geometries or en-
velopes for shower parameterization to be coherently assigned to volumes in the tracking (mass) geometry. The
parallel navigation functionality introduced since release 8.2 of Geant4, allows the user to define more than one
world simultaneously. The G4CoupledTransportation process will see all worlds simultaneously; steps
will be limited by every boundaries of the mass and parallel geometries. G4Transportation is automatically
replaced G4CoupledTransportation.
In a parallel world, the user can define volumes in arbitrary manner with sensitivity, regions, shower parameteri-
zation setups, and/or importance weight for biasing. Volumes in different worlds may overlap.
Any kind of G4VSensitiveDetector object can be defined in volumes in a parallel world, exactly at the
same manner for the mass geometry. G4Step object given as an argument of ProcessHit() method contains
geometrical information of the associated world.
Here are restrictions to be considered for the parallel geometry:
![](asset-ad.png)
Detector Definition and Response
164
• Production thresholds and EM field are used only from the mass geometry. Even if such physical quantities are
defined in a parallel world, they do not affect to the simulation.
• Although all worlds will be comprehensively taken care by the G4CoupledTransportation process for
the navigation, each parallel world must have its own unique object of G4ParallelWorldProcess process.
• Volumes in a parallel world may have materials. Such materials overwrite the materials defined in the mass
geometry if the "layered mass geometry" switch of the G4ParallelWorldProcess constructor
is set.
4.7.2. Defining a parallel world
A parallel world should be defined in the Construct() virtual method of the user's class derived from the ab-
stract base class G4VUserParallelWorld. If needed, sensitive detectors must be defined in the Construc-
tSD() method of the same derived class. Please note that EM field cannot be defined in a paralle world.
Example 4.18. An example header file of a concrete user parallel world class.
#ifndef MyParallelWorld_h
#define MyParallelWorld_h 1
#include "globals.hh"
#include "G4VUserParallelWorld.hh"
class MyParallelWorld : public G4VUserParallelWorld
{
public:
MyParallelWorld(G4String worldName);
virtual ~MyParallelWorld();
public:
virtual void Construct();
virtual void ConstructSD();
};
#endif
A parallel world must have its unique name, which should be set to the G4VUserParallelWorld base class
as an argument of the base class constructor.
The world physical volume of the parallel world is provided by the G4RunManager as a clone of the mass
geometry. In the Construct() virtual method of the user's class, the pointer to this cloned world physical
volume is available through the GetWorld() method defined in the base class. The user should fill the volumes
in the parallel world by using this provided world volume. For a logical volume in a parallel world, the material
pointer can be nullptr. Even if specified a valid material pointer, unless "layered mass geometry"
switch of the G4ParallelWorldProcess constructor is set, it will not be taken into account by any physics
process.
Example 4.19. An example source code of a concrete user parallel world class.
#include "MyParallelWorld.hh"
#include "G4LogicalVolume.hh"
#include "G4VPhysicalVolume.hh"
#include "G4Box.hh"
#include "G4PVPlacement.hh"
MyParallelWorld::MyParallelWorld(G4String worldName)
:G4VUserParallelWorld(worldName)
{;}
MyParallelWorld::~MyParallelWorld()
{;}
void MyParallelWorld::Construct()
{
G4VPhysicalVolume* ghostWorld = GetWorld();
G4LogicalVolume* worldLogical = ghostWorld->GetLogicalVolume();
// place volumes in the parallel world here. For example ...
![](asset-ae.png)
Detector Definition and Response
165
//
G4Box * ghostSolid = new G4Box("GhostdBox", 60.*cm, 60.*cm, 60.*cm);
G4LogicalVolume * ghostLogical
= new G4LogicalVolume(ghostSolid, 0, "GhostLogical", 0, 0, 0);
new G4PVPlacement(0, G4ThreeVector(), ghostLogical,
"GhostPhysical", worldLogical, 0, 0);
}
In case the user needs to define more than one parallel worlds, each of them must be implemented through its
dedicated class. Each parallel world should be registered to the mass geometry class using the method Regis-
terParallelWorld() available through the class G4VUserDetectorConstruction. The registration
must be done before the mass world is registed to the G4RunManager.
Example 4.20. Typical implementation in the main() to define a parallel world.
// RunManager construction
//
G4RunManager* runManager = new G4RunManager;
// mass world
//
MyDetectorConstruction* massWorld = new MyDetectorConstruction;
// parallel world
//
G4String paraWorldName = "ParallelWorld";
massWorld->RegisterParallelWorld(new MyParallelWorld(paraWorldName));
// set mass world to run manager
//
runManager->SetUserInitialization(massWorld);
// physics list
//
G4VModularPhysicsList* physicsList = new FTFP_BERT;
physicsList->RegisterPhysics(new G4ParallelWorldPhysics(paraWorldName));
runManager->SetUserInitialization(physicsList);
4.7.3. Layered mass geometry
If "layered mass geometry" switch of the G4ParallelWorldProcess constructor is set, that parallel
world is conceptually layered on top of the mass geometry. If more than one parallel worlds are defined, later-de-
fined world comes on top of others. A track will see the material of the top layer, if it is nullptr, then one layer
beneath. Thus, user has to make sure volumes in a parallel world should have nullptr as their materials except
for volumes he/she really wants to overwrite.
Example 4.21. Typical implementation in the main() to define a layered mass geometry.
// RunManager construction
//
G4RunManager* runManager = new G4RunManager;
// mass world
//
MyDetectorConstruction* massWorld = new MyDetectorConstruction;
// parallel world
//
G4String paraWorldName = "ParallelWorld";
massWorld->RegisterParallelWorld(new MyParallelWorld(paraWorldName));
// set mass world to run manager
//
runManager->SetUserInitialization(massWorld);
// physics list
//
G4VModularPhysicsList* physicsList = new FTFP_BERT;
physicsList->RegisterPhysics(new G4ParallelWorldPhysics(paraWorldName,true));
![](asset-af.png)
Detector Definition and Response
166
runManager->SetUserInitialization(physicsList);
For an information to advanced users, instead of using G4ParallelWorldPhysics physics constructor, once
can define G4ParallelWorldProcess in his/her physics list and assign it only to some selected kind of
particle types. In this case, this parallel world will be seen only by these kinds of particles.
4.8. Command-based scoring
4.8.1. Introduction
Command-based scoring in Geant4 utilizes parallel navigation in a parallel world volume as descibed in the pre-
vious sections. Through interactive commands, the user can define :
• A parallel world for scoring and three-dimensional mesh in it
• Arbitrary number of physics quantities to be scored and filters
After scoring (i.e. a run), the user can visualize the score and dump scores into a file. All available UI commands
are listed in List of built-in commands.
Command-based scoring is an optional functionality and the user has to explicity define its use in the main().
To do this, the method G4ScoringManager::GetScoringManager() must be invoked right after the
instantiation of G4RunManager. The scoring manager is a singleton object, and the pointer accessed above
should not be deleted by the user.
Example 4.22. A user main() to use the command-based scoring
#include "G4RunManager.hh"
#include "G4ScoringManager.hh"
int main(int argc,char** argv)
{
// Construct the run manager
G4RunManager * runManager = new G4RunManager;
// Activate command-based scorer
G4ScoringManager::GetScoringManager();
...
}
4.8.2. Defining a scoring mesh
To define a scoring mesh, the user has to specify the followings.
• Shape and name of the 3D scoring mesh. Currently, box is the only available shape.
• Size of the scoring mesh. Mesh size must be specified as "half width" similar to the arguments of G4Box.
• Number of bins for each axes. Note that too hugh number causes immense memory consumption.
• Optionally, position and rotation of the mesh. If not specified, the mesh is positioned at the center of the world
volume without rotation.
For a scoring mesh the user can have arbitrary number of quantities to be scored for each cell of the mesh. For each
scoring quantity, the use can set one filter. Please note that /score/filter affects on the preceding scorer.
Names of scorers and filters must be unique for the mesh. It is possible to define more than one scorer of same
kind with different names and, likely, with different filters.
Defining a scoring mesh and scores in the mesh should terminate with the /score/close command. The fol-
lowing sample UI commands define a scoring mesh named boxMesh_1, size of which is 2 m * 2 m * 2 m, and
sliced into 30 cells along each axes. For each cell energy deposition, number of steps of gamma, number of steps
of electron and number of steps of positron are scored.
![](asset-b0.png)
Detector Definition and Response
167
Example 4.23. UI commands to define a scoring mesh and scorers
#
# define scoring mesh
#
/score/create/boxMesh boxMesh_1
/score/mesh/boxSize 100. 100. 100. cm
/score/mesh/nBin 30 30 30
#
# define scorers and filters
#
/score/quantity/energyDeposit eDep
/score/quantity/nOfStep nOfStepGamma
/score/filter/particle gammaFilter gamma
/score/quantity/nOfStep nOfStepEMinus
/score/filter/particle eMinusFilter e-
/score/quantity/nOfStep nOfStepEPlus
/score/filter/particle ePlusFilter e+
#
/score/close
#
4.8.3. Drawing scores
Once scores are filled, it is possible to visualize the scores. The score is drawn on top of the mass geometry with
the current visualization settings.
Figure 4.9. Drawing scores in slices (left) and projection (right)
Scored data can be visualized using the commands "/score/drawProjection" and "/score/drawCol-
umn". For details, see examples/extended/runAndEvent/RE03.
By default, entries are linearly mapped to colors (gray - blue - green - red). This color mapping is implemented
in G4DefaultLinearColorMap class, and registered to G4ScoringManager with the color map name
"defaultLinearColorMap". The user may alternate color map by implementing a customised color map
class derived from G4VScoreColorMap and register it to G4ScoringManager. Then, for each draw com-
mand, one can specify the preferred color map.
4.8.4. Writing scores to a file
It is possible to dump a score in a mesh (/score/dumpQuantityToFile command) or all scores in a mesh
(/score/dumpAllQuantitiesToFile command) to a file. The default file format is the simple CSV. To
alternate the file format, one should overwrite G4VScoreWriter class and register it to G4ScoringManager.
The scoring manager takes ownership of the registered writer, and will delete it at the end of the job.
Please refer to /examples/extended/runAndEvent/RE03 for details.
![](asset-b1.png)
168
Chapter 5. Tracking and Physics
5.1. Tracking
5.1.1. Basic Concepts
Philosophy of Tracking
All Geant4 processes, including the transportation of particles, are treated generically. In spite of the name "track-
ing", particles are not transported in the tracking category. G4TrackingManager is an interface class which
brokers transactions between the event, track and tracking categories. An instance of this class handles the message
passing between the upper hierarchical object, which is the event manager, and lower hierarchical objects in the
tracking category. The event manager is a singleton instance of the G4EventManager class.
The tracking manager receives a track from the event manager and takes the actions required to finish track-
ing it. G4TrackingManager aggregates the pointers to G4SteppingManager, G4Trajectory and
G4UserTrackingAction. Also there is a "use" relation to G4Track and G4Step.
G4SteppingManager plays an essential role in tracking the particle. It takes care of all message passing be-
tween objects in the different categories relevant to transporting a particle (for example, geometry and interactions
in matter). Its public method Stepping() steers the stepping of the particle. The algorithm to handle one step
is given below.
1. If the particle stop (i.e. zero kinetic energy), each active atRest process proposes a step length in time based
on the interaction it describes. And the process proposing the smallest step length will be invoked.
2. Each active discrete or continuous process must propose a step length based on the interaction it describes.
The smallest of these step lengths is taken.
3. The geometry navigator calculates "Safety", the distance to the next volume boundary. If the minimum phys-
ical-step-length from the processes is shorter than "Safety", the physical-step-length is selected as the next
step length. In this case, no further geometrical calculations will be performed.
4. If the minimum physical-step-length from the processes is longer than "Safety", the distance to the next
boundary is re-calculated.
5. The smaller of the minimum physical-step-length and the geometric step length is taken.
6. All active continuous processes are invoked. Note that the particle's kinetic energy will be updated only after
all invoked processes have completed. The change in kinetic energy will be the sum of the contributions
from these processes.
7. The current track properties are updated before discrete processes are invoked. In the same time, the secondary
particles created by processes are stored in SecondaryList. The updated properties are:
• the kinetic energy of the current track particle (note that 'sumEnergyChange' is the sum of the energy
difference before and after each process invocation)
• position and time
8. The kinetic energy of the particle is checked to see whether or not it has been terminated by a continuous
process. If the kinetic energy goes down to zero, atRest processes will be applied at the next step if applicable.
9. The discrete process is invoked. After the invocation,
• the energy, position and time of the current track particle are updated, and
• the secondaries are stored in SecondaryList.
10. The track is checked to see whether or not it has been terminated by the discrete process.
11. "Safety" is updated.
12. If the step was limited by the volume boundary, push the particle into the next volume.
13. Handle hit information.
14. Invoke the user intervention G4UserSteppingAction.
15. Save data to Trajectory.
16. Update the mean free paths of the discrete processes.
17. If the parent particle is still alive, reset the maximum interaction length of the discrete process which has
occurred.
![](asset-b2.png)
Tracking and Physics
169
18. One step completed.
What is a Process?
Only processes can change information of G4Track and add secondary tracks via ParticleChange.
G4VProcess is a base class of all processes and it has 3 kinds of DoIt and GetPhysicalInteraction
methods in order to describe interactions generically. If a user want to modify information of G4Track, he (or
she) SHOULD create a special process for the purpose and register the process to the particle.
What is a Track?
G4Track keeps 'current' information of the particle. (i.e. energy,momentum, position ,time and so on) and has 'sta-
tic' information (i.e. mass, charge, life and so on) also. Note that G4Track keeps information at the beginning of
the step while the AlongStepDoIts are being invoked for the step in progress.After finishing all AlongStep-
DoIts, G4Track is updated. On the other hand, G4Track is updated after each invocation of a PostStep-
DoIt.
What is a Step?
G4Step stores the transient information of a step. This includes the two endpoints of the step, PreStepPoint
and PostStepPoint, which contain the points' coordinates and the volumes containing the points. G4Step
also stores the change in track properties between the two points. These properties, such as energy and momentum,
are updated as the various active processes are invoked.
What is a ParticleChange?
Processes do NOT change any information of G4Track directly in their DoIt. Instead, they proposes changes as a
result of interactions by using ParticleChange. After each DoIt, ParticleChange updates PostStep-
Point based on proposed changes. Then, G4Track is updated after finishing all AlongStepDoIts and after
each PostStepDoIt.
5.1.2. Access to Track and Step Information
How to Get Track Information
Track information may be accessed by invoking various Get methods provided in the G4Track class. For details,
see the G4Track.hh header file in $G4INCLUDE. Typical information available includes:
• (x,y,z)
• Global time (time since the event was created)
• Local time (time since the track was created)
• Proper time (time in its rest frame since the track was created )
• Momentum direction ( unit vector )
• Kinetic energy
• Accumulated geometrical track length
• Accumulated true track length
• Pointer to dynamic particle
• Pointer to physical volume
• Track ID number
• Track ID number of the parent
• Current step number
• Track status
• (x,y,z) at the start point (vertex position) of the track
• Momentum direction at the start point (vertex position) of the track
• Kinetic energy at the start point (vertex position) of the track
• Pinter to the process which created the current track
![](asset-b3.png)
Tracking and Physics
170
How to Get Step Information
Step and step-point information can be retrieved by invoking various Get methods provided in the G4Step/
G4StepPoint classes..
Information in G4Step includes:
• Pointers to PreStep and PostStepPoint
• Geometrical step length (step length before the correction of multiple scattering)
• True step length (step length after the correction of multiple scattering)
• Increment of position and time between PreStepPoint and PostStepPoint
• Increment of momentum and energy between PreStepPoint and PostStepPoint. (Note: to get the en-
ergy deposited in the step, you cannot use this 'Delta energy'. You have to use 'Total energy deposit' as below.)
• Pointer to G4Track
• Total energy deposited during the step - this is the sum of
• the energy deposited by the energy loss process, and
• the energy lost by secondaries which have NOT been generated because each of their energies was below
the cut threshold
• Energy deposited not by ionization during the step
• Secondary tracks created during tracking for the current track.
• NOTE: all secondaries are included. NOT only secondaries created in the CURRENT step.
Information in G4StepPoint (PreStepPoint and PostStepPoint) includes:
• (x, y, z, t)
• (px, py, pz, Ek)
• Momentum direction (unit vector)
• Pointers to physical volumes
• Safety
• Beta, gamma
• Polarization
• Step status
• Pointer to the physics process which defined the current step and its DoIt type
• Pointer to the physics process which defined the previous step and its DoIt type
• Total track length
• Global time (time since the current event began)
• Local time (time since the current track began)
• Proper time
How to Get "particle change"
Particle change information can be accessed by invoking various Get methods provided in the
G4ParticleChange class. Typical information available includes:
• final momentum direction of the parent particle
• final kinetic energy of the parent particle
• final position of the parent particle
• final global time of the parent particle
• final proper time of the parent particle
• final polarization of the parent particle
• status of the parent particle (G4TrackStatus)
• true step length (this is used by multiple scattering to store the result of the transformation from the geometrical
step length to the true step length)
• local energy deposited - this consists of either
• energy deposited by the energy loss process, or
• the energy lost by secondaries which have NOT been generated because each of their energies was below
the cut threshold.
• number of secondaries particles
• list of secondary particles (list of G4Track)
![](asset-b4.png)
Tracking and Physics
171
5.1.3. Handling of Secondary Particles
Secondary particles are passed as G4Tracks from a physics process to tracking. G4ParticleChange provides
the following four methods for a physics process:
•AddSecondary( G4Track* aSecondary )
•AddSecondary( G4DynamicParticle* aSecondary )
•AddSecondary( G4DynamicParticle* aSecondary, G4ThreeVector position )
•AddSecondary( G4DynamicParticle* aSecondary, G4double time)
In all but the first, the construction of G4Track is done in the methods using information given by the arguments.
5.1.4. User Actions
There are two classes which allow the user to intervene in the tracking. These are:
•G4UserTrackingAction, and
•G4UserSteppingAction.
Each provides methods which allow the user access to the Geant4 kernel at specific points in the tracking.
Note-1: Users SHOULD NOT (and CAN NOT) change G4Track in UserSteppingAction. Only the ex-
ception is the TrackStatus.
Note-2: Users have to be cautious to implement an unnatural/unphysical action in these user actions. See the
section Killing Tracks in User Actions and Energy Conservation for more details.
5.1.5. Verbose Outputs
The verbose information output flag can be turned on or off. The amount of information printed about the track/
step, from brief to very detailed, can be controlled by the value of the verbose flag, for example,
G4UImanager* UI = G4UImanager::GetUIpointer();
UI->ApplyCommand("/tracking/verbose 1");
5.1.6. Trajectory and Trajectory Point
G4Trajectory and G4TrajectoryPoint
G4Trajectory and G4TrajectoryPoint are default concrete classes provided by Geant4, which are de-
rived from the G4VTrajectory and G4VTrajectoryPoint base classes, respectively. A G4Trajectory
class object is created by G4TrackingManager when a G4Track is passed from the G4EventManager.
G4Trajectory has the following data members:
• ID numbers of the track and the track's parent
• particle name, charge, and PDG code
• a collection of G4TrajectoryPoint pointers
G4TrajectoryPoint corresponds to a step point along the path followed by the track. Its position is given
by a G4ThreeVector. A G4TrajectoryPoint class object is created in the AppendStep() method of
G4Trajectory and this method is invoked by G4TrackingManager at the end of each step. The first point
is created when the G4Trajectory is created, thus the first point is the original vertex.
The creation of a trajectory can be controlled by invoking
G4TrackingManager::SetStoreTrajectory(G4bool). The UI command /tracking/storeTrajec-
tory _bool_ does the same. The user can set this flag for each individual track from his/her
G4UserTrackingAction::PreUserTrackingAction() method.
![](asset-b5.png)
Tracking and Physics
172
The user should not create trajectories for secondaries in a shower due to the large amount of memory
consumed.
All the created trajectories in an event are stored in G4TrajectoryContainer class object and this ob-
ject will be kept by G4Event. To draw or print trajectories generated in an event, the user may invoke the
DrawTrajectory() or ShowTrajectory() methods of G4VTrajectory, respectively, from his/her
G4UserEventAction::EndOfEventAction(). The geometry must be drawn before the trajectory draw-
ing. The color of the drawn trajectory depends on the particle charge:
• negative: red
• neutral: green
• positive: blue
Due to improvements in G4Navigator, a track can execute more than one turn of its spiral trajectory
without being broken into smaller steps as long as the trajectory does not cross a geometrical boundary.
Thus a drawn trajectory may not be circular.
Customizing trajectory and trajectory point
G4Track and G4Step are transient classes; they are not available at the end of the event. Thus, the concrete
classes G4VTrajectory and G4VTrajectoryPoint are the only ones a user may employ for end-of-event
analysis or for persistency. As mentioned above, the default classes which Geant4 provides, i.e. G4Trajectory
and G4TrajectoryPoint, have only very primitive quantities. The user can customize his/her own trajectory
and trajectory point classes by deriving directly from the respective base classes.
To use the customized trajectory, the user must construct a concrete trajectory class object in the
G4UserTrackingAction::PreUserTrackingAction() method and make its pointer available to
G4TrackingManager by using the SetTrajectory() method. The customized trajectory point class ob-
ject must be constructed in the AppendStep() method of the user's implementation of the trajectory class. This
AppendStep() method will be invoked by G4TrackingManager.
To customize trajectory drawing, the user can override the DrawTrajectory() method in his/her own trajec-
tory class.
When a customized version of G4Trajectory declares any new class variables, operator new and opera-
tor delete must be provided. It is also useful to check that the allocation size in operator new is equal to
sizeof(G4Trajectory). These two points do not apply to G4VTrajectory because it has no operator
new or operator delete.
5.2. Physics Processes
Physics processes describe how particles interact with a material. Seven major categories of processes are provided
by Geant4:
1. electromagnetic,
2. hadronic,
3. decay,
4. photolepton-hadron ,
5. optical,
6. parameterization, and
7. transportation.
The generalization and abstraction of physics processes is a key issue in the design of Geant4. All physics process-
es are treated in the same manner from the tracking point of view. The Geant4 approach enables anyone to cre-
ate a process and assign it to a particle type. This openness should allow the creation of processes for novel, do-
main-specific or customised purposes by individuals or groups of users.
![](asset-b6.png)
Tracking and Physics
173
Each process has two groups of methods which play an important role in tracking, GetPhysicalInterac-
tionLength (GPIL) and DoIt. The GPIL method gives the step length from the current space-time point to the
next space-time point. It does this by calculating the probability of interaction based on the process's cross section
information. At the end of this step the DoIt method should be invoked. The DoIt method implements the details
of the interaction, changing the particle's energy, momentum, direction and position, and producing secondary
tracks if required. These changes are recorded as G4VParticleChange objects(see Particle Change).
G4VProcess
G4VProcess is the base class for all physics processes. Each physics process must implement virtual methods
of G4VProcess which describe the interaction (DoIt) and determine when an interaction should occur (GPIL).
In order to accommodate various types of interactions G4VProcess provides three DoIt methods:
•G4VParticleChange* AlongStepDoIt( const G4Track& track, const G4Step& step-
Data )
This method is invoked while G4SteppingManager is transporting a particle through one step. The corre-
sponding AlongStepDoIt for each defined process is applied for every step regardless of which process pro-
duces the minimum step length. Each resulting change to the track information is recorded and accumulated in
G4Step. After all processes have been invoked, changes due to AlongStepDoIt are applied to G4Track,
including the particle relocation and the safety update. Note that after the invocation of AlongStepDoIt, the
endpoint of the G4Track object is in a new volume if the step was limited by a geometric boundary. In order
to obtain information about the old volume, G4Step must be accessed, since it contains information about
both endpoints of a step.
•G4VParticleChange* PostStepDoIt( const G4Track& track, const G4Step& step-
Data )
This method is invoked at the end point of a step, only if its process has produced the minimum step length,
or if the process is forced to occur. G4Track will be updated after each invocation of PostStepDoIt, in
contrast to the AlongStepDoIt method.
•G4VParticleChange* AtRestDoIt( const G4Track& track, const G4Step& step-
Data )
This method is invoked only for stopped particles, and only if its process produced the minimum step length
or the process is forced to occur.
For each of the above DoIt methods G4VProcess provides a corresponding pure virtual GPIL method:
•G4double PostStepGetPhysicalInteractionLength( const G4Track& track,
G4double previousStepSize, G4ForceCondition* condition )
This method generates the step length allowed by its process. It also provides a flag to force the interaction to
occur regardless of its step length.
•G4double AlongStepGetPhysicalInteractionLength( const G4Track& track,
G4double previousStepSize, G4double currentMinimumStep, G4double& pro-
posedSafety, G4GPILSelection* selection )
This method generates the step length allowed by its process.
•G4double AtRestGetPhysicalInteractionLength( const G4Track& track,
G4ForceCondition* condition )
This method generates the step length in time allowed by its process. It also provides a flag to force the inter-
action to occur regardless of its step length.
Other pure virtual methods in G4VProcess follow:
•virtual G4bool IsApplicable(const G4ParticleDefinition&)
returns true if this process object is applicable to the particle type.
•virtual void PreparePhysicsTable(const G4ParticleDefinition&) and
![](asset-b7.png)
Tracking and Physics
174
•virtual void BuildPhysicsTable(const G4ParticleDefinition&)
is messaged by the process manager, whenever cross section tables should be prepared and rebuilt due to chang-
ing cut-off values. It is not mandatory if the process is not affected by cut-off values.
•virtual void StartTracking() and
•virtual void EndTracking()
are messaged by the tracking manager at the beginning and end of tracking the current track.
Other base classes for processes
Specialized processes may be derived from seven additional virtual base classes which are themselves derived
from G4VProcess. Three of these classes are used for simple processes:
G4VRestProcess
Processes using only the AtRestDoIt method.
example: neutron capture
G4VDiscreteProcess
Processes using only the PostStepDoIt method.
example: compton scattering, hadron inelastic interaction
The other four classes are provided for rather complex processes:
G4VContinuousDiscreteProcess
Processes using both AlongStepDoIt and PostStepDoIt methods.
example: transportation, ionisation(energy loss and delta ray)
G4VRestDiscreteProcess
Processes using both AtRestDoIt and PostStepDoIt methods.
example: positron annihilation, decay (both in flight and at rest)
G4VRestContinuousProcess
Processes using both AtRestDoIt and AlongStepDoIt methods.
G4VRestContinuousDiscreteProcess
Processes using AtRestDoIt, AlongStepDoIt and PostStepDoIt methods.
Particle change
G4VParticleChange and its descendants are used to store the final state information of the track, including
secondary tracks, which has been generated by the DoIt methods. The instance of G4VParticleChange is the
only object whose information is updated by the physics processes, hence it is responsible for updating the step.
The stepping manager collects secondary tracks and only sends requests via particle change to update G4Step.
G4VParticleChange is introduced as an abstract class. It has a minimal set of methods for updating
G4Step and handling secondaries. A physics process can therefore define its own particle change derived from
G4VParticleChange. Three pure virtual methods are provided,
•virtual G4Step* UpdateStepForAtRest( G4Step* step),
•virtual G4Step* UpdateStepForAlongStep( G4Step* step ) and
•virtual G4Step* UpdateStepForPostStep( G4Step* step),
![](asset-b8.png)
Tracking and Physics
175
which correspond to the three DoIt methods of G4VProcess. Each derived class should implement these meth-
ods.
5.2.1. Electromagnetic Interactions
This section summarizes the electromagnetic (EM) physics processes which are provided with Geant4. Extended
information are avalable at EM web pages. For details on the implementation of these processes please refer to
the Physics Reference Manual.
To use the electromagnetic physics data files are needed. The user should set the environment variable
G4LEDATA to the directory with this files. These files are distributed together with Geant4 and can be obtained
via Geant4 download web page. For Geant4 version 10.3 G4EMLOW6.50 data set is required.
5.2.1.1. Electromagnetic Processes
The following is a summary of the electromagnetic processes available in Geant4.
• Photon processes
• Gamma conversion (also called pair production, class name G4GammaConversion)
• Photo-electric effect (class name G4PhotoElectricEffect)
• Compton scattering (class name G4ComptonScattering)
• Rayleigh scattering (class name G4RayleighScattering)
• Muon pair production (class name G4GammaConversionToMuons)
• Electron/positron processes
• Ionisation and delta ray production (class name G4eIonisation)
• Bremsstrahlung (class name G4eBremsstrahlung)
• e+e- pair production (class name G4ePairProduction)
• Multiple scattering (class name G4eMultipleScattering)
• Positron annihilation into two gammas (class name G4eplusAnnihilation)
• Positron annihilation into two muons (class name G4AnnihiToMuPair)
• Positron annihilation into hadrons (class name G4eeToHadrons)
• Muon processes
• Ionisation and delta ray production (class name G4MuIonisation)
• Bremsstrahlung (class name G4MuBremsstrahlung)
• e+e- pair production (class name G4MuPairProduction)
• Multiple scattering (class name G4MuMultipleScattering)
• Hadron/ion processes
• Ionisation (class name G4hIonisation)
• Ionisation for ions (class name G4ionIonisation)
• Ionisation for heavy exotic particles (class name G4hhIonisation)
• Ionisation for classical magnetic monopole (class name G4mplIonisation)
• Multiple scattering (class name G4hMultipleScattering)
• Bremsstrahlung (class name G4hBremsstrahlung)
• e+e- pair production (class name G4hPairProduction)
• Coulomb scattering processes
• Alternative process for simulation of single Coulomb scattering of all charged particles (class name
G4CoulombScattering)
• Alternative process for simulation of single Coulomb scattering of ions (class name
G4ScreenedNuclearRecoil)
• Processes for simulation of polarized electron and gamma beams
• Compton scattering of circularly polarized gamma beam on polarized target (class name
G4PolarizedCompton)
• Pair production induced by circularly polarized gamma beam (class name
G4PolarizedGammaConversion)
• Photo-electric effect induced by circularly polarized gamma beam (class name
G4PolarizedPhotoElectricEffect)
• Bremsstrahlung of polarized electrons and positrons (class name G4ePolarizedBremsstrahlung)
• Ionisation of polarized electron and positron beam (class name G4ePolarizedIonisation)
![](asset-b9.png)
Tracking and Physics
176
• Annihilation of polarized positrons (class name G4eplusPolarizedAnnihilation)
• Processes for simulation of X-rays and optical protons production by charged particles
• Synchrotron radiation (class name G4SynchrotronRadiation)
• Transition radiation (class name G4TransitionRadiation)
• Cerenkov radiation (class name G4Cerenkov)
• Scintillations (class name G4Scintillation)
• The processes described above use physics model classes, which may be combined according to particle energy.
It is possible to change the energy range over which different models are valid, and to apply other models
specific to particle type, energy range, and G4Region. The following alternative models are available in the
standard EM sub-library:
• Ionisation in thin absorbers (class name G4PAIModel)
• Ionisation in thin absorbers (class name G4PAIPhotModel)
• Ionisation in low-density media (class name G4BraggIonGasModel)
• Ionisation in low-density media (class name G4BetheBlochIonGasModel)
• Multiple scattering (class name G4UrbanMscModel)
• Multiple scattering (class name G4GoudsmitSaundersonMscModel)
• Multiple scattering (class name G4WentzelVIModel)
• Multiple scattering (class name G4LowEWentzelVIModel)
• Single scattering (class name G4eCoulombScatteringModel)
• Single scattering (class name G4eSingleCoulombScatteringModel)
It is recommended to use physics constructor classes provided with reference physics lists (in subdirectory
source/physics_lists/constructors/electromagnetic of the Geant4 source distribution):
• default EM physics, multiple scattering is simulated with "UseSafety" type of step limitation by combined
G4WentzelVIModel and G4eCoulombScatteringModel for all particle types, for of e+- below 100
MeV G4UrbanMscModel is used, physics tables are built from 100 eV to 100 TeV, 7 bins per energy decade
of physics tables are used (class name G4EmStandardPhysics)
• optional EM physics providing fast but less acurate electron transport due to "Simple" method of step limitation
by multiple scattering, reduced step limitation by ionisation process and enabled "ApplyCuts" option (class
name G4EmStandardPhysics_option1)
• optional EM physics providing fast but less acurate electron transport due to "Simple" method of step limitation
by multiple scattering and reduced step limitation by ionisation process, G4Generator2BS angular generator
for bremsstrahlung (class name G4EmStandardPhysics_option2)
• EM physics for simulation with high accuracy due to "UseDistanceToBoundary" multiple scattering step
limitation and usage of G4UrbanMscModel for all charged particles, reduced finalRange parameter of
stepping function optimized per particle type, alternative models G4LivermorePhotoElectricModel
for photoelectric effect, G4KleinNishinaModel for Compton scattering, enabled Rayleigh scattering,
enabled fluorescence, enabled nuclear stopping, G4Generator2BS angular generator for bremsstrahlung,
G4IonParameterisedLossModel for ion ionisation, 20 bins per energy decade of physics tables, and 10
eV low-energy limit for tables (class name G4EmStandardPhysics_option3)
• Combination of EM models for simulation with high accuracy includes "UseDistanceToBound-
ary" multiple scattering step limitation, RangeFactor = 0.02, reduced finalRange pa-
rameter of stepping function optimized per particle type, enabled Rayleigh scattering, en-
abled fluorescence, enabled nuclear stopping, enable accurate angular generator for ionisa-
tion models, G4LivermorePhotoElectricModel, G4LowEPComptonModel below 20 MeV,
G4PenelopeGammaConversionModel below 1 GeV, G4PenelopeIonisationModel fro electrons
and positrons below 100 keV, G4IonParameterisedLossModel for ion ionisation, G4Generator2BS
angular generator for bremsstrahlung, and 20 bins per energy decade of physics tables, (class name
G4EmStandardPhysics_option4)
• Models based on Livermore data bases for electrons and gamma, enabled Rayleigh scattering, en-
abled fluorescence, enabled nuclear stopping, enable accurate angular generator for ionisation models,
G4IonParameterisedLossModel for ion ionisation, and 20 bins per energy decade of physics tables,
(G4EmLivermorePhysics);
• Models for simulation of linear polarized gamma based on Livermore data bases for electrons and gamma
(G4EmLivermorePolarizedPhysics);
• Models based on Livermore data bases and new model for Compton scattering G4LowEPComptonModel,
new low-energy model of multiple scatetring G4LowEWenzelMscModel (G4EmLowEPPhysics);
![](asset-ba.png)
Tracking and Physics
177
• Penelope2008 models for electrons, positrons and gamma, enabled Rayleigh scattering, enabled
fluorescence, enabled nuclear stopping, enable accurate angular generator for ionisation models,
G4IonParameterisedLossModel for ion ionisation, and 20 bins per energy decade of physics tables,
(G4EmPenelopePhysics);
• Experimental physics with multiple scattering of e+- below 100 MeV simulated by
G4GoudsmitSaundersonMscModel is done on top of the default EM physics
(G4EmStandardPhysicsGS);
• Experimental physics with multiple scattering of e+- below 100 MeV simulated by a combination of
G4WentzelVIModel and G4eCoulombScatteringModel is done on top of the default EM physics
(G4EmStandardPhysicsGS);
• Experimental physics with single scattering models instead of multiple scattering is done on top of the
default EM physics, for all leptons and hadrons G4eCoulombScatteringModel is used, for ions -
G4IonCoulombScatteringModel (G4EmStandardPhysicsSS);
• Low-energy Geant4-DNA physics (G4EmDNAPhysics).
• Alternative low-energy Geant4-DNA physics constructors (G4EmDNAPhysics_optionX, where X is 1 to
5).Refer to Geant4-DNA section.
Examples of the registration of these physics constructor and construction of alternative combinations of options
are shown in basic, extended and advanced examples, which can be found in the subdirectories examples/ba-
sic, examples/extended/electromagnetic and examples/advanced of the Geant4 source distri-
bution. Examples illustrating the use of electromagnetic processes are available as part of the Geant4 release.
Options are available for steering of electromagnetic processes. These options may be invoked ei-
ther by UI commands or by the new C++ interface class G4EmParameters. The interface
G4EmParameters::Instance() is thread safe, EM parameters are shared between threads, and parameters
are shared between all EM processes. Parameters may be modified at G4State_PreInit or G4State_Idle states of
Geant4. Note, that when any of EM physics constructor is instantiated a default set of EM parameters for this
EM physics configuration is defained. So, parameters modification should be applied only after. This class has
the following public methods:
• Dump()
• StreamInfo(std::ostream&)
• SetDefaults()
• SetLossFluctuations(G4bool)
• SetBuildCSDARange(G4bool)
• SetLPM(G4bool)
• SetSpline(G4bool)
• SetCutAsFinalRange(G4bool)
• SetApplyCuts(G4bool)
• SetFluo(G4bool val)
• SetBeardenFluoDir(G4bool val)
• SetAuger(G4bool val)
• SetAugerCascade(G4bool val)
• SetPixe(G4bool val)
• SetDeexcitationIgnoreCut(G4bool val)
• SetLateralDisplacement(G4bool val)
• SetMuHadLateralDisplacement(G4bool val)
• SetLatDisplacementBeyondBoundary(G4bool val)
• ActivateAngularGeneratorForIonisation(G4bool val)
• SetUseMottCorrection(G4bool val)
• SetIntegral(G4bool val)
• SetBirksActive(G4bool val)
• SetEmSaturation(G4EmSaturation*)
• SetMinSubRange(G4double)
• SetMinEnergy(G4double)
• SetMaxEnergy(G4double)
• SetMaxEnergyForCSDARange(G4double)
• SetLowestEnergy(G4double)
![](asset-bb.png)
Tracking and Physics
178
• SetLowestMuHadEnergy(G4double)
• SetLinearLossLimit(G4double)
• SetBremsstrahlungTh(G4double)
• SetLambdaFactor(G4double)
• SetFactorForAngleLimit(G4double)
• SetMscThetaLimit(G4double)
• SetMscRangeFactor(G4double)
• SetMscMuHadRangeFactor(G4double)
• SetMscGeomFactor(G4double)
• SetMscSkin(G4double)
• SetStepFunction(G4double, G4double)
• SetStepFunctionMuHad(G4double, G4double)
• SetNumberOfBins(G4int)
• SetNumberOfBinsPerDecade(G4int)
• SetVerbose(G4int)
• SetWorkerVerbose(G4int)
• SetMscStepLimitType(G4MscStepLimitType val)
• SetMscMuHadStepLimitType(G4MscStepLimitType val)
• SetNuclearFormFactorType(G4NuclearFormFactorType val)
• SetPIXECrossSectionModel(const G4String&)
• SetPIXEElectronCrossSectionModel(const G4String&)
• AddPAIModel(const G4String& particle, const G4String& region, const G4String& type)
• AddMicroElecModel(const G4String& region)
• AddDNA(const G4String& region, const G4String& type)
• AddMsc(const G4String& region, const G4String& physics_type)
• SetSubCutoff(G4bool, const G4String& region)
• SetDeexActiveRegion(const G4String& region, G4bool, G4bool, G4bool)
• SetProcessBiasingFactor(const G4String& process, G4double, G4bool)
• ActivateForcedInteraction(const G4String& process, const G4String& region, G4double, G4bool)
• ActivateSecondaryBiasing(const G4String& process, const G4String& region, G4double, G4double)
The old interface class G4EmProcessOptions is still available but but is strongly recommended not to be
used. It will be removed in the next major release.
The corresponding UI command can be accessed in the UI subdirectories "/process/eLoss", "/process/em", and "/
process/msc". The following types of step limitation by multiple scattering are available:
• fSimple - simplified step limitation (used in _EMV and _EMX Physics Lists)
• fUseSafety - default
• fUseDistanceToBoundary - advance method of step limitation used in EM examples, required parameter skin
> 0, should be used for setup without magnetic field
• fUseSafetyPlus - advanced method may be used with magnetic field
G4EmCalculator is a class which provides access to cross sections and stopping powers. This class can be used
anywhere in the user code provided the physics list has already been initialised (G4State_Idle). G4EmCalculator
has "Get" methods which can be applied to materials for which physics tables are already built, and "Compute"
methods which can be applied to any material defined in the application or existing in the Geant4 internal database.
The public methods of this class are:
• GetDEDX(kinEnergy,particle,material,G4Region region=0)
• GetRangeFromRestrictedDEDX(kinEnergy,particle,material,G4Region* region=0)
• GetCSDARange(kinEnergy,particle,material,G4Region* region=0)
• GetRange(kinEnergy,particle,material,G4Region* region=0)
• GetKinEnergy(range,particle,material,G4Region* region=0)
• GetCrosSectionPerVolume(kinEnergy,particle,material,G4Region* region=0)
• GetShellIonisationCrossSectionPerAtom(particle,Z,shell,kinEnergy)
• GetMeanFreePath(kinEnergy,particle,material,G4Region* region=0)
• PrintDEDXTable(particle)
• PrintRangeTable(particle)
![](asset-bc.png)
Tracking and Physics
179
• PrintInverseRangeTable(particle)
• ComputeDEDX(kinEnergy,particle,process,material,cut=DBL_MAX)
• ComputeElectronicDEDX(kinEnergy,particle,material,cut=DBL_MAX)
• ComputeNuclearDEDX(kinEnergy,particle,material,cut=DBL_MAX)
• ComputeTotalDEDX(kinEnergy,particle,material,cut=DBL_MAX)
• ComputeCrossSectionPerVolume(kinEnergy,particle,process,material,cut=0)
• ComputeCrossSectionPerAtom(kinEnergy,particle,process,Z,A,cut=0)
• ComputeGammaAttenuationLength(kinEnergy,material)
• ComputeShellIonisationCrossSectionPerAtom(particle,Z,shell,kinEnergy)
• ComputeMeanFreePath(kinEnergy,particle,process,material,cut=0)
• ComputeEnergyCutFromRangeCut(range,particle,material)
• FindParticle(const G4String&)
• FindIon(G4int Z, G4int A)
• FindMaterial(const G4String&)
• FindRegion(const G4String&)
• FindCouple(const G4Material*, const G4Region* region=0)
• SetVerbose(G4int)
For these interfaces, particles, materials, or processes may be pointers or strings with names.
5.2.1.2. Low Energy Electromagnetic Library
A physical interaction is described by a process class which can handle physics models, described by model classes.
The following is a summary of the Low Energy Electromagnetic physics models available in Geant4. Further
information is available in the web pages of the Geant4 Low Energy Electromagnetic Physics Working Group,
accessible from the Geant4 web site, “who we are” section, then “working groups”.
The physics content of these models is documented in the Geant4 Physics Reference Manual. They are based on
the Livermore data library, on the ICRU73 data tables or on the Penelope2008 Monte Carlo code. They adopt the
same software design as the "standard" Geant4 electromagnetic models.
Examples of the registration of physics constructor with low-energy electromagnetic models are shown in Geant4
extended examples (examples/extended/electromagnetic in the Geant4 source distribution). Ad-
vanced examples (examples/advanced in the Geant4 source distribution) illustrate alternative instantiation
of these processes. Both are available as part of the Geant4 release.
5.2.1.3. Production Cuts
Remember that production cuts for secondaries can be specified as range cuts, which are converted at initialisation
time into energy thresholds for secondary gamma, electron, positron and proton production. The cut for proton is
applied by elastic scattering processes to aal recoil ions.
A range cut value is set by default to 0.7 mm in Geant4 reference physics lists. This value can be specified in the
optional SetCuts() method of the user Physics list or via UI commands. For eg. to set a range cut of 10 micrometers,
one can use:
/run/setCut 0.01 mm
or, for a given particle type (for eg. electron),
/run/setCutForAGivenParticle e- 0.01 mm
If a range cut equivalent to an energy lower than 990 eV is specified, the energy cut is still set to 990 eV. In order
to decrease this value (for eg. down to 250 eV, in order to simulate low energy emission lines of the fluorescence
spectrum), one may use the following UI command before the "/run/initialize" command:
![](asset-bd.png)
Tracking and Physics
180
/cuts/setLowEdge 250 eV
or alternatively directly in the user Physics list, in the optional SetCuts() method, using:
G4ProductionCutsTable::GetProductionCutsTable()->SetEnergyRange(250*eV, 1*GeV);
A command is also available in order to disable usage of production threshold for fluorescence and Auger electron
production:
/process/em/deexcitationIgnoreCut true
5.2.1.4. Angular Generators
For part of EM processes it is possible to factorise out sampling of secondary energy and direction. Using an
interface G4VEmModel base class SetAngularDistribution(G4VEmAngularDistribution*) it is
possible to substitute default angular generator of a model. Angular generators in standard and lowenergy sub-
packages follow the same abstract interface.
For photoelectric models several angular generators are available:
• G4SauterGavrilaAngularDistribution (default);
• G4PhotoElectricAngularGeneratorSauterGavrila;
• G4PhotoElectricAngularGeneratorPolarized.
For bremsstrahlung models following angular generators are available:
• G4DipBustGenerator (default);
• G4ModifiedTsai;
• G4Generator2BS;
• G4Generator2BN;
• G4PenelopeBremsstrahlungAngular.
For models of ionisation a new optional angular generator is available:
• G4DeltaAngle.
5.2.1.5. Electromagnetics secondary biasing
It may be useful to create more than one secondary at an interaction. For example, electrons incident on a target
in a medical linac produce photons through bremsstrahlung. The variance reduction technique of bremsstrahlung
splitting involves choosing N photons from the expected distribution, and assigning each a weight of 1/N.
Similarly, if the secondaries are not important, one can kill them with a survival probability of 1/N. The weight of
the survivors is increased by a factor N. This is known as Russian roulette.
Neither biasing technique is applied if the resulting daughter particles would have a weight below 1/N, in the case
of brem splitting, or above 1, in the case of Russian roulette.
These techniques can be enabled in Geant4 electromagnetics with the macro commands
/process/em/setSecBiasing processName Region factor energyLimit energyUnit
where: processName is the name of the process to apply the biasing to; Region is the region in which to apply
biasing; factor is the inverse of the brem splitting or Russian roulette factor (1/N); energyLimit energyUnit is the
high energy limit. If the first secondary has energy above this limit, no biasing is applied.
For example,
![](asset-be.png)
Tracking and Physics
181
/process/em/setSecBiasing eBrem target 10 100 MeV
will result in electrons undergoing bremsstrahlung in the target region being split 10 times (if the first photon
sampled has an energy less than 100 MeV).
Note that the biasing needs to be specified for each process individually. To apply Russian Roulette to daughter
electrons from interactions of photons, issue the macro command for the processes phot, compt, conv.
Reference: BEAMnrc Users Manual, D.W.O Rogers, B. Walters, I. Kawrakow. NRCC Report PIRS-0509(A)revL,
available at http://www.irs.inms.nrc.ca/inms/irs/BEAM/beamhome.html
5.2.1.6. Livermore Data Based Models
•Photon models
• Photo-electric effect (class G4LivermorePhotoElectricModel)
• Polarized Photo-electric effect (class G4LivermorePolarizedPhotoElectricModel)
• Compton scattering (class G4LivermoreComptonModel)
• Compton scattering (class G4LowEPComptonModel)
• Polarized Compton scattering (class G4LivermorePolarizedComptonModel)
• Rayleigh scattering (class G4LivermoreRayleighModel)
• Polarized Rayleigh scattering (class G4LivermorePolarizedRayleighModel)
• Gamma conversion (also called pair production, class G4LivermoreGammaConversionModel)
• Nuclear gamma conversion (class G4LivermoreNuclearGammaConversionModel)
• Radiative correction for pair production (class G4LivermoreGammaConversionModelRC)
• Polarized gamma conversion (class G4LivermorePolarizedGammaConversionModel)
•Electron models
• Bremsstrahlung (class G4LivermoreBremsstrahlungModel)
• Ionisation and delta ray production (class G4LivermoreIonisationModel)
5.2.1.7. ICRU73 Based Ion Model
Ionisation and delta ray production (class G4IonParametrisedLossModel)
The ion model uses data files initially converted from the ICRU 73 report. Later authors of the ICRU 73 report
provided Geant4 recomputated tables for more combinations of projectile and target ions. In 2015 newer calcu-
lation results were provided. The algorith of selection of ion stopping powers applying following condition: if a
projectile/target combionation exists in the data base and the projectile energy is below 1 GeV/nucleon then tab-
ulated data is used, otherwise applies a Bethe-Bloch based formalism. For compounds, ICRU 73 stopping powers
are employed if the material name coincides with the name of Geant4 NIST materials (e.g. G4_WATER). Ele-
mental materials are matched to the corresponding ICRU 73 stopping powers by means of the atomic number of
the material. The material name may be arbitrary in this case. For a list of applicable materials, the user is referred
to the ICRU 73 report.
The model requires data files to be copied by the user to his/her code repository. These files are distributed together
with the Geant4 release. The user should set the environment variable G4LEDATA to the directory where he/
she has copied the files.
The model is dedicated to be used with the G4ionIonisation process and its applicability is restricted to
G4GenericIon particles. The ion model is not used by default by this process and must be instantiated and regis-
tered by the user:
G4ionIonisation* ionIoni = new G4ionIonisation();
ionIoni -> SetEmModel(new G4IonParametrisedLossModel());
5.2.1.8. Penelope2008 Based Models
•Photon models
• Compton scattering (class G4PenelopeComptonModel)
![](asset-bf.png)
Tracking and Physics
182
• Rayleigh scattering (class G4PenelopeRayleighModel)
• Gamma conversion (also called pair production, class GPenelopeGammaConversionModel)
• Photo-electric effect (class G4PenelopePhotoElectricModel)
•Electron models
• Bremsstrahlung (class G4PenelopeBremsstrahlungModel)
• Ionisation and delta ray production (class G4PenelopeIonisationModel)
•Positron models
• Bremsstrahlung (class G4PenelopeBremsstrahlungModel)
• Ionisation and delta ray production (class G4PenelopeIonisationModel)
• Positron annihilation (class class G4PenelopeAnnihilationModel)
All Penelope models can be applied up to a maximum energy of 100 GeV, although it is advisable not to use them
above a few hundreds of MeV.
Options are available in the all Penelope Models, allowing to set (and retrieve) the verbosity level of the model,
namely the amount of information which is printed on the screen.
• SetVerbosityLevel(G4int)
• GetVerbosityLevel()
The default verbosity level is 0 (namely, no textual output on the screen). The default value should be used in
general for normal runs. Higher verbosity levels are suggested only for testing and debugging purposes.
The verbosity scale defined for all Penelope processes is the following:
• 0 = no printout on the screen (default)
• 1 = issue warnings only in the case of energy non-conservation in the final state (should never happen)
• 2 = reports full details on the energy budget in the final state
• 3 = writes also informations on cross section calculation, data file opening and sampling of atoms
• 4 = issues messages when entering in methods
5.2.1.9. Very Low energy Electromagnetic Processes (Geant4-DNA
extension)
The Geant4 low energy electromagnetic Physics package has been extended down to energies of a few electron-
Volts suitable for the simulation of radiation effects in liquid water for applications in micro/nanodosimetry at
the cellular and sub-cellular level. These developments take place in the framework of the on-going Geant4-DNA
project (see more in the Geant4-DNA web pages or in the web pages of the Geant4 Low Energy Electromagnetic
Physics Working Group).
The Geant4-DNA process and model classes apply to electrons, protons, hydrogen, alpha particles and their charge
states.
Electron processes and models
• Elastic scattering :
• process class is G4DNAElastic
• three alternative model classes are : G4DNAScreenedRutherfordElasticModel or
G4DNAChampionElasticModel (default) or G4DNAUeharaScreenedRutherfordElasticModel
• Excitation
• process class is G4DNAExcitation
• model class is G4DNABornExcitationModel (default) or G4DNAEmfietzoglouExcitationModel
• Ionisation
• process class is G4DNAIonisation
• model class is G4DNABornIonisationModel (default) or G4DNAEmfietzoglouIonisationModel
• Attachment
• process class is G4DNAAttachment
• model class is G4DNAMeltonAttachmentModel
• Vibrational excitation
![](asset-c0.png)
Tracking and Physics
183
• process class is G4DNAVibExcitation
• model class is G4DNASancheExcitationModel
Proton processes and models
• Elastic scattering :
• process class is G4DNAElastic
• G4DNAIonElasticModel
• Excitation
• process class is G4DNAExcitation
• two complementary model classes are G4DNAMillerGreenExcitationModel (below 500 keV) and
G4DNABornExcitationModel (above)
• Ionisation
• process class is G4DNAIonisation
• two complementary model classes are G4DNARuddIonisationModel (below 500 keV) and
G4DNABornIonisationModel (above)
• Charge decrease
• process class is G4DNAChargeDecrease
• model class is G4DNADingfelderChargeDecreaseModel
Hydrogen processes and models
• Elastic scattering :
• process class is G4DNAElastic
• G4DNAIonElasticModel
• Excitation
• process class is G4DNAExcitation
• model class is G4DNAMillerGreenExcitationModel
• Ionisation
• process class is G4DNAIonisation
• model class is G4DNARuddIonisationModel
• Charge increase
• process class is G4DNAChargeIncrease
• model class is G4DNADingfelderChargeIncreaseModel
Helium (neutral) processes and models
• Elastic scattering :
• process class is G4DNAElastic
• G4DNAIonElasticModel
• Excitation
• process class is G4DNAExcitation
• model class is G4DNAMillerGreenExcitationModel
• Ionisation
• process class is G4DNAIonisation
• model class is G4DNARuddIonisationModel
• Charge increase
• process class is G4DNAChargeIncrease
• model class is G4DNADingfelderChargeIncreaseModel
Helium+ (ionized once) processes and models
• Elastic scattering :
• process class is G4DNAElastic
• G4DNAIonElasticModel
• Excitation
• process class is G4DNAExcitation
• model class is G4DNAMillerGreenExcitationModel
• Ionisation
![](asset-c1.png)
Tracking and Physics
184
• process class is G4DNAIonisation
• model classes is G4DNARuddIonisationModel
• Charge increase
• process class is G4DNAChargeIncrease
• model classes is G4DNADingfelderChargeIncreaseModel
• Charge decrease
• process class is G4DNAChargeDecrease
• model classes is G4DNADingfelderChargeDecreaseModel
Helium++ (ionised twice) processes and models
• Elastic scattering :
• process class is G4DNAElastic
• G4DNAIonElasticModel
• Excitation
• process class is G4DNAExcitation
• model classes is G4DNAMillerGreenExcitationModel
• Ionisation
• process class is G4DNAIonisation
• model classes is G4DNARuddIonisationModel
• Charge decrease
• process class is G4DNAChargeDecrease
• model classes is G4DNADingfelderChargeDecreaseModel
Li, Be, B, C, N, O, Si, Fe processes and models
• Ionisation
• process class is G4DNAIonisation
• model class is G4DNARuddIonisationExtendedModel
An example of the registration of these processes in a physics list is given in the G4EmDNAPhysics constructor
(in source/physics_lists/constructors/electromagnetic in the Geant4 source distribution).
An example of the usage of this constructor in a physics list is given in the "dnaphysics" extended example, which
explains how to extract basic information from Geant4-DNA Physics processes.
Other alternative Geant4-DNA physics constructors are available, see more information at the Geant4-DNA web-
site.
The "microdosimetry" extended example illustrates how to combine Geant4-DNA processes with Standard elec-
tromagnetic processes (combination of discrete and condensed history Geant4 electromagnetic processes at dif-
ferent scales).
Since Geant4 release 10.1, Geant4-DNA can also be used for the modelling of water radiolysis (physico-chemistry
and chemistry stages). Three extended examples, "chem1", "chem2", "chem3" and "chem4" illustrate this. More
information is available from the Geant4-DNA website.
To run the Geant4-DNA extension, data files need to be copied by the user to his/her code repository. These files
are distributed together with the Geant4 release. The user should set the environment variable G4LEDATA to the
directory where he/she has copied the files.
A full list of publications regarding Geant4-DNA is directly available from the Geant4-DNA website or from the
Geant4@IN2P3 web site).
5.2.1.10. Atomic Deexcitation
A unique interface named G4VAtomicDeexcitation is available in Geant4 for the simulation of atomic deexcita-
tion using Standard, Low Energy and Very Low Energy electromagnetic processes. Atomic deexcitation includes
fluorescence and Auger electron emission induced by photons, electrons and ions (PIXE); see more details in:
PIXE Simulation in Geant4X-Ray Spec.
![](asset-c2.png)
Tracking and Physics
185
It can be activated for processes producing vacancies in atomic shells. Currently these processes are the photo-
electric effect, ionization and Compton scattering.
Activation of atomic deexcitation
The activation of atomic deexcitation in continuous processes in a user physics list can be done through the fol-
lowing G4EmParameters class methods described above or via UI commands:
/process/em/deexcitation region true true true
/process/em/fluo true
/process/em/auger true
/process/em/pixe true
One can define parameters in the G4State_PreInit or G4State_Idle states. Fluorescence from photons and electrons
is activated by default in Option3, Option4, Livermore and Penelope physics constructors, while Auger production
and PIXE are not.
The alternative set of data by Bearden et al. (1967) for the modelling of fluorescence lines had been added to the
G4LEDATA archive. This set can be selected via UI command:
/process/em/fluoBearden true
Another important UI commands enable simulation of the full Auger and/or fluorescence cascade:
/process/em/augerCascade true
/process/em/deexcitationIgnoreCut true
How to change ionisation cross section models ?
The user can also select which cross section model to use in order to calculate shell ionisation cross sections for
generating PIXE:
/process/em/pixeXSmodel name
/process/em/pixeElecXSmodel name
where the name can be "Empirical", "ECPSSR_FormFactor" or "ECPSSR_Analytical" corresponds to different
PIXE cross sections. Following shell cross sections models are available : "ECPSSR_Analytical" models derive
from an analytical calculation of the ECPSSR theory (see A. Mantero et al., X-Ray Spec.40 (2011) 135-140) and
it reproduces K and L shell cross sections over a wide range of energies; "ECPSSR_FormFactor" models derive
from A. Taborda et al. calculations (see A. Taborda et al., X-Ray Spec. 40 (2011) 127-134) of ECPSSR values
directly form Form Factors and it covers K, L shells on the range 0.1-100 MeV and M shells in the range 0.1-10
MeV; the "empirical" models are from Paul "reference values" (for protons and alphas for K-Shell) and Orlic
empirical model for L shells (only for protons and ions with Z>2). The later ones are the models used by default.
Out of the energy boundaries, "ECPSSR_Analytical" model is used. We recommend to use default settings if not
sure what to use.
Example
The TestEm5 extended/electromagetic example shows how to simulate atomic deexcitation (see for eg. the
pixe.mac macro).
5.2.1.11. Very Low energy Electromagnetic Processes in Silicon for
microelectronics application (Geant4-MuElec extension)
(Previously named Geant4-MuElec)
The Geant4 low energy electromagnetic Physics package has been extended down to energies of a few electron-
Volts suitable for the simulation of radiation effects in highly integrated microelectronic components.
![](asset-c3.png)
Tracking and Physics
186
The Geant4-MicroElec process and model classes apply to electrons, protons and heavy ions in silicon.
Electron processes and models
• Elastic scattering :
• process class is G4MicroElastic
• model class is G4MicroElecElasticModel
• Ionization
• process class is G4MicroElecInelastic
• model class is G4MicroElecInelasticModel
Proton processes and models
• Ionisation
• process class is G4MicroElecInelastic
• model class is G4MicroElecInelasticModel
Heavy ion processes and models
• Ionization
• process class is G4MicroElecInelastic
• model class is G4MicroElecInelasticModel
A full list of publications regarding Geant4-MicroElec is directly available from the Geant4-MicroElec website.
5.2.1.12. New Compton model by Monash U., Australia
A new Compton scattering model for unpolarised photons has been developed in the relativistic impulse approx-
imation. The model was developed as an alternative to low energy electromagnetic Compton scattering models
developed from Ribberfors' Compton scattering framework (Livermore, Penelope Compton models). The model
class is named named G4LowEPComptonModel.
G4LowEPComptonModel has been added to the physics constructor G4EmStandardPhysics_option4, containing
the most accurate models from the Standard and Low Energy Electromagnetic physics working groups.
5.2.1.13. Multi-scale Processes
5.2.1.13.1. Hadron Impact Ionisation and PIXE
The G4hImpactIonisation process deals with ionisation by impact of hadrons and alpha particles, and the
following generation of PIXE (Particle Induced X-ray Emission). This process and related classes can be found
in source/processes/electromagnetic/pii .
Further documentation about PIXE simulation with this process is available here.
A detailed description of the related physics features can be found in:
PIXE Simulation with Geant4IEEE Trans. Nucl. Sci.
A brief summary of the related physics features can be found in the Geant4 Physics Reference Manual.
An example of how to use this process is shown below. A more extensive example is available in the eRosita
Geant4 advanced example (see examples/advanced/eRosita in your Geant4 installation source).
#include "G4hImpactIonisation.hh"
[...]
void eRositaPhysicsList::ConstructProcess()
{
[...]
![](asset-c4.png)
Tracking and Physics
187
theParticleIterator->reset();
while( (*theParticleIterator)() )
{
G4ParticleDefinition* particle = theParticleIterator->value();
G4ProcessManager* processManager = particle->GetProcessManager();
G4String particleName = particle->GetParticleName();
if (particleName == "proton")
{
// Instantiate the G4hImpactIonisation process
G4hImpactIonisation* hIonisation = new G4hImpactIonisation();
// Select the cross section models to be applied for K, L and M shell vacancy creation
// (here the ECPSSR model is selected for K, L and M shell; one can mix and match
// different models for each shell)
hIonisation->SetPixeCrossSectionK("ecpssr");
hIonisation->SetPixeCrossSectionL("ecpssr");
hIonisation->SetPixeCrossSectionM("ecpssr");
// Register the process with the processManager associated with protons
processManager -> AddProcess(hIonisation, -1, 2, 2);
}
}
}
Available cross section model options
The following cross section model options are available:
• protons
• K shell
•ecpssr (based on the ECPSSR theory)
•ecpssr_hs (based on the ECPSSR theory, with Hartree-Slater correction)
•ecpssr_ua (based on the ECPSSR theory, with United Atom Hartree-Slater correction)
•ecpssr_he (based on the ECPSSR theory, with high energy correction)
•pwba (plane wave Born approximation)
•paul (based on the empirical model by Paul and Sacher)
•kahoul (based on the empirical model by Kahoul et al.)
• L shell
•ecpssr
•ecpssr_ua
•pwba
•miyagawa (based on the empirical model by Miyagawa et al.)
•orlic (based on the empirical model by Orlic et al.)
•sow (based on the empirical model by Sow et al.)
• M shell
•ecpssr
•pwba
• alpha particles
• K shell
•ecpssr
•ecpssr_hs
•pwba
•paul (based on the empirical model by Paul and Bolik)
• L shell
•ecpssr
•pwba
• M shell
•ecpssr
•pwba
PIXE data library
The G4hImpactIonisation process uses a PIXE Data Library.
![](asset-c5.png)
Tracking and Physics
188
The PIXE Data Library is distributed in the Geant4 G4PII data set, which must be downloaded along with
Geant4 source code.
The G4PIIDATA environment variable must be defined to refer to the location of the G4PII PIXE data library
in your filesystem; for instance, if you use a c-like shell:
setenv G4PIIDATA path_to_where_G4PII_has_been_downloaded
Further documentation about the PIXE Data Library is available here.
5.2.2. Hadronic Interactions
This section briefly introduces the hadronic physics processes installed in Geant4. For details of the implementa-
tion of hadronic interactions available in Geant4, please refer to the Physics Reference Manual.
5.2.2.1. Treatment of Cross Sections
Cross section data sets
Each hadronic process object (derived from G4HadronicProcess) may have one or more cross section data
sets associated with it. The term "data set" is meant, in a broad sense, to be an object that encapsulates methods
and data for calculating total cross sections for a given process. The methods and data may take many forms, from
a simple equation using a few hard-wired numbers to a sophisticated parameterisation using large data tables.
Cross section data sets are derived from the abstract class G4VCrossSectionDataSet, and are required to
implement the following methods:
G4bool IsApplicable( const G4DynamicParticle*, const G4Element* )
This method must return True if the data set is able to calculate a total cross section for the given particle and
material, and False otherwise.
G4double GetCrossSection( const G4DynamicParticle*, const G4Element* )
This method, which will be invoked only if True was returned by IsApplicable, must return a cross section,
in Geant4 default units, for the given particle and material.
void BuildPhysicsTable( const G4ParticleDefinition& )
This method may be invoked to request the data set to recalculate its internal database or otherwise reset its state
after a change in the cuts or other parameters of the given particle type.
void DumpPhysicsTable( const G4ParticleDefinition& ) = 0
This method may be invoked to request the data set to print its internal database and/or other state information,
for the given particle type, to the standard output stream.
Cross section data store
Cross section data sets are used by the process for the calculation of the physical interaction length. A given cross
section data set may only apply to a certain energy range, or may only be able to calculate cross sections for a
particular type of particle. The class G4CrossSectionDataStore has been provided to allow the user to
specify, if desired, a series of data sets for a process, and to arrange the priority of data sets so that the appropriate
one is used for a given energy range, particle, and material. It implements the following public methods:
G4CrossSectionDataStore()
![](asset-c6.png)
Tracking and Physics
189
~G4CrossSectionDataStore()
and
G4double GetCrossSection( const G4DynamicParticle*, const G4Element* )
For a given particle and material, this method returns a cross section value provided by one of the collection of
cross section data sets listed in the data store object. If there are no known data sets, a G4Exception is thrown
and DBL_MIN is returned. Otherwise, each data set in the list is queried, in reverse list order, by invoking its
IsApplicable method for the given particle and material. The first data set object that responds positively
will then be asked to return a cross section value via its GetCrossSection method. If no data set responds
positively, a G4Exception is thrown and DBL_MIN is returned.
void AddDataSet( G4VCrossSectionDataSet* aDataSet )
This method adds the given cross section data set to the end of the list of data sets in the data store. For the
evaluation of cross sections, the list has a LIFO (Last In First Out) priority, meaning that data sets added later to
the list will have priority over those added earlier to the list. Another way of saying this, is that the data store,
when given a GetCrossSection request, does the IsApplicable queries in the reverse list order, starting
with the last data set in the list and proceeding to the first, and the first data set that responds positively is used
to calculate the cross section.
void BuildPhysicsTable( const G4ParticleDefinition& aParticleType )
This method may be invoked to indicate to the data store that there has been a change in the cuts or other parameters
of the given particle type. In response, the data store will invoke the BuildPhysicsTable of each of its data
sets.
void DumpPhysicsTable( const G4ParticleDefinition& )
This method may be used to request the data store to invoke the DumpPhysicsTable method of each of its
data sets.
Default cross sections
The defaults for total cross section data and calculations have been encapsulated in the sin-
gleton class G4HadronCrossSections. Each hadronic process: G4HadronInelasticProcess,
G4HadronElasticProcess, G4HadronFissionProcess, and G4HadronCaptureProcess, comes
already equipped with a cross section data store and a default cross section data set. The data set objects are re-
ally just shells that invoke the singleton G4HadronCrossSections to do the real work of calculating cross
sections.
The default cross sections can be overridden in whole or in part by the user. To this end, the base class
G4HadronicProcess has a ``get'' method:
G4CrossSectionDataStore* GetCrossSectionDataStore()
which gives public access to the data store for each process. The user's cross section data sets can be added to the
data store according to the following framework:
G4Hadron...Process aProcess(...)
MyCrossSectionDataSet myDataSet(...)
aProcess.GetCrossSectionDataStore()->AddDataSet( &MyDataSet )
![](asset-c7.png)
Tracking and Physics
190
The added data set will override the default cross section data whenever so indicated by its IsApplicable
method.
In addition to the ``get'' method, G4HadronicProcess also has the method
void SetCrossSectionDataStore( G4CrossSectionDataStore* )
which allows the user to completely replace the default data store with a new data store.
It should be noted that a process does not send any information about itself to its associated data store (and
hence data set) objects. Thus, each data set is assumed to be formulated to calculate cross sections for one and
only one type of process. Of course, this does not prevent different data sets from sharing common data and/
or calculation methods, as in the case of the G4HadronCrossSections class mentioned above. Indeed,
G4VCrossSectionDataSet specifies only the abstract interface between physics processes and their data
sets, and leaves the user free to implement whatever sort of underlying structure is appropriate.
The current implementation of the data set G4HadronCrossSections reuses the total cross-sections for in-
elastic and elastic scattering, radiative capture and fission as used with GHEISHA to provide cross-sections for
calculation of the respective mean free paths of a given particle in a given material.
Cross-sections for low energy neutron transport
The cross section data for low energy neutron transport are organized in a set of files that are read in by
the corresponding data set classes at time zero. Hereby the file system is used, in order to allow highly gran-
ular access to the data. The ``root'' directory of the cross-section directory structure is accessed through an
environment variable, G4NEUTRONHPDATA, which is to be set by the user. The classes accessing the total
cross-sections of the individual processes, i.e., the cross-section data set classes for low energy neutron trans-
port, are G4NeutronHPElasticData, G4NeutronHPCaptureData, G4NeutronHPFissionData,
and G4NeutronHPInelasticData.
For detailed descriptions of the low energy neutron total cross-sections, they may be registered by the user as
described above with the data stores of the corresponding processes for neutron interactions.
It should be noted that using these total cross section classes does not require that the neutron_hp models also be
used. It is up to the user to decide whethee this is desirable or not for his particular problem.
A prototype of the compact version of neutron cross sections derived from HP database are provided
with new classes G4NeutronHPElasticData, G4NeutronCaptureXS, G4NeutronElasticXS, and
G4NeutronInelasticXS.
Cross-sections for low-energy charged particle transport
The cross-section data for low-energy charged particle transport are organized in a set of files that are read at
initialization, similarly to the case of low-energy neutron transport. The "root" directory of the cross-section di-
rectory structure is accessed through an environment variable, G4PARTICLEHPDATA, which has to be set by the
user. This variable has to point to the directory where the low-energy charged particle data have been installed,
e.g. G4TENDL1.3 for the Geant4 release 10.3 (note that the download of this data library from the Geant4 web
site is not done automatically, i.e. it must be done manually by the user):
export G4PARTICLEHPDATA=/your/path/G4TENDL1.3/.
It is expected that the directory $G4PARTICLEHPDATA has the following five subdirectories, correspond-
ing to the charged particles that can be handled by the low-energy charged particle transport: Proton/,
Deuteron/, Triton/, He3/, Alpha/. It is possible for the user to overwrite the default directory struc-
ture with individual environment variables pointing to custom data libraries for each particle type. This is
considered an advanced/expert user feature. These directories are set by the following environment vari-
ables: G4PROTONHPDATA, for proton; G4DEUTERONHPDATA, for deuteron; G4TRITONHPDATA, for triton;
G4HE3HPDATA, for He3; G4ALPHAHPDATA, for alpha. Note that if any of these variables is not defined
explicitly, e.g. G4TRITONHPDATA, then the corresponding data library is expected to be a subdirectory of
![](asset-c8.png)
Tracking and Physics
191
$G4PARTICLEHPDATA/, e.g. $G4PARTICLEHPDATA/Triton/. If instead all the above five environmental
variables are set, then G4PARTICLEHPDATA does not need to be specified; even if it is set, then its value will
be ignored (because the per-particle ones take precedence).
5.2.2.2. Hadrons at Rest
List of implemented "Hadron at Rest" processes
The following process classes have been implemented:
• pi-, K-, sigma-, xi-, omega- absorption (class name G4HadronicAbsorptionBertini)
• neutron capture (class name G4HadronCaptureProcess)
• anti-proton, anti-sigma+, anti-deuteron, anti-triton, anti-alpha, anti-He3 annihilation (class name
G4HadronicAbsorptionFritiof)
• mu- capture (class name G4MuonMinusCapture)
Capture of low-energy negatively charged particles is a complex process involving formation of mesonic atoms,
X-ray cascade and Auger cascade, nuclear interaction. In the case of mu- there is also a probability to decay from
K-shell of mesonic atom. To handle this a base process class G4HadronicStoppingProcess is used.
For the case of neutrons, Geant4 offer simulation down to thermal energies. The capture cross section generally
increases when neutron energy descreases and there are many nuclear resonances. In Geant4 neutron capture cross
sections are parameterized using ENDF database.
5.2.2.3. Hadrons in Flight
What processes do you need?
For hadrons in motion, there are four physics process classes. Table 5.1 shows each process and the particles for
which it is relevant.
G4HadronElasticProcess pi+, pi-, K+, K0S, K0L, K-, p, p-bar, n, n-bar, lambda,
lambda-bar, Sigma+, Sigma-, Sigma+-bar, Sigma--bar,
Xi0, Xi-, Xi0-bar, Xi--bar
G4HadronInelasticProcess pi+, pi-, K+, K0S, K0L, K-, p, p-bar, n, n-bar, lambda,
lambda-bar, Sigma+, Sigma-, Sigma+-bar, Sigma--bar,
Xi0, Xi-, Xi0-bar, Xi--bar
G4HadronFissionProcess all
G4CaptureProcess n, n-bar
Table 5.1. Hadronic processes and relevant particles.
How to register Models
To register an inelastic process model for a particle, a proton for example, first get the pointer to the particle's
process manager:
G4ParticleDefinition *theProton = G4Proton::ProtonDefinition();
G4ProcessManager *theProtonProcMan = theProton->GetProcessManager();
Create an instance of the particle's inelastic process:
G4ProtonInelasticProcess *theProtonIEProc = new G4ProtonInelasticProcess();
Create an instance of the model which determines the secondaries produced in the interaction, and calculates the
momenta of the particles, for instance the Bertini cascade model:
![](asset-c9.png)
Tracking and Physics
192
G4CascadeInterface *theProtonIE = new G4CascadeInterface();
Register the model with the particle's inelastic process:
theProtonIEProc->RegisterMe( theProtonIE );
Finally, add the particle's inelastic process to the list of discrete processes:
theProtonProcMan->AddDiscreteProcess( theProtonIEProc );
The particle's inelastic process class, G4ProtonInelasticProcess in the example above, derives
from the G4HadronicInelasticProcess class, and simply defines the process name and calls the
G4HadronicInelasticProcess constructor. All of the specific particle inelastic processes derive from
the G4HadronicInelasticProcess class, which calls the PostStepDoIt function, which returns
the particle change object from the G4HadronicProcess function GeneralPostStepDoIt. This
class also gets the mean free path, builds the physics table, and gets the microscopic cross section. The
G4HadronicInelasticProcess class derives from the G4HadronicProcess class, which is the top lev-
el hadronic process class. The G4HadronicProcess class derives from the G4VDiscreteProcess class.
The inelastic, elastic, capture, and fission processes derive from the G4HadronicProcess class. This pure
virtual class also provides the energy range manager object and the RegisterMe access function.
In-flight, final-state hadronic models derive, directly or indirectly, from the G4InelasticInteraction
class, which is an abstract base class since the pure virtual function ApplyYourself is not defined there.
G4InelasticInteraction itself derives from the G4HadronicInteraction abstract base class. This
class is the base class for all the model classes. It sorts out the energy range for the models and provides class
utilities. The G4HadronicInteraction class provides the Set/GetMinEnergy and the Set/GetMax-
Energy functions which determine the minimum and maximum energy range for the model. An energy range
can be set for a specific element, a specific material, or for general applicability:
void SetMinEnergy( G4double anEnergy, G4Element *anElement )
void SetMinEnergy( G4double anEnergy, G4Material *aMaterial )
void SetMinEnergy( const G4double anEnergy )
void SetMaxEnergy( G4double anEnergy, G4Element *anElement )
void SetMaxEnergy( G4double anEnergy, G4Material *aMaterial )
void SetMaxEnergy( const G4double anEnergy )
Which models are there, and what are the defaults
In Geant4, any model can be run together with any other model without the need for the implementation of a special
interface, or batch suite, and the ranges of applicability for the different models can be steered at initialisation
time. This way, highly specialised models (valid only for one material and particle, and applicable only in a very
restricted energy range) can be used in the same application, together with more general code, in a coherent fashion.
Each model has an intrinsic range of applicability, and the model chosen for a simulation depends very much on
the use-case. Consequently, there are no ``defaults''. However, physics lists are provided which specify sets of
models for various purposes.
Two types of hadronic shower models have been implemented: data driven models and theory driven models.
• Data driven models are available for the transport of low energy neutrons in matter in sub-directory hadron-
ics/models/neutron_hp. The modeling is based on the data formats of ENDF/B-VI, and all distributions
of this standard data format are implemented. The data sets used are selected from data libraries that conform
to these standard formats. The file system is used in order to allow granular access to, and flexibility in, the use
of the cross sections for different isotopes, and channels. The energy coverage of these models is from thermal
energies to 20 MeV.
• Theory driven models are available for inelastic scattering in a first implementation, covering the full energy
range of LHC experiments. They are located in sub-directory hadronics/models/generator. The cur-
rent philosophy implies the usage of parton string models at high energies, of intra-nuclear transport models at
intermediate energies, and of statistical break-up models for de-excitation.
![](asset-ca.png)
Tracking and Physics
193
5.2.2.4. High-precision neutron interactions (NeutronHP)
Nuclear models fail (sometimes catastrophically) at predicting with reasonable accuracies the nuclear cross sec-
tions of neutrons (and other particles). For this reason, all physical quantities relevant for an accurate modeling of
nuclear reactions in Monte Carlo simulations need to be provided as a database which includes, ideally:
• cross sections
• angular distributions of the emitted particles
• energy spectra of the emitted particles
• energy-angle correlated spectrum (double-differential cross sections, DDX)
• neutrons per fission
• fission spectra
• fission product yields
• photo production data
For the case of neutron induced reactions, such databases are called “evaluated data”, in the sense that they contain
recommended values for different quantities that rely on compilations of experimental nuclear data and usually
completed with theoretical predictions, benchmarked against available experimental data (i.e. integral and differ-
ential experiments) when possible. It should be noticed that the information available varies from isotope to iso-
tope and can be incomplete or totally missing.
The G4NeutronHP package in GEANT4 allows using evaluated nuclear data libraries in the G4NDL format.
GEANT4 users should know that any simulation involving neutrons with energies below 20 MeV and not using the
G4NeutronHP package can lead to unreliable results. GEANT4 users are therefore encouraged to use it, although
they should be aware of the limitations of using evaluated nuclear data libraries.
An example about how to implement the G4NeutronHP package into physics list in a GEANT4 application can be
found in the example case (among others distributed with GEANT4) extended/radioactivedecay/rde-
cay02. Three different processes are included in that example: elastic, capture and inelastic. The inelastic reac-
tions in G4NeutronHP are all reactions except elastic, capture and fission, so fission should also be included in
the physics list, if needed, and it is done in the same way as it is done for the other three.
The G4NeutronHP package must be used together with evaluated nuclear data libraries. They are distributed by the
GEANT4 collaboration (http://geant4.web.cern.ch/geant4/support/download.shtml) and from the IAEA nuclear
data web site (http://www-nds.iaea.org/geant4/) where a larger set of different libraries, including isotopes with
Z > 92, is available.
The evaluated nuclear data libraries do differ and thus the results of the Monte Carlo simulations will depend on
the library used. It is a safe practice to perform simulations with (at least) two different libraries for estimating
the uncertainties associated to the nuclear data.
Together with a good implementation of the physics list, users must be very careful with the definition of the
materials performed in a Monte Carlo simulation when low energy neutron transport is relevant. In contrast to
other kind of simulations, the isotopic composition of the elements which compose the different materials can
strongly affect the obtained simulation results. Because of this, it is strongly recommended to define specifically
the isotopic composition of each element used in the simulation, as it is described in the GEANT4 user’s manual.
In principle, such a practice is not mandatory if natural isotopic compositions are used, since GEANT4 contains
them in their databases. However, by defining them explicitly some unexpected problems may be avoided and a
better control of the simulation will be achieved.
It is highly recommended or mandatory to set the following UNIX environment variables running a GEANT4
application:
G4NEUTRONHPDATA
[path to the G4NDL format data libraries] (mandatory).
G4NEUTRONHP_SKIP_MISSING_ISOTOPES=1
It sets to zero the cross section of the isotopes which are not present in the neutron library. If GEANT4 doesn’t
find an isotope, then it looks for the natural composition data of that element. Only if the element is not found
![](asset-cb.png)
Tracking and Physics
194
then the cross section is set to zero. On the contrary, if this variable is not defined, GEANT4 looks then for
the neutron data of another isotope close in Z and A, which will have completely different nuclear properties
and lead to incorrect results (highly recommended).
G4NEUTRONHP_DO_NOT_ADJUST_FINAL_STATE=1
If this variable is not defined, a GEANT4 model that attempts to satisfy the energy and momentum conserva-
tion in some nuclear reactions, by generating artificial gamma rays. By setting such a variable one avoids the
correction and leads to the result obtained with the ENDF-6 libraries. Even though energy and momentum
conservation are desirable, the ENDF-6 libraries do not provide the necessary correlations between secondary
particles for satisfying them in all cases. On the contrary, ENDF-6 libraries intrinsically violate energy and
momentum conservation for several processes and have been built for preserving the overall average quanti-
ties such as average energy releases, average number of secondaries… (highly recommended).
AllowForHeavyElements=1
Activates the physics for isotopes with Z>92 (recommended).
The G4NDL format libraries are based on the ENDF-6 format libraries, which contain evaluated (i.e. recommend-
ed) nuclear data prepared for their use in transport codes. These data are essentially nuclear reaction cross sections
together with the distribution in energy and angle of the secondary reaction products. As a consequence of how
the data is written in the ENDF files, there are some features that may be or may be not expected in the results
of a Monte Carlo calculation.
The information concerning the creation of the reaction products can be incomplete and/or uncorrelated, in the
sense that is described below:
1. Incomplete information.
This applies when there is no information about how to generate a secondary particle. As an example, it
is possible to have only the cross section data of an (n,p) reaction, without any information concerning the
energy and angle of the secondary proton. In this case GEANT4 will produce the proton considering that it
is emitted isotropically in the center of mass frame, with an energy which is deduced from assuming that the
residual nucleus is in its ground state.
2. Uncorrelated information.
This applies when:
a. The energy and angle distributions of a reaction product may be uncorrelated. As a consequence, the
reaction products can be generated with an unphysical energy-angle relationship.
b. The energy-angle distributions of different reaction products of a certain reaction are always uncorre-
lated. As an example, consider that in a (n, 2p) reaction at a certain neutron energy both resulting pro-
tons can be emitted with energies ranging from 0 to 5MeV. In this case the energy and angle of each
proton will be sampled independently of the energy and angle of the other proton, so there will be events
in which both protons will be emitted with energies close to 5 MeV and there will also be events in
which both protons will be emitted with energies close to 0 MeV. As a consequence, energy and angular
momentum won’t be conserved event by event. However, energy will be conserved in average and the
resulting proton energy spectrum will be correctly produced.
3. Concatenated reactions.
There are some cases where several nuclear reactions are put together as if they were a single reaction (MT=5
reaction, in ENDF-6 format nomenclature). In those cases the information consists in a cross section, which
is the sum of all of them, plus a reaction product yield and energy-angle distributions for each secondary
particle. In this case the amount of each secondary particle produced has to be sampled every time the reaction
occurs, and it is done independently of the amount of the other secondary particles produced.
Thus, in this case neither the energy and angular momentum nor the number of nucleons is conserved event by
event, but all the quantities should be conserved in average. As a consequence, it is also not possible to deduce
![](asset-cc.png)
Tracking and Physics
195
which are the residual nuclei produced, since no information is available concerning what are the specific
nuclear reactions which take place. It has to be said that sometimes ENDF libraries include the residual nuclei
as an outgoing particle. However, GEANT4 does not manage that information, at present. This situation is
quite uncommon in neutron data libraries up to 20 MeV. However, it is quite common to find it in charged
particle libraries below 20 MeV or in neutron libraries above 20 MeV.
As a consequence of what has been presented above, some general features can be expected in the results of a
Monte Carlo calculation performed with the G4NeutronHP package:
• The neutron transport, which means how the neutron looses energy in the collisions, when and how it is ab-
sorbed…, is quite trustable, since the main purpose of the ENDF neutron libraries is to perform this neutron
transport.
• The production of neutrons due to neutron induced nuclear reactions is usually trustable, with the exception of
the energy-angle correlations when several neutrons are produced in the same nuclear reaction.
• The results concerning the production of charged particles have to be always questioned. A look into the ENDF
format library used can indicate which results are trustable and which are not. This can be done, for example,
in http://t2.lanl.gov/data/data.html, among other websites.
• The results concerning the production of #-rays have to be questioned always. For example, the information on
the number and energies of #-rays emitted in the neutron capture process is incomplete for almost all the nuclei
and is frequently also uncorrelated. When the information is available, it will be used, but one can obtain results
which are quite far from reality on an event by event basis: the total energy of the cascade won’t be correct in
many cases and only some specific #-rays which are stored in the neutron databases will be emitted. If there
isn’t any information concerning these #-rays, GEANT4 will use a simple a model instead which is generally
missing the relevant spectroscopic information. The results concerning the generation of residual nuclei (for
example, in activation calculations) are usually trustable, with the exception of libraries with MT=5 reactions,
as described above (2).
As a general conclusion, users should always be critical with the results obtained with Monte Carlo simulation
codes, and this also applies to GEANT4. They have to anticipate which results can be trusted and which results
should be questioned. For the particular case of the a closer look into the underlying evaluated nuclear datain the
ENDF format libraries will allow to check what is the information available in a certain library for some specific
isotope and a certain reaction. There are several public nuclear data sites like http://t2.lanl.gov/data/data.html.
The transport of very low energy neutrons (below 5 eV) has to be performed using the thermal neutron data li-
braries. At these energies, the fact that the nuclei are in atoms which form part of a certain molecule inside a
material (crystal lattice, liquid, plastic…) plays an important role, since there can be a transference of momentum
between the neutron and the whole structure of the material, not only with the nucleus. This is of particular im-
portance for material used as neutron moderators, i.e., materials with low A (mass number) used to decrease the
incident neutron energy in only a few collisions. Since the property is related to the nucleus in the material, as
an example, there is the need for having different thermal libraries for Hydrogen in polyethylene, Hydrogen in
water and so on.
If neutron collisions at these energies are relevant for the problem to be simulated, thermal libraries should be used
for the materials if they are available. If they are not, the results obtained from the simulation will not be trustable
in the neutron energy range below 5 eV, especially when using low mass elements in the simulation.
To use the thermal libraries the following lines should be included in the physics list:
G4HadronElasticProcess* theNeutronElasticProcess = new G4HadronElasticProcess;
// Cross Section Data set
G4NeutronHPElasticData* theHPElasticData = new G4NeutronHPElasticData;
theNeutronElasticProcess->AddDataSet(theHPElasticData);
G4NeutronHPThermalScatteringData* theHPThermalScatteringData = new G4NeutronHPThermalScatteringData;
theNeutronElasticProcess->AddDataSet(theHPThermalScatteringData);
// Models
G4NeutronHPElastic* theNeutronElasticModel = new G4NeutronHPElastic;
theNeutronElasticModel->SetMinEnergy(4.0*eV);
theNeutronElasticProcess->RegisterMe(theNeutronElasticModel);
G4NeutronHPThermalScattering* theNeutronThermalElasticModel = new G4NeutronHPThermalScattering;
![](asset-cd.png)
Tracking and Physics
196
theNeutronThermalElasticModel->SetMaxEnergy(4.0*eV);
theNeutronElasticProcess->RegisterMe(theNeutronThermalElasticModel);
// Apply Processes to Process Manager of Neutron
G4ProcessManager* pmanager = G4Neutron::Neutron()->GetProcessManager();
pmanager->AddDiscreteProcess(theNeutronElasticProcess);
And the materials should be defined with a specific name. For example, to use the thermal library for Hydrogen
in water, the water should be defined as:
G4Element* elTSHW = new G4Element("TS_H_of_Water", "H_WATER", 1.0, 1.0079*g/mole);
G4Material* matH2O_TS = new G4Material("Water_TS", density=1.0*g/cm3, ncomponents=2);
matH2O_TS->AddElement(elTSHW,natoms=2);
matH2O_TS->AddElement(elO,natoms=1);
where the important thing is the name "TS_H_of_Water", which is a specific name used by G4NeutronHP.
In order to see which thermal libraries are available, they can be found in the G4NDL4.0/Ther-
malScattering folder (or equivalent, for other neutron libraries). Then, one has to look into the
G4NeutronHPThermalScatteringNames.cc source file, under source/processes/hadron-
ic/models/neutron_hp/src. There are some lines similar to:
names.insert(std::pair<G4String,G4String>("TS_H_of_Water", "h_water"));
where "TS_H_of_Water" means Hydrogen in water. Names similar to "TS_H_of_Water" like
"TS_C_of_Graphite" or "TS_H_of_Polyethylene" can be found and used in the same way as described above.
5.2.2.5. High-precision charged particle interactions (ParticleHP)
Due to the coupling between the configuration for neutrons and charged particles in ParticleHP, the default one
is not the recommended one from the physics point of view for all particles. A consistent configuration with
thorough testing will hopefully be introduced in the next release. For the time being, in order to improve the
physics performance for primary charged particles the following environment variable should be set:
export DO_NOT_SET_PHP_AS_HP=1
Note that this environmental variable is a configuration option which is used only at compilation, not at run time,
and it affects both primary neutrons and charged particles. It is not expected to dramatically change the behaviour
for neutrons.
For further improvement with projectile charged particles, it is also recommended to set the following environ-
mental variable used at run-time:
export G4PHP_DO_NOT_ADJUST_FINAL_STATE=1
which avoids the default adjustment of the final state to ensure better conservation laws (for charge, energy,
momentum, baryon number).
The adjustment of the final state is recommended for realistic detector response in the case of neutron interactions.
For the use-case of reactor physics and dosimetry, where average quantities are important, not adjusting the final
state (i.e. setting the above environment variable) improves accuracy.
Note that, for the time being, setting G4PHP_DO_NOT_ADJUST_FINAL_STATE affects both prima-
ry neutrons and charged particles, so be careful which is the use-case you are interested in. To sum-
marize: if you use ParticleHP for primary neutrons, you can safely take the default; no harm is ex-
pected if you build ParticleHP with DO_NOT_SET_PHP_AS_HP set; be very careful instead if you set
G4PHP_DO_NOT_ADJUST_FINAL_STATE. If you use ParticleHP for primary charged particles, then it is rec-
ommended to build with DO_NOT_SET_PHP_AS_HP set, and then run with DO_NOT_SET_PHP_AS_HP set.
5.2.2.6. Switching statistical nuclear de-excitation models
Nuclear reactions at intermediate energies (from a few MeV to a few GeV) are typically modelled in two stages.
The first, fast reaction stage is described by a dynamical model (quantum molecular dynamics, intranuclear cas-
![](asset-ce.png)
Tracking and Physics
197
cade, pre-compound, etc.) and often results in the production of one or several excited nuclei. The second reaction
stage describes the de-excitation of the excited nuclei and it is usually handled by statistical de-excitation models.
The models for the two reaction stages can in principle be chosen independently, but the current design of the
Geant4 hadronics framework makes it difficult to do this at the physics-list level. However, another solution exists.
Geant4 provides several nuclear de-excitation modules. The default one is G4ExcitationHandler, which
is described in detail in the Physics Reference Manual. The Bertini-style G4CascadeInterface uses an
internal de-excitation model. The ABLA V3 model is also available.
Options are available for steering of the pre-compound model and the de-excitation module. These
options may be invoked by the new C++ interface class G4DeexPrecoParameters. The interface
G4NuclearLevelData::Instance()->GetParameters() is thread safe, parameters are shared be-
tween threads, and parameters are shared between all de-excitation and pre-compound classes. Parameters may
be modified at G4State_PreInit state of Geant4. This class has the following public methods:
• Dump()
• StreamInfo(std::ostream&)
• SetLevelDensity(G4double)
• SetR0(G4double)
• SetTransitionsR0(G4double)
• SetFermiEnergy(G4double)
• SetPrecoLowEnergy(G4double)
• SetPhenoFactor(G4double)
• SetMinExcitation(G4double)
• SetMaxLifeTime(G4double)
• SetMinExPerNucleounForMF(G4double)
• SetMinEForMultiFrag(G4double)
• SetMinZForPreco(G4int)
• SetMinAForPreco(G4int)
• SetPrecoModelType(G4int)
• SetDeexModelType(G4int)
• SetNeverGoBack(G4bool)
• SetUseSoftCutoff(G4bool)
• SetUseCEM(G4bool)
• SetUseHETC(G4bool)
• SetUseAngularGen(G4bool)
• SetUseLongFiles(G4bool)
• SetCorrelatedGamma(G4bool)
• SetStoreAllLevels(G4bool)
• SetDeexChannelType(G4DeexChannelType)
It is possible to replace the default de-excitation model with ABLA V3 for any intranuclear-cascade model in Geant4
except G4CascadeInterface. The easiest way to do this is to call the SetDeExcitation() method of
the relevant intranuclear-cascade-model interface. This can be done even if you are using one of the reference
physics lists. The technique is the following.
For clarity's sake, assume you are using the FTFP_INCLXX physics list, which uses INCL++, the Liege Intranu-
clear Cascade model (G4INCLXXInterface) at intermediate energies. You can couple INCL++ to ABLA V3
by adding a run action (Section 6.2.1) and adding the following code snippet to BeginOfRunAction().
Example 5.1. Coupling the INCL++ model to ABLA V3
#include "G4HadronicInteraction.hh"
#include "G4HadronicInteractionRegistry.hh"
#include "G4INCLXXInterface.hh"
#include "G4AblaInterface.hh"
void MyRunAction::BeginOfRunAction(const G4Run*)
{
// Get hold of pointers to the INCL++ model interfaces
![](asset-cf.png)
Tracking and Physics
198
std::vector<G4HadronicInteraction *> interactions = G4HadronicInteractionRegistry::Instance()
->FindAllModels(G4INCLXXInterfaceStore::GetInstance()->getINCLXXVersionName());
for(std::vector<G4HadronicInteraction *>::const_iterator iInter=interactions.begin(), e=interactions.end();
iInter!=e; ++iInter) {
G4INCLXXInterface *theINCLInterface = static_cast<G4INCLXXInterface*>(*iInter);
if(theINCLInterface) {
// Instantiate the ABLA model
G4HadronicInteraction *interaction = G4HadronicInteractionRegistry::Instance()->FindModel("ABLA");
G4AblaInterface *theAblaInterface = static_cast<G4AblaInterface*>(interaction);
if(!theAblaInterface)
theAblaInterface = new G4AblaInterface;
// Couple INCL++ to ABLA
G4cout << "Coupling INCLXX to ABLA" << G4endl;
theINCLInterface->SetDeExcitation(theAblaInterface);
}
}
}
This technique may be applied to any intranuclear-cascade model (i.e. models that inherit from
G4VIntraNuclearTransportModel), except G4CascadeInterface. For example, if your physics list
relies on the Binary-Cascade model (e.g. FTF_BIC), you'll need to do
// Get hold of a pointer to the Binary-Cascade model interface
std::vector<G4HadronicInteraction *> interactions = G4HadronicInteractionRegistry::Instance()
->FindAllModels("Binary Cascade");
for(std::vector<G4HadronicInteraction *>::const_iterator iInter=interactions.begin(), e=interactions.end();
iInter!=e; ++iInter) {
G4BinaryCascade *theBICInterface = static_cast<G4BinaryCascade*>(*iInter);
if(theBICInterface) {
// Instantiate ABLA V3 as in the example above
// [...]
// Couple BIC to ABLA
theBICInterface->SetDeExcitation(theAblaInterface);
}
}
5.2.3. Particle Decay Process
This section briefly introduces decay processes installed in Geant4. For details of the implementation of particle
decays, please refer to the Physics Reference Manual.
5.2.3.1. Particle Decay Class
Geant4 provides a G4Decay class for both ``at rest'' and ``in flight'' particle decays. G4Decay can be applied
to all particles except:
massless particles, i.e.,
G4ParticleDefinition::thePDGMass <= 0
particles with ``negative'' life time, i.e.,
G4ParticleDefinition::thePDGLifeTime < 0
shortlived particles, i.e.,
G4ParticleDefinition::fShortLivedFlag = True
Decay for some particles may be switched on or off by using
G4ParticleDefinition::SetPDGStable() as well as ActivateProcess() and InActi-
vateProcess() methods of G4ProcessManager.
G4Decay proposes the step length (or step time for AtRest) according to the lifetime of the particle unless
PreAssignedDecayProperTime is defined in G4DynamicParticle.
The G4Decay class itself does not define decay modes of the particle. Geant4 provides two ways of doing this:
![](asset-d0.png)
Tracking and Physics
199
• using G4DecayChannel in G4DecayTable, and
• using thePreAssignedDecayProducts of G4DynamicParticle
The G4Decay class calculates the PhysicalInteractionLength and boosts decay products created by
G4VDecayChannel or event generators. See below for information on the determination of the decay modes.
An object of G4Decay can be shared by particles. Registration of the decay process to particles in the Con-
structPhysics method of PhysicsList (see Section 2.5.3) is shown in Example 5.2.
Example 5.2. Registration of the decay process to particles in the ConstructPhysics
method of PhysicsList.
#include "G4Decay.hh"
void MyPhysicsList::ConstructGeneral()
{
// Add Decay Process
G4Decay* theDecayProcess = new G4Decay();
theParticleIterator->reset();
while( (*theParticleIterator)() ){
G4ParticleDefinition* particle = theParticleIterator->value();
G4ProcessManager* pmanager = particle->GetProcessManager();
if (theDecayProcess->IsApplicable(*particle)) {
pmanager ->AddProcess(theDecayProcess);
// set ordering for PostStepDoIt and AtRestDoIt
pmanager ->SetProcessOrdering(theDecayProcess, idxPostStep);
pmanager ->SetProcessOrdering(theDecayProcess, idxAtRest);
}
}
}
5.2.3.2. Decay Table
Each particle has its G4DecayTable, which stores information on the decay modes of the particle. Each de-
cay mode, with its branching ratio, corresponds to an object of various ``decay channel'' classes derived from
G4VDecayChannel. Default decay modes are created in the constructors of particle classes. For example, the
decay table of the neutral pion has G4PhaseSpaceDecayChannel and G4DalitzDecayChannel as fol-
lows:
// create a decay channel
G4VDecayChannel* mode;
// pi0 -> gamma + gamma
mode = new G4PhaseSpaceDecayChannel("pi0",0.988,2,"gamma","gamma");
table->Insert(mode);
// pi0 -> gamma + e+ + e-
mode = new G4DalitzDecayChannel("pi0",0.012,"e-","e+");
table->Insert(mode);
Decay modes and branching ratios defined in Geant4 are listed in Section 5.3.2.
Branching ratios and life time can be set in tracking time.
// set lifetime
G4Neutron::Neutron()->SetPDGLifeTime(885.7*second);
// allow neutron decay
G4Neutron::Neutron()->SetPDGStable(false);
Branching ratios and life time can be modified by using user commands, also.
Example: Set 100% br for dalitz decay of pi0
Idle> /particle/select pi0
Idle> /particle/property/decay/select 0
Idle> /particle/property/decay/br 0
Idle> /particle/property/decay/select 1
Idle> /particle/property/decay/br 1
![](asset-d1.png)
Tracking and Physics
200
Idle> /particle/property/decay/dump
G4DecayTable: pi0
0: BR: 0 [Phase Space] : gamma gamma
1: BR: 1 [Dalitz Decay] : gamma e- e+
5.2.3.3. Pre-assigned Decay Modes by Event Generators
Decays of heavy flavor particles such as B mesons are very complex, with many varieties of decay modes and
decay mechanisms. There are many models for heavy particle decay provided by various event generators and it is
impossible to define all the decay modes of heavy particles by using G4VDecayChannel. In other words, decays
of heavy particles cannot be defined by the Geant4 decay process, but should be defined by event generators or
other external packages. Geant4 provides two ways to do this: pre-assigned decay mode and external
decayer.
In the latter approach, the class G4VExtDecayer is used for the interface to an external package which defines
decay modes for a particle. If an instance of G4VExtDecayer is attached to G4Decay, daughter particles will
be generated by the external decay handler.
In the former case, decays of heavy particles are simulated by an event generator and the primary event contains
the decay information. G4VPrimaryGenerator automatically attaches any daughter particles to the parent
particle as the PreAssignedDecayProducts member of G4DynamicParticle. G4Decay adopts these pre-as-
signed daughter particles instead of asking G4VDecayChannel to generate decay products.
In addition, the user may assign a pre-assigned decay time for a specific track in its rest frame (i.e. de-
cay time is defined in the proper time) by using the G4PrimaryParticle::SetProperTime() method.
G4VPrimaryGenerator sets the PreAssignedDecayProperTime member of G4DynamicParticle.
G4Decay uses this decay time instead of the life time of the particle type.
5.2.4. Gamma-nuclear and Lepto-nuclear Processes
Gamma-nuclear and lepto-nuclear reactions are handled in Geant4 as hybrid processes which typically require
both electromagnetic and hadronic models for their implementation. While neutrino-induced reactions are not
currently provided, the Geant4 hadronic framework is general enough to include their future implementation as
a hybrid of weak and hadronic models.
The general scheme followed is to factor the full interaction into an electromagnetic (or weak) vertex, in which
a virtual particle is generated, and a hadronic vertex in which the virtual particle interacts with a target nucleus.
In most cases the hadronic vertex is implemented by an existing Geant4 model which handles the intra-nuclear
propagation.
The cross sections for these processes are parameterizations, either directly of data or of theoretical distributions
determined from the integration of lepton-nucleon cross sections double differential in energy loss and momentum
transfer.
For the most part gammas can be treated as hadrons and in fact they interact that way with the nucleus when the
Bertini-style cascade G4CascadeInterface and QGSP models are used. These models may be assigned to
G4PhotoNuclearProcess as shown in the following partial code:
G4TheoFSGenerator* theHEModel = new G4TheoFSGenerator;
G4QGSModel* theStringModel = new G4QGSModel<G4GammaParticipants>;
G4ExcitedStringDecay* theStringDecay =
new G4ExcitedStringDecay(theFragmentation=new G4QGSMFragmentation);
theStringModel->SetFragmentationModel(theStringDecay);
theHEModel->SetHighEnergyGenerator(theStringModel);
theHEModel->SetTransport(new G4GeneratorPrecompoundInterface);
theHEModel->SetMinEnergy(8*GeV);
G4CascadeInterface* theLEModel = new G4CascadeInterface;
theLEModel->SetMaxEnergy(10*GeV);
G4PhotoNuclearProcess* thePhotoNuclearProcess = new G4PhotoNuclearProcess;
thePhotoNuclearProcess->RegisterMe(theLEModel);
![](asset-d2.png)
Tracking and Physics
201
thePhotoNuclearProcess->RegisterMe(theHEModel);
G4ProcessManager* procMan = G4Gamma::Gamma()->GetProcessManager();
procMan->AddDiscreteProcess(thePhotoNuclearProcess);
Electro-nuclear reactions in Geant4 are handled by the classes G4ElectronNuclearProcess and
G4PositronNuclearProcess, which are both implmented by G4ElectroVDNuclearModel. This
model consists of three sub-models: code which generates the virtual photon from the lepton-nucleus vertex, the
Bertini-style cascade to handle the low and medium energy photons, and the FTFP model to handle the high en-
ergy photons.
Muon-nuclear reactions are handled similarly. The process G4MuonNuclearProcess can be assigned the
G4MuonVDNuclearModel which in turn is implemented by three sub-models: virtual gamma generation code,
Bertini-style cascade and the FTFP model.
5.2.5. Optical Photon Processes
A photon is considered to be optical when its wavelength is much greater than the typical atomic spacing. In
GEANT4 optical photons are treated as a class of particle distinct from their higher energy gamma cousins. This
implementation allows the wave-like properties of electromagnetic radiation to be incorporated into the optical
photon process. Because this theoretical description breaks down at higher energies, there is no smooth transition
as a function of energy between the optical photon and gamma particle classes.
For the simulation of optical photons to work correctly in GEANT4, they must be imputed a linear polarization.
This is unlike most other particles in GEANT4 but is automatically and correctly done for optical photons that are
generated as secondaries by existing processes in GEANT4. Not so, if the user wishes to start optical photons as
primary particles. In this case, the user must set the linear polarization using particle gun methods, the General
Particle Source, or his/her PrimaryGeneratorAction. For an unpolarized source, the linear polarization should be
sampled randomly for each new primary photon.
The GEANT4 catalogue of processes at optical wavelengths includes refraction and reflection at medium bound-
aries, bulk absorption, Mie and Rayleigh scattering. Processes which produce optical photons include the Cerenkov
effect and scintillation. Optical photons are generated in GEANT4 without energy conservation and their energy
must therefore not be tallied as part of the energy balance of an event.
The optical properties of the medium which are key to the implementation of these types of processes are stored
as entries in a G4MaterialPropertiesTable which is linked to the G4Material in question. These
properties may be constants or they may be expressed as a function of the photon's energy. This table is a pri-
vate data member of the G4Material class. The G4MaterialPropertiesTable is implemented as a
hash directory, in which each entry consists of a value and a key. The key is used to quickly and efficiently re-
trieve the corresponding value. All values in the dictionary are either instantiations of G4double or the class
G4MaterialPropertyVector, and all keys are of type G4String.
A G4MaterialPropertyVector is a typedef of G4PhysicsOrderedFreeVector. The entries are a pair of
numbers, which in the case of an optical property, are the photon energy and corresponding property value. It is
possible for the user to add as many material (optical) properties to the material as he wishes using the methods
supplied by the G4MaterialPropertiesTable class. An example of this is shown in Example 5.3. In this
example the interpolation of the G4MaterialPropertyVector is to be done by a spline fit. The default is a linear
interpolation.
Example 5.3. Optical properties added to a G4MaterialPropertiesTable and
linked to a G4Material
const G4int NUMENTRIES = 32;
G4double ppckov[NUMENTRIES] = {2.034*eV, ......, 4.136*eV};
G4double rindex[NUMENTRIES] = {1.3435, ......, 1.3608};
G4double absorption[NUMENTRIES] = {344.8*cm, ......, 1450.0*cm];
G4MaterialPropertiesTable *MPT = new G4MaterialPropertiesTable();
![](asset-d3.png)
Tracking and Physics
202
MPT -> AddConstProperty("SCINTILLATIONYIELD",100./MeV);
MPT -> AddProperty("RINDEX",ppckov,rindex,NUMENTRIES}->SetSpline(true);
MPT -> AddProperty("ABSLENGTH",ppckov,absorption,NUMENTRIES}->SetSpline(true);
scintillator -> SetMaterialPropertiesTable(MPT);
5.2.5.1. Generation of Photons in processes/electromagnet-
ic/xrays - Cerenkov Effect
The radiation of Cerenkov light occurs when a charged particle moves through a dispersive medium faster than
the group velocity of light in that medium. Photons are emitted on the surface of a cone, whose opening angle
with respect to the particle's instantaneous direction decreases as the particle slows down. At the same time, the
frequency of the photons emitted increases, and the number produced decreases. When the particle velocity drops
below the local speed of light, the radiation ceases and the emission cone angle collapses to zero. The photons
produced by this process have an inherent polarization perpendicular to the cone's surface at production.
The flux, spectrum, polarization and emission of Cerenkov radiation in the AlongStepDoIt method of the
class G4Cerenkov follow well-known formulae, with two inherent computational limitations. The first arises
from step-wise simulation, and the second comes from the requirement that numerical integration calculate the
average number of Cerenkov photons per step. The process makes use of a G4PhysicsTable which contains
incremental integrals to expedite this calculation. The Cerenkov process in Geant4 is limited to normally dispersive
media, i.e., dn(E)/dE ≥ 0.
The time and position of Cerenkov photon emission are calculated from quantities known at the beginning of a
charged particle's step. The step is assumed to be rectilinear even in the presence of a magnetic field. The user may
limit the step size by specifying a maximum (average) number of Cerenkov photons created during the step, using
the SetMaxNumPhotonsPerStep(const G4int NumPhotons) method. The actual number generated
will necessarily be different due to the Poissonian nature of the production. In the present implementation, the
production density of photons is distributed evenly along the particle's track segment, even if the particle has
slowed significantly during the step. The step can also be limited with the SetMaxBetaChangePerStep
method, where the argument is the allowed change in percent).
The frequently very large number of secondaries produced in a single step (about 300/cm in water), compelled the
idea in GEANT3.21 of suspending the primary particle until all its progeny have been tracked. Despite the fact
that GEANT4 employs dynamic memory allocation and thus does not suffer from the limitations of GEANT3.21
with its fixed large initial ZEBRA store, GEANT4 nevertheless provides for an analogous functionality with the
public method SetTrackSecondariesFirst. An example of the registration of the Cerenkov process is
given in Example 5.4.
Example 5.4. Registration of the Cerenkov process in PhysicsList.
#include "G4Cerenkov.hh"
void ExptPhysicsList::ConstructOp(){
G4Cerenkov* theCerenkovProcess = new G4Cerenkov("Cerenkov");
G4int MaxNumPhotons = 300;
theCerenkovProcess->SetTrackSecondariesFirst(true);
theCerenkovProcess->SetMaxBetaChangePerStep(10.0);
theCerenkovProcess->SetMaxNumPhotonsPerStep(MaxNumPhotons);
theParticleIterator->reset();
while( (*theParticleIterator)() ){
G4ParticleDefinition* particle = theParticleIterator->value();
G4ProcessManager* pmanager = particle->GetProcessManager();
G4String particleName = particle->GetParticleName();
if (theCerenkovProcess->IsApplicable(*particle)) {
pmanager->AddProcess(theCerenkovProcess);
pmanager->SetProcessOrdering(theCerenkovProcess,idxPostStep);
}
}
}
![](asset-d4.png)
Tracking and Physics
203
5.2.5.2. Generation of Photons in processes/electromagnet-
ic/xrays - Scintillation
Every scintillating material has a characteristic light yield, SCINTILLATIONYIELD, and an intrinsic resolu-
tion, RESOLUTIONSCALE, which generally broadens the statistical distribution of generated photons. A wider
intrinsic resolution is due to impurities which are typical for doped crystals like NaI(Tl) and CsI(Tl). On the
other hand, the intrinsic resolution can also be narrower when the Fano factor plays a role. The actual num-
ber of emitted photons during a step fluctuates around the mean number of photons with a width given by
ResolutionScale*sqrt(MeanNumberOfPhotons). The average light yield, MeanNumberOfPho-
tons, has a linear dependence on the local energy deposition, but it may be different for minimum ionizing and
non-minimum ionizing particles.
A scintillator is also characterized by its photon emission spectrum and by the exponential decay of its time spec-
trum. In GEANT4 the scintillator can have a fast and a slow component. The relative strength of the fast component
as a fraction of total scintillation yield is given by the YIELDRATIO. Scintillation may be simulated by specifying
these empirical parameters for each material. It is sufficient to specify in the user's DetectorConstruction
class a relative spectral distribution as a function of photon energy for the scintillating material. An example of
this is shown in Example 5.5
Example 5.5. Specification of scintillation properties in DetectorConstruction.
const G4int NUMENTRIES = 9;
G4double Scnt_PP[NUMENTRIES] = { 6.6*eV, 6.7*eV, 6.8*eV, 6.9*eV,
7.0*eV, 7.1*eV, 7.2*eV, 7.3*eV, 7.4*eV };
G4double Scnt_FAST[NUMENTRIES] = { 0.000134, 0.004432, 0.053991, 0.241971,
0.398942, 0.000134, 0.004432, 0.053991,
0.241971 };
G4double Scnt_SLOW[NUMENTRIES] = { 0.000010, 0.000020, 0.000030, 0.004000,
0.008000, 0.005000, 0.020000, 0.001000,
0.000010 };
G4Material* Scnt;
G4MaterialPropertiesTable* Scnt_MPT = new G4MaterialPropertiesTable();
Scnt_MPT->AddProperty("FASTCOMPONENT", Scnt_PP, Scnt_FAST, NUMENTRIES);
Scnt_MPT->AddProperty("SLOWCOMPONENT", Scnt_PP, Scnt_SLOW, NUMENTRIES);
Scnt_MPT->AddConstProperty("SCINTILLATIONYIELD", 5000./MeV);
Scnt_MPT->AddConstProperty("RESOLUTIONSCALE", 2.0);
Scnt_MPT->AddConstProperty("FASTTIMECONSTANT", 1.*ns);
Scnt_MPT->AddConstProperty("SLOWTIMECONSTANT", 10.*ns);
Scnt_MPT->AddConstProperty("YIELDRATIO", 0.8);
Scnt->SetMaterialPropertiesTable(Scnt_MPT);
In cases where the scintillation yield of a scintillator depends on the particle type, different scintillation processes
may be defined for them. How this yield scales to the one specified for the material is expressed with the Scin-
tillationYieldFactor in the user's PhysicsList as shown in Example 5.6. In those cases where the
fast to slow excitation ratio changes with particle type, the method SetScintillationExcitationRatio
can be called for each scintillation process (see the advanced underground_physics example). This overwrites the
YieldRatio obtained from the G4MaterialPropertiesTable.
Example 5.6. Implementation of the scintillation process in PhysicsList.
G4Scintillation* theMuonScintProcess = new G4Scintillation("Scintillation");
theMuonScintProcess->SetTrackSecondariesFirst(true);
theMuonScintProcess->SetScintillationYieldFactor(0.8);
theParticleIterator->reset();
while( (*theParticleIterator)() ){
G4ParticleDefinition* particle = theParticleIterator->value();
G4ProcessManager* pmanager = particle->GetProcessManager();
G4String particleName = particle->GetParticleName();
![](asset-d5.png)
Tracking and Physics
204
if (theMuonScintProcess->IsApplicable(*particle)) {
if (particleName == "mu+") {
pmanager->AddProcess(theMuonScintProcess);
pmanager->SetProcessOrderingToLast(theMuonScintProcess, idxAtRest);
pmanager->SetProcessOrderingToLast(theMuonScintProcess, idxPostStep);
}
}
}
A Gaussian-distributed number of photons is generated according to the energy lost during the
step. A resolution scale of 1.0 produces a statistical fluctuation around the average yield set with
AddConstProperty("SCINTILLATIONYIELD"), while values > 1 broaden the fluctuation. A value of
zero produces no fluctuation. Each photon's frequency is sampled from the empirical spectrum. The photons orig-
inate evenly along the track segment and are emitted uniformly into 4π with a random linear polarization and at
times characteristic for the scintillation component.
When there are multiple scintillators in the simulation and/or when the scintillation yield is a non-linear function of
the energy deposited, the user can also define an array of total scintillation light yields as a function of the energy
deposited and particle type. The available particles are protons, electrons, deuterons, tritons, alphas, and carbon
ions. These are the particles known to significantly effect the scintillation light yield, of for example, BC501A
(NE213/EJ301) liquid organic scintillator and BC420 plastic scintillator as function of energy deposited.
The method works as follows:
1. In the user's physics lists, the user must set a G4bool flag that allows scintillation light emission to depend
on the energy deposited by particle type:
theScintProcess->SetScintillationByParticleType(true);
2. The user must also specify and add, via the AddProperty method of the MPT, the scintillation light yield as
function of incident particle energy with new keywords, for example: PROTONSCINTILLATIONYIELD
etc. and pairs of protonEnergy and scintLightYield.
5.2.5.3. Generation of Photons in processes/optical - Wave-
length Shifting
Wavelength Shifting (WLS) fibers are used in many high-energy particle physics experiments. They absorb light
at one wavelength and re-emit light at a different wavelength and are used for several reasons. For one, they tend
to decrease the self-absorption of the detector so that as much light reaches the PMTs as possible. WLS fibers are
also used to match the emission spectrum of the detector with the input spectrum of the PMT.
A WLS material is characterized by its photon absorption and photon emission spectrum and by a possible time
delay between the absorption and re-emission of the photon. Wavelength Shifting may be simulated by specifying
these empirical parameters for each WLS material in the simulation. It is sufficient to specify in the user's De-
tectorConstruction class a relative spectral distribution as a function of photon energy for the WLS mate-
rial. WLSABSLENGTH is the absorption length of the material as a function of the photon's energy. WLSCOM-
PONENT is the relative emission spectrum of the material as a function of the photon's energy, and WLSTIME-
CONSTANT accounts for any time delay which may occur between absorption and re-emission of the photon.
An example is shown in Example 5.7.
Example 5.7. Specification of WLS properties in DetectorConstruction.
const G4int nEntries = 9;
G4double PhotonEnergy[nEntries] = { 6.6*eV, 6.7*eV, 6.8*eV, 6.9*eV,
7.0*eV, 7.1*eV, 7.2*eV, 7.3*eV, 7.4*eV };
G4double RIndexFiber[nEntries] =
{ 1.60, 1.60, 1.60, 1.60, 1.60, 1.60, 1.60, 1.60, 1.60 };
G4double AbsFiber[nEntries] =
{0.1*mm,0.2*mm,0.3*mm,0.4*cm,1.0*cm,10*cm,1.0*m,10.0*m,10.0*m};
G4double EmissionFiber[nEntries] =
{0.0, 0.0, 0.0, 0.1, 0.5, 1.0, 5.0, 10.0, 10.0 };
![](asset-d6.png)
Tracking and Physics
205
G4Material* WLSFiber;
G4MaterialPropertiesTable* MPTFiber = new G4MaterialPropertiesTable();
MPTFiber->AddProperty("RINDEX",PhotonEnergy,RIndexFiber,nEntries);
MPTFiber->AddProperty("WLSABSLENGTH",PhotonEnergy,AbsFiber,nEntries);
MPTFiber->AddProperty("WLSCOMPONENT",PhotonEnergy,EmissionFiber,nEntries);
MPTFiber->AddConstProperty("WLSTIMECONSTANT", 0.5*ns);
WLSFiber->SetMaterialPropertiesTable(MPTFiber);
The process is defined in the PhysicsList in the usual way. The process class name is G4OpWLS. It should be
instantiated with theWLSProcess = new G4OpWLS("OpWLS") and attached to the process manager of the optical
photon as a DiscreteProcess. The way the WLSTIMECONSTANT is used depends on the time profile method
chosen by the user. If in the PhysicsList theWLSProcess->UseTimeGenerator("exponential") option is set, the
time delay between absorption and re-emission of the photon is sampled from an exponential distribution, with the
decay term equal to WLSTIMECONSTANT. If, on the other hand, theWLSProcess->UseTimeGenerator("delta")
is chosen, the time delay is a delta function and equal to WLSTIMECONSTANT. The default is "delta" in case
the G4OpWLS::UseTimeGenerator(const G4String name) method is not used.
5.2.5.4. Tracking of Photons in processes/optical
Absorption
The implementation of optical photon bulk absorption, G4OpAbsorption, is trivial in that the process merely
kills the particle. The procedure requires the user to fill the relevant G4MaterialPropertiesTable with
empirical data for the absorption length, using ABSLENGTH as the property key in the public method AddProp-
erty. The absorption length is the average distance traveled by a photon before being absorpted by the medium;
i.e. it is the mean free path returned by the GetMeanFreePath method.
Rayleigh Scattering
The differential cross section in Rayleigh scattering, d#/d#, is proportional to 1+cos2(θ), where θ is the polar of
the new polarization vector with respect to the old polarization vector. The G4OpRayleigh scattering process
samples this angle accordingly and then calculates the scattered photon's new direction by requiring that it be
perpendicular to the photon's new polarization in such a way that the final direction, initial and final polarizations
are all in one plane. This process thus depends on the particle's polarization (spin). The photon's polarization is
a data member of the G4DynamicParticle class.
A photon which is not assigned a polarization at production, either via the SetPolarization method
of the G4PrimaryParticle class, or indirectly with the SetParticlePolarization method of the
G4ParticleGun class, may not be Rayleigh scattered. Optical photons produced by the G4Cerenkov process
have inherently a polarization perpendicular to the cone's surface at production. Scintillation photons have a ran-
dom linear polarization perpendicular to their direction.
The process requires a G4MaterialPropertiesTable to be filled by the user with Rayleigh scattering length
data. The Rayleigh scattering attenuation length is the average distance traveled by a photon before it is Rayleigh
scattered in the medium and it is the distance returned by the GetMeanFreePath method. The G4OpRayleigh
class provides a RayleighAttenuationLengthGenerator method which calculates the attenuation coef-
ficient of a medium following the Einstein-Smoluchowski formula whose derivation requires the use of statistical
mechanics, includes temperature, and depends on the isothermal compressibility of the medium. This generator is
convenient when the Rayleigh attenuation length is not known from measurement but may be calculated from first
principles using the above material constants. For a medium named Water and no Rayleigh scattering attenutation
length specified by the user, the program automatically calls the RayleighAttenuationLengthGenera-
tor which calculates it for 10 degrees Celsius liquid water.
Mie Scattering
Mie Scattering (or Mie solution) is an analytical solution of Maxwell's equations for scattering of optical photons
by spherical particles. It is significant only when the radius of the scattering object is of order of the wave length.
The analytical expressions for Mie Scattering are very complicated since they are a series sum of Bessel functions.
![](asset-d7.png)
Tracking and Physics
206
One common approximation made is call Henyey-Greenstein (HG). The implementation in Geant4 follows the HG
approximation (for details see the Physics Reference Manual) and the treatment of polarization and momentum
are similar to that of Rayleigh scattering. We require the final polarization direction to be perpendicular to the
momentum direction. We also require the final momentum, initial polarization and final polarization to be in the
same plane.
The process requires a G4MaterialPropertiesTable to be filled by the user with Mie scattering length data (entered
with the name: MIEHG) analogous to Rayleigh scattering. The Mie scattering attenuation length is the average
distance traveled by a photon before it is Mie scattered in the medium and it is the distance returned by the Get-
MeanFreePath method. In practice, the user not only needs to provide the attenuation length of Mie scattering, but
also needs to provide the constant parameters of the approximation: g_f, g_b, and r_f. (with AddConstProperty
and with the names: MIEHG_FORWARD, MIEHG_BACKWARD, and MIEHG_FORWARD_RATIO, respec-
tively; see Novice Example N06.)
Boundary Process
Reference: E. Hecht and A. Zajac, Optics [ Hecht1974 ]
For the simple case of a perfectly smooth interface between two dielectric materials, all the user needs to provide
are the refractive indices of the two materials stored in their respective G4MaterialPropertiesTable. In
all other cases, the optical boundary process design relies on the concept of surfaces. The information is split into
two classes. One class in the material category keeps information about the physical properties of the surface itself,
and a second class in the geometry category holds pointers to the relevant physical and logical volumes involved
and has an association to the physical class. Surface objects of the second type are stored in a related table and
can be retrieved by either specifying the two ordered pairs of physical volumes touching at the surface, or by the
logical volume entirely surrounded by this surface. The former is called a border surface while the latter is referred
to as the skin surface. This second type of surface is useful in situations where a volume is coded with a reflector
and is placed into many different mother volumes. A limitation is that the skin surface can only have one and
the same optical property for all of the enclosed volume's sides. The border surface is an ordered pair of physical
volumes, so in principle, the user can choose different optical properties for photons arriving from the reverse side
of the same interface. For the optical boundary process to use a border surface, the two volumes must have been
positioned with G4PVPlacement. The ordered combination can exist at many places in the simulation. When
the surface concept is not needed, and a perfectly smooth surface exists beteen two dielectic materials, the only
relevant property is the index of refraction, a quantity stored with the material, and no restriction exists on how
the volumes were positioned.
When an optical photon arrives at a boundary it is absorbed if the medium of the volume being left behind has no
index of refraction defined. A photon is also absorbed in case of a dielectric-dielectric polished or ground surface
when the medium about to be entered has no index of refraction. It is absorbed for backpainted surfaces when the
surface has no index of refraction. If the geometry boundary has a border surface this surface takes precedence,
otherwise the program checks for skin surfaces. The skin surface of the daughter volume is taken if a daughter
volume is entered else the program checks for a skin surface of the current volume. When the optical photon leaves
a volume without entering a daughter volume the skin surface of the current volume takes precedence over that
of the volume about to be entered.
The physical surface object also specifies which model the boundary process should use to simulate interactions
with that surface. In addition, the physical surface can have a material property table all its own. The usage of this
table allows all specular constants to be wavelength dependent. In case the surface is painted or wrapped (but not a
cladding), the table may include the thin layer's index of refraction. This allows the simulation of boundary effects
at the intersection between the medium and the surface layer, as well as the Lambertian reflection at the far side
of the thin layer. This occurs within the process itself and does not invoke the G4Navigator. Combinations of
surface finish properties, such as polished or ground and front painted or back painted, enumerate the different
situations which can be simulated.
When a photon arrives at a medium boundary its behavior depends on the nature of the two materials that join at
that boundary. Medium boundaries may be formed between two dielectric materials or a dielectric and a metal.
In the case of two dielectric materials, the photon can undergo total internal reflection, refraction or reflection,
depending on the photon's wavelength, angle of incidence, and the refractive indices on both sides of the boundary.
Furthermore, reflection and transmission probabilites are sensitive to the state of linear polarization. In the case of
![](asset-d8.png)
Tracking and Physics
207
an interface between a dielectric and a metal, the photon can be absorbed by the metal or reflected back into the
dielectric. If the photon is absorbed it can be detected according to the photoelectron efficiency of the metal.
As expressed in Maxwell's equations, Fresnel reflection and refraction are intertwined through their relative prob-
abilities of occurrence. Therefore neither of these processes, nor total internal reflection, are viewed as individual
processes deserving separate class implementation. Nonetheless, an attempt was made to adhere to the abstraction
of having independent processes by splitting the code into different methods where practicable.
One implementation of the G4OpBoundaryProcess class employs the UNIFIED model [A. Levin and C.
Moisan, A More Physical Approach to Model the Surface Treatment of Scintillation Counters and its Implementa-
tion into DETECT, TRIUMF Preprint TRI-PP-96-64, Oct. 1996] of the DETECT program [G.F. Knoll, T.F. Knoll
and T.M. Henderson, Light Collection Scintillation Detector Composites for Neutron Detection, IEEE Trans. Nu-
cl. Sci., 35 (1988) 872.]. It applies to dielectric-dielectric interfaces and tries to provide a realistic simulation,
which deals with all aspects of surface finish and reflector coating. The surface may be assumed as smooth and
covered with a metallized coating representing a specular reflector with given reflection coefficient, or painted
with a diffuse reflecting material where Lambertian reflection occurs. The surfaces may or may not be in optical
contact with another component and most importantly, one may consider a surface to be made up of micro-facets
with normal vectors that follow given distributions around the nominal normal for the volume at the impact point.
For very rough surfaces, it is possible for the photon to inversely aim at the same surface again after reflection
of refraction and so multiple interactions with the boundary are possible within the process itself and without the
need for relocation by G4Navigator.

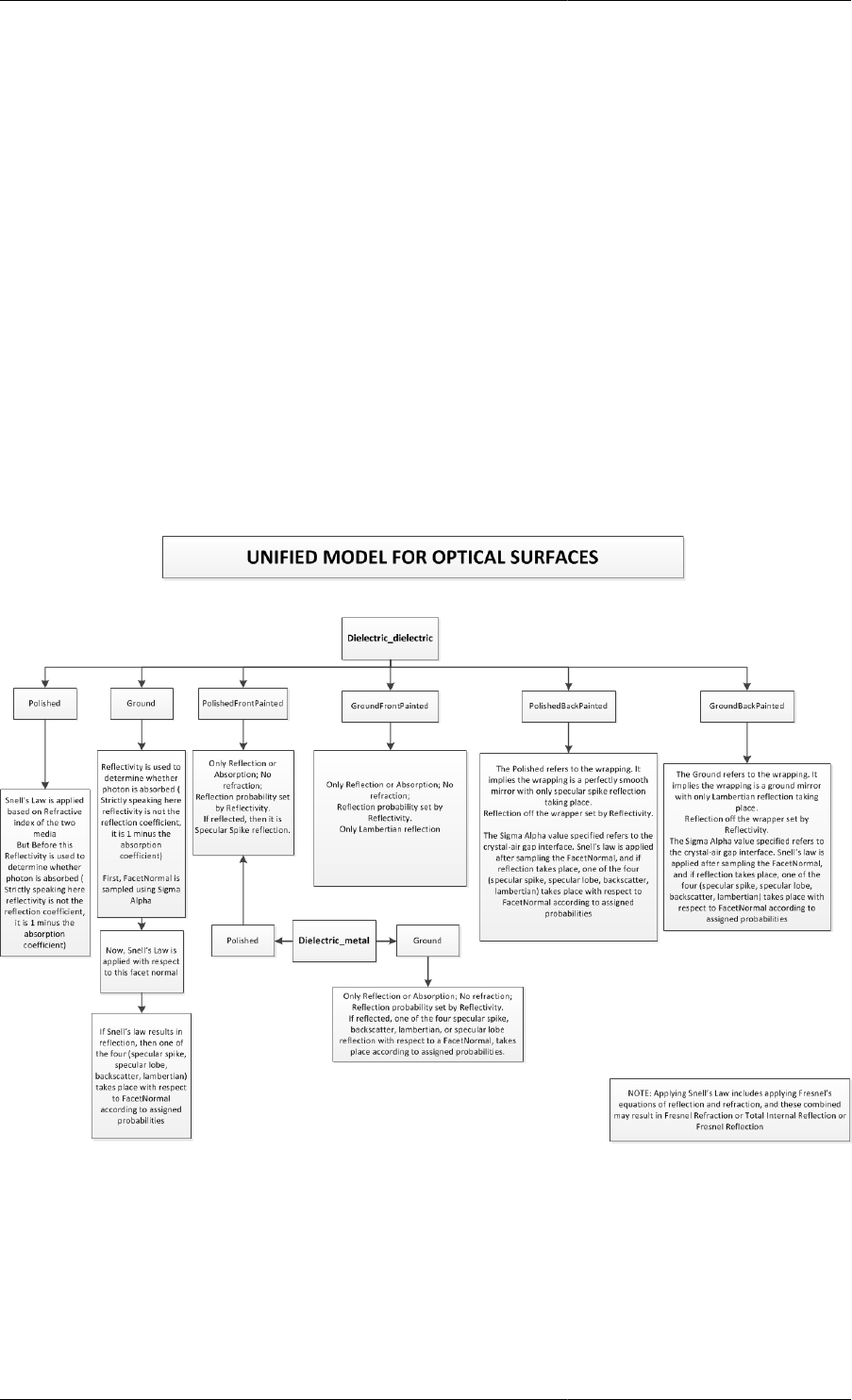

Figure 5.1. Diagram of the UNIFIED Model for Optical Surfaces (courtesy A. Shankar)
The UNIFIED model (Figure 5.1) provides for a range of different reflection mechanisms. The specular lobe
constant represents the reflection probability about the normal of a micro facet. The specular spike constant, in
turn, illustrates the probability of reflection about the average surface normal. The diffuse lobe constant is for the
probability of internal Lambertian reflection, and finally the back-scatter spike constant is for the case of several
reflections within a deep groove with the ultimate result of exact back-scattering. The four probabilities must
add up to one, with the diffuse lobe constant being implicit. The reader may consult the reference for a thorough
description of the model.
![](asset-d9.png)
Tracking and Physics
208
Example 5.8. Dielectric-dielectric surface properties defined via the
G4OpticalSurface.
G4VPhysicalVolume* volume1;
G4VPhysicalVolume* volume2;
G4OpticalSurface* OpSurface = new G4OpticalSurface("name");
G4LogicalBorderSurface* Surface = new
G4LogicalBorderSurface("name",volume1,volume2,OpSurface);
G4double sigma_alpha = 0.1;
OpSurface -> SetType(dielectric_dielectric);
OpSurface -> SetModel(unified);
OpSurface -> SetFinish(groundbackpainted);
OpSurface -> SetSigmaAlpha(sigma_alpha);
const G4int NUM = 2;
G4double pp[NUM] = {2.038*eV, 4.144*eV};
G4double specularlobe[NUM] = {0.3, 0.3};
G4double specularspike[NUM] = {0.2, 0.2};
G4double backscatter[NUM] = {0.1, 0.1};
G4double rindex[NUM] = {1.35, 1.40};
G4double reflectivity[NUM] = {0.3, 0.5};
G4double efficiency[NUM] = {0.8, 0.1};
G4MaterialPropertiesTable* SMPT = new G4MaterialPropertiesTable();
SMPT -> AddProperty("RINDEX",pp,rindex,NUM);
SMPT -> AddProperty("SPECULARLOBECONSTANT",pp,specularlobe,NUM);
SMPT -> AddProperty("SPECULARSPIKECONSTANT",pp,specularspike,NUM);
SMPT -> AddProperty("BACKSCATTERCONSTANT",pp,backscatter,NUM);
SMPT -> AddProperty("REFLECTIVITY",pp,reflectivity,NUM);
SMPT -> AddProperty("EFFICIENCY",pp,efficiency,NUM);
OpSurface -> SetMaterialPropertiesTable(SMPT);
The original GEANT3.21 implementation of this process is also available via the GLISUR methods flag. [GEANT
Detector Description and Simulation Tool, Application Software Group, Computing and Networks Division,
CERN, PHYS260-6 tp 260-7.].
Example 5.9. Dielectric metal surface properties defined via the G4OpticalSurface.
G4LogicalVolume* volume_log;
G4OpticalSurface* OpSurface = new G4OpticalSurface("name");
G4LogicalSkinSurface* Surface = new
G4LogicalSkinSurface("name",volume_log,OpSurface);
OpSurface -> SetType(dielectric_metal);
OpSurface -> SetFinish(ground);
OpSurface -> SetModel(glisur);
G4double polish = 0.8;
G4MaterialPropertiesTable *OpSurfaceProperty = new G4MaterialPropertiesTable();
OpSurfaceProperty -> AddProperty("REFLECTIVITY",pp,reflectivity,NUM);
OpSurfaceProperty -> AddProperty("EFFICIENCY",pp,efficiency,NUM);
OpSurface -> SetMaterialPropertiesTable(OpSurfaceProperty);
The reflectivity off a metal surface can also be calculated by way of a complex index of refraction. Instead of stor-
ing the REFLECTIVITY directly, the user stores the real part (REALRINDEX) and the imaginary part (IMAGI-
NARYRINDEX) as a function of photon energy separately in the G4MaterialPropertyTable. Geant4 then calcu-
lates the reflectivity depending on the incident angle, photon energy, degree of TE and TM polarization, and this
complex refractive index.
![](asset-da.png)
Tracking and Physics
209
The program defaults to the GLISUR model and polished surface finish when no specific model and sur-
face finish is specified by the user. In the case of a dielectric-metal interface, or when the GLISUR model is
specified, the only surface finish options available are polished or ground. For dielectric-metal surfaces, the
G4OpBoundaryProcess also defaults to unit reflectivity and zero detection efficiency. In cases where the
user specifies the UNIFIED model (Figure 5.1), but does not otherwise specify the model reflection probability
constants, the default becomes Lambertian reflection.
Martin Janecek and Bill Moses (Lawrence Berkeley National Laboratory) built an instrument for measuring the
angular reflectivity distribution inside of BGO crystals with common surface treatments and reflectors applied.
These results have been incorporate into the Geant4 code. A third class of reflection type besides dielectric_metal
and dielectric_dielectric is added: dielectric_LUT. The distributions have been converted to 21 look-up-tables
(LUT); so far for 1 scintillator material (BGO) x 3 surface treatments x 7 reflector materials. The modified code
allows the user to specify the surface treatment (rough-cut, chemically etched, or mechanically polished), the at-
tached reflector (Lumirror, Teflon, ESR film, Tyvek, or TiO2 paint), and the bonding type (air-coupled or glued).
The glue used is MeltMount, and the ESR film used is VM2000. Each LUT consists of measured angular distri-
butions with 4º by 5º resolution in theta and phi, respectively, for incidence angles from 0º to 90º degrees, in 1º-
steps. The code might in the future be updated by adding more LUTs, for instance, for other scintillating materials
(such as LSO or NaI). To use these LUT the user has to download them from Geant4 Software Download and
set an environment variable, G4REALSURFACEDATA, to the directory of geant4/data/RealSurface1.0.
For details see: M. Janecek, W. W. Moses, IEEE Trans. Nucl. Sci. 57 (3) (2010) 964-970.
The enumeration G4OpticalSurfaceFinish has been extended to include (what follows should be a 2 column table):
polishedlumirrorair, // mechanically polished surface, with lumirror
polishedlumirrorglue, // mechanically polished surface, with lumirror & meltmount
polishedair, // mechanically polished surface
polishedteflonair, // mechanically polished surface, with teflon
polishedtioair, // mechanically polished surface, with tio paint
polishedtyvekair, // mechanically polished surface, with tyvek
polishedvm2000air, // mechanically polished surface, with esr film
polishedvm2000glue, // mechanically polished surface, with esr film & meltmount
etchedlumirrorair, // chemically etched surface, with lumirror
etchedlumirrorglue, // chemically etched surface, with lumirror & meltmount
etchedair, // chemically etched surface
etchedteflonair, // chemically etched surface, with teflon
etchedtioair, // chemically etched surface, with tio paint
etchedtyvekair, // chemically etched surface, with tyvek
etchedvm2000air, // chemically etched surface, with esr film
etchedvm2000glue, // chemically etched surface, with esr film & meltmount
groundlumirrorair, // rough-cut surface, with lumirror
groundlumirrorglue, // rough-cut surface, with lumirror & meltmount
groundair, // rough-cut surface
groundteflonair, // rough-cut surface, with teflon
groundtioair, // rough-cut surface, with tio paint
groundtyvekair, // rough-cut surface, with tyvek
groundvm2000air, // rough-cut surface, with esr film
groundvm2000glue // rough-cut surface, with esr film & meltmount
To use a look-up-table, all the user needs to specify for an
G4OpticalSurface is: SetType(dielectric_LUT), SetModel(LUT) and for example,
SetFinish(polishedtyvekair).
5.2.6. Parameterization
In this section we describe how to use the parameterization or "fast simulation" facilities of GEANT4. Examples
are provided in the examples/novice/N05 directory.
5.2.6.1. Generalities:
The Geant4 parameterization facilities allow you to shortcut the detailed tracking in a given volume and for given
particle types in order for you to provide your own implementation of the physics and of the detector response.
Parameterisations are bound to a G4Region object, which, in the case of fast simulation is also called an enve-
lope. Prior to release 8.0, parameterisations were bound to a G4LogicalVolume, the root of a volume hierar-
![](asset-db.png)
Tracking and Physics
210
chy. These root volumes are now attributes of the G4Region. Envelopes often correspond to the volumes of
sub-detectors: electromagnetic calorimeters, tracking chambers, etc. With GEANT4 it is also possible to define
envelopes by overlaying a parallel or "ghost" geometry as discussed in Section 5.2.6.7.
In GEANT4, parameterisations have three main features. You must specify:
• the particle types for which your parameterisation is valid;
• the dynamics conditions for which your parameterisation is valid and must be triggered;
• the parameterisation itself: where the primary will be killed or moved, whether or not to create it or create
secondaries, etc., and where the detector response will be computed.
GEANT4 will message your parameterisation code for each step starting in any root G4LogicalVolume (including
daughters. sub-daughters, etc. of this volume) of the G4Region. It will proceed by first asking the available
parameterisations for the current particle type if one of them (and only one) wants to issue a trigger. If so it will
invoke its parameterisation. In this case, the tracking will not apply physics to the particle in the step. Instead, the
UserSteppingAction will be invoked.
Parameterisations look like a "user stepping action" but are more advanced because:
• parameterisation code is messaged only in the G4Region to which it is bound;
• parameterisation code is messaged anywhere in the G4Region, that is, any volume in which the track is located;
• GEANT4 will provide information to your parameterisation code about the current root volume of the
G4Region in which the track is travelling.
5.2.6.2. Overview of Parameterisation Components
The GEANT4 components which allow the implementation and control of parameterisations are:
G4VFastSimulationModel
This is the abstract class for the implementation of parameterisations. You must inherit from it to implement
your concrete parameterisation model.
G4FastSimulationManager
The G4VFastSimulationModel objects are attached to the G4Region through a
G4FastSimulationManager. This object will manage the list of models and will message them at track-
ing time.
G4Region/Envelope
As mentioned before, an envelope in GEANT4 is a G4Region. The parameterisation is bound to the
G4Region by setting a G4FastSimulationManager pointer to it.
The figure below shows how the G4VFastSimulationModel and G4FastSimulationManager ob-
jects are bound to the G4Region. Then for all root G4LogicalVolume's held by the G4Region, the fast sim-
ulation code is active.
G4FastSimulationManagerProcess
This is a G4VProcess. It provides the interface between the tracking and the parameterisation. It must be
set in the process list of the particles you want to parameterise.
![](asset-dc.png)
Tracking and Physics
211
G4GlobalFastSimulationManager
This a singleton class which provides the management of the G4FastSimulationManager objects and
some ghost facilities.
5.2.6.3. The G4VFastSimulationModel Abstract Class
Constructors:
The G4VFastSimulationModel class has two constructors. The second one allows you to get started quickly:
G4VFastSimulationModel( const G4String& aName):
Here aName identifies the parameterisation model.
G4VFastSimulationModel(const G4String& aName, G4Region*, G4bool
IsUnique=false):
In addition to the model name, this constructor accepts a G4Region pointer. The needed
G4FastSimulationManager object is constructed if necessary, passing to it the G4Region point-
er and the boolean value. If it already exists, the model is simply added to this manager. Note that the
G4VFastSimulationModel object will not keep track of the G4Region passed in the constructor. The
boolean argument is there for optimization purposes: if you know that the G4Region has a unique root
G4LogicalVolume, uniquely placed, you can set the boolean value to "true".
Virtual methods:
The G4VFastSimulationModel has three pure virtual methods which must be overriden in your concrete
class:
G4VFastSimulationModel( const G4String& aName):
Here aName identifies the parameterisation model.
G4bool ModelTrigger( const G4FastTrack&):
You must return "true" when the dynamic conditions to trigger your parameterisation are ful-
filled. G4FastTrack provides access to the current G4Track, gives simple access to the current root
G4LogicalVolume related features (its G4VSolid, and G4AffineTransform references between the global and
the root G4LogicalVolume local coordinates systems) and simple access to the position and momentum ex-
pressed in the root G4LogicalVolume coordinate system. Using these quantities and the G4VSolid methods,
you can for example easily check how far you are from the root G4LogicalVolume boundary.
G4bool IsApplicable( const G4ParticleDefinition&):
In your implementation, you must return "true" when your model is applicable to the G4ParticleDefinition
passed to this method. The G4ParticleDefinition provides all intrinsic particle information (mass, charge, spin,
name ...).
If you want to implement a model which is valid only for certain particle types, it is recommended for effi-
ciency that you use the static pointer of the corresponding particle classes.
As an example, in a model valid for gammas only, the IsApplicable() method should take the form:
#include "G4Gamma.hh"
G4bool MyGammaModel::IsApplicable(const G4ParticleDefinition& partDef)
{
return &partDef == G4Gamma::GammaDefinition();
}
![](asset-dd.png)
Tracking and Physics
212
G4bool ModelTrigger( const G4FastTrack&):
You must return "true" when the dynamic conditions to trigger your parameterisation are fulfilled. The
G4FastTrack provides access to the current G4Track, gives simple access to envelope related features
(G4LogicalVolume, G4VSolid, and G4AffineTransform references between the global and the envelope local
coordinates systems) and simple access to the position and momentum expressed in the envelope coordinate
system. Using these quantities and the G4VSolid methods, you can for example easily check how far you are
from the envelope boundary.
void DoIt( const G4FastTrack&, G4FastStep&):
The details of your parameterisation will be implemented in this method. The G4FastTrack reference provides
the input information, and the final state of the particles after parameterisation must be returned through the
G4FastStep reference. Tracking for the final state particles is requested after your parameterisation has been
invoked.
5.2.6.4. The G4FastSimulationManager Class:
G4FastSimulationManager functionnalities regarding the use of ghost volumes are explained in Section 5.2.6.7.
Constructor:
G4FastSimulationManager( G4Region *anEnvelope, G4bool IsUnique=false):
This is the only constructor. You specify the G4Region by providing its pointer. The
G4FastSimulationManager object will bind itself to this G4Region. If you know that this G4Region has a
single root G4LogicalVolume, placed only once, you can set the IsUnique boolean to "true" to allow some
optimization.
Note that if you choose to use the G4VFastSimulationModel(const G4String&, G4Region*, G4bool) con-
structor for your model, the G4FastSimulationManager will be constructed using the given G4Region* and
G4bool values of the model constructor.
G4VFastSimulationModel object management:
The following two methods provide the usual management functions.
•void AddFastSimulationModel( G4VFastSimulationModel*)
•RemoveFastSimulationModel( G4VFastSimulationModel*)
5.2.6.5. The G4FastSimulationManagerProcess Class
This G4VProcess serves as an interface between the tracking and the parameterisation. At tracking time, it col-
laborates with the G4FastSimulationManager of the current volume, if any, to allow the models to trigger. If no
manager exists or if no model issues a trigger, the tracking goes on normally.
In the present implementation, you must set this process in the G4ProcessManager of the particles you parame-
terise to enable your parameterisation.
The processes ordering is:
[n-3] ...
[n-2] Multiple Scattering
[n-1] G4FastSimulationManagerProcess
[ n ] G4Transportation
This ordering is important if you use ghost geometries, since the G4FastSimulationManagerProcess will provide
navigation in the ghost world to limit the step on ghost boundaries.
The G4FastSimulationManager must be added to the process list of a particle as a continuous and discrete process
if you use ghost geometries for this particle. You can add it as a discrete process if you don't use ghosts.
![](asset-de.png)
Tracking and Physics
213
The following code registers the G4FastSimulationManagerProcess with all the particles as a discrete and contin-
uous process:
void MyPhysicsList::addParameterisation()
{
G4FastSimulationManagerProcess*
theFastSimulationManagerProcess = new G4FastSimulationManagerProcess();
theParticleIterator->reset();
while( (*theParticleIterator)() )
{
G4ParticleDefinition* particle = theParticleIterator->value();
G4ProcessManager* pmanager = particle->GetProcessManager();
pmanager->AddProcess(theFastSimulationManagerProcess, -1, 0, 0);
}
}
5.2.6.6. The G4GlobalFastSimulationManager Singleton Class
This class is a singleton which can be accessed as follows:
#include "G4GlobalFastSimulationManager.hh"
...
...
G4GlobalFastSimulationManager* globalFSM;
globalFSM = G4GlobalFastSimulationManager::getGlobalFastSimulationManager();
...
...
Presently, you will mainly need to use the GlobalFastSimulationManager if you use ghost geometries.
5.2.6.7. Parameterisation Using Ghost Geometries
In some cases, volumes of the tracking geometry do not allow envelopes to be defined. This may be the case
with a geometry coming from a CAD system. Since such a geometry is flat, a parallel geometry must be used
to define the envelopes.
Another interesting case involves defining an envelope which groups the electromagnetic and hadronic calorime-
ters of a detector into one volume. This may be useful when parameterizing the interaction of charged pions. You
will very likely not want electrons to see this envelope, which means that ghost geometries have to be organized
by particle flavours.
Using ghost geometries implies some more overhead in the parameterisation mechanism for the particles sensitive
to ghosts, since navigation is provided in the ghost geometry by the G4FastSimulationManagerProcess. Usually,
however, only a few volumes will be placed in this ghost world, so that the geometry computations will remain
rather cheap.
In the existing implementation (temporary implementation with G4Region but before parallel geometry
implementation), you may only consider ghost G4Regions with just one root G4LogicalVolume. The
G4GlobalFastSimulationManager provides the construction of the ghost geometry by making first an empty
"clone" of the world for tracking provided by the construct() method of your G4VUserDetectorConstruction con-
crete class. You provide the placement of the G4Region root G4LogicalVolume relative to the ghost world coor-
dinates in the G4FastSimulationManager objects. A ghost G4Region is recognized by the fact that its associated
G4FastSimulationManager retains a non-empty list of placements.
The G4GlobalFastSimulationManager will then use both those placements and the IsApplicable() methods of the
models attached to the G4FastSimulationManager objects to build the flavour-dependant ghost geometries.
Then at the beginning of the tracking of a particle, the appropriate ghost world, if any, will be selected.
The steps required to build one ghost G4Region are:
1. built the ghost G4Region : myGhostRegion;
2. build the root G4LogicalVolume: myGhostLogical, set it to myGhostRegion;
![](asset-df.png)
Tracking and Physics
214
3. build a G4FastSimulationManager object, myGhostFSManager, giving myGhostRegion as argument of the
constructor;
4. give to the G4FastSimulationManager the placement of the myGhostLogical, by invoking for the
G4FastSimulationManager method:
AddGhostPlacement(G4RotationMatrix*, const G4ThreeVector&);
or:
AddGhostPlacement(G4Transform3D*);
where the rotation matrix and translation vector of the 3-D transformation describe the placement relative
to the ghost world coordinates.
5. build your G4VFastSimulationModel objects and add them to the myGhostFSManager. The IsApplicable()
methods of your models will be used by the G4GlobalFastSimulationManager to build the ghost geometries
corresponding to a given particle type.
6. Invoke the G4GlobalFastSimulationManager method:
G4GlobalFastSimulationManager::getGlobalFastSimulationManager()->
CloseFastSimulation();
This last call will cause the G4GlobalFastSimulationManager to build the flavour-dependent ghost geometries.
This call must be done before the RunManager closes the geometry. (It is foreseen that the run manager in the
future will invoke the CloseFastSimulation() to synchronize properly with the closing of the geometry).
Visualization facilities are provided for ghosts geometries. After the CloseFastSimulation() invocation, it is pos-
sible to ask for the drawing of ghosts in an interactive session. The basic commands are:
• /vis/draw/Ghosts particle_name
which makes the drawing of the ghost geometry associated with the particle specified by name in the command
line.
• /vis/draw/Ghosts
which draws all the ghost geometries.
5.2.6.8. Gflash Parameterization
This section describes how to use the Gflash library. Gflash is a concrete parameterization which is based on
the equations and parameters of the original Gflash package from H1(hep-ex/0001020, Grindhammer & Peters,
see physics manual) and uses the "fast simulation" facilities of GEANT4 described above. Briefly, whenever a
e-/e+ particle enters the calorimeter, it is parameterized if it has a minimum energy and the shower is expected
to be contained in the calorimeter (or " parameterization envelope"). If this is fulfilled the particle is killed, as
well as all secondaries, and the energy is deposited according to the Gflash equations. An example, provided in
examples/extended/parametrisation/gflash/, shows how to interface Gflash to your application. The simulation
time is measured, so the user can immediately see the speed increase resulting from the use of Gflash.
5.2.6.9. Using the Gflash Parameterisation
To use Gflash "out of the box" the following steps are necessary:
• The user must add the fast simulation process to his process manager:
![](asset-e0.png)
Tracking and Physics
215
void MyPhysicsList::addParameterisation()
{
G4FastSimulationManagerProcess*
theFastSimulationManagerProcess = new G4FastSimulationManagerProcess();
theParticleIterator->reset();
while( (*theParticleIterator)() )
{
G4ParticleDefinition* particle = theParticleIterator->value();
G4ProcessManager* pmanager = particle->GetProcessManager();
pmanager->AddProcess(theFastSimulationManagerProcess, -1, 0, 0);
}
}
• The envelope in which the parameterization should be performed must be specified (below: G4Region
m_calo_region) and the GFlashShowerModel must be assigned to this region. Furthermore, the class-
es GFlashParticleBounds (which provides thresholds for the parameterization like minimal energy etc.),
GflashHitMaker(a helper class to generate hits in the sensitive detector) and GFlashHomoShowerParamteri-
sation (which does the computations) must be constructed (by the user at the moment) and assigned to the
GFlashShowerModel. Please note that at the moment only homogeneous calorimeters are supported.
m_theFastShowerModel = new GFlashShowerModel("fastShowerModel",m_calo_region);
m_theParametrisation = new GFlashHomoShowerParamterisation(matManager->getMaterial(mat));
m_theParticleBounds = new GFlashParticleBounds();
m_theHMaker = new GFlashHitMaker();
m_theFastShowerModel->SetParametrisation(*m_theParametrisation);
m_theFastShowerModel->SetParticleBounds(*m_theParticleBounds) ;
m_theFastShowerModel->SetHitMaker(*m_theHMaker);
The user must also set the material of the calorimeter, since the computation depends on the material.
• It is mandatory to use G4VGFlashSensitiveDetector as (additional) base class for the sensitive detector.
class ExGflashSensitiveDetector: public G4VSensitiveDetector ,public G4VGFlashSensitiveDetector
Here it is necessary to implement a separate interface, where the GFlash spots are processed.
(ProcessHits(G4GFlashSpot*aSpot ,G4TouchableHistory* ROhist))
A separate interface is used, because the Gflash spots naturally contain less information than the full simulation.
Since the parameters in the Gflash package are taken from fits to full simulations with Geant3, some retuning
might be necessary for good agreement with Geant4 showers. For experiment-specific geometries some retuning
might be necessary anyway. The tuning is quite complicated since there are many parameters (some correlated)
and cannot be described here (see again hep-ex/0001020). For brave users the Gflash framework already forsees
the possibility of passing a class with the (users) parameters,GVFlashHomoShowerTuning, to the GFlashHo-
moShowerParamterisation constructor. The default parameters are the original Gflash parameters:
GFlashHomoShowerParameterisation(G4Material * aMat, GVFlashHomoShowerTuning * aPar = 0);
Now there is also a preliminary implemenation of a parameterization for sampling calorimeters.
The user must specify the active and passive material, as well as the thickness of the active and passive layer.
The sampling structure of the calorimeter is taken into account by using an "effective medium" to compute the
shower shape.
All material properties needed are calculated automatically. If tuning is required, the user can pass his own para-
meter set in the class GFlashSamplingShowerTuning. Here the user can also set his calorimeter resolution.
All in all the constructor looks the following:
GFlashSamplingShowerParamterisation(G4Material * Mat1, G4Material * Mat2,G4double d1,G4double d2,
GVFlashSamplingShowerTuning * aPar = 0);
![](asset-e1.png)
Tracking and Physics
216
An implementation of some tools that should help the user to tune the parameterization is forseen.
5.2.7. Transportation Process
To be delivered by J. Apostolakis (<John.Apostolakis@cern.ch>).
5.3. Particles
5.3.1. Basic concepts
There are three levels of classes to describe particles in Geant4.
G4ParticleDefinition
defines a particle
G4DynamicParticle
describes a particle interacting with materials
G4Track
describes a particle traveling in space and time
G4ParticleDefinition aggregates information to characterize a particle's properties, such as name, mass,
spin, life time, and decay modes. G4DynamicParticle aggregates information to describe the dynamics of
particles, such as energy, momentum, polarization, and proper time, as well as ``particle definition'' information.
G4Track (see Section 5.1) includes all information necessary for tracking in a detector simulation, such as time,
position, and step, as well as ``dynamic particle'' information.
5.3.2. Definition of a particle
There are a large number of elementary particles and nuclei. Geant4 provides the G4ParticleDefinition
class to represent particles, and various particles, such as the electron, proton, and gamma have their own classes
derived from G4ParticleDefinition.
We do not need to make a class in Geant4 for every kind of particle in the world. There are more than 100 types
of particles defined in Geant4 by default. Which particles should be included, and how to implement them, is
determined according to the following criteria. (Of course, the user can define any particles he wants. Please see
the User's Guide: For ToolKit Developers).
5.3.2.1. Particle List in Geant4
This list includes all particles in Geant4 and you can see properties of particles such as
• PDG encoding
• mass and width
• electric charge
• spin, isospin and parity
• magnetic moment
• quark contents
• life time and decay modes
Here is a list of particles in Geant4. This list is generated automatically by using Geant4 functionality, so listed
values are same as those in your Geant4 application (as far as you do not change source codes).
Categories
• gluon / quarks / di-quarks
• leptons
• mesons
• baryons
![](asset-e2.png)
Tracking and Physics
217
• ions
• others
5.3.2.2. Classification of particles
1. elementary particles which should be tracked in Geant4 volumes
All particles that can fly a finite length and interact with materials in detectors are included in this category.
In addition, some particles with a very short lifetime are included for user's convenience.
a. stable particles
Stable means that the particle can not decay, or has a very small possibility to decay in detectors, e.g.,
gamma, electron, proton, and neutron.
b. long life (>10-14sec) particles
Particles which may travel a finite length, e.g., muon, charged pions.
c. short life particles that decay immediately in Geant4
For example, pi0, eta
d. K0 system
K0 "decays" immediately into K0S or K0L, and then K0S/ K0L decays according to its life time and decay
modes.
e. optical photon
Gamma and optical photon are distinguished in the simulation view, though both are the same particle
(photons with different energies). For example, optical photon is used for Cerenkov light and scintillation
light.
f. geantino/charged geantino
Geantino and charged geantino are virtual particles for simulation which do not interact with materials
and undertake transportation processes only.
2. nuclei
Any kinds of nucleus can be used in Geant4, such as alpha(He-4), uranium-238 and excited states of car-
bon-14. In addition, Geant4 provides hyper-nuclei. Nuclei in Geant4 are divided into two groups from the
viewpoint of implementation.
a. light nuclei
Light nuclei frequently used in simulation, e.g., alpha, deuteron, He3, triton.
b. heavy nuclei (including hyper-nuclei)
Nuclei other than those defined in the previous category.
c. light anti-nuclei
Light anti-nuclei for example anti-alpha.
Note that G4ParticleDefinition represents nucleus state and G4DynamicParticle represents atomic state with
some nucleus. Both alpha particle with charge of +2e and helium atom with no charge aggregates the same
"particle definition" of G4Alpha, but different G4DynamicParticle objects should be assigned to them. (De-
tails can be found below)
3. short-lived particles
Particles with very short life time decay immediately and are never tracked in the detector geometry.
These particles are usually used only inside physics processes to implement some models of interactions.
G4VShortLivedParticle is provided as the base class for these particles. All classes related to particles
in this category can be found in shortlived sub-directory under the particles directory.
a. quarks/di-quarks: For example, all 6 quarks.
b. gluon
c. baryon excited states with very short life: For example, spin 3/2 baryons and anti-baryons
d. meson excited states with very short life: For example, spin 1 vector bosons
![](asset-e3.png)
Tracking and Physics
218
5.3.2.3. Implementation of particles
Single object created in the initialization : Categories a, b-1
These particles are frequently used for tracking in Geant4. An individual class is defined for each particle in these
categories. The object in each class is unique. The user can get pointers to these objects by using static methods in
their own classes. The unique object for each class is created when its static method is called in the ``initialization
phase''.
On-the-fly creation: Category b-2
Ions will travel in a detector geometry and should be tracked, however, the number of ions which may be
used for hadronic processes is so huge that ions are dynamically created by requests from processes (and
users). Each ion corresponds to one object of the G4Ions class. G4IonTable class is a dictionary for ions.
G4IonTable::GetIon() method to create ions on the fly. (G4IonTable::FIndIon() method returns
pointer to the specified ion. If the ion does not exists, it returns zero without creating any ion.
G4NucleiPropertiesTableAME03 contains a table of mesaured mass values of about 3100 stable nuclei
(ground states). G4NucleiPropertiesTheoreticalTable theoretical mass values of about 8000 nuclei
(ground states). G4IsotopeTable describes properties of ions (exited energy, decay modes, life time and mag-
netic moments), which are used to create ions. G4NuclideTable is provided as a list of nuclei in Geant4. It
contains about 2900 ground states and 4000 excited states. Users can register his/her G4IsotopeTable to the
G4IonTable.
Processes attached to heavy ions are same as those for G4GenericIon class. In other words, you need to create
G4GenericIon and attach processes to it if you want to use heavy ions.
G4ParticleGun can shoot any heavy ions with /gun/ions command after ``ion'' is selected by /gun/particle
command.
Dynamic creation by processes: Category c
Particle types in this category are are not created by default, but will only be created by request from
processes or directly by users. Each shortlived particle corresponds to one object of a class derived from
G4VshortLivedParticle, and it will be created dynamically during the ``initialization phase''.
5.3.2.4. G4ParticleDefinition
The G4ParticleDefinition class has ``read-only'' properties to characterize individual particles, such as
name, mass, charge, spin, and so on. These properties are set during initialization of each particle. Methods to get
these properties are listed in Table 5.2.
G4String GetParticleName() particle name
G4double GetPDGMass() mass
G4double GetPDGWidth() decay width
G4double GetPDGCharge() electric charge
G4double GetPDGSpin() spin
G4double GetPDGMagneticMoment() magnetic moment (0: not defined or no magnetic mo-
ment)
G4int GetPDGiParity() parity (0:not defined)
G4int GetPDGiConjugation() charge conjugation (0:not defined)
G4double GetPDGIsospin() iso-spin
G4double GetPDGIsospin3() 3rd-component of iso-spin
G4int GetPDGiGParity() G-parity (0:not defined)
G4String GetParticleType() particle type
![](asset-e4.png)
Tracking and Physics
219
G4String GetParticleSubType() particle sub-type
G4int GetLeptonNumber() lepton number
G4int GetBaryonNumber() baryon number
G4int GetPDGEncoding() particle encoding number by PDG
G4int GetAntiPDGEncoding() encoding for anti-particle of this particle
Table 5.2. Methods to get particle properties.
Table 5.3 shows the methods of G4ParticleDefinition for getting information about decay modes and the
life time of the particle.
G4bool GetPDGStable() stable flag
G4double GetPDGLifeTime() life time
G4DecayTable* GetDecayTable() decay table
Table 5.3. Methods to get particle decay modes and life time.
Users can modify these properties, though the other properties listed above can not be change without rebuilding
the libraries.
Each particle has its own G4ProcessManger object that manages a list of processes applicable to the parti-
cle.(see Section 2.5.2 )
5.3.3. Dynamic particle
The G4DynamicParticle class has kinematics information for the particle and is used for describing the
dynamics of physics processes. The properties in G4DynamicParticle are listed in Table 5.4.
G4double theDynamicalMass dynamical mass
G4ThreeVector theMomentumDirection normalized momentum vector
G4ParticleDefinition* theParticleDef-
inition
definition of particle
G4double theDynamicalSpin dynamical spin (i.e. total angular momentum as a ion/
atom )
G4ThreeVector thePolarization polarization vector
G4double theMagneticMoment dynamical magnetic moment (i.e. total magnetic mo-
ment as a ion/atom )
G4double theKineticEnergy kinetic energy
G4double theProperTime proper time
G4double theDynamicalCharge dynamical electric charge (i.e. total electric charge as a
ion/atom )
G4ElectronOccupancy* theElectronOccu-
pancy
electron orbits for ions
Table 5.4. Methods to set/get values.
Here, the dynamical mass is defined as the mass for the dynamic particle. For most cases, it is same as the mass
defined in G4ParticleDefinition class ( i.e. mass value given by GetPDGMass() method). However,
there are two exceptions.
• resonance particle
• ions
Resonance particles have large mass width and the total energy of decay products at the center of mass system
can be different event by event.
![](asset-e5.png)
Tracking and Physics
220
As for ions, G4ParticleDefintion defines a nucleus and G4DynamicParticle defines an atom.
G4ElectronOccupancy describes state of orbital electrons. So, the dynamic mass can be different from the
PDG mass by the mass of electrons (and their binding energy). In addition, the dynamical charge, spin and mag-
netic moment are those of the atom/ion (i.e. including nucleus and orbit electrons).
Decay products of heavy flavor particles are given in many event generators. In such cases,
G4VPrimaryGenerator sets this information in *thePreAssignedDecayProducts. In addition, decay
time of the particle can be set arbitrarily time by using PreAssignedDecayProperTime.
5.4. Production Threshold versus Tracking Cut
5.4.1. General considerations
We have to fulfill two contradictory requirements. It is the responsibility of each individual process to produce
secondary particles according to its own capabilities. On the other hand, it is only the Geant4 kernel (i.e., tracking)
which can ensure an overall coherence of the simulation.
The general principles in Geant4 are the following:
1. Each process has its intrinsic limit(s) to produce secondary particles.
2. All particles produced (and accepted) will be tracked up to zero range.
3. Each particle has a suggested cut in range (which is converted to energy for all materials), and defined via
a SetCut() method (see Section 2.4.2).
Points 1 and 2 imply that the cut associated with the particle is a (recommended) production threshold of sec-
ondary particles.
5.4.2. Set production threshold (SetCut methods)
As already mentioned, each kind of particle has a suggested production threshold. Some of the processes will not
use this threshold (e.g., decay), while other processes will use it as a default value for their intrinsic limits (e.g.,
ionisation and bremsstrahlung).
See Section 2.4.2 to see how to set the production threshold.
5.4.3. Apply cut
The DoIt methods of each process can produce secondary particles. Two cases can happen:
• a process sets its intrinsic limit greater than or equal to the recommended production threshold. OK. Nothing
has to be done (nothing can be done !).
• a process sets its intrinsic limit smaller than the production threshold (for instance 0).
The list of secondaries is sent to the SteppingManager via a ParticleChange object.
Before being recopied to the temporary stack for later tracking, the particles below the production threshold will
be kept or deleted according to the safe mechanism explained hereafter.
• The ParticleDefinition (or ParticleWithCuts) has a boolean data member: ApplyCut.
•ApplyCut is OFF: do nothing. All the secondaries are stacked (and then tracked later on), regardless of their
initial energy. The Geant4 kernel respects the best that the physics can do, but neglects the overall coherence
and the efficiency. Energy conservation is respected as far as the processes know how to handle correctly the
particles they produced! This is the main used during Geant4 tracking.
•ApplyCut in ON: this feature is not normally used but is potentially available; the TrackingManager checks
the range of each secondary against the production threshold and against the safety. The particle is stacked if
range > min(cut,safety).
• If not, check if the process has nevertheless set the flag ``good for tracking'' and then stack it (see Section 5.4.4
below for the explanation of the GoodForTracking flag).
![](asset-e6.png)
Tracking and Physics
221
• If not, recuperate its kinetic energy in the localEnergyDeposit, and set tkin=0.
• Then check in the ProcessManager if the vector of ProcessAtRest is not empty. If yes, stack the particle for
performing the ``Action At Rest'' later. If not, and only in this case, abandon this secondary.
With this sophisticated mechanism we have the global cut that we wanted, but with energy conservation, and
we respect boundary constraint (safety) and the wishes of the processes (via ``good for tracking''). Note, that
for electromagnetic processes for gamma incident a specific ApplyCut option is used which gurantees energy
balance and is more efficient because secondary tracks are not produced at all.
5.4.4. Why produce secondaries below threshold in some
processes?
A process may have good reasons to produce particles below the recommended threshold:
• checking the range of the secondary versus geometrical quantities like safety may allow one to realize the
possibility that the produced particle, even below threshold, will reach a sensitive part of the detector;
• another example is the gamma conversion: the positron is always produced, even at zero energy, for further
annihilation;
• if a process is rare there is not practical reason make it complicate checking cut value.
These secondary particles are sent to the ``Stepping Manager'' with a flag GoodForTracking to pass the filter
explained in the previous section (even when ApplyCut is ON).
5.4.5. Cuts in stopping range or in energy?
The cuts in stopping range allow one to say that the energy has been released at the correct space position, lim-
iting the approximation within a given distance. On the contrary, cuts in energy imply accuracies of the energy
depositions which depend on the material.
5.4.6. Summary
In summary, we do not have tracking cuts; we only have production thresholds in range. All particles produced
and accepted are tracked up to zero range.
It must be clear that the overall coherency that we provide cannot go beyond the capability of processes to produce
particles down to the recommended threshold.
In other words a process can produce the secondaries down to the recommended threshold, and by interrogating
the geometry, or by realizing when mass-to-energy conversion can occur, recognize when particles below the
threshold have to be produced.
5.4.7. Special tracking cuts
One may need to cut given particle types in given volumes for optimisation reasons. This decision is under user
control, and can happen for particles during tracking as well.
The user must be able to apply these special cuts only for the desired particles and in the desired volumes, without
introducing an overhead for all the rest.
The approach is as follows:
• special user cuts are registered in the UserLimits class (or its descendant), which is associated with the logical
volume class.
The current default list is:
• max allowed step size
• max total track length
• max total time of flight
![](asset-e7.png)
Tracking and Physics
222
• min kinetic energy
• min remaining range
The user can instantiate a UserLimits object only for the desired logical volumes and do the association.
The first item (max step size) is automatically taken into account by the G4 kernel while the others items must
be managed by the user, as explained below.
Example(see basic/B2/B2a or B2b): in the Tracker region, in order to force the step size not to exceed
one half of the Tracker chamber thickness (chamberWidth), it is enough to put the following code in
B2aDetectorConstruction::DefineVolumes():
G4double maxStep = 0.5*chamberWidth;
fStepLimit = new G4UserLimits(maxStep);
trackerLV->SetUserLimits(fStepLimit);
and in PhysicsList, the process G4StepLimiter needs to be attached to each particle's process manager
where step limitation in the Tracker region is required:
// Step limitation seen as a process
G4StepLimiter* stepLimiter = new G4StepLimiter();
pmanager->AddDiscreteProcess(StepLimiter);
If a provided Geant4 physics list is used, as FTFP_BERT in B2 example, then the G4StepLimiterPhysics,
which will take care of attaching the G4StepLimiter process to all particles, can be added to the physics
list in the main() function:
G4VModularPhysicsList* physicsList = new FTFP_BERT;
physicsList->RegisterPhysics(new G4StepLimiterPhysics());
runManager->SetUserInitialization(physicsList);
The G4UserLimits class is in source/global/management.
• Concerning the others cuts, the user must define dedicaced process(es). He registers this process (or its descen-
dant) only for the desired particles in their process manager. He can apply his cuts in the DoIt of this process,
since, via G4Track, he can access the logical volume and UserLimits.
An example of such process (called UserSpecialCuts) is provided in the repository, but not inserted in any
process manager of any particle.
Example: neutrons. One may need to abandon the tracking of neutrons after a given time of flight (or a charged
particle in a magnetic field after a given total track length ... etc ...).
Example(see basic/B2/B2a or B2b): in the Tracker region, in order to force the total
time of flight of the neutrons not to exceed 10 milliseconds, put the following code in
B2aDetectorConstruction::DefineVolumes():
G4double maxTime = 10*ms;
fStepLimit = new G4UserLimits(DBL_MAX,DBL_MAX,maxTime);
trackerLV->SetUserLimits(fStepLimit);
and put the following code in a physics list:
G4ProcessManager* pmanager = G4Neutron::Neutron->GetProcessManager();
pmanager->AddProcess(new G4UserSpecialCuts(),-1,-1,1);
If a provided Geant4 physics list is used, then a SpecialCutsBuilder class can be defined in a similar
way as G4StepLimiterPhysics and added to the physics list in the main() function:
![](asset-e8.png)
Tracking and Physics
223
G4VModularPhysicsList* physicsList = new FTFP_BERT;
physicsList->RegisterPhysics(new SpecialCutsBuilder());
runManager->SetUserInitialization(physicsList);
(The default G4UserSpecialCuts class is in source/processes/transportation.)
5.5. Cuts per Region
5.5.1. General Concepts
Beginning with Geant4 version 5.1, the concept of a region has been defined for use in geometrical descriptions.
Details about regions and how to use them are available in Section 4.1.3.1. As an example, suppose a user defines
three regions, corresponding to the tracking volume, the calorimeter and the bulk structure of a detector. For
performance reasons, the user may not be interested in the detailed development of electromagnetic showers in
the insensitive bulk structure, but wishes to maintain the best possible accuracy in the tracking region. In such a
use case, Geant4 allows the user to set different production thresholds ("cuts") for each geometrical region. This
ability, referred to as "cuts per region", is also a new feature provided by the Geant4 5.1 release. The general
concepts of production thresholds were presented in the Section 5.4.
Please note that this new feature is intended only for users who
1. are simulating the most complex geometries, such as an LHC detector, and
2. are experienced in simulating electromagnetic showers in matter.
We strongly recommend that results generated with this new feature be compared with results using the same
geometry and uniform production thresholds. Setting completely different cut values for individual regions may
break the coherent and comprehensive accuracy of the simulation. Therefore cut values should be carefully opti-
mized, based on a comparison with results obtained using uniform cuts.
5.5.2. Default Region
The world volume is treated as a region by default. A G4Region object is automatically assigned to the world
volume and is referred to as the "default region". The production cuts for this region are the defaults which are
defined in the UserPhysicsList. Unless the user defines different cut values for other regions, the cuts in the default
region will be used for the entire geometry.
Please note that the default region and its default production cuts are created and set automatically by
G4RunManager. The user is not allowed to set a region to the world volume, nor to assign other production
cuts to the default region.
5.5.3. Assigning Production Cuts to a Region
In the SetCuts() method of the user's physics list, the user must first define the default cuts. Then a
G4ProductionCuts object must be created and initialized with the cut value desired for a given region. This
object must in turn be assigned to the region object, which can be accessed by name from the G4RegionStore.
An example SetCuts() code follows.
Example 5.10. Setting production cuts to a region
void MyPhysicsList::SetCuts()
{
// default production thresholds for the world volume
SetCutsWithDefault();
// Production thresholds for detector regions
G4Region* region;
G4String regName;
G4ProductionCuts* cuts;
![](asset-e9.png)
Tracking and Physics
224
regName = "tracker";
region = G4RegionStore::GetInstance()->GetRegion(regName);
cuts = new G4ProductionCuts;
cuts->SetProductionCut(0.01*mm); // same cuts for gamma, e- and e+
region->SetProductionCuts(cuts);
regName = "calorimeter";
region = G4RegionStore::GetInstance()->GetRegion(regName);
cuts = new G4ProductionCuts;
cuts->SetProductionCut(0.01*mm,G4ProductionCuts::GetIndex("gamma"));
cuts->SetProductionCut(0.1*mm,G4ProductionCuts::GetIndex("e-"));
cuts->SetProductionCut(0.1*mm,G4ProductionCuts::GetIndex("e+"));
region->SetProductionCuts(cuts);
}
5.6. Physics Table
5.6.1. General Concepts
In Geant4, physics processes use many tables of cross sections, energy losses and other physics values. Be-
fore the execution of an event loop, PreparePhysicsTable() and BuildPhysicsTable() methods
of G4VProcess are invoked for all processes and as a part of initialisation procedure cross section tables are
prepared. Energy loss processes calculate cross section and/or energy loss values for each pair of material and
production cut value used in geometry for a give run. A change in production cut values therefore require these
cross sections to be re-calculated. Cross sections for hadronic processes and gamma processes do not depend on
the production cut but sampling of final state may depend on cuts, so full re-initilisation is performed.
The G4PhysicsTable class is used to handle cross section tables. G4PhysicsTable is a collection of in-
stances of G4PhysicsVector (and derived classes), each of which has cross section values for a particle within
a given energy range traveling in a material. By default the linear interpolation is used, alternatively spline may
be used if the flag of spline is activated by SetSpline method of the G4PhysicsVector
5.6.2. Material-Cuts Couple
Users can assign different production cuts to different regions (see Section 5.5). This means that if the same
material is used in regions with different cut values, the processes need to prepare several different cross sections
for that material.
The G4ProductionCutsTable has G4MaterialCutsCouple objects, each of which consists of a ma-
terial paired with a cut value. These G4MaterialCutsCouples are numbered with an index which is
the same as the index of a G4PhysicsVector for the corresponding G4MaterialCutsCouplein the
G4PhysicsTable. The list of MaterialCutsCouples used in the current geometry setup is updated before start-
ing the event loop in each run.
5.6.3. File I/O for the Physics Table
Calculated physics tables for electromagnetic processes can be stored in files. The user may thus eliminate the
time required for the calculation of physics tables by retrieving them from the files.
Using the built-in user command "storePhysicsTable" (see Section 7.1), stores physics tables in files. Informa-
tion on materials and cuts defined in the current geometry setup are stored together with physics tables because
calculated values in the physics tables depend on MaterialCutsCouple. Note that physics tables are calculated
before the event loop, not in the initialization phase. So, at least one event must be executed before using the
"storePhysicsTable" command.
Calculated physics tables can be retrieved from files by using the "retrievePhysicsTable" command. Materials
and cuts from files are compared with those defined in the current geometry setup, and only physics vectors
corresponding to the MaterialCutsCouples used in the current setup are restored. Note that nothing happens just
after the "retrievePhysicsTable" command is issued. Restoration of physics tables will be executed in parallel
with the calculation of physics tables.
![](asset-ea.png)
Tracking and Physics
225
5.6.4. Building the Physics Table
In the G4RunManagerKernel::RunInitialization() method, after the list of MaterialCutsCouples is
updated, the G4VUserPhysicsList::BuildPhysicsTable() method is invoked to build physics tables
for all processes.
Initially, the G4VProcess::PreparePhysicsTable() method is invoked. Each process creates
G4PhysicsTable objects as necessary. It then checks whether the MaterialCutsCouples have been modified
after a run to determine if the corresponding physics vectors can be used in the next run or need to be re-calculated.
Next, the G4VProcess::RetrievePhysicsTable() method is invoked if the
G4VUserPhysicsList::fRetrievePhysicsTable flag is asserted. After checking materials and cuts
in files, physics vectors corresponding to the MaterialCutsCouples used in the current setup are restored.
Finally, the G4VProcess::BuildPhysicsTable() method is invoked and only physics vectors which need
to be re-calculated are built.
At the end of program G4PhysicsTable should be deleted. Before deletion of a table it should be cleaned up
using the method G4PhysicsTable::clearAndDestroy(). This method should be called in a middle of
the run if an old table is removed and a new one is created.
5.7. User Limits
5.7.1. General Concepts
The user can define artificial limits affecting to the Geant4 tracking.
G4UserLimits(G4double uStepMax = DBL_MAX,
G4double uTrakMax = DBL_MAX,
G4double uTimeMax = DBL_MAX,
G4double uEkinMin = 0.,
G4double uRangMin = 0. );
uStepMax Maximum step length
uTrakMax Maximum total track length
uTimeMax Maximum global time for a track
uEkinMin Minimum remaining kinetic energy for a track
uRangMin Minimum remaining range for a track
Note that uStepMax is affecting to each step, while all other limits are affecting to a track.
The user can assign G4UserLimits to logical volume and/or to a region. User limits assigned to logical volume
do not propagate to daughter volumes, while User limits assigned to region propagate to daughter volumes unless
daughters belong to another region. If both logical volume and associated region have user limits, those of logical
volume win.
A G4UserLimits object must be instantiated for the duration of whatever logical volume or region to which it
is assigned. It is the responsibility of the user's code to delete the object after the assigned volume(s)/region(s)
have been deleted.
5.7.2. Processes co-working with G4UserLimits
In addition to instantiating G4UserLimits and setting it to logical volume or region, the user has to assign the
following process(es) to particle types he/she wants to affect. If none of these processes is assigned, that kind of
particle is not affected by G4UserLimits.
![](asset-eb.png)
Tracking and Physics
226
Limitation to step (uStepMax)
G4StepLimiter process must be defined to affected particle types. This process limits a step, but it does
not kill a track.
Limitations to track (uTrakMax, uTimeMax, uEkinMin, uRangMin)
G4UserSpecialCuts process must be defined to affected particle types. This process limits a step and
kills the track when the track comes to one of these limits. Step limitation occurs only for the final step.
Example of G4UserLimits can be found in examples/basic/B2 : see B2aDetectorConstruction (or
B2bDetectorConstruction). The G4StepLimiter process is added in the Geant4 physics list via the
G4StepLimiterPhysics class in the main() function in exampleB4a.cc (or exampleB4b.cc ).
5.8. Track Error Propagation
The error propagation package serves to propagate one particle together with its error from a given trajectory state
until a user-defined target is reached (a surface, a volume, a given track length,...).
5.8.1. Physics
The error propagator package computes the average trajectory that a particle would follow. This means that the
physics list must have the following characteristics:
• No multiple scattering
• No random fluctuations for energy loss
• No creation of secondary tracks
• No hadronic processes
It has also to be taken into account that when the propagation is done backwards (in the direction opposed to the
one the original track traveled) the energy loss has to be changed into an energy gain.
All this is done in the G4ErrorPhysicsList class, that is automatically set by
G4ErrorPropagatorManager as the GEANT4 physics list. It sets G4ErrorEnergyLoss as unique elec-
tromagnetic process. This process uses the GEANT4 class G4EnergyLossForExtrapolator to compute
the average energy loss for forwards or backwards propagation. To avoid getting too different energy loss calcu-
lation when the propagation is done forwards (when the energy at the beginning of the step is used) or backwards
(when the energy at the end of the step is used, always smaller than at the beginning) G4ErrorEnergyLoss
computes once the energy loss and then replaces the original energy loss by subtracting/adding half of this value
(what is approximately the same as computing the energy loss with the energy at the middle of the step). In this
way, a better calculation of the energy loss is obtained with a minimal impact on the total CPU time.
The user may use his/her own physics list instead of G4ErrorPhysicsList. As it is not needed to define a
physics list when running this package, the user may have not realized that somewhere else in his/her application
it has been defined; therefore a warning will be sent to advert the user that he is using a physics list different to
G4ErrorPhysicsList. If a new physics list is used, it should also initialize the G4ErrorMessenger with
the classes that serve to limit the step:
G4ErrorEnergyLoss* eLossProcess = new G4ErrorEnergyLoss;
G4ErrorStepLengthLimitProcess* stepLengthLimitProcess = new G4ErrorStepLengthLimitProcess;
G4ErrorMagFieldLimitProcess* magFieldLimitProcess = new G4ErrorMagFieldLimitProcess;
new G4ErrorMessenger( stepLengthLimitProcess, magFieldLimitProcess, eLossProcess );
To ease the use of this package in the reconstruction code, the physics list, whether G4ErrorPhysicsList
or the user's one, will be automatically initialized before starting the track propagation if it has not been done
by the user.
![](asset-ec.png)
Tracking and Physics
227
5.8.2. Trajectory state
The user has to provide the particle trajectory state at the initial point. To do this it has to create an object of one
of the children classes of G4ErrorTrajState, providing:
• Particle type
• Position
• Momentum
• Trajectory error matrix
G4ErrorTrajState( const G4String& partType,
const G4Point3D& pos,
const G4Vector3D& mom,
const G4ErrorTrajErr& errmat = G4ErrorTrajErr(5,0) );
A particle trajectory is characterized by five independent variables as a function of one parameter (e.g. the path
length). Among the five variables, one is related to the curvature (to the absolute value of the momentum), two
are related to the direction of the particle and the other two are related to the spatial location.
There are two possible representations of these five parameters in the error propagator package: as
a free trajectory state, class G4ErrorTrajStateFree, or as a trajectory state on a surface, class
G4ErrorTrajStateonSurface.
5.8.2.1. Free trajectory state
In the free trajectory state representation the five trajectory parameters are
• G4double fInvP
• G4double fLambda
• G4double fPhi
• G4double fYPerp
• G4double fZPerp
where fInvP is the inverse of the momentum. fLambda and fPhi are the dip and azimuthal angles related to
the momentum components in the following way:
p_x = p cos(lambda) cos(phi) p_y = p cos(lambda) sin(phi) p_z = p sin(lambda)
that is, lambda = 90 - theta, where theta is the usual angle with respect to the Z axis.
fYperp and fZperp are the coordinates of the trajectory in a local orthonormal reference frame with the X axis
along the particle direction, the Y axis being parallel to the X-Y plane (obtained by the vectorial product of the
global Z axis and the momentum).
5.8.2.2. Trajectory state on a surface
In the trajectory state on a surface representation the five trajectory parameters are
• G4double fInvP
• G4double fPV
• G4double fPW
• G4double fV
![](asset-ed.png)
Tracking and Physics
228
• G4double fW
where fInvP is the inverse of the momentum; fPV and fPW are the momentum components in an orthonormal
coordinate system with axis U, V and W; fV and fW are the position components on this coordinate system.
For this representation the user has to provide the plane where the parameters are calculated. This can be done by
providing two vectors, V and W, contained in the plane:
G4ErrorSurfaceTrajState( const G4String& partType,
const G4Point3D& pos,
const G4Vector3D& mom,
const G4Vector3D& vecV,
const G4Vector3D& vecW,
const G4ErrorTrajErr& errmat = G4ErrorTrajErr(5,0) );
or by providing a plane
G4ErrorSurfaceTrajState( const G4String& partType,
const G4Point3D& pos,
const G4Vector3D& mom,
const G4Plane3D& plane,
const G4ErrorTrajErr& errmat = G4ErrorTrajErr(5,0) );
In this second case the vector V is calculated as the vector in the plane perpendicular to the global vector X (if the
plane normal is equal to X, Z is used instead) and W is calculated as the vector in the plane perpendicular to V.
5.8.3. Trajectory state error
The 5X5 error matrix should also be provided at the creation of the trajectory state as a G4ErrorTrajErr
object. If it is not provided a default object will be created filled with null values.
Currently the G4ErrorTrajErr is a G4ErrorSymMatrix, a simplified version of CLHEP HepSymMa-
trix.
The error matrix is given in units of GeV and cm. Therefore you should do the conversion if your code is using
other units.
5.8.4. Targets
The user has to define up to where the propagation must be done: the target. The target can be a surface
G4ErrorSurfaceTarget, which is not part of the GEANT4 geometry. It can also be the surface of a
GEANT4 volume G4ErrorGeomVolumeTarget, so that the particle will be stopped when it enters this
volume. Or it can be that the particle is stopped when a certain track length is reached, by implementing a
G4ErrorTrackLengthTarget.
5.8.4.1. Surface target
When the user chooses a G4ErrorSurfaceTarget as target, the track is propagated until the surface is
reached. This surface is not part of GEANT4 geometry, but usually traverses many GEANT4 volumes. The class
G4ErrorNavigator takes care of the double navigation: for each step the step length is calculated as the min-
imum of the step length in the full geometry (up to a GEANT4 volume surface) and the distance to the user-de-
fined surface. To do it, G4ErrorNavigator inherits from G4Navigator and overwrites the methods Com-
puteStep() and ComputeSafety(). Two types of surface are currently supported (more types could be
easily implemented at user request): plane and cylindrical.
5.8.4.1.1. Plane surface target
G4ErrorPlaneSurfaceTarget implements an infinite plane surface. The surface can be given as the four
coefficients of the plane equation ax+by+cz+d = 0:
G4ErrorPlaneSurfaceTarget(G4double a=0,
G4double b=0,
![](asset-ee.png)
Tracking and Physics
229
G4double c=0,
G4double d=0);
or as the normal to the plane and a point contained in it:
G4ErrorPlaneSurfaceTarget(const G4Normal3D &n,
const G4Point3D &p);
or as three points contained in it:
G4ErrorPlaneSurfaceTarget(const G4Point3D &p1,
const G4Point3D &p2,
const G4Point3D &p3);
5.8.4.1.2. Cylindrical surface target
G4ErrorCylSurfaceTarget implements an infinite-length cylindrical surface (a cylinder without end-caps).
The surface can be given as the radius, the translation and the rotation
G4ErrorCylSurfaceTarget( const G4double& radius,
const G4ThreeVector& trans=G4ThreeVector(),
const G4RotationMatrix& rotm=G4RotationMatrix() );
or as the radius and the affine transformation
G4ErrorCylSurfaceTarget( const G4double& radius,
const G4AffineTransform& trans );
5.8.4.2. Geometry volume target
When the user chooses a G4ErrorGeomVolumeTarget as target, the track is propagated until the surface of a
GEANT4 volume is reached. User can choose if the track will be stopped only when the track enters the volume,
only when the track exits the volume or in both cases.
The object has to be instantiated giving the name of a logical volume existing in the geometry:
G4ErrorGeomVolumeTarget( const G4String& name );
5.8.4.3. Track Length target
When the user chooses a G4ErrorTrackLengthTarget as target, the track is propagated until the given
track length is reached.
The object has to be instantiated giving the value of the track length:
G4ErrorTrackLengthTarget(const G4double maxTrkLength );
It is implemented as a G4VDiscreteProcess and it limits the step in PostStepGetPhysicalInter-
actionLength. To ease its use, the process is registered to all particles in the constructor.
5.8.5. Managing the track propagation
The user needs to propagate just one track, so there is no need of run and events. neither of
G4VPrimaryGeneratorAction. G4ErrorPropagator creates a track from the information given in the
G4ErrorTrajState and manages the step propagation. The propagation is done by the standard GEANT4
methods, invoking G4SteppingManager::Stepping() to propagate each step.
After one step is propagated, G4ErrorPropagator takes cares of propagating the track errors for this step,
what is done by G4ErrorTrajStateFree::PropagateError(). The equations of error propagation are
only implemented in the representation of G4ErrorTrajStateFree. Therefore if the user has provided instead
a G4ErrorTrajStateOnSurface object, it will be transformed into a G4ErrorTrajStateFree at the
![](asset-ef.png)
Tracking and Physics
230
beginning of tracking, and at the end it is converted back into G4ErrorTrajStateOnSurface on the target
surface (on the normal plane to the surface at the final point).
The user G4VUserTrackingAction::PreUserTrackingAction( const G4Track* ) and
G4VUserTrackingAction::PreUserTrackingAction( const G4Track* ) are also invoked at
the beginning and at the end of the track propagation.
G4ErrorPropagator stops the tracking when one of the three conditions is true:
• Energy is exhausted
• World boundary is reached
• User-defined target is reached
In case the defined target is not reached, G4ErrorPropagator::Propagate() returns a negative value.
The propagation of a trajectory state until a user defined target can be done by invoking the method of
G4ErrorPropagatorManager
G4int Propagate( G4ErrorTrajState* currentTS, const G4ErrorTarget* target,
G4ErrorMode mode = G4ErrorMode_PropForwards );
You can get the pointer to the only instance of G4ErrorPropagatorManager with
G4ErrorPropagatorManager* g4emgr = G4ErrorPropagatorManager::GetErrorPropagatorManager();
Another possibility is to invoke the propagation step by step, returning control to the user after each step. This
can be done with the method
G4int PropagateOneStep( G4ErrorTrajState* currentTS,
G4ErrorMode mode = G4ErrorMode_PropForwards );
In this case you should register the target first with the command
G4ErrorPropagatorData::GetG4ErrorPropagatorData()->SetTarget( theG4eTarget );
5.8.5.1. Error propagation
As in the GEANT3-based GEANE package, the error propagation is based on the equations of the European Muon
Collaboration, that take into account:
• Error from curved trajectory in magnetic field
• Error from multiple scattering
• Error from ionization
The formulas assume propagation along an helix. This means that it is necessary to make steps small enough to
assure magnetic field constantness and not too big energy loss.
5.8.6. Limiting the step
There are three ways to limit the step. The first one is by using a fixed length value. This can be set by invoking
the user command :
G4UImanager::GetUIpointer()->ApplyCommand("/geant4e/limits/stepLength MY_VALUE MY_UNIT");
The second one is by setting the maximum percentage of energy loss in the step (or energy gain is propagation is
backwards). This can be set by invoking the user command :
![](asset-f0.png)
Tracking and Physics
231
G4UImanager::GetUIpointer()->ApplyCommand("/geant4e/limits/energyLoss MY_VALUE");
The last one is by setting the maximum difference between the value of the magnetic field at the beginning and at
the end of the step. Indeed what is limited is the curvature, or exactly the value of the magnetic field divided by
the value of the momentum transversal to the field. This can be set by invoking the user command :
G4UImanager::GetUIpointer()->ApplyCommand("/geant4e/limits/magField MY_VALUE");
The classes that limit the step are implemented as GEANT4 processes. Therefore, the invocation
of the above-mentioned commands should only be done after the initialization (for example after
G4ErrorPropagatorManager::InitGeant4e().
5.9. Exotic Physics
The Geant4 toolkit has recently been extended to include "exotic physics". This covers the area of phonon prop-
agation and crystal channelling. These two domains are applicable for Dark Matter experiments (phonon excita-
tion) and beam extraction and collimation (crystal channelling). The framework within Geant4 is similar in that
a macroscopic periodic crystal lattice is required for both and wave functions are propagated within the medium
(rather than discrete particles as in the case of conventional Geant4). Contained here is a brief description of how
to modify a Geant4 application to include the crystal as both a material and a geometry (plane orientations).
5.9.1. Physics
For a more complete description and understanding the user is referred to the extended examples category "ex-
oticphysics" and the references therein.
5.9.2. Material
The implementation of solid-state processes in Geant4 requires the addition of two important features, the
crystal unit cell with all its parameters and the support for other data required by the processes. The extend-
ed data for a material is stored in a class derived from the virtual class G4VMaterialExtension. The
G4ExtenededMaterial class collects the pointers to concrete instances of G4VMaterialExtension. The
G4CrystalExtension class is a derived class of G4VMaterialExtension and collects information on
the physics properties of a perfect crystal. In particular, the class contains a pointer to a G4CrystalUnitCell
object, the elasticity tensor, a map of G4CrystalAtomBase objects associated with a G4Element and a vec-
tor of G4AtomicBond. The G4CrystalUnitCell class collects information on the mathematical descrip-
tion of the crystal unit cell, i.e. the sizes and the angles of the unit cell, the space group, the Bravais lattice and
the lattice system, and methods for the calculation of the volume in the direct and reciprocal space, the spac-
ing between two planes, the angle between two planes, and for the filling of the reduced elasticity tensor. The
G4CrystalExtension constructor takes as argument a pointer to a G4Material object and has to be reg-
istered to the G4ExtendedMaterial to which it is attached. The G4CrystalAtomBase class stores the
position of atoms in the crystal unit cell. Since the G4CrystalAtomBase class is mapped to a G4Element
in the G4CrystalMaterial, each G4Element should have an associated G4CrystalAtomBase. The
G4AtomicBond class contains information on the atomic bond in the crystal. For each instance of the class two
G4Elements have to be specified as well as the atom number in the G4CrystalAtomBase associated to the
G4Element.
5.9.2.1. Code Implementation
5.9.3. Geometry
The G4LogicalCrystalVolume accepts only a pointer to a G4CrystalExtension in its constructor and
stores the definition of the orientation of the crystalline structure with respect to the solid to which it is attached.
By convention, the crystal < 100 > direction is by default set parallel to the ${[1,0,0]}$ direction in the Geant4
reference system, and the < 010 > axis lays on the plane which contains the [1,0,0] and [0,1,0] directions in the
Geant4 reference system.
![](asset-f1.png)
232
Chapter 6. User Actions
Geant4 has two user initialization classes and one user action class whose methods the user must override in order
to implement a simulation. They require the user to define the detector, specify the physics to be used, and define
how initial particles are to be generated. These classes are described in Section 6.1.
Additionally, users may define any of several optional user actions, to collect data during event generation from
steps, tracks, or whole events, to accumulate data during runs, or to modify the state of new tracks as they are
created. These user actions are described in Section 6.2.
To support the accumulation of data in the actions mentioned above, users may define subclasses for some of the
container objects used during event generation and tracking. These are described in Section 6.3.
6.1. Mandatory User Actions and Initializations
Three user initialization class objects are registered with the run manager (Section 3.4.1.2) in the user's main()
program, which takes ownership. The user must not delete these objects directly, and they must be created using
'new'. Within the G4UserActionInitialization class (Section 6.1.3), the user must instantiate and register
a concrete G4VUserPrimaryGeneratorAction subclass, which generates the primary particles for each
event.
6.1.1. G4VUserDetectorConstruction
Example 6.1. G4VUserDetectorConstruction
class G4VUserDetectorConstruction
{
public:
G4VUserDetectorConstruction();
virtual ~G4VUserDetectorConstruction();
public:
virtual G4VPhysicalVolume* Construct() = 0;
virtual void ConstructSDandField() = 0;
};
In the Construct() method, material and geometry has to be descrived. Detailed discussions on material and
geometry are given in Section 2.3 and Section 2.2. Detector sensitivity and electromagnetic field should be de-
fined in ConstructSDandField(), as objects defined in this method are thread-local if they are used in mul-
ti-threaded mode. Detailed discussions on Detector sensitivity and electromagnetic field are given in Section 4.4
and Section 4.3.
6.1.2. Physics Lists
The concept of a physics list arises from the fact that Geant4 can not offer a single modeling algorithm to cover
the entire energy domain from zero to the TeV scale, for all known processes and particles. Instead, a combination
of ideas and approaches is typically used to perform a simulation task.
A schematic view of the Geant4 modeling of the processes of particle passage through matter may be presented
as follows:
• Physics Model = final state generator
• Physics Process = cross section + model
• Physics List = list of processes for each particle
The "patchwork" concept is especially true in the Geant4 hadronic physics domain: models are valid only over
finite energy ranges, and there maybe competing models in the same range or one model maybe working better
than the other for a specific group of particles, while its competitor may be better for other species. For this reason
models have to be combined to cover the large energy range; every two adjacent models may have an overlap
in their validity range.
![](asset-f2.png)
User Actions
233
G4VUserPhysicsList
This is an abstract class for constructing particles and processes. An introduction into the concept of the Geant4
Physics List and the Geant4 Physics Processes is also given in Section 2.5 and further in Section 5.2.
While the fabrication of a physics list is, in principle, a choice of a user, the toolkit is distributed with a number of
pre-fabricated physics lists for the convenience of many user applications. These physics lists are supported by the
Geant4 development team and can be recommended for specific physics tasks. However, based on the interests
and needs of a specific project, a user may want to implement her or his own custom physics list.
The following sections offer several examples that show how to instantiate or select one or another pre-fabricated
Physics List from the Geant4 standard collection, as well as guidance composing a custom Physics List from pre-
facbricated components or even entirely from scratch.
To view the contents of a Physics List, there are two useful methods: DumpList() and
DumpCutValueTable(G4int flag).
6.1.2.1. Reference Physics Lists
Number of ready to use Physics Lists are available with Geant4 kernel. Below an example of instantiation of
FTFP_BERT Physics List class is shown. The full set of reference Physics Lists is described in Geant4 web.
Example 6.2. Creating FTFP_BERT Physics List.
G4int verbose = 1;
FTFP_BERT* physlist = new FTFP_BERT(verbose);
runManager->SetUserInitialization(physlist);
6.1.2.2. Building Physics List Using Factory
Geant4 provides a class G4PhysListFactory allowing to defined Physics List by its name. The last for char-
acters in the name defines an electromagnetic (EM) physics options. By default standard EM physics is used,
"_EMV" corresponding to standard option1, "_EMX" - to standard option2, "_LIV" to EM Livermore physics,
"_PEN" - to EM Penelope physics.
Example 6.3. Creating Physics List by name.
G4int verbose = 1;
G4PhysListFactory factory;
G4VModularPhysicsList* physlist = factory.GetReferencePhysList("FTFP_BERT_EMV");
physlist.SetVerboseLevel(verbose);
runManager->SetUserInitialization(physlist);
The class G4PhysListFactory provides also another interface allowing to defined Physics List by the envi-
ronment variable PHYSLIST.
Example 6.4. Creating Physics List by name.
G4int verbose = 1;
G4PhysListFactory factory;
G4VModularPhysicsList* physlist = factory.ReferencePhysList();
physlist.SetVerboseLevel(verbose);
runManager->SetUserInitialization(physlist);
6.1.2.3. Building Physics List from Physics Builders
Technically speaking, one can implement physics list in a "flat-out" manner, i.e. specify all necessary particles and
associated processes in a single piece of code, as it will be shown later in this document. However, for practical
purposes it is often more convenient to group together certain categories and make implementation more modular.
One very useful concept is a Modular Physics List, G4VModularPhysicsList, that is a sub-class of
G4VUserPhysicsLists and allows a user to organize physics processes into "building blocks", or "modules",
then compose a physics list of such modules. The concept allows to group together, at a relatively high level,
![](asset-f3.png)
User Actions
234
desired combinations of selected particles and related processes. One of the advantages of such approach is that
it allows to combine pre-fabricated physics modules that are centrally provided by Geant4 kernel with user's ap-
plications.
G4ModularPhysicsList has all the functionalities as G4VUserPhysicsList class, plus several addition-
al functionalities. One of the important methods is RegisterPhysics(G4VPhysicsConstructor* ) for
"registering" the above mentioned pre-fabriced physics modules. There also methods for removing or replacing
physics modules.
Example below shows how G4VModularPhysList can be implemented.
Example 6.5. Creating Physics List by name.
MyPhysicsList::MyPhysicsList():G4VModularPhysicsList()
{
G4DataQuestionaire it(photon, neutron, no, no, no, neutronxs);
G4cout << "<<< Geant4 Physics List: MyPhysicsList " <<G4endl;
G4cout <<G4endl;
defaultCutValue = 0.7*mm;
G4int ver = 1;
SetVerboseLevel(ver);
// EM Physics
RegisterPhysics( new G4EmStandardPhysics(ver) );
// Synchroton Radiation & GN Physics
RegisterPhysics( new G4EmExtraPhysics(ver) );
// Decays
RegisterPhysics( new G4DecayPhysics(ver) );
// Hadron physics
RegisterPhysics( new G4HadronElasticPhysicsXS(ver) );
RegisterPhysics( new G4QStoppingPhysics(ver) );
RegisterPhysics( new G4IonBinaryCascadePhysics(ver) );
RegisterPhysics( new G4HadronInelasticQBBC(ver));
// Neutron tracking cut
RegisterPhysics( new G4NeutronTrackingCut(ver) );
}
Note that each module to be registered with a Modular Physics List is a G4VPhysicsConstructor (or a
derived object), i.e. a "sublist" that holds groups of particles and accompanying physics processes. A user can
find these and other similar modules in the source/physics_lists/list area of Geant4 core code, and can combine
selected ones with custom modules, if desired.
In order to compose a custom physics module, two mandatory methods of a G4VPhysicsConstructor must
be implemented: ConstructParticle() and ConstructProcess(); beyond that the implementation
can be structured according to the developer's taste.
Another useful concept in the modular approach to composing a Physics List is the concept of so called "builders".
This concept allows to encapsulate certain implementation details into smaller-scale software components, and
offers the flexibility of re-using those component in different modules. At the general level, the scheme is this:
• Particles (hadrons) are created, and physics models to be used to simulate applicable processes are specified,
usually in a particular range of validity.
• Physics processes for each particle type in the builder are created, and each process is outfitted with one or more
hadronic physics models, as specified.
• If necessary, a cross section data set for a given particle type is added.
This concept is widely used through the Geant4 hadronic domain, but the idea would be equally applicable in the
electromagnetic area.
All builders can be found in the source/physics_lists/builders directory. There are basically two types of builders:
• Particle Builders
• Particle-Model Builders
![](asset-f4.png)
User Actions
235
A particle builder is somewhat "superior" here, as it specifies a particle or a group of particles, what category of
processes are applicable, how to outfit a process with specified model(s), and how processes are to be registered
with the G4ProcessManager. A particle-model builder instantiates a given model and implements details of
associating it with one or more processes applicable to a given particle type. Some models can not be instantiated
through a single interface class, but instead they need, in turn, to be composed from several components (examples
are QGS and FTF).
Useful example bulders to review and to consider as inspirations can be the following:
• G4PiKBuilder (.hh and .cc) - groups pions and kaons, together with a list of associated hadronic processes.
• G4BertiniPiKBuilder (.hh and .cc) - instrantiates Bertini cascade model and implements how to outfit pion and
kaon physics processes with this model. It also sets default validity range for the model.
• G4FTFPPiKBuilder (.hh and .cc) - composes a high energy FTF-based model and implements how to outfit
hadronic processes for pions and kaons with the model. This example illustrates that a hadronic model does not
always have a single interface class, but it needs to be created from several components. In particular, in this
builder a "high energy generator" object (G4TheoFSGenerator) is created and is outfited with G4FTFModel
string model (which also gives this builder its name), we well as string fragmentation algorithm and intra-nuclear
transport model. Please note that the quasi-elastic scattering is not set as FTF model has its own mechanism for
it. A cross-section data set is specified for pions. A default validity range is also specified.
One detail to remember is that, in principle, the validity range for a given model can be setup for each particle
type individually. But in these referenced applications the validity range is setup to be the same for a group of
particles (i.e. for a number of corresponding inelastic hadronic processes). Once a builder is instantiated, one can
override the default validity range (via SetMinEnery or SetMaxEnergy methods), but the new value will be, again,
given to a group of particles/processes. Also note that the validity range can be overriden only before calling the
Build() method of a builder. Again, the approach is just a specifics of this particular implementation. Obviously,
if a limited validity range is selected for a specific particle/model/process, one has to supplement another model
or several models, to cover the entire range.
One more useful class is the G4PhysicsListHelper which is a service class that wraps around the technicali-
ties of the physics process registering in Geant4 and allows a user to easily associate a process with a particles, with-
out knowing many details about various types of processes (discrete, continuous, etc.) and their internal ordering
with G4ProcessManager. Curious users may eventually want to go deeper into details of G4ProcessManager
class and, in particular, its group of AddProcess(...) methods, as it is the basis of G4PhysicsListHelper im-
plementation. But for practical purposes, the use of G4PhysicsListHelper is likely to be sufficient in most cases.
Other useful details, including several elements of the software design philosophy and class diagrams, are given
in Section 2.5.
6.1.2.4. Building Physics List from Scratch
The user must derive a concrete class from G4VUserPhysicsList and implement three virtual methods:
•ConstructParticle() to instantiate each requested particle type;
•ConstructPhysics() to instantiate the desired physics processes and register each of them;
•SetCuts(G4double aValue) to set a cut value in range for all particles in the particle table, which invokes
the rebuilding of the physics table.
At early stage of the initialisation of Geant4 the method ConstructParticle() of G4VUserPhysicsList
is invoked. The ConstructProcess() method must always invoke the AddTransportation() method
in order to insure particle transportation. AddTransportation() must never be overridden. This is done au-
tomatically if G4VUserPhysicsList inherits of G4VModularPhysicsList. It is recommended for users
as the most robust interface to Physics List. Geant4 examples demonstrate different methods how to create user
Physics List.
6.1.3. User Action Initialization
All user action classes must be defined through the protected method SetUserAction(). Build() methos
should be used for defining user action classes for worker threads as well as for the sequential mode. Build-
![](asset-f5.png)
User Actions
236
ForMaster() should be used only for defining UserRunAction for the master thread. BuildForMaster()
is not invoked in the sequential mode. In case the user uses his/her own SteppingVerbose class, it must be
instantiated in the method InitializeSteppingVerbose() and returned.
G4VUserActionInitialization
Example 6.6. G4VUserActionInitialization
class G4VUserActionInitialization
{
public:
G4VUserActionInitialization();
virtual ~G4VUserActionInitialization();
public:
virtual void Build() const = 0;
virtual void BuildForMaster() const;
virtual G4VSteppingVerbose* InitializeSteppingVerbose() const;
protected:
void SetUserAction(G4VUserPrimaryGeneratorAction*) const;
void SetUserAction(G4UserRunAction*) const;
void SetUserAction(G4UserEventAction*) const;
void SetUserAction(G4UserStackingAction*) const;
void SetUserAction(G4UserTrackingAction*) const;
void SetUserAction(G4UserSteppingAction*) const;
};
G4VUserPrimaryGeneratorAction
Example 6.7. G4VUserPrimaryGeneratorAction
class G4VUserPrimaryGeneratorAction
{
public:
G4VUserPrimaryGeneratorAction();
virtual ~G4VUserPrimaryGeneratorAction();
public:
virtual void GeneratePrimaries(G4Event* anEvent) = 0;
};
6.2. Optional User Actions
There are five virtual classes whose methods the user may override in order to gain control of the simulation at
various stages. Each method of each action class has an empty default implementation, allowing the user to inherit
and implement desired classes and methods.
Objects of user action classes must be registered with G4RunManager (Section 3.4.1.2), which takes ownership
of them. The user must not delete these objects directly, and they must be created using 'new'.
6.2.1. Usage of User Actions
G4UserRunAction
This class has three virtual methods which are invoked by G4RunManager for each run:
GenerateRun()
This method is invoked at the beginning of BeamOn. Because the user can inherit the class G4Run and create
his/her own concrete class to store some information about the run, the GenerateRun() method is the
place to instantiate such an object. It is also the ideal place to set variables which affect the physics table (such
as production thresholds) for a particular run, because GenerateRun() is invoked before the calculation
of the physics table.
![](asset-f6.png)
User Actions
237
BeginOfRunAction()
This method is invoked before entering the event loop. A typical use of this method would be to initialize and/
or book histograms for a particular run. This method is invoked after the calculation of the physics tables.
EndOfRunAction()
This method is invoked at the very end of the run processing. It is typically used for a simple analysis of
the processed run.
Example 6.8. G4UserRunAction
class G4UserRunAction
{
public:
G4UserRunAction();
virtual ~G4UserRunAction();
public:
virtual G4Run* GenerateRun();
virtual void BeginOfRunAction(const G4Run*);
virtual void EndOfRunAction(const G4Run*);
};
G4UserEventAction
This class has two virtual methods which are invoked by G4EventManager for each event:
beginOfEventAction()
This method is invoked before converting the primary particles to G4Track objects. A typical use of this
method would be to initialize and/or book histograms for a particular event.
endOfEventAction()
This method is invoked at the very end of event processing. It is typically used for a simple analysis of the
processed event. If the user wants to keep the currently processing event until the end of the current run, the
user can invoke fpEventManager->KeepTheCurrentEvent(); so that it is kept in G4Run object.
This should be quite useful if you simulate quite many events and want to visualize only the most interest
ones after the long execution. Given the memory size of an event and its contents may be large, it is the user's
responsibility not to keep unnecessary events.
Example 6.9. G4UserEventAction
class G4UserEventAction
{
public:
G4UserEventAction() {;}
virtual ~G4UserEventAction() {;}
virtual void BeginOfEventAction(const G4Event*);
virtual void EndOfEventAction(const G4Event*);
protected:
G4EventManager* fpEventManager;
};
G4UserStackingAction
This class has three virtual methods, ClassifyNewTrack, NewStage and PrepareNewEvent which the
user may override in order to control the various track stacking mechanisms. ExampleN04 could be a good example
to understand the usage of this class.
ClassifyNewTrack() is invoked by G4StackManager whenever a new G4Track object is
"pushed" onto a stack by G4EventManager. ClassifyNewTrack() returns an enumerator,
![](asset-f7.png)
User Actions
238
G4ClassificationOfNewTrack, whose value indicates to which stack, if any, the track will be sent. This
value should be determined by the user. G4ClassificationOfNewTrack has four possible values:
•fUrgent - track is placed in the urgent stack
•fWaiting - track is placed in the waiting stack, and will not be simulated until the urgent stack is empty
•fPostpone - track is postponed to the next event
•fKill - the track is deleted immediately and not stored in any stack.
These assignments may be made based on the origin of the track which is obtained as follows:
G4int parent_ID = aTrack->get_parentID();
where
•parent_ID = 0 indicates a primary particle
•parent_ID > 0 indicates a secondary particle
•parent_ID < 0 indicates postponed particle from previous event.
NewStage() is invoked when the urgent stack is empty and the waiting stack contains at least one G4Track
object. Here the user may kill or re-assign to different stacks all the tracks in the waiting stack by calling the
stackManager->ReClassify() method which, in turn, calls the ClassifyNewTrack() method. If no
user action is taken, all tracks in the waiting stack are transferred to the urgent stack. The user may also decide
to abort the current event even though some tracks may remain in the waiting stack by calling stackManag-
er->clear(). This method is valid and safe only if it is called from the G4UserStackingAction class.
A global method of event abortion is
G4UImanager * UImanager = G4UImanager::GetUIpointer();
UImanager->ApplyCommand("/event/abort");
PrepareNewEvent() is invoked at the beginning of each event. At this point no primary particles have been
converted to tracks, so the urgent and waiting stacks are empty. However, there may be tracks in the postponed-to-
next-event stack; for each of these the ClassifyNewTrack() method is called and the track is assigned to
the appropriate stack.
Example 6.10. G4UserStackingAction
#include "G4ClassificationOfNewTrack.hh"
class G4UserStackingAction
{
public:
G4UserStackingAction();
virtual ~G4UserStackingAction();
protected:
G4StackManager * stackManager;
public:
//---------------------------------------------------------------
// virtual methods to be implemented by user
//---------------------------------------------------------------
//
virtual G4ClassificationOfNewTrack
ClassifyNewTrack(const G4Track*);
//
//---------------------------------------------------------------
//
virtual void NewStage();
//
//---------------------------------------------------------------
//
virtual void PrepareNewEvent();
//
//---------------------------------------------------------------
![](asset-f8.png)
User Actions
239
};
G4UserTrackingAction
Example 6.11. G4UserTrackingAction
//---------------------------------------------------------------
//
// G4UserTrackingAction.hh
//
// Description:
// This class represents actions taken place by the user at
// the start/end point of processing one track.
//
//---------------------------------------------------------------
///////////////////////////
class G4UserTrackingAction
///////////////////////////
{
//--------
public:
//--------
// Constructor & Destructor
G4UserTrackingAction(){};
virtual ~G4UserTrackingAction(){}
// Member functions
virtual void PreUserTrackingAction(const G4Track*){}
virtual void PostUserTrackingAction(const G4Track*){}
//-----------
protected:
//-----------
// Member data
G4TrackingManager* fpTrackingManager;
};
G4UserSteppingAction
Example 6.12. G4UserSteppingAction
//---------------------------------------------------------------
//
// G4UserSteppingAction.hh
//
// Description:
// This class represents actions taken place by the user at each
// end of stepping.
//
//---------------------------------------------------------------
///////////////////////////
class G4UserSteppingAction
///////////////////////////
{
//--------
public:
//--------
// Constructor and destructor
G4UserSteppingAction(){}
virtual ~G4UserSteppingAction(){}
// Member functions
virtual void UserSteppingAction(const G4Step*){}
![](asset-f9.png)
User Actions
240
//-----------
protected:
//-----------
// Member data
G4SteppingManager* fpSteppingManager;
};
6.2.2. Killing Tracks in User Actions and Energy Conserva-
tion
In either of user action classes described in the previous section, the user can implement an unnatural/unphysical
action. A typical example is to kill a track, which is under the simulation, in the user stepping action. In this case
the user have to be cautious of the total energy conservation. The user stepping action itself does not take care the
energy or any physics quantity associated with the killed track. Therefore if the user want to keep the total energy
of an event in this case, the lost track energy need to be recorded by the user.
The same is true for user stacking or tracking actions. If the user has killed a track in these actions the all physics
information associated with it would be lost and, for example, the total energy conservation be broken.
If the user wants the Geant4 kernel to take care the total energy conservation automatically when he/she has
killed artificially a track, the user has to use a killer process. For example if the user uses G4UserLimits and
G4UserSpecialCuts process, energy of the killed track is added to the total energy deposit.
6.3. User Information Classes
Additional user information can be associated with various Geant4 classes. There are basically two ways for the
user to do this:
• derive concrete classes from base classes used in Geant4. These are classes for run, hit, digit, trajectory and tra-
jectory point, which are discussed in Section 6.2 for G4Run, Section 4.4 for G4VHit, Section 4.5 for G4VDigit,
and Section 5.1.6 for G4VTrajectory and G4VTrajectoryPoint
• create concrete classes from provided abstract base classes and associate them with classes used in Geant4.
Geant4 classes which can accommodate user information classes are G4Event, G4Track, G4PrimaryVertex,
G4PrimaryParticle and G4Region. These classes are discussed here.
6.3.1. G4VUserEventInformation
G4VUserEventInformation is an abstract class from which the user can derive his/her own concrete class
for storing user information associated with a G4Event class object. It is the user's responsibility to construct a
concrete class object and set the pointer to a proper G4Event object.
Within a concrete implementation of G4UserEventAction, the SetUserEventInformation() method of
G4EventManager may be used to set a pointer of a concrete class object to G4Event, given that the G4Event object
is available only by "pointer to const". Alternatively, the user may modify the GenerateEvent() method of his/her
own RunManager to instantiate a G4VUserEventInformation object and set it to G4Event.
The concrete class object is deleted by the Geant4 kernel when the associated G4Event object is deleted.
6.3.2. G4VUserTrackInformation
This is an abstract class from which the user can derive his/her own concrete class for storing user information
associated with a G4Track class object. It is the user's responsibility to construct a concrete class object and set
the pointer to the proper G4Track object.
Within a concrete implementation of G4UserTrackingAction, the SetUserTrackInformation() method of
G4TrackingManager may be used to set a pointer of a concrete class object to G4Track, given that the G4Track
object is available only by "pointer to const".
![](asset-fa.png)
User Actions
241
The ideal place to copy a G4VUserTrackInformation object from a mother track to its daughter tracks is
G4UserTrackingAction::PostUserTrackingAction().
Example 6.13. Copying G4VUserTrackInformation from mother to daughter tracks
void RE01TrackingAction::PostUserTrackingAction(const G4Track* aTrack)
{
G4TrackVector* secondaries = fpTrackingManager->GimmeSecondaries();
if(secondaries)
{
RE01TrackInformation* info = (RE01TrackInformation*)(aTrack->GetUserInformation());
size_t nSeco = secondaries->size();
if(nSeco>0)
{
for(size_t i=0; i < nSeco; i++)
{
RE01TrackInformation* infoNew = new RE01TrackInformation(info);
(*secondaries)[i]->SetUserInformation(infoNew);
}
}
}
}
The concrete class object is deleted by the Geant4 kernel when the associated G4Track object is deleted. In case
the user wants to keep the information, it should be copied to a trajectory corresponding to the track.
6.3.3. G4VUserPrimaryVertexInformation and
G4VUserPrimaryTrackInformation
These abstract classes allow the user to attach information regarding the generated primary vertex and prima-
ry particle. Concrete class objects derived from these classes should be attached to G4PrimaryVertex and
G4PrimaryParticle class objects, respectively.
The concrete class objects are deleted by the Geant4 Kernel when the associated G4PrimaryVertex or
G4PrimaryParticle class objects are deleted along with the deletion of G4Event.
6.3.4. G4VUserRegionInformation
This abstract base class allows the user to attach information associated with a region. For example, it would be
quite beneficial to add some methods returning a boolean flag to indicate the characteristics of the region (e.g.
tracker, calorimeter, etc.). With this example, the user can easily and quickly identify the detector component.
Example 6.14. A sample region information class
class RE01RegionInformation : public G4VUserRegionInformation
{
public:
RE01RegionInformation();
~RE01RegionInformation();
void Print() const;
private:
G4bool isWorld;
G4bool isTracker;
G4bool isCalorimeter;
public:
inline void SetWorld(G4bool v=true) {isWorld = v;}
inline void SetTracker(G4bool v=true) {isTracker = v;}
inline void SetCalorimeter(G4bool v=true) {isCalorimeter = v;}
inline G4bool IsWorld() const {return isWorld;}
inline G4bool IsTracker() const {return isTracker;}
inline G4bool IsCalorimeter() const {return isCalorimeter;}
};
The following code is an example of a stepping action. Here, a track is suspended when it enters the "calorimeter
region" from the "tracker region".
![](asset-fb.png)
User Actions
242
Example 6.15. Sample use of a region information class
void RE01SteppingAction::UserSteppingAction(const G4Step * theStep)
{
// Suspend a track if it is entering into the calorimeter
// check if it is alive
G4Track * theTrack = theStep->GetTrack();
if(theTrack->GetTrackStatus()!=fAlive) { return; }
// get region information
G4StepPoint * thePrePoint = theStep->GetPreStepPoint();
G4LogicalVolume * thePreLV = thePrePoint->GetPhysicalVolume()->GetLogicalVolume();
RE01RegionInformation* thePreRInfo
= (RE01RegionInformation*)(thePreLV->GetRegion()->GetUserInformation());
G4StepPoint * thePostPoint = theStep->GetPostStepPoint();
G4LogicalVolume * thePostLV = thePostPoint->GetPhysicalVolume()->GetLogicalVolume();
RE01RegionInformation* thePostRInfo
= (RE01RegionInformation*)(thePostLV->GetRegion()->GetUserInformation());
// check if it is entering to the calorimeter volume
if(!(thePreRInfo->IsCalorimeter()) && (thePostRInfo->IsCalorimeter()))
{ theTrack->SetTrackStatus(fSuspend); }
}
6.4. Multiple User Actions
Starting from Geant4 Version 10.3 it is possible to attach multiple instances of the same type of user action to a
single run manager. This is achieved via the use of a special proxy classes to which multiple child user actions
are attached. This is allowed for run-, event-, tracking- and stepping-type user actions (G4UserRunAction,
G4UserEventAction,G4UserTrackingAction,G4UserSteppingAction).
The kernel still sees a single user action of each type, the proxy will forward the calls from kernel to all the attached
child user actions.
Example 6.16. An example of the use of the use of multiple user-actions.
#include "G4MultiRunAction.hh"
#include "G4MultiEventAction.hh"
#include "G4MultiTrackingAction.hh"
#include "G4MultiSteppingAction.hh"
//...
void MyUserActionInitialization::Build()
{
//...
// Example with multiple-event action, similartly
// for the other cases
// multi- user actions extend std::vector
auto multiAction = new G4MultiEventAction { new MyEventAction1, new MyEventAction2 } ;
//...
multiAction->push_back( new MyEventAction3 );
SetUserAction( multiAction );
//...
}
6.4.1. Exceptions
This functionality is not implemented for the the stacking user action and primary generation action. There is
no multiple G4UserStackingAction equivalent since this would require a complex handling of the case in
which conflicting classifications are issued. For the case of G4VUserPrimaryGeneratorAction the use
case of the multiple user actions is already addressed by the design of the class itself. User can implement one
or more generators in the actions.
For the case of G4MultiRunAction only one of the child user actions can implement the
G4UserRunAction::GenerateRun() method returning a non null, user derived G4Run object, otherwise
an exception is thrown.
![](asset-fc.png)
243
Chapter 7. Communication and Control
7.1. Built-in Commands
Geant4 has various built-in user interface commands, each of which corresponds roughly to a Geant4 category.
These commands can be used
• interactively via a (Graphical) User Interface - (G)UI,
• in a macro file via /control/execute <command>,
• within C++ code with the ApplyCommand method of G4UImanager.
Note
The availability of individual commands, the ranges of parameters, the available candidates on individ-
ual command parameters vary according to the implementation of your application and may even vary
dynamically during the execution of your job.
The following is a short summary of available commands. You can also see the all available commands by exe-
cuteing 'help' in your UI session.
• List of built-in commands
7.2. User Interface - Defining New Commands
7.2.1. G4UImessenger
G4UImessenger is a base class which represents a messenger that delivers command(s) to the destination class
object. Concrete messengers are instantiated by, and owned by, the functional classes for which they provide a
user interface; messengers should be deleted by those classes in their own destructors.
Your concrete messenger should have the following functionalities.
• Construct your command(s) in the constructor of your messenger.
• Destruct your command(s) in the destructor of your messenger.
These requirements mean that your messenger should keep all pointers to your command objects as its data mem-
bers.
You can use G4UIcommand derived classes for the most frequent types of command. These derived classes have
their own conversion methods according to their types, and they make implementation of the SetNewValue()
and GetCurrentValue() methods of your messenger much easier and simpler.
G4UIcommand objects are owned by the messenger. If instantiated via new, they should be deleted in the mes-
senger destructor.
For complicated commands which take various parameters, you can use the G4UIcommand base class, and con-
struct G4UIparameter objects by yourself. You don't need to delete G4UIparameter object(s).
In the SetNewValue() and GetCurrentValue() methods of your messenger, you can compare the
G4UIcommand pointer given in the argument of these methods with the pointer of your command, because your
messenger keeps the pointers to the commands. Thus, you don't need to compare by command name. Please re-
member, in the cases where you use G4UIcommand derived classes, you should store the pointers with the types
of these derived classes so that you can use methods defined in the derived classes according to their types without
casting.
G4UImanager/G4UIcommand/G4UIparameter have very powerful type and range checking routines.
You are strongly recommended to set the range of your parameters. For the case of a numerical value (int or
![](asset-fd.png)
Communication and Control
244
double), the range can be given by a G4String using C++ notation, e.g., "X > 0 && X < 10". For the
case of a string type parameter, you can set a candidate list. Please refer to the detailed descriptions below.
GetCurrentValue() will be invoked after the user's application of the corresponding command, and before
the SetNewValue() invocation. This GetCurrentValue() method will be invoked only if
• at least one parameter of the command has a range
• at least one parameter of the command has a candidate list
• at least the value of one parameter is omitted and this parameter is defined as omittable and currentVal-
ueAsDefault
For the first two cases, you can re-set the range or the candidate list if you need to do so, but these ``re-set''
parameters are needed only for the case where the range or the candidate list varies dynamically.
A command can be ``state sensitive'', i.e., the command can be accepted only for a certain
G4ApplicationState(s). For example, the /run/beamOn command should not be accepted when Geant4
is processing another event (``G4State_EventProc'' state). You can set the states available for the command with
the AvailableForStates() method.
7.2.2. G4UIcommand and its derived classes
Methods available for all derived classes
These are methods defined in the G4UIcommand base class which should be used from the derived classes.
•void SetGuidance(char*)
Define a guidance line. You can invoke this method as many times as you need to give enough amount of
guidance. Please note that the first line will be used as a title head of the command guidance.
•void availableForStates(G4ApplicationState s1,...)
If your command is valid only for certain states of the Geant4 kernel, specify these states by this
method. Currently available states are G4State_PreInit, G4State_Init, G4State_Idle,
G4State_GeomClosed, and G4State_EventProc. Refer to the section 3.4.2 for meaning of each state.
Please note that the Pause state had been removed from G4ApplicationState.
•void SetRange(char* range)
Define a range of the parameter(s). Use C++ notation, e.g., "x > 0 && x < 10", with variable name(s)
defined by the SetParameterName() method. For the case of a G4ThreeVector, you can set the relation
between parameters, e.g., "x > y".
G4UIdirectory
This is a G4UIcommand derived class for defining a directory containing commands. It is owned by, and should
be deleted in the destructor of, the associated G4UImessenger class, after all of its contained commands have
been deleted.
•G4UIdirectory(char* directoryPath)
Constructor. Argument is the (full-path) directory, which must begin and terminate with `/'.
G4UIcmdWithoutParameter
This is a G4UIcommand derived class for a command which takes no parameter.
•G4UIcmdWithoutParameter(char* commandPath, G4UImessenger* theMessenger)
Constructor. Arguments are the (full-path) command name and the pointer to your messenger.
![](asset-fe.png)
Communication and Control
245
G4UIcmdWithABool
This is a G4UIcommand derived class which takes one boolean type parameter.
•G4UIcmdWithABool(char* commandpath,G4UImanager* theMessenger)
Constructor. Arguments are the (full-path) command name and the pointer to your messenger.
•void SetParameterName(char* paramName, G4bool omittable)
Define the name of the boolean parameter and set the omittable flag. If omittable is true, you should define the
default value using the next method.
•void SetDefaultValue(G4bool defVal)
Define the default value of the boolean parameter.
•G4bool GetNewBoolValue(G4String paramString)
Convert G4String parameter value given by the SetNewValue() method of your messenger into boolean.
•G4String convertToString(G4bool currVal)
Convert the current boolean value to G4String whichshould be returned by the GetCurrentValue()
method of your messenger.
G4UIcmdWithAnInteger
This is a G4UIcommand derived class which takes one integer type parameter.
•G4UIcmdWithAnInteger(char* commandpath, G4UImanager* theMessenger)
Constructor. Arguments are the (full-path) command name and the pointer to your messenger.
•void SetParameterName(char* paramName, G4bool omittable)
Define the name of the integer parameter and set the omittable flag. If omittable is true, you should define the
default value using the next method.
•void SetDefaultValue(G4int defVal)
Define the default value of the integer parameter.
•G4int GetNewIntValue(G4String paramString)
Convert G4String parameter value given by the SetNewValue() method of your messenger into integer.
•G4String convertToString(G4int currVal)
Convert the current integer value to G4String, which should be returned by the GetCurrentValue()
method of your messenger.
G4UIcmdWithADouble
This is a G4UIcommand derived class which takes one double type parameter.
•G4UIcmdWithADouble(char* commandpath, G4UImanager* theMessenger)
Constructor. Arguments are the (full-path) command name and the pointer to your messenger.
•void SetParameterName(char* paramName, G4bool omittable)
Define the name of the double parameter and set the omittable flag. If omittable is true, you should define the
default value using the next method.
•void SetDefaultValue(G4double defVal)
Define the default value of the double parameter.
•G4double GetNewDoubleValue(G4String paramString)
Convert G4String parameter value given by the SetNewValue() method of your messenger into double.
![](asset-ff.png)
Communication and Control
246
•G4String convertToString(G4double currVal)
Convert the current double value to G4String which should be returned by the GetCurrentValue()
method of your messenger.
G4UIcmdWithAString
This is a G4UIcommand derived class which takes one string type parameter.
•G4UIcmdWithAString(char* commandpath, G4UImanager* theMessenger)
Constructor. Arguments are the (full-path) command name and the pointer to your messenger.
•void SetParameterName(char* paramName, G4bool omittable)
Define the name of the string parameter and set the omittable flag. If omittable is true, you should define the
default value using the next method.
•void SetDefaultValue(char* defVal)
Define the default value of the string parameter.
•void SetCandidates(char* candidateList)
Define a candidate list which can be taken by the parameter. Each candidate listed in this list should be separated
by a single space. If this candidate list is given, a string given by the user but which is not listed in this list
will be rejected.
G4UIcmdWith3Vector
This is a G4UIcommand derived class which takes one three vector parameter.
•G4UIcmdWith3Vector(char* commandpath, G4UImanager* theMessenger)
Constructor. Arguments are the (full-path) command name and the pointer to your messenger.
•void SetParameterName(char* paramNamX, char* paramNamY, char* paramNamZ,
G4bool omittable)
Define the names of each component of the three vector and set the omittable flag. If omittable is true, you
should define the default value using the next method.
•void SetDefaultValue(G4ThreeVector defVal)
Define the default value of the three vector.
•G4ThreeVector GetNew3VectorValue(G4String paramString)
Convert the G4String parameter value given by the SetNewValue() method of your messenger into a
G4ThreeVector.
•G4String convertToString(G4ThreeVector currVal)
Convert the current three vector to G4String, which should be returned by the GetCurrentValue()
method of your messenger.
G4UIcmdWithADoubleAndUnit
This is a G4UIcommand derived class which takes one double type parameter and its unit.
•G4UIcmdWithADoubleAndUnit(char* commandpath, G4UImanager* theMessenger)
Constructor. Arguments are the (full-path) command name and the pointer to your messenger.
•void SetParameterName(char* paramName, G4bool omittable)
Define the name of the double parameter and set the omittable flag. If omittable is true, you should define the
default value using the next method.
![](asset-100.png)
Communication and Control
247
•void SetDefaultValue(G4double defVal)
Define the default value of the double parameter.
•void SetUnitCategory(char* unitCategory)
Define acceptable unit category.
•void SetDefaultUnit(char* defUnit)
Define the default unit. Please use this method and the SetUnitCategory() method alternatively.
•G4double GetNewDoubleValue(G4String paramString)
Convert G4String parameter value given by the SetNewValue() method of your messenger into double.
Please note that the return value has already been multiplied by the value of the given unit.
•G4double GetNewDoubleRawValue(G4String paramString)
Convert G4String parameter value given by the SetNewValue() method of your messenger into double
but without multiplying the value of the given unit.
•G4double GetNewUnitValue(G4String paramString)
Convert G4String unit value given by the SetNewValue() method of your messenger into double.
•G4String convertToString(G4bool currVal, char* unitName)
Convert the current double value to a G4String, which should be returned by the GetCurrentValue()
method of your messenger. The double value will be divided by the value of the given unit and converted to
a string. Given unit will be added to the string.
G4UIcmdWith3VectorAndUnit
This is a G4UIcommand derived class which takes one three vector parameter and its unit.
•G4UIcmdWith3VectorAndUnit(char* commandpath, G4UImanager* theMessenger)
Constructor. Arguments are the (full-path) command name and the pointer to your messenger.
•void SetParameterName(char* paramNamX, char* paramNamY, char*
paramNamZ,G4bool omittable)
Define the names of each component of the three vector and set the omittable flag. If omittable is true, you
should define the default value using the next method.
•void SetDefaultValue(G4ThreeVector defVal)
Define the default value of the three vector.
•void SetUnitCategory(char* unitCategory)
Define acceptable unit category.
•void SetDefaultUnit(char* defUnit)
Define the default unit. Please use this method and the SetUnitCategory() method alternatively.
•G4ThreeVector GetNew3VectorValue(G4String paramString)
Convert a G4String parameter value given by the SetNewValue() method of your messenger into a
G4ThreeVector. Please note that the return value has already been multiplied by the value of the given unit.
•G4ThreeVector GetNew3VectorRawValue(G4String paramString)
Convert a G4String parameter value given by the SetNewValue() method of your messenger into three
vector, but without multiplying the value of the given unit.
•G4double GetNewUnitValue(G4String paramString)
Convert a G4String unit value given by the SetNewValue() method of your messenger into a double.
•G4String convertToString(G4ThreeVector currVal, char* unitName)
![](asset-101.png)
Communication and Control
248
Convert the current three vector to a G4String which should be returned by the GetCurrentValue()
method of your messenger. The three vector value will be divided by the value of the given unit and converted
to a string. Given unit will be added to the string.
Additional comments on the SetParameterName() method
You can add one additional argument of G4bool type for every SetParameterName() method mentioned
above. This additional argument is named currentAsDefaultFlag and the default value of this argument is
false. If you assign this extra argument as true, the default value of the parameter will be overriden by the
current value of the target class.
7.2.3. An example messenger
This example is of G4ParticleGunMessenger, which is made by inheriting G4UIcommand.
Example 7.1. An example of G4ParticleGunMessenger.hh.
#ifndef G4ParticleGunMessenger_h
#define G4ParticleGunMessenger_h 1
class G4ParticleGun;
class G4ParticleTable;
class G4UIcommand;
class G4UIdirectory;
class G4UIcmdWithoutParameter;
class G4UIcmdWithAString;
class G4UIcmdWithADoubleAndUnit;
class G4UIcmdWith3Vector;
class G4UIcmdWith3VectorAndUnit;
#include "G4UImessenger.hh"
#include "globals.hh"
class G4ParticleGunMessenger: public G4UImessenger
{
public:
G4ParticleGunMessenger(G4ParticleGun * fPtclGun);
~G4ParticleGunMessenger();
public:
void SetNewValue(G4UIcommand * command,G4String newValues);
G4String GetCurrentValue(G4UIcommand * command);
private:
G4ParticleGun * fParticleGun;
G4ParticleTable * particleTable;
private: //commands
G4UIdirectory * gunDirectory;
G4UIcmdWithoutParameter * listCmd;
G4UIcmdWithAString * particleCmd;
G4UIcmdWith3Vector * directionCmd;
G4UIcmdWithADoubleAndUnit * energyCmd;
G4UIcmdWith3VectorAndUnit * positionCmd;
G4UIcmdWithADoubleAndUnit * timeCmd;
};
#endif
Example 7.2. An example of G4ParticleGunMessenger.cc.
#include "G4ParticleGunMessenger.hh"
#include "G4ParticleGun.hh"
#include "G4Geantino.hh"
#include "G4ThreeVector.hh"
#include "G4ParticleTable.hh"
#include "G4UIdirectory.hh"
![](asset-102.png)
Communication and Control
249
#include "G4UIcmdWithoutParameter.hh"
#include "G4UIcmdWithAString.hh"
#include "G4UIcmdWithADoubleAndUnit.hh"
#include "G4UIcmdWith3Vector.hh"
#include "G4UIcmdWith3VectorAndUnit.hh"
#include <iostream.h>
G4ParticleGunMessenger::G4ParticleGunMessenger(G4ParticleGun * fPtclGun)
:fParticleGun(fPtclGun)
{
particleTable = G4ParticleTable::GetParticleTable();
gunDirectory = new G4UIdirectory("/gun/");
gunDirectory->SetGuidance("Particle Gun control commands.");
listCmd = new G4UIcmdWithoutParameter("/gun/list",this);
listCmd->SetGuidance("List available particles.");
listCmd->SetGuidance(" Invoke G4ParticleTable.");
particleCmd = new G4UIcmdWithAString("/gun/particle",this);
particleCmd->SetGuidance("Set particle to be generated.");
particleCmd->SetGuidance(" (geantino is default)");
particleCmd->SetParameterName("particleName",true);
particleCmd->SetDefaultValue("geantino");
G4String candidateList;
G4int nPtcl = particleTable->entries();
for(G4int i=0;i<nPtcl;i++)
{
candidateList += particleTable->GetParticleName(i);
candidateList += " ";
}
particleCmd->SetCandidates(candidateList);
directionCmd = new G4UIcmdWith3Vector("/gun/direction",this);
directionCmd->SetGuidance("Set momentum direction.");
directionCmd->SetGuidance("Direction needs not to be a unit vector.");
directionCmd->SetParameterName("Px","Py","Pz",true,true);
directionCmd->SetRange("Px != 0 || Py != 0 || Pz != 0");
energyCmd = new G4UIcmdWithADoubleAndUnit("/gun/energy",this);
energyCmd->SetGuidance("Set kinetic energy.");
energyCmd->SetParameterName("Energy",true,true);
energyCmd->SetDefaultUnit("GeV");
energyCmd->SetUnitCandidates("eV keV MeV GeV TeV");
positionCmd = new G4UIcmdWith3VectorAndUnit("/gun/position",this);
positionCmd->SetGuidance("Set starting position of the particle.");
positionCmd->SetParameterName("X","Y","Z",true,true);
positionCmd->SetDefaultUnit("cm");
positionCmd->SetUnitCandidates("micron mm cm m km");
timeCmd = new G4UIcmdWithADoubleAndUnit("/gun/time",this);
timeCmd->SetGuidance("Set initial time of the particle.");
timeCmd->SetParameterName("t0",true,true);
timeCmd->SetDefaultUnit("ns");
timeCmd->SetUnitCandidates("ns ms s");
// Set initial value to G4ParticleGun
fParticleGun->SetParticleDefinition( G4Geantino::Geantino() );
fParticleGun->SetParticleMomentumDirection( G4ThreeVector(1.0,0.0,0.0) );
fParticleGun->SetParticleEnergy( 1.0*GeV );
fParticleGun->SetParticlePosition(G4ThreeVector(0.0*cm, 0.0*cm, 0.0*cm));
fParticleGun->SetParticleTime( 0.0*ns );
}
G4ParticleGunMessenger::~G4ParticleGunMessenger()
{
delete listCmd;
delete particleCmd;
delete directionCmd;
delete energyCmd;
delete positionCmd;
delete timeCmd;
delete gunDirectory;
}
![](asset-103.png)
Communication and Control
250
void G4ParticleGunMessenger::SetNewValue(
G4UIcommand * command,G4String newValues)
{
if( command==listCmd )
{ particleTable->dumpTable(); }
else if( command==particleCmd )
{
G4ParticleDefinition* pd = particleTable->findParticle(newValues);
if(pd != NULL)
{ fParticleGun->SetParticleDefinition( pd ); }
}
else if( command==directionCmd )
{ fParticleGun->SetParticleMomentumDirection(directionCmd->
GetNew3VectorValue(newValues)); }
else if( command==energyCmd )
{ fParticleGun->SetParticleEnergy(energyCmd->
GetNewDoubleValue(newValues)); }
else if( command==positionCmd )
{ fParticleGun->SetParticlePosition(
directionCmd->GetNew3VectorValue(newValues)); }
else if( command==timeCmd )
{ fParticleGun->SetParticleTime(timeCmd->
GetNewDoubleValue(newValues)); }
}
G4String G4ParticleGunMessenger::GetCurrentValue(G4UIcommand * command)
{
G4String cv;
if( command==directionCmd )
{ cv = directionCmd->ConvertToString(
fParticleGun->GetParticleMomentumDirection()); }
else if( command==energyCmd )
{ cv = energyCmd->ConvertToString(
fParticleGun->GetParticleEnergy(),"GeV"); }
else if( command==positionCmd )
{ cv = positionCmd->ConvertToString(
fParticleGun->GetParticlePosition(),"cm"); }
else if( command==timeCmd )
{ cv = timeCmd->ConvertToString(
fParticleGun->GetParticleTime(),"ns"); }
else if( command==particleCmd )
{ // update candidate list
G4String candidateList;
G4int nPtcl = particleTable->entries();
for(G4int i=0;i<nPtcl;i++)
{
candidateList += particleTable->GetParticleName(i);
candidateList += " ";
}
particleCmd->SetCandidates(candidateList);
}
return cv;
}
7.2.4. How to control the output of G4cout/G4cerr
Instead of std::cout and std::cerr, Geant4 uses G4cout and G4cerr. Output streams from G4cout/G4cerr
are handled by G4UImanager which allows the application programmer to control the flow of the stream. Output
strings may therefore be displayed on another window or stored in a file. This is accomplished as follows:
1. Derive a class from G4UIsession and implement the two methods:
G4int ReceiveG4cout(const G4String& coutString);
G4int ReceiveG4cerr(const G4String& cerrString);
These methods receive the string stream of G4cout and G4cerr, respectively. The string can be handled
to meet specific requirements. The following sample code shows how to make a log file of the output stream:
ostream logFile;
logFile.open("MyLogFile");
![](asset-104.png)
Communication and Control
251
G4int MySession::ReceiveG4cout(const G4String& coutString)
{
logFile << coutString << flush;
return 0;
}
2. Set the destination of G4cout/G4cerr using G4UImanager::SetCoutDestination(session).
Typically this method is invoked from the constructor of G4UIsession and its derived classes, such
as G4UIGAG/G4UIteminal. This method sets the destination of G4cout/G4cerr to the session.
For example, when the following code appears in the constructor of G4UIterminal, the method
SetCoutDestination(this) tells UImanager that this instance of G4UIterminal receives the
stream generated by G4cout.
G4UIterminal::G4UIterminal()
{
UI = G4UImanager::GetUIpointer();
UI->SetCoutDestination(this);
// ...
}
Similarly, UI->SetCoutDestination(NULL) must be added to the destructor of the class.
3. Write or modify the main program. To modify exampleB1 to produce a log file, derive a class as described
in step 1 above, and add the following lines to the main program:
#include "MySession.hh"
main()
{
// get the pointer to the User Interface manager
G4UImanager* UI = G4UImanager::GetUIpointer();
// construct a session which receives G4cout/G4cerr
MySession * LoggedSession = new MySession;
UI->SetCoutDestination(LoggedSession);
// session->SessionStart(); // not required in this case
// .... do simulation here ...
delete LoggedSession;
return 0;
}
Note
G4cout/G4cerr should not be used in the constructor of a class if the instance of the class is intended
to be used as static. This restriction comes from the language specification of C++. See the documents
below for details:
• M.A.Ellis, B.Stroustrup, ``Annotated C++ Reference Manual'', Section 3.4 [ Ellis1990 ]
• P.J.Plauger, ``The Draft Standard C++ Library'' [ Plauger1995 ]
![](asset-105.png)
252
Chapter 8. Visualization
8.1. Introduction to Visualization
The Geant4 visualization system was developed in response to a diverse set of requirements:`
1. Quick response to study geometries, trajectories and hits
2. High-quality output for publications
3. Flexible camera control to debug complex geometries
4. Tools to show volume overlap errors in detector geometries
5. Interactive picking to get more information on visualized objects
No one graphics system is ideal for all of these requirements, and many of the large software frameworks into which
Geant4 has been incorporated already have their own visualization systems, so Geant4 visualization was designed
around an abstract interface that supports a diverse family of graphics systems. Some of these graphics systems
use a graphics library compiled with Geant4, such as OpenGL, Qt, while others involve a separate application,
such as HepRApp or DAWN.
Most examples include a vis.mac to perform typical visualization for that example. The macro includes optional
code which you can uncomment to activate additional visualization features.
8.1.1. What Can be Visualized
Simulation data can be visualized:
• Detector components
• A hierarchical structure of physical volumes
• A piece of physical volume, logical volume, and solid
• Particle trajectories and tracking steps
• Hits of particles in detector components
• Scoring data
Other user defined objects can be visualized:
• Polylines, such as coordinate axes
• 3D Markers, such as eye guides
• Text, descriptive character strings, comments or titles
• Scales
• Logos
8.1.2. You have a Choice of Visualization Drivers
The many graphics systems that Geant4 supports are complementary to each other.
• OpenGL
• View directly from Geant4
• Requires addition of GL libraries that are freely avialable for all operating systems (and pre-installed on many)
• Rendered, photorealistic image with some interactive features
• zoom, rotate, translate
• Fast response (can usually exploit full potential of graphics hardware)
• Print to EPS (vector and pixel graphics)
• Qt
• View directly from Geant4
• Requires addition of Qt and GL libraries that are freely available on most operating systems
• Rendered, photorealistic image
• Many interactive features
• zoom, rotate, translate
![](asset-106.png)
Visualization
253
• Fast response (can usually exploit full potential of graphics hardware)
• Expanded printing ability (vector and pixel graphics)
• Easy interface to make movies
• OpenInventor
• View directly from Geant4
• Requires addition of OpenInventor libraries (freely available for most Linux systems).
• Rendered, photorealistic image
• Many interactive features
• zoom, rotate, translate
• click to "see inside" opaque volumes
• Fast response (can usually exploit full potential of graphics hardware)
• Expanded printing ability (vector and pixel graphics)
• HepRep
• Create a file to view in a HepRep browser such as HepRApp, FRED or WIRED4
• Requires a HepRep browser (above options work on any operating system)
• Wireframe or simple area fills (not photorealistic)
• Many interactive features
• zoom, rotate, translate
• click to show attributes (momentum, etc.)
• special projections (FishEye, etc.)
• control visibility from hierarchical (tree) view of data
• Hierarchical view of the geometry
• Export to many vector graphic formats (PostScript, PDF, etc.)
• DAWN
• Create a file to view in the DAWN Renderer
• Requires DAWN, available for all Linux and Windows systems.
• Rendered, photorealistic image
• No interactive features
• Highest quality technical rendering - output to vector PostScript
• VRML
• Create a file to view in any VRML browser (some as web browser plug-ins).
• Requires VRML browser (many different choices for different operating systems).
• Rendered, photorealistic image with some interactive features
• zoom, rotate, translate
• Limited printing ability (pixel graphics, not vector graphics)
• RayTracer
• Create a jpeg file
• Forms image by using Geant4's own tracking to follow photons through the detector
• Can show geometry but not trajectories
• Can render any geometry that Geant4 can handle (such as Boolean solids)
• Supports shadows, transparency and mirrored surfaces
• gMocren
• Create a gMocren file suiable for viewing in the gMocren volume data visualization application
• Represents three dimensional volume data such as radiation therapy dose
• Can also include geometry and trajectory information
• ASCIITree
• Text dump of the geometry hierarchy
• Not graphical
• Control over level of detail to be dumped
• Can calculate mass and volume of any hierarchy of volumes
• Wt (WARNING: this driver is experimental and should be used with caution)
• View directly from Geant4 across a Web browser.
• Requires addition of Wt librarie that is freely available on most operating systems.
• Require a Web browser with WebGL enable.
• Rendered, photorealistic image
• Many interactive features
• zoom, rotate, translate
![](asset-107.png)
Visualization
254
• Fast response (can usually exploit full potential of graphics hardware)
8.1.3. Choose the Driver that Meets Your Needs
• If you want very responsive photorealistic graphics (and have the OpenGL libraries installed)
• OpenGL is a good solution (if you have the Motif extensions, this also gives GUI control)
• If you want to have the User Interface and all Visualization windows in the same window
• Only Qt can do that
• If you want very responsive photorealistic graphics plus more interactivity (and have the OpenInventor or Qt
libraries installed)
• OpenInventor or Qt are good solutions
• If you want GUI control, very responsive photorealistic graphics plus more interactivity (and have the Qt li-
braries installed).
• Qt is a good solution
• If you want GUI control, want to be able to pick on items to inquire about them (identity, momentum, etc.),
perhaps want to render to vector formats, and a wireframe look will do
• HepRep will meet your needs
• If you want to render highest quality photorealistic images for use in a poster or a technical design report, and
you can live without quick rotate and zoom
• DAWN is the way to go
• If you want to render to a 3D format that others can view in a variety of commodity browsers (including some
web browser plug-ins)
• VRML is the way to go
• If you want to visualize a geometry that the other visualization drivers can't handle, or you need transparency
or mirrors, and you don't need to visualize trajectories
• RayTracer will do it
• If you want to visualization volume data, such as radiation therapy dose distributions
• gMocren will meet your needs
• If you just want to quickly check the geometry hierarchy, or if you want to calculate the volume or mass of
any geometry hierarchy
• ASCIITree will meet your needs
• If you to interact with your application with a Web Broswser
• Wt will do it. WARNING: this driver is experimental and should be used with caution
• You can also add your own visualization driver.
• Geant4's visualization system is modular. By creating just three new classes, you can direct Geant4 informa-
tion to your own visualization system.
8.1.4. Controlling Visualization
Your Geant4 code stays basically the same no matter which driver you use.
Visualization is performed either with commands or from C++ code.
• Some visualization drivers work directly from Geant4
• OpenGL
• Qt
• OpenInventor
• RayTracer
• ASCIITree
• Wt (WARNING: this driver is experimental and should be used with caution)
• For other visualization drivers, you first have Geant4 produce a file, and then you have that file rendered by
another application (which may have GUI control)
• HepRep
• DAWN
• VRML
• gMocren
![](asset-108.png)
Visualization
255
8.1.5. Visualization Details
The following sections of this guide cover the details of Geant4 visualization:
• Section 8.2 Adding Visualization to Your Executable
• Section 8.3 The Visualization Drivers
• Section 8.4 Controlling Visualization from Commands
• Section 8.5 Controlling Visualization from Compiled Code
• Section 8.6 Visualization Attributes
• Section 8.7 Enhanced Trajectory Drawing
• Section 8.9 Polylines, Markers and Text
• Section 8.10 Making a Movie
Other useful references for Geant4 visualization outside of this user guide:
• Introduction to Geant4 Visualization ( pdf, ppt)
• Geant4 Visualization Commands ( pdf, ppt)
• Geant4 Advanced Visualization ( pdf, ppt)
• How to Make a Movie ( pdf, ppt)
• Geant4 Visualization Tutorial using the HepRApp HepRep Browser
• Geant4 Visualization Tutorial using the OpenGL Event Display
• Geant4 Visualization Tutorial using the DAWN Event Display
• Macro files distributed in Geant4 source in basic examples, vis.mac and examples/basic/B4/
macros/visTutor/.
8.2. Adding Visualization to Your Executable
This section explains how to incorporate your selected visualization drivers into the main() function and create
an executable for it. In order to perform visualization with your Geant4 executable, you must compile it with
support for the required visualization driver(s). You may be dazzled by the number of choices of visualization
driver, but you need not use all of them at one time.
8.2.1. Installing Visualization Drivers
Depending on what has been installed on your system, several kinds of visualization driver are available. One or
many drivers may be chosen for realization in compilation, depending on your visualization requirements. Features
and notes on each driver are briefly described in Section 8.3 "Visualization Drivers", along with links to detailed
web pages for the various drivers.
Note that not all drivers can be installed on all systems; Table 8.1 in Section 8.3 lists all the available drivers
and the platforms on which they can be installed. For any of the visualization drivers to work, the corresponding
graphics system must be installed beforehand.
Visualization drivers that do not depend on external libraries are by default incorporated into Geant4 libraries
during their installation. Here "installation of Geant4 libraries" means the generation of Geant4 libraries by com-
pilation. The automatically incorporated visualization drivers are: DAWNFILE, HepRepFile, HepRepXML, Ray-
Tracer, VRML1FILE, VRML2FILE and ATree and GAGTree.
The OpenGL, Qt, OpenInventor and RayTracerX drivers are not incorporated by default. Nor are the DAWN-
Network and VRML-Network drivers, because they require the network setting of the installed machine. These
drivers must be selected when you build the Geant4 Toolkit itself. This proceedure is described in detail in the
Installation Guide, to which you should refer.
8.2.2. How to Realize Visualization Drivers in an Exe-
cutable
You can realize and use any of the visualization driver(s) you want in your Geant4 executable, provided they are
among the set installed beforehand into the Geant4 libraries. A warning will appear if this is not the case.
![](asset-109.png)
Visualization
256
In order to realize visualization drivers, you must instantiate and initialize a subclass of G4VisManager that
implements the pure virtual function RegisterGraphicsSystems(). This subclass must be compiled in
the user's domain to force the loading of appropriate libraries in the right order. The easiest way to do this is to
use G4VisExecutive, a provided class with included implementation. G4VisExecutive is sensitive to the
G4VIS_USE... variables mentioned below.
If you do wish to write your own subclass, you may do so. You will see how to do this by looking at
G4VisExecutive.icc. A typical extract is:
...
RegisterGraphicsSystem (new G4DAWNFILE);
...
#ifdef G4VIS_USE_OPENGLX
RegisterGraphicsSystem (new G4OpenGLImmediateX);
RegisterGraphicsSystem (new G4OpenGLStoredX);
#endif
...
If you wish to use G4VisExecutive but register an additional graphics system, XXX say, you may do so either
before or after initializing:
visManager->RegisterGraphicsSytem(new XXX);
visManager->Initialize();
By default, you get the DAWNFILE, HepRepFile, RayTracer, VRML1FILE, VRML2FILE, ATree and GAGTree
drivers. Additionally, you may choose from the OpenGL-Xlib, OpenGL-Motif, Qt, OpenInventor, RayTracerX,
DAWN-Network and VRML-Network drivers, each of which can be set at "Cmake" or "GNUMakefile step",
see Section 2. (Of course, this has to be chosen from the set incorporated into the Geant4 libraries during their
compilation.)
For more details, see Section 8.3 "Visualization Drivers" and pages linked from there.
8.2.3. Visualization Manager
Visualization procedures are controlled by the "Visualization Manager", a class which must inherit from
G4VisManager defined in the visualization category. Most users will find that they can just use the default
visualization manager, G4VisExecutive. The Visualization Manager accepts users' requests for visualization,
processes them, and passes the processed requirements to the abstract interface, i.e., to the currently selected vi-
sualization driver.
8.2.4. How to Write the main() Function
In order for your Geant4 executable to perform visualization, you must instantiate and initialize "your" Visual-
ization Manager in the main() function. The core of the Visualization Manager is the class G4VisManager,
defined in the visualization category. This class requires that one pure virtual function be implemented, namely,
void RegisterGraphicsSystems(). The easiest way to do this is to use G4VisExecutive, as de-
scribed above (but you may write your own class - see above).
Example 8.1 shows the form of the main() function.
Example 8.1. The form of the main() function.
//----- C++ source codes: Instantiation and initialization of G4VisManager
.....
// Your Visualization Manager
#include "G4VisExecutive.hh"
.....
// Instantiation and initialization of the Visualization Manager
#ifdef G4VIS_USE
G4VisManager* visManager = new G4VisExecutive;
![](asset-10a.png)
Visualization
257
// G4VisExecutive can take a verbosity argument - see /vis/verbose guidance.
// G4VisManager* visManager = new G4VisExecutive("Quiet");
visManager->Initialize();
#endif
.....
#ifdef G4VIS_USE
delete visManager;
#endif
//----- end of C++
Alternatively, you can implement an empty RegisterGraphicsSystems() function, and register visualiza-
tion drivers you want directly in your main() function. See Example 8.2.
Example 8.2. An alternative style for the main() function.
//----- C++ source codes: How to register a visualization driver directly
// in main() function
.....
G4VisManager* visManager = new G4VisExecutive;
visManager -> RegisterGraphicsSystem (new MyGraphicsSystem);
.....
delete visManager
//----- end of C++
Do not forget to delete the instantiated Visualization Manager by yourself. Note that a graphics system for Geant4
Visualization may run as a different process. In that case, the destructor of G4VisManager might have to ter-
minate the graphics system and/or close the connection.
We recommend that the instantiation, initialization, and deletion of the Visualization Manager be protected by C-
pre-processor commands, as in the basic examples. To see the behaviour of C-pre-processor macro G4VIS_USE
and G4UI_USE, see Section 2.
Example 8.3 shows an example of the main() function available for Geant4 Visualization.
Example 8.3. An example of the main() function available for Geant4 Visualization.
//----- C++ source codes: An example of main() for visualization
.....
#include "G4VisExecutive.hh"
#include "G4UIExecutive.hh"
.....
int main(int argc, char *argv[])
{
// Run Manager
G4RunManager * runManager = new G4RunManager;
// Detector components
runManager->set_userInitialization(new MyDetectorConstruction);
runManager->set_userInitialization(new MyPhysicsList);
// UserAction classes.
runManager->set_userAction(new MyRunAction);
runManager->set_userAction(new MyPrimaryGeneratorAction);
runManager->set_userAction(new MyEventAction);
runManager->set_userAction(new MySteppingAction);
#ifdef G4VIS_USE
G4VisManager* visManager = new G4VisExecutive;
visManager->Initialize(argc, argv);
#endif
// Define (G)UI
#ifdef G4UI_USE
G4UIExecutive * ui = new G4UIExecutive;
ui->SessionStart();
![](asset-10b.png)
Visualization
258
delete ui;
#endif
delete runManager;
#ifdef G4VIS_USE
delete visManager;
#endif
return 0;
}
//----- end of C++
Useful information on incorporated visualization drivers can be displayed in initializing the Visualization Man-
ager. This is done by setting the verbosity flag to an appropriate number or string:
Simple graded message scheme - give first letter or a digit:
0) quiet, // Nothing is printed.
1) startup, // Startup and endup messages are printed...
2) errors, // ...and errors...
3) warnings, // ...and warnings...
4) confirmations, // ...and confirming messages...
5) parameters, // ...and parameters of scenes and views...
6) all // ...and everything available.
For example, in your main() function, write the following code:
...
G4VisManager* visManager = new G4VisExecutive("Quiet");
visManager->Initialize();
...
(This can also be set with the /vis/verbose command.)
8.3. The Visualization Drivers
As explained in the Introduction to Visualization , Geant4 provides many different choices of visualization sys-
tems. Features and notes on each driver are briefly described here along with links to detailed web pages for the
various drivers.
Details are given below for:
• Section 8.3.2 OpenGL
• Section 8.3.3 Qt
• Section 8.3.4 OpenInventor
• Section 8.3.5 OpenInventor Extended
• Section 8.3.6 HepRepFile
• Section 8.3.7 HepRepXML
• Section 8.3.8 DAWN
• Section 8.3.10 VRML
• Section 8.3.11 RayTracer
• Section 8.3.12 gMocren
• Section 8.3.14 ASCIITree
• Section 8.3.15 GAGTree
• Section 8.3.16 XMLTree
• Section 8.3.13 Wt
8.3.1. Availability of drivers on the supported systems
Table 8.1 lists required graphics systems and supported platforms for the various visualization drivers
Driver Required Graphics System Platform
OpenGL-Xlib OpenGL Linux, UNIX, Mac with Xlib
![](asset-10c.png)
Visualization
259
OpenGL-Motif OpenGL Linux, UNIX, Mac with Motif
OpenGL-Win32 OpenGL Windows
Qt Qt, OpenGL Linux, UNIX, Mac, Windows
Wt Wt for server side/Web browser for
clients. Linux, UNIX, Mac, Windows
OpenInventor-X OpenInventor (Coin3D), OpenGL Linux, UNIX, Mac with Xlib and
Motif
OpenInventor-X-Extended OpenInventor (Coin3D), OpenGL Linux, UNIX, Mac with Xlib and
Motif
OpenInventor-Win32 OpenInventor, OpenGL Windows
HepRep HepRApp, FRED or WIRED4 Hep-
Rep Browser Linux, UNIX, Mac, Windows
DAWNFILE Fukui Renderer DAWN Linux, UNIX, Mac, Windows
DAWN-Network Fukui Renderer DAWN Linux, UNIX
VRMLFILE any VRML viewer Linux, UNIX, Mac, Windows
VRML-Network any network-enabled VRML viewer Linux, UNIX
RayTracer any JPEG viewer Linux, UNIX, Mac, Windows
ASCIITree none Linux, UNIX, Mac, Windows
GAGTree GAG Linux, UNIX, Mac, Windows
XMLTree any XML viewer Linux, UNIX, Mac, Windows
Table 8.1. Required graphics systems and supported platforms for the various
visualization drivers.
8.3.2. OpenGL
These drivers have been developed by John Allison and Andrew Walkden (University of Manchester). It is an
interface to the de facto standard 3D graphics library, OpenGL. It is well suited for real-time fast visualization
and demonstration. Fast visualization is realized with hardware acceleration, reuse of shapes stored in a display
list, etc. NURBS visualization is also supported.
Several versions of the OpenGL drivers are prepared. Versions for Xlib, Motif, Qt and Win32 platforms are
available by default. For each version, there are two modes: immediate mode and stored mode. The former has no
limitation on data size, and the latter is fast for visualizing large data repetitively, and so is suitable for animation.
Output can be exported to EPS (both vector and pixel graphics) using vis/ogl/printEPS.
More information can be found here : Section 8.4.15
If you want to open a OGL viewer, the generic way is :
/vis/open OGL
According to your G4VIS_USE... variables it will open the correct viewer. By default, it will be open in stored
mode. You can specify to open an "OGLS" or "OGLI" viewer, or even "OGLSXm","OGLIXm",... If you don't
have Motif or Qt, all control is done from Geant4 commands:
/vis/open OGLIX
/vis/viewer/set/viewpointThetaPhi 70 20
/vis/viewer/zoom 2
etc.
But if you have Motif libraries or Qt install, you can control Geant4 from Motif widgets or mouse with Qt:
![](asset-10d.png)
Visualization
260
/vis/open OGLSQt
The OpenGL driver added Smooth shading and Transparency since Geant4 release 8.0.
Further information (OpenGL and Mesa):
• http://www.opengl.org/
• http://www.mesa3d.org
• http://geant4.slac.stanford.edu/Presentations/vis/G4OpenGLTutorial/G4OpenGLTutorial.html using the
OpenGL Graphics System
8.3.3. Qt
This driver has been developed by Laurent Garnier (IN2P3, LAL Orsay). It is an interface to the powerful appli-
cation framework, Qt, now free on most platforms. This driver also requires the OpenGL library.
The Qt driver is well suited for real-time fast visualization and demonstration. Fast visualization is realized with
hardware acceleration, reuse of shapes stored in a display list, etc. NURBS visualization is also supported. All
OpenGL features are implemented in the Qt driver, but one also gets mouse control of rotation/translation/zoom,
the ability to save your scene in many formats (both vector and pixel graphics) and an easy interface for making
movies.
Two display modes are available: Immediate mode and Stored mode. The former has no limitation on data size,
and the latter is fast for visualizing large data repetitively, and so is suitable for animation.
This driver has the feature to open a vis window into the UI window as a new tab. You can have as many tabs you
want and mix them from Stored or Immediate mode. To see the visualization window in the UI :
/vis/open OGL (Generic way. For Stored mode if you have define your G4VIS_USE_QT variable)
or
/vis/open OGLI (for Immediate mode)
or
/vis/open OGLS (for Stored mode)
or
/vis/open OGLIQt (for Immediate mode)
or
/vis/open OGLSQt (for Stored mode)
Further information (Qt):
• Qt
• Geant4 Visualization Tutorial using the Qt Driver
8.3.4. OpenInventor
These drivers were developed by Jeff Kallenbach (FNAL) and Guy Barrand (IN2P3) based on the Hepvis class
library originated by Joe Boudreau (Pittsburgh University). The OpenInventor drivers and the Hepvis class library
are based on the well-established OpenInventor technology for scientific visualization. They have high extendibil-
ity. They support high interactivity, e.g., attribute e diting of picked objects. Some OpenInventor viewers support
"stereoscopic" effects.
It is also possible to save a visualized 3D scene as an OpenInventor-formatted file, and re-visualize the scene
afterwards.
Because it is connected directly to the Geant4 kernel, using same language as that kernel (C++), OpenInventor
systems can have direct access to Geant4 data (geometry, trajectories, etc.).
Because OpenInventor uses OpenGL for rendering, it supports lighting and transparency.
OpenInventor provides thumbwheel control to rotate and zoom.
![](asset-10e.png)
Visualization
261
OpenInventor supports picking to ask about data. [Control Clicking] on a volume turns on rendering of that
volume's daughters. [Shift Clicking] a daughter turns that rendering off: If modeling opaque solid, effect is like
opening a box to look inside.
Further information (HEPVis and OpenScientist):
• Geant4 Inventor Visualization with OpenScientist http://openscientist.lal.in2p3.fr/v15r0/html/
osc_g4_vis_ui.html
• Overall OpenScientist Home http://openscientist.lal.in2p3.fr/v15r0/html/osc_g4_vis_ui.html
• HEPVis http://www-pat.fnal.gov/graphics/HEPVis/www
Further information (OpenInventor):
• http://oss.sgi.com/projects/inventor
• Josie Wernecke, "The Inventor Mentor", Addison Wesley (ISBN 0-201-62495-8)
• Josie Wernecke, "The Inventor Toolmaker", Addison Wesley (ISBN 0-201-62493-1)
• "The Open Inventor C++ Reference Manual", Addison Wesley (ISBN 0-201-62491-5)
8.3.5. OpenInventor Extended Viewer
This driver was developed by Rastislav Ondrasek, Pierre-Luc Gagnon and Frederick Jones (TRIUMF). It extends
the functionality of the OpenInventor driver, described in the previous section, by adding a number of new features
to the viewer.
At present this driver is supported only on Linux/Unix/MacOS platforms and is not available for Windows. It
requires the Coin3D implementation of OpenInventor.
All of the viewer functions and behavior of the basic OpenInventor driver are included and remain unchanged.
The added viewer functions are implemented via dropdown menu items, buttons, a new navigation panel, and
keyboard and mouse inputs.
Reference path navigation
Most of the added features are concerned with navigation along a "reference path" which is a piecewise linear path
through the geometry. The reference path can be any particle trajectory, which may be chosen in the application
by an attaching a visualization attribute to it, or at run time by selecting a trajectory with the mouse. Via Load and
Save menu items, a reference path can be read from a file and the current reference path can be written to a file.
Once a reference path is established, the viewer pops up a Navigation Panel showing a list of all elements in
the geometry, ordered by their "distance" along the reference path (based on the perpendicular from the element
center to the path).
Navigation controls
[L,R,U,D refer to the arrow keys on the keyboard]
• Select an element from the list: navigate along the path to the element's "location" (distance along the reference
path).
• Shift-L and Shift-R: navigate to the previous or next element on the path (with wraparound).
• L and R: rotate 90 degrees around the vertical axis
• U and D: rotate 90 degrees around the path
• Ctrl-L and Ctrl-R: rotate 90 degrees around the horizontal axis
All these keys have a "repeat" function for continuous motion.
The rotation keys put the camera in a definite orientation, whereas The Shift-L and Shift-R keys can be used to
"fly" along the path in whatever camera orientation is in effect. NOTE: if this appears to be "stuck", try switching
from orthonormal camera to perspective camera ("cube" viewer button).
Menu Items:
![](asset-10f.png)
Visualization
262
• Tools / Go to start of reference path: useful if you get lost
• Tools / Invert reference path: flips the direction of travel and the distance readout
Reference path animation
This is a special mode which flys the camera steadily along the path, without wraparound. The controls are:
• Tools Menu - Animate Ref Particle: start animation mode
• Page-Up: increase speed
• Page-Down: decrease speed
• U (arrow key): raise camera
• D (arrow key): lower camera
• ESC: exit animation mode
For suitable geometries the U and D keys can be used to get "Star Wars" style fly-over and fly-under effects.
Bookmarks
At any time, the viewpoint and other camera parameters can be saved in a file as a labelled "bookmark". The view
can then be restored later in the current run or in another run.
The default name for the bookmark file is ".bookmarkFile" The first time a viewpoint is saved, this file will be
created if it does not already exist. When the viewer is first opened, it will automatically read this file if present
and load the viewpoints into the left-hand panel of the viewer's auxiliary window.
Controls:
• Select viewpoint from list: restore this view
• Right-arrow VIEWER button: go to next viewpoint Left-arrow VIEWER button: go to next viewpoint
• "Floppy Disk" button: save current view. The user can type in a label for the view, or use the default label
provided.
• File Menu - Open Viewpoint File: loads an existing bookmark file
• File Menu - New Viewpoint File: creates a new bookmark file for saving subsequent views
Special picking modes
Controls:
• "Console" VIEWER button: enable brief trajectory picking and mouse-over element readout For trajectories,
the list of all trajectory points is replaced by the first and last point only, allowing easier identification of the
particle without scrolling back. Passing the mouse over an element will give a readout of the volume name,
material, and position on the reference path.
• "Star" VIEWER button: select new reference path The cursor will change to a small cross (+) after which a
trajectory can be selected to become the new reference path.
Convenience feature
It is now possible to escape from the Open Inventor viewer without using the mouse.
In addition to the File - Escape menu item, pressing the "e" key on the keyboard will exit from the viewer's X
event loop. The viewer will become inactive and control will return to the Geant4 UI prompt.
8.3.6. HepRepFile
The HepRepFile driver creates a HepRep XML file in the HepRep1 format suitable for viewing with the HepRApp
HepRep Browser.
The HepRep graphics format is further described at http://www.slac.stanford.edu/~perl/heprep .
To write just the detector geometry to this file, use the command:
![](asset-110.png)
Visualization
263
/vis/viewer/flush
Or, to also include trajectories and hits (after the appropriate /vis/viewer/add/trajectories or /vis/viewer/add/hits
commands), just issue:
/run/beamOn 1
HepRepFile will write a file called G4Data0.heprep to the current directory. Each subsequent file will have a file
name like G4Data1.heprep, G4Data2.heprep, etc.
View the file using the HepRApp HepRep Browser, available from:
http://www.slac.stanford.edu/~perl/HepRApp/ .
HepRApp allows you to pick on volumes, trajectories and hits to find out their associated HepRep Attributes, such
as volume name, particle ID, momentum, etc. These same attributes can be displayed as labels on the relevant
objects, and you can make visibility cuts based on these attributes ("show me only the photons", or "omit any
volumes made of iron").
HepRApp can read heprep files in zipped format as well as unzipped, so you can save space by applying gzip to
the heprep file. This will reduce the file to about five percent of its original size.
Several commands are available to override some of HepRepFile's defaults
• You can specify a different directory for the heprep output files by using the setFileDir command, as in:
/vis/heprep/setFileDir <someOtherDir/someOtherSubDir>
• You can specify a different file name (the part before the number) by using the setFileName command, as in:
/vis/heprep/setFileName <my_file_name>
which will produce files named <my_file_name>0.heprep, <my_file_name>1.heprep, etc.
• You can specify that each file should overwrite the previous file (always rewriting to the same file name) by
using the setOverwrite command, as in:
/vis/heprep/setOverwrite true
This may be useful in some automated applications where you always want to see the latest output file in the
same location.
• Geant4 visualization supports a concept called "culling", by which certain parts of the detector can be made
invisible. Since you may want to control visibility from the HepRep browser, turning on visibility of detector
parts that had defaulted to be invisible, the HepRepFile driver does not omit these invisible detector parts from
the HepRep file. But for very large files, if you know that you will never want to make these parts visible, you
can choose to have them left entirely out of the file. Use the /vis/heprep/setCullInvisibles command, as in:
/vis/heprep/setCullInvisibles true
Further information:
• HepRApp Users Home Page: http://www.slac.stanford.edu/~perl/HepRApp/
• HepRep graphics format: http://www.slac.stanford.edu/~perl/heprep
• Geant4 Visualization Tutorial using the HepRApp HepRep Browser
http://geant4.slac.stanford.edu/Presentations/vis/G4HepRAppTutorial/G4HepRAppTutorial.html
![](asset-111.png)
Visualization
264
8.3.7. HepRepXML
The HepRepXML driver creates a HepRep file in the HepRep2 format suitable for viewing with the WIRED4
Plugin to the JAS3 Analysis System or the FRED event display.
This driver can write both Binary HepRep (.bheprep) and XML HepRep (.heprep) files. Binary HepRep files
are a one-to-one translation of XML HepRep files, but they are considerably shorter and faster to parse by a
HepRepViewer such as WIRED 4.
Both Binary HepRep and XML HepRep can be compressed using the standard zlib library if linked into Geant4
using G4LIB_USE_ZLIB. If a standard zlib is not available (WIN32-VC for instance) you should also set
G4LIB_BUILD_ZLIB to build G4zlib included with Geant4.
HepRep files (Binary and XML) can contain multiple HepRep events/geometries. If the file contains more than
one HepRep it is not strictly XML anymore. Files can be written in .heprep.zip, .heprep.gz or .heprep format and
their binary versions .bheprep.zip, .bheprep.gz or .bheprep.
The .heprep.zip is the default for file output, the .heprep is the default for stdout and stderr.
(Optional) To set the filename with a particular extension such as: .heprep.zip, .heprep.gz, .hep-
rep, .bheprep.zip, .bheprep.gz or .bheprep use for instance:
/vis/scene/create filename.bheprep.zip
(Optional) To create separate files for each event, you can set a suffix such as "-0001" to start writing files
from filename-0001.bheprep.zip to filename-9999.bheprep.zip (or up), while "-55-sub" will start write files file-
name-55-sub.bheprep.zip to filename-99-sub.bheprep.zip (or up).
/vis/heprep/setEventNumberSuffix -0001
(Note: suffix has to contain at least one digit)
(Optional) To route the HepRep XML output to stdout (or stderr), by default uncompressed, use:
/vis/scene/create stdout
(Optional) To add attributes to each point on a trajectory, use:
/vis/heprep/addPointAttributes 1
Be aware that this may increase the size of the output dramatically.
(Optional) You may use the commands:
/vis/viewer/zoom to set an initial zoom factor
/vis/viewer/set/viewpointThetaPhi to set an initial view point
/vis/heprep/setCoordinateSystem uvw to change the coordinate system, where uvw
can be "xyz", "zxy", ...
(Optional) You may decide to write .zip files with events and geometry separated (but linked). This results in a
smaller zip file, as the geometry is only written once. Use the command:
/vis/heprep/appendGeometry false
(Optional) To close the file, remove the SceneHandler, use:
![](asset-112.png)
Visualization
265
/vis/sceneHandler/remove scene-handler-0
Limitations: Only one SceneHandler can exist at any time, connected to a single Viewer. Since the HepRep format
is a model rather than a view this is not a real limitation. In WIRED 4 you can create as many views (SceneHan-
dlers) as you like.
Further information:
• WIRED4 Plugin to the JAS3 Analysis System
• FRED event display
• HepRep graphics format: http://www.slac.stanford.edu/~perl/heprep
8.3.8. DAWN
The DAWN drivers are interfaces to Fukui Renderer DAWN, which has been developed by Satoshi Tanaka,
Minato Kawaguti et al (Fukui University). It is a vectorized 3D PostScript processor, and so well suited to prepare
technical high quality outputs for presentation and/or documentation. It is also useful for precise debugging of
detector geometry. Remote visualization, off-line re-visualization, cut view, and many other useful functions of
detector simulation are supported. A DAWN process is automatically invoked as a co-process of Geant4 when
visualization is performed, and 3D data are passed with inter-process communication, via a file, or the TCP/IP
socket.
When Geant4 Visualization is performed with the DAWN driver, the visualized view is automatically saved to
a file named g4.eps in the current directory, which describes a vectorized (Encapsulated) PostScript data of
the view.
There are two kinds of DAWN drivers, the DAWNFILE driver and the DAWN-Network driver. The DAWNFILE
driver is usually recommended, since it is faster and safer in the sense that it is not affected by network conditions.
The DAWNFILE driver sends 3D data to DAWN via an intermediate file, named g4.prim in the current direc-
tory. The file g4.prim can be re-visualized later without the help of Geant4. This is done by invoking DAWN
by hand:
% dawn g4.prim
DAWN files can also serve as input to two additional programs:
• A standalone program, DAWNCUT, can perform a planar cut on a DAWN image. DAWNCUT takes as input
a .prim file and some cut parameters. Its output is a new .prim file to which the cut has been applied.
• Another standalone program, DAVID, can show you any volume overlap errors in your geometry. DAVID
takes as input a .prim file and outputs a new .prim file in which overlapping volumes have been highlighted.
The use of DAVID is described in section Section 4.1.11 of this manual.
The DAWN-Network driver is almost the same as the DAWNFILE driver except that
• 3D data are passed to DAWN via the TCP/IP the socket (default) or the named pipe, and that,
If you have not set up network configurations of your host machine, set the environment variable
G4DAWN_NAMED_PIPE to "1", e.g., % setenv G4DAWN_NAMED_PIPE 1. This setting switches the default
socket connection to the named-pipe connection within the same host machine. The DAWN-Network driver also
saves the 3D data to the file g4.prim in the current directory.
8.3.9. Remote Visualization with the DAWN-Network Driver
Visualization in Geant4 is considered to be "remote" when it is performed on a machine other than the Geant4
host. Some of the visualization drivers support this feature.
Usually, the visualization host is your local host, while the Geant4 host is a remote host where you log in, for
example, with the telnet command. This enables distributed processing of Geant4 visualization, avoiding the
transfer of large amounts of visualization data to your terminal display via the network. This section describes
![](asset-113.png)
Visualization
266
how to perform remote Geant4 visualization with the DAWN-Network driver. In order to do it, you must install
the Fukui Renderer DAWN on your local host beforehand.
The following steps realize remote Geant4 visualization viewed by DAWN.
1. Invoke DAWN with "-G" option on your local host:
Local_Host> dawn -G
This invokes DAWN with the network connection mode.
2. Login to the remote host where a Geant4 executable is placed.
3. Set an environment variable on the remote host as follows:
Remote_Host> setenv G4DAWN_HOST_NAME local_host_name
For example, if you are working in the local host named "arkoop.kek.jp", set this environment variable as
follows:
Remote_Host> setenv G4DAWN_HOST_NAME arkoop.kek.jp
This tells a Geant4 process running on the remote host where Geant4 Visualization should be performed, i.e.,
where the visualized views should be displayed.
4. Invoke a Geant4 process and perform visualization with the DAWN-Network driver. For example:
Idle> /vis/open DAWN
Idle> /vis/drawVolume
Idle> /vis/viewer/flush
In step 4, 3D scene data are sent from the remote host to the local host as DAWN-formatted data, and the local
DAWN will visualize the data. The transferred data are saved as a file named g4.prim in the current directory
of the local host.
Further information:
• http://geant4.kek.jp/GEANT4/vis/DAWN/About_DAWN.html
• http://geant4.kek.jp/GEANT4/vis/DAWN/G4PRIM_FORMAT_24/
Further information:
• Fukui Renderer DAWN: http://geant4.kek.jp/GEANT4/vis/DAWN/About_DAWN.html
• The DAWNFILE driver: http://geant4.kek.jp/GEANT4/vis/GEANT4/DAWNFILE_driver.html
• The DAWN-Network driver: http://geant4.kek.jp/GEANT4/vis/GEANT4/DAWNNET_driver.html
• Environmental variables to customize DAWN and DAWN drivers: http://geant4.kek.jp/GEANT4/vis/DAWN/
DAWN_ENV.html, http://geant4.kek.jp/GEANT4/vis/GEANT4/g4vis_on_linux.html
• DAWN format (g4.prim format) manual: http://geant4.kek.jp/GEANT4/vis/DAWN/G4PRIM_FORMAT_24/
• Geant4 Fukui University Group Home Page: http://geant4.kek.jp/GEANT4/vis/
• DAWNCUT: http://geant4.kek.jp/GEANT4/vis/DAWN/About_DAWNCUT.html
• DAVID: http://geant4.kek.jp/GEANT4/vis/DAWN/About_DAVID.html
• Geant4 Visualization Tutorial using the DAWN Renderer: http://geant4.slac.stanford.edu/Presentations/vis/
GDAWNTutorial/G4DAWNTutorial.html
8.3.10. VRML
These drivers were developed by Satoshi Tanaka and Yasuhide Sawada (Fukui University). They generate VRML
files, which describe 3D scenes to be visualized with a proper VRML viewer, at either a local or a remote host. It
realizes virtual-reality visualization with your WWW browser. There are many excellent VRML viewers, which
![](asset-114.png)
Visualization
267
enable one to perform interactive spinning of detectors, walking and/or flying inside detectors or particle showers,
interactive investigation of detailed detector geometry etc.
There are two kinds of VRML drivers: the VRMLFILE driver, and the VRML-Network driver. The VRMLFILE
driver is usually recommended, since it is faster and safer in the sense that it is not affected by network conditions.
The VRMLFILE driver sends 3D data to your VRML viewer, which is running on the same host machine as
Geant4, via an intermediate file named g4.wrl created in the current directory. This file can be re-visualization
afterwards. In visualization, the name of the VRML viewer should be specified by setting the environment variable
G4VRML_VIEWER beforehand. For example,
% setenv G4VRML_VIEWER "netscape"
Its default value is NONE, which means that no viewer is invoked and only the file g4.wrl is generated.
Remote Visualization with the VRML-Network Driver
Visualization in Geant4 is considered to be "remote" when it is performed on a machine other than the Geant4
host. Some of the visualization drivers support this feature.
Usually, the visualization host is your local host, while the Geant4 host is a remote host where you log in, for
example, with the telnet command. This enables distributed processing of Geant4 visualization, avoiding the
transfer of large amounts of visualization data to your terminal display via the network.
In order to perform remote visualization with the VRML-Network driver, the following must be installed on your
local host beforehand:
1. a VRML viewer
2. the Java application g4vrmlview.
The Java application g4vrmlview is included as part of the Geant4 package and is located at:
source/visualization/VRML/g4vrmlview/
Installation instructions for g4vrmlview can be found in the README file there, or on the WWW page below.
The following steps realize remote Geant4 visualization displayed with your local VRML browser:
1. Invoke the g4vrmlview on your local host, giving a VRML viewer name as its argument:
Local_Host> java g4vrmlview VRML_viewer_name
For example, if you want to use the Netscape browser as your VRML viewer, execute g4vrmlview as
follows:
Local_Host> java g4vrmlview netscape
Of course, the command path to the VRML viewer should be properly set.
2. Log in to the remote host where a Geant4 executable is placed.
3. Set an environment variable on the remote host as follows:
Remote_Host> setenv G4VRML_HOST_NAME local_host_name
For example, if you are working on the local host named "arkoop.kek.jp", set this environment variable as
follows:
![](asset-115.png)
Visualization
268
Remote_Host> setenv G4VRML_HOST_NAME arkoop.kek.jp
This tells a Geant4 process running on the remote host where Geant4 Visualization should be performed, i.e.,
where the visualized views should be displayed.
4. Invoke a Geant4 process and perform visualization with the VRML-Network driver. For example:
Idle> /vis/open VRML2
Idle> /vis/drawVolume
Idle> /vis/viewer/update
In step 4, 3D scene data are sent from the remote host to the local host as VRML-formatted data, and the VRML
viewer specified in step 3 is invoked by the g4vrmlview process to visualize the VRML data. The transferred
VRML data are saved as a file named g4.wrl in the current directory of the local host.
Further information:
• http://geant4.kek.jp/GEANT4/vis/GEANT4/VRML_net_driver.html
Further information (VRML drivers):
• http://geant4.kek.jp/GEANT4/vis/GEANT4/VRML_file_driver.html
• http://geant4.kek.jp/GEANT4/vis/GEANT4/VRML_net_driver.html
Sample VRML files:
• http://geant4.kek.jp/GEANT4/vis/GEANT4/VRML2_FIG/
Further information (VRML language and browsers):
• http://www.vrmlsite.com/
8.3.11. RayTracer
This driver was developed by Makoto Asai and Minamimoto (Hirosihma Instutute of Technology). It performs
ray-tracing visualization using the tracking routines of Geant4. It is, therefore, available for every kinds of shapes/
solids which Geant4 can handle. It is also utilized for debugging the user's geometry for the tracking routines of
Geant4. It is well suited for photo-realistic high quality output for presentation, and for intuitive debugging of
detector geometry. It produces a JPEG file. This driver is by default listed in the available visualization drivers
of user's application.
Some pieces of geometries may fail to show up in other visualization drivers (due to algorithms those drivers use
to compute visualizable shapes and polygons), but RayTracer can handle any geometry that the Geant4 navigator
can handle.
Because RayTracer in essence takes over Geant4's tracking routines for its own use, RayTracer cannot be used
to visualize Trajectories or hits.
An X-Window version, called RayTracerX, can be selected by setting GEANT4_USE_RAYTRACER_X11 (for
CMake) at Geant4 library build time and application (user code) build time (assuming you use the standard visu-
alization manager, G4VisExecutive, or an equally smart vis manager). RayTracerX builds the same jpeg file
as RayTracer, but simultaneously renders to screen so you can watch as rendering grows progressively smoother.
RayTracer has its own built-in commands - /vis/rayTracer/.... Alternatively, you can treat it as a normal
vis system and use /vis/viewer/... commands, e.g:
/vis/open RayTracerX
/vis/drawVolume
/vis/viewer/set/viewpointThetaPhi 30 30
/vis/viewer/refresh
![](asset-116.png)
Visualization
269
The view parameters are translated into the necessary RayTracer parameters.
RayTracer is compute intensive. If you are unsure of a good viewing angle or zoom factor, you might be advised
to choose them with a faster renderer, such as OpenGL, and transfer the view parameters with /vis/view-
er/copyViewFrom:
/vis/open OGL
/vis/drawVolume
/vis/viewer/zoom # plus any /vis/viewer/commands that get you the view you want.
/vis/open RayTracerX
/vis/viewer/copyViewFrom viewer-0
/vis/viewer/refresh
8.3.12. gMocren
The gMocrenFile driver creates a gdd file suitable for viewing with the gMocren volume visualizer. gMocren, a
sophisticated tool for rendering volume data, can show volume data such as Geant4 dose distrubutions overlaid
with scoring grids, trajectories and detector geometry. gMocren provides additional advanced functionality such
as transfer functions, colormap editing, image rotation, image scaling, and image clipping.
gMocren is further described at http://geant4.kek.jp/gMocren/ . At this link you will find the gMocren download,
the user manual, a tutorial and some example gdd data files.
Please note that the gMocren file driver is currently considered a Beta release. Users are encouraged to try this
driver, and feedback is welcome, but users should be aware that features of this driver may change in upcoming
releases.
To send volume data from Geant4 scoring to a gMocren file, the user needs to tell the gMocren driver the name
of the specific scoring volume that is to be displayed. For scoring done in C++, this is the name of the sensitive
volume. For command-based scoring, this is the name of the scoring mesh.
/vis/gMocren/setVolumeName <volume_name>
The following is an example of the minimum command sequence to send command-based scoring data to the a
gMocren file:
# an example of a command-based scoring definition
/score/create/boxMesh scoringMesh # name of the scoring mesh
/score/mesh/boxSize 10. 10. 10. cm # dimension of the scoring mesh
/score/mesh/nBin 10 10 10 # number of divisions of the scoring mesh
/score/quantity/energyDeposit eDep # quantity to be scored
/score/close
# configuration of the gMocren-file driver
/vis/scene/create
/vis/open gMocrenFile
/vis/gMocren/setVolumeName scoringMesh
To add detector geometry to this file:
/vis/viewer/flush
To add trajectories and primitive scorer hits to this file:
/vis/scene/add/trajectories
/vis/scene/add/pshits
/run/beamOn 1
gMocrenFile will write a file named G4_00.gd to the current directory. Subsequent draws will create files named
g4_01.gdd, g4_02.gdd, etc. An alternate output directory can be specified with an environment variable:
export G4GMocrenFile_DEST_DIR=<someOtherDir/someOtherSubDir/>
![](asset-117.png)
Visualization
270
View the resuling gMocren files with the gMocren viewer, available from: http://geant4.kek.jp/gMocren/ .
8.3.13. Wt (WARNING: this driver is experimental and
should be used with caution)
This driver has been developed by Laurent Garnier (IN2P3, LAL Orsay). It provide an interface to a geant4
application inside a Web browser. This driver also requires the Wt library and a Web browser with WebGL enable.
See if your Web browser support WebGL on Wikipedia#WebGL#Support
The Wt driver is well suited for real-time fast visualization and demonstration. Available as experimental in
Geant4.10 version, all OpenGL features are not implemented but basics interactions as mouse control of rota-
tion/translation/zoom are present.
Wt driver rely on WebGL, it aims to render the same way as Qt, but inside a Web browser. The use of WebGL
(instead of OpenGL for Qt), allow it to be available wherever a Web browser with WebGL is activate.
Sources files:
See CMake configuration in order to compile Geant4 with Wt support.
As a Geant4 with Wt driver application will be available inside a Web browser, your need at first to launch a web
server in order to be able to see the web page. Hopefully, Wt came with its own web server included. This web
server will be multi-user, that means that you could have many users using your application from everywhere. As
the support for Wt driver is experimental, the multi-user aspect is not well manage. In Geant4.10, many users will
have access at the same Run manager at the same time and evn to the files and datas, this could cause some troubles.
As a Geant4 application using Wt driver is a client/server application, the way to build the main function is a
bit different.
Example 8.4. The typical main() routine available for visualization with Wt driver.
//----- C++ source codes: main() function for visualization
#ifdef G4VIS_USE
#include "G4VisExecutive.hh"
#endif
// Wt includes
#if defined(G4UI_USE_WT)
#include <Wt/WApplication>
#include <Wt/WEnvironment>
#include <Wt/WServer>
// Main Wt driver function. It will be call once by user launching the application
// Inside this function, you have to put all your Geant4 initialisation
// (as in main() function on other graphic drivers)
Wt::WApplication *createApplication(const Wt::WEnvironment& env)
{
// Create a new instance of Wt::Application
Wt::WApplication* myApp = new Wt::WApplication(env);
// Set title and styleSheet
wApp->setTitle( "Geant4 on the web" );
wApp->useStyleSheet("extkitchen.css");
// Get the pointer to the User Interface manager
G4UImanager* UImanager = G4UImanager::GetUIpointer();
char* name = "ExampleN03 \0";
G4UIExecutive* ui = new G4UIExecutive(1,&name, "Wt");
// Start the session
ui->SessionStart();
delete ui;
![](asset-118.png)
Visualization
271
return myApp;
}
#endif
int main(int argc,char** argv) {
.....
// Instantiation and initialization of the Visualization Manager
#ifdef G4VIS_USE
// visualization manager
G4VisManager* visManager = new G4VisExecutive;
// G4VisExecutive can take a verbosity argument - see /vis/verbose guidance.
// G4VisManager* visManager = new G4VisExecutive("Quiet");
visManager->Initialize();
#endif
.....
// replace the "normal" user interface by the Web server
#ifndef G4UI_USE_WT
// Get the pointer to the User Interface manager
G4UImanager* UImanager = G4UImanager::GetUIpointer();
#else
try {
// Create a Wt::WServer
Wt::WServer server(argv[0]);
server.setServerConfiguration(argc, argv, WTHTTP_CONFIGURATION);
server.addEntryPoint(Wt::Application, createApplication);
// Run it !
if (server.start()) {
int sig = Wt::WServer::waitForShutdown();
server.stop();
}
} catch (Wt::WServer::Exception& e) {
std::cerr << e.what() << "\n";
return 1;
} catch (std::exception& e) {
std::cerr << "exception: " << e.what() << "\n";
return 1;
}
// Wait for clients
Wt::WRun(argc, argv, &createApplication);
// Job termination
#ifdef G4VIS_USE
delete visManager;
#endif
.....
#endif
return 0;
}
//----- end of C++
This driver will display the UI and vis window inside a Web browser page. As with Qt driver, you can have as
many tabs with viewer you want. To see the visualization window :
/vis/open OGL
other parameters as OGLI, OGLS, OGLIWt, OGLSWt will have all the same effect
Execution of the server: As your application will contain a web server, you will have to launch the web server
first and set some specific arguments for internet :
•docroot: document root for static files as css, images...
![](asset-119.png)
Visualization
272
•http-address: The address where this application will be deploy. (eg:0.0.0.0)
•http-port: HTTP port (e.g. 80)
More informations on Wt web site The command line for launching your application will be the following :
myExample --docroot "where your ressources are" --http-address 0.0.0.0 --http-port 8080
Execution of a client: All clients can reach your application server at the following address :
http://0.0.0.0:8080 (for users on the same computer as the server)
http://Your.Server.Ip:8080 (for external users)
If this address is unreachable, check if the specify port is not already in use and is fully open.
Further information (Wt):
• Wt
8.3.14. Visualization of detector geometry tree
ASCIITREE is a visualization driver that is not actually graphical but that dumps the volume hierarchy as a simple
text tree.
Each call to /vis/viewer/flush or /vis/drawTree will dump the tree.
ASCIITree has command to control its verbosity, /vis/ASCIITree/verbose. The verbosity value controls
the amount of information available, e.g., physical volume name alone, or also logical volume and solid names.
If the volume is "sensitive" and/or has a "readout geometry", this may also be indicated. Also, the mass of the
physical volume tree(s) can be printed (but beware - higher verbosity levels can be computationally intensive).
At verbosity level 4, ASCIITree calculates the mass of the complete geometry tree taking into account daughters
up to the depth specified for each physical volume. The calculation involves subtracting the mass of that part of the
mother that is occupied by each daughter and then adding the mass of the daughter, and so on down the hierarchy.
/vis/ASCIITree/Verbose 4
/vis/viewer/flush
"HadCalorimeterPhysical":0 / "HadCalorimeterLogical" / "HadCalorimeterBox"(G4Box),
1.8 m3 , 11.35 g/cm3
"HadCalColumnPhysical":-1 (10 replicas) / "HadCalColumnLogical" / "HadCalColumnBox"(G4Box),
180000 cm3, 11.35 g/cm3
"HadCalCellPhysical":-1 (2 replicas) / "HadCalCellLogical" / "HadCalCellBox"(G4Box),
90000 cm3, 11.35 g/cm3
"HadCalLayerPhysical":-1 (20 replicas) / "HadCalLayerLogical" / "HadCalLayerBox"(G4Box),
4500 cm3, 11.35 g/cm3
"HadCalScintiPhysical":0 / "HadCalScintiLogical" / "HadCalScintiBox"(G4Box),
900 cm3, 1.032 g/cm3
Calculating mass(es)...
Overall volume of "worldPhysical":0, is 2400 m3
Mass of tree to unlimited depth is 22260.5 kg
Some more examples of ASCIITree in action:
Idle> /vis/ASCIITree/verbose 1
Idle> /vis/drawTree
# Set verbosity with "/vis/ASCIITree/verbose "
# < 10: - does not print daughters of repeated placements, does not repeat replicas.
# >= 10: prints all physical volumes.
# The level of detail is given by verbosity%10:
# for each volume:
# >= 0: physical volume name.
# >= 1: logical volume name (and names of sensitive detector and readout geometry, if any).
# >= 2: solid name and type.
# >= 3: volume and density.
![](asset-11a.png)
Visualization
273
# >= 5: daughter-subtracted volume and mass.
# and in the summary at the end of printing:
# >= 4: daughter-included mass of top physical volume(s) in scene to depth specified.
.....
"Calorimeter", copy no. 0, belongs to logical volume "Calorimeter"
"Layer", copy no. -1, belongs to logical volume "Layer" (10 replicas)
"Absorber", copy no. 0, belongs to logical volume "Absorber"
"Gap", copy no. 0, belongs to logical volume "Gap"
.....
Idle> /vis/ASCIITree/verbose 15
Idle> /vis/drawTree
....
"tube_phys":0 / "tube_L" / "tube"(G4Tubs), 395841 cm3, 1.782 mg/cm3,
9.6539e-08 mm3, 1.72032e-10 mg
"divided_tube_phys":0 / "divided_tube_L" / "divided_tube"(G4Tubs), 65973.4 cm3,
1.782 mg/cm3, 7587.54 cm3, 13.521 g
"divided_tube_inset_phys":0 / "divided_tube_inset_L" / "divided_tube_inset"(G4Tubs),
58385.9 cm3, 1.782 mg/cm3, 6.03369e-09 mm3, 1.0752e-11 mg
"sub_divided_tube_phys":0 / "sub_divided_tube_L" / "sub_divided_tube"(G4Tubs),
14596.5 cm3, 1.782 mg/cm3, 12196.5 cm3, 21.7341 g
.....
Calculating mass(es)...
Overall volume of "expHall_P":0, is 8000 m3 and the daughter-included mass to unlimited depth
is 78414 kg
.....
For the complete list of commands and options, see the Control...UICommands section of this user guide.
8.3.15. GAG Tree
The GAGTree driver provides a listing of the detector geometry tree within GAG, the Geant Adaptive GUI,
from the environments/MOMO/MOMO.jar file present under the Geant4 source distribution. GAG allows
"folding/un-folding" a part of the geometry tree, using the Tree Widget in Java:
8.3.16. XML Tree
The XML description of the geometry tree can be created in Geant4 by the XML Tree driver. The XML source
can also be edited on the fly. The created XML files are visualizable with any XML browser (in Windows, a good
XML viewer is XML Notepad).
• Folding and un-folding:
![](asset-11b.png)
Visualization
274
• Searching a string:
![](asset-11c.png)
Visualization
275
8.4. Controlling Visualization from Commands
This section describes just a few of the more commonly used visualization commands. For the complete list of
commands and options, see the Control...UICommands section of this user guide.
For simplicity, this section assumes that the Geant4 executable was compiled incorporating the DAWNFILE and
the OpenGL-Xlib drivers. For details on creating an executable for visualization see Section 8.2.
NOTA BENE: THIS SECTION IS NOT A COMPLETE DESCRIPTION OF ALL VISUALISATION COM-
MANDS; THEY ARE TOO NUMEROUS AND CONTINUALLY EVOLVING. PLEASE REFER TO THE
COMMAND GUIDANCE, Control...UICommands OR SIMPLY TYPE "ls vis" OR "help". SOME VIEWERS,
NOTABLE Qt, OFFER INTERACTIVE GUIDANCE UNDER THE "Help" MENU."
8.4.1. Scene, scene handler, and viewer
In using the visualization commands, it is useful to know the concept of "scene", "scene handler", and "viewer".
A "scene" is a set of visualizable raw 3D data. A "scene handler" is a graphics-data modeler, which processes
raw data in a scene for later visualization. And a "viewer" generates images based on data processed by a scene
handler. Roughly speaking, a set of a scene handler and a viewer corresponds to a visualization driver.
The steps of performing Geant4 visualization are explained below, though some of these steps may be done for you
so that in practice you may use as few as just two commands (such as /vis/open OGLIX plus /vis/drawVolume).
The seven steps of visualization are:
Step Command Alternative command
/vis/sceneHandler/create1 Create a scene handler and
a viewer /vis/viewer/create
/vis/open
2 Create an empty scene /vis/scene/create
3 Add raw 3D data to the cre-
ated scene /vis/scene/add/volume
4 Attach the current scene to
the current scene handler /vis/sceneHandler/attach
/vis/drawVolume
5 Set camera parameters,
drawing style (wire-
frame/surface), etc
E.g., /vis/viewer/set/view-
point
6 Make the viewer execute
visualization /vis/viewer/refresh
7 Declare the end of visual-
ization for flushing /vis/viewer/flush
Table 8.2.
For details about the commands, see below.
These seven steps can be controlled explicitly to create multiple scenes and multiple viewers, each with its own
set of parameters, with easy switching from one scene to another. But for the most common case of just having
one scene and one viewer, many steps are handled implicitly for you.
8.4.2. Create a scene handler and a viewer: /vis/open
command
Command "/vis/open" creates a scene handler and a viewer, which corresponds to Step 1.
Command: /vis/open [driver_tag_name]
•Argument
![](asset-11d.png)
Visualization
276
A name of (a mode of) an available visualization driver.
•Action
Create a visualization driver, i.e. a set of a scene hander and a viewer.
•Example: Create an OpenGL generic driver with its immediate mode
Idle> /vis/open OGLI
•Additional notes
For immediate viewers, such as OGLI, your geometry will immediately be rendered in the new GL window
How to list available driver_tag_name:
Idle> help /vis/open
or
Idle> help /vis/sceneHandler/create
The list is, for example, displayed as follows:
.....
Candidates : DAWNFILE OGL
.....
For additional options, see the Control...UICommands section of this user guide.
8.4.3. Create an empty scene: /vis/scene/create com-
mand
Command "/vis/scene/create" creates an empty scene, which corresponds to Step 2.
Command: /vis/scene/create [scene_name]
•Argument
A name for this scene. Created for you if you don't specify one.
8.4.4. Visualization of a physical volume: /vis/drawVol-
ume command
Command "/vis/drawVolume" adds a physical volume to the scene. It also does some of the other steps, if
you haven't done them explicitly. It takes care of steps 2, 3, 4 and 6. Command "/vis/viewer/flush" should
follow in order to do the final Step 7.
Commands:
/vis/drawVolume [physical-volume-name]
.....
Idle> /vis/viewer/flush
•Argument
A physical-volume name. The default value is "world", which is omittable.
•Action
Creates a scene consisting of the given physical volume and asks the current viewer to draw it. The scene
becomes current. Command "/vis/viewer/flush" should follow this command in order to declare end
of visualization.
![](asset-11e.png)
Visualization
277
•Example: Visualization of the whole world with coordinate axes
Idle> /vis/drawVolume
Idle> /vis/scene/add/axes 0 0 0 500 mm
Idle> /vis/viewer/flush
8.4.5. Visualization of a logical volume: /vis/specify
command
Command "/vis/specify" visualizes a logical volume. If allows you to control how much details is shown
and whether to show booleans, voxels and readout geometries. It also does some of the other steps, if you haven't
done them explicitly. It takes care of steps 2, 3, 4 and 6. Command "/vis/viewer/flush" should follow the
command in order to do the final Step 7.
Command: /vis/specify [logical-volume-name][depth-of-descent] [booleans-
flag] [voxels-flag] [readout-flag]
•Argument
A logical-volume name.
•Action
Creates a scene consisting of the given logical volume and asks the current viewer to draw it. The scene becomes
current.
•Example (visualization of a selected logical volume with coordinate axes)
Idle> /vis/specify Absorber
Idle> /vis/scene/add/axes 0 0 0 500 mm
Idle> /vis/scene/add/text 0 0 0 mm 40 -100 -200 LogVol:Absorber
Idle> /vis/viewer/flush
For more options, see the Control...UICommands section of this user guide.
8.4.6. Visualization of trajectories: /vis/scene/add/tra-
jectories command
Command "/vis/scene/add/trajectories [smooth] [rich]" adds trajectories to the current
scene. The optional parameters "smooth" and/or "rich" (you may specify either, both or neither) invoke, if "smooth"
is specified, the storing and displaying of extra points on curved trajectories and, if "rich" is specified, the storing,
for possible subsequent selection and display, of additional information, such as volume names, creator process,
energy deposited, global time. Be aware, of course, that this imposes computational and memory overheads. Note
that this automatically issues the appropriate "/tracking/storeTrajectory" command so that trajectories
are stored (by default they are not). The visualization is performed with the command "/run/beamOn" unless
you have non-default values for /vis/scene/endOfEventAction or /vis/scene/endOfRunAction (described below).
Command: /vis/scene/add/trajectories [smooth] [rich]
•Action
The command adds trajectories to the current scene. Trajectories are drawn at end of event when the scene in
which they are added is current.
•Example: Visualization of trajectories
Idle> /vis/scene/add/trajectories
Idle> /run/beamOn 10
![](asset-11f.png)
Visualization
278
•Additional note 1
See the section Section 8.7.3 Enhanced Trajectory Drawing for details on how to control how trajectories are
color-coded.
•Additional note 2
Events may be kept and reviewed at end of run with
Idle> /vis/reviewKeptEvents
Keep all events with
Idle> /vis/scene/endOfEventAction accumulate [maxNumber]
(see Section 8.4.12)
or keep some chosen subset with
G4EventManager::GetEventManager()->KeepTheCurrentEvent();
as described in Example 6.8.
To suppress drawing during a run
Idle> /vis/disable
Idle> /run/beamOn 10000
then at end of run
Idle> /vis/enable
Idle> /vis/reviewKeptEvents
•Additional note 3
Visualising events as they are being generated inevitably slows the simulation. Visualisation can be suspend-
ed with /vis/disable as suggested above. You may also switch off trajectory production with /track-
ing/storeTrajectory 0. When using OpenGL, the following can help:
Idle> /vis/ogl/flushAt [ endOfEvent endOfRun eachPrimitive NthPrimitive NthEvent never ]
By default, this value is set to /vis/ogl/flushAt NthEvent 100
For more options, see the Control...UICommands section of this user guide.
8.4.7. Visualization of hits: /vis/scene/add/hits com-
mand
Command "/vis/scene/add/hits" adds hits to the current scene, assuming that you have a hit class and
that the hits have visualization information. The visualization is performed with the command "/run/beamOn"
unless you have non-default values for /vis/scene/endOfEventAction or /vis/scene/endOfRunAction (described
above).
8.4.8. Visualization of Scored Data
Scored data can be visualized using the commands "/score/drawProjection" and "/score/drawCol-
umn". For details, see examples/extended/runAndEvent/RE03.
![](asset-120.png)
Visualization
279
8.4.9. HepRep Attributes for Hits
The HepRep file formats, HepRepFile and HepRepXML, attach various attributes to hits such that you can view
these attributes, label trajectories by these attributes or make visibility cuts based on these attributes. Examples of
adding HepRep attributes to hit classes can be found in examples /extended/analysis/A01 and /extended/runAn-
dEvent/RE01.
For example, in example RE01's class RE01CalorimeterHit.cc, available attributes will be:
• Hit Type
• Track ID
• Z Cell ID
• Phi Cell ID
• Energy Deposited
• Energy Deposited by Track
• Position
• Logical Volume
You can add additional attributes of your choosing by modifying the relevant part of the hit class (look for the
methods GetAttDefs and CreateAttValues).
8.4.10. Basic camera workings: /vis/viewer/ commands
Commands in the command directory "/vis/viewer/" set camera parameters and drawing style of the current
viewer, which corresponds to Step 5. Note that the camera parameters and the drawing style should be set separately
for each viewer. They can be initialized to the default values with command "/vis/viewer/reset". Some
visualization systems, such as the VRML and HepRep browsers also allow camera control from the standalone
graphics application.
Just a few of the camera commands are described here. For more commands, see the Control...UICommands
section of this user guide.
The view is defined by a target point (initially at the centre of the extent of all objects in the scene), an up-vector
and a viewpoint direction - see Figure 8.1. By default, the up-Vector is parallel to the y-axis and the viewpoint
direction is parallel to the z-axis, so the the view shows the x-axis to the right and the y-axis upwards - a projection
on to the canonical x-y plane - see Figure 8.2.
The target point can be changed with a /vis/viewer/set command or with the /vis/viewer/pan com-
mands. The up-vector and the viewpoint direction can also be changed with /vis/viewer/set commands.
Care must be taken to avoid having the two vectors parallel, for in that case the view is undefined.

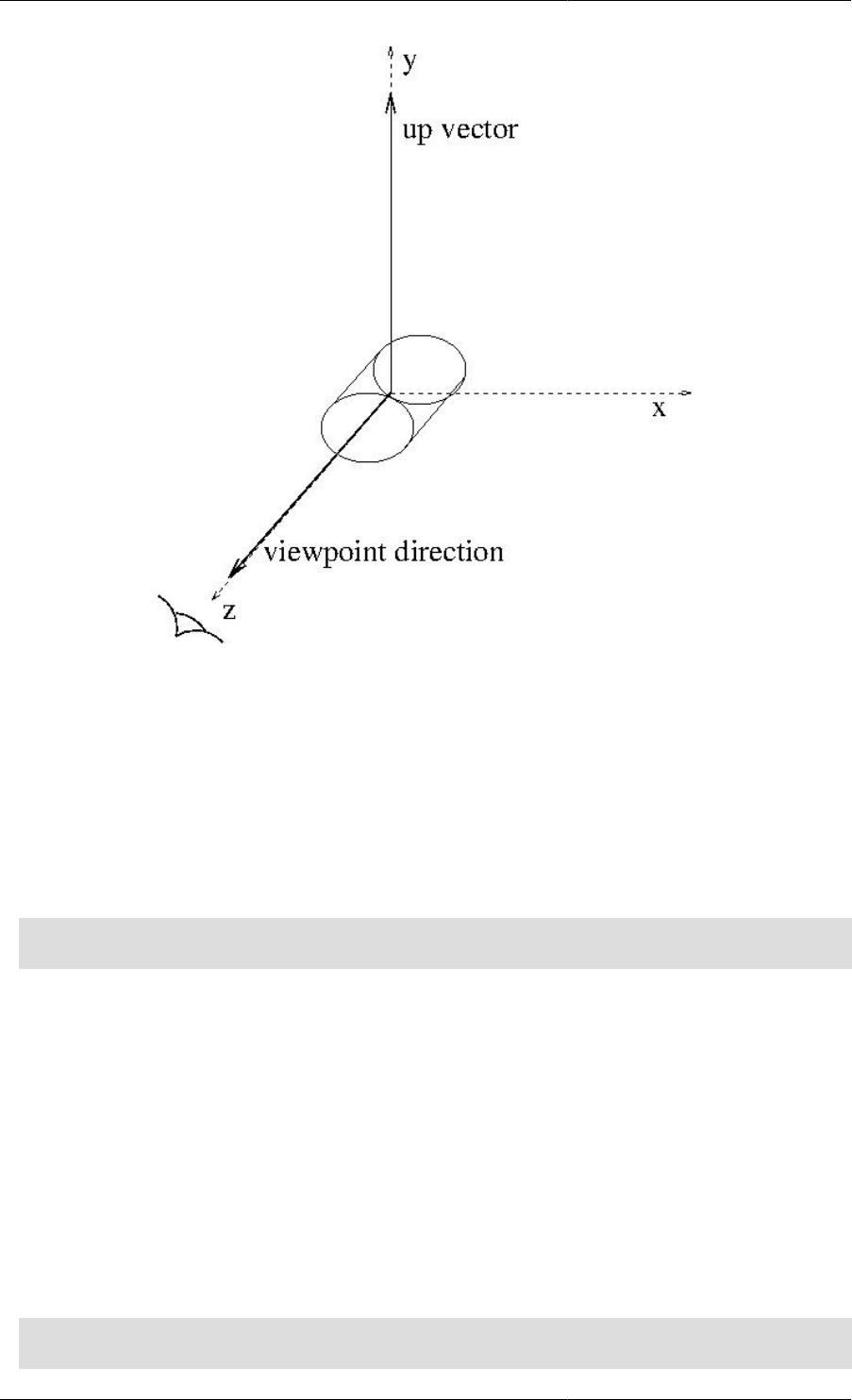

Figure 8.1. Up-vector and viewpoint direction
![](asset-121.png)
Visualization
280
Figure 8.2. The default view
Command: /vis/viewer/set/viewpointThetaPhi [theta] [phi] [deg|rad]
•Arguments
Arguments "theta" and "phi" are polar and azimuthal camera angles, respectively. The default unit is "degree".
•Action
Set a view point in direction of (theta, phi).
•Example: Set the viewpoint in direction of (70 deg, 20 deg) /
Idle> /vis/viewer/set/viewpointThetaPhi 70 20
•Additional notes
Camera parameters should be set for each viewer. They are initialized with command "/vis/viewer/re-
set". Alternatively, they can be copied from another viewer with the command "/vis/viewer/copy-
ViewFrom viewer-0", for example.
Command: /vis/viewer/zoom [scale_factor]
•Argument
The scale factor. The command multiplies magnification of the view by this factor.
•Action
Zoom up/down of view.
•Example: Zoom up by factor 1.5
Idle> /vis/viewer/zoom 1.5
![](asset-122.png)
Visualization
281
•Additional notes
A similar pair of commands, scale and scaleTo allow non-uniform scaling (i.e., zoom differently along different
axes). For details of this and lots of other commands, see the Control...UICommands section of this user guide.
Some viewers have limits to how large the zoom factor can be. This problem can be circumnavigated to some
degree by using zoom and scale together. If
Idle> /vis/viewer/zoomTo 1e10
does not work, please try
Idle> /vis/viewer/scaleTo 1e5 1e5 1e5
Idle> /vis/viewer/zoomTo 1e5
Of course, with such high zoom factors, you might want to know whither you are zooming. Use "/vis/
viewer/set/targetPoint"
Camera parameters should be set for each viewer. They are initialized with command "/vis/viewer/re-
set". Alternatively, they can be copied from another viewer with the command "/vis/viewer/copy-
ViewFrom viewer-0", for example.
Command: /vis/viewer/set/style [style_name]
•Arguments
Candidate values of the argument are "wireframe" and "surface". ("w" and "s" also work.)
•Action
Set a drawing style to wireframe or surface.
•Example: Set the drawing style to "surface"
Idle> /vis/viewer/set/style surface
•Additional notes
The style of some geometry components may have been forced one way or the other through calls in compiled
code. The set/style command will NOT override such force styles.
Drawing style should be set for each viewer. The drawing style is initialized with command "/vis/view-
er/reset". Alternatively, it can be copied from another viewer with the command "/vis/viewer/set/
all viewer-0", for example.
8.4.11. Declare the end of visualization for flushing: /vis/
viewer/flush command
Command: /vis/viewer/flush
•Action
Declare the end of visualization for flushing.
•Additional notes
Command "/vis/viewer/flush" should follow "/vis/drawVolume", "/vis/specify", etc in or-
der to complete visualization. It corresponds to Step 7.
The flush is done automatically after every /run/beamOn command unless you have non-default values for /vis/
scene/endOfEventAction or /vis/scene/endOfRunAction (described above).
![](asset-123.png)
Visualization
282
8.4.12. End of Event Action and End of Run Action: /vis/
viewer/endOfEventAction and /vis/viewer/end-
OfRunAction commands
By default, a separate picture is created for each event. You can change this behavior to accumulate multiple
events, or even multiple runs, in a single picture.
Command: /vis/scene/endOfEventAction [refresh|accumulate]
•Action
Control how often the picture should be cleared. refresh means each event will be written to a new picture.
accumulate means events will be accumulated into a single picture. Picture will be flushed at end of run,
unless you have also set /vis/scene/endOfRunAction accumulate
•Additional note
You may instead choose to use update commands from your BeginOfRunAction or EndOfEventAction, as in
early examples, but now the vis manager ia able to do most of what most users require through the above
commands.
Command: /vis/scene/endOfRunAction [refresh|accumulate]
•Action
Control how often the picture should be cleared. refresh means each run will be written to a new picture.
accumulate means runs will be accumulated into a single picture. To start a new picture, you must explicitly
issue /vis/viewer/refresh, /vis/viewer/update or /vis/viewer/flush
8.4.13. HepRep Attributes for Trajectories
The HepRep file formats, HepRepFile and HepRepXML, attach various attributes to trajectories such that you can
view these attributes, label trajectories by these attributes or make visibility cuts based on these attributes. If you
use the default Geant4 trajectory class from /tracking/src/G4Trajectory.cc (this is what you get with the plain /
vis/scene/add/trajectories command), available attributes will be:
• Track ID
• Parent ID
• Particle Name
• Charge
• PDG Encoding
• Momentum 3-Vector
• Momentum magnitude
• Number of points
Using /vis/scene/add/trajectories rich will get you additional attributes. You may also add addi-
tional attributes of your choosing by modifying the relevant part of G4Trajectory (look for the methods GetAttDefs
and CreateAttValues). If you are using your own trajectory class, you may want to consider copying these methods
from G4Trajectory.
8.4.14. How to save a view.
/vis/viewer/save
This will save to a file that can be read in again with
/control/execute
![](asset-124.png)
Visualization
283
If you save several views you may "fly through" them with
/vis/viewer/interpolate
See "Making a Movie" Section 8.10.
(Use the Geant4 "help" command to see details.)
8.4.15. How to save a view to an image file
Most of the visualization drivers offer ways to save visualized views to PostScript (PS) or Encapsulated PostScript
(EPS). Some, in addition, offer Portable Document Format (PDF). OpenGL offers a big range of formats - see
below.
•DAWNFILE
The DAWNFILE driver, which co-works with Fukui Renderer DAWN, generates "vectorized" PostScript da-
ta with "analytical hidden-line/surface removal", and so it is well suited for technical high-quality outputs for
presentation, documentation, and debugging geometry. In the default setting of the DAWNFILE drivers, EPS
files named "g4_00.eps, g4_01.eps, g4_02.eps,..." are automatically generated in the current di-
rectory each time when visualization is performed, and then a PostScript viewer "gv"is automatically invoked
to visualize the generated EPS files.
For large data sets, it may take time to generate the vectorized PostScript data. In such a case, visualize the 3D
scene with a faster visualization driver beforehand for previewing, and then use the DAWNFILE drivers. For
example, the following visualizes the whole detector with the OpenGL-Xlib driver (immediate mode) first, and
then with the DAWNFILE driver to generate an EPS file g4_XX.eps to save the visualized view:
# Invoke the OpenGL visualization driver in its immediate mode
/vis/open OGLIX
# Camera setting
/vis/viewer/set/viewpointThetaPhi 20 20
# Camera setting
/vis/drawVolume
/vis/viewer/flush
# Invoke the DAWNFILE visualization driver
/vis/open DAWNFILE
# Camera setting
/vis/viewer/set/viewpointThetaPhi 20 20
# Camera setting
/vis/drawVolume
/vis/viewer/flush
This is a good example to show that the visualization drivers are complementary to each other.
•OpenInventor
In the OpenInventor drivers, you can simply click the "Print" button on their GUI to generate a PostScript file
as a hard copy of a visualized view.
•OpenGL
The OpenGL drivers can also generate image files, either from a pull-down menu (Motif and Qt drivers) or
with /vis/ogl/export. Available formats are: eps ps pdf svg bmp cur dds icns ico jp2 jpeg jpg pbm pgm
png ppm tif tiff wbmp webp xbm xpm. The default is pdf. It can generate either vector or bitmap PostScript
data with /vis/ogl/set/printMode ("vectored" or "pixmap"). You can change the filename by /vis/
ogl/set/printFilename And the print size by /vis/ogl/set/printSize In generating vectorized
PostScript data, hidden-surface removal is performed based on the painter's algorithm after dividing facets of
shapes into small sub-triangles.
![](asset-125.png)
Visualization
284
Note that a fundamental limitation of the gl2ps library used for this printing causes the /vis/viewer/set/
hiddenMarker command to be ignored. Trajectories will always be fully drawn in the printEPS output even
when the hiddenMarker hidden line removal option has been set to hide these trajectories in the corresponding
OpenGL view.
The /vis/ogl/set/printSize command can be used to print EPS files even larger than the current
screen resolution. This can allow creation of very large images, suitable for creation of posters, etc. The only
size limitation is the graphics card's viewport dimension: GL_MAX_VIEWPORT_DIMS
# Invoke the OpenGL visualization driver in its stored mode
/vis/open OGLSX
# Camera setting
/vis/viewer/set/viewpointThetaPhi 20 20
# Camera setting
/vis/drawVolume
/vis/viewer/flush
# set print mode to vectored
#/vis/ogl/set/printMode vectored
# set print size larger than screen
/vis/ogl/set/printSize 2000 2000
# print
/vis/ogl/export
•HepRep
The HepRApp HepRep Browser and WIRED4 JAS Plug-In can generate a wide variety of bitmap and vector
output formats including PostScript and PDF.
8.4.16. Culling
"Culling" means to skip visualizing parts of a 3D scene. Culling is useful for avoiding complexity of visualized
views, keeping transparent features of the 3D scene, and for quick visualization.
Geant4 Visualization supports the following 3 kinds of culling:
• Culling of invisible physical volumes
• Culling of low density physical volumes.
• Culling of covered physical volumes by others
In order that one or all types of the above culling are on, i.e., activated, the global culling flag should also be on.
Table 8.3 summarizes the default culling policies.
Culling Type Default Value
global ON
invisible ON
low density OFF
covered daughter OFF
Table 8.3. The default culling policies.
The default threshold density of the low-density culling is 0.01 g/cm3.
The default culling policies can be modified with the following visualization commands. (Below the argument
flag takes a value of true or false.)
# global
![](asset-126.png)
Visualization
285
/vis/viewer/set/culling global flag
# invisible
/vis/viewer/set/culling invisible flag
# low density
# "value" is a proper value of a treshold density
# "unit" is either g/cm3, mg/cm3 or kg/m3
/vis/viewer/set/culling density flag value unit
# covered daughter
/vis/viewer/set/culling coveredDaughters flag density
The HepRepFile graphic system will, by default, include culled objects in the file so that they can still be made
visible later from controls in the HepRep browser. If this behavior would cause files to be too large, you can instead
choose to have culled objects be omitted from the HepRep file. See details in the HepRepFile Driver section of
this user guide.
8.4.17. Cut view
Sectioning
"Sectioning" means to make a thin slice of a 3D scene around a given plane. At present, this function is supported
by the OpenGL drivers. The sectioning is realized by setting a sectioning plane before performing visualization.
The sectioning plane can be set by the command,
/vis/viewer/set/sectionPlane on x y z units nx ny nz
where the vector (x,y,z) defines a point on the sectioning plane, and the vector (nx,ny,nz) defines the normal vector
of the sectioning plane. For example, the following sets a sectioning plane to a yz plane at x = 2 cm:
Idle> /vis/viewer/set/sectionPlane on 2.0 0.0 0.0 cm 1.0 0.0 0.0
Cutting away
"Cutting away" means to remove a half space, defined with a plane, from a 3D scene.
• Cutting away is supported by the DAWNFILE driver "off-line". Do the following:
• Perform visualization with the DAWNFILE driver to generate a file g4.prim, describing the whole 3D
scene.
• Make the application "DAWNCUT" read the generated file to make a view of cutting away.
See the following WWW page for details: http://geant4.kek.jp/GEANT4/vis/DAWN/About_DAWNCUT.html
• Alternatively, add up to three cutaway planes:
/vis/viewer/addCutawayPlane 0 0 0 m 1 0 0
/vis/viewer/addCutawayPlane 0 0 0 m 0 1 0
...
and, for more that one plane, you can change the mode to
• (a) "add" or, equivalently, "union" (default) or
• (b) "multiply" or, equivalently, "intersection":
/vis/viewer/set/cutawayMode multiply
To de-activate:
/vis/viewer/clearCutawayPlanes
OpenGL supports this feature.
![](asset-127.png)
Visualization
286
8.4.18. Multithreading commands
Multithreading
Visualising events inevitably slows things down. With multithreading this effect is all the greater. See Sec-
tion 8.4.6, Additional Note 3, for some advice. If you wish to continue visualising, multithreading mode offers
the following fine tuning.
Since Geant4 version 10.2, in multithreading mode, events generated by worker threads are put in a queue and
extracted by a special visualisation thread. If the queue gets full, workers are suspended until the visualisation
thread catches up. To mitigate or avoid this try using
/vis/multithreading/maxEventQueueSize <N>
/vis/multithreading/actionOnEventQueueFull <wait|discard>
(See command guidance for details.)
8.5. Controlling Visualization from Compiled Code
While a Geant4 simulation is running, visualization can be performed without user intervention. This is
accomplished by calling methods of the Visualization Manager from methods of the user action class-
es (G4UserRunAction and G4UserEventAction, for example). In this section methods of the class
G4VVisManager, which is part of the graphics_reps category, are described and examples of their use
are given.
8.5.1. G4VVisManager
The Visualization Manager is implemented by classes G4VisManager and G4VisExecutive. See Section 8.2
"Making a Visualization Executable". In order that your Geant4 be compilable either with or without the visu-
alization category, you should not use these classes directly in your C++ source code, other than in the main()
function. Instead, you should use their abstract base class G4VVisManager, defined in the intercoms cate-
gory.
The pointer to the concrete instance of the real Visualization Manager can be obtained as follows:
//----- Getting a pointer to the concrete Visualization Manager instance
G4VVisManager* pVVisManager = G4VVisManager::GetConcreteInstance();
The method G4VVisManager::GetConcreteInstance() returns NULL if Geant4 is not ready for visu-
alization. Thus your C++ source code should be protected as follows:
//----- How to protect your C++ source codes in visualization
if (pVVisManager) {
....
pVVisManager ->Draw (...);
....
}
8.5.2. Visualization of detector components
If you have already constructed detector components with logical volumes to which visualization attributes are
properly assigned, you are almost ready for visualizing detector components. All you have to do is to describe
proper visualization commands within your C++ codes, using the ApplyCommand() method.
For example, the following is sample C++ source codes to visualize the detector components:
//----- C++ source code: How to visualize detector components (2)
![](asset-128.png)
Visualization
287
// ... using visualization commands in source codes
G4VVisManager* pVVisManager = G4VVisManager::GetConcreteInstance() ;
if(pVVisManager)
{
... (camera setting etc) ...
G4UImanager::GetUIpointer()->ApplyCommand("/vis/drawVolume");
G4UImanager::GetUIpointer()->ApplyCommand("/vis/viewer/flush");
}
//----- end of C++ source code
In the above, you should also describe /vis/open command somewhere in your C++ codes or execute the
command from (G)UI at the executing stage.
8.5.3. Visualization of trajectories
In order to visualize trajectories, you can use the method void G4Trajectory::DrawTrajectory()
defined in the tracking category. In the implementation of this method, the following drawing method of
G4VVisManager is used:
//----- A drawing method of G4Polyline
virtual void G4VVisManager::Draw (const G4Polyline&, ...) ;
The real implementation of this method is described in the class G4VisManager.
At the end of one event, a set of trajectories can be stored as a list of G4Trajectory objects. There-
fore you can visualize trajectories, for example, at the end of each event, by implementing the method
MyEventAction::EndOfEventAction() as follows:
//----- C++ source codes
void ExN03EventAction::EndOfEventAction(const G4Event* evt)
{
.....
// extract the trajectories and draw them
if (G4VVisManager::GetConcreteInstance())
{
G4TrajectoryContainer* trajectoryContainer = evt->GetTrajectoryContainer();
G4int n_trajectories = 0;
if (trajectoryContainer) n_trajectories = trajectoryContainer->entries();
for (G4int i=0; i < n_trajectories; i++)
{ G4Trajectory* trj=(G4Trajectory*)((*(evt->GetTrajectoryContainer()))[i]);
if (drawFlag == "all") trj->DrawTrajectory(50);
else if ((drawFlag == "charged")&&(trj->GetCharge() != 0.))
trj->DrawTrajectory(50);
else if ((drawFlag == "neutral")&&(trj->GetCharge() == 0.))
trj->DrawTrajectory(50);
}
}
}
//----- end of C++ source codes
8.5.4. Enhanced trajectory drawing
It is possible to use the enhanced trajectory drawing functionality in compiled code as well as from commands.
Multiple trajectory models can be instantiated, configured and registered with G4VisManager. For details, see the
section on Section 8.7.4 Enhanced Trajectory Drawing.
8.5.5. HepRep Attributes for Trajectories
The HepRep file formats, HepRepFile and HepRepXML, attach various attributes to trajectories such that you can
view these attributes, label trajectories by these attributes or make visibility cuts based on these attributes. If you
use the default Geant4 trajectory class, from /tracking/src/G4Trajectory.cc, available attributes will be:
![](asset-129.png)
Visualization
288
• Track ID
• Parent ID
• Particle Name
• Charge
• PDG Encoding
• Momentum 3-Vector
• Momentum magnitude
• Number of points
You can add additional attributes of your choosing by modifying the relevant part of G4Trajectory (look for the
methods GetAttDefs and CreateAttValues). If you are using your own trajectory class, you may want to consider
copying these methods from G4Trajectory.
8.5.6. Visualization of hits
Hits are visualized with classes G4Square or G4Circle, or other user-defined classes in-
heriting the abstract base class G4VMarker (Section 8.9). Drawing methods for hits are not
supported by default. Instead, ways of their implementation are guided by virtual methods,
G4VHit::Draw() and G4VHitsCollection::DrawAllHits(), of the abstract base classes G4VHit
and G4VHitsCollection. These methods are defined as empty functions in the digits+hits category.
You can overload these methods, using the following drawing methods of class G4VVisManager, in order to
visualize hits:
//----- Drawing methods of G4Square and G4Circle
virtual void G4VVisManager::Draw (const G4Circle&, ...) ;
virtual void G4VVisManager::Draw (const G4Square&, ...) ;
The real implementations of these Draw() methods are described in class G4VisManager.
The overloaded implementation of G4VHits::Draw() will be held by, for example, class MyTrackerHits in-
heriting G4VHit as follows:
//----- C++ source codes: An example of giving concrete implementation of
// G4VHit::Draw(), using class MyTrackerHit : public G4VHit {...}
//
void MyTrackerHit::Draw()
{
G4VVisManager* pVVisManager = G4VVisManager::GetConcreteInstance();
if(pVVisManager)
{
// define a circle in a 3D space
G4Circle circle(pos);
circle.SetScreenSize(0.3);
circle.SetFillStyle(G4Circle::filled);
// make the circle red
G4Colour colour(1.,0.,0.);
G4VisAttributes attribs(colour);
circle.SetVisAttributes(attribs);
// make a 3D data for visualization
pVVisManager->Draw(circle);
}
}
//----- end of C++ source codes
The overloaded implementation of G4VHitsCollection::DrawAllHits() will be held by, for example,
class MyTrackerHitsCollection inheriting class G4VHitsCollection as follows:
//----- C++ source codes: An example of giving concrete implementation of
// G4VHitsCollection::Draw(),
// using class MyTrackerHit : public G4VHitsCollection{...}
![](asset-12a.png)
Visualization
289
//
void MyTrackerHitsCollection::DrawAllHits()
{
G4int n_hit = theCollection.entries();
for(G4int i=0;i < n_hit;i++)
{
theCollection[i].Draw();
}
}
//----- end of C++ source codes
Thus, you can visualize hits as well as trajectories, for example, at the end of each event by implementing the
method MyEventAction::EndOfEventAction() as follows:
void MyEventAction::EndOfEventAction()
{
const G4Event* evt = fpEventManager->GetConstCurrentEvent();
G4SDManager * SDman = G4SDManager::GetSDMpointer();
G4String colNam;
G4int trackerCollID = SDman->GetCollectionID(colNam="TrackerCollection");
G4int calorimeterCollID = SDman->GetCollectionID(colNam="CalCollection");
G4TrajectoryContainer * trajectoryContainer = evt->GetTrajectoryContainer();
G4int n_trajectories = 0;
if(trajectoryContainer)
{ n_trajectories = trajectoryContainer->entries(); }
G4HCofThisEvent * HCE = evt->GetHCofThisEvent();
G4int n_hitCollection = 0;
if(HCE)
{ n_hitCollection = HCE->GetCapacity(); }
G4VVisManager* pVVisManager = G4VVisManager::GetConcreteInstance();
if(pVVisManager)
{
// Declare begininng of visualization
G4UImanager::GetUIpointer()->ApplyCommand("/vis/scene/notifyHandlers");
// Draw trajectories
for(G4int i=0; i < n_trajectories; i++)
{
(*(evt->GetTrajectoryContainer()))[i]->DrawTrajectory();
}
// Construct 3D data for hits
MyTrackerHitsCollection* THC
= (MyTrackerHitsCollection*)(HCE->GetHC(trackerCollID));
if(THC) THC->DrawAllHits();
MyCalorimeterHitsCollection* CHC
= (MyCalorimeterHitsCollection*)(HCE->GetHC(calorimeterCollID));
if(CHC) CHC->DrawAllHits();
// Declare end of visualization
G4UImanager::GetUIpointer()->ApplyCommand("/vis/viewer/update");
}
}
//----- end of C++ codes
You can re-visualize a physical volume, where a hit is detected, with a highlight color, in addition to the whole
set of detector components. It is done by calling a drawing method of a physical volume directly. The method is:
//----- Drawing methods of a physical volume
virtual void Draw (const G4VPhysicalVolume&, ...) ;
![](asset-12b.png)
Visualization
290
This method is, for example, called in a method MyXXXHit::Draw(), describing the visualization of hits with
markers. The following is an example for this:
//----- C++ source codes: An example of visualizing hits with
void MyCalorimeterHit::Draw()
{
G4VVisManager* pVVisManager = G4VVisManager::GetConcreteInstance();
if(pVVisManager)
{
G4Transform3D trans(rot,pos);
G4VisAttributes attribs;
G4LogicalVolume* logVol = pPhys->GetLogicalVolume();
const G4VisAttributes* pVA = logVol->GetVisAttributes();
if(pVA) attribs = *pVA;
G4Colour colour(1.,0.,0.);
attribs.SetColour(colour);
attribs.SetForceSolid(true);
//----- Re-visualization of a selected physical volume with red color
pVVisManager->Draw(*pPhys,attribs,trans);
}
}
//----- end of C++ codes
8.5.7. HepRep Attributes for Hits
The HepRep file formats, HepRepFile and HepRepXML, attach various attributes to hits such that you can view
these attributes, label trajectories by these attributes or make visibility cuts based on these attributes. Examples of
adding HepRep attributes to hit classes can be found in examples /extended/analysis/A01 and /extended/runAn-
dEvent/RE01.
For example, in example RE01's class RE01CalorimeterHit.cc, available attributes will be:
• Hit Type
• Track ID
• Z Cell ID
• Phi Cell ID
• Energy Deposited
• Energy Deposited by Track
• Position
• Logical Volume
You can add additional attributes of your choosing by modifying the relevant part of the hit class (look for the
methods GetAttDefs and CreateAttValues).
8.5.8. Visualization of text
In Geant4 Visualization, a text, i.e., a character string, is described by class G4Text inheriting G4VMarker as
well as G4Square and G4Circle. Therefore, the way to visualize text is the same as for hits. The corresponding
drawing method of G4VVisManager is:
//----- Drawing methods of G4Text
virtual void G4VVisManager::Draw (const G4Text&, ...);
The real implementation of this method is described in class G4VisManager.
8.5.9. Visualization of polylines and tracking steps
Polylines, i.e., sets of successive line segments, are described by class G4Polyline. For G4Polyline, the
following drawing method of class G4VVisManager is prepared:
![](asset-12c.png)
Visualization
291
//----- A drawing method of G4Polyline
virtual void G4VVisManager::Draw (const G4Polyline&, ...) ;
The real implementation of this method is described in class G4VisManager.
Using this method, C++ source codes to visualize G4Polyline are described as follows:
//----- C++ source code: How to visualize a polyline
G4VVisManager* pVVisManager = G4VVisManager::GetConcreteInstance();
if (pVVisManager) {
G4Polyline polyline ;
..... (C++ source codes to set vertex positions, color, etc)
pVVisManager -> Draw(polyline);
}
//----- end of C++ source codes
Tracking steps are able to be visualized based on the above visualization of G4Polyline. You can visualize
tracking steps at each step automatically by writing a proper implementation of class MySteppingAction inheriting
G4UserSteppingAction, and also with the help of the Run Manager.
First, you must implement a method, MySteppingAction::UserSteppingAction(). A typical imple-
mentation of this method is as follows:
//----- C++ source code: An example of visualizing tracking steps
void MySteppingAction::UserSteppingAction()
{
G4VVisManager* pVVisManager = G4VVisManager::GetConcreteInstance();
if (pVVisManager) {
//----- Get the Stepping Manager
const G4SteppingManager* pSM = GetSteppingManager();
//----- Define a line segment
G4Polyline polyline;
G4double charge = pSM->GetTrack()->GetDefinition()->GetPDGCharge();
G4Colour colour;
if (charge < 0.) colour = G4Colour(1., 0., 0.);
else if (charge < 0.) colour = G4Colour(0., 0., 1.);
else colour = G4Colour(0., 1., 0.);
G4VisAttributes attribs(colour);
polyline.SetVisAttributes(attribs);
polyline.push_back(pSM->GetStep()->GetPreStepPoint()->GetPosition());
polyline.push_back(pSM->GetStep()->GetPostStepPoint()->GetPosition());
//----- Call a drawing method for G4Polyline
pVVisManager -> Draw(polyline);
}
}
//----- end of C++ source code
Next, in order that the above C++ source code works, you have to pass the information of the MySteppingAction
to the Run Manager in the main() function:
//----- C++ source code: Passing what to do at each step to the Run Manager
int main()
{
![](asset-12d.png)
Visualization
292
...
// Run Manager
G4RunManager * runManager = new G4RunManager;
// User initialization classes
...
runManager->SetUserAction(new MySteppingAction);
...
}
//----- end of C++ source code
Thus you can visualize tracking steps with various visualization attributes, e.g., color, at each step, automatically.
As well as tracking steps, you can visualize any kind 3D object made of line segments, using class G4Polyline
and its drawing method, defined in class G4VVisManager. See, for example, the implementation of the /vis/
scene/add/axes command.
8.5.10. Visualization User Action
You can implement the Draw method of G4VUserVisAction, e.g., the class definition could be:
class StandaloneVisAction: public G4VUserVisAction {
void Draw();
};
and the implementation:
void StandaloneVisAction::Draw() {
G4VVisManager* pVisManager = G4VVisManager::GetConcreteInstance();
if (pVisManager) {
// Simple box...
pVisManager->Draw(G4Box("box",2*m,2*m,2*m),
G4VisAttributes(G4Colour(1,1,0)));
// Boolean solid...
G4Box boxA("boxA",3*m,3*m,3*m);
G4Box boxB("boxB",1*m,1*m,1*m);
G4SubtractionSolid subtracted("subtracted_boxes",&boxA,&boxB,
G4Translate3D(3*m,3*m,3*m));
pVisManager->Draw(subtracted,
G4VisAttributes(G4Colour(0,1,1)),
G4Translate3D(6*m,6*m,6*m));
}
}
Explicit use of polyhedron objects is equivalent, e.g.:
// Same, but explicit polyhedron...
G4Polyhedron* pA = G4Box("boxA",3*m,3*m,3*m).CreatePolyhedron();
G4Polyhedron* pB = G4Box("boxB",1*m,1*m,1*m).CreatePolyhedron();
pB->Transform(G4Translate3D(3*m,3*m,3*m));
G4Polyhedron* pSubtracted = new G4Polyhedron(pA->subtract(*pB));
G4VisAttributes subVisAtts(G4Colour(0,1,1));
pSubtracted->SetVisAttributes(&subVisAtts);
pVisManager->Draw(*pSubtracted,G4Translate3D(6*m,6*m,6*m));
delete pA;
delete pB;
delete pSubtracted;
If efficiency is an issue, create the objects in the constructor, delete them in the destructor and draw them in your
Draw method. Anyway, an instance of your class needs to be registered with the vis manager, e.g.:
![](asset-12e.png)
Visualization
293
...
G4VisManager* visManager = new G4VisExecutive;
visManager->Initialize ();
visManager->SetUserAction
(new StandaloneVisAction,
G4VisExtent(-5*m,5*m,-5*m,5*m,-5*m,5*m)); // 2nd argument optional.
...
then activate by adding to a scene, e.g:
/control/verbose 2
/vis/verbose c
/vis/open OGLSXm
/vis/scene/create
#/vis/scene/add/userAction
/vis/scene/add/userAction -10 10 -10 10 -10 10 m
#/vis/scene/add/axes 0 0 0 10 m
#/vis/scene/add/scale 10 m
/vis/sceneHandler/attach
/vis/viewer/refresh
The extent can be added on registration or on the command line or neither (if the extent of the scene is set by
other components). Your Draw method will be called whenever needed to refresh the screen or rebuild a graphics
database, for any chosen viewer. The scene can be attached to any scene handler and your drawing will be shown.
8.5.11. Standalone Visualization
The above raises the possibility of using Geant4 as a "standalone" graphics package without invoking the run
manager. The following main program, together with a user visualization action and a macro file, will allow you
to view your drawing interactively on any of the supported graphics systems.
#include "globals.hh"
#include "G4VisExecutive.hh"
#include "G4VisExtent.hh"
#include "G4UImanager.hh"
#include "G4UIterminal.hh"
#include "G4UItcsh.hh"
#include "StandaloneVisAction.hh"
int main() {
G4VisManager* visManager = new G4VisExecutive;
visManager->Initialize ();
visManager->SetUserAction
(new StandaloneVisAction,
G4VisExtent(-5*m,5*m,-5*m,5*m,-5*m,5*m)); // 2nd argument optional.
G4UImanager* UI = G4UImanager::GetUIpointer ();
UI->ApplyCommand ("/control/execute standalone.g4m");
G4UIsession* session = new G4UIterminal(new G4UItcsh);
session->SessionStart();
delete session;
delete visManager;
}
8.6. Visualization Attributes
Visualization attributes are extra pieces of information associated with the visualizable objects. This information
is necessary only for visualization, and is not included in geometrical information such as shapes, position, and
orientation. Typical examples of visualization attributes are Color, Visible/Invisible, Wireframe/Solid. For exam-
ple, in visualizing a box, the Visualization Manager must know its colour. If an object to be visualized has not
been assigned a set of visualization attributes, then an appropriate default set is used automatically.
![](asset-12f.png)
Visualization
294
A set of visualization attributes is held by an instance of class G4VisAttributes defined in the
graphics_reps category. In the following, we explain the main fields of the G4VisAttributes one by one.
8.6.1. Visibility
Visibility is a boolean flag to control the visibility of objects that are passed to the Visualization Manager for
visualization. Visibility is set with the following access function:
void G4VisAttributes::SetVisibility (G4bool visibility);
If you give false to the argument, and if culling is activated (see below), visualization is skipped for objects for
which this set of visualization attributes is assigned. The default value of visibility is true.
Note that whether an object is visible or not is also affected by the current culling policy, which can be tuned
with visualization commands.
By default the following public static function is defined:
static const G4VisAttributes& GetInvisible();
which returns a reference to a const object in which visibility is set to false. It can be used as follows:
experimentalHall_logical -> SetVisAttributes (G4VisAttributes::GetInvisible());
Direct access to the public static const data member G4VisAttributes::Invisible is also possible but
deprecated on account of initialisation issues with dynamic libraries.
8.6.2. Colour
8.6.2.1. Construction
Class G4Colour (an equivalent class name, G4Color, is also available) has 4 fields, which represent the RGBA
(red, green, blue, and alpha) components of colour. Each component takes a value between 0 and 1. If an irrele-
vant value, i.e., a value less than 0 or greater than 1, is given as an argument of the constructor, such a value is
automatically clipped to 0 or 1. Alpha is opacity. Its default value 1 means "opaque".
A G4Colour object is instantiated by giving red, green, and blue components to its constructor, i.e.,
G4Colour::G4Colour ( G4double r = 1.0,
G4double g = 1.0,
G4double b = 1.0,
G4double a = 1.0);
// 0<=red, green, blue <= 1.0
The default value of each component is 1.0. That is to say, the default colour is "white" (opaque).
For example, colours which are often used can be instantiated as follows:
G4Colour white () ; // white
G4Colour white (1.0, 1.0, 1.0) ; // white
G4Colour gray (0.5, 0.5, 0.5) ; // gray
G4Colour black (0.0, 0.0, 0.0) ; // black
G4Colour red (1.0, 0.0, 0.0) ; // red
G4Colour green (0.0, 1.0, 0.0) ; // green
G4Colour blue (0.0, 0.0, 1.0) ; // blue
G4Colour cyan (0.0, 1.0, 1.0) ; // cyan
G4Colour magenta (1.0, 0.0, 1.0) ; // magenta
G4Colour yellow (1.0, 1.0, 0.0) ; // yellow
![](asset-130.png)
Visualization
295
It is also possible to instantiate common colours through static public data member functions:
static const G4Colour& White ();
static const G4Colour& Gray ();
static const G4Colour& Grey ();
static const G4Colour& Black ();
static const G4Colour& Red ();
static const G4Colour& Green ();
static const G4Colour& Blue ();
static const G4Colour& Cyan ();
static const G4Colour& Magenta ();
static const G4Colour& Yellow ();
For example, a local G4Colour could be constructed as:
G4Colour myRed(G4Colour::Red());
After instantiation of a G4Colour object, you can access to its components with the following access functions:
G4double G4Colour::GetRed () const ; // Get the red component.
G4double G4Colour::GetGreen () const ; // Get the green component.
G4double G4Colour::GetBlue () const ; // Get the blue component.
8.6.2.2. Colour Map
G4Colour also provides a static colour map, giving access to predefined G4Colour's through a G4String
key. The default mapping is:
G4String G4Colour
---------------------------------------
white G4Colour::White ()
gray G4Colour::Gray ()
grey G4Colour::Grey ()
black G4Colour::Black ()
red G4Colour::Red ()
green G4Colour::Green ()
blue G4Colour::Blue ()
cyan G4Colour::Cyan ()
magenta G4Colour::Magenta ()
yellow G4Colour::Yellow ()
Colours can be retrieved through the GetColour method:
bool G4Colour::GetColour(const G4String& key, G4Colour& result)
For example:
G4Colour myColour(G4Colour::Black());
if (G4Colour::GetColour("red", myColour)) {
// Successfully retrieved colour "red". myColour is now red
}
else {
// Colour did not exist in map. myColour is still black
}
If the key is not registered in the colour map, a warning message is printed and the input colour is not changed.
The colour map is case insensitive.
It is also possible to load user defined G4Colour's into the map through the public AddToMap method. For
example:
G4Colour myColour(0.2, 0.2, 0.2, 1);
![](asset-131.png)
Visualization
296
G4Colour::AddToMap("custom", myColour);
This loads a user defined G4Colour with key "custom" into the colour map.
8.6.2.3. Colour and G4VisAttributes
Class G4VisAttributes holds its colour entry as an object of class G4Colour. A G4Colour object is passed
to a G4VisAttributes object with the following access functions:
//----- Set functions of G4VisAttributes.
void G4VisAttributes::SetColour (const G4Colour& colour);
void G4VisAttributes::SetColor (const G4Color& color );
We can also set RGBA components directly:
//----- Set functions of G4VisAttributes
void G4VisAttributes::SetColour ( G4double red ,
G4double green ,
G4double blue ,
G4double alpha = 1.0);
void G4VisAttributes::SetColor ( G4double red ,
G4double green ,
G4double blue ,
G4double alpha = 1.);
The following constructor with G4Colour as its argument is also supported:
//----- Constructor of G4VisAttributes
G4VisAttributes::G4VisAttributes (const G4Colour& colour);
Note that colour assigned to a G4VisAttributes object is not always the colour that ultimately appears in
the visualization. The ultimate appearance may be affected by shading and lighting models applied in the selected
visualization driver or stand-alone graphics system.
8.6.3. Forcing attributes
As you will see later, you can select a "drawing style" from various options. For example, you can select your
detector components to be visualized in "wireframe" or with "surfaces". In the former, only the edges of your
detector are drawn and so the detector looks transparent. In the latter, your detector looks opaque with shading
effects.
The forced wireframe and forced solid styles make it possible to mix the wireframe and surface visualization (if
your selected graphics system supports such visualization). For example, you can make only the outer wall of your
detector "wired" (transparent) and can see inside in detail.
Forced wireframe style is set with the following access function:
void G4VisAttributes::SetForceWireframe (G4bool force);
If you give true as the argument, objects for which this set of visualization attributes is assigned are always
visualized in wireframe even if in general, the surface drawing style has been requested. The default value of the
forced wireframe style is false.
Similarly, forced solid style, i.e., to force that objects are always visualized with surfaces, is set with:
void G4VisAttributes::SetForceSolid (G4bool force);
The default value of the forced solid style is false, too.
![](asset-132.png)
Visualization
297
You can also force auxiliary edges to be visible. Normally they are not visible unless you set the appropriate view
parameter. Forcing the auxiliary edges to be visible means that auxiliary edges will be seen whatever the view
parameters.
Auxiliary edges are not genuine edges of the volume. They may be in a curved surface made out of polygons, for
example, or in plane surface of complicated shape that has to be broken down into simpler polygons. HepPoly-
hedron breaks all surfaces into triangles or quadrilaterals. There will be auxiliary edges for any volumes with a
curved surface, such as a tube or a sphere, or a volume resulting from a Boolean operation. Normally, they are not
shown, but sometimes it is useful to see them. In particular, a sphere, because it has no egdes, will not be seen in
wireframe mode in some graphics systems unless requested by the view parameters or forced, as described here.
To force auxiliary edges to be visible, use:
void G4VisAttributes::SetForceAuxEdgeVisible (G4bool force);
The default value of the force auxiliary edges visible flag is false.
For volumes with edges that are parts of a circle, such as a tube (G4Tubs), etc., it is possible to force the precision
of polyhedral representation for visualisation. This is recommended for volumes containing only a small angle of
circle, for example, a thin tube segment.
For visualisation, a circle is represented by an N-sided polygon. The default is 24 sides or segments. The user
may change this for all volumes in a particular viewer at run time with /vis/viewer/set/lineSegmentsPerCircle;
alternatively it can be forced for a particular volume with:
void G4VisAttributes::SetForceLineSegmentsPerCircle (G4int nSegments);
8.6.4. Other attributes
Here is a list of Set methods for class G4VisAttributes:
void SetVisibility (G4bool);
void SetDaughtersInvisible (G4bool);
void SetColour (const G4Colour&);
void SetColor (const G4Color&);
void SetColour (G4double red, G4double green, G4double blue,
G4double alpha = 1.);
void SetColor (G4double red, G4double green, G4double blue,
G4double alpha = 1.);
void SetLineStyle (LineStyle);
void SetLineWidth (G4double);
void SetForceWireframe (G4bool);
void SetForceSolid (G4bool);
void SetForceAuxEdgeVisible (G4bool);
void SetForceLineSegmentsPerCircle (G4int nSegments);
// Allows choice of circle approximation. A circle of 360 degrees
// will be composed of nSegments line segments. If your solid has
// curves of D degrees that you need to divide into N segments,
// specify nSegments = N * 360 / D.
void SetStartTime (G4double);
void SetEndTime (G4double);
void SetAttValues (const std::vector<G4AttValue>*);
void SetAttDefs (const std::map<G4String,G4AttDef>*);
8.6.5. Constructors of G4VisAttributes
The following constructors are supported for class G4VisAttributes:
//----- Constructors of class G4VisAttributes
G4VisAttributes (void);
G4VisAttributes (G4bool visibility);
G4VisAttributes (const G4Colour& colour);
G4VisAttributes (G4bool visibility, const G4Colour& colour);
![](asset-133.png)
Visualization
298
8.6.6. How to assign G4VisAttributes to a logical volume
In constructing your detector components, you may assign a set of visualization attributes to each "logical volume"
in order to visualize them later (if you do not do this, the graphics system will use a default set). You cannot make
a solid such as G4Box hold a set of visualization attributes; this is because a solid should hold only geometrical
information. At present, you cannot make a physical volume hold one, but there are plans to design a memory-ef-
ficient way to do it; however, you can visualize a transient piece of solid or physical volume with a temporary
assigned set of visualization attributes.
Class G4LogicalVolume holds a pointer of G4VisAttributes. This field is set and referenced with the
following access functions:
//----- Set functions of G4VisAttributes
void G4VisAttributes::SetVisAttributes (const G4VisAttributes* pVA);
void G4VisAttributes::SetVisAttributes (const G4VisAttributes& VA);
//----- Get functions of G4VisAttributes
const G4VisAttributes* G4VisAttributes::GetVisAttributes () const;
The following is sample C++ source codes for assigning a set of visualization attributes with cyan colour and
forced wireframe style to a logical volume:
//----- C++ source codes: Assigning G4VisAttributes to a logical volume
...
// Instantiation of a logical volume
myTargetLog = new G4LogicalVolume( myTargetTube,BGO, "TLog", 0, 0, 0);
...
// Instantiation of a set of visualization attributes with cyan colour
G4VisAttributes * calTubeVisAtt = new G4VisAttributes(G4Colour(0.,1.,1.));
// Set the forced wireframe style
calTubeVisAtt->SetForceWireframe(true);
// Assignment of the visualization attributes to the logical volume
myTargetLog->SetVisAttributes(calTubeVisAtt);
//----- end of C++ source codes
Note that the life of the visualization attributes must be at least as long as the objects to which they are assigned; it
is the users' responsibility to ensure this, and to delete the visualization attributes when they are no longer needed
(or just leave them to die at the end of the job).
8.6.7. Additional User-Defined Attributes
Geant4 Trajectories and Hits can be assigned additional arbitrary attributes that will be displayed when you click
on the relevant object in the WIRED or FRED HepRep browsers. WIRED then lets you label objects by any of
these attributes or cut visibility based on these attributes.
Define the attributes with lines such as:
std::map<G4String,G4AttDef>* store = G4AttDefStore::GetInstance("G4Trajectory",isNew);
G4String PN("PN");
(*store)[PN] = G4AttDef(PN,"Particle Name","Physics","","G4String");
G4String IMom("IMom");
(*store)[IMom] = G4AttDef(IMom, "Momentum of track at start of trajectory", "Physics", "",
"G4ThreeVector");
Then fill the attributes with lines such as:
std::vector<G4AttValue>* values = new std::vector<G4AttValue>;
values->push_back(G4AttValue("PN",ParticleName,""));
s.seekp(std::ios::beg);
s << G4BestUnit(initialMomentum,"Energy") << std::ends;
values->push_back(G4AttValue("IMom",c,""));
See geant4/source/tracking/src/G4Trajectory.cc for a good example.
![](asset-134.png)
Visualization
299
G4AttValue objects are light, containing just the value; for the long description and other sharable information
the G4AttValue object refers to a G4AttDef object. They are based on the HepRep standard described at
http://www.slac.stanford.edu/~perl/heprep/ . Geant4 also provides an G4AttDefStore.
Geant4 provides some default examples of the use of this facility in the trajectory classes in /source/tracking
such as G4Trajectory, G4SmoothTrajectory. G4Trajectory::CreateAttValues shows how
G4AttValue objects can be made and G4Trajectory::GetAttDefs shows how to make the correspond-
ing G4AttDef objects and use the G4AttDefStore. Note that the "user" of CreateAttValues guarantees to
destroy them; this is a way of allowing creation on demand and leaving the G4Trajectory object, for example,
free of such objects in memory. The comments in G4VTrajectory.hh explain further and additional insights
might be obtained by looking at two methods which use them, namely G4VTrajectory::DrawTrajectory
and G4VTrajectory::ShowTrajectory.
Hits classes in examples /extended/analysis/A01 and /extended/runAndEvent/RE01 show how to do the same
for your hits. The base class no-action methods CreateAttValues and GetAttDefs should be overridden in your
concrete class. The comments in G4VHit.hh explain further.
In addition, the user is free to add a G4std::vector<G4AttValue>* and a
G4std::vector<G4AttDef>* to a G4VisAttributes object as could, for example, be used by a
G4LogicalVolume object.
At the time of writing, only the HepRep graphics systems are capable of displaying the G4AttValue information,
but this information will become useful for all Geant4 visualization systems through improvements in release 8.1
or later.
8.7. Enhanced Trajectory Drawing
8.7.1. Default Configuration
Trajectory drawing styles are specified through trajectory drawing models. Each drawing model has a default
configuration provided through a G4VisTrajContext object. The default context settings are shown below.
Property Default Setting
Line colour grey
Line visibility true
Draw line true
Draw auxiliary points false
Auxiliary point type squares
Auxiliary point size 2 pixels or mm*
Auxiliary point size type screen
Auxiliary point fill style filled
Auxiliary point colour magenta
Auxiliary point visibility true
Draw step point false
Step point type circles
Step point size 2 pixels or mm*
Step point size type screen
Step point fill style filled
Step point colour yellow
Step point visibility true
Time slice interval 0
![](asset-135.png)
Visualization
300
* Depending on size type. If size type == screen, pixels are assumed and no unit need be supplied. If size type
== world, a unit must be supplied, e.g., 10 cm.
Note:
• Different visualisation drivers handle trajectory configuration in different ways, so trajectories may not neces-
sarily get displayed as you have configured them.
8.7.2. Trajectory Drawing Models
A trajectory drawing model can override the default context according to the properties of a given trajectory. The
following models are supplied with the Geant4 distribution:
• G4TrajectoryGenericDrawer (generic)
• G4TrajectoryDrawByCharge (drawByCharge)
• G4TrajectoryDrawByParticleID (drawByParticleID)
• G4TrajectoryDrawByOriginVolume (drawByOriginVolume)
• G4TrajectoryDrawByTouchedVolume (drawByTouchedVolume)
• G4TrajectoryDrawByAttribute (drawByAttribute)
Both the context and model properties can be configured by the user. The models are described briefly below,
followed by some example configuration commands.
G4TrajectoryGenericDrawer
This model simply draws all trajectories in the same style, with the properties provided by the context.
G4TrajectoryDrawByCharge
This is the default model - if no model is specified by the user, this model will be constructed automatically. The
trajectory lines are coloured according to charge, with all other configuration parameters provided by the default
context. The default colouring scheme is shown below.
Charge Colour
----------------------
1 Blue
-1 Red
0 Green
G4TrajectoryDrawByParticleID
This model colours trajectory lines according to particle type. All other configuration parameters are provided by
the default context. By default, all trajectories are coloured grey. Chosen particle types can be highlighted with
specified colours.
G4TrajectoryDrawByOriginVolume
This model colours trajectory lines according to the trajectory's originating volume name. The volume can be
either a logical or physical volume. Physical volume takes precedence over logical volume. All trajectories are
coloured grey by default.
G4TrajectoryDrawByTouchedVolume
This model colours trajectory lines if it touches one or more volumes according to the physical volume name(s).
It requires rich trajectories, G4RichTrajectory (/vis/scene/add/trajectories rich). All trajectories
are coloured grey by default.
G4TrajectoryDrawByAttribute
This model draws trajectories based on the HepRep style attributes associated with trajectories. Each attribute
drawer can be configured with interval and/or single value data. A new context object is created for each inter-
![](asset-136.png)
Visualization
301
val/single value. This makes it possible to have different step point markers etc, as well as line colour for trajec-
tory attributes falling into different intervals, or matching single values. The single value data should override the
interval data, allowing specific values to be highlighted. Units should be specified on the command line if the
attribute unit is specified either as a G4BestUnit or if the unit is part of the value string.
8.7.3. Controlling from Commands
Multiple trajectory models can be created and configured using commands in the "/vis/modeling/trajec-
tories/" directory. It is then possible to list available models and select one to be current.
Model configuration commands are generated dynamically when a model is instantiated. These commands apply
directly to that instance. This makes it possible to have multiple instances of the drawByCharge model for example,
each independently configurable through it's own set of commands.
See the interactive help for more information on the available commands.
8.7.3.1. Example commands
#Create a generic model named generic-0 by default
/vis/modeling/trajectories/create/generic
#Configure context to colour all trajectories red
/vis/modeling/trajectories/generic-0/default/setLineColour red
#Create a drawByCharge model named drawCharge-0 by default (Subsequent models will be named drawBy-
Charge-1, drawByCharge-2, etc.)
/vis/modeling/trajectories/create/drawByCharge
#Create a drawByCharge model named testChargeModel
/vis/modeling/trajectories/create/drawByCharge testChargeModel
#Configure drawByCharge-0 model
/vis/modeling/trajectories/drawByCharge-0/set 1 red
/vis/modeling/trajectories/drawByCharge-0/set -1 red
/vis/modeling/trajectories/drawByCharge-0/set 0 white
#Configure testCharge model through G4Colour components
/vis/modeling/trajectories/testChargeModel/setRGBA 1 0 1 1 1
/vis/modeling/trajectories/testChargeModel/setRGBA -1 0.5 0.5 0.5 1
/vis/modeling/trajectories/testChargeModel/setRGBA 0 1 1 0 1
#Create a drawByParticleID model named drawByParticleID-0
/vis/modeling/trajectories/create/drawByParticleID
#Configure drawByParticleID-0 model
/vis/modeling/trajectories/drawByParticleID-0/set gamma red
/vis/modeling/trajectories/drawByParticleID-0/setRGBA e+ 1 0 1 1
#List available models
![](asset-137.png)
Visualization
302
/vis/modeling/trajectories/list
#select drawByParticleID-0 to be current
/vis/modeling/trajectories/select drawByParticleID-0
#Create a drawByAttribute model named drawByAttribute-0
/vis/modeling/trajectories/create/drawByAttribute
#Configure drawByAttribute-0 model
/vis/modeling/trajectories/drawByAttribute-0/verbose true
#Select attribute "CPN"
/vis/modeling/trajectories/drawByAttribute-0/setAttribute CPN
#Configure single value data
/vis/modeling/trajectories/drawByAttribute-0/addValue brem_key eBrem
/vis/modeling/trajectories/drawByAttribute-0/addValue annihil_key annihil
/vis/modeling/trajectories/drawByAttribute-0/addValue decay_key Decay
/vis/modeling/trajectories/drawByAttribute-0/addValue muIon_key muIoni
/vis/modeling/trajectories/drawByAttribute-0/addValue eIon_key eIoni
/vis/modeling/trajectories/drawByAttribute-0/brem_key/setLineColour red
/vis/modeling/trajectories/drawByAttribute-0/annihil_key/setLineColour green
/vis/modeling/trajectories/drawByAttribute-0/decay_key/setLineColour cyan
/vis/modeling/trajectories/drawByAttribute-0/eIon_key/setLineColour yellow
/vis/modeling/trajectories/drawByAttribute-0/muIon_key/setLineColour magenta
#Create a drawByAttribute model named drawByAttribute-1
/vis/modeling/trajectories/create/drawByAttribute
#Select "IMag" attribute
/vis/modeling/trajectories/drawByAttribute-1/setAttribute IMag
#Configure interval data
/vis/modeling/trajectories/drawByAttribute-1/addInterval interval1 0.0 keV 2.5MeV
/vis/modeling/trajectories/drawByAttribute-1/addInterval interval2 2.5 MeV 5 MeV
/vis/modeling/trajectories/drawByAttribute-1/addInterval interval3 5 MeV 7.5 MeV
/vis/modeling/trajectories/drawByAttribute-1/addInterval interval4 7.5 MeV 10 MeV
/vis/modeling/trajectories/drawByAttribute-1/addInterval interval5 10 MeV 12.5 MeV
/vis/modeling/trajectories/drawByAttribute-1/addInterval interval6 12.5 MeV 10000 MeV
/vis/modeling/trajectories/drawByAttribute-1/interval1/setLineColourRGBA 0.8 0 0.8 1
/vis/modeling/trajectories/drawByAttribute-1/interval2/setLineColourRGBA 0.23 0.41 1 1
/vis/modeling/trajectories/drawByAttribute-1/interval3/setLineColourRGBA 0 1 0 1
/vis/modeling/trajectories/drawByAttribute-1/interval4/setLineColourRGBA 1 1 0 1
/vis/modeling/trajectories/drawByAttribute-1/interval5/setLineColourRGBA 1 0.3 0 1
/vis/modeling/trajectories/drawByAttribute-1/interval6/setLineColourRGBA 1 0 0 1
#Create a drawByEncounteredVolume model named drawByEncounteredVolume-0
/vis/modeling/trajectories/create/drawByEncounteredVolume
#Change the color for a specific encountered shape
![](asset-138.png)
Visualization
303
/vis/modeling/trajectories/drawByEncounteredVolume-0/set Shape1 cyan
8.7.4. Controlling from Compiled Code
It is possible to use the enhanced trajectory drawing functionality in compiled code as well as from commands.
Multiple trajectory models can be instantiated, configured and registered with G4VisManager. Once registered,
the models are owned by G4VisManager, and must not be deleted by the user.
Only one model may be current. For example:
G4VisManager* visManager = new G4VisExecutive;
visManager->Initialize();
G4TrajectoryDrawByParticleID* model = new G4TrajectoryDrawByParticleID;
G4TrajectoryDrawByParticleID* model2 = new G4TrajectoryDrawByParticleID("test");
model->SetDefault("cyan");
model->Set("gamma", "green");
model->Set("e+", "magenta");
model->Set("e-", G4Colour(0.3, 0.3, 0.3));
visManager->RegisterModel(model);
visManager->RegisterModel(model2);
visManager->SelectTrajectoryModel(model->Name());
8.7.5. Drawing by time
To draw by time, you need to use G4RichTrajectory, for example:
/vis/scene/add/trajectories rich
or
/vis/scene/add/trajectories rich smooth
When you run, you need to create a trajectory model and set the time slice interval (remembering that paticles
are often relativistic and travel 30 cm/ns):
/vis/modeling/trajectories/create/drawByCharge
/vis/modeling/trajectories/drawByCharge-0/default/setDrawStepPts true
/vis/modeling/trajectories/drawByCharge-0/default/setStepPtsSize 5
/vis/modeling/trajectories/drawByCharge-0/default/setDrawAuxPts true
/vis/modeling/trajectories/drawByCharge-0/default/setAuxPtsSize 5
/vis/modeling/trajectories/drawByCharge-0/default/setTimeSliceInterval 0.1 ns
/vis/modeling/trajectories/list
and use a graphics driver that can display by time:
/vis/open OGL
/vis/drawVolume
/vis/scene/add/trajectories rich
/vis/ogl/set/startTime 0.5 ns
/vis/ogl/set/endTime 0.8 ns
/run/beamOn
/vis/viewer/refresh
A good way to see the particles moving through the detector is:
/vis/ogl/set/fade 1
/vis/ogl/set/displayHeadTime true
![](asset-139.png)
Visualization
304
/control/alias timeRange 1
/control/loop movie.loop startTime -{timeRange} 40 0.1
where fade gives a vapour-trail effect, displayHeadTime displays the time of the leading edge as 2D text,
and movie.loop is a macro file:
/vis/ogl/set/startTime {startTime} ns {timeRange} ns
From there, it's straightforward to Section 8.10 make a movie.
8.8. Trajectory Filtering
Trajectory filtering allows you to visualise a subset of available trajectories. This can be useful if you only want
to view interesting trajectories and discard uninteresting ones. Trajectory filtering can be run in two modes:
•Soft filtering: In this mode, uninteresting trajectories are marked invisible. Hence, they are still written, but
(depending on the driver) will not be displayed. Some drivers, for example the HepRepFile driver, will allow
you to selectively view these soft filtered trajectories
•Hard filtering: In this mode, uninteresting trajectories are not drawn at all. This mode is especially useful if
the job produces huge graphics files, dominated by data from uninteresting trajectories.
Trajectory filter models are used to apply filtering according to specific criteria. The following models are currently
supplied with the Geant4 distribution:
• G4TrajectoryChargeFilter (chargeFilter)
• G4TrajectoryParticleFilter (particleFilter)
• G4TrajectoryOriginVolumeFilter (originVolumeFilter)
• G4TrajectoryTouchedVolumeFilter (touchedVolumeFilter)
• G4TrajectoryAttributeFilter (attributeFilter)
Multiple filters are automatically chained together, and can configured either interactively or in commands or in
compiled code. The filters can be inverted, set to be inactive or set in a verbose mode. The above models are
described briefly below, followed by some example configuration commands.
G4TrajectoryChargeFilter
This model filters trajectories according to charge. In standard running mode, only trajectories with charges match-
ing those registered with the model will pass the filter.
G4TrajectoryParticleFilter
This model filters trajectories according to particle type. In standard running mode, only trajectories with particle
types matching those registered with the model will pass the filter.
G4TrajectoryOriginVolumeFilter
This model filters trajectories according to originating volume name. In standard running mode, only trajectories
with originating volumes matching those registered with the model will pass the filter.
G4TrajectoryTouchedVolumeFilter
This model filters trajectories that touch one or more volumes according to the physical volume name(s). It requires
rich trajectories, G4RichTrajectory (/vis/scene/add/trajectories rich). In standard running mode,
only trajectories that touch volumes matching those registered with the model will pass the filter.
G4TrajectoryAttributeFilter
This model filters trajectories based on the HepRep style attributes associated with trajectories. Each attribute
drawer can be configured with interval and/or single value data. Single value data should override the interval
![](asset-13a.png)
Visualization
305
data. Units should be specified on the command line if the attribute unit is specified either as a G4BestUnit or if
the unit is part of the value string.
8.8.1. Controlling from Commands
Multiple trajectory filter models can be created and configured using commands in the "/vis/filter-
ing/trajectories/" directory. All generated filter models are chained together automatically.
Model configuration commands are generated dynamically when a filter model is instantiated. These commands
apply directly to that instance.
See the interactive help for more information on the available commands.
8.8.2. Example commands
# Create a particle filter. Configure to pass only gammas. Then
# invert to pass anything other than gammas. Set verbose printout,
# and then deactivate filter
/vis/filtering/trajectories/create/particleFilter
/vis/filtering/trajectories/particleFilter-0/add gamma
/vis/filtering/trajectories/particleFilter-0/invert true
/vis/filtering/trajectories/particleFilter-0/verbose true
/vis/filtering/trajectories/particleFilter-0/active false
# Create a charge filter. Configure to pass only neutral trajectories.
# Set verbose printout. Reset filter and reconfigure to pass only
# negativly charged trajectories.
/vis/filtering/trajectories/create/chargeFilter
/vis/filtering/trajectories/chargeFilter-0/add 0
/vis/filtering/trajectories/chargeFilter-0/verbose true
/vis/filtering/trajectories/chargeFilter-0/reset true
/vis/filtering/trajectories/chargeFilter-0/add -1
# Create an attribute filter named attributeFilter-0
/vis/filtering/trajectories/create/attributeFilter
# Select attribute "IMag"
/vis/filtering/trajectories/attributeFilter-0/setAttribute IMag
# Select trajectories with 2.5 MeV <= IMag< 1000 MeV
/vis/filtering/trajectories/attributeFilter-0/addInterval 2.5 MeV 1000 MeV
# List filters
/vis/filtering/trajectories/list
Note that although particleFilter-0 and chargeFilter-0 are automatically chained, particle-
Filter-0 will not have any effect since it is has been deactivated.
8.8.3. Hit and Digi Filtering
The attribute based filtering can be used on hits and digitisations as well as trajectories. To active the interactive
attribute based hit filtering, a filter call should be added to the "Draw" method of the hit (or digi) class:
void MyHit::Draw()
{
...
if (! pVVisManager->FilterHit(*this)) return;
...
}
Interactive filtering can then be done through the commands in /vis/filtering/hits or digi.
![](asset-13b.png)
Visualization
306
8.9. Polylines, Markers and Text
Polylines, markers and text are defined in the graphics_reps category, and are used only for visualization
(Section 8.5). Users may create any of these objects with local scope; once drawn, they may safely be deleted or
allowed to go out of scope.
8.9.1. Polylines
A polyline is a set of successive line segments. It is defined with a class G4Polyline defined in the
graphics_reps category. A polyline is used to visualize tracking steps, particle trajectories, coordinate axes,
and any other user-defined objects made of line segments.
G4Polyline is defined as a list of G4Point3D objects, i.e., vertex positions. The vertex positions are set to a
G4Polyline object with the push_back() method.
For example, an x-axis with length 5 cm and with red color is defined in Example 8.5.
Example 8.5. Defining an x-axis with length 5 cm and with colour red.
//----- C++ source codes: An example of defining a line segment
// Instantiate an emply polyline object
G4Polyline x_axis;
// Set red line colour
G4Colour red(1.0, 0.0, 0.0);
G4VisAttributes att(red);
x_axis.SetVisAttributes(&att);
// Set vertex positions
x_axis.push_back( G4Point3D(0., 0., 0.) );
x_axis.push_back( G4Point3D(5.*cm, 0., 0.) );
//----- end of C++ source codes
8.9.2. Markers
Here we explain how to use 3D markers in Geant4 Visualization.
What are Markers?
Markers set marks at arbitrary positions in the 3D space. They are often used to visualize hits of particles at detector
components. A marker is a 2-dimensional primitive with shape (square, circle, etc), color, and special properties
(a) of always facing the camera and (b) of having the possibility of a size defined in screen units (pixels). Here
"size" means "overall size", e.g., diameter of circle and side of square (but diameter and radius access functions
are defined to avoid ambiguity).
So the user who constructs a marker should decide whether or not it should be visualized to a given size in world
coordinates by setting the world size. Alternatively, the user can set the screen size and the marker is visualized
to its screen size. Finally, the user may decide not to set any size; in that case, it is drawn according to the sizes
specified in the default marker specified in the class G4ViewParameters.
By default, "square" and "circle" are supported in Geant4 Visualization. The former is described with class
G4Square, and the latter with class G4Circle:
Marker Type Class Name
circle G4Circle
right square G4Square
These classes are inherited from class G4VMarker. They have constructors as follows:
![](asset-13c.png)
Visualization
307
//----- Constructors of G4Circle and G4Square
G4Circle::G4Circle (const G4Point3D& pos );
G4Square::G4Square (const G4Point3D& pos);
Access functions of class G4VMarker are summarized below.
Access functions of markers
Example 8.6 shows the access functions inherited from the base class G4VMarker.
Example 8.6. The access functions inherited from the base class G4VMarker.
//----- Set functions of G4VMarker
void G4VMarker::SetPosition( const G4Point3D& );
void G4VMarker::SetWorldSize( G4double );
void G4VMarker::SetWorldDiameter( G4double );
void G4VMarker::SetWorldRadius( G4double );
void G4VMarker::SetScreenSize( G4double );
void G4VMarker::SetScreenDiameter( G4double );
void G4VMarker::SetScreenRadius( G4double );
void G4VMarker::SetFillStyle( FillStyle );
// Note: enum G4VMarker::FillStyle {noFill, hashed, filled};
//----- Get functions of G4VMarker
G4Point3D G4VMarker::GetPosition () const;
G4double G4VMarker::GetWorldSize () const;
G4double G4VMarker::GetWorldDiameter () const;
G4double G4VMarker::GetWorldRadius () const;
G4double G4VMarker::GetScreenSize () const;
G4double G4VMarker::GetScreenDiameter () const;
G4double G4VMarker::GetScreenRadius () const;
FillStyle G4VMarker::GetFillStyle () const;
// Note: enum G4VMarker::FillStyle {noFill, hashed, filled};
Example 8.7 shows sample C++ source code to define a very small red circle, i.e., a dot with diameter 1.0 pixel.
Such a dot is often used to visualize a hit.
Example 8.7. Sample C++ source code to define a very small red circle.
//----- C++ source codes: An example of defining a red small maker
G4Circle circle(position); // Instantiate a circle with its 3D
// position. The argument "position"
// is defined as G4Point3D instance
circle.SetScreenDiameter (1.0); // Should be circle.SetScreenDiameter
// (1.0 * pixels) - to be implemented
circle.SetFillStyle (G4Circle::filled); // Make it a filled circle
G4Colour colour(1.,0.,0.); // Define red color
G4VisAttributes attribs(colour); // Define a red visualization attribute
circle.SetVisAttributes(attribs); // Assign the red attribute to the circle
//----- end of C++ source codes
8.9.3. Text
Text, i.e., a character string, is used to visualize various kinds of description, particle name, energy, coordinate
names etc. Text is described by the class G4Text . The following constructors are supported:
//----- Constructors of G4Text
G4Text (const G4String& text);
G4Text (const G4String& text, const G4Point3D& pos);
where the argument text is the text (string) to be visualized, and pos is the 3D position at which the text is
visualized.
Text is currently drawn only by the OpenGL drivers, such as OGLIX, OGLIXm and OpenInventor. It is not yet
supported on other drivers, including the Windows OpenGL drivers, HepRep, etc.
![](asset-13d.png)
Visualization
308
Note that class G4Text also inherits G4VMarker. Size of text is recognized as "font size", i.e., height of the text.
All the access functions defined for class G4VMarker mentioned above are available. In addition, the following
access functions are available, too:
//----- Set functions of G4Text
void G4Text::SetText ( const G4String& text ) ;
void G4Text::SetOffset ( double dx, double dy ) ;
//----- Get functions of G4Text
G4String G4Text::GetText () const;
G4double G4Text::GetXOffset () const;
G4double G4Text::GetYOffset () const;
Method SetText() defines text to be visualized, and GetText() returns the defined text. Method SetOff-
set() defines x (horizontal) and y (vertical) offsets in the screen coordinates. By default, both offsets are zero, and
the text starts from the 3D position given to the constructor or to the method G4VMarker:SetPosition().
Offsets should be given with the same units as the one adopted for the size, i.e., world-size or screen-size units.
Example 8.8 shows sample C++ source code to define text with the following properties:
• Text: "Welcome to Geant4 Visualization"
• Position: (0.,0.,0.) in the world coordinates
• Horizontal offset: 10 pixels
• Vertical offset: -20 pixels
• Colour: blue (default)
Example 8.8. An example of defining text.
//----- C++ source codes: An example of defining a visualizable text
//----- Instantiation
G4Text text ;
text.SetText ( "Welcome to Geant4 Visualization");
text.SetPosition ( G4Point3D(0.,0.,0.) );
// These three lines are equivalent to:
// G4Text text ( "Welcome to Geant4 Visualization",
// G4Point3D(0.,0.,0.) );
//----- Size (font size in units of pixels)
G4double fontsize = 24.; // Should be 24. * pixels - to be implemented.
text.SetScreenSize ( fontsize );
//----- Offsets
G4double x_offset = 10.; // Should be 10. * pixels - to be implemented.
G4double y_offset = -20.; // Should be -20. * pixels - to be implemented.
text.SetOffset( x_offset, y_offset );
//----- Color (Blue is the default setting, and so the codes below are omissible)
G4Colour blue( 0., 0., 1. );
G4VisAttributes att ( blue );
text.SetVisAttributes ( att );
//----- end of C++ source codes
8.10. Making a Movie
These instructions are suggestive only. The following procedures have not been tested on all platforms. There
are clearly some instructions that apply only to Unix-like systems with an X-Windows based windowing system.
However, it should not be difficult to take the ideas presented here and extend them to other platforms and systems.
The procedures described here need graphics drivers that can produce picture files that can be converted to a form
suitable for an MPEG encoder. There may be other ways of capturing the screen images and we would be happy
to hear about them. Graphics drivers currently capable of producing picture files are: More informations about
MPEG encoder
Driver File type
![](asset-13e.png)
Visualization
309
DAWNFILE prim then eps using dawn
HepRepFile HepRep1
HepRep HepRep2
OGLX jpeg, eps, pdf, ppm, ...
Qt jpeg, eps, pdf, ppm, ...
RayTracer jpeg
VRMLFILE vrml
So far, only DAWNFILE, OGLX, OGLQt and RayTracer have been "road tested". Once in a standard format,
such as eps, the convert program from ImageMagick can convert to ppm files suitable for ppmtompeg available
here: http://netpbm.sourceforge.net/
8.10.1. Using "/vis/viewer/interpolate".
By saving views with "/vis/viewer/save" (see Section 8.4.14) one may "fly through" them with "/vis/viewer/in-
terpolate". One of the options in "/vis/viewer/interpolate" is to export image files (OpenGL and Qt only) see Sec-
tion 8.10.2 below) that may then be used to make a movie.
(Use the Geant4 "help" command to see details.)
For example, with iMovie (Apple Mac) one may import the created files (PDF recommended) and by reducing
the cliplength to 0.1 s (that seems to be the minimum) one may make a reasonable movie.
8.10.2. OGLX
Make a macro something like this:
/control/verbose 2
/vis/open OGL 600x600-0+0
/vis/drawVolume
/vis/viewer/reset
/vis/viewer/set/style surface
/vis/viewer/set/projection perspective 50 deg
/control/alias phi 30
/control/loop movie.loop theta 0 360 1
which invokes movie.loop, which is something like:
/vis/viewer/set/viewpointThetaPhi {theta} {phi}
/vis/viewer/zoom 1.005
/vis/ogl/printEPS
This produces lots of eps files. Then...
make_mpeg2encode_parfile.sh G4OpenGL_*eps
Then edit mpeg2encode.par to specify file type and size, etc.:
$ diff mpeg2encode.par~ mpeg2encode.par
7c7
< 1 /* input picture file format: 0=*.Y,*.U,*.V, 1=*.yuv, 2=*.ppm */
---
> 2 /* input picture file format: 0=*.Y,*.U,*.V, 1=*.yuv, 2=*.ppm */
15,17c15,17
< /* horizontal_size */
< /* vertical_size */
< 8 /* aspect_ratio_information 1=square pel, 2=4:3, 3=16:9, 4=2.11:1 */
---
> 600 /* horizontal_size */
![](asset-13f.png)
Visualization
310
> 600 /* vertical_size */
> 1 /* aspect_ratio_information 1=square pel, 2=4:3, 3=16:9, 4=2.11:1 */
Then convert to ppm:
for i in G4OpenGL*eps;
do j=`basename $i .eps`; command="convert $i $j.ppm"; echo $command; $command; done
Then
mpeg2encode mpeg2encode.par G4OpenGL.mpg
Then, on Mac, for example:
open G4OpenGL.mpg
opens a movie player.
8.10.3. Qt
The Qt driver provides one of the easiest ways to make a movie. Of course, you first need to add the Qt libraries
and link with Qt, but once you have that, Qt provides a ready-made function to store all updates of the OpenGL
frame into the movie format. You then use loops (as defined in OGLX section above) or even move/rotate/zoom
you scene by mouse actions to form your movie.
The Qt driver automatically handles all of the movie-making steps described in the OGLX section of this document
- storing the files, converting them and assembling the finished movie. You just have to take care of installing
an mpeg_encoder.
To make a movie :
• Right click to display a context menu, "Action"-<"Movie parameters".
• Select MPEG encoder path if it was not found.
• Select the name of the output movie.
• Let go! Hit SPACE to Start/Pause recording, RETURN to STOP
Then, open your movie (on Mac, for example):
open G4OpenGL.mpg
opens a QuickTime player.
8.10.4. DAWNFILE
You need to invoke dawn in "direct" mode, which picks up parameters from .DAWN_1.history, and suppress
the GUI:
alias dawn='dawn -d'
export DAWN_BATCH=1
Change OGL to DAWNFILE in the above set of Geant4 commands and run. Then convert to ppm files as above:
for i in g4_*.eps;
do j=`basename $i .eps`; command="convert $i $j.ppm"; echo $command; $command; done
Then make a .par file:
make_mpeg2encode_parfile.sh g4_*ppm
![](asset-140.png)
Visualization
311
and edit mpeg2encode.par:
$ diff mpeg2encode.par~ mpeg2encode.par
7c7
< 1 /* input picture file format: 0=*.Y,*.U,*.V, 1=*.yuv, 2=*.ppm */
---
> 2 /* input picture file format: 0=*.Y,*.U,*.V, 1=*.yuv, 2=*.ppm */
9c9
< 1 /* number of first frame */
---
> 0 /* number of first frame */
15,16c15,16
< /* horizontal_size */
< /* vertical_size */
---
> 482 /* horizontal_size */
> 730 /* vertical_size */
Then encode and play:
mpeg2encode mpeg2encode.par DAWN.mpg
open DAWN.mpg
8.10.5. RayTracerX
/control/verbose 2
/vis/open RayTracerX 600x600-0+0
# (Raytracer doesn't need a scene; smoother not to /vis/drawVolume.)
/vis/viewer/reset
/vis/viewer/set/style surface
/vis/viewer/set/projection perspective 50 deg
/control/alias phi 30
/control/loop movie.loop theta 0 360 1
where movie.loop is as above. This produces lots of jpeg files (but takes 3 days!!!). Then...
make_mpeg2encode_parfile.sh g4RayTracer*jpeg
Then edit mpeg2encode.par to specify file type and size, etc.:
$ diff mpeg2encode.par.orig mpeg2encode.par
7c7
< 1 /* input picture file format: 0=*.Y,*.U,*.V, 1=*.yuv, 2=*.ppm */
---
> 2 /* input picture file format: 0=*.Y,*.U,*.V, 1=*.yuv, 2=*.ppm */
15,17c15,17
< /* horizontal_size */
< /* vertical_size */
< 8 /* aspect_ratio_information 1=square pel, 2=4:3, 3=16:9, 4=2.11:1 */
---
> 600 /* horizontal_size */
> 600 /* vertical_size */
> 1 /* aspect_ratio_information 1=square pel, 2=4:3, 3=16:9, 4=2.11:1 */
Then convert to ppm, encode and play:
for i in g4*jpeg;
do j=`basename $i .jpeg`; command="convert $i $j.ppm"; echo $command; $command; done
mpeg2encode mpeg2encode.par g4RayTracer.mpg
open g4RayTracer.mpg
![](asset-141.png)
312
Chapter 9. Analysis
9.1. Introduction
The new analysis category based on g4tools was added in the Geant4 9.5 release with the aim to provide the users a
“light” analysis tool available directly with Geant4 installation without a need to link their Geant4 application with
an external analysis package. It consists of the analysis manager classes and it includes also the g4tools package.
g4tools provides code to write and read histograms and ntuples in several formats: ROOT, XML AIDA format
and CSV (comma-separated values format). It is a part of inlib and exlib libraries, that include also other facilities
like fitting and plotting.
The analysis classes provide a uniform, user-friendly interface to g4tools and hide the differences according to
a selected output technology from the user. They take care of a higher-level management of the g4tools objects
(files, histograms and ntuples), handle allocation and removal of the objects in memory and provide the access
methods to them via indexes. They are fully integrated in the Geant4 framework: they follow Geant4 coding style
and also implement the built-in Geant4 user interface commands that can be used by users to define or configure
their analysis objects.
An example of use of analysis manager classes is provided in basic example B4, in the B4RunAction and
B4EventAction classes.
9.2. Analysis Manager Classes
The analysis manager classes provide uniform interfaces to the g4tools package and hide the differences between
use of g4tools classes for the supported output formats (ROOT, AIDA XML and CSV).
An analysis manager class is available for each supported output format:
•G4CsvAnalysisManger
•G4RootAnalysisManger
•G4XmlAnalysisManger
For a simplicity of use, each analysis maneger provides the complete access to all interfaced functions though it
is implemented via a more complex design.
The managers are implemented as singletons. User code will access a pointer to a single instance of the desired
manager. The manager has to be created and deleted from the user code. All objects created via analysis manager
are deleted automatically with the manager. The concrete types of the analysis manager as well as the handled
g4tools objects, are hidden behind a namespace which is selected by including a dedicated include file. This allows
the user to use all output technologies in an identical way via these generic types:
•G4AnalysisManger: the public analysis interface
•G4AnaH1[2,3]: one[two,three]-dimensional histogram
•G4AnaP1[2]: one[two]-dimensional profile
•G4Ntuple: ntuple
In addition to the G4AnalysisManager functions, a set of Geant4 UI commands for creating histograms and
setting their properties is implemented in associated messenger classes.
9.2.1. Analysis Manager
To use Geant4 analysis, an instance of the analysis manager must be created. The analysis manager object is
created with the first call to G4AnalysisManager::Instance(), the next calls to this function will just
provide the pointer to this analysis manager object. The client code is responsible for deleting the created object
what is in our example done in the run action destructor.
![](asset-142.png)
Analysis
313
The example of the code for creating the analysis manager extracted from the basic B4 example is given below:
#include "B4Analysis.hh"
B4RunAction::B4RunAction()
: G4UserRunAction()
{
// Create analysis manager
auto analysisManager = G4AnalysisanalysisManagerager::Instance();
analysisManager->SetVerboseLevel(1);
analysisManager->SetFirstHistoId(1);
}
B4RunAction::~B4RunAction()
{
delete G4AnalysisManager::Instance();
}
It is recommended, but not necessary, to create the analysis manager in the user run action constructor and delete it
in its destructor. This guarantees correct behavior in multi-threading mode. The code specific to the output format
is hidden in B4Analysis.hh where the selection of the output format takes place.
#ifndef B4Analysis_h
#define B4Analysis_h 1
#include "g4root.hh"
//#include "g4xml.hh"
//#include "g4csv.hh"
#endif
The level of informative printings can be set by SetVerboseLevel(G4int). Currently the levels from 0
(default) up to 4 are supported.
The verbose level can be also set via the UI command:
/analysis/verbose level
9.2.2. Files handling
The analysis manager can handle only one base file at a time. Below we give an example of opening and closing
a file extracted from the basic example B4:
#include "B4Analysis.hh"
void B4RunAction::BeginOfRunAction(const G4Run* run)
{
// Get analysis manager
auto analysisManager = G4AnalysisanalysisManagerager::Instance();
// Open an output file
analysisManager->OpenFile("B4");
}
void B4RunAction::EndOfRunAction(const G4Run* aRun)
{
// Save histograms
auto analysisManager = G4AnalysisanalysisManagerager::Instance();
analysisManager->Write();
analysisManager->CloseFile();
}
The following functions are defined for handling files:
G4bool OpenFile(const G4String& fileName = "");
G4bool Write();
G4bool CloseFile();
![](asset-143.png)
Analysis
314
The file name can be defined either directly with OpenFile(const G4String&) call or separately via
SetFileName(const G4String&) function before calling OpenFile(). It is not possible to change the
file name when a file is open and not yet closed. If a file extension is not specified in fileName, it is automatically
completed according to a selected output format.
The file can be optionally structured in sub-directories. Currently only one directory for histograms
and/or one directory for ntuples are supported. The directories are created automatically if their names
are set to non-empty string values via SetHistoDirectoryName(const G4String&) and/or
SetNtupleDirectoryName(const G4String&). This setting is ignored with the output formats which
do not support this feature (XML, CSV).
The following commands for handling files and directories are available:
/analysis/setFileName name # Set name for the output file
/analysis/setHistoDirName name # Set name for the histograms directory
/analysis/setNtupleDirName name # Set name for the histograms directory
Depending on the selected output format more files can be generated when more than one ntuple is defined in a
user application. This is the case of XML and CSV, which do not allow writing more than one ntuple in a file. The
ntuple file name is then generated automatically from the base file name and the ntuple name.
The analysis manager can handle only one base file at a time, but several base files can be generated sucessively
from Geant4 session, typically one file is saved per run. A new file can be open only after a previous file was
closed. An example of generated more files per session is provided in basic/B5 example and its run2.mac macro.
Appending existing files is not supported. When an existing file is open again, its content is overwritten.
9.2.3. Histograms
The code for handling histograms given in the following example is extracted the B4 example classes. In this
example, the histograms are created in the run action constructor and they are filled in the end of event.
#include "B4Analysis.hh"
B4RunAction::B4RunAction()
: G4UserRunAction()
{
// Create analysis manager
// ...
// Creating histograms
analysisManager->CreateH1("1","Edep in absorber", 100, 0., 800*MeV);
analysisManager->CreateH1("2","Edep in gap", 100, 0., 100*MeV);
}
void B4aEventAction::EndOfEventAction(const G4Run* aRun)
{
// Fill histograms
auto analysisManager = G4AnalysisanalysisManagerager::Instance();
analysisManager->FillH1(1, fEnergyAbs);
analysisManager->FillH1(2, fEnergyGap);
}
9.2.3.1. Creating Histograms
A one-dimensional (1D) histogram can be created with one of these two G4AnalysisManager functions:
G4int CreateH1(const G4String& name, const G4String& title,
G4int nbins, G4double xmin, G4double xmax,
const G4String& unitName = "none",
const G4String& fcnName = "none",
const G4String& binSchemeName = "linear");
G4int CreateH1(const G4String& name, const G4String& title,
const std::vector<G4double>& edges,
![](asset-144.png)
Analysis
315
const G4String& unitName = "none",
const G4String& fcnName = "none");
where name and title parameters are self-descriptive. The histogram edgeds can be defined either via the
nbins, xmin and xmax parameters (first function) representing the number of bins, the minimum and maximum
histogram values, or via the const std::vector<G4double>& edges parameter (second function) rep-
resenting the edges defined explicitly. The other parameters in both functions are optional and their meaning is
explained in Section 9.2.3.6.
Two-dimensional (2D) and three-dimensional (3D) histograms can be created with one of these two functions
analogous to those for 1D histograms:
G4int CreateH2(const G4String& name, const G4String& title,
G4int nxbins, G4double xmin, G4double xmax,
G4int nybins, G4double ymin, G4double ymax,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& xbinScheme = "linear",
const G4String& ybinScheme = "linear");
G4int CreateH2(const G4String& name, const G4String& title,
const std::vector<G4double>& xedges,
const std::vector<G4double>& yedges,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none");
G4int CreateH3(const G4String& name, const G4String& title,
G4int nxbins, G4double xmin, G4double xmax,
G4int nybins, G4double ymin, G4double ymax,
G4int nzbins, G4double zmin, G4double zmax,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& zunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& zfcnName = "none",
const G4String& xbinSchemeName = "linear",
const G4String& ybinSchemeName = "linear",
const G4String& zbinSchemeName = "linear");
G4int CreateH3(const G4String& name, const G4String& title,
const std::vector<G4double>& xedges,
const std::vector<G4double>& yedges,
const std::vector<G4double>& zedges,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& zunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& zfcnName = "none");
The meaning of parameters is the same as in the functions for 1D histograms, they are just applied in x, y and
z dimensions.
The histograms created with G4AnalysisManager get automatically attributed an integer identifier which
value is returned from the "Create" function. The default start value is 0 and it is incremented by 1 for each next
created histogram. The numbering of 2D and 3D histograms is independent from 1D histograms and so the first
created 2D (or 3D) histogram identifier is equal to the start value even when several 1D histograms have been
already created.
The start histogram identifier value can be changed either with the SetFirstHistoId(G4int) method, which
applies the new value to all histogram types, or with the SetFirstHNId(G4int), where N = 1, 2, 3
methods, which apply the new value only to the relevant histogram type. The first method is demonstrated in the
example.
![](asset-145.png)
Analysis
316
The histogram names "1", "2" in the demonstrated example are defined to correspond the histograms identifiers
in a similar way as in extended/analysis/AnaEx01 example. This choice is however fully in hands of the
user who can prefer longer and more meaningful names.
All histograms created by G4AnalysisManager are automatically deleted with deleting the
G4AnalysisManager object.
Histograms can be also created via UI commands. The commands to create 1D histogram:
/analysis/h1/create # Create 1D histogram
name title [nbin min max] [unit] [fcn] [binScheme]
The commands to create 2D histogram:
/analysis/h2/create # Create 2D histogram
name title [nxbin xmin xmax xunit xfcn xbinScheme nybin ymin ymax yunit yfcn yBinScheme]
The commands to create 3D histogram:
/analysis/h3/create # Create 3D histogram
name title [nxbin xmin xmax xunit xfcn xbinScheme nybin ymin ymax yunit yfcn yBinScheme nzbin zmin zmax zunit zfcn zBinScheme]
9.2.3.2. Configuring Histograms
The properties of already created histograms can be changed with use of one of these two functions sets. For 1D
histograms:
G4bool SetH1(G4int id,
G4int nbins, G4double xmin, G4double xmax,
const G4String& unitName = "none",
const G4String& fcnName = "none",
const G4String& binSchemeName = "linear");
G4bool SetH1(G4int id,
const std::vector<G4double>& edges,
const G4String& unitName = "none",
const G4String& fcnName = "none");
for 2D histograms:
G4bool SetH2(G4int id,
G4int nxbins, G4double xmin, G4double xmax,
G4int nybins, G4double ymin, G4double ymax,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& xbinSchemeName = "linear",
const G4String& ybinSchemeName = "linear");
G4bool SetH2(G4int id,
const std::vector<G4double>& xedges,
const std::vector<G4double>& yedges,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none");
and for 3D histograms:
G4bool SetH3(G4int id,
G4int nxbins, G4double xmin, G4double xmax,
G4int nzbins, G4double zmin, G4double zmax,
G4int nybins, G4double ymin, G4double ymax,
const G4String& xunitName = "none",
![](asset-146.png)
Analysis
317
const G4String& yunitName = "none",
const G4String& zunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& zfcnName = "none",
const G4String& xbinSchemeName = "linear",
const G4String& ybinSchemeName = "linear",
const G4String& zbinSchemeName = "linear");
G4bool SetH3(G4int id,
const std::vector<G4double>& xedges,
const std::vector<G4double>& yedges,
const std::vector<G4double>& zedges,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& zunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& zfcnName = "none");
The histogram is accessed via its integer identifier. The meaning of the other parameters is the same as in "Create"
functions.
Histogram properties can be also defined via UI commands. The commands to define 1D histogram:
/analysis/h1/set id nbin min max [unit] [fcn] [binScheme] # Set parameters
The commands to define 2D histogram:
# Set parameters for the 2D histogram of #id
/analysis/h2/set
id nxbin xmin xmax xunit xfcn xbinScheme nybin ymin ymax yunit yfcn yBinScheme
# Set parameters per dimension
/analysis/h2/setX id nbin min max [unit] [fcn] [binScheme] # Set x-parameters
/analysis/h2/setY id nbin min max [unit] [fcn] [binScheme] # Set y-parameters
The commands to define 3D histogram:
# Set parameters for the 3D histogram of #id
/analysis/h3/set =
id nxbin xmin xmax xunit xfcn xbinScheme nybin ymin ymax yunit yfcn yBinScheme nzbin zmin zmax zunit zfcn zBinScheme
# Set parameters per dimension
/analysis/h3/setX id nbin min max [unit] [fcn] [binScheme] # Set x-parameters
/analysis/h3/setY id nbin min max [unit] [fcn] [binScheme] # Set y-parameters
/analysis/h3/setY id nbin min max [unit] [fcn] [binScheme] # Set z-parameters
A limited set of parameters for histograms plotting, the histogram and the histogram axis titles, can be also defined
via functions:
G4bool SetH1Title(G4int id, const G4String& title);
G4bool SetH1XAxisTitle(G4int id, const G4String& title);
G4bool SetH1YAxisTitle(G4int id, const G4String& title);
//
G4bool SetH2Title(G4int id, const G4String& title);
G4bool SetH2XAxisTitle(G4int id, const G4String& title);
G4bool SetH2YAxisTitle(G4int id, const G4String& title);
G4bool SetH2ZAxisTitle(G4int id, const G4String& title);
//
G4bool SetH3Title(G4int id, const G4String& title);
G4bool SetH3XAxisTitle(G4int id, const G4String& title);
G4bool SetH3YAxisTitle(G4int id, const G4String& title);
G4bool SetH3ZAxisTitle(G4int id, const G4String& title);
The corresponding UI commands:
/analysis/h1/setTitle id title # Set title for the 1D histogram of #id
![](asset-147.png)
Analysis
318
/analysis/h1/setXaxis id title # Set x-axis title for the 1D histogram
/analysis/h1/setYaxis id title # Set y-axis title for the 1D histogram
The same set of commands is available for the other histogram types and profiles, under the appropriate directory.
9.2.3.3. Filling Histograms
The histogram values can be filled using the functions:
G4bool FillH1(G4int id, G4double value,
G4double weight = 1.0);
G4bool FillH2(G4int id, G4double xvalue, G4double yvalue,
G4double weight = 1.0);
G4bool FillH3(G4int id,
G4double xvalue, G4double yvalue, G4double zvalue,
G4double weight = 1.0);
where the weight can be given optionally.
The histograms can be also scaled with a given factor using the functions:
G4bool ScaleH1(G4int id, G4double factor);
G4bool ScaleH2(G4int id, G4double factor);
G4bool ScaleH3(G4int id, G4double factor);
9.2.3.4. Accessing Histograms
Besides the fast access to histograms via their integer identifiers, the histograms can be also accessed by their
names using the G4AnalysisManager function providing the conversion from a name in a histogram identifier:
G4int GetH1Id(const G4String& name, G4bool warn = true) const;
G4int GetH2Id(const G4String& name, G4bool warn = true) const;
G4int GetH3Id(const G4String& name, G4bool warn = true) const;
If a histogram with a given name is not found, a warning is issued unless it is explicitly disabled by the user. This
way is however less efficient and it is not recommended for frequently called functions as e.g. Fill().
The analysis manager provides also the direct access to the g4tools histogram objects. The concrete histogram
type is hidden behind a selected namespace. In example B4, the g4tools histogram functions mean() and rms()
are called:
auto analysisManager = G4AnalysisanalysisManagerager::Instance();
if ( analysisManager->GetH1(1) ) {
G4cout << "\n ----> print histograms statistic \n" << G4endl;
G4cout << " EAbs : mean = " << analysisManager->GetH1(1)->mean()
<< " rms = " << analysisManager->GetH1(1)->rms(),
<< G4endl;
// ...
}
9.2.3.5. Activation of Histograms
The activation option allows the user to activate only selected histograms. When this option is activated, only the
histograms marked as activated are returned, filled or saved in a file. This feature is intensively used in extend-
ed/electromagnetic examples where all histograms are first created inactivated:
auto analysisManager = G4AnalysisanalysisManagerager::Instance();
analysisManager->SetActivation(true);
// define histogram parameters name, title, nbins, vmin, vmax
G4int id = analysisManager->CreateH1(name, title, nbins, vmin, vmax);
analysisManager->SetH1Activation(id, false);
and then selected histograms are activated in macros, using the analysis "set" command:
![](asset-148.png)
Analysis
319
/analysis/h1/set 1 100 0 50 cm #track length of primary
/analysis/h1/set 2 100 0 300 none #nb steps of primary
The activation option is not switched on by default. It has to be activated either via analysisManager
SetActivation(true) call as above or via the UI command:
/analysis/setActivation true|false # Set activation option
When no parameters need to be changed a histogram can be activated using "setActivation" command:
/analysis/h1/setActivation id true|false # Set activation to histogram #id
/analysis/h1/setActivationToAll true|false # Set activation to all 1D histograms.
9.2.3.6. Histograms Properties
The following properties, additional to those defined in g4tools, can be added to histograms via
G4AnalysisManager:
•Unit: if a histogram is defined with a unit, all filled values are automatically converted to this defined unit and
the unit is added to the histogram axis title.
•Function: if a histogram is defined with a function, the function is automatically executed on the filled values
and its name is added to the histogram axis title. When a histogram is defined with both unit and function the
unit is applied first. The available functions: log, log10, exp .
•Binning scheme: user can select logarithmic binning scheme besides the linear one (default). The available
binning schemes: linear, log .
•Activation: see previous section.
•ASCII option: if activated the histogram is also printed in an ASCII file when Write() function is called.
•Plotting option: if activated the histogram is plotted in a file of Postscript format when Write() function is called.
See more details in Section 9.2.5.
9.2.4. Profiles
Profile histograms (profiles) are used to display the mean value of Y and its error for each bin in X. The displayed
error is by default the standard error on the mean (i.e. the standard deviation divided by the sqrt(n).) An example
of use of 1D profiles can be found in extended/electromagnetic/TestEm2. Though the functions for
creating and manipulating profiles are very similar to those for histograms, they are described in this section.
9.2.4.1. Creating Profiles
A one-dimensional (1D) profile can be created with one of these two G4AnalysisManager functions:
G4int CreateP1(const G4String& name, const G4String& title,
G4int nbins, G4double xmin, G4double xmax,
G4double ymin = 0, G4double ymax = 0,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& xbinSchemeName = "linear");
G4int CreateP1(const G4String& name, const G4String& title,
const std::vector<G4double>& edges,
G4double ymin = 0, G4double ymax = 0,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none");
![](asset-149.png)
Analysis
320
where name and title parameters are self-descriptive. The profile edgeds can be defined either via the nbins,
xmin and xmax parameters (first function) representing the number of bins, the minimum and maximum profile
values, or via the const std::vector<G4double>& edges parameter (second function) representing
the edges defined explicitly. If ymin and ymax parameters are provides, only values between these limnits will
be considered at filling time. The other parameters in both functions are optional and their meaning is explained
in Section 9.2.4.4.
A two-dimensional (2D) profile can be created with one of these two functions analogous to those for 1D profiles:
G4int CreateP2(const G4String& name, const G4String& title,
G4int nxbins, G4double xmin, G4double xmax,
G4int nybins, G4double ymin, G4double ymax,
G4double zmin = 0, G4double zmax = 0,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& zunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& zfcnName = "none",
const G4String& xbinSchemeName = "linear",
const G4String& ybinSchemeName = "linear");
G4int CreateP2(const G4String& name, const G4String& title,
const std::vector<G4double>& xedges,
const std::vector<G4double>& yedges,
G4double zmin = 0, G4double zmax = 0,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& zunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& zfcnName = "none");
The meaning of parameters is the same as in the functions for 1D profiles, they are just applied in x, y and z
dimensions.
The profiles created with G4AnalysisManager get automatically attributed an integer identifier which value
is returned from the "Create" function. The default start value is 0 and it is incremented by 1 for each next created
profile. The numbering of 2D profiles is independent from 1D profiles and so the first created 2D profile identifier
is equal to the start value even when several 1D profiles have been already created.
The start profile identifier value can be changed either with the SetFirstProfileId(G4int) method, which
applies the new value to both 1D and 2D profile types, or with the SetFirstPNId(G4int), where N = 1,
2 methods, which apply the new value only to the relevant profile type.
All profiles created by G4AnalysisManager are automatically deleted with deleting the
G4AnalysisManager object.
Profiles can be also created via UI commands. The commands to create 1D profile:
/analysis/p1/create # Create 1D profile
name title [nxbin xmin xmax xunit xfcn xbinScheme ymin ymax yunit yfcn]
The commands to create 2D profile:
/analysis/p2/create # Create 2D profile
name title [nxbin xmin xmax xunit xfcn xbinScheme nybin ymin ymax yunit yfcn yBinScheme zmin zmax zunit zfcn]
9.2.4.2. Configuring Profiles
The properties of already created profiles can be changed with use of one of these two functions sets. For 1D
profiles:
G4bool SetP1(G4int id,
![](asset-14a.png)
Analysis
321
G4int nbins, G4double xmin, G4double xmax,
G4double ymin = 0, G4double ymax = 0,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& xbinSchemeName = "linear");
G4bool SetP1(G4int id,
const std::vector<G4double>& edges,
G4double ymin = 0, G4double ymax = 0,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none");
and for 2D profiles:
G4bool SetP2(G4int id,
G4int nxbins, G4double xmin, G4double xmax,
G4int nybins, G4double ymin, G4double ymax,
G4double zmin = 0, G4double zmax = 0,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& zunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& zfcnName = "none",
const G4String& xbinSchemeName = "linear",
const G4String& ybinSchemeName = "linear");
G4bool SetP2(G4int id,
const std::vector<G4double>& xedges,
const std::vector<G4double>& yedges,
G4double zmin = 0, G4double zmax = 0,
const G4String& xunitName = "none",
const G4String& yunitName = "none",
const G4String& zunitName = "none",
const G4String& xfcnName = "none",
const G4String& yfcnName = "none",
const G4String& zfcnName = "none");
The profile is accessed via its integer identifier. The meaning of the other parameters is the same as in "Create"
functions.
Profiles properties can be also defined via UI commands. The commands to define 1D profile:
/analysis/p1/set # Set parameters for the 1D histogram of #id
id nxbin xmin xmax xunit xfcn xbinScheme ymin ymax yunit yfcn
The commands to create or define 2D profile:
/analysis/p2/set # Set parameters for the 2D profile of #id
id nxbin xmin xmax xunit xfcn xbinScheme nybin ymin ymax yunit yfcn yBinScheme zmin zmax zunit zfcn
A limited set of parameters for profiles plotting, the profile and the profile axis titles, can be also defined via
functions:
G4bool SetP1Title(G4int id, const G4String& title);
G4bool SetP1XAxisTitle(G4int id, const G4String& title);
G4bool SetP1YAxisTitle(G4int id, const G4String& title);
//
G4bool SetP2Title(G4int id, const G4String& title);
G4bool SetP2XAxisTitle(G4int id, const G4String& title);
G4bool SetP2YAxisTitle(G4int id, const G4String& title);
G4bool SetP2ZAxisTitle(G4int id, const G4String& title);
The parameters can be also set via the same set of UI commands as the histogram parameters available under the
appropriate directory.
![](asset-14b.png)
Analysis
322
9.2.4.3. Filling Profiles
The profile values can be filled using the functions:
G4bool FillP1(G4int id,
G4double xvalue, G4double yvalue,
G4double weight = 1.0);
G4bool FillP2(G4int id,
G4double xvalue, G4double yvalue, G4double zvalue,
G4double weight = 1.0);
where the weight can be given optionally.
The profiles can be also scaled with a given factor using the functions:
G4bool ScaleP1(G4int id, G4double factor);
G4bool ScaleP2(G4int id, G4double factor);
9.2.4.4. Profiles Properties
All histogram features described in sections "Accessing Histograms", "Activation of Histograms" and "Histograms
Properties" (Section 9.2.3.4, Section 9.2.3.5 and Section 9.2.3.6) are also available for profiles.
9.2.5. Plotting
Since Geant4 10.2 version it is possible to produce a graphics output file in the Postscript format containing selected
histograms and profiles. Histograms and profiles plotting can be activated using G4AnalysisManager functions:
auto analysisManager = G4AnalysisanalysisManagerager::Instance();
analysisManager->SetH1Plotting(id, true);
// etc for H2, H3, P1, P2
or using the UI commands
/analysis/h1/setPlotting id true|false # (In)Activate plottig for 1D histogram #id
/analysis/h1/setPlottingToAll true|false # (In)Activate plottig for all 1D histograms.
# etc. for h2, h3, p1, p2
If Geant4 libraries are built with support for Freetype font rendering, user can choose from three plotting styles:
• ROOT_default: ROOT style with high resolution fonts (default)
• hippodraw: hippodraw style with high resolution fonts
• inlib_default: PAW style with low resolution fonts")
otherwise only the inlib_default style with low resolution fonts is available.
The page size of the graphics output is fixed to A4 format. Users can choose the page layout which is defined by
the number columns and the number of rows in a page. Depending on the selected plotting style, the maximum
number of plots is limited to 3 columns x 5 rows for the styles with high resolution fonts and to 2 columns x 3
rows for the inlib_default style.
Finally, users can also customize the plot dimensions, which represent the plotter window size (width and height)
in pixels.
The customization of the plotting can be done via the UI commands in /analysis/plot directory:
/analysis/plot/setStyle styleName
/analysis/plot/setLayout columns rows
![](asset-14c.png)
Analysis
323
/analysis/plot/setDimensions width height
Opening more configuration parameters for users customisation can be considered in future according to the users
feedback.
9.2.6. Ntuples
In the following example the code for handling ntuples extracted from basic example B4, from the B4RunAction
and B4EventAction classes, is presented.
#include "B4Analysis.hh"
B4RunAction::B4RunAction()
: G4UserRunAction()
{
// Create analysis manager
// ...
// Create ntuple
man->CreateNtuple("B4", "Edep and TrackL");
man->CreateNtupleDColumn("Eabs");
man->CreateNtupleDColumn("Egap");
man->FinishNtuple();
}
void B4EventAction::EndOfEventAction(const G4Run* aRun)
{
G4AnalysisManager* man = G4AnalysisManager::Instance();
man->FillNtupleDColumn(0, fEnergyAbs);
man->FillNtupleDColumn(1, fEnergyGap);
man->AddNtupleRow();
}
Since 10.0 release, there is no limitation for the number of ntuples that can be handled by G4AnalysisManager.
Handling of two ntuples is demostrated in extended analysis/AnaEx01 example.
9.2.6.1. Creating Ntuples
An ntuple can be created using the following set of functions:
G4int CreateNtuple(const G4String& name, const G4String& title);
// Create columns in the last created ntuple
G4int CreateNtupleXColumn(const G4String& name);
void FinishNtuple();
// Create columns in the ntuple with given id
G4int CreateNtupleXColumn(G4int ntupleId, const G4String& name);
void FinishNtuple(G4int ntupleId);
The first set is demonstrated in the example. The columns can take the values of G4int, G4float, G4double
or G4Stringtype which is also reflected in the CreateNtupleXColumn() function names. where X can be
I, F, D or S .
It is also possible to define ntuple columns of std::vector of G4int, G4float or G4double values using
the functions:
// Create columns of vector in the last created ntuple
G4int CreateNtupleXColumn(
const G4String& name, std::vector<Xtype>& vector);
// Create columns of vector in the ntuple with given id
G4int CreateNtupleXColumn(G4int ntupleId,
const G4String& name, std::vector<Xtype>& vector);
where [X, Xtype] can be [I, G4int], [F, G4float] or [D, G4double].
![](asset-14d.png)
Analysis
324
When all ntuple columns are created, the ntuple has to be closed using FinishNtuple() function.
The ntuples created with G4AnalysisManager get automatically attributed an integer identifier which value
is returned from the "Create" function. The default start value is 0 and it is incremented by 1 for each next created
ntuple. The start ntuple identifier value can be changed with the SetFirstNtupleId(G4int) function.
The integer identifiers are also attributed to the ntuple columns. The numbering of ntuple columns is independent
for each ntuple, the identifier default start value is 0 and it is incremented by 1 for each next created column
regardless its type (I, F, D or S). (If the third ntuple column of a different type than double (int or float) is
created in the demonstrated example, its identifier will have the value equal 2.) The start ntuple column identifier
value can be changed with the SetFirstNtupleColumnId(G4int) function.
When calls to CreateNtuple-Column() and FinishNtuple() succeed the call to CreateNtuple(),
the ntupleId argument need not to be specified even when creating several ntuples. However this order is not
enforced and the second set of functions with ntupleId argument is provided to allow the user to create the
ntuples and their columns in whatever order.
All ntuples and ntuple columns created by G4AnalysisManager are automatically deleted with deleting the
G4AnalysisManager object.
9.2.6.2. Filling Ntuples
The ntuple values can be filled using the functions:
// Methods for ntuple with id = FirstNtupleId
G4bool FillNtupleIColumn(G4int id, G4int value);
G4bool FillNtupleFColumn(G4int id, G4float value);
G4bool FillNtupleDColumn(G4int id, G4double value);
G4bool FillNtupleSColumn(G4int id, const G4String& value);
G4bool AddNtupleRow();
// Methods for ntuple with id > FirstNtupleId (when more ntuples exist)
G4bool FillNtupleIColumn(G4int ntupleId, G4int columnId, G4int value);
G4bool FillNtupleFColumn(G4int ntupleId, G4int columnId, G4float value);
G4bool FillNtupleDColumn(G4int ntupleId, G4int columnId, G4double value);
G4bool FillNtupleSColumn(G4int ntupleId, G4int id, const G4String& value);
G4bool AddNtupleRow(G4int ntupleId);
If only one ntuple is defined in the user application, the ntuple identifier, ntupleId, need not to be specified
and the first set can be used. The second set of functions has to be used otherwise. When all ntuple columns are
filled, the ntuple fill has to be closed by calling AddNtupleRow().
9.2.6.3. Accessing Ntuples
The ntuples g4tools objects can be accessed by their identifier. The concrete ntuple type is hidden behind a selected
namespace:
auto analysisManager = G4AnalysisanalysisManagerager::Instance();
// If only one ntuple is defined
G4Ntuple* ntuple = analysisManager->GetNtuple();
// If more ntuples
G4int ntuple id = ...;
G4Ntuple* ntuple = analysisManager->GetNtuple(ntupleId);
9.2.7. Parallel Processing
As well as all other Geant4 categories, the analysis code has been adapted for multi-threading. In multi-threading
mode, the analysis manager instances are internally created on the master and thread workers and data accounting
is processed in parallel on workers threads.
Histograms produced on thread workers are automatically merged on Write() call and the result is written in a
master file. Merging is protected by a mutex locking, using G4AutoLock utility.
![](asset-14e.png)
Analysis
325
Ntuples produced on thread workers are, by default, written on separate files, which names are generated auto-
matically from a base file name, a thread identifier and eventually also an ntuple name. Since Geant4 version 10.3
it is possible to activate merging of ntuples with ROOT output type:
auto analysisManager = G4AnalysisManager::Instance();
analysisManager->SetNtupleMerging(true);
The ntuples produced on workers will be then progressively being merged to the main ntuples on the master. By
default, the ntuples are written at the same file as the final histograms. Users can also select merging in a given
number of files or change the default basket size value (32000) :
auto analysisManager = G4AnalysisManager::Instance();
G4int nofReducedNtupleFiles = 2;
G4int basketSize = 64000;
analysisManager->SetNtupleMerging(true, nofReducedNtupleFiles, basketSize);
No merging of ntuples is provided with CSV and AIDA XML formats.
No changes are required in the user client analysis code for migration to multi-threading. It is however recom-
mended to instantiate and delete the analysis manager in the user run action constructor and destructor respec-
tively. The master instance is necessary when histograms are used in the user application or if merging ntuples
is selected (available only with ROOT output); in case only ntuples are in use and merging is not activated, the
master instance need not to be created.
To simplify the scaling of a Geant4 application across nodes on a cluster Geant4 provides the support of MPI.
In particular it is possible to run a hybrid MPI/MT application that uses MPI to scale across nodes and MT to
scale across cores. This is demonstrated in the extended example parallel/MPI/exMPI03 which includes
usage of Geant4 analysis.
9.2.8. Coexistence of Several Managers
The specific manager classes are singletons and so it is not possible to create more than one instance of an analysis
manager of one type, eg. G4RootAnalysisManager. However two analysis manager objects of different types
can coexist. Then instead of the generic G4AnalysisManager typedef the concrete type of each manager has
to be given explicitly.
#include "G4CsvAnalysisManager.hh"
#include "G4XmlAnalysisManager.hh"
G4CsvAnalysisManager* csvManager = G4CsvAnalysisManager::Instance();
G4XmlAnalysisManager* xmlManager = G4XmlAnalysisManager::Instance();
Or:
#include "g4csv_defs.hh"
#include "g4xml_defs.hh"
G4Csv::G4AnalysisManager* csvManager = G4Csv::G4AnalysisManager::Instance();
G4Xml::G4AnalysisManager* xmlManager = G4Xml::G4AnalysisManager::Instance();
9.2.9. Supported Features and Limitations
The analysis category based on g4tools is provided with certain limitations that can be reduced according to the
feedback from Geant4 users and developers.
Below is a summary of currently supported features in Root, Csv and Xml manager classes:
• Histogram types: 1D, 2D, 3D of double
• Profile types: 1D, 2D of double
![](asset-14f.png)
Analysis
326
• Ntuple column types: int, float, double, G4String, std::vector<int>,
std::vector<float>, std::vector<double>
• Optional directory structure limited to one directory for histograms and/or one for ntuples
9.3. Analysis Reader Classes
The analysis reader classes allow to read in g4analysis objects from the files generated by the analysis manager(s)
during processing Geant4 application.
An analysis reader class is available for each supported output format:
•G4CsvAnalysisReader
•G4RootAnalysisReader
•G4XmlAnalysisReader
For a simplicity of use, each analysis manager provides the complete access to all interfaced functions though it
is implemented via a more complex design.
The readers are implemented as singletons. User code will access a pointer to a single instance of the desired reader
object. The reader has to be created and deleted from the user code. All objects created via analysis reader are
deleted automatically with the manager. The concrete types of the analysis reader as well as the handled g4tools
objects, are hidden behind a namespace which is selected by including a dedicated include file. This allows the
user to use all output technologies in an identical way via these generic types:
•G4AnalysisReader: the public reader interface
•G4AnaH1[2,3]: one[two,three]-dimensional histogram
•G4AnaP1[2]: one[two]-dimensional profile
•G4RNtuple: read ntuple
While the histograms and profiles objects handled by the analysis reader are of the same type as those handled by
the analysis manager, the redaer's ntuple type is different.
All objects read with G4AnalysisReader (histograms, profiles and ntuples) get automatically attributed an
integer identifier which value is returned from the "Read" ot "GetNtuple" function. The default start value is 0
and it is incremented by 1 for each next created object. The numbering each object type is independent from other
objects types and also from the numbering of the same object type in analysis manager. The start identifier value
can be changed in the same way as with the analysis manager (see Section 9.2.3.1).
The read objects can be accessed in the analysis reader via their integer identifiers or by their names in the same
way as in the analysis manager (see Section 9.2.3.4). Note that the type of read ntuple is different from the ntuple
type in the analysis manager.
The specific manager classes are singletons and so it is not possible to create more than one instance of an analysis
reader of one type, eg. G4RootAnalysisReader. However two analysis reader objects of different types can
coexist. Then instead of the generic G4AnalysisReader typedef the concrete type of each manager has to be
given explicitly in a similar way as for the analysis managers (see Section 9.2.8).
As well as all other Geant4 categories, the analysis code has been adapted for multi-threading. In multi-threading
mode, the analysis reader instances are internally created on the master or thread workers, depending on the client
code call, and data reading can be processed in parallel on workers threads.
9.3.1. Analysis Reader
For reading in the output files created with G4AnalysisManager, an instance of the analysis reader must be
created. The analysis reader object is created with the first call to G4AnalysisReader::Instance(), the
next calls to this function will just provide the pointer to this analysis manager object. The client code is responsible
for deleting the created object.
The example of the code for creating the analysis reader is given below:
![](asset-150.png)
Analysis
327
#include "g4root.hh"
//#include "g4csv.hh"
//#include "g4xml.hh"
// Create (or get) analysis reader
G4AnalysisReader* analysisReader = G4AnalysisReader::Instance();
analysisReader->SetVerboseLevel(1);
// code to read data
// Delete analysis reader
delete G4AnalysisReader::Instance();
The level of informative printings can be set by SetVerboseLevel(G4int). Currently the levels from 0
(default) up to 4 are supported.
9.3.2. Files handling
The name of file to be read can be specified either via G4AnalysisReader::SetFileName() function, or
directly when reading an object. It is possible to change the base file name at any time. The analysis reader can
handle more than one file at same time.
G4AnalysisReader* analysisReader = G4AnalysisReader::Instance();
// Define a base file name
analysisReader->SetFileName("MyFileName");
The following functions are defined for handling files:
void SetFileName(const G4String& fileName);
G4String GetFileName() const;
A file is open only when any "Read" function is called. When more objects are read from the same file (Xml,
Root), the file is open only once. When reading an object without specifying the file name explicitly in "Read"
call, the object is searched in all open files in the order of their creation time.
9.3.3. Histograms and Profiles
In the following example the code for reading an histogram is presented.
// Code to create (or get) analysis reader
G4AnalysisReader* analysisReader = G4AnalysisReader::Instance();
// Define a base file name
analysisReader->SetFileName("MyFileName");
// Read 1D histogram of "Edep" name
G4int h1Id = analysisReader->ReadH1("Edep");
if ( h1Id >= 0 ) {
G4H1* h1 = analysisReader->GetH1(h1Id);
if ( h1 ) {
G4cout << " H1: "
<< " mean: " << h1->mean() << " rms: " << h1->rms() << G4endl;
}
}
// Delete analysis reader
delete G4AnalysisReader::Instance();
The histograms and profiles can be read with these G4AnalysisReader functions:
G4int ReadH1(const G4String& h1Name, const G4String& fileName = "");
G4int ReadH2(const G4String& h2Name, const G4String& fileName = "");
G4int ReadH3(const G4String& h3Name, const G4String& fileName = "");
G4int ReadP1(const G4String& h1Name, const G4String& fileName = "");
G4int ReadP2(const G4String& h2Name, const G4String& fileName = "");
![](asset-151.png)
Analysis
328
where hNname is the name of the object to be read from a file. The file name can be defined explicitly for each
reading object.
All histograms and profiles created by G4AnalysisReader are automatically deleted with deleting the
G4AnalysisReader object.
9.3.4. Ntuples
In the following example the code for reading ntuples is presented.
// Code to create (or get) analysis reader
G4AnalysisReader* analysisReader = G4AnalysisReader::Instance();
// Define a base file name
analysisReader->SetFileName("MyFileName");
// Read ntuple
G4int ntupleId = analysisReader->GetNtuple("TrackL");;
if ( ntupleId >= 0 ) {
G4double trackL;
analysisReader->SetNtupleDColumn("Labs", trackL);
G4cout << "Ntuple TrackL, reading selected column Labs" << G4endl;
while ( analysisReader->GetNtupleRow() ) {
G4cout << counter++ << "th entry: "
<< " TrackL: " << trackL << std::endl;
}
}
// Delete analysis reader
delete G4AnalysisReader::Instance();
When the ntuple columns are associated with the variables of the appropriate type, the ntuple they can be read in
a loop with GetNtupleRow() function. The function returns true until all data are read in.
On overview of all available functions for ntuple reading is given below:
// Methods to read ntuple from a file
G4int GetNtuple(const G4String& ntupleName, const G4String& fileName = "");
// Methods for ntuple with id = FirstNtupleId
G4bool SetNtupleXColumn(const G4String& columnName, Xtype& value);
G4bool SetNtupleXColumn(const G4String& columnName, std::vector<Xtype>& vector);
G4bool GetNtupleRow();
// Methods for ntuple with id > FirstNtupleId
G4bool SetNtupleXColumn(G4int ntupleId,
const G4String& columnName, Xtype& value);
G4bool SetNtupleXColumn(G4int ntupleId,
const G4String& columnName, std::vector<Xtype>& vector);
G4bool GetNtupleRow(G4int ntupleId);
where [X, Xtype] in SetNtupleXColumn() can be [I, G4int], [F, G4float], [D,
G4double] or [S, G4String]. The columns of std::vector type are not supported for G4String.
All ntuples and ntuple columns created by G4AnalysisReader are automatically deleted with deleting the
G4AnalysisReader object.
9.4. Accumulables
The classes for users accumulables management were added in 10.2 release for the purpose of simplification of
users application code. The accumulables objects are named variables registered to the accumulable manager,
which provides the acces to them by name and performs their merging in multi-threading mode according to their
defined merge mode. Their usage is demonstrated in the basic examples B1 and B3a.
To better reflect the meaning of these objects, the classes base name "Parameter" used in 10.2 was changed in
"Accumulable" in 10.3. Further integration in the Geant4 framework is foreseen in the next Geant4 versions.
![](asset-152.png)
Analysis
329
9.4.1. G4Accumulable<T>
G4Accumulable<T> templated class can be used instead of built-in types in order to facilitate merging of the
values accumulated on workers to the master thread. The G4Accumulable<T> object has, besides its value of
the templated type T, also a name, the initial value, which the value is set to in Reset() function and a merge
mode, specifying the operation which is performed in Merge() function.
The accumulable object can be either instatiated using its constructor and reg-
isterd in G4AccumulablesManager explicitly, or it can be created using
G4AccumulablesManager::CreateAccumulable() function, their registering is then automatic. The
first way is used in the basic examples B1 and B3a:
// B1RunAction.hh
class B1RunAction : public G4UserRunAction
{
// ...
private:
G4Accumulable<G4double> fEdep;
G4Accumulable<G4double> fEdep2;
};
// B1RunAction.cc
B1RunAction::B1RunAction()
: G4UserRunAction(),
fEdep("Edep", 0.),
fEdep2("Edep2", 0.) // the accumulable is initialized with a name and a value = initValue
// (the name can be omitted)
{
// ..
// Register accumulable to the accumulable manager
G4AccumulableManager* accumulableManager = G4AccumulableManager::Instance();
accumulableManager->RegisterAccumulable(fEdep);
accumulableManager->RegisterAccumulable(fEdep2);
}
An alternative way of creating an accumulable using G4AccumulablesManager is demonstrated below:
// B1RunAction.cc
B1RunAction::B1RunAction()
: G4UserRunAction()
{
// ..
// Accumulables can be also created via accumulable manager
G4AccumulableManager* accumulableManager = G4AccumulableManager::Instance();
accumulableManager->CreateAccumulable<G4double>("EdepBis", 0.);
accumulableManager->CreateAccumulable<G4double>("Edep2Bis", 0.);
}
The G4AccumulablesManager takes ownership of the accumulables created by its CreateAccumula-
ble() function the accumulables allocated in the user code has to be deleted in the user code.
Since Geant4 10.3, the name of the accumulable can be omitted. A generic name "accumulable_N", where N is
the current number of registered obects, will be then attributed.
In multi-threading mode all accumulables registered to G4AccumulablesManager accumulated on workers
can be merged to the master thread by calling G4AccumulablesManager::Merge() function. This step
may be not necessary in future after a planned closer integration of G4Accumulable classes in the Geant4 kernel.
// B1RunAction.cc
void B1RunAction::EndOfRunAction(const G4Run* run)
{
// ...
// Merge accumulables
G4AccumulableManager* accumulableManager = G4AccumulableManager::Instance();
accumulableManager->Merge();
}
![](asset-153.png)
Analysis
330
The merging mode can be specified using the third (or the second one, if the name is omitted)
G4Accumulable<T> constructor argument. The merge modes are defined in G4MergeMode class enumer-
ation:
enum class G4MergeMode {
kAddition, // "Or" if boolean type
kMultiplication, // "And" if boolean type
kMaximum, // "Or" if boolean type
kMinimum // "And" if boolean type
};
The default accumulable merge operation is addition.
The registered accumulables can be accessed via G4AccumulablesManager by name or by the id, attributed
in the order of registering:
// ...
G4AccumulableManager* accumulableManager = G4AccumulableManager::Instance();
// Access accumulables by name
G4double edepBis = accumulableManager->GetAccumulable<G4double>("EdepBis")->GetValue();
G4double edep2Bis = accumulableManager->GetAccumulable<G4double>("Edep2Bis")->GetValue();
// Access accumulables by id
G4VAccumulable* accumulable = accumulableManager->GetAccumulable(id);
9.4.2. User defined accumulables
Users can define their own accumulable class derived from G4VAccumulable abstract base class. An example
of a ProcessCounterAccumulable class, implementing an accumulable holding a map of the processes
occurences by the procesesses names, is given below. Such processes occurences map is used in several electro-
magnetic extended examples, e.g. TestEm1.
ProcCounterAccumulable.hh
#include "G4VAccumulable.hh"
#include "globals.hh"
#include <map>
class ProcCounterAccumulable : public G4VAccumulable
{
public:
ProcCounterAccumulable(const G4String& name)
: G4VAccumulable(name, 0), fProcCounter() {}
virtual ~ProcCounterAccumulable() {}
void CountProcesses(G4String procName);
virtual void Merge(const G4VAccumulable& other);
virtual void Reset();
private:
std::map<G4String,G4int> fProcCounter;
};
ProcCounterAccumulable.cc
void ProcCounterAccumulable::Merge(const G4VAccumulable& other)
{
const ProcCounterAccumulable& otherProcCounterAccumulable
= static_cast<const ProcCounterAccumulable&>(other);
std::map<G4String,G4int>::const_iterator it;
for (it = otherProcCounterAccumulable.fProcCounter.begin();
it != otherProcCounterAccumulable.fProcCounter.end(); ++it) {
G4String procName = it->first;
G4int otherCount = it->second;
if ( fProcCounter.find(procName) == fProcCounter.end()) {
![](asset-154.png)
Analysis
331
fProcCounter[procName] = otherCount;
}
else {
fProcCounter[procName] += otherCount;
}
}
}
void ProcCounterAccumulable::Reset()
{
fProcCounter.clear();
}
The implementation of the CountProcesses() function is identical as in Run::CountProcesses() func-
tion in TestEm1.
9.5. g4tools
g4tools is a "namespace protected" part of inlib and exlib which is of some interest for Geant4, mainly
the histograms, the ntuples and the code to write them at the ROOT, AIDA XML and CSV file formats. The idea
of g4tools is to cover, with a very light and easy to install package, what is needed to do analysis in a "Geant4
batch program".
As g4tools is distributed through Geant4 and in order to avoid potential namespace clashes with other codes that
use the inlib/exlib to do Geant4 visualization (as for the g4view application or some of the exlib examples),
the inlib and exlib namespaces had been automatically changed to tools in the g4tools distribution. Since in
principle Geant4 users will not have to deal directly with the g4tools classes, but will manipulate histograms
and ntuples through the G4AnalysisManager, we are not going to extensively document the g4tools classes
here. Interested people are encouraged to go at the inlib/exlib web pages for that (see inlib/exlib site ).
9.5.1. g4tools package
9.5.1.1. g4tools code is pure header
As explained in inlib/exlib, the code found in g4tools is "pure header". This comes from the need to have
an easy way to build applications, as the ioda one, from smartphone, passing by tablets and up to various desktops
(UNIX and Windows). For example, if building an application targeted to the Apple AppStore and GooglePlay,
the simplest way is to pass through Xcode and the Android make system (or Eclipse), and having not to build
libraries simplifies a lot the handling of all these IDEs for the same application. A fallback of that is that the
installation of g4tools (if not using the one coming with Geant4) is straightforward, you simply unzip the file
containing the source code! To build an application using g4tools, as for inlib/exlib, you simply have to
declare to your build system the "-I" toward the unfolded directory and do "Build and Run".
9.5.1.2. g4tools test
g4tools comes with test programs of its own that may be useful in case of problems (for example porting on
a not yet covered platform). You can build and run them with :
UNIX> <get g4tools.zip>
UNIX> <unzip g4tools.zip>
UNIX> cd g4tools/test/cpp
UNIX> ./build
UNIX> ./tools_test_histo
UNIX> ./tools_test_wroot
UNIX> etc...
and on Windows :
DOS> <setup VisualC++ so that CL.exe is in your PATH>
DOS> <get g4tools.zip>
DOS> <unzip g4tools.zip> (you can use the unzip.exe of CYGWIN)
DOS> cd g4tools\test\cpp
DOS> .\build.bat
![](asset-155.png)
Analysis
332
DOS> .\tools_test_histo.exe
DOS> .\tools_test_wroot.exe
DOS> etc...
9.5.1.3. g4tools in Geant4
The g4tools header files are distributed in the Geant4 source in the source/analysis/include/tools
directory and in the Geant4 installation, they are installed in include/tools directory. The g4tools
test programs, included only in Geant4 development versions, can be downloaded with the g4tools-
[version].zip file from the inexlib download page).
While the Geant4 analysis manager provides the methods for booking and filling the g4tools objects, it does not
interface all public functions. Users can access the g4tools objects (see Section 9.2.3.4) and use the g4tools API
described in the next section to get the needed informations.
9.5.2. User API
We describe here some of the public methods potentially seen by a user doing analysis.
9.5.2.1. Booking and filling
h1d(const std::string& title,unsigned int Xnumber,double Xmin,double Xmax);
h1d(const std::string& title,const std::vector<double>& edges);
bool fill(double X,double Weight = 1);
example :
#include <tools/histo/h1d>
#include <tools/randd>
...
tools::histo::h1d h("Gauss",100,-5,5);
tools::rgaussd rg(1,2);
for(unsigned int count=0;count<entries;count++) h.fill(rg.shoot(),1.4);
9.5.2.2. Mean and rms
tools::histo::h1d h("Gauss",100,-5,5);
...
std::cout << " mean " << h.mean() << ", rms " << h.rms() << std::endl;
9.5.2.3. Bin infos
When doing a :
bool fill(double X,double Weight = 1);
the histogram class maintains, for each bin, the number of entries, the sum of weights that we can note "Sw", the
sum of W by W "Sw2", the sum of X by Weight "Sxw", the sum of X by X by W "Sx2w". Then bin method names
reflect these notations, for example to get the 50 bin sum of X*X*W :
double Sx2w = h.bin_Sx2w(50);
and the same for the other sums :
double Sw = h.bin_Sw(50);
double Sw2 = h.bin_Sw2(50);
double Sxw = h.bin_Sxw(50);
unsigned int n = h.bin_entries(50);
You can have also all infos on all bins with:
![](asset-156.png)
Analysis
333
tools::histo::h1d h(...);
...
const std::vector<unsigned int>& _entries = h.bins_entries();
const std::vector<double>& _bins_sum_w = h.bins_sum_w();
const std::vector<double>& _bins_sum_w2 = h.bins_sum_w2();
const std::vector< std::vector<double> >& _bins_sum_xw = h.bins_sum_xw();
const std::vector< std::vector<double> >& _bins_sum_x2w = h.bins_sum_x2w();
for example to dump bin 50 of an histo booked with 100 bins:
std::cout << "entries[50] = " << _entries[50] << std::endl;
std::cout << " sum_w[50] = " << _bins_sum_w[50] << std::endl;
std::cout << " sum_w2[50] = " << _bins_sum_w2[50] << std::endl;
std::cout << " sum_xw[50] = " << _bins_sum_xw[50][0] << std::endl; //0 = xaxis
std::cout << "sum_x2w[50] = " << _bins_sum_x2w[50][0] << std::endl; //0 = xaxis
(Take care that the [0] entries in the upper vectors are for the "underflow bin" and the last one is for the "overflow
bin").
9.5.2.4. All data
You can get all internal data of an histo through the histo_data class:
const tools::histo::h1d::hd_t& hdata = h.dac(); //dac=data access.
and then, for example, find back the bins infos with:
const std::vector<unsigned int>& _entries = hdata.m_bin_entries;
const std::vector<double>& _bins_sum_w = hdata.m_bin_Sw;
const std::vector<double>& _bins_sum_w2 = hdata.m_bin_Sw2;
const std::vector< std::vector<double> >& _bins_sum_xw = hdata.m_bin_Sxw;
const std::vector< std::vector<double> >& _bins_sum_x2w = hdata.m_bin_Sx2w;
// dump bin 50 :
std::cout << "entries[50] = " << _entries[50] << std::endl;
std::cout << " sum_w[50] = " << _bins_sum_w[50] << std::endl;
std::cout << " sum_w2[50] = " << _bins_sum_w2[50] << std::endl;
std::cout << " sum_xw[50] = " << _bins_sum_xw[50][0] << std::endl; //0 = xaxis
std::cout << "sum_x2w[50] = " << _bins_sum_x2w[50][0] << std::endl; //0 = xaxis
See the tools/histo/histo_data class for all internal fields.
9.5.2.5. Projections
From a 2D histo, you can get the x projection with:
tools::histo::h1d* projection = tools::histo::projection_x(h2d,"ProjX");
...
delete projection;
See test/cpp/histo.cpp for example code. Other slicing and projection methods are:
// h2d -> h1d. (User gets ownership of the returned object).
h1d* slice_x(const h2d&,int y_beg_ibin,int y_end_ibin,const std::string& title);
h1d* projection_x(const h2d&,const std::string& title);
h1d* slice_y(const h2d&,int x_beg_ibin,int x_end_ibin,const std::string& title);
h1d* projection_y(const h2d&,const std::string& title);
// h2d -> p1d. (User gets ownership of the returned object).
p1d* profile_x(const h2d&,int y_beg_ibin,int y_end_ibin,const std::string& title);
p1d* profile_x(const h2d&,const std::string&);
p1d* profile_y(const h2d&,int x_beg_ibin,int x_end_ibin,const std::string& title);
p1d* profile_y(const h2d&,const std::string& title);
// h3d -> h2d. (User gets ownership of the returned object).
h2d* slice_xy(const h3d&,int z_beg_ibin,int z_end_ibin,const std::string& title);
h2d* projection_xy(const h3d&,const std::string& title);
h2d* slice_yz(const h3d&,int x_beg_ibin,int x_end_ibin,const std::string& title);
h2d* projection_yz(const h3d&,const std::string& title);
h2d* slice_xz(const h3d&,int y_beg_ibin,int y_end_ibin,const std::string& title);
h2d* projection_xz(const h3d&,const std::string& title);
![](asset-157.png)
334
Chapter 10. Examples
10.1. Introduction
The Geant4 toolkit includes several fully coded examples that demonstrate the implementation of the user classes
required to build a customized simulation.
The new "basic" examples cover the most typical use-cases of a Geant4 application while keeping simplicity and
ease of use. They are provided as a starting point for new Geant4 application developers.
A set of "extended" examples range from the simulation of a non-interacting particle and a trivial detector to the
simulation of electromagnetic and hadronic physics processes in a complex detector. Some of these examples
require some libraries in addition to those of Geant4.
The "advanced" examples cover the use-cases typical of a "toolkit"-oriented kind of development, where real
complete applications for different simulation studies are provided.
All examples can be compiled and run without modification. Most of them can be run both in interactive and batch
mode using the input macro files (*.in) and reference output files (*.out) provided. Most examples are run
routinely as part of the validation, or testing, of official releases of the Geant4 toolkit.
The previous set of examples oriented to novice users, "novice", has been refactored in "basic" and "extended"
examples sets in Geant4 10.0. The information about the original set of these examples can be found at the last
section of this chapter.
10.2. Basic Examples
10.2.1. Basic Examples Summary
Descriptions of the 5 basic examples are provided here along with links to source code documentation automati-
cally generated with Doxygen.
Example B1 (see also Doxygen page )
• Simple geometry with a few solids
• Geometry with simple placements (G4PVPlacement)
• Scoring total dose in a selected volume in user action classes
• Geant4 physics list (QBBC)
Example B2 (see also Doxygen page )
• Simplified tracker geometry with uniform magnetic field
• Geometry with simple placements (G4PVPlacement) and parameterisation (G4PVParameterisation)
• Scoring within tracker via G4 sensitive detector and hits
• Geant4 physics list (FTFP_BERT) with step limiter
• Started from novice N02 example
Example B3 (see also Doxygen page )
• Schematic Positron Emission Tomography system
• Geometry with simple placements with rotation (G4PVPlacement)
• Radioactive source
• Scoring within Crystals via G4 scorers
• Modular physics list built via builders provided in Geant4
Example B4 (see also Doxygen page )
• Simplified calorimeter with layers of two materials
• Geometry with replica (G4PVReplica)
![](asset-158.png)
Examples
335
• Scoring within layers in four ways: via user actions (a), via user own object (b), via G4 sensitive detector and
hits (c) and via scorers (d)
• Geant4 physics list (FTFP_BERT)
• Saving histograms and ntuple in a file using Geant4 analysis tools
• UI commands defined using G4GenericMessenger
• Started from novice/N03 example
Example B5 (see also Doxygen page )
• A double-arm spectrometer with wire chambers, hodoscopes and calorimeters with a local constant magnetic
field
• Geometry with placements with rotation, replicas and parameterisation
• Scoring within wire chambers, hodoscopes and calorimeters via G4 sensitive detector and hits
• Geant4 physics list (FTFP_BERT) with step limiter
• UI commands defined using G4GenericMessenger
• Saving histograms and ntuple in a file using Geant4 analysis tools
• Started from extended/analysis/A01
Table 10.1, Table 10.2 and Table 10.3 display the "item charts" for the examples currently prepared in the basic
level.
Example B1 Example B2
Description Simple application for accounting
dose in a selected volume Fixed target tracker geometry
Geometry • solids: box, cons, trd
• simple placements with transla-
tion
• solids: box, tubs
• simple placements with transla-
tion (a)
• parameterised volume (b)
• uniform magnetic field
Physics Geant4 physics list: QBBC Geant4 physics list: FTFP_BERT
Primary generator Particle gun Particle gun
Scoring User action classes Sensitive detector & hits
Vis/GUI Detector & trajectory drawing • Detector, trajectory & hits draw-
ing
• GUI
Stacking - -
Analysis - -
Table 10.1. The "item chart" for basic level examples B1 and B2.
Example B3 Example B4
Description Schematic Positron Emitted Tomog-
raphy system Simplified calorimeter with layers of
two materials
Geometry • solids: box, tubs
• simple placements with rotation • solids: box
• simple placements with transla-
tion
• replica
• uniform magnetic field
Physics Modular physics list with Geant4
builders Geant4 physics list: FTFP_BERT
Primary generator Radioactive source (particle gun
with Fluor ions) Particle gun
Scoring Multi functional (sensitive) detector
& scorers • (a) User action classes
• (b) User own object (runData)
![](asset-159.png)
Examples
336
• (c) Sensitive detector & hits
• (d) Multi functional (sensitive) de-
tector & scorers
Vis/GUI Detector, trajectory & hits drawing • Detector, trajectory & hits draw-
ing
• GUI
Stacking Killing all neutrina -
Analysis - Histograms 1D, ntuple
Table 10.2. The "item chart" for basic level examples B3 and B4.
Example B5
Description Double-arm spectrometer with several detectors and a
local constant magnetic field
Geometry • solids: box, tubs
• simple placements with rotation
• replica
• parameterised volume
• local constant magnetic field
• modifying geometry between runs
Physics Geant4 physics list: FTFP_BERT
Primary generator Particle gun
Scoring Sensitive detectors & hits
Vis/GUI • Detector, trajectory & hits drawing
• User defined visualization attributes
Stacking -
Analysis • Histograms 1D, ntuple
• Saving file per run
Table 10.3. The "item chart" for basic level example B5.
10.2.2. Basic Examples Macros
All basic examples can be run either interactively or in a batch mode (see section Section 2.1 and Section 2.10)
and they are provided with the following set of macros:
•init_vis.mac
•vis.mac
•[gui.mac]
•run1.mac, run2.mac
•exampleBN.in
The selection is done automatically according to the application build configuration.
The init_vis.mac macro is always executed just after the Geant4 kernel and user application classes instan-
tiation. It sets first some defaults, then performs Geant4 kernel initialization and finally calls the vis.mac macro
with visualization setting.
The vis.mac macros in each of the examples all have the same structure - except for example B1, see below.
There are only a few lines in each example with a setting different from the other examples and so they can be
easily spotted when looking in the macro. Various commands are proposed in commented blocks of lines with
explanations so that a user can just uncomment lines and observe the effect. Additionally, in example B4, there are
some visualization tutorial macros in macros/visTutor/. See more on visualization in section Section 2.11
and chapter Chapter 8.
![](asset-15a.png)
Examples
337
From Release 9.6 the vis.mac macro in example B1 has additional commands that demonstrate additional func-
tionality of the vis system, such as displaying text, axes, scales, date, logo and shows how to change viewpoint and
style. Consider copying these to your favourite example or application. To see even more commands use help
or ls or browse the available UI commands in section Section 7.1.
The gui.mac macros are provided in examples B2 and B4. This macro is automatically executed if Geant4 is
built with any GUI session. See more on graphical user interfaces in section Section 2.9.
When running interactively, the example program stops after processing the init_vis.mac macro and the
Geant4 kernel initialization, invoked from the macro, with the prompt Idle>. At this stage users can type in the
commands from run1.mac line by line (recommended when running the example for the first time) or execute
all commands at once using the "/control/execute run1.mac" command.
The run2.mac macros define conditions for execution a run with a larger number of events and so they are
recommended to be executed in a batch. The exampleBN.in macros are also supposed to be run in a batch
mode and their outputs from the Geant4 system testing are available in the files exampleBN.out.
10.2.3. Multi-threading
10.2.3.1. Multi-threading mode
All basic examples have been migrated to multi-threading (MT). No special steps are needed to build the examples
in multi-threading mode. They will automatically run in MT when they are built against the Geant4 libraries built
with MT mode activated, otherwise they will run in sequential mode.
The choice of multi-threading mode is done be creating G4MTRunManager instead of G4RunManager in the
example main():
#ifdef G4MULTITHREADED
G4MTRunManager* runManager = new G4MTRunManager;
#else
G4RunManager* runManager = new G4RunManager;
#endif
The compiler flag -DG4MULTITHREADED is automatically set when building applications using Geant4's CMake
(via GEANT4_USE_FILE) and GNUmake systems, and is listed in the flags reported by the --cflags option of
the geant4-config program.
10.2.3.2. Action Initialization class [ B1, B2, B3, B4, B5 ]
A newly introduced BnActionInitialization class derived from
G4VUserActionInitialization, present in all basic examples, instantiates and registers all user action
classes with the Geant4 kernel .
While in sequential mode the action classes are instatiated just once, via invocation of the method
BnActionInitialization::Build() . In multi-threading mode the same method is invoked for each
worker thread, so all user action classes are defined thread-locally.
A run action class is instantiated both thread-locally and globally; that is why its instance is created also in
the method BnActionInitialization::BuildForMaster(), which is invoked only in multi-threading
mode.
10.2.4. Example B1
Basic concept:
This example demonstrates a simple (medical) application within which users will familiarize themselves with sim-
ple placement, use the NIST material database, and can utilize electromagnetic and/or hadronic physics processes.
Two items of information are collected in this example: the energy deposited and the total dose for a selected
volume.
![](asset-15b.png)
Examples
338
This example uses the Geant4 physics list QBBC, which is instantiated in the main() function. It requires data
files for electromagnetic and hadronic processes. See more on installation of the datasets in Geant4 Installation
Guide, Chapter 3.3: Note On Geant4 Datasets . The following datasets: G4LEDATA, G4LEVELGAMMADATA,
G4NEUTRONXSDATA, G4SAIDXSDATA and G4ENSDFSTATEDATA are mandatory for this example.
Classes:
•B1DetectorConstruction
The geometry is constructed in the B1DetectorConstruction class. The setup consists of a box shaped
envelope containing two volumes: a circular cone and a trapezoid.
Some common materials from medical applications are used. The envelope is made of water and the two inner
volumes are made from tissue and bone materials. These materials are created using the G4NistManager
class, which allows one to build a material from the NIST database using their names. Available materials and
their compositions can be found in the Appendix Section 6.
The physical volumes are made from Constructive Solid Geometry (CSG) solids and placed without rotation
using the G4PVPlacement class.
•B1PrimaryGeneratorAction
The default kinematics is a 6 MeV gamma, randomly distributed in front of the envelope across 80% of the
transverse (X,Y) plane. This default setting can be changed via the commands of the G4ParticleGun class.
•B1SteppingAction
It is in the UserSteppingAction() function that the energy deposition is collected for a selected volume.
•B1EventAction
The statistical event by event accumulation of energy deposition. At the end of event, the acummulated values
are passed in B1RunAction and summed over the whole run.
•B1RunAction
Sums the event energy depositions. In multi-threading mode the energy deposition accumulated in
G4Accumulable objects per worker is merged to the master. Information about the primary particle is printed
in this class along with the computation of the dose. An example of creating and computing new units (e.g.,
dose) is also shown in the class constructor.
G4Accumulable<G4double> type instead of G4double is used for the B1RunAction data members
in order to facilitate merging of the values accumulated on workers to the master. At present the accumu-
lables have to be registered to G4AccumulablesManager and G4ParametersManager::Merge()
has to be called from the users code. This is planned to be further simplified with a closer integration of
G4Accumulable classes in the Geant4 kernel next year.
10.2.5. Example B2
This example simulates a simplified fixed target experiment. To demonstrate alternative ways of constructing the
geometry two variants are provided: B2a (explicit construction) and B2b (parametrized volumes).
The set of available particles and their physics processes are defined in the FTFP_BERT physics list. This Geant4
physics list is instantiated in the main() function. It requires data files for electromagnetic and hadronic processes.
See more on installation of the datasets in Geant4 Installation Guide, Chapter 3.3: Note On Geant4 Datasets . The
following datasets: G4LEDATA, G4LEVELGAMMADATA, G4NEUTRONXSDATA, G4SAIDXSDATA and
G4ENSDFSTATEDATA are mandatory for this example.
This example also illustrates how to introduce tracking constraints like maximum step length via
G4StepLimiter, and minimum kinetic energy, etc., via the G4UserSpecialCuts processes. This is ac-
complished by adding G4StepLimiterPhysics to the physics list.
![](asset-15c.png)
Examples
339
Classes:
•B2[a, b]DetectorConstruction
The setup consists of a target followed by six chambers of increasing transverse size at defined distances
from the target. These chambers are located in a region called the Tracker region. Their shape are cylin-
ders constructed as simple cylinders (in B2aDetectorConstruction) and as parametrised volumes (in
B2bDetectorConstruction) - see also B2bChamberParameterisation class.
In addition, a global uniform transverse magnetic field can be applied using
G4GlobalMagFieldMessenger, instantiated in ConstructSDandField() with a non zero field
value, or via an interactive command. An instance of the B2TrackerSD class is created and associat-
ed with each logical chamber volume (in B2a) and with the one G4LogicalVolume associated with
G4PVParameterised (in B2b).
One can change the materials of the target and the chambers interactively via the commands defined in
B2aDetectorMessenger (or B2bDetectorMessenger).
This example also illustrates how to introduce tracking constraints like maximum step length, minimum ki-
netic energy etc. via the G4UserLimits class and associated G4StepLimiter and G4UserSpecialCuts process-
es. The maximum step limit in the tracker region can be set by the interactive command defined in
B2aDetectorMessenger (or B2bDetectorMessenger).
•B2PrimaryGeneratorAction
The primary generator action class employs the G4ParticleGun. The primary kinematics consists of a single
particle which hits the target perpendicular to the entrance face. The type of the particle and its energy can be
changed via the G4 built-in commands of the G4ParticleGun class.
•B2EventAction
The event number is written to the log file every requested number of events in BeginOfEventAction()
and EndOfEventAction(). Moreover, for the first 100 events and every 100 events thereafter informa-
tion about the number of stored trajectories in the event is printed as well as the number of hits stored in the
G4VHitsCollection.
•B2RunAction
The run number is printed at BeginOfRunAction(), where the G4RunManager is also informed how to
SetRandomNumberStore for storing initial random number seeds per run or per event.
•B2TrackerHit
The tracker hit class is derived from G4VHit. In this example, a tracker hit is a step by step record of the track
identifier, the chamber number, the total energy deposit in this step, and the position of the energy deposit.
•B2TrackerSD
The tracker sensitive detector class is derived from G4VSensitiveDetector. In ProcessHits() -
called from the Geant4 kernel at each step - it creates one hit in the selected volume so long as energy is de-
posited in the medium during that step. This hit is inserted in a HitsCollection. The HitsCollection is printed
at the end of each event (via the method B2TrackerSD::EndOfEvent()), under the control of the "/hits/
verbose 2" command.
10.2.6. Example B3
This example simulates a Schematic Positron Emission Tomography system. To demonstrate alternative ways of
accumulation event statistics in a run two variants are provided: B3a (using new G4Accumulable class) and
B3b (using G4Run class).
![](asset-15d.png)
Examples
340
Classes:
Geant4 Installation Guide, Chapter 3.3: Note On Geant4 Datasets
•B3DetectorConstruction
Crystals are circularly arranged to form a ring. A number rings make up the full detector (gamma camera). This
is done by positionning Crystals in Ring with an appropriate rotation matrix. Several copies of Ring are then
placed in the full detector.
The Crystal material, Lu2SiO5, is not included in the G4Nist database. Therefore, it is explicitly built in De-
fineMaterials().
Crystals are defined as scorers in DetectorConstruction::CreateScorers(). There are two
G4MultiFunctionalDetector objects: one for the Crystal (EnergyDeposit), and one for the Patient (DoseDeposit).
•B3PhysicsList
The physics list contains standard electromagnetic processes and the radioactiveDecay module for GenericIon.
It is defined in the B3PhysicsList class as a Geant4 modular physics list with registered Geant4 physics
builders:
•G4DecayPhysics
•G4RadioactiveDecayPhysics
•G4EmStandardPhysics
•B3PrimaryGeneratorAction
The default particle beam is an ion (F18), at rest, randomly distributed within a zone inside a patient and is
defined in GeneratePrimaries().
•B3aEventAction , B3aRunAction
Energy deposited in crystals is summed by G4Scorer. At the end of event, the values acummulated
in B3aEventAction are passed in B3aRunAction and summed over the whole run. In multi-thread-
ing mode the data accumulated in G4Accumulable objects per workers is merged to the master in
B3aRunAction::EndOfRunAction() and the final result is printed on the screen.
G4Accumulable<> type instead of G4double and G4int types is used for the B3aRunAction
data members in order to facilitate merging of the values accumulated on workers to the
master. At present the accumulables have to be registered to G4AccumulablesManager and
G4AccumulablesManager::Merge() has to be called from the users code. This is planned to be further
simplified with a closer integration of G4Accumulable classes in the Geant4 kernel next year.
•B3bRun , B3bRunAction
Energy deposited in crystals is summed by G4Scorer. B3Run::RecordEvent() col-
lects information event by event from the hits collections, and accumulates statistics for
B3RunAction::EndOfRunAction(). In multi-threading mode the statistics accumulated per worker is
merged to the master in Run::Merge().
•B3StackingAction
Beta decay of Fluorine generates a neutrino. One wishes not to track this neutrino; therefore one kills it imme-
diately, before created particles are put in a stack.
10.2.7. Example B4
This example simulates a simple Sampling Calorimeter setup. To demonstrate several possible ways of data scor-
ing, the example is provided in four variants: B4a, B4b, B4c, B4d. (See also examples/extended/electromagnet-
ic/TestEm3).
![](asset-15e.png)
Examples
341
The set of available particles and their physics processes are defined in the FTFP_BERT physics list. This Geant4
physics list is instantiated in the main() function. It requires data files for electromagnetic and hadronic processes.
See more on installation of the datasets in Geant4 Installation Guide, Chapter 3.3: Note On Geant4 Datasets . The
following datasets: G4LEDATA, G4LEVELGAMMADATA, G4NEUTRONXSDATA, G4SAIDXSDATA and
G4ENSDFSTATEDATA are mandatory for this example.
Classes:
•B4[c, d] DetectorConstruction
The calorimeter is a box made of a given number of layers. A layer consists of an absorber plate and of a
detection gap. The layer is replicated. In addition a transverse uniform magnetic field can be applied using
G4GlobalMagFieldMessenger, instantiated in ConstructSDandField() with a non zero field val-
ue, or via interactive commands.
•B4PrimaryGeneratorAction
The primary generator action class uses G4ParticleGun. It defines a single particle which hits the calorime-
ter perpendicular to the input face. The type of the particle can be changed via the G4 built-in commands of
the G4ParticleGun class.
•B4RunAction
It accumulates statistics and computes dispersion of the energy deposit and track lengths of charged particles
with the aid of analysis tools. H1D histograms are created in BeginOfRunAction() for the energy deposit
and track length in both Absorber and Gap volumes. The same values are also saved in an ntuple. The histograms
and ntuple are saved in the output file in a format accoring to a selected technology in B4Analysis.hh.
In EndOfRunAction(), the accumulated statistics and computed dispersion are printed. When running in
multi-threading mode, the histograms accumulated on threads are automatically merged in a single output file,
while the ntuple is written in files per thread.
Classes in B4a (scoring via user actions):
•B4aSteppingAction
In UserSteppingAction() the energy deposit and track lengths of charged particles in each step in the
Absober and Gap layers are collected and subsequently recorded in B4aEventAction.
•B4aEventAction
It defines data members to hold the energy deposit and track lengths of charged particles in the Absorber and
Gap layers. In EndOfEventAction(), these quantities are printed and filled in H1D histograms and ntuple
to accumulate statistic and compute dispersion.
Classes in B4b (via user own object):
•B4bRunData
A data class, derived from G4Run, which defines data members to hold the energy deposit and track lengths
of charged particles in the Absober and Gap layers. It is instantiated in B4bRunAction::GenerateRun.
The data are collected step by step in B4bSteppingAction, and the accumulated values are entered in
histograms and an ntuple event by event in B4bEventAction.
•B4bSteppingAction
In UserSteppingAction() the energy deposit and track lengths of charged particles in Absorber and Gap
layers are collected and subsequently recorded in B4bRunData.
•B4bEventAction
![](asset-15f.png)
Examples
342
In EndOfEventAction(), the accumulated quantities of the energy deposit and track lengths of charged
particles in Absorber and Gap layers are printed and then stored in B4bRunData.
Classes in B4c (via Geant4 sensitive detector and hits):
•B4cDetectorConstruction
In addition to materials, volumes and uniform magnetic field definitions as in B4DetectorConstruction,
in ConstructSDandField() two instances of the B4cCalorimeterSD class are created and associated
with Absorber and Gap volumes.
•B4cCalorHit
The calorimeter hit class is derived from G4VHit. It defines data members to store the energy deposit and track
lengths of charged particles in a selected volume.
•B4cCalorimeterSD
The calorimeter sensitive detector class is derived from G4VSensitiveDetector. Two instances of this
class are created in B4cDetectorConstruction and associated with Absorber and Gap volumes. In Ini-
tialize(), it creates one hit for each calorimeter layer and one more hit for accounting the total quantities
in all layers. The values are accounted in hits in the ProcessHits() function, which is called by the Geant4
kernel at each step.
•B4cEventAction
In EndOfEventAction(), the accumulated quantities of the energy deposit and track lengths of charged
particles in Absorber and Gap layers are printed and then stored in the hits collections.
Classes in B4d (via Geant4 scorers):
•B4dDetectorConstruction
In addition to materials, volumes and uniform magnetic field definitions as in B4DetectorConstruction,
in ConstructSDandField() sensitive detectors of G4MultiFunctionalDetector type with prim-
itive scorers are created and associated with Absorber and Gap volumes.
•B4dEventAction
In EndOfEventAction(), the accumulated quantities of the energy deposit and track lengths of charged
particles in Absober and Gap layers are printed and then stored in the hits collections.
10.2.8. Example B5
This example simulates a a double-arm spectrometer with wire chambers, hodoscopes and calorimeters with a
uniform local magnetic field.
The set of available particles and their physics processes are defined in the FTFP_BERT physics list. This Geant4
physics list is instantiated in the main() function. It requires data files for electromagnetic and hadronic processes.
See more on installation of the datasets in Geant4 Installation Guide, Chapter 3.3: Note On Geant4 Datasets . The
following datasets: G4LEDATA, G4LEVELGAMMADATA, G4NEUTRONXSDATA, G4SAIDXSDATA and
G4ENSDFSTATEDATA are mandatory for this example.
This example also illustrates how to introduce tracking constraints like maximum step length via
G4StepLimiter, and minimum kinetic energy, etc., via the G4UserSpecialCuts processes. This is ac-
complished by adding G4StepLimiterPhysics to the physics list.
This example can be built with excluding visualization and/or Geant4 user interface via G4VIS_USE and
G4UI_USE compiler options (see exampleB5.cc). These options are defined by default with Geant4 configura-
![](asset-160.png)
Examples
343
tion; they can be switched off at compilation time via the CMake options G4VIS_NONE or G4UI_NONE or via
the environment variables of the same name if using GNUmake build.
Classes:
•B5DetectorConstruction ,
The spectrometer consists of two detector arms. One arm provides position and timing information of the inci-
dent particle while the other collects position, timing and energy information of the particle after it has been
deflected by a magnetic field centered at the spectrometer pivot point.
First arm: box filled with air, also containing:
• 1 hodoscope (15 vertical strips of plastic scintillator)
• 1 drift chamber (horizontal argon gas layers with a "virtual wire" at the center of each layer)
Second arm: box filled with air, also containing:
• 1 hodoscope (25 vertical strips of plastic scintillator)
• 1 drift chamber (5 horizontal argon gas layers with a "virtual wire" at the center of each layer)
• 1 electromagnetic calorimeter: a box sub-divided along x,y and z axes into cells of CsI (see also
B5CellParameterisation class)
• 1 hadronic calorimeter: a box sub-divided along x,y, and z axes into cells of lead, with a layer of plastic
scintillator placed at the center of each cell
The magnetic field region is represented by an air-filled cylinder which contains the field (see
B5MagneticField).. The maximum step limit in the magnetic field region is also set via the G4UserLimits
class in a similar way as in Example B2.
The rotation angle of the second arm and the magnetic field value can be set via the interactive command defined
using the G4GenericMessenger class.
•B5PrimaryGeneratorAction
The primary generator action class employs the G4ParticleGun. The primary kinematics consists of a single
particle which is is sent in the direction of the first spectrometer arm.
The type of the particle and its several properties can be changed via the Geant4 built-in commands of the
G4ParticleGun class or this example command defined using the G4GenericMessenger class.
•B5EventAction
An event consists of the generation of a single particle which is transported through the first spectrometer arm.
Here, a scintillator hodoscope records the reference time of the particle before it passes through a drift cham-
ber where the particle position is measured. Momentum analysis is performed as the particle passes through a
magnetic field at the spectrometer pivot and then into the second spectrometer arm. In the second arm, the par-
ticle passes through another hodoscope and drift chamber before interacting in the electromagnetic calorimeter.
Here it is likely that particles will induce electromagnetic showers. The shower energy is recorded in a three-
dimensional array of CsI crystals. Secondary particles from the shower, as well as primary particles which do
not interact in the CsI crystals, pass into the hadronic calorimeter. Here, the remaining energy is collected in a
three-dimensional array of scintillator-lead sandwiches.
In first execution of BeginOfEventAction() the hits collections identifiers are saved in data members of
the class and then used in EndOfEventAction() for accessing the hists collections and filling the accounted
information in defined histograms and ntuples and printing its summary in a log file. The frequency of printing
can be tuned with the built-in command "/run/printProgress frequency".
•B5RunAction
The run action class handles the histograms and ntuples with the aid of Geant4 analysis tools in a similar way as
in Example B4. From Release 10.2 the vectors of energy deposits in Electromagnetic and Hadronic calorimeter
cells are also stored in the ntuple.
![](asset-161.png)
Examples
344
• Hit and Sensitive Detector Classes
All the information required to simulate and analyze an event is recorded in hits. This information is recorded
in the following sensitive detectors:
• Hodoscope ( B5HodoscopeSD, B5HodoscopeHit)
• particle time
• strip ID, position and rotation
• Drift chamber: ( B5DriftChamberSD, B5DriftChamberHit)
• particle time
• particle position
• layer ID
• Electromagnetic calorimeter: ( B5EmCalorimeterSD, B5EmCalorimeterHit)
• energy deposited in cell
• cell ID, position and rotation
• Hadronic calorimeter: ( B5HadCalorimeterSD, B5HadCalorimeterHit)
• energy deposited in cell
• cell column ID and row ID, position and rotation
The hit classes include methods GetAttDefs and CreateAttValues to define and then fill extra "Hep-
Rep-style" Attributes that the visualization system can use to present extra information about the hits. For ex-
ample, if you pick a B5HadCalorimeterHit in OpenGL or a HepRep viewer, you will be shown the hit's
"Hit Type", "Column ID", "Row ID", "Energy Deposited" and "Position".
These attributes are essentially arbitrary extra pieces of information (integers, doubles or strings) that are carried
through the visualization. Each attribute is defined once in G4AttDef object and then is filled for each hit in a
G4AttValue object. These attributes can also be used by commands to filter which hits are drawn: "/vis/
filtering/hits/drawByAttribute".
Detector Geometry and trajectories also carry HepRep-style attributes, but these are filled automatically in the
base classes. HepRep is further described at: http://www.slac.stanford.edu/~perl/heprep/
10.3. Extended Examples
10.3.1. Extended Example Summary
Geant4 extended examples serve three purposes:
• testing and validation of processes and tracking,
• demonstration of Geant4 tools, and
• extending the functionality of Geant4.
The code for these examples is maintained as part of the categories to which they belong. Links to descriptions
of the examples are listed below.
10.3.1.1. Analysis
• AnaEx01 - histogram and tuple manipulations using Geant4 internal g4tools system
• AnaEx02 - histogram and tuple manipulations using ROOT
• AnaEx03 - histogram and tuple manipulations using the AIDA interface
• B1Con - modified basic example B1 showing how to use a Convergence Tester
• [A01] - this examples has been refactored in Example B5 in the basic set.
10.3.1.2. Common
• ReadMe - a set of common classes which can be reused in other examples demonstrating just a particular
feature. This module is going to be enhanced in future.
![](asset-162.png)
Examples
345
10.3.1.3. Biasing
• Variance Reduction - examples (B01, B02 and B03) on variance reduction techniques and scoring and appli-
cation of Reverse MonteCarlo in Geant4 ReverseMC
• Generic biasing examples illustrate the usage of a biasing scheme implemented since version Geant4 10.0.
• GB01 This example illustrates how to bias process cross-sections in this scheme.
• GB02 Illustrates a force collision scheme similar to the MCNP one.
• GB03 Illustrates geometry based biasing.
• GB04 Illustrates a bremsstrahlung splitting.
• GB05 Illustrates a "splitting by cross-section" technique: a splitting-based technique using absorption cross-
section to control the neutron population.
• GB06 Illustrates the usage of parallel geometries with generic biasing.
10.3.1.4. Electromagnetic
• TestEm0 - how to print cross-sections and stopping power used in input by the standard EM package
• TestEm1 - how to count processes, activate/inactivate them and survey the range of charged particles. How
to define a maximum step size
• TestEm2 - shower development in an homogeneous material : longitudinal and lateral profiles
• TestEm3 - shower development in a sampling calorimeter : collect energy deposited, survey energy flow and
print stopping power
• TestEm4 - 9 MeV point like photon source: plot spectrum of energy deposited in a single media
• TestEm5 - how to study transmission, absorption and reflection of particles through a single, thin or thick, layer.
• TestEm6 - physics list for rare, high energy, electromagnetic processes: gamma conversion and e+ annihilation
into pair of muons
• TestEm7 - how to produce a Bragg curve in water phantom. How to compute dose in tallies
• TestEm8 - test of photo-absorption-ionisation model in thin absorbers, and transition radiation
• TestEm9 - shower development in a crystal calorimeter; cut-per-region
• TestEm10 - XTR transition radiation model, investigation of ionisation in thin absorbers
• TestEm11 - how to plot a depth dose profile in a rectangular box
• TestEm12 - how to plot a depth dose profile in spherical geometry : point like source
• TestEm13 - how to compute cross sections of EM processes from rate of transmission coefficient
• TestEm14 - how to compute cross sections of EM processes from direct evaluation of the mean-free path. How
to plot final state
• TestEm15 - compute and plot final state of Multiple Scattering as an isolated process
• TestEm16 - simulation of synchrotron radiation
• TestEm17 - check the cross sections of high energy muon processes
• TestEm18 - energy lost by a charged particle in a single layer, due to ionization and bremsstrahlung
Check basic quantities
Total cross sections, mean free paths ... Em0, Em13, Em14
Stopping power, particle range ... Em0, Em1, Em5, Em11, Em12
Final state : energy spectra, angular distributions Em14
Energy loss fluctuations Em18
Multiple Coulomb scattering
as an isolated mechanism Em15
as a result of particle transport Em5
More global verifications
Single layer: transmission, absorption, reflexion Em5
Bragg curve, tallies Em7
Depth dose distribution Em11, Em12
Shower shapes, Moliere radius Em2
![](asset-163.png)
Examples
346
Sampling calorimeters, energy flow Em3
Crystal calorimeters Em9
Other specialized programs
High energy muon physics Em17
Other rare, high energy processes Em6
Synchrotron radiation Em16
Transition radiation Em8
Photo-absorption-ionization model Em10
Table 10.4. TestEm by theme
10.3.1.5. Error Propagation
• ReadMe - error propagation utility
10.3.1.6. Event Generator
• exgps - illustrating the usage of the G4GeneralParticleSource utility
• particleGun - demonstrating three different ways of usage of G4ParticleGun, shooting primary particles
in different cases
• userPrimaryGenerator - demonstrating how to create a primary event including several vertices and several
primary particles per vertex
• HepMCEx01 - simplified collider detector using HepMC interface and stacking
• HepMCEx02 - connecting primary particles in Geant4 with various event generators using the HepMC interface
• MCTruth - demonstrating a mechanism for Monte Carlo truth handling using HepMC as the event record
• pythia - illustrating the usage of Pythia as Monte Carlo event generator, interfaced with Geant4, and showing
how to implement an external decayer (example decayer6)
10.3.1.7. Exotic Physics
• Channeling - simulates channeling of 400 GeV/c protons in a bent crystal.
• Monopole - illustrating how to measure energy deposition in classical magnetic monopole
• Phonon - demonstrates simulation of phonon propagation in cryogenic crystals
• UCN - simulates the passage of ultra-cold neutrons (UCN) in a hollow pipe.
10.3.1.8. Fields
• BlineTracer - tracing and visualizing magnetic field lines
• field01 - tracking using magnetic field and field-dependent processes
• field02 - tracking using electric field and field-dependent processes
• field03 - tracking in a magnetic field where field associated with selected logical volumes varies
• field04 - definition of overlapping fields either magnetic, electric or both
• field05 - demonstration of "spin-frozen" condition, how to cancel the muon g-2 precession by applying an
electric field
• field06 - exercising the capability of tracking massive particles in a gravity field
10.3.1.9. Geant3 to Geant4
• General ReadMe - converting simple geometries in Geant3.21 to their Geant4 equivalents (example clGeom-
etry)
10.3.1.10. Geometry
• General ReadMe
![](asset-164.png)
Examples
347
• transforms - demonstrating various ways of definition of 3D transformations for placing volumes
10.3.1.11. Hadronic
• Hadr00 - example demonstrating the usage of G4PhysListFactory to build physics lists and usage of
G4HadronicProcessStore to access the cross sections
• Hadr01 - example based on the application IION developed for simulation of proton or ion beam interaction
with a water target. Different aspects of beam target interaction are included
• Hadr02 - example application providing simulation of ion beam interaction with different targets. Hadronic
aspects of beam target interaction are demonstrated including longitudinal profile of energy deposition, spectra
of secondary particles, isotope production spectra.
• Hadr03 - example demonstrating how to compute total cross section from the direct evaluation of the mean
free path, how to identify nuclear reactions and how to plot energy spectrum of secondary particles
• Hadr04 - example focused on neutronHP physics, especially neutron transport, including thermal scattering
• Hadr05 - demonstrates the usage of G4GenericPhysicsList to build the concrete physics list at the run time
• Hadr06 - demonstrates survey of energy deposition and particle's flux from a hadronic cascade
• Hadr07 - demonstrates survey of energy deposition and particle's flux from a hadronic cascade. Show how to
plot a depth dose profile in a rectangular box.
• FissionFragment - This example demonstrates the Fission Fragment model as used within the neutron_hp
model. It will demostrate the capability for fission product containmentby the cladding in a water moderated
sub-critical assembly. It could also be further extended to calculate the effective multiplication factor of the
subcritical assembly for various loading schemes.
• NeutronSource - NeutronSource is an example of neutrons production. It illustrates the cooperative work of nu-
clear reactions and radioactive decay processes. It surveys energy deposition and particle's flux. It uses Physic-
sConstructor objects.
10.3.1.12. Medical Applications
• DICOM - geometry set-up using the Geant4 interface to the DICOM image format
• electronScattering - benchmark on electron scattering
• electronScattering2 - benchmark on electron scattering (second way to implement the same benchmark as the
above)
• fanoCavity - dose deposition in an ionization chamber by a monoenergetic photon beam
• fanoCavity2 - dose deposition in an ionization chamber by an extended one-dimensional monoenergetic elec-
tron source
• GammaTherapy - gamma radiation field formation in water phantom by electron beam hitting different targets
• dna - Set of examples using the Geant4-DNA physics processes and models.
• dnaphysics - The dnaphysics example shows how to simulate track structures in liquid water using the
Geant4-DNA physics processes and models.
• microdosimetry - The microdosimetry example simulates the track of a 5 MeV proton in liquid water. Geant4
standard EM models are used in the World volume while Geant4-DNA models are used in a Target volume,
declared as a Region.
• range - Simulation of ranges.
• svalue - This example shows how to simulate S-values in spheres of liquid water using the Geant4-DNA
physics processes and models.
• wvalue - This example shows how to simulate W-values in liquid water using the Geant4-DNA physics
processes and models.
• chem1 - Simple activation of the chemistry module.
• chem2 - Usage of TimeStepAction in the chemistry module.
• chem3 - Activate the full interactivity with the chemistry module.
• chem4 - Simulation of G radiochemical yields with the chemistry module.
• wholeNuclearDNA - Description of the full nucleus of a biological cell.
• pdb4dna - Usage of the Protein Data Bank (PDB) file format to build geometries.
• clustering - Clustering application for direct damage extraction.
10.3.1.13. Optical Photons
• General ReadMe
![](asset-165.png)
Examples
348
• OpNovice - simulation of optical photons generation and transport. (It was moved in extended examples from
novice/N06 with removal of novice examples.)
• LXe - optical photons in a liquid xenon scintillator
• WLS - application simulating the propagation of photons inside a Wave Length Shifting (WLS) fiber
10.3.1.14. Parallel Computing
• General ReadMe
• MPI - interface and examples of applications (exMPI01, exMPI02 and exMPI03) parallelized with different
MPI compliant libraries, such as LAM/MPI, MPICH2, OpenMPI, etc.
• TBB - demonstrate how to interface a simple application with the Intel Threading Building Blocks library
(TBB), and organise MT event-level parallelism as TBB tasks
• ThreadsafeScorers - demonstrates a very simple application where an energy deposit and # of steps is accounted
in thread-local (i.e. one instance per thread) hits maps with underlying types of plain-old data (POD) and global
(i.e. one instance) hits maps with underlying types of atomics.
• TopC - set of examples (ParN02 and ParN04) derived from novice using parallelism at event level with
the TopC application
10.3.1.15. Parameterisations
• Par01 - Demonstrates the use of parameterisation facilities. (It was moved in extended examples from novice/
N05 with removal of novice examples.)
• Par02 - Shows how to do "track and energy smearing" in Geant4, in order to have a very fast simulation based
on assumed detector resolutions.
• Gflash - Demonstrates the use of the GFLASH parameterisation library. It uses the GFLASH equations(hep-
ex/0001020, Grindhammer & Peters) to parametrise electromagnetic showers in matter
10.3.1.16. Persistency
• General ReadMe
• GDML - examples set (G01, G02, G03 and G04) illustrating import and export of a detector geometry with
GDML, and how to extend the GDML schema or use the auxiliary information field for defining additional
persistent properties
• P01 - storing calorimeter hits using reflection mechanism with Root
• P02 - storing detector description using reflection mechanism with Root
• P03 - illustrating import and export of a detector geometry using ASCII text description and syntax
10.3.1.17. Polarisation
• Pol01 - interaction of polarized beam (e.g. circularly polarized photons) with polarized target
10.3.1.18. Radioactive Decay
• rdecay01 - demonstrating basic functionality of the G4RadioactiveDecay process
• rdecay02 (Exrdm) - decays of radioactive isotopes as well as induced radioactivity resulted from nuclear in-
teractions
10.3.1.19. Run & Event
• RE01 - information between primary particles and hits and usage of user-information classes
• RE02 - simplified fixed target application for demonstration of primitive scorers
• RE03 - use of UI-command based scoring; showing how to create parallel world(s) for defining scoring
mesh(es)
• RE04 - demonstrating how to define a layered mass geometry in parallel world
• RE05 - demonstrating interfacing to the PYTHIA primary generator, definition of a 'readout' geometry, event
filtering using the stacking mechanism. (It was moved in extended examples from novice/N04 with removal
of novice examples.)
![](asset-166.png)
Examples
349
• RE06 - demonstrating how to modify part of the geometry setup at run-time, detector description parameteri-
sation by materials, sharing of a sensitive detector definition for different sub-detectors, different geometrical
regions definition with different production thresholds, customization of the G4Run (It was moved in extended
examples from novice/N07 with removal of novice examples.)
10.3.1.20. Visualization
• General ReadMe - examples (perspective, standalone and userVisAction) of customisation for visualization
10.4. Advanced Examples
Geant4 advanced examples illustrate realistic applications of Geant4 in typical experimental environments. Most
of them also show the usage of analysis tools (such as histograms, ntuples and plotting), various visualization
features and advanced user interface facilities, together with the simulation core.
Note: Maintenance and updates of the code is under the responsibility of the authors. These applications are
therefore not subject to regular system testing and no guarantee can be provided.
The advanced examples include:
•air_shower , Simulation of a Fresnel lens focusing direct or reflected UV light onto a photomultiplier. Object
parameterisation and replication capabilities of Geant4 are used to describe the lens geometry. The example is
inspired in the configuration of the ULTRA experiment (NIM A 570 (2007) 22).
•amsEcal , illustrating simulation in the AMS electro-magnetic calorimeter.
•brachytherapy , illustrating a typical medical physics application simulating energy deposit in a Phantom filled
with soft tissue.
•ChargeExchangeMC , The program was used to simulate real experiments in Petersburg Nuclear Physics
Institute (PNPI, Russia).
•composite_calorimeter , test-beam simulation of the CMS Hadron calorimeter at LHC.
•dna_physics , this example explains how to use Geant4-DNA physics for the very low energy transport of
particles in liquid water. See more information at http://geant4-dna.org.
•eRosita , simplified version of the simulation of the shielding of the eROSITA X-ray mission; it demonstrates
the simulation of PIXE (Particle Induced X-ray Emission) as described in M.G. Pia et al., PIXE simulation with
Geant4, IEEE Trans. Nucl. Sci., vol. 56, no. 6, pp. 3614-3649, 2009.
•gammaknife , reproducing in details a gammaknife device for stereotactic radiosurgery. In particular, the gam-
maknife model C is simulated, which is characterized by a symmetrical displacement of the Co60 sources. Dose
distributions are acquired in a water spherical phantom using voxelized geometries. The possibility to change
the source pattern in order to simulate different gammaknife models is in development and new versions with
these additional features will be released.
•gammaray_telescope , illustrating an application to typical gamma ray telescopes with a flexible configuration.
•hadrontherapy , is an example for people interested in Monte Carlo studies related to proton/ion therapy.
Hadrontherapy permits the simulation of a typical hadron therapy beam line (with all its elements) and the
calculation of fundamentals quantities of interest: 3D dose distributions, fluences, and average LET for both
primary and secondary particles, etc.. A typical beamline for laser-driven ion beams is also included in this
last version.
•human_phantom , implementing an Anthropomorphic Phantom body built importing the description from a
GDML representation.
•iort_therapy , specifically developed to address typical needs related to the IntraOperative Radio-Therapy
(IORT) technique. This technique delivers a single dose of radiation directly to the tumor bed, or to the exposed
tumor, during surgery. The idea of iort_therapy is to provide a useful tool for Users interested to radiation
dosimetry, dose planning and radio-protection studies in IORT. In fact, the application allows to reconstruct
dose distribution curves in water or other materials, to plan dose distribution in the tumor treatment region
with different clinical set-up, and to optimize radio-protection of normal patient tissues simulating a composite
metallic shielding disc. iort_therapy simulates the collimator beam line system of a typical medical mobile
linac, the phantom, the detector and the composite metallic shielding disc. Via external macro commands it is
possible to change the physic models, the collimator beam line, the phantom, the detector and shielding disc
geometries, the visualization, the beam particle characteristics, and to activate the Graphical Users Interface
(QT libraries are requested)
![](asset-167.png)
Examples
350
•lAr_calorimeter , simulating the Forward Liquid Argon Calorimeter (FCAL) of the ATLAS Detector at LHC.
•medical_linac , illustrating a typical medical physics application simulating energy deposit in a Phantom filled
with water for a typical linac used for intensity modulated radiation therapy. The experimental set-up is very
similar to one used in clinical practice.
•microbeam , simulates the cellular irradiation beam line installed on the AIFIRA electrostatic accelerator fa-
cility located at CENBG, Bordeaux-Gradignan, France.
•microelectronics , simulates the track of a 5 MeV proton in silicon using very low energy electromagnetic
Geant4 MicroElec processes. It illustrates how to combine these discrete processes with usual Geant4 condensed
history ones, using different processes for different regions of the geometry and different energy ranges.
•nanobeam , simulates the beam optics of the "nanobeam line" installed on the AIFIRA electrostatic accelerator
facility located at CENBG, Bordeaux-Gradignan, France.
•purging_magnet , illustrating an application that simulates electrons traveling through a 3D magnetic field;
used in a medical environment for simulating a strong purging magnet in a treatment head.
•radioprotection , illustrating the response characterization of a novel diamond microdosimeter for radiation
protection in human space missions and aviation.
•underground_physics , illustrating an underground detector for dark matter searches.
•xray_fluorescence , illustrating the emission of X-ray fluorescence and PIXE.
•xray_telescope , illustrating an application for the study of the radiation background in a typical X-ray telescope.
10.5. Novice Examples
The old "novice" set of examples is now replaced with a new "basic" set, covering the most typical use-cases of
a Geant4 application with keeping simplicity and ease of use.
The source code of the last version of the novice examples set (in 9.6.p02 release) can be viewed in the Geant4
LXR code browser
The new location of each example in 10.0 release:
• N01 - removed
• N02 - basic/B2
• N03 - basic/B4
• N04 - extended/runAndEvent/RE05
• N05 - extended/parameterisations/Par01
• N06 - extended/optical/OpNovice
• N07 - extended/runAndEvent/RE06
![](asset-168.png)
351
Appendix . Appendices
1. CLHEP Foundation Library
CLHEP is a set of Class Libraries containing many basic classes for use in High Energy Physics.
Both a CLHEP Reference Guide and a User Guide are available.
Origin and current situation of CLHEP
CLHEP started in 1992 as a library for fundamental classes mostly needed for, and in fact derived from, the MC
event generator MC++ written in C++. Since then various authors added classes to this package, including several
contributions made by developers in the Geant4 Collaboration.
Geant4 and CLHEP
The Geant4 project contributed to the development of CLHEP. The random number package, physics units and
constants, and some of the numeric and geometry classes had their origins in Geant4.
Geant4 also benefits from the development of CLHEP. In addition to the already mentioned classes for random
numbers and numerics, we use the classes for points, vectors, and planes and their transformations in 3D space,
and lorentz vectors and their transformations. Although these classes have Geant4 names like G4ThreeVector,
these are just typedefs to the CLHEP classes.
Since release 9.5 of Geant4, the relevant classes of the CLHEP libraries are distributed as embedded module within
Geant4. It is therefore no longer necessary to build and link against an external CLHEP installation (solution which
is still supported as option).
2. Geant4Config.cmake CMake Config File
2.1. Usage of Geant4Config.cmake
Geant4Config.cmake is designed to be used with CMake's find_package command. When found, it
sets several CMake variables and provides a mechanism for checking and activating optional features of Geant4.
This allows you to use it in many ways in your CMake project to configure Geant4 for use by your application.
The most basic usage of Geant4Config.cmake in a CMakeLists.txt file is just to locate Geant4 with no
requirements on its existence, version number or components:
find_package(Geant4)
If you must find Geant4, then you can use
find_package(Geant4 REQUIRED)
This will cause CMake to fail with an error should an install of Geant4 not be located.
When an install of Geant4 is found, the module sets a sequence of CMake variables that can be used elsewhere
in the project:
•Geant4_FOUND
Set to CMake boolean true if an install of Geant4 was found.
•Geant4_INCLUDE_DIRS
Set to a list of directories containing headers needed by Geant4. May contain paths to third party headers if
these appear in the public interface of Geant4.
![](asset-169.png)
Appendices
352
•Geant4_LIBRARIES
Set to the list of libraries that need to be linked to an application using Geant4.
•Geant4_DEFINITIONS
The list of compile definitions needed to compile an application using Geant4. This is most typically used to
correctly activate UI and Visualization drivers.
•Geant4_CXX_FLAGS
The compiler flags used to build this install of Geant4. Usually most important on Windows platforms.
•Geant4_CXX_FLAGS_<CONFIG>
The compiler flags recommended for compiling Geant4 and applications in mode CONFIG (e.g. Release, Debug,
etc). Usually most important on Windows platforms.
•Geant4_CXXSTD
The C++ standard, e.g. "c++11" against which this install of Geant4 was compiled.
•Geant4_TLS_MODEL
The thread-local storage model, e.g. "initial-exec" against which this install of Geant4 was compiled.
Only set if the install was compiled with multithreading support.
•Geant4_USE_FILE
A CMake script which can be included to handle certain CMake steps automatically. Most useful for very basic
applications.
•Geant4_builtin_clhep_FOUND
A CMake boolean which is set to true if this install of Geant4 was built using the internal CLHEP.
•Geant4_system_clhep_ISGRANULAR
A CMake boolean which is set to true if this install of Geant4 was built using the system CLHEP and linked
to the granular CLHEP libraries.
•Geant4_builtin_expat_FOUND
A CMake boolean which is set to true if this install of Geant4 was built using the internal Expat.
•Geant4_builtin_zlib_FOUND
A CMake boolean which is set to true if this install of Geant4 was built using the internal zlib.
•Geant4_DATASETS
A CMake list of the names of the physics datasets used by physics models in Geant4. It is provided to help
iterate over the Geant4_DATASET_XXX_YYY variables documented below.
•Geant4_DATASET_<NAME>_ENVVAR
The name of the environment variable used by Geant4 to locate the dataset with name <NAME>.
•Geant4_DATASET_<NAME>_PATH
The absolute path to the dataset with name <NAME>. Note that the setting of this variable does not guarantee
the existence of the dataset, and no checking of the path is performed. This checking is not provided because
the action you take on non-existing data will be application dependent.
![](asset-16a.png)
Appendices
353
You can access the Geant4_DATASET_XXX_YYY variables in a CMake script in the following way:
find_package(Geant4_REQUIRED) # Find Geant4
foreach(dsname ${Geant4_DATASETS}) # Iterate over dataset names
if(NOT EXISTS ${Geant4_DATASET_${dsname}_PATH}) # Check existence
message(WARNING "${dsname} not located at ${Geant4_DATASET_${dsname}_PATH}")
endif()
endforeach()
A typical use case for these variables is to automatically set the dataset environment variables for your appli-
cation without the need to preconfigure the environment. This could typically be via a shell script wrapper
around your application, or runtime configuration of the application environment via the relevant C/C++ API
for your system.
The typical usage of find_package and these variables to configure a build requiring Geant4 is thus:
find_package(Geant4 REQUIRED) # Find Geant4
include_directories(${Geant4_INCLUDE_DIRS}) # Add -I type paths
add_definitions(${Geant4_DEFINITIONS}) # Add -D type defs
set(CMAKE_CXX_FLAGS ${Geant4_CXX_FLAGS}) # Optional
add_executable(myg4app myg4app.cc) # Compile application
target_link_libraries(myg4app ${Geant4_LIBRARIES}) # Link it to Geant4
Alternatively, the CMake script pointed to by Geant4_USE_FILE may be included:
find_package(Geant4 REQUIRED) # Find Geant4
include(${Geant4_USE_FILE}) # Auto configure includes/flags
add_executable(myg4app myg4app.cc) # Compile application
target_link_libraries(myg4app ${Geant4_LIBRARIES}) # Link it to Geant4
When included, the Geant4_USE_FILE script performs the following actions:
1. Adds the definitions in Geant4_DEFINITIONS to the global compile definitions.
2. Appends the directories listed in Geant4_INCLUDE_DIRS to those the compiler uses for search for include
paths, marking them as system include directories.
3. Prepends Geant4_CXX_FLAGS to CMAKE_CXX_FLAGS, and similarly for the extra compiler flags for
each build mode (Release, Debug etc).
This use file is very useful for basic applications, but if your use case requires finer control over compiler defini-
tions, include paths and flags you should use the relevant Geant4_NAME variables directly.
By default, CMake will look in several platform dependent locations for the Geant4Config.cmake file
(see find_package for listings). You can also specify the location directly when running CMake by setting the
Geant4_DIR variable to the path of the directory holding Geant4Config.cmake. It may be set on the com-
mand line via a -D option, or by adding an entry to the CMake GUI. For example, if we have an install of Geant4
located in
+- opt/
+- Geant4/
+- lib/
+- libG4global.so
+- ...
+- Geant4-10.3.0/
+- Geant4Config.cmake
then we would pass the argument -DGeant4_DIR=/opt/Geant4/lib/Geant4-10.3.0 to CMake. The
CMAKE_PREFIX_PATH variable may also be used to point CMake to Geant4 by adding, to take the example
![](asset-16b.png)
Appendices
354
above, /opt/Geant4 to the list of paths it holds. This may be set either on the command line or as a path-style
UNIX environment variable.
You can also, if you wish, build an application against a build of Geant4 without installing it. If you look
in the directory where you built Geant4 itself (e.g. on UNIX, where you ran make), you see there is a
Geant4Config.cmake file. This is a perfectly valid file, so you can also point CMake to this file when building
your application. Simply set Geant4_DIR to the directory where you built Geant4. This feature is most useful
for Geant4 developers, but it can be useful if you cannot, or do not want to, install Geant4.
A version number may also be supplied to search for a Geant4 install greater than or equal to the supplied version,
e.g.
find_package(Geant4 10.0 REQUIRED)
would make CMake search for a Geant4 install whose version number is greater than or equal to 10.0. An exact
version number may also be specified:
find_package(Geant4 10.3.0 EXACT REQUIRED)
In both cases, CMake will fail with an error if a Geant4 install meeting these version requirements is not located.
Geant4 can be built with many optional components, and the presence of these can also be required by passing extra
"component" arguments. For example, to require that Geant4 is found and that it support Qt UI and visualization,
we can do
find_package(Geant4 REQUIRED qt)
In this case, if CMake finds a Geant4 install that does not support Qt, it will fail with an error. Multiple component
arguments can be supplied, for example
find_package(Geant4 REQUIRED qt gdml)
requires that we find a Geant4 install that supports both Qt and GDML. If the component(s) is(are) found, any
needed header paths, libraries and compile definitions required to use the component are appended to the vari-
ables Geant_INCLUDE_DIRS, Geant4_LIBRARIES and Geant4_DEFINITIONS respectively. Variables
Geant4_<COMPONENTNAME>_FOUND are set to TRUE if component COMPONENTNAME is supported by the
installation.
If you want to activate options only if they exist, you can use the pattern
find_package(Geant4 REQUIRED)
find_package(Geant4 QUIET COMPONENTS qt)
which will require CMake to locate a core install of Geant4, and then check for and activate Qt support if the install
provides it, continuing without error otherwise. A key thing to note here is that you can call find_package
multiple times to append configuration of components. If you use this pattern and need to check if a component was
found, you can use the Geant4_<COMPONENTNAME>_FOUND variables described earlier to check the support.
The components which can be supplied to find_package for Geant4 are as follows:
•static
Geant4_static_FOUND is TRUE if the install of Geant4 provides static libraries.
Use of this component forces the variable Geant4_LIBRARIES to contain static libraries, if they are available.
It can therefore be used to force static linking if your application requires this, but note that this does not
guarantee that static version of third party libraries will be used.
![](asset-16c.png)
Appendices
355
•multithreaded
Geant4_multithreaded_FOUND is TRUE if the install of Geant4 was built with multithreading support.
Note that this only indicates availability of multithreading support and activates the required compiler definition
to build a multithreaded Geant4 application. Multithreading in your application requires creation and usage of
the appropriate C++ objects and interfaces as described in the Application Developers Guide.
•usolids
Geant4_usolids_FOUND is TRUE if the install of Geant4 was built with USolids replacing the Geant4
solids.
Note that this only indicates that the replacement of Geant4 solids with USolids has taken place. Further infor-
mation on the use of USolids applications is provided in the Application Developers Guide.
•gdml
Geant4_gdml_FOUND is TRUE if the install of Geant4 was built with GDML support.
•g3tog4
Geant4_g3tog4_FOUND is TRUE if the install of Geant4 provides the G3ToG4 library. If so, the G3ToG4
library is added to Geant4_LIBRARIES.
•freetype
Geant4_freetype_FOUND is TRUE if the install of Geant4 was built with Freetype support.
•ui_tcsh
Geant4_ui_tcsh_FOUND is TRUE if the install of Geant4 provides the TCsh command line User Interface.
Using this component allows use of the TCsh command line interface in the linked application.
•ui_win32
Geant4_ui_win32_FOUND is TRUE if the install of Geant4 provides the Win32 command line User Inter-
face. Using this component allows use of the Win32 command line interface in the linked application.
•motif
Geant4_motif_FOUND is TRUE if the install of Geant4 provides the Motif(Xm) User Interface and Visu-
alization driver. Using this component allows use of the Motif User Interface and Visualization Driver in the
linked application.
•qt
Geant4_qt_FOUND is TRUE if the install of Geant4 provides the Qt4 User Interface and Visualization driver.
Using this component allows use of the Qt User Interface and Visualization Driver in the linked application.
•wt
Geant4_wt_FOUND is TRUE if the install of Geant4 provides the Wt Web User Interface and Visualization
driver. Using this component allows use of the Wt User Interface and Visualization Driver in the linked appli-
cation.
•vis_network_dawn
Geant4_vis_network_dawn_FOUND is TRUE if the install of Geant4 provides the Client/Server network
interface to DAWN visualization. Using this component allows use of the Client/Server DAWN Visualization
Driver in the linked application.
![](asset-16d.png)
Appendices
356
•vis_network_vrml
Geant4_vis_network_vrml_FOUND is TRUE if the install of Geant4 provides the Client/Server network
interface to VRML visualization. Using this component allows use of the Client/Server VRML Visualization
Driver in the linked application.
•vis_opengl_x11
Geant4_vis_opengl_x11_FOUND is TRUE if the install of Geant4 provides the X11 interface to the
OpenGL Visualization driver. Using this component allows use of the X11 OpenGL Visualization Driver in
the linked application.
•vis_opengl_win32
Geant4_vis_opengl_win32_FOUND is TRUE if the install of Geant4 provides the Win32 interface to the
OpenGL Visualization driver. Using this component allows use of the Win32 OpenGL Visualization Driver in
the linked application.
•vis_openinventor
Geant4_vis_openinventor_FOUND is TRUE if the install of Geant4 provides the OpenInventor Visu-
alization driver. Using this component allows use of the OpenInventor Visualization Driver in the linked ap-
plication.
•ui_all
Activates all available UI drivers. Does not set any variables, and never causes CMake to fail.
•vis_all
Activates all available Visualization drivers. Does not set any variables, and never causes CMake to fail.
Please note that whilst the above aims to give a complete summary of the functionality of
Geant4Config.cmake, it only gives a sampling of the ways in which you may use it, and other CMake func-
tionality, to configure your application. We also welcome feedback, suggestions for improvement and bug reports
on Geant4Config.cmake.
2.2. Going further with CMake
The preceeding sections show the minimal CMake scripting required to configure, build and install an application
linking against the Geant4 libraries. If your project requires more advanced configuration, CMake provides tools
such as compiler/platform identification and location of additional libraries/executables to link to/use. As this
document is specific to Geant4, we do not cover more advanced usage of CMake and recommend that you consult
the online manuals and tutorials supplied by Kitware.
In particular, for the common use case of finding and using an external software package, see the documentation of
the find_package command, overview of CMake's package location functionality, and the list of packages
CMake knows about out of the box. Location and use of a required package works exactly as we have illustrated
for Geant4. Simply add the required find_package call to your CMake script, and use the supplied variables
or targets for headers paths and library linking, e.g.
find_package(Foo 1.2 REQUIRED) # Find "Foo" of at least version 1.2
find_package(Bar 3.4 EXACT REQUIRED) # Find "Bar" at exactly version 3.4
include_directories(${Foo_INCLUDE_DIRS}) # Foo's setup supplies a header path
add_library(MyLibrary SHARED MyLibrary.cc) # Define our library
target_link_libraries(MyLibrary # Link it
${Foo_LIBRARIES} # Foo's setup supplies a library path
Bar::Bar # Bar's setup supplies an "IMPORTED" target
) # which sets header and library paths automatically
![](asset-16e.png)
Appendices
357
You should consult the documentation of the packages your project requires to see if they supply suitable CMake
configuration files. If they do not, then CMake provide documentation on writing modules to find packages that
do not supply these files. Geant4 cannot provide support for any third party package your project uses, and any
questions should be direct to that package's authors.
2.3. Building an Application against a Build of Geant4
A typical use case for Geant4 developers is to build small testing applications against a fresh build of Geant4. If
rebuilds are frequent, then the testing application builds are also frequent.
CMake can be used to build these test applications using find_package and Geant4Config.cmake, as
a special version of the latter is created in the Geant4 build directory. This sets up the variables to point to the
headers in the Geant4 source directory, and the freshly built libraries in the current build directory.
Applications may therefore be built against a non-installed build of Geant4 by running CMake for the application
and setting Geant4_DIR to point to the current build directory of Geant4.
3. GNUMake System: Makefiles and Environment
Variables
This section describes how the Geant4 GNUMake infrastructure is implemented in Geant4 and provides a quick
reference guide for the user about the most important environment variables that can be set to configure its be-
haviour.
This system is now deprecated, though it is still provided through the SVN repository for developers, and is
installed by CMake to provide temporary backward compatibility for user applications.
3.1. Geant4Make System
As described in Section 2.1 of the Installation Guide, the GNUmake process in Geant4 is mainly controlled by the
following GNUmake script files (*.gmk scripts are placed in $G4INSTALL/config):
•architecture.gmk: defining all the architecture specific settings and paths. System settings are stored in
$G4INSTALL/config/sys in separate files.
•common.gmk: defining all general GNUmake rules for building objects and libraries.
•globlib.gmk: defining all general GNUmake rules for building compound libraries.
•binmake.gmk: defining the general GNUmake rules for building executables.
•GNUmake scripts: placed inside each directory in the G4 distribution and defining directives specific to build
a library (or a set of sub-libraries) or and executable.
To build a single library (or a set of sub-libraries) or an executable, you must explicitly change your current
directory to the one you're interested in and invoke the "make" command from there ("make global" for
building a compound library). Here is a list of the basic commands or GNUmake "targets" one can invoke to build
libraries and/or executables:
•make
starts the compilation process for building a kernel library or a library associated with an example. Kernel
libraries are built with maximum granularity, i.e. if a category is a compound, this command will build all
the related sub-libraries, not the compound one. The top level GNUmakefile in $G4INSTALL/source
will also build in this case a dependency map libname.map of each library to establish the linking order
automatically at the bin step. The map will be placed in $G4LIB/$G4SYSTEM.
•make global
starts the compilation process to build a single compound kernel library per category. If issued after "make",
both 'granular' and 'compound' libraries will be available (NOTE: this will consistently increase the disk space
required. Compound libraries will then be selected by default at link time, unless G4LIB_USE_GRANULAR
is specified).
•make bin or make (only for examples/)
![](asset-16f.png)
Appendices
358
starts the compilation process to build an executable. This command will build implicitly the library associated
with the example and link the final application. It assumes all kernel libraries are already generated and placed
in the correct $G4INSTALL path defined for them.
The linking order is controlled automatically in case libraries have been built with maximum granularity, and
the link list is generated on the fly.
•make dll
On Windows systems this will start the compilation process to build single compound kernel library per category
and generate Dynamic Link Libraries (DLLs). Once the libraries are generated, the process will imply also the
deletion of all temporary files generated during the compilation.
lib/ bin/ and tmp/ directories
The $G4INSTALL environment variable specifies where the installation of the Geant4 toolkit should take place,
therefore kernel libraries will be placed in $G4INSTALL/lib. The $G4WORKDIR environment variable is set
by the user and specifies the path to the user working directory; temporary files (object-files and data products
of the installation process of Geant4) will be placed in $G4WORKDIR/tmp, according to the system architecture
used. Binaries will be placed in $G4WORKDIR/bin, according to the system architecture used. The path to
$G4WORKDIR/bin/$G4SYSTEM should be added to $PATH in the user environment.
3.2. Environment variables
Here is a list of the most important environment variables defined within the Geant4 GNUmake infrastructure,
with a short explanation of their use.
We recommend that those environment variables listed here and marked with (*) NOT be overriden or set
(explicitly or by accident). They are already set and used internally in the default setup !
System configuration
$CLHEP_BASE_DIR
Specifies the path where the CLHEP package is installed in your system.
$USOLIDS_BASE_DIR
Specifies the path where the USolids package is installed in your system.
$G4SYSTEM
Defines the architecture and compiler currently used.
NOTE: This variable is set automatically if the Configure script is adopted for the installation. This will
result in the proper settings also for configuring the environment with the generated shell scripts env.[c]sh.
Installation paths
$G4INSTALL
Defines the path where the Geant4 toolkit is located. It should be set by the system installer. By default, it
sets to $HOME/geant4, assuming the Geant4 distribution is placed in $HOME.
$G4BASE (*)
Defines the path to the source code. Internally used to define $CPPFLAGS and $LDFLAGS for -I and -L
directives. It has to be set to $G4INSTALL/src.
$G4WORKDIR
Defines the path for the user's workdir for Geant4. It is set by default to $HOME/geant4, assuming the user's
working directory for Geant4 is placed in $HOME.
$G4INCLUDE
Defines the path where source header files may be mirrored at installation by issuing gmake includes
(default is set to $G4INSTALL/include)
![](asset-170.png)
Appendices
359
$G4BIN, $G4BINDIR (*)
Used by the system to specify the place where to store executables. By default they're set to $G4WORKDIR/
bin and $G4BIN/$G4SYSTEM respectively. The path to $G4WORKDIR/bin/$G4SYSTEM should be
added to $PATH in the user environment. $G4BIN can be overridden.
$G4TMP, $G4TMPDIR (*)
Used by the system to specify the place where to store temporary files products of the compilation/build of
a user application or test. By default they're set to $G4WORKDIR/tmp and $G4TMP/$G4SYSTEM respec-
tively. $G4TMP can be overridden.
$G4LIB, $G4LIBDIR (*)
Used by the system to specify the place where to install libraries. By default they're set to $G4INSTALL/
lib and $G4LIB/$G4SYSTEM respectively. $G4LIB can be overridden.
Build specific
$G4TARGET
Specifies the target (name of the source file defining the main()) of the application/example to be built. This
variable is set automatically for the examples and tests placed in $G4INSTALL/examples.
$G4DEBUG
Specifies to compile the code (libraries or examples) including symbolic information in the object code for
debugging. The size of the generated object code can increase considerably. By default, code is compiled in
optimised mode ($G4OPTIMISE set).
$G4OPTDEBUG
Only available for the g++ compiler, specifies to compile the code (libraries or examples) in optimised mode,
but including symbolic information in the object code for debugging.
$G4USE_STD11
Specifies to compile the code (libraries or examples) with C++11 Standard enabled on compilers supporting
the C++11 Standard.
$G4NO_OPTIMISE
Specifies to compile the code (libraries or examples) without compiler optimisation.
$G4PROFILE
On Linux systems with the g++ compiler, it allows to build libraries with profiling setup for monitoring
with the gprof tool.
$G4_NO_VERBOSE
Geant4 code is compiled by default in high verbosity mode ($G4VERBOSE flag set). For better performance,
verbosity code can be left out by defining $G4_NO_VERBOSE.
$G4LIB_BUILD_SHARED
Flag specifying if to build kernel libraries as shared libraries (libraries will be then used by default). If not
set, static archive libraries are built by default.
$G4LIB_BUILD_STATIC
Flag specifying if to build kernel libraries as static archive libraries in addition to shared libraries (in case
$G4LIB_BUILD_SHARED is set as well).
$G4LIB_BUILD_DLL (*)
Internal flag for specifying to build DLL kernel libraries for Windows systems. The flag is automatically set
when requested to build DLLs.
$G4LIB_USE_DLL
For Windows systems only. Flag to specify to build an application using the installed DLL kernel libraries
for Windows systems. It is required to have this flag set in the environment in order to successfully build an
application if the DLL libraries have been installed.
![](asset-171.png)
Appendices
360
$G4LIB_USE_GRANULAR
To force usage of "granular" libraries against "compound" libraries at link time in case both have been in-
stalled. The Geant4 building system chooses "compound" libraries by default, if installed.
UI specific
The most relevant flags for User Interface drivers are just listed here. A more detailed description is given also
in section 2. of this User's Guide.
G4UI_USE_TERMINAL
Specifies to use dumb terminal interface in the application to be built (default).
G4UI_USE_TCSH
Specifies to use the tcsh-shell like interface in the application to be built.
G4UI_BUILD_XM_SESSION
Specifies to include in kernel library the XM Motif-based user interfaces.
G4UI_USE_XM
Specifies to use the XM interfaces in the application to be built.
G4UI_BUILD_WIN32_SESSION
Specifies to include in kernel library the WIN32 terminal interface for Windows systems.
G4UI_USE_WIN32
Specifies to use the WIN32 interfaces in the application to be built on Windows systems.
G4UI_BUILD_QT_SESSION
Specifies to include in kernel library the Qt terminal interface. $QTHOME should specify the path where Qt
libraries and headers are installed
G4UI_USE_QT
Specifies to use the Qt interfaces in the application to be built.
G4UI_NONE
If set, no UI sessions nor any UI libraries are built. This can be useful when running a pure batch job or in
a user framework having its own UI system.
Visualization specific
The most relevant flags for visualization graphics drivers are just listed here. A description of these variables is
given also in section 2. of this User's Guide.
$G4VIS_BUILD_OPENGLX_DRIVER
Specifies to build kernel library for visualization including the OpenGL driver with X11 extension. It requires
$OGLHOME set (path to OpenGL installation).
$G4VIS_USE_OPENGLX
Specifies to use OpenGL graphics with X11 extension in the application to be built.
$G4VIS_BUILD_OPENGLXM_DRIVER
Specifies to build kernel library for visualization including the OpenGL driver with XM extension. It requires
$OGLHOME set (path to OpenGL installation).
$G4VIS_USE_OPENGLXM
Specifies to use OpenGL graphics with XM extension in the application to be built.
G4VIS_BUILD_OPENGLQT_DRIVER
Specifies to build kernel library for visualization including the OpenGL driver with Qt extension. It requires
$QTHOME set to specify the path where Qt libraries and headers are installed.
G4VIS_USE_OPENGLQT
Specifies to use OpenGL graphics with Qt extension in the application to be built.
![](asset-172.png)
Appendices
361
$G4VIS_BUILD_OI_DRIVER
Specifies to build kernel library for visualization including the OpenInventor driver. It requires $OIHOME set
(paths to the OpenInventor installation).
$G4VIS_USE_OI
Specifies to use OpenInventor graphics in the application to be built.
$G4VIS_BUILD_OIX_DRIVER
Specifies to build the driver for the free X11 version of OpenInventor.
$G4VIS_USE_OIX
Specifies to use the free X11 version of OpenInventor.
$G4VIS_BUILD_RAYTRACERX_DRIVER
Specifies to build kernel library for visualization including the Ray-Tracer driver with X11 extension. It re-
quires X11 installed in the system.
$G4VIS_USE_RAYTRACERX
Specifies to use the X11 version of the Ray-Tracer driver.
$G4VIS_BUILD_OIWIN32_DRIVER
Specifies to build the driver for the free X11 version of OpenInventor on Windows systems.
$G4VIS_USE_OIWIN32
Specifies to use the free X11 version of OpenInventor on Windows systems.
$G4VIS_BUILD_DAWN_DRIVER
Specifies to build kernel library for visualization including the driver for DAWN.
$G4VIS_USE_DAWN
Specifies to use DAWN as a possible graphics renderer in the application to be built.
$G4DAWN_HOST_NAME
To specify the hostname for use with the DAWN-network driver.
$G4VIS_NONE
If specified, no visualization drivers will be built or used.
Hadronic physics specific
$G4NEUTRONHP_USE_ONLY_PHOTONEVAPORATION
When using high precision neutron code, user may choose to force the use of Photon Evaporation model
instead of using the neutron capture final state data.
$G4NEUTRONHP_SKIP_MISSING_ISOTOPES
User can force high precison neutron code to use only exact isotope data files instead of allowing nearby
isotope files to be used. If the exact file is not available, the cross section will be set to zero and a warning
message will be printed.
$G4NEUTRONHP_NEGLECT_DOPPLER
Sets neglecting doppler broadening mode for boosting performance.
GDML, zlib and g3tog4 modules
$G4LIB_BUILD_GDML
If set, triggers compilation of a plugin module gdml for allowing import/export of detector description setups
(geometrical volumes, solids, materials, etc.). By default, the flag is not set; if set, the path to the installation
of XercesC package must be specified through the variable $XERCESCROOT.
$G4LIB_USE_GDML
Specifies to use the gdml module. The flag is automatically set if $G4LIB_BUILD_GDML is set in the
environment.
![](asset-173.png)
Appendices
362
$G4LIB_USE_USOLIDS
Specifies to adopt the USolids primitives in place of the original Geant4 solids.
$G4LIB_BUILD_ZLIB
If set, triggers compilation of a specific zlib module for the compression of output files (mainly in use
currently for the HepRep graphics driver). By default, the flag is not set and the built-in system library for
compression is adopted instead. Setting this flag will also implicitely set the flag below. On Windows systems,
if OpenGL or OpenInventor visualization drivers are built, this module is automatically built.
$G4LIB_USE_ZLIB
Specifies to use the zlib module, either system built-in or Geant4 specific.
$G4LIB_BUILD_G3TOG4
If set, triggers compilation of the g3tog4 module for conversions of simple legacy geometries descriptions to
Geant4. By default, the flag is not set and the module's library is not built. Setting this flag will also implicitely
set the flag below.
$G4LIB_USE_G3TOG4
Specifies to use the g3tog4 module, assuming the related library has been already installed.
Analysis specific
$G4ANALYSIS_USE
Specifies to activate the appropriate environment for analysis, if an application includes code for histogram-
ming based on AIDA. Additional setup variables are required ($G4ANALYSIS_AIDA_CONFIG_CFLAGS,
$G4ANALYSIS_AIDA_CONFIG_LIBS) to define config options for AIDA ("aida-config --
cflags" and "aida-config --libs"). See installation instructions of the specific analysis tools for
details.
Directory paths to Physics Data
$G4NEUTRONHPDATA
Path to external data set for Neutron Scattering processes.
$G4NEUTRONXSDATA
Path to external data set for evaluated neutron cross-sections.
$G4LEDATA
Path to external data set for low energy electromagnetic processes.
$G4PIIDATA
Path to external data set for shell ionisation cross-sections.
$G4LEVELGAMMADATA
Path to the data set for Photon Evaporation.
$G4RADIOACTIVEDATA
Path to the data set for Radiative Decay processes.
$G4ENSDFSTATE1.0
Path to the data set for NuclideTable
$G4ABLADATA
Path to nuclear shell effects data set for INCL/ABLA hadronic model.
$G4REALSURFACEDATA
Path to the data set for measured optical surface reflectance for precise optical physics.
3.3. Linking External Libraries with Geant4
The Geant4 GNUmake infrastructure allows to extend the link list of libraries with external (or user defined)
packages which may be required for some user's applications to generate the final executable.
![](asset-174.png)
Appendices
363
3.3.1. Adding external libraries which do *not* use Geant4
In the GNUmakefile of your application, before including binmake.gmk, specify the extra library in EX-
TRALIBS either using the -L...-l... syntax or by specifying the full pathname, e.g.:
EXTRALIBS := -L<your-path>/lib -l<myExtraLib>
or
EXTRALIBS := <your-path>/lib/lib<myExtraLib>.a
You may also specify EXTRA_LINK_DEPENDENCIES, which is added to the dependency of the target exe-
cutable, and you may also specify a rule for making it, e.g.:
EXTRA_LINK_DEPENDENCIES := <your-path>/lib/lib<myExtraLib>.a
<your-path>/lib/lib<myExtraLib>.a:
cd <your-path>/lib; $(MAKE)
Note that you almost certainly need to augment CPPFLAGS for the header files of the external library, e.g.:
CPPFLAGS+=-I<your-path>/include
See Example 94.
Example 94. An example of a customised GNUmakefile for an application or example
using an external module not bound to Geant4.
# --------------------------------------------------------------------
# GNUmakefile for the application "sim" depending on module "Xplotter"
# --------------------------------------------------------------------
name := sim
G4TARGET := $(name)
G4EXLIB := true
CPPFLAGS += -I$(HOME)/Xplotter/include
EXTRALIBS += -L$(HOME)/Xplotter/lib -lXplotter
EXTRA_LINK_DEPENDENCIES := $(HOME)/Xplotter/lib/libXplotter.a
.PHONY: all
all: lib bin
include $(G4INSTALL)/config/binmake.gmk
$(HOME)/Xplotter/lib/libXplotter.a:
cd $(HOME)/Xplotter; $(MAKE)
3.3.2. Adding external libraries which use Geant4
In addition to the above, specify, in EXTRALIBSSOURCEDIRS, a list of directories containing source files in its
src/ subdirectory. Thus, your GNUmakefile might contain:
EXTRALIBS += $(G4WORKDIR)/tmp/$(G4SYSTEM)/<myApp>/lib<myApp>.a \
-L<your-path>/lib -l<myExtraLib>
EXTRALIBSSOURCEDIRS += <your-path>/<myApp> <your-path>/<MyExtraModule>
EXTRA_LINK_DEPENDENCIES := $(G4WORKDIR)/tmp/$(G4SYSTEM)/<myApp>/lib<myApp>.a
MYSOURCES := $(wildcard <your-path>/<myApp>/src/*cc)
$(G4WORKDIR)/tmp/$(G4SYSTEM)/<myApp>/lib<myApp>.a: $(MYSOURCES)
cd <your-path>/<myApp>; $(MAKE)
See Example 95.
![](asset-175.png)
Appendices
364
Example 95. An example of a customised GNUmakefile for an application or example
using external modules bound to Geant4.
# -----------------------------------------------------------------
# GNUmakefile for the application "phys" depending on module "reco"
# -----------------------------------------------------------------
name := phys
G4TARGET := $(name)
G4EXLIB := true
EXTRALIBS += $(G4WORKDIR)/tmp/$(G4SYSTEM)/$(name)/libphys.a \
-L$(HOME)/reco/lib -lreco
EXTRALIBSSOURCEDIRS += $(HOME)/phys $(HOME)/reco
EXTRA_LINK_DEPENDENCIES := $(G4WORKDIR)/tmp/$(G4SYSTEM)/$(name)/libphys.a
.PHONY: all
all: lib bin
include $(G4INSTALL)/config/binmake.gmk
MYSOURCES := $(wildcard $(HOME)/phys/src/*cc)
$(G4WORKDIR)/tmp/$(G4SYSTEM)/$(name)/libphys.a: $(MYSOURCES)
cd $(HOME)/phys; $(MAKE)
4. Development and Debug Tools
Although not in the scope of this user manual, in this appendix section we provide a set of references to rather
known and established development tools and environments we think are useful for code development in C++ in
general. It's a rather limited list, far from being complete of course.
4.1. Unix/Linux
• The KDevelop environment on Linux systems.
• The GNU Data Display Debugger (DDD).
• Valgrind, a system for debugging and profiling Linux programs.
• Parasoft Insure++ run-time debugger and memory checker
• Parasoft C++ Test source code analyzer.
• MicroFocus Together Visual Modeling for Software Architecture Design tool.
4.2. Windows
• Microsoft Visual Studio development environment.
• Parasoft Insure++ run-time debugger and memory checker
• Parasoft C++ Test source code analyzer.
• Enterprise Architect UML Visual Modeling tool.
• MicroFocus Together Visual Modeling for Software Architecture Design tool.
5. Python Interface
Python is a popular scripting language with an interactive interpreter. Geant4Py, a Geant4-Python bridge, provides
a bridge for Geant4 classes. This enables to directly access Geant4 classes from Python scripting. User applications
can be easily configured with many Python third-party modules, such as PyROOT, on the Python software bus.
Geant4Py is supplied in the directory environments/g4py/ of the Geant4 source package.
5.1. Installation
5.1.1. Software Requirements
Geant4Py requires the Boost-C++ external library, which helps Python binding of C++ codes.
![](asset-176.png)
Appendices
365
5.1.2. Building Geant4Py module
Building system is completely migrated to CMake system. Before building library, GEANT4_INSTALL envi-
ronment variable should be set to the path specified by "CMAKE_INSTALL_PREFIX" when building Geant4.
# export GEANT4_INSTALL="Geant4 install path" (zsh, bash)
# setenv GEANT4_INSTALL "Geant4 install path" (csh)
Then
# mkdir build
# cd build
# cmake ..
# make
# make install
If you want to run the testing component,
# cd build/tests
# make; make install
By default, Geant4Py is installed in "g4py"/lib(64) directory.
5.2. Using Geant4Py
PYTHONPATH environment variable should be set at tun time. PYTHONPATH environment variable indi-
cates Python module search directories, given by a colon-separated list of directories. Practically, the variable is
(your g4py directory)/lib:(your g4py directory)/lib/examples:(your g4py di-
rectory)/lib/tests.
5.2.1. Import Geant4
To use Geant4Py, you start with importing the module called "Geant4".
# python
Python 2.7.5 (default, Mar 9 2014, 22:15:05)
[GCC 4.2.1 Compatible Apple LLVM 5.0 (clang-500.0.68)] on darwin
Type "help", "copyright", "credits" or "license" for more information.
>>> from Geant4 import *
*************************************************************
Geant4 version Name: geant4-10-01 (5-December-2014)
Copyright : Geant4 Collaboration
Reference : NIM A 506 (2003), 250-303
WWW : http://cern.ch/geant4
*************************************************************
Visualization Manager instantiating...
>>>
5.2.2. Access to Geant4 Globals
When importing the Geant4 module, the G4RunManager object will be automatically instantiated. Geant4 sin-
gleton objects are also automatically instantiated. These singleton objects can be accessed by "gXXXX" variables,
like "gRunManager".
gLossTableManager gTerminate
gApplyUICommand gMaterialTable gTrackingManager
gControlExecute gNistManager gTransportationManager
gElementTable gParticleIterator gUImanager
gEmCalculator gParticleTable gVisManager
gEventManager gProcessTable
gExceptionHandler gProductionCutsTable
gG4Date gRunManager
![](asset-177.png)
Appendices
366
gG4VERSION_NUMBER gRunManagerKernel
gG4Version gStackManager
gGeometryManager gStartUISession
gGetCurrentValues gStateManager
5.2.3. Call Geant4 Methods
Once a Python object of a Geant4 class instantiated, Geant4 methods can be directly called the same way as in C++.
>>> from Geant4 import *
*************************************************************
Geant4 version Name: geant4-10-01 (5-December-2014)
Copyright : Geant4 Collaboration
Reference : NIM A 506 (2003), 250-303
WWW : http://cern.ch/geant4
*************************************************************
Visualization Manager instantiating...
>>> print gRunManager.GetVersionString()
Geant4 version Name: geant4-10-01 (5-December-2014)
5.3. Site-modules
Geant4Py provides additional utility modules called "g4py" in the directory site-modules. It consists of pred-
ifined geometries, materials, physics lists, primary generator actions, and so on.
5.3.1. ezgeom module
The ezgeom module provides an alternative way of defining simple geometry. An example code for defining a
simple geometry is shown here:
import g4py.ezgeom
from g4py.ezgeom import G4EzVolume
def ConstructGeom():
print "* Constructing geometry..."
# reset world material
air= G4Material.GetMaterial("G4_AIR")
g4py.ezgeom.SetWorldMaterial(air)
# a target box is placed
global target
target= G4EzVolume("Target")
au= G4Material.GetMaterial("G4_Au")
target.CreateTubeVolume(au, 0., 1.*cm, 1.*mm)
target.PlaceIt(G4ThreeVector(0.,0.,-10.*cm))
5.3.2. NISTmaterials module
The NISTmaterials module provides an instant use of Geant4 NIST materials. An example code for creating NIST
materials:
from Geant4 import *
import g4py.NISTmaterials
g4py.NISTmaterials.Construct()
print Geant4.gMaterialTable
5.3.3. ParticleGun module
The ParticleGun module provides a primary generator action with G4ParticleGun. An example code is shown
here:
![](asset-178.png)
Appendices
367
import g4py.ParticleGun
# normal way for constructing user primary generator action
#pgPGA= g4py.ParticleGun.ParticleGunAction()
#gRunManager.SetUserAction(pgPGA)
#pg= pgPGA.GetParticleGun()
# 2nd way, short-cut way
pg= g4py.ParticleGun.Construct()
# set parameters of particle gun
pg.SetParticleByName("e-")
pg.SetParticleEnergy(300.*MeV)
primary_position= G4ThreeVector(0.,0., -14.9*cm)
primary_direction= G4ThreeVector(0.2, 0., 1.)
pg.SetParticlePosition(primary_position)
pg.SetParticleMomentumDirection(primary_direction)
5.4. Examples
There are some examples of Geant4Py in the directories "tests/" and "examples/".
In the "tests/" directory,
gtest01 : exposes a user application
gtest02 : test for using site-module packages
gtest03 : test for ezgeom package
gtest04 : test for getting command tree and command information
gtest05 : test for constructing CSG geometries in Python
gtest06 : test for constructing/visualizing boolean geoemtries
gtest07 : test for checking overlapped geometries
The "examples/" directory contains a set of examples of Geant4Py.
demos/water_phantom
An example of "water phantom dosimetry". This demo program shows that a Geant4 application well coworks
with Root on Python front end. VisManager, PrimaryGeneratorAction, UserAction-s, histogramming with
Root are implemented in Python;
• dose calculation in a water phantom
• Python overloading of user actions
• on-line histogramming with Root
• visualization
education
Educational examples with Graphical User Interface using TKinter
* lesson1
The first version of the courseware of the mass attenuation coefficient.
* lesson2
GUI interface of ExN03, which can control geometry configuration, intial particle condition, physics process-
es, cut value, magnetic field and visualization outputs.
emplot
Examples of plotting photon cross sections and stopping powers with Root.
gdml
Examples of writing/reading user's geometry to/from a GDML file
![](asset-179.png)
Appendices
368
6. Geant4 Material Database
6.1. Simple Materials (Elements)
=======================================================
Z Name density(g/cm^3) I(eV)
=======================================================
1 G4_H 8.3748e-05 19.2
2 G4_He 0.000166322 41.8
3 G4_Li 0.534 40
4 G4_Be 1.848 63.7
5 G4_B 2.37 76
6 G4_C 2 81
7 G4_N 0.0011652 82
8 G4_O 0.00133151 95
9 G4_F 0.00158029 115
10 G4_Ne 0.000838505 137
11 G4_Na 0.971 149
12 G4_Mg 1.74 156
13 G4_Al 2.699 166
14 G4_Si 2.33 173
15 G4_P 2.2 173
16 G4_S 2 180
17 G4_Cl 0.00299473 174
18 G4_Ar 0.00166201 188
19 G4_K 0.862 190
20 G4_Ca 1.55 191
21 G4_Sc 2.989 216
22 G4_Ti 4.54 233
23 G4_V 6.11 245
24 G4_Cr 7.18 257
25 G4_Mn 7.44 272
26 G4_Fe 7.874 286
27 G4_Co 8.9 297
28 G4_Ni 8.902 311
29 G4_Cu 8.96 322
30 G4_Zn 7.133 330
31 G4_Ga 5.904 334
32 G4_Ge 5.323 350
33 G4_As 5.73 347
34 G4_Se 4.5 348
35 G4_Br 0.0070721 343
36 G4_Kr 0.00347832 352
37 G4_Rb 1.532 363
38 G4_Sr 2.54 366
39 G4_Y 4.469 379
40 G4_Zr 6.506 393
41 G4_Nb 8.57 417
42 G4_Mo 10.22 424
43 G4_Tc 11.5 428
44 G4_Ru 12.41 441
45 G4_Rh 12.41 449
46 G4_Pd 12.02 470
47 G4_Ag 10.5 470
48 G4_Cd 8.65 469
49 G4_In 7.31 488
50 G4_Sn 7.31 488
51 G4_Sb 6.691 487
52 G4_Te 6.24 485
53 G4_I 4.93 491
54 G4_Xe 0.00548536 482
55 G4_Cs 1.873 488
56 G4_Ba 3.5 491
57 G4_La 6.154 501
58 G4_Ce 6.657 523
59 G4_Pr 6.71 535
60 G4_Nd 6.9 546
61 G4_Pm 7.22 560
62 G4_Sm 7.46 574
63 G4_Eu 5.243 580
64 G4_Gd 7.9004 591
65 G4_Tb 8.229 614
66 G4_Dy 8.55 628
67 G4_Ho 8.795 650
![](asset-17a.png)
Appendices
369
68 G4_Er 9.066 658
69 G4_Tm 9.321 674
70 G4_Yb 6.73 684
71 G4_Lu 9.84 694
72 G4_Hf 13.31 705
73 G4_Ta 16.654 718
74 G4_W 19.3 727
75 G4_Re 21.02 736
76 G4_Os 22.57 746
77 G4_Ir 22.42 757
78 G4_Pt 21.45 790
79 G4_Au 19.32 790
80 G4_Hg 13.546 800
81 G4_Tl 11.72 810
82 G4_Pb 11.35 823
83 G4_Bi 9.747 823
84 G4_Po 9.32 830
85 G4_At 9.32 825
86 G4_Rn 0.00900662 794
87 G4_Fr 1 827
88 G4_Ra 5 826
89 G4_Ac 10.07 841
90 G4_Th 11.72 847
91 G4_Pa 15.37 878
92 G4_U 18.95 890
93 G4_Np 20.25 902
94 G4_Pu 19.84 921
95 G4_Am 13.67 934
96 G4_Cm 13.51 939
97 G4_Bk 14 952
98 G4_Cf 10 966
6.2. NIST Compounds
=============================================================
Ncomp Name density(g/cm^3) I(eV) ChFormula
=============================================================
6 G4_A-150_TISSUE 1.127 65.1
1 0.101327
6 0.7755
7 0.035057
8 0.0523159
9 0.017422
20 0.018378
3 G4_ACETONE 0.7899 64.2
6 3
1 6
8 1
2 G4_ACETYLENE 0.0010967 58.2
6 2
1 2
3 G4_ADENINE 1.6 71.4
6 5
1 5
7 5
7 G4_ADIPOSE_TISSUE_ICRP 0.95 63.2
1 0.114
6 0.598
7 0.007
8 0.278
11 0.001
16 0.001
17 0.001
4 G4_AIR 0.00120479 85.7
6 0.000124
7 0.755268
8 0.231781
18 0.012827
4 G4_ALANINE 1.42 71.9
6 3
1 7
7 1
8 2
2 G4_ALUMINUM_OXIDE 3.97 145.2 Al_2O_3
13 2
![](asset-17b.png)
Appendices
370
8 3
3 G4_AMBER 1.1 63.2
1 0.10593
6 0.788974
8 0.105096
2 G4_AMMONIA 0.000826019 53.7
7 1
1 3
3 G4_ANILINE 1.0235 66.2
6 6
1 7
7 1
2 G4_ANTHRACENE 1.283 69.5
6 14
1 10
6 G4_B-100_BONE 1.45 85.9
1 0.0654709
6 0.536944
7 0.0215
8 0.032085
9 0.167411
20 0.176589
3 G4_BAKELITE 1.25 72.4
1 0.057441
6 0.774591
8 0.167968
2 G4_BARIUM_FLUORIDE 4.89 375.9
56 1
9 2
3 G4_BARIUM_SULFATE 4.5 285.7
56 1
16 1
8 4
2 G4_BENZENE 0.87865 63.4
6 6
1 6
2 G4_BERYLLIUM_OXIDE 3.01 93.2
4 1
8 1
3 G4_BGO 7.13 534.1
83 4
32 3
8 12
10 G4_BLOOD_ICRP 1.06 75.2
1 0.102
6 0.11
7 0.033
8 0.745
11 0.001
15 0.001
16 0.002
17 0.003
19 0.002
26 0.001
8 G4_BONE_COMPACT_ICRU 1.85 91.9
1 0.064
6 0.278
7 0.027
8 0.41
12 0.002
15 0.07
16 0.002
20 0.147
9 G4_BONE_CORTICAL_ICRP 1.92 110
1 0.034
6 0.155
7 0.042
8 0.435
11 0.001
12 0.002
15 0.103
16 0.003
20 0.225
2 G4_BORON_CARBIDE 2.52 84.7
5 4
6 1
2 G4_BORON_OXIDE 1.812 99.6
![](asset-17c.png)
Appendices
371
5 2
8 3
9 G4_BRAIN_ICRP 1.04 73.3
1 0.107
6 0.145
7 0.022
8 0.712
11 0.002
15 0.004
16 0.002
17 0.003
19 0.003
2 G4_BUTANE 0.00249343 48.3
6 4
1 10
3 G4_N-BUTYL_ALCOHOL 0.8098 59.9
6 4
1 10
8 1
5 G4_C-552 1.76 86.8
1 0.02468
6 0.501611
8 0.004527
9 0.465209
14 0.003973
2 G4_CADMIUM_TELLURIDE 6.2 539.3
48 1
52 1
3 G4_CADMIUM_TUNGSTATE 7.9 468.3
48 1
74 1
8 4
3 G4_CALCIUM_CARBONATE 2.8 136.4
20 1
6 1
8 3
2 G4_CALCIUM_FLUORIDE 3.18 166
20 1
9 2
2 G4_CALCIUM_OXIDE 3.3 176.1
20 1
8 1
3 G4_CALCIUM_SULFATE 2.96 152.3
20 1
16 1
8 4
3 G4_CALCIUM_TUNGSTATE 6.062 395
20 1
74 1
8 4
2 G4_CARBON_DIOXIDE 0.00184212 85 CO_2
6 1
8 2
2 G4_CARBON_TETRACHLORIDE 1.594 166.3
6 1
17 4
3 G4_CELLULOSE_CELLOPHANE 1.42 77.6
6 6
1 10
8 5
3 G4_CELLULOSE_BUTYRATE 1.2 74.6
1 0.067125
6 0.545403
8 0.387472
4 G4_CELLULOSE_NITRATE 1.49 87
1 0.029216
6 0.271296
7 0.121276
8 0.578212
5 G4_CERIC_SULFATE 1.03 76.7
1 0.107596
7 0.0008
8 0.874976
16 0.014627
58 0.002001
2 G4_CESIUM_FLUORIDE 4.115 440.7
55 1
![](asset-17d.png)
Appendices
372
9 1
2 G4_CESIUM_IODIDE 4.51 553.1
55 1
53 1
3 G4_CHLOROBENZENE 1.1058 89.1
6 6
1 5
17 1
3 G4_CHLOROFORM 1.4832 156
6 1
1 1
17 3
10 G4_CONCRETE 2.3 135.2
1 0.01
6 0.001
8 0.529107
11 0.016
12 0.002
13 0.033872
14 0.337021
19 0.013
20 0.044
26 0.014
2 G4_CYCLOHEXANE 0.779 56.4
6 6
1 12
3 G4_1,2-DICHLOROBENZENE 1.3048 106.5
6 6
1 4
17 2
4 G4_DICHLORODIETHYL_ETHER 1.2199 103.3
6 4
1 8
8 1
17 2
3 G4_1,2-DICHLOROETHANE 1.2351 111.9
6 2
1 4
17 2
3 G4_DIETHYL_ETHER 0.71378 60
6 4
1 10
8 1
4 G4_N,N-DIMETHYL_FORMAMIDE 0.9487 66.6
6 3
1 7
7 1
8 1
4 G4_DIMETHYL_SULFOXIDE 1.1014 98.6
6 2
1 6
8 1
16 1
2 G4_ETHANE 0.00125324 45.4
6 2
1 6
3 G4_ETHYL_ALCOHOL 0.7893 62.9
6 2
1 6
8 1
3 G4_ETHYL_CELLULOSE 1.13 69.3
1 0.090027
6 0.585182
8 0.324791
2 G4_ETHYLENE 0.00117497 50.7
6 2
1 4
8 G4_EYE_LENS_ICRP 1.07 73.3
1 0.096
6 0.195
7 0.057
8 0.646
11 0.001
15 0.001
16 0.003
17 0.001
2 G4_FERRIC_OXIDE 5.2 227.3
![](asset-17e.png)
Appendices
373
26 2
8 3
2 G4_FERROBORIDE 7.15 261
26 1
5 1
2 G4_FERROUS_OXIDE 5.7 248.6
26 1
8 1
7 G4_FERROUS_SULFATE 1.024 76.4
1 0.108259
7 2.7e-05
8 0.878636
11 2.2e-05
16 0.012968
17 3.4e-05
26 5.4e-05
3 G4_FREON-12 1.12 143
6 0.099335
9 0.314247
17 0.586418
3 G4_FREON-12B2 1.8 284.9
6 0.057245
9 0.181096
35 0.761659
3 G4_FREON-13 0.95 126.6
6 0.114983
9 0.545621
17 0.339396
3 G4_FREON-13B1 1.5 210.5
6 1
9 3
35 1
3 G4_FREON-13I1 1.8 293.5
6 0.061309
9 0.290924
53 0.647767
3 G4_GADOLINIUM_OXYSULFIDE 7.44 493.3
64 2
8 2
16 1
2 G4_GALLIUM_ARSENIDE 5.31 384.9
31 1
33 1
5 G4_GEL_PHOTO_EMULSION 1.2914 74.8
1 0.08118
6 0.41606
7 0.11124
8 0.38064
16 0.01088
6 G4_Pyrex_Glass 2.23 134
5 0.0400639
8 0.539561
11 0.0281909
13 0.011644
14 0.377219
19 0.00332099
5 G4_GLASS_LEAD 6.22 526.4
8 0.156453
14 0.080866
22 0.008092
33 0.002651
82 0.751938
4 G4_GLASS_PLATE 2.4 145.4
8 0.4598
11 0.0964411
14 0.336553
20 0.107205
4 G4_GLUTAMINE 1.46 73.3
6 5
1 10
7 2
8 3
3 G4_GLYCEROL 1.2613 72.6
6 3
1 8
8 3
4 G4_GUANINE 2.2 75
![](asset-17f.png)
Appendices
374
6 5
1 5
7 5
8 1
4 G4_GYPSUM 2.32 129.7
20 1
16 1
8 6
1 4
2 G4_N-HEPTANE 0.68376 54.4
6 7
1 16
2 G4_N-HEXANE 0.6603 54
6 6
1 14
4 G4_KAPTON 1.42 79.6
6 22
1 10
7 2
8 5
3 G4_LANTHANUM_OXYBROMIDE 6.28 439.7
57 1
35 1
8 1
3 G4_LANTHANUM_OXYSULFIDE 5.86 421.2
57 2
8 2
16 1
2 G4_LEAD_OXIDE 9.53 766.7
8 0.071682
82 0.928318
3 G4_LITHIUM_AMIDE 1.178 55.5
3 1
7 1
1 2
3 G4_LITHIUM_CARBONATE 2.11 87.9
3 2
6 1
8 3
2 G4_LITHIUM_FLUORIDE 2.635 94
3 1
9 1
2 G4_LITHIUM_HYDRIDE 0.82 36.5
3 1
1 1
2 G4_LITHIUM_IODIDE 3.494 485.1
3 1
53 1
2 G4_LITHIUM_OXIDE 2.013 73.6
3 2
8 1
3 G4_LITHIUM_TETRABORATE 2.44 94.6
3 2
5 4
8 7
9 G4_LUNG_ICRP 1.04 75.3
1 0.105
6 0.083
7 0.023
8 0.779
11 0.002
15 0.001
16 0.002
17 0.003
19 0.002
5 G4_M3_WAX 1.05 67.9
1 0.114318
6 0.655824
8 0.0921831
12 0.134792
20 0.002883
3 G4_MAGNESIUM_CARBONATE 2.958 118
12 1
6 1
8 3
2 G4_MAGNESIUM_FLUORIDE 3 134.3
12 1
![](asset-180.png)
Appendices
375
9 2
2 G4_MAGNESIUM_OXIDE 3.58 143.8
12 1
8 1
3 G4_MAGNESIUM_TETRABORATE 2.53 108.3
12 1
5 4
8 7
2 G4_MERCURIC_IODIDE 6.36 684.5
80 1
53 2
2 G4_METHANE 0.000667151 41.7
6 1
1 4
3 G4_METHANOL 0.7914 67.6
6 1
1 4
8 1
5 G4_MIX_D_WAX 0.99 60.9
1 0.13404
6 0.77796
8 0.03502
12 0.038594
22 0.014386
6 G4_MS20_TISSUE 1 75.1
1 0.081192
6 0.583442
7 0.017798
8 0.186381
12 0.130287
17 0.0009
9 G4_MUSCLE_SKELETAL_ICRP 1.05 75.3
1 0.102
6 0.143
7 0.034
8 0.71
11 0.001
15 0.002
16 0.003
17 0.001
19 0.004
8 G4_MUSCLE_STRIATED_ICRU 1.04 74.7
1 0.102102
6 0.123123
7 0.035035
8 0.72973
11 0.001001
15 0.002002
16 0.004004
19 0.003003
4 G4_MUSCLE_WITH_SUCROSE 1.11 74.3
1 0.0982341
6 0.156214
7 0.035451
8 0.710101
4 G4_MUSCLE_WITHOUT_SUCROSE 1.07 74.2
1 0.101969
6 0.120058
7 0.035451
8 0.742522
2 G4_NAPHTHALENE 1.145 68.4
6 10
1 8
4 G4_NITROBENZENE 1.19867 75.8
6 6
1 5
7 1
8 2
2 G4_NITROUS_OXIDE 0.00183094 84.9
7 2
8 1
4 G4_NYLON-8062 1.08 64.3
1 0.103509
6 0.648416
7 0.0995361
8 0.148539
4 G4_NYLON-6-6 1.14 63.9
![](asset-181.png)
Appendices
376
6 6
1 11
7 1
8 1
4 G4_NYLON-6-10 1.14 63.2
1 0.107062
6 0.680449
7 0.099189
8 0.1133
4 G4_NYLON-11_RILSAN 1.425 61.6
1 0.115476
6 0.720818
7 0.0764169
8 0.0872889
2 G4_OCTANE 0.7026 54.7
6 8
1 18
2 G4_PARAFFIN 0.93 55.9
6 25
1 52
2 G4_N-PENTANE 0.6262 53.6
6 5
1 12
8 G4_PHOTO_EMULSION 3.815 331
1 0.0141
6 0.072261
7 0.01932
8 0.066101
16 0.00189
35 0.349103
47 0.474105
53 0.00312
2 G4_PLASTIC_SC_VINYLTOLUENE 1.032 64.7
6 9
1 10
2 G4_PLUTONIUM_DIOXIDE 11.46 746.5
94 1
8 2
3 G4_POLYACRYLONITRILE 1.17 69.6
6 3
1 3
7 1
3 G4_POLYCARBONATE 1.2 73.1
6 16
1 14
8 3
3 G4_POLYCHLOROSTYRENE 1.3 81.7
6 8
1 7
17 1
2 G4_POLYETHYLENE 0.94 57.4 (C_2H_4)_N-Polyethylene
6 1
1 2
3 G4_MYLAR 1.4 78.7
6 10
1 8
8 4
3 G4_PLEXIGLASS 1.19 74
6 5
1 8
8 2
3 G4_POLYOXYMETHYLENE 1.425 77.4
6 1
1 2
8 1
2 G4_POLYPROPYLENE 0.9 56.5 (C_2H_4)_N-Polypropylene
6 2
1 4
2 G4_POLYSTYRENE 1.06 68.7
6 8
1 8
2 G4_TEFLON 2.2 99.1
6 2
9 4
3 G4_POLYTRIFLUOROCHLOROETHYLENE 2.1 120.7
6 2
9 3
![](asset-182.png)
Appendices
377
17 1
3 G4_POLYVINYL_ACETATE 1.19 73.7
6 4
1 6
8 2
3 G4_POLYVINYL_ALCOHOL 1.3 69.7
6 2
1 4
8 1
3 G4_POLYVINYL_BUTYRAL 1.12 67.2
6 8
1 14
8 2
3 G4_POLYVINYL_CHLORIDE 1.3 108.2
6 2
1 3
17 1
3 G4_POLYVINYLIDENE_CHLORIDE 1.7 134.3
6 2
1 2
17 2
3 G4_POLYVINYLIDENE_FLUORIDE 1.76 88.8
6 2
1 2
9 2
4 G4_POLYVINYL_PYRROLIDONE 1.25 67.7
6 6
1 9
7 1
8 1
2 G4_POTASSIUM_IODIDE 3.13 431.9
19 1
53 1
2 G4_POTASSIUM_OXIDE 2.32 189.9
19 2
8 1
2 G4_PROPANE 0.00187939 47.1
6 3
1 8
2 G4_lPROPANE 0.43 52
6 3
1 8
3 G4_N-PROPYL_ALCOHOL 0.8035 61.1
6 3
1 8
8 1
3 G4_PYRIDINE 0.9819 66.2
6 5
1 5
7 1
2 G4_RUBBER_BUTYL 0.92 56.5
1 0.143711
6 0.856289
2 G4_RUBBER_NATURAL 0.92 59.8
1 0.118371
6 0.881629
3 G4_RUBBER_NEOPRENE 1.23 93
1 0.05692
6 0.542646
17 0.400434
2 G4_SILICON_DIOXIDE 2.32 139.2 SiO_2
14 1
8 2
2 G4_SILVER_BROMIDE 6.473 486.6
47 1
35 1
2 G4_SILVER_CHLORIDE 5.56 398.4
47 1
17 1
3 G4_SILVER_HALIDES 6.47 487.1
35 0.422895
47 0.573748
53 0.003357
2 G4_SILVER_IODIDE 6.01 543.5
47 1
53 1
9 G4_SKIN_ICRP 1.09 72.7
![](asset-183.png)
Appendices
378
1 0.1
6 0.204
7 0.042
8 0.645
11 0.002
15 0.001
16 0.002
17 0.003
19 0.001
3 G4_SODIUM_CARBONATE 2.532 125
11 2
6 1
8 3
2 G4_SODIUM_IODIDE 3.667 452
11 1
53 1
2 G4_SODIUM_MONOXIDE 2.27 148.8
11 2
8 1
3 G4_SODIUM_NITRATE 2.261 114.6
11 1
7 1
8 3
2 G4_STILBENE 0.9707 67.7
6 14
1 12
3 G4_SUCROSE 1.5805 77.5
6 12
1 22
8 11
2 G4_TERPHENYL 1.24 71.7
6 18
1 14
9 G4_TESTIS_ICRP 1.04 75
1 0.106
6 0.099
7 0.02
8 0.766
11 0.002
15 0.001
16 0.002
17 0.002
19 0.002
2 G4_TETRACHLOROETHYLENE 1.625 159.2
6 2
17 4
2 G4_THALLIUM_CHLORIDE 7.004 690.3
81 1
17 1
9 G4_TISSUE_SOFT_ICRP 1.03 72.3
1 0.105
6 0.256
7 0.027
8 0.602
11 0.001
15 0.002
16 0.003
17 0.002
19 0.002
4 G4_TISSUE_SOFT_ICRU-4 1 74.9
1 0.101
6 0.111
7 0.026
8 0.762
4 G4_TISSUE-METHANE 0.00106409 61.2
1 0.101869
6 0.456179
7 0.035172
8 0.40678
4 G4_TISSUE-PROPANE 0.00182628 59.5
1 0.102672
6 0.56894
7 0.035022
8 0.293366
2 G4_TITANIUM_DIOXIDE 4.26 179.5
22 1
8 2
![](asset-184.png)
Appendices
379
2 G4_TOLUENE 0.8669 62.5
6 7
1 8
3 G4_TRICHLOROETHYLENE 1.46 148.1
6 2
1 1
17 3
4 G4_TRIETHYL_PHOSPHATE 1.07 81.2
6 6
1 15
8 4
15 1
2 G4_TUNGSTEN_HEXAFLUORIDE 2.4 354.4
74 1
9 6
2 G4_URANIUM_DICARBIDE 11.28 752
92 1
6 2
2 G4_URANIUM_MONOCARBIDE 13.63 862
92 1
6 1
2 G4_URANIUM_OXIDE 10.96 720.6
92 1
8 2
4 G4_UREA 1.323 72.8
6 1
1 4
7 2
8 1
4 G4_VALINE 1.23 67.7
6 5
1 11
7 1
8 2
3 G4_VITON 1.8 98.6
1 0.009417
6 0.280555
9 0.710028
2 G4_WATER 1 78 H_2O
1 2
8 1
2 G4_WATER_VAPOR 0.000756182 71.6 H_2O-Gas
1 2
8 1
2 G4_XYLENE 0.87 61.8
6 8
1 10
1 G4_GRAPHITE 2.21 78 Graphite
6.3. HEP and Nuclear Materials
=============================================================
Ncomp Name density(g/cm^3) I(eV) ChFormula
=============================================================
1 G4_lH2 0.0708 21.8
1 G4_lN2 0.807 82
1 G4_lO2 1.141 95
1 G4_lAr 1.396 188
1 G4_lBr 3.1028 343
1 G4_lKr 2.418 352
1 G4_lXe 2.953 482
3 G4_PbWO4 8.28 0
8 4
82 1
74 1
1 G4_Galactic 1e-25 21.8
1 G4_GRAPHITE_POROUS 1.7 78 Graphite
3 G4_LUCITE 1.19 74
1 0.080538
6 0.599848
8 0.319614
3 G4_BRASS 8.52 0
29 62
30 35
82 3
![](asset-185.png)
Appendices
380
3 G4_BRONZE 8.82 0
29 89
30 9
82 2
3 G4_STAINLESS-STEEL 8 0
26 74
24 18
28 8
3 G4_CR39 1.32 0
1 18
6 12
8 7
3 G4_OCTADECANOL 0.812 0
1 38
6 18
8 1
6.4. Space (ISS) Materials
=============================================================
Ncomp Name density(g/cm^3) I(eV) ChFormula
=============================================================
4 G4_KEVLAR 1.44 0
6 14
1 10
8 2
7 2
3 G4_DACRON 1.4 0
6 10
1 8
8 4
3 G4_NEOPRENE 1.23 0
6 4
1 5
17 1
6.5. Bio-Chemical Materials
=============================================================
Ncomp Name density(g/cm^3) I(eV) ChFormula
=============================================================
4 G4_CYTOSINE 1.55 72
1 5
6 4
7 3
8 1
4 G4_THYMINE 1.23 72
1 6
6 5
7 2
8 2
4 G4_URACIL 1.32 72
1 4
6 4
7 2
8 2
3 G4_DNA_ADENINE 1 72
1 4
6 5
7 5
4 G4_DNA_GUANINE 1 72
1 4
6 5
7 5
8 1
4 G4_DNA_CYTOSINE 1 72
1 4
6 4
7 3
8 1
4 G4_DNA_THYMINE 1 72
1 5
6 5
![](asset-186.png)
Appendices
381
7 2
8 2
4 G4_DNA_URACIL 1 72
1 3
6 4
7 2
8 2
4 G4_DNA_ADENOSINE 1 72
1 10
6 10
7 5
8 4
4 G4_DNA_GUANOSINE 1 72
1 10
6 10
7 5
8 5
4 G4_DNA_CYTIDINE 1 72
1 10
6 9
7 3
8 5
4 G4_DNA_URIDINE 1 72
1 9
6 9
7 2
8 6
4 G4_DNA_METHYLURIDINE 1 72
1 11
6 10
7 2
8 6
2 G4_DNA_MONOPHOSPHATE 1 72
15 1
8 3
5 G4_DNA_A 1 72
1 10
6 10
7 5
8 7
15 1
5 G4_DNA_G 1 72
1 10
6 10
7 5
8 8
15 1
5 G4_DNA_C 1 72
1 10
6 9
7 3
8 8
15 1
5 G4_DNA_U 1 72
1 9
6 9
7 2
8 9
15 1
5 G4_DNA_MU 1 72
1 11
6 10
7 2
8 9
15 1
![](asset-187.png)
382
Bibliography
[ Booch1994 ] Grady Booch. Object-Oriented Analysis and Design with Applications . The Benjamin/Cummings
Publishing Co. Inc . 1994 . ISBN: 0-8053-5340-2 .
[ Ellis1990 ] Margaret Ellis and Bjarne Stroustrup. Annotated C++ Reference Manual (ARM) . Addison-Wesley
Publishing Co. . 1990 .
[ Hecht1974 ] E. Hecht and A. Zajac. Optics . Addison-Wesley Publishing Co. . 1974 . pp. 71-80 and pp. 244-246 .
[ Josuttis1999 ] Nicolai M. Josuttis. The C++ Standard Library - A Tutorial and Reference . Addison-Wesley
Publishing Co. . 1999 . ISBN: 0-201-37926-0 .
[ Meyers2001 ] Scott Meyers. Effective STL . Addison-Wesley Publishing Co. . 2001 . ISBN: 0-201-74962-9 .
[ Musser1996 ] David R. Musser and Atul Saini. STL Tutorial and Reference Guide / C++ Programming with
the Standard Template Library . Addison-Wesley Publishing Co. . 1996 . ISBN: 0-201-63398-1 .
[ Plauger1995 ] P.J. Plauger. The Draft Standard C++ Library . Prentice Hall, Englewood Cliffs . 1995 .
[ Chauvie2007 ] S. Chauvie, Z. Francis, S. Guatelli, S. Incerti, B. Mascialino, P. Moretto, P. Nieminen and M. G.
Pia . Geant4 physics processes for microdosimetry simulation: design foundation and implementation
of the first set of models . To be published in IEEE Trans. Nucl. Sci., Dec. 2007 . 2007 .
