TIMERS
GRASSLIN DEFROST TIMER
GRASSLIN DTMV SERIES
SPECIFIERS GUIDE
Furnish and install a Grasslin DTMV40 defrost control which is field adjustable for
120V or 240V operation and shall have defrost initiation times settable to the quarter
hour via captive trippers at 15 minute intervals. The defrost timer shall be housed in a
NEMA 3R indoor/outdoor plastic enclosure. The relay output will be rated for 40A
Resistive, 2HP @ 250VAC. Defrost termination to be by time
(and by a remote temperature or pressure switch).
SPECIFICATIONS
Switch Rating: 40A Resistive @ 120VAC, 208~240VAC 2HP @ 208~240VAC;
1HP @ 120VAC 16FLA, 90LRA @ 120VAC 12FLA, 52LRA @ 240VAC
“F” Terminal: 30A Resistive @ 120~240VAC 1HP @ 120VAC; 2HP @ 208~240VAC
Wiring Connections: Screw box lug terminals accommodate up to four #8 AWG wires.
Environmental Ratings: Operating Temperature Range: –40°F to 131°F (–40°C to 55°C)
Operating Humidity: 0 to 95% non-condensing
Dimensions: 8.795” x 6.631” x 2.935” (H x W x D) Shipping Weight: 2 lbs.
Ordering Data
Time Initiated, Remote Temperature, Pressure, or Time Terminated
DEFROST
PART NO VOLTAGE MOUNTING TIMER BATTERY
BACK-UP
Duration
FREQUENCY
NO/DAY
DURATION MINIMUM
DURATION
INTERVAL
DTMV40 120V, 208/240V, 60Hz NEMA 3R Outdoor
Enclosure
Synchronous N/A 1 to 24 15-180 min. 15 minutes
DTMV40-M 120V, 208/240V, 60Hz Mechanism Only Synchronous N/A 1 to 24 15-180 min. 15 minutes
DTMV40-B20 120V, 208/240V, 60Hz Bracket Mount Synchronous N/A 1 to 24 15-180 min. 15 minutes
DTMV40-P 120V, 208/240V, 60Hz Panel Mount Synchronous N/A 1 to 24 15-180 min. 15 minutes
DTQMV40 120V, 208/240V, 60Hz NEMA 3R Outdoor
Enclosure
Quartz 1 week 1 to 24 15-180 min. 15 minutes
DTQMV40-M 120V, 208/240V, 60Hz Mechanism Only Quartz 1 week 1 to 24 15-180 min. 15 minutes
DTQMV40-B 120V, 208/240V, 60Hz Bracket Mount Quartz 1 week 1 to 24 15-180 min. 15 minutes
DTQMV40-P 120V, 208/240V, 60Hz Panel Mount Quartz 1 week 1 to 24 15-180 min. 15 minutes
DT140 Digi 20-120 120V, 50/60Hz NEMA 3R Outdoor
Enclosure
Electronic* 1 week 1 to 8 1-180 min. 1 minute
DT140 Digi 20-240 208/240V, 50/60Hz NEMA 3R Outdoor
Enclosure
Electronic* 1 week 1 to 8 1-180 min. 1 minute
Standard models are also available with 50Hz input in 208/240V *Rated at 30 Amps
Universal Replacement
Recommended Pressure Switches:
Johnson/Penn P170, Ranco 010 series, or Danfoss KP1 series.
Pressure range approximately 35-110psi, Cut-in on pressure rise
GRASSLIN
=
DTMV 40
PARAGON PRECISION
8141-00 6141-00
8143-00 6143-00
8145-00 6145-00
8041-00 6041-00
8043-00 6043-00
8045-00 6045-00
8046-00
8047-00 6047-00
8141-20 6141-20
8143-20 6143-20
8145-20 6145-20
8041-20 6041-20
8043-20 6043-20
8045-20 6045-20
8046-20
8047-20 6047-20
8245-20* 6245-20
8243-20* 6243-20
8247-20* 6247-20
TIMERS
364
http://waterheatertimer.org/Intermatic-timers-and-manuals.html
For updated timers and manuals
TIMERS
GRASSLIN GENERAL PURPOSE TIMER (24-Hour, 7-Day)
Multivoltage — Accepts 120, 240 or 277 Input Voltages
The GM1 and GMD units are universal commercial time switches that are field-
selectable for 120, 208 and 240 or 277 VAC (50 or 60 Hz) – all within the same
unit. All units are 40A rated. The GMX time Switches are voltage-specific,
offering 4 pole 32A contacts.
A
ll commercial time controls come standard in a high quality plastic enclosure;
Metal enclosures are optional.
24-Hour
PART NO DESCRIPTION REPLACES PARAGON
GM1-ST-I-MV 24 Hr., Synchronous, SPDT Switch 4001 & P101
GMD-ST-I-MV 24 Hr., Synchronous, DPDT Switch 4003-00 & 4004-71
GMD1SW-I-MV 7 Day, Synchronous, DPDT Switch 7008
GMX SW-I-4P32-120 7 Day, Synchronous with 4-Pole 32A Contactor 7008-00
GMX SW-I-4P32-240 7 Day, Synchronous with 4-Pole 20A Contactor 7008-71
24-Hour, Battery Backup
PART NO TIMER VOLTAGE SWITCH AMPS
GM1 QT-“I”-MV 120, 208/240, 277 V SPDT 30
GMD QT-“I”-MV 120, 208/240, 277 V DPDT 30
7-Day
PART NO TIMER VOLTAGE SWITCH AMPS
GM1 SW-“I”-MV 120, 208/240, 277 V SPDT 30
GMD SW-“I”-MV 120, 208/240, 277 V DPDT 30
7-Day, Battery Backup
PART NO TIMER VOLTAGE SWITCH AMPS
GM1 QW-“I”-MV 120, 208/240, 277 V SPDT 30
GMD QW-“I”-MV 120, 208/240, 277 V DPDT 30
TIMERS
365
TIMERS
GRASSLIN GENERAL PURPOSE TIMER GM40
Amber and Green LED Lights Indicate Power and Status
Easy Multi-Voltage Field Adjustable DIP Switch for 120, 208/240 or 277 VAC
New Compact VALOX® NEMA 3R Outdoor Enclosure Replaces All Metal Enclosures
Large Screw Terminals for Easy Wiring #8 AWG
Ground Lug Termination
Captive Trippers Can’t Be Lost
Independently Adjustable Trippers at 15 Minute Intervals
Real Time Clock Face
NO TOOLS REQUIRED! Our “GUTS” simply snap into existing Grasslin or Intermatic
enclosures
40 Amp Rated Contacts
Moisture Resistant Conformal Coated Board
PART NO DESCRIPTION VOLTAGE OUTPUT BATTERY
BACKUP
WILL REPLACE
GM40 24-HOUR ELECTROMECHANICAL, MULTI-VOLTAGE,
SPDT, NEMA 3R OUTDOOR ENCLOSURE
120, 208-240, 277VAC 40A DPDT NO GM1ST-I-MV &
GMDST-I-MV
GM40Q 24-HOUR ELECTROMECHANICAL, MULTI-VOLTAGE,
SPDT, NEMA 3R OUTDOOR ENCLOSURE
120, 208-240, 277VAC 40A DPDT YES GM1QT-I-MV &
GMDQT-I-MV
GM40W 7-DAY (SKIP-A-DAY/WEEKLY) ELECTROMECHANICAL,
MULTI-VOLTAGE, SPDT/DPDT, NEMA 3R OUTDOOR
ENCLOSURE
120, 208-240, 277VAC 40A DPDT NO GM1SW-I-MV &
GMDSW-I-MV
GM40QW 7-DAY (SKIP-A-DAY/WEEKLY) ELECTROMECHANICAL,
MULTI-VOLTAGE, SPDT/DPDT, NEMA 3R OUTDOOR
ENCLOSURE
120, 208-240, 277VAC 40A DPDT YES GM1QW-I-MV &
GMDQW-I-MV
TIMERS
366
TIMERS

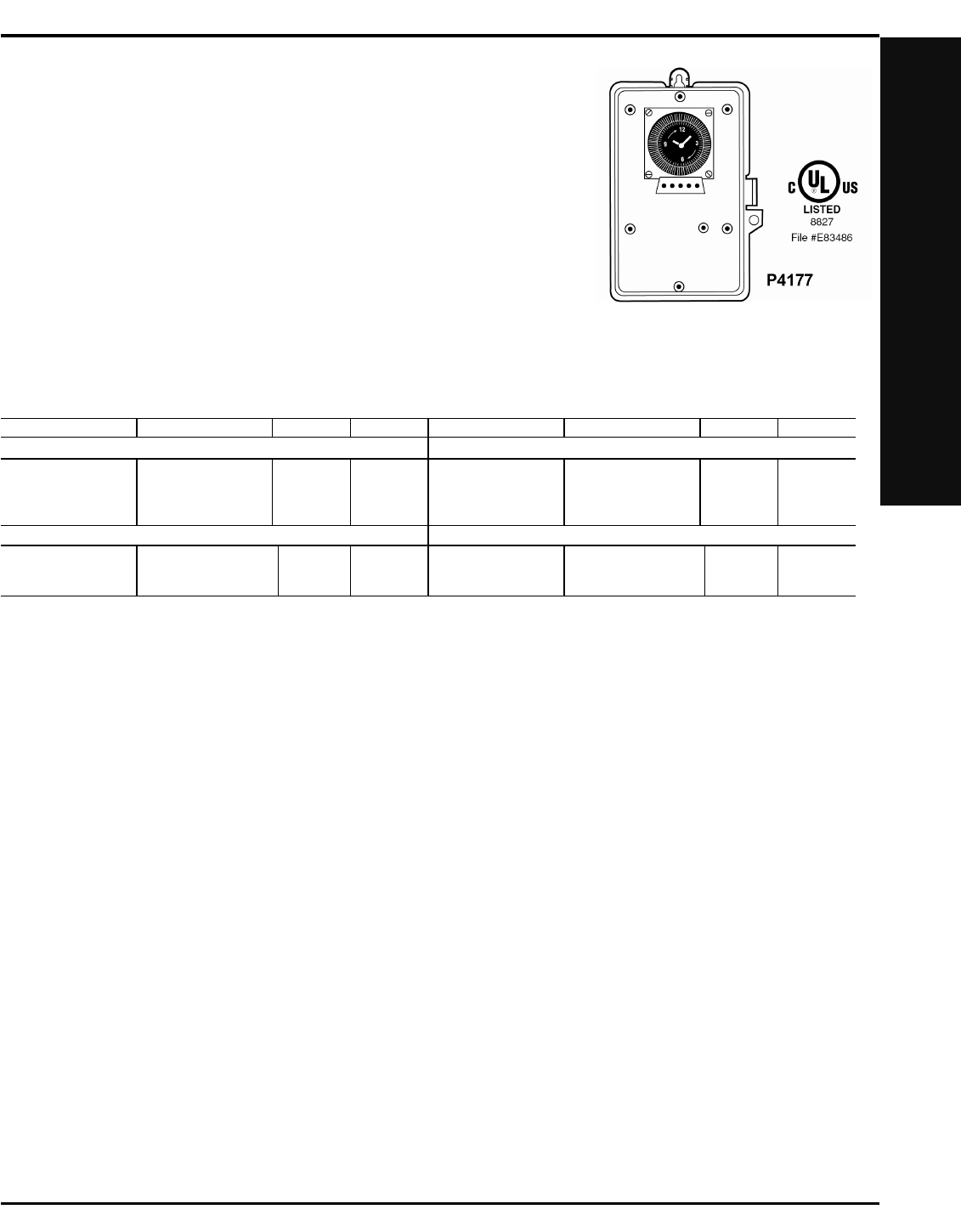

GRASSLIN GMX SERIES (24-Hour, 7-Day)
• Inexpensive general purpose timer.
• 21A, 2HP @ 240V switch.
• Indoor or outdoor enclosure.
• Captive trippers with interval of 15 minutes on 24-hour model.
• Easy to set clock face timer.
• Optional clear cover allows viewing timer clock face without opening cover.
Enclosure Options, Substitute the Following for “X”:
“I” = NEMA 1 Indoor Enclosure
“IC” = NEMA 1 Indoor Enclosure with Clear Cover
“O” = NEMA 3R Outdoor Enclosure
“OC” = NEMA 3R Outdoor Enclosure with Clear Cover
“IM” = NEMA 1 Indoor Metal Enclosure
PART NO. TIMER VOLTAGE SWITCH AMPS PART NO. TIMER VOLTAGE SWITCH AMPS
24-Hour
7-Day
GMX ST-“I”-120 120, 60 Hz SPDT 21 GMX SW-“I”-120 120, 60 Hz SPDT 21
GMX ST-“I”-240 208/240 v, 60 Hz SPDT 21 GMX SW-“I”-240 208/240 V, 60 Hz SPDT 21
GMX ST-“I”-24 24 V, 60 Hz SPDT 21 GMX SW-“I”-24 24 V, 60 Hz SPDT 21
GMX ST-“I”-277 277V,60Hz SPDT 21 GMX SW-“I”-277 277 V, 60 Hz SPDT 21
24-Hour, Battery Backup 7-Day Battery Backup
GMX QT-“I”-120 120, 50/60 Hz SPDT 21 GMX QW-“I”-120 120, 50/60 Hz SPDT 21
GMX QT-“I”-240 208/240 V, 50/60 Hz SPDT 21 GMX QW-“I”-240 208/240 V, 50/60 Hz SPDT 21
GMX QT-“I”-24 24 V, 50/60 Hz SPDT 21 GMX QW-“I”-24 24 V, 50/60 Hz SPDT 21
TIMERS
367
TIMERS

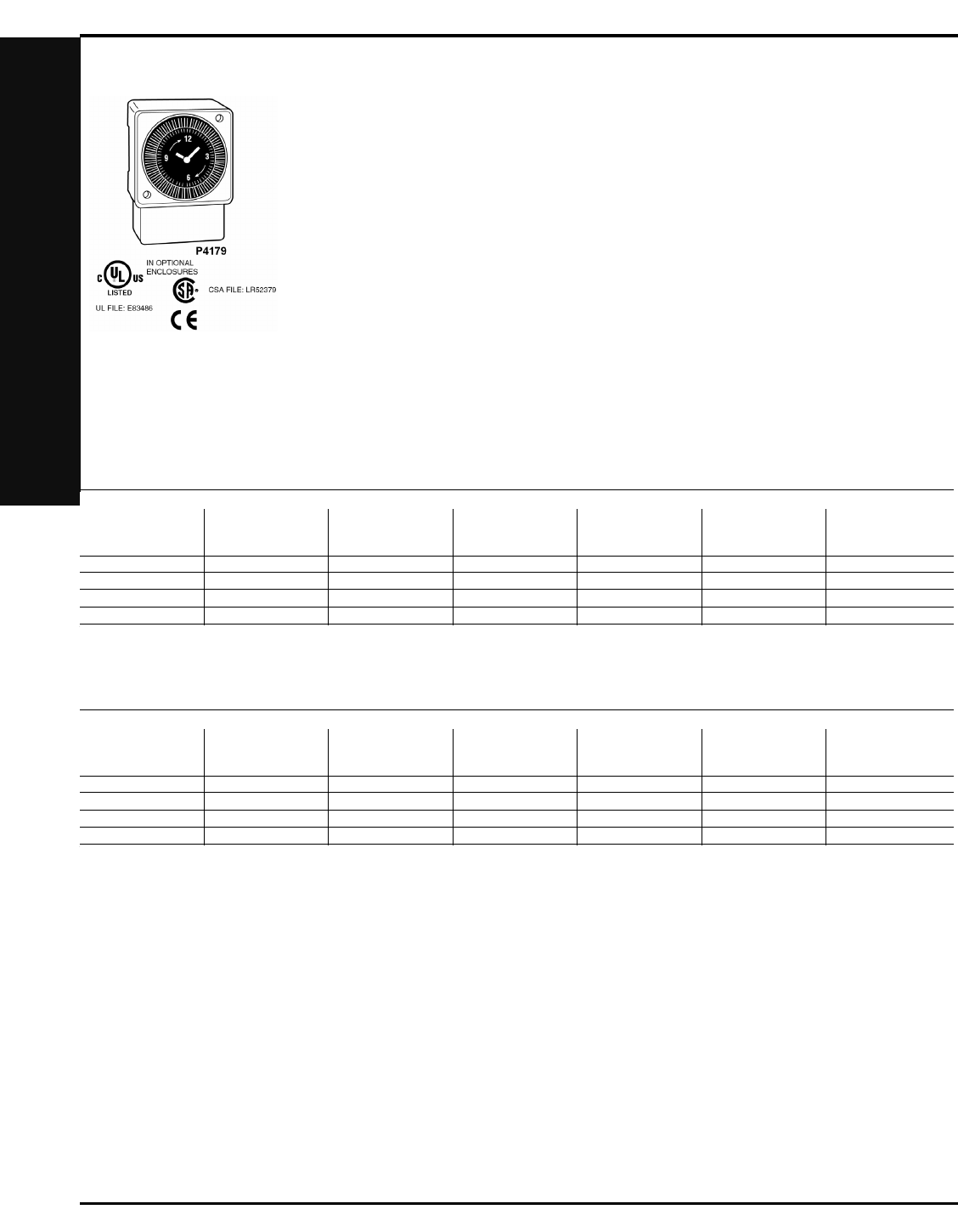

GRASSLIN MIL 72 SERIES (24-Hour, 7-Day)
24-HOUR TIME CONTROL
Time based control of lighting, ventilating, heating, cooling or other electrical loads
in commercial and industrial applications. The MIL 72 time switches are available with
a 24-hour or 7-day program dial with a SPDT switch (form “C” contact). The MIL 72A
series is intended for surface mounting. The control is completely enclosed in a plastic
housing and includes a terminal cover and sub-base for installation and hard wiring.
The MIL 72E is intended for flush (panel) mounting. All units are supplied with a clear
plastic cover.
Features
• Synchronous drive or quartz drive with battery backup
• 21A SPDT switch
• Captive trippers with interval as low as 15 minutes
• With or without 3-way override
• Real clock face
• Surface, flush, or DIN rail mount
Complete Part Number = MIL 72A or E Followed by Suffix Code and Voltage.
Example: MIL 72A STuZ-24
SYNCHRONOUS
WITHOUT OVERRIDE WITH 3-WAY OVERRIDE QUARTZ 7-DAY
CARRY-OVER**With
3-Way Override
INPUT VOLTS SWITCH RATING 240 V
RES
MINIMUM ON/OFF TIME EVENT ON/OFF TIME
STuZ-24 STuZH-24 QTuZH-24 24 VAC SPDT 21A 15 min. ON 1/4 hr.
STuZ-120 STuZH-120 QTuZH-120 120 VAC SPDT 21A 15 min. ON 1/4 hr.
STuZ-240 STuZH-240 QTuZH-240 208/240 VAC SPDT 21A 15 min. ON 1/4 hr.
STuZH-277 277 VAC SPDT 21A 15 min. ON 1/4 hr.
7-DAY TIME CONTROL
MIL 72A — Surface Mount MIL 72E — Flush Mount
SYNCHRONOUS
WITHOUT OVERRIDE WITHOUT 3-WAY
OVERRIDE
QUARTZ 7-DAY
CARRY-OVER**With
3-Way Override
INPUT VOLTS SWITCH RATING 240 V
RES
MINIMUM ON/OFF TIME EVENT ON/OFF TIME
SWuZ-24 SW7ZH-24 QWuZH-24 24 VAC SPDT 21A 2 hr. ON 2 hr.
SWuZ-120 SWuZH-120 QWuZH-120 120 VAC SPDT 21A 2 hr. ON 2 hr.
SWuZ-240 SWuZH-240 QWuZH-240 208/240 VAC SPDT 21A 2 hr. ON 2 hr.
- SWuZH-277 - 277 VAC SPDT 21A 2 hr. ON 2 hr.
**Quartz units also operate on DC voltages down to 12 VDC.
TIMERS
368
TIMERS

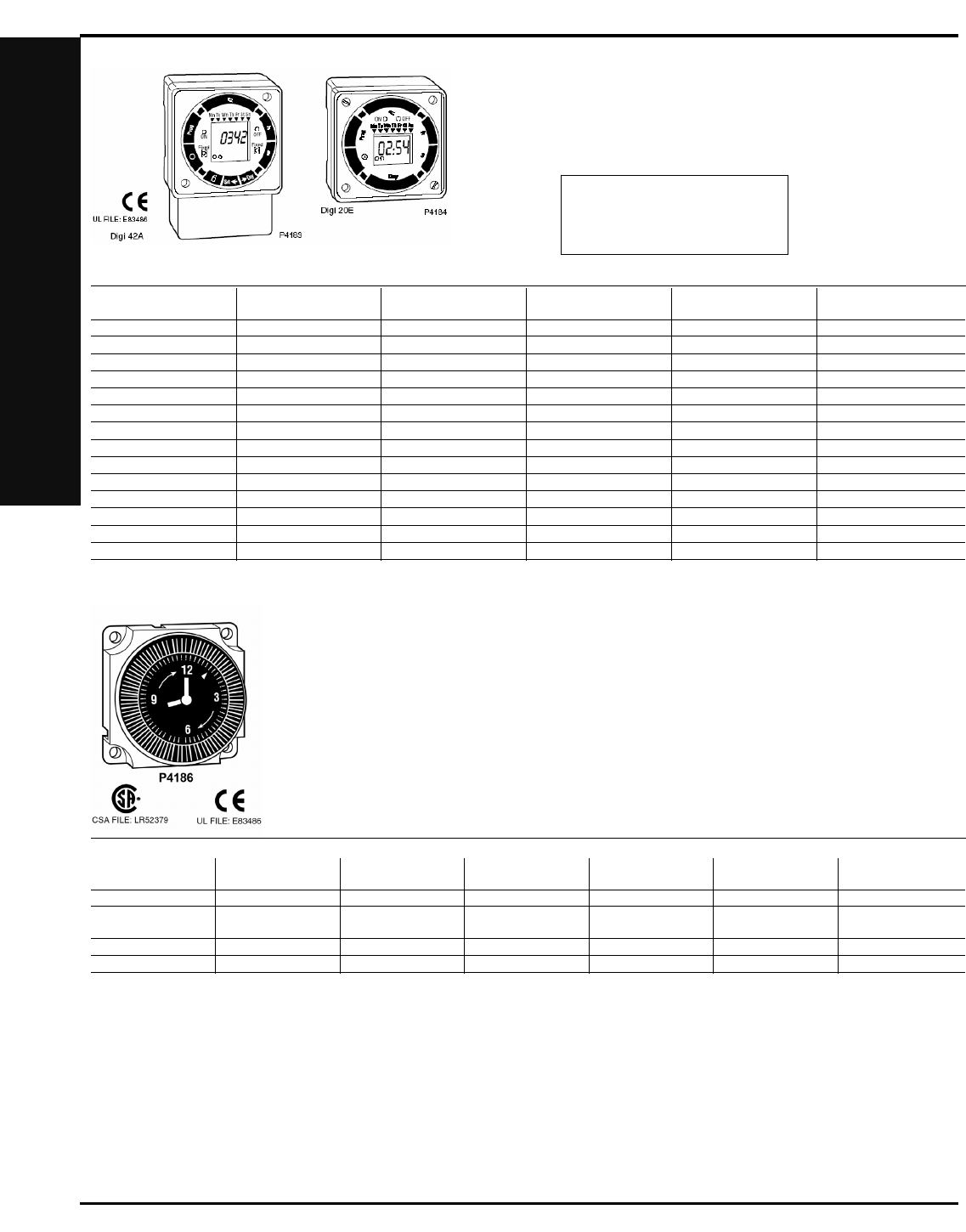

GRASSLIN GM digi SERIES (24-Hour, 7-Day)
ONE Channel Electronic Time Controls In Enclosure
GM Series: 30 Amp Electronic Time Controls
GM20: 20 programs, 24 hr. or 7 day
GM42: 42 programs, 7 day plus holiday program and automatic daylight
time changeover.
All GM20/42 models contain a manual temporary and continuous override.
24 Hr./7 Day NEMA I Indoor Plastic Enclosure
MODEL CODE INPUT VOLTAGE PROGRAMS SWITCH RATING
GM1-digi20-I-120 120V 50/60 Hz 20 30A SPDT
GM1-digi20-I-240 208/240V 50/60 Hz 20 30A SPDT
GM1-digi20-I-277 277V 50/60 Hz 20 30A SPDT
GMD-digi20-I-120 120V 50/60 Hz 20 30A DPDT
GMD-digi20-I-240 208/240V 50/60 Hz 20 30A DPDT
GMD-digi20-I-277 277V 50/60 Hz 20 30A DPDT
GM1-digi42-I-120 120V 50/60 Hz 42 30A SPDT
GM1-digi42-I-240 208/240V 50/60 Hz 42 30A SPDT
GMD-digi42-I-120 120V 50/60 Hz 42 30A DPDT
GMD-digi42-I-240 208/240V 50/60 Hz 42 30A DPDT
24 Hr/7 Day NEMA 3R Outdoor Plastic Enclosure
MODEL CODE INPUT VOLTAGE PROGRAMS SWITCH RATING
GM1-digi20-O-120 120V 50/60 Hz 20 30A SPDT
GM1-digi20-O-240 208/240V 50/60 Hz 20 30A SPDT
GM1-digi20-O-277 277V, 50/60 Hz 20 30A SPDT
GMD-digi20-O-120 120V, 50/60 Hz 20 30A DPDT
GMD-digi20-O-240 208/240V 50/60 Hz 20 30A DPDT
GMD-digi20-O-277 277V 50/60 Hz 20 30A DPDT
GM1-digi42-O-120 120V 50/60 Hz 42 30A SPDT
GM1-digi42-O-240 208/240V 50/60 Hz 42 30A SPDT
GMD-digi42-O-120 120V 50/60 Hz 42 30A DPDT
GMD-digi42-O-240 208/240V 50/60 Hz 42 30A DPDT
24 Hr/7 Day NEMA 1 Indoor Metal Enclosure
MODEL CODE INPUT VOLTAGE PROGRAMS SWITCH RATING
GM1-digi20-IM-120 120V 50/60 Hz 20 30A SPDT
GM1-digi20-IM-240 208/240V 50/60 Hz 20 30A SPDT
GM1-digi20-IM-277 277V 50/60 Hz 20 30A SPDT
GMD-digi20-IM-120 120V 50/60 Hz 20 30A DPDT
GMD-digi20-IM-240 208/240V 50/60 Hz 20 30A DPDT
GMD-digi20-IM-277 277V 50/60 Hz 20 30A DPDT
GM1-digi42-IM-120 120V 50/60 Hz 42 30A SPDT
GM1-digi42-IM-240 208/240V 50/60 Hz 42 30A SPDT
GMD-digi42-IM-120 120V 50/60 Hz 42 30A DPDT
GMD-digi42-IM-240 208/240V 50/60 Hz 42 30A DPDT
TIMERS
369
TIMERS

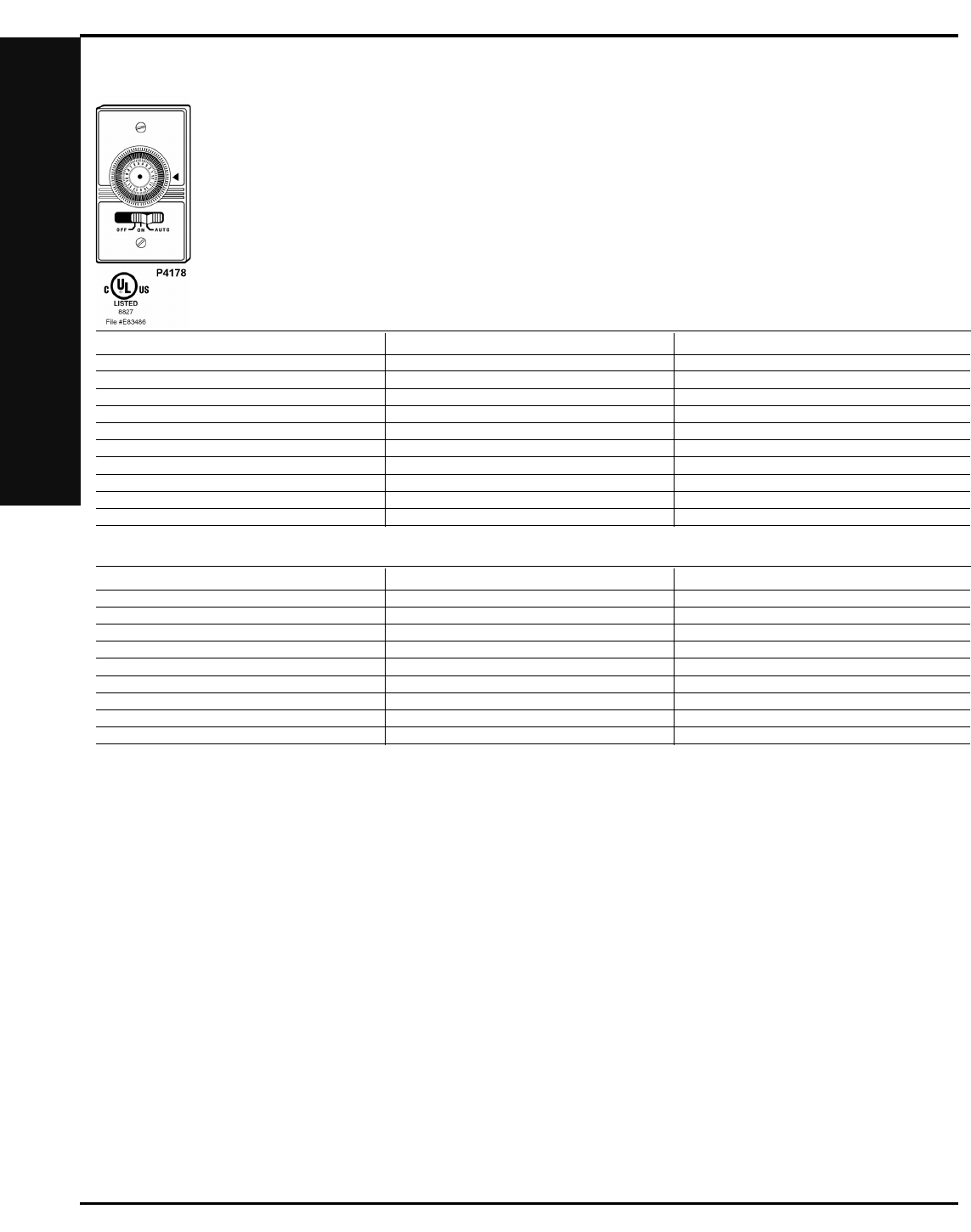

GRASSLIN KM2 IN-WALL TIMER (24-Hour, 7-Day)
24-HOUR
• Captive trippers with 20-minute switching interval (2-1/3 hour for 7-day).
• SPST 20A, 1 Hp @ 120 V switch.
• Replaces standard wall switches.
• Reliable synchronous timer motor.
PART NO WALLPLATE CONFIGURATION SWITCH
KM2 ST-CS 1 Gang SPST
KM2 STu-1G 1 Gang, 3 Way SPDT
KM2 ST-2G 2 Gang, Toggle SPST
KM2 STu-2G 2 Gang, Toggle, 3 Way SPDT
KM2 ST-3G 3 Gang, Toggle SPST
KM2 ST-4G 4 Gang, Toggle SPST
KM2 ST-2D 2 Gang, Decorator SPST
KM2 ST-3D 3 Gang, Decorator SPST
KM2 ST-2R 2 Gang, Receptacle SPST
KM2 STST-2G 2 Gang, Dual Timers (2) SPST
7-DAY
PART NO WALLPLATE CONFIGURATION SWITCH
KM2 SW-1G 1 Gang SPST
KM2 SWu-1G 1 Gang, 3 Way SPDT
KM2 SW-2G 2 Gang, Toggle SPST
KM2 SW-3G 3 Gang, Toggle SPST
KM2 SW-4G 4 Gang, Toggle SPST
KM2 SW-2D 2 Gang, Decorator SPST
KM2 Sw-3D 3 Gang, Decorator SPST
KM2 SW-2R 2 Gang, Receptacle SPST
KM2 SWSW-2G 2 Gang, Dual Timers (2) SPST
TIMERS
370
TIMERS
GRASSLIN GMX digi SERIES (24-Hour, 7-Day)
• 16A @ 240V switch.
• Indoor or outdoor enclosure.
• Rechargeable battery backup with 1 week or more carryover.
• Optional clear cover allows viewing timer clock face without opening cover.
Enclosure Options, Substitute the Following for “X”:
“I” = NEMA 1 Indoor Enclosure
“IC” = NEMA 1 Indoor Enclosure with Clear Cover
“O” = NEMA 3R Outdoor Enclosure
“OC” = NEMA 3R Outdoor Enclosure with Clear Cover
“IM” = NEMA 1 Indoor Metal Enclosure
NOTE: 6 V and 12 VDC Models Available
PART NO TIMER VOLTAGE SWITCH AMPS PROGRAMS
GMX digi 20-“X”-120 120 V, 50/60 Hz SPDT 16 20
GMX digi 20-“X”-240 208/240 V, 50/60 Hz SPDT 16 20
GMX digi 20-“X”-24 24 V, 50/60 Hz SPDT 16 20
GMX digi 20-“X”-277 277 V, 50/60 Hz SPDT 16 20
GMX digi 42-“X”-120 120 V, 50/60 Hz† SPDT 16 42
GMX digi 42-“X”-240 208/240 V, 50/60 Hz† SPDT 16 42
GMX digi 42-“X”-24 24 V, 50/60 Hz† SPDT 16 42
GMX2 digi 42-“X”-120† 120 V, 50/60 Hz (2) SPDT 16 42
GMX2 digi 42-“X”-240† 208/240 V, 50/60 Hz (2) SPDT 16 42
GMX2 digi 42-“X”-24† 24 V, 50/60 Hz (2) SPDT 16 42
GRASSLIN digi 42/2 (24-Hour, 7-Day)
Time based control of 2-circuit lighting, ventilating, heating, cooling or other electrical loads in
commercial and industrial applications. The Digi 42/2 time switches are programmable for
24-hour or 7-day schedules as well as an "8th day" or holiday schedule. Each channel can
operate independently or combined.
• Two channel or double pole switching.
• Automatic daylight time changeover.
• 8th day HOLIDAY program.
• 16 A, SPDT switching.
PART NO TIMER VOLTAGE MOUNTING* SETPOINT PROGRAMS MAXIMUM WEEKLY ON/OFF
EVENTS
RELAY OUTPUT GENERAL
PURPOSE RATING
Digi 42/2-120†† 120 V, 50/60 Hz Flush or Surface 42 294 (2) SPDT, 16 A, 240 VAC
Digi 42/2-240† 240 V, 50/60 Hz Flush or Surface 42 294 (2) SPDT, 16 A, 250 VAC
Digi 42/2-24† 24 V, 50/60 Hz Flush or Surface 42 294 (2) SPDT, 16 A, 250 VAC
TIMERS
371
TIMERS
GRASSLIN digi 20, digi 42 SERIES (24-Hour, 7-Day)
• Automatic Daylight Time changeover with Digi 42
• Holiday program with Digi 42.
• Rechargeable battery backup with 1 week or more carryover.
• 16 amp, SPDT switching.
]
C.E.C. CERTIFIED
TITLE 24, PART 6
ON ALL MODELS MARKED WITH “†”
PART NO TIMER VOLTAGE MOUNTING* SETPOINT PROGRAMS MAXIMUM WEEKLY ON/OFF
EVENTS
RELAY OUTPUT GENERAL
PURPOSE RATING
Digi 20A — 120 120 V, 50/60 Hz Surface or DIN Rail 20 140 SPDT, 16 A, 250 V
Digi 20A — 240 208/240 V, 50/60 Hz Surface or DIN Rail 20 140 SPDT, 15 A, 250 V
Digi 20A — 24 24 V, 50/60 Hz Surface or DIN Rail 20 140 SPDT, 16 A, 250 V
Digi 20A — 277 277 V, 50/60 Hz Surface or DIn Rail 20 140 SPDT, 16 A, 250 V
Digi 42A — 120† 120 V, 50/60 Hz Surface or DIN Rail 42 294 SPDT, 16 A, 250 V
Digi 42A — 240† 208/240 V, 50/60 Hz Surface or DIN Rail 42 294 SPDT, 16 A, 250 V
Digi 42A — 24† 24 V, 50/60 Hz Surface or DIn Rail 42 294 SPDT, 16 A, 250 V
Digi 20E — 120 120 V, 50/60 Hz Flush Panel 20 140 SPDT, 16 A, 250 V
Digi 20E — 240 208/240 V, 50/60 Hz Flush Panel 20 140 SDPT, 16 A, 250 V
Digi 20E — 24 24 V, 50/60 Hz Flush Panel 20 140 SPDT, 16 A, 250 V
Digi 20E — 277 277 V, 50/60 Hz Flush Panel 20 140 SPDT, 16 A, 250 V
Digi 42E — 120† 120 V, 50/60 Hz Flush Panel 42 294 SDPT, 15 A, 250 V
Digi 42E — 240† 208/240 V, 50/60 Hz Flush Panel 42 294 SDPT, 16 A, 250 V
Digi 42E — 24† 24 V, 50/60 Hz Flush Panel 42 294 SPDT, 16 A, 250 V
GRASSLIN FM/1 SERIES (24-Hour, 7-Day)
The FM/1 series modules are designed to be placed inside a machine control panel, circuit
board, or other equipment. It offers up to 21A switching designed for control of heating,
ventilating, air conditioning, refrigeration, lighting, security, circulating pumps, spas or any
electrical load requiring 24-hour or 7-day scheduling.
• Authentic clock face.
• 21 A SPDT switch.
• Captive Trippers.
SWITCH OUTPUT
PART NO MINIMUM ON/OFF TIME SWITCH PROGRAM CARRY-OVER PROGRAM ON/OFF
EVERY
Type Rating
FM/1 StuZ (synchronous) 15 minutes 21 A Res. No 15 minutes SPDT 21 A Res.
FM/1 SWuZ
(synchronous)
2 hours 21 A Res. No 2 hours SPDT 21 A Res.
FM/1 QtuZ (quartz) 15 minutes 21 A Res. 7 day 15 minutes SPDT 21 A Res.
FM/1 QWuZ (quartz) 2 hours 21 A Res. 7 day 2 hours SPDT 21 A Res.
NOTES:
1. Available with 24 V, 120 V, 240 V, 277 VAC input.
2. Quartz also available with 12 V, 30 V, 60 V, or 120 VDC input.
TIMERS
372
TIMERS
GRASSLIN FM/1 digi 20-120 (24 Hour, 7-Day)
The FM/1 digi 20 is a compact electronic 24 hour/ 7 day time switch module with heavy
duty relay contacts for switching low or line voltage loads. Applicable for time of day control
of pumps, fans, heaters, HVAC control circuits, lighting, machinery and many other types of
commercial, industrial,and agricultural equipment. The FM/1 digi 20 features large keys with
unique “circular pattern” for easy programming, an easy-to-read LCD display and capacitor
backup to retain program memory during power outages.
• 20 programs, up to 140 events per week.
• Easy to program with large keys.
• 16 Amp @ 277 V SPDT switching.
• Capacitor backup with 5-day carryover.
• Manual override.
GRASSLIN FM/1 digi 42-120 (24 Hour, 7-Day)
• Automatic Spring/Fall Daylight Time changeover.
• 42 programs, up to 294 events per week.
• Holiday programming.
• 16 Amp @ 277 V SPDT switching.
• Rechargeable battery backup with carryover of over 2 weeks.
PART NO INPUT VOLTAGE PROGRAMS SWITCH PROGRAM MAX WEEKLY
ON/OFF
HOLIDAY PROGRAM RESERVE
CARRYOVER
RELAY OUTPUT
FM/1 digi 20-240 240 V, 50/60 Hz 20 24 hr./7 day 140 No 1 week SPDT 16 A
FM/1 digi 20-24 24 V, 50/60 Hz 20 24 hr./7 day 140 No 1 week SPDT 16 A
FM/1 digi 20-277 277 V, 50/60 Hz 20 24 hr./7 day 140 No 1 week SPDT 16 A
FM/1 digi 42-120† 120 V, 50/60 Hz 42 24 hr./7 day 294 Yes 2 weeks SPDT 16 A
FM/1 digi 42-240† 240 V, 50/60 Hz 42 24 hr./7 day 294 Yes 2 weeks SPDT 16 A
FM/1 digi 42-24 24 V, 50/60 Hz 42 24 hr./7 day 294 Yes 2 weeks SPDT 16 A
TIMERS
373
TIMERS

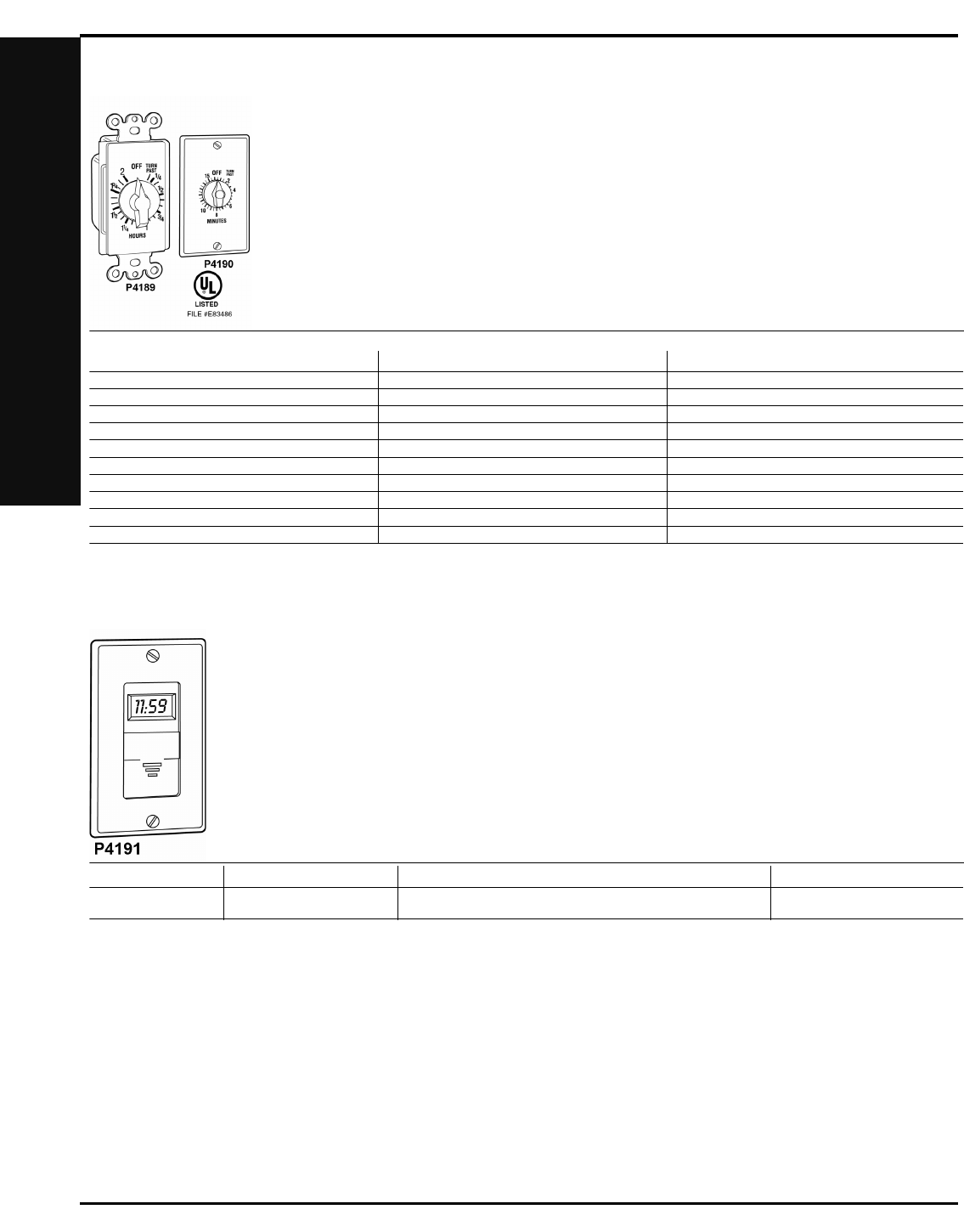

GRASSLIN KLT SERIES COUNTDOWN/TWIST TIMERS
SPRING WOUND INTERVAL/COUNTDOWN TIME SWITCH
• Timing ranges from 5 minutes to 12 hours.
• SPST 20 A, 2 HP switch.
• Decorator style dial plate fits both standard and decorator wallplates.
• Aluminum wallplate available.
• Fits in single or multigang wallboxes.
• May be flush panel mounted.
• Normally closed version (15 and 30 min. only)
PART NO
NO-HOLD MODELS WITH IVORYKNOB & PLATE HOLD MODELS WITH IVORYKNOB & PLATE TIME CYCLE
KLT-5M KLT-5MH 0-5 Minutes
KLT-15M KLT-15MH 0-15 Minutes
KLT-15MC — 0-15 Minutes (Normally Closed)
KLT-30M KLT-30MH 0-30 Minutes
KLT-30MC — 0-30 Minutes (Normally Closed)
KLT-60M KLT-60MH 0-60 Minutes
KLT-2H KLT-2HH 0-2 Hours
KLT-4H KLT-4HH 0-4 Hours
KLT-6H KLT-6HH 0-6 Hours
KLT-12H KLT-12HH 0-12 Hours
Example: KLT-30M-W — Add “-W” to above for white knob and plate.
Example: KLT-30MH-A — Add “-A” to above for aluminum plate and plastic knob.
GRASSLIN ET 616 ELECTRONIC COUNTDOWN TIMER
• Electronic version of the manual countdown timer.
• Operates on 120 V or 277 VAC — No neutral wire required.
• Mounts in standard wallbox.
• Single button On/Off operation.
• Backlighted LCD display.
• Preset time countdown; 5, 15, 30, 60 minutes, 3, 6, 9, 12 hours.
• Switch holds position during a power failure (on or off), restarts at preset
time when power is restored.
• UL and cUL listed.
PART NO VOLTAGE SWITCH RATING COUNTDOWN TIMING
ET616 120 or 277 VAC, 50/60 Hz 1000 W (Tung.) @ 120 V;800 W (Bal.) @ 120 V;1500W (Tung.) @ 277
V;1200W (Bal.) @ 277 V
5, 15, 30, 60 Min.3, 6, 9, 12 Hr.
TIMERS
374
TIMERS

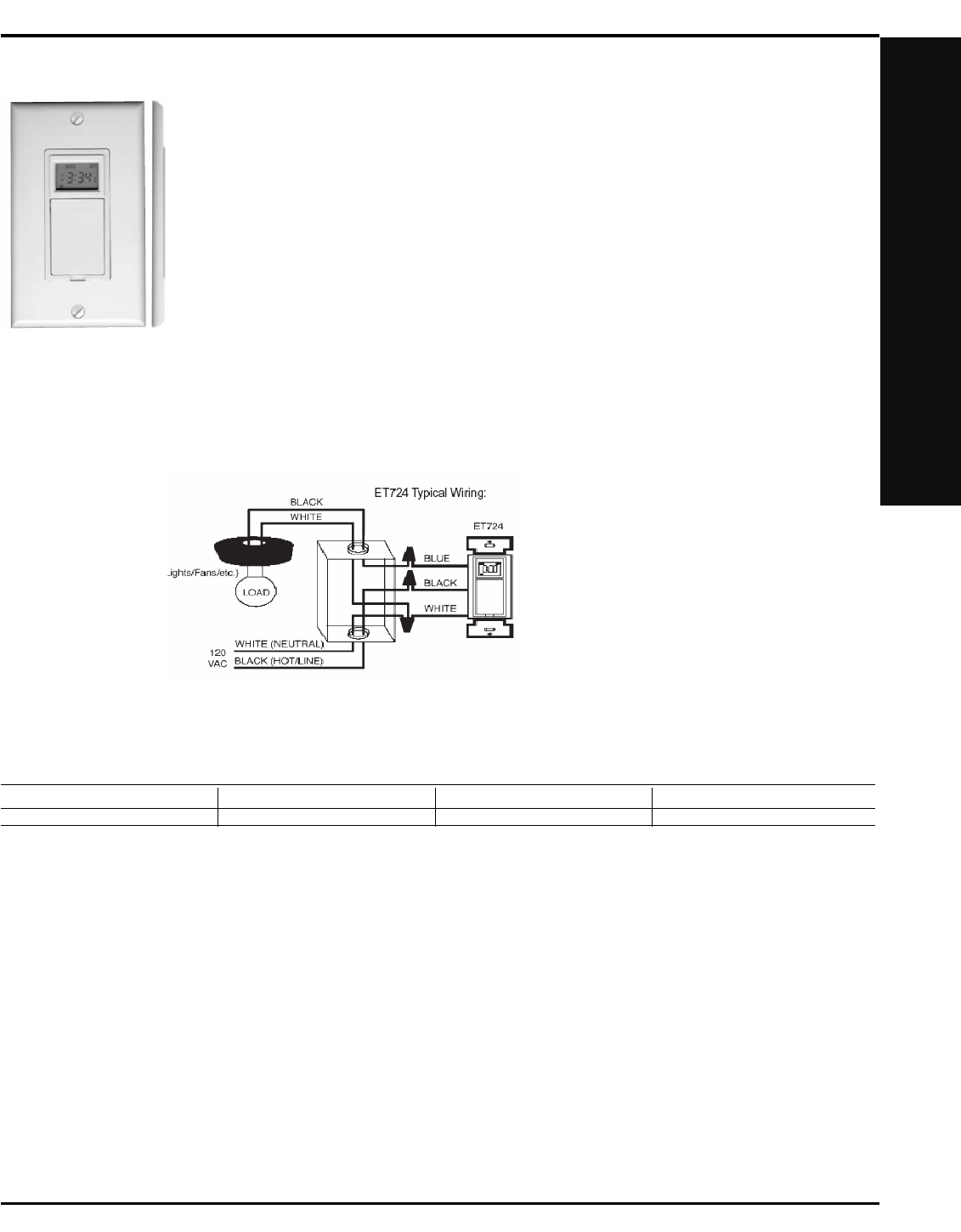

GRASSLIN ET724 Electronic In-Wall Timer
24 Hour, 7 Day
Replaces standard wall switch (toggle) to provide automatic control of outdoor or indoor
lighting, fans, pumps, office machines, and other types of circuits. The unit can be
programmed for 7-ON and 7-OFF events daily or weekly. AUTO and Manual Modes are
clearly displayed along the time of day. The ET724 is designed to be mounted in a
standard decorator plate for a sleek modern look.
Features
• Sleek profile
• Easy to program
• Single push-button control
• Mounts in standard wallbox
• Built-in rechargeable battery never needs replacement
• LCD display
• Flush mounted design
• Non-volatile memory
• Captive cover plate
• UL Listed and CSA Approved
SPECIFIERS GUIDE: Furnish and install a Grasslin model ET724 electronic in-wall 7 day
time control. The timer shall fit into a standard 2-1/2” deep single or multigang wall box and
decorator style wallplate. It shall not protrude from the wall more than 1/8” and have a captive
cover plate over the programming keys. The unit shall be capable of switching a 20 amp
ballast or general purpose load or 1 HP motor and have seven independently programmable
events. The battery backup will be a rechargeable NiMh type that does not require replacement.
SPECIFICATIONS
Input: 120VAC, 60 Hz
Switch Rating: 20A Ballast Switch
Rating @ 120VAC, 20A Inductive
Switch Rating @ 120VAC,2400W
Resistive, 1HP Motor
Operating Temperature: 32° to 122°F
(0° to 50°C)
Faceplate Color: White
Timing Accuracy: Less Than 1%
Deviation
Wiring Connections: 6” Leadwires
ORDERING DATA
PART NO DESCRIPTION WALLPLATE CONFIGURATION SWITCH
ET724 Electronic 24-hr./7-day (White) 1 Gang Decorator (Not Included) SPST
TIMERS
375
TIMERS
GRASSLIN T25/16 PLUG-IN TIMER
Features
• 24 hour electromechanical plug-in timer
• Captive trippers
• Programming resolution of 15 minutes
• Easy to program
• Manual override
Specifications:
Input Voltage: 120VAC
Switch Rating: 15A @ 125VAC
Tungsten: 1250W, TV-4 1/3HP
Polarized 2-conductor plug and receptacle
ORDERING DATA
PART NO SWITCH PROGRAM RESERVE PROGRAM ON/OFF EVERY SHORTEST SWITCHING TIME
T25 24 hour No 15 minutes 15 minutes
GRASSLIN T35/16CS PLUG-IN TIMER
Features
• 24 hour electromechanical plug-in timer
• Captive trippers
• Programming resolution of 15 minutes
• Easy to program
• Manual override
Specifications:
Voltage: 110-120VAC
Switch Rating: 15A Resistive
Ambient Temperature Range: 14°F to 122°F Grounded 3-conductor plug and receptacle
ORDERING DATA
PART NO SWITCH PROGRAM RESERVE PROGRAM ON/OFF EVERY SHORTEST SWITCHING TIME
T35 24 hour No 15 minutes 15 minutes
GRASSLIN T240 PLUG-IN TIMER
Features
• 24 hour electromechanical plug-in timer
• Captive trippers
• Programming resolution of 15 minutes
• Heavy Duty 20A, 4800W
• Manual override
Specifications:
Voltage: 240VAC, 60Hz
Switch Rating: 20A Resistive
Ambient Temperature Range: 14°F to 122°F Grounded 3-conductor plug and receptacle
ORDERING DATA
PART NO SWITCH PROGRAM RESERVE PROGRAM ON/OFF EVERY SHORTEST SWITCHING TIME
T240 24 hour No 15 minutes 15 minutes
TIMERS
376

Navigation menu
