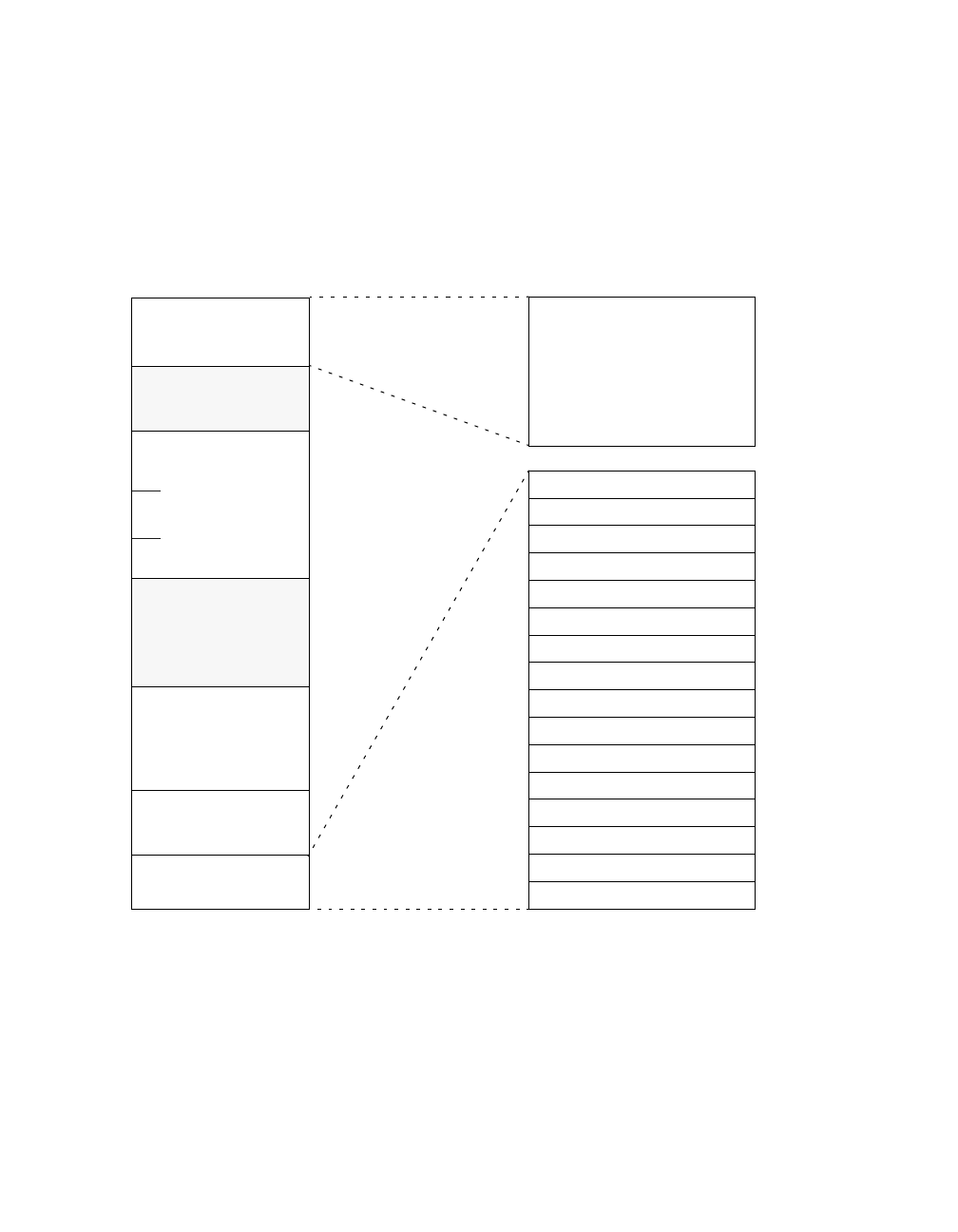

- SECTION2 MEMORY
- SECTION3 CENTRAL PROCESSING UNIT
- SECTION4 INTERRUPTS
- SECTION5 RESETS
- SECTION6 LOW POWER MODES
- SECTION7 INPUT/OUTPUT PORTS
- SECTION8 MULTI-FUNCTION TIMER
- SECTION9 16-BIT TIMER
- SECTION10 UNIVERSAL SERIAL BUS MODULE
- 10.1 FEATURES
- 10.2 OVERVIEW
- 10.3 CLOCK REQUIREMENTS
- 10.4 HARDWARE DESCRIPTION
- 10.5 I/O REGISTER DESCRIPTION
- 10.5.1 USB Address Register (UADDR)
- 10.5.2 USB Interrupt Register 0 (UIR0)
- 10.5.3 USB Interrupt Register 1 (UIR1)
- 10.5.4 USB Control Register 0 (UCR0)
- 10.5.5 USB Control Register 1 (UCR1)
- 10.5.6 USB Control Register 2 (UCR2)
- 10.5.7 USB Status Register (USR)
- 10.5.8 USB Endpoint 0 Data Registers (UE0D0-UE0D7)
- 10.5.9 USB Endpoint 1/Endpoint 2 Data Registers (UE1D0-UE1D7)
- 10.6 USB INTERRUPTS
- SECTION11 ANALOG TO DIGITAL CONVERTER
- SECTION12 INSTRUCTION SET
- 12.1 ADDRESSING MODES
- 12.1.1 Inherent
- 12.1.2 Immediate
- 12.1.3 Direct
- 12.1.4 Extended
- 12.1.5 Indexed, No Offset
- 12.1.6 Indexed, 8Bit Offset
- 12.1.7 Indexed, 16Bit Offset
- 12.1.8 Relative
- 12.1.9 Instruction Types
- 12.1.10 Register/Memory Instructions
- 12.1.11 Read-Modify-Write Instructions
- 12.1.12 Jump/Branch Instructions
- 12.1.13 Bit Manipulation Instructions
- 12.1.14 Control Instructions
- 12.1.15 Instruction Set Summary
- 12.1 ADDRESSING MODES
- SECTION13 ELECTRICAL SPECIFICATIONS

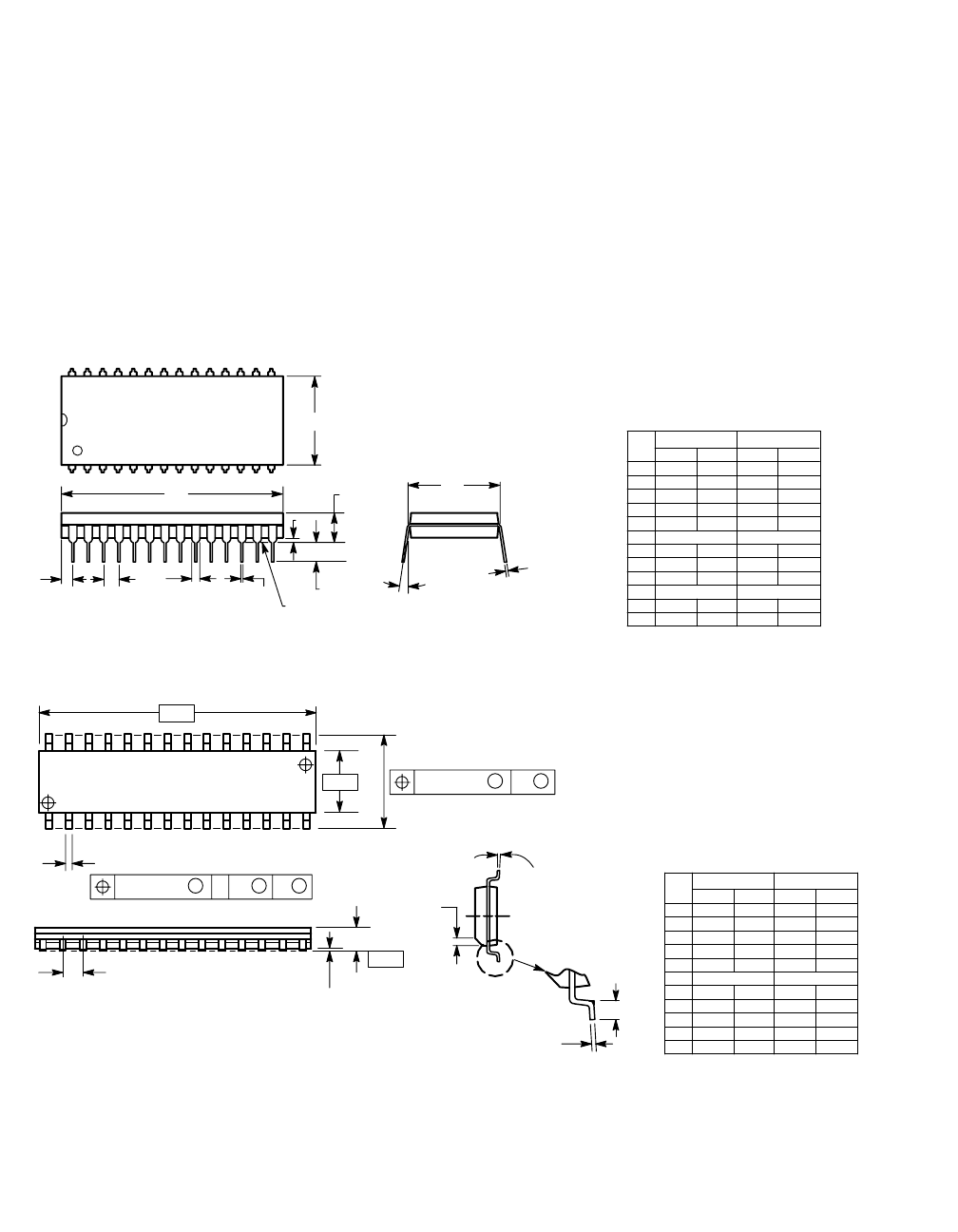

- SECTION14 MECHANICAL SPECIFICATIONS
- APPENDIXA MC68HC705JB4
HC05JB4GRS/H
REV 2
68HC05JB4
68HC705JB4
SPECIFICATION
(General Release)
February 24, 1999
Semiconductor Products Sector
Freescale Semiconductor, I
nc...
Freescale Semiconductor
© Freescale Semiconductor, Inc., 2004. All rights reserved.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4
REV 2
TABLE OF CONTENTS
Section Page
SECTION 1
GENERAL DESCRIPTION
1.1 FEATURES...................................................................................................... 1-1
1.2 MASK OPTIONS.............................................................................................. 1-2
1.3 MCU STRUCTURE.......................................................................................... 1-2
1.4 FUNCTIONAL PIN DESCRIPTION.................................................................. 1-4
1.4.1 V
DD
AND V
SS
.............................................................................................. 1-4
1.4.2 OSC1, OSC2 ............................................................................................... 1-4
1.4.3 RESET......................................................................................................... 1-6
1.4.4 IRQ (MASKABLE INTERRUPT REQUEST)................................................ 1-6
1.4.5 V3.3 ............................................................................................................. 1-6
1.4.6 D+ and D– ................................................................................................... 1-6
1.4.7 PA0-PA7...................................................................................................... 1-6
1.4.8 PB0-PB4...................................................................................................... 1-7
1.4.9 PC0-PC5...................................................................................................... 1-7
SECTION 2
MEMORY
2.1 I/O AND CONTROL REGISTERS ...................................................................2-2
2.2 RAM ................................................................................................................. 2-2
2.3 ROM................................................................................................................. 2-2
2.4 I/O REGISTERS SUMMARY ........................................................................... 2-3
SECTION 3
CENTRAL PROCESSING UNIT
3.1 REGISTERS .................................................................................................... 3-1
3.2 ACCUMULATOR (A)........................................................................................ 3-2
3.3 INDEX REGISTER (X)..................................................................................... 3-2
3.4 STACK POINTER (SP).................................................................................... 3-2
3.5 PROGRAM COUNTER (PC) ........................................................................... 3-2
3.6 CONDITION CODE REGISTER (CCR)........................................................... 3-3
3.6.1 Half Carry Bit (H-Bit).................................................................................... 3-3
3.6.2 Interrupt Mask (I-Bit).................................................................................... 3-3
3.6.3 Negative Bit (N-Bit)...................................................................................... 3-3
3.6.4 Zero Bit (Z-Bit) ............................................................................................. 3-3
3.6.5 Carry/Borrow Bit (C-Bit)............................................................................... 3-4
SECTION 4
INTERRUPTS
4.1 INTERRUPT VECTORS .................................................................................. 4-1
4.2 INTERRUPT PROCESSING............................................................................ 4-2
4.3 RESET INTERRUPT SEQUENCE .................................................................. 4-4
4.4 SOFTWARE INTERRUPT (SWI).....................................................................
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
REV
TABLE OF CONTENTS
Section Page
4.5 HARDWARE INTERRUPTS ............................................................................ 4-4
4.5.1 External Interrupt IRQ.................................................................................. 4-4
4.5.2 External Interrupt IRQ2................................................................................ 4-5
4.5.3 IRQ Control/Status Register (ICSR) - $0A................................................... 4-6
4.5.4 Port A External Interrupts (PA0-PA3, by mask option)................................ 4-7
4.5.5 Timer1 Interrupt (TIMER1)........................................................................... 4-8
4.5.6 USB Interrupt (USB) .................................................................................... 4-8
4.5.7 MFT Interrupt (MFT) .................................................................................... 4-8
SECTION 5
RESETS
5.1 POWER-ON RESET........................................................................................ 5-2
5.2 EXTERNAL RESET ......................................................................................... 5-2
5.3 INTERNAL RESETS........................................................................................ 5-2
5.3.1 Power-On Reset (POR)............................................................................... 5-2
5.3.2 USB Reset................................................................................................... 5-3
5.3.3 Computer Operating Properly (COP) Reset ................................................ 5-3
5.3.4 Low Voltage Reset (LVR) ............................................................................ 5-3
5.3.5 Illegal Address Reset................................................................................... 5-4
SECTION 6
LOW POWER MODES
6.1 STOP MODE.................................................................................................... 6-3
6.2 WAIT MODE .................................................................................................... 6-3
6.3 DATA-RETENTION MODE.............................................................................. 6-3
SECTION 7
INPUT/OUTPUT PORTS
7.1 SLOW FALLING-EDGE OUTPUT DRIVER..................................................... 7-1
7.2 PORT-A............................................................................................................ 7-2
7.2.1 Port-A Data Register.................................................................................... 7-2
7.2.2 Port-A Data Direction Register .................................................................... 7-3
7.2.3 Port-A Pull-up Control Register ................................................................... 7-3
7.3 PORT-B............................................................................................................ 7-3
7.3.1 Port-B Data Register.................................................................................... 7-4
7.3.2 Port-B Data Direction Register .................................................................... 7-4
7.3.3 Port-B Pull-up Control Register ................................................................... 7-4
7.4 PORT-C ........................................................................................................... 7-4
7.4.1 Port-C Data Register ................................................................................... 7-5
7.4.2 Port-C Data Direction Register .................................................................... 7-5
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
TABLE OF CONTENTS
Section Page
SECTION 8
MULTI-FUNCTION TIMER
8.1 OVERVIEW...................................................................................................... 8-2
8.2 COMPUTER OPERATING PROPERLY (COP) WATCHDOG ........................ 8-2
8.3 MFT REGISTERS............................................................................................ 8-3
8.3.1 Timer Counter Register (TCNT) $09 ........................................................... 8-3
8.3.2 Timer Control/Status Register (TCSR) $08 ................................................. 8-3
8.4 OPERATION DURING STOP MODE .............................................................. 8-4
8.5 COP CONSIDERATION DURING STOP MODE............................................. 8-4
SECTION 9
16-BIT TIMER
9.1 TIMER REGISTERS (TMRH, TMRL)............................................................... 9-2
9.2 ALTERNATE COUNTER REGISTERS (ACRH, ACRL) .................................. 9-4
9.3 INPUT CAPTURE REGISTERS ...................................................................... 9-5
9.4 OUTPUT COMPARE REGISTERS ................................................................. 9-6
9.5 TIMER CONTROL REGISTER (TCR) ............................................................. 9-8
9.6 TIMER STATUS REGISTER (TSR)................................................................. 9-9
9.7 TIMER OPERATION DURING WAIT MODE................................................. 9-10
9.8 TIMER OPERATION DURING STOP MODE................................................ 9-10
SECTION 10
UNIVERSAL SERIAL BUS MODULE
10.1 FEATURES.................................................................................................... 10-1
10.2 OVERVIEW.................................................................................................... 10-2
10.2.1 USB Protocol ............................................................................................. 10-2
10.2.2 Reset Signaling.......................................................................................... 10-8
10.2.3 Suspend..................................................................................................... 10-9
10.2.4 Resume After Suspend.............................................................................. 10-9
10.2.5 Low Speed Device................................................................................... 10-10
10.3 CLOCK REQUIREMENTS........................................................................... 10-10
10.4 HARDWARE DESCRIPTION....................................................................... 10-10
10.4.1 Voltage Regulator.................................................................................... 10-11
10.4.2 USB Transceiver...................................................................................... 10-11
10.4.3 Receiver Characteristics.......................................................................... 10-12
10.4.4 USB Control Logic ................................................................................... 10-14
10.5 I/O REGISTER DESCRIPTION ................................................................... 10-17
10.5.1 USB Address Register (UADDR)............................................................. 10-18
10.5.2 USB Interrupt Register 0 (UIR0).............................................................. 10-19
10.5.3 USB Interrupt Register 1 (UIR1).............................................................. 10-20
10.5.4 USB Control Register 0 (UCR0) .............................................................. 10-21
10.5.5 USB Control Register 1 (UCR1) .............................................................. 10-22
10.5.6 USB Control Register 2 (UCR2) ..............................................................
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
TABLE OF CONTENTS
Section Page
10.5.7 USB Status Register (USR)..................................................................... 10-25
10.5.8 USB Endpoint 0 Data Registers (UE0D0-UE0D7)................................... 10-25
10.5.9 USB Endpoint 1/Endpoint 2 Data Registers (UE1D0-UE1D7) ................ 10-26
10.6 USB INTERRUPTS...................................................................................... 10-26
10.6.1 USB End of Transaction Interrupt............................................................ 10-26
10.6.2 Resume Interrupt..................................................................................... 10-27
10.6.3 End of Packet Interrupt............................................................................ 10-27
SECTION 11
ANALOG TO DIGITAL CONVERTER
11.1 ADC OPERATION ......................................................................................... 11-2
11.2 ADC STATUS AND CONTROL REGISTER (ADSCR).................................. 11-3
11.3 ADC DATA REGISTER (ADDR).................................................................... 11-4
11.4 ADC DURING LOW POWER MODES .......................................................... 11-5
SECTION 12
INSTRUCTION SET
12.1 ADDRESSING MODES ................................................................................. 12-1
12.1.1 Inherent...................................................................................................... 12-1
12.1.2 Immediate.................................................................................................. 12-1
12.1.3 Direct ......................................................................................................... 12-2
12.1.4 Extended.................................................................................................... 12-2
12.1.5 Indexed, No Offset..................................................................................... 12-2
12.1.6 Indexed, 8-Bit Offset.................................................................................. 12-2
12.1.7 Indexed, 16-Bit Offset................................................................................ 12-3
12.1.8 Relative...................................................................................................... 12-3
12.1.9 Instruction Types ....................................................................................... 12-3
12.1.10 Register/Memory Instructions.................................................................... 12-4
12.1.11 Read-Modify-Write Instructions ................................................................. 12-5
12.1.12 Jump/Branch Instructions .......................................................................... 12-5
12.1.13 Bit Manipulation Instructions...................................................................... 12-7
12.1.14 Control Instructions.................................................................................... 12-7
12.1.15 Instruction Set Summary ........................................................................... 12-8
SECTION 13
ELECTRICAL SPECIFICATIONS
13.1 MAXIMUM RATINGS..................................................................................... 13-1
13.2 THERMAL CHARACTERISTICS................................................................... 13-1
13.3 DC ELECTRICAL CHARACTERISTICS........................................................ 13-2
13.4 USB DC ELECTRICAL CHARACTERISTICS ............................................... 13-3
13.5 USB LOW SPEED SOURCE ELECTRICAL CHARACTERISTICS............... 13-4
13.6 CONTROL TIMING........................................................................................ 13-5
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4
REV 2
TABLE OF CONTENTS
Section Page
SECTION 14
MECHANICAL SPECIFICATIONS
14.1 28-PIN PDIP (CASE 710) .............................................................................. 14-1
14.2 28-PIN SOIC (CASE 751F)............................................................................ 14-1
APPENDIX A
MC68HC705JB4
A.1 INTRODUCTION..............................................................................................A-1
A.2 MEMORY.........................................................................................................A-1
A.3 MASK OPTION REGISTER (MOR).................................................................A-1
A.4 BOOTSTRAP MODE .......................................................................................A-2
A.5 EPROM PROGRAMMING...............................................................................A-3
A.5.1 EPROM Program Control Register (PCR)...................................................A-3
A.5.2 Programming Sequence..............................................................................A-3
A.6 EPROM PROGRAMMING SPECIFICATIONS................................................A-5
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
REV
TABLE OF CONTENTS
Section Page
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
TABLE OF CONTENTS
Section Page
10.5.7 USB Status Register (USR)..................................................................... 10-25
10.5.8 USB Endpoint 0 Data Registers (UE0D0-UE0D7)................................... 10-25
10.5.9 USB Endpoint 1/Endpoint 2 Data Registers (UE1D0-UE1D7) ................ 10-26
10.6 USB INTERRUPTS...................................................................................... 10-26
10.6.1 USB End of Transaction Interrupt............................................................ 10-26
10.6.2 Resume Interrupt..................................................................................... 10-27
10.6.3 End of Packet Interrupt............................................................................ 10-27
SECTION 11
ANALOG TO DIGITAL CONVERTER
11.1 ADC OPERATION ......................................................................................... 11-2
11.2 ADC STATUS AND CONTROL REGISTER (ADSCR).................................. 11-3
11.3 ADC DATA REGISTER (ADDR).................................................................... 11-4
11.4 ADC DURING LOW POWER MODES .......................................................... 11-5
SECTION 12
INSTRUCTION SET
12.1 ADDRESSING MODES ................................................................................. 12-1
12.1.1 Inherent...................................................................................................... 12-1
12.1.2 Immediate.................................................................................................. 12-1
12.1.3 Direct ......................................................................................................... 12-2
12.1.4 Extended.................................................................................................... 12-2
12.1.5 Indexed, No Offset..................................................................................... 12-2
12.1.6 Indexed, 8-Bit Offset.................................................................................. 12-2
12.1.7 Indexed, 16-Bit Offset................................................................................ 12-3
12.1.8 Relative...................................................................................................... 12-3
12.1.9 Instruction Types ....................................................................................... 12-3
12.1.10 Register/Memory Instructions.................................................................... 12-4
12.1.11 Read-Modify-Write Instructions ................................................................. 12-5
12.1.12 Jump/Branch Instructions .......................................................................... 12-5
12.1.13 Bit Manipulation Instructions...................................................................... 12-7
12.1.14 Control Instructions.................................................................................... 12-7
12.1.15 Instruction Set Summary ........................................................................... 12-8
SECTION 13
ELECTRICAL SPECIFICATIONS
13.1 MAXIMUM RATINGS..................................................................................... 13-1
13.2 THERMAL CHARACTERISTICS................................................................... 13-1
13.3 DC ELECTRICAL CHARACTERISTICS........................................................ 13-2
13.4 USB DC ELECTRICAL CHARACTERISTICS ............................................... 13-3
13.5 USB LOW SPEED SOURCE ELECTRICAL CHARACTERISTICS............... 13-4
13.6 CONTROL TIMING........................................................................................ 13-5
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
LIST OF FIGURES
Figure Title Page

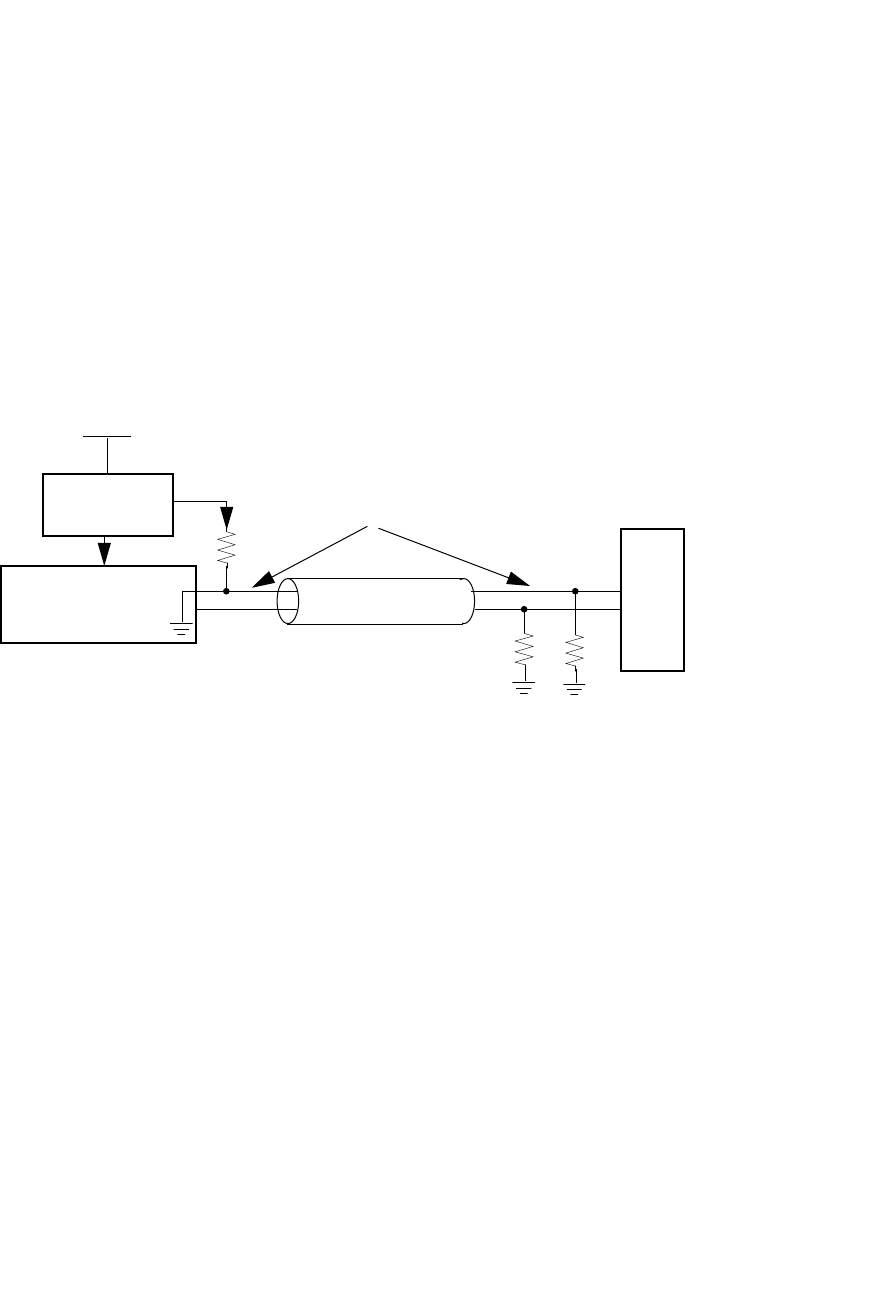

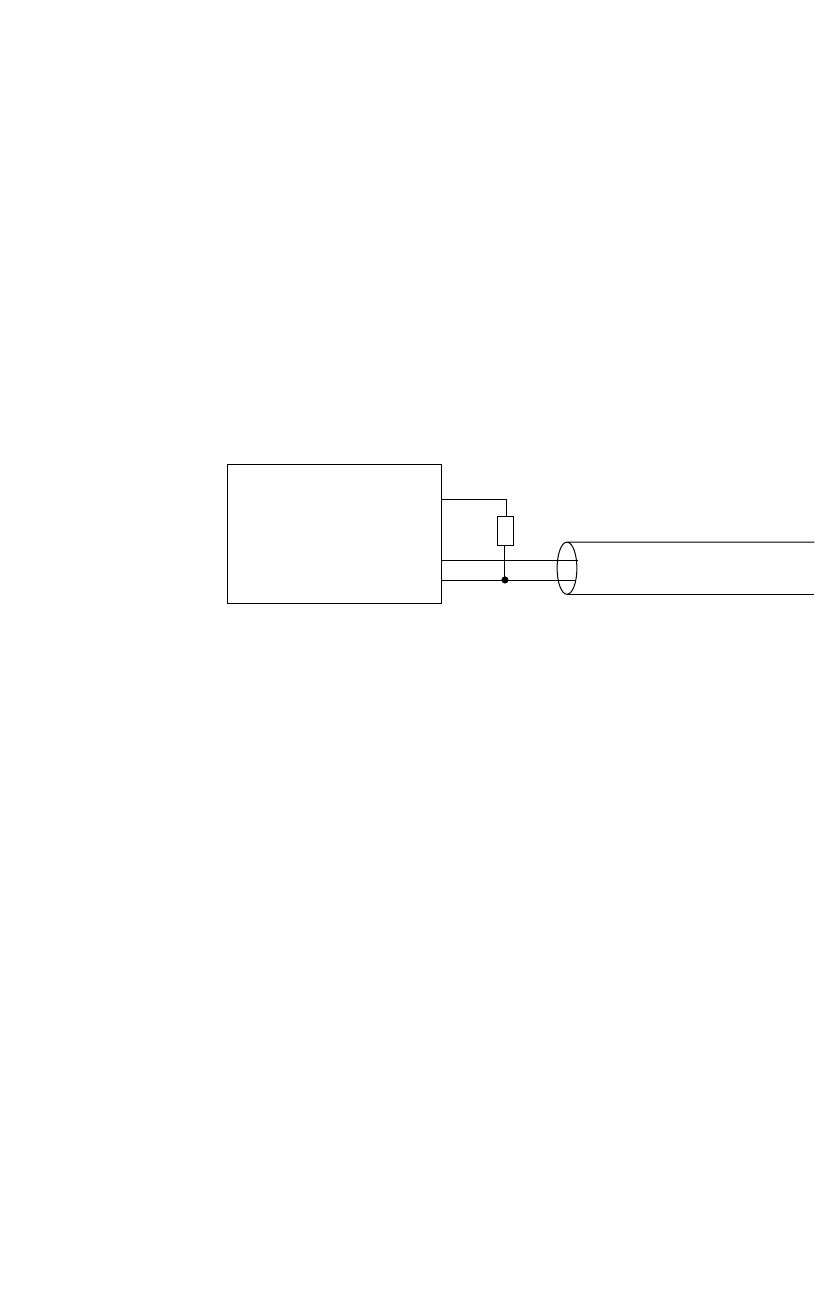

10-11 Regulator Electrical Connections................................................................. 10-11

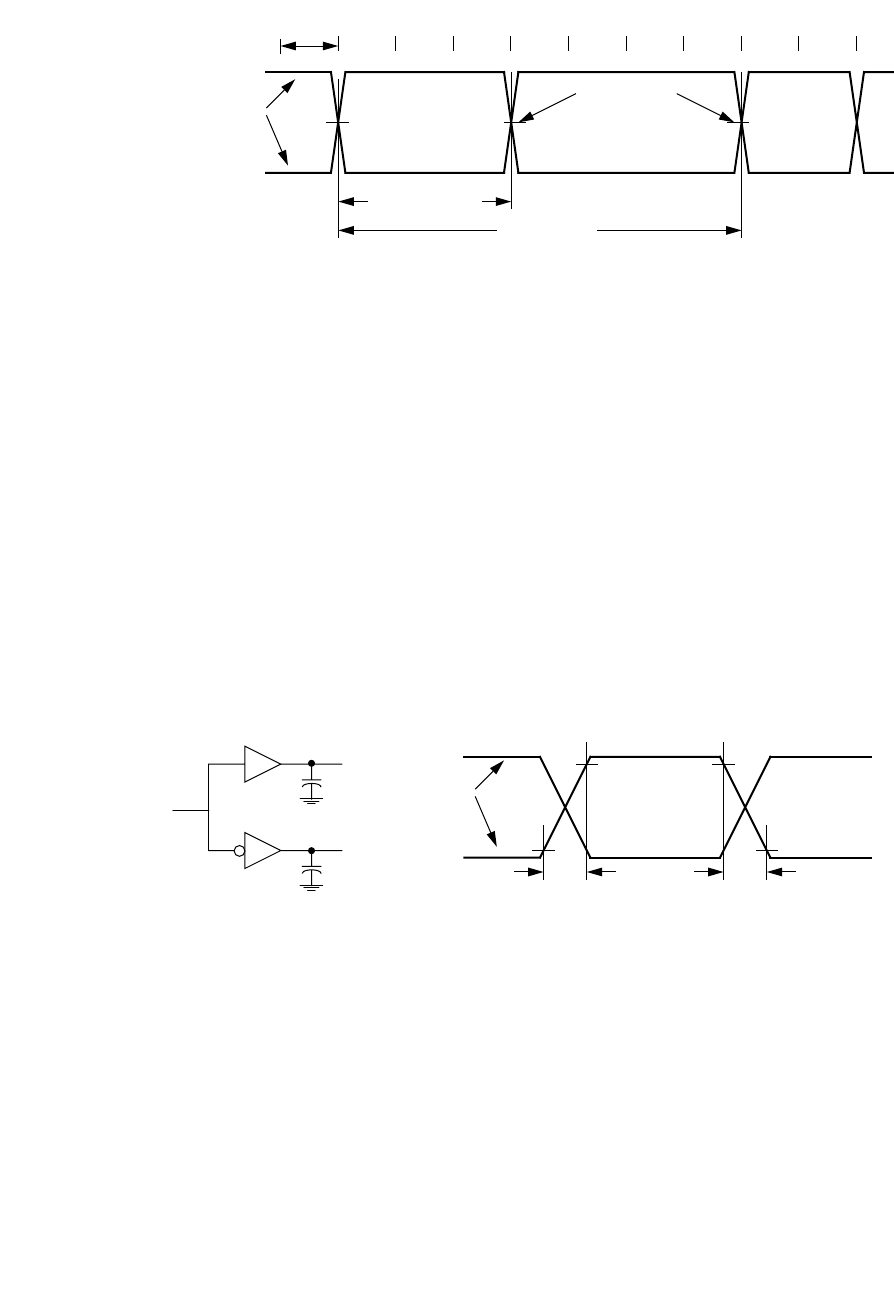

10-12 Low Speed Driver Signal Waveforms .......................................................... 10-12
10-13 Differential Input Sensitivity Over Entire Common Mode Range ................. 10-13
10-14 Data Jitter..................................................................................................... 10-14
10-15 Data Signal Rise and Fall Time.................................................................... 10-14

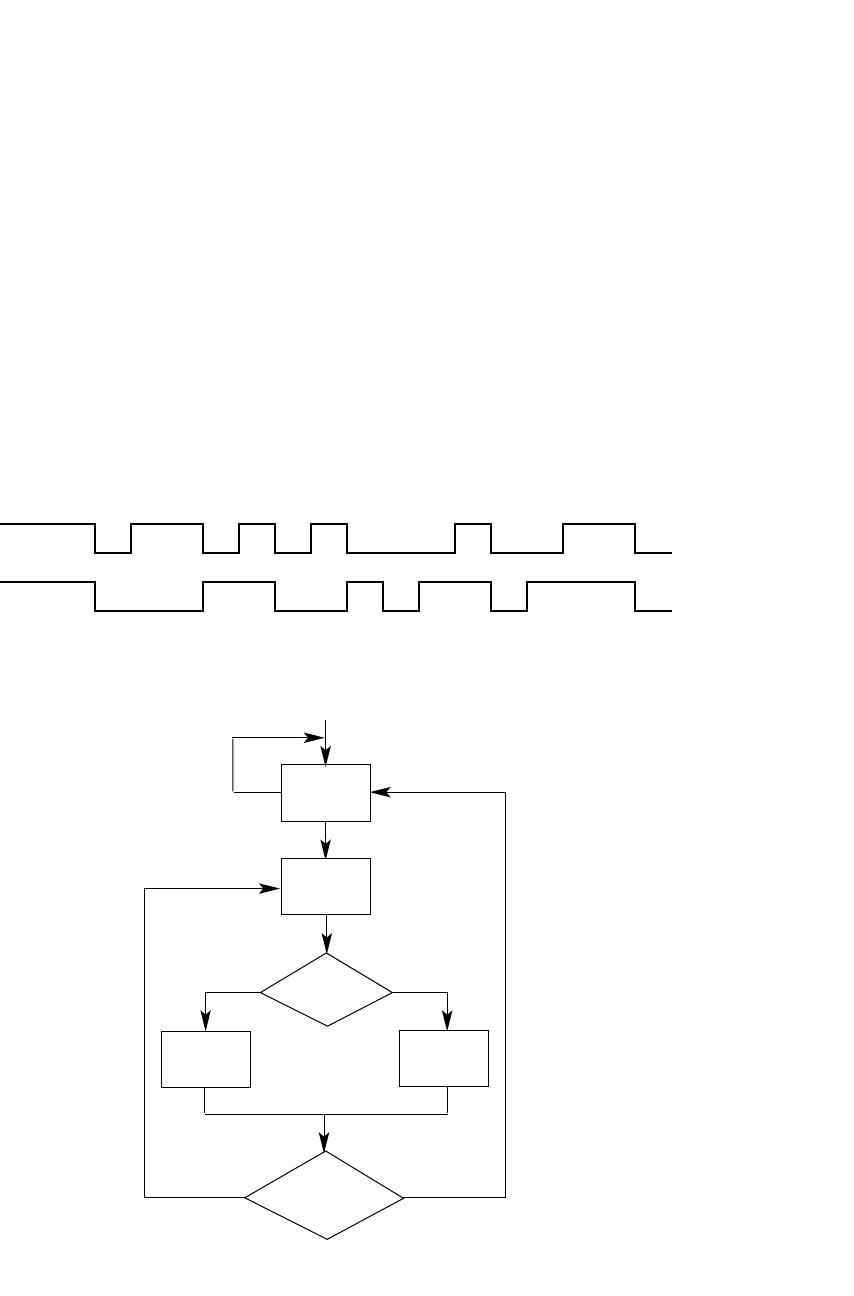

10-16 NRZI Data Encoding .................................................................................... 10-15
10-17 Flow Diagram for NRZI ................................................................................ 10-15
10-18 Bit Stuffing.................................................................................................... 10-16
10-19 Flow Diagram for Bit Stuffing ....................................................................... 10-17
10-20 USB Address Register (UADDR)................................................................. 10-18
10-21 USB Interrupt Register 0 (UIR0) .................................................................. 10-19
10-22 USB Interrupt Register 1(UIR1) ................................................................... 10-20
10-23 USB Control Register 0 (UCR0)................................................................... 10-21
10-24 USB Control Register 1 (UCR1)................................................................... 10-22
10-25 USB Control Register 2 (UCR2)................................................................... 10-23
10-26 USB Status Register (USR) ......................................................................... 10-25
10-27 USB Endpoint 0 Data Register (UE0D0-UE0D7)......................................... 10-25
10-28 USB Endpoint 1/Endpoint2 Data Registers (UE1D0-UE1D7)...................... 10-26
10-29 OUT Token Data Flow for Receive Endpoint 0............................................ 10-28
10-30 SETUP Token Data Flow for Receive Endpoint 0........................................ 10-29
10-31 IN Token Data Flow for Transmit Endpoint 0............................................... 10-30
10-32 IN Token Data Flow for Transmit Endpoint 1/2............................................ 10-31

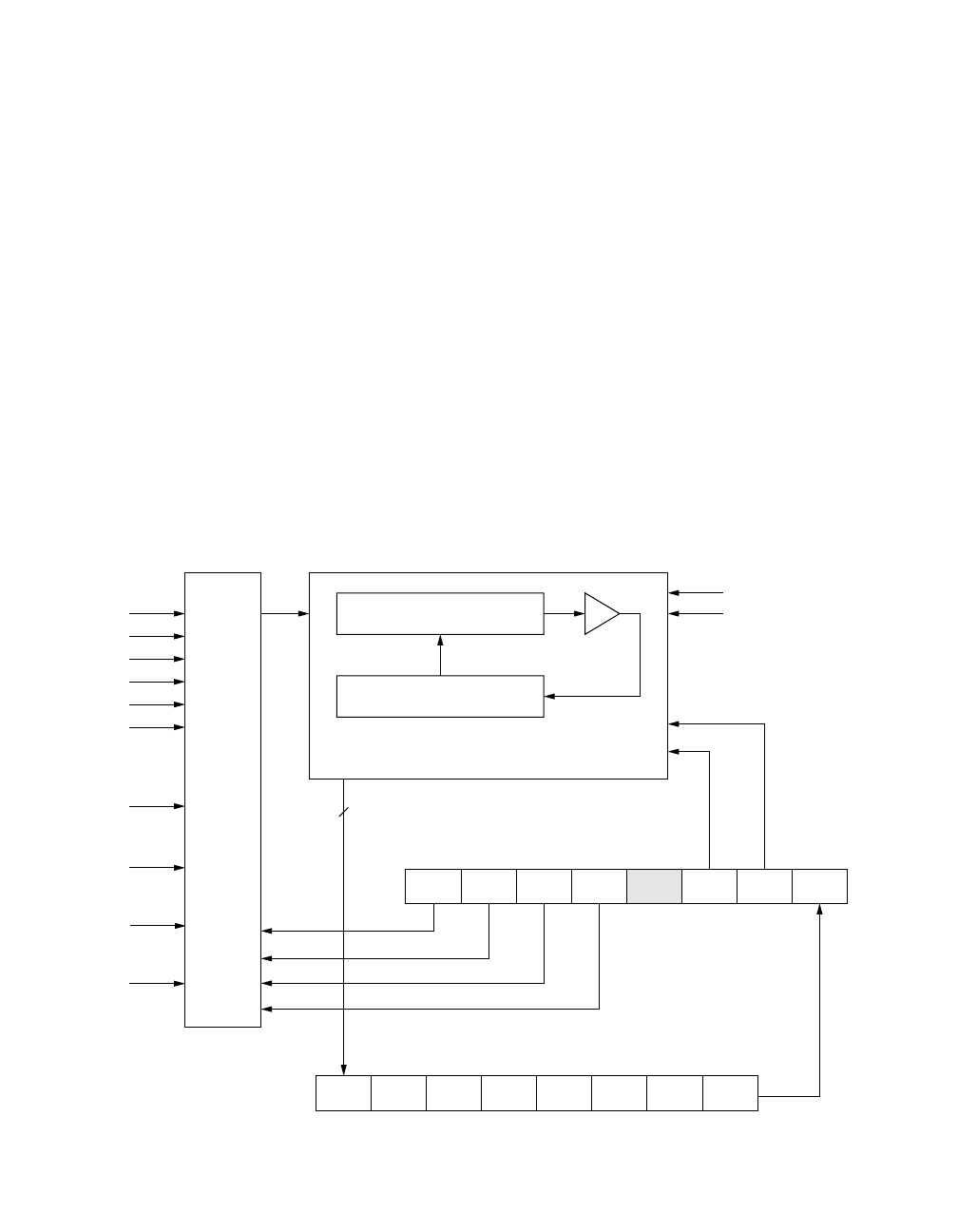

11-1 ADC Converter Block Diagram ...................................................................... 11-1
11-2 A/D Status and Control Register.................................................................... 11-3
11-3 A/D Data Register .......................................................................................... 11-4
A-1 MC68HC705JB4 Memory Map ........................................................................A-2
A-2 EPROM Programming Sequence ....................................................................A-4
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
LIST OF TABLES
Table Title Page
4-1 Reset/Interrupt Vector Addresses.................................................................... 4-1
8-1 RTI and COP Rates at f
OP
=3.0MHz................................................................ 8-2
10-1 Supported Packet Identifiers.......................................................................... 10-5
10-2 Register Summary ....................................................................................... 10-17
11-1 A/D Channel Assignments ............................................................................. 11-4
12-1 Register/Memory Instructions ........................................................................ 12-4
12-2 Read-Modify-Write Instructions...................................................................... 12-5
12-3 Jump and Branch Instructions........................................................................ 12-6
12-4 Bit Manipulation Instructions .......................................................................... 12-7
12-5 Control Instructions ........................................................................................ 12-7
12-6 Instruction Set Summary............................................................................... 12-8
12-7 Opcode Map................................................................................................. 12-14
13-1 DC Electrical Characteristics.......................................................................... 13-2
13-2 USB DC Electrical Characteristics ................................................................. 13-3
13-3 USB Low Speed Source Electrical Characteristics........................................ 13-4
13-4 Control Timing................................................................................................ 13-5
A-1 EPROM Programming Electrical Characteristics.............................................A-5
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
LIST OF TABLES
Table Title Page
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
SECTION 1
GENERAL DESCRIPTION
The MC68HC05JB4 is a member of the low-cost, high-performance M68HC05
Family of 8-bit microcontroller units (MCUs). The M68HC05 Family is based on
the customer-specified integrated circuit (CSIC) design strategy. All MCUs in the
family use the popular M68HC05 central processing unit (CPU) and are available
with a variety of subsystems, memory sizes and types, and package types.
The MC68HC05JB4 is specifically designed to be used in applications where a
low speed (1.5Mbps) Universal Serial Bus (USB) interface is required.
1.1 FEATURES
• Industry standard M68HC05 CPU core
• Memory-mapped input/output (I/O) registers
• 3584 Bytes of user ROM
• 176 Bytes of user RAM (includes 64 byte stack)
• 19 Bidirectional I/O pins with the following added features:
– PA[0:7]: Software enable Internal pull-up resistor (50k
Ω
typical)
– PA[0:3]: Built-in schmitt triggered input level
– Maskable as extra input sources for IRQ interrupt
– Maskable Negative-Edge Only or Negative-Edge
– and Low-Level Interrupt Capability
– PA4: IRQ2 with built-in schmitt triggered input
– PA[5:7]: 10mA Sink output drive
– PA[6:7]: Maskable 10mA/25mA sink output drive
– Software enable Slow Edge Pull Down Devices
– PB[0:4]: Software enable Internal pull-up resistor (50k
Ω
typical)
– Software enable Slow Edge Pull Down Devices
– PB[0]: ICAP1 with built-in schmitt triggered input
– PB[3:4]: AD[4:5]
– PC[0:3]: AD[0:3]
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
• Fully compliant to Low Speed USB with 3 Endpoints:
– 1 Control Endpoint (2x8 byte buffer)
– 2 Interrupt Endpoints (1x8 byte buffer shared)
• 6-channel 8-bit Analog-to-Digital Converter (ADC)
• Multi-function Timer (MFT)
• 16-bit Timer with 1 input capture and 1 output compare
• Low Voltage Reset (LVR) Circuit
• Computer Operating Properly (COP) Watchdog Reset
• Provide a 3.3V
±
10% DC Voltage for USB pull-up resistor
• Fully Static Operation with no Minimum Clock Speed
• Illegal Address Reset
• Power-Saving STOP and WAIT Modes
• Available in 28-Pin PDIP and 28-Pin SOIC packages
1.2 MASK OPTIONS
The following mask options are available:
• Enable PA0 to PA3 as extra IRQ interrupt sources.
• External interrupt pins (IRQ, PA0 to PA3): negative edge-triggered or
negative edge- and low level-triggered.
• High current (25mA) output on PA6 and PA7.
• OSC: crystal/ceramic resonator start up delay, 4064 or 128 clock cycles.
• LVR: enabled or disabled.
• COP: enabled or disabled.
1.3 MCU STRUCTURE
Figure 1-1
shows the structure of MC68HC05JB4 MCU.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...

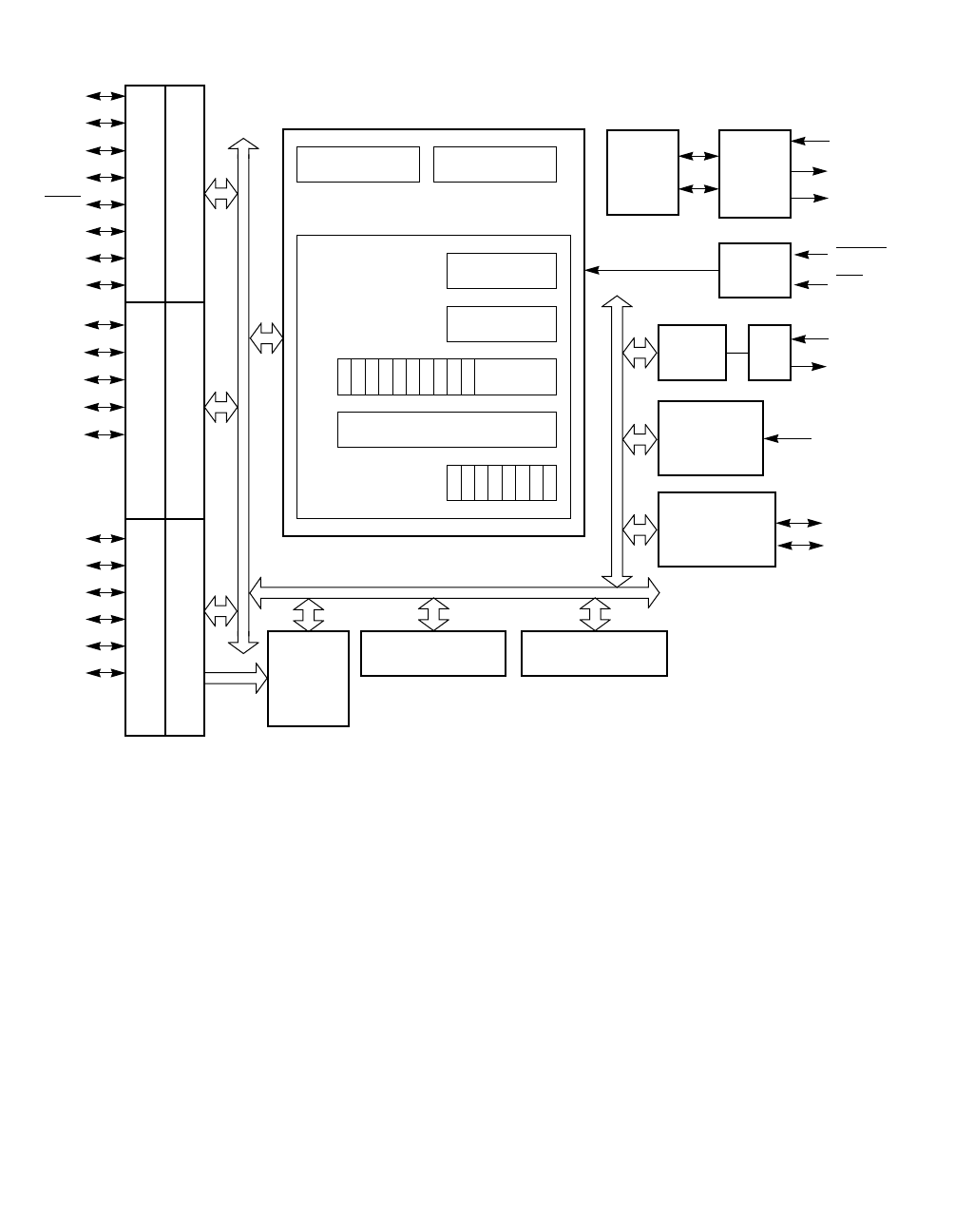

Figure 1-1. MC68HC05JB4 Block Diagram
COND CODE REG 1 1 1 I N Z CH
INDEX REG
CPU CONTROL
0 0 0 STK PNTR1100000
ALU
68HC05 CPU
ACCUM
PROGRAM COUNTER
CPU REGIS-
PA0
PA7
PA6
PA5
PA4/IRQ2
PA3
PA2
PA1
PB0/ICAP1
PB4/AD5
PB3/AD4
PB2
PB1 OSC 1
OSC 2
RESET
IRQ
(ICAP1)
D+
D–
VDD
VSS
V3.3
PC0/AD0
PC1/AD1
PC2/AD2
PC3/AD3
PC4/VRH
PC5/VRL 8-bit ADC
176 Bytes RAM 3584 bytes ROM
Low Speed
USB
16-bit Timer
Core
TImer OSC
÷2
RESET
and
IRQ
LVR
VREF POWER
SUPPLY
PORT A
DATA DIRECTION REG. A
PORT B
DATA DIRECTION REG. B
PORT C
DATA DIRECTION REG. C
shared with PB0
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...

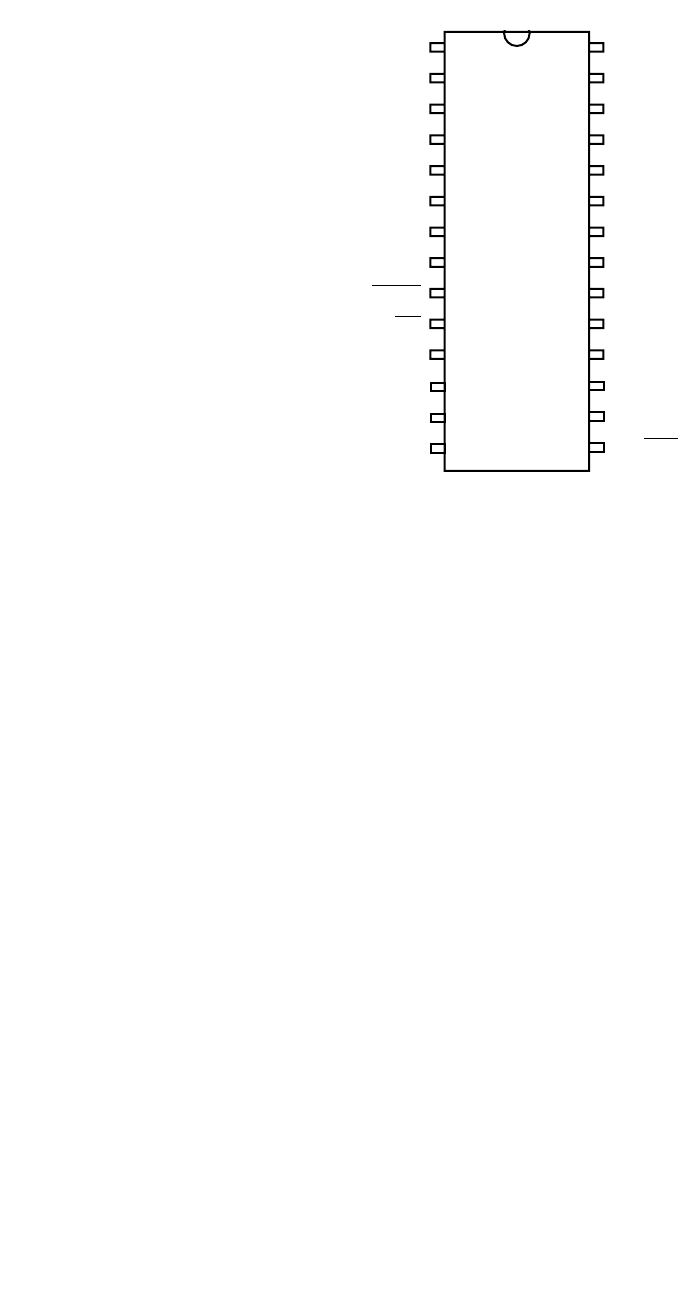

Figure 1-2. MC68HC05JB4 Pin Assignment
1.4 FUNCTIONAL PIN DESCRIPTION
The following paragraphs give a description of the general function of each pin
assigned in Fig. 1-2 and Fig. 1-3.
1.4.1 V
DD
AND V
SS
Power is supplied to the MCU through V
DD
and V
SS
. V
DD
is the positive supply,
and V
SS
is ground. The MCU operates from a single power supply.
Very fast signal transitions occur on the MCU pins. The short rise and fall times
place very high short-duration current demands on the power supply. To prevent
noise problems, special care should be taken to provide good power supply
bypassing at the MCU by using bypass capacitors with good high-frequency char-
acteristics that are positioned as close to the MCU as possible. Bypassing
requirements vary, depending on how heavily the MCU pins are loaded.
1.4.2 OSC1, OSC2
The OSC1 and OSC2 pins are the connections for the on-chip oscillator. The
OSC1 and OSC2 pins can accept the following sets of components:
1. A crystal as shown in
Figure 1-3
(a)
2. A ceramic resonator as shown in
Figure 1-3
(a)
3. An external clock signal as shown in
Figure 1-3
(b)
The frequency, f
OSC
, of the oscillator or external clock source is divided by two to
produce the internal operating frequency, f
OP
. If the internal operating frequency is
3MHz, then the external oscillator frequency will be 6MHz. For LS USB 1.5MHz
28
27
26
25
24
23
22
21
20
19
18
1
2
3
4
5
6
7
8
9
10
11
PA5
VSS
PA4/IRQ2
IRQ
PA6
PB2
RESET
OSC1
OSC2
PB3/AD4
PB4/AD5
PC0/AD0
PC2/AD2
PC1/AD1 PC4/VRH
PC5/VRL
3.3V
12
13
14
PA2
PA3
17
16
15
D+
D–
VDD
PC3/AD3
PA1
PA0 PA7
PB1
PB0/ICAP1
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
frequency clock can be derived from a divided by 4 circuit. The type of oscillator is
selected by a mask option. An internal 2M
Ω
resistor may be selected between
OSC1 and OSC2 by a mask option (crystal/ceramic resonator mode only).
Crystal Oscillator
The circuit in
Figure 1-3
(a) shows a typical oscillator circuit for an AT-cut, parallel
resonant crystal. The crystal manufacturer’s recommendations should be fol-
lowed, as the crystal parameters determine the external component values
required to provide maximum stability and reliable start-up. The load capacitance
values used in the oscillator circuit design should include all stray capacitances.
The crystal and components should be mounted as close as possible to the pins
for start-up stabilization and to minimize output distortion. An internal start-up
resistor of approximately 2 M
Ω
is provided between OSC1 and OSC2 for the crys-
tal type oscillator as a mask option.

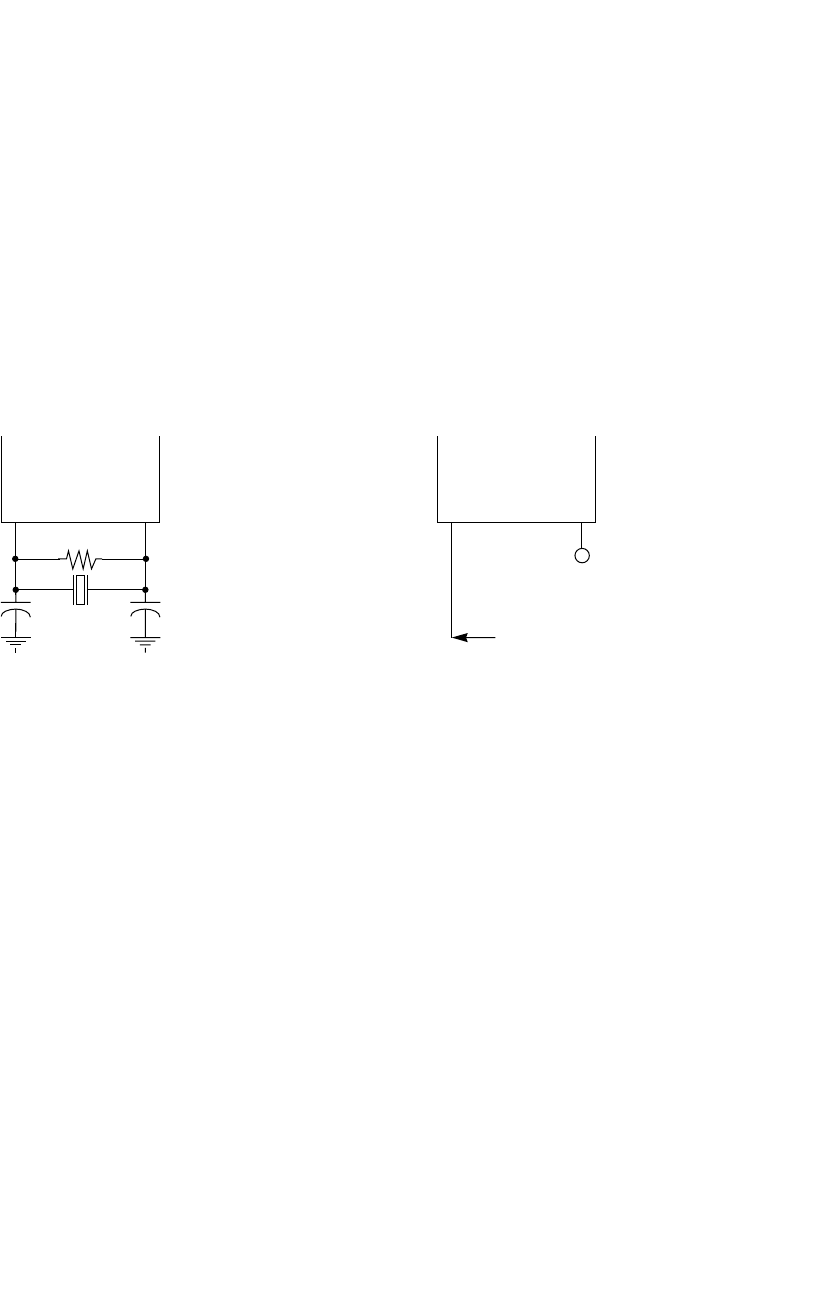

Figure 1-3. Oscillator Connections
Ceramic Resonator Oscillator
In cost-sensitive applications, a ceramic resonator can be used in place of the
crystal. The circuit in
Figure 1-3
(a) can be used for a ceramic resonator. The res-
onator manufacturer’s recommendations should be followed, as the resonator
parameters determine the external component values required for maximum sta-
bility and reliable starting. The load capacitance values used in the oscillator cir-
cuit design should include all stray capacitances. The ceramic resonator and
components should be mounted as close as possible to the pins for start-up stabi-
lization and to minimize output distortion. An internal start-up resistor of approxi-
mately 2 M
Ω
is provided between OSC1 and OSC2 for the ceramic resonator type
oscillator as a mask option.
External Clock
An external clock from another CMOS-compatible device can be connected to the
OSC1 input, with the OSC2 input not connected, as shown in
Figure 1-3
(b).This
configuration is possible ONLY when the crystal/ceramic resonator mask option is
selected.
MCU
OSC1 OSC2
2M
Ω
Unconnected
External Clock
MCU
OSC1 OSC2
(a) Crystal or Ceramic Resonator Connections (b) External Clock Source Connection
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
1.4.3 RESET
This is an I/O pin. This pin can be used as an input to reset the MCU to a known
start-up state by pulling it to the low state. The RESET pin contains a steering
diode to discharge any voltage on the pin to V
DD
, when the power is removed. An
internal pull-up is also connected between this pin and V
DD
. The RESET pin con-
tains an internal Schmitt trigger to improve its noise immunity as an input. This pin
is an output pin if LVR triggers an internal reset.
1.4.4 IRQ (MASKABLE INTERRUPT REQUEST)
This input pin drives the asynchronous IRQ interrupt function of the CPU. The IRQ
interrupt function has a mask option to provide either only negative edge-sensitive
triggering or both negative edge-sensitive and low level-sensitive triggering. If the
option is selected to include level-sensitive triggering, the IRQ input requires an
external resistor to V
DD
for "wired-OR" operation, if desired. The IRQ pin contains
an internal Schmitt trigger as part of its input to improve noise immunity.
NOTE
Each of the PA0 thru PA3 I/O pins may be connected as an OR function with the
IRQ interrupt function by a mask option. This capability allows keyboard scan
applications where the transitions or levels on the I/O pins will behave the same
as the IRQ pin. The edge or level sensitivity selected by a separate mask option
for the IRQ pin also applies to the I/O pins OR’ed to create the IRQ signal.
1.4.5 V3.3
This is an output reference voltage nominally set at 3.3 volt DC.
1.4.6 D+ and D–
These two lines carry the USB differential data. For low speed device such as
MC68HC05JB4, a 1.5 k
Ω
resistor is required to be connected across D– and 3.3V
for proper signal termination.
1.4.7 PA0-PA7
These eight I/O lines comprise Port-A. PA0 to PA7 are push-pull pins with internal
pull-up resistors. The state of any pin is software programmable and all Port A
lines are configured as inputs during power-on or reset. The internal pull-up resis-
tor on PA0-4 is software enable. The PA0 thru PA3 can be connected via an inter-
nal NAND gate to the IRQ interrupt function enabled by a mask option. PA5 thru
PA7 has built in 10mA pull-down device for direct LED drive. In addition, PA6 and
PA7 both have Slow Falling Edge Control which is enabled by software and can
sink 25mA current selectable by mask option. PA0 thru PA4 have built-in schmitt
triggered input. PA4 can be used as an extra interrupt pin (IRQ2) when IRQ2 inter-
rupt is enabled.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
1.4.8 PB0-PB4
These five I/O lines comprise Port-B. PB0 to PB4 are push-pull pins with internal
pull-up resistors. The state of any pin is software programmable and all Port B
lines are configured as inputs during power-on or reset. The internal pull-up resis-
tor is software enable. In addition, all Port-B pins have Slow Falling Edge Control
which is enabled by software. PB0 can be used as the input capture pin when the
input capture function is enabled on the 16-bit Timer. PB0 has built-in schmitt trig-
gered input. When the ADC function is enabled, PB3 and PB4 can be used as
extra two analog input channels (AD4 and AD5 respectively) to the ADC.
1.4.9 PC0-PC5
These six I/O lines comprise Port-C. PC0 to PC5 are push-pull pins. The state of
any pin is software programmable and all Port C lines are configured as inputs
during power-on or reset. When the ADC function is enabled, PC0 thru PC3
become the four analog input channels to the ADC and PC4 and PC5 become the
analog “High” and “Low” reference voltages to the ADC respectively.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
SECTION 2
MEMORY
The MC68HC05JB4 has 8k-bytes of addressable memory, with 64 bytes of I/O,
176 bytes of user RAM, and 3584 bytes of user ROM, as shown in
Figure 2-1
.
Figure 2-1. MC68HC05JB4 Memory Map
$1FF7
$1FF8
$1FF9
$1FFA
$1FFB
$1FFC
$1FFD
$1FFE
$1FFF
$003F
$0000
$1FF6
$1FF3
$1FF4
$1FF5
$1FF2
$1FF1
Reserved
USB Vector (Low Byte)
Timer1 Vector (Low Byte)
USB Vector (High Byte)
Timer1 Vector (High Byte)
MFT Vector (Low Byte)
MFT Vector (High Byte)
Reserved
$1FF0
Reserved
Reserved
IRQ/IRQ2 Vector (High Byte)
IRQ/IRQ2 Vector (Low Byte)
SWI Vector (High Byte)
SWI Vector (Low Byte)
Reset Vector (High Byte)
Reset Vector (Low Byte)
I/O Registers
64 Bytes
I/O Registers
64 Bytes
$0000
$003F
$0040
$007F
Unused
64 Bytes
User RAM
176 Bytes
64 Byte Stack
$0080
$00C0
$00FF
$012F
$0130
$0FFF
Unused
3792 Bytes
$1000
$1DFF
$1E00
$1FEF
User ROM
3584 Bytes
Self-Check ROM
496 Bytes
User Vectors
16 Bytes
$1FF0
$1FFF
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
2.1 I/O AND CONTROL REGISTERS
The I/O and Control Registers reside in locations $0000 to $003F. The bit assign-
ments for each register are shown in
Figure 2-2
,
Figure 2-3
,
Figure 2-4
, and
Figure 2-5
. Reading from unused bits will return unknown states, and writing to
unused bits will be ignored.
2.2 RAM
The user RAM consists of 176 bytes (including the stack) at locations $0080 to
$012F. The stack begins at address $00FF and proceeds down to $00C0. Using
the stack area for data storage or temporary work locations requires care to pre-
vent it from being overwritten due to stacking from an interrupt or subroutine call.
2.3 ROM
There are a total of 4k bytes of ROM on chip. This includes 3584 bytes of user
ROM with locations $1000 to $1DFF for user program storage and 16 bytes for
user vectors at locations $1FF0 to $1FFF. Also, 496 bytes of Self-check ROM on
chip at locations $1E00 to $1FEF.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
2.4 I/O REGISTERS SUMMARY
ADDR REGISTER R/W BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
$0000 Port A Data R PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0
PORTA W
$0001 Port B Data R 0 0 0 PB4 PB3 PB2 PB1 PB0
PORTB W
$0002 Port C Data R 0 0 PC5 PC4 PC3 PC2 PC1 PC0
PORTC W
$0003 Unused R
W
$0004 Port A Data Direction R DDRA7 DDRA6 DDRA5 DDRA4 DDRA3 DDRA2 DDRA1 DDRA0
DDRA W
$0005 Port B Data Direction R SLOWEASLOWEB 0DDRB4 DDRB3 DDRB2 DDRB1 DDRB0
DDRB W
$0006 Port C Data Direction R 0 0 DDRC5 DDRC4 DDRC3 DDRC2 DDRC1 DDRC0
DDRC W
$0007 Unused R
W
$0008 MFT Ctrl/Status R TOF RTIF TOFE RTIE 00
RT1 RT0
TCSR W TOFR RTIFR
$0009 MFT Counter R TMR7 TMR6 TMR5 TMR4 TMR3 TMR2 TMR1 TMR0
TCNT W
$000A IRQ Control/Status R IRQE IRQ2E 0 0 IRQF IRQ2F 0 0
ICSR W IRQR IRQ2R
$000B Unused R
W
$000C Unused R
W
$000D Unused R
W
$000E ADC Control/Status R COCO ADRC ADON 0CH3 CH2 CH1 CH0
ADSCR W
$000F ADC Data R ADDR7 ADDR6 ADDR5 ADDR4 ADDR3 ADDR2 ADDR1 ADDR0
ADDR W
unused bits reserved bits
Figure 2-2. MC68HC05JB4 I/O Registers $0000-$000F
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
MEMORY
REV
ADDR REGISTER R/W BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
$0010 Port A Pull-Up R
PURA W PURA7 PURA6 PURA5 PURA4 PURA3 PURA2 PURA1 PURA0
$0011 Port B Pull-Up R
PURB W PURB4 PURB3 PURB2 PURB1 PURB0
$0012 Timer1 Control R ICIE OCIE TOIE 000
IEDG 0
TCR W
$0013 Timer1 Status R ICF OCF TOF 00000
TSR W
$0014 Input Capture MSB R ICH7 ICH6 ICH5 ICH4 ICH3 ICH2 ICH1 ICH0
ICH W
$0015 Input Capture LSB R ICL7 ICL6 ICL5 ICL4 ICL3 ICL2 ICL1 ICL0
ICL W
$0016 Output Compare MSB R OCH7 OCH6 OCH5 OCH4 OCH3 OCH2 OCH1 OCH0
OCH W
$0017 Output Compare LSB R OCL7 OCL6 OCL5 OCL4 OCL3 OCL2 OCL1 OCL0
OCL W
$0018 Timer1 Counter MSB R TCNTH7 TCNTH6 TCNTH5 TCNTH4 TCNTH3 TCNTH2 TCNTH1 TCNTH0
TCNTH W
$0019 Timer1 Counter LSB R TCNTL7 TCNTL6 TCNTL5 TCNTL4 TCNTL3 TCNTL2 TCNTL1 TCNTL0
TCNTL W
$001A Alter. Counter MSB R ACNTH7 ACNTH6 ACNTH5 ACNTH4 ACNTH3 ACNTH2 ACNTH1 ACNTH0
ACNTH W
$001B Alter. Counter LSB R ACNTL7 ACNTL6 ACNTL5 ACNTL4 ACNTL3 ACNTL2 ACNTL1 ACNTL0
ACNTL W
$001C Unused R
W
$001D Unused R
W
$001E Unused R
W
$001F Unused R
W
unused bits reserved bits
Figure 2-3. MC68HC05JB4 I/O Registers $0010-$001F
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 MEMORY
REV 2
ADDR REGISTER R/W BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
$0020 USB Endpoint 0 Data 0 R UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0
UD0R0 W UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
$0021 USB Endpoint 0 Data 1 R UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0
UD0R1 W UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
$0022 USB Endpoint 0 Data 2 R UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0
UD0R2 W UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
$0023 USB Endpoint 0 Data 3 R UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0
UD0R3 W UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
$0024 USB Endpoint 0 Data 4 R UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0
UD0R4 W UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
$0025 USB Endpoint 0 Data 5 R UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0
UD0R5 W UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
$0026 USB Endpoint 0 Data 6 R UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0
UD0R6 W UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
$0027 USB Endpoint 0 Data 7 R UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0
UD0R7 W UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
$0028 USB Endpoint 1 Data 0 R UE1RD7 UE1RD6 UE1RD5 UE1RD4 UE1RD3 UE1RD2 UE1RD1 UE1RD0
UD1R0 W UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
$0029 USB Endpoint 1 Data 1 R UE1RD7 UE1RD6 UE1RD5 UE1RD4 UE1RD3 UE1RD2 UE1RD1 UE1RD0
UD1R1 W UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
$002A USB Endpoint 1 Data 2 R UE1RD7 UE1RD6 UE1RD5 UE1RD4 UE1RD3 UE1RD2 UE1RD1 UE1RD0
UD1R2 W UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
$002B USB Endpoint 1 Data 3 R UE1RD7 UE1RD6 UE1RD5 UE1RD4 UE1RD3 UE1RD2 UE1RD1 UE1RD0
UD1R3 W UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
$002C USB Endpoint 1 Data 4 R UE1RD7 UE1RD6 UE1RD5 UE1RD4 UE1RD3 UE1RD2 UE1RD1 UE1RD0
UD1R4 W UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
$002D USB Endpoint 1 Data 5 R UE1RD7 UE1RD6 UE1RD5 UE1RD4 UE1RD3 UE1RD2 UE1RD1 UE1RD0
UD1R5 W UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
$002E USB Endpoint 1 Data 6 R UE1RD7 UE1RD6 UE1RD5 UE1RD4 UE1RD3 UE1RD2 UE1RD1 UE1RD0
UD1R6 W UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
$002F USB Endpoint 1 Data 7 R UE1RD7 UE1RD6 UE1RD5 UE1RD4 UE1RD3 UE1RD2 UE1RD1 UE1RD0
UD1R7 W UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
unused bits reserved bits
Figure 2-4. MC68HC05JB4 I/O Registers $0020-$002F
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
MEMORY
REV
ADDR REGISTER R/W BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
$0030 Unused R
W
$0031 Unused R
W
$0032 Unused R
W
$0033 Unused R
W
$0034 Unused R
W
$0035 Unused R
W
$0036 Unused R
W
$0037 USB Control 2 R 0TX1ST ENABLE2 ENABLE1 STALL2 STALL1
UCR2 W TX1STR
$0038 USB Address R USBEN UADD6 UADD5 UADD4 UADD3 UADD2 UADD1 UADD0
UADR W
$0039 USB Interrupt 0 R TXD0F RXD0F RSTF SUSPND TXD0IE RXD0IE 00
UIR0 W 0 0 0 TXD0FR RXD0FR
$003A USB Interrupt 1 R TXD1F RXD1F RESUMF 0 TXD1IE EOPIE 00
UIR1 W 0 0 0 RESUMFR TXD1FR EOPFR
$003B USB Control 0 R T0SEQ STALL0 TX0E RX0E TP0SIZ3 TP0SIZ2 TP0SIZ1 TP0SIZ0
UCR0 W
$003C USB Control 1 R T1SEQ ENDADD TX1E FRESUM TP1SIZ3 TP1SIZ2 TP1SIZ1 TP1SIZ0
UCR1 W
$003D USB Status R RSEQ SETUP RPSIZ3 RPSIZ2 RPSIZ1 RPSIZ0
USR W
$003E Reserved R
W
$003F Reserved R
W
unused bits reserved bits
Figure 2-5. MC68HC05JB4 I/O Registers $0030-$003F
ADDR REGISTER R/W BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
$1FF0 COP Register R 00000000
COPR W COPR
Figure 2-6. COP Register (COPR)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 CENTRAL PROCESSING UNIT
REV 2
SECTION 3
CENTRAL PROCESSING UNIT
The MC68HC05JB4 has an 8k-bytes memory map. The stack has only 64 bytes.
Therefore, the stack pointer has been reduced to only 6 bits and will only
decrement down to $00C0 and then wrap-around to $00FF. All other instructions
and registers behave as described in this chapter.
3.1 REGISTERS
The MCU contains five registers which are hard-wired within the CPU and are not
part of the memory map. These five registers are shown in Figure 3-1 and are
described in the following paragraphs.
Figure 3-1. MC68HC05 Programming Model
CONDITION CODE REGISTER I
ACCUMULATOR
60
A
INDEX REGISTER
71
X
4523
STACK POINTER SP
14 815 91213 1011
PC
CC111
1100000000
PROGRAM COUNTER
H NZC
HALF-CARRY BIT (FROM BIT 3)
INTERRUPT MASK
NEGATIVE BIT
ZERO BIT
CARRY BIT
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
CENTRAL PROCESSING UNIT
REV
3.2 ACCUMULATOR (A)
The accumulator is a general purpose 8-bit register as shown in Figure 3-1. The
CPU uses the accumulator to hold operands and results of arithmetic calculations
or non-arithmetic operations. The accumulator is not affected by a reset of the
device.
3.3 INDEX REGISTER (X)
The index register shown in Figure 3-1 is an 8-bit register that can perform two
functions:
• Indexed addressing
• Temporary storage
In indexed addressing with no offset, the index register contains the low byte of
the operand address, and the high byte is assumed to be $00. In indexed
addressing with an 8-bit offset, the CPU finds the operand address by adding the
index register content to an 8-bit immediate value. In indexed addressing with a
16-bit offset, the CPU finds the operand address by adding the index register
content to a 16-bit immediate value.
The index register can also serve as an auxiliary accumulator for temporary
storage. The index register is not affected by a reset of the device.
3.4 STACK POINTER (SP)
The stack pointer shown in Figure 3-1 is a 16-bit register. In MCU devices with
memory space less than 64k-bytes the unimplemented upper address lines are
ignored. The stack pointer contains the address of the next free location on the
stack. During a reset or the reset stack pointer (RSP) instruction, the stack pointer
is set to $00FF. The stack pointer is then decremented as data is pushed onto the
stack and incremented as data is pulled off the stack.
When accessing memory, the ten most significant bits are permanently set to
0000000011. The six least significant register bits are appended to these ten fixed
bits to produce an address within the range of $00FF to $00C0. Subroutines and
interrupts may use up to 64($C0) locations. If 64 locations are exceeded, the
stack pointer wraps around and overwrites the previously stored information. A
subroutine call occupies two locations on the stack and an interrupt uses five
locations.
3.5 PROGRAM COUNTER (PC)
The program counter shown in Figure 3-1 is a 16-bit register. In MCU devices
with memory space less than 64k-bytes the unimplemented upper address lines
are ignored. The program counter contains the address of the next instruction or
operand to be fetched.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 CENTRAL PROCESSING UNIT
REV 2
Normally, the address in the program counter increments to the next sequential
memory location every time an instruction or operand is fetched. Jump, branch,
and interrupt operations load the program counter with an address other than that
of the next sequential location.
3.6 CONDITION CODE REGISTER (CCR)
The CCR shown in Figure 3-1 is a 5-bit register in which four bits are used to
indicate the results of the instruction just executed. The fifth bit is the interrupt
mask. These bits can be individually tested by a program, and specific actions can
be taken as a result of their states. The condition code register should be thought
of as having three additional upper bits that are always ones. Only the interrupt
mask is affected by a reset of the device. The following paragraphs explain the
functions of the lower five bits of the condition code register.
3.6.1 Half Carry Bit (H-Bit)
When the half-carry bit is set, it means that a carry occurred between bits 3 and 4
of the accumulator during the last ADD or ADC (add with carry) operation. The
half-carry bit is required for binary-coded decimal (BCD) arithmetic operations.
3.6.2 Interrupt Mask (I-Bit)
When the interrupt mask is set, the internal and external interrupts are disabled.
Interrupts are enabled when the interrupt mask is cleared. When an interrupt
occurs, the interrupt mask is automatically set after the CPU registers are saved
on the stack, but before the interrupt vector is fetched. If an interrupt request
occurs while the interrupt mask is set, the interrupt request is latched. Normally,
the interrupt is processed as soon as the interrupt mask is cleared.
A return from interrupt (RTI) instruction pulls the CPU registers from the stack,
restoring the interrupt mask to its state before the interrupt was encountered. After
any reset, the interrupt mask is set and can only be cleared by the Clear I-Bit
(CLI), or WAIT instructions.
3.6.3 Negative Bit (N-Bit)
The negative bit is set when the result of the last arithmetic operation, logical
operation, or data manipulation was negative. (Bit 7 of the result was a logical
one.)
The negative bit can also be used to check an often tested flag by assigning the
flag to bit 7 of a register or memory location. Loading the accumulator with the
contents of that register or location then sets or clears the negative bit according
to the state of the flag.
3.6.4 Zero Bit (Z-Bit)
The zero bit is set when the result of the last arithmetic operation, logical
operation, data manipulation, or data load operation was zero.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
CENTRAL PROCESSING UNIT
REV
3.6.5 Carry/Borrow Bit (C-Bit)
The carry/borrow bit is set when a carry out of bit 7 of the accumulator occurred
during the last arithmetic operation, logical operation, or data manipulation. The
carry/borrow bit is also set or cleared during bit test and branch instructions and
during shifts and rotates. This bit is neither set by an INC nor by a DEC instruction.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INTERRUPTS
REV 2
SECTION 4
INTERRUPTS
The MCU can be interrupted in seven different ways:
• Non-maskable Software Interrupt Instruction (SWI)
• External Asynchronous Interrupt (IRQ)
• External Asynchronous Interrupt (IRQ2)
• Optional External Interrupt via IRQ on PA0-PA3 (by a mask option)
• USB Interrupt
• Timer1 Interrupt (16-bit Timer)
• Multi-Function Timer Interrupt
4.1 INTERRUPT VECTORS
Table 4-1. Reset/Interrupt Vector Addresses
Function Source Control
Bit
Global
Hardware
Mask
Local
Software
Mask
Priority
(1 = Highest) Vector
Address
Reset
Power-On Logic
RESET Pin
Low Voltage Reset
Illegal Address Reset — — — 1 $1FFE–$1FFF
COP Watchdog
Software
Interrupt (SWI) User Code — — — Same Priority
As Instruction $1FFC–$1FFD
External
Interrupt (IRQ) IRQ Pin
IRQ2 Pin — I Bit IRQE Bit
IRQ2E Bit 2 $1FFA–$1FFB
USB
Interrupts
TXD0F
TXD1F
RESUMP — I Bit TXD0IE
TXD1IE
—3 $1FF8–$1FF9
Timer1
Interrupts
ICF Bit
OCF Bit
TOF Bit — I Bit ICIE Bit
OCIE Bit
TOIE Bit 4 $1FF6–$1FF7
MFT
Interrupts TOF Bit
RTIF — I Bit TOFE Bit
RTIE Bit 5 $1FF4–$1FF5
Reserved
$1FF2–$1FF3
Reserved
$1FF0–$1FF1
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INTERRUPTS
REV
NOTE
If more than one interrupt request is pending, the CPU fetches the vector of the
higher priority interrupt first. A higher priority interrupt does not actually interrupt a
lower priority interrupt service routine unless the lower priority interrupt service
routine clears the I bit.
4.2 INTERRUPT PROCESSING
The CPU does the following actions to begin servicing an interrupt:
• Stores the CPU registers on the stack in the order shown in Figure 4-1.
• Sets the I bit in the condition code register to prevent further interrupts.
• Loads the program counter with the contents of the appropriate interrupt
vector locations as shown in Table 4-1.
The return from interrupt (RTI) instruction causes the CPU to recover its register
contents from the stack as shown in Figure 4-1. The sequence of events caused
by an interrupt are shown in the flow chart in Figure 4-2.
$0020 (BOTTOM OF RAM)
$0021
$00BE
$00BF
$00C0 (BOTTOM OF STACK)
$00C1
$00C2 UNSTACKING
ORDER
⇓
n CONDITION CODE REGISTER 5 1
n+1 ACCUMULATOR 4 2
n+2 INDEX REGISTER 3 3
n+3 PROGRAM COUNTER (HIGH BYTE) 2 4
n+4 PROGRAM COUNTER (LOW BYTE) 1 5
⇑
STACKING
$00FD ORDER
$00FE
$00FF TOP OF STACK (RAM)
Figure 4-1. Interrupt Stacking Order
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INTERRUPTS
REV 2
I

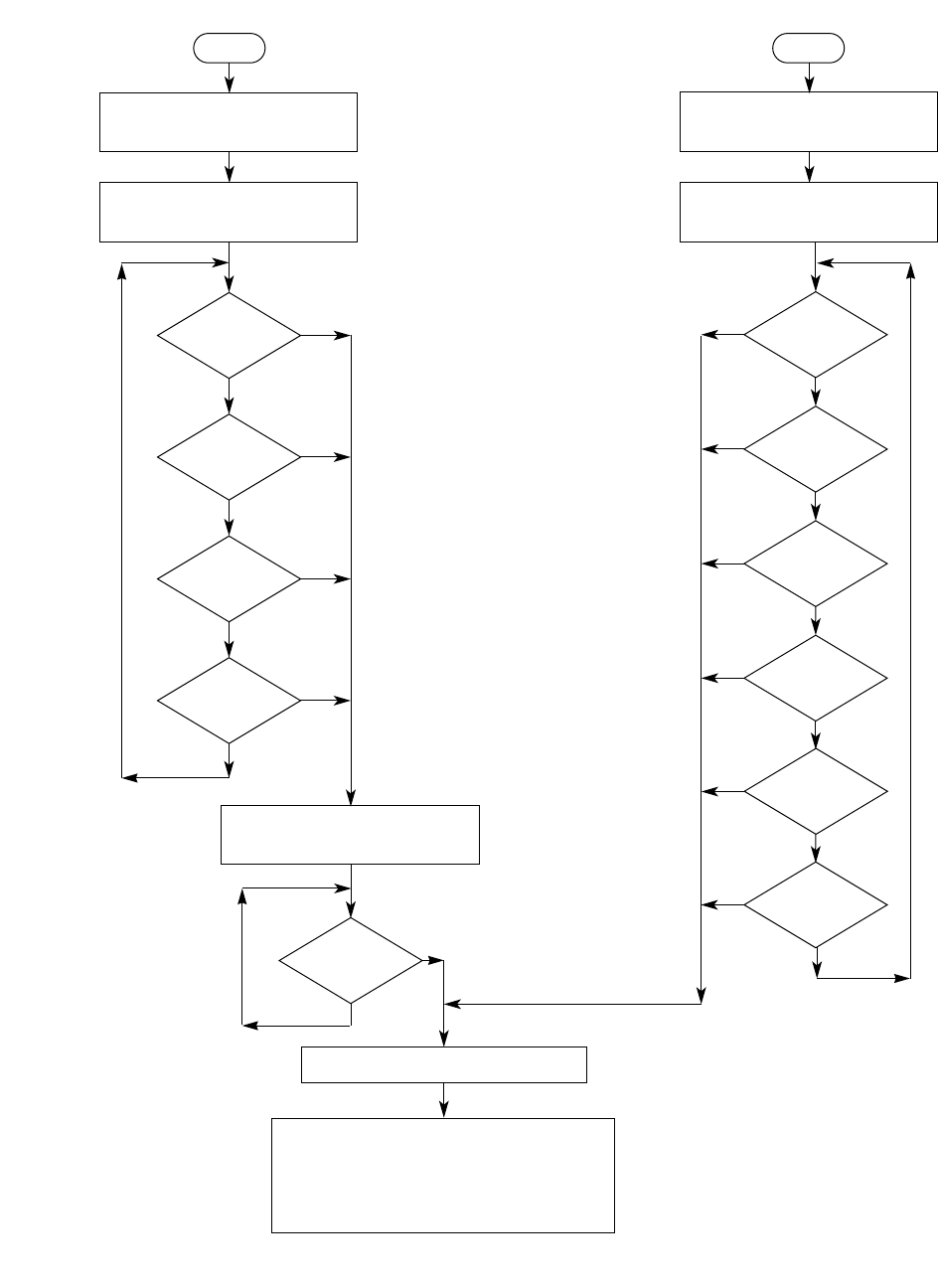

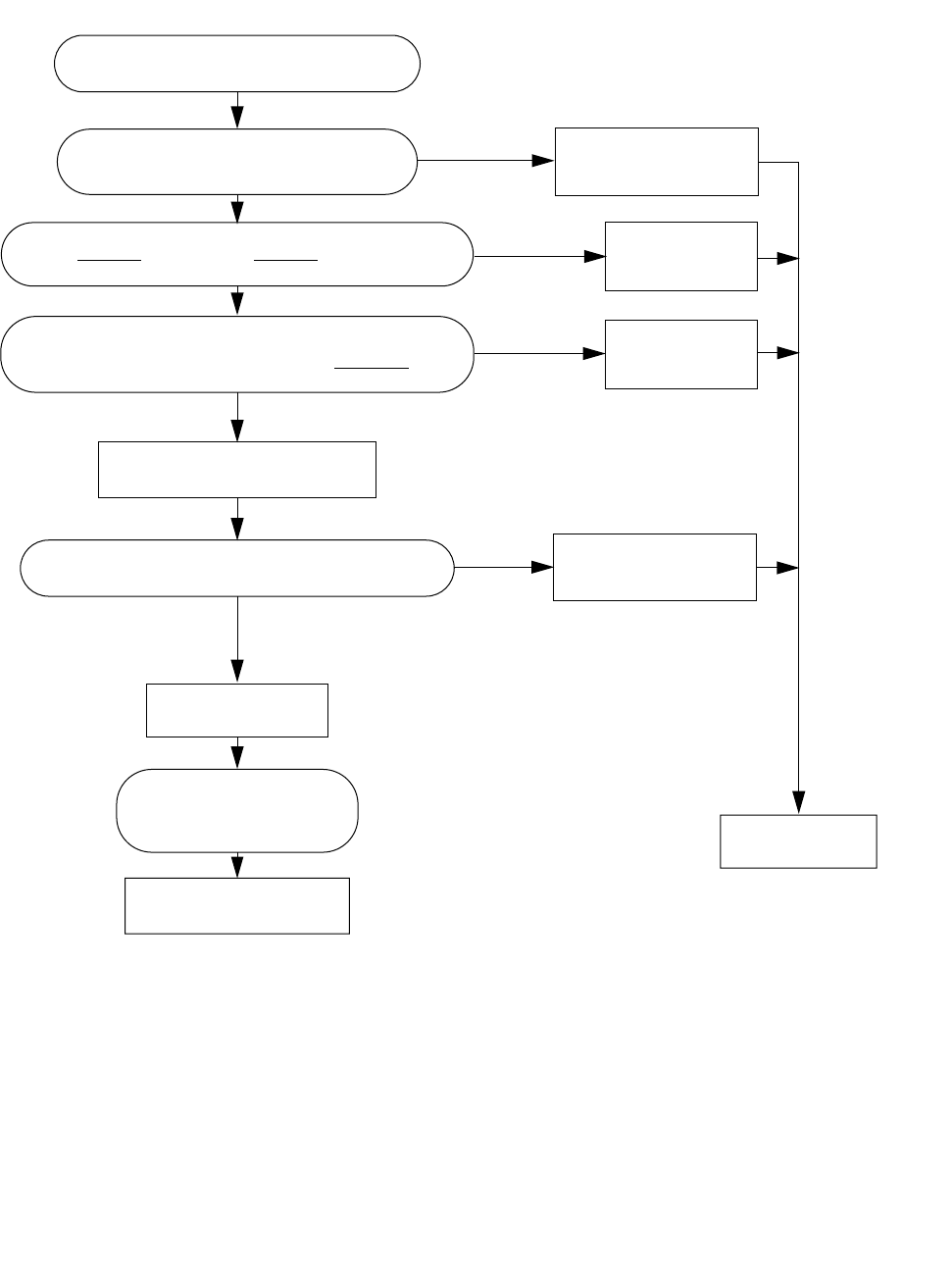

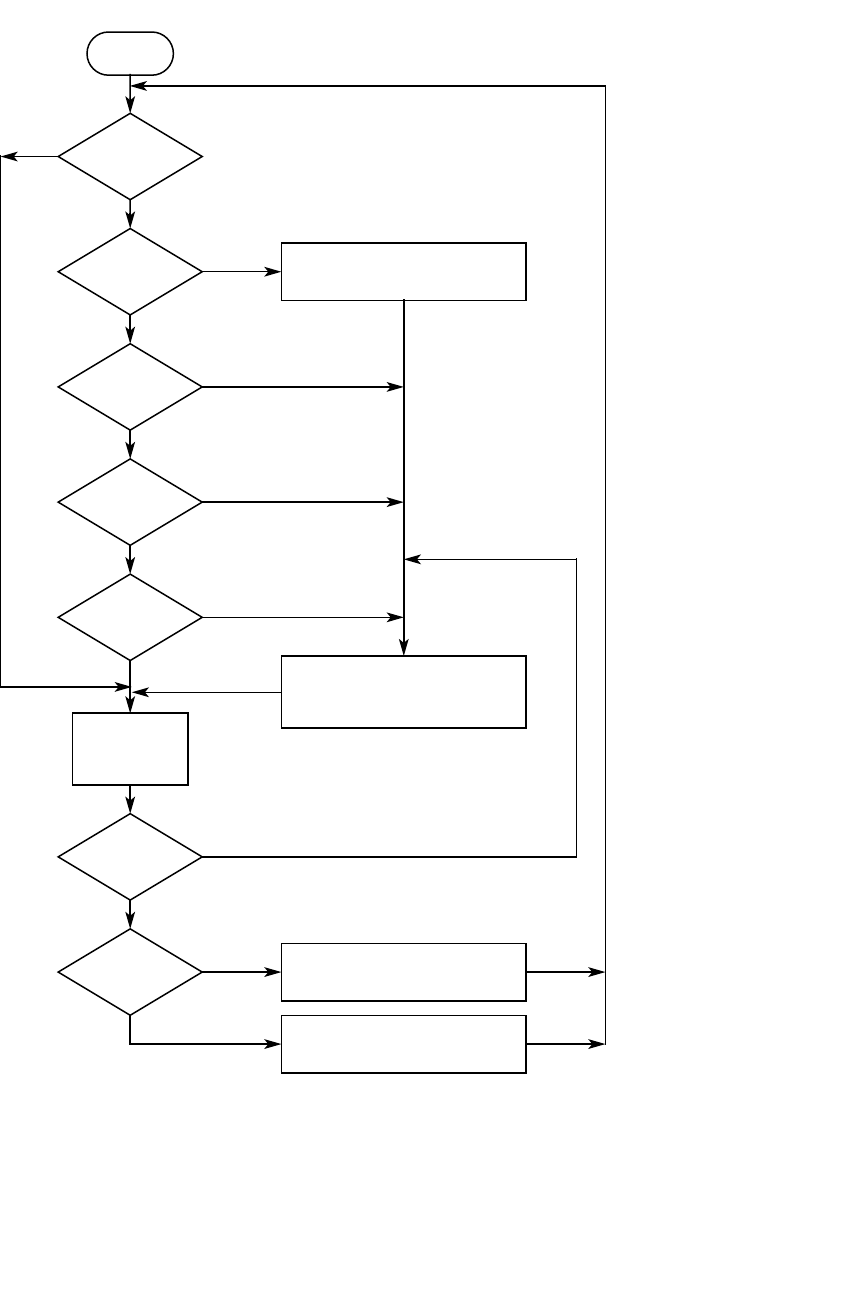

Figure 4-2. Interrupt Flowchart
NO
EXTERNAL
INTERRUPT?
I BIT SET?
FROM
RESET
YES
YES CLEAR IRQ LATCH.
NO
EXECUTE INSTRUCTION.
UNSTACK CCR, A, X, PCH, PCL.
FETCH NEXT
INSTRUCTION.
STACK PCL, PCH, X, A, CCR.
SET I BIT.
LOAD PC WITH INTERRUPT VECTOR.
USB
INTERRUPT? YES
NO
TIMER1
INTERRUPT? YES
NO
MFT
INTERRUPT? YES
NO
SWI
INSTRUCTION? YES
NO
RTI
INSTRUCTION? YES
NO
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INTERRUPTS
REV
4.3 RESET INTERRUPT SEQUENCE
The RESET function is not in the strictest sense an interrupt; however, it is acted
upon in a similar manner as shown in Figure 4-2. A low level input on the RESET
pin or an internally generated RST signal causes the program to vector to its start-
ing address which is specified by the contents of memory locations $1FFE and
$1FFF. The I-bit in the condition code register is also set.
4.4 SOFTWARE INTERRUPT (SWI)
The SWI is an executable instruction and a non-maskable interrupt since it is exe-
cuted regardless of the state of the I-bit in the CCR. As with any instruction, inter-
rupts pending during the previous instruction will be serviced before the SWI
opcode is fetched. The interrupt service routine address is specified by the con-
tents of memory locations $1FFC and $1FFD.
4.5 HARDWARE INTERRUPTS
All hardware interrupts except RESET are maskable by the I-bit in the CCR. If the
I-bit is set, all hardware interrupts (internal and external) are disabled. Clearing
the I-bit enables the hardware interrupts. There are two types of hardware inter-
rupts which are explained in the following sections.
4.5.1 External Interrupt IRQ
The IRQ pin provides an asynchronous interrupt to the CPU. A block diagram of
the IRQ logic is shown in Figure 4-3.
The IRQ pin is one source of an IRQ interrupt and a mask option can also enable
the four lower Port A pins (PA0 to PA3) to act as other IRQ interrupt sources.
Refer to Figure 4-3 for the following descriptions. IRQ interrupt source comes
from IRQ latch. The IRQ latch will be set on the falling edge of the IRQ pin or on
any falling edge of PA0-3 pins if PA0-3 interrupts have been enabled. If ‘edge-only’
sensitivity is chosen by a mask option, only the IRQ latch output can activate an
IRQF flag which creates a request to the CPU to generate the IRQ interrupt
sequence. This makes the IRQ interrupt sensitive to the following cases:
1. Falling edge on the IRQ pin.
2. Falling edge on any PA0-PA3 pin with IRQ enabled (via mask option).
If level sensitivity is chosen, the active high state of the signal to the clock input of
the IRQ latch can also activate an IRQF flag which creates an IRQ request to the
CPU to generate the IRQ interrupt sequence. This makes the IRQ interrupt sensi-
tive to the following cases:
1. Low level on the IRQ pin.
2. Falling edge on the IRQ pin.
3. Low level on any PA0- PA3 pin with IRQ enabled (via mask option).
4. Falling edge on any PA0- PA3 pin with IRQ enabled (via mask option).
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INTERRUPTS
REV 2
The IRQE enable bit controls whether an active IRQF flag can generate an IRQ
interrupt sequence. This interrupt is serviced by the interrupt service routine
located at the address specified by the contents of $1FFA and $1FFB.
If IRQF is set, the only way to clear this flag is by writing a logic one to the IRQR
acknowledge bit in the ICSR. As long as the output state of the IRQF flag bit is
active the CPU will continuously re-enter the IRQ interrupt sequence until the
active state is removed or the IRQE enable bit is cleared.
Figure 4-3. External Interrupt (IRQ) Logic
4.5.2 External Interrupt IRQ2
The IRQ2/PA4 pin provides an asynchronous interrupt to the CPU. When a nega-
tive-edge is detected by the schmitt trigger input, an IRQ2 interrupt will be gener-
ated if the IRQ2E-bit in the ICSR register is set. This interrupt is serviced by the
interrupt service routine located at the address specified by the contents of $1FFA
and $1FFB. A block diagram of the IRQ2 function is shown in Figure 4-4.
IRQ
IRQ
LATCH
VDD
RST
IRQ VECTOR FETCH
IRQ STATUS/CONTROL REGISTER
EXTERNAL
INTERRUPT
REQUEST
IRQE
IRQF
IRQR
INTERNAL DATA BUS
TO BIH & BIL
INSTRUCTION
PROCESSING
R
IRQ Level
(Mask Option)
PA0
PA1
PA2
PA3
Port A External Interrupt
(Mask Option)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INTERRUPTS
REV

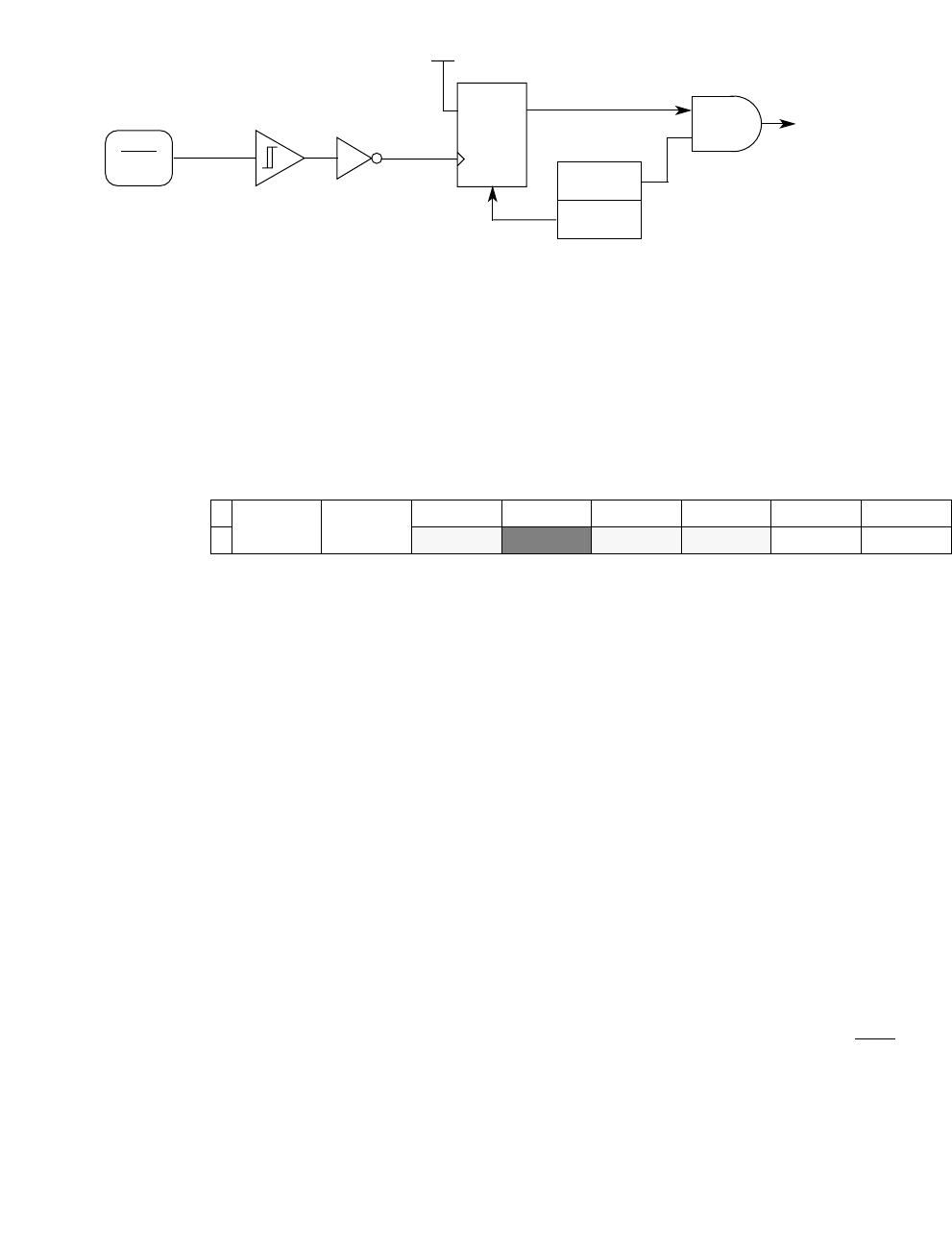

Figure 4-4. External Interrupt (IRQ2) Logic
4.5.3 IRQ Control/Status Register (ICSR) - $0A
The IRQ interrupt function is controlled by the ICSR located at $000A. All unused
bits in the ICSR will read as logic zeros. The IRQF bit is cleared and IRQE bit is
set by reset.
IRQR — IRQ Interrupt Acknowledge
The IRQR acknowledge bit clears an IRQ interrupt by clearing the IRQ latch.
The IRQR acknowledge bit will always read as a logic zero.
1 = Writing a logic one to the IRQR acknowledge bit will clear the IRQ
latch.
0 = Writing a logic zero to the IRQR acknowledge bit will have no effect
on the IRQ latch.
IRQF — IRQ Interrupt Request Flag
Writing to the IRQF flag bit will have no effect on it. If the additional setting of
IRQF flag bit is not cleared in the IRQ service routine and the IRQE enable bit
remains set the CPU will re-enter the IRQ interrupt sequence continuously until
either the IRQF flag bit or the IRQE enable bit is clear. The IRQF latch is
cleared by reset.
1 = Indicates that an IRQ request is pending.
0 = Indicates that no IRQ request triggered by pins PA0-3 or IRQ is
pending. The IRQF flag bit can be cleared by writing a logic one to
the IRQR acknowledge bit to clear the IRQ latch and also
conditioning the external IRQ sources to be inactive (if the level
sensitive interrupts are enabled via mask option). Doing so before
exiting the service routine will mask out additional occurrences of
the IRQF.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
ICSR R IRQE IRQ2E 0 0 IRQF IRQ2F 0 0
$000A W IRQR IRQ2R
reset: 10000000
Figure 4-5. IRQ Control and Status Register (ICSR)
IRQ2
IRQ2
LATCH
VDD
IRQ2
INTERRUPT
RIRQ2E
IRQ2R
ICSR ($0A)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INTERRUPTS
REV 2
IRQE — IRQ Interrupt Enable
The IRQE bit enables/disables the IRQF flag bit to initiate an IRQ interrupt
sequence.
1 = Enables IRQ interrupt, that is, the IRQF flag bit can generate an
interrupt sequence. Reset sets the IRQE enable bit, thereby
enabling IRQ interrupts once the I-bit is cleared. Execution of the
STOP or WAIT instructions causes the IRQE bit to be set in order to
allow the external IRQ to exit these modes.
0 = The IRQF flag bit cannot generate an interrupt sequence.
IRQ2R — IRQ2 Interrupt Acknowledge
The IRQ2R acknowledge bit clears an IRQ2 interrupt by clearing the IRQ2 latch.
The IRQ2R acknowledge bit will always read as a logic zero.
1 = Writing a logic one to the IRQ2R acknowledge bit will clear the IRQ2
latch.
0 = Writing a logic zero to the IRQ2R acknowledge bit will have no effect
on the IRQ2 latch.
IRQ2F — IRQ2 Interrupt Request Flag
Writing to the IRQ2F flag bit will have no effect on it. If the additional setting of
IRQ2F flag bit is not cleared in the IRQ2 service routine and the IRQ2E enable bit
remains set the CPU will re-enter the IRQ2 interrupt sequence continuously until
either the IRQ2F flag bit or the IRQ2E enable bit is clear. The IRQ2F latch is
cleared by reset.
1 = Indicates that an IRQ2 request is pending.
0 = Indicates that no IRQ2 request triggered by pins PA4. The IRQ2F
flag bit can be cleared by writing a logic one to the IRQ2R
acknowledge bit to clear the IRQ2 latch.
IRQ2E - IRQ2 Interrupt Enable
The IRQ2E bit enables/disables the IRQ2F flag bit to initiate an IRQ2 interrupt
sequence.
1 = Enables IRQ2 interrupt, that is, the IRQ2F flag bit can generate an
interrupt sequence. Reset clears the IRQ2E enable bit.
0 = The IRQ2F flag bit cannot generate an interrupt sequence.
4.5.4 Port A External Interrupts (PA0-PA3, by mask option)
The IRQ interrupt can also be triggered by the inputs on the PA0 to PA3 port pins
if enabled by a single mask option. If enabled, the lower four bits of Port A can
activate the IRQ interrupt function, and the interrupt operation will be the same as
for inputs to the IRQ pin. This mask option of PA0-3 interrupt allow all of these
input pins to be OR’ed with the input present on the IRQ pin. All PA0 to PA3 pins
must be selected as a group as an additional IRQ interrupt. All the PA0-3 interrupt
sources are also controlled by the IRQE enable bit.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INTERRUPTS
REV
NOTE
The BIH and BIL instructions will only apply to the level on the IRQ pin itself, and
not to the output of the logic OR function with the PA0 to PA3 pins. The state of the
individual Port A pins can be checked by reading the appropriate Port A pins as
inputs.
NOTE
If enabled, the PA0 to PA3 pins will cause an IRQ interrupt only when the
corresponding pin is configured as input.
4.5.5 Timer1 Interrupt (TIMER1)
The TIMER1 interrupt is generated by the 16-bit timer when either an overflow or
an input capture or output compare has occurred as described in the section on
16-bit timer. The interrupt flags and enable bits for the Timer1 interrupts are
located in the Timer1 Control & Status Register (TSR) located at $0012, $0013.
The I-bit in the CCR must be clear in order for the TIMER1 interrupt to be enabled.
Either of these three interrupts will vector to the same interrupt service routine
located at the address specified by the contents of memory locations $1FF6 and
$1FF7.
4.5.6 USB Interrupt (USB)
The USB interrupt is generated by the USB module as described in the section on
Universal Serial Bus. The interrupt enable bits for the USB interrupt are located at
bit3-bit2 of UIR0 REG and bit3-bit2 of UIR1 REG. Also Once the device goes into
Suspend Mode, any bus activities will cause the USB to generate an interrupt to
CPU to come out from the Suspend mode. The I-bit in the CCR must be clear in
order for the USB interrupt to be enabled. Either of these two interrupts will vector
to the same interrupt service routine located at the address specified by the con-
tents of memory locations $1FF8 and $1FF9.
4.5.7 MFT Interrupt (MFT)
The MFT interrupt is generated by the MFT module as described in the section on
Multi-function Timer. These interrupts will vector to the same interrupt service rou-
tine located at the address specified by the contents of memory locations $1FF4
and $1FF5.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 RESETS
REV 2
SECTION 5
RESETS
This section describes the six reset sources and how they initialize the MCU. A
reset immediately stops the operation of the instruction being executed, initializes
certain control bits, and loads the program counter with a user defined reset vec-
tor address. The following conditions produce a reset:
• Initial power up of device (power on reset).
• A logic zero applied to the RESET pin (external reset).
• Timeout of the COP watchdog (COP reset).
• Low voltage applied to the device (LVR reset).
• Fetch of an opcode from an address not in the memory map (illegal
address reset).
• Detection of USB reset signal (USB reset).
Figure 5-1 shows a block diagram of the reset sources and their interaction.
Figure 5-1. Reset Sources
RESET RESET
LATCH
R
COP WATCHDOG
POWER-ON RESET
ILLEGAL ADDRESS RESET
INTERNAL
D
INTERNAL
CLOCK
SRST TO CPU
AND
LOW VOLTAGE RESET
VDD
SUBSYSTEMS
ADDRESS BUS
USB RESET DETECTION
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
RESETS
REV
5.1 POWER-ON RESET
A positive transition on the VDD pin generates a power-on reset. The power-on
reset is strictly for conditions during powering up and cannot be used to detect
drops in power supply voltage.
A 4064 tCYC (internal clock cycle) delay after the oscillator becomes active allows
the clock generator to stabilize. If the RESET pin is at logic zero at the end of the
multiple tCYC time, the MCU remains in the reset condition until the signal on the
RESET pin goes to a logic one.
5.2 EXTERNAL RESET
A logic zero applied to the RESET pin for 1.5tCYC generates an external reset.
This pin is connected to a Schmitt trigger input gate to provide and upper and
lower threshold voltage separated by a minimum amount of hysteresis. The exter-
nal reset occurs whenever the RESET pin is pulled below the lower threshold and
remains in reset until the RESET pin rises above the upper threshold. This active
low input will generate the internal RST signal that resets the CPU and peripher-
als.
The RESET pin can also act as an open drain output. It will be pulled to a low
state by an internal pulldown device that is activated by three internal reset
sources. This RESET pulldown device will only be asserted for 3 - 4 cycles of the
internal clock, fOP
, or as long as the internal reset source is asserted. When the
external RESET pin is asserted, the pulldown device will not be turned on.
NOTE
Do not connect the RESET pin directly to VDD, as this may overload some power
supply designs when the internal pulldown on the RESET pin activates.
5.3 INTERNAL RESETS
The five internally generated resets are the initial power-on reset function, the
COP Watchdog timer reset, the low voltage reset, and the illegal address detector.
Only the COP Watchdog timer reset, low voltage reset and illegal address detec-
tor will also assert the pulldown device on the RESET pin for the duration of the
reset function or 3 - 4 internal clock cycles, whichever is longer.
5.3.1 Power-On Reset (POR)
The internal POR is generated on power-up to allow the clock oscillator to stabi-
lize. The POR is strictly for power turn-on conditions and is not able to detect a
drop in the power supply voltage (brown-out). There is an oscillator stabilization
delay of 4064 internal processor bus clock cycles after the oscillator becomes
active.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 RESETS
REV 2
The POR will generate the RST signal which will reset the CPU. If any other reset
function is active at the end of the 4064 cycle delay, the RST signal will remain in
the reset condition until the other reset condition(s) end.
POR will not activate the pulldown device on the RESET pin. VDD must drop
below VPOR in order for the internal POR circuit to detect the next rise of VDD.
5.3.2 USB Reset
The USB reset is generated by a detection on the USB bus reset signal. For
MC68HC05JB4, seeing a single-end zero on its upstream port for 4 to 8 bit times
will set RSTF bit in UIR0 register. The detections will also generate the RST signal
to reset the CPU and other peripherals in the MCU.
5.3.3 Computer Operating Properly (COP) Reset
The COP watchdog is enabled by a mask option.
A timeout of the COP watchdog generates a COP reset. The COP watchdog is
part of a software error detection system and must be cleared periodically to start
a new timeout period. To clear the COP watchdog and prevent a COP reset, write
a logic zero to the COPC bit of the COP register at location $1FF0.
COPC — COP Clear
COPC is a write-only bit. Periodically writing a logic zero to COPC prevents the
COP watchdog from resetting the MCU. Reset clears the COPC bit.
1 = No effect on system.
0 = Reset COP watchdog timer.
The COP Watchdog reset will assert the pulldown device to pull the RESET pin
low for one cycle of the internal bus clock.
See section on Core Timer for detail on COP watchdog timeout periods.
5.3.4 Low Voltage Reset (LVR)
The LVR activates the RST reset signal to reset the device when the voltage on
the VDD pin falls below the LVR trip voltage. The LVR will assert the pulldown
device to pull the RESET pin low one cycle of the internal bus clock. The Low Volt-
age Reset circuit is enabled by a mask option.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
COPR R 00000000
$1FF0 W COPC
reset: UUUUUUU0
U = UNAFFECTED BY RESET
Figure 5-2. COP Watchdog Register (COPR)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
RESETS
REV
5.3.5 Illegal Address Reset
An opcode fetch from an address that is not in the ROM (locations $1000 to
$1FFF) or the RAM (locations $0080 to $012F) generates an illegal address reset.
The illegal address reset will assert the pulldown device to pull the RESET pin low
for 3 to 4 cycles of the internal bus clock.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 LOW POWER MODES
REV 2
SECTION 6
LOW POWER MODES
There are three modes of operation that reduce power consumption:
• Stop mode
• Wait mode
• Data retention mode
Figure 6-1 shows the sequence of events in Stop and Wait modes.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
LOW POWER MODES
REV

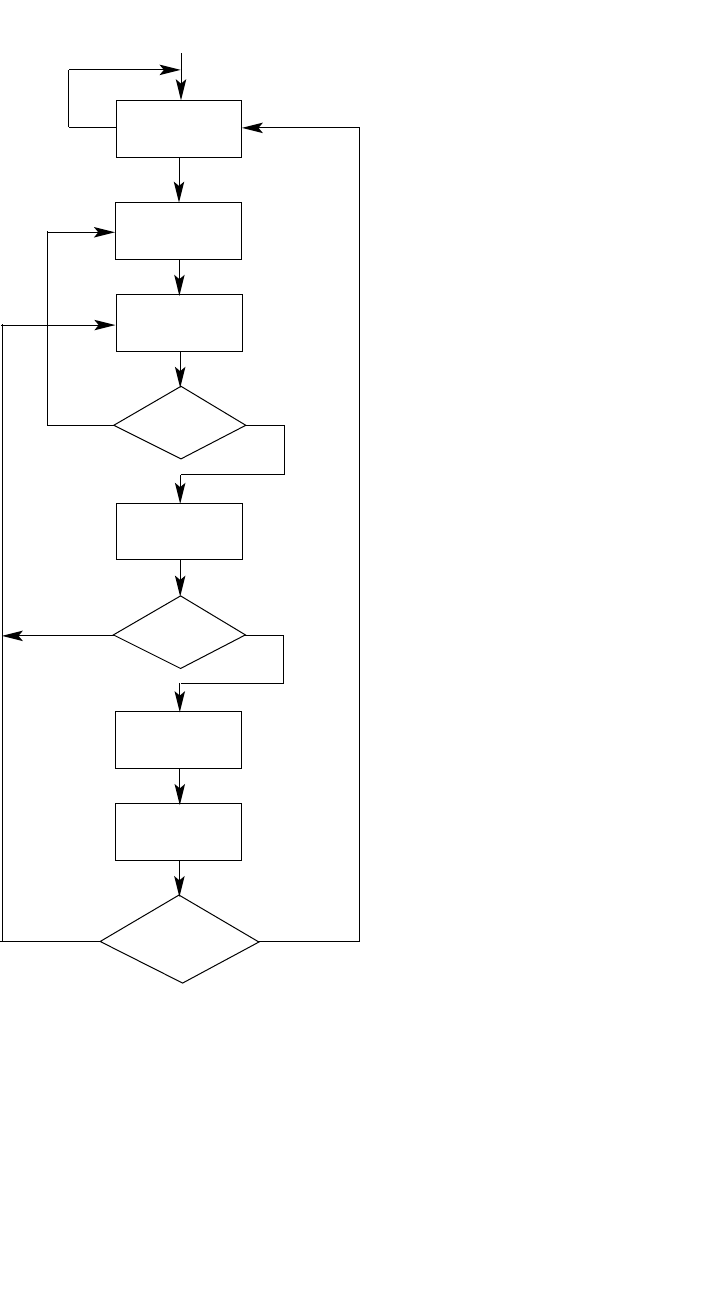

Figure 6-1. STOP and WAIT Flowchart
STOP
EXTERNAL
RESET?
EXTERNAL
INTERRUPT?
NO
NO
START STABILIZATION DELAY
YES
YES
END OF
STABILIZATION
DELAY?
YES
NO
WAIT
RESTART INTERNAL PROCESSOR CLOCK

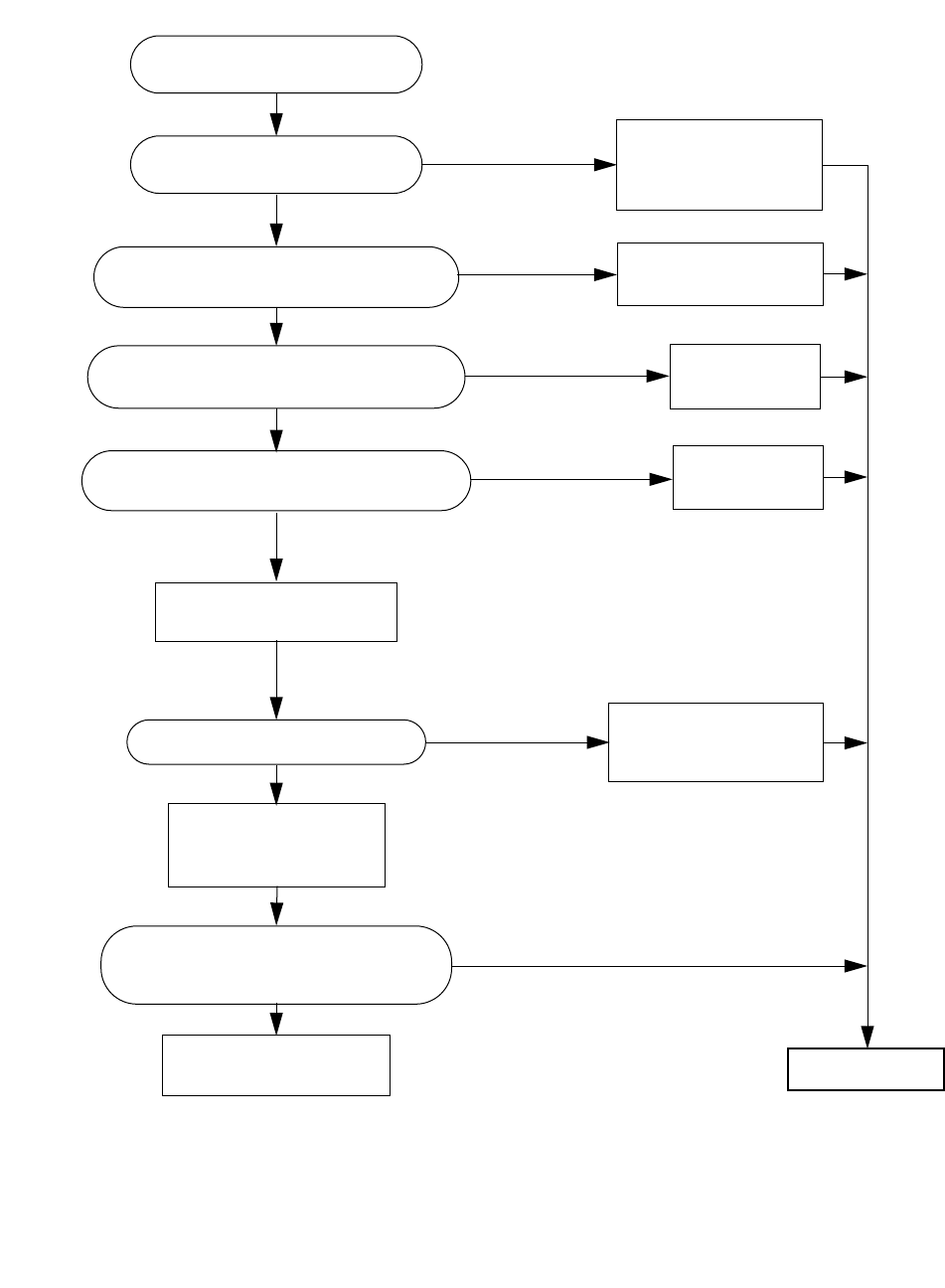

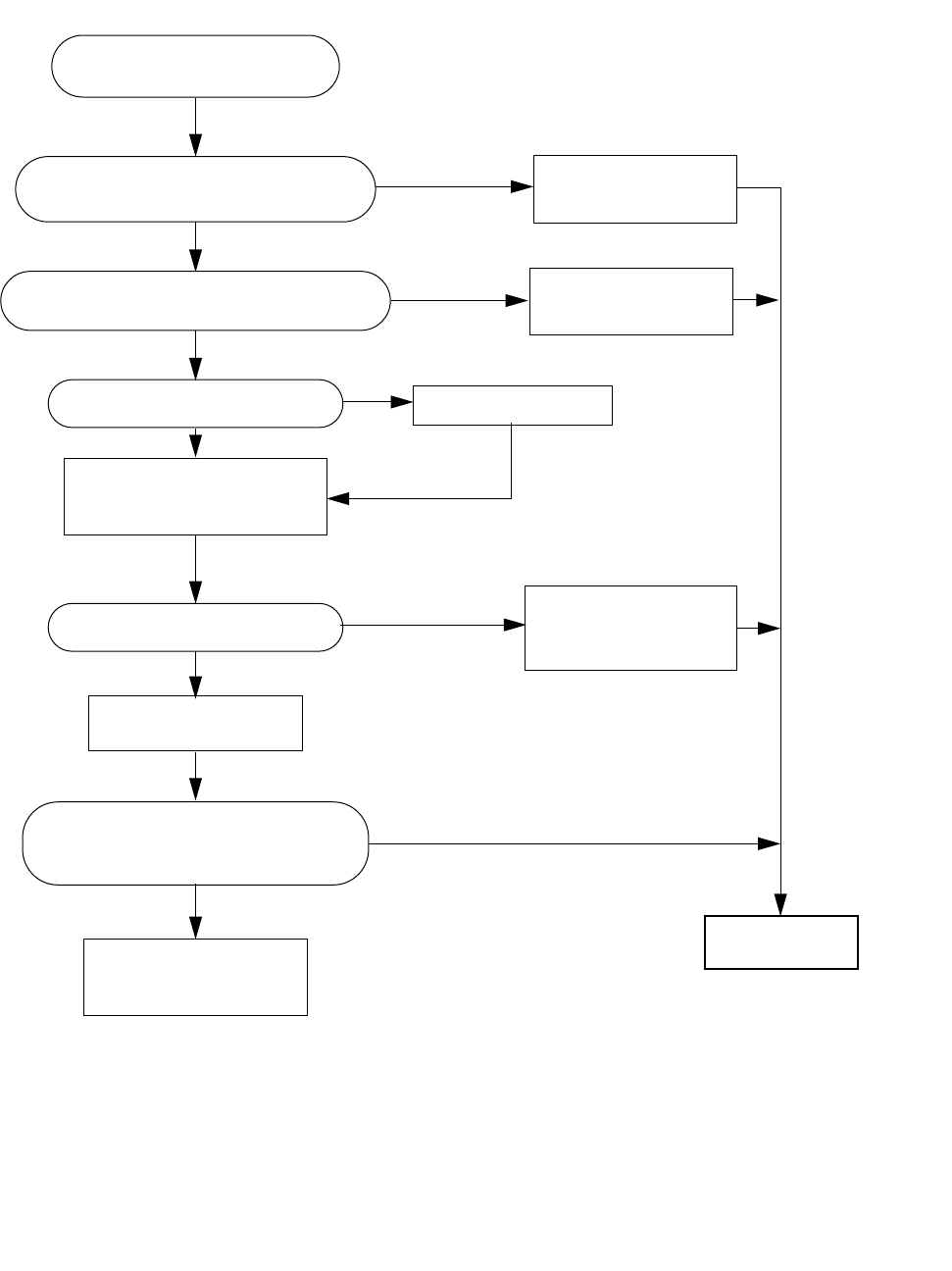

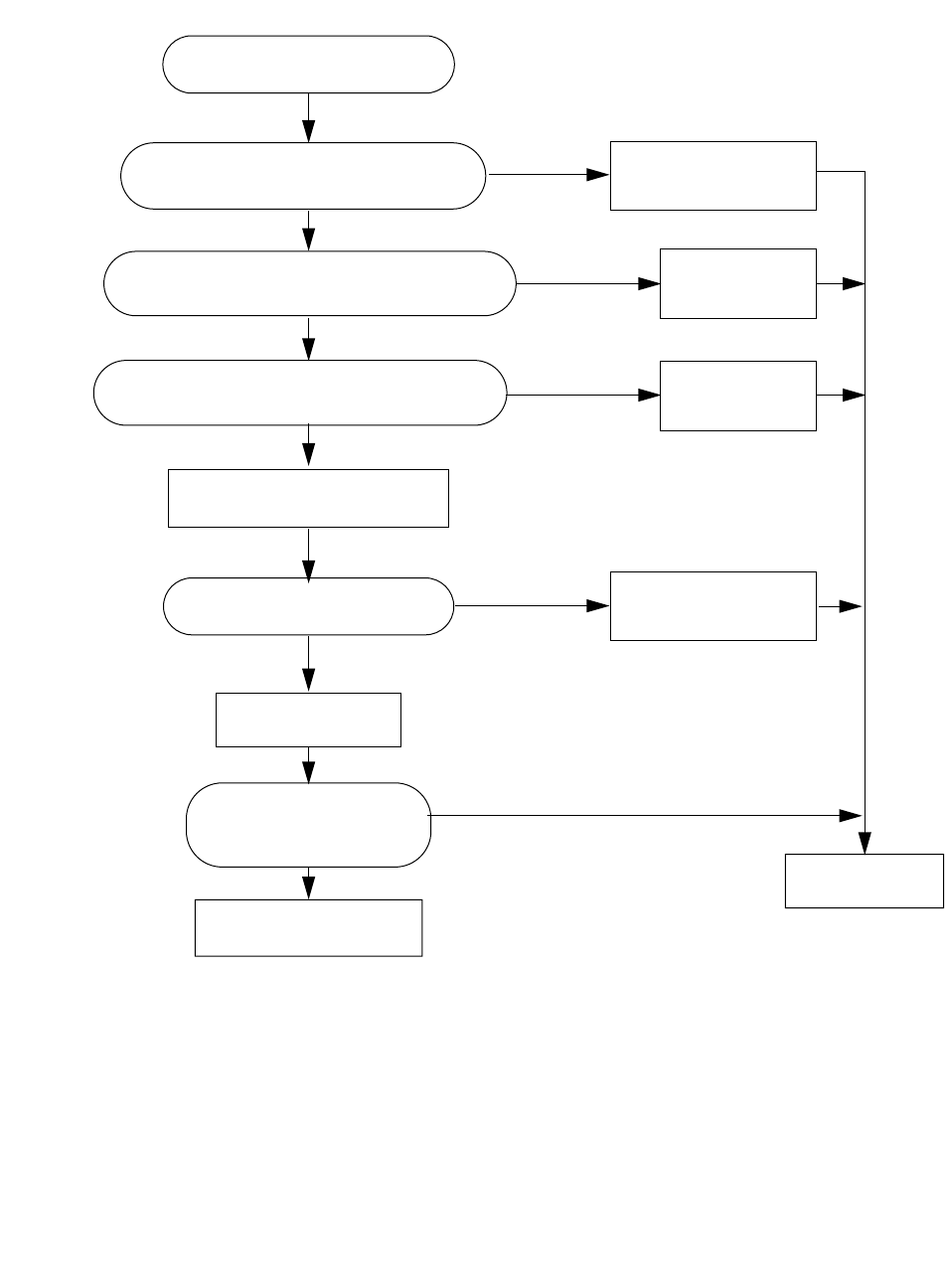

1. LOAD PC WITH RESET VECTOR
OR
2. SERVICE INTERRUPT.
a. SAVE CPU REGISTERS ON STACK.
b. SET I BIT IN CCR.
c. LOAD PC WITH INTERRUPT VECTOR.
NO
EXTERNAL
RESET?
YES
NO
YES
NO
EXTERNAL
INTERRUPT?
YES
NO
USB
INTERRUPT?
YES RESET OR
NO
YES
IRQ2
INTERRUPT?
EXTERNAL
YES
NO
STOP EXTERNAL OSCILLATOR,
STOP INTERNAL TIMER CLOCK,
RESET START-UP DELAY
STOP INTERNAL PROCESSOR CLOCK,
CLEAR I-BIT IN CCR,
SET IRQE IN ICSR
EXTERNAL
INTERRUPT?
USB
INTERRUPT
NO
NO
YES
YES
IRQ
IRQ2
OR RESET?
RESTART EXTERNAL OSCILLATOR,
IRQ
TIMER1
INTERRUPT?
INTERNAL
MFT
INTERRUPT?
INTERNAL
EXTERNAL OSCILLATOR ACTIVE,
INTERNAL TIMER CLOCK ACTIVE
STOP INTERNAL PROCESSOR CLOCK,
CLEAR I-BIT IN CCR,
SET IRQE IN ICSR
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 LOW POWER MODES
REV 2
6.1 STOP MODE
STOP mode is entered by executing the STOP instruction. This is the lowest
power consumption mode of the MCU. In the STOP Mode the internal oscillator is
turned off, halting all internal processing.
Execution of the STOP instruction automatically clears the I-bit in the Condition
Code Register and sets the IRQE enable bit in the IRQ Control/Status Register so
that the IRQ external interrupt is enabled. All other registers, including the other
bits in the TCSR, and memory remain unaltered. All input/output lines remain
unchanged.
The MCU can be brought out of the STOP Mode by an IRQ external interrupt,
IRQ2 external interrupt or a USB coming out from Suspend Mode Interrupt (Bus
activity detection) or an externally generated RESET, USB Reset or an LVR reset.
When exiting the STOP Mode the internal oscillator will resume after a 128 or
4064 internal processor clock cycle oscillator stabilization delay.
6.2 WAIT MODE
WAIT mode is entered by executing the WAIT instruction. This places the MCU in
a low-power mode, which consumes more power than the STOP Mode. In the
WAIT Mode the internal processor clock is halted, suspending all processor and
internal bus activity. Execution of the WAIT instruction automatically clears the I-bit
in the Condition Code Register and sets the IRQE enable bit in the IRQ Control/
Status Register so that the IRQ external interrupt is enabled. All other registers,
memory, and input/output lines remain in their previous states.
The WAIT Mode may be exited when an external IRQ, IRQ2, USB, Timer1 or MFT
interrupt, an LVR reset, USB reset or an external RESET occurs.
6.3 DATA-RETENTION MODE
The Data-Retention mode is only available if the Low Voltage Reset function
(mask option) is not enabled.
In the data retention mode, the MCU retains RAM contents and CPU register con-
tents at VDD voltages as low as 2.0Vdc. The data retention feature allows the
MCU to remain in a low power consumption state during which it retains data, but
the CPU cannot execute instructions. The RESET pin must be held low during
data-retention mode.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
LOW POWER MODES
REV
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INPUT/OUTPUT PORTS
REV 2
SECTION 7
INPUT/OUTPUT PORTS
In normal operating mode there are 19 usable bidirectional I/O lines arranged as
one 8-bit I/O port (Port-A), one 5-bit I/O port (Port-B), and one 6-bit I/O port
(Port C). The individual bits in these ports are programmable as either inputs or
outputs under software control by the data direction registers (DDRs).
Each pin on Port-A and Port-B has individual internal pull-up resistor (50kΩ typi-
cal) which can be enabled by software. In addition, port pins PA6, PA7, and all
port-B pins have built in Slow Falling Edge transition feature. This software select-
able feature helps to eliminate EMI noise.
Other functions such as high current drive, interrupt, are available on some port
pins via mask option.
7.1 SLOW FALLING-EDGE OUTPUT DRIVER
When enabled, the slow falling-edge output drive feature has a slow falling edge
(drops from 5.0V to 2.2V in 167ns typically, with 50pF load) followed by a fast tran-
sition to Vss. The fast transition duration is depending on the strength of the output
driver defined for each port.

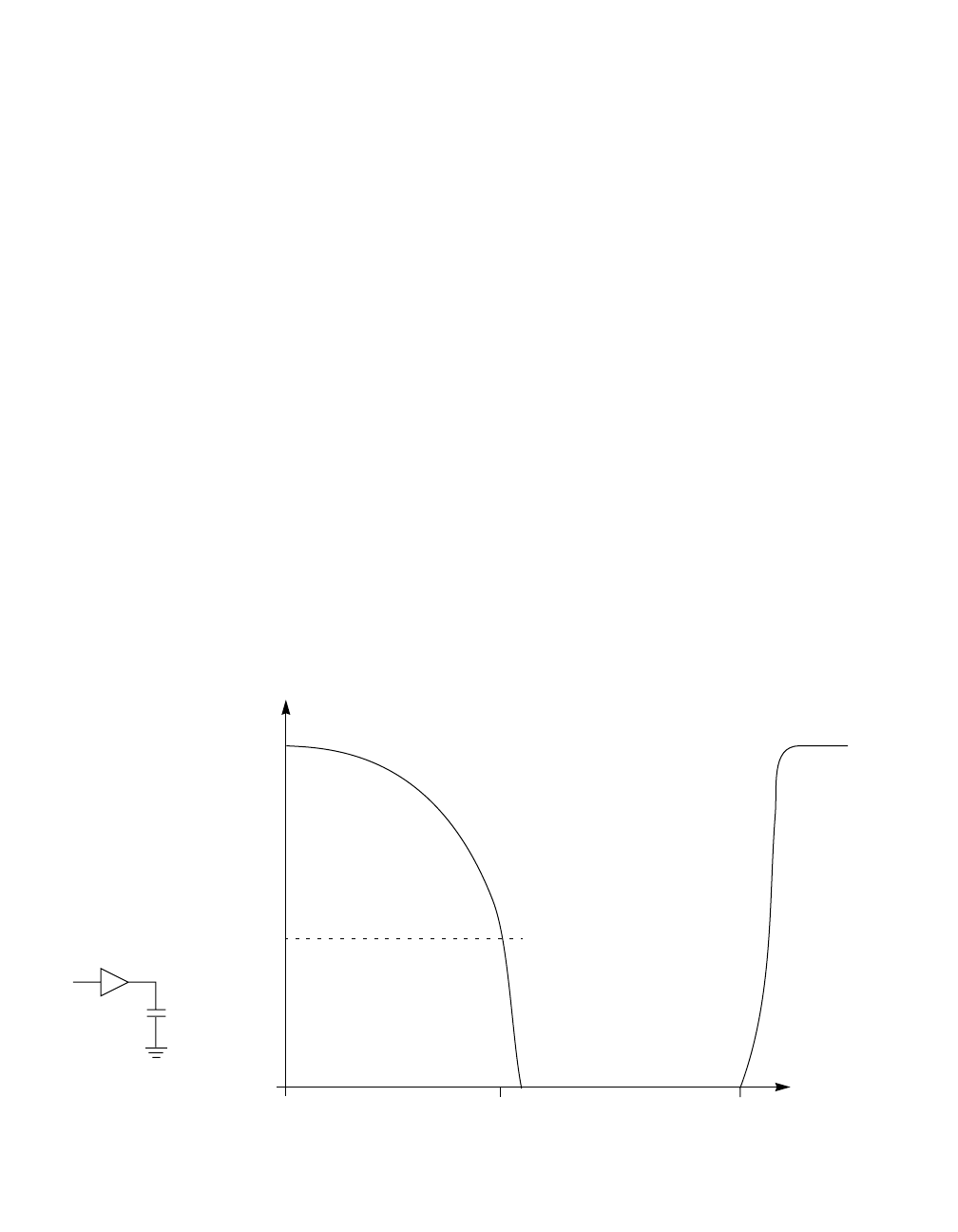

Figure 7-1. Slow Falling-edge Output Driver
50pF
5.0V
165ns 330ns
2.2V
Output Driver
0V
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INPUT/OUTPUT PORTS
REV
7.2 PORT-A
Port-A is an 8-bit bi-directional port. The port-A data register is at $0000 and the
data direction register (DDRA) is at $0004. Reset does not affect the data regis-
ters, but clears the data direction registers, thereby returning the port pins to
inputs. Writing a ‘1’ to a DDR bit sets the corresponding port bit to output mode.
Each pin in Port-A has an internal pull-up resistor (50kΩ typical) which can be
individually enabled by writing a ‘1’ to the corresponding bit in the Port-A pull-up
control register at location $0010. PA0 to PA4 have built-in schmitt triggered input
to improve noise immunity.
PA5 to PA7 port pins each has built in high current drive (10mA sink typical) for
direct LED drive. In addition, PA6 and PA7 each has optional 25mA drive which
can be enabled by Mask Option. To minimize EME (Electro-Magnetic Emission)
noise, PA6 and PA7 has slow output transition which can be enabled by writing a
‘1’ to bit-7 of the Port-B data direction register at location $0005.
PA0 to PA3 and PA4 can be used to generate IRQ and IRQ2 interrupts respec-
tively. PA0 to PA3 and PA4 cannot generate interrupts via IRQ and IRQ2 if these
port pins are configured as output pins.
If the pull-up device is enabled and the port pin is configured as output, the output
port becomes an open-drain output with 50kΩ pull-up.
NOTE
Enabling or disabling the SLOW edge function on PA6 and PA7 does not change
the pin configuration. Reading from an output pin will return the content of the
data register.
7.2.1 Port-A Data Register
Port-A PURX Port-A DDRX Pin Configuration
0 0 Input
0 1 Output Push/Pull
1 0 Input with 50k pull-up
1 1 Open-drain Output with 50k pull-up
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
PTA R PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0
$0000 W
reset: 00000000
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INPUT/OUTPUT PORTS
REV 2
7.2.2 Port-A Data Direction Register
7.2.3 Port-A Pull-up Control Register
7.3 PORT-B
Port-B is a 5-bit bi-directional port. The port-B data register is at $0001 and the
data direction register (DDRB) is at $0005. Reset does not affect the data regis-
ters, but clears the data direction registers, thereby returning the port pins to
inputs. Writing a ‘one’ to a DDR bit sets the corresponding port bit to output mode.
Each pin in Port-B has an internal pull-up resistor (50kΩ typical) which can be
individually enabled by writing a ‘1’ to the corresponding bit in the Port-B pull-up
control register at location $0011.
All Port-B pins have built in Slow Output edge transition driver which can be
enabled by writing a ‘1’ to bit-6 of Port-B data direction register at location $0005.
When PB0 is configured as an input, it also serves as the input capture pin for the
16-bit Timer. When configured as output, the input to the input capture will be per-
manently tied “low” and no input capture can be generated. PB0 has built-in
schmitt triggered input to improve noise immunity.
PB3 and PB4 also serve as extra ADC inputs, AD4 and AD5. When a port pin is
selected as ADC input and the ADON bit is set to ‘1’, the pin will be configured as
input pin and its pull-up will be disabled automatically regardless of the status of
the DDR-bit. The value of the DDR-bit will not be affected.
If the pull-up device is enabled and the port pin is configured as output, the output
port becomes an open-drain output with 50kΩ pull-up.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
DDRA R DDRA7 DDRA6 DDRA5 DDRA4 DDRA3 DDRA2 DDRA1 DDRA0
$0004 W
reset: 00000000
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
PURA R
$0010 W PURA7 PURA6 PURA5 PURA4 PURA3 PURA2 PURA1 PURA0
reset: 00000000
Port-B PURX Port-B DDRX Pin Configuration
0 0 Input
0 1 Output Push/Pull
1 0 Input with 50k pull-up
1 1 Open-drain Output with 50k pull-up
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INPUT/OUTPUT PORTS
REV
NOTE
Enabling or disabling the SLOW edge function does not change the pin
configuration. Reading from an output pin will return the content of the data
register.
7.3.1 Port-B Data Register
7.3.2 Port-B Data Direction Register
SLOWEA
1 = Enable slow falling-edge output transition feature on PA6 and PA7.
0 = Disable slow falling-edge output transition feature on PA6 and PA7.
SLOWEB
1 = Enable slow falling-edge output transition feature on PB0 to PB4.
0 = Disable slow falling-edge output transition feature on PB0 to PB4.
7.3.3 Port-B Pull-up Control Register
7.4 PORT-C
Port-C is a 6-bit bi-directional port. The port-C data register is at $0002 and the
data direction register (DDRC) is at $0006. Reset does not affect the data regis-
ters, but clears the data direction registers, thereby returning the port pins to
inputs. Writing a ‘one’ to a DDR bit sets the corresponding port bit to output mode.
When the ADON-bit is set, PC4 and PC5 are used as dedicated ADC reference
input, reference high (VRH) and reference low (VRL) respectively. And PC0 to
PC3 can be used as ADC inputs AD0 to AD3 when the appropriate channel is
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
PTB R 0 0 0 PB4 PB3 PB2 PB1 PB0
$0001 W
reset: 00000000
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
DDRB R SLOWEA SLOWEB 0DDRB4 DDRB3 DDRB2 DDRB1 DDRB0
$0005 W
reset: 00000000
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
PURB R
$0011 W PURB4 PURB3 PURB2 PURB1 PURB0
reset: 00000000
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INPUT/OUTPUT PORTS
REV 2
selected. When a port pin is selected as ADC input and the ADON bit is set to ‘1’,
the pin will be configured as input pin automatically regardless of the status of the
DDR-bit. The value of the DDR-bit will not be affected.
NOTE
Reading from an output pin will return the content of the data register.
7.4.1 Port-C Data Register
7.4.2 Port-C Data Direction Register
Port-C DDRX Pin Configuration
0 Input
1 Output Push/Pull
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
PTC R 0 0 PC5 PC4 PC3 PC2 PC1 PC0
$0002 W
reset: 00000000
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
DDRC R 0 0 DDRC5 DDRC4 DDRC3 DDRC2 DDRC1 DDRC0
$0006 W
reset: 00000000
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INPUT/OUTPUT PORTS
REV
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 MULTI-FUNCTION TIMER
REV 2
SECTION 8
MULTI-FUNCTION TIMER
The Multi-Function Timer module is a 15-stage ripple counter with Timer Over
Flow (TOF), Real Time Interrupt (RTI), and COP Watchdog function.

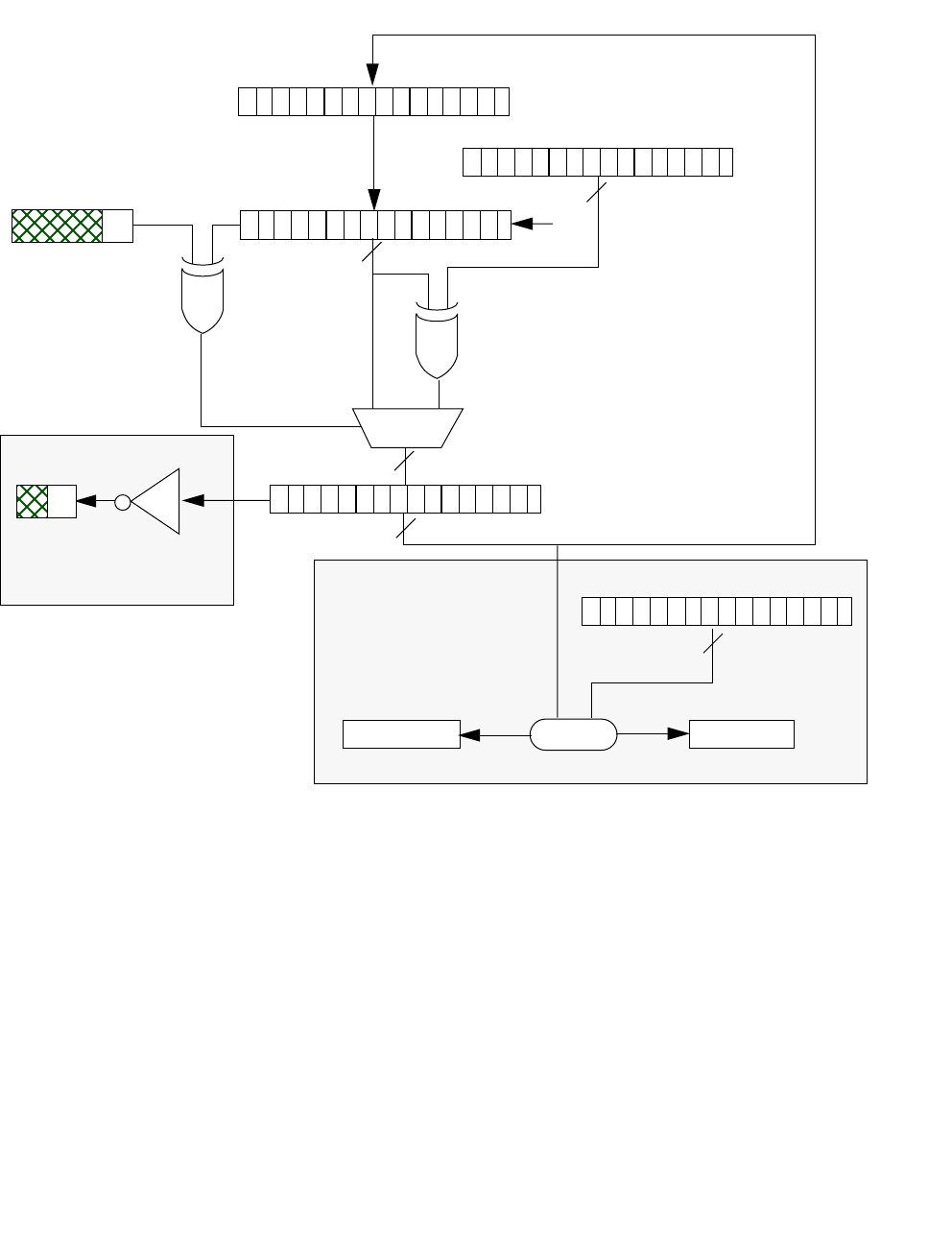

Figure 8-1. Multi-Function Timer Block Diagram
RTI Select Circuit
Overflow
Circuit
Detect
88
f
OP
÷2
2
÷2
10
Internal
Timer Clock
(NTF1)
TOF RTIF TOFE RTIE RT1 RT0RTIFRTOFR
Timer Control & Status Register ($08)
Timer Counter Register ($09)
Interrupt Circuit
COP Watchdog
Resetable Timer
(÷8)
7-bit counter
MCU Internal Bus
to CPU interrupt
÷2
14
÷2
15
÷2
17
÷2
16
÷4
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
MULTI-FUNCTION TIMER
REV
8.1 OVERVIEW
As shown in Figure 8-1, the Timer is driven by the timer clock, NTF1, divided by
four. NTF1 has the same phase and frequency as the processor bus clock, PH2,
but continues to run in WAIT mode. The NTF1 drives an 8-bit ripple counter. The
value of this 8-bit ripple counter can be read by the CPU at any time by accessing
the Timer Counter Register (TCNT) at address $09. A timer overflow function is
implemented on the last stage of this 8-bit counter, giving a possible interrupt rate
of fOP÷1024.
The last stage of the 8-bit counter also drives a further 7-bit counter. The final four
stages is used by the RTI circuit, giving possible RTI rates of fOP÷214, 215, 216 or
217, selected by RT1 and RT0 (see Table 8-1). The RTI rate selector bits, and the
RTI and TOF enable bits and flags are located in the Timer Control and Status
Register at location $08.
The power-on cycle clears the entire counter chain and begins clocking the
counter. After 128 or 4064 cycles, the power-on reset circuit is released which
again clears the counter chain and allows the device to come out of reset. At this
point, if RESET is not asserted, the timer will start counting up from zero and nor-
mal device operation will begin. If RESET is asserted at any time during operation
the counter chain will be cleared.
8.2 COMPUTER OPERATING PROPERLY (COP) WATCHDOG
The COP Watchdog is enabled by a mask option.
The COP Watchdog Timer function is implemented by using the output of the RTI
circuit and further dividing it by eight. The minimum COP reset rates are listed in
Table 8-1. If the COP circuit times out, an internal reset is generated and the nor-
mal reset vector is fetched.
Preventing a COP time-out is done by writing a “0” to bit-0 of address $1FF0.
When the COP is cleared, only the final divide by eight stage (output of the RTI) is
cleared.
Table 8-1. RTI and COP Rates at fOP=3.0MHz
Bus Frequency, fBUS=fOP=3.0 MHz
RT1 RT0 Divide Ratio RTI Rate COP Reset Period
(RTI x 8)
00 2
14 5.46ms 43.68ms
01 2
15 10.92ms 87.36ms
10 2
16 21.85ms 174.8ms
11 2
17 43.69ms 349.52ms
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 MULTI-FUNCTION TIMER
REV 2
8.3 MFT REGISTERS
8.3.1 Timer Counter Register (TCNT) $09
The Timer Counter Register is a read-only register which contains the current
value of the 8-bit ripple counter at the beginning of the timer chain. This counter is
clocked at fOP÷4 and can be used for various functions including a software input
capture. Extended time periods can be attained using the TOF function to incre-
ment a temporary RAM storage location thereby simulating a 16-bit (or more)
counter. The value of each bit of the TCNT is shown in Figure 8-2. This register is
cleared by reset.
Figure 8-2. Timer Counter Register
8.3.2 Timer Control/Status Register (TCSR) $08
The TCSR contains the timer interrupt flag bits, the timer interrupt enable bits, and
the real time interrupt rate select bits. Bit 2 and bit 3 are write-only bits which will
read as logical zeros. Figure 8-3 shows the value of each bit in the TCSR follow-
ing reset.
Figure 8-3. Timer Control/Status Register (TCSR)
TOF - Timer Overflow Flag
The TOF is a read-only flag bit.
1 = Set when the 8-bit ripple counter rolls over from $FF to $00. A
TIMER Interrupt request will be generated if TOFE is also set.
0 = Reset by writing a logical one to the TOF acknowledge bit, TOFR.
Writing to the TOF flag bit has no effect on its value. This bit is
cleared by reset.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
TCNT R TMR7 TMR6 TMR5 TMR4 TMR3 TMR2 TMR1 TMR0
$0009 W
reset: 00000000
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
TCSR R TOF RTIF TOFE RTIE 00
RT1 RT0
$0008 W TOFR RTIFR
reset: 00000011
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
MULTI-FUNCTION TIMER
REV
RTIF - Real Time Interrupt Flag
The RTIF is a read-only flag bit.
1 = Set when the output of the chosen (1 of 4 selections) Real Time
Interrupt stage goes active. A TIMER Interrupt request will be
generated if RTIE is also set.
0 = Reset by writing a logical one to the RTIF acknowledge bit, RTIFR.
Writing to the RTIF flag bit has no effect on its value. This bit is
cleared by reset.
TOFE - Timer Overflow Enable
The TOFE is an enable bit that allows generation of a TIMER Interrupt upon
overflow of the Timer Counter Register.
1 = When set, the TIMER Interrupt is generated when the TOF flag bit is
set.
0 = When cleared, no TIMER interrupt caused by TOF bit set will be
generated. This bit is cleared by reset.
RTIE - Real Time Interrupt Enable
The RTIE is an enable bit that allows generation of a TIMER Interrupt by the
RTIF bit.
1 = When set, the TIMER Interrupt is generated when the RTIF flag bit is
set.
0 = When cleared, no TIMER interrupt caused by RTIF bit set will be
generated. This bit is cleared by reset.
TOFR - Timer Overflow Acknowledge
The TOFR is an acknowledge bit that resets the TOF flag bit. This bit is unaf-
fected by reset. Reading the TOFR will always return a logical zero.
1 = Clears the TOF flag bit.
0 = Does not clear the TOF flag bit.
RTIFR - Real Time Interrupt Acknowledge
The RTIFR is an acknowledge bit that resets the RTIF flag bit. This bit is unaf-
fected by reset. Reading the RTIFR will always return a logical zero.
1 = Clears the RTIF flag bit.
0 = Does not clear the RTIF flag bit.
8.4 OPERATION DURING STOP MODE
When STOP is exited by an external interrupt or an LVR reset or an external
RESET, the internal oscillator will resume, followed by a 128 or 4064 internal pro-
cessor oscillator stabilization delay.
8.5 COP CONSIDERATION DURING STOP MODE
In STOP mode, the clock to the Watchdog Timer is stopped and is therefore
impossible to generate COP reset when in STOP mode. The COP function will
resume 128 or 4064 cycles after exiting from STOP.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 16-BIT TIMER
REV 2
SECTION 9
16-BIT TIMER
This 16-bit Programmable Timer (Timer1) has an Input Capture function and an
Output Compare function. Figure 9-1 shows a block diagram of the 16-bit pro-
grammable timer.

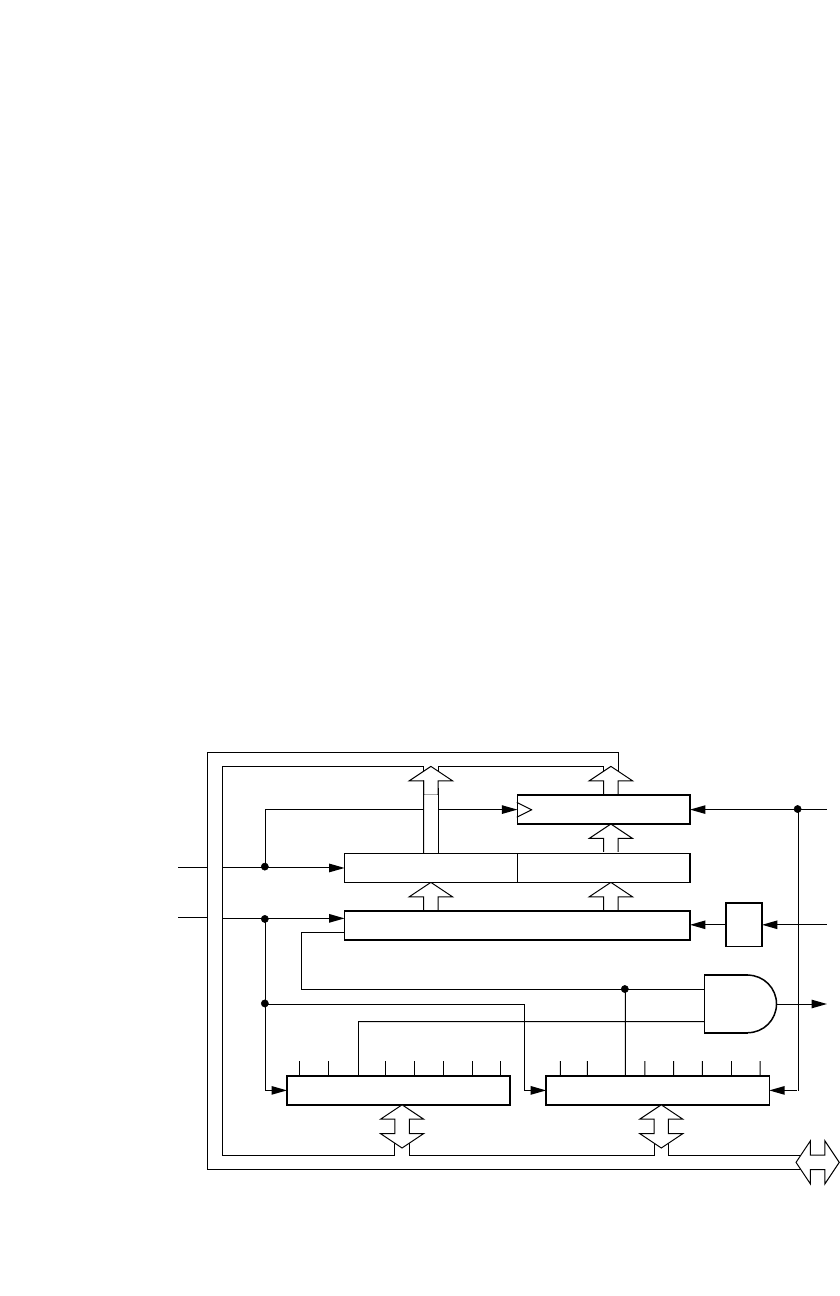

Figure 9-1. Programmable Timer Block Diagram
IEDG
ICIE
OCIE
TOIE
TMRH ($0018) TMRL ($0019)
16-BIT COUNTER ÷ 4INTERNAL
(fOSC ÷ 2)
TIMER CONTROL REGISTER
TIMER
REQUEST
OVERFLOW (TOF)
RESET
CLOCK
INTERRUPT
ACRH ($001A) ACRL ($001B)
16-BIT COMPARATOR
OCRH ($0016) OCRL ($0017)
ICAP1
EDGE
SELECT
& DETECT
ICF
OCF
TOF
TIMER STATUS REGISTER
IEDG
ICF
OCF
$0012 $0013
INTERNAL DATA BUS
LOGIC
ICRH ($0014) ICRL ($0015)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
16-BIT TIMER
REV
The basis of the 16-bit Timer is a 16-bit free-running counter which increases in
count with each internal bus clock cycle. The counter is the timing reference for
the input capture and output compare functions. The input capture and output
compare functions provide a means to latch the times at which external events
occur, to measure input waveforms, and to generate output waveforms and timing
delays. Software can read the value in the 16-bit free-running counter at any time
without affect the counter sequence.
Because of the 16-bit timer architecture, the I/O registers for the input capture and
output compare functions are pairs of 8-bit registers. Each register pair contains
the high and low byte of that function. Generally, accessing the low byte of a spe-
cific timer function allows full control of that function; however, an access of the
high byte inhibits that specific timer function until the low byte is also accessed.
Because the counter is 16 bits long and preceded by a fixed divide-by-four pres-
caler, the counter rolls over every 262,144 internal clock cycles. Timer resolution
with a 4MHz crystal oscillator is 2 microsecond/count.
The interrupt capability, the input capture edge, and the output compare state are
controlled by the timer control register (TCR) located at $0012 and the status of
the interrupt flags can be read from the timer status register (TSR) located at
$0013.
9.1 TIMER REGISTERS (TMRH, TMRL)
The functional block diagram of the 16-bit free-running timer counter and timer
registers is shown in Figure 9-2. The timer registers include a transparent buffer
latch on the LSB of the 16-bit timer counter.

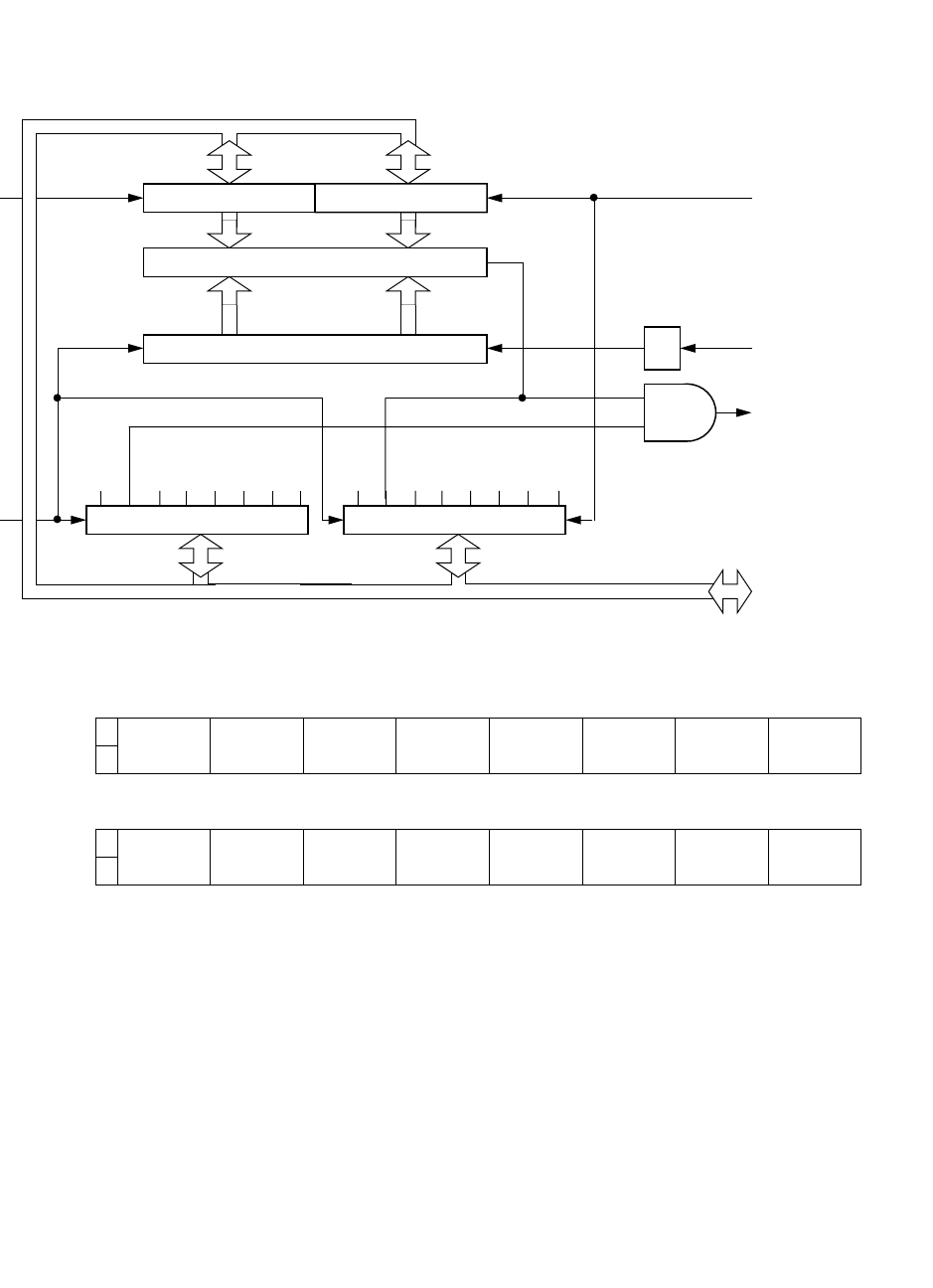

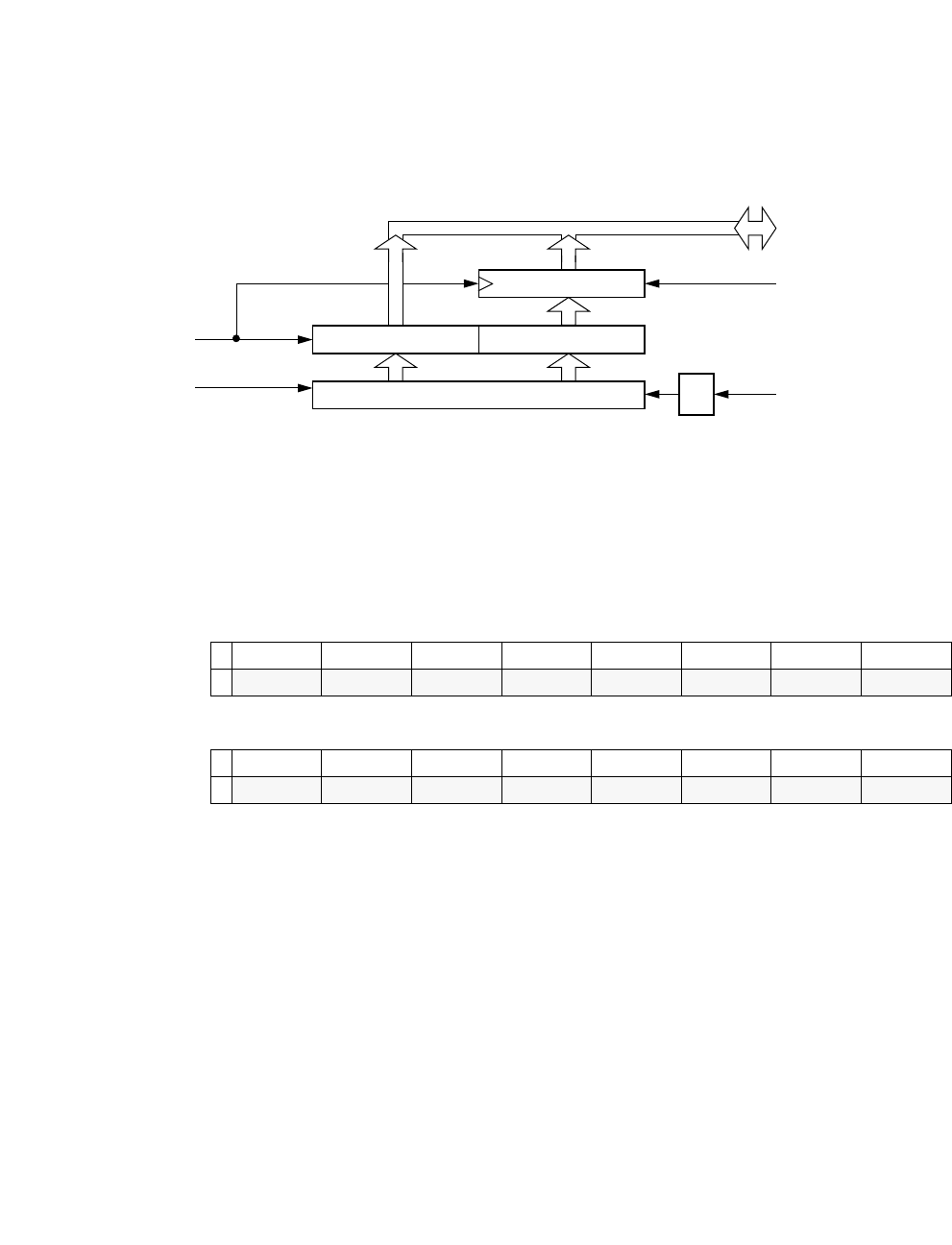

Figure 9-2. Programmable Timer Counter Block Diagram
TOIE
TMRH ($0018) TMR LSB
16-BIT COUNTER ÷ 4INTERNAL
(fOSC ÷ 2)
TIMER CONTROL REG.
TIMER
REQUEST
OVERFLOW (TOF)
RESET CLOCK
INTERRUPT
TMRL ($0019)
TOF
TIMER STATUS REG.
$0012 $0013
INTERNAL
($FFFC)
DATA
READ
TMRH
READ
TMRL
READ
LATCH
BUS
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 16-BIT TIMER
REV 2
The timer registers (TMRH, TMRL) shown in Figure 9-3 are read-only locations
which contain the current high and low bytes of the 16-bit free-running counter.
Writing to the timer registers has no effect. Reset of the device presets the timer
counter to $FFFC.
The TMRL latch is a transparent read of the LSB until the a read of the TMRH
takes place. A read of the TMRH latches the LSB into the TMRL location until the
TMRL is again read. The latched value remains fixed even if multiple reads of the
TMRH take place before the next read of the TMRL. Therefore, when reading the
MSB of the timer at TMRH the LSB of the timer at TMRL must also be read to
complete the read sequence.
During power-on-reset (POR), the counter is initialized to $FFFC and begins
counting after the oscillator start-up delay. Because the counter is sixteen bits and
preceded by a fixed divide-by-four prescaler, the value in the counter repeats
every 262, 144 internal bus clock cycles (524, 288 oscillator cycles).
When the free-running counter rolls over from $FFFF to $0000, the timer overflow
flag bit (TOF) is set in the TSR. When the TOF is set, it can generate an interrupt if
the timer overflow interrupt enable bit (TOIE) is also set in the TCR. The TOF flag
bit can only be reset by reading the TMRL after reading the TSR.
Other than clearing any possible TOF flags, reading the TMRH and TMRL in any
order or any number of times does not have any effect on the 16-bit free-running
counter.
NOTE
To prevent interrupts from occurring between readings of the TMRH and TMRL,
set the I bit in the condition code register (CCR) before reading TMRH and clear
the I bit after reading TMRL.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
TMRH R TMRH7 TMRH6 TMRH5 TMRH4 TMRH3 TMRH2 TMRH1 TMRH0
$0018 W
reset: 11111111
TMRL R TMRL7 TMRL6 TMRL5 TMRL4 TMRL3 TMRL2 TMRL1 TMRL0
$0019 W
reset: 11111100
Figure 9-3. Programmable Timer Counter Registers (TMRH, TMRL)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
16-BIT TIMER
REV
9.2 ALTERNATE COUNTER REGISTERS (ACRH, ACRL)
The functional block diagram of the 16-bit free-running timer counter and alternate
counter registers is shown in Figure 9-4. The alternate counter registers behave
the same as the timer registers, except that any reads of the alternate counter will
not have any effect on the TOF flag bit and Timer interrupts. The alternate counter
registers include a transparent buffer latch on the LSB of the 16-bit timer counter.
Figure 9-4. Alternate Counter Block Diagram
The alternate counter registers (ACRH, ACRL) shown in Figure 9-5 are read-only
locations which contain the current high and low bytes of the 16-bit free-running
counter. Writing to the alternate counter registers has no effect. Reset of the
device presets the timer counter to $FFFC.
The ACRL latch is a transparent read of the LSB until the a read of the ACRH
takes place. A read of the ACRH latches the LSB into the ACRL location until the
ACRL is again read. The latched value remains fixed even if multiple reads of the
ACRH take place before the next read of the ACRL. Therefore, when reading the
MSB of the timer at ACRH the LSB of the timer at ACRL must also be read to
complete the read sequence.
During power-on-reset (POR), the counter is initialized to $FFFC and begins
counting after the oscillator start-up delay. Because the counter is sixteen bits and
preceded by a fixed divide-by-four prescaler, the value in the counter repeats
every 262,144 internal bus clock cycles (524,288 oscillator cycles).
Reading the ACRH and ACRL in any order or any number of times does not have
any effect on the 16-bit free-running counter or the TOF flag bit.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
ACRH R ACRH7 ACRH6 ACRH5 ACRH4 ACRH3 ACRH2 ACRH1 ACRH0
$001A W
reset: 11111111
ACRL R ACRL7 ACRL6 ACRL5 ACRL4 ACRL3 ACRL2 ACRL1 ACRL0
$001B W
reset: 11111100
Figure 9-5. Alternate Counter Registers (ACRH, ACRL)
ACRH ($001A) TMR LSB
16-BIT COUNTER ÷ 4INTERNAL
(fOSC ÷ 2)
RESET CLOCK
ACRL ($001B)
INTERNAL
($FFFC)
DATA
READ
ACRH
READ
ACRL
READ
LATCH
BUS
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 16-BIT TIMER
REV 2
NOTE
To prevent interrupts from occurring between readings of the ACRH and ACRL,
set the I bit in the condition code register (CCR) before reading ACRH and clear
the I bit after reading ACRL.
9.3 INPUT CAPTURE REGISTERS
The input capture function is a technique whereby an external signal (connected
to PB0/ICAP1 pin) is used to trigger the 16-bit timer counter. In this way it is possi-
ble to relate the timing of an external signal to the internal counter value, and
hence to elapsed time.
When the input capture circuitry detects an active edge on the ICAP1 pin, it
latches the contents of the free-running timer counter registers into the input cap-
ture registers as shown in Figure 9-6.
Latching values into the input capture registers at successive edges of the same
polarity measures the period of the selected input signal. Latching the counter val-
ues at successive edges of opposite polarity measures the pulse width of the sig-
nal.
Figure 9-6. Timer Input Capture Block Diagram
The input capture registers are made up of two 8-bit read-only registers (ICRH,
ICRL) as shown in Figure 9-7. The input capture edge detector contains a Schmitt
trigger to improve noise immunity. The edge that triggers the counter transfer is
defined by the input edge bit (IEDG) in the TCR. Reset does not affect the con-
tents of the input capture registers.
ICIE
ICRH ($0014)
16-BIT COUNTER ÷ 4INTERNAL
(fOSC ÷ 2)
TIMER CONTROL REG.
TIMER
REQUEST
INPUT CAPTURE (ICF)
RESET
CLOCK
INTERRUPT
ICRL ($0015)
ICF
TIMER STATUS REG.
$0012 $0013
INTERNAL
($FFFC)
DATA
READ
ICRH
READ
ICRL
LATCH
BUS
IEDG
EDGE
SELECT
& DETECT
LOGIC
IEDG
PB0/ICAP1
INTERNAL
DATA
BUS
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
16-BIT TIMER
REV
The result obtained by an input capture will be one count higher than the value of
the free-running timer counter preceding the external transition. This delay is
required for internal synchronization. Resolution is affected by the prescaler,
allowing the free-running timer counter to increment once every four internal clock
cycles (eight oscillator clock cycles).
Reading the ICRH inhibits further captures until the ICRL is also read. Reading
the ICRL after reading the timer status register (TSR) clears the ICF flag bit. does
not inhibit transfer of the free-running counter. There is no conflict between read-
ing the ICRL and transfers from the free-running timer counters. The input capture
registers always contain the free-running timer counter value which corresponds
to the most recent input capture.
NOTE
To prevent interrupts from occurring between readings of the ICRH and ICRL, set
the I bit in the condition code register (CCR) before reading ICRH and clear the I
bit after reading ICRL.
9.4 OUTPUT COMPARE REGISTERS
The Output Compare function is a means of generating an interrupt when the 16-
bit timer counter reaches a selected value as shown in Figure 9-8. Software
writes the selected value into the output compare registers. On every fourth inter-
nal clock cycle (every eight oscillator clock cycle) the output compare circuitry
compares the value of the free-running timer counter to the value written in the
output compare registers. When a match occurs, the output compare interrupt
flag, OCF is set. A timer interrupt request to the CPU is generated if the output
compare interrupt enable is set, i.e. OCIE=1.
Software can use the output compare register to measure time periods, to gener-
ate timing delays, or to generate a pulse of specific duration or a pulse train of
specific frequency and duty cycle.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
ICRH R ICRH7 ICRH6 ICRH5 ICRH4 ICRH3 ICRH2 ICRH1 ICRH0
$0014 W
reset: UUUUUUUU
ICRL R ICRL7 ICRL6 ICRL5 ICRL4 ICRL3 ICRL2 ICRL1 ICRL0
$0015 W
reset: UUUUUUUU
U = UNAFFECTED BY RESET
Figure 9-7. Input Capture Registers (ICRH, ICRL)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 16-BIT TIMER
REV 2
Writing to the OCRH before writing to the OCRL inhibits timer compares until the
OCRL is written. Reading or writing to the OCRL after reading the TSR will clear
the output compare flag bit (OCF).
Figure 9-8. Timer Output Compare Block Diagram
To prevent OCF from being set between the time it is read and the time the output
compare registers are updated, use the following procedure:
1. Disable interrupts by setting the I bit in the condition code register.
2. Write to the OCRH. Compares are now inhibited until OCRL is written.
3. Read the TSR to arm the OCF for clearing.
4. Enable the output compare registers by writing to the OCRL. This also
clears the OCF flag bit in the TSR.
5. Enable interrupts by clearing the I bit in the condition code register
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
OCRH R OCRH7 OCRH6 OCRH5 OCRH4 OCRH3 OCRH2 OCRH1 OCRH0
$0016 W
reset: UUUUUUUU
OCRL R OCRL7 OCRL6 OCRL5 OCRL4 OCRL3 OCRL2 OCRL1 OCRL0
$0017 W
reset: UUUUUUUU
U = UNAFFECTED BY RESET
Figure 9-9. Output Compare Registers (OCRH, OCRL)
OCIE
OCRH ($0016)
16-BIT COUNTER ÷ 4INTERNAL
(fOSC ÷ 2)
TIMER CONTROL REG.
TIMER
REQUEST
OUTPUT COMPARE
RESET
CLOCK
INTERRUPT
OCRL ($0017)
OCF
TIMER STATUS REG.
$0012 $0013
INTERNAL
($FFFC)
DATA
R/W
OCRH R/W
OCRL
BUS
16-BIT COMPARATOR
(OCF)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
16-BIT TIMER
REV
A software example of this procedure is shown below.
9.5 TIMER CONTROL REGISTER (TCR)
The timer control register is shown in Figure 9-10 performs the following func-
tions:
• Enables input capture interrupts
• Enables output compare interrupts
• Enables timer overflow interrupts
• Control the active edge polarity of the ICAP1 signal on pin PB0/ICAP1
Reset clears all the bits in the TCR with the exception of the IEDG bit which is
unaffected.
ICIE - INPUT CAPTURE INTERRUPT ENABLE
This read/write bit enables interrupts caused by an active signal on the PB0/
ICAP1 pin. Reset clears the ICIE bit.
1 = Input capture interrupts enabled.
0 = Input capture interrupts disabled.
OCIE - OUTPUT COMPARE INTERRUPT ENABLE
This read/write bit enables interrupts caused by a successful compare between
the timer counter and the output compare registers. Reset clears the OCIE bit.
1 = Output compare interrupts enabled.
0 = Output compare interrupts disabled.
TOIE - TIMER OVERFLOW INTERRUPT ENABLE
This read/write bit enables interrupts caused by a timer overflow. Reset clears
the TOIE bit.
1 = Timer overflow interrupts enabled.
0 = Timer overflow interrupts disabled.
9B
...
...
B7
B6
BF
...
...
9A
16
13
17
SEI
...
...
STA
LDA
STX
...
...
CLI
OCRH
TSR
OCRL
DISABLE INTERRUPTS
.....
.....
INHIBIT OUTPUT COMPARE
ARM OCF FLAG FOR CLEARING
READY FOR NEXT COMPARE, OCF CLEARED
.....
.....
ENABLE INTERRUPTS
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
TCR R ICIE OCIE TOIE 000
IEDG 0
$0012 W
reset: 000000Unaffected 0
Figure 9-10. Timer Control Register (TCR)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 16-BIT TIMER
REV 2
IEDG - INPUT CAPTURE EDGE SELECT
The state of this read/write bit determines whether a positive or negative transi-
tion on the ICAP1 pin triggers a transfer of the contents of the timer register to
the input capture register. Reset has no effect on the IEDG bit.
1 = Positive edge (low to high transition) triggers input capture.
0 = Negative edge (high to low transition) triggers input capture.
9.6 TIMER STATUS REGISTER (TSR)
The timer status register (TSR) shown in Figure 9-11 contains flags for the follow-
ing events:
• An active signal on the PB0/ICAP1 pin, transferring the contents of the
timer registers to the input capture registers.
• A match between the 16-bit counter and the output compare registers
• An overflow of the timer registers from $FFFF to $0000.
Writing to any of the bits in the TSR has no effect. Reset does not change the
state of any of the flag bits in the TSR.
ICF - INPUT CAPTURE FLAG
The ICF bit is automatically set when an edge of the selected polarity occurs on
the PB0/ICAP1 pin. Clear the ICF bit by reading the timer status register with
the ICF set, and then reading the low byte (ICRL, $0015) of the input capture
registers. Reset has no effect on ICF.
OCF - OUTPUT COMPARE FLAG
The OCF bit is automatically set when the value of the timer registers matches
the contents of the output compare registers. Clear the OCF bit by reading the
timer status register with the OCF set, and then accessing the low byte (OCRL,
$0017) of the output compare registers. Reset has no effect on OCF.
TOF - TIMER OVERFLOW FLAG
The TOF bit is automatically set when the 16-bit timer counter rolls over from
$FFFF to $0000. Clear the TOF bit by reading the timer status register with the
TOF set, and then accessing the low byte (TMRL, $0019) of the timer registers.
Reset has no effect on TOF.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
TSRRICFOCFTOF00000
$0013 W
reset: U U U 00000
U = UNAFFECTED BY RESET
Figure 9-11. Timer Status Registers (TSR)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
16-BIT TIMER
REV
9.7 TIMER OPERATION DURING WAIT MODE
During WAIT mode the 16-bit timer continues to operate normally and may gener-
ate an interrupt to trigger the MCU out of the WAIT mode.
9.8 TIMER OPERATION DURING STOP MODE
When the MCU enters the STOP mode the free-running counter stops counting
(the internal processor clock is stopped). It remains at that particular count value
until the STOP mode is exited by applying a low signal to the IRQ pin, at which
time the counter resumes from its stopped value as if nothing had happened. If
STOP mode is exited via an external reset (logic low applied to the RESET pin)
the counter is forced to $FFFC.
If a valid input capture edge occurs at the PB0/TCAP pin during the STOP mode
the input capture detect circuitry will be armed. This action does not set any flags
or “wake up” the MCU, but when the MCU does “wake up” there will be an active
input capture flag (and data) from the first valid edge. If the STOP mode is exited
by an external reset, no input capture flag or data will be present even if a valid
input capture edge was detected during the STOP mode.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
SECTION 10
UNIVERSAL SERIAL BUS MODULE
This USB Module is designed for USB application in LS products. With minimized
software effort, it can fully comply with USB LS device specification. See USB
specification version 1.0 for the detail description of USB.
10.1 FEATURES
• Integrated 3.3 Volt Regulator with 3.3V Output Pin
• Integrated USB transceiver supporting Low Speed functions
• USB Data Control Logic
– Packet decoding/generation
– CRC generation and checking
– NRZI encoding/decoding
– Bit-stuffing
• USB reset support
• Control Endpoint 0 and Interrupt Endpoints 1 and 2
• Two 8-byte transmit buffers
• One 8-byte receive buffer
• Suspend and resume operations
• Remote Wake-up support
• USB generated interrupts
• transaction interrupt driven
• Resume interrupt
• End of Packet interrupt
• Stall, Nak, and Ack handshake generation
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
10.2 OVERVIEW
This section provides an overview of the Universal Serial Bus (USB) module in the
MC68HC05JB4. This USB module is designed to serve as a low-speed (LS) USB
device per the Universal Serial Bus Specification Rev 1.0. Three types of USB
data transfers are supported: control, interrupt, and bulk (transmit only). Endpoint
0 functions as a receive/transmit control endpoint. Endpoints 1 and 2 can function
as interrupt or bulk, but only in the transmit direction.
A block diagram of the USB module is shown Figure 10-1. The USB module
manages communications between the host and the USB function. The module is
partitioned into four functional blocks. These blocks consist of a 3.3 volt regulator,
a dual function transceiver, the USB control logic, and the endpoint registers. The
blocks are further detailed in Section 10.4.
Figure 10-1. USB Block Diagram
10.2.1 USB Protocol
Figure 10-2 shows the various transaction types supported by the
MC68HC05JB4 USB module. The transactions are portrayed as error free. The
effect of errors in the data flow are discussed later.
D+
D–
USB CONTROL LOGIC
TRANSCEIVER
RCV
VPIN
VMIN
VPOUT
VMOUT
REGULATOR 3.3V OUT
CPU BUS USB REGISTERS
USB
Upstream
Port
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2

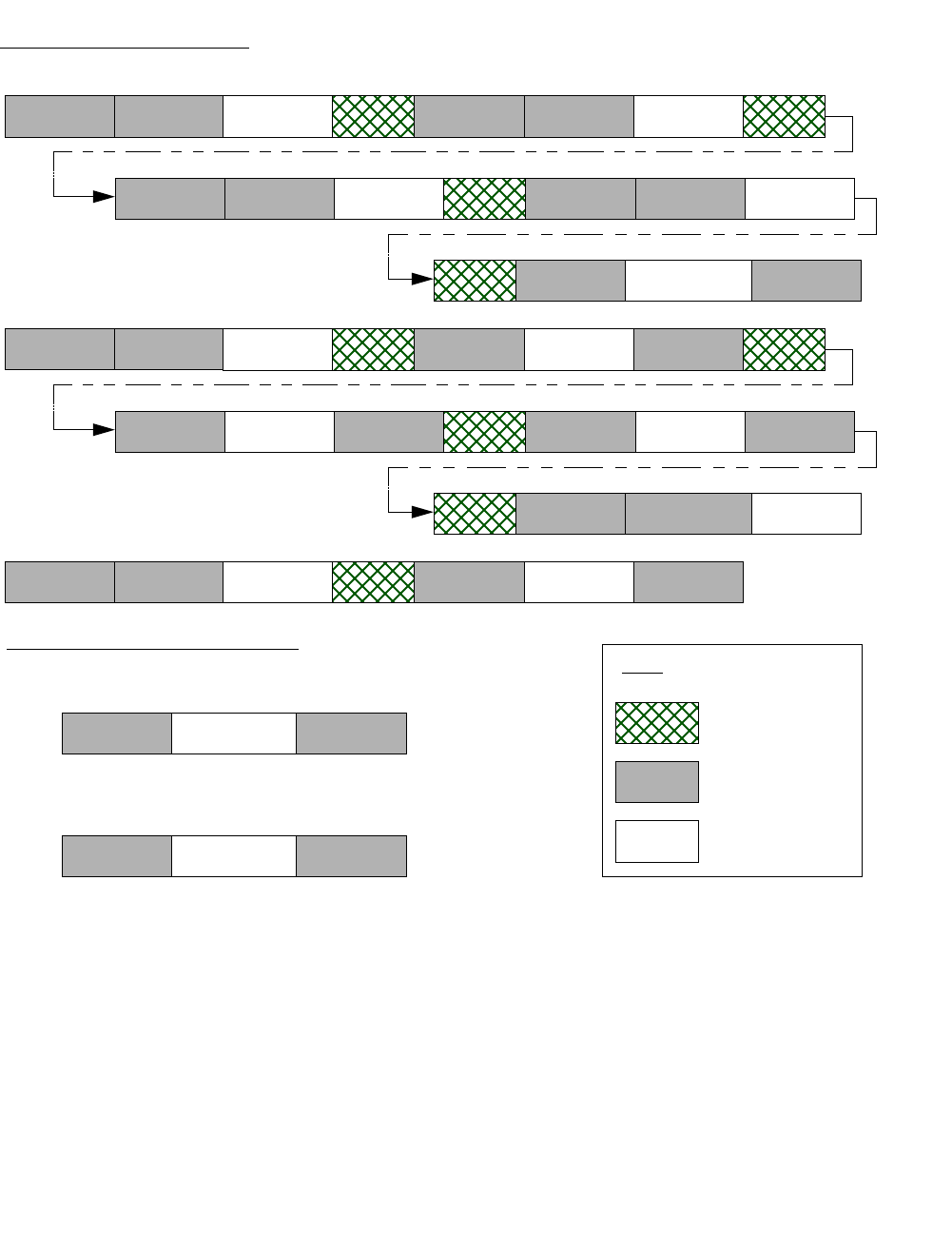

Figure 10-2. Supported Transaction Types per Endpoint
Each USB transaction is comprised of a series of packets. The MC68HC05JB4
USB module supports the packet types shown in Figure 10-3. Token packets are
generated by the USB host and decoded by the USB device. Data and
Handshake packets are both decoded and generated by the USB device
depending on the type of transaction.
SETUP
IN
OUT
DATA0/1
DATA0 DATA1
ACK
DATA1
OUT ACKOUT DATA0 ACK
ACK
DATA0/1
ENDPOINT 0 TRANSACTIONS:
Control Write
Control Read
No-Data Control
ENDPOINTS 1 & 2 TRANSACTIONS:
Interrupt
Bulk Transmit
IN ACK
KEY:
Unrelated Bus
Traffic
Host
Generated
Device
Generated
ACK
SETUP
OUT
IN
DATA0/1
DATA0 DATA1
ACK
DATA1
IN ACKIN DATA0 ACK
ACK
ACK
SETUP IN
DATA0 DATA1
ACK ACK
DATA0/1
IN ACK
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
Figure 10-3. Supported USB Packet Types
The following sections will give some detail on each segment used to form a
complete USB transaction.
10.2.1.1 Sync Pattern
The NRZI (See Section 10.4.4.1) bit pattern shown in Figure 10-4 is used as a
synchronization pattern and is prefixed to each packet. This pattern is equivalent
to a data pattern of seven 0’s followed by a 1 (0x80).
Figure 10-4. Sync Pattern
The start of a packet (SOP) is signaled by the originating port by driving the D+
and D– lines from the idle state (also referred to as the “J” state) to the opposite
logic level (also referred to as the “K” state). This switch in levels represents the
first bit of the Sync field. Figure 10-5 shows the data signaling and voltage levels
for the start of packet and the sync pattern.
Token Packet:
IN
OUT
SYNC PID PID ADDR ENDP CRC5 EOP
SETUP
Data Packet:
DATA0
SYNC PID PID DATA CRC5 EOP
DATA1
0 - 8 bytes
Handshake Packet:
ACK
NAK
SYNC PID PID EOP
STALL
SYNC PATTERN
PID0 PID1Idle
NRZI Data
Encoding
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2

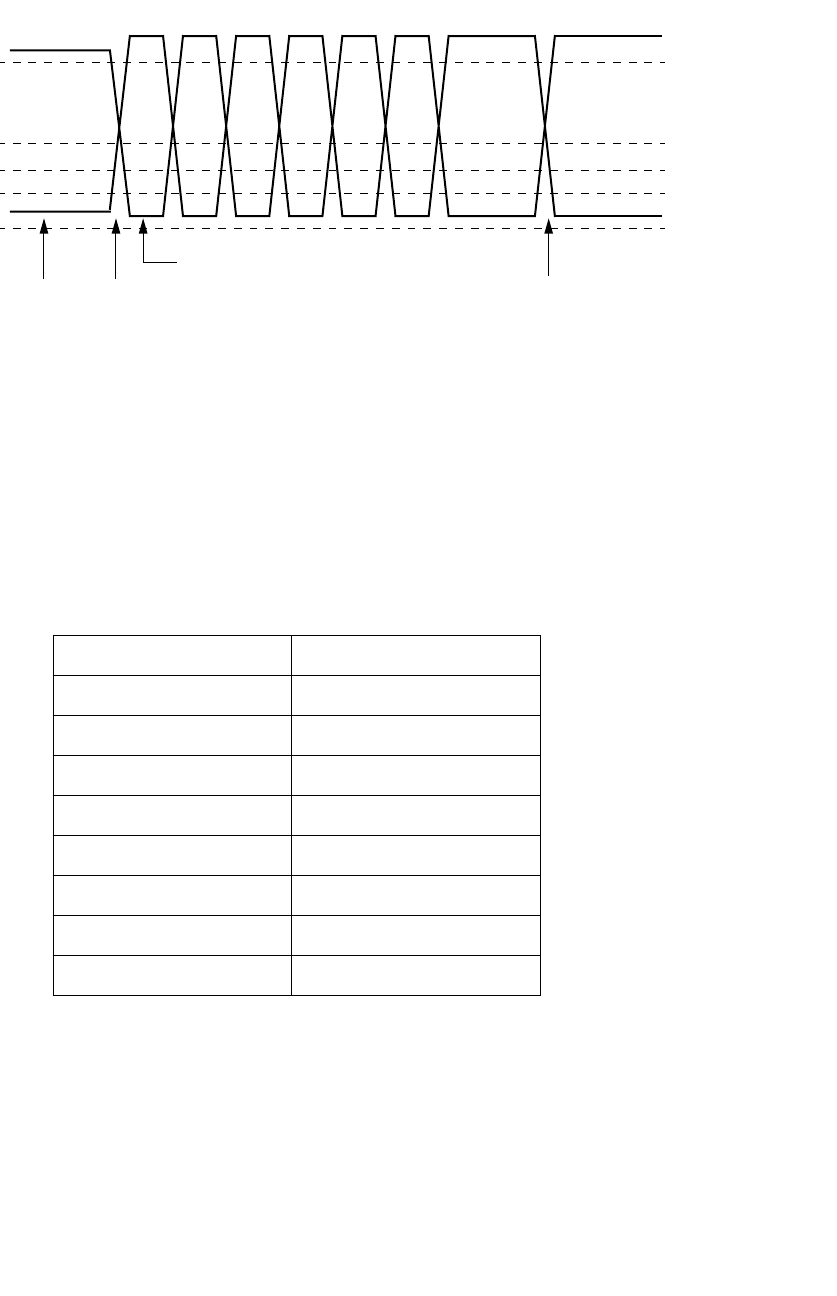

Figure 10-5. SOP, Sync Signaling and Voltage Levels
10.2.1.2 Packet Identifier Field
The Packet Identifier field is an eight bit number comprised of the four bit packet
identification (PID) and its complement. The field follows the sync pattern and
determines the direction and type of transaction on the bus. Table 10-1 shows the
PID values for the supported packet types.
Table 10-1. Supported Packet Identifiers
10.2.1.3 Address Field (ADDR)
The Address field is a seven bit number that is used to select a particular USB
device. This field is compared to the lower seven bits of the UADDR register to
determine if a given transaction is targeting the MC68HC05JB4 USB device.
PID Value PID Type
%1001 IN Token
%0001 OUT Token
%1101 SETUP Token
%0011 DATA0 Packet
%1011 DATA1 Packet
%0010 ACK Handshake
%1010 NAK Handshake
%1110 STALL Handshake
END OF SYNC
FIRST BIT OF PACKET
SOP
BUS IDLE
V
OH
(min)
V
SE
(max)
V
SE
(min)
V
OL
(min)
V
SS
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
10.2.1.4 Endpoint Field (ENDP)
The Endpoint field is a four bit number that is used to select a particular endpoint
within a USB device. For the MC68HC05JB4, this will be a binary number
between zero and two inclusive. Any other value will cause the transaction to be
ignored.
10.2.1.5 Cyclic Redundancy Check (CRC)
Cyclic Redundancy Checks are used to verify the address and data stream of a
USB transaction. This field is five bits wide for token packets and sixteen bits wide
for data packets. CRCs are generated in the transmitter and sent on the USB data
lines after both the endpoint field and the data field. Figure 10-6 shows how the
five bit CRC value is calculated from the data stream and verified for the address
and endpoint fields of a token packet. Figure 10-7 shows how the sixteen bit CRC
value is calculated and either transmitted or verified for the data packet of a given
transaction.

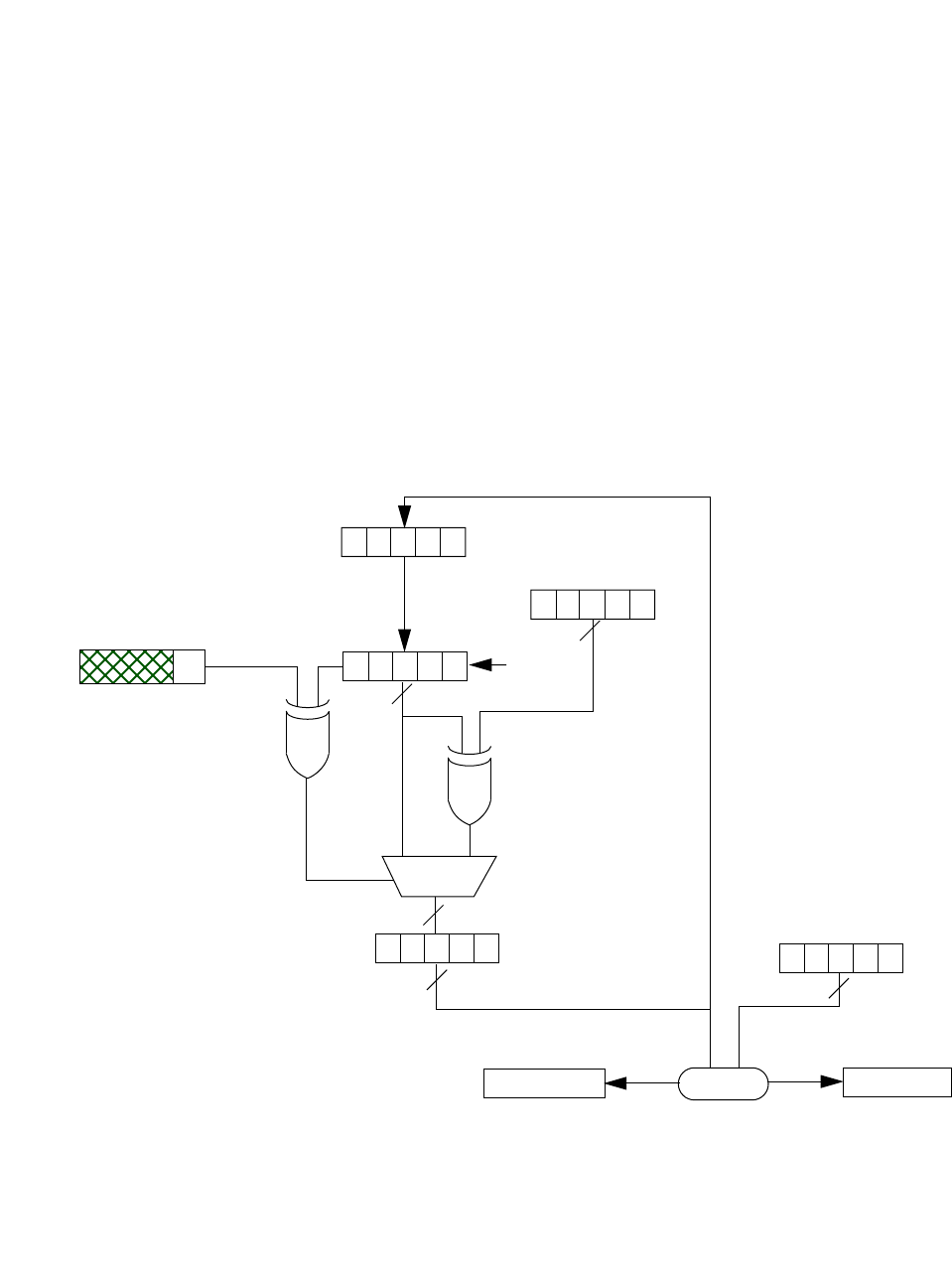

Figure 10-6. CRC Block Diagram for Address and Endpoint Fields
00101
01100
0
5
5
5
5
next bit
Data Stream
- Update every bit time.
- Reset to ones at SOP
Equal?
Good CRC Bad CRC
5
YN
Expected Residual:
Generator Polynomial:
MUX 10
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
Figure 10-7. CRC Block Diagram for Data Packets
10.2.1.6 End Of Packet (EOP)
The single-ended 0 (SE0) state is used to signal an end of packet (EOP). The
single-ended 0 state is indicated by both D+ and D– being below 0.8 V. EOP will
be signaled by driving D+ and D– to the single-ended 0 state for two bit times
followed by driving the lines to the idle state for one bit time. The transition from
the single-ended 0 to the idle state defines the end of the packet. The idle state is
asserted for one bit time and then both the D+ and D– output drivers are placed in
their high-impedance state. The bus termination resistors hold the bus in the idle
state. Figure 10-8 shows the data signaling and voltage levels for an end of
packet transaction.
MUX
0
16
16
16
16
1
0
next bit
Input / Output
- Update every bit time
- Reset to ones at SOP
Equal?
Good CRC Bad CRC
16
YN
Expected Residual:
Generator Polynomial:
Data Stream
Output
Data Stream
CRC16 Transmitted
MSB first after final
data byte.
TRANSMIT
RECEIVE
000 0010 000 000101
0000010000 001101
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV

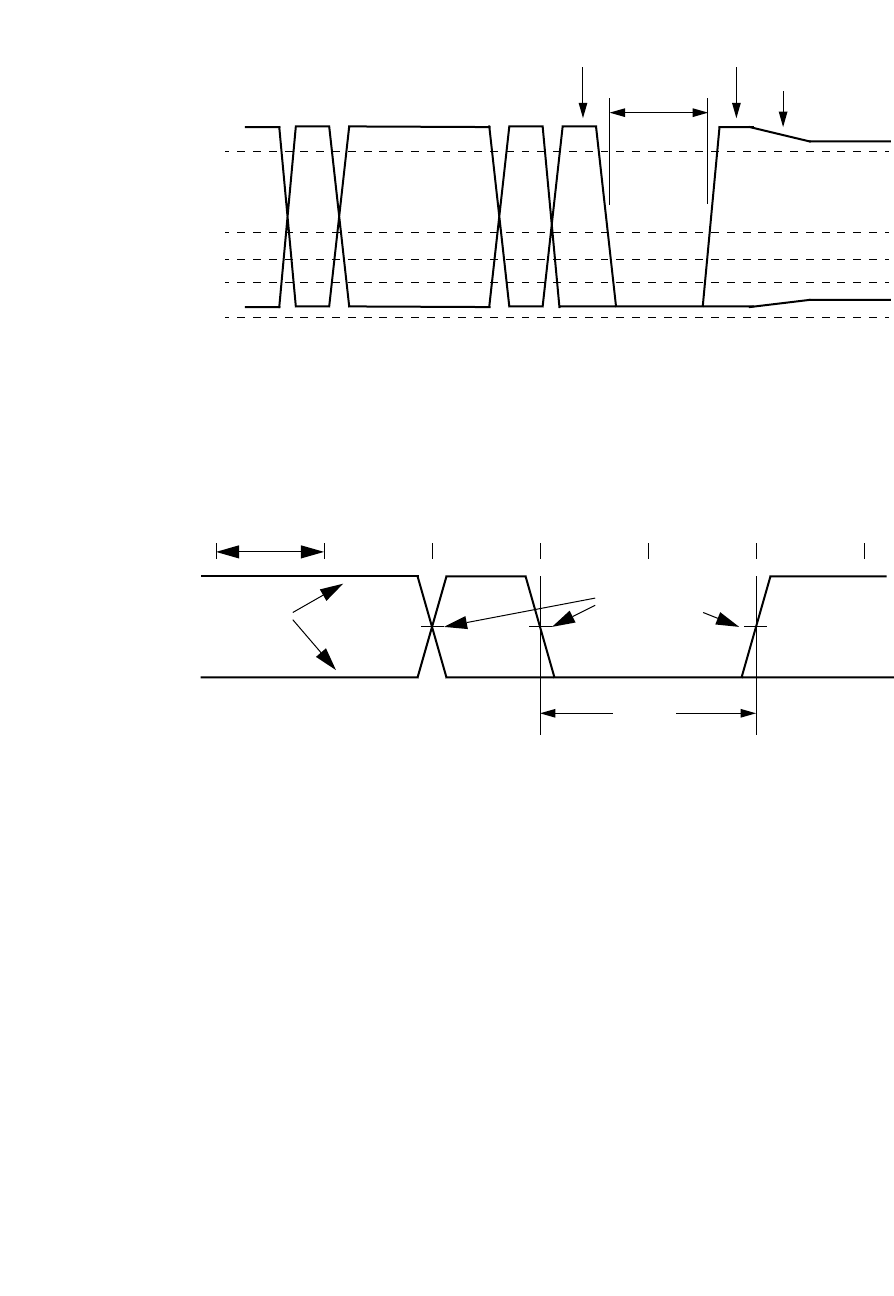

Figure 10-8. EOP Transaction Voltage Levels
The width of the SE0 in the EOP is about two bit times. The EOP width is
measured with the same capacitive load used for maximum rise and fall times and
is measured at the same level as the differential signal crossover points of the
data lines.
Figure 10-9. EOP Width Timing
10.2.2 Reset Signaling
A reset is signaled on the bus by the presence of an extended SE0 at the USB
data pins of a device. The reset signaling is specified to be present for a minimum
of 10 ms. An active device (powered and not in the suspend state) seeing a
single-ended zero on its USB data inputs for more than 2.5µs may treat that signal
as a reset, but must have interpreted the signaling as a reset within 5.5 µs. For a
Low speed device, an SE0 condition between 4 and 8 low speed bit times
represents a valid USB reset.
A USB sourced reset will hold the MC68HC05JB4 in reset for the duration of the
reset on the USB bus. The RSTF bit in the USB interrupt register 0 (UIR0) will be
set after the internal reset is removed (See Section 10.5.2 for more detail).
After a reset is removed, the device will be in the attached, but not yet addressed
or configured state (refer to Section 9.1 of the USB specification). The device must
be able to accept a device address via a SET_ADDRESS command (refer to
section 9.4 of the USB specification) no later than 10 ms after the reset is
removed.
BUS DRIVEN TO
LAST BIT OF
BUS IDLE
EOP
STROBE
PACKET IDLE STATE
BUS FLOATS
V
OH
(min)
V
SE
(max)
V
SE
(min)
V
OL
(min)
V
SS
EOP
WIDTH
t
Period
DIFFERENTIAL
DATA LINES
DATA
CROSSOVER
LEVEL
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
Reset can wake a device from the suspended mode. A device may take up to
10ms to wake up from the suspended state.
10.2.3 Suspend
The MC68HC05JB4 supports suspend mode for low power. Suspend mode
should be entered when the USB data lines are in the idle state for more than 3.0
ms. Entry into Suspend mode is controlled by the SUSPND bit in the USB
Interrupt Register. Any low speed bus activity should keep the device out of the
suspend state. Low speed devices are kept awake by periodic low speed EOP
signals from the host. This is referred to as Low speed keep alive (refer to Section
11.2.5.1 of the USB specification).
Firmware should monitor the EOPF flag and enter suspend mode by setting the
SUSPND bit if an EOP is not detected for 3 ms.
Per the USB specification, the MC68HC05JB4 is required to draw less than
500µA from the VDD supply when in the suspend state. This includes the current
supplied by the voltage regulator to the 15 KΩ to ground termination resistors
placed at the host end of the USB bus. This low current requirement means that
firmware is responsible for entering STOP mode once the USB module has been
placed in the suspend state.
10.2.4 Resume After Suspend
The MC68HC05JB4 can be activated from the suspend state by normal bus
activity, a USB reset signal, or by a forced resume driven from the
MC68HC05JB4.
10.2.4.1 Host Initiated Resume
The host signals resume by initiating resume signalling (“K” state) for at least 20
ms followed by a standard low speed EOP signal. This 20 ms ensures that all
devices in the USB network are awakened.
After resuming the bus, the host must begin sending bus traffic within 3 ms to
prevent the device from re-entering suspend mode.
10.2.4.2 USB Reset Signalling
Reset can wake a device from the suspended mode. A device may take up to 10
ms to wake up from the suspended state.
10.2.4.3 Remote Wake-up
The MC68HC05JB4 also supports the remote wake-up feature. The firmware has
the ability to exit suspend mode by signaling a resume state to the upstream Host
or Hub. A non-idle state (“K” state) on the USB data lines is accomplished by
asserting the FRESUM bit in the UCR1 register.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
When using the remote wake-up capability, the firmware must wait for at least 5
ms after the bus is in the idle state before sending the remote wake-up resume
signaling. This allows the upstream devices to get into their suspend state and
prepare for propagating resume signaling. The FRESUM bit should be asserted to
cause the resume state on the USB data lines for at least 10ms, but not more than
15ms. Note that the resume signalling is controlled by the FRESUM bit and
meeting the timing specifications is dependent on the firmware. When FRESUM is
cleared by firmware, the data lines will return to their high impedance state. Refer
to Section 10.5.5 for more information about how the Force Resume (FRESUM)
bit can be used to initiate the remote wake-up feature.
10.2.5 Low Speed Device
Externally, low speed devices are configured by the position of a pull-up resistor
on the USB D– pin of the MC68HC05JB4. Low speed devices are terminated as
shown in Figure 10-10 with the pull-up on the D– line.
Figure 10-10. External Low Speed Device Configuration
For low speed transmissions, the transmitter’s EOP width must be between
1.25µs and 1.50µs. These ranges include timing variations due to differential
buffer delay and rise/fall time mismatches and to noise and other random effects.
A low speed receiver must accept a 670ns wide SE0 followed by a J transition as
a valid EOP. An SE0 narrower than 330ns or an SE0 not followed by a J transition
must be rejected as an EOP. An EOP between 330ns and 670ns may be rejected
or accepted as above. Any SE0 that is 2.5µs or wider is automatically a reset.
10.3 CLOCK REQUIREMENTS
The low speed data rate is nominally 1.5 Mbs. The OSCXCLK signal driven by the
oscillator circuits is the clock source for the USB module and requires that a 6
MHz oscillator circuit be connected to the OSC1 and OSC2 pins. The permitted
frequency tolerance for low speed functions is approximately ±1.5% (15000 ppm).
This tolerance includes inaccuracies from all sources: initial frequency accuracy,
crystal capacitive loading, supply voltage on the oscillator, temperature, and
aging. The jitter in the low speed data rate must be less than 10 ns. This tolerance
allows the use of resonators in low cost, low speed devices.
10.4 HARDWARE DESCRIPTION
The USB module as previously shown in Figure 10-1 contains four functional
blocks: a 3.3 volt Regulator, a LS USB transceiver, the USB control logic, and the
68HC05JB4
1.5KΩ
D+
D–
3.3V Regulator Out
USB Low Speed Cable
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
USB registers. The following will detail the function of the regulator, transceiver
and control logic. See Section 10.5 for the register discussion.
10.4.1 Voltage Regulator
The USB data lines are required by the USB Specification to have a maximum
output voltage between 2.8V and 3.6V. The data lines are also required to have an
external 1.5KΩ pullup resistor connected between a data line and a voltage
source between 3.0V and 3.6V. Since the power provided by the USB cable is
specified to be between 4.4V and 5.0V, an on-chip regulator is used to drop the
voltage to the appropriate level for sourcing the USB transceiver and external
pullup resistor. An output pin driven by the regulator voltage is provided to source
the 1.5KΩ external resistor. Figure 10-11 shows the worst case electrical
connection for the voltage regulator.
Figure 10-11. Regulator Electrical Connections
10.4.2 USB Transceiver
The USB transceiver provides the physical interface to the USB D+ and D– data
lines. The transceiver is composed of two parts: an output drive circuit and a
differential receiver.
10.4.2.1 Output Driver Characteristics
The USB transceiver uses a differential output driver to drive the USB data signal
onto the USB cable. The static output swing of the driver in its low state is below
the VOL of 0.3 V with a 1.5 kΩ load to 3.6 V and in its high state is above the VOH
of 2.8 V with a 15 kΩ load to ground. The output swings between the differential
high and low state are well balanced to minimize signal skew. Slew rate control on
the driver is used to minimize the radiated noise and cross talk. The driver’s
outputs support three-state operation to achieve bi-directional half duplex
operation. The driver can tolerate a voltage on the signal pins of –0.5 V to 3.8 V
LS
Transceiver
3.3V
R2 R2
R1
R1 = 1.5KΩ ±5%
R2 = 15KΩ ±5%
Regulator
USB Data Lines
Host
or
Hub
USB Cable
4.4V
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
with respect to local ground reference without damage.
10.4.2.2 Low Speed (1.5 Mbs) Driver Characteristics
The rise and fall time of the signals on this cable are greater than 75 ns to keep
RFI emissions under FCC class B limits, and less than 300 ns to limit timing
delays and signaling skews and distortions. The driver reaches the specified static
signal levels with smooth rise and fall times, and minimal reflections and ringing
when driving the cable. This driver is used only on network segments between low
speed devices and the ports to which they are connected.

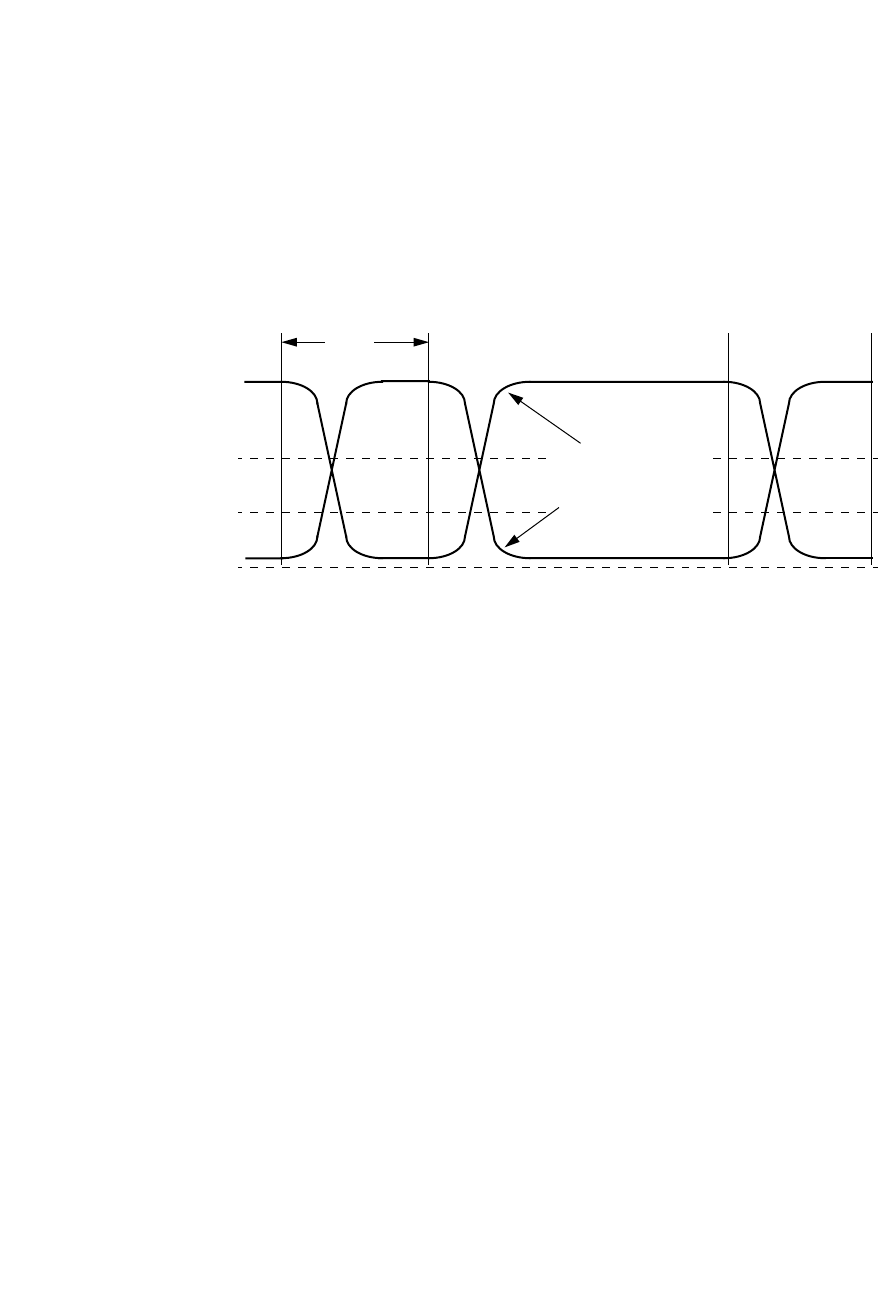

Figure 10-12. Low Speed Driver Signal Waveforms
10.4.3 Receiver Characteristics
USB data transmission is done with differential signals. A differential input receiver
is used to accept the USB data signal. A differential 1 on the bus is represented by
D+ being at least 200 mV more positive than D– as seen at the receiver, and a
differential 0 is represented by D– being at least 200 mV more positive than D+ as
seen at the receiver. The signal cross over point must be between 1.3V and 2.0V.
The receiver features an input sensitivity of 200 mV when both differential data
inputs are in the range of 0.8 V to 2.5 V with respect to the local ground reference.
This is called the common mode input voltage range. Proper data reception is also
achieved when the differential data lines are outside the common mode range, as

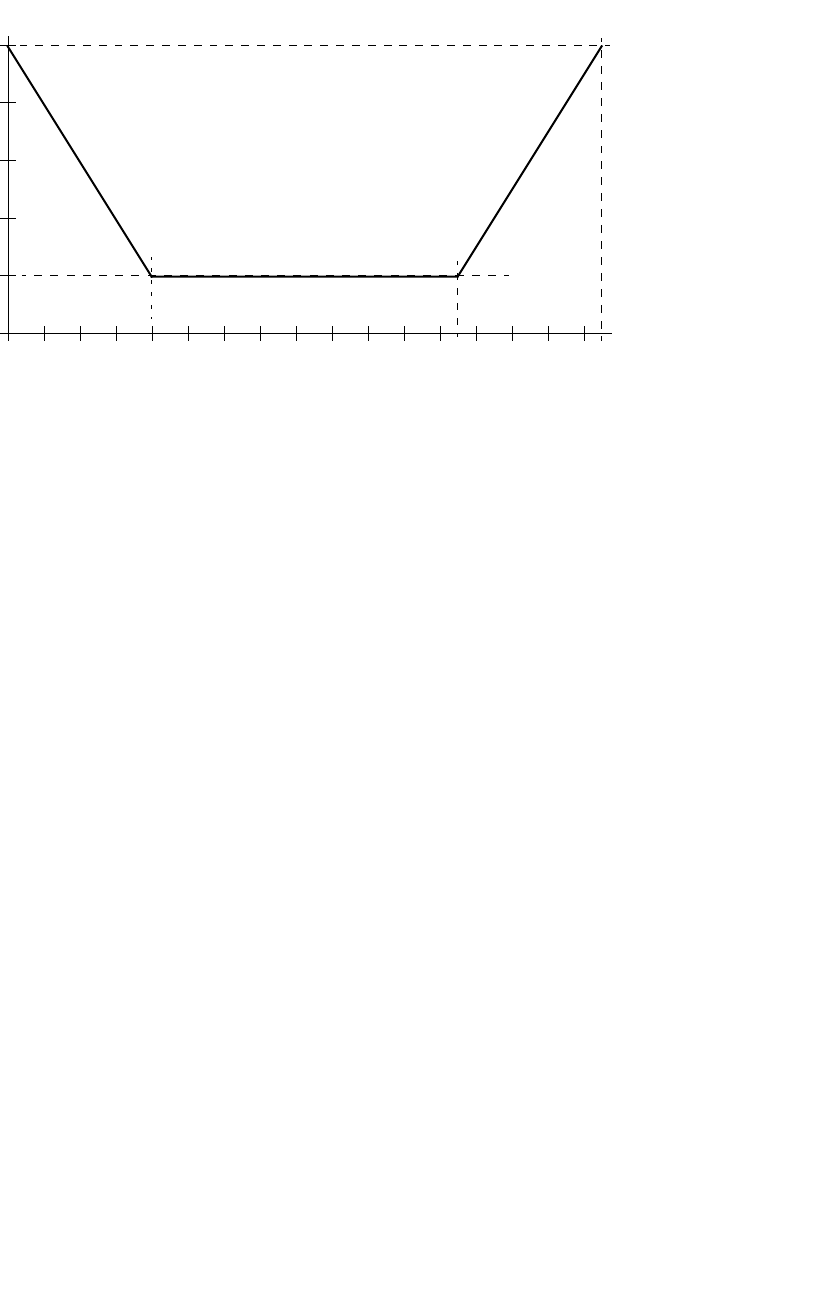

shown in Figure 10-13. The receiver can tolerate static input voltages between
–0.5V to 3.8 V with respect to its local ground reference without damage. In
addition to the differential receiver, there is a single-ended receiver (schmitt
trigger) for each of the two data lines.
ONE BIT
TIME
(1.5 Mb/s)
SIGNAL PINS
PASS OUTPUT SPEC
LEVELS WITH MINIMAL
REFLECTIONS AND RINGING
V
SE
(min)
V
SE
(max)
V
SS
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
Figure 10-13. Differential Input Sensitivity Over Entire Common Mode Range
10.4.3.1 Receiver Data Jitter
The data receivers for all types of devices must be able to properly decode the
differential data in the presence of jitter. The more of the bit cell that any data edge
can occupy and still be decoded, the more reliable the data transfer will be. Data
receivers are required to decode differential data transitions that occur in a
window plus and minus a nominal quarter bit cell from the nominal (centered) data
edge position.
Jitter will be caused by the delay mismatches and by mismatches in the source
and destination data rates (frequencies). The receive data jitter budget for low
speed is given in the electrical section of the this specification. The specification
includes the consecutive (next) and paired transition values for each source of
jitter.
10.4.3.2 Data Source Jitter
The source of data can have some variation (jitter) in the timing of edges of the
data transmitted. The time between any set of data transitions is
N x TPERIOD ± jitter time, where ‘N’ is the number of bits between the transitions
and TPERIOD is defined as the actual period of the data rate. The data jitter is
measured with the same capacitive load used for maximum rise and fall times and
is measured at the crossover points of the data lines as shown in Figure 10-14.
COMMON MODE INPUT VOLTAGE (VOLTS)
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2
1.0
0.8
0.6
0.4
0.2
MINIMUM DIFFERENTIAL SENSITIVITY (VOLTS)
0
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
Figure 10-14. Data Jitter
For low speed transmissions, the jitter time for any consecutive differential data
transitions must be within ±25 ns and within ±10 ns for any set of paired
differential data transitions. These jitter numbers include timing variations due to
differential buffer delay, rise/fall time mismatches, internal clock source jitter, and
to noise and other random effects.
10.4.3.3 Data Signal Rise and Fall Time
The output rise time and fall time are measured between 10% and 90% of the
signal. Edge transition time for the rising and falling edges of low speed signals is
75 ns (minimum) into a capacitive load (CL) of 50 pF and 300 ns (maximum) into a
capacitive load of 350 pF. The rising and falling edges should be smooth
transitional (monotonic) when driving the cable to avoid excessive EMI.
Figure 10-15. Data Signal Rise and Fall Time
10.4.4 USB Control Logic
The USB control logic manages data movement between the CPU and the
transceiver. The control logic handles both transmit and receive operations on the
USB. It contains the logic used to manipulate the transceiver and the endpoint
registers. The logic contains byte count buffers for transmit operations that load
the active transmit endpoints byte count and use this to determine the number of
bytes to transfer. This same buffer is used for receive transactions to count the
number of bytes received and, upon the end of the transaction, transfer that
number to the receive endpoints byte count register.
CONSECUTIVE
TRANSITIONS
t
Period
DIFFERENTIAL
DATA LINES
CROSSOVER
POINTS
PAIRED
TRANSITIONS
t
R
DIFFERENTIAL
DATA LINES
t
F
RISE TIME FALL TIME
10%
90% 90%
10%
LOW SPEED: 75 ns at C
L
= 50 pF, 300 ns at C
L
= 350 pF
C
L
C
L
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
When transmitting, the control logic handles parallel to serial conversion, CRC
generation, NRZI encoding, and bit stuffing.
When Receiving, the control logic handles Sync detection, packet identification,
end of packet detection, bit (un)stuffing, NRZI decoding, CRC validation, and
serial to parallel conversion. Errors detected by the control logic include bad CRC,
time-out while waiting for EOP, and bit stuffing violations.
10.4.4.1 Data Encoding/Decoding
The USB employs NRZI data encoding when transmitting packets. In NRZI
encoding, a 1 is represented by no change in level and a 0 is represented by a
change in level. Figure 10-16 shows a data stream and the NRZI equivalent and
Figure 10-17 is a flow diagram for NRZI. The high level represents the J state on
the data lines in this and subsequent figures showing NRZI encoding. A string of
zeros causes the NRZI data to toggle each bit time. A string of ones causes long
periods with no transitions in the data.
Figure 10-16. NRZI Data Encoding
Figure 10-17. Flow Diagram for NRZI
IDLEDATA
IDLE
NRZI
0110 0 000 00 011 1 11
POWER UP
NO PACKET
TRANSMISSION IDLE
BEGIN PACKET
FETCH THE
DATA BIT
NO YES
NO DATA
TRANSITION TRANSITION
IS PACKAGE
TRANSFER
DONE?
NO YES
DATA
TRANSMISSION
IS DATA
BIT = 0?
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
10.4.4.2 Bit Stuffing
In order to ensure adequate signal transitions, bit stuffing is employed by the
transmitting device when sending a packet on the USB (see Figure 10-18 and
Figure 10-19). A 0 is inserted after every six consecutive 1’s in the data stream
before the data is NRZI encoded to force a transition in the NRZI data stream.
This gives the receiver logic a data transition at least once every seven bit times to
guarantee the data and clock lock. The receiver must decode the NRZI data,
recognize the stuffed bits, and discard them. Bit stuffing is enabled beginning with
the Sync Pattern and throughout the entire transmission. The data “one” that ends
the Sync Pattern is counted as the first one in a sequence. Bit stuffing is always
enforced, without exception. If required by the bit stuffing rules, a zero bit will be
inserted even if it is the last bit before the end-of-packet (EOP) signal.

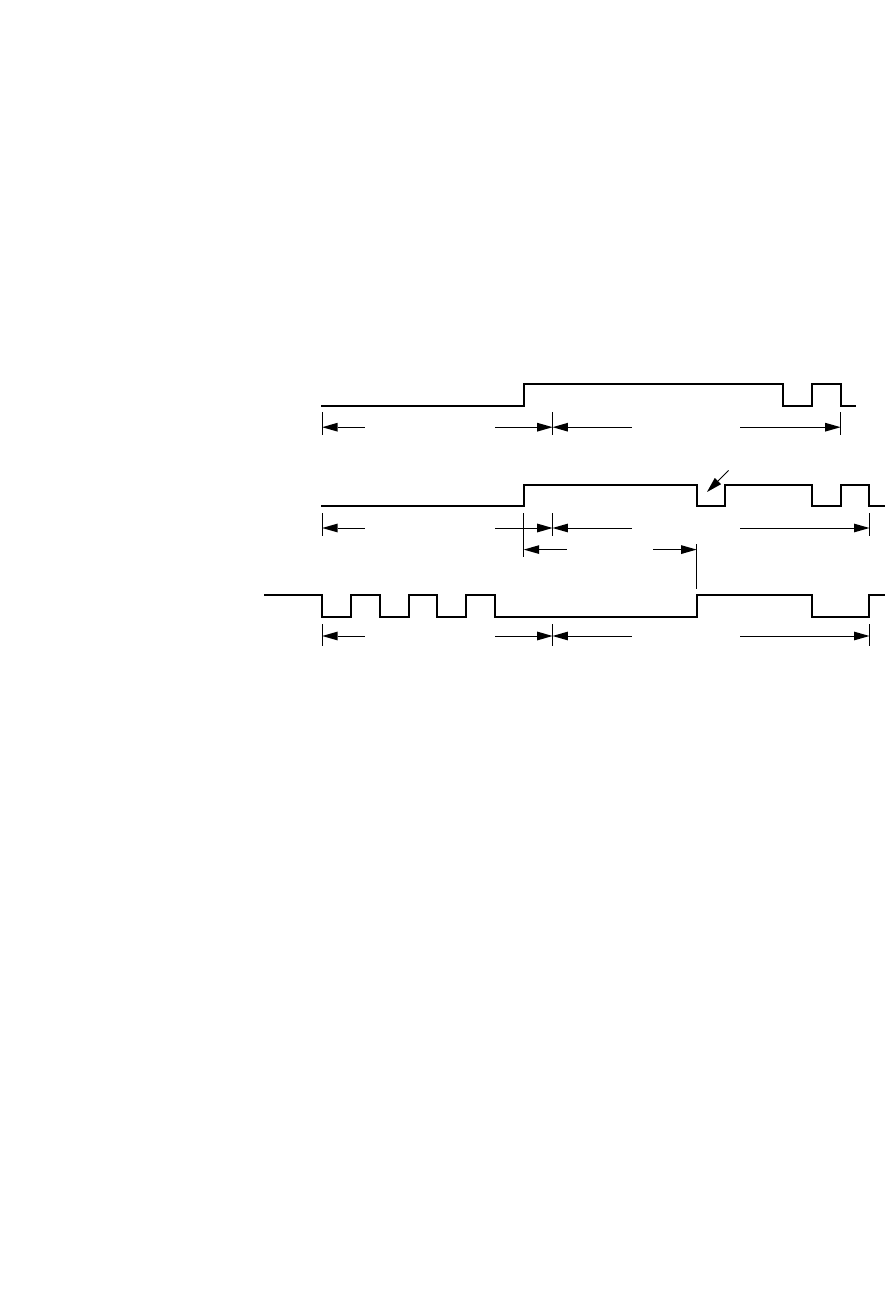

Figure 10-18. Bit Stuffing
IDLE
NRZI
ENCODED
DATA
BIT
STUFFED
DATA
RAW
DATA
STUFFED BIT
SYNC PATTERN PACKET DATA
PACKET DATA
SYNC PATTERN
PACKET DATA
SYNC PATTERN
SIX ONES
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
Figure 10-19. Flow Diagram for Bit Stuffing
10.5 I/O REGISTER DESCRIPTION
The USB Endpoint registers are comprised of a set of control/status registers and
twenty-four data registers that provide storage for the buffering of data between
the USB and the CPU. These registers are shown in Table 10-2.
Table 10-2. Register Summary
POWER UP
NO PACKET
TRANSMISSION IDLE
NO YES
IS PACKAGE
TRANSFER
DONE?
NO YES
RESET THE BIT
COUNTER TO 0
INSERT A
ZERO BIT
COUNTER = 6?
INCREMENT
THE COUNTER
= 0 = 1
BIT VALUE?
GET NEXT
BIT
RESET BIT
COUNTER TO 0
BEGIN PACKET
TRANSMISSION
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
10.5.1 USB Address Register (UADDR)
Register Name Bit 7 6 5 4 3 2 1 Bit 0 Addr
USB Control Register 2
(UCR2)
0 TX1ST 0 ENABLE2 ENABLE1 STALL2 STALL1 $0037
TX1STR
USB Address Register
(UADDR) USBEN UADD6 UADD5 UADD4 UADD3 UADD2 UADD1 UADD0 $0038
USB Interrupt Register 0
(UIR0)
TXD0F RXD0F RSTF SUSPND TXD0IE RXD0IE 00
$0039
TXD0FR RXD0FR
USB Interrupt Register 1
(UIR1)
TXD1F EOPF RESUMF 0 TXD1IE EOPIE 00
$003A
RESUMFR TXD1FR EOPFR
USB Control Register 0
(UCR0) T0SEQ STALL0 TX0E RX0E TP0SIZ3 TP0SIZ2 TP0SIZ1 TP0SIZ0 $003B
USB Control Register 1
(UCR1) T1SEQ ENDADD TX1E FRESUM TP1SIZ3 TP1SIZ2 TP1SIZ1 TP1SIZ0 $003C
USB Status Register
(USR)
RSEQ SETUP 0 0 RPSIZ3 RPSIZ2 RPSIZ1 RPSIZ0 $003D
USB Endpoint 0 Data
Register 0 (UE0D0)
UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0 $0020
UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
↓↓
USB Endpoint 0 Data
Register 7 (UE0D7)
UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0 $0027
UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
USB Endpoint 1/2 Data
Register 0 (UE1D0) $0028
UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
↓↓
USB Endpoint 1/2 Data
Register 7 (UE1D7) $002F
UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
= Unimplemented
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
UADDR R USBEN UADD6 UADD5 UADD4 UADD3 UADD2 UADD1 UADD0
$0038 W
reset: 00000000
Figure 10-20. USB Address Register (UADDR)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
USBEN — USB Module Enable
This read/write bit enables and disables the USB module and the USB pins.
When USBEN is clear, the USB module will not respond to any tokens. Reset
clears this bit.
1 = USB function enabled
0 = USB function disabled
UADD6-UADD0 — USB Function Address
These bits specify the USB address of the device. Reset clears these bits.
10.5.2 USB Interrupt Register 0 (UIR0)
TXD0F — Endpoint 0 Data Transmit Flag
This read only bit is set after the data stored in Endpoint 0 transmit buffers has
been sent and an ACK handshake packet from the host is received. Once the
next set of data is ready in the transmit buffers, software must clear this flag by
writing a logic 1 to the TXD0FR bit. To enable the next data packet transmis-
sion, TX0E must also be set. If TXD0F bit is not cleared, a NAK handshake will
be returned in the next IN transaction.
Reset clears this bit. Writing a logic 0 to TXD0F has no effect.
1 = Transmit on Endpoint 0 has occurred
0 = Transmit on Endpoint 0 has not occurred
RXD0F — Endpoint 0 Data Receive Flag
This read only bit is set after the USB module has received a data packet and
responded with an ACK handshake packet. Software must clear this flag by
writing a logic 1 to the RXD0FR bit after all of the received data has been read.
Software must also set RX0E bit to one to enable the next data packet recep-
tion. If RXD0F bit is not cleared, a NAK handshake will be returned in the next
OUT transaction.
Reset clears this bit. Writing a logic 0 to RXD0F has no effect.
1 = Receive on Endpoint 0 has occurred
0 = Receive on Endpoint 0 has not occurred
RSTF — USB Reset Flag
This read only bit is set when a valid reset signal state is detected on the D+
and D– lines. This reset detection will also generate an internal reset signal to
reset the CPU and other peripherals including the USB module. This bit is
cleared by a POR reset.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
UIR0 R TXD0F RXD0F RSTF SUSPND TXD0IE RXD0IE 00
$0039 W TXD0FR RXD0FR
reset: 00000000
= Unimplemented
Figure 10-21. USB Interrupt Register 0 (UIR0)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
SUSPND — USB Suspend Flag
To save power, this read/write bit should be set by the software if a 3ms con-
stant idle state is detected on USB bus. Setting this bit stops the clock to the
USB and causes the USB module to enter Suspend mode. Unnecessary ana-
log circuitry will be powered down. Software must clear this bit after the
Resume flag (RESUMF) is set while this Resume interrupt flag is serviced.
TXD0IE — Endpoint 0 Transmit Interrupt Enable
This read/write bit enables the Transmit Endpoint 0 to generate a USB interrupt
when the TXD0F bit becomes set.
1 = USB interrupts enabled for Transmit Endpoint 0
0 = USB interrupts disabled for Transmit Endpoint 0
RXD0IE — Endpoint 0 Receive Interrupt Enable
This read/write bit enables the Transmit Endpoint 0 to generate a USB interrupt
when the RXD0F bit becomes set.
1 = USB interrupts enabled for Receive Endpoint 0
0 = USB interrupts disabled for Receive Endpoint 0
TXD0FR — Endpoint 0 Transmit Flag Reset
Writing a logic 1 to this write only bit will clear the TXD0F bit if it is set.Writing a
logic 0 to TXD0FR has no effect. Reset clears this bit.
RXD0FR — Endpoint 0 Receive Flag Reset
Writing a logic 1 to this write only bit will clear the RXD0F bit if it is set.Writing a
logic 0 to RXD0FR has no effect. Reset clears this bit.
10.5.3 USB Interrupt Register 1 (UIR1)
TXD1F — Endpoint 1/Endpoint 2 Data Transmit Flag
This read only bit is shared by Endpoint 1 and Endpoint 2. It is set after the data
stored in the shared Endpoint 1/Endpoint 2 transmit buffer has been sent and
an ACK handshake packet from the host is received. Once the next set of data
is ready in the transmit buffers, software must clear this flag by writing a logic 1
to the TXD1FR bit. To enable the next data packet transmission, TX1E must
also be set. If TXD1F bit is not cleared, a NAK handshake will be returned in
the next IN transaction.
Reset clears this bit. Writing a logic 0 to TXD1F has no effect.
1 = Transmit on Endpoint 1 or Endpoint 2 has occurred
0 = Transmit on Endpoint 1 or Endpoint 2 has not occurred
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
UIR1 R TXD1F EOPF RESUMF 0 TXD1IE EOPIE 00
$003A W RESUMFR TXD1FR EOPFR
reset: 00000000
= Unimplemented
Figure 10-22. USB Interrupt Register 1(UIR1)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
EOPF — End of Packet Detect Flag
This read only bit is set when a valid End-of-Packet sequence is detected on
the D+ and D– lines. Software must clear this flag by writing a logic 1 to the
EOPFR bit.
Reset clears this bit. Writing a logic 0 to EOPF has no effect.
1 = End-of-Packet sequence has been detected
0 = End-of-Packet sequence has not been detected
RESUMF — Resume Flag
This read only bit is set when USB bus activity is detected while the SUSPND
bit is set. Software must clear this flag by writing a logic 1 to the RESUMFR bit.
Reset clears this bit. Writing a logic 0 to RESUMF has no effect.
1 = USB bus activity has been detected
0 = No USB bus activity has been detected
RESUMFR — Resume Flag Reset
Writing a logic 1 to this write only bit will clear the RESUMF bit if it is set. Writ-
ing a logic 0 to RESUMFR has no effect. Reset clears this bit.
TXD1IE — Endpoint 1/Endpoint 2 Transmit Interrupt Enable
This read/write bit enables the USB to generate an interrupt when the shared
Transmit Endpoint 1/Endpoint 2 interrupt flag (TXD1F) bit becomes set. Reset
clears this bit.
1 = USB interrupts enabled for Transmit Endpoints 1 and 2
0 = USB interrupts disabled for Transmit Endpoints 1 and 2
EOPIE — End of Packet Detect Interrupt Enable
This read/write bit enables the USB to generate an interrupt when the EOPF bit
becomes set. Reset clears this bit.
1 = USB interrupts enabled for Transmit Endpoints 1 and 2
0 = USB interrupts disabled for Transmit Endpoint 1 and 2
TXD1FR — Endpoint 1/Endpoint 2 Transmit Flag Reset
Writing a logic 1 to this write only bit will clear the TXD1F bit if it is set. Writing a
logic 0 to TXD1FR has no effect. Reset clears this bit.
EOPFR — End of Packet Flag Reset
Writing a logic 1 to this write only bit will clear the EOPF bit if it is set. Writing a
logic 0 to the EOPFR has no effect. Reset clears this bit.
10.5.4 USB Control Register 0 (UCR0)
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
UCR0 R T0SEQ STALL0 TX0E RX0E TP0SIZ3 TP0SIZ2 TP0SIZ1 TP0SIZ0
$003B W
reset: 00000000
Figure 10-23. USB Control Register 0 (UCR0)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
T0SEQ — Endpoint 0 Transmit Sequence Bit
This read/write bit determines which type of data packet (DATA0 or DATA1) will
be sent during the next IN transaction. Toggling of this bit must be controlled by
software. Reset clears this bit.
1 = DATA1 Token active for next Endpoint 0 transmit
0 = DATA0 Token active for next Endpoint 0 transmit
STALL0 — Endpoint 0 Force Stall Bit
This read/write bit causes Endpoint 0 to return a STALL handshake when
polled by either an IN or OUT token by the USB Host Controller. The USB hard-
ware clears this bit when a SETUP token is received. Reset clears this bit.
1 = Send STALL handshake
0 = Default
TX0E — Endpoint 0 Transmit Enable
This read/write bit enables a transmit to occur when the USB Host controller
sends an IN token to Endpoint 0. Software should set this bit when data is
ready to be transmitted. It must be cleared by software when no more Endpoint
0 data needs to be transmitted.
If this bit is 0 or the TXD0F is set, the USB will respond with a NAK handshake
to any Endpoint 0 IN tokens. Reset clears this bit.
1 = Data is ready to be sent.
0 = Data is not ready. Respond with NAK.
RX0E — Endpoint 0 Receive Enable
This read/write bit enables a receive to occur when the USB Host controller
sends an OUT token to Endpoint 0. Software should set this bit when data is
ready to be received. It must be cleared by software when data cannot be
received.
If this bit is 0 or the RXD0F is set, the USB will respond with a NAK handshake
to any Endpoint 0 OUT tokens. Reset clears this bit.
1 = Data is ready to be received.
0 = Not ready for data. Respond with NAK.
TP0SIZ3-TP0SIZ0 — Endpoint 0 Transmit Data Packet Size
These read/write bits store the number of transmit data bytes for the next IN
token request for Endpoint 0. These bits are cleared by reset.
10.5.5 USB Control Register 1 (UCR1)
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
UCR1 R T1SEQ ENDADD TX1E FRESUM TP1SZ3 TP1SIZ2 TP1SIZ1 TP1SIZ0
$003C W
reset: 00000000
Figure 10-24. USB Control Register 1 (UCR1)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
T1SEQ — Endpoint1/Endpoint 2 Transmit Sequence Bit
This read/write bit determines which type of data packet (DATA0 or DATA1) will
be sent during the next IN transaction directed to Endpoint 1 or Endpoint 2.
Toggling of this bit must be controlled by software. Reset clears this bit.
1 = DATA1 Token active for next Endpoint 1/Endpoint 2 transmit
0 = DATA0 Token active for next Endpoint 1/Endpoint 2 transmit
ENDADD — Endpoint Address Select
This read/write bit specifies whether the data inside the registers
UE1D0-UE1D7 are used for Endpoint 1 or Endpoint 2. If all the conditions for a
successful Endpoint 2 USB response to a hosts IN token are satisfied
(TXD1F=0, TX1E=1, STALL2=0, and ENABLE2=1) except that the ENDADD bit
is configured for Endpoint 1, the USB responds with a NAK handshake packet.
1 = The data buffers are used for Endpoint 2
0 = The data buffers are used for Endpoint 1
TX1E — Endpoint 1/Endpoint 2 Transmit Enable
This read/write bit enables a transmit to occur when the USB Host controller
sends an IN token to Endpoint 1 or Endpoint 2. The appropriate endpoint
enable bit, ENABLE1 or ENABLE2 bit in the UCR2 register, should also be set.
Software should set the TX1E bit when data is ready to be transmitted. It must
be cleared by software when no more data needs to be transmitted.
If this bit is 0 or the TXD1F is set, the USB will respond with a NAK handshake
to any Endpoint 1 or Endpoint 2 directed IN tokens. Reset clears this bit.
1 = Data is ready to be sent.
0 = Data is not ready. Respond with NAK.
FRESUM — Force Resume
This read/write bit forces a resume state (“K” or non-idle state) onto the USB
data lines to initiate a remote wake-up. Software should control the timing of the
forced resume to be between 10ms and 15 ms. Setting this bit will not cause
the RESUMF bit to set.
1 = Force data lines to “K” state
0 = Default
TP1SIZ3-TP1SIZ0 — Endpoint 1/Endpoint 2 Transmit Data Packet Size
These read/write bits store the number of transmit data bytes for the next IN
token request for Endpoint 1 or Endpoint 2. These bits are cleared by reset.
10.5.6 USB Control Register 2 (UCR2)
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
UCR2 R 0 TX1ST 0 ENABLE2 ENABLE1 STALL2 STALL1
$0037 W TX1STR
reset:- -0-0000
= Unimplemented
Figure 10-25. USB Control Register 2 (UCR2)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
TX1STR — Clear Transmit First Flag
Writing a logic 1 to this write-only bit will clear the TX1ST bit if it is set. Writing a
logic 0 to the TX1STR has no effect. Reset clears this bit.
TX1ST — Transmit First Flag
This read-only bit is set if the Endpoint 0 Data Transmit Flag (TXD0F) is set
when the USB control logic is setting the Endpoint 0 Data Receive Flag
(RXD0F). That is, this bit will be set if an Endpoint 0 Transmit Flag is still set at
the end of an Endpoint 0 reception. This bit lets the firmware know that the
Endpoint 0 transmission happened before the Endpoint 0 reception. Reset
clears this bit.
1 = IN transaction occurred before SETUP/OUT.
0 = IN transaction occurred after SETUP/OUT.
ENABLE2 — Endpoint 2 Enable
This read/write bit enables Endpoint 2 and allows the USB to respond to IN
packets addressed to Endpoint 2. Reset clears this bit.
1 = Endpoint 2 is enabled and can respond to an IN token.
0 = Endpoint 2 is disabled
ENABLE1 — Endpoint 1 Enable
This read/write bit enables Endpoint 1 and allows the USB to respond to IN
packets addressed to Endpoint 1. Reset clears this bit.
1 = Endpoint 1 is enabled and can respond to an IN token.
0 = Endpoint 1 is disabled
STALL2 — Endpoint 2 Force Stall Bit
This read/write bit causes Endpoint 2 to return a STALL handshake when
polled by either an IN or OUT token by the USB Host Controller. Reset clears
this bit.
1 = Send STALL handshake.
0 = Default
STALL1 — Endpoint 1 Force Stall Bit
This read/write bit causes Endpoint 1 to return a STALL handshake when
polled by either an IN or OUT token by the USB Host Controller. Reset clears
this bit.
1 = Send STALL handshake
0 = Default
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
10.5.7 USB Status Register (USR)
RSEQ — Endpoint 0 Receive Sequence Bit
This read only bit indicates the type of data packet last received for Endpoint 0
(DATA0 or DATA1).
1 = DATA1 Token received in last Endpoint 0 receive
0 = DATA0 Token received in last Endpoint 0 receive
SETUP — SETUP Token Detect Bit
This read only bit indicates that a valid SETUP token has been received.
1 = Last token received for Endpoint 0 was a SETUP token
0 = Last token received for Endpoint 0 was not a SETUP token
RPSIZ3-RPSIZ0 — Endpoint 0 Receive Data Packet Size
These read only bits store the number of data bytes received for the last OUT
or SETUP transaction for Endpoint 0. These bits are not affected by reset.
10.5.8 USB Endpoint 0 Data Registers (UE0D0-UE0D7)
UE0RD7 - UE0RD0 — Endpoint 0 Receive Data Buffer
These read only bits are serially loaded with OUT token or SETUP token data
received over the USB’s D+ and D– pins.
UE0TD7 - UE0TD0 — Endpoint 0 Transmit Data Buffer
These write only buffers are loaded by software with data to be sent on the
USB bus on the next IN token directed at Endpoint 0.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
USR R RSEQ SETUP 0 0 RPSIZ3 RPSIZ2 RPSIZ1 RPSIZ0
$003D W
reset: UUUUUUUU
= Unimplemented
Figure 10-26. USB Status Register (USR)
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
UE0D0 R UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0
$0020 W UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
to ::::::::
::::::::
UE0D7 R UE0RD7 UE0RD6 UE0RD5 UE0RD4 UE0RD3 UE0RD2 UE0RD1 UE0RD0
$0027 W UE0TD7 UE0TD6 UE0TD5 UE0TD4 UE0TD3 UE0TD2 UE0TD1 UE0TD0
reset: XXXXXXXX
Figure 10-27. USB Endpoint 0 Data Register (UE0D0-UE0D7)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
10.5.9 USB Endpoint 1/Endpoint 2 Data Registers (UE1D0-UE1D7)
UE1TD7 - UE1TD0 — Endpoint 1/ Endpoint 2 Transmit Data Buffer
These write only buffers are loaded by software with data to be sent on the
USB bus on the next IN token directed at Endpoint 1 or Endpoint 2. These buff-
ers are shared by Endpoints 1 and 2 and depend on proper configuration of the
ENDADD bit.
10.6 USB INTERRUPTS
The USB module is capable of generating interrupts and causing the CPU to
execute the USB interrupt service routine. There are three types of USB
interrupts:
• End of Transaction interrupts signify a completed transaction (receive or
transmit)
• Resume interrupts signify that the USB bus is reactivated after having
been suspended
• End of Packet interrupts signify that a low speed end of packet signal
was detected
All USB interrupts share the same interrupt vector. Firmware is responsible for
determining which interrupt is active.
10.6.1 USB End of Transaction Interrupt
There are three possible end of transaction interrupts: Endpoint 0 Receive,
Endpoint 0 Transmit, and a shared Endpoint 1 or Endpoint 2 Transmit. End of
transaction interrupts occur as detailed in the following sections.
10.6.1.1 Receive Control Endpoint 0
For a Control OUT transaction directed at Endpoint 0, the USB module will
generate an interrupt by setting the RXD0F flag in the UIR0 register. The
conditions necessary for the interrupt to occur are shown in the flowchart of
Figure 10-29.
SETUP transactions cannot be stalled by the USB function. A SETUP received by
a control endpoint will clear the STALL0 bit if it is set. The conditions for receiving
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
UE1D0 R
$0028 W UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
to ::::::::
::::::::
UE1D7 R
$002F W UE1TD7 UE1TD6 UE1TD5 UE1TD4 UE1TD3 UE1TD2 UE1TD1 UE1TD0
reset: XXXXXXXX
Figure 10-28. USB Endpoint 1/Endpoint2 Data Registers (UE1D0-UE1D7)
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
a SETUP interrupt are shown in Figure 10-30.
10.6.1.2 Transmit Control Endpoint 0
For a Control IN transaction directed at Endpoint 0, the USB module will generate
an interrupt by setting the TXD0F flag in the UIR0 register. The conditions
necessary for the interrupt to occur are shown in the flowchart of Figure 10-31.
10.6.1.3 Transmit Endpoint 1 and Transmit Endpoint 2
Transmit Endpoints 1 & 2 share their interrupt flag. For an IN transaction directed
at Endpoint 1 or 2, the USB module will generate an interrupt by setting the
TXD1F flag in the UIR1 register. The conditions necessary for the interrupt to
occur are shown in the flowchart of Figure 10-32.
10.6.2 Resume Interrupt
The USB module will generate a USB interrupt if low speed bus activity is
detected after entering the suspend state. A transition of the USB data lines to the
non-idle state (“K” state) while in the suspend mode will set the RESUMF flag in
the UIR1 register. There is no interrupt enable bit for this interrupt source and an
interrupt will be executed if the I bit in the CCR is cleared. A resume interrupt can
only occur while the MC68HC05JB4 is in the suspend mode.
10.6.3 End of Packet Interrupt
The USB module can generate a USB interrupt upon detection of an end of
packet signal (a single ended 0) for low speed devices. Upon detection of an SE0
sequence, the USB module sets the EOPF bit and will generate an interrupt if the
EOPIE bit in the UIR1 register is set.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
Figure 10-29. OUT Token Data Flow for Receive Endpoint 0
Valid OUT token
received for Endpoint 0
Endpoint 0 Receive Enabled?
(USBEN = 1)
Endpoint 0 Receive Ready to Receive?
(RX0E = 1) && (RXD0F = 0)
Error free DATA packet?
No Response
from USB function
Send NAK
Handshake
Ignore transaction
No response from
USB function
Set RXD0F to 1
Receive Control Endpoint
Interrupt Enabled?
(RXD0IE = 1)
No Interrupt
Valid transaction
Interrupt generated
Endpoint 0 Receive Not Stalled?
(STALL0 = 0) Send STALL
Handshake
Accept Data
Valid DATA token
received for Endpoint 0? No Response
from USB function
Time-out
N
N
N
N
N
N
Y
Y
Y
Y
Y
Y
Y
Set/clear RSEQ bit
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
Figure 10-30. SETUP Token Data Flow for Receive Endpoint 0
Valid SETUP token
received for Endpoint 0
Endpoint 0 Receive Enabled?
(USBEN = 1)
Error free DATA packet?
No Response
from USB function
Ignore transaction
No response from
USB function
Set RXD0F to 1
Receive Control Endpoint
Interrupt Enabled?
(RXD0IE = 1)
No Interrupt
Valid transaction
Interrupt generated
Accept Data
Set SETUP to 1
N
N
N
Y
Y
Y
Y
Y
Y
Y
STALL0 = 0? NClear STALL0 bit
Endpoint 0 Receive Ready to Receive?
(RX0E = 1) && (RXD0F = 0)
N
Y
set/clear RSEQ bit
No Response
from USB function
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
Figure 10-31. IN Token Data Flow for Transmit Endpoint 0
Transmit Endpoint Enabled?
(USBEN = 1)
Transmit Endpoint ready to Transfer?
(TX0E = 1) && (TXD0F = 0)
No Response
from USB function
Send NAK
Handshake
ACK received and no
Set TXD0F to 1
Transmit Endpoint
Interrupt Enabled?
(TXD0IE = 1)
No Interrupt
Valid transaction
Interrupt generated
Transmit Endpoint not Stalled by firmware?
(STALL0 = 0)
Send STALL
Handshake
Send DATA
Data PID set by T0SEQ
Valid IN token
received for Endpoint 0
N
Y
N
N
Y
Y
Y
No Response
from USB function
N
Y
Time-out condition occur?
Y
N
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 UNIVERSAL SERIAL BUS MODULE
REV 2
Figure 10-32. IN Token Data Flow for Transmit Endpoint 1/2
Transmit Endpoint Enabled?
(USBEN = 1)
Transmit Endpoint ready to Transfer?
(TX1E = 1) && (TXD1F = 0) &
No Response
from USB function
Send NAK
Handshake
Set TXD1F to 1
Transmit Endpoint
Interrupt Enabled?
(TXD1IE = 1) No Interrupt
Valid transaction
Interrupt generated
Transmit Endpoint not Stalled by firmware?
(STALL1 & ENDP1) + (STALL2 & ENDP2)
Send STALL
Handshake
Send DATA
Data PID set by T1SEQ
Valid IN token
received for Endpoints 1 or 2
N
Y
N
N
Y
Y
Y
ACK received and no
Time-out condition occurs?
No Response
from USB function
N
Y
((ENDP2 & ENDADD) + (ENDP1 & ENDADD))
ENDP1 is Endpoint 1 directed traffic
ENDP2 is Endpoint 2 directed traffic
Note:
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
UNIVERSAL SERIAL BUS MODULE
REV
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 ANALOG TO DIGITAL CONVERTER
REV 2
SECTION 11
ANALOG TO DIGITAL CONVERTER
The analog to digital converter system consists of a single 8-bit successive
approximation converter and an 16-channel analog multiplexer. Six of the chan-
nels are available for analog inputs, four channels are dedicated to internal test
functions, and the remaining six channels are unused. There is one 8-bit ADC
Data Register ($0F) and one 8-bit ADC Status and Control register ($0E). The ref-
erence supply, VRL and VRH for the converter uses two input pins (shared with port
pins PC4 and PC5) instead of the power supply lines, because drops caused by
loading in the power supply lines would degrade the accuracy of the analog to dig-
ital conversion. An internal RC oscillator is available if the bus speed is low
enough to degrade the ADC accuracy. An ADON bit allows the ADC to be
switched off to reduce power consumption, which is particularly useful in the Wait
mode.
Figure 11-1. ADC Converter Block Diagram
CH3CH2CH1CH0 COCOADRCADON
8-bit capacitive DAC
with sample and hold
Successive approximation
register and control
Result
ADC Status and Control Register ($0E)
Analog MUX
(Channel assignment)
ADC Data Register ($0F)
VRH
VRL
AD0
V
RH
(V
RH
+V
RL
)/2
V
RL
AD1
AD2
AD3
(V
RH
+V
RL
)/4
8
AD4
AD5
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
ANALOG TO DIGITAL CONVERTER
REV
11.1 ADC OPERATION
As shown in Figure 11-1, the ADC consists of an analog multiplexer, an 8-bit digi-
tal to analog capacitor array, a comparator and a successive approximation regis-
ter (SAR).
There are ten options that can be selected by the multiplexer; the AD0 to AD5
input pins, VRH, VRL, (VRH+VRL)/4, or (VRH+VRL)/2. Selection is done via the CHx
bits in the ADC Status and Control Register. AD0 to AD5 are input points for ADC
conversion operations; the others are reference points which can be used for test
purposes. The converter uses VRH and VRL as reference voltages. An input volt-
age equal to or greater than VRH converts to $FF. An input voltage equal to or less
than VRL, but greater than VSS, converts to $00. Maximum and minimum ratings
must not be exceeded. Each analog input source should use VRH as the supply
voltage and should be referenced to VRL for the ratiometric conversions. To main-
tain full accuracy of the ADC, the following should be noted:
1. VRH should be equal to or less than VCC;
2. VRL should be equal to or greater than VSS but less than maximum
specifications; and
3. VRH–VRL should be equal to or greater than 4 Volts.
The ADC reference inputs (VRH and VRL) are applied to a precision internal digital
to analog converter. Control logic drives this D/A converter and the analog output
is successively compared with the selected analog input sampled at the beginning
of the conversion. The conversion is monotonic with no missing codes.
The result of each successive comparison is stored in the successive approxima-
tion register (SAR) and, when the conversion is complete, the contents of the SAR
are transferred to the read-only ADC Data Register ($0F), and the conversion
complete flag, COCO, is set in the ADC Status and Control Register ($0E).
NOTE
Any write to the ADC Status and Control Register will abort the current
conversion, reset the conversion complete flag (COCO) and a new conversion
starts on the selected channel.
At power-on or external reset, both the ADRC and ADON bits are cleared, thus
the ADC is disabled.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 ANALOG TO DIGITAL CONVERTER
REV 2
11.2 ADC STATUS AND CONTROL REGISTER (ADSCR)
The ADSCR is a read/write register containing status and control bits for the ADC.
Figure 11-2. A/D Status and Control Register
COCO — COnversion COmplete
1 = An ADC conversion has completed; ADC Data Register ($0F)
contains valid conversion result.
0 = ADC conversion not completed.
This read-only status bit is set when a conversion is completed, indicating that
the ADC Data Register contains a valid result. This COCO bit is cleared either
by a write to the ADSCR or a read of the ADC Data Register. Once the COCO
bit is cleared, a new conversion automatically starts. If the COCO bit is not
cleared, conversions are initiated every 32 cycles. In this continuous conver-
sion mode the ADC Data Register is refreshed with new data, every 32 cycles,
and the COCO bit remains set.
ADRC — ADC RC Oscillator Control
1 = ADC uses RC oscillator as clock source.
0 = ADC uses internal processor clock as clock source.
The RC oscillator option must be used if the internal processor is running below
1MHz. A stabilization time of typically 1ms is required when switching to the RC
oscillator option.
ADON — ADC On
1 = ADC is switched ON.
0 = ADC is switched OFF.
When the ADC is turned from OFF to ON, it requires a time tADON for the cur-
rent sources to stabilize. During this time ADC conversion results may be inac-
curate. Switching the ADC off disables the internal charge pump and RC
oscillator (if selected by ADRC=1), and hence saving power.
CH3:CH0 — Channel Select Bits
These four bits selects one of ten ADC channels for the conversion. Channels 0
to 5 correspond to inputs AD0-AD5 on port pins PC0-PC3, PB3 and PB4
respectively. Channels 12 and 13 are the ADC reference inputs VRH and VRL,
on port pins PC4 and PC5 respectively. Channels 14 and 15 are used for inter-
nal reference points. Table 11-1 shows the signals selected by the channel
select bits.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
ADSCR R COCO ADRC ADON 0CH3 CH2 CH1 CH0
$000E W
reset: 00000000
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
ANALOG TO DIGITAL CONVERTER
REV
Using a port pin as both an analog and digital input simultaneously is prohib-
ited. When the ADC is enabled (ADON=1) and one of channels is selected, the
corresponding port pin will appear as a logic zero when read from the Port Data
Register. Note that the pull-up on a port-B pin will be disabled automatically
when that port pin is selected as the ADC input and the ADON bit is set to logic
“1”.
11.3 ADC DATA REGISTER (ADDR)
The ADDR stores the result of a valid ADC conversion when the COCO bits is set
in ADSCR.
Figure 11-3. A/D Data Register
Table 11-1. A/D Channel Assignments
CH3 CH2 CH1 CH0 Channel Signal
0000 0 AD0 (PC0)
0001 1 AD1 (PC1)
0010 2 AD2 (PC2)
0011 3 AD3 (PC3)
0100 4 AD4 (PB3)
0101 5 AD5 (PB4)
0110 6 Not Implemented
0111 7 Not Implemented
1000 8 Not Implemented
1001 9 Not Implemented
1010 10 Not Implemented
1011 11 Not Implemented
1100 12 VRH (PC4)
1101 13 VRL (PC5)
1110 14 (VRH+VRL)/4
1111 15 (VRH+VRL)/2
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
ADDR R ADDR7 ADDR6 ADDR5 ADDR4 ADDR3 ADDR2 ADDR1 ADDR0
$000F W
reset: 00000000
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 ANALOG TO DIGITAL CONVERTER
REV 2
11.4 ADC DURING LOW POWER MODES
The ADC continues normal operation in WAIT mode. To reduce power consump-
tion in WAIT mode, the ADON and ADRC bits in the ADSCR should be cleared if
the ADC is not used. If the ADC is in use and the internal bus clock is above
1MHz, it is recommended that the ADRC bit be cleared.
In STOP mode, the ADC stops operation.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
ANALOG TO DIGITAL CONVERTER
REV
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INSTRUCTION SET
REV 2
SECTION 12
INSTRUCTION SET
This section describes the addressing modes and instruction types.
12.1 ADDRESSING MODES
The CPU uses eight addressing modes for flexibility in accessing data. The
addressing modes define the manner in which the CPU finds the data required to
execute an instruction. The eight addressing modes are the following:
• Inherent
• Immediate
• Direct
• Extended
• Indexed, No Offset
• Indexed, 8-Bit Offset
• Indexed, 16-Bit Offset
• Relative
12.1.1 Inherent
Inherent instructions are those that have no operand, such as return from interrupt
(RTI) and stop (STOP). Some of the inherent instructions act on data in the CPU
registers, such as set carry flag (SEC) and increment accumulator (INCA).
Inherent instructions require no memory address and are one byte long.
12.1.2 Immediate
Immediate instructions are those that contain a value to be used in an operation
with the value in the accumulator or index register. Immediate instructions require
no memory address and are two bytes long. The opcode is the first byte, and the
immediate data value is the second byte.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INSTRUCTION SET
REV
12.1.3 Direct
Direct instructions can access any of the first 256 memory addresses with two
bytes. The first byte is the opcode, and the second is the low byte of the operand
address. In direct addressing, the CPU automatically uses $00 as the high byte of
the operand address. BRSET and BRCLR are three-byte instructions that use
direct addressing to access the operand and relative addressing to specify a
branch destination.
12.1.4 Extended
Extended instructions use only three bytes to access any address in memory. The
first byte is the opcode; the second and third bytes are the high and low bytes of
the operand address.
When using the Freescale assembler, the programmer does not need to specify
whether an instruction is direct or extended. The assembler automatically selects
the shortest form of the instruction.
12.1.5 Indexed, No Offset
Indexed instructions with no offset are one-byte instructions that can access data
with variable addresses within the first 256 memory locations. The index register
contains the low byte of the conditional address of the operand. The CPU
automatically uses $00 as the high byte, so these instructions can address
locations $0000–$00FF.
Indexed, no offset instructions are often used to move a pointer through a table or
to hold the address of a frequently used RAM or I/O location.
12.1.6 Indexed, 8-Bit Offset
Indexed, 8-bit offset instructions are two-byte instructions that can access data
with variable addresses within the first 511 memory locations. The CPU adds the
unsigned byte in the index register to the unsigned byte following the opcode. The
sum is the conditional address of the operand. These instructions can access
locations $0000–$01FE.
Indexed 8-bit offset instructions are useful for selecting the kth element in an
n-element table. The table can begin anywhere within the first 256 memory
locations and could extend as far as location 510 ($01FE). The k value is typically
in the index register, and the address of the beginning of the table is in the byte
following the opcode.
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INSTRUCTION SET
REV 2
12.1.7 Indexed, 16-Bit Offset
Indexed, 16-bit offset instructions are three-byte instructions that can access data
with variable addresses at any location in memory. The CPU adds the unsigned
byte in the index register to the two unsigned bytes following the opcode. The sum
is the conditional address of the operand. The first byte after the opcode is the
high byte of the 16-bit offset; the second byte is the low byte of the offset. These
instructions can address any location in memory.
Indexed, 16-bit offset instructions are useful for selecting the kth element in an
n-element table anywhere in memory.
As with direct and extended addressing, the Freescale assembler determines the
shortest form of indexed addressing.
12.1.8 Relative
Relative addressing is only for branch instructions. If the branch condition is true,
the CPU finds the conditional branch destination by adding the signed byte
following the opcode to the contents of the program counter. If the branch
condition is not true, the CPU goes to the next instruction. The offset is a signed,
two’s complement byte that gives a branching range of –128 to +127 bytes from
the address of the next location after the branch instruction.
When using the Freescale assembler, the programmer does not need to calculate
the offset, because the assembler determines the proper offset and verifies that it
is within the span of the branch.
12.1.9 Instruction Types
The MCU instructions fall into the following five categories:
• Register/Memory Instructions
• Read-Modify-Write Instructions
• Jump/Branch Instructions
• Bit Manipulation Instructions
• Control Instructions
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INSTRUCTION SET
REV
12.1.10 Register/Memory Instructions
Most of these instructions use two operands. One operand is in either the
accumulator or the index register. The CPU finds the other operand in memory.
Table 12-1 lists the register/memory instructions.
Table 12-1. Register/Memory Instructions
Instruction Mnemonic
Add Memory Byte and Carry Bit to Accumulator ADC
Add Memory Byte to Accumulator ADD
AND Memory Byte with Accumulator AND
Bit Test Accumulator BIT
Compare Accumulator CMP
Compare Index Register with Memory Byte CPX
EXCLUSIVE OR Accumulator with Memory Byte EOR
Load Accumulator with Memory Byte LDA
Load Index Register with Memory Byte LDX
Multiply MUL
OR Accumulator with Memory Byte ORA
Subtract Memory Byte and Carry Bit from Accumulator SBC
Store Accumulator in Memory STA
Store Index Register in Memory STX
Subtract Memory Byte from Accumulator SUB
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INSTRUCTION SET
REV 2
12.1.11 Read-Modify-Write Instructions
These instructions read a memory location or a register, modify its contents, and
write the modified value back to the memory location or to the register. The test for
negative or zero instruction (TST) is an exception to the read-modify-write
sequence because it does not write a replacement value. Table 12-2 lists the
read-modify-write instructions.
12.1.12 Jump/Branch Instructions
Jump instructions allow the CPU to interrupt the normal sequence of the program
counter. The unconditional jump instruction (JMP) and the jump to subroutine
instruction (JSR) have no register operand. Branch instructions allow the CPU to
interrupt the normal sequence of the program counter when a test condition is
met. If the test condition is not met, the branch is not performed. All branch
instructions use relative addressing.
Bit test and branch instructions cause a branch based on the state of any
readable bit in the first 256 memory locations. These three-byte instructions use a
combination of direct addressing and relative addressing. The direct address of
the byte to be tested is in the byte following the opcode. The third byte is the
signed offset byte. The CPU finds the conditional branch destination by adding the
Table 12-2. Read-Modify-Write Instructions
Instruction Mnemonic
Arithmetic Shift Left ASL
Arithmetic Shift Right ASR
Clear Bit in Memory BCLR
Set Bit in Memory BSET
Clear CLR
Complement (One’s Complement) COM
Decrement DEC
Increment INC
Logical Shift Left LSL
Logical Shift Right LSR
Negate (Two’s Complement) NEG
Rotate Left through Carry Bit ROL
Rotate Right through Carry Bit ROR
Test for Negative or Zero TST
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INSTRUCTION SET
REV
third byte to the program counter if the specified bit tests true. The bit to be tested
and its condition (set or clear) is part of the opcode. The span of branching is from
–128 to +127 from the address of the next location after the branch instruction.
The CPU also transfers the tested bit to the carry/borrow bit of the condition code
register. Table 12-3 lists the jump and branch instructions.
Table 12-3. Jump and Branch Instructions
Instruction Mnemonic
Branch if Carry Bit Clear BCC
Branch if Carry Bit Set BCS
Branch if Equal BEQ
Branch if Half-Carry Bit Clear BHCC
Branch if Half-Carry Bit Set BHCS
Branch if Higher BHI
Branch if Higher or Same BHS
Branch if IRQ Pin High BIH
Branch if IRQ Pin Low BIL
Branch if Lower BLO
Branch if Lower or Same BLS
Branch if Interrupt Mask Clear BMC
Branch if Minus BMI
Branch if Interrupt Mask Set BMS
Branch if Not Equal BNE
Branch if Plus BPL
Branch Always BRA
Branch if Bit Clear BRCLR
Branch Never BRN
Branch if Bit Set BRSET
Branch to Subroutine BSR
Unconditional Jump JMP
Jump to Subroutine JSR
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INSTRUCTION SET
REV 2
12.1.13 Bit Manipulation Instructions
The CPU can set or clear any writable bit in the first 256 bytes of memory. Port
registers, port data direction registers, timer registers, and on-chip RAM locations
are in the first 256 bytes of memory. The CPU can also test and branch based on
the state of any bit in any of the first 256 memory locations. Bit manipulation
instructions use direct addressing. Table 12-4 lists these instructions.
12.1.14 Control Instructions
These register reference instructions control CPU operation during program
execution. Control instructions, listed in Table 12-5, use inherent addressing.
Table 12-4. Bit Manipulation Instructions
Instruction Mnemonic
Clear Bit BCLR
Branch if Bit Clear BRCLR
Branch if Bit Set BRSET
Set Bit BSET
Table 12-5. Control Instructions
Instruction Mnemonic
Clear Carry Bit CLC
Clear Interrupt Mask CLI
No Operation NOP
Reset Stack Pointer RSP
Return from Interrupt RTI
Return from Subroutine RTS
Set Carry Bit SEC
Set Interrupt Mask SEI
Stop Oscillator and Enable IRQ Pin STOP
Software Interrupt SWI
Transfer Accumulator to Index Register TAX
Transfer Index Register to Accumulator TXA
Stop CPU Clock and Enable Interrupts WAIT
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INSTRUCTION SET
REV
12.1.15 Instruction Set Summary
Table 12-6 is an alphabetical list of all M68HC05 instructions and shows the effect
of each instruction on the condition code register.
Table 12-6. Instruction Set Summary
Source
Form Operation Description
Effect on
CCR
Address
Mode
Opcode
Operand
Cycles
H I NZC
ADC #
opr
ADC
opr
ADC
opr
ADC
opr
,X
ADC
opr
,X
ADC ,X
Add with Carry A ← (A) + (M) + (C) ↕—↕↕↕
IMM
DIR
EXT
IX2
IX1
IX
A9
B9
C9
D9
E9
F9
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
ADD #
opr
ADD
opr
ADD
opr
ADD
opr
,X
ADD
opr
,X
ADD ,X
Add without Carry A ← (A) + (M) ↕—↕↕↕
IMM
DIR
EXT
IX2
IX1
IX
AB
BB
CB
DB
EB
FB
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
AND #
opr
AND
opr
AN
D opr
AND
opr
,X
AND
opr
,X
AND ,X
Logical AND A ← (A) ∧ (M) — — ↕↕—
IMM
DIR
EXT
IX2
IX1
IX
A4
B4
C4
D4
E4
F4
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
ASL
opr
ASLA
ASLX
ASL
opr
,X
ASL ,X
Arithmetic Shift Left
(Same as LSL) —— ↕↕↕ ↕
38
48
58
68
78
dd
ff
5
3
3
6
5
ASR
opr
ASRA
ASRX
ASR
opr
,X
ASR ,X
Arithmetic Shift Right — — ↕↕↕
DIR
INH
INH
IX1
IX
37
47
57
67
77
dd
ff
5
3
3
6
5
BCC
rel
Branch if Carry Bit
Clear PC ← (PC) + 2 +
rel
? C = 0 ————— REL 24 rr 3
BCLR
n opr
Clear Bit n Mn ← 0 —————
DIR (b0)
DIR (b1)
DIR (b2)
DIR (b3)
DIR (b4)
DIR (b5)
DIR (b6)
DIR (b7)
11
13
15
17
19
1B
1D
1F
dd
dd
dd
dd
dd
dd
dd
dd
5
5
5
5
5
5
5
5
BCS
rel
Branch if Carry Bit
Set (Same as BLO) PC ← (PC) + 2 +
rel
? C = 1 ————— REL 25 rr 3
BEQ
rel
Branch if Equal PC ← (PC) + 2 +
rel
? Z = 1 ————— REL 27 rr 3
BHCC
rel
Branch if Half-Carry
Bit Clear PC ← (PC) + 2 +
rel
? H = 0 ————— REL 28 rr 3
C
b0
b7
0
b0
b7
C
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INSTRUCTION SET
REV 2
BHCS
rel
Branch if Half-Carry
Bit Set PC ← (PC) + 2 +
rel
? H = 1 ————— REL 29 rr 3
BHI
rel
Branch if Higher PC ← (PC) + 2 +
rel
? C ∨ Z = 0 ————— REL 22 rr 3
BHS
rel
Branch if Higher or
Same PC ← (PC) + 2 +
rel
? C = 0 ————— REL 24 rr 3
BIH
rel
Branch if IRQ Pin
High PC ← (PC) + 2 +
rel
? IRQ = 1 ————— REL 2F rr 3
BIL
rel
Branch if IRQ Pin
Low PC ← (PC) + 2 +
rel
? IRQ = 0 ————— REL 2E rr 3
BIT #
opr
BIT
opr
BIT
opr
BIT
opr
,X
BIT
opr
,X
BIT ,X
Bit Test
Accumulator with
Memory Byte (A) ∧ (M) — — ↕↕—
IMM
DIR
EXT
IX2
IX1
IX
A5
B5
C5
D5
E5
F5
ii
dd
hh ll
ee ff
ff
p
2
3
4
5
4
3
BLO
rel
Branch if Lower
(Same as BCS) PC ← (PC) + 2 +
rel
? C = 1 ————— REL 25 rr 3
BLS
rel
Branch if Lower or
Same PC ← (PC) + 2 +
rel
? C ∨ Z = 1 ————— REL 23 rr 3
BMC
rel
Branch if Interrupt
Mask Clear PC ← (PC) + 2 +
rel
? I = 0 ————— REL 2C rr 3
BMI
rel
Branch if Minus PC ← (PC) + 2 +
rel
? N = 1 ————— REL 2B rr 3
BMS
rel
Branch if Interrupt
Mask Set PC ← (PC) + 2 +
rel
? I = 1 ————— REL 2D rr 3
BNE
rel
Branch if Not Equal PC ← (PC) + 2 +
rel
? Z = 0 ————— REL 26 rr 3
BPL
rel
Branch if Plus PC ← (PC) + 2 +
rel
? N = 0 ————— REL 2A rr 3
BRA
rel
Branch Always PC ← (PC) + 2 +
rel
? 1 = 1 ————— REL 20 rr 3
BRCLR
n opr rel
Branch if bit n clear PC ← (PC) + 2 +
rel
? Mn = 0 ———— ↕
DIR (b0)
DIR (b1)
DIR (b2)
DIR (b3)
DIR (b4)
DIR (b5)
DIR (b6)
DIR (b7)
01
03
05
07
09
0B
0D
0F
dd rr
dd rr
dd rr
dd rr
dd rr
dd rr
dd rr
dd rr
5
5
5
5
5
5
5
5
BRSET
n opr rel
Branch if Bit n Set PC ← (PC) + 2 +
rel
? Mn = 1 ———— ↕
DIR (b0)
DIR (b1)
DIR (b2)
DIR (b3)
DIR (b4)
DIR (b5)
DIR (b6)
DIR (b7)
00
02
04
06
08
0A
0C
0E
dd rr
dd rr
dd rr
dd rr
dd rr
dd rr
dd rr
dd rr
5
5
5
5
5
5
5
5
BRN
rel
Branch Never PC ← (PC) + 2 +
rel
? 1 = 0 ————— REL 21 rr 3
Table 12-6. Instruction Set Summary (Continued)
Source
Form Operation Description
Effect on
CCR
Address
Mode
Opcode
Operand
Cycles
H I NZC
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INSTRUCTION SET
REV
BSET
n opr
Set Bit n Mn ← 1 —————
DIR (b0)
DIR (b1)
DIR (b2)
DIR (b3)
DIR (b4)
DIR (b5)
DIR (b6)
DIR (b7)
10
12
14
16
18
1A
1C
1E
dd
dd
dd
dd
dd
dd
dd
dd
5
5
5
5
5
5
5
5
BSR
rel
Branch to
Subroutine
PC ← (PC) + 2; push (PCL)
SP ← (SP) – 1; push (PCH)
SP ← (SP) – 1
PC ← (PC) +
rel
————— REL AD rr 6
CLC Clear Carry Bit C ← 0 ———— 0 INH 98 2
CLI Clear Interrupt Mask I ← 0 — 0 — — — INH 9A 2
CLR
opr
CLRA
CLRX
CLR
opr
,X
CLR ,X
Clear Byte
M ← $00
A ← $00
X ← $00
M ← $00
M ← $00
—— 0 1 —
DIR
INH
INH
IX1
IX
3F
4F
5F
6F
7F
dd
ff
5
3
3
6
5
CMP #
opr
CMP
opr
CMP
opr
CMP
opr
,X
CMP
opr
,X
CMP ,X
Compare
Accumulator with
Memory Byte (A) – (M) — — ↕↕↕
IMM
DIR
EXT
IX2
IX1
IX
A1
B1
C1
D1
E1
F1
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
COM
opr
COMA
COMX
COM
opr
,X
COM ,X
Complement Byte
(One’s Complement)
M ← ( ) = $FF – (M)
A ← ( ) = $FF – (M)
X ← ( ) = $FF – (M)
M ← ( ) = $FF – (M)
M ← ( ) = $FF – (M)
—— ↕↕1
DIR
INH
INH
IX1
IX
33
43
53
63
73
dd
ff
5
3
3
6
5
CPX #
opr
CPX
opr
CPX
opr
CPX
opr
,X
CPX
opr
,X
CPX ,X
Compare Index
Register with
Memory Byte (X) – (M) — — ↕↕↕
IMM
DIR
EXT
IX2
IX1
IX
A3
B3
C3
D3
E3
F3
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
DEC
opr
DECA
DECX
DEC
opr
,X
DEC ,X
Decrement Byte
M ← (M) – 1
A ← (A) – 1
X ← (X) – 1
M ← (M) – 1
M ← (M) – 1
—— ↕↕—
DIR
INH
INH
IX1
IX
3A
4A
5A
6A
7A
dd
ff
5
3
3
6
5
EOR #
opr
EOR
opr
EOR
opr
EOR
opr
,X
EOR
opr
,X
EOR ,X
EXCLUSIVE OR
Accumulator with
Memory Byte A ← (A) ⊕ (M) — — ↕↕—
IMM
DIR
EXT
IX2
IX1
IX
A8
B8
C8
D8
E8
F8
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
Table 12-6. Instruction Set Summary (Continued)
Source
Form Operation Description
Effect on
CCR
Address
Mode
Opcode
Operand
Cycles
H I NZC
M
A
X
M
M
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INSTRUCTION SET
REV 2
INC
opr
INCA
INCX
INC
opr
,X
INC ,X
Increment Byte
M ← (M) + 1
A ← (A) + 1
X ← (X) + 1
M ← (M) + 1
M ← (M) + 1
—— ↕↕—
DIR
INH
INH
IX1
IX
3C
4C
5C
6C
7C
dd
ff
5
3
3
6
5
JMP
opr
JMP
opr
JMP
opr
,X
JMP
opr
,X
JMP ,X
Unconditional Jump PC ← Jump Address —————
DIR
EXT
IX2
IX1
IX
BC
CC
DC
EC
FC
dd
hh ll
ee ff
ff
2
3
4
3
2
JSR
opr
JSR
opr
JSR
opr
,X
JSR
opr
,X
JSR ,X
Jump to Subroutine
PC ← (PC) + n (n = 1, 2, or 3)
Push (PCL); SP ← (SP) – 1
Push (PCH); SP ← (SP) – 1
PC ← Conditional Address
—————
DIR
EXT
IX2
IX1
IX
BD
CD
DD
ED
FD
dd
hh ll
ee ff
ff
5
6
7
6
5
LDA #
opr
LDA
opr
LDA
opr
LDA
opr
,X
LDA
opr
,X
LDA ,X
Load Accumulator
with Memory Byte A ← (M) — — ↕↕—
IMM
DIR
EXT
IX2
IX1
IX
A6
B6
C6
D6
E6
F6
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
LDX #
opr
LDX
opr
LDX
opr
LDX
opr
,X
LDX
opr
,X
LDX ,X
Load Index Register
with Memory Byte X ← (M) — — ↕↕—
IMM
DIR
EXT
IX2
IX1
IX
AE
BE
CE
DE
EE
FE
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
LSL
opr
LSLA
LSLX
LSL
opr
,X
LSL ,X
Logical Shift Left
(Same as ASL) —— ↕↕↕
DIR
INH
INH
IX1
IX
38
48
58
68
78
dd
ff
5
3
3
6
5
LSR
opr
LSRA
LSRX
LSR
opr
,X
LSR ,X
Logical Shift Right — — 0 ↕↕
DIR
INH
INH
IX1
IX
34
44
54
64
74
dd
ff
5
3
3
6
5
MUL Unsigned Multiply X : A ← (X) × (A) 0 — — — 0 INH 42 11
NEG
opr
NEGA
NEGX
NEG
opr
,X
NEG ,X
Negate Byte
(Two’s Complement)
M ← –(M) = $00 – (M)
A ← –(A) = $00 – (A)
X ← –(X) = $00 – (X)
M ← –(M) = $00 – (M)
M ← –(M) = $00 – (M)
—— ↕↕↕
DIR
INH
INH
IX1
IX
30
40
50
60
70
ii
ff
5
3
3
6
5
NOP No Operation ————— INH 9D 2
Table 12-6. Instruction Set Summary (Continued)
Source
Form Operation Description
Effect on
CCR
Address
Mode
Opcode
Operand
Cycles
H I NZC
C
b0
b7
0
b0
b7
C0
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
INSTRUCTION SET
REV
ORA #
opr
ORA
opr
ORA
opr
ORA
opr
,X
ORA
opr
,X
ORA ,X
Logical OR
Accumulator with
Memory A ← (A) ∨ (M) — — ↕↕—
IMM
DIR
EXT
IX2
IX1
IX
AA
BA
CA
DA
EA
FA
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
ROL
opr
ROLA
ROLX
ROL
opr
,X
ROL ,X
Rotate Byte Left
through Carry Bit —— ↕↕↕
DIR
INH
INH
IX1
IX
39
49
59
69
79
dd
ff
5
3
3
6
5
ROR
opr
RORA
RORX
ROR
opr
,X
ROR ,X
Rotate Byte Right
through Carry Bit —— ↕↕↕
DIR
INH
INH
IX1
IX
36
46
56
66
76
dd
ff
5
3
3
6
5
RSP Reset Stack Pointer SP ← $00FF ————— INH 9C 2
RTI Return from Interrupt
SP ← (SP) + 1; Pull (CCR)
SP ← (SP) + 1; Pull (A)
SP ← (SP) + 1; Pull (X)
SP ← (SP) + 1; Pull (PCH)
SP ← (SP) + 1; Pull (PCL)
↕↕↕↕↕ INH 80 9
RTS Return from
Subroutine SP ← (SP) + 1; Pull (PCH)
SP ← (SP) + 1; Pull (PCL) ————— INH 81 6
SBC #
opr
SBC
opr
SBC
opr
SBC
opr
,X
SBC
opr
,X
SBC ,X
Subtract Memory
Byte and Carry Bit
from Accumulator A ← (A) – (M) – (C) — — ↕↕↕
IMM
DIR
EXT
IX2
IX1
IX
A2
B2
C2
D2
E2
F2
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
SEC Set Carry Bit C ← 1 ———— 1 INH 99 2
SEI Set Interrupt Mask I ← 1 — 1 — — — INH 9B 2
STA
opr
STA
opr
STA
opr
,X
STA
opr
,X
STA ,X
Store Accumulator in
Memory M ← (A) — — ↕↕—
DIR
EXT
IX2
IX1
IX
B7
C7
D7
E7
F7
dd
hh ll
ee ff
ff
4
5
6
5
4
STOP Stop Oscillator and
Enable IRQ Pin — 0 — — — INH 8E 2
STX
opr
STX
opr
STX
opr
,X
STX
opr
,X
STX ,X
Store Index
Register In Memory M ← (X) — — ↕↕—
DIR
EXT
IX2
IX1
IX
BF
CF
DF
EF
FF
dd
hh ll
ee ff
ff
4
5
6
5
4
Table 12-6. Instruction Set Summary (Continued)
Source
Form Operation Description
Effect on
CCR
Address
Mode
Opcode
Operand
Cycles
H I NZC
C
b0
b7
b0
b7
C
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 INSTRUCTION SET
REV 2
SUB #
opr
SUB
opr
SUB
opr
SUB
opr
,X
SUB
opr
,X
SUB ,X
Subtract Memory
Byte from
Accumulator A ← (A) – (M) — — ↕↕↕
IMM
DIR
EXT
IX2
IX1
IX
A0
B0
C0
D0
E0
F0
ii
dd
hh ll
ee ff
ff
2
3
4
5
4
3
SWI Software Interrupt
PC ← (PC) + 1; Push (PCL)
SP ← (SP) – 1; Push (PCH)
SP ← (SP) – 1; Push (X)
SP ← (SP) – 1; Push (A)
SP ← (SP) – 1; Push (CCR)
SP ← (SP) – 1; I ← 1
PCH ← Interrupt Vector High Byte
PCL ← Interrupt Vector Low Byte
— 1 — — — INH 83 10
TAX Transfer
Accumulator to
Index Register X ← (A) ————— INH 97 2
TST
opr
TSTA
TSTX
TST
opr
,X
TST ,X
Test Memory Byte
for Negative or Zero (M) – $00 — — ↕↕—
DIR
INH
INH
IX1
IX
3D
4D
5D
6D
7D
dd
ff
4
3
3
5
4
TXA Transfer Index
Register to
Accumulator A ← (X) ————— INH 9F 2
WAIT Stop CPU Clock and
Enable
Interrupts — 0 — — — INH 8F 2
A Accumulator
opr
Operand (one or two bytes)
C Carry/borrow flag PC Program counter
CCR Condition code register PCH Program counter high byte
dd Direct address of operand PCL Program counter low byte
dd rr Direct address of operand and relative offset of branch instruction REL Relative addressing mode
DIR Direct addressing mode
rel
Relative program counter offset byte
ee ff High and low bytes of offset in indexed, 16-bit offset addressing rr Relative program counter offset byte
EXT Extended addressing mode SP Stack pointer
ff Offset byte in indexed, 8-bit offset addressing X Index register
H Half-carry flag Z Zero flag
hh ll High and low bytes of operand address in extended addressing # Immediate value
I Interrupt mask ∧Logical AND
ii Immediate operand byte ∨Logical OR
IMM Immediate addressing mode ⊕Logical EXCLUSIVE OR
INH Inherent addressing mode ( ) Contents of
IX Indexed, no offset addressing mode –( ) Negation (two’s complement)
IX1 Indexed, 8-bit offset addressing mode ←Loaded with
IX2 Indexed, 16-bit offset addressing mode ? If
M Memory location : Concatenated with
N Negative flag ↕Set or cleared
n
Any bit — Not affected
Table 12-6. Instruction Set Summary (Continued)
Source
Form Operation Description
Effect on
CCR
Address
Mode
Opcode
Operand
Cycles
H I NZC
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
INSTRUCTION SET MC68HC05JB4
REV 2
Table 12-7. Opcode Map
Bit Manipulation Branch Read-Modify-Write Control Register/Memory
DIR DIR REL DIR INH INH IX1 IX INH INH IMM DIR EXT IX2 IX1 IX
0123456789ABCDEF
05
BRSET0
3 DIR
5
BSET0
2 DIR
3
BRA
2 REL
5
NEG
2 DIR
3
NEGA
1 INH
3
NEGX
1 INH
6
NEG
2 IX1
5
NEG
1IX
9
RTI
1 INH
2
SUB
2 IMM
3
SUB
2 DIR
4
SUB
3 EXT
5
SUB
3 IX2
4
SUB
2 IX1
3
SUB
1IX
0
15
BRCLR0
3 DIR
5
BCLR0
2 DIR
3
BRN
2 REL
6
RTS
1 INH
2
CMP
2 IMM
3
CMP
2 DIR
4
CMP
3 EXT
5
CMP
3 IX2
4
CMP
2 IX1
3
CMP
1IX
1
25
BRSET1
3 DIR
5
BSET1
2 DIR
3
BHI
2 REL
11
MUL
1 INH
2
SBC
2 IMM
3
SBC
2 DIR
4
SBC
3 EXT
5
SBC
3 IX2
4
SBC
2 IX1
3
SBC
1IX
2
35
BRCLR1
3 DIR
5
BCLR1
2 DIR
3
BLS
2 REL
5
COM
2 DIR
3
COMA
1 INH
3
COMX
1 INH
6
COM
2 IX1
5
COM
1IX
10
SWI
1 INH
2
CPX
2 IMM
3
CPX
2 DIR
4
CPX
3 EXT
5
CPX
3 IX2
4
CPX
2 IX1
3
CPX
1IX
3
45
BRSET2
3 DIR
5
BSET2
2 DIR
3
BCC
2 REL
5
LSR
2 DIR
3
LSRA
1 INH
3
LSRX
1 INH
6
LSR
2 IX1
5
LSR
1IX
2
AND
2 IMM
3
AND
2 DIR
4
AND
3 EXT
5
AND
3 IX2
4
AND
2 IX1
3
AND
1IX
4
55
BRCLR2
3 DIR
5
BCLR2
2 DIR
3
BCS/BLO
2 REL
2
BIT
2 IMM
3
BIT
2 DIR
4
BIT
3 EXT
5
BIT
3 IX2
4
BIT
2 IX1
3
BIT
1IX
5
65
BRSET3
3 DIR
5
BSET3
2 DIR
3
BNE
2 REL
5
ROR
2 DIR
3
RORA
1 INH
3
RORX
1 INH
6
ROR
2 IX1
5
ROR
1IX
2
LDA
2 IMM
3
LDA
2 DIR
4
LDA
3 EXT
5
LDA
3 IX2
4
LDA
2 IX1
3
LDA
1IX
6
75
BRCLR3
3 DIR
5
BCLR3
2 DIR
3
BEQ
2 REL
5
ASR
2 DIR
3
ASRA
1 INH
3
ASRX
1 INH
6
ASR
2 IX1
5
ASR
1IX
2
TAX
1 INH
4
STA
2 DIR
5
STA
3 EXT
6
STA
3 IX2
5
STA
2 IX1
4
STA
1IX
7
85
BRSET4
3 DIR
5
BSET4
2 DIR
3
BHCC
2 REL
5
ASL/LSL
2 DIR
3
ASLA/LSLA
1 INH
3
ASLX/LSLX
1 INH
6
ASL/LSL
2 IX1
5
ASL/LSL
1IX
2
CLC
1 INH
2
EOR
2 IMM
3
EOR
2 DIR
4
EOR
3 EXT
5
EOR
3 IX2
4
EOR
2 IX1
3
EOR
1IX
8
95
BRCLR4
3 DIR
5
BCLR4
2 DIR
3
BHCS
2 REL
5
ROL
2 DIR
3
ROLA
1 INH
3
ROLX
1 INH
6
ROL
2 IX1
5
ROL
1IX
2
SEC
1 INH
2
ADC
2 IMM
3
ADC
2 DIR
4
ADC
3 EXT
5
ADC
3 IX2
4
ADC
2 IX1
3
ADC
1IX
9
A5
BRSET5
3 DIR
5
BSET5
2 DIR
3
BPL
2 REL
5
DEC
2 DIR
3
DECA
1 INH
3
DECX
1 INH
6
DEC
2 IX1
5
DEC
1IX
2
CLI
1 INH
2
ORA
2 IMM
3
ORA
2 DIR
4
ORA
3 EXT
5
ORA
3 IX2
4
ORA
2 IX1
3
ORA
1IX
A
B5
BRCLR5
3 DIR
5
BCLR5
2 DIR
3
BMI
2 REL
2
SEI
1 INH
2
ADD
2 IMM
3
ADD
2 DIR
4
ADD
3 EXT
5
ADD
3 IX2
4
ADD
2 IX1
3
ADD
1IX
B
C5
BRSET6
3 DIR
5
BSET6
2 DIR
3
BMC
2 REL
5
INC
2 DIR
3
INCA
1 INH
3
INCX
1 INH
6
INC
2 IX1
5
INC
1IX
2
RSP
1 INH
2
JMP
2 DIR
3
JMP
3 EXT
4
JMP
3 IX2
3
JMP
2 IX1
2
JMP
1IX
C
D5
BRCLR6
3 DIR
5
BCLR6
2 DIR
3
BMS
2 REL
4
TST
2 DIR
3
TSTA
1 INH
3
TSTX
1 INH
5
TST
2 IX1
4
TST
1IX
2
NOP
1 INH
6
BSR
2 REL
5
JSR
2 DIR
6
JSR
3 EXT
7
JSR
3 IX2
6
JSR
2 IX1
5
JSR
1IX
D
E5
BRSET7
3 DIR
5
BSET7
2 DIR
3
BIL
2 REL
2
STOP
1 INH
2
LDX
2 IMM
3
LDX
2 DIR
4
LDX
3 EXT
5
LDX
3 IX2
4
LDX
2 IX1
3
LDX
1IX
E
F5
BRCLR7
3 DIR
5
BCLR7
2 DIR
3
BIH
2 REL
5
CLR
2 DIR
3
CLRA
1 INH
3
CLRX
1 INH
6
CLR
2 IX1
5
CLR
1IX
2
WAIT
1 INH
2
TXA
1 INH
4
STX
2 DIR
5
STX
3 EXT
6
STX
3 IX2
5
STX
2 IX1
4
STX
1IX
F
INH = Inherent REL = Relative
IMM = Immediate IX = Indexed, No Offset
DIR = Direct IX1 = Indexed, 8-Bit Offset
EXT = Extended IX2 = Indexed, 16-Bit Offset
0 MSB of Opcode in Hexadecimal
LSB of Opcode in Hexadecimal 0 5
BRSET0
3 DIR
Number of Cycles
Opcode Mnemonic
Number of Bytes/Addressing Mode
LSB
MSB LSB
M
S
B
LSB
MSB
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 ELECTRICAL SPECIFICATIONS
REV 2
SECTION 13
ELECTRICAL SPECIFICATIONS
This section describes the electrical and timing specifications of the
MC68HC05JB4.
13.1 MAXIMUM RATINGS
NOTE
Maximum ratings are the extreme limits the device can be exposed to without
causing permanent damage to the chip. The device is not intended to operate at
these conditions.
The MCU contains circuitry that protect the inputs against damage from high
static voltages; however, do not apply voltages higher than those shown in the
table below. Keep VIN and VOUT within the range from VSS ≤ (VIN or VOUT) ≤ VDD.
Connect unused inputs to the appropriate voltage level, either VSS or VDD.
13.2 THERMAL CHARACTERISTICS
(Voltages referenced to VSS)
Rating Symbol Value Unit
Supply Voltage VDD –0.3 to +7.0 V
Current Drain Per Pin Excluding VDD and VSS I25mA
Input Voltage VIN VSS – 0.3 to VSS + 0.3 V
IRQ/VPP Pin VPP VSS –0.3 to 17 V
Storage Temperature Range TSTG –65 to +150 °C
Characteristic Symbol Value Unit
Thermal Resistance
28-pin PDIP
28-pin SOIC
θJA
θJA
60
60 °C/W
°C/W
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
ELECTRICAL SPECIFICATIONS
REV
13.3 DC ELECTRICAL CHARACTERISTICS
Table 13-1. DC Electrical Characteristics
(VDD = 4.2V to 5.5V, VSS = 0 Vdc, TA = 0°C to +70°C, unless otherwise noted)
Characteristic Symbol Min Typ Max Unit
Output Voltage
ILoad = 10.0 µAVOL
VOH
—
VDD–0.1 —
—0.1
—V
Output High Voltage
(ILoad =–0.8 mA) PA0-7, PB0-4, PC0-5 VOH VDD–0.8 — — V
Output Low Voltage
(ILoad = 1.6 mA) PA0-4, PB0-4, PC0-5
(ILoad = 10.0 mA) PA5-7
(ILoad = 25.0 mA) PA6, PA7 (mask option)
VOL —
—
—
—
—
—
0.4
0.4
0.5
V
Input High Voltage
PA0-7, PB0-4, PC0-5, IRQ, RESET, OSC1 VIH 0.7×VDD —V
DD V
Input Low Voltage
PA0-7, PB0-4, PC0-5, IRQ, RESET, OSC1 VIL VSS — 0.2×VDD V
Supply Current (see Notes)
Run (USB active)
Run (USB suspended)
Wait (USB active)
Wait (USB suspended)
Stop
LVR off at 25°C (not inlcude 15k to GND)
IDD
—
—
—
—
—
4.0
3.5
1.5
1.0
130
4.5
4.0
2.0
1.5
180
mA
mA
mA
mA
µA
I/O Ports Hi-Z Leakage Current
PA0-7, PB0-4, PC0-5
(without individual pulldown/up activated) IZ——±10 µA
Input Current
RESET, IRQ, OSC1 Iin ——5µA
Capacitance
Ports (as Input or Output)
RESET, IRQ, OSC1, OSC2 Cout
Cin
—
——
—12
8pF
pF
Crystal/Ceramic Resonator Oscillator Mode
Internal Resistor
OSC1 to OSC2 ROSC 1.0 2.0 3.0 MΩ
Pullup Resistor
PA0-7, PB0-4 RPULLUP 30 50 75 KΩ
LVR Inhibit VLVRI — 3.3 — V
LVR Recover VLVRR — 3.5 — V
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 ELECTRICAL SPECIFICATIONS
REV 2
NOTES:
1. All values shown reflect average measurements.
2. Typical values at midpoint of voltage range, 25°C only.
3. Wait IDD: Only MFT and Timer1 active.
4. Run (Operating) IDD, Wait IDD: Measured using external square wave clock source to OSC1 (fOSC = 6.0
MHz), all inputs 0.2 VDC from rail; no DC loads, less than 50pF on all outputs, CL = 20 pF on OSC2.
5. Wait, Stop IDD: All ports configured as inputs, VIL = 0.2 VDC, VIH = VDD–0.2 VDC.
6. Stop IDD measured with OSC1 = VSS.
7. Wait IDD is affected linearly by the OSC2 capacitance.
13.4 USB DC ELECTRICAL CHARACTERISTICS
Table 13-2. USB DC Electrical Characteristics
(VDD = 4.2V to 5.5V, VSS = 0 Vdc, TA = 0°C to +70°C, unless otherwise noted)
Characteristic Symbol Conditions Min Typ Max Unit
Hi-Z State Data Line Leakage ILO 0V<Vin<3.3V –10 +10 µA
Differential Input Sensitivity VDI |(D+)–(D–)| 0.2 V
Differential Common Mode
Range VCM Includes VDI
range 0.8 2.5 V
Single Ended Receiver
Threshold VSE 0.8 2.0 V
Static Output Low VOL RL of 1.5k to
3.6V 0.3 V
Static Output High VOH RL of 15k to
GND 2.8 3.6 V
3.3V External Reference Pin V3.3 IL=200µA 3.0 3.3 3.6 V
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
ELECTRICAL SPECIFICATIONS
REV
13.5 USB LOW SPEED SOURCE ELECTRICAL CHARACTERISTICS
NOTES:
1. All voltages measured from local ground, unless otherwise specified.
2. All timings use a capacitive load of 50pF, unless otherwise specified.
3. Low speed timings have a 1.5k pull-up to 2.8V on the D– data line.
4. Measured from 10% to 90% of the data signal.
5. The rising and falling edges should be smooth transitions (monotonic).
6. Timing differences between the differential data signals.
7. Measured at crossover point of differential data signals.
8. Capacitive loading includes 50pF of tester capacitance.
Table 13-3. USB Low Speed Source Electrical Characteristics
Parameter Symbol Conditions
(Notes 1,2,3) Min Typ Max Unit
Transition time:
Rise Time
Fall Time
TR
TF
Notes 4, 5, 8
CL=50pF
CL=350pF
CL=50pF
CL=350pF
75
75
—
—
—
300
—
300
ns
ns
ns
ns
Rise/Fall Time Matching TRFM TR/TF80 — 120 %
Output Signal Crossover
Voltage VCRS 1.3 — 2.0 V
Low Speed Data Rate TDRATE 1.5Mbs ±1.5% 1.4775
676.8 1.500
666.0 1.5225
656.8 Mbs
ns
Source Differential Driver Jitter
To Next Transition
For Paired Transitions TUDJ1
TUDJ2
CL=350pF
Notes 6 and 7 –25
–10 —
—25
10 ns
ns
Receiver Data Jitter Tolerance
To Next Transition
For Paired Transitions TDJR1
TDJR2
CL=350pF
Notes 7 –75
–45 —
—75
45 ns
ns
Source EOP Width TEOPT Note 7 1.25 — 1.50 µs
Differential to EOP Transition
Skew TDEOP Note 7 –40 — 100 ns
Receiver EOP Width
Must Reject as EOP
Must Accept TEOPR1
TEOPR2
Note 7 330
675 —
——
—ns
ns
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 ELECTRICAL SPECIFICATIONS
REV 2
13.6 CONTROL TIMING
NOTES:
1. The minimum period tILIL or tIHIH should not be less than the number of cycles it takes to execute the
interrupt service routine plus 19 tCYC.
Table 13-4. Control Timing
(VDD = 4.2V to 5.5V, VSS = 0 Vdc, TA = 0°C to +70°C, unless otherwise noted)
Characteristic Symbol Min Max Units
Frequency of Operation
Crystal Oscillator Option
External Clock Source fOSC
fOSC
—
DC 6
6MHz
MHz
Internal Operating Frequency
Crystal Oscillator (fOSC ÷ 2)
External Clock (fOSC ÷ 2) fOP
fOP
—
DC 3
3MHz
MHz
Cycle Time (1/fOP)t
CYC 330 — ns
RESET Pulse Width Low tRL 1.5 — tCYC
IRQ Interrupt Pulse Width Low (Edge-Triggered) tILIH 0.5 — tCYC
IRQ Interrupt Pulse Period tILIL note 1 — tCYC
PA0 to PA3 Interrupt Pulse Width High
(Edge-Triggered) tIHIL 0.5 —tCYC
PA0 to PA3 Interrupt Pulse Period tIHIH note 1 — tCYC
OSC1 Pulse Width tOH, tOL ——ns
Output High to Low Transition Period on
PA6, PA7, PB0-4 tSLOW 0.5 (typical) tCYC
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
ELECTRICAL SPECIFICATIONS
REV
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4 MECHANICAL SPECIFICATIONS
REV 2
SECTION 14
MECHANICAL SPECIFICATIONS
This section provides the mechanical dimensions for the 28-pin PDIP and 28-pin
SOIC packages.
14.1 28-PIN PDIP (CASE 710)
14.2 28-PIN SOIC (CASE 751F)
NOTES:
1. POSITIONAL TOLERANCE OF LEADS (D), SHALL
BE WITHIN 0.25 (0.010) AT MAXIMUM MATERIAL
CONDITION, IN RELATION TO SEATING PLANE
AND EACH OTHER.
2. DIMENSION L TO CENTER OF LEADS WHEN
FORMED PARALLEL.
3. DIMENSION B DOES NOT INCLUDE MOLD FLASH.
1
SEATING
PLANE
15
14
28
M
A
B
K
C
N
F
GD
HJ
L
DIM MIN MAX MIN MAX
INCHESMILLIMETERS
A36.45 37.21 1.435 1.465
B13.72 14.22 0.540 0.560
C3.94 5.08 0.155 0.200
D0.36 0.56 0.014 0.022
F1.02 1.52 0.040 0.060
G2.54 BSC 0.100 BSC
H1.65 2.16 0.065 0.085
J0.20 0.38 0.008 0.015
K2.92 3.43 0.115 0.135
L15.24 BSC 0.600 BSC
M0° 15° 0° 15°
N0.51 1.02 0.020 0.040
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSION A AND B DO NOT INCLUDE
MOLD PROTRUSION.
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006)
PER SIDE.
5. DIMENSION D DOES NOT INCLUDE DAMBAR
PROTRUSION.
ALLOWABLE
DAMBAR PROTRUSION SHALL BE 0.13
(0.005) TOTAL IN EXCESS OF D DIMENSION
AT MAXIMUM MATERIAL CONDITION.
J
KF
1
15
14
28
-A-
-B-
28X
14X
D
P
S
A
M
0.010 (0.25) B S
T
M
0.010 (0.25) B M
26X G-T-
SEATING
PLANE
C
X 45R
M
DIM MIN MAX MIN MAX
INCHESMILLIMETERS
A17.80 18.05 0.701 0.711
B7.40 7.60 0.292 0.299
C2.35 2.65 0.093 0.104
D0.35 0.49 0.014 0.019
F0.41 0.90 0.016 0.035
G1.27 BSC 0.050 BSC
J0.23 0.32 0.009 0.013
K0.13 0.29 0.005 0.011
M
P10.01 10.55 0.395 0.415
R0.25 0.75 0.010 0.029
0°0°8°8°
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
MECHANICAL SPECIFICATIONS
REV
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4
REV 2
APPENDIX A
MC68HC705JB4
This appendix describes the MC68HC705JB4, the emulation part for
MC68HC05JB4. The entire MC68HC05JB4 data sheet applies to the
MC68HC705JB4, with exceptions outlined in this appendix.
A.1 INTRODUCTION
The MC68HC705JB4 is an EPROM version of the MC68HC05JB4, and is avail-
able for user system evaluation and debugging. The MC68HC705JB4 is function-
ally identical to the MC68HC05JB4 with the exception of the 3584 bytes user
ROM is replaced by 3584 bytes user EPROM. Also, the mask options available on
the MC68HC05JB4 are implemented using the Mask Option Register (MOR) in
the MC68HC705JB4.
A.2 MEMORY
The MC68HC705JB4 memory map is shown in Figure A-1.
A.3 MASK OPTION REGISTER (MOR)
The Mask Option Register (MOR) is a byte of EPROM used to select the features
controlled by mask options on the MC68HC05JB4. In order to program this regis-
ter the MORON bit in PCR need to be set to “1” before doing the EPROM pro-
gramming process.
COPEN – COP Enable
1 = COP watchdog function disabled.
0 = COP watchdog function enabled.
IRQTRIG – IRQ, PA0-PA3 Interrupt Options
1 = Edge-trigger only.
0 = Edge-and-level-triggered.
HIGHCURRA – PA6 and PA7 High Current Enable
1 = High current capability disabled on PA6 and PA7.
0 = High current capability enabled on PA6 and PA7.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
MOR R COPEN IRQTRIG HIGHCURRA PAINTEN OSCDLY LVREN
$007F W
reset: 00111111
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
REV
PAINTEN – PA0-PA3 External Interrupt Options
1 = External interrupt capability on PA0-PA3 disabled.
0 = External interrupt capability on PA0-PA3 enabled.
OSCDLY – Oscillator Delay Option
1 = 128 internal clock cycles.
0 = 4064 internal clock cycles.
LVREN – LVR Option
1 = Low Voltage Reset circuit enabled.
0 = Low Voltage Reset circuit disabled.
Figure A-1. MC68HC705JB4 Memory Map
A.4 BOOTSTRAP MODE
Bootloader mode is entered upon the rising edge of RESET if the IRQ/VPP pin is
at VTST and the PB0 pin is at logic zero. The Bootloader program is masked in the
ROM area from $1E00 to $1FEF. This program handles copying of user code from
an external EPROM into the on-chip EPROM. The bootload function has to be
done from an external EPROM. The bootloader performs one programming pass
at 1ms per byte then does a verify pass.
$1FF7
$1FF8
$1FF9
$1FFA
$1FFB
$1FFC
$1FFD
$1FFE
$1FFF
$003F
$0000
$1FF6
$1FF3
$1FF4
$1FF5
$1FF2
$1FF1
Reserved
USB Vector (Low Byte)
Timer1 Vector (Low Byte)
USB Vector (High Byte)
Timer1 Vector (High Byte)
MFT Vector (Low Byte)
MFT Vector (High Byte)
Reserved
$1FF0
Reserved
Reserved
IRQ/IRQ2 Vector (High Byte)
IRQ/IRQ2 Vector (Low Byte)
SWI Vector (High Byte)
SWI Vector (Low Byte)
Reset Vector (High Byte)
Reset Vector (Low Byte)
I/O Registers
64 Bytes
I/O Registers
64 Bytes
$0000
$003F
$0040
$007F
Unused
63 Bytes
User RAM
176 Bytes
64 Byte Stack
$0080
$00C0
$00FF
$012F
$0130
$0FFF
Unused
3792 Bytes
$1000
$1DFF
$1E00
$1FEF
User EPROM
3584 Bytes
Bootstrap ROM
496 Bytes
User Vectors
16 Bytes
$1FF0
$1FFF
Mask Option Register
$007E
EPROM Program Control Register
$003E
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4
REV 2
The user code must be a one-to-one correspondence with the internal EPROM
addresses.
A.5 EPROM PROGRAMMING
Programming the on-chip EPROM is achieved by using the Program Control Reg-
ister located at address $3E.
Please contact Freescale for programming board availability.
A.5.1 EPROM Program Control Register (PCR)
This register is provided for programming the on-chip EPROM in the
MC68HC705JB4.
MORON – Mask Option Register ON
0 = Disable programming to Mask Option Register ($007F)
1 = Enable programming to Mask Option Register ($007F)
ELAT – EPROM LATch control
0 = EPROM address and data bus configured for normal reads
1 = EPROM address and data bus configured for programming (writes
to EPROM cause address and data to be latched). EPROM is in
programming mode and cannot be read if ELAT is 1. This bit should
not be set when no programming voltage is applied to the Vpp pin.
PGM – EPROM ProGraM command
0 = Programming power is switched OFF from EPROM array.
1 = Programming power is switched ON to EPROM array. If ELAT ≠ 1,
then PGM = 0.
A.5.2 Programming Sequence
The EPROM programming sequence is:
1. Set the ELAT bit
2. Write the data to the address to be programmed
3. Set the PGM bit
4. Delay for a time tPGMR
5. Clear the PGM bit
6. Clear the ELAT bit
The last two steps must be performed with separate CPU writes.
BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
PCR R RESERVED MORON ELAT PGM
$003E W
reset: 00000000
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
REV
CAUTION
It is important to remember that an external programming voltage must be applied
to the VPP pin while programming, but it should be equal to VDD during normal
operations.
Figure A-2 shows the flow required to successfully program the EPROM.
Figure A-2. EPROM Programming Sequence
START
ELAT=1
Write EPROM byte
EPGM=1
Wait 1ms
EPGM=0
ELAT=0
Write
additional
byte?
N
Y
END
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
February 24, 1999 GENERAL RELEASE SPECIFICATION
MC68HC05JB4
REV 2
A.6 EPROM PROGRAMMING SPECIFICATIONS
A.7 DC ELECTRICAL CHARACTERISTICS
Table A-1. EPROM Programming Electrical Characteristics
(VDD = 4.2V to 5.5V, VSS = 0 Vdc, TA = 0°C to +40°C, unless otherwise noted)
Characteristic Symbol Min Typ Max Unit
Programming Voltage
IRQ/VPP VPP — 13.5 — V
Programming Current
IRQ/VPP IPP — 5 10 mA
Programming Time
per byte tEPGM —1—ms
Table A-2. DC Electrical Characteristics (705JB4)
(VDD = 4.2V to 5.5V, VSS = 0 Vdc, TA = 0°C to +40°C, unless otherwise noted)
Characteristic Symbol Min Typ Max Unit
Supply Current (see Notes)
Run (USB active)
Run (USB suspended)
Wait (USB active)
Wait (USB suspended)
Stop
LVR off at 25°C (not include 15k to GND)
IDD
—
—
—
—
—
—
—
—
—
130
7.5
6.5
4.0
3.0
180
mA
mA
mA
mA
µA
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
GENERAL RELEASE SPECIFICATION February 24, 1999
REV
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
nc...
Freescale Semiconductor, I
Freescale Semiconductor, Inc.
nc...
Information in this document is provided solely to enable system and software
implementers to use Freescale Semiconductor products. There are no express or
implied copyright licenses granted hereunder to design or fabricate any integrated
circuits or integrated circuits based on the information in this document.
Freescale Semiconductor reserves the right to make changes without further notice to
any products herein. Freescale Semiconductor makes no warranty, representation or
guarantee regarding the suitability of its products for any particular purpose, nor does
Freescale Semiconductor assume any liability arising out of the application or use of
any product or circuit, and specifically disclaims any and all liability, including without
limitation consequential or incidental damages. “Typical” parameters which may be
provided in Freescale Semiconductor data sheets and/or specifications can and do
vary in different applications and actual performance may vary over time. All operating
parameters, including “Typicals” must be validated for each customer application by
customer’s technical experts. Freescale Semiconductor does not convey any license
under its patent rights nor the rights of others. Freescale Semiconductor products are
not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life,
or for any other application in which the failure of the Freescale Semiconductor product
could create a situation where personal injury or death may occur. Should Buyer
purchase or use Freescale Semiconductor products for any such unintended or
unauthorized application, Buyer shall indemnify and hold Freescale Semiconductor
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees arising out of,
directly or indirectly, any claim of personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that Freescale
Semiconductor was negligent regarding the design or manufacture of the part.
