Calpella DIS LA4743P

0.1

Cover Sheet

Custom

149Monday, April 13, 2009

2007/08/28 2006/03/10

Compal Electronics, Inc.

Compal confidential

Schematics Document

Mobile Auburndale rPGA989 with

Intel PCH(Ibex Peak-M) core logic

2009-04-13

http://laptop-motherboard-schematic.blogspot.com/

1 1

2 2

3 3

4 4

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

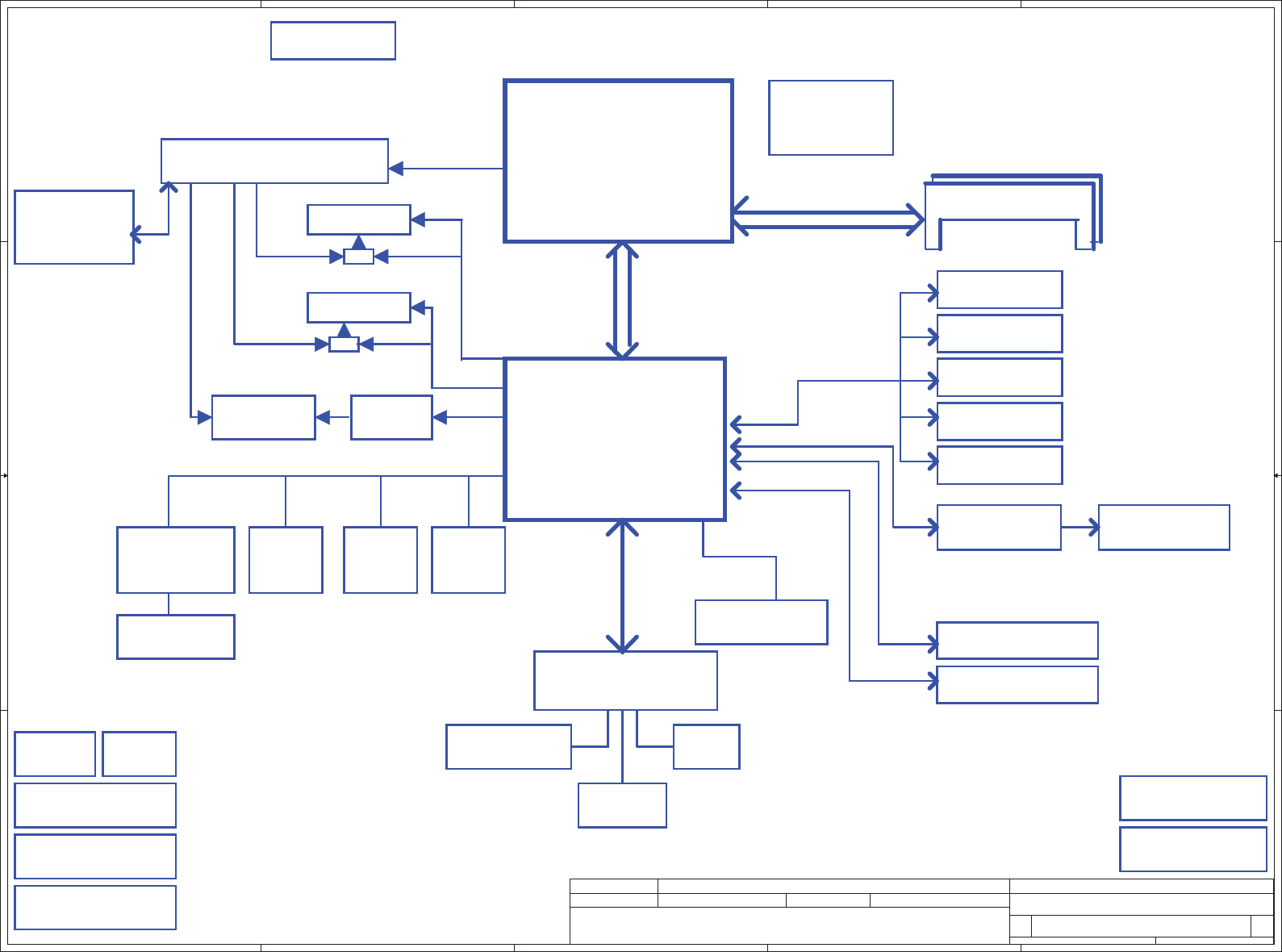

Block Diagram

Custom

249Monday, April 13, 2009

2006/02/13 2006/03/10

Compal Electronics, Inc.

Compal confidential

Fan conn

Mobile Arrandale

Socket-rPGA989

FCBGA 951

Intel PCH

DDR3 1066/1333 MHz 1.5V

Dual Channel

LPC BUS

DC/DC Interface CKT.

RTC CKT. Touch Pad CONN. Int.KBD

ENE

LED

SATA HDD Connector

SATA Master-1

Codec_IDT92HD81

Audio CKT Audio Jack

USB conn x3

USB2.0 X12

Azalia

BT Conn

KB926

Page 6,7,8,9,10

Page 11,12,13,14,15,16

P30

P21

P34 P35

P36

P38

Page 6

Calpella Consumer 13.3" UMA +Switchable

SPI

Clock Generator

SLG8SP585VTR

P19

CK505 32QFN

SATA Slave

P36

USB Camera

Capsense switch Conn

SATA ODD Connector

P21

P30

P37

SPI ROM

SST25VF080

P39

P36

USB Board Conn

P33

Finger print

P36

USB conn x2

K/B backlight Conn

P36

P27

ACCELEROMETER

2C CPU + GMCH

P17, 18

BANK 0, 1, 2, 3

DDR3 SO-DIMM X2

Ibex Peak-M

P31

Mini-Card New Card

PCI-E BUS*4

P32P32 P32

WWAN

Mini-Card

JMC261 (LAN

+Card reader)

RJ45/11 CONN

WLAN

USB Card Reader

P33

DMI X4

P34

SPI ROM 16M

MX25L1605AM2C-15G

128/512MB

Dis

UMA

MUX

LCD Conn.

page 21

Dis Dis(UMA)

HDMI Conn.

page 23

Level Shifter

page 23

PCIE-Express 16X

Nvidia

NB10M-GE

VRAM DDR3

page 28,29

MUX Dis(UMA)Dis

CRT

page 20

page 24,25,26,27

http://laptop-motherboard-schematic.blogspot.com/

1 1

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

Notes List

Custom

349Monday, April 13, 2009

2007/08/28 2006/03/10

Compal Electronics, Inc.

O MEANS ON X MEANS OFF

Voltage Rails

+0.9V

+3VS

+3VALW

+5VS

+2.5VS

+CPU_CORE

+VCCP

power

plane

S5 S4/ Battery only

State

+1.5VS

+1.8V

S5 S4/AC & Battery

don't exist

S5 S4/AC

+5VALW

Symbol Note :

: means Digital Ground

: means Analog Ground

@ : means just reserve , no build

SMB_EC_CK2

SOURCE

KB926

XDP BATT Thermal

Sensor SODIMM CLK CHIP

SMBUS Control Table

SMBCLK

SMBDATA PCH

WLAN

WWAN

SMB_EC_DA2

SMB_EC_CK1

SMB_EC_DA1

NB10M-GE

XV1 0 1 0 0 1 0 0A4

PCH I2C / SMBUS ADDRESSING

1 0 1 0 0 0 0 0

CLOCK GENERATOR (EXT.)

HEX

DDR SO-DIMM 1

ADDRESS

DDR SO-DIMM 0

1 1 0 1 0 0 1 0

DEVICE

+1.8VS

VVV

KB926

CONN@ : means ME part

BATT @ : means need be mounted when 45 level assy or rework stage.

45@ : means need be mounted when 45 level assy or rework stage.

USB-1 Right side

USB-8 MiniCard(WWAN/TV)

USB-6 Bluetooth

USB-5 WLAN

USB-4 Camera

USB-2 Left side(with ESATA)

USB-10 X

USB-9 Express card

USB-3 X

USB-7 Finger Printer

USB assignment:

USB-11 X

USB-0 Right side

PCIe-2 WLAN

PCIe assignment:

PCIe-1 WWAN

PCIe-3 LAN

PCIe-4 New card

PCIe-5 X

PCIe-6 X

Cap sensor

board

NEW

CARD G sensor

SML0CLK

SML0DATA PCH X

SML1CLK

SML1DATA PCH XXXXXXXXX X

+3VALW +3VALW+3VS+3VS+3VS +3VS+5VL +5VL

NB10M

Thermal

Sensor

SOURCE LVDS CRT

NB10M-GE SMBUS Control Table

D_EDID_CLK

D_EDID_DATA NB10M

D_CRT_DDC_DATA

HDMIDAT_VGA

HDMICLK_VGA

NB10M

HDMI

SG@ : means stuff when Switchable graphic

UMA@ : means stuff when UMA skus

VRAM@ : X76 level

SATA1 ODD

SATA assignment:

SATA0 HDD

SATA2 X

SATA3 X

SATA4 ESATA

SATA5 X

8111DL@ : Only for Giga LAN

DEBUG@ : For debug

Cypress@ : Only For Cypress Capacitor sensor board

ENE@ : Only For ENE Capacitor sensor board

M3@ : Only For Intel DDR3 VREF

PA@ : Only For PA

PR@ : Only For PR

45172932L01ΚSwitchable graphic

45172932L02ΚUMA only

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ON ICS, INC . AN D CO NTAI NS CO NFI DENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUS TOD Y OF TH E C OMPETENT DI VISI ON OF R& D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITH ER THI S SH EET N OR TH E I NFOR MATION IT CO NTAI NS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CO NSEN T O F CO MPA L EL ECTR ONICS , I NC .

Issued Date

Deci phered Date

Calpella DIS LA4743P

0.1

Power delevry

449Monday, April 13, 2009

2007/08/28 2006/03/10

Compal Electronics, Inc.

VIN

DC BATT

B+

INVPWR_B+

B++

B+++

1.05V_B+

LVDS CON

+3VALW

+5VALW

ICH9

+3VS

Finger printer

New card

PCH

0.3A

811mA

300mA

+1.5V

LAN

+3VS_DVDD

ALC268

25mA

+5VS +VDDA

IDT 9271B7

35mA

50mA

169mA

+LCDVDD

1.5A

+3VS_CK505

250mA

+5VAMP

10mA

ODD

1.8A

SATA

700mA

CPU

DDR3 800Mhz 4G x2

8 A

+0.75V

50mA

+VCCP

PCH

CPU

??A

162mA

LVDS CON

3.39A5.89A

3.7 X 3=11.1V

1.7A

1.3A0.58A

11.05A1.9A

4.7A

+V_BATTERY Dock con

+1.5VS

Mini card

??mA

New card

???A

CPU_B+ +VCC_CORE

10mA2A CPU

38A/1.05V

Mini card (WLAN)

1A Mini card (TV tu/WWAN/Robeson)

+3VAUX_BT

60mA

MDC 1.5

35mA

SPI ROM

+3VALW_EC

20mA

10mA

PC Camera(4.75V)

50mA

RT5158

+1.05VS PCH

2.59A

http://laptop-motherboard-schematic.blogspot.com/

1 1

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

Notes List

Custom

549Monday, April 13, 2009

2007/08/28 2006/03/10

Compal Electronics, Inc.

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

CLK_CPU_XDP

CL K_ C PU_XDP#

XDP _D BRESET#

XDP_PRDY#

XDP _PREQ#

XDP_TCK

XDP_TMS

XDP_TDI_R

XDP_TDO_R

XDP_TDI_M

XDP_TDO_M

COMP3

COMP2

COMP1

COMP0

TP_SKTOCC#

H_CATE RR#

H_PEC I_ISO

H_THERMTRIP#_R

H_CPURST#_R

H_PM_SYNC_R

H_CPURST#

VCCPWRGOOD_0

SYS_AGENT_PWROK

VDDPWRGOOD_R

H_ PW RG D _XDP_RH_PWRGD_XDP

PL T_RST#_R

PM_EXTTS#1

SM_RCOMP0

SM_RCOMP1

SM_RCOMP2

PM_EXTTS#0

PM_EXTTS#1

PM_EXTTS#0

SM_RCOMP0

SM_RCOMP1

H_CATERR#

H_CPURST#_R

XDP_TDI_R

XDP_TDO_R

XDP_TDI

XDP_TDOXDP_TDO_M

XDP_TDI_M

XDP_BPM#4

XDP_BPM#6

XDP_BPM#3

XDP_BPM#0

XDP_BPM#2

XDP_BPM#5

XDP_BPM#7

XDP_BPM#1

SM_RCOMP2

VDDPWRGOOD_R

H_CPUPWRGD

XDP_TDI

XDP_TDO

XDP_TMS

XDP_TCK

XDP _PREQ#

H_CPUPWRGD_R

XDP_PRDY#

XDP_BPM#4

XDP_TDO

XDP_BPM#1

CLK_CPU_XDP

XDP_BPM#6

XDP_BPM#3

XDP _D BRESET#_R

XDP_TDI

XDP_BPM#0

H_PWRGD_XDP

XDP_TMSXDP_TCK

XDP_BPM#5

H_CPUPWRGD

XDP_BPM#2

XDP_RST#_R

XDP_BPM#7

H_CPURST#

XDP _PREQ#

PM_PWRBTN#_R

XDP_RST#_R

CL K_ C PU_XDP#

H_PROCHOT#

XD P_TRST#

CLK_CPU_BCLK

XDP _D BRESET#

CLK_CPU_BCLK#

CL K_EXP

C LK_EXP#

FAN_SPEED

+5VS_FAN

FAN_SPEED

CLK_EXP# <12>

CLK_EXP <12>

DRAMRST# <17,18>

H_PECI<14>

H_PM_SYNC<13>

H_THERMTRIP#<14>

PM_DRAM_PWRGD<13>

VTTPWRGOOD<44>

BUF_PLT_RST#<14>

H_CPUPWRGD<14>

PM_EXTTS#1_R <17,18>

PLT_RST# <14,31,32>

XDP_ DBRESET# <13>

PM_PWRBTN#_R<13>

CLK_CPU_BCLK# <14>

CLK_CPU_BCLK <14>

FAN_SET<37>

FAN_SPEED<37>

H_PROCHOT#<46>

+VCCP

+1.5V

+VCCP

+3VS

+5VS

+3VS

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

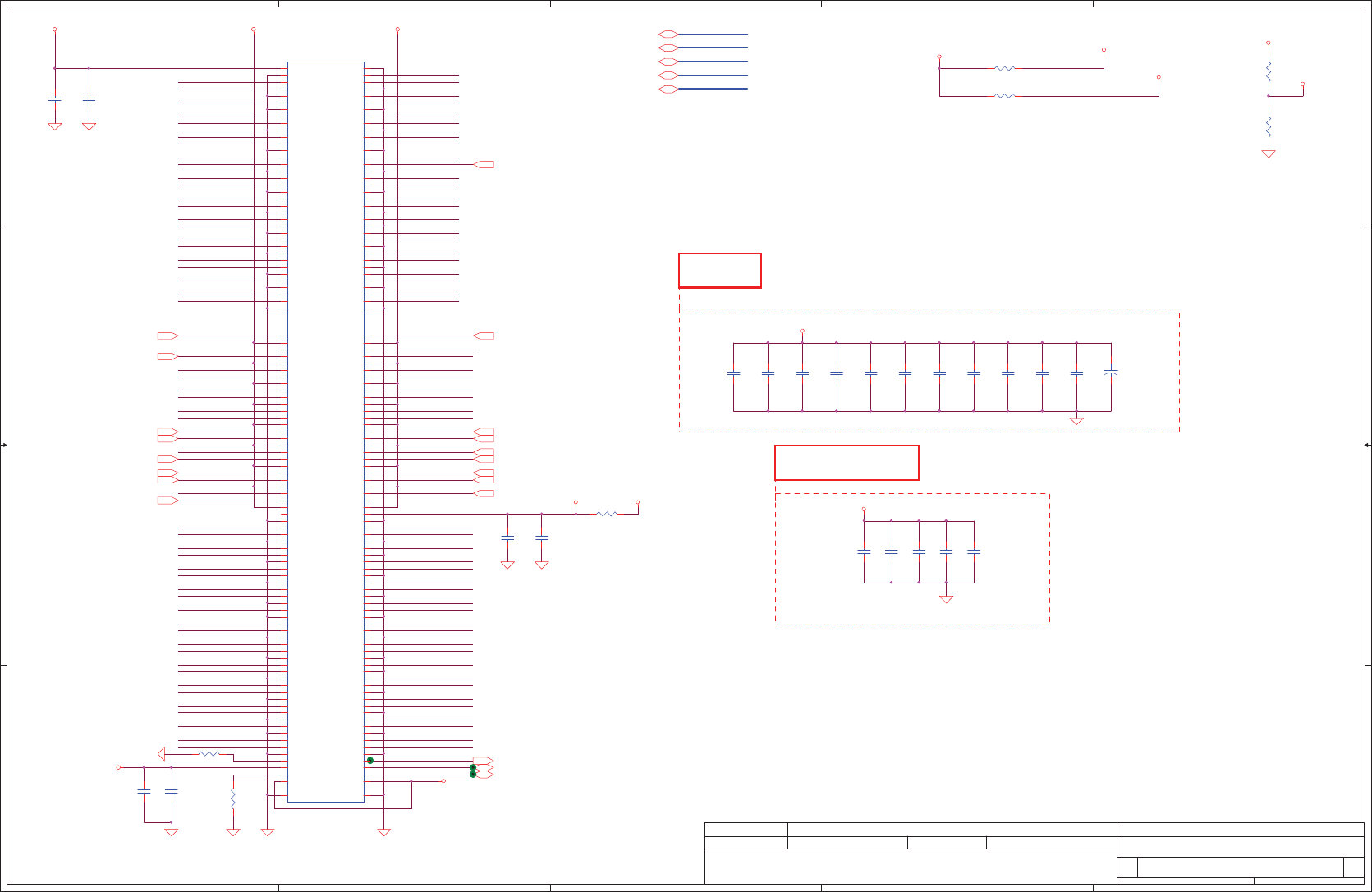

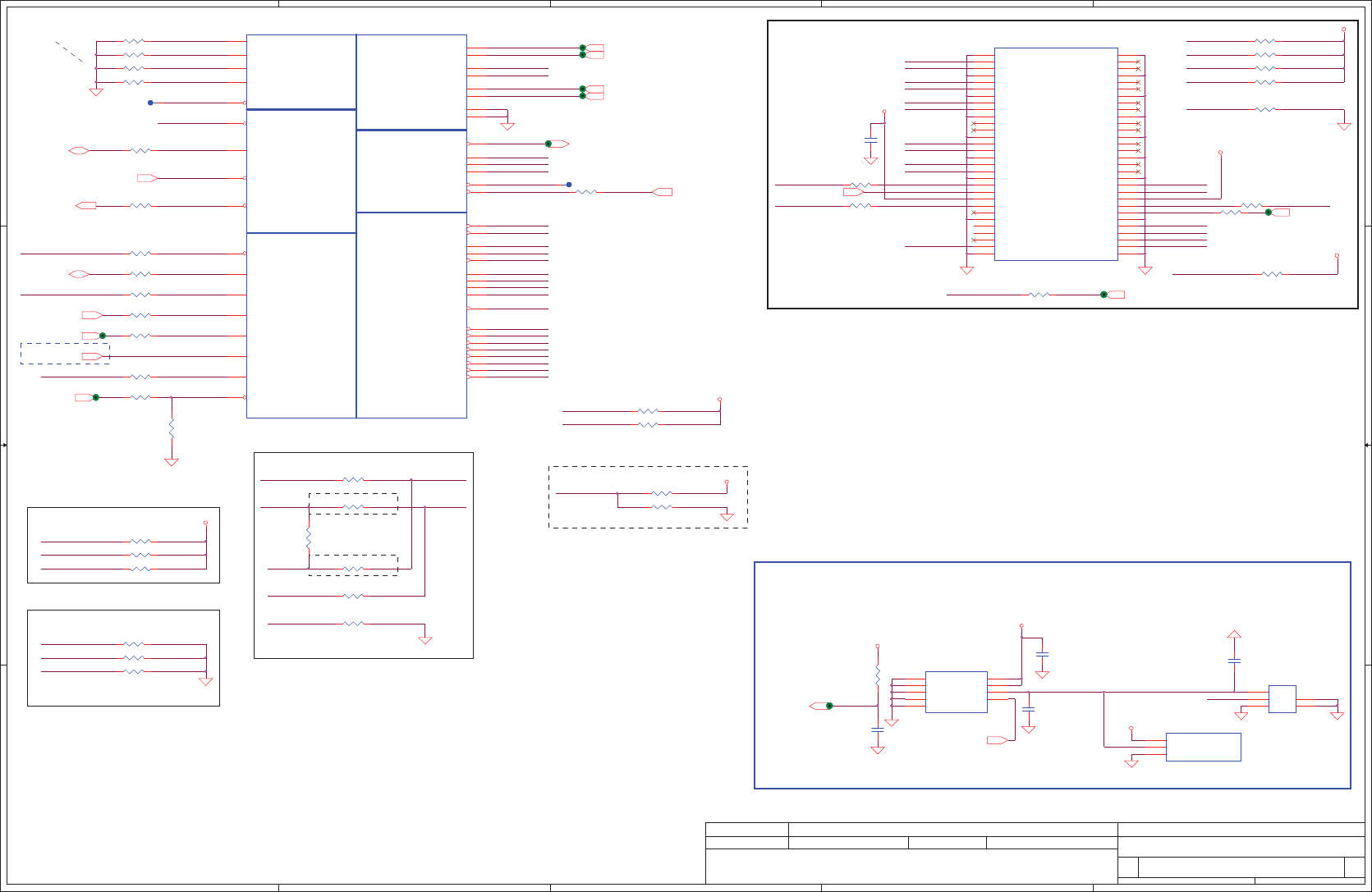

Auburndale(1/5)-Thermal/XDP

Custom

649Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

Layout Note:Please these

resistors near Processor

DDR3 Compensation Signals

Processor Pullups

JTAG MAPPING

From power

from DDR

This shall place near CPU

XDP Connector

CRB 0.9 R38 change to 1K

Layout rule 10m

width trace length <

0.5", spacing 20mil

Fan Voltage Control circuit

SI-1 Change to voltage control circuit

eDP

R27 10K_0402_5%

1 2

R15 0_0402_5%

1 2

R10 0_0402_5%

1 2

R8 51_0402_1%

1 2

JP1

SAMTE_BSH-030-01-L-D-A CO NN@

GND0

OBSFN_A0

OBSFN_A1

GND2

OBSDATA_A0

OBSDATA_A1

GND4

OBSDATA_A2

OBSDATA_A3

GND6

OBSFN_B0

OBSFN_B1

GND8

OBSDATA_B0

OBSDATA_B1

GND10

OBSDATA_B2

OBSDATA_B3

GND12

PWRGOOD/HOOK0

HOOK1

VCC_OBS_AB

HOOK2

HOOK3

GND14

SDA

SCL

TCK1

TCK0

GND16

GND1 2

OBSFN_C0 4

OBSFN_C1 6

GND3 8

OBSDATA_C0 10

OBSDATA_C1 12

GND5 14

OBSDATA_C2 16

OBSDATA_C3 18

GND7 20

OBSFN_D0 22

OBSFN_D1 24

GND9 26

OBSDATA_D0 28

OBSDATA_D1 30

GND11 32

OBSDATA_D2 34

OBSDATA_D3 36

GND13 38

ITPCLK/HOOK4 40

ITPCLK#/HOOK5 42

VCC_OBS_CD 44

RESET#/HOOK6 46

DBR#/HOOK7 48

GND15 50

TD0 52

TRST# 54

TDI 56

TMS 58

GND17 60

R1 20_0402_1%

1 2

JFAN1

ACES_85204-03001

CONN@

3G1 4

G2 5

R26

1.5K_0402_1%

1 2

R16 0_0402_5%

1 2

R28

750_0402_1%

R41 24.9_0402_1%

1 2

R603 1K_0402_5%

1 2

R4 51_0402_1%@

1 2

R32 0_0402_5%@

1 2

R21 0_0402_5%

1 2

R11 68_0402_5%

R7 49.9_0402_1%

1 2

R9 51_0402_1%@

1 2

R6 51_0402_1%@

1 2

R30 0_0402_5%

1 2

R23 0_0402_5%

1 2

R25 0_0402_5%

1 2

R40 100_0402_1%

1 2

R18

0_0402_5%

1 2

R20 0_0402_5%

1 2

R22 0_0402_5%@

1 2

R33 12K_0402_1%

1 2

0.1U_0402_16V4Z

R2 51_0402_1%@

1 2

DLPT05-7-F_SOT23-3

Line to be protected

2Vcc

GND

R29 10K_0402_5%

1 2

0.1U_0402_16V4Z

CLOCKS

MISC THERMAL PWR MANAGEMENT

DDR3

MISC

JTAG & BPM

JCPU1B

IC,AU B_CFD_rPGA,R1P0

CONN@

SM_RCOMP[1] AM1

SM_RCOMP[2] AN1

SM_DRAMRST# F6

SM_RCOMP[0] AL1

BCLK# B16

BCLK A16

BCLK_ITP# AT30

BCLK_ITP AR30

PEG_CLK# D16

PEG_CLK E16

DPLL_REF_SSCLK# A17

DPLL_REF_SSCLK A18

CATERR#

AK14

COMP3

AT23

PECI

AT15

PROCHOT#

AN26

THERMTRIP#

AK15

RESET_OBS#

AP26

VCCPWRGOOD_1

AN14

VCCPWRGOOD_0

AN27

SM_DRAMPWROK

AK13

VTTPWRGOOD

AM15

RSTIN#

AL14

PM_EXT_TS#[0] AN15

PM_EXT_TS#[1] AP15

PRDY# AT28

PREQ# AP27

TCK AN28

TMS AP28

TRST# AT27

TDI AT29

TDO AR27

TDI_M AR29

TDO_M AP29

DBR# AN25

BPM#[0] AJ22

BPM#[1] AK22

BPM#[2] AK24

BPM#[3] AJ24

BPM#[4] AJ25

BPM#[5] AH22

BPM#[6] AK23

BPM#[7] AH23

COMP2

AT24

PM_SYNC

AL15

TAPPWRGOOD

AM26

COMP1

G16

COMP0

AT26

SKTOCC#

AH24

R31 4.75K_0402_1%

1 2

R37 0_0402_5%@

1 2

R34

0_0402_5%

1 2

U32

G996RD1U_TDFN8_3X3

VEN 1

VIN 2

VO 3

VSET 4

GND

Thermal Pad

R19 0_0402_5%

1 2

R35 49.9_0402_1%

1 2

R17

1K_0402_5%

1 2

R678

10K_0402_5%

1 2

T1PAD

R14 0_0402_5%

1 2

R5 49.9_0402_1%

1 2

C775

1000P_0402_50V7K

R3 20_0402_1%

1 2

R38 0_0402_5%

1 2

R39 51_0402_1%

1 2

C774

2.2U_0603_6.3V4Z

R42 130_0402_1%

1 2

R24 0_0402_5%

1 2

2.2U_0603_6.3V4Z

R36 68_0402_5%@

1 2

R13

1K_0402_5%

1 2

T63 P A D

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

CFG0

CFG3

EXP_ICOMPI

EXP_RBIAS

CFG2

CFG13

CFG12

CFG5

CFG6

CFG3

CFG16

CFG9

CFG4

CFG15

CFG8

CFG7

CFG14

CFG17

CFG10

CFG0

CFG18

CFG1

CFG11

CFG7

CFG4

PCIE_CRX_GTX_N14

PCIE_CRX_GTX_N15

PCIE_CRX_GTX_N10

PCIE_CRX_GTX_N4

PCIE_CRX_GTX_N7

PCIE_CRX_GTX_N6

PCIE_CRX_GTX_N8

PCIE_CRX_GTX_N0

PCIE_CRX_GTX_N5

PCIE_CRX_GTX_N13

PCIE_CRX_GTX_N12

PCIE_CRX_GTX_N9

PCIE_CRX_GTX_N3

PCIE_CRX_GTX_N11

PCIE_CRX_GTX_N1

PCIE_CRX_GTX_N2

PCIE_CRX_GTX_P14

PCIE_CRX_GTX_P15

PCIE_CRX_GTX_P7

PCIE_CRX_GTX_P10

PCIE_CRX_GTX_P0

PCIE_CRX_GTX_P4

PCIE_CRX_GTX_P8

PCIE_CRX_GTX_P5

PCIE_CRX_GTX_P12

PCIE_CRX_GTX_P3

PCIE_CRX_GTX_P6

PCIE_CRX_GTX_P13

PCIE_CRX_GTX_P9

PCIE_CRX_GTX_P2

PCIE_CRX_GTX_P1

PCIE_CRX_GTX_P11

PCIE_CTX_GRX_P14

PCIE_CTX_GRX_P15

PCIE_CTX_GRX_P10

PCIE_CTX_GRX_P0

PCIE_CTX_GRX_P7

PCIE_CTX_GRX_P13

PCIE_CTX_GRX_P4

PCIE_CTX_GRX_P6

PCIE_CTX_GRX_P8

PCIE_CTX_GRX_P5

PCIE_CTX_GRX_P3

PCIE_CTX_GRX_P12

PCIE_CTX_GRX_P9

PCIE_CTX_GRX_P1

PCIE_CTX_GRX_P11

PCIE_CTX_GRX_P2

PCIE_CTX_GRX_C_N14

PCIE_CTX_GRX_C_N0

PCIE_CTX_GRX_C_N15

PCIE_CTX_GRX_C_N4

PCIE_CTX_GRX_C_N13

PCIE_CTX_GRX_C_N8

PCIE_CTX_GRX_C_N6

PCIE_CTX_GRX_C_N10

PCIE_CTX_GRX_C_N7

PCIE_CTX_GRX_C_N12

PCIE_CTX_GRX_C_N2

PCIE_CTX_GRX_C_N5

PCIE_CTX_GRX_C_N9

PCIE_CTX_GRX_C_N3

PCIE_CTX_GRX_C_N11

PCIE_CTX_GRX_C_N1

PCIE_CTX_GRX_C_P14

PCIE_CTX_GRX_C_P15

PCIE_CTX_GRX_C_P10

PCIE_CTX_GRX_C_P0

PCIE_CTX_GRX_C_P7

PCIE_CTX_GRX_C_P13

PCIE_CTX_GRX_C_P4

PCIE_CTX_GRX_C_P6

PCIE_CTX_GRX_C_P8

PCIE_CTX_GRX_C_P5

PCIE_CTX_GRX_C_P3

PCIE_CTX_GRX_C_P12

PCIE_CTX_GRX_C_P9

PCIE_CTX_GRX_C_P1

PCIE_CTX_GRX_C_P11

PCIE_CTX_GRX_C_P2

PCIE_CTX_GRX_N13

PCIE_CTX_GRX_N0

PCIE_CTX_GRX_N7

PCIE_CTX_GRX_N15

PCIE_CTX_GRX_N10

PCIE_CTX_GRX_N14

PCIE_CTX_GRX_N9

PCIE_CTX_GRX_N1

PCIE_CTX_GRX_N6

PCIE_CTX_GRX_N5

PCIE_CTX_GRX_N11

PCIE_CTX_GRX_N8

PCIE_CTX_GRX_N12

PCIE_CTX_GRX_N3

PCIE_CTX_GRX_N4

PCIE_CTX_GRX_N2

DMI_CTX_PRX_P0<13>

DMI_CRX_PTX_P0<13>

DMI_CTX_PRX_N1<13>

DMI_CRX_PTX_N1<13>

DMI_CTX_PRX_P3<13>

DMI_CRX_PTX_P3<13>

DMI_CTX_PRX_P2<13>

DMI_CTX_PRX_N0<13>

DMI_CRX_PTX_N3<13>

DMI_CRX_PTX_P2<13>

DMI_CTX_PRX_N3<13>

DMI_CTX_PRX_P1<13>

DMI_CRX_PTX_N0<13>

DMI_CRX_PTX_N2<13>

DMI_CRX_PTX_P1<13>

DMI_CTX_PRX_N2<13>

PCIE_CTX_GRX_P[0..15] <24>

PCIE_CTX_GRX_N[0..15] <24>

PCIE_CRX_GTX_N[0..15] <24>

PCIE_CRX_GTX_P[0..15] <24>

FDI_LSYNC1<13> F DI_L SYNC0<13>

FDI_INT<13>

FDI_FSYNC1<13> FDI_FS YNC0<13>

FDI_CTX_PRX_N4<13>

FDI_CTX_PRX_N1<13>

FDI_CTX_PRX_N6<13>

FDI_CTX_PRX_N0<13>

FDI_CTX_PRX_N3<13>

FDI_CTX_PRX_N5<13>

FDI_CTX_PRX_N2<13>

FDI_CTX_PRX_N7<13>

FDI_CTX_PRX_P4<13>

FDI_CTX_PRX_P1<13>

FDI_CTX_PRX_P6<13>

FDI_CTX_PRX_P0<13>

FDI_CTX_PRX_P3<13>

FDI_CTX_PRX_P5<13>

FDI_CTX_PRX_P2<13>

FDI_CTX_PRX_P7<13>

+V_DDR_CPU_REF1

+V_DDR_CPU_REF0

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

Auburndale(2/5)-DMI/PEG/FDI

Custom

749Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

CFG Straps for PROCESSOR

0: Bifurcation enabled

Not applicable for Clarksfield Processor

1: Single PEG

CFG0

PCI-Express Configuration Select

0: Lane Numbers Reversed

1: Normal Operation

CFG3

CFG3-PCI Express Static Lane Reversal

15 -> 0, 14 ->1, .....

CRB 0.9 change to GND

Only temporary for early

CFD samples (rPGA/BGA)

0: Enabled; An external

Display Port

1: Disabled; No Physical

Display Port

CFG4

CFG4-Display Port Presence

attached to Embedded Display Port

device is connected to the

Embedded Display Port

Only for pre ES1 sample

WW33GPD 3.01K on CFG7 for PCIE Jitter

WW41 don't staff

CFG7

Layout rule trace

length < 0.5"

C19 0.1U_0402_16V4ZSG@

1 2

C8 0.1U_0402_16V4ZSG@

1 2

R55 3.01K_0402_1%@

1 2

C35 0.1U_0402_16V4ZSG@

1 2

C9 0.1U_0402_16V4ZSG@

1 2

RESERVED

JCPU1E

IC,AUB_CFD_rPGA,R1P0

CONN@

CFG[0]

AM30

CFG[1]

AM28

CFG[2]

AP31

CFG[3]

AL32

CFG[4]

AL30

CFG[5]

AM31

CFG[6]

AN29

CFG[7]

AM32

CFG[8]

AK32

CFG[9]

AK31

CFG[10]

AK28

CFG[11]

AJ28

CFG[12]

AN30

CFG[13]

AN32

CFG[14]

AJ32

CFG[15]

AJ29

CFG[16]

AJ30

CFG[17]

AK30

RSVD34 AH25

RSVD35 AK26

RSVD38 AJ26

RSVD_NCTF_42 AT3

RSVD39 AJ27

RSVD_NCTF_40 AP1

RSVD_NCTF_41 AT2

RSVD_NCTF_43 AR1

RSVD_TP_86

H16

RSVD45 AL28

RSVD46 AL29

RSVD47 AP30

RSVD48 AP32

RSVD49 AL27

RSVD50 AT31

RSVD51 AT32

RSVD52 AP33

RSVD53 AR33

RSVD_NCTF_54 AT33

RSVD_NCTF_55 AT34

RSVD_NCTF_56 AP35

RSVD_NCTF_57 AR35

RSVD58 AR32

RSVD_NCTF_30

C35

RSVD_NCTF_31

B35

RSVD_NCTF_28

A34

RSVD_NCTF_29

A33

RSVD27

J28 RSVD26

J29

RSVD16

A19 RSVD15

B19

RSVD17

A20

RSVD18

B20

RSVD20

T9 RSVD19

RSVD22

AB9 RSVD21

AC9

RSVD_NCTF_23

RSVD_NCTF_24

RSVD_TP_66 AA5

RSVD_TP_67 AA4

RSVD_TP_68 R8

RSVD_TP_71 AA2

RSVD_TP_72 AA1

RSVD_TP_73 R9

RSVD_TP_69 AD3

RSVD_TP_74 AG7

RSVD_TP_70 AD2

RSVD_TP_75 AE3

RSVD_TP_76 V4

RSVD_TP_77 V5

RSVD_TP_78 N2

RSVD_TP_81 W3

RSVD_TP_82 W2

RSVD_TP_83 N3

RSVD_TP_79 AD5

RSVD_TP_84 AE5

RSVD_TP_80 AD7

RSVD_TP_85 AD9

RSVD36 AL26

RSVD_NCTF_37 AR2

RSVD1

AP25

RSVD2

AL25

RSVD3

AL24

RSVD4

AL22

RSVD5

AJ33

RSVD6

AG9

RSVD7

M27

RSVD8

L28

SA_DIMM_VREF

J17

SB_DIMM_VREF

H17

RSVD11

G25

RSVD12

G17

RSVD13

E31

RSVD14

E30

RSVD32 AJ13

RSVD33 AJ12

RSVD_TP_59 E15

RSVD_TP_60 F15

KEY A2

RSVD62 D15

RSVD63 C15

RSVD64 AJ15

RSVD65 AH15

VSS AP34

R48 0_0402_5%@

1 2

C32 0.1U_0402_16V4ZSG@

1 2

C11 0.1U_0402_16V4ZSG@

1 2

R50 0_0402_5%@

1 2

C12 0.1U_0402_16V4ZSG@

1 2

C13 0.1U_0402_16V4ZSG@

1 2

R49 0_0402_5%@

1 2

C14 0.1U_0402_16V4ZSG@

1 2

R45 750_0402_1%

1 2

PCI EXPRESS -- GRAPHICS

DMI Intel(R) FDI

JCPU1A

IC,AUB_CFD_rPGA,R1P0

CONN@

DMI_RX#[0]

A24

DMI_RX#[1]

C23

DMI_RX#[2]

B22

DMI_RX#[3]

A21

DMI_RX[0]

B24

DMI_RX[1]

D23

DMI_RX[2]

B23

DMI_RX[3]

A22

DMI_TX#[0]

D24

DMI_TX#[1]

G24

DMI_TX#[2]

F23

DMI_TX#[3]

H23

DMI_TX[0]

D25

DMI_TX[1]

F24

DMI_TX[3]

G23 DMI_TX[2]

E23

FDI_TX#[0]

E22

FDI_TX#[1]

D21

FDI_TX#[2]

D19

FDI_TX#[3]

D18

FDI_TX#[4]

G21

FDI_TX#[5]

E19

FDI_TX#[6]

F21

FDI_TX#[7]

G18

FDI_TX[0]

D22

FDI_TX[1]

C21

FDI_TX[2]

D20

FDI_TX[3]

C18

FDI_TX[4]

G22

FDI_TX[5]

E20

FDI_TX[6]

F20

FDI_TX[7]

G19

FDI_FSYNC[0]

F17

FDI_FSYNC[1]

E17

FDI_INT

C17

FDI_LSYNC[0]

F18

FDI_LSYNC[1]

D17

PEG_ICOMPI B26

PEG_ICOMPO A26

PEG_RBIAS A25

PEG_RCOMPO B27

PEG_RX#[0] K35

PEG_RX#[1] J34

PEG_RX#[2] J33

PEG_RX#[3] G35

PEG_RX#[4] G32

PEG_RX#[5] F34

PEG_RX#[6] F31

PEG_RX#[7] D35

PEG_RX#[8] E33

PEG_RX#[9] C33

PEG_RX#[10] D32

PEG_RX#[11] B32

PEG_RX#[12] C31

PEG_RX#[13] B28

PEG_RX#[14] B30

PEG_RX#[15] A31

PEG_RX[0] J35

PEG_RX[1] H34

PEG_RX[2] H33

PEG_RX[3] F35

PEG_RX[4] G33

PEG_RX[5] E34

PEG_RX[6] F32

PEG_RX[7] D34

PEG_RX[8] F33

PEG_RX[9] B33

PEG_RX[10] D31

PEG_RX[11] A32

PEG_RX[12] C30

PEG_RX[13] A28

PEG_RX[14] B29

PEG_RX[15] A30

PEG_TX#[0] L33

PEG_TX#[1] M35

PEG_TX#[2] M33

PEG_TX#[3] M30

PEG_TX#[4] L31

PEG_TX#[5] K32

PEG_TX#[6] M29

PEG_TX#[7] J31

PEG_TX#[8] K29

PEG_TX#[9] H30

PEG_TX#[10] H29

PEG_TX#[11] F29

PEG_TX#[12] E28

PEG_TX#[13] D29

PEG_TX#[14] D27

PEG_TX#[15] C26

PEG_TX[0] L34

PEG_TX[1] M34

PEG_TX[2] M32

PEG_TX[3] L30

PEG_TX[4] M31

PEG_TX[5] K31

PEG_TX[6] M28

PEG_TX[7] H31

PEG_TX[8] K28

PEG_TX[9] G30

PEG_TX[10] G29

PEG_TX[11] F28

PEG_TX[12] E27

PEG_TX[13] D28

PEG_TX[14] C27

PEG_TX[15] C25

C10 0.1U_0402_16V4ZSG@

1 2

R52 3.01K_0402_1%@

1 2

C28 0.1U_0402_16V4ZSG@

1 2

C29 0.1U_0402_16V4ZSG@

1 2

C24 0.1U_0402_16V4ZSG@

1 2

C4 0.1U_0402_16V4ZSG@

1 2

C16 0.1U_0402_16V4ZSG@

1 2

C27 0.1U_0402_16V4ZSG@

1 2

C31 0.1U_0402_16V4ZSG@

1 2

C22 0.1U_0402_16V4ZSG@

1 2

C30 0.1U_0402_16V4ZSG@

1 2

C21 0.1U_0402_16V4ZSG@

1 2

C15 0.1U_0402_16V4ZSG@

1 2

C25 0.1U_0402_16V4ZSG@

1 2

C33 0.1U_0402_16V4ZSG@

1 2

C34 0.1U_0402_16V4ZSG@

1 2

C17 0.1U_0402_16V4ZSG@

1 2

C26 0.1U_0402_16V4ZSG@

1 2

R53 3.01K_0402_1%@

1 2

R44 49.9_0402_1%

1 2

R54 3.01K_0402_1%

1 2

C20 0.1U_0402_16V4ZSG@

1 2

C6 0.1U_0402_16V4ZSG@

1 2

R51 0_0402_5%@

1 2

C5 0.1U_0402_16V4ZSG@

1 2

C23 0.1U_0402_16V4ZSG@

1 2

C18 0.1U_0402_16V4ZSG@

1 2

C7 0.1U_0402_16V4ZSG@

1 2

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

DDR_A_D63

DDR_A_D62

DDR_A_D8

DDR_A_D3

DDR_A_D4

DDR_A_D7

DDR_A_D5

DDR_A_D6

DDR_A_D59

DDR_A_D58

DDR_A_D57

DDR_A_D56

DDR_A_D47

DDR_A_D46

DDR_A_D42

DDR_A_D43

DDR_A_D34

DDR_A_D39

DDR_A_D44

DDR_A_D45

DDR_A_D35

DDR_A_D41

DDR_A_D40

DDR_A_D38

DDR_A_D36

DDR_A_D37

DDR_A_D32

DDR_A_D33

DDR_A_D61

DDR_A_D60

DDR_A_D2

DDR_A_D1

DDR_A_D0

DDR_A_D55

DDR_A_D54

DDR_A_D51

DDR_A_D48

DDR_A_D50

DDR_A_D49

DDR_A_D52

DDR_A_D53

DDR_A_D31

DDR_A_D14

DDR_A_D15

DDR_A_D25

DDR_A_D24

DDR_A_D26

DDR_A_D27

DDR_A_D30

DDR_A_D9

DDR_A_D13

DDR_A_D12

DDR_A_D10

DDR_A_D11

DDR_A_D29

DDR_A_D28

DDR_A_D19

DDR_A_D20

DDR_A_D16

DDR_A_D21

DDR_A_D17

DDR_A_D22

DDR_A_D18

DDR_A_D23

DDR_A_DQS#7

DDR_A_DQS#0

DDR_A_DQS#2

DDR_A_DQS#5

DDR_A_DQS#3

DDR_A_DQS#1

DDR_A_DQS#4

DDR_A_DQS#6

DDR_A_DM7

DDR_A_DM2

DDR_A_DM5

DDR_A_DM4

DDR_A_DM1

DDR_A_DM6

DDR_A_DM3

DDR_A_DM0

DDR_A_MA5

DDR_A_MA0

DDR_A_MA9

DDR_A_MA14

DDR_A_MA11

DDR_A_MA4

DDR_A_MA7

DDR_A_MA6

DDR_A_MA10

DDR_A_MA1

DDR_A_MA12

DDR_A_MA2

DDR_A_MA13

DDR_A_MA3

DDR_A_MA8

DDR_B_D3

DDR_B_D51

DDR_B_D56

DDR_B_D9

DDR_B_D31

DDR_B_D39

DDR_B_D49

DDR_B_D54

DDR_B_D57

DDR_B_D24

DDR_B_D10

DDR_B_D1

DDR_B_D6

DDR_B_D44

DDR_B_D43

DDR_B_D20

DDR_B_D42

DDR_B_D55

DDR_B_D15

DDR_B_D34

DDR_B_D23

DDR_B_D60

DDR_B_D33

DDR_B_D11

DDR_B_D41

DDR_B_D45

DDR_B_D0

DDR_B_D48

DDR_B_D50

DDR_B_D38

DDR_B_D21

DDR_B_D32

DDR_B_D22

DDR_B_D4

DDR_B_D14

DDR_B_D27

DDR_B_D25

DDR_B_D62

DDR_B_D59

DDR_B_D19

DDR_B_D52

DDR_B_D7

DDR_B_D5

DDR_B_D17

DDR_B_D58

DDR_B_D30

DDR_B_D26

DDR_B_D36

DDR_B_D13

DDR_B_D53

DDR_B_D18

DDR_B_D8

DDR_B_D35

DDR_B_D46

DDR_B_D12

DDR_B_D47

DDR_B_D28

DDR_B_D2

DDR_B_D37

DDR_B_D63

DDR_B_D40

DDR_B_D29

DDR_B_D61

DDR_B_D16

DDR_A_MA15

DDR_A_DQS0

DDR_A_DQS2

DDR_A_DQS1

DDR_A_DQS6

DDR_A_DQS5

DDR_A_DQS4

DDR_A_DQS3

DDR_A_DQS7

DDR_B_MA0

DDR_B_MA9

DDR_B_MA7

DDR_B_MA13

DDR_B_MA2

DDR_B_MA4

DDR_B_MA11

DDR_B_MA3

DDR_B_MA5

DDR_B_MA6

DDR_B_MA10

DDR_B_MA8

DDR_B_MA1

DDR_B_MA12

DDR_B_MA14

DDR_B_MA15

DDR_B_DQS#1

DDR_B_DQS#7

DDR_B_DQS#5

DDR_B_DQS#4

DDR_B_DQS#0

DDR_B_DQS#3

DDR_B_DQS#6

DDR_B_DQS#2

DDR_B_DQS7

DDR_B_DQS0

DDR_B_DQS1

DDR_B_DQS5

DDR_B_DQS4

DDR_B_DQS3

DDR_B_DQS2

DDR_B_DQS6

DDR_B_DM3

DDR_B_DM1

DDR_B_DM5

DDR_B_DM0

DDR_B_DM6

DDR_B_DM7

DDR_B_DM4

DDR_B_DM2

DDR_A_MA[0..15] <17>

DDR_A_DM[0..7] <17>

DDR_A_D[0..63]<17>

DDR_A_BS0<17> DDR_A_BS1<17> DDR_A_BS2<17>

DDR_A_WE#<17> DDR_A_RAS#<17> DDR_A_CAS#<17>

DDR_B_MA[0..15] <18>

DDR_B_DM[0..7] <18>

DDR_B_BS0<18> DDR_B_BS1<18> DDR_B_BS2<18>

DDR_B_WE#<18> DDR_B_RAS#<18> DDR_B_CAS#<18>

DDR_B_D[0..63]<18>

M_CLK_DDR0 <17>

M_CLK_DDR#0 <17>

DDR_CKE0_DIMMA <17>

M_CLK_DDR1 <17>

M_CLK_DDR#1 <17>

DDR_CKE1_DIMMA <17>

DDR_CS0_DIMMA# <17>

DDR_CS1_DIMMA# <17>

M_ODT0 <17>

M_ODT1 <17>

M_ODT2 <18>

M_ODT3 <18>

DDR_CS2_DIMMB# <18>

DDR_CS3_DIMMB# <18>

DDR_B_DQS[0..7] <18>

DDR_A_DQS#[0..7] <17>

DDR_A_DQS[0..7] <17>

DDR_B_DQS#[0..7] <18>

M_CLK_DDR2 <18>

M_CLK_DDR#2 <18>

DDR_CKE2_DIMMB <18>

M_CLK_DDR3 <18>

M_CLK_DDR#3 <18>

DDR_CKE3_DIMMB <18>

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

Cantiga(2/6)-DDR3 A/B CH

Custom

849Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

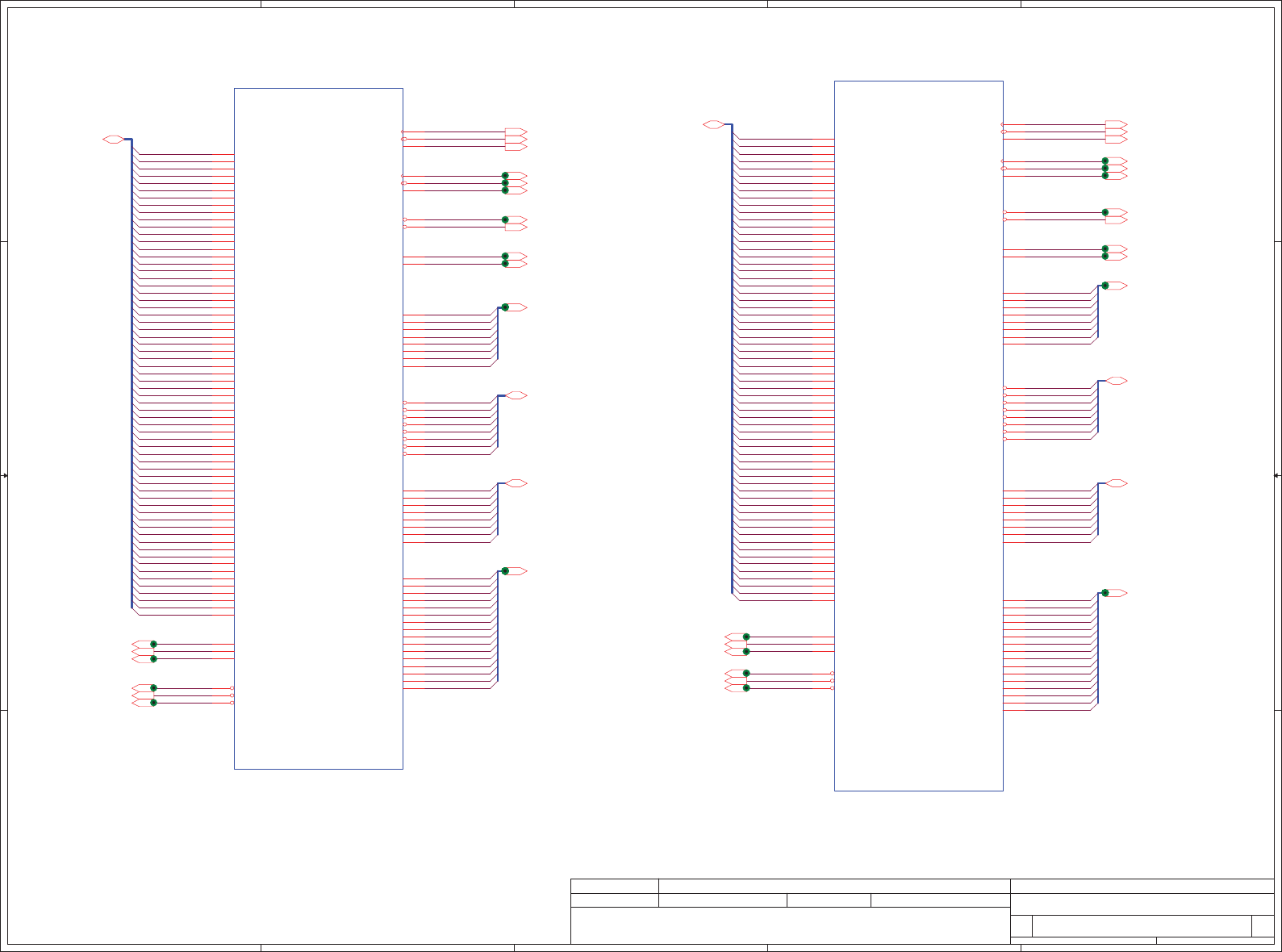

DDR SYSTEM MEMORY A

JCPU1C

IC,AUB_CFD_rPGA,R1P0

CONN@

SA_BS[0]

AC3

SA_BS[1]

AB2

SA_BS[2]

SA_CAS#

AE1

SA_RAS#

AB3

SA_WE#

AE9

SA_CK[0] AA6

SA_CK[1] Y6

SA_CK#[0] AA7

SA_CK#[1] Y5

SA_CKE[0] P7

SA_CKE[1] P6

SA_CS#[0] AE2

SA_CS#[1] AE8

SA_ODT[0] AD8

SA_ODT[1] AF9

SA_DM[0] B9

SA_DM[1] D7

SA_DM[2] H7

SA_DM[3] M7

SA_DM[4] AG6

SA_DM[5] AM7

SA_DM[6] AN10

SA_DM[7] AN13

SA_DQS[0] C8

SA_DQS#[0] C9

SA_DQS[1] F9

SA_DQS#[1] F8

SA_DQS[2] H9

SA_DQS#[2] J9

SA_DQS[3] M9

SA_DQS#[3] N9

SA_DQS[4] AH8

SA_DQS#[4] AH7

SA_DQS[5] AK10

SA_DQS#[5] AK9

SA_DQS[6] AN11

SA_DQS#[6] AP11

SA_DQS[7] AR13

SA_DQS#[7] AT13

SA_MA[0] Y3

SA_MA[1] W1

SA_MA[2] AA8

SA_MA[3] AA3

SA_MA[4] V1

SA_MA[5] AA9

SA_MA[6] V8

SA_MA[7] T1

SA_MA[8] Y9

SA_MA[9] U6

SA_MA[10] AD4

SA_MA[11] T2

SA_MA[12] U3

SA_MA[13] AG8

SA_MA[14] T3

SA_MA[15] V9

SA_DQ[0]

A10

SA_DQ[1]

C10

SA_DQ[2]

SA_DQ[3]

SA_DQ[4]

B10

SA_DQ[5]

D10

SA_DQ[6]

E10

SA_DQ[7]

SA_DQ[8]

SA_DQ[9]

F10

SA_DQ[10]

SA_DQ[11]

SA_DQ[12]

SA_DQ[13]

SA_DQ[14]

SA_DQ[15]

SA_DQ[16]

H10

SA_DQ[17]

SA_DQ[18]

SA_DQ[19]

SA_DQ[20]

SA_DQ[21]

G10

SA_DQ[22]

SA_DQ[23]

J10

SA_DQ[24]

SA_DQ[25]

SA_DQ[26]

SA_DQ[27]

SA_DQ[28]

SA_DQ[29]

SA_DQ[30]

SA_DQ[31]

SA_DQ[32]

AH5

SA_DQ[33]

AF5

SA_DQ[34]

AK6

SA_DQ[35]

AK7

SA_DQ[36]

AF6

SA_DQ[37]

AG5

SA_DQ[38]

AJ7

SA_DQ[39]

AJ6

SA_DQ[40]

AJ10

SA_DQ[41]

AJ9

SA_DQ[42]

AL10

SA_DQ[43]

AK12

SA_DQ[44]

AK8

SA_DQ[45]

AL7

SA_DQ[46]

AK11

SA_DQ[47]

AL8

SA_DQ[48]

AN8

SA_DQ[49]

AM10

SA_DQ[50]

AR11

SA_DQ[51]

AL11

SA_DQ[52]

AM9

SA_DQ[53]

AN9

SA_DQ[54]

AT11

SA_DQ[55]

AP12

SA_DQ[56]

AM12

SA_DQ[57]

AN12

SA_DQ[58]

AM13

SA_DQ[59]

AT14

SA_DQ[60]

AT12

SA_DQ[61]

AL13

SA_DQ[62]

AR14

SA_DQ[63]

AP14

DDR SYSTEM MEMORY - B

JCPU1D

IC,AUB_CFD_rPGA,R1P0

CONN@

SB_BS[0]

AB1

SB_BS[1]

SB_BS[2]

SB_CAS#

AC5

SB_RAS#

SB_WE#

AC6

SB_CK[0] W8

SB_CK[1] V7

SB_CK#[0] W9

SB_CK#[1] V6

SB_CKE[0] M3

SB_CKE[1] M2

SB_CS#[0] AB8

SB_CS#[1] AD6

SB_ODT[0] AC7

SB_ODT[1] AD1

SB_DM[0] D4

SB_DM[1] E1

SB_DM[2] H3

SB_DM[3] K1

SB_DM[4] AH1

SB_DM[5] AL2

SB_DM[6] AR4

SB_DM[7] AT8

SB_DQS[4] AG2

SB_DQS#[4] AH2

SB_DQS[5] AL5

SB_DQS#[5] AL4

SB_DQS[6] AP5

SB_DQS#[6] AR5

SB_DQS[7] AR7

SB_DQS#[7] AR8

SB_DQS[0] C5

SB_DQS#[0] D5

SB_DQS[1] E3

SB_DQS#[1] F4

SB_DQS[2] H4

SB_DQS#[2] J4

SB_DQS[3] M5

SB_DQS#[3] L4

SB_MA[0] U5

SB_MA[1] V2

SB_MA[2] T5

SB_MA[3] V3

SB_MA[4] R1

SB_MA[5] T8

SB_MA[6] R2

SB_MA[7] R6

SB_MA[8] R4

SB_MA[9] R5

SB_MA[10] AB5

SB_MA[11] P3

SB_MA[12] R3

SB_MA[13] AF7

SB_MA[14] P5

SB_MA[15] N1

SB_DQ[0]

SB_DQ[1]

SB_DQ[2]

SB_DQ[3]

SB_DQ[4]

SB_DQ[5]

SB_DQ[6]

SB_DQ[7]

SB_DQ[8]

SB_DQ[9]

SB_DQ[10]

SB_DQ[11]

SB_DQ[12]

SB_DQ[13]

SB_DQ[14]

SB_DQ[15]

SB_DQ[16]

SB_DQ[17]

SB_DQ[18]

SB_DQ[19]

SB_DQ[20]

SB_DQ[21]

SB_DQ[22]

SB_DQ[23]

SB_DQ[24]

SB_DQ[25]

SB_DQ[26]

SB_DQ[27]

SB_DQ[28]

SB_DQ[29]

SB_DQ[30]

SB_DQ[31]

SB_DQ[32]

AF3

SB_DQ[33]

AG1

SB_DQ[34]

AJ3

SB_DQ[35]

AK1

SB_DQ[36]

AG4

SB_DQ[37]

AG3

SB_DQ[38]

AJ4

SB_DQ[39]

AH4

SB_DQ[40]

AK3

SB_DQ[41]

AK4

SB_DQ[42]

AM6

SB_DQ[43]

AN2

SB_DQ[44]

AK5

SB_DQ[45]

AK2

SB_DQ[46]

AM4

SB_DQ[47]

AM3

SB_DQ[48]

AP3

SB_DQ[49]

AN5

SB_DQ[50]

AT4

SB_DQ[51]

AN6

SB_DQ[52]

AN4

SB_DQ[53]

AN3

SB_DQ[54]

AT5

SB_DQ[55]

AT6

SB_DQ[56]

AN7

SB_DQ[57]

AP6

SB_DQ[58]

AP8

SB_DQ[59]

AT9

SB_DQ[60]

AT7

SB_DQ[61]

AP9

SB_DQ[62]

AR10

SB_DQ[63]

AT10

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

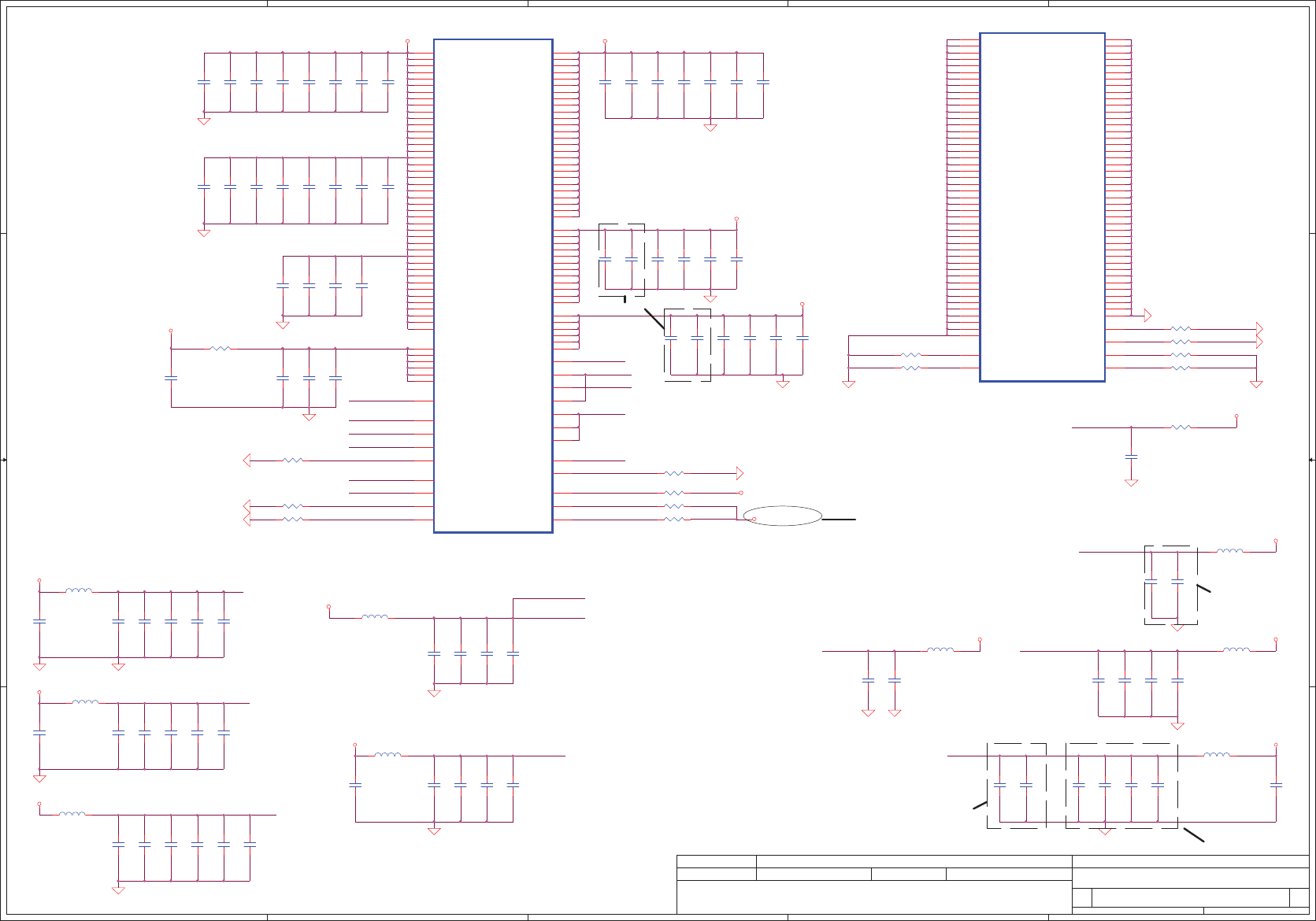

VCCSENSE

VSSSENSE

VCCSENSE

VSSSENSE

+VTT_43

+VTT_44

GFXVR_VID_0

GFXVR_VID_1

GFXVR_VID_2

GFXVR_VID_3

GFXVR_VID_4

GFXVR_VID_5

GFXVR_VID_6

H_VID1

H_VID4

H_VID3

VSS_SENSE_VTT

H_VID5

VCCSENSE_R

H_VID2

PM_DPRSLPVR_R

H_VID0

+VTT_43

VSSSENSE_R

H_VID6

+VTT_44

GFXVR_EN

GFXVR_DPRSLPVR

VCC_AXG_SENSE

VSS_AXG_SENSE

GFXVR_IMON

H_PSI# <46>

H_ VID[0..6] <46>

H_DPRSLPVR <46>

VTT_SELECT <44>

IMVP_IMON <46>

VTT_SENSE <44>

VCCSENSE <46>

VSSSENSE <46>

GFXVR_VID_0 <43>

GFXVR_VID_1 <43>

GFXVR_VID_2 <43>

GFXVR_VID_3 <43>

GFXVR_VID_4 <43>

GFXVR_VID_5 <43>

GFXVR_VID_6 <43>

GFXVR_EN <43>

GFXVR_DPRSLPVR <43>

VCC_AXG_SENSE <43>

VSS_AXG_SENSE <43>

GFXVR_IMON <43>

+VCC_CORE

+VCCP

+1.8VS

+1.5V

+VCC_CORE

+VCCP

+VGA_CORE

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

Auburndale(4/5)-PWR

Custom

949Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

CPU

H_VTTVID1 = Low, 1.1V(Clarksfield)

H_VTTVID1 = High, 1.05V(Auburndale)

48A 15A18A

0.6A

to powe r

Near Processor

to powe r

C69

22U_0805_6.3V6M

C76

22U_0805_6.3V6M

C78

22U_0805_6.3V6M

R57 0_0603_5%

1 2

C57

1U_0603_10V4Z

C66

22U_0805_6.3V6M

C41

10U_0805_6.3V6M

C75

22U_0805_6.3V6M

C81

2.2U_0603_6.3V4Z

C80

1U_0603_10V4Z

C63

22U_0805_6.3V6M

C65

22U_0805_6.3V6M

C993

22U_0805_6.3V6M

R56 0_0603_5%

1 2

POWER

CPU CORE SUPPLY

1.1V RAIL POWER

SENSE LINES CPU VIDS

JCPU1F

IC,AUB_CFD_rPGA,R1P0

CONN@

ISENSE AN35

VTT_SENSE B15

PSI# AN33

VID[0] AK35

VID[1] AK33

VID[2] AK34

VID[3] AL35

VID[4] AL33

VID[5] AM33

VID[6] AM35

PROC_DPRSLPVR AM34

VTT_SELECT G15

VCC_SENSE AJ34

VSS_SENSE_VTT A15

VCC1

AG35

VCC2

AG34

VCC3

AG33

VCC4

AG32

VCC5

AG31

VCC6

AG30

VCC7

AG29

VCC8

AG28

VCC9

AG27

VCC10

AG26

VCC11

AF35

VCC12

AF34

VCC13

AF33

VCC14

AF32

VCC15

AF31

VCC16

AF30

VCC17

AF29

VCC18

AF28

VCC19

AF27

VCC20

AF26

VCC21

AD35

VCC22

AD34

VCC23

AD33

VCC24

AD32

VCC25

AD31

VCC26

AD30

VCC27

AD29

VCC28

AD28

VCC29

AD27

VCC30

AD26

VCC31

AC35

VCC32

AC34

VCC33

AC33

VCC34

AC32

VCC35

AC31

VCC36

AC30

VCC37

AC29

VCC38

AC28

VCC39

AC27

VCC40

AC26

VCC41

AA35

VCC42

AA34

VCC43

AA33

VCC44

AA32

VCC45

AA31

VCC46

AA30

VCC47

AA29

VCC48

AA28

VCC49

AA27

VCC50

AA26

VCC51

Y35

VCC52

Y34

VCC53

Y33

VCC54

Y32

VCC55

Y31

VCC56

Y30

VCC57

Y29

VCC58

Y28

VCC59

Y27

VCC60

Y26

VCC61

V35

VCC62

V34

VCC63

V33

VCC64

V32

VCC65

V31

VCC66

V30

VCC67

V29

VCC68

V28

VCC69

V27

VCC70

V26

VCC71

U35

VCC72

U34

VCC73

U33

VCC74

U32

VCC75

U31

VCC76

U30

VCC77

U29

VCC78

U28

VCC79

U27

VCC80

U26

VCC81

R35

VCC82

R34

VCC83

R33

VCC84

R32

VCC85

R31

VCC86

R30

VCC87

R29

VCC88

R28

VCC89

R27

VCC90

R26

VCC91

P35

VCC92

P34

VCC93

P33

VCC94

P32

VCC95

P31

VCC96

P30

VCC97

P29

VCC98

P28

VCC99

P27

VCC100

P26

VTT0_33 AF10

VTT0_34 AE10

VTT0_35 AC10

VTT0_36 AB10

VTT0_37 Y10

VTT0_38 W10

VTT0_39 U10

VTT0_40 T10

VTT0_41 J12

VTT0_42 J11

VTT0_1 AH14

VTT0_2 AH12

VTT0_3 AH11

VTT0_4 AH10

VTT0_5 J14

VTT0_6 J13

VTT0_7 H14

VTT0_8 H12

VTT0_9 G14

VTT0_10 G13

VTT0_11 G12

VTT0_12 G11

VTT0_13 F14

VTT0_14 F13

VTT0_15 F12

VTT0_16 F11

VTT0_17 E14

VTT0_18 E12

VTT0_19 D14

VTT0_20 D13

VTT0_21 D12

VTT0_22 D11

VTT0_23 C14

VTT0_24 C13

VTT0_25 C12

VTT0_26 C11

VTT0_27 B14

VTT0_28 B12

VTT0_29 A14

VTT0_30 A13

VTT0_31 A12

VTT0_32 A11

VSS_SENSE AJ35

VTT0_43 J16

VTT0_44 J15

C72

10U_0805_6.3V6M

C43

10U_0805_6.3V6M

POWER

GRAPHICS VIDs

GRAPHICS

DDR3 - 1.5V RAILS

FDI PEG & DMI

SENSE

LINES

1.1V1.8V

JCPU1G

IC,AUB_CFD_rPGA,R1P0

CONN@

GFX_VID[0] AM22

GFX_VID[1] AP22

GFX_VID[2] AN22

GFX_VID[3] AP23

GFX_VID[4] AM23

GFX_VID[5] AP24

GFX_VID[6] AN24

GFX_VR_EN AR25

GFX_DPRSLPVR AT25

GFX_IMON AM24

VAXG_SENSE AR22

VSSAXG_SENSE AT22

VAXG1

AT21

VAXG2

AT19

VAXG3

AT18

VAXG4

AT16

VAXG5

AR21

VAXG6

AR19

VAXG7

AR18

VAXG8

AR16

VAXG9

AP21

VAXG10

AP19

VAXG11

AP18

VAXG12

AP16

VAXG13

AN21

VAXG14

AN19

VAXG15

AN18

VAXG16

AN16

VAXG17

AM21

VAXG18

AM19

VAXG19

AM18

VAXG20

AM16

VAXG21

AL21

VAXG22

AL19

VAXG23

AL18

VAXG24

AL16

VAXG25

AK21

VAXG26

AK19

VAXG27

AK18

VAXG28

AK16

VAXG29

AJ21

VAXG30

AJ19

VAXG31

AJ18

VAXG32

AJ16

VAXG33

AH21

VAXG34

AH19

VAXG35

AH18

VAXG36

AH16

VTT1_45

J24

VTT1_46

J23

VTT1_47

H25

VTT1_48

K26

VTT1_49

J27

VTT1_50

J26

VTT1_51

J25

VTT1_52

H27

VTT1_53

G28

VTT1_54

G27

VTT1_55

G26

VTT1_56

F26

VTT1_57

E26

VTT1_58

E25

VDDQ1 AJ1

VDDQ2 AF1

VDDQ3 AE7

VDDQ4 AE4

VDDQ5 AC1

VDDQ6 AB7

VDDQ7 AB4

VDDQ8 Y1

VDDQ9 W7

VDDQ10 W4

VDDQ11 U1

VDDQ12 T7

VDDQ13 T4

VDDQ14 P1

VDDQ15 N7

VDDQ16 N4

VDDQ17 L1

VDDQ18 H1

VTT0_59 P10

VTT0_60 N10

VTT0_61 L10

VTT0_62 K10

VCCPLL1 L26

VCCPLL2 L27

VCCPLL3 M26

VTT1_63 J22

VTT1_64 J20

VTT1_65 J18

VTT1_66 H21

VTT1_67 H20

VTT1_68 H19

C52

10U_0805_6.3V6M

C51

10U_0805_6.3V6M

C59

1U_0603_10V4Z

C60

1U_0603_10V4Z

R128 1K_0402_5%

C50

10U_0805_6.3V6M

C990

10U_0805_6.3V6M

R62 100_0402_1%

1 2

C67

22U_0805_6.3V6M

C82

22U_0805_6.3V6M

C77

22U_0805_6.3V6M

C995

330U_D2_2VY_R7M

C40

10U_0805_6.3V6M

C994

22U_0805_6.3V6M

C58

1U_0603_10V4Z

C988

22U_0805_6.3V6M

C74

22U_0805_6.3V6M

C42

10U_0805_6.3V6M

C79

1U_0603_10V4Z

C71

10U_0805_6.3V6M

C61

22U_0805_6.3V6M

C49

10U_0805_6.3V6M

C996

330U_D2_2VY_R7M

C73

22U_0805_6.3V6M

C70

22U_0805_6.3V6M

C68

22U_0805_6.3V6M

C62

22U_0805_6.3V6M

R60 0_0402_5%

1 2

R203 0_0402_5%

1 2

C56

1U_0603_10V4Z

R59 0_0402_5%

1 2

C989

10U_0805_6.3V6M

R61 100_0402_1%

1 2

C48

10U_0805_6.3V6M

C64

330U_D2_2VY_R7M

R58 0_0402_5%

1 2

C991

22U_0805_6.3V6M

C987

22U_0805_6.3V6M

C83

4.7U_0603_6.3V6K

http://laptop-motherboard-schematic.blogspot.com/

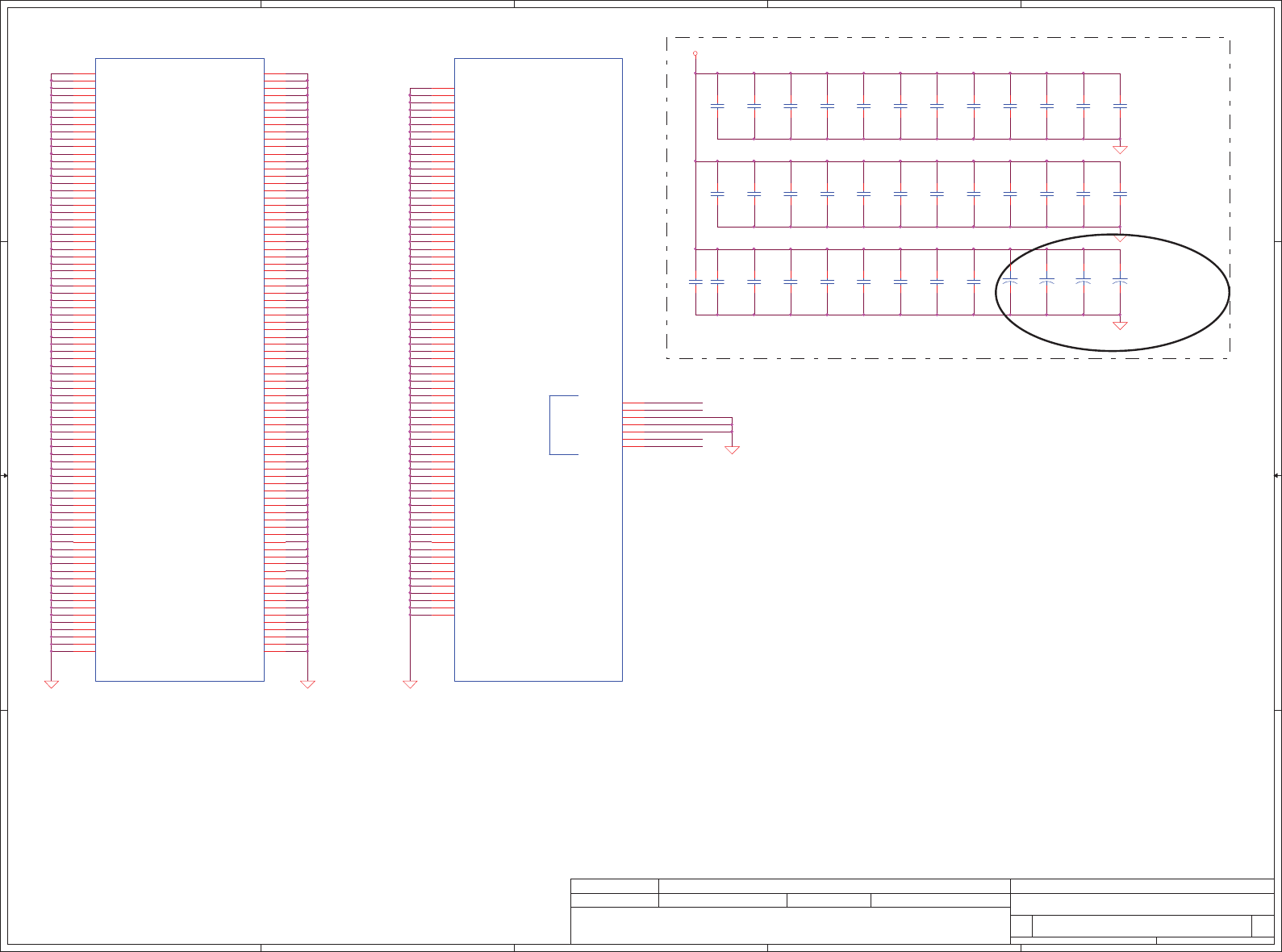

D D

C C

B B

A A

VSS_NCTF7_R

VSS_NCTF2_R

VSS_NCTF1_R

VSS_NCTF6_R

+VCC_CORE

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

Auburndale(5/5)-GND/Bypass

Custom

10 49Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

CPU CORE

470uF 4.5mohm

between

Inductor and

socket

Inside cavity

VSS_NCTF3_R

VSS_NCTF4_R

VSS_NCTF5_R

C111

470U_D2_2VM_R4.5M

C119

22U_0805_6.3V6M

C91

10U_0805_6.3V6M

VSS

JCPU1H

IC,AUB_CFD_rPGA,R1P0

CONN@

VSS1

AT20

VSS2

AT17

VSS3

AR31

VSS4

AR28

VSS5

AR26

VSS6

AR24

VSS7

AR23

VSS8

AR20

VSS9

AR17

VSS10

AR15

VSS11

AR12

VSS12

AR9

VSS13

AR6

VSS14

AR3

VSS15

AP20

VSS16

AP17

VSS17

AP13

VSS18

AP10

VSS19

AP7

VSS20

AP4

VSS21

AP2

VSS22

AN34

VSS23

AN31

VSS24

AN23

VSS25

AN20

VSS26

AN17

VSS27

AM29

VSS28

AM27

VSS29

AM25

VSS30

AM20

VSS31

AM17

VSS32

AM14

VSS33

AM11

VSS34

AM8

VSS35

AM5

VSS36

AM2

VSS37

AL34

VSS38

AL31

VSS39

AL23

VSS40

AL20

VSS41

AL17

VSS42

AL12

VSS43

AL9

VSS44

AL6

VSS45

AL3

VSS46

AK29

VSS47

AK27

VSS48

AK25

VSS49

AK20

VSS50

AK17

VSS51

AJ31

VSS52

AJ23

VSS53

AJ20

VSS54

AJ17

VSS55

AJ14

VSS56

AJ11

VSS57

AJ8

VSS58

AJ5

VSS59

AJ2

VSS60

AH35

VSS61

AH34

VSS62

AH33

VSS63

AH32

VSS64

AH31

VSS65

AH30

VSS66

AH29

VSS67

AH28

VSS68

AH27

VSS69

AH26

VSS70

AH20

VSS71

AH17

VSS72

AH13

VSS73

AH9

VSS74

AH6

VSS75

AH3

VSS76

AG10

VSS77

AF8

VSS78

AF4

VSS79

AF2

VSS80

AE35

VSS81 AE34

VSS82 AE33

VSS83 AE32

VSS84 AE31

VSS85 AE30

VSS86 AE29

VSS87 AE28

VSS88 AE27

VSS89 AE26

VSS90 AE6

VSS91 AD10

VSS92 AC8

VSS93 AC4

VSS94 AC2

VSS95 AB35

VSS96 AB34

VSS97 AB33

VSS98 AB32

VSS99 AB31

VSS100 AB30

VSS101 AB29

VSS102 AB28

VSS103 AB27

VSS104 AB26

VSS105 AB6

VSS106 AA10

VSS107 Y8

VSS108 Y4

VSS109 Y2

VSS110 W35

VSS111 W34

VSS112 W33

VSS113 W32

VSS114 W31

VSS115 W30

VSS116 W29

VSS117 W28

VSS118 W27

VSS119 W26

VSS120 W6

VSS121 V10

VSS122 U8

VSS123 U4

VSS124 U2

VSS125 T35

VSS126 T34

VSS127 T33

VSS128 T32

VSS129 T31

VSS130 T30

VSS131 T29

VSS132 T28

VSS133 T27

VSS134 T26

VSS135 T6

VSS136 R10

VSS137 P8

VSS138 P4

VSS139 P2

VSS140 N35

VSS141 N34

VSS142 N33

VSS143 N32

VSS144 N31

VSS145 N30

VSS146 N29

VSS147 N28

VSS148 N27

VSS149 N26

VSS150 N6

VSS151 M10

VSS152 L35

VSS153 L32

VSS154 L29

VSS155 L8

VSS156 L5

VSS157 L2

VSS158 K34

VSS159 K33

VSS160 K30

C101

10U_0805_6.3V6M

C97

10U_0805_6.3V6M

C96

10U_0805_6.3V6M

C117

10U_0805_6.3V6M

C94

10U_0805_6.3V6M

C86

10U_0805_6.3V6M

C110

470U_D2_2VM_R4.5M

C114

10U_0805_6.3V6M

C87

10U_0805_6.3V6M

C116

10U_0805_6.3V6M

C118

22U_0805_6.3V6M

C92

10U_0805_6.3V6M

C104

10U_0805_6.3V6M

C93

10U_0805_6.3V6M

C89

10U_0805_6.3V6M

C105

10U_0805_6.3V6M

C107

10U_0805_6.3V6M

C98

10U_0805_6.3V6M

C100

10U_0805_6.3V6M

C90

10U_0805_6.3V6M

C120

22U_0805_6.3V6M

C84

10U_0805_6.3V6M

C85

10U_0805_6.3V6M

C106

10U_0805_6.3V6M

C982

47P_0402_50V8J

C115

10U_0805_6.3V6M

C99

10U_0805_6.3V6M

C109

470U_D2_2VM_R4.5M

C121

22U_0805_6.3V6M

VSS

NCTF

JCPU1I

IC,AUB_CFD_rPGA,R1P0

CONN@

VSS161

K27

VSS162

VSS163

VSS164

VSS165

J32

VSS166

J30

VSS167

J21

VSS168

J19

VSS169

H35

VSS170

H32

VSS171

H28

VSS172

H26

VSS173

H24

VSS174

H22

VSS175

H18

VSS176

H15

VSS177

H13

VSS178

H11

VSS179

VSS180

VSS181

VSS182

G34

VSS183

G31

VSS184

G20

VSS185

VSS186

VSS187

VSS188

F30

VSS189

F27

VSS190

F25

VSS191

F22

VSS192

F19

VSS193

F16

VSS194

E35

VSS195

E32

VSS196

E29

VSS197

E24

VSS198

E21

VSS199

E18

VSS200

E13

VSS201

E11

VSS202

VSS203

VSS204

VSS205

D33

VSS206

D30

VSS207

D26

VSS208

VSS209

VSS210

VSS211

C34

VSS212

C32

VSS213

C29

VSS214

C28

VSS215

C24

VSS216

C22

VSS217

C20

VSS218

C19

VSS219

C16

VSS220

B31

VSS221

B25

VSS222

B21

VSS223

B18

VSS224

B17

VSS225

B13

VSS226

B11

VSS227

VSS228

VSS229

VSS230

A29

VSS_NCTF1 AT35

VSS_NCTF2 AT1

VSS_NCTF3 AR34

VSS_NCTF4 B34

VSS_NCTF5 B2

VSS_NCTF6 B1

VSS_NCTF7 A35

VSS231

A27

VSS232

A23

VSS233

C103

10U_0805_6.3V6M

C102

10U_0805_6.3V6M

C108

470U_D2_2VM_R4.5M

C95

10U_0805_6.3V6M

C88

10U_0805_6.3V6M

http://laptop-motherboard-schematic.blogspot.com/

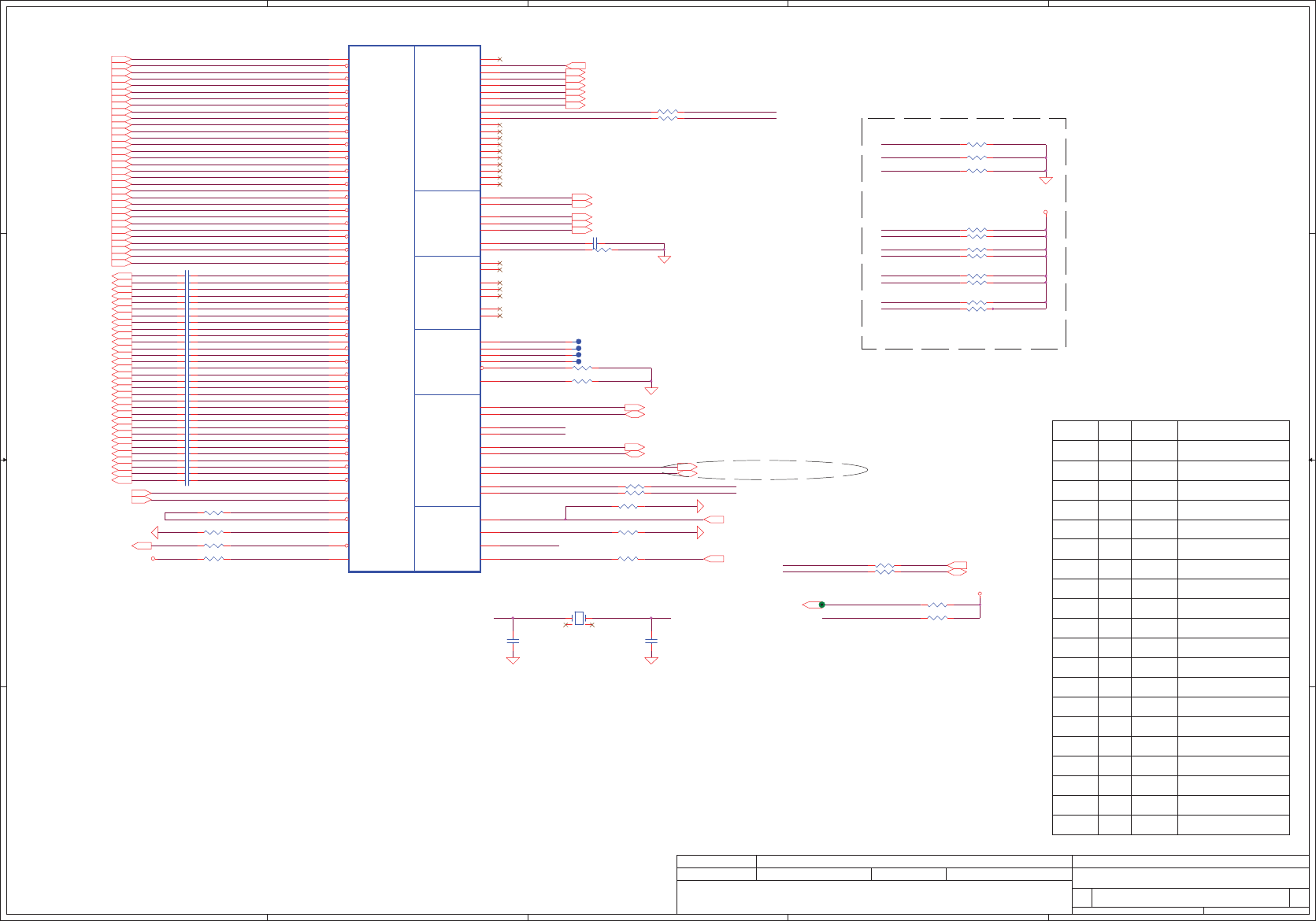

D D

C C

B B

A A

LDRQ0#

SIRQ

LDRQ1#

SM_INTRUDER#

SATA_TXN0_C

HDDHALT_LED#

SATA_TXP0_C

SATA_RXN0_C

SATA_RXP0_C

SATA_TXN0

SATA_TXP0

PCH_JTAG_TCK

PCH_JTAG_TMS

PCH_JTAG_TDI

PCH_JTAG_TDO

PCH _ J TAG_RST#

SIRQ

SB_ S PKR

GPIO21

HDA_SDIN0

PCH_INTVRMEN

HDDHALT_LED#

GPIO21

SPI _C L K_PCH

SPI _ SB_CS#

SPI_SI

SPI_SO_R

SPI _ SB_CS#

SPI_SO_R

ICH _ RTCX1

ICH _ RTCX2

SPI_SI

ICH _ RTCX1

ICH _ RTCX2

PCH_JTAG_TMS PCH_ J TAG_RST#PCH_JTAG_TDO PCH_JTAG_TDI

ICH_RTCRST#

HDA_DOCK_EN#

PCH_JTAG_TCK

ICH_SRTCRST#

SM_INTRUDER#

PCH_INTVRMEN

SATA_TXN4_C

SATA_TXP4_C

SATA_RXP4_C

SATA_RXN4_C

SATA_TXN4

SATA_TXP4

SATA_TXN2_C

SATA_TXP2_C

SATA_RXP2_C

SATA_RXN2_C

SATA_TXN2

SATA_TXP2

HDA_BIT_CLK

H DA_SYNC

HDA_RST#

HDA_SDIN1

HDA_SDOUT

LPC_AD0 <31,36,37>

LPC_AD1 <31,36,37>

LPC_AD2 <31,36,37>

LPC_AD3 <31,36,37>

LPC_FRAME# <31,36,37>

SIRQ <37>

SATA_LED# <38>

HDA_SDIN0<33>

HDDHALT_LED# <38>

SPI_ SB_CS#<36>

SPI_ CL K_PCH<36>

SPI_SI<36>

SPI_SO_R<36>

SB_ SPKR<33>

SATA_RXN0_C <30>

SATA_RXP0_C <30>

SATA_TXN0 <30>

SATA_TXP0 <30>

SATA_RXN4_C <30>

SATA_RXP4_C <30>

SATA_TXN4 <30>

SATA_TXP4 <30>

SATA_RXN2_C <35>

SATA_RXP2_C <35>

SATA_TXN2 <35>

SATA_TXP2 <35>

HDA_BITCLK_MDC<33> HDA_BITCLK_CODEC<33> HDA_SYNC_MDC<33> HDA_SYNC_CODEC<33>

HDA_RST#_MDC<33> HDA_RST#_CODEC<33,37>

HDA_SDIN1<33>

HDA_SDOUT_MDC<33> HDA_SDOUT_CODEC<33>

+RTCVCC

+1.05VS

+3VS

BATT1.1+3VL+RTCVCC

+3VS

+3VALW+3VALW +3VALW +3VALW

Title

Size Document Number R e v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHE ET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

IBEX-M(1/6)-HDA/JTAG/SATA

Custom

11 49Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

No Install

No InstallNo Install

No Install

100ohm 100ohm

10Kohm 10Kohm

10Kohm

20Kohm 20Kohm

20Kohm

100ohm

200ohm

51ohm 51ohm 51ohm

No Install

R90

No Install

PCH_JTAG_TMS

PCH JTAG Enable PCH JTAG Disable

RefDesPCH Pin

No Install

LOW=Default

HIGH=No Reboot

W=20mils

Place near IBEX-M

W=20milsW=20mils

Enable iTPM=Stuff

Disable iTPM=No Stuff

iTPM ENABLE/DISABLE

HDD

HIn

tegrated VRM enable

LIn

tegrated VRM disable

INTVRMEN

PCH_JTAG_TDO

ES1 ES1ES2 ES2

PCH_JTAG_TDI

PCH_JTAG_TCK

PCH_JTAG_RST#

R84

R683

R86

R684

No Install

51ohm

No InstallR85

R685

R87

R88

No Install

HDA_SYNC

This signal has a weak internal pull down.

H=>On Die PLL is supplied by 1.5V

L=>On Die PLL is supplied by 1.8V

HDA_DOCK_EN#

ME debug mode , this signal has a weak internal PU

H=>security measures defined in the Flash

Descriptor will be in effect (default)

L=>Flash Descriptor Security will be overridden

SPI_MOSI

This signal has a weak internal pull down.

Enable iTPM=Stuff

Disable iTPM=No Stuff

HDA_SDO

This signal has a weak internal pull down.

This signal can't PU

ODD

E SATA

R67 1K_0402_5%@

1 2

R70 20K_0402_1%

1 2

R87

20K_0402_5%

1 2

R88

10K_0402_5%

T13 P A D

R75 33_0402_5%

1 2

R68 1K_0402_5%@

1 2

R93 10K_0402_5%

R84

200_0402_5%

R656 10K_0402_5%

1 2

R66 330K_0402_5%

1 2

C129 0.01U_0402_50V7K

1 2

DAN202U_SC70

R78 33_0402_5%

1 2

C122

18P_0402_50V8J

R69 20K_0402_1%

1 2

C128 0.01U_0402_50V7K

1 2

R684

100_0402_1%

R72 33_0402_5%

1 2

R85

20K_0402_5%

1 2

R654 15_0402_5%

1 2

C123

18P_0402_50V8J

R89 37.4_0402_1%

1 2

RTCIHDA

SATA LPC

SPI JTAG

U1A

IBEXPEAK-M_FCBGA1071

RTCX1

B13

RTCX2

D13

INTVRMEN

A14

INTRUDER#

A16

HDA_BCLK

A30

HDA_SYNC

D29

HDA_RST#

C30

HDA_SDIN0

G30

HDA_SDIN1

F30

HDA_SDIN2

E32

HDA_SDO

B29

SATALED# T3

FWH0 / LAD0 D33

FWH1 / LAD1 B33

FWH2 / LAD2 C32

FWH3 / LAD3 A32

LDRQ1# / GPIO23 F34

FWH4 / LFRAME# C34

LDRQ0# A34

RTCRST#

C14

HDA_SDIN3

F32

HDA_DOCK_EN# / GPIO33

H32

HDA_DOCK_RST# / GPIO13

J30

SRTCRST#

D17

SATA0RXN AK7

SATA0RXP AK6

SATA0TXN AK11

SATA0TXP AK9

SATA1RXN AH6

SATA1RXP AH5

SATA1TXN AH9

SATA1TXP AH8

SATA2RXN AF11

SATA2RXP AF9

SATA2TXN AF7

SATA2TXP AF6

SATA3RXN AH3

SATA3RXP AH1

SATA3TXN AF3

SATA3TXP AF1

SATA4RXN AD9

SATA4RXP AD8

SATA4TXN AD6

SATA4TXP AD5

SATA5RXN AD3

SATA5RXP AD1

SATA5TXN AB3

SATA5TXP AB1

SATAICOMPI AF15

SPI_CLK

BA2

SPI_CS0#

AV3

SPI_CS1#

AY3

SPI_MOSI

AY1

SPI_MISO

AV1

SATA0GP / GPIO21 Y9

SATA1GP / GPIO19 V1

JTAG_TCK

JTAG_TMS

JTAG_TDI

JTAG_TDO

TRST#

SERIRQ AB9

SPKR

SATAICOMPO AF16

R90 51_0402_5%

1 2

CLRP2

SHORT PADS

R77 33_0402_5%

1 2

R81 33_0402_5%

1 2

BATT1

CR2032 RTC BATTERY

C124

1U_0603_10V4Z

C131 0.01U_0402_50V7K

1 2

C132

2.2U_0603_6.3V4Z

32.768KHZ_12.5PF_Q13MC14610002

OSC 4

OSC 1

R657 10K_0402_5%

1 2

R91 10K_0402_1%

1 2

R683

100_0402_1%

R73 33_0402_5%

1 2

C125

1U_0603_10V4Z

R92 10K_0402_5%

R670 100K_0402_5%@

1 2

T16PAD

R63 10M_0402_5%

1 2

R82 33_0402_5%

1 2

R655 15_0402_5%

1 2

C126 0.01U_0402_50V7K

1 2

C130 0.01U_0402_50V7K

1 2

R685

10K_0402_1%

1 2

R74 33_0402_5%

1 2

C127 0.01U_0402_50V7K

1 2

T14 P A D

R94 1K_0402_5%

1 2

R64 10K_0402_5%

1 2

R65 1M_0402_5%

1 2

R86

200_0402_5%

JBATT1

ACES_85205-02001

CONN@

GND

CLRP1

SHORT PADS

http://laptop-motherboard-schematic.blogspot.com/

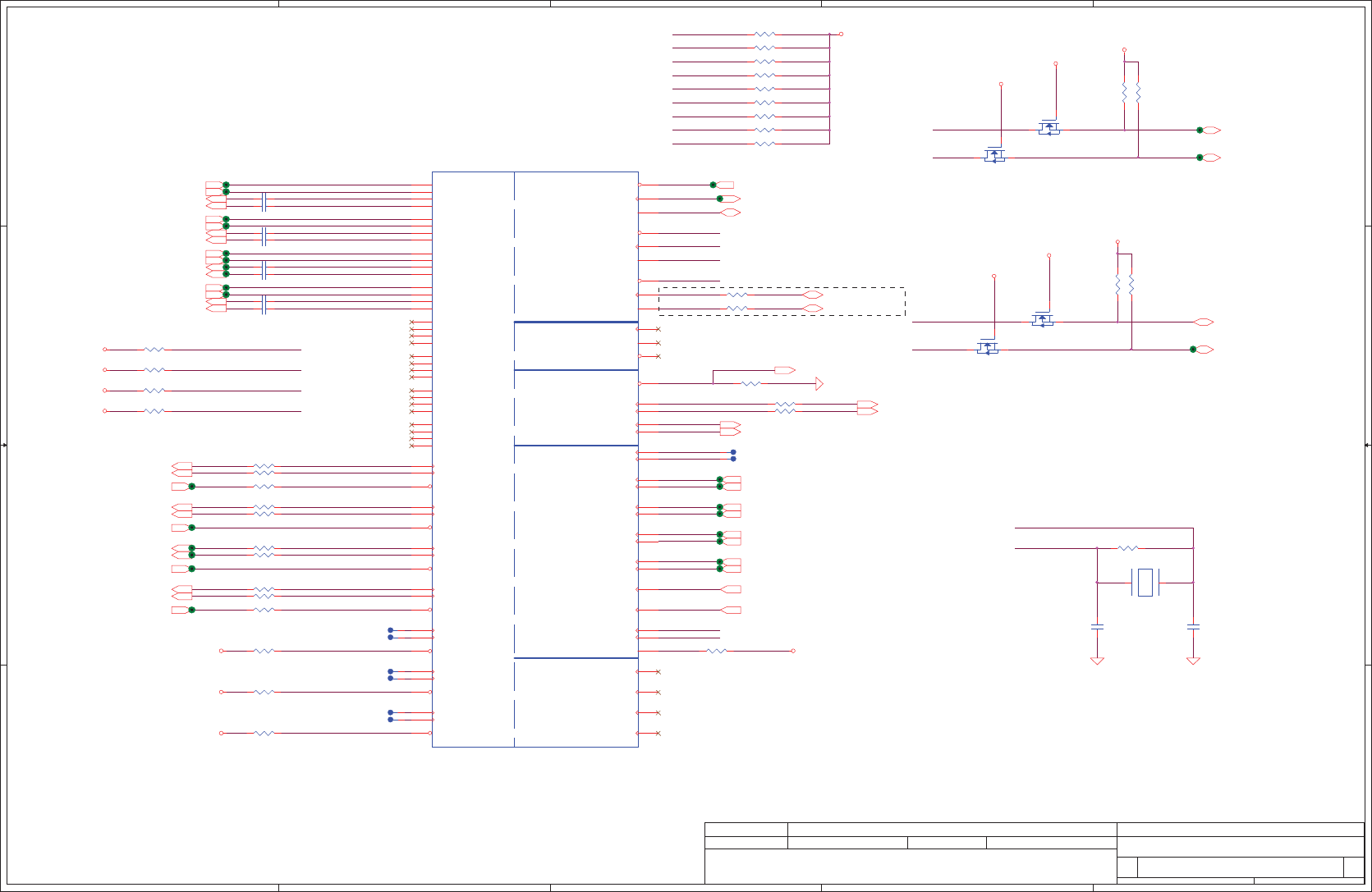

D D

C C

B B

A A

SMBCLK

SMBDATA

SML0CLK

SML0DATA

XTAL25_IN

XTAL25_OUT

EC_L ID_OUT#

SMBCLK

SMBDATA

SML0CLK

SML0DATA

SML1ALERT#

CLK_PCIE_WLAN_R

CLK_PCIE_WLAN#_R

PC IE_C_TXP1

PCIE_C_TXN1

PCI E_ RXP1

PCIE_RXN1

SMB _CLK_S3SMBCLK

SMB_DATA_S3SMBDATA

SML0ALERT#

SML1CLK

SML1DATA

SML1CLK

SML1DATA

SML0ALERT#

SML1ALERT#

PC IE_C_TXP2

PCIE_C_TXN2

PCI E_ RXP2

PCIE_RXN2

EC_L ID_OUT#

PC IE_C_TXP4

PCIE_C_TXN4

PCI E_ RXP4

PCIE_RXN4

GLAN_C_TXP

GLA N_C_TXN

PCI E_ RXP3

PCIE_RXN3

CLK_PCIE_WWAN_R

CLK_PCIE_WWAN#_R

CLKREQ_WWAN#_R

CLK_PCIE_LAN_R

CLK_PCIE_LAN#_R

CLK_ PCIE_EXP_R

CLK_ PCIE_EXP#_R

CL KR EQ_EXP#_R

L_ CL K_PCIE_VGA#

L_ CL K_PCIE_VGA

PEG _ B_CLKRQ#

SMB_E C_CK2_RSMB _ EC_CK2

SMB_E C_DA2_RSMB _ EC_DA2

CLKREQ_LAN#

CL KR EQ_EXP#_R

CLKREQ_WWAN#_R

CLKREQ_WLAN#

PCI EC L KREQ5#

PCI EC L KREQ4#

PEG _ C LKREQ#

XTAL25_IN

XTAL25_OUT

CLK_DP#

CLK_DP

CLK_14M_PCH <19>

CLK_EXP <6>

CLK_EXP# <6>

CLK_DMI <19>

CLK_PCIE_WLAN<31> CLK_PCIE_WLAN#<31>

CLKREQ_WLAN#<31>

CLK_BUF_BCLK <19>

CLK_BUF_BCLK# <19>

PCIE_TXP1<31>

PCIE_RXN1<31>

PCIE_TXN1<31>

PCI E_RXP1<31>

CLK_BUF_DOT96 <19>

CLK_BUF_DOT96# <19>

CLK_PCI_FB <14>

SMB_DATA_S3 <17,18,19,30>

SMB_CLK_S3 <17,18,19,30>

PCIE_TXP2<31>

PCIE_RXN2<31>

PCIE_TXN2<31>

PCI E_RXP2<31>

EC_LID_OUT# <37>

PCIE_TXP4<31>

PCIE_RXN4<31>

PCIE_TXN4<31>

PCI E_RXP4<31>

PCIE_TXP3<32>

PCIE_RXN3<32>

PCIE_TXN3<32>

PCI E_RXP3<32>

CLK_DMI# <19>

CLK_BUF_CKSSCD <19>

CLK_BUF_CKSSCD# <19>

CLK_PCIE_WWAN<31> CLK_PCIE_WWAN#<31>

CLKREQ_WWAN#<31>

CLK_PCIE_LAN<32> CLK_PCIE_LAN#<32>

CLKREQ_LAN#<32>

CLK_PCIE_EXP<31> CLK_PCIE_EXP#<31>

CLKREQ_EXP#<31>

CLK_PCIE_VGA# <24>

CLK_PCIE_VGA <24>

SMB_EC_CK2 <37>

SMB_EC_DA2 <37>

SMB_EC_DA2_R <24>

SMB_EC_CK2_R <24>

PEG _ CLKREQ# <14>

SMBDATA <31>

SMBCLK <31>

+1.05VS

+3VALW

+3VS

+3VALW

+3VS

+3VALW

+3VS

+3VALW

Title

Size Document Number R e v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHE ET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

IBEX-M(2/6)-PCI-E/SMBUS/CLK

Custom

12 49Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

WLAN

WWAN

PCH

DTS , read from EC

New Card

LAN

WWAN

LAN

EXP

XDP SODIMMΕ

ΕΕ

ΕClock genΕ

ΕΕ

ΕG sensor

WLAN WWAN New Ε

ΕΕ

Εcard

Nvidisa thermall sensor

For Intel LAN only

T62PAD

R107 0_0402_5%

1 2

T59PAD

R97 2.2K_0402_5%

1 2

R681

2.2K_0402_5%

R677 10K_0402_5%

1 2

T58PAD

25MHZ_20P_1BG25000CK1A

1 2

R757 10K_0402_5%

1 2

C138 0.1U_0402_16V4Z

1 2

R215

0_0402_5%

R104 2.2K_0402_5%

1 2

R682

2.2K_0402_5%

R103 2.2K_0402_5%

1 2

R105

2.2K_0402_5%

C141

18P_0402_50V8J

C135 0.1U_0402_16V4Z

1 2

R102 10K_0402_5%

1 2

Q1B

2N7002DW-7-F_SOT363-6

Q1A

2N7002DW-7-F_SOT363-6

6 1

R113 1M_0402_5%

1 2

R114 0_0402_5%

1 2

R111 0_0402_5%

1 2

C142

18P_0402_50V8J

T71 P A D

R109 0_0402_5%

1 2

PCI-E*

SMBus

Controller

From CLK BUFFER PEG

Clock Flex

Link

U1B

IBEXPEAK-M_FCBGA1071

PERN1

BG30

PERP1

BJ30

PERN2

AW30

PERP2

BA30

PERN3

AU30

PERP3

AT30

PERN4

BA32

PERP4

BB32

PERN5

BF33

PERP5

BH33

PERN6

BA34

PERP6

AW34

PERN7

AT34

PERP7

AU34

PERN8

BG34

PERP8

BJ34

PETN1

BF29

PETP1

BH29

PETN2

BC30

PETP2

BD30

PETN3

AU32

PETP3

AV32

PETN4

BD32

PETP4

BE32

PETN5

BG32

PETP5

BJ32

PETN6

BC34

PETP6

BD34

PETN7

AU36

PETP7

AV36

PETN8

BG36

PETP8

BJ36

SMBALERT# / GPIO11 B9

SMBCLK H14

SMBDATA C8

SML0CLK C6

SML0DATA G8

CLKOUT_PCIE0N

AK48

CLKOUT_PCIE0P

AK47

CLKOUT_PCIE1N

AM43

CLKOUT_PCIE1P

AM45

CLKOUT_PCIE2N

AM47

CLKOUT_PCIE2P

AM48

CLKOUT_PCIE3N

AH42

CLKOUT_PCIE3P

AH41

CLKOUT_PCIE4N

AM51

CLKOUT_PCIE4P

AM53

CLKOUT_PCIE5N

AJ50

CLKOUT_PCIE5P

AJ52

SML0ALERT# / GPIO60 J14

CL_CLK1 T13

CL_DATA1 T11

CL_RST1# T9

CLKIN_BCLK_N AP3

CLKIN_BCLK_P AP1

CLKIN_DMI_N AW24

CLKIN_DMI_P BA24

CLKIN_DOT_96N F18

CLKIN_DOT_96P E18

CLKIN_SATA_N / CKSSCD_N AH13

CLKIN_SATA_P / CKSSCD_P AH12

XTAL25_IN AH51

XTAL25_OUT AH53

REFCLK14IN P41

CLKIN_PCILOOPBACK J42

CLKOUT_PEG_A_N AD43

CLKOUT_PEG_A_P AD45

PEG_A_CLKRQ# / GPIO47 H1

PCIECLKRQ0# / GPIO73

PCIECLKRQ1# / GPIO18

PCIECLKRQ2# / GPIO20

PCIECLKRQ3# / GPIO25

PCIECLKRQ4# / GPIO26

PCIECLKRQ5# / GPIO44

CLKOUTFLEX0 / GPIO64 T45

CLKOUTFLEX1 / GPIO65 P43

CLKOUTFLEX2 / GPIO66 T42

CLKOUTFLEX3 / GPIO67 N50

CLKOUT_DMI_N AN4

CLKOUT_DMI_P AN2

PEG_B_CLKRQ# / GPIO56

P13

CLKOUT_PEG_B_P

AK51 CLKOUT_PEG_B_N

AK53

SML1ALERT# / GPIO74 M14

SML1CLK / GPIO58 E10

SML1DATA / GPIO75 G12

XCLK_RCOMP AF38

CLKOUT_DP_P / CLKOUT_BCLK1_P AT3

CLKOUT_DP_N / CLKOUT_BCLK1_N AT1

R605 0_0402_5%

1 2

T57PAD

R95 10K_0402_5%

1 2

C133 0.1U_0402_16V4Z

1 2

T61PAD

T72 P A D

R411 10K_0402_5%

1 2

R415 10K_0402_5%

1 2

Q4B

2N7002DW-7-F_SOT363-6

R83 100_0402_5%

1 2

C137 0.1U_0402_16V4Z

1 2

C140 0.1U_0402_16V4Z

1 2

R110 0_0402_5%

1 2

R116 90.9_0402_1%

1 2

R80 100_0402_5%

1 2

R106

2.2K_0402_5%

R112 0_0402_5%

1 2

R115 0_0402_5%

1 2

R108 0_0402_5%

1 2

C139 0.1U_0402_16V4Z

1 2

C136 0.1U_0402_16V4Z

1 2

R99 2.2K_0402_5%

1 2

R96 2.2K_0402_5%

1 2

R98 2.2K_0402_5%

1 2

R231

0_0402_5%

R604 0_0402_5%

1 2

R100 10K_0402_5%

1 2

R756 10K_0402_5%

1 2

T60PAD

R101 10K_0402_5%

1 2

C134 0.1U_0402_16V4Z

1 2

Q4A

2N7002DW-7-F_SOT363-6

6 1

R606 10K_0402_5%

1 2

R405 10K_0402_5%

1 2

http://laptop-motherboard-schematic.blogspot.com/

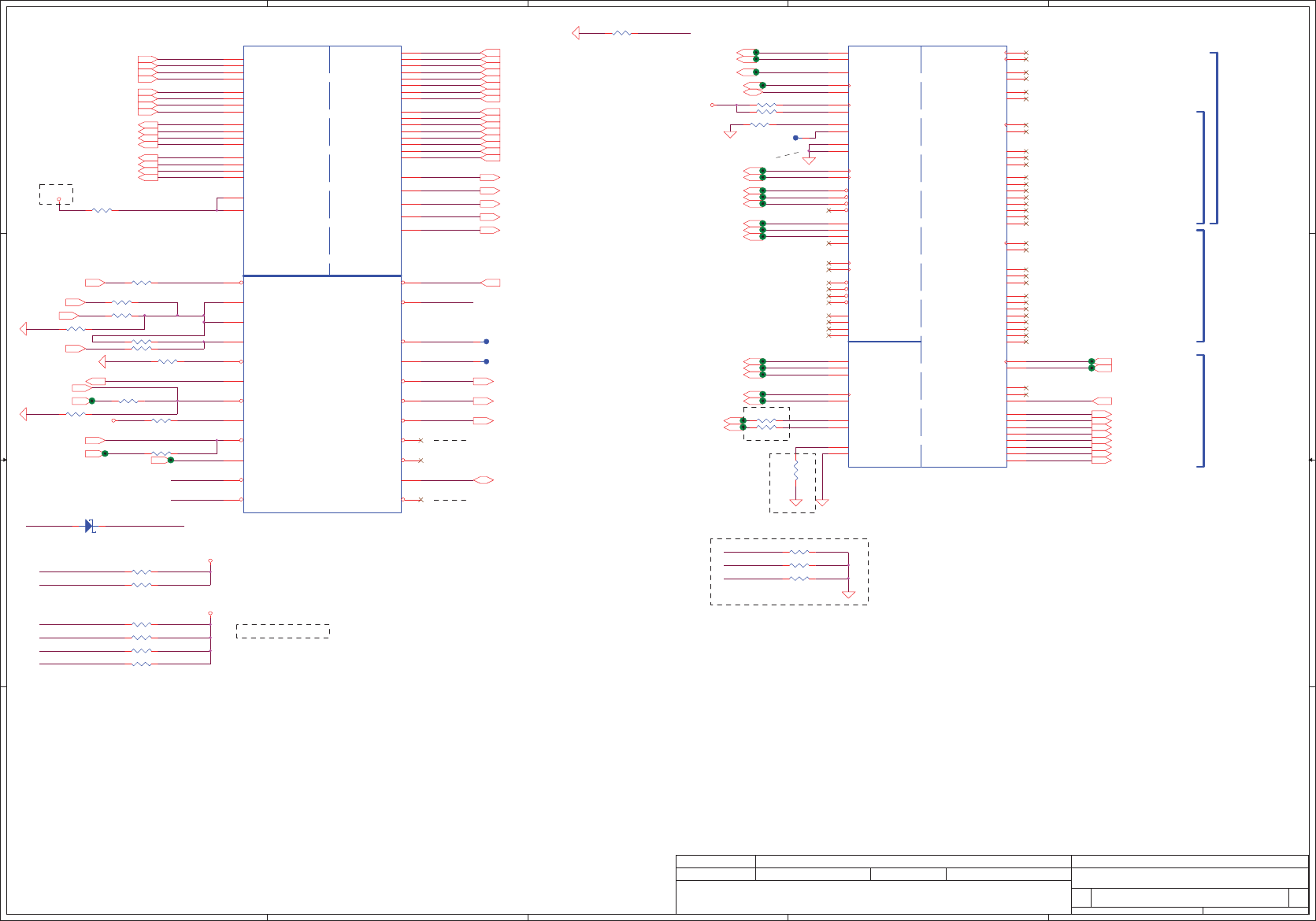

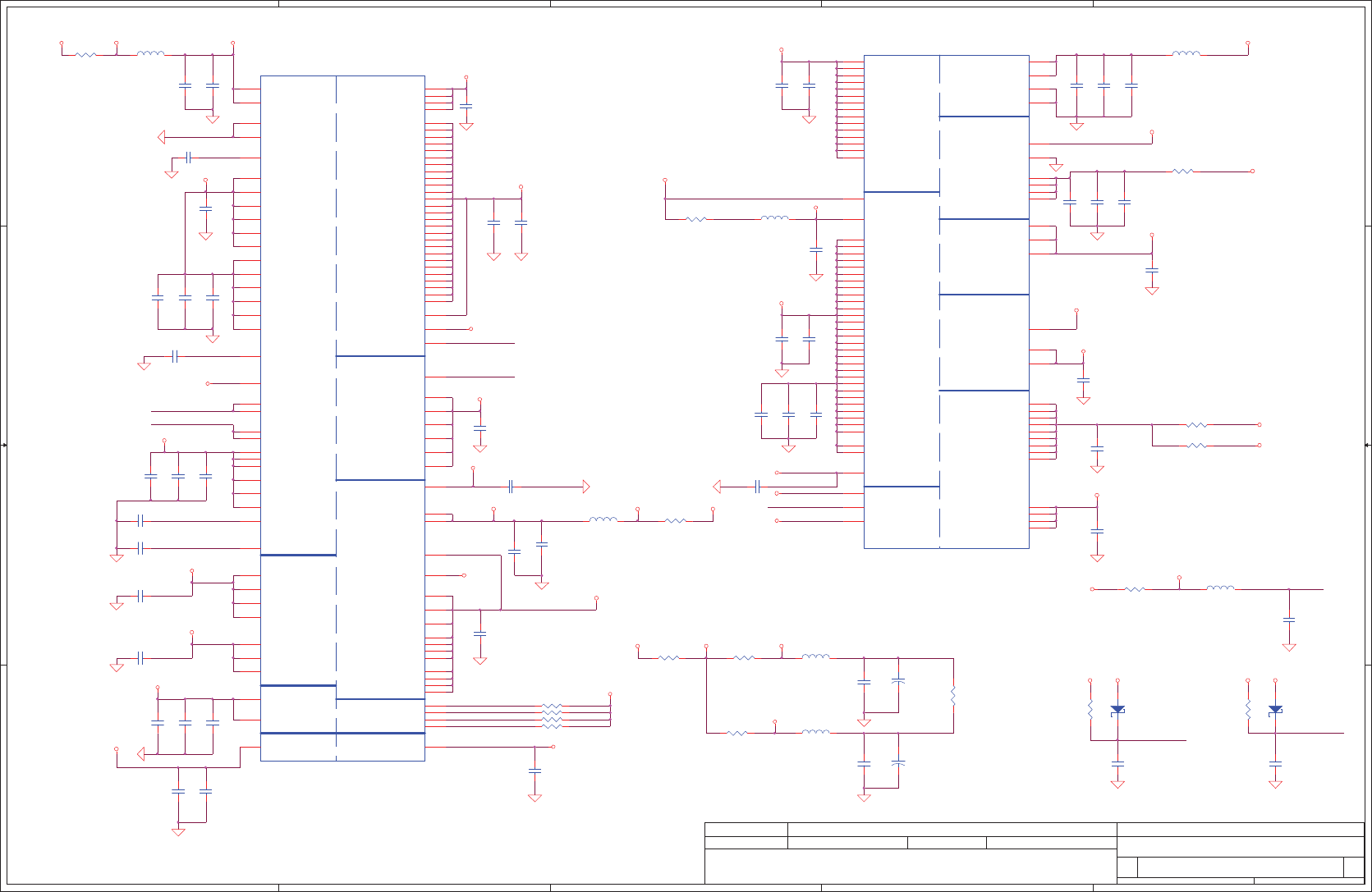

D D

C C

B B

A A

ICH_PCI E _WAKE#

L OW _BAT#

PM_CL K RUN#

PM_RI#

DMI_IRCOMP

SUS_CLK

L OW _BAT#

PM_CL K RUN#

PM_DRAM_PWRGD

PM_SUS_STAT#

SYS_RST#

PM_RI#

EC_ACIN

ICH_PCI E _WAKE#

PM_RSMRST#

EC_ACIN

DMI_CTX_PRX_N2

DMI_CRX_PTX_N0

DMI_CRX_PTX_N1

DMI_CRX_PTX_N2

DMI_CRX_PTX_N3

DMI_CRX_PTX_P0

DMI_CRX_PTX_P1

DMI_CRX_PTX_P2

DMI_CRX_PTX_P3

DMI_CTX_PRX_N1

DMI_CTX_PRX_N0

DMI_CTX_PRX_N3

DMI_CTX_PRX_P1

DMI_CTX_PRX_P2

DMI_CTX_PRX_P0

DMI_CTX_PRX_P3

PM_PWROK PM_RSMRST#

FD I_ CTX_PRX_N1

FD I_ CTX_PRX_N0

FD I_ CTX_PRX_N3

FD I_ CTX_PRX_N5

FD I_ CTX_PRX_N6

FD I_ CTX_PRX_N2

FD I_ CTX_PRX_N4

FD I_ CTX_PRX_N7

FD I _CTX_PRX_P1

FD I _CTX_PRX_P0

FD I _CTX_PRX_P3

FD I _CTX_PRX_P5

FD I _CTX_PRX_P6

FD I _CTX_PRX_P4

FD I _CTX_PRX_P7

FD I _CTX_PRX_P2

I_ENAVDD

IG PU _BKLT_EN

HSYNC

VSYNC

I_BLUE

I_ GR EEN

I_RED

I_BLUE

I_ GR EEN

I_RED

HDMID_CTRLCLK

HDMID_CTRLDATA

TMDS_ B_HPD#

DPST_PWM

SYS_RST#

EC_RSMRST#<37> SL P_S4# <37>

ICH_PCI E_WAKE# <31,32>

XDP_ DBRESET#<6>

PM_PWROK<37>

H_PM_SYNC <6>

SLP_S5# <37>

SLP_S3# <37>

PM_DRAM_PWRGD<6>

PM_PWRBTN#_R<6>

PWRBTN_OUT#<37>

R_EC_RSMRST#<42>

DMI_CRX_PTX_N0<7>

DMI_CTX_PRX_N0<7> DMI_CTX_PRX_N1<7> DMI_CTX_PRX_N2<7> DMI_CTX_PRX_N3<7>

DMI_CTX_PRX_P0<7> DMI_CTX_PRX_P1<7> DMI_CTX_PRX_P2<7> DMI_CTX_PRX_P3<7>

DMI_CRX_PTX_N1<7> DMI_CRX_PTX_N2<7> DMI_CRX_PTX_N3<7>

DMI_CRX_PTX_P0<7> DMI_CRX_PTX_P1<7> DMI_CRX_PTX_P2<7> DMI_CRX_PTX_P3<7>

VGATE<19,46>

M_PWROK<37>

FDI_ CTX_PRX_N0 <7>

FDI_ CTX_PRX_N1 <7>

FDI_ CTX_PRX_N2 <7>

FDI_ CTX_PRX_N3 <7>

FDI_ CTX_PRX_N4 <7>

FDI_ CTX_PRX_N5 <7>

FDI_ CTX_PRX_N6 <7>

FDI_ CTX_PRX_N7 <7>

FDI_CTX_PRX_P0 <7>

FDI_CTX_PRX_P1 <7>

FDI_CTX_PRX_P2 <7>

FDI_CTX_PRX_P3 <7>

FDI_CTX_PRX_P4 <7>

FDI_CTX_PRX_P5 <7>

FDI_CTX_PRX_P6 <7>

FDI_CTX_PRX_P7 <7>

FDI_INT <7>

FDI_FSYNC0 <7>

FDI_LSYNC0 <7>

FDI_FSYNC1 <7>

FDI_LSYNC1 <7>

I_LVDS_ACLK-<22> I_LVDS_ACLK+<22>

I_LVDS_A0-<22> I_LVDS_A1-<22> I_LVDS_A2-<22>

I_LVDS_A0+<22> I_LVDS_A1+<22> I_LVDS_A2+<22>

IGPU_BKLT_EN<22>

I_ENAVDD<21>

I_EDID_DATA<22> I_EDID_CLK<22>

I_BLUE<22> I_GREEN<22> I_RED<22>

I_CRT_ DDC_CLK<20>

I_CRT_HSYNC<22> I_CRT_VSYNC<22>

I_CRT_DDC_DATA<20>

TMDSD_CLK# <23>

TMDSD_CLK <23>

HDMID_CTRLCLK <23>

HDMID_CTRLDATA <23>

TMDSD_DATA0# <23>

TMDSD_DATA0 <23>

TMDSD_DATA1# <23>

TMDSD_DATA1 <23>

TMDSD_DATA2# <23>

TMDSD_DATA2 <23>

TMDS_B_HPD# <23>

DPST_PWM<22>

EC_ACIN<37>

+3VALW

+1.05VS

+3VS

+3VALW

+3VS

Title

Size Document Number R e v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHE ET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

IBEX-M(3/6)-DMI/GPIO/LVDS

Custom

13 49Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

Display Port B

SDVO

Display Port C Display Port D

Check PM_SLP_LAN#

CRB0.9 change to 1K_0402_0.5%

4mil width and place

within 500mil of the PCH

If not using integrated

LAN,signal may be left as NC.

Can be left NC when IAMT is

not support on the platfrom

Checklist0.8 MEPWROK

can be connect to

PWROK if iAMT disable

Close PCH and mini space 20mil

EDID_CLK and EDID_DATA single

end and keep 30 mil with other

LVDS signal avoid noise

CRB0.9 change to 0 ohm

Place the 3 resistors close to IBEX

R125 0_0402_5%

1 2

D37

CH751H-40PT_SOD323-2

2 1

R770

100K_0402_5%

1 2

R133 10K_0402_5%@

1 2

DMI

FDI

System Power Management

U1C

IBEXPEAK-M_FCBGA1071

DMI0RXN

BC24

DMI1RXN

BJ22

DMI2RXN

AW20

DMI3RXN

BJ20

DMI0RXP

BD24

DMI1RXP

BG22

DMI2RXP

BA20

DMI3RXP

BG20

DMI0TXN

BE22

DMI1TXN

BF21

DMI2TXN

BD20

DMI3TXN

BE18

DMI0TXP

BD22

DMI1TXP

BH21

DMI2TXP

BC20

DMI3TXP

BD18

DMI_ZCOMP

BH25

DMI_IRCOMP

BF25

FDI_RXN0 BA18

FDI_RXN1 BH17

FDI_RXN2 BD16

FDI_RXN3 BJ16

FDI_RXN4 BA16

FDI_RXN5 BE14

FDI_RXN6 BA14

FDI_RXN7 BC12

FDI_RXP0 BB18

FDI_RXP1 BF17

FDI_RXP2 BC16

FDI_RXP3 BG16

FDI_RXP4 AW16

FDI_RXP5 BD14

FDI_RXP6 BB14

FDI_RXP7 BD12

FDI_FSYNC0 BF13

FDI_FSYNC1 BH13

FDI_LSYNC0 BJ12

FDI_LSYNC1 BG14

FDI_INT BJ14

PMSYNCH BJ10

TP23 N2

SLP_M# K8

SLP_S3# P12

SLP_S4# H7

SLP_S5# / GPIO63 E4

SYS_RESET#

SYS_PWROK

PWRBTN#

RI#

F14

WAKE# J12

SUS_STAT# / GPIO61 P8

SUSCLK / GPIO62 F3

ACPRESENT / GPIO31

LAN_RST#

A10

MEPWROK

BATLOW# / GPIO72

PWROK

B17

CLKRUN# / GPIO32 Y1

SUS_PWR_DN_ACK / GPIO30

RSMRST#

C16

DRAMPWROK

SLP_LAN# / GPIO29 F6

R778 150_0402_1%

1 2

R134 8.2K_0402_5%

1 2

T69PAD

R118 49.9_0402_1%

1 2

R151 10K_0402_5%

1 2

R137 1K_0402_5%

1 2

R119 0_0402_5%

1 2

R124 10K_0402_5%

LVDS

Digital Display Interface

CRT

U1D

IBEXPEAK-M_FCBGA1071

L_BKLTCTL

Y48

L_BKLTEN

T48

L_CTRL_CLK

AB46

L_CTRL_DATA

V48

L_DDC_CLK

AB48

L_DDC_DATA

Y45

L_VDD_EN

T47

LVDSA_CLK#

AV53

LVDSA_CLK

AV51

LVDSA_DATA#0

BB47

LVDSA_DATA#1

BA52

LVDSA_DATA#2

AY48

LVDSA_DATA#3

AV47

LVDSA_DATA0

BB48

LVDSA_DATA1

BA50

LVDSA_DATA2

AY49

LVDSA_DATA3

AV48

LVDSB_CLK#

AP48

LVDSB_CLK

AP47

LVDSB_DATA#0

AY53

LVDSB_DATA#1

AT49

LVDSB_DATA#2

AU52

LVDSB_DATA#3

AT53

LVDSB_DATA0

AY51

DDPB_0N BD42

DDPB_1N BJ42

LVD_VREFH

AT43

LVD_VREFL

AT42

DDPD_2N BF37

DDPD_3N BE36

DDPB_2N BB40

DDPB_3N AW38

DDPC_0N BE40

DDPC_1N BF41

DDPC_2N BD38

DDPC_3N BB36

DDPD_0N BJ40

DDPD_1N BJ38

DDPB_0P BC42

DDPB_1P BG42

DDPD_2P BH37

DDPD_3P BD36

DDPB_2P BA40

DDPB_3P BA38

LVDSB_DATA1

AT48

LVDSB_DATA2

AU50

LVDSB_DATA3

AT51

LVD_IBG

AP39

LVD_VBG

AP41

DDPC_1P BH41

DDPC_0P BD40

DDPC_2P BC38

DDPC_3P BA36

DDPD_0P BG40

DDPD_1P BG38

CRT_BLUE

AA52

CRT_DDC_CLK

V51

CRT_DDC_DATA

V53

CRT_GREEN

AB53

CRT_HSYNC

Y53

CRT_IRTN

AB51

CRT_RED

AD53

CRT_VSYNC

Y51

DAC_IREF

AD48

SDVO_CTRLCLK T51

SDVO_CTRLDATA T53

DDPC_CTRLCLK Y4 9

DDPC_CTRLDATA AB49

DDPD_CTRLCLK U50

DDPD_CTRLDATA U52

DDPB_AUXN BG44

DDPC_AUXN BE44

DDPD_AUXN BC46

DDPB_AUXP BJ44

DDPC_AUXP BD44

DDPD_AUXP BD46

DDPB_HPD AU38

DDPC_HPD AV40

DDPD_HPD AT38

SDVO_TVCLKINP BG46

SDVO_TVCLKINN BJ46

SDVO_STALLP BG48

SDVO_STALLN BJ48

SDVO_INTP BH45

SDVO_INTN BF45

T17

R123 100_0402_5%

1 2

R771 10K_0402_5%

1 2

R773 2.37K_0402_1%

1 2

R774 0_0402_5%

1 2

R136 10K_0402_5%

1 2

R365 0_0402_5%

1 2

R772 10K_0402_5%

1 2

R379 0_0402_5%@

1 2

R777 150_0402_1%

1 2

R138 8.2K_0402_5%

R121 0_0402_5%

1 2

R373 0_0402_5%@

1 2

R122 10K_0402_5%

1 2

T18

R776 150_0402_1%

1 2

R120 10K_0402_5%@

R775 0_0402_5%

1 2

R129 8.2K_0402_5%

1 2

R126

1K_0402_0.5%

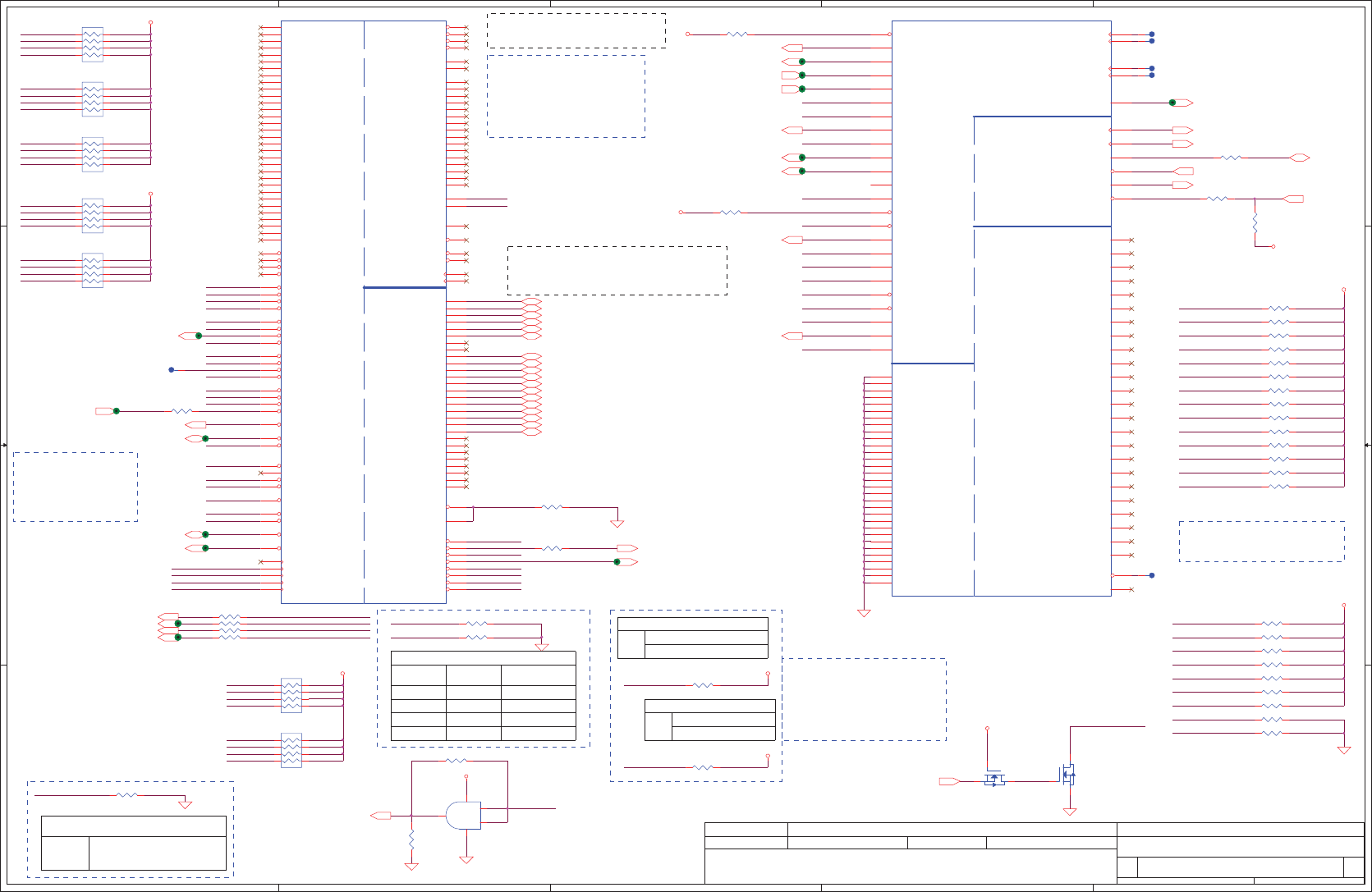

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

PCI_TRDY#

PCI_IRDY#

PCI_PERR#

PCI_PIRQB#

PCI_PIRQF#

PCI_REQ1#

USB20_N0

USB20_P0

USB20_N6

USB20_P6

USB20_N4

USB20_P4

USB20_N5

USB20_P7

USB20_N7

USB20_N8

USB20_P8

USB20_P2

USB20_N2

USB20_N9

USB20_P9

USB_OC#2

USB_OC#4

USB_OC#7

USB_OC#5

USB_OC#6

USB_OC#0

PCI_GNT1#

DGPU_PWR_EN

VGA_ PRSNT_L#

DGP U_ HO LD_RST#

PCI_GNT3#

GPIO38

PCH_GPIO0

DGPU_HPD_INT#

GA TEA20

GPIO48

GPIO39

GPIO57

PCH_PECI_R

KB_RST#

GPIO38

DG PU _E D IDSEL#

GPIO35

CR_WAKE#

PCH_GPIO15

H_THERMTRIP#_L

DGPU_PWROK

GA TEA20

VGA_ PRSNT_L#

PCH_TEMP_ALERT#

USB_OC#7

USB_OC#5

DG PU _E D IDSEL#

ACCEL_INT

EC_SCI#

PCH_GPIO12

EC_SCI#

EC_SMI#

H_STP_PCI#

XMIT_OFF

PCI_GNT1#

PCI_GNT0#

USB_OC#1

WXMI T_OFF#

PCI_PIRQC#

PLT_RST#

PCI _ D EVSEL#

PCI_ PIRQG#

PCI_PIRQA#

PCI_LOCK#

PCI_REQ3#

PCI _ FR AME#

PCI_GNT0#

PLT_RST#

PCI_PIRQD#

PCI_STOP#

PCI_PIRQE#

PCI_PIRQH#

PCI_SERR#

PCI_GNT3#

PCI_REQ0# USB 20_N1

USB20_P1

NV_CLE

NV_ALE

R_ CL K_ D EBUG_PORT_1

R_ CL K_ D EBUG_PORT_0

R_ CL K_ D EBUG_PORT_1

R_ CL K_ D EBUG_PORT_0

R_CLK_PCI_EC

R_CLK_PCI_FB

USB_OC#4

USB_OC#6

USB_OC#1

WXMI T_OFF#

USB_OC#0

USB_OC#2

PCI _ D EVSEL#

PCI_TRDY#

PCI _ FR AME#

PCI_STOP#

PCI_LOCK#

PCI_IRDY#

PCI_PERR#

PCI_SERR#

PCI_REQ0#

PCI_REQ1#

DGPU_ SELECT#

PCI_PIRQD#

PCI_PIRQA#

PCI_PIRQC#

PCI_PIRQB#

PCI_PIRQH#

PCI_PIRQE#

PCI_PIRQF#

PCI_ PIRQG#

GPIO48

GPIO39

CR_WAKE#

DGPU_HPD_INT#

DGP U_ HO LD_RST#

DGPU_PWROK

PCI EC L KREQ6#

PCI EC L KREQ7#

PCH_GPIO15

EC_SMI#

PCI EC L KREQ6#

PCH_GPIO12

PCI_REQ3#

PCI EC L KREQ7#

PCH_GPIO28

GPIO35

DGPU_PWR_EN

KB_RST#

GPIO57

USBRBIAS

USB20_P5

DGPU_ SELECT#

DG PU _P W M_SELECT#

R_CLK_PCI_EC

R_CLK_PCI_FB

VGA_ PRSNT_L#

DGPU_PWROK

NV_CLE

NV_ALE

USB20_N0 <35>

USB20_P0 <35>

USB20_N2 <35>

USB20_P2 <35>

USB20_N4 <21>

USB20_P4 <21>

USB20_N5 <31>

USB20_N6 <35>

USB20_P6 <35>

USB20_N7 <35>

USB20_P7 <35>

USB20_N8 <31>

USB20_P8 <31>

USB20_N9 <31>

USB20_P9 <31>

BUF_PLT_RST#<6>

GATEA20 <37>

H_CPUPWRGD <6>

H_PECI <6>

H_THERMTRIP# <6>

KB_RST# <37>

ACCEL_INT<30>

EC_SCI#<37>

EC_SMI#<37>

XMIT_OFF<31>

BT_OFF <35>

WXMIT_OFF# <31>

PCI_RST#<36,37>

PLT_RST#<6,31,32>

PCI _PME#<37>

PCI_SERR#<37>

USB20_N1 <35>

USB20_P1 <35>

CLK_CPU_BCLK# <6>

CLK_CPU_BCLK <6>

CLK_DEBUG_PORT_0<36> CLK_DEBUG_PORT_1<31>

CLK_PCI_FB<12>

DGPU_ED IDSEL#<20>

DGPU_HPD_INT#<23>

DGPU_HOLD_RST#<24>

DGPU_PWR_EN<23,39,45,47>

PCH_TEMP_ALERT#

USB20_P5 <31>

DGPU_SELECT#<22>

CLK_PCI_EC<37>

PEG _ CLKREQ#<12>

CR_WAKE#<32>

+3VS

+3VALW

+VCCP

+3VALW

+3VS

+3VS_NV

+3VS

+1.8VS

Title

Size Document Number R e v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHE ET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

IBEX-M(4/6)-PCI/USB/RSVD

Custom

14 49Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

Within 500

mils

New Card

Finger print

WWAN

MB USB/ESATA

DOCK

WLAN

USB Camera

override/Top-Block

Low=A16 swap

PCI_GNT3#

A16 swap overide Strap/Top-Block

Swap Override jumper

Swap Override enabled

High=Default

Check list Rev0.8 section1.23.2 If not

implemented, the Braidwood interface

signals can be left as No Connect (NC).

PCI_GNT1#PCI_GNT0#

Boot BIOS

Location

LPC

Boot BIOS Strap

PCI

Reserved(NAND)

SPI

Internal VccVRM Option

GNT2

Default-Internal pull up

Low=Configures DMI for ESI

compatible operation(for

servers only.Not for

mobile/desktops)

This signal has weak internal

PU, can't pull low

INIT3_3V

On-Die PLL Voltage Regulator

This signal has a weak internal pull up

GPIO27

H On-D

ie voltage regulator enable

L On-Di

e PLL Voltage Regulator disable

This signal has a weak internal

pull up ,can't Pull low

GPIO8

it have weak internal PU 20K

L Int

el ME Crypto Transport

Layer Security(TLS) chiper suite

with no confidentiality

GPIO15

H Int

el ME Crypto Transport

Layer Security(TLS) chiper suite

with confidentiality

NV_CLE

NV_ALE

Enable Intel Anti-Theft

Technology 8.2K PU to +3VS

Disable Intel Anti-Theft

Technology floating(internal PD)

DMI termination voltage.

weak internal PU, don't PD

Intel Anti-Theft Techonlogy

Weak internal

PU,Do not pull low

Set to Vcc when HIGH

DMI Termination Voltage

NV_ALE

High=Endabled

Low=Disable(floating)

NV_CLE

Set to Vss when LOW

Q29A

2N7002DW-7-F_SOT363-6

R166 10K_0402_5%

1 2

GPIO

MISC

NCTF

RSVD

CPU

U1F

IBEXPEAK-M_FCBGA1071

GPIO27

AB12

GPIO28

V13

GPIO24

H10

GPIO57

LAN_PHY_PWR_CTRL / GPIO12

VSS_NCTF_1

VSS_NCTF_2

A49

VSS_NCTF_3

VSS_NCTF_4

A50

VSS_NCTF_5

A52

VSS_NCTF_6

A53

VSS_NCTF_7

VSS_NCTF_8

VSS_NCTF_9

B52

VSS_NCTF_10

B53

VSS_NCTF_11

BE1

VSS_NCTF_12

BE53

VSS_NCTF_13

BF1

VSS_NCTF_14

BF53

VSS_NCTF_15

BH1

VSS_NCTF_16

BH2

VSS_NCTF_17

BH52

VSS_NCTF_18

BH53

VSS_NCTF_19

BJ1

VSS_NCTF_20

BJ2

VSS_NCTF_21

BJ4

VSS_NCTF_22

BJ49

VSS_NCTF_23

BJ5

VSS_NCTF_24

BJ50

VSS_NCTF_25

BJ52

VSS_NCTF_26

BJ53

VSS_NCTF_27

VSS_NCTF_28

VSS_NCTF_29

D53

VSS_NCTF_30

VSS_NCTF_31

E53

TACH2 / GPIO6

D37

TACH0 / GPIO17

F38

TACH3 / GPIO7

J32

TP9 M18

TP10 N18

TP11 AJ24

TP12 AK41

SATA3GP / GPIO37

AB13

SATA5GP / GPIO49

AA4

SCLOCK / GPIO22

SLOAD / GPIO38

SDATAOUT0 / GPIO39

SDATAOUT1 / GPIO48

AB6

A20GATE U2

PROCPWRGD BE10

RCIN# T1

PECI BG10

THRMTRIP# BD10

GPIO8

F10

CLKOUT_PCIE6N AH45

CLKOUT_PCIE6P AH46

PCIE CLKRQ6# / GP IO4 5

CLKOUT_PCIE7N AF48

CLKOUT_PCIE7P AF47

PCIE CLKRQ7# / GP IO4 6

TP5 AY46

TP4 AY45

TP6 AV43

TP7 AV45

BMBUSY# / GPIO0

TP16 M30

TP17 N30

NC_1 AB45

NC_2 AB38

NC_3 AB42

NC_4 AB41

GPIO15

TACH1 / GPIO1

C38

TP13 AK42

TP3 BB22

TP1 BA22

TP2 AW22

TP14 M32

TP15 N32

SATA2GP / GPIO36

AB7

NC_5 T39

INIT3_3V# P6

STP_PCI# / GPIO34

M11

SATACLKREQ# / GPIO35

SATA4GP / GPIO16

AA2

TP24 C10

TP8 AF13

CLKOUT_BCLK0_N / CLKOUT_PCIE8N AM3

CLKOUT_BCLK0_P / CLKOUT_PCIE8P AM1

TP19 AA23

TP18 H12

R178 10K_0402_5%

1 2

T19 P A D

R157 10K_0402_5%

1 2

SN74AHC1G08DCKR_SC70-5

IN1 1

IN2 2

R150

0_0402_5%

R155 22.6_0402_1%

1 2

RP6

8.2K_0804_8P4R_5%

1 8

2 7

3 6

4 5

R171 10K_0402_5%

1 2

R185

100K_0402_5%

R145 10K_0402_5%

1 2

R159 1K_0402_5%

1 2

R911 10K_0402_5%

1 2

R176 10K_0402_5%

1 2

R181 10K_0402_5%

1 2

R169 10K_0402_5%

1 2

R811 10K_0402_5%

1 2

R814 10K_0402_5%

1 2

R162 22_0402_5%

1 2

R170 10K_0402_5%

1 2

RP9

10K_1206_8P4R_5%

1 8

2 7

3 6

4 5

T22 P A D

T21 P A D

R173 10K_0402_5%

1 2

Q29B

2N7002DW-7-F_SOT363-6

R182 10K_0402_5%

1 2

R813 10K_0402_5%

1 2

R167 10K_0402_5%

1 2

RP8

10K_1206_8P4R_5%

1 8

2 7

3 6

4 5

R164 1K_0402_5%@

1 2

T20 P A D

R165 10K_0402_5%

R183 1K_0402_5%@

1 2

R147

56_0402_5%

R146 54.9_0402_1%

1 2

R174 1K_0402_5%@

1 2

RP3

8.2K_0804_8P4R_5%

1 8

2 7

3 6

4 5

R172 10K_0402_5%

1 2

RP5

8.2K_0804_8P4R_5%

1 8

2 7

3 6

4 5

T48 P A D

R156 0_0402_5%

R175 10K_0402_5%

1 2

PCI

NVRAM

USB

U1E

IBEXPEAK-M_FCBGA1071

AD0

H40

AD1

N34

AD2

C44

AD20

C42

AD21

K46

AD22

M51

AD23

J52

AD24

K51

AD25

L34

AD26

F42

AD27

J40

AD28

G46

AD29

F44

AD3

A38

AD30

M47

AD31

H36

AD4

C36

AD5

J34

AD6

A40

AD7

D45

AD8

E36

AD9

H48

C/BE0#

J50

C/BE1#

G42

C/BE2#

H47

C/BE3#

G34

PCIRST#

PERR#

E50

PIRQA#

G38

PIRQB#

H51

PIRQC#

B37

PIRQD#

A44

PLOCK#

D49

PLTRST#

PME#

REQ0#

F51

REQ1# / GPIO50

A46

REQ2# / GPIO52

B45

REQ3# / GPIO54

M53

SERR#

E44

STOP#

D41

TRDY#

C48

NV_ALE BD3

NV_CE#0 AY9

NV_CE#1 BD1

NV_CE#2 AP15

NV_CE#3 BD8

NV_CLE AY6

NV_DQS0 AV9

NV_DQS1 BG8

NV_DQ0 / NV_IO0 AP7

NV_DQ1 / NV_IO1 AP6

NV_DQ10 / NV_IO10 BD6

NV_DQ11 / NV_IO11 BB7

NV_DQ12 / NV_IO12 BC8

NV_DQ13 / NV_IO13 BJ8

NV_DQ14 / NV_IO14 BJ6

NV_DQ15 / NV_IO15 BG6

NV_DQ2 / NV_IO2 AT6

NV_DQ3 / NV_IO3 AT9

NV_DQ4 / NV_IO4 BB1

NV_DQ5 / NV_IO5 AV6

NV_DQ6 / NV_IO6 BB3

NV_DQ7 / NV_IO7 BA4

NV_DQ8 / NV_IO8 BE4

NV_DQ9 / NV_IO9 BB6

NV_RB# AV7

NV_RCOMP AU2

NV_WR#0_RE# AY8

NV_WR#1_RE# AY5

NV_WE#_CK0 AV11

NV_WE#_CK1 BF5

USBP0N H18

USBP0P J18

USBP10N A22

USBP10P C22

USBP11N G24

USBP11P H24

USBP12N L24

USBP12P M24

USBP13N A24

USBP13P C24

USBP1N A18

USBP1P C18

USBP2N N20

USBP2P P20

USBP3N J20

USBP3P L20

USBP4N F20

USBP4P G20

USBP5N A20

USBP5P C20

USBP6N M22

USBP7N B21

USBP7P D21

USBP8N H22

USBP8P J22

USBP9N E22

USBP9P F22

USBRBIAS# B25

USBRBIAS D25

USBP6P N22

AD10

E40

AD11

C40

AD12

M48

AD13

M45

AD14

F53

AD15

M40

AD16

M43

AD17

J36

AD18

K48

AD19

F40

DEVSEL#

F46

FRAME#

C46

GNT0#

F48

GNT1# / GPIO51

K45

GNT2# / GPIO53

F36

GNT3# / GPIO55

H53

PIRQE# / GPIO2

B41

PIRQF# / GPIO3

K53

PIRQG# / GPIO4

A36

PIRQH# / GPIO5

A48

IRD Y#

A42

PAR

H44

OC0# / GPIO59 N16

OC1# / GPIO40 J16

OC2# / GPIO41 F16

OC3# / GPIO42 L16

OC4# / GPIO43 E14

OC5# / GPIO9 G16

OC6# / GPIO10 F12

OC7# / GPIO14 T15

CLKOUT_PCI0

N52

CLKOUT_PCI1

P53

CLKOUT_PCI2

P46

CLKOUT_PCI3

P51

CLKOUT_PCI4

P48

R184 1K_0402_5%@

1 2

R180 10K_0402_5%

1 2

RP7

8.2K_0804_8P4R_5%

1 8

2 7

3 6

4 5

R163 1K_0402_5%@

1 2

T70 P A D

R168 10K_0402_5%

1 2

R140 1K_0402_1%

1 2

R160 22_0402_5%

1 2

R874 10K_0402_5%

1 2

RP4

8.2K_0804_8P4R_5%

1 8

2 7

3 6

4 5

R158 22_0402_5%

1 2

R812 10K_0402_5%

1 2

R161 22_0402_5%

1 2

R179 0_0402_5%

1 2

R144 0_0402_5%

1 2

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

+1 .05V S_VCCFDIPLL

ICH_V5REF_SUS

+PCH _VCC1_1_23

ICH_V5REF_SUS

+PCH _VCC1_1_22

+PCH _VCC1_1_20

+V 1. 1A _ INT_VCCSUS

+VC C SST

+PCH _VCC1_1_21

+VCCRTCEXT

+V1 .0 5S_VCCA_B_DPL

ICH_V5REF_RUN

+1 .05V S_VCCFDIPLL

+V1 .0 5S_VCCA_B_DPL

+V1 .0 5S_VCCA_A_DPL

+3.3A_1 .5A_VCCPAZSUS

+1.05VS

+3VS

+VCCP

+3VS

+VCCP_VCCA_CLK

+1.05VS

+1.8VS

+1.05VS

+3VALW

+3VS

+VCCP

+RTCVCC

+1.05VS

+1.05VS_VCCAPLL

+1.05VS

+5VS +3VS+3VALW+5VALW

+3VS

+3VALW

+1.05VS_APLL

+1.8VS

+1.05VS

+1.8VS

+3VALW

+1.8VS

+1.05VS+1.05VS_VCCAPLL_L

+3VS

+1.05VS

+1.05VS_VCCFDIPLL_L

+1.05VS_L+1.05VS +V1.05S_VCCA_A_DPL_L

+V1.05S_VCCA_B_DPL_L

+1.05VS +VCCP_VCCA_CLK_L

+1.8VS

+3VS

+1.8VS

+3VS

Title

Size Document Number R e v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHE ET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

IBEX-M(5/6)-PWR

Custom

15 49Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

20 mils20 mils

3.208A

0.163A

1.998A

0.344A

0.052A

0.035A

0.072A

0.073A 0.357A

2mA

>1mA

6mA

0.032A

0.069A

0.030A

0.156A

6mA

0.035A

0.061A

0.059A

0.085A

0.042A

1.524A

1/1/

1/ 3BA4/4W

3BA4/4W3BA4/4W

3BA4/4W

1/1/

1/ 5BA4/4W

5BA4/4W5BA4/4W

5BA4/4W

1/1/

1/ 2BA2/2W

2BA2/2W2BA2/2W

2BA2/2W

3n3n

3n BA4/4W

BA4/4WBA4/4W

BA4/4W

1/1/

1/ 2BA2/2W

2BA2/2W2BA2/2W

2BA2/2W

DG1.1 no M3

support and not

Intel LAN, VCCLAN

Source=>GND

C153

1U_0402_6.3V6K

C162

10U_0805_6.3V6M

CH751H-40PT_SOD323-2

10UH_LB2012T100MR_20%_0805

1 2

C169

1U_0402_6.3V6K

C194

1U_0402_6.3V4K_X5R

C186

220U_D2_4VM_R15

R191

0_0603_5%

1 2

C174

1U_0402_6.3V6K

C193

1U_0402_6.3V6K

C161

1U_0402_6.3V6K

C180

1U_0402_6.3V6K

R201

0_0603_5%

1 2

C183

10U_0805_6.3V6M

R196

100_0402_5%

C190

0.1U_0402_16V4Z

R779 0_0603_5%

1 2

C181

10U_0805_6.3V6M

10UH_LB2012T100MR_20%_0805

1 2

C184

1U_0402_6.3V6K

C146

10U_0603_6.3V6M

C182

0.1U_0402_16V4Z

1 2

C150

1U_0402_6.3V6K

C148

10U_0805_6.3V6M

C197

0.1U_0402_16V4Z

C158

0.1U_0402_16V4Z

C185

0.1U_0402_16V4Z

1 2

C152

0.1U_0402_16V4Z

1 2

C682 0.1U_0402_16V4Z

1 2

C171

0.1U_0402_16V4Z

C1000

10U_0805_6.3V6M

C195

1U_0402_6.3V4K_X5R

R671 0_0402_5%

1 2

10UH_LB2012T100MR_20%_0805

1 2

R200 0_0402_5%

1 2

C170

10U_0603_6.3V6M

C177

0.1U_0402_16V4Z

1 2

C143

10U_0805_6.3V6M

10UH_LB2012T100MR_20%_0805

1 2

POWER

SATA

USB

Clock and Miscellaneous

HDA

CPU

PCI/GPIO/LPC

RTC PCI/GPIO/LPC

U1J

IBEXPEAK-M_FCBGA1071

DCPSUSBYP

Y20

VCCME[1]

AD38

VCCME[2]

AD39

VCCME[3]

AD41

VCCME[5]

AF41

VCCME[6]

AF42

VCCSUSHDA L30

VCCSUS3_3[28] U23

VCCIO[56] V23

VCCIO[13] AD19

VCCIO[14] AF20

VCCIO[15] AF19

VCCME[7]

V39

VCCME[8]

V41

VCCME[9]

V42

VCCME[10]

Y39

VCCME[11]

Y41

VCCME[12]

Y42

V5REF K49

VCC3_3[8] J38

VCC3_3[9] L38

VCC3_3[10] M36

VCC3_3[11] N36

VCC3_3[12] P36

VCC3_3[13] U35

VCCRTC

A12

VCCSUS3_3[27] A26

VCCSUS3_3[26] A28

VCCSUS3_3[25] B27

VCCSUS3_3[24] C26

VCCSUS3_3[23] C28

VCCSUS3_3[22] E26

VCCSUS3_3[21] E28

VCCSUS3_3[20] F26

VCCSUS3_3[19] F28

VCCSUS3_3[18] G26

VCCSUS3_3[17] G28

VCCSUS3_3[16] H26

VCCSUS3_3[15] H28

VCCSUS3_3[14] J26

VCCSUS3_3[13] J28

VCCSUS3_3[12] L26

VCCSUS3_3[11] L28

VCCSUS3_3[10] M26

VCCSUS3_3[9] M28

VCCSUS3_3[8] N26

VCCSUS3_3[7] N28

VCCSUS3_3[6] P26

VCCSUS3_3[5] P28

VCCSUS3_3[4] U24

VCCSUS3_3[3] U26

VCCSUS3_3[2] U28

VCCSUS3_3[1] V28

VCCIO[11] AD20

VCCIO[20] AD22

VCCIO[10] AH19

VCCADPLLA[2]

BB53

VCCADPLLB[1]

BD51

VCCIO[22]

AJ35

V5REF_SUS F24

VCCIO[16] AH20

VCCIO[17] AB19

VCCIO[18] AB20

VCCIO[19] AB22

VCCIO[12] AF22

VCC3_3[14] AD13

VCCIO[9] AH22

VCCVRM[4] AT20

DCPSUS

Y22

VCCIO[2]

AF34

VCCIO[3]

AH34

VCCLAN[1]

AF23

VCCLAN[2]

AF24

VCCADPLLA[1]

BB51

VCCADPLLB[2]

BD53

VCCVRM[3]

AU24

VCCACLK[1]

AP51

VCCACLK[2]

AP53

DCPRTC

VCCIO[4]

AF32

VCCME[4]

AF43

VCCIO[23]

AH35

VCCIO[21]

AH23

DCPSST

V12 VCCSATAPLL[2] AK1

VCCSATAPLL[1] AK3

VCCME[13] AA34

VCCME[14] Y34

VCCME[15] Y35

VCCME[16] AA35

VCC3_3[5]

V15

VCC3_3[6]

V16

VCC3_3[7]

Y16

VCCSUS3_3[29]

P18

VCCSUS3_3[30]

U19

VCCSUS3_3[31]

U20

VCCSUS3_3[32]

U22

VCCIO[5] V24

VCCIO[6] V26

VCCIO[7] Y24

VCCIO[8] Y26

V_CPU_IO[1]

AT18

V_CPU_IO[2]

AU18

C192

1U_0402_6.3V6K

C145

1U_0402_6.3V6K

C175

1U_0402_6.3V6K

C144

1U_0402_6.3V6K

R188

0_0603_5%

1 2

C149

0.1U_0402_16V4Z

C168

1U_0402_6.3V6K

C176 0.1U_0402_16V4Z

1 2

C187

1U_0402_6.3V6K

C196

0.1U_0402_16V4Z

C157

0.1U_0402_16V4Z

C167

1U_0402_6.3V6K

R190

0_0603_5%

1 2

C999

0.01U_0603_16V7K

C160

0.1U_0402_16V4Z

L45

MURATA_BLM18AG601SN1D_0603

10UH_LB2012T100MR_20%_0805

1 2

C147

0.01U_0402_25V7K

10UH_LB2012T100MR_20%_0805

1 2

C179

0.1U_0402_16V4Z

1 2

R192

0_0603_5%

1 2

C188

4.7U_0603_6.3V6K

C998

0.01U_0603_16V7K

R193

0_0603_5%

R195 0_0402_5%

1 2

R189

0_0603_5%

1 2

C165

1U_0402_6.3V6K

C166 0.1U_0402_16V4Z

1 2

C178

0.1U_0402_16V4Z

C191

220U_B_2.5VM_R15M

R198 0_0402_5%

1 2

C159

10U_0805_6.3V6M

C164

1U_0402_6.3V6K

POWER

VCC CORE

DMI

PCI E*

CRTLVDS

FDI

NAND / SPI HVCMOS

U1G

IBEXPEAK-M_FCBGA1071

VCCCORE[1]

AB24

VCCCORE[2]

AB26

VCCCORE[3]

AB28

VCCCORE[4]

AD26

VCCCORE[5]

AD28

VCCCORE[6]

AF26

VCCCORE[7]

AF28

VCCCORE[8]

AF30

VCCCORE[9]

AF31

VCCCORE[10]

AH26

VCCCORE[11]

AH28

VCCCORE[12]

AH30

VCCCORE[13]

AH31

VCCCORE[14]

AJ30

VCCCORE[15]

AJ31

VCCPNAND[4] AK19

VCCPNAND[3] AK20

VCCIO[27]

AN23

VCCIO[28]

AN24

VCCIO[29]

AN26

VCCIO[30]

AN28

VCCIO[54]

AN30

VCCIO[55]

AN31

VCCIO[33]

AT26

VCCIO[34]

AT28

VCCIO[35]

AU26

VCCIO[36]

AU28

VCCIO[37]

AV26

VCCIO[38]

AV28

VCCIO[39]

AW26

VCCIO[40]

AW28

VCCIO[41]

BA26

VCCIO[42]

BA28

VCCIO[43]

BB26

VCCIO[44]

BB28

VCCIO[45]

BC26

VCCIO[46]

BC28

VCCIO[47]

BD26

VCCIO[48]

BD28

VCCIO[49]

BE26

VCCIO[50]

BE28

VCCIO[51]

BG26

VCCIO[52]

BG28

VCCIO[53]

BH27

VCCIO[31]

BJ26

VCCIO[32]

BJ28

VCCADAC[1] AE50

VCCADAC[2] AE52

VCCTX_LVDS[1] AP43

VCCTX_LVDS[2] AP45

VCCALVDS AH38

VCCVRM[2] AT24

VCCVRM[1]

AT22

VCCAPLLEXP

BJ24

VCCFDIPLL

BJ18

VCCPNAND[6] AK13

VCCPNAND[5] AK15

VCCPNAND[7] AM12

VCCPNAND[8] AM13

VCCIO[24]

AK24 VCCTX_LVDS[4] AT45

VCCTX_LVDS[3] AT46

VSSA_DAC[1] AF53

VSSA_LVDS AH39

VSSA_DAC[2] AF51

VCCIO[1]

AM23

VCC3_3[2] AB34

VCC3_3[3] AB35

VCC3_3[4] AD35

VCC3_3[1]

AN35

VCCME3_3[1] AM8

VCCME3_3[2] AM9

VCCME3_3[3] AP11

VCCME3_3[4] AP9

VCCPNAND[2] AK16

VCCPNAND[9] AM15

VCCPNAND[1] AM16

VCCDMI[1] AT16

VCCDMI[2] AU16

VCCIO[25]

AN20

VCCIO[26]

AN22

C173

1U_0402_6.3V6K

R672 0_0402_5%@

1 2

C172

0.1U_0402_16V4Z

C163

10U_0805_6.3V6M

R186

0_0603_5%

1 2

R197

100_0402_5%

R194 0_0402_5%

1 2

CH751H-40PT_SOD323-2

C189

0.1U_0402_16V4Z

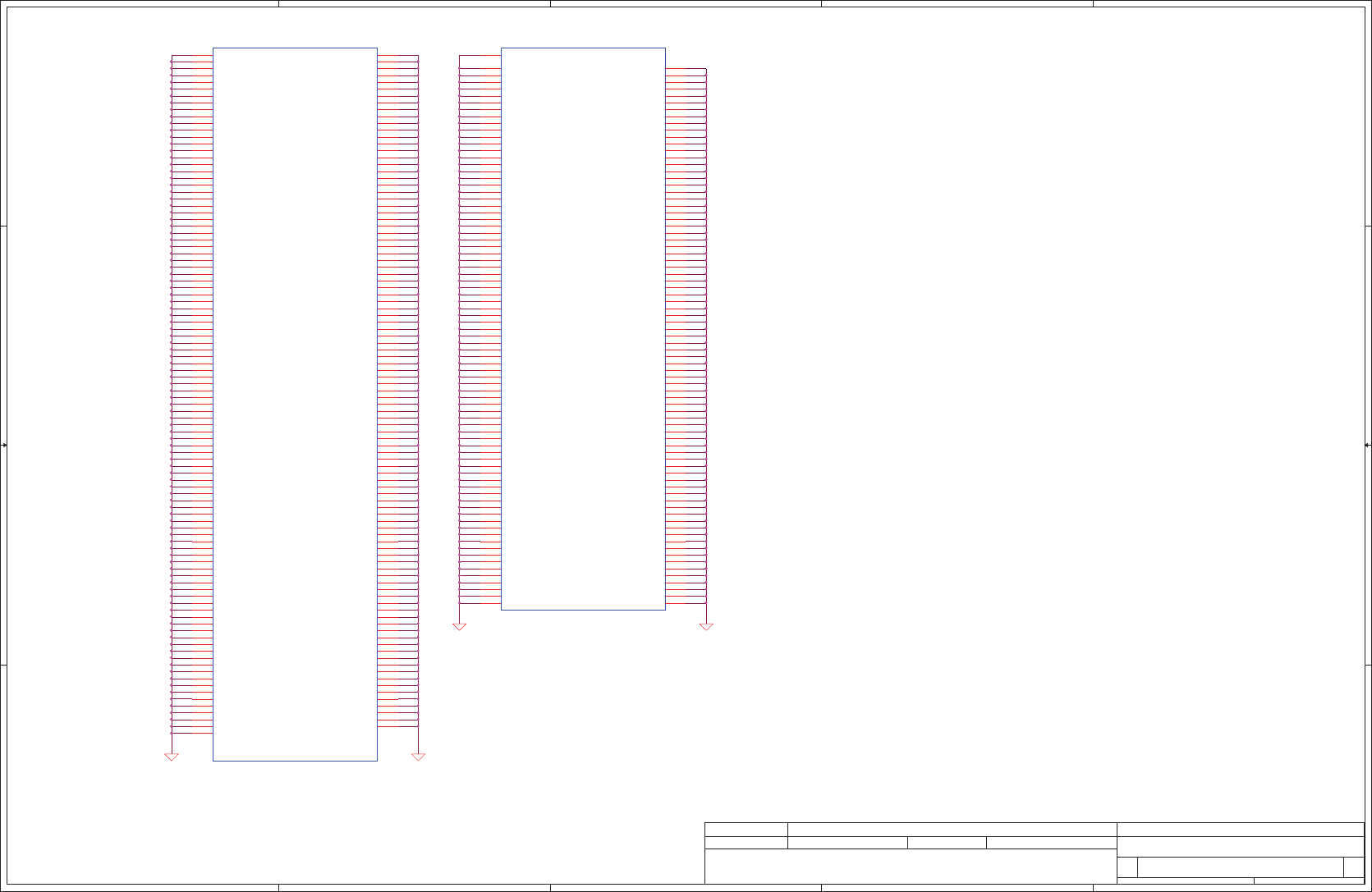

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

Title

Size Document Number R e v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHE ET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

IBEX-M(6/6)-GND

Custom

16 49Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

U1H

IBEXPEAK-M_FCBGA1071

VSS[1]

AA19

VSS[2]

AA20

VSS[3]

AA22

VSS[5]

AA24

VSS[6]

AA26

VSS[7]

AA28

VSS[8]

AA30

VSS[9]

AA31

VSS[10]

AA32

VSS[11]

AB11

VSS[12]

AB15

VSS[13]

AB23

VSS[14]

AB30

VSS[15]

AB31

VSS[16]

AB32

VSS[17]

AB39

VSS[18]

AB43

VSS[19]

AB47

VSS[20]

AB5

VSS[21]

AB8

VSS[22]

AC2

VSS[23]

AC52

VSS[24]

AD11

VSS[25]

AD12

VSS[26]

AD16

VSS[27]

AD23

VSS[28]

AD30

VSS[29]

AD31

VSS[30]

AD32

VSS[31]

AD34

VSS[33]

AD42

VSS[34]

AD46

VSS[35]

AD49

VSS[36]

AD7

VSS[37]

AE2

VSS[38]

AE4

VSS[39]

AF12

VSS[43]

AF35

VSS[44]

AP13

VSS[46]

AF45

VSS[47]

AF46

VSS[48]

AF49

VSS[49]

AF5

VSS[50]

AF8

VSS[51]

AG2

VSS[52]

AG52

VSS[53]

AH11

VSS[54]

AH15

VSS[55]

AH16

VSS[56]

AH24

VSS[57]

AH32

VSS[59]

AH43

VSS[60]

AH47

VSS[61]

AH7

VSS[62]

AJ19

VSS[63]

AJ2

VSS[64]

AJ20

VSS[65]

AJ22

VSS[66]

AJ23

VSS[67]

AJ26

VSS[68]

AJ28

VSS[69]

AJ32

VSS[70]

AJ34

VSS[71]

AT5

VSS[72]

AJ4

VSS[73]

AK12

VSS[76]

AK26

VSS[77]

AK22

VSS[78]

AK23

VSS[79]

AK28

VSS[80] AK30

VSS[81] AK31

VSS[82] AK32

VSS[83] AK34

VSS[84] AK35

VSS[85] AK38

VSS[86] AK43

VSS[87] AK46

VSS[88] AK49

VSS[89] AK5

VSS[90] AK8

VSS[91] AL2

VSS[92] AL52

VSS[93] AM11

VSS[96] AM20

VSS[97] AM22

VSS[98] AM24

VSS[99] AM26

VSS[100] AM28

VSS[102] AM30

VSS[103] AM31

VSS[104] AM32

VSS[105] AM34

VSS[106] AM35

VSS[107] AM38

VSS[108] AM39

VSS[109] AM42

VSS[110] AU20

VSS[111] AM46

VSS[112] AV22

VSS[113] AM49

VSS[114] AM7

VSS[116] BB10

VSS[117] AN32

VSS[118] AN50

VSS[119] AN52

VSS[120] AP12

VSS[121] AP42

VSS[122] AP46

VSS[123] AP49

VSS[124] AP5

VSS[125] AP8

VSS[126] AR2

VSS[127] AR52

VSS[128] AT11

VSS[131] AT32

VSS[132] AT36

VSS[133] AT41

VSS[134] AT47

VSS[135] AT7

VSS[136] AV12

VSS[137] AV16

VSS[138] AV20

VSS[139] AV24

VSS[140] AV30

VSS[141] AV34

VSS[142] AV38

VSS[143] AV42

VSS[144] AV46

VSS[145] AV49

VSS[146] AV5

VSS[147] AV8

VSS[148] AW14

VSS[149] AW18

VSS[150] AW2

VSS[151] BF9

VSS[152] AW32

VSS[153] AW36

VSS[154] AW40

VSS[155] AW52

VSS[156] AY11

VSS[157] AY43

VSS[158] AY47

VSS[40]

Y13

VSS[42]

AU4

VSS[45]

AN34

VSS[115] AA50

VSS[0]

AB16

VSS[58]

AV18

VSS[32]

AU22

VSS[4]

AM19

VSS[74]

AM41

VSS[75]

AN19

VSS[41]

AH49

VSS[129] BA12

VSS[130] AH48

VSS[101] BA42

VSS[95] AD24

VSS[94] BB44

U1I

IBEXPEAK-M_FCBGA1071

VSS[159]

AY7

VSS[160]

B11

VSS[161]

B15

VSS[162]

B19

VSS[163]

B23

VSS[164]

B31

VSS[165]

B35

VSS[166]

B39

VSS[167]

B43

VSS[168]

B47

VSS[169]

VSS[170]

BG12

VSS[171]

BB12

VSS[172]

BB16

VSS[173]

BB20

VSS[174]

BB24

VSS[175]

BB30

VSS[176]

BB34

VSS[177]

BB38

VSS[178]

BB42

VSS[179]

BB49

VSS[180]

BB5

VSS[181]

BC10

VSS[182]

BC14

VSS[183]

BC18

VSS[184]

BC2

VSS[185]

BC22

VSS[186]

BC32

VSS[187]

BC36

VSS[188]

BC40

VSS[189]

BC44

VSS[190]

BC52

VSS[191]

BH9

VSS[192]

BD48

VSS[193]

BD49

VSS[194]

BD5

VSS[195]

BE12

VSS[196]

BE16

VSS[197]

BE20

VSS[198]

BE24

VSS[199]

BE30

VSS[200]

BE34

VSS[201]

BE38

VSS[202]

BE42

VSS[203]

BE46

VSS[204]

BE48

VSS[205]

BE50

VSS[206]

BE6

VSS[207]

BE8

VSS[208]

BF3

VSS[209]

BF49

VSS[210]

BF51

VSS[211]

BG18

VSS[212]

BG24

VSS[213]

BG4

VSS[214]

BG50

VSS[215]

BH11

VSS[216]

BH15

VSS[217]

BH19

VSS[218]

BH23

VSS[219]

BH31

VSS[220]

BH35

VSS[221]

BH39

VSS[222]

BH43

VSS[223]

BH47

VSS[224]

BH7

VSS[225]

C12

VSS[226]

C50

VSS[227]

D51

VSS[228]

E12

VSS[229]

E16

VSS[230]

E20

VSS[231]

E24

VSS[232]

E30

VSS[233]

E34

VSS[234]

E38

VSS[235]

E42

VSS[236]

E46

VSS[237]

E48

VSS[264] K47

VSS[265] K7

VSS[266] L14

VSS[267] L18

VSS[268] L2

VSS[269] L22

VSS[270] L32

VSS[271] L36

VSS[272] L40

VSS[273] L52

VSS[274] M12

VSS[275] M16

VSS[276] M20

VSS[277] N38

VSS[278] M34

VSS[279] M38

VSS[280] M42

VSS[281] M46

VSS[282] M49

VSS[283] M5

VSS[284] M8

VSS[285] N24

VSS[286] P11

VSS[288] P22

VSS[289] P30

VSS[290] P32

VSS[291] P34

VSS[292] P42

VSS[293] P45

VSS[294] P47

VSS[295] R2

VSS[296] R52

VSS[297] T12

VSS[298] T41

VSS[299] T46

VSS[300] T49

VSS[301] T5

VSS[302] T8

VSS[303] U30

VSS[304] U31

VSS[305] U32

VSS[306] U34

VSS[307] P38

VSS[308] V11

VSS[309] P16

VSS[310] V19

VSS[311] V20

VSS[312] V22

VSS[313] V30

VSS[314] V31

VSS[315] V32

VSS[316] V34

VSS[238]

VSS[239]

VSS[240]

F49

VSS[241]

VSS[242]

G10

VSS[243]

G14

VSS[244]

G18

VSS[245]

VSS[246]

G22

VSS[247]

G32

VSS[248]

G36

VSS[249]

G40

VSS[250]

G44

VSS[251]

G52

VSS[317] V35

VSS[318] V38

VSS[319] V43

VSS[320] V45

VSS[321] V46

VSS[322] V47

VSS[323] V49

VSS[324] V5

VSS[325] V7

VSS[326] V8

VSS[327] W2

VSS[328] W52

VSS[329] Y11

VSS[330] Y12

VSS[331] Y15

VSS[332] Y19

VSS[333] Y23

VSS[334] Y28

VSS[335] Y30

VSS[336] Y31

VSS[337] Y32

VSS[338] Y38

VSS[339] Y43

VSS[340] Y46

VSS[342] Y5

VSS[343] Y6

VSS[344] Y8

VSS[341] P49

VSS[345] P24

VSS[287] AD15

VSS[252]

AF39

VSS[253]

H16

VSS[254]

H20

VSS[255]

H30

VSS[256]

H34

VSS[257]

H38

VSS[258]

H42

VSS[346] T43

VSS[347] AD51

VSS[348] AT8

VSS[349] AD47

VSS[350] Y47

VSS[351] AT12

VSS[352] AM6

VSS[353] AT13

VSS[354] AM5

VSS[355] AK45

VSS[356] AK39

VSS[366] AV14

VSS[262] K11

VSS[263] K43

VSS[259] H49

VSS[260] H5

VSS[261] J24

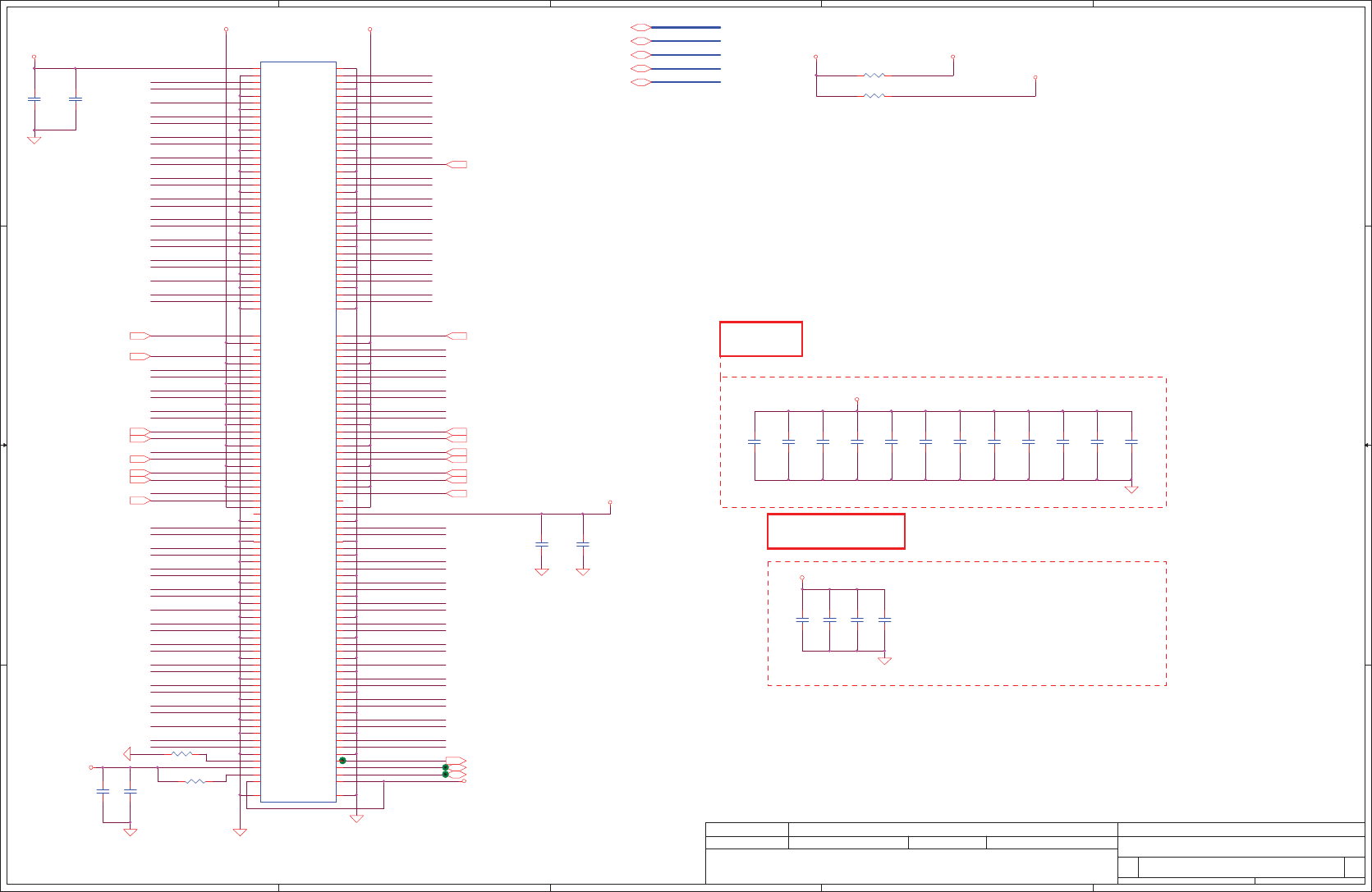

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

DDR_A_D31

DDR_A_D12

DDR_CKE0_DIMMA

DDR_A_D59

DDR_A_D6

DDR_A_MA3

SMB _CLK_S3

DDR_CS1_DIMMA#

DDR_A_D39

DDR_A_BS1

DDR_A_DQS0

DDR_A_WE#

DDR_A_MA7

DDR_A_MA0

DDR_A_DM2

DDR_A_DM1

DDR_A_DQS7

DDR_A_D0

DDR_A_D57

DDR_A_D46

DDR_A_D28

DDR_A_DM0

DDR_A_D19

DDR_A_DQS#5

DDR_A_D51

DDR_A_D4

DDR_A_DM4

DDR_A_D30

DDR_A_DQS2

DDR_A_D44

DDR_A_RAS#

DDR_A_D33

DDR_A_D58

DDR_A_DM5

DDR_A_DQS3

DDR_A_MA8

DDR_CS0_DIMMA#

DDR_A_D10

DDR_A_MA6

DDR_A_D27

DDR_A_D3

DRAMRST#

DDR_A_MA10

DDR_A_DQS#7

DDR_A_D1

DDR_A_DQS#6

DDR_A_D40

DDR_A_MA9

DDR_A_D16

DDR_A_D29

DDR_A_DQS#4

DDR_A_D52

DDR_A_DM3

DDR_A_DQS5

DDR_A_D54

DDR_A_D49

DDR_A_BS2

DDR_A_D45

DDR_A_D9

DDR_A_DM7

DDR_A_D7

DDR_A_MA1

DDR_A_D13

DDR_A_D20

DDR_A_D60

DDR_A_BS0

DDR_A_CAS# M_ ODT0

DDR_A_D37

DDR_A_MA5

DDR_A_DQS#1

DDR_A_MA14

DDR_A_D55

DDR_A_MA4

DDR_A_D21

DDR_A_D62

DDR_A_D24

DDR_A_D15

DDR_A_D23

DDR_A_D56

DDR_A_D53

DDR_A_D47

DDR_A_D18

M_ODT1

DDR_A_D43

DDR_A_D34

M_CLK_DDR1

M_CLK_DDR#1

DDR_A_D48

SMB_DATA_S3

DDR_A_DQS#2

DDR_A_D11

DDR_A_D38

M_CLK_DDR0

M_CLK_DDR#0

DDR_A_DQS#3

DDR_A_D32

DDR_A_D8

DDR_A_DQS1

DDR_A_MA13

DDR_A_MA11

DDR_A_D50

DDR_A_D61

DDR_A_MA2

DDR_A_D41

DDR_A_D17

DDR_A_D36

DDR_A_D26

DDR_A_D63

DDR_A_D2

DDR_A_D5

DDR_A_D22

DDR_A_D25

DDR_A_DQS6

DDR_A_D35

DDR_A_D14

DDR_A_MA12

DDR_A_DQS#0

DDR_A_DQS4

DDR_A_DM6

DDR_A_D42

DDR_CKE1_DIMMA

PM_EXTTS#1_R

V_DDR_MCH_REF

+0.75VS

DDR_A_MA15

V_DDR_CPU_REF+VREF_D Q_DIMMA

DDR_A_ DQS#[0..7]<8>

DDR_A_D[0..63]<8>

DDR_A_ DM[0..7]<8>

DDR_A_DQS[0..7]<8>

DDR_A_MA[0..15]<8>

DDR_CKE0_DIMMA<8>

DDR_A_BS2<8>

M_CLK_DDR0<8> M_CLK_DDR#0<8>

DDR_A_BS0<8>

DDR_A_WE#<8> DDR_A_CAS#<8>

DDR_CS1_DIMMA#<8>

DDR_CKE1_DIMMA <8>

DDR_A_BS1 <8>

DDR_A_RAS# <8>

DDR_CS0_DIMMA# <8>

M_ODT0 <8>

M_CLK_DDR1 <8>

M_CLK_DDR#1 <8>

M_ODT1 <8>

DRAMRST# <6,18>

PM_EXTTS#1_R <6,18>

SMB_DATA_S3 <12,18,19,30>

SMB_CLK_S3 <12,18,19,30>

+0.75VS

+3VS

+1.5V +1.5V

+VREF_DQ_DIMMA

+1.5V

+V_DDR_CPU_REF

+1.5V

+0.75VS

+VREF_DQ_DIMMA +V_DDR_CPU_REF

+VREF_CA +V_DDR_CPU_REF

+V_DDR_CPU_REF0

Title

Size Document Number R e v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHE ET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

DDRIII-SODIMM SLOT1

Custom

17 49Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

DDR3 SO-DIMM A

Layout Note:

Place near JP4.203 & JP4.204

Layout Note:

Place near JP4

REVERSE

4BA2

4BA24BA2

4BA2/6W

/6W/6W

/6W

1/76B

1/76B1/76B

1/76BA1/86W

A1/86WA1/86W

A1/86W

C208

10U_0603_6.3V6M

C217

1U_0402_6.3V6K

R884 0_0402_5%

1 2

R207

10K_0402_5%

1 2

C213

0.1U_0402_16V4Z

C214

2.2U_0402_6.3V6M

C216

1U_0402_6.3V6K

C205

10U_0603_6.3V6M

JDIMM1 C O NN@

VREF_DQ

1VSS1 2

VSS2

3DQ4 4

DQ0

5DQ5 6

DQ1

7VSS3 8

VSS4

9DQS#0 10

DM0

11 DQS0 12

VSS5

13 VSS6 14

DQ2

15 DQ6 16

DQ3

17 DQ7 18

VSS7

19 VSS8 20

DQ8

21 DQ12 22

DQ9

23 DQ13 24

VSS9

25 VSS10 26

DQS#1

27 DM1 28

DQS1

29 RESET# 30

VSS11

31 VSS12 32

DQ10

33 DQ14 34

DQ11

35 DQ15 36

VSS13

37 VSS14 38

DQ16

39 DQ20 40

DQ17

41 DQ21 42

VSS15

43 VSS16 44

DQS#2

45 DM2 46

DQS2

47 VSS17 48

VSS18

49 DQ22 50

DQ18

51 DQ23 52

DQ19

53 VSS19 54

VSS20

55 DQ28 56

DQ24

57 DQ29 58

DQ25

59 VSS21 60

VSS22

61 DQS#3 62

DM3

63 DQS3 64

VSS23

65 VSS24 66

DQ26

67 DQ30 68

DQ27

69 DQ31 70

VSS25

71 VSS26 72

A12/BC#

83 A11 84

85 A7 86

VDD5

87 VDD6 88

89 A6 90

CKE0

73 CKE1 74

VDD1

75 VDD2 76

NC1

77 A15 78

BA2

79 A14 80

VDD3

81 VDD4 82

91 A4 92

VDD7

93 VDD8 94

95 A2 96

97 A0 98

VDD9

99 VDD10 100

CK0

101 CK1 102

CK0#

103 CK1# 104

VDD11

105 VDD12 106

A10/AP

107 BA1 108

BA0

109 RAS# 110

VDD13

111 VDD14 112

WE#

113 S0# 114

CAS#

115 ODT0 116

VDD15

117 VDD16 118

A13

119 ODT1 120

S1#

121 NC2 122

VDD17

123 VDD18 124

NCTEST

125 VREF_CA 126

VSS27

127 VSS28 128

DQ32

129 DQ36 130

DQ33

131 DQ37 132

VSS29

133 VSS30 134

DQS#4

135 DM4 136

DQS4

137 VSS31 138

VSS32

139 DQ38 140

DQ34

141 DQ39 142

DQ35

143 VSS33 144

VSS34

145 DQ44 146

DQ40

147 DQ45 148

DQ41

149 VSS35 150

VSS36

151 DQS#5 152

DM5

153 DQS5 154

VSS37

155 VSS38 156

DQ42

157 DQ46 158

DQ43

159 DQ47 160

VSS39

161 VSS40 162

DQ48

163 DQ52 164

DQ49

165 DQ53 166

VSS41

167 VSS42 168

DQS#6

169 DM6 170

DQS6

171 VSS43 172

VSS44

173 DQ54 174

DQ50

175 DQ55 176

DQ51

177 VSS45 178

VSS46

179 DQ60 180

DQ56

181 DQ61 182

DQ57

183 VSS47 184

VSS48

185 DQS#7 186

DM7

187 DQS7 188

VSS49

189 VSS50 190

DQ58

191 DQ62 192

DQ59

193 DQ63 194

VSS51

195 VSS52 196

SA0

197 EVENT# 198

VDDSPD

199 SDA 200

SA1

201 SCL 202

VTT1

203 VTT2 204

205 G2 206

R877 0_0402_5%

1 2

C203

10U_0603_6.3V6M

C220

0.1U_0402_16V4Z

C211

0.1U_0402_16V4Z

C200

330U_D2_2VY_R7M

C202

10U_0805_6.3V6M

C207

10U_0603_6.3V6M

C204

10U_0603_6.3V6M

C1057

0.1U_0402_10V6K

C201

10U_0603_6.3V6M

C215

1U_0402_6.3V6K

R208

10K_0402_5%

C219

2.2U_0402_6.3V6M

C206

10U_0603_6.3V6M

C209

0.1U_0402_16V4Z

C218

1U_0402_6.3V6K

C212

0.1U_0402_16V4Z

C1058

2.2U_0603_6.3V4Z

R206

1K_0402_1%

C210

0.1U_0402_16V4Z

R205

1K_0402_1%

R898 0_0402_5%

M3@

1 2

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

DDR_B_D36

DDR_B_D26

DDR_B_D63

DDR_B_D2

DDR_B_D5

DDR_B_D22

DDR_B_D25

DDR_B_DQS6

DDR_B_D35

DDR_B_D14

DDR_B_MA12

DDR_B_DQS#0

DDR_B_DQS4

DDR_B_DM6

DDR_B_D42

DDR_CKE3_DIMMB

DDR_B_D31

DDR_B_D12

DDR_CKE2_DIMMB

DDR_B_D59

DDR_B_D6

DDR_B_MA3

DDR_CS3_DIMMB#

DDR_B_D39

DDR_B_BS1

DDR_B_DQS0

DDR_B_WE#

DDR_B_MA7

DDR_B_MA0

DDR_B_DM2

DDR_B_DM1

DDR_B_DQS7

DDR_B_D0

DDR_B_D57

DDR_B_D46

DDR_B_D28

DDR_B_DM0

DDR_B_D19

DDR_B_DQS#5

DDR_B_D51

DDR_B_D4

DDR_B_DM4

DDR_B_D30

DDR_B_DQS2

DDR_B_D44

DDR_B_RAS#

DDR_B_D33

DDR_B_D58

DDR_B_DM5

DDR_B_DQS3

DDR_B_MA8

DDR_CS2_DIMMB#

DDR_B_D10

DDR_B_MA6

DDR_B_D27

DDR_B_D3

DRAMRST#

DDR_B_MA10

DDR_B_DQS#7

DDR_B_D1

DDR_B_DQS#6

DDR_B_D40

DDR_B_MA9

DDR_B_D16

DDR_B_D29

DDR_B_DQS#4

DDR_B_D52

DDR_B_DM3

DDR_B_DQS5

DDR_B_D54

DDR_B_D49

DDR_B_BS2

DDR_B_D45

DDR_B_D9

DDR_B_DM7

DDR_B_D7

DDR_B_MA1

DDR_B_D13

DDR_B_D20

DDR_B_D60

DDR_B_BS0

DDR_B_CAS# M_ ODT2

DDR_B_D37

DDR_B_MA5

DDR_B_DQS#1

DDR_B_MA14

DDR_B_D55

DDR_B_MA4

DDR_B_D21

DDR_B_D62

DDR_B_D24

DDR_B_D15

DDR_B_D23

DDR_B_D56

DDR_B_D53

DDR_B_D47

DDR_B_D18

M_ODT3

DDR_B_D43

DDR_B_D34

M_CLK_DDR3

M_CLK_DDR#3

DDR_B_D48

DDR_B_DQS#2

DDR_B_D11

DDR_B_D38

M_CLK_DDR2

M_CLK_DDR#2

DDR_B_DQS#3

DDR_B_D32

DDR_B_D8

DDR_B_DQS1

DDR_B_MA13

DDR_B_MA11

DDR_B_D50

DDR_B_D61

DDR_B_MA2

DDR_B_D41

DDR_B_D17

PM_EXTTS#1_R

+0.75VS

SMB _CLK_S3

SMB_DATA_S3

V_DDR_MCH_REF

DDR_B_MA15

DRAMRST# <6,17>

DDR_CKE3_DIMMB <8>

M_CLK_DDR3 <8>

M_CLK_DDR#3 <8>

DDR_B_BS1 <8>

DDR_B_RAS# <8>

DDR_CS2_DIMMB# <8>

M_ODT2 <8>

M_ODT3 <8>

DDR_B_BS2<8>

DDR_CKE2_DIMMB<8>

M_CLK_DDR2<8> M_CLK_DDR#2<8>

DDR_B_BS0<8>

DDR_B_WE#<8> DDR_B_CAS#<8>

DDR_CS3_DIMMB#<8>

DDR_B_ DQS#[0..7]<8>

DDR_B_D[0..63]<8>

DDR_B_ DM[0..7]<8>

DDR_B_DQS[0..7]<8>

DDR_B_MA[0..15]<8>

PM_EXTTS#1_R <6,17>

SMB_DATA_S3 <12,17,19,30>

SMB_CLK_S3 <12,17,19,30>

+0.75VS

+3VS

+1.5V +1.5V

+VREF_DQ_DIMMB

+1.5V

+0.75VS

+VREF_CA

+V_DDR_CPU_REF+VREF_DQ_DIMMB

+V_DDR_CPU_REF1

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

DDRIII-SODIMM SLOT2

18 49Monday, April 13, 2009

2008/03/13 2009/05/11

Compal Electronics, Inc.

DDR3 SO-DIMM B

REVERSE

Layout Note:

Place near JP5

Layout Note:

Place near JP5.203 & JP5.204

4BA2

4BA24BA2

4BA2/6W

/6W/6W

/6W

1/76B

1/76B1/76B

1/76BA1/86W

A1/86WA1/86W

A1/86W

C231

0.1U_0402_16V4Z

C1060

2.2U_0603_6.3V4Z

R211

10K_0402_5%

1 2

R885

0_0402_5%

1 2

C234

0.1U_0402_16V4Z

C1059

0.1U_0402_10V6K

C241

2.2U_0402_6.3V6M

C242

0.1U_0402_16V4Z

JDIMM2

CONN@

VREF_DQ

1VSS1 2

VSS2

3DQ4 4

DQ0

5DQ5 6

DQ1

7VSS3 8

VSS4

9DQS#0 10

DM0

11 DQS0 12

VSS5

13 VSS6 14

DQ2

15 DQ6 16

DQ3

17 DQ7 18

VSS7

19 VSS8 20

DQ8

21 DQ12 22

DQ9

23 DQ13 24

VSS9

25 VSS10 26

DQS#1

27 DM1 28

DQS1

29 RESET# 30

VSS11

31 VSS12 32

DQ10

33 DQ14 34

DQ11

35 DQ15 36

VSS13

37 VSS14 38

DQ16

39 DQ20 40

DQ17

41 DQ21 42

VSS15

43 VSS16 44

DQS#2

45 DM2 46

DQS2

47 VSS17 48

VSS18

49 DQ22 50

DQ18

51 DQ23 52

DQ19

53 VSS19 54

VSS20

55 DQ28 56

DQ24

57 DQ29 58

DQ25

59 VSS21 60

VSS22

61 DQS#3 62

DM3

63 DQS3 64

VSS23

65 VSS24 66

DQ26

67 DQ30 68

DQ27

69 DQ31 70

VSS25

71 VSS26 72

A12/BC#

83 A11 84

85 A7 86

VDD5

87 VDD6 88

89 A6 90

CKE0

73 CKE1 74

VDD1

75 VDD2 76

NC1

77 A15 78

BA2

79 A14 80

VDD3

81 VDD4 82

91 A4 92

VDD7

93 VDD8 94

95 A2 96

97 A0 98

VDD9

99 VDD10 100

CK0

101 CK1 102

CK0#

103 CK1# 104

VDD11

105 VDD12 106

A10/AP

107 BA1 108

BA0

109 RAS# 110

VDD13

111 VDD14 112

WE#

113 S0# 114

CAS#

115 ODT0 116

VDD15

117 VDD16 118

A13

119 ODT1 120

S1#

121 NC2 122

VDD17

123 VDD18 124

NCTEST

125 VREF_CA 126

VSS27

127 VSS28 128

DQ32

129 DQ36 130

DQ33

131 DQ37 132

VSS29

133 VSS30 134

DQS#4

135 DM4 136

DQS4

137 VSS31 138

VSS32

139 DQ38 140

DQ34

141 DQ39 142

DQ35

143 VSS33 144

VSS34

145 DQ44 146

DQ40

147 DQ45 148

DQ41

149 VSS35 150

VSS36

151 DQS#5 152

DM5

153 DQS5 154

VSS37

155 VSS38 156

DQ42

157 DQ46 158

DQ43

159 DQ47 160

VSS39

161 VSS40 162

DQ48

163 DQ52 164

DQ49

165 DQ53 166

VSS41

167 VSS42 168

DQS#6

169 DM6 170

DQS6

171 VSS43 172

VSS44

173 DQ54 174

DQ50

175 DQ55 176

DQ51

177 VSS45 178

VSS46

179 DQ60 180

DQ56

181 DQ61 182

DQ57

183 VSS47 184

VSS48

185 DQS#7 186

DM7

187 DQS7 188

VSS49

189 VSS50 190

DQ58

191 DQ62 192

DQ59

193 DQ63 194

VSS51

195 VSS52 196

SA0

197 EVENT# 198

VDDSPD

199 SDA 200

SA1

201 SCL 202

VTT1

203 VTT2 204

205 G2 206

C228

10U_0603_6.3V6M

C229

10U_0603_6.3V6M

C230

10U_0603_6.3V6M

C227

10U_0603_6.3V6M

C226

10U_0603_6.3V6M

C223

10U_0603_6.3V6M

R899 0_0402_5%M3@

1 2

C225

10U_0603_6.3V6M

C237

1U_0402_6.3V6K

R210

10K_0402_5%

1 2

C235

0.1U_0402_16V4Z

C224

10U_0603_6.3V6M

C240

1U_0402_6.3V6K

C232

0.1U_0402_16V4Z

C238

1U_0402_6.3V6K

C239

1U_0402_6.3V6K

C221

2.2U_0402_6.3V6M

C233

0.1U_0402_16V4Z

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

CLK_EN#

CKPWRGD

CLK_XTAL_OUT

CLK_BUF_DOT96

CLK_DMI

L_CLK_BUF_DOT96 CLK_14M_PCH

CPU_STOP#

CLK_DMI#

CLK_BUF_DOT96#

CLK_XTAL_IN

R_CKPWRGD

L_CLK_DMI#

L_CLK_BUF_CKSSCD

L_CLK_BUF_CKSSCD#

CLK _BUF_CKSSCD

L_CLK_BUF_BCLK#

L_CLK_BUF_BCLK

SMB_DATA_S3

REF_0/CPU_SEL

CLK_XTAL_IN

CLK_XTAL_OUT

L_CLK_BUF_DOT96#

SMB_CLK_S3

L _CLK_DMI

CLK_BUF_CKSSCD#

CPU_STOP#

27M_CLK L_27M_CLK

27M_SSC L_27M_SSC

REF_0/CPU_SEL

CLK_14M_PCH

CLK_EN#<46>

VGATE <13,46>

CLK_BUF_BCLK# <12>

CLK_BUF_BCLK <12>

CLK_DMI<12> CLK_DMI#<12>

CLK_BUF_DOT96#<12> CLK_BUF_DOT96<12>

CLK_BUF_CKSSCD#<12> CLK_BUF_CKSSCD<12>

CLK_14M_PCH <12>

SMB_DATA_S3 <12,17,18,30>

SMB_CLK_S3 <12,17,18,30>

27M_CLK<24> 27M_SSC<24>

+3VS

+3VS_CK505

+VCCP

+3VS

+1.05VS_CK505

+3VS_CK505

+1.05VS_CK505 +1.05VS_CK505

+3VS_CK505

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

Clock Generator CK505

19 49Monday, April 13, 2009

2007/08/28 2006/03/10

Compal Electronics, Inc.

CPU_SEL During CK_PEWGD Latch Pin1

133MHz

PIN 30 CPU_1CPU_0

0(default)

100MHz

133MHz

100MHz

BCLK

DOT96

Number of Clock Outputs

SRC(100MHz_SS)

133MHz

REF(14.318MHz)

SRC/SATA(100MHz)

Output

27MHz_SS

27MHz

DOT_CLK(96MHz) 1

Number

27M

14M

DMI

CKSSCD

Vendor suggests 22pF

Place close to U51

Routing the trace at least 10mil

SLG8SP585

pin8 is GND (for DELL

HP)

SLG8SP587

pin8 is 48MHz (For ABO or 030)

250mA

80mA

96MHz

100MHz

133MHz

R216 33_0402_5%@

C808 10P_0402_50V8J@

1 2

R214 33_0402_5%

C246

0.1U_0402_16V4Z

R244 10K_0402_5%

1 2

C254

0.1U_0402_16V4Z

C250

0.1U_0402_16V4Z

R221 33_0402_5%

1 2

Q30

2N7002_SOT23-3

C247

0.1U_0402_16V4Z

C249

0.1U_0402_16V4Z

SLG8SP585VTR_QFN32_5X5

CPU_1# 19

SRC_1/SATA

CKPWRGD/PD# 25

DOT_96

CPU_0# 22

XTAL_OUT 27

VSS_REF 26

VDD_CPU 24

CPU_0 23

27MHZ

6XTAL_IN 28

VDD_27

27MHZ_SS

CPU_1 20

VSS_CPU 21

VDD_CPU_IO 18

VDD_DOT

REF_0/CPU_SEL 30

SDA 31

SCL 32

DOT_96#

VSS_SATA

SRC_1#/SATA#

VSS_SRC

SRC_2

SRC_2#

VDD_SRC_IO

VDD_SRC 17

VDD_REF 29

VSS_DOT

CPU_STOP#

TGND

VSS_27

R220 33_0402_5%

1 2

R226 0_0402_5%@

1 2

R213 33_0402_5%

R223 33_0402_5%

1 2

C248

0.1U_0402_16V4Z

R607

10K_0402_5%

R217 33_0402_5%@

R219 33_0402_5%

1 2

C260

18P_0402_50V8J

R247 10K_0402_5%

1 2

C253

0.1U_0402_16V4Z

C252

10U_0805_10V4Z

R237 0_0402_5%

1 2

R225 33_0402_5%

1 2

R218

0_0805_5%

1 2

14.318MHZ_16PF_7A14300083

1 2

C245

10U_0805_10V4Z

R222 33_0402_5%

R212

0_0805_5%

1 2

C259

18P_0402_50V8J

R224 33_0402_5%

1 2

R234 10K_0402_5%

1 2

http://laptop-motherboard-schematic.blogspot.com/

1 1

2 2

3 3

4 4

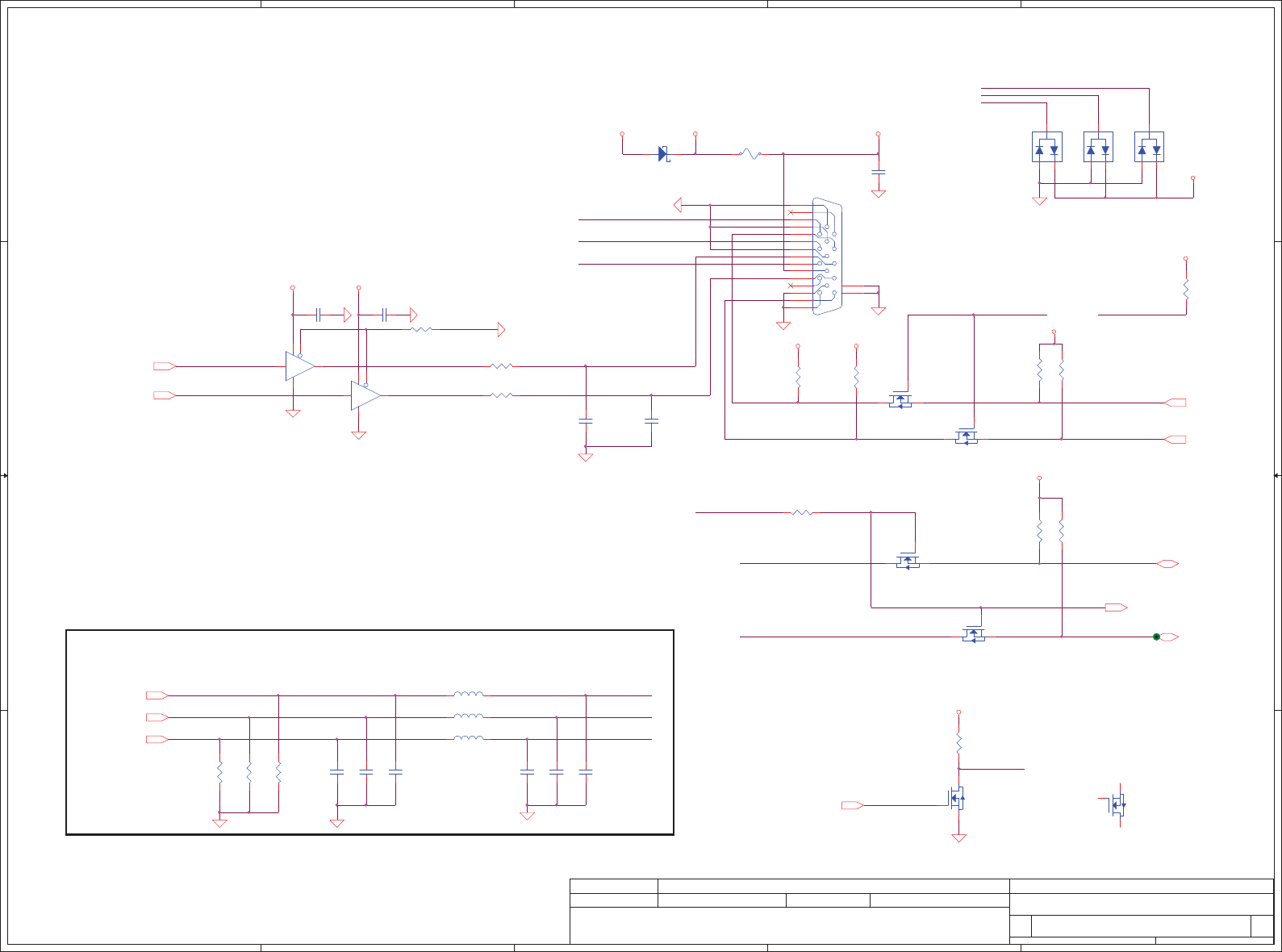

GREEN

HSYNC_G_A

VS YNC_G_A D_VSYNC

D_HSYNC

CRT_VSYNC

CRT_HSYNC

I_CRT_DDC_DATA

I_CR T _DDC_CLK

D_DD CDATA

D_DDCCLK

BLUEC_BLU

C_RED

GREEN

RED

C_GRN

RED

BLUE

RED

GREEN

BLUE

D_DD CDATA

D_DDCCLK

DGP U_EDIDSEL#

DGP U_EDIDSEL EDIDSEL

DGP U_EDIDSEL

DGP U_EDIDSEL#

EDIDSEL

DGP U_EDIDSEL#

CRT_HSYNC<22>

CRT_VSYNC<22> I_CRT_DDC_DATA <13>

I_CRT_DDC_CLK <13>

M_RED<22>

M_GREEN<22>

M_BLUE<22>

D_CRT_DDC_DATA <24>

D_CRT_DDC_CLK <24>

EDIDSEL <22>

DGPU_EDIDSEL#<14>

+CRTVDD+RCRT_VCC+5VS

+3VS

+CRTVDD +CRTVDD

+5VS +5VS

+3VS

+3VS_NV

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

CRT Connector

20 49Monday, April 13, 2009

2007/08/28 2006/07/26

Compal Electronics, Inc.

W=40mils

CRT Connector

Place close to

JCRT1

CRT Termination/EMI Filter

R270

4.7K_0402_5%

R879

4.7K_0402_5%

SG@

R274 0_0603_5%

1 2

Q11B

2N7002DW-7-F_SOT363-6

SG@

R271

4.7K_0402_5%

R878

4.7K_0402_5%

SG@

C266

0.1U_0402_16V4Z

R273

4.7K_0402_5%

C274

10P_0402_50V8J

C270

5P_0402_50V8C

SN74AHCT1G125GW_SOT353-5

2Y4

OE# 1

3P5

C271

22P_0402_50V8J

R272

4.7K_0402_5%

Q2B

2N7002DW-7-F_SOT363-6

L8 HLC0603CSCCR11JT_0603

1 2

JCRT1

SUYIN_070546FR015S263ZR

CONN@

C273

22P_0402_50V8J

R276

150_0402_1%

L9 HLC0603CSCCR11JT_0603

1 2

C269

5P_0402_50V8C

C268

0.1U_0402_16V4Z

1 2

DAN217T146_SC59-3

SN74AHCT1G125GW_SOT353-5

2Y4

OE# 1

3P5

DAN217T146_SC59-3

Q12B

2N7002DW-7-F_SOT363-6

SG@

L10 HLC0603CSCCR11JT_0603

1 2

R902

10K_0402_5%

SG@

1 2

RB491D_SC59-3

2 1

Q2A

2N7002DW-7-F_SOT363-6

6 1

R275

150_0402_1%

1.1A_6VDC_FUSE

C276

10P_0402_50V8J

C267

0.1U_0402_16V4Z

1 2

R901

10K_0402_5%

UMA@

1 2

C275

10P_0402_50V8J

Q11A

2N7002DW-7-F_SOT363-6

SG@

6 1

R900 0_0402_5%

SG@

1 2

C272

22P_0402_50V8J

R269 0_0603_5%

1 2

DAN217T146_SC59-3

R815 10K_0402_5%

R277

150_0402_1%

Q12A

2N7002DW-7-F_SOT363-6

6 1

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

LVDS_A2-

DMIC_DAT

LVDS_EDID_DATA

LVDS_A1-

LV DS_EDID_CLK

LVDS_ACLK-

BKOFF#

LVDS_A2+

LVDS_A1+

LVDS_ACLK+

LVDS_A0-

LVDS_INV_PWM

USB20_N4

DMIC_CLK

LVDS_A0+

USB20_P4

I_E NAVDD

+3V_LOGO

DMIC_DAT

DMIC_CLK

BKOFF#

LVDS_EDID_DATA

LV DS_EDID_CLK

LVDS_INV_PWM <22>

BKOFF# <37>

LVDS_A2+ <22>

LVDS_A2- <22>

LVDS_A1+ <22>

LVDS_A1- <22>

LVDS_A0+ <22>

LVDS_A0- <22>

LVDS_ACLK+ <22>

LVDS_ACLK- <22>

DMIC_DAT <33>

DMIC_CLK <33>

LVDS_EDID_DATA <22>

LVDS_EDID_CLK <22>

USB20_P4<14> USB20_N4<14>

D_ENAVDD<24>

I_ENAVDD<13>

INVPWR_B++LCDVDD+3VS

+USB_CAM

+LCDVDD

+5VALW+LCDVDD+LCDVDD

INVPWR_B+B+

+3VS

+5VS

+3VS

+5VS

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

LCD CONN.

21 49Monday, April 13, 2009

2007/08/28 2006/07/26

Compal Electronics, Inc.

LVDS CONN & USB Camera + Dig Mic

EMI request.

+USB_CAM is +3.9VS, R286:215K; R287:100Kohm

USB Camera

0308_Reserve L10 and install L11.

Limited Current < 1A

+USB_CAM=1.25(1+R1091/R1093)

Must close JLVDS1pin 24Ε

ΕΕ

Ε26

01/03 Change to 0.047u to meet T1 timing

02/13 Reserve

02/20 Change to 0805 size

C281

0.1U_0402_16V4Z

Q33

2N7002_SOT23-3

SG@

C283

4.7U_0805_10V4Z

R286

215K_0603_1%

R287

100K_0402_1%

R279

1M_0402_5%

C280

4.7U_0805_10V4Z

C279

680P_0402_50V7K

R283

10K_0402_5%

C278

680P_0402_50V7K

Q13

SI2301BDS-T1-E3_SOT23-3

1 3

C288

220P_0402_25V8J

JLVDS1

ACES_88242-4001

CONN@

10 10

12 12

14 14

16 16

18 18

20 20

22 22

24 24

26 26

28 28

30 30

32 32

34 34

36 36

38 38

40 40

GND

41 GND 42

C286

680P_0402_50V7K

C277

680P_0402_50V7K

R285

2.2K_0402_5%

1 2

R284

2.2K_0402_5%

1 2

R288

0_0402_5%

1 2

R278

470_0805_5%

Q3B

2N7002DW-7-F_SOT363-6

R281

100_0805_5%

1 2

R280

100K_0402_5%

C981

47P_0402_50V8J

C290

10U_0805_6.3V6M

R282

10K_0402_5%

1 2

R880

2.2K_0402_5%

SG@

1 2

G916-390T1UF_SOT23-5

GND

SHDN

OUT 5

BYP 4

C287

220P_0402_25V8J

L12

FBMA-L11-201209-221LMA30T_0805

1 2

C284

0.047U_0402_16V7K

Q3A

2N7002DW-7-F_SOT363-6

C282

0.1U_0402_16V4Z

C289

10U_0805_6.3V6M

L11 0_0805_5%

1 2

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

I_L VDS_ACLK-

I_LV DS_ACLK+

I_ LVDS_A1+

I_ LVDS_A1-

I_ LVDS_A0+

I_ LVDS_A0- LVDS_A0+

LVDS_A1+

LVDS_A0-

LVDS_A1-

LVDS_ACLK-

LVDS_ACLK+

I_ LVDS_A2-

I_ LVDS_A2+ LVDS_A2+

LVDS_A2-

LVDS_A2+

LVDS_A1-

LVDS_A1+

LVDS_A0+

LVDS_A0-

LVDS_ACLK+

LVDS_ACLK-

DGPU_ SELECT#

M_RED

M_ G R EEN

M_BLUE

DGPU_ SELECT#

C RT_HSYNC

CRT_VSYNC

DPST_PWM LVDS_INV_PWM

LVDS_ED ID_CLK

LVDS_ED ID_DATA

ENBKL

ENBKLIG PU _BKLT_EN

M_RED

M_ G R EEN

C RT_HSYNC

CRT_VSYNC

M_BLUE

I_ GR EEN

I_CRT_HSYNC

I_RED

I_BLUE

I_CRT_VSYNC

EDIDSEL

D_L VDS_A2-

D_L VDS_A2+

D_L VDS_A1-

D_L VDS_A1+

D_L VDS_A0+

D_L VDS_A0-

D_LVDS_ACLK+

D_LV DS_ACLK-

I_LV DS_ACLK+

I_L VDS_ACLK-

I_ LVDS_A2-

I_ LVDS_A2+

I_ LVDS_A1-

I_ LVDS_A1+

I_ LVDS_A0+

I_ LVDS_A0-

LVDS_A0+ <21>

LVDS_A0- <21>

LVDS_A1+ <21>

LVDS_A1- <21>

LVDS_A2+ <21>

LVDS_A2- <21>

LVDS_ACLK+ <21>

LVDS_ACLK- <21>

I_CRT_VSYNC<13>

I_GREEN<13> I_RED<13>

I_CRT_HSYNC<13>

M_RED <20>

M_ G REEN <20>

M_BLUE <20>

CRT_VSYNC <20>

C RT_HSYNC <20>

I_BLUE<13>

D_CRT_VSYNC<24>

D_BLUE<24> D_GREEN<24> D_RED<24>

D_CRT_HSYNC<24>

DPST_PWM<13>

D_INV_PWM<24>

LVDS_INV_PWM <21>

INV_PWM <37>

D_EDID_CLK<24>

D_EDID_DATA<24> LVDS_EDID_DATA <21>

LVDS_EDID_CLK <21>

DGPU_BKL_EN<24>

IGPU_BKLT_EN<13>

ENBKL <37>

EDI D SEL <20>

DGPU_SELECT# <14>

I_EDID_DATA<13>

I_EDID_CLK<13>

D_LVDS_A2-<25> D_LVDS_A2+<25>

D_LVDS_ACLK-<25> D_LVDS_ACLK+<25>

D_LVDS_A0-<25> D_LVDS_A0+<25>

D_LVDS_A1-<25> D_LVDS_A1+<25>

I_LVDS_ACLK-<13> I_LVDS_ACLK+<13>

I_LVDS_A0-<13> I_LVDS_A0+<13>

I_LVDS_A1-<13> I_LVDS_A1+<13>

I_LVDS_A2-<13> I_LVDS_A2+<13>

+3VS

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

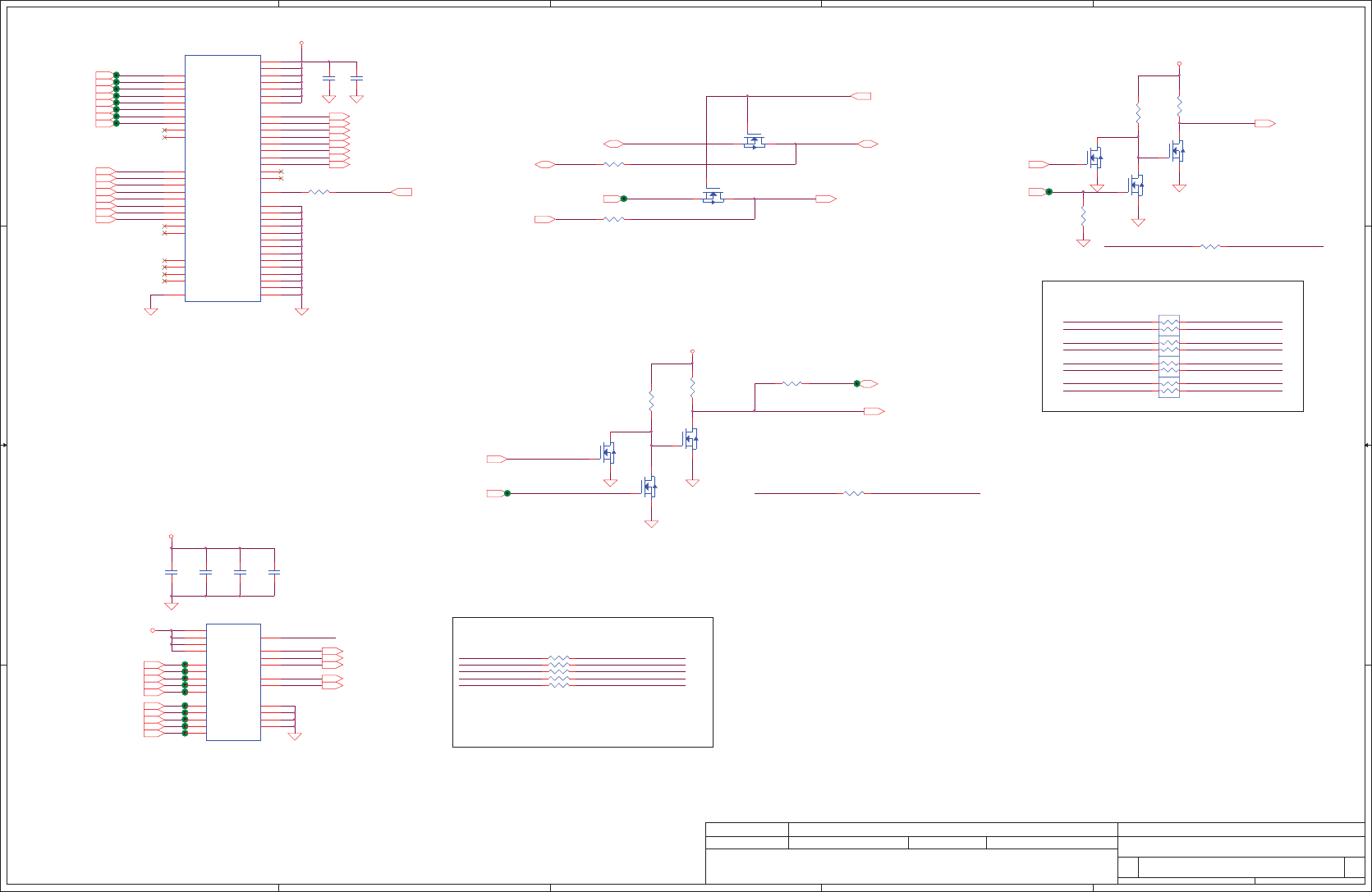

LVDS Switch

Custom

22 49Monday, April 13, 2009

2007/09/29 2007/09/29

Compal Electronics, Inc.

UMA ONLY (LVDS)

Backlight Enable

LVDS PWM switch

LVDS I2C switch

LVDS Switch

CRT Switch

UMA ONLY (CRT)

Q34B

2N7002DW-7-F_SOT363-6

SG@

R890 0_0402_5%@

Q34A

2N7002DW-7-F_SOT363-6

SG@

RP38

0_0404_4P2R_5%UMA@

14 23

RP36

0_0404_4P2R_5%UMA@

14 23

R882

4.7K_0402_5%

SG@

1 2

Q35B

2N7002DW-7-F_SOT363-6

SG@

C1013

0.1U_0402_16V4Z

SG@

R799 0_0402_5%

UMA@

1 2

Q37A

2N7002DW-7-F_SOT363-6

SG@

R920 0_0402_5%

1 2

R883

4.7K_0402_5%

SG@

1 2

R897 0_0402_5%UMA@

R891

4.7K_0402_5%

SG@

1 2

R889

4.7K_0402_5%

SG@

1 2

RP37

0_0404_4P2R_5%UMA@

14 23

C1011

0.1U_0402_16V4Z

SG@

U35

TS3DV520ERHUR_QFN56_11X5~D

SG@

GND 33

5B2

34 4B2

5B1

36 4B1

VCC 38

GND 39

3B2

A0 2

A5 12

GND 13

A6 14

A7 15

GND 16

SEL 17

VCC 18

GND 1

A1 3

VCC 4

A8 19

A9 20

GND 21

8B1

9B1

GND 24

8B2

2B2

3B1

42 2B1

GND 44

1B2

45 0B2

1B1

47 0B1

GND 49

VCC 50

GND 53

54 NC

GND 6

A2 7

A3 8

GND 9

VCC 10

A4 11

9B2

VCC 27

GND 28

7B2

29 6B2

7B1

31 6B1

GND 55

VCC 56

Thermal_GND

C1014

0.1U_0402_16V4Z

SG@

C1012

0.1U_0402_16V4Z

SG@

R896 0_0402_5%UMA@

Q37B

2N7002DW-7-F_SOT363-6

SG@

R790

0_0402_5%

SG@

1 2

R892 0_0402_5%

UMA@

R886

10K_0402_5%

SG@

1 2

Q36B

2N7002DW-7-F_SOT363-6

SG@

Q35A

2N7002DW-7-F_SOT363-6

SG@

U43

PI3V512QE_QSOP24

SG@

VDD

YA 2

YB 5

YC 6

YD 8

GND 3

VDD

GND 7

VDD

GND 10

YE 11

SEL 12

15 C1

17 C0

VDD

GND 20

R894 0_0402_5%UMA@

Q36A

2N7002DW-7-F_SOT363-6

SG@

R895 0_0402_5%UMA@

R919 0_0402_5%

1 2

C1004

0.1U_0402_16V4Z

SG@

R893 0_0402_5%UMA@

RP39

0_0404_4P2R_5%UMA@

14 23

C1005

4.7U_0805_10V4Z

SG@

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

+5VS_HDMI

HDMIDAT

HDMICLK

HDMI_DETECT

TMDS_B_HPD

HDMI_TX_1-

HDMI_TX_1+

HDMI_TX_0-

HDMI_DETECT

HDMIDAT

HDMICLK

HDMI_TX_2-

HDMICLK-

HDMICLK+

HDMI_TX_2+ TMDS_B_HPD

HDMI_R_CLK-

HDM I_R_CLK+

HDMICLK-

HDMI_TX_0-

HDMI_TX_1-

HDMI_TX_1+

HDMI_TX_2-

HDMI_TX_2+

HDMI_R_TX0+

HDMI_R_TX0-

HDMI_R_TX2-

HDMI_R_TX1-

HDMI_R_TX2+

HDMI_R_TX1+

HDMICLK+ HDMI_TX_0+

HDMI_TX_0+

HDMI_R_TX0+

HDM I_R_CLK+

HDMI_R_TX2+

HDMI_R_TX1-

HDMI_R_TX0-

HDM I_R_CLK-

HDMI_R_TX2-

HDMI_R_TX1+

HDMIDAT

HDMICLK

HDMICLK-

HDMICLK+

HDMI_TX_0+

HDMI_TX_0-

HDMI_TX_2+

HDMI_TX_2-

HDMI_TX_1+

HDMI_TX_1- HDMI_DETECT

DGPU_PWR_EN

HDMI_DETECT

HDMID_CTRLDATA<13>

HDMID_CTRLCLK<13>

TMDSD_DATA1 <13>

TMDSD_DATA0 <13>

TMDSD_DATA0# <13>

TMDSD_DATA1# <13>

TMDSD_CLK<13> TMDSD_CLK#<13>

TMDSD_DATA2<13> TMDSD_DATA2#<13>

TMDS_B_HPD#<13>

HDMI_C_CLK+<25>

HDMI_C_CLK-<25>

HDMI_C_TX0+<25>

HDMI_C_TX0-<25>

HDMI_C_TX1-<25>

HDMI_C_TX1+<25>

HDMI_C_TX2-<25>

HDMI_C_TX2+<25>

HDMICLK_VGA<25>

HDMIDAT_VGA<25>

DGPU_HPD_INT#<14>

HDMI_DET<24> DGPU_PWR_EN <14,39,45,47>

+5VS_HDMI+5VS

+3VS_LS

+3VS_LS +3VS_LS

+3VS_LS+3VS_LS

+3VS_LS

+3VS_LS+3VS

+3VS_LS

+3VS_NV

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

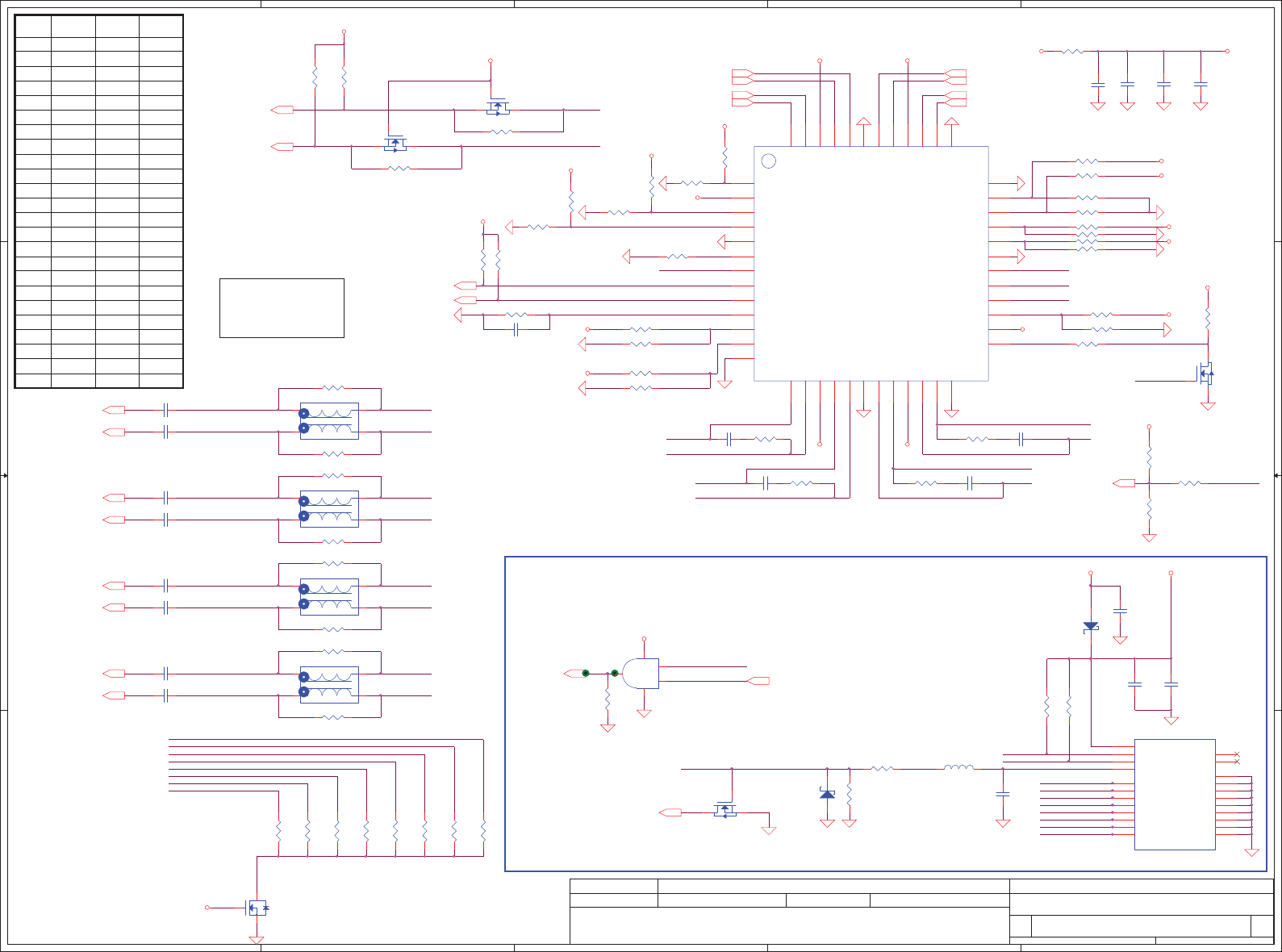

HDMI LS & Conn.

Custom

23 49Monday, April 13, 2009

2007/08/28 2006/03/10

Compal Electronics, Inc.

HDMI Connector

PC0

PC1

0 ohm 0 ohm

4.7K ohm

0 ohm 0 ohm

4.7K ohm

R833

R837

R838

R842

C1052

R853

R855

R857

R858

R851

R854

R843

R844

R834

R835

499 ohm

1uF

4.7K ohm

0 ohm 4.7K ohm

XX X

0 ohm

XXX

0 ohm 4.7K ohm

4.7K ohm

4.7K ohmX

X 4.7K ohm

4.7K ohm

0 ohm

X2.2uF

0 ohm 0 ohm X

X X 4.7K ohm

Parade

R836

R840

R849

R850

R839

R841

3.9K ohm 499 ohm

C667 0.1uF 1uF

R862

R867

0 ohm 0 ohm

X X 4.7K ohm

8101T

Parade

8171

EQUALIZATION SETTING:

[PC1,PC0]=00,8dB

[PC1,PC0]=01,4dB (Recommanded)

[PC1,PC0]=10,12dB

[PC1,PC0]=11,0dB

R853 0_0402_5%

UMA@

1 2

C1048

0.01U_0402_16V7K

UMA@

R838

4.7K_0402_5%

R866 0_0402_5%

1 2

D35

SKS10-04AT_TSMA

2 1

C1056

0.5P_0402_50V8B

R740

499_0402_1%

SG@

C375 0.1U_0402_16V4Z

SG@

R871 0_0402_5%

1 2

R872 0_0402_5%@

1 2

C378 0.1U_0402_16V4Z

SG@

R580

100K_0402_1%

R844 0_0402_5%@

C1050

0.1U_0402_10V6K

UMA@

R846 0_0402_5%@

R735

499_0402_1%

SG@

C381 0.1U_0402_16V4Z

SG@

L30

WCM-2012-900T_0805

122

R852

10K_0402_5%

UMA@

R579

10K_0402_1%

1 2

C1049

0.1U_0402_10V6K

UMA@

R832

0_0603_5%

UMA@

1 2

R865

0_0402_5%

UMA@

R834 4.7K_0402_5%@

R863

68_0402_5%

1 2

C1055

0.5P_0402_50V8B

JHDMI1

SUYIN_100042MR019S153ZL

CONN@

D2+

GND 2

D2-

3D1+

GND 5

D1-

6D0+

GND 8

D0-

9CK+

GND 11

CK-

CEC 13

Reserved 14

SCL

15 SDA

DDC/CEC_GND 17

+5V

HP_DET

GND 20

GND 21

GND 22

GND 23

D34

RB411DT146_SOT23-3

R842

0_0402_5%

1 2

R924

10K_0402_5%

SG@

R836

4.7K_0402_5%

R734

499_0402_1%

SG@

Q31

2N7002_SOT23-3

SG@

R575 0_0402_5%@

1 2

R833

4.7K_0402_5%

R864

68_0402_5%

1 2

R870 0_0402_5%@

1 2

C382 0.1U_0402_16V4Z

SG@

C667

0.1U_0402_16V4Z

R862

20K_0402_5%

UMA@

R868 0_0402_5%@

1 2

L32 FBML10160808121LMT_0603

1 2

R859 0_0402_5%@

1 2

R867

7.5K_0402_1%

UMA@

R845 4.7K_0402_5%UMA@

C1054

0.5P_0402_50V8B

R576 0_0402_5%@

1 2

L28

WCM-2012-900T_0805

122

R835 4.7K_0402_5%@

C377 0.1U_0402_16V4Z

SG@

R841 0_0402_5%

UMA@

C379 0.1U_0402_16V4Z

SG@

Q19B

2N7002DW-7-F_SOT363-6

SG@

R736

499_0402_1%

SG@

R839 0_0402_5%

UMA@

R738

499_0402_1%

SG@

R733

499_0402_1%

SG@

R855 4.7K_0402_5%@

1 2

Q5B

2N7002DW-7-F_SOT363-6

SG@

L31

WCM-2012-900T_0805

122

C1052

2.2U_0603_6.3V4Z

1 2

R572

2.2K_0402_5%

1 2

C668

330P_0402_50V7K

R849 4.3K_0402_1%

UMA@

R851 4.7K_0402_5%@

R873 0_0402_5%

1 2

Q19A

2N7002DW-7-F_SOT363-6

SG@

R837

0_0402_5%

UMA@

1 2

C1051

10U_0805_6.3V6M

UMA@

R739

499_0402_1%

SG@

Q5A

2N7002DW-7-F_SOT363-6

SG@

C380 0.1U_0402_16V4Z

SG@

R571

2.2K_0402_5%

R869 0_0402_5%

1 2

U51

NC7SZ08P5X_NL_SC70-5

SG@

R856 0_0402_5%

UMA@

C1053

0.5P_0402_50V8B

R848

2.2K_0402_5%

UMA@

S IC STHDLS101TQTR QFN 48P HDMI SHIFTER

U47

UMA@

GND

VCC3V

FUNCTION1

FUCNTION2

GND

ANALOG1(REXT)

HPD_SOURCE

SDA_SOURCE

SCL_SOURCE

ANALOG2

VCC3V

GND

OUT_D4+

OUT_D4-

VCC3V

OUT_D3+

OUT_D3-

GND

OUT_D2+

OUT_D2-

VCC3V

OUT_D1+

OUT_D1-

GND

GND 36

FUNCTION4 35

FUNCTION3 34

VCC3V 33

DDC_EN 32

GND 31

HPD_SI NK 30

SDA_SINK 29

SCL_SINK 28

GND 27

VCC3V 26

OE* 25

IN_D4+ 48

IN_D4- 47

VCC3V 46

IN_D3+ 45

IN_D3- 44

GND 43

IN_D2+ 42

IN_D2- 41

VCC3V 40

IN_D1+ 39

IN_D1- 38

GND 37

thm_pad

R850 0_0402_5%

UMA@

1 2

R854 0_0402_5%

UMA@

1 2

R847

2.2K_0402_5%

UMA@

R843 0_0402_5%UMA@

R578

1.5K_0402_5%

1 2

R840

4.7K_0402_5%

UMA@

1 2

R860

68_0402_5%

1 2

C665

22N_0402_16V7K

C376 0.1U_0402_16V4Z

SG@

L29

WCM-2012-900T_0805

122

C666

22N_0402_16V7K

R577

1.5K_0402_5%

1 2

R857 4.7K_0402_5%@

1 2

R858 0_0402_5%

UMA@

1 2

R861

68_0402_5%

1 2

R737

499_0402_1%

SG@

http://laptop-motherboard-schematic.blogspot.com/

A A

B B

C C

D D

HDCP_SCL

HDCP_SDA

D_RED

D_GREEN

D_BLUE

PEX_RST#

CLK_PCIE_VGA

CLK_PCIE_VGA#

DACA_RSEF

D_RED

DACA_VREF

JTAG_TCK

JTAG_TRST

JTAG_TDI

JTAG_TDO

JTAG_TMS

D_EDID_DATA

D_EDID_CLK

HDCP_SCL

HDCP_SDA

XTALOUT

I2CB_SCL

I2CB_SDA

PCIE_CRX_GTX_G_P15

PCIE_CRX_GTX_G_N15

PC IE_CRX_GTX_G_N14

PC IE_CRX_GTX_G_P14

PC IE_CRX_GTX_G_P13

PC IE_CRX_GTX_G_N13

PC IE_CRX_GTX_G_N12

PC IE_CRX_GTX_G_P12

PC IE_CRX_GTX_G_N11

PC IE_CRX_GTX_G_P11

PC IE_CRX_GTX_G_P10

PC IE_CRX_GTX_G_N10

PC IE_CRX_GTX_G_P9

PCIE_CRX_GTX_G_N9

PCIE_C R X_GTX_G_P8

PCIE_CRX_GTX_G_N8

PCIE_C R X_GTX_G_P7

PCIE_CRX_GTX_G_N7

PCIE_C R X_GTX_G_P6

PCIE_CRX_GTX_G_N6

PCIE_C R X_GTX_G_P5

PCIE_CRX_GTX_G_N5

PCIE_CRX_GTX_G_N4

PCIE_C R X_GTX_G_P4

PCIE_C R X_GTX_G_P3

PCIE_CRX_GTX_G_N3

PCIE_C R X_GTX_G_P2

PCIE_CRX_GTX_G_N2

PCIE_C R X_GTX_G_P1

PCIE_CRX_GTX_G_N1

PCIE_C R X_GTX_G_P0

PCIE_CRX_GTX_G_N0

VGA_SM_CLK

VGA_SM_DA

VGA_SM_CLK D_EDID_DATAVGA_SM_DA D_EDID_CLK

I2CB_SDA

I2CB_SCL

GPU_VID0

GPU_VID1

THERMAL ALERT

SINN_GPIO9

THER M#_VGA

THERM_SCI#

D_BLUE

D_GREEN

D_EDID_DATA

D_EDID_CLK

THERM#_VGA

THERM_SCI#

27 M_SSC

XTALOUT

XTALIN

DGPU_HOLD_RST#<14>

CLK_PCIE_VGA<12> CLK_PCIE_VGA#<12>

D_CRT_VSYNC <22>

D_CRT_HSYNC <22>

D_RED <22>

D_EDID_CLK <22>

D_EDID_DATA <22>

D_CRT_DDC_CLK <20>

D_CRT_DDC_DATA <20>

HDCP_SCL <25>

HDCP_SDA <25>

27M_SSC <19>

PCIE_CTX_GRX_P15<7> PCIE_CTX_GRX_N15<7> PCIE_CTX_GRX_P14<7> PCIE_CTX_GRX_N14<7> PCIE_CTX_GRX_P13<7> PCIE_CTX_GRX_N13<7> PCIE_CTX_GRX_P12<7> PCIE_CTX_GRX_N12<7> PCIE_CTX_GRX_P11<7> PCIE_CTX_GRX_N11<7> PCIE_CTX_GRX_P10<7> PCIE_CTX_GRX_N10<7> PCIE_CTX_GRX_P9<7> PCIE_CTX_GRX_N9<7> PCIE_CTX_GRX_P8<7> PCIE_CTX_GRX_N8<7> PCIE_CTX_GRX_P7<7> PCIE_CTX_GRX_N7<7> PCIE_CTX_GRX_P6<7> PCIE_CTX_GRX_N6<7> PCIE_CTX_GRX_P5<7> PCIE_CTX_GRX_N5<7> PCIE_CTX_GRX_P4<7> PCIE_CTX_GRX_N4<7> PCIE_CTX_GRX_P3<7> PCIE_CTX_GRX_N3<7> PCIE_CTX_GRX_P2<7> PCIE_CTX_GRX_N2<7> PCIE_CTX_GRX_P1<7> PCIE_CTX_GRX_N1<7> PCIE_CTX_GRX_P0<7> PCIE_CTX_GRX_N0<7>

PCIE_CRX_GTX_P15<7> PCIE_CRX_GTX_N15<7>

PCIE_CRX_GTX_N14<7> PCIE_CRX_GTX_P14<7>

PCIE_CRX_GTX_N13<7> PCIE_CRX_GTX_P13<7>

PCIE_CRX_GTX_N12<7> PCIE_CRX_GTX_P12<7>

PCIE_CRX_GTX_N11<7> PCIE_CRX_GTX_P11<7>

PCIE_CRX_GTX_N10<7> PCIE_CRX_GTX_P10<7>

PCIE_CRX_GTX_P9<7> PCIE_CRX_GTX_N9<7> PCIE_CRX_GTX_P8<7> PCIE_CRX_GTX_N8<7> PCIE_CRX_GTX_P7<7> PCIE_CRX_GTX_N7<7> PCIE_CRX_GTX_P6<7> PCIE_CRX_GTX_N6<7> PCIE_CRX_GTX_P5<7> PCIE_CRX_GTX_N5<7> PCIE_CRX_GTX_P4<7> PCIE_CRX_GTX_N4<7> PCIE_CRX_GTX_P3<7> PCIE_CRX_GTX_N3<7> PCIE_CRX_GTX_P2<7> PCIE_CRX_GTX_N2<7> PCIE_CRX_GTX_P1<7> PCIE_CRX_GTX_N1<7> PCIE_CRX_GTX_P0<7> PCIE_CRX_GTX_N0<7>

THERM_SCI#<37>

SMB_EC_DA2_R <12>

SMB_EC_CK2_R <12>

DGPU_BKL_EN <22>

D_ENAVDD <21>

GPU_VID0 <47>

GPU_VID1 <47>

GPU_VID2

HDMI_DET <23>

D_BLUE <22>

D_GREEN <22>

D_INV_PWM <22>

27M_CLK <19>

+3VS_NV

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

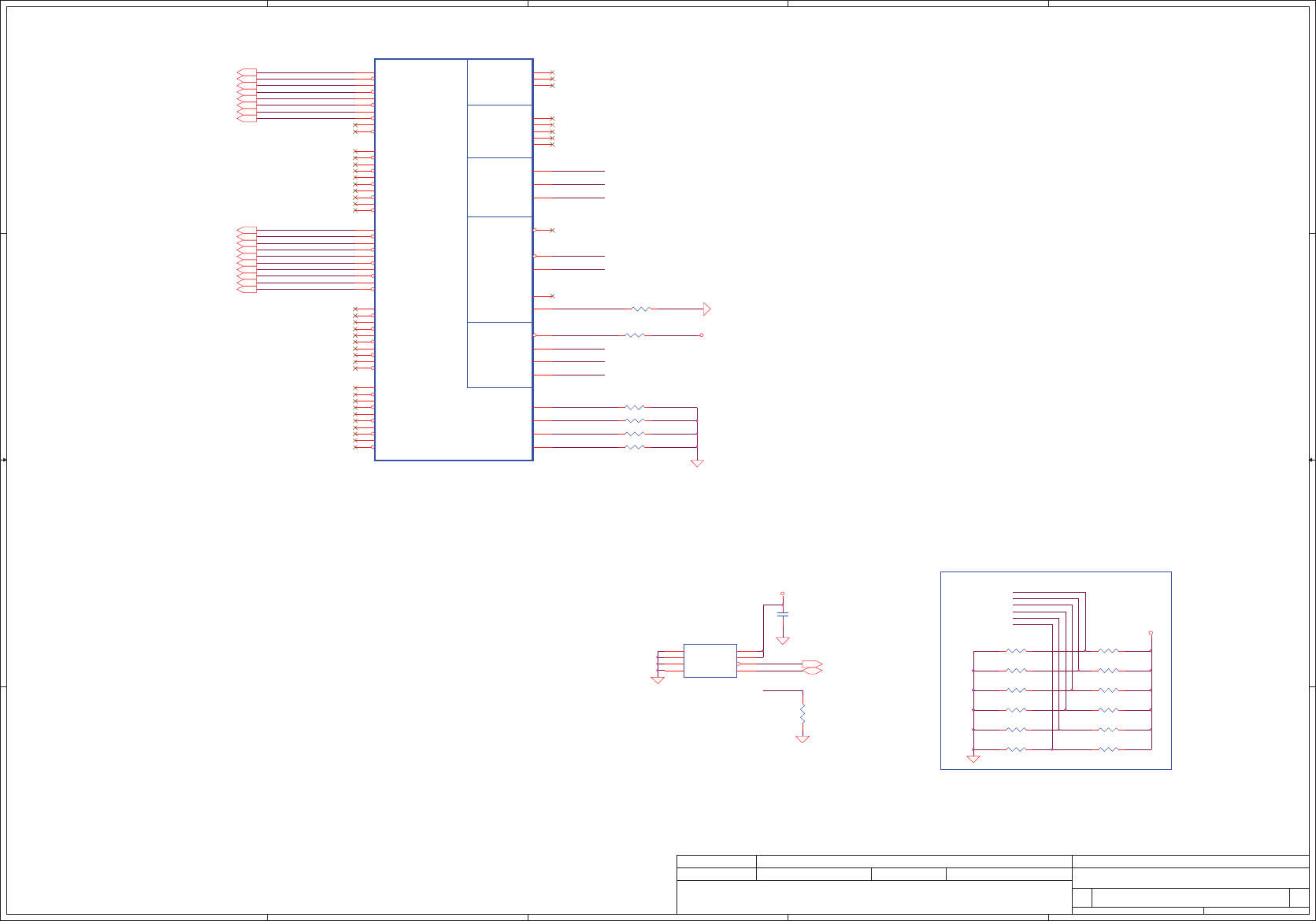

PEG Interface

Custom

24 49Monday, April 13, 2009

2008/09/15 2009/12/31

Compal Electronics, Inc.

Close t o GPU

HDCP

LVDS

CRT

GPIO0

GPIO1

GPIO2

GPIO3

GPIO4

GPIO5

GPIO6

GPIO7

GPIO8

GPIO9

GPIO10

GPIO11

GPIO12

GPIO13

GPIO14

OUT

HPD-C (used for IFPC)

Panel Back-Light PWM

Panel Power Enable

Panel Back-Light Enable

NVVDD VID0

NVVDD VID1

NVVDD VID2

Thermal Alert

MEM_VREF

SLI SYNCO

AC Detect

MEM_VID

PS Control

N/A

2nd DVI Hot-plug

GPIO I/O ACTIVE USAGE

GPIO15

GPIO16

GPIO17

GPIO18 N/A

N/A

FAN PWM Control

OVERT

HPD-E (used for IFPE)IN

OUT

N/A

GPIO19 N/A HPD-D (used for IFPD)IN

R809 2.2K_0402_5%SG@

1 2

R31410K_0402_5% SG@

C784 0.1U_0402_16V4ZSG@

1 2

R692 10K_0402_5%@

1 2

C778 0.1U_0402_16V4ZSG@

1 2

R686 2.2K_0402_5%SG@

1 2

T65 T P C1 2

R688 10K_0402_5%SG@

1 2

C801 0.1U_0402_16V4ZSG@

1 2

R296 150_0402_1%SG@

1 2

R294 124_0402_1%SG@

1 2

C779 0.1U_0402_16V4ZSG@

1 2

C788 0.1U_0402_16V4ZSG@

1 2

R316 0_0402_5%SG@

C793 0.1U_0402_16V4ZSG@

1 2

GPIO

PCI EXPRESS

TEST

CLK

Part 1 of 5

I2C DACADACB

U8A

N10M-GLM-S-A1_BGA533

SG@

PEX_RX0

AE12

PEX_RX0_N

AF12

PEX_RX1

AG12

PEX_RX1_N

AG13

PEX_RX2

AF13

PEX_RX2_N

AE13

PEX_RX3

AE15

PEX_RX3_N

AF15

PEX_RX4

AG15

PEX_RX4_N

AG16

PEX_RX5

AF16

PEX_RX5_N

AE16

PEX_RX6

AE18

PEX_RX6_N

AF18

GPIO0 N1

GPIO1 G1

GPIO2 C1

GPIO3 M2

GPIO4 M3

GPIO5 K3

GPIO6 K2

GPIO7 J2

GPIO8 C2

GPIO9 M1

GPIO10 D2

GPIO11 D1

GPIO13 J1

DACA_HSYNC AD2

DACA_VSYNC AD1

DACA_RED AE2

DACA_BLUE AD3

DACA_GREEN AE3

DACA_RSET AE1

DACA_VREF AF1

PEX_TSTCLK_OUT

AF10

PEX_TSTCLK_OUT_N

AE10

GPIO14 K1

GPIO15 F3

GPIO16 G3

GPIO17 G2

GPIO18 F1

GPIO19 F2

GPIO12 J3

PEX_REFCLK

AB10

PEX_REFCLK_N

AC10

PEX_RST_N

AD9

PEX_RX7

AG18

PEX_RX7_N

AG19

PEX_RX8

AF19

PEX_RX8_N

AE19

PEX_RX9

AE21

PEX_RX9_N

AF21

PEX_RX10

AG21

PEX_RX10_N

AG22

PEX_RX11

AF22

PEX_RX11_N

AE22

PEX_RX12

AE24

PEX_RX12_N

AF24

PEX_RX13

AG24

PEX_RX13_N

AF25

PEX_RX14

AG25

PEX_RX14_N

AG26

PEX_RX15

AF27

PEX_RX15_N

AE27

PEX_TERMP

AG10

PEX_TX0

AD10

PEX_TX0_N

AD11

PEX_TX1

AD12

PEX_TX1_N

AC12

PEX_TX2

AB11

PEX_TX2_N

AB12

PEX_TX3

AD13

PEX_TX3_N

AD14

PEX_TX4

AD15

PEX_TX4_N

AC15

PEX_TX5

AB14

PEX_TX5_N

AB15

PEX_TX6

AC16

PEX_TX6_N

AD16

PEX_TX7

AD17

PEX_TX7_N

AD18

PEX_TX8

AC18

PEX_TX8_N

AB18

PEX_TX9

AB19

PEX_TX9_N

AB20

PEX_TX10

AD19

PEX_TX10_N

AD20

PEX_TX11

AD21

PEX_TX11_N

AC21

PEX_TX12

AB21

PEX_TX12_N

AB22

PEX_TX13

AC22

PEX_TX13_N

AD22

PEX_TX14

AD23

PEX_TX14_N

AD24

PEX_TX15

AE25

PEX_TX15_N

AE26

PEX_CLKREQ_N

AE9

DACB_HSYNC U6

DACB_VSYNC U4

DACB_RED T5

DACB_BLUE R4

DACB_GREEN T4

DACB_VREF R6

DACB_RSET V6

JTAG_TCK AF3

JTAG_TDI AG4

JTAG_TDO AE4

JTAG_TMS AF4

JTAG_TRST_N AG3

TESTMODE AD25

XTAL_SSIN D11

XTAL_OUTBUFF E9

XTAL_OUT E10

XTAL_IN D10

I2CS_SCL T1

I2CS_SDA T2

I2CH_SCL A3

I2CH_SDA A4

I2CC_SCL A2

I2CC_SDA B1

I2CB_SCL R2

I2CB_SDA R3

I2CA_SCL R1

I2CA_SDA T3

R327 0_0402_5%SG@

1 2

C777 0.1U_0402_16V4ZSG@

1 2

C794 0.1U_0402_16V4ZSG@

1 2

C781 0.1U_0402_16V4ZSG@

1 2

T66 T P C1 2

C790 0.1U_0402_16V4ZSG@

1 2

R297 150_0402_1%SG@

1 2

C804 0.1U_0402_16V4ZSG@

1 2

R319 2.2K_0402_5%SG@

1 2

C811

20P_0402_50V8

SG@

R687 2.2K_0402_5%SG@

1 2

R808 2.2K_0402_5%SG@

1 2

R328 0_0402_5%SG@

1 2

C802 0.1U_0402_16V4ZSG@

1 2

C807 0.1U_0402_16V4ZSG@

1 2

C780 0.1U_0402_16V4ZSG@

1 2

C785 0.1U_0402_16V4ZSG@

1 2

C795 0.1U_0402_16V4ZSG@

1 2

T67 T P C1 2

C797 0.1U_0402_16V4ZSG@

1 2

C776 0.1U_0402_16V4ZSG@

1 2

C800 0.1U_0402_16V4ZSG@

1 2

C786 0.1U_0402_16V4ZSG@

1 2

C799 0.1U_0402_16V4ZSG@

1 2

C782 0.1U_0402_16V4ZSG@

1 2

R689 200_0402_1%@

1 2

R691 2.49K_0402_1%SG@

1 2

27MHZ_18PF_X3S027000FI1H-X

SG@

1 3

2 4

C805 0.1U_0402_16V4ZSG@

1 2

R315 0_0402_5%SG@

R903 10K_0402_5%@

1 2

C791 0.1U_0402_16V4ZSG@

1 2

C810

20P_0402_50V8

SG@

C806 0.1U_0402_16V4ZSG@

1 2

C796 0.1U_0402_16V4ZSG@

1 2

R3260_0402_5% @

1 2

R693 0_0402_5%SG@

1 2

C803 0.1U_0402_16V4ZSG@

1 2

R320 2.2K_0402_5%SG@

1 2

R695 0_0402_5%@

R187 10K_0402_5%@

1 2

C792 0.1U_0402_16V4ZSG@

1 2

R694 10K_0402_5%SG@

1 2

T64 T P C1 2

R3250_0402_5% @

1 2

R69610K_0402_5% SG@

1 2

C783 0.1U_0402_16V4ZSG@

1 2

R690 10K_0402_5%@

R595 10K_0402_5%@

1 2

C798 0.1U_0402_16V4ZSG@

1 2

R295 150_0402_1%SG@

1 2

C789 0.1U_0402_16V4ZSG@

1 2

C787 0.1U_0402_16V4ZSG@

1 2

C358 0.1U_0402_16V4ZSG@

1 2

http://laptop-motherboard-schematic.blogspot.com/

A A

B B

C C

D D

ROM_SCLK

ROM_SI

STR AP0

ROM_SO

HDCP_SCL

HDCP_SDA

HDCP_SCL

VGA_THERMDA

STR AP1

STR AP2

STR AP0

ROM_SI

ROM_SO

ROM_SCLK

ROM_CS#

IFPAB_RSET

IFPC_RSET

VGA_THERMDC

IFP D_ R SET

IFPE_RSET

SPDIF_IN

HD MI_C_TX0-

HD MI_C_TX2-

HDMI_ C_CLK-

HD MI_C_TX2+

HD MI_C_TX1-

HD MI_C_TX0+

HD MI_C_TX1+

HDMI_ C_CLK+

STR AP2

STR AP1

HDCP_SCL <24>

HDCP_SDA <24>

D_LVDS_A0-<22>

D_LVDS_A1-<22> D_LVDS_A1+<22>

D_LVDS_A2-<22> D_LVDS_A2+<22>

D_LVDS_ACLK-<22> D_LVDS_ACLK+<22>

D_LVDS_A0+<22>

HDMI_C_TX0+<23>

HDMI_C_TX2+<23>

HDMI_ C_CLK-<23>

HDMIDAT_VGA<23>

HDMI_ C_CLK+<23>

HDMICLK_VGA<23>

HDMI_C_TX0-<23>

HDMI_C_TX1+<23> HDMI_C_TX1-<23>

HDMI_C_TX2-<23>

+3VS_NV

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

N10M(2)_ LVDS&DP&HDCP

Custom

25 49Monday, April 13, 2009

2008/09/15 2009/12/31

Compal Electronics, Inc.

MULTI LEVEL STRAPS

HDCP ROM

Straps

LVDS Interface

SPDIF

FB HW Strap for DDR3: (RAM_CFG @ROM_SI)

- Hynix 64Mx16: 0000 (R344 pull-down 15K)

- Samsung 64Mx16: 0001 (R344 pull-down 20K)

R302 1K_0402_1%

SG@

1 2

R344

15K_0402_1%

SG@

1 2

R329

4.99K_0402_1%

1 2

U10

AT24 C1 6BN-SHBY-B

SG@

SDA 5

SCL 6

VCC 8

GND

WP 7

R349

4.99K_0402_1%

SG@

1 2

R347

4.99K_0402_1%

1 2

R345

4.99K_0402_1%

1 2

R697 1K_0402_1%

SG@

1 2

R343

4.99K_0402_1%

1 2

C388

0.1U_0402_16V4Z

SG@

R290 1K_0402_1%@

1 2

R342

24.9K_0402_1%

SG@

1 2

Part 3 of 5

NCRFU

LVDS / TMDS

GENERAL STRAPSERIAL

U8C

N10M-GLM-S-A1_BGA533

SG@

IFPA_TXC

AC4

IFPA_TXC_N

AD4

IFPA_TXD0

IFPA_TXD0_N

IFPA_TXD1

AA5

IFPA_TXD1_N

AA4

IFPA_TXD2

IFPA_TXD2_N

IFPA_TXD3

AB4

IFPA_TXD3_N

AB5

BUFRST_N N5

THERMDN D8

ROM_SCLK C9

ROM_SI A10

ROM_SO C10

ROM_CS_N B10

STRAP0 C7

IFPB_TXC

AB3

IFPB_TXC_N

AB2

IFPB_TXD4

IFPB_TXD4_N

IFPB_TXD5

IFPB_TXD5_N

IFPB_TXD6

AA2

IFPB_TXD6_N

AA3

IFPB_TXD7

AB1

IFPB_TXD7_N

AA1

IFPD_AUX_I2CX_SCL

IFPD_AUX_I2CX_SDA_N

IFPD_L0

IFPD_L0_N

IFPD_L1

IFPD_L1_N

IFPD_L2

IFPD_L2_N

IFPD_L3

IFPD_L3_N

IFPC_AUX_I2CW_SCL

IFPC_AUX_I2CW_SDA_N

IFPC_L0

IFPC_L0_N

IFPC_L1

IFPC_L1_N

IFPC_L2

IFPC_L2_N

IFPC_L3

IFPC_L3_N

IFPE_AUX_I2CY_SCL

IFPE_AUX_I2CY_SDA_N

IFPE_L0

IFPE_L0_N

IFPE_L1

IFPE_L1_N

IFPE_L2

IFPE_L2_N

IFPE_L3

IFPE_L3_N

E7 IFPE_RSET F8

IFPD_RSET M6

IFPC_RSET R5

IFPAB_RSET AB6

STRAP2 A9

STRAP1 B9

SPDIF F9

CEC N2

NC C15

NC D15

NC J5

RFU_1 T6

RFU_2 W6

RFU_3 Y6

RFU_4 AA6

RFU_5 N3

THERMDP D9

R698 1K_0402_1%

SG@

1 2

R348

4.99K_0402_1%

1 2

R340

4.99K_0402_1%

1 2

R313

10K_0402_5%

R346

4.99K_0402_1%

SG@

1 2

R301 10K_0402_5%

SG@

1 2

R330

45.3K_0402_1%

SG@

1 2

R339

35K_0402_1%

SG@

1 2

R669 36K_0402_1%

SG@

1 2

http://laptop-motherboard-schematic.blogspot.com/

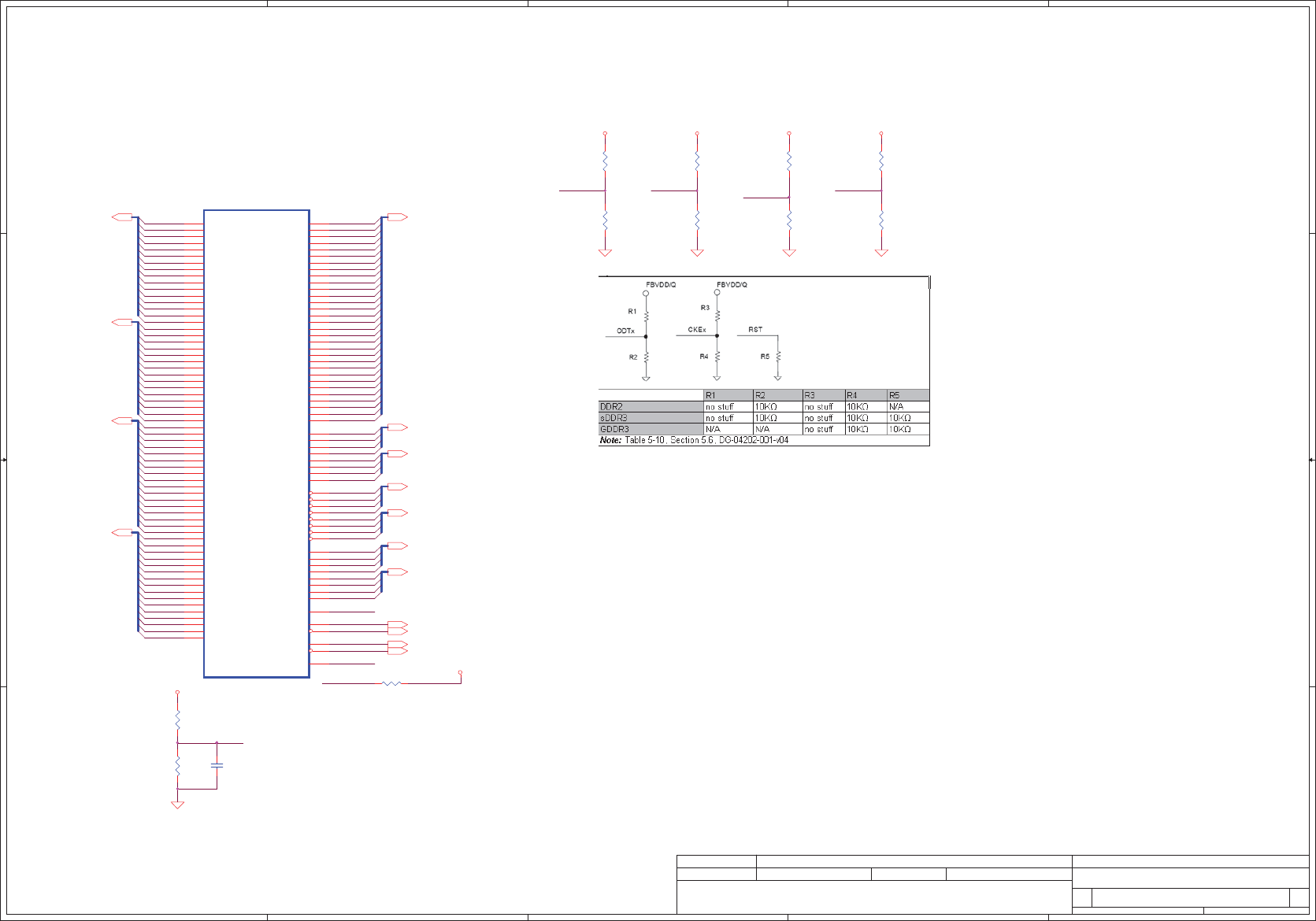

A A

B B

C C

D D

MDA56

MDA62

MDA63

MDA59

MDA61

MDA45

MDA58

MDA60

MDA44

MDA57

MDA40

MDA47

MDA41

MDA46

MDA42

MDA33

MDA35

MDA43

MDA28

MDA38

MDA37

MDA34

MDA39

MDA36

MDA20

MDA23

MDA30

MDA31

MDA32

MDA21

MDA25

MDA22

MDA26

MDA24

MDA29

MDA2

MDA15

MDA13

MDA27

MDA18

MDA0

MDA9

MDA8

MDA12

MDA1

MDA3

MDA16

MDA11

MDA10

MDA5

MDA7

MDA14

MDA19

MDA6

MDA17

MDA4

MDA50

MDA54

MDA55

MDA48

MDA49

MDA52

MDA53

MDA51

FB_VREF

DQMA0

DQMA1

DQMA2

DQMA3

DQMA4

DQMA5

DQMA6

DQMA7

DQSA3

DQSA2

DQSA1

DQSA0

DQSA4

DQSA5

DQSA6

DQSA7

DQSA#0

DQSA#1

DQSA#3

DQSA#2

DQSA#4

DQSA#5

DQSA#6

DQSA#7

ODT

CMDA28

CMDA8

CMDA26

CMDA30

CMDA5

CMDA27

CMDA25

CMDA24

CMDA16

CMDA23

CMDA1

CMDA28

CMDA3

CMDA0

CMDA14

CMDA13

CMDA9

CMDA18

CMDA17

CMDA10

CMDA29

CMDA2

CMDA30

CMDA12

CMDA6

CMDA19

CMDA18

CMDA22

CMDA20

CMDA4

CMDA21

CMDA11

CMDA15

CMDA7

MDA[15..0]<28>

MDA[31..16]<28>

MDA[47..32]<29>

MDA[63..48]<29>

CMDA[30..0] <28,29>

DQMA[3..0] <28>

DQMA[7..4] <29>

CLKA0 <28>

CLKA0# <28>

CLKA1 <29>

CLKA1# <29>

DQSA[3..0] <28>

DQSA#[3..0] <28>

DQSA[7..4] <29>

DQSA#[7..4] <29>

+VDD_MEM

+VDD_MEM +VDD_MEM +VDD_MEM +VDD_MEM

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

N10M(3)_VGA RAM Interface

Custom

26 49Monday, April 13, 2009

2008/09/15 2009/12/31

Compal Electronics, Inc.

W=15mils

Close to U8

32~63 CKE 0~31 CKE0~31 ODT32~63 ODT

R751

10K_0402_5%

SG@

R701

1K_0402_1%

MEMORY INTERFACE

Part 2 of 5

U8B

N10M-GLM-S-A1_BGA533

SG@

FBA_D36

T23

FBA_CMD0 F26

FBA_CMD1 J24

FBA_CMD2 F25

FBA_CMD3 M23

FBA_CMD4 N27

FBA_CMD5 M27

FBA_CMD6 K26

FBA_CMD7 J25

FBA_CMD8 J27

FBA_CMD9 G23

FBA_CMD10 G26

FBA_CMD11 J23

FBA_CMD12 M25

FBA_CMD13 K27

FBA_CMD14 G25

FBA_CMD15 L24

FBA_CMD16 K23

FBA_CMD17 K24

FBA_CMD18 G22

FBA_CMD19 K25

FBA_CMD20 H22

FBA_CMD21 M26

FBA_CMD22 H24

FBA_CMD23 F27

FBA_CMD24 J26

FBA_CMD25 G24

FBA_CMD26 G27

FBA_CMD27 M24

FBA_CMD28 K22

FBA_DEBUG M22

FBA_CLK1 N24

FBA_CLK1_N N23

FBA_CLK0 F24

FBA_CLK0_N F23

FB_VREF A16

FBA_DQS_WP2 E19

FBA_DQS_WP4 T22

FBA_DQS_RN2 E18

FBA_DQS_RN4 R22

FBA_DQM2 D19

FBA_DQM4 T24

FBA_CMD29 J22

FBA_CMD30 L22

FBA_DQM1 B19

FBA_DQM3 D23

FBA_DQM0 C26

FBA_DQM5 AA23

FBA_DQM6 AB27

FBA_DQM7 T26

FBA_DQS_RN1 A18

FBA_DQS_RN3 B24

FBA_DQS_RN0 D25

FBA_DQS_RN5 Y24

FBA_DQS_RN6 AA27

FBA_DQS_RN7 R27

FBA_DQS_WP1 A19

FBA_DQS_WP3 A24

FBA_DQS_WP0 C25

FBA_DQS_WP5 AA24

FBA_DQS_WP6 AA26

FBA_DQS_WP7 T27

FBA_D63

N26 FBA_D62

N25

FBA_D60

R26

FBA_D61

T25

FBA_D59

V27

FBA_D56

V25

FBA_D57

R25

FBA_D58

V26

FBA_D55

AD27

FBA_D44

AA22

FBA_D51

W25

FBA_D52

AB25

FBA_D53

AB26

FBA_D54

AD26

FBA_D49

W27

FBA_D50

W26

FBA_D48

AA25 FBA_D47

V22 FBA_D46

W22 FBA_D45

W23

FBA_D40

AC24

FBA_D41

AB23

FBA_D42

AB24

FBA_D43

W24

FBA_D39

P22 FBA_D38

P24 FBA_D37

R23

FBA_D32

U24

FBA_D33

V24

FBA_D34

V23

FBA_D35

R24

FBA_D31

A26 FBA_D30

B25 FBA_D29

A25 FBA_D28

C22

FBA_D0

D22

FBA_D1

E24

FBA_D2

E22

FBA_D3

D24

FBA_D4

D26

FBA_D5

D27

FBA_D6

C27

FBA_D7

B27

FBA_D8

A21

FBA_D9

B21

FBA_D10

C21

FBA_D11

C19

FBA_D12

C18

FBA_D13

D18

FBA_D14

B18

FBA_D15

C16

FBA_D16

E21

FBA_D17

F21

FBA_D18

D20

FBA_D19

F20

FBA_D20

D17

FBA_D21

F18

FBA_D22

D16

FBA_D23

E16

FBA_D24

A22

FBA_D25

C24

FBA_D26

D21

FBA_D27

B22

R699

1K_0402_1%

C813

0.1U_0402_16V4Z

R747

10K_0402_5%

SG@

R752

10K_0402_5%

SG@

R12 10K_0402_5%

SG@

1 2

R749

100_0402_5%

1 2

R748

10K_0402_5%

SG@

R746

100_0402_5%

1 2

R745

100_0402_5%

1 2

R750

100_0402_5%

1 2

http://laptop-motherboard-schematic.blogspot.com/

A A

B B

C C

D D

VDD33

IFPAB_PLLVDD

IFPC_PLLVDD

IFP A_IOVDD

IFPB_IOVDD

IFP C_IOVDD

PEX_PLLDVDD

DACA_VDD

DACB_VDD

PEX_SVDD_3V3

FB _P LL AVDD

IFPD_PLLVDD

IFPDE_IOVDD

PEX_SVDD_3V3

FB _P LL AVDD

GPU_P LLVDD

IFP A_IOVDD

IFP C_IOVDD PEX_PLLDVDD

DACA_VDD

IFPAB_PLLVDD

IFPB_IOVDD

IFPC_PLLVDD

SP_PLLVDD

GPU_P LLVDD

SP_P LLVDD

IFPE_PLLVDD

+NVVDD

+3VS_NV

+PCIE

+VDD_MEM

+3VS_NV

+PCIE

+3VS_NV

+NVVDD_SENSE

+3VS_NV

+PCIE

+PCIE +PCIE

+1.8VS_NV

+PCIE

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

N10M(4)_Power/GND

Custom

27 49Monday, April 13, 2009

2008/09/15 2009/12/31

Compal Electronics, Inc.

600 mA

Layout Note:Please

colse to Ball.

1u(0402) X 1

1u(0603) X 1

10u(0805) X 3

0.1u X 8

0.01u X 3

0.022u X 9

4.7u X 1

11.44A

150mA

120mA

1.8A

85mA

70mA

3.4A

150mA

to Power

10mA

Layout Note:Please

colse to BGA.

135mA

100mA

150mA

Layout Note:Please

colse to Ball.

Layout Note:Please

colse to BGA.

110mA

VGA Power sequence: +.3VS->+NVVDD->+VDD_MEM

C858

1U_0603_10V4Z

SG@

R742 40.2_0402_1%SG@

1 2

C958

4.7U_0603_6.3V6K

SG@

C885

1U_0603_10V6K

SG@

C963

0.1U_0402_10V6K

SG@

C824

0.047U_0402_16V7K

SG@

L44

BLM18PG181SN1D_0603

SG@

1 2

L46

BLM18PG181SN1D_0603

SG@

1 2

C836

0.022U_0402_16V7K

SG@

R7060_0402_5% SG@

1 2

C828

0.01U_0402_16V7K

SG@

R7040_0402_5% SG@

1 2

C835

0.022U_0402_16V7K

SG@

C823

0.047U_0402_16V7K

SG@

C814

0.1U_0402_16V4Z

SG@

C883

4.7U_0603_6.3V6K

SG@

C902

4.7U_0603_6.3V6K

SG@

C815

0.1U_0402_16V4Z

SG@

C871

4700P_0402_25V7K

C893

1U_0402_6.3V4Z

SG@

C867

1U_0402_6.3V4Z

SG@

C898

1U_0402_6.3V4Z

SG@

R708 0_0402_5%

SG@

1 2

C826

0.01U_0402_16V7K

SG@

R79 10K_0402_5%

SG@

1 2

C899

1U_0402_6.3V4Z

SG@

GND

Part 5 of 5

U8E

N10M-GLM-S-A1_BGA533

SG@

GND

B11

GND

B14

GND

B17

GND

B20

GND

B23

GND

B26

GND

E11

GND T14

GND T15

GND T16

GND U2

GND U5

GND U11

GND U12

GND U13

GND U14

GND U15

GND U16

GND U17

GND AF14

GND AF17

GND AF20

GND AF23

GND AF26

GND U23

GND U26

GND V9

GND V19

GND W11

GND W14

GND W17

GND Y2

GND Y5

GND Y23

GND Y26

GND AC2

GND AC5

GND AC6

GND AC8

GND AC11

GND AC14

GND AC17

GND AC20

GND AC23

GND AC26

GND AF2

GND AF5

GND AF8

GND AF11

GND

E17

GND

E20

GND

E23

GND

E26

GND

J11

GND

J14

GND

J17

GND

K19

GND

L11

GND

L12

GND

L13

GND

L14

GND

L15

GND

L16

GND

L17

GND

M12

GND

M13

GND

M14

GND

M15

GND

M16

GND

P19

GND

P23

GND

P26

GND

T12

GND

T13

GND_SENSE

E14

GND_SENSE

W16

FB_CAL_PU_GND A15

FB_CAL_TERM_GND B16

MULTI_STRAP_REF0_GND F10

MULTI_STRAP_REF1_GND F11

GND F6

C840

0.1U_0402_16V4Z

SG@

C834

0.022U_0402_16V7K

SG@

C829

4.7U_0603_6.3V6K

SG@

R743 60.4_0402_1%SG@

1 2

C878

0.1U_0402_10V6K

SG@

C832

0.022U_0402_16V7K

SG@

C881

0.1U_0402_16V4Z

SG@

C894

0.1U_0402_16V4Z

SG@

L37

BLM18PG181SN1D_0603

SG@

1 2

C887

0.1U_0402_10V6K

SG@

L41

BLM18PG181SN1D_0603

SG@

1 2

C876

1U_0603_10V6K

SG@

C833

0.022U_0402_16V7K

SG@

C882

0.1U_0402_16V4Z

SG@

C850

1U_0402_6.3V4Z

SG@

R744 0_0402_5%SG@

1 2

C962

0.1U_0402_10V6K

SG@

C964

1U_0402_6.3V4Z

SG@

R709 10K_0402_5%SG@

1 2

C854

1U_0603_10V4Z

SG@

C861

0.1U_0402_16V4Z

SG@

C901

0.1U_0402_10V6K

SG@

C888

470P_0402_50V8J

SG@

C838

0.022U_0402_16V7K

SG@

C819

0.1U_0402_16V4Z

SG@

L34

BLM18PG181SN1D_0603

SG@

1 2

C837

0.022U_0402_16V7K

SG@

C842

1U_0603_10V4Z

SG@

C820

0.1U_0402_16V4Z

SG@

R710 40.2_0402_1%SG@

1 2

R703 0_0603_5%

SG@

1 2

C1061

4.7U_0603_6.3V6K

SG@

C848

4.7U_0603_6.3V6K

SG@

C879

4.7U_0603_6.3V6K

SG@

C860

0.1U_0402_16V4Z

SG@

C862

0.1U_0402_16V4Z

SG@

C816

0.1U_0402_16V4Z

SG@

L33

BLM18PG181SN1D_0603

SG@

1 2

C857

10U_0805_6.3V6M

SG@

C844

10U_0805_6.3V6M

SG@

C843

4.7U_0603_6.3V6K

SG@

C827

0.01U_0402_16V7K

SG@

R71 10K_0402_5%

SG@

1 2

C905

0.1U_0402_10V6K

SG@

C961

0.1U_0402_10V6K

SG@

C855

1U_0603_10V4Z

SG@

L42

BLM18PG181SN1D_0603

SG@

1 2

C870

1U_0603_10V6K

SG@

C853

0.1U_0402_16V4Z

SG@

C822

0.047U_0402_16V7K

SG@

C841

1U_0603_10V4Z

SG@

R76 10K_0402_5%

SG@

1 2

C891

4.7U_0603_6.3V6K

SG@

C852

0.1U_0402_16V4Z

SG@

C903

4.7U_0603_6.3V6K

SG@

C900

4700P_0402_25V7K

SG@

C896

4.7U_0603_6.3V6M

SG@

C880

1U_0402_6.3V4Z

SG@

R707 40.2K_0402_1%SG@

1 2

C856

4.7U_0603_6.3V6K

SG@

C817

0.1U_0402_16V4Z

SG@

R711 0_0402_5%SG@

1 2

C849

1U_0402_6.3V4Z

SG@

C884

4.7U_0603_6.3V6K

SG@

C886

0.1U_0402_10V6K

SG@

C821

0.1U_0402_16V4Z

SG@

C831

0.022U_0402_16V7K

SG@

C869

4.7U_0603_6.3V6K

SG@

C897

1U_0402_6.3V4Z

SG@

R705 40.2K_0402_1%SG@

1 2

L38

BLM18PG181SN1D_0603

SG@

1 2

C959

0.1U_0402_10V6K

C818

0.1U_0402_16V4Z

SG@

C847

10U_0805_6.3V6M

SG@

C895

1U_0402_6.3V4Z

SG@

C960

1U_0402_6.3V4Z

SG@

C877

0.1U_0402_10V6K

SG@

C868

4.7U_0603_6.3V6K

SG@

C866

4.7U_0603_6.3V6K

SG@

C839

0.1U_0402_16V4Z

SG@

Part 4 of 5

POWER

U8D

N10M-GLM-S-A1_BGA533

SG@

VDD

R13

VDD

R14

VDD

R15

VDD

R16

VDD

R17

VDD

T11

VDD

T17

VDD

P11 VDD

N19 VDD

N17 VDD

N16 VDD

N15 VDD

N14

VDD

R12

VDD

M11

VDD

N12

VDD

M9 VDD

L9 VDD

J13 VDD

J12 VDD

J10 VDD

VDD

N13

VDD

P12

VDD

P13

VDD

P14

VDD

P15

VDD

P16

VDD

P17

VDD

R11

VDD

N11

VDD

M17

VDD

U19

VDD

W13

VDD

W18

VDD

W19

FBVDDQ A13

FBVDDQ B13

FBVDDQ C13

FBVDDQ D13

FBVDDQ D14

FBVDDQ E13

FBVDDQ F13

FBVDDQ F14

FBVDDQ F15

FBVDDQ F16

VDD

W12 VDD

W10

FBVDDQ F17

FBVDDQ F19

FBVDDQ F22

FBVDDQ H23

FBVDDQ H26

FBVDDQ J15

FBVDDQ J16

FBVDDQ J18

FBVDDQ J19

FBVDDQ L19

FBVDDQ L23

FBVDDQ L26

FBVDDQ M19

FBVDDQ N22

FBVDDQ U22

FBVDDQ Y22

PEX_IOVDDQ AB7

PEX_IOVDDQ AB8

PEX_IOVDDQ AB9

PEX_IOVDDQ AB13

PEX_IOVDDQ AB16

PEX_IOVDDQ AB17

PEX_IOVDDQ AC7

PEX_IOVDDQ AC13

PEX_IOVDDQ AD6

PEX_IOVDDQ AE6

PEX_IOVDDQ AF6

PEX_IOVDDQ AG6

PEX_IOVDD AG7

PEX_IOVDD AF7

PEX_IOVDD AE7

PEX_IOVDD AD8

PEX_IOVDD AD7

PEX_IOVDD AC9

PEX_PLLVDD AF9

VID_PLLVDD K6

SP_PLLVDD L6

PLLVDD K5

FB_PLLAVDD R19

VDD_SENSE W15

FB_CAL_PD_VDDQ B15

DACB_VDD W5

DACA_VDD AG2

FB_PLLAVDD AC19

FB_DLLAVDD T19

VDD_SENSE E15

VDD33

A12

VDD33

B12

VDD33

C12

VDD33

D12

VDD33

E12

VDD33

F12

IFPE_PLLVDD

IFPD_PLLVDD

IFPC_PLLVDD

IFPAB_PLLVDD

AD5

IFPDE_IOVDD

IFPC _IOV DD

IFPB_IOVDD

IFPA_IOVDD

PEX_SVDD_3V3

AG9

C952

0.1U_0402_10V6K

C904

1U_0603_10V6K

SG@

L40

10NH_MLG1608B10NJT_5%

SG@

1 2

C859

1U_0402_6.3V4Z

SG@

http://laptop-motherboard-schematic.blogspot.com/

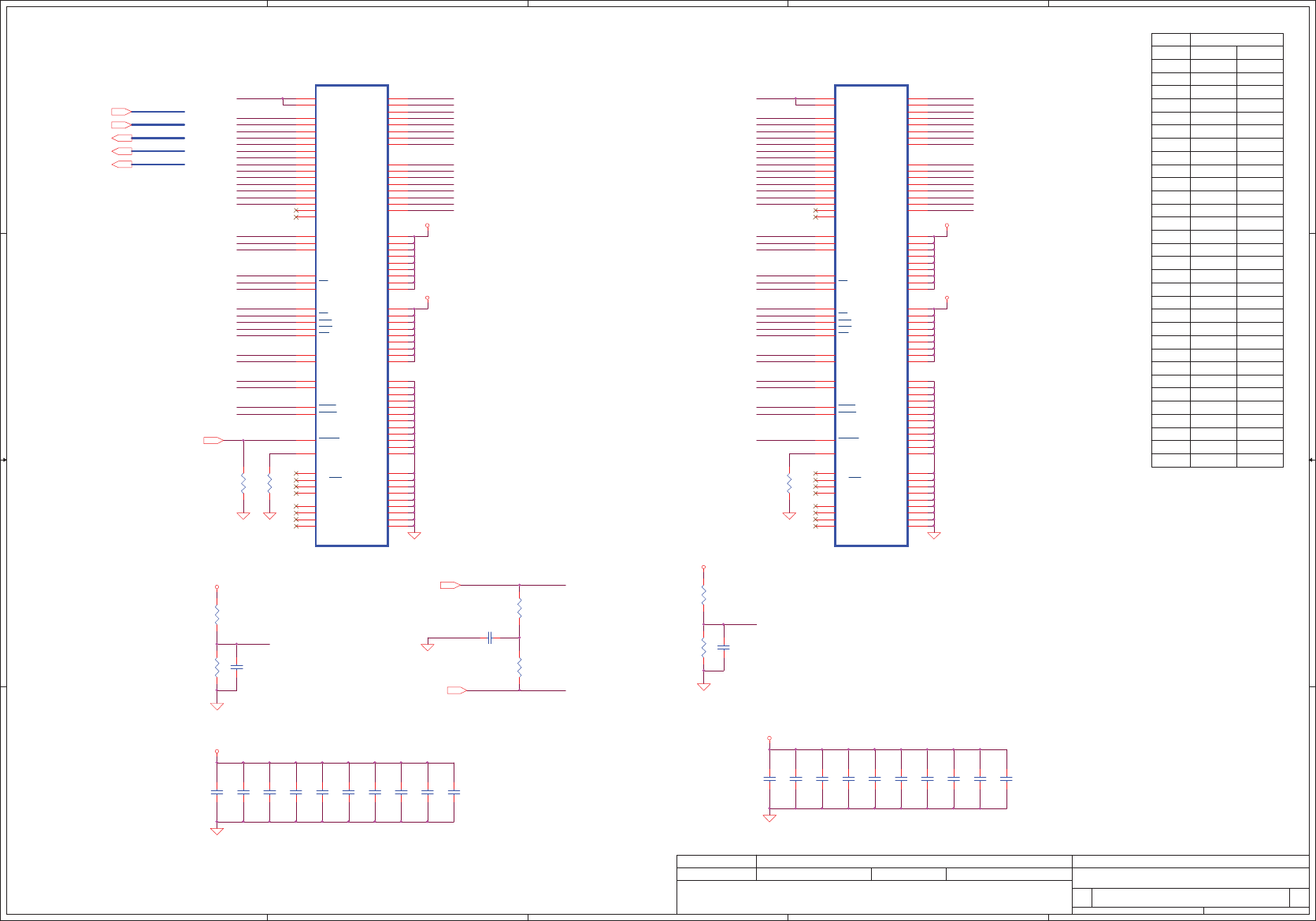

A A

B B

C C

D D

MDA[63..0]

DQM A[7..0]

DQSA[7..0]

DQS A#[7..0]

CMDA[30..0]

CL KA0

CMDA16

CMDA17

CMDA14

CMDA2

CMDA1

CMDA0

CMDA24

CMDA22

CMDA19

CMDA23

CMDA20

CMDA26

CMDA21

CMDA25

CMDA9

CMDA15

CMDA11

CL KA0

CL KA0#

CMDA25

CMDA26

CMDA9

CMDA12

CMDA16

CMDA17

CMDA1

CMDA2

CMDA3

CMDA14

CMDA23

CMDA20

CMDA19

CMDA22

CMDA24

CMDA18

CMDA21

CMDA10

CMDA27

CL KA0#

CL KA0

CMDA30

CMDA11

CMDA0

CMDA15

CL KA0#

ZQ0

CMDA29

MEM_VREF1

ZQ1

DQMA0

DQMA3

DQSA0

DQSA3

DQSA#0

DQSA#3

CMDA10

CMDA29

MEM_VREF0

CMDA12

CMDA3

CMDA27

CMDA30

CMDA18

DQSA#1

DQSA#2

DQMA1

DQMA2

DQSA1

DQSA2

MDA30

MDA31

MDA26

MDA24

MDA29

MDA28

MDA27

MDA25

MDA1

MDA5

MDA7

MDA4

MDA0

MDA6

MDA3

MDA2

MDA9

MDA12

MDA13

MDA8

MDA11

MDA14

MDA10

MDA15

MDA23

MDA22

MDA16

MDA21

MDA20

MDA17

MDA19

MDA18

CLKA0<26>

CLKA0#<26>

CMDA15<26,29>

DQMA[7..0]<26,29>

MDA[63..0]<26,29>

CMDA[30..0]<26,29>

DQSA[7..0]<26,29>

DQSA#[7..0]<26,29>

+VDD_MEM

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Monday, April 13, 2009

2008/09/15 2009/12/31

Compal Electronics, Inc.

VRAM DDR3 chips (512MB)

64Mx16 DDR3 700MHz*4==>512MB

CMD22

CMD23

BA1

A10

A11

RAS#

BA1

BA2

A13

CAS#

A10

A11

CMD30

CMD24

CMD25

CMD26

CMD27

CMD28

CMD29

RAS#

BA2

A13

CAS#

CMD15

DATA Bus

Address

A12

32..63

0..31

CS#

WE#

BA0

CMD0

CKE

CMD1

ODT

CMD2

CMD3

A12

CMD4

CMD5

CMD6

CMD7

CS#CMD8

CMD9

CMD10

CMD11

CMD12

CMD13

CMD14

WE#

BA0

CKE

CMD16

CMD17

CMD18

CMD19

CMD20

CMD21

RST RST

LOW HIGH

Low 32 bit FB

0.1

VRAM DDR3

LA-4901P

DDR3 BGA MEMORY DDR3 BGA MEMORY

310mA 310mA

Hynix : H5TQ1G63BFR-12C-->SA000032400

Samsung : K4W1G1646E-HC12-->SA000035700

R718

121_0402_1%

SG@

C921

1U_0402_6.3V6K

SG@

R714

10K_0402_5%

SG@

R717

1K_0402_1%

SG@

C925

0.1U_0402_16V7K

SG@

R719

1K_0402_1%

SG@

C927

0.1U_0402_16V7K

SG@

C919

1U_0402_6.3V6K

SG@

C922

1U_0402_6.3V6K

SG@

C918

0.1U_0402_16V7K

SG@

R716

243_0402_1%

SG@

C924

0.1U_0402_16V7K

SG@

C923

0.1U_0402_16V7K

SG@

R721

1K_0402_1%

SG@

C910

1U_0402_6.3V6K

SG@

C907

0.01U_0402_16V7K

SG@

C9060.01U_0402_16V7K

SG@

1 2

C908

0.01U_0402_16V7K

SG@

R720

1K_0402_1%

SG@

C909

1U_0402_6.3V6K

SG@

100-BALL

SDRAM DDR3

U12

K4B1G1646D-HCF8_FBGA100

VRAM@

RAS

CAS

CKE/CKE0

K10

DQSU

BA0

BA1

A10/AP

A11

DQL0 E4

DQL1 F8

DQL2 F3

DQL3 F9

DQL4 H4

DQL5 H9

DQL6 G3

DQL7 H8

VSSQ D2

VSS A10

VSS E2

VSS B4

NC/ODT1

VDD B3

VDD D10

VDDQ A2

VDDQ A9

VDDQ C2

VDDQ C10

NC/CS1

NC/CE1

J10

VDDQ E10

ZQ/ZQ0

RESET

DQSL

DMU

D4 DML

VSSQ B2

VSSQ B10

VSSQ D9

VSSQ E3

DQSU

VSSQ E9

DQSL

VDDQ F2

VSSQ F10

VSSQ G2

VDDQ H3

VDDQ H10

VSSQ G10

VREFCA

VSS G9

VDD G8

ODT/ODT0

VDD K3

A12

VSS J3

VDD K9

DQU1 C4

DQU2 C9

DQU3 C3

DQU4 A8

DQU5 A3

DQU6 B9

DQU7 A4

DQU0 D8

A13

A14

A15/BA3

BA2

VREFDQ

NCZQ1

L10

VDD N2

VDD N10

VDD R2

VDD R10

VSS J9

VSS M2

VSS M10

VSS P2

VSS P10

VSS T2

VSS T10

VDDQ D3

A11

T11

C917

0.1U_0402_16V7K

SG@

C920

1U_0402_6.3V6K

SG@

C928

0.1U_0402_16V7K

SG@

C914

0.1U_0402_16V7K

SG@

100-BALL

SDRAM DDR3

U11

K4B1G1646D-HCF8_FBGA100

VRAM@

RAS

CAS

CKE/CKE0

K10

DQSU

BA0

BA1

A10/AP

A11

DQL0 E4

DQL1 F8

DQL2 F3

DQL3 F9

DQL4 H4

DQL5 H9

DQL6 G3

DQL7 H8

VSSQ D2

VSS A10

VSS E2

VSS B4

NC/ODT1

VDD B3

VDD D10

VDDQ A2

VDDQ A9

VDDQ C2

VDDQ C10

NC/CS1

NC/CE1

J10

VDDQ E10

ZQ/ZQ0

RESET

DQSL

DMU

D4 DML

VSSQ B2

VSSQ B10

VSSQ D9

VSSQ E3

DQSU

VSSQ E9

DQSL

VDDQ F2

VSSQ F10

VSSQ G2

VDDQ H3

VDDQ H10

VSSQ G10

VREFCA

VSS G9

VDD G8

ODT/ODT0

VDD K3

A12

VSS J3

VDD K9

DQU1 C4

DQU2 C9

DQU3 C3

DQU4 A8

DQU5 A3

DQU6 B9

DQU7 A4

DQU0 D8

A13

A14

A15/BA3

BA2

VREFDQ

NCZQ1

L10

VDD N2

VDD N10

VDD R2

VDD R10

VSS J9

VSS M2

VSS M10

VSS P2

VSS P10

VSS T2

VSS T10

VDDQ D3

A11

T11

C912

1U_0402_6.3V6K

SG@

R715

243_0402_1%

SG@

C911

1U_0402_6.3V6K

SG@

C926

0.1U_0402_16V7K

SG@

R722

121_0402_1%

SG@

C915

0.1U_0402_16V7K

SG@

C913

0.1U_0402_16V7K

SG@

C916

0.1U_0402_16V7K

SG@

http://laptop-motherboard-schematic.blogspot.com/

A A

B B

C C

D D

CMDA6

CMDA4

CMDA13

CMDA5

CMDA23

CMDA17

CMDA19

CMDA20

CMDA16

CMDA3

CMDA21

CMDA14

CMDA27

CMDA10

CL KA1#

CL KA1

CMDA12

CMDA25

CMDA9

CMDA15

CMDA11

CMDA26

CMDA[30..0]

MDA[63..0]

DQM A[7..0]

DQSA[7..0]

DQS A#[7..0]

MEM_VREF3

MEM_VREF2

CMDA1

CMDA8

CL KA1

CL KA1#

DQMA4

DQMA7

DQSA4

DQSA7

DQSA#4

DQSA#7

MEM_VREF2

CMDA7

CMDA28

MEM_VREF3

CMDA3

CMDA27

CMDA12

CL KA1#

CL KA1

ZQ3

DQMA5

DQMA6

DQSA5

DQSA6

DQSA#5

DQSA#6

CMDA15

CMDA7

CMDA1

CMDA10

CMDA11

CMDA8

CMDA28

CMDA6

CMDA4

CMDA13

CMDA5

CMDA23

CMDA17

CMDA19

CMDA20

CMDA16

CMDA21

CMDA14

CMDA25

CMDA9

CMDA26

MDA62

MDA59

MDA58

MDA63

MDA56

MDA57

MDA60

MDA39

MDA37

MDA38

MDA36

MDA32

MDA35

MDA34

MDA33

MDA61

MDA42

MDA50

MDA51

MDA55

MDA48

MDA52

MDA46

MDA43

MDA47

MDA45

MDA40

MDA44

MDA41

MDA49

MDA53

MDA54

ZQ2

DQMA[7..0]<26,28>

MDA[63..0]<26,28>

CMDA[30..0]<26,28>

DQSA[7..0]<26,28>

DQSA#[7..0]<26,28>

CLKA1<26>

CLKA1#<26>

CMDA7<26>

CMDA28<26>

+VDD_MEM +VDD_MEM

+VDD_MEM

Title

Size Document Number R e v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHE ET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Monday, April 13, 2009

2008/09/15 2009/12/31

Compal Electronics, Inc.

VRAM DDR3 chips (512MB)

64Mx16 DDR3 700MHz*4==>512MB

High 32 bit FB

Cartier DIS

VRAM DDR3

0.1

4929

DDR3 BGA MEMORY DDR3 BGA MEMORY

310mA 310mA

C929 0.01U_0402_16V7K

SG@

1 2

C940

0.1U_0402_16V7K

SG@

C932

1U_0402_6.3V6K

SG@

C935

1U_0402_6.3V6K

SG@

C946

0.1U_0402_16V7K

SG@

100-BALL

SDRAM DDR3

U14

K4B1G1646D-HCF8_FBGA100

VRAM@

RAS

CAS

CKE/CKE0

K10

DQSU

BA0

BA1

A10/AP

A11

DQL0 E4

DQL1 F8

DQL2 F3

DQL3 F9

DQL4 H4

DQL5 H9

DQL6 G3

DQL7 H8

VSSQ D2

VSS A10

VSS E2

VSS B4

NC/ODT1

VDD B3

VDD D10

VDDQ A2

VDDQ A9

VDDQ C2

VDDQ C10

NC/CS1

NC/CE1

J10

VDDQ E10

ZQ/ZQ0

RESET

DQSL

DMU

D4 DML

VSSQ B2

VSSQ B10

VSSQ D9

VSSQ E3

DQSU

VSSQ E9

DQSL

VDDQ F2

VSSQ F10

VSSQ G2

VDDQ H3

VDDQ H10

VSSQ G10

VREFCA

VSS G9

VDD G8

ODT/ODT0

VDD K3

A12

VSS J3

VDD K9

DQU1 C4

DQU2 C9

DQU3 C3

DQU4 A8

DQU5 A3

DQU6 B9

DQU7 A4

DQU0 D8

A13

A14

A15/BA3

BA2

VREFDQ

NCZQ1

L10

VDD N2

VDD N10

VDD R2

VDD R10

VSS J9

VSS M2

VSS M10

VSS P2

VSS P10

VSS T2

VSS T10

VDDQ D3

A11

T11

100-BALL

SDRAM DDR3

U13

K4B1G1646D-HCF8_FBGA100

VRAM@

RAS

CAS

CKE/CKE0

K10

DQSU

BA0

BA1

A10/AP

A11

DQL0 E4

DQL1 F8

DQL2 F3

DQL3 F9

DQL4 H4

DQL5 H9

DQL6 G3

DQL7 H8

VSSQ D2

VSS A10

VSS E2

VSS B4

NC/ODT1

VDD B3

VDD D10

VDDQ A2

VDDQ A9

VDDQ C2

VDDQ C10

NC/CS1

NC/CE1

J10

VDDQ E10

ZQ/ZQ0

RESET

DQSL

DMU

D4 DML

VSSQ B2

VSSQ B10

VSSQ D9

VSSQ E3

DQSU

VSSQ E9

DQSL

VDDQ F2

VSSQ F10

VSSQ G2

VDDQ H3

VDDQ H10

VSSQ G10

VREFCA

VSS G9

VDD G8

ODT/ODT0

VDD K3

A12

VSS J3

VDD K9

DQU1 C4

DQU2 C9

DQU3 C3

DQU4 A8

DQU5 A3

DQU6 B9

DQU7 A4

DQU0 D8

A13

A14

A15/BA3

BA2

VREFDQ

NCZQ1

L10

VDD N2

VDD N10

VDD R2

VDD R10

VSS J9

VSS M2

VSS M10

VSS P2

VSS P10

VSS T2

VSS T10

VDDQ D3

A11

T11

C944

1U_0402_6.3V6K

SG@

C937

0.1U_0402_16V7K

SG@

R729

1K_0402_1%

SG@

C950

0.1U_0402_16V7K

SG@

R732

1K_0402_1%

SG@

R727

121_0402_1%

SG@

C948

0.1U_0402_16V7K

SG@

C951

0.1U_0402_16V7K

SG@

C930

0.01U_0402_16V7K

SG@

C938

0.1U_0402_16V7K

SG@

C942

1U_0402_6.3V6K

SG@

C949

0.1U_0402_16V7K

SG@

R731

121_0402_1%

SG@

R728

1K_0402_1%

SG@

C936

0.1U_0402_16V7K

SG@

R730

1K_0402_1%

SG@

C947

0.1U_0402_16V7K

SG@

C939

0.1U_0402_16V7K

SG@

R725

243_0402_1%

SG@

C943

1U_0402_6.3V6K

SG@

C934

1U_0402_6.3V6K

SG@

R726

243_0402_1%

SG@

C945

1U_0402_6.3V6K

SG@

C931

0.01U_0402_16V7K

SG@

C933

1U_0402_6.3V6K

SG@

C941

0.1U_0402_16V7K

SG@

http://laptop-motherboard-schematic.blogspot.com/

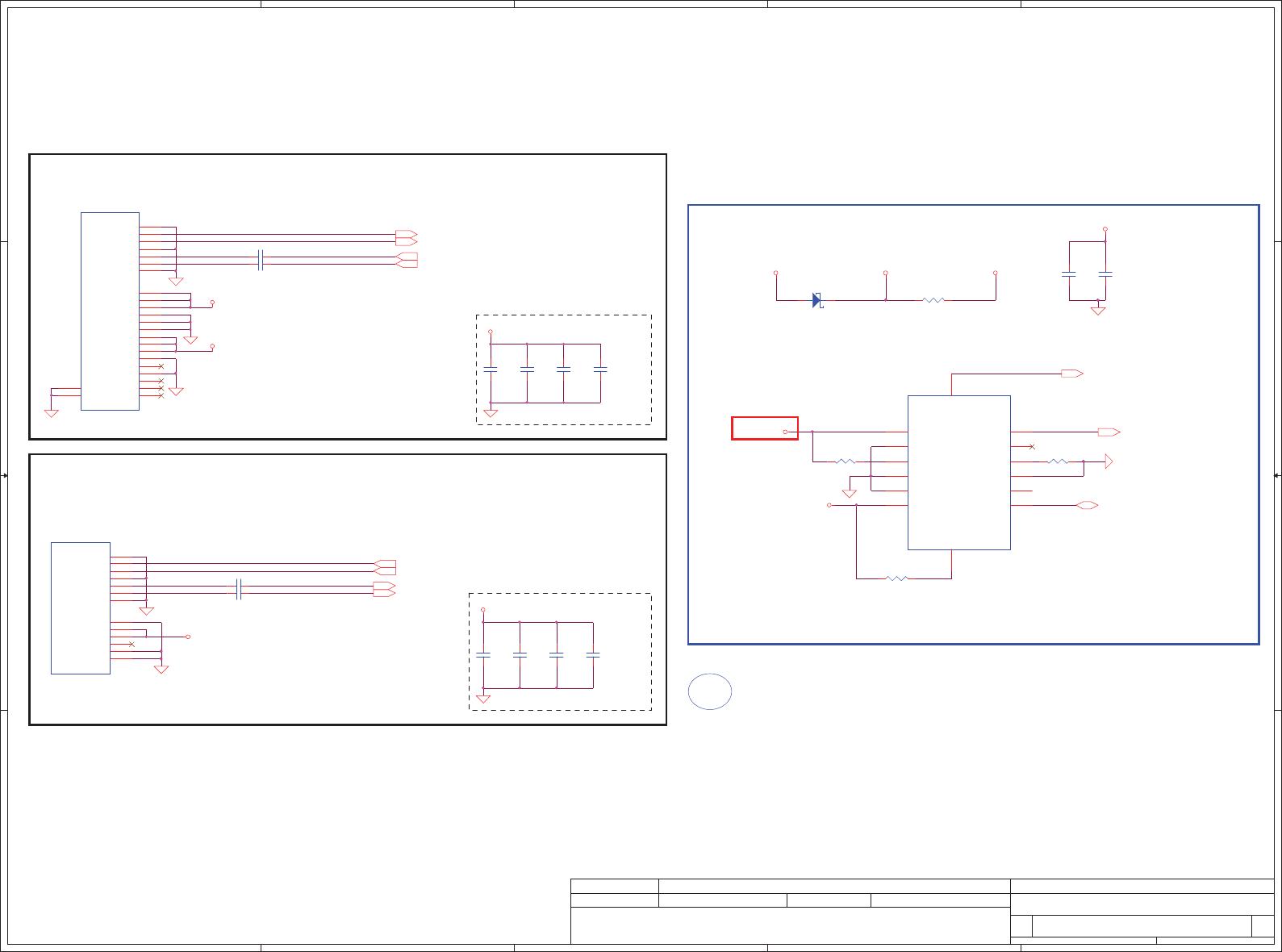

D D

C C

B B

A A

SATA_RXP0 SATA_RXP0_C

SATA_TXN0

SATA_RXN0_C

SATA_TXP0

SATA_RXN0

SATA_RXP4

SATA_RXN4

SATA_TXP4

SATA_RXN4_C

SATA_RXP4_C

SATA_TXN4

SMB_CLK_S3

SMB_DATA_S3

SATA_RXN0_C <11>

SATA_RXP0_C <11>

SATA_TXN0 <11>

SATA_TXP0 <11>

SATA_RXN4_C <11>

SATA_TXN4 <11>

SATA_TXP4 <11>

SATA_RXP4_C <11>

SMB_DATA_S3 <12,17,18,19>

SMB_CLK_S3 <12,17,18,19>

ACCEL_INT <14>

+3VS

+5VS

+3VS_ACL+3VS +3VS_ACL_IO

+3VS_ACL_IO

+3VS_ACL

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

HDD & CDROM

Custom

30 49Monday, April 13, 2009

2007/08/28 2006/03/10

Compal Electronics, Inc.

Near CONN side.

HDD Connector

CD-ROM Connector

Placea caps. near ODD CONN.

Pleace near HDD CONN (JP3)

ACCELEROMETER (ST)

0011101b

Must be placed in the center of the system.

VDDIO absolute man

rating is VDD+0.1

02/12 Change SM bus to VS

C467 0.01U_0402_16V7K

C465

0.1U_0402_16V4Z

D10

CH751H-40PT_SOD323-2

2 1

C473 0.01U_0402_16V7K

C476

1U_0603_10V4Z

JHDD

OCTEK_SAT-22EH1G_RV

CONN@

GND 1

A+ 2

A- 3

GND 4

B- 5

B+ 6

GND 7

V33 8

V33 9

V33 10

GND 11

GND 12

GND 13

V5 14

V5 15

V5 16

GND 17

Reserved 18

GND 19

V12 20

V12 21

V12 22

GND

23 GND

C474 0.01U_0402_16V7K

R368 10K_0402_5%

C478

10U_0805_10V4Z

C468

0.1U_0402_16V4Z

U15

LIS302DLTR_LGA14_3x5

SCL / SPC 14

GND

Reserved

GND

Vdd_IO

Vdd

SDA / SDI / SDO 13

SDO 12

Reserved 11

GND 10

INT 2 9

INT 1 8

C462

10U_0805_10V4Z

C466 0.01U_0402_16V7K

R364

0_0603_5%

1 2

C464

0.1U_0402_16V4Z

ZZZ1

PCB-MB

R367

0_0402_5%

1 2

C475

0.1U_0402_16V4Z

C463

0.1U_0402_16V4Z

R366

0_0402_5%

1 2

JODD

SUYIN_127382FR013GX09ZR

CONN@

GND 13

A+ 12

A- 11

GND 10

B- 9

B+ 8

GND 7

DP 6

V5 5

V5 4

MD 3

GND 2

GND 1

C469

10U_0805_6.3V6M

C477

10U_0805_10V4Z

http://laptop-motherboard-schematic.blogspot.com/

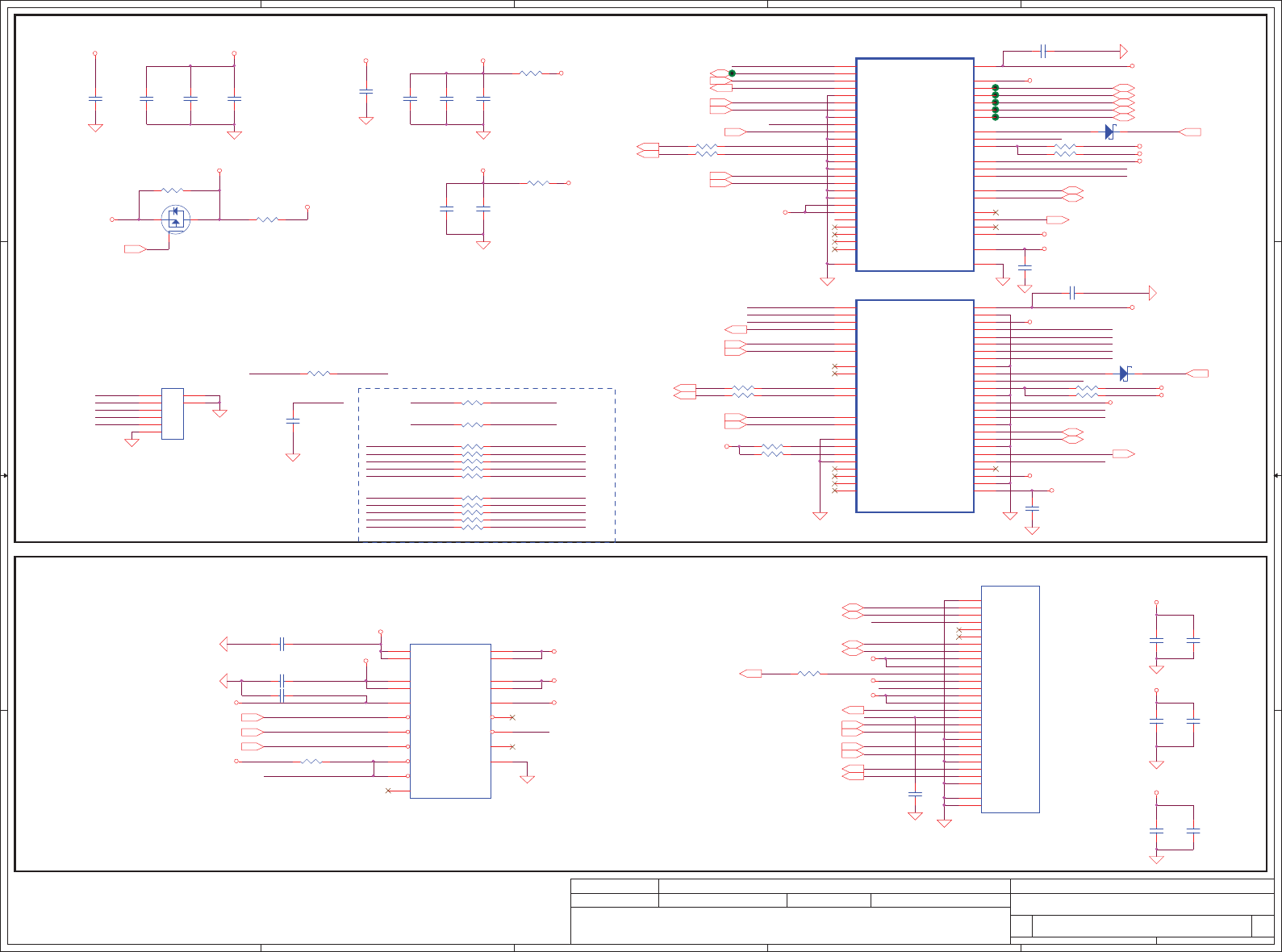

1 1

2 2

3 3

4 4

EXP_CPPE#

PLT_RST#

PERST#

SUSP#

SYSON

EXP_CPPE#

PCIE_PME#_R

SMBDATA

SMBCLK

PERST#

EXP_CPPE#

PLT_RST#

SMBCLK

SMBDATA

PLT_RST#

CL K_PCIE_MCA RD2#

CL K_PCIE_MCA RD2

PCIE_C_RXP2

PCIE_C_RXN2

CH_CLK

PCIE_TXN2

PCIE_TXP2

CH_DATA

ICH_PCIE_WAKE#

UIM_RST_R

UIM_CLK_R

UIM_PWR_R

UIM_DATA_R

UIM_VPP_R

PLT_RST#

CH_CLK

CH_DATA

ICH_PCIE_WAKE#

PCIE_TXN1

PCIE_TXP1

PCIE_C_RXP1

PCIE_C_RXN1

UIM_RST

UIM_PWR

UIM_DATA

UIM_CLK

UIM_VPP

UIM_PWR

UIM_CLK

UIM_DATA

XMIT_OFF# M_WXMIT_OFF#

UIM_PWR_R

UIM_DATA_R

UIM_CLK_R

UIM_RST_R

UIM_VPP_R

LPC_FRAME#

LPC_AD3

LPC_AD2

LPC_AD1

LPC_AD0

UIM_PWR

UIM_DATA

UIM_CLK

UIM_RST

UIM_VPP

UIM_PWR_R

UIM_DATA_R

UIM_CLK_R

UIM_RST_R

UIM_VPP_R

WL_LED# WW_LED#_R

WW_LED#_R

M_WXMIT_OFF#

XMIT_OFF#

SMBCLK

SMBDATA

PLT_RST#<6,14,32>

SYSON<37,38,39,48>

SUSP#<37,39,41,44,45>

SMBCLK<12> SMBDATA<12>

USB20_N9<14> USB20_P9<14>

ICH_PCIE_WAKE#<13,32>

CLKREQ_EXP#<12>

CLK_PCIE_EXP<12> CLK_PCIE_EXP#<12>

PCIE_RXN4<12> PCIE_RXP4<12>

PCIE_TXN4<12> PCIE_TXP4<12>

LPC_FRAME# <11,36,37>

LPC_AD3 <11,36,37>

LPC_AD2 <11,36,37>

LPC_AD0 <11,36,37>

LPC_AD1 <11,36,37>

WL_LED# <38>

USB20_P5 <14>

USB20_N5 <14>

XMIT_OFF <14>

CLKREQ_WLAN#<12>

CLK_PCIE_WLAN<12>

PCIE_TXN2<12>

PCIE_TXP2<12>

PCIE_RXP2<12>

CH_CLK<35> CH_DATA<35>

CLK_PCIE_WLAN#<12>

PCIE_RXN2<12>

CLK_DEBUG_PORT_1<14>

USB20_N8 <14>

USB20_P8 <14>

WW_LED# <38>

WXMIT_OFF# <14>

CLK_PCIE_WWAN<12>

PCIE_RXN1<12> PCIE_RXP1<12>

CLK_PCIE_WWAN#<12>

CLKREQ_WWAN#<12>

PCIE_TXP1<12>

PCIE_TXN1<12>

WWAN_POWER_OFF<37>

+3VS_PEC

+1.5VS_PEC

+3V_PEC

+3VS_PEC

+3V_PEC

+1.5VS_PEC

+1.5VS

+3VALW

+3VS

+3VS_PEC

+3V_PEC

+1.5VS_PEC

+3VALW

+3VS_WLAN

+1.5VS_WLAN

+3VS_WLAN

+1.5VS_WLAN

+3VS_WLAN

+1.5VS_WLAN

+3VS_WLAN

+3VS_WWAN

+1.5VS_WLAN

+3VALW

+1.5VS_WLAN

+3VS_WWAN

+3VALW +3VS_WWAN

+3VS_WLAN

+3VALW +1.5VS_WLAN

+1.5VS

+3VALW

+3VS

+3VS_WWAN

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

WLAN, WWAN, New Card

31 49Monday, April 13, 2009

2007/08/28 2006/07/26

Compal Electronics, Inc.

Mini Card Solt--WLAN/WWAN

Near to Express Card slot.

New Card

internal pull high to 3.3Vaux-in

EC need setting at Hi-Z & output Low

Express Card Power Switch

SIM card Connector

For PR

JSIM

ACES_87212-06G0

CONN@

G1 7

G2 8

D12 CH751H-40_SC76

2 1

R402 0_0805_5%

1 2

R401 0_0402_5%

1 2

R410

0_1206_5%

1 2

R766 0_0402_5% PA@

1 2

C511

4.7U_0805_10V4Z

C977 47P_0402_50V8J@

1 2

C979 47P_0402_50V8J@

1 2

C519

18P_0402_50V8J

C529

4.7U_0805_10V4Z

R406

47K_0402_5%

1 2

C514

4.7U_0805_10V4Z

Q16

SI2301BDS_SOT23

R767 0_0402_5% PA@

1 2

R396 0_0805_5%@

1 2

R761 0_0402_5% PR@

1 2

R769 0_0402_5% PA@

1 2

R388

0_0805_5%

R397 0_0402_5%

1 2

JEXP

SANTA_130801-5_RT

CONN@

GND

USB_D-

USB_D+

CPUSB#

RSV

SMB_CLK

SMB_DATA

+1.5V

WAKE#

+3.3VAUX

PERST#

+3.3V

CLKREQ#

CPPE#

REFCLK-

REFCLK+

GND

PERn0

PERp0

GND

PETn0

PETp0

GND

R398 0_0805_5%

1 2

C520 0.1U_0402_16V4Z

1 2

R395 0_0402_5%

1 2

R768 0_0402_5% PA@

1 2

R762 0_0402_5% PR@

1 2

C525

0.1U_0402_16V4Z

D13 CH751H-40_SC76

2 1

C518

4.7U_0805_10V4Z

R759 0_0402_5%PR@

1 2

R758 0_0402_5%PR@

1 2

R389

0_0805_5%

R765 0_0402_5% PA@

1 2

C515

0.1U_0402_16V4Z

C527

330P_0402_50V7K

R763 0_0402_5% PR@

1 2

C521

0.1U_0402_16V4Z

R399 0_0402_5%

1 2

R403 0_0603_5%

1 2

C523 0.1U_0402_16V4Z

1 2

GND

JMINIB

QUASA_CA0416-092N21

CONN@

WAKE#

CLKREQ#

REFCLK-

B11

REFCLK+

B13

PERn0

B23

PERp0

B25

PETn0

B31

PETp0

B33

+3.3Vaux B24

SMB_CLK B30

SMB_DATA B32

USB_D- B36

USB_D+ B38

+3.3Vaux B2

GND B26

LED_WWAN# B42

LED_WLAN# B44

LED_WPAN# B46

+3.3Vaux B52

GND B4

UIM_PW R B8

UIM_DATA B10

UIM_CLK B12

UIM_RESET B14

UIM_VPP B16

GND B18

W_DISABLE# B20

PERST# B22

+1.5V B6

+1.5V B28

GND B34

GND B40

+1.5V B48

GND B50

COEX1

Reserved

B17

Reserved

B19

GND

B37

+3.3Vaux

B39

+3.3Vaux

B41

GND

B43

Reserved

B45

Reserved

B47

Reserved

B49

Reserved

B51

C522

4.7U_0805_10V4Z

C526

4.7U_0805_10V4Z

C513

0.1U_0402_16V4Z

C524 0.1U_0402_16V4Z

1 2

R760 0_0402_5% PR@

1 2

GND

JMINIA

QUASA_CA0416-092N21

CONN@

WAKE#

LED_WWAN# A42

LED_WLAN# A44

LED_WPAN# A46

+3.3Vaux A52

GND A54

CLKREQ#

+3.3Vaux A2

PERST# A22

+3.3Vaux A24

SMB_CLK A30

SMB_DATA A32

USB_D- A36

USB_D+ A38

GND

A53

REFCLK-

A11

REFCLK+

A13

PERn0

A23

PERp0

A25

PETn0

A31

PETp0

A33

COEX1

COEX2

GND

A15

Reserved

A17

Reserved

A19

GND

A21

GND

A27

GND

A29

GND

A35

GND

A37

+3.3Vaux

A39

+3.3Vaux

A41

GND

A43

Reserved

A45

Reserved

A47

Reserved

A49

Reserved

A51

+1.5V A6

UIM_PW R A8

UIM_CLK A12

UIM_RESET A14

UIM_VPP A16

W_DISABLE# A20

+1.5V A28

+1.5V A48

UIM_DATA A10

R409

0_0603_5%

1 2

R413 0_0402_5%

1 2

C509

0.1U_0402_16V4Z

R400 0_0805_5%@

1 2

C517

0.1U_0402_16V4Z

C516

0.01U_0402_16V7K

C978

47P_0402_50V8J

R414 100K_0402_5%@

1 2

U19

R5538D001-TR-F_QFN20_4X4~D

3.3Vin

43.3Vout 3

3.3Vout 5

SYSRST#

SHDN#

STBY#

PERST# 8

OC# 19

RCLKEN

AUX_IN

17 AUX_OUT 15

CPPE#

CPUSB#

NC 16

GND 7

1.5Vin

14 1.5Vout 11

1.5Vout 13

R404 0_0603_5%

1 2

R764 0_0402_5% PR@

1 2

C512

0.01U_0402_16V7K

C510

0.1U_0402_16V4Z

C980

47P_0402_50V8J

C528

0.1U_0402_16V4Z

http://laptop-motherboard-schematic.blogspot.com/

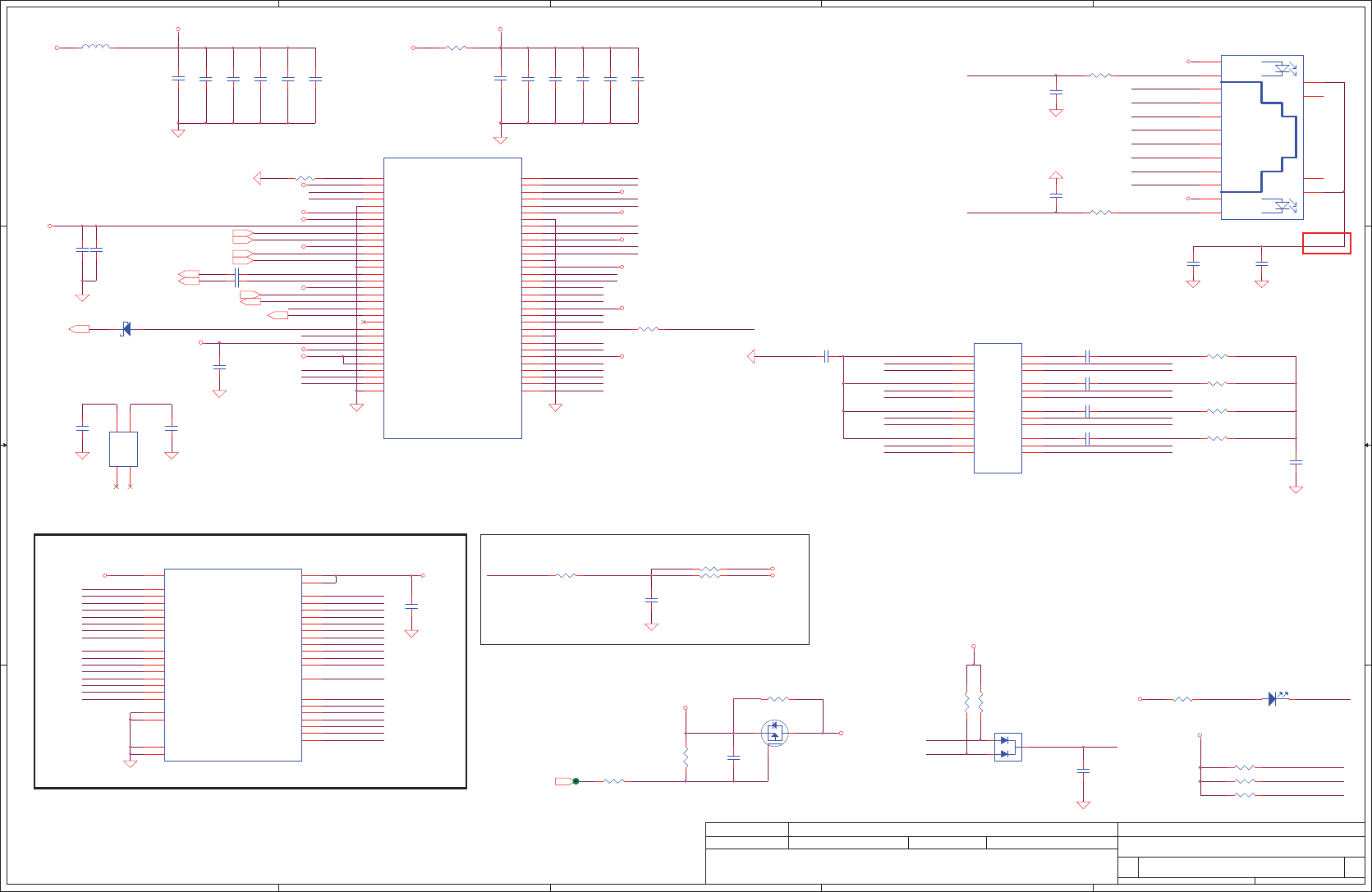

D D

C C

B B

A A

LAN_MDI0+

LAN_MDI0-

LAN_MDI1+

LAN_MDI1-

LAN_X1

LAN_X2

MDIO0

MDIO1

MDIO2

CR_CD1N

CR_CD0N

MDIO3

MDIO4

MDIO5

MDIO6

MDIO7

MDIO8

MDIO9

MDIO10

MDIO11

MDIO12

MDIO4

MDIO6

MDIO13

MDIO14

MDIO13

CR_CD0N

XD_CD

CR_LED#

LAN_X1

CLKREQ_LAN#

LANLE D_LINK#

LANGND

RJ4 5_MIDI1-

RJ4 5_MIDI0+

LANLED_ACT#

RJ4 5_MIDI1+

RJ4 5_MIDI0-

LAN_ACT#

LAN_LINK#

LAN_ACT#

LAN_LINK#

MDIO0

MDIO1

MDIO2

MDIO4

MDIO2

MDIO4

MDIO3

MDIO4

MDIO3

MDIO5_R

MDIO3

MDIO5_R

MDIO6

MDIO7

MDIO8

MDIO9

MDIO10

MDIO11

MDIO13

MDIO14

XD_CD

MDIO12

CR_CD0N

CR_CD1N

PC IE_PTX_IRX_N3

PCIE_PTX_IRX_P3

MDIO5_RCR_CD1N

LAN_MDI3-

LAN_MDI3+

LAN_MDI2+

LAN_MDI2-

RJ4 5_MIDI3+

RJ4 5_MIDI3-

RJ4 5_MIDI2-

RJ4 5_MIDI2+

RJ45_GND

LAN_X2

LAN_MDI0-

LAN_MDI0+

LAN_MDI1+

LAN_MDI1-

LAN_MDI2-

LAN_MDI2+

LAN_MDI3+

LAN_MDI3-

RJ4 5_MIDI0+

RJ4 5_MIDI0-

RJ4 5_MIDI1-

RJ4 5_MIDI1+

RJ4 5_MIDI2-

RJ4 5_MIDI2+

RJ4 5_MIDI3-

RJ4 5_MIDI3+

MPD

PL T_RST# MPD

ICH_PCI E_WAKE#<13,31>

CLK_PCIE_LAN#<12> CLK_PCIE_LAN<12>

PLT_RST#<6,14,31>

CLKREQ_LAN#<12>

PCIE_TXP3<12> PCIE_TXN3<12>

PCIE_RXN3<12> PCIE_RXP3<12>

CR_WAKE#<14>

LAN_POWER_OFF<37>

+5VS

+VDD33

+VDD33 +VDD33

+VDD33

+DVDD

+DVDD12

+3V_LAN

+VDD33

+DVDD12

+VCC_4IN1

+VDD33

+VCC_4IN1

+VDD33

+3V_LAN

+VCC_4IN1 +VCC_4IN1

+DVDD12

+VDD33

+3VS

+3V_LAN

+3VALW

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

USB CardReader&CONN

Custom

32 49Monday, April 13, 2009

2007/08/28 2006/10/06

Compal Electronics, Inc.

Card Reader Connector

Close to Pin8.

White

LAN Conn.

10/100 and Giga Transformer Co lay

1.For Giga LAN (RTL8111DL):

Mail source: LANKom: LG-2446S-1 (P/N: SP050005L00)

2nd Source: MHPC: NS892406 (P/N: SP050005900)

2.For 10/100M (RTL 8103EL):

Main Source: MHPC NS892404 (P/N: SP050003P00)

JMC251 SA000039X

JMC261 SA000037N

D3E support

40 mils

R927 0_0402_5%@

U17

SUPERWORLD_SWG150401

TCT1

TD1+

TD1-

TCT2

TD2+

TD2-

6MX2- 19

MX2+ 20

MCT2 21

MX1- 22

MX1+ 23

MCT1 24

TCT3

TD3+

TD3-

TCT4

TD4+

TD4-

MCT3 18

MX3+ 17

MX3- 16

MCT4 15

MX4+ 14

MX4- 13

C483

0.1U_0402_16V4Z

R821 75_0402_1%

1 2

C1035

10U_0805_6.3V6M

R830 10K_0402_5%

1 2

C1085 1000P_0402_50V7K

R371

300_0402_5%

R826

4.7K_0402_5%

C1028

0.1U_0402_16V4Z

R925 0_0402_5%@

C1083 1000P_0402_50V7K

D40

HT-11 0TW_WHITE

2 1

R828 1.2K_0402_5%

1 2

C1041 1000P_0402_50V7K

C1023

0.1U_0402_16V4Z

(LQFP 64)

JMC261

U46

JMC261-LGBZ0A_LQFP64_7X7

REXT

VDDX33

XIN

XOUT

MDIO8 37

VDDIO 38

MDIO7 39

MDIO6 40

GND 41

MDIO5 42

MDIO4 43

MDIO3 44

VDDIO 45

MDIO2 46

MDIO1 47

MDIO0 48

MDIO9 36

MDIO10 35

MDIO11 34

MDIO12 33

LED0 49

LED1 50

VDD 51

GND 52

VIP_1 53

VIN_1 54

AVDD12 55

VIP_2 56

VIN_2 57

GND 58

AVDD33 59

NC 60

NC 61

NC 62

NC 63

NC 64

GND

FB12

VDDREG

CLKN

CLKP

AVDDH

RXP

RXN

GND

TXN

TXP

GND

AVDDX

RSTN

WAKEN

MPD

CREQN

SMB_SCL/LED2

CR_CD1N

CR_CD0N

VCC3O

VDD

VDDIO

TESTN

SMB_SDA/CR_LEDN

MDIO14

MDIO13

JRJ45

FOX_JM36113-P1122-7F

CONN@

PR1-

PR1+

PR2+

PR3+

PR3-

PR2-

PR4+

PR4-

Green LED-

Green LED+

Yellow LED-

Yellow LED+

SHLD1 15

SHLD1 16

DETECT PIN1 9

DETCET PIN2 10

C480

0.1U_0402_16V4Z

C1029

0.1U_0402_16V4Z

R822 75_0402_1%

1 2

R817

0_0805_5%

1 2

R382 0_0402_5%

1 2

C1020

0.1U_0402_16V4Z

C1044

27P_0402_50V8J

D41 CH751H-40PT_SOD323-2

25MHZ_16PF_X3S025000FG1H-HX

IN 1

OUT 3

C1042 0.1U_0402_16V4Z

1 2

C1086

0.1U_0402_16V4Z

C1026

0.1U_0402_16V4Z

Q15

SI2301BDS-T1-E3_SOT23-3

C1027

0.1U_0402_16V4Z

C1043

27P_0402_50V8J

C1039 1000P_0402_50V7K

C1025

10U_0805_6.3V6M

C1019

0.1U_0402_16V4Z

C1034

0.1U_0402_16V4Z

R922 75_0402_1%

8111DL@

1 2

C1018

10U_0805_6.3V6M

C1021

0.1U_0402_16V4Z

C1045

1000P_1206_2KV7K

C1047

270P_0402_25V7

R333 22_0402_5%

1 2

C1062

10U_0805_6.3V6M

C479 0.1U_0402_16V7K

R923 75_0402_1%

8111DL@

1 2

R823 0_0805_5%@

1 2

C484

4.7U_0805_10V4Z

R369

300_0402_5%

C1040

0.1U_0402_16V4Z

C482

0.1U_0402_16V4Z

R824

100K_0402_5%

1 2

7 IN 1 CONN

JREAD1

TAITW_R015-B10-LM

CONN@

XD-WP

XD-D4

MS-DATA3 24

MS-DATA0 17

SD-DAT2 30

SD-DAT0 14

SD-CMD 25

MS-DATA1 15

XD-D6

5SD-DAT3 29

SD-DAT1 12

XD-ALE

XD-D0

SD_CLK 20

XD-D2

MS-INS 22

MS-DATA2 19

MS-SCLK 26

XD-RE

MS-BS 13

XD-D5

XD-D7

XD-D1

XD-CE

XD-R/B

XD-D3

XD-WE

MS-VCC 28

7IN1 GND

XD-CLE

7IN1 GND

SD-VCC 21

XD-VCC

XD-CD

40 SD-CD-SW 1

SD-WP-SW 2

7IN1 GND

SD-DAT4 27

SD-DAT5 23

SD-DAT6 18

SD-DAT7 16

C485

0.1U_0402_16V4Z

R831 1K_0402_5%

1 2

R926 0_0402_5%

1 2

R825

4.7K_0402_5%

4.7UH_1008HC-472EJFS-A_5%_1008

1 2

C1030

0.1U_0402_16V4Z

C1022

0.1U_0402_16V4Z

R829 10K_0402_5%

1 2

C481 0.1U_0402_16V7K

R819 12K_0402_1%

D39

DAN202U_SC70

http://laptop-motherboard-schematic.blogspot.com/

1 1

2 2

3 3

4 4

HDA_SYNC_CODEC

HDA_RST#_CODEC

HDA _S DOUT_CODEC

HDA _BITCLK_CODEC

HDA_SDIN0_CODEC

EC_MUTE#

HP_OUTL

HP_OUTR

MIC_EXTR

MIC_EXTL MIC_EXT_R

MIC_EXT_L

+VREFOUT_EXTMIC

SB_SPKR

MONO_INR MONO_IN

SPKL+

SPKL-

SPKR+

SPKR-

SENSEA

MIC_EXT_L

MIC_EXT_R

+VREFOUT_EXTMIC

MIC_IN_L

+V REFOUT_INTMIC

MIC_IN_R

MIC_INL

MIC_INR MIC_IN_R

MIC_IN_L

+V REFOUT_INTMIC

HDA_SYNC_MDC

HDA _ SDOUT_MDC

HDA _S DIN1_MDC

GNDA <34>

HDA _BITCLK_CODEC<11>

HDA _SDOUT_CODEC<11>

HDA_SYNC_CODEC<11>

HDA_RST#_CODEC<11,37>

HDA _SDIN0<11>

HP_OUTL <34>

HP_OUTR <34>

EC_MUTE#<37>

MIC_EXT_L <34>

MIC_EXT_R <34>

SPKL+ <34>

SPKL- <34>

SPKR- <34>

SPKR+ <34>

SB_SPKR <11>

EC_BEEP <37>

HP_DET# <34>

EXTMIC_DET# <34>

DMIC_CLK<21> DMIC_DAT<21>

EAPD_CODEC<37>

MIC_IN_L <34>

MIC_IN_R <34>

HDA_SDIN1<11> HDA_BITCLK_MDC <11>

HDA_SDOUT_MDC<11>

HDA_RST#_MDC<11>

HDA_SYNC_MDC<11>

+3VS_DVDD

+3VS_HDA

+AVDD_CODEC +5VS

+3VS

+AVDD_CODEC

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

Codec_IDT9271B7

Custom

33 49Monday, April 13, 2009

2007/08/28 2006/07/26

GNDAGND

HP Jack

Ext MIC

Internal SPKR

Int MIC

MDC 1.5 Conn.

MDC Standoff

C986 1000P_0402_50V7K@

1 2

R434

4.7K_0402_5%

C553

1U_0402_6.3V6K

C1064

1U_0402_6.3V6K

C976

0.1U_0402_16V4Z

C1068

10U_0805_10V4Z

C563

10U_0805_10V4Z

1 2

C561 0.1U_0402_16V4Z

C1069

4.7U_0603_6.3V6M

C1072

10U_0805_10V4Z

R440 20K_0402_1%

1 2

HOLEA

C558 2.2U_0603_6.3V4Z

1 2

R431

1K_0402_5%

C545

1U_0603_10V4Z

1 2

R448 47K_0402_5%@

R904 0_0805_5%

Q38

2N7002_SOT23-3

R132 0_0603_5%@

1 2

R135 0_0603_5%@

1 2

C985 1000P_0402_50V7K@

1 2

C1070 0.1U_0402_16V4Z

1 2

C560 2.2U_0603_6.3V4Z

1 2

R452 33_0402_5%

1 2

C546

1U_0603_10V4Z

1 2

U22

92HD81B1X5NLGXB1X8_QFN48_7X7~D

DVDD_CORE

DVDD_IO

DMIC_CLK/GPIO1

DMIC0/GPIO2

SPKR_PORT_D_R- 43

SPKR_PORT_D_R+ 44

PVDD 45

DMIC1/GPIO0/SPDIF_OUT_1

HDA_SDO

HDA_BITCLK

DVSS

HDA_SDI

DVDD

HDA_SYNC

HDA_RST#

SPDIF_OUT_0

EAPD

MONO_OUT 25

AVDD 38

AVSS

PVSS

AVSS

AVDD 27

PVDD 39

SPKR_PORT_D_L- 41

VREG 37

VREFFILT 21

CAP2 22

HP0_PORT_A_L 28

VREFOUT_A_or_F 23

VREFOUT_C 24

HP0_PORT_A_R 29

CAP-

CAP+

SENSE_B 14

PORT_E_L 15

HP1_PORT_B_L 31

PORT_E_R 16

PORT_F_L 17

AVSS

PORT_F_R 18

PORT_C_L 19

PORT_C_R 20

PC_BEEP 12

HP1_PORT_B_R 32

SPKR_PORT_D_L+ 40

SENSE_A 13

V- 34

DAP

C1071

4.7U_0603_6.3V6M

R432

4.7K_0402_5%

C557 2.2U_0603_6.3V4Z

1 2

R433

4.7K_0402_5%

C555 1000P_0402_50V7K@

1 2

R446 0_0603_5%

1 2

R450 0_0603_5%

1 2

R437

BLM18BD601SN1D_0603

C1065 10U_0805_10V4Z

R908 10K_0402_5%

1 2

R139 0_0603_5%@

1 2

H10

HOLEA

C1066

0.1U_0402_16V4Z

R449

10K_0402_5%

1 2

C983 1000P_0402_50V7K@

1 2

C566

0.1U_0402_16V4Z

C562

0.1U_0402_16V4Z

R679 33_0402_5%

1 2

R447 47K_0402_5%

R907 0_0603_5%

1 2

R910 0_0402_5%@

1 2

R435

4.7K_0402_5%

C551

0.1U_0402_16V4Z

R441

47_0402_5%

R754 0_0603_5%

1 2

C556 1000P_0402_50V7K

1 2

R439 39.2K_0402_1%

1 2

R909

10K_0402_5%

1 2

C565

1000P_0402_50V7K

C559 2.2U_0603_6.3V4Z

1 2

R453

10_0402_5%

R442 100K_0402_5%

C984 1000P_0402_50V7K@

1 2

C1067

1U_0402_6.3V6K

R430

0_0402_5%

R438 2.5K_0402_1%

1 2

C564

1U_0603_10V6K

Connector for MDC Rev1.5

JP8

ACES_88018-124G

CONN@

GND1

IAC_SDATA_OUT

GND2

IAC_SYNC

IAC_SDATA_IN

IAC_RESET#

RES0 2

RES1 4

3.3V 6

GND3 8

GND4 10

IAC_BITCLK 12

GND

R444

33_0402_5%

1 2

C554

33P_0402_50V8K

C1063

0.1U_0402_16V4Z

C568

10P_0402_25V8K

1 2

http://laptop-motherboard-schematic.blogspot.com/

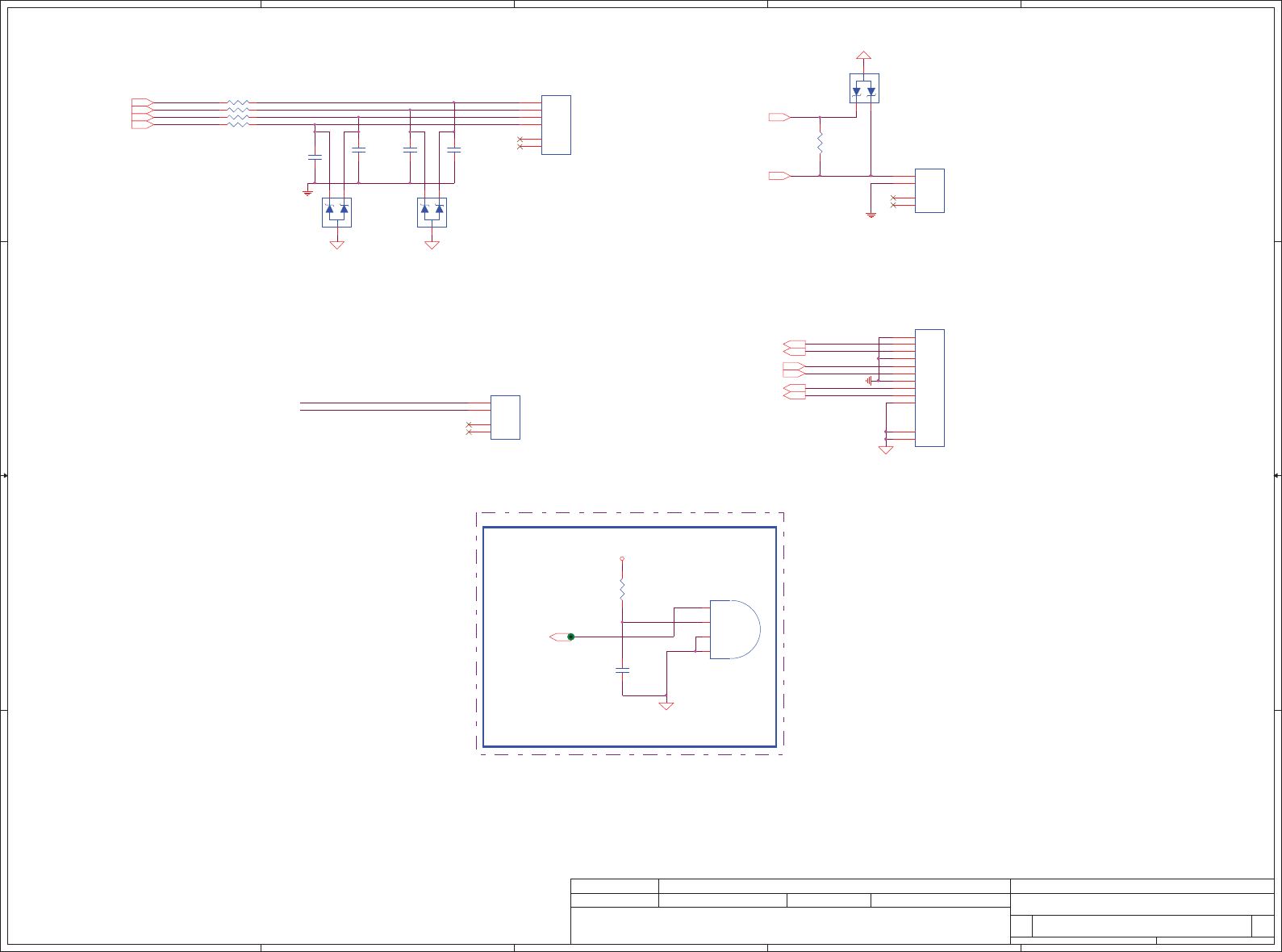

1 1

2 2

3 3

4 4

SPK_L-

SPK_L+

SPK_R+

SPK_R-

SPKR+

SPKL-

SPKL+

SPKR-

SPK_L-

SPK_L+

MIC_EXT_R

MIC_EXT_L

EXTMIC_DET#

HP_OUTR

HP_OUTL

HP_DET#

CIR_IN

MIC_IN_R<33>

MIC_IN_L<33>

MIC_EXT_R<33> MIC_EXT_L<33>

EXTMIC_DET#<33> HP_DET#<33>

CIR_IN<37>

SPKR-<33> SPKR+<33> SPKL-<33> SPKL+<33>

HP_OUTL<33> HP_OUTR<33>

+5VL

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

AMP & Audio Jack

Custom

34 49Monday, April 13, 2009

2007/08/28 2006/07/26

SPEAKER

INTMIC IN

Audio connector

Add JSPK2 for PA

Consumer IR

R455 0_0603_5%

1 2

R456 0_0603_5%

1 2

C572

330P_0402_50V7K

R469

0_0402_5%

JAUDIO

ACES_87213-1000G

CONN@

GND1

GND2

C571

330P_0402_50V7K

R457 0_0603_5%

1 2

R454 0_0603_5%

1 2

JP10

ACES_88231-02001

CONN@

GND

C570

330P_0402_50V7K

R476

100_0805_5%

JSPK1

E&T_3806-F04N-02R

CONN@

GND1

GND2

D15

PSOT24C_SOT23-3

D17

PSOT24C_SOT23-3

JSPK2

ACES_88231-02001

CONN@

GND

D16

PSOT24C_SOT23-3

IR1

IRM-V536/TR1_3P

VCC

Vout

GND

C569

330P_0402_50V7K

C597

4.7U_0805_10V4Z

http://laptop-motherboard-schematic.blogspot.com/

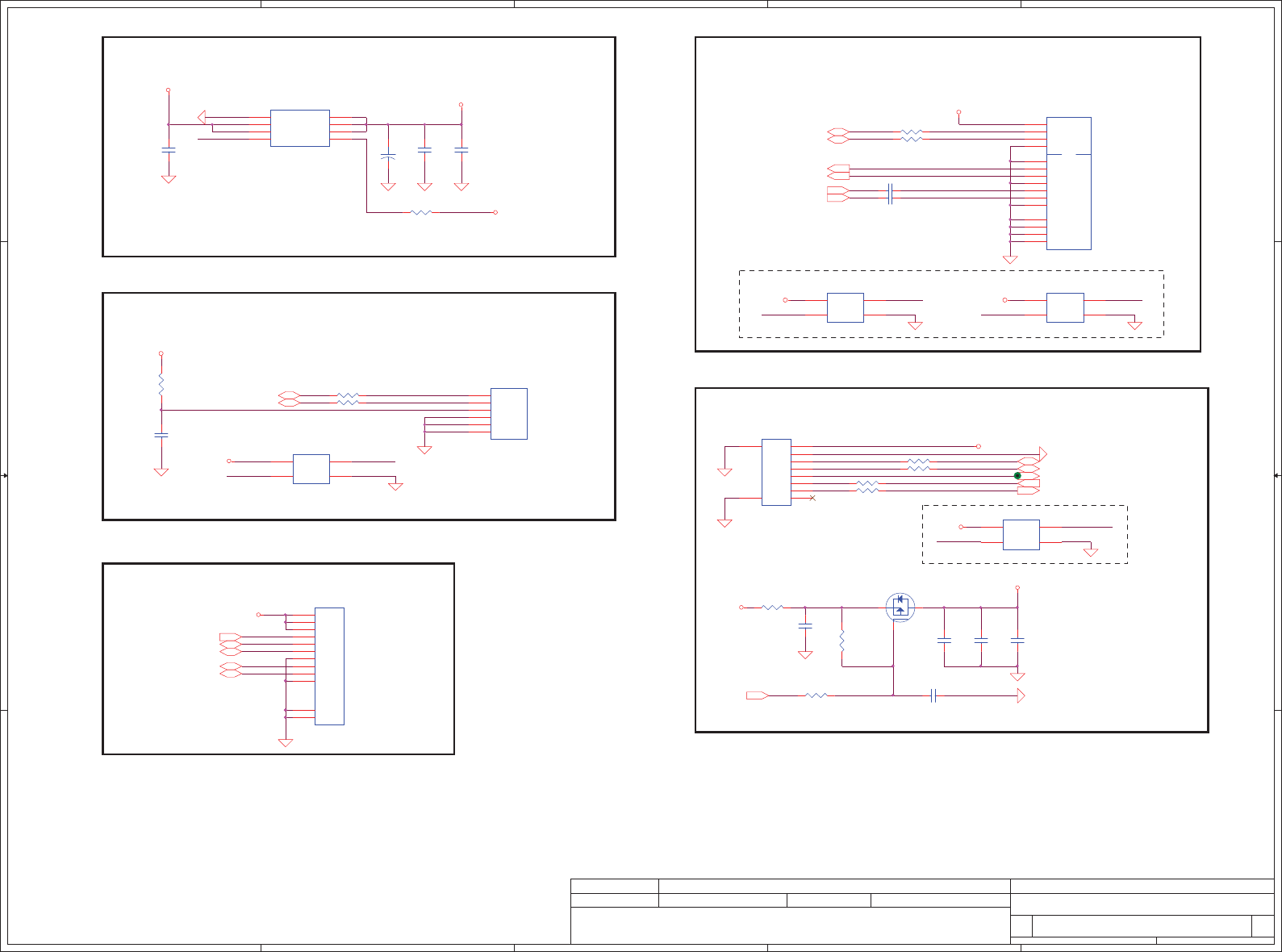

D D

C C

B B

A A

USB20_N6_R

USB20_P6_R

USB20_P2_R

USB20_N2_R

SATA_TXN2

SATA_TXP2

SATA_RXN2

SATA_RXP2

USB_EN#

USB20_N7_R

USB20_P7_R

USB_EN#

USB20_N2

USB20_P2

+3VS_FP

USB20_N7_R

USB20_P7_R

SATA_TXP2

SATA_TXN2

BT_OFF<14>

USB20_N6 <14>

CH_CLK <31>

BT_LED <38>

CH_DATA <31>

USB20_P6 <14>

USB20_N2<14>

SATA_RXN2_C<11> SATA_RXP2_C<11>

SATA_TXP2<11>

USB20_P2<14>

SATA_TXN2<11>

USB20_P7<14> USB20_N7<14>

USB20_N0<14> USB20_P0<14>

USB_EN#<37>

USB20_N1<14> USB20_P1<14>

+5VALW

+USB_VCCC

+5VALW

+3VAUX_BT

+5VALW

+3VAUX_BT

+5VALW

+US B_VCCC

+5VALW

+5VALW +3VS

+3VS

+5VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

USB, BT, eSATA

35 49Monday, April 13, 2009

2007/08/28 2006/07/26

Compal Electronics, Inc.

W=100mils

Need change to New version

Finger printer

Right side USB Power Switch Right side ESATA/USB combination Connector

BT Connector

USB cable connector for Left side

10/08 ESD request

JUSB

ACES_87213-1000G

CONN@

GND1

GND2

JFPR

P-TWO_161011-04021

CONN@

GND

R481 10K_0402_5%

1 2

R493

100K_0402_5%

C609 0.1U_0402_16V4Z

1 2

C605

1U_0603_10V4Z

USB

ESATA

JESATA

TYCO_1759576-1

CONN@

VBUS

D-

D+

GND

A+

A-

GND

B-

B+

GND

C603 0.01U_0402_16V7K

R479 0_0402_5%

1 2

R487 0_0402_5%

D21

PRTR5V0U2X_SOT143-4

GND 1

IO1 2

IO2

VIN

R484 0_0402_5%

1 2

C604

0.1U_0402_16V4Z

R488 0_0402_5%

R489 1K_0402_5%@

1 2

JBT

ACES_87213-0800G

CONN@

GND

C598

150U_B_6.3VM_R40M

D23

PRTR5V0U2X_SOT143-4

GND 1

IO1 2

IO2

VIN

C600

0.1U_0402_16V4Z

C606

0.01U_0402_16V7K

R490 1K_0402_5%@

1 2

C607

0.1U_0402_16V4Z

R485 0_0402_5%

1 2

U24

TPS2061IDGNR_MSOP8

GND

OC# 5

OUT 6

OUT 8

EN#

OUT 7

R491

0_0603_5%

1 2

R483

0_0603_5%

1 2

R494 10K_0402_5%

1 2

C608

4.7U_0805_10V4Z

D20

PRTR5V0U2X_SOT143-4

GND 1

IO1 2

IO2

VIN

C602 0.01U_0402_16V7K

D22

PRTR5V0U2X_SOT143-4

GND 1

IO1 2

IO2

VIN

C601

1000P_0402_50V7K

C599

4.7U_0805_10V4Z

Q20 SI2301BDS_SOT23

R480 0_0402_5%

1 2

http://laptop-motherboard-schematic.blogspot.com/

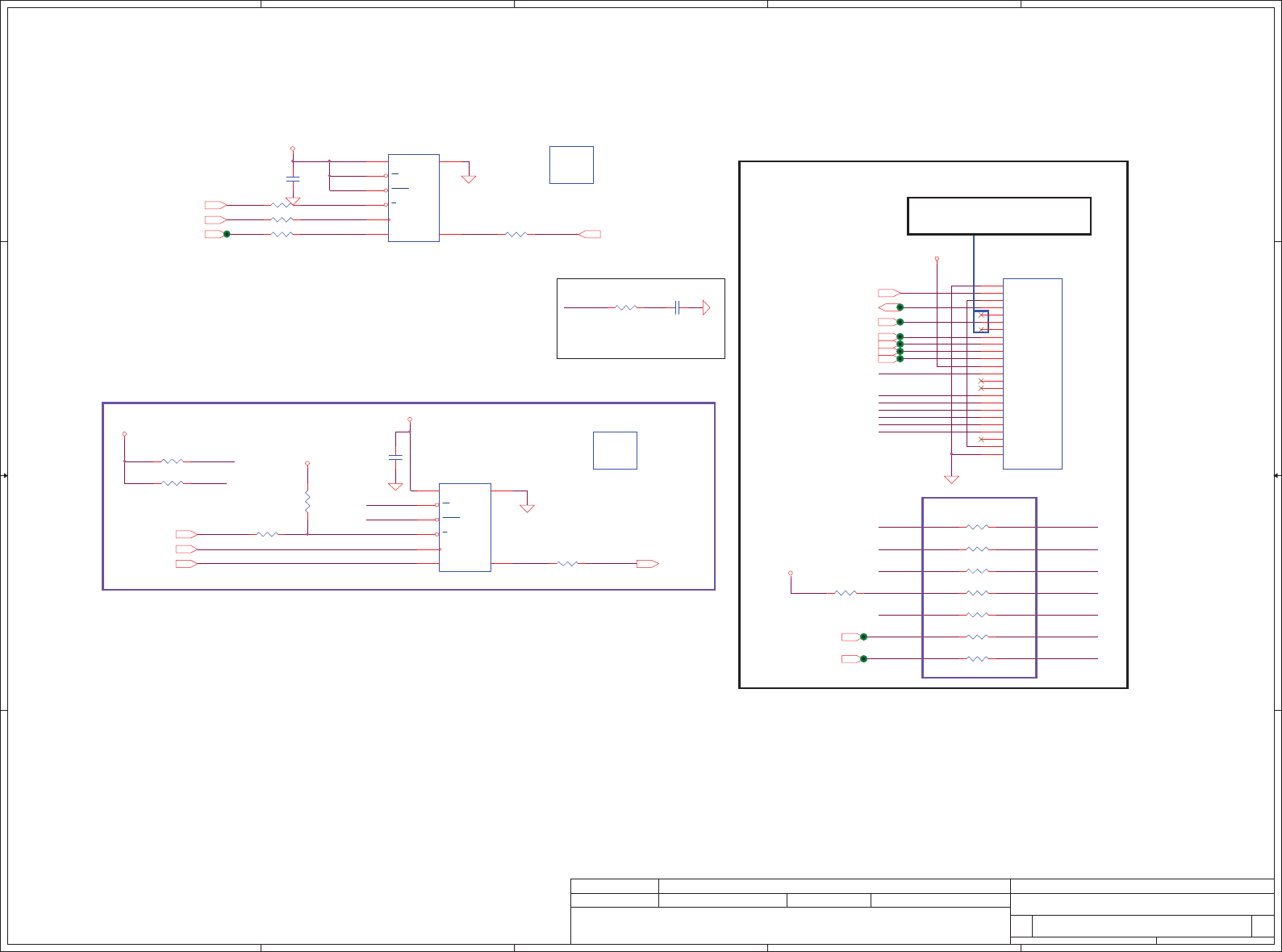

D D

C C

B B

A A

FRD#

SPI_CLK_R

SPI_SOSPI_FWR#

SPI_FSEL#

SPI_HOLD#_0

SPI_SO_JP18

SPI_SI_JP18

ON/OFFBTNLED#

VCC1PWRGD

SPI_CLK_JP18

SPI_CS#_JP18

ON/OFFBTNLED#

VCC1PWRGD

ON/OFFBTN_LED#

SPI_SI_JP18

SPI_HOLD#_0

SPI_CLK_JP18

SPI_CS#_JP18

SPI_SO_JP18

FWR#

SPI_CLK

FSEL#

FRD#

HOLD#

VCC1_PWRGD

SPI_CLK_R

SPI_SB_CS#

SPI_SI

SPI_CLK_PCH

SPI_WP#

SPI_HOLD#

SPI_SO_RSPI_SO_L

SPI_WP#

SPI_HOLD#

SPI_CLK<37>

FRD# <37>FWR#<37>

FSEL#<37>

PCI_RST#<14,37>

LPC_AD0<11,31,37> LPC_AD1<11,31,37> LPC_AD2<11,31,37> LPC_AD3<11,31,37>

LPC_FRAME#<11,31,37>

ON/OFFBTN_LED#<37,38>

VCC1_PWRGD<37>

SPI_SI<11>

SPI_SB_CS#<11>

SPI_SO_R <11>

SPI_CLK_PCH<11>

CLK_DEBUG_PORT_0<14>

+3VL

B+

+3VALW

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

BIOS ROM

36 49Monday, April 13, 2009

2007/08/28 2006/07/26

Compal Electronics, Inc.

SP07000F500 S SOCKET WIESON G6179-100000 8P SPIFLASH

WIESO_G6179-100000_8P

20mils

SPI ROM => 1M (EC code)

LPC Debug Port

Change from +3VL to +3VS. 6/9

Removed +3VS. 6/13

Connect pin3 & 23

together and pin 24

to GND in 6/29.

11/07 Add 0 Ohm for debug port

0919 EMI request

SPI ROM on PCH => 4M (ME code + System BIOS)

SA00000XT00 S IC FL 8M

ΚΚ

MX25L8005M2C-15G SOP 8P (MXIC)

SA00001AW00 S IC FL 16M MX25L

ΚΚ

1605AM2C-15G SOP 8P SPI (MXIC)

SA000021A00 S IC FL 32M

ΚΚ

MX25L3205DM2I-12G SOP 8P (MXIC)

SA000031Q00 S IC

ΚΚ

FL 32M AT25DF321-SU SOIC 8P (ATMEL)

U31

WIESON G6179 8P SPI

VCC

HOLD

VSS 4

R659 3.3K_0402_5%

1 2

C610

0.1U_0402_16V4Z

&U31

32M AT25DF321-SU SOIC 8P

45@

R501 0_0402_5%

DEBUG@

1 2

R498 0_0402_5%

1 2

R504 3.3K_0402_5%

1 2

R660

1K_0402_5%

1 2

R661

15_0402_5%

1 2

C773

0.1U_0402_16V4Z

U25

WIESON G6179 8P SPI

VCC

HOLD

VSS 4

R505 0_0402_5%

DEBUG@

1 2

R506 0_0402_5%

DEBUG@

1 2

R233

10_0402_5%

1 2

C391

6P_0402_50V8D

1 2

&U25

MX25L8005M2C-15G SOP 8P

45@

JP15

ACES_87216-2404_24P

CONN@

Ground

LPC_PCI_CLK

Ground

LPC_FRAME#

+V3S

LPC_RESET#

+V3S

LPC_AD0

LPC_AD1

LPC_AD2

LPC_AD3

VCC_3VA

PWR_LED#

CAPS_LED#

NUM_LED#

VCC1_PWRGD

SPI_CLK

SPI_CS#

SPI_SI

SPI_SO

SPI_HOLD#

Reserved

R497 10_0402_5%

1 2

R495 10_0402_5%

1 2

R503 0_0402_5%

DEBUG@

1 2

R507 0_0402_5%

DEBUG@

1 2

R662

15_0402_5%

1 2

R496 10_0402_5%

1 2

R508 0_0402_5%

DEBUG@

1 2

R502 0_0402_5%

DEBUG@

1 2

R658 3.3K_0402_5%

1 2

http://laptop-motherboard-schematic.blogspot.com/

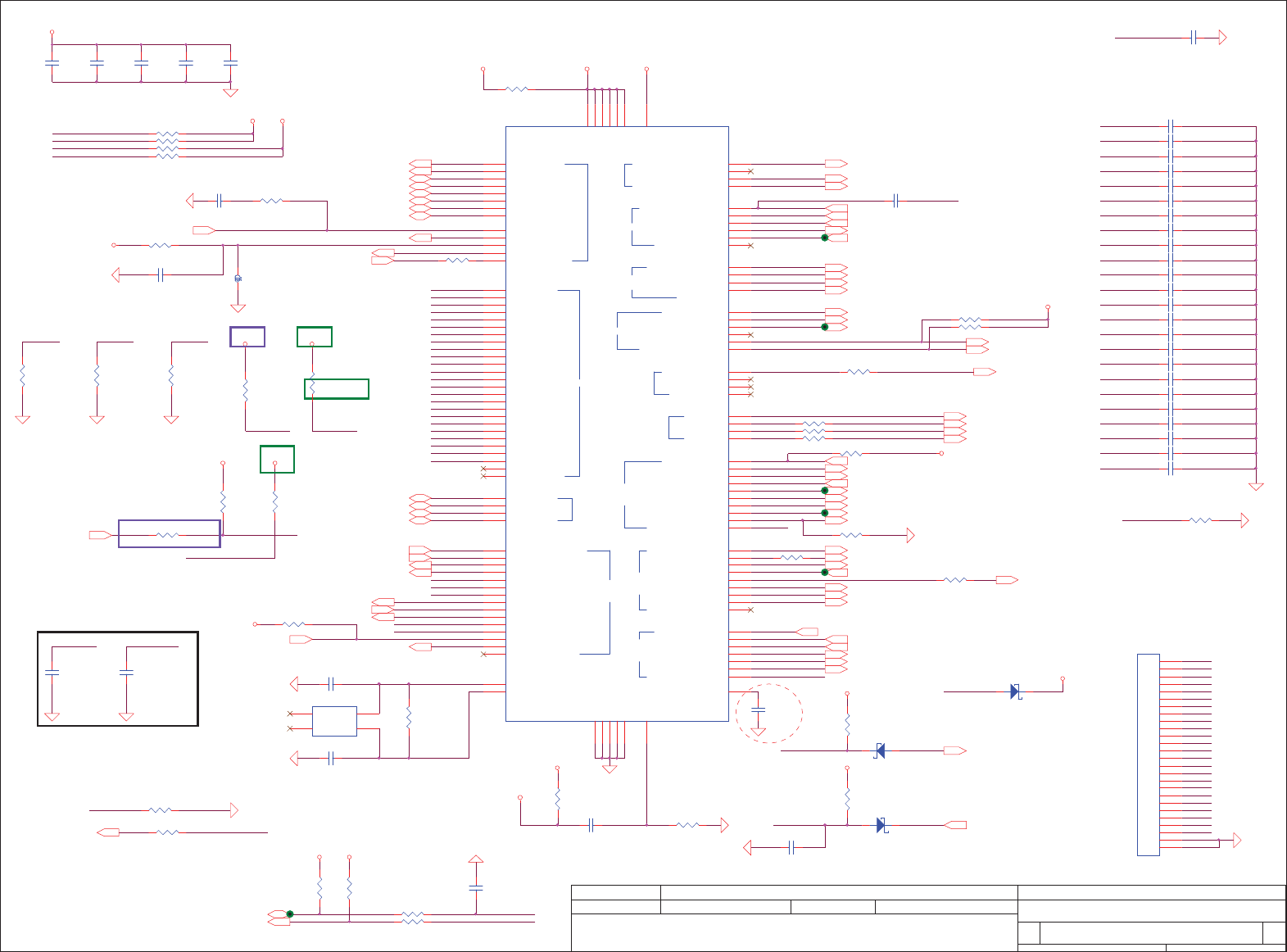

ON/OFFBTN#

KSI7

KSO12

KSO13

KSO14

KSO4

KSO8

KSO6

KSO3

KSO0

KSO1

KSO9

KSO2

KSO7

KSO5

KSO11

KSO10

SMB_EC_CK2

SMB_EC_DA2

SLP_S3#

SLP_S5#

EC_SMI#

LPC_FRAME#

LID_SW#

SIRQ

GATEA20

KB_RST#

LPC_AD2

LPC_AD1

LPC_AD3

LPC_AD0

ECAGND

PCI_RST#

UTX

LAN_POWER_OFF_R

CLK_PCI_EC

ECRST#

KSI3

CRY1

CRY2

KSI0

KSI1

KSI6

KSI5

KSI2

KSI4

KSO15

SMB_EC_CK1

SMB_EC_DA1

SUSP#

LID_SW#

EC_PME#

SMB_EC_CK1

SMB_EC_DA1

BAT_LED#

IREF

ECAGND

INV_PWM

BATT_TEMP

M_PWROK

EC_RSMRST#

BKOFF#

EC_ON

ADP_I

ADP_ID

VR_ON

FAB_SET

ENBKL

STD_ADP

TP_BTN#

AC_SET

AC_IN

FS TCHG

FRD#

BATT_OVP

SYSON

PM_PWROK_R

ACOFF

THERM_SCI#

ON/OFFBTN_LED#

EC_PME#

EC_MUTE#

CAPS_LED#

TP_CLK

TP_DATA

VCC1_PWRGD

DIM_LED

I2C_INT

ESB_DAT_R

ESB_CLK_R

TP_LED#

SUSP#

PWRBTN_OUT#

VCTRL

USB_EN#

EAPD_CODEC

WL_BLUE_LED#

AC_IN ACIN

NMI_DBG# PCI_SERR#

CIR_IN

PCI_RST#

KSO12

KSO11

KSO10

KSO6

KSO3

KSO5

KSO4

KSO0

KSO2

KSO1

KSI3

KSI2

KSI4

KSI5

KSI1

KSI6

KSO13

KSI7

KSI0

KSO14

KSO15

KSO9

KSO7

KSO8

NMI_DBG#

TP_BTN#

ESB_CLK_R

ESB_DAT_R

ADP_ID

WWAN_POWER_OFF

SLP_S4#

SYSON

EC_BEEP

BATT_OVP

EC_PME#

FWR#

SPI_CLK

FSEL#

LAN_POWER_OFF_R

UTX

EC_PME# PCI_RST#

SMB_EC_DA2

SMB_EC_CK2

FAN_SPEED

ENBKL

EC_ACIN

KSI5

KSO4

KSO3

KSO13

KSI2

KSO10

KSO8

KSO2

KSI1

KSO1

KSO7

KSI3

KSO11

KSI6

KSI4

KSO14

KSO15

KSI7

KSO12

KSI0

KSO0

KSO9

KSO5

KSO6

LPC_FRAME#<11,31,36> SIRQ<11>

LPC_AD1<11,31,36> LPC_AD2<11,31,36>

LPC_AD0<11,31,36>

LPC_AD3<11,31,36>

CLK_PCI_EC<14>

PCI_RST#<14,36>

EC_SCI#<14>

SMB_EC_DA1<38,40> SMB_EC_CK1<38,40>

LID_SW#<38>

GATEA20<14> KB_RST#<14>

SLP_S3#<13> SLP_S5#<13>

PCI_PME#<14>

EC_SMI#<14>

ON/OFFBTN#<38>

ACOFF <41>

CIR_IN <34>

FRD# <36>

BATT_OVP <40>

FAN_SET <6>

SYSON <31,38,39,48>

EC_RSMRST# <13>

EC_ON <42>

BAT_LED# <38>

VR_ON <46>

ADP_I <41>

THERM_SCI# <24>

ON/OFFBTN_LED# <36,38>

INV_PWM <22>

EC_LID_OUT# <12>

TP_CLK <38>

TP_DATA <38>

BKOFF# <21>

M_PWROK <13>

FSTCHG <41>

STD_ADP <41>

TP_BTN# <38>

AC_SET <41>

IREF <41>

ADP_ID <40>

ENBKL <22>

CAPS_LED# <38>

VCC1_PWRGD <36>

DIM_LED<39>

I2C_INT <38>

EC_MUTE# <33>

TP_LED# <38>

SUSP# <31,39,41,44,45>

PWRBTN_OUT# <13>

BATT_TEMP <40>

VCTRL <41>

USB_EN# <35>

EAPD_CODEC <33>

WL_BLUE_LED# <38>

PCI_SERR# <14>

ESB_DAT<38> ESB_CLK<38>

ACIN <41>

WWAN_POWER_OFF<31>

SLP_S4# <13>

EC_BEEP <33>

FW R# <36>

FSEL# <36>

SPI_CLK <36>

LAN_POWER_OFF<32>

AC_LED# <40>

PM_PWROK <13>

SMB_EC_CK2<12> SMB_EC_DA2<12>

HDA_RST#_CODEC<11,33>

FAN_SPEED<6> EC_ACIN<13>

+EC_AVCC

+3VL_EC

+EC_AVCC

+3VL_EC

+3VL

+5V_TP

+3VL +3VL_EC

+3VL

+3VL +3VALW

+3VL

+3VS

+3VL

+5VL

+3VL +3VL

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

EC KB926/KB Conn.

37 49Monday, April 13, 2009

2007/08/28 2006/07/26

Compal Electronics, Inc.

For EMI

For C

Revision

11/09 don't stuff when use C0

11/15 Delete PCI_PME#

01/03 Change to +3VS

EC DEBUG port

PV PWROK sequence issue

03/13 PV2 Add EMI solution

13" INT_KBD

CONN.( TYPE "D"

KB)

R516

33_0402_5%

1 2

R544

4.7K_0402_5%

L27

0_0603_5%

1 2

R528 33_0402_5%

1 2

R521

8.2K_0402_5%

1 2

R523

100K_0402_5%

C639 100P_0402_50V8J@

1 2

C622 100P_0402_50V8J@

1 2

C618 100P_0402_50V8J@

1 2

R511

0_0805_5%

1 2

R536

100_0402_5%

1 2

C617

1000P_0402_50V7K

C623

15P_0402_50V8J

1 2

C647

15P_0402_50V8J

1 2

C621 100P_0402_50V8J@

1 2

R543

0_0402_5%

1 2

C629 100P_0402_50V8J@

1 2

C640 100P_0402_50V8J@

1 2

R538 4.7K_0402_5%

1 2

R546 0_0402_5%

1 2

C650 0.1U_0402_16V4Z

1 2

R512 4.7K_0402_5%

1 2

R520 10K_0402_5%

1 2

C620 100P_0402_50V8J@

1 2

C636 100P_0402_50V8J@

1 2

R547 0_0402_5%

1 2

C638 100P_0402_50V8J@

1 2

C632 100P_0402_50V8J@

1 2

R513 4.7K_0402_5%

1 2

R532

10K_0402_5%

C627 100P_0402_50V8J@

1 2

C626 100P_0402_50V8J@

1 2

R535 0_0402_5%

1 2

JOPEN

R741 10K_0402_5%

C635 100P_0402_50V8J@

1 2

C628 100P_0402_50V8J@

1 2

C645

0.1U_0402_16V4Z

C631 100P_0402_50V8J@

1 2

C625 100P_0402_50V8J@

1 2

R522

8.2K_0402_5%

R515 4.7K_0402_5%

1 2

R531

10K_0402_5%

1 2

C646

0.1U_0402_16V4Z

C634 100P_0402_50V8J@

1 2

R525

10K_0402_5%

C613

0.1U_0402_16V4Z

R534 10K_0402_5%

C630 0.1U_0402_16V4Z

C624 0.01U_0402_16V7K

1 2

JKB1

ACES_85202-24051

CONN@

10 10

11 11

12 12

13 13

14 14

15 15

16 16

17 17

18 18

19 19

20 20

21 21

22 22

23 23

24 24

G1 25

G2 26

R524 0_0402_5%

1 2

L26

0_0603_5%

C644 100P_0402_50V8J@

1 2

C649

15P_0402_50V8J

1 2

C642 100P_0402_50V8J@

1 2

C614

0.1U_0402_16V4Z

R529 33_0402_5%

1 2

C651 100P_0402_50V8J

1 2

R545

4.7K_0402_5%

1 2

R518

0_0402_5%

1 2

C612

100P_0402_50V8J

32.768KHZ_12.5PF_Q13MC14610002

OSC 4

OSC 1

C633 100P_0402_50V8J@

1 2

C616

0.1U_0402_16V4Z

C619 100P_0402_50V8J@

1 2

C637 100P_0402_50V8J@

1 2

R526

10K_0402_5%

D26

CH751H-40PT_SOD323-2

2 1

C643 100P_0402_50V8J@

1 2

C641 100P_0402_50V8J@

1 2

R519 10K_0402_5%

1 2

R541

150K_0402_5%

R527 33_0402_5%

1 2

R540

10K_0402_5%

R514 4.7K_0402_5%

1 2

R533 0_0402_5%

1 2

R530 10K_0402_5%

1 2

C615

1000P_0402_50V7K

R542 0_0805_5%

C648

4.7U_0603_6.3V6K

D24

CH751H-40PT_SOD323-2

2 1

LPC & MISC

Int. K/B

Matrix

SM Bus

GPIO

AD Input

PWM Output

DA Output

PS2 Interface

SPI Device Interface

SPI Flash ROM

GPO

GPI

U27

KB926QFB0_LQFP128_14X14

GA20/GPIO00

KBRST#/GPIO01

SERIRQ#

LFRAME#

LAD3

PM_SLP_S3#/GPIO04

LAD2

LAD1

VCC 9

LAD0

GND

PCICLK

PCIRST#/GPIO05

PM_SLP_S5#/GPIO07

EC_SMI#/GPIO08

LID_SW#/GPIO0A

SUSP#/GPIO0B

PBTN_OUT#/GPIO0C

EC_PME#/GPIO0D

SCI#/GPIO0E

INVT_PWM/PWM1/GPIO0F 21

VCC 22

BEEP#/PWM2/GPIO10 23

GND

EC_THERM#/GPIO11

FANPWM1/GPIO12 26

ACOFF/FANPWM2/GPIO13 27

FAN_SPEED1/FANFB1/GPIO14

FANFB2/GPIO15

EC_TX/GPIO16

EC_RX/GPIO17

ON_OFF/GPIO18

VCC 33

PWR_LED#/GPIO19

GND

NUMLED#/GPIO1A

ECRST#

CLKRUN#/ GPI O1D

KSO0/GPIO20

KSO1/GPIO21

KSO2/GPIO22

KSO3/GPIO23

KSO4/GPIO24

KSO5/GPIO25

KSO6/GPIO26

KSO7/GPIO27

KSO8/GPIO28

KSO9/GPIO29

KSO10/ GPI O2A

KSO11/ GPI O2B

KSO12/ GPI O2C

KSO13/ GPI O2D

KSO14/ GPI O2E

KSO15/ GPI O2F

KSI0/GPIO30

KSI1/GPIO31

KSI2/GPIO32

KSI3/GPIO33

KSI4/GPIO34

KSI5/GPIO35

KSI6/GPIO36

KSI7/GPIO37

BATT_TEMP/AD0/GPIO38 63

BATT_OVP/AD1/GPIO39 64

ADP_I/AD2/GPIO3A 65

AD3/GPIO3B 66

AVCC 67

DAC_BRIG/DA0/GPIO3C 68

AGND

EN_DFAN1/DA1/GPIO3D 70

IREF/DA2/GPIO3E 71

DA3/GPIO3F 72

CI R_RX/GPIO40 73

CI R_RLC_TX/GPIO41 74

AD4/GPIO42 75

SELIO2#/AD5/GPIO43 76

SCL1/GPIO44

SDA1/GPIO45

SCL2/GPIO46

SDA2/GPIO47

KSO16/ GPI O48

KSO17/ GPI O49

PSCLK1/GPIO4A 83

PSDAT1/GPIO4B 84

PSCLK2/GPIO4C 85

PSDAT2/GPIO4D 86

TP_CLK/PSCLK3/GPIO4E 87

TP_DATA/PSDAT3/GPIO4F 88

FSTCHG/SELIO#/GPIO50 89

BATT_CHGI_LED#/GPIO52 90

CAPS_LED#/GPIO53 91

BATT_LOW _LED#/GPIO54 92

SUSP_LED#/GPIO55 93

GND

SYSON/GPIO56 95

VCC 96

SDICS#/GPXOA00 97

SDICLK/GPXOA01 98

SDIDO/GPXOA02 99

EC_RSMRST#/GPXO03 100

EC_LID_OUT#/GPXO04 101

EC_ON/GPXO05 102

EC_SWI#/GPXO06 103

ICH_PWROK/GPXO06 104

BKOFF#/GPXO08 105

WL_OFF#/GPXO09 106

GPXO10 107

GPXO11 108

SDIDI/GPXID0 109

PM_SLP_S4#/GPXID1 110

VCC 111

ENBKL/GPXID2 112

GND

113

GPXID3 114

GPXID4 115

GPXID5 116

GPXID6 117

GPXID7 118

SPIDI/RD# 119

SPIDO/WR# 120

VR_ON/XCLK32K/GPIO57 121

XCLK1

122

XCLK0

123 V18R 124

VCC 125

SPICLK/GPIO58 126

AC_IN/GPIO59 127

SPICS# 128

D25

CH751H-40PT_SOD323-2

C652

10P_0402_50V8J

R517 47K_0402_5%

1 2

R539

20M_0402_5%

http://laptop-motherboard-schematic.blogspot.com/

1 1

2 2

3 3

4 4

ON/OFFBTN_LED#

ESB_DAT

TP_CLK

TP_DATA

SYSON

TP_CLK

TP_DATA

TP_LED#

TP_BTN#

ON/OFFBTN_LED#

ON/OFFBTN#

WL_LED

ESB_CLK

I2C_INT<37> ESB_DAT<37> ESB_CLK<37>

BT_LED<35>

WL_BLUE_LED# <37>

WW_LED#<31>

WL_LED#<31>

TP_DATA <37>

TP_CLK <37>

SYSON<31,37,39,48>

LID_SW#<37>

ON/OFFBTN#<37>

TP_LED# <37>

TP_BTN# <37>

BAT_LED#<37>

SATA_LED#<11>

HDDHALT_LED#<11>

CAPS_LED# <37>

ON/OFFBTN_LED#<36,37>

SMB_EC_DA1<37,40> SMB_EC_CK1<37,40>

+5VS

+5VS_LED

+3VL

+3VS

+5V_TP

+5VALW +5V_TP

+5VALW

+5VS

+5VALW

+5VS

+3VS

+5VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

KBD, ON/OFF, SW, CIR

38 49Monday, April 13, 2009

2007/08/28 2006/07/26

Compal Electronics, Inc.

Capacitor Sensor Conn

Keyboard backlight Conn

Mini card LED

T/P Board (Inculde T/P_ON/OFF)

T/P Board Conn

AMBER

White

System LED Conn Caps-Lock Conn for debug only

Power Button

R597 0_0402_5%

Cypress@

1 2

R567

100K_0402_5%

C654

0.1U_0402_16V4Z

Q25

2N7002_SOT23-3

C662

15P_0402_50V8J

JTP

P-TWO_161011-04021

CONN@

GND 5

GND 6

JCSB

P-TWO_161021-10021

CONN@

GND

R565

10K_0402_5%

R558 0_0603_5%

1 2

C661

4.7U_0603_6.3V6K

R598 0_0402_5%

Cypress@

1 2

R557

0_0805_5%

Q23

SI2301BDS-T1-E3_SOT23-3

R566

0_0805_5%

1 2

R563 1K_0402_5%

1 2

R570

33_0402_5%

C659

100P_0402_50V8J

R596 1.8K_0402_5%

1 2

R564

33_0402_5%

JTPSW

P-TWO_161011-04021

CONN@

GND 5

GND 6

C660

15P_0402_50V8J

R561 FBMA-11-100505-801T 0402ENE@

1 2

JKBL

P-TWO_161011-04021

CONN@

GND

R560

10K_0402_5%

D33

PSOT24C_SOT23-3

JCAP

P-TWO_161011-04021

CONN@

GND 5

GND 6

C772

15P_0402_50V8J

R562 FBMA-11-100505-801T 0402ENE@

1 2

SW2

SMT1-05_4P

C658

100P_0402_50V8J

Q24

2N7002_SOT23-3

D32

PSOT24C_SOT23-3

JLED

ACES_87213-0800G

CONN@

GND 9

GND 10

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

RUNON_3VS

SUSP

RUNON

SUSPSUSP SUSPSUSP SYSON#SUSP

DIM_LED#

DIM_LED

RUNON

DGPU_PWR_EN#

DGPU_PWR_EN NV VDD_PG

NV VDD_PG#

NV VDD_PG

NV VDD_PG#

SYSON<31,37,38,48> SUSP# <31,37,41,44,45>

SYSON#<45> SUSP <45>

DIM_LED<37>

DGPU_PWR_EN<14,23,45,47> NV VDD_PG<47>

+3VL

+5VS +3VS

B+

+3VL

B+

+5VALW +3VALW

+3VS +1.5V

+5VS +1.5VS +VCCP +0.75VS

+5VS +5VS_LED

+1.5VS+1.5V

+3VS_NVB+ +3VALW +1.8VS_NV

+1.8VS +VDD_MEM+1.5V

B+

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

DC/DC Interface

39 49Monday, April 13, 2009

2007/08/28 2006/07/26

Compal Electronics, Inc.

+5VALW to +5VS Transfer +3VALW to +3VS Transfer

01/03 Sparate+5VS

and +3VS power

timing

Discharge circuit DIM LED

+1.5V to +1.5VS Transfer

+3VALW to +3VS_NV Transfer +1.8VS to +1.8VS_NV Transfer +1.5V to +1.5VS_NV Transfer

400 mA 100 mA 4.64A

R591

470_0402_5%

Q6B

2N7002DW-7-F_SOT363-6

C671

0.1U_0402_16V4Z

H15

HOLEA

C680

10U_0805_10V4Z

C672

10U_0805_10V4Z

C677

4700P_0402_25V7K

Q10B

2N7002DW-7-F_SOT363-6

C676

0.01U_0402_16V7K

R588

470_0402_5%

C1076

10U_0805_10V4Z

SG@

U30

SI7326DN-T1-E3_PAK1212-8

35 2

C679

0.1U_0402_16V4Z

Q7B

2N7002DW-7-F_SOT363-6

R582

10K_0402_5%

R917

470_0402_5%

SG@

C674

10U_0805_10V4Z

HOLEA

R589

470_0402_5%

C1077

0.01U_0402_16V7K

SG@

Q9B

2N7002DW-7-F_SOT363-6

Q17A

2N7002DW-7-F_SOT363-6

SG@

R594

470_0402_5%

SG@

R586

100K_0402_5%

FM4

H14

HOLEA

R581

330K_0402_5%

C681

10U_0805_10V4Z

C1081

10U_0805_10V4Z

SG@

C1078

0.1U_0402_25V4K

SG@

U49

SI7326DN-T1-E3_PAK1212-8

SG@

35 2

Q18B

2N7002DW-7-F_SOT363-6

SG@

Q9A

2N7002DW-7-F_SOT363-6

C770

0.1U_0402_25V4K

C673

0.1U_0402_16V4Z

H13

HOLEA

U48

SI7326DN-T1-E3_PAK1212-8

SG@

35 2

HOLEA

R915

470_0402_5%

SG@

H18

HOLEA

Q8A

2N7002DW-7-F_SOT363-6

U29

SI7326DN-T1-E3_PAK1212-8

35 2

Q14B

2N7002DW-7-F_SOT363-6

SG@

R593

470_0402_5%

H12

HOLEA

R590

470_0402_5%

H16

HOLEA

Q10A

2N7002DW-7-F_SOT363-6

R650

1K_0402_5%

R585

470_0402_5%

C1074

0.1U_0402_16V4Z

SG@

R592

470_0402_5%

FM2

R916

1K_0402_5%

SG@

HOLEA

FM3

HOLEA

C1079

0.1U_0402_16V4Z

SG@

R583

330K_0402_5%

FM1

R587

100K_0402_5%

C670

0.1U_0402_16V4Z

H11

HOLEA

Q6A

2N7002DW-7-F_SOT363-6

C675

10U_0805_10V4Z

H17

HOLEA

Q27

2N7002_SOT23-3

C669

10U_0805_10V4Z

R913

470_0402_5%

SG@

U50

SI7326DN-T1-E3_PAK1212-8

SG@

35 2

C1073

10U_0805_10V4Z

SG@

C1075

0.1U_0402_16V4Z

SG@

Q18A

2N7002DW-7-F_SOT363-6

SG@

HOLEA

Q14A

2N7002DW-7-F_SOT363-6

SG@

HOLEA

Q7A

2N7002DW-7-F_SOT363-6

Q8B

2N7002DW-7-F_SOT363-6

R912

330K_0402_5%

SG@

R918

330K_0402_5%

SG@

Q26

SI2301BDS-T1-E3_SOT23-3

Q17B

2N7002DW-7-F_SOT363-6

SG@

R584

470_0402_5%

U28

SI7326DN-T1-E3_PAK1212-8

35 2

http://laptop-motherboard-schematic.blogspot.com/

1 1

2 2

3 3

4 4

EC_SMD

EC_SMC

SMB_EC_DA1

SMB_EC_CK1

ADP _SIGNAL

ADPINADPIN

EN0 <42>

BATT_OVP <37>

SMB_EC_CK1 <37,38>

SMB_EC_DA1 <37,38>

BAT _ID <41>

BATT_TEMP <37>

ADP_ID <37>

AC_LED# <37>

+5VS

+5VALW

BATT

+5VALW

VMB

+3VL

BATT

VIN

+3VALW

+3VL

Title

Size Document Number R ev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

DC Connector/CPU_OTP

40 49Monday, April 13, 2009

2007/05/29 2008/05/29

Compal Electronics, Inc.

CPU

PH1 under CPU botten side :

CPU thermal protection at 90 +-3 degree C

connect to KBC pin97

PD4

RLZ3.6B_LL34

PR3

10K_0402_5%

1 2

PR10

200K_0402_1%

1 2

PC4

100P_0402_50V8J

PR13

100_0402_5%

PC9

0.01U_0402_50V4Z

PQ3

TP0610K-T1-E3_SOT23-3

1 3

PC12

@1000P_0402_50V7K

PD2

PJSOT24C_SOT23-3

PR11

150K_0402_1%

1 2

PR16

6.49K_0402_1%

1 2

PR8

2K_0402_5%

1 2

PR14

100_0402_5%

PC5

1000P_0402_50V7K

PQ1

SSM3K7002FU_SC70-3

PL3

HCB2012KF-121T50_0805

1 2

JBATT

SUYIN_200275MR006G113ZL

BATT+ 1

TS 5

SMD 2

GND 6

SMC 3

B/I 4

GND

PR7

604K_0402_1%

1 2

PR6

105K_0402_1%

PU1B

LM358ADT_SO8

607

JDC

ACES_87302-0441

GND 5

GND 6

PH1

10K_TH11-3H103FT_0603_1%

PC10

0.22U_0603_10V7K

PR4

499K_0402_1%

PD1

@PJSOT24C_SOT23-3

PC6

0.01U_0402_25V7K

PL2

HCB2012KF-121T50_0805

1 2

PR9

100K_0402_5%

1 2

PR12

2.49K_0402_1%

PL4

HCB2012KF-121T50_0805

1 2

PC3

1000P_0402_50V7K

PC8

1000P_0402_50V7K

PR1

340K_0402_1%

PD3

PJSOT24C_SOT23-3

PL1

HCB2012KF-121T50_0805

1 2

PR5

10K_0402_5%

PC11

1000P_0402_50V7K

PU1A

LM358ADT_SO8

201

PC2

100P_0402_50V8J

PR2

10K_0402_5%

PC1

0.01U_0402_25V7K

PR15

150K_0402_1%

PR17

1K_0402_5%

http://laptop-motherboard-schematic.blogspot.com/

1 1

2 2

3 3

4 4

DL_CHG

ACP

ACN

LX_CHG

PACIN

CHGEN#

REGNVADJ

BATT

ACDET

ACSET

IADAPT

VIN_1

CHGEN#

FSTCHG#

ACDET

VIN_1

PACIN

ACOFF#

ACSET

DH_CHG DH_CHG1

BST_CHG

IREF <37>

VCTRL<37>

ADP_I<37>

BAT_ID <40>

AC _ SET<37>

SUSP#<31,37,39,44,45>

ACIN <37>

STD_ADP <37>

FSTCHG<37>

ACOFF <37>

VIN

BATT

VIN

BATT

B+

VIN

CHG_B+

VIN

+3VL

BQ24740VREF

1.24VREF

BQ24740VREF

+3VL

1.24VREF

VIN

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ON ICS, INC . AN D CO NTAI NS CO NFI DENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUS TOD Y OF TH E C OMPETENT DI VISI ON OF R& D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITH ER THI S SH EET N OR TH E I NFOR MATION IT CO NTAI NS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CO NSEN T O F CO MPA L EL ECTR ONICS , I NC .

Issued Date

Deci phered Date

Calpella DIS LA4743P

0.1

Charger

41 49Monday, April 13, 2009

2007/05/29 2008/05/29

Compal Electronics, Inc.

Charge Detector

PR103

47K_0402_5%

1 2

PQ112

SSM3K7002FU_SC70-3

PC102

1U_0603_6.3V6M

1 2

PD104

1SS355_SOD323-2

1 2

PR136

60.4K_0402_1%

1 2

PR119

47K_0402_5%

PC124

0.1U_0603_25V7K

PR124

1K_0402_5%

1 2

PC119

1U_0603_10V6K

PR123

1M_0402_5%

1 2

PR114

@0_0402_5%

1 2

PC112

1U_0603_6.3V6M

1 2

PR101

47K_0402_5%

1 2

PQ105

DTC115EUA_SC70-3

PR132

100K_0402_5%

PR116

39K_0402_5%

PQ111

SSM3K7002FU_SC70-3

PQ109

SSM3K7002FU_SC70-3

PR111

3K_0402_1%

1 2

PD103

RLZ4.3B_LL34

PR125

47_1206_5%

PC117

1U_0603_10V6K

PU102B

LM393DG_SO8

6O7

PC114

4.7U_0805_25V6-K

PR139

0_0402_5%

1 2

PC125

0.1U_0603_25V7K

PQ107

SSM3K7002FU_SC70-3

PC135

@470P_0603_50V8J

1 2

BQ24740RHDR_QFN28_5X5

PU101

ACP 3

LPMD 4

CHGEN 1

ACN 2

ACDET 5

ACSET 6

IADSLP

SRP

BAT

IADAPT

PGND 22

SRSET

ISYNSET

VADJ

VDAC

LPREF 7

VREF

DPMDET

LODRV 23

CELLS

SRN

AGND

REGN 24

EXTPWR

PH 25

HIDRV 26

BTST 27

PVCC 28

TP 29

PR108

10_1206_5%

1 2

PR126

100K_0402_1%

PR134

10K_0402_5%

PQ101

AO4433_SO8

PR106

200K_0402_5%

PC113

4.7U_0805_25V6-K

PC107

@0.01U_0402_16V7K

PQ113

SSM3K7002FU_SC70-3

PR115

100K_0402_1%

PQ102

AO4407_SO8

3 6

PR130

2.15K_0402_1%

1 2

PR109

150K_0402_5%

PR107

47K_0402_1%

1 2

PR129

10K_0402_1%

PR122

681K_0402_1%

1 2

PC120

0.22U_0603_10V7K

PC111

0.1U_0402_10V7K

1 2

PR112

0.015_1206_1%

1 2

PQ103

AO4409_SO8

3 6

PR105

10K_0402_5%

PR117

100K_0402_5%

1 2

PQ106

DTC115EUA_SC70-3

PR137

20K_0402_1%

1 2

PR128

10K_0402_5%

PR140

100K_0402_5%

PC126

0.047U_0402_16V7K

PD101

1SS355_SOD323-2

1 2

PU102A

LM393DG_SO8

2O1

PR102

0.012_2512_1%

PQ104

DTA144EUA_SC70-3

1 3

PC106

0.1U_0603_16V7K

PC115

4.7U_0805_25V6-K

PC127

22P_0402_50V8J

PR131

133K_0402_1%

PL101

HCB2012KF-121T50_0805

1 2

PR127

10K_0402_1%

PR118

10K_0402_5%

1 2

PC105

4.7U_0805_25V6-K

PR141

@4.7_1206_5%

PR135

10K_0603_0.1%

PR113

143K_0402_1%

PL102

10U_LF919AS-100M-P3_4.5A_20%

1 2

PC108

0.1U_0603_25V7K

PR138

100K_0402_1%

PC123

0.1U_0402_10V7K

PC103

4.7U_0805_25V6-K

PR104

0_0402_5%

1 2

PC101

47P_0402_50V8J

PC122

4.7U_0805_25V6-K

PR120

133K_0402_1%

PQ108

AON7408L_DFN8-5

3 5

PD102

1SS355_SOD323-2

PR121

200K_0402_1%

PC104

4.7U_0805_25V6-K

PU104

LMV431ACM5X_SOT23-5

NC 2

REF

NC 1

CATHODE 3

ANODE

PC121

100P_0402_50V8J

PQ110

AO4468_SO8

3 6

PC118

0.1U_0402_10V7K

1 2

PC110

1U_0805_25V6K

1 2

PR142

0_0402_5%

1 2

PR133

10K_0603_0.1%

PC116

4.7U_0805_25V6-K

PR110

0_0402_5%

1 2

http://laptop-motherboard-schematic.blogspot.com/

1 1

2 2

3 3

4 4

BST_5V

LX_5V

LG_3V

LX_3V

UG_3V

ENTRIP1

ENTRIP2

UG1_3V

UG_5V

BST_3V

ENTRIP2

ENTRIP1

LG_5V

EC_ON <37>

R_EC_RSMRST# <13>

EN0<40>

B++

+5VALWP

+3VALWP

B++

2VREF_51125

B+

+3VL

+3VLP

2VREF_51125

+5VALWP

+3VALW

+5VALW

+3VALWP

+5VL

B++

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

3.3VALWP/5VALWP

Custom

42 49Monday, April 13, 2009

2007/08/02 2008/08/02

Compal Electronics, Inc.

(4.5A,180mils ,Via NO.= 9)

(3A,120mils ,Via NO.= 6)

PC312

0.1U_0603_25V7K

PJP301

PAD-OPEN 2x2m

2 1

PR317

0_0402_5%

1 2

PC304

1000P_0402_50V7K

PR306

115K_0402_1%

1 2

PR310

0_0402_5%

1 2

PR307

0_0402_5%

1 2

PQ305

SSM3K7002FU_SC70-3

PR316

4.7_1206_5%

PR302

30.9K_0402_1%

1 2

PC308

0.1U_0402_10V7K

1 2

PJP304

PAD-OPEN 2x2m

2 1

PC306

10U_0805_6.3V6M

PC305

10U_1206_25V6M

PQ302

AON7408L_DFN8-5

3 5

PC310

150U_B_6.3VM_R45M

PR315

4.7_1206_5%

PR304

20K_0402_1%

1 2

PQ306

SSM3K7002FU_SC70-3

PL303

4.7UH_PCMC063T-4R7MN_5.5A_20%

1 2

PC307

0.1U_0402_10V7K

1 2

PU301

TPS51125RGER_QFN24_4X4

VREF 3

TONSEL 4

ENTRIP1 1

VFB1 2

VFB2 5

ENTRIP2 6

VREG3

DRVL1 19

VREG5

GND

VBST1 22

VIN

SKIPSEL

DRVL2

LL2

VO2

DRVH2

10 DRVH1 21

PGOOD 23

LL1 20

VCLK

VBST2

VO1 24

EN0

P PAD

PQ301

AON7408L_DFN8-5

3 5

PQ307

SSM3K7002FU_SC70-3

PC316

0.1U_0402_25V6

PR301

13.7K_0402_1%

1 2

PR314

100K_0402_5%

PC303

4.7U_0805_25V6-K

PC311

10U_0805_10V6K

PR311

191K_0402_1%

PL301

HCB2012KF-121T50_0805

1 2

PQ303

AON7406L_DFN8-5

PC302

0.22U_0603_10V7K

PC315

680P_0603_50V8J

PR303

20K_0402_1%

1 2

PC313

0.1U_0402_25V6

PC314

680P_0603_50V8J

PR308

0_0402_5%

1 2

PJP303

PAD-OPEN 4x4m

1 2

PR313

100K_0402_5%

1 2

PR312

1M_0402_1%

1 2

PJP302

PAD-OPEN 4x4m

1 2

PR309

0_0402_5%

1 2

PC309

150U_B_6.3VM_R45M

PQ304

STL8NH3LL

PR305

105K_0402_1%

1 2

PC301

1000P_0402_50V7K

PL302

4.7UH_SIQB74B-4R7PF_4A_20%

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

DL_GFX

LX_GFX

BST_GFX

ISUM+

ISUM-

ISUM+ VSS_AXG_SENSE

DH_GFX1D H_GFX

GFXVR_VID_0 <9>

GFXVR_VID_1 <9>

GFXVR_VID_2 <9>

GFXVR_VID_3 <9>

GFXVR_VID_4 <9>

GFXVR_VID_5 <9>

GFXVR_VID_6 <9>

GFXVR_EN <9>

GFXVR_DPRSLPVR <9>

GFXVR_IMON <9>

VCC_AXG_SENSE<9>

VSS_AXG_SENSE<9>

GFXVR_PWRGD

GFXVR_CLKEN#

CPU_B+

+VGA_CORE

+5VALW

+VGA_CORE

Title

Size Document Number R ev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

VCCGFX

Custom

43 49Monday, April 13, 2009

2008/10/31 2009/10/31

Compal Electronics, Inc.

PR402

0_0603_5%

1 2

PU401

ISL62881HRZ-T_QFN28_4X4

CLK_EN#

PGOOD

ISUM+ 10

ISUM 9

VID5

VID1 21

LGATE 18

VSSP 17

VID2

UGATE 15

RTN 8

RBIAS

COMP

VID0 20

VCCP 19

VID3

VID4

VID6

VR_ON

DPRSLPVR

VSEN

VDD 11

VIN 12

IMON 13

BOOT 14

PHASE 16

AGND 29

PR410

0_0603_5%

1 2

PL402

0.56UH_MMD-10CZ-R56M-M1_19A_20%

PC411

1000P_0402_50V7K

1 2

PC426

180P_0402_50V8J

1 2

PC419

2.2U_0603_6.3V6K

PR406

10_0402_5%

1 2

PR4250_0402_5%

PR424

100_0402_1%

1 2

PC409

0.22U_0402_6.3V6K

PR404

10_0402_5%

1 2

PR419

@1.91K_0402_1%

PR4310_0402_5%

PQ402

TPCA8028_PSO8

3 5

PR4210_0402_5%

PC425

0.01U_0402_16V7K

1 2

PC418

1000P_0402_50V7K

PC412

330P_0402_50V7K

1 2

PR407

0_0603_5%

1 2

PR416

17.8K_0402_1%

PQ401

AO4474_SO8

3 6

PR417

8.06K_0402_1%

PC401

1000P_0402_50V7K

PR401

1_0603_5%

PR409

47K_0402_1%

PC402

10U_1206_25V6

PR4270_0402_5%

PR4220_0402_5%

PC417

100P_0402_50V8J

1 2

PR418

11K_0402_1%

1 2

PR403

22.6K_0402_1%

PC420

680P_0603_50V7K

1 2

PR415

2.61K_0402_1%

1 2

PR4320_0402_5%

PC413

330P_0402_50V7K

PR4300_0402_5%

PR4280_0402_5%

PC422

22P_0402_50V8J

1 2

PH401

10KB_0603_5%_ERTJ1VR103J

1 2

PR405

2.2_0603_5%

1 2

PR413

8.66K_0402_1%

PC408

0.22U_0603_25V7K

PC406

0.1U_0402_25V6

PR420

@10K_0402_1%

PR411

3.65K_0805_1%

PR408

4.7_1206_5%

PC424

0.033U_0402_16V7K

1 2

PR429

82.5_0402_1%

1 2

PC410

0.22U_0603_16V7K

1 2

PR412

0_0402_5%

PR414

825K_0402_1%

1 2

PR423

3.01K_0402_1%

1 2

PC403

10U_1206_25V6

PC421

150P_0402_50V8J

PC407

1U_0603_6.3V6M

PC423

0.1U_0402_16V7K

1 2

PR4260_0402_5%

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

BST_1.05V

LG_1.05V

UG1_1.05V

LG_1.1VTT

LX_1.1VTT LX_1.05V

SUSP#

UG1_1.1VTT UG_1.05V

BST_1.1VTT

UG_1.1VTT

+1.05VSP

VTT_SENSE

+1.1VTT

+VCCP

SUSP#<31,37,39,41,45>

VTTPWRGOOD<6>

VTT_SELECT<9>

VTT_SENSE<9>

B+++

+1.05VSP

B+

+1.1VTT

+5VALW

B+++

+1.05VS

+1.05VSP

+VCCP

+1.1VTT

Title

Size Document Number R ev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

1.1VTTP/1.1VSP

44 49Monday, April 13, 2009

2007/05/29 2008/05/29

Compal Electronics, Inc.

(6A,240mils ,Via NO.= 12)

(14A,240mils ,Via NO.= 28)

PJP503

PAD-OPEN 4x4m

1 2

PC522

330U_X_2VM_R6M

PR520

174K_0402_1%

PR507

0_0402_5%

PR518

10_0402_5%

PJP502

PAD-OPEN 4x4m

1 2

PR510

14.7K_0402_1%

1 2

PR514

3.3_0402_5%

1 2

PC506

0.1U_0402_10V7K

PR511

12.1K_0402_1%

1 2

PC524

0.022U_0402_25V7K@

PC523

330U_X_2VM_R6M

PC511

10U_1206_25V6

PR502

10.5K_0402_1%

1 2

PL502

HCB2012KF-121T50_0805

PR501

26.7K_0402_1%

1 2

PC514

1U_0603_10V6K

PC505

1000P_0402_50V7K

PR516

4.7_1206_5%

PC519

680P_0603_50V7K

PR517

0_0402_5%

PR509

0_0402_5%

PC508

220U_B2_2.5VM_R25M

PC501

4.7U_0805_25V6-K

PC502

1000P_0402_50V7K

PQ502

AO4474_SO8

3 6

PC520

0.1U_0402_25V6

PC521

0.1U_0402_25V6

PJP501

PAD-OPEN 4x4m

1 2

PC517

330U_X_2VM_R6M

PU501

TPS51124RGER_QFN24_4x4

GND 3

TONSEL 4

VO1 1

VFB1 2

VFB2 5

VO2 6

EN2

DR VL1 19

TRIP1

V5FILT

VBST1 22

V5IN

TRIP2

DR VL2

LL2

PGOOD2

DR VH2

10 DR VH1 21

EN1 23

LL1 20

PGND1

VBST2

PGOOD1 24

PGND2

P PAD

PQ501

AON7408L_DFN8-5

3 5

PL503

0.47UH_FDV0630-R47M-P3_18A_20%

PQ504

TPCA8028_PSO8

3 5

PR506

0_0402_5%

PC513

@0.1U_0402_16V7K

PC515

4.7U_0805_10V6K

PC507

0.1U_0402_10V7K

1 2

PR505

0_0402_5%

1 2

PC512

@0.1U_0402_16V7K

PC503

10U_1206_25V6

PR504

29.4K_0402_1%

1 2

PR515

4.7_1206_5%

PR512

0_0402_5%

1 2

PQ503

FDMC8296_POWER33-8-5

3 5

PR503

75K_0402_1%

1 2

PR513

0_0402_5%

PR5080_0402_5%

PL501

2.2UH_PCMC063T-2R2MN_8A_20%

1 2

PC518

680P_0603_50V7K

http://laptop-motherboard-schematic.blogspot.com/

D D

C C

B B

A A

SUSP#

SUSP<39>

SYSON#<39>

DGPU_PWR_EN<14,23,39,47>

SUSP#<31,37,39,41,44>

+5VALW

+0.75VSP

+1.5V

+0.75VSP +0.75VS

+5VALW

+1.1V_PCIE

+1.5VS

+1.1V_PCIE +PCIE

+1.8VS

+1.8VSP

+5VALW

+1.8VSP

+3VS

Title

Size Document Number Re v

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

0.75VP/1.8VSP/1.1V_PCIE

45 49Monday, April 13, 2009

2006/11/23 2007/11/23

Compal Electronics, Inc.

(2A,80mils ,Via NO.= 4)

(1.5A,60mils ,Via NO.= 3)

PC610

10U_0805_10V6K

PR611

15K_0402_1%

PC606

@0.1U_0402_16V7K

PJP603

PAD-OPEN 3x3m

1 2

PC617

0.01U_0402_16V7K

PU603

APL5913-KAC-TRL_SO8

GND

VOUT 3

POK

VCNTL 6

VIN 5

VOUT 4

FB 2

VIN 9

PQ601

SSM3K7002FU_SC70-3

PR608

39.2K_0402_1%

PJP602

PAD-OPEN 3x3m

1 2

PR609

0_0402_5%

1 2

PC604

0.1U_0402_16V7K

PC601

10U_0805_10V4Z

PC612

22U_0805_6.3V6M

PC618

1U_0603_6.3V6M

PC613

@47P_0402_50V8J

PC603

1U_0603_16V6K

PR607

15K_0402_1%

PR604

0_0402_5%

1 2

PC605

10U_0805_6.3V6M

PU601

G2992F1U_SO8

VOUT

NC 5

GND

VREF

VIN

1VCNTL 6

NC 7

NC 8

TP 9

PC615

10U_0805_10V6K

PC602

@10U_0805_10V4Z

PC611

@0.01U_0402_16V7K

PU602

APL5915KAI-TRL_SO8

GND

VOUT 4

POK

VCNTL 6

VIN 5

VOUT 3

FB 2

TP 9

PJP601

PAD-OPEN 3x3m

1 2

PR606

0_0402_5%

1 2

PC616

22U_0805_6.3V6M

PR602

@0_0402_5%

1 2

PR603

1K_0402_1%

PC609

1U_0603_6.3V6M

PC614

150P_0402_50V8J

PR610

12K_0402_1%

PR601

1K_0402_1%

http://laptop-motherboard-schematic.blogspot.com/

H H

G G

F F

E E

D D

C C

B B

A A

BOOST_CPU2

UGATE_CPU2

PHASE_CPU2

CLK_EN#

BOOST_CPU1

VSSSENSE

VSUM+

VSUM-

PHASE_CPU1

LGATE_CPU2

LGATE_CPU1

UGATE_CPU1

ISEN2

ISEN1

VSUM-

ISEN1

VSUM+

ISEN2

VSUM+

V2N

V1N

LF2

LF1

H_PROCHO T#<6>

CLK_EN#<19>

VGATE<13,19>

H_VID0<9>

H_VID1<9>

H_VID2<9>

H_VID3<9>

H_VID4<9>

H_VID5<9>

H_VID6<9>

VR_ON<37>

H_DPRSLPVR<9>

H_PSI#<9>

VC CSENSE>

VSSSENSE<9>

IMVP_IMON <9>

+VCC_CORE

CPU_B+

B+

CPU_B+

+VCC_CORE

+5VALW

+3VS

+5VALW

CPU_B+

+VCCP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ON ICS, INC . AN D CO NTAI NS CO NFI DENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUS TOD Y OF TH E C OMPETENT DI VISI ON OF R& D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITH ER THI S SH EET N OR TH E I NFOR MATION IT CO NTAI NS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CO NSEN T O F CO MPA L EL ECTR ONICS , I NC .

Issued Date

Deci phered Date

Calpella DIS LA4743P

0.1

+CPU_CORE

46 49Monday, April 13, 2009

2007/05/29 2008/05/29

Compal Electronics, Inc.

Iccmax= 35A

I_TDC=TDB

OCP=TDBA, Intel spec=TDBA

PC232

0.22U_0402_10V4Z

PC212

1U_0603_10V6K

1 2

PR283

1K_0402_1%

1 2

PC222

1000P_0402_50V7K

PR203 0_0402_5%

1 2

PR251

2.61K_0402_1%

PC237

10U_1206_25V6

PR282

1K_0402_1%

PC227

150P_0402_50V8J

1 2

PR206 0_0402_5%

1 2

PR256

10K_0402_5%

PR284

1K_0402_1%

1 2

PR250

82.5_0402_1%

PR287

1K_0402_1%

1 2

PC228

1U_0603_10V6K

PR263 0_0402_5%

1 2

PQ206

TPCA8028-H_SOP-ADVANCE8-5

3 5

PC235

1000P_0402_50V7K

PR281

1K_0402_1%

PR204 0_0402_5%

1 2

PR213

0_0603_5%

PQ205

AO4474_SO8

3 6

PR244 1_0402_5%

1 2

PR260

1.1K_0402_1%

1 2

PC234

0.1U_0402_25V6

PR289

1K_0402_1%

1 2

PR211

4.7_1206_5%

PR278

1K_0402_1%

1 2

PC230

0.22U_0603_25V7K

PR223 147K_0402_1%

1 2

PC249

1200P_0402_50V7K

1 2

PR286

1K_0402_1%

1 2

PC203

0.1U_0402_25V6

PR243

0_0603_5%

PR212

1.91K_0402_1%

1 2

PC244

0.01U_0402_25V7K

PR216

1_0402_5%

PC240

0.22U_0603_10V7K

1 2

PC210

0.22U_0603_10V7K

1 2

PL201

0.36UH_PCMC104T -R36MN1R17_30A_20%

PR207 0_0402_5%

1 2

PR234

249K_0402_1%

PR228

0_0402_5%

1 2

PR219

0_0402_5%

1 2

PC241

@2700P_0402_50V7K

PR239 0_0402_5%

1 2

PC236

10U_1206_25V6

PR280

1K_0402_1%

1 2

PR290

1K_0402_1%@

PR235

8.06K_0402_1%

PH202

10KB_0603_5%_ERTJ1VR103J

PC211

680P_0603_50V7K

PR238

2.43K_0402_1%

1 2

PR277

1K_0402_1%

1 2

PR205 0_0402_5%

1 2

PR208

0_0603_5%

PR265

100_0402_1%

1 2

PR248

0_0603_5%

PC223

1U_0603_10V6K

PL204

0.36UH_PCMC104T -R36MN1R17_30A_20%

PR210 499_0402_1%

1 2

PC224

390P_0402_50V7K

1 2

PR222 0_0402_5%

1 2

PR246

8.25K_0402_1%

PC229

0.22U_0603_25V7K

PC246

680P_0603_50V7K

PC243

0.047U_0603_16V7K

PC247

1000P_0402_50V7K

PL205

HCB2012KF-121T50_0805

PC204

1000P_0402_50V7K

PR236

562_0402_1%

PR262

11K_0402_1%

PC206

10U_1206_25V6

PR288

1K_0402_1%

1 2

PC202

100U_25V_M

PC221

22P_0402_50V8J

1 2

PR215

10K_0402_5%

PR257

1_0402_5%

PC225

10P_0402_50V8K

1 2

PC242

0.22U_0603_10V7K

PR241

412K_0402_1%

1 2

PU201

ISL62883HRZ-T_QFN40_5X5

PGOOD

PSI#

RBIAS

VR_TT#

NTC

COMP

VIN

ISEN1

VSEN

RTN

ISUM-

ISUM+

VDD

VSSP1 22

LGATE1 23

PWM3 24

VCCP 25

LGATE2 26

VSSP2 27

PHASE2 28

UGATE2 29

VID0 31

VID1 32

VID2 33

VID3 34

VID5 36

VID6 37

VR_ON 38

ISEN3

ISEN2

IMON

BOOT1

UGATE1

AGND

PHASE1 21

BOOT2 30

DPRSLPVR 39

CLK_EN# 40

VID4 35

PR202 0_0402_5%

1 2

PC209

100U_25V_M

PR253

4.7_1206_5%

PR224

68_0402_5%

PR209 0_0402_5%

1 2

PC250

0.1U_0402_16V7K

PR275

1K_0402_1%

1 2

PR279

1K_0402_1%

1 2

PQ202

AO4474_SO8

3 6

PR201 0_0402_5%

1 2

PC233

0.22U_0402_10V4Z

PR217

1.91K_0402_1%

PC248

330P_0402_50V7K

PC205

10U_1206_25V6

PL202

HCB2012KF-121T50_0805

PC245

330P_0402_50V7K

PQ203

TPCA8028-H_SOP-ADVANCE8-5

3 5

PR285

1K_0402_1%

1 2

PR214

3.65K_0603_1%

PR242 0_0402_5%

1 2

PR225 0_0402_5%

1 2

PR255

3.65K_0603_1%

PR274

1K_0402_1%

1 2

PR261

0_0402_5%

PR221 1K_0402_5%@

1 2

PR252 0_0402_5%

1 2

PR276

1K_0402_1%

1 2

http://laptop-motherboard-schematic.blogspot.com/

1 1

2 2

3 3

4 4

DL_VGA

VGA_B+

DH _VGA_1

+NVVDDP

+ 5VALW

+5VALW

BST_VGA

DH_VGA

LX_VGA

+NVVDD_SENSE

GPU_VID0 <24>

DGPU_PWR_EN<14,23,39,45>

GPU_VID1 <24>

NVVDD_PG <39>

+NVVDDP

B+

+VGA_COREP1

+NVVDDP +N VVDD

+NVVDDP

+5VALW

+NVVDD_SENSE

Title

Size Document Number R ev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

VGA_CORE

47 49Monday, April 13, 2009

2007/05/29 200810/11

Compal Electronics, Inc.

(11A,489mils ,Via NO.= 22)

GPU_VID1 GPU_VID0 +NVVDD

0.9V

0.85V

0.8V

PC702

1U_0603_10V6K

PC705

2200P_0402_50V7K

PC706

0.1U_0402_10V7K

1 2

PC712

22U_0805_6.3V6M

PU701

TPS51117RGYR_QFN14_3.5x3.5

VOUT

V5FILT

EN_PSV 1

TON

VFB

PGOOD

6DRVL 9

DRVH 13

LL 12

GND

PGND

TRIP 11

V5DRV 10

VBST 14

TP 15

PR701

0_0402_5%

1 2

PQ701

AON7408L_DFN8-5

3 5

PC708

@0.1U_0402_25V6

PR704

0_0402_5%

1 2

PR713

10_0402_5%

PQ713B

2N7002KDW-2N_SOT363-6

PJP702

PAD-OPEN 4x4m

1 2

PC710

1000P_0402_50V7K

PC716

680P_0603_50V7K

PC711

22U_0805_6.3V6M

PJP701

PAD-OPEN 4x4m

1 2

PL702

0.82UH_PCMC063T-R82MN_13A_20%

1 2

PR716

10K_0402_5%

PR703

0_0402_5%

PC707

4.7U_0805_10V6K

PR712

76.8K_0402_1%

PC715

0.022U_0402_16V7K

PQ702

AO4714_SO8

PC703

4.7U_0805_25V6-K

PR705

255K_0402_1%

1 2

PR717

10K_0402_1%

1 2

PR718

38.3K_0402_1%

1 2

PR702

316_0402_1%

PR719

10K_0402_5%

PR706

7.15K_0402_1%

1 2

PR711

75K_0402_1%

PC704

4.7U_0805_25V6-K

PQ713A

2N7002KDW-2N_SOT363-6

6 1

PC709

470U_D2_2VM_R4.5M

PL701

HCB1608KF-121T30_0603

1 2

PR715

10K_0402_1%

1 2

PR721

0_0402_5%

PR714

0_0402_5%

PR708

5.11K_0402_1%

1 2

PR707

0_0402_5%

1 2

PC714

0.022U_0402_16V7K

PC713

@1000P_0402_50V7K

1 2

PC701

@1000P_0402_50V7K

PR720

4.7_1206_5%

http://laptop-motherboard-schematic.blogspot.com/

1 1

2 2

3 3

4 4

LX_1.5V

1.5V_B+

DL_1.5V

DH _1.5V

BST_1.5V

+ 5VALW

+5VALW

DH_1.5V_1

+1.5VP

SYSON1,37,38,39>

+1.5V

+1.5VP

B+

+1.5VP

+5VALW

Title

Size Document Number R ev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

Calpella DIS LA4743P

0.1

1.5VP

48 49Monday, April 13, 2009

2007/05/29 2008/05/29

Compal Electronics, Inc.

(6A,240mils ,Via NO.= 12)

OCP=9.8913(min)

MOSTemperature Factor=1.3 (100C)

PR907 13.7K_0402_1%

1 2

PC909

4.7U_0805_6.3V6K

1 2

PR904

255K_0402_1%

1 2

PC901

1000P_0402_50V7K@

PR911

10K_0603_0.1%

PC906

0.1U_0402_25V6

PR902

0_0402_5%

1 2

PU901

TPS51117RGYR_QFN14_3.5x3.5

VOUT

V5FILT

EN_PSV 1

TON

VFB

PGOOD

6DRVL 9

DRVH 13

LL 12

GND

PGND

TRIP 11

V5DRV 10

VBST 14

TP 15

PR906

0_0402_5%

PJP901

PAD-OPEN 4x4m

1 2

PR903

316_0402_1%

PQ902

FDMC8296_POWER33-8-5

3 5

PL901

2.2UH_PCMC063T-2R2MN_8A_20%

1 2

PC905

0.1U_0402_10V7K

1 2

PL902

HCB1608KF-121T30_0603

1 2

PC913

680P_0603_50V8J

1 2

PC904

1000P_0402_50V7K

PR908

10.2K_0603_0.1%

1 2

PC903

10U_1206_25V6

PR905 0_0402_5%

1 2

PC910

330U_B2_2.5VM_R15M

PR909

4.7_1206_5%

1 2

PC908

4.7U_0805_10V6K

PR901

0_0402_5%

1 2

PQ901

AON7408L_DFN8-5

3 5

PC907

1U_0603_10V6K

http://laptop-motherboard-schematic.blogspot.com/

1 1

2 2

3 3

4 4

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFO RMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

Calpella DIS LA4743P

0.1

Power Changed-List History-1

Custom

49 49Monday, April 13, 2009

2007/08/02 2008/08/02

Compal Electronics, Inc.

Version Change List ( P. I. R. List ) for Power Circuit

Page# Title Rev.Issue DescriptionItem Request

Owner

Date Solution Description

http://laptop-motherboard-schematic.blogspot.com/

Calpella_dis_uma_090413 HP Compaq CQ36 LA 4743P

Navigation menu

Versions of this User Manual:

Views

Navigation
