Sony EMCS Co.
SERVICE MANUAL
Revision History
985273712.pdf
2010A0800-1
© 2010.1
Published by Tokai TEC
Ver. 1.1 2010.01
Digital HD Video Camera Recorder
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
RMT-845
9-852-737-12
US Model
Canadian Model
AEP Model
E Model
Chinese Model
Japanese Model
Photo: HXR-NX5U
SERVICE NOTE (Check the following note before the service.)
1-1. POWER SUPPLY DURING REPAIRS
1-2. PRECAUTION ON REPLACING THE VC-582 BOARD
1-3. SELF-DIAGNOSIS FUNCTION
1-4. GPS RECEIVING CHECK(NX5E/NX5J/NX5N/NX5P/NX5U)
1-5. PRECAUTION ON REPLACING THE GY-022 BOARD
• Regarding the Adjustment, refer to SERVICE MANUAL 9-852-737-5 .
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
Revised-1
Replace the previously issued
SERVICE MANUAL 9-852-737-11
with this Manual.
Ver. Date History Contents S.M. Rev.
issued
1.0 2010.01 Official Release — —
1.1 2010.01 Revised-1
(A1 09-396)
• Correction of SERVICE NOTE
Page
1-2, 1-4
• Correction of EXPLODED VIEWS
Page 2-3, 2-4, 2-6, 2-7, 2-10, 2-12, 2-13, 2-14
• Correction of SUPPLIED ACCESSORIES
Page 2-18
• Correction of ELECTRICAL PARTS LIST
Page 2-19, 2-20, 2-30
• Correction of BLOCK DIAGRAMS
Page 4-2,4-5, 4-7, 4-8, 4-11
• Correction of FRAME SCHEMATIC DIAGRAMS
Page 5-1, 5-2
• Correction of SCHEMATIC DIAGRAMS
Page 6-32, 6-40, 6-44, 6-49
• Correction of PRINTED WIRING BOARDS
Page 6-68, 6-69
Yes
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-1

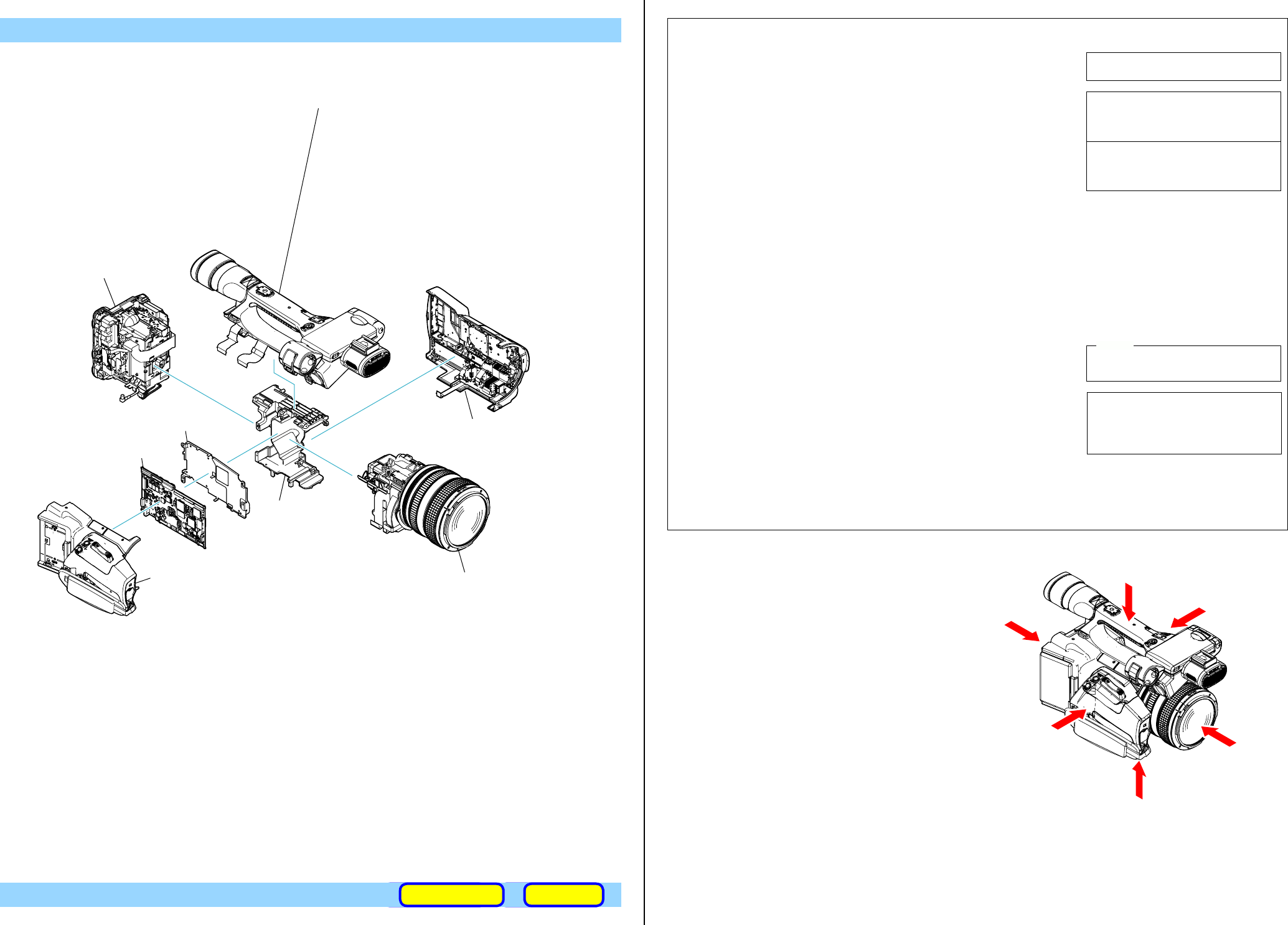

2. REPAIR PARTS LIST
Follow the disassembly in the numerical order given.
AC- DIS-
IDENTIFYING PARTS
Link
• Abbreviation
CH : Chinese model
CND : Canadian model
J : Japanese model
Right View
Left View Front View
Bottom View
Top View
Back View
View Position
VC-582
VC-582
1Cabinet (L) Section
[Disassembly]
[Exploded View]
• Cabinet (L) Section- 1
• AS-063 Board
• GC-012 Board
• GS-010 Board
(Except HXR-NX5M/HXR-NX5C)
• FP-1151 Flexible Board
• FP-1156 Flexible Board
• FP-1161 Flexible Board
• Cabinet (L) Section- 2
• TC-001 Board
• TS-157 Board

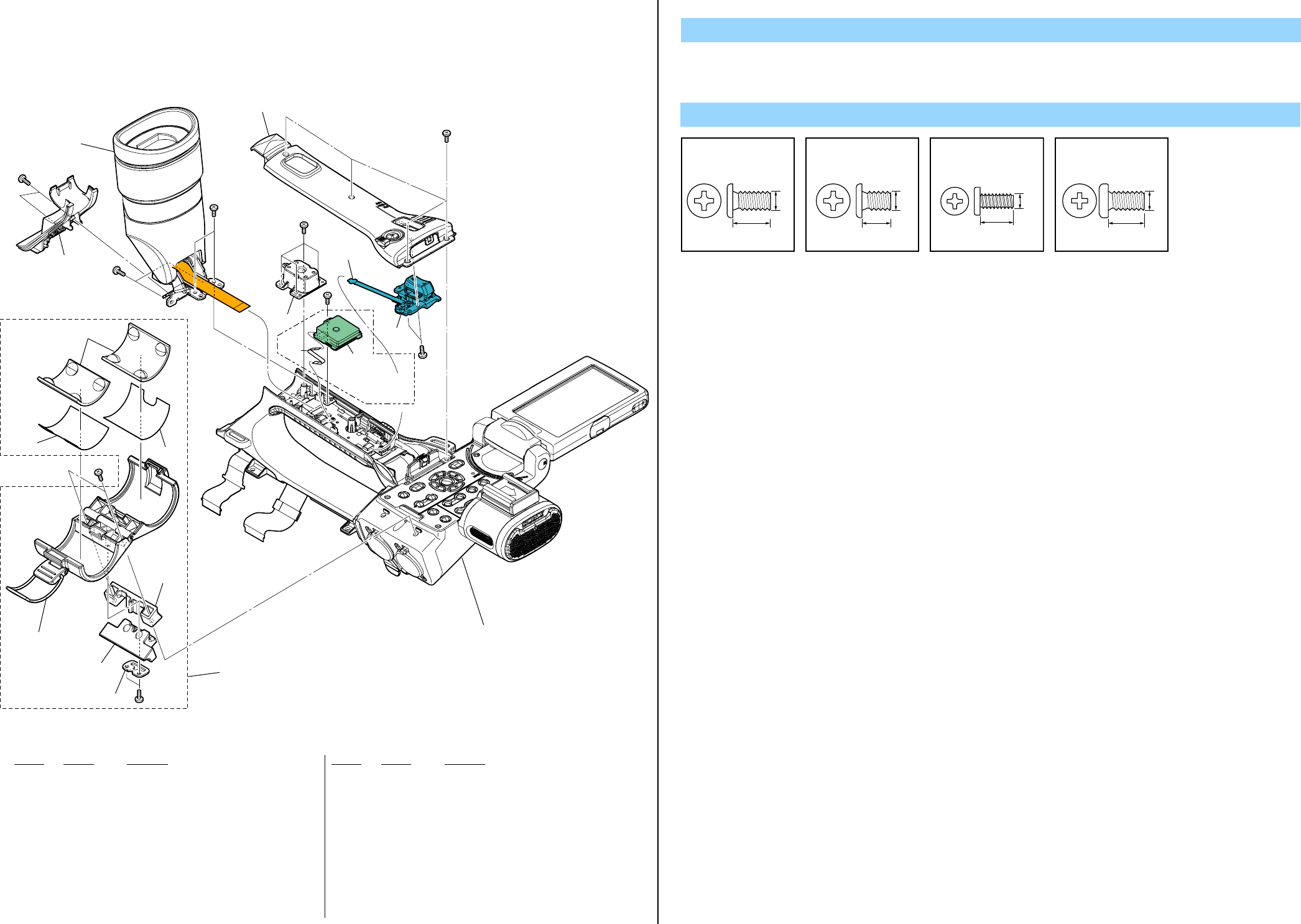

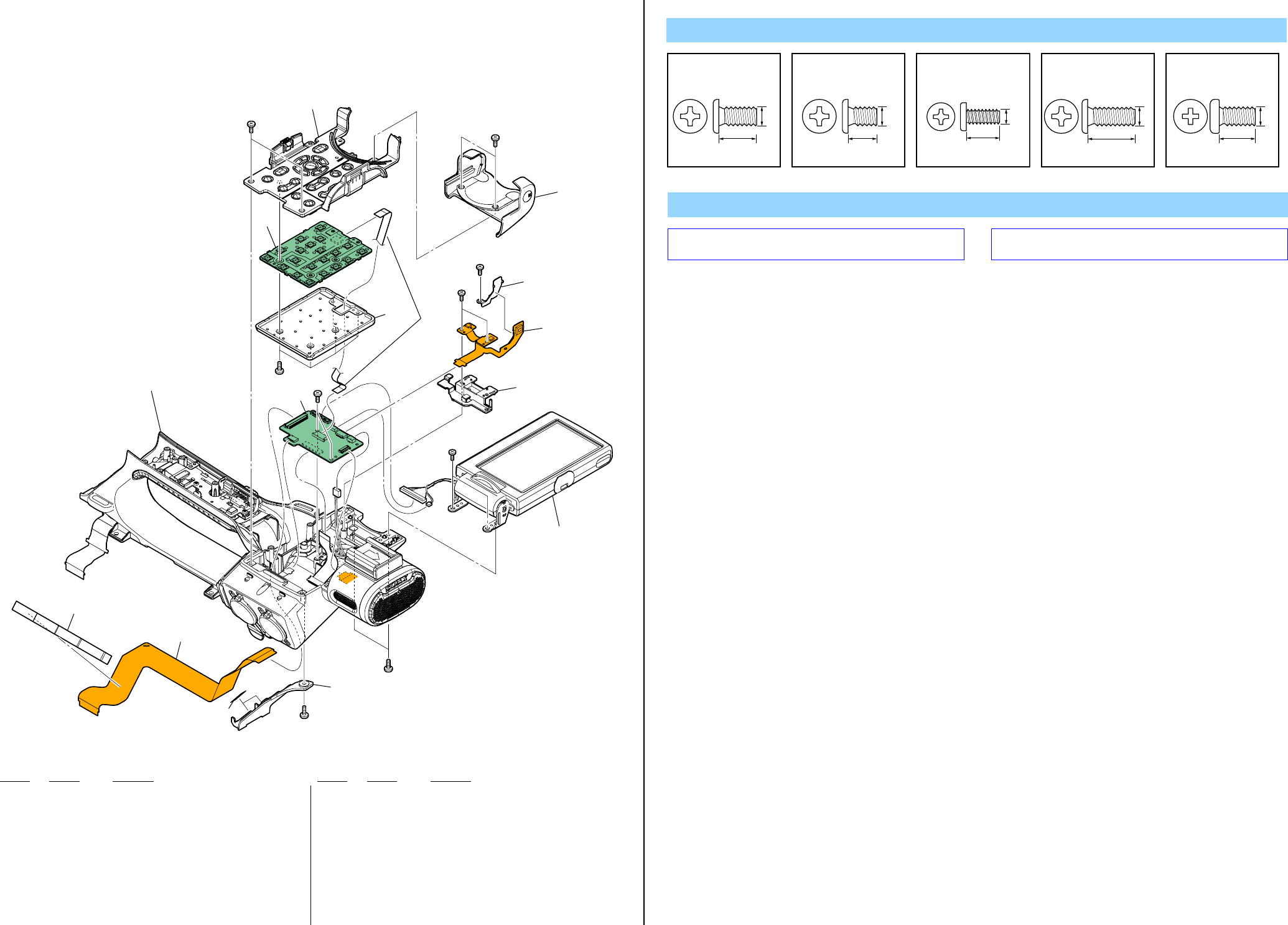

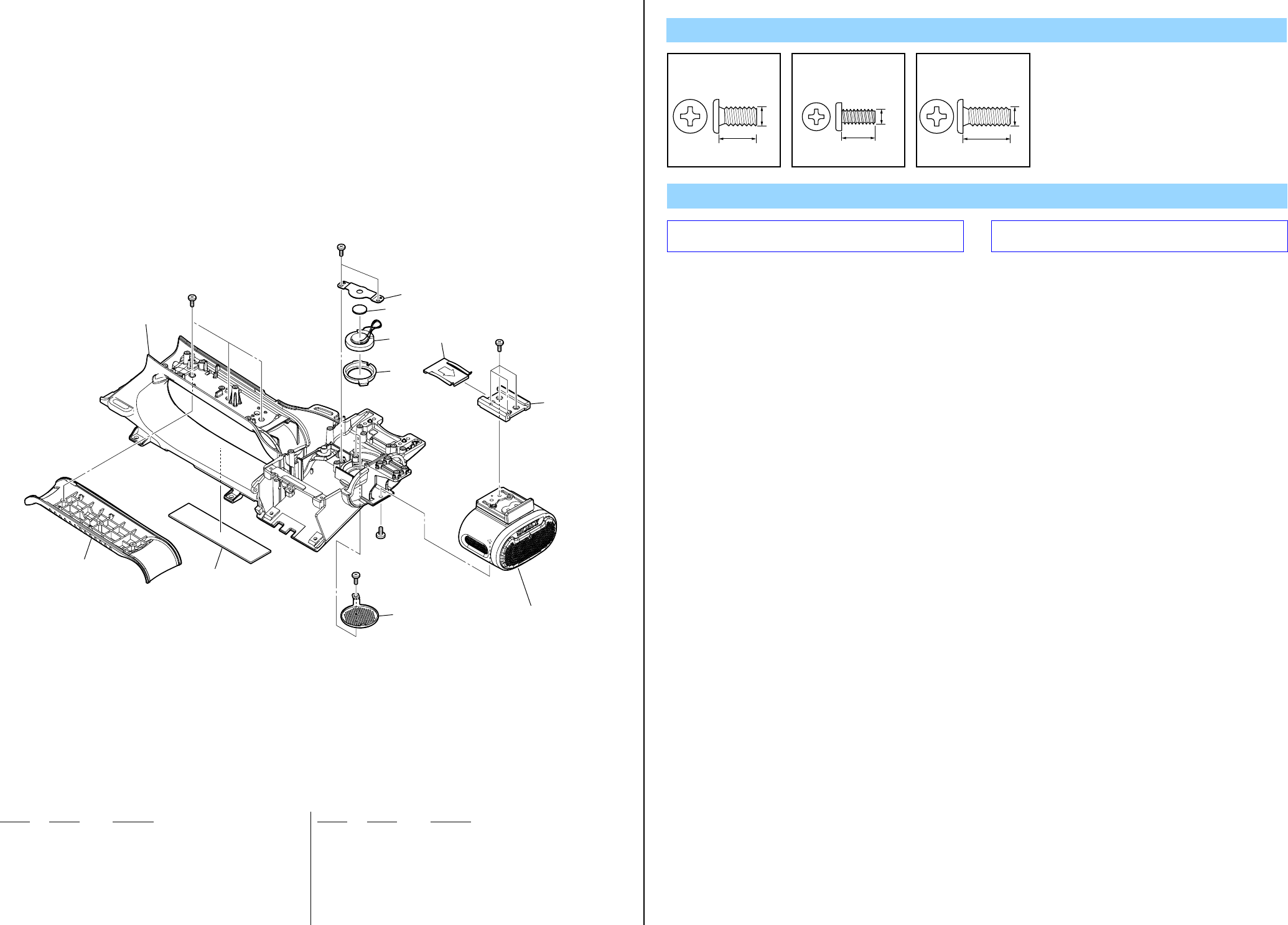

Handle Section
[Disassembly]
[Exploded View]
• Handle Section- 1
• GP940 Assy (GP-028 Board)
(Except HXR-NX5M/HXR-NX5C)
• Handle Section- 2
• KY-115 Board
• PI-030 Board
• FP-1150 Flexible Board
• FP-1157 Flexible Board
• Handle Section- 3
• HG-001 Board
• HP-156 Board
• XL-011 Board
• FP-1152 Flexible Board
• Handle Section- 4

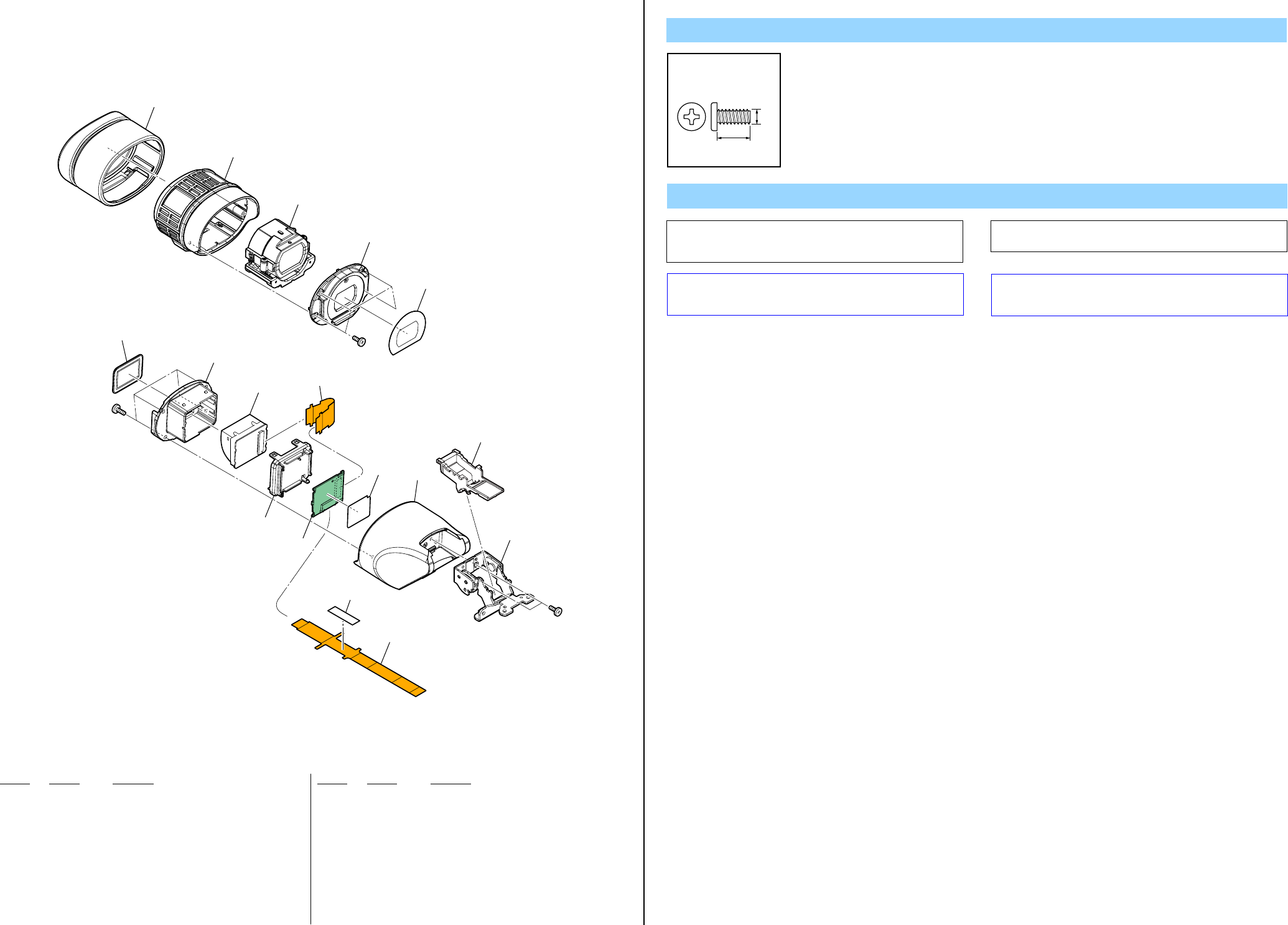

• EVF Section
• VF-179 Board
• FP-776 Flexible Board
• FP-1160 Flexible Board

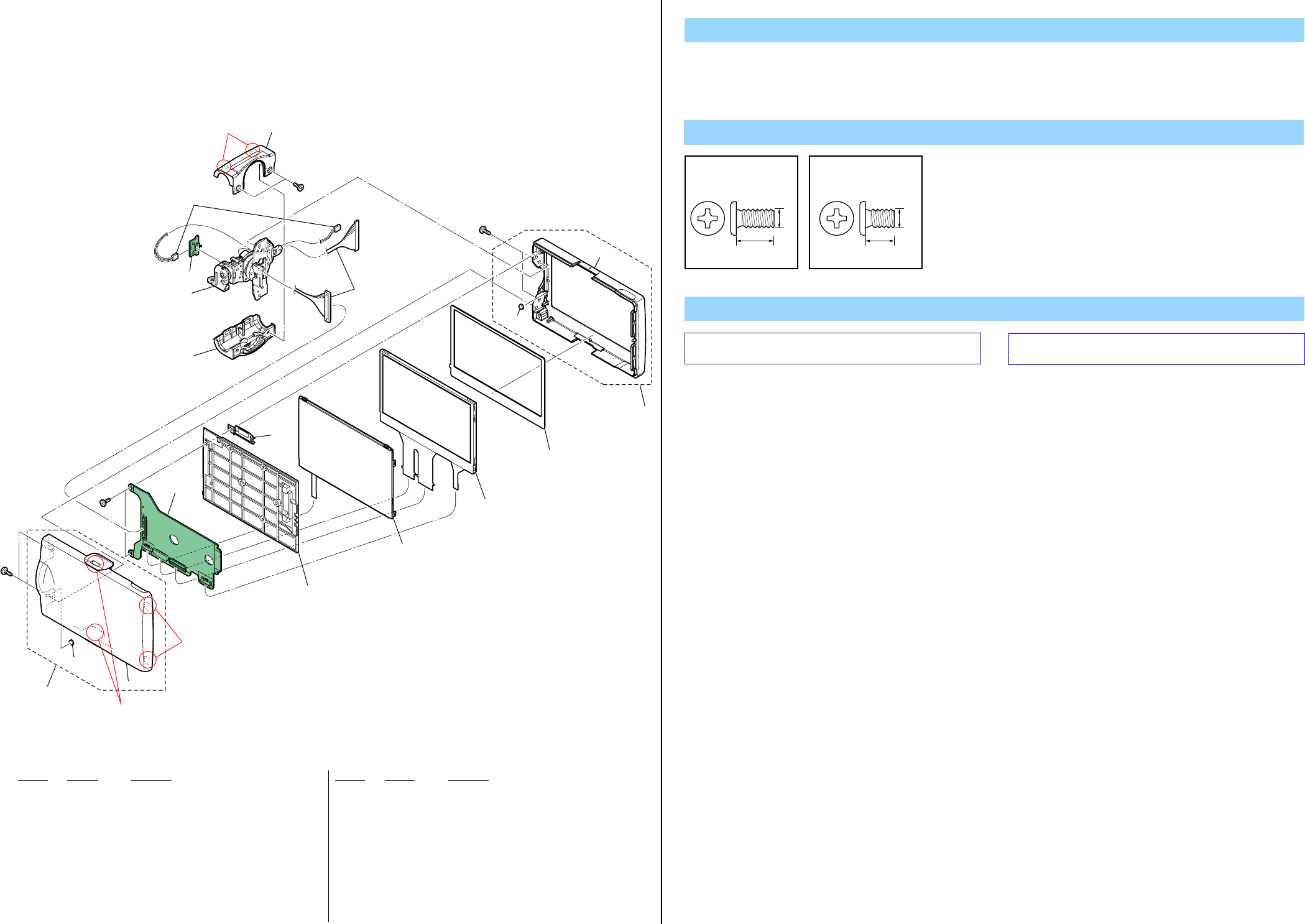

• LCD Section
• HT-003 Board
• PD-395 Board

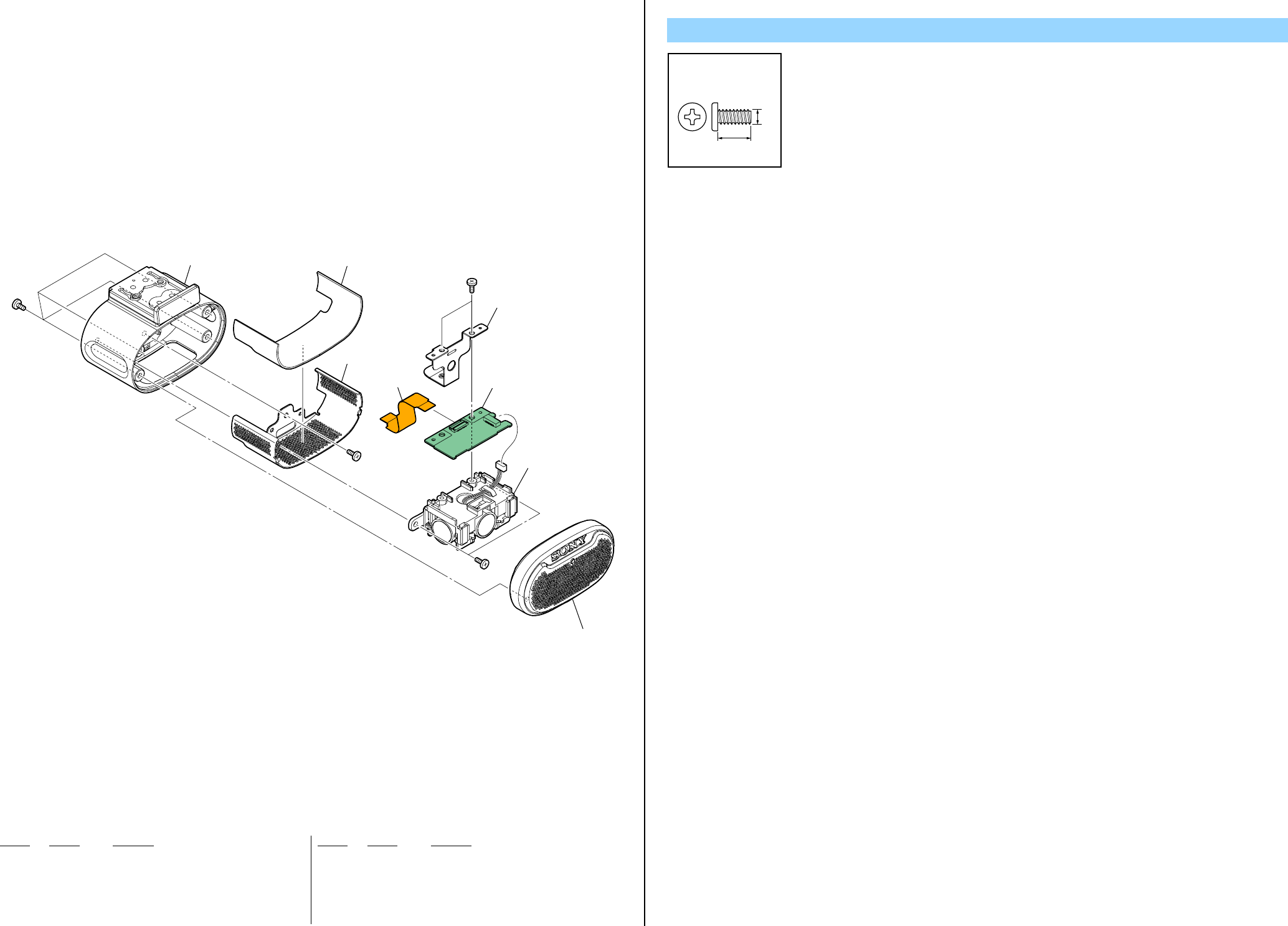

• Microphone Section
• MA-459 Board
• FP-1158 Flexible Board
4
5

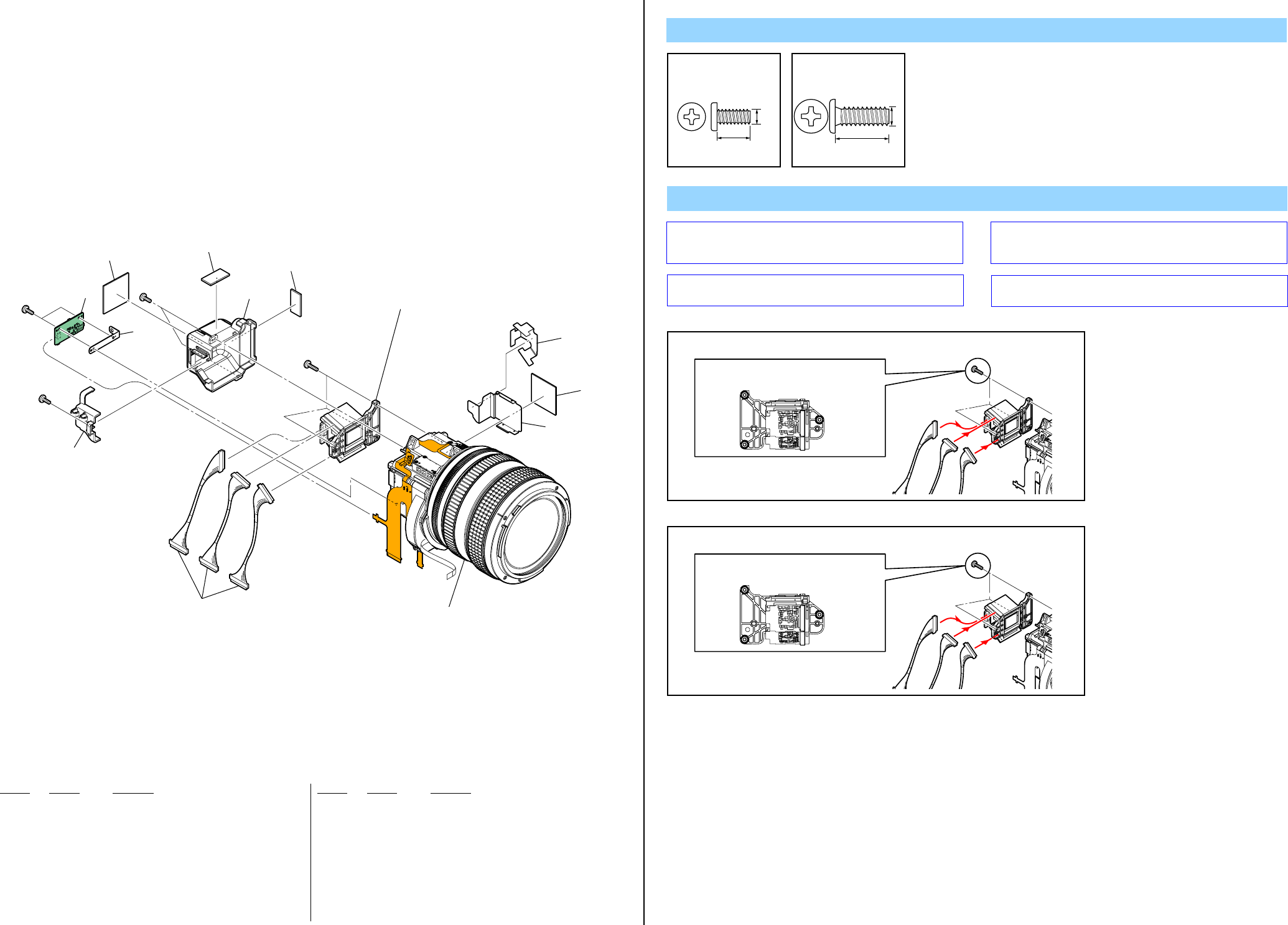

Lens Section
[Disassembly]
[Exploded View]
• GY-022 Board
• Prism Device
(including CM-097/CM-104 Board
)
6

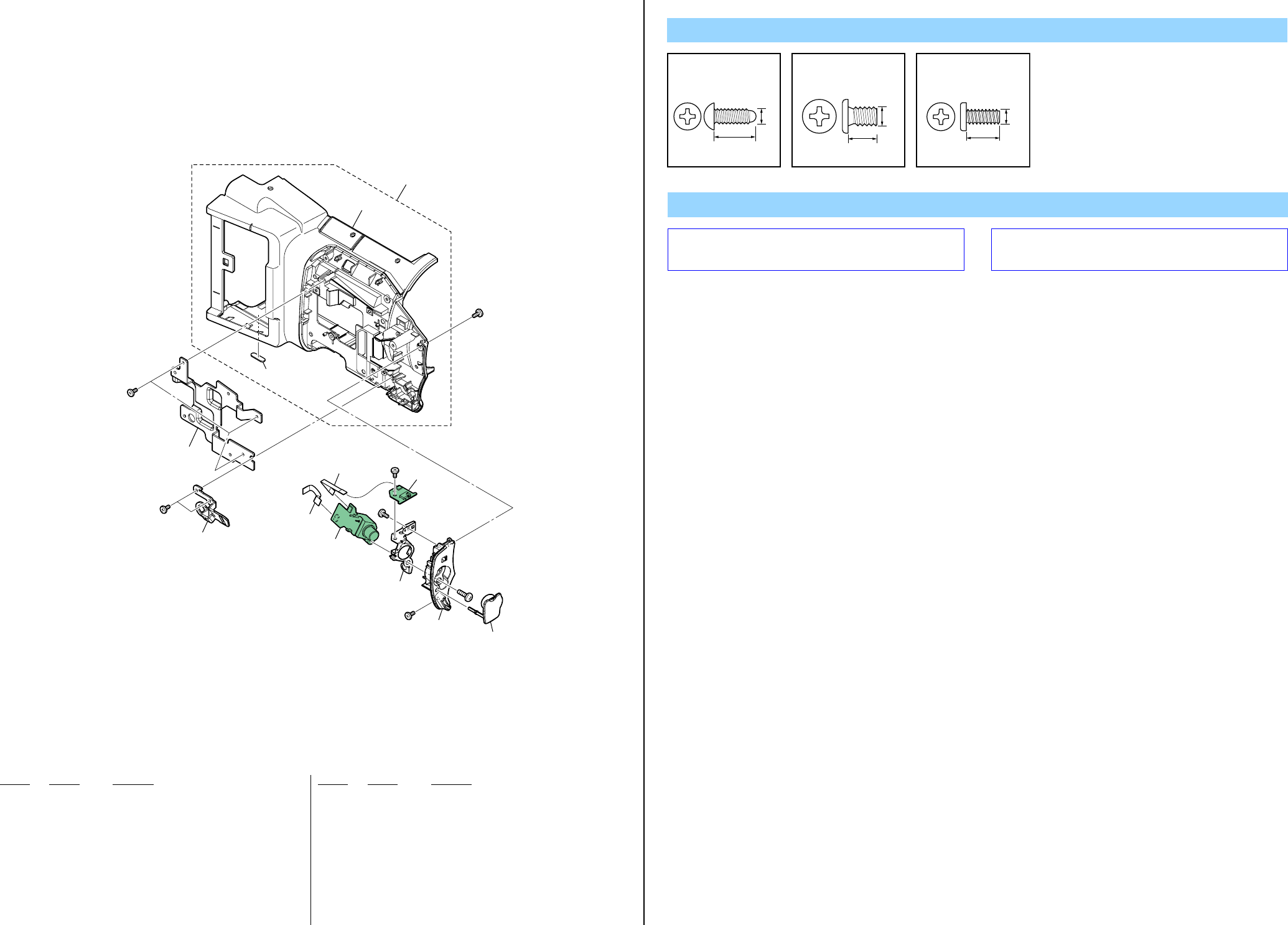

Cabinet (R) Section
[Disassembly]
[Exploded View]
• CK-218 Board
• FP-1159 Flexible Board
7BT Panel Section
[Disassembly]
[Exploded View]
• CP-004 Board
• JK-392 Board
• MS-424 Board
• FP-1149 Flexible Board
• FP-1155 Flexible Board
• FP-1162 Flexible Board
2 VC-582 Board
3 Main Frame
8 Main Chassis
(ENGLISH)
NOTE:
• -XX, -X mean standardized parts, so they may have some differences from the original
one.
• Items marked “*” are not stocked since they are seldom required for routine service.
Some delay should be anticipated when ordering these items.
• The mechanical parts with no reference number in the exploded views are not sup-
plied.
• Due to standardization, replacements in the parts list may be different from the parts
specified in the diagrams or the components used on the set.
• CAPACITORS:
uF: μF
• COILS
uH: μH
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• SEMICONDUCTORS
In each case, u: μ, for example:
uA...: μA... , uPA... , μPA... ,
uPB... , μPB... , μPC... , μPC... ,
uPD..., μPD...
(JAPANESE)
The components identified by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
00
When indicating parts by reference
number,please include the board name.

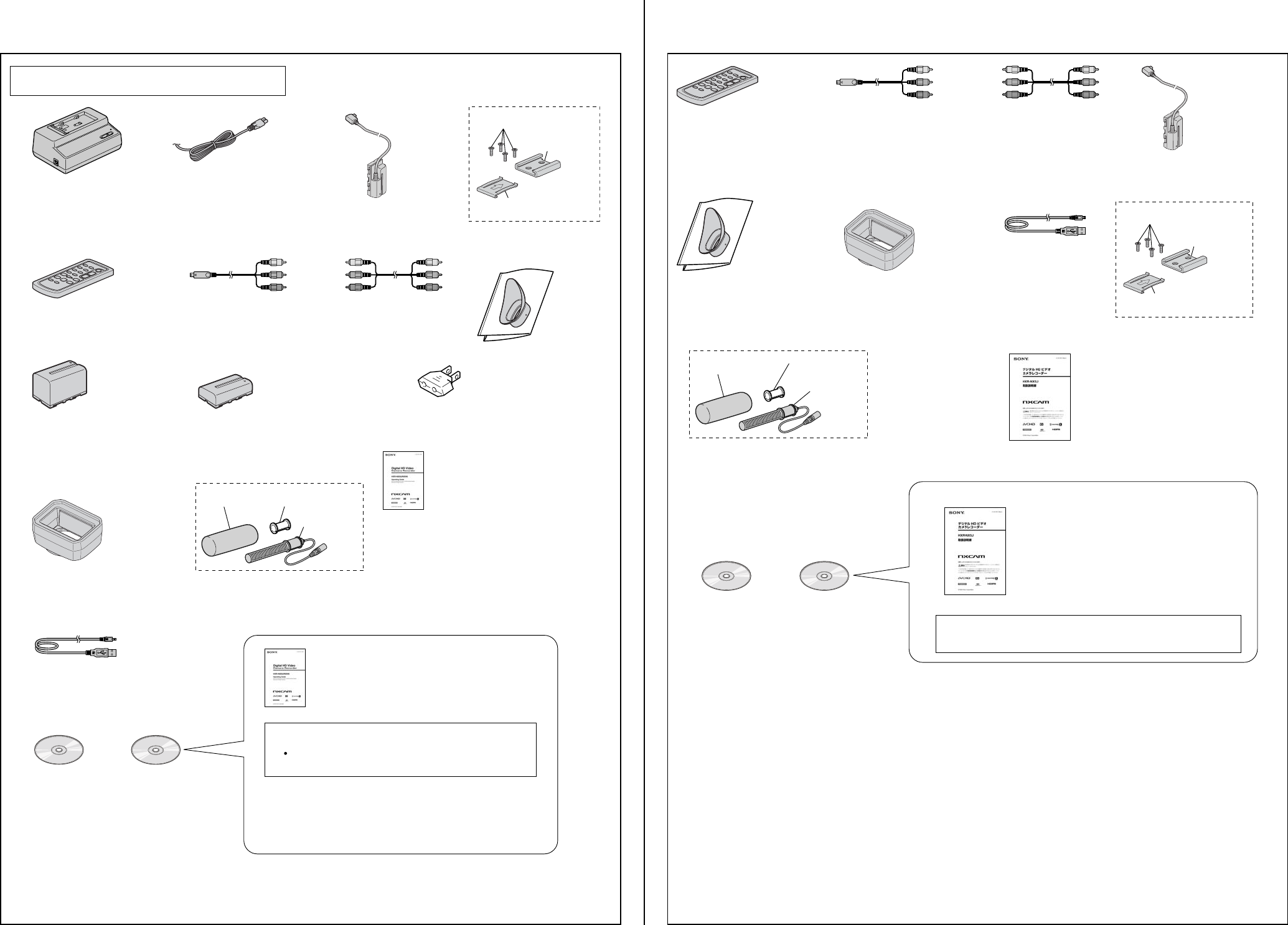

ACCESSORIES ASSEMBLY
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-2
– ENGLISH – – JAPANESE –
NOTE FOR REPAIR
• Make sure that the flat cable and flexible board are not cracked
of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
• When remove a connector, don’t pull at wire of connector. It is
possible that a wire is snapped.
• When installing a connector, don’t press down at wire of con-
nector.
It is possible that a wire is snapped.
• Do not apply excessive load to the gilded flexible board.
修理時の注意

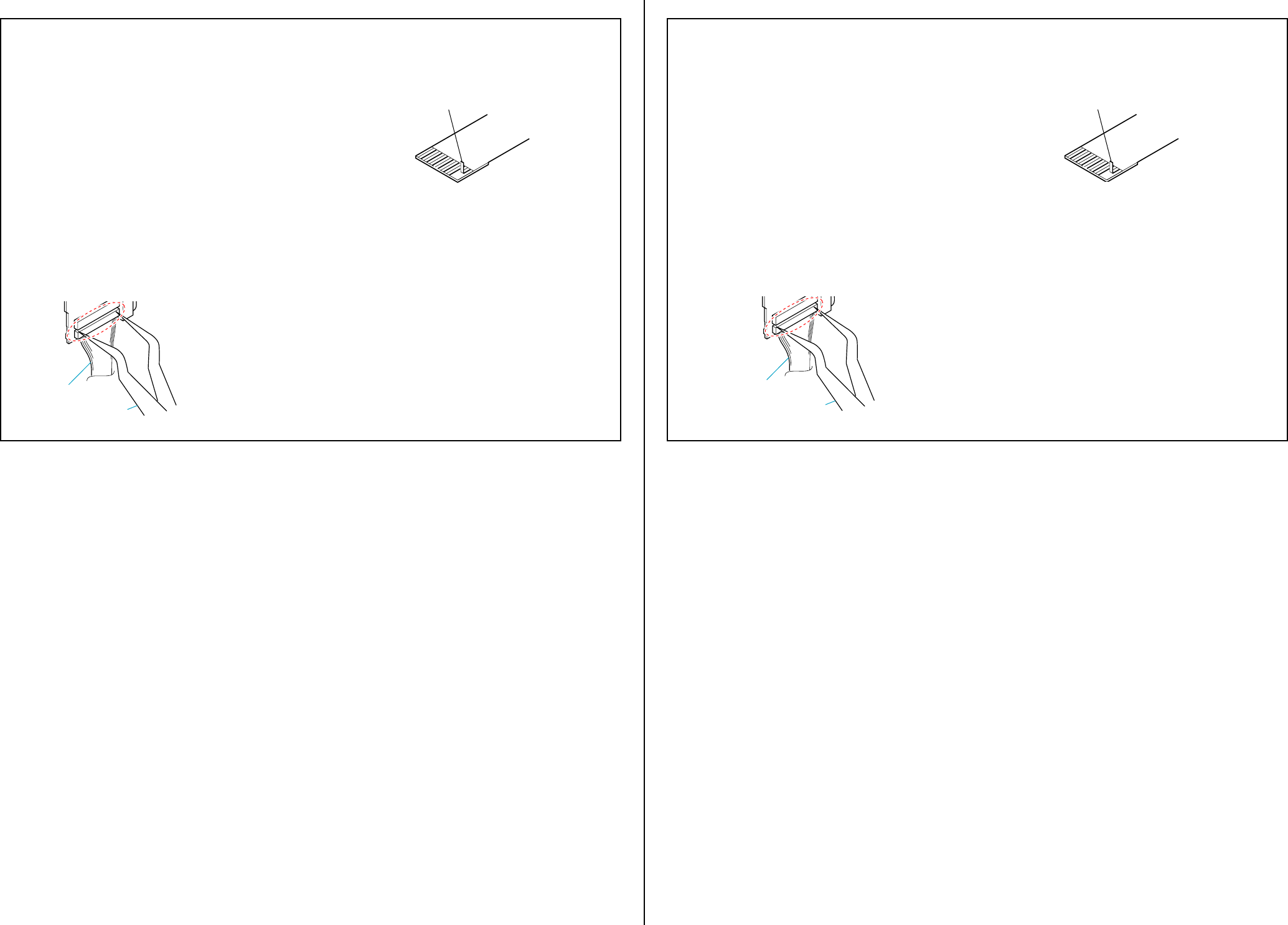

NOTE FOR DISCONNECTING THE HARNESS (COAXIAL CABLE) ハーネス（同軸ケーブル）の交換について
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)
Harness
(coaxial cable)
Tweezers etc.
When disconnecting the harness (COAX IAL CABL E ), do not
pull the harness part but pull off the connector body with tweezers
etc.
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-3

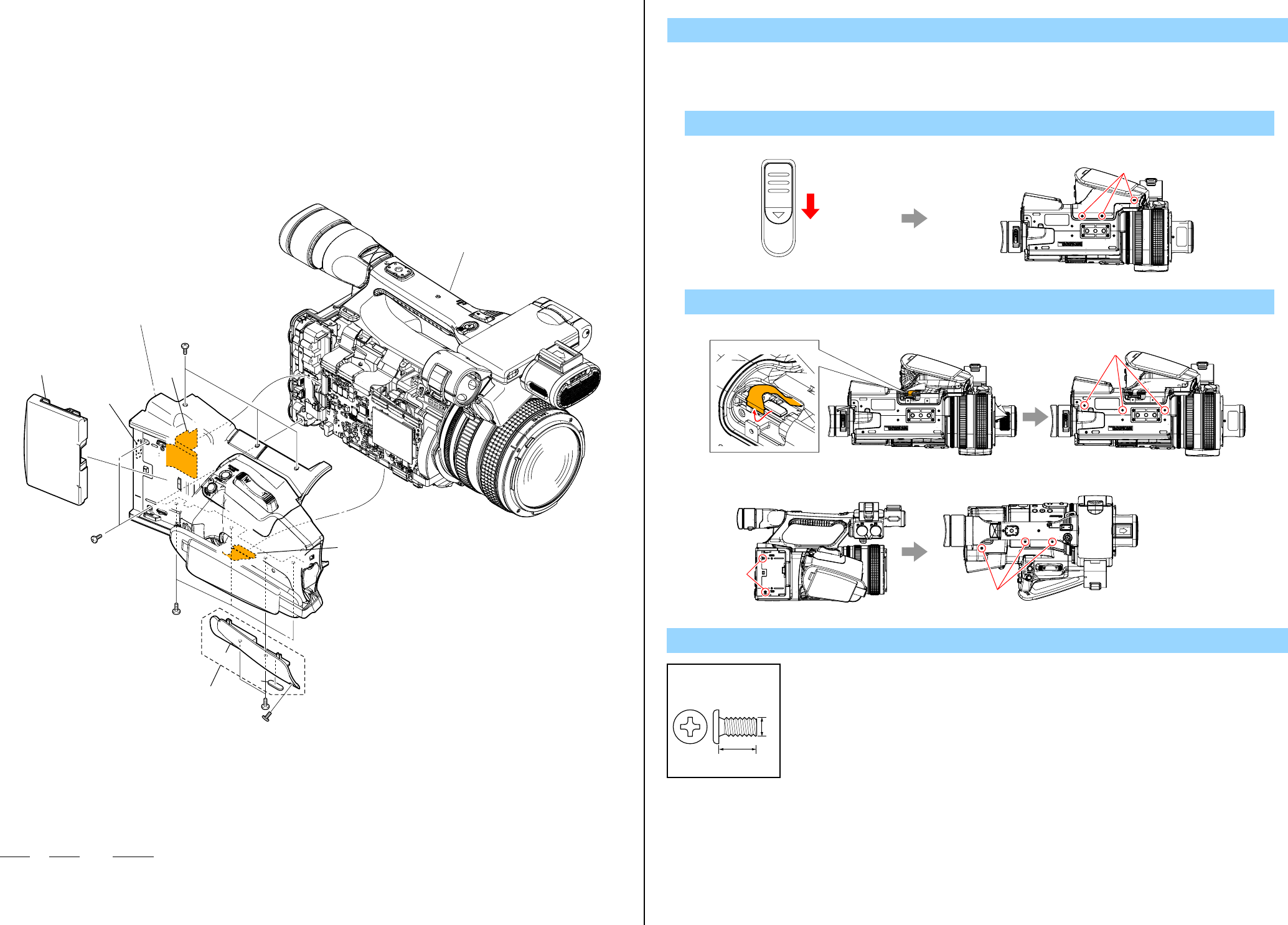

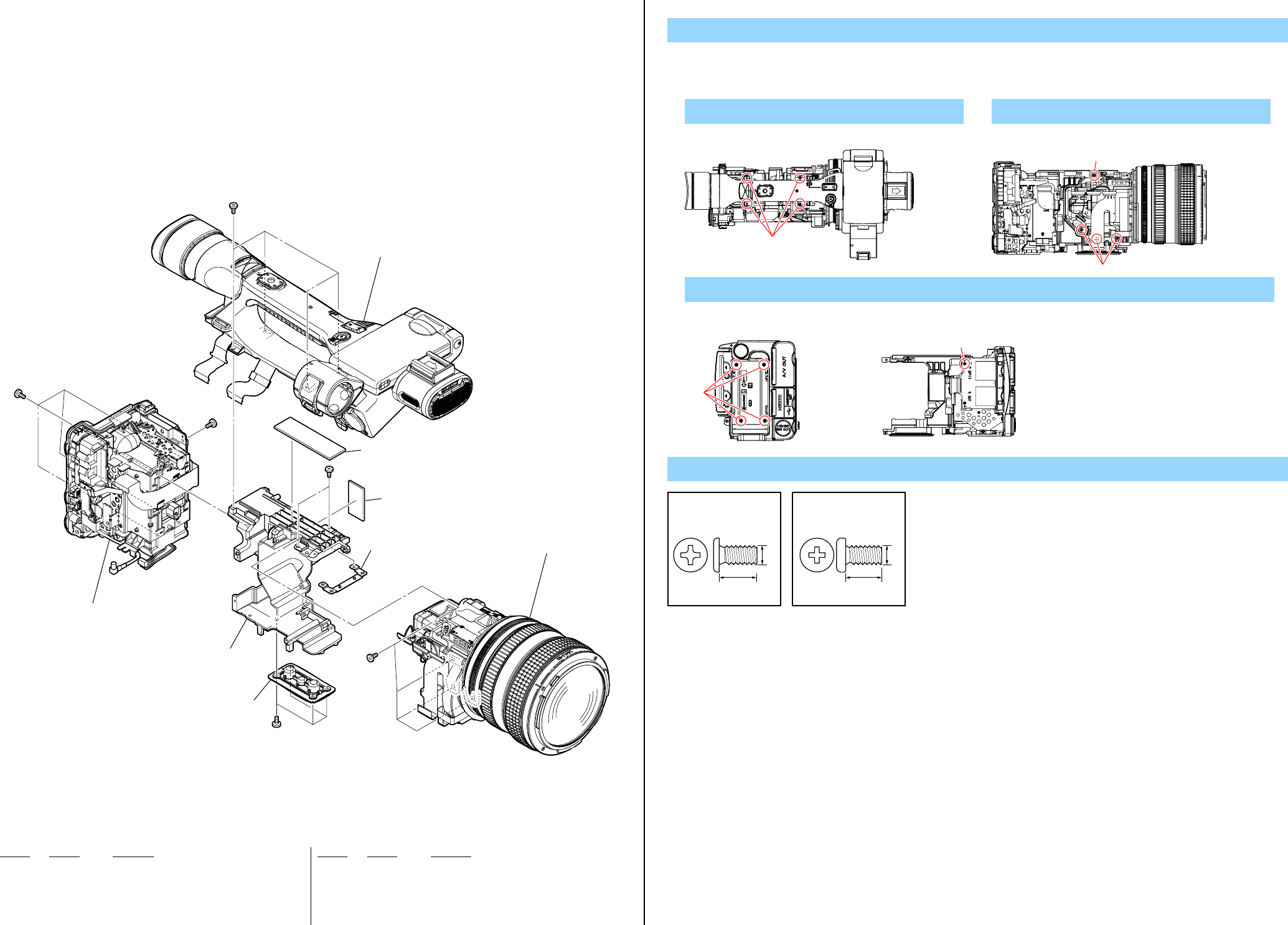

2-1. EXPLODED VIEWS
2-1-1. OVERALL SECTION
ns: not supplied
Ref. No. Part No. Description
1 4-165-238-01 COVER, EXT DUMMY
2 X-2515-789-1 COVER ASSY, GRIP
3 2-178-805-01 FOOT, RUBBER
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
DISASSEMBLY
1 Release button (1-1) → EXT Dummy Cover (1-2) → #49 X 3 → Grip Cover Assy (1-3)
→ Flexible Board → #49 X 8
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
1 Cabinet (L) Section-1
(See page 2-6)
Main Board Section
(See page 2-4)
#49
#49
#49
#49
#49
3
-1
-1
ns
1
1-2
2
1-3
1-1
#49
Bottom View
#49
#49
#49
Bottom ViewBottom View
Left View Top View
1. Remove to numerical order 1 (1-1 to 1-3) in the left figure.
2. The meaning of the sign in left figure is as follows. Be careful when it removes.
◆-X: Flexible Board, Flat Cable, Harness
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-4

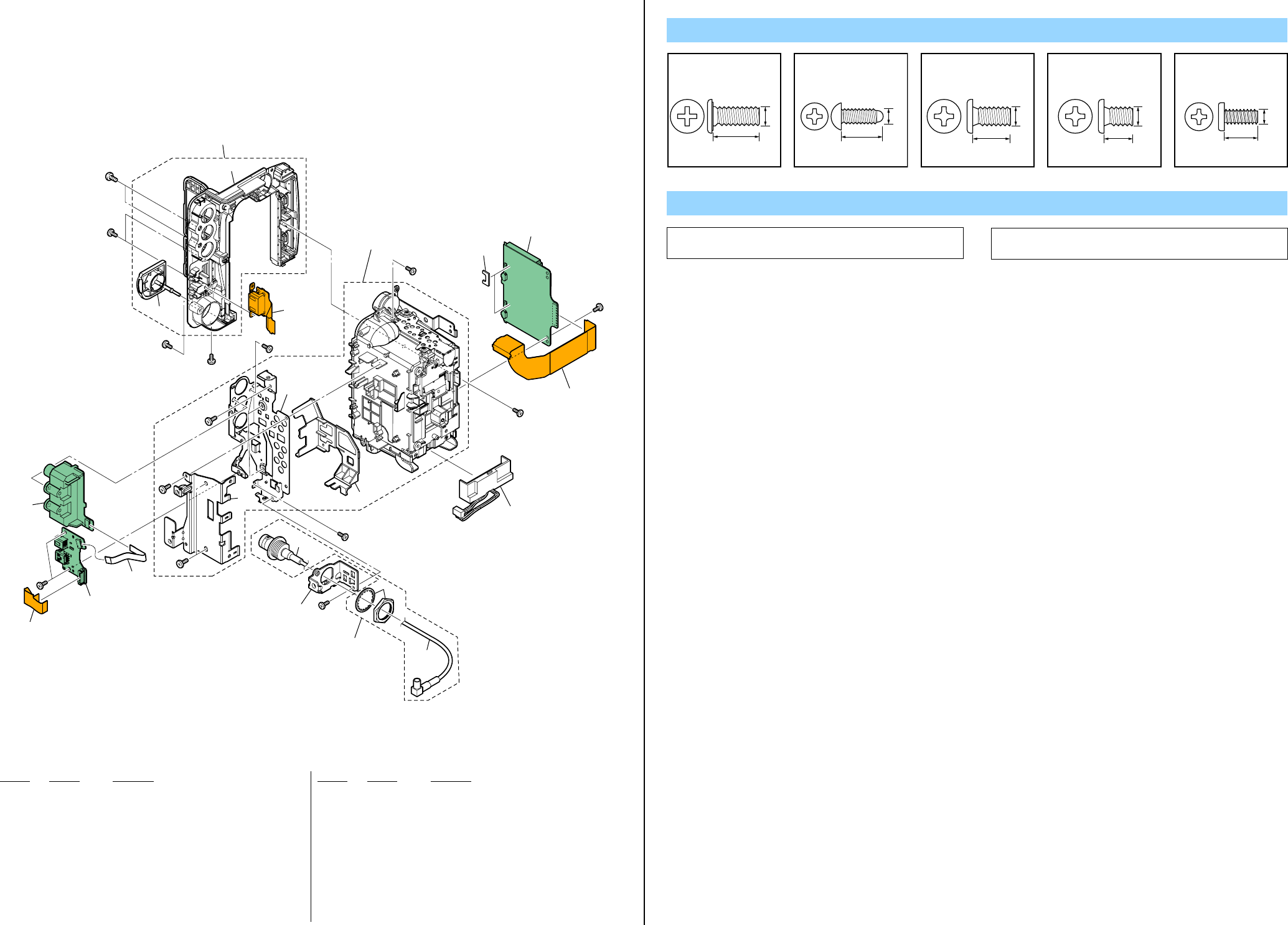

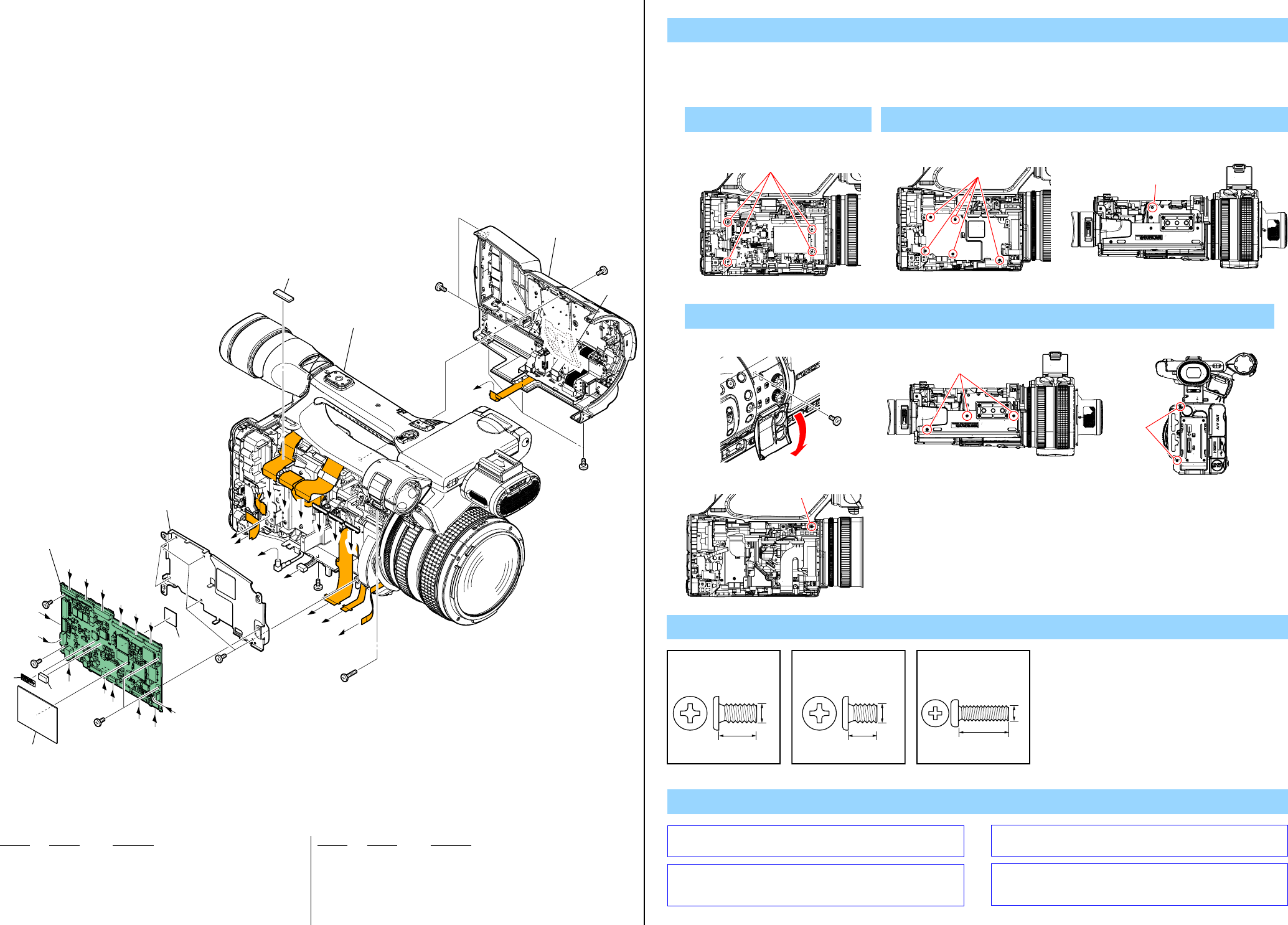

2-1-2. MAIN BOARD SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
* 51 4-165-223-01 SHEET (4535T1), RADIATION
* 52 4-170-751-01 SPACER (A), VC
* 53 4-165-995-01 LABEL, FUSE
54 A-1758-578-A VC-582 BOARD, COMPLETE (SERVICE) (Note 1)
* 55 4-166-044-01 SPACER (B), VC
* 56 4-165-252-01 FRAME, MAIN
* 57 4-175-181-01 SHEET (FP1152), WATERPROOF
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#154 7-627-556-97 SCREW, PRECISION +P2.6X8 TYPE 1
1. Remove to numerical order (2 to 4) in the left figure.
2. The meaning of the sign in left figure is as follows. Be careful when it removes.
◆-X: Flexible Board, Flat Cable, Harness
DISASSEMBLY
VC-582
VC-582
EE
E
EEE
F
E
D
C
L
K
J
H
G
I
B
A
I
L
H
J
K
AB
C
DEF
G
M
N
M
N
4
#50
#50 #49
#49
#49
#49
#154
#49
#50
2 54
(Note 1)
3 56
51
52
53
55
57
4
Cabinet (R) Section
(Note 2)
(See page 2-8)
Chassis Section
(See page 2-5)
2 #50 X 4 3 #49 X 6
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
VC-582
VC-582
#50
Left View
#49 #49
Left View Bottom View
4 Open Lid AL (4) → #49 X 6 → #154 X 1
#154
#49
Left View
Back View
#49
#49
Bottom ViewRight View
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
8.0
2.6
#154: M2.6 X 8.0
(Silver)
7-627-556-97
Note
Note 1: Refer to “Assembly-8: How to arrange Harness (Coaxial
Cable)” when installing.
Note 1:
Note 2: Refer to “Assembly-7: On installation of the Cabinet (R)
section, adjust the position of the ND filter switch” when
installing.
Note 2:
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-5
Ref. No. Part No. Description Ref. No. Part No. Description
101 4-119-234-11 WASHER, TRIPOD
* 102 4-165-251-01 CHASSIS, MAIN
103 4-119-237-01 PLATE (F), MC FIXED
* 104 4-165-225-01 SHEET (3218T1), RADIATION
105 4-165-224-01 SHEET (6018T1), RADIATION
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#119 7-627-556-58 SCREW +P 2.6X5
2-1-3. CHASSIS SECTION
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
DISASSEMBLY
5 #119 X 4
#119
Top View
6 #119 X 4
#119
#119
Left View
7 #49 X 5
5 Handle Section-1
(See page 2-9)
#119
#119
#119
#49
105
#49
#49
6 Lens Section
(See page 2-16)
7 BT Panel Section
(See page 2-17)
8 102
101
103
104
1. Remove to numerical order (5 to 8) in the left figure.
2. The meaning of the sign in left figure is as follows. Be careful when it removes.
#49
#49
Back View Right View
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-6

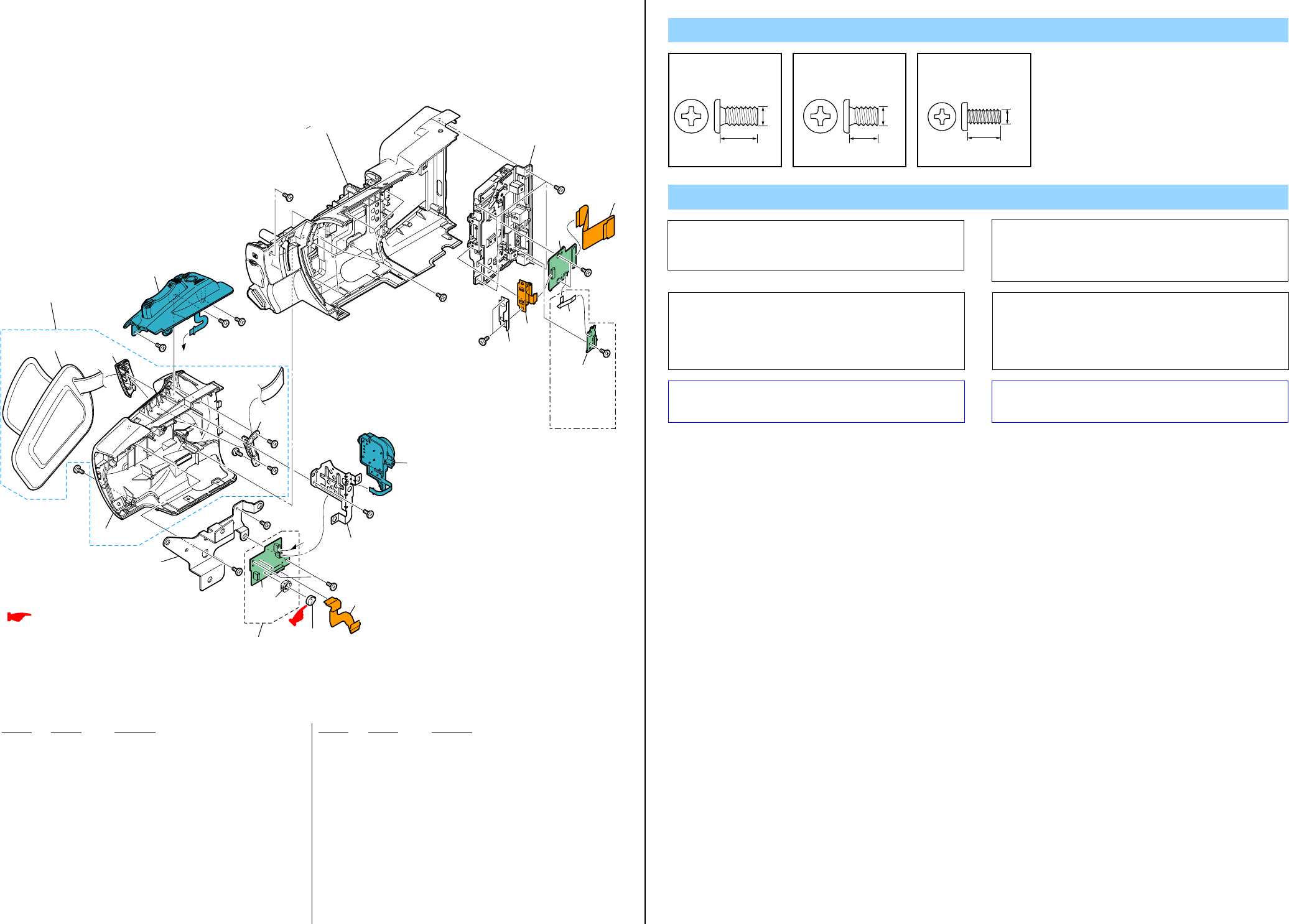

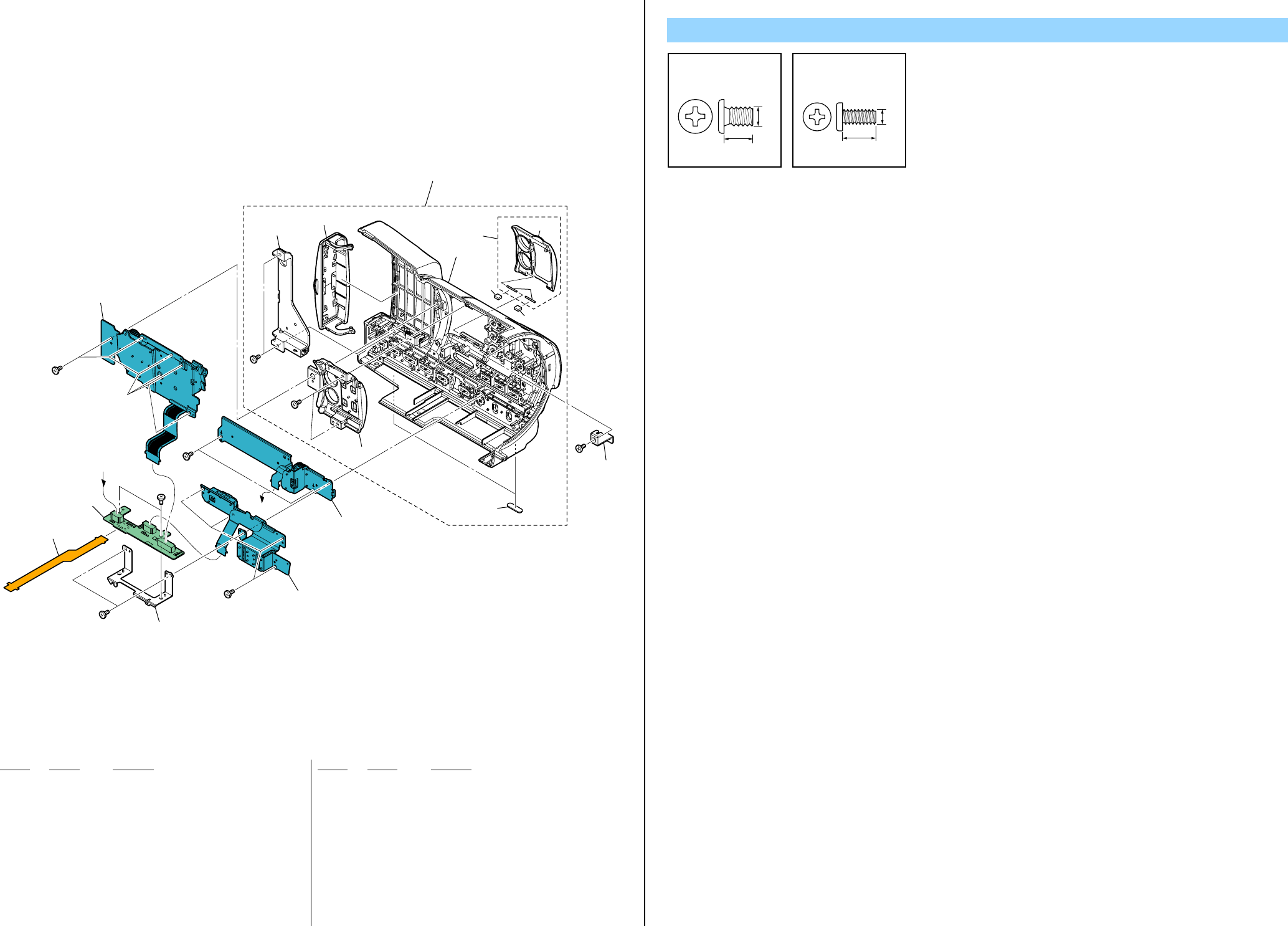

2-1-4. CABINET (L) SECTION-1
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
151 A-1752-113-A GC-012 BOARD, COMPLETE
152 1-879-860-11 FP-1161 FLEXIBLE BOARD
* 153 4-165-326-01 FRAME, PS
154 1-487-447-11 SWITCH BLOCK, CONTROL (PS94000)
* 155 4-165-331-01 BRACKET (REAR), GRIP BELT
156 X-2515-778-1 CABINET (G (94000)) ASSY
157 2-178-804-01 BELT, GRIP
* 158 4-165-330-01 HOLDER, GRIP BELT
159 1-487-448-11 SWITCH BLOCK, CONTROL (PZ94000)
160 X-2515-779-1 CABINET (S (94000)) ASSY
(EXCEPT HXR-NX5M/HXR-NX5C)
160 X-2515-788-1 CABINET (S (94003)) ASSY
(HXR-NX5M/HXR-NX5C)
161 1-879-855-11 FP-1156 FLEXIBLE BOARD
162 A-1752-127-A AS-063 BOARD, COMPLETE
163 A-1752-124-A GS-010 BOARD, COMPLETE
(EXCEPT HXR-NX5M/HXR-NX5C) (Note 2)
164 1-837-242-11 CABLE, FLEXIBLE FLAT (FFC-202)
(EXCEPT HXR-NX5M/HXR-NX5C)
165 A-1752-135-A FP-1151 FLEXIBLE BOARD, COMPLETE
* 166 4-165-336-01 RETAINER, EXT CONNECTOR (M)
0 BT2001 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note 1)
0 BH2001 1-756-615-61 HOLDER, BATTERY (Note 1)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
Note
A
A
Except
HXR-NX5M/
HXR-NX5C
#53
#53
#53
#49
#53
#53
#53
#53
#53 #53
#49
#50
#50
#53
#53
#53
#53
: BT2001 (LITHIUM STORAGE BATTERY)
Board on the mount position.
(See page 6-63)
Cabinet (L) Section-2
(See page 2-7)
152
151 BT2001
(Note)
BH2001
(Note)
ns
ns
ns
153
154
155
156
157 158
159
160
161
164
165
166
163
162
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Caution :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
注意 :
電池の交換は，正しく行わないと破裂する恐れがあります。
電池を交換する場合には必ず同じ型名の電池又は同等品と交換
してください。
使用済み電池は，取扱指示に従って処分してください。
Note 1:
GC-012基板のリチウム蓄電池 （BT2001） を交換する場合はバッ
テリホルダ（BH2001）も同時に新品に交換して下さい。
（一度使用したバッテリホルダは再使用できません。）
部品取り付けの際は，先にバッテリホルダを取り付けてからリ
チウム蓄電池を装着して下さい。
Note 1: Replace the battery holder (BH2001) together when
replacing the lithium storage battery (BT2001) on the
GC-012 board. (The battery holder removed once cannot
be used again.)
When mounting these parts, mount new battery holder
first and attach new lithium storage battery next.
Note 2: Refer to “Assembly-5: On installation of the GS-010
Board, adjust the position of the switch” when install-
ing.
Note 2: 組立時はAssembly-5: On installation of the GS-010
Board, adjust the position of the switch.を参照してく
ださい。
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-7
2-1-5. CABINET (L) SECTION-2
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
201 X-2515-776-1 CABINET (L (94000)) ASSY
(EXCEPT HXR-NX5M/HXR-NX5C)
201 X-2515-787-1 CABINET (L (94003)) ASSY
(HXR-NX5M/HXR-NX5C)
202 2-178-805-01 FOOT, RUBBER
* 203 4-165-334-01 HEAT SINK, L
* 204 4-165-327-01 BRACKET (FRONT), GRIP BELT
205 1-837-240-11 CABLE, FLEXIBLE FLAT (FFC-194)
206 1-837-242-11 CABLE, FLEXIBLE FLAT (FFC-202)
207 A-1752-121-A TC-001 BOARD, COMPLETE
208 A-1752-126-A TS-157 BOARD, COMPLETE (Note)
209 4-165-237-01 FRAME, TC
210 X-2515-777-1 CABINET (TC) ASSY
211 4-165-240-01 COVER, TC
#34 3-077-331-41 +BV3 (3-CR)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
ns
201
202
203
204 207
208
209
205
206
#53
#53
#53
#34
#50
#53
#53
210
211
(Note)
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#34: M3.0 X 8.0
(Black)
3-077-331-41
8.0
3.0
Note
Note : Refer to “Assembly-6: On installation of the TS-157
Board, adjust the position of the switch” when install-
ing.
Note :
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-8
2-1-6. CABINET (R) SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
251 1-879-858-11 FP-1159 FLEXIBLE BOARD
252 A-1752-112-A CK-218 BOARD, COMPLETE
253 1-487-451-11 SWITCH BLOCK, CONTROL (CF94000)
254 1-487-449-11 SWITCH BLOCK, CONTROL (KP94000)
255 1-487-450-11 SWITCH BLOCK, CONTROL (AU94000)
256 X-2515-775-1 CABINET (R (94000)) ASSY
(EXCEPT HXR-NX5M/HXR-NX5C)
256 X-2515-786-1 CABINET (R (94003)) ASSY
(HXR-NX5M/HXR-NX5C)
257 X-2546-696-1 LID SUB ASSY (94000), AL (SERVICE)
258 X-2546-465-1 LID SUB ASSY (94000), MS (SERVICE)
* 259 4-165-325-01 SHEET, RUBBER
* 260 4-119-383-01 PLATE, CABINET (R) FIXED
* 261 4-165-313-01 BASE, AL
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
A
A
ns
ns
ns
ns
ns
ns
#53
#53
#53
#53
#53
#53
#53
#50
256
257
251
252
255
ns
258
259
261
260
254
253
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-9
2-1-7. HANDLE SECTION-1
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
301 X-2342-570-1 HOLDER (93000) ASSY, MICROPHONE
302 3-284-080-01 RUBBER, MICROPHONE
303 3-284-081-01 SHEET, RUBBER ADHESIVE
304 3-284-075-02 COVER, MICROPHONE HOLDER RUBBER
305 4-119-861-01 RUBBER (93000), HOLDER
306 X-2515-770-1 COVER (94000) ASSY, (REAR)
307 X-2515-769-1 CABINET (94000) ASSY, (UPPER)
308 3-288-538-01 SHOE, REAR (COLD)
309 A-1753-082-A GP940 ASSY (EXCEPT HXR-NX5M/HXR-NX5C)
310 1-837-242-11 CABLE, FLEXIBLE FLAT (FFC-202)
(EXCEPT HXR-NX5M/HXR-NX5C)
311 1-480-298-11 SWITCH BLOCK, CONTROL (GZ92000)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#119 7-627-556-58 SCREW +P 2.6X5
Screw
Except
HXR-NX5M/
HXR-NX5C
Handle section-2
(See page 2-10)
#53
#119
#49
#50
#49
#49
#49
301
302
303
304
305
303
EVF section
(See page 2-13)
ns
ns
307
311
308
309
310 #49
#49
306
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
DISASSEMBLY
1. The meaning of the sign in left figure is as follows. Be careful when it removes.
◆-X: Flexible Board, Flat Cable, Harness
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-10
2-1-8. HANDLE SECTION-2
Ref. No. Part No. Description Ref. No. Part No. Description
351 X-2515-767-1 PANEL (94000) ASSY, CONTROL
352 A-1752-116-A KY-115 BOARD, COMPLETE
353 1-837-240-11 CABLE, FLEXIBLE FLAT (FFC-194)
* 354 4-165-283-01 COVER (BB)
355 A-1752-129-A PI-030 BOARD, COMPLETE (Note)
356 4-119-279-01 HOLDER, FLEXIBLE (Note)
357 A-1752-134-A FP-1150 FLEXIBLE BOARD, COMPLETE (Note)
358 X-2188-609-1 FIXED (759) ASSY
359 X-2515-768-1 COVER (94000) ASSY, (FRONT)
360 4-165-281-01 CABINET, HANDLE (FRONT)
361 1-879-856-12 FP-1157 FLEXIBLE BOARD
362 4-169-934-01 SHEET (FP1157), COUNTERMEASURE
* 363 4-174-174-01 CUSHION, HANDLE (FRONT) CABINET
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#100 3-080-203-51 SREW (M2), LOCK ACE, P2
#119 7-627-556-58 SCREW +P 2.6X5
Screw
KY-115
KY-115
PI-030
#119
#50
#50
LCD section
(See page 2-14)
359
360
361
363
362
357
(Note)
356
(Note)
355
(Note)
358
#50
#49
#49
353
354
351
352
#53
#100
#100
Handle section-3
(See page 2-11)
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
#100: M2.0 X 6.0
(Black)
3-080-203-51
6.0
2.0
Note
Note : Refer to “Assembly-4: How to arrange Harnesses and
Flexible Board” when installing.
Note :
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-11
2-1-9. HANDLE SECTION-3
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
401 A-1752-136-A FP-1152 FLEXIBLE BOARD, COMPLETE
402 A-1752-114-A HP-156 BOARD, COMPLETE
403 A-1752-123-A HG-001 BOARD, COMPLETE
404 4-165-284-01 COVER, HP JACK
405 3-061-234-01 NUT (M6X0.5)
406 X-2188-599-1 KNOB ASSY, ZOOM SELECTION
407 1-834-244-11 FLEXIBLE FLAT CABLE (FFC-116)
408 A-1752-130-A XL-011 BOARD, COMPLETE
* 409 4-165-279-01 BRACKET, XL
410 3-288-474-01 RUBBER, PANEL RETAINER
411 4-165-282-01 COVER, XLR
412 4-165-285-01 COVER, XLR RUBBER
413 2-892-095-01 CLAMP, CABLE
414 1-480-870-11 SWITCH BLOCK, CONTROL (XS93000)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#119 7-627-556-58 SCREW +P 2.6X5
Screw
ns
ns
ns
#49 #49
#50
#50
#50
#50
#119
#49
#49
#49
#49
#49
401
402
403
405
Handle section-4
(See page 2-12)
404
406
407
414
408
409
410
411
412
413
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-12
2-1-10. HANDLE SECTION-4
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
451 4-165-278-01 GRIP
452 4-165-224-01 SHEET (6018T1), RADIATION
453 4-165-277-01 HANDLE
* 454 4-119-285-01 CUSHION, SPEAKER
455 2-178-550-01 HOLDER, SPEAKER
456 3-069-286-03 SHOE, ACCESSORY
* 457 2-178-566-01 GRILLE, SPEAKER (Note)
SP901 1-825-968-11 LOUDSPEAKER (1.8CM)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#100 3-080-203-51 SREW (M2), LOCK ACE, P2
Screw
451 452
453 454
ns
ns
SP901
#49
#100
#49
#53
#49
Microphone section
(See page 2-15)
455
456
457
(Note)
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#100: M2.0 X 6.0
(Black)
3-080-203-51
6.0
2.0
Note
Note:
Note: Refer to “Assembly-3: How to bent the Speaker Grille”
when installing.
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-13
2-1-11. EVF SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
501 4-119-301-01 EYE CUP (SMALL)
502 X-2320-885-1 EYE CUP (93000) ASSY
503 X-2320-861-1 LENS ASSY, VF (Note)
504 4-119-302-01 LID, EYE CUP CABINET
505 4-119-303-01 COVER, EYE CUP CABINET LID
506 3-288-591-01 SHEET, VF PROTECTION
507 3-288-585-01 CASE, PANEL
508 1-873-733-11 FP-776 FLEXIBLE BOARD
509 3-288-586-01 LID, PANEL
510 A-1752-131-A VF-179 BOARD, COMPLETE
* 511 3-299-948-01 SHEET (UU)
512 1-879-859-11 FP-1160 FLEXIBLE BOARD
513 CAUTION TAPE, VF
514 X-2515-771-1 CABINET (94000) ASSY, VF
* 515 4-165-332-01 RETAINER, VF FLEXIBLE
516 X-2515-764-1 TILT ASSY, VF
LCD902 1-802-560-31 LCD MODULE
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
#53
#53
LCD902
#5
3
501
502
503
504
505
506
507
509
508
510
511
512
515
516
514
513
(16mm × 6.4mm)
(Note)
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Note
Caution :
For the part of 513, cut NON WOVEN (T0.25) (3-076-631-01) into
the desired length and use it.
Caution:
Note:
Note: Refer to “Assembly-1: Confirm the Diopter Adjustment
Lever is on the left side when installing the VF Lens Assy”
when installing.
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-14
2-1-12. LCD SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
551 X-2515-773-1 CABINET (UPPER (94000)) ASSY
552 A-1752-128-A PD-395 BOARD, COMPLETE
* 553 4-165-311-01 FRAME, BL
554 3-288-565-11 CUSHION, PANEL
555 X-2515-774-1 LOWER (94000) ASSY, CABINET
556 3-288-566-01 CABINET (T), PANEL HINGE
557 1-963-030-21 HARNESS (SW-116) (Note)
558 A-1752-122-A HT-003 BOARD, COMPLETE
559 X-2342-571-1 HINGE (TYPE 07KAI) ASSY, PANEL
560 1-965-937-21 HARNESS (COAXIAL CABLE)
561 3-288-567-01 CABINET (B), PANEL HINGE
D901 1-480-358-11 BLOCK, LIGHT GUIDE PLATE (3.2)
LCD901 A-1734-177-A TP BLOCK ASSY (32ESHGU09)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
Screw
PD-395
#49
#49
#49
#50
D901
ns
ns
ns
ns
ns
551
552
553
554
555
556
559
557
(Note)
558
561
560
LCD901
Boss
Claw
Claw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
1. { points in left figure shows claws. Be careful when it removes.
DISASSEMBLY
Note
Note:
Note: Refer to “Assembly-2: How to arrange Harnesses
(SW-116)” when installing.
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-15
2-1-13. MICROPHONE SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
601 X-2515-772-1 GRILLE (94000) ASSY, MICROPHONE
602 A-1752-117-A MA-459 BOARD, COMPLETE
603 1-879-857-11 FP-1158 FLEXIBLE BOARD
* 604 4-165-302-01 SHEET METAL, MICROPHONE
605 4-165-303-01 GRILLE (REAR), MICROPHONE
606 4-165-304-01 SCREEN (REAR), WINDOW
607 4-165-301-01 CABINET (REAR), MICROPHONE
MIC901 1-542-808-11 MICROPHONE
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
#53
#53
#53
#53
MIC901
601
602603
604
605
607 606
MA-459
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-16
2-1-14. LENS SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
651 1-788-775-31 LENS, VIDEO CF0022
* 652 4-119-361-01 HEAT SINK, LENS
653 4-119-362-01 SHEET (2828), LENS RADIATION
* 654 4-119-360-01 SHEET, CM RADIATION
655 A-1566-526-A DEVICE (SERVICE), PRISM
(including IC3001/IC5001 (CMOS imager) and
CM-097/104 complete boards) (Note 2)
656 1-966-281-11 HARNESS (COAXIAL CABLE) (Note 1)
* 657 4-119-357-01 COVER (A), LIGHT INTERCEPTION
658 4-119-356-01 SHEET (1122), LENS RADIATION
* 659 4-119-358-01 COVER (B), LIGHT INTERCEPTION
* 660 4-119-359-01 PLATE, GY GROUND
661 A-1759-066-A GY-022 BOARD, COMPLETE (SERVICE)
#53 3-080-206-21 SCREW, TAPPING, P2
#155 3-080-204-31 SCREW, TAPPING, P2 (Note 3)
Screw
#53
#53
#53
(including IC3001/IC5001 (CMOS imager)
and CM-097/104 complete boards) (Note 2)
(Note 1)
(Note 3)
#155
661
660
653
659
656
658
658
655
654
657
653
652
651
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0 1.7
6.0
#155: M1.7 X 6.0 (Tapping)
(Black)
3-080-204-31
Note
Note1:
Note1: Refer to page 2-2 “Note for disconnecting the harness
(coaxial cable)” when changing the harness (coaxial
cable).
Note2:
Note2: Be sure to read “Precuations for Replacement of
Imager”on page 6-1 when changing the imager.
1
2
3
Note 3: Prism Device cautions
Tighten screws in the following order.
Be sure not to insert the harnesses forcefully.
(Standard: Insertion; 15N, Pull out; 10N)
1
2
3
Note 3: プリズムデバイス取り外し組立時の注意
下記の順番でねじを締め付けてください。
ハーネスを強く差し込まないでください。
(差し込み時：15N, 引き抜き時：10N)
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-17
2-1-15. BT PANEL SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
701 X-2515-765-1 PANEL (94000) ASSY, BT
702 4-165-234-01 COVER, SDI JACK
703 A-1752-133-A FP-1149 FLEXIBLE BOARD, COMPLETE
704 A-1752-099-A CP-004 BOARD, COMPLETE
705 1-879-883-11 FP-1162 FLEXIBLE BOARD
706 A-1752-115-A JK-392 BOARD, COMPLETE
707 1-837-240-11 CABLE, FLEXIBLE FLAT (FFC-194)
708 1-836-909-11 CABLE ASSY, COAXIAL (Note)
* 709 4-165-233-01 HOLDER, SDI
710 X-2515-780-1 HOLDER ASSY, BT
711 1-879-854-11 FP-1155 FLEXIBLE BOARD
712 4-165-226-01 SHEET, MS LIGHT INTERCEPTION
713 A-1752-120-A MS-424 BOARD, COMPLETE
714 4-165-269-01 HOLDER, JACK
0 BT901 1-694-411-12 TERMINAL BOARD, BATTERY
#2 2-635-562-31 SCREW (M1.7)
#34 3-077-331-41 +BV3 (3-CR)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
ns
#49
#49
#2
#34
701
702 703
704
706
707
705
#50
711
713
710
#5
3
#53
#53
#53
#53
#53
#53
#53
BT901
MS-424
714
712
ns
ns
708
#53
ns
ns
709
(Note)
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#34: M3.0 X 8.0
(Black)
3-077-331-41
8.0
3.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Note
Note:
Note: Connect and Disconnect the SDI Cable vertically.
Do not load to widthwise.
HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-18
• EXCEPT J MODEL
Checking supplied accessories.
The CD-ROM supplied contains all of language version of the Operating
Instructions(PDF) for printing.
The printed matter is not supplied. If required,
please order it with the part number below.
AC Adaptor/Charger
(AC-VL1)
0 1-487-539-11
Wireless Remote Commander
(RMT-845)
1-487-540-11
Component video cable
1-829-414-61
A/V connecting cable
1-828-145-21
Rechargeable battery pack
(NP-F770) (NX5U)
(Note)
Rechargeable battery pack
(NP-F570)
(EXCEPT NX5U)
(Note)
Lens hood with lens cover
(CF002)
X-2320-850-1
USB cable
1-829-868-31
Large eyecup
X-2342-702-1
Note : This item is supplied with the unit as an accessory, but is
not prepared as a service part.
Power cord (mains lead)
0 1-834-484-31 (NX5U)
0 1-832-121-31 (NX5C)
0 1-834-482-21 (NX5N/NX5E/NX5M/NX5P)
Wind Screen, Microphone
(ECM-XM1)
1-542-749-11
Wind Screen
3-048-481-01
Microphone
(not supplied)
Microphone Spacer
* 3-179-882-01
CD-ROM “Manuals for
Digital HD Video
Camera Recorder”
4-162-320-01
Connecting Cord (DK-415)
1-782-361-15 (EXCEPT NX5U)
1-782-361-21 (NX5U) Accessory Shoe Kit
X-2188-877-2
Accessory Shoe
3-069-286-03
Screws
2-630-005-31
Accessory Shoe Plate
(not supplied)
4-157-877-11 (ENGLISH) (NX5U/NX5N)
4-157-878-11 (ENGLISH) (NX5E/NX5P/NX5M)
4-157-878-21 (SIMPLIFIED CHINESE) (NX5C)
Operating Guide
Operating Guide (PDF)
4-157-877-01 (JAPANESE)
4-157-877-11 (ENGLISH)
4-157-877-21 (FRENCH)
Conversion (2P) Adaptor
0 1-569-008-12 (NX5N)
4-157-878-11 (ENGLISH)
4-157-878-21 (SIMPLIFIED CHINESE)
4-157-878-31 (FRENCH)
4-157-878-41 (SPANISH)
4-157-878-51 (ITALIAN)
4-157-878-61 (GERMAN)
* *
*
*
*
CD-ROM
“Content Management
Utility”
4-174-940-01
• J MODEL
(RMT-845)
1-487-540-11
USB
1-829-868-31
CD-ROM
“Content Management
Utility”
4-174-940-01
A/V
1-828-145-21
(CF002)
X-2320-850-1
CD-ROM
Manuals for Digital HD
Video Camera Recorder
4-162-320-01
1-829-414-61
(PDF)CD-ROM
CD-ROM(PDF)
(PDF)
4-157-877-01 ()
X-2342-702-1
(ECM-XM1)
1-542-749-11
3-048-481-01
()
* 3-179-882-01
(DK-415)
1-782-361-15
X-2188-877-2
3-069-286-03
2-630-005-31
()
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
