Fleet Solutions - Fan Clutch Application Guide

2009

2010

Issued: 2/1/2010

Catalog #: CQ-10001 HKC

Mfg Code: HKC

12 − Fan Clutches

Table of Contents 12−1

Part Number Index 12−3

General Information

Foreword 12−4

Core Return Guidelines 12−5

Application Guidelines 12−6

Horton Components 12−12

Horton Repair Kit Reference 12−14

Horton® Fan Clutches

Caterpillar, Cummins, & Detroit in MCI Applications (HT/S AdvantageTM) 12−15

Caterpillar 3176 (Model S & HT/S AdvantageTM) 12−16

Caterpillar 3306 (HT/S AdvantageTM) 12−17

Caterpillar 3406 (Model S & HT/S AdvantageTM)

4 Belt Groove 12−18

6, 8, 10K Multi−Groove 12−20

Caterpillar 3406, 3406B (Direct Drive) 12−21

Caterpillar 3406, 3406E, C11, C13, C15 & C16 (DriveMaster®) 12−22

Cummins (EC450®) 12−23

Cummins "C" Series (Model S) 12−24

Cummins ISB (DriveMaster®) 12−25

Cummins ISL (DriveMaster®) 12−26

Cummins ISM (DriveMaster®) 12−27

Cummins ISX (DriveMaster®) 12−28

Cummins ISX (HT/S AdvantageTM) 12−29

Cummins ISX & N14 (HT/S AdvantageTM) 12−30

Cummins L10 Series (Direct Drive) 12−31

Cummins L10 Series (Model S & HT/S AdvantageTM) 12−32

Cummins L10 & N14 (Model S) 12−34

Cummins Ford NTC Series (Model S) 12−35

Cummins NT, NTC (Direct Drive) 12−36

Cummins NTC, NT88, 444 Series (Model S & HT/S AdvantageTM) 12−37

Cummins N14 Series (Model S & HT/S AdvantageTM) 12−38

Detroit 6V92, 8V92, 8V71, 6V71 & 12V71 Series (Model S) 12−39

Detroit 60 Series (Direct Drive) 12−40

Detroit 60 Series (DriveMaster®) 12−41

Detroit 60 Series (Model S & HT/S AdvantageTM)

3 & 4 Belt Groove 12−42

6, 10, 14K Multi−Groove 12−43

Table of Contents 12−FAN CLUTCHES

12 − 1

Mack ASET AI (DriveMaster® Two−Speed) 12−44

Volvo VE D12 (DriveMaster PolarExtreme®) 12−45

KysorTM/Borg Warner Style Fan Clutches 12−46

Gold Top® Kits 12−47

Horton® Fan Clutch Components/Repair Kits

Major Overhaul Kits 12−48

Super Kits 12−49

Seal Kit 12−50

Facing/Liner Kit 12−51

Spacers & Adapters 12−52

Thermal Switches 12−53

Solenoid Valve & Filter 12−54

Fan Blades 12−55

KysorTM/Borg Warner Style Components

KysorTM/Borg Warner Style Kits and Components 12−56

Temperature Controls/Shutterstats 12−57

Maintenance

Troubleshooting 12−58

Troubleshooting 12−59

Troubleshooting 12−62

12−FAN CLUTCHES Table of Contents

12 − 2

Part Number Type Page #

RF14200K S 12−47

RF142561K S 12−47

RF14256K S 12−47

RF142SK S 12−47

RF145K S 12−47

RF14LK S 12−47

RF14SBLK S 12−47

RF14SK S 12−47

RF35029 S 12−57

RF35030 S 12−57

RF35031 S 12−57

RF36029 S 12−57

RF36030 S 12−57

RF36031 S 12−57

RF790000X S 12−37

RF790001X S 12−38

RF790002X S 12−37

RF790003X S 12−39

RF790004X S 12−39

RF790005X S 12−18

RF790007X S 12−18

RF790008X S 12−35

RF790009X S 12−42

RF790010X S 12−32

RF790011X S 12−42

RF790012X S 12−24

RF790013X S 12−24

RF790014X S 12−16

RF790015X S 12−16

RF790016X S 12−32

RF790017X S 12−32

RF790018X S 12−42

RF790021X S 12−34

RF790023X S 12−32

RF791000X S 12−37

RF791001X S 12−32

RF791002X S 12−18

RF791003X S 12−18

RF791004X S 12−38

RF791005X S 12−18

RF791006X S 12−38

RF791007X S 12−18

RF791008X S 12−18

RF791009X S 12−38

RF791010X S 12−38

RF791011X S 12−42

RF791012X S 12−17

RF791013X S 12−18

RF791014X S 12−18

RF791015X S 12−16

RF791016X S 12−37

RF791017X S 12−18

RF791018X S 12−32

RF791019X S 12−38

RF791020X S 12−18

RF791021X S 12−32

RF791022X S 12−32

RF791023X S 12−43

RF791024X S 12−42

RF791025X S 12−16

RF791026X S 12−38

RF791027X S 12−18

RF791028X S 12−17

RF791029X S 12−32

RF791030X S 12−32

RF791031X S 12−43

RF791032X S 12−32

RF791033X S 12−43

RF791034X S 12−32

RF791035X S 12−16

RF791036X S 12−32

RF791037X S 12−42

RF791038X S 12−20

RF791039X S 12−15

RF791040X S 12−15

RF791041X S 12−15

RF791069X S 12−20

RF791073X S 12−30

RF791076X S 12−20

RF791093X S 12−29

RF799011X S 12−27

Part Number Type Page #

RF799065X S 12−41

RF799067X S 12−41

RF799103X S 12−22

RF799168X S 12−28

RF799223X S 12−41

RF799334X S 12−22

RF799339X S 12−22

RF799437X S 12−22

RF799809X S 12−22

RF80001X S 12−46

RF80005X S 12−46

RF8000KCK S 12−56

RF8000KSK S 12−56

RF8101K S 12−56

RF8201K S 12−56

RF8202K S 12−56

RF8203K S 12−56

RF8204K S 12−56

RF85001X S 12−46

RF85002X S 12−46

RF85003X S 12−46

RF8500KCK S 12−56

RF8500KLK S 12−56

RF8500KSK S 12−56

RF88001X S 12−46

RF88003X S 12−46

RF8800KCK S 12−56

RF8800KLK S 12−56

RF991762202 S 12−55

RF991762502 S 12−55

RF991813253 S 12−55

RF991900 S 12−31

RF991902 S 12−36

RF991903 S 12−36

RF991918 S 12−21

RF991933 S 12−36

RF992013 S 12−40

RF993249 S 12−54

RF993272 S 12−54

RF993273 S 12−54

RF993280 S 12−54

RF993282 S 12−54

RF993284 S 12−54

RF993286 S 12−54

RF993287 S 12−54

RF993293 S 12−54

RF993294 S 12−54

RF993295 S 12−54

RF993296 S 12−54

RF993343 S 12−54

RF993412 S 12−54

RF993427 S 12−54

RF993428 S 12−54

RF993603 S 12−53

RF993605 S 12−53

RF993606 S 12−53

RF993607 S 12−53

RF993610 S 12−53

RF993615 S 12−53

RF993616 S 12−53

RF993617 S 12−53

RF993619 S 12−53

RF993625 S 12−53

RF993626 S 12−53

RF993630 S 12−53

RF993653 S 12−53

RF993654 S 12−53

RF993655 S 12−53

RF993658 S 12−53

RF993665 S 12−53

RF994002 S 12−54

RF994039 S 12−52

RF994040 S 12−52

RF994052 S 12−52

RF994053 S 12−52

RF994072 S 12−52

RF994073 S 12−52

RF994074 S 12−52

RF994105 S 12−55

RF994116 S 12−55

RF994117 S 12−55

Part Number Type Page #

RF994155 S 12−55

RF994156 S 12−55

RF994205 S 12−50

RF994305 S 12−49

RF994307 S 12−49

RF994314 S 12−48

RF994315 S 12−48

RF994319 S 12−51

RF994322 S 12−49

RF994343 S 12−49

RF994346 S 12−50

RF994349 S 12−51

RF994900 S 12−49

RF994985 S 12−49

RF996019 S 12−23

RF996048 S 12−23

RF999110 S 12−25

RF999285 S 12−41

RF999416 S 12−26

RF999801 S 12−28

RF999809 S 12−22

RF999820 S 12−45

RF999947 S 12−44

Part Number Type Page #

Type "O" = OEM P/N, Type "S" = Service P/N

If OEM part # is not found on page listed, refer to the MCR for applicable cross reference.

Part Number Index 12−FAN CLUTCHES

12 − 3

PURPOSE OF THIS SECTION

This section is designed as a reference for Haldex Commercial Vehicle Systems new and remanufactured air brake system

components and accessories, sold under the Haldex and Midland product names. Products described include all pertinent

information needed to replace an OEM installed component or to help design an original installation. If there is a service

number for a given part, it is noted in the product number table.

DESIGN FLEXIBILITY

The products presented in this section are described by function and usage. Technical data and mounting configurations

are also provided. Throughout this section, reference is made to numerous specific OEM applications. This section is not,

however, intended to be a mutually exclusive listing of all part numbers and designs available. Should the need for a design

not presented occur, contact your Haldex Commercial Vehicle Systems sales representative for additional information.

WARRANTY INFORMATION

Proper service and repair are important to the safe, reliable operation of any motor vehicle. To prevent personal injury

and/or vehicle damage, careful and cautious service procedures recommended by the vehicle manufacturer should be

followed by anyone servicing a motor vehicle. For details on warranty of Haldex Commercial Vehicle air brake system

components and accessories, refer to L20221 Aftermarket Warranty Policy. For warranty returns, use L90005 Warranty

Adjustment Form. To obtain further information, visit the www.haldex.com website, select North America/English in drop

down box then search for Warranty.

ORDERING PROCEDURE

Most customers can place electronic orders on the www.haldex.com website by obtaining a username and password or by

using EDI. For additional information about electronic orders or to place an order by phone or fax, contact Customer

Service in U.S. or Canada at numbers listed below:

U.S. Customer Service: Canada Customer Service:

Phone: 800−643−2374 Phone: 800−267−9247

Fax: 800−533−1941 Fax: 519−621−3924

Mail: Commercial Vehicle Systems

Haldex Brake Products Corporation

Attn: Customer Service Department

10930 N. Pomona Ave.

Kansas City, MO 64153

Mail: Commercial Vehicle Systems

Haldex Limited

Canadian Distribution Centre

Attn: Customer Service Department

500 Pinebush Road, Unit 1

Cambridge, Ontario N1T 0A5

IMPORTANT NOTICE

The data listed herein is correct to the best of Commercial Vehicle Systems knowledge and belief, having been compiled

from reliable and official sources of information. However, COMMERCIAL VEHICLE SYSTEMS CANNOT ASSUME ANY

RESPONSIBILITY for possible error or misapplication of the product. Final determination of the suitability of the products

for the use contemplated by the Buyer is the sole responsibility of the Buyer. Commercial Vehicle Systems shall have no

responsibility in connection with this suitability. It is not our intention to imply that any of the components in this catalog in

connection with an engine make or model are made by any engine manufacturer.

Commercial Vehicle Systems

Haldex Brake Products Corporation

10930 N. Pomona Ave.

Kansas City, MO 64153

Materials may only be reproduced with written permission of Commercial Vehicle Systems.

12−FAN CLUTCHES Foreword

12 − 4

WHAT YOU NEED TO LOOK FOR:

Core is complete and not disassembled. The fan clutch core must include a bracket, sheave, PFD (piston

friction disk),and an air chamber.

The fan clutch core cannot be broken, cracked, welded or galled.2.

The sheave and air chamber must spin freely.3.

Core has not been damaged by non−operational causes such as fire, rust, or rough handling.4.

The fan clutch core must be a part number specified by Haldex that is acceptable for exchange.5.

APPLICABLE CREDIT:

If none of the above conditions exist (1, 2, 3 or 4), full credit is applicable.1.

If any one of the above conditions exist, fifty percent (50%) credit is applicable.2.

If two or more of the above conditions exist, no credit is applicable.3.

Refer to Core Policy L00036 for additional information on core credits, core return

procedures, core changes, core acceptance, core refunds, and freight.

PRINCIPLE COMPONENT

PARTS:

PROCEDURES FOR CORE IDENTIFICATION:

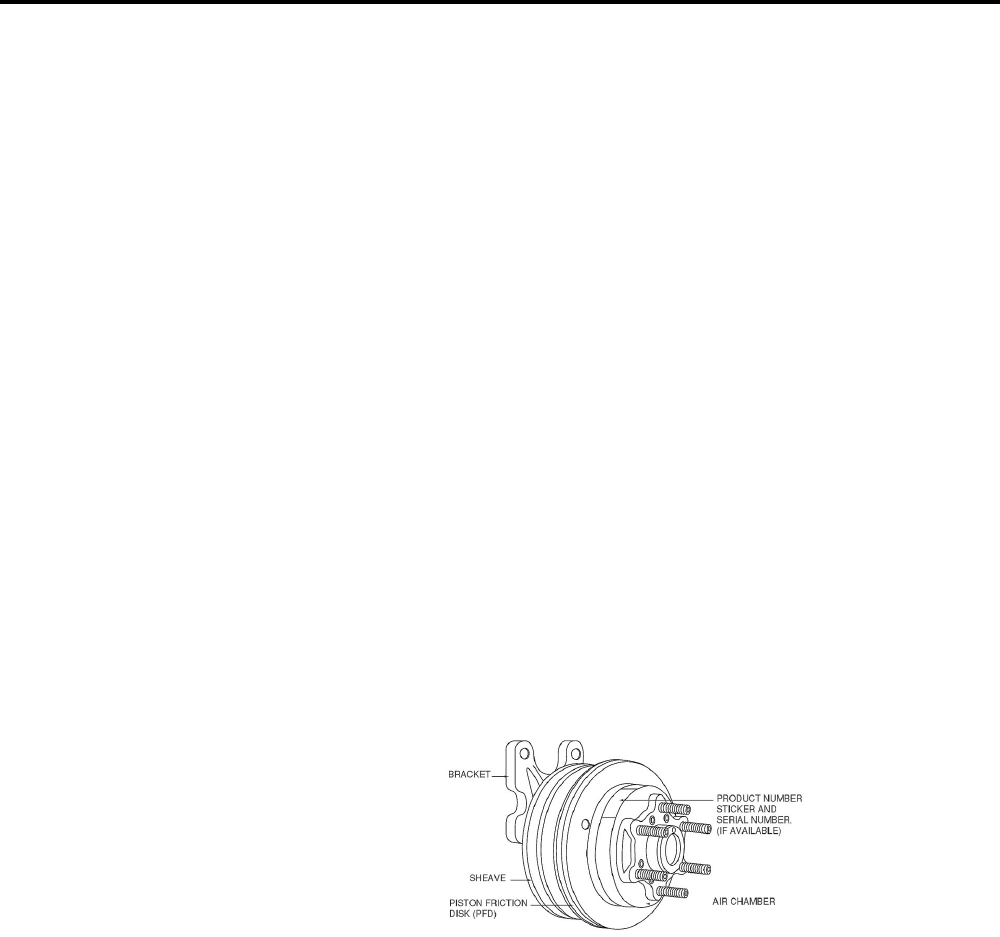

A. Sticker Check A "Good" core should have a product number which matches the listed acceptable

product numbers. (If sticker is not available, go to steps B & C).

B. Visual Check A "Good" core should match match one of the graphics and notes listed on the

following pages.

CASTING NUMBER LOCATIONS:

Sheave On the edge of the back rim

Bracket Front surface near shaft

Air Chamber Front surface (smooth type has no casting numbers)

Core Return Guidelines 12−FAN CLUTCHES

12 − 5

VEHICLE

MODEL & YEAR ENGINE MAKE & MODEL OEM #

HORTON

REMAN

NUMBER

MIDLAND

SERVICE

NUMBER

BLUEBIRD

1988 & UP, School Bus Cummins C−Series 980008 790012 RF790012X

FORD

1974−86, CL9000

1973 & UP, L9000, W9000

1977 & UP, CL9000

1974 & UP, L9000

1975 & UP, W−WT9000

1978 & UP, CL9000

Caterpillar 3406

Cummins PT270, NTC Series

Cummins NTC Series

Detroit Diesel 8V71, 6V92

Detroit Diesel 8V71T, TT, TA,

6V92T, TT 8V92TA

Detroit Diesel 6V92TT, 8V92TT

990058

990019

990026

990031

790005

790008

790002

790003

RF790005X

RF790008X

RF790002X

RF790003X

FREIGHTLINER

10/88 & UP, ALL

1988 & UP, ALL

1989 & UP, ALL

1989 & UP, Replaces

HT550 & D.H.

1990 & UP, ALL

1975 & UP, ALL

1987 & UP, ALL

1988 & UP, ALL

1989, COE &

Conventional

1990 & UP, FLD112

1989 & UP, ALL

1970 & UP, ALL

1975 & UP, ALL

1988 & UP, ALL

Caterpillar 3176

Caterpillar 3406 ATTAC

Caterpillar 3406 ATAAC

Caterpillar 3406

Caterpillar 3306

Cummins NTC Series

Cummins NTC Series, Big

Cam IV

Cummins NTC Series

Cummins L−10

Detroit Diesel 8V71N & T

Detroit Diesel 8V92T, TA, 8V71

Detroit Diesel 60 Series

990083

991022

991021

−

991050

990026

991015

991084

990006

990092

990007

990031

990047

990041

790015

791008

791007

791013

791012

790002

791016

791009

790010

790016

790017

790003

790004

790009

RF790015X

RF791008X

RF791007X

RF791013X

RF791012X

RF790002X

RF791016X

RF791009X

RF790010X

RF790016X

RF790017X

RF790003X

RF790004X

RF790009X

12−FAN CLUTCHES Application Guidelines

12 − 6

VEHICLE

MODEL & YEAR ENGINE MAKE & MODEL OEM #

HORTON

REMAN

NUMBER

MIDLAND

SERVICE

NUMBER

HENDRICKSON

1975 & UP, ALL Detroit Diesel 8V71N & T,

6V92TT, 8V92T 990031 790003 RF790003X

INTERNATIONAL

1988 & UP, 8000 Series,

9400 & Paystar

4/1974 & UP, 4070B,

Transtar II

1975 & UP, 4200−4300

Conventional Transtar II

1981−82, C09670 & Eagle

1983 & UP, C09670 & Eagle

1984 & UP, 9370

Conventional

8/86−11/86, 9370, 9670

1987 & UP, 9300, 9600

& 9700

1987 & UP, 9400

1973−74, 4200−4300

Conventional Transtar II

1973 & UP, Paystar 5000

1974 & UP, 4070B Transtar II

NTC 290, 350, NTA 400

1975 & UP 4100 Conco

1981 & UP, C09670 & Eagle

Paystar 5050, 5070

1985 & UP, S−Series, 8300

1988 & UP, 9300, 9600

& 9700

1986 & UP, ALL

1991 & UP, 8000

1991 & UP, 8000, 9000

1994 & UP, 8000

1973 & UP, Paystar 5000

Caterpillar 3176

Caterpillar 3406

Caterpillar 3406 ATAAC

Caterpillar 3406

Cummins Super 250, 270,

NTA 370

Cummins Super 250

Cummins F290/NTC 290,

350, 400

Cummins NTC 400

Cummins NTC Series

Cummins B.C.IV

Cummins NT88

Cummins L−10

Cummins N14

Detroit Diesel 6V92,

8V92, 8V71N & T

991023

990058

−

990058

990063

−

991007

991016

991032

990012

990023

990026

990012

991001

991000

991039

991044

991106

990031

791015

790005

791002

791003

791017

790000

790001

790002

790000

791000

791001

791018

791019

791026

791003

RF791015X

RF790005X

RF791002X

RF791003X

RF791017X

RF790000X

RF790001X

RF790002X

RF790000X

RF791000X

RF791001X

RF791018X

RF791019X

RF791026X

RF790003X

Application Guidelines 12−FAN CLUTCHES

12 − 7

VEHICLE

MODEL & YEAR ENGINE MAKE & MODEL OEM #

HORTON

REMAN

NUMBER

MIDLAND

SERVICE

NUMBER

INTERNATIONAL (Cont.)

ALL, 4070B, Transtar II,

4100 Conco

1978 & UP, S−2225

1983 & UP, Paystar 5000

1983 & UP, C09670 & Eagle

1983 & UP, 4200 & 4300,

9370 Conventional

1991 & UP, 9400

1991 & UP, 9600, 9700

Detroit Diesel 8V92, 8V71N

& T, 6V92TT

Detroit Diesel 6−71

Detroit Diesel 6V92, 8V71, 8V92

Detroit Diesel 6V92, 8V71TTA,

8V92

Detroit Diesel 6V92 Not Turbo

Charged

Detroit Diesel 60 Series

990031

990032

990034

990032

991062

991061

790003

791023

791031

RF790003X

RF791023X

RF791031X

KENWORTH

1988 & UP, ALL

1992 & UP, T−450

1975 & UP, ALL

1988 & UP, T−600

ALL, W900B, T600A, T800

1990 & UP, T−600, T−800

1992 & UP, T−600, T−800

1974 & UP, ALL

1975 & UP, ALL

1985 & UP, T−600

ALL

ALL, T−400A, T−450

1970−74, ALL

1975 & UP, ALL

6V92, 6V71, 12V71

ALL, 4 GR. S

Caterpillar 3176

Caterpillar 3406

Cummins NTA, NTC Series

Cummins NTC, BC III & IV

Cummins L−10 OAC

Cummins C−Series

Detroit Diesel 6V71, 8V71T

Detroit Diesel 8V71N, T,

8V92N, T

Detroit Diesel 60 Series

990081

991082

990058

990062

991009

991046

991076

990012

990026

991004

991005

990006

990080

990032

990048

990041

790014

791025

790005

790007

791005

791020

791014

790000

791004

791006

790010

790013

790003

790004

790009

RF790014X

RF791025X

RF790005X

RF790007X

RF791005X

RF791020X

RF791014X

RF790000X

RF791004X

RF791006X

RF790010X

RF790013X

RF790003X

RF790004X

RF790009X

12−FAN CLUTCHES Application Guidelines

12 − 8

VEHICLE

MODEL & YEAR ENGINE MAKE & MODEL OEM #

HORTON

REMAN

NUMBER

MIDLAND

SERVICE

NUMBER

KENWORTH (Cont.)

1990 & UP, 4 GR. HT/S

1990 & UP, ALL

1988 & UP, ALL

Detroit Diesel 60 Series

Caterpillar 3176

991051

990099

991064

990081

791011

790018

791024

790014

RF791011X

RF790018X

RF791024X

RF790014X

MACK

1976 & UP, ALL 1:1

1976 & UP, ALL 1.2:1

1976 & UP, ALL 1:1

1976 & UP, ALL .8:1

Cummins NTC Series

Cummins NTC, NTA 400

DDC 8V71N, T, 6V92TT, 8V92T

DDC 8V71N, T, TV92T, 12V71

990012

990026

990031

990047

790000

790002

790003

790004

RF790000X

RF790002X

RF790003X

RF791004X

MARMON

1975 & UP, ALL

ALL

1975 & UP, ALL

ALL

Caterpillar 3406

Cummins NTC 290, 335, 350,

NH 230, Super 250

Cummins L−10

DDC 8V71N, T, 6V92TT, 8V92T

DDC Series 60

990058

990023

990006

990031

990077

790005

790001

790010

790003

790009

RF790005X

RF790001X

RF790010X

RF790003X

RF790009X

OSHKOSH

1975 & UP, ALL Cummins NTC Series 990026 790002 RF790002X

PETERBILT

1992 & UP, 320 Cement

Truck

1975 & UP, Conventional &

& COE

1972−74, ALL

1975 & UP, Conventional

& COE

1985 & UP, 375, 377, 379

Caterpillar 3306

Caterpillar 3406

Cummins NTC Series

Cummins NTC 230−350

Cummins NTC @2 230, 250

991090

990059

990012

990026

991040

791028

790005

790000

790002

791010

RF791028X

RF790005X

RF790000X

RF790002X

RF791010X

Application Guidelines 12−FAN CLUTCHES

12 − 9

VEHICLE

MODEL & YEAR ENGINE MAKE & MODEL OEM #

HORTON

REMAN

NUMBER

MIDLAND

SERVICE

NUMBER

PETERBILT (Cont.)

1986 & UP, ALL

1988 & UP, 320

4/78 & UP, Conventional

& COE 1:1

1975 & UP, Conventional

& COE .8:1

ALL

1976 & UP, ALL .8:1

Cummins L−10

Cummins C−Series

DDC ALL "V" Engines

DDC 60 Series

DDC 8V71N & T, 8V92T,

12V71

990006

990080

990032

990048

990077

990047

790010

790013

790003

790004

790009

790004

RF790010X

RF790013X

RF790003X

RF791004X

RF790009X

RF791004X

VOLVO WHITE GMC

1976−1985

ALL, WCA

1975 & UP, Autocar

1976 & UP, Volvo White

1976 & UP, General

1991 & UP, ALL

ALL, Astro DR

1975 & UP, Autocar 1:1

1975 & UP, Autocar 1.2:1

1975 & UP, Autocar .8:1

1985 & UP, Autocar

ALL, WC, WJ, WI, WX

1991, ALL 1:1

1991, ALL 1.2:1

1975 & BEFORE, HV & JV

9500 Conventional

1975 & UP, Autocar 1:1

1975 & UP, Autocar 8:1

Caterpillar 3306

Caterpillar 3176

Caterpillar 3406

Cummins NTC Series

Cummins L−10

Cummins L−10, N14

DDC 6V53

DDC 8V71N & T, 6V92TT,

8V92T

DDC 8V71N & T, 8V92T, 12V71

990810

990089

990059

990060

991067

990060

−

990023

990026

990006

991056

991055

−

990031

990047

791012

790014

790005

791027

790005

790000

790001

790002

790010

791021

791022

790003

790004

RF791012X

RF790014X

RF790005X

RF791027X

RF790005X

RF790000X

RF790001X

RF790002X

RF790010X

RF791021X

RF791022X

RF790003X

RF790004X

12−FAN CLUTCHES Application Guidelines

12 − 10

VEHICLE

MODEL & YEAR ENGINE MAKE & MODEL OEM #

HORTON

REMAN

NUMBER

MIDLAND

SERVICE

NUMBER

VOLVO WHITE GMC (Cont.)

1978 & BEFORE, DP9502

1988 & UP

ALL, Road Boss II

ALL, W−G

DDC 12V71 Astro/Titan

Detroit Diesel 60 Series

Detroit Diesel ALL "V" Engines,

Road Commander II,

Road Expediter II

Detroit Diesel 60 Series

−

990040

990048

990077

790004

790011

790004

790009

RF790003X

RF790011X

RF791004X

RF790009X

WESTERN STAR

1976 & UP, ALL

1975 & UP, ALL

1975 & UP, ALL 1:1

Caterpillar 3406

Cummins NTC Series

DDC 8V71N & T, 6V92TT, 8V92T

990058

990026

990031

790005

790002

790003

RF790005X

RF790002X

RF790003X

Application Guidelines 12−FAN CLUTCHES

12 − 11

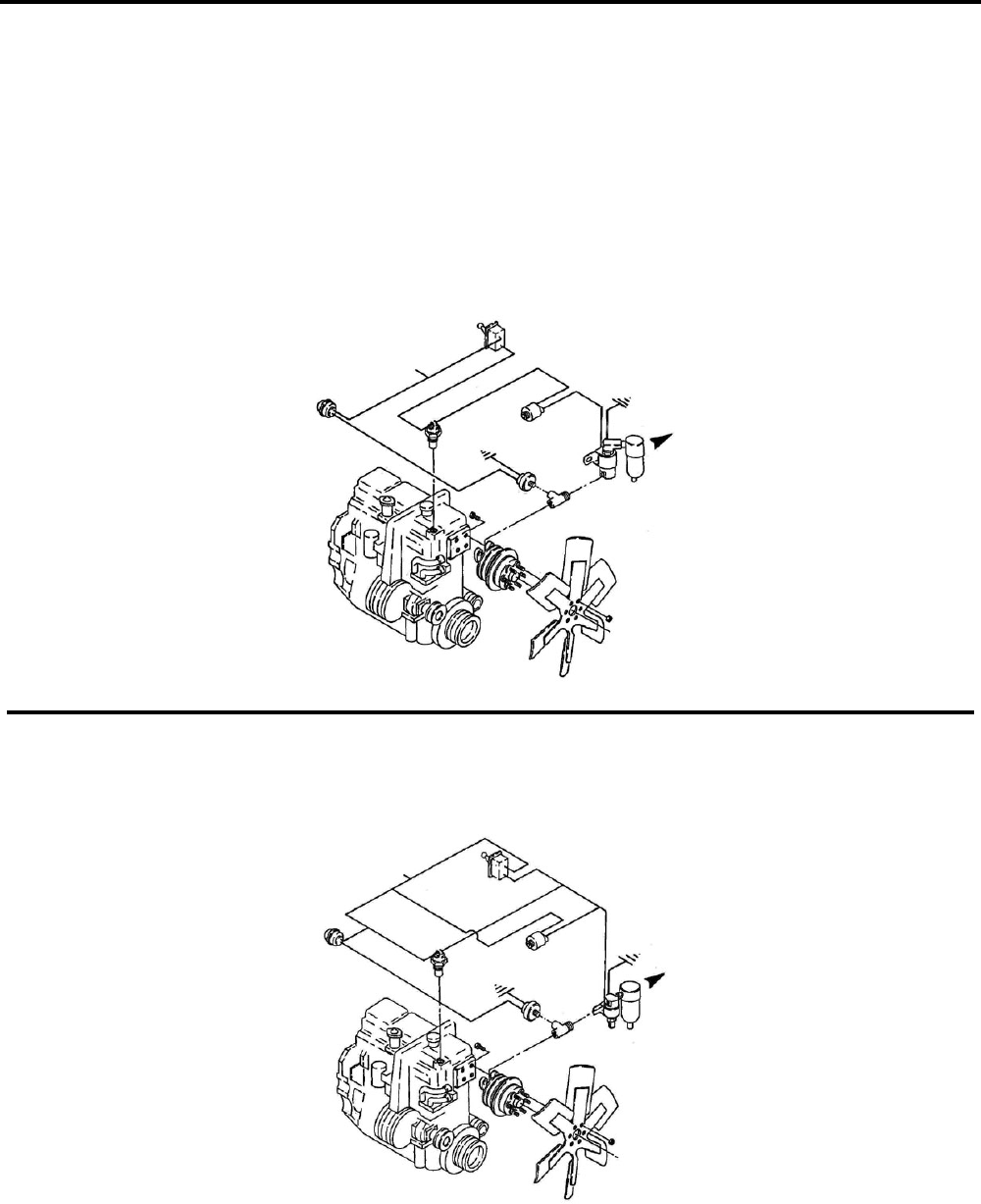

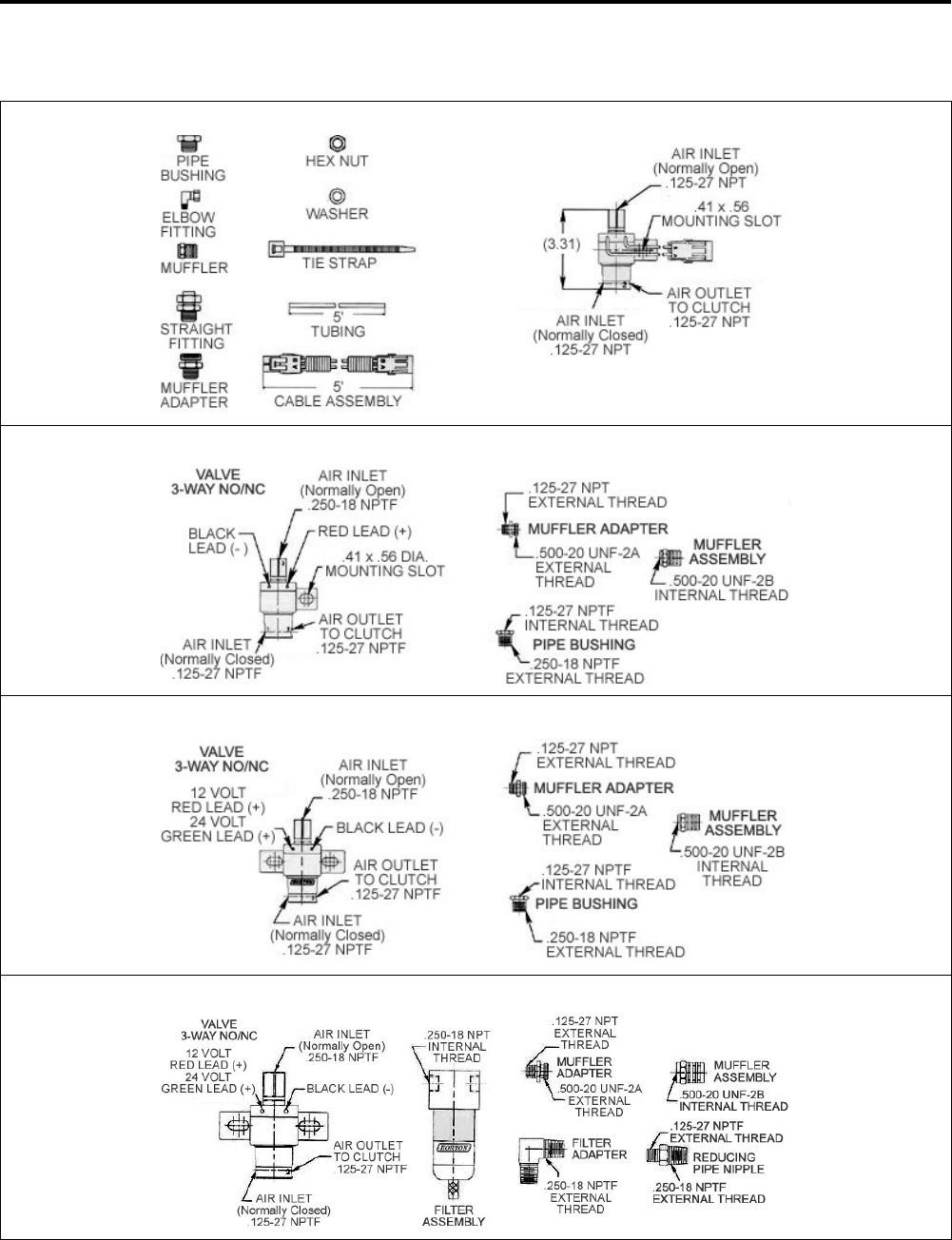

Pneumatic Fan Clutch Controls

Solenoid Valve Illustrations

RF993249

RF993272

RF993282

RF993293 and RF003294

12−FAN CLUTCHES Horton Components

12 − 12

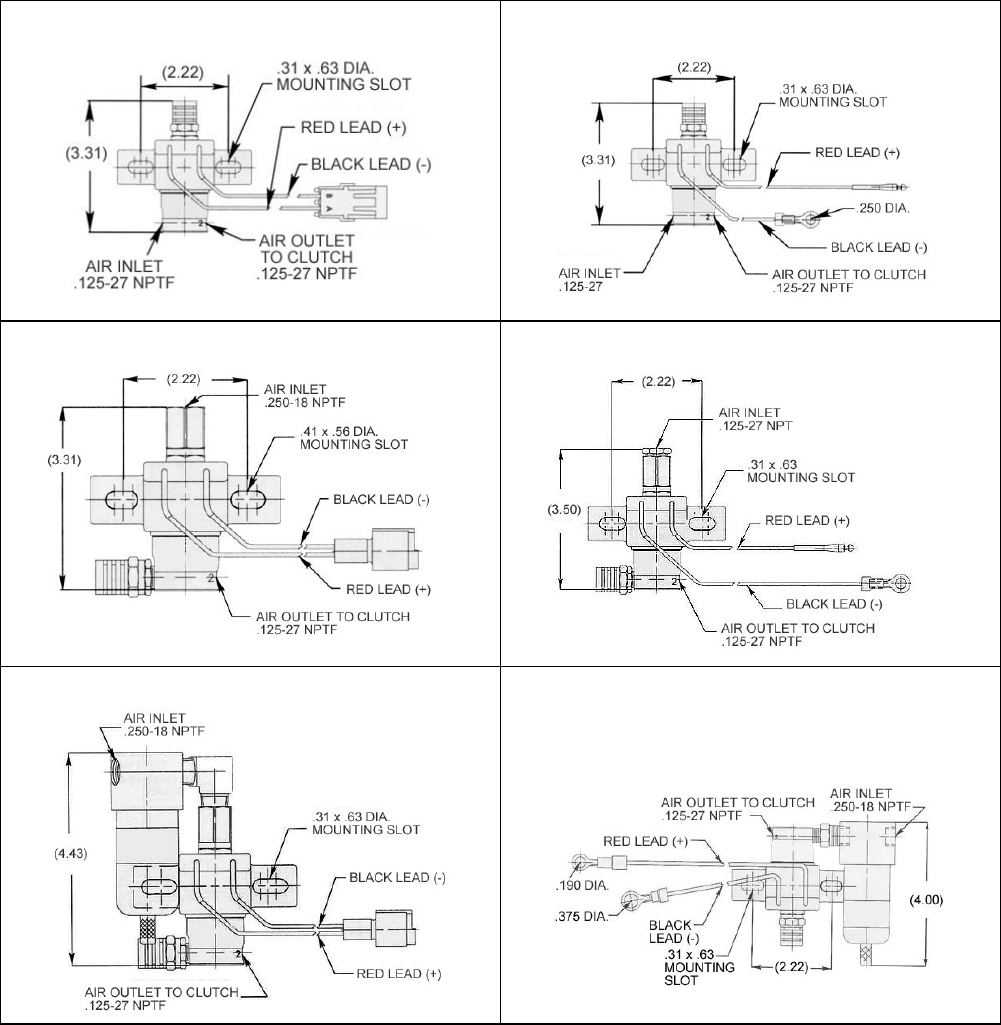

Pneumatic Fan Clutch Controls

Solenoid Valve Illustrations

RF993284 RF993286

RF993295 RF993296

RF993427

RF993428

Horton Components 12−FAN CLUTCHES

12 − 13

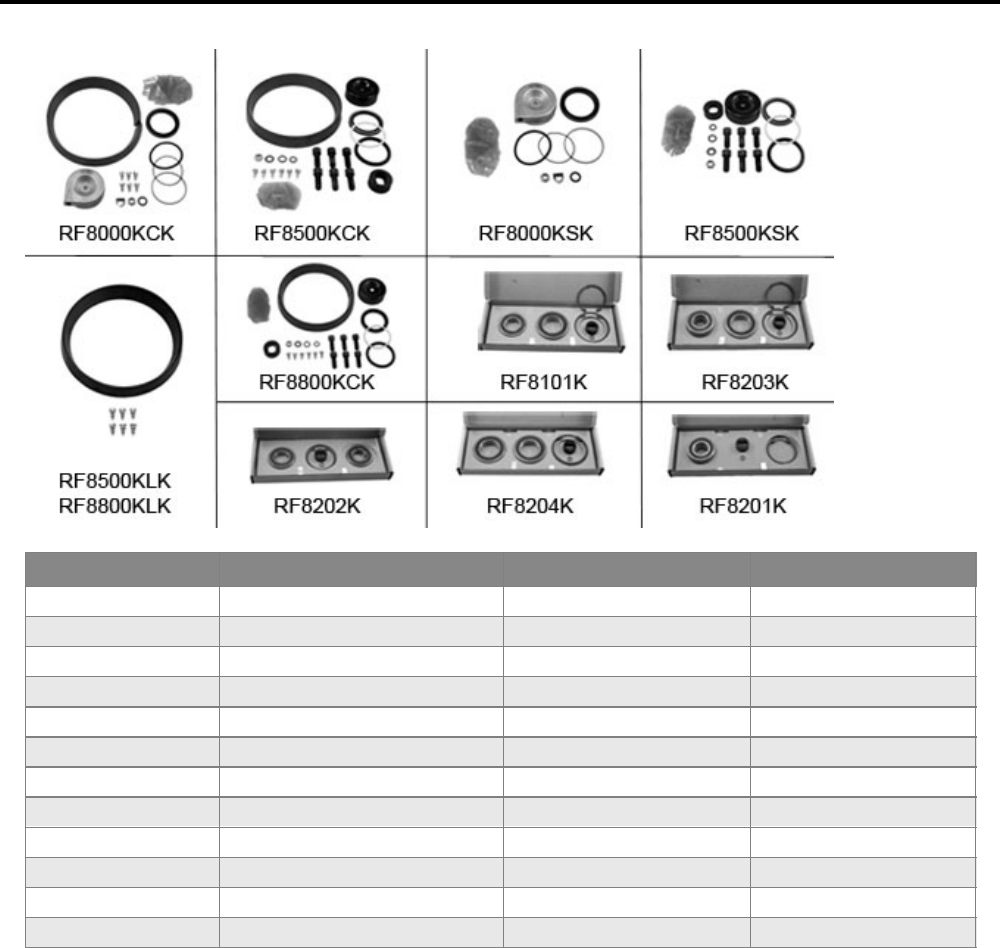

HORTON FAN CLUTCH TO REPAIR KIT QUICK REFERENCE

STANDARD PART # ADVANTAGE PART # MINOR SEAL KIT PART # MAJOR KIT PART

#SUPER KIT PART #

RF590000X

RF590001X

RF590002X

RF590003X

RF590004X

RF590005X

RF590007X

RF590008X

RF590009X

RF590010X

RF590011X

RF590012X

RF590013X

RF590014X

RF590015X

RF590016X

RF590017X

RF590018X

RF591000X

RF591001X

RF591002X

RF591003X

RF591004X

RF591005X

RF591006X

RF591007X

RF591008X

RF591009X

RF591010X

RF591011X

RF591012X

RF591013X

RF591014X

RF591015X

RF591016X

RF591017X

RF591018X

RF591019X

RF591020X

RF591021X

RF591022X

RF591023X

RF591024X

RF591025X

RF591026X

RF591027X

RF591028X

RF591029X

RF591030X

RF591031X

RF591032X

RF591033X

RF591034X

N/A

RF790000X

RF790001X

RF790002X

RF790003X

RF790004X

RF790005X

RF790007X

RF790008X

RF790009X

RF790010X

RF790011X

RF790012X

RF790013X

RF790014X

RF790015X

RF790016X

RF790017X

RF790018X

RF791000X

RF791001X

RF791002X

RF791003X

RF791004X

RF791005X

RF791006X

RF791007X

RF791008X

RF791009X

RF791010X

RF791011X

RF791012X

RF791013X

RF791014X

RF791015X

RF791016X

RF791017X

RF791018X

RF791019X

RF791020X

RF791021X

RF791022X

RF791023X

RF791024X

RF791025X

RF791026X

RF791027X

RF791028X

RF791029X

RF791030X

RF791031X

RF791032X

RF791033X

RF791034X

RF791035X

RF791036X

RF791037X

RF791038X

RF791039X

RF791040X

RF791041X

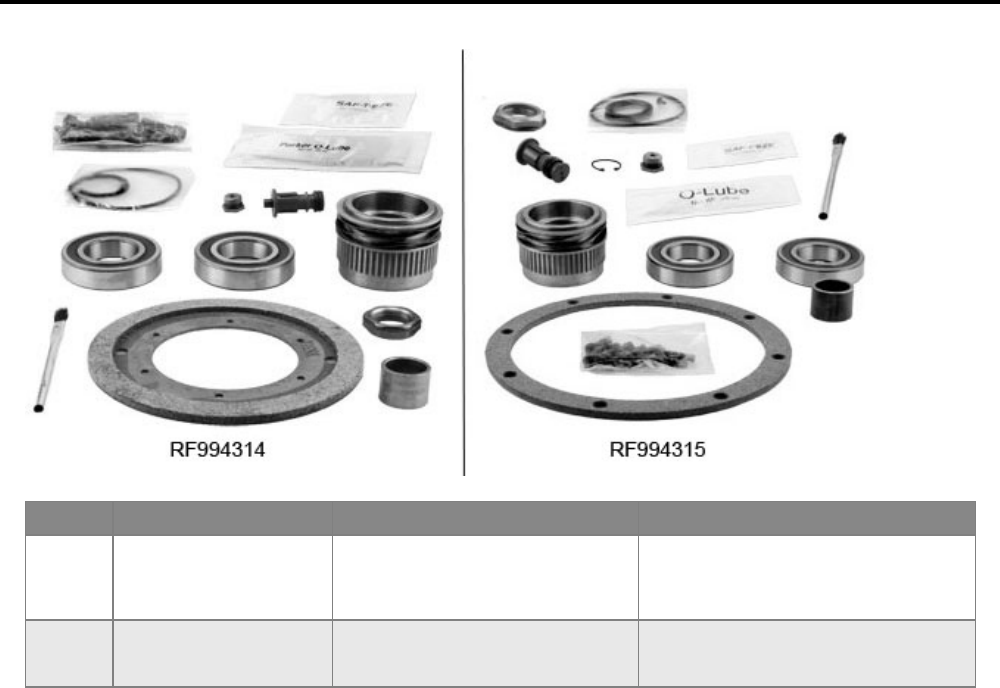

RF994205

RF994314

RF994315

RF994307

RF994342

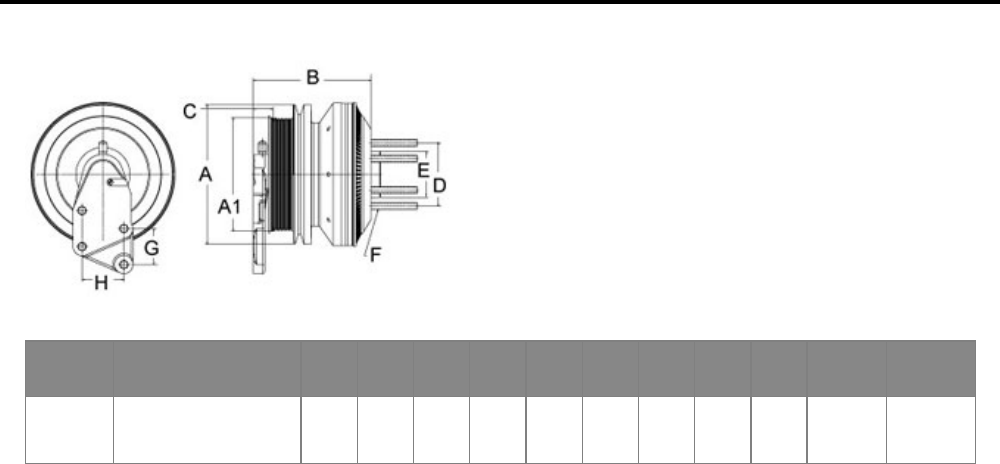

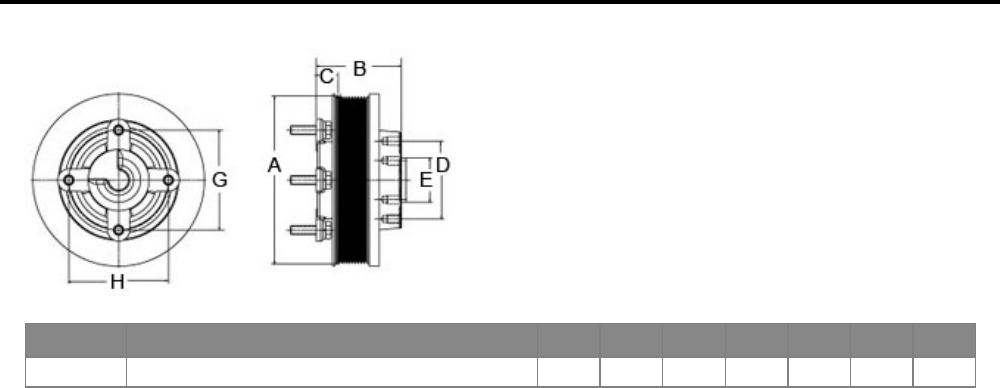

12−FAN CLUTCHES Horton Repair Kit Reference

12 − 14

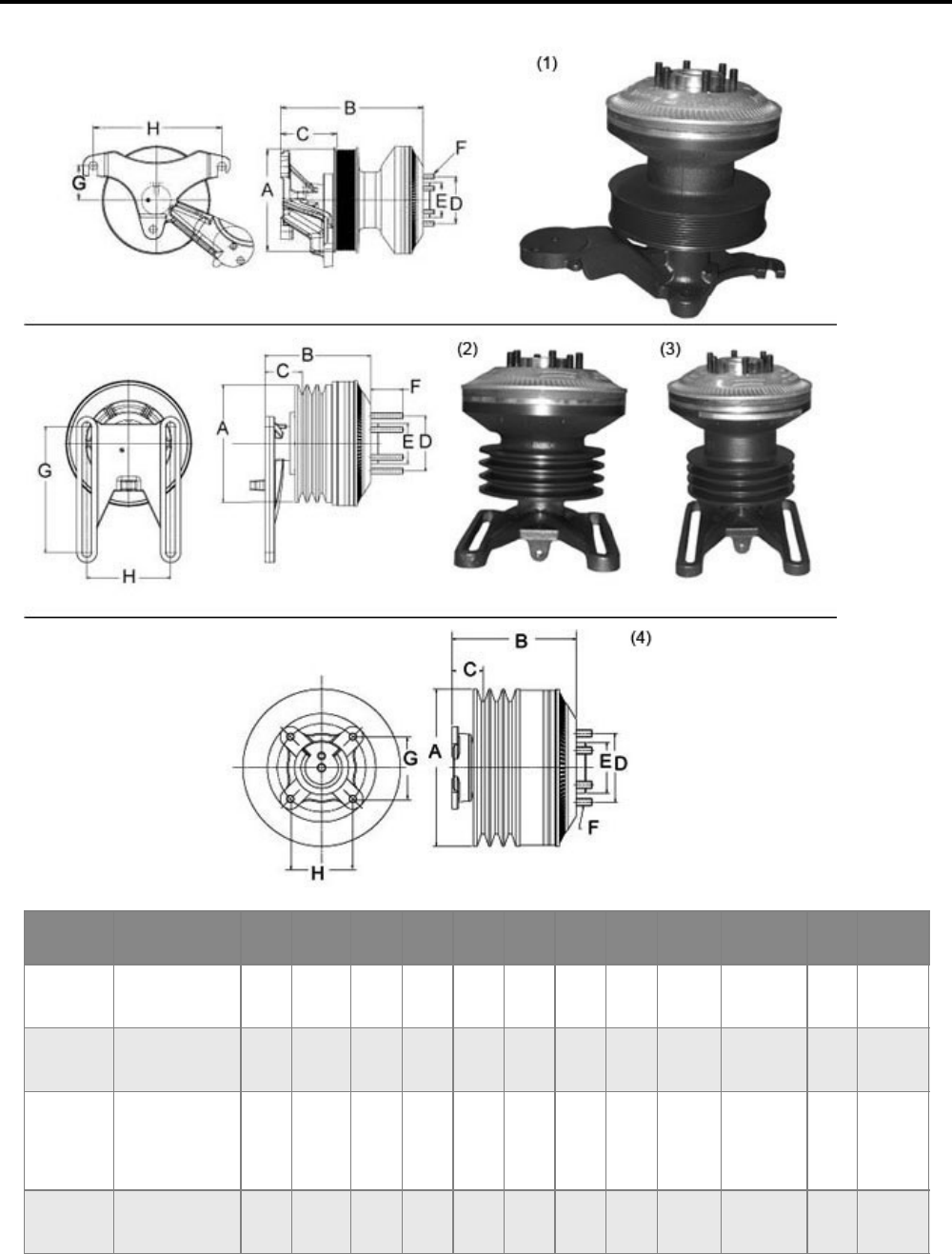

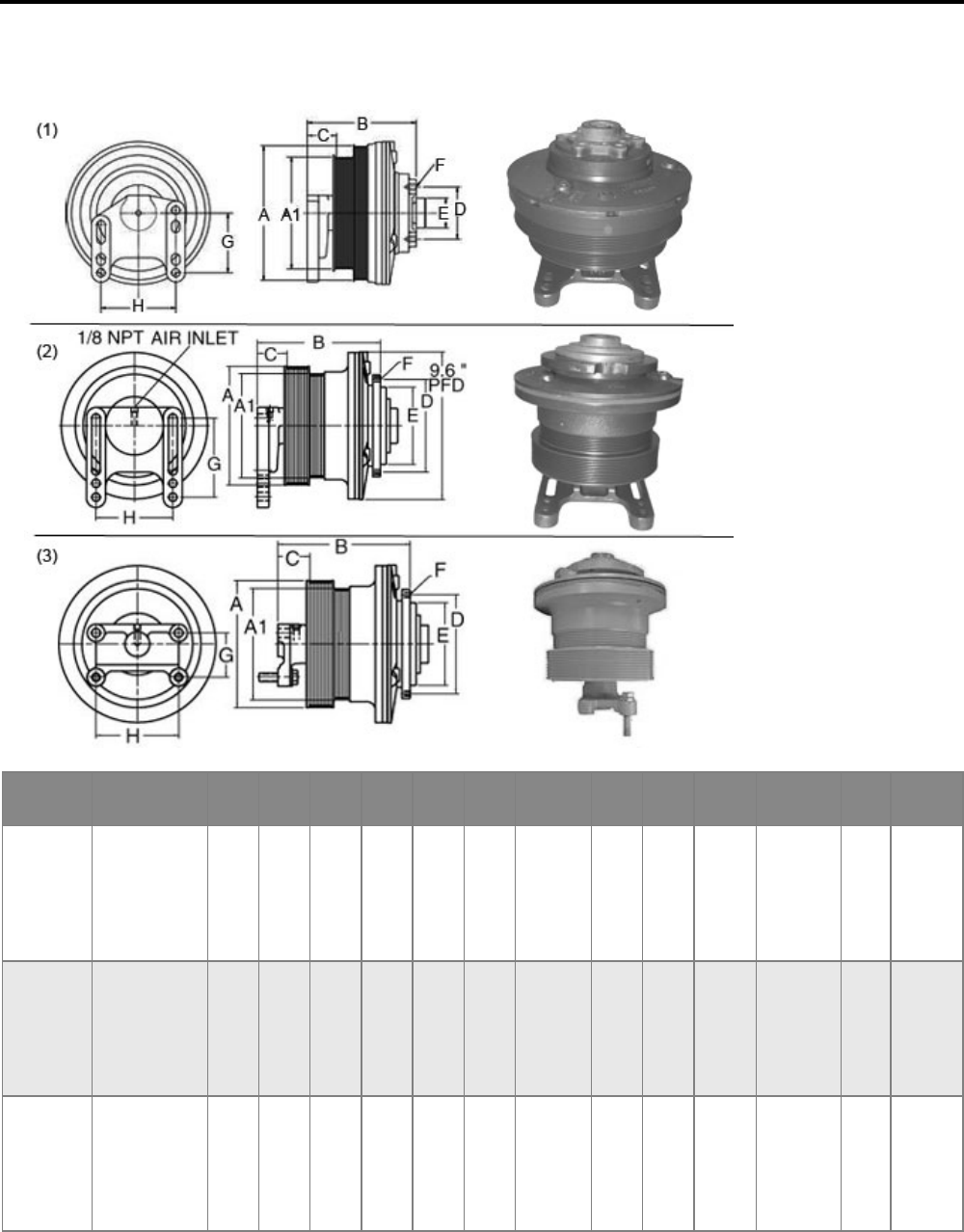

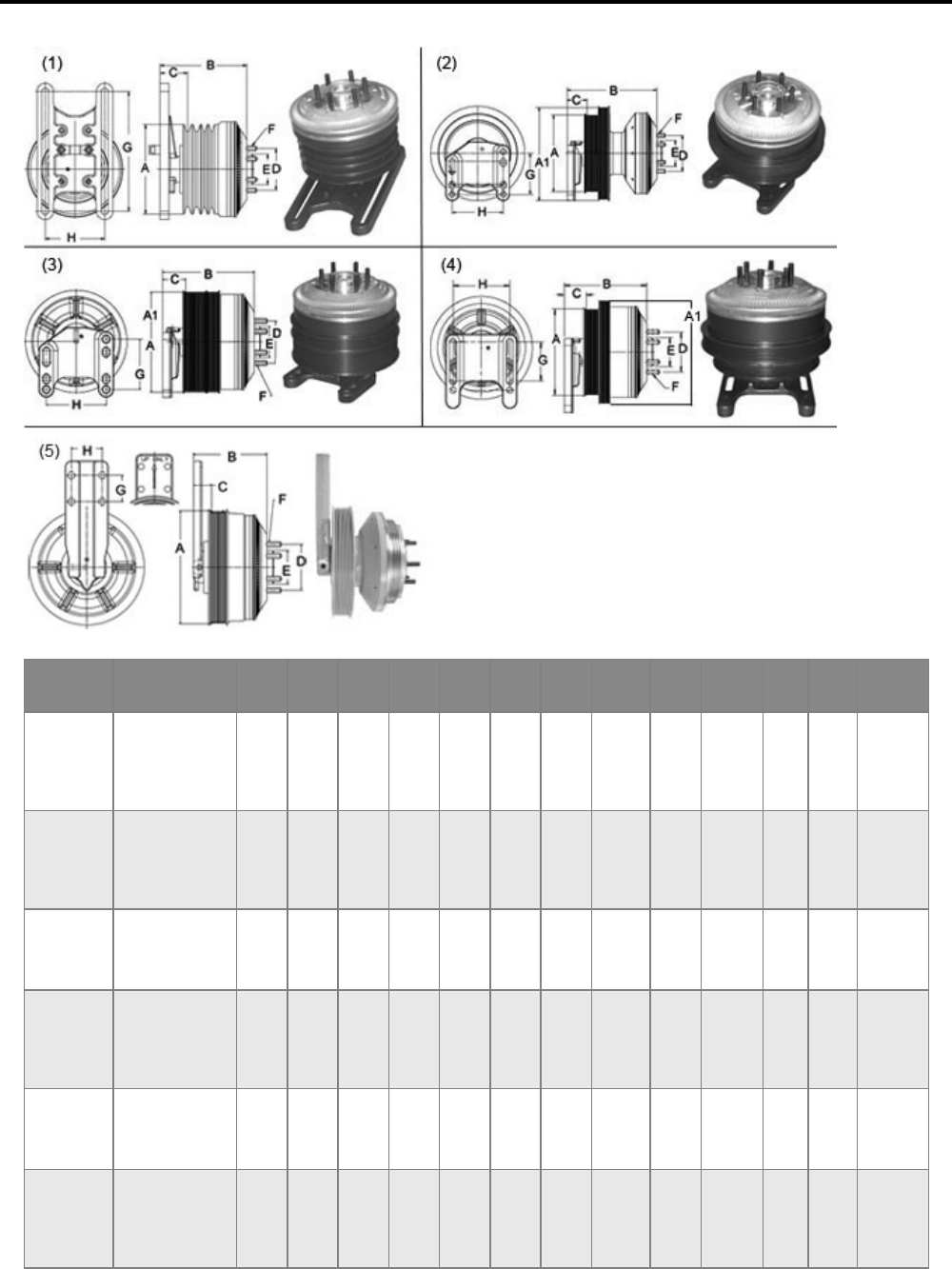

Caterpillar, Cummins, & Detroit in MCI Applications (HT/S AdvantageВ™)

SKU# Product

Description A A1 B C D E G H Drive

Ratio Approx.

Weight Core

Group

RF791039X 2 Groove Reman.

Caterpillar, Cummins,

Detroit, Advantage

Series (Model HT/S)

7.27" 8.77" 6.33" 1.75" 3.50" 2.00" 3.17" 3.17" 1:1 46 lbs. FC10H1

RF791040X 2 Groove Reman.

Caterpillar, Cummins,

Detroit, Advantage

Series (Model HT/S)

7.27" 9.25" 6.33" 1.75" 3.50" 2.00" 3.17" 3.17" 1:1 48 lbs. FC10H1

RF791041X 2 Groove Reman.

Caterpillar, Cummins,

Detroit Diesel,

Advantage Series

(Model HT/S) in MCI

Applications

6.95" 9.25" 6.33" 1.75" 3.50" 2.00" 3.17" 3.17" 1:1 48 lbs. FC10H1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 15

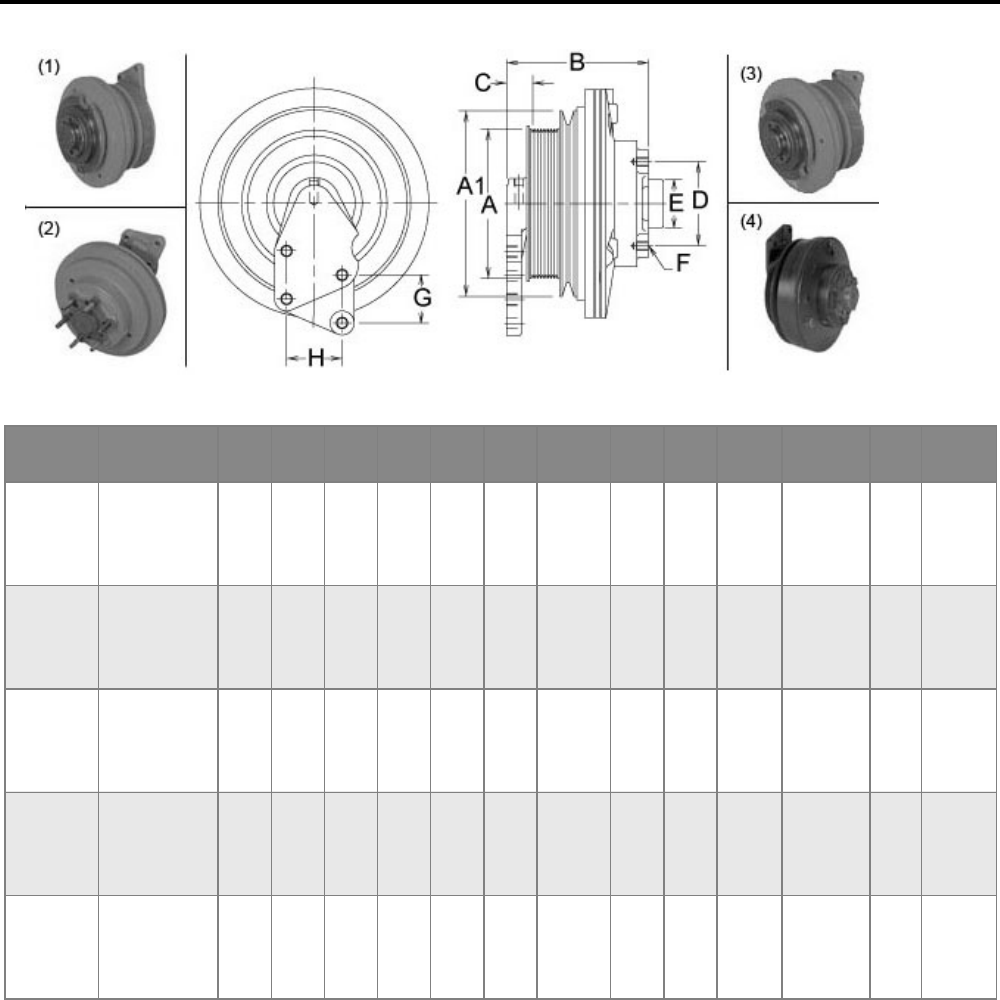

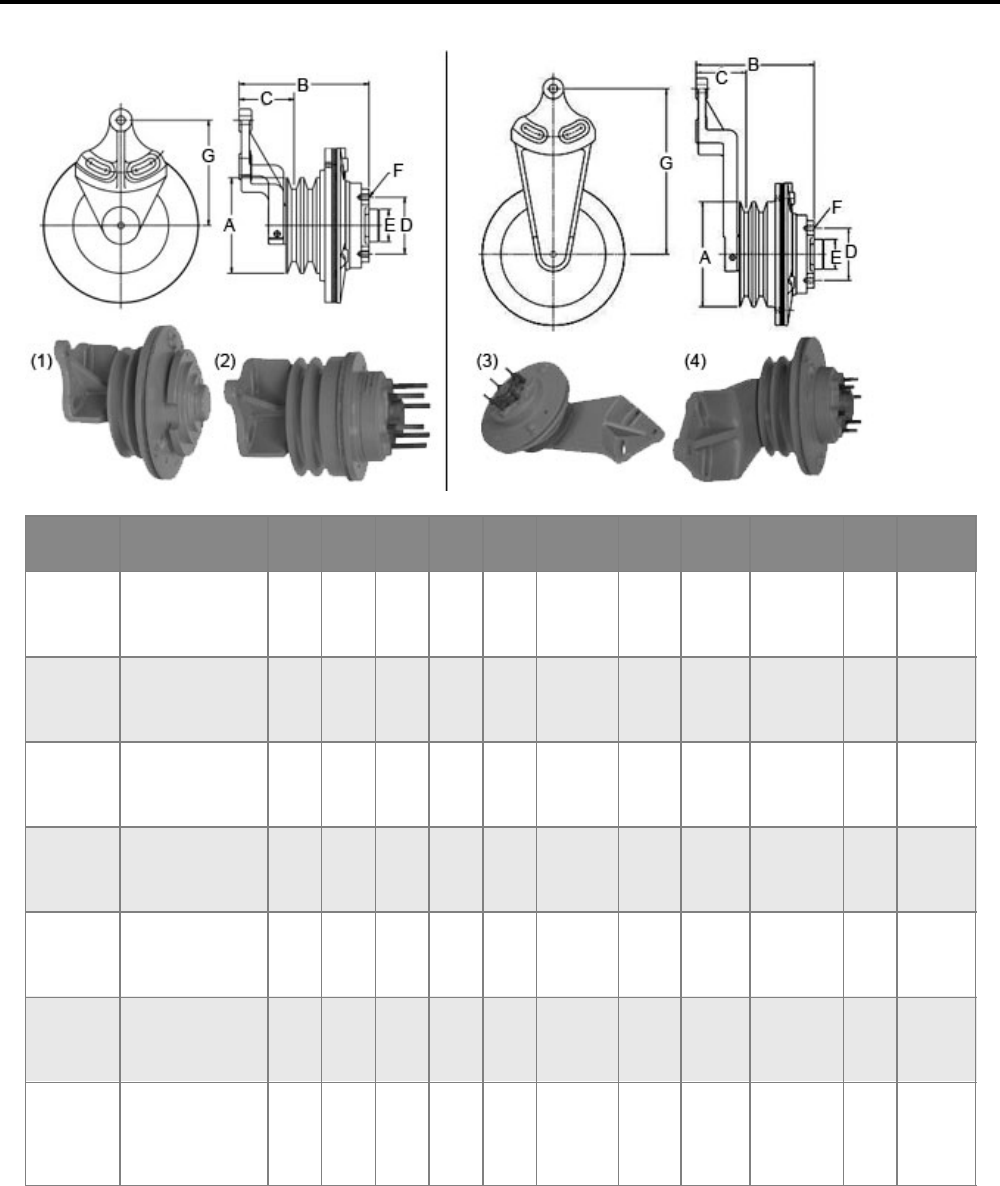

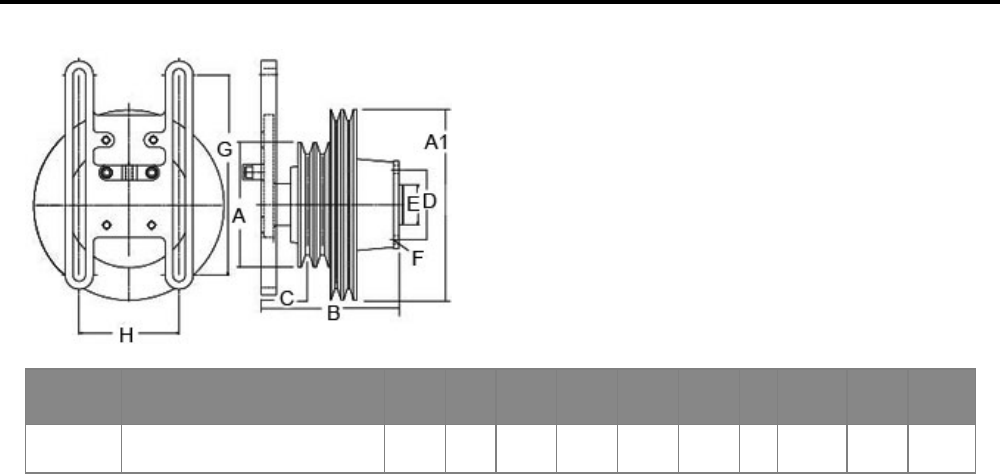

Caterpillar 3176 (Model S & HT/S AdvantageВ™)

8K Poly V, 1V Belt Groove

SKU# Product

Description A A1 B C D E F G H Drive

Ratio Approx.

Weight Pic.

#Core

Group

RF790014X Reman.

Caterpillar 3176

Advantage

Series (Model

7.50" 7.75" 5.21" 1.08" 6.00" 5.00" 5/16−18

TAP 2.00" 2.32" 1:1 40 lbs. 1 FC00H1

RF790015X Reman.

Caterpillar 3176

Advantage

Series (Model

6.25" 9.00" 7.07" 1.08" 3.50" 2.00" 1.25"

2.50"

2.75"

2.00" 2.32" − 40 lbs. 2 FC00H1

RF791015X Reman.

Caterpillar 3176

Advantage

Series (Model

HT/S)

7.50" 7.75" 6.08" 1.08" 6.00" 5.00" 5/16−18

TAP 2.00" 2.32" 1.2:1 44 lbs. 3 FC10H1

RF791025X Reman.

Caterpillar 3176

Advantage

Series (Model

HT/S)

7.50" 7.75" 6.08" 1.08" 6.00" 5.00" 5/16−18

TAP 2.00" 2.32" − 44 lbs. 3 FC10H1

RF791035X Reman.

Caterpillar 3176

Advantage

Series (Model

HT/S)

6.25" 9.00" 6.72" 1.08" 3.50" 2.00" 1.00" 2.00" 2.32" 1.12:1 45 lbs. 4 FC10H1

12−FAN CLUTCHES Horton® Fan Clutches

12 − 16

Caterpillar 3306 (HT/S AdvantageВ™)

SKU# Product

Description A B C D E F G H Belt

Groove Drive

Ratio Approx.

Weight Core

Group

RF791012X Reman.

Caterpillar 3306

Advantage

Series (Model

HT/S)

7.16" 6.86" 1.93" 3.50"

6.00" 1.99"

2.00"

4.99"

5/16−18

TAP

1.50"

2.50"

7.00" 4.00" 5 − 44 lbs. FC10H1

RF791028X Reman.

Caterpillar 3306

Advantage

Series (Model

HT/S)

8.00" 6.86" 1.93" 3.50" 1.99" 2.00"

2.50" 7.00" 4.00" 4 0.8:1

1:1 44 lbs. FC10H1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 17

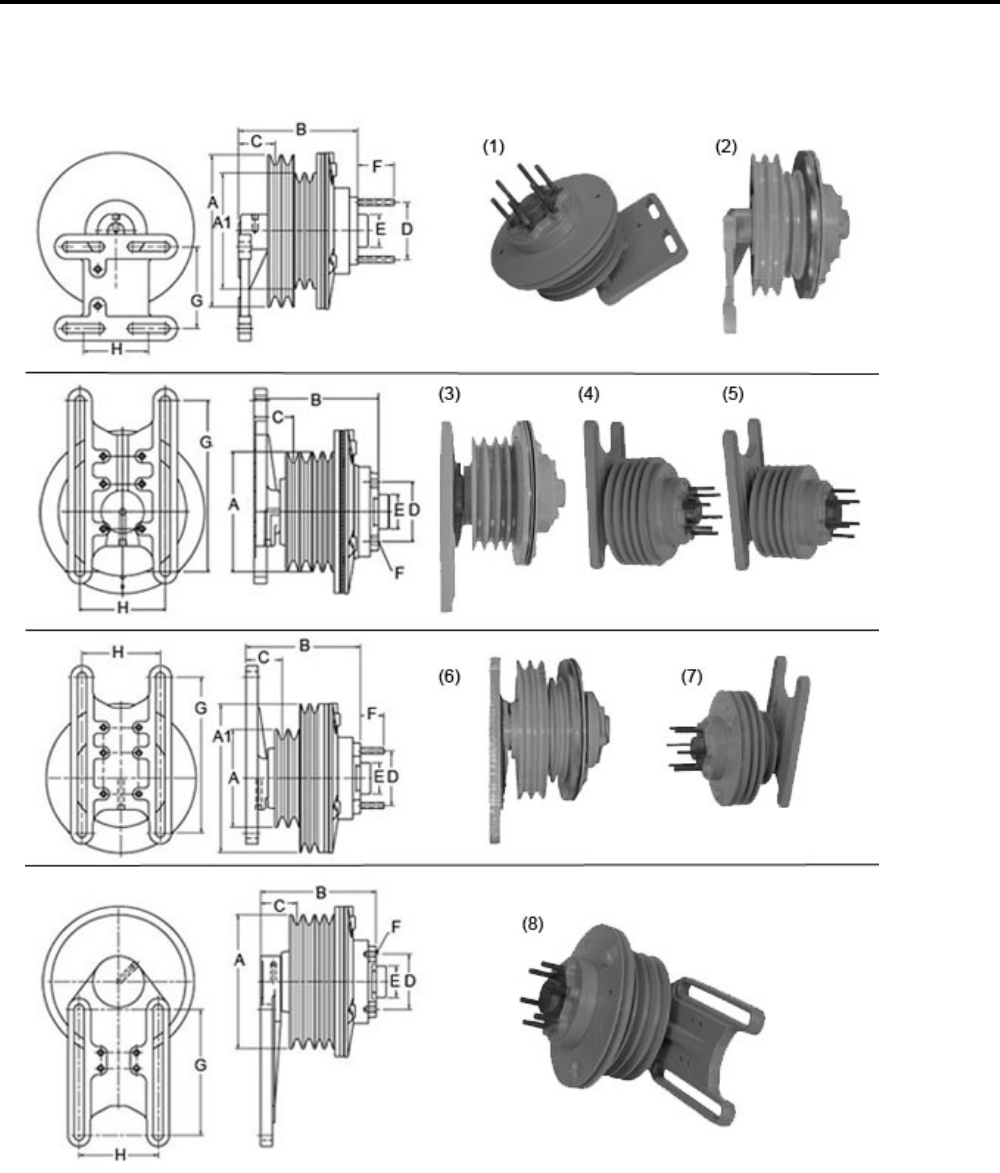

Caterpillar 3406 (Model S & HT/S AdvantageВ™)

4 Belt Groove

12−FAN CLUTCHES Horton® Fan Clutches

12 − 18

SKU# Product

Description A A1 B C D E F G H Drive

Ratio Approx.

Weight Pic.

#Core

Group

RF790005X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model S)

8.50" − 7.28" 2.31" 3.50" 1.99" 1.50"

2.00"

2.50"

3.25"

10.00" 5.00" 0.88:1 52 lbs. 4 FC00H1

RF790007X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model S)

7.50" − 7.28" 2.31" 3.50" 1.99" 1.50"

2.50" 10.00" 5.00" 1:1 43 lbs. 5 FC00H1

RF791002X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model HT/S)

7.08" − 7.28" 2.32" 3.50" 1.99" 2.00"

2.50" 5.00" 4.00" 1.07:1 44 lbs. 1 FC10H1

RF791003X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model HT/S)

9.30" 7.08" 7.28" 2.24" 3.50" 1.99" 2.50" 5.00" 4.00" 1.05:1 44 lbs. 2 FC10H1

RF791005X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model HT/S)

8.50" − 7.29" 2.30" 3.50" 1.99" − 8.00" 5.00" 0.88:1

1:1 44 lbs. 8 FC10H1

RF791007X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model HT/S)

6.25" 9.50" 7.28"

8.51" 2.31" 3.50" 1.99" 1.00"

1.25"

2.50"

10.00" 5.00" 1.2:1 55 lbs. 7 FC10H1

RF791008X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model HT/S)

7.50" 9.50" 7.28" 2.31" 3.50" 1.99" 2.50" 10.00" 5.00" 1:1 50 lbs. 7 FC10H1

RF791013X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model HT/S)

6.25" 9.50" 7.28" 2.31" 6.00" 5.00" 5/16−18

TAP 10.00" 5.00" − 50 lbs. 7 FC10H1

RF791014X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model HT/S)

7.00" − 7.29" 2.30" 3.50" 1.99"

2.00" 1.50" 7.00" 5.00" − 51 lbs. 8 FC10H1

RF791017X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model HT/S)

9.30" 7.08" 7.30" 2.31"

2.32" 3.50" 1.99"

2.00" 2.50" 10.00" 5.00" 1.13:1 50 lbs. 6 FC10H1

RF791020X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model HT/S)

7.00" − 7.29" 2.30" 3.50" 1.99" − 8.00" 5.00" 1.2:1 55 lbs. 8 FC10H1

RF791027X 4 Groove

Reman. CAT

3406

Advantage Ser.

(Model HT/S)

7.50" − 7.28" 2.31" 3.50" 1.99" 1.50"

2.50" 10.00" 5.00" 1.13:1 55 lbs. 3 FC10H1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 19

Caterpillar 3406 (Model S & HT/S AdvantageВ™)

6, 8, 10K Multi−Groove

SKU# Product

Description A A1 B C D E F G H Drive

Ratio Approx.

Weight Pic.

#Core

Group

RF791038X 10K, 6K

Multi−Groove

Reman.

Caterpillar 3406

Advantage

Series (Model

HT/S)

7.70" 6.77" 8.00" 1.93" 6.00" 4.99" 5/16"−18

TAP 2.69" 5.00" 1.2:1 44 lbs. 3 FC10H1

RF791069X 8K, 6K

Multi−Groove

Reman.

Caterpillar 3406

Advantage

Series (Model

HT/S)

7.50" 9.00" 7.28" 1.94" 3.50" 1.99" − 4.18" 5.00" − 49 lbs. 1 FC10H1

RF791076X 10K, 6K

Multi−Groove

Reman.

Caterpillar 3406

Advantage

Series (Model

HT/S)

7.70" 6.77" 8.00" 1.93" 6.00" 4.99" − 4.22" 5.00" − 62 lbs. 2 FC10H1

12−FAN CLUTCHES Horton® Fan Clutches

12 − 20

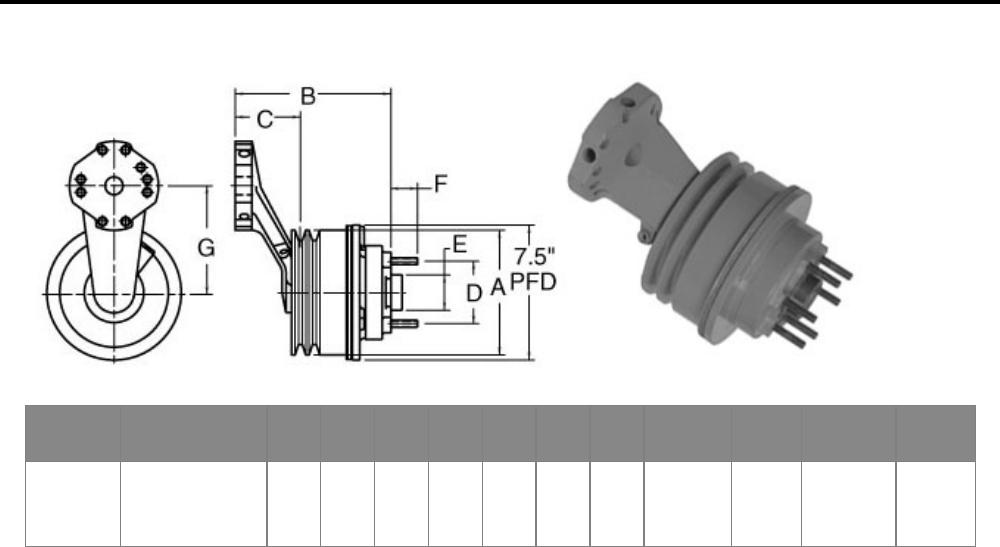

Caterpillar 3406, 3406B (Direct Drive)

SKU# Product Description A A1 B C D E F G H Drive

Ratio

RF991918 New 4 Groove CAT 3406, 3406B

(Direct Drive) 7.50" − 6.25" 2.32" 3.50" 1.99" − 10.00" 5.00" 1.13:1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 21

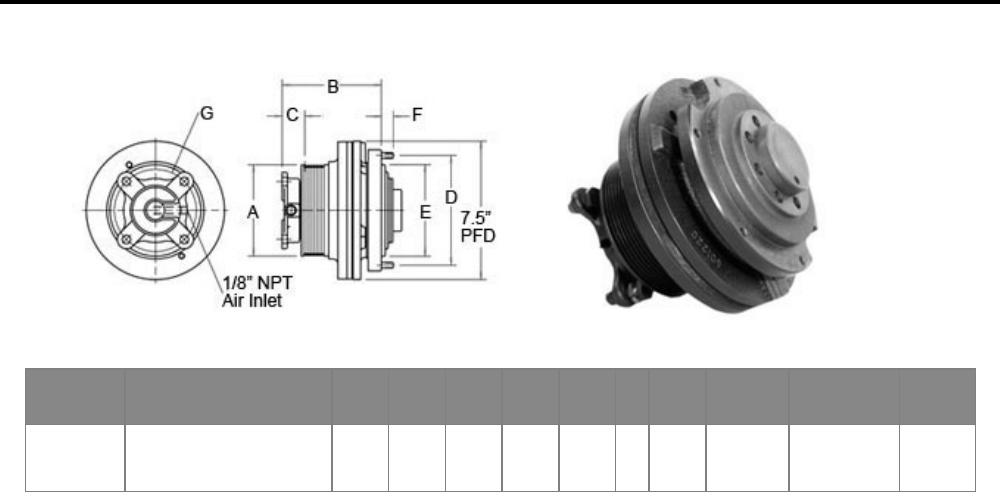

Caterpillar 3406, 3406E, C11, C13, C15 & C16 (DriveMaster®)

SKU# Product

Description A A1 B C D E F G H Drive

Ratio Wt. Pic.

#Core

Group

RF799103X Reman. 4

Groove CAT

3406, 3406E,

C15 & C16

(DriveMaster)

7.50" − 7.28" 2.31" 3.50" 2.56" 1.07" 10.00" 5.00" 1.2:1 49

lbs. 1 FC99H1

RF799334X Reman. 8K, 6K

Multi−Groove

CAT C15 & C16

ACERT

(DriveMaster)

7.54" 9.04" 7.09" 1.94" 3.50" 2.56" 1.07" 4.00" 5.00" 1.2:1 53

lbs. 2 FC99H1

RF799339X Reman. 8PK

Multi−Groove

CAT C11 & C13

(DriveMaster)

8.25" − 5.59" 1.38" 3.50" 2.56" 1.07" 2.00" 2.36" − − 5 FC99H1

RF799437X Reman. 8PK,

6PK

Multi−Groove

CAT C15 & C16

(DriveMaster)

7.24" 8.68" 7.28" 1.94" 3.50" 2.56" 1.07" 3.96" 5.00" 1.25:1 51

lbs. 4 FC99H1

RF799809X Reman. 12K, 6K

Multi−Groove

CAT C15

(DriveMaster)

8.31" 8.31" 7.68" 1.94" 3.50" 2.56" 1.07" 4.19" 5.00" 1.3:1 53

lbs. 3 FC99H1

RF999809 New 12K, 6K

Multi−Groove

CAT C15

(DriveMaster

PolarExtreme®)

8.31" 8.31" 7.68" 1.94" 3.50" 2.56" 1.07" 4.19" 5.00" 1.3:1 53

lbs. 3 −

12−FAN CLUTCHES Horton® Fan Clutches

12 − 22

Cummins (EC450®)

SKU# Product

Description A B C D # of

Bolts E F # of

Slots/Holes H J K L

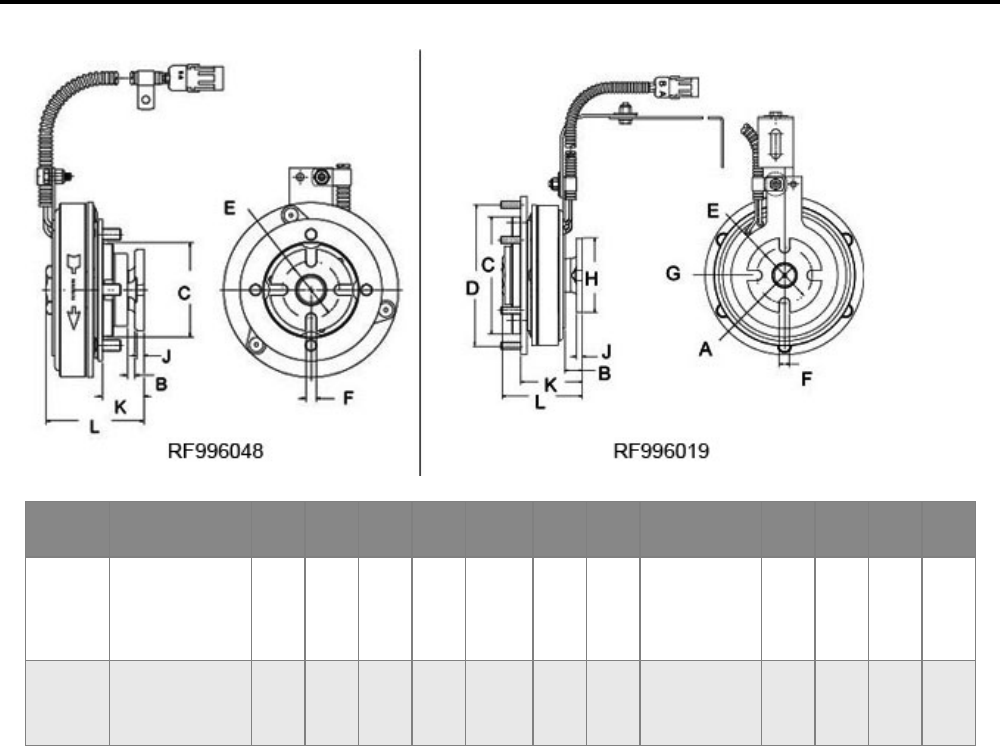

RF996019 New 12 Volts

Cummins "B" &

"C" Series, ISB,

ISC (EC450®)

Freightliner

1.00" 0.74" 5.00" 6.00" 6 2.36" 0.43" 4 3.20" 0.25" 2.60" 3.41"

RF996048 New 12 Volts

Cummins "C"

Series (EC450®)

Ford

− 0.37" 5.00" − 6 3.20" 0.44" 4 − 0.25" 1.32" 3.41"

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 23

Cummins "C" Series (Model S)

SKU# Product

Description A A1 B C D E F G H Drive

Ratio Approx.

Weight Pic.

#Core

Group

RF790012X 8K POLY V

Reman.

Cummins "C"

Advantage

Series (Model

6.22" − 6.08" 2.25" 3.50" 1.99" 1.00" 4.01" 4.41" − 40 lbs. 2 FC00H1

RF790013X 8K POLY V, 1V

Belt Groove

Reman.

Cummins "C"

Advantage

Series (Model

6.22" 7.07" 6.38" 2.25" 6.00" 4.99" 5/16−18

TAP 2.01" 4.41" 1.1:1 50 lbs. 1 FC00H1

12−FAN CLUTCHES Horton® Fan Clutches

12 − 24

Cummins ISB (DriveMaster®)

Notes:

1) Dimension B = 6.77" without 2.88" fan spacer (included)

SKU# Product Description A A1 B C D E F G H Drive

Ratio Approx.

Weight

RF999110 New 8K, 1V

Multi−Groove Cummins

ISB (DriveMaster®)

6.21" 6.88" 9.64" 2.04" 3.50" 2.56" 3.57" 2.40" 2.36" 1.2:1 −

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 25

Cummins ISL (DriveMaster®)

SKU# Product Description A A1 B C D E F G H Drive

Ratio Approx.

Weight

RF999416 New 8K, 1V

Multi−Groove Cummins

ISL (DriveMaster®)

6.29" 7.75" 6.54" 1.08" 3.50" 2.56" 2.57" 2.00" 2.32" 1.25:1 −

12−FAN CLUTCHES Horton® Fan Clutches

12 − 26

Cummins ISM (DriveMaster®)

SKU# Product

Description A B C D E F G H Drive

Ratio Approx.

Weight Core

Group

RF799011X 8K Multi−Groove

Reman. Cummins

ISM (DriveMaster)

7.50" 10.12" 5.55" 3.50" 2.56" 1.00" 2.76" 3.58" 1.2:1 − FC99H1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 27

Cummins ISX (DriveMaster®)

SKU# Product

Description A B C D E F G H Drive

Ratio Approx.

Weight Core

Group

RF799168X 10K Multi−Groove

Reman. Cummins ISX

(DriveMaster)

6.82" 11.89" 6.65" 3.50" 2.56" 1.07" 2.02" 6.36" 1.2:1 50 lbs. FC99H1

RF999801 New 12K

Multi−Groove

Cummins ISX

(DriveMaster

PolarExtreme®)

7.35" 11.57" 6.66" 3.50" 2.56" 1.07" 2.02" 6.36" 1.3:1 50 lbs. −

12−FAN CLUTCHES Horton® Fan Clutches

12 − 28

Cummins ISX (HT/S AdvantageВ™)

SKU# Product

Description A B C D E F G H Drive

Ratio Approx.

Weight Core

Group

RF791093X 10K Multi−Groove

Reman. Cummins

ISX (Model HT/S)

6.77" 11.22" 6.65" 3.50" 2.56" 1.00" 5.53" 6.36" − 52 lbs. FC10H1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 29

Cummins ISX & N14 (HT/S AdvantageВ™)

SKU# Product

Description A B C D E F G H Drive

Ratio Approx.

Weight Core

Group

RF791073X 10K Multi−Groove

Reman. Cummins ISX

& N14 (Model HT/S)

6.77" 6.09" 1.40" 3.50" 2.56" 1.00" 3.27" 3.63" − 37.5 lbs. FC10H1

12−FAN CLUTCHES Horton® Fan Clutches

12 − 30

Cummins L10 Series (Direct Drive)

SKU# Product Description A B C D E F G Drive Ratio

RF991900 New 8K Multi−Groove Cummins L10 Series

(Direct Drive) 5.98" 3.18" 1.25" 3.50" 1.99" − 4.49" 1:1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 31

Cummins L10 Series (Model S & HT/S AdvantageВ™)

12−FAN CLUTCHES Horton® Fan Clutches

12 − 32

SKU# Product

Description A B C D E F G H Drive

Ratio Wt. Pic.

#Core

Group

RF790010X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model S)

5.98" 6.04" 1.25" 3.50" 1.99" 1.00"

2.50" 4.49" − 1:1 40

lbs. 1 FC00H1

RF790016X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model S)

4.98" 5.43" 1.25" 6.00" 4.99" 5/16−18

TAP 4.49" − 1.2:1 40

lbs. 2 FC00H1

RF790017X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model S)

4.98" 6.04" 1.25" 3.50" 1.99" 0.75"

1.50" 4.49" − 1.2:1 40

lbs. 1 FC00H1

RF790023X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model S)

6.59" 6.04" 1.25" 3.50" 1.99" 1.25"

1.50" 4.49" − 0.91:1

0.92:1 40

lbs. 1 FC00H1

RF791001X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model HT/S)

6.51" 6.04"

6.42" 1.25" 3.50" 1.99" 1.00"

1.50" 4.49" − 1.15:1

1.35:1 44

lbs. 1 FC10H1

RF791018X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model HT/S)

6.22" 5.42" 1.25" 6.00" 4.99" 5/16−18

TAP 4.49" − 1.2:1 43

lbs. 1 FC10H1

RF791021X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model HT/S)

5.98" 5.42"

5.68" 1.25" 6.00" 4.99" 5/16−18

TAP 4.49" − 1:1

1.12:1 44

lbs. 2 FC10H1

RF791022X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model HT/S)

4.98" 5.42"

5.68" 1.25" 6.00" 4.99" 5/16−18

TAP 4.49" − 1:1

1.2:1 44

lbs. 2 FC10H1

RF791029X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model HT/S)

6.22" 9.73" 5.55" 6.00" 4.99" 5/16−18

TAP 2.76" 3.58" − 44

lbs. 5 FC10H1

RF791030X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model HT/S)

6.22" 9.73" 5.55" 6.00" 4.99" 5/16−18

TAP 2.76" 3.58" 1.2:1 54

lbs. 6 FC10H1

RF791032X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model HT/S)

6.22" 10.40" 5.55" 6.00" 4.99" 5/16−18

TAP 2.76" 3.58" 1.2:1 44

lbs. 7 FC10H1

RF791034X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model HT/S)

6.22" 9.73" 5.55" 6.00" 4.99" 5/16−18

TAP 2.76" 3.58" 1.2:1 44

lbs. 4 FC10H1

RF791036X 8K POLY V

Reman. CUM L10

Advantage Ser.

(Model HT/S)

4.98" 6.04" 1.25" 3.50" 1.99" 1.50"

2.00" 4.49" − 1.2:1 44

lbs. 3 FC10H1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 33

Cummins L10 & N14 (Model S)

SKU# Product Description A B C D E F G Drive

Ratio Approx.

Weight Core

Group

RF790021X 8K Multi−Groove Reman.

Cummins L10 & N14 (Model

4.98" 5.43" 1.25" 6.00" 4.99" − 4.49" − 33.5 lbs. FC00H1

12−FAN CLUTCHES Horton® Fan Clutches

12 − 34

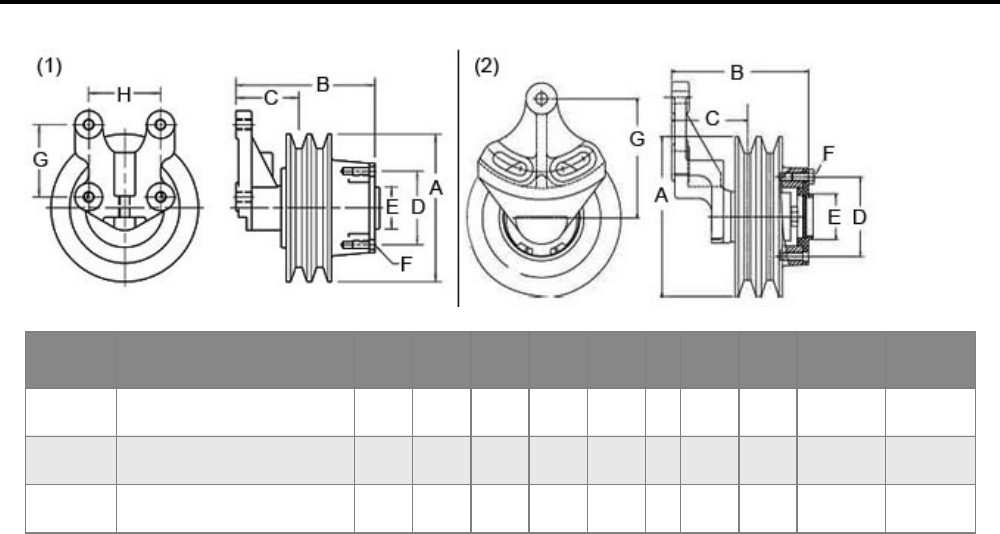

Cummins Ford NTC Series (Model S)

SKU# Product

Description A B C D E F G Belt

Groove Drive

Ratio Approx.

Weight Core

Group

RF790008X Reman. Cummins

Ford NTC

Advantage Series

(Model S)

7.00" 8.74" 3.66" 3.50" 1.99" 1.50" 6.10" 2 1:1 40 lbs. FC00H1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 35

Cummins NT, NTC (Direct Drive)

SKU# Product Description A B C D E F G H Drive

Ratio Picture

Number

RF991902 New 2 Groove Cummins NT,

NTC (Direct Drive) 7.03" 6.63" 3.00" 3.50" 1.99" − 3.44" 3.44" 1.1:1 1

RF991903 New 2 Groove Cummins NT,

NTC Big Cam IV (Direct Drive) 7.03" 6.38" 3.00" 3.50" 2.56" − 3.44" 3.44" 1:1 1

RF991933 New 2 Groove Cummins NTC

(Direct Drive) 7.03" 6.05" 3.35" 3.50" 1.99" − 5.25" − − 2

12−FAN CLUTCHES Horton® Fan Clutches

12 − 36

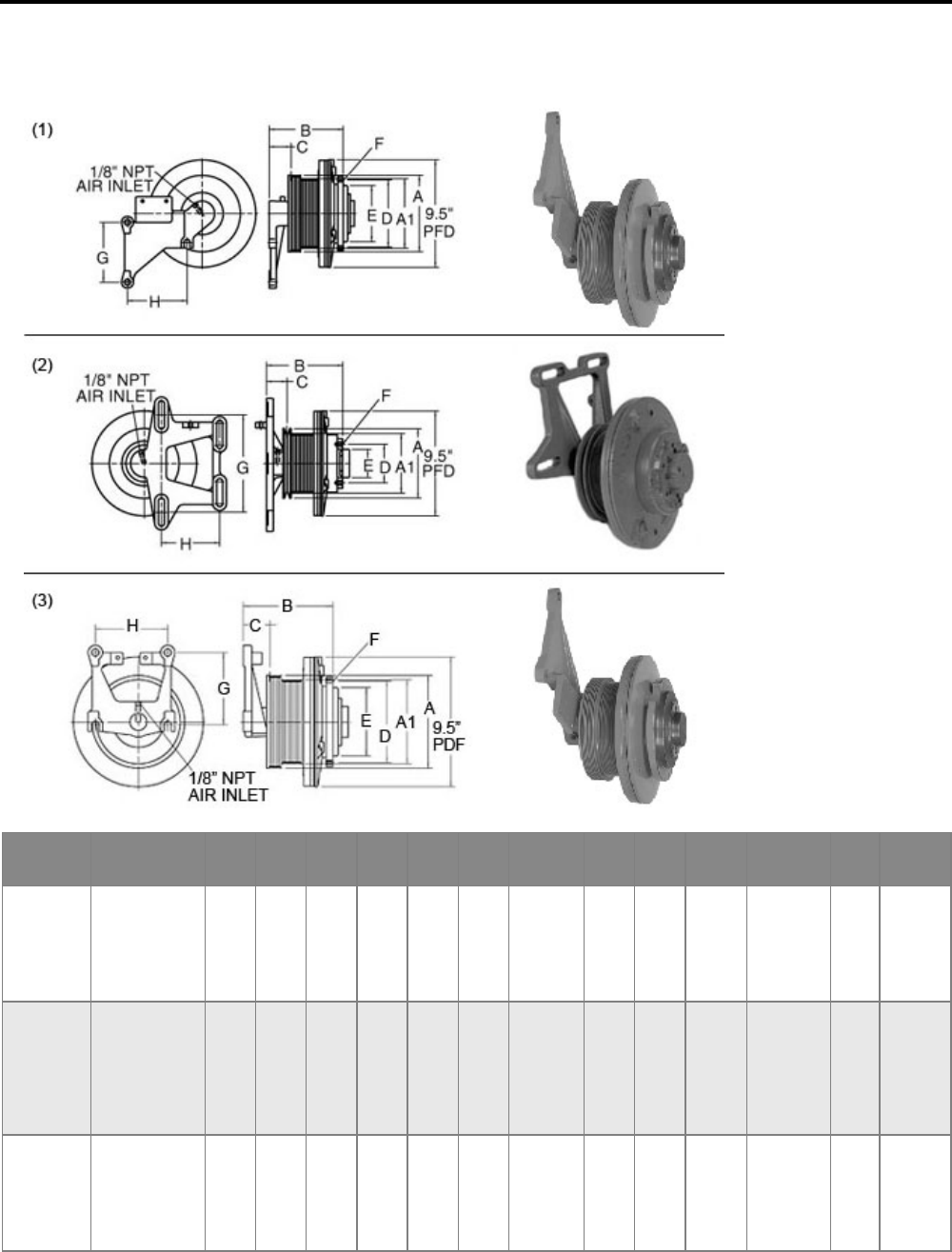

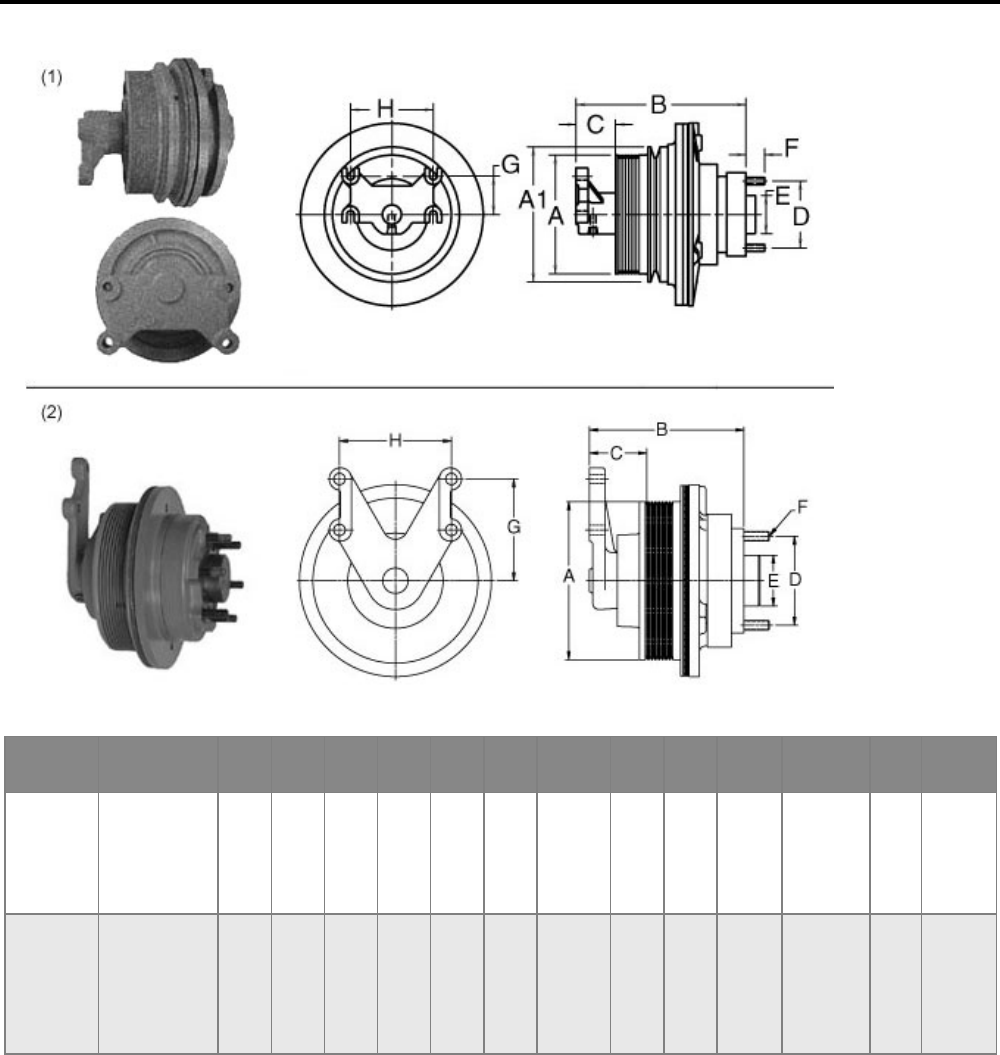

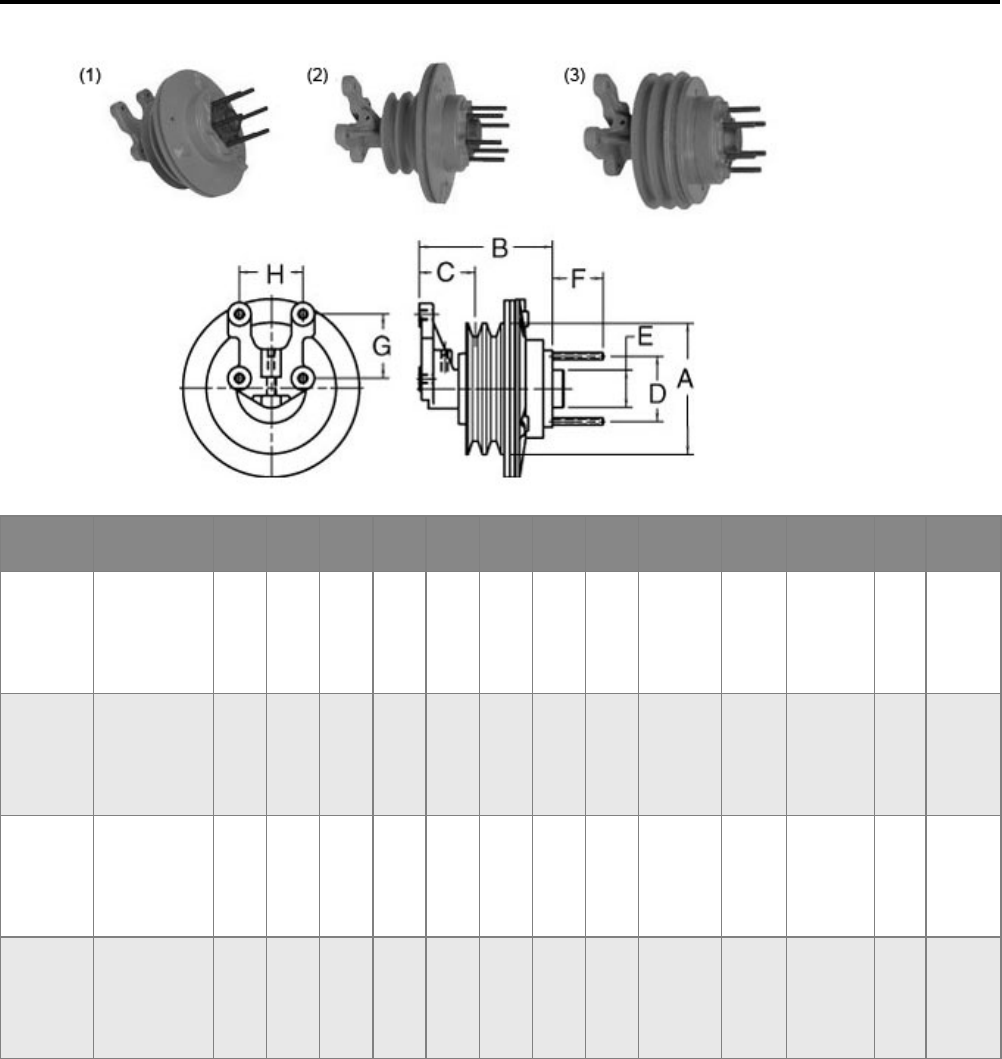

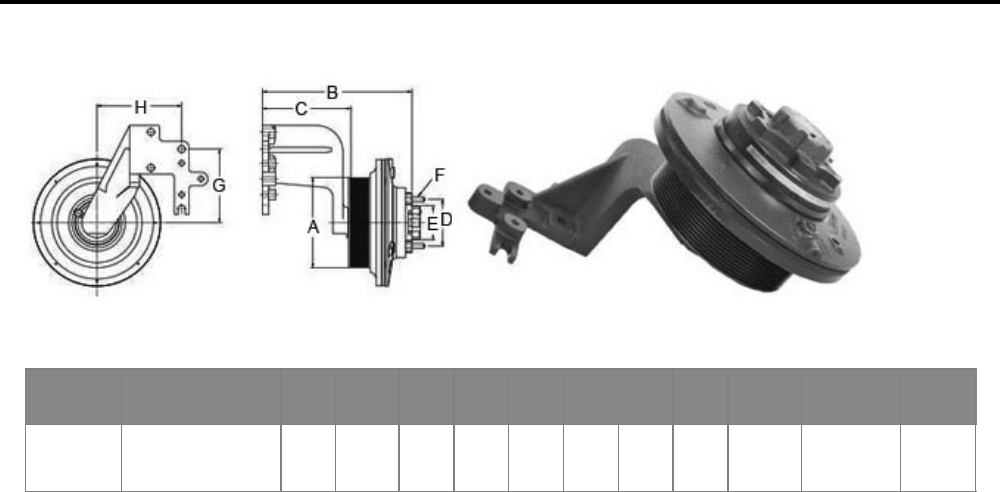

Cummins NTC, NT88, 444 Series (Model S & HT/S AdvantageВ™)

SKU# Product

Description A B C D E F G H Belt

Groove Drive

Ratio Approx.

Weight Pic.

#Core

Group

RF790000X Reman.

Cummins NTC,

NT88, 444

Advantage

Series (Model

7.03" 7.19" 3.03" 3.50" 1.99" 1.50"

2.50"

2.75"

3.25"

3.44" 3.44" 2 1:1 35 lbs. 3 FC00H1

RF790002X Reman.

Cummins NTC,

NT88, 444

Advantage

Series (Model

8.19" 7.19" 3.03" 3.50" 1.99"

2.00" 1.50"

2.50" 3.44" 3.44" 2 0.86:1 40 lbs. 3 FC00H1

RF791000X Reman.

Cummins NTC,

NT88, 444

Advantage

Series (Model

HT/S)

7.03" 7.19" 3.03" 3.50" 1.99" 1.50"

2.75" 3.44" 3.44" 2 1:1

1.25:1 42 lbs. 1 FC10H1

RF791016X Reman.

Cummins NTC,

NT88, 444

Advantage

Series (Model

HT/S)

5.75" 8.38"

9.00" 3.06" 3.50" 1.99" 1.50" 3.44" 3.44" 2 1.2:1 44 lbs. 2 FC10H1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 37

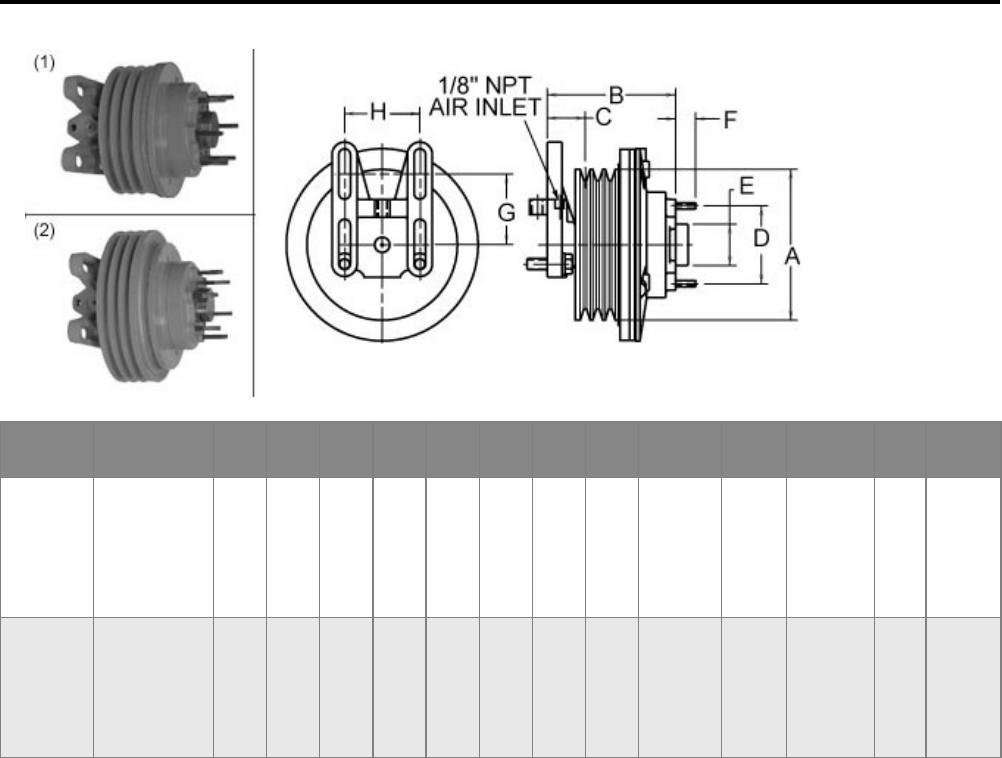

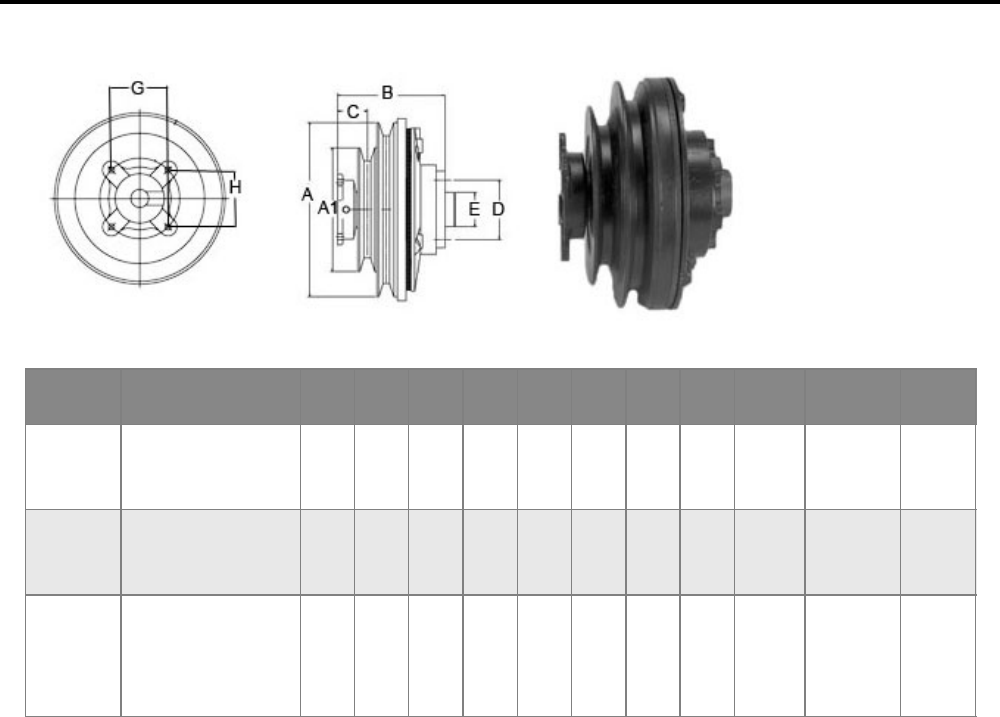

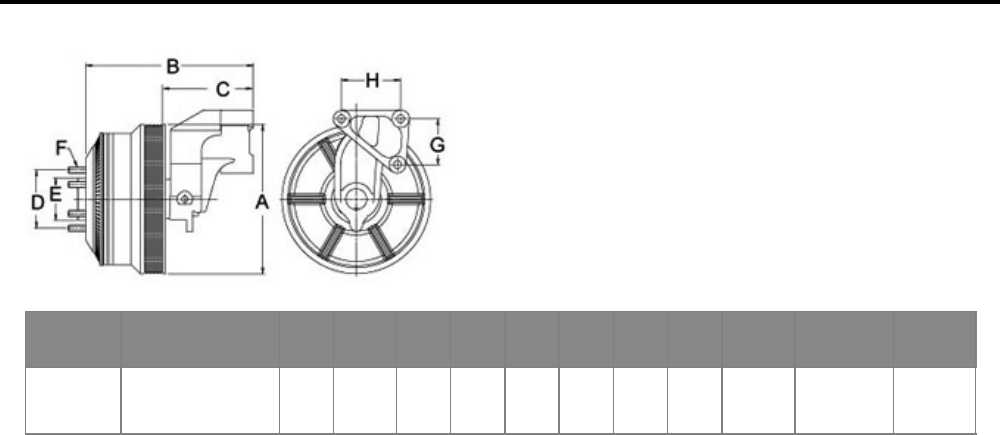

Cummins N14 Series (Model S & HT/S AdvantageВ™)

SKU# Product

Description A B C D E F G Drive

Ratio Approx.

Weight Pic.

#Core

Group

RF790001X 2 Belt Groove

Reman. Cummins

N14 Advantage

Series (Model S)

7.04" 8.25" 3.31" 3.50" 1.99" 2.00"

2.50" 5.25" 1:1 40 lbs. 2 FC00H1

RF791004X 2 Groove Reman.

Cummins N14

Advantage Series

(Model HT/S)

6.38" 7.90" 3.36" 3.50" 1.99" 1.00"

1.50" 11.05" 1.1:1 44 lbs. 3 FC10H1

RF791006X 2 Groove Reman.

Cummins N14

Advantage Series

(Model HT/S)

7.03" 7.90" 3.36" 3.50" 1.99" 1.00" 11.05" 1:1 52 lbs. 4 FC10H1

RF791009X 2 Groove Reman.

Cummins N14

Advantage Series

(Model HT/S)

5.88" 8.00" 3.36" 3.50" 1.99" 1.00"

1.50" 6.50" − 44 lbs. 1 FC10H1

RF791010X 2 Groove Reman.

Cummins N14

Advantage Series

(Model HT/S)

7.03" 6.86" 3.35" 6.00" 4.99" 5/16"−18

TAP 5.25" 1:1 45 lbs. 1 FC10H1

RF791019X 2 Groove Reman.

Cummins N14

Advantage Series

(Model HT/S)

7.03" 7.27" 3.36" 6.00" 4.99" 5/16"−18

TAP 7.72" 1.2:1 47 lbs. 1 FC10H1

RF791026X 2 Belt Groove

Reman. Cummins

N14 Advantage

Series (Model

HT/S)

7.03" 7.89" 3.35" 3.50" 1.99" 1.25" 5.25" − 47 lbs. 1 FC10H1

12−FAN CLUTCHES Horton® Fan Clutches

12 − 38

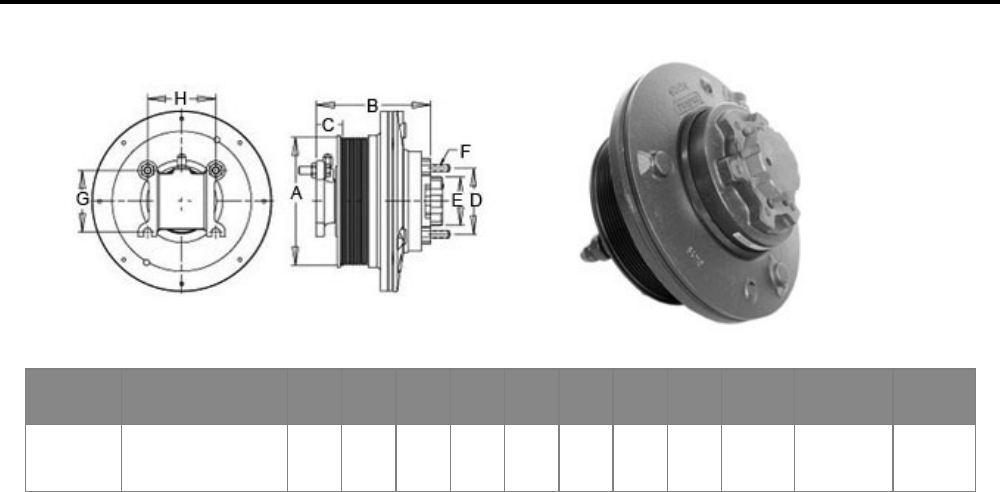

Detroit 6V92, 8V92, 8V71, 6V71 & 12V71 Series (Model S)

SKU# Product

Description A B C D E F G H Belt

Groove Drive

Ratio Approx.

Weight Pic.

#Core

Group

RF790003X Reman. Detroit

6V92, 8V92,

8V71, 6V71,

12V71

Advantage

Series (Model

7.25" 6.39" 1.89" 3.50"

3.88" 1.99"

2.05" 0.75"

1.00"

1.25"

1.50"

2.75"

3.47" 3.75" 3 1:1 40 lbs. 1 FC00H1

RF790004X Reman. Detroit

6V92, 8V92,

8V71, 6V71,

12V71

Advantage

Series (Model

9.12" 6.39"

7.50" 1.89" 3.50"

3.88"

4.50"

1.99"

2.05"

2.49"

1.00

1.50" 3.47" 3.75" 3 0.8:1

1:1 40 lbs. 2 FC00H1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 39

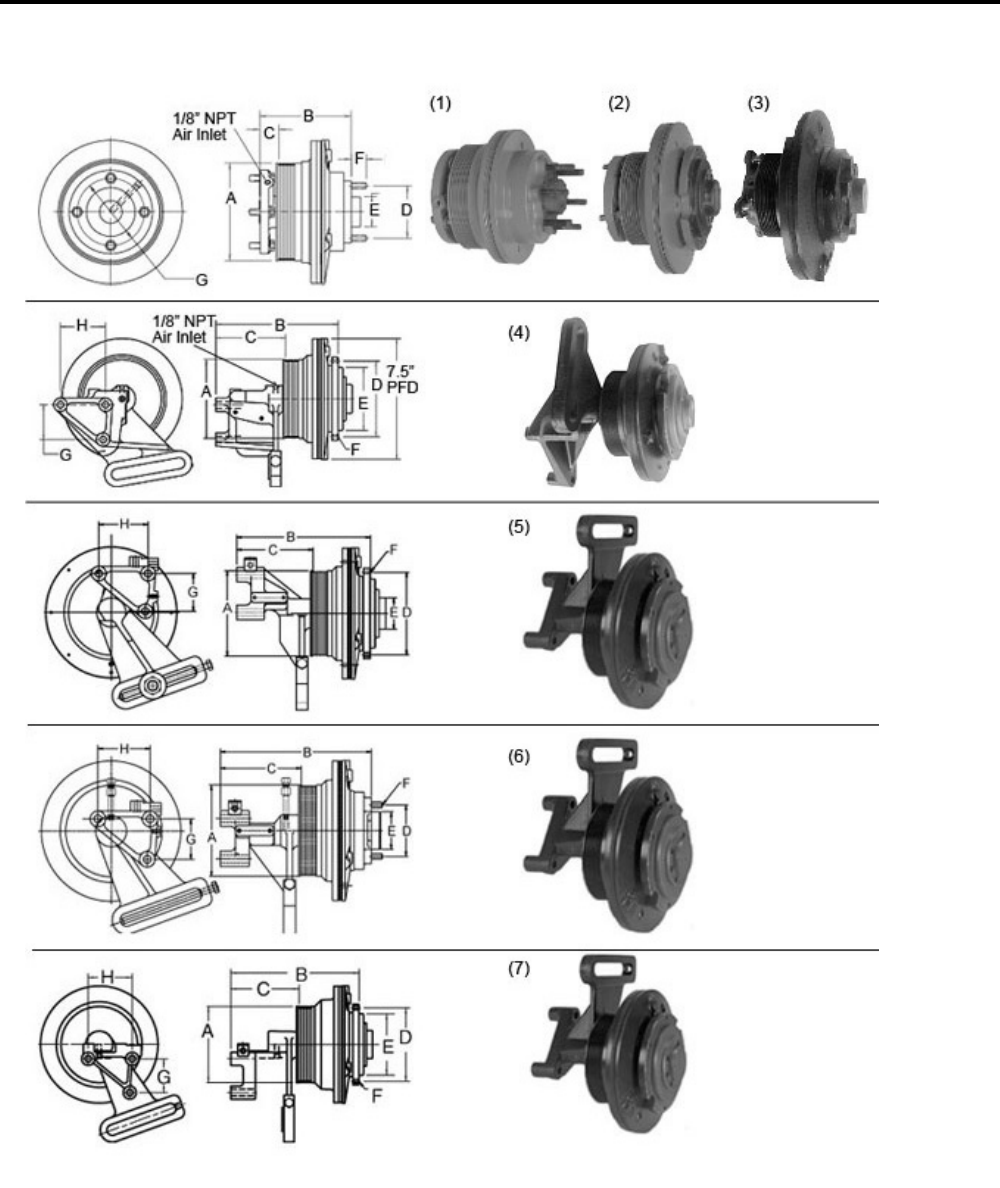

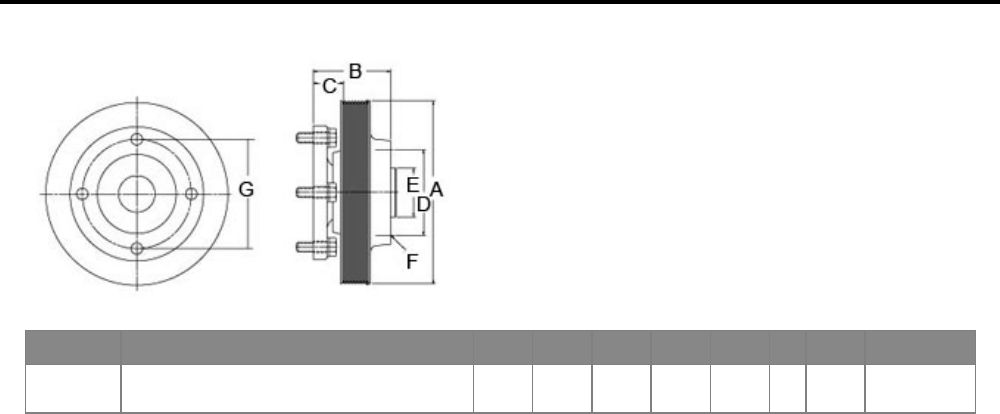

Detroit 60 Series (Direct Drive)

SKU# Product Description A B C D E G H

RF992013 New 10K Multi−Groove Detroit 60 Series (Direct Drive) 7.50" 3.83" 0.97" 3.50" 2.00" 3.17" 3.17"

12−FAN CLUTCHES Horton® Fan Clutches

12 − 40

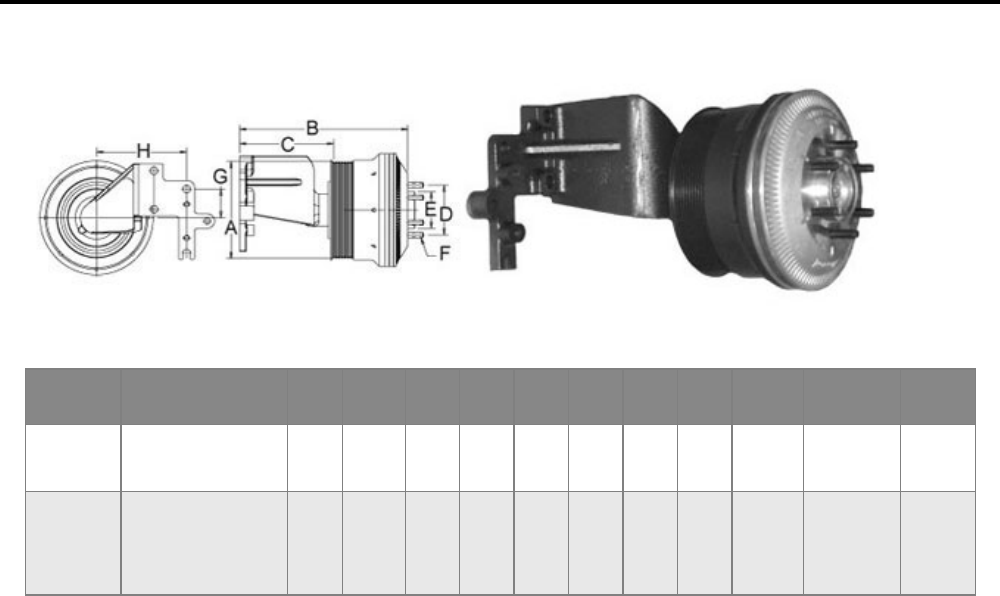

Detroit 60 Series (DriveMaster®)

SKU# Product

Description A B C D E F G H Drive

Ratio Approx.

Weight Pic.

#Core

Group

RF799065X 3 Groove Reman.

Detroit 60 Series

(DriveMaster®)

6.20" 7.93" 2.37" 3.50" 2.56" 0.81" 8.00" 5.32" 1.2:1 39.5 lbs. 2 FC99H1

RF799067X 3 Groove Reman.

Detroit 60 Series

(DriveMaster®)

6.20" 8.93" 2.37" 3.50" 2.56" 0.81" 8.00" 5.32" − 41.7 lbs. 3 FC99H1

RF799223X 10K

Multi−Groove

Reman. Detroit

60 Series

(DriveMaster®)

7.54" 10.55" 4.17" 3.50" 2.56" 0.81" 2.56" 9.53" 1.2:1 53.7 lbs. 1 FC99H1

RF999285 New 3 Groove

Detroit 60 Series

(DriveMaster®)

8.00" 6.24" 1.55" 3.50" 2.56" 0.81" 3.17" 3.17" 1.08:1 − 4 −

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 41

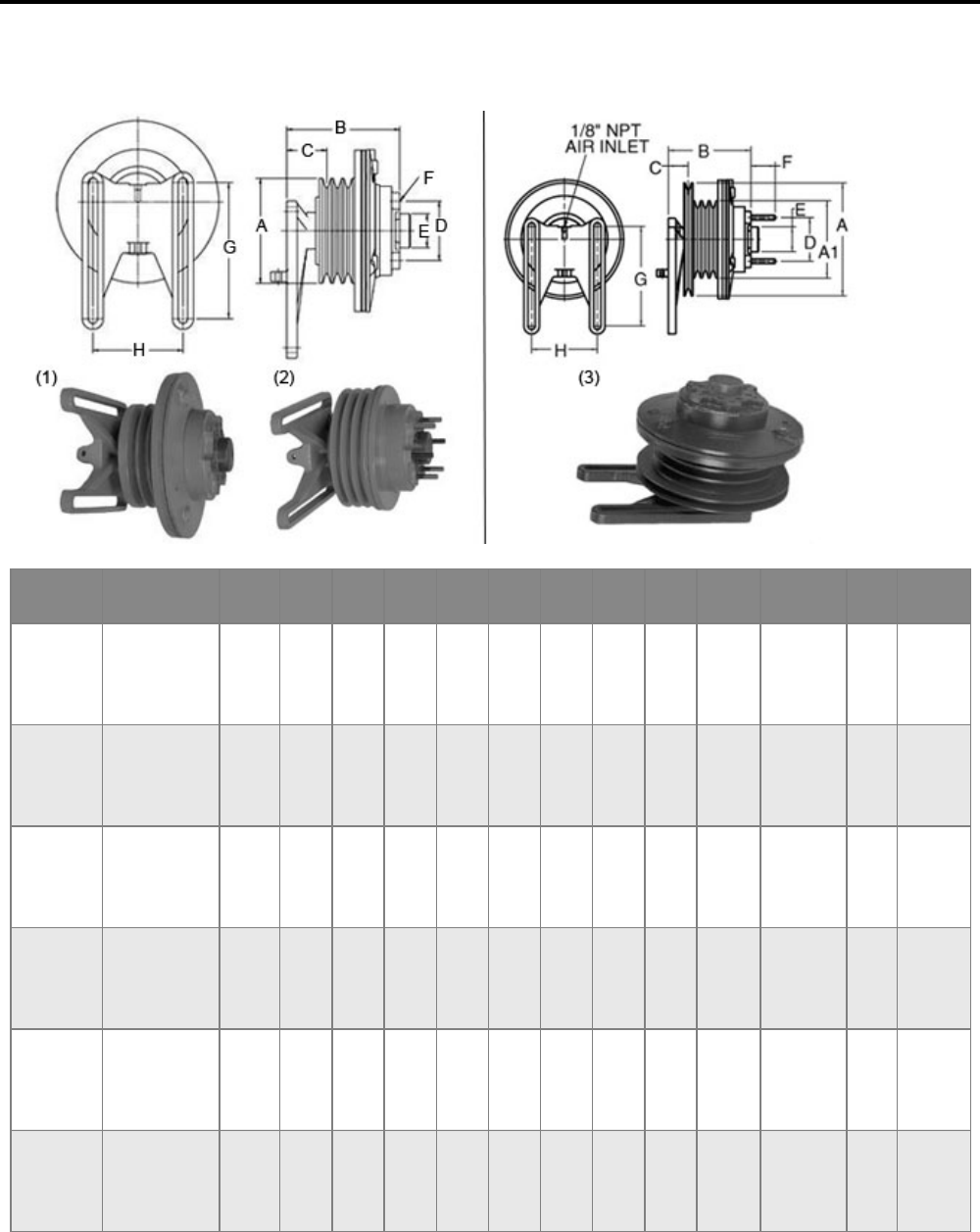

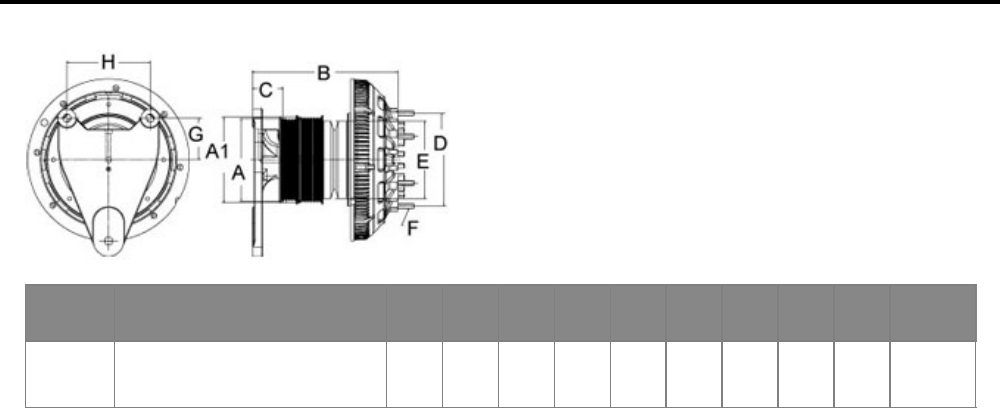

Detroit 60 Series (Model S & HT/S AdvantageВ™)

3 & 4 Belt Groove

SKU# Product

Description A A1 B C D E F G H Drive

Ratio Approx.

Weight Pic.

#Core

Group

RF790009X 4 Groove

Reman. Detroit

60 Advantage

Series (Model

9.06" 7.25" 6.51" 1.61" 3.50" 1.99" 1.25"

2.00" 8.58" 5.32" 1.01:1

1.02:1

1.06:1

46 lbs. 3 FC00H1

RF790011X 4 Groove

Reman. Detroit

60 Advantage

Series (Model

10.00" 8.00" 6.51" 1.61" 3.50" 1.99" 1.25" 8.58" 5.32" − 40 lbs. 3 FC00H1

RF790018X 3 Groove

Reman. Detroit

60 Advantage

Series (Model

7.25" − 6.51" 2.37" 3.50" 1.99" 0.75"

1.25"

1.50"

8.58" 5.32" 1:1 40 lbs. 2 FC00H1

RF791011X 4 Groove

Reman. Detroit

60 Advantage

Series (Model

HT/S)

9.06" 6.20" 6.68" 1.61" 3.50" 1.99" 2.00" 8.58" 5.32" 1.19:1 44 lbs. 3 FC10H1

RF791024X 3 Groove

Reman. Detroit

60 Advantage

Series (Model

HT/S)

6.20" − 6.68" 2.37" 3.50" 1.99" 2.00" 8.58" 5.32" 1.2:1 43 lbs. 1 FC10H1

RF791037X 4 Groove

Reman. Detroit

60 Advantage

Series (Model

HT/S)

9.06" 7.25" 6.68" 1.61" 3.50" 1.99" 2.00 8.58" 5.32" 1:1 54 lbs. 3 FC10H1

12−FAN CLUTCHES Horton® Fan Clutches

12 − 42

Detroit 60 Series (Model S & HT/S AdvantageВ™)

6, 10, 14K Multi−Groove

SKU# Product

Description A A1 B C D E F G H Drive

Ratio Approx.

Weight Pic.

#Core

Group

RF791023X 6K & 10K

POLY V

Reman. Detroit

60 Advantage

Series (Model

HT/S)

6.81" 6.18" 6.60" 1.96" 6.00" 4.99" 5/16"−18

TAP 5.32" 5.32" 12:1 44 lbs. 3 FC10H1

RF791031X 6K & 10K

POLY V

Reman. Detroit

60 Advantage

Series −

International

(Model HT/S)

6.81" 6.18" 6.60" 1.96" 6.00" 4.99" 5/16"−18

TAP 5.32" 5.32" 1.2:1 44 lbs. 1 FC10H1

RF791033X 14K POLY V,

1V Reman.

Detroit 60

Advantage

Series − Ford

(Model HT/S)

6.36" 5.44" 6.95" 1.88" 3.50" 2.56" 3/8"−16

TAP 8.86" 5.32" − 44 lbs. 2 FC10H1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 43

Mack ASET AI (DriveMaster® Two−Speed)

SKU# Product Description A A1 B C D E F G H Drive

Ratio

RF999947 New 6PK, 10PK, 1V Multi−Groove

Mack ASET AI (DriveMaster

Two−Speed)

5.00" 5.19" 9.43" 2.00" 6.00" 5.00" 1.05" 2.69" 5.39" 1.77:1

12−FAN CLUTCHES Horton® Fan Clutches

12 − 44

Volvo VE D12 (DriveMaster PolarExtreme®)

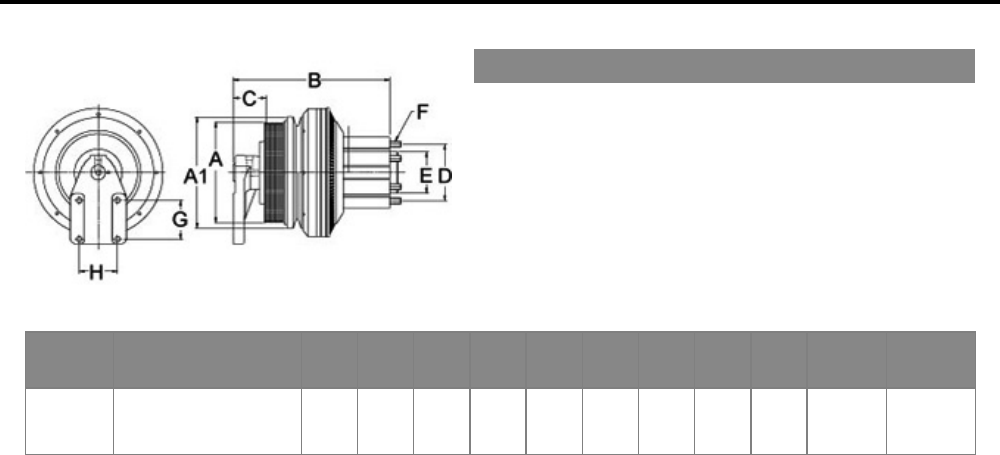

SKU# Product Description A B C D E F G H Drive

Ratio

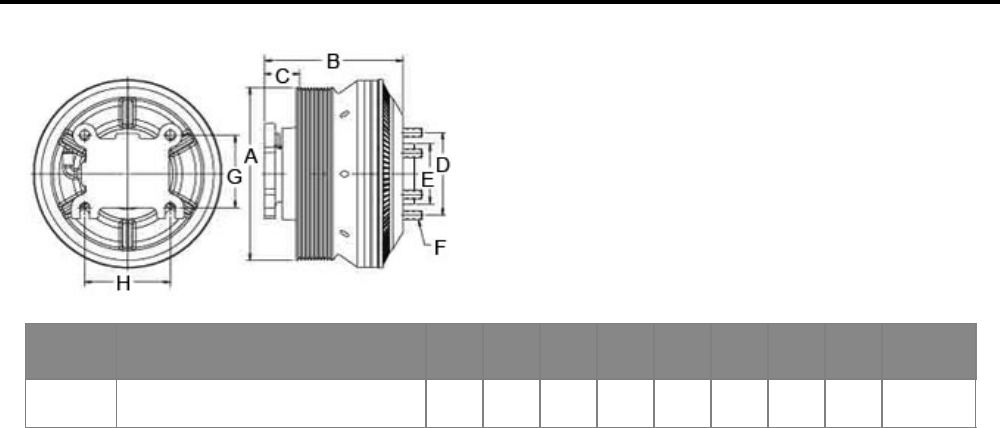

RF999820 New 12PK Multi−Groove Volvo VE D12

(DriveMaster PolarExtreme®) 6.99" 6.61" 1.47" 3.50" 2.56" 0.81" 3.27" 3.63" 1.41:1

Horton® Fan Clutches 12−FAN CLUTCHES

12 − 45

KysorВ™/Borg Warner Style Fan Clutches

Specifications:

SKU# Product Description Model/Type OEM Number Approx. Weight Core Group

RF80001X Reman. Fan Clutch K−22 Front Air 1090−08000−01 14 lbs. FC101KF

RF80005X Reman. Fan Clutch for Mack Application K−22 Front Air 1090−08000−05 14 lbs. FC101KF

RF85001X Reman. Fan Clutch (Most Popular

Application) K−22 Rear Air 1090−08500−01 14 lbs. FC101KR

RF85002X Reman. Fan Clutch for Ford Application K−22 Rear Air 1090−08500−02 14 lbs. FC101KR

RF85003X Reman. Fan Clutch for Ford Application K−22 Rear Air 1090−08500−03 14 lbs. FC101KR

RF88001X Reman. Fan Clutch K−26 Rear Air 1090−09500−01 14 lbs. FC102KR

RF88003X Reman. Fan Clutch K−26 Rear Air 1090−09500−03 14 lbs. FC102KR

12−FAN CLUTCHES KysorВ™/Borg Warner Style Fan Clutches

12 − 46

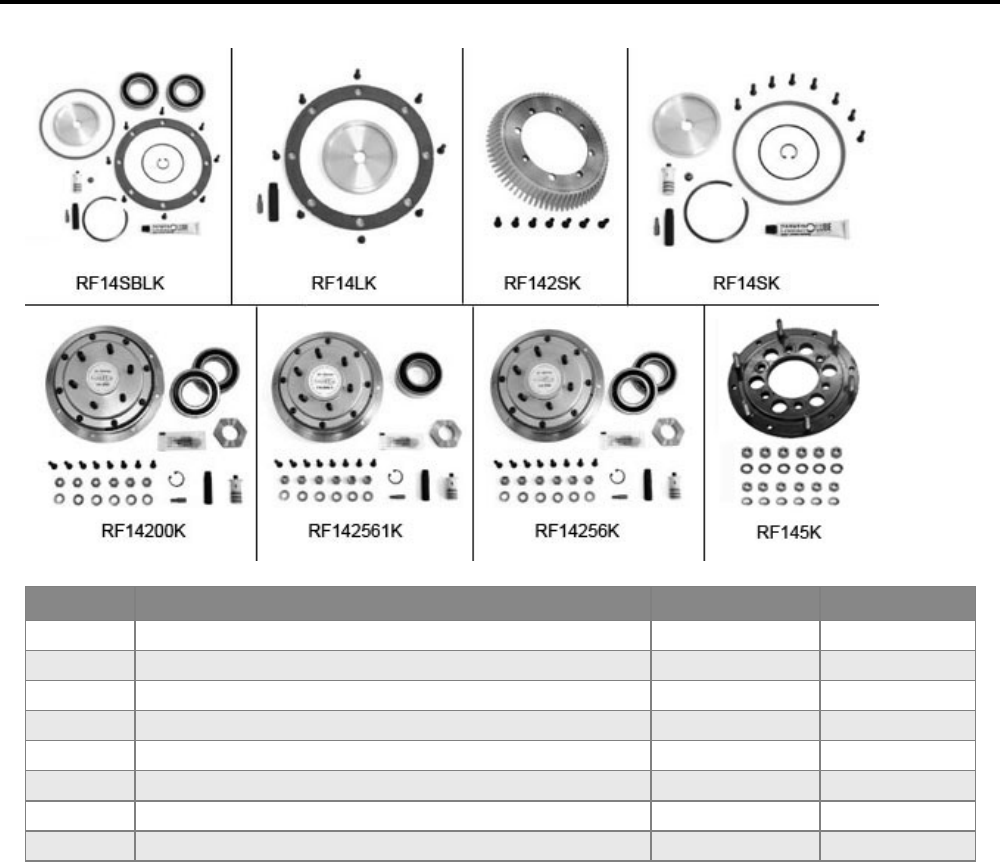

Gold Top® Kits

SKU# Product Description Pilot/Nose Cone Pulley Bearing

RF14200K Gold Top® Kit for Horton−Style Post 2000 Kits 2" 2

RF142561K Gold Top® Kit for Horton−Style Post 2000 Kits 2.56" 1

RF14256K Gold Top® Kit for Horton−Style Post 2000 Kits 2.56" 2

RF142SK Gold Top® 2 Speed Kit for Horton−Style Post 2000 Kits − −

RF145K Gold Top® 2 Speed Adapter Plate Kit for Horton−Style Post 2000 Kits 5" −

RF14LK Gold Top® Lining Kit for Horton−Style Post 2000 Kits − −

RF14SBLK Gold Top® Seal, Bearing & Lining Kit for Horton−Style Post 2000 Kits − −

RF14SK Gold Top® Seal Kit for Horton−Style Post 2000 Kits − −

Gold Top® Kits 12−FAN CLUTCHES

12 − 47

Major Overhaul Kits

SKU# Product Description Kit Contains Kit Contains Continued

RF994314 'S' Major Kit with Standard

Friction Facing for Horton Fan

Clutch

(1pr.) Sheave Bearing, (1) Friction Facing,

(6) S Cap Screws, (1) Large O−Ring Seal,

(1) Locknut, (1) Cartridge Assembly,

(1) Face Seal Assembly, (1) Small O−Ring

Seal, (8) Cap Screws, (1) O−Ring Lube, (1)

System SentryВ™ and (1)Umbrella Check

Valve.

RF994315 'HT/S' Major Kit with Standard

Friction Facing for Horton Fan

Clutch

(1pr.) Sheave Bearing, (1) Friction Facing,

(8) HT/S Cap Screw, (1) Large O−Ring

Seal, (1) Locknut, (1) Cartridge Assembly,

(1)Face Seal Assembly, (1) Small O−Ring Seal,

(8) Cap Screws, (1) O−Ring Lube, (1) System

SentryВ™ and (1) Umbrella Check Valve.

12−FAN CLUTCHES Horton® Fan Clutch Components/Repair Kits

12 − 48

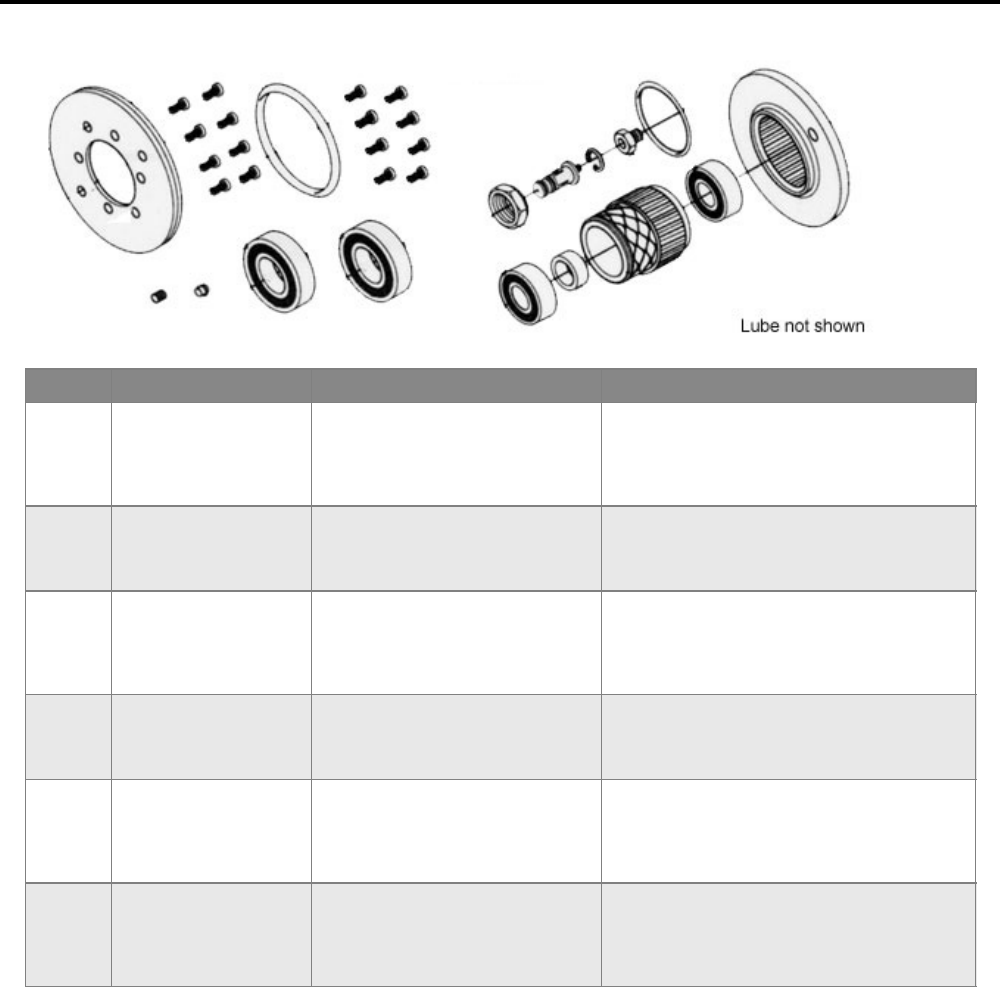

Super Kits

SKU# Product Description Kit Contains Kit Contains Continued

RF994305 'HT/S' Advantage Super Kit

with Standard Friction

Facing for Horton Fan

Clutch

(1pr.) Sheave Bearing, (1) Friction

Facing, (8) Socket Head Cap Screws −

friction facing, (1) Piston Assembly, (1)

Large O−Ring, (1) Locknut,

(1) Cartridge Assembly, (1) Face Seal Assembly, (1)

Small O−Ring, (8) Socket Head Screws − air

chamber, (1) O−Ring Lube, (1) Spline Lube, (1)

Spline Lube Brush (1) System SentryВ™ and (1)

Umbrella Check Valve.

RF994307 'S' Advantage Super Kit

with Standard Friction

Facing for Horton Fan

Clutch

(1pr.) Sheave Bearing, (1) Friction

Facing, (6) S Cap Screws, (1) S Piston

Assembly, (1) Large O−Ring, (1)

Locknut,

(1) Cartridge Assembly, (1) Face Seal Assembly, (1)

Small O−Ring, (8) Cap Screws, (1) O−Ring Lube, (1)

System SentryВ™ and (1) Umbrella Check Valve.

RF994322 HT/S Advantage Super Kit

with Sintered Friction Liner

for Horton Fan Clutch

(1) O−Ring Lube, (1) Spline Lube, (1)

Spline Lube Brush, (1 pr.) Sheave

Bearings, (1) Friction Facing, (8) Socket

Head Cap Screw − friction facing, (1)

Piston Assembly,

(1) Large O−Ring, (1) Lock Nut, (1) Cartridge

Assembly, (1) Face Seal Assembly, (1) Small

O−Ring, (8) Socket Head Screws − air chamber, (1)

Umbrella Check Valve

RF994343 'HT/S' Advantage Super Kit

with Sintered Friction

Facing for Horton Fan

Clutch

(1pr.) Sheave Bearing, (1) Friction

Facing, (8) S Cap Screws, (1) HT/S

Piston Assembly, (1) Large O−Ring

Seal, (1) Locknut,

(1) Cartridge Assembly, (1) Face Seal Assembly, (1)

Small O−Ring Seal, (8) Cap Screws, (1) O−Ring

Lube, (1) System SentryВ™ and (1) Umbrella Check

Valve.

RF994900 Drivemaster Polarextreme

Super Kit for Horton Fan

Clutch

(1) T55 Torx Plus Driver, (1) O−Ring

Lubricant, (1 pr.) Sheave Bearings, (1)

Bearing Nut, (1) O−Ring Seal, (1) Fan

Mounted Disc/Studs, (8) Button Head

Screws,

(1) Air Chamber Seal, (1) Face Seal, (2) Retaining

Rings, (1) Air Cartridge Assembly, (1) Friction Liner,

(1) Spring Housing/Piston, (1) Cage Nut − used for

repairs only.

RF994985 Drivemaster Super Kit for

Horton Fan Clutch (1) T55 Torx Plus Driver, (1) O−Ring

Lubricant, (1 pr.) Sheave Bearings, (1)

Bearing Nut, (1) O−Ring Seal, (1) Fan

Mounted Disc/Studs, (8) Button Head

Screws,

(1) Air Chamber Seal, (1) Face Seal, (2) Retaining

Rings, (1) Air Cartridge Assembly, (1) Friction Liner,

(1) Spring Housing/Piston, (1) Cage Nut − used for

repairs only.

Horton® Fan Clutch Components/Repair Kits12−FAN CLUTCHES

12 − 49

Seal Kit

SKU# Product Description Kit Contains Kit Contains Continued

RF994205 'S' and 'HT/S' Seal Kit for

Horton Fan Clutch (1) Large O−Ring Seal, (1) Cartridge

Assembly, (1) Face Seal Assembly, (1) Small

O−Ring Seal, (8) Cap Screws,

(1) O−Ring Lube, (1) Spline Lube, (1) Spline Lube

Brush, (1) System SentryВ™, (1) Umbrella Check

Valve and (1) Wrench.

RF994346 Drivemaster Seal Kit for

Horton Fan Clutch (1) T55 Torx Plus Driver, (1) O−Ring

Lubricant, (1) O−Ring Seal, (8) Button Head

Screws, (1) Air Chamber Seal,

(1) Face Seal, (1) Retaining Ring, (1) Air

Cartridge Assembly, (1) Retaining Ring and (1)

Cage Nut − used for repairs only.

12−FAN CLUTCHES Horton® Fan Clutch Components/Repair Kits

12 − 50

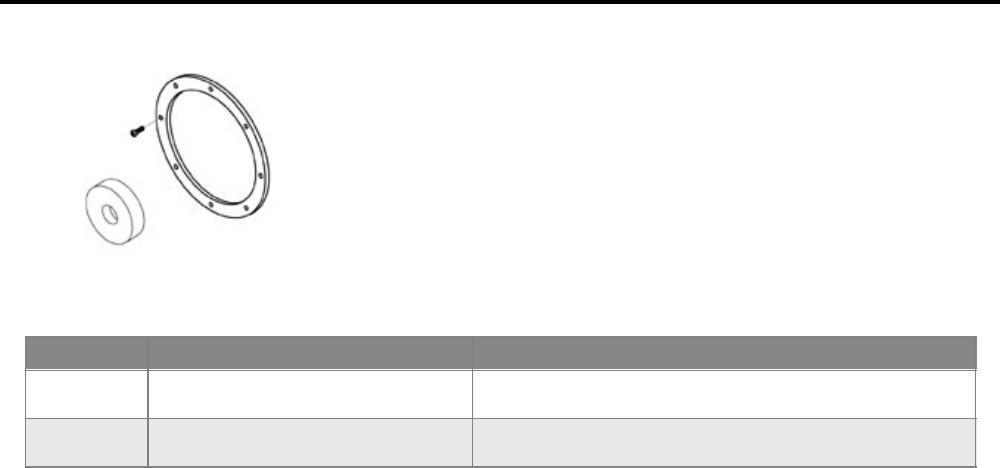

Facing/Liner Kit

RF994349 Shown

SKU# Product Description Kit Contains

RF994319 'HT/S' Advantage Facing Kit for Horton Fan

Clutch 'HT/S' Sintered Friction Facing

RF994349 Drivemaster Friction Liner Kit for Horton Fan

Clutch (1) T55 Torx Plus Driver, (8) Button Head Screws, (1) Friction Liner and

(1) Cage Nut − used for repairs only.

Horton® Fan Clutch Components/Repair Kits12−FAN CLUTCHES

12 − 51

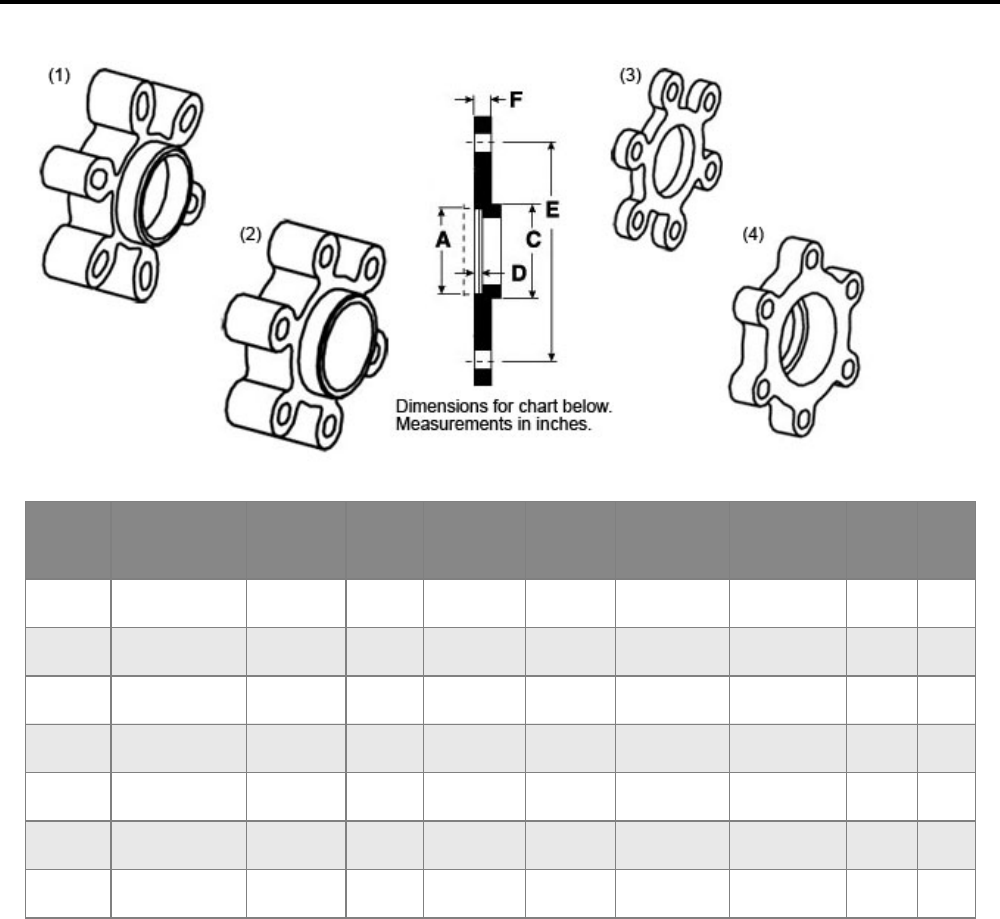

Spacers & Adapters

SKU# Product

Description Female

Pilot Dia.

(A)

Male

Pilot

Dia. (C)

Female

Pilot

Depth (D)

Bolt

Circle

(E)

Thickness

(F) Comments OEM # FIG.

RF994039 Spacer for Horton

Fan Clutch 2.06" 2.00" .62" 3.5"−4.0" 1.00" For DDA

Drives 984081 1

RF994040 Spacer for Horton

Fan Clutch 2.00" 2.00" .62" 3.50" 1.00" − 984080 2

RF994052 Spacer for Horton

Fan Clutch 2.00" 2.00" .75" 3.50" 1.23" − 984086 2

RF994053 Spacer for Horton

Fan Clutch 2.00" 2.56" 0.75" 3.50" .62" − 984087 4

RF994072 Spacer for Horton

Fan Clutch 2.00" 2.00" .75" 3.50" 2.25" − 984089 2

RF994073 Spacer for Horton

Fan Clutch 2.00" 2.00" .26" 3.50" .62" − 984090 2

RF994074 Spacer for Horton

Fan Clutch 2.00" − Thru Hole 3.50" .25" Flat Spacer

Thru Holes 984091 3

12−FAN CLUTCHES Horton® Fan Clutch Components/Repair Kits

12 − 52

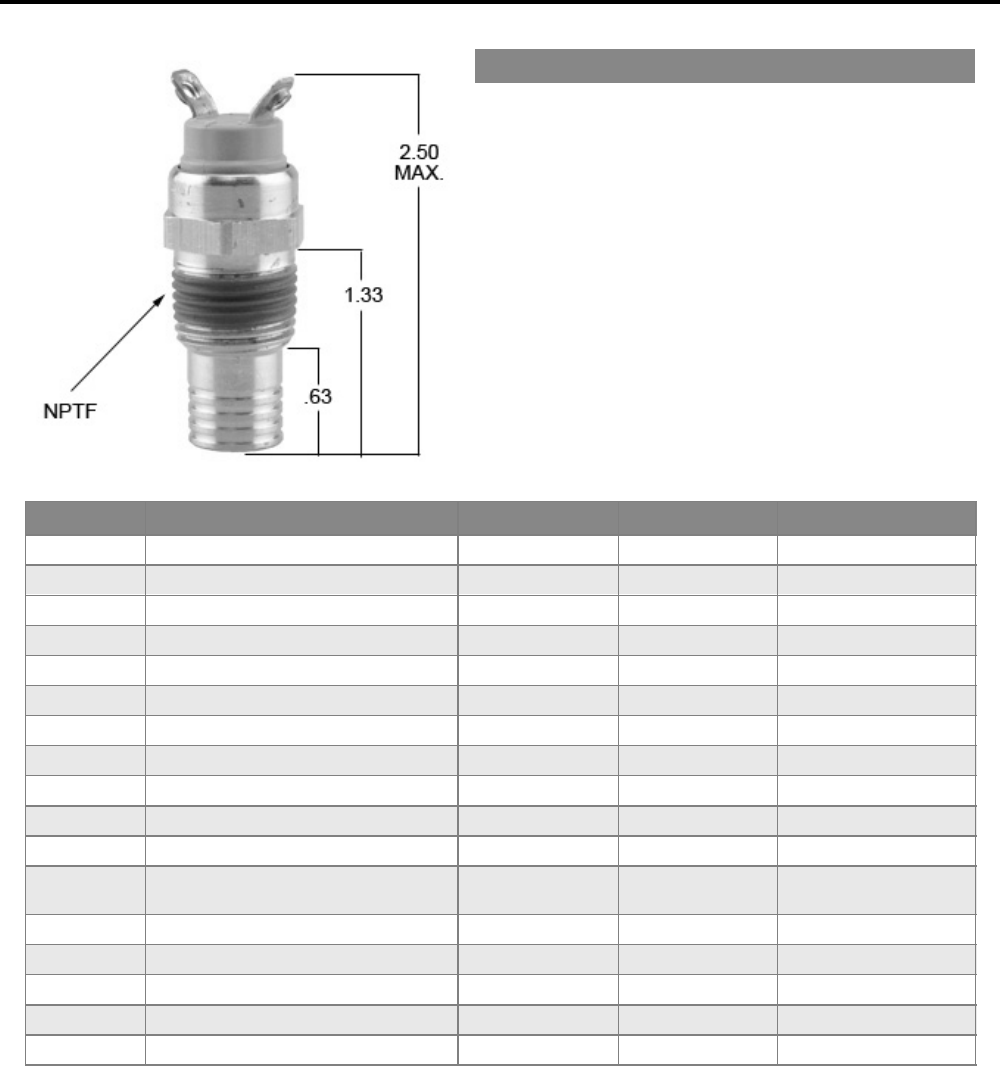

Thermal Switches

Features:

The thermal switch is an integrated temperature control and/or

overheat protective device.

•

The switching circuit features mechanical load switching,

designed for frequent or high current switching.

•

Controls include the fan clutch, radiator shutters and engine

shutdown (overtemp).

•

SKU# Product Description Circuit Type Temperature Pipe Thread Size

RF993603 Thermal Switch for Horton Fan Clutch Normally Closed 190° F .500"

RF993605 Thermal Switch for Horton Fan Clutch Normally Closed 195° F .500"

RF993606 Thermal Switch for Horton Fan Clutch Normally Closed 200° F .500"

RF993607 Thermal Switch for Horton Fan Clutch Normally Closed 205° F .500"

RF993610 Thermal Switch for Horton Fan Clutch Normally Open 195° F .375"

RF993615 Thermal Switch for Horton Fan Clutch Normally Open 180° F .500"

RF993616 Thermal Switch for Horton Fan Clutch Normally Open 185° F .500"

RF993617 Thermal Switch for Horton Fan Clutch Normally Open 190° F .500"

RF993619 Thermal Switch for Horton Fan Clutch Normally Closed 185° F .500"

RF993625 Thermal Switch for Horton Fan Clutch Normally Open 215° F .500"

RF993626 Thermal Switch for Horton Fan Clutch Normally Open 220° F .500"

RF993630 Thermal Switch for Horton Fan Clutch Normally Closed

Dual Function 185° /195° F .500"

RF993653 Thermal Switch for Horton Fan Clutch Normally Open 195° F .500"

RF993654 Thermal Switch for Horton Fan Clutch Normally Open 200° F .500"

RF993655 Thermal Switch for Horton Fan Clutch Normally Open 205° F .500"

RF993658 Thermal Switch for Horton Fan Clutch Normally Closed 150° F .500"

RF993665 Thermal Switch for Horton Fan Clutch Normally Closed 215° F .500"

Horton® Fan Clutch Components/Repair Kits12−FAN CLUTCHES

12 − 53

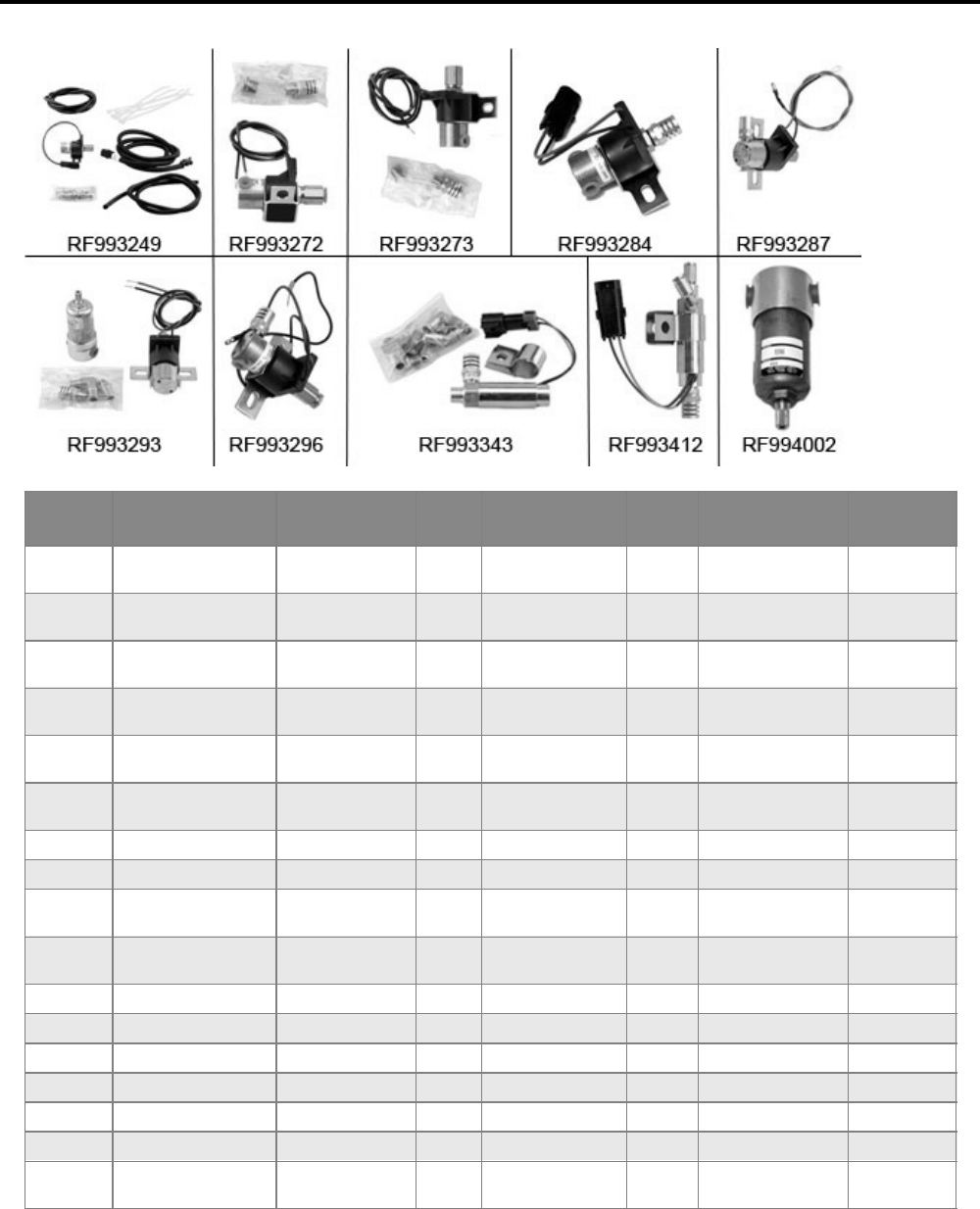

Solenoid Valve & Filter

SKU# Product

Description Applications Volts Circuit Type Diode Notes OEM

Number

RF993249 Solenoid Valve International 12 Normally Open /

Normally Closed Yes − −

RF993272 Solenoid Valve All / Freightliner 12 Normally Open /

Normally Closed Yes Single−Hole

Mounting Bracket −

RF993273 Solenoid Valve All 24 Normally Open /

Normally Closed Yes Single−Hole

Mounting Bracket −

RF993280 Solenoid Valve Dina 12 Normally Open /

Normally Closed No − −

RF993282 Solenoid Valve All 12 Normally Open /

Normally Closed Yes Two−Hole Mounting

Bracket −

RF993284 Solenoid Valve Kenworth /

Navistar 12 Normally Closed Yes − 983236

RF993286 Solenoid Valve Peterbilt 12 Normally Closed Yes − 983238

RF993287 Solenoid Valve Unspecified 12 Normally Open Yes − 983239

RF993293 Solenoid Valve All / Freightliner 12 Normally Closed /

Normally Open Yes With Filter 983246 (NC)

983246 (NO)

RF993294 Solenoid Valve All 24 Normally Open /

Normally Closed Yes With Filter 983247 (NO)

993248 (NC)

RF993295 Solenoid Valve Ford 12 Normally Open Yes − 983249

RF993296 Solenoid Valve Freightliner 12 Normally Open Yes − 983250

RF993343 Solenoid Valve All − Normally Open Yes Volvo Universal Kit −

RF993412 Solenoid Valve International 12 Normally Closed Yes − 983410

RF993427 Solenoid Valve Ford 12 Normally Open Yes With Filter 983424

RF993428 Solenoid Valve Freightliner 12 Normally Closed Yes With Filter 983425

RF994002 Solenoid Valve Filter

Assembly − − − − − −

12−FAN CLUTCHES Horton® Fan Clutch Components/Repair Kits

12 − 54

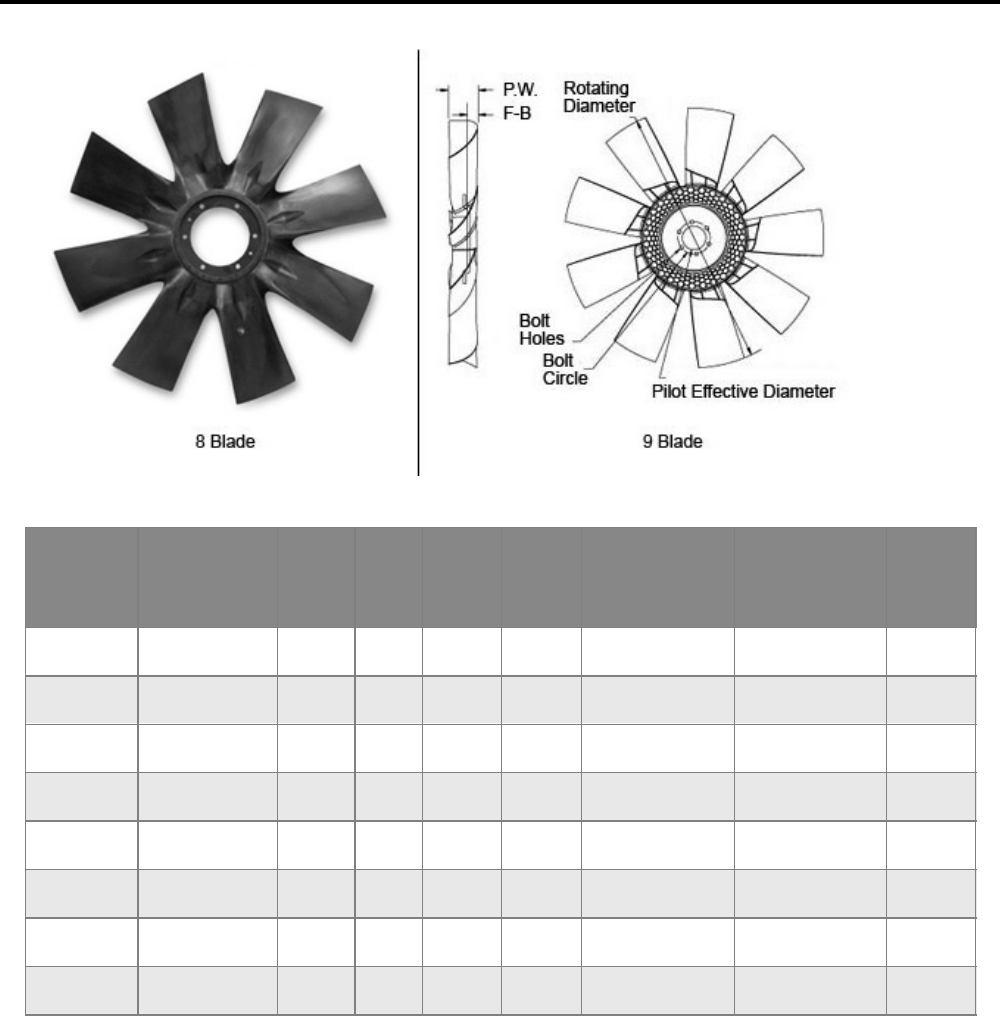

Fan Blades

Clockwise Rotation

SKU# Product

Description Blade

Dia. Pilot

Dia. Bolt

Circle Pitch

Width Front Tip of

Blade to Back

of Mounting

Disc

Back of

Mounting Disc

to Back Tip of

Blade

Approx.

Weight

RF991762202 9 Blade for Horton

Fan Clutch 30.0 2.00 3.50 3.50 1.29 2.21 12.1 lbs.

RF991762502 9 Blade for Horton

Fan Clutch 30.0 5.00 6.00 3.50 1.29 2.21 11.6 lbs.

RF991813253 9 Blade for Horton

Fan Clutch 32.0 2.56 3.50 3.50 1.94 1.56 12.6 lbs.

RF994105 8 Blade for Horton

Fan Clutch 26.0 2.00 3.50 3.34 1.13 2.21 6.2 lbs.

RF994116 8 Blade for Horton

Fan Clutch 28.0 5.00 6.00 3.46 1.14 2.32 6.5 lbs.

RF994117 8 Blade for Horton

Fan Clutch 30.0 5.00 6.00 3.56 1.18 2.38 7.1 lbs.

RF994155 8 Blade for Horton

Fan Clutch 28.0 2.00 3.50 3.46 2.20 1.26 6.5 lbs.

RF994156 8 Blade for Horton

Fan Clutch 30.0 2.00 3.50 3.56 1.30 2.26 7.1 lbs.

Horton® Fan Clutch Components/Repair Kits12−FAN CLUTCHES

12 − 55

KysorВ™/Borg Warner Style Kits and Components

SKU# Product Description Model/Type OEM Number

RF8000KCK Combo Seal/Lining Kit K−22 Front Air 1033−05435−02

RF8000KSK Seal Kit K−22 Front Air −

RF8101K Pulley Bearing Kit − 1033−07781−01

RF8201K Pulley Bearing Kit − 1033−07782−01

RF8202K Pulley Bearing Kit − 1033−07782−02

RF8203K Pulley Bearing Kit − 1033−07782−03

RF8204K Pulley Bearing Kit − 1033−07782−04

RF8500KCK Combo Seal/Lining Kit K−22 Rear Air 1033−05435−03

RF8500KLK Lining Kit K−22 Front/Rear Air 1033−08250−01

RF8500KSK Seal Kit K−22/K−26 Rear Air 1033−08233−01

RF8800KCK Combo Seal/Lining Kit K−26 Rear Air 1033−09339−01

RF8800KLK Lining Kit K−26 Rear Air 1033−09340−01

12−FAN CLUTCHES KysorВ™/Borg Warner Style Components

12 − 56

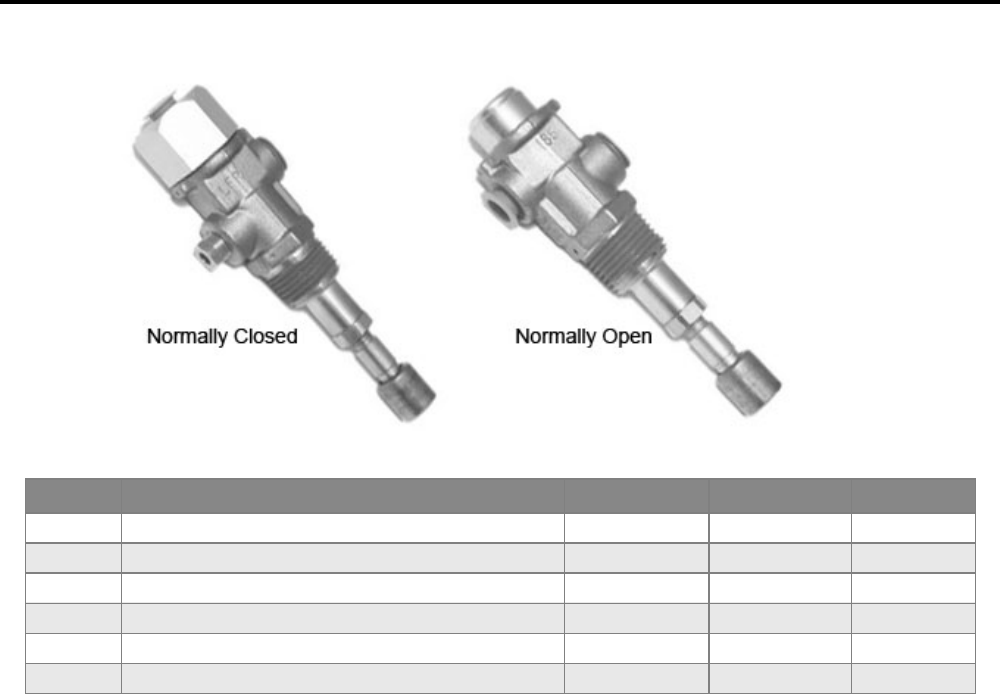

Temperature Controls/Shutterstats

SKU# Product Description Circuit Type Temperature Port Size

RF35029 Temperature Control/Shutterstats for KysorВ™ Style Clutch Normally Closed 185° F 1/8−27 NPTF

RF35030 Temperature Control/Shutterstats for KysorВ™ Style Clutch Normally Closed 190° F 1/8−27 NPTF

RF35031 Temperature Control/Shutterstats for KysorВ™ Style Clutch Normally Closed 195° F 1/8−27 NPTF

RF36029 Temperature Control/Shutterstats for KysorВ™ Style Clutch Normally Open 185° F 1/8−27 NPTF

RF36030 Temperature Control/Shutterstats for KysorВ™ Style Clutch Normally Open 190° F 1/8−27 NPTF

RF36031 Temperature Control/Shutterstats for KysorВ™ Style Clutch Normally Open 195° F 1/8−27 NPTF

KysorВ™/Borg Warner Style Components 12−FAN CLUTCHES

12 − 57

COOLING SYSTEM CONTROLS

A Normally Closed Electric Control System has a normally closed Thermal Switch and a normally

open Solenoid Valve.

•

A Normally Open Electric Control System has a normally open Thermal Switch and a normally closed

Solenoid Valve.

•

NORMALLY CLOSED

NORMALLY OPEN

12−FAN CLUTCHES Troubleshooting

12 − 58

Normally Closed Fan Clutches

Problem Possible Cause Solution

Fan won't engage when

manual override is turned on. Manual override switch, air solenoid valve or

related plumbing or wiring is faulty. Replace faulty component.

Fan won't cycle on when air

conditioning test is performed. Outside air temperature is too low, there is a

low refrigerant charge or refrigerant pressure

switch is faulty. Check air conditioning system.1. Replace pressure switch if

required.

Overtemp warning activates

before fan engages. Defective overtemp warning switch. Replace overtemp warning switch.

Engine appears to overheat.

(Fan won't engage when

engine coolant temp gauge is

above 195−205°F or

overtemp warning activates

before fan engages.)

Air Solenoid valve may be plumbed

incorrectly

Overtemp warning switch faulty

(warning light activates prematurely).

Overtemp warning switch is too far

away from the fan temp switch.

Temp gauge is faulty (reads high).4. Fan temp switch is faulty.5.

Check solenoid plumbing.

Replumb solenoid valve.

Replace overtemp warning

switch.

Move overtemp warning switch

as close to the fan temp switch

as possible.

Replace temp gauge.4.

Replace fan temp switch.5.

Fan engages at low engine

temperatures while vehicle is

moving. Normal condition in extremely hot

weather or at slow vehicle speeds in

warm weather.

Faulty temp gauge.2.

A/C system overcharged or condenser

covered with debris.

Refrigerant pressure switch may be

faulty.

Fan temp switch is faulty, if fan

engages at low engine temp and A/C

is OFF.

Normal condition in hot

weather.

Replace temp gauge or

sender.

Check A/C system.3.

Replace pressure switch if

necessary.

Replace fan temp switch.5.

Fan won't run under any

condition. Air line may be leaking (Horton/Evans

air−on fan drives).

Wiring may be shorted and/or fuses,

circuit breakers blown.

Air solenoid may be faulty. Test air

solenoid valve by shorting across the

terminals of the temp switch to

energize the air solenoid valve and to

activate the fan drive.

Check air lines. Fix where

necessary.

Check wiring, fuses, and circuit

breakers.

If solenoid does not activate,

replace solenoid.

Troubleshooting 12−FAN CLUTCHES

12 − 59

Normally Closed Fan Clutches

Problem Possible Cause Solution

Fan runs all the time when

the air conditioning is OFF. Manual override switch is ON.1. Air solenoid valve may be faulty or

plumbed incorrectly.

Air line to clutch may be leaking

(Bendix/Kysor air−off fan drives).

Fan temp switch may be stuck open;

with engine temp below 180°F short

across terminals, if fan turns off,

switch is faulty.

Pressure switch may be stuck open;

turn off A/C system, if fan continues to

run, short across pressure switch, if

fan stops, pressure switch is

defective.

Turn manual override off.1. Check air solenoid valve

plumbing, replace valve if

faulty.

Check air lines, fix where

necessary.

Replace fan temp switch.4.

Replace pressure switch.5.

Fan runs all the time when

the air conditioning is ON. This is a normal condition in

extremely hot weather; spray water

on A/C condenser (fan should

disengage for a short period of time

and then re−engage after water

evaporates).

Air conditioning system may be

over−charged or condenser covered

with debris. Turn OFF the A/C

system; if the fan stops, the

refrigerant pressure switch is

functioning.

Pressure switch may have drifted out

of calibration; use pressure gauge to

compare actual fan−on and fan−off

pressures vs. specified pressures.

Normal condition in hot

weather.

Service A/C system. Check

A/C pressure and condenser.

If out of calibration, replace

pressure switch.

Fan operation is erratic. Loose electrical connection.1.

Fan temp or pressure switch may be

faulty.

Check wiring; fix where

necessary.

If other system components

and connections check out

okay, (a) replace pressure

switch if erratic fan operation

is associated with air

conditioning at idle or (b)

replace fan temp switch if the

erratic operation occurs

primarily when the engine is

hot.

Fan cycles frequently when

engine is hot. The fan should remain engaged long enough

to reduce temperature 7−10єF. The fan temp

switch is defective if the fan disengages after

only a 3−4є reduction.

Replace fan temp switch.

12−FAN CLUTCHES Troubleshooting

12 − 60

Normally Closed Fan Clutches

Problem Possible Cause Solution

Fan cycles frequently when

vehicle is stationary with A/C

ON.

Up to 4 cycles per minute is a normal condition

for conventional control systems; turn off air

conditioning system and cycling should stop.

To reduce cycling by up to 90%, install

an Index K7 fan control system.

Fan turns on whenever

ignition is on (turns off when

engine gets hot).

Air solenoid valve plumbed backwards. Check solenoid installation instructions;

plumb correctly.

Control system fuses blown. If fuse blows whenever the ignition is

turned on, the problem is most likely

related to a fault in the wiring.

If the fuses blow only when the fan

engages, the fault is probably

associated with the solenoid valve.

Check wiring, fix where

necessary.

Use an ohmmeter to check for

a shorted solenoid coil (the

coil resistance should be

greater than 14 ohms). If

shorted, replace air solenoid

valve.

Troubleshooting 12−FAN CLUTCHES

12 − 61

Normally Open Fan Clutches

Problem Possible Cause Solution

Fan won't engage when

manual override is turned on. Manual override switch, air solenoid valve or

related plumbing or wiring is faulty. Replace faulty component.

Fan won't cycle on when air

conditioning test is performed. Outside air temperature is too low, there is a

low refrigerant charge or refrigerant pressure

switch is faulty. Check air conditioning system.1. Replace pressure switch if

required.

Override warning activates

before fan engages. Defective overtemp warning switch. Replace overtemp warning switch.

Engine appears to overheat.

(Fan won't engage when

engine coolant temp gauge is

above 195−205°F or

overtemp warning activates

before fan engages.)

Air Solenoid valve may be plumbed

incorrectly

Overtemp warning switch faulty

(warning light activates prematurely).

Overtemp warning switch is too far

away from the fan temp switch.

Temp gauge is faulty (reads high).4. Fan temp switch is faulty.5.

Check solenoid plumbing.

Replumb solenoid valve.

Replace overtemp warning

switch.

Move overtemp warning switch

as close to the fan temp switch

as possible.

Replace temp gauge.4.

Replace fan temp switch.5.

Fan engages at low engine

temperatures while vehicle is

moving, with air conditioning

ON.

Normal condition in extremely hot

weather or at slow vehicle speeds in

warm weather.

Faulty temp gauge.2.

A/C system overcharged or condenser

covered with debris.

Refrigerant pressure switch may be

faulty.

Fan temp switch is faulty if fan

engages at low engine temp and A/C

is OFF.

Normal condition in hot

weather.

Replace temp gauge or

sender.

Check A/C system.3.

Replace pressure switch if

necessary.

Replace fan temp switch.5.

Fan won't run under any

condition. Air line may be leaking (Horton/Evans

air−on fan drives).

Wiring may be shorted and/or fuses,

circuit breakers blown.

Air solenoid may be faulty. Test air

solenoid valve by shorting across the

terminals of the temp switch to

energize the air solenoid valve and to

activate the fan drive.

Check air lines. Fix where

necessary.

Check wiring, fuses, and circuit

breakers.

If solenoid does not activate,

replace solenoid.

12−FAN CLUTCHES Troubleshooting

12 − 62

Normally Open Fan Clutches

Problem Possible Cause Solution

Fan runs all the time when

the air conditioning is OFF. Manual override switch is ON.1. Air solenoid valve may be faulty or

plumbed incorrectly.

Air line to clutch may be leaking

(Bendix/Kysor air−off fan drives).

Fan temp switch may be stuck closed;

with engine temp below 180°F

disconnect wiring, if fan turns off,

switch is faulty.

Pressure switch may be stuck closed;

turn off A/C system, if fan continues to

run, disconnect wiring to pressure

switch, if fan stops, pressure switch is

defective.

Turn manual override off.1. Check air solenoid valve

plumbing, replace valve if

faulty.

Check air lines, fix where

necessary.

Replace fan temp switch.4.

Replace pressure switch.5.

Fan runs all the time when

the air conditioning is ON. This is a normal condition in

extremely hot weather; spray water

on A/C condenser (fan should

disengage for a short period of time

and then re−engage after water

evaporates).

Air conditioning system may be

over−charged or condenser covered

with debris. Turn OFF the A/C

system; if the fan stops, the

refrigerant pressure switch is

functioning.

Pressure switch may have drifted out

of calibration; use pressure gauge to

compare actual fan−on and fan−off

pressures vs. specified pressures.

Normal condition in hot

weather.

Service A/C system. Check

A/C pressure and condenser.

If out of calibration, replace

pressure switch.

Fan operation is erratic. Loose electrical connection.1.

Fan temp or pressure switch may be

faulty.

Check wiring; fix where

necessary.

If other system components

and connections check out

okay, (a) replace pressure

switch if erratic fan operation

is associated with air

conditioning at idle or (b)

replace fan temp switch if the

erratic operation occurs

primarily when the engine is

hot.

Fan cycles frequently when

engine is hot. The fan should remain engaged long enough

to reduce temperature 7−10єF. The fan temp

switch is defective if the fan disengages after

only a 3−4єF reduction.

Replace fan temp switch.

Troubleshooting 12−FAN CLUTCHES

12 − 63

Normally Open Fan Clutches

Problem Possible Cause Solution

Fan cycles frequently when

vehicle is stationary with A/C

ON.

Up to 4 cycles per minute is a normal condition

for conventional control systems; turn off air

conditioning system and cycling should stop.

To reduce cycling by up to 90%, install

an Index K7 fan control system.

Fan turns on whenever

ignition is on (turns off when

engine gets hot).

Air solenoid valve plumbed backwards. Check solenoid installation instructions;

plumb correctly.

Control system fuses blown. If fuse blows whenever the ignition is

turned on, the problem is most likely

related to a fault in the wiring.

If the fuses blow only when the fan

engages, the fault is probably

associated with the solenoid valve.

Check wiring, fix where

necessary.

Use an ohmmeter to check for

a shorted solenoid coil (the

coil resistance should be

greater than 14 ohms). If

shorted, replace air solenoid

valve.

12−FAN CLUTCHES Troubleshooting

12 − 64

CARQUEST Corporation

Raleigh, North Carolina 27604

www.CARQUEST.com

HKC

2010

Fan_Clutch_Cover Haldex Fan Clutches

Navigation menu

Versions of this User Manual:

Views

Navigation
