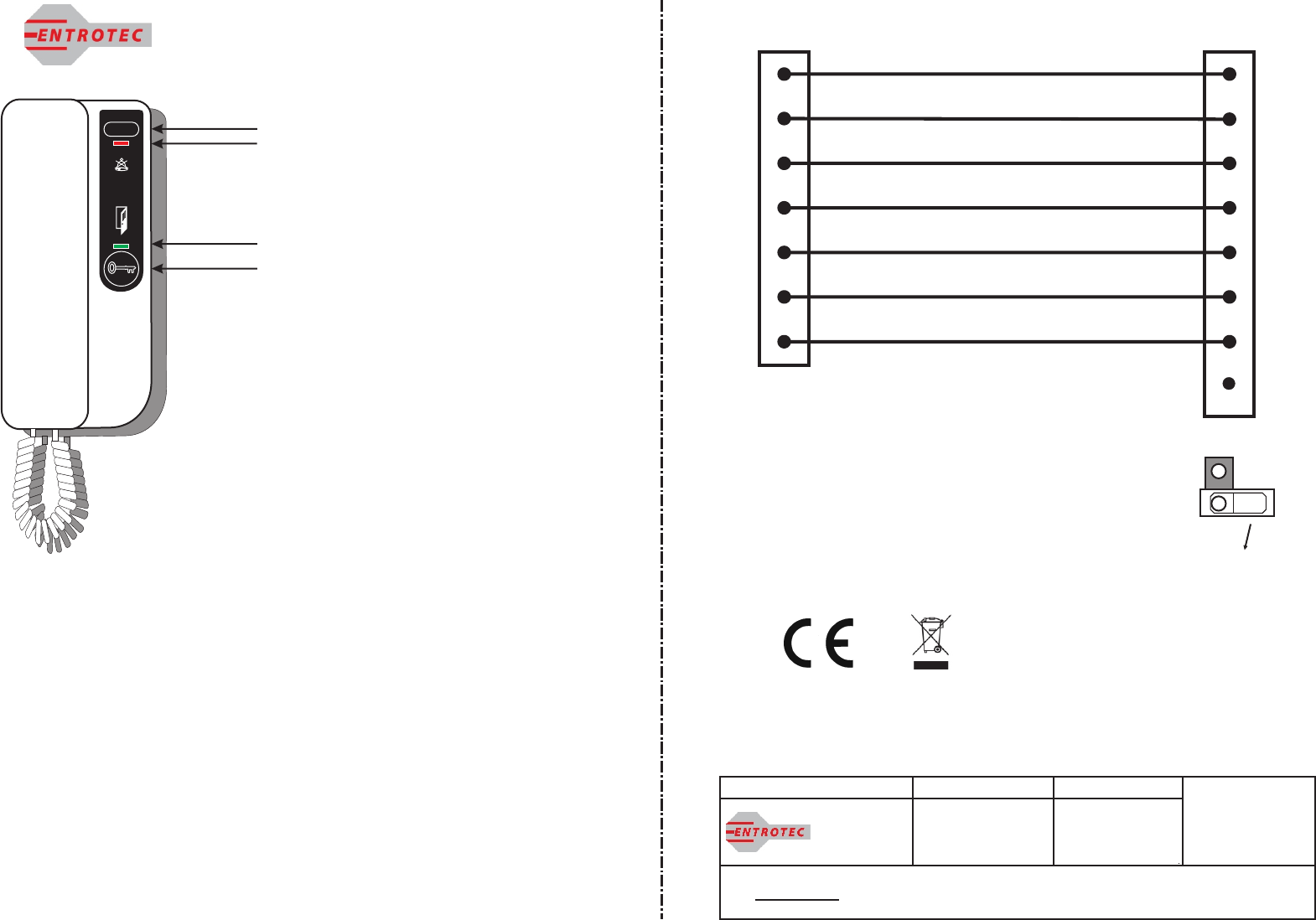

Privacy Switch
Privacy on LED
Door Open LED
Lock Release Button
GENERAL NOTES
The door entry phone system
is designed so that you have a
limited time to answer a call
and allow the caller access or
not. This is to save inconvenience
to other users of the system.
ON
PRIVACY
ON PRIVACY
DOOR OPEN
1) When called, the telephone will give a distinctive pulsing tone for up to 25
seconds and then stop. You have approx. 30 seconds to answer the call from
the start of the call tone. If the call is not answered within the call period, then
the system will reset to allow other visitors to make a call.
2) To answer the call remove the handset from the cradle and speak to the caller.
(You have approx. 2 minutes to speak to the caller and then the system will
reset).
3) To let the caller gain access, press the lock release button and this will open
the door for approximately 10 seconds.
4) When you have completed the call, replace the handset to reset the system.
PRIVACY SWITCH
5) If you do not wish to be disturbed or annoyed by nuisance calls, press the
privacy switch (the Red LED will illuminate to remind you that the handset is in
privacy mode). When in this mode the call tone is muted until you reset the
switch by pressing it again. If you wish to terminate the privacy period press the
privacy switch once, the Red LED will extinguish and allow calls to be heard.
ENTROTEC LTD.
ED3+ TELEPHONE-INSTRUCTIONS FOR USE
WHITE/BLUE
BLUE/WHITE
WHITE/ORANGE
ORANGE/WHITE
WHITE/GREEN
GREEN/WHITE
WHITE/BROWN
DR
VT
0V
BZ
S2
S1
DS
EX
DS
S1
S2
BZ
0V
VT
DR
CW1308
1
2
3
4
5
6
7
8
PREFERED COLOUR CODING FOR WIRING HANDSETS.
ED3+ HANDSET CONNECTION DIAGRAM
WIR/SCH0111/
002/V Rev 1
WIRING DIAGRAM
AND COLOUR
SCHEME FOR
ED3+ HANDSETS
4. Terminal 8 must only be connected to an Extension
Sounder, Flashing Beacon or other Aux. Equipment.
ENTROTEC LTD
Access House
5 Ashwood Court.
Oakbank
Livingston
EH53 0TL.
TEL.01506 886230
FAX.01506 886233
DATE:
DRAWN BY:
DRG.NO. DESC.
IMPORTANT.
ALL CABLES TO BE KEPT WELL AWAY FROM HIGH VOLTAGE CABLES.
PLEASE CONSULT OUR INSTALLATION GUIDELINE SHEET OR CONTACT
OUR TECHNICAL DEPT. FOR ADVICE ON 08448586370.
V.A.Turner
28/11/2011
Installer Please Note:
1. All ED3+ handsets have a latching Privacy Switch.
This should be set in the ‘Off’ position with the Red
LED extinguished to allow call tones to be heard.
2. All ED3+ handsets are fitted with a Call Tone Volume
adjustment (VOL). This maybe adjusted to suit level
required. Factory setting is full volume
3. All ED3+ handsets are now fitted with a DC blocking capacitor.
On older systems (Vertex and old RDC’s) this may make the call tone
fade. If this is the case check for no DC on BZ and if 0v fit PL5 link.
If there is a DC voltage find source and isolate before fitting link.
Manufactured in the UK
