Product Range
Product Range
2012/2013
2012/2013
Valid from 01.10.2011
HERZ Valves UK
Progress House 6 Moorfi eld Point 6
Moorfi eld Road 6 Slyfi eld Industrial Estate 6
Guildford 6 Surrey 6 GU1 1RU
Telephone: 01483 502211
Fax: 01483 502025
e-mail: sales@herzvalves.com
www.herzvalves.com
General
General information, technical data
HERZ-Thermostatic valves
Thermostatic heads and valves marked with the CENCER mark
of conformity in the HERZ-Product Range have been tested ac-
cording to EN 215.
The maximum permissible differential pressure for all HERZ-
Thermostatic valves is 0.6 bar, with the exception of dimensions
3/4 and 1 with 0.4 bar and HERZ-TS-90-E and HERZ-TS-E with
0.2 bar.
In order to reduce noise during operation the differential pres-
sure should be determined in accordance with the “VDMA In-
struction Sheet for Planning and Hydraulic Balancing of Heating
Systems with Thermostatic Radiator Valves” (max. 0.2 bar).
Universal models
HERZ-Radiator valves and threaded radiator connections of
sizes 3/8 – 3/4 are universal models with special sockets, except
HERZ-TS-E and HERZ-RL-1-E. They are suitable for connecting
threaded pipes with a pipe thread and copper, soft steel or plas-
tic pipes, the latter three by means of a compression union.
The same applies to STRÖMAX, STRÖMAX-D, STRÖMAX-M,
STRÖMAX-R 1/2. A special adapter is available for dimension
3/4.
The corresponding tables show the wide variety of compression
unions.
Standard models
HERZ-AS and radiator connections 1 and 1¼, HERZ-TS-valves
1, as well as HERZ-TS-E-valves are standard models with
threaded sockets for threaded pipes.
Nickel-plated and Brass Versions
Unless otherwise stated, HERZ-Fittings and HERZ-Distributor
connection systems are supplied with a nickel-plated surface.
Pipe fi ttings are mainly installed in boiler houses or in riser mains.
Unless otherwise stated, these valves are supplied in brass ver-
sion.
Technical Data
for all HERZ-Fittings
Maximum operating temperature TS 120 °C
Maximum operating pressure PS 10 bar
These values are valid unless otherwise stated in the article
description.
Hot water quality according Austrian Standard ÖNORM H 5195
and/or VDI-Regulation 2035.
Storage temperature (not installed) – 40 °C until 60 °C.
for compression unions for metal pipes.
When using compression unions for copper and steel pipes,
take into account the permissible temperature and pressure rat-
ings according to EN 1254-2:1998, Table 5.
for plastic pipe connections
Plastic pipe connections are suitable for application classes
4 and 5 according ISO 10508 (panel heating and radiator
connection) as well as for pipes made of PE-RT (DIN 4721),
PE-MDX (DIN 4724), PB and PE-X (DIN 4726) as well as lastic
composite tubes (ÖNORM B 5157).
Operating temperature, resulting thereof: maximum 95 °C with
10 bar. It is the operators task, to regulate the operating pres-
sure P oper and the operating temperature T oper in such a way
that they are conforming to standards and that operational data
of the pipe producer are respected.
Any deviations from this data are specially mentioned in the
technical documentation.
Hand Wheel Colours
Hand wheels and plastic components are white, in case of pipe
fi ttings they are red. When colours are different, this is specially
mentioned. Special colours are available upon enquiry.
Documentation
Brochures, standard sheets and tender data sheets are avail-
able for all HERZ-Products and product groups. Your HERZ-
Representatives will be glad to supply these materials upon
request.
Order number
The seven-digit numbers include the former four-digit article
number in bold print. The order number defi nes the valve to
be ordered in terms of series, dimension, colour and model
and is suitable for electronic data processing. You are kindly
requested to use this number in your orders in order to rule out
any confusion.
EAN, Item
The European Article Number (EAN) is a thirteen-digit number
featuring the country and manufacturer code – EAN 90 04174,
as well as the product code and check digit.
The EAN is valid for one unit or one invoicing unit and not for the
sales units (Item) specifi ed. We will be glad to send you the ean
list for sales units (Item) upon request.
ARA
HERZ Armaturen is a licensee of the Austrian waste-recycling
corporation (“Altstoff Recycling Austria Aktiengesellschaft“)
registered under licence number 2102. The waste disposal
charge is paid on the basis of the licensing agreement.
Modifi cations
HERZ Armaturen reserves the right to make modifi cations
necessitated by technological progress and/or market
requirements, and to supply modifi ed products without prior
notice.
Images
It is understood that images in the HERZ product ranges are
symbolic representations and may therefore differ visually from
the actual products.
ISO 9001
Certifi cation
HERZ Armaturen Ges.m.b.H., 1230 Vienna, has an effective
quality management system in all divisions of the business,
suitable for upholding all-important trust from customers. Proof
has been furnished that the requirements according to ÖNORM
EN ISO 9001:2000 are fulfi lled.
Table of Contents
1

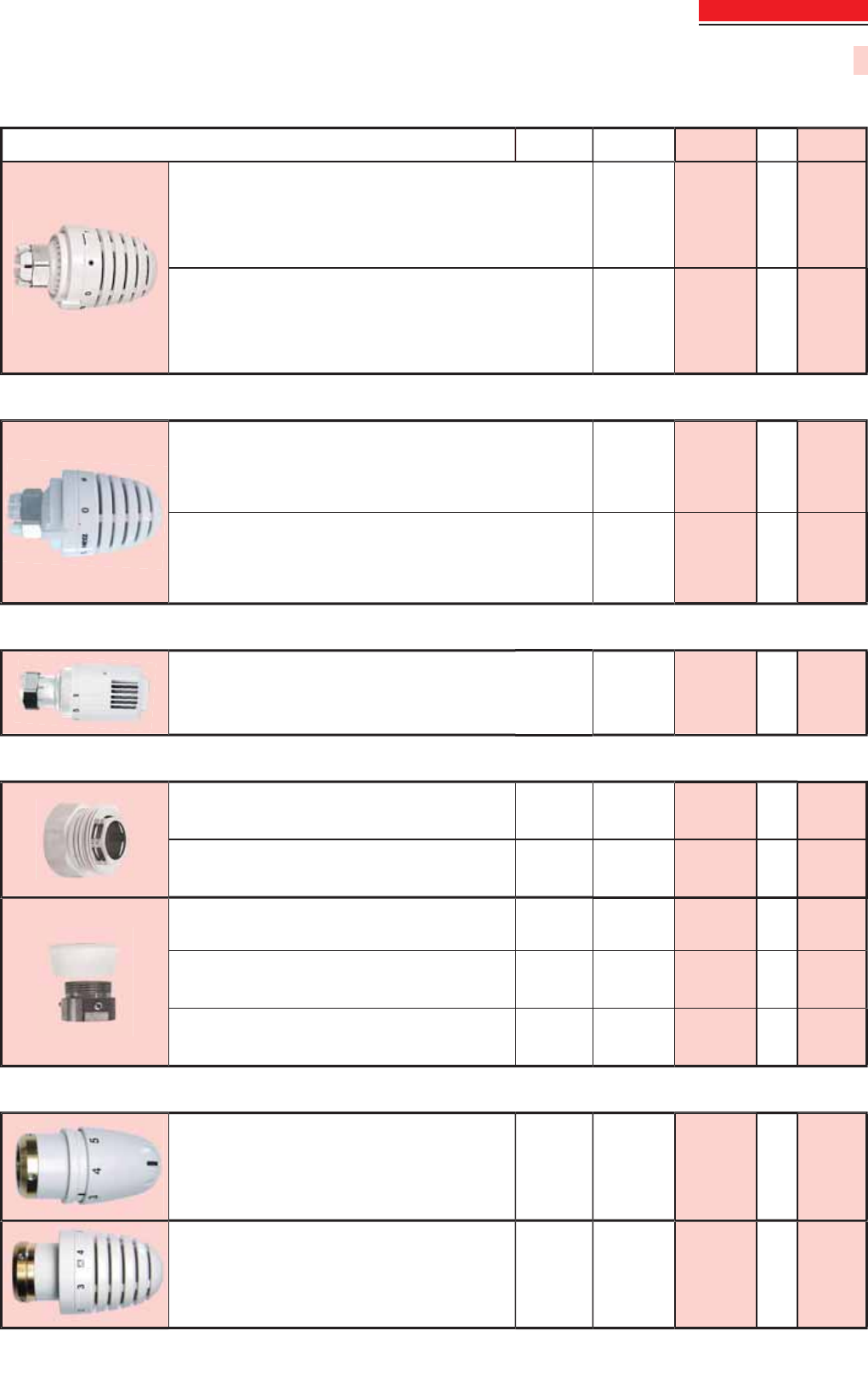

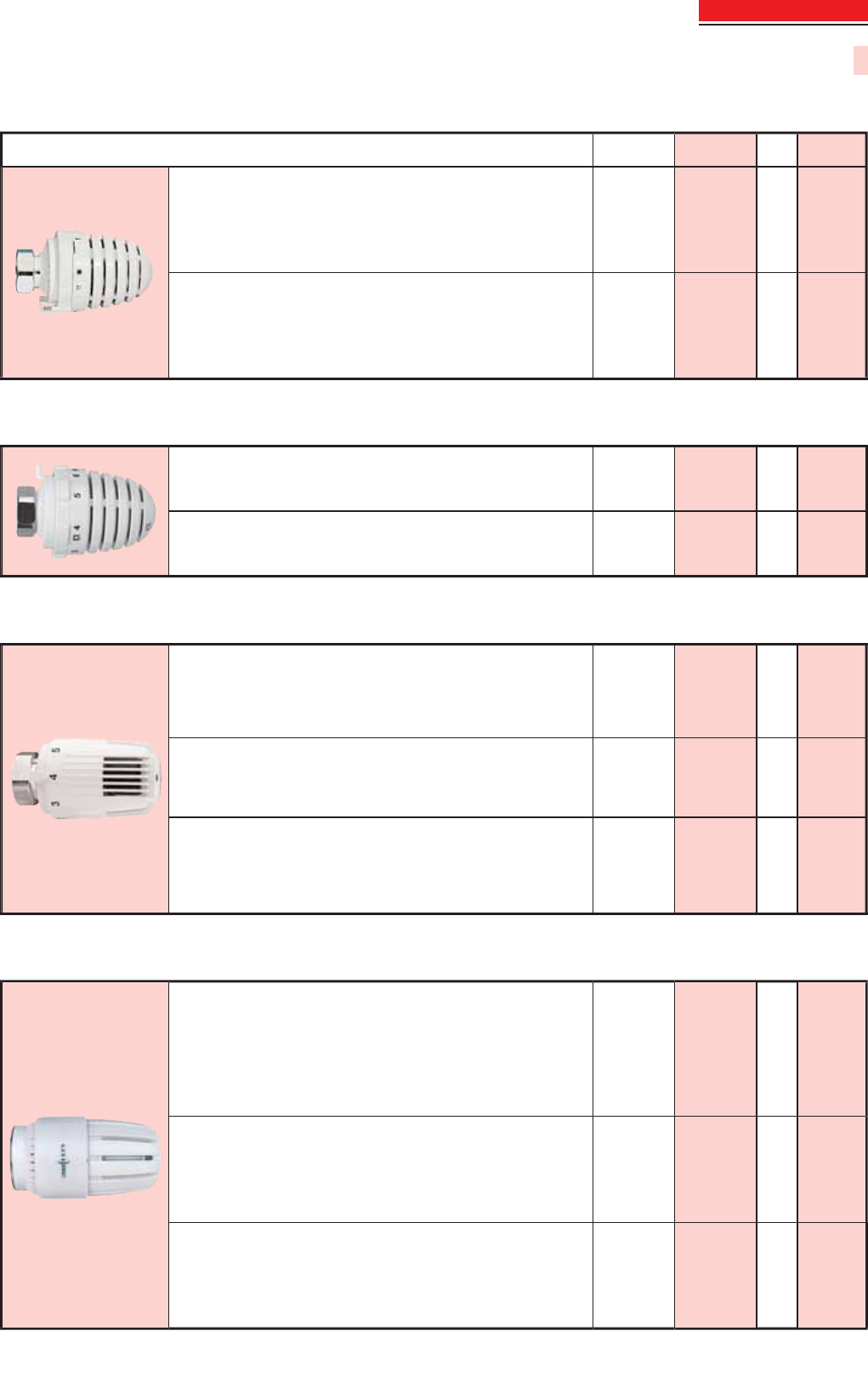

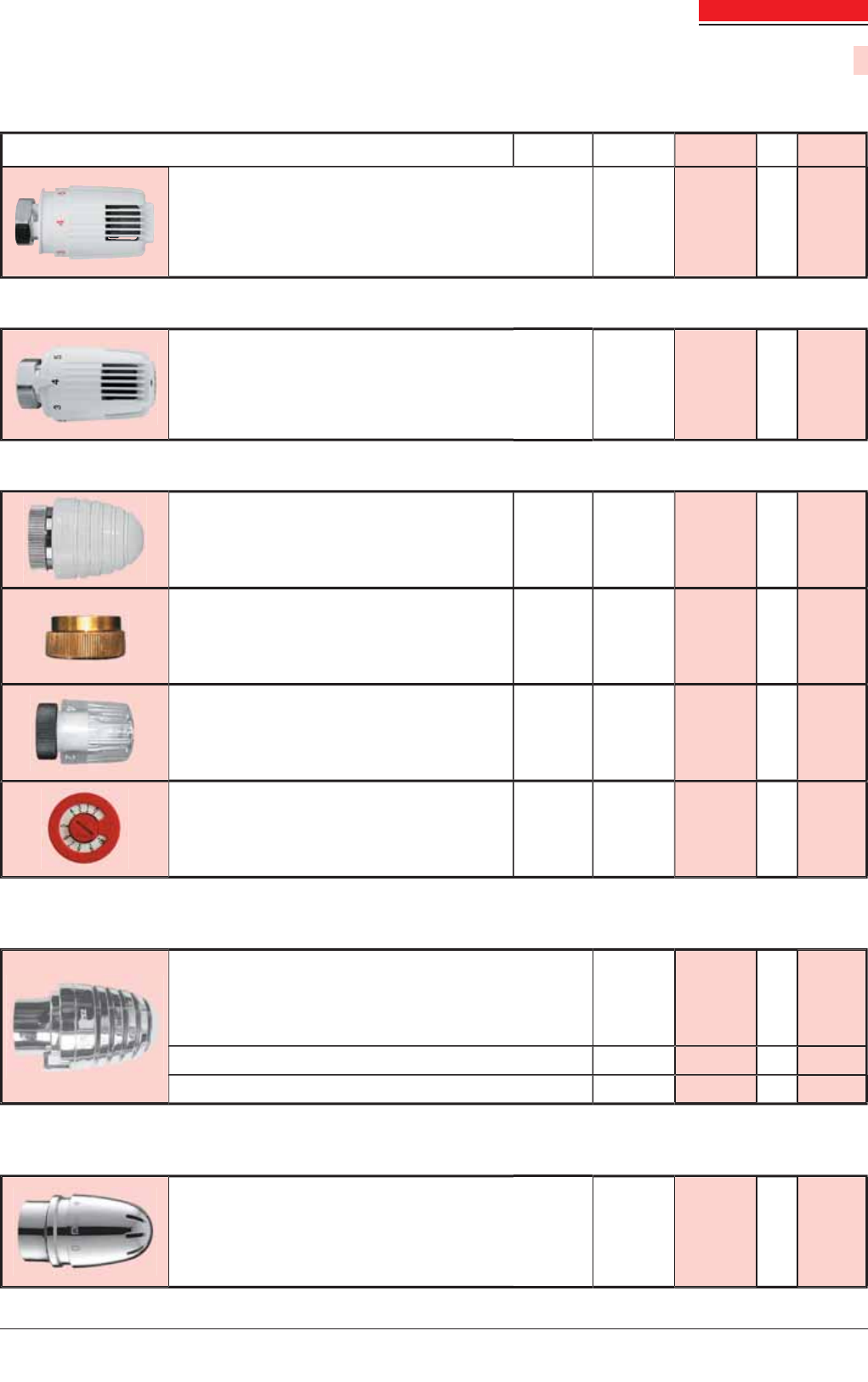

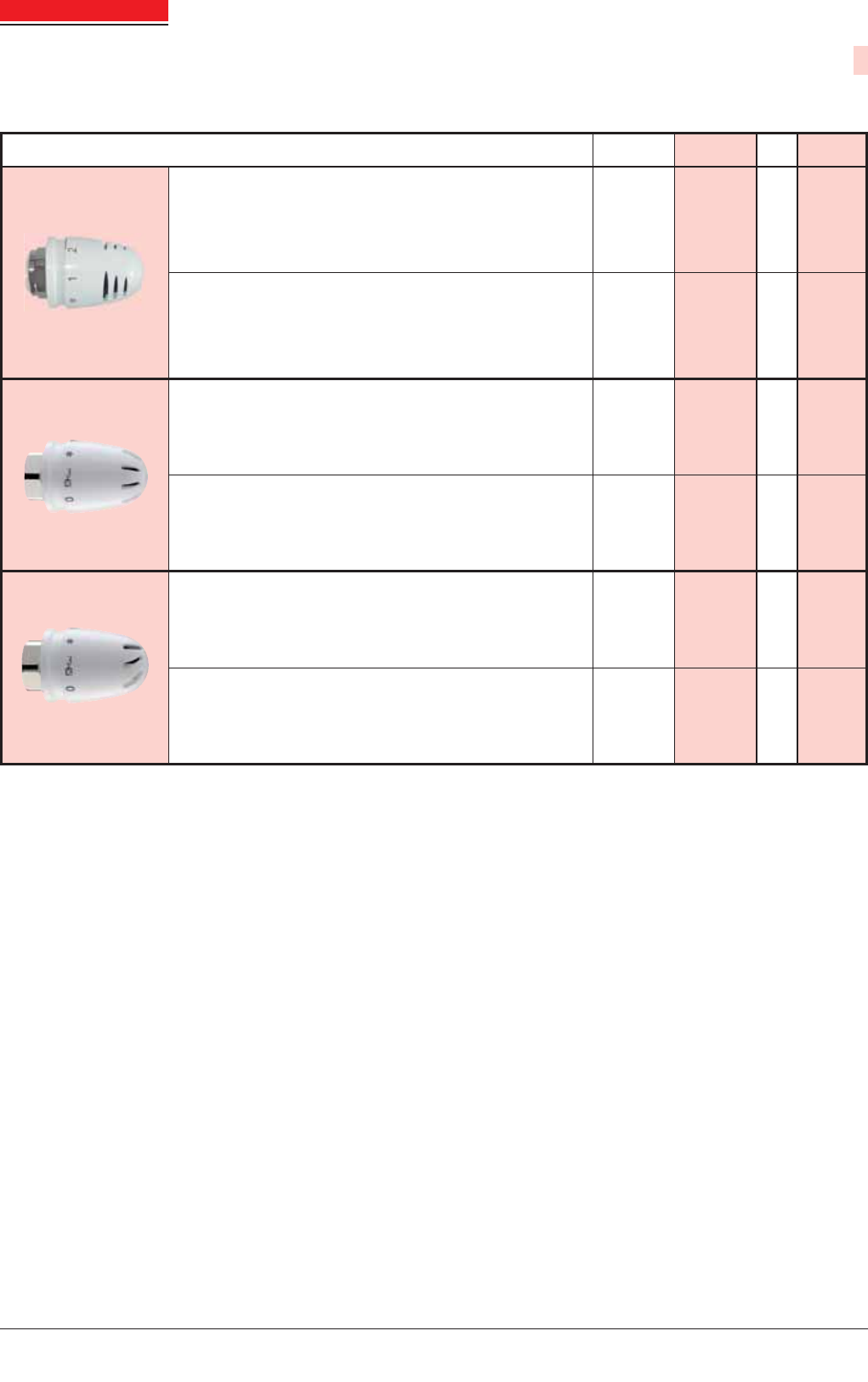

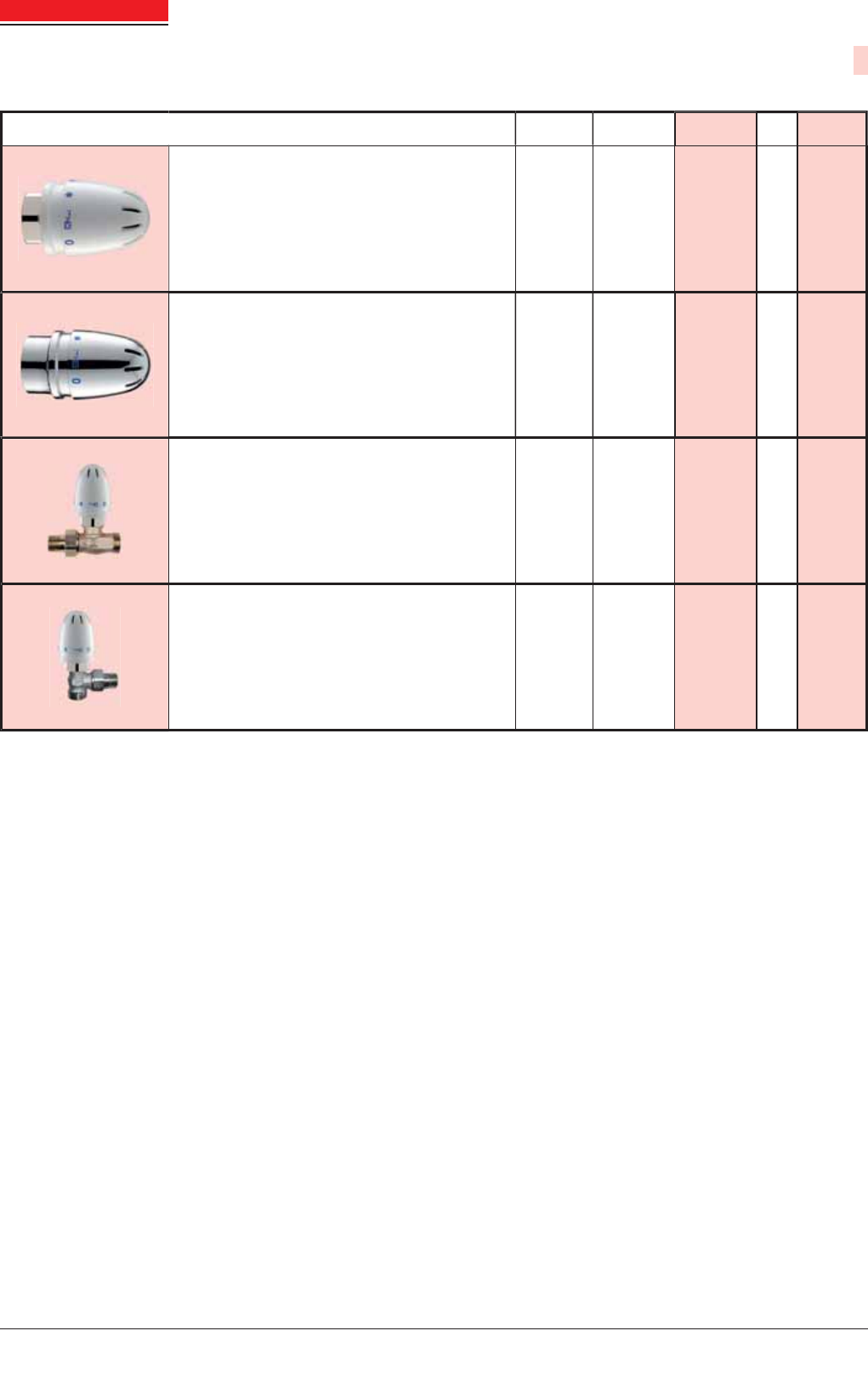

HERZ-Thermostatic Heads
3-5

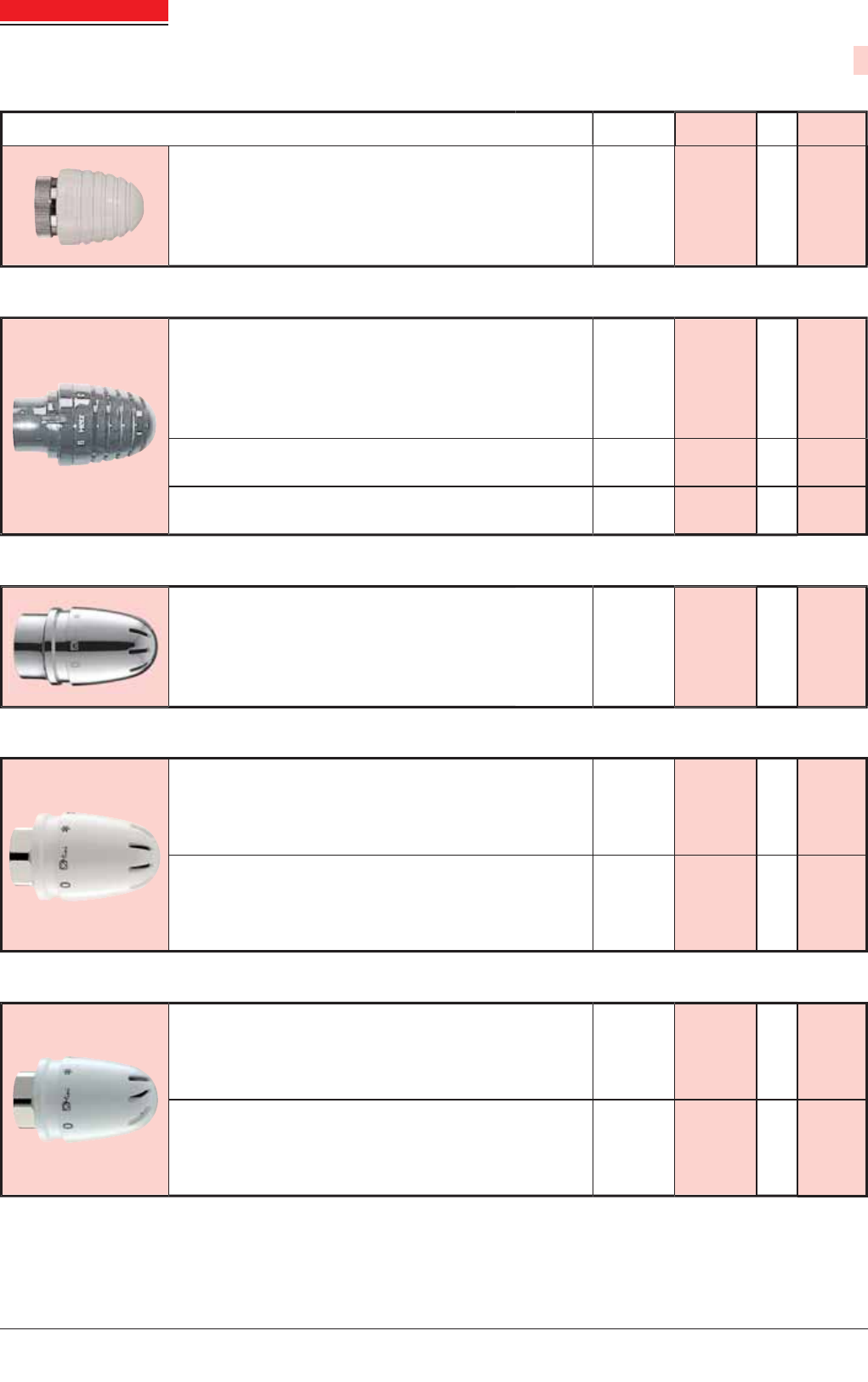

HERZ-Design Thermostatic Heads
5
HERZ-Design-Handwheels
5
HERZ-Thermostats series DE LUXE
5-6
HERZ-Design Thermostats with Remote Adjustment or Remote Sensor, with threaded connection M 28 x 1.5
7-8
HERZ-Thermostats with Contact Sensor
8
HERZ-Thermostats Adapter
8
Foreign valve Thermostats
8
HERZ-Design Thermostatic Heads “H” with Threaded Connection M 30 x 1.5
9-10
HERZ-Thermostatic Heads “H” “DE LUXE” with Threaded Connection M 30 x 1.5
11
HERZ-Thermostatic Heads “H” “DE LUXE” with Remote Adjustment or Remote Sensor, with Threaded Connection M 30 x 1.5
12
HERZ-Thermostatic Adapter Rings “D”
13
HERZ-Thermostatic Heads D “DE LUXE”
14-15
HERZ-Design Thermostats “D”
14
HERZ-Design Thermostats “D” with remote
14
HERZ-Design Hand Wheel “D”
14
Accessories and Tools for HERZ-Thermostatic Heads
16

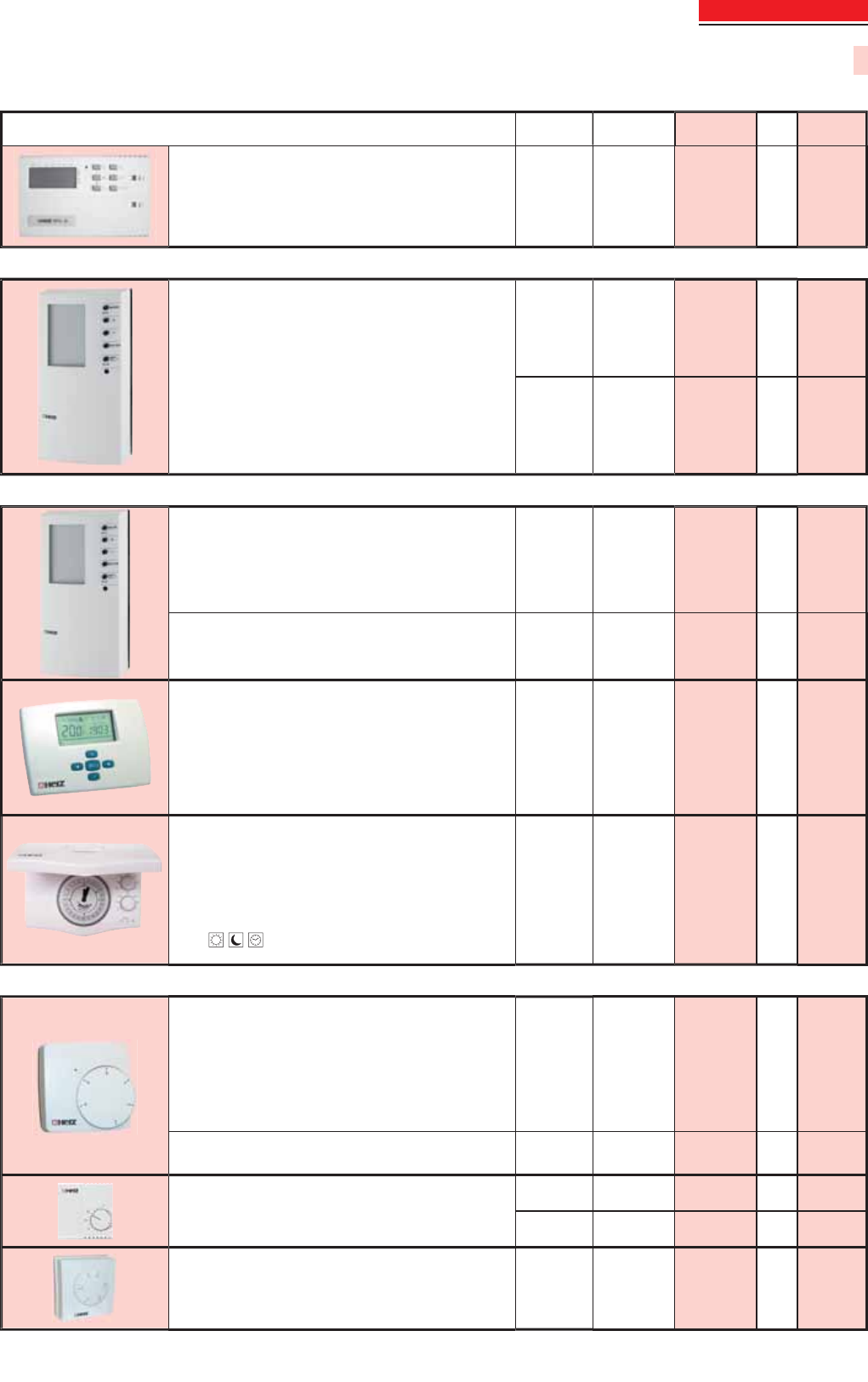

HERZ-Temperature controller RTC
17
HERZ-Temperature Controller RTR
17, 20
HERZ-Actuating Drive
18
Accessories for Actuators
19
HERZ-Wireless Room Control RTF
21
HERZ-Energy Saving Thermostatic Head
21
HERZ-Return Temperature Limiter
22
HERZ-Floor Heating Control Sets
23
HERZ-Floor Fix, Floor Heating Control Set for Flush Mounting
23

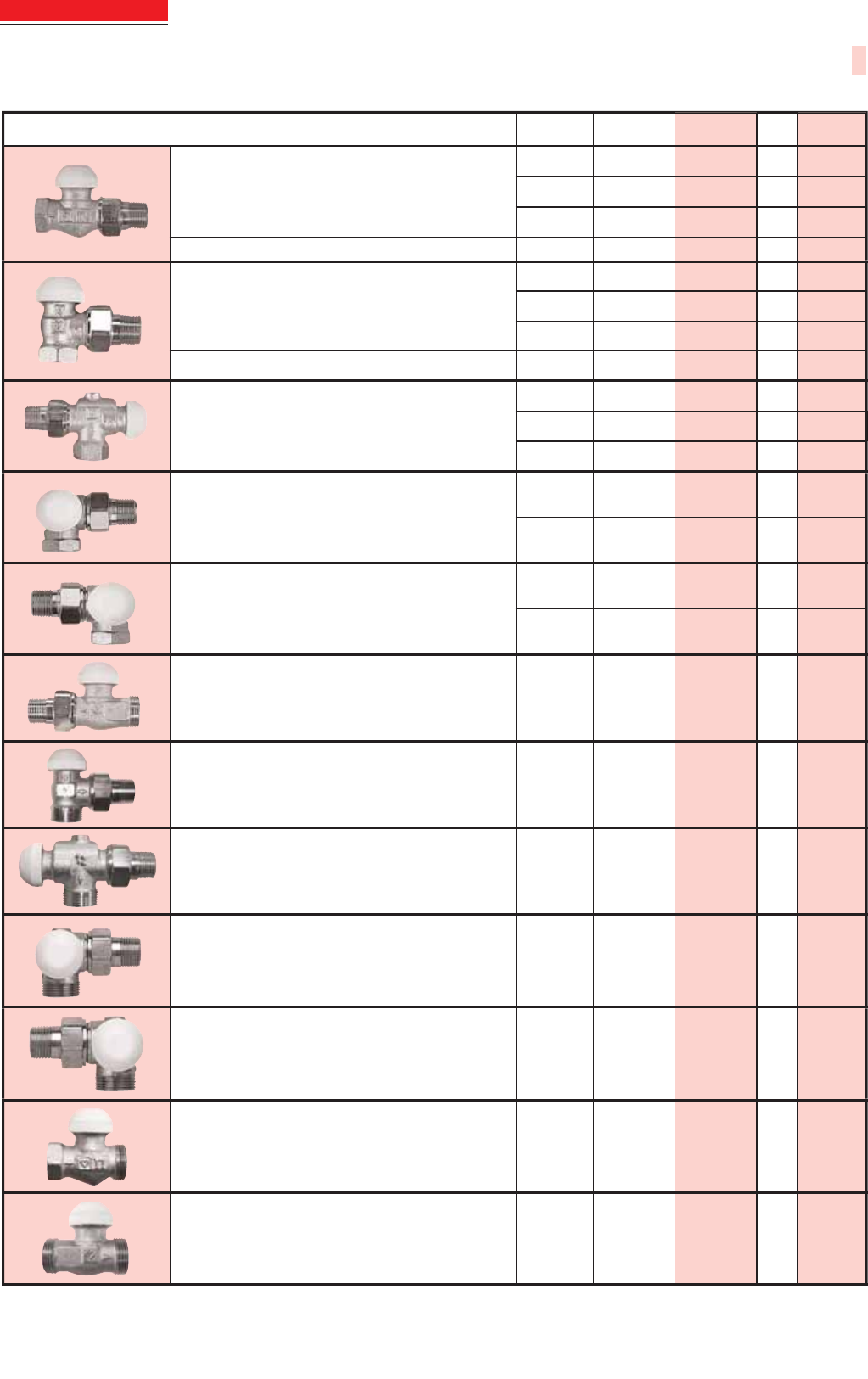

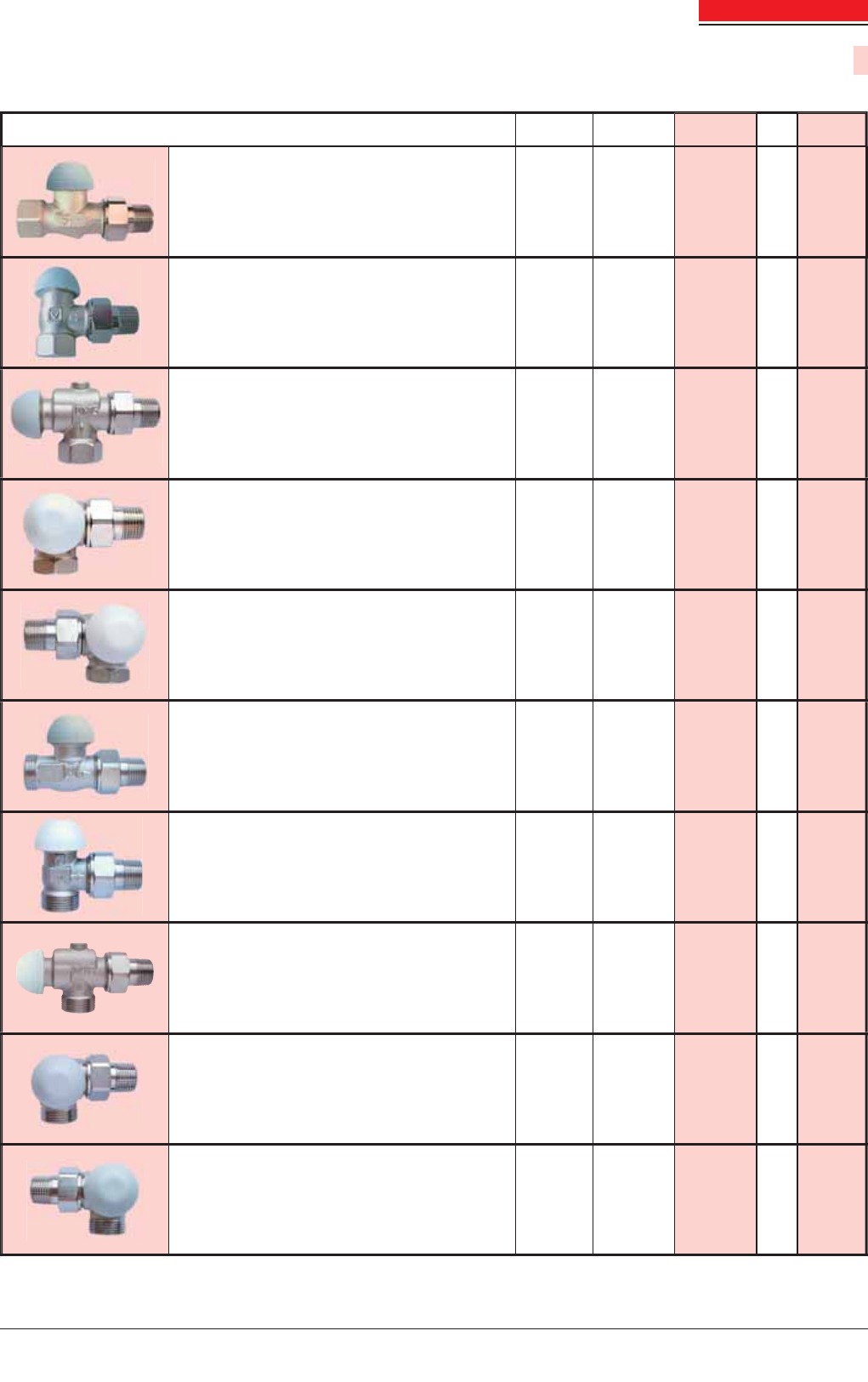

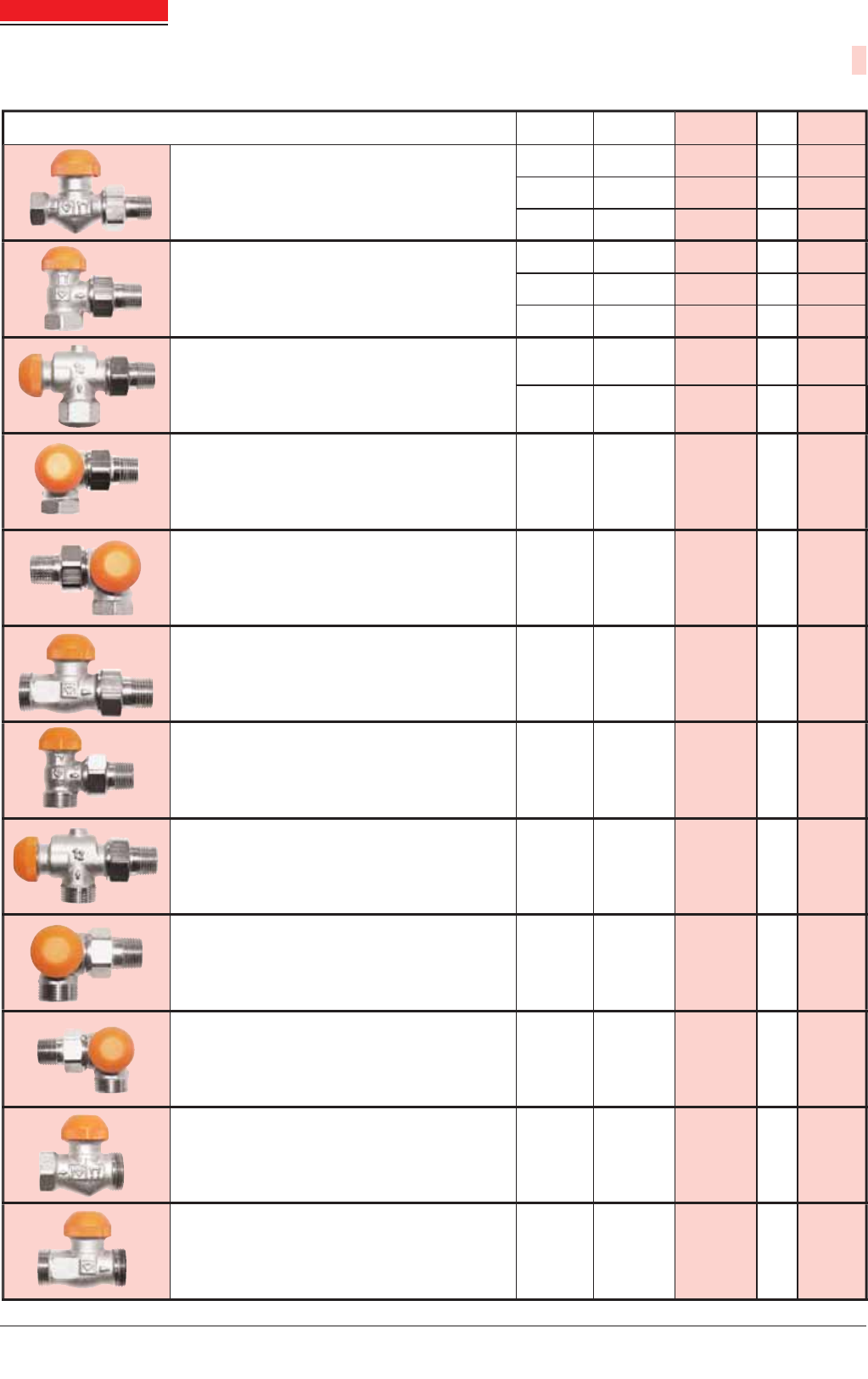

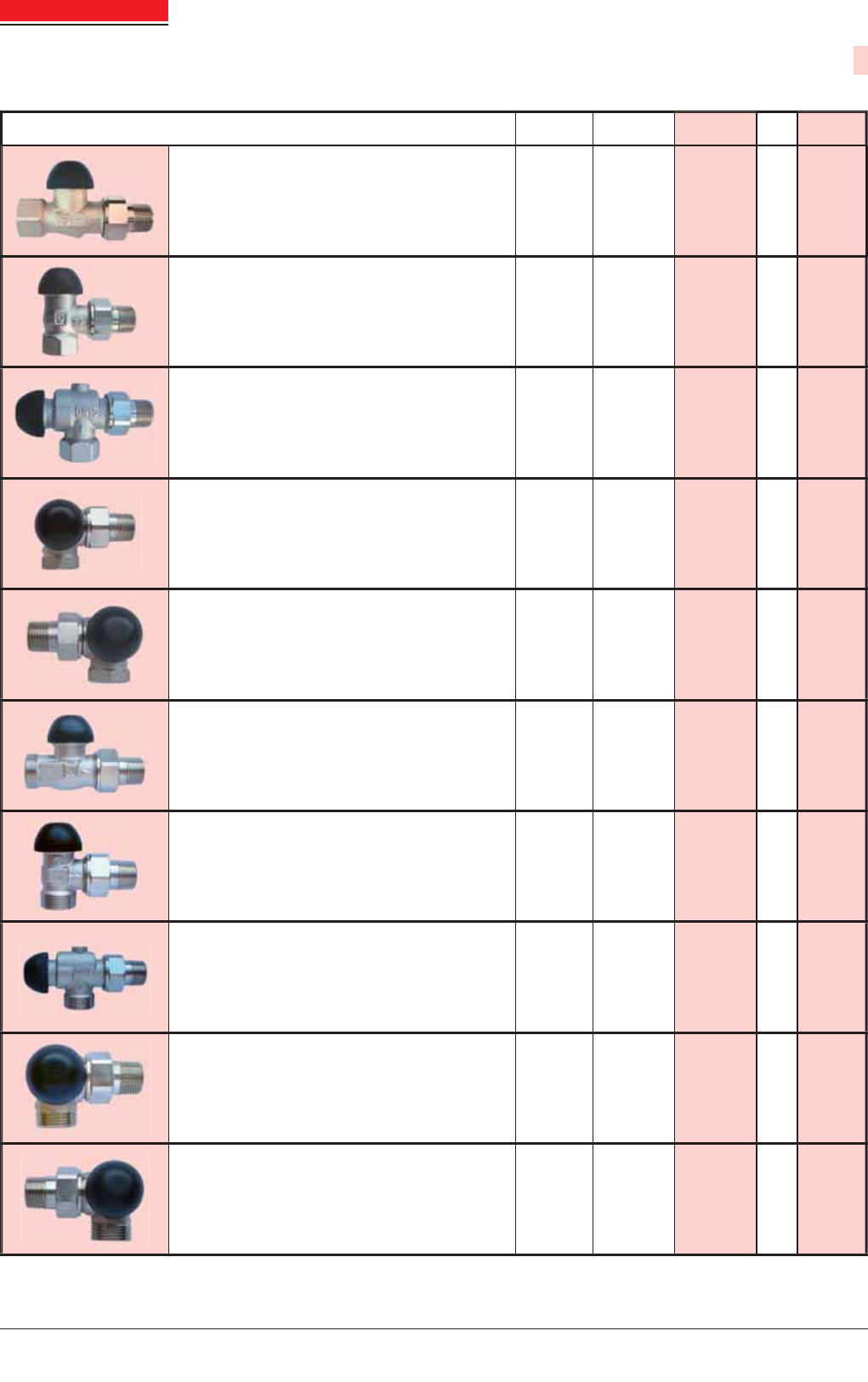

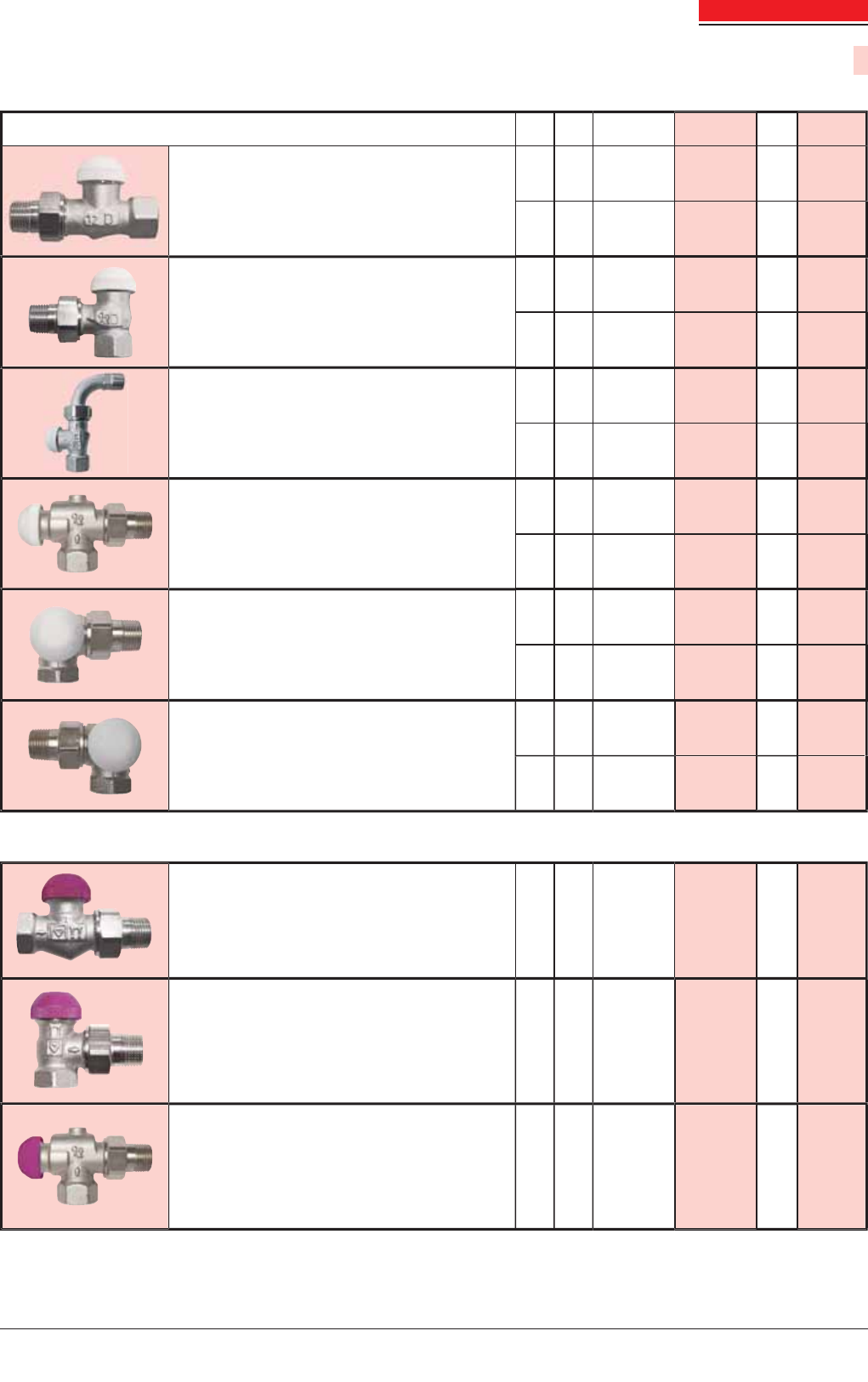

HERZ-TS-90-Thermostatic Valves
24, 52

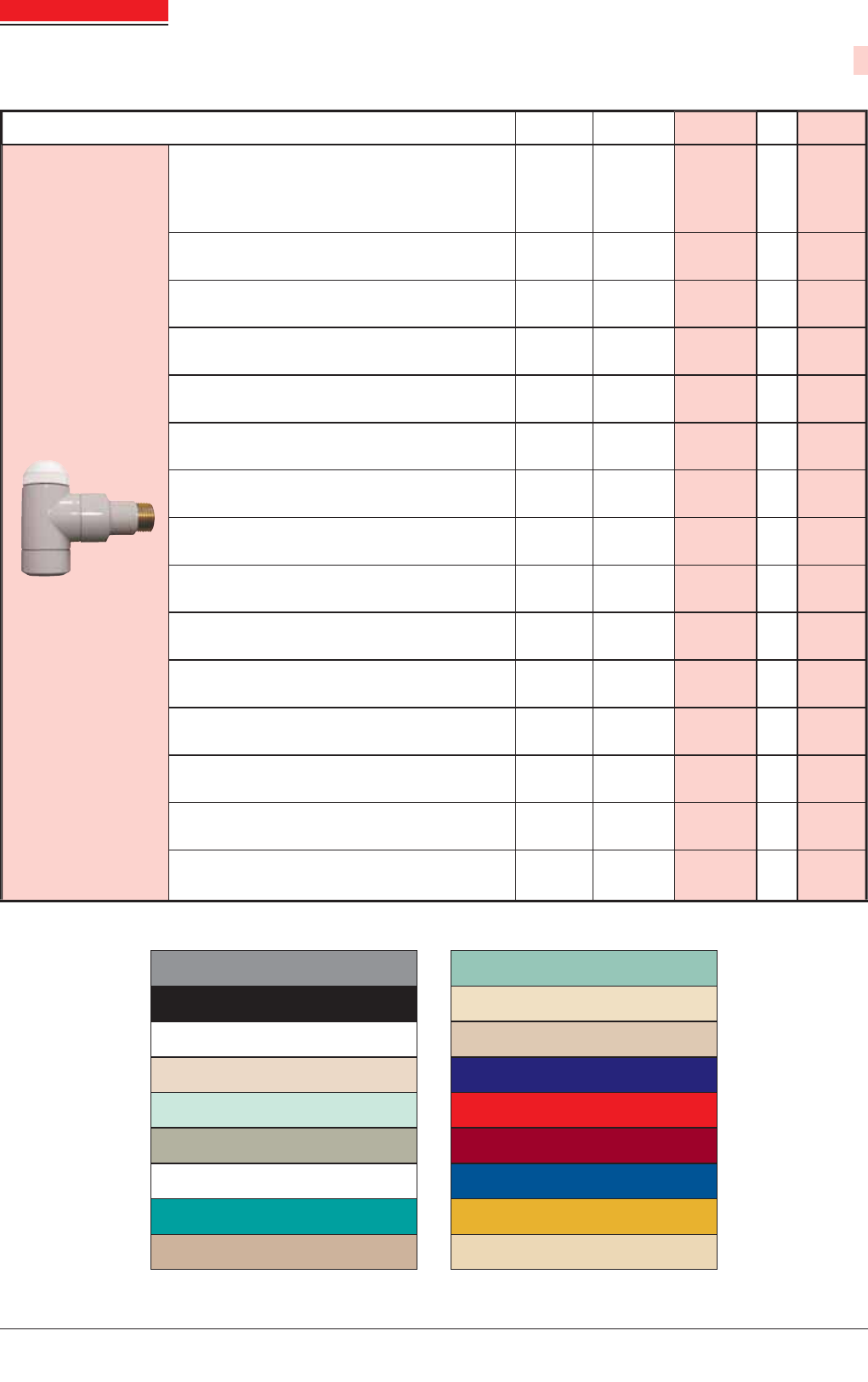

Thermostatic Valves “DE LUXE”
25-26
HERZ-TS-90-E-Thermostatic Valves
27
HERZ-TS-E-Thermostatic Valves
27
HERZ-TS-90-Thermostatic valves TS-90-kv
28-29
HERZ-TS-FV Thermostatic Valve
29
HERZ-TS-98-V Thermostatic Valves
30
HERZ-TS-90-V Thermostatic Valves
31
HERZ-Bi-Directional Flow Thermostatic Valves
32
HERZ-Thermostatic Valves Special Design
33
HERZ-TS-90-H-Thermostatic Valves
34
HERZ-TS-98-VH-Thermostatic Valves
35

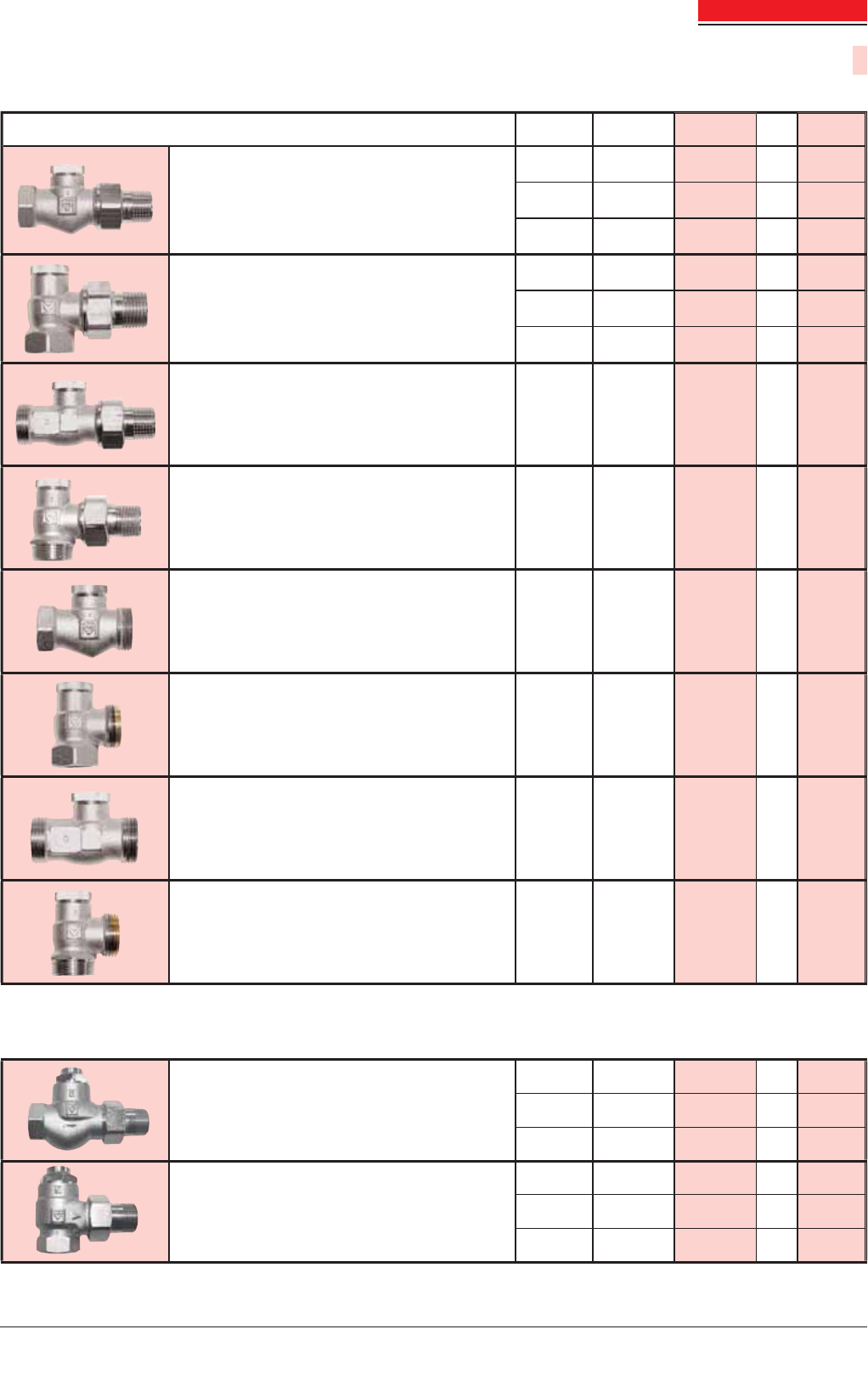

HERZ-RL-5-Return Valves
36
HERZ-RL-1-Return Valves
37
HERZ-RL-1-E-Return Valves
37
HERZ-Return Valves “DE LUXE”
38
HERZ-DR-T-90-Radiator Control Valves
39
HERZ-GP-Radiator Control Valves
40
HERZ-TS-3000-Bypass Bodies for Radiators with Integrated Thermostatic Valves
41-42

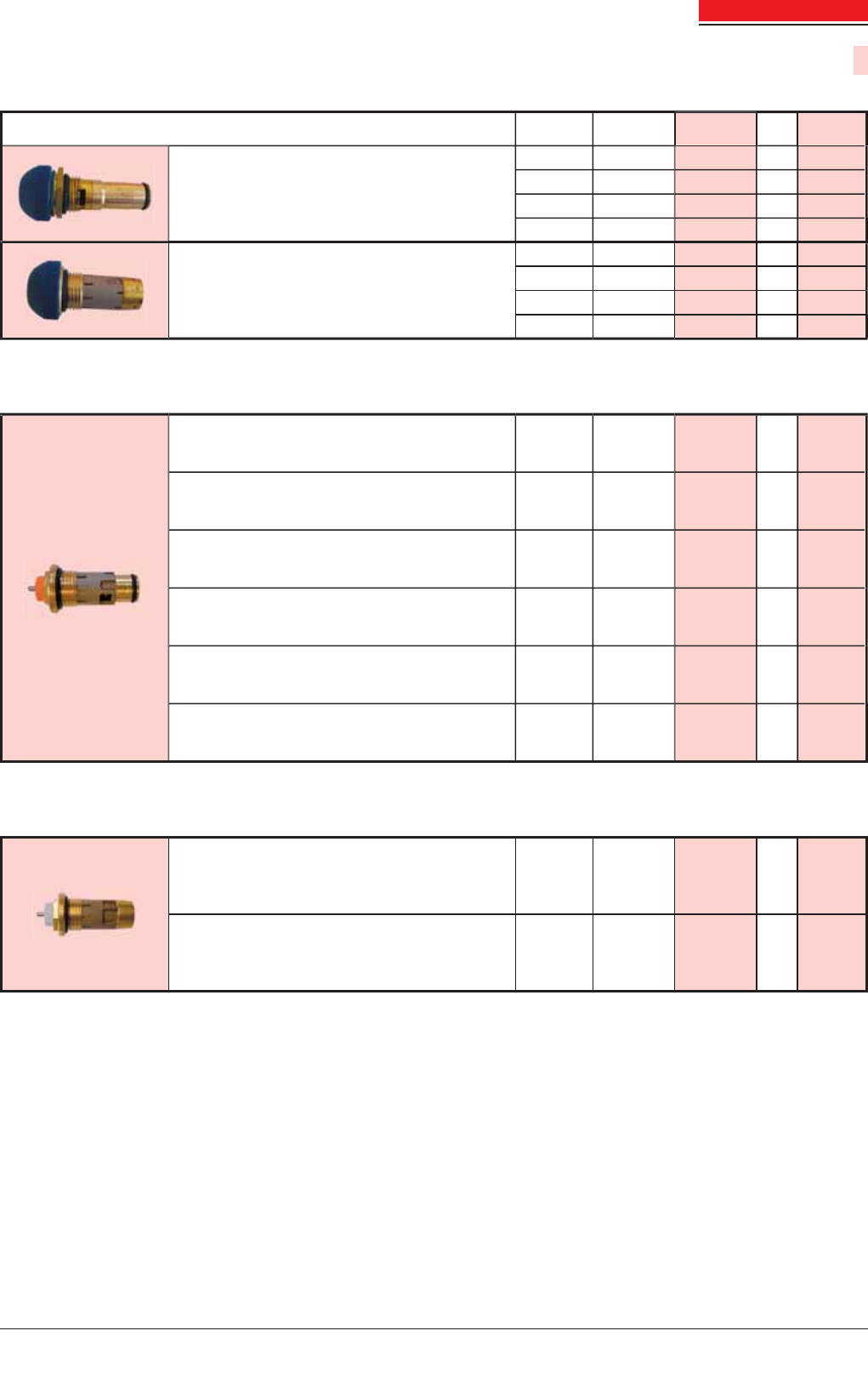

HERZ-Thermostatic Inserts
43

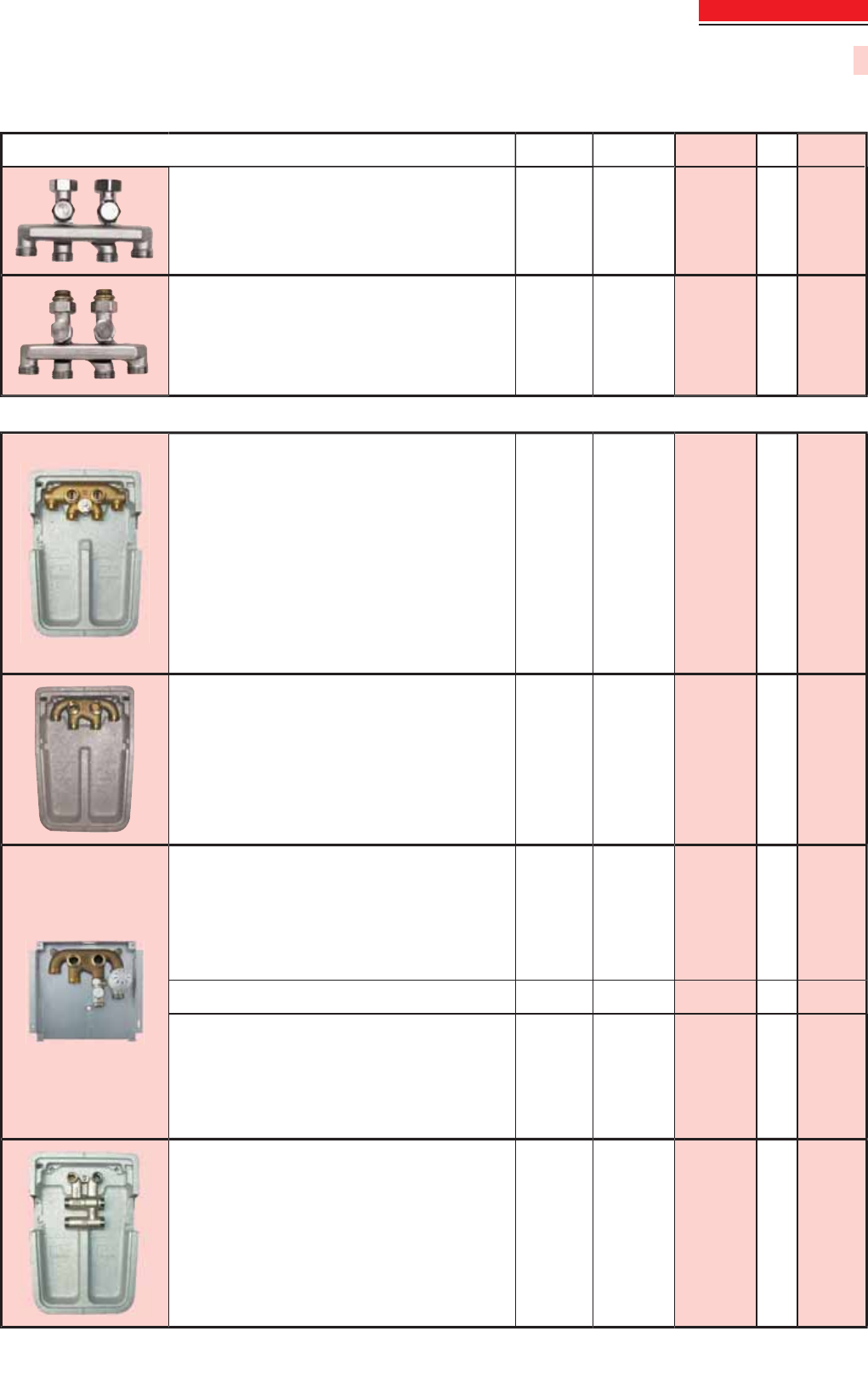

HERZ-3000 Connection Elements “Project”
44

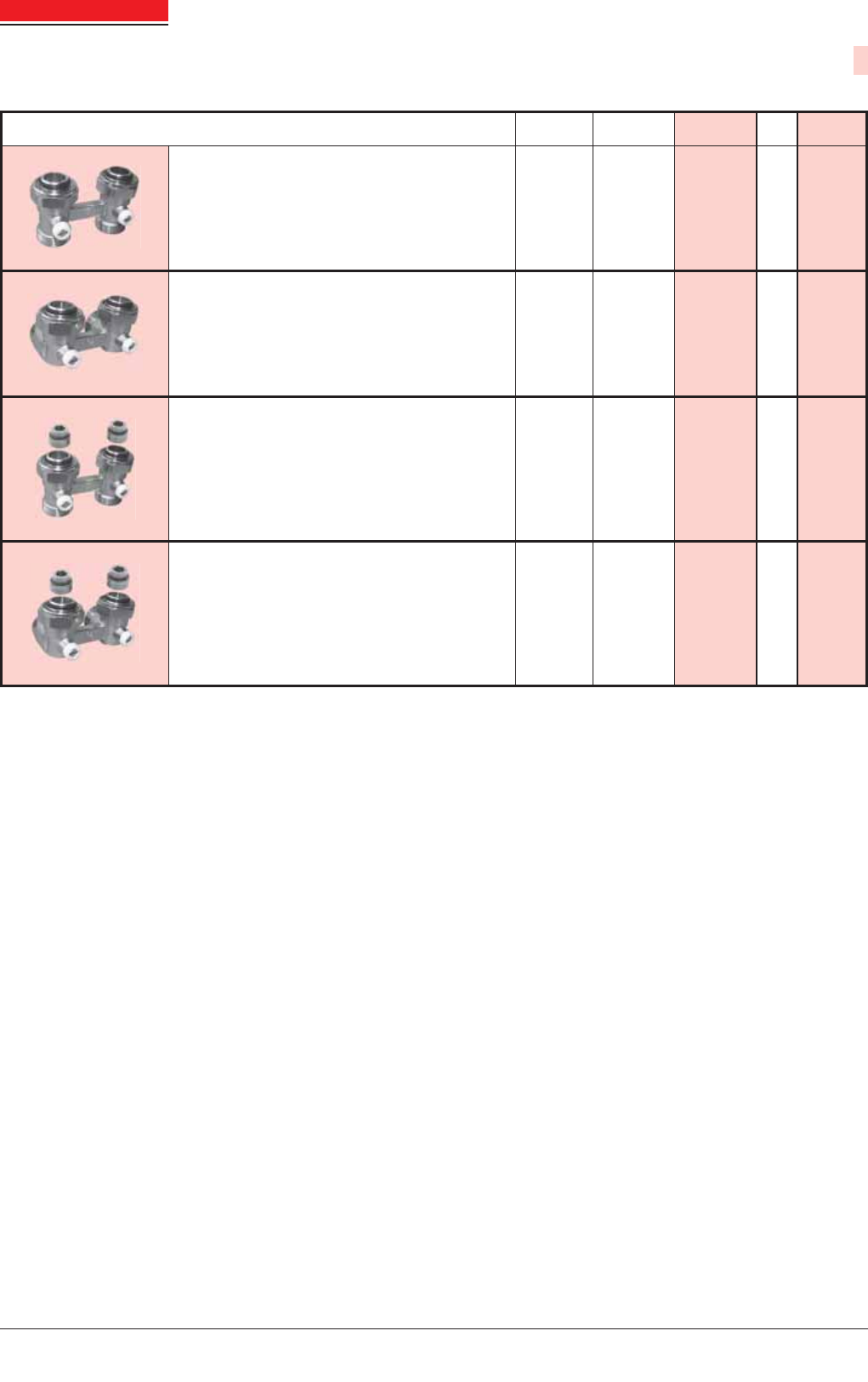

HERZ-3000 Connection Elements for Radiators with Integrated Thermostatic Valves
45-47
HERZ-3000 TP-bypass body for Radiator connection
47
HERZ-RL-4-Single Shutoff Valve
48
HERZ-Design Cover for HERZ-3000
48

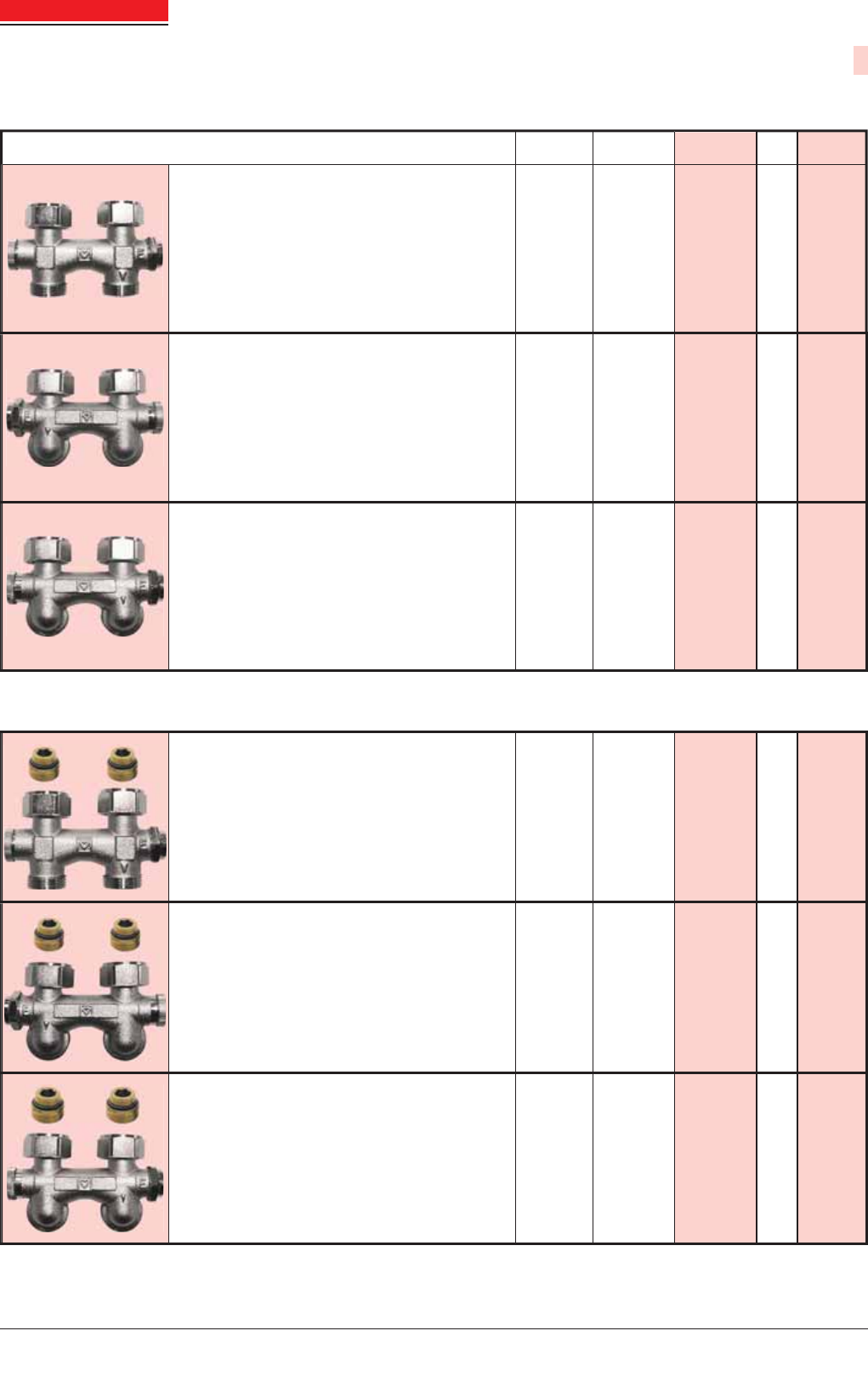

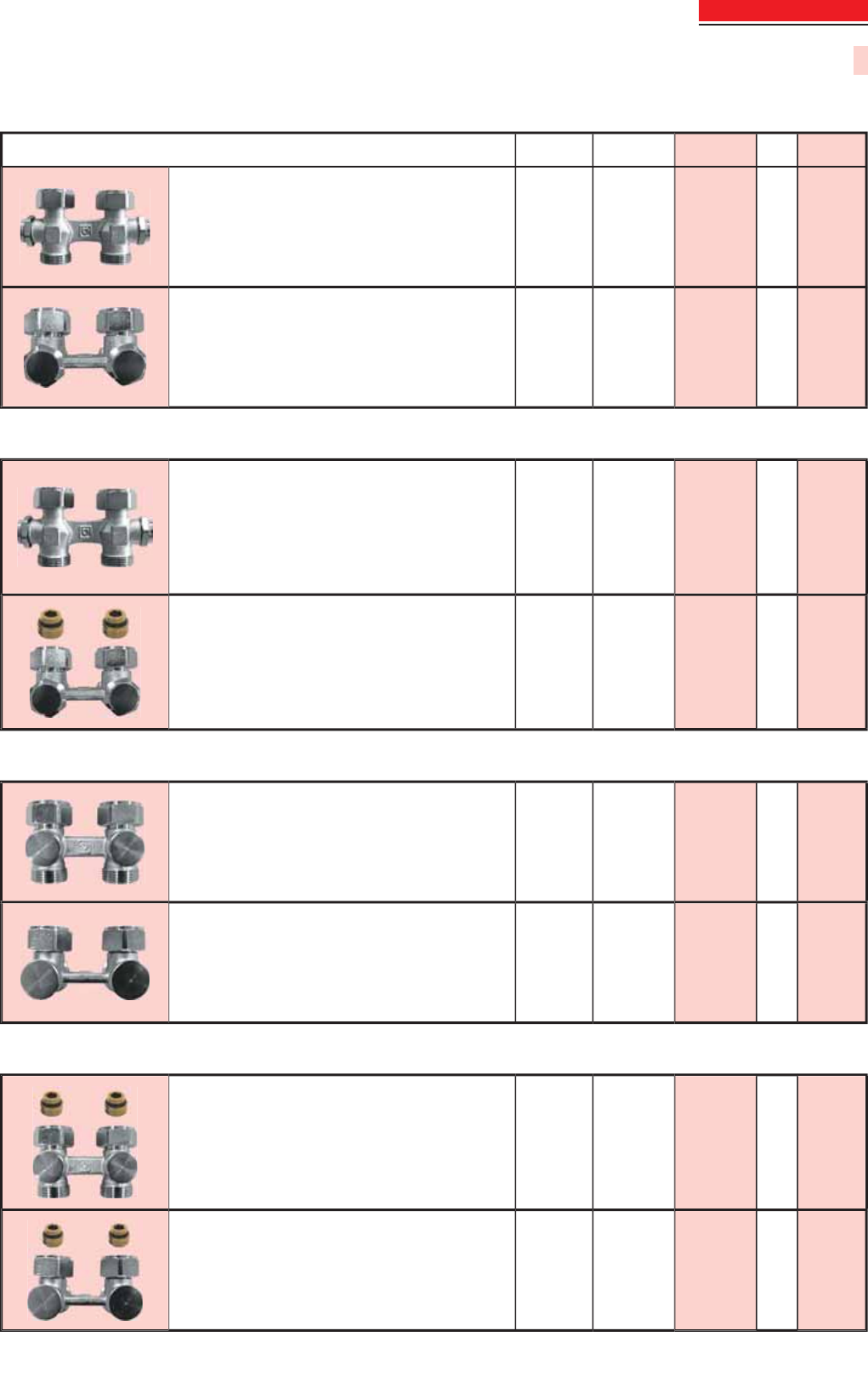

HERZ-Double Connection Distributor for Radiators, SWITCHFIX
49
Connection Systems
50-52
HERZ-2000 Bypass Body
52
Valve Arrangements
53

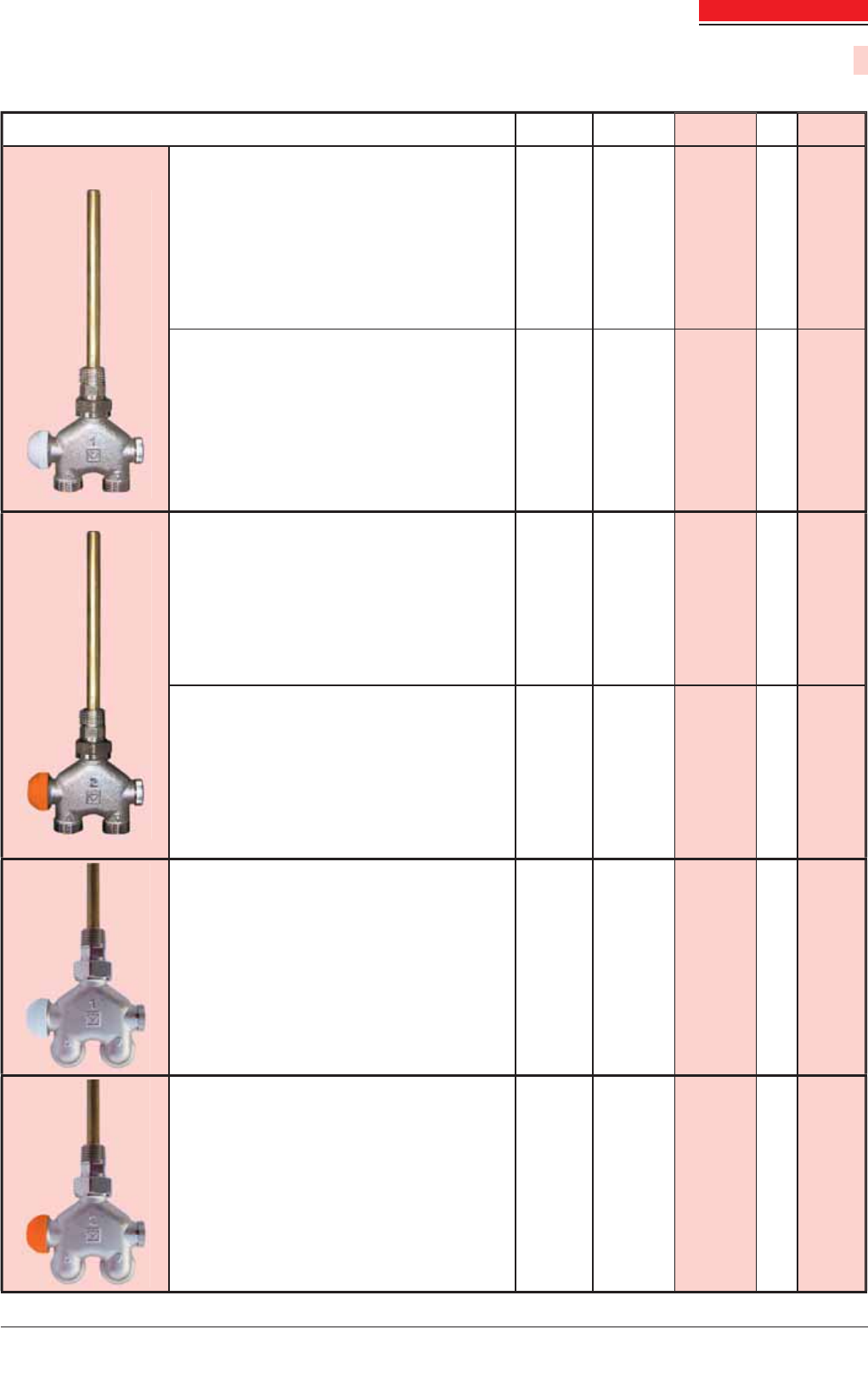

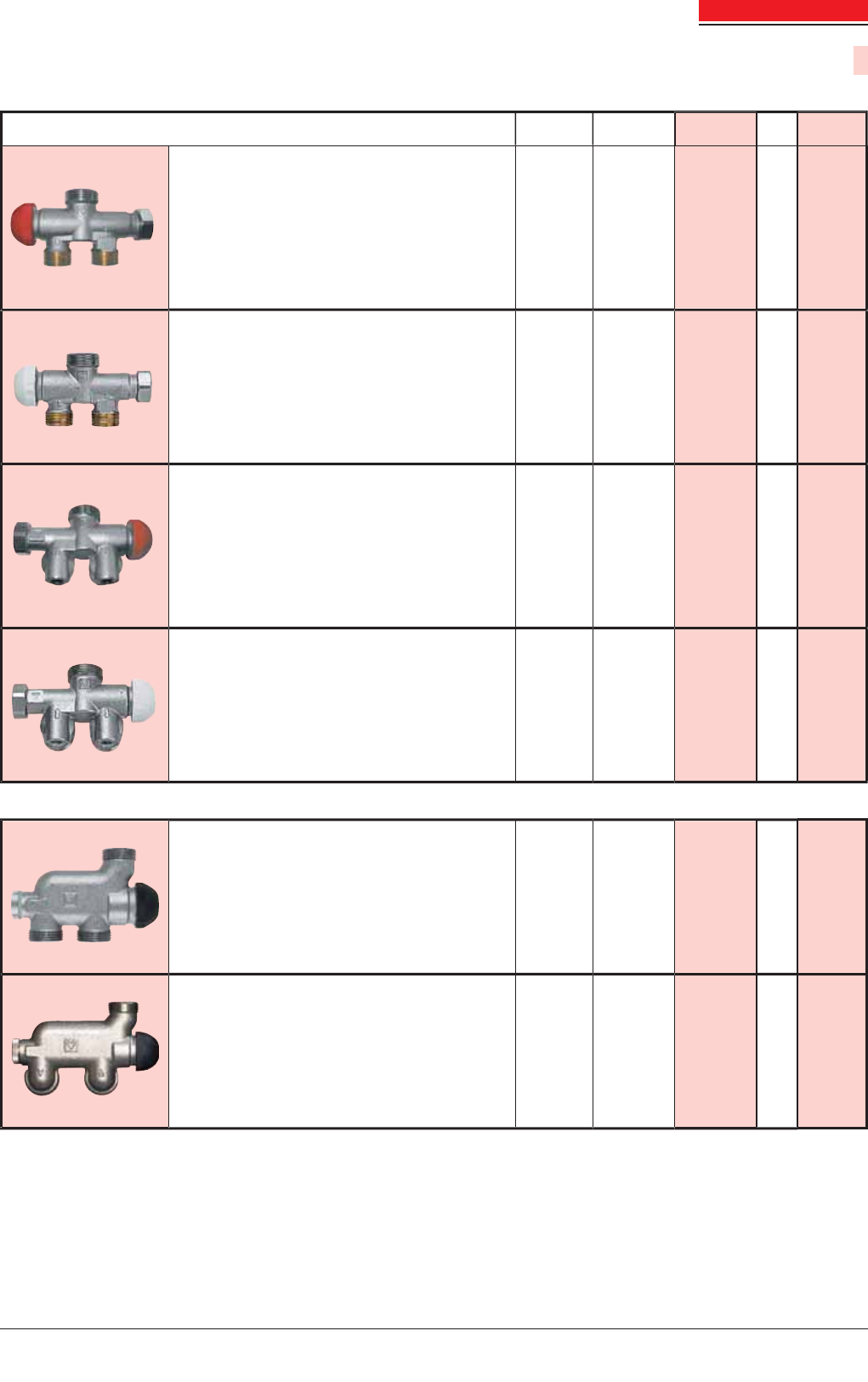

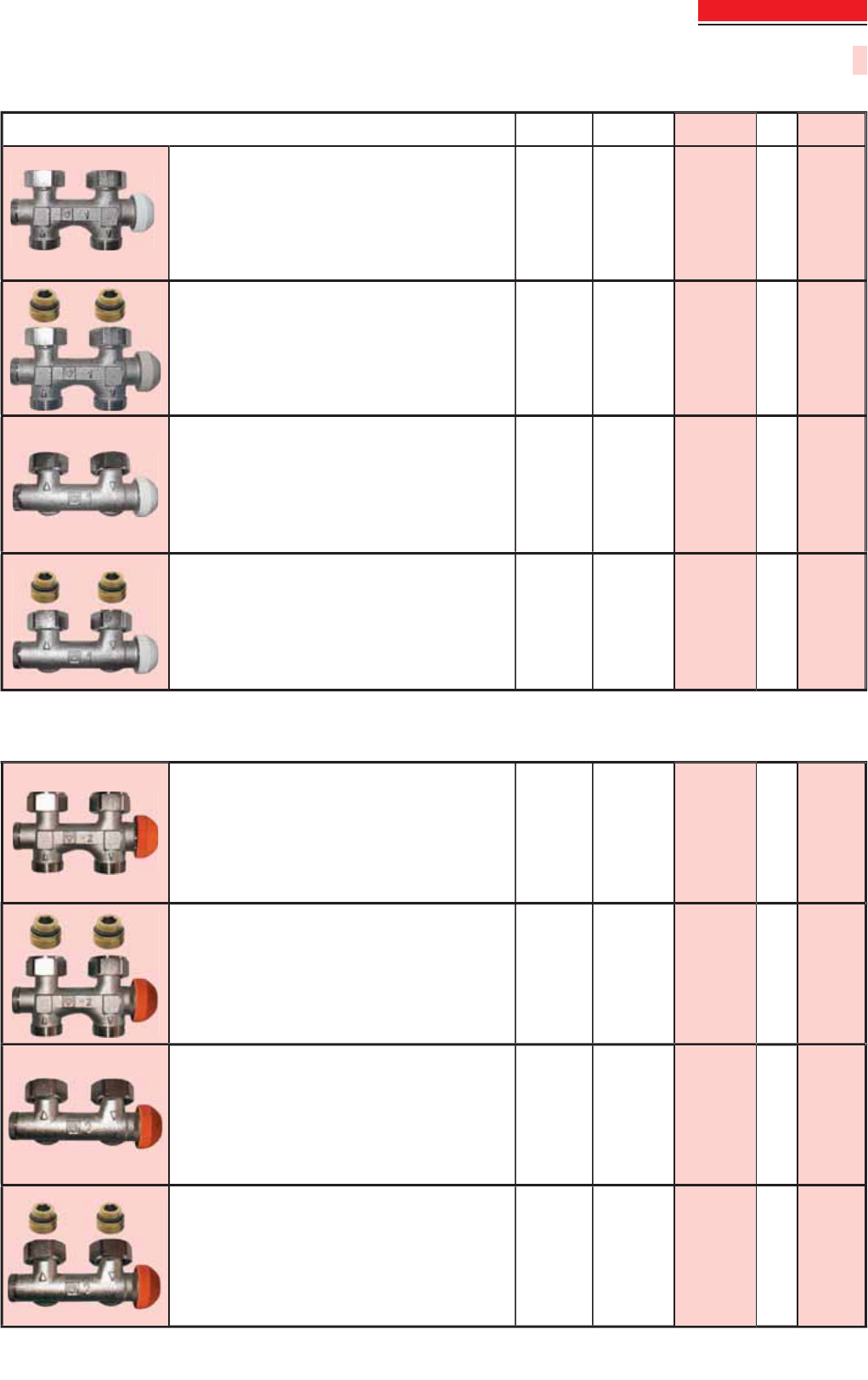

HERZ-VTA-40-Four-Way Valves
54

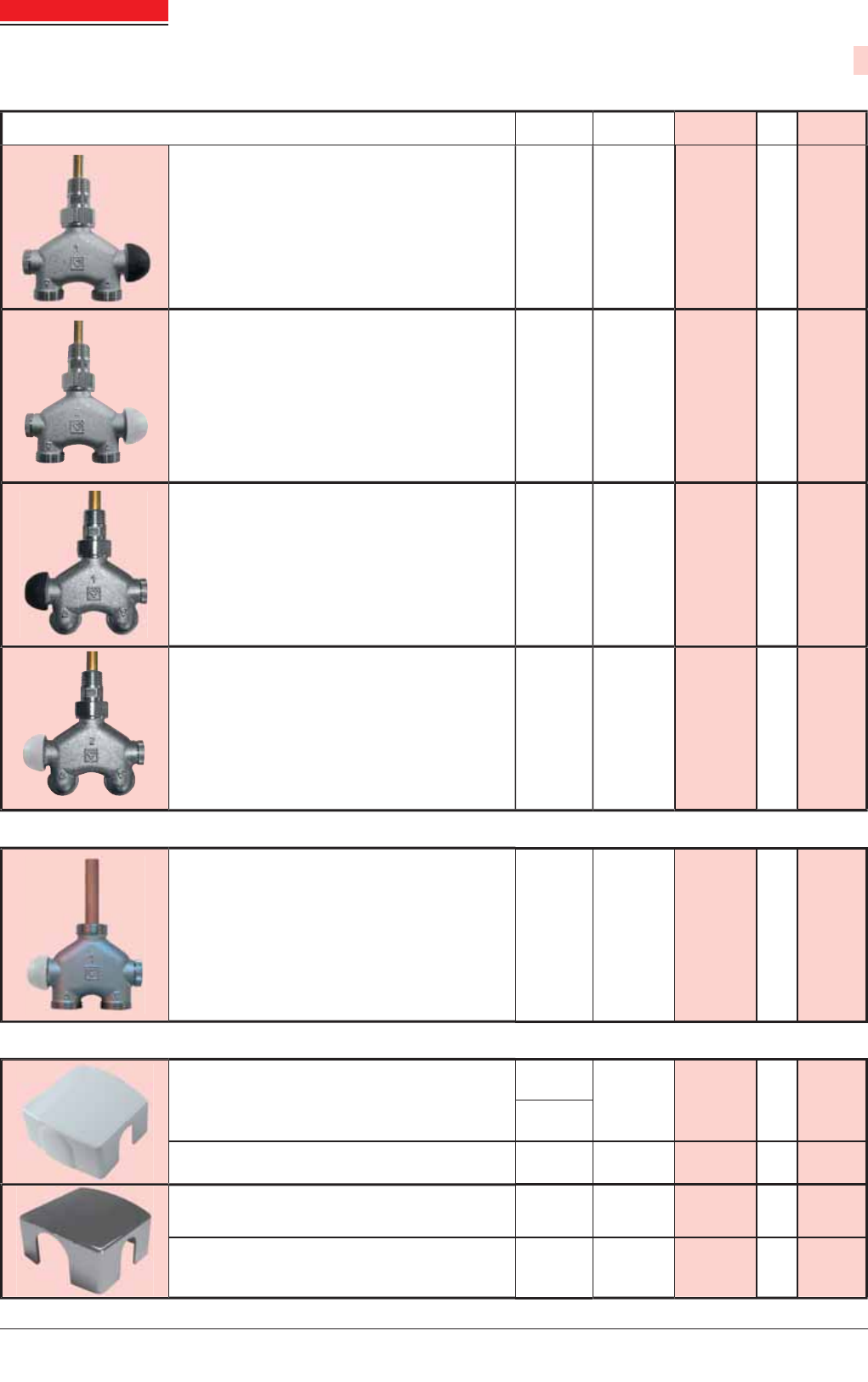

HERZ-VUA-40-Four-Way Valves
55-56
HERZ-Design cover for Four-Way valves VUA
56
HERZ-VUA-TV-Four-Way Valves
57
HERZ-CALIS-TS-Three-Way Valve
58

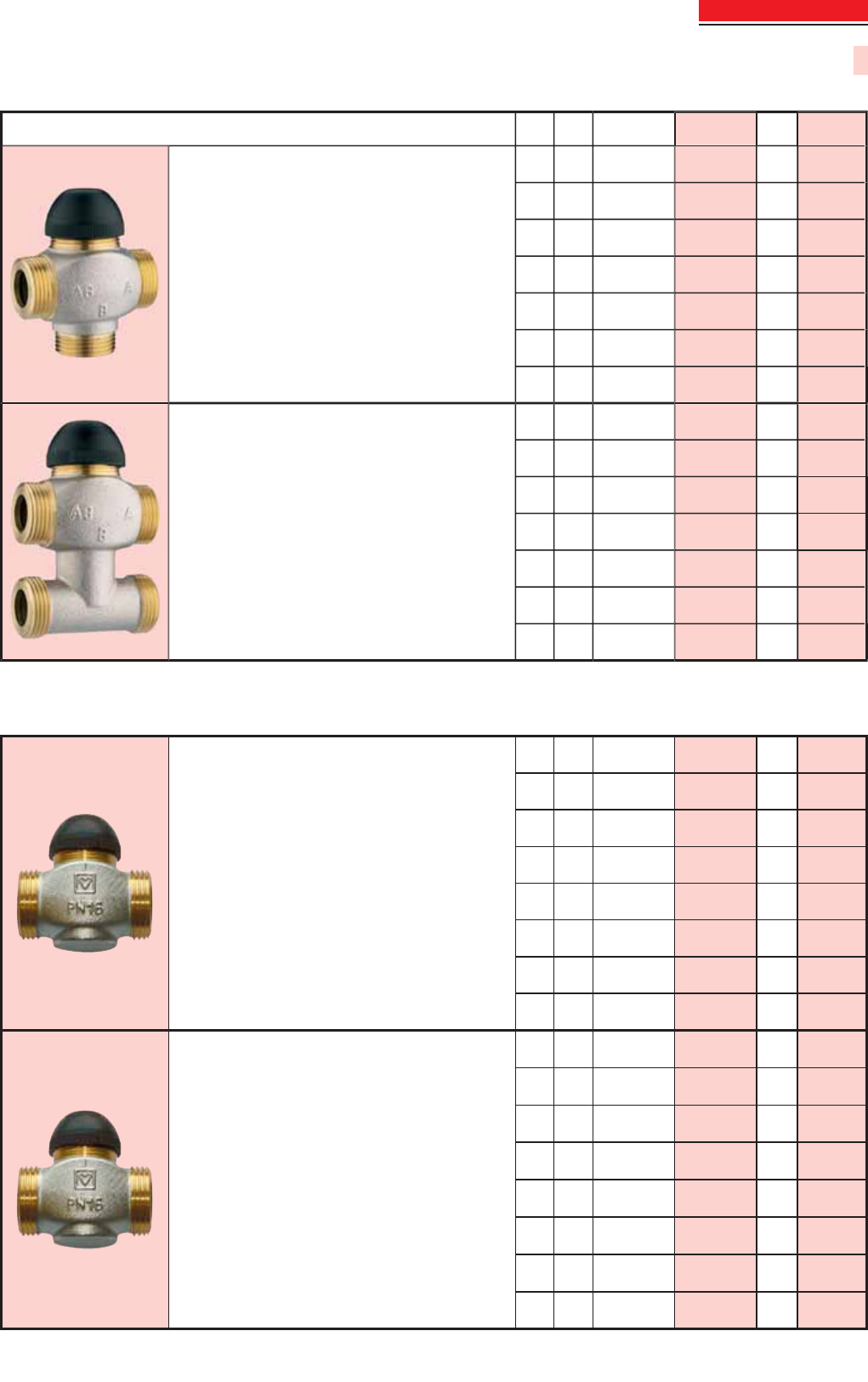

HERZ-Thermostatic Three-Way Valves and Two Port Valves
59
HERZ-Thermostatic Control Valves
60-61
HERZ-Two Port Control and Zone Valves
61
Control Ball valves, Actuator
62
HERZ-Keys and Tools for Thermostatic Valves
63

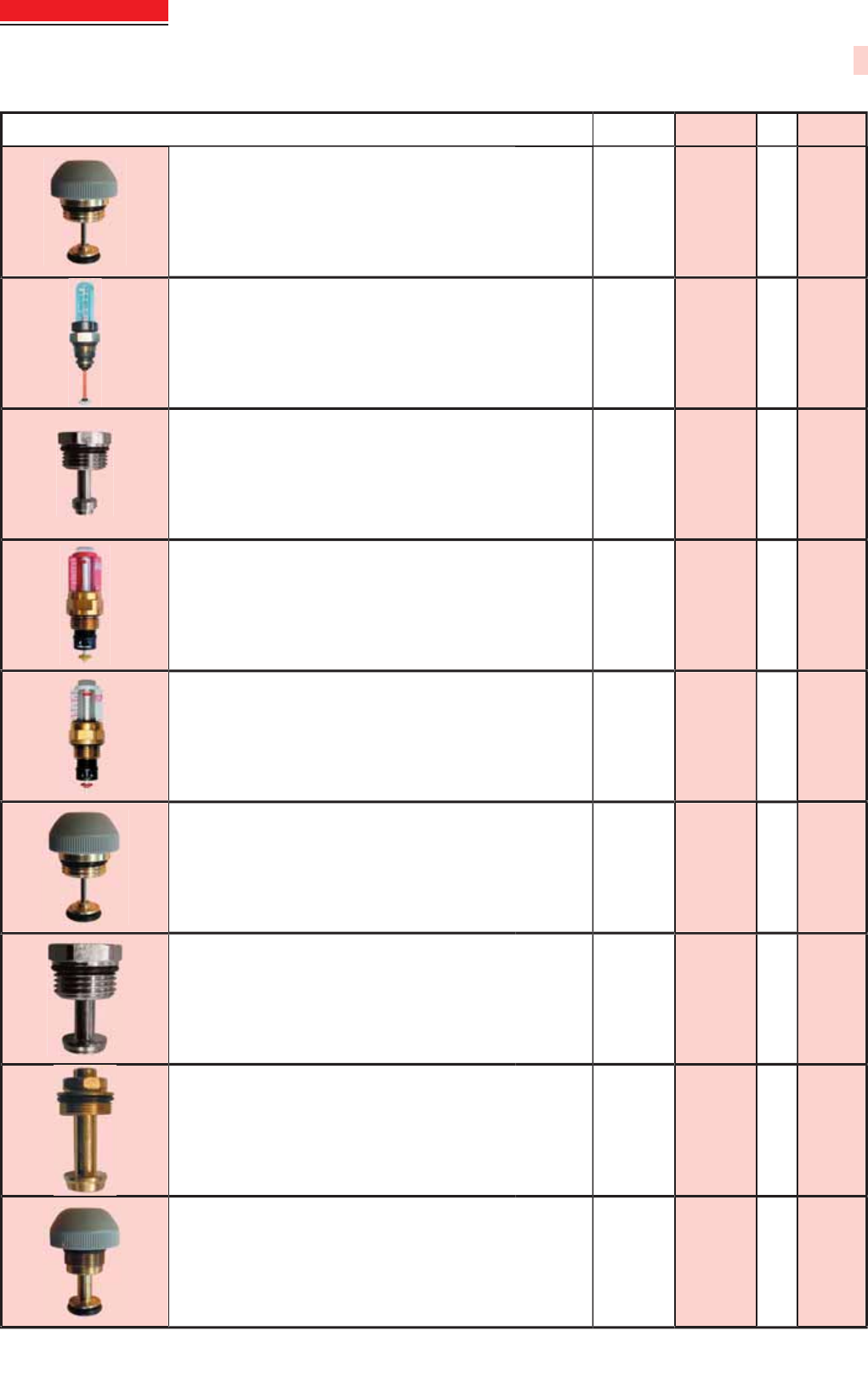

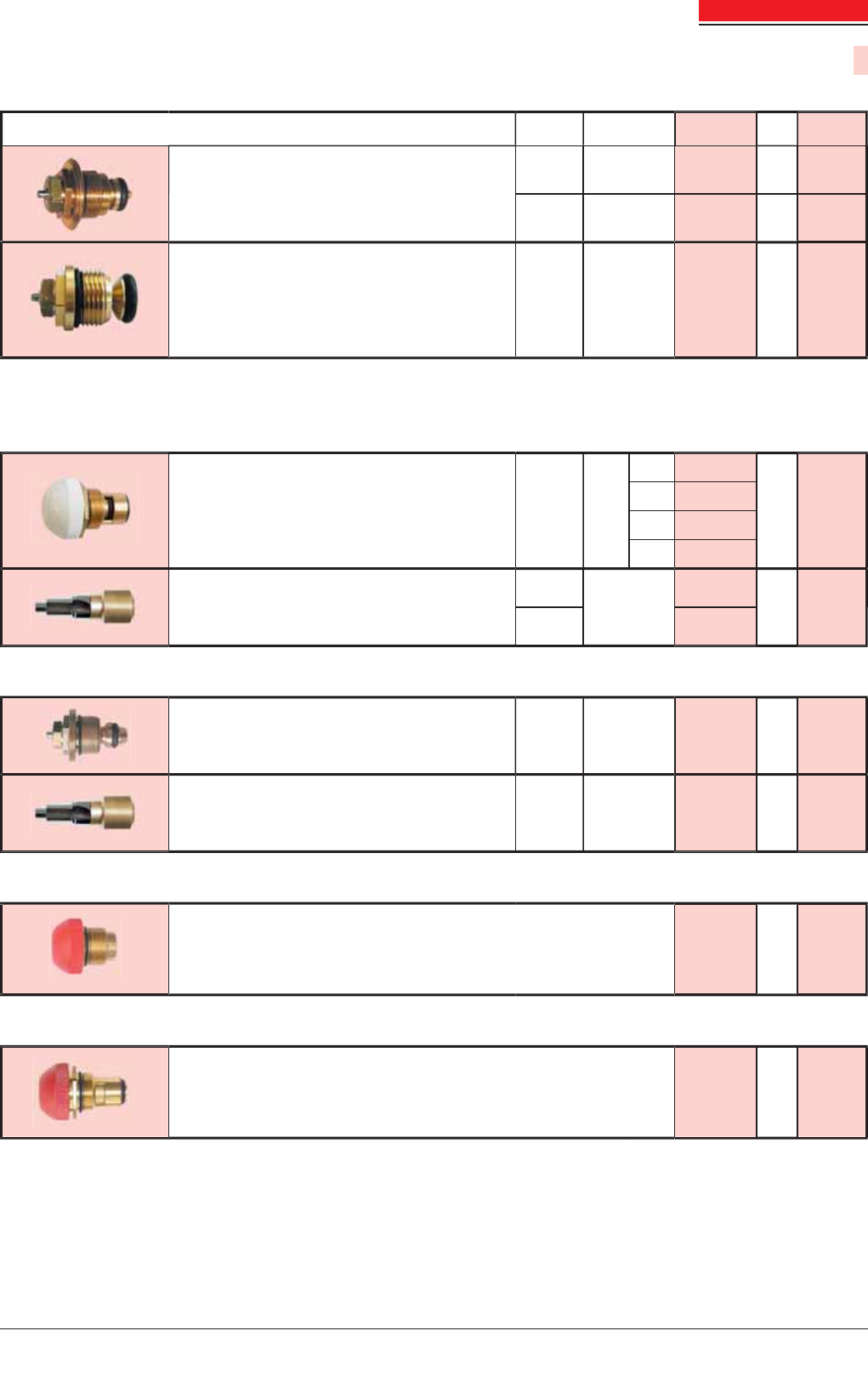

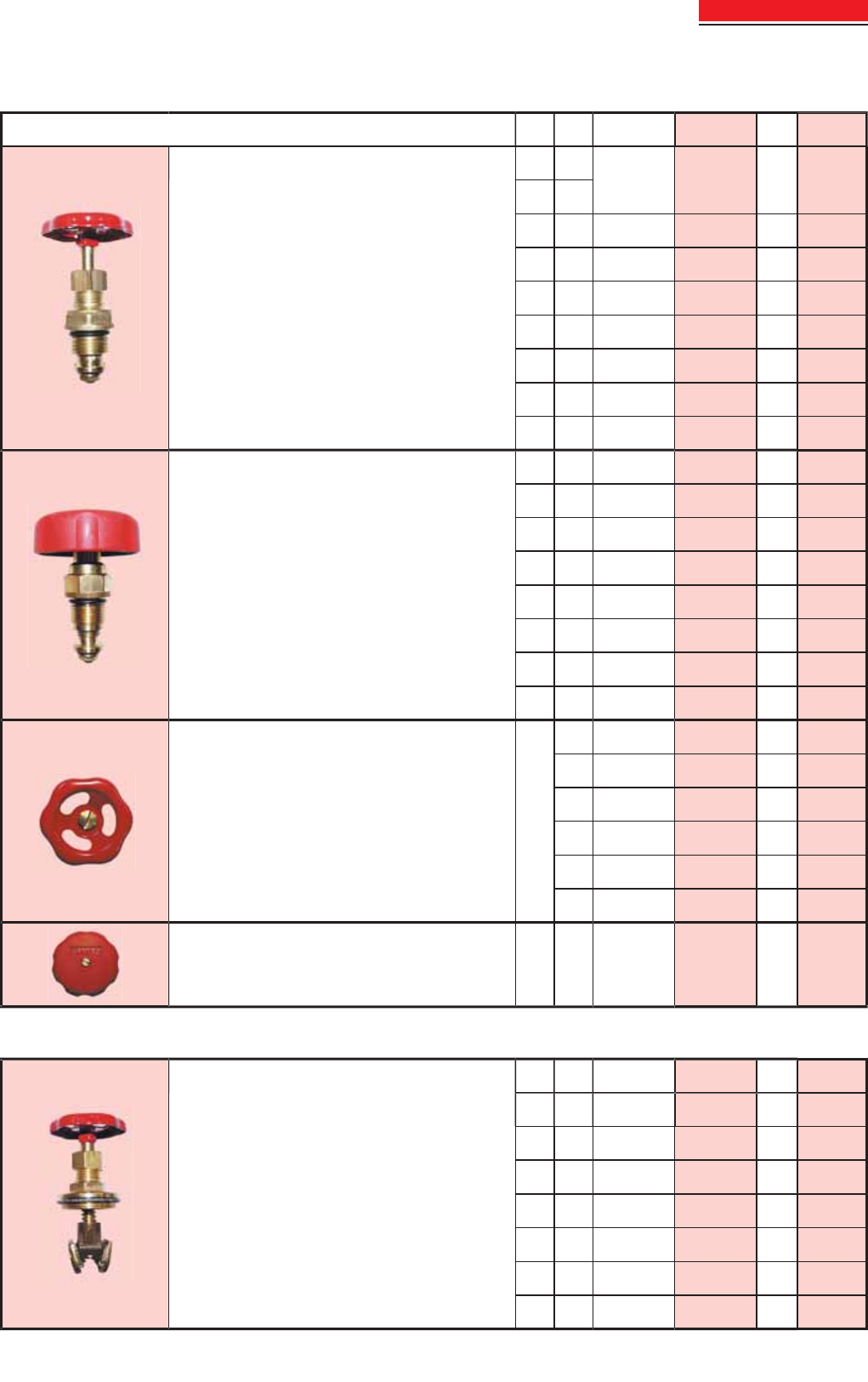

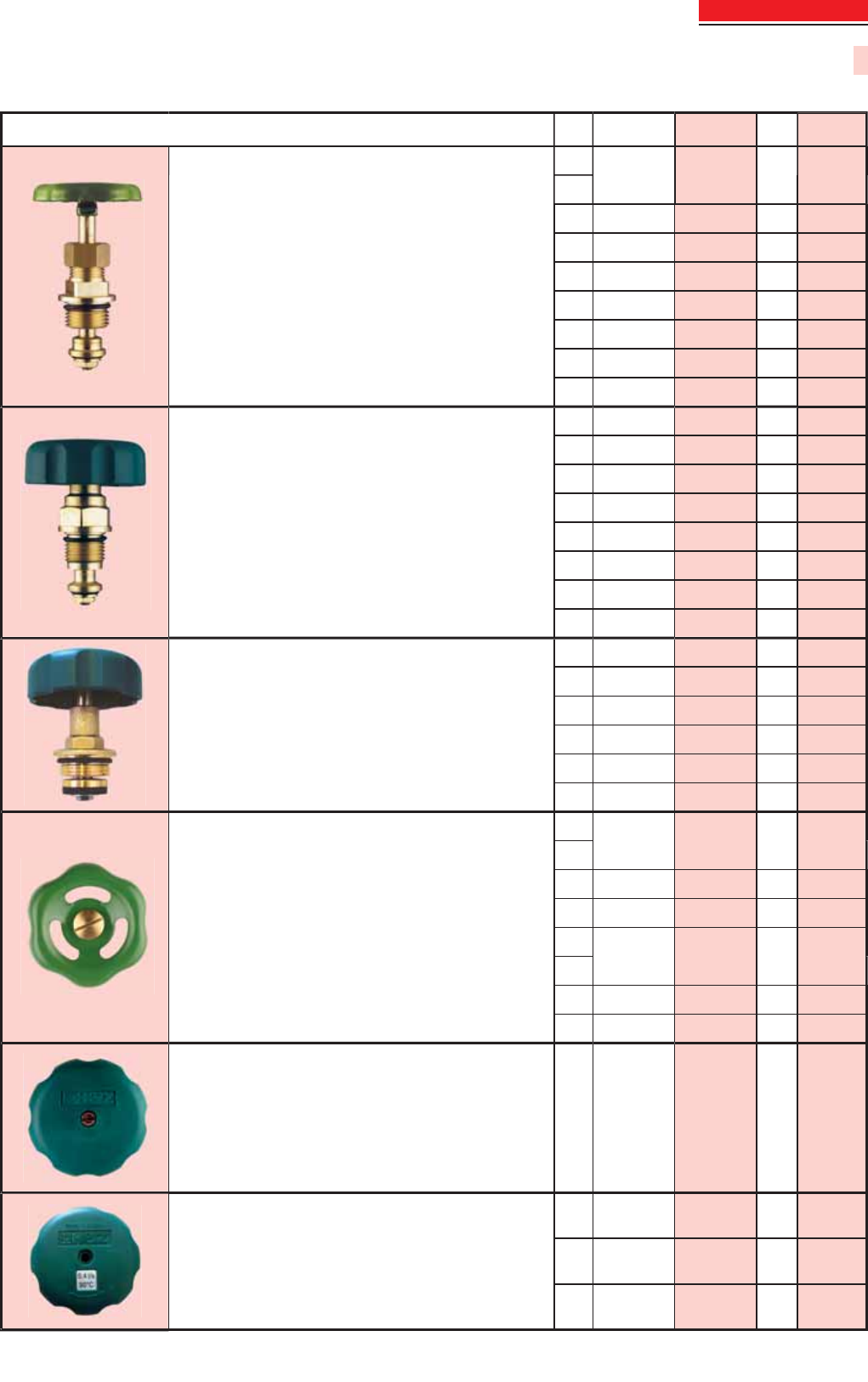

HERZ-Upper Parts for Thermostatic and Control Valves
64-65, 67
2
HERZ-GP-Spindle Sealing Set, Spare parts
66
HERZ-Changefi x Tool for HERZ-Thermostatic Upper Parts
68

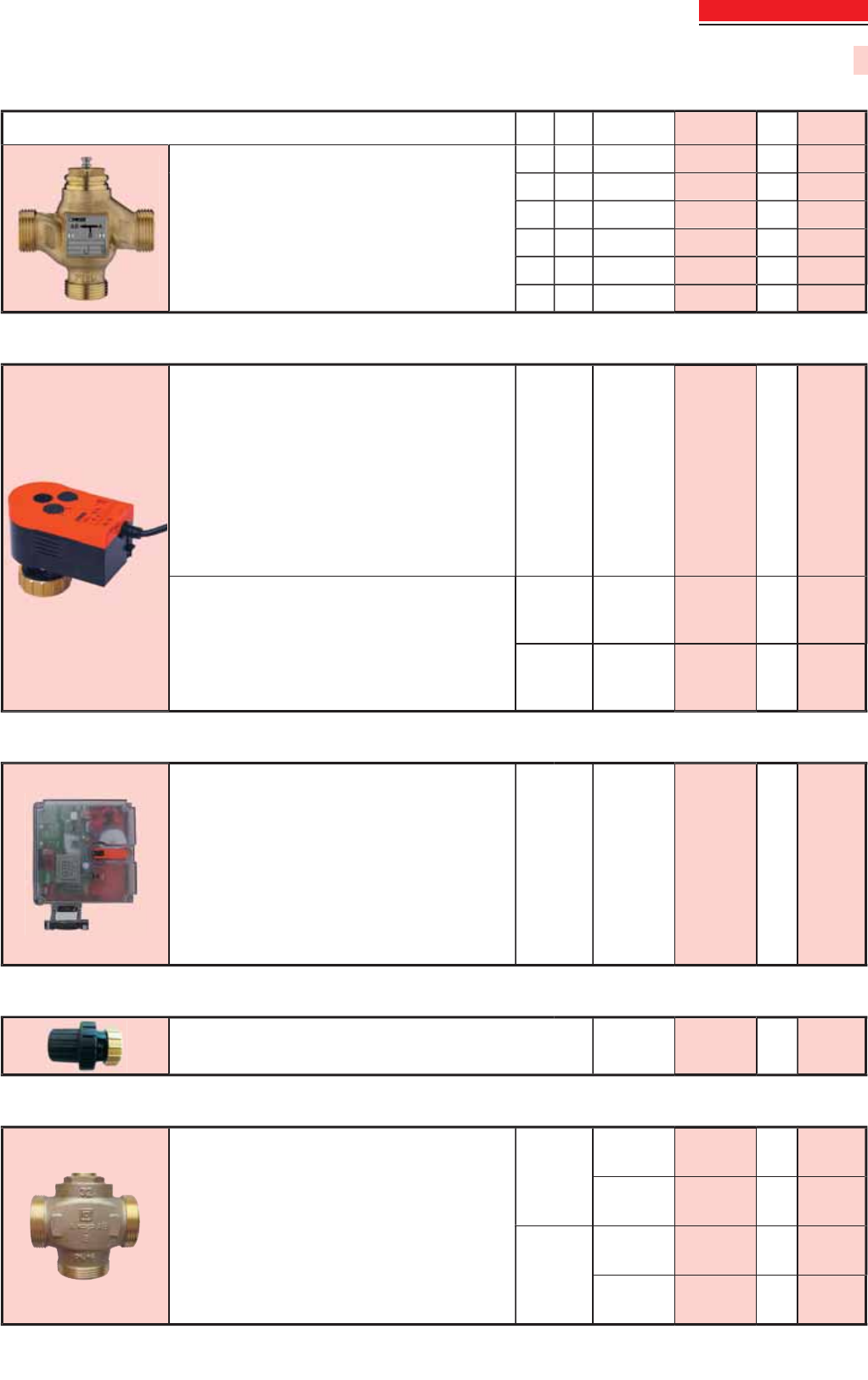

HERZ-Three-Way Mixing and Diverting Valves, Actuator
69-70
HERZ-Pump set 4500 KRAS
70
HERZ-Three-way mixing valve actuator
70

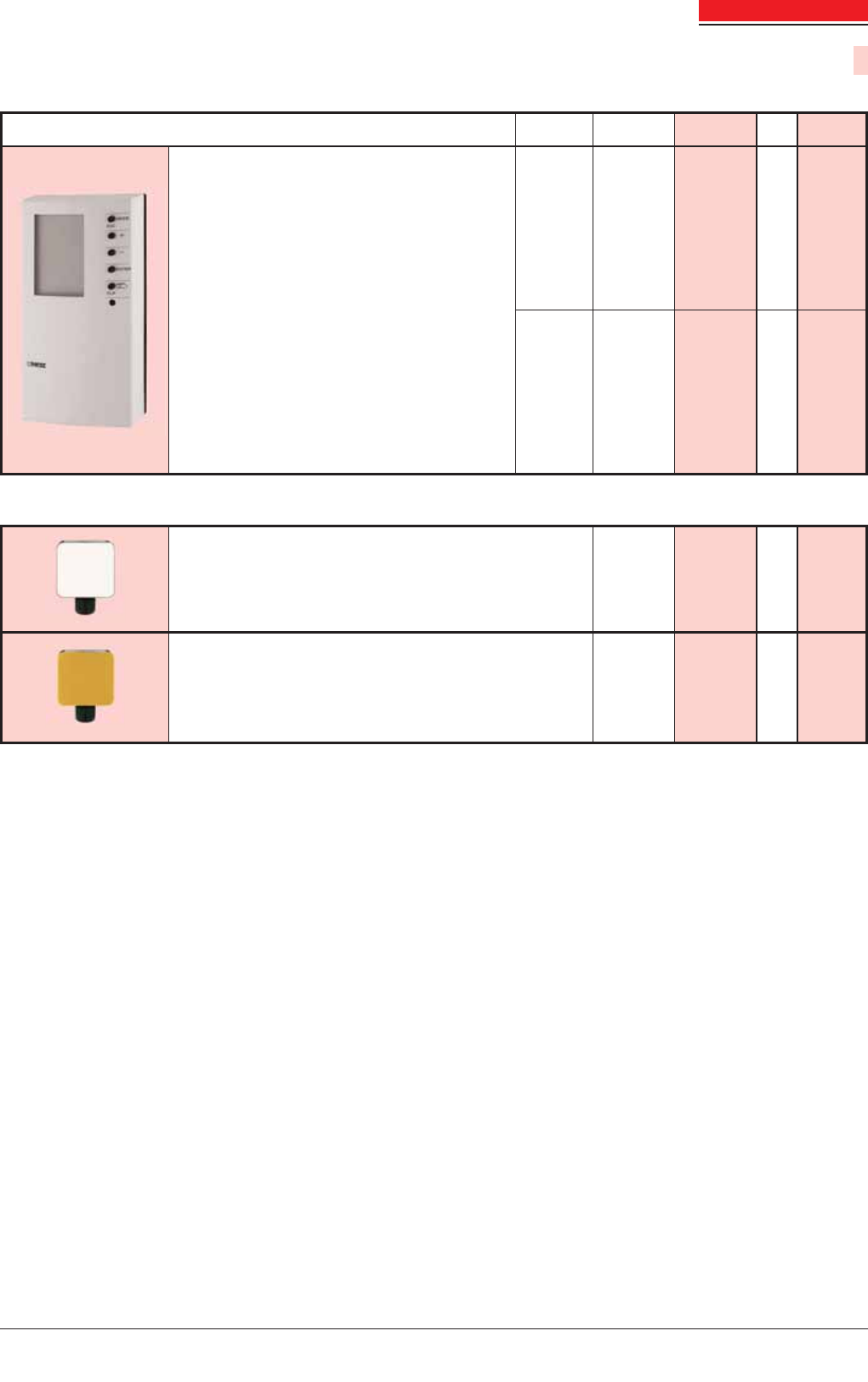

HERZ-Electronic Heating Controller
71

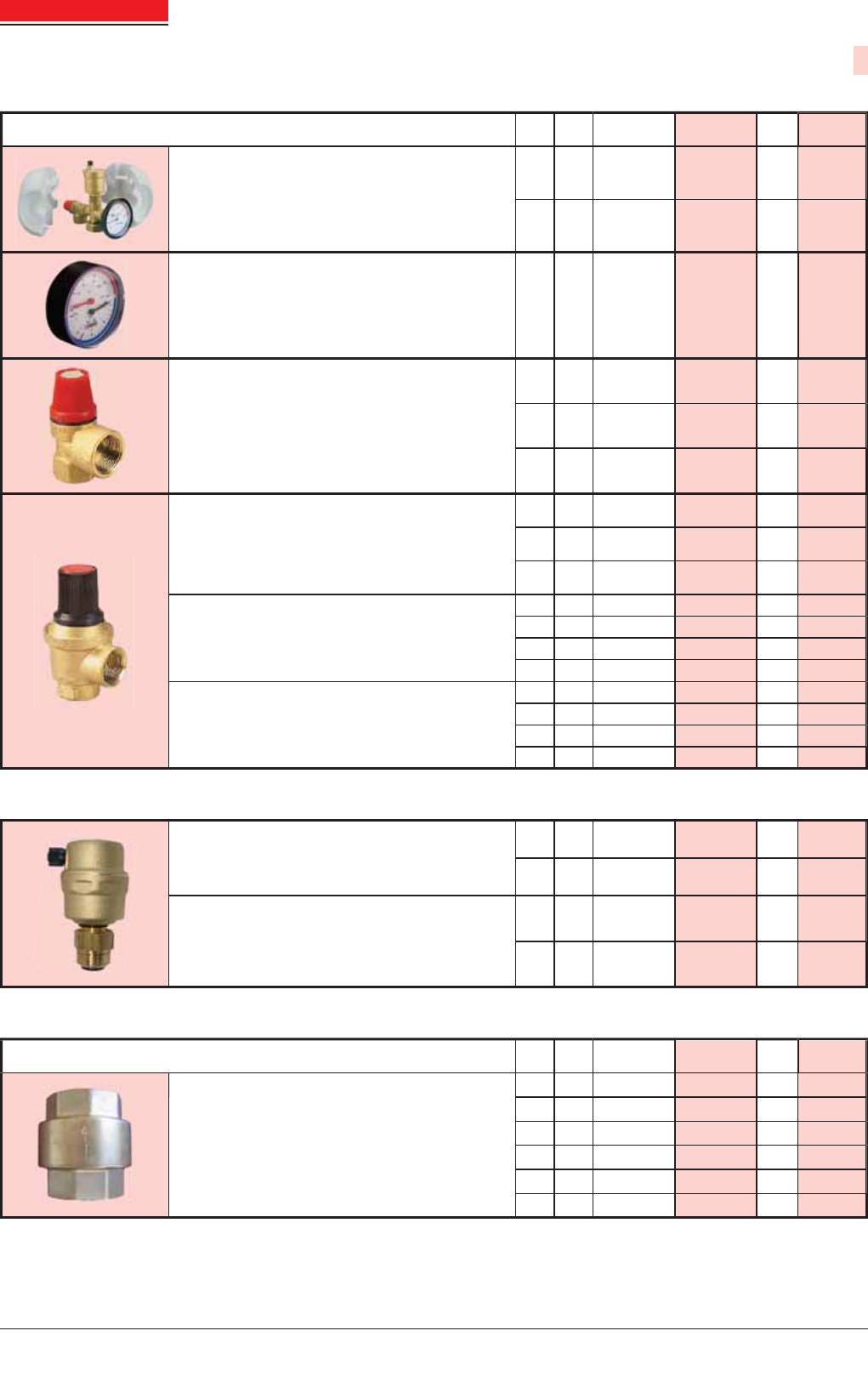

HERZ-Safety Valves, Air Release Valve, Backfl ow preventer
72

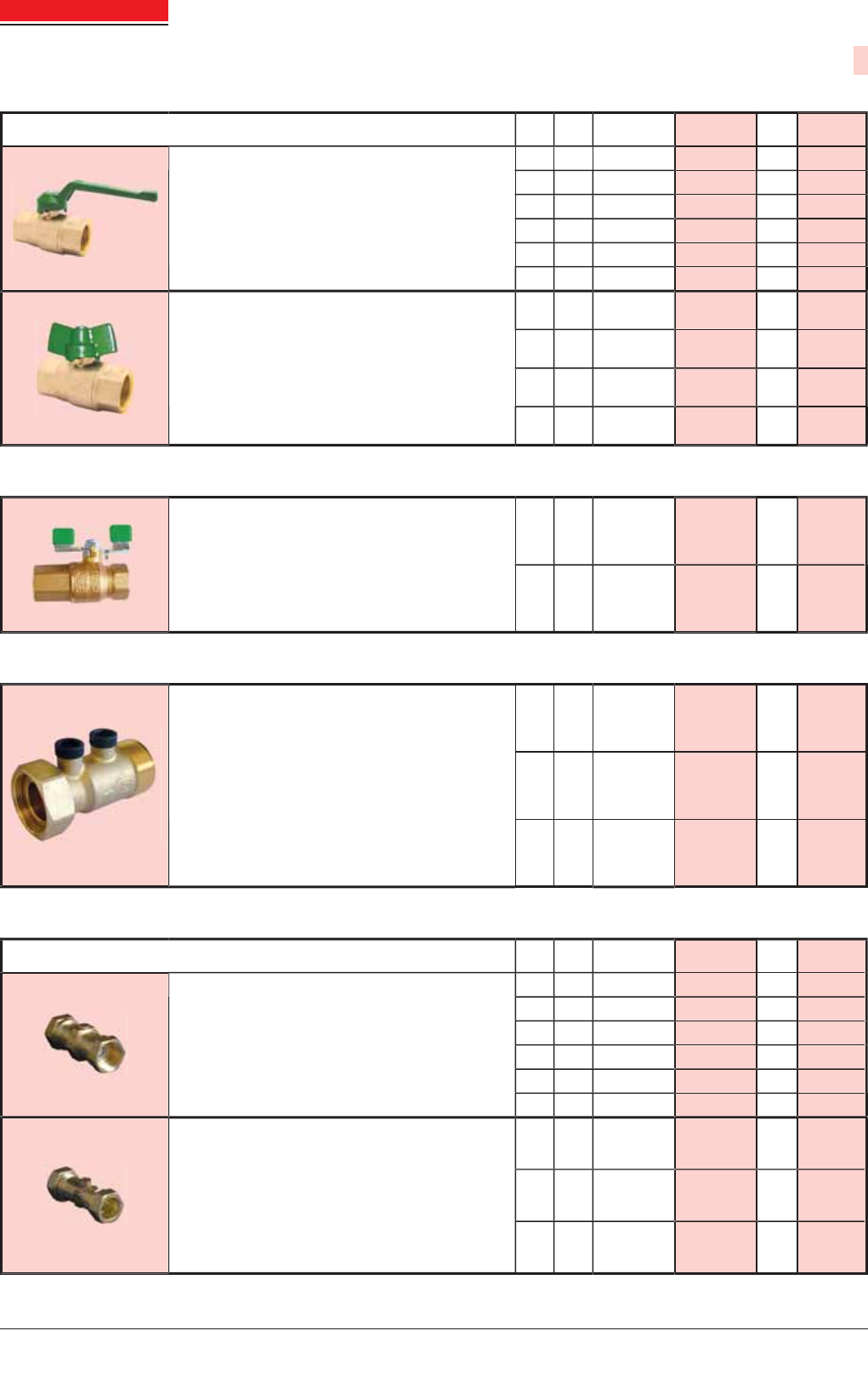

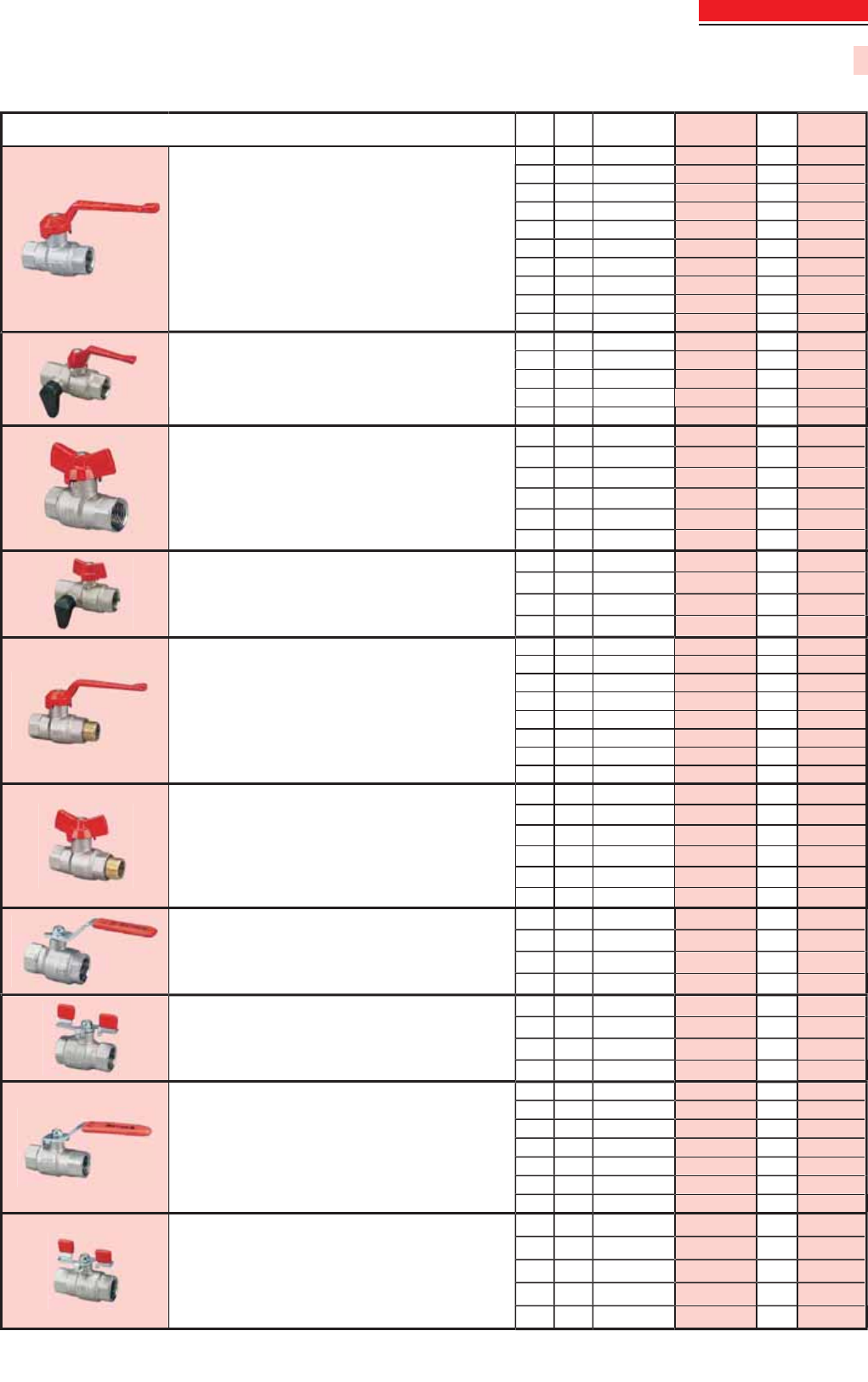

HERZ-Ball Valves
73
HERZ-Boiler fi ll and drain valves, THERMOFLEX
74
HERZ-Connect 4
75

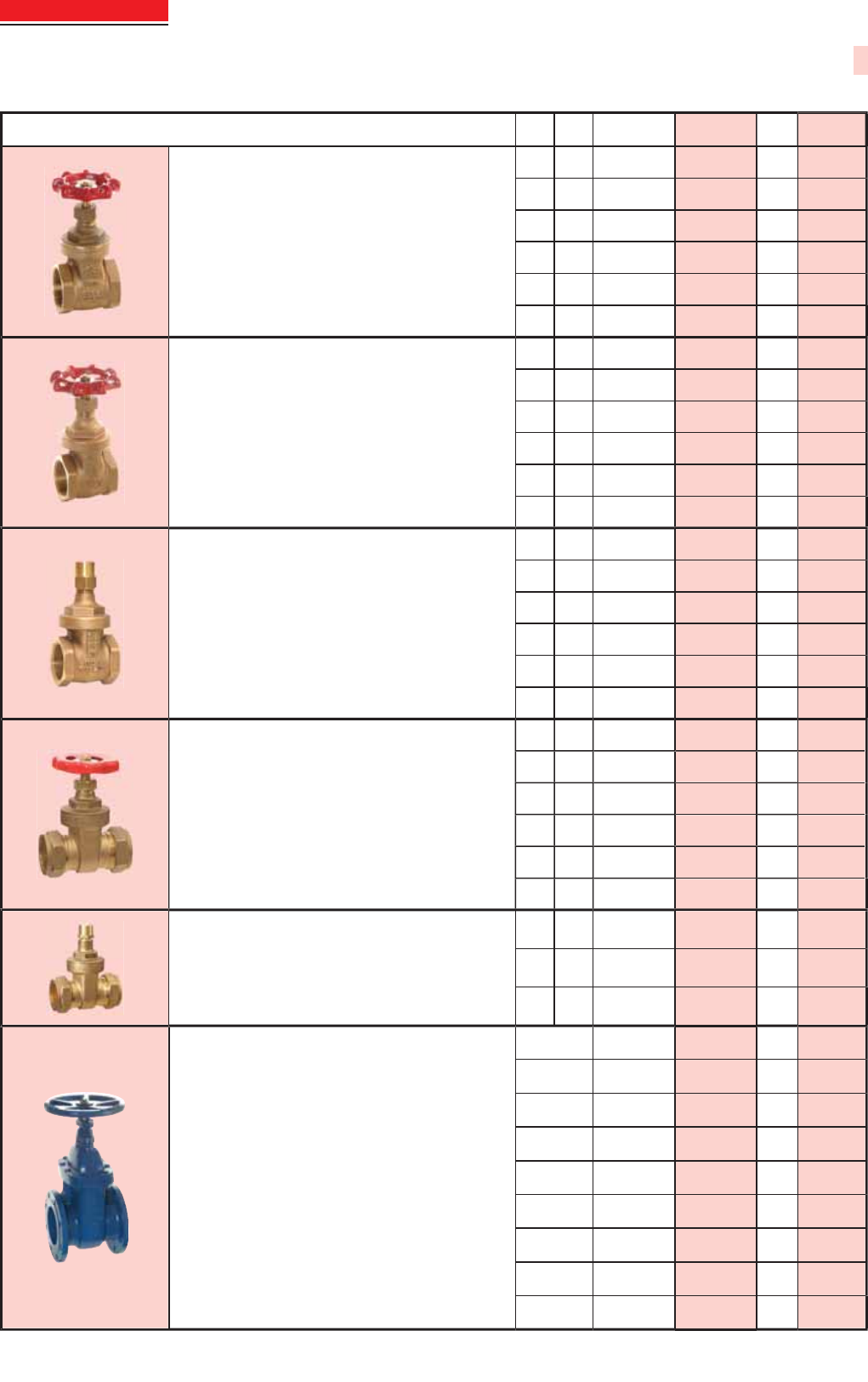

HERZ-Gate Valves
75-76
HERZ-Regulating valve, Combination valve, Differential Pressure Overfl ow Valves
77

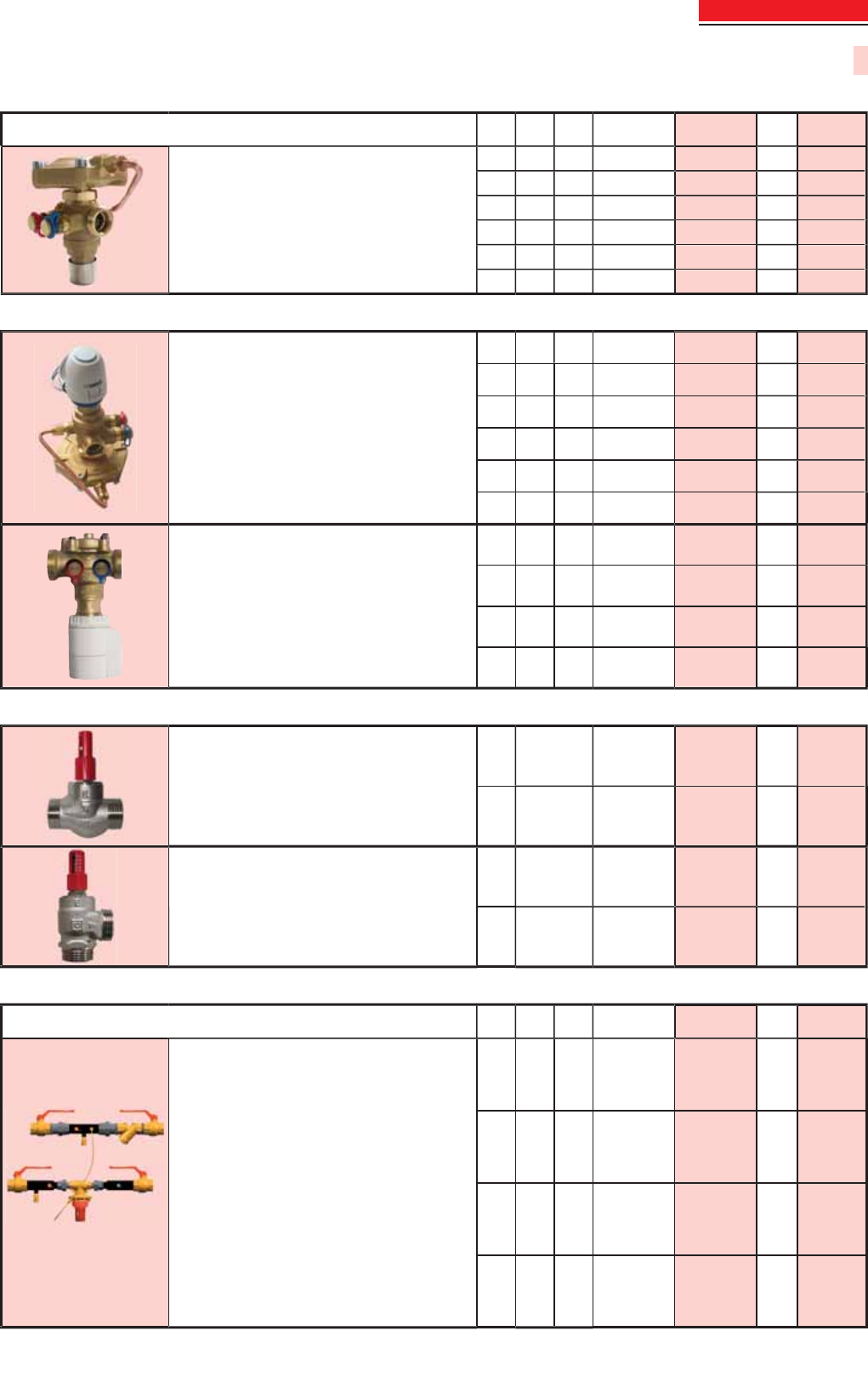

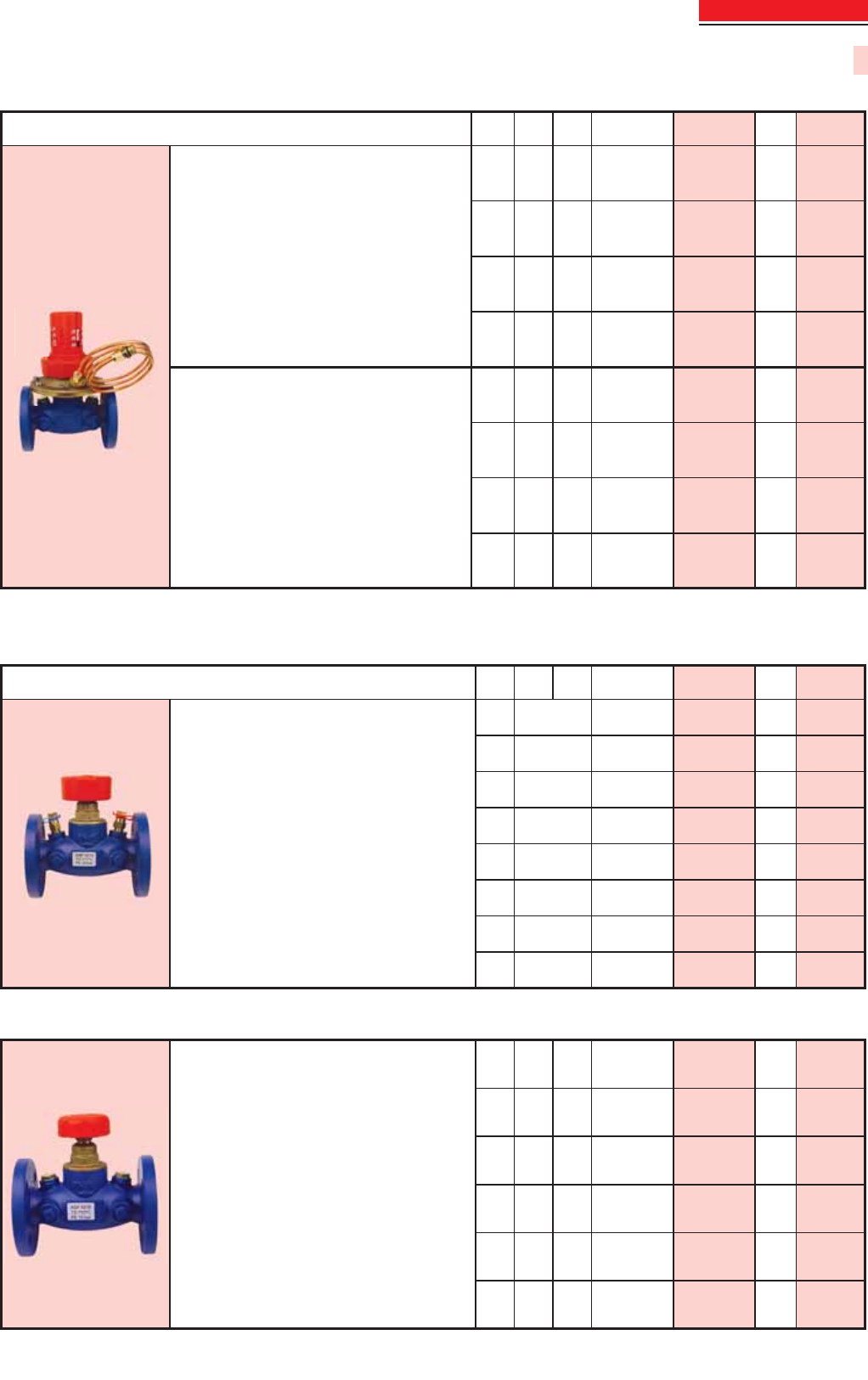

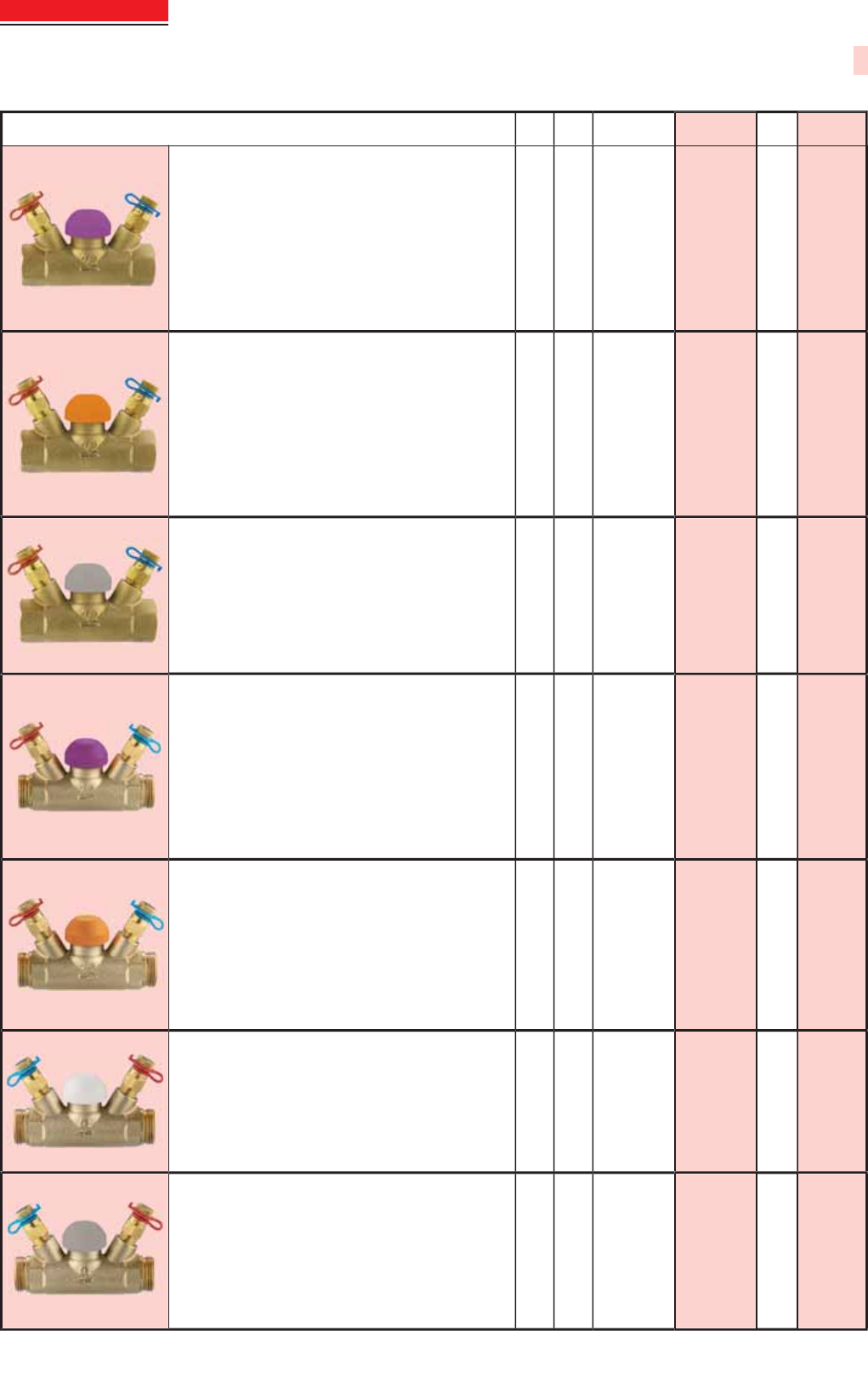

Differential Pressure Controller
77-78
STRÖMAX-M, Double Regulating Valves
78-79
Regulating Valves
80-82

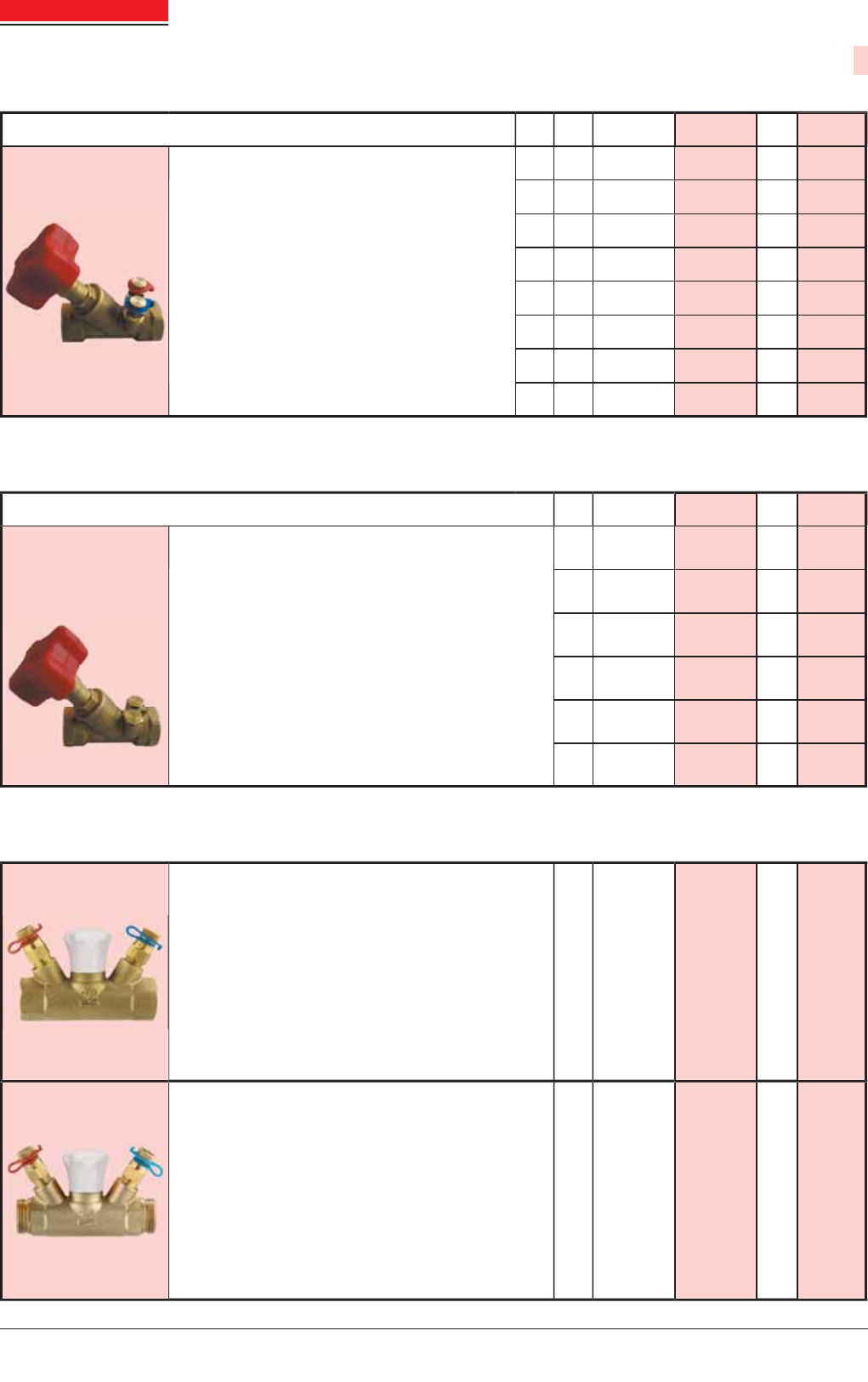

Double Regulating Valve
79-80

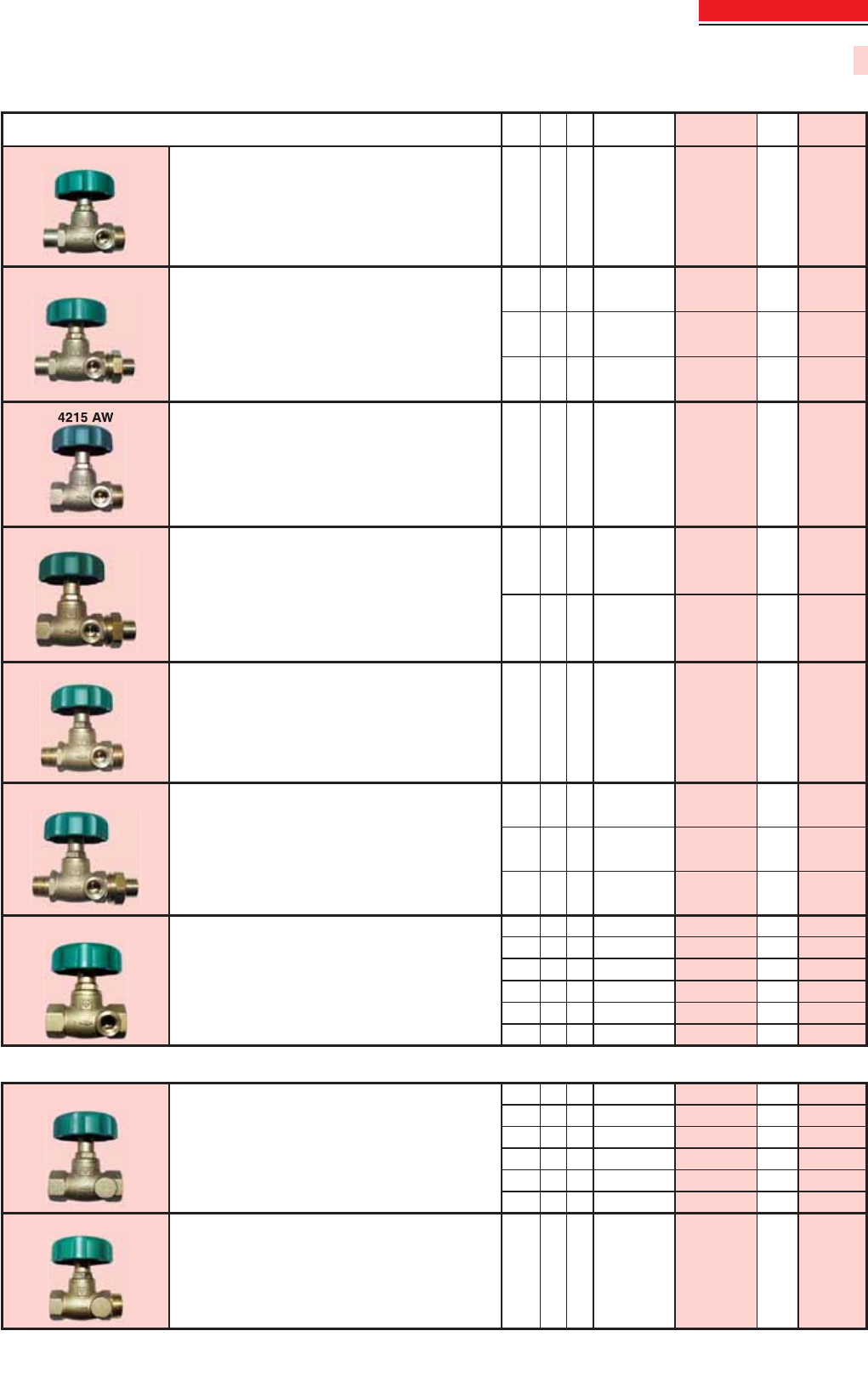

Shutoff Valves
83-85

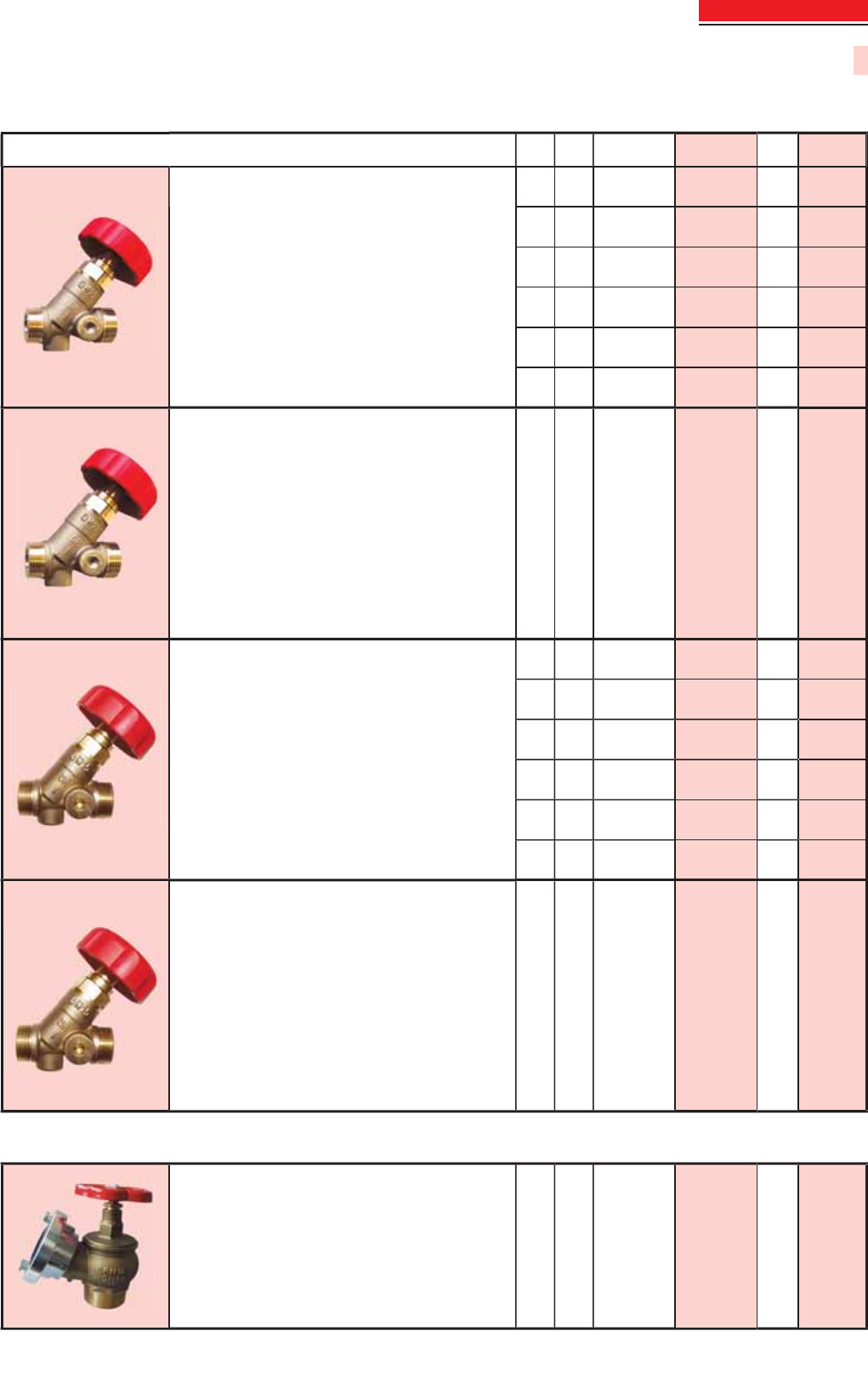

HERZ-Shutoff Valve with fi re Hose Connection
85
HERZ-Ball Valves
86

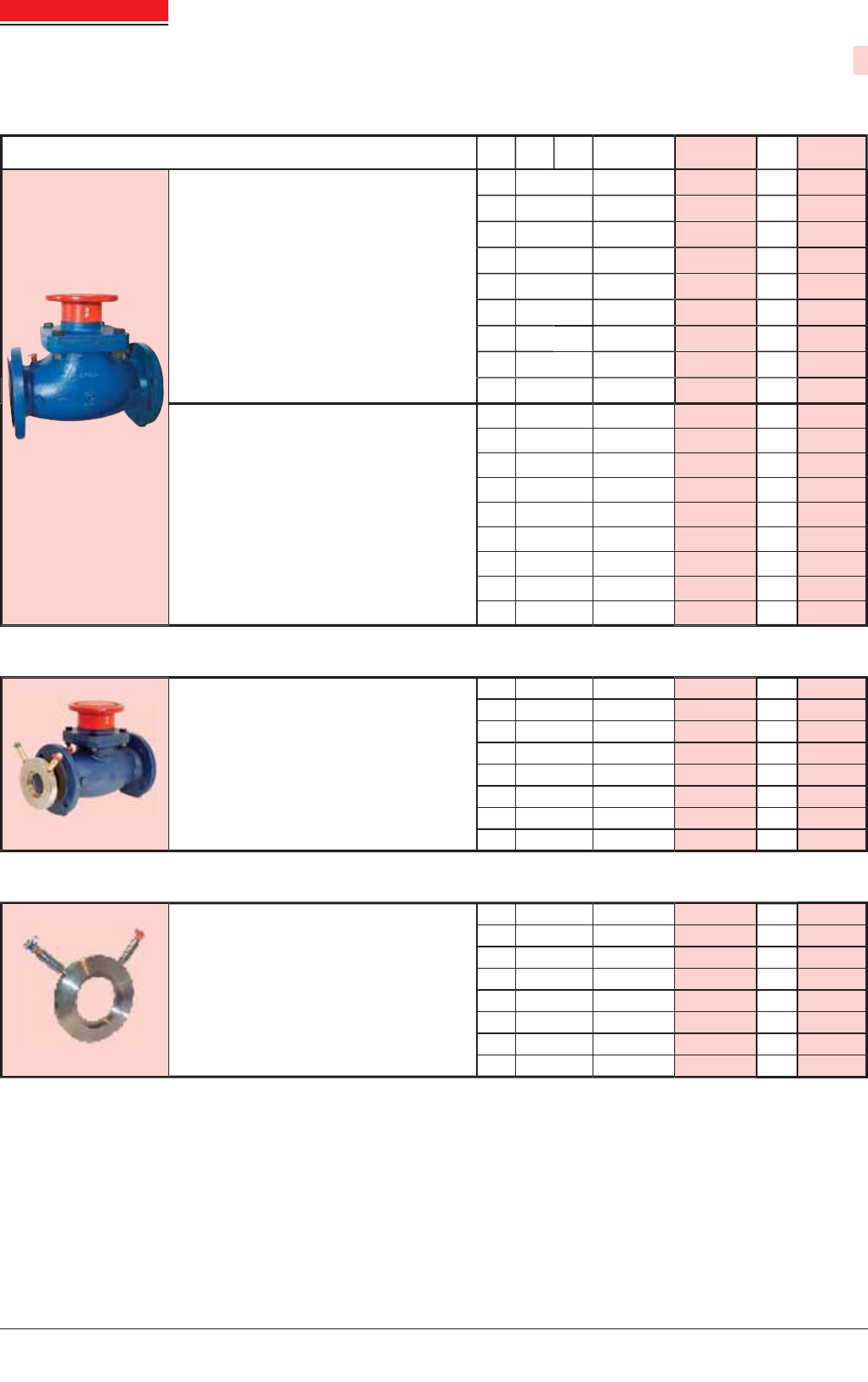

HERZ-Differential Pressure Controllers, Regulating Valves, Shutoff Valves. Flanged Version
87
Circuit Regulating Valves, Flanged Version. Cast Iron Commissioning Set
88

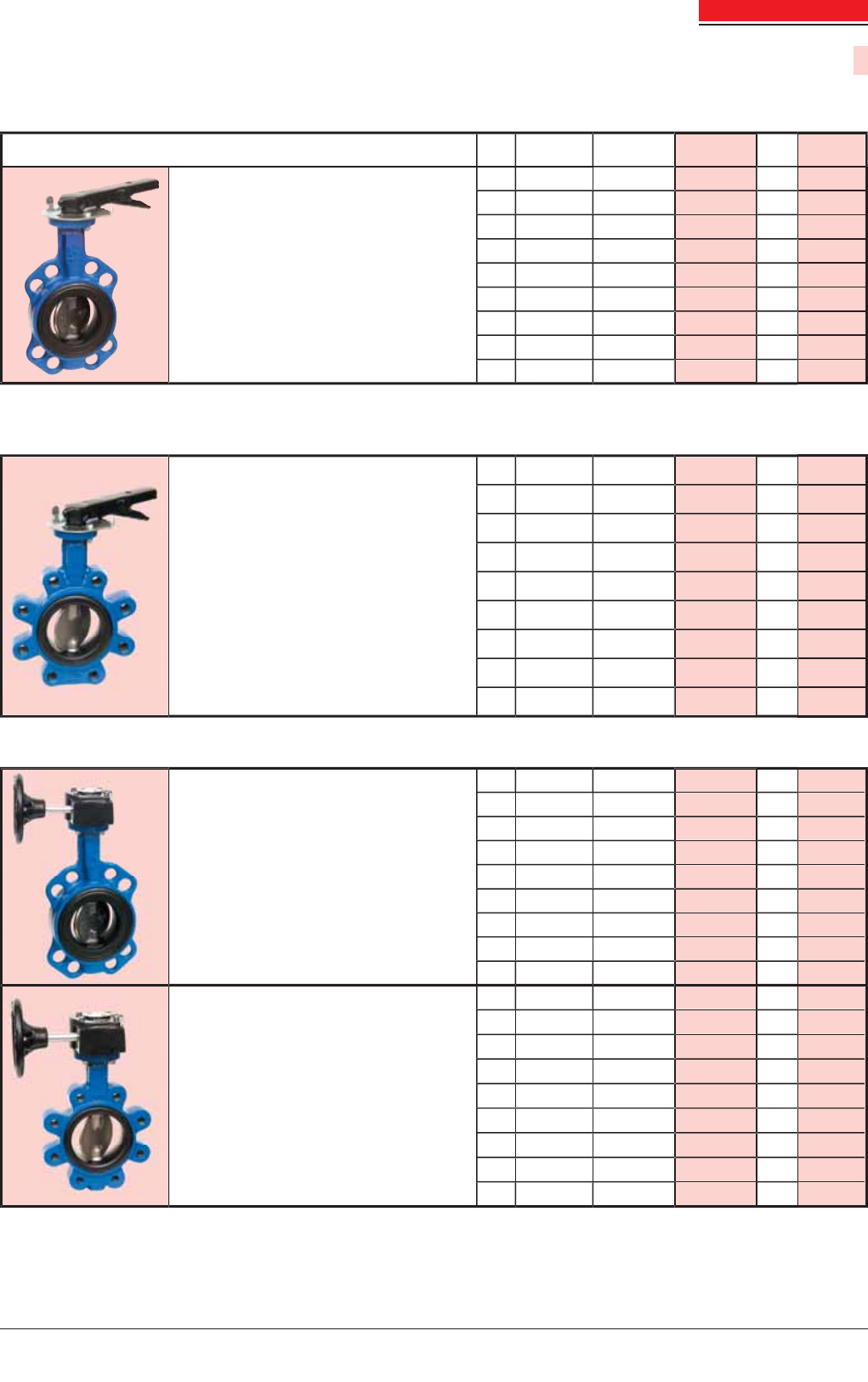

HERZ-Isolator Butterfl y Valves, Flanged Version
89

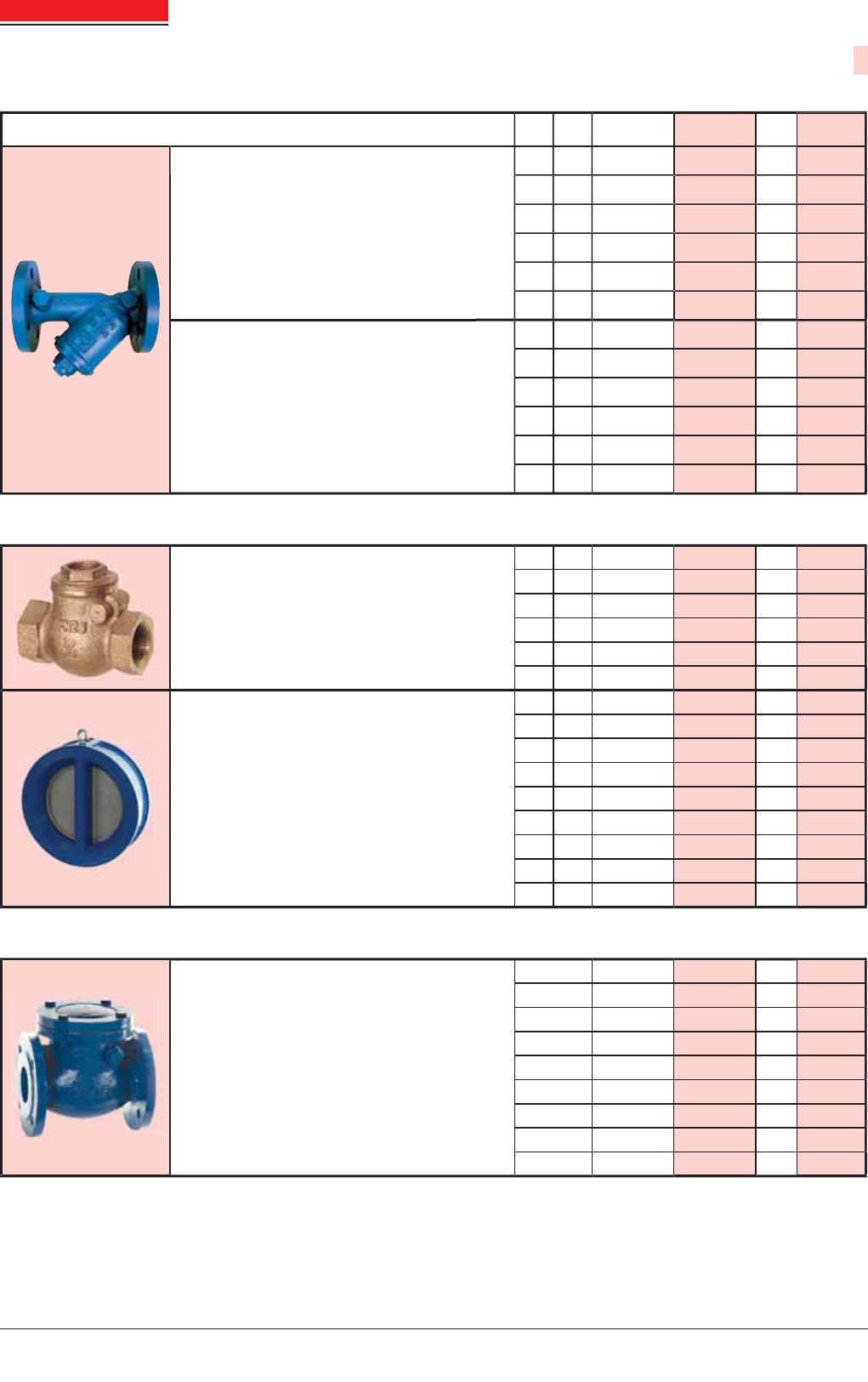

HERZ-Strainer. Flanged Version. Swing Check Valve, Wafer Check Valve
90

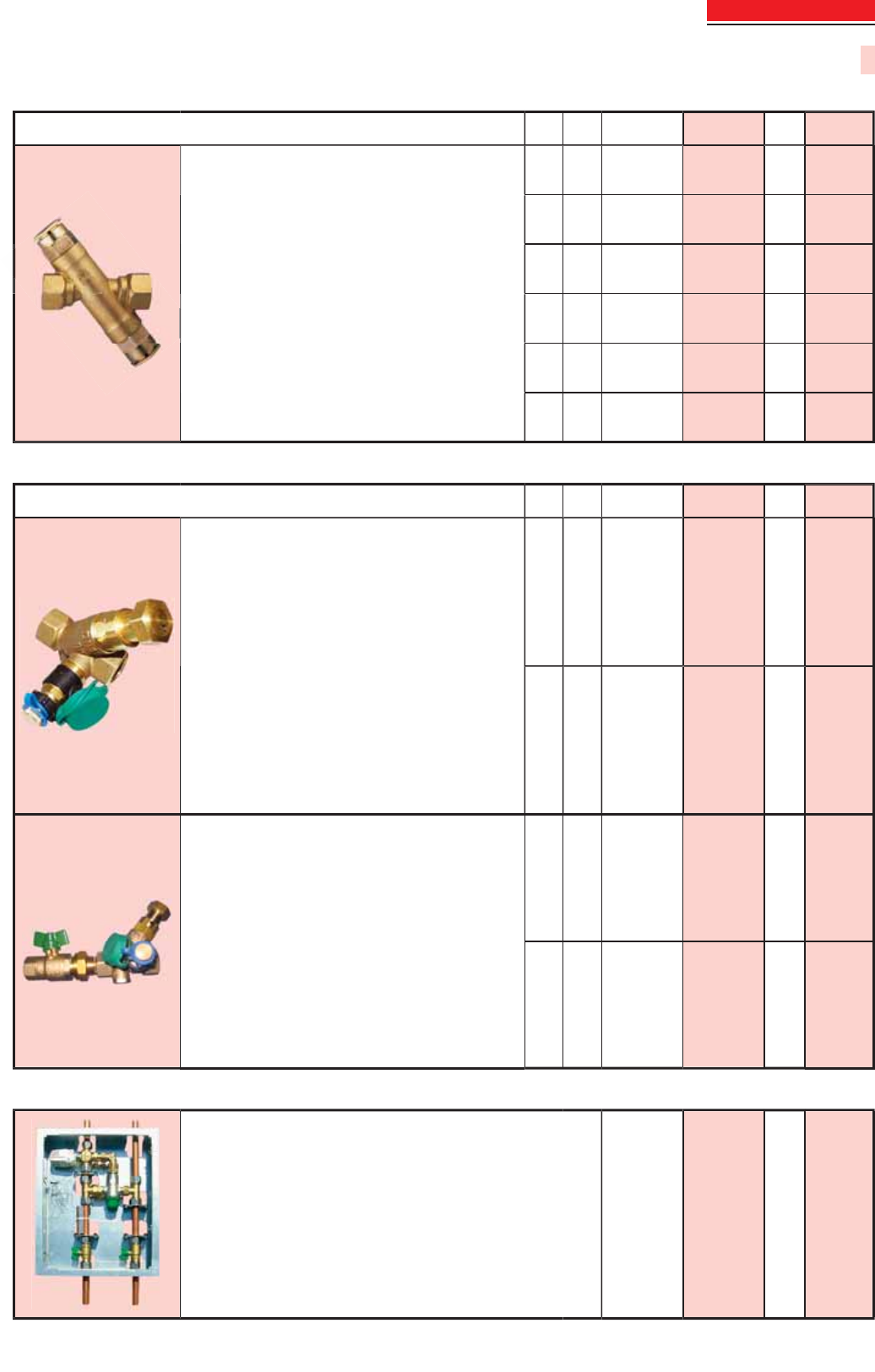

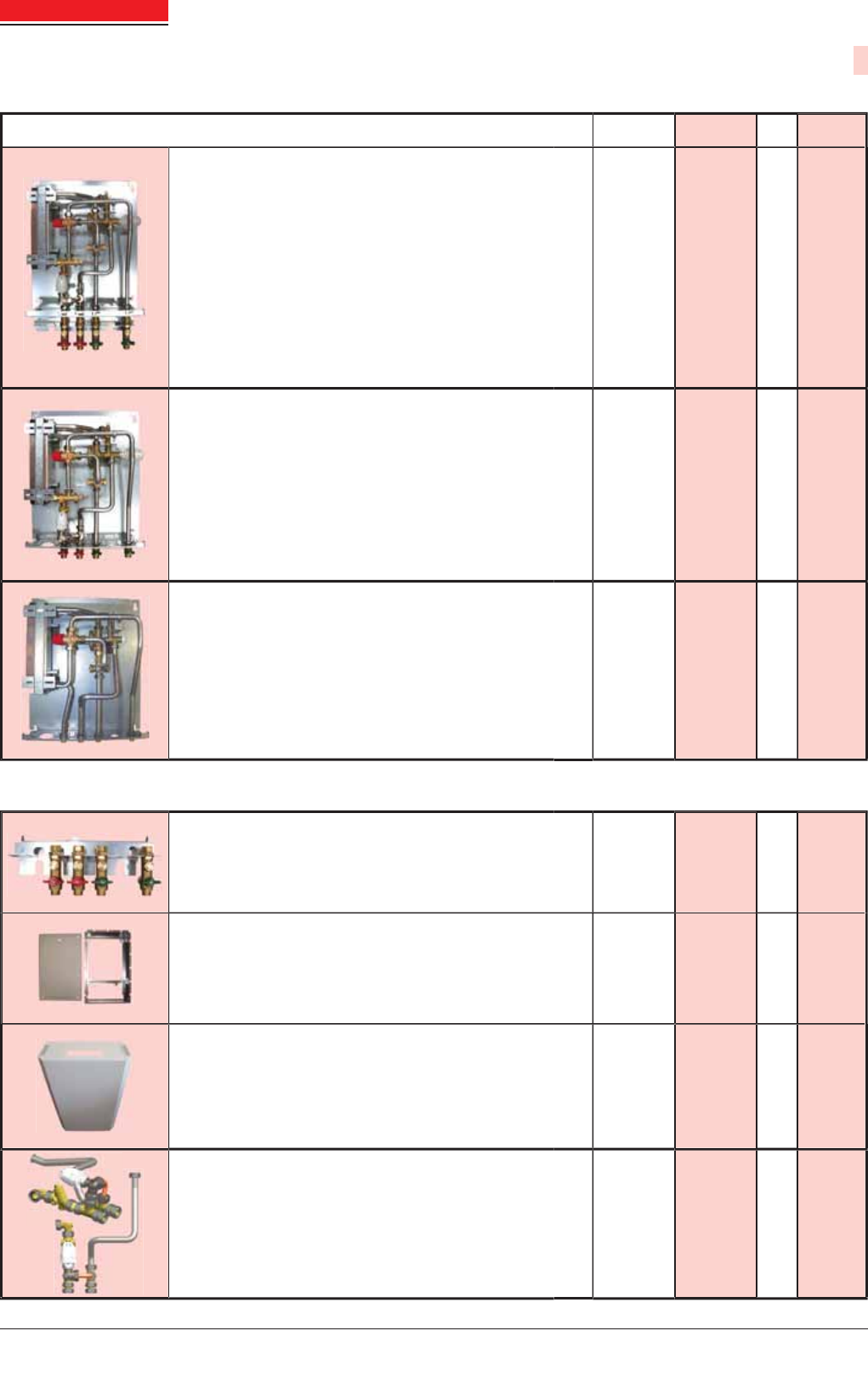

HERZ-Hydraulic Interface Units and Accessories
91-95

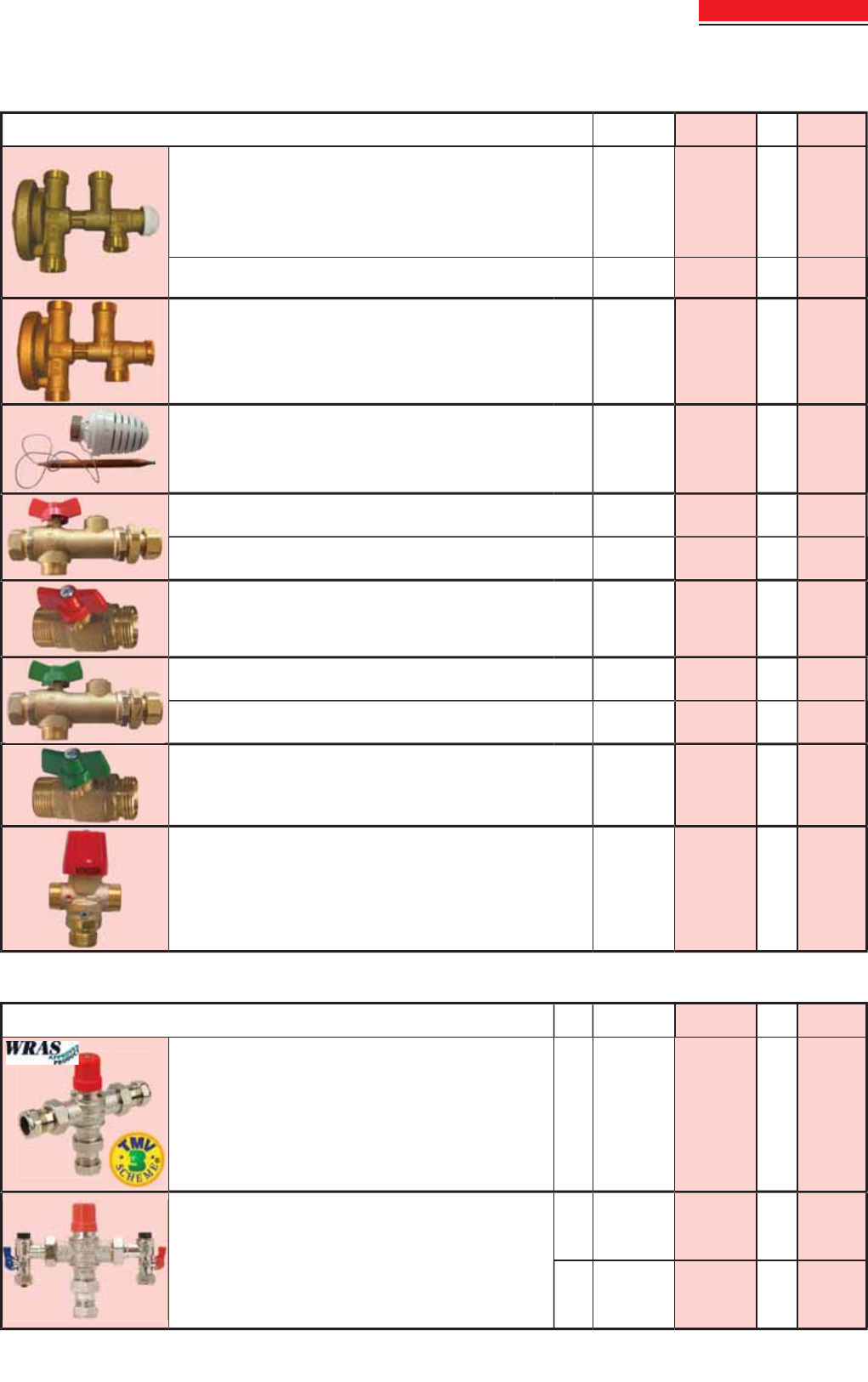

HERZ-Thermostatic mixing valves
95
HERZ-Mixing valves
96
HERZ-Ball Valves for Flush Mounting
96
HERZ-Drain Valve
96
HERZ-Circulation Temperature Controller
97
HERZ-LEGIOFIX
97

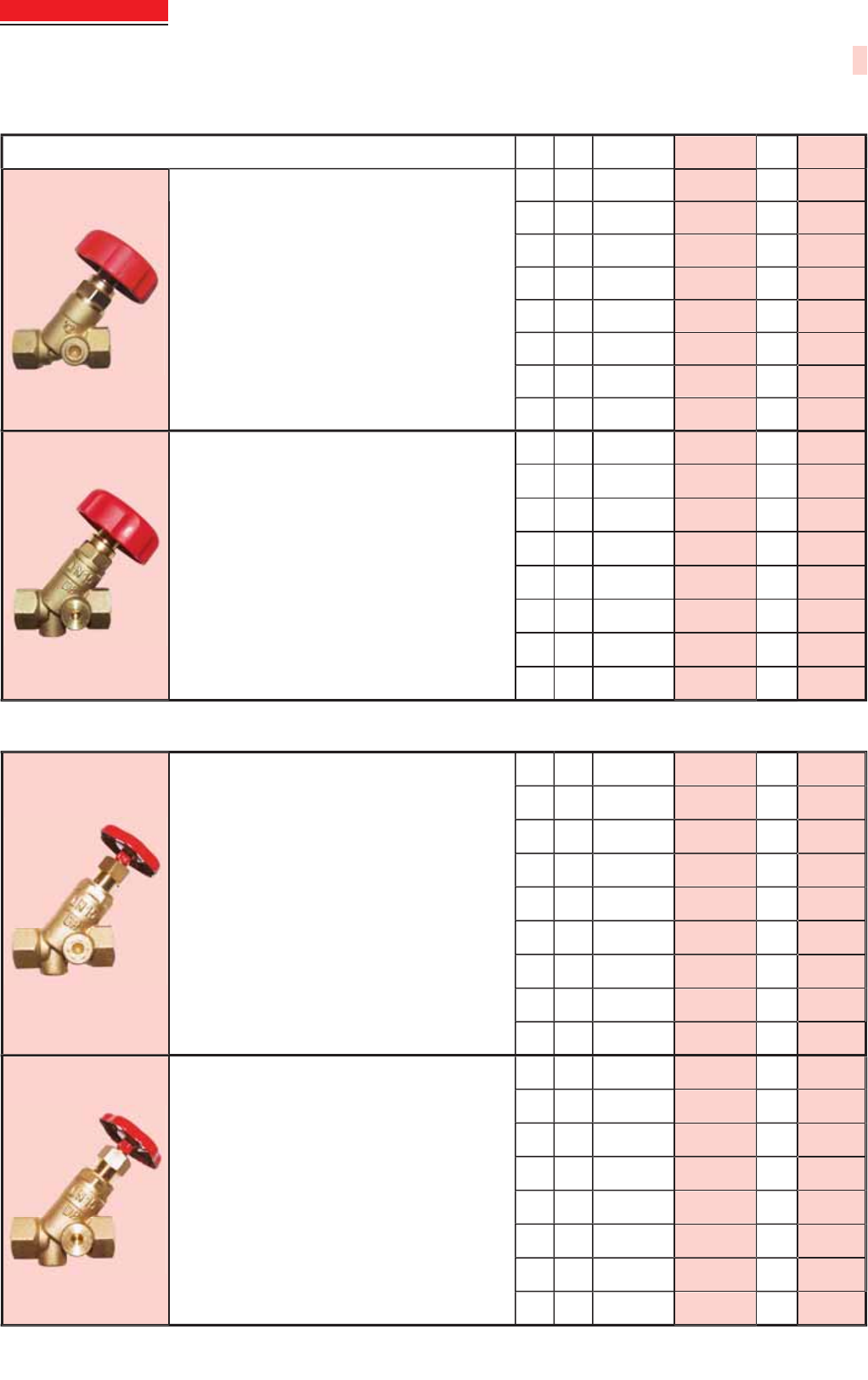

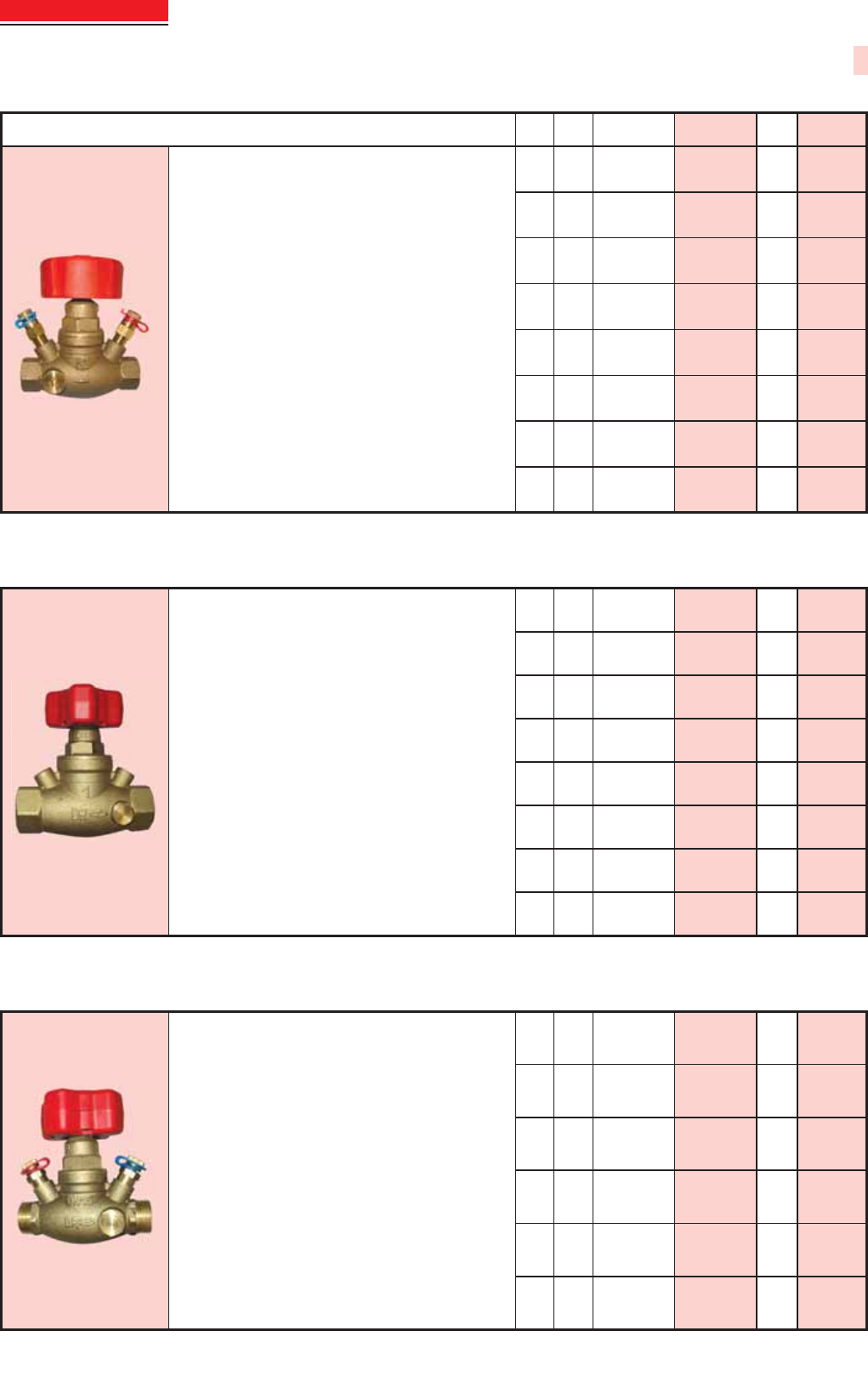

HERZ-Balancing Valves STRÖMAX
98

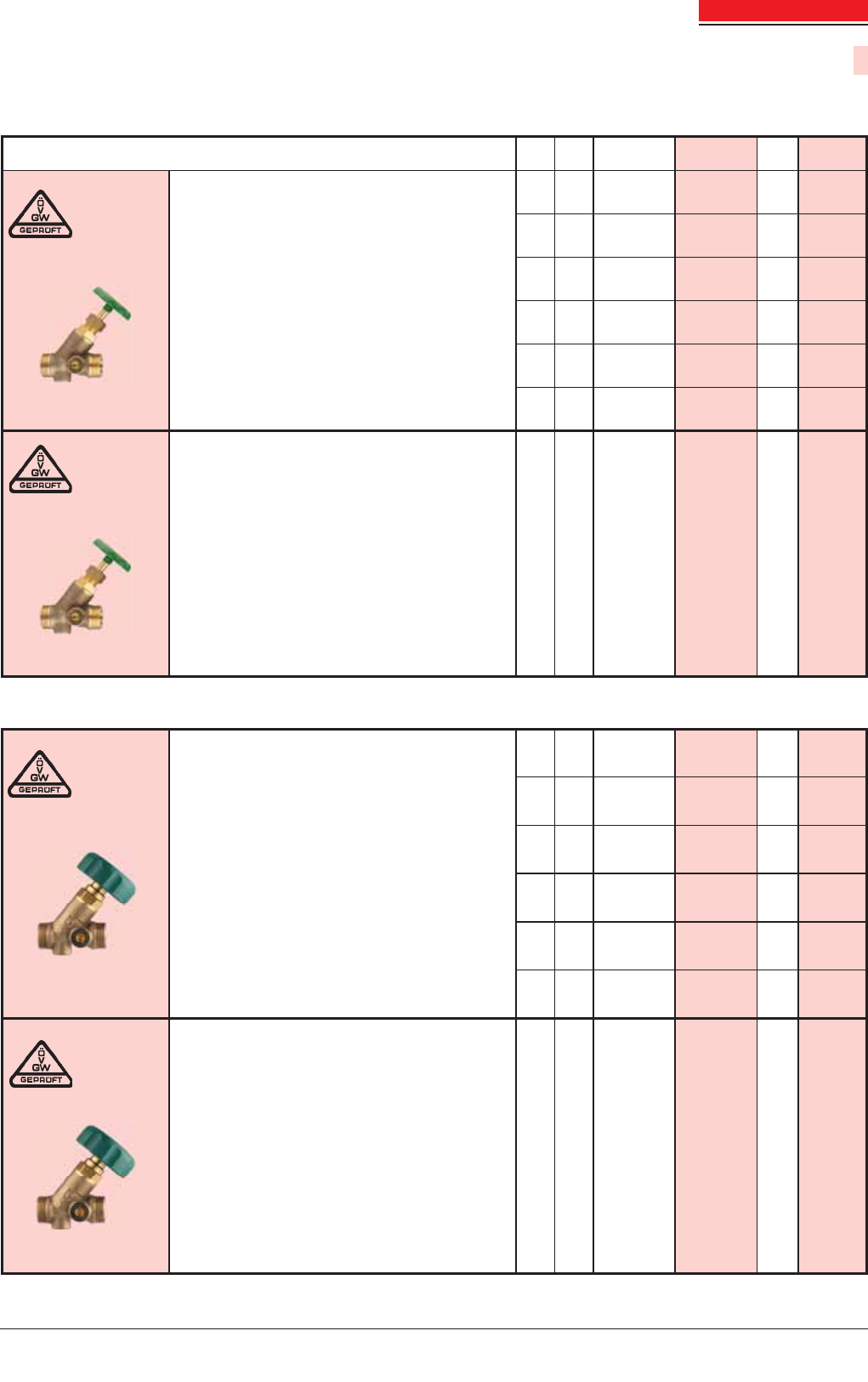

HERZ-Shutoff valves STRÖMAX
99-100, 103
HERZ-Pressure Reducer, Backfl ow preventer, Ball Valves
101
HERZ-Ball Valves, Backfl ow preventer, Double Check Valves
102

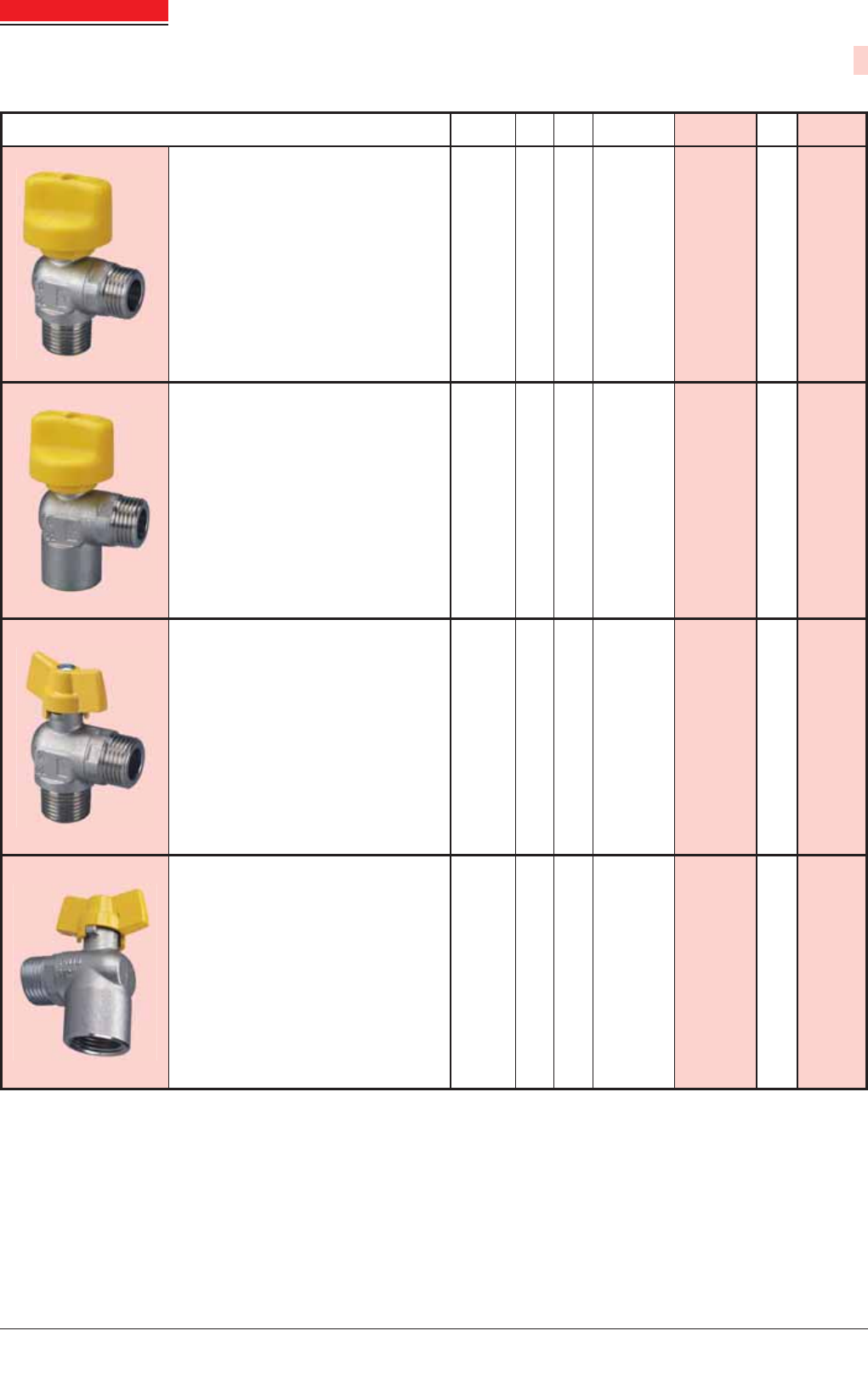

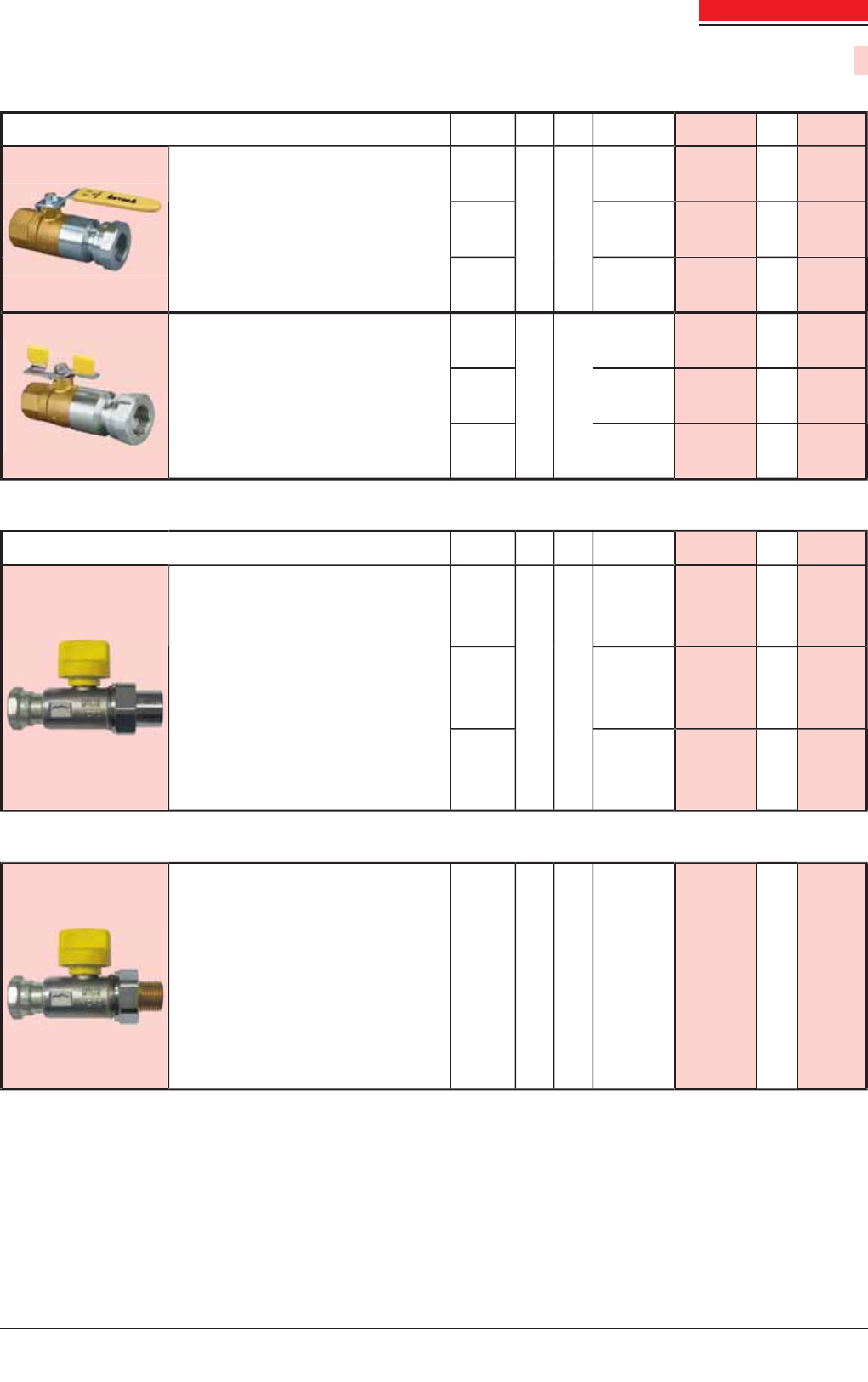

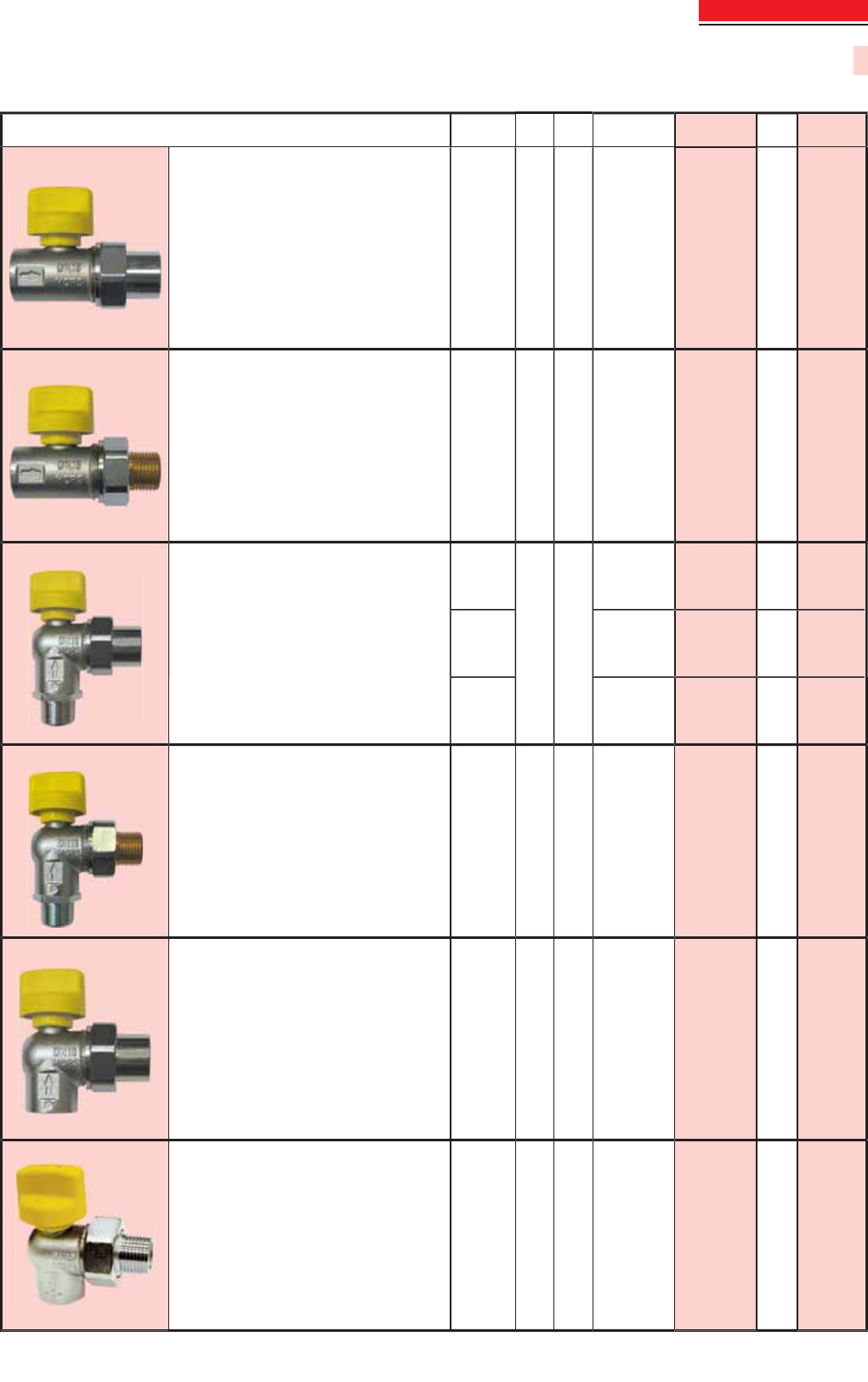

Ball Valves for Gas
104-108
HERZ-Insulating Nipple for Gas, Strainer for Gas
108

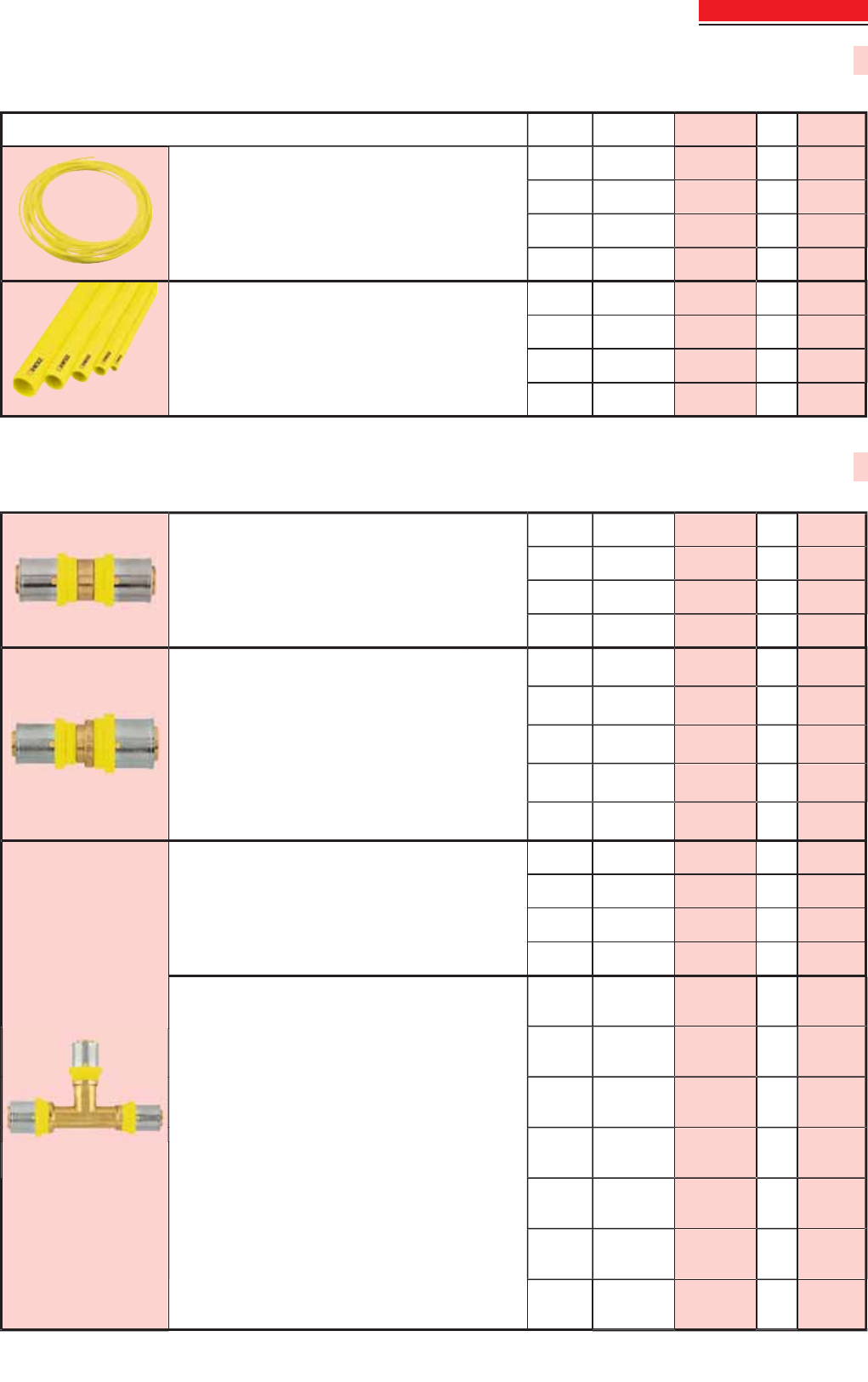

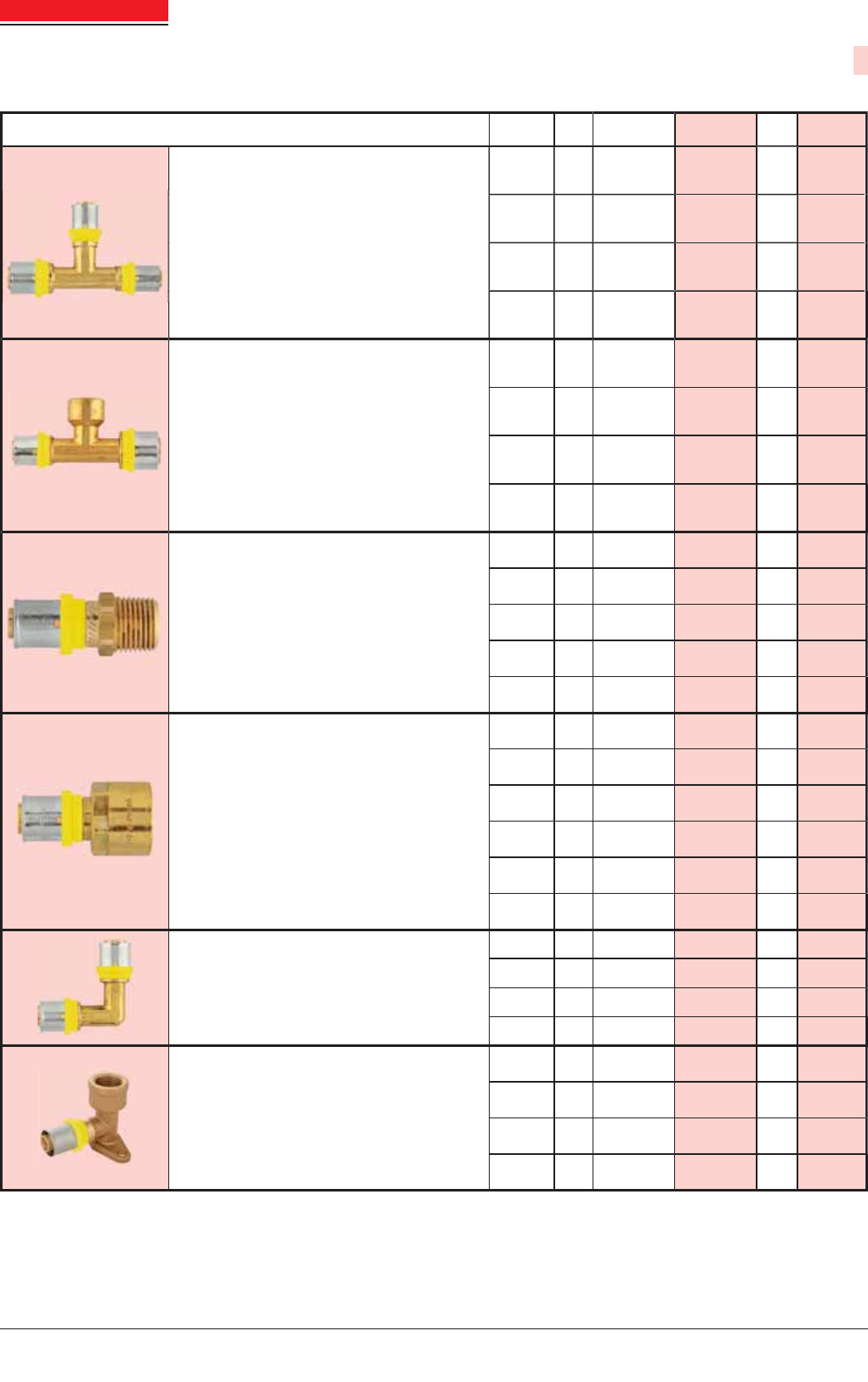

HERZ-Pipe and Fittings for Gas
109-110

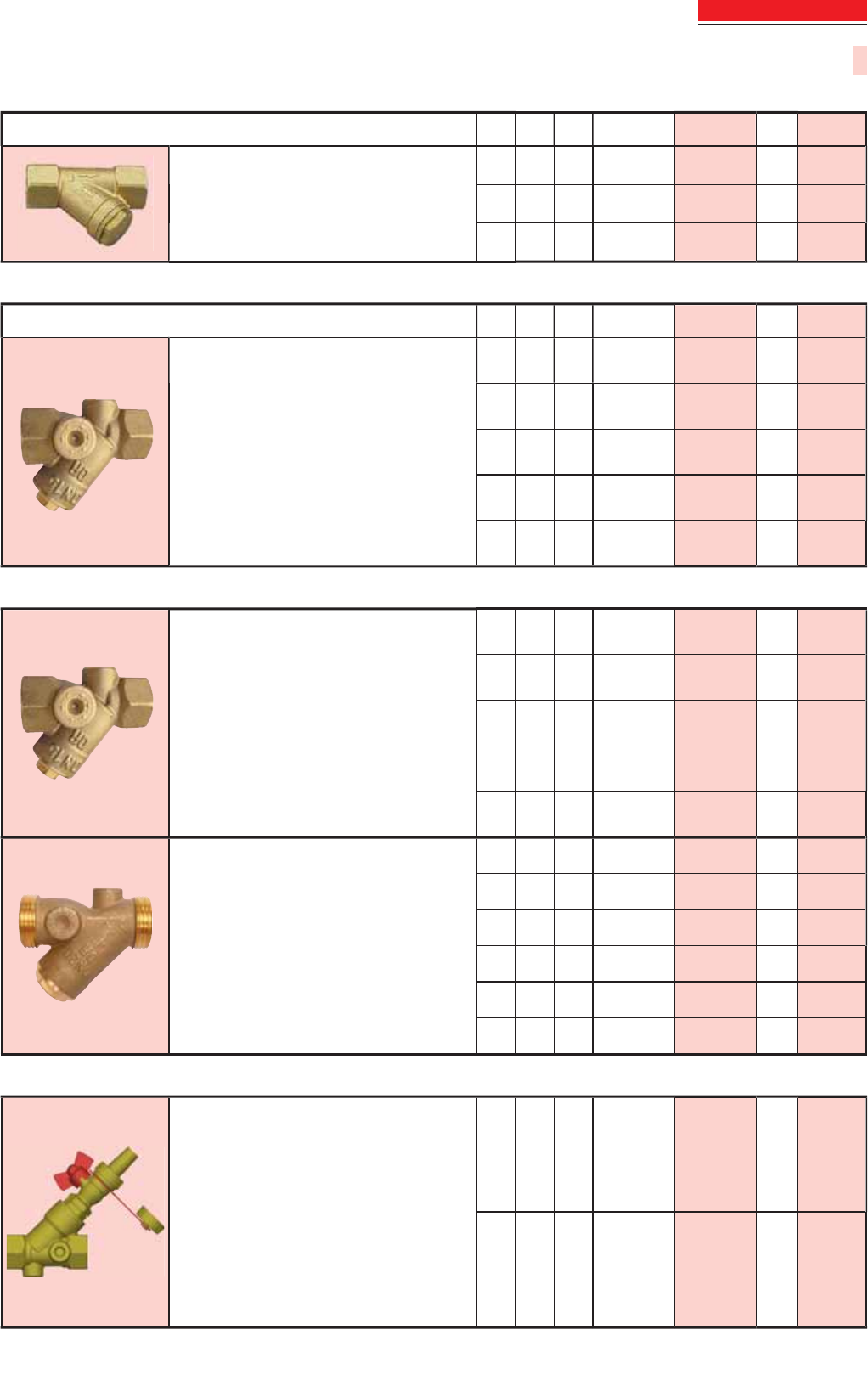

HERZ-Strainers
111
HERZ-Metering stations, Measuring Valves
112

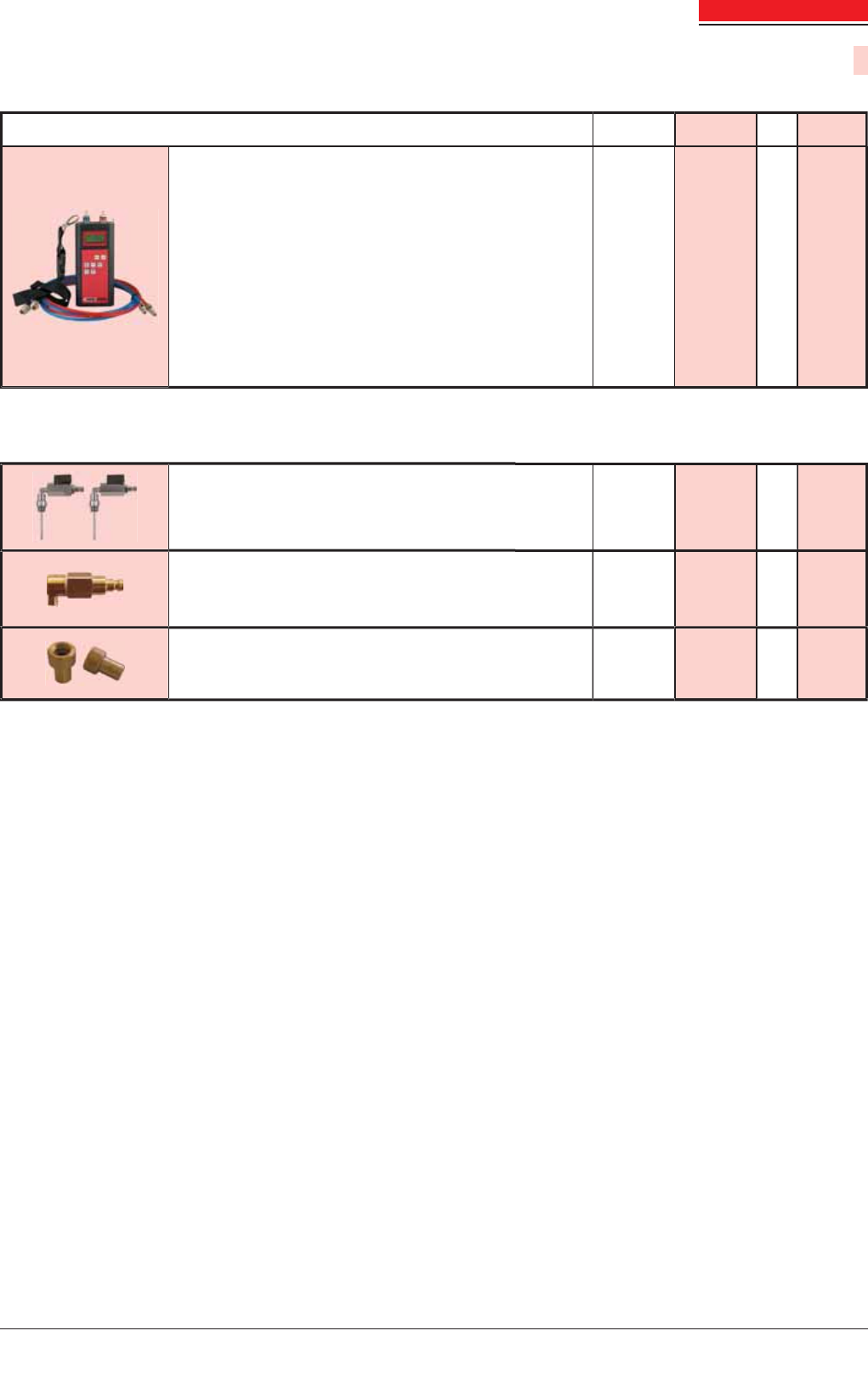

HERZ-Measuring Computer, Accessories
113
HERZ-Accessories, Pipe Fittings, Drain Valves
114
Pipe Fittings Insulation Shells
114
Spare Parts for Inclined Model
115-118
Spare parts for Differential Pressure and Stromax Valves
119

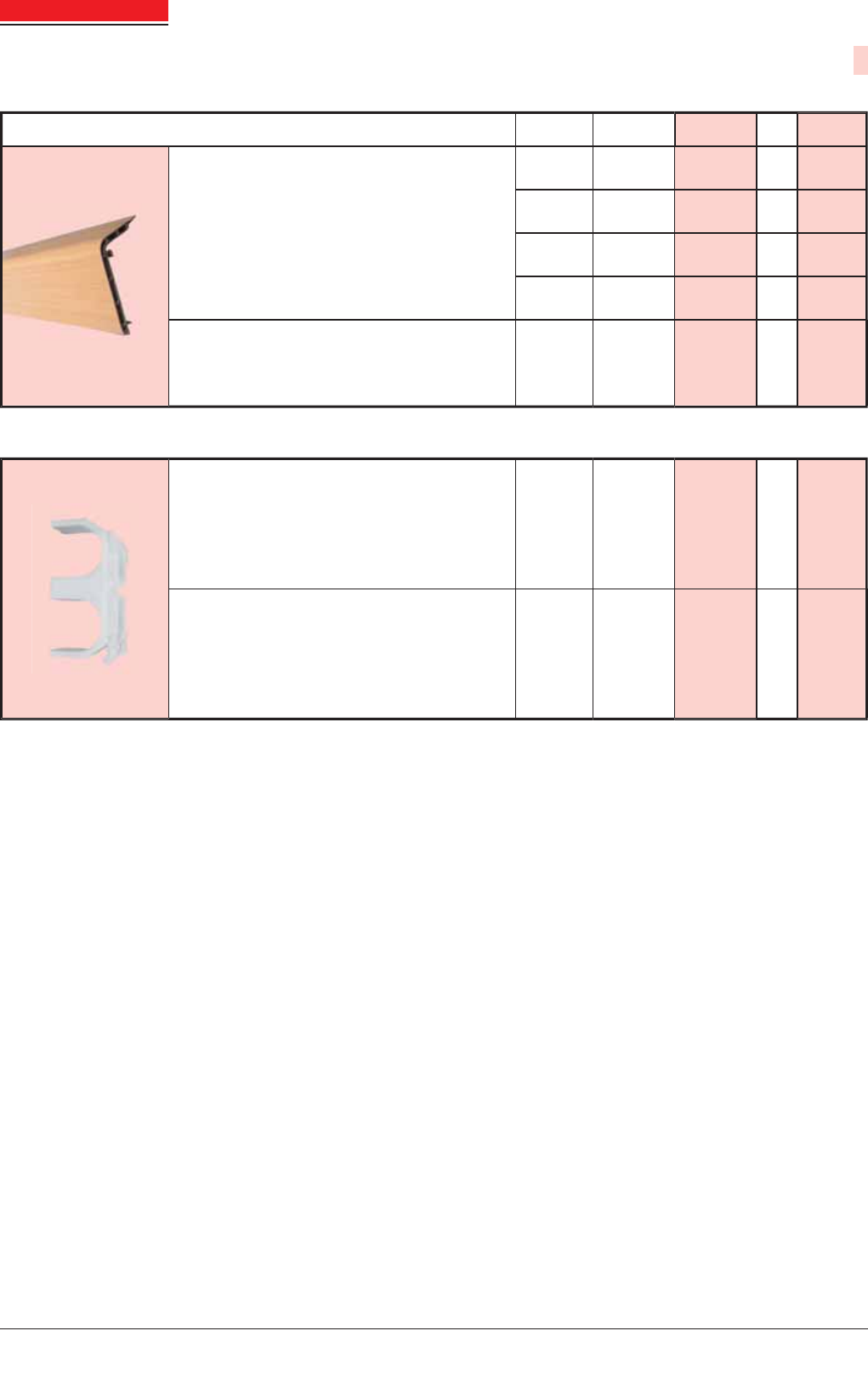

Plastic Skirting Boards
120-121

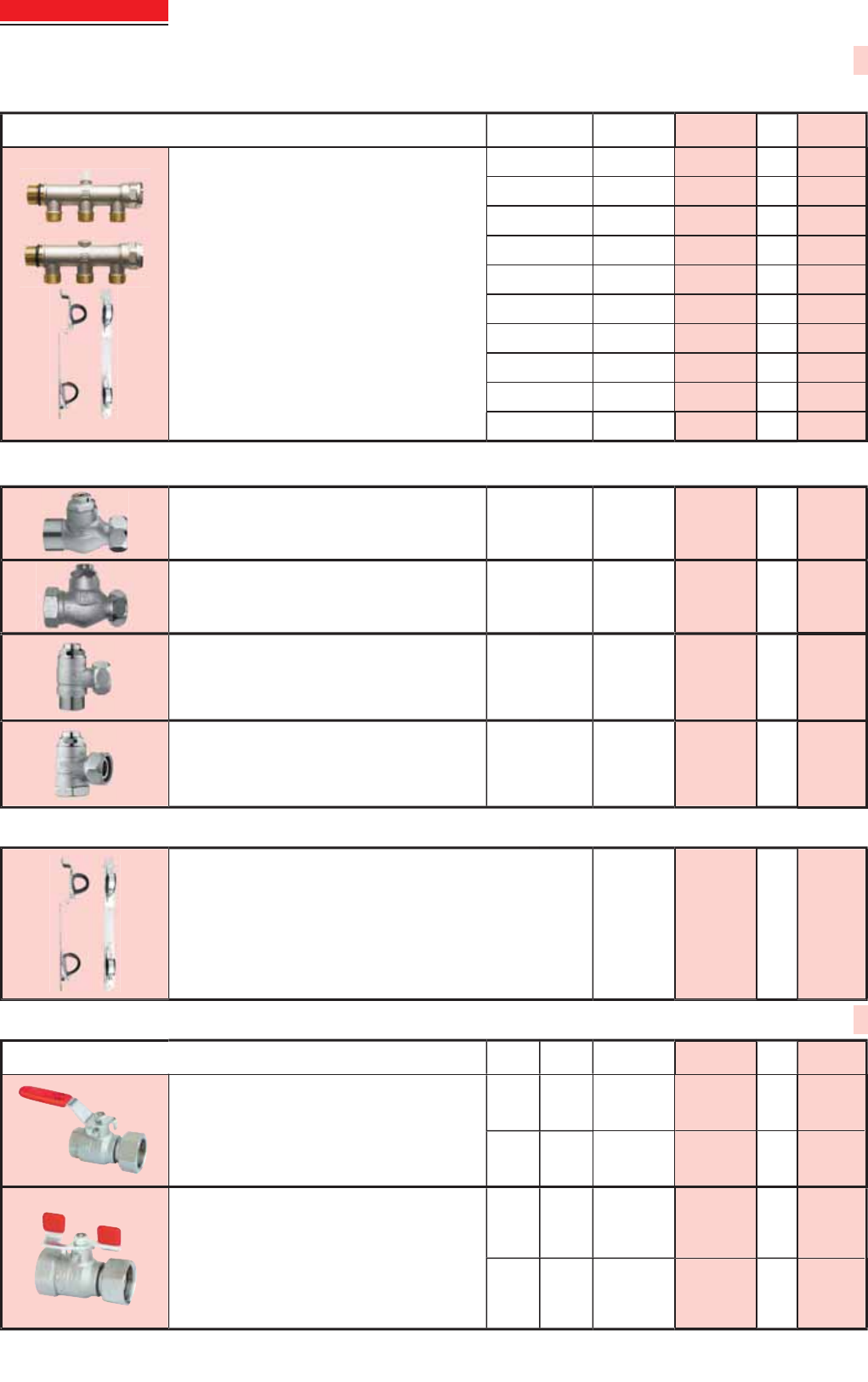

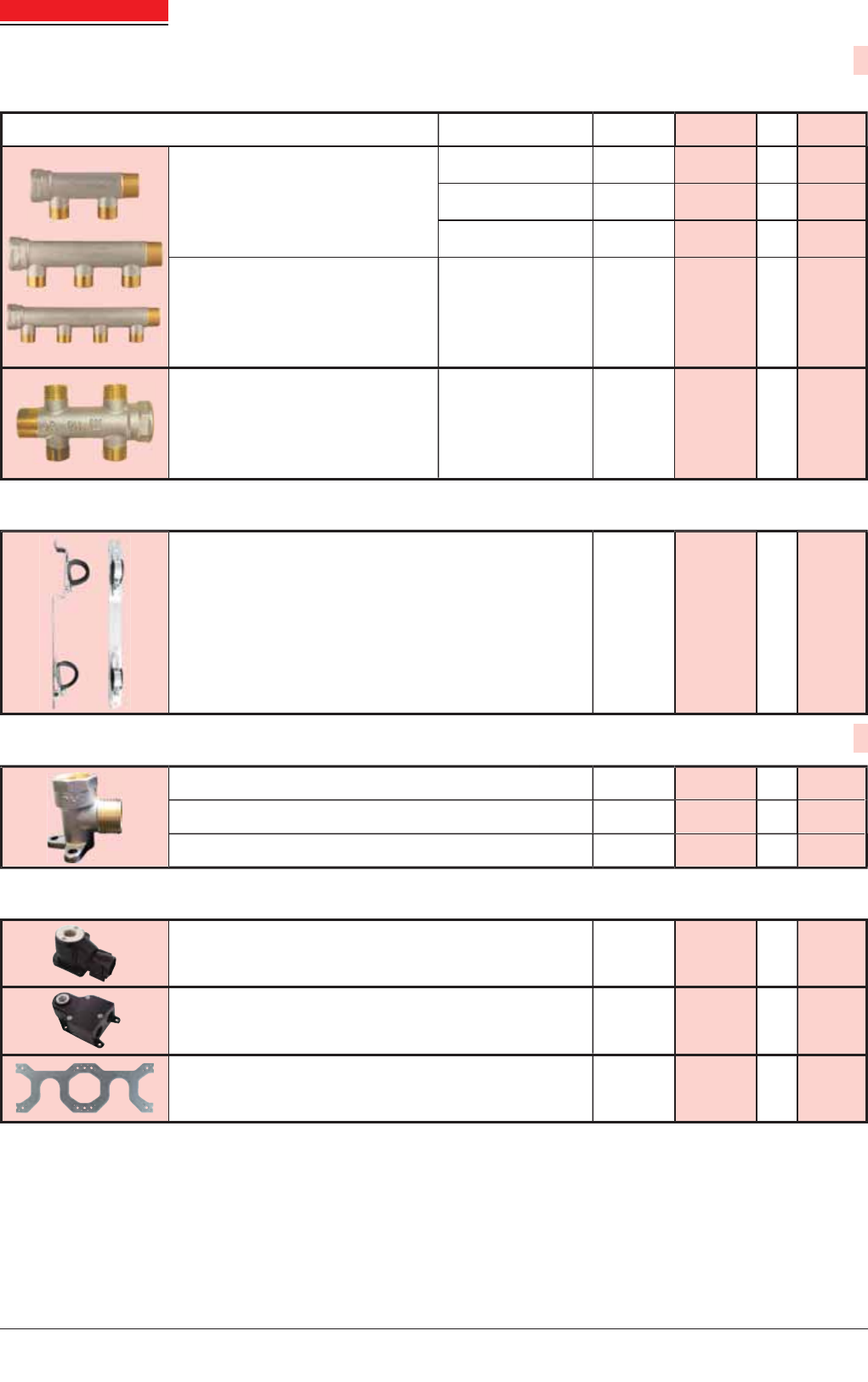

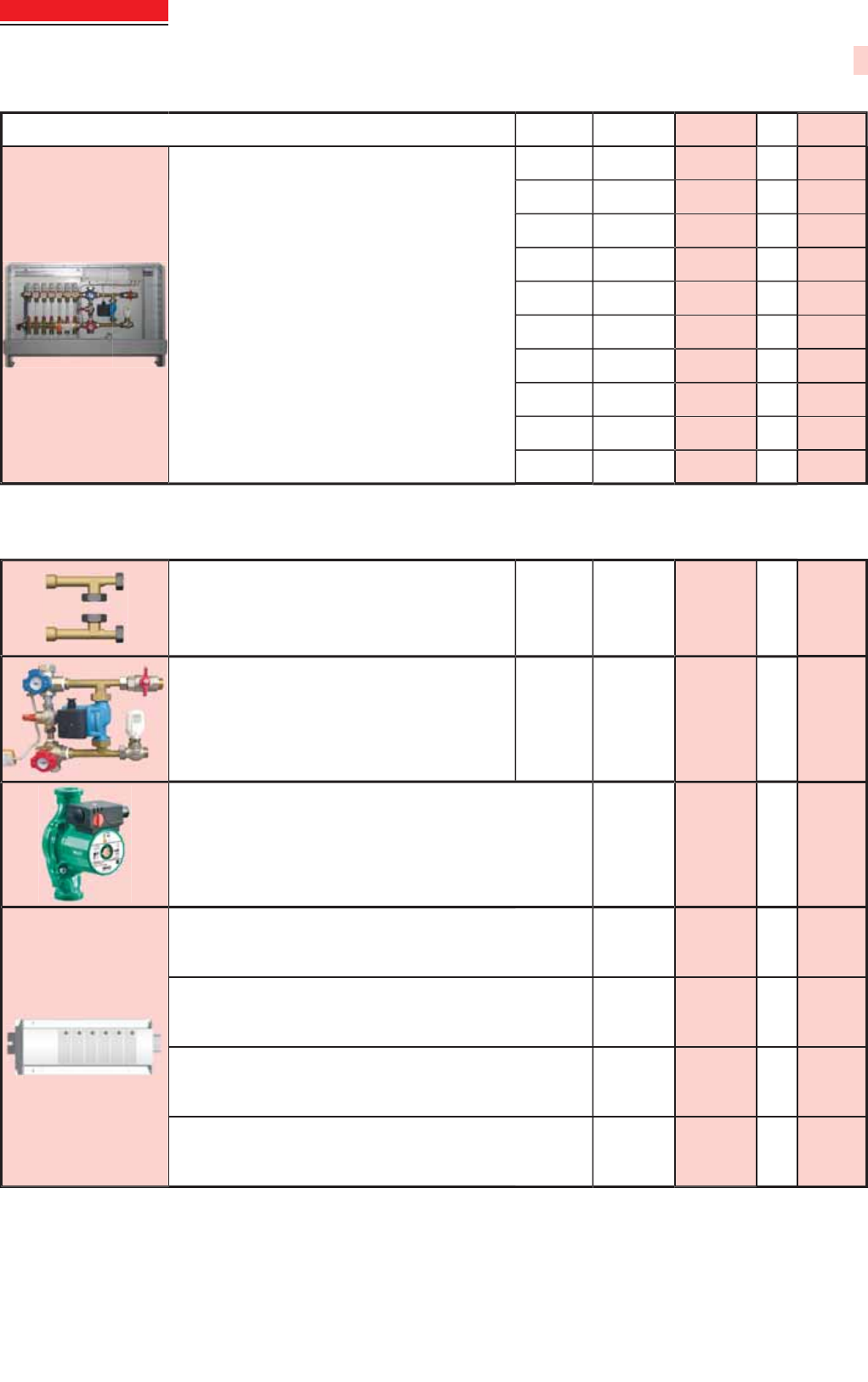

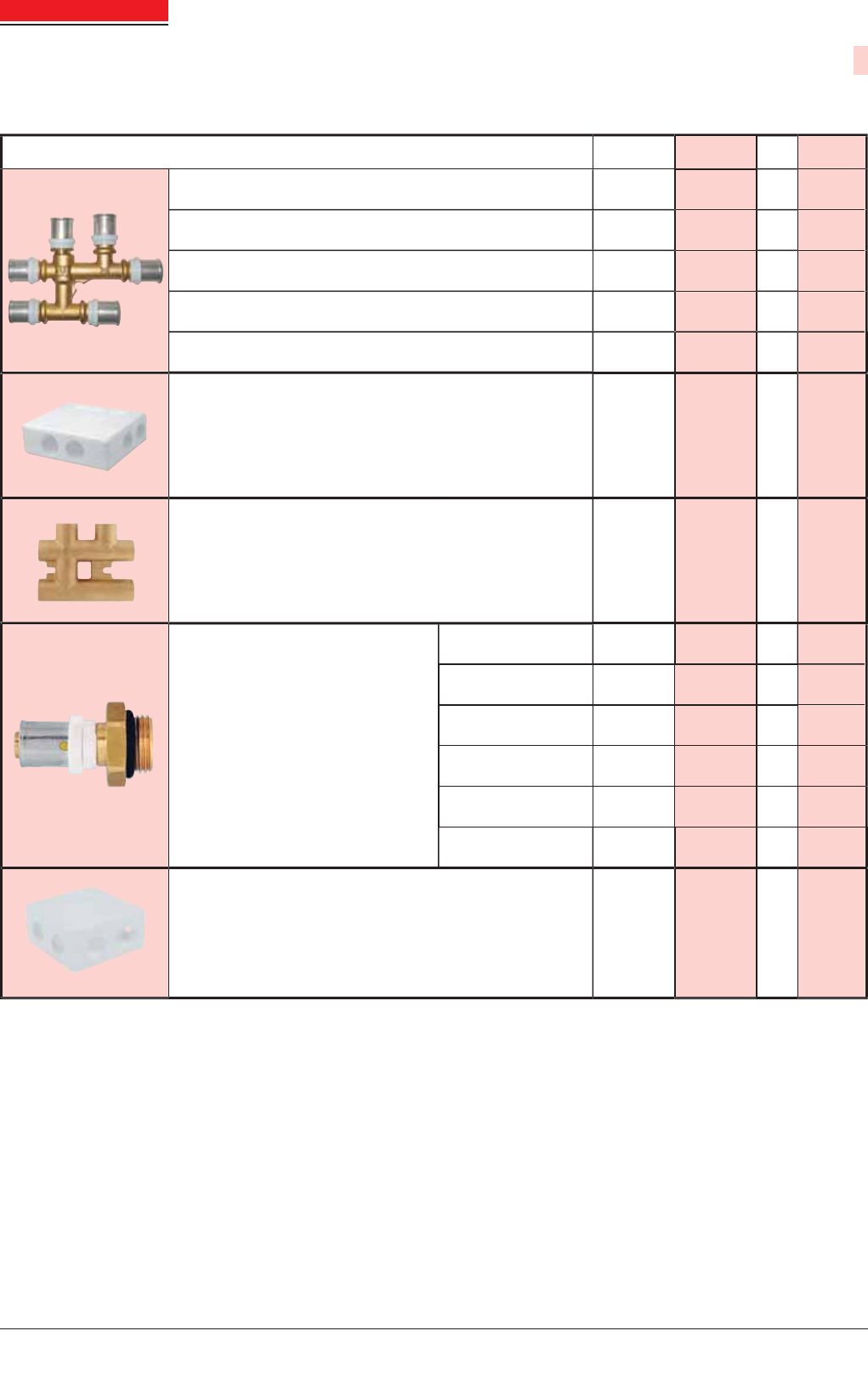

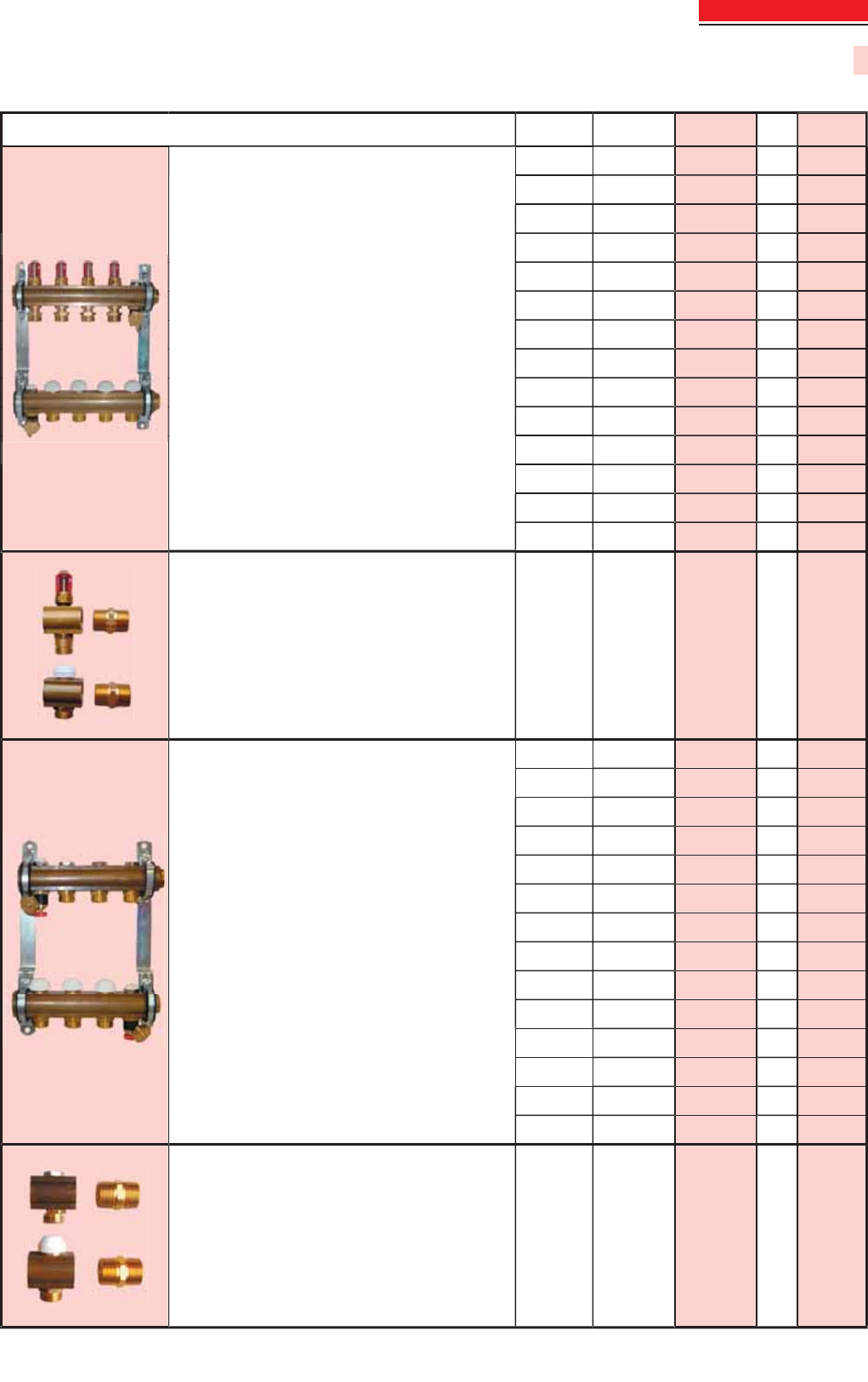

HERZ-Compact Distributors
122, 126-127, 131-132
Press fi ttings
123-124

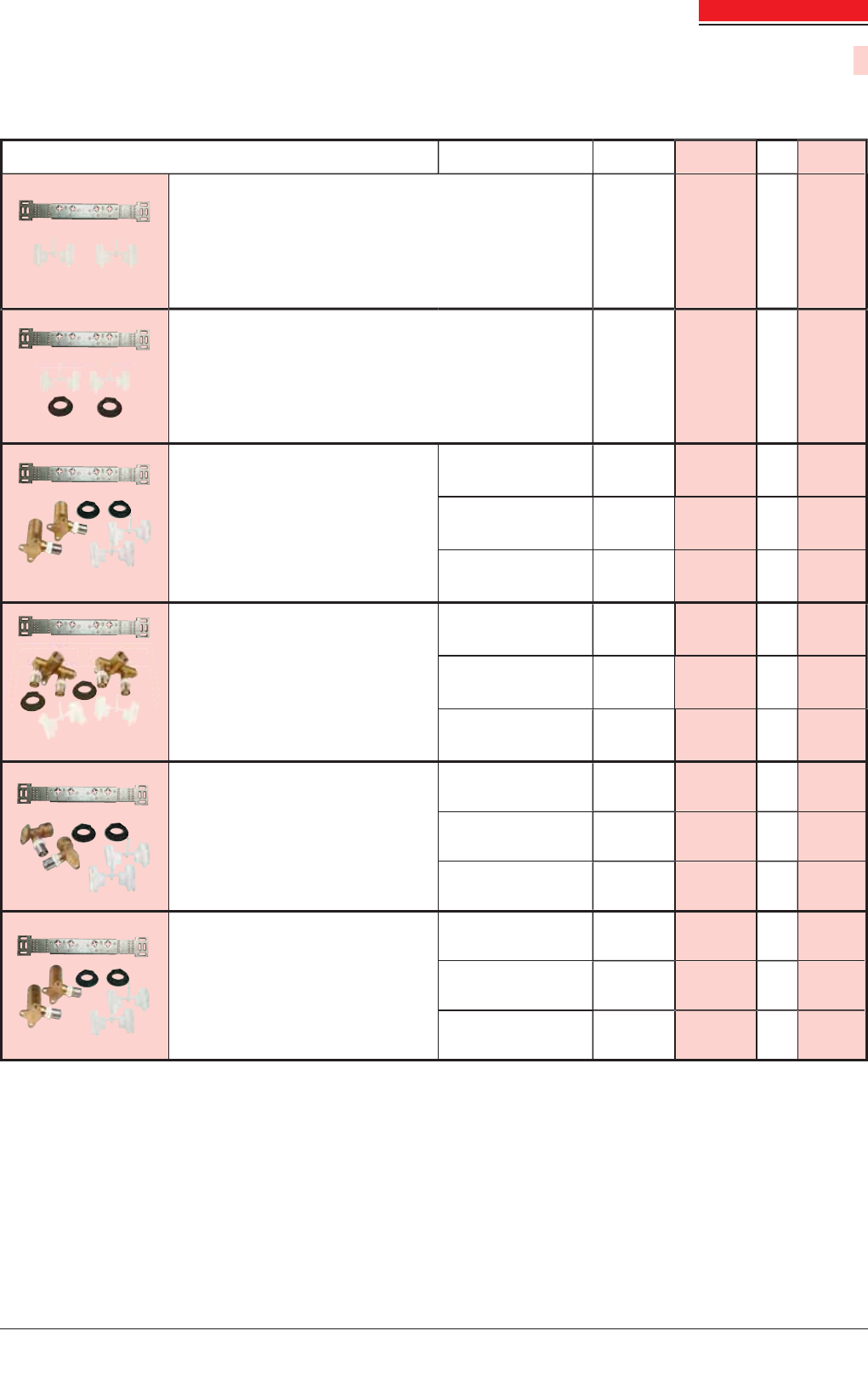

Mounting Kits
125
HERZ-Shutoff Valve for Compact Distributor
126

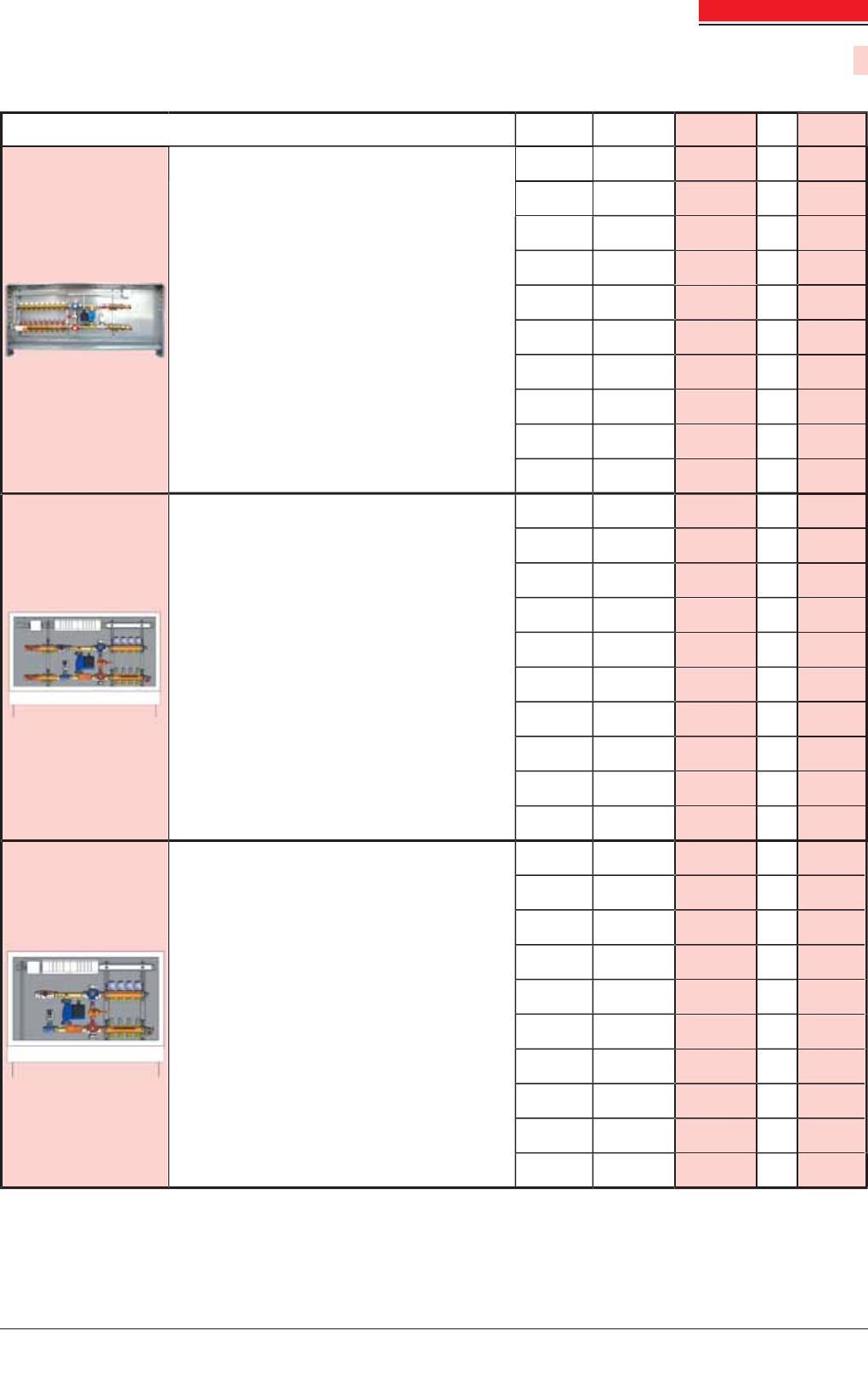

Pre-assembled Control Station for Radiator Heating Control
127
HERZ-COMPACT FLOOR
128-130
HERZ-Connection System for COMPACTFLOOR
130

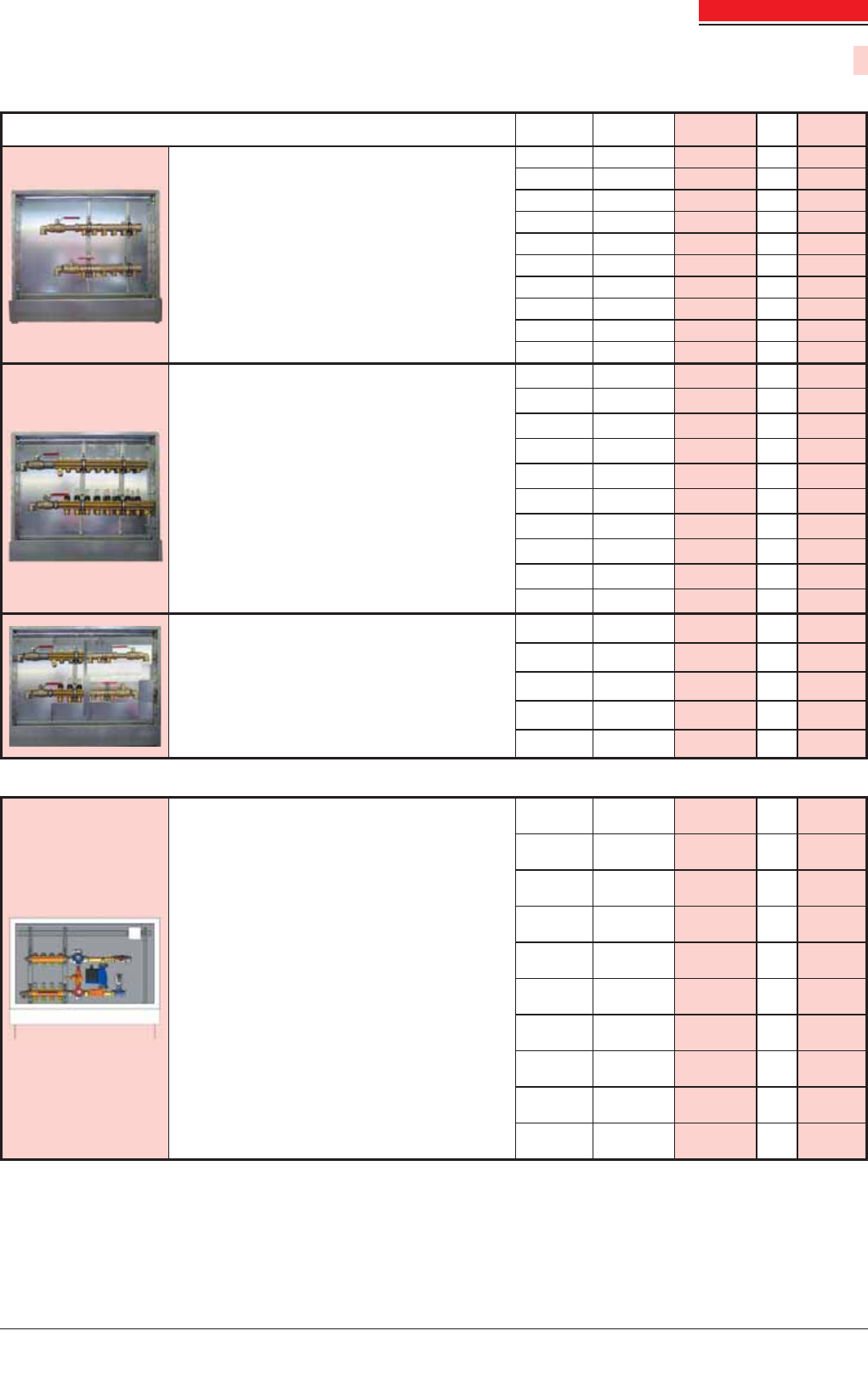

HERZ-Distributor Cabinets
133
Electrical Distribution
133
HERZ-Spare Upper Part for Distributors
134

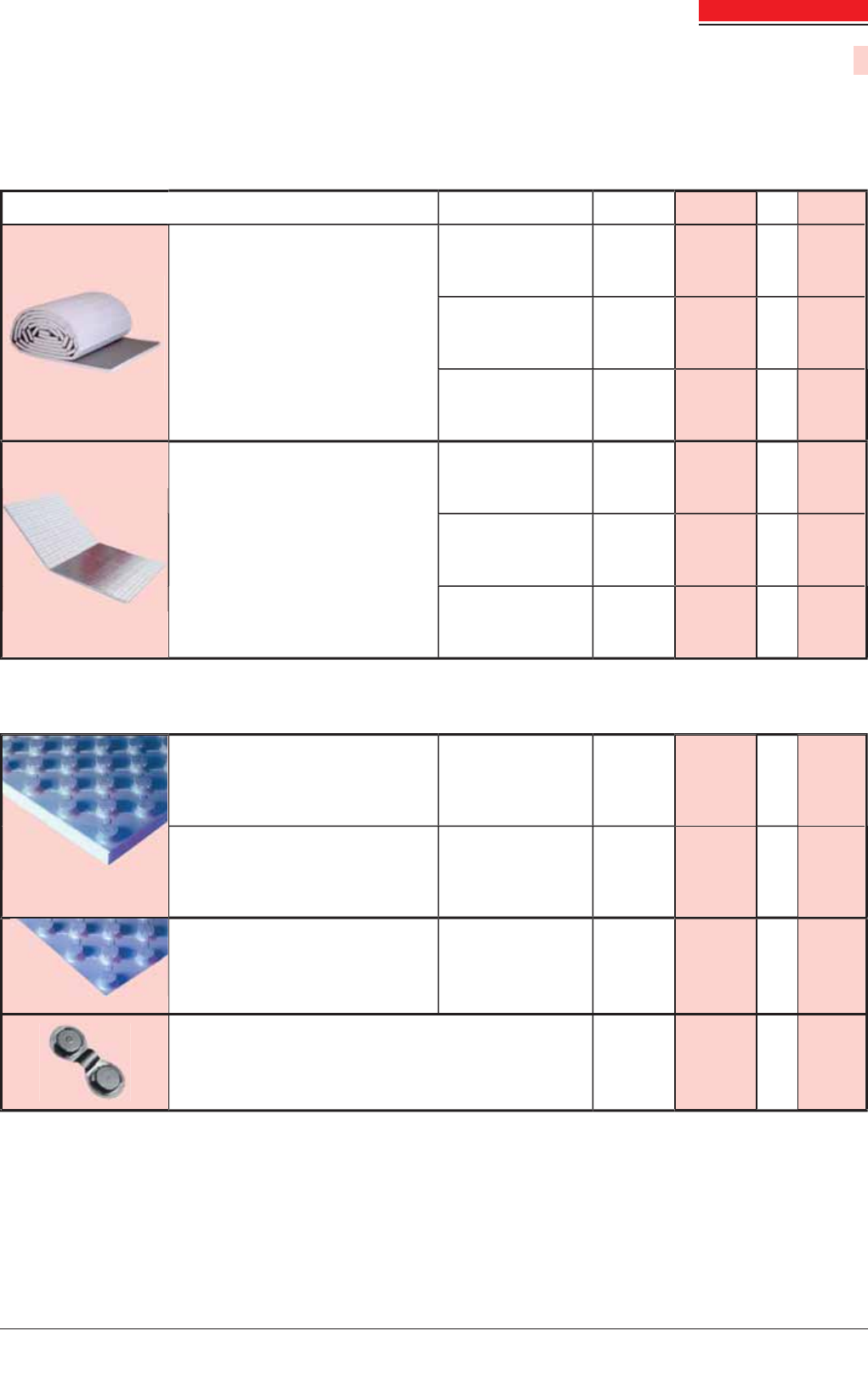

Tacker, Panels for Underfl oor Heating System
135

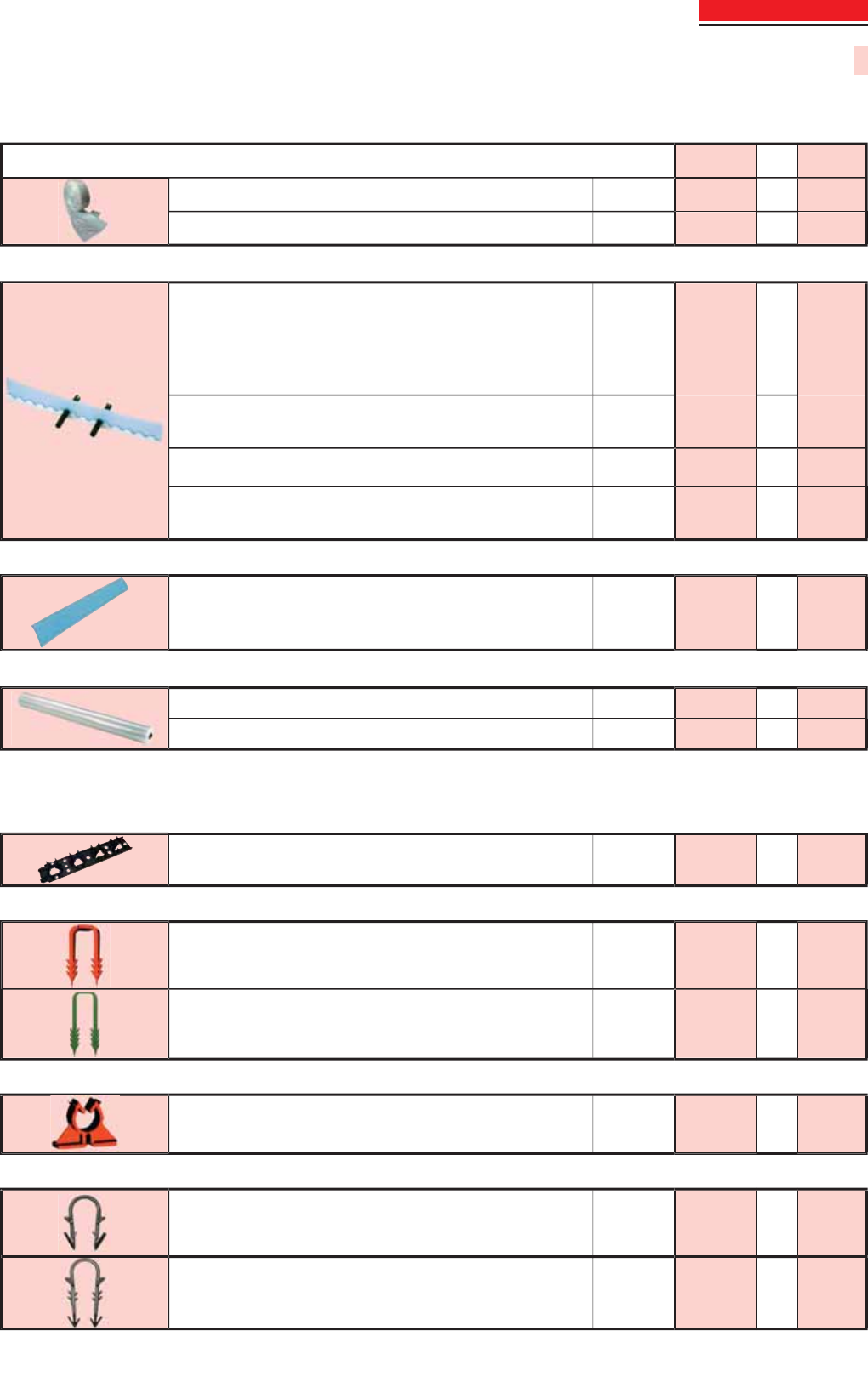

Miscellaneous Accessories for Underfl oor Heating System
136-138
HERZ-Plastic Composite Pipe
139-140

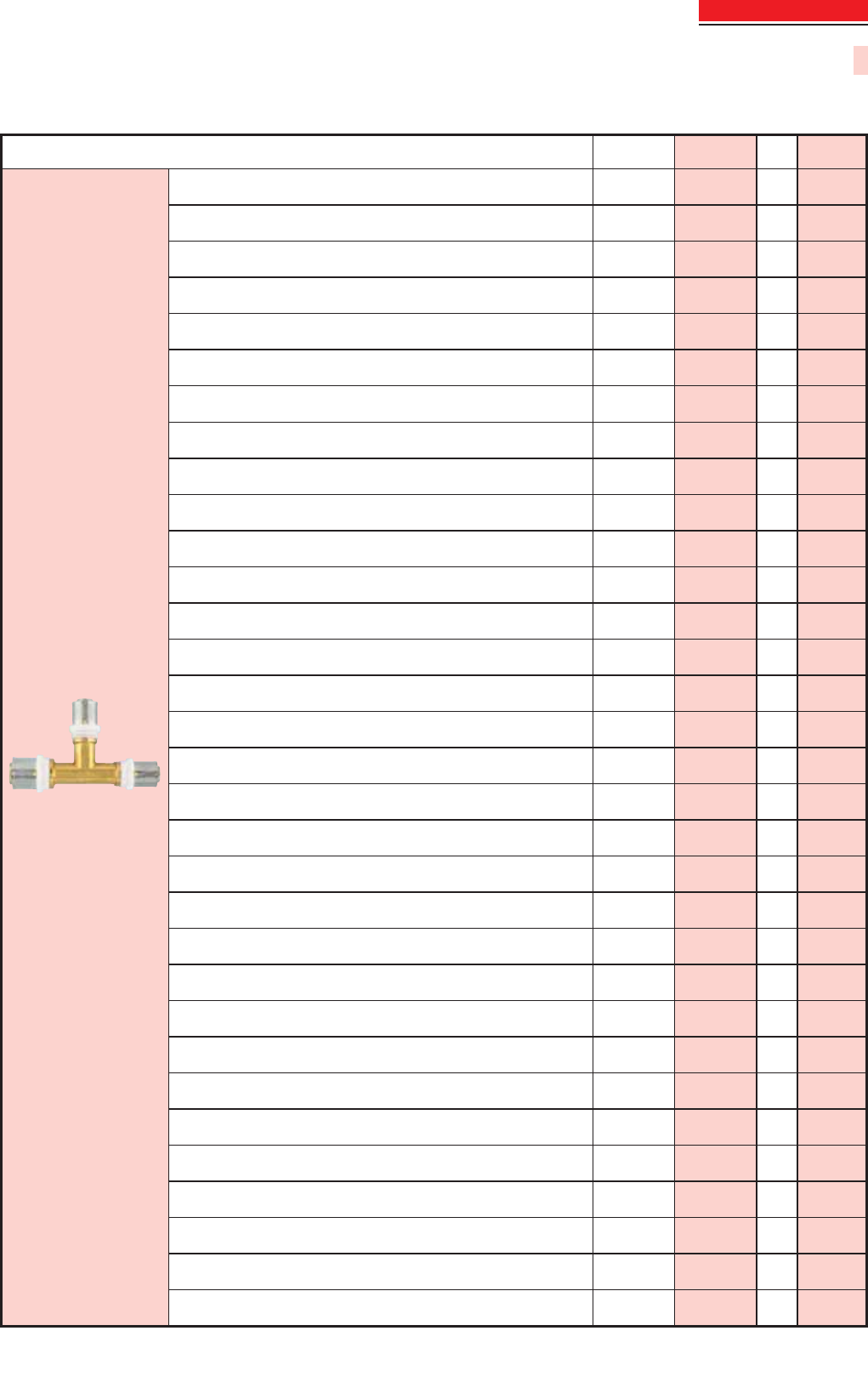

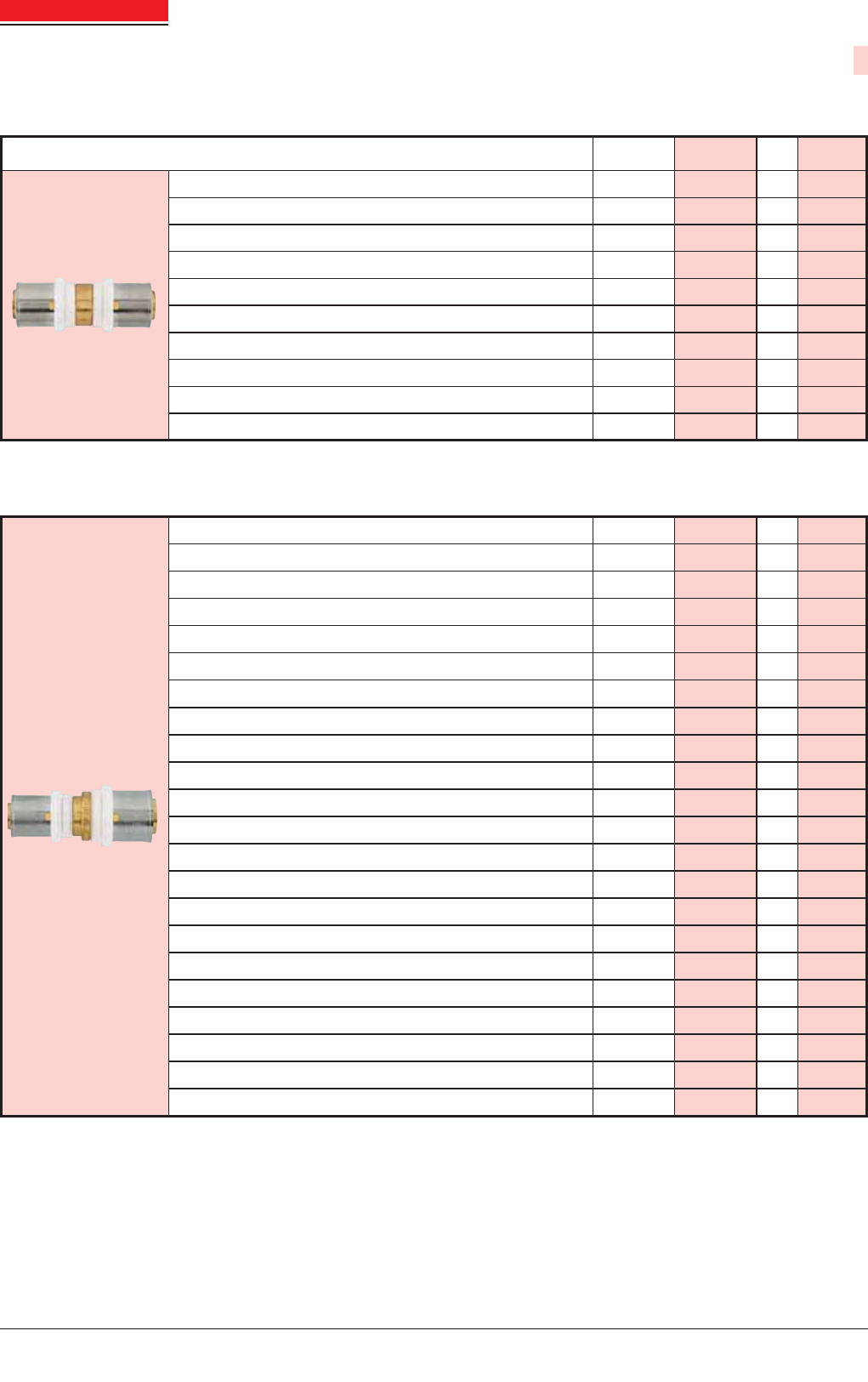

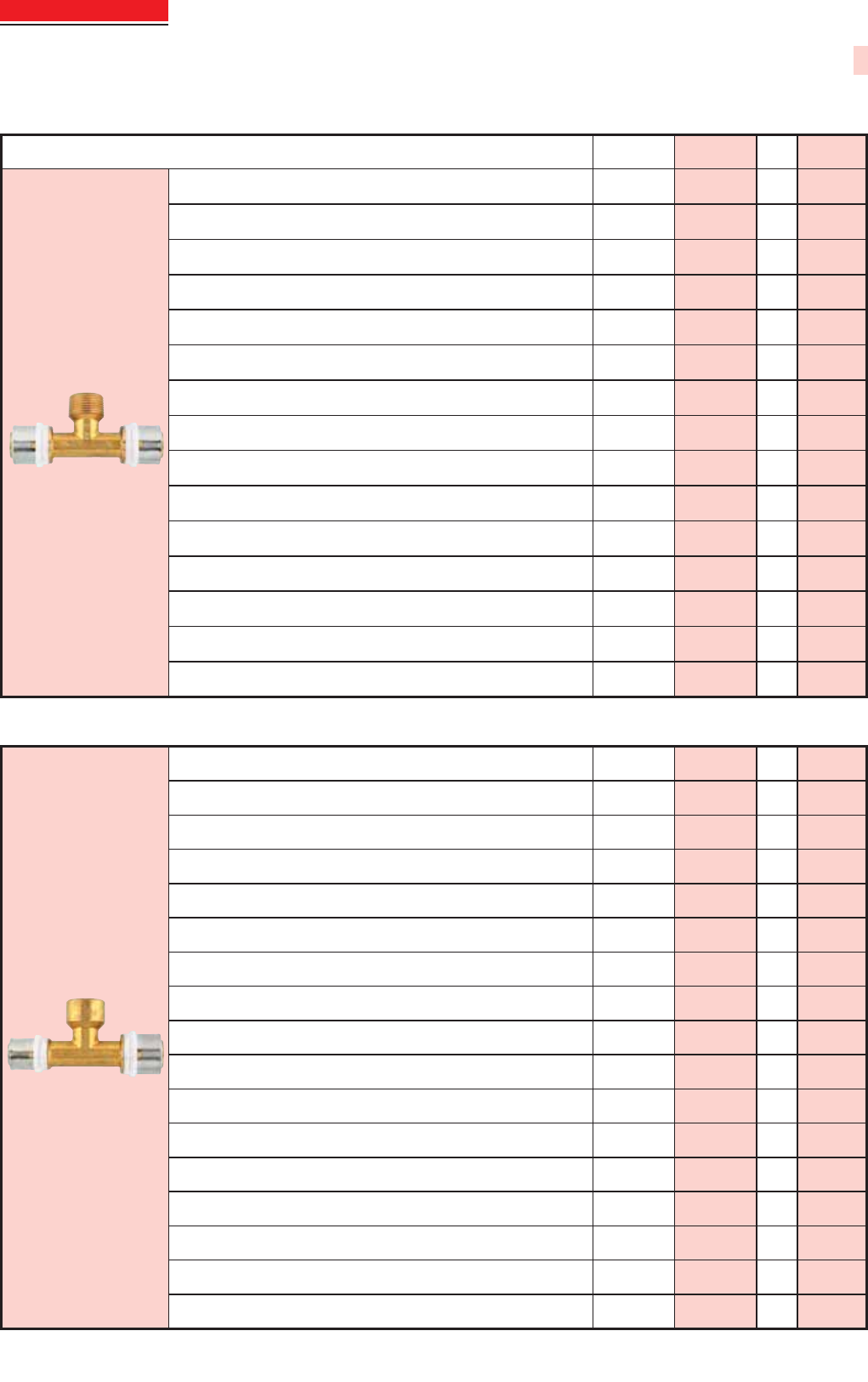

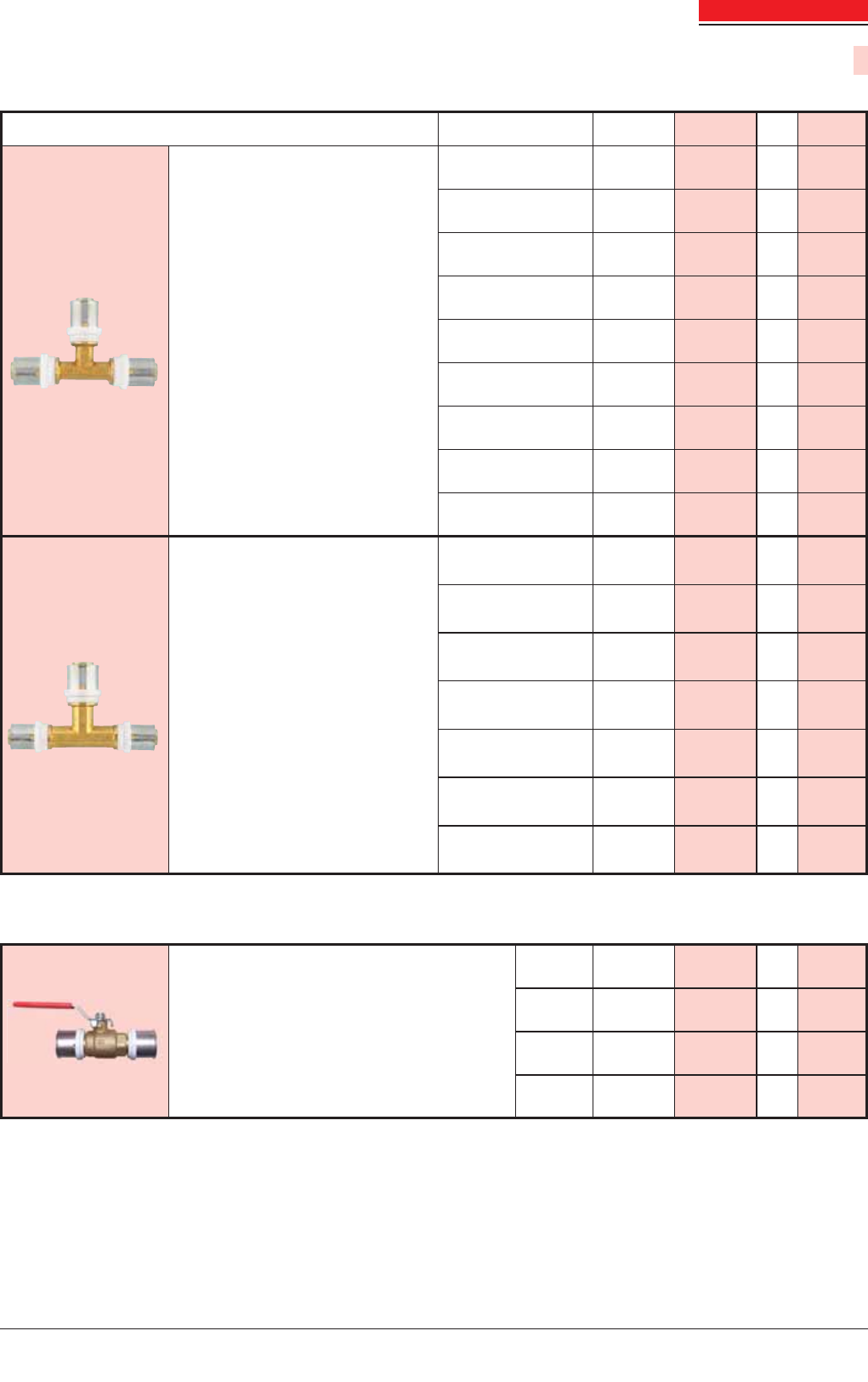

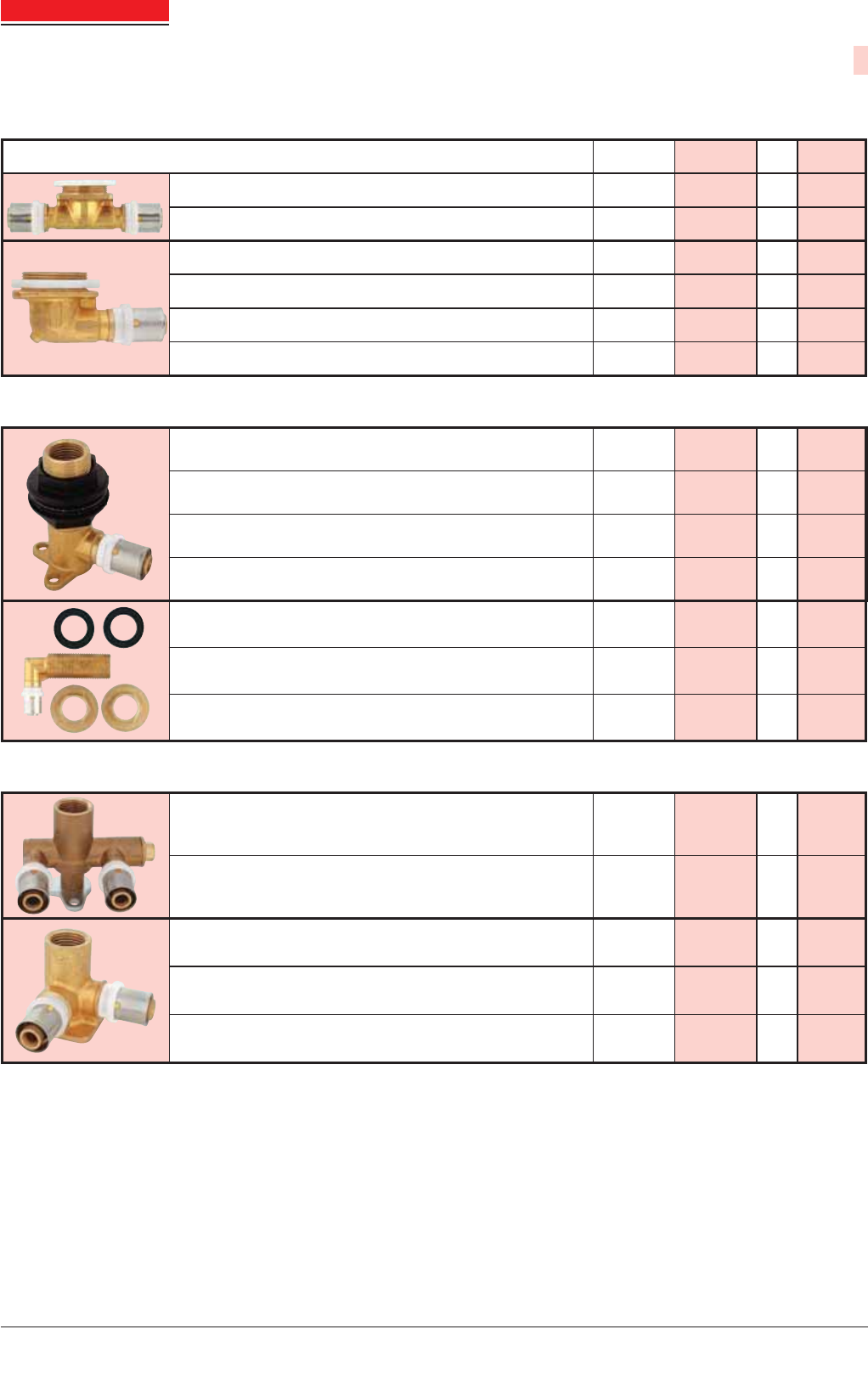

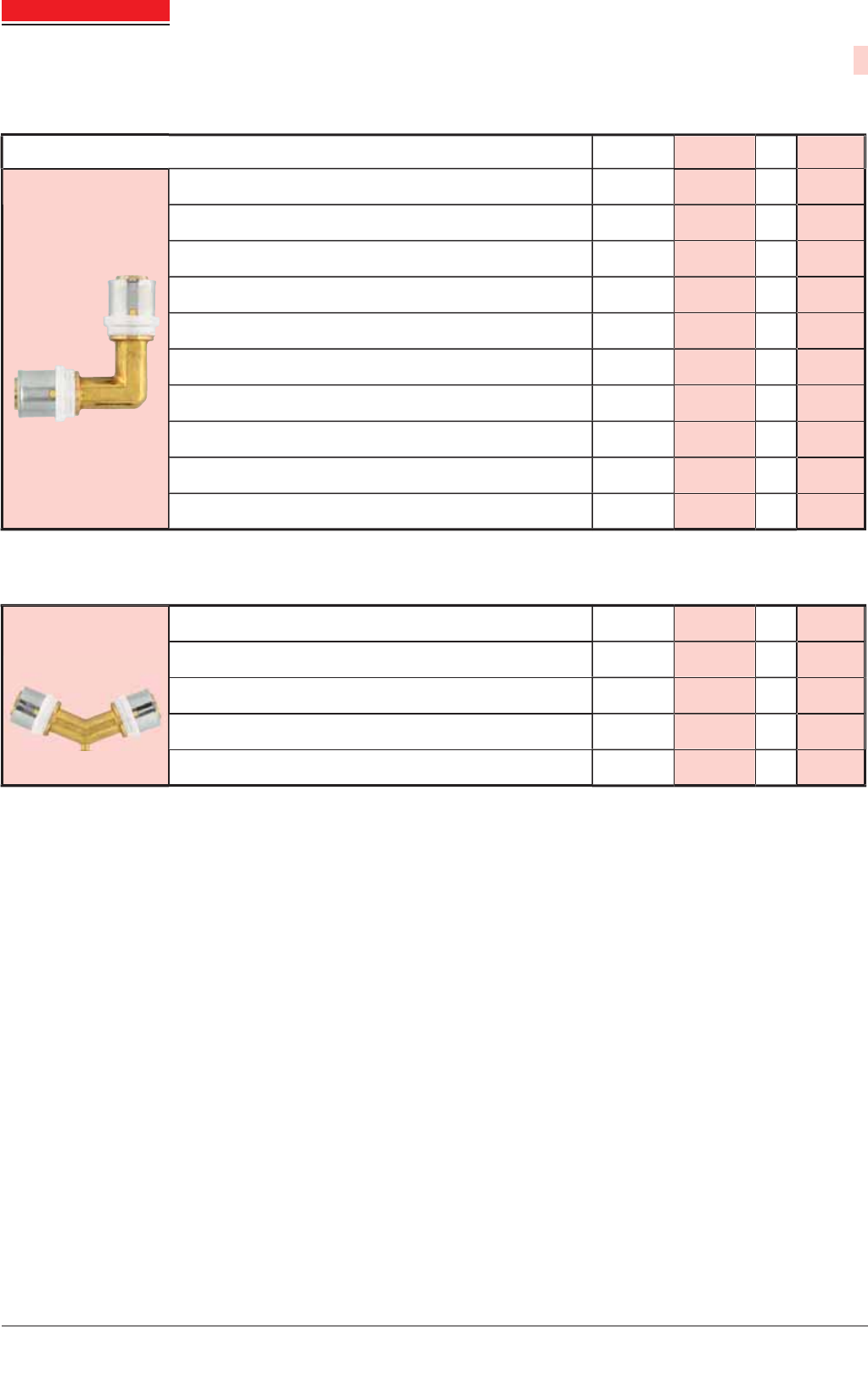

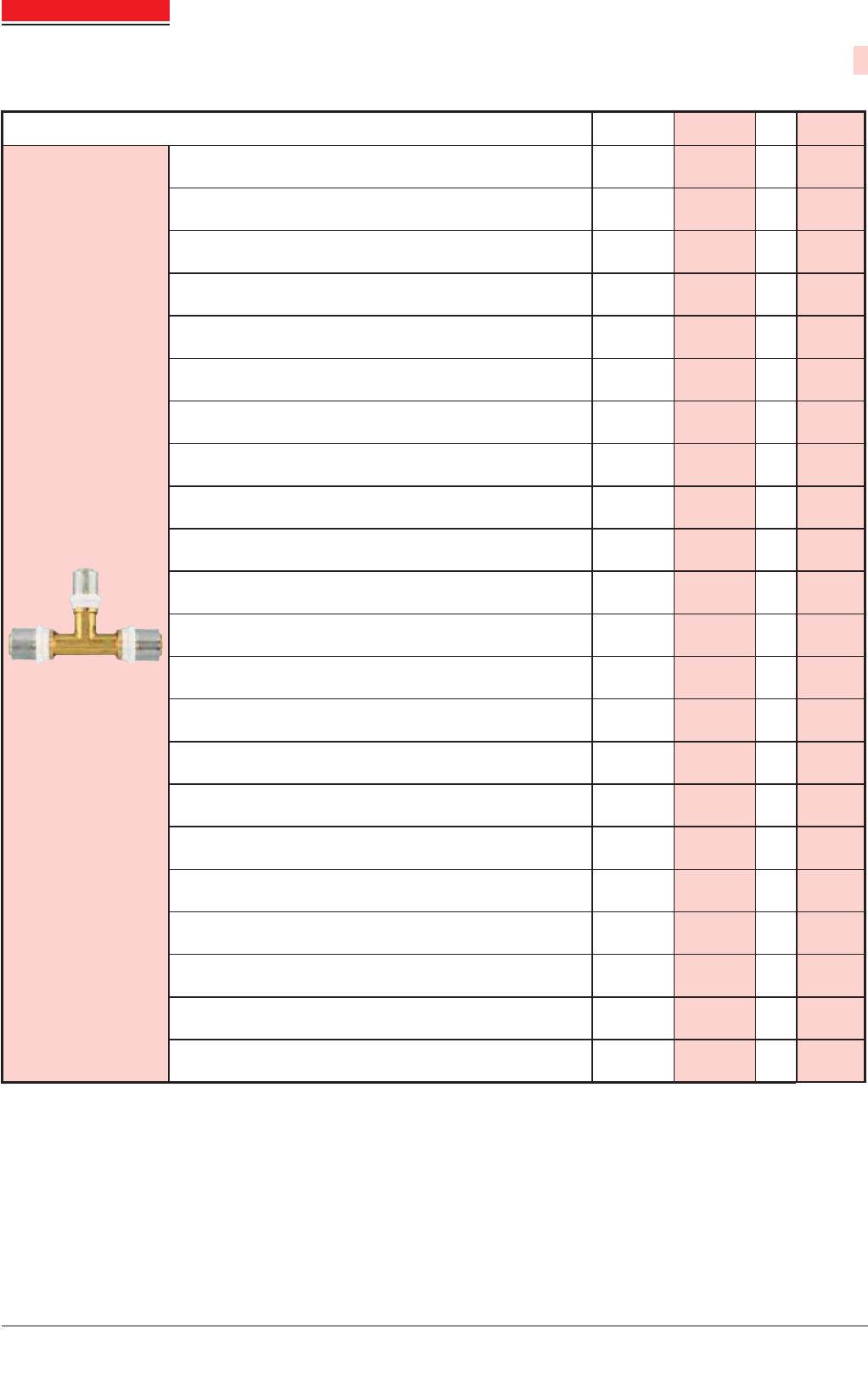

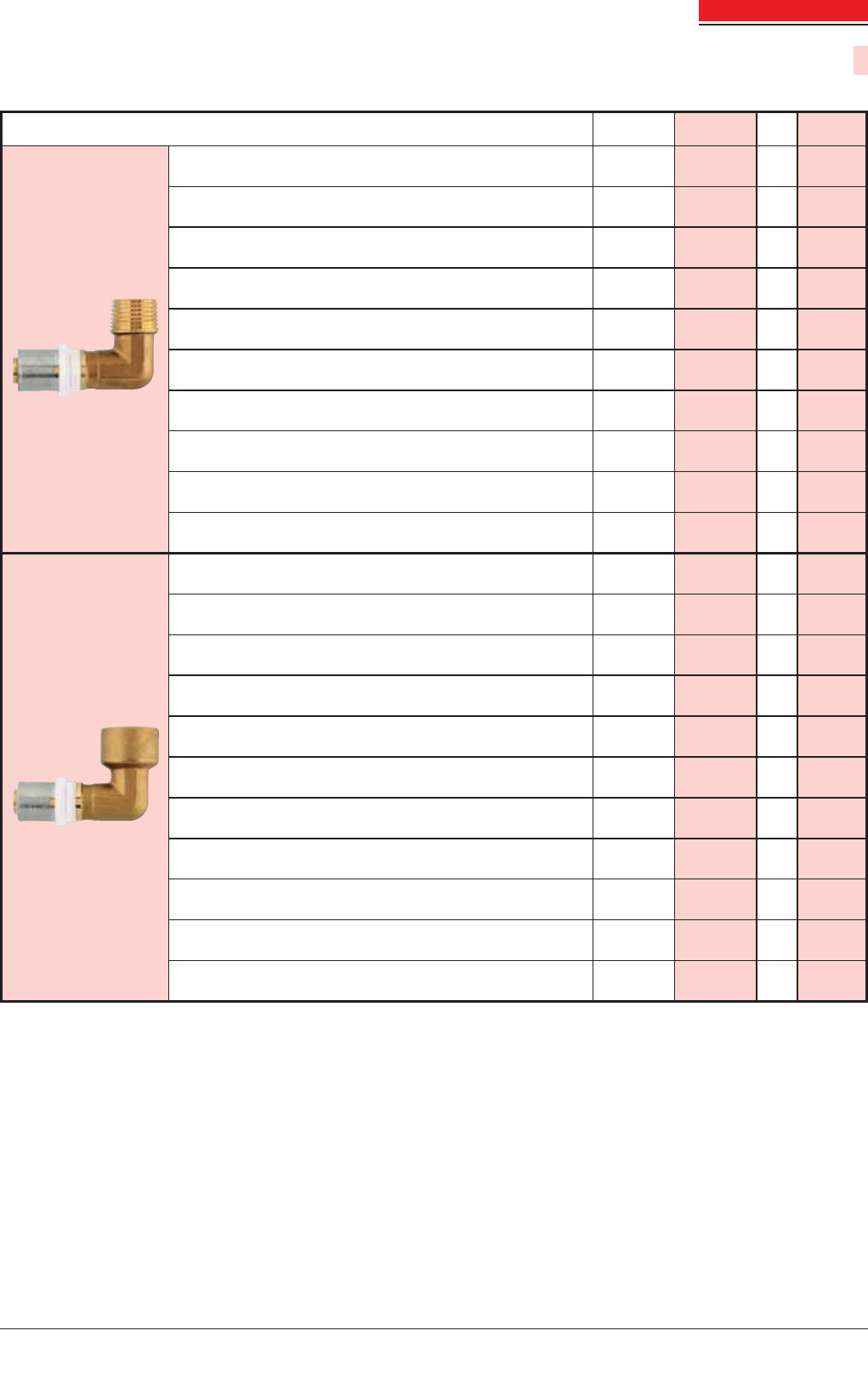

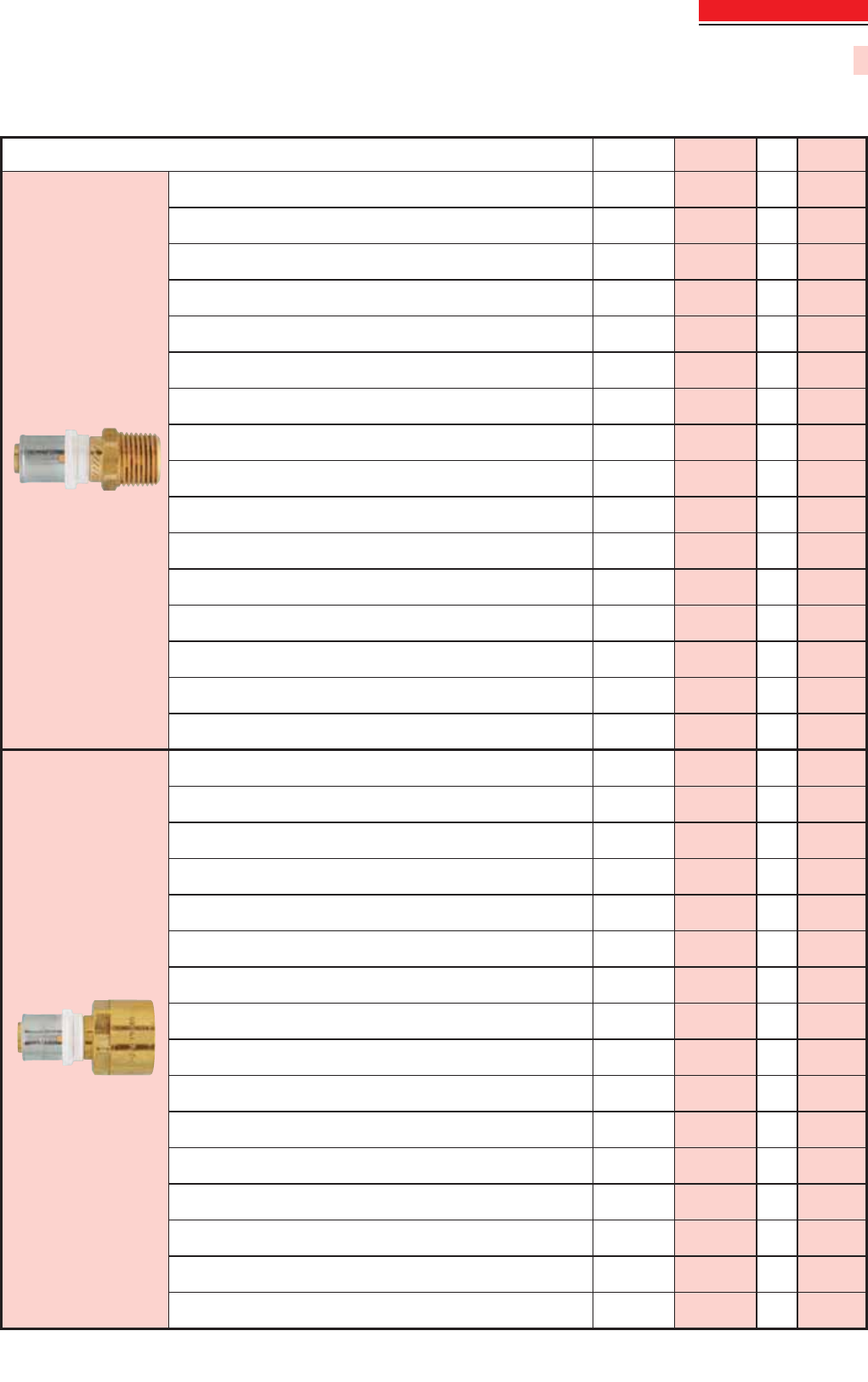

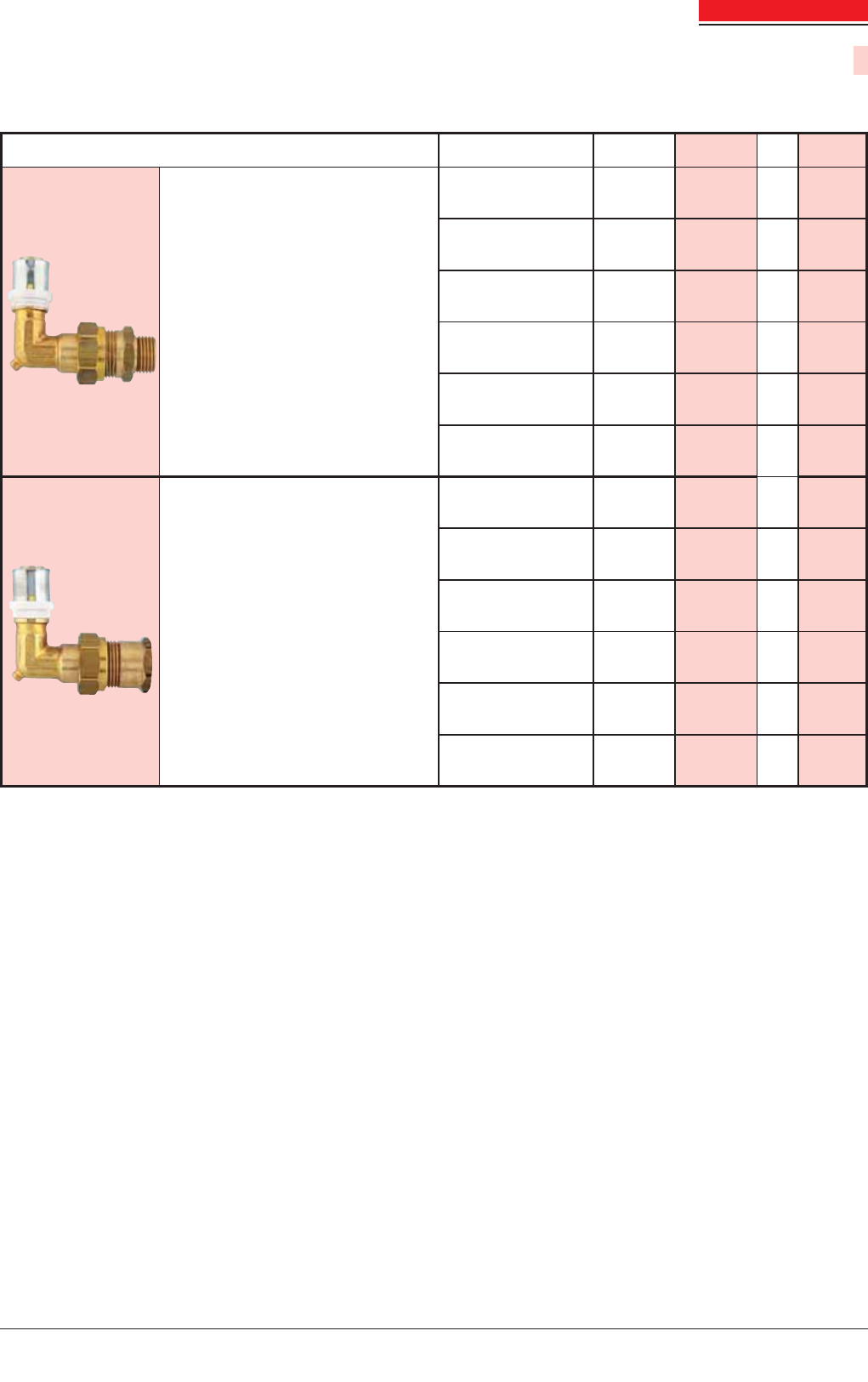

PIPEFIX Press fi ttings
141, 146-156

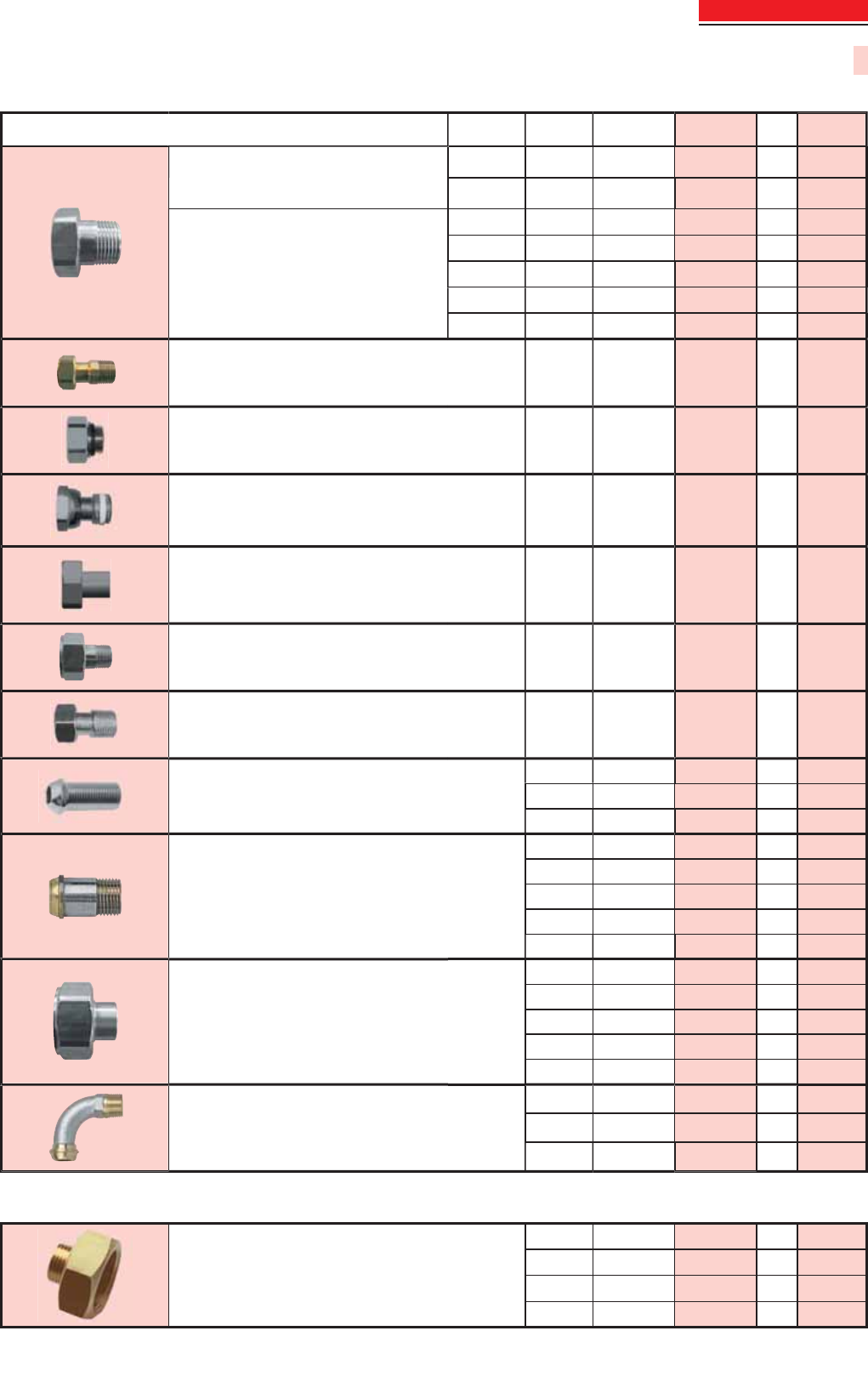

Connections
142-145, 161, 162

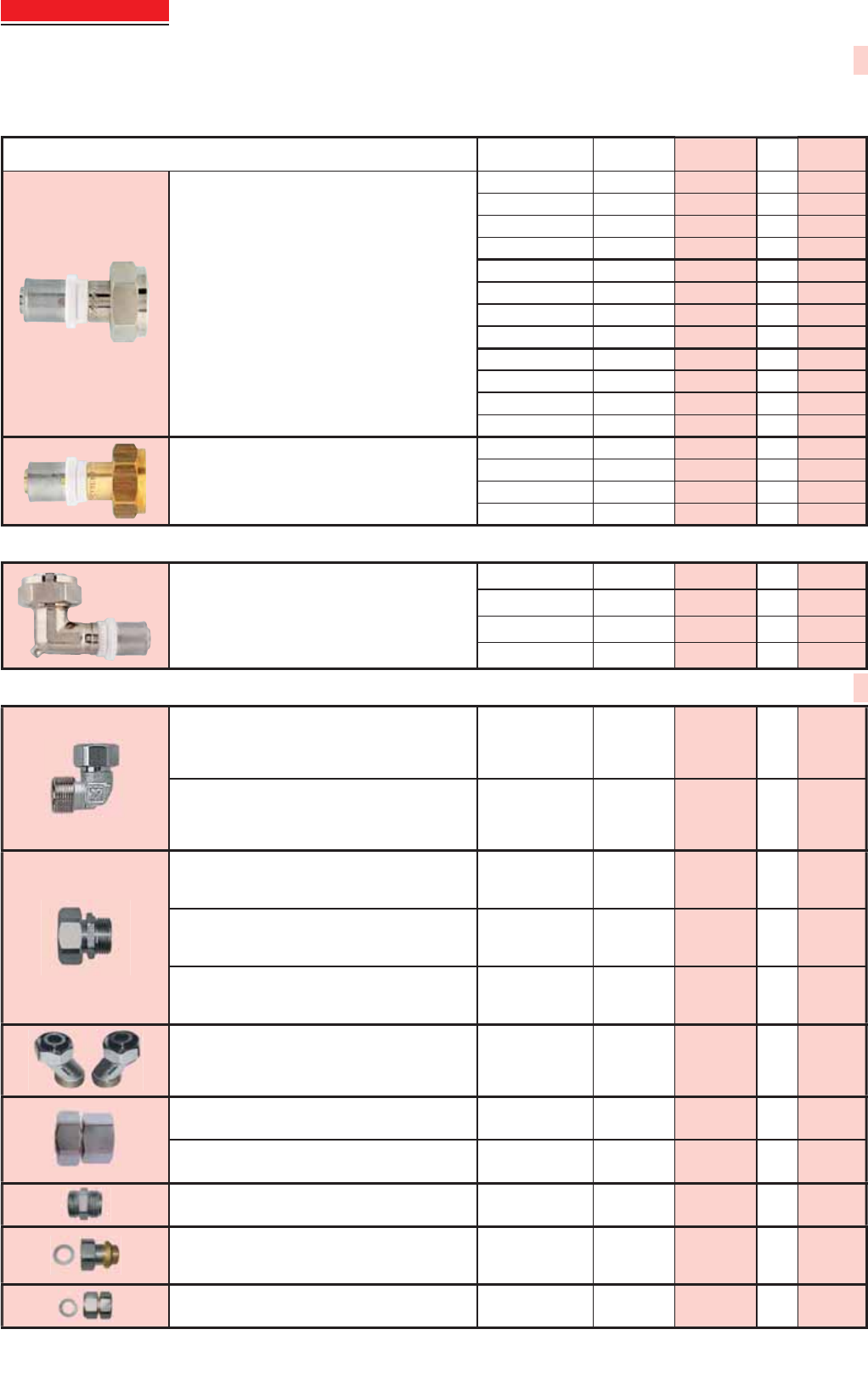

Plastic Pipe Conections
157
HERZ-Compression Adapters, compression adapters for DE LUXE
158-159

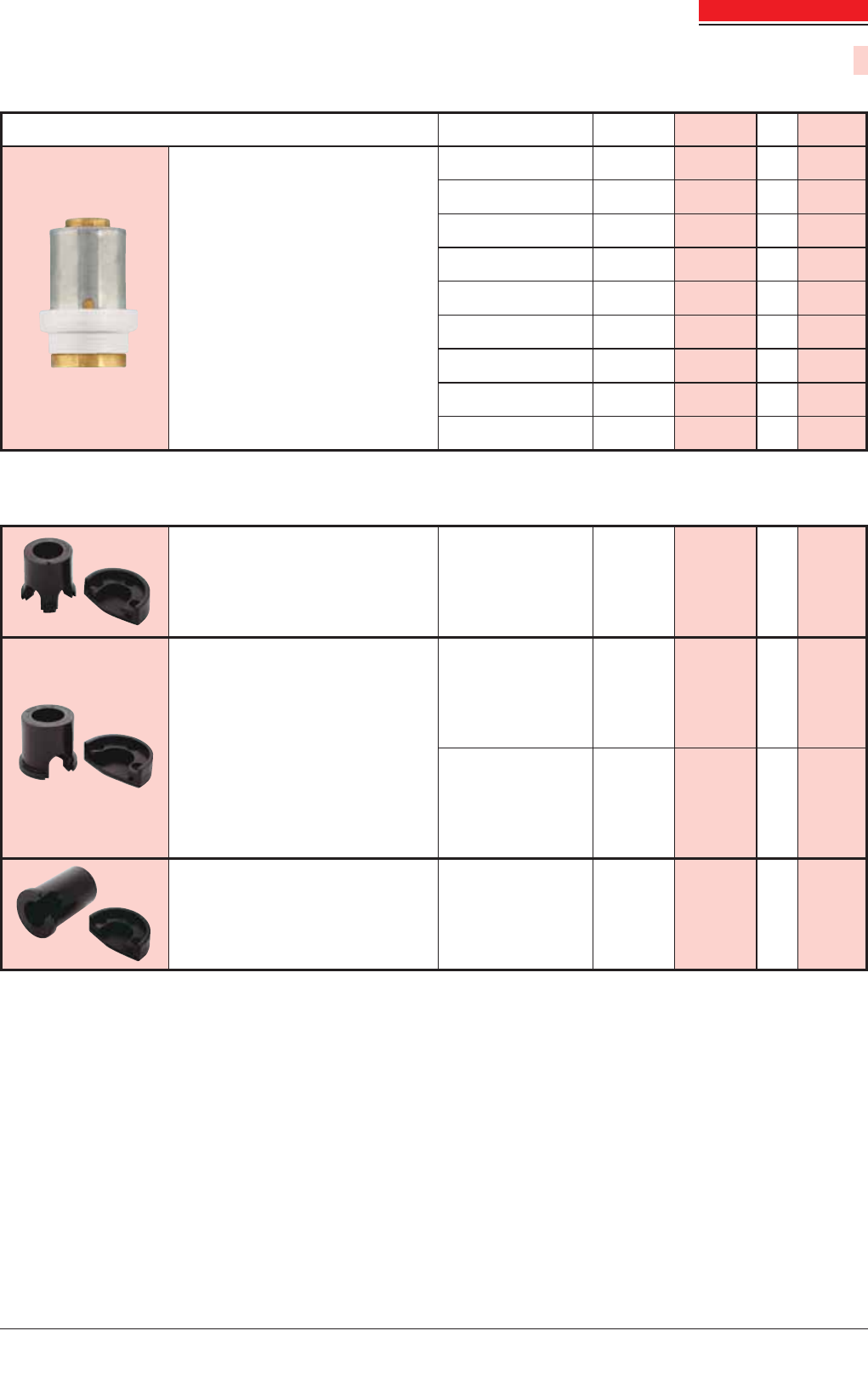

Accessories for PIPEFIX Press 17 Fittings
163

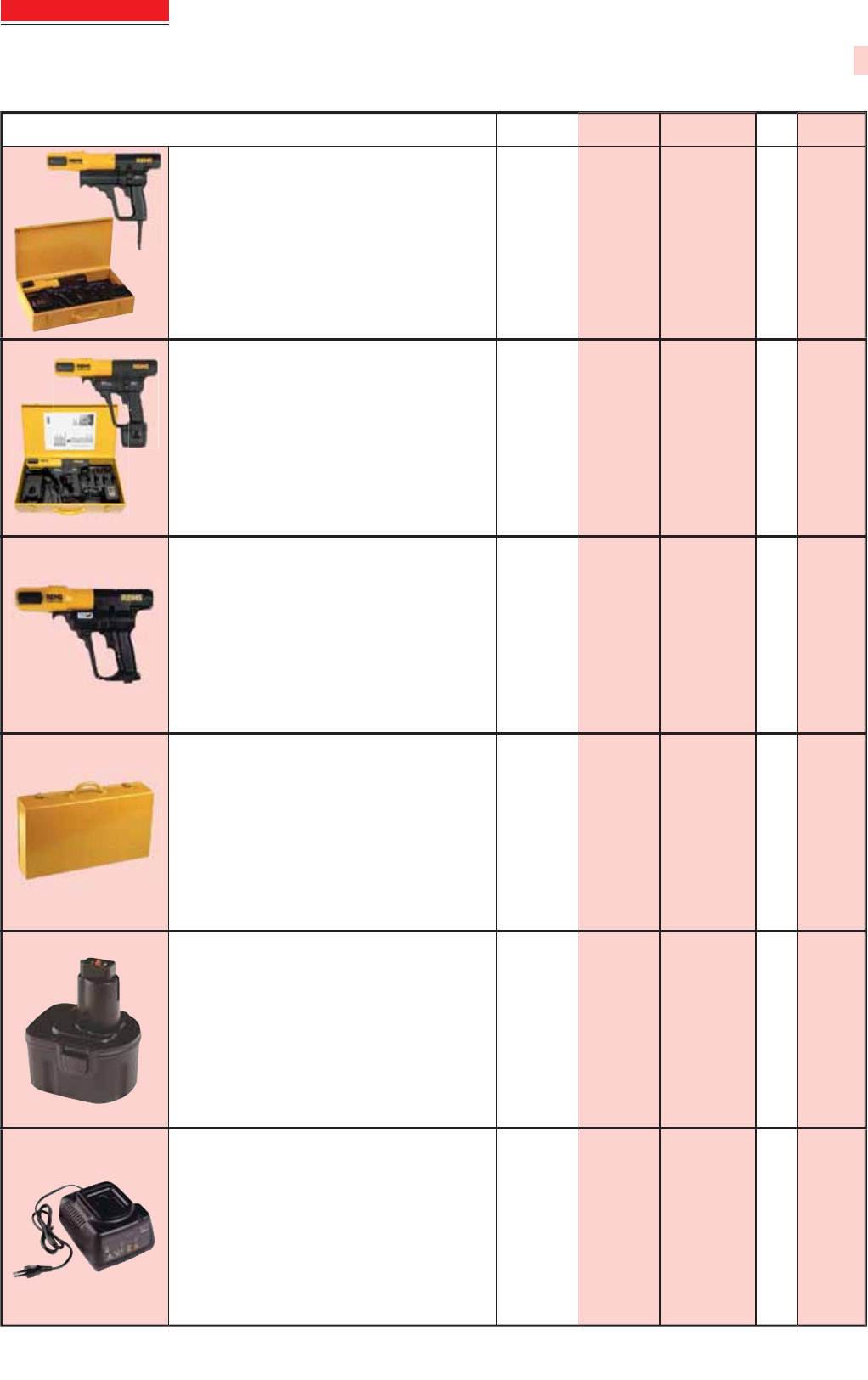

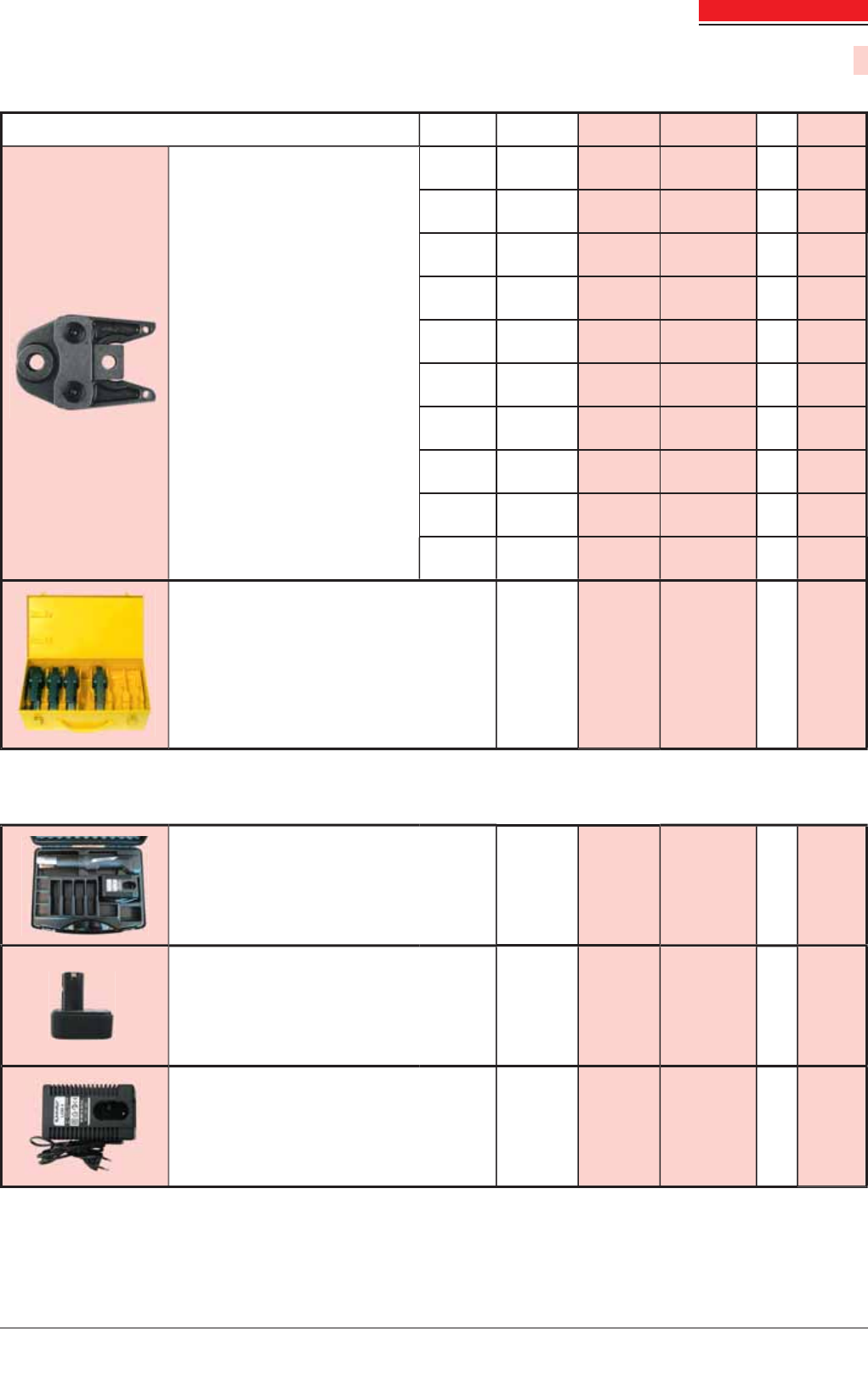

Tools for Press Fittings
164-168
Spare Parts for Press Fittings
169
Table of Contents
Product
group 1
3

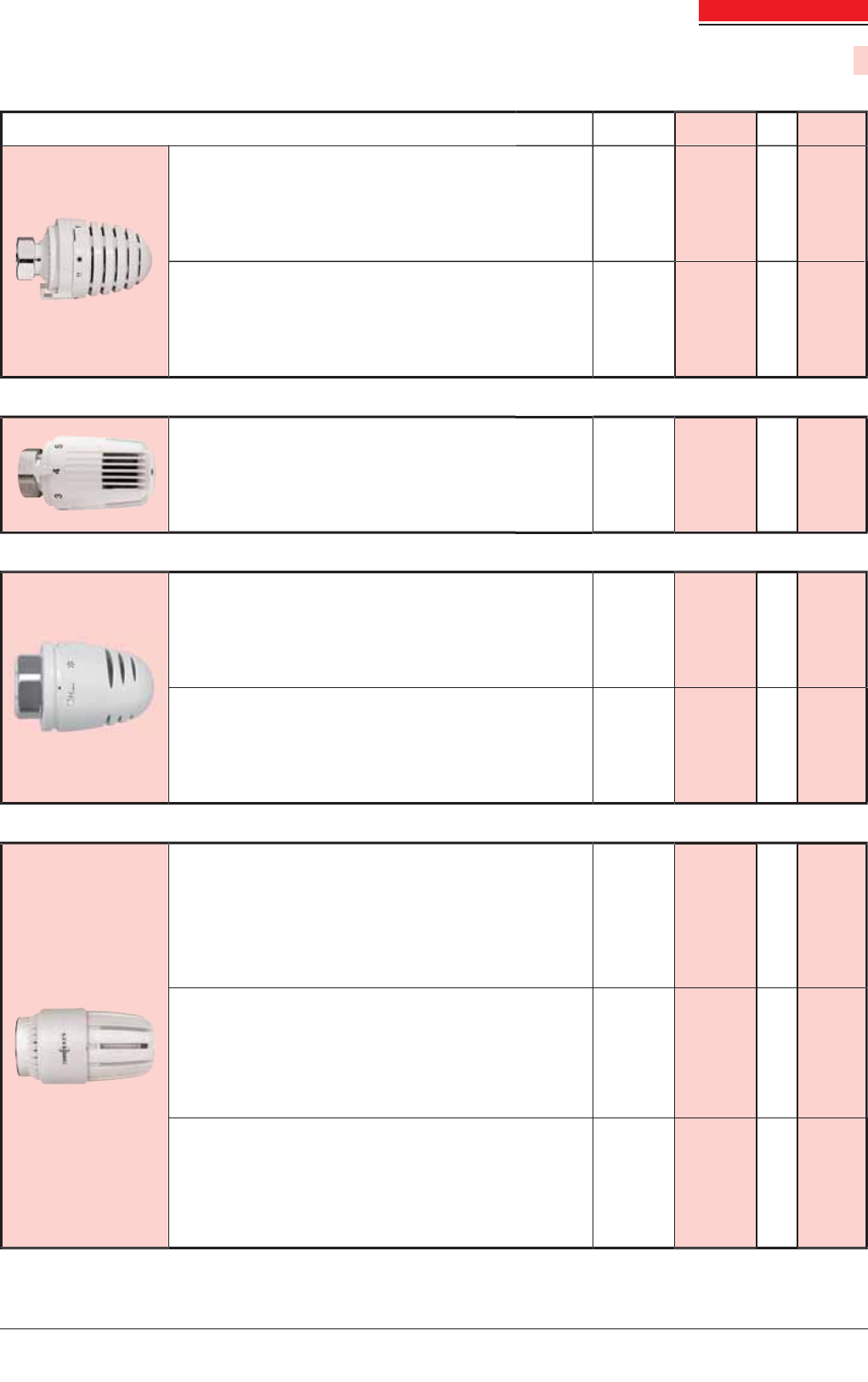

HERZ-Design Thermostatic Heads with threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
Model EAN
90 04174 Order
number Item
HERZ-Design Thermostatic Head
With hydrosensor, set value range 6–30 °C, with “0” position,
frost protection approx. 6 °C adjustable. Limitation and locking
of set value range by means of stop pins 1 9551 00
(to be ordered separately). Design developed in co-operation
with “Porsche Design GmbH”.
90000 6 1 9230 06 20
HERZ-Design Thermostatic Head
With hydrosensor, set value range 6–28 °C, automatic frost
protection at approx. 6 °C. Limitation and locking of set value
range by means of stop pins 1 9551 00 (to be ordered separately).
Design developed in co-operation with “Porsche Design GmbH”.
90030 3 1 9260 06 20
HERZ-Design Thermostatic Heads, Special Models, with threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
HERZ-Design Thermostatic Head with grip ring
The grip ring on the head makes accurate adjustment
of the desired comfort temperature easy for the handicapped.
Otherwise same as 1 9230 06.
90270 3 1 9230 59 20
HERZ-Design Thermostatic Head with grip ring
The grip ring on the head makes accurate adjustment of the
desired comfort temperature easy for the handicapped.
Otherwise same as 1 9260 06.
90280 2 1 9260 59 20
HERZ-Thermostatic Heads with threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
HERZ-Thermostatic Head
With hydrosensor, set value range 6–28 °C, mechanical shutoff
function (“0” position), frost protecton approx. 6 °C adjustable.
Limitation and locking of set value range by means of stop pins
1 9551 00 (to be ordered separately).
70120 7 1 7230 06 20
HERZ-Thermostatic Head
With hydrosensor, set value range 6–28 °C,
cannot be shut off mechanically, automatic frost protection at
approx. 6 °C. Limitation and locking of set value range by means
of stop pins 1 9551 00 (to be ordered separately).
70140 5 1 7260 06 20
HERZ-High Lift Thermostatic Head
Set value range 8–25 °C, with automatic frost protection
at approx. 8 °C. Mounting without adapter, in connection with
HERZ-Thermostatic body-TS-E increases kv-value up to 2.2 m³/h.
91840 7 1 7262 00 1
HERZ-Thermostatic Heads “HERZCULES”, Robust Version with threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
“HERZCULES”, HERZ-Thermostatic Head, Robust Version
protection against vandalism, theft and unauthorised operation.
With hydrosensor, set value range 8–26 °C, with automatic frost
protection. Mounting and dismounting is only possible
by means of tightening tool 1 9554 01 and Allen key 1 6616 00
(both to be ordered separately). Control of set value by means
of unlocking tool 1 9554 00 (included), set value control is locked.
In locked position, set value indicator remains concealed.
90560 5 1 9860 10 20
“HERZCULES”, HERZ-Thermostatic Head, Robust Version
protection against vandalism, theft and unauthorised operation.
The highest temperature set point can be decreased by 10 K
externally by means of a coin slot operation, without changing
the concealed base set point. Otherwise same as 1 9860 10.
91050 0 1 9861 10 20
“HERZCULES”, HERZ-Thermostatic Head, Robust Version
protection against vandalism, theft and unauthorised operation.
The highest temperature set point can be decreased by 4 K
externally by means of a coin slot operation, without changing
the concealed base set point. Otherwise same as 1 9860 10.
91260 3 1 9861 40 20
Heating
Product
group 1
4
HERZ-Design Thermostatic Heads “Mini” with threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
Model EAN
90 04174 Order
number Item
HERZ-Design Thermostatic Head “Mini”
With hydrosensor, set value range 6–30 °C,
with “0” position, frost protection approx. 6 °C adjustable.
Limitation and locking of set value range by means
of stop pins 1 9551 02 (to be ordered separately).
Dimensions: Length 75 mm, diameter of hand wheel 45 mm.
90520 9 1 9200 30 20
HERZ-Design Thermostatic Head “Mini”
With hydrosensor, set value range 6–28 °C,
automatic frost protection at approx. 6 °C.
Limitation and locking of set value range
by means of stop pins 1 9551 02 (to be ordered separately).
Dimensions: Length 75 mm, diameter of hand wheel 45 mm.
90530 8 1 9200 60 20
HERZ-Design Thermostatic Head “Mini” GS
With hydrosensor, set value range 6–30 °C, with “0” position,
frost protection approx. 6 °C adjustable.
Limitation and locking of set value range by means
of stop pins 1 9551 02 (to be ordered separately).
91700 4 1 9200 03 20
HERZ-Design Thermostatic Head “Mini” GS
With hydrosensor, set value range 6–28 °C,
automatic frost protection at approx. 6 °C.
Limitation and locking of set value range by means
of stop pins 1 9551 02 (to be ordered separately).
91690 8 1 9200 06 20
HERZ-Design Thermostatic Head “Mini”, “Turbo”
With hydrosensor, set value range 6–30 °C, with “0” position,
automatic frost protection at approx. 6 °C adjustable.
Limitation and locking of set value range by means
of stop pins 1 9551 02 (to be ordered separately).
91740 0 1 9200 13 20
HERZ-Design Thermostatic Head “Mini”, “Turbo”
With hydrosensor, set value range 6–28 °C,
automatic frost protection at approx. 6 °C.
Limitation and locking of set value range by means
of stop pins 1 9551 02 (to be ordered separately).
91730 1 1 9200 16 20
Heating
Product
group 1
5
Heating
HERZ-Design Thermostatic Heads, Special Models, with threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
Model Dim. EAN
90 04174 Order
number Item
HERZ-Thermostatic Head for Applications
with Increased Temperature Requirement
Set value range 11–35 °C.
cannot be shut off mechanically,
automatic frost protection at approx. 6 °C.
72460 2 1 7260 35 20
HERZ-Thermostatic Heads for HERZ-Thermostatic Valves prior to 1977
HERZ Thermostatic Head
With hydrosensor, set value range 6–28 °C, cannot be shut off
mechanically, automatic frost protection at approx. 6 °C.
Limitation and locking of set value range by means of stop pins
1 9551 00 (to be ordered separately), suitable for all
HERZ-Thermostatic valves prior to 1977.
72700 9 1 7235 01 20
HERZ-Design-Handwheels
HERZ-Design-Hand Wheels
For HERZ-Thermostatic valves which are not
equipped with a HERZ-Thermostatic head. M 28 x 1.5 90090 7 1 9102 80 20
HERZ-TS-Cap
Brass solid protection cap for thermostatic
valves TS-E, Calis TS-E-3D, threaded connection
M 28 x 1.5.
M 28 x 1.5 ohne 1 6329 30 20
Manual hand wheel
with adjustment settings.
M 28 x 1.5 82490 6 1 8531 35 1
Manual hand wheel
with adjustment settings.
M 28 x 1.5 72070 3 1 7740 63 1

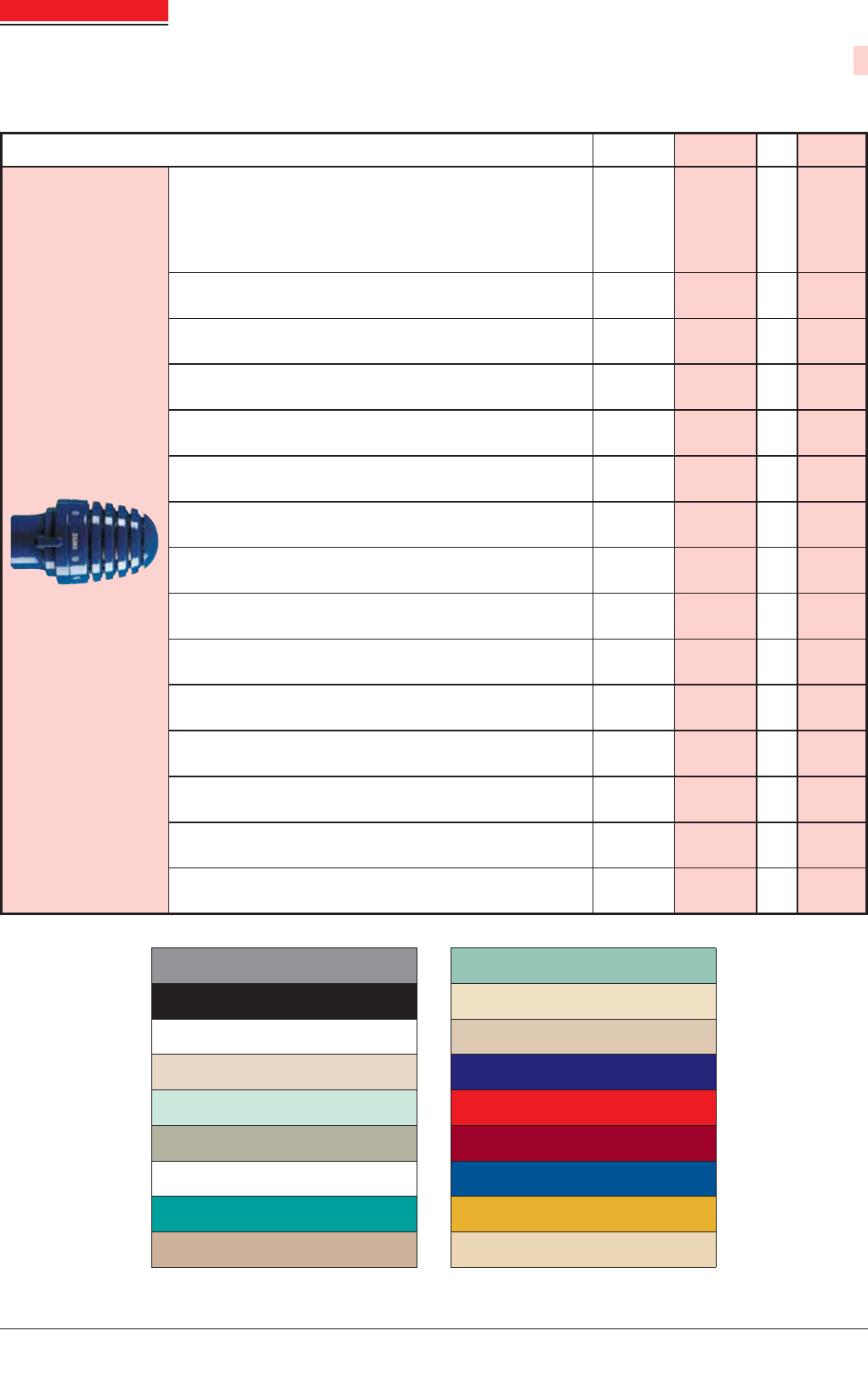

HERZ-Thermostatic Heads “DE LUXE” with threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
HERZ-Thermostatic Head series “DE LUXE”, chrome
With hydrosensor, with “0” position as well as cover sleeve and
locking ring. Frost protection approx. 6 °C adjustable, set value
range 6–30 °C.
90160 7 1 9230 41 1
HERZ-Thermostatic Head series “DE LUXE”, white (RAL 9010) 90180 5 1 9230 44 1
HERZ-Thermostatic Head series “DE LUXE”, matt black 90290 1 1 9230 49 1
HERZ-Thermostatic Heads “Mini” “DE LUXE” with threaded connection M 28 x 1,5
suitable for HERZ-Thermostatic Valves
HERZ-Thermostatic Head Mini series “DE LUXE”,
Frost protection approx. 6 °C adjustable, set value range 6–30 °C.
chrome 91560 4 1 9200 41 1
Product
group 1
6
HERZ-Thermostatic Heads “DE LUXE” with threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
Model EAN
90 04174 Order
number Item
HERZ-Thermostatic Head series “DE LUXE”, Colour Pergamum
With hydrosensor, with “0” position, cover sleeve and locking ring.
Frost protection approx. 6 °C adjustable, set value range 6–30 °C. 90580 3 S 9230 01 1
Colour Aegean 90570 4 S 9230 02 1
Colour Manhattan 90610 7 S 9230 03 1
Colour Edelweiss 90770 8 S 9230 04 1
Colour Calypso 90780 7 S 9230 05 1
Colour Bahama beige 90790 6 S 9230 06 1
Colour Greenwich 90800 2 S 9230 07 1
Colour Jasmine 90810 1 S 9230 08 1
Colour Natural 90820 0 S 9230 09 1
Colour Ultramarine blue (RAL 5002) 90830 9 S 9230 10 1
Colour Flame red (RAL 3000) 90840 8 S 9230 11 1
Colour Ruby red (RAL 3003) 90850 7 S 9230 12 1
Colour Signal blue (RAL 5005) 90860 6 S 9230 13 1
Colour Golden yellow (RAL 1004) 90870 5 S 9230 14 1
Colour Light ivory (RAL 1015) 90880 4 S 9230 15 1
Other colours are available upon request
Differences in colours due to printing reasons!
Heating
Chrome Greenwich
Matt black Jasmine
White RAL 9010 Natural
Pergamum Ultramarine blue RAL 5002
Aegean Flame red RAL 3001
Manhattan Ruby red RAL 3003
Edelweiss Signal blue RAL 5005
Calypso Golden yellow RAL
Bahama beige Light ivory RAL 1015
Product
group 1
7
Heating

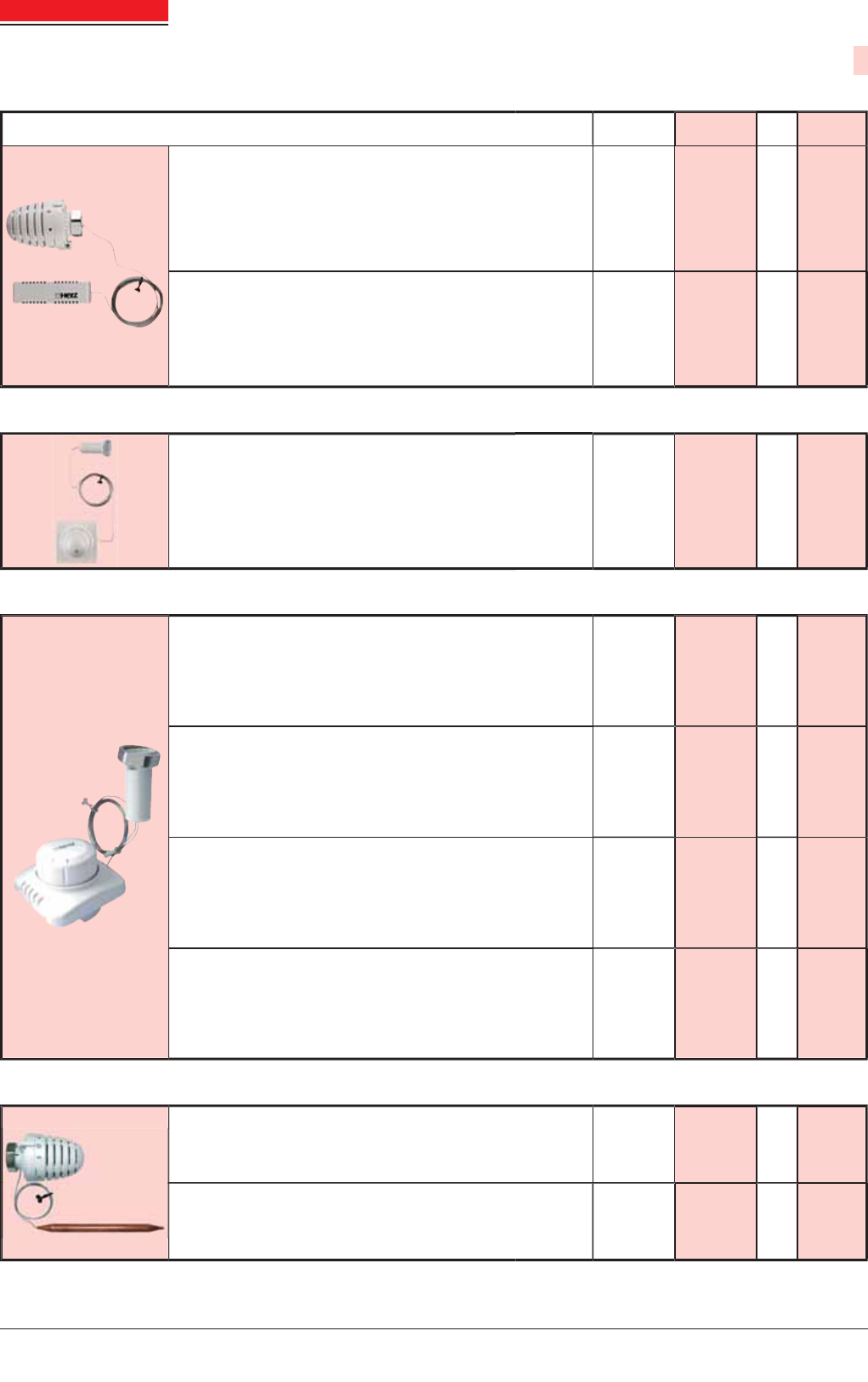

HERZ-Design Thermostats with Remote Adjustment or Remote Sensor, with threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
Model EAN
90 04174 Order
number Item
HERZ-Design Thermostats with remote sensor
Thermostat with hydrosensor, capillary tube and remote sensor.
Set value range 6–30 °C, with “0” position, frost protection approx.
6 °C adjustable. Limitation and locking of set value range by
means of stop pins 1 9551 00 (to be ordered separately).
Capillary tube length 2000 mm.
90120 1 1 9430 08 10
Capillary tube length 8000 mm. 90600 8 1 9430 18 1
HERZ-Design Thermostats with remote sensor
Thermostat with hydrosensor, capillary tube and remote sensor.
Set value range 6–28 °C, automatic frost protection at approx.
6 °C. Limitation and locking of set value range by means of stop
pins 1 9551 00 (to be ordered separately).
Capillary tube length 2000 mm.
90140 9 1 9460 06 10
Capillary tube length 8000 mm. 90690 9 1 9460 18 1
HERZ-Design Thermostats with Remote Adjustment and threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
HERZ-Design Thermostats with remote adjustment
Thermostat with hydrosensor, capillary tube and valve cover.
Set value range 6–28 °C, frost protection approx.
6 °C adjustable. Limitation and locking of set value range.
Capillary tube length 2000 mm.
90130 0 1 9330 05 5
Capillary tube length 5000 mm. 90320 5 1 9330 10 5
Capillary tube length 8000 mm. 90330 4 1 9330 18 1
HERZ-Design Thermostats with Remote Adjustment and threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
HERZ-Thermostat with remote adjustment
for surface mounting
Suitable for HERZ-Thermostatic valves, thermostat with
hydrosensor, capillary tube and valve cover, set value range
6–28 °C, limitation and locking of set value range possible,
frost protection approx. 6 °C length of capillary tube 2000 mm.
91400 3 1 9352 00 5
HERZ-Thermostat with remote adjustment
for surface mounting
Suitable for HERZ-Thermostatic valves, thermostat with
hydrosensor, capillary tube and valve cover, set value range
6–28 °C, limitation and locking of set value range possible,
frost protection approx. 6 °C length of capillary tube 5000 mm.
91410 2 1 9355 00 5
HERZ-Thermostat with remote adjustment
for surface mounting
Suitable for HERZ-Thermostatic valves, thermostat with
hydrosensor, capillary tube and valve cover, set value range
6–28 °C, limitation and locking of set value range possible,
frost protection approx. 6 °C length of capillary tube 8000 mm.
91420 1 1 9358 00 5
HERZ-Thermostat with remote adjustment
for surface mounting
Suitable for HERZ-Thermostatic valves, thermostat with
hydrosensor, capillary tube and valve cover, set value range
6–28 °C, limitation and locking of set value range possible,
frost protection approx. 6 °C length of capillary tube 10000 mm.
91430 0 1 9350 00 5
Product
group 1
8
Heating

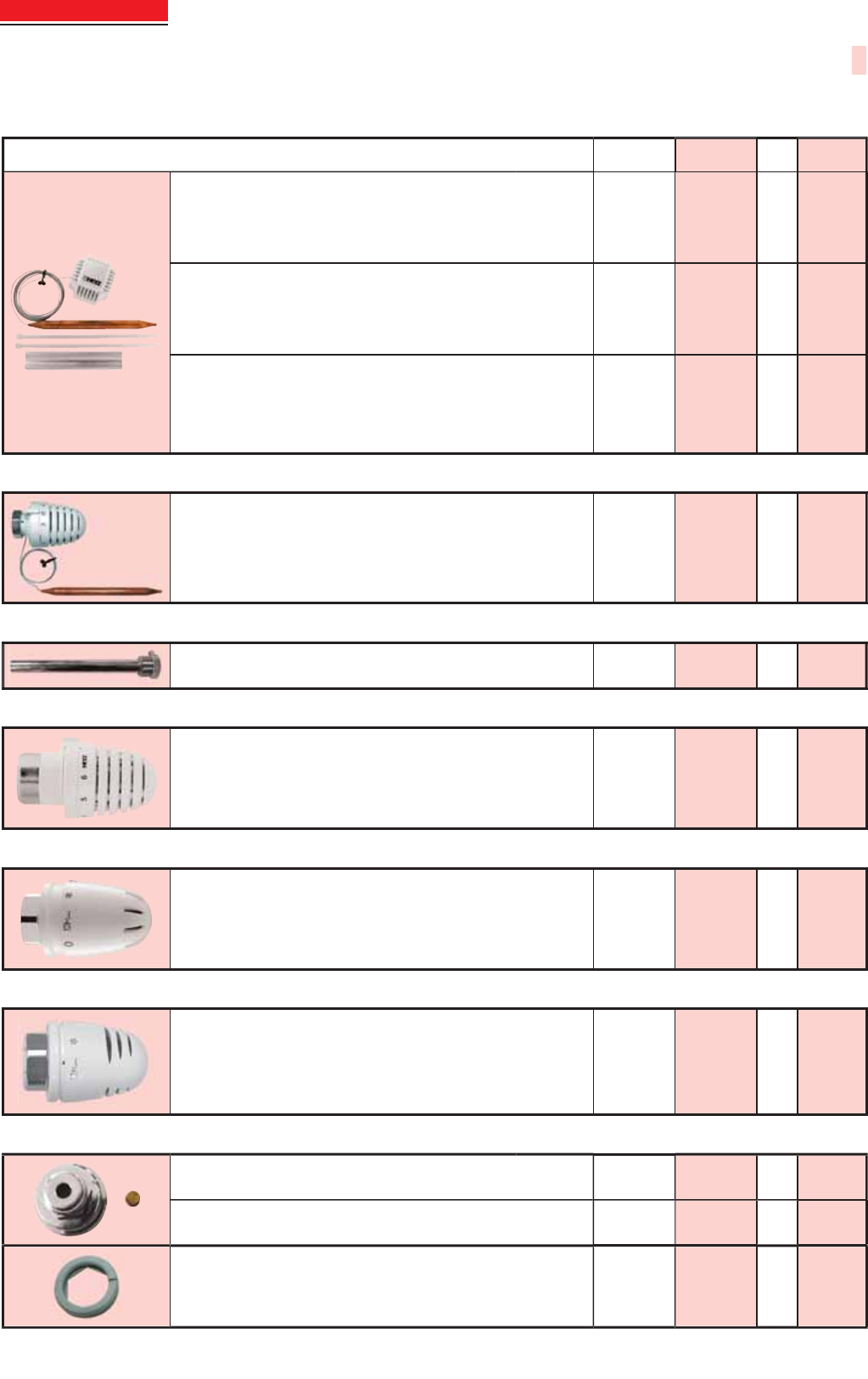

HERZ-Thermostats with Contact Sensor and threaded connection M 28 x 1.5
suitable for HERZ-Thermostatic Valves*
Model EAN
90 04174 Order
number Item
HERZ Thermostat with contact sensor
for fl oor heating systems
Thermostatic head with hydrosensor, capillary tube,
pipe contact sensor and fastening materials for piping.
Set value range 20–50 °C, capillary tube length 2000 mm.
72390 2 1 7420 06 10
HERZ Thermostat with contact sensor
for fl oor heating systems
Thermostatic head with hydrosensor, capillary tube,
pipe contact sensor and fastening materials for piping.
Set value range 20–50 °C, capillary tube length 500 mm.
76280 2 1 7420 16 10
HERZ-Thermostat with contact sensor for boiler intake
temperature control
Thermostatic head with hydrosensor, capillary tube,
pipe contact sensor and fastening materials for piping.
Set value range 40–70 °C, capillary tube length 2000 mm.
70210 5 1 7421 00 10
HERZ-Design Thermostats with Contact Sensor and threaded connection M 28 x 1,5
HERZ-Design Thermostats with contact sensor
Thermostatic head with hydrosensor, capillary tube,
pipe contact sensor and fastening materials for piping.
Set value range: 30-60 °C, capillary tube length 500 mm. 91870 4 1 9421 26 20
Insertion pocket
Insertion pocket made of brass
For 7420/7421, with screw thread G 1/2. 66240 9 1 6313 01 20
HERZ-Design Thermostatic Head for Vaillant Valves
HERZ-Design-Thermostatic Head for Vaillant Thermostatic Valves
With hydrosensor, set value range 6-30 °C, with “0” position, frost
protection approx. 6 °C adjustable. Limitation and locking of set
value range by means of stop pins 1 9551 00 (to be ordered
separately). Connection diameter 31 mm.
90720 3 1 9260 11 6
HERZ-Design Thermostatic Head “Mini” for “MMA” Valves
HERZ-Design “Mini” Thermostatic Head for “MMA” Valves
With hydrosensor, set value range 6-30 °C, with “0” position,
automatic frost protection at approx. 6 °C adjustable. Limitation
and locking of set value range by means of stop pins 1 9551 02
(to be ordered separately).
91890 2 1 9200 69 20
HERZ-Thermostatic Head for Armal Thermostatic Valves
Thermostatic Head “Mini” for Armal Valves
With hydrosensor, set value range 6 -30 °C, with “0” position,
automatic frost protection at approx.6 °C adjustable. M 24 x 1.5,
Limitation and locking of set value range by means of stop pins
1 9551 02 (to be ordered separately).
For valves manufactured before 1999.
92230 5 1 9200 24 20
HERZ-Thermostats Adapter for installation all HERZ-Thermostatic Heads with threaded connection M 28 x 1.5
Thermostats Adapter Ring for T&A for installation Thermostatic
Heads with threaded connection M 28 x 1.5 66400 7 1 6350 03 1
Thermostatic Adapter Ring
for Caleffi -Thermostatic Valves M 30 x 1.5. 62810 8 1 6357 11 1
Thermostatic adaptor ring for Caleffi Thermostatic valves
Thread M 30 x 1.5
Threaded connection M 30 x 1.5 66410 6 1 6351 01 1
Product
group 1
9
Heating
HERZ-Design Thermostatic Heads “H” with threaded connection M 30 x 1.5 for direct installation on radiators with integrated valves
Model EAN
90 04174 Order
number Item
HERZ-Design Thermostatic Head “H”
With hydrosensor, set value range 6–30 °C, with “0” position,
automatic frost protection at approx. 6 °C adjustable.
Limitation and locking of set value range by means
of stop pins 1 9551 00 (to be ordered separately).
Design developed in co-operation with “Porsche Design GmbH”.
90040 2 1 9230 98 20
HERZ-Design Thermostatic Head “H”
With hydrosensor, set value range 6–28 °C, automatic frost
protection at approx. 6 °C. Limitation and locking of set value
range by means of stop pins 1 9551 00 (to be ordered separately).
Design developed in co-operation with “Porsche Design GmbH”.
90060 0 1 9260 98 20
HERZ-Thermostatic Heads “H” with threaded connection M 30 x 1.5 for direct installation on radiators with integrated valves
HERZ-Thermostatic Head “H”
With hydrosensor, set value range 6–28 °C, cannot be shut off
mechanically, automatic frost protection at approx. 6 °C.
Limitation and locking of set value range by means of stop pins
1 9551 00 (to be ordered separately).
71680 5 1 7260 98 20
HERZ-Design Thermostatic Heads “Mini-H” with threaded connection M 30 x 1.5
HERZ-Design Thermostatic Head “Mini-H”
With hydrosensor, set value range 6-30 °C, with “0” position,
automatic frost protection at approx. 6 °C adjustable. Limitation
and locking of set value range by means of stop pins 1 9551 02
(to be ordered separately). Dimensions: Length 78 mm, diameter
of hand wheel 45 mm.
90540 7 1 9200 38 20
HERZ-Design Thermostatic Head “Mini-H”
With hydrosensor, set value range 6-28 °C, automatic frost
protection at approx. 6 °C. Limitation and locking of set value
range by means of stop pins 1 9551 02 (to be ordered separately).
Dimensions: Length 78 mm, diameter of hand wheel 45 mm.
90550 6 1 9200 68 20
HERZ-Thermostatic Heads “H”, Robust Version “HERZCULES” with threaded connection M 30 x 1.5
“HERZCULES”, HERZ-Thermostatic Head “H”,
Robust Version protection against vandalism, theft and
unauthorised operation. With hydrosensor, set value range
8–26 °C, with automatic frost protection. Mounting and dismounting
only possible by means of tightening tool 1 9554 01 and Allen key
1 6616 00. Control of set value by means of unlocking tool
1 9554 00 (included), set value control is locked. In locked position,
set value indicator remains concealed.
90730 2 1 9860 98 20
“HERZCULES”, HERZ-Thermostatic Head “H”,
Robust Version protection against vandalism, theft and
unauthorised operation, temperature can be decreased.
The highest temperature set point can be decreased by 10 K
externally by means of a coin slot operation, without changing
the concealed base set point. Otherwise same as 1 9860 98.
91060 9 1 9861 98 20
“HERZCULES”, HERZ-Thermostatic Head “H”,
Robust Version protection against vandalism, theft and
unauthorised operation, temperature can be decreased.
The highest temperature set point can be decreased by 4 K
externally by means of a coin slot operation, without changing
the concealed base set point. Otherwise same as 1 9860 98.
91270 2 1 9861 48 20
Product
group 1
10
HERZ-Thermostatic Head “H” with threaded connection M 30 x 1.5
Model EAN
90 04174 Order
number Item
HERZ-Design Hand Wheel “H” For direct installation on
Heimeier-Valve inserts with threaded connection
M 30 x 1.5, which are not equipped with a thermostatic head. 90100 3 1 9102 98 20
HERZ-Thermostatic Heads H “DE LUXE” with threaded connection M 30 x 1.5
HERZ-Thermostatic Head H “DE LUXE”, chrome
With hydrosensor, with “0” position, cover sleeve and locking
ring. Frost protection approx. 6 °C adjustable,
set value range 6-30 °C. 90340 3 1 9238 41 1
HERZ-Thermostatic Head H “DE LUXE”, white (RAL 9010) 90370 0 1 9238 44 1
HERZ-Thermostatic Head H “DE LUXE”, matt black 90380 9 1 9238 49 1
HERZ-Thermostatic Heads Mini H “DE LUXE” with threaded connection M 30 x 1.5
HERZ-Thermostatic Head Mini H “DE LUXE”, chrome
With hydrosensor, with “0” position, cover sleeve and locking ring,
frost protection approx. 6 °C adjustable, set value range 6-30 °C. 91570 3 1 9200 48 1
HERZ-Design Thermostatic Heads “Mini”, GS, with threaded connection M 30 x 1.5
HERZ-Design Thermostatic Head “Mini-H” with straight grooves
With hydrosensor, set value range 6-30 °C, with “0” position,
automatic frost protection at 6 °C adjustable. Limitation
and locking of set value range by means of stop pins 1 9551 02
(to be ordered separately).
91720 2 1 9200 83 20
HERZ-Design Thermostatic Head “Mini-H” with straight grooves
With hydrosensor, set value range 6-28 °C, automatic
frost protection at approx. 6 °C. Limitation and locking of set value
range possible by means of stop pins 1 9551 02
(to be ordered separately).
91710 3 1 9200 86 20
HERZ-Design Thermostatic Heads “Mini”, Turbo, with threaded connection M 30 x 1.5
HERZ-Design Thermostatic Head “Turbo-H”
With hydrosensor, set value range 6-28 °C, automatic frost
protection at approx. 6 °C. Limitation and locking of set value
range possible by means of stop pins 1 9551 02
(to be ordered separately).
91760 8 1 9200 93 20
HERZ-Design Thermostatic Head “Turbo-H”
With hydrosensor, set value range 6-30 °C, with “0” position,
automatic frost protection at 6 °C adjustable. Limitation
and locking of set value range by means of stop pins 1 9551 02
(to be ordered separately).
91750 9 1 9200 96 20
Heating
Product
group 1
11
Heating
HERZ-Thermostatic Heads “H” “DE LUXE” with threaded connection M 30 x 1.5
for direct installation on radiators with integrated valves
Model EAN
90 04174 Order
number Item
HERZ-Thermostatic Head H “DE LUXE”, Colour Pergamum
With hydrosensor, with “0” position, cover sleeve and locking ring.
Frost protection approx. 6 °C adjustable, set value range 6-30 °C. 91100 2 S 9238 01 1
Colour Aegean 91110 1 S 9238 02 1
Colour Manhattan 91120 0 S 9238 03 1
Colour Edelweiss 91130 9 S 9238 04 1
Colour Calypso 91140 8 S 9238 05 1
Colour Bahama beige 91150 7 S 9238 06 1
Colour Greenwich 91160 6 S 9238 07 1
Colour Jasmine 91170 5 S 9238 08 1
Colour Natural 91180 4 S 9238 09 1
Colour Ultramarine blue (RAL 5002) 91190 3 S 9238 10 1
Colour Flame red (RAL 3000) 91200 9 S 9238 11 1
Colour Ruby red (RAL 3003) 91210 8 S 9238 12 1
Colour Signal blue (RAL 5005) 91220 7 S 9238 13 1
Colour Golden yellow (RAL 1004) 91230 6 S 9238 14 1
Colour Light ivory (RAL 1015) 91240 5 S 9238 15 1
Other colours are available upon request
Chrome Greenwich
Matt black Jasmine
White RAL 9010 Natural
Pergamum Ultramarine blue 5002
Aegean Flame red RAL 3001
Manhattan Ruby red RAL 3003
Edelweiss Signal blue RAL 5005
Calypso Golden yellow RAL
Bahama beige Light ivory RAL 1015
Differences in colours due to printing reasons!
Product
group 1
12
Heating
HERZ-Design Thermostats with Remote Adjustment or Remote Sensor, with threaded connection M 30 x 1.5
Model EAN
90 04174 Order
number Item
HERZ-Design Thermostats with remote sensor
Thermostat with hydrosensor, capillary tube and remote sensor.
Set value range 6–30 °C, with “0” position, frost protection approx.
6 °C adjustable. Limitation and locking of set value range by
means of stop pins 1 9551 00 (to be ordered separately).
Capillary tube length 2000 mm.
91010 4 1 9430 98 10
HERZ-Design Thermostats with remote sensor
Thermostat with hydrosensor, capillary tube and remote sensor.
Set value range 6–28 °C, automatic frost protection at approx.
6 °C. Limitation and locking of set value range by means of stop
pins 1 9551 00 (to be ordered separately).
Capillary tube length 2000 mm.
91010 3 1 9460 98 10
HERZ-Design Thermostats with Remote Adjustment and threaded connection M 30 x 1.5
HERZ-Design Thermostats with remote adjustment
Thermostat with hydrosensor, capillary tube and valve cover.
Set value range 6–28 °C, frost protection approx.
6 °C adjustable. Limitation and locking of set value range.
Capillary tube length 2000 mm. 91090 6 1 9330 98 10
HERZ-Design Thermostats with Remote Adjustment and threaded connection M 30 x 1.5
HERZ-Thermostat with remote adjustment
for surface mounting
Suitable for HERZ-Thermostatic valves, thermostat with
hydrosensor, capillary tube and valve cover, set value range
6-28 °C, limitation and locking of set value range possible,
frost protection approx. 6 °C length of capillary tube 2000 mm.
91440 9 1 9352 98 5
HERZ-Thermostat with remote adjustment
for surface mounting
Suitable for HERZ-Thermostatic valves, thermostat with
hydrosensor, capillary tube and valve cover, set value range
6-28 °C, limitation and locking of set value range possible,
frost protection approx. 6 °C length of capillary tube 5000 mm.
91450 8 1 9355 98 5
HERZ-Thermostat with remote adjustment
for surface mounting
Suitable for HERZ-Thermostatic valves, thermostat with
hydrosensor, capillary tube and valve cover, set value range
6-28 °C, limitation and locking of set value range possible,
frost protection approx. 6 °C length of capillary tube 8000 mm.
91460 7 1 9358 98 5
HERZ-Thermostat with remote adjustment
for surface mounting
Suitable for HERZ-Thermostatic valves, thermostat with
hydrosensor, capillary tube and valve cover, set value range
6-28 °C, limitation and locking of set value range possible,
frost protection approx. 6 °C length of capillary tube 10000 mm.
91470 6 1 9350 98 5
HERZ-Design Thermostats with Contact Sensor and threaded connection M 30 x 1.5
HERZ-Design Thermostats with contact sensor
Thermostatic head with hydrosensor, capillary tube,
pipe contact sensor and fastening materials for piping.
Set value range: 30-60 °C, capillary tube length 500 mm.
91910 7 1 9421 98 20
HERZ-Design Thermostats with contact sensor
Thermostatic head with hydrosensor, capillary tube, pipe contact
sensor and fastening materials for piping.
Set value range: 20-50 °C, capillary tube length 2000 mm.
-1 9420 88 10
Product
group 1
13
Heating
HERZ-Design Thermostatic Heads “D”
for direct installation on radiators with integrated valves with clip or snap-on fastening
Model Dim. EAN
90 04174 Order
number Item
HERZ-Design Thermostatic Head “D”
With hydrosensor, set value range 6-30 °C, with “0” position,
automatic frost protection at approx. 6 °C adjustable. Limitation
and locking of set value range by means of stop pins 1 9551 00
(to be ordered separately). Design developed in co-operation
with “Porsche Design GmbH”.
90050 1 1 9230 99 20
HERZ-Design Thermostatic Head “D”
With hydrosensor, set value range 6-28 °C,
automatic frost protection at approx. 6 °C. Limitation
and locking of set value range by means of stop pins 1 9551 00
(to be ordered separately). Design developed in co-operation
with “Porsche Design GmbH”.
90070 9 1 9260 99 20
HERZ-Thermostatic Heads
HERZ-Design Thermostatic Head “D”
With hydrosensor, set value range 6-30 °C, with “0” position,
automatic frost protection at approx. 6 °C adjustable.
Limitation and locking of set value range by means of stop
pins 1 9551 00 (to be ordered separately).
90050 1 1 9230 09 20
HERZ-Design Thermostatic Head “D”
With hydrosensor, set value range 6-28 °C,
automatic frost protection at approx. 6 °C.
Limitation and locking of set value range by means of stop
pins 1 9551 00 (to be ordered separately).
90070 9 1 9260 09 20
HERZ-Thermostatic Head “D”
HERZ-Thermostatic Head “D”
With hydrosensor, set value range 6-28 °C, cannot be shut off
mechanically, automatic frost protection at approx. 6 °C.
Limitation and locking of set value range.
71690 4 1 7260 99 20
HERZ-Thermostatic Adapter Rings “D”
Thermostatic Adapter Ring “D”
For radiators with integrated valves with Danfoss
thermostatic inserts.
M 20 x 1 61180 3 1 6362 01 1
Thermostatic Adapter Ring “D”
For radiators with integrated valves with Danfoss
thermostatic inserts.
M 23.5 x 1.5 63330 0 1 6362 11 1
Thermostatic Adapter Ring “D” “HERZCULES”
for Danfoss upper parts, suitable for special models. ø 23 65160 1 1 6362 00 1
Thermostatic Adapter Ring “D” “HERZCULES”
For installation of “HERZCULES”-Thermostatic heads
on radiators with Danfoss thermostatic inserts.
M 20 x 1 64280 7 1 6362 20 1
Thermostatic Adapter Ring “D” “HERZCULES”
For installation of “HERZCULES”-Thermostatic heads
on radiators with Danfoss thermostatic inserts.
M 23.5 x 1.5 64290 6 1 6362 23 1
HERZ-Thermostatic Head for Danfoss till 1981
HERZ-Thermostatic heads for Danfoss valves
Old Design with hydrosensor, set value range 6-28 °C,
automatic frost protection at approx. 6 °C. Limitation
and locking of set value range by means of stop pins
1 9551 02 (to be ordered separately).
For Valves manufactured 1971-1981.
ø 26 90080 6 1 9200 19 20
Thermostatic heads for Danfoss valves
Old Design with hydrosensor, set value range 6-28 °C,
automatic frost protection at approx. 6 °C. Limitation
and locking of set value range by means of stop pins
1 9551 02 (to be ordered separately).
For Valves manufactured 1965-1979.
ø 34 90090 5 1 9260 19 20
Product
group 1
14
Heating
HERZ-Design Hand Wheels with clip or snap-on fastening
Model EAN
90 04174 Order
number Item
HERZ-Design Hand Wheel “D”
For direct installation with clip or snap-on fastening,
suitable for Danfoss-Valve inserts which are not equipped
with a thermostatic head. 90110 2 1 9102 99 20
HERZ-Thermostatic Heads D “DE LUXE” with clip or snap-on fastening
HERZ-Thermostatic Head D “DE LUXE”, chrome
With hydrosensor, with “0” position as well as cover sleeve
and locking ring. Frost protection approx. 6 °C adjustable,
set value range 6-30 °C. 90430 1 1 9239 41 1
HERZ-Thermostatic Head D “DE LUXE”, white (RAL 9010) 90460 8 1 9239 44 1
HERZ-Thermostatic Head D “DE LUXE”, matt black 90470 7 1 9239 49 1
HERZ-Design Thermostats “D” with remote adjustment
HERZ-Design Thermostats with remote adjustment
Thermostat with hydrosensor, capillary tube and valve cover.
Set value range 6-28 °C, frost protection approx.
6 °C adjustable. Limitation and locking of set value range.
Capillary tube length 2000 mm.
91790 5 1 9330 99 5
HERZ-Thermostats “D” with Remote Adjustment and clip or snap-on fastening
HERZ-Thermostat “D” with remote adjustment suitable
for mounting in fl ush box
Thermostat with hydrosensor, capillary tube and valve cover,
set value range 6-28 °C, limitation and locking of set value
range possible, frost protection approx. 6 °C.
Capillary tube length 2000 mm.
91480 5 1 9352 99 5
HERZ-Thermostat “D” with remote adjustment suitable
for mounting in fl ush box
Thermostat with hydrosensor, capillary tube and valve cover,
set value range 6-28 °C, limitation and locking of set value
range possible, frost protection approx. 6 °C.
Capillary tube length 5000 mm.
91490 4 1 9355 99 5
HERZ-Thermostat “D” with remote adjustment suitable
for mounting in fl ush box
Thermostat with hydrosensor, capillary tube and valve cover,
set value range 6-28 °C, limitation and locking of set value
range possible, frost protection approx. 6 °C.
Capillary tube length 8000 mm.
91500 0 1 9358 99 5
HERZ-Thermostat “D” with remote adjustment suitable
for mounting in fl ush box
Thermostat with hydrosensor, capillary tube and valve cover,
set value range 6-28 °C, limitation and locking of set value
range possible, frost protection approx. 6 °C.
Capillary tube length 10000 mm.
91510 9 1 9350 99 5
Product
group 1
15
Heating
HERZ-Thermostatic Heads D “DE LUXE” with clip or snap-on fastening
Model EAN
90 04174 Order
number Item
HERZ-Thermostatic Head D “DE LUXE”, colour Pergamum
with hydrosensor, with “0” position, including cover sleeve
and locking ring. Frost protection approx. 6 °C adjustable,
set value range 6-30 °C. 90750 0 S 9239 01 1
Colour Aegean 90740 1 S 9239 02 1
Colour Manhattan 90760 9 S 9239 03 1
Colour Edelweiss 90890 3 S 9239 04 1
Colour Calypso 90900 9 S 9239 05 1
Colour Bahama beige 90910 8 S 9239 06 1
Colour Greenwich 90920 7 S 9239 07 1
Colour Jasmine 90930 6 S 9239 08 1
Colour Natural 90940 5 S 9239 09 1
Colour Ultramarine blue (RAL 5002) 90950 4 S 9239 10 1
Colour Flame red (RAL 3000) 90960 3 S 9239 11 1
Colour Ruby red (RAL 3003) 90970 2 S 9239 12 1
Colour Signal blue (RAL 5005) 90980 1 S 9239 13 1
Colour Golden yellow (RAL 1004) 90990 0 S 9239 14 1
Colour Light ivory (RAL 1015) 91000 5 S 9239 15 1
Other colours are available upon request
Chrome Greenwich
Matt black Jasmine
White RAL 9010 Natural
Pergamum Ultramarine blue RAL 5002
Aegean Flame red RAL 3001
Manhattan Ruby red RAL 3003
Edelweiss Signal blue RAL 5005
Calypso Golden yellow RAL
Bahama beige Light ivory RAL 1015
Differences in colours due to printing reasons!
Product
group 1
16
Accessories and Tools for HERZ-Thermostatic Heads
Model EAN
90 04174 Order
number Item
Theft protection
Snap clips, open with universal key 1 6640 00.
For HERZ-Thermostatic heads, series 7000 and 9000.
Threaded connection M 28 x 1.5, for thermostatic heads,
series “D” with clip or snap-on fastening.
90020 4 1 9552 03 20
Theft protection “H”
Snap clips, open with universal key 1 6640 00.
For HERZ-Thermostatic heads, series 7000 and 9000.
Threaded connection M 30 x 1.5. 90080 8 1 9552 98 20
Cover sleeve
For fastening nut of HERZ-Thermostatic heads.
Threaded connection M 28 x 1.5. 90230 7 1 9553 44 20
Cover sleeve
For HERZ-Thermostatic head “Mini”.
Threaded connection. M 28 x 1.5. 90710 4 1
9596 44 20
Cover sleeve “H”
Standard length l = 20 mm.
Threaded connection M 30 x 1.5. 90310 6 1 9553 98 20
Cover sleeve “H”
Long version l = 22.5 mm.
Threaded connection M 30 x 1.5. 90650 3 1 9598 44 20
Cover sleeve “H” and HERZ-Thermostat - “Mini-H”
Short version l = 17 mm.
Threaded connection M 30 x 1.5. 90700 5 1 9597 44 20
Cover sleeve “D”
For HERZ-Thermostatic heads “D” with clip or snap-on fastening. 90640 4 1
9599 44 20
Limiting pin
For limitation and locking of set value range for HERZ-Thermostatic
heads, series 7000 and 9000. 90010 5 1 9551 00 20
Limiting pin
For HERZ-Thermostatic heads “Mini”. 90670 1 1 9551 02 20
Retaining clips
For fastening of capillary tubes, 20 piece set with pins.
70260 0 1
7555 00 10
Unlocking tool “HERZCULES”
For setting of set value. Included in package, delivery ex works.
90630 5 1 9554 00 1
Tightening tool “HERZCULES”
For installation of “HERZCULES”-Thermostatic heads
on thermostatic valves. To be ordered separately. 90620 6 1
9554 01 1
HERZ-Logo-Clip
Logo clip for customer-specifi c logos, suitable for
HERZ-Thermostatic heads, series 7000, with threaded connection
M 28 x 1.5, M 30 x 1.5 and “D”, not suitable for special type
thermostatic heads.
1
7000
..
500
Accessories and Tools
Product
group 1
17
Control Systems
HERZ-RTC-Electronic Control System for Continuous Control
Model Dim. EAN
90 04174 Order
number Item
HERZ-RTC-Room Temperature Computer
With 3 weekly programmes, 4 temperature steps,
vacation programme for heating and cooling,
switching difference adjusting.
Set value range 5-40 °C, operating voltage 24 V,
output voltage 0-10 V.
24 V 71890 8 1 7940 62 1
HERZ-Electronic Room Temperature Controller for Heating and Cooling
Electronic Room Temperature Controller
with PI control
For heating and cooling operation, with programmable
time and temperature settings. Outlets for motor
(3-point) and thermal drive and pump or blower
(on/off signal). Fix basic programme (preset condition)
for fi rst start-up. Easy adjustment to system by selecting
8-basis control model by service parameter. Electronics
located in the attachable body, white
(RAL 9010), front with digital display in viewing window.
Digital timer with weekly and yearly programme, relay with
elapsed time indicator.
For installation on a wall or fl ush-mouning socket.
230 V 75190 5 1 7794 23 1
24 V 75200 1 1 7794 24 1
HERZ-Electronic Room Temperature Controller for 2-Point or Pulse Control with digital timer
Electronic Room Temperature Controller
For individual time and temperature programmable
adjustment. Digital timer with program on a weekly
and yearly basis, automatic switching between
summer and winter time. Set value range 8-38 °C.
Switching difference as 2-point controller 0.4-8 K.
Metering precision 0.3 K at a temperature of 20 °C.
230 V 74190 6 1 7791 23 1
Electronic Room Temperature Controller
Design as 1 7791 23, but operation by 2
alkalimanganese penlight type round cells (AA) 1.5 V,
not included in package.
3 V 74200 2 1 7791 02 1
Digital chrono thermostat
The digital chrono thermostat with 4 user programmes
and 9 fi xed programmes.
Powered by 3 batteries High accuracy, easy to install
(2 wires), easy to programme Operating voltage:
3 x AA LR6 1.5 V Battery life time: 3 ears Operating
temperature: 0 °C to 50 °C. Output: Relay 8 A
Setting temperature: 5 °C to 35 °C. Differential
temperature 0.4 K Protection class: IP 30
4.5 V 75201 8 1 7795 01 1
Electronic thermostat with mechanical weeklyprogramming clock:
- Day temperature setting: + 5 °C to +35 °C
- Night temperature setting: 5 °C to 35 °C,
Temperature differential: 0.5 °C. Power of contacts:
8 (3) A 250 V- Clock programming: 7 days (weekly) or
1 day 24 hours. Clock programming: intervals 15 minutes
(daily), 1 hour (weekly) Power: 2 batteries LR6 AA 1.5 V
(life duration 2 years) A switch 3 positions enables select
with ( ) the type of regulation required. Electrical
protection: Class II, IP 30.
3 V 75202 5 1 7795 02 1
HERZ-Room Temperature Controller for 2-Point Control
Electronic room thermostat for fl oor heating, 230 V
for room temperature contol with night set back mode.
External pilot wire for night set back, equipped with a switch
to select comfort, set back or clock mode. Possibility to
regulate either the fl oor or the room temperature, or combined
(in that case, the fl oor sensor is used as temperature limiter)
Operating voltage: 230 V~, 50 Hz. Setting temperature: 5 °C
to 30 °C. Output: Max. 15 W Differential temperature: 0.5 K.
Protection class: IP 30.
230 V 99958 1 3 F792 00 112
Electronic room thermostat for fl oor heating, 24 V
Operating voltage: 24 V ~, functions same as above. 24 V 99959 8 3 F792 01 112
Electronic Room Temperature Controller
1 change-over contact
Set value range 10-30 °C.
Switching difference ± 0.2 K fi xed
230 V
50 Hz 71840 3 1 7790 15 1
24 V 71850 2 1 7790 25 1
Electromechanical Room Temperature Controller
1 change-over contact, set value range 5-30 °C.
Adjustment of set value by means of mechanical
limitation of set value range.
230 V /
24 V 99953 6 3 F791 00 1
Product
group 1
18

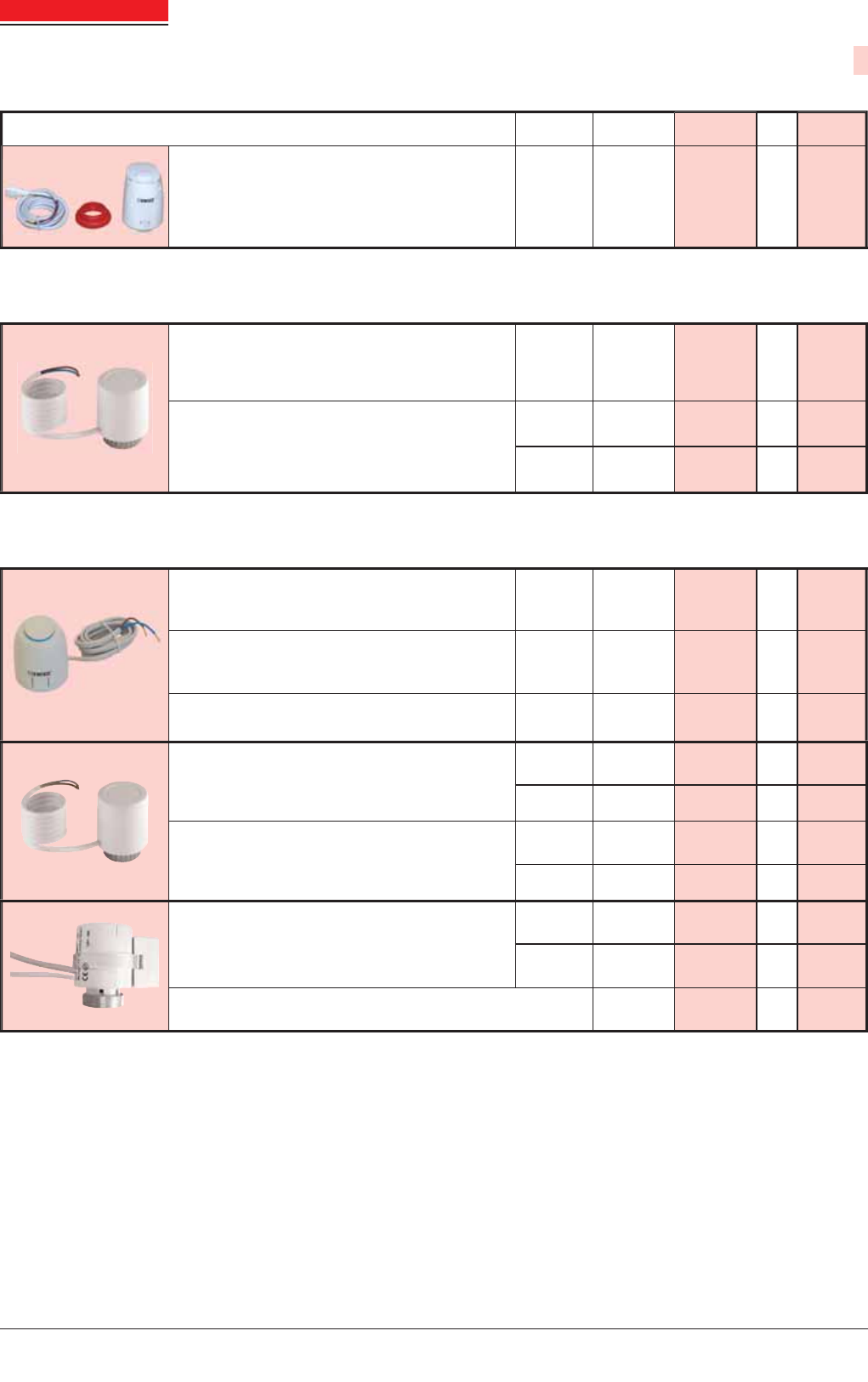

Control Systems
HERZ-RTC-Electronic Control System for Continuous Control
Model Dim. EAN
90 04174 Order
number Item
DDC actuating drive
Thermo-electronic continuous drive, 3-conductor
connection cable. Operating voltage 24 V, driving
voltage 0-10 V DC, up to 6 units per controller
can be connected
24 V
10 kΩ /
100 kΩ
71900 4 1 7990 00 1
HERZ-Actuating Drives and Electronic Control Systems for Thermostatic Three-Way Valves
HERZ-Actuating drives for continuous control, M 30 x 1.5
Thermo-electronic continuous drive, 3-conductor
connection cable, operating voltage 24 V, driving
voltage 0-10 V DC.
0-10 V /
24 V 75160 8 1 7711 18 1
HERZ Actuating drives for 2-point
or pulse control, M 30 x 1.5
For HERZ-thermostatic three-way valves 1 7762
and 1 7763; with normaly closed contact (NC),
can be switched to normaly open contact (NO).
230 V
50 Hz 75260 5 1 7711 80 1
24 V 75270 4 1 7711 81 1
HERZ-Actuating Drives
HERZ-Actuating drive for 2-point or pulse control
Normally closed. 230 V 75710 5 1 7708 23 1
HERZ-Actuating drive for 2-point or pulse control
normally open, installed in Compact Floor. 230 V 76460 8 1 7709 01 1
HERZ-Actuating drive.
Normally closed with limit switch. 230 V 76470 7 1 7708 50
1
HERZ-Actuating drive for 2-point or pulse control
with normaly closed contact (NC), can be switched
to normaly open contact (NO), threaded connection
M 28 x 1.5.
230 V
50 Hz 73140 2 1 7710 00 1
24 V 73150 1 1 7710 01 1
HERZ Actuating drive for 2-point or pulse control
with normaly closed contact (NC), can be switched to
normaly open contact (NO), not suitable for articles
7762 and 7763. Threaded connection M 30 x 1.5.
230 V
50 Hz 73160 0 1 7710 80 1
24 V 73170 9 1 7710 81 1
HERZ-Actuating drive for 2-point or pulse control
Installed with auxiliary contact
(1 changeover contact), threaded connection
M 28 x 1.5.
230 V 74110 4 1 7710 50 1
24 V 74120 3 1 7710 51 1
Auxiliary contact
For actuating drives 1 7710 .., for retro fi tting. 74130 2 1 7710 55 1
Product
group 1
19

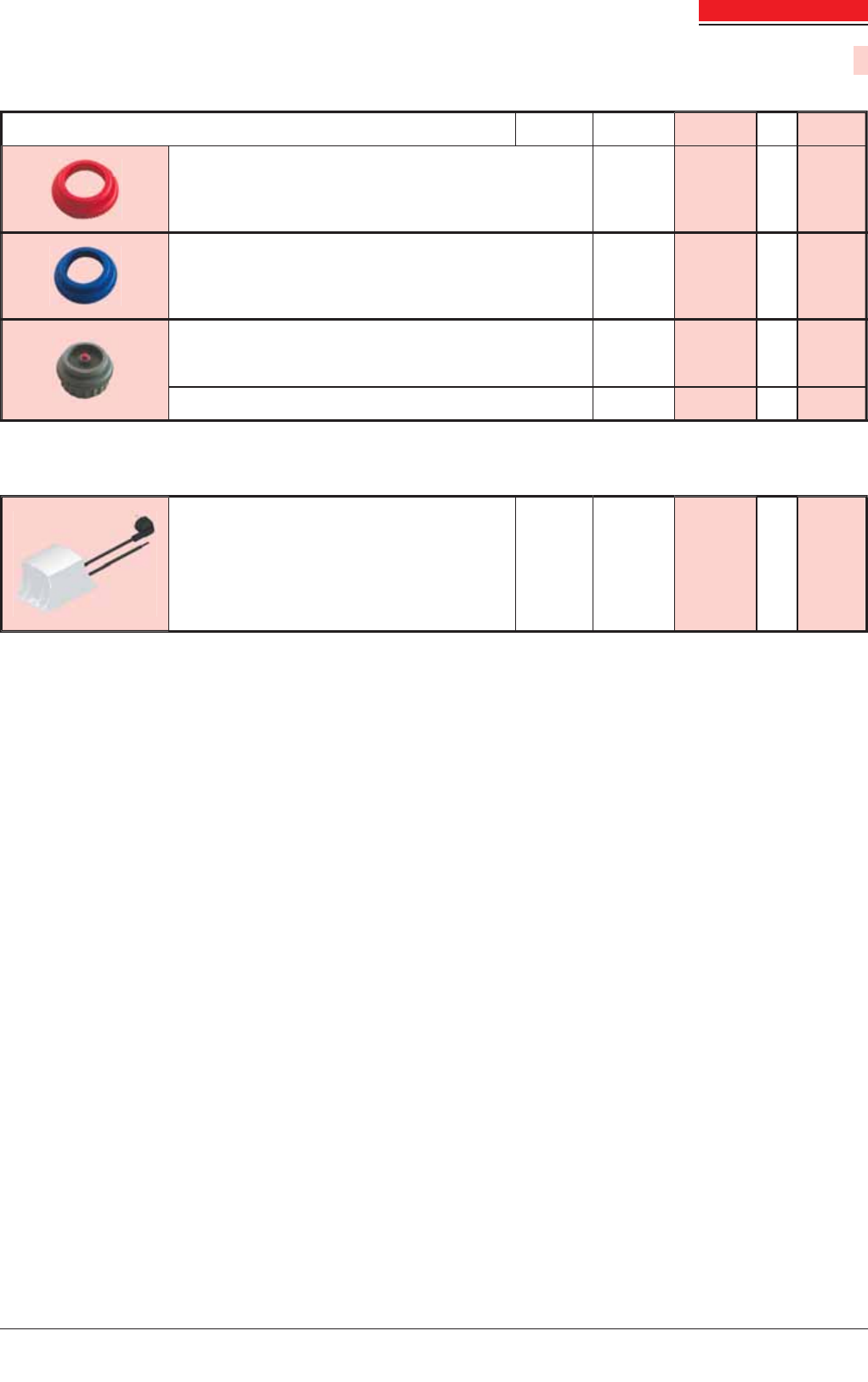

Adaptor for Actuator 7708, 7709, 7990
Model Dim. EAN
90 04174 Order
number Item
Adapter for HERZ actuator, colour red
Standard adapter M 28 x 1.5. 76863 7 1 7708 90 1
Adapter for HERZ actuator, colour blue
Adapter for use with 4002, 4006, 7217-TS-V
M 28 x 1.5. 76861 3 1 7708 85 1
Adapter for HERZ actuator, gray
Adapter for use with 7217-TS-E, M 28 x 1.5. 76860 6 1 7708 80 1
Adapter for use with 7760, M 30 x 1.5. 76862 0 1 7708 98 1
Transformer
Transformer 230 V / 24 V
Transformer 230 V specially made for modular
connecting boxes 230 V~ or 110 V~
Output: max. 24 V~.
Operating temperature: 0 °C to 50 °C
Output Power: 60 VA (18 actuators)
Protection class: IP 30.
230 V / 24 V 71881 6 1 7796 04 50
Accessories
Product
group 1
20
Control Systems

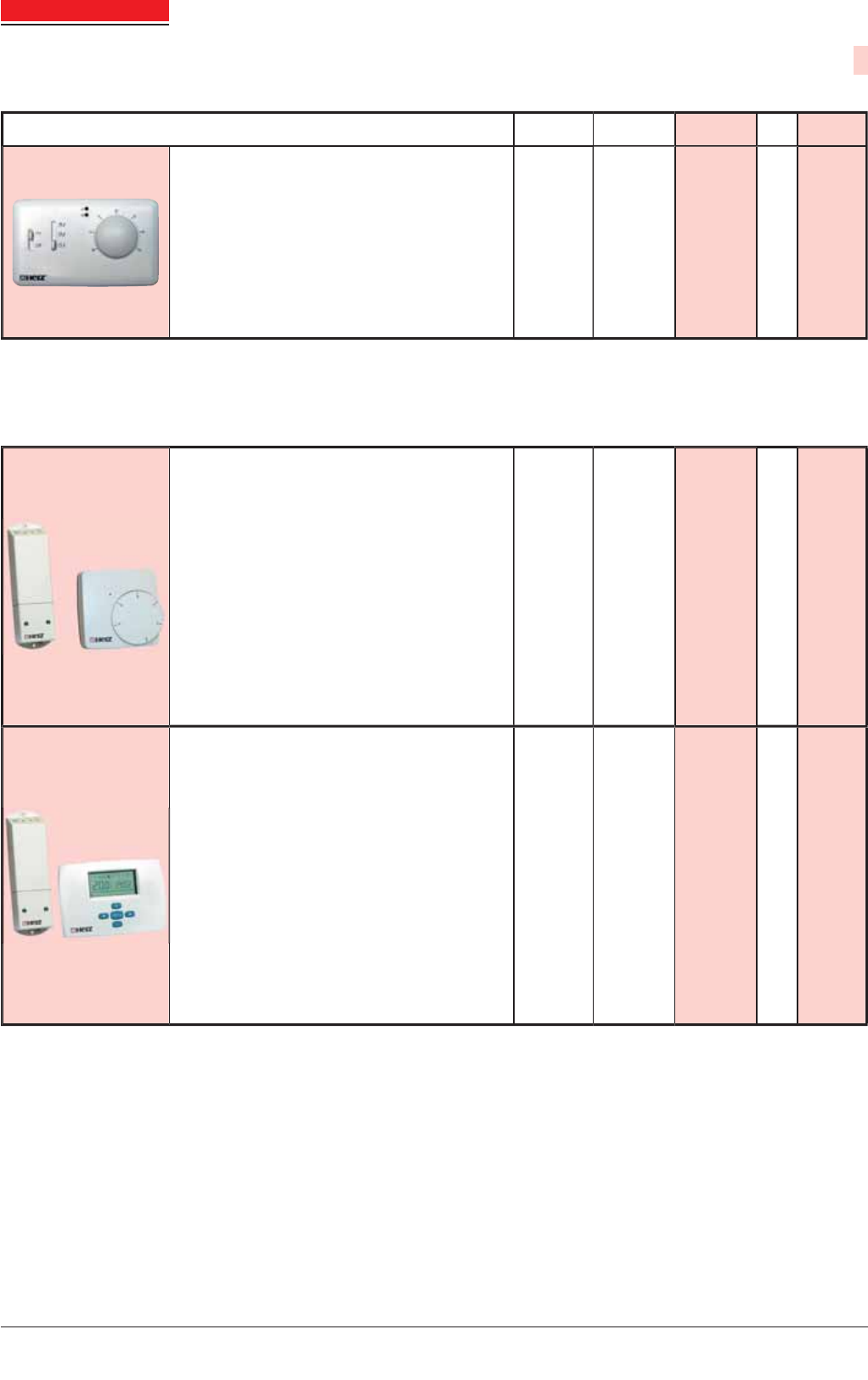

HERZ-Room Temperature Control
Model Dim. EAN
90 04174 Order
number Item
HERZ-Room Temperature Controller Comfort
Electronic room thermostat for Fan Coil
Operating voltage 230 V
Set value range 5-35 °C
ON/OFF Switch
3 position switch
Swithching difference 0.6 K
Protection class II IP 30
Output: max. 250 V~, 6 A
75205 6 1 7795 05
Wireless Control Systems
HERZ-Electronic Room Temperature Control
Wireless control room thermostat
Radio frequency thermostat to be used with our
specifi c receiver. Equipped with 3 position switch:
Comfort, Night Reduction and OFF mode. Personal
code on each product. The receiver is equipped with
2 indicators (heating, confi guration/reception).
Switch for manual and automatic mode.
Emitter: operating voltage: 2 x 3 V, CR 2430,
battery life time: 2 years, operating temperature:
0 °C to 50 °C, setting temperature: 5 °C to 30 °C,
frequency: 433.92 Mhz.
Open Ground Distance: 40 meters.
Protection Class: IP 30. Receiver:
operating voltage: 230 V~ / 12 A, other voltage
24 V~, 120 V~... available upon request.
Proctection class: IP 44.
230 V 99947 5 3 F799 04 24
Wireless control room thermostat
Radio frequency digital thermostat to be used with our
specifi c receiver. Equipped with a weekly programme,
which enables power savings in harmony with your
every day life. Personal code on each product.
The receiver is equipped with 2 indicators
(heating, confi guration/reception).
Switch for manual and automatic mode.
Emitter: operating voltage: 3 x AA LR6 1.5 V,
battery life time: 3 years, operating temperature:
0 °C to 50 °C, setting temperature: 5 °C to 30 °C,
frequency: 433.92 Mhz.
Open Ground Distance: 50 meters
Protection Class: IP 30.
Receiver: operating voltage: 230 V~ / 12 A, other
voltage 24 V~, 120 V~... available upon request.
Proctection class: IP 44.
230 V 99949 9 3 F799 06 100
Product
group 1
21
Heating

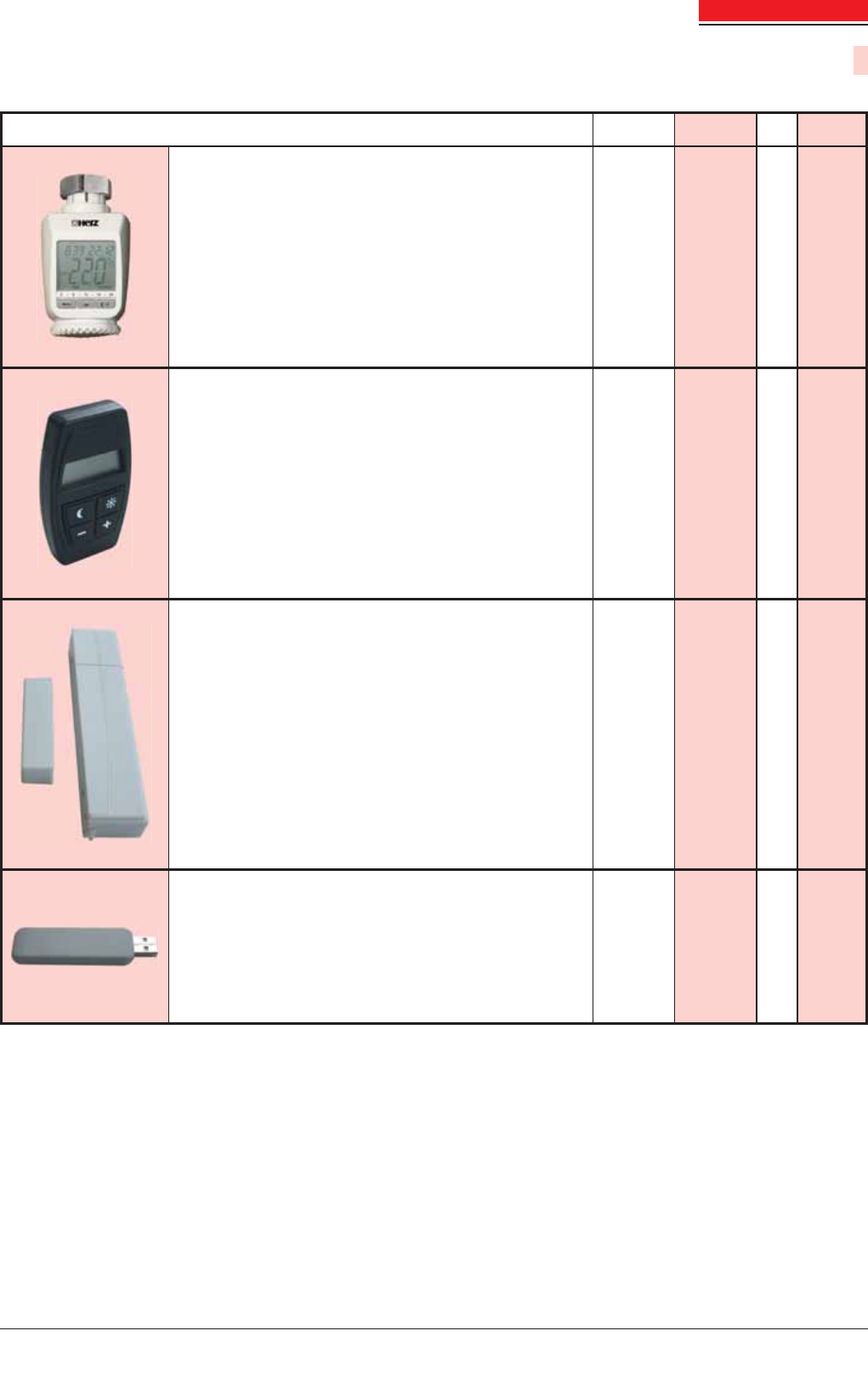

HERZ-Electronic Wireless Room Temperature Control 868,3 MHz
Model EAN
90 04174 Order
number Item
Energy Saving Thermostatic head
with built in programmable temperature and time control.
Setting range 5-30 °C
Differential: 0.5 K
Operation with batteries 2 x 1.5 V AA, LR6
Battery life: Approx 2 years 84700 4 1 8250 01 1
Wireless remote control
for radio energy-saving controller ETKF
The wireless operated, remote control is a user-friendly device for
changing the temperature in a room. If the remote control has been
connected to a ETKF radio energy-saving controller for radiators.
The ETKF head can receive commands from the remote control
and implement them.
Supply voltage: 3 V
Batteries: 2 x LR 44
Battery life: approx 4 years.
Working range 30 m.
84710 3 1 8250 02 1
Wireless window contact
for radio energy-saving controller ETKF
This window contact is used to detect when a window
is opened. If the window contact is connected to an ETKF head,
the device will automatically reduce the temperature in the room
during ventilation using the automatic temperature reduction
function whilst windows are open. This enables heating costs
to be lowered.
Supply voltage: 3 V
Batteries: 2 x LR 03 / Micro / AAA
Battery life: approx 5 years.
Working range: 30 m.
84720 2 1 8250 03 1
USB programming stick
for radio energy-saving controller ETKF
The USB programming stick is used to program system
components such as radio energy-saving controllers.
The USB stick does not have any controls and must be used
in conjunction with the associated PC software.
Power supply: USB connection
Working range: 10 m.
84730 1 1 8250 04 1
Product
group 1
22
HERZ-Return Temperature Limiter “Mini”
Model Dim. EAN
90 04174 Order
number Item
HERZ-Return Temperature Limiter “Mini”
Return temperature control between 25-60 °C,
limitation and locking of set value range by means
of stop pins 1 9551 02 (to be ordered separately).
Can be combined with all HERZ-Valves which are
available for thermostatic operation.
M 28 91520 8 1 9201 00 10
HERZ-Return Temperature Limiter Mini chrom
Return temperature control 25-60 °C, limitation
and locking of set value range by means of stop
pins 1 9551 02 (to be ordered separately). Can be
combined with all HERZ-Valves which are available
for thermostatic operation.
M 28 92100 1 1 9201 41 10
HERZ-Return Temperature Limiter “Mini”,
straight model:
1 9201 00 Return temperature limiter “Mini”
1 7733 81 HERZ-TS-90-Thermostatic valve,
straight model Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone.
1/2 91530 7 1 9201 23 1
HERZ-Return Temperature Limiter “Mini”,
angle model:
1 9201 00 Return temperature limiter “Mini”
1 7724 37 HERZ-TS-90-Thermostatic valve,
angle model Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone.
1/2 91540 6 1 9201 24 1
Compression sets G 3/4 for copper, steel and plastic pipes have to be orded separately
Heating
Product
group 1
23
HERZ-Floor Heating Control Sets
Model Dim. EAN
90 04174 Order
number Item
HERZ-Floor heating control set for rooms up to 45 m²
The set contains: HERZ-Thermostat with contact
sensor (1 7420 06). Safety switch (1 8100 00)
HERZ-TS-90 Thermostatic valve DN 15 (1 7737 91)
HERZ-GP Regulating valve DN 15 (1 5537 01).
15 81970 4 1 8100 01 1
HERZ-Floor heating control set for rooms up to 85 m²
The set contains:
HERZ-Thermostat with contact sensor (1 7420 06)
Safety switch (1 8100 00)
HERZ-TS-90-E Thermostatic valve DN 15 (1 7723 01)
HERZ-RL-1-E Return valve DN 20 (1 3723 02).
20 82000 7 1 8100 02 1
HERZ-Floor heating control set for rooms up to 120 m²
The set contains:
HERZ-Thermostat with contact sensor (1 7420 06)
Safety switch (1 8100 00)
HERZ-TS-E Thermostatic valve DN 20 (1 7723 02)
HERZ-RL-1-E Return valve DN 25 (1 3723 03).
20 82010 6 1 8100 03 1
HERZ-Floor heating control set for rooms up to 160 m²
The set contains:
HERZ-Thermostat with contact sensor (1 7420 06)
Safety switch (1 8100 00)
HERZ-TS-E Thermostatic valve DN 25 (1 7723 03)
HERZ-Strömax 4115 Shutoff valve DN 32 (1 4115 04).
25 82020 5 1 8100 04 1
Safety switch
For fl oor heating control set.
82030 4 1 8100 00 1
HERZ-Floor Fix, Floor Heating Control Set for fl ush mounting
HERZ-Floor Fix, fl oor heating control set
for fl ush mounting
For room temperature control and limitation
of circulation temperature.
Room regulation by
HERZ-Remote adjustment 1 9330 and 1 7330 or
HERZ-Actuating drive 1 7710,
Pipe connection for HERZ-Compression adapter.
Delivery includes fl ush box and cover.
White cover.
3/4 82090 8 1 8100 10 1
HERZ-Floor Fix, fl oor heating control set
for fl ush mounting
For room temperature control and limitation
of medium temperature.
Room regulation by
HERZ-Remote adjustment 1 9330 and 1 7330 or
HERZ-Actuating drive 1 7710,
Pipe connection for HERZ-Compression adapter
Delivery includes fl ush box and cover
Chrome cover.
3/4 82450 0 1 8100 11 1
Spare parts, HERZ-Floor Fix
For room temperature andLimitation of the medium
temperature. Space control with HEART-9330 remote
control or HEART-actuator 7710 th Supplied without
valves, Wall box and cover design.
3/4 82451 7 1 8100 15 1
Heating
Product
group 1
24
Thermostatic Valves

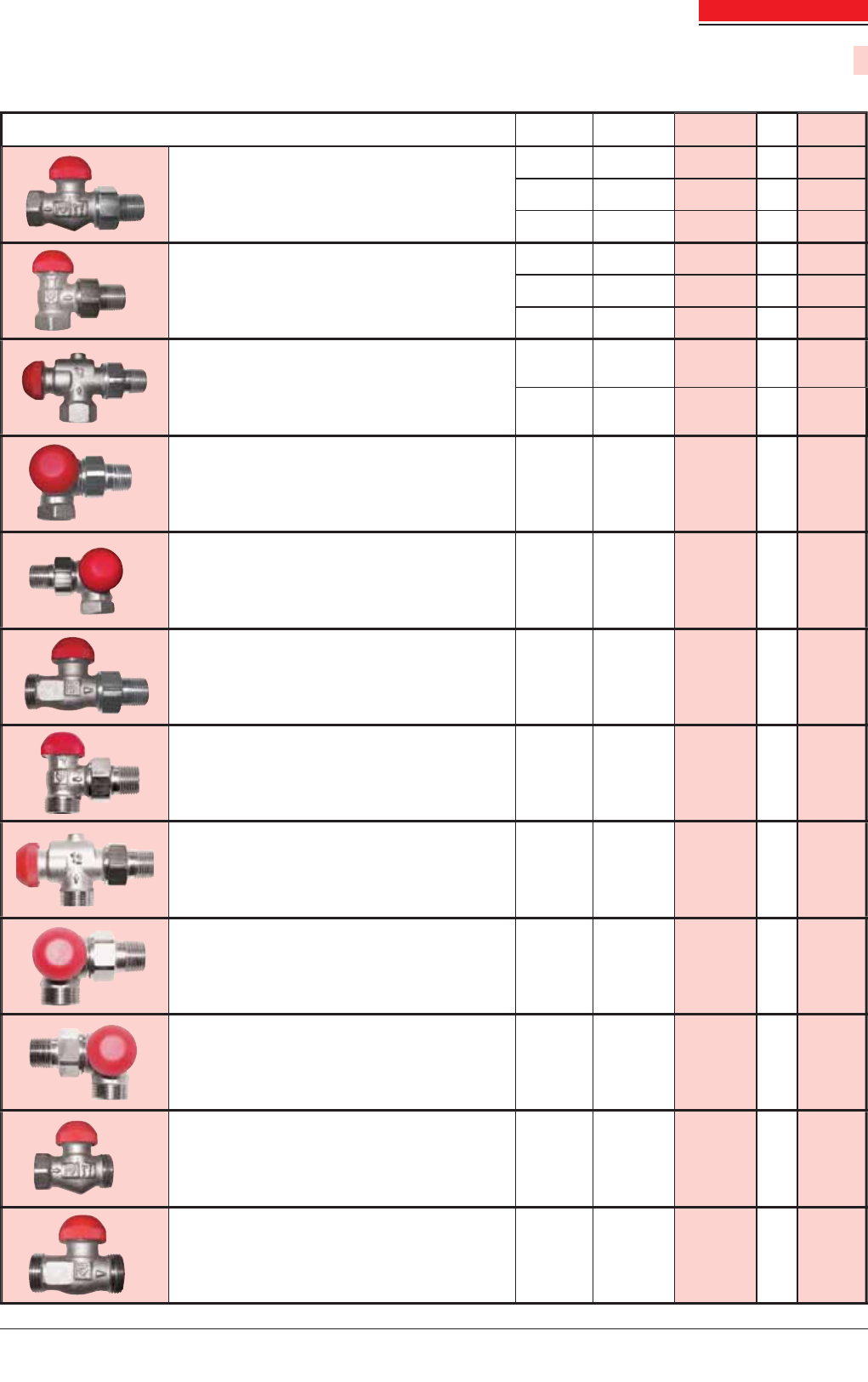

HERZ-TS-90-Thermostatic Valves
Model Dim. EAN
90 04174 Order
number Item
HERZ-TS-90-Thermostatic Valve
Straight model
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapter.
3/8 70690 5 1 7723 90 20
1/2 70700 1 1 7723 91 20
3/4 70710 0 1 7723 92 20
Standard model with threaded socket. 171490 0 1 7723 93 1
HERZ-TS-90-Thermostatic Valve
Angle model
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapter.
3/8 70790 2 1 7724 90 20
1/2 70800 8 1 7724 91 20
3/4 70810 7 1 7724 92 20
Standard model with threaded socket. 171500 6 1 7724 93 1
HERZ-TS-90-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapter.
3/8 70890 9 1 7728 90 20
1/2 70900 5 1 7728 91 20
3/4 72110 6 1 7728 97 20
HERZ-TS-90-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
3/8 * 75410 4 1 7758 90 20
1/2 71040 7 1 7758 91 20
HERZ-TS-90-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
3/8 * 75460 9 1 7759 90 20
1/2 71070 4 1 7759 91 20
HERZ-TS-90-Thermostatic Valve
Straight model
Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone.
1/2 73290 4 1 7733 81 20
HERZ-TS-90-Thermostatic Valve
Angle model
Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone.
1/2 73110 5 1 7724 37 20
HERZ-TS-90-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone.
1/2 71520 4 1 7748 91 20
HERZ-TS-90-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator.
Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone.
1/2 71000 1 1 7745 91 20
HERZ-TS-90-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator.
Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone.
1/2 71010 0 1 7746 91 20
HERZ-TS-90-Thermostatic Valve
Straight model
Special socket x external thread G 3/4 with cone.
Universal models with special sockets for threaded
pipes and compression adapters.
1/2 71510 5 1 7723 61 20
HERZ-TS-90-Thermostatic Valve
Straight model
2 x external thread G 3/4 with cone. 1/2 70930 2 1 7737 91 20
HERZ-TS-90-Thermostatic Valves universal models in straight and angle versions are also available according to DIN “D”.
* Valve with socket, for threaded pipes only
Product
group 1
25
Thermostatic Valves

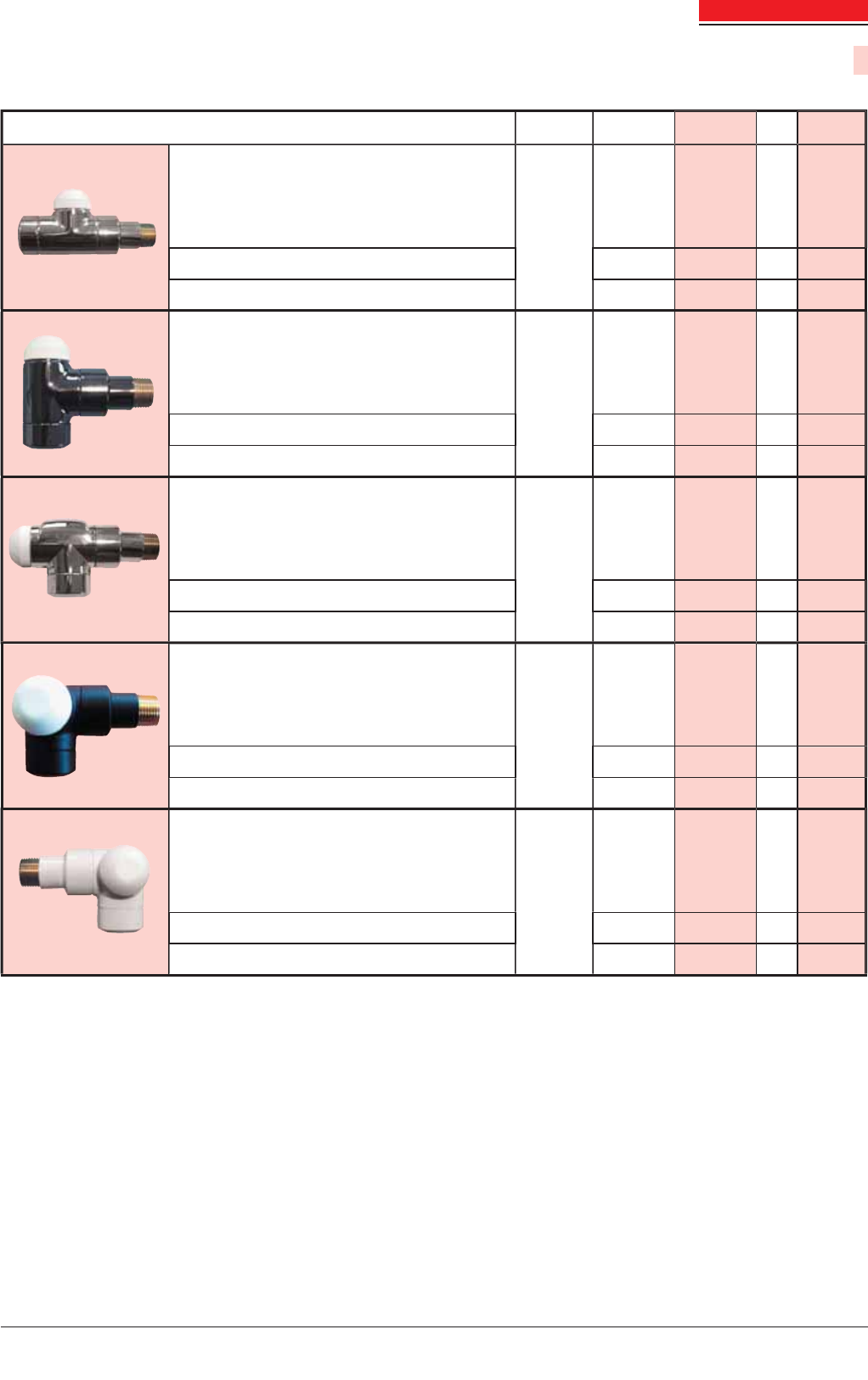

HERZ-TS-90-Thermostatic Valves “DE LUXE”, Universal
Model Dim. EAN
90 04174 Order
number Item
HERZ-TS-90-Thermostatic Valve “DE LUXE”
Straight model, chrome
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapters. 1/2
72310 0 1 7923 41 1
White (RAL 9010) 72340 7 1 7923 44 1
Matt black 72510 4 1 7923 49 1
HERZ-TS-90-Thermostatic Valve “DE LUXE”
Angle model, chrome
Radiator connection with cone. Universal models
with special sockets for threaded pipes and
compression adapters. 1/2
72350 6 1 7924 41 1
White (RAL 9010) 72380 3 1 7924 44 1
Matt black 72500 5 1 7924 49 1
HERZ-TS-90-Thermostatic Valve “DE LUXE”
Reverse angle, chrome
Radiator connection with cone. Universal models
with special sockets for threaded pipes and
compression adapters. 1/2
72710 8 1 7928 41 1
White (RAL 9010) 72740 5 1 7928 44 1
Matt black 72750 4 1 7928 49 1
HERZ-TS-90-Thermostatic Valve “DE LUXE”
3-Axis Valve “AB”, chrome
Valve to the left of the radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapters. 1/2
72760 3 1 7958 41 1
White (RAL 9010) 72790 0 1 7958 44 1
Matt black 72800 6 1 7958 49 1
HERZ-TS-90-Thermostatic Valve “DE LUXE”
3-Axis Valve “CD”, chrome
Valve to the right of the radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapters. 1/2
72810 5 1 7959 41 1
White (RAL 9010) 72840 2 1 7959 44 1
Matt black 72850 1 1 7959 49 1
Product
group 1
26
Thermostatic Valves
HERZ-TS-90-Thermostatic Valves “DE LUXE”, Universal
Model Dim. EAN
90 04174 Order
number Item
HERZ-TS-90-Thermostatic Valve “DE LUXE”
Angle model, Colour Pergamum
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapters.
1/2 73550 9 S 7924 01 1
Colour Aegean 1/2 73560 8 S 7924 02 1
Colour Manhattan 1/2 73570 7 S 7924 03 1
Colour Edelweiss 1/2 73620 9 S 7924 04 1
Colour Calypso 1/2 73630 8 S 7924 05 1
Colour Bahama beige 1/2 73640 7 S 7924 06 1
Colour Greenwich 1/2 73650 6 S 7924 07 1
Colour Jasmine 1/2 73660 5 S 7924 08 1
Colour Natural 1/2 73670 4 S 7924 09 1
Colour Ultramarine blue (RAL 5002) 1/2 73680 3 S 7924 10 1
Colour Flame red (RAL 3000) 1/2 73690 2 S 7924 11 1
Colour Ruby red (RAL 3003) 1/2 73700 8 S 7924 12 1
Colour Signal blue (RAL 5005) 1/2 73710 7 S 7924 13 1
Colour Golden yellow (RAL 1004) 1/2 73720 6 S 7924 14 1
Colour Light ivory (RAL 1015) 1/2 73730 5 S 7924 15 1
Other designs, versions and dimensions are available upon request
Differences in colours due to printing reasons!
Chrome
Matt black
White RAL 9010
Pergamum
Aegean
Manhattan
Edelweiss
Calypso
Bahama beige
Greenwich
Jasmine
Natural
Ultramarine blue RAL 5002
Flame red RAL 3001
Ruby red RAL 3003
Signal blue RAL 5005
Golden yellow RAL 1004
Light ivory RAL 1015
Product
group 1
27
Thermostatic Valves

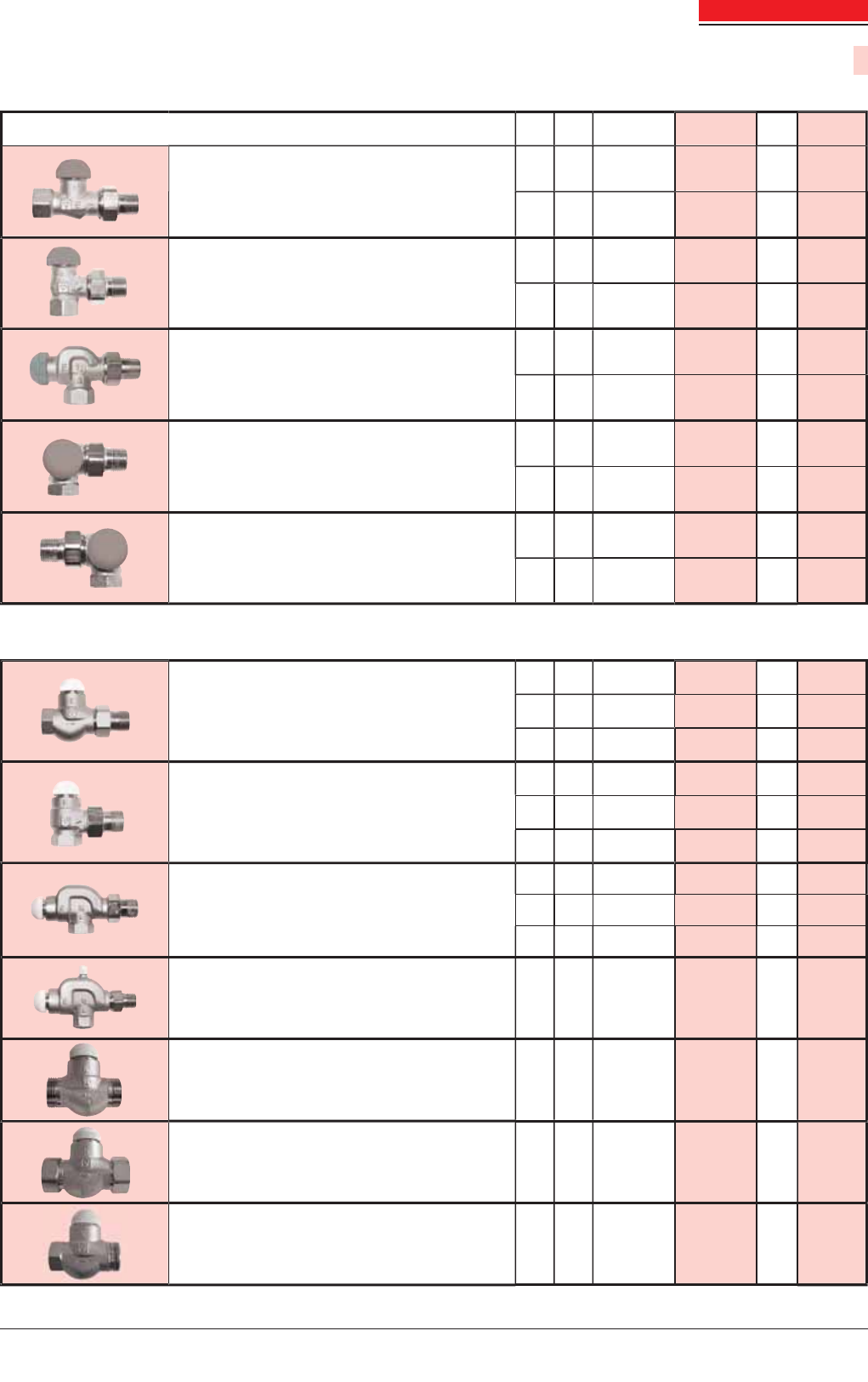

HERZ-TS-90-E-Thermostatic Valves with Reduced Resistance for One-Pipe Systems
Model kvs Dim. EAN
90 04174 Order
number Item
HERZ-TS-90-E-Thermostatic Valve
Straight model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
1.0 3/8 76700 5 1 7723 00 20
2.0 1/2 72000 0 1 7723 01 20
HERZ-TS-90-E-Thermostatic Valve
Angle model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
1.0 3/8 76710 4 1 7724 00 20
2.3 1/2 72080 2 1 7724 01 20
HERZ-TS-90-E-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
1.0 3/8 76720 3 1 7728 00 20
2.0 1/2 72020 8 1 7728 01 20
HERZ-TS-90-E-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
1.0 3/8 76730 2 1 7758 00 20
2.0 1/2 72420 6 1 7758 01 20
HERZ-TS-90-E-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
1.0 3/8 76740 1 1 7759 00 20
2.0 1/2 72430 5 1 7759 01 20
HERZ-TS-E-Thermostatic Valves with Maximum Flow Rate for One-Pipe and Gravity Installations
HERZ-TS-E-Thermostatic Valve
Straight model
Standard model with threaded socket,
radiator connection with cone.
5.1 1/2 72010 9 1 7723 11 1
5.1 3/4 71980 6 1 7723 02 1
5.1 1 71950 9 1 7723 03 1
HERZ-TS-E-Thermostatic Valve
Angle model
Standard model with threaded socket,
radiator connection with cone.
5.1 1/2 73380 2 1 7724 11 1
5.1 3/4 72090 1 1 7724 02 1
5.1 1 71960 8 1 7724 03 1
HERZ-TS-E-Thermostatic Valve
Reverse angle
Standard model with threaded socket,
radiator connection with cone.
5.1 1/2 72030 7 1 7728 11 1
5.1 3/4 72040 6 1 7728 02 1
5.1 1 72100 7 1 7728 03 1
HERZ-TS-E-Thermostatic Valve
Reverse angle, with air valve
Standard model with threaded socket,
radiator connection with cone.
5.1 1/2 74300 9 1 7728 21 1
HERZ-TS-E-Thermostatic Valve Straight model
2 x external thread G 1 with fl at seal. 5.1 20 76160 7 1 7723 74 20
HERZ-TS-E-Thermostatic Valve Straight model
2 x external thread G 1 with fl at seal,
with nuts and 2 fl at seals. 5.1 20 76150 8 1 7723 73 20
HERZ-TS-E-Thermostatic Valve Straight model
Socket x external thread G 1 with fl at seal. 5.1 20 76140 9 1 7723 72 20
Dimensions are different with regard to HERZ-TS-90 Valves for identical sizes,
For HERZ-RL-1-E return valves with maximum fl ow rate for one-pipe systems see page 38.
Product
group 1
28

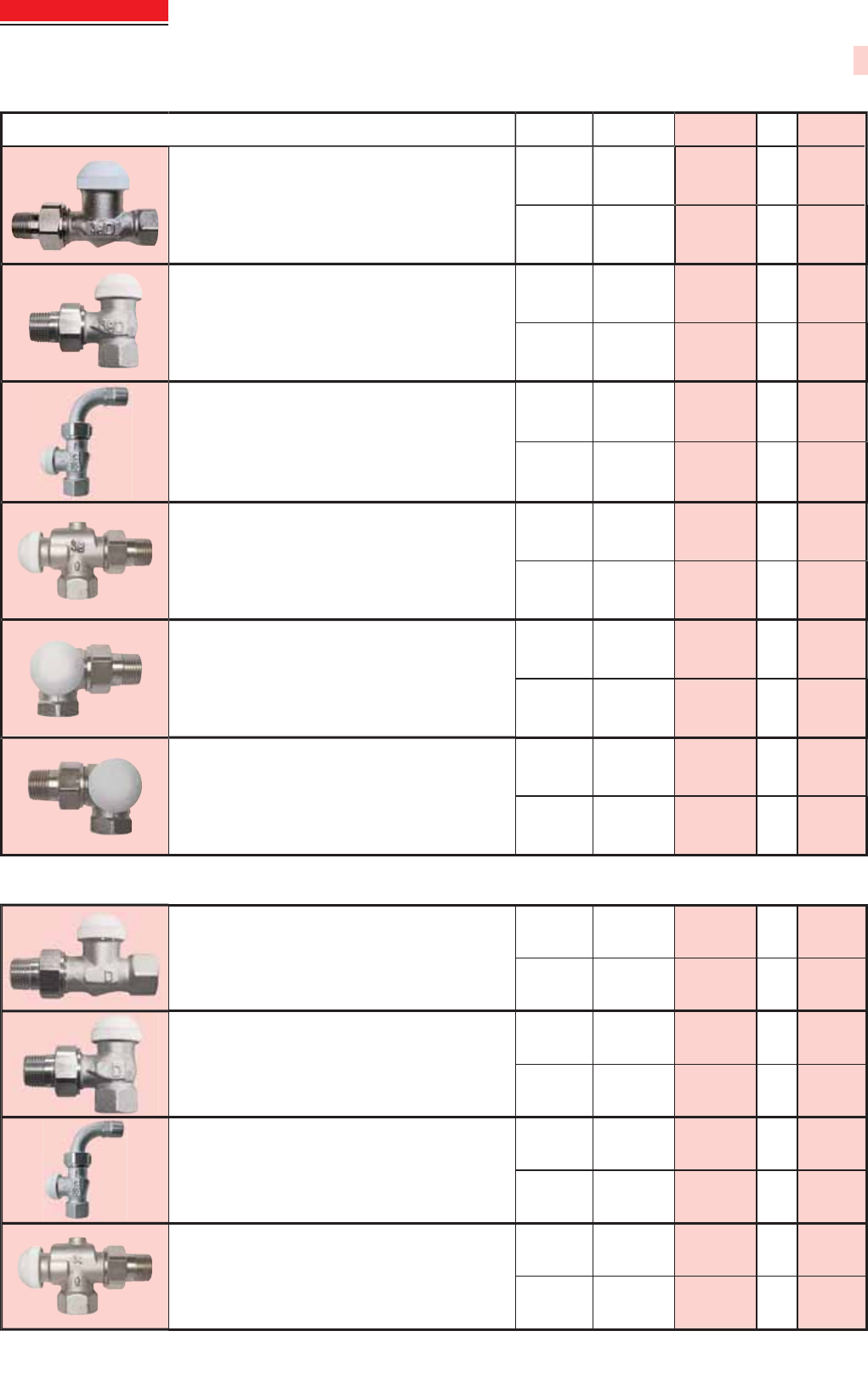

Thermostatic Valves
HERZ-TS-90-Thermostatic valves TS-90, with fi xed kv-values for heating installations 3/8
Model kv-m³/h EAN
90 04174 Order
number Item
HERZ-TS-90 Thermostatic Valve
Straight model Dimension 3/8
Radiator connection with cone.
Universal models with special sockets for
threaded pipes and compression adapter.
0.12 71550 1 1 7771 79 20
0.25 71560 0 1 7771 89 20
HERZ-TS-90 Thermostatic Valve
Angle model Dimension 3/8
Radiator connection with cone.
Universal models with special sockets for
threaded pipes and compression adapter.
0.12 71600 3 1 7772 79 20
0.25 71610 2 1 7772 89 20
HERZ-TS-90 Thermostatic Valve
Angle model with elbow 90° Dimension 3/8
Radiator connector elbow 90°
with cone.Universal models with special sockets
for threaded pipes and compression adapter.
0.12 71170 1 1 7777 79 20
0.25 71180 0 1 7777 89 20
HERZ-TS-90 Thermostatic Valve
Reverse angle Dimension 3/8
Radiator connection with cone.
Universal models with special sockets for
threaded pipes and compression adapter.
0.12 74880 6 1 7778 79 20
0.25 74890 5 1 7778 89 20
HERZ-TS-90 Thermostatic Valve
3-Axis Valve “AB” Dimension 3/8
Valve to the left of the radiator. Radiator connection
with cone. Universal models with special sockets for
threaded pipes and compression adapters.
0.12 75910 9 1 7758 79 20
0.25 75920 8 1 7758 89 20
HERZ-TS-90 Thermostatic Valve
3-Axis Valve “CD” Dimension 3/8
Valve to the right of the radiator. Radiator connection
with cone. Universal models with special sockets for
threaded pipes and compression adapters.
0.12 75950 5 1 7759 79 20
0.25 75960 4 1 7759 89 20
HERZ-TS-90-Thermostatic valves TS-90 with fi xed kv-values for heating installations 3/4
HERZ-TS-90 Thermostatic Valve
Straight model Dimension 3/4
Radiator connection with cone.
Universal models with special sockets for
threaded pipes and compression adapter.
0.12 77061 6 1 7671 79 20
0.25 77062 3 1 7671 89 20
HERZ-TS-90 Thermostatic Valve
Angle model Dimension 3/4
Radiator connection with cone.
Universal models with special sockets for
threaded pipes and compression adapter.
0.12 77071 5 1 7672 79 20
0.25 77072 2 1 7672 89 20
HERZ-TS-90 Thermostatic Valve
Angle model with elbow 90 °C Dimension 3/4
Radiator connector with elbow 90 °C with
cone.Universal models with special sockets for
threaded pipes and compression adapter.
0.12 77091 3 1 7677 79 20
0.25 77092 0 1 7677 89 20
HERZ-TS-90 Thermostatic Valve
Reverse angle Dimension 3/4
Radiator connection with cone.
Universal models with special sockets for
threaded pipes and compression adapter.
0.12 77081 4 1 7675 79 20
0.25 77082 1 1 7675 89 20
Product
group 1
29
HERZ-TS-90-Thermostatic valve with fi xed values of kv for district heating 1/2
Model kv
m³/h Dim. EAN
90 04174 Order
number Item
HERZ-TS-90 Thermostatic Valve
Straight model Dimension 1/2
Radiator connection with cone.
Universal models with special sockets for
threaded pipes and compression adapter.
0.12 1/2 70340 9 1 7713 79 20
0.25 1/2 70350 8 1 7713 89 20
HERZ-TS-90 Thermostatic Valve
Angle model Dimension 1/2
Radiator connection with cone.
Universal models with special sockets for
threaded pipes and compression adapter.
0.12 1/2 70390 4 1 7714 79 20
0.25 1/2 70400 0 1 7714 89 20
HERZ-TS-90 Thermostatic Valve
Angle model with elbow 90 °C Dimension 1/2
Radiator connector with elbow 90 °C with
cone.Universal models with special sockets for
threaded pipes and compression adapter.
0.12 1/2 70440 6 1 7715 79 20
0.25 1/2 70450 5 1 7715 89 20
HERZ-TS-90 Thermostatic Valve
Reverse angle Dimension 1/2
Radiator connection with cone.
Universal models with special sockets for
threaded pipes and compression adapter.
0.12 1/2 70600 4 1 7718 79 20
0.25 1/2 70610 3 1 7718 89 20
HERZ-TS-90 Thermostatic Valve
3-Axis Valve “AB” Dimension 1/2
Valve to the left of the radiator. Radiator connection
with cone. Universal models with special sockets for
threaded pipes and compression adapters.
0.12 1/2 70500 7 1 7716 79 20
0.25 1/2 70510 6 1 7716 89 20
HERZ-TS-90 Thermostatic Valve
3-Axis Valve “CD” Dimension 1/2
Valve to the right of the radiator. Radiator connection
with cone. Universal models with special sockets for
threaded pipes and compression adapters.
0.12 1/2 70550 2 1 7717 79 20
0.25 1/2 70560 1 1 7717 89 20
HERZ-TS-FV Thermostatic Valve with Fine 6 Position Pre-Setting and Readout 1/2
HERZ-TS-FV Thermostatic Valve Straight model
Radiator connection with cone. Universal models
with special sockets for threaded pipes and
compression adapter. 0.39 1/2 73580 6 1 7523 67 20
HERZ-TS-FV Thermostatic Valve Angle model
Radiator connection with cone. Universal models
with special sockets for threaded pipes and
compression adapter. 0.39 1/2 73590 5 1 7524 67 20
HERZ-TS-FV Thermostatic Valves Reverse Angle
Radiator connection with cone.
Universal models with special sockets for
threaded pipes and compression adapters. 0.39 1/2 74920 9 1 7528 67 20
Thermostatic Valves
Product
group 1
30
Thermostatic Valves
HERZ-TS-98-V Thermostatic Valves with Continuous Pre-Setting and Readout
Model Dim. EAN
90 04174 Order
number Item
HERZ-TS-98-V-Thermostatic Valve
Straight model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
3/8 72550 0 1 7623 65 20
1/2 72570 8 1 7623 67 20
3/4 74840 0 1 7623 69 20
HERZ-TS-98-V-Thermostatic Valve
Angle model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
3/8 72600 2 1 7624 65 20
1/2 72620 0 1 7624 67 20
3/4 74850 9 1 7624 69 20
HERZ-TS-98-V-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapter.
3/8 72640 8 1 7628 65 20
1/2 72650 7 1 7628 67 20
HERZ-TS-98-V-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
1/2 72680 4 1 7658 67 20
HERZ-TS-98-V-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
1/2 72690 3 1 7659 67 20
HERZ-TS-98-V-Thermostatic Valve
Straight model
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone.
1/2 73480 9 1 7633 67 20
HERZ-TS-98-V-Thermostatic Valve
Angle model
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone.
1/2 73510 3 1 7638 67 20
HERZ-TS-98-V-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone.
1/2 72670 5 1 7648 67 20
HERZ-TS-98-V-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator. Radiator connection
with cone. Pipe connection with external thread
G 3/4 with cone.
1/2 73970 5 1 7645 67 20
HERZ-TS-98-V-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator. Radiator connection
with cone. Pipe connection with external thread
G 3/4 with cone.
1/2 73980 4 1 7646 67 20
HERZ-TS-98-V-Thermostatic Valve
Straight model
Special socket x external thread G 3/4 with cone.
Universal models with special sockets for threaded
pipes and compression adapters.
1/2 73460 1 1 7623 71 20
HERZ-TS-98-V-Thermostatic Valve
Straight model
2 x external thread G 3/4 with cone. 1/2 72660 6 1 7637 67 20
HERZ-TS-98-V-Universal in straight and angle versions are also avaliable according to DIN “D”.
Product
group 1
31
Thermostatic Valves
HERZ-TS-90-V Thermostatic Valves with Continuous, Concealed Pre-Settings
Model Dim. EAN
90 04174 Order
number Item
HERZ-TS-90-V-Thermostatic Valve
Straight model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
3/8 70630 1 1 7723 65 20
1/2 70650 9 1 7723 67 20
3/4 70670 7 1 7723 69 20
HERZ-TS-90-V-Thermostatic Valve
Angle model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
3/8 70750 6 1 7724 65 20
1/2 70770 4 1 7724 67 20
3/4 74830 1 1 7724 69 20
HERZ-TS-90-V-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
3/8 70870 1 1 7728 65 20
1/2 70880 0 1 7728 67 20
HERZ-TS-90-V-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
1/2 71030 8 1 7758 67 20
HERZ-TS-90-V-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
1/2 71060 5 1 7759 67 20
HERZ-TS-90-V-Thermostatic Valve
Straight model
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone.
1/2 73420 5 1 7733 67 20
HERZ-TS-90-V-Thermostatic Valve
Angle model
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone.
1/2 73450 2 1 7738 67 20
HERZ-TS-90-V-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone.
1/2 71510 5 1 7748 67 20
HERZ-TS-90-V-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator.
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone.
1/2 73950 7 1 7745 67 20
HERZ-TS-90-V-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator.
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone.
1/2 73960 6 1 7746 67 20
HERZ-TS-90-V-Thermostatic Valve
Straight model
Special socket x external thread G 3/4 with cone.
Universal models with special sockets for threaded
pipes and compression adapters.
1/2 70680 6 1 7723 71 20
HERZ-TS-90-V-Thermostatic Valve
Straight model
2 x special socket G 3/4 with cone. 1/2 70920 3 1 7737 67 20
HERZ-TS-90-V-Universal in straight and angle versions are also avaliable according to DIN “D”.
Product
group 1
32
Thermostatic Valves
HERZ-Bi-Directional Flow Thermostatic Valves
Model Dim. EAN
90 04174 Order
number Item
Thermostatic Valves with “Mini” Sensor
Angle model
Valve can be installed as either standard angle or
reverse angle pattern with 15, 10 and 8 mm copper
connection, plastic pipe connections available.
Double integrity metal to metal and “O”-ring seal
tail piece connection.
15 mm 74060 2 1 7734 33 20
10 mm 74390 0 1 7734 31 20
8 mm 74400 6 1 7734 38 20
Return Valves with Knurled Cap
Angle model
Valve available with 15, 10 and 8 mm copper
connection, plastic pipe connections available.
Double integrity metal to metal and “O”-ring seal
tail piece connection.
15 mm 32300 3 1 3734 15 20
10 mm 32310 2 1 3734 10 20
8 mm 32320 1 1 3734 08 20
Thermostatic Valves with Hand Wheel
Angle model
Valve can be installed as either standard angle or
reverse angle pattern with 15, 10 and 8 mm copper
connection, plastic pipe connections available.
Double integrity metal to metal and “O”-ring seal tail
piece connection. Can be converted to a TRV by
swapping the head
15 mm 74360 3 1 7834 15 20
10 mm 74370 2 1 7834 10 20
8 mm 74380 1 1 7834 08 20
Return Valves with Deluxe Cap
Angle model
Valve available with 15, 10 and 8 mm copper
connection, plastic pipe connections available.
Double integrity metal to metal and “O”-ring seal
tail piece connection.
15 mm ohne 1 3734 30 20
10 mm 32330 0 1 3734 31 20
8 mm 32340 9 1 3734 38 20
Option with HERZ Standard Head
Angle model
Valve can be installed as either standard angle or
reverse angle pattern with 15 mm copper connection,
plastic pipe connections available. Double integrity
metal to metal and “O”-ring seal tail piece connection.
15 mm 74410 5 1 7736 15 20
Return Valves with Knurled Cap & Drain off
Angle model
Valve available with 15 mm copper
connection, plastic pipe connections available.
Drain valve incorporated into tail piece.
15 mm 1 3734 25 20
For replacement insert 6390 see page 46
Product
group 1
33

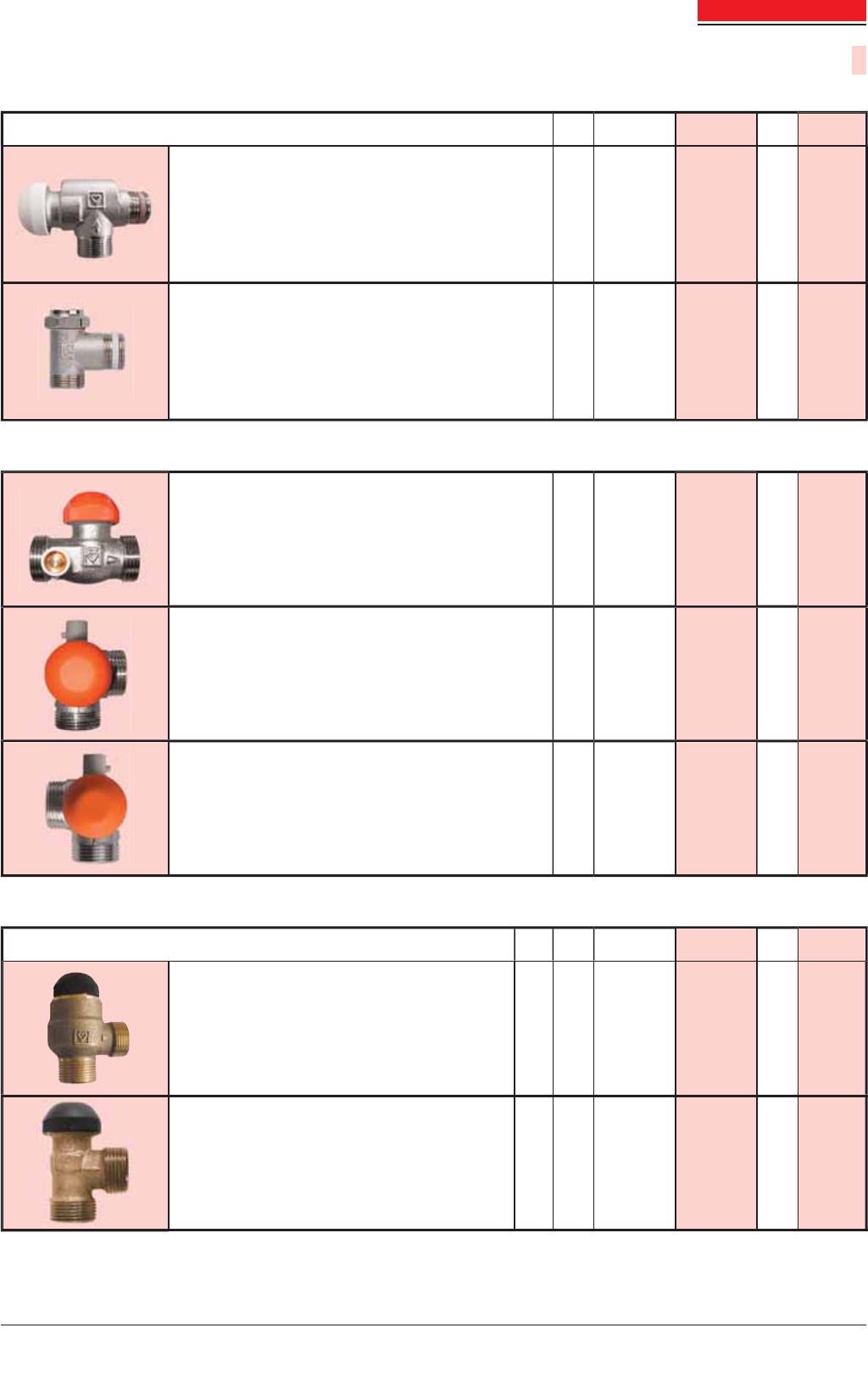

Thermostatic Valves
HERZ-TS-90-Thermostatic Valves
Model Dim. EAN
90 04174 Order
number Item
Herz-TS-90-Thermostatic Valve Reverse angle
Direct connection to the radiator, self-sealing by means
of Tefl on ring. Threaded pipe connection.
M 22 x 1.5 Compression adapter for pipe connection
to be ordered separately.
1/2 x
M 22
x 1.5
70990 6 1 7742 91 20
HERZ-RL-5-Return Valve Angle model
Direct connection to the radiator, self-sealing by means
of Tefl on ring. Threaded pipe connection M 22 x 1.5.
Compression adapter for pipe connection
to be ordered separately
1/2 x
M 22
x 1.5
30170 4 1 3942 01 20
HERZ-TS-98-Thermostatic Valves
HERZ-TS-98-V-Thermostatic Valve
with continuous pre-setting
and readout, straight model with air bleed,
2 x external thread G 3/4 with cone 1/2 76240 6 1 7637 68 20
HERZ-TS-98-V-Thermostatic Valve
with continuous pre-setting
and readout, 3-axis valve “AB” with air bleed,
2 x external thread G 3/4 1/2 73220 1 1 7645 68 20
HERZ-TS-98-V-Thermostatic Valve
with continuous pre-setting
and readout, 3-axis valve “CD” with air bleed,
2 x external thread G 3/4 1/2 73230 0 1 7646 68 20
HERZ-TS-Thermostatic Valves - Special Models
Model Kvs DN EAN
90 04174 Order
number Item
HERZ-TS-E-Thermostatic Valve
Angle model
2 x external thread G 1 with fl at seal.
3.62 20 76180 5 1 7724 21 20
HERZ-TS-90-Thermostatic Valve
Angle model
2 x external thread G 3/4 with fl at seal.
1.92 15 76500 0 1 7724 38 20
Product
group 1
34
Thermostatic Valves
HERZ-TS-90-H-Thermostatic Valves M 30 x 1.5
Model Dim. EAN
90 04174 Order
number Item
HERZ-TS-90-H-Thermostatic Valve
Straight model
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapter.
1/2 74510 2 1 7723 26 20
HERZ-TS-90-H-Thermostatic Valve
Angle model
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapter.
1/2 74520 1 1 7724 26 20
HERZ-TS-90-H-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapter.
1/2 74530 0 1 7728 26 20
HERZ-TS-90-H-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
1/2 74590 0 1 7758 26 20
HERZ-TS-90-H-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
1/2 74600 0 1 7759 26 20
HERZ-TS-90-H-Thermostatic Valve
Straight model
Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone. 1/2 74540 9 1 7733 26 20
HERZ-TS-90-H-Thermostatic Valve
Angle model
Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone. 1/2 74550 8 1 7734 26 20
HERZ-TS-90-H-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone. 1/2 74570 6 1 7738 26 20
HERZ-TS-90-H-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator.
Radiator connection with cone.
Pipe connection with outside thread G 3/4 with cone.
1/2 74580 5 1 7745 26 20
HERZ-TS-90-H-Thermostatic Valve
Straight model
Special socket x external thread G 3/4 with cone.
Universal models with special sockets for threaded
pipes and compression adapters.
1/2 75460 7 1 7746 26 20
Product
group 1
35
Thermostatic Valves
HERZ-TS-98-VH-Thermostatic Valves M 30 x 1.5
with Continuous Pre-Setting and Readout
Model Dim. EAN
90 04174 Order
number Item
HERZ-TS-98-VH-Thermostatic Valve
Straight model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
1/2 75530 9 1 7623 26
HERZ-TS-98-VH-Thermostatic Valve
Angle model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
1/2 75540 8 1 7624 26
HERZ-TS-98-VH-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapter.
1/2 75550 7 1 7628 26
HERZ-TS-98-VH-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
DN 15 75600 9 1 7658 26
HERZ-TS-98-VH-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator. Radiator connection
with cone. Universal models with special sockets
for threaded pipes and compression adapters.
DN 15 75610 8 1 7659 26
HERZ-TS-98-VH-Thermostatic Valve
Straight model
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone. 1/2 ohne 1 7633 26
HERZ-TS-98-VH-Thermostatic Valve
Angle model
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone. 1/2 75560 6 1 7634 26
HERZ-TS-98-VH-Thermostatic Valve
Reverse angle
Radiator connection with cone.
Pipe connection with external thread G 3/4 with cone. 1/2 75570 5 1 7638 26
HERZ-TS-98-VH-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator. Radiator connection
with cone. Pipe connection with external thread
G 3/4 with cone.
1/2 75580 4 1 7645 26
HERZ-TS-98-VH-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator. Radiator connection
with cone. Pipe connection with external thread
G 3/4 with cone.
1/2 75590 3 1 7646 26
Product
group 1
36

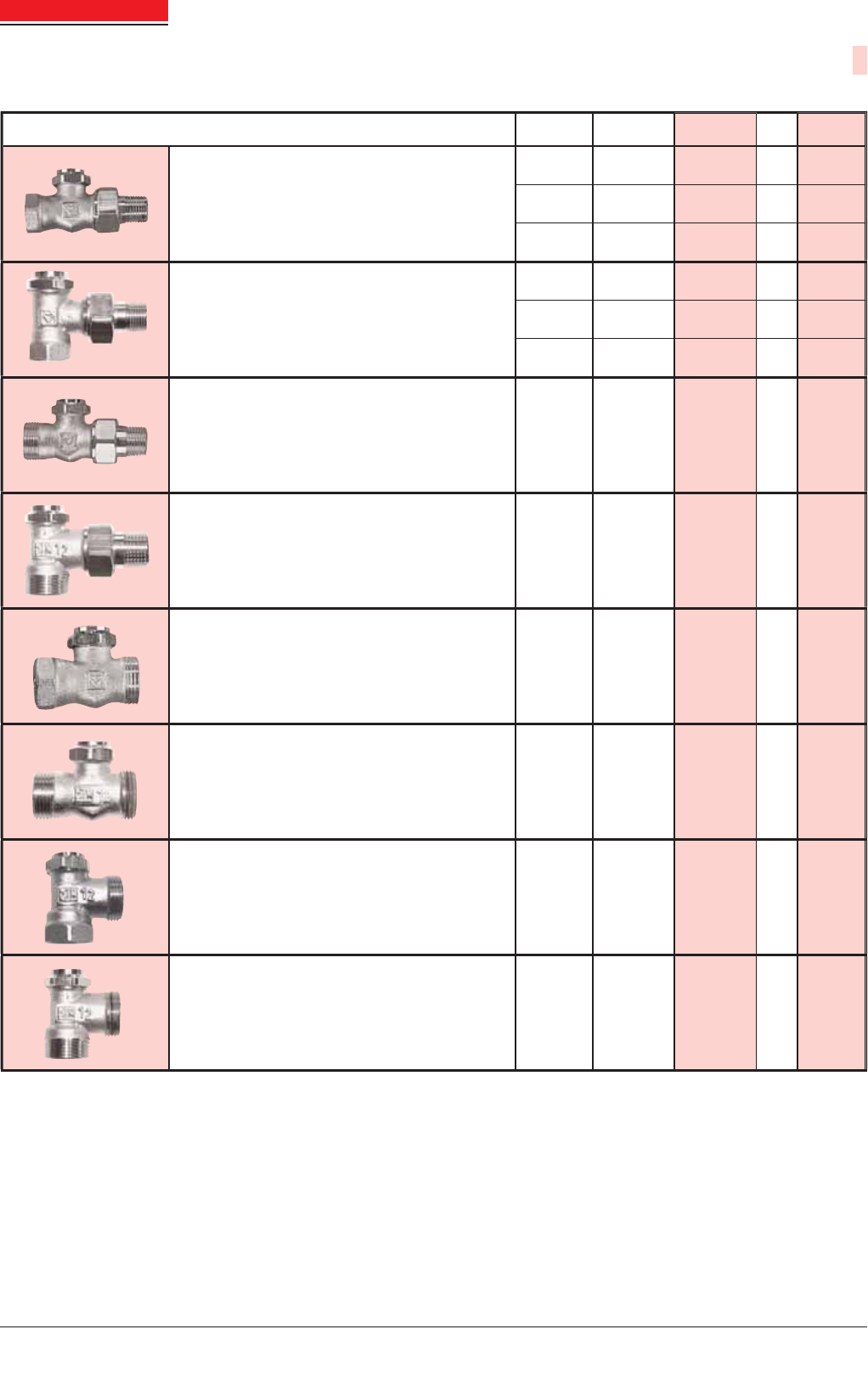

Return Valves
HERZ-RL-5-Return Valves with Pre-Setting
Model Dim. EAN
90 04174 Order
number Item
HERZ-RL-5-Return Valve
Straight model
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapter. Dimensions
according DIN 3832, series 1, DARE-Ms-K.
3/8 30090 5 1 3923 00 20
1/2 30100 1 1 3923 01 20
3/4 30110 0 1 3923 02 20
HERZ-RL-5-Return Valve
Angle model
Radiator connection with cone.
Universal models with special sockets for threaded
pipes and compression adapter. Dimensions
according DIN 3842, series 1, EARE Ms-K.
3/8 30130 8 1 3924 00 20
1/2 30140 7 1 3924 01 20
3/4 30150 6 1 3924 02 20
HERZ-RL-5-Return Valve
Straight model
Radiator connection with cone.
Pipe connection with external thread
G 3/4 with cone seal.
1/2 30330 2 1 3937 11 20
HERZ-RL-5-Return Valve
Angle model
Radiator connection with cone.
Pipe connection with external thread
G 3/4 with cone seal.
1/2 30190 2 1 3948 11 20
HERZ-RL-5-Return Valve
Straight model
Special socket x external thread G 3/4 with cone seal.
Universal models with special sockets for threaded
pipes and compression adapters.
1/2 30120 9 1 3923 11 20
HERZ-RL-5-Return Valve
Straight model
2 x external thread G 3/4 with cone seal. 1/2 31050 8 1 3937 01 20
HERZ-RL-5-Return Valve
Angle model
Special socket x external thread G 3/4 with cone seal.
Universal models with special sockets for threaded
pipes and compression adapters.
1/2 30160 5 1 3924 11 20
HERZ-RL-5-Return Valve
Angle model
2 x external thread G 3/4 with cone seal. 1/2 30180 3 1 3948 01 20
Product
group 1
37
Return Valves
HERZ-RL-1-Return Valves
Model Dim. EAN
90 04174 Order
number Item
HERZ-RL-1-Return Valve
Straight model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
3/8 30020 2 1 3723 40 20
1/2 30030 1 1 3723 41 20
3/4 30040 0 1 3723 42 20
HERZ-RL-1-Return Valve
Angle model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
3/8 30050 9 1 3724 40 20
1/2 30060 8 1 3724 41 20
3/4 30070 7 1 3724 42 20
HERZ-RL-1-Return Valve
Straight model
Radiator connection with cone.
Pipe connection with external thread
G 3/4 with cone seal.
1/2 31410 0 1 3733 11 20
HERZ-RL-1-Return Valve
Angle model
Radiator connection with cone.
Pipe connection with external thread
G 3/4 with cone seal.
1/2 31420 9 1 3748 01 20
HERZ-RL-1-Return Valve
Straight model
Special socket x external thread G 3/4 with cone.
Universal models with special sockets for threaded
pipes and compression adapters.
1/2 30010 3 1 3723 11 20
HERZ-RL-1-Return Valve
Angle model
Special socket x external thread G 3/4 with cone seal.
Universal models with special sockets for threaded
pipes and compression adapters.
1/2 31470 4 1 3724 71 20
HERZ-RL-1-Return Valve
Straight model
2 x external socket G 3/4 with cone seal. 1/2 30080 6 1 3737 01 20
HERZ-RL-1-Return Valve
Angle model
2 x external socket G 3/4 with cone seal. 1/2 31480 3 1 3724 37 20
HERZ-RL-1-E-Return Valves with Maximum Flow Rate for One-Pipe and Gravity Installations
HERZ-RL-1-E-Return Valve
Straight model
Radiator connection with cone.
Standard model with threaded socket.
1/2 31430 8 1 3723 01 1
3/4 31440 7 1 3723 02 1
131400 1 1 3723 03 1
HERZ-RL-1-E-Return Valve
Angle model
Radiator connection with cone.
Standard model with threaded socket.
1/2 31450 6 1 3724 01 1
3/4 31460 5 1 3724 02 1
131390 5 1 3724 03 1
Product
group 1
38

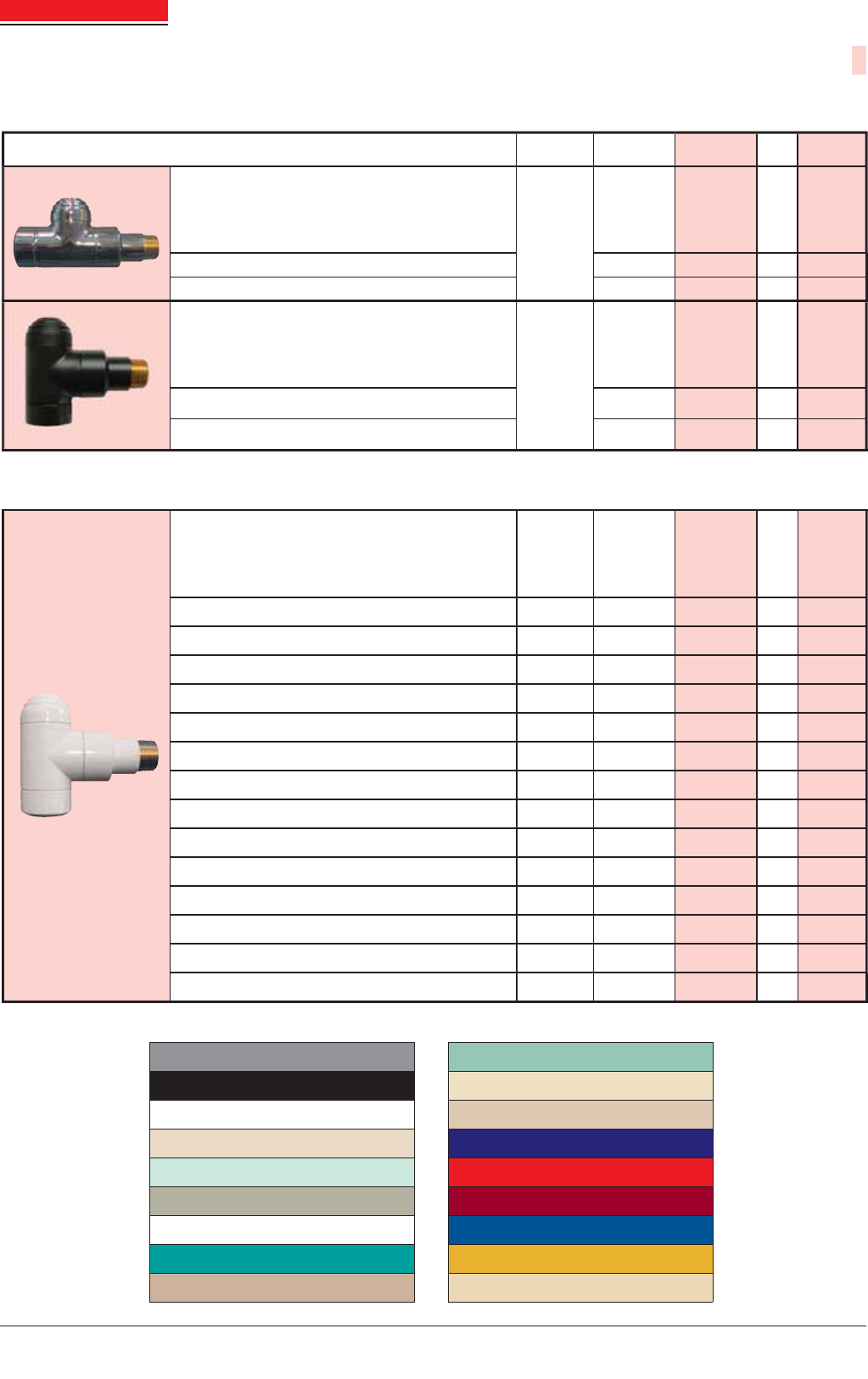

Return Valves
Chrome Greenwich
Matt black Jasmine
White RAL 9010 Natural
Pergamon Ultramarine blue RAL 5002
Aegean Flame red RAL 3000
Manhattan Ruby red RAL 3003
Edelweiss Signal blue RAL 5005
Calypso Golden yellow RAL 1004
Bahama Beige Light ivory RAL 1015
Differences in colours due to printing reasons!
HERZ-Return Valves “DE LUXE”, Universal
with pre-setting by limitation of valve lift
Model Dim. EAN
90 04174 Order
number Item
HERZ-Return Valve “DE LUXE”
Straight Model, chrome
Radiator connection with cone,
Universal models with special sockets
for threaded pipes and compression adapters. 1/2
30850 5 1 3725 41 1
White (RAL 9010) 30880 2 1 3725 44 1
Matt black 31080 5 1 3725 49 1
HERZ-Return Valve “DE LUXE”
Angle Model, chrome
Radiator connection with cone,
Universal models with special sockets
for threaded pipes and compression adapters. 1/2
30890 1 1 3726 41 1
White (RAL 9010) 30920 5 1 3726 44 1
Matt black 31090 4 1 3726 49 1
HERZ-Return Valves “DE LUXE”, Universal
with pre-setting by limitation of valve lift
HERZ-Return Valve “DE LUXE”
Angle Model, Colour Pergamum
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapters.
1/2 31530 5 S 3726 01 1
Colour Aegean 1/2 31540 4 S 3726 02 1
Colour Manhattan 1/2 31550 3 S 3726 03 1
Colour Edelweiss 1/2 31560 2 S 3726 04 1
Colour Calypso 1/2 31570 1 S 3726 05 1
Colour Bahama beige 1/2 31580 0 S 3726 06 1
Colour Greenwich 1/2 31590 9 S 3726 07 1
Colour Jasmine 1/2 31600 5 S 3726 08 1
Colour Natural 1/2 31610 4 S 3726 09 1
Colour Ultramarine blue (RAL 5002) 1/2 31620 3 S 3726 10 1
Colour Flame red (RAL 3000) 1/2 31630 2 S 3726 11 1
Colour Ruby red (RAL 3003) 1/2 31640 1 S 3726 12 1
Colour Signal blue (RAL 5005) 1/2 31650 0 S 3726 13 1
Colour Golden yellow (RAL 1004) 1/2 31660 9 S 3726 14 1
Colour Light ivory (RAL 1015) 1/2 31670 8 S 3726 15 1
Other dimensions are available upon request
Product
group 1
39

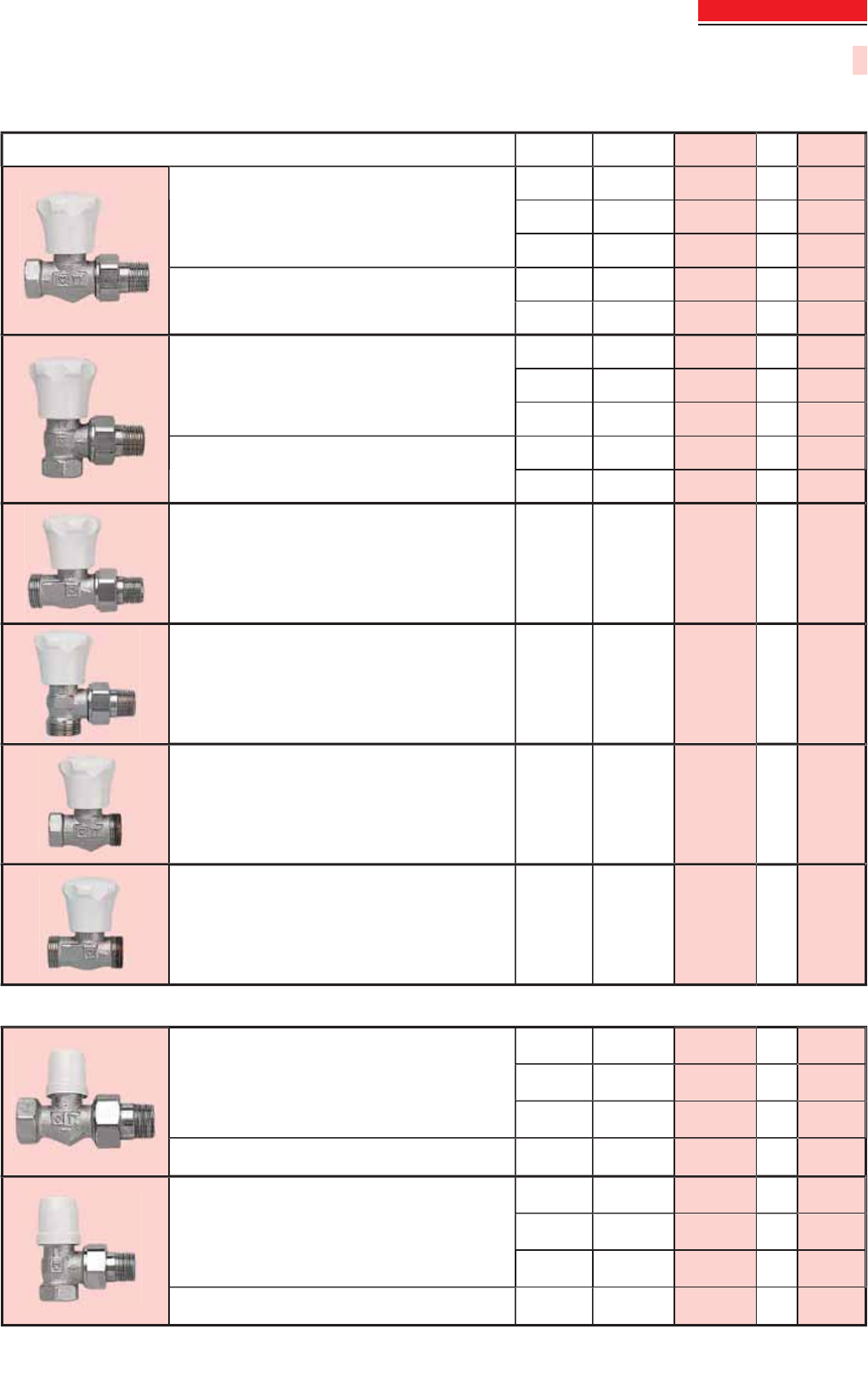

Radiator Control Valves
HERZ-DR-T-90-Radiator Control Valves
Accurate pre-setting by secondary flow restriction cone
Model Dim. EAN
90 04174 Order
number Item
HERZ-DR-T-90-Radiator Control Valve
Straight model
Radiator connection with cone.
Universal models with special sockets
for threaded pipe and compression adapter.
3/8 62000 3 1 6823 90 20
1/2 62010 2 1 6823 91 20
3/4 62020 1 1 6823 92 20
HERZ-DR-T-90-Radiator Control Valve
Straight model
Standard model with threaded socket.
161940 3 1 6823 73 1
1¼ 61950 2 1 6823 74 1
HERZ-DR-T-90-Radiator Control Valve
Angle model
Radiator connection with cone.
Universal models with special sockets
for threaded pipe and compression adapter.
3/8 62100 0 1 6824 90 20
1/2 62110 9 1 6824 91 20
3/4 62120 8 1 6824 92 20
HERZ-DR-T-90-Radiator Control Valve
Angle model
Standard model with threaded socket.
162040 9 1 6824 73 1
1¼ 62050 8 1 6824 74 1
HERZ-DR-T-90-Radiator Control Valve
Straight model
Radiator connection with cone.
Pipe connection with external thread
G 3/4 with cone seal.
1/2 63550 2 1 6833 81 20
HERZ-DR-T-90-Radiator Control Valve
Angle model
Radiator connection with cone.
Pipe connection with external thread
G 3/4 with cone seal.
1/2 63560 1 1 6848 01 20
HERZ-DR-T-90-Radiator Control Valve
Straight model
Special socket x external thread G 3/4 with cone seal.
Universal models with special sockets for threaded
pipes and compression adapters.
1/2 61930 4 1 6823 71 20
HERZ-DR-T-90-Radiator Control Valve
Straight model
2 x external socket G 3/4 with cone seal.
1/2 62140 6 1 6837 91 20
HERZ-DR-T-90-Radiator Control Valves with Lockshield Cap
HERZ-DR-T-90-Radiator Control Valve
with Lockshield Cap
Straight model
Radiator connection with cone.
Universal models with special sockets
for threaded pipe and compression adapter.
3/8 61960 1 1 6823 80 20
1/2 61970 0 1 6823 81 1
3/4 61980 9 1 6823 82 1
Standard model with threaded socket. 161990 8 1 6823 86 1
HERZ-DR-T-90-Radiator Control Valve
with Lockshield Cap
Angle model
Radiator connection with cone.
Universal models with special sockets
for threaded pipe and compression adapter.
3/8 62060 7 1 6824 80 20
1/2 62070 6 1 6824 81 1
3/4 62080 5 1 6824 82 1
Standard model with threaded socket. 162090 4 1 6824 86 1
Product
group 1
40
Radiator Control Valves
HERZ-GP-Radiator Control Valves
with pre-setting by limitation of valve lift
Model Dim. EAN
90 04174 Order
number Item
HERZ-GP-Radiator Control Valve
Straight model
Radiator connection with cone seal.
Universal models with special sockets
for threaded pipe and compression adapter.
3/8 50030 5 1 5523 20 20
1/2 50040 4 1 5523 21 20
3/4 50050 3 1 5523 22 20
HERZ-GP-Radiator Control Valve
Angle model
Radiator connection with cone seal.
Universal models with special sockets
for threaded pipe and compression adapter.
3/8 50120 3 1 5524 20 20
1/2 50130 2 1 5524 21 20
3/4 50140 1 1 5524 22 20
HERZ-GP-Radiator Control Valve
Straight model
Special socket x external thread G 3/4 with cone seal.
Universal models with special sockets
for threaded pipes and compression adapters. 1/2 50070 1 1 5523 71 20
HERZ-GP-Radiator Control Valve
Straight model
2 x external socket G 3/4 with cone seal.
1/2 50190 6 1 5537 01 20
HERZ-GP-Radiator Control Valve
Straight model
Radiator connection with cone seal.
Pipe connection with external thread
G 3/4 with cone seal. 1/2 50310 8 1 5537 11 20
HERZ-GP-Radiator Control Valve
Angle model
Radiator connection with cone seal.
Pipe connection with external thread
G 3/4 with cone seal. 1/2 50330 6 1 5548 01 20
HERZ-GP-Radiator Control Valves with Lockshield Cap
HERZ-GP-Radiator Control Valve
with Lockshield Cap
Straight model
Radiator connection with cone seal.
Universal models with special sockets
for threaded pipe and compression adapter.
3/8 50000 8 1 5523 10 20
1/2 50010 7 1 5523 11 20
3/4 50020 6 1 5523 12 20
HERZ-GP-Radiator Control Valve
with Lockshield Cap
Angle model
Radiator connection with cone seal.
Universal models with special sockets
for threaded pipe and compression adapter.
3/8 50090 9 1 5524 10 20
1/2 50100 5 1 5524 11 20
3/4 50110 4 1 5524 12 20
Product
group 1
41

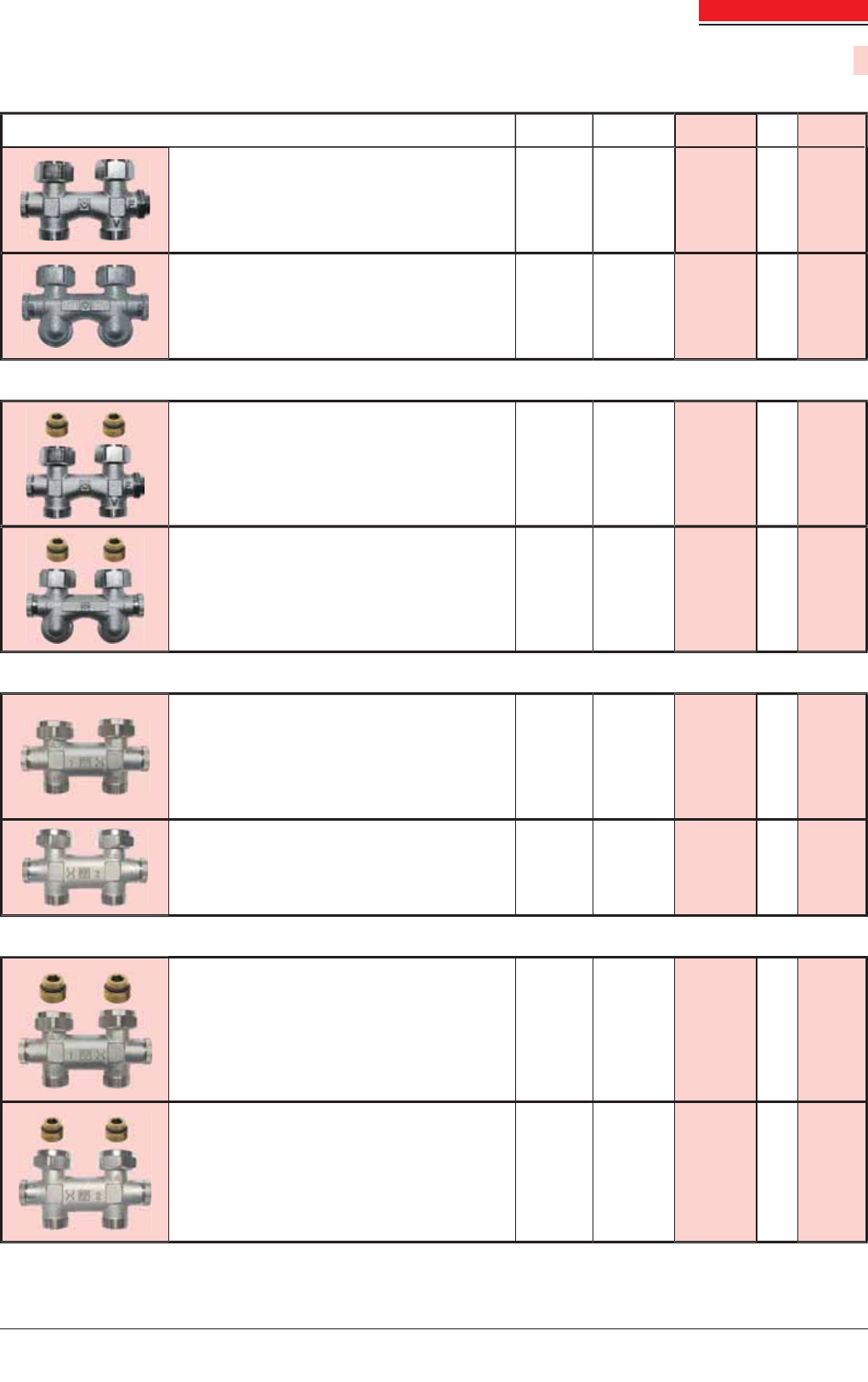

HERZ-3000 Connection System
for Radiators with Integrated Valves
HERZ-3000 Bypass Bodies for One-Pipe Systems with Integrated Thermostatic Valves
Model Dim. EAN
90 04174 Order
number Item
HERZ-3000 Bypass Body with Integrated
Thermostatic Valve
Straight model for one-pipe system.
Connection branch-distance between centres is 50 mm,
radiator connection G 3/4 with cone seal, freely moving
nut. Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters have to be ordered separately.
G 3/4 30800 0 1 3791 92 10
HERZ-3000 Bypass Body with Integrated
Thermostatic Valve
Straight model for one-pipe system.
Connection branch-distance between centres is 50 mm,
radiator connection R 1/2, freely moving nut, 2 connection
nipples are included. Radiator connection with external
thread G 3/4, with cone seal, for compression adapter.
Compression adapters have to be ordered separately.
Rp 1/2 x
G 3/4 30790 4 1 3792 92 10
HERZ-3000 Bypass Body with Integrated
Thermostatic Valve
Straight model for one-pipe system.
Connection branch-distance between centres is 50 mm,
radiator connection G 3/4 with cone seal, freely moving
nut. Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters have to be ordered separately.
G 3/4 31840 5 1 3793 92 10
HERZ-3000 Bypass Body with Integrated
Thermostatic Valve
Straight model for one-pipe system.
Connection branch-distance between centres is 50 mm,
radiator connection R 1/2, freely moving nut, 2 connection
nipples are included. Radiator connection with external
thread G 3/4, with cone seal, for compression adapter.
Compression adapters have to be ordered separately.
Rp 1/2 x
G 3/4 31860 3 1 3794 92 10
HERZ-TS-3000 Connection Elements for Two-Pipe Systems with Integrated Thermostatic Valves
Thermostatic Upper Part with direct pre-setting and readout
HERZ-3000 Connection Element with pre-setable
thermostatic upper part
Straight model for two-pipe system.
Connection branch-distance between centres is 50 mm,
radiator connection G 3/4 with cone seal, freely moving
nut. Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters are to be ordered separately.
G 3/4 32200 6 1 3691 91 10
HERZ-3000 Connection Element with pre-setable
thermostatic upper part
Straight model for two-pipe system.
Connection branch-distance between centres is 50 mm,
radiator connection R 1/2, freely moving nut, 2 connection
nipples are included. Radiator connection with external
thread G 3/4, with cone seal for compression adapter.
Compression adapters have to be ordered separately.
Rp 1/2 x
G 3/4 32210 5 1 3692 91 10
HERZ-3000 Connection Element with pre-setable
thermostatic upper part
Angle model for two-pipe system.
Connection branch-distance between centres is 50 mm,
radiator connection G 3/4 with cone seal, freely moving
nut. Radiator connection with external thread G 3/4,
with cone seal, for compression adapter. Compression
adapters have to be ordered separately.
G 3/4 32220 4 1 3693 91 10
HERZ-3000 Connection Element with pre-setable
thermostatic upper part
Angle model for two-pipe system.
Connection branch-distance between centres is 50 mm,
radiator connection R 1/2, freely moving nut, 2 connection
nipples are included. Radiator connection with external
thread G 3/4, with cone seal, for compression adapter.
Compression adapters have to be ordered separately.
Rp 1/2 x
G 3/4 32230 3 1 3694 91 10
Product
group 1
42

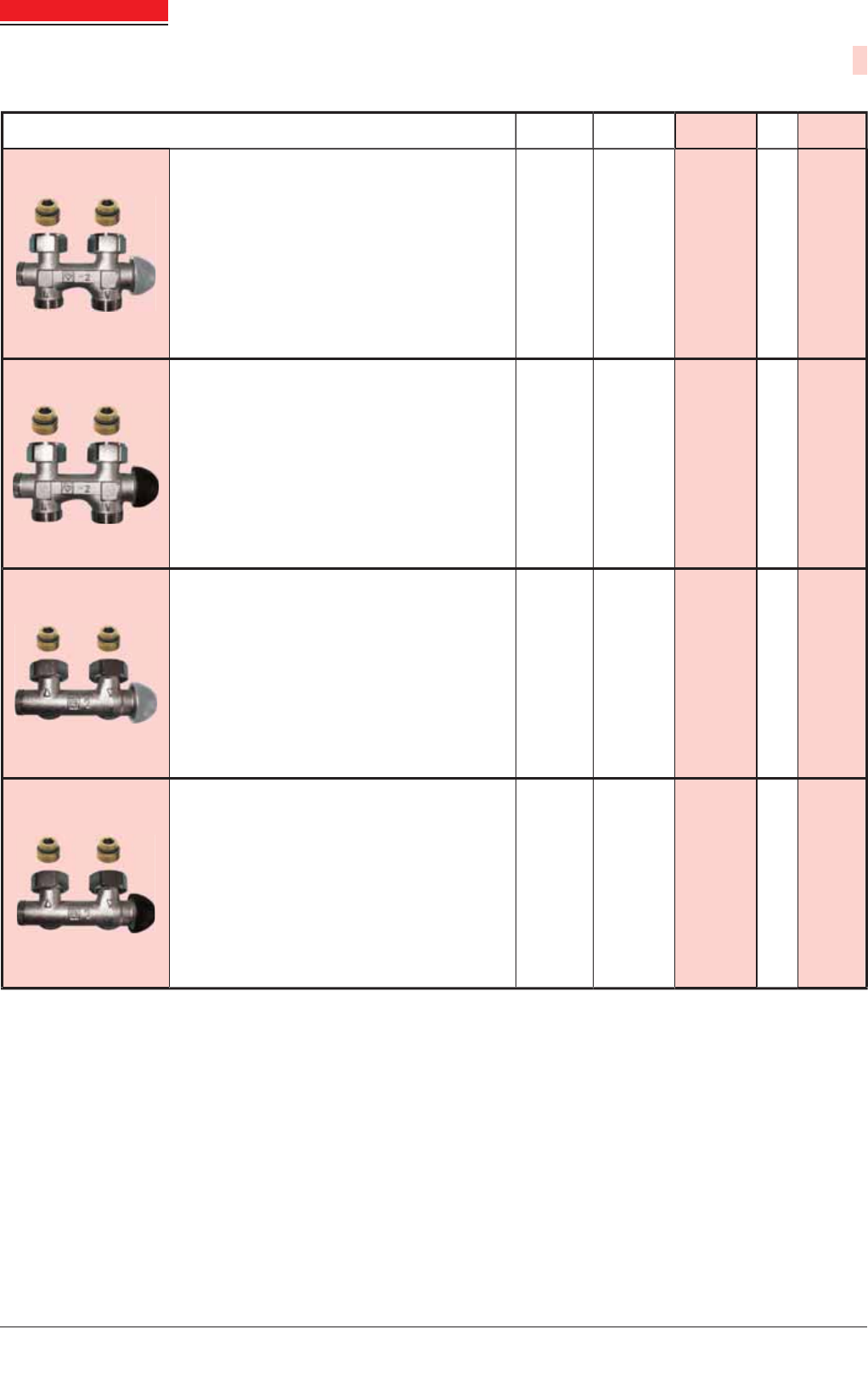

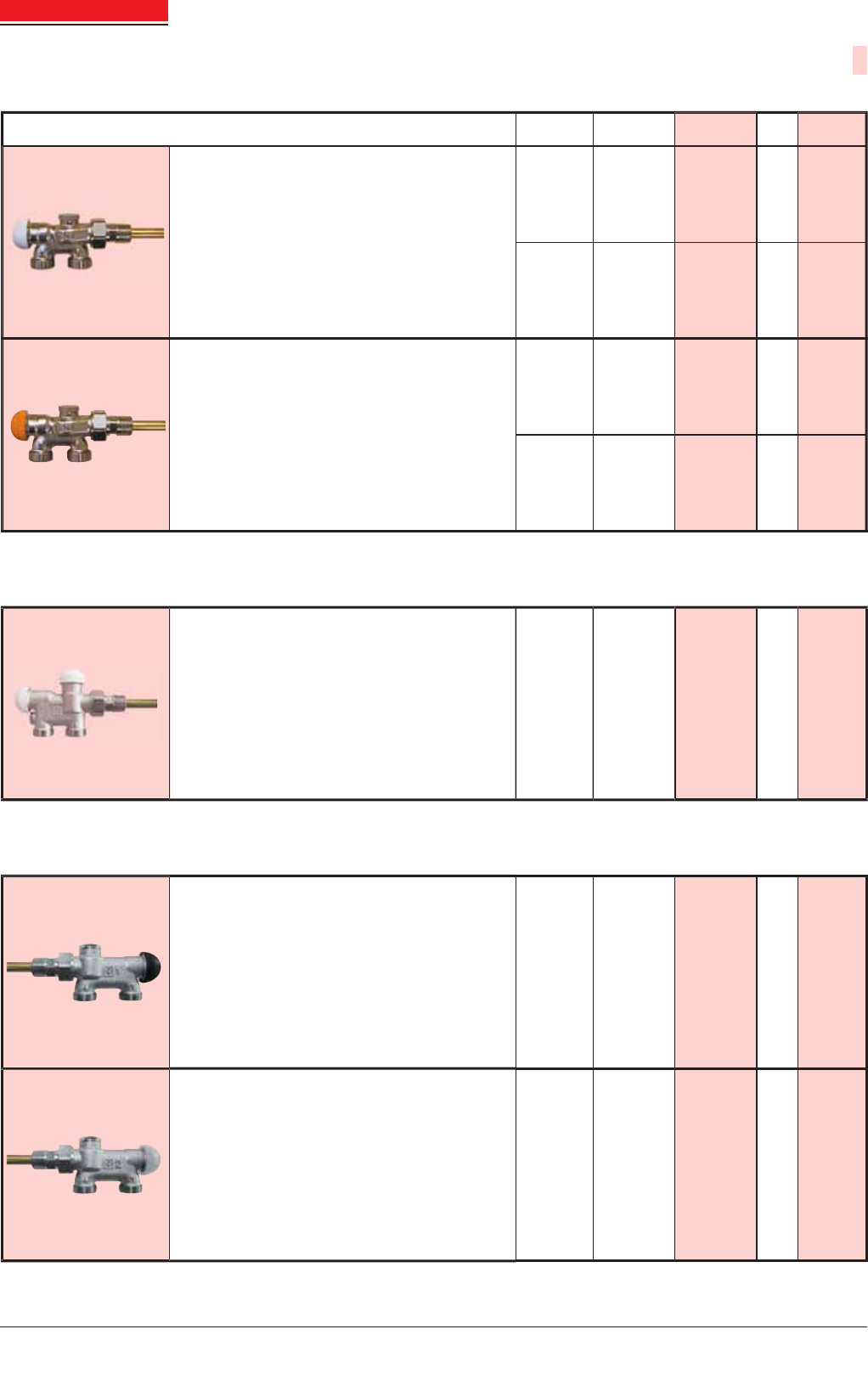

HERZ-3000 Connection System
for Radiators with Integrated Valves
HERZ-TS-3000-Bypass Bodies with Integrated Thermostatic Valves M 30 x 1.5
Model Dim. EAN
90 04174 Order
number Item
HERZ-3000 Connection Element with pre-setable
thermostatic upper part
Straight model for two-pipe system.
Connection branch-distance between centres is
50 mm, radiator connection R 1/2, freely moving nut,
2 connection nipples are included.
Radiator connection with external thread G 3/4,
with cone seal for compression adapter.
Compression adapters have to be ordered separately.
Rp 1/2 x
G 3/4 -1 3798 91 10
HERZ-3000 Connection Element with pre-setable
thermostatic upper part
Straight model for one-pipe system.
Connection branch-distance between centres is
50 mm, radiator connection R 1/2, freely moving nut,
2 connection nipples are included.
Radiator connection with external thread G 3/4,
with cone seal for compression adapter.
Compression adapters have to be ordered separately.
Rp 1/2 x
G 3/4 -1 3798 92 10
HERZ-3000 Connection Element with pre-setable
thermostatic upper part
Angle model for two-pipe system.
Connection branch-distance between centres is
50 mm, radiator connection R 1/2, freely moving nut,
2 connection nipples are included.
Radiator connection with external thread G 3/4,
with cone seal, for compression adapter.
Compression adapters have to be ordered separately.
Rp 1/2 x
G 3/4 -1 3799 91 10
HERZ-3000 Connection Element with pre-setable
thermostatic upper part
Angle model for one-pipe system.
Connection branch-distance between centres is
50 mm, radiator connection R 1/2, freely moving nut,
2 connection nipples are included.
Radiator connection with external thread G 3/4,
with cone seal, for compression adapter.
Compression adapters have to be ordered separately.
Rp 1/2 x
G 3/4 -1 3799 92 10
Product
group 1
43
HERZ-Thermostatic Inserts
HERZ-Thermostatic Inserts for Radiators FWW
Model Dim. EAN
90 04174 Order
number Item
ERZ-Thermostatic Inserts for Radiators
Manufacturer Vogel & Noot.
kv 0.06 32870 1 1 3093 69 20
kv 0.12 32880 0 1 3093 79 20
kv 0.25 32890 9 1 3093 89 20
kv 0.5 32900 5 1 3093 99 20
HERZ-Thermostatic Inserts for Radiators
with a fi xed value kv
Manufacturer Stelrad & Korado.
kv 0.06 32910 4 1 3192 82 20
kv 0.12 32920 3 1 3192 83 20
kv 0.25 32930 2 1 3192 84 20
kv 0.5 32940 1 1 3192 85 20
HERZ-Thermostatic Inserts for Radiators with Integrated Valves M 28 x 1.5
HERZ-Thermostatic Inserts TS-98-V
for Radiators (Purmo, Dia Norm, Radson, Superia,
Veha), with pre-setting.
1/2 33050 6 1 3091 98 20
HERZ-Einschraubventil TS-98-V
for Radiators
(Henrad, Korado
, Stelrad
),
with pre-setting.
1/2 33060 5 1 3192 98 20
HERZ-Thermostatic Inserts TS-98-V
for Radiators (Vogel&Noot),
with pre-setting.
1/2 32370 6 1 3093 98 20
HERZ-Thermostatic Inserts TS-98-V
for Radiators (ThermoTeknik, Acova, Brugmann),
with pre-setting.
1/2 32960 9 1 3095 98 20
HERZ-Thermostatic Inserts
for Radiators (Kermi), with pre-setting 1/2 33070 4 1 3197 98 20
HERZ-Thermostatic Inserts TS-98-V
for Radiators (Dunaferr), with pre-setting. 1/2 32630 1 1 3192 03 20
HERZ-Thermostatic Inserts for Radiators with Integrated Valves M 30 x 1.5
HERZ-Thermostatic Inserts
for Radiators(Acova) with Intergrated Valves
Continuous precise pre-setting various lengths
according to radiator connection design.
1/2 32970 8 1 3295 98 1
HERZ-Thermostatic Inserts TS-98-V
for Radiators(Dunaferr) with Intergrated
Valves Continuous precise pre-setting various lengths
according to radiator connection design.
1/2 32640 0 1 3292 03 20
* Please note that the manufacturer-related Integrated valve inserts has been extensively revised, and the information provided here
is appropriate at the time of radiator models in Austria. Subject to change at any time.
Product
group 1
44
HERZ-3000 Connection Elements for Two-Pipe Systems G 3/4
Model Dim. EAN
90 04174 Order
number Item
“PROJEKT” Connection Element
Straight model
Connection branch-distance between centres is
50 mm, radiator connection G 3/4, freely moving nut.
Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters have to be ordered separately.
G 3/4 32250 1 3 3021 01 100
“PROJEKT” Connection Element
Angle model
Connection branch-distance between centres is
50 mm, radiator connection G 3/4, freely moving nut.
Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters have to be ordered separately.
G 3/4 32260 0 3 3021 02 100
“PROJEKT” Connection Element
Straight model
Connection branch-distance between centres is
50 mm, radiator connection G 3/4, freely moving nut.
2 connecting nipples 1 3002 31 are included.
Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters have to be ordered separately.
Rp 1/2 x
G 3/4 33130 5 3 3021 11 100
“PROJEKT” Connection Element
Angle model
Connection branch-distance between centres is
50 mm, radiator connection G 3/4, freely moving nut.
2 connecting nipples 1 3002 31 are included.
Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters have to be ordered separately.
Rp 1/2 x
G 3/4 33140 4 3 3021 12 100
HERZ-3000 Connection System
for Radiators with Integrated Valves
Product
group 1
45
HERZ-3000 Connection System
for Radiators with Integrated Valves
HERZ-3000 Connection Elements for Two-Pipe Systems
With shutoff, draining and filling functions on both sides, radiator connection G 3/4 G 3/4
Model Dim. EAN
90 04174 Order
number Item
HERZ-3000-Connection Element
Straight model
Connection branch-distance between centres is
50 mm, radiator connection G 3/4, freely moving nut.
Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters have to be ordered separately.
G 3/4 32010 1 1 3466 01 10
HERZ-3000-Connection Element
Angle model
Connection branch-distance between centres is
50 mm, radiator connection G 3/4, freely moving nut.
Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters have to be ordered separately.
G 3/4 32030 9 1 3466 11 10
With shutoff, draining and filling functions on both sides, radiator connection Rp 1/2 Rp 1/2
HERZ-3000-Connection Element
Straight model
Connection branch-distance between centres is
50 mm, radiator connection R 1/2, freely moving nut,
2 connection nipples 1 3002 31 are included. Radiator
connection with external thread G 3/4, with cone seal
for compression adapter. Compression adapters have
to be ordered separately.
Rp 1/2 x
G 3/4 32020 0 1 3466 02 10
HERZ-3000-Connection Element
Angle model
Connection branch-distance between centres is
50 mm, radiator connection Rp 1/2, freely moving nut,
2 connection nipples 1 3002 31 are included. Radiator
connection with external thread G 3/4, with cone seal
for compression adapter connection. Compression
adapters have to be ordered separately.
Rp 1/2 x
G 3/4 32040 8 1 3466 12 10
With shutoff function on both sides, operation from front, radiator connection G 3/4 G 3/4
HERZ-3000-Connection Element
Straight model
Connection branch-distance between centres is
50 mm, radiator connection G 3/4, freely moving nut.
Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters have to be ordered separately.
G 3/4 31890 0 1 3766 01 10
HERZ-3000-Connection Element
Angle model
Connection branch-distance between centres is
50 mm, radiator connection G 3/4, freely moving nut.
Radiator connection with external thread G 3/4,
with cone seal for compression adapter. Compression
adapters have to be ordered separately.
G 3/4 31910 5 1 3766 11 10
With shutoff functions on both sides, operation from front, radiator connection Rp 1/2 Rp 1/2
HERZ-3000-Connection Element
Straight model
Connection branch-distance between centres is
50 mm, radiator connection Rp 1/2, freely moving nut,
2 connection nipples are included. Radiator
connection with external thread G 3/4, with cone seal
for compression adapter. Compression adapters have
to be ordered separately.
Rp 1/2 x
G 3/4 31900 6 1 3766 02 10
HERZ-3000-Connection Element
Angle model
Connection branch-distance between centres is
50 mm, radiator connection Rp 1/2, freely moving nut,
2 connection nipples are included. Radiator
connection with external thread G 3/4,
with cone seal for compression adapter.
Rp 1/2 x
G 3/4 31920 4 1 3766 12 10
Product
group 1
46
HERZ-3000 Connection System
for Radiators with Integrated Valves
HERZ-3000 Bypass Bodies for One or Two-Pipe Systems
With pre-setting, shutoff, draining and fi lling functions G 3/4
Model Dim. EAN
90 04174 Order
number Item
HERZ-3000 Bypass Body Straight model
Connection branch-distance between centres is
50 mm, radiator connection G 3/4 with cone seal,
freely moving nut. Radiator connection with external
thread G 3/4, with cone seal, for compression
adapter. 2 cone sockets are included.
Compression adapters have to be ordered
separately.
G 3/4 32080 4 1 3066 01 10
HERZ-3000 Bypass Body Angle model,
left-side draining
Connection branch-distance between centres is
50 mm, radiator connection G 3/4 with cone seal,
freely moving nut. Radiator connection with external
thread G 3/4, with cone seal, for compression
adapter. 2 cone sockets are included.
Compression adapters have to be ordered
separately.
G 3/4 32100 9 1 3066 11 10
HERZ-3000 Bypass Body Angle model,
right-side draining
Connection branch-distance between centres is
50 mm, radiator connection G 3/4 with cone seal,
freely moving nut. Radiator connection with external
thread G 3/4, with cone seal, for compression
adapter. 2 cone sockets are included.
Compression adapters have to be ordered
separately.
G 3/4 32120 7 1 3066 21 10
HERZ-3000 Bypass Bodies for One or Two-Pipe Systems
With pre-setting, shutoff, draining and fi lling functions. Rp 1/2
HERZ-3000 Bypass Body Straight model
Connection branch-distance between centres is
50 mm, radiator connection R 1/2 , freely moving nut,
2 connection nipples 1 3002 31 are included.
Pipe connection with external thread G 3/4 with cone
seal for compression adapter. Compression adapters
have to be ordered separately.
Rp 1/2 x
G 3/4 32090 3 1 3066 02 10
HERZ-3000 Bypass Body Angle model,
left-side draining
Connection branch-distance between centres is
50 mm, radiator connection R 1/2, freely moving nut,
2 connection nipples are included. Pipe connection
with external thread G 3/4 with cone seal for
compression adapter. Compression adapters have
to be ordered separately.
Rp 1/2 x
G 3/4 32110 8 1 3066 12 10
HERZ-3000 Bypass Body Angle model,
right-side draining
Connection branch-distance between centres is
50 mm, radiator connection R 1/2 , freely moving nut,
2 connection nipples 1 3002 12 are included. Pipe
connection with external thread G 3/4 with cone seal
for compression adapter. Compression adapters
have to be ordered separately.
Rp 1/2 x
G 3/4 32130 6 1 3066 22 10
Product
group 1
47
HERZ-3000-Bypass Bodies for One-Pipe Systems G 3/4
Model Dim. EAN
90 04174 Order
number Item
HERZ-3000-Bypass Body with fi xed bypass
Straight model Connection branch-centre distance
50 mm, radiator connection G 3/4 with cone seal,
freely moving nut, pipe connection with external
thread, G 3/4 for compression adapter connection.
Compression adapters have to be ordered separately.
G 3/4 32450 5 1 3166 01 10
HERZ-3000-Bypass Body with fi xed bypass
Angle model Connection branch-centre distance
50 mm, radiator connection G 3/4 with cone seal,
freely moving nut. Radiator connection with external
thread G 3/4 for compression adapter connection.
Compression adapters have to be ordered separately.
G 3/4 32470 3 1 3166 11 10
HERZ-3000-Bypass Bodies for One-Pipe Systems Rp 1/2
HERZ-3000-Bypass Body with fi xed bypass
Straight model Connection branch-centre distance
50 mm, radiator connection R 1/2 , freely moving nut,
2 connection nipples 1 3002 31 are included. Radiator
connection with external thread G 3/4 for compression
adapter connection. Compression adapters have to
be ordered separately.
G 3/4 32460 4 1 3166 02 10
HERZ-3000-Bypass Body with fi xed bypass Angle
model Connection branch-centre distance 50 mm,
radiator connection R 1/2 , freely moving nut, 2
connection nipples 1 3002 31 are included. Radiator
connection with external thread G 3/4 for compression
adapter connection. Compression adapters have to
be ordered separately.
G 3/4 32480 2 1 3166 12 10
HERZ-3000 TP-bypass body for Radiator connection G 3/4
HERZ-3000 TP-bypass body for one-pipe systems
for refurbishment of existing installations and Heating
systems with old radiators, manufactured by JAGA,
Stelrad, BZW or therma panel.
Center distance 50 mm to existing pipe installations
Radiator connection 40 mm centres and contrary fl ow
and return directions. With cone
M 22 x 1.5
x G 3/4
+ Konushülse
33090 2 1 3166 31 10
HERZ-3000 TP-bypass body for two-pipe systems
for connection to standard radiator
with center distance 50 mm to an existing
Pipe installations and pipe spacing 40 mm to radiator
with contrary fl ow and return directions. With cone.
M 22 x 1.5
x G 3/4
+ Konushülse
33110 7 1 3266 31 10
HERZ-3000 TP-bypass body for Radiator connection Rp 1/2
HERZ-3000 TP-bypass body for one-pipe systems
for refurbishment of existing installations and Heating
systems with old radiators, manufactured by JAGA,
Stelrad, BZW or therma panel.
Center distance 50 mm to existing pipe installations
Radiator connection 40 mm centres and contrary fl ow
and return directions.
Nipple 1/2.
M 22 x 1.5
x G 3/4
+
Nippel
33100 8 1 3166 32 10
HERZ-3000 TP-bypass body for two-pipe systems
for connection to standard radiator
with center distance 50 mm to an existing
Pipe installations and pipe spacing 40 mm
to radiator with contrary fl ow and return directions.
Nipple 1/2
M 22 x 1.5
x G 3/4
+
Nippel
33120 6 1 3266 32 10
HERZ-3000 Connection System
for Radiators with Integrated Valves
Product
group 1
48
HERZ-3000 Single Shutoff Valves
HERZ-3000 Single Shutoff Valves
with draining and fi lling functions, radiator connection G 3/4 G 3/4
Model Dim. EAN
90 04174 Order
number Item
HERZ-RL-4-Single Shutoff Valve. Straight model for
two-pipe system. Radiator connection G 3/4 with cone
seal, freely moving nut. Radiator connection with external
thread G 3/4, with cone seal for compression adapter.
Compression adapters have to be ordered separately.
G 3/4 30270 1 1 3041 01 20
HERZ-RL-4-Single Shutoff Valve. Angle model
for two-pipe system.
otherwise same as 1 3041 01. G 3/4 30280 0 1 3042 01 20
HERZ-RL-4-Single Shutoff Valve. Straight model for
two-pipe system. Radiator connection G 3/4
with cone seal and freely moving nut. Universal
models with special socket Rp 1/2 for threaded
pipes and compression adapters.
G 3/4 x
Rp 1/2 30560 3 1 3061 01 20
HERZ-RL-4-Single Shutoff Valve.
Angle model for two-pipe system.
Otherwise same as 1 3061 01. G 3/4 x
Rp 1/2 30570 2 1 3062 01 20
With draining and fi lling functions, radiator connection Rp 1/2 Rp 1/2
HERZ-RL-4-Single Shutoff Valve. Straight model
for two-pipe system. Radiator connection Rp 1/2
with cone seal, with iron pipe connection 1 6210 21.
Pipe connection with external thread G 3/4 with cone
seal for compression adapter connection. Compression
adapters have to be ordered separately.
Rp 1/2 x
G 3/4 30310 4 1 3437 11 20
HERZ-RL-4-Single Shutoff Valve.
Angle model for two-pipe system.
Otherwise same as 1 3437 11. Rp 1/2 x
G 3/4 30320 3 1 3448 11 20
HERZ-3000-Single Shutoff Valves
with shutoff function, radiator connection G 3/4 G 3/4
HERZ-RL-1-Single Shutoff Valve. Straight model
for two-pipe system. Radiator connection G 3/4,
with cone seal, freely moving nut. Radiator connection
with external thread G 3/4, with cone seal for
compression adapter. Compression adapters have
to be ordered separately.
G 3/4 31380 6 1 3741 01 20
HERZ-RL-1-Single Shutoff Valve. Angle model for
two-pipe system.
Otherwise same as 1 3741 01. G 3/4 31370 7 1 3742 01 20
HERZ-RL-1-Single Shutoff Valve. Straight model
for two-pipe system. Radiator connection G 3/4 with
cone seal and freely moving nut. Universal models
with special socket Rp 1/2 for threaded pipes and
compression adapters.
G 3/4 x
Rp 1/2 31360 8 1 3761 01 20
HERZ-RL-1-Single Shutoff Valve.
Angle model for two-pipe system.
Otherwise same as 1 3761 01. G 3/4 x
Rp 1/2 31350 9 1 3762 01 20
HERZ-Design Cover for HERZ-3000
HERZ-Design cover, colour white (Ral 9010) Applicable
for HERZ-3000 Bypass bodies and connection elements with
integrated thermostatic valve, with snap-on mounting. 02170 1 1 0100 21 1
Colour traffi c white (RAL 9016) 02340 8 1 0100 22 1
Colour chrome 02320 0 1 0100 41 1
Other colours are available upon request
Product
group 1
49
Heating
HERZ-Double Connection Distributor for Radiators with Central Connection
With shutoff, draining and fi lling functions
Model Dim. EAN
90 04174 Order
number Item
HERZ-Double Connection Distributor
Radiator connection G 3/4, freely moving nut. Pipe
connection with external thread G 3/4 with cone seal,
for compression adapter. Compression adapters have
to be ordered separately.
G 3/4 31930 3 1 3033 01 10
HERZ-Double Connection Distributor
Radiator connection Rp1/2, freely moving nut,
2 connection nipples are included. Radiator
connection with external thread G 3/4, with cone seal,
for compression adapter. Compression adapters
have to be ordered separately.
Rp 1/2 x
G 3/4 31940 2 1 3033 02 10
HERZ-Double connection Distributors for Two-Pipe Systems
HERZ-Switch fi x, Reverse Distributor
for Two-Pipe Systems
For appropriate fl ow and connection without crossover
of radiator and piping. Advance and reverse motion
of heating can be changed by means of adjusting
spindle. The pipes can be freely installed.
The adjustment of the radiator fl ow direction can be
done subsequently. The radiator connection can
be shutoff. Delivery includes fl ush box and cover.
Connection G 3/4 with cone seal to radiator.
Radiator connection with external thread G 3/4,
with cone seal, for compression adapter.
Compression adapters have to be ordered separately.
G 3/4 31950 1 1 3030 01 1
HERZ-Double Connection Distributor
for two-pipe systems
For radiator connection without crossover for fl ush
mounting. The radiator connection cannot be shutoff.
Delivery includes fl ush box and cover. Radiator
connection G 3/4 with cone seal. Radiator connection
with external thread G 3/4, with cone seal, for
compression adapter. 1 8525 02 have to be ordered
separately.
G 3/4 43600 0 1 4133 01 1
HERZ-Room Temperature Controller Set for
radiator and fl oor connection
Combined for fl ush mounting. The set includes fl ush
box and cover, chrome, RL-1-Shutoff Valve, return
temperature limiter (Mini Turbo), TS-98-V thermostatic
valve and double connection distributor 1 8525 02
have to be ordered separately 1 8525 02 have
to be ordered separately.
G 3/4 82460 9 1 8100 25 1
Cover for 1 8100 25 spare parts, chrome. G 3/4 82461 6 1 8100 50 1
HERZ-Room Temperature Controller Set for
radiator and fl oor connection
Combined for fl ush
mounting. The set includes fl ush
box and cover, white, RL-1-Shutoff Valve,
return temperature limiter, TS-98-V thermostatic
valve and double connection distributor.
1 8525 02 have to be ordered separately.
G 3/4 82465 4 1 8100 26 1
Skirting board distribution for two-pipe systems
For radiator connection without crossover for
fl ush mounting. The radiator connection cannot
be shutoff. Delivery includes fl ush box and cover.
Radiator connection G 3/4 with cone seal.
Radiator connection with external thread M 22 x 1.5,
with cone seal, for compression adapter.
1 8525 02 have to be ordered separately.
M 22 -
G 3/4 41020 8 1 3012 22 1
Product
group 1
50

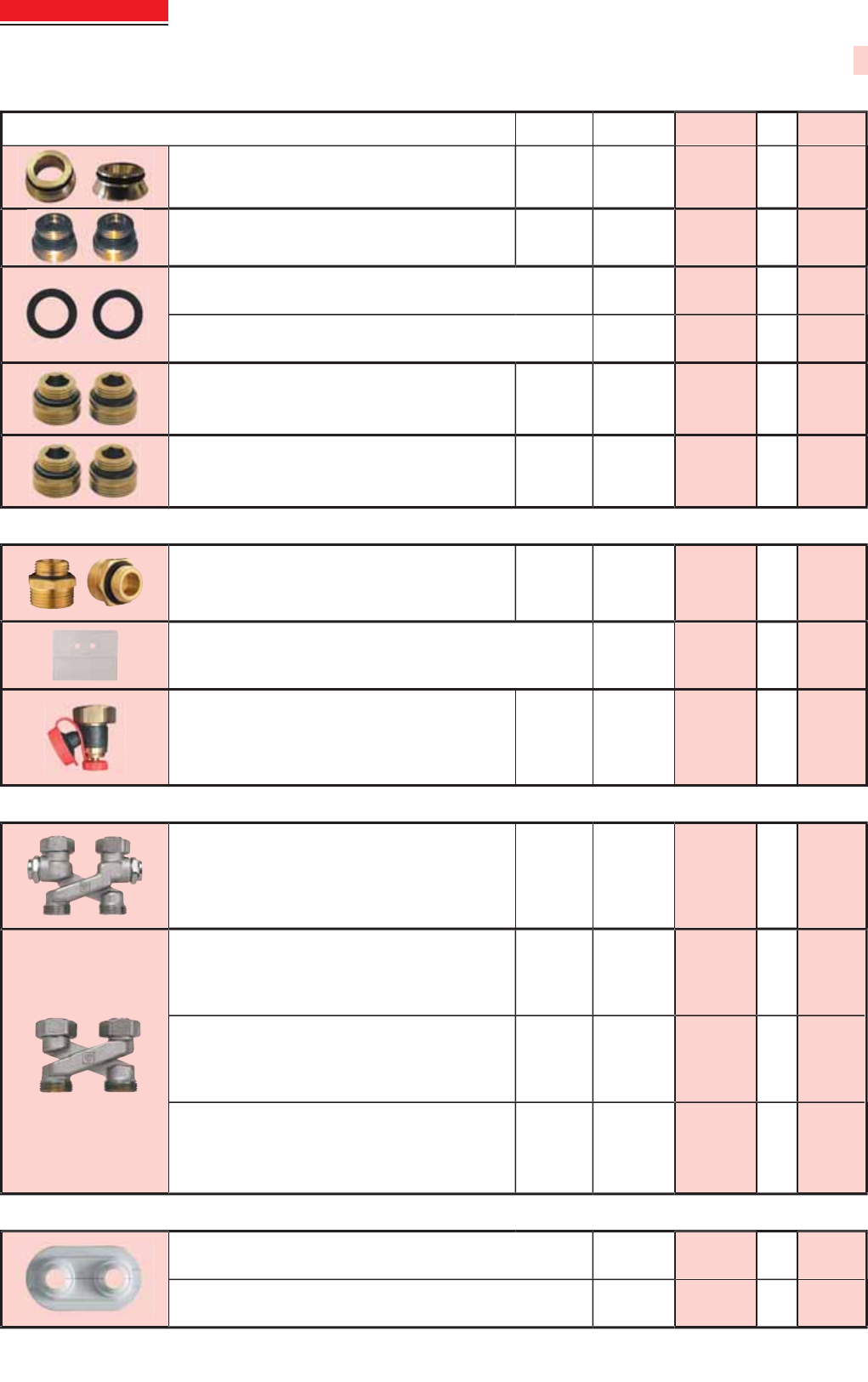

Connection Systems
Sleeves, Nipples, Seals
Model Dim. EAN
90 04174 Order
number Item
Cone sleeve for radiator connection G 3/4,
set consists of 2 units G 3/4 30490 3 1 3001 01 20
Connection nipples with fl at seal, set consists
of 2 units, direct installation on radiator Rp 1/2,
self-sealing by means of O-Ring.
Rp 1/2 x
G 3/4 30500 9 1 3002 12 1
Flat seal, set of 2 units,
for HERZ-3000 manufactured till 2001. 31010 2 1 3002 10 10
Flat seal, set consists of 2 units,
for HERZ-3000 manufactured from 2004 (18 mm). 32760 5 1 3002 11 10
Connection nipples with cone seal,
set consists of 2 units, direct installation
on radiator Rp 1/2, self-sealing by means of O-Ring.
Valve connection G 3/4 with cone.
Rp 1/2 x
G 3/4 30930 4 1 3002 31 20
Connection nipples with fl at seal,
set consists of 2 units,
direct installation on radiator Rp 1/2, self-sealing
by means of O-Ring. Valve connection G 3/4 fl at seal.
Rp 1/2 x
G 3/4 32575 5 1 3002 21 20
HERZ-Switch fix, Reverse Distributor for Two-Pipe Systems
Connection nipples with cone seal, set of 2 units,
direct installation on radiator Rp 1/2, self-sealing by
means of O-Ring, valve connection G 3/4 with cone. Rp 1/2 x
G 3/4 32580 9 1 3002 39 1 Set
HERZ-Plastic Cover Rosete
To be cut to length, white RAL 9010. 32530 4 1 3030 50 1
HERZ-drain valve
brass version, with O-ring sealing,
freely moving nut G 3/4,
Hose connection with cap 3/4,
Hose connector to be ordered separately.
G 3/4 76309 0 1 4120 01 20
Intersection Element
Intersection Element in “X”-shape For pipe centre
distance 50 mm, for shutoff, fi lling and draining.
Connection with cone seal G 3/4, freely moving nut.
Radiator connection with external thread G 3/4, with
cone seal, for compression adapter. Compression
adapters have to be ordered separately.
G 3/4 31980 8 1 3404 34 10
Intersection Element in “X”-shape Pipe centre
distance 50 mm, connection with cone seal G 3/4, with
freely moving nut. Radiator connection with external
thread G 3/4, with cone seal for compression adapter.
Compression adapters have to be ordered separately.
G 3/4 30840 6 1 3004 34 10
Intersection Element in “X”-shape Pipe centre
distance 40 mm, connection with cone seal G 3/4, with
freely moving nut. Radiator connection with external
thread G 3/4, with cone seal for compression adapter.
Compression adapters have to be ordered separately.
G 3/4 31130 7 1 3004 44 10
Intersection Element in “X”-shape Pipe centre
distance 50 mm, connection with cone seal M 22 x 1.5
with freely moving nut. Radiator connection with external
thread M 22 x 1.5 for compression adapter. Compression
adapters have to be ordered separately.
M 22 x 1.5 30830 7 1 3004 22 10
HERZ-Double rose
Spacer block centre pipe distance 50 mm,
for pipe external diameter 14–20 mm. 30200 8 1 3003 50 20
Spacer block centre pipe distance 40 mm,
for pipe external diameter 14–20 mm. 61920 5 1 6822 40 10
Product
group 1
51

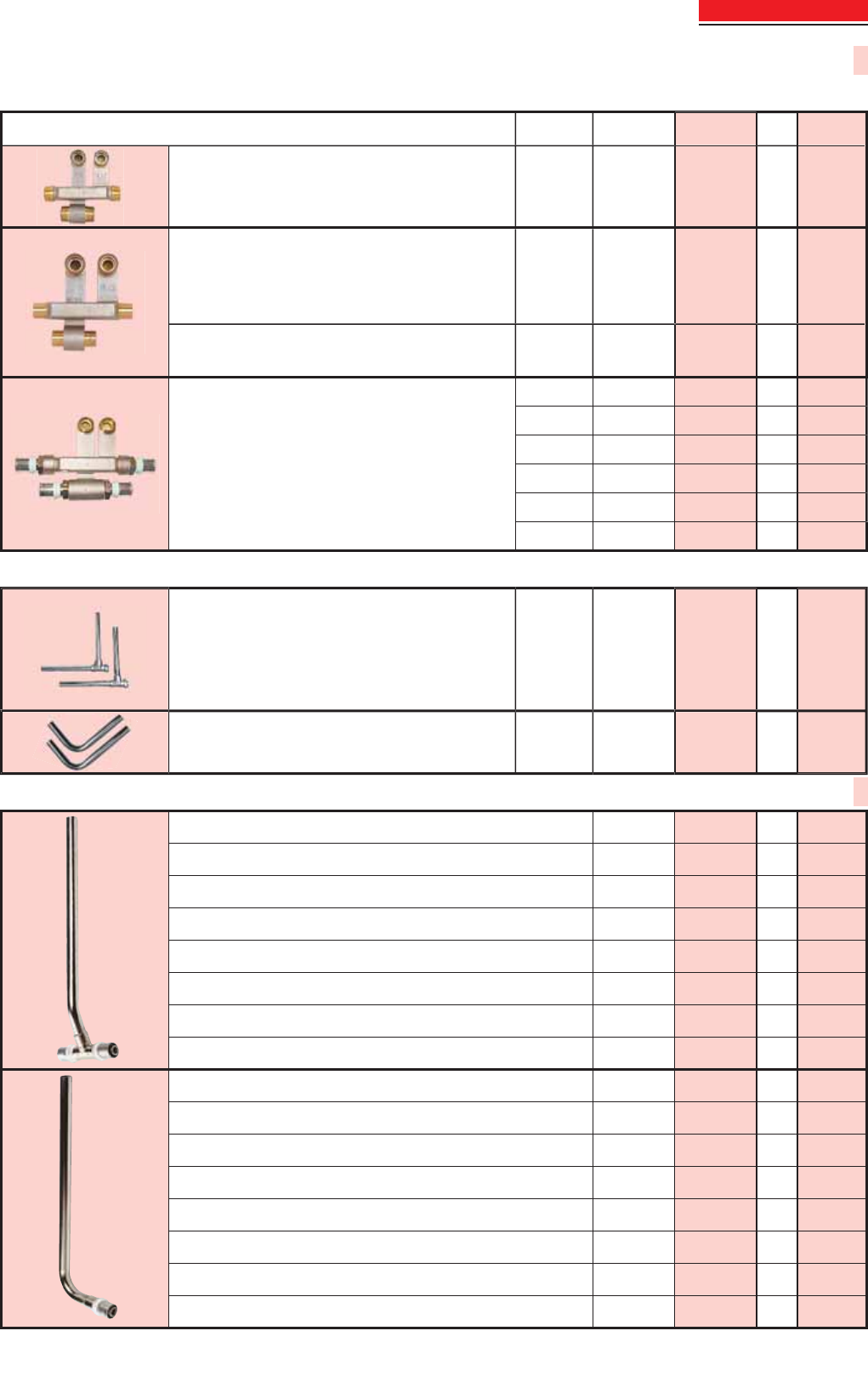

Connection Systems
HERZ-Radiator Connections for Two-Pipe Systems
Model Dim. EAN
90 04174 Order
number Item
HERZ-Connection set for compression adapter
Nickel-plated brass, for radiators with integrated valves
and compact radiators. Compression adapter: at the
radiator side M 22 x 1.5, at the pipe side rnale thread G 3/4.
Compression adapters have to be ordered separately.
M 22 x 1.5
x G 3/4 02030 8 1 3031 00 10
HERZ-Connection set for soldering connection
Nickel-plated brass, for radiators with integrated
valves and compact radiators. Connections:
On radiator side, compression adapter M 22 x 1.5,
on pipe side soldering socket 18 mm. Compression
adapters have to be ordered separately.
M 22 x 1.5
x Cu 18 02040 7 1 3031 01 10
HERZ-Connection set for soldering connection
same as above, however at the pipe side
female/male soldering end 15/22 x 1 m.
M 22 x 1.5
x Cu
22 x 1 mm
15 x 1 mm
02050 6 1 3031 02 10
HERZ-Connection set for press connection
Short version, nickel-plated brass, for radiators
with integrated valves and compact radiators.
Connections: On radiator side M 22 x 1.5,
on pipe side press connection.
M 22 x 1.5
- 14 x 2 15710 3 1 3032 01 1
M 22 x 1.5
- 16 x 2 15720 2 1 3032 02 1
M 22 x 1.5
- 17 x 2 15730 1 1 3032 03 1
M 22 x 1.5
- 18 x 2 15740 0 1 3032 04 1
M 22 x 1.5
- 20 x 2 15750 9 1 3032 05 1
M 22 x 1.5
- 20 x 2.5 15760 8 1 3032 06 1
HERZ-Connection Elbow Set for Two-Pipe Systems
HERZ-Valve connection elbow set
For connection of HERZ-Connection set and radiator
with integrated valves. Valves with shutoff and
draining function. Nickel-plated copper pipe 15 x 1,
soldered. Compression adapters M 22 x 1.5 for pipe
connection and compression adapters for radiator
connection have to be ordered separately.
2 pieces leg length 150 x 150 mm.
150 x 150
mm 65523 4 1 6332 00 1
Connection elbow pipe set
15 x 1, 150 x 100 mm. 15 x 1
150 x 100
mm 65520 3 1 6333 00 1

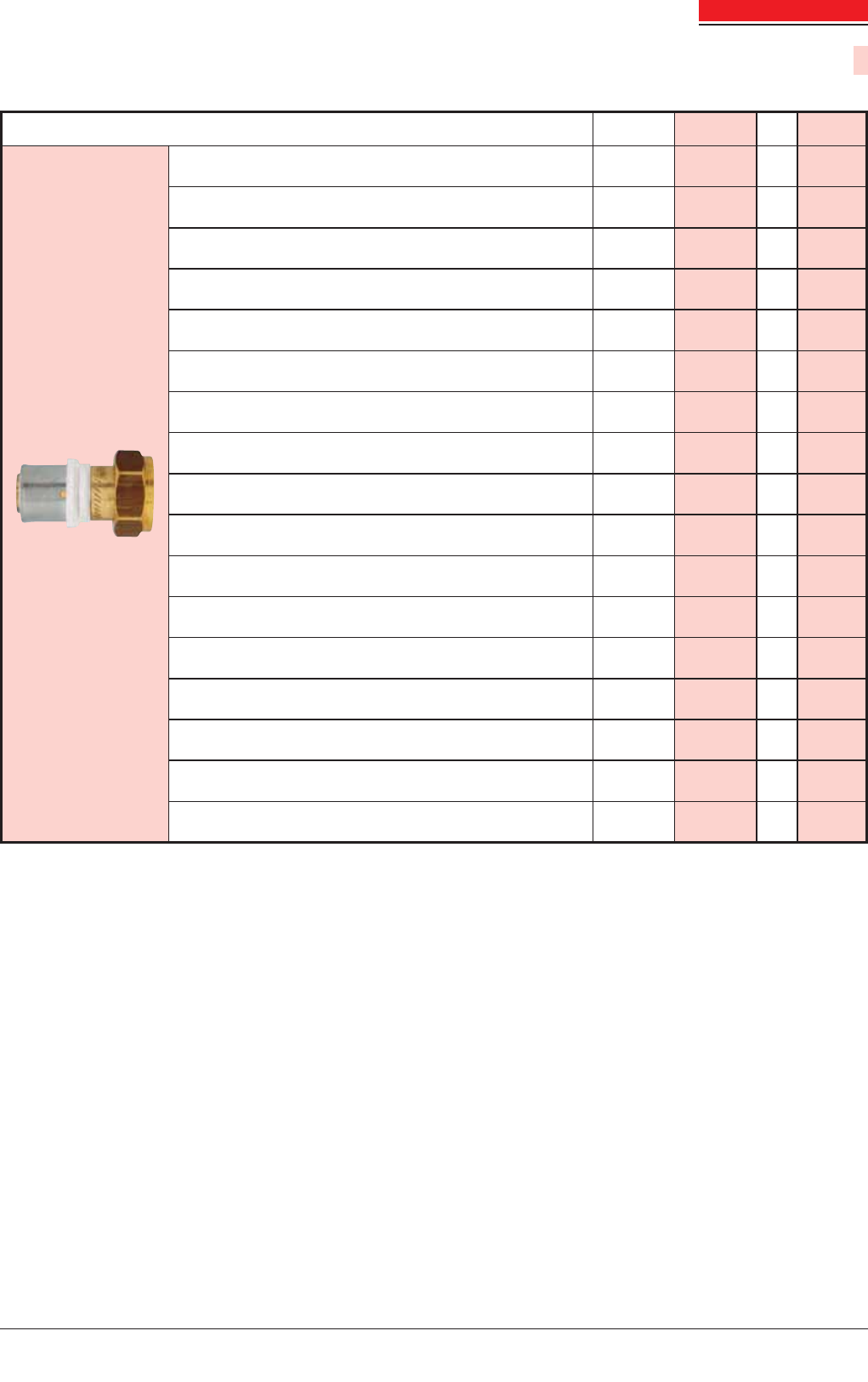

Connection Tubes, 300 mm / 1100 mm
14 x 2 - 15 mm / 300 mm 15470 6 P 7214 91 2
16 x 2 - 15 mm / 300 mm 15480 5 P 7216 91 2
18 x 2 - 15 mm / 300 mm 15500 0 P 7218 91 2
20 x 2 - 15 mm / 300 mm 15510 9 P 7220 91 2
14 x 2 - 15 mm / 1100 mm 15530 7 P 7214 92 2
16 x 2 - 15 mm / 1100 mm 15540 6 P 7216 92 2
18 x 2 - 15 mm / 1100 mm 15560 4 P 7218 92 2
20 x 2 - 15 mm / 1100 mm 15570 3 P 7220 92 2
14 x 2 - 15 mm / 300 mm 15590 1 P 7114 91 2
16 x 2 - 15 mm / 300 mm 15600 7 P 7116 91 2
18 x 2 - 15 mm / 300 mm 15620 5 P 7118 91 2
20 x 2 - 15 mm / 300 mm 15630 4 P 7120 91 2
14 x 2 - 15 mm / 1100 mm 15650 1 P 7114 92 2
16 x 2 - 15 mm / 1100 mm 15660 1 P 7116 92 2
18 x 2 - 15 mm / 1100 mm 15680 9 P 7118 92 2
20 x 2 - 15 mm / 1100 mm 15690 8 P 7120 92 2
Product
group 3
Product
group 1
52
Connection Systems
HERZ-TS-90-Thermostatic Valves
Model Dim. EAN
90 04174 Order
number Item
HERZ-TS-90-Thermostatic Valve
Straight model with elbow
Radiator connection with elbow 1 6249 01 and cone.
Compression adapter 1 6292 11 is mounted.
1/2 x 15 70850 3 1 7727 19 20
HERZ-TS-90-Thermostatic Valve
Reverse angle with air valve
Radiator connection with cone seal.
Compression adapter 1 6292 11 is mounted. 1/2 x 15 70910 4 1 7728 92 20
HERZ-TS-90-Thermostatic Valve
3-Axis Valve “AB”
Valve to the left of the radiator.
Radiator connection with cone seal.
Compression adapter 1 6292 11 is mounted.
1/2 x 15 71020 9 1 7758 19 20
HERZ-TS-90-Thermostatic Valve
3-Axis Valve “CD”
Valve to the right of the radiator.
Radiator connection with cone seal.
Compression adapter 1 6292 11 is mounted.
1/2 x 15 71050 6 1 7759 19 20
Connection Pipe
Connection pipe 15 x 1
Made of copper, nickel-plated.
1 6330 11: Pipe length 600 mm.
1 6330 31: Pipe length 1000 mm.
600 61120 9 1 6330 11 20
1000 61130 8 1 6330 31 20
HERZ-2000 Bypass Body
Bypass Body for one-pipe system
with shutoff function
Radiator connection with cone seal. Compression
adapter 1 6284 04 is mounted, pipe connections have
to be ordered separately. Threaded pipe connection
G 3/4 with cone seal. Circulation brake included.
1/2 x G 3/4 70020 0 1 7173 01 20
Bypass Body for two-pipe system with
shutoff and regulation function
Radiator connection with cone seal. Compression
adapter 1 6284 04 is mounted, pipe connections
have to be ordered separately. Threaded pipe
connection G 3/4 with cone seal.
1/2 x G 3/4 70040 8 1 7175 01 20
Bypass Body for one-pipe system
with shutoff function
Radiator connection with cone seal. Compression
adapter 1 6284 04 is mounted, pipe connections
have to be ordered separately. Threaded pipe
connection M 22 x 1.5. Circulation brake included.
1/2 x
M 22 x 1.5 70030 9 1 7174 01 20
Bypass Body for two-pipe system with
shutoff and regulation function
Radiator connection with cone seal. Compression
adapter 1 6284 04 is mounted, pipe connections
have to be ordered separately. Threaded pipe
connection M 22 x 1.5.
1/2 x
M 22 x 1.5 70050 7 1 7176 01 20
Bypass Body for one-pipe system
with shutoff function
Angle model
Radiator connection with cone seal. Compression
adapter 1 6284 04 is mounted, pipe connections
have to be ordered separately. Threaded pipe
connection G 3/4 with cone seal.
1/2 x G 3/4 74320 7 1 7187 14 20
Bypass Body for two-pipe system
with shutoff and regulation function
Angle model
Radiator connection with cone seal. Radiator connection
with cone seal, compression adapter 1 6284 04 mounted,
pipe connections have to be ordered separately.
Threaded pipe connection G 3/4 with cone seal.
1/2 x G 3/4 74310 8 1 7189 14 20
Product
group 1
53

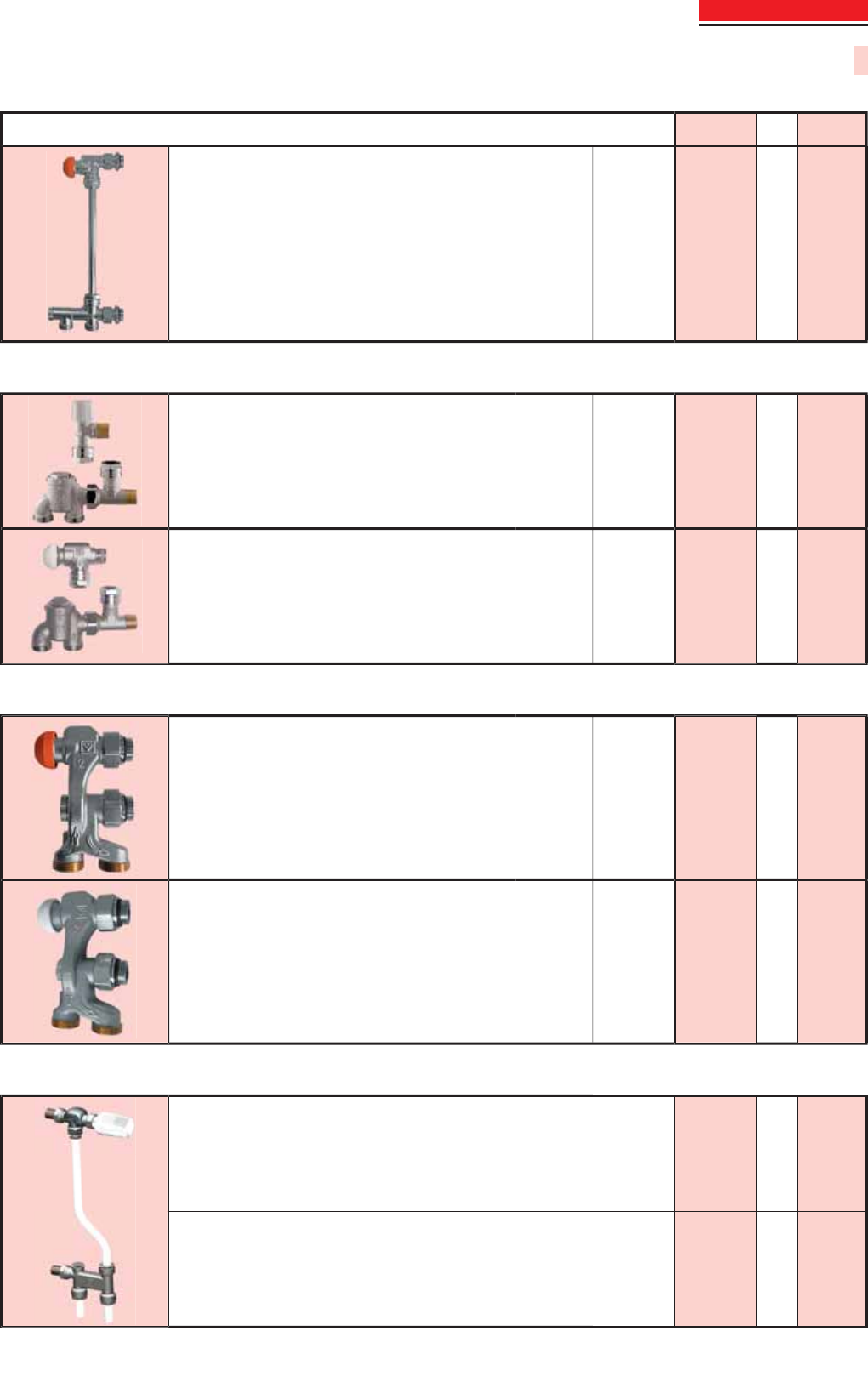

Valve Arrangements
HERZ-Valve Arrangements “S” Two-Pipe
Model EAN
90 04174 Order
number Item
HERZ “S”
Including regulating valve, connection pipe, bypass
body and pipe connections. Two-pipe system,
radiator connection with cone seal, threaded pipe
connection M 22 x 1.5.
76210 9 1 7650 00 1
HERZ-Valve Arrangements “Switchable” One-Pipe
HERZ-Valve Arrangements “Switchable”
including regulating valve and bypass body.
One-pipe system, radiator connection with cone seal,
threaded pipe connection G 3/4. 50440 2 1 5151 01 1
HERZ-Valve Arrangements “Switchable”
including regulating valve and bypass body.
One-pipe system, radiator connection with cone seal,
threaded pipe connection G 3/4. 75280 3 1 7151 01 1
HERZ-Valve Arrangements for Convectors
HERZ-Valve Arrangements for Convectors
For two-pipe system, radiator connection with cone
seal, threaded pipe connection G 3/4 with cone seal,
pipe connections have to be ordered separately.
75520 0 1 7688 21 1
HERZ-Valve Arrangements for Convectors
For one-pipe system, radiator connection with cone
seal, threaded pipe connection G 3/4 with cone seal,
pipe connections have to be ordered separately.
75510 1 1 7788 21 1
HERZ connection kit “Meibes” for One-Pipe
HERZ connection kit “Meibes”, complete, one-pipe DN 15
consisting of control valve, bypass body and pipe connections.
One-pipe system, radiator connection with cone,
threaded pipe connection G 3/4 with cone,
pipe connections must be ordered separately.
76900 9 1 7188 01 1
HERZ connection kit “Meibes”, complete, one-pipe DN 20
consisting of control valve, bypass body and pipe connections.
One-pipe system, radiator connection with cone,
threaded pipe connection G 3/4 with cone,
pipe connections must be ordered separately.
76910 8 1 7188 02 1
Product
group 1
54
Four-Way Valves
HERZ-VTA-40-Four-Way Valves for Thermostatic Operation
Model Dim. EAN
90 04174 Order
number Item
HERZ-VTA-40-Four-Way Valve
for one-pipe system
Radiator connection from below, with flat seal,
submerged pipe l = 290 mm, Ø =11 mm.
Pipe centre distance 40 mm. The radiator can
be removed while the system is under pressure.
The valve upper part can be changed by means
of HERZ Changefix Tool.
Pipe connections G 3/4 with cone. Pipe connections
have to be ordered separately. Circulation brake
1 6222 01 has to be ordered separately.
15
290/11 72220 2 1 7767 41 10
20
290/11 72230 1 1 7767 42 10
HERZ-VTA-40-Four-Way Valve
for two-pipe system
Radiator connection from below, with flat seal,
submerged pipe l = 290 mm, Ø =11 mm.
Pipe centre distance 40 mm. The radiator can
be removed while the system is under pressure.
The valve upper part can be changed by means
of HERZ Changefix Tool. Pipe connections G 3/4
with cone. Pipe connections have to be ordered
separately.
15
290/11 72240 0 1 7767 51 10
20
290/11 72250 9 1 7767 52 10
HERZ-VTA-40-Uni-Four-Way Valves for Thermostatic Operation
HERZ-VTA-40-Uni-Four-Way Valve
for one or two-pipe system
Radiator connection from below, with flat seal,
submerged pipe l = 290 mm, Ø =11 mm.
Pipe centre distance 40 mm. Can be switched from
one- to two-pipe operation, can be shut off, selection
between two TS upper parts during installation.
The radiator can be removed while the system
is under pressure. The valve upper part can be
changed by means of HERZ-Changefix Tool.
Pipe connections G 3/4 with cone. Pipe connections
have to be ordered separatel.
15
290/11 74730 4 1 7768 51 10
HERZ-VTA-50-Four-Way Valves for Thermostatic Operation, threaded connection M 30 x 1.5
HERZ-VTA-50-Four-Way Valve
for one-pipe system
with thread M 30 x 1.5 for “H”-heads, lateral radiator
connection from below, with fl at seal, pipe centre
distance 50 mm. With submerged pipe L = 290 mm,
Ø = 11 mm. The radiator can be removed while the
system is under pressure. The valve upper part can
be changed by means of HERZ-Changefi x “H” Tool.
Pipe connections G 3/4 with cone. Pipe connection
have to be ordered separately.
15
290/11 75380 0 1 7767 26 10
HERZ-VTA-50-Four-Way Valve
for two-pipe system
with thread M 30 x 1.5 for “H”-heads, lateral radiator
connection from below, with fl at seal, pipe centre
distance 50 mm. With submerged pipe
L = 290 mm, Ø = 11mm. The radiator can be
removed while the system is under pressure.
The valve upper part can be changed by means
of HERZ-Changefi x “H” Tool. Pipe connections
G 3/4 with cone. Pipe connection have to be
ordered separately.
15
290/11 75290 2 1 7767 27 10
Alternative submerged pipe lengths are available upon request
Product
group 1
55
Four-Way Valves
HERZ-VUA-40-Four-Way Valves for Thermostatic Operation
Model Dim. EAN
90 04174 Order
number Item
HERZ-VUA-40-Four-Way Valve
Straight model for one-pipe system
Central or lateral radiator connection from below,
with flat seal, submerged pipe l=150 mm, Ø=11 mm.
Pipe centre distance 40 mm. Adjustable partial flow
rate limit in thermostatic operation, the radiator can be
removed while the system is under pressure,
the valve upper part can be changed by means of
HERZ-Changefix Tool. Pipe connections G 3/4
with cone. Pipe connections have to be ordered
separately.
1/2
150/11 72280 6 1 7786 41 10
HERZ-VUA-40-Four-Way Valve
Straight model for one-pipe system
Central or lateral radiator connection from below,
with flat seal, submerged pipe l=290 mm, Ø=11 mm.
Pipe centre distance 40 mm. Adjustable partial flow
rate limit in thermostatic operation, The radiator can
be removed while the system is under pressure.
The valve upper part can be changed by means of
HERZ-Changefix Tool. Pipe connections G 3/4
with cone. Pipe connections have to be ordered
separately.
1/2
290/11 72530 21 1 7786 51 10
HERZ-VUA-40-Four-Way Valve
Straight model for two-pipe system
Central or lateral radiator connection from below,
with flat seal, submerged pipe l = 150 mm, Ø =11 mm.
Pipe centre distance 40 mm. The radiator can be
removed while the system is under pressure,
the valve upper part can be changed by means of
HERZ-Changefix Tool. Pipe connections G 3/4
with cone. Pipe connections have to be ordered
separately.
1/2
150/11 72290 5 1 7783 41 10
HERZ-VUA-40-Four-Way Valve
Straight model for two-pipe system
Central or lateral radiator connection from below,
with flat seal, submerged pipe l = 290 mm, Ø =11 mm.
Pipe centre distance 40 mm. The radiator can be
removed while the system is under pressure,
the valve upper part can be changed by means of
HERZ-Changefix Tool. Pipe connections G 3/4
with cone. Pipe connections have to be ordered
separately.
1/2
290/11 72520 3 1 7783 51 10
HERZ-VUA-40-Four-Way Valve
Angle model for one-pipe system
Central or lateral radiator connection from below,
with flat seal, submerged pipe l=150 mm, Ø =11 mm.
Pipe centre distance 40 mm. Adjustable partial flow
rate limit in thermostatic operation, The radiator can
be removed while the system is under pressure.
The valve upper part can be changed by means of
HERZ-Changefix Tool. Pipe connections G 3/4
with cone. Pipe connections have to be ordered
separately.
1/2
150/11 72490 9 1 7784 42 10
HERZ-VUA-40-Four-Way Valve
Angle model for two-pipe system
Central or lateral radiator connection from below,
with flat seal, submerged pipe l=150 mm, Ø =11 mm.
Pipe centre distance 40 mm. The radiator can be
removed while the system is under pressure,
the valve upper part can be changed by means of
HERZ-Changefix Tool. Pipe connections G 3/4
with cone. Pipe connections have to be ordered
separately.
1/2
150/11 72300 1 1 7784 41 10
Alternative submerged pipe lengths are available upon request
Product
group 1
56
Four-Way Valves
*) with presettable thermostatic upper part
HERZ-VUA-50-Four-Way Valves for Thermostatic Operation, threaded connection M 30 x 1.5
Model Dim. EAN
90 04174 Order
number Item
HERZ-VTA-50-Four-Way Valve for one-pipe system
dimension 1/2, with thread M 30 x 1.5 for “H”-heads,
central or lateral radiator connection from below,
with flat seal, pipe centre distance 50 mm.
With submerged pipe L=290 mm, Ø=11 mm.
The radiator can be removed while the system is under
pressure. The valve upper part can be changed by
means of HERZ-Changefix “H” Tool. Pipe connections
G 3/4 with cone. Pipe connections have to be ordered
separately.
15
290/11 75360 2 1 7786 26 10
HERZ-VTA-50-Four-Way Valve for two-pipe systems
dimension 1/2, with thread M 30 x 1.5 for “H”-heads,
central or lateral radiator connection from below,
with flat seal, pipe centre distance 50 mm. With sub-
merged pipe L=290 mm, Ø=11 mm. Adjustable partial
flow rate limit in thermostatic operation. The radiator
can be removed while the system is under pressure.
The valve upper part can be changed by means of
HERZ-Changefix “H” Tool. Pipe connections G 3/4 with
cone. Pipe connection have to be ordered separately.
15
290/11 75370 1 1 7783 26 10
HERZ-VTA-50-Four-Way Valve for one-pipe system
dimension 1/2, with thread M 30 x 1.5 for “H”-heads,
central or lateral radiator connection from below,
with flat seal, pipe centre distance 50 mm. With sub-
merged pipe L=150 mm, Ø=11 mm. Adjustable partial
flow rate limit in thermostatic operation. The radiator
can be removed while the system is under pressure.
The valve upper part can be changed by means of
HERZ-Changefix “H” Tool. Pipe connections G 3/4 with
cone. Pipe connection have to be ordered separately.
15
150/11 75370 1 1 7784 62 10
HERZ-VTA-50-Four-Way Valve for two-pipe system
dimension 1/2, with thread M 30 x 1.5 for “H”-heads,
central or lateral radiator connection from below,
with flat seal, pipe centre distance 50 mm. With
submerged pipe L=150 mm, Ø=11 mm, the radiator
can be removed while the system is under pressure.
The valve upper part can be changed by means of
HERZ-Changefix “H” Tool. Pipe connections have to be
ordered separately. Pipe connections G 3/4 with cone.
Pipe connection have to be ordered separately.
15
150/11 76230 7 1 7784 61 10
HERZ-Four-way valve for Thermostatic Operation, threaded connection M 28 x 1.5
HERZ-VUA-AHA four-way valve
for one-pipe system
Replacement for T & A AHA-four-way valve.
Dimension 1/2, with thread M 28 x 1.5
central or lateral radiator connection from below,
with fl at seal, pipe centre distance 40 mm.
With submerged pipe L=55 mm,
Radiator connection thread G 3/4,
Pipe connections G 3/4 with cone. Pipe
connection have to be ordered separately.
3/4 76490 5 1 7783 40 10
HERZ-Design cover for four-way valves VUA
HERZ-VUA-50 DE LUXE Plastic Cover
Cover VUA 50. Farbe
02570 9 1 0110 21 10
weiss
RAL 9010
HERZ-Design cover VUA 40. weiss
RAL 9010 02580 8 1 0112 21 10
Cover VUA 50. chrom 02590 7 1 0110 41 10
HERZ-Design cover VUA 40.
chrom 02600 3 1 0112 41 10
Product
group 1
57
HERZ-VUA-TV-Four-way Valves for Thermostatic Operation
Model Dim. EAN
90 04174 Order
number Item
HERZ-VUA-TV-Four-Way Valve with pre-setting
function Straight model for two-pipe system
Central or lateral radiator connection from below,
by means of turbulator connection (not included in
package), pipe centre distance 35 mm. The radiator
can be removed while the system is under pressure,
the valve upper part can be changed by means of
HERZ-Changefi x Tool. Pipe connection 2 x M22 x 1.5
with cone, radiator connection G 3/4 fl at seal.
Pipe connections have to be ordered separately.
3/4 x M
22 x 1.5 72180 9 1 7783 67 10
HERZ-VUA-T-Four-Way Valve Straight model for
two-pipe system Central or lateral radiator connection
from below, by means of turbulator connection (not
included in package), pipe centre distance 35 mm.
The radiator can be removed while the system is
under pressure, the valve upper part can be changed
by means of HERZ-Changefi x Tool. Pipe connection 2
x M 22 x 1.5 with cone, radiator connection G 3/4 fl at
seal. Pipe connections have to be ordered separately.
3/4 x
M 22 x 1.5
72200 4 1 7783 91 10
HERZ-VUA-TV-Four-Way Valve with pre-setting
function Angel model for two -pipe system
Central or lateral radiator connection from below,
by means of turbulator connection (not included in
package), pipe centre distance 35 mm. The radiator
can be removed while the system is under pressure,
the valve upper part can be changed by means of
HERZ-Changefi x Tool. Pipe connection 2 x M 22 x 1.5
with cone, radiator connection G 3/4 fl at seal.
Pipe connections have to be ordered separately.
3/4 x
M 22 x 1.5
72190 8 1 7784 67 10
HERZ-VUA-T-Four-Way Valve Angle model for two-
pipe system Central or lateral radiator connection
from below, by means of turbulator connection (not
included in package), pipe centre distance 35 mm.
The radiator can be removed while the system is
under pressure. The valve upper part can be changed
by means of HERZ-Changefi x Tool. Pipe connection
2 x M 22 x 1.5 with cone, radiator connection G 3/4 fl at
seal. Pipe connections have to be ordered separately.
3/4 x
M 22 x 1.5
72210 3 1 7784 91 10
VUA-TV-Four-way Valves for Thermostatic Operation M 30 x 1.5
HERZ-4WA-T35-Four-Way Valve Straight model
for one- and two-pipe system Central or lateral
radiator connection from below, by means of turbulator
connection (not included in package), can be
switched from one to two-pipe operation. Pipe centre
distance 35 mm. With M 30 x 1.5 thread for “H”-
Heads. Pipe connection 2 x G 3/4 with cone, radiator
connection G 3/4 fl at seal. Pipe connections have
to be ordered separately.
3/4 74470 9 1 7765 31 10
HERZ-4WA-T50-Four-Way Valve Angle model for
one- and two-pipe system Central or lateral radiator
connection from below, by means of turbulator
connection (not included in package), can be
switched from one to two-pipe operation. Pipe centre
distance 50 mm. With M 30 x 1.5 thread for “H”-
Heads. Pipe connection 2 x G 3/4 with cone, radiator
connection G 3/4 fl at seal. Pipe connections have
to be ordered separately.
3/4 76220 8 1 7765 41 10
Four-Way Valves
Alternative submerged pipe lengths are available upon request
Product
group 1
58

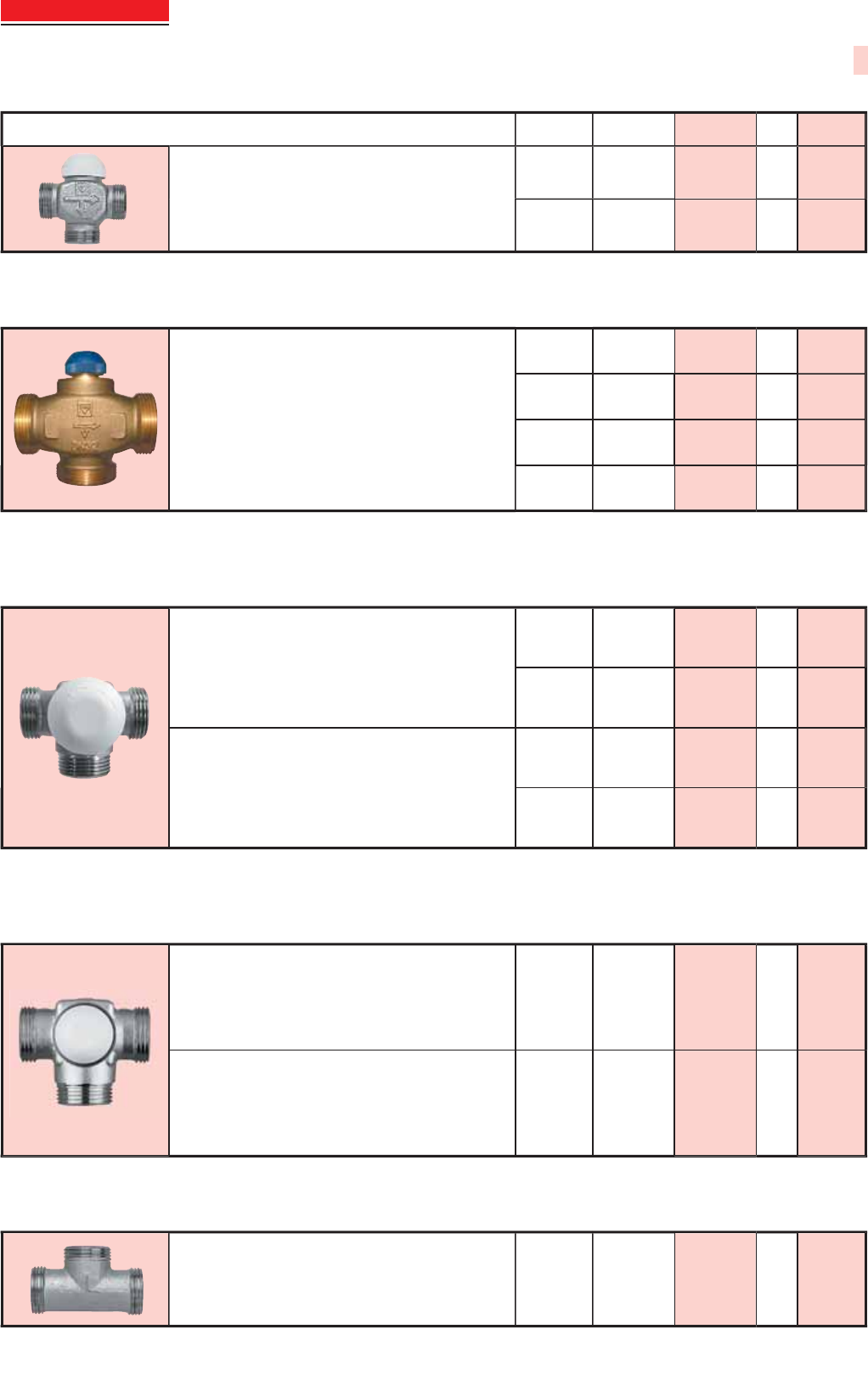

Three Way Valves
HERZ-CALIS-TS-Three-Way Valve for Thermostatic Operation
Model DN EAN
90 04174 Order
number Item
CALIS-TS-Three-Way Valve
With flat seal, without connections, with screw cap.
Pipe connections have to be ordered separately.
1 7761 01 kvs = 2.75
1 7761 02 kvs = 3.2
15 71820 5 1 7761 01 10
20 71830 4 1 7761 02 10
HERZ-CALIS-TS-RD-Three-Way Valves for Thermostatic Operation, 100% Distribution
CALIS-TS-RD-Three-Way Valve
for Thermostatic Operation, 100% Distribution
With flat seal, without pipe connections, with screw
cap. Pipe connections have to be ordered separately.
1 7761 38 kvs = 3.0
1 7761 39 kvs = 3.0
1 7761 40 kvs = 6.44
1 7761 41 kvs = 6.44
15 74480 8 1 7761 38 5
20 74610 9 1 7761 39 5
25 75990 1 1 7761 40 5
32 76000 6 1 7761 41 5
HERZ-CALIS-TS 3-D-Models for Thermostatic Operation
Thermostatic Head in a horizontal position
CALIS-TS 3-D-Models Three-Way Valve
Valve to the left of the radiator
With flat seal, without connections, with screw cap.
Pipe connections have to be ordered separately.
1 7761 43 kvs = 3.5
1 7761 45 kvs = 4.2
15 73360 4 1 7761 43 5
20 72470 1 1 7761 45 5
CALIS-TS 3-D-Models Three-Way Valve
Valve to the right of the radiator
With flat seal, without connections, with screw cap.
Pipe connections have to be ordered separately.
1 7761 44 kvs = 3.5
1 7761 46 kvs = 4.2
15 73370 3 1 7761 44 5
20 72480 0 1 7761 46 5
HERZ-CALIS-TS-E 3-D-Models with Maximum Flow Rate for Thermostatic Operation in one-pipe systems
Thermostatic Head in a horizontal position
CALIS-TS E-3-D-Models Three-Way Valve
Valve to the left of the radiator
With flat seal, without connections, with screw cap.
Pipe connections have to be ordered separately.
kvs = 5.28
20 73330 7 1 7745 02 5
CALIS-TS E-3-D-Models Three-Way Valve
Valve to the right of the radiator
With flat seal, without connections, with screw cap.
Pipe connections have to be ordered separately.
kvs = 5.28
20 73340 6 1 7746 02 5
HERZ-CALIS-T-Piece
CALIS-Flow-T-Piece
With flat seal, without connections.
Pipe connections have to be ordered separately. 20 10040 6 1 1001 02 10
Product
group 1
59
Control Valves
HERZ-Thermostatic Three-Way Valves
Model kvs Dim. EAN
90 04174 Order
number Item
Thermostatic Three-Way Valve without
bypass for mixing and diverting use.
Use as mixing or diverting valve for control of heating
zones, Fan-Coils, convectors and two lead systems
with heating exchanger.
Lift 3.7 mm, threaded connection M 30 x 1.5,
three external threads with fl at seal.
0.4 10 75020 5 1 7762 50 10
0.63 10 75040 3 1 7762 60 10
1.0 10 75070 0 1 7762 70 10
1.6 10 75080 9 1 7762 80 10
2.5 15 75030 4 1 7762 51 10
4.0 15 75050 2 1 7762 61 10
5.0 20 75060 1 1 7762 62 10
Thermostatic Three-Way Valve with bypass
for mixing and diverting use.
Use as mixing or diverting valve for control of heating
zones, Fan-Coils, convectors and two lead systems
with heating exchanger.
Lift 3.7 mm, threaded connection M 30 x 1.5,
four external threads with fl at seal.
0.4 10 75090 8 1 7763 50 10
0.63 10 75110 3 1 7763 60 10
1.0 10 75140 0 1 7763 70 10
1.6 10 75150 9 1 7763 80 10
2.5 15 75100 4 1 7763 51 10
4.0 15 75120 2 1 7763 61 10
5.0 20 75130 1 1 7763 62 10
HERZ-Thermostatic Valves
HERZ-Thermostatic Valve
Straight model M 30 x 1.5
Control valve with graduated kvs value for
air-conditioning systems. The valve is suitable
for variable volume fl ows.
2 x external thread with fl at seals.
0.16 10 75882 9 1 7760 21 10
0.4 10 75750 1 1 7760 01 10
0.63 10 75760 0 1 7760 02 10
1.0 10 75770 9 1 7760 03 10
1.6 10 75780 8 1 7760 04 10
2.5 15 75790 7 1 7760 05 10
3.5 15 75800 3 1 7760 07 10
4.5 20 75810 2 1 7760 08 10
HERZ-Thermostatic Valve
Straight model M 30 x 1.5
Control valve with graduated kvs value for
air-conditioning systems. The valve is suitable
for variable volume fl ows.
2 x external thread with cone.
0.16 10 75883 6 1 7760 22 10
0.4 10 75820 1 1 7760 11 10
0.63 10 75830 0 1 7760 12 10
1.0 10 75840 9 1 7760 13 10
1.6 10 75850 8 1 7760 14 10
2.5 15 75860 7 1 7760 15 10
3.5 15 75870 6 1 7760 17 10
4.5 20 75880 5 1 7760 18 10
Product
group 1
60
Thermostatic Control Valves
HERZ-Control valve
Model kvs DN EAN
90 04174 Order
number Item
Thermostatic Regulating Valve STRÖMAX-TS-99-FV
Straight model with test points, Rp (female thread)
Dezincifi cation resistant brass body with TS-99-FV
thermostatic upper part, with 6 position fi ne adjustment
for hydraulic balance of cooling ceiling
systems, radiant panels and fan coils. Fitted with two
test points 1 0284. Presetting key (1 6919 98) is to
be ordered separately. Pipe connection on both sides,
with threaded socket, compression adapter
1 6266 01, suitable for press fi tting connection.
Compression adapters and press fi tting connections
have to be ordered separately.
0.4 15 76510 0 1 7217 38 10
Thermostatic Regulating Valve STRÖMAX-TS-98-V
Straight model with test points, Rp (female thread)
Dezincifi cation resistant brass body with TS-98-V
Thermostatic upper part, with continual adjustment
for hydraulic balance of cooling ceiling systems,
radiant panels and fan coils. Fitted with two test points
1 0284. Presetting key (1 6919 98) is to be ordered
separately. Pipe connection on both sides, with
threaded socket, compression adapter 1 6266 01,
suitable for press fi tting connection. Compression
adapters and press fi tting connections have to be
ordered separately.
1.1 15 76520 9 1 7217 37 10
Thermostatic Regulating Valve STRÖMAX-TS-90-E
Straight model with test points, Rp (female thread)
Dezincifi cation resistant brass body with thermostatic
upper part TS-90-E with reduced resistance, for the
regulation of cooling ceiling systems and fan coils.
Fitted with two test points 1 0284. Pipe connection
on both sides, with threaded socket, compression
adapter 1 6266 01, suitable for press fi tting
connection. Compression adapters and press fi tting
connections have to be ordered separately.
2.0 15 74980 3 1 7217 31 10
Thermostatic Regulating Valve STRÖMAX TS-99-FV
Straight model with test points, G (male thread)
Dezincifi cation resistant brass body with TS-99-FV
thermostatic upper part, with 6 position fi ne adjustment
for hydraulic balance of cooling ceiling systems,
radiant panels and fan coils. Fitted with two test points
1 0284. Presetting key (1 6919 98) is to be ordered
separately. Pipe connection with external thread
G 3/4 on both sides for compression adapter and
press fi tting connection. Compression adapters
and press fi tting connections have to be ordered
separately.
0.4 15 76530 8 1 7217 68 10
Thermostatic Regulating Valve STRÖMAX TS-98-V
Straight model with test points, G (male thread)
Dezincifi cation resistant brass body with TS-98-V
Thermostatic upper part, with continual adjustment for
hydraulic balance of cooling ceiling systems, radiant
panels and fan coils. Fitted with two test points 1 0284.
Presetting key (1 6919 98) is to be ordered separately.
Pipe connection with external thread G 3/4 on both sides
for compression adapter and press fi tting connection.
Compression adapters and press fi tting connections
have to be ordered separately.
1.1 15 74950 6 1 7217 67 10
Thermostatic Regulating Valve STRÖMAX TS-90
Straight model with test points, G (male thread)
Dezincifi cation resistant brass body with thermostatic
upper part TS-90 for the regulation of cooling ceiling
systems and fan coils. Fitted with two test points
1 0284. Pipe connection with external thread G 3/4 on
both sides for compression adapter and press fi tting
connection. Compression adapters and press fi tting
connections have to be ordered separately.
1.0 15 74960 5 1 7217 11 10
Thermostatic Regulating Valve STRÖMAX TS-90-E
Straight model with test points, G (male thread)
Dezincifi cation resistant brass body with thermostatic
upper part TS-90-E with reduced resistance, for the
regulation of cooling ceiling systems and fan coils.
Fitted with two test points 1 0284. Pipe connection
with external thread G 3/4 on both sides for
compression adapter and press fi tting connection.
Compression adapters and press fi tting connections
have to be ordered separately.
2.0 15 74970 4 1 7217 21 10
Product
group 1
61
Control Valves
HERZ-FODRV Control valve
Model kvs DN EAN
90 04174 Order
number Item
FODRV Control valve
7217 TSV motorized fi xed orifi ce double regulating
valve. The 7217 TSV motorized FODRV is designed
for installations in circuits where combined functions
of actuated regulation and fl ow measurement are
required. Actuator Fig. 7710 operated for on/off
or Fig. 7990 for modulating control.
Double regulating device, integral fi xed orifi ce.
Actuators to be ordered separately
1.90 15 70290 7 1 7217 51 10
0.47 15
LF 70280 8 1 7217 50 10
1.00 15
MF 70310 2 1 7217 59 10
3.90 20 70300 3 1 7217 52 10
HERZ-Control Valve with reverse function
HERZ-Thermostatic Valve with reverse function.
Valve opens by pressed actuator pin.
Designed for cooling applications by using standard
thermostatic heads.
Thread for Thermostatic head M 28 x 1.5 mm.
2 x external threads with fl at seals.
2.81 15 76330 4 1 7760 51 10
3.21 20 76340 3 1 7760 52 10
HERZ-Zone Valve
HERZ-Zone Valve
Regulation by HERZ-Actuating drives and
HERZ-Thermostats.
Straight model, radiator connection
With cone seal. Universal models with special sockets
for threaded pipes and compression adapters.
Thermostatic upper part can be changed by means
of HERZ-Changefi x.
2.0 20 73320 8 1 7723 82 20
HERZ-Regulating Valve for large volume fl ow
Thermostatic Regulating Valve STRÖMAX-TS-E
Straight model with test points,
Rp (female thread)
Dezincifi cation resistant brass body, with thermostatic
upper part TS-E (body identical to STRÖMAX-4217
GM/GR) for the regulation of cooling ceiling systems
and fan coils for large volume fl ow. Fitted with two
test points 1 0284. With 2 tap holes 1/4 for drain
fi ttings (to be ordered separately), one screw plug
1 0273 09 is mounted. Pipe connection on both sides
with long threaded sockets.
4.9 15 74990 2 1 7217 41 10
5.3 20 75000 7 1 7217 42 10
7.6 25 75010 6 1 7217 43 10
Thermostatic Regulating Valve STRÖMAX-TS-E
Straight model with test points,
G (male thread)
Dezincifi cation resistant brass body, with thermostatic
upper part TS-E body (identical to STRÖMAX-4217
GM/GR) for the regulation of cooling ceiling systems
and fan coils for large volume fl ow.
Fitted with two test points 1 0284. With 2 tap holes
1/4 for drain fi ttings (to be ordered separately), one
screw plug 1 0273 09 is mounted. Pipe connection on
both sides with external thread G 3/4 for compression
adapter and press fi tting connection. Compression
adapters and press connections have to be ordered
separately.
4.9 15 74760 1 1 7217 01 10
5.3 20 74770 0 1 7217 02 10
7.6 25 74780 9 1 7217 03 10
Valve spindle for HERZ-STRÖMAX TS-E, TS-90-E, TS-90 and TS-98-V: An O-Ring is used as a spindle seal, the upper parts can be removed
under normal working conditions. It guarantees a maximum level of maintenance-free operation and offers permanent smooth running of the
valve. A permanently elastic soft seal for constant temperatures is used as a seat seal.
Product
group 1
62

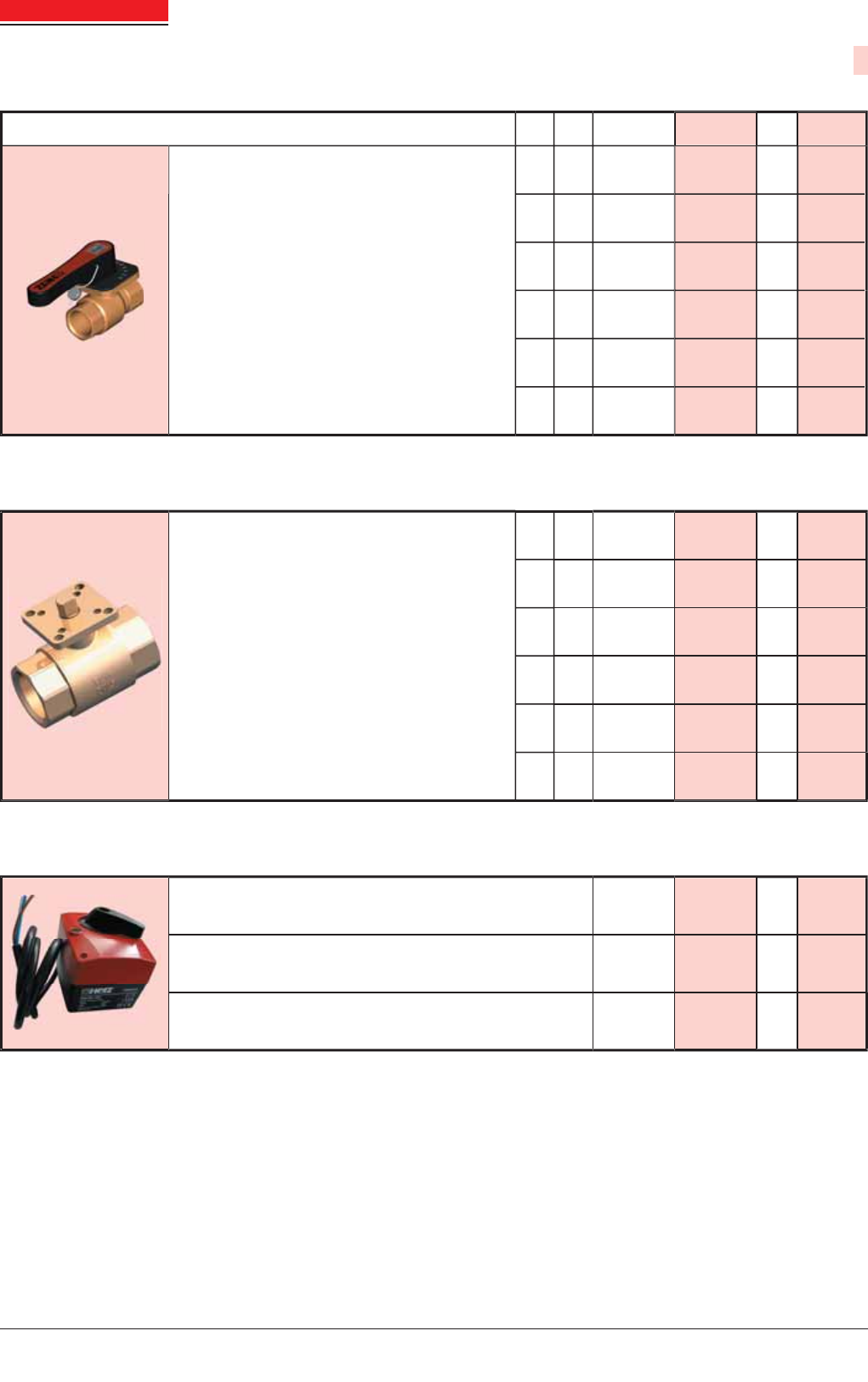

Heating, Climate Control
HERZ-two-way control ball valve with handle
Model kvs DN EAN
38 389693
Order
number Item
Two-way ball valve with internal thread PN 40
Control valve for modulating control of heating,
cooling or air systems, Ball with equal percentage
characteristic, Spindle with large sliding surface
and Tefl on-slip ring, O-ring bearing sleeve,
high turndown ratio 500:1, low torque PN 40,
Internal thread to ISO 7/1 Rp, DZR brass body,
DZR Brass Ball, chrome plated and polished,
Axle seal with double O-ring made of EPDM,
Actuators 7712 to be ordered separately.
515 42000 2 1 2117 01 1
820 42001 9 1 2117 02 1
12.5 25 42002 6 1 2117 03 1
20 32 42003 3 1 2117 04 1
32 40 42004 0 1 2117 05 1
50 50 42005 7 1 2117 06 1
HERZ-two-way control ball valve without operator
Two-way ball valve with internal thread PN 40
Control valve for modulating control of heating,
cooling or air systems, Ball with equal percentage
characteristic, Spindle with large sliding surface
and Tefl on-slip ring, O-ring bearing sleeve,
high turndown ratio 500:1, low torque PN 40,
Internal thread to ISO 7/1 Rp, DZR brass body,
DZR Brass Ball, chrome plated and polished,
Axle seal with double O-ring made of EPDM,
Actuators 7712 to be ordered separately.
515 42006 4 1 2117 11 1
820 42007 1 1 2117 12 1
12.5 25 42008 8 1 2117 13 1
20 32 42009 5 1 2117 14 1
32 40 42010 1 1 2117 15 1
50 50 42011 8 1 2117 16 1
HERZ-Actuator for two-way control ball valve
HERZ-Actuator
Actuating motor
230 V, 90°, 2 Pkt., 10 Nm, 140 sec.
42030 9 1 7712 60 1
HERZ-Actuator
Actuating motor 230 V, 90°, 3 Pkt., 10 Nm, 140 sec. 42031 6 1 7712 61 1
HERZ Actuator
Actuating motor 24 V, 90°, modular, 10 Nm. 42032 3 1 7712 62 1
Product
group 1
63

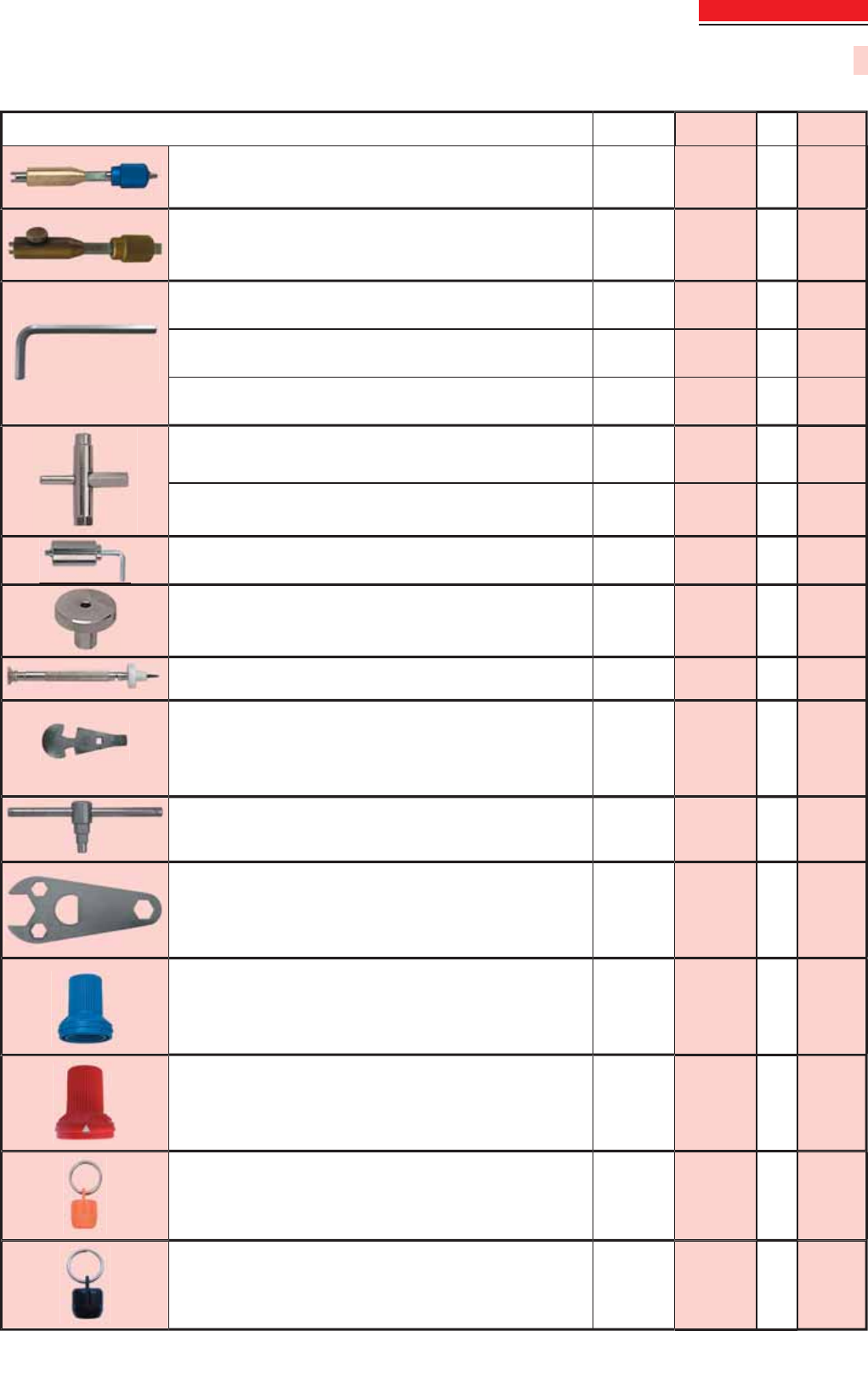

HERZ-Keys and tools
Model EAN
90 04174 Order
number Item
Pre-Setting Key
With blue shaft For HERZ-AS standard models. 61760 7 1
6600 00 1
Pre-Setting Key
With yellow shaft For HERZ-DR-T-90 universal models. 61860 4 1
6800 00 1
4-mm-Allen Key
For HERZ-3000. 61770 6 1
6615 00 1
2-mm-Allen Key For installation of thermostatic heads “Herzcules”
and thermostatic heads 7260 99 und 7230 99. 61780 5 1
6616 00 1
1.5-mm-Allen Key For HERZ-GP, positioning screw pre-setting. 61790 4 1
6618 00 1
Multi-Purpose Key
For HERZ-3000, HERZ-Return Valves, HERZ-Radiator
connection sets and four-way valves.
61800 0 1
6625 00 1
Setting Key For HERZ-4-WA-T35, straight model. 65230 1 1 6625 41 1
Indicator, Setting and Checking Key
For HERZ 3000 Radiator fl ow rates. 62260 1 1
6630 01 1
Shutoff Key
For HERZ-3000. 63150 4 1
6630 02 1
Pre-Setting Key For HERZ-RL-5. 61810 9 1
6639 01 1
Universal Key
For opening the theft protection clips 9552 5mm square key
for STRÖMAX-M 11 mm square key for STRÖMAX-MFS 63140 5 1
6640 00 1
Assembly Key
For 3/8 - 3/4 connection with hexagon socket screws
or mounting web.
61820 8 1 6680 00 1
HERZ-TS-90 -Installation Key
13 mm: For changing the O-Ring chamber HERZ-TS-90
14 mm: For changing the O-Ring chamber HERZ-TS-90-V
18 mm: For changing the HERZ-TS-90 Valve Upper Part
30 mm: For the installation of HERZ-Thermostatic Heads
62680 7 1 6807 90 1
Pre-Setting Key (blue)
For HERZ-TS-90-V, models from 1998 onward.
Valves with knurled cover screw. 63320 1 1 6809 67 1
HERZ-TS-90-V Pre-setting key (red) for models before 1998
For valves with O-ring screw with nut.
61880 2 1 6808 67 1
Pre-Setting Key
For HERZ-TS-98-V, HERZ-3000 Bypass Bodies and connection
elements with integrated thermostatic valve. 63410 9 1 6819 98 1
Pre-Setting Key
Universal Pre-Setting Key HERZ-Flowmeter 3 F900 in 8532/8533.66350 5 1 6819 32 1
Accessories
Product
group 1
64

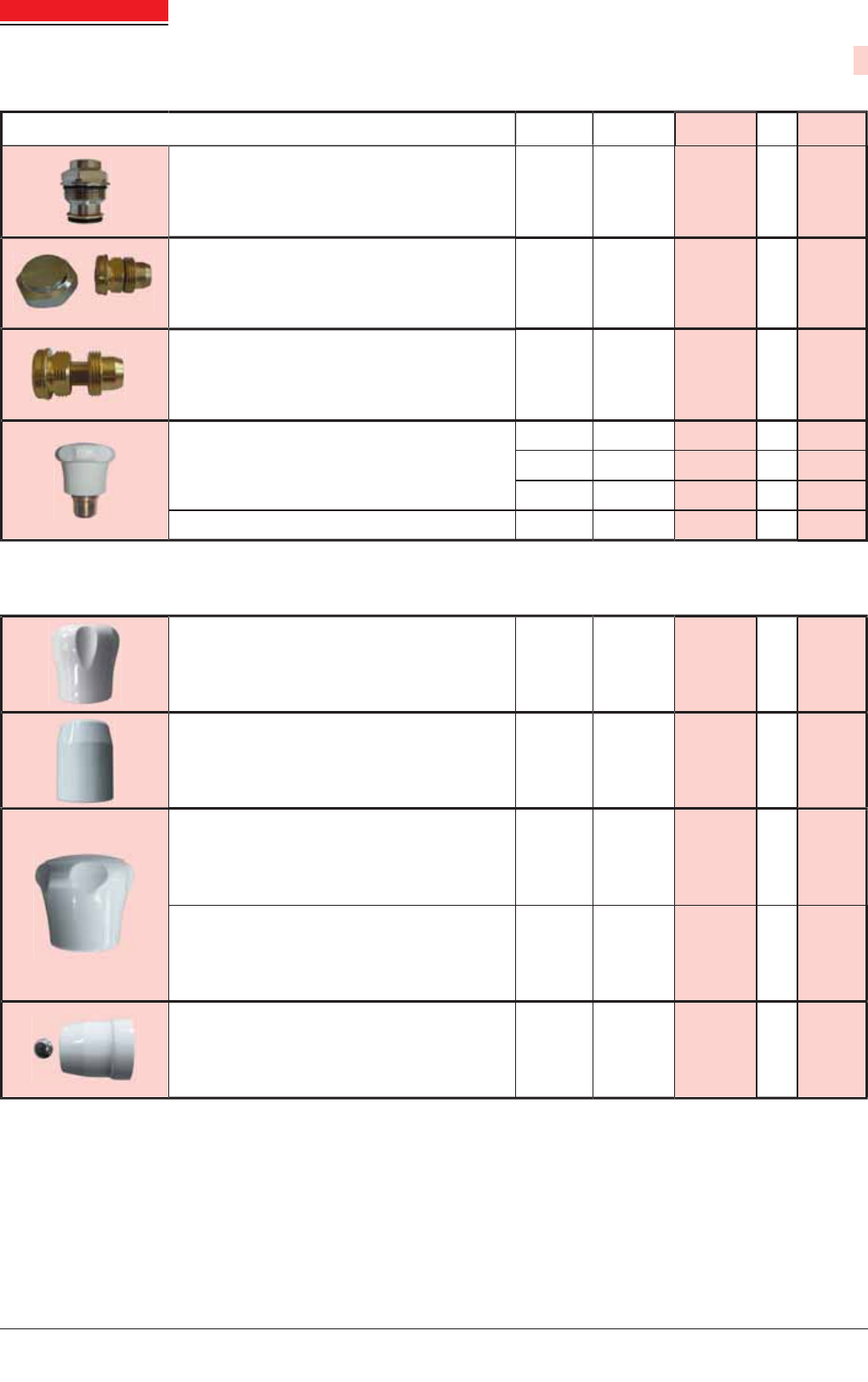

HERZ-Upper Parts
Model Dim. EAN
90 04174 Order
number Item
Upper Part
For HERZ-RL-1-E, Shutoff valves
8437, 8438, 8537 and 8538. 1/2–1 63600 4 1 6301 00 1
Upper Part
For HERZ-3000 bypass bodies and connection
elements with draining function, HERZ-RL-4-Single
shutoff valves. 3/8–3/4 62580 0 1 6302 00 1
Upper Part
For HERZ-RL-5.
3/8–3/4 61040 0 1
6304 00 1
Upper Part
For HERZ-DR-T-90 universal models. 3/8 61080 6 1
6310 90 1
1/2 61090 5 1
6310 91 1
3/4 61100 1 1
6310 92 1
For HERZ-DR standard models. 161070 7 1
6310 03 1
HERZ-Hand Wheels
Hand Wheel
For HERZ-GP-Radiator Control Valves, including
fastening screw. 3/8–3/4 61640 2 1 6501 10 1
Lockshield
For HERZ-GP-Radiator Control Valves.
3/8–3/4 61650 1 1 6503 10 1
Hand Wheel
For HERZ-DR-T-90 universal models,
including screw disk. 3/8–3/4 61670 9 1 6510 90 1
Hand Wheel
For HERZ-DR-Radiator Control Valves,
including insert and screw. 1–1¼ 61660 0 1 6510 03 1
Lockshield
For HERZ-DR-T-90 universal models,
including fastening screw. 3/8–3/4 61680 8 1 6512 90 1
Spare parts
Product
group 1
65

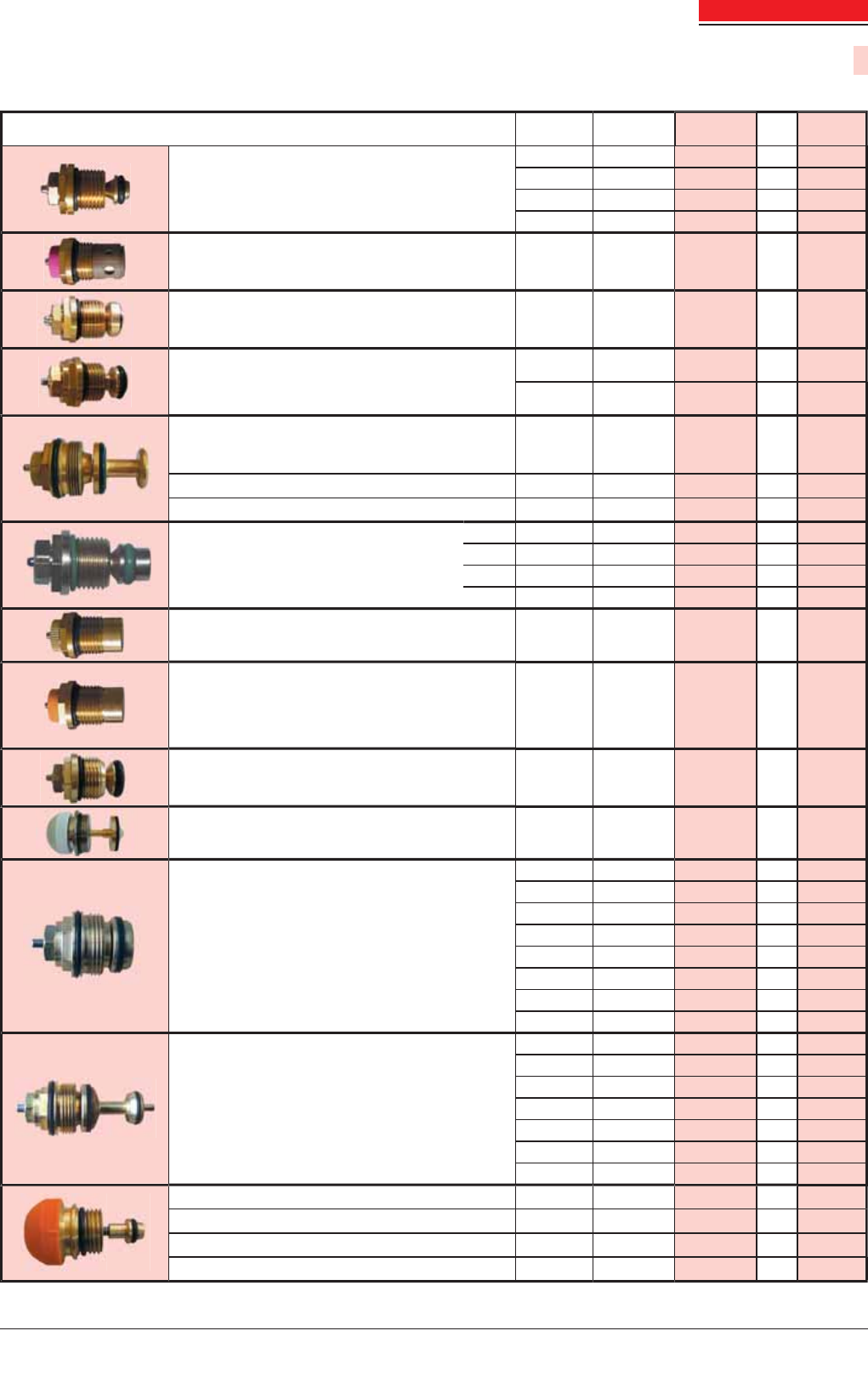

HERZ-Upper Parts
Model Dim. EAN
90 04174 Order
number Item
Thermostatic Upper Part For HERZ-TS-90,
HERZ-3000, HERZ-VUA, HERZ-VTA and
HERZ-DR-T-90-Valves (3/8–3/4) manufactured in 1991
or later. 1 6390 91 and for VTA-40 Uni. Can be changed
under pressure by means of HERZ Changefi x Tool.
3/8 61590 0 1 6390 90 1
1/2 61600 6 1 6390 91 1
3/4 61610 5 1 6390 92 1
162460 5 1 6390 93 1
Thermostatic Upper Part For HERZ-TS-FV-Precise
adjustment valve (purple cap). Can be changed
under pressure by means of HERZ Changefi x Tool. 1/2 63620 2 1 6367 99 1
Thermostatic Upper Part For HERZ Zone Valve Can
be changed under pressure by means of
HERZ Changefi x Tool. 3/4 63830 5 1 6391 92 1
Thermostatic Upper Part with pre-setting
For HERZ-TS-98-V (orange cap). HERZ-3000-connection
elements with integrated thermostatic valve. Can be
changed under pressure by means of HERZ Changefi x Tool.
One pipe 61610 5 1 6390 92 1
Two pipe 63310 2 1 6367 98 1
Thermostatic Upper Part Can be changed under
pressure by means of HERZ Changefi x Tool,
for CALIS-TS/ CALIS-TS-RD 1/2–3/4 61110 0 1 6329 01 1
for CALIS-TS-3-D 1/2–3/4 63510 6 1 6329 11 1
for CALIS-TS-E-3-D
(cannot be changed under pressure)
3/4 63520 5 1 6329 22 1
Thermostatic Upper Part with fi xed kv-
values, can be changed under pressure by
means of HERZ-Changing Tool Changefi x.
For HERZ-TS-90-kv
B blue kv 0.06 61210 7 1 6365 69 1
C
green
kv 0.12 61220 6 1 6365 79 1
D
yellow
kv 0.25 61230 5 1 6365 89 1
E white kv 0.5 61240 4 1 6365 99 1
Thermostatic Upper Part with pre-setting
For HERZ-TS-90-V. Can be changed under pressure
by means of HERZ-Changefi x Tool.
3/8–3/4 63420 8 1 6367 97 1
Thermostatic Upper Part with pre-setting For
HERZ-TS-98-V (orange cap). HERZ-3000-connection
elements with integrated thermostatic valve.
Can be changed under pressure by means
of HERZ-Changefi x Tool.
3/8–3/4 63310 2 1 6367 98 1
Thermostatic Upper Part For HERZ-TS-90-E-
universal models. Can be changed under pressure
by means of HERZ-Changefi x Tool. 1/2 61320 3 1 6379 02 1
Thermostatic Upper Part
For HERZ-TS-E-standard models. 1/2–1 62800 9 1 6379 03 1
Thermostatic Upper Part fo HERZ 7760 kvs 0.16 -1 6305 00 1
kvs 0.40 -1 6305 01 1
kvs 0.63 -1 6305 02 1
kvs 1.00 -1 6305 03 1
kvs 1.6 -1 6305 04 1
kvs 2.5 -1 6305 05 1
kvs 3.5 -1 6305 06 1
kvs 4.5 -1 6305 07 1
Thermostatic Upper Part for 7762 / 7763 kvs 0.40 -1 6305 11 1
kvs 0.63 -1 6305 12 1
kvs 1.00 -1 6305 13 1
kvs 1.6 -1 6305 14 1
kvs 2.5 -1 6305 15 1
kvs 4.0 -1 6305 16 1
kvs 5.0 -1 6305 17 1
HERZ-Regulating Valve Upper part 7217-TSV. 15 LF -1 6305 50 1
Regulating Valve Upper part 7217-TSV. 15 -1 6305 51 1
Regulating Valve Upper part 7217-TSV. 20 -1 6305 52 1
Regulating Valve Upper part 7217-TSV. 15 MF -1 6305 59 1
Spare parts
The HERZ-TS-90-Thermostatic Upper Part 1 6365 69–1 6365 99, 1 6367 97, 1 6367 98 sowie 1 6390 90–1 6390 92, are dimensionally
interchangeable. Change under pressure with HERZ-Changefi x 1 7780 00 HERZ-Changefix 1 7780 00.
Product
group 1
66
HERZ-O-Ring-Sets
Model EAN
90 04174 Order
number Item
O-Ring Box, red
20 O-Rings and klingerit seals plus cleaning tool for
HERZ-DR-Radiator Control Valves -1”. Till DN 20 from 1992. 61850 5 1 6710 00 1
O-Ring Set
20 O-Ring screws for HERZ-DR-T-90
Radiator Control Valves. 61890 1 1 6810 90 1
O-Ring Set
20 O-Ring chambers for HERZ-TS-90-Thermostatic Valves
as well as Three- and Four-Way Valves. 62190 1 1 6890 00 1
HERZ-GP-Spindle Sealing Set
Spindle Sealing Set
For HERZ-GP-Radiator Control Valves,
without pre-setting. 62470 4 1 6701 00 20
Spindle Sealing Set
For HERZ-GP-Radiator Control Valves,
with pre-setting. 62670 8 1 6702 00 20
HERZ-AS-T
O-Ring Box,
yellow 20 O-rings and klingerit
seals plus cleaning tool. 62610 4 1 6810 00 1
HERZ-O-Ring-Set
O-Ring-Set, yellow
20 pcs O-ring-chambers, 1-key groove for STRÖMAX-M
and STRÖMAX-R.
61830 7 1 6705 00 1
Spare parts
Product
group 1
67
HERZ-TS
Model Dim. EAN
90 04174 Order
number Item
Valve Upper Part
For HERZ thermostatic valves for the years1978-1989
and the conversion of HERZ-ASand GR-T manual
regulating valves for the years1978-1992.
3/8–1/2 61290 9 1 6376 00 1
3/4 61300 5 1 6376 02 1
Valve Upper Part
For HERZ-TS DIN series “D”
Model years 1986-1990. 3/8–1/2 61310 4 1 6379 00 1
HERZ-Thermostats, actuators and HERZ-TS-screw caps and bonnets of HERZ-TS-90 valves are compatible with the discontinued products
and can be used for off-line as well as for the current series.
HERZ-Thermostatic upper part
Thermostatic upper part
for the conversion of HERZ-AS
Radiator control valve manufactured before 1978
(yellow body, handwheel beige). 3/8–1/2
63820 6
kv 0.06
1 6165 69
1
kv 0.12
1 6165 79
kv 0.25
1 6165 89
kv 0.5
1 6165 99
Hand Cutter
for milling of the valve seat during refurbishing
of HERZ-AS radiator control valves manufactured
before 1978.
3/8
65430 5
1 6165 00
1
1/2 1 6165 01
HERZ-ID built in 1965-1970, GP 1970-1978
Thermostatic upper part
for the conversion of HERZ-ID
Radiator control valve manufactured 1965-1970. 3/8–1/2 65480 0 1 6360 99 1
Hand Cutter
for milling of the valve seat during refurbishing
of HERZ ID radiator control valves manufactured
1965-1970.
3/8–1/2 65490 9 1 6360 00 1
HERZ-AGA / Stelrad, built in 1980-1991
Thermostatic upper part
Thermostatic upper part TS-90-V
preset, the retrofi tting of AGA / Stelrad C32 / 2Compact
valve connection kit 1980-1991.
1 6367 32 20
HERZ-Thermopanel, Modulpanel, built in 1988-1994
Thermostatic upper part TS-90-V
preset, the retrofi tting from Thermopanel Radiator valve
1 3089 67 20
Dimensions
The thermostat valve body HERZ-TS and the radiator control valves HERZ-AS-T and GP-T model years 1978 to 1990/1991 nickel-plated body
and gray hand wheels are together with the currently manufactured equivalent series and can be easily replaced if necessary (nickel-plated
body, hand wheels or screw caps, white)
Spare parts
Product
group 1
68

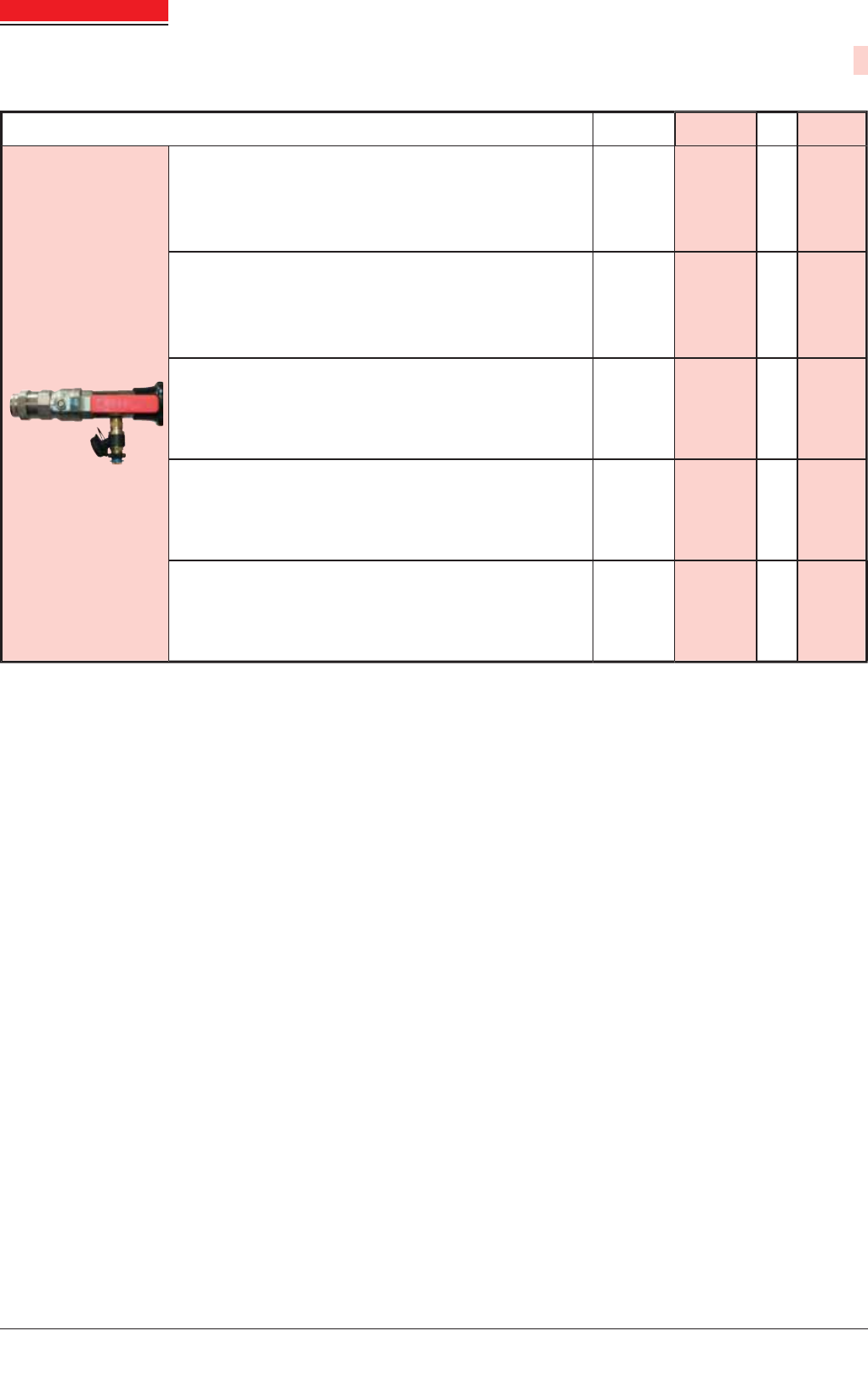

HERZ-Changefix
Model EAN
90 04174 Order
number Item
HERZ Changefi x Tool for HERZ-Thermostatic Upper Parts
with threaded connection M 28 x 1.5. With its liquid lock function,
this tool permits to change the upper part of the valve or clean the
seat seal at the spindle while the system is under pressure. 71260 9 1 7780 00 1
HERZ Changefi x Tool for HERZ-Thermostatic Upper Parts
with threaded connection M 30 x 1.5. with its liquid lock function,
this tool permits to change the upper part of the valve or clean the
seat seal at the spindle while the system is under pressure. 74160 9 1 7780 98 1
Set of seals
71270 8 1 7780 04 1

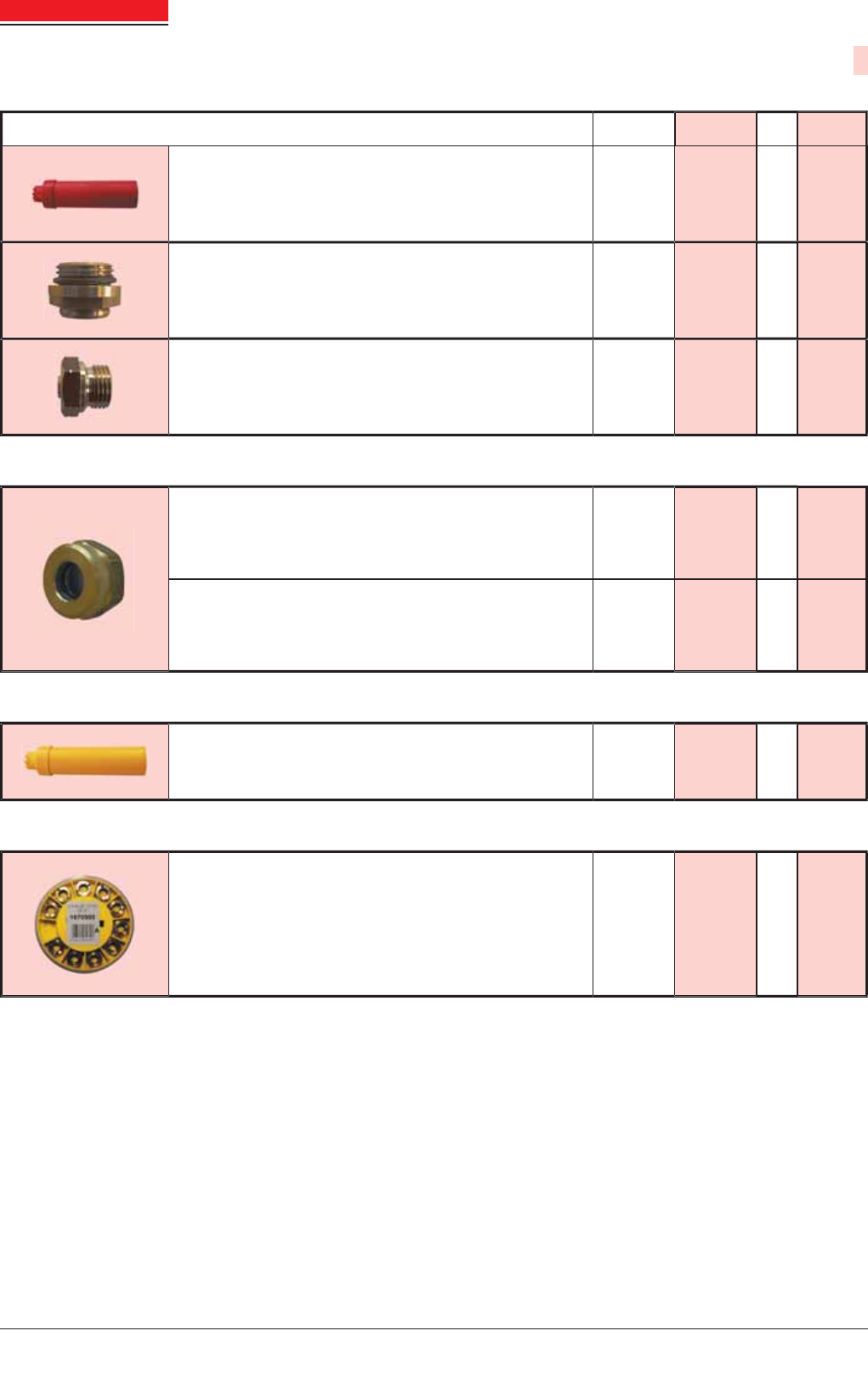

Pressure measuring accessories
for measuring the differential pressure or static pressure at the
closed valve by means of the HERZ-measuring instruments
1 8900 and 1 8903. 71280 7 1 7781 00 1
Set of cleaning brushes
73240 9 1 7781 01 1
Accessories, Tools
Product
group 1
69
Heating Control
HERZ-Three-Way Mixing and Diverting Valves
Model DN Dim. EAN
90 04174 Order
number Item
HERZ-Three-Way Mixing and Diverting Valve
For the control of cold and hot water.
With valve drive 1 7712, suitable as control device
with adjustable characteristic line. Stainless steel
spindle, brass valve cone with glass-fibre reinforced
teflon seal ring. Brass bushing with EPDM-O-Ring.
Vertical and horizontal mounting is possible.
Cast brass body with 3 external threads, brass
version, flat seal, without threaded connection
elements.
15 1/2 42870 8 1 4037 15 1
20 3/4 42880 7 1 4037 20 1
25 1 42890 6 1 4037 25 1
32 1¼ 42900 2 1 4037 32 1
40 1½ 42910 1 1 4037 40 1
50 2 42920 0 1 4037 50 1
Valve Drives for Three-Way Valve, Actuating Power 500 N
Valve Drive for Three-Way Valve,
actuating power 500 N
Operation through heating control for 2-point, 3-point
or continuous control. Selection of characteristic line
is linear or parallel. Two-piece body made of self-
extinguishing plastic. Plastic console and brass union
nut for valve installation.
Working condition can be directly switched, automatic
adjustment of valve lift. Code switch for selection
of characteristic line and running time. Gearbox for
positioning of valve and adjustment of hand wheel.
Vertical and horizontal mounting is possible, inverted
installation is not possible.
24 V 74810 3 1 7712 11 1
Valve Drive for Three-Way Valve,
actuating power 500 N
Operating through heating control for 3-point
operation. Two-piece body made of self-extinguishing
plastic. Plastic console and brass union nut for valve
installation. Gearbox for positioning of valve and hand
wheel adjustment. Vertical and horizontal mounting is
possible, inverted installation is not possible.
230 V 74790 8 1 7712 50 1
24 V 74820 2 1 7712 51 1
Valve Drives for Three-Way Valve, Actuating Power 800 N
Valve Drive for Three-Way Valve,
actuating power 800 N
Operation through heating control with switching exit
(3-point control). Black box with actuator, control
electronics, LED display and transmission. Box cover
transparent. Self-extinguishing plastic parts. Gear and
mounting clamp made of cast zinc.
Electronic force dependent shutoff, automatic valve lift
adjustment, encoding switch for operating time. Manual
adjustment from outside by means of circuit breaker.
Vertical and horizontal mounting at valve is possible,
inverted installation is not possible.
24 V 74860 8 1 7712 80 1
Hand Wheel for Three-Way Mixing and Diverting Valves
HERZ-Hand Wheel
for HERZ-Three-Way Mixing and Diverting Valve 4037,
not supplied with valve drive.
91900 8 1 9102 40
Mixing Valve for Return Mounting
Teplomix-Three-Way-thermostaic control valve
Brass version, with flat seal.
The Teplomix-Three-Way valve is equipped with
a pre-set constant temperature control and it is used
as mixer in return. For throttling of bypass between
flow and return.
Max. application temperature range till 110 °C
Models ..-03 and ..-14 with bypass.
Temp. approx. 61 °C. Models ..-13 and ..-14 with
bypass closing function, Temp. approx. 55–63 °C.
Leakage rate max. 10%.
DN 25, kvs = 11; DN 32, kvs = 14.
DN 25
76010 5 1 7766 03 1
76020 4 1 7766 04 1
DN 32
76290 1 1 7766 13 1
76300 7 1 7766 14 1
Product
group 1
70
Heating
HERZ-Pump set 4500 KRAS
Model DN EAN
90 04174 Order
number Item
Pump set 4500 KRAS (Thermal mixing valve).
For solid fuel boilers and biomass systems, in order
to maintain a minimum boiler return temperature.
Consisting of TEPLOMIX automatic temperature
control mixing valve, isolation valve, circulating pump
and isolation valve with backfl ow preventer, factory
assembled and leakage tested. Design: Thermal
mixing valve.
25 67000 8 1 4500 73 1
32 67010 7 1 4500 74 1
Pump set 4500 KRAS (mixing valve with
automatic thermostat).
For solid fuel boilers and biomass systems, in order
to maintain a minimum boiler return temperature.
Consisting of 4037 temperature control mixing valve,
isolation valve, circulating pump and isolation valve
with backfl ow preventer, factory assembled and
leakage tested, mixing valve and electric actuator
of choice. Design: mixing valve with automatic
thermostat.
20 67020 6 1 4500 82 1
25 67030 5 1 4500 83 1
32 67040 4 1 4500 84 1
40 67050 3 1 4500 85 1
50 67060 2 1 4500 86 1
Pump set 4500 KRAS (1/4 turn mixing valve
with electric actuator).
For solid fuel boilers and biomass systems, in order
to maintain a minimum boiler return temperature.
Consisting of EUROMIX mixing valve, isolation valve,
circulating pump and isolation valve with backfl ow
preventer, factory assembled and leakage tested,
1/4 turn mixing valve with electric actuator.
Design: 1/4 turn mixing valve with electric actuator.
20 67070 1 1 4500 92 1
25 67080 0 1 4500 93 1
32 67090 9 1 4500 94 1
HERZ-Three-way mixing valve with handle
Model DN EAN
38 389693 Order
number Item
Three-way mixing valve, PN 16
Female end connections,
Body and cone dezincifi cation Brass EPDM gasket
Medium temperature -10 ° - 110 °C PN 10
15 42037 8 1 2137 01 1
20 42038 5 1 2137 02 1
25 42039 2 1 2137 03 1
32 42040 8 1 2137 04 1
40 42041 5 1 2137 05 1
50 42042 2 1 2137 06 1
HERZ-Three-way mixing valve without operator
Three-way mixing valve, PN 16
Female end connections,
Body and cone dezincifi cation Brass
EPDM gasket Medium temperature -10 ° - 110 °C
PN 10.
15 42043 9 1 2137 11 1
20 42044 6 1 2137 12 1
25 42045 3 1 2137 13 1
32 42046 0 1 2137 14 1
40 42047 7 1 2137 15 1
50 42048 4 1 2137 16 1
HERZ-Three-way mixing valve actuator
HERZ-Actuator valve controller NR 230-455, 230 V.
42055 2 1 7712 63 1
Product
group 1
71
Heating Control
HERZ-Electronic Heating Controller
Model Dim. EAN
90 04174 Order
number Item
Electronic Heating Controller with PI control
With programmable time and temperature
adjustment.
For motor drives at valves or mixers and for pumps
(on/off signal). Adjustment corresponding to external
or room temperature by external or internal sensor.
Easy adjustment with system by module switch and
service parameter.
Electronics located in the attachable body, white
(RAL 9010), front panel with keyboard and digital
display in window.
Digital timer with weekly and yearly programme,
with relay that counts operating hours.
Time depending control of several room temperature
controllers without clock per relay.
Frost protection in operating modus “out” is possible.
For installation on surface mount or on fl ush box.
110 -
230 V 74210 1 1 7793 23 1
24 V 74220 0 1 7793 24 1
HERZ-Electronic Heating Controller
External temperature probe for heating controller
Nickel thin coated sensor according to DIN 43760.
Base and cover white (RAL 9010), installation on surface or fl ush. 74230 9 1 7793 01 1
Touch temperature probe for heating controller
For temperature measurements on pipes.
Nickel-thin-coat sensor according to DIN 43760, spring mounted.
Olive-yellow thermoplastic box, non-infl ammable.
Strap retainer for pipe diameters 15–90 mm and heat conducting
paste included in delivery.
74240 8 1 7793 00 1
72
Heating
HERZ-Safety Valves
Model PN Dim. EAN
383 000282 Order
number Item
HERZ Boiler group
forged brass acc. EN 12420
Female thread acc. ISO228
Maximum temperature 100 °C. Manometric
thermometer: working temperature
20 °C up to 100 °C.
2.5 15 7759 1 2104 04 6
315 7766 1 2104 14 1
Thermometer
Body made of forged brass, EPDM seals.
Temperature range is from 0 °C to +100 °C. 415 7735 1 2670 01 1
Pressure Relief safety valve
Housing made of forged brass,
EPDM Diaphragm, cap seals and plastic.
Temperature range is from 0 °C to +110 °C.
For boiler output to 75 kW, DN 15.
2.5 15 7544 1 2611 01 100
315 7551 1 2612 01 100
615 7568 1 2613 01 100
Pressure Relief safety valve
Housing made of forged brass,
EPDM Diaphragm, cap seals and plastic.
Temperature range is from 0 °C to +110 °C.
For boiler output to 100 kW, DN 15.
2.5 20 7438 1 2604 02 100
320 7445 1 2605 02 50
620 7452 1 2606 02 100
For boiler output to 200 kW, DN 25. 2.5 25 7469 1 2607 03 30
325 7490 1 2608 03 50
625 7476 1 2667 03 50
825 7483 1 2687 03 50
For boiler output to 350 kW, DN 32. 2.5 32 7506 1 2609 04 30
332 7513 1 2610 04 30
632 7520 1 2669 04 12
832 7537 1 2689 04 12
HERZ-Air Release Valve
Automatic Air Vent Forged brass version, with EPDM
seal, PN 10, G thread, for heating systems. For all
nonagressive fl uids such as water, oil, air, steam, fuel and
lubricating oil. Working temperature 0 °C to +110 °C.
10 10 7711 1 2630 00 50
10 15 7704 1 2630 01 50
Automatic Air Vent FWW Forged brass version, with
EPDM seal, PN 10, G thread, for heating systems. For
all nonagressive fl uids such as water, oil, air, steam,
fuel and lubricating oil. Working temperature
0 °C to +110 °C.
10 10 9784 1 2630 10 50
10 15 9791 1 2630 11 50
HERZ-Backfl ow preventer
Model PN Dim. EAN
38 3896342
Order
number Item
Spring check valves
Brass body, NBR seals, PN 10,
Temperature range is from 0 °C to +80 °C
G 1/2
15 0859 1 2622 11 10
G 3/4
20 0866 1 2622 12 10
G 1
25 0873 1 2622 13 10
G 1¼
32 0880 1 2622 14 10
G 1½
40 0897 1 2622 15 5
G 2
50 0903 1 2622 16 5
Product
group 6
73
Ball Valves
HERZ-Ball Valves
Model PN Dim. EAN
383 000282 Order
number Item
Ball valve, “TÜV” with lever handle
Forged brass body according to DIN 17660,
nickel plated, with PTFE spindle seals, female thread
connection. Temperature range -30 °C to +150 °C
(water from 0 °C to +110 °C). Ball valves are also
available in DZR.
63 86004 1 2100 09 25
63 10 6011 1 2100 00 25
50 15 6028 1 2100 01 25
50 20 6035 1 2100 02 25
50 25 6042 1 2100 03 16
40 32 6059 1 2100 04 16
40 40 6066 1 2100 05 12
40 50 6073 1 2100 06 8
16 65 6080 1 2100 07 10
16 80 6097 1 2100 08 5
Ball valve with drain cock and plug
Forged brass body according to DIN 17660,
nickel plated, with PTFE & NBR seals, female thread
connection. Temperature range -10 °C to +150 °C
(water from 0 °C to +110 °C).
40 15 6523 1 2402 01 25
40 20 6530 1 2402 02 25
40 25 6547 1 2402 03 16
40 32 6554 1 2402 04 16
25 40 6561 1 2402 05 12
Ball valve, “TÜV”with T- handle
Forged brass body according to DIN 17660,
nickel plated, with PTFE spindle seals, female thread
connection. Temperature range -30 °C to +150 °C
(water from 0 °C to +110 °C).
63 8 6103 1 2100 19 25
63 10 6110 1 2100 10 25
50 15 6127 1 2100 11 25
50 20 6134 1 2100 12 25
50 25 6141 1 2100 13 16
40 32 6158 1 2100 14
Ball valve with drain cock and T- handle
Forged brass body according to DIN 17660, nickel
plated, with PTFE & NBR seals, female thread
connection. Temperature range -10 °C to +150 °C
(water from 0 °C to +110 °C).
40 15 6578 1 2402 11 25
40 20 6585 1 2402 12 25
40 25 6592 1 2402 13 16
40 32 6608 1 2402 14 16
Ball valve, “TÜV”, with one male AG thread
connection with lever handle
Forged brass body according to DIN 17660,
nickel plated, with tefl on seals, male x female thread
connection. Temperature range -30 °C to +150 °C
(water from 0 °C to +110 °C).
63 8 6745 1 2160 09 25
63 10 6752 1 2160 00 25
50 15 6769 1 2160 01 25
50 20 6776 1 2160 02 25
50 25 6783 1 2160 03 16
40 32 6790 1 2160 04 16
40 40 6806 1 2160 05 12
40 50 6813 1 2160 06 8
Ball valve, “TÜV”, with one male AG thread
connection with T- handle
Ball valve, “TÜV”with T-handle
Forged brass body according to DIN 17660,
nickel plated, with tefl on seals, male x female thread
connection. Temperature range-30 °C to +150 °C
(water from 0 °C to +110 °C).
63 8 6820 1 2160 19 25
63 10 6837 1 2160 10 25
50 15 6844 1 2160 11 25
50 20 6851 1 2160 12 25
40 25 6868 1 2160 13 16
40 32 6875 1 2160 14 16
Ball valve EURO with lever handle
Forged brass body according to DIN 17660,
nickel plated, with PTFE & NBR seals, female thread
connection. Temperature range -10 °C to +110 °C
(water from 0 °C to +110 °C).
16 15 6431 1 2902 01 25
16 20 6448 1 2902 02 25
16 25 6455 1 2902 03 16
16 32 6462 1 2902 04 16
Ball valve EURO with T- handle
Forged brass body according to DIN 17660,
nickel plated, with PTFE & NBR seals, female thread
connection. Temperature range -10 °C to +110 °C
(water from 0 °C to +110 °C).
16 15 6479 1 2902 11 25
16 20 6486 1 2902 12 25
16 25 6493 1 2902 13 16
16 32 6509 1 2902 14 16
Ball valve, KS with lever handle
Forged brass body according to DIN 17660,
nickel plated, with PTFE & NBR seals, female thread
connection. Temperature range -10 °C to +150 °C
(water from 0 °C to +110 °C).
25 10 6172 1 2453 00 25
25 15 6189 1 2453 01 25
25 20 6196 1 2453 02 25
25 25 6202 1 2453 03 16
25 32 6219 1 2453 04 16
25 40 6226 1 2453 05 12
25 50 6233 1 2453 06 8
Ball valve, KS with T- handle
Forged brass body according to DIN 17660,
nickel plated, with PTFE & NBR seals, female thread
connection. Temperature range -10 °C to +150 °C
(water from 0 °C to +110 °C).
25 10 6240 1 2453 10 25
25 15 6257 1 2453 11 25
25 20 6264 1 2453 12 25
25 25 6271 1 2453 13 16
25 32 6288 1 2453 14 16
Product
group 6
74

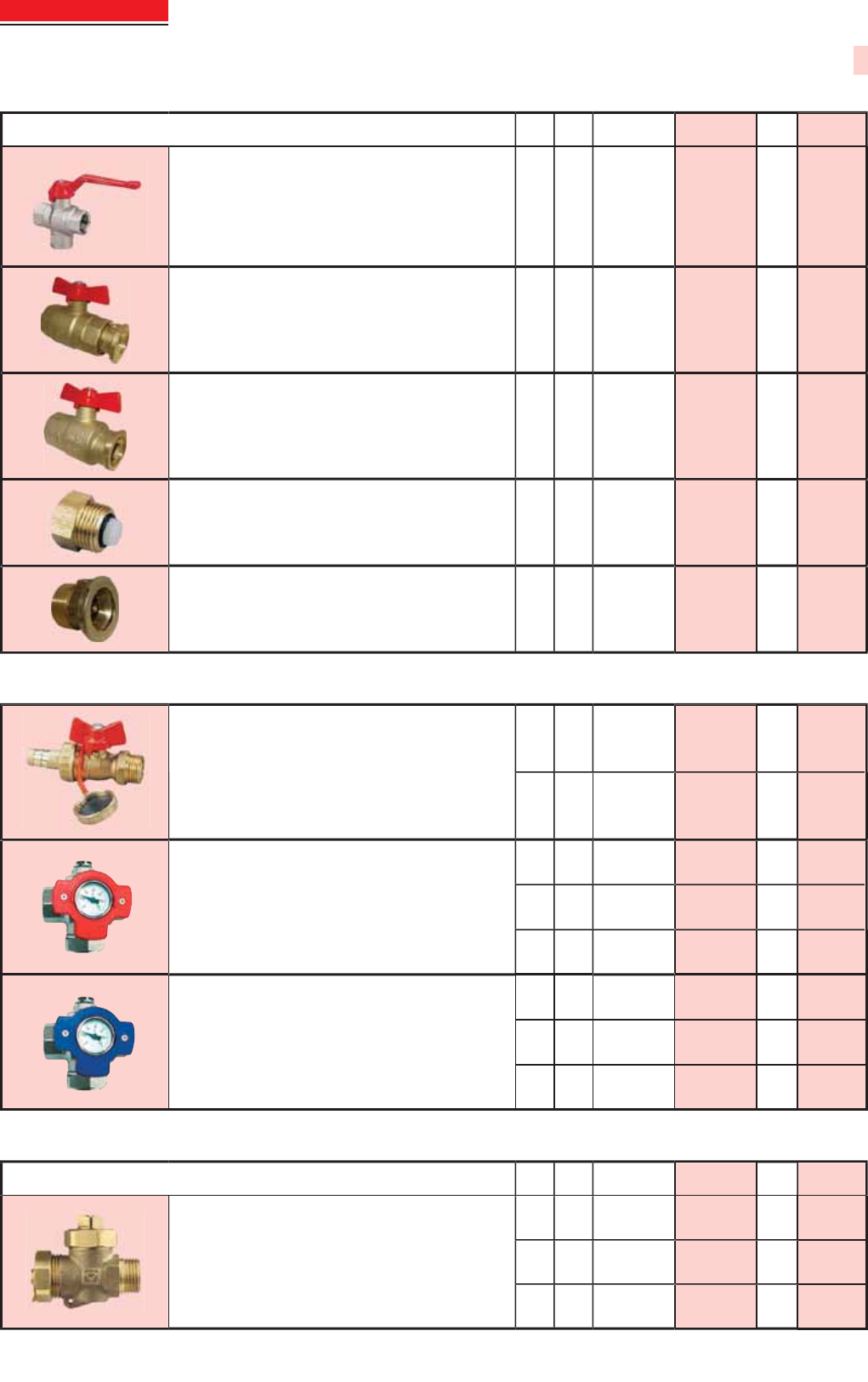

Ball Valves
HERZ-Ball Valves
Model PN Dim. EAN
383 000282 Order
number Item
Three-way Ball Valve
Forged brass body according to DIN 17660,
nickel plated, PTFE seals.
Temperatures of Medium from -30 °C to 150 °C
(water at 0 °C to 110 °C).
40 15 7049 1 2412 01 50
Ball valve for pump with check valve
Body made of forged brass, nickel plated,
Ball with PTFE seat.
Check valve EPDM seal.
Temperature range 0 °C to +110 °C.
16 25 7209 1 2268 03 32
Ball valve for pump
Body made of forged brass, nickel plated,
Ball with PTFE seat.
Temperature range 0 °C to +110 °C. 16 25 7216 1 2269 03 32
Check Valve
Brass body, with O-ring, PN 10, G 1/2.
Temperature range is from 0 °C to +100 °C.
Rp 1/2 - Rp 3/8.
10 15 7612 1 2621 01 25
Check valve and pump connection
Body of forged brass, nickel plated,
EPDM gaskets, PN 25, DN 20,
Temperature range is from 0 °C to +90 °C.
25 25 7636 1 2634 03 25
HERZ-Boiler fi ll and drain valves
Ball valve with hose union 1/2 WRAS Approved
Body made of forged brass according to DIN 17660,
PTFE seals. Temperatures of Medium
from -30 °C to 150 °C (water at 0 °C to 110 °C).
12.5 15 7155 1 2512 01 50
12.5 20 7162 1 2512 02 20
HERZ-Multifunction Ball Valve with red “T’’
Handle and Thermometer 0–120 °C
Three-Way-Ball Valve, made of DZR forged brass
acc. DIN 17660, nickel plated, 2 x socket, 1 x male
thread 5/4 fl at seal, end connection 1/2 for drain cock
or manometer. T port of ball with full bore allows the
draining or fi lling of full systems or part of the systems.
25 20 9463 1 2414 02 20
25 25 9500 1 2414 03 10
25 32 9487 1 2414 04 10
HERZ-Multifunction Ball Valve with blue “T’’
Handle and Thermometer 0–120 °C
Three-Way-Ball Valve, made of DZR forged brass
acc. DIN 17660, nickel plated, 2 x socket, 1 x male
thread 5/4 fl at seal, end connection 1/2 for drain cock
or manometer. T port of ball with full bore allows the
draining or fi lling of full systems or part of the systems.
25 20 9470 1 2415 02 20
25 25 9517 1 2415 03 10
25 32 9494 1 2415 04 10
THERMOFLEX
Model PN Dim. EAN
900417 4 Order
number Item
THERMOFLEX,
HERZ-Boiler Filling and Draining Cock
Brass version. Sturdy model, smooth running by
means of cup spring and friction disk with O-Ring
seal. Pipe connection with external thread, hose
connection with cap and chain.
Hose connection have to be ordered separately.
10 10 41030 7 1 4119 00 20
10 15 41040 6 1 4119 01 20
10 20 41050 5 1 4119 02 20
Product
group 6
Product
group 1
75

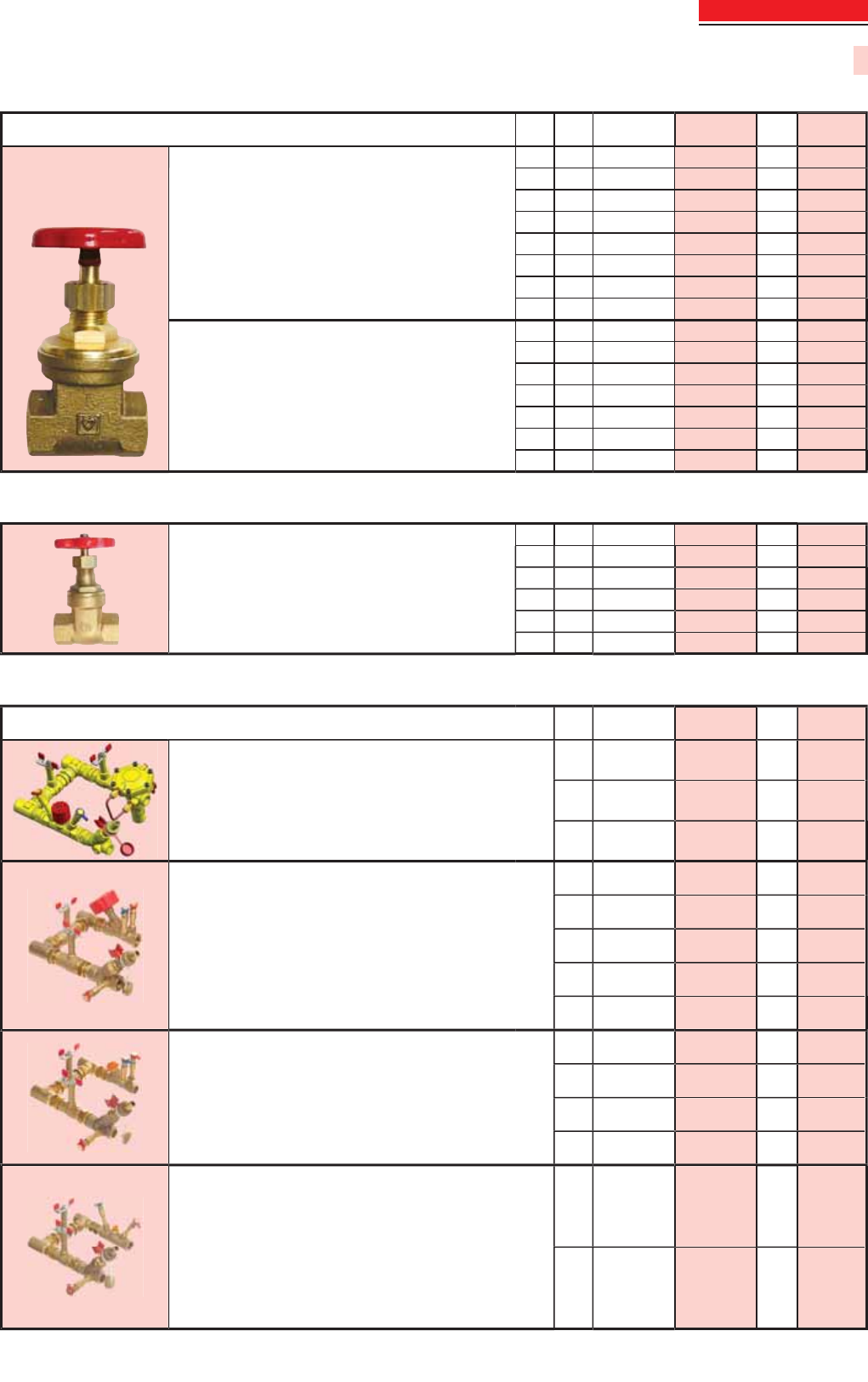

Gate Valves
HERZ-Gate Valves
Model DN Dim. EAN
90 04174
Order
number Item
4112 Gate valve
Bronze construction, Threaded ISO 7-1 Rp
Graphite Gasket.
15 1/2 40260 9 1 4112 01 10
20 3/4 40270 8 1 4112 02 10
25 1 40280 7 1 4112 03 10
32 1¼ 40290 6 1 4112 04 5
40 1½ 40300 2 1 4112 05 5
50 2 40310 1 1 4112 06 5
65 2½ 40320 0 1 4112 07 1
80 3 40330 9 1 4112 08 1
Gate valve with 2 blank plugs
Bronze construction, Threaded Acc ISO 7-1 Rp
Graphite Gasket
DN 15–DN 50: 2 holes 1/4, 1 plug 1 0272 09
screwed in.
DN 65–DN 80: 2 holes 3/8, 1 plug 1 0272 00
screwed in
Drain valve 270, 275 are to be ordered separately.
20 3/4 40340 8 1 4112 12 10
25 1 40350 7 1 4112 13 10
32 1¼ 40360 6 1 4112 14 5
40 1½ 40370 5 1 4112 15 5
50 2 40380 4 1 4112 16 5
65 2½ 40390 3 1 4112 17 1
80 3 40400 9 1 4112 18 1
Gate Valve with non-rising spindle
HERZ-Gate Valve with non-rising spindle
“BS” version
Dezincifi cation resistant brass version,
socket x socket, threaded Rp acc. ISO 7-1.
Medium temp. range +5 ... +120 °C, PN 20 at 20 °C,
for all nonagressive fl uids such as water,
steam or hydraulic oil.
15 1/2 40410 8 1 4113 01 10
20 3/4 40420 7 1 4113 02 10
25 1 40430 6 1 4113 03 10
32 1¼ 40440 5 1 4113 04 5
40 1½ 40450 4 1 4113 05 5
50 2 40460 3 1 4113 06 5
HERZ-Connect 4
Model Dim. EAN Order
number Item
HERZ-Pressure Independant Connect-4 PN16
Fan Coil dynamic balancing connection.
A pre-fabricated module providing pressure independent
control, fl ushing and isolation for terminal units.
Utilizing 4006 SMART PIBCV for dynamic balancing & control.
All components are DZR - same components as above.
Actuators to be ordered separately
15 –1 4500 41 1
20 –1 4500 42 1
25 –1 4500 43 1
HERZ-Connect-4 PN 16
Fan coil commissioning connection
A pre-fabricated module providing fl ow measurement,
fl ushing and isolation for terminal units
HERZ-Connect-4 is suitable for HTG & CHW applications
All components are DZR - The module includes:
Fig 4017 FODRV commissioning valve
Fig 4111 Strainer
Fig 2512 Blow down valve
Fig 2190 EXT Ball Valve
15 LF
–1 4500 11 1
15 MF
–1 4500 21 1
15 –1 4500 01 1
20 –1 4500 02 1
25 –1 4500 03 1
HERZ-Motorised Connect-4 PN 16
Fan coil commissioning connection motorised
A pre-fabricated module providing fl ow measurement,
fl ushing and isolation for terminal units
HERZ Connect-4 is suitable for HTG & CHW applications
All components are DZR - same components as above
Fig 7217 FODRV Motorised valve
Actuators to be ordered separately
15 LF
–1 4500 50 1
15 MF
–1 4500 50 1
15 –1 4500 51 1
20 –1 4500 52 1
HERZ-Radiant Panel Connect-4 PN 16
Radiant Panel commissioning connection
A pre-fabricated module providing fl ow measurement,
fl ushing and isolation for Radiant Panels
Controlled by remote adjustment or actuated
All components are DZR - same components as above
Fig 7217 Thermostatic Regulating valve
4500-67 fi tted with TS-98-V thermostatic insert
4500-66 fi tted with TS-90-V thermostatic insert
Actuators or remote adjusters to be ordered separately
15 –1 4500 66 1
15 –1 4500 67 1
Product
group 1
76
HERZ-Gate Valves
Model DN Dim. EAN
90 04174 Order
number Item
HERZ Gate Valve PN 16
Bronze construction
Cast Iron Handwheel
Taper threads to BS 21
Maximum Pressure 16 bar @ 100 °C
Maximum Temperature 170 °C @ 7 bar
15 1/2 –HV5516-01 1
20 3/4 –HV5516-02 1
25 1 –HV5516-03 1
32 1¼ –HV5516-04 1
40 1½ –HV5516-05 1
50 2 –HV5516-06 1
HERZ Gate Valve PN 20
WRAS Approved
Bronze construction
Cast Iron Handwheel
Taper threads to BS 21
Maximum Pressure 20 bar @ 100 °C
Maximum Temperature 180 °C @ 9 bar
15 1/2 –HV5520-01 1
20 3/4 –HV5520-02 1
25 1 –HV5520-03 1
32 1¼ –HV5520-04 1
40 1½ –HV5520-05 1
50 2 –HV5520-06 1
HERZ Lockshield Gate Valve PN 20
WRAS Approved
Bronze construction
Taper threads to BS 21
Maximum Pressure 20 bar @ 100 °C
Maximum Temperature 180 °C @ 9 bar
15 1/2 –
HV5520LS-01
1
20 3/4 –
HV5520LS-02
1
25 1 –
HV5520LS-03
1
32 1¼ –
HV5520LS-04
1
40 1½ –
HV5520LS-05
1
50 2 –
HV5520LS-06
1
HERZ Compression Gate Valve PN 16
WRAS Approved
Brass construction
Cast Iron Handwheel
Compression ends to BS 864/2
Maximum Pressure 16 bar @ 30 °C
Maximum Temperature 120 °C @ 5 bar
15 1/2 –
HV5154CXC-01
1
22 3/4 –
HV5154CXC-02
1
28 1 –
HV5154CXC-03
1
35 1¼ –
HV5154CXC-04
1
42 1½ –
HV5154CXC-05
1
54 2 –
HV5154CXC-06
1
HERZ Compression Lockshield Gate Valve PN 16
WRAS Approved
Brass construction
Compression ends to BS 864/2
Maximum Pressure 16 bar @ 100 °C
Maximum Temperature 170 °C @ 7 bar
15 1/2 –
HV5154CXCLS-01
1
22 3/4 –
HV5154CXCLS-02
1
28 1 –
HV5154CXCLS-03
1
HERZ-Gate Valve flanged version*
Cast iron construction, acc. EN-GJL 250, flanged and
drilled BS EN 1092-2 PN 16.
Bolted bonnet non rising stem, face to face
dimensions comply to BS5150 PN 16.
In accordance with BS EN 1171
Temperature range -10 to 120 °C
Maximum pressure 16 bar,
for all non aggressive fluids such as water and oil
products.
*) only in UK
50 –HV5150-06 1
65 –HV5150-07 1
80 –HV5150-08 1
100 –HV5150-09 1
125 –HV5150-10 1
150 –HV5150-11 1
200 –HV5150-12 1
250 –HV5150-13 1
300 –HV5150-14 1
Gate Valves
Product
group 1
77
Heating, Climate Control
HERZ-Regulating valve
Model l/h DN Dim. EAN
90 04174 Order
number Item
Flow rate controller
Pressure Independent. Compact design,
dezincifi cation resistant brass body, external
thread connection DN 15 and DN 20 with cone,
DN 25 up to DN 50 with fl at seal.
Two test points for measuring the differential
pressure. Compression adapters and press
connections have to be ordered separately.
40-
400 15 G 3/4 45200 0 1 4001 21 1
80-
900 20 G 1 45210 9 1 4001 22 1
100 -
1500 25 5/4 45220 8 1 4001 23 1
200-
2500 32 1½ 45230 7 1 4001 24 1
400-
4000 40 1¾ 45240 6 1 4001 25 1
500-
5000 50 2 ⁄ 45250 5 1 4001 26 1
HERZ-Combination valve
Pressure Independent Balancing Control valve
Compact design, dezincifi cation resistant brass
body, external thread connection DN 15
and DN 20 with cone, DN 25 up to DN 50
with fl at seal. Two test points for measuring
the differential pressure. Combined fl ow
rate controller and control valve, pressure
independent. Actuator mounting threaded
connection M 28 x 1.5 with operating range
4.0 mm. Compression adapters and press
connections have to be ordered separately.
The actuating drive is not included.
40-
400 15 G 3/4 45700 5 1 4006 11 1
80-
900 20 G 1 45710 4 1 4006 12 1
100-
1500 25 5/4 45720 3 1 4006 13 1
200-
2500 32 1½ 45730 2 1 4006 14 1
400-
4000 40 1¾ 45740 1 1 4006 15 1
500-
5000 50 2 ⁄ 45750 0 1 4006 16 1
HERZ-SMART Pressure Independent
Balancing Control Valve
Compact design, dezincifi cation resistant brass
body, external thread connection and with cone,
Combined fl ow rate controller and control valve,
pressure independent. Actuator mounting
threaded connection M 28 x 1.5 with operating
range 4.0 mm. Compression adapters and
press connections have to be ordered
separately. The actuating drive is not included.
20-
100 15
LF G 3/4 45880 4 1 4006 60 1
80-
400 15 G 3/4 45890 3 1 4006 61 1
200-
800 20 G 1 45900 9 1 4006 62 1
40-
200 15
MF G 3/4 45910 8 1 4006 69 1
HERZ-Differential Pressure Overfl ow Valves
HERZ-Differential Pressure Overfl ow Valve
Straight model
One piece metal valve body, nickel-plated,
for screw connection with fl at seal.
Joint elements have to be ordered separately.
10-
2000 15 43810 3 1 4004 31 1
10-
2000 20 43830 1 1 4004 32 1
HERZ-Differential Pressure Overfl ow Valve
Angle model
One piece metal valve body, nickel-plated,
for screw connection with fl at seal.
Joint elements have to be ordered separately.
10-
2000 15 43820 2 1 4004 41 1
10-
2000 20 43840 1 1 4004 42 1
HERZ-Riser valve assembly for two-pipe radiator systems and decentralized distributed hot water
Model l/h Dim. DN
4007 FWW
EAN
90 04174 Order
number Item
4500 FWW
Prefabricated riser in accordance with the
Guidelines of the FWW, including,
- ball valves
- drain cocks
- Strainer
- Differential pressure regulator
- Test points
The differential pressure is constant over the
Differential pressure regulator set at 23 kPa
Nominal pressure: PN 16
Operating temperature:
max. 130 °C for DN 25 and DN 32
max. 110 °C for DN 40 and DN 50
Medium: heating water in accordance
ÖNORM H5195 or VDI guideline 2035.
The use of ethylene, or
Propylene glycol up to a mixing ratio
of 50% is permitted.
40-
1200 11540670 6 1 4500 13 1
40-
1200 5/4 20 40680 5 1 4500 14 1
300-
4000 6/4 25 40690 4 1 4500 15 1
500-
6000 23240700 0 1 4500 16 1
38
38
Product
group 1
78
Heating, Climate Control

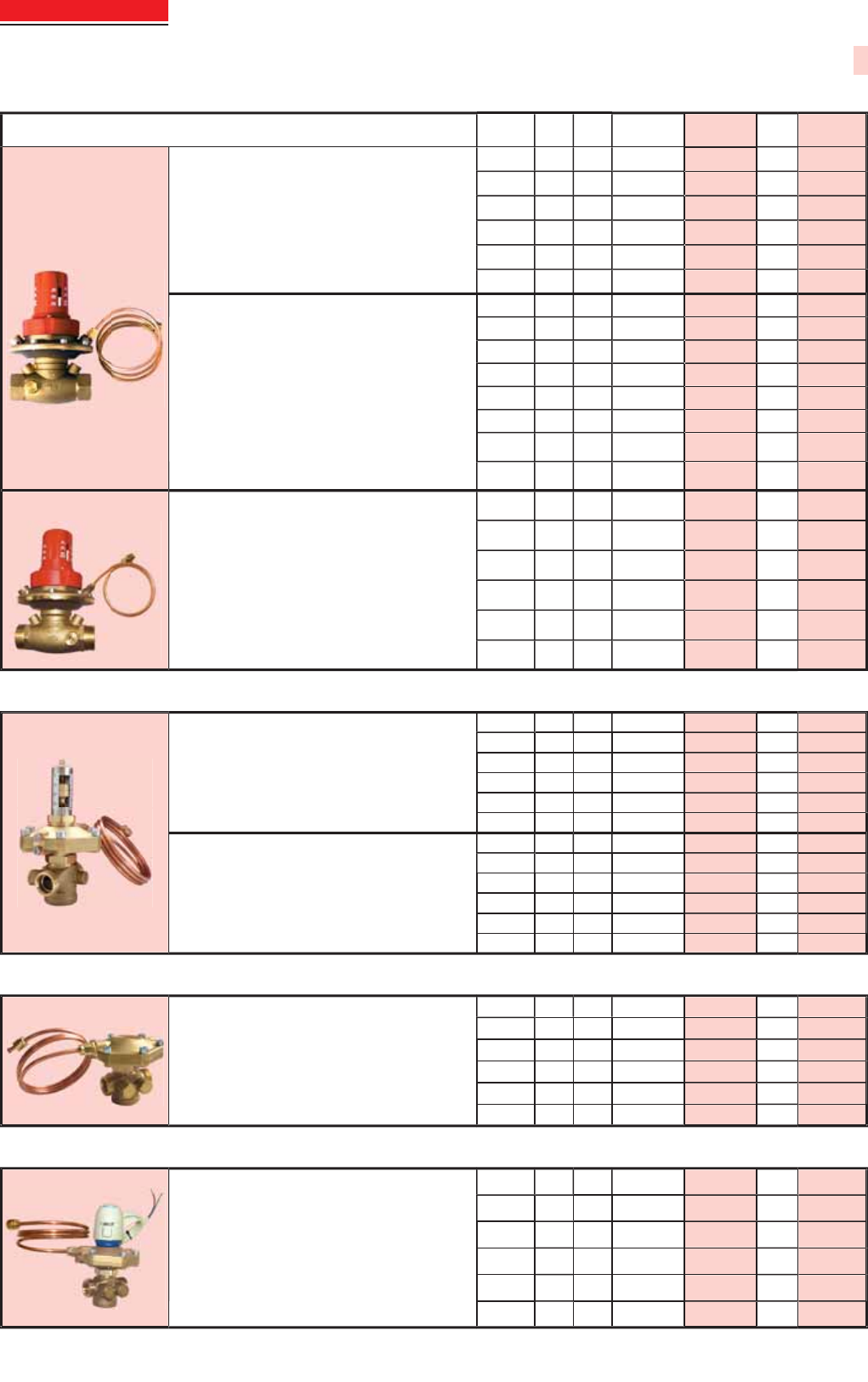

HERZ-Differential Pressure Controller
Model l/h DN Dim. EAN
90 04174 Order
number Item
4007
Differential Pressure Controller with threaded
sockets.
Proportional controller, for two-pipe systems with
thermostatic radiator valves. Differential pressure
50–300 mbar, continuously adjustable. Dezincifi cation
resistant brass body, pipe connection with threaded
pipe connection on both sides, including capillary
1000 mm. 2 bores 1/4, with screw plug 1 0273 00.
Drain valve 276 has to be ordered separately.
50-1200 15 G 1/2 42610 0 1 4007 01 1
60-1200 20 G 3/4 42620 9 1 4007 02 1
150-4000 25 G 1 42630 8 1 4007 03 1
200-4200 32 G 1¼ 42640 7 1 4007 04 1
250-5600 40 G 1½ 42650 6 1 4007 05 1
700-9000 50 G 2 42660 5 1 4007 06 1
4007 differential pressure controller FIX
threaded sleeve FWW
Proportional controller for two-pipe systems
with Thermostatic radiator valves. Differential
pressure 23 kPa fi xed, brass body, Both sides
with threaded pipe connection, including
Pulse line 1000. 2 bores 1/4, with screw plug
1 0273 00. Drain cock 276 is to be ordered
separately.
100-600 15 G 1/2 43210 1 1 4007 51 1
150-780 20 G 3/4 43220 0 1 4007 52 1
200-1500 25 G 1 43230 9 1 4007 53 1
300-2500 32 G 1¼ 43240 8 1 4007 54 1
400-4700 40 G 1½ 43250 7 1 4007 55 1
600-6100 50 G 2 43260 6 1 4007 56 1
-65 G 2 ½44970 3 1 4007 57 1
-80 G 3 44980 2 1 4007 58 1
4207
Differential Pressure Controller with male thread.
Proportional controller, with external thread,
for twopipe systems with thermostatic radiator
valves. Differential pressure 50–300 mbar,
continuously adjustable. Dezincifi cation resistant
brass body, pipe connection with external thread
on both sides, including capillary 1000 mm.
2 bores 1/4, closed with screw plug 1 0273 00.
Drain valve, 276 has to be ordered separately.
Soldering and welding connections and
threaded bushes are to be ordered separately.
50-1200 15 G 3/4 43900 1 1 4207 01 1
60-1200 20 G 1 43910 0 1 4207 02 1
150-4000 25 G 1¼ 43920 9 1 4207 03 1
200-4200 32 G 1½ 43930 8 1 4207 04 1
250-5600 40 G 1¾ 43940 7 1 4207 05 1
700-9000 50 G 2 ⁄ 43950 6 1 4207 06 1
HERZ-DPCV
Differential pressure controller - 30 KPa
Regulating range 5 to 30 Kpa, compact
design, dezincifi cation resistant brass body,
external thread connection DN 15 and
DN 20 with cone, DN 25 up to DN 50 with
fl at seal. Compression adapters and press
connections have to be ordered separately.
50-1300
15 G 3/4 45400 4 1 4002 41 1
100-1600
20 G 1 45410 3 1 4002 42 1
150-2000
25 G 5/4 45420 2 1 4002 43 1
200-5000
32 G 1½ 45430 1 1 4002 44 1
400-8000
40 G 1¾ 45440 0 1 4002 45 1
400-9000
50 G 2 ⁄ 45450 9 1 4002 46 1
Differential pressure controller - 60 KPa
Regulating range 25 to 60 Kpa, compact
design, dezincifi cation resistant brass body,
external thread connection DN 15 and
DN 20 with cone, DN 25 up to DN 50 with
fl at seal. Compression adapters and press
connections have to be ordered separately.
50-1300
15 G 3/4 45500 1 1 4002 61 1
100-1600
20 G 1 45510 0 1 4002 62 1
150-2200
25 G 5/4 45520 9 1 4002 63 1
200-7500
32 G 1½ 45530 8 1 4002 64 1
500-9000
40 G 1¾ 45540 7 1 4002 65 1
500-10000
50 G 2 ⁄ 45550 6 1 4002 66 1
HERZ-DPCV 4002 FIX
Differential pressure controller 4002 FIX
Differential pressure 23 Kpa fi xed, without pre
adjustment. Compact design, dezincifi cation
resistant brass body, external thread connection
DN 15 and DN 20 with cone, DN 25 up to
DN 50 with fl at seal. Compression adapters
and press connections have to be ordered
separately.
50-900
15 G 3/4 45300 7 1 4002 21 1
100-1200
20 G 1 45310 6 1 4002 22 1
150-1800
25 G 5/4 45320 5 1 4002 23 1
200-4000
32 G 1½ 45330 4 1 4002 24 1
400-6500
40 G 1¾ 45340 3 1 4002 25 1
400-7000
50 G 2 ⁄ 45350 2 1 4002 26 1
HERZ-DPCV 4002 FIX TS
Differential pressure controller 4002 FIX TS
Differential pressure 23 Kpa fi xed, without pre
adjustment. Compact design, dezincifi cation
resistant brass body, external thread
connection DN 15 and DN 20 with cone,
DN 25 up to DN 50 with fl at seal. With
integrated regulation valve for 2-point control.
Thermo-electric drive, compression adapters
and press connections have to be ordered
separately.
50-900
15 G 3/4 45600 8 1 4002 81 1
100-1200
20 G 1 45610 7 1 4002 82 1
150-1800
25 G 5/4 45620 6 1 4002 83 1
200-4000
32 G 1½ 45630 5 1 4002 84 1
400-6500
40 G 1¾ 45640 4 1 4002 85 1
400-7000
50 G 2 ⁄ 45650 3 1 4002 86 1
38
38
38
38
38
Product
group 1
79
Heating, Climate Control

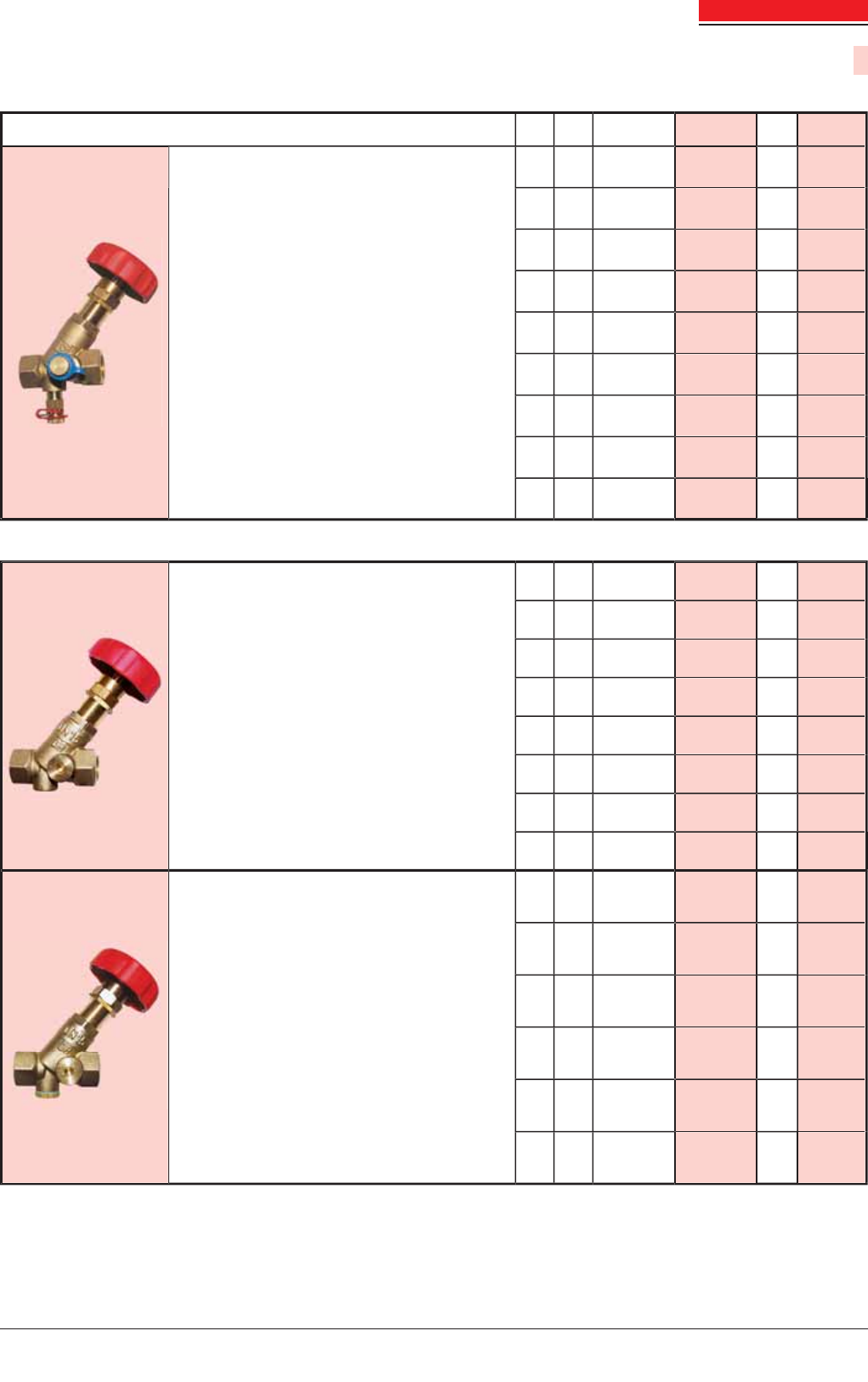

STRÖMAX-M, Double Regulating Valves, Variable Orifi ce DRV, Inclined Model
Model kvs DN EAN
90 04174 Order
number Item
4117 M
STRÖMAX-M
STRÖMAX-M, Double Regulating Valves,
inclined model with test points
Dezincifi cation Brass version, O Ring, spindle seal.
Memory stop by means of an external nut, threaded
end connections BSP.
DN 15 - DN 20: 2 bores 1/4 with test points, 1 bore 1/4
closed with screw plug 1 0273 09.
DN 25 - DN 50: 2 bores 1/4 with test points, 2 bores
1/4 closed with screw plugs
1 0273 09.
DN 65 - DN 80: 2 bores 3/8 with test points, 2 bores
3/8 closed with screw plugs
1 0273 00. Handwheel position
1 6517 05 is included. Drain valve 276
has to be ordered separately.
Compression adapter:
DN 15: Universal models with special sockets for
threaded pipes and compression adapters.
DN 20: Adapter 1 6266 20 and compression adapter
G 3/4. Adapter and compression adapters
have to be ordered separately.
* LF Minimum kv 0.12
4.75* 15
LF 44580 4 1 4117 39 10
4.75 15 40810 6 1 4117 51 10
6.12 20 40820 5 1 4117 52 10
10.4 25 40830 4 1 4117 53 10
15.97 32 40840 3 1 4117 54 5
23.5 40 40850 2 1 4117 55 5
47.89 50 40860 1 1 4117 56 5
84.2 65 40870 0 1 4117 57 1
133.2 80 40800 9 1 4117 58 1
HERZ-DRV, Inclined Model
4117 R
STRÖMAX-R
STRÖMAX-R, Double Regulating Valves,
inclined model
Dezincifi cation Brass version, O Ring, spindle seal
Memory stop by means of an external nut, threaded
end connections BSP. Handwheel position marker
1 6517 05 is included. Drain valve 276 has to be
ordered separately.
Compression adapter:
DN 15: Universal models with special sockets for
threaded pipes and compression adapters.
DN 20: Adapter 1 6266 20 and compression adapter
G 3/4. Adapter and compression adapters
have to be ordered separately.
Commissioning set 4117CS when close coupled
to Herz 4000 metering station
4.75 15 40890 8 1 4117 61 10
6.12 20 40900 4 1 4117 62 10
10.4 25 40910 3 1 4117 63 10
15.97 32 40920 2 1 4117 64 5
23.5 40 40930 1 1 4117 65 5
47.89 50 41180 9 1 4117 66 5
84.2 65 40940 0 1 4117 67 1
133.2 80 40950 9 1 4117 68 1
4117
STRÖMAX
STRÖMAX-MR, balancing valve,
Inclined Model
Dezincifi cation Brass version,
O Ring, spindle seal. Memory stop by means of an
external nut, threaded end connections BSP.
DN 15–DN 50: 2 bores 1/4 closed with screw plugs
1 0273 09.
1 bore 1/4 closed with screw plugs
273.
Handwheel position marker 1 6517 05 is included.
Drain valve 276 has to be ordered separately.
Compression adapter:
DN 15: Universal models with special sockets for
threaded pipes and compression adapters.
DN 20: Adapter 1 6266 20 and compression adapter
G 3/4.
Adapter and compression adapters have to be
ordered separately.
4.75 15 44330 5 1 4117 21 10
6.12 20 44340 4 1 4117 22 10
10.4 25 44350 3 1 4117 23 10
15.97 32 44360 2 1 4117 24 5
23.5 40 44370 1 1 4117 25 5
47.89 50 44380 0 1 4117 26 5
Product
group 1
80
HERZ-Fixed Orifi ce DRV
Model kvs DN EAN
90 04174 Order
number Item
HERZ-Fixed Orifi ce Double Regulating Valve
Dezinfi cation resistant brass body, Handwheel
operated, numerical indicator, inside screw non rising
handwheel, Memory stop inner spindle, integral fi xed
orifi ce, supplied with two test points. Extended test
points available 0284-11 blue, 0284-12 red
End connections threaded according to ISO 7/1.
2.00 15 45020 4 1 4017 01 10
0.52
15 LF
45000 6 1 4017 11 10
0.95
15 MF
45010 5 1 4017 21 10
3.60 20 45030 3 1 4017 02 10
6.50 25 45040 2 1 4017 03 10
13.30 32 45050 1 1 4017 04 5
18.50 40 45060 0 1 4017 05 5
33.00 50 45070 9 1 4017 06 5
HERZ-Double Regulating Valve
Model Dim. EAN
90 04174 Order
number Item
4017 R
HERZ-Fixed Orifi ce Double Regulating Valve
Dezinfi cation resistant brass body, Handwheel
operated, numerical indicator, inside screw non rising
handwheel, Memory stop inner spindle, drain cock
1 0276 09 have to be ordered separately.
DN 15: Adapter 1 6266 01 and compression adapter
G 3/4..
DN 20: Adapter 1 6266 20 and compression adapter
G 3/4.
Adapter and compression adapters have to be
ordered separately.
15 46270 2 1 4017 61 10
20 46280 1 1 4017 62 10
25 46290 0 1 4017 63 10
32 46300 6 1 4017 64 10
40 46310 5 1 4017 65 5
50 46320 4 1 4017 66 5
HERZ-AS-T-90 Regulating Valve with Test points
Regulating Valve AS-T-90, Straight model
with test points, Rp (female thread)
Dezincifi cation resistant brass body with AS-T-90
thermostatic upper part, adjustment for hydraulic
balance of cooling ceiling systems, radiant panels
and fan coils. Fitted with two test points 1 0284.
Presetting key (1 6800 00)) is to be ordered
separately. Pipe connecting both sides with female
thread 1/2 for press fi tting connection.
15 76540 7 1 7217 36 10
Regulating Valve AS-T-90, Straight model
with test points, G 3/4 male thread
Dezincifi cation resistant brass body with AS-T-90
thermostatic upper part, adjustment for hydraulic
balance of cooling ceiling systems, radiant panels
and fan coils. Fitted with two test points 1 0284.
Presetting key (1 6800 00) is to be ordered separately.
Pipe connecting both sides with male thread G 3/4
for press fi tting connection
15 76550 6 1 7217 66 10
* Heating, Cooling
4017 M
Regulating Valves
Product
group 1
81
HERZ-Regulating Valve for Manual Adjustment and Cooling Ceiling Systems, STRÖMAX-MS
Model kvs DN EAN
90 04174 Order
number Item
Regulating Valve for manual adjustment
STRÖMAX-MS Screw-down model with test points,
G (male thread)
Dezincifi cation resistant brass body, model for
hydraulic balancing of cooling ceiling systems
and fan coils. Two test points 1 0284 mounted next
to hand wheel, presetting by limitation of valve lift,
pipe connection on both sides with external thread
and fl at seal.
3.4 15 43770 0 1 4216 21 10
3.4 20 43780 9 1 4216 22 10
Regulating Valve for manual adjustment
STRÖMAX-MS Screw-down model
with test points, Rp (female thread)
Dezincifi cation resistant brass body, model for
hydraulic balancing of cooling ceiling systems and
fan coils. Two test points 1 0284 mounted next to
hand wheel, presetting by limitation of valve lift, pipe
connection on both sides with female thread
3.4 15 43750 2 1 4216 31 10
3.4 20 43760 1 1 4216 32 10
Regulating Valve for solar
STRÖMAX-4216 with soldering connection.
Maximum working temperature 200 °C.
For DN 15 the soldering connection is 15 mm.
For DN 20 the soldering connection is 22 mm.
3.4 15 45080 8 1 4216 11 10
3.4 20 45090 7 1 4216 12 10
HERZ-Regulating Valves
Regulating Valve for manual adjustment
STRÖMAX-MS Screw-down model with
compression union connections
Dezincifi cation resistant brass body, model for
hydraulic balancing of cooling ceiling systems and
fan coils. Two test points 1 0284 mounted next to
hand wheel, presetting by limitation of valve lift, pipe
connection on both sides with external thread and fl at
seal. Compression adapter for 15 mm copper pipe.
3.4 15 76560 5 1 4216 23 10
Regulating Valve for manual adjustment
STRÖMAX-MS Screw-down model with
compression union connections
Dezincifi cation resistant brass body, model for
hydraulic balancing of cooling ceiling systems and
fan coils. Two test points 1 0284 mounted next to
hand wheel, presetting by limitation of valve lift, pipe
connection on both sides with external thread and fl at
seal. Compression adapter for 22 mm copper pipe.
3.4 20 34772 6 1 4216 24 10
HERZ-Circuit Regulating Valves for Differential Pressure Measurement, Screw-down Model
4217 GM-BS
STRÖMAX
STRÖMAX-GM, VO Double Regulating Valve
Screw-down model with test points.
Dezincifi cation resistant brass body, Handwheel
operated, Inner spindle memory stop, numerical
indicator, inside screw non rising handwheel, End
connections threaded BSP. Two test points
1 0284 are fi tted.
DN 15: Adapter 1 6266 01 and compression adapter
G 3/4.
DN 20: Adapter 1 6266 20 and compression adapter
G 3/4.
Adapter and compression adapters have to be
ordered separately.
1.00 15 LF 45800 2 1 4217 30 10
3.67 15 45810 1 1 4217 31 10
6.80 20 42820 0 1 4217 32 10
10.00 25 45830 9 1 4217 33 10
20.67 32 45840 8 1 4217 34 5
28.09 40 45850 7 1 4217 35 5
41.38 50 45860 6 1 4217 36 5
Regulating Valves
Product
group 1
82
Regulating Valves
HERZ-Circuit Regulating Valves for Differential Pressure Measurement, Screw-down Model
Model DN kvs EAN
90 04174 Order
number Item
4217 GM
STRÖMAX-GM
STRÖMAX-GM, VO Double Regulating Valve
Screw-down model with test points.
Dezincifi cation resistant brass body, Handwheel
operated, Inner spindle memory stop, numerical
indicator, inside screw non rising handwheel, End
connections threaded BSP. Two test points
1 0284 are fi tted.
DN 15 - DN 50: 2 bores 1/4, with screw plugs
1 0273 09.
DN 65 - DN 80: 2 bores 3/8, with screw plug
1 0273 00. Presetting seal 1 6517 04
and presetting marker 1 6517 05 are
included.
Drain valves 271, 276 have to be ordered separately.
Compression adapter:
DN 15: Adapter 1 6266 01 and compression adapter
G 3/4.
DN 20: Adapter 1 6266 20 and compression adapter
G 3/4.
Adapter and compression adapters have to be
ordered separately.
15 6 41640 8 1 4217 01 10
20 6.88 41650 7 1 4217 02 10
25 13.23 41660 6
1 4217 03
10
32 18.91 41670 5 1 4217 04 5
40 27.56 41680 4 1 4217 05 5
50 40.98 41690 3 1 4217 06 5
65 51.2 41700 9 1 4217 07 1
80 70.5 41710 8 1 4217 08 1
HERZ-Circuit Regulating Valves Screw-down Model
4217 GR
STRÖMAX-GR
STRÖMAX-GR, Double Regulating Valve
Screw-down model
Dezincifi cation resistant brass body, Handwheel
operated, Inner spindle memory stop, numerical
indicator, inside screw non rising handwheel, End
connections threaded BSP.
DN 15 - DN 50: 2 bores 1/4, with screw plugs
1 0273 09.
DN 65 - DN 80: 2 bores 3/8, with screw plug 1 0273 00.
Presetting seal 1 6517 04 and presetting marker
1 6517 05 are included.
Drain valve 276 has to be ordered separately.
Compression adapter:
DN 15: Adapter 1 6266 01 and compression adapter
G 3/4.
DN 20: Adapter 1 6266 20 and compression adapter
G 3/4.
Adapter and compression adapters have to be
ordered separately.
15 6 41790 0 1 4217 61 10
20 6.88 41800 6 1 4217 62 10
25 13.23 41810 5 1 4217 63 10
32 18.91 41820 4 1 4217 64 5
40 27.56 41830 3 1 4217 65 5
50 40.98 41840 2 1 4217 66 5
65 51.2 41850 1 1 4217 67 1
80 70.5 41860 0 1 4217 68 1
HERZ-Circuit Regulating Valves for Differential Pressure Measurement, Screw-down Model with male thread
4417 GM
STRÖMAX-GM
STRÖMAX-GM, VO Double Regulating Valve.
Screw-down model with test points,
pipe connection with external threads.
Dezincifi cation resistant brass body, Handwheel
operated, Inner spindle memory stop, numerical
indicator, inside screw non rising handwheel,
End connections threaded BSP. Two test points
1 0284 are fi tted.
2 bores 1/4, with screw plug 1 0273 09.
Presetting seal 1 6517 04 and presetting marker
1 6517 05 are included. Drain valve 276 has to be
ordered separately. Soldering and welding
connections and threaded bushes have to be ordered
separately.
15 6 43840 0 1 4417 11 5
20 6.88 43850 9 1 4417 12 5
25 13.23 43860 8
1 4417 13
3
32 18.91 43870 7 1 4417 14 3
40 27.56 43880 6 1 4417 15 2
50 40.98 43890 5 1 4417 16 1
Product
group 1
83
Shut off Valves
HERZ-Shutoff Valves, Screw-down Model
Model DN kvs EAN
90 04174 Order
number Item
4215 G
STRÖMAX-G
STRÖMAX-G, Shutoff Valve
Screw-down model with end connections
threaded BSP. Dezincifi cation resistant brass version,
non-rising spindle, spindle seal by means of a double
O-Ring. Dimensions as STRÖMAX-GM/GR.
Compression adapter:
DN 15: Adapter 1 6266 01 and compression adapter
G 3/4.
DN 20: Adapter 1 6266 20 and compression adapter
G 3/4.
Adapter and compression adapters have to be
ordered separately.
15 6.56 41870 9 1 4215 01 10
20 6.56 41880 8 1 4215 02 10
25 12 41890 7 1 4215 03 10
32 21.1 41900 3 1 4215 04 5
40 28.8 41910 6 1 4215 05 5
50 40 41920 1 1 4215 06 5
65 53.4 41930 0 1 4215 07 1
80 77.3 41940 9 1 4215 08 1
4215 AG
STRÖMAX-AG
STRÖMAX-AG, Shutoff Valve with draining
Screw-down model with long threaded sockets.
Same as STRÖMAX-G however with 2 bores and
screw plug.
DN 15 - DN 50: 2 bores 1/4, with screw plug
1 0273 09.
DN 65 - DN 80: 2 bores 3/8, with screw plug
1 0273 00.
Drain valves 271, 276 have to be ordered separately.
Compression adapter:
DN 15: Adapter 1 6266 01 and compression adapter
G 3/4.
DN 20: Adapter 1 6266 20 and compression adapter
G 3/4.
Adapter and compression adapters have to be
ordered separately.
15 6.56 41950 8 1 4215 11 10
20 6.56 41960 7 1 4215 12 10
25 12 41970 6 1 4215 13 10
32 21.1 41980 5 1 4215 14 5
40 28.8 41990 4 1 4215 15 5
50 40 42000 9 1 4215 16 5
65 53.4 42010 8 1 4215 17 1
80 77.3 42020 7 1 4215 18 1
HERZ-Shutoff Valves, Screw-down Model with male thread
4415 G
STRÖMAX-G
STRÖMAX-G-Shutoff Valve
Screw-down model with male thread
Dezincifi cation resistant brass version, two external
threads with fl at seal, non-rising spindle, spindle seal
by means of a double O-Ring.
Dimensions same as 4417 and 4207.
A permanently elastic soft seal is used as a seat seal.
Pipe connections by soldering connections 6236 and
welding connections 6240 or threaded bushes 6210.
Connections have to be ordered separately.
15 6.56 44020 5 1 4415 01 5
20 6.56 44030 4 1 4415 02 5
25 12 44040 3 1 4415 03 3
32 21.1 44050 2 1 4415 04 3
40 28.8 44060 1 1 4415 05 2
50 40 44070 0 1 4415 06 1
4415 AG
STRÖMAX-AG
STRÖMAX-AG-Shutoff Valve
Screw-down model with male thread
Dezincifi cation resistant brass version, two external
threads with fl at seal, non-rising spindle, spindle seal
by means of a double O-Ring.
Dimensions same as 4417 and 4207.
A permanently elastic soft seal is used as a seat seal.
With 2 bores 1/4 for drain fi ttings, two screw plug
1 0273 09.
Drain valve 276 has to be ordered separately.
Connections have to be ordered separately.
15 6.56 44080 9 1 4415 11 5
20 6.56 44090 8 1 4415 12 5
25 12 44100 4 1 4415 13 3
32 21.1 44110 3 1 4415 14 3
40 28.8 44120 2 1 4415 15 2
50 40 44130 1 1 4415 16 1
Product
group 1
84
Shut off Valves
HERZ- Shutoff Valves “D” Inclined Model with threaded ends
spindle seal by means of a double O-Ring
Model kvs DN EAN
90 04174 Order
number Item
4125 D
STRÖMAX-D
STRÖMAX D-Shutoff Valve, inclined model, with
long threaded ends, new version
Dezincifi cation resistant brass body, end connections
threaded BSP. Non- rising spindle. Spindle seal by
means of fl exible double O-rings.
DN 15: Universal models with special sockets for
threaded pipes and commpression units.
DN 20: Adapter 1 6266 20 and commpression union
G 3/4.
Adapter and commpression unions have to be
ordered separately.
4.8 15 42030 6 1 4125 61 10
11.5 20 42040 5 1 4125 62 10
21.5 25 42050 4 1 4125 63 10
35.0 32 42060 3 1 4125 64 5
48.0 40 42070 2 1 4125 65 5
80.0 50 42080 1 1 4125 66 5
127.0 65 42090 0 1 4125 67 1
183.0 80 42100 6 1 4125 68 1
4125 AD
STRÖMAX-AD
STRÖMAX-AD, Shutoff valve, inclined model, with
long threaded ends and 2 bores, new version.
Same as STRÖMAX-D however with 2 bores and
screw plug.
DN 15- DN 50: 2 bores 1/4, with screw plug 1 0273 09.
DN 65- DN 80: 2 bores 3/8, with screw plug 1 0273 00.
Drain valves 271, 276 have to be ordered separately.
Compression union:
DN 15: Universal models with special sockets for
threaded pipes and compression units.
DN 20: Adapter 1 6266 20 and commpression union
G 3/4. Adapter and commpression union sets
to be ordered separately.
4.8 15 42110 5 1 4125 71 10
11.5 20 42120 4 1 4125 72 10
21.5 25 42130 3 1 4125 73 10
35.0 32 42140 2 1 4125 74 5
48.0 40 42150 1 1 4125 75 5
82.0 50 42160 0 1 4125 76 5
127.0 65 42170 9 1 4125 77 1
183.0 80 42180 8 1 4125 78 1
HERZ-Globe Valves, Inclined Model
4115
STRÖMAX
STRÖMAX-Shutoff Valve, inclined model, spindle
seal by means of gland packing, new version.
Dezincifi cation resistant brass body, end connections
threaded BSP. Upper part sealed in body by means of
O-Ring. Commpression union:
DN 15 - DN 50: Universal models with special sockets
for threaded pipes and commpression
units.
DN 20: Adapter 1 6266 20 and commpression
union G 3/4.
Adapter and commpression unions have to be
ordered separately.
3.0 10 40410 8 1 4115 00 10
4.0 15 40420 7 1 4115 01 10
10.5 20 40430 6 1 4115 02 10
18.0 25 40440 5 1 4115 03 10
32.5 32 40450 4 1 4115 04 5
44.0 40 40460 3 1 4115 05 5
87.0 50 40470 2 1 4115 06 5
112.0 65 40480 1 1 4115 07 1
175.0 80 40490 0 1 4115 08 1
4115 A
STRÖMAX-A
STRÖMAX-A, Shutoff Valve, inclined model,
with spindle seal by means of gland packing and
2 bores, new version. Same as STRÖMAX but
with 2 tap holes and screw plug.
DN 15 - DN 50: 2 bores 1/4, with screw plugs
1 0273 09.
DN 65 - DN 80: 2 bores 3/8, with screw plugs
1 0273 00.
Drain valve 276 has to be ordered separately.
4.0 15 40500 6 1 4115 11 10
10.5 20 40510 5 1 4115 12 10
18.0 25 40520 4 1 4115 13 10
32.5 32 40530 3 1 4115 14 5
44.0 40 40540 2 1 4115 15 5
87.0 50 40550 1 1 4115 16 5
112.0 65 40560 0
1 4115 17
1
175.0 80 40570 9 1 4115 18 1
Product
group 1
85
Shutoff Valves
STRÖMAX D-Shutoff Valve, inclined model, with male thread
spindle seal by means of a double O-Ring
Model kvs DN EAN
90 04174 Order
number Item
4325 D
STRÖMAX-D
STRÖMAX-D-Shutoff valves, inclined model,
pipe connection with male thread.
Brass version, two external threads with fl at seal,
non-rising spindle, spindle seal by means of an elastic
double O-Ring. Upper part sealed in body by means
of O-Ring. Pipe connections by soldering connections
6236 and weldering connections 6240 or threaded
bushes 6220, with 2 union nuts. Soldering and welding
connections as well as threaded bushes have to be
ordered separately.
4.8 15 42930 9 1 4325 61 10
11.5 20 42940 8 1 4325 62 10
21.5 25 42950 7 1 4325 63 10
35.0 32 42960 6 1 4325 64 5
48.0 40 42970 5 1 4325 65 5
82.0 50 42980 4 1 4325 66 5
4325 D
STRÖMAX-D
STRÖMAX-D-Shutoff valves, inclined model,
pipe connection with male thread,
for commpression union.
Brass version, two external threads with cone seal,
non-rising spindle, spindle seal by means of an elastic
double O-Ring. Upper part sealed in body by means
of O-Ring. Commpression union G 3/4. Commpression
unions have to be ordered separately. 4.8 15 43170 8 1 4325 81 10
4325 AD
STRÖMAX-AD
STRÖMAX-AD-Shutoff valves, inclined model, pipe
connection with male thread, with 2 bores.
Identical to STRÖMAX-D, however with 2 bores and
screw plugs with two union nuts.
DN 15- DN 50: 2 bores 1/4, with screw plugs
1 0273 09.
Drain valves 271, 276 have to be ordered separately
separately. Soldering and welding connections as well
as threaded bushes have to be ordered separately.
4.8 15 42990 3 1 4325 71 10
11.5 20 43000 8 1 4325 72 10
21.5 25 43010 7 1 4325 73 10
35.0 32 43020 6 1 4325 74 5
48.0 40 43030 5 1 4325 75 5
82.0 50 43040 4 1 4325 76 5
4325 AD
STRÖMAX-AD
STRÖMAX-AD, Shutoff valve, inclined model,
pipe connection with male thread and 2 bores, for
commpression union,
Identical to STRÖMAX-D, however with 2 bores 1/4
and screw plugs 1 0273 09 mounted. Drain valves
271, 276 have to be ordered separately.
4.8 15 43180 7 1 4325 91 10
HERZ-Shutoff Valve with fi re hose connection
Shutoff Valve with fi re hose connection
HERZ- Shutoff valve for fi re hose connection C
Male thread G2 is lockable. Especially for fi xed type
F (fi re) to DIN 14461-1 and DIN 14461-6, for Rising
mains “wet” and “wet-dry”.Connection of fi re water
hoses withStorz C coupling in aluminum (DIN 14307)
or Ms (DIN 86 204).
90.0 50 76840 8 1 4115 53 10
86
Ball Valves
HERZ Ball Valve DR with lever handle
Model PN Dim. EAN
383 000282 Order
number Item
HERZ-Ball Valve
WRAS Approved
Dezincifi cation resistant brass, full bore, machined
to a microsmooth fi nish,
Female thread acc. ISO 228
Maximum temperature: 150 °C (water 110 °C).
50 15 9531 1 2190 01 25
50 20 9548 1 2190 02 25
50 25 9555 1 2190 03 16
40 32 9562 1 2190 04 16
40 40 9579 1 2190 05 12
40 50 9586 1 2190 06 8
HERZ-Ball Valve with extended spindle
WRAS Approved
Dezincifi cation resistant brass, full bore, machined
to a microsmooth fi nish, female thread acc. ISO 228
Minimum temeprature: -10 °C (short period -50 °C),
water 0.5 °C. Maximum temperature:
130 °C (short period 150 °C), water 110 °C.
25 15 8992 1 2190 21 25
25 20 9005 1 2190 22 25
25 25 9012 1 2190 23 16
25 32 9029 1 2190 24 16
25 40 9036 1 2190 25 12
25 50 9043 1 2190 26 8
HERZ-Ball Valve with Compression connections EURO, DR
HERZ-Ball Valve with compression ends
WRAS Approved
Dezincifi cation resistant brass
Compression fi tting ends to BS 864/2
Maximum pressure: 16 bar (20 °C)
Maximum temperature: 120 °C (5 bar).
16 15 9210 1 2190 41 25
16 20 9227 1 2190 42 25
16 25 9234 1 2190 43 16
16 32 9241 1 2190 44 16
16 40 9258 1 2190 45 12
16 50 9265 1 2190 46 8
HERZ Ball Valve with compression ends
with extended spindle WRAS Approved
Dezincifi cation resistant brass
Compression fi tting ends to BS 864/2
Maximum pressure: 16 bar (20 °C)
Maximum temperature: 120 °C (5 bar).
16 15 9296 1 2190 61 25
16 20 9302 1 2190 62 25
16 25 9319 1 2190 63 16
16 32 9326 1 2190 64 16
16 40 9333 1 2190 65 12
16 50 9340 1 2190 66 8
HERZ-ball valve with union nut and fl at sealing connection, EURO, DR
Model PN Dim. EAN
383 896342
Order
number Item
HERZ-ball valve with union nut and fl at sealing
connection WRAS Approved
Dezincifi cation resistant brass body according to
EN 12420, chrome ball
Connections according to BS 864 / 2
Maximum pressure 16 bar (20 ° C).
Maximum temperature: 120 ° C (5 bar).
16 15 0644 1 2190 71 25
16 20 0651 1 2190 72 25
16 25 0668 1 2190 73 16
16 32 0675 1 2190 74 16
16 40 0682 1 2190 75 12
16 50 0699 1 2190 76 8
Ball valve with Extended spindle, union nut
and fl at sealing connection WRAS Approved
Dezincifi cation resistant brass body EN 12420,
chrome ball
Connections to BS 864 / 2
Maximum pressure 16 bar (20 ° C).
Maximum temperature: 120 ° C (5 bar).
16 15 0705 1 2190 81 25
16 20 0712 1 2190 82 25
16 25 0729 1 2190 83 16
16 32 0736 1 2190 84 16
16 40 0743 1 2190 85 12
16 50 0750 1 2190 86 8
Herz-ball valve with lever handle and press connection
Ball valve with lever handle and press connection
Dezincifi cation resistant brass body according
to DIN 17660,
Press connections at both ends for multi-layered
composite pipe. 16
15-16 x 2.0
9654 P 7216 62 50
15-18 x 2.0
9661 P 7218 62 50
15-20 x 2.0
9678 P 7220 62 50
25-26 x 3.0
9715 P 7226 62 50
Product
group 6
Product
group 1
87
Flanged Regulating Valves
HERZ-Differential Pressure Controllers, Flanged Version
Model l/h DN Dim. EAN
90 04174 Order
number Item
4007 F
Differential Pressure Controller, fl anged version
Proportional controller for two-pipe systems
with thermostatic radiator valves. Differential
pressure 50–300 mbar, continuously
adjustable. Body made of cast iron GJL 250
according to EN 1561, fl ange according to
EN 1092, PN 16, length according to ÖNORM
EN 551-1, basic series 1, blue enamel coating.
Pipe connection with fl ange on both sides,
including capillary 1,000 mm. Four bores
Rp 3/8, with drain plug. Drain valve 276 has
to be ordered separately.
150-
4000 25 1 43610 9 1 4007 13 1
200-
4200 32 1¼ 43620 8 1 4007 14 1
250-
5600 40 1½ 43630 7 1 4007 15 1
700-
9000 50 2 43640 6 1 4007 16 1
Differential Pressure Controller,
4007 F FIX fl anged version
Proportional controller for two-pipe systems
with thermostatic radiator valves.
Differential pressure fi xed at 23 kPa. Body
made of cast iron GJL 250 according to
EN 1561, fl ange according to EN 1092, PN 16,
length according to ÖNORM EN 551-1, basic
series 1, blue enamel coating. Pipe connection
with fl ange on both sides, including capillary
1,000 mm. Four bores Rp 3/8, with drain plug.
Drain valve 276 has to be ordered separately.
200-
1500 25 1 43650 5 1 4007 63 1
300-
2500 32 1¼ 43660 4 1 4007 64 1
400-
4700 40 1½ 43670 3 1 4007 65 1
600-
6100 50 2 43680 2 1 4007 66 1
HERZ-Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version
Screw-down Model with test points
Model kvs DN Dim. EAN
90 04174 Order
number Item
4218 GMF
STRÖMAX-GMF
STRÖMAX-GMF, Circuit Regulating Valve
for differential pressure measurement,
fl anged version, with test points.
Body made of cast iron GJL 250 according to
EN 1561, fl ange according to EN 1092, PN 16,
length according to ÖNORM EN-558-1, basic
series 1, blue enamel coating.
Dezincifi cation resistant brass upper part,
with non-rising spindle. Spindle seal by means
of double O-Ring.
Two test points 1 0284 are mounted next to
the hand wheel.
Four bores Rp 3/8 with drain plug, presetting
seal 1 6517 04 and presetting marker
1 6517 05 are included.
Drain valve 276 has to be ordered separately.
12.2 25 43570 6 1 4218 43 1
17.3 32 43580 5 1 4218 44 1
28.6 40 43590 4 1 4218 45 1
38.0 50 43350 4 1 4218 46 1
60.3 65 43360 3 1 4218 47 1
68.5 80 43370 2 1 4218 48 1
100 100 46200 9 1 4218 49 1
-125 46210 8 1 4218 50 1
HERZ-Shutoff Valves, Flanged Version
4218 AGF
STRÖMAX-AGF
STRÖMAX-AGF-Shutoff Valve,
fl anged version
Body made of cast iron GJL 250 according to
EN 1561, fl ange according to EN 1092, PN 16;
length according to ÖNORM EN-558-1, basic
series 1, blue enamel coating. Valve upper
part made of brass.
Non-rising spindle, spindle seal by means of
double O-Ring.
Dimensions as STRÖMAX-GMF.
A permanently elastic soft seal is used as a
seat seal.
With four bores Rp 3/8, with drain plug.
Drain valve 276 has to be ordered separately.
11.0 25 1 43690 1 1 4218 53 1
20.1 32 1¼ 43700 7 1 4218 54 1
30.4 40 1½ 43710 6 1 4218 55 1
36.9 50 2 43720 5 1 4218 56 1
62.5 65 2½ 43730 4 1 4218 57 1
75.0 80 3 43740 3 1 4218 58 1
Product
group 1
88
Flanged & Butterfl y Valves
HERZ-Circuit Regulating Valves for Differential Pressure Measurement,
Flanged Version Screw-down Model
Model kvs DN Dim. EAN
90 04174 Order
number Item
4218 GF
STRÖMAX-GF
STRÖMAX-GF, Double Regulating Valve
fl anged version
Screw-down model with test points.
Cast iron body GJL 250 according to EN 1561,
fl ange according to EN 1092, PN 16, length
according to ÖNORM EN-558-1, basic series 1,
blue enamel coating. Valve upper part made
of cast iron GJL 250, with non-rising spindle.
Spindle seal by means of triple O-Ring.
Presetting step is shown on the digital display.
Test points 1 0284 and presetting marker
1 6517 05 are included. Test points position
optional.
48,5 50 44240 7 1 4218 70 1
75 65 44250 6 1 4218 71 1
110 80 44260 5 1 4218 72 1
165 100 44270 4 1 4218 73 1
241 125 44280 3 1 4218 74 1
372 150 44290 2 1 4218 75 1
704 200 44300 8 1 4218 76 1
812 250 44310 7 1 4218 77 1
1383 300 44320 6 1 4218 78 1
STRÖMAX-GF, Double Regulating Valve
fl anged version
Screw-down model with test points.
Cast iron body GJL 250 according to EN 1561,
fl ange according to EN 1092, PN 16, length
according to ÖNORM EN-558-1, basic series 1,
blue enamel coating. Valve upper part made
of cast iron GJL 250, with non-rising spindle.
Spindle seal by means of double O-Ring.
Presetting step is shown on the digital display.
Test points 1 0284 and presetting marker
1 6517 05 are included. Test points position
optional.
48,5 50 44670 2 1 4218 80 1
75 65 44680 1 1 4218 81 1
110 80 44690 0 1 4218 82 1
165 100 44700 6 1 4218 83 1
241 125 44710 5 1 4218 84 1
372 150 44720 4 1 4218 85 1
704 200 44730 3 1 4218 86 1
812 250 44740 2 1 4218 87 1
1383 300 44750 1 1 4218 88 1
Cast Iron Commissioning Set
STRÖMAX-GF Cast Iron Commissioning Set
4218 close coupled to HV2740 orifi ce plate
93 65 –4218-71CS 1
126 80 –4218-72CS 1
244 100 –4218-73CS 1
415 125 –4218-74CS 1
540 150 –4218-75CS 1
1010 200 –4218-76CS 1
1450 250 –4218-77CS 1
2400 300 –4218-78CS 1
HERZ-Flow Measuring Orifice Plate
HERZ-Flow Measuring Orifi ce Plate*
Stainless steel disc with extended test points
Maximum working temperature 120 °C
Maximum static pressure 16 bar
Kv-values, also pressure and temperature
ratings, comply with requirements of BS7350
Kv-values in m3/hour at a pressure drop of 1 bar.
*) only in UK
100.7 65 –HV2740-07 1
133.8 80 –HV2740-08 1
237.7 100 –HV2740-09 1
339 125 –HV2740-10 1
511 150 –HV2740-11 1
858 200 –HV2740-12 1
1235 250 –HV2740-13 1
1793 300 –HV2740-14 1
Product
group 1
89
HERZ-Butterfl y Valves
Semi lugged version, Lever operated drive PN 16
Model kvs DN EAN
90 04174 Order
number Item
HV Butterfl y Valve, semi lugged version,
WRAS Approved
Body made of grey cast iron JL 1040, acc.
to EN 1561, blue coated, hand lever made of
pressed steel CF8M Stainless steel disk,
EPDM liner and sealing, model with 4 to 8 lugs.
Operating pressure 16 bar, operating
temperature range: -10 °C to 120 °C.
For dimensions DN 250 and DN 300 the max.
operating pressure is 10 bar.
116 50 –
HV-BF-SLL-06
1
190 65 –
HV-BF-SLL-07
1
260 80 –
HV-BF-SLL-08
1
517 100 –
HV-BF-SLL-09
1
880 125 –
HV-BF-SLL-10
1
1376 150 –
HV-BF-SLL-11
1
2702 200 –
HV-BF-SLL-12
1
4600 250 –
HV-BF-SLL-13
1
7107 300 –
HV-BF-SLL-14
1
HERZ-Butterfl y Valves
Fully lugged version, Lever operated drive PN 16
HV Butterfl y Valve, fully lugged version,
WRAS Approved
Body made of SG iron JS 1030,
acc. to EN 1563, blue coated, hand lever made
of pressed steel CF8M Stainless steel disk,
EPDM liner and sealing, model screwed lugs
suitable for fl ange PN 16.
Operating pressure 16 bar,
operating temperature range: -10 °C to 120 °C.
For dimensions DN 250 and DN 300 the max.
operating pressure is 10 bar.
116 50 –
HV-BF-FLL-06
1
190 65 –
HV-BF-FLL-07
1
260 80 –
HV-BF-FLL-08
1
517 100 –
HV-BF-FLL-09
1
880 125 –
HV-BF-FLL-10
1
1376 150 –
HV-BF-FLL-11
1
2702 200 –
HV-BF-FLL-12
1
4600 250 –
HV-BF-FLL-13
1
7107 300 –
HV-BF-FLL-14
1
Gear operated drive PN 16
HV Butterfl y Valve, semi lugged version,
WRAS Approved
Body made of grey cast iron JL 1040,
acc.to EN 1561, blue coated. Gearbox with
chromium plated steel input shaft,
Ductie Iron gear segment, adjustable travel
stops. CF8M Stainless steel disk,
EPDM liner, model with 4 to 8 lugs.
Operating pressure 16 bar DN 50 to DN 200
Operating pressure 10 bar DN 250 to DN 300
Operating temperature -10 °C to 120 °C.
116 50 –
HV-BF-SLG-06
1
190 65 –
HV-BF-SLG-07
1
260 80 –
HV-BF-SLG-08
1
517 100 –
HV-BF-SLG-09
1
880 125 –
HV-BF-SLG-10
1
1376 150 –
HV-BF-SLG-11
1
2702 200 –
HV-BF-SLG-12
1
4600 250 –
HV-BF-SLG-13
1
7107 300 –
HV-BF-SLG-14
1
HV Butterfl y Valve, Fully lugged version,
WRAS Approved
Body made of ductile cast iron JS 1030,
acc. to EN 1563, blue coated. Gearbox with
chromium plated steel input shaft,
Ductie Iron gear segment, adjustable travel
stops. CF8M Stainless steel disk,
EPDM liner, model with fully tapped lugs.
Operating pressure 16 bar DN 50 to DN 200
Operating pressure 10 bar DN 250 to DN 300
Operating temperature -10 °C to 120 °C.
Operating pressure 10 bar DN 250 to DN 300
Operating temperature -10 °C to 120 °C.
116 50 –
HV-BF-FLG-06
1
190 65 –
HV-BF-FLG-07
1
260 80 –
HV-BF-FLG-08
1
517 100 –
HV-BF-FLG-09
1
880 125 –
HV-BF-FLG-10
1
1376 150 –
HV-BF-FLG-11
1
2702 200 –
HV-BF-FLG-12
1
4600 250 –
HV-BF-FLG-13
1
7107 300 –
HV-BF-FLG-14
1
All Butterfl y Valves are available with electric, pneumatic or hydraulic drives.
Flanged & Butterfl y Valves
Product
group 1
90
Strainers
HERZ-Strainer, Mesh Width 0.75 mm
Model DN Dim. EAN
90 04174 Order
number Item
HERZ-Strainer, Y-shape, with fl anged
connection. With fi ne-mesh screen made of
chrome-nickel steel. Mesh width 0.75 mm.
Cast iron body GJL 250 according to
EN 1561, fl ange according to EN 1092, PN 16;
length according to ÖNORM EN 558-1, basic
series 1, with blue enamel coating Cover with
drain bore and drain plug 1/2. Four bores
Rp 1/4 with drain plug for differential pressure
measurement. Test points 1 0284 01 and
1 0284 02 have to be ordered separately.
25 1 44140 0 1 4111 83 1
32 1¼ 44150 9 1 4111 84 1
40 1½ 44160 8 1 4111 85 1
50 2 44170 7 1 4111 86 1
65 2½ 44180 6 1 4111 87 1
80 3 44190 5 1 4111 88 1
HERZ-Strainer, Y-shape, with fl anged
connection. With fi ne-mesh screen made of
chrome-nickel steel.*
Cast iron body GJL 250 according to EN 1561,
fl ange according to EN 1092, PN 16;
Mesh width DN100 - DN150: d = 1,5 mm
DN 200 - DN 300: d = 2 mm
*) only in UK
100 4 –HV185-09 1
125 5 –HV185-10 1
150 6 –HV185-11 1
200 8 –HV185-12 1
250 10 –HV185-13 1
300 12 –HV185-14 1
HERZ-Swing Check Valve
Herz Swing Check Valve PN 25
Body, Cap & Hinge made of Gunmetal BS 1400 LG2
Brass Disk
Maximum Pressure 25 bar
Temperature range -10 °C to 180 °C.
15 1/2 –HVCH25-01 1
20 3/4 –HVCH25-02 1
25 1 –HVCH25-03 1
32 1¼ –HVCH25-04 1
40 1½ –HVCH25-05 1
50 2 –HVCH25-06 1
Herz Wafer Check Valve PN 16
Cast Iron body to 1561 EN - JL1030
Disk, Shaft & Spring made of Stainless Steel
EPDM Seat
Maximum Pressure 16 bar
Temperature range -10 °C to 120 °C.
50 2 –HVWC25-06 1
65 2½ –HVWC25-07 1
80 3 –HVWC25-08 1
100 4 –HVWC25-09 1
125 5 –HVWC25-10 1
150 6 –HVWC25-11 1
200 8 –HVWC25-12 1
250 10 –HVWC25-13 1
300 12 –HVWC25-14 1
HERZ-Check Valve
HERZ-Check Valve*
For heating, hydraulic and industrial
installations, for all non aggressive fl uids such
as water and oil products.
Body made of cast iron EN-GJL 250, cover
made of cast iron EN-GJL 250, disc - cast iron
EN-GJL 250, seat rings made of brass.
Temperature range -10 to +120 °C
Maximum pressure 16 bar.
Flange according EN 1092-2 PN16
*) only in UK
50 –HV5153-06 1
65 –HV5153-07 1
80 –HV5153-08 1
100 –HV5153-09 1
125 –HV5153-10 1
150 –HV5153-11 1
200 –HV5153-12 1
250 –HV5153-13 1
300 –HV5153-14 1
91
Hydraulic Interface Units
HERZ-Hydraulic Interface Units
Model EAN
90 04174 Order
number Item
The HERZ-DE LUXE Substation
Compact substation for radiator heating and drinking water systems, utilising
a countercurrent heat exchanger made of stainless steel. In standby mode a
temperature regulated bypass guarantees available primary fl ow at the heat
exchanger. Central controller for hot water only operates as a pressure drop
is detected when a hot tap is opened. Safety against scalding by integrated
HERZ-thermostatic mixing valve. Differential pressure controller with fi xed DP
fi tted on the heating circuit can be operated as a zone valve with a thermo
electric drive for regulating the room temperature. Heat meters can be retro-
fi tted as required. Strainer with fi ne-mesh screen is also fi tted on the heating
circuit to protect the DP controller. Premounting unit with ball valves for the
later connection of the substation. Usable as in- or onwall substation with
separate cover. Necessary inwall adjustment unit or external cover have to
be ordered separately. Static pressure of cold water 3.5 bar at minimum.
Hot water fl ow rate 14 l/min (10/52 °C). Max. working pressure 10 bar. Max.
riser temperature 90 °C. The HERZ premounting unit for the HERZ-DE LUXE
substation 1 4008 04 has to be ordered separately.
68000 7 1 4008 25 1
The HERZ DE LUXE light Substation
Compact substation for radiator heating and drinking water systems.
Individual module DE LUXE Light. Individual module for DHW, water and
space heating. In standby mode a temperature regulated bypass guarantees
available primary fl ow at the heat exchanger. Central controller for hot water
only operates as a pressure drop is detected when a hot tap is opened.
The module includes a HERZ-Control valve incorporating a thermostat with
immersion sensor,which maintains a maximum DHW temperature, a strainer
with fi ne mesh is also fi tted. It also provides adapters for installation of
fl owmeter, water- and heat meters. Individual module HERZ DE LUXE Light
can be combined with the following sets of equipment:
68110 3 1 4008 50 1
Package space heater 1: Equipped with thermal zone valve and actuator for room
temperature control 1 4018 02 1
The “Space heating” 2: Equipped with differential pressure control valve fi xed at 23 kPa 1 4018 03 1
The “Space heating” 3: Equipped with differential pressure control valve fi xed at 23
kPa can be operated as a zone valve with a hermo electric drive for regulating the room
temperature. 1 4018 04 1
The “Comfort”: Equipped with a distribution system HERZ DE LUXE Light bypass valve in
the heating circuit to ensure readiness to work in the summer. 1 4018 00 1
The “Reliability”: Set mixing valve to protect against overheating of hot water. Case for
concealed HERZ DE LUXE or protective cover for the module HERZ DE LUXE ordered
separately. 1 4018 01 1
The HERZ-STANDARD Substation
Compact substation for radiator heating and drinking water systems, utilising
a countercurrent heat exchanger made of stainless steel. In standby mode a
temperature regulated bypass guarantees available primary fl ow at the heat
exchanger. Central controller for hot water only operates as a pressure drop
is detected when a hot tap is opened. Safety against scalding by integrated
HERZ-thermostatic mixing valve. Differential pressure controller with fi xed DP
is fi tted on the heating circuit. Heat meters can be retro-fi tted as required.
Strainer with fi ne-mesh screen is also fi tted on the heating circuit to protect
the DP controller. Connection by premounted ball valves. Usable as in- or
onwall substation with separate cover. Necessary inwall adjustment unit has
to be ordered separately. Static pressure of cold water 3.5 bar at minimum.
Hot water fl ow rate 14 l/min
(10/52 °C). Max. working pressure 10 bar. Max. riser temperature 90 °C.
68010 6 1 4008 23 1
The HERZ- substation”OC”.
Compact substation for radiator heating and drinking water systems, utilising
a countercurrent heat exchanger made of stainless steel. In standby mode
a temperature regulated bypass guarantees available primary fl ow at the
heat exchanger. Central controller for hot water only operates as a pressure
drop is detected when a hot tap is opened. Hot water temperature regulated
by thermostat with immersion sensor. Differential pressure controller with
fi xed DP fi tted on the heating circuit can be operated as a zone valve with a
thermo electric drive for regulating the room temperature. Heat meters can
be retro-fi tted as required. Strainer with fi ne mesh screen is also fi tted on the
heating circuit to protect the DP controller. Connection by premounted ball
valves. Usable as in- or onwall substation with separate cover. Necessary
inwall adjustment unit has to be ordered separately. Hot water fl ow rate 12
l/min (10/45 °C). Pressure drop 25kPa Max. working pressure 10 bar. Max.
riser temperature 90 °C. Necessary Additional details for the distribution
system HERZ - inwall unit for HERZ substations Number 1 4008 06 HERZ
cover for HERZ s 1 4008 08.
68100 4 1 4008 49 1
The HERZ PROJECT Substation
Compact substation for radiator heating and drinking water systems, utilising
a countercurrent heat exchanger made of stainless steel. Central controller
for hot water only operates as a pressure drop is detected when a hot tap
is opened. Safety against scalding by integrated HERZ thermostatic mixing
valve. Heat meters can be retro-fi tted as required. Usable as in- or onwall
substation with separate cover. Necessary inwall adjustment unit has to be
ordered separately. Static pressure of cold water 3.5 bar at minimum.
Hot water fl ow rate 14 l/min (10/52 °C).
Max. working pressure 10 bar. Max. riser temperature 90 °C.
68020 5 1 4008 21 1
Additional parts for adapting with a bypass
for substation project
Additional parts for adapting the substation project,
including strainer, thermostatic valve with return temperature
limiter and pipe form pieces. 68160 8 1 4008 18 1
Product
group 8
92
Hydraulic Interface Units
HERZ-Hydraulic Interface Units
Model EAN
90 04174 Order
number Item
Compact substation FWW
Compact substation for radiator heating and drinking water systems, utilising
a countercurrent heat exchanger made of stainless steel. In standby mode a
temperature regulated bypass guarantees available primary fl ow at the heat
exchanger. Central controller for hot water only operates as a pressure drop
is detected when a hot tap is opened. Safety against scalding by integrated
HERZ thermostatic mixing valve. Hot water temperature regulated by
thermostat with immersion sensor. A zone valve is fi tted on the heating circuit
with a thermo-electric drive for regulating the room temperature. Heat meters
can be retro-fi tted as required. Premounting unit with ball valves for the later
connection of the substation. Usable as in- or onwall substation with separate
cover. Necessary inwall adjustment unit or external cover have to be ordered
separately. Static pressure of cold water 2.8 bar at minimum. Hot water fl ow
rate 10 l/min (10/52 °C). Pressure drop 25 kPa. Max. working pressure 10 bar.
Max. riser temperature 90 °C.
The HERZ premounting unit for the HERZ de lux substation 1 4008 04 has to
be ordered separately. HERZ inwall unit for HERZ substations 1 4008 06 or
HERZ cover for HERZ substations 1 4008 08 have to be ordered separately.
68040 3 1 4008 31 1
substation GSWB
Compact substation for radiator heating and drinking water systems,
utilising a countercurrent heat exchanger made of stainless steel. In
standby mode a temperature regulated bypass guarantees available
primary fl ow at the heat exchanger. Return temperature limiter
fi tted to control heating return temperature. Central controller for
hot water only operates as a pressure drop is detected when a hot
tap is opened. Hot water temperature regulated by thermostat with
immersion sensor. Differential pressure controller with fi xed DP fi tted
on the heating circuit. Water meter and Heat meter fi tted. Strainer
with fi ne mesh screen is also fi tted on the heating circuit to protect
the DP controller. Hot water fl ow rate 15 l/min (5/55 °C). Pressure
drop 25 kPa. Max. working pressure 10 bar. Max. riser temperature
90 °C. The necessary additional elements: In-wall version for HERZ-
substation GSWB 1 4008 40. Protective cover Surface-mounted
version for the HERZ- substation GSWB 1 4008 42. Condensate trap
for the HERZ- substation GSWB 1 4008 41. Premounting unit for
HERZ -substation GSWB 1 4008 34.
68050 2 1 4008 33 1
HERZ-Premounting unit for HERZ- substation GSWB .
68130 1 1 4008 34 1
Retro-fi t heat meter connection set
Additional items for retrofi tting the sub stations “GSWB”,
consisting of heat meters and pipe fi ttings.
68170 7 1 4008 19 1
HERZ inwall unit for GSWB substations
Made of zinc coated steel B x H x D 545 x 960 x 192 mm,
fi xing parts included., with mounting frame
Front frame and door white, powder coated (RAL 9003). 68060 1 1 4008 40 1
HERZ cover for HERZ GSWB substations
Made of steel white powder coated, fi xing parts included for
HERZ substations GSWB.
Front frame and door white, powder coated (RAL 9003),
door with catch b x H x D 500 x 850 x 200 mm. 68070 0 1 4008 42 1
Substation ITPS
Compact substation for radiator heating and drinking water systems,
utilising a countercurrent heat exchanger made of stainless steel. In
standby mode a temperature regulated bypass guarantees available
primary fl ow at the heat exchanger. Central controller for hot water only
operates as a pressure drop is detected when a hot tap is opened.
Hot water temperature regulated by thermostat with immersion sensor.
Differential pressure controller with fi xed DP fi tted on the heating circuit
can be operated as a zone valve with a thermo-electric drive for regulating
the room temperature. Heat meters can be retro-fi tted as required. Strainer
with fi ne mesh screen is also fi tted on the heating circuit to protect the DP
controller. Hot water fl ow rate 12 l/min (10/45 °C). Pressure drop
25 kPa Max. working pressure 10 bar. Max. riser temperature 90 °C.
The necessary additional elements: HERZ- in-wall unit for HERZ
substations ITPS 1 4008 06. HERZ-cover in-wall unit for HERZ substations
ITPS 1 4008 08 Premounting unit for HERZ-substation ITPS 1 4008 46.
68080 9 1 4008 45 1
Premounting unit for HERZ substation ITPS. 68090 8 1 4008 46 1
Product
group 8
93
Hydraulic Interface Units
HERZ-Hydraulic Interface Units
Model EAN
90 04174 Order
number Item
HERZ- substation Version DE LUXE Indirect
Compact substation for radiator heating and drinking water
systems, utilizing two separate countercurrent
heat exchangers made of stainless steel for domestic hot and
space heating water. A zone valve is fi tted on the heating circuit
with a thermo-electric drive which controls the primary heating
water into the second heat exchanger and a pump is fi tted to
ensure constant circulation round the heating system.
In standby mode a temperature regulated bypass guarantees
available primary fl ow at the domestic water heat exchanger.
Central controller for hot water only operates as a pressure drop
is detected when a hot tap is opened. Safety against scalding by
integrated HERZ thermostatic mixing valve. Hot water temperature
regulated by thermostat with immersion sensor. Strainer with fi ne
mesh screen is also fi tted on the heating circuit. Substation to be
used in low-temperature heating. HERZ-Bracket for mounting the
substation DE LUXE Indirectly is not included. Min. pressure of
cold water 2,8 bar, capacity 15 l / min, thermal power 10 kW
HERZ- in-wall unit or HERZ cover for HERZ substations have
to be ordered separately.
68030 4 1 4008 26 1
Accessories
Premounting unit for HERZ-DE LUXE substation
Supplied as mounting plate with holes, completed by ball valves
for heating, cold- and hot water, connection possible from the wall,
or from the bottom, the connection to the substation is done by
inserting and screwing connections at the pipe side, fi xing parts
included.
68120 2 1 4008 04 1
HERZ-inwall unit for HERZ substations
Made of zinc coated steel, with mounting frame. For HERZ
substations De LUXE, STANDARD or PROJECT. Front frame
and door white, powder coated (RAL 9003), door with catch.
W x H x D 650 x 850 x 200 mm, fi xing parts included. 68140 0 1 4008 06 1
HERZ-cover for HERZ substations
Made of steel white powder coated, for HERZ substations
De LUXE, STANDARD or PROJECT.
W x H x D 500 x 800 x 200 mm. 68150 9 1 4008 08 1
Product
group 8
94
Hydraulic Interface Units
HERZ-Hydraulic Interface Units
Model EAN
90 04174 Order
number Item
HERZ-Water heater DE LUXE
Compact water heater, Utilising a countercurrent heat exchanger
made of stainless steel. In standby mode a temperature regulated
bypass guarantees available primary fl ow at the heat exchanger.
Central contoller for hot water only operates as a pressure drop
is detected when a hot tap is opened. Safety against scalding by
integrated HERZ thermostatic mixing valve. Premounting unit with
ball valves for the later connection of the water heater. Usable as
in- or onwall unit with separate cover. Necessary inwall adjustment
unit or external cover have to be ordered separately. Static
pressure of cold water 3.5 bar at minimum. Hot water fl ow rate
14 l/min (10/52 °C). Max. working pressure 10 bar. Max. riser
temperature of the heating media 90 °C. The HERZ premounting
unit for the HERZ de lux substation 1 4008 05 has to be ordered
separately.
68180 6 1 4008 11 1
HERZ-Water heater STANDARD
Compact water heater, utilising a countercurrent heat exchanger
made of stainless steel. In standby mode a temperature regulated
bypass guarantees available primary fl ow at the heat exchanger.
Central controller for hot water only operates as a pressure drop
is detected when a hot tap is opened. Safety against scalding
by integrated HERZ-thermostatic mixing valve. Connection by
premounted ball valves. Usable as in- or onwall unit with separate
cover. Necessary inwall adjustment unit or external cover have to
be ordered separately. Static pressure of cold water 3.5 bar at
minimum. Hot water fl ow rate 14 l/min (10/52 °C). Max. working
pressure 10 bar. Max. riser temperature of the heating media 90 °C.
68190 5 1 4008 13 1
HERZ-Water heater PROJECT
Compact water heater, utilising a countercurrent heat exchanger made
of stainless steel. In standby mode a temperature regulated bypass
guarantees available primary fl ow at the heat exchanger. Central
controller for hot water only operates as a pressure drop is detected
when a hot tap is opened. Safety against scalding by integrated HERZ
thermostatic mixing valve. Usable as in- or onwall unit with separate
cover. Necessary accessories, inwall adjustment unit, or external
cover have to be ordered separately. Static pressure of cold water 3.5
bar at minimum. Hot water fl ow rate 14 l/min (10/52 °C). Max. working
pressure 10 bar. Max. riser temperature of the heating media 90 °C.
68200 1 1 4008 15 1
Accessories
HERZ-Premounting unit for HERZ Water Heater DE LUXE
Supplied as mounting plate with holes, completed by ball valves
for heating, cold- and hot water, connection possible from the wall,
or from the bottom, the connection to the water heater is done by
inserting and screwing connections at the pipe side, fi xing parts
included.
68210 0 1 4008 05 1
HERZ-nwall unit for HERZ Water heaters
Made of zinc coated steel, with mounting frame.
For HERZ water heaters De LUXE, STANDARD or PROJECT.
Front frame and door white, powder coated (RAL 9003), door with
catch. W x H x D 500 x 850 x 200 mm, fi xing parts included.
68220 9 1 4008 07 1
HERZ-cover for HERZ Water heaters
Made of steel white powder coated, for HERZ water heaters
DE LUXE, STANDARD or PROJECT.
W x H x D 500 x 800 x 200 mm. 68230 8 1 4008 09 1
Additional parts for adapting the water heater
Additional parts for adapting the water heater PROJECT,
including strainer, thermostatic valve with return temperature
limiter and pipe form pieces.
68240 7 1 4008 17 1
*) Only Available in Germany
Product
group 8
95
Hydraulic Interface Unit Spare parts
Spare parts for HERZ HIU
Model EAN
90 04174 Order
number Item
Pressure and Temperature Controller
Control valve, automatic function without requiring auxiliary power,
regulates the temperature of hot water from a heat exchanger
in individual systems within a district heating scheme.
Temperature control via thermostat with contact sensor,
thermostat be ordered separately. Maximum operating
pressure 10 bar. Max operating temperature 90 °C.
68250 6 1 4008 00 1
Pressure and Temperature Controller DE LUXE, STANDARD
with thermostat. 68260 5 1 4008 10 1
Pressure and Temperature Controller
Control valve, automatic function without requiring auxiliary power,
regulates the temperature of hot water from a heat exchanger
in individual systems within a district heating scheme.
Maximum operating pressure 10 bar.
Max operating temperature 90 °C.
68270 4 1 4008 03 1
Thermostatic head
with hydrosensor 52 °C, M 28, capillary tube,
pipe contact sensor and fastening materials
for attaching to pipes. 68280 3 1 9421 28 1
Universal Ball Valve
G 3/4 for DE LUXE HIU 1/2 plug, Red thumb-grip handle. 68290 2 1 2420 02 25
Universal Ball Valve
G 3/4 for DE LUXE HIU 1/2 plug, Red thumb-grip handle. 68300 8 1 2420 12 25
Ball Valve Straight
type G 3/4 Standard HIU Red thumb-grip handle. 68310 7 1 2420 22 25
Universal Ball Valve
G 3/4 for DE LUXE HIU 1/2 plug, Red thumb-grip handle. 68320 6 1 2420 03 25
Universal Ball Valve
G 3/4 for DE LUXE HIU 1/2 plug, green thumb-grip handle. 68330 5 1 2420 13 25
Ball Valve Straight
type G 3/4 Standard HIU green thumb-grip handle. 68340 4 1 2420 23 25
HERZ-Mixing valve MIX 025
with amended fl ow direction
25 l/min, 3 bar of water pressure, with water quantity
min. 4 l/min, factory setting of mixing temperature
52 °C ±2K mixing precision,temperature max. 90 °C,
pressure 10 bar.
59930 9 2 7766 40 1
HERZ-Thermostatic mixing valves
Model DN EAN
90 04174 Order
number Item
HERZ-Shield TMV3 in-line mixing valve*
Available with 22 mm compression connections as standard,
or 15 mm using the reducing sets supplied. Integral
removable check valves. Flat faced union couplings and
strainers are included. The valve is factory preset to 43 °C.
Complies with NHS model engineering specifi cation DO8
also WRAS & TMV3
Minimum mixed temperature 30 °C.
Maximum mixed temperature 50 °C.
Maximum static pressure 12 bar
15 –TMV01 1
HERZ-Shield Plus TMV3 with integral ball valves
Available as 15 or 22 mm complete with integral
ball valves with fi lters. Integral removable check valves.
Flat faced union couplings are included. The valve is factory
preset to 43 °C. Complies with NHS model engineering
specifi cation DO8, TMV3 & WRAS
Minimum mixed temperature 30 °C.
Maximum mixed temperature 50 °C.
Maximum static pressure 10 bar
15 –TMV+15 1
20 –TMV+22 1
Product
group 1
96
Sanitary valves
HERZ-Mixing valves for drinking water
Model DN l/min EAN
90 04174 Order
number Item
HERZ-Mixing valve MIX 160 with two-way
fl ow direction
42 l/min, 3 bar of water pressure, with water quantity
min. 4 l/min, factory setting of mixing temperature
38–48 °C ± 2K mixing precision,
temperature max. 90 °C, pressure 10 bar.
20 42 59980 4 2 7766 54 1
HERZ-Ball valves for fl ush mounting
Model PN Dim. EAN
383 000282 Order
number Item
Ball valve for fl ush mounting
Dezincifi cation resistant brass according to
DIN 17660 with seals PTFE and EPDM.
Temperature range -10 °C to 110 °C
(water from 0 °C 110 °C).
16 15 6691 1 2202 01 50
16 20 6707 1 2202 02 50
Ball valve for fl ush mounting with lever handle
Dezincifi cation resistant brass according to
DIN 17660 with seals PTFE and EPDM.
Temperature range -10 °C to 110 °C
(water from 0 °C 110 °C).
16 15 6714 1 2202 11 50
16 20 6721 1 2202 12 50
HERZ-Ball valves for fl ush mounting with press connectors
Ball valve for fl ush mounting
Dezincifi cation resistant brass according to
EN 12420. Press connectors for aluminum composite
pipe. cover of pressed chrome-plated brass,
Full bore.
16
15-16
x 2.0
70350 8 P 7216 63 25
15-20
x 2.0
70360 7 P 7220 63 25
20-26
x 3.0
70370 6 P 7226 63 25
HERZ-Drain valve
Ball valve for water drainage, with connection
for hose, with lever handle.
Dezincifi cation resistant brass, nickel plated.
Tefl on seal, two O-Ring and the bore. Application in
horticulture, hydro and sanitary facilities.
Temperature range is 0 °C to +110 °C.
16 15 7230 1 2503 01 50
16 20 7247 1 2503 02 50
HERZ-Drain valves
Model EAN
38 38963 Order
number Item
Wall-mounted tap
Body made of forged brass, an aerator.
Length to drain spout 95 mm. 600527 UH10052 50
Wall-mounted tap
Body made of forged brass.
Length to drain spout 95 mm. 601517 UH10151 50
Wall-mounted tapt for washing machine.
Body made of forged brass,
Plug for hose connection. 601524 UH10152 50
Kitchen tap - «S» shaped spout.
Body made of forged brass. Seamless tube - Ø 18.
The length of the drain spout to connect the hose from
150 mm to 185 mm.
552512 UH05251 12
Product
group 1
Product
group 6
Product
group 3
Product
group 6
Product
group 1
97
Flow Temperature Control
HERZ-Circulation Temperature Controller
Model
Tempe-
rature
DN EAN
90 04174 Order
number Item
HERZ-Circulation Temperature Controller
Thermostatic fl ow control valve for pumped return
hot water distribution systems. Inclined model,
dezincifi cation resistant brass body and water bearing
parts. Socket thread according to ISO 7/1 (Rp),
model with two thermostats.
Factory settings 52 °C and 70 °C
(2 4011 01 and 2 4011 02) Factory settings 55 °C
and 70 °C (2 4011 11 and 2 4011 12)
When the control temperature is reached the valve is
closed by the thermostat to a small bleed (to prevent
deadlegs forming). When a temperature of 70 °C,
plus, is reached (pasteurisation) the valve is opened
to full fl ow by the second thermostat. Socket x socket,
for 15 mm copper pipe, compression adapter
1 6292 01 has to be ordered separately. WRAS
approved, Certifi cate No. 0510070.
52/70 15 43790 8 2 4011 01 20
52/70 20 43800 4 2 4011 02 20
55/70 15 43795 3 2 4011 11 20
55/70 20 43805 9 2 4011 12 20
58/70 15 40650 8 2 4011 17 20
58/70 20 40660 7 2 4011 18 20
HERZ-Circulation Temperature Controller for District Heating Plants
Model kvs DN EAN
90 04174 Order
number Item
HERZ-Circulation Temperature
Controller for district heating plants
Thermostatic fl ow control valve for limiting water fl ow
temperature with circulating pump, in the form of a
proportional controller. Inclined model, dezincifi cation
resistant brass body and water bearing parts.
Socket thread according to to ISO 7/1 (Rp),
Factory setting at 52 °C, secured against excess
temperatures up to 90 °C. For rising temperatures
the valve cone is closed via the thermostatic element.
For decreasing temperatures, the valve cone is
opened via an opening spring. Compression adapters
1 6292 01 for 15 mm copper pipe, and 1 6092 01
for 16 x 2.0 mm plastic pipe have to be ordered
separately.
0.4 15 44200 1 2 4010 51 20
0.4 20 44210 0 2 4010 52 20
HERZ-Circulation Temperature Controller
for district heating plants
Thermostatic fl ow control valve for limiting water
fl ow temperature with circulating pump, in the
form of a proportional controller. Inclined model,
dezincifi cation resistant brass body and water
bearing parts. Cone, valve spindles, springs and
guide parts stainless steel.
Factory setting at 52 °C, secured against excess
temperatures up to 90 °C.
For rising temperatures the valve cone is closed
via the thermostatic element. For decreasing
temperatures, the valve cone is opened via an
opening spring.
Complete with ball valve.
Socket thread according to to ISO 7/1 (Rp).
0.4 15 44940 6 2 4010 41 20
0.4 20 44960 4 2 4010 42 20
Legionella protection: HERZ-LEGIOFIX
HERZ-LEGIOFIX
independently-working without auxiliary power module allows
Legionella fl ushing / circulation, according to ÖNORM B 5019
up to 6 m from each sampling point.
Normal operation: bypass closed; Flow runs through mixing
valve with a mixed temperature of 55 degrees.
Legionella fl ushing: bypass open; Flow with temperature
disinfection of the module at 70 degrees.
When fl ushing has completed, the unit automatically resets to
normal operation. All water-carrying parts made of brass alloy.
Supplied with white plastic cover.
44950 5 2 4011 51 1
Product
group 1
98
Sanitary
HERZ-Balancing Valves for hydronic balancing in drinking water installations in buildings,
inclined model with female thread
Model min.
l/s DN EAN
90 04174 Order
number Item
4117 MW
STRÖMAX-MW
STRÖMAX- MW balancing valve inInclined model with
female thread,with measuring valves,
Rp (female thread)
Dezincifi cation resistant brass, yellowVersion, two measuring
valves 0284 mounted.
* On both sides threaded ends according to ISO 7/1
* Draining is possible. Drain fi ttings have to be ordered
separately.
* Two test points for measuring the differential pressure.
* O Ring, spindle seal Memory stop by means of an external
nut, threaded end connections BSP.
* 2 Measuring valves for measuring pressure drop.
0.42 15 43380 1 2 4117 51 5
0.54 20 43390 0 2 4117 52 5
0.91 25 43400 6 2 4117 53 5
1.40 32 43410 5 2 4117 54 5
2.06 40 43420 4 2 4117 55 1
4.21 50 43430 3 2 4117 56 1
4117 RW
STRÖMAX-RW
STRÖMAX- RW balancing valve inInclined model with
female thread, without measuring valves,
Rp (female thread)
Dezincifi cation resistant brass, yellow version
* On both sides threaded ends according to ISO 7/1
* Draining is possible. Drain fi ttings have to be ordered
separately.
* Two test points for measuring the differential pressure.
* O Ring, spindle seal Memory stop by means of an external
nut, threaded end connections BSP.
0.42 15 43440 2 2 4117 61 5
0.54 20 43450 1 2 4117 62 5
0.91 25 43460 0 2 4117 63 5
1.40 32 43470 9 2 4117 64 1
2.06 40 43480 8 2 4117 65 1
4.21 50 43490 7 2 4117 66 1
Product
group 1
99
Sanitary
HERZ-Straight pattern Shutoff valves with draining
Model min.
l/s DN
Pipe
Ø mm
EAN
90 04174 Order
number Item
4215 AW HERZ-Shutoff valve, straight pattern
soldered end x male thread, both sides have been
drilled, dezincifi cation resistant brass, a plug has been
mounted Volumen fl ow class VA, ÖNORM EN 1213.
Max.operation temperature 90 °C. Max. operation
pressure 10 bar max. differential pressure on closed
seat 10 bar. accessory: 2 0275 09 charging &draining
valves have to be ordered separately.
0.2 15 15 46230 6 2 4215 00 10
4215 AW HERZ-Shutoff valve, straight pattern
soldered end x male thread + braze screwed,
both sides have been drilled, a plug has been mounted,
dezincifi cation resistant brass, seal (from standard
acceptable Material) Volume fl ow class VA, ÖNORM
EN 1213. Max. operation temperature 90 °C. Max.
operaion pressure, 10 bar max. Differential pressure
on closed seat 10 bar. accessory: 2 0275 09 charging
& draining valves have to be ordered separately.
0.20 15 15 46000 5 2 4215 01 10
0.40 20 18 46010 4 2 4215 02 10
0.70 25 22 46020 3 2 4215 03 10
HERZ-Shutoff valve, straight pattern
with female x male thread
both sides have been drilled, a plug has been mounted,
dezincifi cation resistant brass. Volumen fl ow class VA,
ÖNORM EN 1213. Max. operation temperature
90 °C. Max. operation pressure, 10 bar max.
Differential pressure on closed seat 10 bar. accessory:
2 0275 09 charging & draining valves have to be
ordered separately.
0.20 15 – 46240 5 2 4215 10 10
4215 AW HERZ-Shutoff valve, straight pattern
female x male thread + soldered union
both sides have been drilled, a plug has been mounted,
dezincifi cation resistant brass, seal (from standard
aceptable material). Volumen fl ow class VA, ÖNORM
EN 1213. Max. operation temperature 90 °C. Max.
operation pressure, 10 bar max. Differential pressure
on closed seat 10 bar. accessory: 2 0275 09 charging
& draining valves have to be ordered separately.
0.20 15 15 46030 2 2 4215 11 10
0.40 20 18 46040 1 2 4215 12 10
4215 AW HERZ-Shutoff valve, straight pattern
male thread x male thread
both sides have been drilled, a plug has been mounted
dezincifi cation resistant brass. Volumen fl ow class VA,
ÖNORM EN 1213. Max. operation temperature 90 °C.
Max. operation pressure, 10 bar max. Differential pressure
on closed seat 10 bar. accessory: 2 0275 09 charging &
draining valves have to be ordered separately.
0.20 15 – 46050 0 2 4215 20 10
4215 AW HERZ-Shutoff valve, straight pattern
male thread x male thread + soldered union
both sides have been drilled,a plug has been mounted
dezincifi cation resistant brass,yellow model seal (from
standard acceptable material). Volumen fl ow class VA,
ÖNORM EN 1213. Max. operation temperature 90 °C.
Max. operation pressure, 10 bar max. Differential pressure
on closed seat 10 bar. accessory: 2 0275 09 charging &
draining valves have to be ordered separately.
0.20 15 15 46060 9 2 4215 21 10
0.40 20 18 46070 8 2 4215 22 10
0.70 25 22 46250 4 2 4215 23 10
4215 AW HERZ-Shutoff valve, straight pattern
female x female thread
both sides have been drilled, a plug has been mounted
dezincifi cation resistant brass. Volumen fl ow class VA,
ÖNORM EN 1213 Max. operation temperature 90 °C. Max.
operation pressure, 10 bar. Max. Differential pressure
on closed seat 10 bar accessory: 2 0275 09 charging &
draining valves have to be ordered separately.
0.20 15 – 46080 7 2 4215 31 10
0.40 20 – 46090 6 2 4215 32 10
0.70 25 – 46100 2 2 4215 33 10
1.20 32 – 46110 1 2 4215 34 5
1.60 40 – 46120 0 2 4215 35 5
2.70 50 – 46130 9 2 4215 36 5
HERZ-Shutoff valve, Straight pattern without draining
4215 W HERZ-Shutoff valve, straight pattern
female x female thread, without draining
without drilling, dezincifi cation resistant brass,
Volumen fl ow class VA, ÖNORM EN 1213
Max. operation temperature 90 °C
Max. operation pressure, 10 bar
max. Differential pressure on closed seat 10 bar.
0.20 15 – 46140 8 2 4215 41 10
0.40 20 – 46150 7 2 4215 42 10
0.70 25 – 46160 6 2 4215 43 10
1.20 32 – 46170 5 2 4215 44 5
1.60 40 – 46180 4 2 4215 45 5
2.70 50 – 46190 3 2 4215 46 5
4215 W HERZ-Shutoff valve, straight pattern
with female x male thread without draining
without drilling, dezincifi cation resistant brass.
Volumen fl ow class VA,
ÖNORM EN 1213
Max. operation temperature 90 °C.
Max. operation pressure, 10 bar
max. Differential pressure on closed seat 10 bar.
0.20 15 – 46260 3 2 4215 61 10
Product
group 1
100
Sanitary
Shutoff Valve for Drinking Water Systems in buildings, inclined model
Model min.
l/s DN EAN
90 04174 Order
number Item
4125 WD
W1.332
STRÖMAX-AW-Shutoff Valve,
inclined model Rp (female thread)
Dezincifi cation resistant brass,
* on both sides threaded ends according to ISO 7/1,
draining is not possible.
* not rising spindle, Spindle seal from elastic double
O-Ring, Upper part is sealed by O-Ring seal im
body.
* The sealing material is made of satndards
acceptable material.
* Volume fl ow class VB, fi ttings group I,
according to ÖNORM EN 1213.
0.5 15 44510 1 2 4125 61 5
1.0 20 44520 0 2 4125 62 5
1.75 25 44530 9 2 4125 63 5
3.0 32 44540 8 2 4125 64 5
4.0 40 44550 7 2 4125 65 5
6.75 50 44560 6 2 4125 66 5
11.0 65 44570 5 2 4125 67 1
16.0 80 44580 4 2 4125 68 1
W1.332
STRÖMAX-AW-Shutoff Valve, inclined model
Rp (female thread)
Dezincifi cation resistant brass,
* Two bores 1/4 and one screw plug 1 0273 09
is mounted.
* Threaded ends on both sides according to
ISO 7/1.
* Draining is possible. Drain fi ttings have to be
ordered separately.
* not rising spindle, Spindle seal from elastic double
O-Ring, Upper part is sealed by O-Ring seal im
body.
* The sealing material is made of satndards
acceptable material.
* Volume fl ow class VB, fi ttings group I,
according to ÖNORM EN 1213.
Certifi ed and registered acc. ÖVGW.
0.5 15 42780 0 2 4125 71 5
1.0 20 42790 9 2 4125 72 5
1.75 25 42800 5 2 4125 73 5
3.0 32 42810 4 2 4125 74 5
4.0 40 42820 3 2 4125 75 5
6.75 50 42830 2 2 4125 76 5
11.0 65 42840 1 2 4125 77 1
16.0 80 42850 0 2 4125 78 1
HERZ-Shutoff Valves for Drinking Water Systems, Inclined Model
with female threaded ends
4115 AW
STRÖMAX-AW
W1.331
STRÖMAX-AW-Shutoff Valve, inclined model with
threaded ends, Rp (female thread)
Dezincicfi cation resistant brass.
DN 10 - 50:
Two bores 1/4 and screw plugs
1 0273 09.
DN 65 and 80:
Two bores 3/8 and screw plug
1 0273 00 mounted.
* Threaded ends on both sides according
to ISO 7/1.
* Draining is possible, drain fi ttings have to be
ordered separately.
* The rising valve spindle is permanently sealed
by means of a double O-Ring.
* The sealing material is made of satndards
acceptable material.
* Volume fl ow class VB, fi ttings group I, according
to ÖNORM EN 1213.
Certifi ed and registered acc. ÖVGW.
0.25 10 42690 2 2 4115 00 10
0.5 15 42700 8 2 4115 11 10
1.0 20 42710 7 2 4115 12 10
1.75 25 42720 6 2 4115 13 10
3.0 32 42730 5 2 4115 14 5
4.0 40 42740 4 2 4115 15 5
6.75 50 42750 3 2 4115 16 5
11.0 65 42760 2 2 4115 17 1
16.0 80 42770 1 2 4115 18 1
W1.331
STRÖMAX-W-Shutoff Valve, inclined model with
threaded ends, Rp (female thread)
Dezincicfi cation resistant brass.
* Threaded ends on both sides according
to ISO 7/1.
* The rising valve spindle is permanently sealed
by means of a double O-Ring.
* The sealing material is made of satndards
acceptable material.
* Volume fl ow class VB, fi ttings group I, according
to ÖNORM EN 1213.
Certifi ed and registered acc. ÖVGW.
0.5 15 44430 2 2 4115 01 10
1.0 20 44440 1 2 4115 02 10
1.75 25 44450 0 2 4115 03 10
3.0 32 44460 9 2 4115 04 5
4.0 40 44470 8 2 4115 05 5
6.75 50 44480 7 2 4115 06 5
11.0 65 44490 6 2 4115 07 1
16.0 80 44500 2 2 4115 08 1
Product
group 1
101
Sanitary
HERZ kit for connection of water meters
Model DN EAN
90 04174 Order
number Item
HERZ kit for connection of water meters according
to ÖNORM B 2535.
Installation kit for the water meter with Bracket made
of galvanized steel.
- Shut-off valve before the water meter
- Check valve after the water meter.
20 45130 0 2 4126 62 1
25 45100 3 2 4126 63 1
32 45140 9 2 4126 64 1
40 45150 8 2 4126 65 1
50 45160 7 2 4126 66 1
HERZ- Backfl ow preventer
Dezincifi cation resistant brass body,, brass version,
* 2 bores 1 / 4 and a screw plug 1 0273 09 screwed.
* Both sides are female threaded according to ISO 7 / 1.
* Possible draining function, the equipment for draining
function are be ordered separately.
* Non-rising spindle, spindle seal by means of elastic
double O-ring, the upper part wiht O-ring sealed in the
body.
* Seal materials consist of physiologically harmless material.
* Flow Class VB, product group I, according to
ÖNORM EN 1213th.
15 45130 0 2 4126 01 5
20 45110 2 2 4126 02 5
25 45120 1 2 4126 03 5
32 45460 8 2 4126 04 5
40 45470 7 2 4126 05 1
50 45480 6 2 4126 06 1
HERZ-Pressure Reducer
Model PN DN EAN
383 000282 Order
number Item
Diaphragm Pressure Reducer
Forged brass version, EPDM diaphragm and seal,
G thread, with plastic cap. Suitable for heating systems
to protect boiler against increased pressure. For all non-
agressive fl uids such as water, oil, air, steam, fuel and
lubricating oil. Working temperature 0 °C to +70 °C.
16 15 7582 1 2682 01 18
16 20 7599 1 2682 02 18
16 25 7827 1 2682 03 18
16 32 7834 1 2682 04 18
HERZ-Pressure Reducing Valves
Model DN Dim. EAN Order
number Item
HERZ-Pressure Reducing Valve PN 16
Body made of gunmetal, male BSP union
Stainless Steel Spring, NBR seals & Diaphragm
Max inlet pressure 25 bar
Adjustable pressure range 1.5–6 bar
Max Temperature 80 °C.
According to BS EN 1567
WRAS Approved.
15 1/2 –HVPRV-01 1
20 3/4 –HVPRV-02 1
25 1 –HVPRV-03 1
32 1¼ –HVPRV-04 1
40 1½ –HVPRV-04 1
50 2 –HVPRV-06 1
HERZ-Pressure Reducing Valve PN 16
Body made of DZR Brass, compression ends
Stainless Steel Spring, NBR seals & Diaphragm
Max inlet pressure 25 bar
Adjustable pressure range 1–6 bar
Max Temperature 80 °C.
According to BS EN 1567
WRAS Approved.
15 15 –HVPRVC-11 1
20 22 –HVPRVC-12 1
Product
group 6
Product
group 1
102
HERZ-Ball Valves
Model PN DN EAN
383 000282 Order
number Item
Ball Valve with green duraluminium handle.
Dezincifi cation resistant brass according to
DIN 17660, sealing material is made of standards
acceptable material, female thread connection.
Free of dead space by fl ushing behind the ball with
protected seat seal. Medium temperature range
to 85 °C for drinking water.
16 15 9593 2 2100 01 25
16 20 9609 2 2100 02 25
16 25 9616 2 2100 03 16
16 30 9623 2 2100 04 16
16 40 9630 2 2100 05 12
16 50 9647 2 2100 06 8
Ball valve with a green T-handle, DZR.
Housing Forged brass alloy according to DIN 17660,
Seal materials are made of physiologically acceptable
material. Dead space by fl ushing behind ball, with
abrasion-proof seal seat. The application area is
Temperatures to 85 °C for drinking water.
16 15 9869 2 2100 11 25
16 20 9826 2 2100 12 25
16 25 9883 2 2100 13 16
16 32 9890 2 2100 14 16
HERZ-Ball Valves
HERZ Ball Valve with Check Valve
Dezincifi cation resistant brass according to
DIN 17660, Seals is from PTFE and EPDM
Temperature of the medium from -10 till +90 °C.
Water from 0 till +90 °C
16 15 9524 1 2110 01 25
16 20 9425 1 2110 02 25
HERZ-Backfl ow preventer
HERZ- Backfl ow preventer
According to EN 1717, safety device to prevent
backfl ows, pressures and suction of polluted water
into the buildings supply line or also different and
unfamiliar component parts. KIWA Accreditation,
medium water, housing and parts in contact with
water made of dezincifi cation brass, works noiseless
and it doesn’t produce any hammer blow (pressure
surges). Two 1/4 openings for the functional control.
3/4 20 9746 1 2623 02 25
125 9753 1 2623 03 25
1½
32 9760 1 2623 04 16
HERZ-Double Check Valves
Model DN Dim. EAN Order
number Item
HERZ-Double Check Valve PN 16
Body made of DZR Brass, screwed BSP ends
Stainless Steel Spring, NBR seals
Pressure range 0.1 bar - 16 bar
Max Temperature 85 °C.
According to BS6282:
Part 1 WRAS Approved.
15 1/2 –HVDCV-01
20 3/4 –HVDCV-02
25 1 –HVDCV-03
32 1¼ –HVDCV-04
40 1½ –HVDCV-05
50 2 –HVDCV-06
HERZ-Double Check Valve PN 16
Body made of DZR Brass, compression ends
Stainless Steel Spring, NBR seals
Pressure range 0.1 bar - 16 bar
Max Temperature 85 °C.
According to BS6282:
Part 1 WRAS Approved.
15 15 –HVDCVC-11
20 22 –HVDCVC-12
25 28 –HVDCVC-13
Sanitary
Product
group 1
103
Sanitary
Shutoff Valve for Drinking Water Systems in buildings, inclined model,
with male thread
Model min.
l/s DN EAN
90 04174 Order
number Item
W1.331
4315 AW
STRÖMAX-AW
STRÖMAX-AW - Shutoff Valve for Drinking Water,
inclined model, with male thread
Dezincifi cation resistant brass, brass version.
* Two bores 1/4 and one screw plug 1 0273 09 is
mounted with 2 pieces of nuts.
* Two male fl ah sealed at both ends.
* Draining is possible. Drain fi ttings have to be ordered
separately.
* The rising valve spindle is permanently sealed by
means of a double O-Ring.
* The sealing material is made of standards
acceptable material.
* Volume fl ow class VB, fi ttings group I, according to
ÖNORM EN 1213.
0.5 15 43050 3 2 4315 11 10
1.0 20 43060 2 2 4315 12 10
1.75 25 43070 1 2 4315 13 10
3.0 32 43080 1 2 4315 14 5
4.0 40 43090 9 2 4315 15 5
6.75 50 43100 5 2 4315 16 5
W1.331
4315 AW
STRÖMAX-AW
STRÖMAX-AW - Shutoff Valve for Drinking Water,
inclined model, with male thread
Dezincifi cation resistant brass, brass version.
* Two bores 1/4 and one screw plug 1 0273 09 is
mounted
* Two male 3/4 with cone both ends.
* Draining is possible. Drain fi ttings have to be
ordered separately.
* The rising valve spindle is permanently sealed by
means of a double O-Ring.
* The sealing material is made of standards
acceptable material.
* Volume fl ow class VB, fi ttings group I, according to
ÖNORM EN 1213.
0.5 15 43190 6 2 4315 91 10
Shutoff Valve for Drinking Water Systems in buildings, inclined model, with male thread
4325 AWD
STRÖMAX-AWD
W1.332
STRÖMAX-AWD - Shutoff Valve for Drinking Water,
inclined model, with male thread, fl at sealing
connection
Dezincifi cation resistant brass, brass version.
* Two bores 1/4 and one screw plug 1 0273 09 is
mounted with 2 pieces of nuts. DN 65 and 80.
* Two male thread are fl at seal.
* Draining is possible. Drain fi ttings have to be
ordered separately.
* The non-rising valve spindle is permanently sealed
by means of a double O-Ring. Upper part is sealed
by O-Ring seal im body.
* The sealing material is made of standards
acceptable material.
* Volume fl ow class VB, fi ttings group I, according to
ÖNORM EN 1213.
0.5 15 43110 4 2 4325 71 5
1.0 20 43120 3 2 4325 72 5
1.75 25 43130 2 2 4325 73 5
3.0 32 43140 1 2 4325 74 5
4.0 40 43150 2 2 4325 75 5
6.75 50 43160 9 2 4325 76 5
4325 AWD
W1.332
STRÖMAX-AWD - Shutoff Valve, inclined model,
with male thread
Dezincifi cation resistant brass, brass version.
* Two bores 1/4 and one screw plug 1 0273 09 is
mounted
* Two male thread are conical sealed
* Draining is possible. Drain fi ttings have to be
ordered separately.
* The non-rising valve spindle is permanently sealed
by means of a double O-Ring. Upper part is sealed
by O-Ring seal im body.
* The sealing material is made of standards
acceptable material.
* Volume fl ow class VB, fi ttings group I, according to
ÖNORM EN 1213.
0.5 15 43200 2 2 4325 91 10
STRÖMAX-AWD
104
Gas
Ball valves for gas
Model Dim. PN MOP EAN
383 000282 Order
number Item
Ball valve with steel lever
Forged brass body according to EN 12165,
with O-ring seals (ball and spindle),
female thread connection.
Suitable for gas installations according to
table DIN-DVGW G.260,
PN1 (HTB 650 °C/30 min), GT.
Medium temperature range -20 °C to 60 °C.
Gas Approved to EN331.
DN 8
15
8008 1 2300 09 25
DN 10 8015 1 2300 00 25
DN 15 8022 1 2300 01 25
DN 20 8039 1 2300 02 25
DN 25 8046 1 2300 03 20
DN 32 8053 1 2300 04 16
DN 40 8060 1 2300 05 8
DN 50 8077 1 2300 06 4
Ball valve with steel T-handle
Forged brass body according to EN 12165,
with O-ring seals (ball and spindle),
female thread connection.
Suitable for gas installations according to
table DIN-DVGW G.260,
PN1 (HTB 650 °C/30 min), GT.
Medium temperature range -20 °C to 60 °C.
Gas Approved to EN331.
DN 8
15
8091 1 2300 19 25
DN 10 8107 1 2300 10 25
DN 15 8114 1 2300 11 25
DN 20 8121 1 2300 12 25
DN 25 8138 1 2300 13 20
DN 32 8145 1 2300 14 16
Ball valve with steel lever
Forged brass body according to EN 12165,
with O-ring seals (ball and spindle),
male x female thread connection.
Suitable for gas installations according to
table DIN-DVGW G.260,
PN1 (HTB 650 °C/30 min), GT.
Medium temperature range -20 °C to 60 °C.
DN 8
15
8169 1 2301 09 25
DN 10 8176 1 2301 00 25
DN 15 8183 1 2301 01 25
DN 20 8190 1 2301 02 25
DN 25 8206 1 2301 03 20
DN 32 8213 1 2301 04 16
DN 40 8220 1 2301 05 8
DN 50 8237 1 2301 06 4
Ball valve with steel T-handle
Forged brass body according to EN 12165,
with O-ring seals (ball and spindle),
male x female thread connection.
Suitable for gas installations according to
table DIN-DVGW G.260,
PN1 (HTB 650 °C/30 min), GT.
Medium temperature range -20 °C to 60 °C.
DN 8
15
8251 1 2301 19 25
DN 10 8268 1 2301 10 25
DN 15 8275 1 2301 11 25
DN 20 8282 1 2301 12 25
DN 25 8299 1 2301 13 20
DN 32 8305 1 2301 14 16
Ball valve with steel T-handle
Forged brass body according to EN 12165,
with O-ring seals (ball and spindle),
male x female thread connection.
Suitable for gas installations according to
table DIN-DVGW G.260,
PN1 (HTB 650 °C), GT.
Medium temperature range -20 °C to 60 °C.
DN 8
15
8497 1 2303 19 25
DN 10 8503 1 2303 10 25
DN 15 8510 1 2303 11 25
DN 20 8527 1 2303 12 25
DN 25 8534 1 2303 13 20
DN 32 8541 1 2303 14 16
Ball valve with steel lever
Forged brass body according to EN 12165,
with O-ring seals (ball and spindle),
male x female thread connection.
Suitable for gas installations according to
table DIN-DVGW G.260 table,
PN1 (HTB 650 °C), GT.
Medium temperature range -20 °C to 60 °C.
DN 8
15
8404 1 2303 09 25
DN 10 8411 1 2303 00 25
DN 15 8428 1 2303 01 25
DN 20 8435 1 2303 02 25
DN 25 8442 1 2303 03 20
DN 32 8459 1 2303 04 16
DN 40 8466 1 2303 05 8
DN 50 8473 1 2303 06 4
Product
group 6
105
Gas
Ball valves for gas
Model Dim. PN MOP EAN
383 000282 Order
number Item
Ball valve with steel lever
Forged brass body according to EN 12165,
with O-ring seals (ball and spindle),
female thread connection.
Suitable for gas installations according to
table DIN-DVGW G.260, PN1
(HTB 925 °C, 60 min.), GT.
Medium temperature range -20 °C to 60 °C.
DN 15
15
8329 1 2302 01 25
DN 20 8336 1 2302 02 25
DN 25 8343 1 2302 03 20
Ball valve with steel T-handle
Forged brass body according to EN 12165,
with O-ring seals (ball and spindle),
female thread connection.
Suitable for gas installations according to
table DIN-DVGW G.260,
PN1 (HTB 925 °C, 60 min.), GT.
Medium temperature range -20 °C to 60 °C.
DN 15
15
8367 1 2302 11 25
DN 20 8374 1 2302 12 25
DN 25 8381 1 2302 13 20
Ball valve for connecting devices with plastic handle
Model Dim. PN MOP EAN
383 896342 Order
number Item
Ball valve for connecting devices with
plastic handle, straighway
Brass body according EN 12165, nickel,
with double O-ring seal for spindle,
Ball with Tefl on seals, IG x conical sealing
screw plug with male thead,
Security operation by pressing
and turning the handle.
Suitable for gas installations for
DIN-DVGW G 260.
Nominal pressure PN 1;
Operating temperature -20 °C to +60 °C,
with thermal safety device (TAS) resistant
against 925 °C / 60 min
DN 15
15
0910 1 2362 21 25
DN 20 0927 1 2362 22 25
DN 25 0934 1 2362 23 20
HERZ-Ball valve for connecting devices, straightway
Ball valve for connecting devices with
plastic handle, straighway
Brass body according EN 12165, nickel,
with double O-ring seal for spindle,
Ball with Tefl on seals, IG x conical sealing
Iron pipe connection screw plug with male
thead, Security operation by pressing
and turning the handle. Suitable for gas
installations for DIN-DVGW G 260.
Nominal pressure PN 1; Operating
temperature -20 °C to +60 °C, with thermal
safety device (TAS) resistant against
925 °C / 60 min
DN 15 1 5 0941 1 2362 31 25
Product
group 6
Product
group 1
106
Gas
Ball valves for gas
Model Dim. PN MOP EAN
383 000282 Order
number Item
Ball valve with security closing T-handle
Forged brass body according to EN 12165,
nickel platted, with tefl on seals, two spindle
O-Rings, male thread connection. Suitable
for gas installations according to table
DIN-DVGW G.260. Medium temperature
range -20 °C to 60 °C.
DN 10 1 5 8565 1 2362 00 25
Ball valve with security closing T-handle
Forged brass body according to EN 12165,
nickel platted, with tefl on seals, two spindle
O-Rings, male x female thread connection.
Suitable for gas installations according
to table DIN-DVGW G.260. Medium
temperature range -20 °C to 60 °C.
DN 10 1 5 8589 1 2372 01 25
Ball valve with duraluminium T-handle
Forged brass body according to EN 12165,
nickel platted, with tefl on seals, two spindle
O-Rings, male thread connection. Suitable
for gas installations according to table
DIN-DVGW G. 260. Medium temperature
range -20 °C to 60 °C.
DN 10 1 5 8602 1 2362 10 25
Ball valve with duraluminium T-handle
Forged brass body according to EN 12165,
nickel platted, with tefl on seals, two spindle
O-Rings, male x female thread connection.
Suitable for gas installations according
to table DIN-DVGW G. 260. Medium
temperature range -20 °C to 60 °C.
DN 10 1 5 8626 1 2372 11 25
6
107
HERZ-Ball valves for gas
Model Dim. PN MOP EAN
383 896342 Order
number Item
Ball valve for connecting devices with
plastic handle, straighway
Brass body according EN 12165, nickel,
with double O-ring seal for spindle,
Ball with Tefl on seals, female thread x
conical sealing Iron pipe connection
screw plug with weld end, Security
operation by pressing and turning the
handle. Suitable for gas installations for
DIN-DVGW G 260. Nominal pressure PN 1;
Operating temperature -20 ° C to +60 ° C,
with thermal safety device (TAS) resistant
against 650 ° C / 30 min.
DN 15 1 5 0958 1 2363 01 25
Ball valve for connecting devices with
plastic handle, straighway
Brass body according EN 12165, nickel,
with double O-ring seal for spindle, Ball
with Tefl on seals, female thread x conical
sealing Iron pipe connection screw plug
with male thead, Security operation by
pressing and turning the handle. Suitable
for gas installations for DIN-DVGW G
260. Nominal pressure PN 1; Operating
temperature -20 ° C to +60 ° C, with thermal
safety device (TAS) resistant against
650 °C / 30 min.
DN 15 1 5 0965 1 2363 11 25
Ball valve for connecting devices with
plastic handle, angle
Brass body according EN 12165, nickel,
with double O-ring seal for spindle, Ball with
Tefl on seals, male thread x conical sealing
Iron pipe connection screw plug with male
thead, Security operation by pressing
and turning the handle. Suitable for gas
installations for DIN-DVGW G 260. Nominal
pressure PN 1; Operating temperature -20 °
C to +60 ° C, with thermal safety device
(TAS) resistant against 650 ° C / 30 min.
DN 15
15
0972 1 2362 41 25
DN 20 0989 1 2362 42 25
DN 25 0996 1 2362 43 25
Ball valve for connecting devices with
plastic handle, angle
Brass body according EN 12165, nickel,
with double O-ring seal for spindle,
Ball with Tefl on seals, male thread x conical
sealing Iron pipe connection screw plug
with male thead, Security operation by
pressing and turning the handle. Suitable
for gas installations for DIN-DVGW G 260.
Nominal pressure PN 1; Operating
temperature -20 ° C to +60 ° C, with thermal
safety device (TAS) resistant against
925 °C / 60 min.
DN 15 15 1009 1 2362 51 25
Ball valve for connecting devices with
plastic handle, angle
Brass body according EN 12165, nickel,
with double O-ring seal for spindle, Ball
with Tefl on seals, female thread x conical
sealing Iron pipe connection screw plug
with male thead, Security operation by
pressing and turning the handle. Suitable
for gas installations for DIN-DVGW G 260.
Nominal pressure PN 1; Operating
temperature -20 ° C to +60 ° C, with thermal
safety device (TAS) resistant against
650 °C / 30 min.
DN 15 15 1016 1 2363 21 25
Ball valve for connecting devices with
plastic handle, angle
Brass body according EN 12165, nickel,
with double O-ring seal for spindle, Ball with
tefl on seals, female thread x conical sealing
Iron pipe connection screw plug with male
thead, Security operation by pressing
and turning the handle. Suitable for gas
installations for DIN-DVGW G 260.
Nominal pressure PN 1; Operating
temperature -20 ° C to +60 ° C, with thermal
safety device (TAS) resistant against
650 °C / 30 min.
DN 15 15 1023 1 2363 31 25
Gas
Product
group 6
108
HERZ-Ball valves for gas
Model Dim. PN MOP EAN
383 000282 Order
number Item
Ball valve with steel lever
Forged brass body according to
EN 12165, nickel platted, with tefl on
seals, two spindle O-Rings, female thread
connection. Suitable for gas installations
according to table DIN-DVGW G. 260.
Medium temperature range -20 °C to 60 °C.
DN 10
41
8640 1 2304 00 25
DN 15 8657 1 2304 01 25
DN 20 8664 1 2304 02 25
DN 25 8671 1 2304 03 20
DN 32 8688 1 2304 04 16
DN 40 8695 1 2304 05 8
DN 50 8701 1 2304 06 4
Ball valve with steel T-handle
Forged brass body according to EN 12165,
nickel platted, with tefl on seals,
two spindle O-Rings, female thread
connection. Suitable for gas installations
according to table DIN-DVGW G. 260.
Medium temperature range -20 °C to 60 °C.
DN 10
41
8725 1 2304 10 25
DN 15 8732 1 2304 11 25
DN 20 8749 1 2304 12 25
DN 25 8756 1 2304 13 20
DN 32 8763 1 2304 14 16
Ball valve with steel lever
Forged brass body according to EN 12165,
nickel platted, with tefl on seals, two spindle
O-Rings, male x female thread connection.
Suitable for gas installations according
to table DIN-DVGW G. 260. Medium
temperature range -20 °C to 60 °C.
DN 10
41
8787 1 2305 00 25
DN 15 8794 1 2305 01 25
DN 20 8800 1 2305 02 25
DN 25 8817 1 2305 03 20
DN 32 8824 1 2305 04 16
DN 40 8831 1 2305 05 8
DN 50 8848 1 2305 06 4
Ball valve with butterfl y handle from steel
Brass body according EN 12165, nickel,
with double O-ring seal for spindle, ball with
tefl on seals, female thread x male thread.
Suitable for gas installations to DIN-DVGW
G 260 Nominal pressure PN 4, Operating
temperature -20 °C to +60 °C.
DN 10
41
8862 1 2305 10 25
DN 15 8879 1 2305 11 25
DN 20 8886 1 2305 12 25
DN 25 8893 1 2305 13 16
DN 32 8909 1 2305 14 8
HERZ-Insulating Nipple for gas
Insulating Nipple
Brass body according EN 12165, female
thread x male thread. Suitable for gas
installations for DIN-DVGW G 260 Table
nominal pressure PN 5, Operating
temperature -20 °C to +60 °C.
DN 15
51
1030 1 2000 01 25
DN 20 8923 1 2000 02 25
DN 25 1047 1 2000 03 20
DN 32 1054 1 2000 04 16
DN 40 1061 1 2000 05 8
DN 50 1078 1 2000 06 4
HERZ-Strainer for gas
Strainer for gas
Brass body according EN 12165, both
sides threaded sockets, Suitable for
gas installations to DIN-DVGW G 260
table. Nominal pressure PN 5, Operating
temperature -20 °C to 60 °C.
DN 15
51
8947 1 2319 01 25
DN 20 8954 1 2319 02 25
DN 25 8961 1 2319 03 20
Gas
Product
group 6
109
Pipe and Fittings
Model Dim. EAN
90 04174 Order
number Item
HERZ Plastic composite pipe for natural gas
aluminium core, in reels 50 metres,
with yellow extra strong surface RAL 1201.
Operating temperature -20 °C to +60 °C,
max. Operating pressure 100 mbar
16 x 2.0 95000 1 G 1160 20 200
20 x 2.0 95010 0 G 1200 20 100
26 x 3.0 95020 9 G 1260 20 50
32 x 3.0 95030 8 G 1320 20 50
HERZ Plastic composite pipe for natural gas
aluminium core, in 5 metre length,
with yellow extra strong surface RAL 1201
Operating temperature -20 °C to +60 °C,
max. Operating pressure 100 mbar
16 x 2.0 95040 7 G 1160 21 120
20 x 2.0 95050 6 G 1200 21 120
26 x 3.0 95060 5 G 1260 21 120
32 x 3.0 95070 4 G 1320 21 50
Press fi ttings from brass for natural gas.
Stainless steel press sleeve, double O-ring HNBR yellow color, plastic ring for centering the compression sleeve
colored yellow, operating temperature -20 °C to +60 °C, max. operating pressure 100 mbar.
Press straight coupling 16 x 2.0 95200 5 G 17016 00 200
20 x 2.0 95210 4 G 17020 00 150
26 x 3.0 95220 3 G 17026 00 100
32 x 3.0 95230 2 G 17032 00 50
Reducer 20 x 2.0 -
16 x 2.0 95240 1 G 17020 01 150
26 x 3.0 -
16 x 2.0 95250 0 G 17026 01 100
26 x 3.0 -
20 x 2.0 95260 9 G 17026 02 100
32 x 3.0 -
16 x 2.0 95270 8 G 17032 02 60
32 x 3.0 -
20 x 2.0 95280 7 G 17032 06 60
T- piece with equal outlets 16 x 2.0 95290 6 G 17216 00 60
20 x 2.0 95300 2 G 17220 00 50
26 x 3.0 95310 1 G 17226 00 30
32 x 3.0 95320 0 G 17232 00 25
T- piece, centre outlet larger 16 x 2.0 -
20 x 2.0 -
16 x 2.0
95330 9 G 17216 03 50
20 x 2.0 -
16 x 2.0 -
20 x 2.0
95350 7 G 17220 01 50
26 x 3.0 -
16 x 2.0 -
26 x 3.0
95360 6 G 17226 03 30
26 x 3.0 -
20 x 2.0 -
26 x 3.0
95370 5 G 17226 05 30
26 x 3.0 -
32 x 3.0 -
26 x 3.0
95340 8 G 17226 17 30
32 x 3.0 -
20 x 2.0 -
32 x 3.0
95380 4 G 17232 04 30
32 x 3.0 -
26 x 2.0 -
32 x 3.0
95390 3 G 17232 07 30
Gas
Product
group 2
Product
group 3
110
HERZ-Fittings for Gas
Model Dim. PN EAN
90 04174 Order
number Item
T-Piece, centre outlet larger 20 x 2.0 -
16 x 2.0-
16 x 2.0 0.1 95400 9 G 17220 03 50
26 x 3.0 -
20 x 2.0 -
16 x 2.0 0.1 95410 8 G 17226 13 30
32 x 3.0 -
26 x 3.0 -
26 x 3.0 0.1 95420 7 G 17232 09 30
32 x 3.0 -
32 x 3.0 -
26 x 3.0 0.1 95430 6 G 17232 14 30
T-Piece with central female thread 16 x 2.0 -
1/2 -
16 x 2.0 0.1 95440 5 G 17216 41 60
20 x 2.0 -
1/2 -
20 x 2.0 0.1 95450 4 G 17220 41 50
26 x 3.0 -
1/2 -
26 x 3.0 0.1 95460 3 G 17226 41 30
32 x 3.0 -
1/2 -
32 x 3.0 0.1 95470 2 G 17232 43 30
Junction, male thread 16 x 2.0
- R 1/2 0.1 95480 1 G 17016 11 150
20 x 2.0
- R 1/2 0.1 95490 0 G 17020 11 150
20 x 2.0
- R 3/4 0.1 95500 6 G 17020 12 150
26 x 3.0
- R 3/4 0.1 95510 5 G 17026 12 100
32 x 3.0
- R 1 0.1 95520 4 G 17032 13 70
Junction, female thread 16 x 2.0 -
Rp 1/2 0.1 95530 3 G 17016 21 150
20 x 2.0 -
Rp 1/2 0.1 95540 2 G 17020 21 150
20 x 2.0 -
Rp 3/4 0.1 95550 1 G 17020 22 100
26 x 3.0 -
Rp 3/4 0.1 95560 0 G 17026 22 100
26 x 3.0
- Rp 1 0.1 95570 9 G 17026 23 70
32 x 3.0 -
Rp 1¼ 0.1 95580 8 G 17032 24 30
90 degree angle 16 x 2.0 0.1 95590 7 G 17116 00 150
20 x 2.0 0.1 95600 3 G 17120 00 80
26 x 3.0 0.1 95610 2 G 17126 00 50
32 x 3.0 0.1 95620 1 G 17132 00 30
Wall angle short 16 x 2.0
- R 1/2 0.1 95630 0 G 17116 31 50
20 x 2.0
- R 1/2 0.1 95640 9 G 17120 31 50
20 x 2.0
- R 3/4 0.1 95650 8 G 17120 32 50
26 x 3.0
- R 3/4 0.1 95660 7 G 17126 32 50
Gas
Product
group 3
Product
group 1
111
Strainers
HERZ-Strainers, Mesh Width 0.5 mm
Model kvs PN Dim. EAN
383 000282 Order
number Item
Water Strainer
Stainless steel mesh, Y-shape brass model for
heating and cooling system, with female thread
connection. Medium temperature range -10 °C
to +110 °C (water 0 °C to +110 °C).
2.55 16 15 7070 1 2662 01 25
5.60 16 20 7087 1 2662 02 25
8.20 16 25 7094 1 2662 03 16
HERZ-Strainers, Mesh Width 0.4 mm
Model kvs DN Dim. EAN
90 04174 Order
number Item
HERZ-Strainer
with fi ne-mesh screen made of
chromenickel steel, mesh width 0.4 mm
Dezincifi cation resistant brass body,
socket x socket.
15.9 32 1¼ 40040 7 1 4111 04 5
29.6 40 1½ 40050 6 1 4111 05 5
40.4 50 2 40060 5 1 4111 06 5
55.0 65 2½ 40070 4 1 4111 07 1
87.4 80 3 40080 3 1 4111 08 1
HERZ-Strainers, Mesh Width 0.75 mm
HERZ-Strainer
with fi ne-mesh screen made of
chromenickel steel, mesh width 0.75 mm
Dezincifi cation resistant brass body,
socket x socket.
21.5 32 1¼ 41480 0 1 4111 14 5
30.0 40 1½ 41490 9 1 4111 15 5
42.0 50 2 41500 5 1 4111 16 5
64.3 65 2½ 41510 4 1 4111 17 1
148.6 80 3 41520 3 1 4111 18 1
HERZ-Strainer with male thread,
with fi ne-mesh screen made
of chrome-nickel steel,
mesh width 0.75 mm.
Brass version, 2 x male thread, fl at seal.
3.1 15 1/2 39020 3 1 4111 51 10
7.1 20 3/4 39030 2 1 4111 52 5
13.8 25 1 39040 1 1 4111 53 5
21.5 32 1¼ 39050 0 1 4111 54 5
30.0 40 1½ 39060 9 1 4111 55 1
42.0 50 2 39070 8 1 4111 56 1
Strainer with Drain Valve
HERZ-strainer with drain valve (2275 09)
fi ne-mesh Stainless Steel screen,
Mesh size 0.75 mm.
socket x socket.
Compression adapter:
DN 15: Universal model with special sockets
for threaded pipe and Compression
adapter.
DN 20: Adapter 1 6266 20 Compression union
G 3 / 4. Adapter and compression sets
are sold separately.
3.1 15 1/2 39000 5 1 4111 41 10
7.1 20 3/4 39010 4 1 4111 42 10
Product
group 1
112
Accessories
HERZ-Metering stations
Model DN kvs EAN
90 04174 Order
number Item
HERZ-Metering Station with two test points
Inlet female thread, outlet external thread,
PN 20 from -20 °C up to 110 °C
Dezincifi cation resistant brass body, for hydraulic
balance of cooling systems, fan coils and heating
systems. 2 test points (0284) are mounted.
15 2.2 43500 3 1 4000 01 10
20 4.25 43520 1 1 4000 02 10
25 8.6 43530 9 1 4000 03 10
32 15.9 43540 9 1 4000 04 5
40 23.7 43550 8 1 4000 05 5
50 48.0 43560 7 1 4000 06 5
HERZ-Metering Station Low Flow Version
With reduced kvs-value, for differential pressure
measurement, otherwise as described above.
15 0.55 43510 2 1 4000 11 10
HERZ-Metering Station Medium Flow Version
for differential pressure measurement. 15 1.1 43310 8 1 4000 21 10
HERZ-Measuring Valves
Test points for HERZ-STRÖMAX-Circuit regulating
valves (manufactured from 2004), brass version,
blue cap (return) for fl ow computer. 1/4 02360 6 1 0284 01 1
Test points for HERZ-STRÖMAX-Circuit regulating
valves (manufactured in 2004 or later), brass version,
red cap (fl ow) for fl ow computer.
1/4 02370 5 1 0284 02 1
Test points for HERZ-STRÖMAX-TW-Circuit
regulating valves Brass version, blue cap
(return) for fl ow computer, valves are marked
in green (for drinking water).
1/4 02460 6 2 0284 01 1
Test points for HERZ-STRÖMAX-TW-Circuit
regulating valves Brass version, red cap (fl ow)
for fl ow computer, valves are marked in green
(for drinking water).
1/4 02470 5 2 0284 02 1
Test points for HERZ-STRÖMAX-Circuit
regulating valves Brass version, blue cap (return) for
fl ow computer. Extended model for insulated valves. 1/4 02530 3 1 0284 11 1
Test points for HERZ-STRÖMAX-Circuit
regulating valves. Brass version, red cap (fl ow) for
fl ow computer. Extended model for insulated valves. 1/4 02540 2 1 0284 12 1
Test points with draining function
Brass version, green cap, with swivel
hose connection. Test point for fl ow computer. 1/4 02640 9 2 0284 20 1
Test points with draining function
Brass version, red cap, with swivel hose connection.
Test point for fl ow computer. 1/4 02560 0 1 0284 22 1
Test points with draining function
Brass version, blue cap, with swivel hose connection.
Test point for fl ow computer. 1/4 02550 1 1 0284 21 1
Extended test point, drain function, blue cap
1/4 02620 1 1 0284 23 20
Extended test point, drain function, red cap
1/4 02630 0 1 0284 24 20
Product
group 1
113
Accessories
HERZ-Measuring Computer
Model EAN
90 04174 Order
number Item
HERZ Measuring computer suitable for one-hand operation
Electronic device to measure differential pressure, including
pressure absorption device, for measurement of circuit regulating
valves with direct fl ow display and differential pressure display.
Measuring range: 0–10 bar, maximum pressure 15 bar. Connection
for printer and computer for RS232C interface, protection IP 40,
recording buffer for 2,500 measurements. Package includes
accessories: 2 measuring hoses with R20 quick acting closure, fi lter
hose adapter, software and operation manual on disk, pressure
absorption device 1 0284 00 and test point adapter set 1 8903 11.
82110 3 1 8900 03 1
HERZ-Accessories for measuring computer
Test point adaptors
02380 4 1 0284 00 1
HERZ-Test point adapter set for HERZ-STRÖMAX-Valves
with test points 0280, 0282 u. 0283, for differential pressure
measurement via HERZ-Measuring computers “manufactured
in 2004 or earlier”.
81610 9 1 8903 11 1
Extension lead for measuring valve
1 set = 2 pieces 02610 2 1 0284 10 Set
Product
group 1
114
Accessories
1
HERZ-Accessories
Model DN Dim. EAN
90 04174 Order
number Item
Screw plug Brass version, with O-Ring seal
and hexagon socket screw. 1/4 02180 0 1 0273 09 1
3/8 02190 9 1 0273 00 1
Drain cock
Drain cock with Handle, brass version, TW. 3/8 02650 8 2 0275 00 20
1/4 02660 7 2 0275 09 20
Drain Valve with handle and swivel hose
connection
Brass version, Hose connection 1 6206 01
have to be ordered separately.
3/8 02480 1 2 0276 00 20
1/4 02490 0 2 0276 09 20
Drain Valve with handle and swivel hose
connection Brass version, Hose connection
1 6206 01 have to be ordered separately.
1/4 02220 3 1 0276 09 1
3/8 02230 2 1 0276 00 1
Hose Connection Adapter for HERZ-RL-5
and HERZ-3000
For radiator fi lling and draining via the return valve.
Hose connection 1 6206 01 to be ordered separately. 1/2 00010 2 1 0256 01 1
Hose connection
Brass version, nut and hose sleeve. 3/8 60010 4 1 6206 00 1
1/2 60020 3 1 6206 01 1
3/4 60030 2 1 6206 02 1
Thermal insulation shell for STRÖMAX
Stutoff Valves For STRÖMAX-D
HERZ-accessories, pipe fi ttings, drain valves
Valves for STRÖMAX-R Circuit Regulating Valves
For STRÖMAX-M
Circuit Regulating Valves with test points
The holes for the test points can be cut out
with a knife.
For HERZ-Strainers DN 32-85
15 1/2 40110 7 1 4095 01 1
20 3/4 40120 6 1 4095 02 1
25 1 40130 5 1 4095 03 1
32 1¼ 40140 4 1 4095 04 1
40 1½ 40150 3 1 4095 05 1
50 2 40160 2 1 4095 06 1
65 2½ 40170 1 1 4095 07 1
80 3 40180 0 1 4095 08 1
Presetting seal for STRÖMAX-GM/GR and STRÖMAX GMF
for covering the hand wheel fastening screw,
this seal will be destroyed by removing. 62910 5 1 6517 04 20
Presetting marker
Plastic tag for marking the presetting step.
Can be mounted on the valve or pipe. 62920 4 1 6517 05 20
Key presettingfor HERZ-fl ow rate controller model 4001,
since 2009; HERZ-Differential pressure controller 4002,
since 2009; HERZ-Kombi-fl ow controller, model 4006. 02670 6 1 4006 02 1
115
Spare parts for inclined model
HERZ-Upper Part for inclined valve seit 2004 Year
Model DN Dim. EAN
90 04174 Order
number Item
Upper part
for STRÖMAX shut-off valves with O-ring seal
between cap and body. Rising spindle
4115, 4115 A
10 3/8
64300 2 1 6385 50 1
15 1/2
20 3/4 64310 1 1 6385 52 1
25 1 64320 0 1 6385 53 1
32 1¼ 64330 9 1 6385 54 1
40 1½ 64340 8 1 6385 55 1
50 2 64350 7 1 6385 56 1
65 2½ 64360 6 1 6385 57 1
80 2 64370 5 1 6385 58 1
Upper part
for STRÖMAX shut-off valves
Non-rising spindle
4125 D, 4125 AD
4325 D, 4325 AD
15 1/2 62370 7 1 6389 01 1
20 3/4 62380 6 1 6389 02 1
25 1 62390 5 1 6389 03 1
32 1¼ 62400 1 1 6389 04 1
40 1½ 62410 0 1 6389 05 1
50 2 62420 9 1 6389 06 1
65 2½ 62560 2 1 6389 07 1
80 3 62570 1 1 6389 08 1
Handwheel
with fi xing screw for Gate valve and
STRÖMAX-stuffi ng box type.
-
3/8–1/2
61700 3 1 6519 00 1
3/4 61710 2 1 6519 02 1
161720 1 1 6519 03 1
1¼-1½
61730 0 1 6519 04 1
261740 9 1 6519 06 1
2
½
–3
61750 8 1 6519 07 1
Handwheel
with fi xing screw for STRÖMAX-D, STRÖMAX-G. -1/2–3 62280 9 1 6517 00 1
Upper part for gate valve
Upper part
for Gate valve with 2 blank plugs.
4112, 4112 A
15 1/2 61350 0 1 6382 01 1
20 3/4 61360 9 1 6382 02 1
25 1 61370 8 1 6382 03 1
32 1¼ 61380 7 1 6382 04 1
40 1½ 61390 6 1 6382 05 1
50 2 61400 2 1 6382 06 1
65 2½ 61410 1 1 6382 07 1
80 3 61420 0 1 6382 08 1
Product
group 1
116
Spare parts for inclined model
Upper Part for inclined model TW
Model DN Dim. EAN
90 04174 Order
number Item
Upper Part
for STRÖMAX-MW and STRÖMAX-RW
Balansing valves, New Design,
with O-ring seal between cap and body.
4117 MW, 4117 RW
15 1/2 66030 6 2 6388 00 10
20 3/4 66040 5 2 6388 02 10
25 1 66050 4 2 6388 03 10
32 1¼ 66060 3 2 6388 04 5
40 1½ 66070 2 2 6388 05 1
50 2 66080 1 2 6388 06 1
Upper Part for inclined model, current version
Upper Part
for STRÖMAX-M and STRÖMAX-R
Double regulating valves, New Design,
with O-ring seal between cap and body.
4117 M, 4117 R
15 1/2 64380 4 1 6388 50 1
20 3/4 64390 3 1 6388 52 1
25 1 64400 9 1 6388 53 1
32 1¼ 64410 8 1 6388 54 1
40 1½ 64430 6 1 6388 55 1
50 2 64420 7 1 6388 56 1
65 2½ 64440 5 1 6388 57 1
80 3 64450 4 1 6388 58 1
Handwheels
Handwheel
green with fi xing screw for
STRÖMAX MW Double regulating Valves
incline model with female thread.
2 4117 MW, 2 4117 RW
1/2–2 65810 5 2 6518 00 1
Handwheel
green with fi xing screw for STRÖMAX-M,
STRÖMAX-R.
1/2–3 61690 7 1 6518 00 1
Product
group 1
117
Spare parts for inclind Model
HERZ-Upper Part for incline Model, New Design
Model DN EAN
90 04174 Order
number Item
Upper Part
for STRÖMAX-AW shutoff valve,
inclined model, risind spindel
2 4115 AW, 2 4315 AW
10 64460 3 2 6385 00 1
15
20 64480 1 2 6385 02 1
25 64490 0 2 6385 03 1
32 64505 1 2 6385 04 1
40 64510 5 2 6385 05 1
50 64520 4 2 6385 06 1
65 64530 3 2 6385 07 1
80 64540 2 2 6385 08 1
Upper Part
for STRÖMAX-WD- shutoff valve
4125 WD, 4125 AWD
4325 D, 4325 AD
15 64550 1 2 6389 01 1
20 64560 0 2 6389 02 1
25 64570 9 2 6389 03 1
32 64580 8 2 6389 04 1
40 64590 7 2 6389 05 1
50 64600 3 2 6389 06 1
65 64610 2 2 6389 07 1
80 64620 1 2 6389 08 1
Upper Part
for valves 4215 W, 4215 AW, straight type
2 4215 W, 2 4215 AW
1/2 66530 1 2 6387 51 1
3/4 66540 0 2 6387 52 1
166550 9 2 6387 53 1
1¼ 66560 8 2 6387 54 1
1½ 66570 7 2 6387 55 1
266580 6 2 6387 56 1
Handwheel green with fi xing screw
for STRÖMAX MW shutoff valve,
incline model
2 4115 AW, 2 4315 AW
10 64630 0 2 6519 00 1
15
20 64640 9 2 6519 02 1
25 64650 8 2 6519 03 1
32 64660 7 2 6519 04 1
40
65 64680 5 2 6519 06 1
80 64680 5 2 6519 07 1
Handwheel green with fi xing screw
for STRÖMAX-AWD- shutoff valve,
incline model
2 4125 AWD, 2 4325 AWD
15
bis
80
64690 4 2 6517 00 1
Handwheel green with fi xing screw
for valves 3215 W, 4215 AW, strait model
2 4215 W, 2 4215 AW
15-20 66430 4 2 6520 01 1
25-32 66440 3 2 6520 03 1
40-50 66450 2 2 6520 04 1
Product
group 1
118
Spare parts for pipe fi ttings
Upper Part for incline Model till 2004 year
Model DN Dim. EAN
90 04174 Order
number Item
Upper part
for STRÖMAX M and STRÖMAX R
Double Regulating Valves with klingerit seal
between cap and body.
4117 M, 4117 R
15 1/2 65250 9 1 6388 00 1
20 3/4 65240 0 1 6388 02 1
25 1 65260 8 1 6388 03 1
32 1¼ 65270 7 1 6388 04 1
40 1½ 65280 6 1 6388 05 1
50 2 65290 5 1 6388 06 1
65 2½ 65300 1 1 6388 07 1
80 3 65310 0 1 6388 08 1
Upper part
for STRÖMAX shutoff valves with klingerit seal
between cap and body.
4115, 4115 A
10 3/8
61430 9 1 6385 00 1
15 1/2
20 3/4 61440 8 1 6385 02 1
25 1 61450 7 1 6385 03 1
32 1¼ 61460 6 1 6385 04 1
40 1½ 65320 9 1 6385 05 1
50 2 65330 8 1 6385 06 1
65 2½ 65340 7 1 6385 07 1
80 3 65350 6 1 6385 08 1
HERZ-Measuring Valves till 2004 year
Measuring valve for STRÖMAX-M,
STRÖMAX-MF straight and STRÖMAX-MFS
straight, Brass version. 1/4 00080 5 1 0280 09 1
Measuring valve for STRÖMAX-M,
Angle, Brass version. 1/4 00100 0 1 0282 09 1
Measuring valve for STRÖMAX-GM,
strait, Brass version. M 14 x 1.5 00140 6 1 0283 09 1
HERZ-Drain fi ttings till 2004 year
for pipe fi ttings and old versions of incline model.
Drainkock with handle
Brass version,
with Klingerit seal.
1/4 00030 0 1 0270 09 1
3/8 00020 1 1 0270 00 1
Screw plug
Brass version,
with Klingerit seal.
1/4 00050 8 1 0272 09 1
3/8 00040 9 1 0272 00 1
Drainkock with handle and hose connection
Brass version, with Klingerit seal.
Hose connection 1 6206 01 have to be orderer
separatel
1/4 00070 6 1 0275 09 1
3/8 00060 7 1 0275 00 1
Product
group 1
119
Spare parts for Differential pressure
HERZ-Upper Part for Differential pressure Controllers 4007
Model DN Dim. EAN
90 04174 Order
number Item
Upper Part for
Differential pressure Controllers
4007 and 4207 R.
15 1/2
65550 0 1 6386 02 1
20 3/4
25 1 65560 9 1 6386 03 1
32 1¼ 65570 8 1 6386 04 1
40 1½ 65580 7 1 6386 05 1
50 2 65550 6 1 6386 06 1
Capillary for Differential pressure Controllers 4007
Ball valve with nipple 1/8
1/8 40250 0 1 4007 78 1
Capillary for Differential pressure
Controllers 4007 including screw plug G 1/4 and
nipples.
1.0 m 43270 5 1 4007 79 1
1.5 m 43271 2 1 4007 80 1
Capillary for 4002 with ball valve 1/8 1.0 m 40240 1 1 4002 78 1
Capillary for 4002 1.0 m 40230 2 1 4002 79 1
Upper Parts for straight Model
Upper Part
for STRÖMAX-GM- and
STRÖMAX-GR-double regulating valves
4217 GM, 4217 GR, 4218 GMF
15 1/2 62820 7 1 6387 12 1
20 3/4
25 1 62830 6 1 6387 13 1
32 1¼ 62840 5 1 6387 14 1
40 1½ 62850 4 1 6387 15 1
50 2 62860 3 1 6387 16 1
65 2½ 62870 2 1 6387 17 1
80 3 62880 1 1 6387 18 1
Upper Part
for STRÖMAX-G
shutoff valve
4215 G, 4215 AG, 4218 AGF
15 1/2 62930 3 1 6387 52 10
20 3/4
25 1 62940 2 1 6387 53 10
32 1¼ 62950 1 1 6387 54 5
40 1½ 62960 0 1 6387 55 2
50 2 62970 9 1 6387 56 1
65 2½ 62980 8 1 6387 57 1
80 3 62990 7 1 6387 58 1
Handwheel
Handwheel
with fi xing screw for
STRÖMAX-GM, STRÖMAX-GR and
STRÖMAX-GMF.
1/2–1½ 62890 0 1 6517 06 1
2–3 62900 6 1 6517 08 1
120
Plastic Skirting Boards
Model Colour EAN
90 04174 Order
number Item
HERZ-Plastic skirting board, 4000 x 40 x 88 mm,
plastic skirting board, re-cycled PVC hollow profi le
laminated with light-fast foil. Sealing lip extruded in
colour of skirting board, click-clack fi xing on ledge
handles.
Light oak 00270 0 3 S910 14 40
Ash, white 00280 9 3 S910 34 40
Beech 00290 8 3 S970 44 40
Birch 00300 4 3 S970 54 40
HERZ-Plastic skirting board
PVC hollow profi le, white. Sealing lip extruded in
white, click-clack fi xing on ledge handles. pure white 02250 0 3 S970 64 40
Pipe and Skirting Board Handles
HERZ-Pipe handle, up to pipe diameter 22 mm
For mounting of HERZ-Skirting boards on already
placed pipes, height adjustment is not possible.
Fixing by dowel 3 S130 60 6 x 60 mm, consumption
1 piece/m skirting board. white 00410 0 3 S912 00 50
HERZ-Pipe handle, fi x up to pipe diameter 22 mm
For mounting of HERZ-Skirting boards on already
placed pipes, height adjustment up to 15 mm.
Fixing by dowel 3 S130 60 6 x 60 mm, consumption
1 piece/m skirting board.
black 00430 8 3 S940 00 50
Plastic Skirting Boards
Product
group 4
121
Plastic Skirting Board System
Connection Pieces
Model Colour EAN
90 04174 Order
number Item
HERZ-Butt joints
Recycled PVC,
surface design engraved,
to cover butt joints.
Light oak 00450 6 3 S912 10 50
Ash, white 00460 5 3 S912 30 50
Beech 00470 4 3 S918 30 50
Birch 00480 3 3 S919 30 50
Pure white 02260 9 3 S919 31 50
HERZ-External angle
Recycled PVC,
surface design engraved,
to cover mitre-cuts.
Light oak 02090 2 3 S912 50 50
Ash, white 02100 8 3 S912 70 50
Beech 02110 7 3 S918 40 50
Birch 02120 6 3 S919 40 50
HERZ-Internal angle
Recycled PVC,
surface design engraved,
to cover mitre-cuts.
Light oak 02130 5 3 S912 90 50
Ash, white 02140 4 3 S913 10 50
Beech 02150 3 3 S918 50 50
Birch 02160 2 3 S919 50 50
HERZ-External angle, plug-in type
Recycled PVC,
surface design engraved,
no mitre-cuts necessary.
Light oakl 00490 2 3 S958 10 50
Ash, white 00500 8 3 S958 30 50
Beech 00510 7 3 S918 80 50
Birch 00520 6 3 S919 80 50
Pure white 02270 8 3 S919 81 50
HERZ-Internal angle, plug-in type
Recycled PVC,
surface design engraved,
no mitre-cuts necessary.
Light oak 00530 5 3 S958 50 50
Ash, white 00540 4 3 S958 70 50
Beech 00550 3 3 S918 90 50
Birch 00560 2 3 S919 90 50
Pure white 02280 7 3 S919 91 50
HERZ-Finishing cover, right
Recycled PVC,
surface design engraved,
to cover open skirting board ends.
Light oak 00570 1 3 S913 30 50
Ash, white 00580 0 3 S913 50 50
Beech 00590 9 3 S918 60 50
Birch 00600 5 3 S919 60 50
Pure white 02290 6 3 S919 61 50
HERZ-Finishing cover, left
Recycled PVC,
surface design engraved,
to cover open skirting board ends.
Light oak 00610 4 3 S913 70 50
Ash, white 00620 3 3 S913 90 50
Beech 00630 2 3 S918 70 50
Birch 00640 1 3 S919 70 50
Pure white 00230 2 3 S919 71 50
Plastic Skirting Board System
Product
group 4
122
Sanitary
HERZ-Compact Distributors for Sanitary Installation DN 20 (3/4)
Model Dim. EAN
90 04174 Order
number Item
HERZ-Compact distributor made of
dezincifi cation resistant brass according
DVGW-AB W 534. Outside only is
nickelplated. Stem DN 20, outlets,
external thread G 1/2 with cone, 50 mm
pipe centres.
With 2 outlets 82160 8 2 8451 22 1
With 3 outlets 82170 7 2 8451 23 1
With 4 outlets 82180 6 2 8451 24 1
HERZ-Compact distributor made of
dezincifi cation resistant brass, according
to DVGW-AB W 534. Outside only is
nickel-plated. Stem DN 20, outlets,
external thread G 3/4 with cone,
50 mm pipe centres.
With 2 outlets 82190 5 2 8451 32 1
HERZ-Compact distributor made of
dezincifi cation resistant brass, according
to DVGW-AB W 534. Outside only is
nickel-plated. Stem DN 20, outlets,
external thread G 3/4 with cone,
50 mm pipe centres.
With 4outlets 84490 4 2 8451 42 1
Spare Parts
Distributor holding device for distributor
installation into cabinet.
1 Pair for compact distributors 1 8441,
beam distance 200 mm.
81410 5 1 8422 20 1
Wall-Angles with female thread
G 1/2 x Rp 1/2 16670 9 P 3124 14 150
G 3/4 x Rp 1/2 16680 8 P 3126 14 120
G 3/4 x Rp 3/4 16690 7 P 3126 15 100
Wall Box
G 3/4 - Rp 1/2 16700 3 P 3128 18 15
G 3/4 x G 3/4 - Rp 1/2 16710 2 P 3128 19 12
Mounting strip for wall box 16880 2 P 1025 07 10
Product
group 1
Produkt-
gruppe 3
Product
group 1
123
Wall-Angles with female thread
Model EAN
90 04174 Order
number Item
14 x 2 - Rp 1/2 10180 9 P 7114 31 50
16 x 2 - Rp 1/2 10190 8 P 7116 31 50
18 x 2 - Rp 1/2 10200 4 P 7118 31 50
20 x 2 - Rp 1/2 10210 3 P 7120 31 50
20 x 2 - Rp 3/4 10220 2 P 7120 32 50
26 x 3 - Rp 3/4 10270 7 P 7126 32 50
Wall-Angle long
14 x 2 - Rp 1/2 10390 72 P 7114 41 10
16 x 2 - Rp 1/2 10400 8 P 7116 41 10
18 x 2 - Rp 1/2 10410 7 P 7118 41 10
20 x 2 - Rp 1/2 10420 6 P 7120 41 10
Wall-Angle set
16 x 2 - Rp 1/2 153/120/100
Set: Rail + 2 wall angle 10650 7 P 7116 56 10
16 x 2 - Rp 1/2 76
Set: Rail + 2 wall angle 10660 6 P 7116 57 10
16 x 2 - Rp 1/2, 2
Holes
Rail + 2 wall angle 10670 5 P 7116 58 10
16 x 2 - Rp 1/2,
3
Holes
Rail + 2 wall angle 10680 4 P 7116 59 10
Product
group 3
Press fittings
124
Concealed T-piece for Flush Box
Model EAN
90 04174 Order
number Item
16 x 2 - Rp 1/2 - 16 x 2 11180 8 P 7216 61 50
20 x 2 - Rp 1/2 - 20 x 2 11190 7 P 7220 61 50
14 x 2 - Rp 1/2 11130 3 P 7114 61 50
16 x 2 - Rp 1/2 11140 2 P 7116 61 50
18 x 2 - Rp 1/2 11150 1 P 7118 61 50
20 x 2 - Rp 1/2 11160 0 P 7120 61 50
Wall Bushing
16 x 2 - Rp 1/2 4 mm 11070 2 P 7116 51 10
16 x 2 - Rp 1/2 30 mm 11030 6 P 7116 52 30
18 x 2 - Rp 1/2 30 mm 11040 5 P 7118 52 30
20 x 2 - Rp 1/2 30 mm 11050 4 P 7120 52 30
16 x 2 - Rp 1/2
thickness up to 30 10990 4 P 7116 53 10
18 x 2 - Rp 1/2
thickness up to 30 11000 9 P 7118 53 10
20 x 2 - Rp 1/2
thickness up to 30 11010 8 P 7120 53 10
Wall-Angle double, U-shape
16 x 2 - Rp 1/2 - 16 x 2 10350 6 P 7116 38 10
20 x 2 - Rp 1/2 - 20 x 2 10360 5 P 7120 38 10
16 x 2 - Rp 1/2 - 16 x 2 10300 1 P 7116 35 10
18 x 2 - Rp 1/2 - 18 x 2 10310 0 P 7118 35 10
20 x 2 - Rp 1/2 - 20 x 2 10320 9 P 7120 35 10
Product
group 3
Press Fittings
125
HERZ-Press fi ttings
Mounting Kits
Model Dim. EAN
90 04174 Order
number Item
Mounting strip for wall bushing 11080 1 P 7298 11 6
Mounting strip for wall-angle with adapter 10450 3 P 7298 10 6
Mounting strip with adapter and
2 wall bushings, not mounted,
3/4 external thread 30 mm
16 x 2 - Rp 1/2 30 mm 11090 0 P 7116 54 6
18 x 2 - Rp 1/2 30 mm 11100 6 P 7118 54 6
20 x 2 - Rp 1/2 30 mm 11110 5 P 7120 54 6
Mounting strip with adapter and
2 wall-angles, double U-shape not
mounted, 1/2
16 x 2 - Rp 1/2 - 16 x 2 10560 9 P 7116 39 6
18 x 2 - Rp 1/2 - 18 x 2 10570 8 P 7118 39 6
20 x 2 - Rp 1/2 - 20 x 2 10580 7 P 7120 39 6
Mounting strip with adapter and
2 short wall-angles,
not mounted Included in set
16 x 2 - Rp 1/2 10470 1 P 7116 33 6
18 x 2 - Rp 1/2 10480 0 P 7118 33 6
20 x 2 - Rp 1/2 10490 9 P 7120 33 6
Mounting strip with adapter
and 2 long wall-angles, not mounted
Included in set.
16 x 2 - Rp 1/2 10610 1 P 7116 43 6
18 x 2 - Rp 1/2 10620 0 P 7118 43 6
20 x 2 - Rp 1/2 10630 9 P 7120 43 6
Product
group 3
Mounting Kits
Product
group 1
126
Distributors
HERZ-Nickel-plated Compact Distributor Distributor Outlet
G 3/4
Model Dim. EAN
90 04174 Order
number Item
HERZ-Compact distributor pair,
dimension 1, consisting of distributor pair,
holding device, 1 bleed valve and O-Ring
seal between the components, distributor
entry with euro cone, external thread G 1
for copper and thin-walled steel pipes with
HERZ-Compression adapter 6273 for plastic
pipes with HERZ-plastic pipe connections
6198, compression adapter and copper pipe
connections have to be ordered separately.
When using HERZ-compression adapters pay
attention to their operational data. Maximum
operating temperature 110 °C, maximum
operating pressure 10 bar.
With 3 Outlet 80830 1 1 8541 03 1
With 4 Outlet 80840 0 1 8541 04 1
With 5 Outlet 80850 9 1 8541 05 1
With 6 Outlet 80860 8 1 8541 06 1
With 7 Outlet 80870 7 1 8541 07 1
With 8 Outlet 80880 6 1 8541 08 1
With 9 Outlet 80890 5 1 8541 09 1
With 10 Outlet 80900 1 1 8541 10 1
With 11 Outlet 80910 0 1 8541 11 1
With 12 Outlet 81920 9 1 8541 12 1
HERZ-Shutoff Valve for Compact distributor pair 8541
Shutoff Valve, straight model, 1 pair,
for compact distributor, nickel-plated.
Pipe connection for compression adapter G 1,
distributor connection with freely moving nut.
25 82060 1 1 8537 43 1
Shutoff Valve, straight model, 1 pair,
for compact distributor, nickel-plated.
Pipe connection with socket,
distributor connection with freely moving nut.
25 82040 3 1 8537 53 1
Shutoff Valve, angle model, 1 pair,
for compact distributor, nickel-plated.
Pipe connection for compression adapter G 1,
distributor connection with freely moving nut,
screw connection, short and long version.
25 82070 0 1 8538 43 1
Shutoff Valve, angle model, 1 pair,
for compact distributor, nickel-plated.
Pipe connection with socket,
Distributor connection with freely moving nut,
screw connection, short and long version.
25 82050 2 1 8538 53 1
Spare parts
Distributor holding device for installation
of distributor in cabinet, 1 pair for compact
distributor 1 8541. Beam distance 200 mm.
81400 6 1 8522 20 1
HERZ-
Ball Valve
Model PN Dim. EAN
383 000282 Order
number Item
Ball Valve with freely moving nut, with lever
Body made of forget brass to DIN 17660, plated.
Seals PTFE and NBR. Operating temperature
range: -10 °C to 110 °C, (water at 0 °C to 110 °C),
non-aggressive for all media such as water, oil,
air, fuel oil or lubricating
16 15 7773 1 2442 01 50
16 20 7780 1 2442 02 50
Ball Valve with freely moving nut,
with T- handle
Ball Valve with freely moving nut, with lever.
Body made of forget brass to DIN 17660,
plated. Seals PTFE and NBR.
Operating temperature range: -10 °C to 110 °C,
(water at 0 °C to 110 °C), non-aggressive for all
media such as water, oil, air, fuel oil or lubricating
16 15 7797 1 2442 11 50
16 20 7803 1 2442 12 50
Product
group 1
Product
group 6
Product
group 1
127
Pre-assembled Control station for radiator heating control
Model Dim. EAN
90 04174 Order
number Item
Pre-assembled Control station for radiator heating
control, circuits consisting of:
- Compact distributor pairof forged brass, plated,
with bleed Valve and 2 end caps
- Distributor holding device
- Ball Valves brass version with full bore
- Adapter and connecting places pre-assembled
in distributor cabinet made of galvanized steel sheet,
front frame and door powder coated,
white (RAL 9010).
Adjustable installation depth (80–110 mm), cabinet
height 705–775 mm, with removable pipe rail tracks.
Radiator connection is not temperature controlled.
3-outlets 99725 9 1 8574 03 1
4-outlets 99726 6 1 8574 04 1
5-outlets 99727 3 1 8574 05 1
6-outlets 99728 0 1 8574 06 1
7-outlets 99729 7 1 8574 07 1
8-outlets 99730 3 1 8574 08 1
9-outlets 99731 0 1 8574 09 1
10-outlets 99732 7 1 8574 10 1
11-outlets 99733 4 1 8574 11 1
12-outlets 99734 1 1 8574 12 1
Pre-assembled Control station, for fl oor heating
control circuits consisting of:
- Rod distributor made of brass, fl ow distributor
with control inserts with fl ow rate display and return
distributor with thermostatic valves, bleed, drain
valve with hose connection and 2 end caps.
- Distributor holding device
- Ball Valves brass version with full bore
- Adapter and connecting places pre-assembled in
distributor cabinet made of galvanized steel sheet,
front frame and door powder coated,
white (RAL 9010).
Adjustable installation depth (80–110 mm), cabinet
height 705–775 mm, with removable pipe rail tracks.
Radiator connection is not temperature controlled.
3-outlets 99735 8 1 8575 03 1
4-outlets 99736 5 1 8575 04 1
5-outlets 99737 2 1 8575 05 1
6-outlets 99738 9 1 8575 06 1
7-outlets 99739 6 1 8575 07 1
8-outlets 99740 2 1 8575 08 1
9-outlets 99741 9 1 8575 09 1
10-outlets 99742 6 1 8575 10 1
11-outlets 99743 3 1 8575 11 1
12-outlets 99744 0 1 8575 12 1
Pre-assembled Control station, for fl oor heating
control and radiator heating control, circuits
consisting of:
consisting of a combination of Pre-assembled Control
station for radiators for 8574 and a distribution point
for fl oor heating control 8575, including accessories
as described.
3-outlets 99745 7 1 8576 03 1
4-outlets 99746 4 1 8576 04 1
5-outlets 99747 1 1 8576 05 1
6-outlets 99748 8 1 8576 06 1
7-outlets 99749 5 1 8576 07 1
HERZ-COMPACT FLOOR
Pre-assembled Control station for fl oor heating
control, connection on the right, circuits
consisting of:
- Rod distributor made of brass, fl ow distributor
with control inserts with fl ow rate display and return
distributor with thermostatic valves, bleed and drain
valve with hose connection.
- Distributor holding devices
- Actuating drive for heating circuit control
- Mechanical temperature control
- Shutoff valve
- Circulating pump
- Automatic excess temperature control through
disconnection of pump
- Differential pressure control with overfl ow valve, pre-
assembled in distributor cabinet made of galvanized
steel sheet, front frame and door powder coated,
white (RAL 9010).
Adjustable installation depth (80–110 mm), cabinet
height 705–775 mm, with removable pipe rail tracks.
Radiator connection is not temperature controlled.
3-outlets 47000 4 3 F531 03 1
4-outlets 47001 1 3 F531 04 1
5-outlets 47002 8 3 F531 05 1
6-outlets 47003 5 3 F531 06 1
7-outlets 47004 2 3 F531 07 1
8-outlets 47005 9 3 F531 08 1
9-outlets 47006 6 3 F531 09 1
10-outlets 47007 3 3 F531 10 1
11-outlets 47008 0 3 F531 11 1
12-outlets 47009 7 3 F531 12 1
Distribution
Product
group 1
128
HERZ-COMPACT FLOOR
Model Dim. EAN
90 04174 Order
number Item
Pre-assembled Control station for fl oor heating
control, connection on the left, circuits consisting of:
- Rod distributor made of brass, fl ow distributor
with control inserts with fl ow rate display and return
distributor with thermostatic valves, bleed and drain
valve with hose connection.
- Distributor holding devices
- Mechanical temperature control
- Shutoff valve
- Circulating pump
- Automatic excess temperature control through
disconnection of pump
- Differential pressure control with overfl ow valve,
pre-assembled in distributor cabinet made of
galvanized steel sheet, front frame and door powder
coated, white (RAL 9010).
Adjustable installation depth (80–110 mm), cabinet
height 705–775 mm, with removable pipe rail tracks.
3-outlets 47010 3 3 F531 13 1
4-outlets 47011 0 3 F531 14 1
5-outlets 47012 7 3 F531 15 1
6-outlets 47013 4 3 F531 16 1
7-outlets 47014 1 3 F531 17 1
8-outlets 47015 8 3 F531 18 1
9-outlets 47016 5 3 F531 19 1
10-outlets 47017 2 3 F531 20 1
11-outlets 47018 9 3 F531 21 1
12-outlets 47019 6 3 F531 22 1
Pre-assembled Control station, 230 V, 50 Hz for
fl oor heating control and additional 2 radiator,
connection on the right, circuits consisting of:
- Rod distributor made of brass, fl ow distributor
with control inserts with fl ow rate display and return
distributor with thermostatic valves, bleed and drain
valve with hose connection.
- Distributor holding devices
- Mechanical temperature control
- Shutoff valve
- Circulating pump
- Automatic excess temperature control through
disconnection of pump
- Differential pressure control with overfl ow valve, pre-
assembled in distributor cabinet made of galvanized
steel sheet, front frame and door powder coated,
white (RAL 9010).
Adjustable installation depth (80–110 mm), cabinet
height 705–775 mm, with removable pipe rail tracks.
Radiator connection is not temperature controlled.
3-outlets 47020 2 3 F531 23 1
4-outlets 47021 9 3 F531 24 1
5-outlets 47022 6 3 F531 25 1
6-outlets 47023 3 3 F531 26 1
7-outlets 47024 0 3 F531 27 1
8-outlets 47025 7 3 F531 28 1
9-outlets 47026 4 3 F531 29 1
10-outlets 47027 1 3 F531 30 1
11-outlets 47028 8 3 F531 31 1
12-outlets 47029 5 3 F531 32 1
Pre-assembled Control station, 230 V, 50 Hz for
fl oor heating control and additional 2 radiator,
connection on the left, circuits consisting of:
- Rod distributor made of brass, fl ow distributor
with control inserts with fl ow rate display and return
distributor with thermostatic valves, bleed and drain
valve with hose connection.
- Distributor holding devices
- Mechanical temperature control
- Shutoff valve
- Circulating pump
- Automatic excess temperature control through
disconnection of pump
- Differential pressure control with overfl ow valve, pre-
assembled in distributor cabinet made of galvanized
steel sheet, front frame and door powder coated,
white (RAL 9010).
Adjustable installation depth (80–110 mm), cabinet
height 705–775 mm, with removable pipe rail tracks.
Radiator connection is not temperature controlled.
3-outlets 47030 1 3 F531 33 1
4-outlets 47031 8 3 F531 34 1
5-outlets 47032 5 3 F531 35 1
6-outlets 47033 2 3 F531 36 1
7-outlets 47034 9 3 F531 37 1
8-outlets 47035 6 3 F531 38 1
9-outlets 47036 3 3 F531 39 1
10-outlets 47037 0 3 F531 40 1
11-outlets 47038 7 3 F531 41 1
12-outlets 47039 4 3 F531 42 1
Distribution
Product
group 1
129
HERZ-COMPACT FLOOR
Model Dim. EAN
90 04174 Order
number Item
Pre-assembled Control station, 230 V, 50 Hz for
fl oor heating control and additional 2 radiator,
connection on the right, circuits consisting of:
- Rod distributor made of brass, fl ow distributor
with control inserts with fl ow rate display and return
distributor with thermostatic valves, bleed and drain
valve with hose connection.
- Distributor holding devices
- Actuating drive for heating circuit control
- Mechanical temperature control
- Shutoff valve
- Circulating pump
- Automatic excess temperature control through
disconnection of pump
- Differential pressure control with overfl ow valve,
pre-assembled in distributor cabinet made of
galvanized steel sheet, front frame and door powder
coated, white (RAL 9010).
Adjustable installation depth (80–110 mm), cabinet
height 705–775 mm, with removable pipe rail tracks.
Radiator connection is not temperature controlled.
3-outlets 99751 8 3 F533 03 1
4-outlets 99752 5 3 F533 04 1
5-outlets 99753 2 3 F533 05 1
6-outlets 99754 9 3 F533 06 1
7-outlets 99755 6 3 F533 07 1
8-outlets 99756 3 3 F533 08 1
9-outlets 99767 0 3 F533 09 1
10-outlets 99758 7 3 F533 10 1
11-outlets 99759 4 3 F533 11 1
12-outlets 99760 0 3 F533 12 1
Pre-assembled Control station, 230 V, 50 Hz for
fl oor heating control and additional 2 radiator,
connection on the left, circuits consisting of:
- Rod distributor made of brass, fl ow distributor
with control inserts with fl ow rate display and return
distributor with thermostatic valves, bleed and drain
valve with hose connection.
- Distributor holding devices
- Actuating drive for heating circuit control
- Mechanical temperature control
- Shutoff valve
- Circulating pump
- Automatic excess temperature control through
disconnection of pump
- Differential pressure control with overfl ow valve,
pre-assembled in distributor cabinet made of
galvanized steel sheet, front frame and door powder
coated, white (RAL 9010).
Adjustable installation depth (80–110 mm), cabinet
height 705–775 mm, with removable pipe rail tracks.
Radiator connection is not temperature controlled.
3-outlets 47040 0 3 F533 13 1
4-outlets 47041 7 3 F533 14 1
5-outlets 47042 4 3 F533 15 1
6-outlets 47043 1 3 F533 16 1
7-outlets 47044 8 3 F533 17 1
8-outlets 47045 5 3 F533 18 1
9-outlets 47046 2 3 F533 19 1
10-outlets 47047 9 3 F533 20 1
11-outlets 47048 6 3 F533 21 1
12-outlets 47049 3 3 F533 22 1
Pre-assembled Control station, 230 V, 50 Hz for
fl oor heating control, connection on the left,
circuits consisting of:
- Rod distributor made of brass, fl ow distributor
with control inserts with fl ow rate display and return
distributor with thermostatic valves, bleed and drain
valve with hose connection.
- Distributor holding devices
- Actuating drive for heating circuit control
- Mechanical temperature control
- Shutoff valve
- Circulating pump
- Automatic excess temperature control through
disconnection of pump
- Differential pressure control with overfl ow valve, pre-
assembled in distributor cabinet made of galvanized
steel sheet, front frame and door powder coated,
white (RAL 9010).
Adjustable installation depth (80–110 mm), cabinet
height 705–775 mm, with removable pipe rail tracks.
Radiator connection is not temperature controlled.
3-outlets 47050 9 3 F532 13 1
4-outlets 47051 6 3 F532 14 1
5-outlets 47052 3 3 F532 15 1
6-outlets 47053 0 3 F532 16 1
7-outlets 47054 7 3 F532 17 1
8-outlets 47055 4 3 F532 18 1
9-outlets 47056 1 3 F532 19 1
10-outlets 47057 8 3 F532 20 1
11-outlets 47058 5 3 F532 21 1
12-outlets 47059 2 3 F532 22 1
Distribution
Product
group 1
Product
group 1
130
HERZ-COMPACTFLOOR
Model Dim. EAN
90 04174 Order
number Item
Pre-assembled Control station, 230 V, 50 Hz
for fl oor heating control, consisting of:
- Rod distributor made of brass, fl ow distributor
with control inserts with fl ow rate display and return
distributor with thermostatic valves, bleed and drain
valve with hose connection.
- Distributor holding devices
- Actuating drive for heating circuit control
- Mechanical temperature control
- Shutoff valve
- Circulating pump
- Automatic excess temperature control through
disconnection of pump
- Differential pressure control with overfl ow valve, pre-
assembled in distributor cabinet made of galvanized
steel sheet, front frame and door powder coated,
white (RAL 9010).
Adjustable installation depth (80–110 mm), cabinet
height 705–775 mm, with removable pipe rail tracks.
3-outlets 99761 7 3 F532 03 1
4-outlets 99762 4 3 F532 04 1
5-outlets 99763 1 3 F532 05 1
6-outlets 99764 8 3 F532 06 1
7-outlets 99765 5 3 F532 07 1
8-outlets 99766 2 3 F532 08 1
9-outlets 99767 9 3 F532 09 1
10-outlets 99768 6 3 F532 10 1
11-outlets 99769 3 3 F532 11 1
12-outlets 99770 9 3 F532 12 1
HERZ-Spare Parts for COMPACTFLOOR
Pump connection system,
made of copper pipes, 1 pair of G1 connection nuts
for pump installation, distributor connection with
external thread R 1.
199931 4 3 F532 25 1
Pump group for underfl oor heating manifolds
with differential pressure bypass valve, temperature
limit switch, pump (3 F532 35), isolation valve and
thermostatic control valve with contact sensor,
factory assembled and leakage tested.
192060 8 3 F532 30 1
Pump EAS 25/2 – 130 230 V/50 Hz
46950 3 3 F532 35 1
Power input 230V
normally open master 4-fold. 46910 7 3 F798 14 1
Power input 230V
normally open Master 6-fold. 46920 6 3 F798 16 1
Power input 230V
normally open Slave 4-fold. 46930 5 3 F798 24 1
Power input 230V
normally open Slave 6-fold. 46940 4 3 F798 26 1
Distribution
131
HERZ-Floor rod-type Distributor, Brass Version
Model Dim. EAN
90 04174 Order
number Item
HERZ-Floor rod-type Distributor Set
With fl ow meter 2.5 l/min, dimension 1,
consisting of fl ow distributor with fl ow
meter control inserts, return manifold
with thermostatic upper parts, bleed and
drain valve with hose connection, end
caps und holding devices, staggered
distributor outlets, pipe connection G 3/4,
distributor with female thread Rp 1.
3-outlets 81090 9 1 8532 03 1
4-outlets 81100 5 1 8532 04 1
5-outlets 81110 4 1 8532 05 1
6-outlets 81120 3 1 8532 06 1
7-outlets 81130 2 1 8532 07 1
8-outlets 81140 1 1 8532 08 1
9-outlets 81150 0 1 8532 09 1
10-outlets 81160 9 1 8532 10 1
11-outlets 81170 8 1 8532 11 1
12-outlets 81180 7 1 8532 12 1
13-outlets 81350 4 1 8532 13 1
14-outlets 81360 3 1 8532 14 1
15-outlets 81370 2 1 8532 15 1
16-outlets 81380 1 1 8532 16 1
HERZ-Single Outlet set with fl ow
meter control insert
Dimension 1, for extension of 1 8532 ff,
consisting of 1 distributor with fl ow meter
control insert, return with thermostatic
upper part, control insert, 2 couplings for
female thread Rp 1, control insert,
2 couplings for female thread Rp 1,
pipe connection G 3/4.
DN 25
G 1 81310 8 1 8532 93 1
HERZ-Floor rod-type Distributor Set
Dimension 1, consisting of fl ow
distributor with shutoff upper parts,
return manifold with thermostatic
upper parts, bleed and drain valve
with hose connection, end caps with
holding devices, staggered distributor
outlets,pipe connection G 3/4,
distributor with female thread Rp 1.
3-outlets 80990 3 1 8531 03 1
4-outlets 81000 8 1 8531 04 1
5-outlets 81010 7 1 8531 05 1
6-outlets 81020 6 1 8531 06 1
7-outlets 81030 5 1 8531 07 1
8-outlets 81040 4 1 8531 08 1
9-outlets 81050 3 1 8531 09 1
10-outlets 81060 2 1 8531 10 1
11-outlets 81070 1 1 8531 11 1
12-outlets 81080 0 1 8531 12 1
13-outlets 81310 8 1 8531 13 1
14-outlets 81320 7 1 8531 14 1
15-outlets 81330 6 1 8531 15 1
16-outlets 81340 5 1 8531 16 1
HERZ-Single Outlet set with
thermostatic upper part
Dimension 1 for extension of 1 8531 ff,
consisting of 1 distributor with shutoff
valve, 1 return with thermostatic upper
part, 2 couplings for female thread Rp 1,
radiator connection G 3/4.
DN 25
G 1 81190 6 1 8531 93 1
Distributors
Product
group 1
132
Distributors
HERZ-Floor rod-type Distributor for Raised Flow-Through, Brass Version Distributor Outlet G 3/4
Model Dim. EAN
90 04174 Order
number Item
HERZ-Floor rod-type Distributor Set,
with fl ow meter 6 l/min, dimension 1,
consisting of fl ow distributor with fl ow
meters and, return distributor with
thermostatic upper parts, bleed and
drain valve with hose connection, end
caps and holding devices, staggered
distributor outlets, pipe connection G 3/4,
distributor with female thread Rp 1.
Set 1-way distributor 82500 2 1 8533 93 1
Set 3-way distributor 82510 1 1 8533 03 1
Set 4-way distributor 82520 0 1 8533 04 1
Set 5-way distributor 82530 9 1 8533 05 1
Set 6-way distributor 82540 8 1 8533 06 1
Set 7-way distributor 82550 7 1 8533 07 1
Set 8-way distributor 82560 6 1 8533 08 1
Set 9-way distributor 82570 5 1 8533 09 1
Set 10-way distributor 82580 4 1 8533 10 1
Set 11-way distributor 82590 3 1 8533 11 1
Set 12-way distributor 82600 9 1 8533 12 1
Set 13-way distributor 82610 8 1 8533 13 1
Set 14-way distributor 82620 7 1 8533 14 1
Set 15-way distributor 82630 6 1 8533 15 1
Set 16-way distributor 82640 5 1 8533 16 1
HERZ-Floor rod-type Distributor Set
HERZ-Floor rod-type Distributor Set,
with fl ow meter 6 l/min, dimension
DN 32, consisting of fl ow distributor with
fl ow meters and, return distributor with
thermostatic upper parts.
With bleed and drain valves, end caps
and holding devices.
Staggered distributor outlets,
pipe connection G 3/4, distributor
with female thread Rp 5/4.
2-outlets 84500 0 1 8531 42 1
3-outlets 84510 9 1 8531 43 1
4-outlets 84520 8 1 8531 44 1
5-outlets 84530 7 1 8531 45 1
6-outlets 84540 6 1 8531 46 1
7-outlets 84550 5 1 8531 47 1
8-outlets 84560 4 1 8531 48 1
9-outlets 84570 3 1 8531 49 1
10-outlets 84580 2 1 8531 50 1
11-outlets 84590 1 1 8531 51 1
12-outlets 84600 7 1 8531 52 1
13-outlets 84610 6 1 8531 53 1
14-outlets 84620 5 1 8531 54 1
15-outlets 84630 4 1 8531 55 1
16-outlets 84640 3 1 8531 56 1
Spare Parts
Distributor holding device for
installation of distributor in cabinet
1 pair for compact distributor 1 8528.3/4 84450 8 1 8535 01 1
1 pair for compact distributor
1 8530/31/32/33.1 84460 7 1 8535 02 1
1 pair for compact distributor 1 8529. 5/4 84470 6 1 8535 03 1
HERZ-Ball valve
Model PN Dim. EAN
383 000282 Order
number Item
EURO- ball valve with nipplesand
T- handle. Body made of forged brass
to DIN 17660-plated, seals materials are
PTFE and NBR. Temperature range
-10 °C to 110 °C (water 0 °C to 110 °C).
16 15 6653 1 2911 11 25
16 20 6660 1 2911 12 25
16 25 6677 1 2911 13 16
Product
group 1
Product
group 6
Product
group 1
133
HERZ-Distributor Cabinets
Model Dim. EAN
90 04174 Order
number Item
HERZ-Distributor cabinet, made
of steel plate
Galvanised, front door and front frame
powder coated, white (RAL 9003).
Adjustable installation depth
(80-110 mm), cabinet height
(705-775 mm), fastening rail for
distributor holding devices as well as
front screen. With removable pipe rail
tracks. Cabinet door with bolt.
Section width 300 mm 81200 2 1 8569 03 1
Section width 400 mm 81210 1 1 8569 04 1
Section width 500 mm 81220 0 1 8569 05 1
Section width 600 mm 81230 9 1 8569 10 1
Section width 750 mm 81240 8 1 8569 15 1
Section width 900 mm 81250 7 1 8569 20 1
Section width 1050 mm 81260 6 1 8569 25 1
Section width 1200 mm 81270 5 1 8569 30 1
Section width 1500 mm 81280 4 1 8569 40 1
Electric Distribution Panel for Actuating Signals
For distribution of electric signals
and for power supply of control devices and actuating drives.
The switch impulse of the room temperature controller are
individually passed to the actuating drives. Plastic body,
white RAL 9010, with integrated fuse 4 A, over voltage protection
for actuating drives, pump connection with earthed conductor
and temperature limiter, pump logistics as needed (24 V or 230 V)
with volt-free contacts available as accessories. Electrical
connections with screw clamps max. 1.5 mm².
99935 2 3 F798 00 1
Product
group 5
Distributors
Product
group 1
134
HERZ-Spare upper part for distributors for fl oor heating
Model EAN
90 04174 Order
number Item
HERZ-TS-Spare upper part for
distribution 8531 and 8532nd.
63460 4 1 6403 31 1
HERZ-Flowmeter
for fl oor heating - return manifold 8532
built till 2005.
63480 2 1 6413 00 1
HERZ-Shutoff upper part
for fl ow manifold 8531
built till 2005.
63470 3 1 6413 01 1
HERZ-Flow Meter
Control range 0 to 2.5 l/min
Built in fl oor heatings fl ow manifold 8532.
Built 2005. 99932 1 3 F900 01 1
HERZ-Flow Meter
Control range 0-6 l/min
Built in fl oor cooling-fl ow manifold 8531 and 8532
built from 1999. 99933 8 3 F900 02 1
Thermostat upper part
Spare upper part for return manifold,
for cast iron distributor with body marking
∆ (triangle), from built in 1999. 63440 6 1 6403 02 1
Shut upper part
for return manifold,
for cast iron distributor with body marking
∆ (triangle), from built in 1999. 63450 5 1 6413 02 20
Shut upper part
Spare upper part for fl ow manifold für for distributors
with body marking O (ring), built till 1999.
62630 3 1 6303 00 20
Thermostat upper part
Spare upper part for return manifold,
for cast iron distributor with body marking
O (ring), built till 1999. 61260 2 1 6372 02 20
Spare Parts
135
Tacker, panels for underfl oor heating system
System of aluminum metallized role, high tear resistant fabric fi lm, with sound insulation foam, thermal conductivity 0.041 W/mK, fi re behavior B1
according to ÖNORM B 3800, B1 to DIN 4102, load capacity 3.5 kN/m², printed with grid in the distance 50 mm, 40 mm wide self-overlapping
one side.
Easy installation by rolling out the system role and fi xing the pipes with tacks.
Model Dim. EAN
90 04174 Order
number Item
Tackerroll,
from quality-monitored EPS-T
laminated and metallized
highly tear-resistant fabric foil (AL-PET)
according to EN 13163 with a imprinted
Raster-5 cm and one-sided
4 cm wide self-adhesive
Overlap.
15-2 rolled
1000 x 10000 99719 8 3 F040 01 10 m²
22/20 rolled
1000 x 10000 99720 4 3 F040 02 10 m²
32/30 rolled
1000 x 10000 99721 1 3 F040 03 10 m²
Tackerpanel,
from quality-monitored EPS-T
laminated and metallized
highly tear-resistant fabric foil (AL-PET)
according to EN 13163 with a imprinted
Raster-5 cm and one-sided
4 cm wide self-adhesive
Overlap.
15-2 rolled
1000 x 2000 99722 8 3 F040 04 2 m²
22/20 rolled
1000 x 2000 99723 5 3 F040 05 2 m²
32/30 rolled
1000 x 2000 99724 2 3 F040 06 2 m²
Tacker, studded panel
Studded panel with insulation, black,
polystyrene foam, 35–2 mm
for pipe diameters of 14–17 mm,
50 mm fi lm overlap
1000 x 500 x 57 mm 99716 7 3 F030 01 6 m²
Studded panel with insulation, black,
polystyrene foam, 15 mm
for pipe diameters of 14–17 mm,
50 mm fi lm overlap
1000 x 500 x 44 mm 99717 4 3 F030 02 7,5 m²
Studded panel, black polystyrene
for individual execution of the
Insulation, fi lm 50 mm overlap. 1400 x 800 x 20 mm 99718 1 3 F030 03
13,44 m²
Diagonal bracket
for diagonal installation of the pipes.
92070 7 3 F030 04 40
Product
group 5
Heating
136
Heat insulation plate
Heat insulation plate of polyurethane polyurethane foam, FCKW-free, quality controlled according to DIN 18164 Part 1, on both sides aluminum
coated. Building material class B2 according to DIN 4102. WLG 025
Model EAN
90 04174 Order
number Item
Heat insulation plate 30
Board size 1200 x 600 x 30 mm, Thermal resistance Rl = 1.2 99878 2 3 F070 30
11,52 m²
Heat insulation plate 40
Board size 1200 x 600 x 40 mm,Thermal resistance Rl = 1.6 99879 9 3 F070 40
8,64 m²
Heat insulation plate 47
Board size 1200 x 800 x 47 mm,Thermal resistance Rl = 1.88 99880 5 3 F070 47
9,60 m²
Heat insulation plate 53
Board size 1200 x 800 x 40 mm,Thermal resistance Rl = 2.12 99881 2 3 F070 53
9,60 m²
Miscellaneous Accessories
Level indicator for screed
Level indicator for screed for measurements
on the rules of DIN EN 1264.
99882 9 3 F090 00 1
Stk.
Screed additive
The screed additive homogenized cement screed
and thus brings about a better thermal conductivity and
increases Compressive and tensile strength. Consumption
of about 0.2 l/m². 99883 6 3 F090 01 10
kg
Adhesive tape
For bonding the edges Pannels, and insulation against the
penetration water into screed. Transparent, waterproof.
99884 3 3 F090 02
1 Rolle
Product
group 5
Heating
137
The Insulation strips
made of polyethylene with foil and slits for separation according to DIN 18560.
On one side, on the edge of the foil band is sticky, also available without adhesive.
Model EAN
90 04174 Order
number Item
RDS 8/160 MK, 8 x 160 mm, with adhesive. 99885 0 3 F080 02
4 Rollen
a 25 m
RDS 8/160 OK, 8 x 160 mm, without adhesive 99886 7 3 F080 03
4 Rollen
a 25 m
Set expansion joint for fl oor screed
Kit for pipe laying. To secure the distribution of stacking of pipes
on the surface corresponds to DIN 18560. In a double T-profi le
is fi xed Polyethylene fi llet width of 8 mm, which prevents the
movement of pipes. This (2 meter long) self-adhesive profi le allows
you to lay pipes for fl oor heating systems at a distance of 5 cm from
each other. Consists of a 20 m profi le fi llet, 20 meters of the elastic
bands 8/100, 50 pieces of protective tubes 400 mm long.
99887 4 3 F100 00
20 m /
20 m /
50 Stk.
Expansion strip
Double-T profi le of polystyrene, standard length 2 m self-adhesive.
2000 x 35 x 20 mm.
99888 1 3 F100 01 50 m
Protection tube for expansion strip
Corrugated pipes 12–18 mm, slit longitudinally. 99889 8 3 F100 02
50 Stk.
Inlets for expansion strip
Universal expansion strip of polyethylene to prevent
tension and fl anking path and according to DIN 18560, length 2 m.
99890 4 3 F100 03 50 m
Fastener strip of polyethylene, 10 x 160 mm, standard length 25 m
10 x 160 mm, standard length 25 m.
99891 1 3 F100 04
7 Rollen
je 25 m
Polyethylene cover
PE-Folie 0,1, Roll size 25 x 4 m, Stärke 0,1 mm. 99892 8 3 F100 05
100 m2
PE-Folie 0,2, Roll size 25 x 4 m, Stärke 0,2 mm. 99893 5 3 F100 06
100 m2
Clamp Strip
Rack rail, U-profi le, special construction for pipes 16 and 17 x 2, extruded fastening rail with formed pipe fastening clips. Easy, compact and low
model prevents weakening of undercoating, suitable for all rigid coatings on top, including plates, natural stones and ceramic coatings, quick
installation with clips. Fastening on thermal insulation by adhesive tape on both sides or by fastening needles via pre-punch. Pipe distance 50 mm.
L x B x H = 200 x 40 x 25 mm. 99972 7 3 F110 18
100 Stk.
Fixing Needles
Fixing needles, red, for direct fastening of insulation thickness
30 mm and higher. Thanks to the special material this fi xing needle
offers the best holding force which can even be increased when
the needle is pushed in diagonally.
99896 6 3 F110 03 500
Fixing needles, green, for direct fastening of insulation of thickness
40 mm and higher. Thanks to the special material this fi xing needle
offers the best supporting forces which can even be increased
when the needle is pushed in diagonally.
99897 3 3 F110 04 500
Tacker Needles
Clips 1622, red, for grid mats,
thickness of support mat 3, 4, 5 mm. 99898 0 3 F110 05 1000
Tacker Needles
Tacker needle for fastening of heating pipe on insulation.
Packed in units of 30 pieces, fastened by scotch tape. Black.
Processing using a stapler setting device 3 F110 13 permits a
simple and effi cient pipe fi tting.
99899 7 3 F110 06 300
Tacker needle, special model, extra long needles, especially
suitable for non-lined surfaces made of high- quality polyamide, in
units of 30 pieces. Processing using a stapler setting device
3 F110 13 permits a simple and effi cient pipe fi tting.
99900 0 3 F110 07 300
Product
group 5
Underfloor
Product
group 1
138
Angled Pipe Clamp
Plastic angled pipe clamp for 90° bends of heating pipes in ceiling apertures, distribution feeds, etc.
Model EAN
90 04174 Order
number Item
Plastic angled pipe clamp. 14–18 mm
99901 7 3 F110 08 500
Plastic angled pipe clamp for pipes 20–23 mm
99902 4 3 F110 09 50
Plastic Dowel
Plastic dowel for additional fastening of insulation, length 90 mm,
bore diameter 8 mm. 99928 4 3 F110 17
100 Stk.
Pipe holder anchor
Single-pipe retaining dowel, 90 mm
99904 8 3 F110 11 50
Double-pipe holding strap, 90 mm
99905 5 3 F110 12 50
Tools
Tacker
The tacker ensures an easy and effi cient installation of the heating
pipe which can be securely fastened on the insulation in just one
step. Combi Tacker for both needle versions 3 F110 06 and
3 F110 7 as well as commercially available needles, with plastic
foot. 99906 2 3 F110 13
1 Stk.
Heat cutting machine
HANDSET including the cutting tip for cutting individual pipe guides in the fi lling and distributing. Voltage: 230 V - 50 Hz
(110 V - 60 Hz) Power consumption 60 W Protection class II 2 m power cable with Euro plug, heating time of the cutting tip 6-8 sec.
Heat cutting machine complete 99907 9 3 F110 14 1
Replacement cutting tip N-1 99908 6 3 F110 15 1
Hand dispensers
Hand dispensers for adhesive tape to seal edges the insulation
taxiways and insulating boards.
99909 3 3 F110 16 1
Product
group 5
Underfloor
139
HERZ-HT-Plastic Composite Pipe, PE-RT, HD
HT
Model Aluminium-
Insulation wall
thickness (mm)
Diameter
Wall thickness
(mm)
EAN
90 04174 Order
number
Item
reels
(m)
Tubing 0.25 16 x 2 93000 3 3 C160 22 200
0.25 18 x 2 93001 0 3 C180 30 200
0.25 20 x 2 93002 7 3 C200 30 200
0.4 16 x 2 99772 3 3 C160 20 200
0.4 20 x 2 99774 7 3 C200 20 100
0.5 26 x 3 99775 4 3 C260 30 50
0.5 32 x 3 99776 1 3 C320 30 50
0.5 40 x 3.5 99777 8 3 C400 30 50
Plastic Composite Pipe PE-RT, HD
HT
Model Aluminium-
Insulation wall
thickness (mm)
Diameter
Wall thickness
(mm)
EAN
90 04174 Order
number
VKE
Rods
(m)
HERZ-HT-Plastic Composite
Pipe
0.4 16 x 2 99778 5 3 C160 34 5
0.4 20 x 2 99779 2 3 C200 34 5
0.5 26 x 3 99780 8 3 C260 35 5
0.5 32 x 3 99781 5 3 C320 35 5
0.5 40 x 3.5 99782 2 3 C400 36 5
0.6 50 x 4 99000 7 3 C500 40 5
0.8 63 x 4.5 99010 6 3 C630 45 5
Plastic Composite Pipe PE-RT, HD
FH
Model Aluminium-
Insulation wall
thickness (mm)
Diameter
Wall thickness
(mm)
EAN
90 04174 Order
number
VKE
reels
(m)
Herz-FH-Plastic Composite
Pipe,
in reels.
0.2 10 x 1,3 93003 4 3 C101 30 250
0.2 14 x 2 93004 1 3 C140 30 200
0.2 16 x 2 99708 2 3 D160 20 200
Pipe
Product
group 2
Product
group 1
140
Pipe
Product
group 2
HERZ-HT-Plastic Composite Pipe, PE-RT
HT with Insulation
Model Insulation wall
thickness
(mm)
Diameter
Wall thickness
(mm)
EAN
90 04174 Order
number
Item
Roll
(m)
HERZ-HT-Plastic
Composite Pipe
Heating and plumbing pipes
with heat-insulation from
PE-LD froth of PP
Thermal conductivity of 0.04
W/mK as per DIN EN 8497
Reaction to fi re according
to DIN 4102 B1
CFC and HCFC free
Water vapor diffusion number
≥ 6000 to 52 615 DSIN
Outer casing gray, black
lettering
6 16 x 2 93014 0 3 C160 06 100
6 20 x 2 93015 7 3 C200 06 50
6 26 x 3 93017 1 3 C260 06 50
6 32 x 3 93018 8 3 C320 06 25
9 16 x 2 93019 5 3 C160 09 100
9 20 x 2 93020 1 3 C200 09 50
9 26 x 3 93022 5 3 C260 09 50
9 32 x 3 93023 2 3 C320 09 25
13 16 x 2 93024 9 3 C160 13 50
13 20 x 2 93025 6 3 C200 13 50
13 26 x 3 23026 3 3 C260 13 25
13 32 x 3 93028 7 3 C320 13 25
HERZ-HT-Plastic Composite Pipe,
“Pipe in pipe”
HERZ-HT-Plastic Composite
Pipe, black 16 x 2 99787 7 3 C160 33 50
20 x 2 99788 4 3 C200 33 50
141
Junction, Press to Screw Fitting, fl at sealing
Model EAN
90 04174 Order
number Item
14 x 2 - G 3/4 13970 3 P 7014 41 50
16 x 2 - G 3/4 13980 2 P 7016 41 50
18 x 2 - G 3/4 14000 6 P 7018 41 50
20 x 2 - G 3/4 14020 3 P 7020 41 50
16 x 2 - G 1 13990 1 P 7016 42 100
18 x 2 - G 1 14010 5 P 7018 42 100
20 x 2 - G 1 14040 2 P 7020 42 100
26 x 3 - G 1 14100 3 P 7026 42 80
26 x 3 - G 1¼ 14110 2 P 7026 43 50
32 x 3 - G 1¼ 14120 1 P 7032 43 50
40 x 3.5 - G 1¼ 14140 9 P 7040 43 30
32 x 3 - G 1½ 14130 0 P 7032 44 40
40 x 3.5 - G 1½ 14150 8 P 7040 44 30
50 x 4 - G 1½ 14170 6 P 7050 44 16
40 x 3.5 - G 2 14160 7 P 7040 45 20
50 x 4 - G 2 14180 6 P 7050 45 16
63 x 4.5 - G 2½ 14190 4 P 7063 46 14
Product
group 3
Connections
142
Junction Press Screw
Fitting with cone
Model Dim. EAN
90 04174 Order
number Item
Nickel-plated
14 x 2 - M 22 x 1.5
14890 3 P 7014 86 150
16 x 2 - M 22 x 1.5
14900 9 P 7016 86 150
18 x 2 - M 22 x 1.5
14920 7 P 7018 86 150
20 x 2 - M 22 x 1.5
14930 6 P 7020 86 150
14 x 2 - G 1/2
14950 4 P 7014 90 150
16 x 2 - G 1/2
14960 3 P 7016 90 150
18 x 2 - G 1/2
14980 1 P 7018 90 150
20 x 2 - G 1/2
14990 0 P 7020 90 150
14 x 2 - G 3/4
14830 9 P 7014 82 150
16 x 2 - G 3/4
14840 8 P 7016 82 150
18 x 2 - G 3/4
14860 6 P 7018 82 150
20 x 2 - G 3/4
14870 5 P 7020 82 140
Unplated
14 x 2 - G 3/4
14770 8 P 7014 81 150
16 x 2 - G 3/4
14780 7 P 7016 81 150
18 x 2 - G 3/4
14800 2 P 7018 81 150
20 x 2 - G 3/4
14810 1 P 7020 81 140
Angle Screw Connection
Angle screw connection for HERZ-3000
14 x 2 - G 3/4
11210 2 P 7114 14 150
16 x 2 - G 3/4
11220 1 P 7116 14 60
18 x 2 - G 3/4
11230 0 P 7118 14 50
20 x 2 - G 3/4
11240 9 P 7120 14 50
HERZ-Screw Connections
Connection elbow 90°
made of brass, nickel-plated, pipe connection
with external thread M 22 x 1.5 with
freely moving nut and cone seal.
M 22 x 1.5 60420 1 1 6248 16 1
Connection elbow 90°
made of brass, nickel-plated, pipe connection
with external thread G 3/4 with freely
moving nut and cone seal.
G 3/4 62270 0 1 6248 01 1
Screw connection short version,
with cone seal and freely moving nut G 3/4,
length 30 mm.
G 3/4 10551 7 1 3011 02 2
Threaded pipe connection
with freely moving nut.
G 3/4 x M 22
76270 3 1 6223 22 20
Screw connection long version,
with cone seal and freely moving nut G 3/4,
length 38 mm.
G 3/4 10561 6 1 3011 03 1
Compensation adapter, set of 2 units,
to balance different pipe connections, radius
15 mm, valve connection 3/4 with cone seal, freely
moving nut, pipe connection 3/4 male thread.
G 3/4 32570 0 1 3004 15
1 Set
Threaded pipe connection
with freely moving nut.
G 3/4 x
1/2 IG 63610 3 1 6223 01 1
Connection nipples
with freely moving nut. G 1 x 1 IG 66320 8 1 6220 73 1
Adapter, set of 2 units
Nickel-plated, with fl at seal and cone. 3/4 10571 5 1 6262 70 20
Self-sealing screw connection, with fl at seal,
external thread 1/2 with freely moving nut 3/4. 1/2 10581 4 1 6220 70 1
Screw connection, set of 2 units
with cone seal G 3/4 and fl at seal G 3/4. G 3/4 10591 3 1 6220 71 20
Product
group 1
Connections
Product
group 3
Product
group 1
143
HERZ-Threaded Connection Elements with cone
Model Shoulder
throw Dim. EAN
90 04174 Order
number Item
Iron pipe connection
with cone, connection cone 90°,
nut and connection element.
5/4 1 60040 1 1 6209 03 20
1¾ 1¼ 62590 9 1 6209 04 20
Iron pipe connection
with cone.
Nut and connection element.
5/8 3/8 60050 0 1 6210 00 20
3/4 1/2 60080 7 1 6210 21 20
1/2 x 26 60090 6 1 6210 26 20
1/2 x 35 60070 8 1 6210 11 20
1 3/4 60060 9 1 6210 02 20
Radiator connection, with cone seal,
nut and connection element without cover
sleeve DE LUXE.
G 3/4 x
1/2 63180 1 1 6210 44 20
Radiator connection with freely moving
nut G 3/4 and O-Ring seal. G 3/4 x
1/2 66290 4 1 6252 11 20
Radiator connection with PTFE-Ring,
iron pipe connection with freely moving nut,
radiator connection G 1/2, self-sealing.
M22 x
G1/2 10601 9 1 6252 01 20
Radiator connection, brass version,
for valves, 3/4 on radiator socket 1/2,
nickel-plated, nut and connection element,
with cone seal.
G1 x
Rp1/2 65440 4 1 6210 12 20
Radiator connection for valves 1/2 on
radiator sleeve 3/8, with cone,
nut and connection element. 1/2 x 3/8 60100 2 1 6211 00 20
Radiator connection
for valves 3/8 on radiator sleeve 1/2,
with cone, nut and connection element. 3/8 x 1/2 60110 1 1 6213 01 20
Threaded bush, long
without nut, with cone.
Can be shortened in order to compensate
for differences in structural dimensions.
3/8 x 40 60120 0 1 6218 00 20
1/2 x 76 60130 9 1 6218 01 20
3/4 x 70 60140 8 1 6218 02 20
Threaded bush
without nut, with cone.
1/2 x 39 60150 7 1 6218 11 20
1/2 x 42 60160 6 1 6218 21 20
1/2 x 48 60170 5 1 6218 31 20
1/2 x 36 60180 4 1 6218 41 20
1/2 x 76 60190 3 1 6218 51 20
Soldering connection
with cone seal, brass nut, nickel-plated,
soldering nipple made of copper.
10 x 12 60330 3 1 6235 10 20
20 x 18 60340 2 1 6235 12 20
15 x 12 60350 1 1 6235 21 20
15 x 15 60360 0 1 6235 31 20
15 x 18 65360 5 1 6235 41 20
Iron pipe connection elbow 90°
made of brass, nickel-plated,
with cone seal, without nut.
10 60430 0 1 6249 00 20
15 60440 9 1 6249 01 20
20 60450 8 1 6249 02 20
Reduction Socket
Reduction Socket
For connection of pipe and valve, brass
version. Female thread (pipe) x external
thread (valve).
1 x 1/2 60200 9 1 6219 03 1
1¼ x 1/2 60210 8 1 6219 04 1
1 x 3/4 60220 7 1 6219 05 1
1¼ x 3/4 60230 6 1 6219 14 1
Connections
144
HERZ-Threaded Connection Elements
with cone fl at seal Iron pipe connection
Model Rp Shoulder
throw EAN
90 04174 Order
number Item
Iron pipe connection with fl at seal
with nut and seal,
Rc for 4037, 7762, 7763, 7760.
3/8 G 5/8 -1 6220 00 1
1/2 G 3/4 62480 3 1 6220 21 20
3/4 G 1 62490 2 1 6220 12 20
1¼ G 1½ 66000 9 1 6220 64 20
1¼ G 2 66170 9 1 6220 74 20
1½ G 2¼ 66180 8 1 6220 75 20
2 G 2¾ 66170 7 1 6220 76 20
Iron pipe connection with fl at seal
with nut, connection element and seal.
4004, 4315, 4325, 4415, 4417, 4207,
7761, 7217, 4216, 7766.
1/2 x 38 mm G 3/4 60240 5 1 6220 11 20
3/4 x 44 mm G 1 60270 2 1 6220 22 20
1 G 1¼ 65990 4 1 6220 63 20
1½ G 1¾ 66010 8 1 6220 65 20
2G 2
66020 7 1 6220 66 20
Soldering connection
Soldering connection with fl at seal
with nut and seal, soldering nipple
made of copper
for 4037, 7762, 7763, 7760.
12 mm G
1/2
-1 6236 00 1
15 mm G 3/4 62520 6 1 6236 11 20
22 mm G 1 62600 5 1 6236 22 20
35 mm G 2 66140 2 1 6236 74 20
42 mm G 2¼ 66150 1 1 6236 75 20
54 mm G 2¾ 66160 0 1 6236 76 20
Soldering connection with fl at seal
with nut made of brass, soldering
nipple made of copper and seal.
4004, 4315, 4325, 4415, 4417, 4207,
7761, 7217, 4216, 7766.
12 mm G 3/4 62510 7 1 6236 01 20
18 mm G 3/4 62530 5 1 6236 21 20
15 mm G 1 62540 4 1 6236 02 20
18 mm G 1 62550 3 1 6236 12 20
28 mm G 1¼ 65950 8 1 6236 63 20
35 mm G 1½ 65960 7 1 6236 64 20
42 mm G 1¾ 65970 6 1 6236 65 20
54 mm G 2 65980 5 1 6236 66 20
Welding connection
Welding connection with fl at seal
with nut, welding nipple and seal.
4004, 4315, 4325, 4415, 4417, 4207,
7761, 7217, 4216, 7766.
21 mm G 3/4 60370 9 1 6240 01 20
26.5 mm G 1 62500 8 1 6240 02 20
33.7 mm G 1¼ 65910 2 1 6240 63 20
41.5 mm G 1½ 65920 1 1 6240 64 20
47.5 mm G 1¾ 65930 0 1 6240 65 20
60.3 mm G 2 65940 9 1 6240 66 20
Welding connection
Reduction connection
with fl at seal, 1 x 1/2 nut and
connection element. 1/2 G 1 63490 1 1 6221 02 20
Reduction connection
with fl at seal, DN 20 on
DN 15 welding connection,
nut and connection element.
21 mm G 1 63500 7 1 6241 02 20
Adapter
for iron pipe connection 3/4 3/4 x
M 22 x 1.5 60400 3 1 6244 01 20
3
8
3
8
3
8
Product
group 1
Connections
145
HERZ-Connection fi ttings; threaded fl at seat
Model DN EAN
90 04174 Order
number Item
Threaded fl at seat 15 x 1/2 65170 0 1 6220 51 20
20 x 3/4 65180 9 1 6220 52 20
25 x 1 65190 8 1 6220 53 20
32 x 1¼ 65200 4 1 6220 54 20
40 x 1½ 65210 4 1 6220 55 20
50 x 2 65220 2 1 6220 56 20
Solder fl at seat
without nut and seal.
Dimension = Pipe diameter in mm.
15 x 12 64940 0 1 6236 50 20
15 x 15 64950 9 1 6236 51 20
15 x 18 64960 8 1 6236 52 20
20 x 22 64970 7 1 6236 53 20
25 x 28 64980 6 1 6236 54 20
32 x 35 64990 5 1 6236 55 20
40 x 42 65000 0 1 6236 56 20
50 x 54 65010 9 1 6236 57 20
Welding connection, fl at sealing
without nut and gasket.
Dimension = Outer diameter of the Connecting piece.
Welding connection, fl at sealing, DN 50 x 60.3 mm.
Dimension = Outer diameter of the fi tting without nut
and gasket.
15 x 17.2 65020 8 1 6240 50 20
15 x 21.3 65030 7 1 6240 51 20
20 x 26.9 65040 6 1 6240 52 20
25 x 33.7 65050 5 1 6240 53 20
32 x 42.4 65060 4 1 6240 54 20
40 x 48.3 65070 3 1 6240 55 20
50 x 60.3 65080 2 1 6240 56 20
HERZ-Threaded Radiator Connections
Model Dim. EAN
90 04174 Order
number Item
HERZ-Threaded radiator connection
Straight model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
3/8 41080 2 1 4144 00 25
1/2 41090 1 1 4144 01 25
3/4 41100 7 1 4144 02 25
Standard model with threaded socket. 141110 6 1 4144 03 1
1¼ 41120 5 1 4144 04 1
HERZ-Threaded radiator connection
Angle model
Radiator connection with cone.
Universal models with special sockets
for threaded pipes and compression adapter.
3/8 41130 4 1 4145 00 25
1/2 41140 3 1 4145 01 25
3/4 41150 2 1 4145 02 25
Standard model with threaded socket. 1 41160 1 1 4145 03 1
1¼ 41170 0 1 4145 04 1
Product
group 1
Connections
146
Press Straight
Coupling
Model EAN
90 04174 Order
number Item
10 x 1.3 - 10 x 1.3 10621 7 P 7010 00 10
14 x 2 - 14 x 2 13110 3 P 7014 00 200
16 x 2 - 16 x 2 13120 2 P 7016 00 200
18 x 2 - 18 x 2 13140 0 P 7018 00 150
20 x 2 - 20 x 2 13150 9 P 7020 00 150
26 x 3 - 26 x 3 13190 5 P 7026 00 100
32 x 3 - 32 x 3 13200 1 P 7032 00 50
40 x 3.5 - 40 x 3.5 13210 0 P 7040 00 30
50 x 4 - 50 x 4 13220 9 P 7050 00 20
63 x 4.5 - 63 x 4.5 13230 8 P 7063 00 20
T-Piece, middle outlet, reducedT-Piece, middle outlet, reduced
16 x 2 - 14 x 2 13240 7 P 7016 01 200
18 x 2 - 14 x 2 13250 6 P 7018 01 150
18 x 2 - 16 x 2 13260 5 P 7018 02 150
20 x 2 - 14 x 2 13270 4 P 7020 03 150
20 x 2 - 16 x 2 13280 3 P 7020 01 150
20 x 2 - 18 x 2 13300 8 P 7020 02 150
26 x 3 - 16 x 2 13380 0 P 7026 01 100
26 x 3 - 18 x 2 13400 5 P 7026 05 100
26 x 3 - 20 x 2 13410 4 P 7026 02 100
32 x 3 - 16 x 2 13430 2 P 7032 01 60
32 x 3 - 18 x 2 13440 1 P 7032 07 60
32 x 3 - 20 x 2 13450 0 P 7032 02 60
32 x 3 - 26 x 3 13490 6 P 7032 06 60
40 x 3.5 - 26 x 3 13510 1 P 7040 02 50
40 x 3.5 - 32 x 3 13520 0 P 7040 03 40
50 x 4 - 26 x 3 13530 9 P 7050 01 20
50 x 4 - 32 x 3 13540 8 P 7050 02 20
50 x 4 - 40 x 3.5 13550 7 P 7050 03 20
63 x 4.5 - 26 x 3 13560 6 P 7063 01 20
63 x 4.5 - 32 x 3 13570 5 P 7063 02 20
63 x 4.5 - 40 x 3.5 13580 4 P 7063 03 20
63 x 4.5 - 50 x 4 13590 3 P 7063 04 20
Press fi ttings
Product
group 3
147
T-Piece
Model Dim. EAN
383 000282 Order
number Item
T-Piece
With equal outlets.
14 x 2 11940 8 P 7214 00 100
16 x 2 11950 7 P 7216 00 60
18 x 2 11970 5 P 7218 00 50
20 x 2 11980 4 P 7220 00 50
26 x 3 12020 6 P 7226 00 30
32 x 3 12030 5 P 7232 00 25
40 x 3.5 12040 4 P 7240 00 15
50 x 4 12050 3 P 7250 00 10
63 x 4.5 12060 2 P 7263 00 8
T-Piece
Centre outlet larger.
14 x 2 - 16 x 2 - 14 x 2 12990 2 P 7214 01 60
16 x 2 - 18 x 2 - 16 x 2 13000 7 P 7216 05 50
16 x 2 - 20 x 2 - 16 x 2 13010 6 P 7216 03 50
20 x 2 - 26 x 3 - 20 x 2 13040 3 P 7220 06 30
26 x 3 - 32 x 3 - 26 x 3 13090 8 P 7226 17 30
32 x 3 - 40 x 3.5 - 32 x 3 13100 4 P 7232 10 5
40 x 3.5 - 50 x 4 - 40 x 3.5
18200 6 P 7240 12 10
HERZ-Ball valve with lever handle and press connection
Ball valve with lever handle and press connection
Body made of forged
brass to DIN 17660, from both sides press
connection for plastic composite pipe. PN 16.
15-16 x 2.0 9654 P 7216 62 50
15-18 x 2.0 9661 P 7218 62 50
15-20 x 2.0 9678 P 7220 62 50
25-26 x 3.0 9715 P 7226 62 50
Product
group 3
Press fittings
148
T-Piece, middle outlet, reduced
Model EAN
90 04174 Order
number Item
16 x 2 - 14 x 2 - 16 x 2 12070 1 P 7216 01 60
18 x 2 - 14 x 2 - 18 x 2 12080 0 P 7218 01 50
18 x 2 - 16 x 2 - 18 x 2 12090 9 P 7218 02 50
20 x 2 - 10 x 1.3 - 20 x 2 12082 4 P 7210 00 10
20 x 2 - 16 x 2 - 20 x 2 12100 5 P 7220 01 50
20 x 2 - 14 x 2 - 20 x 2 12120 3 P 7220 10 50
20 x 2 - 18 x 2 - 20 x 2 12110 4 P 7220 02 50
26 x 3 - 16 x 2 - 26 x 3 12210 1 P 7226 03 5
26 x 3 - 18 x 2 - 26 x 3 12220 0 P 7226 04 30
26 x 3 - 20 x 2 - 26 x 3 12230 9 P 7226 05 30
32 x 3 - 16 x 2 - 32 x 3 12240 8 P 7232 01 30
32 x 3 - 18 x 2 - 32 x 3 12250 7 P 7232 03 30
32 x 3 - 20 x 2 - 32 x 3 12260 6 P 7232 04 30
32 x 3 - 26 x 3 - 32 x 3 12290 3 P 7232 07 30
40 x 3.5 - 26 x 3 - 40 x 3.5 12320 7 P 7240 02 20
40 x 3.5 - 32 x 3 - 40 x 3.5 12330 6 P 7240 03 20
50 x 4 - 26 x 3 - 50 x 4 12350 4 P 7250 03 2
50 x 4 - 32 x 3 - 50 x 4 12360 3 P 7250 01 2
50 x 4 - 40 x 3.5 - 50 x 4 12370 2 P 7250 02 2
63 x 4.5 - 32 x 3 - 63 x 4.5 12380 1 P 7263 01 10
63 x 4.5 - 40 x 3.5 - 63 x 4.5 12390 0 P 7263 02 10
63 x 4.5 - 50 x 4 - 63 x 4.5 12400 6 P 7263 03 10
Product
group 3
Press fittings
149
T-Piece,
reduced
Model EAN
90 04174 Order
number Item
16 x 2 - 14 x 2 - 14 x 2 12410 5 P 7216 02 60
18 x 2 - 16 x 2 - 14 x 2 12420 4 P 7218 04 50
18 x 2 - 16 x 2 - 16 x 2 12430 3 P 7218 03 50
20 x 2 - 14 x 2 - 16 x 2 12500 3 P 7220 11 50
20 x 2 - 16 x 2 - 16 x 2 12450 1 P 7220 03 50
20 x 2 - 16 x 2 - 18 x 2 12470 9 P 7220 07 50
20 x 2 - 18 x 2 - 18 x 2 12460 0 P 7220 04 50
20 x 2 - 20 x 2 - 14 x 2 12480 8 P 7220 09 50
20 x 2 - 20 x 2 - 16 x 2 12490 7 P 7220 08 50
26 x 3 - 16 x 2 - 20 x 2 12630 7 P 7226 11 30
26 x 3 - 18 x 2 - 18 x 2 12650 5 P 7226 18 30
26 x 3 - 18 x 2 - 20 x 2 12660 4 P 7226 12 30
26 x 3 - 20 x 2 - 16 x 2 12670 3 P 7226 13 30
26 x 3 - 20 x 2 - 20 x 2 12680 2 P 7226 14 30
26 x 3 - 26 x 3 - 16 x 2 12720 5 P 7226 16 30
26 x 3 - 26 x 3 - 20 x 2 12730 4 P 7226 15 30
32 x 3 - 20 x 2 - 26 x 3 12740 3 P 7232 11 30
32 x 3 - 26 x 3 - 26 x 3 12790 8 P 7232 09 30
32 x 3 - 32 x 3 - 20 x 2 12800 4 P 7232 15 30
32 x 3 - 32 x 3 - 26 x 3 12830 1 P 7232 14 30
40 x 3.5 - 26 x 3 - 32 x 3 12870 7 P 7240 06 20
40 x 3.5 - 32 x 3 - 32 x 3 12840 0 P 7240 04 20
40 x 3.5 - 40 x 3.5 - 26 x 3 12890 5 P 7240 07 20
40 x 3.5 - 40 x 3.5 - 32 x 3 12900 1 P 7240 08 20
50 x 4 - 32 x 3 - 40 x 3.5 12920 9 P 7250 06 20
50 x 4 - 40 x 3.5 - 40 x 3.5 12910 0 P 7250 05 20
50 x 4 - 50 x 4 - 32 x 3 12930 8 P 7250 07 20
50 x 4 - 50 x 4 - 40 x 3.5 12940 7 P 7250 08 20
63 x 4.5 - 40 x 3.5 - 50 x 4 12950 6 P 7263 04 5
63 x 4.5 - 50 x 4 - 50 x 4 12960 5 P 7263 05 5
63 x 4.5 - 63 x 4.5 - 40 x 3.5 12970 4 P 7263 06 5
63 x 4.5 - 63 x 4.5 - 50 x 4 12980 3 P 7263 07 5
Product
group 3
Press fi ttings
150
90 degree
Angles
Model EAN
90 04174 Order
number Item
14 x 2 10050 5 P 7114 00 150
16 x 2 10060 4 P 7116 00 150
18 x 2 10080 2 P 7118 00 100
20 x 2 10900 1 P 7120 00 80
20 x 2 - 10 x 1.3 10020 8 P 7110 00 10
26 x 3 10130 4 P 7126 00 30
32 x 3 10140 3 P 7132 00 25
40 x 3.5 10150 2 P 7140 00 30
50 x 4 10160 1 P 7150 00 10
63 x 4.5 10170 1 P 7163 00 10
45 degree Angle
26 x 3 11280 5 P 7126 01 50
32 x 3 11290 4 P 7132 01 30
40 x 3.5 11300 0 P 7140 01 5
50 x 4 11310 9 P 7150 01 24
63 x 4.5 11320 8 P 7163 01 10
Product
group 3
Press fi ttings
151
Angle Screw
Connection
Model Dim. EAN
90 04174 Order
number Item
Angle screw connection with male thread
16 x 2 - 1/2 AG 11330 7 P 7116 71 80
18 x 2 - 1/2 AG 11340 6 P 7118 71 80
20 x 2 - 1/2 AG 11350 5 P 7120 71 60
20 x 2 - 3/4 AG 11360 4 P 7120 72 50
26 x 3 - 1 AG 11370 3 P 7126 73 40
32 x 3 - 1¼ AG 11380 2 P 7132 74 30
Angle screw connection with female thread
16 x 2 - 1/2 IG 11390 1 P 7116 81 80
16 x 2 - 1/2 IG 11400 7 P 7118 81 80
20 x 2 - 1/2 IG 11410 6 P 7120 81 60
20 x 2 - 3/4 IG 11420 5 P 7120 82 50
26 x 3 - 1 IG 11430 4 P 7126 83 40
32 x 3 - 1¼ IG 11440 3 P 7132 84 30
Product
group 3
Press fi ttings
152
Press Coupling
Model Dim. EAN
90 04174 Order
number Item
Press screw connection
With male thread and fl at seal.
16 x 2 - 1/2 AG 15010 4 P 7016 61 100
18 x 2 - 1/2 AG 15030 2 P 7018 61 100
20 x 2 - 1/2 AG 15050 0 P 7020 61 80
16 x 2 - 3/4 AG 15020 3 P 7016 62 80
18 x 2 - 3/4 AG 15040 1 P 7018 62 80
20 x 2 - 3/4 AG 15060 9 P 7020 62 70
26 x 3 - 3/4 AG 15130 9 P 7026 62 50
26 x 3 - 1 AG 15140 8 P 7026 63 50
32 x 3 - 1 AG 15150 7 P 7032 63 40
40 x 3.5 - 1¼ AG 15160 6 P 7040 64 20
50 x 4 - 1½ AG 15170 5 P 7050 65 10
63 x 4.5 - 2 AG 15180 4 P 7063 66 8
Press screw connection
With female thread and fl at seal.
16 x 2 - 1/2 IG 15190 3 P 7016 71 100
18 x 2 - 1/2 IG 15210 8 P 7018 71 100
20 x 2 - 1/2 IG 15230 6 P 7020 71 80
16 x 2 - 3/4 IG 15200 9 P 7016 72 80
18 x 2 - 3/4 IG 15220 7 P 7018 72 80
20 x 2 - 3/4 IG 15240 5 P 7020 72 70
26 x 3 - 3/4 IG 15310 5 P 7026 72 50
26 x 3 - 1 IG 15320 4 P 7026 73 50
32 x 3 - 1 IG 15330 3 P 7032 73 40
40 x 3.5 - 1¼ IG 15340 2 P 7040 74 20
50 x 4 - 1½ IG 15350 1 P 7050 75 10
63 x 4.5 - 2 IG 15360 0 P 7063 76 8
Coupling for press screw connection
with fl at seal.
16 x 2 - 3/4 14660 2 P 7016 51 70
18 x 2 - 3/4 14670 1 P 7018 51 70
20 x 2 - 3/4 14680 0 P 7020 51 70
26 x 3 - 1 14720 3 P 7026 52 50
32 x 3 - 1¼ 14730 2 P 7032 53 30
40 x 3.5 - 1¼ 14740 1 P 7040 53 20
50 x 4 - 2 14750 0 P 7050 55 10
63 x 4.5 - 2½ 14760 9 P 7063 56 2
Product
group 3
Press fi ttings
153
Junction,
male & female thread
Model EAN
90 04174 Order
number Item
14 x 2 - R 1/2 14200 0 P 7014 11 200
16 x 2 - R 1/2 14210 9 P 7016 11 150
18 x 2 - R 1/2 14230 7 P 7018 11 150
20 x 2 - R 1/2 14250 5 P 7020 11 150
18 x 2 - R 3/4 14240 6 P 7018 12 150
20 x 2 - R 3/4 14260 4 P 7020 12 150
26 x 3 - R 3/4 14330 4 P 7026 12 100
26 x 3 - R 1 14340 3 P 7026 13 80
32 x 3 - R 1 14350 2 P 7032 13 70
40 x 3.5 - R 1 14370 0 P 7040 13 30
32 x 3 - R 1¼ 14360 1 P 7032 14 50
40 x 3.5 - R 1¼ 14380 9 P 7040 14 30
50 x 4 - R 1¼ 14390 8 P 7050 14 24
50 x 4 - R 1½ 14400 4 P 7050 15 20
63 x 4.5 - R 2 14410 3 P 7063 16 14
63 x 4.5 - R 2½ 14420 2 P 7063 17 2
14 x 2 - Rp 1/2 14430 1 P 7014 21 200
16 x 2 - Rp 1/2 14400 0 P 7016 21 150
18 x 2 - Rp 1/2 14460 8 P 7018 21 150
20 x 2 - Rp 1/2 14480 6 P 7020 21 150
18 x 2 - Rp 3/4 14470 7 P 7018 22 150
20 x 2 - Rp 3/4 14490 5 P 7020 22 100
26 x 3 - Rp 3/4 14560 5 P 7026 22 100
26 x 3 - Rp 1 14570 4 P 7026 23 70
32 x 3 - Rp 1 14580 3 P 7032 23 50
40 x 3.5 - Rp 1 14600 8 P 7040 23 30
32 x 3 - Rp 1¼ 14590 2 P 7032 24 30
40 x 3.5 - Rp 1¼ 14610 7 P 7040 24 30
50 x 4 - Rp 1¼ 14620 6 P 7050 24 20
50 x 4 - Rp 1½ 14630 5 P 7050 25 16
63 x 4.5 - Rp 2 14640 4 P 7063 26 14
63 x 4.5 - Rp 2½ 14650 3 P 7063 27 8
Product
group 3
Press fi ttings
154
T-Pieces
with central male thread
Model EAN
90 04174 Order
number Item
16 x 2 - 1/2 - 16 x 2 11450 2 P 7216 51 60
18 x 2 - 1/2 - 18 x 2 11460 1 P 7218 51 50
20 x 2 - 1/2 - 20 x 2 11470 0 P 7220 51 50
26 x 3 - 1/2 - 26 x 3 11570 7 P 7226 51 30
20 x 2 - 3/4 - 20 x 2 11480 9 P 7220 52 50
26 x 3 - 3/4 - 26 x 3 11580 6 P 7226 52 30
32 x 3 - 3/4 - 32 x 3 11600 1 P 7232 51 30
26 x 3 - 1 - 26 x 3 11590 5 P 7226 53 30
32 x 3 - 1 - 32 x 3 11610 0 P 7232 52 25
40 x 3.5 - 1 - 40 x 3.5 11620 9 P 7240 52 15
40 x 3.5 - 1¼ - 40 x 3.5 11630 8 P 7240 53 15
50 x 4 - 1¼ - 50 x 4 11640 7 P 7250 53 10
50 x 4 - 1½ - 50 x 4 11650 6 P 7250 54 10
63 x 4.5 - 1½ - 63 x 4.5 11660 5 P 7263 54 2
63 x 4.5 - 2 - 63 x 4.5 11670 4 P 7263 55 8
T-Pieces with central female thread
16 x 2 - 1/2 - 16 x 2 11680 3 P 7216 41 60
18 x 2 - 1/2 - 18 x 2 11690 2 P 7218 41 50
20 x 2 - 1/2 - 20 x 2 11700 8 P 7220 41 50
26 x 3 - 1/2 - 20 x 2 11810 4 P 7226 42 30
26 x 3 - 1/2 - 26 x 3 11800 5 P 7226 41 30
32 x 3 - 1/2 - 32 x 3 11840 1 P 7232 43 30
20 x 2 - 3/4 - 20 x 2 11710 7 P 7220 42 50
26 x 3 - 3/4 - 26 x 3 11830 2 P 7226 44 30
32 x 3 - 3/4 - 32 x 3 11850 0 P 7232 41 30
32 x 3 - 1 - 32 x 3 11860 9 P 7232 42 25
40 x 3.5 - 1 - 40 x 3.5 11880 7 P 7240 41 20
32 x 3 - 1¼ - 32 x 3 11870 8 P 7232 44 20
40 x 3.5 - 1¼ - 40 x 3.5 11890 6 P 7240 42 20
50 x 4 - 1¼ - 50 x 4 11900 2 P 7250 42 10
50 x 4 - 1½ - 50 x 4 11910 1 P 7250 43 10
63 x 4.5 - 1½ - 63 x 4.5 11920 0 P 7263 43 2
63 x 4.5 - 2 - 63 x 4.5 11930 9 P 7263 44 8
Product
group 3
Press fi ttings
155
Junction, Angle
Model EAN
90 04174 Order
number Item
14 x 2 - R 1/2 10690 3 P 7114 11 150
16 x 2 - R 1/2 10700 9 P 7116 11 150
18 x 2 - R 1/2 10710 8 P 7118 11 150
20 x 2 - R 1/2 10720 7 P 7120 11 120
20 x 2 - R 3/4 10730 6 P 7120 12 100
26 x 3 - R 3/4 10780 1 P 7126 12 50
32 x 3 - R 1 10790 0 P 7132 13 30
40 x 3.5 - R 1¼ 10800 6 P 7140 14 30
50 x 4 - R 1¼ 10810 5 P 7150 14 20
63 x 4.5 - R 2 10830 3 P 7163 16 10
14 x 2 - Rp 1/2 10840 2 P 7114 21 120
16 x 2 - Rp 1/2 10850 1 P 7116 21 120
18 x 2 - Rp 1/2 10860 0 P 7118 21 120
20 x 2 - Rp 1/2 10870 9 P 7120 21 100
20 x 2 - Rp 3/4 10880 8 P 7120 22 50
26 x 3 - Rp 3/4 10930 0 P 7126 22 50
32 x 3 - Rp 1 10940 9 P 7132 23 30
40 x 35 - Rp 1 1/4 10950 8 P 7140 24 30
50 x 4 - Rp 1¼ 10960 7 P 7150 24 16
50 x 4 - Rp 1½ 10970 6 P 7150 25 16
63 x 4.5 - Rp 2 10980 5 P 7163 26 10
Product
group 3
Press fi ttings
156
Non crossing
T-piece
Model EAN
90 04174 Order
number Item
16 x 2 17110 9 P 7216 25 20
20 x 2 17130 7 P 7220 25 20
20 x 2 - 16 x 2 - 16 x 2 17160 4 P 7220 27 20
20 x 2 - 16 x 2 - 20 x 2 17150 5 P 7220 26 20
20 x 2 - 20 x 2 - 16 x 2 17170 3 P 7220 28 20
Box for non crossing T-piece
(Styropore) 16870 3 P 1020 22 1
Non crossing T-piece, 6 x connection
female thread Rp 1/2
for pipe connection adapter (14–26)
1 6266 01 or P 7016 18, have to be ordered separately.
15370 9 P 7200 31 2
Screw in device R 1/2,
with O-Ring seal, for
non crossing T-piece.
10 x 1.3 - G 1/2 99936 9 P 7010 18 150
14 x 2 - G 1/2 15380 8 P 7014 18 150
16 x 2 - G 1/2 15390 7 P 7016 18 150
18 x 2 - G 1/2 15400 3 P 7018 18 150
20 x 2 - G 1/2 15410 2 P 7020 18 150
26 x 3 - G 1/2 15450 8 P 7026 18 100
Box for non crossing T-piece,
internal thread 1/2 (Plastic) 15460 7 P 1020 21 5
Press fi ttings
Product
group 3
Product
group 1
157
Plastic Pipe Conections
for PE-X, PB and Aluminium Composite Pipes
G 3/4
Model Dim. EAN
90 04174 Order
number Item
Plastic pipe connections 3/4
For PE-X, PB and aluminium composite pipes,
consisting of spiggot, olive and union nut G 3/4.
With cone.
10 x 1.3 66330 7 1 6098 18 10
14 x 2 61520 7 1 6098 02 10
15 x 2.5 66250 8 1 6098 16 10
16 x 2 61530 6 1 6098 03 10
16 x 2.2 63290 7 1 6098 12 10
16 x 2.7 66340 6 1 6098 27 100
17 x 2 61540 5 1 6098 04 10
17 x 2.5 61550 4 1 6098 05 10
18 x 2 61570 2 1 6098 07 10
18 x 2.5 61560 3 1 6098 06 10
18 x 3 -1 6098 17 100
20 x 2 61580 1 1 6098 08 10
20 x 3.5 62710 1 1 6098 10 10
20 x 2.5 63160 3 1 6098 11 10
20 x 3.4 -1 6098 19 100
Plastic Pipe Connections
for PE-X, PB and Aluminium Composite Pipes M 22 x 1,5
Plastic pipe connections M 22 x 1.5
For PE-X, PB and aluminium composite pipes,
consisting of spiggot, olive and union M 22 x 1.5.
14 x 2 61480 4 1 6066 02 10
16 x 2 61490 3 1 6066 03 10
17 x 2 61500 9 1 6066 04 10
Plastic Pipe Connections
For PE-X, PB and Aluminium Composite Pipes G 1/2
HERZ-Compression adapter for plastic pipe
connections,
consisting of compression nut and olive, compression
adapter R 1/2, suitable for HERZ-Valves of series “D”,
TS-7728, DE LUXE and RL5
14 x 2 65600 2 1 6092 02 10
16 x 2 65590 6 1 6092 01 10
Plastic pipe connection G 1/2
with double O-Ring and insulating disc,
consisting of spiggot, and olive and union nut G 1/2
with cone.
12 x 2 16260 2 1 6092 11 10
14 x 2 16270 1 1 6092 12 10
16 x 2 16280 0 1 6092 13 10
Plastic Pipe Connections
For PE-X, PB and Aluminium Composite Pipes G 1
Plastic pipe connections G 1
For PE-X, PB and aluminium composite pipes,
consisting of spiggot, olive and union nut G 1
with cone.
16 x 2 16290 9 1 6198 11 10
20 x 2 16300 5 1 6198 12 10
25 x 3.5 64710 9 1 6198 00 10
26 x 3 64720 8 1 6198 01 10
Plastic Pipe Conections
Product
group 1
158
HERZ-Compression Adapters
for Steel and Copper Pipes G 3/4
Model Dim. EAN
90 04174 Order
number Item
Compression adapter, metal-to-metal joint
Olive with O-Ring installed, metal-to-metal joint
towards pipe, locking nut G 3/4.
Not suitable for chromium-plated metal
and stainless steel pipes.
863340 9 1 6274 18 10
10 60530 7 1 6274 00 10
12 60540 6 1 6274 01 10
14 60550 5 1 6274 02 10
15 60560 4 1 6274 03 10
16 60570 3 1 6274 04 10
Compression adapter with soft seal
Olive, rubber joint (EPDM) towards pipe,
locking nut G 3/4.
12 64740 6 1 6276 12 10
14 66270 6 1 6276 14 10
15 64750 5 1 6276 15 10
16 66280 5 1 6276 16 10
18 64760 4 1 6276 18 10
HERZ-Compression Adapters
for Steel and Copper Pipes M 22 x 1,5
Compression adapter, metal-to-metal joint
Olive, metal-to-metal joint towards pipe,
locking nut M 22 x 1.5.
Not suitable for chromium-plated metal
and stainless steel pipes.
10 60590 1 1 6284 00 10
12 60600 7 1 6284 01 10
14 60610 6 1 6284 03 10
15 60620 5 1 6284 04 10
16 60630 4 1 6284 05 10
Compression adapter with soft seal
Olive, rubber joint (EPDM) towards pipe,
locking nut M 22 x 1.5.
12 64770 3 1 6286 12 10
14 60590 1 1 6286 14 10
15 64780 2 1 6286 15 10
HERZ-Compression Adapters
for Steel and Copper Pipes G 1/2
Compression adapter, metal-to-metal joint
Olive, metal-to-metal joint towards pipe, olive screw.
3/8 x 12 60650 2 1 6292 00 10
1/2 x 12 63780 3 1 6292 12*10
1/2 x 14 63430 7 1 6292 14*10
1/2 x 15 60660 1 1 6292 01 10
3/4 x 18 60670 0 1 6292 02 10
Compression adapter, metal-to-metal joint,
Olive, metal-to-metal joint towards pipe,
locking nut G 1/2.
15 x 1
- G 1/2 15790 5 1 6294 01 10
HERZ-Compression Adapters
for Steel and Copper Pipes G 1
Compression adapter, metal-to-metal joint
Olive, metal-to-metal joint towards pipe,
locking nut G 1 with cone.
22 64730 7 1 6273 01 10
HERZ-Nut & Olive
Compression nut & olive set for Herz ball
valve 2190
G 3/4-15 mm
66470 0 1 6274 21
10 x 10
G 1-22 mm
66480 9 1 6274 22
10 x 10
G 1¼-28 mm
66490 8 1 6274 23 20
G 1½-35 mm
66500 4 1 6274 24 5
G 1¾-42 mm
66510 3 1 6274 25 5
G
2 ⁄
-54 mm
66520 2 1 6274 26 5
Accessories
Support sleeves
For pipe dimensions.
10 x 1 00150 5 1 0674 10 20
12 x 1 00160 4 1 0674 12 20
14 x 1 00170 3 1 0674 14 20
15 x 1 00180 2 1 0674 15 20
16 x 1 00190 1 1 0674 16 20
18 x 1 00200 7 1 0674 18 20
22 x 1 02310 1 1 0674 22 20
Compression Adapters
38
159
HERZ-Compression Adapters for Universal Models “DE LUXE”
Model Colour EAN
90 04174 Order
number Item
HERZ-Compression adapter cover
“DE LUXE”
for compression adapters.
Chrome 63200 6 1 6292 41 20
White (RAL 9010) 63230 3 1 6292 44 20
Matt black 63270 9 1 6292 49 20
HERZ-Compression Adapters for Universal Models “DE LUXE” in Sanitary Colours
HERZ-Compression adapter
cover “DE LUXE”
for compression adapters.
Pergamum 63630 1 S 6292 01 20
Aeg 63640 0 S 6292 02 20
Manhattan 63650 9 S 6292 03 20
Edelweiss 63660 8 S 6292 04 20
Calypso 63670 7 S 6292 05 20
Bahama beige 63680 6 S 6292 06 20
Greenwich 63690 5 S 6292 07 20
Jasmine 63700 1 S 6292 08 20
Natural 63710 0 S 6292 09 20
Ultramarine blue (RAL 5002)
63720 9 S 6292 10 20
Flame red (RAL 3000) 63730 8 S 6292 11 20
Ruby red (RAL 3003) 63740 7 S 6292 12 20
Signal blue (RAL 5005) 63750 6 S 6292 13 20
Golden yellow (RAL 1004)
63760 5 S 6292 14 20
Light ivory (RAL 1015) 63770 4 S 6292 15 20
HERZ-Compression Adapter Cover “DE LUXE”
HERZ-Compression adapter cover
“DE LUXE”
for compression adapters.
Chrome 63860 2 1 6281 41 20
White (RAL 9010) 63890 9 1 6281 44 20
Matt black 63900 5 1 6281 49 20
HERZ-Compression Adapter Cover “DE LUXE” in Sanitary Colours
HERZ-Compression adapter cover
“DE LUXE”
for compression adapters.
Pergamum 65620 0 S 6281 21 20
Aeg 65630 9 S 6281 22 20
Manhattan 65640 8 S 6281 23 20
Edelweiss 65650 7 S 6281 24 20
Calypso 65660 6 S 6281 25 20
Bahama beige 65670 5 S 6281 26 20
Greenwich 65680 4 S 6281 27 20
Jasmine 65690 3 S 6281 28 20
Natura 65700 9 S 6281 29 20
Ultramarine blue (RAL 5002)
65710 8 S 6281 30 20
Flame red (RAL 3000) 65720 7 S 6281 31 20
Ruby red (RAL 3003) 65730 6 S 6281 32 20
Signal blue (RAL 5005) 65740 5 S 6281 33 20
Golden yellow (RAL 1004)
65750 4 S 6281 34 20
Light ivory (RAL 1015) 65760 3 S 6281 35 20
Product
group 1
Compression Adapters
160
Adapter
Model Dim. EAN
90 04174 Order
number Item
Adapter
For connection of plastic pipes.
Compression adapter set G 3/4 with cone and for
pipe connection has to be ordered separately.
G 1/2 60470 6 1 6262 01 20
G 3/4 60510 9 1 6262 02 20
G 1 16550 4 1 6262 03 10
Adapter
For universal and Y-valves.
Compression adapters for pipe connection
have to be ordered separately.
G 1/2 x
M 22 x 1.5 60500 0 1 6272 01 10
G 1/2 x G
3/4
60490 4 1 6266 01 100
G 1/2 x R 1/2
16630 3 1 6266 11 10
G 3/4 x R 1/2
16640 2 1 6266 12 10
G 3/4 x R 3/4
16650 1 1 6266 20 10
G 1 x R 3/4
16660 0 1 6266 13 10
G1 x Rc1 64700 0 1 6266 03 10
Adapter
made of brass, nickel-plated with female thread
for direct distributor connection, with cone seal.
G 3/4 x Rp
1/2
60480 5 1 6265 01 10
G 1/2 x Rp
1/2
16590 0 1 6265 11 10
G 3/4 x Rp
3/4
16600 6 1 6265 12 10
G 1 x Rp 3/4
16610 5 1 6265 13 10
G 1 x Rp 1
16620 4 1 6265 14 10
1/2 x
M 22 x 1.5 63260 0 1 6275 22 20
Junction sockets
For the connection of threaded pipes.
1 pair of sockets for O-Ring seal, including O-Ring. G 3/4 80940 8 1 8447 02 1
Double nipple
For the connection of compression adapters for
copper and plastic pipes, 1 pair. G 3/4 80950 7 1 8448 02 20
Product
group 1
Adapter
161
Elbows
Model Dimension EAN
90 04174 Order
number Item
G 1/2 16510 8 P 3124 18 200
G 3/4 16520 7 P 3126 03 100
G 1 16530 6 P 3128 09 50
G 1/2 x R 1/2 16460 6 P 3124 17 200
G 3/4 x R 1/2 16470 5 P 3126 02 120
G 3/4 x R 3/4 16480 4 P 3126 06 100
G 1 x R 3/4 16490 3 P 3128 07 80
G 1 x R 1 16500 9 P 3128 08 50
G 1/2 x Rp 1/2 16410 1 P 3124 16 200
G 3/4 x Rp 1/2 16430 9 P 3126 16 120
G 3/4 x Rp 3/4 16420 0 P 3126 05 100
G 1 x Rp 3/4 16440 8 P 3128 05 80
G 1 x Rp 1 16450 7 P 3128 06 10
T-piece
G 1/2 16560 3 P 3124 19 150
G 3/4 16570 2 P 3126 08 100
G 1 16580 1 P 3128 15 50
G 1/2 x Rp 1/2 x G 1/2 16310 4 P 3124 15 150
G 3/4 x Rp 1/2 x G 3/4 16320 3 P 3126 07 100
G 3/4 x Rp 3/4 x G 3/4 16330 2 P 3126 13 100
G 1 x Rp 1/2 x G 1 16340 1 P 3128 01 50
G 1 x Rp 3/4 x G 1 16350 0 P 3128 03 50
G 1 x Rp 1 x G 1 16360 9 P 3128 04 50
G 1/2 x R 1/2 x G 1/2 16370 8 P 3124 20 150
G 3/4 x R 3/4 x G 3/4 16380 7 P 3126 17 100
G 1 x R 3/4 x G 1 16390 6 P 3128 16 50
G 1 x R 1 x G 1 16400 2 P 3128 17 50
Product
group 3
Fittings
162
Reducer
Model Dimension EAN
90 04174 Order
number Item
G 1 x Rp 1/2 16790 4 P 1928 12 10
R 1/2 x 3/8 Brass, nickel plated, with O-ring,
Temperature range -10 °C to 110
(water 0 °C to 110 °C). -1 2333 01 10
Spare Parts
3/8 16720 1 1 8445 30 10
1/2 16730 0 1 8445 31 10
3/4 16740 9 1 8445 32 10
116750 8 1 8445 33 10
G 1/2 16760 7 1 8525 11 10
G 3/4 16770 6 1 8525 12 10
G 1 16780 5 1 8525 13 10
G 1¼ 20690 0 1 8525 63 20
G 1½ 20700 6 1 8525 64 20
G 2 20710 5 1 8525 74 20
G 2¼ 20720 4 1 8525 75 20
G 2¾ 20730 3 1 8525 76 20
M 22 x 1.5 10030 7 1 1056 66 20
Plug, nickel-plated 3/4, with connection nipple for chain. 80660 5 1 8525 52 20
Plug, brass version 3/4, with connection nipple for chain. 80190 7 1 8525 02 1
End caps with O-Ring seal
1 pair for 8541.G 1 81930 8 1 8545 03 1
End caps with O-Ring seal
1 Pair for compact distributor 8441.G 3/4 80930 9 1 8445 02 1
Adaptor
HERZ-Compensation Adapter 1/2
For compensation of different radiator pipe
lengths, 2 pieces, to be cut into length,
centre distance 35–70 mm.
1/2 32590 8 1 3010 11 20
HERZ-
spacing adaptor
1/2
compensation for adapter 1 3010 11
To compensate for different lengths for
Adapter assembly.Thread length 65 mm,
lengths 35-65 mm.
1/2 32600 4 1 3011 11 20
Product
group 1
Fittings
163
Plug fi tting
Model Dim. EAN
90 04174 Order
number Item
plug fi tting
14 x 2 13850 8 P 7014 10 200
16 x 2 13860 7 P 7016 10 200
18 x 2 13880 5 P 7018 10 200
20 x 2 13890 4 P 7020 10 200
26 x 3 13920 8 P 7026 10 100
32 x 3 13930 7 P 7032 10 80
40 x 3.5 13940 6 P 7040 10 10
50 x 4 13950 5 P 7050 10 30
63 x 4.5 13960 4 P 7063 10 20
Soundproofi ng element for double-wall angle
Soundproofi ng element
for double-wall angle Rp 1/2 10340 7 P 0450 04 10
Soundproofi ng element
wall angle shot
1/2 10280 6 P 0450 01 40
3/4 10290 5 P 0450 02 40
Soundproofi ng element
for wall angle short Rp 1/2 10440 4 P 0450 03 30
Accessories
Product
group 3
Product
group 1
164
Tubing cutter
Model EAN
90 04174 Order
number Item
Suitable for dimensions 10 to 40
(REMS Reference article number: 290050) 16140 7 P 2010 11 1
Suitable for dimensions 10 to 63
(REMS Reference article number: 290000) 16150 6 P 2010 16 1
Replacement blades for tube cutter for dimensions
10 to 40 and 10 to 63
(REMS-Reference Model: 290016)
17040 9 P 2010 01 10
Suitable for dimensions 14 to 35 16160 5 P 2010 14 1
Suitable for dimensions 35 to 50 17080 5 P 2010 17 1
Replacement blades for tube cutter
for dimensions 14 to 35 17030 0 P 2010 15 10
Replacement blades for tube cutter
for dimensions 35 to 50 17090 4 P 2010 18 10
Pipe cutter
Simple pipe cutter for cutting plastic pipes,
Metal composite pipes, tubes WIROFlex and all kind of
Plastic or rubber hoses
10911 9 P 2010 19 1
Bending Spring
inside 14 x 2 16220 6 P 2021 41 1
inside 16 x 2 16170 4 P 2021 61 1
inside 18 x 2 16230 5 P 2021 81 1
inside 20 x 2 16180 3 P 2022 01 1
inside 26 x 3 16190 2 P 2022 61 1
outside 14 16240 4 P 2021 42 1
outside 16 16200 8 P 2021 62 1
outside 18 16250 3 P 2021 82 1
outside 20 16210 7 P 2022 02 1
outside 26 16220 6 P 2022 62 1
Tools for Press Fittings
Product
group 3
165
Universal calibrator,
with standard handle, mounted
Model Dim. EAN
90 04174 Order
number Item
Calibrator
10 x 1.3 99911 6 3 F010 11 1
14 x 2 19890 8 P 2011 73 1
16 x 2 19900 4 P 2011 74 1
18 x 2 19910 3 P 2011 75 1
20 x 2 19920 2 P 2011 76 1
26 x 3 19930 1 P 2011 78 1
32 x 3 19940 0 P 2011 79 1
40 x 3.5 19950 9 P 2011 80 1
50 x 4 19970 7 P 2011 83 1
63 x 4.5 20010 6 P 2011 87 1
Universal calibrator,
used with standard- and click- or directly handle for clamping onto cordless screwdriver
Calibrator with 6-kant
14 x 2 16910 6 P 2010 73 1
16 x 2 16920 5 P 2010 74 1
18 x 2 16930 4 P 2010 75 1
20 x 2 16940 3 P 2010 76 1
26 x 3 16950 2 P 2010 78 1
32 x 3 16960 1 P 2010 79 1
40 x 3.5 16970 0 P 2010 80 1
50 x 4 16990 8 P 2010 83 1
63 x 4.5 19880 9 P 2010 87 1
Handles
Click Grip for universal calibrator all dimensions 16890 1 P 2010 70 1
Standard handle for calibrating all dimensions 16900 7 P 2010 71 1
Product
group 3
Tools for Press Fittings
PipeFix unpressed leak path calibrator*
Unpressed leak path calibrator*
16 x 2 -P 2016 20 1
18 x 2 -P 2018 20 1
20 x 2 -P 2020 20 1
26 x 2 -P 2026 20 1
32 x 2 -P 2032 20 1
40 x 2 -P 2040 20 1
50 x 2 -P 2050 20 1
63 x 2 -P 2063 20 1
166
Product
group 3
Tools for Press Fittings
Pressing aids and batteries
Model EAN
90 04174 Order
number Reference-
order number VKE
Universal Press electric device to
Preparation of press joints
to 63 mm incl case of stable plate
230 V, 50 Hz
15850 6 P 2010 09 REMS 577011 1
Universal battery pressing device to
Preparation of press joints
to 63 mmincl case of stable plate,
L-Ion Battery
15810 0 P 2010 08 REMS 571013 1
Universal battery pressing device 15840 7 P 2010 10 REMS 571003 1
Steel case with insert.
The case comes without content.
(REMS Reference
Item number: 570 280)
15830 8 P 2010 00 REMS 570280 1
Battery Ni-Cd 12 V, 2.0 Ah,
no memory effect
(REMS-Reference Model: 571510)
+ Li-Ion 14.4 V, 2.2 Ah
15980 0 P 2010 13 REMS 571510 1
Quick Charger Li-lon/Ni-Cd 23 V
(REMS-Reference Model 571560) 15970 1 P 2010 12 REMS 571560 1
167
Press jaw (TH) to pressing machine (battery, 230 V)
Model Dim. EAN
90 04174 Order
number Reference
Order No. VKE
Pressing jaw to pressing
machine
10 20650 4 P 2011 19 REMS 570467 1
14 15860 5 P 2011 21 REMS 570455 1
16 15870 4 P 2011 22 REMS 570460 1
18 15890 2 P 2011 23 REMS 570465 1
20 15900 8 P 2011 24 REMS 570470 1
26 15920 6 P 2011 26 REMS 570475 1
32 15930 5 P 2011 27 REMS 570480 1
40 15940 4 P 2011 28 REMS 570485 1
50 15950 3 P 2011 29 REMS 572400 1
63 15960 2 P 2011 30 REMS 572405 1
Steel case for six
Press jaw and a pipes cutter.
The case comes without content.
(REMS Reference article number: 570 295).
15830 8 P 2011 00 REMS 570295 1
Batteries
Battery press tool 9.6 V (Mini),
including a plastic case,
Charger and battery for pressures up
Diameter 32 mm.
10451 0 P 2010 27 Klauke MAP1 1
Spare battery press for tool 9.6 V. 10461 9 P 2010 28 Klauke RAM2 1
Replacement battery charger
for battery press tool 9.6 V. 10471 8 P 2010 29 Klauke LG4F 1
Tools for Press Fittings
Product
group 3
168
Press jaw (TH) to pressing machine
Model Dim. EAN
90 04174 Order
number
Reference
Order No.
Klauke Item
Press jaw (TH) to pressing machine
9.6, marked with Nominal size,
production week, burnished surface
14 10491 6 P 2010 30 SBM14N 1
16 10501 2 P 2010 31 SBM16N 1
18 10511 1 P 2010 32 SBM18N 1
20 10521 0 P 2010 33 SBM20N 1
26 10531 9 P 2010 34 SBM26N 1
32 10541 8 P 2010 35 SBM32N 1
Hand press tool
crimping pliers / wrench press Manual 15990 9 P 2010 20 MP32N 1
insert 14 16000 4 P 2010 21 WE14N 1
insert 16 16010 3 P 2010 22 WE16N 1
insert 18 16020 2 P 2010 23 WE18N 1
insert 20 16030 1 P 2010 24 WE20N 1
insert 26 16040 0 P 2010 25 WE26N 1
insert 32 16050 9 P 2010 26 WE32N 1
Hand-lever for all Press jaw
Model EAN
90 04174 Order
number Reference
Order No. Item
Lever suitable for all Press jaw pressing units,
Dimension 10–26.
The Press jaw must be ordered separately.
17070 6 P 2010 05 REMS 574000 1
Press Tools for Fittings
Product
group 3
169
Spare parts
Model Dim. EAN
90 04174 Order
number Item
O-ring EPDM for NW
14 x 2 13720 4 P 0181 14 100
16 x 2 13730 3 P 0181 16 100
18 x 2 13750 1 P 0181 18 100
20 x 2 13760 0 P 0181 20 100
26 x 3 13800 3 P 0181 26 100
32 x 3 13810 2 P 0181 32 100
40 x 3.5 13820 1 P 0181 40 100
50 x 4 13830 0 P 0181 50 100
63 x 4.5 13840 9 P 0181 63 100
Press sleeve of stainless steel.
14 13600 9 P 0441 47 200
16 13610 8 P 0441 67 200
18 13630 6 P 0441 87 200
20 13640 5 P 0442 07 200
26 13670 2 P 0442 67 100
32 13680 1 P 0443 27 80
40 13690 0 P 0444 07 60
50 13700 6 P 0445 07 50
63 13710 5 P 0446 37 40
Spare parts
Product
group 3
170
Certificate of Guarantee
1. Definition of Terms and Scope of Validity
1.1. In order to be entitled to claim services under the present Certificate of
Guarantee, the claiming party must hold a trade licence for the installa-
tion of low-pressure central heating systems and hot water preparation
plants of the upper and lower categories or a trade licence for gas
fitters and plumbers.
1.2. Under the present Certificate of Guarantee „Products” shall designate
all heating components manufactured by us after January 1st, 2007,
bought new by the party entitled to raise a claim either directly from us
or directly from one of our authorized dealers in Austria, unless these
components have been exempted from the validity of the Certificate
of Guarantee by express declaration to the party entitled to raise a
claim or are generally exempted from such guarantee. There are
special provisions for electronic and electric products such as HERZ-
Electronic thermostats and actuating drives, HERZ-Actuating drives,
HERZ-Room temperature controllers, HERZ transformers and wireless
control systems and devices, which are not covered by the Certificate
of Guarantee. Furthermore, wear parts of HERZ components such as
seals are not covered by the present Certificate of Guarantee.
1.3. A case of damage in the sense of the Certificate of Guarantee occurs
when a customer of a party entitled to raise claims with HERZ raises
a warranty claim against the said party for any damage caused by an
error in design or a defect in manufacturing or materials of the pro-
ducts.
1.4. The geographic validity of the Certificate of Guarantee shall be limited
to places within Europe.
2. Extend of Services rendered under the Certificate of Guarantee
We shall render the following services under the present Certificate of
Guarantee (excluding any further claims):
2.1. Replacement free of charge of the products or product components
required repairing the damage, free place of damage.
2.2. According to our choice:
a) performing the required dismantling /disassembly and assembly/
installation of products or product components or
b) repairing the initial products or product components or
c) paying the costs fort he services as mentioned above.
2.3. Repairing the immediate material damage caused by the defective
products or paying the costs for the services as mentioned above.
2.4. Damages for direct personal injury caused by the defective products.
2.5. Our liability according 2.1. to 2.3. is limited to € 500,000 per claim.
2.6. Without prejudice to the provisions of item 4.1. our liability shall be
limited in terms of time to claims arising within a period of 5 years after
manufacturing of the products causing the damage.
2.7. Our liability is limited to claims arising out of errors in design, defects in
manufacturing or materials of the products and based on the absence
of characteristics which have either been guaranteed by us or which
can be expected in accordance with the state of technology or with
trade practice.
3. Obligations of the Party Entitled to Raise Claims
It is a condition precedent for the implementation of the present
Certificate of Guarantee that the party entitled to raise claims meet the
below mentioned obligations. Failure to meet any or several of these
obligations shall relieve HERZ of any and all obligations under the
present Guarantee.
3.1. During installation and use of the products it is imperative to observe
our instructions for installation and maintenance valid at the moment
of installation and laid down in the brochures, standard sheets, as well
as our information regarding the scope of application of the products.
Furthermore, it is imperative to proceed with due care according to the
state of technology, particularly during maintenance.
3.2. As soon as the party entitled to raise a claim detects or learns of a case
of damage, it shall forthwith inform HERZ of such damage (not later
than on the 3rd working day thereafter) by fax, telex or cable and shall
make available to us all information requested by us. The information
shall be submitted in writing upon our request.
3.3. The party entitled to raise a claim shall make sure that the representa-
tives of our company and the agents of our insurance company be
granted access to the place of damage immediately after giving notice
of the claim and shall take all appropriate measures to determine the
cause and scope of the damage. In particular, the party entitled to
raise a claim shall keep and make available the products or product
components which caused the damage.
3.4. The burden of proof lies with the party who suffered the damage. The
party entitled to raise a claim shall not acknowledge any obligation to
damages neither with regard to its basis nor to its extend, neither in its
own name nor on our behalf. Any declaration extending the scope of
damages offered by the present Certificate of Guarantee and by the
applicable legal provisions made by the party entitled to raise a claim
before or after the occurrence of damage, are not admitted and shall
not be binding on us.
4. Period of Validity and Formal Provisions
4.1. The present Certificate of Guarantee shall cover claims for damage
occurring between April 1st, 2007 and March 31st, 2012. We reserve
the right to extend this period.
5. Place of Fulfilment, Jurisdiction, Applicable Law
5.1. The place of fulfilment shall be Vienna. The court having subject-matter
jurisdiction for our company in Vienna shall have exclusive jurisdic-
tion. Any disputes arising from the present Certificate of Guarantee
shall be settled according to Austrian Law. The application of the
UN-Convention on Contracts for the International Sale of Goods is
expressly excluded.
Vienna, April, 2011
171
1. Offers, Acknowledgement of Orders, Conclusion of Contracts
1.1. All offers are without obligation. We reserve the right to modify,
supplement or discontinue our production at any time. We are
entitled to accept only partial orders or to refuse them without giving a
reason.
1.2. Our written acknowledgement of order constitutes a contract, an
acknowledgement of order by faxsimile is suffi cient also. The content
of the acknowledgement of order shall at the same time be the content
of the contract unless the customer raises an objection against it
immediately after receipt. Otherwise, our acknowledgement of order
and our Terms and Conditions of Sale, Delivery and Payment shall be
deemed to have been accepted. In case of claim against the order
confirmation, its content becomes a contract if the customer accepts
the delivery and/or makes a payment.
1.3. After the acknowledgement of order has been sent, the order placed
with us no longer can be changed or cancelled.
1.4. The present Terms and Conditions of Sale, Delivery and Payment shall
supersede any purchasing conditions of our customers in any case.
They also apply to any future business with the customer.
1.5. Prices are understood to be from the factory, unpackaged, carriage
forward and without VAT.
1.6. In case of an increase in costs during the period between the
acknowledgement of order and delivery, we shall be entitled to make
the respective price adjustments.
1.7. In case that a component of a fitting ordered is not needed, the price
deduction shall not be made according to the component price but
according to our price calculation.
1.8. Declarations and announcements of HERZ towards our contract
partners come into force with sending these declarations and
announcements to the mailing address known to us. This is also valid
if the mailing address has been changed and has not been announced
immediately.
1.9. To be considered valid, changes and additions to the contract must be
agreed and confirmed in writing by persons with representative status
who are entered in the company register of our firm. Our other staff are
not authorised to arrange changes or additional agreements.
2. Conditions of Payment
2.1. As long as nothing else is given in the order confirmation, payments
are net cash at receipt of the invoice and without any discount.
2.2. In case of default payment we reserve the right to demand payment of
default interest at a rate of 10% above the then current Austrian bank
rate (per year), however not less than 1% per month. Only payments
made to the payment entity specify in the invoice will be recognised. In
case of bank transfers, payment shall be deemed to have been made
only when the amount of the invoice has been irrevocably credited to
our account.
2.3. Bills of exchange, cheques and payments by money order will be
recognised only on account of payment. In this event a discount is not
permitted even for special discount arrangements.
2.4. In case of payment by accepted bill or customer’s bill, the discount
charges shall be borne by the debtor.
2.5. The date of the invoice shall be relevant for the date of payment in any
case, even if goods are received with a delay for reasons not to be
attributed to us.
2.6. In the event that payment is not made by the due date or in case of
deteriorating financial soundness of the customer or on other important
reasons, we shall be entitled at our discretion to repudiate the contract
or to demand immediate payment of any and all debts irrespective
of the term of payment agreed upon, all this without any claim for
fulfilment or damages arising against us.
3. Retention of Title
3.1. The goods supplied by us shall remain our property until payment in full
has been made for any and all goods supplied. This shall also apply
to the payment of any bills of exchange accepted in payment by us.
In the event of re-sale for cash, the re-sale proceeds from this separate
retention by the customer come to us and oblige the customer to enter
a valid note in the accounts (anticipated ownership). In the case of
manufacturing our retention of title (proportionate) is the end product.
The customer must inform their buyer at re-sale about the existing
retention of title and all other security laws agreed.
3.2. The buyer must inform us immediately if third parties raise claims
against our goods supplied under our retention of title or bring legal
actions. Any costs resulting from legal consequences are to be borne
by the buyer.
4. Packing and Dispatch
4.1. The goods will be packed to commercial standards at the buyer’s
expense. Packing materials will not be taken back. The packing shall
be dimensioned assuming customary transport conditions.
4.2. The goods will be dispatched ex-works at the risk of the buyer, even in
case of delivery freight prepaid.
4.3. The seller shall be obliged to take out insurance only if and to the extent
that this has been agreed upon in writing.
5. Modification of Models
5.1. We reserve the right to make design modifications, to change
tolerances and to make improvements.
5.2. In case of special designs manufactured according to customer
sample, model or drawing, we reserve the right to supply up to 5 %
more or less than the quantity ordered.
6. Complaints
6.1. With regard to any defects or damage that can be recognised during
proper inspection upon receipt, not recognizable defects or damages
have to be reprehend immediately after their occurrence, a complaint
shall be filed immediately after receipt of goods. However, any
warranty claim shall expire three months after delivery.
6.2.
In addition, in case of deviations in the number of units supplied or
in weight, a complaint shall be filed with the railway company or the
forwarding agent (carrier) upon receipt of the goods, and a certification
to support any such difference shall be obtained. Any defective units
shall be returned to us without delay freight prepaid.
7. Warranty
7.1. We will perform our warranty obligation by replacing free of charge any
items which become totally inoperative within a period of three months
as a result of defective materials or deficiencies in workmanship,
provided that the rejected items are returned within 4 months from
delivery.
8. Returned Goods
8.1. Returned goods will only be accepted with our prior written consent and
only if sent free our works in Vienna without any damage or defect.
8.2. Return of items made to order will not be accepted in any case.
9. Default in Delivery and Release from the Delivery Commitment
9.1. The obligation to deliver and to adhere to the delivery period shall be
suspended by any extraordinary events and circumstances not to be
attributed to us which causes a relevant interruption of operations or
makes the dispatch of goods impossible.
9.2. In the event that dispatching of goods is impossible, we shall be
entitled to store any goods already manufactured at the expense and
risk of the buyer. In that case, the goods will be invoiced to the buyer
as if they had already been supplied.
9.3. If we are in default in delivery, the buyer shall grant a reasonable period
of grace of not less than 6 weeks. The buyer shall not be entitled to
cancel the contract after we have initiated production of the goods
ordered – even after having granted a period of grace.
10. Quality of a Consignment
10.1. The quality of a consignment cannot be assessed on the basis of the
quality of individual items.
11. Damages, Limitation of Warranty
11.1. The amount of any claims is limited according to the net invoice value
of the item in question.
11.2. We are entitled to settle any guarantee claims through the provision of
replacement parts. No claims can be made for price reductions.
11.3. We shall not recognise or reimburse any claims for damages with
respect to installation costs, incipient processing costs, maintenance
costs, etc. in any case.
11.4. Claims for damages by the customer are excluded, whatever the
legal reasons, particularly due to delays, impossibility of attainment,
positive breach of a claim, debts at conclusion of a contract, damage
consequential to defects and defects due to improper handling, as
long as they are intentional or do to gross negligence on our part.
In the event of intent or gross negligence the customer must give
proof of this. Information issued by us (installation and maintenance
instructions, details of areas of use for products, etc.) must be strictly
adhered to. Where instructions are disregarded or ignored, the official
conditions release us from any liability.
11.5. We do not assume liability for any loss or damage resulting from
improper handling or use, overstraining or natural wear. Furthermore,
we do not assume liability with respect to any loss or damage caused
by negligence nor any indirect or consequential loss.
11.6. Our liability for material damage due to a production fault according
to the Product Liability Act (Produkthaftungsgesetz) shall be excluded
for all companies participating in the production and distribution
of our products, as well as for all buyers of our products who are
entrepreneurs. The parties to contracts with us who are entrepreneurs
undertake to transfer this exoneration clause to their customers to
the extent that they on their part are entrepreneurs and as far as our
products are concerned.
12. Place of Fulfilment and Jurisdiction
12.1 The place of fulfi lment for all contract demands shall be Vienna, if
the product is taken from Vienna factory; if the product is taken from
Sebersdorf factory, Sebersdorf is a place of fulfi lment.
12.2. For partners from the European Union countries as well as from the
European Economic Area and for the partners with headquarter
situated in a country, which has an enforcement agreement with
Austria the court having subjectmatter jurisdiction in Vienna is agreed
as a place of fulfi lment for all contract demands.
12.3. For the partners from countries, which do not fall under the point 12.2
the court having subjektmatter jurisdiction in Vienna is agreed as a
place of fulfi lment. HERZ reserves the right to sue for the contract
demand in each case in the responsible court.
12.4. In subsidiarity to these Terms and Conditions of Sale, Delivery and
Payment, Austrian legal provisions are to be applied exclusively. The
application of the UN-Convention on Contracts for the International
Sale of Goods is expressly excluded.
Terms and Conditions of Sale, Delivery and
Payment
172
Index of Article Numbers
Article Number Page
0100 48
0110 56
0112 56
0256 114
0270 118
0272 118
0273 114
0275 114, 118
0276 114
0280 118
0282 118
0283 118
0284 112, 113
0674 158
1001 58
1056 162
2000 52
2100 73, 102
2104 72
2110 102
2117 62
2137 70
2160 73
2190 86
2202 96
2268 74
2269 74
2300 104
2301 104
2302 105
2303 104
2304 108
2305 108
2319 108
2333 162
2362 105-107
2363 107
2372 106
2402 73
2412 74
2414 74
2415 74
2420 95
2442 126
2453 73
2503 96
2512 74
2604 72
2605 72
2606 72
2607 72
2608 72
2609 72
2610 72
2611 72
2612 72
2613 72
2621 74
2622 72
2623 102
2630 72
2634 74
2662 111
2667 72
2669 72
2670 72
2682 101
2687 72
2689 72
2902 73
2911 132
3001 50
3002 50
3003 50
3004 50
3010 162
3011 142, 162
Article Number Page
3012 49
3021 44
3030 49-50
3031 51
3032 51
3033 49
3041 48
3042 48
3061 48
3062 48
3066 46
3089 67
3091 43
3093 43
3095 43
3166 47
3192 43
3197 43
3266 47
3292 43
3295 43
3404 50
3437 48
3448 48
3466 45
3691 41
3692 41
3693 41
3694 41
3723 37
3724 37
3725 38
3726 38
3733 37
3734 32
3737 37
3741 48
3742 48
3748 37
3761 48
3762 48
3766 45
3791 41
3792 41
3793 41
3794 41
3798 42
3799 42
3923 36
3924 36
3937 36
3942 33
3948 36
4000 112
4001 77
4002 78
4002 119
4004 77
4006 77, 114
4007 78, 87, 119
4008 91-95
4010 97
4011 97
4017 80
4037 69
4095 114
4111 90, 111
4112 75
4113 75
4115 84, 100
4117 79, 98
4119 74
4120 50
4125 84, 100
4126 101
4133 49
4144 145
4145 145
4207 78
Article Number Page
4215 83, 99
4216 81
4217 81-82
4218 87-88
4315 103
4325 85, 103
4415 83
4417 82
4500 70, 75, 77
5151 53
5523 40
5524 40
5537 40
5548 40
6066 157
6092 157
6098 157
6165 67
6198 157
6206 114
6209 143
6210 143
6211 143
6213 143
6218 143
6219 143
6220 142, 144-145
6221 144
6223 142
6235 143
6236 144-145
6240 144-145
6241 144
6244 144
6248 142
6249 143
6252 143
6262 142, 160
6265 160
6266 160
6272 160
6273 158
6274 158
6275 160
6276 158
6281 159
6284 158
6286 158
6292 158
6294 158
6301 64
6302 64
6303 134
6304 64
6305 65
6310 64
6313 8
6329 5, 65
6330 52
6332 51
6333 51
6350 8
6351 8
6357 8
6360 67
6362 13
6365 65
6367 65, 67
6372 134
6376 67
6379 65, 67
6382 115
6385 115, 117-118
6386 119
6387 117, 119
6388 116, 118
6389 115, 117
6390 65
Article Number Page
6391 65
6403 134
6413 134
6501 64
6503 64
6510 64
6512 64
6517 114-115, 117,
119
6518 116
6519 115, 117
6520 117
6600 63
6615 63
6616 63
6618 63
6625 63
6630 63
6639 63
6640 63
6680 63
6701 66
6702 66
6705 66
6710 66
6800 63
6807 63
6808 63
6809 63
6810 66
6819 63
6822 50
6823 39
6824 39
6833 39
6837 39
6848 39
6890 66
7000 16
7151 53
7173 52
7174 52
7175 52
7176 52
7187 52
7188 53
7189 52
7216 96
7217 60-61, 80
7220 96
7226 96
7230 3
7235 5
7260 3, 5, 9, 13
7262 3
7420 8
7421 8
7523 29
7524 29
7528 29
7555 16
7623 30, 35
7624 30, 35
7628 30, 35
7633 30, 35
7634 35
7637 30, 33
7638 30, 35
7645 30, 33, 35
7646 30, 33, 35
7648 30
7650 53
7658 30, 35
7659 30, 35
7671 28
7672 28
7675 28
7677 28
7688 53
173
HERZ order numbers are seven-digit numbers. The fi rst digits describes the application area, digits 2-5 are the article number and the last two digits specify
the particular version. In order to provide a better overview, only the four-digit article numbers are specifi ed in the present Index of Article Numbers.
Index of Article Numbers
Article Number Page
7708 18-19
7709 18
7710 18
7711 18
7712 62, 69-70
7713 29
7714 29
7715 29
7716 29
7717 29
7718 29
7723 24, 27, 31, 34, 61
7724 24, 27, 31, 33-34
7727 52
7728 24, 27, 31, 34, 52
7733 24, 31, 34
7734 32, 34
7736 32
7737 24, 31
7738 31, 34
7740 5
7742 33
7745 24, 31
7745 34, 58
7746 24, 31, 34, 58
7748 24, 31
7758 24, 27-28, 31,
34, 52
7759 24, 27-28, 31,
34, 52
7760 59, 61
7761 58
7762 59
7763 59
7765 57
7766 69, 95-96
7767 54
7768 54
7771 28
7772 28
7777 28
7778 28
7780 68
7781 68
7783 55-57
7784 55-57
7786 55
7788 53
7791 17
7793 71
7794 17
7795 17, 20
7796 19
7834 32
7923 25
7924 25
7928 25
7940 17
7958 25
7959 25
7990 18
8100 23, 49
8250 21
8422 122
8445 162
8447 160
8448 160
8451 122
8522 126
8525 162
8531 5, 131-132
8532 131
8533 132
8535 132
8537 126
Article Number Page
8538 126
8541 126
8545 162
8569 133
8574 127
8575 127
8576 127
8900 113
8903 113
9102 5, 10, 14, 69
9200 4-5, 8-10, 13
9201 22
9230 3, 5, 9, 13
9238 10
9239 14
9260 3, 8-9, 13
9330 7, 12, 14
9350 7, 12, 14
9352 7, 12, 14
9355 7, 12, 14
9358 7, 12, 14
9420 12
9421 8, 12, 95
9430 7, 12
9460 7, 12
9551 16
9552 16
9553 16
9554 16
9596 16
9597 16
9598 16
9599 16
9860 3, 9
9861 3, 9
1 7790 17
3 C101 139
3 C140 139
3 C160 139-140
3 C180 139
3 C200 139-140
3 C260 139-140
3 C320 139-140
3 C400 139
3 C500 139
3 C630 139
3 D160 139
3 F010 165
3 F030 135
3 F040 135
3 F070 136
3 F080 137
3 F090 136
3 F100 137
3 F110 137-138
3 F531 127-128
3 F532 129
3 F532 130
3 F533 129
3 F791 17
3 F792 17
3 F798 130
3 F798 133
3 F799 20
3 F900 134
HV-BF-FLG 89
HV-BF-SLG 89
HV-BF-FLL 89
HV-BF-SLL 89
Article Number Page
G 1160 109
G 1200 109
G 1260 109
G 1320 109
G 17016 109-110
G 17020 109-110
G 17026 109-110
G 17032 109-110
G 17116 110
G 17120 110
G 17126 110
G 17132 110
G 17216 109-110
G 17220 109-110
G 17226 109-110
G 17232 109-110
HV2740 88
HV5150 76
HV5153 90
HV5154CXC 76
HV5154CXCLS 76
HV5516 76
HV5520 76
HV5520LS 76
HVCH25 90
HVDCV 102
HVDCVC 102
HVPRV 101
HVPRVC 101
HVWC25 90
P 0181 169
P 0441 169
P 0442 169
P 0443 169
P 0444 169
P 0445 169
P 0446 169
P 0450 163
P 1020 156
P 1025 122
P 1928 162
P 2010 164-168
P 2011 165, 167
P 2016 165
P 2018 165
P 2020 165
P 2021 164
P 2022 164
P 2026 165
P 2032 165
P 2040 165
P 2050 165
P 2063 165
P 3124 122, 161
P 3126 122, 161
P 3128 122, 161
P 7010 146, 156
P 7014 141-142, 146,
153, 156, 163
P 7016 141-142, 146,
152-153, 156,
163
P 7018 141-142, 146,
152-153, 156,
163
P 7020 141-142, 146,
152-153, 156,
163
P 7026 141, 146,
152-153, 156,
163
P 7032 141, 146,
152-153, 156,
163
Article Number Page
P 7040 141, 146,
152-153, 156,
163
P 7050 141, 146,
152-153, 156,
163
P 7063 141, 146,
152-153, 156,
163
P 7110 147
P 7114 51, 123-124,
142, 150, 155
P 7116 51, 123-125, 142,
150-151, 155
P 7118 51, 123-125, 142,
150-151, 155
P 7120 51, 123-125, 142,
150-151, 155
P 7126 123, 150-151,
155
P 7132 150-151, 155
P 7140 150, 155
P 7150 150, 155
P 7163 150, 155
P 7200 156
P 7210 145
P 7214 51, 147
P 7216 51, 86, 96, 124,
147-149, 154,
156
P 7218 51, 86, 144,
147-149, 154
P 7220 51, 86, 96, 124,
147-149, 154,
156
P 7226 86, 96, 147-149,
154
P 7232 147-149, 154
P 7240 147-149, 154
P 7250 147-149, 154
P 7263 147-149, 154
P 7298 125
S 3726 38
S 6281 159
S 6292 159
S 7924 26
S 9230 6
S 9238 11
S 9239 15
3 S910 120
3 S912 120-121
3 S913 120
3 S918 120
3 S919 120
3 S940 120
3 S958 120
3 S970 120
TMV+15 95
TMV+22 95
TMV01 95
UH05251 96
UH10052 96
UH10151 96
UH10152 96
174
Notes
175
Notes
176
Notes
All specifi cations and statements within this brochure are according to information available at the time of printing and meant for informational
purpose only. Herz Armaturen reserves the right to modify and change products as well as its technical specifi cations and/or it functioning
according to technological progress and requirements. It is understood that all images of Herz products are symbolic representations and
therefore may visually differ from the actual product. Colours may differ due to printing technology used. In case of any further questions don’t
hesitate to contact your closest HERZ Branch-offi ce.
LP-GB-0611-Bell-1SD
HERZ Valves UK
Progress House
6
Moorfi eld Point
6
Moorfi eld Road
6
Slyfi eld Industrial Estate
6
Guildford
6
Surrey
6
GU1 1RU
Telephone: 01483 502211
Fax: 01483 502025
e-mail: sales@herzvalves.com
www.herzvalves.com
DVR 0092541
GLN 9004174000003
ARA 2102
Handelsgericht Wien
FN 101 622 w
