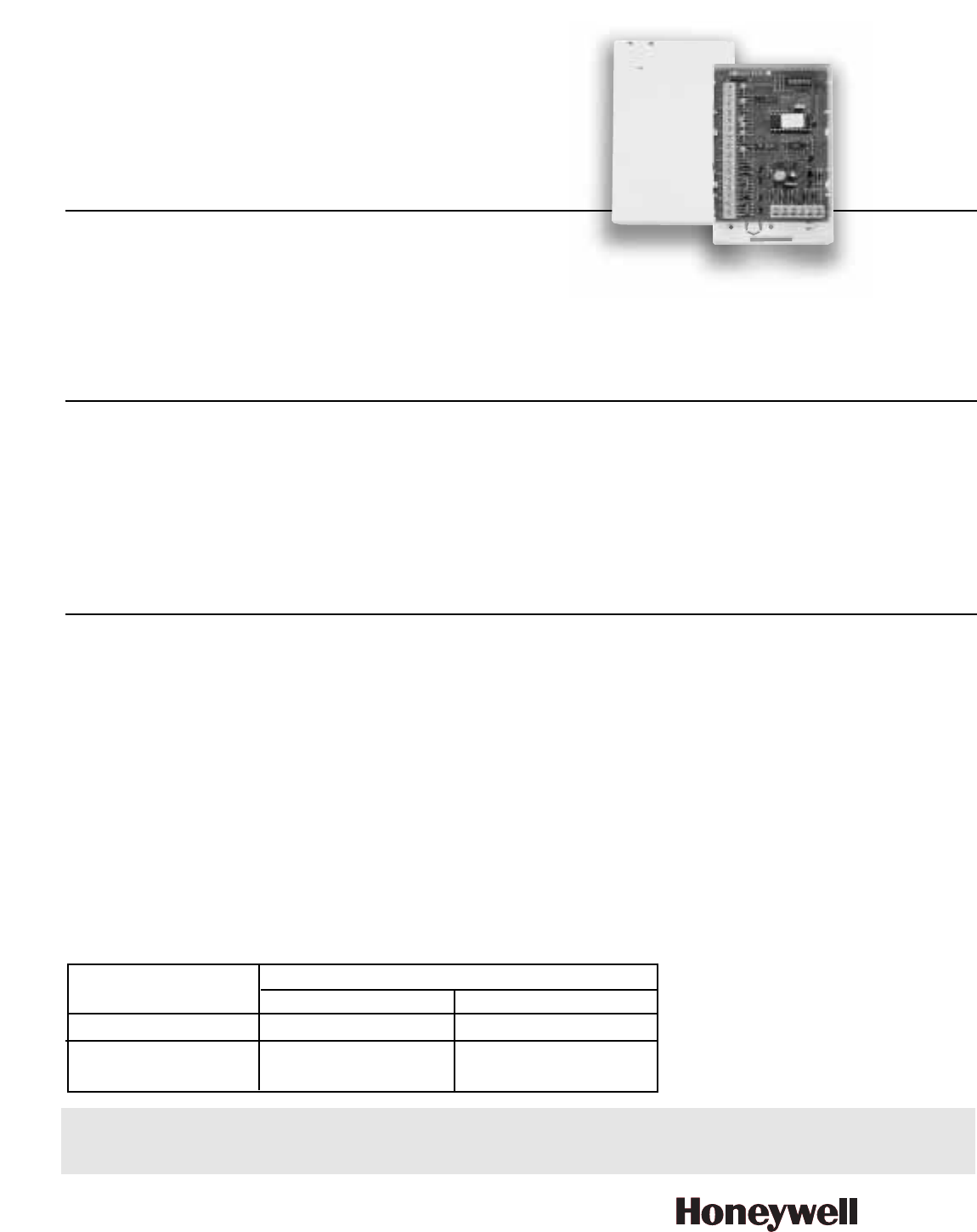

Serialized Eight Zone Remote Point Module
4208SN
The 4208SN Remote Point Module (RPM) is an eight-zone expander that allows the use of available expansion zones on
ADEMCO controls that support V-Plex polling loop devices.
• Can be used on controls that
support up to 250 zones
• Can be optionally powered from an
external DC power supply to
reduce the amount of current draw
from the polling loop
• Uniquely identifies eight EOLR
supervised zones (all zones use
10K resistors, supplied)
• Each zone is identified by a unique
serial number, which is assigned via
on-board DIP Switches
• Detects faults on all zones within
400ms of occurrence
• Loops A & B can be programmed
for fast (10ms) response
• Provides cover tamper protection,
which may be enabled or disabled
via on-board DIP Switches
FEATURES
Physical
• 6-7/16”W X 4-1/4”H X 1-1/4” D
163mm x 108mm x 32mm
Electrical
Polling Loop Voltage
• 11V nominal; 8.7 - 14VDC range
Current
• 33.6mA when polling loop provides
power to module, 0.6mA when
12VDC input provides power to
module. See chart below.
12VDC Input Voltage
• 12V nominal; 9.4 - 14VDC range
Expander Sensor Loop Response
• Slow: 400msec (all loops)
• Fast: 10msec (option for loops A
and B)
Expander Sensor Loop Current
• 0.52mA (normal)
• 1.3mA (shorted)
NOTE: These currents apply when
polling loop input = 11VDC and
10VDC input is not connected to
external supply
Sensor Loop Max. Resistance
• Up to 300 ohms of wire resistance +
10K EOLR
Agency Listings
• UL 985 Household Fire
• UL 1023 Household Burglary
• UL 609 Commercial Burglary
• UL 864 Commercial Fire
• CSFM
• FM (Pending)
• CUL
• CE (requires #N6361)
SPECIFICATIONS
Power Input Source Current Draw (all zones shorted)
From Polling Loop From External Power
Polling Loop Only 33.6m AN/A
Polling Loop and 0.6mA 33mA
External Power Input
For UL Listed Commercial Fire
Usage:
Use N.O. contacts. Style B
supervise these loops using Model
#EOL 100 fire listed 10K EOLRs
(purchased separately).
For UL Listed Commercial
Burglary Usage:
Use N.O. or N.C. contacts.
Supervise using EOLRs supplied.
4208SN Eight Zone Expander
ORDERING
The 4208U Remote Point Module (RPM) is an eight-zone expander that allows the use of available expansion zones on
ADEMCO controls that support V-Plex polling loop devices.
• Can be optionally powered from an
external DC power supply to reduce
the amount of current draw from the
polling loop
• Uniquely identifies eight EOLR
supervised zones (all zones use 10K
resistors, supplied)
• DIP Switches can be used to set
zone numbers or serial numbers
• When used in the serial number
mode, each serial number in the
selected group can be assigned to
any zone number
• Loops A & B can be programmed for
fast (10msec) response
• Provides cover tamper protection,
which may be enabled or disabled
via on-board DIP Switches
FEATURES
Physical
• 6-7/16” W X 4-1/4”H X 1-1/4”D
163mm X 108mm X 32mm
Electrical
Polling Loop input:
• 7.3 - 14VDC range
Current draw:
• 28.6mA max. External power and
polling loop. See chart below.
External Power Input (optional):
• 12VDC @ 28mA (from control panel’s
auxiliary power)
Sensor Loop Response:
• Slow: 400 msec (all loops)
• Fast: 10msec (option for loops A
and B)
Sensor Loop Current:
• Polling loop input = 11VDC, no
external power input):0.52mA
(normal), 1.3mA (shorted)
Sensor Loop Max. Current:
• Up to 300 ohms of wire resistance +
10K EOLR
Agency Listings
• UL 985 Household Fire
• UL 1023 Household Burglary
• UL 609 Commercial Burglary
• UL 864 Commercial Fire
• CSFM
• FM
• CUL
• CE (requires #N6361)
SPECIFICATIONS
4208U Eight Zone Expander
ORDERING

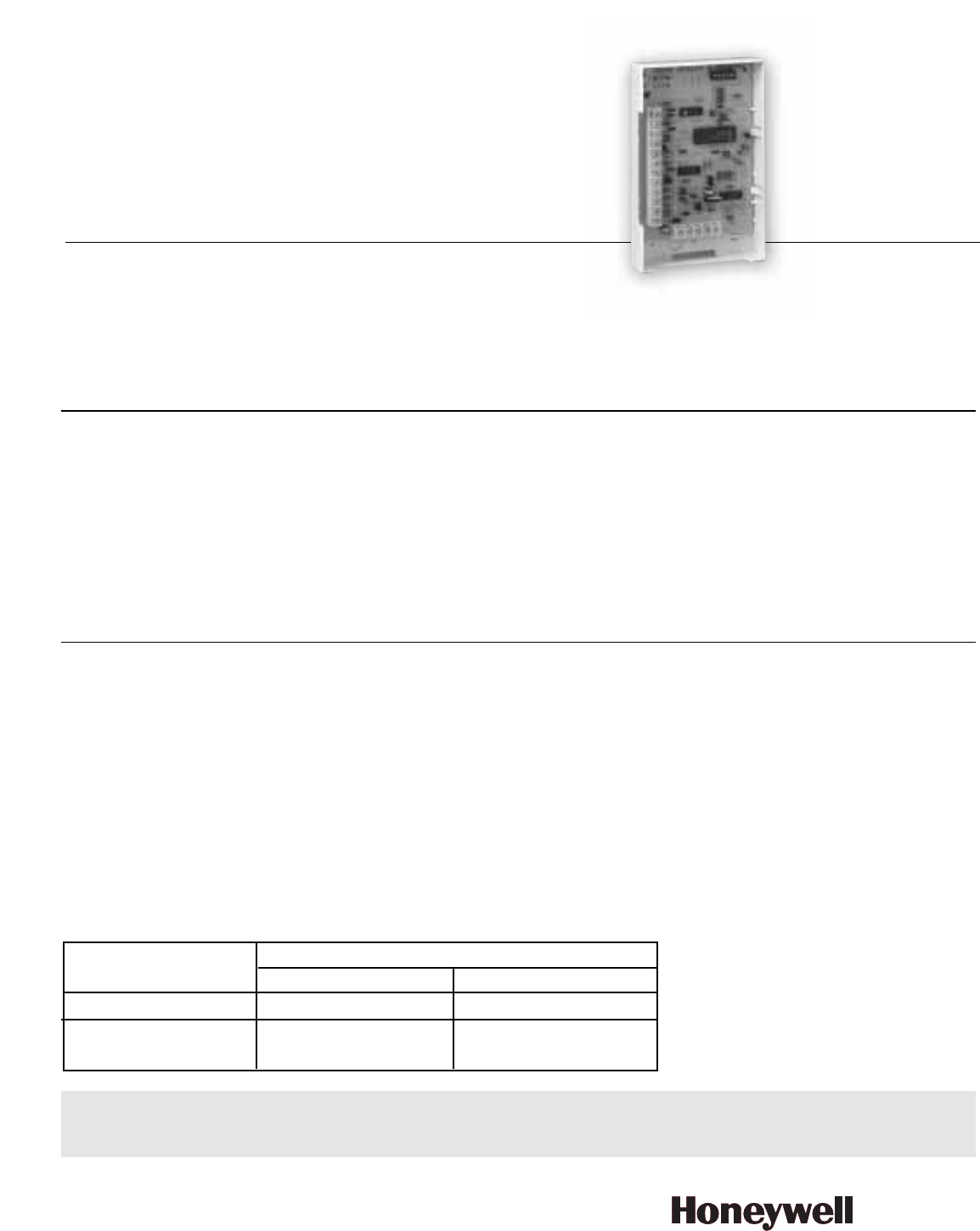

Universal Eight Zone Remote Point Module
4208U
Power Input Source
(Input Voltage: 11-14VDC)
Current Draw (all zones shorted)
From Polling Loop From External Power
Polling Loop Only 27.3mA N/A
Polling Loop and 0.6mA 33mA
External Power Input
For UL Listed Commercial Fire Usage:
Use N.O. contacts. Style B supervise these
loops using Model #EOL 100 fire listed 10K
EOLRs (purchased separately).
For UL Listed Commercial Burglary Usage:
Use N.O. or N.C. contacts. Supervise using
EOLRs supplied.
Honeywell Security & Custom Electronics
PO Box 9035,
Syosset, NY 11791
www.security.honeywell.com/sce
L/4208FAM/D
November 2004
©2004 Honeywell International Inc.
