Pull Plate 8311 Ives 9264

User Manual: Pull Plate 8311

Open the PDF directly: View PDF PDF.
Page Count: 4

Ives Architectural hardware products
B10
B10
Pulls & Plates
A
Hinges & Pivots
C
Flush Bolts & Coordinators
D
Latches, Catches & Bolts
E
Stops
F
Exterior Hardware
G
Miscellaneous Hardware

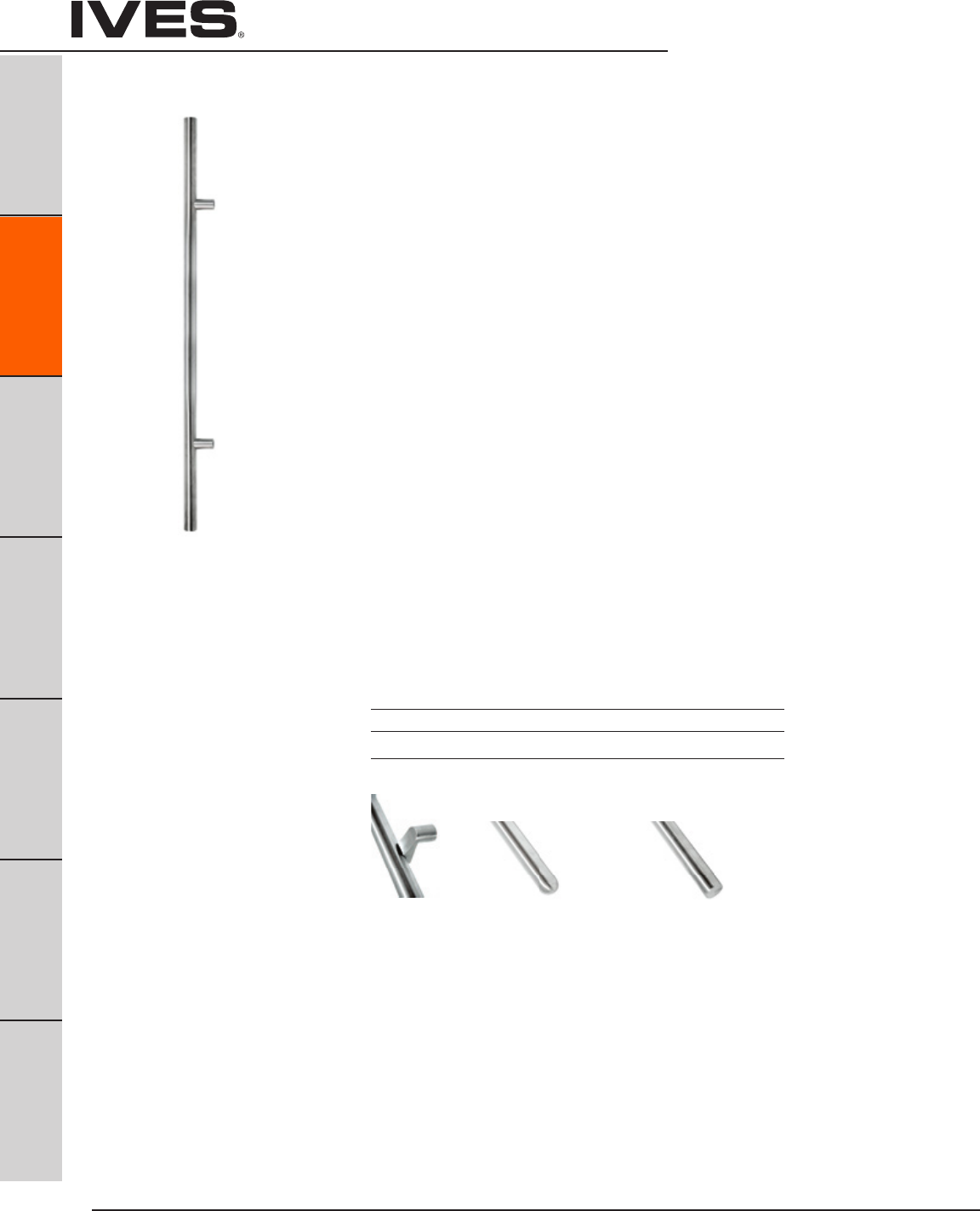

Long Door Pulls
Long Door Pulls
Dimensions
Length: 36” / 20” CC
72” / 56” CC
Diameter: 1-1/4”
Projection: 2-3/4”
Special Lengths Available
18” and 24”
Custom lengths available from 36” to 144”
Finishes
Ives Number US3 US4 US10B US32 US32D
BHMA 605 606 613 629 630
Offset
Bracket
Note: A middle position bracket is required for pulls over 8 feet.
Flat TipRound Tip
Offered in two Models:
9264 Offset
9266 Straight
• Heavy1-1/4”RoundBrassorStainlessSteel
• RoundorFlatTip
• 316StainlessSteel
• 1-3/4˝,2˝or2-1/4˝DoorThickness
• RoundTipStandard
• FlatTipOptional
Ives Architectural hardware products B15
Push Plates
B15
Pulls & Plates
A
Hinges & Pivots
C
Flush Bolts & Coordinators
D
Latches, Catches & Bolts
E
Stops
F
Exterior Hardware
G
Miscellaneous Hardware

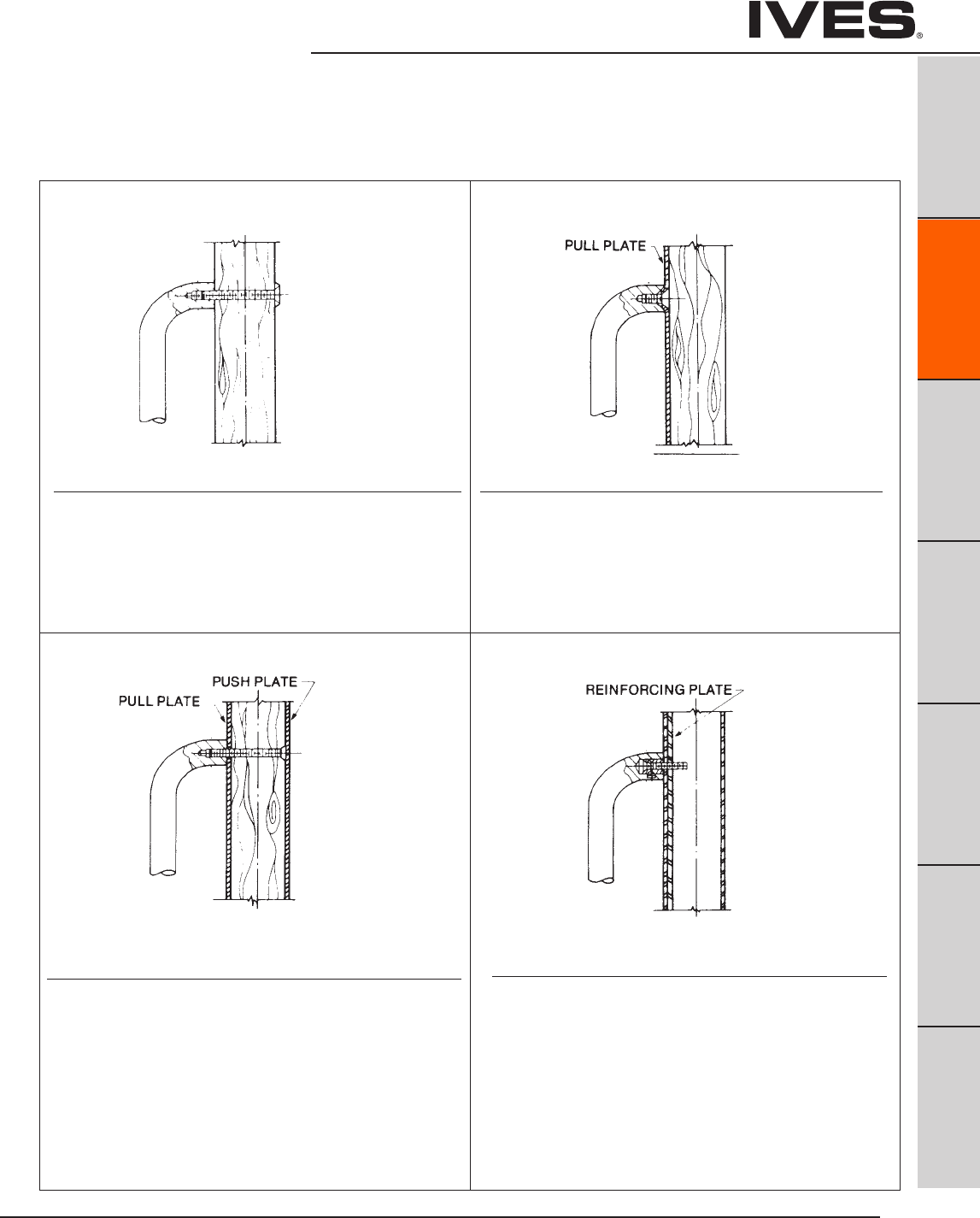

Mounting
Type Standard Mount Type G Mount
 •Allmountinghardwareisforstandard1-3/4”door.
 •ConsultCustomerServiceifotherthanstandard.
Type F Mount Type H-I-L Mount
Standard Mounting
•(2)3/8-16x2-1/4”brass,flatheadmachinescrews;
plate to match.
• (2)3/8-16countersunkwashers;platedtomatch
Note: 8102HD and 8105 have (2) 5/16-18 x 2-1/2” machine screws
-Options: (2) 5/16 countersunk washers
Wood Doors
Concealed Pull Mounting With Push Plate
• (2)2-1/4”steelflatheadmachinescrews;zincplated.
Available only for 8102HD, 8103HD, 8105, 8111, 8302, 8303, 8305 and
8311. Plate on opposite side of door must be ordered separately.
Note: 8102HD, 8302 will have 5/16-18
8105, 8111, 8305, 8311 will have 1/4-20
8103HD, 8303 will have 3/8-16”
Concealed Pull Plate Mounting
Available only for 8302, 8303, 8311 Pull Plates.
•(2)3/8-16x5/8”steelflatheadmachinescrews;zincplated.
Pull mounts directly onto plate.
Plate is attached to door by 6 screws.
Note: 8302 has (2) 5/16-19 x 5/8” steel flathead zinc plated screws
Reinforced Hollow Metal Door
Concealed Pull Mounting
Available only for 8102, 8103, 810EZ or wood door pulls, 8302,
8303 pull plates and 9264, 9265, 9266 and 9267 long door pulls.
• (2)Steelscrewsleeves;zincplated.
• (2)Steelcountersunktrimheadmachinescrew;zincplatedfor
reinforced metal door.
• (2)Steelcountersunktrimheadsteelmetalscrew;zincplated
for wood doors.
Note: 8102HD and 8302 will have 5/16-18”
8103HD, 8103EZHD, 8303 will have 3/8-16
Ives Architectural hardware products
B16
Architectural Door Trim
B16
Pulls & Plates
A
Hinges & Pivots
C
Flush Bolts & Coordinators
D
Latches, Catches & Bolts
E
Stops
F
Exterior Hardware
G
Miscellaneous Hardware
Mounting
 •Allmountinghardwareisforstandard1-3/4”door.
 •ConsultCustomerServiceifotherthanstandard.

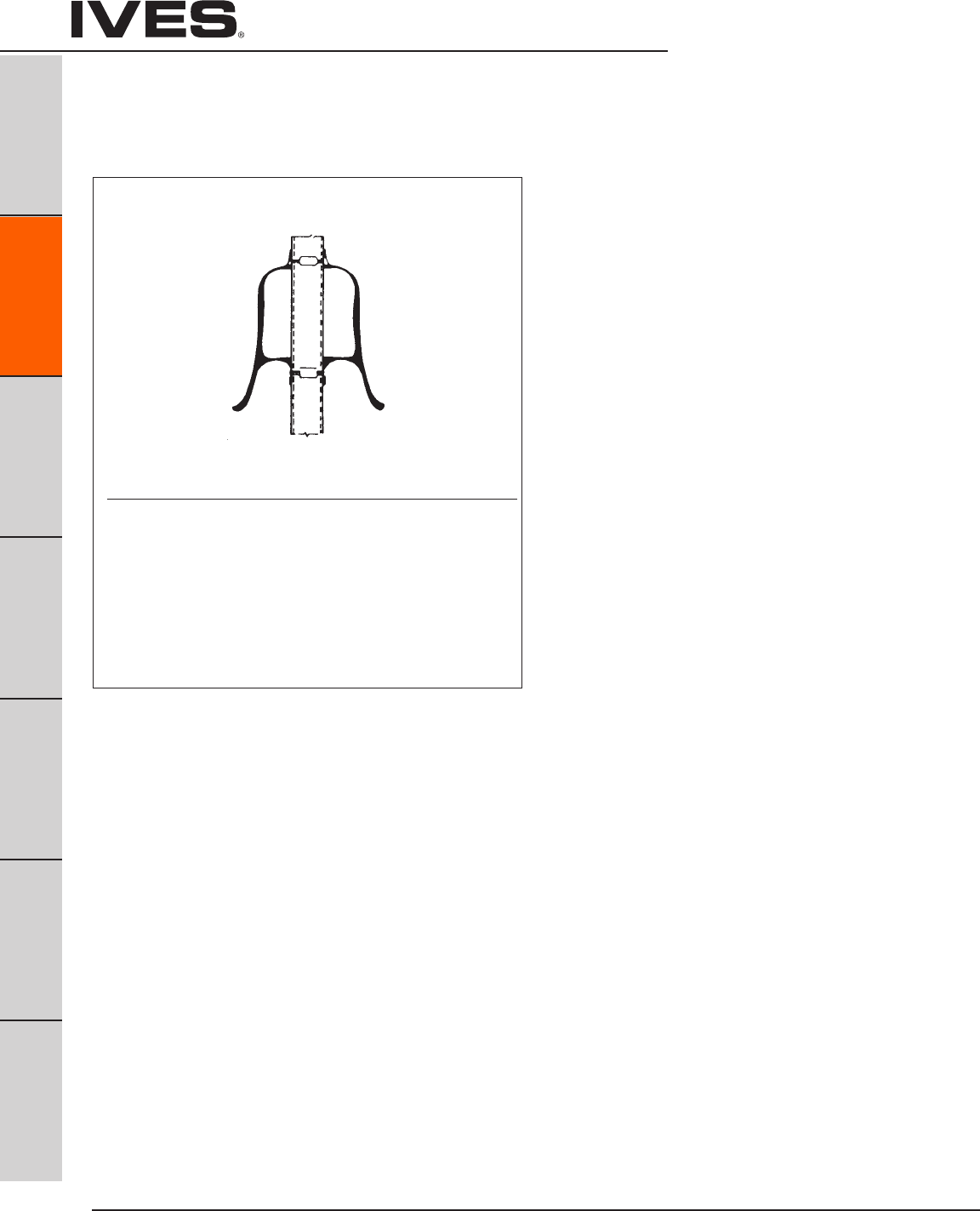

Back to Back Pull Mounting
Available only for 8121-5 Pulls.
•(4)Steelscrewsleevenuts;steelzincplated.
• (8)No.8-32x1”brassovalheadmachinescrews;platedtomatch.
Pulls furnished in pairs (PR).
Type K Mount
Ives Architectural hardware products B17
Architectural Door Trim
B17
Pulls & Plates
A
Hinges & Pivots
C
Flush Bolts & Coordinators
D
Latches, Catches & Bolts
E
Stops
F
Exterior Hardware
G
Miscellaneous Hardware

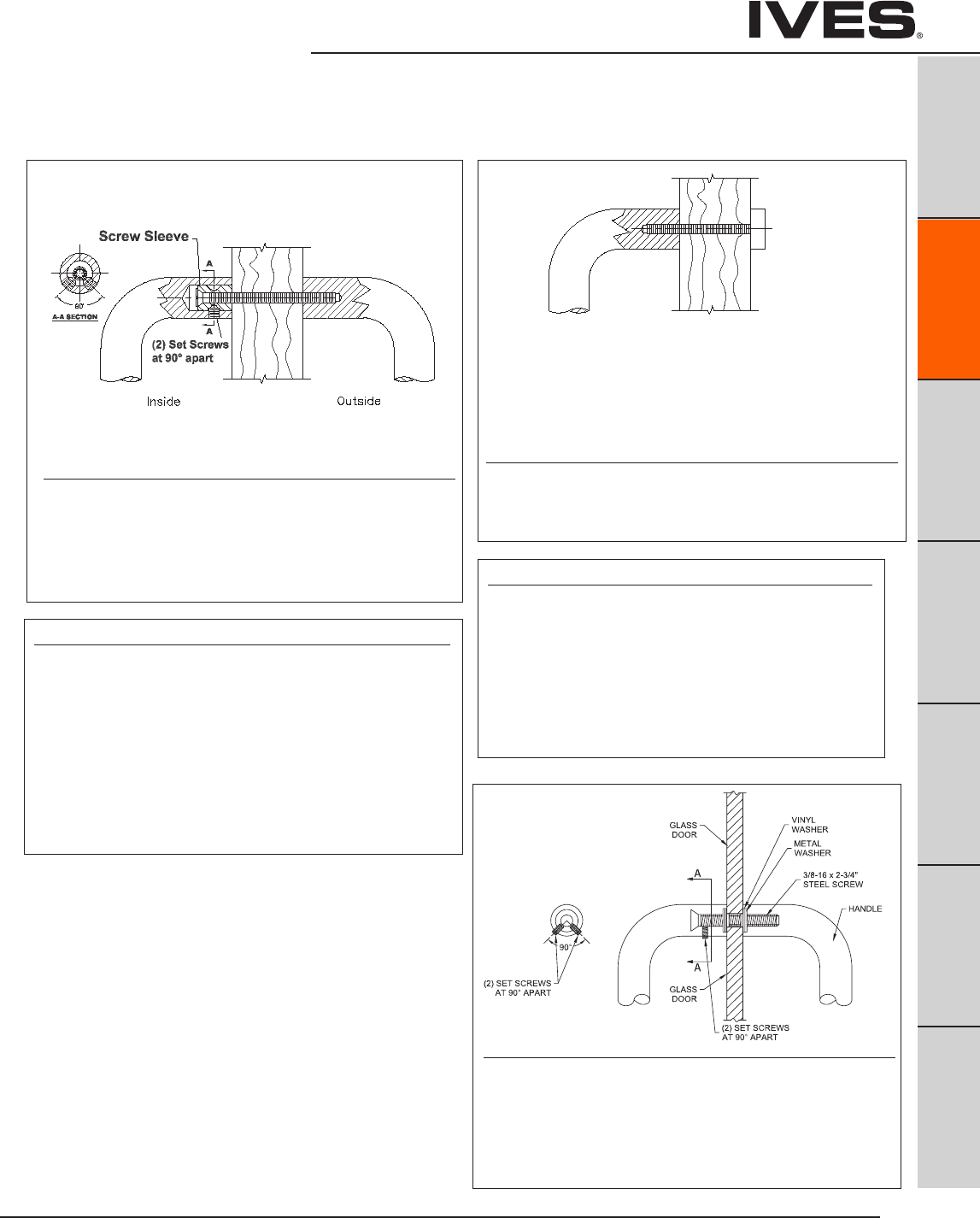

Type NS-Standard Push/Pull Mounting
Type N & Standard
Pushbar to Pull
- (1) 3/8 - 16 X 3”steel countersunk trim head machine screws
with (2) set screws.
- (1) steel screw sleeve, zinc plated.
Free End Pushbar & Pull
- (2) 3/8 - 16 X 2-1/4” brass, oval head mach screws;
plated to match.
- (2) No. 14 countersunk washers; plated to match.
Type NO Push/Pull Mounting
Type N & Type O
Pushbar to Pull
- (1) 3/8 -16 X 3”steel countersunk trim head machine screws
with (2) set screws.
- (1) steel screw sleeve, zinc plated.
Free End Pushbar & Pull
- (2) 3/8 - 16 X 2-1/4” blind thru-bolts; plated to match.
Mounting for 8103Ez, 8190, 9100, 9103Ez, 9190 and 9264, 9265, 9266 and
9267 long door pulls.
 •Allmountinghardwareisforstandard1-3/4”door.  •ConsultCustomerServiceifotherthanstandard.
Type J/N Mount Type O Mount
Type P Mount
(push) (pull)
Back to Back “Two-Anchor”
Wood or Metal Door
Available only for 8103EZHD, 8190HD, 9100HD push/pull
combinations and 9264, 9265, 9266 and 9267 long door pulls.
•(2)3/8-16x2-3/4”steelcountersunktrimheadmachinescrews
with (4) set screws for maximum anchoring force.
• (2)Steelscrewsleeves;zincplated.
Decorative Blind Thru - Bolt
Wood or Metal Door
Available only for 8103EZHD, 8190HD and 9100HD Series Push/Pull
Combinations.
•(2)3/8-16x2-1/4”blindthru-bolts;platedtomatch.
1/2” Glass Door
Available only for 8103EZHD, 8190HD, 9100HD, 9265 and 9266 long
door pulls.
•(2)3/8-16x2-1/4”steelcountersunktrimheadmachinescrews
with (4) set screws for maximum anchoring force.
• (2)Steelscrewsleeves;zincplated
•(2)MetalandVinylwashers
