Kinetis SDK V.2.0 API Reference Manual

User Manual:

Open the PDF directly: View PDF PDF.
Page Count: 1273 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor, Inc.
Document Number: KSDK20APIRM
Rev. 0
Jan 2016
Contents
Chapter Introduction
Chapter Driver errors status

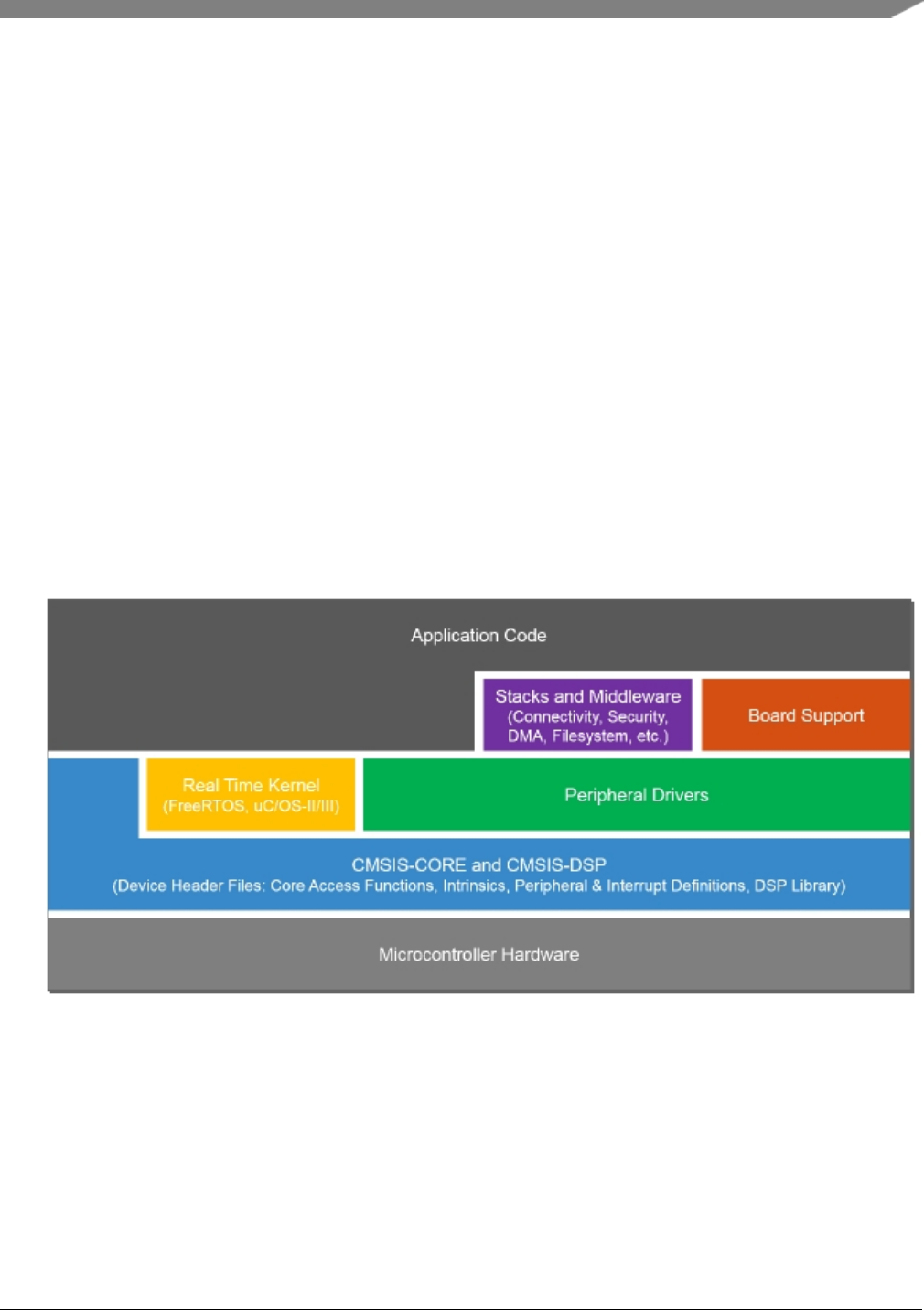

Chapter Architectural Overview
Chapter Trademarks
Chapter ADC16: 16-bit SAR Analog-to-Digital Converter Driver
5.1 Overview ........................................ 11
5.2 Typical use case .................................... 11
5.2.1 Polling Configuration ................................ 11
5.2.2 Interrupt Configuration ............................... 11
5.3 Data Structure Documentation ............................ 14
5.3.1 struct adc16_config_t ................................ 14
5.3.2 struct adc16_hardware_compare_config_t ..................... 15
5.3.3 struct adc16_channel_config_t ............................ 16
5.4 Macro Definition Documentation ........................... 16
5.4.1 FSL_ADC16_DRIVER_VERSION ......................... 16
5.5 Enumeration Type Documentation .......................... 16
5.5.1 _adc16_channel_status_flags ............................ 16
5.5.2 _adc16_status_flags ................................. 16
5.5.3 adc16_clock_divider_t ................................ 16
5.5.4 adc16_resolution_t .................................. 17
5.5.5 adc16_clock_source_t ................................ 17
5.5.6 adc16_long_sample_mode_t ............................. 17
5.5.7 adc16_reference_voltage_source_t ......................... 17
5.5.8 adc16_hardware_compare_mode_t ......................... 18
5.6 Function Documentation ............................... 18
5.6.1 ADC16_Init ..................................... 18
5.6.2 ADC16_Deinit .................................... 18
5.6.3 ADC16_GetDefaultConfig .............................. 18
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
iii
Section
Number
Contents
Title
Page
Number
5.6.4 ADC16_EnableHardwareTrigger .......................... 19
5.6.5 ADC16_SetHardwareCompareConfig ........................ 19
5.6.6 ADC16_GetStatusFlags ............................... 19
5.6.7 ADC16_ClearStatusFlags .............................. 19
5.6.8 ADC16_SetChannelConfig ............................. 20
5.6.9 ADC16_GetChannelConversionValue ........................ 20
5.6.10 ADC16_GetChannelStatusFlags ........................... 21
Chapter Clock Driver
6.1 Overview ........................................ 23
6.2 Get frequency ..................................... 23
6.3 External clock frequency ............................... 23
6.4 Multipurpose Clock Generator Lite (MCGLITE) ................. 24
6.4.1 Overview ....................................... 24
6.4.2 Function description ................................. 24
6.4.3 Data Structure Documentation ............................ 29
6.4.4 Macro Definition Documentation .......................... 31
6.4.5 Enumeration Type Documentation ......................... 35
6.4.6 Function Documentation ............................... 37
6.4.7 Variable Documentation ............................... 45
Chapter CMP: Analog Comparator Driver
7.1 Overview ........................................ 47
7.2 Typical use case .................................... 47
7.2.1 Polling Configuration ................................ 47
7.2.2 Interrupt Configuration ............................... 48
7.3 Data Structure Documentation ............................ 50
7.3.1 struct cmp_config_t ................................. 50
7.3.2 struct cmp_filter_config_t .............................. 51
7.3.3 struct cmp_dac_config_t ............................... 51
7.4 Macro Definition Documentation ........................... 52
7.4.1 FSL_CMP_DRIVER_VERSION .......................... 52
7.5 Enumeration Type Documentation .......................... 52
7.5.1 _cmp_interrupt_enable ............................... 52
7.5.2 _cmp_status_flags .................................. 52
7.5.3 cmp_hysteresis_mode_t ............................... 52
7.5.4 cmp_reference_voltage_source_t .......................... 52
iv
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
7.6 Function Documentation ............................... 53
7.6.1 CMP_Init ....................................... 53
7.6.2 CMP_Deinit ..................................... 53
7.6.3 CMP_Enable ..................................... 53
7.6.4 CMP_GetDefaultConfig ............................... 54
7.6.5 CMP_SetInputChannels ............................... 54
7.6.6 CMP_SetFilterConfig ................................ 54
7.6.7 CMP_SetDACConfig ................................ 55
7.6.8 CMP_EnableInterrupts ............................... 55
7.6.9 CMP_DisableInterrupts ............................... 55
7.6.10 CMP_GetStatusFlags ................................ 55
7.6.11 CMP_ClearStatusFlags ............................... 56
Chapter CMT: Carrier Modulator Transmitter Driver
8.1 Overview ........................................ 57
8.2 Clock formulas ..................................... 57
8.3 Typical use case .................................... 57
8.4 Data Structure Documentation ............................ 60
8.4.1 struct cmt_modulate_config_t ............................ 60
8.4.2 struct cmt_config_t .................................. 61
8.5 Macro Definition Documentation ........................... 61
8.5.1 FSL_CMT_DRIVER_VERSION .......................... 61
8.6 Enumeration Type Documentation .......................... 61
8.6.1 cmt_mode_t ..................................... 61
8.6.2 cmt_primary_clkdiv_t ................................ 62
8.6.3 cmt_second_clkdiv_t ................................ 62
8.6.4 cmt_infrared_output_polarity_t ........................... 63
8.6.5 cmt_infrared_output_state_t ............................. 63
8.6.6 _cmt_interrupt_enable ................................ 63
8.7 Function Documentation ............................... 63
8.7.1 CMT_GetDefaultConfig ............................... 63
8.7.2 CMT_Init ...................................... 63
8.7.3 CMT_Deinit ..................................... 64
8.7.4 CMT_SetMode ................................... 64
8.7.5 CMT_GetMode ................................... 64
8.7.6 CMT_GetCMTFrequency .............................. 65
8.7.7 CMT_SetCarrirGenerateCountOne ......................... 66
8.7.8 CMT_SetCarrirGenerateCountTwo ......................... 66
8.7.9 CMT_SetModulateMarkSpace ........................... 67
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
v
Section
Number
Contents
Title
Page
Number
8.7.10 CMT_EnableExtendedSpace ............................ 67
8.7.11 CMT_SetIroState .................................. 68
8.7.12 CMT_EnableInterrupts ............................... 69
8.7.13 CMT_DisableInterrupts ............................... 69
8.7.14 CMT_GetStatusFlags ................................ 69
Chapter COP: Watchdog Driver
9.1 Overview ........................................ 71
9.2 Data Structure Documentation ............................ 72
9.2.1 struct cop_config_t .................................. 72
9.3 Macro Definition Documentation ........................... 72
9.3.1 FSL_COP_DRIVER_VERSION .......................... 72
9.4 Enumeration Type Documentation .......................... 72
9.4.1 cop_clock_source_t ................................. 72
9.4.2 cop_timeout_cycles_t ................................ 72
9.5 Function Documentation ............................... 73
9.5.1 COP_GetDefaultConfig ............................... 73
9.5.2 COP_Init ....................................... 73
9.5.3 COP_Disable ..................................... 73
9.5.4 COP_Refresh .................................... 74
Chapter CRC: Cyclic Redundancy Check Driver
10.1 Overview ........................................ 75
10.2 CRC Driver Initialization and Configuration .................... 75
10.3 CRC Write Data .................................... 75
10.4 CRC Get Checksum .................................. 75
10.5 Comments about API usage in RTOS ........................ 76
10.6 Comments about API usage in interrupt handler .................. 76
10.7 CRC Driver Examples ................................. 76
10.8 Data Structure Documentation ............................ 80
10.8.1 struct crc_config_t .................................. 80
10.9 Macro Definition Documentation ........................... 80
10.9.1 FSL_CRC_DRIVER_VERSION .......................... 80
vi
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
10.9.2 CRC_DRIVER_USE_CRC16_CCIT_FALSE_AS_DEFAULT .......... 81
10.10 Enumeration Type Documentation .......................... 81
10.10.1 crc_bits_t ....................................... 81
10.10.2 crc_result_t ...................................... 81
10.11 Function Documentation ............................... 81
10.11.1 CRC_Init ....................................... 81
10.11.2 CRC_Deinit ..................................... 81
10.11.3 CRC_GetDefaultConfig ............................... 82
10.11.4 CRC_WriteData ................................... 82
10.11.5 CRC_Get32bitResult ................................ 82
10.11.6 CRC_Get16bitResult ................................ 83
Chapter DAC: Digital-to-Analog Converter Driver
11.1 Overview ........................................ 85
11.2 Data Structure Documentation ............................ 88
11.2.1 struct dac_config_t .................................. 88
11.2.2 struct dac_buffer_config_t .............................. 88
11.3 Macro Definition Documentation ........................... 89
11.3.1 FSL_DAC_DRIVER_VERSION .......................... 89
11.4 Enumeration Type Documentation .......................... 89
11.4.1 _dac_buffer_status_flags ............................... 89
11.4.2 _dac_buffer_interrupt_enable ............................ 89
11.4.3 dac_reference_voltage_source_t ........................... 89
11.4.4 dac_buffer_trigger_mode_t ............................. 89
11.4.5 dac_buffer_work_mode_t .............................. 90
11.5 Function Documentation ............................... 90
11.5.1 DAC_Init ....................................... 90
11.5.2 DAC_Deinit ..................................... 90
11.5.3 DAC_GetDefaultConfig ............................... 90
11.5.4 DAC_Enable ..................................... 91
11.5.5 DAC_EnableBuffer ................................. 91
11.5.6 DAC_SetBufferConfig ................................ 91
11.5.7 DAC_GetDefaultBufferConfig ........................... 91
11.5.8 DAC_EnableBufferDMA .............................. 92
11.5.9 DAC_SetBufferValue ................................ 92
11.5.10 DAC_DoSoftwareTriggerBuffer ........................... 92
11.5.11 DAC_GetBufferReadPointer ............................ 92
11.5.12 DAC_SetBufferReadPointer ............................. 93
11.5.13 DAC_EnableBufferInterrupts ............................ 93
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
vii
Section
Number
Contents
Title
Page
Number
11.5.14 DAC_DisableBufferInterrupts ............................ 93
11.5.15 DAC_GetBufferStatusFlags ............................. 93
11.5.16 DAC_ClearBufferStatusFlags ............................ 94
Chapter Debug Console
12.1 Function groups .................................... 95
12.1.1 Initialization ..................................... 95
12.1.2 Advanced Feature .................................. 96
12.2 Typical use case .................................... 99
Chapter DMA: Direct Memory Access Controller Driver
13.1 Overview ........................................101
13.2 Typical use case ....................................101
13.2.1 DMA Operation ...................................101
13.3 Data Structure Documentation ............................104
13.3.1 struct dma_transfer_config_t ............................104
13.3.2 struct dma_channel_link_config_t ..........................105
13.3.3 struct dma_handle_t .................................105
13.4 Macro Definition Documentation ...........................106
13.4.1 FSL_DMA_DRIVER_VERSION ..........................106
13.5 Typedef Documentation ................................106
13.5.1 dma_callback ....................................106
13.6 Enumeration Type Documentation ..........................106
13.6.1 _dma_channel_status_flags .............................106
13.6.2 dma_transfer_size_t .................................106
13.6.3 dma_modulo_t ....................................107
13.6.4 dma_channel_link_type_t ..............................107
13.6.5 dma_transfer_type_t .................................107
13.6.6 dma_transfer_options_t ...............................108
13.7 Function Documentation ...............................108
13.7.1 DMA_Init ......................................108
13.7.2 DMA_Deinit .....................................108
13.7.3 DMA_ResetChannel .................................108
13.7.4 DMA_SetTransferConfig ..............................108
13.7.5 DMA_SetChannelLinkConfig ............................109
13.7.6 DMA_SetSourceAddress ..............................109
13.7.7 DMA_SetDestinationAddress ............................110
viii
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
13.7.8 DMA_SetTransferSize ................................110
13.7.9 DMA_SetModulo ..................................110
13.7.10 DMA_EnableCycleSteal ...............................111
13.7.11 DMA_EnableAutoAlign ...............................111
13.7.12 DMA_EnableAsyncRequest .............................111
13.7.13 DMA_EnableInterrupts ...............................112
13.7.14 DMA_DisableInterrupts ...............................112
13.7.15 DMA_EnableChannelRequest ............................112
13.7.16 DMA_DisableChannelRequest ...........................112
13.7.17 DMA_TriggerChannelStart .............................113
13.7.18 DMA_GetRemainingBytes .............................113
13.7.19 DMA_GetChannelStatusFlags ............................113
13.7.20 DMA_ClearChannelStatusFlags ...........................114
13.7.21 DMA_CreateHandle .................................114
13.7.22 DMA_SetCallback ..................................114
13.7.23 DMA_PrepareTransfer ................................115
13.7.24 DMA_SubmitTransfer ................................115
13.7.25 DMA_StartTransfer .................................116
13.7.26 DMA_StopTransfer .................................116
13.7.27 DMA_AbortTransfer .................................116
13.7.28 DMA_HandleIRQ ..................................117
Chapter DMAMUX: Direct Memory Access Multiplexer Driver
14.1 Overview ........................................119
14.2 Typical use case ....................................119
14.2.1 DMAMUX Operation ................................119
14.3 Macro Definition Documentation ...........................120
14.3.1 FSL_DMAMUX_DRIVER_VERSION .......................120
14.4 Function Documentation ...............................120
14.4.1 DMAMUX_Init ...................................120
14.4.2 DMAMUX_Deinit ..................................121
14.4.3 DMAMUX_EnableChannel .............................121
14.4.4 DMAMUX_DisableChannel ............................121
14.4.5 DMAMUX_SetSource ................................122
Chapter DSPI: Serial Peripheral Interface Driver
15.1 Overview ........................................123
15.2 DSPI Driver ......................................124
15.2.1 Overview .......................................124
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
ix
Section
Number
Contents
Title
Page
Number
15.2.2 Typical use case ...................................124
15.2.3 Data Structure Documentation ............................131
15.2.4 Macro Definition Documentation ..........................139
15.2.5 Typedef Documentation ...............................139
15.2.6 Enumeration Type Documentation .........................140
15.2.7 Function Documentation ...............................144
15.3 DSPI DMA Driver ...................................164
15.3.1 Overview .......................................164
15.3.2 Data Structure Documentation ............................165
15.3.3 Typedef Documentation ...............................168
15.3.4 Function Documentation ...............................169
15.4 DSPI eDMA Driver ..................................174
15.4.1 Overview .......................................174
15.4.2 Data Structure Documentation ............................175
15.4.3 Typedef Documentation ...............................178
15.4.4 Function Documentation ...............................179
15.5 DSPI FreeRTOS Driver ................................184
15.5.1 Overview .......................................184
15.5.2 Data Structure Documentation ............................184
15.5.3 Macro Definition Documentation ..........................185
15.5.4 Function Documentation ...............................185
15.6 DSPI µCOS/II Driver .................................187
15.6.1 Overview .......................................187
15.6.2 Data Structure Documentation ............................187
15.6.3 Macro Definition Documentation ..........................188
15.6.4 Function Documentation ...............................188
15.7 DSPI µCOS/III Driver .................................190
15.7.1 Overview .......................................190
15.7.2 Data Structure Documentation ............................190
15.7.3 Macro Definition Documentation ..........................191
15.7.4 Function Documentation ...............................191
Chapter eDMA: Enhanced Direct Memory Access Controller Driver
16.1 Overview ........................................193
16.2 Typical use case ....................................193
16.2.1 eDMA Operation ..................................193
16.3 Data Structure Documentation ............................199
16.3.1 struct edma_config_t .................................199
x
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
16.3.2 struct edma_transfer_config_t ............................199
16.3.3 struct edma_channel_Preemption_config_t .....................200
16.3.4 struct edma_minor_offset_config_t .........................201
16.3.5 struct edma_tcd_t ..................................201
16.3.6 struct edma_handle_t ................................202
16.4 Macro Definition Documentation ...........................203
16.4.1 FSL_EDMA_DRIVER_VERSION .........................203
16.5 Typedef Documentation ................................203
16.5.1 edma_callback ....................................203
16.6 Enumeration Type Documentation ..........................203
16.6.1 edma_transfer_size_t ................................203
16.6.2 edma_modulo_t ...................................204
16.6.3 edma_bandwidth_t ..................................204
16.6.4 edma_channel_link_type_t .............................205
16.6.5 _edma_channel_status_flags .............................205
16.6.6 _edma_error_status_flags ..............................205
16.6.7 edma_interrupt_enable_t ...............................205
16.6.8 edma_transfer_type_t ................................206
16.6.9 _edma_transfer_status ................................206
16.7 Function Documentation ...............................206
16.7.1 EDMA_Init .....................................206
16.7.2 EDMA_Deinit ....................................206
16.7.3 EDMA_GetDefaultConfig ..............................206
16.7.4 EDMA_ResetChannel ................................207
16.7.5 EDMA_SetTransferConfig .............................207
16.7.6 EDMA_SetMinorOffsetConfig ...........................208
16.7.7 EDMA_SetChannelPreemptionConfig .......................208
16.7.8 EDMA_SetChannelLink ...............................209
16.7.9 EDMA_SetBandWidth ...............................209
16.7.10 EDMA_SetModulo .................................210
16.7.11 EDMA_EnableAutoStopRequest ..........................210
16.7.12 EDMA_EnableChannelInterrupts ..........................210
16.7.13 EDMA_DisableChannelInterrupts ..........................211
16.7.14 EDMA_TcdReset ..................................211
16.7.15 EDMA_TcdSetTransferConfig ...........................211
16.7.16 EDMA_TcdSetMinorOffsetConfig .........................213
16.7.17 EDMA_TcdSetChannelLink .............................213
16.7.18 EDMA_TcdSetBandWidth .............................214
16.7.19 EDMA_TcdSetModulo ...............................214
16.7.20 EDMA_TcdEnableAutoStopRequest ........................215
16.7.21 EDMA_TcdEnableInterrupts ............................215
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xi
Section
Number
Contents
Title
Page
Number
16.7.22 EDMA_TcdDisableInterrupts ............................215
16.7.23 EDMA_EnableChannelRequest ...........................215
16.7.24 EDMA_DisableChannelRequest ..........................216
16.7.25 EDMA_TriggerChannelStart ............................216
16.7.26 EDMA_GetRemainingBytes ............................216
16.7.27 EDMA_GetErrorStatusFlags ............................217
16.7.28 EDMA_GetChannelStatusFlags ...........................217
16.7.29 EDMA_ClearChannelStatusFlags ..........................217
16.7.30 EDMA_CreateHandle ................................218
16.7.31 EDMA_InstallTCDMemory .............................218
16.7.32 EDMA_SetCallback .................................218
16.7.33 EDMA_PrepareTransfer ...............................219
16.7.34 EDMA_SubmitTransfer ...............................219
16.7.35 EDMA_StartTransfer ................................220
16.7.36 EDMA_StopTransfer ................................220
16.7.37 EDMA_AbortTransfer ................................220
16.7.38 EDMA_HandleIRQ .................................221
Chapter ENET: Ethernet MAC Driver
17.1 Overview ........................................223
17.2 Typical use case ....................................223
17.2.1 ENET Initialization, receive, and transmit operation ................223
17.3 Data Structure Documentation ............................231
17.3.1 struct enet_rx_bd_struct_t ..............................231
17.3.2 struct enet_tx_bd_struct_t ..............................231
17.3.3 struct enet_data_error_stats_t ............................232
17.3.4 struct enet_buffer_config_t .............................232
17.3.5 struct enet_config_t .................................233
17.3.6 struct _enet_handle .................................235
17.4 Macro Definition Documentation ...........................236
17.4.1 FSL_ENET_DRIVER_VERSION .........................236
17.4.2 ENET_BUFFDESCRIPTOR_RX_EMPTY_MASK ................238
17.4.3 ENET_BUFFDESCRIPTOR_RX_SOFTOWNER1_MASK ............238
17.4.4 ENET_BUFFDESCRIPTOR_RX_WRAP_MASK .................238
17.4.5 ENET_BUFFDESCRIPTOR_RX_SOFTOWNER2_Mask .............238
17.4.6 ENET_BUFFDESCRIPTOR_RX_LAST_MASK .................238
17.4.7 ENET_BUFFDESCRIPTOR_RX_MISS_MASK .................238
17.4.8 ENET_BUFFDESCRIPTOR_RX_BROADCAST_MASK .............238
17.4.9 ENET_BUFFDESCRIPTOR_RX_MULTICAST_MASK .............238
17.4.10 ENET_BUFFDESCRIPTOR_RX_LENVLIOLATE_MASK ...........238
17.4.11 ENET_BUFFDESCRIPTOR_RX_NOOCTET_MASK ..............238
xii
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
17.4.12 ENET_BUFFDESCRIPTOR_RX_CRC_MASK ..................238
17.4.13 ENET_BUFFDESCRIPTOR_RX_OVERRUN_MASK ..............238
17.4.14 ENET_BUFFDESCRIPTOR_RX_TRUNC_MASK ................238
17.4.15 ENET_BUFFDESCRIPTOR_TX_READY_MASK ................238
17.4.16 ENET_BUFFDESCRIPTOR_TX_SOFTOWENER1_MASK ...........238
17.4.17 ENET_BUFFDESCRIPTOR_TX_WRAP_MASK .................238
17.4.18 ENET_BUFFDESCRIPTOR_TX_SOFTOWENER2_MASK ...........238
17.4.19 ENET_BUFFDESCRIPTOR_TX_LAST_MASK .................238
17.4.20 ENET_BUFFDESCRIPTOR_TX_TRANMITCRC_MASK ............238
17.4.21 ENET_BUFFDESCRIPTOR_RX_ERR_MASK ..................238
17.4.22 ENET_FRAME_MAX_FRAMELEN ........................239
17.4.23 ENET_FRAME_MAX_VALNFRAMELEN ....................239
17.4.24 ENET_FIFO_MIN_RX_FULL ...........................239
17.4.25 ENET_RX_MIN_BUFFERSIZE ..........................239
17.4.26 ENET_BUFF_ALIGNMENT ............................239
17.4.27 ENET_PHY_MAXADDRESS ...........................239
17.5 Typedef Documentation ................................239
17.5.1 enet_callback_t ...................................239
17.6 Enumeration Type Documentation ..........................239
17.6.1 _enet_status .....................................239
17.6.2 enet_mii_mode_t ...................................239
17.6.3 enet_mii_speed_t ..................................240
17.6.4 enet_mii_duplex_t ..................................240
17.6.5 enet_mii_write_t ...................................240
17.6.6 enet_mii_read_t ...................................240
17.6.7 enet_special_control_flag_t .............................240
17.6.8 enet_interrupt_enable_t ...............................241
17.6.9 enet_event_t .....................................241
17.6.10 enet_tx_accelerator_t ................................242
17.6.11 enet_rx_accelerator_t ................................242
17.7 Function Documentation ...............................242
17.7.1 ENET_GetDefaultConfig ..............................242
17.7.2 ENET_Init ......................................242
17.7.3 ENET_Deinit ....................................243
17.7.4 ENET_Reset .....................................243
17.7.5 ENET_SetMII ....................................243
17.7.6 ENET_SetSMI ....................................244
17.7.7 ENET_GetSMI ...................................244
17.7.8 ENET_ReadSMIData ................................244
17.7.9 ENET_StartSMIRead ................................245
17.7.10 ENET_StartSMIWrite ................................245
17.7.11 ENET_SetMacAddr .................................245
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xiii
Section
Number
Contents
Title
Page
Number
17.7.12 ENET_GetMacAddr .................................246
17.7.13 ENET_AddMulticastGroup .............................246
17.7.14 ENET_LeaveMulticastGroup ............................246
17.7.15 ENET_ActiveRead ..................................246
17.7.16 ENET_EnableSleepMode ..............................247
17.7.17 ENET_GetAccelFunction ..............................247
17.7.18 ENET_EnableInterrupts ...............................247
17.7.19 ENET_DisableInterrupts ...............................248
17.7.20 ENET_GetInterruptStatus ..............................248
17.7.21 ENET_ClearInterruptStatus .............................248
17.7.22 ENET_SetCallback .................................249
17.7.23 ENET_GetRxErrBeforeReadFrame .........................249
17.7.24 ENET_GetRxFrameSize ...............................250
17.7.25 ENET_ReadFrame ..................................250
17.7.26 ENET_SendFrame ..................................251
17.7.27 ENET_TransmitIRQHandler ............................251
17.7.28 ENET_ReceiveIRQHandler .............................252
17.7.29 ENET_ErrorIRQHandler ..............................252
Chapter EWM: External Watchdog Monitor Driver
18.1 Overview ........................................253
18.2 Data Structure Documentation ............................254
18.2.1 struct ewm_config_t .................................254
18.3 Macro Definition Documentation ...........................254
18.3.1 FSL_EWM_DRIVER_VERSION ..........................254
18.4 Enumeration Type Documentation ..........................254
18.4.1 _ewm_interrupt_enable_t ..............................254
18.4.2 _ewm_status_flags_t .................................255
18.5 Function Documentation ...............................255
18.5.1 EWM_Init ......................................255
18.5.2 EWM_Deinit .....................................255
18.5.3 EWM_GetDefaultConfig ..............................255
18.5.4 EWM_EnableInterrupts ...............................256
18.5.5 EWM_DisableInterrupts ...............................256
18.5.6 EWM_GetStatusFlags ................................256
18.5.7 EWM_Refresh ....................................257
Chapter C90TFS Flash Driver
19.1 Overview ........................................259
xiv
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
19.2 Data Structure Documentation ............................266
19.2.1 struct flash_execute_in_ram_function_config_t ...................266
19.2.2 struct flash_swap_state_config_t ...........................267
19.2.3 struct flash_swap_ifr_field_config_t .........................267
19.2.4 struct flash_operation_config_t ...........................268
19.2.5 struct flash_config_t .................................269
19.3 Macro Definition Documentation ...........................270
19.3.1 MAKE_VERSION .................................270
19.3.2 FSL_FLASH_DRIVER_VERSION .........................270
19.3.3 FLASH_SSD_CONFIG_ENABLE_FLEXNVM_SUPPORT ...........270
19.3.4 FLASH_DRIVER_IS_FLASH_RESIDENT ....................270
19.3.5 FLASH_DRIVER_IS_EXPORTED .........................270
19.3.6 kStatusGroupGeneric ................................271
19.3.7 MAKE_STATUS ..................................271
19.3.8 FOUR_CHAR_CODE ................................271
19.4 Enumeration Type Documentation ..........................271
19.4.1 _flash_driver_version_constants ...........................271
19.4.2 _flash_status .....................................271
19.4.3 _flash_driver_api_keys ................................272
19.4.4 flash_margin_value_t ................................272
19.4.5 flash_security_state_t ................................272
19.4.6 flash_protection_state_t ...............................272
19.4.7 flash_execute_only_access_state_t .........................272
19.4.8 flash_property_tag_t .................................273
19.4.9 _flash_execute_in_ram_function_constants .....................273
19.4.10 flash_read_resource_option_t ............................273
19.4.11 _flash_read_resource_range .............................274
19.4.12 flash_flexram_function_option_t ..........................274
19.4.13 flash_swap_function_option_t ............................274
19.4.14 flash_swap_control_option_t ............................274
19.4.15 flash_swap_state_t ..................................275
19.4.16 flash_swap_block_status_t ..............................275
19.4.17 flash_partition_flexram_load_option_t .......................275
19.5 Function Documentation ...............................275
19.5.1 FLASH_Init .....................................275
19.5.2 FLASH_SetCallback .................................276
19.5.3 FLASH_PrepareExecuteInRamFunctions ......................276
19.5.4 FLASH_EraseAll ..................................277
19.5.5 FLASH_Erase ....................................277
19.5.6 FLASH_EraseAllExecuteOnlySegments ......................278
19.5.7 FLASH_Program ..................................280
19.5.8 FLASH_ProgramOnce ................................281
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xv
Section
Number
Contents
Title
Page
Number
19.5.9 FLASH_ReadOnce .................................282
19.5.10 FLASH_GetSecurityState ..............................283
19.5.11 FLASH_SecurityBypass ...............................284
19.5.12 FLASH_VerifyEraseAll ...............................284
19.5.13 FLASH_VerifyErase .................................285
19.5.14 FLASH_VerifyProgram ...............................286
19.5.15 FLASH_VerifyEraseAllExecuteOnlySegments ...................287
19.5.16 FLASH_IsProtected .................................288
19.5.17 FLASH_IsExecuteOnly ...............................289
19.5.18 FLASH_GetProperty ................................289
19.5.19 FLASH_PflashSetProtection .............................290
19.5.20 FLASH_PflashGetProtection ............................290
Chapter FlexBus: External Bus Interface Driver
20.1 Overview ........................................293
20.2 Overview ........................................293
20.3 FlexBus functional operation .............................293
20.4 Typical use case and example .............................293
20.5 Data Structure Documentation ............................295
20.5.1 struct flexbus_config_t ................................295
20.6 Macro Definition Documentation ...........................296
20.6.1 FSL_FLEXBUS_DRIVER_VERSION .......................296
20.7 Enumeration Type Documentation ..........................296
20.7.1 flexbus_port_size_t .................................296
20.7.2 flexbus_write_address_hold_t ............................297
20.7.3 flexbus_read_address_hold_t ............................297
20.7.4 flexbus_address_setup_t ...............................297
20.7.5 flexbus_bytelane_shift_t ...............................297
20.7.6 flexbus_multiplex_group1_t .............................297
20.7.7 flexbus_multiplex_group2_t .............................298
20.7.8 flexbus_multiplex_group3_t .............................298
20.7.9 flexbus_multiplex_group4_t .............................298
20.7.10 flexbus_multiplex_group5_t .............................298
20.8 Function Documentation ...............................298
20.8.1 FLEXBUS_Init ...................................298
20.8.2 FLEXBUS_Deinit ..................................299
20.8.3 FLEXBUS_GetDefaultConfig ............................299
xvi
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
Chapter FlexCAN: Flex Controller Area Network Driver
21.1 Overview ........................................301
21.2 FlexCAN Driver ....................................302
21.2.1 Overview .......................................302
21.2.2 Typical use case ...................................302
21.2.3 Data Structure Documentation ............................310
21.2.4 Macro Definition Documentation ..........................314
21.2.5 Typedef Documentation ...............................319
21.2.6 Enumeration Type Documentation .........................319
21.2.7 Function Documentation ...............................322
21.3 FlexCAN eDMA Driver ................................335
21.3.1 Overview .......................................335
21.3.2 Data Structure Documentation ............................335
21.3.3 Typedef Documentation ...............................336
21.3.4 Function Documentation ...............................336
Chapter FlexIO: FlexIO Driver
22.1 Overview ........................................339
22.2 FlexIO Driver .....................................340
22.2.1 Overview .......................................340
22.2.2 Data Structure Documentation ............................344
22.2.3 Macro Definition Documentation ..........................347
22.2.4 Typedef Documentation ...............................347
22.2.5 Enumeration Type Documentation .........................347
22.2.6 Function Documentation ...............................351
22.3 FlexIO Camera Driver ................................362
22.3.1 Overview .......................................362
22.3.2 Overview .......................................362
22.3.3 Typical use case ...................................362
22.3.4 Data Structure Documentation ............................365
22.3.5 Macro Definition Documentation ..........................367
22.3.6 Enumeration Type Documentation .........................367
22.3.7 Function Documentation ...............................367
22.3.8 FlexIO DMA I2S Driver ...............................371
22.3.9 FlexIO DMA SPI Driver ...............................377
22.3.10 FlexIO DMA UART Driver .............................383
22.3.11 FlexIO eDMA Camera Driver ............................388
22.3.12 FlexIO eDMA I2S Driver ..............................392
22.3.13 FlexIO eDMA SPI Driver ..............................399
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xvii
Section
Number
Contents
Title
Page
Number
22.3.14 FlexIO eDMA UART Driver ............................405
22.4 FlexIO I2C Master Driver ...............................410
22.4.1 Overview .......................................410
22.4.2 Overview .......................................410
22.4.3 Typical use case ...................................410
22.4.4 Data Structure Documentation ............................414
22.4.5 Macro Definition Documentation ..........................417
22.4.6 Typedef Documentation ...............................417
22.4.7 Enumeration Type Documentation .........................417
22.4.8 Function Documentation ...............................418
22.5 FlexIO I2S Driver ...................................428
22.5.1 Overview .......................................428
22.5.2 Overview .......................................428
22.5.3 Typical use case ...................................428
22.5.4 Data Structure Documentation ............................434
22.5.5 Macro Definition Documentation ..........................435
22.5.6 Enumeration Type Documentation .........................435
22.5.7 Function Documentation ...............................437
22.6 FlexIO SPI Driver ...................................448
22.6.1 Overview .......................................448
22.6.2 Overview .......................................448
22.6.3 Typical use case ...................................448
22.6.4 Data Structure Documentation ............................454
22.6.5 Macro Definition Documentation ..........................459
22.6.6 Typedef Documentation ...............................459
22.6.7 Enumeration Type Documentation .........................459
22.6.8 Function Documentation ...............................461
22.7 FlexIO UART Driver .................................475
22.7.1 Overview .......................................475
22.7.2 Overview .......................................475
22.7.3 Typical use case ...................................476
22.7.4 Data Structure Documentation ............................483
22.7.5 Macro Definition Documentation ..........................486
22.7.6 Typedef Documentation ...............................486
22.7.7 Enumeration Type Documentation .........................486
22.7.8 Function Documentation ...............................487
Chapter FTM: FlexTimer Driver
23.1 Overview ........................................499
xviii
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
23.2 Function groups ....................................499
23.2.1 Initialization and deinitialization ..........................499
23.2.2 PWM Operations ..................................499
23.2.3 Input capture operations ...............................499
23.2.4 Output compare operations .............................500
23.2.5 Quad decode .....................................500
23.2.6 Fault operation ....................................500
23.3 Register Update ....................................500
23.4 Typical use case ....................................501
23.4.1 PWM output .....................................501
23.5 Data Structure Documentation ............................507
23.5.1 struct ftm_chnl_pwm_signal_param_t ........................507
23.5.2 struct ftm_dual_edge_capture_param_t .......................508
23.5.3 struct ftm_phase_params_t .............................508
23.5.4 struct ftm_fault_param_t ...............................508
23.5.5 struct ftm_config_t ..................................508
23.6 Enumeration Type Documentation ..........................509
23.6.1 ftm_chnl_t ......................................509
23.6.2 ftm_fault_input_t ..................................510
23.6.3 ftm_pwm_mode_t ..................................510
23.6.4 ftm_pwm_level_select_t ...............................510
23.6.5 ftm_output_compare_mode_t ............................511
23.6.6 ftm_input_capture_edge_t ..............................511
23.6.7 ftm_dual_edge_capture_mode_t ...........................511
23.6.8 ftm_quad_decode_mode_t ..............................511
23.6.9 ftm_phase_polarity_t ................................511
23.6.10 ftm_deadtime_prescale_t ..............................512
23.6.11 ftm_clock_source_t .................................512
23.6.12 ftm_clock_prescale_t ................................512
23.6.13 ftm_bdm_mode_t ..................................512
23.6.14 ftm_fault_mode_t ..................................513
23.6.15 ftm_external_trigger_t ................................513
23.6.16 ftm_pwm_sync_method_t ..............................513
23.6.17 ftm_reload_point_t ..................................513
23.6.18 ftm_interrupt_enable_t ................................514
23.6.19 ftm_status_flags_t ..................................514
23.7 Function Documentation ...............................515
23.7.1 FTM_Init .......................................515
23.7.2 FTM_Deinit .....................................515
23.7.3 FTM_GetDefaultConfig ...............................516
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xix
Section
Number
Contents
Title
Page
Number
23.7.4 FTM_SetupPwm ...................................516
23.7.5 FTM_UpdatePwmDutycycle ............................517
23.7.6 FTM_UpdateChnlEdgeLevelSelect .........................517
23.7.7 FTM_SetupInputCapture ..............................517
23.7.8 FTM_SetupOutputCompare .............................518
23.7.9 FTM_SetupDualEdgeCapture ............................518
23.7.10 FTM_SetupQuadDecode ..............................519
23.7.11 FTM_SetupFault ...................................519
23.7.12 FTM_EnableInterrupts ................................519
23.7.13 FTM_DisableInterrupts ...............................519
23.7.14 FTM_GetEnabledInterrupts .............................520
23.7.15 FTM_GetStatusFlags ................................520
23.7.16 FTM_ClearStatusFlags ...............................520
23.7.17 FTM_StartTimer ...................................520
23.7.18 FTM_StopTimer ...................................521
23.7.19 FTM_SetSoftwareCtrlEnable ............................521
23.7.20 FTM_SetSoftwareCtrlVal ..............................521
23.7.21 FTM_SetGlobalTimeBaseOutputEnable ......................521
23.7.22 FTM_SetOutputMask ................................522
23.7.23 FTM_SetFaultControlEnable ............................522
23.7.24 FTM_SetDeadTimeEnable .............................522
23.7.25 FTM_SetComplementaryEnable ..........................523
23.7.26 FTM_SetInvertEnable ................................524
23.7.27 FTM_SetSoftwareTrigger ..............................524
23.7.28 FTM_SetWriteProtection ..............................524
Chapter GPIO: General-Purpose Input/Output Driver
24.1 Overview ........................................525
24.2 Data Structure Documentation ............................525
24.2.1 struct gpio_pin_config_t ...............................525
24.3 Macro Definition Documentation ...........................526
24.3.1 FSL_GPIO_DRIVER_VERSION ..........................526
24.4 Enumeration Type Documentation ..........................526
24.4.1 gpio_pin_direction_t .................................526
24.5 GPIO Driver ......................................527
24.5.1 Overview .......................................527
24.5.2 Typical use case ...................................527
24.5.3 Function Documentation ...............................528
24.6 FGPIO Driver .....................................531
xx
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
24.6.1 Typical use case ...................................531
Chapter I2C: Inter-Integrated Circuit Driver
25.1 Overview ........................................533
25.2 I2C Driver .......................................534
25.2.1 Overview .......................................534
25.2.2 Overview .......................................534
25.2.3 Typical use case ...................................534
25.2.4 Data Structure Documentation ............................541
25.2.5 Macro Definition Documentation ..........................545
25.2.6 Typedef Documentation ...............................545
25.2.7 Enumeration Type Documentation .........................545
25.2.8 Function Documentation ...............................547
25.3 I2C DMA Driver ....................................561
25.3.1 Overview .......................................561
25.3.2 Data Structure Documentation ............................561
25.3.3 Typedef Documentation ...............................562
25.3.4 Function Documentation ...............................562
25.4 I2C eDMA Driver ...................................565
25.4.1 Overview .......................................565
25.4.2 Data Structure Documentation ............................565
25.4.3 Typedef Documentation ...............................566
25.4.4 Function Documentation ...............................566
25.5 I2C FreeRTOS Driver .................................569
25.5.1 Overview .......................................569
25.5.2 Data Structure Documentation ............................569
25.5.3 Macro Definition Documentation ..........................570
25.5.4 Function Documentation ...............................570
25.6 I2C µCOS/II Driver ..................................572
25.6.1 Overview .......................................572
25.6.2 Data Structure Documentation ............................572
25.6.3 Macro Definition Documentation ..........................573
25.6.4 Function Documentation ...............................573
25.7 I2C µCOS/III Driver .................................575
Chapter LLWU: Low-Leakage Wakeup Unit Driver
26.1 Overview ........................................577
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xxi
Section
Number
Contents
Title
Page
Number
26.2 External wakeup pins configurations .........................577
26.3 Internal wakeup modules configurations .......................577
26.4 Digital pin filter for external wakeup pin configurations ..............577
26.5 Macro Definition Documentation ...........................578
26.5.1 FSL_LLWU_DRIVER_VERSION .........................578
26.6 Enumeration Type Documentation ..........................578
26.6.1 llwu_external_pin_mode_t ..............................578
26.6.2 llwu_pin_filter_mode_t ...............................578
Chapter LMEM: Local Memory Controller Cache Control Driver
27.1 Overview ........................................579
27.2 Descriptions ......................................579
27.3 Function groups ....................................579
27.3.1 Local Memory Processor Code Bus Cache Control .................579
27.3.2 Local Memory Processor System Bus Cache Control ................580
27.4 Macro Definition Documentation ...........................583
27.4.1 FSL_LMEM_DRIVER_VERSION .........................583
27.4.2 LMEM_CACHE_LINE_SIZE ...........................583
27.4.3 LMEM_CACHE_SIZE_ONEWAY .........................583
27.5 Enumeration Type Documentation ..........................583
27.5.1 lmem_cache_mode_t ................................583
27.5.2 lmem_cache_region_t ................................583
27.5.3 lmem_cache_line_command_t ...........................584
27.6 Function Documentation ...............................584
27.6.1 LMEM_EnableCodeCache .............................584
27.6.2 LMEM_CodeCacheInvalidateAll ..........................584
27.6.3 LMEM_CodeCachePushAll .............................584
27.6.4 LMEM_CodeCacheClearAll ............................585
27.6.5 LMEM_CodeCacheInvalidateLine .........................585
27.6.6 LMEM_CodeCacheInvalidateMultiLines ......................585
27.6.7 LMEM_CodeCachePushLine ............................586
27.6.8 LMEM_CodeCachePushMultiLines .........................586
27.6.9 LMEM_CodeCacheClearLine ............................587
27.6.10 LMEM_CodeCacheClearMultiLines ........................587
27.6.11 LMEM_CodeCacheDemoteRegion .........................587
xxii
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
Chapter LPI2C: Low Power I2C Driver
28.1 Overview ........................................589
28.2 Macro Definition Documentation ...........................589
28.2.1 FSL_LPI2C_DRIVER_VERSION .........................589
28.3 Enumeration Type Documentation ..........................590
28.3.1 _lpi2c_status .....................................590
28.4 LPI2C FreeRTOS Driver ...............................591
28.4.1 Overview .......................................591
28.4.2 Data Structure Documentation ............................591
28.4.3 Macro Definition Documentation ..........................592
28.4.4 Function Documentation ...............................592
28.5 LPI2C Master Driver .................................594
28.5.1 Overview .......................................594
28.5.2 Data Structure Documentation ............................597
28.5.3 Typedef Documentation ...............................601
28.5.4 Enumeration Type Documentation .........................601
28.5.5 Function Documentation ...............................604
28.6 LPI2C Master DMA Driver ..............................616
28.6.1 Overview .......................................616
28.6.2 Data Structure Documentation ............................616
28.6.3 Typedef Documentation ...............................617
28.6.4 Function Documentation ...............................618
28.7 LPI2C Slave Driver ..................................621
28.7.1 Overview .......................................621
28.7.2 Data Structure Documentation ............................623
28.7.3 Typedef Documentation ...............................627
28.7.4 Enumeration Type Documentation .........................628
28.7.5 Function Documentation ...............................629
28.8 LPI2C Slave DMA Driver ...............................638
28.9 LPI2C µCOS/II Driver ................................639
28.9.1 Overview .......................................639
28.9.2 Data Structure Documentation ............................639
28.9.3 Macro Definition Documentation ..........................640
28.9.4 Function Documentation ...............................640
28.10 LPI2C µCOS/III Driver ................................642
28.10.1 Overview .......................................642
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xxiii
Section
Number
Contents
Title
Page
Number
28.10.2 Data Structure Documentation ............................642
28.10.3 Macro Definition Documentation ..........................643
28.10.4 Function Documentation ...............................643
Chapter LPTMR: LPTMR Driver
29.1 Overview ........................................645
29.2 Data Structure Documentation ............................647
29.2.1 struct lptmr_config_t .................................647
29.3 Enumeration Type Documentation ..........................648
29.3.1 lptmr_pin_select_t ..................................648
29.3.2 lptmr_pin_polarity_t .................................648
29.3.3 lptmr_timer_mode_t .................................648
29.3.4 lptmr_prescaler_glitch_value_t ...........................648
29.3.5 lptmr_prescaler_clock_select_t ...........................649
29.3.6 lptmr_interrupt_enable_t ...............................649
29.3.7 lptmr_status_flags_t .................................649
29.4 Function Documentation ...............................649
29.4.1 LPTMR_Init .....................................649
29.4.2 LPTMR_Deinit ...................................650
29.4.3 LPTMR_GetDefaultConfig .............................650
29.4.4 LPTMR_EnableInterrupts ..............................650
29.4.5 LPTMR_DisableInterrupts .............................650
29.4.6 LPTMR_GetEnabledInterrupts ...........................651
29.4.7 LPTMR_GetStatusFlags ...............................651
29.4.8 LPTMR_ClearStatusFlags ..............................651
29.4.9 LPTMR_SetTimerPeriod ..............................652
29.4.10 LPTMR_GetCurrentTimerCount ..........................652
29.4.11 LPTMR_StartTimer .................................652
29.4.12 LPTMR_StopTimer .................................653
Chapter LPUART: Low Power UART Driver
30.1 Overview ........................................655
30.2 LPUART Driver ....................................656
30.2.1 Overview .......................................656
30.2.2 Data Structure Documentation ............................660
30.2.3 Macro Definition Documentation ..........................662
30.2.4 Typedef Documentation ...............................662
30.2.5 Enumeration Type Documentation .........................662
30.2.6 Function Documentation ...............................664
xxiv
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
30.2.7 LPUART DMA Driver ...............................677
30.2.8 LPUART eDMA Driver ...............................682
30.3 LPUART FreeRTOS Driver .............................687
30.3.1 Overview .......................................687
30.3.2 Macro Definition Documentation ..........................687
30.3.3 Function Documentation ...............................687
30.4 LPUART µCOS/II Driver ...............................690
30.4.1 Overview .......................................690
30.4.2 Macro Definition Documentation ..........................690
30.4.3 Function Documentation ...............................690
30.5 LPUART µCOS/III Driver ..............................693
30.5.1 Overview .......................................693
30.5.2 Macro Definition Documentation ..........................693
30.5.3 Function Documentation ...............................693
Chapter LTC: LP Trusted Cryptography
31.1 Overview ........................................697
31.2 LTC Driver Initialization and Configuration ....................697
31.3 Comments about API usage in RTOS ........................697
31.4 Comments about API usage in interrupt handler ..................697
31.5 LTC Driver Examples .................................698
31.6 Macro Definition Documentation ...........................700
31.6.1 FSL_LTC_DRIVER_VERSION ..........................700
31.7 Function Documentation ...............................700
31.7.1 LTC_Init .......................................700
31.7.2 LTC_Deinit .....................................701
31.7.3 LTC_SetDpaMaskSeed ...............................701
31.8 LTC Blocking APIs ..................................702
31.8.1 Overview .......................................702
31.8.2 LTC AES driver ...................................703
31.8.3 LTC DES driver ...................................713
31.8.4 LTC HASH driver ..................................730
31.8.5 LTC PKHA driver ..................................734
31.9 LTC Non-blocking eDMA APIs ...........................749
31.9.1 Overview .......................................749
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xxv
Section
Number
Contents
Title
Page
Number
31.9.2 Data Structure Documentation ............................749
31.9.3 Typedef Documentation ...............................751
31.9.4 Function Documentation ...............................752
31.9.5 LTC eDMA AES driver ...............................754
31.9.6 LTC eDMA DES driver ...............................760
Chapter MPU: Memory Protection Unit
32.1 Overview ........................................781
32.2 Initialization and Deinitialize .............................781
32.3 Basic Control Operations ...............................782
32.4 Data Structure Documentation ............................785
32.4.1 struct mpu_hardware_info_t .............................785
32.4.2 struct mpu_access_err_info_t ............................785
32.4.3 struct mpu_low_masters_access_rights_t ......................786
32.4.4 struct mpu_high_masters_access_rights_t ......................786
32.4.5 struct mpu_region_config_t .............................787
32.4.6 struct mpu_config_t .................................788
32.5 Macro Definition Documentation ...........................789
32.5.1 FSL_MPU_DRIVER_VERSION ..........................789
32.5.2 MPU_WORD_LOW_MASTER_SHIFT ......................789
32.5.3 MPU_WORD_LOW_MASTER_MASK ......................789
32.5.4 MPU_WORD_LOW_MASTER_WIDTH .....................789
32.5.5 MPU_WORD_LOW_MASTER ..........................789
32.5.6 MPU_LOW_MASTER_PE_SHIFT .........................789
32.5.7 MPU_LOW_MASTER_PE_MASK ........................789
32.5.8 MPU_WORD_MASTER_PE_WIDTH .......................789
32.5.9 MPU_WORD_MASTER_PE ............................789
32.5.10 MPU_WORD_HIGH_MASTER_SHIFT ......................789
32.5.11 MPU_WORD_HIGH_MASTER_MASK ......................789
32.5.12 MPU_WORD_HIGH_MASTER_WIDTH .....................789
32.5.13 MPU_WORD_HIGH_MASTER ..........................789
32.6 Enumeration Type Documentation ..........................790
32.6.1 mpu_region_num_t .................................790
32.6.2 mpu_master_t ....................................790
32.6.3 mpu_region_total_num_t ..............................790
32.6.4 mpu_slave_t .....................................790
32.6.5 mpu_err_access_control_t ..............................790
32.6.6 mpu_err_access_type_t ...............................790
32.6.7 mpu_err_attributes_t .................................791
xxvi
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
32.6.8 mpu_supervisor_access_rights_t ..........................791
32.6.9 mpu_user_access_rights_t ..............................791
32.7 Function Documentation ...............................791
32.7.1 MPU_Init ......................................791
32.7.2 MPU_Deinit .....................................792
32.7.3 MPU_Enable .....................................792
32.7.4 MPU_RegionEnable .................................792
32.7.5 MPU_GetHardwareInfo ...............................792
32.7.6 MPU_SetRegionConfig ...............................793
32.7.7 MPU_SetRegionAddr ................................793
32.7.8 MPU_SetRegionLowMasterAccessRights .....................793
32.7.9 MPU_SetRegionHighMasterAccessRights .....................794
32.7.10 MPU_GetSlavePortErrorStatus ...........................794
32.7.11 MPU_GetDetailErrorAccessInfo ..........................794
Chapter Notification Framework
33.1 Overview ........................................797
33.2 Notifier Overview ...................................797
33.3 Data Structure Documentation ............................800
33.3.1 struct notifier_notification_block_t .........................800
33.3.2 struct notifier_callback_config_t ...........................800
33.3.3 struct notifier_handle_t ...............................801
33.4 Typedef Documentation ................................802
33.4.1 notifier_user_config_t ................................802
33.4.2 notifier_user_function_t ...............................802
33.4.3 notifier_callback_t ..................................802
33.5 Enumeration Type Documentation ..........................803
33.5.1 _notifier_status ....................................803
33.5.2 notifier_policy_t ...................................803
33.5.3 notifier_notification_type_t .............................804
33.5.4 notifier_callback_type_t ...............................804
33.6 Function Documentation ...............................804
33.6.1 NOTIFIER_CreateHandle ..............................804
33.6.2 NOTIFIER_SwitchConfig ..............................805
33.6.3 NOTIFIER_GetErrorCallbackIndex .........................806
Chapter PDB: Programmable Delay Block
34.1 Overview ........................................807
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xxvii
Section
Number
Contents
Title
Page
Number
34.2 Data Structure Documentation ............................812
34.2.1 struct pdb_config_t ..................................812
34.2.2 struct pdb_adc_pretrigger_config_t .........................813
34.2.3 struct pdb_dac_trigger_config_t ...........................813
34.3 Macro Definition Documentation ...........................814
34.3.1 FSL_PDB_DRIVER_VERSION ..........................814
34.4 Enumeration Type Documentation ..........................814
34.4.1 _pdb_status_flags ..................................814
34.4.2 _pdb_adc_pretrigger_flags ..............................814
34.4.3 _pdb_interrupt_enable ................................814
34.4.4 pdb_load_value_mode_t ...............................814
34.4.5 pdb_prescaler_divider_t ...............................815
34.4.6 pdb_divider_multiplication_factor_t .........................815
34.4.7 pdb_trigger_input_source_t .............................815
34.5 Function Documentation ...............................816
34.5.1 PDB_Init .......................................816
34.5.2 PDB_Deinit .....................................816
34.5.3 PDB_GetDefaultConfig ...............................816
34.5.4 PDB_Enable .....................................817
34.5.5 PDB_DoSoftwareTrigger ..............................817
34.5.6 PDB_DoLoadValues .................................817
34.5.7 PDB_EnableDMA ..................................817
34.5.8 PDB_EnableInterrupts ................................818
34.5.9 PDB_DisableInterrupts ...............................818
34.5.10 PDB_GetStatusFlags .................................818
34.5.11 PDB_ClearStatusFlags ................................818
34.5.12 PDB_SetModulusValue ...............................819
34.5.13 PDB_GetCounterValue ...............................819
34.5.14 PDB_SetCounterDelayValue ............................819
34.5.15 PDB_SetADCPreTriggerConfig ...........................819
34.5.16 PDB_SetADCPreTriggerDelayValue ........................820
34.5.17 PDB_GetADCPreTriggerStatusFlags ........................820
34.5.18 PDB_ClearADCPreTriggerStatusFlags .......................820
34.5.19 PDB_EnablePulseOutTrigger ............................821
34.5.20 PDB_SetPulseOutTriggerDelayValue ........................821
Chapter PIT: Periodic Interrupt Timer Driver
35.1 Overview ........................................823
35.2 Data Structure Documentation ............................824
35.2.1 struct pit_config_t ..................................824
xxviii
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
35.3 Enumeration Type Documentation ..........................824
35.3.1 pit_chnl_t ......................................824
35.3.2 pit_interrupt_enable_t ................................825
35.3.3 pit_status_flags_t ...................................825
35.4 Function Documentation ...............................825
35.4.1 PIT_Init .......................................825
35.4.2 PIT_Deinit ......................................825
35.4.3 PIT_GetDefaultConfig ................................826
35.4.4 PIT_EnableInterrupts ................................826
35.4.5 PIT_DisableInterrupts ................................826
35.4.6 PIT_GetEnabledInterrupts ..............................827
35.4.7 PIT_GetStatusFlags .................................827
35.4.8 PIT_ClearStatusFlags ................................827
35.4.9 PIT_SetTimerPeriod .................................828
35.4.10 PIT_GetCurrentTimerCount .............................828
35.4.11 PIT_StartTimer ...................................829
35.4.12 PIT_StopTimer ....................................829
Chapter PMC: Power Management Controller
36.1 Overview ........................................831
36.2 Data Structure Documentation ............................832
36.2.1 struct pmc_low_volt_detect_config_t ........................832
36.2.2 struct pmc_low_volt_warning_config_t .......................832
36.3 Macro Definition Documentation ...........................832
36.3.1 FSL_PMC_DRIVER_VERSION ..........................832
36.4 Function Documentation ...............................832
36.4.1 PMC_ConfigureLowVoltDetect ...........................832
36.4.2 PMC_GetLowVoltDetectFlag ............................832
36.4.3 PMC_ClearLowVoltDetectFlag ...........................833
36.4.4 PMC_ConfigureLowVoltWarning ..........................833
36.4.5 PMC_GetLowVoltWarningFlag ...........................833
36.4.6 PMC_ClearLowVoltWarningFlag ..........................834
Chapter PORT: Port Control and Interrupts
37.1 Overview ........................................835
37.2 Typical configuration case ...............................835
37.2.1 Input PORT Configuration ..............................835
37.2.2 I2C PORT Configuration ..............................835
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xxix
Section
Number
Contents
Title
Page
Number
37.3 Data Structure Documentation ............................837
37.3.1 struct port_pin_config_t ...............................837
37.4 Macro Definition Documentation ...........................837
37.4.1 FSL_PORT_DRIVER_VERSION .........................837
37.5 Enumeration Type Documentation ..........................837
37.5.1 _port_pull ......................................837
37.5.2 _port_slew_rate ...................................838
37.5.3 _port_passive_filter_enable .............................838
37.5.4 _port_drive_strength .................................838
37.5.5 port_mux_t ......................................838
37.5.6 port_interrupt_t ...................................838
37.6 Function Documentation ...............................839
37.6.1 PORT_SetPinConfig .................................839
37.6.2 PORT_SetMultiplePinsConfig ............................839
37.6.3 PORT_SetPinMux ..................................840
37.6.4 PORT_SetPinInterruptConfig ............................841
37.6.5 PORT_GetPinsInterruptFlags ............................841
37.6.6 PORT_ClearPinsInterruptFlags ...........................842
Chapter QSPI: Quad Serial Peripheral Interface Driver
38.1 Overview ........................................843
38.2 Overview ........................................843
38.3 Data Structure Documentation ............................848
38.3.1 struct qspi_dqs_config_t ...............................848
38.3.2 struct qspi_flash_timing_t ..............................848
38.3.3 struct qspi_config_t .................................848
38.3.4 struct qspi_flash_config_t ..............................849
38.3.5 struct qspi_transfer_t .................................850
38.4 Macro Definition Documentation ...........................850
38.4.1 FSL_QSPI_DRIVER_VERSION ..........................850
38.5 Enumeration Type Documentation ..........................850
38.5.1 _status_t .......................................850
38.5.2 qspi_read_area_t ...................................850
38.5.3 qspi_command_seq_t ................................850
38.5.4 qspi_fifo_t ......................................851
38.5.5 qspi_endianness_t ..................................851
38.5.6 _qspi_error_flags ...................................851
38.5.7 _qspi_flags ......................................851
xxx
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
38.5.8 _qspi_interrupt_enable ................................852
38.5.9 _qspi_dma_enable ..................................853
38.5.10 qspi_dqs_phrase_shift_t ...............................853
38.6 Function Documentation ...............................853
38.6.1 QSPI_Init ......................................853
38.6.2 QSPI_GetDefaultQspiConfig ............................853
38.6.3 QSPI_Deinit .....................................854
38.6.4 QSPI_SetFlashConfig ................................854
38.6.5 QSPI_SoftwareReset .................................854
38.6.6 QSPI_Enable .....................................854
38.6.7 QSPI_GetStatusFlags ................................855
38.6.8 QSPI_GetErrorStatusFlags .............................855
38.6.9 QSPI_ClearErrorFlag ................................855
38.6.10 QSPI_EnableInterrupts ...............................856
38.6.11 QSPI_DisableInterrupts ...............................856
38.6.12 QSPI_EnableDMA .................................856
38.6.13 QSPI_GetTxDataRegisterAddress ..........................856
38.6.14 QSPI_GetRxDataRegisterAddress ..........................857
38.6.15 QSPI_SetIPCommandAddress ...........................857
38.6.16 QSPI_SetIPCommandSize ..............................857
38.6.17 QSPI_ExecuteIPCommand .............................858
38.6.18 QSPI_ExecuteAHBCommand ............................858
38.6.19 QSPI_EnableIPParallelMode ............................858
38.6.20 QSPI_EnableAHBParallelMode ...........................858
38.6.21 QSPI_UpdateLUT ..................................859
38.6.22 QSPI_ClearFifo ...................................859
38.6.23 QSPI_ClearCommandSequence ...........................859
38.6.24 QSPI_WriteBlocking ................................859
38.6.25 QSPI_WriteData ...................................860
38.6.26 QSPI_ReadBlocking .................................860
38.6.27 QSPI_ReadData ...................................860
38.6.28 QSPI_TransferSendBlocking ............................861
38.6.29 QSPI_TransferReceiveBlocking ...........................861
38.7 QSPI eDMA Driver ..................................862
38.7.1 Overview .......................................862
38.7.2 Data Structure Documentation ............................863
38.7.3 Function Documentation ...............................863
Chapter RCM: Reset Control Module Driver
39.1 Overview ........................................867
39.2 Data Structure Documentation ............................868
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xxxi
Section
Number
Contents
Title
Page
Number
39.2.1 struct rcm_reset_pin_filter_config_t .........................868
39.3 Macro Definition Documentation ...........................868
39.3.1 FSL_RCM_DRIVER_VERSION ..........................868
39.4 Enumeration Type Documentation ..........................868
39.4.1 rcm_reset_source_t .................................868
39.4.2 rcm_run_wait_filter_mode_t .............................868
39.5 Function Documentation ...............................869
39.5.1 RCM_GetPreviousResetSources ..........................869
39.5.2 RCM_ConfigureResetPinFilter ...........................869
Chapter RNGA: Random Number Generator Accelerator Driver
40.1 Overview ........................................871
40.2 RNGA Initialization ..................................871
40.3 Get random data from RNGA ............................871
40.4 RNGA Set/Get Working Mode ............................871
40.5 Seed RNGA .......................................871
40.6 Macro Definition Documentation ...........................873
40.6.1 FSL_RNGA_DRIVER_VERSION .........................873
40.7 Enumeration Type Documentation ..........................873
40.7.1 rnga_mode_t .....................................873
40.8 Function Documentation ...............................873
40.8.1 RNGA_Init ......................................873
40.8.2 RNGA_Deinit ....................................873
40.8.3 RNGA_GetRandomData ..............................874
40.8.4 RNGA_Seed .....................................874
40.8.5 RNGA_SetMode ...................................874
40.8.6 RNGA_GetMode ..................................875
Chapter RTC: Real Time Clock Driver
41.1 Overview ........................................877
41.2 Data Structure Documentation ............................879
41.2.1 struct rtc_datetime_t .................................879
41.2.2 struct rtc_config_t ..................................879
xxxii
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
41.3 Enumeration Type Documentation ..........................880
41.3.1 rtc_interrupt_enable_t ................................880
41.3.2 rtc_status_flags_t ...................................880
41.3.3 rtc_osc_cap_load_t .................................880
41.4 Function Documentation ...............................880
41.4.1 RTC_Init .......................................880
41.4.2 RTC_Deinit .....................................881
41.4.3 RTC_GetDefaultConfig ...............................881
41.4.4 RTC_SetDatetime ..................................881
41.4.5 RTC_GetDatetime ..................................882
41.4.6 RTC_SetAlarm ...................................883
41.4.7 RTC_GetAlarm ...................................883
41.4.8 RTC_EnableInterrupts ................................883
41.4.9 RTC_DisableInterrupts ...............................884
41.4.10 RTC_GetEnabledInterrupts .............................885
41.4.11 RTC_GetStatusFlags .................................885
41.4.12 RTC_ClearStatusFlags ................................885
41.4.13 RTC_StartTimer ...................................886
41.4.14 RTC_StopTimer ...................................887
41.4.15 RTC_SetOscCapLoad ................................887
41.4.16 RTC_Reset ......................................887
Chapter SAI: Serial Audio Interface
42.1 Overview ........................................889
42.2 Overview ........................................889
42.3 Typical use case ....................................889
42.3.1 SAI Send/Receive using an interrupt method ....................889
42.3.2 SAI Send/receive using a DMA method .......................890
42.4 Data Structure Documentation ............................896
42.4.1 struct sai_config_t ..................................896
42.4.2 struct sai_transfer_format_t .............................896
42.4.3 struct sai_transfer_t .................................896
42.4.4 struct _sai_handle ..................................897
42.5 Macro Definition Documentation ...........................897
42.5.1 SAI_XFER_QUEUE_SIZE .............................897
42.6 Enumeration Type Documentation ..........................897
42.6.1 _sai_status_t .....................................897
42.6.2 sai_protocol_t ....................................898
42.6.3 sai_master_slave_t ..................................898
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xxxiii
Section
Number
Contents
Title
Page
Number
42.6.4 sai_mono_stereo_t ..................................898
42.6.5 sai_sync_mode_t ...................................898
42.6.6 sai_mclk_source_t ..................................898
42.6.7 sai_bclk_source_t ..................................899
42.6.8 _sai_interrupt_enable_t ...............................899
42.6.9 _sai_dma_enable_t ..................................899
42.6.10 _sai_flags .......................................899
42.6.11 sai_reset_type_t ...................................899
42.6.12 sai_sample_rate_t ..................................900
42.6.13 sai_word_width_t ..................................900
42.7 Function Documentation ...............................900
42.7.1 SAI_TxInit ......................................900
42.7.2 SAI_RxInit ......................................901
42.7.3 SAI_TxGetDefaultConfig ..............................901
42.7.4 SAI_RxGetDefaultConfig ..............................901
42.7.5 SAI_Deinit ......................................902
42.7.6 SAI_TxReset .....................................902
42.7.7 SAI_RxReset .....................................902
42.7.8 SAI_TxEnable ....................................902
42.7.9 SAI_RxEnable ....................................903
42.7.10 SAI_TxGetStatusFlag ................................903
42.7.11 SAI_TxClearStatusFlags ...............................903
42.7.12 SAI_RxGetStatusFlag ................................903
42.7.13 SAI_RxClearStatusFlags ..............................904
42.7.14 SAI_TxEnableInterrupts ...............................904
42.7.15 SAI_RxEnableInterrupts ...............................904
42.7.16 SAI_TxDisableInterrupts ..............................905
42.7.17 SAI_RxDisableInterrupts ..............................906
42.7.18 SAI_TxEnableDMA .................................906
42.7.19 SAI_RxEnableDMA .................................906
42.7.20 SAI_TxGetDataRegisterAddress ..........................907
42.7.21 SAI_RxGetDataRegisterAddress ..........................908
42.7.22 SAI_TxSetFormat ..................................908
42.7.23 SAI_RxSetFormat ..................................909
42.7.24 SAI_WriteBlocking .................................909
42.7.25 SAI_WriteData ...................................909
42.7.26 SAI_ReadBlocking .................................910
42.7.27 SAI_ReadData ....................................910
42.7.28 SAI_TransferTxCreateHandle ............................910
42.7.29 SAI_TransferRxCreateHandle ............................911
42.7.30 SAI_TransferTxSetFormat ..............................911
42.7.31 SAI_TransferRxSetFormat .............................912
42.7.32 SAI_TransferSendNonBlocking ...........................912
42.7.33 SAI_TransferReceiveNonBlocking .........................913
xxxiv
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
42.7.34 SAI_TransferGetSendCount .............................913
42.7.35 SAI_TransferGetReceiveCount ...........................914
42.7.36 SAI_TransferAbortSend ...............................914
42.7.37 SAI_TransferAbortReceive .............................915
42.7.38 SAI_TransferTxHandleIRQ .............................915
42.7.39 SAI_TransferRxHandleIRQ .............................915
42.8 SAI DMA Driver ....................................916
42.8.1 Overview .......................................916
42.8.2 Data Structure Documentation ............................917
42.8.3 Function Documentation ...............................917
42.9 SAI eDMA Driver ...................................923
42.9.1 Overview .......................................923
42.9.2 Data Structure Documentation ............................924
42.9.3 Function Documentation ...............................925
Chapter SDHC: Secured Digital Host Controller Driver
43.1 Overview ........................................931
43.2 Data Structure Documentation ............................939
43.2.1 struct sdhc_adma2_descriptor_t ...........................939
43.2.2 struct sdhc_capability_t ...............................940
43.2.3 struct sdhc_transfer_config_t ............................940
43.2.4 struct sdhc_boot_config_t ..............................940
43.2.5 struct sdhc_config_t .................................941
43.2.6 struct sdhc_data_t ..................................941
43.2.7 struct sdhc_command_t ...............................942
43.2.8 struct sdhc_transfer_t ................................942
43.2.9 struct sdhc_transfer_callback_t ...........................942
43.2.10 struct _sdhc_handle .................................943
43.2.11 struct sdhc_host_t ..................................943
43.3 Macro Definition Documentation ...........................943
43.3.1 FSL_SDHC_DRIVER_VERSION .........................943
43.4 Typedef Documentation ................................944
43.4.1 sdhc_adma1_descriptor_t ..............................944
43.4.2 sdhc_transfer_function_t ...............................944
43.5 Enumeration Type Documentation ..........................944
43.5.1 _sdhc_status .....................................944
43.5.2 _sdhc_capability_flag ................................944
43.5.3 _sdhc_wakeup_event ................................944
43.5.4 _sdhc_reset ......................................944
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xxxv
Section
Number
Contents
Title
Page
Number
43.5.5 _sdhc_transfer_flag .................................945
43.5.6 _sdhc_present_status_flag ..............................945
43.5.7 _sdhc_interrupt_status_flag .............................946
43.5.8 _sdhc_auto_command12_error_status_flag .....................946
43.5.9 _sdhc_adma_error_status_flag ............................947
43.5.10 sdhc_adma_error_state_t ..............................947
43.5.11 _sdhc_force_event ..................................947
43.5.12 sdhc_data_bus_width_t ...............................948
43.5.13 sdhc_endian_mode_t .................................948
43.5.14 sdhc_dma_mode_t ..................................948
43.5.15 _sdhc_sdio_control_flag ...............................948
43.5.16 sdhc_boot_mode_t ..................................948
43.5.17 sdhc_command_type_t ...............................949
43.5.18 sdhc_response_type_t ................................949
43.5.19 _sdhc_adma1_descriptor_flag ............................949
43.5.20 _sdhc_adma2_descriptor_flag ............................950
43.6 Function Documentation ...............................950
43.6.1 SDHC_Init ......................................950
43.6.2 SDHC_Deinit ....................................950
43.6.3 SDHC_Reset .....................................951
43.6.4 SDHC_SetAdmaTableConfig ............................951
43.6.5 SDHC_EnableInterruptStatus ............................952
43.6.6 SDHC_DisableInterruptStatus ............................952
43.6.7 SDHC_EnableInterruptSignal ............................952
43.6.8 SDHC_DisableInterruptSignal ...........................952
43.6.9 SDHC_GetInterruptStatusFlags ...........................953
43.6.10 SDHC_ClearInterruptStatusFlags ..........................953
43.6.11 SDHC_GetAutoCommand12ErrorStatusFlags ...................953
43.6.12 SDHC_GetAdmaErrorStatusFlags .........................953
43.6.13 SDHC_GetPresentStatusFlags ............................954
43.6.14 SDHC_GetCapability ................................954
43.6.15 SDHC_EnableSdClock ...............................954
43.6.16 SDHC_SetSdClock .................................955
43.6.17 SDHC_SetCardActive ................................955
43.6.18 SDHC_SetDataBusWidth ..............................955
43.6.19 SDHC_SetTransferConfig ..............................956
43.6.20 SDHC_GetCommandResponse ...........................956
43.6.21 SDHC_WriteData ..................................957
43.6.22 SDHC_ReadData ..................................958
43.6.23 SDHC_EnableWakeupEvent .............................958
43.6.24 SDHC_EnableCardDetectTest ............................958
43.6.25 SDHC_SetCardDetectTestLevel ...........................959
43.6.26 SDHC_EnableSdioControl .............................959
43.6.27 SDHC_SetContinueRequest .............................959
xxxvi
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
43.6.28 SDHC_SetMmcBootConfig .............................959
43.6.29 SDHC_SetForceEvent ................................960
43.6.30 SDHC_TransferBlocking ..............................960
43.6.31 SDHC_TransferCreateHandle ............................961
43.6.32 SDHC_TransferNonBlocking ............................961
43.6.33 SDHC_TransferHandleIRQ .............................962
Chapter SDRAMC: Synchronous DRAM Controller Driver
44.1 Overview ........................................963
44.2 Typical use case ....................................963
44.3 Data Structure Documentation ............................966
44.3.1 struct sdramc_blockctl_config_t ...........................966
44.3.2 struct sdramc_refresh_config_t ...........................966
44.3.3 struct sdramc_config_t ................................967
44.4 Macro Definition Documentation ...........................967
44.4.1 FSL_SDRAMC_DRIVER_VERSION .......................967
44.5 Enumeration Type Documentation ..........................967
44.5.1 sdramc_refresh_time_t ................................967
44.5.2 sdramc_latency_t ..................................968
44.5.3 sdramc_command_bit_location_t ..........................968
44.5.4 sdramc_command_t .................................968
44.5.5 sdramc_port_size_t .................................969
44.5.6 sdramc_block_selection_t ..............................969
44.6 Function Documentation ...............................969
44.6.1 SDRAMC_Init ....................................969
44.6.2 SDRAMC_Deinit ..................................970
44.6.3 SDRAMC_SendCommand .............................970
44.6.4 SDRAMC_EnableWriteProtect ...........................971
44.6.5 SDRAMC_EnableOperateValid ...........................972
Chapter SIM: System Integration Module Driver
45.1 Overview ........................................973
45.2 Data Structure Documentation ............................973
45.2.1 struct sim_uid_t ...................................973
45.3 Enumeration Type Documentation ..........................974
45.3.1 _sim_flash_mode ..................................974
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xxxvii
Section
Number
Contents
Title
Page
Number
45.4 Function Documentation ...............................974
45.4.1 SIM_GetUniqueId ..................................974
45.4.2 SIM_SetFlashMode .................................974
Chapter SLCD: Segment LCD Driver
46.1 Overview ........................................975
46.2 Typical use case ....................................975
46.2.1 SLCD Initialization operation ............................975
46.3 Data Structure Documentation ............................980
46.3.1 struct slcd_fault_detect_config_t ..........................980
46.3.2 struct slcd_clock_config_t ..............................981
46.3.3 struct slcd_config_t .................................981
46.4 Macro Definition Documentation ...........................983
46.4.1 FSL_SLCD_DRIVER_VERSION .........................983
46.5 Enumeration Type Documentation ..........................983
46.5.1 slcd_power_supply_option_t ............................983
46.5.2 slcd_regulated_voltage_trim_t ............................983
46.5.3 slcd_load_adjust_t ..................................983
46.5.4 slcd_clock_src_t ...................................984
46.5.5 slcd_alt_clock_div_t .................................984
46.5.6 slcd_clock_prescaler_t ................................984
46.5.7 slcd_duty_cycle_t ..................................985
46.5.8 slcd_phase_type_t ..................................985
46.5.9 slcd_phase_index_t .................................985
46.5.10 slcd_display_mode_t .................................986
46.5.11 slcd_blink_mode_t ..................................986
46.5.12 slcd_blink_rate_t ...................................986
46.5.13 slcd_fault_detect_clock_prescaler_t .........................986
46.5.14 slcd_fault_detect_sample_window_width_t .....................987
46.5.15 slcd_interrupt_enable_t ...............................987
46.5.16 slcd_lowpower_behavior ..............................987
46.6 Function Documentation ...............................987
46.6.1 SLCD_Init ......................................987
46.6.2 SLCD_Deinit ....................................988
46.6.3 SLCD_GetDefaultConfig ..............................988
46.6.4 SLCD_StartDisplay .................................988
46.6.5 SLCD_StopDisplay .................................989
46.6.6 SLCD_StartBlinkMode ...............................989
46.6.7 SLCD_StopBlinkMode ...............................989
xxxviii
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
46.6.8 SLCD_SetBackPlanePhase .............................989
46.6.9 SLCD_SetFrontPlaneSegments ...........................990
46.6.10 SLCD_SetFrontPlaneOnePhase ...........................990
46.6.11 SLCD_GetFaultDetectCounter ...........................991
46.6.12 SLCD_EnableInterrupts ...............................991
46.6.13 SLCD_DisableInterrupts ...............................992
46.6.14 SLCD_GetInterruptStatus ..............................992
46.6.15 SLCD_ClearInterruptStatus .............................992
Chapter SMC: System Mode Controller Driver
47.1 Overview ........................................993
47.2 Macro Definition Documentation ...........................994
47.2.1 FSL_SMC_DRIVER_VERSION ..........................994
47.3 Enumeration Type Documentation ..........................994
47.3.1 smc_power_mode_protection_t ...........................994
47.3.2 smc_power_state_t ..................................994
47.3.3 smc_run_mode_t ...................................995
47.3.4 smc_stop_mode_t ..................................995
47.3.5 smc_partial_stop_option_t ..............................995
47.3.6 _smc_status .....................................995
47.4 Function Documentation ...............................995
47.4.1 SMC_SetPowerModeProtection ...........................995
47.4.2 SMC_GetPowerModeState .............................996
47.4.3 SMC_SetPowerModeRun ..............................996
47.4.4 SMC_SetPowerModeWait ..............................996
47.4.5 SMC_SetPowerModeStop ..............................997
47.4.6 SMC_SetPowerModeVlpr ..............................997
47.4.7 SMC_SetPowerModeVlpw .............................997
47.4.8 SMC_SetPowerModeVlps ..............................998
Chapter SPI: Serial Peripheral Interface Driver
48.1 Overview ........................................999
48.2 Overview ........................................999
48.3 SPI Driver .......................................1000
48.3.1 Overview .......................................1000
48.3.2 Overview .......................................1000
48.3.3 Typical use case ...................................1000
48.3.4 Data Structure Documentation ............................1005
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xxxix
Section
Number
Contents
Title
Page
Number
48.3.5 Macro Definition Documentation ..........................1007
48.3.6 Enumeration Type Documentation .........................1007
48.3.7 Function Documentation ...............................1009
48.3.8 SPI DMA Driver ...................................1019
48.4 SPI FreeRTOS driver .................................1024
48.4.1 Overview .......................................1024
48.4.2 Data Structure Documentation ............................1024
48.4.3 Macro Definition Documentation ..........................1025
48.4.4 Function Documentation ...............................1025
48.5 SPI µCOS/II driver ..................................1027
48.5.1 Overview .......................................1027
48.5.2 Data Structure Documentation ............................1027
48.5.3 Macro Definition Documentation ..........................1028
48.5.4 Function Documentation ...............................1028
48.6 SPI µCOS/III driver ..................................1030
48.6.1 Overview .......................................1030
48.6.2 Data Structure Documentation ............................1030
48.6.3 Macro Definition Documentation ..........................1031
48.6.4 Function Documentation ...............................1031
Chapter Smart Card
49.1 Overview ........................................1033
49.2 SmartCard Driver Initialization ...........................1033
49.3 SmartCard Call diagram ...............................1033
49.4 Data Structure Documentation ............................1035
49.4.1 struct smartcard_card_params_t ...........................1035
49.4.2 struct smartcard_timers_state_t ...........................1036
49.4.3 struct smartcard_interface_config_t .........................1037
49.4.4 struct smartcard_xfer_t ...............................1038
49.4.5 struct smartcard_context_t ..............................1038
49.5 Macro Definition Documentation ...........................1040
49.5.1 FSL_SMARTCARD_DRIVER_VERSION .....................1040
49.6 Enumeration Type Documentation ..........................1040
49.6.1 smartcard_status_t ..................................1040
49.6.2 smartcard_control_t .................................1040
49.6.3 smartcard_direction_t ................................1040
xl
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
49.7 Smart Card EMVSIM Driver .............................1041
49.7.1 Overview .......................................1041
49.7.2 Enumeration Type Documentation .........................1042
49.7.3 Function Documentation ...............................1043
49.8 Smart Card FreeRTOS Driver ............................1047
49.8.1 Overview .......................................1047
49.8.2 Data Structure Documentation ............................1048
49.8.3 Macro Definition Documentation ..........................1048
49.8.4 Function Documentation ...............................1049
49.9 Smart Card PHY EMVSIM Driver .........................1052
49.9.1 Overview .......................................1052
49.9.2 Function Documentation ...............................1053
49.10 Smart Card PHY GPIO Driver ............................1057
49.10.1 Overview .......................................1057
49.10.2 Function Documentation ...............................1058
49.11 Smart Card PHY NCN8025 Driver ..........................1062
49.11.1 Overview .......................................1062
49.11.2 Macro Definition Documentation ..........................1063
49.11.3 Function Documentation ...............................1063
49.12 Smart Card UART Driver ..............................1066
49.12.1 Overview .......................................1066
49.12.2 Function Documentation ...............................1067
49.13 Smart Card µCOS/II Driver .............................1072
49.13.1 Overview .......................................1072
49.13.2 Data Structure Documentation ............................1073
49.13.3 Macro Definition Documentation ..........................1074
49.13.4 Function Documentation ...............................1074
49.14 Smart Card µCOS/III Driver .............................1078
49.14.1 Overview .......................................1078
49.14.2 Data Structure Documentation ............................1079
49.14.3 Macro Definition Documentation ..........................1080
49.14.4 Function Documentation ...............................1080
Chapter TPM: Timer PWM Module
50.1 Overview ........................................1085
50.2 Typical use case ....................................1086
50.2.1 PWM output .....................................1086
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xli
Section
Number
Contents
Title
Page
Number
50.3 Data Structure Documentation ............................1090
50.3.1 struct tpm_chnl_pwm_signal_param_t .......................1090
50.3.2 struct tpm_config_t .................................1090
50.4 Enumeration Type Documentation ..........................1091
50.4.1 tpm_chnl_t ......................................1091
50.4.2 tpm_pwm_mode_t ..................................1091
50.4.3 tpm_pwm_level_select_t ...............................1091
50.4.4 tpm_trigger_select_t .................................1092
50.4.5 tpm_output_compare_mode_t ............................1092
50.4.6 tpm_input_capture_edge_t ..............................1092
50.4.7 tpm_clock_source_t .................................1092
50.4.8 tpm_clock_prescale_t ................................1092
50.4.9 tpm_interrupt_enable_t ...............................1093
50.4.10 tpm_status_flags_t ..................................1093
50.5 Function Documentation ...............................1093
50.5.1 TPM_Init .......................................1093
50.5.2 TPM_Deinit .....................................1094
50.5.3 TPM_GetDefaultConfig ...............................1094
50.5.4 TPM_SetupPwm ...................................1094
50.5.5 TPM_UpdatePwmDutycycle ............................1095
50.5.6 TPM_UpdateChnlEdgeLevelSelect .........................1095
50.5.7 TPM_SetupInputCapture ..............................1096
50.5.8 TPM_SetupOutputCompare .............................1096
50.5.9 TPM_EnableInterrupts ................................1096
50.5.10 TPM_DisableInterrupts ...............................1097
50.5.11 TPM_GetEnabledInterrupts .............................1097
50.5.12 TPM_GetStatusFlags ................................1097
50.5.13 TPM_ClearStatusFlags ...............................1097
50.5.14 TPM_StartTimer ...................................1098
50.5.15 TPM_StopTimer ...................................1098
Chapter TRNG: True Random Number Generator
51.1 Overview ........................................1099
51.2 TRNG Initialization ..................................1099
51.3 Get random data from TRNG ............................1099
51.4 Data Structure Documentation ............................1101
51.4.1 struct trng_statistical_check_limit_t .........................1101
51.4.2 struct trng_config_t .................................1101
51.5 Macro Definition Documentation ...........................1103
xlii
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
51.5.1 FSL_TRNG_DRIVER_VERSION .........................1103
51.6 Enumeration Type Documentation ..........................1103
51.6.1 trng_sample_mode_t .................................1103
51.6.2 trng_clock_mode_t .................................1104
51.6.3 trng_ring_osc_div_t .................................1104
51.7 Function Documentation ...............................1104
51.7.1 TRNG_GetDefaultConfig ..............................1104
51.7.2 TRNG_Init ......................................1105
51.7.3 TRNG_Deinit ....................................1105
51.7.4 TRNG_GetRandomData ...............................1105
Chapter TSI: Touch Sensing Input
52.1 Overview ........................................1107
52.2 TSIv2 Driver ......................................1108
52.2.1 Overview .......................................1108
52.2.2 Data Structure Documentation ............................1115
52.2.3 Macro Definition Documentation ..........................1116
52.2.4 Enumeration Type Documentation .........................1116
52.2.5 Function Documentation ...............................1122
52.3 TSIv4 Driver ......................................1137
52.3.1 Overview .......................................1137
52.3.2 Data Structure Documentation ............................1143
52.3.3 Macro Definition Documentation ..........................1145
52.3.4 Enumeration Type Documentation .........................1145
52.3.5 Function Documentation ...............................1150
Chapter UART: Universal Asynchronous Receiver/Transmitter Driver
53.1 Overview ........................................1163
53.2 UART Driver ......................................1164
53.2.1 Overview .......................................1164
53.2.2 Typical use case ...................................1164
53.2.3 Data Structure Documentation ............................1172
53.2.4 Macro Definition Documentation ..........................1174
53.2.5 Typedef Documentation ...............................1174
53.2.6 Enumeration Type Documentation .........................1174
53.2.7 Function Documentation ...............................1176
53.2.8 UART DMA Driver .................................1190
53.2.9 UART eDMA Driver ................................1196
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xliii
Section
Number
Contents
Title
Page
Number
53.3 UART FreeRTOS Driver ...............................1201
53.3.1 Overview .......................................1201
53.3.2 Data Structure Documentation ............................1201
53.3.3 Macro Definition Documentation ..........................1203
53.3.4 Function Documentation ...............................1203
53.4 UART µCOS/II Driver ................................1206
53.4.1 Overview .......................................1206
53.4.2 Data Structure Documentation ............................1206
53.4.3 Macro Definition Documentation ..........................1208
53.4.4 Function Documentation ...............................1208
53.5 UART µCOS/III Driver ................................1211
53.5.1 Overview .......................................1211
53.5.2 Data Structure Documentation ............................1211
53.5.3 Macro Definition Documentation ..........................1213
53.5.4 Function Documentation ...............................1213
Chapter VREF: Voltage Reference Driver
54.1 Overview ........................................1217
54.2 Overview ........................................1217
54.2.1 VREF functional Operation .............................1217
54.3 Typical use case and example .............................1217
54.4 Data Structure Documentation ............................1218
54.4.1 struct vref_config_t .................................1218
54.5 Macro Definition Documentation ...........................1218
54.5.1 FSL_VREF_DRIVER_VERSION .........................1218
54.6 Enumeration Type Documentation ..........................1218
54.6.1 vref_buffer_mode_t .................................1218
54.7 Function Documentation ...............................1219
54.7.1 VREF_Init ......................................1219
54.7.2 VREF_Deinit ....................................1219
54.7.3 VREF_GetDefaultConfig ..............................1219
54.7.4 VREF_SetTrimVal ..................................1220
54.7.5 VREF_GetTrimVal .................................1220
Chapter WDOG: Watchdog Timer Driver
55.1 Overview ........................................1221
xliv
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Section
Number
Contents
Title
Page
Number
55.2 Data Structure Documentation ............................1223
55.2.1 struct wdog_work_mode_t ..............................1223
55.2.2 struct wdog_config_t .................................1223
55.2.3 struct wdog_test_config_t ..............................1224
55.3 Macro Definition Documentation ...........................1224
55.3.1 FSL_WDOG_DRIVER_VERSION .........................1224
55.4 Enumeration Type Documentation ..........................1224
55.4.1 wdog_clock_source_t ................................1224
55.4.2 wdog_clock_prescaler_t ...............................1224
55.4.3 wdog_test_mode_t ..................................1225
55.4.4 wdog_tested_byte_t .................................1225
55.4.5 _wdog_interrupt_enable_t ..............................1225
55.4.6 _wdog_status_flags_t ................................1225
55.5 Function Documentation ...............................1226
55.5.1 WDOG_GetDefaultConfig ..............................1226
55.5.2 WDOG_Init .....................................1226
55.5.3 WDOG_Deinit ....................................1227
55.5.4 WDOG_SetTestModeConfig ............................1227
55.5.5 WDOG_Enable ...................................1227
55.5.6 WDOG_Disable ...................................1227
55.5.7 WDOG_EnableInterrupts ..............................1228
55.5.8 WDOG_DisableInterrupts ..............................1228
55.5.9 WDOG_GetStatusFlags ...............................1229
55.5.10 WDOG_ClearStatusFlags ..............................1229
55.5.11 WDOG_SetTimeoutValue ..............................1230
55.5.12 WDOG_SetWindowValue ..............................1230
55.5.13 WDOG_Unlock ...................................1230
55.5.14 WDOG_Refresh ...................................1230
55.5.15 WDOG_GetResetCount ...............................1231
55.5.16 WDOG_ClearResetCount ..............................1231
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
xlv
Chapter 1
Introduction
The Kinetis Software Development Kit (KSDK) 2.0 is a collection of software enablement, for NXP
Kinetis Microcontrollers, that includes peripheral drivers, high level stacks including USB and LWIP,
integration with WolfSSL and mbed TLS cryptography libraries, other middleware packages (multicore
support, fatfs), and integrated RTOS support for FreeRTOS, µC/OS-II, and µC/OS-III. In addition to the
base enablement, the KSDK is augmented with demo applications, driver example projects, and API
documentation to help users quickly leverage the support of the Kinetis SDK. The Kinetis Expert (KEx)
Web UI is available to provide access to all Kinetis SDK packages. See the Kinetis SDK v.2.0.0 Release
Notes (document KSDK200RN) and the supported Devices section at www.nxp.com/ksdk for details.
The Kinetis SDK is built with the following runtime software components:
• ARM®and DSP standard libraries, and CMSIS-compliant device header files which provide direct
access to the peripheral registers.
• Open-source peripheral drivers that provide stateless, high performance, ease-of-use APIs. Com-
munication drivers provide higher level transactional APIs for a higher performance option.
• Open-source RTOS wrapper driver built on on top of KSDK peripheral drivers and leverage native
RTOS services to better comply to the RTOS cases.
• Real time operation systems (RTOS) including FreeRTOS OS, µC/OS-II, and µC/OS-III.
• Stacks and middleware in source or object formats including:
–A USB device, host, and OTG stack with comprehensive USB class support.
–CMSIS-DSP, a suite of common signal processing functions.
–FatFs, a FAT file system for small embedded systems.
–Encryption software utilizing the mmCAU hardware acceleration.
–SDMMC, a software component supporting SD Cards and eMMC.
–mbedTLS, cryptographic SSL/TLS libraries.
–lwIP, a light-weight TCP/IP stack.
–WolfSSL, a cryptography and SSL/TLS library.
–EMV L1 that complies to EMV-v4.3_Book_1 specification.
–DMA Manager, a software component used for managing on-chip DMA channel resources.
–The Kinetis SDK comes complete with software examples demonstrating the usage of the
peripheral drivers, RTOS wrapper drivers, middleware and RTOSes.
All demo applications and driver examples are provided with projects for the following toolchains:
–Atollic TrueSTUDIO
–GNU toolchain for ARM®Cortex®-M with Cmake build system
–IAR Embedded Workbench
–Keil MDK
–Kinetis Design Studio
The peripheral drivers and RTOS driver wrappers can be used across multiple devices within the Kinetis
product family without modification. The configuration items for each driver are encapsulated into C
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1
language data structures. Kinetis device specific configuration information is provided as part of the KS-
DK and need not be modified by the user. If necessary, the user is able to modify the peripheral driver and
RTOS wrapper driver configuration during runtime. The driver examples demonstrate how to configure
the drivers by passing the proper configuration data to the APIs. The Kinetis SDK folder structure is
organized to reduce the total number of includes required to compile a project.
Table 2: KSDK Folder Structure
The rest of this document describes the API references in detail for the peripheral drivers and RTOS
wrapper drivers. For the latest version of this and other Kinetis SDK documents, see the kex.nxp.-
com/apidoc.
2
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 2
Driver errors status
•kStatus_DMA_Busy = 5000
•kStatus_DSPI_Error = 601
•kStatus_EDMA_QueueFull = 5100
•kStatus_EDMA_Busy = 5101
•kStatus_ENET_RxFrameError = 4000
•kStatus_ENET_RxFrameFail = 4001
•kStatus_ENET_RxFrameEmpty = 4002
•kStatus_ENET_TxFrameBusy = 4003
•kStatus_ENET_TxFrameFail = 4004
•kStatus_ENET_PtpTsRingFull = 4005
•kStatus_ENET_PtpTsRingEmpty = 4006
•kStatus_FLEXIO_I2S_Idle = 2300
•kStatus_FLEXIO_I2S_TxBusy = 2301
•kStatus_FLEXIO_I2S_RxBusy = 2302
•kStatus_FLEXIO_I2S_Error = 2303
•kStatus_FLEXIO_I2S_QueueFull = 2304
•kStatus_QSPI_Idle = 4500
•kStatus_QSPI_Busy = 4501
•kStatus_QSPI_Error = 4502
•kStatus_SAI_TxBusy = 1900
•kStatus_SAI_RxBusy = 1901
•kStatus_SAI_TxError = 1902
•kStatus_SAI_RxError = 1903
•kStatus_SAI_QueueFull = 1904
•kStatus_SAI_TxIdle = 1905
•kStatus_SAI_RxIdle = 1906
•kStatus_SMARTCARD_Success = 4300
•kStatus_SMARTCARD_TxBusy = 4301
•kStatus_SMARTCARD_RxBusy = 4302
•kStatus_SMARTCARD_NoTransferInProgress = 4303
•kStatus_SMARTCARD_Timeout = 4304
•kStatus_SMARTCARD_Initialized = 4305
•kStatus_SMARTCARD_PhyInitialized = 4306
•kStatus_SMARTCARD_CardNotActivated = 4307
•kStatus_SMARTCARD_InvalidInput = 4308
•kStatus_SMARTCARD_OtherError = 4309
•kStatus_SMC_StopAbort = 3900
•kStatus_SPI_Busy = 1400
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
3
•kStatus_SPI_Idle = 1401
•kStatus_SPI_Error = 1402
•kStatus_TRGMUX_Locked = 4200
•kStatus_NOTIFIER_ErrorNotificationBefore = 9800
•kStatus_NOTIFIER_ErrorNotificationAfter = 9801
4
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 3
Architectural Overview
This chapter provides the architectural overview for the Kinetis Software Development Kit (KSDK). It
describes each layer within the architecture and its associated components.
Overview
The Kinetis SDK architecture consists of five key components listed below.
1. The ARM Cortex Microcontroller Software Interface Standard (CMSIS) CORE compliance device
specific header files, SOC Header, and CMSIS math/DSP libraries.
2. Peripheral Drivers
3. Real-time Operating Systems (RTOS)
4. Stacks and Middleware that integrate with the Kinetis SDK
5. Demo Applications based on the Kinetis SDK
Figure 1: KSDK Block Diagram
Kinetis MCU header files
Each supported Kinetis MCU device in the KSDK has an overall System-on- Chip (SoC) memory-mapped
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
5
header file. This header file contains the memory map and register base address for each peripheral and
the IRQ vector table with associated vector numbers. The overall SoC header file provides a access to the
peripheral registers through pointers and predefined bit masks. In addition to the overall SoC memory-
mapped header file, the KSDK includes a feature header file for each device. The feature header file allows
NXP to deliver a single software driver for a given peripheral. The feature file will ensure that the driver
is properly compiled for the target SOC.
CMSIS Support
Along with the SoC header files and peripheral extension header files, the KSDK also includes common
CMSIS header files for the ARM Cortex-M core and the math and DSP libraries from the latest CMSIS
release. The CMSIS DSP library source code is also included for reference.
KSDK Peripheral Drivers
The KSDK peripheral drivers mainly consist of low-level functional APIs for the Kinetis MCU product
family on-chip peripherals and also of high-level transactional APIs for some bus drivers/DMA driver/e-
DMA driver to quickly enable the peripherals and perform transfers.
All KSDK peripheral drivers only depend on the CMSIS headers, device feature files, fsl_common.h, and
fsl_clock.h files so that users can easily pull selected drivers and their dependencies into projects. With the
exception of the clock/power-relevant peripherals, each peripheral has its own driver. Peripheral drivers
handle the peripheral clock gating/ungating inside the drivers during initialization and deinit respectively.
Low-level functional APIs provide common peripheral functionality, abstracting the hardware peripheral
register accesses into a set of stateless basic functional operations. These APIs primarily focus on the
control, configuration, and function of basic peripheral operations. The APIs hide the register access
details and various MCU peripheral instantiation differences so that the application can be abstracted from
the low-level hardware details. The API prototypes are intentionally similar to help ensure easy portability
across supported KSDK devices.
Transactional APIs provide a quick method for customers to utilize higher level functionality of the pe-
ripherals. The transactional APIs will utilize interrupts and perform asynchronous operations without user
intervention. Transactional APIs operate on high-level logic that requires data storage for internal opera-
tion context handling. However, the Peripheral Drivers do not allocate this memory space. Rather, the user
passes in the memory to the driver for internal driver operation. Transactional APIs ensure the NVIC is
enabled properly inside the drivers. The transactional APIs will not meet all customer needs, but provide
a baseline for development of custom user APIs.
Note that the transactional drivers will never disable an NVIC after use. This is due to the shared nature of
interrupt vectors on Kinetis devices. It’s up to the user to ensure that NVIC interrupts are properly disabled
after usage is complete.
Interrupt handling for transactional APIs
A double weak mechanism is introduced for drivers with transactional API. The double weak indicates
two levels of weak vector entries. See the examples below:
PUBWEAK SPI0_IRQHandler
PUBWEAK SPI0_DriverIRQHandler
SPI0_IRQHandler
LDR R0, =SPI0_DriverIRQHandler
BX R0
6
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
The first level of the weak implementation are the functions defined in the vector table. In the devices/<-
DEVICE_NAME>/<TOOLCHAIN>/startup_<DEVICE_NAME>.s/.S file, the implementation of the
first layer weak function calls the second layer of weak function. The implementation of the second layer
weak function (ex. SPI0_DriverIRQHandler) jumps to itself (B .). The KSDK drivers with transactional
APIs provide the reimplementation of the second layer function inside of the peripheral driver. If the
KSDK drivers with transactional APIs are linked into the image, the SPI0_DriverIRQHandler is replaced
with the function implemented in the KSDK SPI driver.
The reason for implementing the double weak functions is to provide a better user experience when using
the transactional APIs. For drivers with a transactional function, call the transactional APIs and the drivers
complete the interrupt-driven flow. Users are not required to redefine the vector entries out of the box.
At the same time, if users are not satisfied by the second layer weak function implemented in the KS-
DK drivers, users can redefine the first layer weak function and implement their own interrupt handler
functions to suit their implementation.
The limitation of the double weak mechanism is that it cannot be used for peripherals that share the same
vector entry. For this use case, redefine the first layer weak function to enable the desired peripheral
interrupt functionality. For example, if the MCU’s UART0 and UART1 share the same vector entry,
redefine the UART0_UART1_IRQHandler according to the use case requirements.
Feature Header Files
The peripheral drivers are designed to be reusable regardless of the peripheral functional differences from
one Kinetis MCU device to another. An overall Peripheral Feature Header File is provided for the KSD-
K-supported MCU device to define the features or configuration differences for each Kinetis sub-family
device.
Application
See the Getting Started with Kinetis SDK (KSDK) v2.0 document (KSDK20GSUG).
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
7
8
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 4
Trademarks
Information in this document is provided solely to enable system and software implementers to use
Freescale products. There are no express or implied copyright licenses granted hereunder to design or
fabricate any integrated circuits based on the information in this document.
How to Reach Us:
Home Page: nxp.com
Web Support: nxp.com/support
Freescale reserves the right to make changes without further notice to any products herein. Freescale
makes no warranty, representation, or guarantee regarding the suitability of its products for any particular
purpose, nor does Freescale assume any liability arising out of the application or use of any product or
circuit, and specifically disclaims any and all liability, including without limitation consequential or inci-
dental damages. “Typical” parameters that may be provided in Freescale data sheets and/or specifications
can and do vary in different applications, and actual performance may vary over time. All operating pa-
rameters, including “typicals,” must be validated for each customer application by customer’s technical
experts. Freescale does not convey any license under its patent rights nor the rights of others. Freescale
sells products pursuant to standard terms and conditions of sale, which can be found at the following
address: freescale.com/SalesTermsandConditions
Freescale, the Freescale logo, Kinetis, and Processor Expert are trademarks of Freescale Semiconductor,
Inc., Reg. U.S. Pat. & Tm. Off. Tower is a trademark of Freescale Semiconductor, Inc. All other product
or service names are the property of their respective owners. ARM, ARM powered logo, Keil, and Cortex
are registered trademarks of ARM Limited (or its subsidiaries) in the EU and/or elsewhere. All rights
reserved.
© 2016 Freescale Semiconductors, Inc.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
9
10
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 5
ADC16: 16-bit SAR Analog-to-Digital Converter Driver
5.1 Overview
The KSDK provides a Peripheral driver for the 16-bit SAR Analog-to-Digital Converter (ADC16) module
of Kinetis devices.
5.2 Typical use case
5.2.1 Polling Configuration
adc16_config_t adc16ConfigStruct;
adc16_channel_config_t adc16ChannelConfigStruct;
ADC16_Init(DEMO_ADC16_INSTANCE);
ADC16_GetDefaultConfig(&adc16ConfigStruct);
ADC16_Configure(DEMO_ADC16_INSTANCE, &adc16ConfigStruct);
ADC16_EnableHardwareTrigger(DEMO_ADC16_INSTANCE, false);
#if defined(FSL_FEATURE_ADC16_HAS_CALIBRATION) && FSL_FEATURE_ADC16_HAS_CALIBRATION
if (kStatus_Success == ADC16_DoAutoCalibration(DEMO_ADC16_INSTANCE))
{
PRINTF("ADC16_DoAutoCalibration() Done.\r\n");
}
else
{
PRINTF("ADC16_DoAutoCalibration() Failed.\r\n");
}
#endif // FSL_FEATURE_ADC16_HAS_CALIBRATION
adc16ChannelConfigStruct.channelNumber = DEMO_ADC16_USER_CHANNEL;
adc16ChannelConfigStruct.enableInterruptOnConversionCompleted =
false;
#if defined(FSL_FEATURE_ADC16_HAS_DIFF_MODE) && FSL_FEATURE_ADC16_HAS_DIFF_MODE
adc16ChannelConfigStruct.enableDifferentialConversion = false;
#endif // FSL_FEATURE_ADC16_HAS_DIFF_MODE
while(1)
{
GETCHAR(); // Input any key in terminal console.
ADC16_ChannelConfigure(DEMO_ADC16_INSTANCE, DEMO_ADC16_CHANNEL_GROUP, &adc16ChannelConfigStruct);
while (kADC16_ChannelConversionDoneFlag !=
ADC16_ChannelGetStatusFlags(DEMO_ADC16_INSTANCE, DEMO_ADC16_CHANNEL_GROUP))
{
}
PRINTF("ADC Value: %d\r\n", ADC16_ChannelGetConversionValue(DEMO_ADC16_INSTANCE,
DEMO_ADC16_CHANNEL_GROUP));
}
5.2.2 Interrupt Configuration
volatile bool g_Adc16ConversionDoneFlag = false;
volatile uint32_t g_Adc16ConversionValue;
volatile uint32_t g_Adc16InterruptCount = 0U;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
11
Typical use case
// ...
adc16_config_t adc16ConfigStruct;
adc16_channel_config_t adc16ChannelConfigStruct;
ADC16_Init(DEMO_ADC16_INSTANCE);
ADC16_GetDefaultConfig(&adc16ConfigStruct);
ADC16_Configure(DEMO_ADC16_INSTANCE, &adc16ConfigStruct);
ADC16_EnableHardwareTrigger(DEMO_ADC16_INSTANCE, false);
#if defined(FSL_FEATURE_ADC16_HAS_CALIBRATION) && FSL_FEATURE_ADC16_HAS_CALIBRATION
if (ADC16_DoAutoCalibration(DEMO_ADC16_INSTANCE))
{
PRINTF("ADC16_DoAutoCalibration() Done.\r\n");
}
else
{
PRINTF("ADC16_DoAutoCalibration() Failed.\r\n");
}
#endif // FSL_FEATURE_ADC16_HAS_CALIBRATION
adc16ChannelConfigStruct.channelNumber = DEMO_ADC16_USER_CHANNEL;
adc16ChannelConfigStruct.enableInterruptOnConversionCompleted =
true;// Enable the interrupt.
#if defined(FSL_FEATURE_ADC16_HAS_DIFF_MODE) && FSL_FEATURE_ADC16_HAS_DIFF_MODE
adc16ChannelConfigStruct.enableDifferentialConversion = false;
#endif // FSL_FEATURE_ADC16_HAS_DIFF_MODE
while(1)
{
GETCHAR(); // Input any key in terminal console.
g_Adc16ConversionDoneFlag = false;
ADC16_ChannelConfigure(DEMO_ADC16_INSTANCE, DEMO_ADC16_CHANNEL_GROUP, &adc16ChannelConfigStruct);
while (!g_Adc16ConversionDoneFlag)
{
}
PRINTF("ADC Value: %d\r\n", g_Adc16ConversionValue);
PRINTF("ADC Interrupt Count: %d\r\n", g_Adc16InterruptCount);
}
// ...
void DEMO_ADC16_IRQHandler(void)
{
g_Adc16ConversionDoneFlag = true;
// Read conversion result to clear the conversion completed flag.
g_Adc16ConversionValue = ADC16_ChannelConversionValue(DEMO_ADC16_INSTANCE, DEMO_ADC16_CHANNEL_GROUP
);
g_Adc16InterruptCount++;
}
Files
• file fsl_adc16.h
Data Structures
• struct adc16_config_t
ADC16 converter configuration . More...
• struct adc16_hardware_compare_config_t
ADC16 Hardware compare configuration. More...
• struct adc16_channel_config_t
ADC16 channel conversion configuration. More...
12
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
Enumerations
• enum _adc16_channel_status_flags {kADC16_ChannelConversionDoneFlag = ADC_SC1_COC-
O_MASK }
Channel status flags.
• enum _adc16_status_flags {kADC16_ActiveFlag = ADC_SC2_ADACT_MASK }
Converter status flags.
• enum adc16_clock_divider_t {
kADC16_ClockDivider1 = 0U,
kADC16_ClockDivider2 = 1U,
kADC16_ClockDivider4 = 2U,
kADC16_ClockDivider8 = 3U }
Clock divider for the converter.
• enum adc16_resolution_t {
kADC16_Resolution8or9Bit = 0U,
kADC16_Resolution12or13Bit = 1U,
kADC16_Resolution10or11Bit = 2U,
kADC16_ResolutionSE8Bit = kADC16_Resolution8or9Bit,
kADC16_ResolutionSE12Bit = kADC16_Resolution12or13Bit,
kADC16_ResolutionSE10Bit = kADC16_Resolution10or11Bit }
Converter’s resolution.
• enum adc16_clock_source_t {
kADC16_ClockSourceAlt0 = 0U,
kADC16_ClockSourceAlt1 = 1U,
kADC16_ClockSourceAlt2 = 2U,
kADC16_ClockSourceAlt3 = 3U,
kADC16_ClockSourceAsynchronousClock = kADC16_ClockSourceAlt3 }
Clock source.
• enum adc16_long_sample_mode_t {
kADC16_LongSampleCycle24 = 0U,
kADC16_LongSampleCycle16 = 1U,
kADC16_LongSampleCycle10 = 2U,
kADC16_LongSampleCycle6 = 3U,
kADC16_LongSampleDisabled = 4U }
Long sample mode.
• enum adc16_reference_voltage_source_t {
kADC16_ReferenceVoltageSourceVref = 0U,
kADC16_ReferenceVoltageSourceValt = 1U }
Reference voltage source.
• enum adc16_hardware_compare_mode_t {
kADC16_HardwareCompareMode0 = 0U,
kADC16_HardwareCompareMode1 = 1U,
kADC16_HardwareCompareMode2 = 2U,
kADC16_HardwareCompareMode3 = 3U }
Hardware compare mode.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
13
Data Structure Documentation
Driver version
• #define FSL_ADC16_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
ADC16 driver version 2.0.0.
Initialization
• void ADC16_Init (ADC_Type ∗base, const adc16_config_t ∗config)
Initializes the ADC16 module.
• void ADC16_Deinit (ADC_Type ∗base)
De-initializes the ADC16 module.
• void ADC16_GetDefaultConfig (adc16_config_t ∗config)
Gets an available pre-defined settings for converter’s configuration.
Advanced Feature
• static void ADC16_EnableHardwareTrigger (ADC_Type ∗base, bool enable)
Enables the hardware trigger mode.
• void ADC16_SetHardwareCompareConfig (ADC_Type ∗base, const adc16_hardware_compare_-
config_t ∗config)
Configures the hardware compare mode.
• uint32_t ADC16_GetStatusFlags (ADC_Type ∗base)
Gets the status flags of the converter.
• void ADC16_ClearStatusFlags (ADC_Type ∗base, uint32_t mask)
Clears the status flags of the converter.
Conversion Channel
• void ADC16_SetChannelConfig (ADC_Type ∗base, uint32_t channelGroup, const adc16_channel-
_config_t ∗config)
Configures the conversion channel.
• static uint32_t ADC16_GetChannelConversionValue (ADC_Type ∗base, uint32_t channelGroup)
Gets the conversion value.
• uint32_t ADC16_GetChannelStatusFlags (ADC_Type ∗base, uint32_t channelGroup)
Gets the status flags of channel.
5.3 Data Structure Documentation
5.3.1 struct adc16_config_t
Data Fields
•adc16_reference_voltage_source_t referenceVoltageSource
Select the reference voltage source.
•adc16_clock_source_t clockSource
Select the input clock source to converter.
• bool enableAsynchronousClock
Enable the asynchronous clock output.
•adc16_clock_divider_t clockDivider
Select the divider of input clock source.
14
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
•adc16_resolution_t resolution
Select the sample resolution mode.
•adc16_long_sample_mode_t longSampleMode
Select the long sample mode.
• bool enableHighSpeed
Enable the high-speed mode.
• bool enableLowPower
Enable low power.
• bool enableContinuousConversion
Enable continuous conversion mode.
5.3.1.0.0.1 Field Documentation
5.3.1.0.0.1.1 adc16_reference_voltage_source_t adc16_config_t::referenceVoltageSource
5.3.1.0.0.1.2 adc16_clock_source_t adc16_config_t::clockSource
5.3.1.0.0.1.3 bool adc16_config_t::enableAsynchronousClock
5.3.1.0.0.1.4 adc16_clock_divider_t adc16_config_t::clockDivider
5.3.1.0.0.1.5 adc16_resolution_t adc16_config_t::resolution
5.3.1.0.0.1.6 adc16_long_sample_mode_t adc16_config_t::longSampleMode
5.3.1.0.0.1.7 bool adc16_config_t::enableHighSpeed
5.3.1.0.0.1.8 bool adc16_config_t::enableLowPower
5.3.1.0.0.1.9 bool adc16_config_t::enableContinuousConversion
5.3.2 struct adc16_hardware_compare_config_t
Data Fields
•adc16_hardware_compare_mode_t hardwareCompareMode
Select the hardware compare mode.
• int16_t value1
Setting value1 for hardware compare mode.
• int16_t value2
Setting value2 for hardware compare mode.
5.3.2.0.0.2 Field Documentation
5.3.2.0.0.2.1 adc16_hardware_compare_mode_t adc16_hardware_compare_config_t::hardware-
CompareMode
See "adc16_hardware_compare_mode_t".
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
15
Enumeration Type Documentation
5.3.2.0.0.2.2 int16_t adc16_hardware_compare_config_t::value1
5.3.2.0.0.2.3 int16_t adc16_hardware_compare_config_t::value2
5.3.3 struct adc16_channel_config_t
Data Fields
• uint32_t channelNumber
Setting the conversion channel number.
• bool enableInterruptOnConversionCompleted
Generate a interrupt request once the conversion is completed.
5.3.3.0.0.3 Field Documentation
5.3.3.0.0.3.1 uint32_t adc16_channel_config_t::channelNumber
The available range is 0-31. See channel connection information for each chip in Reference Manual
document.
5.3.3.0.0.3.2 bool adc16_channel_config_t::enableInterruptOnConversionCompleted
5.4 Macro Definition Documentation
5.4.1 #define FSL_ADC16_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
5.5 Enumeration Type Documentation
5.5.1 enum _adc16_channel_status_flags
Enumerator
kADC16_ChannelConversionDoneFlag Conversion done.
5.5.2 enum _adc16_status_flags
Enumerator
kADC16_ActiveFlag Converter is active.
5.5.3 enum adc16_clock_divider_t
Enumerator
kADC16_ClockDivider1 For divider 1 from the input clock to the module.
16
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
kADC16_ClockDivider2 For divider 2 from the input clock to the module.
kADC16_ClockDivider4 For divider 4 from the input clock to the module.
kADC16_ClockDivider8 For divider 8 from the input clock to the module.
5.5.4 enum adc16_resolution_t
Enumerator
kADC16_Resolution8or9Bit Single End 8-bit or Differential Sample 9-bit.
kADC16_Resolution12or13Bit Single End 12-bit or Differential Sample 13-bit.
kADC16_Resolution10or11Bit Single End 10-bit or Differential Sample 11-bit.
kADC16_ResolutionSE8Bit Single End 8-bit.
kADC16_ResolutionSE12Bit Single End 12-bit.
kADC16_ResolutionSE10Bit Single End 10-bit.
5.5.5 enum adc16_clock_source_t
Enumerator
kADC16_ClockSourceAlt0 Selection 0 of the clock source.
kADC16_ClockSourceAlt1 Selection 1 of the clock source.
kADC16_ClockSourceAlt2 Selection 2 of the clock source.
kADC16_ClockSourceAlt3 Selection 3 of the clock source.
kADC16_ClockSourceAsynchronousClock Using internal asynchronous clock.
5.5.6 enum adc16_long_sample_mode_t
Enumerator
kADC16_LongSampleCycle24 20 extra ADCK cycles, 24 ADCK cycles total.
kADC16_LongSampleCycle16 12 extra ADCK cycles, 16 ADCK cycles total.
kADC16_LongSampleCycle10 6 extra ADCK cycles, 10 ADCK cycles total.
kADC16_LongSampleCycle6 2 extra ADCK cycles, 6 ADCK cycles total.
kADC16_LongSampleDisabled Disable the long sample feature.
5.5.7 enum adc16_reference_voltage_source_t
Enumerator
kADC16_ReferenceVoltageSourceVref For external pins pair of VrefH and VrefL.
kADC16_ReferenceVoltageSourceValt For alternate reference pair of ValtH and ValtL.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
17
Function Documentation
5.5.8 enum adc16_hardware_compare_mode_t
Enumerator
kADC16_HardwareCompareMode0 x<value1.
kADC16_HardwareCompareMode1 x>value1.
kADC16_HardwareCompareMode2 if value1 <= value2, then x <value1 || x>value2; else,
value1 >x>value2.
kADC16_HardwareCompareMode3 if value1 <= value2, then value1 <= x <= value2; else x >=
value1 || x<= value2.
5.6 Function Documentation
5.6.1 void ADC16_Init ( ADC_Type ∗base, const adc16_config_t ∗config )
Parameters
base ADC16 peripheral base address.
config Pointer to configuration structure. See "adc16_config_t".
5.6.2 void ADC16_Deinit ( ADC_Type ∗base )
Parameters
base ADC16 peripheral base address.
5.6.3 void ADC16_GetDefaultConfig ( adc16_config_t ∗config )
This function initializes the converter configuration structure with an available settings. The default values
are:
config->referenceVoltageSource = kADC16_ReferenceVoltageSourceVref;
config->clockSource = kADC16_ClockSourceAsynchronousClock
;
config->enableAsynchronousClock = true;
config->clockDivider = kADC16_ClockDivider8;
config->resolution = kADC16_ResolutionSE12Bit;
config->longSampleMode = kADC16_LongSampleDisabled;
config->enableHighSpeed = false;
config->enableLowPower = false;
config->enableContinuousConversion = false;
18
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
config Pointer to configuration structure.
5.6.4 static void ADC16_EnableHardwareTrigger ( ADC_Type ∗base, bool enable )
[inline],[static]
Parameters
base ADC16 peripheral base address.
enable Switcher of hardware trigger feature. "true" means to enable, "false" means not.
5.6.5 void ADC16_SetHardwareCompareConfig ( ADC_Type ∗base, const
adc16_hardware_compare_config_t ∗config )
The hardware compare mode provides a way to process the conversion result automatically by hardware.
Only the result in compare range is available. To compare the range, see "adc16_hardware_compare_-
mode_t", or the reference manual document for more detailed information.
Parameters
base ADC16 peripheral base address.
config Pointer to "adc16_hardware_compare_config_t" structure. Passing "NULL" is to dis-
able the feature.
5.6.6 uint32_t ADC16_GetStatusFlags ( ADC_Type ∗base )
Parameters
base ADC16 peripheral base address.
Returns
Flags’ mask if indicated flags are asserted. See "_adc16_status_flags".
5.6.7 void ADC16_ClearStatusFlags ( ADC_Type ∗base, uint32_t mask )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
19
Function Documentation
Parameters
base ADC16 peripheral base address.
mask Mask value for the cleared flags. See "_adc16_status_flags".
5.6.8 void ADC16_SetChannelConfig ( ADC_Type ∗base, uint32_t channelGroup,
const adc16_channel_config_t ∗config )
This operation triggers the conversion if in software trigger mode. When in hardware trigger mode, this
API configures the channel while the external trigger source helps to trigger the conversion.
Note that the "Channel Group" has a detailed description. To allow sequential conversions of the ADC to
be triggered by internal peripherals, the ADC can have more than one group of status and control register,
one for each conversion. The channel group parameter indicates which group of registers are used channel
group 0 is for Group A registers and channel group 1 is for Group B registers. The channel groups are used
in a "ping-pong" approach to control the ADC operation. At any point, only one of the channel groups
is actively controlling ADC conversions. Channel group 0 is used for both software and hardware trigger
modes of operation. Channel groups 1 and greater indicate potentially multiple channel group registers
for use only in hardware trigger mode. See the chip configuration information in the MCU reference
manual about the number of SC1n registers (channel groups) specific to this device. None of the channel
groups 1 or greater are used for software trigger operation and therefore writes to these channel groups
do not initiate a new conversion. Updating channel group 0 while a different channel group is actively
controlling a conversion is allowed and vice versa. Writing any of the channel group registers while that
specific channel group is actively controlling a conversion aborts the current conversion.
Parameters
base ADC16 peripheral base address.
channelGroup Channel group index.
config Pointer to "adc16_channel_config_t" structure for conversion channel.
5.6.9 static uint32_t ADC16_GetChannelConversionValue ( ADC_Type ∗base,
uint32_t channelGroup )[inline],[static]
Parameters
20
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
base ADC16 peripheral base address.
channelGroup Channel group index.
Returns
Conversion value.
5.6.10 uint32_t ADC16_GetChannelStatusFlags ( ADC_Type ∗base, uint32_t
channelGroup )
Parameters
base ADC16 peripheral base address.
channelGroup Channel group index.
Returns
Flags’ mask if indicated flags are asserted. See "_adc16_channel_status_flags".
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
21
Function Documentation
22
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 6
Clock Driver
6.1 Overview
The KSDK provides APIs for Kinetis devices clock operation.
6.2 Get frequency
There is a centralized function CLOCK_GetFreq to get different types of clock frequency by passing in
clock name, for example, pass in kCLOCK_CoreSysClk to get core clock, pass in kCLOCK_BusClk to
get bus clock. Beside, there are also separate functions to get frequency, for example, use CLOCK_Get-
CoreSysClkFreq to get core clock frequency, use CLOCK_GetBusClkFreq to get bus clock frequency, use
these separate functions could reduce image size.
6.3 External clock frequency
The external clock EXTAL0/EXTAL1/EXTAL32 are decided by board level design. Clock driver uses
variables g_xtal0Freq/g_xtal1Freq/g_xtal32Freq to save these clock frequency. Correspondingly, the AP-
Is CLOCK_SetXtal0Freq, CLOCK_SetXtal1Freq and CLOCK_SetXtal32Freq are used to set these vari-
ables.
Upper layer must set these values correctly, for example, after OSC0(SYSOSC) is initialized using CLO-
CK_InitOsc0 or CLOCK_InitSysOsc, upper layer should call CLOCK_SetXtal0Freq too. Otherwise, the
clock frequency get functions may not get valid value. This is useful for multi-core platforms, only one
core calls CLOCK_InitOsc0 to initialize OSC0, other cores only need to call CLOCK_SetXtal0Freq.
The next section shows the MCG_Lite based APIs, the MCG based APIs are similar, will not explain in
this document.
Modules
•Multipurpose Clock Generator Lite (MCGLITE)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
23
Multipurpose Clock Generator Lite (MCGLITE)
6.4 Multipurpose Clock Generator Lite (MCGLITE)
6.4.1 Overview
The KSDK provides a peripheral driver for the MCG_Lite module of Kinetis devices.
6.4.2 Function description
The MCG_Lite driver provides three kinds of APIs:
1. APIs to get the MCG_Lite frequency.
2. APIs for MCG_Lite mode.
3. APIs for OSC setup.
6.4.2.1 MCG_Lite clock frequency
The CLOCK_GetOutClkFreq(),CLOCK_GetInternalRefClkFreq() and CLOCK_GetPeriphClkFreq()
functions are used to get the frequency of MCGOUTCLK, MCGIRCLK, and MCGPCLK based on the
current hardware setting.
6.4.2.2 MCG_Lite mode
The function CLOCK_GetMode() gets the current MCG_Lite mode.
The function CLOCK_SetMcgliteConfig() sets the MCG_Lite to a desired configuration. The MCG_Lite
can’t switch between the LIRC2M and LIRC8M. Instead, the function switches to the HIRC mode first
and then switches to the target mode.
6.4.2.3 OSC configuration
To enable the OSC clock, the MCG_Lite is needed together with the OSC module. The function CLOCK-
_InitOsc0() uses the MCG_Lite and the OSC to initialize the OSC. The OSC should be configured based
on the board design.
Data Structures
• struct sim_clock_config_t
SIM configuration structure for clock setting. More...
• struct oscer_config_t
OSC configuration for OSCERCLK. More...
• struct osc_config_t
OSC Initialization Configuration Structure. More...
• struct mcglite_config_t
MCG_Lite configure structure for mode change. More...
24
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
Macros
• #define FSL_CLOCK_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
Clock driver version.
• #define DMAMUX_CLOCKS
Clock ip name array for DMAMUX.
• #define RTC_CLOCKS
Clock ip name array for RTC.
• #define SAI_CLOCKS
Clock ip name array for SAI.
• #define SPI_CLOCKS
Clock ip name array for SPI.
• #define SLCD_CLOCKS
Clock ip name array for SLCD.
• #define PIT_CLOCKS
Clock ip name array for PIT.
• #define PORT_CLOCKS
Clock ip name array for PORT.
• #define LPUART_CLOCKS
Clock ip name array for LPUART.
• #define DAC_CLOCKS
Clock ip name array for DAC.
• #define LPTMR_CLOCKS
Clock ip name array for LPTMR.
• #define ADC16_CLOCKS
Clock ip name array for ADC16.
• #define FLEXIO_CLOCKS
Clock ip name array for FLEXIO.
• #define VREF_CLOCKS
Clock ip name array for VREF.
• #define DMA_CLOCKS
Clock ip name array for DMA.
• #define UART_CLOCKS
Clock ip name array for UART.
• #define TPM_CLOCKS
Clock ip name array for TPM.
• #define I2C_CLOCKS
Clock ip name array for I2C.
• #define FTF_CLOCKS
Clock ip name array for FTF.
• #define CMP_CLOCKS
Clock ip name array for CMP.
• #define LPO_CLK_FREQ 1000U
LPO clock frequency.
• #define SYS_CLK kCLOCK_CoreSysClk
Peripherals clock source definition.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
25
Multipurpose Clock Generator Lite (MCGLITE)
Enumerations
• enum clock_name_t {
kCLOCK_CoreSysClk,
kCLOCK_PlatClk,
kCLOCK_BusClk,
kCLOCK_FlexBusClk,
kCLOCK_FlashClk,
kCLOCK_FastPeriphClk,
kCLOCK_PllFllSelClk,
kCLOCK_Er32kClk,
kCLOCK_Osc0ErClk,
kCLOCK_Osc1ErClk,
kCLOCK_Osc0ErClkUndiv,
kCLOCK_McgFixedFreqClk,
kCLOCK_McgInternalRefClk,
kCLOCK_McgFllClk,
kCLOCK_McgPll0Clk,
kCLOCK_McgPll1Clk,
kCLOCK_McgExtPllClk,
kCLOCK_McgPeriphClk,
kCLOCK_McgIrc48MClk,
kCLOCK_LpoClk }
Clock name used to get clock frequency.
• enum clock_usb_src_t {
kCLOCK_UsbSrcIrc48M = SIM_SOPT2_USBSRC(1U),
kCLOCK_UsbSrcExt = SIM_SOPT2_USBSRC(0U) }
USB clock source definition.
• enum clock_ip_name_t
Clock gate name used for CLOCK_EnableClock/CLOCK_DisableClock.
• enum _osc_cap_load {
kOSC_Cap2P = OSC_CR_SC2P_MASK,
kOSC_Cap4P = OSC_CR_SC4P_MASK,
kOSC_Cap8P = OSC_CR_SC8P_MASK,
kOSC_Cap16P = OSC_CR_SC16P_MASK }
Oscillator capacitor load setting.
• enum _oscer_enable_mode {
kOSC_ErClkEnable = OSC_CR_ERCLKEN_MASK,
kOSC_ErClkEnableInStop = OSC_CR_EREFSTEN_MASK }
OSCERCLK enable mode.
• enum osc_mode_t {
kOSC_ModeExt = 0U,
kOSC_ModeOscLowPower = MCG_C2_EREFS0_MASK,
kOSC_ModeOscHighGain = MCG_C2_EREFS0_MASK |MCG_C2_HGO0_MASK }
OSC work mode.
• enum mcglite_clkout_src_t {
26
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
kMCGLITE_ClkSrcHirc,
kMCGLITE_ClkSrcLirc,
kMCGLITE_ClkSrcExt }
MCG_Lite clock source selection.
• enum mcglite_lirc_mode_t {
kMCGLITE_Lirc2M,
kMCGLITE_Lirc8M }
MCG_Lite LIRC select.
• enum mcglite_lirc_div_t {
kMCGLITE_LircDivBy1 = 0U,
kMCGLITE_LircDivBy2,
kMCGLITE_LircDivBy4,
kMCGLITE_LircDivBy8,
kMCGLITE_LircDivBy16,
kMCGLITE_LircDivBy32,
kMCGLITE_LircDivBy64,
kMCGLITE_LircDivBy128 }
MCG_Lite divider factor selection for clock source.
• enum mcglite_mode_t {
kMCGLITE_ModeHirc48M,
kMCGLITE_ModeLirc8M,
kMCGLITE_ModeLirc2M,
kMCGLITE_ModeExt,
kMCGLITE_ModeError }
MCG_Lite clock mode definitions.
• enum _mcglite_irclk_enable_mode {
kMCGLITE_IrclkEnable = MCG_C1_IRCLKEN_MASK,
kMCGLITE_IrclkEnableInStop = MCG_C1_IREFSTEN_MASK }
MCG internal reference clock (MCGIRCLK) enable mode definition.
Functions
• static void CLOCK_SetXtal0Freq (uint32_t freq)
Set the XTAL0 frequency based on board setting.
• static void CLOCK_SetXtal32Freq (uint32_t freq)
Set the XTAL32/RTC_CLKIN frequency based on board setting.
• static void CLOCK_EnableClock (clock_ip_name_t name)
Enable the clock for specific IP.
• static void CLOCK_DisableClock (clock_ip_name_t name)
Disable the clock for specific IP.
• static void CLOCK_SetEr32kClock (uint32_t src)
Set ERCLK32K source.
• static void CLOCK_SetLpuart0Clock (uint32_t src)
Set LPUART0 clock source.
• static void CLOCK_SetLpuart1Clock (uint32_t src)
Set LPUART1 clock source.
• static void CLOCK_SetTpmClock (uint32_t src)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
27
Multipurpose Clock Generator Lite (MCGLITE)
Set TPM clock source.
• static void CLOCK_SetFlexio0Clock (uint32_t src)
Set FLEXIO clock source.
• bool CLOCK_EnableUsbfs0Clock (clock_usb_src_t src, uint32_t freq)
Enable USB FS clock.
• static void CLOCK_DisableUsbfs0Clock (void)
Disable USB FS clock.
• static void CLOCK_SetClkOutClock (uint32_t src)
Set CLKOUT source.
• static void CLOCK_SetRtcClkOutClock (uint32_t src)
Set RTC_CLKOUT source.
• static void CLOCK_SetOutDiv (uint32_t outdiv1, uint32_t outdiv4)
System clock divider.
• uint32_t CLOCK_GetFreq (clock_name_t clockName)
Gets the clock frequency for a specific clock name.
• uint32_t CLOCK_GetCoreSysClkFreq (void)
Get the core clock or system clock frequency.
• uint32_t CLOCK_GetPlatClkFreq (void)
Get the platform clock frequency.
• uint32_t CLOCK_GetBusClkFreq (void)
Get the bus clock frequency.
• uint32_t CLOCK_GetFlashClkFreq (void)
Get the flash clock frequency.
• uint32_t CLOCK_GetEr32kClkFreq (void)
Get the external reference 32K clock frequency (ERCLK32K).
• uint32_t CLOCK_GetOsc0ErClkFreq (void)
Get the OSC0 external reference clock frequency (OSC0ERCLK).
• void CLOCK_SetSimConfig (sim_clock_config_t const ∗config)
Set the clock configure in SIM module.
• static void CLOCK_SetSimSafeDivs (void)
Set the system clock dividers in SIM to safe value.
Variables
• uint32_t g_xtal0Freq
External XTAL0 (OSC0) clock frequency.
• uint32_t g_xtal32Freq
External XTAL32/EXTAL32/RTC_CLKIN clock frequency.
MCG_Lite clock frequency
• uint32_t CLOCK_GetOutClkFreq (void)
Gets the MCG_Lite output clock (MCGOUTCLK) frequency.
• uint32_t CLOCK_GetInternalRefClkFreq (void)
Gets the MCG internal reference clock (MCGIRCLK) frequency.
• uint32_t CLOCK_GetPeriphClkFreq (void)
Gets the current MCGPCLK frequency.
28
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
MCG_Lite mode.
•mcglite_mode_t CLOCK_GetMode (void)
Gets the current MCG_Lite mode.
• status_t CLOCK_SetMcgliteConfig (mcglite_config_t const ∗targetConfig)
Sets the MCG_Lite configuration.
OSC configuration
• static void OSC_SetExtRefClkConfig (OSC_Type ∗base, oscer_config_t const ∗config)
Configures the OSC external reference clock (OSCERCLK).
• static void OSC_SetCapLoad (OSC_Type ∗base, uint8_t capLoad)
Sets the capacitor load configuration for the oscillator.
• void CLOCK_InitOsc0 (osc_config_t const ∗config)
Initialize OSC0.
• void CLOCK_DeinitOsc0 (void)
Deinitializes the OSC0.
6.4.3 Data Structure Documentation
6.4.3.1 struct sim_clock_config_t
Data Fields
• uint8_t er32kSrc
ERCLK32K source selection.
• uint32_t clkdiv1
SIM_CLKDIV1.
6.4.3.1.0.4 Field Documentation
6.4.3.1.0.4.1 uint8_t sim_clock_config_t::er32kSrc
6.4.3.1.0.4.2 uint32_t sim_clock_config_t::clkdiv1
6.4.3.2 struct oscer_config_t
Data Fields
• uint8_t enableMode
OSCERCLK enable mode.
6.4.3.2.0.5 Field Documentation
6.4.3.2.0.5.1 uint8_t oscer_config_t::enableMode
OR’ed value of _oscer_enable_mode.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
29
Multipurpose Clock Generator Lite (MCGLITE)
6.4.3.3 struct osc_config_t
Defines the configuration data structure to initialize the OSC. When porting to a new board, set the fol-
lowing members according to board settings:
1. freq: The external frequency.
2. workMode: The OSC module mode.
Data Fields
• uint32_t freq
External clock frequency.
• uint8_t capLoad
Capacitor load setting.
•osc_mode_t workMode
OSC work mode setting.
•oscer_config_t oscerConfig
Configuration for OSCERCLK.
6.4.3.3.0.6 Field Documentation
6.4.3.3.0.6.1 uint32_t osc_config_t::freq
6.4.3.3.0.6.2 uint8_t osc_config_t::capLoad
6.4.3.3.0.6.3 osc_mode_t osc_config_t::workMode
6.4.3.3.0.6.4 oscer_config_t osc_config_t::oscerConfig
6.4.3.4 struct mcglite_config_t
Data Fields
•mcglite_clkout_src_t outSrc
MCGOUT clock select.
• uint8_t irclkEnableMode
MCGIRCLK enable mode, OR’ed value of _mcglite_irclk_enable_mode.
•mcglite_lirc_mode_t ircs
MCG_C2[IRCS].
•mcglite_lirc_div_t fcrdiv
MCG_SC[FCRDIV].
•mcglite_lirc_div_t lircDiv2
MCG_MC[LIRC_DIV2].
• bool hircEnableInNotHircMode
HIRC enable when not in HIRC mode.
30
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
6.4.3.4.0.7 Field Documentation
6.4.3.4.0.7.1 mcglite_clkout_src_t mcglite_config_t::outSrc
6.4.3.4.0.7.2 uint8_t mcglite_config_t::irclkEnableMode
6.4.3.4.0.7.3 mcglite_lirc_mode_t mcglite_config_t::ircs
6.4.3.4.0.7.4 mcglite_lirc_div_t mcglite_config_t::fcrdiv
6.4.3.4.0.7.5 mcglite_lirc_div_t mcglite_config_t::lircDiv2
6.4.3.4.0.7.6 bool mcglite_config_t::hircEnableInNotHircMode
6.4.4 Macro Definition Documentation
6.4.4.1 #define FSL_CLOCK_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
Version 2.1.0.
6.4.4.2 #define DMAMUX_CLOCKS
Value:
{\
kCLOCK_Dmamux0 \
}
6.4.4.3 #define RTC_CLOCKS
Value:
{\
kCLOCK_Rtc0 \
}
6.4.4.4 #define SAI_CLOCKS
Value:
{\
kCLOCK_Sai0 \
}
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
31
Multipurpose Clock Generator Lite (MCGLITE)
6.4.4.5 #define SPI_CLOCKS
Value:
{\
kCLOCK_Spi0, kCLOCK_Spi1 \
}
6.4.4.6 #define SLCD_CLOCKS
Value:
{\
kCLOCK_Slcd0 \
}
6.4.4.7 #define PIT_CLOCKS
Value:
{\
kCLOCK_Pit0 \
}
6.4.4.8 #define PORT_CLOCKS
Value:
{\
kCLOCK_PortA, kCLOCK_PortB, kCLOCK_PortC, kCLOCK_PortD, kCLOCK_PortE \
}
6.4.4.9 #define LPUART_CLOCKS
Value:
{\
kCLOCK_Lpuart0, kCLOCK_Lpuart1 \
}
32
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
6.4.4.10 #define DAC_CLOCKS
Value:
{\
kCLOCK_Dac0 \
}
6.4.4.11 #define LPTMR_CLOCKS
Value:
{\
kCLOCK_Lptmr0 \
}
6.4.4.12 #define ADC16_CLOCKS
Value:
{\
kCLOCK_Adc0 \
}
6.4.4.13 #define FLEXIO_CLOCKS
Value:
{\
kCLOCK_Flexio0 \
}
6.4.4.14 #define VREF_CLOCKS
Value:
{\
kCLOCK_Vref0 \
}
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
33
Multipurpose Clock Generator Lite (MCGLITE)
6.4.4.15 #define DMA_CLOCKS
Value:
{\
kCLOCK_Dma0 \
}
6.4.4.16 #define UART_CLOCKS
Value:
{\
kCLOCK_IpInvalid, kCLOCK_IpInvalid, kCLOCK_Uart2 \
}
6.4.4.17 #define TPM_CLOCKS
Value:
{\
kCLOCK_Tpm0, kCLOCK_Tpm1, kCLOCK_Tpm2 \
}
6.4.4.18 #define I2C_CLOCKS
Value:
{\
kCLOCK_I2c0, kCLOCK_I2c1 \
}
6.4.4.19 #define FTF_CLOCKS
Value:
{\
kCLOCK_Ftf0 \
}
34
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
6.4.4.20 #define CMP_CLOCKS
Value:
{\
kCLOCK_Cmp0, kCLOCK_Cmp1, kCLOCK_Cmp2 \
}
6.4.4.21 #define SYS_CLK kCLOCK_CoreSysClk
6.4.5 Enumeration Type Documentation
6.4.5.1 enum clock_name_t
Enumerator
kCLOCK_CoreSysClk Core/system clock.
kCLOCK_PlatClk Platform clock.
kCLOCK_BusClk Bus clock.
kCLOCK_FlexBusClk FlexBus clock.
kCLOCK_FlashClk Flash clock.
kCLOCK_FastPeriphClk Fast peripheral clock.
kCLOCK_PllFllSelClk The clock after SIM[PLLFLLSEL].
kCLOCK_Er32kClk External reference 32K clock (ERCLK32K)
kCLOCK_Osc0ErClk OSC0 external reference clock (OSC0ERCLK)
kCLOCK_Osc1ErClk OSC1 external reference clock (OSC1ERCLK)
kCLOCK_Osc0ErClkUndiv OSC0 external reference undivided clock(OSC0ERCLK_UNDIV).
kCLOCK_McgFixedFreqClk MCG fixed frequency clock (MCGFFCLK)
kCLOCK_McgInternalRefClk MCG internal reference clock (MCGIRCLK)
kCLOCK_McgFllClk MCGFLLCLK.
kCLOCK_McgPll0Clk MCGPLL0CLK.
kCLOCK_McgPll1Clk MCGPLL1CLK.
kCLOCK_McgExtPllClk EXT_PLLCLK.
kCLOCK_McgPeriphClk MCG peripheral clock (MCGPCLK)
kCLOCK_McgIrc48MClk MCG IRC48M clock.
kCLOCK_LpoClk LPO clock.
6.4.5.2 enum clock_usb_src_t
Enumerator
kCLOCK_UsbSrcIrc48M Use IRC48M.
kCLOCK_UsbSrcExt Use USB_CLKIN.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
35
Multipurpose Clock Generator Lite (MCGLITE)
6.4.5.3 enum clock_ip_name_t
6.4.5.4 enum _osc_cap_load
Enumerator
kOSC_Cap2P 2 pF capacitor load
kOSC_Cap4P 4 pF capacitor load
kOSC_Cap8P 8 pF capacitor load
kOSC_Cap16P 16 pF capacitor load
6.4.5.5 enum _oscer_enable_mode
Enumerator
kOSC_ErClkEnable Enable.
kOSC_ErClkEnableInStop Enable in stop mode.
6.4.5.6 enum osc_mode_t
Enumerator
kOSC_ModeExt Use external clock.
kOSC_ModeOscLowPower Oscillator low power.
kOSC_ModeOscHighGain Oscillator high gain.
6.4.5.7 enum mcglite_clkout_src_t
Enumerator
kMCGLITE_ClkSrcHirc MCGOUTCLK source is HIRC.
kMCGLITE_ClkSrcLirc MCGOUTCLK source is LIRC.
kMCGLITE_ClkSrcExt MCGOUTCLK source is external clock source.
6.4.5.8 enum mcglite_lirc_mode_t
Enumerator
kMCGLITE_Lirc2M Slow internal reference(LIRC) 2MHz clock selected.
kMCGLITE_Lirc8M Slow internal reference(LIRC) 8MHz clock selected.
36
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
6.4.5.9 enum mcglite_lirc_div_t
Enumerator
kMCGLITE_LircDivBy1 Divider is 1.
kMCGLITE_LircDivBy2 Divider is 2.
kMCGLITE_LircDivBy4 Divider is 4.
kMCGLITE_LircDivBy8 Divider is 8.
kMCGLITE_LircDivBy16 Divider is 16.
kMCGLITE_LircDivBy32 Divider is 32.
kMCGLITE_LircDivBy64 Divider is 64.
kMCGLITE_LircDivBy128 Divider is 128.
6.4.5.10 enum mcglite_mode_t
Enumerator
kMCGLITE_ModeHirc48M Clock mode is HIRC 48 M.
kMCGLITE_ModeLirc8M Clock mode is LIRC 8 M.
kMCGLITE_ModeLirc2M Clock mode is LIRC 2 M.
kMCGLITE_ModeExt Clock mode is EXT.
kMCGLITE_ModeError Unknown mode.
6.4.5.11 enum _mcglite_irclk_enable_mode
Enumerator
kMCGLITE_IrclkEnable MCGIRCLK enable.
kMCGLITE_IrclkEnableInStop MCGIRCLK enable in stop mode.
6.4.6 Function Documentation
6.4.6.1 static void CLOCK_SetXtal0Freq ( uint32_t freq )[inline],[static]
Parameters
freq The XTAL0/EXTAL0 input clock frequency in Hz.
6.4.6.2 static void CLOCK_SetXtal32Freq ( uint32_t freq )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
37
Multipurpose Clock Generator Lite (MCGLITE)
Parameters
freq The XTAL32/EXTAL32/RTC_CLKIN input clock frequency in Hz.
6.4.6.3 static void CLOCK_EnableClock ( clock_ip_name_t name )[inline],
[static]
Parameters
name Which clock to enable, see clock_ip_name_t.
6.4.6.4 static void CLOCK_DisableClock ( clock_ip_name_t name )[inline],
[static]
Parameters
name Which clock to disable, see clock_ip_name_t.
6.4.6.5 static void CLOCK_SetEr32kClock ( uint32_t src )[inline],[static]
Parameters
src The value to set ERCLK32K clock source.
6.4.6.6 static void CLOCK_SetLpuart0Clock ( uint32_t src )[inline],[static]
Parameters
src The value to set LPUART0 clock source.
6.4.6.7 static void CLOCK_SetLpuart1Clock ( uint32_t src )[inline],[static]
Parameters
38
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
src The value to set LPUART1 clock source.
6.4.6.8 static void CLOCK_SetTpmClock ( uint32_t src )[inline],[static]
Parameters
src The value to set TPM clock source.
6.4.6.9 static void CLOCK_SetFlexio0Clock ( uint32_t src )[inline],[static]
Parameters
src The value to set FLEXIO clock source.
6.4.6.10 bool CLOCK_EnableUsbfs0Clock ( clock_usb_src_t src, uint32_t freq )
Parameters
src USB FS clock source.
freq The frequency specified by src.
Return values
true The clock is set successfully.
false The clock source is invalid to get proper USB FS clock.
6.4.6.11 static void CLOCK_DisableUsbfs0Clock ( void ) [inline],[static]
Disable USB FS clock.
6.4.6.12 static void CLOCK_SetClkOutClock ( uint32_t src )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
39
Multipurpose Clock Generator Lite (MCGLITE)
Parameters
src The value to set CLKOUT source.
6.4.6.13 static void CLOCK_SetRtcClkOutClock ( uint32_t src )[inline],[static]
Parameters
src The value to set RTC_CLKOUT source.
6.4.6.14 static void CLOCK_SetOutDiv ( uint32_t outdiv1, uint32_t outdiv4 )[inline],
[static]
Set the SIM_CLKDIV1[OUTDIV1], SIM_CLKDIV1[OUTDIV4].
Parameters
outdiv1 Clock 1 output divider value.
outdiv4 Clock 4 output divider value.
6.4.6.15 uint32_t CLOCK_GetFreq ( clock_name_t clockName )
This function checks the current clock configurations and then calculates the clock frequency for a specific
clock name defined in clock_name_t. The MCG must be properly configured before using this function.
Parameters
clockName Clock names defined in clock_name_t
Returns
Clock frequency value in Hertz
6.4.6.16 uint32_t CLOCK_GetCoreSysClkFreq ( void )
Returns
Clock frequency in Hz.
40
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
6.4.6.17 uint32_t CLOCK_GetPlatClkFreq ( void )
Returns
Clock frequency in Hz.
6.4.6.18 uint32_t CLOCK_GetBusClkFreq ( void )
Returns
Clock frequency in Hz.
6.4.6.19 uint32_t CLOCK_GetFlashClkFreq ( void )
Returns
Clock frequency in Hz.
6.4.6.20 uint32_t CLOCK_GetEr32kClkFreq ( void )
Returns
Clock frequency in Hz.
6.4.6.21 uint32_t CLOCK_GetOsc0ErClkFreq ( void )
Returns
Clock frequency in Hz.
6.4.6.22 void CLOCK_SetSimConfig ( sim_clock_config_t const ∗config )
This function sets system layer clock settings in SIM module.
Parameters
config Pointer to the configure structure.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
41
Multipurpose Clock Generator Lite (MCGLITE)
6.4.6.23 static void CLOCK_SetSimSafeDivs ( void ) [inline],[static]
The system level clocks (core clock, bus clock, flexbus clock and flash clock) must be in allowed ranges.
During MCG clock mode switch, the MCG output clock changes then the system level clocks may be out
of range. This function could be used before MCG mode change, to make sure system level clocks are in
allowed range.
42
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
Parameters
config Pointer to the configure structure.
6.4.6.24 uint32_t CLOCK_GetOutClkFreq ( void )
This function gets the MCG_Lite output clock frequency (Hz) based on the current MCG_Lite register
value.
Returns
The frequency of MCGOUTCLK.
6.4.6.25 uint32_t CLOCK_GetInternalRefClkFreq ( void )
This function gets the MCG_Lite internal reference clock frequency (Hz) based on the current MCG
register value.
Returns
The frequency of MCGIRCLK.
6.4.6.26 uint32_t CLOCK_GetPeriphClkFreq ( void )
This function gets the MCGPCLK frequency (Hertz) based on the current MCG_Lite register settings.
Returns
The frequency of MCGPCLK.
6.4.6.27 mcglite_mode_t CLOCK_GetMode ( void )
This function checks the MCG_Lite registers and determines the current MCG_Lite mode.
Returns
Current MCG_Lite mode or error code.
6.4.6.28 status_t CLOCK_SetMcgliteConfig ( mcglite_config_t const ∗targetConfig )
This function configures the MCG_Lite, include output clock source, MCGIRCLK setting, HIRC setting
and so on, see mcglite_config_t for details.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
43
Multipurpose Clock Generator Lite (MCGLITE)
Parameters
targetConfig Pointer to the target MCG_Lite mode configuration structure.
Returns
Error code.
6.4.6.29 static void OSC_SetExtRefClkConfig ( OSC_Type ∗base, oscer_config_t const ∗
config )[inline],[static]
This function configures the OSC external reference clock (OSCERCLK). For example, to enable the
OSCERCLK in normal mode and stop mode, and also set the output divider to 1, as follows:
oscer_config_t config =
{
.enableMode =kOSC_ErClkEnable |
kOSC_ErClkEnableInStop,
.erclkDiv = 1U,
};
OSC_SetExtRefClkConfig(OSC, &config);
Parameters
base OSC peripheral address.
config Pointer to the configuration structure.
6.4.6.30 static void OSC_SetCapLoad ( OSC_Type ∗base, uint8_t capLoad )
[inline],[static]
This function sets the specified capacitors configuration for the oscillator. This should be done in the early
system level initialization function call based on the system configuration.
Parameters
base OSC peripheral address.
capLoad OR’ed value for the capacitor load option, see _osc_cap_load.
Example:
// To enable only 2 pF and 8 pF capacitor load, please use like this.
OSC_SetCapLoad(OSC, kOSC_Cap2P |kOSC_Cap8P);
6.4.6.31 void CLOCK_InitOsc0 ( osc_config_t const ∗config )
This function initializes the OSC0 according to the board configuration.
44
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Multipurpose Clock Generator Lite (MCGLITE)
Parameters
config Pointer to the OSC0 configuration structure.
6.4.6.32 void CLOCK_DeinitOsc0 ( void )
This function deinitializes the OSC0.
6.4.7 Variable Documentation
6.4.7.1 uint32_t g_xtal0Freq
The XTAL0/EXTAL0 (OSC0) clock frequency in Hz, when the clock is setup, use the function CLOCK-
_SetXtal0Freq to set the value in to clock driver. For example, if XTAL0 is 8MHz,
CLOCK_InitOsc0(...); // Setup the OSC0
CLOCK_SetXtal0Freq(80000000); // Set the XTAL0 value to clock driver.
This is important for the multicore platforms, only one core needs to setup OSC0 using CLOCK_InitOsc0,
all other cores need to call CLOCK_SetXtal0Freq to get valid clock frequency.
6.4.7.2 uint32_t g_xtal32Freq
The XTAL32/EXTAL32/RTC_CLKIN clock frequency in Hz, when the clock is setup, use the function
CLOCK_SetXtal32Freq to set the value in to clock driver.
This is important for the multicore platforms, only one core needs to setup the clock, all other cores need
to call CLOCK_SetXtal32Freq to get valid clock frequency.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
45
Multipurpose Clock Generator Lite (MCGLITE)
46
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 7
CMP: Analog Comparator Driver
7.1 Overview
The KSDK provides a peripheral driver for the Analog Comparator (CMP) module of Kinetis devices.
Overview
The CMP driver is a basic comparator with advanced features. The APIs for the basic comparator enable
the CMP as a general comparator, which compares the two voltage of the two input channels and creates
the output of the comparator result. The APIs for advanced features can be used as the plug-in function
based on the basic comparator. They can process the comparator’s output with hardware support.
7.2 Typical use case
7.2.1 Polling Configuration
int main(void)
{
cmp_config_t mCmpConfigStruct;
cmp_dac_config_t mCmpDacConfigStruct;
// ...
// Configures the comparator.
CMP_Init(DEMO_CMP_INSTANCE);
CMP_GetDefaultConfig(&mCmpConfigStruct);
CMP_Configure(DEMO_CMP_INSTANCE, &mCmpConfigStruct);
// Configures the DAC channel.
mCmpDacConfigStruct.referenceVoltageSource =
kCMP_VrefSourceVin2;// VCC.
mCmpDacConfigStruct.DACValue = 32U; // Half voltage of logic high level.
CMP_SetDACConfig(DEMO_CMP_INSTANCE, &mCmpDacConfigStruct);
CMP_SetInputChannels(DEMO_CMP_INSTANCE, DEMO_CMP_USER_CHANNEL, DEMO_CMP_DAC_CHANNEL
);
while (1)
{
if (0U != (kCMP_OutputAssertEventFlag &
CMP_GetStatusFlags(DEMO_CMP_INSTANCE)))
{
// Do something.
}
else
{
// Do something.
}
}
}
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
47
Typical use case
7.2.2 Interrupt Configuration
volatile uint32_t g_CmpFlags = 0U;
// ...
void DEMO_CMP_IRQ_HANDLER_FUNC(void)
{
g_CmpFlags = CMP_GetStatusFlags(DEMO_CMP_INSTANCE);
CMP_ClearStatusFlags(DEMO_CMP_INSTANCE, kCMP_OutputRisingEventFlag |
kCMP_OutputFallingEventFlag);
if (0U != (g_CmpFlags & kCMP_OutputRisingEventFlag))
{
// Do something.
}
else if (0U != (g_CmpFlags & kCMP_OutputFallingEventFlag))
{
// Do something.
}
}
int main(void)
{
cmp_config_t mCmpConfigStruct;
cmp_dac_config_t mCmpDacConfigStruct;
// ...
EnableIRQ(DEMO_CMP_IRQ_ID);
// ...
// Configures the comparator.
CMP_Init(DEMO_CMP_INSTANCE);
CMP_GetDefaultConfig(&mCmpConfigStruct);
CMP_Configure(DEMO_CMP_INSTANCE, &mCmpConfigStruct);
// Configures the DAC channel.
mCmpDacConfigStruct.referenceVoltageSource =
kCMP_VrefSourceVin2;// VCC.
mCmpDacConfigStruct.DACValue = 32U; // Half voltage of logic high level.
CMP_SetDACConfig(DEMO_CMP_INSTANCE, &mCmpDacConfigStruct);
CMP_SetInputChannels(DEMO_CMP_INSTANCE, DEMO_CMP_USER_CHANNEL, DEMO_CMP_DAC_CHANNEL
);
// Enables the output rising and falling interrupts.
CMP_EnableInterrupts(DEMO_CMP_INSTANCE,
kCMP_OutputRisingInterruptEnable |
kCMP_OutputFallingInterruptEnable);
while (1)
{
}
}
Files
• file fsl_cmp.h
Data Structures
• struct cmp_config_t
Configure the comparator. More...
• struct cmp_filter_config_t
Configure the filter. More...
48
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
• struct cmp_dac_config_t
Configure the internal DAC. More...
Enumerations
• enum _cmp_interrupt_enable {
kCMP_OutputRisingInterruptEnable = CMP_SCR_IER_MASK,
kCMP_OutputFallingInterruptEnable = CMP_SCR_IEF_MASK }
Interrupt enable/disable mask.
• enum _cmp_status_flags {
kCMP_OutputRisingEventFlag = CMP_SCR_CFR_MASK,
kCMP_OutputFallingEventFlag = CMP_SCR_CFF_MASK,
kCMP_OutputAssertEventFlag = CMP_SCR_COUT_MASK }
Status flags’ mask.
• enum cmp_hysteresis_mode_t {
kCMP_HysteresisLevel0 = 0U,
kCMP_HysteresisLevel1 = 1U,
kCMP_HysteresisLevel2 = 2U,
kCMP_HysteresisLevel3 = 3U }
CMP Hysteresis mode.
• enum cmp_reference_voltage_source_t {
kCMP_VrefSourceVin1 = 0U,
kCMP_VrefSourceVin2 = 1U }
CMP Voltage Reference source.
Driver version
• #define FSL_CMP_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
CMP driver version 2.0.0.
Initialization
• void CMP_Init (CMP_Type ∗base, const cmp_config_t ∗config)
Initializes the CMP.
• void CMP_Deinit (CMP_Type ∗base)
De-initializes the CMP module.
• static void CMP_Enable (CMP_Type ∗base, bool enable)
Enables/disables the CMP module.
• void CMP_GetDefaultConfig (cmp_config_t ∗config)
Initializes the CMP user configuration structure.
• void CMP_SetInputChannels (CMP_Type ∗base, uint8_t positiveChannel, uint8_t negativeChannel)
Sets the input channels for the comparator.
Advanced Features
• void CMP_SetFilterConfig (CMP_Type ∗base, const cmp_filter_config_t ∗config)
Configures the filter.
• void CMP_SetDACConfig (CMP_Type ∗base, const cmp_dac_config_t ∗config)
Configures the internal DAC.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
49
Data Structure Documentation
• void CMP_EnableInterrupts (CMP_Type ∗base, uint32_t mask)
Enables the interrupts.
• void CMP_DisableInterrupts (CMP_Type ∗base, uint32_t mask)
Disables the interrupts.
Results
• uint32_t CMP_GetStatusFlags (CMP_Type ∗base)
Gets the status flags.
• void CMP_ClearStatusFlags (CMP_Type ∗base, uint32_t mask)
Clears the status flags.
7.3 Data Structure Documentation
7.3.1 struct cmp_config_t
Data Fields
• bool enableCmp
Enable the CMP module.
•cmp_hysteresis_mode_t hysteresisMode
CMP Hysteresis mode.
• bool enableHighSpeed
Enable High Speed (HS) comparison mode.
• bool enableInvertOutput
Enable inverted comparator output.
• bool useUnfilteredOutput
Set compare output(COUT) to equal COUTA(true) or COUT(false).
• bool enablePinOut
The comparator output is available on the associated pin.
50
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
7.3.1.0.0.8 Field Documentation
7.3.1.0.0.8.1 bool cmp_config_t::enableCmp
7.3.1.0.0.8.2 cmp_hysteresis_mode_t cmp_config_t::hysteresisMode
7.3.1.0.0.8.3 bool cmp_config_t::enableHighSpeed
7.3.1.0.0.8.4 bool cmp_config_t::enableInvertOutput
7.3.1.0.0.8.5 bool cmp_config_t::useUnfilteredOutput
7.3.1.0.0.8.6 bool cmp_config_t::enablePinOut
7.3.2 struct cmp_filter_config_t
Data Fields
• uint8_t filterCount
Filter Sample Count.
• uint8_t filterPeriod
Filter Sample Period.
7.3.2.0.0.9 Field Documentation
7.3.2.0.0.9.1 uint8_t cmp_filter_config_t::filterCount
Available range is 1-7, 0 would cause the filter disabled.
7.3.2.0.0.9.2 uint8_t cmp_filter_config_t::filterPeriod
The divider to bus clock. Available range is 0-255.
7.3.3 struct cmp_dac_config_t
Data Fields
•cmp_reference_voltage_source_t referenceVoltageSource
Supply voltage reference source.
• uint8_t DACValue
Value for DAC Output Voltage.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
51
Enumeration Type Documentation
7.3.3.0.0.10 Field Documentation
7.3.3.0.0.10.1 cmp_reference_voltage_source_t cmp_dac_config_t::referenceVoltageSource
7.3.3.0.0.10.2 uint8_t cmp_dac_config_t::DACValue
Available range is 0-63.
7.4 Macro Definition Documentation
7.4.1 #define FSL_CMP_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
7.5 Enumeration Type Documentation
7.5.1 enum _cmp_interrupt_enable
Enumerator
kCMP_OutputRisingInterruptEnable Comparator interrupt enable rising.
kCMP_OutputFallingInterruptEnable Comparator interrupt enable falling.
7.5.2 enum _cmp_status_flags
Enumerator
kCMP_OutputRisingEventFlag Rising-edge on compare output has occurred.
kCMP_OutputFallingEventFlag Falling-edge on compare output has occurred.
kCMP_OutputAssertEventFlag Return the current value of the analog comparator output.
7.5.3 enum cmp_hysteresis_mode_t
Enumerator
kCMP_HysteresisLevel0 Hysteresis level 0.
kCMP_HysteresisLevel1 Hysteresis level 1.
kCMP_HysteresisLevel2 Hysteresis level 2.
kCMP_HysteresisLevel3 Hysteresis level 3.
7.5.4 enum cmp_reference_voltage_source_t
Enumerator
kCMP_VrefSourceVin1 Vin1 is selected as resistor ladder network supply reference Vin.
kCMP_VrefSourceVin2 Vin2 is selected as resistor ladder network supply reference Vin.
52
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
7.6 Function Documentation
7.6.1 void CMP_Init ( CMP_Type ∗base, const cmp_config_t ∗config )
This function initializes the CMP module. The operations included are:
• Enabling the clock for CMP module.
• Configuring the comparator.
• Enabling the CMP module. Note: For some devices, multiple CMP instance share the same clock
gate. In this case, to enable the clock for any instance enables all the CMPs. Check the chip reference
manual for the clock assignment of the CMP.
Parameters
base CMP peripheral base address.
config Pointer to configuration structure.
7.6.2 void CMP_Deinit ( CMP_Type ∗base )
This function de-initializes the CMP module. The operations included are:
• Disabling the CMP module.
• Disabling the clock for CMP module.
This function disables the clock for the CMP. Note: For some devices, multiple CMP instance shares the
same clock gate. In this case, before disabling the clock for the CMP, ensure that all the CMP instances
are not used.
Parameters
base CMP peripheral base address.
7.6.3 static void CMP_Enable ( CMP_Type ∗base, bool enable )[inline],
[static]
Parameters
base CMP peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
53
Function Documentation
enable Enable the module or not.
7.6.4 void CMP_GetDefaultConfig ( cmp_config_t ∗config )
This function initializes the user configure structure to these default values:
config->enableCmp = true;
config->hysteresisMode = kCMP_HysteresisLevel0;
config->enableHighSpeed = false;
config->enableInvertOutput = false;
config->useUnfilteredOutput = false;
config->enablePinOut = false;
config->enableTriggerMode = false;
Parameters
config Pointer to the configuration structure.
7.6.5 void CMP_SetInputChannels ( CMP_Type ∗base, uint8_t positiveChannel,
uint8_t negativeChannel )
This function sets the input channels for the comparator. Note that two input channels cannot be set as
same in the application. When the user selects the same input from the analog mux to the positive and
negative port, the comparator is disabled automatically.
Parameters
base CMP peripheral base address.
positive-
Channel
Positive side input channel number. Available range is 0-7.
negative-
Channel
Negative side input channel number. Available range is 0-7.
7.6.6 void CMP_SetFilterConfig ( CMP_Type ∗base, const cmp_filter_config_t ∗
config )
54
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base CMP peripheral base address.
config Pointer to configuration structure.
7.6.7 void CMP_SetDACConfig ( CMP_Type ∗base, const cmp_dac_config_t ∗
config )
Parameters
base CMP peripheral base address.
config Pointer to configuration structure. "NULL" is for disabling the feature.
7.6.8 void CMP_EnableInterrupts ( CMP_Type ∗base, uint32_t mask )
Parameters
base CMP peripheral base address.
mask Mask value for interrupts. See "_cmp_interrupt_enable".
7.6.9 void CMP_DisableInterrupts ( CMP_Type ∗base, uint32_t mask )
Parameters
base CMP peripheral base address.
mask Mask value for interrupts. See "_cmp_interrupt_enable".
7.6.10 uint32_t CMP_GetStatusFlags ( CMP_Type ∗base )
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
55
Function Documentation
base CMP peripheral base address.
Returns
Mask value for the asserted flags. See "_cmp_status_flags".
7.6.11 void CMP_ClearStatusFlags ( CMP_Type ∗base, uint32_t mask )
Parameters
base CMP peripheral base address.
mask Mask value for the flags. See "_cmp_status_flags".
56
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 8
CMT: Carrier Modulator Transmitter Driver
8.1 Overview
The carrier modulator transmitter (CMT) module provides the means to generate the protocol timing and
carrier signals for a side variety of encoding schemes. The CMT incorporates hardware to off-load the
critical and/or lengthy timing requirements associated with signal generation from the CPU. The KSDK
provides a driver for the CMT module of the Kinetis devices.
8.2 Clock formulas
The CMT module has internal clock dividers. It was originally designed to be based on an 8 MHZ bus
clock that could be divided by 1, 2, 4, or 8 according to the specification. To be compatible with higher
bus frequency, the primary prescaler (PPS) was developed to receive a higher frequency and generate a
clock enable signal called an intermediate frequency (IF). The IF must be approximately equal to 8MHz
and works as a clock enable to the secondary prescaler. For the PPS, the prescaler is selected according
to the bus clock to generate an intermediate clock approximately to 8 MHz and is selected as (bus_clock-
_hz/8000000). The secondary prescaler is the "cmtDivider". The clocks for the CMT module are listed
below:
1. CMT clock frequency = bus_clock_Hz / (bus_clock_Hz / 8000000) / cmtDivider
2. CMT carrier and generator frequency = CMT clock frequency / (highCount1 + lowCount1)
(In FSK mode, the second frequency = CMT clock frequency / (highCount2 + lowCount2))
3. CMT infrared output signal frequency
a. In Time and Baseband mode
CMT IRO signal mark time = (markCount + 1) / (CMT clock frequency / 8)
CMT IRO signal space time = spaceCount / (CMT clock frequency / 8)
b. In FSK mode
CMT IRO signal mark time = (markCount + 1) / CMT carrier and generator frequency
CMT IRO signal space time = spaceCount / CMT carrier and generator frequency
8.3 Typical use case
This is an example code to initialize the data:
cmt_config_t config;
cmt_modulate_config_t modulateConfig;
uint32_t busClock;
// Gets the bus clock for the CMT module.
busClock = CLOCK_GetFreq(kCLOCK_BusClk);
CMT_GetDefaultConfig(&config);
// Interrupts is enabled to change the modulate mark and space count.
config.isInterruptEnabled =true;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
57
Typical use case
CMT_Init(CMT, &config, busClock);
// Prepares the modulate configuration for a user case.
modulateConfig->highCount1 = ...;
modulateConfig->lowCount1 = ...;
modulateConfig->markCount = ...;
modulateConfig->spaceCount = ...;
// Sets the time mode.
CMT_SetMode(CMT, kCMT_TimeMode, &modulateConfig);
This is an example IRQ handler to change the mark and space count to complete the data modulation:
// The data length has been transmitted.
uint32_t g_CmtDataBitLen;
void CMT_IRQHandler(void)
{
if (CMT_GetStatusFlags(CMT))
{
if (g_CmtDataBitLen <= CMT_TEST_DATA_BITS)
{
// LSB.
if (data & ((uint32_t)0x01 << g_CmtDataBitLen))
{
CMT_SetModulateMarkSpace(CMT, g_CmtModDataOneMarkCount,
g_CmtModDataOneSpaceCount);
}
else
{
CMT_SetModulateMarkSpace(CMT, g_CmtModDataZeroMarkCount,
g_CmtModDataZeroSpaceCount);
}
}
}
}
Files
• file fsl_cmt.h
Data Structures
• struct cmt_modulate_config_t
CMT carrier generator and modulator configure structure. More...
• struct cmt_config_t
CMT basic configuration structure. More...
Enumerations
• enum cmt_mode_t {
kCMT_DirectIROCtl = 0x00U,
kCMT_TimeMode = 0x01U,
kCMT_FSKMode = 0x05U,
kCMT_BasebandMode = 0x09U }
The modes of CMT.
58
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
• enum cmt_primary_clkdiv_t {
kCMT_PrimaryClkDiv1 = 0U,
kCMT_PrimaryClkDiv2 = 1U,
kCMT_PrimaryClkDiv3 = 2U,
kCMT_PrimaryClkDiv4 = 3U,
kCMT_PrimaryClkDiv5 = 4U,
kCMT_PrimaryClkDiv6 = 5U,
kCMT_PrimaryClkDiv7 = 6U,
kCMT_PrimaryClkDiv8 = 7U,
kCMT_PrimaryClkDiv9 = 8U,
kCMT_PrimaryClkDiv10 = 9U,
kCMT_PrimaryClkDiv11 = 10U,
kCMT_PrimaryClkDiv12 = 11U,
kCMT_PrimaryClkDiv13 = 12U,
kCMT_PrimaryClkDiv14 = 13U,
kCMT_PrimaryClkDiv15 = 14U,
kCMT_PrimaryClkDiv16 = 15U }
The CMT clock divide primary prescaler.
• enum cmt_second_clkdiv_t {
kCMT_SecondClkDiv1 = 0U,
kCMT_SecondClkDiv2 = 1U,
kCMT_SecondClkDiv4 = 2U,
kCMT_SecondClkDiv8 = 3U }
The CMT clock divide secondary prescaler.
• enum cmt_infrared_output_polarity_t {
kCMT_IROActiveLow = 0U,
kCMT_IROActiveHigh = 1U }
The CMT infrared output polarity.
• enum cmt_infrared_output_state_t {
kCMT_IROCtlLow = 0U,
kCMT_IROCtlHigh = 1U }
The CMT infrared output signal state control.
• enum _cmt_interrupt_enable {kCMT_EndOfCycleInterruptEnable = CMT_MSC_EOCIE_MASK
}
CMT interrupt configuration structure, default settings all disabled.
Driver version
• #define FSL_CMT_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
CMT driver version 2.0.0.
Initialization and deinitialization
• void CMT_GetDefaultConfig (cmt_config_t ∗config)
Gets the CMT default configuration structure.
• void CMT_Init (CMT_Type ∗base, const cmt_config_t ∗config, uint32_t busClock_Hz)
Initializes the CMT module.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
59
Data Structure Documentation
• void CMT_Deinit (CMT_Type ∗base)
Disables the CMT module and gate control.
Basic Control Operations
• void CMT_SetMode (CMT_Type ∗base, cmt_mode_t mode, cmt_modulate_config_t ∗modulate-
Config)
Selects the mode for CMT.
•cmt_mode_t CMT_GetMode (CMT_Type ∗base)
Gets the mode of the CMT module.
• uint32_t CMT_GetCMTFrequency (CMT_Type ∗base, uint32_t busClock_Hz)
Gets the actual CMT clock frequency.
• static void CMT_SetCarrirGenerateCountOne (CMT_Type ∗base, uint32_t highCount, uint32_-
t lowCount)
Sets the primary data set for the CMT carrier generator counter.
• static void CMT_SetCarrirGenerateCountTwo (CMT_Type ∗base, uint32_t highCount, uint32_t
lowCount)
Sets the secondary data set for the CMT carrier generator counter.
• void CMT_SetModulateMarkSpace (CMT_Type ∗base, uint32_t markCount, uint32_t spaceCount)
Sets the modulation mark and space time period for the CMT modulator.
• static void CMT_EnableExtendedSpace (CMT_Type ∗base, bool enable)
Enables or disables the extended space operation.
• void CMT_SetIroState (CMT_Type ∗base, cmt_infrared_output_state_t state)
Sets IRO - infrared output signal state.
• static void CMT_EnableInterrupts (CMT_Type ∗base, uint32_t mask)
Enables the CMT interrupt.
• static void CMT_DisableInterrupts (CMT_Type ∗base, uint32_t mask)
Disables the CMT interrupt.
• static uint32_t CMT_GetStatusFlags (CMT_Type ∗base)
Gets the end of the cycle status flag.
8.4 Data Structure Documentation
8.4.1 struct cmt_modulate_config_t
Data Fields
• uint8_t highCount1
The high time for carrier generator first register.
• uint8_t lowCount1
The low time for carrier generator first register.
• uint8_t highCount2
The high time for carrier generator second register for FSK mode.
• uint8_t lowCount2
The low time for carrier generator second register for FSK mode.
• uint16_t markCount
The mark time for the modulator gate.
• uint16_t spaceCount
The space time for the modulator gate.
60
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
8.4.1.0.0.11 Field Documentation
8.4.1.0.0.11.1 uint8_t cmt_modulate_config_t::highCount1
8.4.1.0.0.11.2 uint8_t cmt_modulate_config_t::lowCount1
8.4.1.0.0.11.3 uint8_t cmt_modulate_config_t::highCount2
8.4.1.0.0.11.4 uint8_t cmt_modulate_config_t::lowCount2
8.4.1.0.0.11.5 uint16_t cmt_modulate_config_t::markCount
8.4.1.0.0.11.6 uint16_t cmt_modulate_config_t::spaceCount
8.4.2 struct cmt_config_t
Data Fields
• bool isInterruptEnabled
Timer interrupt 0-disable, 1-enable.
• bool isIroEnabled
The IRO output 0-disabled, 1-enabled.
•cmt_infrared_output_polarity_t iroPolarity
The IRO polarity.
•cmt_second_clkdiv_t divider
The CMT clock divide prescaler.
8.4.2.0.0.12 Field Documentation
8.4.2.0.0.12.1 bool cmt_config_t::isInterruptEnabled
8.4.2.0.0.12.2 bool cmt_config_t::isIroEnabled
8.4.2.0.0.12.3 cmt_infrared_output_polarity_t cmt_config_t::iroPolarity
8.4.2.0.0.12.4 cmt_second_clkdiv_t cmt_config_t::divider
8.5 Macro Definition Documentation
8.5.1 #define FSL_CMT_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
8.6 Enumeration Type Documentation
8.6.1 enum cmt_mode_t
Enumerator
kCMT_DirectIROCtl Carrier modulator is disabled and the IRO signal is directly in software con-
trol.
kCMT_TimeMode Carrier modulator is enabled in time mode.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
61
Enumeration Type Documentation
kCMT_FSKMode Carrier modulator is enabled in FSK mode.
kCMT_BasebandMode Carrier modulator is enabled in baseband mode.
8.6.2 enum cmt_primary_clkdiv_t
The primary clock divider is used to divider the bus clock to get the intermediate frequency to approxi-
mately equal to 8 MHZ. When the bus clock is 8 MHZ, set primary prescaler to "kCMT_PrimaryClkDiv1".
Enumerator
kCMT_PrimaryClkDiv1 The intermediate frequency is the bus clock divided by 1.
kCMT_PrimaryClkDiv2 The intermediate frequency is the bus clock divided by 2.
kCMT_PrimaryClkDiv3 The intermediate frequency is the bus clock divided by 3.
kCMT_PrimaryClkDiv4 The intermediate frequency is the bus clock divided by 4.
kCMT_PrimaryClkDiv5 The intermediate frequency is the bus clock divided by 5.
kCMT_PrimaryClkDiv6 The intermediate frequency is the bus clock divided by 6.
kCMT_PrimaryClkDiv7 The intermediate frequency is the bus clock divided by 7.
kCMT_PrimaryClkDiv8 The intermediate frequency is the bus clock divided by 8.
kCMT_PrimaryClkDiv9 The intermediate frequency is the bus clock divided by 9.
kCMT_PrimaryClkDiv10 The intermediate frequency is the bus clock divided by 10.
kCMT_PrimaryClkDiv11 The intermediate frequency is the bus clock divided by 11.
kCMT_PrimaryClkDiv12 The intermediate frequency is the bus clock divided by 12.
kCMT_PrimaryClkDiv13 The intermediate frequency is the bus clock divided by 13.
kCMT_PrimaryClkDiv14 The intermediate frequency is the bus clock divided by 14.
kCMT_PrimaryClkDiv15 The intermediate frequency is the bus clock divided by 15.
kCMT_PrimaryClkDiv16 The intermediate frequency is the bus clock divided by 16.
8.6.3 enum cmt_second_clkdiv_t
The second prescaler can be used to divide the 8 MHZ CMT clock by 1, 2, 4, or 8 according to the
specification.
Enumerator
kCMT_SecondClkDiv1 The CMT clock is the intermediate frequency frequency divided by 1.
kCMT_SecondClkDiv2 The CMT clock is the intermediate frequency frequency divided by 2.
kCMT_SecondClkDiv4 The CMT clock is the intermediate frequency frequency divided by 4.
kCMT_SecondClkDiv8 The CMT clock is the intermediate frequency frequency divided by 8.
62
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
8.6.4 enum cmt_infrared_output_polarity_t
Enumerator
kCMT_IROActiveLow The CMT infrared output signal polarity is active-low.
kCMT_IROActiveHigh The CMT infrared output signal polarity is active-high.
8.6.5 enum cmt_infrared_output_state_t
Enumerator
kCMT_IROCtlLow The CMT Infrared output signal state is controlled to low.
kCMT_IROCtlHigh The CMT Infrared output signal state is controlled to high.
8.6.6 enum _cmt_interrupt_enable
This structure contains the settings for all of the CMT interrupt configurations.
Enumerator
kCMT_EndOfCycleInterruptEnable CMT end of cycle interrupt.
8.7 Function Documentation
8.7.1 void CMT_GetDefaultConfig ( cmt_config_t ∗config )
The purpose of this API is to get the default configuration structure for the CMT_Init(). Use the initialized
structure unchanged in CMT_Init(), or modify some fields of the structure before calling the CMT_Init().
Parameters
config The CMT configuration structure pointer.
8.7.2 void CMT_Init ( CMT_Type ∗base, const cmt_config_t ∗config, uint32_t
busClock_Hz )
This function ungates the module clock and sets the CMT internal clock, interrupt, and infrared output
signal for the CMT module.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
63
Function Documentation
Parameters
base CMT peripheral base address.
config The CMT basic configuration structure.
busClock_Hz The CMT module input clock - bus clock frequency.
8.7.3 void CMT_Deinit ( CMT_Type ∗base )
This function disables CMT modulator, interrupts, and gates the CMT clock control. CMT_Init must be
called to use the CMT again.
Parameters
base CMT peripheral base address.
8.7.4 void CMT_SetMode ( CMT_Type ∗base, cmt_mode_t mode,
cmt_modulate_config_t ∗modulateConfig )
Parameters
base CMT peripheral base address.
mode The CMT feature mode enumeration. See "cmt_mode_t".
modulate-
Config
The carrier generation and modulator configuration.
8.7.5 cmt_mode_t CMT_GetMode ( CMT_Type ∗base )
Parameters
base CMT peripheral base address.
Returns
The CMT mode. kCMT_DirectIROCtl Carrier modulator is disabled, the IRO signal is directly in
software control. kCMT_TimeMode Carrier modulator is enabled in time mode. kCMT_FSKMode
Carrier modulator is enabled in FSK mode. kCMT_BasebandMode Carrier modulator is enabled in
baseband mode.
64
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
8.7.6 uint32_t CMT_GetCMTFrequency ( CMT_Type ∗base, uint32_t busClock_Hz
)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
65
Function Documentation
Parameters
base CMT peripheral base address.
busClock_Hz CMT module input clock - bus clock frequency.
Returns
The CMT clock frequency.
8.7.7 static void CMT_SetCarrirGenerateCountOne ( CMT_Type ∗base, uint32_t
highCount, uint32_t lowCount )[inline],[static]
This function sets the high time and low time of the primary data set for the CMT carrier generator counter
to control the period and the duty cycle of the output carrier signal. If the CMT clock period is Tcmt, The
period of the carrier generator signal equals (highCount + lowCount) ∗Tcmt. The duty cycle equals
highCount / (highCount + lowCount).
Parameters
base CMT peripheral base address.
highCount The number of CMT clocks for carrier generator signal high time, integer in the range
of 1 ∼0xFF.
lowCount The number of CMT clocks for carrier generator signal low time, integer in the range
of 1 ∼0xFF.
8.7.8 static void CMT_SetCarrirGenerateCountTwo ( CMT_Type ∗base, uint32_t
highCount, uint32_t lowCount )[inline],[static]
This function is used for FSK mode setting the high time and low time of the secondary data set CMT
carrier generator counter to control the period and the duty cycle of the output carrier signal. If the CMT
clock period is Tcmt, The period of the carrier generator signal equals (highCount + lowCount) ∗Tcmt.
The duty cycle equals highCount / (highCount + lowCount).
Parameters
base CMT peripheral base address.
66
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
highCount The number of CMT clocks for carrier generator signal high time, integer in the range
of 1 ∼0xFF.
lowCount The number of CMT clocks for carrier generator signal low time, integer in the range
of 1 ∼0xFF.
8.7.9 void CMT_SetModulateMarkSpace ( CMT_Type ∗base, uint32_t markCount,
uint32_t spaceCount )
This function sets the mark time period of the CMT modulator counter to control the mark time of the
output modulated signal from the carrier generator output signal. If the CMT clock frequency is Fcmt and
the carrier out signal frequency is fcg:
• In Time and Baseband mode: The mark period of the generated signal equals (markCount + 1) /
(Fcmt/8). The space period of the generated signal equals spaceCount / (Fcmt/8).
• In FSK mode: The mark period of the generated signal equals (markCount + 1)/fcg. The space
period of the generated signal equals spaceCount / fcg.
Parameters
base Base address for current CMT instance.
markCount The number of clock period for CMT modulator signal mark period, in the range of
0∼0xFFFF.
spaceCount The number of clock period for CMT modulator signal space period, in the range of
the 0 ∼0xFFFF.
8.7.10 static void CMT_EnableExtendedSpace ( CMT_Type ∗base, bool enable )
[inline],[static]
This function is used to make the space period longer for time, baseband, and FSK modes.
Parameters
base CMT peripheral base address.
enable True enable the extended space, false disable the extended space.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
67
Function Documentation
8.7.11 void CMT_SetIroState ( CMT_Type ∗base, cmt_infrared_output_state_t
state )
Changes the states of the IRO signal when the kCMT_DirectIROMode mode is set and the IRO signal is
enabled.
68
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base CMT peripheral base address.
state The control of the IRO signal. See "cmt_infrared_output_state_t"
8.7.12 static void CMT_EnableInterrupts ( CMT_Type ∗base, uint32_t mask )
[inline],[static]
This function enables the CMT interrupts according to the provided maskIf enabled. The CMT only has
the end of the cycle interrupt - an interrupt occurs at the end of the modulator cycle. This interrupt provides
a means for the user to reload the new mark/space values into the CMT modulator data registers and verify
the modulator mark and space. For example, to enable the end of cycle, do the following:
CMT_EnableInterrupts(CMT, kCMT_EndOfCycleInterruptEnable)
;
Parameters
base CMT peripheral base address.
mask The interrupts to enable. Logical OR of _cmt_interrupt_enable.
8.7.13 static void CMT_DisableInterrupts ( CMT_Type ∗base, uint32_t mask )
[inline],[static]
This function disables the CMT interrupts according to the provided maskIf enabled. The CMT only has
the end of the cycle interrupt. For example, to disable the end of cycle, do the following:
CMT_DisableInterrupts(CMT, kCMT_EndOfCycleInterruptEnable
);
Parameters
base CMT peripheral base address.
mask The interrupts to enable. Logical OR of _cmt_interrupt_enable.
8.7.14 static uint32_t CMT_GetStatusFlags ( CMT_Type ∗base )[inline],
[static]
The flag is set:
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
69
Function Documentation
• When the modulator is not currently active and carrier and modulator are set to start the initial CMT
transmission.
• At the end of each modulation cycle when the counter is reloaded and the carrier and modulator are
enabled.
Parameters
base CMT peripheral base address.
Returns
Current status of the end of cycle status flag
–non-zero: End-of-cycle has occurred.
–zero: End-of-cycle has not yet occurred since the flag last cleared.
70
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 9
COP: Watchdog Driver
9.1 Overview
The KSDK provides a peripheral driver for the COP module (COP) of Kinetis devices.
Typical use case
cop_config_t config;
COP_GetDefaultConfig(&config);
config.timeoutCycles =kCOP_2Power8CyclesOr2Power16Cycles;
COP_Init(sim_base,&config);
Files
• file fsl_cop.h
Data Structures
• struct cop_config_t
Describes COP configuration structure. More...
Enumerations
• enum cop_clock_source_t {
kCOP_LpoClock = 0U,
kCOP_BusClock = 3U }
COP clock source selection.
• enum cop_timeout_cycles_t {
kCOP_2Power5CyclesOr2Power13Cycles = 1U,
kCOP_2Power8CyclesOr2Power16Cycles = 2U,
kCOP_2Power10CyclesOr2Power18Cycles = 3U }
Define the COP timeout cycles.
Driver version
• #define FSL_COP_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
COP driver version 2.0.0.
COP refresh sequence.
• #define COP_FIRST_BYTE_OF_REFRESH (0x55U)
First byte of refresh sequence.
• #define COP_SECOND_BYTE_OF_REFRESH (0xAAU)
Second byte of refresh sequence.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
71
Enumeration Type Documentation
COP Functional Operation
• void COP_GetDefaultConfig (cop_config_t ∗config)
Initializes the COP configuration structure.
• void COP_Init (SIM_Type ∗base, const cop_config_t ∗config)
Initializes the COP module.
• static void COP_Disable (SIM_Type ∗base)
De-initializes the COP module.
• void COP_Refresh (SIM_Type ∗base)
Refreshes the COP timer.
9.2 Data Structure Documentation
9.2.1 struct cop_config_t
Data Fields
• bool enableWindowMode
COP run mode: window mode or normal mode.
•cop_clock_source_t clockSource
Set COP clock source.
•cop_timeout_cycles_t timeoutCycles
Set COP timeout value.
9.3 Macro Definition Documentation
9.3.1 #define FSL_COP_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
9.4 Enumeration Type Documentation
9.4.1 enum cop_clock_source_t
Enumerator
kCOP_LpoClock COP clock sourced from LPO.
kCOP_BusClock COP clock sourced from Bus clock.
9.4.2 enum cop_timeout_cycles_t
Enumerator
kCOP_2Power5CyclesOr2Power13Cycles 2∧5 or 2∧13 clock cycles
kCOP_2Power8CyclesOr2Power16Cycles 2∧8 or 2∧16 clock cycles
kCOP_2Power10CyclesOr2Power18Cycles 2∧10 or 2∧18 clock cycles
72
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
9.5 Function Documentation
9.5.1 void COP_GetDefaultConfig ( cop_config_t ∗config )
This function initializes the COP configuration structure to default values. The default values are:
copConfig->enableWindowMode = false;
copConfig->timeoutMode = kCOP_LongTimeoutMode;
copConfig->enableStop = false;
copConfig->enableDebug = false;
copConfig->clockSource = kCOP_LpoClock;
copConfig->timeoutCycles = kCOP_2Power10CyclesOr2Power18Cycles;
Parameters
config Pointer to the COP configuration structure.
See Also
cop_config_t
9.5.2 void COP_Init ( SIM_Type ∗base, const cop_config_t ∗config )
This function configures the COP. After it is called, the COP starts running according to the configura-
tion. Because all COP control registers are write-once only, the COP_Init function and the COP_Disable
function can be called only once. A second call has no effect.
Example:
cop_config_t config;
COP_GetDefaultConfig(&config);
config.timeoutCycles =kCOP_2Power8CyclesOr2Power16Cycles;
COP_Init(sim_base,&config);
Parameters
base SIM peripheral base address.
config The configuration of COP.
9.5.3 static void COP_Disable ( SIM_Type ∗base )[inline],[static]
This dedicated function is not provided. Instead, the COP_Disable function can be used to disable the
COP.
Disables the COP module.
This function disables the COP Watchdog. Note: The COP configuration register is a write-once after
reset. To disable the COP Watchdog, call this function first.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
73
Function Documentation
Parameters
base SIM peripheral base address.
9.5.4 void COP_Refresh ( SIM_Type ∗base )
This function feeds the COP.
Parameters
base SIM peripheral base address.
74
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 10
CRC: Cyclic Redundancy Check Driver
10.1 Overview
The Kinetis SDK provides the Peripheral driver for the Cyclic Redundancy Check (CRC) module of
Kinetis devices.
The cyclic redundancy check (CRC) module generates 16/32-bit CRC code for error detection. The CRC
module provides a programmable polynomial, seed, and other parameters required to implement a 16-bit
or 32-bit CRC standard.
10.2 CRC Driver Initialization and Configuration
CRC_Init() function enables the clock gate for the CRC module in the Kinetis SIM module and fully (re-
)configures the CRC module according to configuration structure. The seed member of the configuration
structure is the initial checksum for which new data can be added to. When starting new checksum
computation, the seed shall be set to the initial checksum per the CRC protocol specification. For continued
checksum operation, the seed shall be set to the intermediate checksum value as obtained from previous
calls to CRC_Get16bitResult() or CRC_Get32bitResult() function. After CRC_Init(), one or multiple CR-
C_WriteData() calls follow to update checksum with data, then CRC_Get16bitResult() or CRC_Get32bit-
Result() follows to read the result. The crcResult member of configuration structure determines if CR-
C_Get16bitResult() or CRC_Get32bitResult() return value is final checksum or intermediate checksum.
CRC_Init() can be called as many times as required, thus, allows for runtime changes of CRC protocol.
CRC_GetDefaultConfig() function can be used to set the module configuration structure with parameters
for CRC-16/CCIT-FALSE protocol.
10.3 CRC Write Data
The CRC_WriteData() function is used to add data to actual CRC. Internally it tries to use 32-bit reads
and writes for all aligned data in the user buffer and it uses 8-bit reads and writes for all unaligned data
in the user buffer. This function can update CRC with user supplied data chunks of arbitrary size, so one
can update CRC byte by byte or with all bytes at once. Prior call CRC configuration function CRC_Init()
fully specifies the CRC module configuration for CRC_WriteData() call.
10.4 CRC Get Checksum
The CRC_Get16bitResult() or CRC_Get32bitResult() function is used to read the CRC module data reg-
ister. Depending on prior CRC module usage the return value is either intermediate checksum or final
checksum. Example: for 16-bit CRCs the following call sequences can be used:
CRC_Init() /CRC_WriteData() /CRC_Get16bitResult() to get final checksum.
CRC_Init() /CRC_WriteData() / ... / CRC_WriteData() /CRC_Get16bitResult() to get final checksum.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
75
CRC Driver Examples
CRC_Init() /CRC_WriteData() /CRC_Get16bitResult() to get intermediate checksum.
CRC_Init() /CRC_WriteData() / ... / CRC_WriteData() /CRC_Get16bitResult() to get intermediate
checksum.
10.5 Comments about API usage in RTOS
If multiple RTOS tasks will share the CRC module to compute checksums with different data and/or
protocols, the following shall be implemented by user:
The triplets
CRC_Init() /CRC_WriteData() /CRC_Get16bitResult() or CRC_Get32bitResult()
shall be protected by RTOS mutex to protect CRC module against concurrent accesses from different
tasks. Example:
CRC_Module_RTOS_Mutex_Lock;
CRC_Init();
CRC_WriteData();
CRC_Get16bitResult();
CRC_Module_RTOS_Mutex_Unlock;
10.6 Comments about API usage in interrupt handler
All APIs can be used from interrupt handler although execution time shall be considered (interrupt latency
of equal and lower priority interrupts increases). Protection against concurrent accesses from different
interrupt handlers and/or tasks shall be assured by the user.
10.7 CRC Driver Examples
Simple examples
Simple example with default CRC-16/CCIT-FALSE protocol
crc_config_t config;
CRC_Type *base;
uint8_t data[] = {0x00, 0x01, 0x02, 0x03, 0x04};
uint16_t checksum;
base = CRC0;
CRC_GetDefaultConfig(base, &config); /*default gives CRC-16/CCIT-FALSE */
CRC_Init(base, &config);
CRC_WriteData(base, data, sizeof(data));
checksum = CRC_Get16bitResult(base);
Simple example with CRC-32 protocol configuration
crc_config_t config;
uint32_t checksum;
config.polynomial = 0x04C11DB7u;
config.seed = 0xFFFFFFFFu;
config.crcBits =kCrcBits32;
config.reflectIn =true;
76
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
CRC Driver Examples
config.reflectOut =true;
config.complementChecksum =true;
config.crcResult =kCrcFinalChecksum;
CRC_Init(base, &config);
/*example: update by 1 byte at time */
while (dataSize)
{
uint8_t c = GetCharacter();
CRC_WriteData(base, &c, 1);
dataSize--;
}
checksum = CRC_Get32bitResult(base);
Advanced examples
Per-partes data updates with context switch between. Assuming we have 3 tasks/threads, each using CRC
module to compute checksums of different protocol, with context switches.
Firstly, we prepare 3 CRC module init functions for 3 different protocols: CRC-16 (ARC), CRC-16/-
CCIT-FALSE and CRC-32. Table below lists the individual protocol specifications. See also: http-
://reveng.sourceforge.net/crc-catalogue/
CRC-16/CCIT-FALSE CRC-16 CRC-32
Width 16 bits 16 bits 32 bits
Polynomial 0x1021 0x8005 0x04C11DB7
Initial seed 0xFFFF 0x0000 0xFFFFFFFF
Complement check-
sum
No No Yes
Reflect In No Yes Yes
Reflect Out No Yes Yes
Corresponding init functions:
void InitCrc16_CCIT(CRC_Type *base, uint32_t seed, bool isLast)
{
crc_config_t config;
config.polynomial = 0x1021;
config.seed = seed;
config.reflectIn =false;
config.reflectOut =false;
config.complementChecksum =false;
config.crcBits =kCrcBits16;
config.crcResult = isLast?kCrcFinalChecksum:
kCrcIntermediateChecksum;
CRC_Init(base, &config);
}
void InitCrc16(CRC_Type *base, uint32_t seed, bool isLast)
{
crc_config_t config;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
77
CRC Driver Examples
config.polynomial = 0x8005;
config.seed = seed;
config.reflectIn =true;
config.reflectOut =true;
config.complementChecksum =false;
config.crcBits =kCrcBits16;
config.crcResult = isLast?kCrcFinalChecksum:
kCrcIntermediateChecksum;
CRC_Init(base, &config);
}
void InitCrc32(CRC_Type *base, uint32_t seed, bool isLast)
{
crc_config_t config;
config.polynomial = 0x04C11DB7U;
config.seed = seed;
config.reflectIn =true;
config.reflectOut =true;
config.complementChecksum =true;
config.crcBits =kCrcBits32;
config.crcResult = isLast?kCrcFinalChecksum:
kCrcIntermediateChecksum;
CRC_Init(base, &config);
}
The following context switches show possible API usage:
uint16_t checksumCrc16;
uint32_t checksumCrc32;
uint16_t checksumCrc16Ccit;
checksumCrc16 = 0x0;
checksumCrc32 = 0xFFFFFFFFU;
checksumCrc16Ccit = 0xFFFFU;
/*Task A bytes[0-3] */
InitCrc16(base, checksumCrc16, false);
CRC_WriteData(base, &data[0], 4);
checksumCrc16 = CRC_Get16bitResult(base);
/*Task B bytes[0-3] */
InitCrc16_CCIT(base, checksumCrc16Ccit, false);
CRC_WriteData(base, &data[0], 4);
checksumCrc16Ccit = CRC_Get16bitResult(base);
/*Task C 4 bytes[0-3] */
InitCrc32(base, checksumCrc32, false);
CRC_WriteData(base, &data[0], 4);
checksumCrc32 = CRC_Get32bitResult(base);
/*Task B add final 5 bytes[4-8] */
InitCrc16_CCIT(base, checksumCrc16Ccit, true);
CRC_WriteData(base, &data[4], 5);
checksumCrc16Ccit = CRC_Get16bitResult(base);
/*Task C 3 bytes[4-6] */
InitCrc32(base, checksumCrc32, false);
CRC_WriteData(base, &data[4], 3);
checksumCrc32 = CRC_Get32bitResult(base);
/*Task A 3 bytes[4-6] */
InitCrc16(base, checksumCrc16, false);
78
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
CRC Driver Examples
CRC_WriteData(base, &data[4], 3);
checksumCrc16 = CRC_Get16bitResult(base);
/*Task C add final 2 bytes[7-8] */
InitCrc32(base, checksumCrc32, true);
CRC_WriteData(base, &data[7], 2);
checksumCrc32 = CRC_Get32bitResult(base);
/*Task A add final 2 bytes[7-8] */
InitCrc16(base, checksumCrc16, true);
CRC_WriteData(base, &data[7], 2);
checksumCrc16 = CRC_Get16bitResult(base);
Files
• file fsl_crc.h
Data Structures
• struct crc_config_t
CRC protocol configuration. More...
Macros
• #define CRC_DRIVER_USE_CRC16_CCIT_FALSE_AS_DEFAULT 1
Default configuration structure filled by CRC_GetDefaultConfig().
Enumerations
• enum crc_bits_t {
kCrcBits16 = 0U,
kCrcBits32 = 1U }
CRC bit width.
• enum crc_result_t {
kCrcFinalChecksum = 0U,
kCrcIntermediateChecksum = 1U }
CRC result type.
Functions
• void CRC_Init (CRC_Type ∗base, const crc_config_t ∗config)
Enables and configures the CRC peripheral module.
• static void CRC_Deinit (CRC_Type ∗base)
Disables the CRC peripheral module.
• void CRC_GetDefaultConfig (crc_config_t ∗config)
Loads default values to CRC protocol configuration structure.
• void CRC_WriteData (CRC_Type ∗base, const uint8_t ∗data, size_t dataSize)
Writes data to the CRC module.
• static uint32_t CRC_Get32bitResult (CRC_Type ∗base)
Reads 32-bit checksum from the CRC module.
• uint16_t CRC_Get16bitResult (CRC_Type ∗base)
Reads 16-bit checksum from the CRC module.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
79
Macro Definition Documentation
Driver version
• #define FSL_CRC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
CRC driver version.
10.8 Data Structure Documentation
10.8.1 struct crc_config_t
This structure holds the configuration for the CRC protocol.
Data Fields
• uint32_t polynomial
CRC Polynomial, MSBit first.
• uint32_t seed
Starting checksum value.
• bool reflectIn
Reflect bits on input.
• bool reflectOut
Reflect bits on output.
• bool complementChecksum
True if the result shall be complement of the actual checksum.
•crc_bits_t crcBits
Selects 16- or 32- bit CRC protocol.
•crc_result_t crcResult
Selects final or intermediate checksum return from CRC_Get16bitResult() or CRC_Get32bitResult()
10.8.1.0.0.13 Field Documentation
10.8.1.0.0.13.1 uint32_t crc_config_t::polynomial
Example polynomial: 0x1021 = 1_0000_0010_0001 = x∧12+x∧5+1
10.8.1.0.0.13.2 bool crc_config_t::reflectIn
10.8.1.0.0.13.3 bool crc_config_t::reflectOut
10.8.1.0.0.13.4 bool crc_config_t::complementChecksum
10.8.1.0.0.13.5 crc_bits_t crc_config_t::crcBits
10.9 Macro Definition Documentation
10.9.1 #define FSL_CRC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
80
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
10.9.2 #define CRC_DRIVER_USE_CRC16_CCIT_FALSE_AS_DEFAULT 1
Use CRC16-CCIT-FALSE as defeault.
10.10 Enumeration Type Documentation
10.10.1 enum crc_bits_t
Enumerator
kCrcBits16 Generate 16-bit CRC code.
kCrcBits32 Generate 32-bit CRC code.
10.10.2 enum crc_result_t
Enumerator
kCrcFinalChecksum CRC data register read value is the final checksum. Reflect out and final xor
protocol features are applied.
kCrcIntermediateChecksum CRC data register read value is intermediate checksum (raw value).
Reflect out and final xor protocol feature are not applied. Intermediate checksum can be used as
a seed for CRC_Init() to continue adding data to this checksum.
10.11 Function Documentation
10.11.1 void CRC_Init ( CRC_Type ∗base, const crc_config_t ∗config )
This functions enables the clock gate in the Kinetis SIM module for the CRC peripheral. It also configures
the CRC module and starts checksum computation by writing the seed.
Parameters
base CRC peripheral address.
config CRC module configuration structure
10.11.2 static void CRC_Deinit ( CRC_Type ∗base )[inline],[static]
This functions disables the clock gate in the Kinetis SIM module for the CRC peripheral.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
81
Function Documentation
Parameters
base CRC peripheral address.
10.11.3 void CRC_GetDefaultConfig ( crc_config_t ∗config )
Loads default values to CRC protocol configuration structure. The default values are:
config->polynomial = 0x1021;
config->seed = 0xFFFF;
config->reflectIn =false;
config->reflectOut =false;
config->complementChecksum =false;
config->crcBits =kCrcBits16;
config->crcResult =kCrcFinalChecksum;
Parameters
config CRC protocol configuration structure
10.11.4 void CRC_WriteData ( CRC_Type ∗base, const uint8_t ∗data, size_t
dataSize )
Writes input data buffer bytes to CRC data register. The configured type of transpose is applied.
Parameters
base CRC peripheral address.
data Input data stream, MSByte in data[0].
dataSize Size in bytes of the input data buffer.
10.11.5 static uint32_t CRC_Get32bitResult ( CRC_Type ∗base )[inline],
[static]
Reads CRC data register (intermediate or final checksum). The configured type of transpose and comple-
ment are applied.
82
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base CRC peripheral address.
Returns
intermediate or final 32-bit checksum, after configured transpose and complement operations.
10.11.6 uint16_t CRC_Get16bitResult ( CRC_Type ∗base )
Reads CRC data register (intermediate or final checksum). The configured type of transpose and comple-
ment are applied.
Parameters
base CRC peripheral address.
Returns
intermediate or final 16-bit checksum, after configured transpose and complement operations.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
83
Function Documentation
84
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 11
DAC: Digital-to-Analog Converter Driver
11.1 Overview
The KSDK provides a peripheral driver for the Digital-to-Analog Converter (DAC) module of Kinetis
devices.
#Overview
The DAC driver includes a basic DAC module (converter) and DAC buffer.
The basic DAC module supports operations unique to the DAC converter in each DAC instance. The APIs
in this part are used in the initialization phase, which is necessary for enabling the DAC module in the
application. The APIs enable/disable the clock, enable/disable the module, and configure the converter.
Call the initial APIs to prepare the DAC module for the application.
The DAC buffer operates the DAC hardware buffer. The DAC module supports a hardware buffer to keep a
group of DAC values to be converted. This feature supports updating the DAC output value automatically
by triggering the buffer read pointer to move in the buffer. Use the APIs to configure the hardware buffer’s
trigger mode, watermark, work mode, and use size. Additionally, the APIs operate the DMA, interrupts,
flags, the pointer (index of buffer), item values, and so on.
The DAC buffer plays a major part when using the DAC module, as the most functional features are
designed for the DAC hardware buffer.
Typical use case
Working as a basic DAC without the hardware buffer feature.
// ...
// Configures the DAC.
DAC_GetDefaultConfig(&dacConfigStruct);
DAC_Init(DEMO_DAC_INSTANCE, &dacConfigStruct);
DAC_SetBufferReadPointer(DEMO_DAC_INSTANCE, 0U);
// ...
DAC_SetBufferValue(DEMO_DAC_INSTANCE, 0U, dacValue);
Working with the hardware buffer.
// ...
EnableIRQ(DEMO_DAC_IRQ_ID);
// ...
// Configures the DAC.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
85
Overview
DAC_GetDefaultConfig(&dacConfigStruct);
DAC_Init(DEMO_DAC_INSTANCE, &dacConfigStruct);
// Configures the DAC buffer.
DAC_GetDefaultBufferConfig(&dacBufferConfigStruct);
DAC_SetBufferConfig(DEMO_DAC_INSTANCE, &dacBufferConfigStruct);
DAC_SetBufferReadPointer(DEMO_DAC_INSTANCE, 0U); // Make sure the read pointer
to the start.
for (index = 0U, dacValue = 0; index < DEMO_DAC_USED_BUFFER_SIZE; index++, dacValue += (0xFFFU /
DEMO_DAC_USED_BUFFER_SIZE))
{
DAC_SetBufferValue(DEMO_DAC_INSTANCE, index, dacValue);
}
// Clears flags.
#if defined(FSL_FEATURE_DAC_HAS_WATERMARK_DETECTION) && FSL_FEATURE_DAC_HAS_WATERMARK_DETECTION
g_DacBufferWatermarkInterruptFlag = false;
#endif // FSL_FEATURE_DAC_HAS_WATERMARK_DETECTION
g_DacBufferReadPointerTopPositionInterruptFlag = false;
g_DacBufferReadPointerBottomPositionInterruptFlag = false;
// Enables interrupts.
mask = 0U;
#if defined(FSL_FEATURE_DAC_HAS_WATERMARK_DETECTION) && FSL_FEATURE_DAC_HAS_WATERMARK_DETECTION
mask |= kDAC_BufferWatermarkInterruptEnable;
#endif // FSL_FEATURE_DAC_HAS_WATERMARK_DETECTION
mask |= kDAC_BufferReadPointerTopInterruptEnable |
kDAC_BufferReadPointerBottomInterruptEnable;
DAC_EnableBuffer(DEMO_DAC_INSTANCE, true);
DAC_EnableBufferInterrupts(DEMO_DAC_INSTANCE, mask);
// ISR for the DAC interrupt.
void DEMO_DAC_IRQ_HANDLER_FUNC(void)
{
uint32_t flags = DAC_GetBufferStatusFlags(DEMO_DAC_INSTANCE);
#if defined(FSL_FEATURE_DAC_HAS_WATERMARK_DETECTION) && FSL_FEATURE_DAC_HAS_WATERMARK_DETECTION
if (kDAC_BufferWatermarkFlag == (kDAC_BufferWatermarkFlag & flags))
{
g_DacBufferWatermarkInterruptFlag = true;
}
#endif // FSL_FEATURE_DAC_HAS_WATERMARK_DETECTION
if (kDAC_BufferReadPointerTopPositionFlag == (
kDAC_BufferReadPointerTopPositionFlag & flags))
{
g_DacBufferReadPointerTopPositionInterruptFlag = true;
}
if (kDAC_BufferReadPointerBottomPositionFlag == (
kDAC_BufferReadPointerBottomPositionFlag & flags))
{
g_DacBufferReadPointerBottomPositionInterruptFlag = true;
}
DAC_ClearBufferStatusFlags(DEMO_DAC_INSTANCE, flags); /*Clear flags.
}
Files
• file fsl_dac.h
Data Structures
• struct dac_config_t
DAC module configuration. More...
• struct dac_buffer_config_t
DAC buffer configuration. More...
86
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
Enumerations
• enum _dac_buffer_status_flags {
kDAC_BufferReadPointerTopPositionFlag = DAC_SR_DACBFRPTF_MASK,
kDAC_BufferReadPointerBottomPositionFlag = DAC_SR_DACBFRPBF_MASK }
DAC buffer flags.
• enum _dac_buffer_interrupt_enable {
kDAC_BufferReadPointerTopInterruptEnable = DAC_C0_DACBTIEN_MASK,
kDAC_BufferReadPointerBottomInterruptEnable = DAC_C0_DACBBIEN_MASK }
DAC buffer interrupts.
• enum dac_reference_voltage_source_t {
kDAC_ReferenceVoltageSourceVref1 = 0U,
kDAC_ReferenceVoltageSourceVref2 = 1U }
DAC reference voltage source.
• enum dac_buffer_trigger_mode_t {
kDAC_BufferTriggerByHardwareMode = 0U,
kDAC_BufferTriggerBySoftwareMode = 1U }
DAC buffer trigger mode.
• enum dac_buffer_work_mode_t {
kDAC_BufferWorkAsNormalMode = 0U,
kDAC_BufferWorkAsOneTimeScanMode }
DAC buffer work mode.
Driver version
• #define FSL_DAC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
DAC driver version 2.0.0.
Initialization
• void DAC_Init (DAC_Type ∗base, const dac_config_t ∗config)
Initializes the DAC module.
• void DAC_Deinit (DAC_Type ∗base)
De-initializes the DAC module.
• void DAC_GetDefaultConfig (dac_config_t ∗config)
Initializes the DAC user configuration structure.
• static void DAC_Enable (DAC_Type ∗base, bool enable)
Enables the DAC module.
Buffer
• static void DAC_EnableBuffer (DAC_Type ∗base, bool enable)
Enables the DAC buffer.
• void DAC_SetBufferConfig (DAC_Type ∗base, const dac_buffer_config_t ∗config)
Configures the CMP buffer.
• void DAC_GetDefaultBufferConfig (dac_buffer_config_t ∗config)
Initializes the DAC buffer configuration structure.
• static void DAC_EnableBufferDMA (DAC_Type ∗base, bool enable)
Enables the DMA for DAC buffer.
• void DAC_SetBufferValue (DAC_Type ∗base, uint8_t index, uint16_t value)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
87
Data Structure Documentation
Sets the value for items in the buffer.
• static void DAC_DoSoftwareTriggerBuffer (DAC_Type ∗base)
Triggers the buffer by software and updates the read pointer of the DAC buffer.
• static uint8_t DAC_GetBufferReadPointer (DAC_Type ∗base)
Gets the current read pointer of the DAC buffer.
• void DAC_SetBufferReadPointer (DAC_Type ∗base, uint8_t index)
Sets the current read pointer of the DAC buffer.
• void DAC_EnableBufferInterrupts (DAC_Type ∗base, uint32_t mask)
Enables interrupts for the DAC buffer.
• void DAC_DisableBufferInterrupts (DAC_Type ∗base, uint32_t mask)
Disables interrupts for the DAC buffer.
• uint32_t DAC_GetBufferStatusFlags (DAC_Type ∗base)
Gets the flags of events for the DAC buffer.
• void DAC_ClearBufferStatusFlags (DAC_Type ∗base, uint32_t mask)
Clears the flags of events for the DAC buffer.
11.2 Data Structure Documentation
11.2.1 struct dac_config_t
Data Fields
•dac_reference_voltage_source_t referenceVoltageSource
Select the DAC reference voltage source.
• bool enableLowPowerMode
Enable the low power mode.
11.2.1.0.0.14 Field Documentation
11.2.1.0.0.14.1 dac_reference_voltage_source_t dac_config_t::referenceVoltageSource
11.2.1.0.0.14.2 bool dac_config_t::enableLowPowerMode
11.2.2 struct dac_buffer_config_t
Data Fields
•dac_buffer_trigger_mode_t triggerMode
Select the buffer’s trigger mode.
•dac_buffer_work_mode_t workMode
Select the buffer’s work mode.
• uint8_t upperLimit
Set the upper limit for buffer index.
88
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
11.2.2.0.0.15 Field Documentation
11.2.2.0.0.15.1 dac_buffer_trigger_mode_t dac_buffer_config_t::triggerMode
11.2.2.0.0.15.2 dac_buffer_work_mode_t dac_buffer_config_t::workMode
11.2.2.0.0.15.3 uint8_t dac_buffer_config_t::upperLimit
Normally, 0-15 is available for buffer with 16 item.
11.3 Macro Definition Documentation
11.3.1 #define FSL_DAC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
11.4 Enumeration Type Documentation
11.4.1 enum _dac_buffer_status_flags
Enumerator
kDAC_BufferReadPointerTopPositionFlag DAC Buffer Read Pointer Top Position Flag.
kDAC_BufferReadPointerBottomPositionFlag DAC Buffer Read Pointer Bottom Position Flag.
11.4.2 enum _dac_buffer_interrupt_enable
Enumerator
kDAC_BufferReadPointerTopInterruptEnable DAC Buffer Read Pointer Top Flag Interrupt En-
able.
kDAC_BufferReadPointerBottomInterruptEnable DAC Buffer Read Pointer Bottom Flag Inter-
rupt Enable.
11.4.3 enum dac_reference_voltage_source_t
Enumerator
kDAC_ReferenceVoltageSourceVref1 The DAC selects DACREF_1 as the reference voltage.
kDAC_ReferenceVoltageSourceVref2 The DAC selects DACREF_2 as the reference voltage.
11.4.4 enum dac_buffer_trigger_mode_t
Enumerator
kDAC_BufferTriggerByHardwareMode The DAC hardware trigger is selected.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
89
Function Documentation
kDAC_BufferTriggerBySoftwareMode The DAC software trigger is selected.
11.4.5 enum dac_buffer_work_mode_t
Enumerator
kDAC_BufferWorkAsNormalMode Normal mode.
kDAC_BufferWorkAsOneTimeScanMode One-Time Scan mode.
11.5 Function Documentation
11.5.1 void DAC_Init ( DAC_Type ∗base, const dac_config_t ∗config )
This function initializes the DAC module, including:
• Enabling the clock for DAC module.
• Configuring the DAC converter with a user configuration.
• Enabling the DAC module.
Parameters
base DAC peripheral base address.
config Pointer to the configuration structure. See "dac_config_t".
11.5.2 void DAC_Deinit ( DAC_Type ∗base )
This function de-initializes the DAC module, including:
• Disabling the DAC module.
• Disabling the clock for the DAC module.
Parameters
base DAC peripheral base address.
11.5.3 void DAC_GetDefaultConfig ( dac_config_t ∗config )
This function initializes the user configuration structure to a default value. The default values are:
config->referenceVoltageSource = kDAC_ReferenceVoltageSourceVref2;
config->enableLowPowerMode = false;
90
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
config Pointer to the configuration structure. See "dac_config_t".
11.5.4 static void DAC_Enable ( DAC_Type ∗base, bool enable )[inline],
[static]
Parameters
base DAC peripheral base address.
enable Enables the feature or not.
11.5.5 static void DAC_EnableBuffer ( DAC_Type ∗base, bool enable )
[inline],[static]
Parameters
base DAC peripheral base address.
enable Enables the feature or not.
11.5.6 void DAC_SetBufferConfig ( DAC_Type ∗base, const dac_buffer_config_t ∗
config )
Parameters
base DAC peripheral base address.
config Pointer to the configuration structure. See "dac_buffer_config_t".
11.5.7 void DAC_GetDefaultBufferConfig ( dac_buffer_config_t ∗config )
This function initializes the DAC buffer configuration structure to a default value. The default values are:
config->triggerMode = kDAC_BufferTriggerBySoftwareMode;
config->watermark = kDAC_BufferWatermark1Word;
config->workMode = kDAC_BufferWorkAsNormalMode;
config->upperLimit = DAC_DATL_COUNT - 1U;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
91
Function Documentation
Parameters
config Pointer to the configuration structure. See "dac_buffer_config_t".
11.5.8 static void DAC_EnableBufferDMA ( DAC_Type ∗base, bool enable )
[inline],[static]
Parameters
base DAC peripheral base address.
enable Enables the feature or not.
11.5.9 void DAC_SetBufferValue ( DAC_Type ∗base, uint8_t index, uint16_t value
)
Parameters
base DAC peripheral base address.
index Setting index for items in the buffer. The available index should not exceed the size
of the DAC buffer.
value Setting value for items in the buffer. 12-bits are available.
11.5.10 static void DAC_DoSoftwareTriggerBuffer ( DAC_Type ∗base )
[inline],[static]
This function triggers the function by software. The read pointer of the DAC buffer is updated with one
step after this function is called. Changing the read pointer depends on the buffer’s work mode.
Parameters
base DAC peripheral base address.
11.5.11 static uint8_t DAC_GetBufferReadPointer ( DAC_Type ∗base )
[inline],[static]
This function gets the current read pointer of the DAC buffer. The current output value depends on the
item indexed by the read pointer. It is updated by software trigger or hardware trigger.
92
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base DAC peripheral base address.
Returns
Current read pointer of DAC buffer.
11.5.12 void DAC_SetBufferReadPointer ( DAC_Type ∗base, uint8_t index )
This function sets the current read pointer of the DAC buffer. The current output value depends on the
item indexed by the read pointer. It is updated by software trigger or hardware trigger. After the read
pointer changes, the DAC output value also changes.
Parameters
base DAC peripheral base address.
index Setting index value for the pointer.
11.5.13 void DAC_EnableBufferInterrupts ( DAC_Type ∗base, uint32_t mask )
Parameters
base DAC peripheral base address.
mask Mask value for interrupts. See "_dac_buffer_interrupt_enable".
11.5.14 void DAC_DisableBufferInterrupts ( DAC_Type ∗base, uint32_t mask )
Parameters
base DAC peripheral base address.
mask Mask value for interrupts. See "_dac_buffer_interrupt_enable".
11.5.15 uint32_t DAC_GetBufferStatusFlags ( DAC_Type ∗base )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
93
Function Documentation
Parameters
base DAC peripheral base address.
Returns
Mask value for the asserted flags. See "_dac_buffer_status_flags".
11.5.16 void DAC_ClearBufferStatusFlags ( DAC_Type ∗base, uint32_t mask )
Parameters
base DAC peripheral base address.
mask Mask value for flags. See "_dac_buffer_status_flags_t".
94
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 12
Debug Console
Initializes the the peripheral used to debug messages.
This part describes the programming interface of the debug console driver. The debug console enables
debug log messages to be output via the specified peripheral with frequency of the peripheral source clock
and base address at the specified baud rate. Additionally, it provides input and output functions to scan
and print formatted data.
12.1 Function groups
12.1.1 Initialization
To initialize the debug console, call the DbgConsole_Init() function with these parameters. This function
automatically enables the module and the clock.
/*
* * @param baseAddr Indicates which address of the peripheral is used to send debug messages.
*@param baudRate The desired baud rate in bits per second.
*@param device Low level device type for the debug console, can be one of:
*@arg DEBUG_CONSOLE_DEVICE_TYPE_UART,
*@arg DEBUG_CONSOLE_DEVICE_TYPE_LPUART,
*@arg DEBUG_CONSOLE_DEVICE_TYPE_LPSCI,
*@arg DEBUG_CONSOLE_DEVICE_TYPE_USBCDC.
*@param clkSrcFreq Frequency of peripheral source clock.
*@return Whether initialization was successful or not.
status_t DbgConsole_Init(uint32_t baseAddr, uint32_t baudRate, uint8_t device, uint32_t clkSrcFreq)
Selects the supported debug console hardware device type, such as
DEBUG_CONSOLE_DEVICE_TYPE_NONE
After the initialization is successful, stdout and stdin are connected to the selected peripheral. The debug
console state is stored in the debug_console_state_t structure, such as shown here:
typedef struct DebugConsoleState
{
uint8_t type;
This example shows how to call the DbgConsole_Init() given the user configuration structure:
uint32_t uartClkSrcFreq = CLOCK_GetFreq(BOARD_DEBUG_UART_CLKSRC);
DbgConsole_Init(BOARD_DEBUG_UART_BASEADDR, BOARD_DEBUG_UART_BAUDRATE, DEBUG_CONSOLE_DEVICE_TYPE_UART,
uartClkSrcFreq);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
95
Function groups
12.1.2 Advanced Feature
The debug console provides input and output functions to scan and print formatted data.
•Support a format specifier for PRINTF following this prototype " %[flags][width]
[.precision][length]specifier", which is explained below
flags Description
- Left-justified within the given field width. Right-
justified is the default.
+ Forces to precede the result with a plus or minus
sign (+ or -) even for positive numbers. By default,
only negative numbers are preceded with a - sign.
(space) If no sign is going to be written, a blank space is
inserted before the value.
# Used with o, x, or X specifiers the value is pre-
ceded with 0, 0x, or 0X respectively for values
other than zero. Used with e, E and f, it forces
the written output to contain a decimal point even
if no digits would follow. By default, if no digits
follow, no decimal point is written. Used with g or
G the result is the same as with e or E but trailing
zeros are not removed.
0 Left-pads the number with zeroes (0) instead of
spaces, where padding is specified (see width sub-
specifier).
Width Description
(number) A minimum number of characters to be printed. If
the value to be printed is shorter than this number,
the result is padded with blank spaces. The value
is not truncated even if the result is larger.
∗The width is not specified in the format string, but
as an additional integer value argument preceding
the argument that has to be formatted.
96
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function groups
.precision Description
.number For integer specifiers (d, i, o, u, x, X) precision
specifies the minimum number of digits to be writ-
ten. If the value to be written is shorter than this
number, the result is padded with leading zeros.
The value is not truncated even if the result is
longer. A precision of 0 means that no character
is written for the value 0. For e, E, and f speci-
fiers this is the number of digits to be printed after
the decimal point. For g and G specifiers This
is the maximum number of significant digits to be
printed. For s this is the maximum number of
characters to be printed. By default, all characters
are printed until the ending null character is en-
countered. For c type it has no effect. When no
precision is specified, the default is 1. If the period
is specified without an explicit value for precision,
0 is assumed.
.∗The precision is not specified in the format string,
but as an additional integer value argument pre-
ceding the argument that has to be formatted.
length Description
Do not support
specifier Description
d or i Signed decimal integer
f Decimal floating point
F Decimal floating point capital letters
x Unsigned hexadecimal integer
X Unsigned hexadecimal integer capital letters
o Signed octal
b Binary value
p Pointer address
u Unsigned decimal integer
c Character
s String of characters
n Nothing printed
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
97
Function groups
• Support a format specifier for SCANF following this prototype " %[∗][width][length]specifier",
which is explained below
∗Description
An optional starting asterisk indicates that the data is to be read from the stream but ignored, i.e., it is
not stored in the corresponding argument.
width Description
This specifies the maximum number of characters to be read in the current reading operation.
length Description
hh The argument is interpreted as a signed charac-
ter or unsigned character (only applies to integer
specifiers: i, d, o, u, x, and X).
h The argument is interpreted as a short integer
or unsigned short integer (only applies to integer
specifiers: i, d, o, u, x, and X).
l The argument is interpreted as a long integer or
unsigned long integer for integer specifiers (i, d,
o, u, x, and X), and as a wide character or wide
character string for specifiers c and s.
ll The argument is interpreted as a long long integer
or unsigned long long integer for integer specifiers
(i, d, o, u, x, and X), and as a wide character or
wide character string for specifiers c and s.
L The argument is interpreted as a long double (only
applies to floating point specifiers: e, E, f, g, and
G).
j or z or t Not supported
specifier Qualifying Input Type of argument
c Single character: Reads the next
character. If a width different
from 1 is specified, the function
reads width characters and stores
them in the successive locations
of the array passed as argument.
No null character is appended at
the end.
char ∗
98
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
specifier Qualifying Input Type of argument
i Integer: : Number optionally
preceded with a + or - sign
int ∗
d Decimal integer: Number op-
tionally preceded with a + or -
sign
int ∗
a, A, e, E, f, F, g, G Floating point: Decimal number
containing a decimal point, op-
tionally preceded by a + or - sign
and optionally followed by the
e or E character and a decimal
number. Two examples of valid
entries are -732.103 and 7.12e4
float ∗
o Octal Integer: int ∗
s String of characters. This reads
subsequent characters until a
white space is found (white
space characters are considered
to be blank, newline, and tab).
char ∗
u Unsigned decimal integer. unsigned int ∗
The debug console has its own printf/scanf/putchar/getchar functions which are defined in the header file:
int DbgConsole_Printf(const char *fmt_s, ...);
This utility supports selecting toolchain’s printf/scanf or the KSDK printf/scanf:
#if SDK_DEBUGCONSOLE /*Select printf, scanf, putchar, getchar of SDK version.
#define PRINTF DbgConsole_Printf
#define SCANF DbgConsole_Scanf
#define PUTCHAR DbgConsole_Putchar
#define GETCHAR DbgConsole_Getchar
#else /*Select printf, scanf, putchar, getchar of toolchain.
#define PRINTF printf
#define SCANF scanf
#define PUTCHAR putchar
#define GETCHAR getchar
#endif /*SDK_DEBUGCONSOLE
12.2 Typical use case
Some examples use the PUTCHAR & GETCHAR function
ch = GETCHAR();
PUTCHAR(ch);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
99
Typical use case
Some examples use the PRINTF function
Statement prints the string format.
PRINTF("%s %s\r\n","Hello","world!");
Statement prints the hexadecimal format/
PRINTF("0x%02X hexadecimal number equivalents 255", 255);
Statement prints the decimal floating point and unsigned decimal.
PRINTF("Execution timer: %s\n\rTime: %u ticks %2.5f milliseconds\n\rDONE\n\r","1 day", 86400, 86.4);
Some examples use the SCANF function
PRINTF("Enter a decimal number: ");
SCANF("%d", &i);
PRINTF("\r\nYou have entered %d.\r\n", i, i);
PRINTF("Enter a hexadecimal number: ");
SCANF("%x", &i);
PRINTF("\r\nYou have entered 0x%X (%d).\r\n", i, i);
Print out failure messages using KSDK __assert_func:
void __assert_func(const char *file, int line, const char *func, const char *failedExpr)
{
PRINTF("ASSERT ERROR \" %s \": file \"%s\" Line \"%d\" function name \"%s\"\n", failedExpr, file ,
line, func);
for (;;)
{}
}
100
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 13
DMA: Direct Memory Access Controller Driver
13.1 Overview
The KSDK provides a peripheral driver for the Direct Memory Access (DMA) of Kinetis devices.
13.2 Typical use case
13.2.1 DMA Operation
dma_transfer_config_t transferConfig;
uint32_t transferDone = false;
DMA_Init(DMA0);
DMA_CreateHandle(&g_DMA_Handle, DMA0, channel);
DMA_InstallCallback(&g_DMA_Handle, DMA_Callback, &transferDone);
DMA_PrepareTransfer(&transferConfig, srcAddr, srcWidth, destAddr, destWidth,
transferBytes,
kDMA_MemoryToMemory);
DMA_SubmitTransfer(&g_DMA_Handle, &transferConfig, true);
DMA_StartTransfer(&g_DMA_Handle);
/*Wait for DMA transfer finish
while (transferDone != true);
Files
• file fsl_dma.h
Data Structures
• struct dma_transfer_config_t
DMA transfer configuration structure. More...
• struct dma_channel_link_config_t
DMA transfer configuration structure. More...
• struct dma_handle_t
DMA DMA handle structure. More...
Typedefs
• typedef void(∗dma_callback )(struct _dma_handle ∗handle, void ∗userData)
Callback function prototype for the DMA driver.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
101
Typical use case
Enumerations
• enum _dma_channel_status_flags {
kDMA_TransactionsBCRFlag = DMA_DSR_BCR_BCR_MASK,
kDMA_TransactionsDoneFlag = DMA_DSR_BCR_DONE_MASK,
kDMA_TransactionsBusyFlag = DMA_DSR_BCR_BSY_MASK,
kDMA_TransactionsRequestFlag = DMA_DSR_BCR_REQ_MASK,
kDMA_BusErrorOnDestinationFlag = DMA_DSR_BCR_BED_MASK,
kDMA_BusErrorOnSourceFlag = DMA_DSR_BCR_BES_MASK,
kDMA_ConfigurationErrorFlag = DMA_DSR_BCR_CE_MASK }
status flag for the DMA driver.
• enum dma_transfer_size_t {
kDMA_Transfersize32bits = 0x0U,
kDMA_Transfersize8bits,
kDMA_Transfersize16bits }
DMA transfer size type.
• enum dma_modulo_t {
kDMA_ModuloDisable = 0x0U,
kDMA_Modulo16Bytes,
kDMA_Modulo32Bytes,
kDMA_Modulo64Bytes,
kDMA_Modulo128Bytes,
kDMA_Modulo256Bytes,
kDMA_Modulo512Bytes,
kDMA_Modulo1KBytes,
kDMA_Modulo2KBytes,
kDMA_Modulo4KBytes,
kDMA_Modulo8KBytes,
kDMA_Modulo16KBytes,
kDMA_Modulo32KBytes,
kDMA_Modulo64KBytes,
kDMA_Modulo128KBytes,
kDMA_Modulo256KBytes }
Configuration type for the DMA modulo.
• enum dma_channel_link_type_t {
kDMA_ChannelLinkDisable = 0x0U,
kDMA_ChannelLinkChannel1AndChannel2,
kDMA_ChannelLinkChannel1,
kDMA_ChannelLinkChannel1AfterBCR0 }
DMA channel link type.
• enum dma_transfer_type_t {
kDMA_MemoryToMemory = 0x0U,
kDMA_PeripheralToMemory,
kDMA_MemoryToPeripheral }
DMA transfer type.
• enum dma_transfer_options_t {
kDMA_NoOptions = 0x0U,
102
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
kDMA_EnableInterrupt }
DMA transfer options.
• enum _dma_transfer_status
DMA transfer status.
Driver version
• #define FSL_DMA_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
DMA driver version 2.0.0.
DMA Initialization and De-initialization
• void DMA_Init (DMA_Type ∗base)
Initializes the DMA peripheral.
• void DMA_Deinit (DMA_Type ∗base)
Deinitializes the DMA peripheral.
DMA Channel Operation
• void DMA_ResetChannel (DMA_Type ∗base, uint32_t channel)
Resets the DMA channel.
• void DMA_SetTransferConfig (DMA_Type ∗base, uint32_t channel, const dma_transfer_config_t
∗config)
Configures the DMA transfer attribute.
• void DMA_SetChannelLinkConfig (DMA_Type ∗base, uint32_t channel, const dma_channel_link-
_config_t ∗config)
Configures the DMA channel link feature.
• static void DMA_SetSourceAddress (DMA_Type ∗base, uint32_t channel, uint32_t srcAddr)
Sets the DMA source address for the DMA transfer.
• static void DMA_SetDestinationAddress (DMA_Type ∗base, uint32_t channel, uint32_t destAddr)
Sets the DMA destination address for the DMA transfer.
• static void DMA_SetTransferSize (DMA_Type ∗base, uint32_t channel, uint32_t size)
Sets the DMA transfer size for the DMA transfer.
• void DMA_SetModulo (DMA_Type ∗base, uint32_t channel, dma_modulo_t srcModulo, dma_-
modulo_t destModulo)
Sets the DMA modulo for the DMA transfer.
• static void DMA_EnableCycleSteal (DMA_Type ∗base, uint32_t channel, bool enable)
Enables the DMA cycle steal for the DMA transfer.
• static void DMA_EnableAutoAlign (DMA_Type ∗base, uint32_t channel, bool enable)
Enables the DMA auto align for the DMA transfer.
• static void DMA_EnableAsyncRequest (DMA_Type ∗base, uint32_t channel, bool enable)
Enables the DMA async request for the DMA transfer.
• static void DMA_EnableInterrupts (DMA_Type ∗base, uint32_t channel)
Enables an interrupt for the DMA transfer.
• static void DMA_DisableInterrupts (DMA_Type ∗base, uint32_t channel)
Disables an interrupt for the DMA transfer.
DMA Channel Transfer Operation
• static void DMA_EnableChannelRequest (DMA_Type ∗base, uint32_t channel)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
103
Data Structure Documentation
Enables the DMA hardware channel request.
• static void DMA_DisableChannelRequest (DMA_Type ∗base, uint32_t channel)
Disables the DMA hardware channel request.
• static void DMA_TriggerChannelStart (DMA_Type ∗base, uint32_t channel)
Starts the DMA transfer with a software trigger.
DMA Channel Status Operation
• static uint32_t DMA_GetRemainingBytes (DMA_Type ∗base, uint32_t channel)
Gets the remaining bytes of the current DMA transfer.
• static uint32_t DMA_GetChannelStatusFlags (DMA_Type ∗base, uint32_t channel)
Gets the DMA channel status flags.
• static void DMA_ClearChannelStatusFlags (DMA_Type ∗base, uint32_t channel, uint32_t mask)
Clears the DMA channel status flags.
DMA Channel Transactional Operation
• void DMA_CreateHandle (dma_handle_t ∗handle, DMA_Type ∗base, uint32_t channel)
Creates the DMA handle.
• void DMA_SetCallback (dma_handle_t ∗handle, dma_callback callback, void ∗userData)
Sets the DMA callback function.
• void DMA_PrepareTransfer (dma_transfer_config_t ∗config, void ∗srcAddr, uint32_t srcWidth,
void ∗destAddr, uint32_t destWidth, uint32_t transferBytes, dma_transfer_type_t type)
Prepares the DMA transfer configuration structure.
• status_t DMA_SubmitTransfer (dma_handle_t ∗handle, const dma_transfer_config_t ∗config,
uint32_t options)
Submits the DMA transfer request.
• static void DMA_StartTransfer (dma_handle_t ∗handle)
DMA starts a transfer.
• static void DMA_StopTransfer (dma_handle_t ∗handle)
DMA stops a transfer.
• void DMA_AbortTransfer (dma_handle_t ∗handle)
DMA aborts a transfer.
• void DMA_HandleIRQ (dma_handle_t ∗handle)
DMA IRQ handler for current transfer complete.
13.3 Data Structure Documentation
13.3.1 struct dma_transfer_config_t
Data Fields
• uint32_t srcAddr
DMA transfer source address.
• uint32_t destAddr
DMA destination address.
• bool enableSrcIncrement
Source address increase after each transfer.
•dma_transfer_size_t srcSize
Source transfer size unit.
104
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
• bool enableDestIncrement
Destination address increase after each transfer.
•dma_transfer_size_t destSize
Destination transfer unit.
• uint32_t transferSize
The number of bytes to be transferred.
13.3.1.0.0.16 Field Documentation
13.3.1.0.0.16.1 uint32_t dma_transfer_config_t::srcAddr
13.3.1.0.0.16.2 uint32_t dma_transfer_config_t::destAddr
13.3.1.0.0.16.3 bool dma_transfer_config_t::enableSrcIncrement
13.3.1.0.0.16.4 dma_transfer_size_t dma_transfer_config_t::srcSize
13.3.1.0.0.16.5 bool dma_transfer_config_t::enableDestIncrement
13.3.1.0.0.16.6 dma_transfer_size_t dma_transfer_config_t::destSize
13.3.1.0.0.16.7 uint32_t dma_transfer_config_t::transferSize
13.3.2 struct dma_channel_link_config_t
Data Fields
•dma_channel_link_type_t linkType
Channel link type.
• uint32_t channel1
The index of channel 1.
• uint32_t channel2
The index of channel 2.
13.3.2.0.0.17 Field Documentation
13.3.2.0.0.17.1 dma_channel_link_type_t dma_channel_link_config_t::linkType
13.3.2.0.0.17.2 uint32_t dma_channel_link_config_t::channel1
13.3.2.0.0.17.3 uint32_t dma_channel_link_config_t::channel2
13.3.3 struct dma_handle_t
Data Fields
• DMA_Type ∗base
DMA peripheral address.
• uint8_t channel
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
105
Enumeration Type Documentation
DMA channel used.
•dma_callback callback
DMA callback function.
• void ∗userData
Callback parameter.
13.3.3.0.0.18 Field Documentation
13.3.3.0.0.18.1 DMA_Type∗dma_handle_t::base
13.3.3.0.0.18.2 uint8_t dma_handle_t::channel
13.3.3.0.0.18.3 dma_callback dma_handle_t::callback
13.3.3.0.0.18.4 void∗dma_handle_t::userData
13.4 Macro Definition Documentation
13.4.1 #define FSL_DMA_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
13.5 Typedef Documentation
13.5.1 typedef void(∗dma_callback)(struct _dma_handle ∗handle, void ∗userData)
13.6 Enumeration Type Documentation
13.6.1 enum _dma_channel_status_flags
Enumerator
kDMA_TransactionsBCRFlag Contains the number of bytes yet to be transferred for a given block.
kDMA_TransactionsDoneFlag Transactions Done.
kDMA_TransactionsBusyFlag Transactions Busy.
kDMA_TransactionsRequestFlag Transactions Request.
kDMA_BusErrorOnDestinationFlag Bus Error on Destination.
kDMA_BusErrorOnSourceFlag Bus Error on Source.
kDMA_ConfigurationErrorFlag Configuration Error.
13.6.2 enum dma_transfer_size_t
Enumerator
kDMA_Transfersize32bits 32 bits are transferred for every read/write
kDMA_Transfersize8bits 8 bits are transferred for every read/write
kDMA_Transfersize16bits 16b its are transferred for every read/write
106
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
13.6.3 enum dma_modulo_t
Enumerator
kDMA_ModuloDisable Buffer disabled.
kDMA_Modulo16Bytes Circular buffer size is 16 bytes.
kDMA_Modulo32Bytes Circular buffer size is 32 bytes.
kDMA_Modulo64Bytes Circular buffer size is 64 bytes.
kDMA_Modulo128Bytes Circular buffer size is 128 bytes.
kDMA_Modulo256Bytes Circular buffer size is 256 bytes.
kDMA_Modulo512Bytes Circular buffer size is 512 bytes.
kDMA_Modulo1KBytes Circular buffer size is 1 KB.
kDMA_Modulo2KBytes Circular buffer size is 2 KB.
kDMA_Modulo4KBytes Circular buffer size is 4 KB.
kDMA_Modulo8KBytes Circular buffer size is 8 KB.
kDMA_Modulo16KBytes Circular buffer size is 16 KB.
kDMA_Modulo32KBytes Circular buffer size is 32 KB.
kDMA_Modulo64KBytes Circular buffer size is 64 KB.
kDMA_Modulo128KBytes Circular buffer size is 128 KB.
kDMA_Modulo256KBytes Circular buffer size is 256 KB.
13.6.4 enum dma_channel_link_type_t
Enumerator
kDMA_ChannelLinkDisable No channel link.
kDMA_ChannelLinkChannel1AndChannel2 Perform a link to channel LCH1 after each cycle-
steal transfer. followed by a link to LCH2 after the BCR decrements to 0.
kDMA_ChannelLinkChannel1 Perform a link to LCH1 after each cycle-steal transfer.
kDMA_ChannelLinkChannel1AfterBCR0 Perform a link to LCH1 after the BCR decrements.
13.6.5 enum dma_transfer_type_t
Enumerator
kDMA_MemoryToMemory Memory to Memory transfer.
kDMA_PeripheralToMemory Peripheral to Memory transfer.
kDMA_MemoryToPeripheral Memory to Peripheral transfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
107
Function Documentation
13.6.6 enum dma_transfer_options_t
Enumerator
kDMA_NoOptions Transfer without options.
kDMA_EnableInterrupt Enable interrupt while transfer complete.
13.7 Function Documentation
13.7.1 void DMA_Init ( DMA_Type ∗base )
This function ungates the DMA clock.
Parameters
base DMA peripheral base address.
13.7.2 void DMA_Deinit ( DMA_Type ∗base )
This function gates the DMA clock.
Parameters
base DMA peripheral base address.
13.7.3 void DMA_ResetChannel ( DMA_Type ∗base, uint32_t channel )
Sets all register values to reset values and enables the cycle steal and auto stop channel request features.
Parameters
base DMA peripheral base address.
channel DMA channel number.
13.7.4 void DMA_SetTransferConfig ( DMA_Type ∗base, uint32_t channel, const
dma_transfer_config_t ∗config )
This function configures the transfer attribute including the source address, destination address, transfer
size, and so on. This example shows how to set up the the dma_transfer_config_t parameters and how to
call the DMA_ConfigBasicTransfer function.
108
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
dma_transfer_config_t transferConfig;
memset(&transferConfig, 0, sizeof(transferConfig));
transferConfig.srcAddr = (uint32_t)srcAddr;
transferConfig.destAddr = (uint32_t)destAddr;
transferConfig.enbaleSrcIncrement = true;
transferConfig.enableDestIncrement =true;
transferConfig.srcSize =kDMA_Transfersize32bits;
transferConfig.destSize =kDMA_Transfersize32bits;
transferConfig.transferSize =sizeof(uint32_t) *BUFF_LENGTH;
DMA_SetTransferConfig(DMA0, 0, &transferConfig);
Parameters
base DMA peripheral base address.
channel DMA channel number.
config Pointer to the DMA transfer configuration structure.
13.7.5 void DMA_SetChannelLinkConfig ( DMA_Type ∗base, uint32_t channel,
const dma_channel_link_config_t ∗config )
This function allows DMA channels to have their transfers linked. The current DMA channel triggers a
DMA request to the linked channels (LCH1 or LCH2) depending on the channel link type. Perform a link
to channel LCH1 after each cycle-steal transfer followed by a link to LCH2 after the BCR decrements to 0
if the type is kDMA_ChannelLinkChannel1AndChannel2. Perform a link to LCH1 after each cycle-steal
transfer if the type is kDMA_ChannelLinkChannel1. Perform a link to LCH1 after the BCR decrements
to 0 if the type is kDMA_ChannelLinkChannel1AfterBCR0.
Parameters
base DMA peripheral base address.
channel DMA channel number.
config Pointer to the channel link configuration structure.
13.7.6 static void DMA_SetSourceAddress ( DMA_Type ∗base, uint32_t channel,
uint32_t srcAddr )[inline],[static]
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
109
Function Documentation
base DMA peripheral base address.
channel DMA channel number.
srcAddr DMA source address.
13.7.7 static void DMA_SetDestinationAddress ( DMA_Type ∗base, uint32_t
channel, uint32_t destAddr )[inline],[static]
Parameters
base DMA peripheral base address.
channel DMA channel number.
destAddr DMA destination address.
13.7.8 static void DMA_SetTransferSize ( DMA_Type ∗base, uint32_t channel,
uint32_t size )[inline],[static]
Parameters
base DMA peripheral base address.
channel DMA channel number.
size The number of bytes to be transferred.
13.7.9 void DMA_SetModulo ( DMA_Type ∗base, uint32_t channel, dma_modulo_t
srcModulo, dma_modulo_t destModulo )
This function defines a specific address range specified to be the value after (SAR + SSIZE)/(DAR + DS-
IZE) calculation is performed or the original register value. It provides the ability to implement a circular
data queue easily.
Parameters
base DMA peripheral base address.
110
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
channel DMA channel number.
srcModulo source address modulo.
destModulo destination address modulo.
13.7.10 static void DMA_EnableCycleSteal ( DMA_Type ∗base, uint32_t channel,
bool enable )[inline],[static]
If the cycle steal feature is enabled (true), the DMA controller forces a single read/write transfer per
request, or it continuously makes read/write transfers until the BCR decrements to 0.
Parameters
base DMA peripheral base address.
channel DMA channel number.
enable The command for enable (true) or disable (false).
13.7.11 static void DMA_EnableAutoAlign ( DMA_Type ∗base, uint32_t channel,
bool enable )[inline],[static]
If the auto align feature is enabled (true), the appropriate address register increments, regardless of DINC
or SINC.
Parameters
base DMA peripheral base address.
channel DMA channel number.
enable The command for enable (true) or disable (false).
13.7.12 static void DMA_EnableAsyncRequest ( DMA_Type ∗base, uint32_t
channel, bool enable )[inline],[static]
If the async request feature is enabled (true), the DMA supports asynchronous DREQs while the MCU is
in stop mode.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
111
Function Documentation
Parameters
base DMA peripheral base address.
channel DMA channel number.
enable The command for enable (true) or disable (false).
13.7.13 static void DMA_EnableInterrupts ( DMA_Type ∗base, uint32_t channel )
[inline],[static]
Parameters
base DMA peripheral base address.
channel DMA channel number.
13.7.14 static void DMA_DisableInterrupts ( DMA_Type ∗base, uint32_t channel )
[inline],[static]
Parameters
base DMA peripheral base address.
channel DMA channel number.
13.7.15 static void DMA_EnableChannelRequest ( DMA_Type ∗base, uint32_t
channel )[inline],[static]
Parameters
base DMA peripheral base address.
channel The DMA channel number.
13.7.16 static void DMA_DisableChannelRequest ( DMA_Type ∗base, uint32_t
channel )[inline],[static]
112
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base DMA peripheral base address.
channel DMA channel number.
13.7.17 static void DMA_TriggerChannelStart ( DMA_Type ∗base, uint32_t
channel )[inline],[static]
This function starts only one read/write iteration.
Parameters
base DMA peripheral base address.
channel The DMA channel number.
13.7.18 static uint32_t DMA_GetRemainingBytes ( DMA_Type ∗base, uint32_t
channel )[inline],[static]
Parameters
base DMA peripheral base address.
channel DMA channel number.
Returns
The number of bytes which have not been transferred yet.
13.7.19 static uint32_t DMA_GetChannelStatusFlags ( DMA_Type ∗base, uint32_t
channel )[inline],[static]
Parameters
base DMA peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
113
Function Documentation
channel DMA channel number.
Returns
The mask of the channel status. Use the _dma_channel_status_flags type to decode the return 32 bit
variables.
13.7.20 static void DMA_ClearChannelStatusFlags ( DMA_Type ∗base, uint32_t
channel, uint32_t mask )[inline],[static]
Parameters
base DMA peripheral base address.
channel DMA channel number.
mask The mask of the channel status to be cleared. Use the defined _dma_channel_status-
_flags type.
13.7.21 void DMA_CreateHandle ( dma_handle_t ∗handle, DMA_Type ∗base,
uint32_t channel )
This function is called first if using the transactional API for the DMA. This function initializes the internal
state of the DMA handle.
Parameters
handle DMA handle pointer. The DMA handle stores callback function and parameters.
base DMA peripheral base address.
channel DMA channel number.
13.7.22 void DMA_SetCallback ( dma_handle_t ∗handle, dma_callback callback,
void ∗userData )
This callback is called in the DMA IRQ handler. Use the callback to do something after the current transfer
complete.
114
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
handle DMA handle pointer.
callback DMA callback function pointer.
userData Parameter for callback function. If it is not needed, just set to NULL.
13.7.23 void DMA_PrepareTransfer ( dma_transfer_config_t ∗config, void ∗
srcAddr, uint32_t srcWidth, void ∗destAddr, uint32_t destWidth, uint32_t
transferBytes, dma_transfer_type_t type )
This function prepares the transfer configuration structure according to the user input.
Parameters
config Pointer to the user configuration structure of type dma_transfer_config_t.
srcAddr DMA transfer source address.
srcWidth DMA transfer source address width (byte).
destAddr DMA transfer destination address.
destWidth DMA transfer destination address width (byte).
transferBytes DMA transfer bytes to be transferred.
type DMA transfer type.
13.7.24 status_t DMA_SubmitTransfer ( dma_handle_t ∗handle, const
dma_transfer_config_t ∗config, uint32_t options )
This function submits the DMA transfer request according to the transfer configuration structure.
Parameters
handle DMA handle pointer.
config Pointer to DMA transfer configuration structure.
options Additional configurations for transfer. Use the defined dma_transfer_options_t type.
Return values
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
115
Function Documentation
kStatus_DMA_Success It indicates that the DMA submit transfer request succeeded.
kStatus_DMA_Busy It indicates that the DMA is busy. Submit transfer request is not allowed.
Note
This function can’t process multi transfer request.
13.7.25 static void DMA_StartTransfer ( dma_handle_t ∗handle )[inline],
[static]
This function enables the channel request. Call this function after submitting a transfer request.
Parameters
handle DMA handle pointer.
Return values
kStatus_DMA_Success It indicates that the DMA start transfer succeed.
kStatus_DMA_Busy It indicates that the DMA has started a transfer.
13.7.26 static void DMA_StopTransfer ( dma_handle_t ∗handle )[inline],
[static]
This function disables the channel request to stop a DMA transfer. The transfer can be resumed by calling
the DMA_StartTransfer.
Parameters
handle DMA handle pointer.
13.7.27 void DMA_AbortTransfer ( dma_handle_t ∗handle )
This function disables the channel request and clears all status bits. Submit another transfer after calling
this API.
116
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
handle DMA handle pointer.
13.7.28 void DMA_HandleIRQ ( dma_handle_t ∗handle )
This function clears the channel interrupt flag and calls the callback function if it is not NULL.
Parameters
handle DMA handle pointer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
117
Function Documentation
118
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 14
DMAMUX: Direct Memory Access Multiplexer Driver
14.1 Overview
The KSDK provides a peripheral driver for the Direct Memory Access Multiplexer(DMAMUX) of Kinetis
devices.
14.2 Typical use case
14.2.1 DMAMUX Operation
DMAMUX_Init(DMAMUX0);
DMAMUX_SetSource(DMAMUX0, channel, source);
DMAMUX_EnableChannel(DMAMUX0, channel);
...
DMAMUX_DisableChannel(DMAMUX, channel);
DMAMUX_Deinit(DMAMUX0);
Files
• file fsl_dmamux.h
Driver version
• #define FSL_DMAMUX_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
DMAMUX driver version 2.0.0.
DMAMUX Initialize and De-initialize
• void DMAMUX_Init (DMAMUX_Type ∗base)
Initializes DMAMUX peripheral.
• void DMAMUX_Deinit (DMAMUX_Type ∗base)
Deinitializes DMAMUX peripheral.
DMAMUX Channel Operation
• static void DMAMUX_EnableChannel (DMAMUX_Type ∗base, uint32_t channel)
Enable DMAMUX channel.
• static void DMAMUX_DisableChannel (DMAMUX_Type ∗base, uint32_t channel)
Disable DMAMUX channel.
• static void DMAMUX_SetSource (DMAMUX_Type ∗base, uint32_t channel, uint8_t source)
Configure DMAMUX channel source.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
119
Function Documentation
14.3 Macro Definition Documentation
14.3.1 #define FSL_DMAMUX_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
14.4 Function Documentation
14.4.1 void DMAMUX_Init ( DMAMUX_Type ∗base )
This function ungate the DMAMUX clock.
120
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base DMAMUX peripheral base address.
14.4.2 void DMAMUX_Deinit ( DMAMUX_Type ∗base )
This function gate the DMAMUX clock.
Parameters
base DMAMUX peripheral base address.
14.4.3 static void DMAMUX_EnableChannel ( DMAMUX_Type ∗base, uint32_t
channel )[inline],[static]
This function enable DMAMUX channel to work.
Parameters
base DMAMUX peripheral base address.
channel DMAMUX channel number.
14.4.4 static void DMAMUX_DisableChannel ( DMAMUX_Type ∗base, uint32_t
channel )[inline],[static]
This function disable DMAMUX channel.
Note
User must disable DMAMUX channel before configure it.
Parameters
base DMAMUX peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
121
Function Documentation
channel DMAMUX channel number.
14.4.5 static void DMAMUX_SetSource ( DMAMUX_Type ∗base, uint32_t channel,
uint8_t source )[inline],[static]
Parameters
base DMAMUX peripheral base address.
channel DMAMUX channel number.
source Channel source which is used to trigger DMA transfer.
122
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 15
DSPI: Serial Peripheral Interface Driver
15.1 Overview
The KSDK provides a peripheral driver for the Serial Peripheral Interface (SPI) module of Kinetis devices.
Modules
•DSPI DMA Driver
•DSPI Driver
•DSPI FreeRTOS Driver
•DSPI eDMA Driver
•DSPI µCOS/II Driver
•DSPI µCOS/III Driver
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
123
DSPI Driver
15.2 DSPI Driver
15.2.1 Overview
This section describes the programming interface of the DSPI Peripheral driver. The DSPI driver config-
ures DSPI module, provides the functional and transactional interfaces to build the DSPI application.
15.2.2 Typical use case
15.2.2.1 Master Operation
dspi_master_handle_t g_m_handle; //global variable
dspi_master_config_t masterConfig;
masterConfig.whichCtar =kDSPI_Ctar0;
masterConfig.ctarConfig.baudRate = baudrate;
masterConfig.ctarConfig.bitsPerFrame = 8;
masterConfig.ctarConfig.cpol =
kDSPI_ClockPolarityActiveHigh;
masterConfig.ctarConfig.cpha =
kDSPI_ClockPhaseFirstEdge;
masterConfig.ctarConfig.direction =
kDSPI_MsbFirst;
masterConfig.ctarConfig.pcsToSckDelayInNanoSec = 1000000000 /
baudrate ;
masterConfig.ctarConfig.lastSckToPcsDelayInNanoSec = 1000000000 /
baudrate ;
masterConfig.ctarConfig.betweenTransferDelayInNanoSec = 1000000000 /
baudrate ;
masterConfig.whichPcs =kDSPI_Pcs0;
masterConfig.pcsActiveHighOrLow =
kDSPI_PcsActiveLow;
masterConfig.enableContinuousSCK =false;
masterConfig.enableRxFifoOverWrite =false;
masterConfig.enableModifiedTimingFormat =false;
masterConfig.samplePoint =
kDSPI_SckToSin0Clock;
DSPI_MasterInit(base, &masterConfig, srcClock_Hz);
//srcClock_Hz = CLOCK_GetFreq(xxx);
DSPI_MasterInit(base, &masterConfig, srcClock_Hz);
DSPI_MasterTransferCreateHandle(base, &g_m_handle, NULL, NULL);
masterXfer.txData = masterSendBuffer;
masterXfer.rxData = masterReceiveBuffer;
masterXfer.dataSize = transfer_dataSize;
masterXfer.configFlags = kDSPI_MasterCtar0 |kDSPI_MasterPcs0 ;
DSPI_MasterTransferBlocking(base, &g_m_handle, &masterXfer);
15.2.2.2 Slave Operation
dspi_slave_handle_t g_s_handle;//global variable
/*Slave config
slaveConfig.whichCtar = kDSPI_Ctar0;
slaveConfig.ctarConfig.bitsPerFrame = 8;
slaveConfig.ctarConfig.cpol = kDSPI_ClockPolarityActiveHigh;
slaveConfig.ctarConfig.cpha = kDSPI_ClockPhaseFirstEdge;
slaveConfig.enableContinuousSCK = false;
slaveConfig.enableRxFifoOverWrite = false;
124
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
slaveConfig.enableModifiedTimingFormat = false;
slaveConfig.samplePoint = kDSPI_SckToSin0Clock;
DSPI_SlaveInit(base, &slaveConfig);
slaveXfer.txData = slaveSendBuffer0;
slaveXfer.rxData = slaveReceiveBuffer0;
slaveXfer.dataSize = transfer_dataSize;
slaveXfer.configFlags = kDSPI_SlaveCtar0;
bool isTransferCompleted = false;
DSPI_SlaveTransferCreateHandle(base, &g_s_handle, DSPI_SlaveUserCallback, &isTransferCompleted);
DSPI_SlaveTransferNonBlocking(&g_s_handle, &slaveXfer);
//void DSPI_SlaveUserCallback(SPI_Type *base, dspi_slave_handle_t *handle, status_t status, void *
isTransferCompleted)
//{
// if (status == kStatus_Success)
// {
// __NOP();
// }
// else if (status == kStatus_DSPI_Error)
// {
// __NOP();
// }
//
// *((bool *)isTransferCompleted) = true;
//
// PRINTF("This is DSPI slave call back . \r\n");
//}
Files
• file fsl_dspi.h
Data Structures
• struct dspi_command_data_config_t
DSPI master command date configuration used for SPIx_PUSHR. More...
• struct dspi_master_ctar_config_t
DSPI master ctar configuration structure. More...
• struct dspi_master_config_t
DSPI master configuration structure. More...
• struct dspi_slave_ctar_config_t
DSPI slave ctar configuration structure. More...
• struct dspi_slave_config_t
DSPI slave configuration structure. More...
• struct dspi_transfer_t
DSPI master/slave transfer structure. More...
• struct dspi_master_handle_t
DSPI master transfer handle structure used for transactional API. More...
• struct dspi_slave_handle_t
DSPI slave transfer handle structure used for transactional API. More...
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
125
DSPI Driver
Macros
• #define DSPI_MASTER_CTAR_SHIFT (0U)
DSPI master CTAR shift macro , internal used.
• #define DSPI_MASTER_CTAR_MASK (0x0FU)
DSPI master CTAR mask macro , internal used.
• #define DSPI_MASTER_PCS_SHIFT (4U)
DSPI master PCS shift macro , internal used.
• #define DSPI_MASTER_PCS_MASK (0xF0U)
DSPI master PCS mask macro , internal used.
• #define DSPI_SLAVE_CTAR_SHIFT (0U)
DSPI slave CTAR shift macro , internal used.
• #define DSPI_SLAVE_CTAR_MASK (0x07U)
DSPI slave CTAR mask macro , internal used.
Typedefs
• typedef void(∗dspi_master_transfer_callback_t )(SPI_Type ∗base, dspi_master_handle_t ∗handle,
status_t status, void ∗userData)
Completion callback function pointer type.
• typedef void(∗dspi_slave_transfer_callback_t )(SPI_Type ∗base, dspi_slave_handle_t ∗handle,
status_t status, void ∗userData)
Completion callback function pointer type.
Enumerations
• enum _dspi_status {
kStatus_DSPI_Busy = MAKE_STATUS(kStatusGroup_DSPI, 0),
kStatus_DSPI_Error = MAKE_STATUS(kStatusGroup_DSPI, 1),
kStatus_DSPI_Idle = MAKE_STATUS(kStatusGroup_DSPI, 2),
kStatus_DSPI_OutOfRange = MAKE_STATUS(kStatusGroup_DSPI, 3) }
Status for the DSPI driver.
• enum _dspi_flags {
kDSPI_TxCompleteFlag = SPI_SR_TCF_MASK,
kDSPI_EndOfQueueFlag = SPI_SR_EOQF_MASK,
kDSPI_TxFifoUnderflowFlag = SPI_SR_TFUF_MASK,
kDSPI_TxFifoFillRequestFlag = SPI_SR_TFFF_MASK,
kDSPI_RxFifoOverflowFlag = SPI_SR_RFOF_MASK,
kDSPI_RxFifoDrainRequestFlag = SPI_SR_RFDF_MASK,
kDSPI_TxAndRxStatusFlag = SPI_SR_TXRXS_MASK,
kDSPI_AllStatusFlag }
DSPI status flags in SPIx_SR register.
• enum _dspi_interrupt_enable {
126
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
kDSPI_TxCompleteInterruptEnable = SPI_RSER_TCF_RE_MASK,
kDSPI_EndOfQueueInterruptEnable = SPI_RSER_EOQF_RE_MASK,
kDSPI_TxFifoUnderflowInterruptEnable = SPI_RSER_TFUF_RE_MASK,
kDSPI_TxFifoFillRequestInterruptEnable = SPI_RSER_TFFF_RE_MASK,
kDSPI_RxFifoOverflowInterruptEnable = SPI_RSER_RFOF_RE_MASK,
kDSPI_RxFifoDrainRequestInterruptEnable = SPI_RSER_RFDF_RE_MASK,
kDSPI_AllInterruptEnable }
DSPI interrupt source.
• enum _dspi_dma_enable {
kDSPI_TxDmaEnable = (SPI_RSER_TFFF_RE_MASK |SPI_RSER_TFFF_DIRS_MASK),
kDSPI_RxDmaEnable = (SPI_RSER_RFDF_RE_MASK |SPI_RSER_RFDF_DIRS_MASK) }
DSPI DMA source.
• enum dspi_master_slave_mode_t {
kDSPI_Master = 1U,
kDSPI_Slave = 0U }
DSPI master or slave mode configuration.
• enum dspi_master_sample_point_t {
kDSPI_SckToSin0Clock = 0U,
kDSPI_SckToSin1Clock = 1U,
kDSPI_SckToSin2Clock = 2U }
DSPI Sample Point: Controls when the DSPI master samples SIN in Modified Transfer Format.
• enum dspi_which_pcs_t {
kDSPI_Pcs0 = 1U << 0,
kDSPI_Pcs1 = 1U << 1,
kDSPI_Pcs2 = 1U << 2,
kDSPI_Pcs3 = 1U << 3,
kDSPI_Pcs4 = 1U << 4,
kDSPI_Pcs5 = 1U << 5 }
DSPI Peripheral Chip Select (Pcs) configuration (which Pcs to configure).
• enum dspi_pcs_polarity_config_t {
kDSPI_PcsActiveHigh = 0U,
kDSPI_PcsActiveLow = 1U }
DSPI Peripheral Chip Select (Pcs) Polarity configuration.
• enum _dspi_pcs_polarity {
kDSPI_Pcs0ActiveLow = 1U << 0,
kDSPI_Pcs1ActiveLow = 1U << 1,
kDSPI_Pcs2ActiveLow = 1U << 2,
kDSPI_Pcs3ActiveLow = 1U << 3,
kDSPI_Pcs4ActiveLow = 1U << 4,
kDSPI_Pcs5ActiveLow = 1U << 5,
kDSPI_PcsAllActiveLow = 0xFFU }
DSPI Peripheral Chip Select (Pcs) Polarity.
• enum dspi_clock_polarity_t {
kDSPI_ClockPolarityActiveHigh = 0U,
kDSPI_ClockPolarityActiveLow = 1U }
DSPI clock polarity configuration for a given CTAR.
• enum dspi_clock_phase_t {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
127
DSPI Driver
kDSPI_ClockPhaseFirstEdge = 0U,
kDSPI_ClockPhaseSecondEdge = 1U }
DSPI clock phase configuration for a given CTAR.
• enum dspi_shift_direction_t {
kDSPI_MsbFirst = 0U,
kDSPI_LsbFirst = 1U }
DSPI data shifter direction options for a given CTAR.
• enum dspi_delay_type_t {
kDSPI_PcsToSck = 1U,
kDSPI_LastSckToPcs,
kDSPI_BetweenTransfer }
DSPI delay type selection.
• enum dspi_ctar_selection_t {
kDSPI_Ctar0 = 0U,
kDSPI_Ctar1 = 1U,
kDSPI_Ctar2 = 2U,
kDSPI_Ctar3 = 3U,
kDSPI_Ctar4 = 4U,
kDSPI_Ctar5 = 5U,
kDSPI_Ctar6 = 6U,
kDSPI_Ctar7 = 7U }
DSPI Clock and Transfer Attributes Register (CTAR) selection.
• enum _dspi_transfer_config_flag_for_master {
kDSPI_MasterCtar0 = 0U << DSPI_MASTER_CTAR_SHIFT,
kDSPI_MasterCtar1 = 1U << DSPI_MASTER_CTAR_SHIFT,
kDSPI_MasterCtar2 = 2U << DSPI_MASTER_CTAR_SHIFT,
kDSPI_MasterCtar3 = 3U << DSPI_MASTER_CTAR_SHIFT,
kDSPI_MasterCtar4 = 4U << DSPI_MASTER_CTAR_SHIFT,
kDSPI_MasterCtar5 = 5U << DSPI_MASTER_CTAR_SHIFT,
kDSPI_MasterCtar6 = 6U << DSPI_MASTER_CTAR_SHIFT,
kDSPI_MasterCtar7 = 7U << DSPI_MASTER_CTAR_SHIFT,
kDSPI_MasterPcs0 = 0U << DSPI_MASTER_PCS_SHIFT,
kDSPI_MasterPcs1 = 1U << DSPI_MASTER_PCS_SHIFT,
kDSPI_MasterPcs2 = 2U << DSPI_MASTER_PCS_SHIFT,
kDSPI_MasterPcs3 = 3U << DSPI_MASTER_PCS_SHIFT,
kDSPI_MasterPcs4 = 4U << DSPI_MASTER_PCS_SHIFT,
kDSPI_MasterPcs5 = 5U << DSPI_MASTER_PCS_SHIFT,
kDSPI_MasterPcsContinuous = 1U << 20,
kDSPI_MasterActiveAfterTransfer = 1U << 21 }
Can use this enumeration for DSPI master transfer configFlags.
• enum _dspi_transfer_config_flag_for_slave {kDSPI_SlaveCtar0 = 0U << DSPI_SLAVE_CTAR-
_SHIFT }
Can use this enum for DSPI slave transfer configFlags.
• enum _dspi_transfer_state {
kDSPI_Idle = 0x0U,
kDSPI_Busy,
128
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
kDSPI_Error }
DSPI transfer state, which is used for DSPI transactional APIs’ state machine.
Driver version
• #define FSL_DSPI_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
DSPI driver version 2.1.0.
Dummy data
• #define DSPI_MASTER_DUMMY_DATA (0x00U)
Master dummy data used for tx if there is not txData.
• #define DSPI_SLAVE_DUMMY_DATA (0x00U)
Slave dummy data used for tx if there is not txData.
Initialization and deinitialization
• void DSPI_MasterInit (SPI_Type ∗base, const dspi_master_config_t ∗masterConfig, uint32_t src-
Clock_Hz)
Initializes the DSPI master.
• void DSPI_MasterGetDefaultConfig (dspi_master_config_t ∗masterConfig)
Sets the dspi_master_config_t structure to default values.
• void DSPI_SlaveInit (SPI_Type ∗base, const dspi_slave_config_t ∗slaveConfig)
DSPI slave configuration.
• void DSPI_SlaveGetDefaultConfig (dspi_slave_config_t ∗slaveConfig)
Sets the dspi_slave_config_t structure to default values.
• void DSPI_Deinit (SPI_Type ∗base)
De-initializes the DSPI peripheral.
• static void DSPI_Enable (SPI_Type ∗base, bool enable)
Enables the DSPI peripheral and sets the MCR MDIS to 0.
Status
• static uint32_t DSPI_GetStatusFlags (SPI_Type ∗base)
Gets the DSPI status flag state.
• static void DSPI_ClearStatusFlags (SPI_Type ∗base, uint32_t statusFlags)
Clears the DSPI status flag.
Interrupts
• void DSPI_EnableInterrupts (SPI_Type ∗base, uint32_t mask)
Enables the DSPI interrupts.
• static void DSPI_DisableInterrupts (SPI_Type ∗base, uint32_t mask)
Disables the DSPI interrupts.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
129
DSPI Driver
DMA Control
• static void DSPI_EnableDMA (SPI_Type ∗base, uint32_t mask)
Enables the DSPI DMA request.
• static void DSPI_DisableDMA (SPI_Type ∗base, uint32_t mask)
Disables the DSPI DMA request.
• static uint32_t DSPI_MasterGetTxRegisterAddress (SPI_Type ∗base)
Gets the DSPI master PUSHR data register address for the DMA operation.
• static uint32_t DSPI_SlaveGetTxRegisterAddress (SPI_Type ∗base)
Gets the DSPI slave PUSHR data register address for the DMA operation.
• static uint32_t DSPI_GetRxRegisterAddress (SPI_Type ∗base)
Gets the DSPI POPR data register address for the DMA operation.
Bus Operations
• static void DSPI_SetMasterSlaveMode (SPI_Type ∗base, dspi_master_slave_mode_t mode)
Configures the DSPI for master or slave.
• static bool DSPI_IsMaster (SPI_Type ∗base)
Returns whether the DSPI module is in master mode.
• static void DSPI_StartTransfer (SPI_Type ∗base)
Starts the DSPI transfers and clears HALT bit in MCR.
• static void DSPI_StopTransfer (SPI_Type ∗base)
Stops (halts) DSPI transfers and sets HALT bit in MCR.
• static void DSPI_SetFifoEnable (SPI_Type ∗base, bool enableTxFifo, bool enableRxFifo)
Enables (or disables) the DSPI FIFOs.
• static void DSPI_FlushFifo (SPI_Type ∗base, bool flushTxFifo, bool flushRxFifo)
Flushes the DSPI FIFOs.
• static void DSPI_SetAllPcsPolarity (SPI_Type ∗base, uint32_t mask)
Configures the DSPI peripheral chip select polarity simultaneously.
• uint32_t DSPI_MasterSetBaudRate (SPI_Type ∗base, dspi_ctar_selection_t whichCtar, uint32_-
t baudRate_Bps, uint32_t srcClock_Hz)
Sets the DSPI baud rate in bits per second.
• void DSPI_MasterSetDelayScaler (SPI_Type ∗base, dspi_ctar_selection_t whichCtar, uint32_-
t prescaler, uint32_t scaler, dspi_delay_type_t whichDelay)
Manually configures the delay prescaler and scaler for a particular CTAR.
• uint32_t DSPI_MasterSetDelayTimes (SPI_Type ∗base, dspi_ctar_selection_t whichCtar, dspi_-
delay_type_t whichDelay, uint32_t srcClock_Hz, uint32_t delayTimeInNanoSec)
Calculates the delay prescaler and scaler based on the desired delay input in nanoseconds.
• static void DSPI_MasterWriteData (SPI_Type ∗base, dspi_command_data_config_t ∗command,
uint16_t data)
Writes data into the data buffer for master mode.
• void DSPI_GetDefaultDataCommandConfig (dspi_command_data_config_t ∗command)
Sets the dspi_command_data_config_t structure to default values.
• void DSPI_MasterWriteDataBlocking (SPI_Type ∗base, dspi_command_data_config_t ∗command,
uint16_t data)
Writes data into the data buffer master mode and waits till complete to return.
• static uint32_t DSPI_MasterGetFormattedCommand (dspi_command_data_config_t ∗command)
Returns the DSPI command word formatted to the PUSHR data register bit field.
• void DSPI_MasterWriteCommandDataBlocking (SPI_Type ∗base, uint32_t data)
130
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
Writes a 32-bit data word (16-bit command appended with 16-bit data) into the data buffer, master mode
and waits till complete to return.
• static void DSPI_SlaveWriteData (SPI_Type ∗base, uint32_t data)
Writes data into the data buffer in slave mode.
• void DSPI_SlaveWriteDataBlocking (SPI_Type ∗base, uint32_t data)
Writes data into the data buffer in slave mode, waits till data was transmitted, and returns.
• static uint32_t DSPI_ReadData (SPI_Type ∗base)
Reads data from the data buffer.
Transactional
• void DSPI_MasterTransferCreateHandle (SPI_Type ∗base, dspi_master_handle_t ∗handle, dspi_-
master_transfer_callback_t callback, void ∗userData)
Initializes the DSPI master handle.
• status_t DSPI_MasterTransferBlocking (SPI_Type ∗base, dspi_transfer_t ∗transfer)
DSPI master transfer data using polling.
• status_t DSPI_MasterTransferNonBlocking (SPI_Type ∗base, dspi_master_handle_t ∗handle, dspi-
_transfer_t ∗transfer)
DSPI master transfer data using interrupts.
• status_t DSPI_MasterTransferGetCount (SPI_Type ∗base, dspi_master_handle_t ∗handle, size_-
t∗count)
Gets the master transfer count.
• void DSPI_MasterTransferAbort (SPI_Type ∗base, dspi_master_handle_t ∗handle)
DSPI master aborts transfer using an interrupt.
• void DSPI_MasterTransferHandleIRQ (SPI_Type ∗base, dspi_master_handle_t ∗handle)
DSPI Master IRQ handler function.
• void DSPI_SlaveTransferCreateHandle (SPI_Type ∗base, dspi_slave_handle_t ∗handle, dspi_slave-
_transfer_callback_t callback, void ∗userData)
Initializes the DSPI slave handle.
• status_t DSPI_SlaveTransferNonBlocking (SPI_Type ∗base, dspi_slave_handle_t ∗handle, dspi_-
transfer_t ∗transfer)
DSPI slave transfers data using an interrupt.
• status_t DSPI_SlaveTransferGetCount (SPI_Type ∗base, dspi_slave_handle_t ∗handle, size_t
∗count)
Gets the slave transfer count.
• void DSPI_SlaveTransferAbort (SPI_Type ∗base, dspi_slave_handle_t ∗handle)
DSPI slave aborts a transfer using an interrupt.
• void DSPI_SlaveTransferHandleIRQ (SPI_Type ∗base, dspi_slave_handle_t ∗handle)
DSPI Master IRQ handler function.
15.2.3 Data Structure Documentation
15.2.3.1 struct dspi_command_data_config_t
Data Fields
• bool isPcsContinuous
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
131
DSPI Driver
Option to enable the continuous assertion of chip select between transfers.
•dspi_ctar_selection_t whichCtar
The desired Clock and Transfer Attributes Register (CTAR) to use for CTAS.
•dspi_which_pcs_t whichPcs
The desired PCS signal to use for the data transfer.
• bool isEndOfQueue
Signals that the current transfer is the last in the queue.
• bool clearTransferCount
Clears SPI Transfer Counter (SPI_TCNT) before transmission starts.
15.2.3.1.0.19 Field Documentation
15.2.3.1.0.19.1 bool dspi_command_data_config_t::isPcsContinuous
15.2.3.1.0.19.2 dspi_ctar_selection_t dspi_command_data_config_t::whichCtar
15.2.3.1.0.19.3 dspi_which_pcs_t dspi_command_data_config_t::whichPcs
15.2.3.1.0.19.4 bool dspi_command_data_config_t::isEndOfQueue
15.2.3.1.0.19.5 bool dspi_command_data_config_t::clearTransferCount
15.2.3.2 struct dspi_master_ctar_config_t
Data Fields
• uint32_t baudRate
Baud Rate for DSPI.
• uint32_t bitsPerFrame
Bits per frame, minimum 4, maximum 16.
•dspi_clock_polarity_t cpol
Clock polarity.
•dspi_clock_phase_t cpha
Clock phase.
•dspi_shift_direction_t direction
MSB or LSB data shift direction.
• uint32_t pcsToSckDelayInNanoSec
PCS to SCK delay time with nanosecond , set to 0 sets the minimum delay.
• uint32_t lastSckToPcsDelayInNanoSec
Last SCK to PCS delay time with nanosecond , set to 0 sets the minimum delay.It sets the boundary value
if out of range that can be set.
• uint32_t betweenTransferDelayInNanoSec
After SCK delay time with nanosecond , set to 0 sets the minimum delay.It sets the boundary value if out
of range that can be set.
132
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
15.2.3.2.0.20 Field Documentation
15.2.3.2.0.20.1 uint32_t dspi_master_ctar_config_t::baudRate
15.2.3.2.0.20.2 uint32_t dspi_master_ctar_config_t::bitsPerFrame
15.2.3.2.0.20.3 dspi_clock_polarity_t dspi_master_ctar_config_t::cpol
15.2.3.2.0.20.4 dspi_clock_phase_t dspi_master_ctar_config_t::cpha
15.2.3.2.0.20.5 dspi_shift_direction_t dspi_master_ctar_config_t::direction
15.2.3.2.0.20.6 uint32_t dspi_master_ctar_config_t::pcsToSckDelayInNanoSec
It sets the boundary value if out of range that can be set.
15.2.3.2.0.20.7 uint32_t dspi_master_ctar_config_t::lastSckToPcsDelayInNanoSec
15.2.3.2.0.20.8 uint32_t dspi_master_ctar_config_t::betweenTransferDelayInNanoSec
15.2.3.3 struct dspi_master_config_t
Data Fields
•dspi_ctar_selection_t whichCtar
Desired CTAR to use.
•dspi_master_ctar_config_t ctarConfig
Set the ctarConfig to the desired CTAR.
•dspi_which_pcs_t whichPcs
Desired Peripheral Chip Select (pcs).
•dspi_pcs_polarity_config_t pcsActiveHighOrLow
Desired PCS active high or low.
• bool enableContinuousSCK
CONT_SCKE, continuous SCK enable .
• bool enableRxFifoOverWrite
ROOE, Receive FIFO overflow overwrite enable.
• bool enableModifiedTimingFormat
Enables a modified transfer format to be used if it’s true.
•dspi_master_sample_point_t samplePoint
Controls when the module master samples SIN in Modified Transfer Format.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
133
DSPI Driver
15.2.3.3.0.21 Field Documentation
15.2.3.3.0.21.1 dspi_ctar_selection_t dspi_master_config_t::whichCtar
15.2.3.3.0.21.2 dspi_master_ctar_config_t dspi_master_config_t::ctarConfig
15.2.3.3.0.21.3 dspi_which_pcs_t dspi_master_config_t::whichPcs
15.2.3.3.0.21.4 dspi_pcs_polarity_config_t dspi_master_config_t::pcsActiveHighOrLow
15.2.3.3.0.21.5 bool dspi_master_config_t::enableContinuousSCK
Note that continuous SCK is only supported for CPHA = 1.
15.2.3.3.0.21.6 bool dspi_master_config_t::enableRxFifoOverWrite
ROOE = 0, the incoming data is ignored, the data from the transfer that generated the overflow is either
ignored. ROOE = 1, the incoming data is shifted in to the shift to the shift register.
15.2.3.3.0.21.7 bool dspi_master_config_t::enableModifiedTimingFormat
15.2.3.3.0.21.8 dspi_master_sample_point_t dspi_master_config_t::samplePoint
It’s valid only when CPHA=0.
15.2.3.4 struct dspi_slave_ctar_config_t
Data Fields
• uint32_t bitsPerFrame
Bits per frame, minimum 4, maximum 16.
•dspi_clock_polarity_t cpol
Clock polarity.
•dspi_clock_phase_t cpha
Clock phase.
15.2.3.4.0.22 Field Documentation
15.2.3.4.0.22.1 uint32_t dspi_slave_ctar_config_t::bitsPerFrame
15.2.3.4.0.22.2 dspi_clock_polarity_t dspi_slave_ctar_config_t::cpol
15.2.3.4.0.22.3 dspi_clock_phase_t dspi_slave_ctar_config_t::cpha
Slave only supports MSB , does not support LSB.
134
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
15.2.3.5 struct dspi_slave_config_t
Data Fields
•dspi_ctar_selection_t whichCtar
Desired CTAR to use.
•dspi_slave_ctar_config_t ctarConfig
Set the ctarConfig to the desired CTAR.
• bool enableContinuousSCK
CONT_SCKE, continuous SCK enable.
• bool enableRxFifoOverWrite
ROOE, Receive FIFO overflow overwrite enable.
• bool enableModifiedTimingFormat
Enables a modified transfer format to be used if it’s true.
•dspi_master_sample_point_t samplePoint
Controls when the module master samples SIN in Modified Transfer Format.
15.2.3.5.0.23 Field Documentation
15.2.3.5.0.23.1 dspi_ctar_selection_t dspi_slave_config_t::whichCtar
15.2.3.5.0.23.2 dspi_slave_ctar_config_t dspi_slave_config_t::ctarConfig
15.2.3.5.0.23.3 bool dspi_slave_config_t::enableContinuousSCK
Note that continuous SCK is only supported for CPHA = 1.
15.2.3.5.0.23.4 bool dspi_slave_config_t::enableRxFifoOverWrite
ROOE = 0, the incoming data is ignored, the data from the transfer that generated the overflow is either
ignored. ROOE = 1, the incoming data is shifted in to the shift to the shift register.
15.2.3.5.0.23.5 bool dspi_slave_config_t::enableModifiedTimingFormat
15.2.3.5.0.23.6 dspi_master_sample_point_t dspi_slave_config_t::samplePoint
It’s valid only when CPHA=0.
15.2.3.6 struct dspi_transfer_t
Data Fields
• uint8_t ∗txData
Send buffer.
• uint8_t ∗rxData
Receive buffer.
• volatile size_t dataSize
Transfer bytes.
• uint32_t configFlags
Transfer transfer configuration flags , set from _dspi_transfer_config_flag_for_master if the transfer is
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
135
DSPI Driver
used for master or _dspi_transfer_config_flag_for_slave enumeration if the transfer is used for slave.
15.2.3.6.0.24 Field Documentation
15.2.3.6.0.24.1 uint8_t∗dspi_transfer_t::txData
15.2.3.6.0.24.2 uint8_t∗dspi_transfer_t::rxData
15.2.3.6.0.24.3 volatile size_t dspi_transfer_t::dataSize
15.2.3.6.0.24.4 uint32_t dspi_transfer_t::configFlags
15.2.3.7 struct _dspi_master_handle
Forward declaration of the _dspi_master_handle typedefs.
Data Fields
• uint32_t bitsPerFrame
Desired number of bits per frame.
• volatile uint32_t command
Desired data command.
• volatile uint32_t lastCommand
Desired last data command.
• uint8_t fifoSize
FIFO dataSize.
• volatile bool isPcsActiveAfterTransfer
Is PCS signal keep active after the last frame transfer.
• volatile bool isThereExtraByte
Is there extra byte.
• uint8_t ∗volatile txData
Send buffer.
• uint8_t ∗volatile rxData
Receive buffer.
• volatile size_t remainingSendByteCount
Number of bytes remaining to send.
• volatile size_t remainingReceiveByteCount
Number of bytes remaining to receive.
• size_t totalByteCount
Number of transfer bytes.
• volatile uint8_t state
DSPI transfer state , _dspi_transfer_state.
•dspi_master_transfer_callback_t callback
Completion callback.
• void ∗userData
Callback user data.
136
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
15.2.3.7.0.25 Field Documentation
15.2.3.7.0.25.1 uint32_t dspi_master_handle_t::bitsPerFrame
15.2.3.7.0.25.2 volatile uint32_t dspi_master_handle_t::command
15.2.3.7.0.25.3 volatile uint32_t dspi_master_handle_t::lastCommand
15.2.3.7.0.25.4 uint8_t dspi_master_handle_t::fifoSize
15.2.3.7.0.25.5 volatile bool dspi_master_handle_t::isPcsActiveAfterTransfer
15.2.3.7.0.25.6 volatile bool dspi_master_handle_t::isThereExtraByte
15.2.3.7.0.25.7 uint8_t∗volatile dspi_master_handle_t::txData
15.2.3.7.0.25.8 uint8_t∗volatile dspi_master_handle_t::rxData
15.2.3.7.0.25.9 volatile size_t dspi_master_handle_t::remainingSendByteCount
15.2.3.7.0.25.10 volatile size_t dspi_master_handle_t::remainingReceiveByteCount
15.2.3.7.0.25.11 volatile uint8_t dspi_master_handle_t::state
15.2.3.7.0.25.12 dspi_master_transfer_callback_t dspi_master_handle_t::callback
15.2.3.7.0.25.13 void∗dspi_master_handle_t::userData
15.2.3.8 struct _dspi_slave_handle
Forward declaration of the _dspi_slave_handle typedefs.
Data Fields
• uint32_t bitsPerFrame
Desired number of bits per frame.
• volatile bool isThereExtraByte
Is there extra byte.
• uint8_t ∗volatile txData
Send buffer.
• uint8_t ∗volatile rxData
Receive buffer.
• volatile size_t remainingSendByteCount
Number of bytes remaining to send.
• volatile size_t remainingReceiveByteCount
Number of bytes remaining to receive.
• size_t totalByteCount
Number of transfer bytes.
• volatile uint8_t state
DSPI transfer state.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
137
DSPI Driver
• volatile uint32_t errorCount
Error count for slave transfer.
•dspi_slave_transfer_callback_t callback
Completion callback.
• void ∗userData
Callback user data.
138
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
15.2.3.8.0.26 Field Documentation
15.2.3.8.0.26.1 uint32_t dspi_slave_handle_t::bitsPerFrame
15.2.3.8.0.26.2 volatile bool dspi_slave_handle_t::isThereExtraByte
15.2.3.8.0.26.3 uint8_t∗volatile dspi_slave_handle_t::txData
15.2.3.8.0.26.4 uint8_t∗volatile dspi_slave_handle_t::rxData
15.2.3.8.0.26.5 volatile size_t dspi_slave_handle_t::remainingSendByteCount
15.2.3.8.0.26.6 volatile size_t dspi_slave_handle_t::remainingReceiveByteCount
15.2.3.8.0.26.7 volatile uint8_t dspi_slave_handle_t::state
15.2.3.8.0.26.8 volatile uint32_t dspi_slave_handle_t::errorCount
15.2.3.8.0.26.9 dspi_slave_transfer_callback_t dspi_slave_handle_t::callback
15.2.3.8.0.26.10 void∗dspi_slave_handle_t::userData
15.2.4 Macro Definition Documentation
15.2.4.1 #define FSL_DSPI_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
15.2.4.2 #define DSPI_MASTER_DUMMY_DATA (0x00U)
15.2.4.3 #define DSPI_SLAVE_DUMMY_DATA (0x00U)
15.2.4.4 #define DSPI_MASTER_CTAR_SHIFT (0U)
15.2.4.5 #define DSPI_MASTER_CTAR_MASK (0x0FU)
15.2.4.6 #define DSPI_MASTER_PCS_SHIFT (4U)
15.2.4.7 #define DSPI_MASTER_PCS_MASK (0xF0U)
15.2.4.8 #define DSPI_SLAVE_CTAR_SHIFT (0U)
15.2.4.9 #define DSPI_SLAVE_CTAR_MASK (0x07U)
15.2.5 Typedef Documentation
15.2.5.1 typedef void(∗dspi_master_transfer_callback_t)(SPI_Type ∗base,
dspi_master_handle_t ∗handle, status_t status, void ∗userData)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
139
DSPI Driver
Parameters
base DSPI peripheral address.
handle Pointer to the handle for the DSPI master.
status Success or error code describing whether the transfer completed.
userData Arbitrary pointer-dataSized value passed from the application.
15.2.5.2 typedef void(∗dspi_slave_transfer_callback_t)(SPI_Type ∗base,
dspi_slave_handle_t ∗handle, status_t status, void ∗userData)
Parameters
base DSPI peripheral address.
handle Pointer to the handle for the DSPI slave.
status Success or error code describing whether the transfer completed.
userData Arbitrary pointer-dataSized value passed from the application.
15.2.6 Enumeration Type Documentation
15.2.6.1 enum _dspi_status
Enumerator
kStatus_DSPI_Busy DSPI transfer is busy.
kStatus_DSPI_Error DSPI driver error.
kStatus_DSPI_Idle DSPI is idle.
kStatus_DSPI_OutOfRange DSPI transfer out Of range.
15.2.6.2 enum _dspi_flags
Enumerator
kDSPI_TxCompleteFlag Transfer Complete Flag.
kDSPI_EndOfQueueFlag End of Queue Flag.
kDSPI_TxFifoUnderflowFlag Transmit FIFO Underflow Flag.
kDSPI_TxFifoFillRequestFlag Transmit FIFO Fill Flag.
kDSPI_RxFifoOverflowFlag Receive FIFO Overflow Flag.
kDSPI_RxFifoDrainRequestFlag Receive FIFO Drain Flag.
kDSPI_TxAndRxStatusFlag The module is in Stopped/Running state.
kDSPI_AllStatusFlag All status above.
140
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
15.2.6.3 enum _dspi_interrupt_enable
Enumerator
kDSPI_TxCompleteInterruptEnable TCF interrupt enable.
kDSPI_EndOfQueueInterruptEnable EOQF interrupt enable.
kDSPI_TxFifoUnderflowInterruptEnable TFUF interrupt enable.
kDSPI_TxFifoFillRequestInterruptEnable TFFF interrupt enable, DMA disable.
kDSPI_RxFifoOverflowInterruptEnable RFOF interrupt enable.
kDSPI_RxFifoDrainRequestInterruptEnable RFDF interrupt enable, DMA disable.
kDSPI_AllInterruptEnable All above interrupts enable.
15.2.6.4 enum _dspi_dma_enable
Enumerator
kDSPI_TxDmaEnable TFFF flag generates DMA requests. No Tx interrupt request.
kDSPI_RxDmaEnable RFDF flag generates DMA requests. No Rx interrupt request.
15.2.6.5 enum dspi_master_slave_mode_t
Enumerator
kDSPI_Master DSPI peripheral operates in master mode.
kDSPI_Slave DSPI peripheral operates in slave mode.
15.2.6.6 enum dspi_master_sample_point_t
This field is valid only when CPHA bit in CTAR register is 0.
Enumerator
kDSPI_SckToSin0Clock 0 system clocks between SCK edge and SIN sample.
kDSPI_SckToSin1Clock 1 system clock between SCK edge and SIN sample.
kDSPI_SckToSin2Clock 2 system clocks between SCK edge and SIN sample.
15.2.6.7 enum dspi_which_pcs_t
Enumerator
kDSPI_Pcs0 Pcs[0].
kDSPI_Pcs1 Pcs[1].
kDSPI_Pcs2 Pcs[2].
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
141
DSPI Driver
kDSPI_Pcs3 Pcs[3].
kDSPI_Pcs4 Pcs[4].
kDSPI_Pcs5 Pcs[5].
15.2.6.8 enum dspi_pcs_polarity_config_t
Enumerator
kDSPI_PcsActiveHigh Pcs Active High (idles low).
kDSPI_PcsActiveLow Pcs Active Low (idles high).
15.2.6.9 enum _dspi_pcs_polarity
Enumerator
kDSPI_Pcs0ActiveLow Pcs0 Active Low (idles high).
kDSPI_Pcs1ActiveLow Pcs1 Active Low (idles high).
kDSPI_Pcs2ActiveLow Pcs2 Active Low (idles high).
kDSPI_Pcs3ActiveLow Pcs3 Active Low (idles high).
kDSPI_Pcs4ActiveLow Pcs4 Active Low (idles high).
kDSPI_Pcs5ActiveLow Pcs5 Active Low (idles high).
kDSPI_PcsAllActiveLow Pcs0 to Pcs5 Active Low (idles high).
15.2.6.10 enum dspi_clock_polarity_t
Enumerator
kDSPI_ClockPolarityActiveHigh CPOL=0. Active-high DSPI clock (idles low).
kDSPI_ClockPolarityActiveLow CPOL=1. Active-low DSPI clock (idles high).
15.2.6.11 enum dspi_clock_phase_t
Enumerator
kDSPI_ClockPhaseFirstEdge CPHA=0. Data is captured on the leading edge of the SCK and
changed on the following edge.
kDSPI_ClockPhaseSecondEdge CPHA=1. Data is changed on the leading edge of the SCK and
captured on the following edge.
142
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
15.2.6.12 enum dspi_shift_direction_t
Enumerator
kDSPI_MsbFirst Data transfers start with most significant bit.
kDSPI_LsbFirst Data transfers start with least significant bit.
15.2.6.13 enum dspi_delay_type_t
Enumerator
kDSPI_PcsToSck Pcs-to-SCK delay.
kDSPI_LastSckToPcs Last SCK edge to Pcs delay.
kDSPI_BetweenTransfer Delay between transfers.
15.2.6.14 enum dspi_ctar_selection_t
Enumerator
kDSPI_Ctar0 CTAR0 selection option for master or slave mode, note that CTAR0 and CTAR0_S-
LAVE are the same register address.
kDSPI_Ctar1 CTAR1 selection option for master mode only.
kDSPI_Ctar2 CTAR2 selection option for master mode only , note that some device do not support
CTAR2.
kDSPI_Ctar3 CTAR3 selection option for master mode only , note that some device do not support
CTAR3.
kDSPI_Ctar4 CTAR4 selection option for master mode only , note that some device do not support
CTAR4.
kDSPI_Ctar5 CTAR5 selection option for master mode only , note that some device do not support
CTAR5.
kDSPI_Ctar6 CTAR6 selection option for master mode only , note that some device do not support
CTAR6.
kDSPI_Ctar7 CTAR7 selection option for master mode only , note that some device do not support
CTAR7.
15.2.6.15 enum _dspi_transfer_config_flag_for_master
Enumerator
kDSPI_MasterCtar0 DSPI master transfer use CTAR0 setting.
kDSPI_MasterCtar1 DSPI master transfer use CTAR1 setting.
kDSPI_MasterCtar2 DSPI master transfer use CTAR2 setting.
kDSPI_MasterCtar3 DSPI master transfer use CTAR3 setting.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
143
DSPI Driver
kDSPI_MasterCtar4 DSPI master transfer use CTAR4 setting.
kDSPI_MasterCtar5 DSPI master transfer use CTAR5 setting.
kDSPI_MasterCtar6 DSPI master transfer use CTAR6 setting.
kDSPI_MasterCtar7 DSPI master transfer use CTAR7 setting.
kDSPI_MasterPcs0 DSPI master transfer use PCS0 signal.
kDSPI_MasterPcs1 DSPI master transfer use PCS1 signal.
kDSPI_MasterPcs2 DSPI master transfer use PCS2 signal.
kDSPI_MasterPcs3 DSPI master transfer use PCS3 signal.
kDSPI_MasterPcs4 DSPI master transfer use PCS4 signal.
kDSPI_MasterPcs5 DSPI master transfer use PCS5 signal.
kDSPI_MasterPcsContinuous Is PCS signal continuous.
kDSPI_MasterActiveAfterTransfer Is PCS signal active after last frame transfer.
15.2.6.16 enum _dspi_transfer_config_flag_for_slave
Enumerator
kDSPI_SlaveCtar0 DSPI slave transfer use CTAR0 setting. DSPI slave can only use PCS0.
15.2.6.17 enum _dspi_transfer_state
Enumerator
kDSPI_Idle Nothing in the transmitter/receiver.
kDSPI_Busy Transfer queue is not finished.
kDSPI_Error Transfer error.
15.2.7 Function Documentation
15.2.7.1 void DSPI_MasterInit ( SPI_Type ∗base, const dspi_master_config_t ∗
masterConfig, uint32_t srcClock_Hz )
This function initializes the DSPI master configuration. An example use case is as follows:
dspi_master_config_t masterConfig;
masterConfig.whichCtar =kDSPI_Ctar0;
masterConfig.ctarConfig.baudRate = 500000000;
masterConfig.ctarConfig.bitsPerFrame = 8;
masterConfig.ctarConfig.cpol =
kDSPI_ClockPolarityActiveHigh;
masterConfig.ctarConfig.cpha =
kDSPI_ClockPhaseFirstEdge;
masterConfig.ctarConfig.direction =
kDSPI_MsbFirst;
masterConfig.ctarConfig.pcsToSckDelayInNanoSec = 1000000000 /
masterConfig.ctarConfig.baudRate ;
144
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
masterConfig.ctarConfig.lastSckToPcsDelayInNanoSec = 1000000000 /
masterConfig.ctarConfig.baudRate ;
masterConfig.ctarConfig.betweenTransferDelayInNanoSec = 1000000000 /
masterConfig.ctarConfig.baudRate ;
masterConfig.whichPcs =kDSPI_Pcs0;
masterConfig.pcsActiveHighOrLow =
kDSPI_PcsActiveLow;
masterConfig.enableContinuousSCK =false;
masterConfig.enableRxFifoOverWrite =false;
masterConfig.enableModifiedTimingFormat =false;
masterConfig.samplePoint =
kDSPI_SckToSin0Clock;
DSPI_MasterInit(base, &masterConfig, srcClock_Hz);
Parameters
base DSPI peripheral address.
masterConfig Pointer to structure dspi_master_config_t.
srcClock_Hz Module source input clock in Hertz
15.2.7.2 void DSPI_MasterGetDefaultConfig ( dspi_master_config_t ∗masterConfig )
The purpose of this API is to get the configuration structure initialized for the DSPI_MasterInit(). User
may use the initialized structure unchanged in DSPI_MasterInit() or modify the structure before calling
DSPI_MasterInit(). Example:
dspi_master_config_t masterConfig;
DSPI_MasterGetDefaultConfig(&masterConfig);
Parameters
masterConfig pointer to dspi_master_config_t structure
15.2.7.3 void DSPI_SlaveInit ( SPI_Type ∗base, const dspi_slave_config_t ∗slaveConfig )
This function initializes the DSPI slave configuration. An example use case is as follows:
dspi_slave_config_t slaveConfig;
slaveConfig->whichCtar =kDSPI_Ctar0;
slaveConfig->ctarConfig.bitsPerFrame = 8;
slaveConfig->ctarConfig.cpol =
kDSPI_ClockPolarityActiveHigh;
slaveConfig->ctarConfig.cpha =
kDSPI_ClockPhaseFirstEdge;
slaveConfig->enableContinuousSCK =false;
slaveConfig->enableRxFifoOverWrite =false;
slaveConfig->enableModifiedTimingFormat =false;
slaveConfig->samplePoint =kDSPI_SckToSin0Clock;
DSPI_SlaveInit(base, &slaveConfig);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
145
DSPI Driver
Parameters
base DSPI peripheral address.
slaveConfig Pointer to structure dspi_master_config_t.
15.2.7.4 void DSPI_SlaveGetDefaultConfig ( dspi_slave_config_t ∗slaveConfig )
The purpose of this API is to get the configuration structure initialized for the DSPI_SlaveInit(). User
may use the initialized structure unchanged in DSPI_SlaveInit(), or modify the structure before calling
DSPI_SlaveInit(). Example:
dspi_slave_config_t slaveConfig;
DSPI_SlaveGetDefaultConfig(&slaveConfig);
Parameters
slaveConfig pointer to dspi_slave_config_t structure.
15.2.7.5 void DSPI_Deinit ( SPI_Type ∗base )
Call this API to disable the DSPI clock.
Parameters
base DSPI peripheral address.
15.2.7.6 static void DSPI_Enable ( SPI_Type ∗base, bool enable )[inline],
[static]
Parameters
base DSPI peripheral address.
enable pass true to enable module, false to disable module.
15.2.7.7 static uint32_t DSPI_GetStatusFlags ( SPI_Type ∗base )[inline],
[static]
146
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
Parameters
base DSPI peripheral address.
Returns
The DSPI status(in SR register).
15.2.7.8 static void DSPI_ClearStatusFlags ( SPI_Type ∗base, uint32_t statusFlags )
[inline],[static]
This function clears the desired status bit by using a write-1-to-clear. The user passes in the base and the
desired status bit to clear. The list of status bits is defined in the dspi_status_and_interrupt_request_t. The
function uses these bit positions in its algorithm to clear the desired flag state. Example usage:
DSPI_ClearStatusFlags(base, kDSPI_TxCompleteFlag|
kDSPI_EndOfQueueFlag);
Parameters
base DSPI peripheral address.
statusFlags The status flag , used from type dspi_flags.
<The status flags are cleared by writing 1 (w1c).
15.2.7.9 void DSPI_EnableInterrupts ( SPI_Type ∗base, uint32_t mask )
This function configures the various interrupt masks of the DSPI. The parameters are base and an interrupt
mask. Note, for Tx Fill and Rx FIFO drain requests, enable the interrupt request and disable the DMA
request.
DSPI_EnableInterrupts(base, kDSPI_TxCompleteInterruptEnable
|kDSPI_EndOfQueueInterruptEnable );
Parameters
base DSPI peripheral address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
147
DSPI Driver
mask The interrupt mask, can use the enum _dspi_interrupt_enable.
15.2.7.10 static void DSPI_DisableInterrupts ( SPI_Type ∗base, uint32_t mask )
[inline],[static]
DSPI_DisableInterrupts(base,
kDSPI_TxCompleteInterruptEnable |
kDSPI_EndOfQueueInterruptEnable );
Parameters
base DSPI peripheral address.
mask The interrupt mask, can use the enum _dspi_interrupt_enable.
15.2.7.11 static void DSPI_EnableDMA ( SPI_Type ∗base, uint32_t mask )[inline],
[static]
This function configures the Rx and Tx DMA mask of the DSPI. The parameters are base and a DMA
mask.
DSPI_EnableDMA(base, kDSPI_TxDmaEnable |
kDSPI_RxDmaEnable);
Parameters
base DSPI peripheral address.
mask The interrupt mask can use the enum dspi_dma_enable.
15.2.7.12 static void DSPI_DisableDMA ( SPI_Type ∗base, uint32_t mask )[inline],
[static]
This function configures the Rx and Tx DMA mask of the DSPI. The parameters are base and a DMA
mask.
SPI_DisableDMA(base, kDSPI_TxDmaEnable |kDSPI_RxDmaEnable);
148
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
Parameters
base DSPI peripheral address.
mask The interrupt mask can use the enum dspi_dma_enable.
15.2.7.13 static uint32_t DSPI_MasterGetTxRegisterAddress ( SPI_Type ∗base )
[inline],[static]
This function gets the DSPI master PUSHR data register address because this value is needed for the DMA
operation.
Parameters
base DSPI peripheral address.
Returns
The DSPI master PUSHR data register address.
15.2.7.14 static uint32_t DSPI_SlaveGetTxRegisterAddress ( SPI_Type ∗base )
[inline],[static]
This function gets the DSPI slave PUSHR data register address as this value is needed for the DMA
operation.
Parameters
base DSPI peripheral address.
Returns
The DSPI slave PUSHR data register address.
15.2.7.15 static uint32_t DSPI_GetRxRegisterAddress ( SPI_Type ∗base )[inline],
[static]
This function gets the DSPI POPR data register address as this value is needed for the DMA operation.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
149
DSPI Driver
Parameters
base DSPI peripheral address.
Returns
The DSPI POPR data register address.
15.2.7.16 static void DSPI_SetMasterSlaveMode ( SPI_Type ∗base,
dspi_master_slave_mode_t mode )[inline],[static]
Parameters
base DSPI peripheral address.
mode Mode setting (master or slave) of type dspi_master_slave_mode_t.
15.2.7.17 static bool DSPI_IsMaster ( SPI_Type ∗base )[inline],[static]
Parameters
base DSPI peripheral address.
Returns
Returns true if the module is in master mode or false if the module is in slave mode.
15.2.7.18 static void DSPI_StartTransfer ( SPI_Type ∗base )[inline],[static]
This function sets the module to begin data transfer in either master or slave mode.
Parameters
base DSPI peripheral address.
15.2.7.19 static void DSPI_StopTransfer ( SPI_Type ∗base )[inline],[static]
This function stops data transfers in either master or slave mode.
150
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
Parameters
base DSPI peripheral address.
15.2.7.20 static void DSPI_SetFifoEnable ( SPI_Type ∗base, bool enableTxFifo, bool
enableRxFifo )[inline],[static]
This function allows the caller to disable/enable the Tx and Rx FIFOs (independently). Note that to
disable, the caller must pass in a logic 0 (false) for the particular FIFO configuration. To enable, the caller
must pass in a logic 1 (true).
Parameters
base DSPI peripheral address.
enableTxFifo Disables (false) the TX FIFO, else enables (true) the TX FIFO
enableRxFifo Disables (false) the RX FIFO, else enables (true) the RX FIFO
15.2.7.21 static void DSPI_FlushFifo ( SPI_Type ∗base, bool flushTxFifo, bool
flushRxFifo )[inline],[static]
Parameters
base DSPI peripheral address.
flushTxFifo Flushes (true) the Tx FIFO, else do not flush (false) the Tx FIFO
flushRxFifo Flushes (true) the Rx FIFO, else do not flush (false) the Rx FIFO
15.2.7.22 static void DSPI_SetAllPcsPolarity ( SPI_Type ∗base, uint32_t mask )
[inline],[static]
For example, PCS0 and PCS1 set to active low and other PCS set to active high. Note that the number of
PCSs is specific to the device.
DSPI_SetAllPcsPolarity(base, kDSPI_Pcs0ActiveLow |
kDSPI_Pcs1ActiveLow);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
151
DSPI Driver
Parameters
base DSPI peripheral address.
mask The PCS polarity mask , can use the enum _dspi_pcs_polarity.
15.2.7.23 uint32_t DSPI_MasterSetBaudRate ( SPI_Type ∗base, dspi_ctar_selection_t
whichCtar, uint32_t baudRate_Bps, uint32_t srcClock_Hz )
This function takes in the desired baudRate_Bps (baud rate) and calculates the nearest possible baud rate
without exceeding the desired baud rate, and returns the calculated baud rate in bits-per-second. It requires
that the caller also provide the frequency of the module source clock (in Hertz).
Parameters
base DSPI peripheral address.
whichCtar The desired Clock and Transfer Attributes Register (CTAR) of the type dspi_ctar_-
selection_t
baudRate_Bps The desired baud rate in bits per second
srcClock_Hz Module source input clock in Hertz
Returns
The actual calculated baud rate
15.2.7.24 void DSPI_MasterSetDelayScaler ( SPI_Type ∗base, dspi_ctar_selection_t
whichCtar, uint32_t prescaler, uint32_t scaler, dspi_delay_type_t whichDelay )
This function configures the PCS to SCK delay pre-scalar (PcsSCK) and scalar (CSSCK), after SCK delay
pre-scalar (PASC) and scalar (ASC), and the delay after transfer pre-scalar (PDT)and scalar (DT).
These delay names are available in type dspi_delay_type_t.
The user passes the delay to configure along with the prescaler and scaler value. This allows the user to
directly set the prescaler/scaler values if they have pre-calculated them or if they simply wish to manually
increment either value.
Parameters
152
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
base DSPI peripheral address.
whichCtar The desired Clock and Transfer Attributes Register (CTAR) of type dspi_ctar_-
selection_t.
prescaler The prescaler delay value (can be an integer 0, 1, 2, or 3).
scaler The scaler delay value (can be any integer between 0 to 15).
whichDelay The desired delay to configure, must be of type dspi_delay_type_t
15.2.7.25 uint32_t DSPI_MasterSetDelayTimes ( SPI_Type ∗base, dspi_ctar_selection_t
whichCtar, dspi_delay_type_t whichDelay, uint32_t srcClock_Hz, uint32_t
delayTimeInNanoSec )
This function calculates the values for: PCS to SCK delay pre-scalar (PCSSCK) and scalar (CSSCK), or
After SCK delay pre-scalar (PASC) and scalar (ASC), or Delay after transfer pre-scalar (PDT)and scalar
(DT).
These delay names are available in type dspi_delay_type_t.
The user passes which delay they want to configure along with the desired delay value in nanoseconds.
The function calculates the values needed for the prescaler and scaler and returning the actual calculated
delay as an exact delay match may not be possible. In this case, the closest match is calculated without
going below the desired delay value input. It is possible to input a very large delay value that exceeds the
capability of the part, in which case the maximum supported delay is returned. The higher level peripheral
driver alerts the user of an out of range delay input.
Parameters
base DSPI peripheral address.
whichCtar The desired Clock and Transfer Attributes Register (CTAR) of type dspi_ctar_-
selection_t.
whichDelay The desired delay to configure, must be of type dspi_delay_type_t
srcClock_Hz Module source input clock in Hertz
delayTimeIn-
NanoSec
The desired delay value in nanoseconds.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
153
DSPI Driver
Returns
The actual calculated delay value.
15.2.7.26 static void DSPI_MasterWriteData ( SPI_Type ∗base, dspi_-
command_data_config_t ∗command, uint16_t data )[inline],
[static]
In master mode, the 16-bit data is appended to the 16-bit command info. The command portion provides
characteristics of the data such as the optional continuous chip select operation between transfers, the
desired Clock and Transfer Attributes register to use for the associated SPI frame, the desired PCS signal
to use for the data transfer, whether the current transfer is the last in the queue, and whether to clear the
transfer count (normally needed when sending the first frame of a data packet). This is an example:
dspi_command_data_config_t commandConfig;
commandConfig.isPcsContinuous =true;
commandConfig.whichCtar = kDSPICtar0;
commandConfig.whichPcs = kDSPIPcs0;
commandConfig.clearTransferCount =false;
commandConfig.isEndOfQueue =false;
DSPI_MasterWriteData(base, &commandConfig, dataWord);
Parameters
base DSPI peripheral address.
command Pointer to command structure.
data The data word to be sent.
15.2.7.27 void DSPI_GetDefaultDataCommandConfig ( dspi_command_data_config_t ∗
command )
The purpose of this API is to get the configuration structure initialized for use in the DSPI_MasterWrite_-
xx(). User may use the initialized structure unchanged in DSPI_MasterWrite_xx() or modify the structure
before calling DSPI_MasterWrite_xx(). Example:
dspi_command_data_config_t command;
DSPI_GetDefaultDataCommandConfig(&command);
Parameters
154
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
command pointer to dspi_command_data_config_t structure.
15.2.7.28 void DSPI_MasterWriteDataBlocking ( SPI_Type ∗base,
dspi_command_data_config_t ∗command, uint16_t data )
In master mode, the 16-bit data is appended to the 16-bit command info. The command portion provides
characteristics of the data such as the optional continuous chip select operation between transfers, the
desired Clock and Transfer Attributes register to use for the associated SPI frame, the desired PCS signal
to use for the data transfer, whether the current transfer is the last in the queue, and whether to clear the
transfer count (normally needed when sending the first frame of a data packet). This is an example:
dspi_command_config_t commandConfig;
commandConfig.isPcsContinuous = true;
commandConfig.whichCtar = kDSPICtar0;
commandConfig.whichPcs = kDSPIPcs1;
commandConfig.clearTransferCount = false;
commandConfig.isEndOfQueue = false;
DSPI_MasterWriteDataBlocking(base, &commandConfig, dataWord);
Note that this function does not return until after the transmit is complete. Also note that the DSPI must
be enabled and running to transmit data (MCR[MDIS] & [HALT] = 0). Because the SPI is a synchronous
protocol, receive data is available when transmit completes.
Parameters
base DSPI peripheral address.
command Pointer to command structure.
data The data word to be sent.
15.2.7.29 static uint32_t DSPI_MasterGetFormattedCommand ( dspi_command_data_-
config_t ∗command )[inline],[static]
This function allows the caller to pass in the data command structure and returns the command word for-
matted according to the DSPI PUSHR register bit field placement. The user can then "OR" the returned
command word with the desired data to send and use the function DSPI_HAL_WriteCommandData-
Mastermode or DSPI_HAL_WriteCommandDataMastermodeBlocking to write the entire 32-bit com-
mand data word to the PUSHR. This helps improve performance in cases where the command structure
is constant. For example, the user calls this function before starting a transfer to generate the command
word. When they are ready to transmit the data, they OR this formatted command word with the desired
data to transmit. This process increases transmit performance when compared to calling send functions
such as DSPI_HAL_WriteDataMastermode which format the command word each time a data word is to
be sent.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
155
DSPI Driver
Parameters
command Pointer to command structure.
Returns
The command word formatted to the PUSHR data register bit field.
15.2.7.30 void DSPI_MasterWriteCommandDataBlocking ( SPI_Type ∗base, uint32_t
data )
In this function, the user must append the 16-bit data to the 16-bit command info then provide the total 32-
bit word as the data to send. The command portion provides characteristics of the data such as the optional
continuous chip select operation between transfers, the desired Clock and Transfer Attributes register to
use for the associated SPI frame, the desired PCS signal to use for the data transfer, whether the current
transfer is the last in the queue, and whether to clear the transfer count (normally needed when sending the
first frame of a data packet). The user is responsible for appending this command with the data to send.
This is an example:
dataWord = <16-bit command> | <16-bit data>;
DSPI_HAL_WriteCommandDataMastermodeBlocking(base, dataWord);
Note that this function does not return until after the transmit is complete. Also note that the DSPI must
be enabled and running to transmit data (MCR[MDIS] & [HALT] = 0). Because the SPI is a synchronous
protocol, the receive data is available when transmit completes.
For a blocking polling transfer, see methods below. Option 1: uint32_t command_to_send = DSPI_-
MasterGetFormattedCommand(&command); uint32_t data0 = command_to_send |data_need_to_send-
_0; uint32_t data1 = command_to_send |data_need_to_send_1; uint32_t data2 = command_to_send |
data_need_to_send_2;
DSPI_MasterWriteCommandDataBlocking(base,data0); DSPI_MasterWriteCommandDataBlocking(base,data1);
DSPI_MasterWriteCommandDataBlocking(base,data2);
Option 2: DSPI_MasterWriteDataBlocking(base,&command,data_need_to_send_0); DSPI_Master-
WriteDataBlocking(base,&command,data_need_to_send_1); DSPI_MasterWriteDataBlocking(base,&command,data-
_need_to_send_2);
Parameters
156
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
base DSPI peripheral address.
data The data word (command and data combined) to be sent
15.2.7.31 static void DSPI_SlaveWriteData ( SPI_Type ∗base, uint32_t data )
[inline],[static]
In slave mode, up to 16-bit words may be written.
Parameters
base DSPI peripheral address.
data The data to send.
15.2.7.32 void DSPI_SlaveWriteDataBlocking ( SPI_Type ∗base, uint32_t data )
In slave mode, up to 16-bit words may be written. The function first clears the transmit complete flag,
writes data into data register, and finally waits until the data is transmitted.
Parameters
base DSPI peripheral address.
data The data to send.
15.2.7.33 static uint32_t DSPI_ReadData ( SPI_Type ∗base )[inline],[static]
Parameters
base DSPI peripheral address.
Returns
The data from the read data buffer.
15.2.7.34 void DSPI_MasterTransferCreateHandle ( SPI_Type ∗base, dspi_master_-
handle_t ∗handle, dspi_master_transfer_callback_t callback, void ∗userData
)
This function initializes the DSPI handle which can be used for other DSPI transactional APIs. Usually,
for a specified DSPI instance, call this API once to get the initialized handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
157
DSPI Driver
Parameters
base DSPI peripheral base address.
handle DSPI handle pointer to dspi_master_handle_t.
callback dspi callback.
userData callback function parameter.
15.2.7.35 status_t DSPI_MasterTransferBlocking ( SPI_Type ∗base, dspi_transfer_t ∗
transfer )
This function transfers data with polling. This is a blocking function, which does not return until all
transfers have been completed.
Parameters
base DSPI peripheral base address.
transfer pointer to dspi_transfer_t structure.
Returns
status of status_t.
15.2.7.36 status_t DSPI_MasterTransferNonBlocking ( SPI_Type ∗base,
dspi_master_handle_t ∗handle, dspi_transfer_t ∗transfer )
This function transfers data using interrupts. This is a non-blocking function, which returns right away.
When all data have been transferred, the callback function is called.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_handle_t structure which stores the transfer state.
transfer pointer to dspi_transfer_t structure.
Returns
status of status_t.
158
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
15.2.7.37 status_t DSPI_MasterTransferGetCount ( SPI_Type ∗base,
dspi_master_handle_t ∗handle, size_t ∗count )
This function gets the master transfer count.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
159
DSPI Driver
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_handle_t structure which stores the transfer state.
count Number of bytes transferred so far by the non-blocking transaction.
Returns
status of status_t.
15.2.7.38 void DSPI_MasterTransferAbort ( SPI_Type ∗base, dspi_master_handle_t ∗
handle )
This function aborts a transfer using an interrupt.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_handle_t structure which stores the transfer state.
15.2.7.39 void DSPI_MasterTransferHandleIRQ ( SPI_Type ∗base, dspi_master_handle_t
∗handle )
This function processes the DSPI transmit and receive IRQ.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_handle_t structure which stores the transfer state.
15.2.7.40 void DSPI_SlaveTransferCreateHandle ( SPI_Type ∗base, dspi_slave_handle_t
∗handle, dspi_slave_transfer_callback_t callback, void ∗userData )
This function initializes the DSPI handle, which can be used for other DSPI transactional APIs. Usually,
for a specified DSPI instance, call this API once to get the initialized handle.
160
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
Parameters
handle DSPI handle pointer to dspi_slave_handle_t.
base DSPI peripheral base address.
callback DSPI callback.
userData callback function parameter.
15.2.7.41 status_t DSPI_SlaveTransferNonBlocking ( SPI_Type ∗base,
dspi_slave_handle_t ∗handle, dspi_transfer_t ∗transfer )
This function transfers data using an interrupt. This is a non-blocking function, which returns right away.
When all data have been transferred, the callback function is called.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_slave_handle_t structure which stores the transfer state.
transfer pointer to dspi_transfer_t structure.
Returns
status of status_t.
15.2.7.42 status_t DSPI_SlaveTransferGetCount ( SPI_Type ∗base, dspi_slave_handle_t
∗handle, size_t ∗count )
This function gets the slave transfer count.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_handle_t structure which stores the transfer state.
count Number of bytes transferred so far by the non-blocking transaction.
Returns
status of status_t.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
161
DSPI Driver
15.2.7.43 void DSPI_SlaveTransferAbort ( SPI_Type ∗base, dspi_slave_handle_t ∗
handle )
This function aborts transfer using an interrupt.
162
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI Driver
Parameters
base DSPI peripheral base address.
handle pointer to dspi_slave_handle_t structure which stores the transfer state.
15.2.7.44 void DSPI_SlaveTransferHandleIRQ ( SPI_Type ∗base, dspi_slave_handle_t ∗
handle )
This function processes the DSPI transmit and receive IRQ.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_slave_handle_t structure which stores the transfer state.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
163
DSPI DMA Driver
15.3 DSPI DMA Driver
15.3.1 Overview
This section describes the programming interface of the DSPI Peripheral driver. The DSPI driver config-
ures DSPI module, provides the functional and transactional interfaces to build the DSPI application.
Files
• file fsl_dspi_dma.h
Data Structures
• struct dspi_master_dma_handle_t
DSPI master DMA transfer handle structure used for transactional API. More...
• struct dspi_slave_dma_handle_t
DSPI slave DMA transfer handle structure used for transactional API. More...
Typedefs
• typedef void(∗dspi_master_dma_transfer_callback_t )(SPI_Type ∗base, dspi_master_dma_handle-
_t ∗handle, status_t status, void ∗userData)
Completion callback function pointer type.
• typedef void(∗dspi_slave_dma_transfer_callback_t )(SPI_Type ∗base, dspi_slave_dma_handle_-
t∗handle, status_t status, void ∗userData)
Completion callback function pointer type.
Functions
• void DSPI_MasterTransferCreateHandleDMA (SPI_Type ∗base, dspi_master_dma_handle_t
∗handle, dspi_master_dma_transfer_callback_t callback, void ∗userData, dma_handle_t ∗dma-
RxRegToRxDataHandle, dma_handle_t ∗dmaTxDataToIntermediaryHandle, dma_handle_t ∗dma-
IntermediaryToTxRegHandle)
Initializes the DSPI master DMA handle.
• status_t DSPI_MasterTransferDMA (SPI_Type ∗base, dspi_master_dma_handle_t ∗handle, dspi_-
transfer_t ∗transfer)
DSPI master transfers data using DMA.
• void DSPI_MasterTransferAbortDMA (SPI_Type ∗base, dspi_master_dma_handle_t ∗handle)
DSPI master aborts a transfer which is using DMA.
• status_t DSPI_MasterTransferGetCountDMA (SPI_Type ∗base, dspi_master_dma_handle_-
t∗handle, size_t ∗count)
Gets the master DMA transfer remaining bytes.
164
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI DMA Driver
• void DSPI_SlaveTransferCreateHandleDMA (SPI_Type ∗base, dspi_slave_dma_handle_t ∗handle,
dspi_slave_dma_transfer_callback_t callback, void ∗userData, dma_handle_t ∗dmaRxRegToRx-
DataHandle, dma_handle_t ∗dmaTxDataToTxRegHandle)
Initializes the DSPI slave DMA handle.
• status_t DSPI_SlaveTransferDMA (SPI_Type ∗base, dspi_slave_dma_handle_t ∗handle, dspi_-
transfer_t ∗transfer)
DSPI slave transfers data using DMA.
• void DSPI_SlaveTransferAbortDMA (SPI_Type ∗base, dspi_slave_dma_handle_t ∗handle)
DSPI slave aborts a transfer which is using DMA.
• status_t DSPI_SlaveTransferGetCountDMA (SPI_Type ∗base, dspi_slave_dma_handle_t ∗handle,
size_t ∗count)
Gets the slave DMA transfer remaining bytes.
15.3.2 Data Structure Documentation
15.3.2.1 struct _dspi_master_dma_handle
Forward declaration of the DSPI DMA master handle typedefs.
Data Fields
• uint32_t bitsPerFrame
Desired number of bits per frame.
• volatile uint32_t command
Desired data command.
• volatile uint32_t lastCommand
Desired last data command.
• uint8_t fifoSize
FIFO dataSize.
• volatile bool isPcsActiveAfterTransfer
Is PCS signal keep active after the last frame transfer.
• volatile bool isThereExtraByte
Is there extra byte.
• uint8_t ∗volatile txData
Send buffer.
• uint8_t ∗volatile rxData
Receive buffer.
• volatile size_t remainingSendByteCount
Number of bytes remaining to send.
• volatile size_t remainingReceiveByteCount
Number of bytes remaining to receive.
• size_t totalByteCount
Number of transfer bytes.
• uint32_t rxBuffIfNull
Used if there is not rxData for DMA purpose.
• uint32_t txBuffIfNull
Used if there is not txData for DMA purpose.
• volatile uint8_t state
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
165
DSPI DMA Driver
DSPI transfer state , _dspi_transfer_state.
•dspi_master_dma_transfer_callback_t callback
Completion callback.
• void ∗userData
Callback user data.
•dma_handle_t ∗dmaRxRegToRxDataHandle
dma_handle_t handle point used for RxReg to RxData buff
•dma_handle_t ∗dmaTxDataToIntermediaryHandle
dma_handle_t handle point used for TxData to Intermediary
•dma_handle_t ∗dmaIntermediaryToTxRegHandle
dma_handle_t handle point used for Intermediary to TxReg
15.3.2.1.0.27 Field Documentation
15.3.2.1.0.27.1 uint32_t dspi_master_dma_handle_t::bitsPerFrame
15.3.2.1.0.27.2 volatile uint32_t dspi_master_dma_handle_t::command
15.3.2.1.0.27.3 volatile uint32_t dspi_master_dma_handle_t::lastCommand
15.3.2.1.0.27.4 uint8_t dspi_master_dma_handle_t::fifoSize
15.3.2.1.0.27.5 volatile bool dspi_master_dma_handle_t::isPcsActiveAfterTransfer
15.3.2.1.0.27.6 volatile bool dspi_master_dma_handle_t::isThereExtraByte
15.3.2.1.0.27.7 uint8_t∗volatile dspi_master_dma_handle_t::txData
15.3.2.1.0.27.8 uint8_t∗volatile dspi_master_dma_handle_t::rxData
15.3.2.1.0.27.9 volatile size_t dspi_master_dma_handle_t::remainingSendByteCount
15.3.2.1.0.27.10 volatile size_t dspi_master_dma_handle_t::remainingReceiveByteCount
15.3.2.1.0.27.11 uint32_t dspi_master_dma_handle_t::rxBuffIfNull
15.3.2.1.0.27.12 uint32_t dspi_master_dma_handle_t::txBuffIfNull
15.3.2.1.0.27.13 volatile uint8_t dspi_master_dma_handle_t::state
15.3.2.1.0.27.14 dspi_master_dma_transfer_callback_t dspi_master_dma_handle_t::callback
15.3.2.1.0.27.15 void∗dspi_master_dma_handle_t::userData
15.3.2.2 struct _dspi_slave_dma_handle
Forward declaration of the DSPI DMA slave handle typedefs.
166
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI DMA Driver
Data Fields
• uint32_t bitsPerFrame
Desired number of bits per frame.
• volatile bool isThereExtraByte
Is there extra byte.
• uint8_t ∗volatile txData
Send buffer.
• uint8_t ∗volatile rxData
Receive buffer.
• volatile size_t remainingSendByteCount
Number of bytes remaining to send.
• volatile size_t remainingReceiveByteCount
Number of bytes remaining to receive.
• size_t totalByteCount
Number of transfer bytes.
• uint32_t rxBuffIfNull
Used if there is not rxData for DMA purpose.
• uint32_t txBuffIfNull
Used if there is not txData for DMA purpose.
• uint32_t txLastData
Used if there is an extra byte when 16 bits per frame for DMA purpose.
• volatile uint8_t state
DSPI transfer state.
• uint32_t errorCount
Error count for slave transfer.
•dspi_slave_dma_transfer_callback_t callback
Completion callback.
• void ∗userData
Callback user data.
•dma_handle_t ∗dmaRxRegToRxDataHandle
dma_handle_t handle point used for RxReg to RxData buff
•dma_handle_t ∗dmaTxDataToTxRegHandle
dma_handle_t handle point used for TxData to TxReg
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
167
DSPI DMA Driver
15.3.2.2.0.28 Field Documentation
15.3.2.2.0.28.1 uint32_t dspi_slave_dma_handle_t::bitsPerFrame
15.3.2.2.0.28.2 volatile bool dspi_slave_dma_handle_t::isThereExtraByte
15.3.2.2.0.28.3 uint8_t∗volatile dspi_slave_dma_handle_t::txData
15.3.2.2.0.28.4 uint8_t∗volatile dspi_slave_dma_handle_t::rxData
15.3.2.2.0.28.5 volatile size_t dspi_slave_dma_handle_t::remainingSendByteCount
15.3.2.2.0.28.6 volatile size_t dspi_slave_dma_handle_t::remainingReceiveByteCount
15.3.2.2.0.28.7 uint32_t dspi_slave_dma_handle_t::rxBuffIfNull
15.3.2.2.0.28.8 uint32_t dspi_slave_dma_handle_t::txBuffIfNull
15.3.2.2.0.28.9 uint32_t dspi_slave_dma_handle_t::txLastData
15.3.2.2.0.28.10 volatile uint8_t dspi_slave_dma_handle_t::state
15.3.2.2.0.28.11 uint32_t dspi_slave_dma_handle_t::errorCount
15.3.2.2.0.28.12 dspi_slave_dma_transfer_callback_t dspi_slave_dma_handle_t::callback
15.3.2.2.0.28.13 void∗dspi_slave_dma_handle_t::userData
15.3.3 Typedef Documentation
15.3.3.1 typedef void(∗dspi_master_dma_transfer_callback_t)(SPI_Type ∗base,
dspi_master_dma_handle_t ∗handle, status_t status, void ∗userData)
168
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI DMA Driver
Parameters
base DSPI peripheral base address.
handle Pointer to the handle for the DSPI master.
status Success or error code describing whether the transfer completed.
userData Arbitrary pointer-dataSized value passed from the application.
15.3.3.2 typedef void(∗dspi_slave_dma_transfer_callback_t)(SPI_Type ∗base,
dspi_slave_dma_handle_t ∗handle, status_t status, void ∗userData)
Parameters
base DSPI peripheral base address.
handle Pointer to the handle for the DSPI slave.
status Success or error code describing whether the transfer completed.
userData Arbitrary pointer-dataSized value passed from the application.
15.3.4 Function Documentation
15.3.4.1 void DSPI_MasterTransferCreateHandleDMA ( SPI_Type ∗base,
dspi_master_dma_handle_t ∗handle, dspi_master_dma_transfer_callback_t
callback, void ∗userData, dma_handle_t ∗dmaRxRegToRxDataHandle,
dma_handle_t ∗dmaTxDataToIntermediaryHandle, dma_handle_t ∗
dmaIntermediaryToTxRegHandle )
This function initializes the DSPI DMA handle which can be used for other DSPI transactional APIs.
Usually, for a specified DSPI instance, call this API once to get the initialized handle.
Note that DSPI DMA has a separated (Rx and Tx as two sources) or shared (Rx and Tx is the same source)
DMA request source. (1) For a separated DMA request source, enable and set the Rx DMAMUX source
for dmaRxRegToRxDataHandle and Tx DMAMUX source for dmaIntermediaryToTxRegHandle. (2) For
a shared DMA request source, enable and set the Rx/Rx DMAMUX source for dmaRxRegToRxData-
Handle.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
169
DSPI DMA Driver
base DSPI peripheral base address.
handle DSPI handle pointer to dspi_master_dma_handle_t.
callback DSPI callback.
userData callback function parameter.
dmaRxRegTo-
RxDataHandle
dmaRxRegToRxDataHandle pointer to dma_handle_t.
dmaTxDataTo-
Intermediary-
Handle
dmaTxDataToIntermediaryHandle pointer to dma_handle_t.
dma-
Intermediary-
ToTxReg-
Handle
dmaIntermediaryToTxRegHandle pointer to dma_handle_t.
15.3.4.2 status_t DSPI_MasterTransferDMA ( SPI_Type ∗base, dspi_master_dma_-
handle_t ∗handle, dspi_transfer_t ∗transfer )
This function transfers data using DMA. This is a non-blocking function, which returns right away. When
all data is transferred, the callback function is called.
Note that master DMA transfer cannot support the transfer_size of 1 when the bitsPerFrame is greater than
8.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_dma_handle_t structure which stores the transfer state.
transfer pointer to dspi_transfer_t structure.
Returns
status of status_t.
15.3.4.3 void DSPI_MasterTransferAbortDMA ( SPI_Type ∗base,
dspi_master_dma_handle_t ∗handle )
This function aborts a transfer which is using DMA.
170
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI DMA Driver
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_dma_handle_t structure which stores the transfer state.
15.3.4.4 status_t DSPI_MasterTransferGetCountDMA ( SPI_Type ∗base,
dspi_master_dma_handle_t ∗handle, size_t ∗count )
This function gets the master DMA transfer remaining bytes.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_dma_handle_t structure which stores the transfer state.
count number point of bytes transferred so far by the non-blocking transaction.
Returns
status of status_t.
15.3.4.5 void DSPI_SlaveTransferCreateHandleDMA ( SPI_Type ∗base,
dspi_slave_dma_handle_t ∗handle, dspi_slave_dma_transfer_callback_t
callback, void ∗userData, dma_handle_t ∗dmaRxRegToRxDataHandle,
dma_handle_t ∗dmaTxDataToTxRegHandle )
This function initializes the DSPI DMA handle which can be used for other DSPI transactional APIs.
Usually, for a specified DSPI instance, call this API one time to get the initialized handle.
Note that DSPI DMA has a separated (Rx and Tx as two sources) or shared (Rx and Tx is the same
source) DMA request source. (1) For a separated DMA request source, enable and set the Rx DMAMUX
source for dmaRxRegToRxDataHandle and Tx DMAMUX source for dmaTxDataToTxRegHandle. (2)
For a shared DMA request source, enable and set the Rx/Rx DMAMUX source for dmaRxRegToRxData-
Handle.
Parameters
base DSPI peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
171
DSPI DMA Driver
handle DSPI handle pointer to dspi_slave_dma_handle_t.
callback DSPI callback.
userData callback function parameter.
dmaRxRegTo-
RxDataHandle
dmaRxRegToRxDataHandle pointer to dma_handle_t.
dmaTxDataTo-
TxRegHandle
dmaTxDataToTxRegHandle pointer to dma_handle_t.
15.3.4.6 status_t DSPI_SlaveTransferDMA ( SPI_Type ∗base, dspi_slave_dma_handle_t
∗handle, dspi_transfer_t ∗transfer )
This function transfers data using DMA. This is a non-blocking function, which returns right away. When
all data is transferred, the callback function is called.
Note that the slave DMA transfer cannot support the transfer_size of 1 when the bitsPerFrame is greater
than 8.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_slave_dma_handle_t structure which stores the transfer state.
transfer pointer to dspi_transfer_t structure.
Returns
status of status_t.
15.3.4.7 void DSPI_SlaveTransferAbortDMA ( SPI_Type ∗base, dspi_slave_dma_handle_t
∗handle )
This function aborts a transfer which is using DMA.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_slave_dma_handle_t structure which stores the transfer state.
15.3.4.8 status_t DSPI_SlaveTransferGetCountDMA ( SPI_Type ∗base,
dspi_slave_dma_handle_t ∗handle, size_t ∗count )
This function gets the slave DMA transfer remaining bytes.
172
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI DMA Driver
Parameters
base DSPI peripheral base address.
handle pointer to dspi_slave_dma_handle_t structure which stores the transfer state.
count number point of bytes transferred so far by the non-blocking transaction.
Returns
status of status_t.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
173
DSPI eDMA Driver
15.4 DSPI eDMA Driver
15.4.1 Overview
This section describes the programming interface of the DSPI Peripheral driver. The DSPI driver config-
ures DSPI module, provides the functional and transactional interfaces to build the DSPI application.
Files
• file fsl_dspi_edma.h
Data Structures
• struct dspi_master_edma_handle_t
DSPI master eDMA transfer handle structure used for transactional API. More...
• struct dspi_slave_edma_handle_t
DSPI slave eDMA transfer handle structure used for transactional API. More...
Typedefs
• typedef void(∗dspi_master_edma_transfer_callback_t )(SPI_Type ∗base, dspi_master_edma_-
handle_t ∗handle, status_t status, void ∗userData)
Completion callback function pointer type.
• typedef void(∗dspi_slave_edma_transfer_callback_t )(SPI_Type ∗base, dspi_slave_edma_handle_t
∗handle, status_t status, void ∗userData)
Completion callback function pointer type.
Functions
• void DSPI_MasterTransferCreateHandleEDMA (SPI_Type ∗base, dspi_master_edma_handle_t
∗handle, dspi_master_edma_transfer_callback_t callback, void ∗userData, edma_handle_t ∗edma-
RxRegToRxDataHandle, edma_handle_t ∗edmaTxDataToIntermediaryHandle, edma_handle_t
∗edmaIntermediaryToTxRegHandle)
Initializes the DSPI master eDMA handle.
• status_t DSPI_MasterTransferEDMA (SPI_Type ∗base, dspi_master_edma_handle_t ∗handle, dspi-
_transfer_t ∗transfer)
DSPI master transfer data using eDMA.
• void DSPI_MasterTransferAbortEDMA (SPI_Type ∗base, dspi_master_edma_handle_t ∗handle)
DSPI master aborts a transfer which using eDMA.
• status_t DSPI_MasterTransferGetCountEDMA (SPI_Type ∗base, dspi_master_edma_handle_t
∗handle, size_t ∗count)
Gets the master eDMA transfer count.
174
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI eDMA Driver
• void DSPI_SlaveTransferCreateHandleEDMA (SPI_Type ∗base, dspi_slave_edma_handle_t
∗handle, dspi_slave_edma_transfer_callback_t callback, void ∗userData, edma_handle_t ∗edmaRx-
RegToRxDataHandle, edma_handle_t ∗edmaTxDataToTxRegHandle)
Initializes the DSPI slave eDMA handle.
• status_t DSPI_SlaveTransferEDMA (SPI_Type ∗base, dspi_slave_edma_handle_t ∗handle, dspi_-
transfer_t ∗transfer)
DSPI slave transfer data using eDMA.
• void DSPI_SlaveTransferAbortEDMA (SPI_Type ∗base, dspi_slave_edma_handle_t ∗handle)
DSPI slave aborts a transfer which using eDMA.
• status_t DSPI_SlaveTransferGetCountEDMA (SPI_Type ∗base, dspi_slave_edma_handle_-
t∗handle, size_t ∗count)
Gets the slave eDMA transfer count.
15.4.2 Data Structure Documentation
15.4.2.1 struct _dspi_master_edma_handle
Forward declaration of the DSPI eDMA master handle typedefs.
Data Fields
• uint32_t bitsPerFrame
Desired number of bits per frame.
• volatile uint32_t command
Desired data command.
• volatile uint32_t lastCommand
Desired last data command.
• uint8_t fifoSize
FIFO dataSize.
• volatile bool isPcsActiveAfterTransfer
Is PCS signal keep active after the last frame transfer.
• volatile bool isThereExtraByte
Is there extra byte.
• uint8_t ∗volatile txData
Send buffer.
• uint8_t ∗volatile rxData
Receive buffer.
• volatile size_t remainingSendByteCount
Number of bytes remaining to send.
• volatile size_t remainingReceiveByteCount
Number of bytes remaining to receive.
• size_t totalByteCount
Number of transfer bytes.
• uint32_t rxBuffIfNull
Used if there is not rxData for DMA purpose.
• uint32_t txBuffIfNull
Used if there is not txData for DMA purpose.
• volatile uint8_t state
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
175
DSPI eDMA Driver
DSPI transfer state , _dspi_transfer_state.
•dspi_master_edma_transfer_callback_t callback
Completion callback.
• void ∗userData
Callback user data.
•edma_handle_t ∗edmaRxRegToRxDataHandle
edma_handle_t handle point used for RxReg to RxData buff
•edma_handle_t ∗edmaTxDataToIntermediaryHandle
edma_handle_t handle point used for TxData to Intermediary
•edma_handle_t ∗edmaIntermediaryToTxRegHandle
edma_handle_t handle point used for Intermediary to TxReg
•edma_tcd_t dspiSoftwareTCD [2]
SoftwareTCD , internal used.
15.4.2.1.0.29 Field Documentation
15.4.2.1.0.29.1 uint32_t dspi_master_edma_handle_t::bitsPerFrame
15.4.2.1.0.29.2 volatile uint32_t dspi_master_edma_handle_t::command
15.4.2.1.0.29.3 volatile uint32_t dspi_master_edma_handle_t::lastCommand
15.4.2.1.0.29.4 uint8_t dspi_master_edma_handle_t::fifoSize
15.4.2.1.0.29.5 volatile bool dspi_master_edma_handle_t::isPcsActiveAfterTransfer
15.4.2.1.0.29.6 volatile bool dspi_master_edma_handle_t::isThereExtraByte
15.4.2.1.0.29.7 uint8_t∗volatile dspi_master_edma_handle_t::txData
15.4.2.1.0.29.8 uint8_t∗volatile dspi_master_edma_handle_t::rxData
15.4.2.1.0.29.9 volatile size_t dspi_master_edma_handle_t::remainingSendByteCount
15.4.2.1.0.29.10 volatile size_t dspi_master_edma_handle_t::remainingReceiveByteCount
15.4.2.1.0.29.11 uint32_t dspi_master_edma_handle_t::rxBuffIfNull
15.4.2.1.0.29.12 uint32_t dspi_master_edma_handle_t::txBuffIfNull
15.4.2.1.0.29.13 volatile uint8_t dspi_master_edma_handle_t::state
15.4.2.1.0.29.14 dspi_master_edma_transfer_callback_t dspi_master_edma_handle_t::callback
15.4.2.1.0.29.15 void∗dspi_master_edma_handle_t::userData
15.4.2.2 struct _dspi_slave_edma_handle
Forward declaration of the DSPI eDMA slave handle typedefs.
176
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI eDMA Driver
Data Fields
• uint32_t bitsPerFrame
Desired number of bits per frame.
• volatile bool isThereExtraByte
Is there extra byte.
• uint8_t ∗volatile txData
Send buffer.
• uint8_t ∗volatile rxData
Receive buffer.
• volatile size_t remainingSendByteCount
Number of bytes remaining to send.
• volatile size_t remainingReceiveByteCount
Number of bytes remaining to receive.
• size_t totalByteCount
Number of transfer bytes.
• uint32_t rxBuffIfNull
Used if there is not rxData for DMA purpose.
• uint32_t txBuffIfNull
Used if there is not txData for DMA purpose.
• uint32_t txLastData
Used if there is an extra byte when 16bits per frame for DMA purpose.
• volatile uint8_t state
DSPI transfer state.
• uint32_t errorCount
Error count for slave transfer.
•dspi_slave_edma_transfer_callback_t callback
Completion callback.
• void ∗userData
Callback user data.
•edma_handle_t ∗edmaRxRegToRxDataHandle
edma_handle_t handle point used for RxReg to RxData buff
•edma_handle_t ∗edmaTxDataToTxRegHandle
edma_handle_t handle point used for TxData to TxReg
•edma_tcd_t dspiSoftwareTCD [2]
SoftwareTCD , internal used.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
177
DSPI eDMA Driver
15.4.2.2.0.30 Field Documentation
15.4.2.2.0.30.1 uint32_t dspi_slave_edma_handle_t::bitsPerFrame
15.4.2.2.0.30.2 volatile bool dspi_slave_edma_handle_t::isThereExtraByte
15.4.2.2.0.30.3 uint8_t∗volatile dspi_slave_edma_handle_t::txData
15.4.2.2.0.30.4 uint8_t∗volatile dspi_slave_edma_handle_t::rxData
15.4.2.2.0.30.5 volatile size_t dspi_slave_edma_handle_t::remainingSendByteCount
15.4.2.2.0.30.6 volatile size_t dspi_slave_edma_handle_t::remainingReceiveByteCount
15.4.2.2.0.30.7 uint32_t dspi_slave_edma_handle_t::rxBuffIfNull
15.4.2.2.0.30.8 uint32_t dspi_slave_edma_handle_t::txBuffIfNull
15.4.2.2.0.30.9 uint32_t dspi_slave_edma_handle_t::txLastData
15.4.2.2.0.30.10 volatile uint8_t dspi_slave_edma_handle_t::state
15.4.2.2.0.30.11 uint32_t dspi_slave_edma_handle_t::errorCount
15.4.2.2.0.30.12 dspi_slave_edma_transfer_callback_t dspi_slave_edma_handle_t::callback
15.4.2.2.0.30.13 void∗dspi_slave_edma_handle_t::userData
15.4.3 Typedef Documentation
15.4.3.1 typedef void(∗dspi_master_edma_transfer_callback_t)(SPI_Type ∗base,
dspi_master_edma_handle_t ∗handle, status_t status, void ∗userData)
178
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI eDMA Driver
Parameters
base DSPI peripheral base address.
handle Pointer to the handle for the DSPI master.
status Success or error code describing whether the transfer completed.
userData Arbitrary pointer-dataSized value passed from the application.
15.4.3.2 typedef void(∗dspi_slave_edma_transfer_callback_t)(SPI_Type ∗base,
dspi_slave_edma_handle_t ∗handle, status_t status, void ∗userData)
Parameters
base DSPI peripheral base address.
handle Pointer to the handle for the DSPI slave.
status Success or error code describing whether the transfer completed.
userData Arbitrary pointer-dataSized value passed from the application.
15.4.4 Function Documentation
15.4.4.1 void DSPI_MasterTransferCreateHandleEDMA ( SPI_Type ∗base,
dspi_master_edma_handle_t ∗handle, dspi_master_edma_transfer_callback_t
callback, void ∗userData, edma_handle_t ∗edmaRxRegToRxDataHandle,
edma_handle_t ∗edmaTxDataToIntermediaryHandle, edma_handle_t ∗
edmaIntermediaryToTxRegHandle )
This function initializes the DSPI eDMA handle which can be used for other DSPI transactional APIs.
Usually, for a specified DSPI instance, user need only call this API once to get the initialized handle.
Note that DSPI eDMA has separated (RX and TX as two sources) or shared (RX and TX are the same
source) DMA request source. (1)For the separated DMA request source, enable and set the RX DMAM-
UX source for edmaRxRegToRxDataHandle and TX DMAMUX source for edmaIntermediaryToTxReg-
Handle. (2)For the shared DMA request source, enable and set the RX/RX DMAMUX source for the
edmaRxRegToRxDataHandle.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
179
DSPI eDMA Driver
base DSPI peripheral base address.
handle DSPI handle pointer to dspi_master_edma_handle_t.
callback DSPI callback.
userData callback function parameter.
edmaRxRegTo-
RxDataHandle
edmaRxRegToRxDataHandle pointer to edma_handle_t.
edmaTxData-
To-
Intermediary-
Handle
edmaTxDataToIntermediaryHandle pointer to edma_handle_t.
edma-
Intermediary-
ToTxReg-
Handle
edmaIntermediaryToTxRegHandle pointer to edma_handle_t.
15.4.4.2 status_t DSPI_MasterTransferEDMA ( SPI_Type ∗base, dspi-
_master_edma_handle_t ∗handle, dspi_transfer_t ∗transfer
)
This function transfer data using eDMA. This is non-blocking function, which returns right away. When
all data have been transfer, the callback function is called.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_edma_handle_t structure which stores the transfer state.
transfer pointer to dspi_transfer_t structure.
Returns
status of status_t.
15.4.4.3 void DSPI_MasterTransferAbortEDMA ( SPI_Type ∗base,
dspi_master_edma_handle_t ∗handle )
This function aborts a transfer which using eDMA.
180
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI eDMA Driver
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_edma_handle_t structure which stores the transfer state.
15.4.4.4 status_t DSPI_MasterTransferGetCountEDMA ( SPI_Type ∗base,
dspi_master_edma_handle_t ∗handle, size_t ∗count )
This function get the master eDMA transfer count.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_master_edma_handle_t structure which stores the transfer state.
count Number of bytes transferred so far by the non-blocking transaction.
Returns
status of status_t.
15.4.4.5 void DSPI_SlaveTransferCreateHandleEDMA ( SPI_Type ∗base,
dspi_slave_edma_handle_t ∗handle, dspi_slave_edma_transfer_callback_t
callback, void ∗userData, edma_handle_t ∗edmaRxRegToRxDataHandle,
edma_handle_t ∗edmaTxDataToTxRegHandle )
This function initializes the DSPI eDMA handle which can be used for other DSPI transactional APIs.
Usually, for a specified DSPI instance, call this API once to get the initialized handle.
Note that DSPI eDMA has separated (RN and TX in 2 sources) or shared (RX and TX are the same source)
DMA request source. (1)For the separated DMA request source, enable and set the RX DMAMUX source
for edmaRxRegToRxDataHandle and TX DMAMUX source for edmaTxDataToTxRegHandle. (2)For the
shared DMA request source, enable and set the RX/RX DMAMUX source for the edmaRxRegToRxData-
Handle.
Parameters
base DSPI peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
181
DSPI eDMA Driver
handle DSPI handle pointer to dspi_slave_edma_handle_t.
callback DSPI callback.
userData callback function parameter.
edmaRxRegTo-
RxDataHandle
edmaRxRegToRxDataHandle pointer to edma_handle_t.
edmaTxData-
ToTxReg-
Handle
edmaTxDataToTxRegHandle pointer to edma_handle_t.
15.4.4.6 status_t DSPI_SlaveTransferEDMA ( SPI_Type ∗base, dspi_slave_edma_handle-
_t ∗handle, dspi_transfer_t ∗transfer )
This function transfer data using eDMA. This is non-blocking function, which returns right away. When
all data have been transfer, the callback function is called. Note that slave EDMA transfer cannot support
the situation that transfer_size is 1 when the bitsPerFrame is greater than 8 .
Parameters
base DSPI peripheral base address.
handle pointer to dspi_slave_edma_handle_t structure which stores the transfer state.
transfer pointer to dspi_transfer_t structure.
Returns
status of status_t.
15.4.4.7 void DSPI_SlaveTransferAbortEDMA ( SPI_Type ∗base,
dspi_slave_edma_handle_t ∗handle )
This function aborts a transfer which using eDMA.
Parameters
base DSPI peripheral base address.
handle pointer to dspi_slave_edma_handle_t structure which stores the transfer state.
15.4.4.8 status_t DSPI_SlaveTransferGetCountEDMA ( SPI_Type ∗base,
dspi_slave_edma_handle_t ∗handle, size_t ∗count )
This function gets the slave eDMA transfer count.
182
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI eDMA Driver
Parameters
base DSPI peripheral base address.
handle pointer to dspi_slave_edma_handle_t structure which stores the transfer state.
count Number of bytes transferred so far by the non-blocking transaction.
Returns
status of status_t.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
183
DSPI FreeRTOS Driver
15.5 DSPI FreeRTOS Driver
15.5.1 Overview
Files
• file fsl_dspi_freertos.h
Data Structures
• struct dspi_rtos_handle_t
DSPI FreeRTOS handle. More...
Driver version
• #define FSL_DSPI_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
DSPI FreeRTOS driver version 2.0.0.
DSPI RTOS Operation
• status_t DSPI_RTOS_Init (dspi_rtos_handle_t ∗handle, SPI_Type ∗base, const dspi_master_config-
_t ∗masterConfig, uint32_t srcClock_Hz)
Initializes DSPI.
• status_t DSPI_RTOS_Deinit (dspi_rtos_handle_t ∗handle)
Deinitializes the DSPI.
• status_t DSPI_RTOS_Transfer (dspi_rtos_handle_t ∗handle, dspi_transfer_t ∗transfer)
Performs SPI transfer.
15.5.2 Data Structure Documentation
15.5.2.1 struct dspi_rtos_handle_t
DSPI FreeRTOS handle.
Data Fields
• SPI_Type ∗base
DSPI base address.
• dspi_master_handle_t drv_handle
Handle of the underlying driver, treated as opaque by the RTOS layer.
• SemaphoreHandle_t mutex
Mutex to lock the handle during a transfer.
184
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI FreeRTOS Driver
• SemaphoreHandle_t event
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a transfer.
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a transfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
15.5.3 Macro Definition Documentation
15.5.3.1 #define FSL_DSPI_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
15.5.4 Function Documentation
15.5.4.1 status_t DSPI_RTOS_Init ( dspi_rtos_handle_t ∗handle, SPI_Type ∗base, const
dspi_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the DSPI module and related RTOS context.
Parameters
handle The RTOS DSPI handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the DSPI instance to initialize.
masterConfig Configuration structure to set-up DSPI in master mode.
srcClock_Hz Frequency of input clock of the DSPI module.
Returns
status of the operation.
15.5.4.2 status_t DSPI_RTOS_Deinit ( dspi_rtos_handle_t ∗handle )
This function deinitializes the DSPI module and related RTOS context.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
185
DSPI FreeRTOS Driver
handle The RTOS DSPI handle.
15.5.4.3 status_t DSPI_RTOS_Transfer ( dspi_rtos_handle_t ∗handle, dspi_transfer_t ∗
transfer )
This function performs an SPI transfer according to data given in the transfer structure.
Parameters
handle The RTOS DSPI handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
186
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI µCOS/II Driver
15.6 DSPI µCOS/II Driver
15.6.1 Overview
Files
• file fsl_dspi_ucosii.h
Data Structures
• struct dspi_rtos_handle_t
DSPI µC/OS-II handle. More...
Driver version
• #define FSL_DSPI_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
DSPI µC/OS-II driver version 2.0.0.
DSPI RTOS Operation
• status_t DSPI_RTOS_Init (dspi_rtos_handle_t ∗handle, SPI_Type ∗base, const dspi_master_config-
_t ∗masterConfig, uint32_t srcClock_Hz)
Initializes DSPI.
• status_t DSPI_RTOS_Deinit (dspi_rtos_handle_t ∗handle)
Deinitializes the DSPI.
• status_t DSPI_RTOS_Transfer (dspi_rtos_handle_t ∗handle, dspi_transfer_t ∗transfer)
Performs SPI transfer.
15.6.2 Data Structure Documentation
15.6.2.1 struct dspi_rtos_handle_t
DSPI µC/OS-II handle.
Data Fields
• SPI_Type ∗base
DSPI base address.
• dspi_master_handle_t drv_handle
Handle of the underlying driver, treated as opaque by the RTOS layer.
• SemaphoreHandle_t mutex
Mutex to lock the handle during a transfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
187
DSPI µCOS/II Driver
• SemaphoreHandle_t event
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a transfer.
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a transfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
15.6.3 Macro Definition Documentation
15.6.3.1 #define FSL_DSPI_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
15.6.4 Function Documentation
15.6.4.1 status_t DSPI_RTOS_Init ( dspi_rtos_handle_t ∗handle, SPI_Type ∗base, const
dspi_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the DSPI module and related RTOS context.
Parameters
handle The RTOS DSPI handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the DSPI instance to initialize.
masterConfig Configuration structure to set-up DSPI in master mode.
srcClock_Hz Frequency of input clock of the DSPI module.
Returns
status of the operation.
15.6.4.2 status_t DSPI_RTOS_Deinit ( dspi_rtos_handle_t ∗handle )
This function deinitializes the DSPI module and related RTOS context.
Parameters
188
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI µCOS/II Driver
handle The RTOS DSPI handle.
15.6.4.3 status_t DSPI_RTOS_Transfer ( dspi_rtos_handle_t ∗handle, dspi_transfer_t ∗
transfer )
This function performs an SPI transfer according to data given in the transfer structure.
Parameters
handle The RTOS DSPI handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
189
DSPI µCOS/III Driver
15.7 DSPI µCOS/III Driver
15.7.1 Overview
Files
• file fsl_dspi_ucosiii.h
Data Structures
• struct dspi_rtos_handle_t
DSPI µC/OS-III handle. More...
Driver version
• #define FSL_DSPI_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
DSPI µC/OS-III driver version 2.0.0.
DSPI RTOS Operation
• status_t DSPI_RTOS_Init (dspi_rtos_handle_t ∗handle, SPI_Type ∗base, const dspi_master_config-
_t ∗masterConfig, uint32_t srcClock_Hz)
Initializes DSPI.
• status_t DSPI_RTOS_Deinit (dspi_rtos_handle_t ∗handle)
Deinitializes the DSPI.
• status_t DSPI_RTOS_Transfer (dspi_rtos_handle_t ∗handle, dspi_transfer_t ∗transfer)
Performs SPI transfer.
15.7.2 Data Structure Documentation
15.7.2.1 struct dspi_rtos_handle_t
DSPI µC/OS-III handle.
Data Fields
• SPI_Type ∗base
DSPI base address.
• dspi_master_handle_t drv_handle
Handle of the underlying driver, treated as opaque by the RTOS layer.
• SemaphoreHandle_t mutex
Mutex to lock the handle during a transfer.
190
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
DSPI µCOS/III Driver
• SemaphoreHandle_t event
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a transfer.
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a transfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
15.7.3 Macro Definition Documentation
15.7.3.1 #define FSL_DSPI_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
15.7.4 Function Documentation
15.7.4.1 status_t DSPI_RTOS_Init ( dspi_rtos_handle_t ∗handle, SPI_Type ∗base, const
dspi_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the DSPI module and related RTOS context.
Parameters
handle The RTOS DSPI handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the DSPI instance to initialize.
masterConfig Configuration structure to set-up DSPI in master mode.
srcClock_Hz Frequency of input clock of the DSPI module.
Returns
status of the operation.
15.7.4.2 status_t DSPI_RTOS_Deinit ( dspi_rtos_handle_t ∗handle )
This function deinitializes the DSPI module and related RTOS context.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
191
DSPI µCOS/III Driver
handle The RTOS DSPI handle.
15.7.4.3 status_t DSPI_RTOS_Transfer ( dspi_rtos_handle_t ∗handle, dspi_transfer_t ∗
transfer )
This function performs an SPI transfer according to data given in the transfer structure.
Parameters
handle The RTOS DSPI handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
192
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 16
eDMA: Enhanced Direct Memory Access Controller Driver
16.1 Overview
The KSDK provides a peripheral driver for the enhanced Direct Memory Access of Kinetis devices.
16.2 Typical use case
16.2.1 eDMA Operation
edma_transfer_config_t transferConfig;
edma_config_t userConfig;
uint32_t transferDone = false;
EDMA_GetDefaultConfig(&userConfig);
EDMA_Init(DMA0, &userConfig);
EDMA_CreateHandle(&g_EDMA_Handle, DMA0, channel);
EDMA_SetCallback(&g_EDMA_Handle, EDMA_Callback, &transferDone);
EDMA_PrepareTransfer(&transferConfig, srcAddr, srcWidth, destAddr, destWidth,
bytesEachRequest, transferBytes, kEDMA_MemoryToMemory);
EDMA_SubmitTransfer(&g_EDMA_Handle, &transferConfig, true);
EDMA_StartTransfer(&g_EDMA_Handle);
/*Wait for EDMA transfer finish
while (transferDone != true);
Files
• file fsl_edma.h
Data Structures
• struct edma_config_t
eDMA global configuration structure. More...
• struct edma_transfer_config_t
eDMA transfer configuration More...
• struct edma_channel_Preemption_config_t
eDMA channel priority configuration More...
• struct edma_minor_offset_config_t
eDMA minor offset configuration More...
• struct edma_tcd_t
eDMA TCD. More...
• struct edma_handle_t
eDMA transfer handle structure More...
Macros
• #define DMA_DCHPRI_INDEX(channel) (((channel) & ∼0x03U) |(3 - ((channel)&0x03U)))
Compute the offset unit from DCHPRI3.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
193
Typical use case
• #define DMA_DCHPRIn(base, channel) ((volatile uint8_t ∗)&(base->DCHPRI3))[DMA_DCHP-
RI_INDEX(channel)]
Get the pointer of DCHPRIn.
Typedefs
• typedef void(∗edma_callback )(struct _edma_handle ∗handle, void ∗userData, bool transferDone,
uint32_t tcds)
Define Callback function for eDMA.
Enumerations
• enum edma_transfer_size_t {
kEDMA_TransferSize1Bytes = 0x0U,
kEDMA_TransferSize2Bytes = 0x1U,
kEDMA_TransferSize4Bytes = 0x2U,
kEDMA_TransferSize16Bytes = 0x4U,
kEDMA_TransferSize32Bytes = 0x5U }
eDMA transfer configuration
• enum edma_modulo_t {
194
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
kEDMA_ModuloDisable = 0x0U,
kEDMA_Modulo2bytes,
kEDMA_Modulo4bytes,
kEDMA_Modulo8bytes,
kEDMA_Modulo16bytes,
kEDMA_Modulo32bytes,
kEDMA_Modulo64bytes,
kEDMA_Modulo128bytes,
kEDMA_Modulo256bytes,
kEDMA_Modulo512bytes,
kEDMA_Modulo1Kbytes,
kEDMA_Modulo2Kbytes,
kEDMA_Modulo4Kbytes,
kEDMA_Modulo8Kbytes,
kEDMA_Modulo16Kbytes,
kEDMA_Modulo32Kbytes,
kEDMA_Modulo64Kbytes,
kEDMA_Modulo128Kbytes,
kEDMA_Modulo256Kbytes,
kEDMA_Modulo512Kbytes,
kEDMA_Modulo1Mbytes,
kEDMA_Modulo2Mbytes,
kEDMA_Modulo4Mbytes,
kEDMA_Modulo8Mbytes,
kEDMA_Modulo16Mbytes,
kEDMA_Modulo32Mbytes,
kEDMA_Modulo64Mbytes,
kEDMA_Modulo128Mbytes,
kEDMA_Modulo256Mbytes,
kEDMA_Modulo512Mbytes,
kEDMA_Modulo1Gbytes,
kEDMA_Modulo2Gbytes }
eDMA modulo configuration
• enum edma_bandwidth_t {
kEDMA_BandwidthStallNone = 0x0U,
kEDMA_BandwidthStall4Cycle = 0x2U,
kEDMA_BandwidthStall8Cycle = 0x3U }
Bandwidth control.
• enum edma_channel_link_type_t {
kEDMA_LinkNone = 0x0U,
kEDMA_MinorLink,
kEDMA_MajorLink }
Channel link type.
• enum _edma_channel_status_flags {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
195
Typical use case
kEDMA_DoneFlag = 0x1U,
kEDMA_ErrorFlag = 0x2U,
kEDMA_InterruptFlag = 0x4U }
eDMA channel status flags.
• enum _edma_error_status_flags {
kEDMA_DestinationBusErrorFlag = DMA_ES_DBE_MASK,
kEDMA_SourceBusErrorFlag = DMA_ES_SBE_MASK,
kEDMA_ScatterGatherErrorFlag = DMA_ES_SGE_MASK,
kEDMA_NbytesErrorFlag = DMA_ES_NCE_MASK,
kEDMA_DestinationOffsetErrorFlag = DMA_ES_DOE_MASK,
kEDMA_DestinationAddressErrorFlag = DMA_ES_DAE_MASK,
kEDMA_SourceOffsetErrorFlag = DMA_ES_SOE_MASK,
kEDMA_SourceAddressErrorFlag = DMA_ES_SAE_MASK,
kEDMA_ErrorChannelFlag = DMA_ES_ERRCHN_MASK,
kEDMA_ChannelPriorityErrorFlag = DMA_ES_CPE_MASK,
kEDMA_TransferCanceledFlag = DMA_ES_ECX_MASK,
kEDMA_ValidFlag = DMA_ES_VLD_MASK }
eDMA channel error status flags.
• enum edma_interrupt_enable_t {
kEDMA_ErrorInterruptEnable = 0x1U,
kEDMA_MajorInterruptEnable = DMA_CSR_INTMAJOR_MASK,
kEDMA_HalfInterruptEnable = DMA_CSR_INTHALF_MASK }
eDMA interrupt source
• enum edma_transfer_type_t {
kEDMA_MemoryToMemory = 0x0U,
kEDMA_PeripheralToMemory,
kEDMA_MemoryToPeripheral }
eDMA transfer type
• enum _edma_transfer_status {
kStatus_EDMA_QueueFull = MAKE_STATUS(kStatusGroup_EDMA, 0),
kStatus_EDMA_Busy = MAKE_STATUS(kStatusGroup_EDMA, 1) }
eDMA transfer status
Driver version
• #define FSL_EDMA_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
eDMA driver version
eDMA initialization and De-initialization
• void EDMA_Init (DMA_Type ∗base, const edma_config_t ∗config)
Initializes eDMA peripheral.
• void EDMA_Deinit (DMA_Type ∗base)
Deinitializes eDMA peripheral.
• void EDMA_GetDefaultConfig (edma_config_t ∗config)
Gets the eDMA default configuration structure.
196
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
eDMA Channel Operation
• void EDMA_ResetChannel (DMA_Type ∗base, uint32_t channel)
Sets all TCD registers to a default value.
• void EDMA_SetTransferConfig (DMA_Type ∗base, uint32_t channel, const edma_transfer_config-
_t ∗config, edma_tcd_t ∗nextTcd)
Configures the eDMA transfer attribute.
• void EDMA_SetMinorOffsetConfig (DMA_Type ∗base, uint32_t channel, const edma_minor_-
offset_config_t ∗config)
Configures the eDMA minor offset feature.
• static void EDMA_SetChannelPreemptionConfig (DMA_Type ∗base, uint32_t channel, const
edma_channel_Preemption_config_t ∗config)
Configures the eDMA channel preemption feature.
• void EDMA_SetChannelLink (DMA_Type ∗base, uint32_t channel, edma_channel_link_type_-
ttype, uint32_t linkedChannel)
Sets the channel link for the eDMA transfer.
• void EDMA_SetBandWidth (DMA_Type ∗base, uint32_t channel, edma_bandwidth_t bandWidth)
Sets the bandwidth for the eDMA transfer.
• void EDMA_SetModulo (DMA_Type ∗base, uint32_t channel, edma_modulo_t srcModulo, edma-
_modulo_t destModulo)
Sets the source modulo and destination modulo for eDMA transfer.
• static void EDMA_EnableAutoStopRequest (DMA_Type ∗base, uint32_t channel, bool enable)
Enables an auto stop request for the eDMA transfer.
• void EDMA_EnableChannelInterrupts (DMA_Type ∗base, uint32_t channel, uint32_t mask)
Enables the interrupt source for the eDMA transfer.
• void EDMA_DisableChannelInterrupts (DMA_Type ∗base, uint32_t channel, uint32_t mask)
Disables the interrupt source for the eDMA transfer.
eDMA TCD Operation
• void EDMA_TcdReset (edma_tcd_t ∗tcd)
Sets all fields to default values for the TCD structure.
• void EDMA_TcdSetTransferConfig (edma_tcd_t ∗tcd, const edma_transfer_config_t ∗config,
edma_tcd_t ∗nextTcd)
Configures the eDMA TCD transfer attribute.
• void EDMA_TcdSetMinorOffsetConfig (edma_tcd_t ∗tcd, const edma_minor_offset_config_-
t∗config)
Configures the eDMA TCD minor offset feature.
• void EDMA_TcdSetChannelLink (edma_tcd_t ∗tcd, edma_channel_link_type_t type, uint32_-
t linkedChannel)
Sets the channel link for eDMA TCD.
• static void EDMA_TcdSetBandWidth (edma_tcd_t ∗tcd, edma_bandwidth_t bandWidth)
Sets the bandwidth for the eDMA TCD.
• void EDMA_TcdSetModulo (edma_tcd_t ∗tcd, edma_modulo_t srcModulo, edma_modulo_t dest-
Modulo)
Sets the source modulo and destination modulo for eDMA TCD.
• static void EDMA_TcdEnableAutoStopRequest (edma_tcd_t ∗tcd, bool enable)
Sets the auto stop request for the eDMA TCD.
• void EDMA_TcdEnableInterrupts (edma_tcd_t ∗tcd, uint32_t mask)
Enables the interrupt source for the eDMA TCD.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
197
Typical use case
• void EDMA_TcdDisableInterrupts (edma_tcd_t ∗tcd, uint32_t mask)
Disables the interrupt source for the eDMA TCD.
eDMA Channel Transfer Operation
• static void EDMA_EnableChannelRequest (DMA_Type ∗base, uint32_t channel)
Enables the eDMA hardware channel request.
• static void EDMA_DisableChannelRequest (DMA_Type ∗base, uint32_t channel)
Disables the eDMA hardware channel request.
• static void EDMA_TriggerChannelStart (DMA_Type ∗base, uint32_t channel)
Starts the eDMA transfer by software trigger.
eDMA Channel Status Operation
• uint32_t EDMA_GetRemainingBytes (DMA_Type ∗base, uint32_t channel)
Gets the Remaining bytes from the eDMA current channel TCD.
• static uint32_t EDMA_GetErrorStatusFlags (DMA_Type ∗base)
Gets the eDMA channel error status flags.
• uint32_t EDMA_GetChannelStatusFlags (DMA_Type ∗base, uint32_t channel)
Gets the eDMA channel status flags.
• void EDMA_ClearChannelStatusFlags (DMA_Type ∗base, uint32_t channel, uint32_t mask)
Clears the eDMA channel status flags.
eDMA Transactional Operation
• void EDMA_CreateHandle (edma_handle_t ∗handle, DMA_Type ∗base, uint32_t channel)
Creates the eDMA handle.
• void EDMA_InstallTCDMemory (edma_handle_t ∗handle, edma_tcd_t ∗tcdPool, uint32_t tcdSize)
Installs the TCDs memory pool into eDMA handle.
• void EDMA_SetCallback (edma_handle_t ∗handle, edma_callback callback, void ∗userData)
Installs a callback function for the eDMA transfer.
• void EDMA_PrepareTransfer (edma_transfer_config_t ∗config, void ∗srcAddr, uint32_t srcWidth,
void ∗destAddr, uint32_t destWidth, uint32_t bytesEachRequest, uint32_t transferBytes, edma_-
transfer_type_t type)
Prepares the eDMA transfer structure.
• status_t EDMA_SubmitTransfer (edma_handle_t ∗handle, const edma_transfer_config_t ∗config)
Submits the eDMA transfer request.
• void EDMA_StartTransfer (edma_handle_t ∗handle)
eDMA start transfer.
• void EDMA_StopTransfer (edma_handle_t ∗handle)
eDMA stop transfer.
• void EDMA_AbortTransfer (edma_handle_t ∗handle)
eDMA abort transfer.
• void EDMA_HandleIRQ (edma_handle_t ∗handle)
eDMA IRQ handler for current major loop transfer complete.
198
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
16.3 Data Structure Documentation
16.3.1 struct edma_config_t
Data Fields
• bool enableContinuousLinkMode
Enable (true) continuous link mode.
• bool enableHaltOnError
Enable (true) transfer halt on error.
• bool enableRoundRobinArbitration
Enable (true) round robin channel arbitration method, or fixed priority arbitration is used for channel
selection.
• bool enableDebugMode
Enable(true) eDMA debug mode.
16.3.1.0.0.31 Field Documentation
16.3.1.0.0.31.1 bool edma_config_t::enableContinuousLinkMode
Upon minor loop completion, the channel activates again if that channel has a minor loop channel link
enabled and the link channel is itself.
16.3.1.0.0.31.2 bool edma_config_t::enableHaltOnError
Any error causes the HALT bit to set. Subsequently, all service requests are ignored until the HALT bit is
cleared.
16.3.1.0.0.31.3 bool edma_config_t::enableDebugMode
When in debug mode, the eDMA stalls the start of a new channel. Executing channels are allowed to
complete.
16.3.2 struct edma_transfer_config_t
This structure configures the source/destination transfer attribute. This figure shows the eDMA’s transfer
model:
|Transfer Size | | Minor Loop |_______________|Major loop Count 1 |Bytes |Transfer Size | | ______-
______|_______________|____________________|–>Minor loop complete
||||_______________|Major Loop Count 2 |||||_______________|____________________|–>Minor
loop Complete
------------------------------------------------------—>Transfer complete
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
199
Data Structure Documentation
Data Fields
• uint32_t srcAddr
Source data address.
• uint32_t destAddr
Destination data address.
•edma_transfer_size_t srcTransferSize
Source data transfer size.
•edma_transfer_size_t destTransferSize
Destination data transfer size.
• int16_t srcOffset
Sign-extended offset applied to the current source address to form the next-state value as each source read
is completed.
• int16_t destOffset
Sign-extended offset applied to the current destination address to form the next-state value as each desti-
nation write is completed.
• uint16_t minorLoopBytes
Bytes to transfer in a minor loop.
• uint32_t majorLoopCounts
Major loop iteration count.
16.3.2.0.0.32 Field Documentation
16.3.2.0.0.32.1 uint32_t edma_transfer_config_t::srcAddr
16.3.2.0.0.32.2 uint32_t edma_transfer_config_t::destAddr
16.3.2.0.0.32.3 edma_transfer_size_t edma_transfer_config_t::srcTransferSize
16.3.2.0.0.32.4 edma_transfer_size_t edma_transfer_config_t::destTransferSize
16.3.2.0.0.32.5 int16_t edma_transfer_config_t::srcOffset
16.3.2.0.0.32.6 int16_t edma_transfer_config_t::destOffset
16.3.2.0.0.32.7 uint32_t edma_transfer_config_t::majorLoopCounts
16.3.3 struct edma_channel_Preemption_config_t
Data Fields
• bool enableChannelPreemption
If true: channel can be suspended by other channel with higher priority.
• bool enablePreemptAbility
If true: channel can suspend other channel with low priority.
• uint8_t channelPriority
Channel priority.
200
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
16.3.4 struct edma_minor_offset_config_t
Data Fields
• bool enableSrcMinorOffset
Enable(true) or Disable(false) source minor loop offset.
• bool enableDestMinorOffset
Enable(true) or Disable(false) destination minor loop offset.
• uint32_t minorOffset
Offset for minor loop mapping.
16.3.4.0.0.33 Field Documentation
16.3.4.0.0.33.1 bool edma_minor_offset_config_t::enableSrcMinorOffset
16.3.4.0.0.33.2 bool edma_minor_offset_config_t::enableDestMinorOffset
16.3.4.0.0.33.3 uint32_t edma_minor_offset_config_t::minorOffset
16.3.5 struct edma_tcd_t
This structure is same as TCD register which is described in reference manual, and is used to configure
scatter/gather feature as a next hardware TCD.
Data Fields
• __IO uint32_t SADDR
SADDR register, used to save source address.
• __IO uint16_t SOFF
SOFF register, save offset bytes every transfer.
• __IO uint16_t ATTR
ATTR register, source/destination transfer size and modulo.
• __IO uint32_t NBYTES
Nbytes register, minor loop length in bytes.
• __IO uint32_t SLAST
SLAST register.
• __IO uint32_t DADDR
DADDR register, used for destination address.
• __IO uint16_t DOFF
DOFF register, used for destination offset.
• __IO uint16_t CITER
CITER register, current minor loop numbers, for unfinished minor loop.
• __IO uint32_t DLAST_SGA
DLASTSGA register, next stcd address used in scatter-gather mode.
• __IO uint16_t CSR
CSR register, for TCD control status.
• __IO uint16_t BITER
BITER register, begin minor loop count.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
201
Data Structure Documentation
16.3.5.0.0.34 Field Documentation
16.3.5.0.0.34.1 __IO uint16_t edma_tcd_t::CITER
16.3.5.0.0.34.2 __IO uint16_t edma_tcd_t::BITER
16.3.6 struct edma_handle_t
Data Fields
•edma_callback callback
Callback function for major count exhausted.
• void ∗userData
Callback function parameter.
• DMA_Type ∗base
eDMA peripheral base address.
•edma_tcd_t ∗tcdPool
Pointer to memory stored TCDs.
• uint8_t channel
eDMA channel number.
• volatile int8_t header
The first TCD index.
• volatile int8_t tail
The last TCD index.
• volatile int8_t tcdUsed
The number of used TCD slots.
• volatile int8_t tcdSize
The total number of TCD slots in the queue.
• uint8_t flags
The status of the current channel.
202
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
16.3.6.0.0.35 Field Documentation
16.3.6.0.0.35.1 edma_callback edma_handle_t::callback
16.3.6.0.0.35.2 void∗edma_handle_t::userData
16.3.6.0.0.35.3 DMA_Type∗edma_handle_t::base
16.3.6.0.0.35.4 edma_tcd_t∗edma_handle_t::tcdPool
16.3.6.0.0.35.5 uint8_t edma_handle_t::channel
16.3.6.0.0.35.6 volatile int8_t edma_handle_t::header
16.3.6.0.0.35.7 volatile int8_t edma_handle_t::tail
16.3.6.0.0.35.8 volatile int8_t edma_handle_t::tcdUsed
16.3.6.0.0.35.9 volatile int8_t edma_handle_t::tcdSize
16.3.6.0.0.35.10 uint8_t edma_handle_t::flags
16.4 Macro Definition Documentation
16.4.1 #define FSL_EDMA_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
16.5 Typedef Documentation
16.5.1 typedef void(∗edma_callback)(struct _edma_handle ∗handle, void
∗userData, bool transferDone, uint32_t tcds)
16.6 Enumeration Type Documentation
16.6.1 enum edma_transfer_size_t
Enumerator
kEDMA_TransferSize1Bytes Source/Destination data transfer size is 1 byte every time.
kEDMA_TransferSize2Bytes Source/Destination data transfer size is 2 bytes every time.
kEDMA_TransferSize4Bytes Source/Destination data transfer size is 4 bytes every time.
kEDMA_TransferSize16Bytes Source/Destination data transfer size is 16 bytes every time.
kEDMA_TransferSize32Bytes Source/Destination data transfer size is 32 bytes every time.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
203
Enumeration Type Documentation
16.6.2 enum edma_modulo_t
Enumerator
kEDMA_ModuloDisable Disable modulo.
kEDMA_Modulo2bytes Circular buffer size is 2 bytes.
kEDMA_Modulo4bytes Circular buffer size is 4 bytes.
kEDMA_Modulo8bytes Circular buffer size is 8 bytes.
kEDMA_Modulo16bytes Circular buffer size is 16 bytes.
kEDMA_Modulo32bytes Circular buffer size is 32 bytes.
kEDMA_Modulo64bytes Circular buffer size is 64 bytes.
kEDMA_Modulo128bytes Circular buffer size is 128 bytes.
kEDMA_Modulo256bytes Circular buffer size is 256 bytes.
kEDMA_Modulo512bytes Circular buffer size is 512 bytes.
kEDMA_Modulo1Kbytes Circular buffer size is 1K bytes.
kEDMA_Modulo2Kbytes Circular buffer size is 2K bytes.
kEDMA_Modulo4Kbytes Circular buffer size is 4K bytes.
kEDMA_Modulo8Kbytes Circular buffer size is 8K bytes.
kEDMA_Modulo16Kbytes Circular buffer size is 16K bytes.
kEDMA_Modulo32Kbytes Circular buffer size is 32K bytes.
kEDMA_Modulo64Kbytes Circular buffer size is 64K bytes.
kEDMA_Modulo128Kbytes Circular buffer size is 128K bytes.
kEDMA_Modulo256Kbytes Circular buffer size is 256K bytes.
kEDMA_Modulo512Kbytes Circular buffer size is 512K bytes.
kEDMA_Modulo1Mbytes Circular buffer size is 1M bytes.
kEDMA_Modulo2Mbytes Circular buffer size is 2M bytes.
kEDMA_Modulo4Mbytes Circular buffer size is 4M bytes.
kEDMA_Modulo8Mbytes Circular buffer size is 8M bytes.
kEDMA_Modulo16Mbytes Circular buffer size is 16M bytes.
kEDMA_Modulo32Mbytes Circular buffer size is 32M bytes.
kEDMA_Modulo64Mbytes Circular buffer size is 64M bytes.
kEDMA_Modulo128Mbytes Circular buffer size is 128M bytes.
kEDMA_Modulo256Mbytes Circular buffer size is 256M bytes.
kEDMA_Modulo512Mbytes Circular buffer size is 512M bytes.
kEDMA_Modulo1Gbytes Circular buffer size is 1G bytes.
kEDMA_Modulo2Gbytes Circular buffer size is 2G bytes.
16.6.3 enum edma_bandwidth_t
Enumerator
kEDMA_BandwidthStallNone No eDMA engine stalls.
kEDMA_BandwidthStall4Cycle eDMA engine stalls for 4 cycles after each read/write.
kEDMA_BandwidthStall8Cycle eDMA engine stalls for 8 cycles after each read/write.
204
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
16.6.4 enum edma_channel_link_type_t
Enumerator
kEDMA_LinkNone No channel link.
kEDMA_MinorLink Channel link after each minor loop.
kEDMA_MajorLink Channel link while major loop count exhausted.
16.6.5 enum _edma_channel_status_flags
Enumerator
kEDMA_DoneFlag DONE flag, set while transfer finished, CITER value exhausted.
kEDMA_ErrorFlag eDMA error flag, an error occurred in a transfer
kEDMA_InterruptFlag eDMA interrupt flag, set while an interrupt occurred of this channel
16.6.6 enum _edma_error_status_flags
Enumerator
kEDMA_DestinationBusErrorFlag Bus error on destination address.
kEDMA_SourceBusErrorFlag Bus error on the source address.
kEDMA_ScatterGatherErrorFlag Error on the Scatter/Gather address, not 32byte aligned.
kEDMA_NbytesErrorFlag NBYTES/CITER configuration error.
kEDMA_DestinationOffsetErrorFlag Destination offset not aligned with destination size.
kEDMA_DestinationAddressErrorFlag Destination address not aligned with destination size.
kEDMA_SourceOffsetErrorFlag Source offset not aligned with source size.
kEDMA_SourceAddressErrorFlag Source address not aligned with source size.
kEDMA_ErrorChannelFlag Error channel number of the cancelled channel number.
kEDMA_ChannelPriorityErrorFlag Channel priority is not unique.
kEDMA_TransferCanceledFlag Transfer cancelled.
kEDMA_ValidFlag No error occurred, this bit will be 0, otherwise be 1.
16.6.7 enum edma_interrupt_enable_t
Enumerator
kEDMA_ErrorInterruptEnable Enable interrupt while channel error occurs.
kEDMA_MajorInterruptEnable Enable interrupt while major count exhausted.
kEDMA_HalfInterruptEnable Enable interrupt while major count to half value.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
205
Function Documentation
16.6.8 enum edma_transfer_type_t
Enumerator
kEDMA_MemoryToMemory Transfer from memory to memory.
kEDMA_PeripheralToMemory Transfer from peripheral to memory.
kEDMA_MemoryToPeripheral Transfer from memory to peripheral.
16.6.9 enum _edma_transfer_status
Enumerator
kStatus_EDMA_QueueFull TCD queue is full.
kStatus_EDMA_Busy Channel is busy and can’t handle the transfer request.
16.7 Function Documentation
16.7.1 void EDMA_Init ( DMA_Type ∗base, const edma_config_t ∗config )
This function ungates the eDMA clock and configure eDMA peripheral according to the configuration
structure.
Parameters
base eDMA peripheral base address.
config Pointer to configuration structure, see "edma_config_t".
Note
This function enable the minor loop map feature.
16.7.2 void EDMA_Deinit ( DMA_Type ∗base )
This function gates the eDMA clock.
Parameters
base eDMA peripheral base address.
16.7.3 void EDMA_GetDefaultConfig ( edma_config_t ∗config )
This function sets the configuration structure to a default value. The default configuration is set to the
following value:
206
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
config.enableContinuousLinkMode = false;
config.enableHaltOnError = true;
config.enableRoundRobinArbitration = false;
config.enableDebugMode = false;
Parameters
config Pointer to eDMA configuration structure.
16.7.4 void EDMA_ResetChannel ( DMA_Type ∗base, uint32_t channel )
This function sets TCD registers for this channel to default value.
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
Note
This function must not be called while the channel transfer is on-going, or it will case unpredicated
results.
This function will enable auto stop request feature.
16.7.5 void EDMA_SetTransferConfig ( DMA_Type ∗base, uint32_t channel, const
edma_transfer_config_t ∗config, edma_tcd_t ∗nextTcd )
This function configure the transfer attribute, including source address, destination address, transfer size,
address offset, and so on. It also configures the scatter gather feature if the user supplies the TCD address.
Example:
edma_transfer_t config;
edma_tcd_t tcd;
config.srcAddr = ..;
config.destAddr = ..;
...
EDMA_SetTransferConfig(DMA0, channel, &config, &stcd);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
207
Function Documentation
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
config Pointer to eDMA transfer configuration structure.
nextTcd Point to TCD structure. It can be NULL if user do not want to enable scatter/gather
feature.
Note
If nextTcd is not NULL, it means scatter gather feature will be enabled. And DREQ bit will be
cleared in the previous transfer configuration which will be set in eDMA_ResetChannel.
16.7.6 void EDMA_SetMinorOffsetConfig ( DMA_Type ∗base, uint32_t channel,
const edma_minor_offset_config_t ∗config )
Minor offset means signed-extended value added to source address or destination address after each minor
loop.
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
config Pointer to Minor offset configuration structure.
16.7.7 static void EDMA_SetChannelPreemptionConfig ( DMA_Type ∗base,
uint32_t channel, const edma_channel_Preemption_config_t ∗config )
[inline],[static]
This function configures the channel preemption attribute and the priority of the channel.
Parameters
base eDMA peripheral base address.
208
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
channel eDMA channel number
config Pointer to channel preemption configuration structure.
16.7.8 void EDMA_SetChannelLink ( DMA_Type ∗base, uint32_t channel,
edma_channel_link_type_t type, uint32_t linkedChannel )
This function configures minor link or major link mode. The minor link means that the channel link is
triggered every time CITER decreases by 1. The major link means that the channel link is triggered when
the CITER is exhausted.
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
type Channel link type, it can be one of:
• kEDMA_LinkNone
• kEDMA_MinorLink
• kEDMA_MajorLink
linkedChannel The linked channel number.
Note
User should ensure that DONE flag is cleared before call this interface, or the configuration will be
invalid.
16.7.9 void EDMA_SetBandWidth ( DMA_Type ∗base, uint32_t channel,
edma_bandwidth_t bandWidth )
In general, because the eDMA processes the minor loop, it continuously generates read/write sequences
until the minor count is exhausted. The bandwidth forces the eDMA to stall after the completion of each
read/write access to control the bus request bandwidth seen by the crossbar switch.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
209
Function Documentation
base eDMA peripheral base address.
channel eDMA channel number.
bandWidth Bandwidth setting, it can be one of:
• kEDMABandwidthStallNone
• kEDMABandwidthStall4Cycle
• kEDMABandwidthStall8Cycle
16.7.10 void EDMA_SetModulo ( DMA_Type ∗base, uint32_t channel,
edma_modulo_t srcModulo, edma_modulo_t destModulo )
This function defines a specific address range specified to be the value after (SADDR + SOFF)/(DADDR
+ DOFF) calculation is performed or the original register value. It provides the ability to implement a
circular data queue easily.
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
srcModulo Source modulo value.
destModulo Destination modulo value.
16.7.11 static void EDMA_EnableAutoStopRequest ( DMA_Type ∗base, uint32_t
channel, bool enable )[inline],[static]
If enabling the auto stop request, the eDMA hardware automatically disables the hardware channel request.
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
enable The command for enable (true) or disable (false).
16.7.12 void EDMA_EnableChannelInterrupts ( DMA_Type ∗base, uint32_t
channel, uint32_t mask )
210
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
mask The mask of interrupt source to be set. User need to use the defined edma_interrupt-
_enable_t type.
16.7.13 void EDMA_DisableChannelInterrupts ( DMA_Type ∗base, uint32_t
channel, uint32_t mask )
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
mask The mask of interrupt source to be set. Use the defined edma_interrupt_enable_t type.
16.7.14 void EDMA_TcdReset ( edma_tcd_t ∗tcd )
This function sets all fields for this TCD structure to default value.
Parameters
tcd Pointer to the TCD structure.
Note
This function will enable auto stop request feature.
16.7.15 void EDMA_TcdSetTransferConfig ( edma_tcd_t ∗tcd, const
edma_transfer_config_t ∗config, edma_tcd_t ∗nextTcd )
TCD is a transfer control descriptor. The content of the TCD is the same as hardware TCD registers. ST-
CD is used in scatter-gather mode. This function configures the TCD transfer attribute, including source
address, destination address, transfer size, address offset, and so on. It also configures the scatter gather
feature if the user supplies the next TCD address. Example:
edma_transfer_t config = {
...
}
edma_tcd_t tcd __aligned(32);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
211
Function Documentation
edma_tcd_t nextTcd __aligned(32);
EDMA_TcdSetTransferConfig(&tcd, &config, &nextTcd);
212
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
tcd Pointer to the TCD structure.
config Pointer to eDMA transfer configuration structure.
nextTcd Pointer to the next TCD structure. It can be NULL if user do not want to enable
scatter/gather feature.
Note
TCD address should be 32 bytes aligned, or it will cause eDMA error.
If nextTcd is not NULL, it means scatter gather feature will be enabled. And DREQ bit will be
cleared in the previous transfer configuration which will be set in EDMA_TcdReset.
16.7.16 void EDMA_TcdSetMinorOffsetConfig ( edma_tcd_t ∗tcd, const
edma_minor_offset_config_t ∗config )
Minor offset is a signed-extended value added to the source address or destination address after each minor
loop.
Parameters
tcd Point to the TCD structure.
config Pointer to Minor offset configuration structure.
16.7.17 void EDMA_TcdSetChannelLink ( edma_tcd_t ∗tcd,
edma_channel_link_type_t type, uint32_t linkedChannel )
This function configures either a minor link or a major link. The minor link means the channel link is
triggered every time CITER decreases by 1. The major link means that the channel link is triggered when
the CITER is exhausted.
Note
User should ensure that DONE flag is cleared before call this interface, or the configuration will be
invalid.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
213
Function Documentation
Parameters
tcd Point to the TCD structure.
type Channel link type, it can be one of:
• kEDMA_LinkNone
• kEDMA_MinorLink
• kEDMA_MajorLink
linkedChannel The linked channel number.
16.7.18 static void EDMA_TcdSetBandWidth ( edma_tcd_t ∗tcd,
edma_bandwidth_t bandWidth )[inline],[static]
In general, because the eDMA processes the minor loop, it continuously generates read/write sequences
until the minor count is exhausted. Bandwidth forces the eDMA to stall after the completion of each
read/write access to control the bus request bandwidth seen by the crossbar switch.
Parameters
tcd Point to the TCD structure.
bandWidth Bandwidth setting, it can be one of:
• kEDMABandwidthStallNone
• kEDMABandwidthStall4Cycle
• kEDMABandwidthStall8Cycle
16.7.19 void EDMA_TcdSetModulo ( edma_tcd_t ∗tcd, edma_modulo_t
srcModulo, edma_modulo_t destModulo )
This function defines a specific address range specified to be the value after (SADDR + SOFF)/(DADDR
+ DOFF) calculation is performed or the original register value. It provides the ability to implement a
circular data queue easily.
Parameters
tcd Point to the TCD structure.
214
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
srcModulo Source modulo value.
destModulo Destination modulo value.
16.7.20 static void EDMA_TcdEnableAutoStopRequest ( edma_tcd_t ∗tcd, bool
enable )[inline],[static]
If enabling the auto stop request, the eDMA hardware automatically disables the hardware channel request.
Parameters
tcd Point to the TCD structure.
enable The command for enable(ture) or disable(false).
16.7.21 void EDMA_TcdEnableInterrupts ( edma_tcd_t ∗tcd, uint32_t mask )
Parameters
tcd Point to the TCD structure.
mask The mask of interrupt source to be set. User need to use the defined edma_interrupt-
_enable_t type.
16.7.22 void EDMA_TcdDisableInterrupts ( edma_tcd_t ∗tcd, uint32_t mask )
Parameters
tcd Point to the TCD structure.
mask The mask of interrupt source to be set. User need to use the defined edma_interrupt-
_enable_t type.
16.7.23 static void EDMA_EnableChannelRequest ( DMA_Type ∗base, uint32_t
channel )[inline],[static]
This function enables the hardware channel request.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
215
Function Documentation
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
16.7.24 static void EDMA_DisableChannelRequest ( DMA_Type ∗base, uint32_t
channel )[inline],[static]
This function disables the hardware channel request.
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
16.7.25 static void EDMA_TriggerChannelStart ( DMA_Type ∗base, uint32_t
channel )[inline],[static]
This function starts a minor loop transfer.
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
16.7.26 uint32_t EDMA_GetRemainingBytes ( DMA_Type ∗base, uint32_t channel
)
This function checks the TCD (Task Control Descriptor) status for a specified eDMA channel and returns
the the number of bytes that have not finished.
Parameters
base eDMA peripheral base address.
216
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
channel eDMA channel number.
Returns
Bytes have not been transferred yet for the current TCD.
Note
This function can only be used to get unfinished bytes of transfer without the next TCD, or it might
be inaccuracy.
16.7.27 static uint32_t EDMA_GetErrorStatusFlags ( DMA_Type ∗base )
[inline],[static]
Parameters
base eDMA peripheral base address.
Returns
The mask of error status flags. User need to use the _edma_error_status_flags type to decode the
return variables.
16.7.28 uint32_t EDMA_GetChannelStatusFlags ( DMA_Type ∗base, uint32_t
channel )
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
Returns
The mask of channel status flags. User need to use the _edma_channel_status_flags type to decode
the return variables.
16.7.29 void EDMA_ClearChannelStatusFlags ( DMA_Type ∗base, uint32_t
channel, uint32_t mask )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
217
Function Documentation
Parameters
base eDMA peripheral base address.
channel eDMA channel number.
mask The mask of channel status to be cleared. User need to use the defined _edma_-
channel_status_flags type.
16.7.30 void EDMA_CreateHandle ( edma_handle_t ∗handle, DMA_Type ∗base,
uint32_t channel )
This function is called if using transaction API for eDMA. This function initializes the internal state of
eDMA handle.
Parameters
handle eDMA handle pointer. The eDMA handle stores callback function and parameters.
base eDMA peripheral base address.
channel eDMA channel number.
16.7.31 void EDMA_InstallTCDMemory ( edma_handle_t ∗handle, edma_tcd_t ∗
tcdPool, uint32_t tcdSize )
This function is called after the EDMA_CreateHandle to use scatter/gather feature.
Parameters
handle eDMA handle pointer.
tcdPool Memory pool to store TCDs. It must be 32 bytes aligned.
tcdSize The number of TCD slots.
16.7.32 void EDMA_SetCallback ( edma_handle_t ∗handle, edma_callback
callback, void ∗userData )
This callback is called in eDMA IRQ handler. Use the callback to do something after the current major
loop transfer completes.
218
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
handle eDMA handle pointer.
callback eDMA callback function pointer.
userData Parameter for callback function.
16.7.33 void EDMA_PrepareTransfer ( edma_transfer_config_t ∗config, void ∗
srcAddr, uint32_t srcWidth, void ∗destAddr, uint32_t destWidth, uint32_t
bytesEachRequest, uint32_t transferBytes, edma_transfer_type_t type )
This function prepares the transfer configuration structure according to the user input.
Parameters
config The user configuration structure of type edma_transfer_t.
srcAddr eDMA transfer source address.
srcWidth eDMA transfer source address width(bytes).
destAddr eDMA transfer destination address.
destWidth eDMA transfer destination address width(bytes).
bytesEach-
Request
eDMA transfer bytes per channel request.
transferBytes eDMA transfer bytes to be transferred.
type eDMA transfer type.
Note
The data address and the data width must be consistent. For example, if the SRC is 4 bytes, so the
source address must be 4 bytes aligned, or it shall result in source address error(SAE).
16.7.34 status_t EDMA_SubmitTransfer ( edma_handle_t ∗handle, const
edma_transfer_config_t ∗config )
This function submits the eDMA transfer request according to the transfer configuration structure. If the
user submits the transfer request repeatedly, this function packs an unprocessed request as a TCD and
enables scatter/gather feature to process it in the next time.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
219
Function Documentation
Parameters
handle eDMA handle pointer.
config Pointer to eDMA transfer configuration structure.
Return values
kStatus_EDMA_Success It means submit transfer request succeed.
kStatus_EDMA_Queue-
Full
It means TCD queue is full. Submit transfer request is not allowed.
kStatus_EDMA_Busy It means the given channel is busy, need to submit request later.
16.7.35 void EDMA_StartTransfer ( edma_handle_t ∗handle )
This function enables the channel request. User can call this function after submitting the transfer request
or before submitting the transfer request.
Parameters
handle eDMA handle pointer.
16.7.36 void EDMA_StopTransfer ( edma_handle_t ∗handle )
This function disables the channel request to pause the transfer. User can call EDMA_StartTransfer()
again to resume the transfer.
Parameters
handle eDMA handle pointer.
16.7.37 void EDMA_AbortTransfer ( edma_handle_t ∗handle )
This function disables the channel request and clear transfer status bits. User can submit another transfer
after calling this API.
220
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
handle DMA handle pointer.
16.7.38 void EDMA_HandleIRQ ( edma_handle_t ∗handle )
This function clears the channel major interrupt flag and call the callback function if it is not NULL.
Parameters
handle eDMA handle pointer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
221
Function Documentation
222
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 17
ENET: Ethernet MAC Driver
17.1 Overview
The KSDK provides a peripheral driver for the 10/100 Mbps Ethernet MAC (ENET) module of Kinetis
devices.
The MII interface is the interface connected with MAC and PHY. the Serial management interface - MII
management interface should be set firstly before any access to external PHY chip register. So call ENET-
_SetSMI() to initialize MII management interface. Use ENET_StartSMIRead(),ENET_StartSMIWrite()
and ENET_ReadSMIData() to read/write phy registers. This function group sets up the MII and serial
management SMI interface, gets data from the SMI interface, and starts the SMI read and write command.
Use ENET_SetMII() to configure the MII before successfully get the data from the external PHY.
This group sets/gets the ENET mac address, setting the multicast group address filter. ENET_Add-
MulticastGroup() should be called to add the ENET MAC to multicast group. It is important for 1588
feature to receive the PTP message.
For ENET receive side, ENET_GetRxFrameSize() must be called firstly used to get the received data size,
then call ENET_ReadFrame() to get the received data. If the received error happen, call ENET_GetRx-
ErrBeforeReadFrame() after ENET_GetRxFrameSize() and before ENET_ReadFrame() to get the detail
error informations.
For ENET transmit side, simply call ENET_SendFrame() to send the data out. The transmit data error
information only accessible for 1588 enhanced buffer descriptor mode. So when ENET_ENHANCEDB-
UFFERDESCRIPTOR_MODE is defined the ENET_GetTxErrAfterSendFrame() can be used to get the
detail transmit error information. The transmit error information only be updated by uDMA after the
data is transmit. So ENET_GetTxErrAfterSendFrame() is recommended to be called on transmit interrupt
handler.
This function group configures the PTP 1588 feature, starts/stops/gets/sets/adjusts the PTP IEEE 1588
timer, gets the receive/transmit frame timestamp, and PTP IEEE 1588 timer channel feature setting.
ENET_Ptp1588Configure() must be called when ENET_ENHANCEDBUFFERDESCRIPTOR_MODE
is defined and the 1588 feature is required. The ENET_GetRxFrameTime() and ENET_GetTxFrame-
Time() are called by PTP stack to get the timestamp captured by ENET driver.
17.2 Typical use case
17.2.1 ENET Initialization, receive, and transmit operation
For ENET_ENHANCEDBUFFERDESCRIPTOR_MODE not defined use case, use the legacy type buffer
descriptor transmit/receive the frame:
enet_config_t config;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
223
Typical use case
uint32_t length = 0;
uint32_t sysClock;
uint32_t phyAddr = 0;
bool link = false;
phy_speed_t speed;
phy_duplex_t duplex;
enet_status_t result;
enet_data_error_stats_t eErrorStatic;
// Prepares the buffer configuration.
enet_buffer_config_t buffCfg =
{
ENET_RXBD_NUM,
ENET_TXBD_NUM,
ENET_BuffSizeAlign(ENET_RXBUFF_SIZE),
ENET_BuffSizeAlign(ENET_TXBUFF_SIZE),
&RxBuffDescrip[0], // Prepare buffers
&TxBuffDescrip[0], // Prepare buffers
&RxDataBuff[0][0], // Prepare buffers
&TxDataBuff[0][0], // Prepare buffers
};
sysClock = CLOCK_GetFreq(kCLOCK_CoreSysClk);
// Gets the default configuration.
ENET_GetDefaultConfig(&config);
PHY_Init(EXAMPLE_ENET, 0, sysClock);
// Changes the link status to PHY auto-negotiated link status.
PHY_GetLinkStatus(EXAMPLE_ENET, phyAddr, &link);
if (link)
{
PHY_GetLinkSpeedDuplex(EXAMPLE_ENET, phyAddr, &speed, &duplex);
config.miiSpeed = (enet_mii_speed_t)speed;
config.miiDuplex = (enet_mii_duplex_t)duplex;
}
ENET_Init(EXAMPLE_ENET, &handle, &config, &buffCfg, &macAddr[0], sysClock);
ENET_ActiveRead(EXAMPLE_ENET);
while (1)
{
// Gets the frame size.
result = ENET_GetRxFrameSize(&handle, &length);
// Calls the ENET_ReadFrame when there is a received frame.
if (length != 0)
{
// Receives a valid frame and delivers the receive buffer with the size equal to length.
uint8_t *data = (uint8_t *)malloc(length);
ENET_ReadFrame(EXAMPLE_ENET, &handle, data, length);
// Delivers the data to the upper layer.
.........
free(data);
}
else if (result == kStatus_ENET_RxFrameErr)
{
// Updates the received buffer when an error occurs.
ENET_GetRxErrBeforeReadFrame(&handle, &eErrStatic);
// Updates the receive buffer.
ENET_ReadFrame(EXAMPLE_ENET, &handle, NULL, 0);
}
// Sends a multicast frame when the PHY is linked up.
if(kStatus_Success == PHY_GetLinkStatus(EXAMPLE_ENET, phyAddr, &link))
{
if(link)
{
ENET_SendFrame(EXAMPLE_ENET, &handle, &frame[0], ENET_DATA_LENGTH);
}
}
}
224
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
For ENET_ENHANCEDBUFFERDESCRIPTOR_MODE defined case, add the PTP IEEE 1588 config-
uration to enable the PTP IEEE 1588 feature. The initialization occurs as follows:
enet_config_t config;
uint32_t length = 0;
uint32_t sysClock;
uint32_t phyAddr = 0;
bool link = false;
phy_speed_t speed;
phy_duplex_t duplex;
enet_status_t result;
enet_data_err_stats_t eErrStatic;
enet_buffer_config_t buffCfg =
{
ENET_RXBD_NUM,
ENET_TXBD_NUM,
ENET_BuffSizeAlign(ENET_RXBUFF_SIZE),
ENET_BuffSizeAlign(ENET_TXBUFF_SIZE),
&RxBuffDescrip[0],
&TxBuffDescrip[0],
&RxDataBuff[0][0],
&TxDataBuff[0][0],
};
sysClock = CLOCK_GetFreq(kCLOCK_CoreSysClk);
// Sets the PTP 1588 source.
CLOCK_SetEnetTime0Clock(2);
ptpClock = CLOCK_GetFreq(kCLOCK_Osc0ErClk);
// Prepares the PTP configuration.
enet_ptp_config_t ptpConfig =
{
ENET_RXBD_NUM,
ENET_TXBD_NUM,
&g_rxPtpTsBuff[0],
&g_txPtpTsBuff[0],
kENET_PtpTimerChannel1,
ptpClock,
};
// Gets the default configuration.
ENET_GetDefaultConfig(&config);
PHY_Init(EXAMPLE_ENET, 0, sysClock);
// Changes the link status to PHY auto-negotiated link status.
PHY_GetLinkStatus(EXAMPLE_ENET, phyAddr, &link);
if (link)
{
PHY_GetLinkSpeedDuplex(EXAMPLE_ENET, phyAddr, &speed, &duplex);
config.miiSpeed = (enet_mii_speed_t)speed;
config.miiDuplex = (enet_mii_duplex_t)duplex;
}
ENET_Init(EXAMPLE_ENET, &handle, &config, &buffCfg, &macAddr[0], sysClock);
// Configures the PTP 1588 feature.
ENET_Ptp1588Configure(EXAMPLE_ENET, &handle, &ptpConfig);
// Adds the device to the PTP multicast group.
ENET_AddMulticastGroup(EXAMPLE_ENET, &mGAddr[0]);
ENET_ActiveRead(EXAMPLE_ENET);
Files
• file fsl_enet.h
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
225
Typical use case
Data Structures
• struct enet_rx_bd_struct_t
Defines the receive buffer descriptor structure for the little endian system. More...
• struct enet_tx_bd_struct_t
Defines the enhanced transmit buffer descriptor structure for the little endian system. More...
• struct enet_data_error_stats_t
Defines the ENET data error statistic structure. More...
• struct enet_buffer_config_t
Defines the receive buffer descriptor configure structure. More...
• struct enet_config_t
Defines the basic configuration structure for the ENET device. More...
• struct enet_handle_t
Defines the ENET handler structure. More...
Macros
• #define ENET_BUFFDESCRIPTOR_RX_ERR_MASK
Defines the receive error status flag mask.
• #define ENET_FIFO_MIN_RX_FULL 5U
ENET minimum receive FIFO full.
• #define ENET_RX_MIN_BUFFERSIZE 256U
ENET minimum buffer size.
• #define ENET_BUFF_ALIGNMENT 16U
Ethernet buffer alignment.
• #define ENET_PHY_MAXADDRESS (ENET_MMFR_PA_MASK >> ENET_MMFR_PA_SHI-
FT)
Defines the PHY address scope for the ENET.
Typedefs
• typedef void(∗enet_callback_t )(ENET_Type ∗base, enet_handle_t ∗handle, enet_event_t event,
void ∗userData)
ENET callback function.
Enumerations
• enum _enet_status {
kStatus_ENET_RxFrameError = MAKE_STATUS(kStatusGroup_ENET, 0U),
kStatus_ENET_RxFrameFail = MAKE_STATUS(kStatusGroup_ENET, 1U),
kStatus_ENET_RxFrameEmpty = MAKE_STATUS(kStatusGroup_ENET, 2U),
kStatus_ENET_TxFrameBusy,
kStatus_ENET_TxFrameFail = MAKE_STATUS(kStatusGroup_ENET, 4U) }
Defines the status return codes for transaction.
• enum enet_mii_mode_t {
kENET_MiiMode = 0U,
kENET_RmiiMode }
Defines the RMII or MII mode for data interface between the MAC and the PHY.
226
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
• enum enet_mii_speed_t {
kENET_MiiSpeed10M = 0U,
kENET_MiiSpeed100M }
Defines the 10 Mbps or 100 Mbps speed for the MII data interface.
• enum enet_mii_duplex_t {
kENET_MiiHalfDuplex = 0U,
kENET_MiiFullDuplex }
Defines the half or full duplex for the MII data interface.
• enum enet_mii_write_t {
kENET_MiiWriteNoCompliant = 0U,
kENET_MiiWriteValidFrame }
Defines the write operation for the MII management frame.
• enum enet_mii_read_t {
kENET_MiiReadValidFrame = 2U,
kENET_MiiReadNoCompliant = 3U }
Defines the read operation for the MII management frame.
• enum enet_special_control_flag_t {
kENET_ControlFlowControlEnable = 0x0001U,
kENET_ControlRxPayloadCheckEnable = 0x0002U,
kENET_ControlRxPadRemoveEnable = 0x0004U,
kENET_ControlRxBroadCastRejectEnable = 0x0008U,
kENET_ControlMacAddrInsert = 0x0010U,
kENET_ControlStoreAndFwdDisable = 0x0020U,
kENET_ControlSMIPreambleDisable = 0x0040U,
kENET_ControlPromiscuousEnable = 0x0080U,
kENET_ControlMIILoopEnable = 0x0100U,
kENET_ControlVLANTagEnable = 0x0200U }
Defines a special configuration for ENET MAC controller.
• enum enet_interrupt_enable_t {
kENET_BabrInterrupt = ENET_EIR_BABR_MASK,
kENET_BabtInterrupt = ENET_EIR_BABT_MASK,
kENET_GraceStopInterrupt = ENET_EIR_GRA_MASK,
kENET_TxFrameInterrupt = ENET_EIR_TXF_MASK,
kENET_TxByteInterrupt = ENET_EIR_TXB_MASK,
kENET_RxFrameInterrupt = ENET_EIR_RXF_MASK,
kENET_RxByteInterrupt = ENET_EIR_RXB_MASK,
kENET_MiiInterrupt = ENET_EIR_MII_MASK,
kENET_EBusERInterrupt = ENET_EIR_EBERR_MASK,
kENET_LateCollisionInterrupt = ENET_EIR_LC_MASK,
kENET_RetryLimitInterrupt = ENET_EIR_RL_MASK,
kENET_UnderrunInterrupt = ENET_EIR_UN_MASK,
kENET_PayloadRxInterrupt = ENET_EIR_PLR_MASK,
kENET_WakeupInterrupt = ENET_EIR_WAKEUP_MASK }
List of interrupts supported by the peripheral.
• enum enet_event_t {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
227
Typical use case
kENET_RxEvent,
kENET_TxEvent,
kENET_ErrEvent,
kENET_WakeUpEvent }
Defines the common interrupt event for callback use.
• enum enet_tx_accelerator_t {
kENET_TxAccelIsShift16Enabled = ENET_TACC_SHIFT16_MASK,
kENET_TxAccelIpCheckEnabled = ENET_TACC_IPCHK_MASK,
kENET_TxAccelProtoCheckEnabled = ENET_TACC_PROCHK_MASK }
Defines the transmit accelerator configuration.
• enum enet_rx_accelerator_t {
kENET_RxAccelPadRemoveEnabled = ENET_RACC_PADREM_MASK,
kENET_RxAccelIpCheckEnabled = ENET_RACC_IPDIS_MASK,
kENET_RxAccelProtoCheckEnabled = ENET_RACC_PRODIS_MASK,
kENET_RxAccelMacCheckEnabled = ENET_RACC_LINEDIS_MASK,
kENET_RxAccelisShift16Enabled = ENET_RACC_SHIFT16_MASK }
Defines the receive accelerator configuration.
Driver version
• #define FSL_ENET_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Defines the driver version.
Control and status region bit masks of the receive buffer descriptor.
• #define ENET_BUFFDESCRIPTOR_RX_EMPTY_MASK 0x8000U
Empty bit mask.
• #define ENET_BUFFDESCRIPTOR_RX_SOFTOWNER1_MASK 0x4000U
Software owner one mask.
• #define ENET_BUFFDESCRIPTOR_RX_WRAP_MASK 0x2000U
Next buffer descriptor is the start address.
• #define ENET_BUFFDESCRIPTOR_RX_SOFTOWNER2_Mask 0x1000U
Software owner two mask.
• #define ENET_BUFFDESCRIPTOR_RX_LAST_MASK 0x0800U
Last BD of the frame mask.
• #define ENET_BUFFDESCRIPTOR_RX_MISS_MASK 0x0100U
Received because of the promiscuous mode.
• #define ENET_BUFFDESCRIPTOR_RX_BROADCAST_MASK 0x0080U
Broadcast packet mask.
• #define ENET_BUFFDESCRIPTOR_RX_MULTICAST_MASK 0x0040U
Multicast packet mask.
• #define ENET_BUFFDESCRIPTOR_RX_LENVLIOLATE_MASK 0x0020U
Length violation mask.
• #define ENET_BUFFDESCRIPTOR_RX_NOOCTET_MASK 0x0010U
Non-octet aligned frame mask.
• #define ENET_BUFFDESCRIPTOR_RX_CRC_MASK 0x0004U
CRC error mask.
• #define ENET_BUFFDESCRIPTOR_RX_OVERRUN_MASK 0x0002U
FIFO overrun mask.
228
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
• #define ENET_BUFFDESCRIPTOR_RX_TRUNC_MASK 0x0001U
Frame is truncated mask.
Control and status bit masks of the transmit buffer descriptor.
• #define ENET_BUFFDESCRIPTOR_TX_READY_MASK 0x8000U
Ready bit mask.
• #define ENET_BUFFDESCRIPTOR_TX_SOFTOWENER1_MASK 0x4000U
Software owner one mask.
• #define ENET_BUFFDESCRIPTOR_TX_WRAP_MASK 0x2000U
Wrap buffer descriptor mask.
• #define ENET_BUFFDESCRIPTOR_TX_SOFTOWENER2_MASK 0x1000U
Software owner two mask.
• #define ENET_BUFFDESCRIPTOR_TX_LAST_MASK 0x0800U
Last BD of the frame mask.
• #define ENET_BUFFDESCRIPTOR_TX_TRANMITCRC_MASK 0x0400U
Transmit CRC mask.
Defines the maximum Ethernet frame size.
• #define ENET_FRAME_MAX_FRAMELEN 1518U
Maximum Ethernet frame size.
• #define ENET_FRAME_MAX_VALNFRAMELEN 1522U
Maximum VLAN frame size.
Initialization and De-initialization
• void ENET_GetDefaultConfig (enet_config_t ∗config)
Gets the ENET default configuration structure.
• void ENET_Init (ENET_Type ∗base, enet_handle_t ∗handle, const enet_config_t ∗config, const
enet_buffer_config_t ∗bufferConfig, uint8_t ∗macAddr, uint32_t srcClock_Hz)
Initializes the ENET module.
• void ENET_Deinit (ENET_Type ∗base)
Deinitializes the ENET module.
• static void ENET_Reset (ENET_Type ∗base)
Resets the ENET module.
MII interface operation
• void ENET_SetMII (ENET_Type ∗base, enet_mii_speed_t speed, enet_mii_duplex_t duplex)
Sets the ENET MII speed and duplex.
• void ENET_SetSMI (ENET_Type ∗base, uint32_t srcClock_Hz, bool isPreambleDisabled)
Sets the ENET SMI(serial management interface)- MII management interface.
• static bool ENET_GetSMI (ENET_Type ∗base)
Gets the ENET SMI- MII management interface configuration.
• static uint32_t ENET_ReadSMIData (ENET_Type ∗base)
Reads data from the PHY register through SMI interface.
• void ENET_StartSMIRead (ENET_Type ∗base, uint32_t phyAddr, uint32_t phyReg, enet_mii_-
read_t operation)
Starts an SMI (Serial Management Interface) read command.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
229
Typical use case
• void ENET_StartSMIWrite (ENET_Type ∗base, uint32_t phyAddr, uint32_t phyReg, enet_mii_-
write_t operation, uint32_t data)
Starts a SMI write command.
MAC Address Filter
• void ENET_SetMacAddr (ENET_Type ∗base, uint8_t ∗macAddr)
Sets the ENET module Mac address.
• void ENET_GetMacAddr (ENET_Type ∗base, uint8_t ∗macAddr)
Gets the ENET module Mac address.
• void ENET_AddMulticastGroup (ENET_Type ∗base, uint8_t ∗address)
Adds the ENET device to a multicast group.
• void ENET_LeaveMulticastGroup (ENET_Type ∗base, uint8_t ∗address)
Moves the ENET device from a multicast group.
Other basic operation
• static void ENET_ActiveRead (ENET_Type ∗base)
Activates ENET read or receive.
• static void ENET_EnableSleepMode (ENET_Type ∗base, bool enable)
Enables/disables the MAC to enter sleep mode.
• static void ENET_GetAccelFunction (ENET_Type ∗base, uint32_t ∗txAccelOption, uint32_t ∗rx-
AccelOption)
Gets ENET transmit and receive accelerator functions from MAC controller.
Interrupts.
• static void ENET_EnableInterrupts (ENET_Type ∗base, uint32_t mask)
Enables the ENET interrupt.
• static void ENET_DisableInterrupts (ENET_Type ∗base, uint32_t mask)
Disables the ENET interrupt.
• static uint32_t ENET_GetInterruptStatus (ENET_Type ∗base)
Gets the ENET interrupt status flag.
• static void ENET_ClearInterruptStatus (ENET_Type ∗base, uint32_t mask)
Clears the ENET interrupt events status flag.
Transactional operation
• void ENET_SetCallback (enet_handle_t ∗handle, enet_callback_t callback, void ∗userData)
Set the callback function.
• void ENET_GetRxErrBeforeReadFrame (enet_handle_t ∗handle, enet_data_error_stats_t ∗eError-
Static)
Gets the ENET the error statistics of a received frame.
• status_t ENET_GetRxFrameSize (enet_handle_t ∗handle, uint32_t ∗length)
Gets the size of the read frame.
• status_t ENET_ReadFrame (ENET_Type ∗base, enet_handle_t ∗handle, uint8_t ∗data, uint32_t
length)
Reads a frame from the ENET device.
• status_t ENET_SendFrame (ENET_Type ∗base, enet_handle_t ∗handle, uint8_t ∗data, uint32_t
length)
230
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
Transmits an ENET frame.
• void ENET_TransmitIRQHandler (ENET_Type ∗base, enet_handle_t ∗handle)
The transmit IRQ handler.
• void ENET_ReceiveIRQHandler (ENET_Type ∗base, enet_handle_t ∗handle)
The receive IRQ handler.
• void ENET_ErrorIRQHandler (ENET_Type ∗base, enet_handle_t ∗handle)
The error IRQ handler.
17.3 Data Structure Documentation
17.3.1 struct enet_rx_bd_struct_t
Data Fields
• uint16_t length
Buffer descriptor data length.
• uint16_t control
Buffer descriptor control and status.
• uint8_t ∗buffer
Data buffer pointer.
17.3.1.0.0.36 Field Documentation
17.3.1.0.0.36.1 uint16_t enet_rx_bd_struct_t::length
17.3.1.0.0.36.2 uint16_t enet_rx_bd_struct_t::control
17.3.1.0.0.36.3 uint8_t∗enet_rx_bd_struct_t::buffer
17.3.2 struct enet_tx_bd_struct_t
Data Fields
• uint16_t length
Buffer descriptor data length.
• uint16_t control
Buffer descriptor control and status.
• uint8_t ∗buffer
Data buffer pointer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
231
Data Structure Documentation
17.3.2.0.0.37 Field Documentation
17.3.2.0.0.37.1 uint16_t enet_tx_bd_struct_t::length
17.3.2.0.0.37.2 uint16_t enet_tx_bd_struct_t::control
17.3.2.0.0.37.3 uint8_t∗enet_tx_bd_struct_t::buffer
17.3.3 struct enet_data_error_stats_t
Data Fields
• uint32_t statsRxLenGreaterErr
Receive length greater than RCR[MAX_FL].
• uint32_t statsRxAlignErr
Receive non-octet alignment/.
• uint32_t statsRxFcsErr
Receive CRC error.
• uint32_t statsRxOverRunErr
Receive over run.
• uint32_t statsRxTruncateErr
Receive truncate.
17.3.3.0.0.38 Field Documentation
17.3.3.0.0.38.1 uint32_t enet_data_error_stats_t::statsRxLenGreaterErr
17.3.3.0.0.38.2 uint32_t enet_data_error_stats_t::statsRxFcsErr
17.3.3.0.0.38.3 uint32_t enet_data_error_stats_t::statsRxOverRunErr
17.3.3.0.0.38.4 uint32_t enet_data_error_stats_t::statsRxTruncateErr
17.3.4 struct enet_buffer_config_t
Note: For the internal DMA requirements, the buffers have a corresponding alignment requirement:
1. The aligned receive and transmit buffer size must be evenly divisible by 16.
2. The aligned transmit and receive buffer descriptor start address must be at least 64 bit aligned.
However, it’s recommended to be evenly divisible by 16.
3. The aligned transmit and receive buffer start address must be evenly divisible by 16. Receive buffers
should be continuous with the total size equal to "rxBdNumber ∗rxBuffSizeAlign". Transmit buffers
should be continuous with the total size equal to "txBdNumber ∗txBuffSizeAlign".
Data Fields
• uint16_t rxBdNumber
Receive buffer descriptor number.
232
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
• uint16_t txBdNumber
Transmit buffer descriptor number.
• uint32_t rxBuffSizeAlign
Aligned receive data buffer size.
• uint32_t txBuffSizeAlign
Aligned transmit data buffer size.
• volatile enet_rx_bd_struct_t ∗rxBdStartAddrAlign
Aligned receive buffer descriptor start address.
• volatile enet_tx_bd_struct_t ∗txBdStartAddrAlign
Aligned transmit buffer descriptor start address.
• uint8_t ∗rxBufferAlign
Receive data buffer start address.
• uint8_t ∗txBufferAlign
Transmit data buffer start address.
17.3.4.0.0.39 Field Documentation
17.3.4.0.0.39.1 uint16_t enet_buffer_config_t::rxBdNumber
17.3.4.0.0.39.2 uint16_t enet_buffer_config_t::txBdNumber
17.3.4.0.0.39.3 uint32_t enet_buffer_config_t::rxBuffSizeAlign
17.3.4.0.0.39.4 uint32_t enet_buffer_config_t::txBuffSizeAlign
17.3.4.0.0.39.5 volatile enet_rx_bd_struct_t∗enet_buffer_config_t::rxBdStartAddrAlign
17.3.4.0.0.39.6 volatile enet_tx_bd_struct_t∗enet_buffer_config_t::txBdStartAddrAlign
17.3.4.0.0.39.7 uint8_t∗enet_buffer_config_t::rxBufferAlign
17.3.4.0.0.39.8 uint8_t∗enet_buffer_config_t::txBufferAlign
17.3.5 struct enet_config_t
Note:
1. macSpecialConfig is used for a special control configuration, A logical OR of "enet_special_control-
_flag_t". For a special configuration for MAC, set this parameter to 0.
2. txWatermark is used for a cut-through operation. It is in steps of 64 bytes: 0/1 - 64 bytes written to
TX FIFO before transmission of a frame begins. 2 - 128 bytes written to TX FIFO .... 3 - 192 bytes
written to TX FIFO .... The maximum of txWatermark is 0x2F - 4032 bytes written to TX FIFO ....
txWatermark allows minimizing the transmit latency to set the txWatermark to 0 or 1 or for larger
bus access latency 3 or larger due to contention for the system bus.
3. rxFifoFullThreshold is similar to the txWatermark for cut-through operation in RX. It is in 64-bit
words. The minimum is ENET_FIFO_MIN_RX_FULL and the maximum is 0xFF. If the end of
the frame is stored in FIFO and the frame size if smaller than the txWatermark, the frame is still
transmitted. The rule is the same for rxFifoFullThreshold in the receive direction.
4. When "kENET_ControlFlowControlEnable" is set in the macSpecialConfig, ensure that the pause-
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
233
Data Structure Documentation
Duration, rxFifoEmptyThreshold, and rxFifoStatEmptyThreshold are set for flow control enabled
case.
5. When "kENET_ControlStoreAndFwdDisabled" is set in the macSpecialConfig, ensure that the rx-
FifoFullThreshold and txFifoWatermark are set for store and forward disable.
6. The rxAccelerConfig and txAccelerConfig default setting with 0 - accelerator are disabled. The
"enet_tx_accelerator_t" and "enet_rx_accelerator_t" are recommended to be used to enable the
transmit and receive accelerator. After the accelerators are enabled, the store and forward feature
should be enabled. As a result, kENET_ControlStoreAndFwdDisabled should not be set.
Data Fields
• uint32_t macSpecialConfig
Mac special configuration.
• uint32_t interrupt
Mac interrupt source.
• uint16_t rxMaxFrameLen
Receive maximum frame length.
•enet_mii_mode_t miiMode
MII mode.
•enet_mii_speed_t miiSpeed
MII Speed.
•enet_mii_duplex_t miiDuplex
MII duplex.
• uint8_t rxAccelerConfig
Receive accelerator, A logical OR of "enet_rx_accelerator_t".
• uint8_t txAccelerConfig
Transmit accelerator, A logical OR of "enet_rx_accelerator_t".
• uint16_t pauseDuration
For flow control enabled case: Pause duration.
• uint8_t rxFifoEmptyThreshold
For flow control enabled case: when RX FIFO level reaches this value, it makes MAC generate XOFF
pause frame.
• uint8_t rxFifoFullThreshold
For store and forward disable case, the data required in RX FIFO to notify the MAC receive ready status.
• uint8_t txFifoWatermark
For store and forward disable case, the data required in TX FIFO before a frame transmit start.
17.3.5.0.0.40 Field Documentation
17.3.5.0.0.40.1 uint32_t enet_config_t::macSpecialConfig
A logical OR of "enet_special_control_flag_t".
17.3.5.0.0.40.2 uint32_t enet_config_t::interrupt
A logical OR of "enet_interrupt_enable_t".
234
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
17.3.5.0.0.40.3 uint16_t enet_config_t::rxMaxFrameLen
17.3.5.0.0.40.4 enet_mii_mode_t enet_config_t::miiMode
17.3.5.0.0.40.5 enet_mii_speed_t enet_config_t::miiSpeed
17.3.5.0.0.40.6 enet_mii_duplex_t enet_config_t::miiDuplex
17.3.5.0.0.40.7 uint8_t enet_config_t::rxAccelerConfig
17.3.5.0.0.40.8 uint8_t enet_config_t::txAccelerConfig
17.3.5.0.0.40.9 uint16_t enet_config_t::pauseDuration
17.3.5.0.0.40.10 uint8_t enet_config_t::rxFifoEmptyThreshold
17.3.5.0.0.40.11 uint8_t enet_config_t::rxFifoFullThreshold
17.3.5.0.0.40.12 uint8_t enet_config_t::txFifoWatermark
17.3.6 struct _enet_handle
Data Fields
• volatile enet_rx_bd_struct_t ∗rxBdBase
Receive buffer descriptor base address pointer.
• volatile enet_rx_bd_struct_t ∗rxBdCurrent
The current available receive buffer descriptor pointer.
• volatile enet_rx_bd_struct_t ∗rxBdDirty
The dirty receive buffer descriptor needed to be updated from.
• volatile enet_tx_bd_struct_t ∗txBdBase
Transmit buffer descriptor base address pointer.
• volatile enet_tx_bd_struct_t ∗txBdCurrent
The current available transmit buffer descriptor pointer.
• uint32_t rxBuffSizeAlign
Receive buffer size alignment.
• uint32_t txBuffSizeAlign
Transmit buffer size alignment.
•enet_callback_t callback
Callback function.
• void ∗userData
Callback function parameter.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
235
Macro Definition Documentation
17.3.6.0.0.41 Field Documentation
17.3.6.0.0.41.1 volatile enet_rx_bd_struct_t∗enet_handle_t::rxBdBase
17.3.6.0.0.41.2 volatile enet_rx_bd_struct_t∗enet_handle_t::rxBdCurrent
17.3.6.0.0.41.3 volatile enet_rx_bd_struct_t∗enet_handle_t::rxBdDirty
17.3.6.0.0.41.4 volatile enet_tx_bd_struct_t∗enet_handle_t::txBdBase
17.3.6.0.0.41.5 volatile enet_tx_bd_struct_t∗enet_handle_t::txBdCurrent
17.3.6.0.0.41.6 uint32_t enet_handle_t::rxBuffSizeAlign
17.3.6.0.0.41.7 uint32_t enet_handle_t::txBuffSizeAlign
17.3.6.0.0.41.8 enet_callback_t enet_handle_t::callback
17.3.6.0.0.41.9 void∗enet_handle_t::userData
17.4 Macro Definition Documentation
17.4.1 #define FSL_ENET_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
236
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Macro Definition Documentation
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
237
Macro Definition Documentation
17.4.2 #define ENET_BUFFDESCRIPTOR_RX_EMPTY_MASK 0x8000U
17.4.3 #define ENET_BUFFDESCRIPTOR_RX_SOFTOWNER1_MASK 0x4000U
17.4.4 #define ENET_BUFFDESCRIPTOR_RX_WRAP_MASK 0x2000U
17.4.5 #define ENET_BUFFDESCRIPTOR_RX_SOFTOWNER2_Mask 0x1000U
17.4.6 #define ENET_BUFFDESCRIPTOR_RX_LAST_MASK 0x0800U
17.4.7 #define ENET_BUFFDESCRIPTOR_RX_MISS_MASK 0x0100U
17.4.8 #define ENET_BUFFDESCRIPTOR_RX_BROADCAST_MASK 0x0080U
17.4.9 #define ENET_BUFFDESCRIPTOR_RX_MULTICAST_MASK 0x0040U
17.4.10 #define ENET_BUFFDESCRIPTOR_RX_LENVLIOLATE_MASK 0x0020U
17.4.11 #define ENET_BUFFDESCRIPTOR_RX_NOOCTET_MASK 0x0010U
17.4.12 #define ENET_BUFFDESCRIPTOR_RX_CRC_MASK 0x0004U
17.4.13 #define ENET_BUFFDESCRIPTOR_RX_OVERRUN_MASK 0x0002U
17.4.14 #define ENET_BUFFDESCRIPTOR_RX_TRUNC_MASK 0x0001U
17.4.15 #define ENET_BUFFDESCRIPTOR_TX_READY_MASK 0x8000U
17.4.16 #define ENET_BUFFDESCRIPTOR_TX_SOFTOWENER1_MASK 0x4000U
17.4.17 #define ENET_BUFFDESCRIPTOR_TX_WRAP_MASK 0x2000U
17.4.18 #define ENET_BUFFDESCRIPTOR_TX_SOFTOWENER2_MASK 0x1000U
17.4.19 #define ENET_BUFFDESCRIPTOR_TX_LAST_MASK 0x0800U
17.4.20 #define ENET_BUFFDESCRIPTOR_TX_TRANMITCRC_MASK 0x0400U
17.4.21 #define ENET_BUFFDESCRIPTOR_RX_ERR_MASK
Value:
238
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
(ENET_BUFFDESCRIPTOR_RX_TRUNC_MASK |
ENET_BUFFDESCRIPTOR_RX_OVERRUN_MASK |\
ENET_BUFFDESCRIPTOR_RX_LENVLIOLATE_MASK |
ENET_BUFFDESCRIPTOR_RX_NOOCTET_MASK |
ENET_BUFFDESCRIPTOR_RX_CRC_MASK)
17.4.22 #define ENET_FRAME_MAX_FRAMELEN 1518U
17.4.23 #define ENET_FRAME_MAX_VALNFRAMELEN 1522U
17.4.24 #define ENET_FIFO_MIN_RX_FULL 5U
17.4.25 #define ENET_RX_MIN_BUFFERSIZE 256U
17.4.26 #define ENET_BUFF_ALIGNMENT 16U
17.4.27 #define ENET_PHY_MAXADDRESS (ENET_MMFR_PA_MASK >>
ENET_MMFR_PA_SHIFT)
17.5 Typedef Documentation
17.5.1 typedef void(∗enet_callback_t)(ENET_Type ∗base, enet_handle_t ∗handle,
enet_event_t event, void ∗userData)
17.6 Enumeration Type Documentation
17.6.1 enum _enet_status
Enumerator
kStatus_ENET_RxFrameError A frame received but data error happen.
kStatus_ENET_RxFrameFail Failed to receive a frame.
kStatus_ENET_RxFrameEmpty No frame arrive.
kStatus_ENET_TxFrameBusy Transmit buffer descriptors are under process.
kStatus_ENET_TxFrameFail Transmit frame fail.
17.6.2 enum enet_mii_mode_t
Enumerator
kENET_MiiMode MII mode for data interface.
kENET_RmiiMode RMII mode for data interface.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
239
Enumeration Type Documentation
17.6.3 enum enet_mii_speed_t
Enumerator
kENET_MiiSpeed10M Speed 10 Mbps.
kENET_MiiSpeed100M Speed 100 Mbps.
17.6.4 enum enet_mii_duplex_t
Enumerator
kENET_MiiHalfDuplex Half duplex mode.
kENET_MiiFullDuplex Full duplex mode.
17.6.5 enum enet_mii_write_t
Enumerator
kENET_MiiWriteNoCompliant Write frame operation, but not MII-compliant.
kENET_MiiWriteValidFrame Write frame operation for a valid MII management frame.
17.6.6 enum enet_mii_read_t
Enumerator
kENET_MiiReadValidFrame Read frame operation for a valid MII management frame.
kENET_MiiReadNoCompliant Read frame operation, but not MII-compliant.
17.6.7 enum enet_special_control_flag_t
These control flags are provided for special user requirements. Normally, these control flags are unused
for ENET initialization. For special requirements, set the flags to macSpecialConfig in the enet_config_t.
The kENET_ControlStoreAndFwdDisable is used to disable the FIFO store and forward. FIFO store and
forward means that the FIFO read/send is started when a complete frame is stored in TX/RX FIFO. If this
flag is set, configure rxFifoFullThreshold and txFifoWatermark in the enet_config_t.
Enumerator
kENET_ControlFlowControlEnable Enable ENET flow control: pause frame.
kENET_ControlRxPayloadCheckEnable Enable ENET receive payload length check.
kENET_ControlRxPadRemoveEnable Padding is removed from received frames.
240
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
kENET_ControlRxBroadCastRejectEnable Enable broadcast frame reject.
kENET_ControlMacAddrInsert Enable MAC address insert.
kENET_ControlStoreAndFwdDisable Enable FIFO store and forward.
kENET_ControlSMIPreambleDisable Enable SMI preamble.
kENET_ControlPromiscuousEnable Enable promiscuous mode.
kENET_ControlMIILoopEnable Enable ENET MII loop back.
kENET_ControlVLANTagEnable Enable VLAN tag frame.
17.6.8 enum enet_interrupt_enable_t
This enumeration uses one-bot encoding to allow a logical OR of multiple members. Members usually
map to interrupt enable bits in one or more peripheral registers.
Enumerator
kENET_BabrInterrupt Babbling receive error interrupt source.
kENET_BabtInterrupt Babbling transmit error interrupt source.
kENET_GraceStopInterrupt Graceful stop complete interrupt source.
kENET_TxFrameInterrupt TX FRAME interrupt source.
kENET_TxByteInterrupt TX BYTE interrupt source.
kENET_RxFrameInterrupt RX FRAME interrupt source.
kENET_RxByteInterrupt RX BYTE interrupt source.
kENET_MiiInterrupt MII interrupt source.
kENET_EBusERInterrupt Ethernet bus error interrupt source.
kENET_LateCollisionInterrupt Late collision interrupt source.
kENET_RetryLimitInterrupt Collision Retry Limit interrupt source.
kENET_UnderrunInterrupt Transmit FIFO underrun interrupt source.
kENET_PayloadRxInterrupt Payload Receive interrupt source.
kENET_WakeupInterrupt WAKEUP interrupt source.
17.6.9 enum enet_event_t
Enumerator
kENET_RxEvent Receive event.
kENET_TxEvent Transmit event.
kENET_ErrEvent Error event: BABR/BABT/EBERR/LC/RL/UN/PLR .
kENET_WakeUpEvent Wake up from sleep mode event.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
241
Function Documentation
17.6.10 enum enet_tx_accelerator_t
Enumerator
kENET_TxAccelIsShift16Enabled Transmit FIFO shift-16.
kENET_TxAccelIpCheckEnabled Insert IP header checksum.
kENET_TxAccelProtoCheckEnabled Insert protocol checksum.
17.6.11 enum enet_rx_accelerator_t
Enumerator
kENET_RxAccelPadRemoveEnabled Padding removal for short IP frames.
kENET_RxAccelIpCheckEnabled Discard with wrong IP header checksum.
kENET_RxAccelProtoCheckEnabled Discard with wrong protocol checksum.
kENET_RxAccelMacCheckEnabled Discard with Mac layer errors.
kENET_RxAccelisShift16Enabled Receive FIFO shift-16.
17.7 Function Documentation
17.7.1 void ENET_GetDefaultConfig ( enet_config_t ∗config )
The purpose of this API is to get the default ENET MAC controller configure structure for ENET_Init().
User may use the initialized structure unchanged in ENET_Init(), or modify some fields of the structure
before calling ENET_Init(). Example:
enet_config_t config;
ENET_GetDefaultConfig(&config);
Parameters
config The ENET mac controller configuration structure pointer.
17.7.2 void ENET_Init ( ENET_Type ∗base, enet_handle_t ∗handle, const
enet_config_t ∗config, const enet_buffer_config_t ∗bufferConfig, uint8_t ∗
macAddr, uint32_t srcClock_Hz )
This function ungates the module clock and initializes it with the ENET configuration.
242
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base ENET peripheral base address.
handle ENET handler pointer.
config ENET mac configuration structure pointer. The "enet_config_t" type mac configura-
tion return from ENET_GetDefaultConfig can be used directly. It is also possible to
verify the Mac configuration using other methods.
bufferConfig ENET buffer configuration structure pointer. The buffer configuration should be pre-
pared for ENET Initialization.
macAddr ENET mac address of Ethernet device. This MAC address should be provided.
srcClock_Hz The internal module clock source for MII clock.
Note
ENET has two buffer descriptors: legacy buffer descriptors and enhanced 1588 buffer descriptors.
The legacy descriptor is used by default. To use 1588 feature, use the enhanced 1588 buffer de-
scriptor by defining "ENET_ENHANCEDBUFFERDESCRIPTOR_MODE" and calling ENET_-
Ptp1588Configure() to configure the 1588 feature and related buffers after calling ENET_Init().
17.7.3 void ENET_Deinit ( ENET_Type ∗base )
This function gates the module clock, clears ENET interrupts, and disables the ENET module.
Parameters
base ENET peripheral base address.
17.7.4 static void ENET_Reset ( ENET_Type ∗base )[inline],[static]
This function restores the ENET module to reset state. Note that this function sets all registers to reset
state. As a result, the ENET module can’t work after calling this function.
Parameters
base ENET peripheral base address.
17.7.5 void ENET_SetMII ( ENET_Type ∗base, enet_mii_speed_t speed,
enet_mii_duplex_t duplex )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
243
Function Documentation
Parameters
base ENET peripheral base address.
speed The speed of the RMII mode.
duplex The duplex of the RMII mode.
17.7.6 void ENET_SetSMI ( ENET_Type ∗base, uint32_t srcClock_Hz, bool
isPreambleDisabled )
Parameters
base ENET peripheral base address.
srcClock_Hz This is the ENET module clock frequency. Normally it’s the system clock. See clock
distribution.
isPreamble-
Disabled
The preamble disable flag.
• true Enables the preamble.
• false Disables the preamble.
17.7.7 static bool ENET_GetSMI ( ENET_Type ∗base )[inline],[static]
This API is used to get the SMI configuration to check if the MII management interface has been set.
Parameters
base ENET peripheral base address.
Returns
The SMI setup status true or false.
17.7.8 static uint32_t ENET_ReadSMIData ( ENET_Type ∗base )[inline],
[static]
244
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base ENET peripheral base address.
Returns
The data read from PHY
17.7.9 void ENET_StartSMIRead ( ENET_Type ∗base, uint32_t phyAddr, uint32_t
phyReg, enet_mii_read_t operation )
Parameters
base ENET peripheral base address.
phyAddr The PHY address.
phyReg The PHY register.
operation The read operation.
17.7.10 void ENET_StartSMIWrite ( ENET_Type ∗base, uint32_t phyAddr, uint32_t
phyReg, enet_mii_write_t operation, uint32_t data )
Parameters
base ENET peripheral base address.
phyAddr The PHY address.
phyReg The PHY register.
operation The write operation.
data The data written to PHY.
17.7.11 void ENET_SetMacAddr ( ENET_Type ∗base, uint8_t ∗macAddr )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
245
Function Documentation
Parameters
base ENET peripheral base address.
macAddr The six-byte Mac address pointer. The pointer is allocated by application and input
into the API.
17.7.12 void ENET_GetMacAddr ( ENET_Type ∗base, uint8_t ∗macAddr )
Parameters
base ENET peripheral base address.
macAddr The six-byte Mac address pointer. The pointer is allocated by application and input
into the API.
17.7.13 void ENET_AddMulticastGroup ( ENET_Type ∗base, uint8_t ∗address )
Parameters
base ENET peripheral base address.
address The six-byte multicast group address which is provided by application.
17.7.14 void ENET_LeaveMulticastGroup ( ENET_Type ∗base, uint8_t ∗address )
Parameters
base ENET peripheral base address.
address The six-byte multicast group address which is provided by application.
17.7.15 static void ENET_ActiveRead ( ENET_Type ∗base )[inline],
[static]
246
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base ENET peripheral base address.
Note
This must be called after the MAC configuration and state are ready. It must be called after the EN-
ET_Init() and ENET_Ptp1588Configure(). This should be called when the ENET receive required.
17.7.16 static void ENET_EnableSleepMode ( ENET_Type ∗base, bool enable )
[inline],[static]
This function is used to set the MAC enter sleep mode. When entering sleep mode, the magic frame
wakeup interrupt should be enabled to wake up MAC from the sleep mode and reset it to normal mode.
Parameters
base ENET peripheral base address.
enable True enable sleep mode, false disable sleep mode.
17.7.17 static void ENET_GetAccelFunction ( ENET_Type ∗base, uint32_t ∗
txAccelOption, uint32_t ∗rxAccelOption )[inline],[static]
Parameters
base ENET peripheral base address.
txAccelOption The transmit accelerator option. The "enet_tx_accelerator_t" is recommended to be
used to as the mask to get the exact the accelerator option.
rxAccelOption The receive accelerator option. The "enet_rx_accelerator_t" is recommended to be
used to as the mask to get the exact the accelerator option.
17.7.18 static void ENET_EnableInterrupts ( ENET_Type ∗base, uint32_t mask )
[inline],[static]
This function enables the ENET interrupt according to the provided mask. The mask is a logical OR of
enumeration members. See enet_interrupt_enable_t. For example, to enable the TX frame interrupt and
RX frame interrupt, do this:
ENET_EnableInterrupts(ENET, kENET_TxFrameInterrupt |
kENET_RxFrameInterrupt);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
247
Function Documentation
Parameters
base ENET peripheral base address.
mask ENET interrupts to enable. This is a logical OR of the enumeration :: enet_interrupt-
_enable_t.
17.7.19 static void ENET_DisableInterrupts ( ENET_Type ∗base, uint32_t mask )
[inline],[static]
This function disables the ENET interrupts according to the provided mask. The mask is a logical OR of
enumeration members. See enet_interrupt_enable_t. For example, to disable the TX frame interrupt and
RX frame interrupt, do this:
ENET_DisableInterrupts(ENET, kENET_TxFrameInterrupt |
kENET_RxFrameInterrupt);
Parameters
base ENET peripheral base address.
mask ENET interrupts to disable. This is a logical OR of the enumeration :: enet_interrupt-
_enable_t.
17.7.20 static uint32_t ENET_GetInterruptStatus ( ENET_Type ∗base )
[inline],[static]
Parameters
base ENET peripheral base address.
Returns
The event status of the interrupt source. This is the logical OR of members of the enumeration ::
enet_interrupt_enable_t.
17.7.21 static void ENET_ClearInterruptStatus ( ENET_Type ∗base, uint32_t mask
)[inline],[static]
This function clears enabled ENET interrupts according to the provided mask. The mask is a logical OR
of enumeration members. See the enet_interrupt_enable_t. For example, to clear the TX frame interrupt
and RX frame interrupt, do this:
248
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
ENET_ClearInterruptStatus(ENET, kENET_TxFrameInterrupt |
kENET_RxFrameInterrupt);
Parameters
base ENET peripheral base address.
mask ENET interrupt source to be cleared. This is the logical OR of members of the enu-
meration :: enet_interrupt_enable_t.
17.7.22 void ENET_SetCallback ( enet_handle_t ∗handle, enet_callback_t
callback, void ∗userData )
This API is provided for application callback required case when ENET interrupt is enabled. This API
should be called after calling ENET_Init.
Parameters
handle ENET handler pointer. Should be provided by application.
callback The ENET callback function.
userData The callback function parameter.
17.7.23 void ENET_GetRxErrBeforeReadFrame ( enet_handle_t ∗handle,
enet_data_error_stats_t ∗eErrorStatic )
This API must be called after the ENET_GetRxFrameSize and before the ENET_ReadFrame(). If the
ENET_GetRxFrameSize returns kStatus_ENET_RxFrameError, the ENET_GetRxErrBeforeReadFrame
can be used to get the exact error statistics. For example:
status = ENET_GetRxFrameSize(&g_handle, &length);
if (status == kStatus_ENET_RxFrameError)
{
// Get the error information of the received frame.
ENET_GetRxErrBeforeReadFrame(&g_handle, &eErrStatic);
// update the receive buffer.
ENET_ReadFrame(EXAMPLE_ENET, &g_handle, NULL, 0);
}
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
249
Function Documentation
handle The ENET handler structure pointer. This is the same handler pointer used in the
ENET_Init.
eErrorStatic The error statistics structure pointer.
17.7.24 status_t ENET_GetRxFrameSize ( enet_handle_t ∗handle, uint32_t ∗
length )
This function reads a received frame size from the ENET buffer descriptors.
Note
The FCS of the frame is removed by MAC controller and the size is the length without the FCS.
After calling ENET_GetRxFrameSize, ENET_ReadFrame() should be called to update the receive
buffers If the result is not "kStatus_ENET_RxFrameEmpty".
Parameters
handle The ENET handler structure. This is the same handler pointer used in the ENET_Init.
length The length of the valid frame received.
Return values
kStatus_ENET_RxFrame-
Empty
No frame received. Should not call ENET_ReadFrame to read frame.
kStatus_ENET_RxFrame-
Error
Data error happens. ENET_ReadFrame should be called with NULL data
and NULL length to update the receive buffers.
kStatus_Success Receive a frame Successfully then the ENET_ReadFrame should be called
with the right data buffer and the captured data length input.
17.7.25 status_t ENET_ReadFrame ( ENET_Type ∗base, enet_handle_t ∗handle,
uint8_t ∗data, uint32_t length )
This function reads a frame (both the data and the length) from the ENET buffer descriptors. The ENET-
_GetRxFrameSize should be used to get the size of the prepared data buffer.
Note
The FCS of the frame is removed by MAC controller and is not delivered to the application.
250
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base ENET peripheral base address.
handle The ENET handler structure. This is the same handler pointer used in the ENET_Init.
data The data buffer provided by user to store the frame which memory size should be at
least "length".
length The size of the data buffer which is still the length of the received frame.
Returns
The execute status, successful or failure.
17.7.26 status_t ENET_SendFrame ( ENET_Type ∗base, enet_handle_t ∗handle,
uint8_t ∗data, uint32_t length )
Note
The CRC is automatically appended to the data. Input the data to send without the CRC.
Parameters
base ENET peripheral base address.
handle The ENET handler pointer. This is the same handler pointer used in the ENET_Init.
data The data buffer provided by user to be send.
length The length of the data to be send.
Return values
kStatus_Success Send frame succeed.
kStatus_ENET_TxFrame-
Busy
Transmit buffer descriptor is busy under transmit.
kStatus_ENET_TxFrame-
Fail
Transmit frame fail.
17.7.27 void ENET_TransmitIRQHandler ( ENET_Type ∗base, enet_handle_t ∗
handle )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
251
Function Documentation
Parameters
base ENET peripheral base address.
handle The ENET handler pointer.
17.7.28 void ENET_ReceiveIRQHandler ( ENET_Type ∗base, enet_handle_t ∗
handle )
Parameters
base ENET peripheral base address.
handle The ENET handler pointer.
17.7.29 void ENET_ErrorIRQHandler ( ENET_Type ∗base, enet_handle_t ∗handle
)
Parameters
base ENET peripheral base address.
handle The ENET handler pointer.
252
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 18
EWM: External Watchdog Monitor Driver
18.1 Overview
The KSDK provides a peripheral driver for the EWM module of Kinetis devices.
Typical use case
ewm_config_t config;
EWM_GetDefaultConfig(&config);
config.enableInterrupt =true;
config.compareLowValue = 0U;
config.compareHighValue = 0xAAU;
NVIC_EnableIRQ(WDOG_EWM_IRQn);
EWM_Init(base, &config);
Files
• file fsl_ewm.h
Data Structures
• struct ewm_config_t
Describes ewm clock source. More...
Enumerations
• enum _ewm_interrupt_enable_t {kEWM_InterruptEnable = EWM_CTRL_INTEN_MASK }
EWM interrupt configuration structure, default settings all disabled.
• enum _ewm_status_flags_t {kEWM_RunningFlag = EWM_CTRL_EWMEN_MASK }
EWM status flags.
Driver version
• #define FSL_EWM_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
EWM driver version 2.0.1.
EWM Initialization and De-initialization
• void EWM_Init (EWM_Type ∗base, const ewm_config_t ∗config)
Initializes the EWM peripheral.
• void EWM_Deinit (EWM_Type ∗base)
Deinitializes the EWM peripheral.
• void EWM_GetDefaultConfig (ewm_config_t ∗config)
Initializes the EWM configuration structure.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
253
Enumeration Type Documentation
EWM functional Operation
• static void EWM_EnableInterrupts (EWM_Type ∗base, uint32_t mask)
Enables the EWM interrupt.
• static void EWM_DisableInterrupts (EWM_Type ∗base, uint32_t mask)
Disables the EWM interrupt.
• static uint32_t EWM_GetStatusFlags (EWM_Type ∗base)
Gets EWM all status flags.
• void EWM_Refresh (EWM_Type ∗base)
Service EWM.
18.2 Data Structure Documentation
18.2.1 struct ewm_config_t
Data structure for EWM configuration.
This structure is used to configure the EWM.
Data Fields
• bool enableEwm
Enable EWM module.
• bool enableEwmInput
Enable EWM_in input.
• bool setInputAssertLogic
EWM_in signal assertion state.
• bool enableInterrupt
Enable EWM interrupt.
• uint8_t compareLowValue
Compare low register value.
• uint8_t compareHighValue
Compare high register value.
18.3 Macro Definition Documentation
18.3.1 #define FSL_EWM_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
18.4 Enumeration Type Documentation
18.4.1 enum _ewm_interrupt_enable_t
This structure contains the settings for all of the EWM interrupt configurations.
Enumerator
kEWM_InterruptEnable Enable EWM to generate an interrupt.
254
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
18.4.2 enum _ewm_status_flags_t
This structure contains the constants for the EWM status flags for use in the EWM functions.
Enumerator
kEWM_RunningFlag Running flag, set when ewm is enabled.
18.5 Function Documentation
18.5.1 void EWM_Init ( EWM_Type ∗base, const ewm_config_t ∗config )
This function is used to initialize the EWM. After calling, the EWM runs immediately according to the
configuration. Note that except for interrupt enable control bit, other control bits and registers are write
once after a CPU reset. Modifying them more than once generates a bus transfer error.
Example:
ewm_config_t config;
EWM_GetDefaultConfig(&config);
config.compareHighValue = 0xAAU;
EWM_Init(ewm_base,&config);
Parameters
base EWM peripheral base address
config The configuration of EWM
18.5.2 void EWM_Deinit ( EWM_Type ∗base )
This function is used to shut down the EWM.
Parameters
base EWM peripheral base address
18.5.3 void EWM_GetDefaultConfig ( ewm_config_t ∗config )
This function initializes the EWM configure structure to default values. The default values are:
ewmConfig->enableEwm = true;
ewmConfig->enableEwmInput = false;
ewmConfig->setInputAssertLogic = false;
ewmConfig->enableInterrupt = false;
ewmConfig->ewm_lpo_clock_source_t = kEWM_LpoClockSource0;
ewmConfig->prescaler = 0;
ewmConfig->compareLowValue = 0;
ewmConfig->compareHighValue = 0xFEU;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
255
Function Documentation
Parameters
config Pointer to EWM configuration structure.
See Also
ewm_config_t
18.5.4 static void EWM_EnableInterrupts ( EWM_Type ∗base, uint32_t mask )
[inline],[static]
This function enables the EWM interrupt.
Parameters
base EWM peripheral base address
mask The interrupts to enable The parameter can be combination of the following source if
defined:
• kEWM_InterruptEnable
18.5.5 static void EWM_DisableInterrupts ( EWM_Type ∗base, uint32_t mask )
[inline],[static]
This function enables the EWM interrupt.
Parameters
base EWM peripheral base address
mask The interrupts to disable The parameter can be combination of the following source
if defined:
• kEWM_InterruptEnable
18.5.6 static uint32_t EWM_GetStatusFlags ( EWM_Type ∗base )[inline],
[static]
This function gets all status flags.
Example for getting Running Flag:
256
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
uint32_t status;
status = EWM_GetStatusFlags(ewm_base) & kEWM_RunningFlag;
Parameters
base EWM peripheral base address
Returns
State of the status flag: asserted (true) or not-asserted (false).
See Also
_ewm_status_flags_t
• true: related status flag has been set.
• false: related status flag is not set.
18.5.7 void EWM_Refresh ( EWM_Type ∗base )
This function reset EWM counter to zero.
Parameters
base EWM peripheral base address
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
257
Function Documentation
258
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 19
C90TFS Flash Driver
19.1 Overview
The flash provides the C90TFS Flash driver of Kinetis devices with the C90TFS Flash module inside. The
flash provides general APIs to handle specific operations on C90TFS/FTFx Flash module. The user can
use those APIs directly in the application. In addition, it provides internal functions called by the driver.
Although these functions are not meant to be called from the user’s application directly, the APIs can still
be used.
Data Structures
• struct flash_execute_in_ram_function_config_t
Flash execute-in-ram function information. More...
• struct flash_swap_state_config_t
Flash Swap information. More...
• struct flash_swap_ifr_field_config_t
Flash Swap IFR fileds. More...
• struct flash_operation_config_t
Active flash information for current operation. More...
• struct flash_config_t
Flash driver state information. More...
Typedefs
• typedef void(∗flash_callback_t )(void)
callback type used for pflash block
Enumerations
• enum flash_margin_value_t {
kFLASH_marginValueNormal,
kFLASH_marginValueUser,
kFLASH_marginValueFactory,
kFLASH_marginValueInvalid }
Enumeration for supported flash margin levels.
• enum flash_security_state_t {
kFLASH_securityStateNotSecure,
kFLASH_securityStateBackdoorEnabled,
kFLASH_securityStateBackdoorDisabled }
Enumeration for the three possible flash security states.
• enum flash_protection_state_t {
kFLASH_protectionStateUnprotected,
kFLASH_protectionStateProtected,
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
259
Overview
kFLASH_protectionStateMixed }
Enumeration for the three possible flash protection levels.
• enum flash_execute_only_access_state_t {
kFLASH_accessStateUnLimited,
kFLASH_accessStateExecuteOnly,
kFLASH_accessStateMixed }
Enumeration for the three possible flash execute access levels.
• enum flash_property_tag_t {
kFLASH_propertyPflashSectorSize = 0x00U,
kFLASH_propertyPflashTotalSize = 0x01U,
kFLASH_propertyPflashBlockSize = 0x02U,
kFLASH_propertyPflashBlockCount = 0x03U,
kFLASH_propertyPflashBlockBaseAddr = 0x04U,
kFLASH_propertyPflashFacSupport = 0x05U,
kFLASH_propertyPflashAccessSegmentSize = 0x06U,
kFLASH_propertyPflashAccessSegmentCount = 0x07U,
kFLASH_propertyFlexRamBlockBaseAddr = 0x08U,
kFLASH_propertyFlexRamTotalSize = 0x09U,
kFLASH_propertyDflashSectorSize = 0x10U,
kFLASH_propertyDflashTotalSize = 0x11U,
kFLASH_propertyDflashBlockSize = 0x12U,
kFLASH_propertyDflashBlockCount = 0x13U,
kFLASH_propertyDflashBlockBaseAddr = 0x14U }
Enumeration for various flash properties.
• enum _flash_execute_in_ram_function_constants {
kFLASH_executeInRamFunctionMaxSize = 64U,
kFLASH_executeInRamFunctionTotalNum = 2U }
Constants for execute-in-ram flash function.
• enum flash_read_resource_option_t {
kFLASH_resourceOptionFlashIfr,
kFLASH_resourceOptionVersionId = 0x01U }
Enumeration for the two possible options of flash read resource command.
• enum _flash_read_resource_range {
kFLASH_resourceRangePflashIfrSizeInBytes = 256U,
kFLASH_resourceRangeVersionIdSizeInBytes = 8U,
kFLASH_resourceRangeVersionIdStart = 0x00U,
kFLASH_resourceRangeVersionIdEnd = 0x07U,
kFLASH_resourceRangePflashSwapIfrStart = 0x40000U,
kFLASH_resourceRangePflashSwapIfrEnd = 0x403FFU,
kFLASH_resourceRangeDflashIfrStart = 0x800000U,
kFLASH_resourceRangeDflashIfrEnd = 0x8003FFU }
Enumeration for the range of special-purpose flash resource.
• enum flash_flexram_function_option_t {
kFLASH_flexramFunctionOptionAvailableAsRam = 0xFFU,
kFLASH_flexramFunctionOptionAvailableForEeprom = 0x00U }
Enumeration for the two possilbe options of set flexram function command.
260
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
• enum flash_swap_function_option_t {
kFLASH_swapFunctionOptionEnable = 0x00U,
kFLASH_swapFunctionOptionDisable = 0x01U }
Enumeration for the possible options of Swap function.
• enum flash_swap_control_option_t {
kFLASH_swapControlOptionIntializeSystem = 0x01U,
kFLASH_swapControlOptionSetInUpdateState = 0x02U,
kFLASH_swapControlOptionSetInCompleteState = 0x04U,
kFLASH_swapControlOptionReportStatus = 0x08U,
kFLASH_swapControlOptionDisableSystem = 0x10U }
Enumeration for the possible options of Swap Control commands.
• enum flash_swap_state_t {
kFLASH_swapStateUninitialized = 0x00U,
kFLASH_swapStateReady = 0x01U,
kFLASH_swapStateUpdate = 0x02U,
kFLASH_swapStateUpdateErased = 0x03U,
kFLASH_swapStateComplete = 0x04U,
kFLASH_swapStateDisabled = 0x05U }
Enumeration for the possible flash swap status.
• enum flash_swap_block_status_t {
kFLASH_swapBlockStatusLowerHalfProgramBlocksAtZero,
kFLASH_swapBlockStatusUpperHalfProgramBlocksAtZero }
Enumeration for the possible flash swap block status
• enum flash_partition_flexram_load_option_t {
kFLASH_partitionFlexramLoadOptionLoadedWithValidEepromData,
kFLASH_partitionFlexramLoadOptionNotLoaded = 0x01U }
Enumeration for FlexRAM load during reset option.
Flash version
• enum _flash_driver_version_constants {
kFLASH_driverVersionName = ’F’,
kFLASH_driverVersionMajor = 2,
kFLASH_driverVersionMinor = 1,
kFLASH_driverVersionBugfix =0}
FLASH driver version for ROM.
• #define MAKE_VERSION(major, minor, bugfix) (((major) << 16) |((minor) << 8) |(bugfix))
Construct the version number for drivers.
• #define FSL_FLASH_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
FLASH driver version for SDK.
Flash configuration
• #define FLASH_SSD_CONFIG_ENABLE_FLEXNVM_SUPPORT 1
Whether to support FlexNVM in flash driver.
• #define FLASH_SSD_IS_FLEXNVM_ENABLED (FLASH_SSD_CONFIG_ENABLE_FLEXN-
VM_SUPPORT && FSL_FEATURE_FLASH_HAS_FLEX_NVM)
Whether the FlexNVM is enabled in flash driver.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
261
Overview
• #define FLASH_DRIVER_IS_FLASH_RESIDENT 1
Flash driver location.
• #define FLASH_DRIVER_IS_EXPORTED 0
Flash Driver Export option.
Flash status
• enum _flash_status {
kStatus_FLASH_Success = MAKE_STATUS(kStatusGroupGeneric, 0),
kStatus_FLASH_InvalidArgument = MAKE_STATUS(kStatusGroupGeneric, 4),
kStatus_FLASH_SizeError = MAKE_STATUS(kStatusGroupFlashDriver, 0),
kStatus_FLASH_AlignmentError,
kStatus_FLASH_AddressError = MAKE_STATUS(kStatusGroupFlashDriver, 2),
kStatus_FLASH_AccessError,
kStatus_FLASH_ProtectionViolation,
kStatus_FLASH_CommandFailure,
kStatus_FLASH_UnknownProperty = MAKE_STATUS(kStatusGroupFlashDriver, 6),
kStatus_FLASH_EraseKeyError = MAKE_STATUS(kStatusGroupFlashDriver, 7),
kStatus_FLASH_RegionExecuteOnly = MAKE_STATUS(kStatusGroupFlashDriver, 8),
kStatus_FLASH_ExecuteInRamFunctionNotReady,
kStatus_FLASH_PartitionStatusUpdateFailure,
kStatus_FLASH_SetFlexramAsEepromError,
kStatus_FLASH_RecoverFlexramAsRamError,
kStatus_FLASH_SetFlexramAsRamError = MAKE_STATUS(kStatusGroupFlashDriver, 13),
kStatus_FLASH_RecoverFlexramAsEepromError,
kStatus_FLASH_CommandNotSupported = MAKE_STATUS(kStatusGroupFlashDriver, 15),
kStatus_FLASH_SwapSystemNotInUninitialized,
kStatus_FLASH_SwapIndicatorAddressError }
Flash driver status codes.
• #define kStatusGroupGeneric 0
Flash driver status group.
• #define kStatusGroupFlashDriver 1
• #define MAKE_STATUS(group, code) ((((group)∗100) + (code)))
Construct a status code value from a group and code number.
Flash API key
• enum _flash_driver_api_keys {kFLASH_apiEraseKey = FOUR_CHAR_CODE(’k’, ’f’, ’e’, ’k’) }
Enumeration for flash driver API keys.
• #define FOUR_CHAR_CODE(a, b, c, d) (((d) << 24) |((c) << 16) |((b) << 8) |((a)))
Construct the four char code for flash driver API key.
Initialization
• status_t FLASH_Init (flash_config_t ∗config)
Initializes global flash properties structure members.
• status_t FLASH_SetCallback (flash_config_t ∗config, flash_callback_t callback)
Set the desired flash callback function.
262
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
• status_t FLASH_PrepareExecuteInRamFunctions (flash_config_t ∗config)
Prepare flash execute-in-ram functions.
Erasing
• status_t FLASH_EraseAll (flash_config_t ∗config, uint32_t key)
Erases entire flash.
• status_t FLASH_Erase (flash_config_t ∗config, uint32_t start, uint32_t lengthInBytes, uint32_t key)
Erases flash sectors encompassed by parameters passed into function.
• status_t FLASH_EraseAllExecuteOnlySegments (flash_config_t ∗config, uint32_t key)
Erases entire flash, including protected sectors.
Programming
• status_t FLASH_Program (flash_config_t ∗config, uint32_t start, uint32_t ∗src, uint32_t lengthIn-
Bytes)
Programs flash with data at locations passed in through parameters.
• status_t FLASH_ProgramOnce (flash_config_t ∗config, uint32_t index, uint32_t ∗src, uint32_-
t lengthInBytes)
Programs Program Once Field through parameters.
Reading
Programs flash with data at locations passed in through parameters via Program Section command
This function programs the flash memory with desired data for a given flash area as determined by the
start address and length.
Parameters
config Pointer to storage for the driver runtime state.
start The start address of the desired flash memory to be programmed. Must be word-
aligned.
src Pointer to the source buffer of data that is to be programmed into the flash.
lengthInBytes The length, given in bytes (not words or long-words) to be programmed. Must be
word-aligned.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
263
Overview
kStatus_FLASH_-
AlignmentError
Parameter is not aligned with specified baseline.
kStatus_FLASH_Address-
Error
Address is out of range.
kStatus_FLASH_Set-
FlexramAsRamError
Failed to set flexram as ram
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
kStatus_FLASH_Recover-
FlexramAsEepromError
Failed to recover flexram as eeprom
Programs EEPROM with data at locations passed in through parameters
This function programs the Emulated EEPROM with desired data for a given flash area as determined by
the start address and length.
Parameters
config Pointer to storage for the driver runtime state.
start The start address of the desired flash memory to be programmed. Must be word-
aligned.
src Pointer to the source buffer of data that is to be programmed into the flash.
lengthInBytes The length, given in bytes (not words or long-words) to be programmed. Must be
word-aligned.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
264
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
kStatus_FLASH_Address-
Error
Address is out of range.
kStatus_FLASH_Set-
FlexramAsEepromError
Failed to set flexram as eeprom.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_Recover-
FlexramAsRamError
Failed to recover flexram as ram
• status_t FLASH_ReadOnce (flash_config_t ∗config, uint32_t index, uint32_t ∗dst, uint32_t length-
InBytes)
Read resource with data at locations passed in through parameters.
Security
• status_t FLASH_GetSecurityState (flash_config_t ∗config, flash_security_state_t ∗state)
Returns the security state via the pointer passed into the function.
• status_t FLASH_SecurityBypass (flash_config_t ∗config, const uint8_t ∗backdoorKey)
Allows user to bypass security with a backdoor key.
Verification
• status_t FLASH_VerifyEraseAll (flash_config_t ∗config, flash_margin_value_t margin)
Verifies erasure of entire flash at specified margin level.
• status_t FLASH_VerifyErase (flash_config_t ∗config, uint32_t start, uint32_t lengthInBytes, flash-
_margin_value_t margin)
Verifies erasure of desired flash area at specified margin level.
• status_t FLASH_VerifyProgram (flash_config_t ∗config, uint32_t start, uint32_t lengthInBytes,
const uint32_t ∗expectedData, flash_margin_value_t margin, uint32_t ∗failedAddress, uint32_-
t∗failedData)
Verifies programming of desired flash area at specified margin level.
• status_t FLASH_VerifyEraseAllExecuteOnlySegments (flash_config_t ∗config, flash_margin_-
value_t margin)
Verifies if the program flash executeonly segments have been erased to the specified read margin level.
Protection
• status_t FLASH_IsProtected (flash_config_t ∗config, uint32_t start, uint32_t lengthInBytes, flash_-
protection_state_t ∗protection_state)
Returns the protection state of desired flash area via the pointer passed into the function.
• status_t FLASH_IsExecuteOnly (flash_config_t ∗config, uint32_t start, uint32_t lengthInBytes,
flash_execute_only_access_state_t ∗access_state)
Returns the access state of desired flash area via the pointer passed into the function.
Properties
• status_t FLASH_GetProperty (flash_config_t ∗config, flash_property_tag_t whichProperty, uint32-
_t ∗value)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
265
Data Structure Documentation
Returns the desired flash property.
Flash Protection Utilities
Prepares the FlexNVM block for use as data flash, EEPROM backup, or a combination of both and ini-
tializes the FlexRAM.
Parameters
config Pointer to storage for the driver runtime state.
option The option used to set FlexRAM load behavior during reset.
eepromData-
SizeCode
Determines the amount of FlexRAM used in each of the available EEPROM subsys-
tems.
flexnvm-
PartitionCode
Specifies how to split the FlexNVM block between data flash memory and EEPROM
backup memory supporting EEPROM functions.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
• status_t FLASH_PflashSetProtection (flash_config_t ∗config, uint32_t protectStatus)
Set PFLASH Protection to the intended protection status.
• status_t FLASH_PflashGetProtection (flash_config_t ∗config, uint32_t ∗protectStatus)
Get PFLASH Protection Status.
19.2 Data Structure Documentation
19.2.1 struct flash_execute_in_ram_function_config_t
Data Fields
• uint32_t activeFunctionCount
Number of available execute-in-ram functions.
• uint8_t ∗flashRunCommand
266
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
execute-in-ram function: flash_run_command.
• uint8_t ∗flashCacheClearCommand
execute-in-ram function: flash_cache_clear_command.
19.2.1.0.0.42 Field Documentation
19.2.1.0.0.42.1 uint32_t flash_execute_in_ram_function_config_t::activeFunctionCount
19.2.1.0.0.42.2 uint8_t∗flash_execute_in_ram_function_config_t::flashRunCommand
19.2.1.0.0.42.3 uint8_t∗flash_execute_in_ram_function_config_t::flashCacheClearCommand
19.2.2 struct flash_swap_state_config_t
Data Fields
•flash_swap_state_t flashSwapState
Current swap system status.
•flash_swap_block_status_t currentSwapBlockStatus
Current swap block status.
•flash_swap_block_status_t nextSwapBlockStatus
Next swap block status.
19.2.2.0.0.43 Field Documentation
19.2.2.0.0.43.1 flash_swap_state_t flash_swap_state_config_t::flashSwapState
19.2.2.0.0.43.2 flash_swap_block_status_t flash_swap_state_config_t::currentSwapBlockStatus
19.2.2.0.0.43.3 flash_swap_block_status_t flash_swap_state_config_t::nextSwapBlockStatus
19.2.3 struct flash_swap_ifr_field_config_t
Data Fields
• uint16_t swapIndicatorAddress
Swap indicator address field.
• uint16_t swapEnableWord
Swap enable word field.
• uint8_t reserved0 [6]
Reserved field.
• uint16_t swapDisableWord
Swap disable word field.
• uint8_t reserved1 [4]
Reserved field.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
267
Data Structure Documentation
19.2.3.0.0.44 Field Documentation
19.2.3.0.0.44.1 uint16_t flash_swap_ifr_field_config_t::swapIndicatorAddress
19.2.3.0.0.44.2 uint16_t flash_swap_ifr_field_config_t::swapEnableWord
19.2.3.0.0.44.3 uint8_t flash_swap_ifr_field_config_t::reserved0[6]
19.2.3.0.0.44.4 uint16_t flash_swap_ifr_field_config_t::swapDisableWord
19.2.3.0.0.44.5 uint8_t flash_swap_ifr_field_config_t::reserved1[4]
19.2.4 struct flash_operation_config_t
Data Fields
• uint32_t convertedAddress
Converted address for current flash type.
• uint32_t activeSectorSize
Sector size of current flash type.
• uint32_t activeBlockSize
Block size of current flash type.
• uint32_t blockWriteUnitSize
write unit size.
• uint32_t sectorCmdAddressAligment
Erase sector command address alignment.
• uint32_t partCmdAddressAligment
Program/Verify part command address alignment.
• 32_t resourceCmdAddressAligment
Read resource command address alignment.
• uint32_t checkCmdAddressAligment
Program check command address alignment.
268
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
19.2.4.0.0.45 Field Documentation
19.2.4.0.0.45.1 uint32_t flash_operation_config_t::convertedAddress
19.2.4.0.0.45.2 uint32_t flash_operation_config_t::activeSectorSize
19.2.4.0.0.45.3 uint32_t flash_operation_config_t::activeBlockSize
19.2.4.0.0.45.4 uint32_t flash_operation_config_t::blockWriteUnitSize
19.2.4.0.0.45.5 uint32_t flash_operation_config_t::sectorCmdAddressAligment
19.2.4.0.0.45.6 uint32_t flash_operation_config_t::partCmdAddressAligment
19.2.4.0.0.45.7 uint32_t flash_operation_config_t::resourceCmdAddressAligment
19.2.4.0.0.45.8 uint32_t flash_operation_config_t::checkCmdAddressAligment
19.2.5 struct flash_config_t
An instance of this structure is allocated by the user of the flash driver and passed into each of the driver
APIs.
Data Fields
• uint32_t PFlashBlockBase
Base address of the first PFlash block.
• uint32_t PFlashTotalSize
Size of all combined PFlash block.
• uint32_t PFlashBlockCount
Number of PFlash blocks.
• uint32_t PFlashSectorSize
Size in bytes of a sector of PFlash.
•flash_callback_t PFlashCallback
Callback function for flash API.
• uint32_t PFlashAccessSegmentSize
Size in bytes of a access segment of PFlash.
• uint32_t PFlashAccessSegmentCount
Number of PFlash access segments.
• uint32_t ∗flashExecuteInRamFunctionInfo
Info struct of flash execute-in-ram function.
• uint32_t FlexRAMBlockBase
For FlexNVM device, this is the base address of FlexRAM For non-FlexNVM device, this is the base
address of acceleration RAM memory.
• uint32_t FlexRAMTotalSize
For FlexNVM device, this is the size of FlexRAM For non-FlexNVM device, this is the size of acceleration
RAM memory.
• uint32_t DFlashBlockBase
For FlexNVM device, this is the base address of D-Flash memory (FlexNVM memory); For non-FlexNVM
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
269
Macro Definition Documentation
device, this field is unused.
• uint32_t DFlashTotalSize
For FlexNVM device, this is total size of the FlexNVM memory; For non-FlexNVM device, this field is
unused.
• uint32_t EEpromTotalSize
For FlexNVM device, this is the size in byte of EEPROM area which was partitioned from FlexRAM; For
non-FlexNVM device, this field is unused.
19.2.5.0.0.46 Field Documentation
19.2.5.0.0.46.1 uint32_t flash_config_t::PFlashTotalSize
19.2.5.0.0.46.2 uint32_t flash_config_t::PFlashBlockCount
19.2.5.0.0.46.3 uint32_t flash_config_t::PFlashSectorSize
19.2.5.0.0.46.4 flash_callback_t flash_config_t::PFlashCallback
19.2.5.0.0.46.5 uint32_t flash_config_t::PFlashAccessSegmentSize
19.2.5.0.0.46.6 uint32_t flash_config_t::PFlashAccessSegmentCount
19.2.5.0.0.46.7 uint32_t∗flash_config_t::flashExecuteInRamFunctionInfo
19.3 Macro Definition Documentation
19.3.1 #define MAKE_VERSION( major, minor, bugfix ) (((major) << 16) |
((minor) << 8) |(bugfix))
19.3.2 #define FSL_FLASH_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
Version 2.1.0.
19.3.3 #define FLASH_SSD_CONFIG_ENABLE_FLEXNVM_SUPPORT 1
Enable FlexNVM support by default.
19.3.4 #define FLASH_DRIVER_IS_FLASH_RESIDENT 1
Used for flash resident application.
19.3.5 #define FLASH_DRIVER_IS_EXPORTED 0
Used for SDK application.
270
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
19.3.6 #define kStatusGroupGeneric 0
19.3.7 #define MAKE_STATUS( group, code ) ((((group)∗100) + (code)))
19.3.8 #define FOUR_CHAR_CODE( a, b, c, d ) (((d) << 24) |((c) << 16) |((b)
<< 8) |((a)))
19.4 Enumeration Type Documentation
19.4.1 enum _flash_driver_version_constants
Enumerator
kFLASH_driverVersionName Flash driver version name.
kFLASH_driverVersionMajor Major flash driver version.
kFLASH_driverVersionMinor Minor flash driver version.
kFLASH_driverVersionBugfix Bugfix for flash driver version.
19.4.2 enum _flash_status
Enumerator
kStatus_FLASH_Success Api is executed successfully.
kStatus_FLASH_InvalidArgument Invalid argument.
kStatus_FLASH_SizeError Error size.
kStatus_FLASH_AlignmentError Parameter is not aligned with specified baseline.
kStatus_FLASH_AddressError Address is out of range.
kStatus_FLASH_AccessError Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_ProtectionViolation The program/erase operation is requested to execute on pro-
tected areas.
kStatus_FLASH_CommandFailure Run-time error during command execution.
kStatus_FLASH_UnknownProperty Unknown property.
kStatus_FLASH_EraseKeyError Api erase key is invalid.
kStatus_FLASH_RegionExecuteOnly Current region is execute only.
kStatus_FLASH_ExecuteInRamFunctionNotReady Execute-in-ram function is not available.
kStatus_FLASH_PartitionStatusUpdateFailure Failed to update partition status.
kStatus_FLASH_SetFlexramAsEepromError Failed to set flexram as eeprom.
kStatus_FLASH_RecoverFlexramAsRamError Failed to recover flexram as ram.
kStatus_FLASH_SetFlexramAsRamError Failed to set flexram as ram.
kStatus_FLASH_RecoverFlexramAsEepromError Failed to recover flexram as eeprom.
kStatus_FLASH_CommandNotSupported Flash api is not supported.
kStatus_FLASH_SwapSystemNotInUninitialized Swap system is not in uninitialzed state.
kStatus_FLASH_SwapIndicatorAddressError Swap indicator address is invalid.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
271
Enumeration Type Documentation
19.4.3 enum _flash_driver_api_keys
Note
The resulting value is built with a byte order such that the string being readable in expected order
when viewed in a hex editor, if the value is treated as a 32-bit little endian value.
Enumerator
kFLASH_apiEraseKey Key value used to validate all flash erase APIs.
19.4.4 enum flash_margin_value_t
Enumerator
kFLASH_marginValueNormal Use the ’normal’ read level for 1s.
kFLASH_marginValueUser Apply the ’User’ margin to the normal read-1 level.
kFLASH_marginValueFactory Apply the ’Factory’ margin to the normal read-1 level.
kFLASH_marginValueInvalid Not real margin level, Used to determine the range of valid margin
level.
19.4.5 enum flash_security_state_t
Enumerator
kFLASH_securityStateNotSecure Flash is not secure.
kFLASH_securityStateBackdoorEnabled Flash backdoor is enabled.
kFLASH_securityStateBackdoorDisabled Flash backdoor is disabled.
19.4.6 enum flash_protection_state_t
Enumerator
kFLASH_protectionStateUnprotected Flash region is not protected.
kFLASH_protectionStateProtected Flash region is protected.
kFLASH_protectionStateMixed Flash is mixed with protected and unprotected region.
19.4.7 enum flash_execute_only_access_state_t
Enumerator
kFLASH_accessStateUnLimited Flash region is unLimited.
272
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
kFLASH_accessStateExecuteOnly Flash region is execute only.
kFLASH_accessStateMixed Flash is mixed with unLimited and execute only region.
19.4.8 enum flash_property_tag_t
Enumerator
kFLASH_propertyPflashSectorSize Pflash sector size property.
kFLASH_propertyPflashTotalSize Pflash total size property.
kFLASH_propertyPflashBlockSize Pflash block size property.
kFLASH_propertyPflashBlockCount Pflash block count property.
kFLASH_propertyPflashBlockBaseAddr Pflash block base address property.
kFLASH_propertyPflashFacSupport Pflash fac support property.
kFLASH_propertyPflashAccessSegmentSize Pflash access segment size property.
kFLASH_propertyPflashAccessSegmentCount Pflash access segment count property.
kFLASH_propertyFlexRamBlockBaseAddr FlexRam block base address property.
kFLASH_propertyFlexRamTotalSize FlexRam total size property.
kFLASH_propertyDflashSectorSize Dflash sector size property.
kFLASH_propertyDflashTotalSize Dflash total size property.
kFLASH_propertyDflashBlockSize Dflash block count property.
kFLASH_propertyDflashBlockCount Dflash block base address property.
kFLASH_propertyDflashBlockBaseAddr Eeprom total size property.
19.4.9 enum _flash_execute_in_ram_function_constants
Enumerator
kFLASH_executeInRamFunctionMaxSize Max size of execute-in-ram function.
kFLASH_executeInRamFunctionTotalNum Total number of execute-in-ram functions.
19.4.10 enum flash_read_resource_option_t
Enumerator
kFLASH_resourceOptionFlashIfr Select code for Program flash 0 IFR, Program flash swap 0 IFR,
Data flash 0 IFR.
kFLASH_resourceOptionVersionId Select code for Version ID.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
273
Enumeration Type Documentation
19.4.11 enum _flash_read_resource_range
Enumerator
kFLASH_resourceRangePflashIfrSizeInBytes Pflash IFR size in byte.
kFLASH_resourceRangeVersionIdSizeInBytes Version ID IFR size in byte.
kFLASH_resourceRangeVersionIdStart Version ID IFR start address.
kFLASH_resourceRangeVersionIdEnd Version ID IFR end address.
kFLASH_resourceRangePflashSwapIfrStart Pflash swap IFR start address.
kFLASH_resourceRangePflashSwapIfrEnd Pflash swap IFR end address.
kFLASH_resourceRangeDflashIfrStart Dflash IFR start address.
kFLASH_resourceRangeDflashIfrEnd Dflash IFR end address.
19.4.12 enum flash_flexram_function_option_t
Enumerator
kFLASH_flexramFunctionOptionAvailableAsRam Option used to make FlexRAM available as R-
AM.
kFLASH_flexramFunctionOptionAvailableForEeprom Option used to make FlexRAM available
for EEPROM.
19.4.13 enum flash_swap_function_option_t
Enumerator
kFLASH_swapFunctionOptionEnable Option used to enable Swap function.
kFLASH_swapFunctionOptionDisable Option used to Disable Swap function.
19.4.14 enum flash_swap_control_option_t
Enumerator
kFLASH_swapControlOptionIntializeSystem Option used to Intialize Swap System.
kFLASH_swapControlOptionSetInUpdateState Option used to Set Swap in Update State.
kFLASH_swapControlOptionSetInCompleteState Option used to Set Swap in Complete State.
kFLASH_swapControlOptionReportStatus Option used to Report Swap Status.
kFLASH_swapControlOptionDisableSystem Option used to Disable Swap Status.
274
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
19.4.15 enum flash_swap_state_t
Enumerator
kFLASH_swapStateUninitialized Flash swap system is in uninitialized state.
kFLASH_swapStateReady Flash swap system is in ready state.
kFLASH_swapStateUpdate Flash swap system is in update state.
kFLASH_swapStateUpdateErased Flash swap system is in updateErased state.
kFLASH_swapStateComplete Flash swap system is in complete state.
kFLASH_swapStateDisabled Flash swap system is in disabled state.
19.4.16 enum flash_swap_block_status_t
Enumerator
kFLASH_swapBlockStatusLowerHalfProgramBlocksAtZero Swap block status is that lower half
program block at zero.
kFLASH_swapBlockStatusUpperHalfProgramBlocksAtZero Swap block status is that upper half
program block at zero.
19.4.17 enum flash_partition_flexram_load_option_t
Enumerator
kFLASH_partitionFlexramLoadOptionLoadedWithValidEepromData FlexRAM is loaded with
valid EEPROM data during reset sequence.
kFLASH_partitionFlexramLoadOptionNotLoaded FlexRAM is not loaded during reset sequence.
19.5 Function Documentation
19.5.1 status_t FLASH_Init ( flash_config_t ∗config )
This function checks and initializes Flash module for the other Flash APIs.
Parameters
config Pointer to storage for the driver runtime state.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
275
Function Documentation
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_-
PartitionStatusUpdate-
Failure
Failed to update partition status.
19.5.2 status_t FLASH_SetCallback ( flash_config_t ∗config, flash_callback_t
callback )
Parameters
config Pointer to storage for the driver runtime state.
callback callback function to be stored in driver
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
19.5.3 status_t FLASH_PrepareExecuteInRamFunctions ( flash_config_t ∗config )
Parameters
config Pointer to storage for the driver runtime state.
Return values
kStatus_FLASH_Success Api was executed successfully.
276
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
19.5.4 status_t FLASH_EraseAll ( flash_config_t ∗config, uint32_t key )
Parameters
config Pointer to storage for the driver runtime state.
key value used to validate all flash erase APIs.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_Erase-
KeyError
Api erase key is invalid.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
kStatus_FLASH_-
PartitionStatusUpdate-
Failure
Failed to update partition status
19.5.5 status_t FLASH_Erase ( flash_config_t ∗config, uint32_t start, uint32_t
lengthInBytes, uint32_t key )
This function erases the appropriate number of flash sectors based on the desired start address and length.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
277
Function Documentation
Parameters
config Pointer to storage for the driver runtime state.
start The start address of the desired flash memory to be erased. The start address does not
need to be sector aligned but must be word-aligned.
lengthInBytes The length, given in bytes (not words or long-words) to be erased. Must be word
aligned.
key value used to validate all flash erase APIs.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_-
AlignmentError
Parameter is not aligned with specified baseline.
kStatus_FLASH_Address-
Error
Address is out of range.
kStatus_FLASH_Erase-
KeyError
Api erase key is invalid.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
19.5.6 status_t FLASH_EraseAllExecuteOnlySegments ( flash_config_t ∗config,
uint32_t key )
Parameters
278
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
config Pointer to storage for the driver runtime state.
key value used to validate all flash erase APIs.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_Erase-
KeyError
Api erase key is invalid.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
kStatus_FLASH_-
PartitionStatusUpdate-
Failure
Failed to update partition status
Erases all program flash execute-only segments defined by the FXACC registers.
Parameters
config Pointer to storage for the driver runtime state.
key value used to validate all flash erase APIs.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_Erase-
KeyError
Api erase key is invalid.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
279
Function Documentation
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
19.5.7 status_t FLASH_Program ( flash_config_t ∗config, uint32_t start, uint32_t
∗src, uint32_t lengthInBytes )
This function programs the flash memory with desired data for a given flash area as determined by the
start address and length.
Parameters
config Pointer to storage for the driver runtime state.
start The start address of the desired flash memory to be programmed. Must be word-
aligned.
src Pointer to the source buffer of data that is to be programmed into the flash.
lengthInBytes The length, given in bytes (not words or long-words) to be programmed. Must be
word-aligned.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_-
AlignmentError
Parameter is not aligned with specified baseline.
kStatus_FLASH_Address-
Error
Address is out of range.
280
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
19.5.8 status_t FLASH_ProgramOnce ( flash_config_t ∗config, uint32_t index,
uint32_t ∗src, uint32_t lengthInBytes )
This function programs the Program Once Field with desired data for a given flash area as determined by
the index and length.
Parameters
config Pointer to storage for the driver runtime state.
index The index indicating which area of Program Once Field to be programmed.
src Pointer to the source buffer of data that is to be programmed into the Program Once
Field.
lengthInBytes The length, given in bytes (not words or long-words) to be programmed. Must be
word-aligned.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
281
Function Documentation
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
19.5.9 status_t FLASH_ReadOnce ( flash_config_t ∗config, uint32_t index,
uint32_t ∗dst, uint32_t lengthInBytes )
This function reads the flash memory with desired location for a given flash area as determined by the start
address and length.
Parameters
config Pointer to storage for the driver runtime state.
start The start address of the desired flash memory to be programmed. Must be word-
aligned.
dst Pointer to the destination buffer of data that is used to store data to be read.
lengthInBytes The length, given in bytes (not words or long-words) to be read. Must be word-
aligned.
option The resource option which indicates which area should be read back.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_-
AlignmentError
Parameter is not aligned with specified baseline.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
282
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
Read Program Once Field through parameters
This function reads the read once feild with given index and length
Parameters
config Pointer to storage for the driver runtime state.
index The index indicating the area of program once field to be read.
dst Pointer to the destination buffer of data that is used to store data to be read.
lengthInBytes The length, given in bytes (not words or long-words) to be programmed. Must be
word-aligned.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
19.5.10 status_t FLASH_GetSecurityState ( flash_config_t ∗config,
flash_security_state_t ∗state )
This function retrieves the current Flash security status, including the security enabling state and the
backdoor key enabling state.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
283
Function Documentation
config Pointer to storage for the driver runtime state.
state Pointer to the value returned for the current security status code:
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
19.5.11 status_t FLASH_SecurityBypass ( flash_config_t ∗config, const uint8_t ∗
backdoorKey )
If the MCU is in secured state, this function will unsecure the MCU by comparing the provided backdoor
key with ones in the Flash Configuration Field.
Parameters
config Pointer to storage for the driver runtime state.
backdoorKey Pointer to the user buffer containing the backdoor key.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
19.5.12 status_t FLASH_VerifyEraseAll ( flash_config_t ∗config,
flash_margin_value_t margin )
This function will check to see if the flash have been erased to the specified read margin level.
284
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
config Pointer to storage for the driver runtime state.
margin Read margin choice
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
19.5.13 status_t FLASH_VerifyErase ( flash_config_t ∗config, uint32_t start,
uint32_t lengthInBytes, flash_margin_value_t margin )
This function will check the appropriate number of flash sectors based on the desired start address and
length to see if the flash have been erased to the specified read margin level.
Parameters
config Pointer to storage for the driver runtime state.
start The start address of the desired flash memory to be verified. The start address does
not need to be sector aligned but must be word-aligned.
lengthInBytes The length, given in bytes (not words or long-words) to be verified. Must be word-
aligned.
margin Read margin choice
Return values
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
285
Function Documentation
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_-
AlignmentError
Parameter is not aligned with specified baseline.
kStatus_FLASH_Address-
Error
Address is out of range.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
19.5.14 status_t FLASH_VerifyProgram ( flash_config_t ∗config, uint32_t
start, uint32_t lengthInBytes, const uint32_t ∗expectedData,
flash_margin_value_t margin, uint32_t ∗failedAddress, uint32_t ∗
failedData )
This function verifies the data programed in the flash memory using the Flash Program Check Command
and compares it with expected data for a given flash area as determined by the start address and length.
Parameters
config Pointer to storage for the driver runtime state.
start The start address of the desired flash memory to be verified. Must be word-aligned.
lengthInBytes The length, given in bytes (not words or long-words) to be verified. Must be word-
aligned.
expectedData Pointer to the expected data that is to be verified against.
margin Read margin choice
failedAddress Pointer to returned failing address.
286
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
failedData Pointer to returned failing data. Some derivitives do not included failed data as part
of the FCCOBx registers. In this case, zeros are returned upon failure.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_-
AlignmentError
Parameter is not aligned with specified baseline.
kStatus_FLASH_Address-
Error
Address is out of range.
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
19.5.15 status_t FLASH_VerifyEraseAllExecuteOnlySegments ( flash_config_t ∗
config, flash_margin_value_t margin )
Parameters
config Pointer to storage for the driver runtime state.
margin Read margin choice
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
287
Function Documentation
kStatus_FLASH_Execute-
InRamFunctionNotReady
Execute-in-ram function is not available.
kStatus_FLASH_Access-
Error
Invalid instruction codes and out-of bounds addresses.
kStatus_FLASH_-
ProtectionViolation
The program/erase operation is requested to execute on protected areas.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
19.5.16 status_t FLASH_IsProtected ( flash_config_t ∗config, uint32_t start,
uint32_t lengthInBytes, flash_protection_state_t ∗protection_state )
This function retrieves the current Flash protect status for a given flash area as determined by the start
address and length.
Parameters
config Pointer to storage for the driver runtime state.
start The start address of the desired flash memory to be checked. Must be word-aligned.
lengthInBytes The length, given in bytes (not words or long-words) to be checked. Must be word-
aligned.
protection_-
state
Pointer to the value returned for the current protection status code for the desired flash
area.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_-
AlignmentError
Parameter is not aligned with specified baseline.
kStatus_FLASH_Address-
Error
Address is out of range.
288
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
19.5.17 status_t FLASH_IsExecuteOnly ( flash_config_t ∗config, uint32_t start,
uint32_t lengthInBytes, flash_execute_only_access_state_t ∗access_state )
This function retrieves the current Flash access status for a given flash area as determined by the start
address and length.
Parameters
config Pointer to storage for the driver runtime state.
start The start address of the desired flash memory to be checked. Must be word-aligned.
lengthInBytes The length, given in bytes (not words or long-words) to be checked. Must be word-
aligned.
access_state Pointer to the value returned for the current access status code for the desired flash
area.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_-
AlignmentError
Parameter is not aligned with specified baseline.
kStatus_FLASH_Address-
Error
Address is out of range.
19.5.18 status_t FLASH_GetProperty ( flash_config_t ∗config,
flash_property_tag_t whichProperty, uint32_t ∗value )
Parameters
config Pointer to storage for the driver runtime state.
whichProperty The desired property from the list of properties in enum flash_property_tag_t
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
289
Function Documentation
value Pointer to the value returned for the desired flash property
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_-
UnknownProperty
unknown property tag
19.5.19 status_t FLASH_PflashSetProtection ( flash_config_t ∗config, uint32_t
protectStatus )
Parameters
config Pointer to storage for the driver runtime state.
protectStatus The expected protect status user wants to set to PFlash protection register. Each bit
is corresponding to protection of 1/32 of the total PFlash. The least significant bit
is corresponding to the lowest address area of P-Flash. The most significant bit is
corresponding to the highest address area of PFlash. There are two possible cases as
shown below: 0: this area is protected. 1: this area is unprotected.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
kStatus_FLASH_-
CommandFailure
Run-time error during command execution.
290
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
19.5.20 status_t FLASH_PflashGetProtection ( flash_config_t ∗config, uint32_t ∗
protectStatus )
Parameters
config Pointer to storage for the driver runtime state.
protectStatus Protect status returned by PFlash IP. Each bit is corresponding to protection of 1/32
of the total PFlash. The least significant bit is corresponding to the lowest address
area of PFlash. The most significant bit is corresponding to the highest address area
of PFlash. Thee are two possible cases as below: 0: this area is protected. 1: this area
is unprotected.
Return values
kStatus_FLASH_Success Api was executed successfully.
kStatus_FLASH_Invalid-
Argument
Invalid argument is provided.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
291
Function Documentation
292
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 20
FlexBus: External Bus Interface Driver
20.1 Overview
The KSDK provides a peripheral driver for the Crossbar External Bus Interface (FlexBus) block of Kinetis
devices.
20.2 Overview
A multifunction external bus interface is provided on the device with a basic functionality to interface to
slave-only devices. It can be directly connected to the following asynchronous or synchronous devices
with little or no additional circuitry:
• External ROMs
• Flash memories
• Programmable logic devices
• Other simple target (slave) devices
For asynchronous devices, a simple chip-select based interface can be used. The FlexBus interface has
up to six general purpose chip-selects, FB_CS[5:0]. The actual number of chip selects available depends
upon the device and its pin configuration.
20.3 FlexBus functional operation
To configure the FlexBus driver, use on of the two ways to configure the flexbus_config_t structure.
1. Using the FLEXBUS_GetDefaultConfig() function.
2. Set parameters in the flexbus_config_t structure.
To initialize and configure the FlexBus driver, call the FLEXBUS_Init() function and pass a pointer to the
flexbus_config_t structure.
To De-initialize the FlexBus driver, call the FLEXBUS_Deinit() function.
20.4 Typical use case and example
This example shows how to write/read to external memory (MRAM) by using the FlexBus module.
flexbus_config_t flexbusUserConfig;
FLEXBUS_GetDefaultConfig(&flexbusUserConfig); /*Gets the default configuration.
/*Configure some parameters when using MRAM
flexbusUserConfig.waitStates = 2U; /*Wait 2 states
flexbusUserConfig.chipBaseAddress = MRAM_START_ADDRESS; /*MRAM address for using FlexBus
flexbusUserConfig.chipBaseAddressMask = 7U; /*512 kilobytes memory size
FLEXBUS_Init(FB, &flexbusUserConfig); /*Initializes and configures the FlexBus module
/*Do something
FLEXBUS_Deinit(FB);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
293
Typical use case and example
Files
• file fsl_flexbus.h
Data Structures
• struct flexbus_config_t
Configuration structure that the user needs to set. More...
Enumerations
• enum flexbus_port_size_t {
kFLEXBUS_4Bytes = 0x00U,
kFLEXBUS_1Byte = 0x01U,
kFLEXBUS_2Bytes = 0x02U }
Defines port size for FlexBus peripheral.
• enum flexbus_write_address_hold_t {
kFLEXBUS_Hold1Cycle = 0x00U,
kFLEXBUS_Hold2Cycles = 0x01U,
kFLEXBUS_Hold3Cycles = 0x02U,
kFLEXBUS_Hold4Cycles = 0x03U }
Defines number of cycles to hold address and attributes for FlexBus peripheral.
• enum flexbus_read_address_hold_t {
kFLEXBUS_Hold1Or0Cycles = 0x00U,
kFLEXBUS_Hold2Or1Cycles = 0x01U,
kFLEXBUS_Hold3Or2Cycle = 0x02U,
kFLEXBUS_Hold4Or3Cycle = 0x03U }
Defines number of cycles to hold address and attributes for FlexBus peripheral.
• enum flexbus_address_setup_t {
kFLEXBUS_FirstRisingEdge = 0x00U,
kFLEXBUS_SecondRisingEdge = 0x01U,
kFLEXBUS_ThirdRisingEdge = 0x02U,
kFLEXBUS_FourthRisingEdge = 0x03U }
Address setup for FlexBus peripheral.
• enum flexbus_bytelane_shift_t {
kFLEXBUS_NotShifted = 0x00U,
kFLEXBUS_Shifted = 0x01U }
Defines byte-lane shift for FlexBus peripheral.
• enum flexbus_multiplex_group1_t {
kFLEXBUS_MultiplexGroup1_FB_ALE = 0x00U,
kFLEXBUS_MultiplexGroup1_FB_CS1 = 0x01U,
kFLEXBUS_MultiplexGroup1_FB_TS = 0x02U }
Defines multiplex group1 valid signals.
• enum flexbus_multiplex_group2_t {
kFLEXBUS_MultiplexGroup2_FB_CS4 = 0x00U,
kFLEXBUS_MultiplexGroup2_FB_TSIZ0 = 0x01U,
kFLEXBUS_MultiplexGroup2_FB_BE_31_24 = 0x02U }
Defines multiplex group2 valid signals.
294
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
• enum flexbus_multiplex_group3_t {
kFLEXBUS_MultiplexGroup3_FB_CS5 = 0x00U,
kFLEXBUS_MultiplexGroup3_FB_TSIZ1 = 0x01U,
kFLEXBUS_MultiplexGroup3_FB_BE_23_16 = 0x02U }
Defines multiplex group3 valid signals.
• enum flexbus_multiplex_group4_t {
kFLEXBUS_MultiplexGroup4_FB_TBST = 0x00U,
kFLEXBUS_MultiplexGroup4_FB_CS2 = 0x01U,
kFLEXBUS_MultiplexGroup4_FB_BE_15_8 = 0x02U }
Defines multiplex group4 valid signals.
• enum flexbus_multiplex_group5_t {
kFLEXBUS_MultiplexGroup5_FB_TA = 0x00U,
kFLEXBUS_MultiplexGroup5_FB_CS3 = 0x01U,
kFLEXBUS_MultiplexGroup5_FB_BE_7_0 = 0x02U }
Defines multiplex group5 valid signals.
Driver version
• #define FSL_FLEXBUS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
FlexBus functional operation
• void FLEXBUS_Init (FB_Type ∗base, const flexbus_config_t ∗config)
Initializes and configures the FlexBus module.
• void FLEXBUS_Deinit (FB_Type ∗base)
De-initializes a FlexBus instance.
• void FLEXBUS_GetDefaultConfig (flexbus_config_t ∗config)
Initializes the FlexBus configuration structure.
20.5 Data Structure Documentation
20.5.1 struct flexbus_config_t
Data Fields
• uint8_t chip
Chip FlexBus for validation.
• uint8_t waitStates
Value of wait states.
• uint32_t chipBaseAddress
Chip base address for using FlexBus.
• uint32_t chipBaseAddressMask
Chip base address mask.
• bool writeProtect
Write protected.
• bool burstWrite
Burst-Write enable.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
295
Enumeration Type Documentation
• bool burstRead
Burst-Read enable.
• bool byteEnableMode
Byte-enable mode support.
• bool autoAcknowledge
Auto acknowledge setting.
• bool extendTransferAddress
Extend transfer start/extend address latch enable.
• bool secondaryWaitStates
Secondary wait states number.
•flexbus_port_size_t portSize
Port size of transfer.
•flexbus_bytelane_shift_t byteLaneShift
Byte-lane shift enable.
•flexbus_write_address_hold_t writeAddressHold
Write address hold or deselect option.
•flexbus_read_address_hold_t readAddressHold
Read address hold or deselect option.
•flexbus_address_setup_t addressSetup
Address setup setting.
•flexbus_multiplex_group1_t group1MultiplexControl
FlexBus Signal Group 1 Multiplex control.
•flexbus_multiplex_group2_t group2MultiplexControl
FlexBus Signal Group 2 Multiplex control.
•flexbus_multiplex_group3_t group3MultiplexControl
FlexBus Signal Group 3 Multiplex control.
•flexbus_multiplex_group4_t group4MultiplexControl
FlexBus Signal Group 4 Multiplex control.
•flexbus_multiplex_group5_t group5MultiplexControl
FlexBus Signal Group 5 Multiplex control.
20.6 Macro Definition Documentation
20.6.1 #define FSL_FLEXBUS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
20.7 Enumeration Type Documentation
20.7.1 enum flexbus_port_size_t
Enumerator
kFLEXBUS_4Bytes 32-bit port size
kFLEXBUS_1Byte 8-bit port size
kFLEXBUS_2Bytes 16-bit port size
296
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
20.7.2 enum flexbus_write_address_hold_t
Enumerator
kFLEXBUS_Hold1Cycle Hold address and attributes one cycles after FB_CSn negates on writes.
kFLEXBUS_Hold2Cycles Hold address and attributes two cycles after FB_CSn negates on writes.
kFLEXBUS_Hold3Cycles Hold address and attributes three cycles after FB_CSn negates on writes.
kFLEXBUS_Hold4Cycles Hold address and attributes four cycles after FB_CSn negates on writes.
20.7.3 enum flexbus_read_address_hold_t
Enumerator
kFLEXBUS_Hold1Or0Cycles Hold address and attributes 1 or 0 cycles on reads.
kFLEXBUS_Hold2Or1Cycles Hold address and attributes 2 or 1 cycles on reads.
kFLEXBUS_Hold3Or2Cycle Hold address and attributes 3 or 2 cycles on reads.
kFLEXBUS_Hold4Or3Cycle Hold address and attributes 4 or 3 cycles on reads.
20.7.4 enum flexbus_address_setup_t
Enumerator
kFLEXBUS_FirstRisingEdge Assert FB_CSn on first rising clock edge after address is asserted.
kFLEXBUS_SecondRisingEdge Assert FB_CSn on second rising clock edge after address is as-
serted.
kFLEXBUS_ThirdRisingEdge Assert FB_CSn on third rising clock edge after address is asserted.
kFLEXBUS_FourthRisingEdge Assert FB_CSn on fourth rising clock edge after address is as-
serted.
20.7.5 enum flexbus_bytelane_shift_t
Enumerator
kFLEXBUS_NotShifted Not shifted. Data is left-justified on FB_AD
kFLEXBUS_Shifted Shifted. Data is right justified on FB_AD
20.7.6 enum flexbus_multiplex_group1_t
Enumerator
kFLEXBUS_MultiplexGroup1_FB_ALE FB_ALE.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
297
Function Documentation
kFLEXBUS_MultiplexGroup1_FB_CS1 FB_CS1.
kFLEXBUS_MultiplexGroup1_FB_TS FB_TS.
20.7.7 enum flexbus_multiplex_group2_t
Enumerator
kFLEXBUS_MultiplexGroup2_FB_CS4 FB_CS4.
kFLEXBUS_MultiplexGroup2_FB_TSIZ0 FB_TSIZ0.
kFLEXBUS_MultiplexGroup2_FB_BE_31_24 FB_BE_31_24.
20.7.8 enum flexbus_multiplex_group3_t
Enumerator
kFLEXBUS_MultiplexGroup3_FB_CS5 FB_CS5.
kFLEXBUS_MultiplexGroup3_FB_TSIZ1 FB_TSIZ1.
kFLEXBUS_MultiplexGroup3_FB_BE_23_16 FB_BE_23_16.
20.7.9 enum flexbus_multiplex_group4_t
Enumerator
kFLEXBUS_MultiplexGroup4_FB_TBST FB_TBST.
kFLEXBUS_MultiplexGroup4_FB_CS2 FB_CS2.
kFLEXBUS_MultiplexGroup4_FB_BE_15_8 FB_BE_15_8.
20.7.10 enum flexbus_multiplex_group5_t
Enumerator
kFLEXBUS_MultiplexGroup5_FB_TA FB_TA.
kFLEXBUS_MultiplexGroup5_FB_CS3 FB_CS3.
kFLEXBUS_MultiplexGroup5_FB_BE_7_0 FB_BE_7_0.
20.8 Function Documentation
20.8.1 void FLEXBUS_Init ( FB_Type ∗base, const flexbus_config_t ∗config )
This function enables the clock gate for FlexBus module. Only chip 0 is validated and set to known values.
Other chips are disabled. NOTE: In this function, certain parameters, depending on external memories,
298
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
must be set before using FLEXBUS_Init() function. This example shows how to set up the uart_state-
_t and the flexbus_config_t parameters and how to call the FLEXBUS_Init function by passing in these
parameters:
flexbus_config_t flexbusConfig;
FLEXBUS_GetDefaultConfig(&flexbusConfig);
flexbusConfig.waitStates = 2U;
flexbusConfig.chipBaseAddress = 0x60000000U;
flexbusConfig.chipBaseAddressMask = 7U;
FLEXBUS_Init(FB, &flexbusConfig);
Parameters
base FlexBus peripheral address.
config Pointer to the configure structure
20.8.2 void FLEXBUS_Deinit ( FB_Type ∗base )
This function disables the clock gate of the FlexBus module clock.
Parameters
base FlexBus peripheral address.
20.8.3 void FLEXBUS_GetDefaultConfig ( flexbus_config_t ∗config )
This function initializes the FlexBus configuration structure to default value. The default values are:
fbConfig->chip = 0;
fbConfig->writeProtect = 0;
fbConfig->burstWrite = 0;
fbConfig->burstRead = 0;
fbConfig->byteEnableMode = 0;
fbConfig->autoAcknowledge = true;
fbConfig->extendTransferAddress = 0;
fbConfig->secondaryWaitStates = 0;
fbConfig->byteLaneShift = kFLEXBUS_NotShifted;
fbConfig->writeAddressHold = kFLEXBUS_Hold1Cycle;
fbConfig->readAddressHold = kFLEXBUS_Hold1Or0Cycles;
fbConfig->addressSetup = kFLEXBUS_FirstRisingEdge;
fbConfig->portSize = kFLEXBUS_1Byte;
fbConfig->group1MultiplexControl = kFLEXBUS_MultiplexGroup1_FB_ALE;
fbConfig->group2MultiplexControl = kFLEXBUS_MultiplexGroup2_FB_CS4 ;
fbConfig->group3MultiplexControl = kFLEXBUS_MultiplexGroup3_FB_CS5;
fbConfig->group4MultiplexControl = kFLEXBUS_MultiplexGroup4_FB_TBST;
fbConfig->group5MultiplexControl = kFLEXBUS_MultiplexGroup5_FB_TA;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
299
Function Documentation
Parameters
config Pointer to the initialization structure.
See Also
FLEXBUS_Init
300
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 21
FlexCAN: Flex Controller Area Network Driver
21.1 Overview
The KSDK provides a peripheral driver for the Flex Controller Area Network (FlexCAN) module of
Kinetis devices.
Modules
•FlexCAN Driver
•FlexCAN eDMA Driver
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
301
FlexCAN Driver
21.2 FlexCAN Driver
21.2.1 Overview
This section describes the programming interface of the FlexCAN driver. The FlexCAN driver configures
FlexCAN module, provides a functional and transactional interfaces to build the FlexCAN application.
21.2.2 Typical use case
21.2.2.1 Message Buffer Send Operation
flexcan_config_t flexcanConfig;
flexcan_frame_t txFrame;
/*Init FlexCAN module.
FLEXCAN_GetDefaultConfig(&flexcanConfig);
FLEXCAN_Init(EXAMPLE_CAN, &flexcanConfig);
/*Enable FlexCAN module.
FLEXCAN_Enable(EXAMPLE_CAN, true);
/*Sets up the transmit message buffer.
FLEXCAN_SetTxMbConfig(EXAMPLE_CAN, TX_MESSAGE_BUFFER_INDEX, true);
/*Prepares the transmit frame for sending.
txFrame.format = KFLEXCAN_FrameFormatStandard;
txFrame.type = KFLEXCAN_FrameTypeData;
txFrame.id = FLEXCAN_ID_STD(0x123);
txFrame.length = 8;
txFrame.dataWord0 = CAN_WORD0_DATA_BYTE_0(0x11) |
CAN_WORD0_DATA_BYTE_1(0x22) |
CAN_WORD0_DATA_BYTE_2(0x33) |
CAN_WORD0_DATA_BYTE_3(0x44);
txFrame.dataWord1 = CAN_WORD1_DATA_BYTE_4(0x55) |
CAN_WORD1_DATA_BYTE_5(0x66) |
CAN_WORD1_DATA_BYTE_6(0x77) |
CAN_WORD1_DATA_BYTE_7(0x88);
/*Writes a transmit message buffer to send a CAN Message.
FLEXCAN_WriteTxMb(EXAMPLE_CAN, TX_MESSAGE_BUFFER_INDEX, &txFrame);
/*Waits until the transmit message buffer is empty.
while (!FLEXCAN_GetMbStatusFlags(EXAMPLE_CAN, 1 << TX_MESSAGE_BUFFER_INDEX));
/*Cleans the transmit message buffer empty status.
FLEXCAN_ClearMbStatusFlags(EXAMPLE_CAN, 1 << TX_MESSAGE_BUFFER_INDEX);
21.2.2.2 Message Buffer Receive Operation
flexcan_config_t flexcanConfig;
flexcan_frame_t rxFrame;
/*Initializes the FlexCAN module.
FLEXCAN_GetDefaultConfig(&flexcanConfig);
FLEXCAN_Init(EXAMPLE_CAN, &flexcanConfig);
/*Enables the FlexCAN module.
FLEXCAN_Enable(EXAMPLE_CAN, true);
/*Sets up the receive message buffer.
302
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
mbConfig.format = KFLEXCAN_FrameFormatStandard;
mbConfig.type = KFLEXCAN_FrameTypeData;
mbConfig.id = FLEXCAN_ID_STD(0x123);
FLEXCAN_SetRxMbConfig(EXAMPLE_CAN, RX_MESSAGE_BUFFER_INDEX, &mbConfig, true);
/*Waits until the receive message buffer is full.
while (!FLEXCAN_GetMbStatusFlags(EXAMPLE_CAN, 1 << RX_MESSAGE_BUFFER_INDEX));
/*Reads the received message from the receive message buffer.
FLEXCAN_ReadRxMb(EXAMPLE_CAN, RX_MESSAGE_BUFFER_INDEX, &rxFrame);
/*Cleans the receive message buffer full status.
FLEXCAN_ClearMbStatusFlags(EXAMPLE_CAN, 1 << RX_MESSAGE_BUFFER_INDEX);
21.2.2.3 Receive FIFO Operation
uint32_t rxFifoFilter[] = {FLEXCAN_RX_FIFO_STD_FILTER_TYPE_A(0x321, 0, 0),
FLEXCAN_RX_FIFO_STD_FILTER_TYPE_A(0x321, 1, 0),
FLEXCAN_RX_FIFO_STD_FILTER_TYPE_A(0x123, 0, 0),
FLEXCAN_RX_FIFO_STD_FILTER_TYPE_A(0x123, 1, 0)}
;
flexcan_config_t flexcanConfig;
flexcan_frame_t rxFrame;
/*Initializes the FlexCAN module.
FLEXCAN_GetDefaultConfig(&flexcanConfig);
FLEXCAN_Init(EXAMPLE_CAN, &flexcanConfig);
/*Enables the FlexCAN module.
FLEXCAN_Enable(EXAMPLE_CAN, true);
/*Sets up the receive FIFO.
rxFifoConfig.idFilterTable = rxFifoFilter;
rxFifoConfig.idFilterType = KFLEXCAN_RxFifoFilterTypeA;
rxFifoConfig.idFilterNum = sizeof(rxFifoFilter) / sizeof(rxFifoFilter[0]);
rxFifoConfig.priority = KFLEXCAN_RxFifoPrioHigh;
FlEXCAN_SetRxFifoConfig(EXAMPLE_CAN, &rxFifoConfig, true);
/*Waits until the receive FIFO becomes available.
while (!FLEXCAN_GetMbStatusFlags(EXAMPLE_CAN, KFLEXCAN_RxFifoFrameAvlFlag));
/*Reads the message from the receive FIFO.
FlEXCAN_ReadRxFifo(EXAMPLE_CAN, &rxFrame);
/*Cleans the receive FIFO available status.
FLEXCAN_ClearMbStatusFlags(EXAMPLE_CAN, KFLEXCAN_RxFifoFrameAvlFlag);
Files
• file fsl_flexcan.h
Data Structures
• struct flexcan_frame_t
FlexCAN message frame structure. More...
• struct flexcan_config_t
FlexCAN module configuration structure. More...
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
303
FlexCAN Driver
• struct flexcan_timing_config_t
FlexCAN protocol timing characteristic configuration structure. More...
• struct flexcan_rx_mb_config_t
FlexCAN Receive Message Buffer configuration structure. More...
• struct flexcan_rx_fifo_config_t
FlexCAN Rx FIFO configure structure. More...
• struct flexcan_mb_transfer_t
FlexCAN Message Buffer transfer. More...
• struct flexcan_fifo_transfer_t
FlexCAN Rx FIFO transfer. More...
• struct flexcan_handle_t
FlexCAN handle structure. More...
Macros
• #define FLEXCAN_ID_STD(id) (((uint32_t)(((uint32_t)(id)) << CAN_ID_STD_SHIFT)) & CA-
N_ID_STD_MASK)
FlexCAN Frame ID helper macro.
• #define FLEXCAN_ID_EXT(id)
Extend Frame ID helper macro.
• #define FLEXCAN_RX_MB_STD_MASK(id, rtr, ide)
FlexCAN Rx Message Buffer Mask helper macro.
• #define FLEXCAN_RX_MB_EXT_MASK(id, rtr, ide)
Extend Rx Message Buffer Mask helper macro.
• #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_A(id, rtr, ide)
FlexCAN Rx FIFO Mask helper macro.
• #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_B_HIGH(id, rtr, ide)
Standard Rx FIFO Mask helper macro Type B upper part helper macro.
• #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_B_LOW(id, rtr, ide)
Standard Rx FIFO Mask helper macro Type B lower part helper macro.
• #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_HIGH(id) ((FLEXCAN_ID_STD(id) &
0x7F8) << 21)
Standard Rx FIFO Mask helper macro Type C upper part helper macro.
• #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_MID_HIGH(id) ((FLEXCAN_ID_ST-
D(id) & 0x7F8) << 13)
Standard Rx FIFO Mask helper macro Type C mid-upper part helper macro.
• #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_MID_LOW(id) ((FLEXCAN_ID_ST-
D(id) & 0x7F8) << 5)
Standard Rx FIFO Mask helper macro Type C mid-lower part helper macro.
• #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_LOW(id) ((FLEXCAN_ID_STD(id) &
0x7F8) >> 3)
Standard Rx FIFO Mask helper macro Type C lower part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_A(id, rtr, ide)
Extend Rx FIFO Mask helper macro Type A helper macro.
• #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_B_HIGH(id, rtr, ide)
Extend Rx FIFO Mask helper macro Type B upper part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_B_LOW(id, rtr, ide)
Extend Rx FIFO Mask helper macro Type B lower part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_HIGH(id) ((FLEXCAN_ID_EXT(id) &
304
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
0x1FE00000) << 3)
Extend Rx FIFO Mask helper macro Type C upper part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_MID_HIGH(id)
Extend Rx FIFO Mask helper macro Type C mid-upper part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_MID_LOW(id)
Extend Rx FIFO Mask helper macro Type C mid-lower part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_LOW(id) ((FLEXCAN_ID_EXT(id) &
0x1FE00000) >> 21)
Extend Rx FIFO Mask helper macro Type C lower part helper macro.
• #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_A(id, rtr, ide) FLEXCAN_RX_FIFO_STD-
_MASK_TYPE_A(id, rtr, ide)
FlexCAN Rx FIFO Filter helper macro.
• #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_B_HIGH(id, rtr, ide)
Standard Rx FIFO Filter helper macro Type B upper part helper macro.
• #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_B_LOW(id, rtr, ide)
Standard Rx FIFO Filter helper macro Type B lower part helper macro.
• #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_C_HIGH(id)
Standard Rx FIFO Filter helper macro Type C upper part helper macro.
• #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_C_MID_HIGH(id)
Standard Rx FIFO Filter helper macro Type C mid-upper part helper macro.
• #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_C_MID_LOW(id)
Standard Rx FIFO Filter helper macro Type C mid-lower part helper macro.
• #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_C_LOW(id) FLEXCAN_RX_FIFO_STD_-
MASK_TYPE_C_LOW(id)
Standard Rx FIFO Filter helper macro Type C lower part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_A(id, rtr, ide) FLEXCAN_RX_FIFO_EXT-
_MASK_TYPE_A(id, rtr, ide)
Extend Rx FIFO Filter helper macro Type A helper macro.
• #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_B_HIGH(id, rtr, ide)
Extend Rx FIFO Filter helper macro Type B upper part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_B_LOW(id, rtr, ide)
Extend Rx FIFO Filter helper macro Type B lower part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_C_HIGH(id) FLEXCAN_RX_FIFO_EXT-
_MASK_TYPE_C_HIGH(id)
Extend Rx FIFO Filter helper macro Type C upper part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_C_MID_HIGH(id)
Extend Rx FIFO Filter helper macro Type C mid-upper part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_C_MID_LOW(id)
Extend Rx FIFO Filter helper macro Type C mid-lower part helper macro.
• #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_C_LOW(id) FLEXCAN_RX_FIFO_EXT_-
MASK_TYPE_C_LOW(id)
Extend Rx FIFO Filter helper macro Type C lower part helper macro.
Typedefs
• typedef void(∗flexcan_transfer_callback_t )(CAN_Type ∗base, flexcan_handle_t ∗handle, status_t
status, uint32_t result, void ∗userData)
FlexCAN transfer callback function.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
305
FlexCAN Driver
Enumerations
• enum _flexcan_status {
kStatus_FLEXCAN_TxBusy = MAKE_STATUS(kStatusGroup_FLEXCAN, 0),
kStatus_FLEXCAN_TxIdle = MAKE_STATUS(kStatusGroup_FLEXCAN, 1),
kStatus_FLEXCAN_TxSwitchToRx,
kStatus_FLEXCAN_RxBusy = MAKE_STATUS(kStatusGroup_FLEXCAN, 3),
kStatus_FLEXCAN_RxIdle = MAKE_STATUS(kStatusGroup_FLEXCAN, 4),
kStatus_FLEXCAN_RxOverflow = MAKE_STATUS(kStatusGroup_FLEXCAN, 5),
kStatus_FLEXCAN_RxFifoBusy = MAKE_STATUS(kStatusGroup_FLEXCAN, 6),
kStatus_FLEXCAN_RxFifoIdle = MAKE_STATUS(kStatusGroup_FLEXCAN, 7),
kStatus_FLEXCAN_RxFifoOverflow = MAKE_STATUS(kStatusGroup_FLEXCAN, 8),
kStatus_FLEXCAN_RxFifoWarning = MAKE_STATUS(kStatusGroup_FLEXCAN, 0),
kStatus_FLEXCAN_ErrorStatus = MAKE_STATUS(kStatusGroup_FLEXCAN, 10),
kStatus_FLEXCAN_UnHandled = MAKE_STATUS(kStatusGroup_FLEXCAN, 11) }
FlexCAN transfer status.
• enum flexcan_frame_format_t {
kFLEXCAN_FrameFormatStandard = 0x0U,
kFLEXCAN_FrameFormatExtend = 0x1U }
FlexCAN frame format.
• enum flexcan_frame_type_t {
kFLEXCAN_FrameTypeData = 0x0U,
kFLEXCAN_FrameTypeRemote = 0x1U }
FlexCAN frame type.
• enum flexcan_clock_source_t {
kFLEXCAN_ClkSrcOsc = 0x0U,
kFLEXCAN_ClkSrcPeri = 0x1U }
FlexCAN clock source.
• enum flexcan_rx_fifo_filter_type_t {
kFLEXCAN_RxFifoFilterTypeA = 0x0U,
kFLEXCAN_RxFifoFilterTypeB,
kFLEXCAN_RxFifoFilterTypeC,
kFLEXCAN_RxFifoFilterTypeD = 0x3U }
FlexCAN Rx Fifo Filter type.
• enum flexcan_rx_fifo_priority_t {
kFLEXCAN_RxFifoPrioLow = 0x0U,
kFLEXCAN_RxFifoPrioHigh = 0x1U }
FlexCAN Rx FIFO priority.
• enum _flexcan_interrupt_enable {
kFLEXCAN_BusOffInterruptEnable = CAN_CTRL1_BOFFMSK_MASK,
kFLEXCAN_ErrorInterruptEnable = CAN_CTRL1_ERRMSK_MASK,
kFLEXCAN_RxWarningInterruptEnable = CAN_CTRL1_RWRNMSK_MASK,
kFLEXCAN_TxWarningInterruptEnable = CAN_CTRL1_TWRNMSK_MASK,
kFLEXCAN_WakeUpInterruptEnable = CAN_MCR_WAKMSK_MASK }
FlexCAN interrupt configuration structure, default settings all disabled.
• enum _flexcan_flags {
306
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
kFLEXCAN_SynchFlag = CAN_ESR1_SYNCH_MASK,
kFLEXCAN_TxWarningIntFlag = CAN_ESR1_TWRNINT_MASK,
kFLEXCAN_RxWarningIntFlag = CAN_ESR1_RWRNINT_MASK,
kFLEXCAN_TxErrorWarningFlag = CAN_ESR1_TXWRN_MASK,
kFLEXCAN_RxErrorWarningFlag = CAN_ESR1_RXWRN_MASK,
kFLEXCAN_IdleFlag = CAN_ESR1_IDLE_MASK,
kFLEXCAN_FaultConfinementFlag = CAN_ESR1_FLTCONF_MASK,
kFLEXCAN_TransmittingFlag = CAN_ESR1_TX_MASK,
kFLEXCAN_ReceivingFlag = CAN_ESR1_RX_MASK,
kFLEXCAN_BusOffIntFlag = CAN_ESR1_BOFFINT_MASK,
kFLEXCAN_ErrorIntFlag = CAN_ESR1_ERRINT_MASK,
kFLEXCAN_WakeUpIntFlag = CAN_ESR1_WAKINT_MASK,
kFLEXCAN_ErrorFlag }
FlexCAN status flags.
• enum _flexcan_error_flags {
kFLEXCAN_StuffingError = CAN_ESR1_STFERR_MASK,
kFLEXCAN_FormError = CAN_ESR1_FRMERR_MASK,
kFLEXCAN_CrcError = CAN_ESR1_CRCERR_MASK,
kFLEXCAN_AckError = CAN_ESR1_ACKERR_MASK,
kFLEXCAN_Bit0Error = CAN_ESR1_BIT0ERR_MASK,
kFLEXCAN_Bit1Error = CAN_ESR1_BIT1ERR_MASK }
FlexCAN error status flags.
• enum _flexcan_rx_fifo_flags {
kFLEXCAN_RxFifoOverflowFlag = CAN_IFLAG1_BUF7I_MASK,
kFLEXCAN_RxFifoWarningFlag = CAN_IFLAG1_BUF6I_MASK,
kFLEXCAN_RxFifoFrameAvlFlag = CAN_IFLAG1_BUF5I_MASK }
FlexCAN Rx FIFO status flags.
Driver version
• #define FLEXCAN_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
FlexCAN driver version 2.1.0.
Initialization and deinitialization
• void FLEXCAN_Init (CAN_Type ∗base, const flexcan_config_t ∗config, uint32_t sourceClock_Hz)
Initializes a FlexCAN instance.
• void FLEXCAN_Deinit (CAN_Type ∗base)
De-initializes a FlexCAN instance.
• void FLEXCAN_GetDefaultConfig (flexcan_config_t ∗config)
Get the default configuration structure.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
307
FlexCAN Driver
Configuration.
• void FLEXCAN_SetTimingConfig (CAN_Type ∗base, const flexcan_timing_config_t ∗config)
Sets the FlexCAN protocol timing characteristic.
• void FlEXCAN_SetRxMbGlobalMask (CAN_Type ∗base, uint32_t mask)
Sets the FlexCAN receive message buffer global mask.
• void FlEXCAN_SetRxFifoGlobalMask (CAN_Type ∗base, uint32_t mask)
Sets the FlexCAN receive FIFO global mask.
• void FlEXCAN_SetRxIndividualMask (CAN_Type ∗base, uint8_t maskIdx, uint32_t mask)
Sets the FlexCAN receive individual mask.
• void FLEXCAN_SetTxMbConfig (CAN_Type ∗base, uint8_t mbIdx, bool enable)
Configures a FlexCAN transmit message buffer.
• void FLEXCAN_SetRxMbConfig (CAN_Type ∗base, uint8_t mbIdx, const flexcan_rx_mb_config-
_t ∗config, bool enable)
Configures a FlexCAN Receive Message Buffer.
• void FlEXCAN_SetRxFifoConfig (CAN_Type ∗base, const flexcan_rx_fifo_config_t ∗config, bool
enable)
Configures the FlexCAN Rx FIFO.
Status
• static uint32_t FLEXCAN_GetStatusFlags (CAN_Type ∗base)
Gets the FlexCAN module interrupt flags.
• static void FLEXCAN_ClearStatusFlags (CAN_Type ∗base, uint32_t mask)
Clears status flags with the provided mask.
• static void FlEXCAN_GetBusErrCount (CAN_Type ∗base, uint8_t ∗txErrBuf, uint8_t ∗rxErrBuf)
Gets the FlexCAN Bus Error Counter value.
• static uint32_t FLEXCAN_GetMbStatusFlags (CAN_Type ∗base, uint32_t mask)
Gets the FlexCAN Message Buffer interrupt flags.
• static void FLEXCAN_ClearMbStatusFlags (CAN_Type ∗base, uint32_t mask)
Clears the FlexCAN Message Buffer interrupt flags.
Interrupts
• static void FLEXCAN_EnableInterrupts (CAN_Type ∗base, uint32_t mask)
Enables FlexCAN interrupts according to provided mask.
• static void FLEXCAN_DisableInterrupts (CAN_Type ∗base, uint32_t mask)
Disables FlexCAN interrupts according to provided mask.
• static void FLEXCAN_EnableMbInterrupts (CAN_Type ∗base, uint32_t mask)
Enables FlexCAN Message Buffer interrupts.
• static void FLEXCAN_DisableMbInterrupts (CAN_Type ∗base, uint32_t mask)
Disables FlexCAN Message Buffer interrupts.
Bus Operations
• static void FLEXCAN_Enable (CAN_Type ∗base, bool enable)
Enables or disables the FlexCAN module operation.
308
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
• status_t FLEXCAN_WriteTxMb (CAN_Type ∗base, uint8_t mbIdx, const flexcan_frame_t ∗tx-
Frame)
Writes a FlexCAN Message to Transmit Message Buffer.
• status_t FLEXCAN_ReadRxMb (CAN_Type ∗base, uint8_t mbIdx, flexcan_frame_t ∗rxFrame)
Reads a FlexCAN Message from Receive Message Buffer.
• status_t FlEXCAN_ReadRxFifo (CAN_Type ∗base, flexcan_frame_t ∗rxFrame)
Reads a FlexCAN Message from Rx FIFO.
Transactional
• status_t FlEXCAN_TransferSendBlocking (CAN_Type ∗base, uint8_t mbIdx, flexcan_frame_t ∗tx-
Frame)
Performs a polling send transaction on the CAN bus.
• status_t FlEXCAN_TransferReceiveBlocking (CAN_Type ∗base, uint8_t mbIdx, flexcan_frame_t
∗rxFrame)
Performs a polling receive transaction on the CAN bus.
• status_t FlEXCAN_TransferReceiveFifoBlocking (CAN_Type ∗base, flexcan_frame_t ∗rxFrame)
Performs a polling receive transaction from Rx FIFO on the CAN bus.
• void FLEXCAN_TransferCreateHandle (CAN_Type ∗base, flexcan_handle_t ∗handle, flexcan_-
transfer_callback_t callback, void ∗userData)
Initializes the FlexCAN handle.
• status_t FLEXCAN_TransferSendNonBlocking (CAN_Type ∗base, flexcan_handle_t ∗handle,
flexcan_mb_transfer_t ∗xfer)
Sends a message using IRQ.
• status_t FLEXCAN_TransferReceiveNonBlocking (CAN_Type ∗base, flexcan_handle_t ∗handle,
flexcan_mb_transfer_t ∗xfer)
Receives a message using IRQ.
• status_t FLEXCAN_TransferReceiveFifoNonBlocking (CAN_Type ∗base, flexcan_handle_-
t∗handle, flexcan_fifo_transfer_t ∗xfer)
Receives a message from Rx FIFO using IRQ.
• void FLEXCAN_TransferAbortSend (CAN_Type ∗base, flexcan_handle_t ∗handle, uint8_t mbIdx)
Aborts the interrupt driven message send process.
• void FLEXCAN_TransferAbortReceive (CAN_Type ∗base, flexcan_handle_t ∗handle, uint8_t mb-
Idx)
Aborts the interrupt driven message receive process.
• void FLEXCAN_TransferAbortReceiveFifo (CAN_Type ∗base, flexcan_handle_t ∗handle)
Aborts the interrupt driven message receive from Rx FIFO process.
• void FLEXCAN_TransferHandleIRQ (CAN_Type ∗base, flexcan_handle_t ∗handle)
FlexCAN IRQ handle function.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
309
FlexCAN Driver
21.2.3 Data Structure Documentation
21.2.3.1 struct flexcan_frame_t
21.2.3.1.0.47 Field Documentation
21.2.3.1.0.47.1 uint32_t flexcan_frame_t::timestamp
21.2.3.1.0.47.2 uint32_t flexcan_frame_t::length
21.2.3.1.0.47.3 uint32_t flexcan_frame_t::type
21.2.3.1.0.47.4 uint32_t flexcan_frame_t::format
21.2.3.1.0.47.5 uint32_t flexcan_frame_t::reserve1
21.2.3.1.0.47.6 uint32_t flexcan_frame_t::idhit
21.2.3.1.0.47.7 uint32_t flexcan_frame_t::id
21.2.3.1.0.47.8 uint32_t flexcan_frame_t::reserve2
21.2.3.1.0.47.9 uint32_t flexcan_frame_t::dataWord0
21.2.3.1.0.47.10 uint32_t flexcan_frame_t::dataWord1
21.2.3.1.0.47.11 uint8_t flexcan_frame_t::dataByte3
21.2.3.1.0.47.12 uint8_t flexcan_frame_t::dataByte2
21.2.3.1.0.47.13 uint8_t flexcan_frame_t::dataByte1
21.2.3.1.0.47.14 uint8_t flexcan_frame_t::dataByte0
21.2.3.1.0.47.15 uint8_t flexcan_frame_t::dataByte7
21.2.3.1.0.47.16 uint8_t flexcan_frame_t::dataByte6
21.2.3.1.0.47.17 uint8_t flexcan_frame_t::dataByte5
21.2.3.1.0.47.18 uint8_t flexcan_frame_t::dataByte4
21.2.3.2 struct flexcan_config_t
Data Fields
• uint32_t baudRate
FlexCAN baud rate in bps.
•flexcan_clock_source_t clkSrc
Clock source for FlexCAN Protocol Engine.
310
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
• uint8_t maxMbNum
The maximum number of Message Buffers used by user.
• bool enableLoopBack
Enable or Disable Loop Back Self Test Mode.
• bool enableSelfWakeup
Enable or Disable Self Wakeup Mode.
• bool enableIndividMask
Enable or Disable Rx Individual Mask.
21.2.3.2.0.48 Field Documentation
21.2.3.2.0.48.1 uint32_t flexcan_config_t::baudRate
21.2.3.2.0.48.2 flexcan_clock_source_t flexcan_config_t::clkSrc
21.2.3.2.0.48.3 uint8_t flexcan_config_t::maxMbNum
21.2.3.2.0.48.4 bool flexcan_config_t::enableLoopBack
21.2.3.2.0.48.5 bool flexcan_config_t::enableSelfWakeup
21.2.3.2.0.48.6 bool flexcan_config_t::enableIndividMask
21.2.3.3 struct flexcan_timing_config_t
Data Fields
• uint8_t preDivider
Clock Pre-scaler Division Factor.
• uint8_t rJumpwidth
Re-sync Jump Width.
• uint8_t phaseSeg1
Phase Segment 1.
• uint8_t phaseSeg2
Phase Segment 2.
• uint8_t propSeg
Propagation Segment.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
311
FlexCAN Driver
21.2.3.3.0.49 Field Documentation
21.2.3.3.0.49.1 uint8_t flexcan_timing_config_t::preDivider
21.2.3.3.0.49.2 uint8_t flexcan_timing_config_t::rJumpwidth
21.2.3.3.0.49.3 uint8_t flexcan_timing_config_t::phaseSeg1
21.2.3.3.0.49.4 uint8_t flexcan_timing_config_t::phaseSeg2
21.2.3.3.0.49.5 uint8_t flexcan_timing_config_t::propSeg
21.2.3.4 struct flexcan_rx_mb_config_t
This structure is used as the parameter of FLEXCAN_SetRxMbConfig() function. The FLEXCAN_-
SetRxMbConfig() function is used to configure FlexCAN Receive Message Buffer. The function abort
previous receiving process, clean the Message Buffer and activate the Rx Message Buffer using given
Message Buffer setting.
Data Fields
• uint32_t id
CAN Message Buffer Frame Identifier, should be set using FLEXCAN_ID_EXT() or FLEXCAN_ID_STD()
macro.
•flexcan_frame_format_t format
CAN Frame Identifier format(Standard of Extend).
•flexcan_frame_type_t type
CAN Frame Type(Data or Remote).
21.2.3.4.0.50 Field Documentation
21.2.3.4.0.50.1 uint32_t flexcan_rx_mb_config_t::id
21.2.3.4.0.50.2 flexcan_frame_format_t flexcan_rx_mb_config_t::format
21.2.3.4.0.50.3 flexcan_frame_type_t flexcan_rx_mb_config_t::type
21.2.3.5 struct flexcan_rx_fifo_config_t
Data Fields
• uint32_t ∗idFilterTable
Pointer to FlexCAN Rx FIFO identifier filter table.
• uint8_t idFilterNum
The quantity of filter elements.
•flexcan_rx_fifo_filter_type_t idFilterType
The FlexCAN Rx FIFO Filter type.
•flexcan_rx_fifo_priority_t priority
The FlexCAN Rx FIFO receive priority.
312
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
21.2.3.5.0.51 Field Documentation
21.2.3.5.0.51.1 uint32_t∗flexcan_rx_fifo_config_t::idFilterTable
21.2.3.5.0.51.2 uint8_t flexcan_rx_fifo_config_t::idFilterNum
21.2.3.5.0.51.3 flexcan_rx_fifo_filter_type_t flexcan_rx_fifo_config_t::idFilterType
21.2.3.5.0.51.4 flexcan_rx_fifo_priority_t flexcan_rx_fifo_config_t::priority
21.2.3.6 struct flexcan_mb_transfer_t
Data Fields
•flexcan_frame_t ∗frame
The buffer of CAN Message to be transfer.
• uint8_t mbIdx
The index of Message buffer used to transfer Message.
21.2.3.6.0.52 Field Documentation
21.2.3.6.0.52.1 flexcan_frame_t∗flexcan_mb_transfer_t::frame
21.2.3.6.0.52.2 uint8_t flexcan_mb_transfer_t::mbIdx
21.2.3.7 struct flexcan_fifo_transfer_t
Data Fields
•flexcan_frame_t ∗frame
The buffer of CAN Message to be received from Rx FIFO.
21.2.3.7.0.53 Field Documentation
21.2.3.7.0.53.1 flexcan_frame_t∗flexcan_fifo_transfer_t::frame
21.2.3.8 struct _flexcan_handle
FlexCAN handle structure definition.
Data Fields
•flexcan_transfer_callback_t callback
Callback function.
• void ∗userData
FlexCAN callback function parameter.
•flexcan_frame_t ∗volatile mbFrameBuf [CAN_WORD1_COUNT]
The buffer for received data from Message Buffers.
•flexcan_frame_t ∗volatile rxFifoFrameBuf
The buffer for received data from Rx FIFO.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
313
FlexCAN Driver
• volatile uint8_t mbState [CAN_WORD1_COUNT]
Message Buffer transfer state.
• volatile uint8_t rxFifoState
Rx FIFO transfer state.
21.2.3.8.0.54 Field Documentation
21.2.3.8.0.54.1 flexcan_transfer_callback_t flexcan_handle_t::callback
21.2.3.8.0.54.2 void∗flexcan_handle_t::userData
21.2.3.8.0.54.3 flexcan_frame_t∗volatile flexcan_handle_t::mbFrameBuf[CAN_WORD1_COUNT]
21.2.3.8.0.54.4 flexcan_frame_t∗volatile flexcan_handle_t::rxFifoFrameBuf
21.2.3.8.0.54.5 volatile uint8_t flexcan_handle_t::mbState[CAN_WORD1_COUNT]
21.2.3.8.0.54.6 volatile uint8_t flexcan_handle_t::rxFifoState
21.2.4 Macro Definition Documentation
21.2.4.1 #define FLEXCAN_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
21.2.4.2 #define FLEXCAN_ID_STD( id ) (((uint32_t)(((uint32_t)(id)) <<
CAN_ID_STD_SHIFT)) & CAN_ID_STD_MASK)
Standard Frame ID helper macro.
21.2.4.3 #define FLEXCAN_ID_EXT( id )
Value:
(((uint32_t)(((uint32_t)(id)) << CAN_ID_EXT_SHIFT)) & \
(CAN_ID_EXT_MASK | CAN_ID_STD_MASK))
21.2.4.4 #define FLEXCAN_RX_MB_STD_MASK( id, rtr, ide )
Value:
(((uint32_t)((uint32_t)(rtr) << 31) | (uint32_t)((uint32_t)(ide) << 30)) | \
FLEXCAN_ID_STD(id))
Standard Rx Message Buffer Mask helper macro.
314
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
21.2.4.5 #define FLEXCAN_RX_MB_EXT_MASK( id, rtr, ide )
Value:
(((uint32_t)((uint32_t)(rtr) << 31) | (uint32_t)((uint32_t)(ide) << 30)) | \
FLEXCAN_ID_EXT(id))
21.2.4.6 #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_A( id, rtr, ide )
Value:
(((uint32_t)((uint32_t)(rtr) << 31) | (uint32_t)((uint32_t)(ide) << 30)) | \
(FLEXCAN_ID_STD(id) << 1))
Standard Rx FIFO Mask helper macro Type A helper macro.
21.2.4.7 #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_B_HIGH( id, rtr, ide )
Value:
(((uint32_t)((uint32_t)(rtr) << 31) | (uint32_t)((uint32_t)(ide) << 30)) | \
(FLEXCAN_ID_STD(id) << 16))
21.2.4.8 #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_B_LOW( id, rtr, ide )
Value:
(((uint32_t)((uint32_t)(rtr) << 15) | (uint32_t)((uint32_t)(ide) << 14)) | \
FLEXCAN_ID_STD(id))
21.2.4.9 #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_HIGH( id
) ((FLEXCAN_ID_STD(id) & 0x7F8) << 21)
21.2.4.10 #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_MID_HIGH( id
) ((FLEXCAN_ID_STD(id) & 0x7F8) << 13)
\
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
315
FlexCAN Driver
21.2.4.11 #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_MID_LOW( id
) ((FLEXCAN_ID_STD(id) & 0x7F8) << 5)
21.2.4.12 #define FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_LOW( id
) ((FLEXCAN_ID_STD(id) & 0x7F8) >> 3)
21.2.4.13 #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_A( id, rtr, ide )
Value:
(((uint32_t)((uint32_t)(rtr) << 31) | (uint32_t)((uint32_t)(ide) << 30)) | \
(FLEXCAN_ID_EXT(id) << 1))
21.2.4.14 #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_B_HIGH( id, rtr, ide )
Value:
(\
((uint32_t)((uint32_t)(rtr) << 31) | (uint32_t)((uint32_t)(ide) << 30)) | \
((FLEXCAN_ID_EXT(id) & 0x1FFF8000) \
<< 1))
21.2.4.15 #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_B_LOW( id, rtr, ide )
Value:
(((uint32_t)((uint32_t)(rtr) << 15) | (uint32_t)((uint32_t)(ide) << 14)) | \
((FLEXCAN_ID_EXT(id) & 0x1FFF8000) >> \
15))
21.2.4.16 #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_HIGH( id
) ((FLEXCAN_ID_EXT(id) & 0x1FE00000) << 3)
21.2.4.17 #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_MID_HIGH( id )
Value:
((FLEXCAN_ID_EXT(id) & 0x1FE00000) >> \
5)
316
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
21.2.4.18 #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_MID_LOW( id )
Value:
((FLEXCAN_ID_EXT(id) & 0x1FE00000) >> \
13)
21.2.4.19 #define FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_LOW( id
) ((FLEXCAN_ID_EXT(id) & 0x1FE00000) >> 21)
21.2.4.20 #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_A( id, rtr, ide
)FLEXCAN_RX_FIFO_STD_MASK_TYPE_A(id, rtr, ide)
Standard Rx FIFO Filter helper macro Type A helper macro.
21.2.4.21 #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_B_HIGH( id, rtr, ide )
Value:
FLEXCAN_RX_FIFO_STD_MASK_TYPE_B_HIGH(\
id, rtr, ide)
21.2.4.22 #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_B_LOW( id, rtr, ide )
Value:
FLEXCAN_RX_FIFO_STD_MASK_TYPE_B_LOW(\
id, rtr, ide)
21.2.4.23 #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_C_HIGH( id )
Value:
FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_HIGH(\
id)
21.2.4.24 #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_C_MID_HIGH( id )
Value:
FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_MID_HIGH(\
id)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
317
FlexCAN Driver
21.2.4.25 #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_C_MID_LOW( id )
Value:
FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_MID_LOW(\
id)
21.2.4.26 #define FLEXCAN_RX_FIFO_STD_FILTER_TYPE_C_LOW( id
)FLEXCAN_RX_FIFO_STD_MASK_TYPE_C_LOW(id)
\
21.2.4.27 #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_A( id, rtr, ide
)FLEXCAN_RX_FIFO_EXT_MASK_TYPE_A(id, rtr, ide)
21.2.4.28 #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_B_HIGH( id, rtr, ide )
Value:
FLEXCAN_RX_FIFO_EXT_MASK_TYPE_B_HIGH(\
id, rtr, ide)
21.2.4.29 #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_B_LOW( id, rtr, ide )
Value:
FLEXCAN_RX_FIFO_EXT_MASK_TYPE_B_LOW(\
id, rtr, ide)
21.2.4.30 #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_C_HIGH( id
)FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_HIGH(id)
\
21.2.4.31 #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_C_MID_HIGH( id )
Value:
FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_MID_HIGH(\
id)
318
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
21.2.4.32 #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_C_MID_LOW( id )
Value:
FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_MID_LOW(\
id)
21.2.4.33 #define FLEXCAN_RX_FIFO_EXT_FILTER_TYPE_C_LOW( id
)FLEXCAN_RX_FIFO_EXT_MASK_TYPE_C_LOW(id)
21.2.5 Typedef Documentation
21.2.5.1 typedef void(∗flexcan_transfer_callback_t)(CAN_Type ∗base, flexcan_handle_t
∗handle, status_t status, uint32_t result, void ∗userData)
The FlexCAN transfer callback returns a value from the underlying layer. If the status equals to kStatus-
_FLEXCAN_ErrorStatus, the result parameter is the Content of FlexCAN status register which can be
used to get the working status(or error status) of FlexCAN module. If the status equals to other FlexCAN
Message Buffer transfer status, the result is the index of Message Buffer that generate transfer event. If
the status equals to other FlexCAN Message Buffer transfer status, the result is meaningless and should
be Ignored.
21.2.6 Enumeration Type Documentation
21.2.6.1 enum _flexcan_status
Enumerator
kStatus_FLEXCAN_TxBusy Tx Message Buffer is Busy.
kStatus_FLEXCAN_TxIdle Tx Message Buffer is Idle.
kStatus_FLEXCAN_TxSwitchToRx Remote Message is send out and Message buffer changed to
Receive one.
kStatus_FLEXCAN_RxBusy Rx Message Buffer is Busy.
kStatus_FLEXCAN_RxIdle Rx Message Buffer is Idle.
kStatus_FLEXCAN_RxOverflow Rx Message Buffer is Overflowed.
kStatus_FLEXCAN_RxFifoBusy Rx Message FIFO is Busy.
kStatus_FLEXCAN_RxFifoIdle Rx Message FIFO is Idle.
kStatus_FLEXCAN_RxFifoOverflow Rx Message FIFO is overflowed.
kStatus_FLEXCAN_RxFifoWarning Rx Message FIFO is almost overflowed.
kStatus_FLEXCAN_ErrorStatus FlexCAN Module Error and Status.
kStatus_FLEXCAN_UnHandled UnHadled Interrupt asserted.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
319
FlexCAN Driver
21.2.6.2 enum flexcan_frame_format_t
Enumerator
kFLEXCAN_FrameFormatStandard Standard frame format attribute.
kFLEXCAN_FrameFormatExtend Extend frame format attribute.
21.2.6.3 enum flexcan_frame_type_t
Enumerator
kFLEXCAN_FrameTypeData Data frame type attribute.
kFLEXCAN_FrameTypeRemote Remote frame type attribute.
21.2.6.4 enum flexcan_clock_source_t
Enumerator
kFLEXCAN_ClkSrcOsc FlexCAN Protocol Engine clock from Oscillator.
kFLEXCAN_ClkSrcPeri FlexCAN Protocol Engine clock from Peripheral Clock.
21.2.6.5 enum flexcan_rx_fifo_filter_type_t
Enumerator
kFLEXCAN_RxFifoFilterTypeA One full ID (standard and extended) per ID Filter element.
kFLEXCAN_RxFifoFilterTypeB Two full standard IDs or two partial 14-bit ID slices per ID Filter
Table element.
kFLEXCAN_RxFifoFilterTypeC Four partial 8-bit Standard or extended ID slices per ID Filter Ta-
ble element.
kFLEXCAN_RxFifoFilterTypeD All frames rejected.
21.2.6.6 enum flexcan_rx_fifo_priority_t
The matching process starts from the Rx MB(or Rx FIFO) with higher priority. If no MB(or Rx FIFO
filter) is satisfied, the matching process goes on with the Rx FIFO(or Rx MB) with lower priority.
Enumerator
kFLEXCAN_RxFifoPrioLow Matching process start from Rx Message Buffer first.
kFLEXCAN_RxFifoPrioHigh Matching process start from Rx FIFO first.
320
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
21.2.6.7 enum _flexcan_interrupt_enable
This structure contains the settings for all of the FlexCAN Module interrupt configurations. Note: FlexC-
AN Message Buffers and Rx FIFO have their own interrupts.
Enumerator
kFLEXCAN_BusOffInterruptEnable Bus Off interrupt.
kFLEXCAN_ErrorInterruptEnable Error interrupt.
kFLEXCAN_RxWarningInterruptEnable Rx Warning interrupt.
kFLEXCAN_TxWarningInterruptEnable Tx Warning interrupt.
kFLEXCAN_WakeUpInterruptEnable Wake Up interrupt.
21.2.6.8 enum _flexcan_flags
This provides constants for the FlexCAN status flags for use in the FlexCAN functions. Note: The CPU
read action clears FlEXCAN_ErrorFlag, therefore user need to read FlEXCAN_ErrorFlag and distinguish
which error is occur using _flexcan_error_flags enumerations.
Enumerator
kFLEXCAN_SynchFlag CAN Synchronization Status.
kFLEXCAN_TxWarningIntFlag Tx Warning Interrupt Flag.
kFLEXCAN_RxWarningIntFlag Rx Warning Interrupt Flag.
kFLEXCAN_TxErrorWarningFlag Tx Error Warning Status.
kFLEXCAN_RxErrorWarningFlag Rx Error Warning Status.
kFLEXCAN_IdleFlag CAN IDLE Status Flag.
kFLEXCAN_FaultConfinementFlag Fault Confinement State Flag.
kFLEXCAN_TransmittingFlag FlexCAN In Transmission Status.
kFLEXCAN_ReceivingFlag FlexCAN In Reception Status.
kFLEXCAN_BusOffIntFlag Bus Off Interrupt Flag.
kFLEXCAN_ErrorIntFlag Error Interrupt Flag.
kFLEXCAN_WakeUpIntFlag Wake-Up Interrupt Flag.
kFLEXCAN_ErrorFlag All FlexCAN Error Status.
21.2.6.9 enum _flexcan_error_flags
The FlexCAN Error Status enumerations is used to report current error of the FlexCAN bus. This enumer-
ations should be used with KFLEXCAN_ErrorFlag in _flexcan_flags enumerations to ditermine which
error is generated.
Enumerator
kFLEXCAN_StuffingError Stuffing Error.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
321
FlexCAN Driver
kFLEXCAN_FormError Form Error.
kFLEXCAN_CrcError Cyclic Redundancy Check Error.
kFLEXCAN_AckError Received no ACK on transmission.
kFLEXCAN_Bit0Error Unable to send dominant bit.
kFLEXCAN_Bit1Error Unable to send recessive bit.
21.2.6.10 enum _flexcan_rx_fifo_flags
The FlexCAN Rx FIFO Status enumerations are used to determine the status of the Rx FIFO. Because Rx
FIFO occupy the MB0 ∼MB7 (Rx Fifo filter also occupies more Message Buffer space), Rx FIFO status
flags are mapped to the corresponding Message Buffer status flags.
Enumerator
kFLEXCAN_RxFifoOverflowFlag Rx FIFO overflow flag.
kFLEXCAN_RxFifoWarningFlag Rx FIFO almost full flag.
kFLEXCAN_RxFifoFrameAvlFlag Frames available in Rx FIFO flag.
21.2.7 Function Documentation
21.2.7.1 void FLEXCAN_Init ( CAN_Type ∗base, const flexcan_config_t ∗config, uint32_t
sourceClock_Hz )
This function initializes the FlexCAN module with user-defined settings. This example shows how to
set up the flexcan_config_t parameters and how to call the FLEXCAN_Init function by passing in these
parameters:
flexcan_config_t flexcanConfig;
flexcanConfig.clkSrc = KFLEXCAN_ClkSrcOsc;
flexcanConfig.baudRate = 125000U;
flexcanConfig.maxMbNum = 16;
flexcanConfig.enableLoopBack =false;
flexcanConfig.enableSelfWakeup =false;
flexcanConfig.enableIndividMask =false;
flexcanConfig.enableDoze = false;
FLEXCAN_Init(CAN0, &flexcanConfig, 8000000UL);
Parameters
base FlexCAN peripheral base address.
322
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
config Pointer to user-defined configuration structure.
sourceClock_-
Hz
FlexCAN Protocol Engine clock source frequency in Hz.
21.2.7.2 void FLEXCAN_Deinit ( CAN_Type ∗base )
This function disable the FlexCAN module clock and set all register value to reset value.
Parameters
base FlexCAN peripheral base address.
21.2.7.3 void FLEXCAN_GetDefaultConfig ( flexcan_config_t ∗config )
This function initializes the FlexCAN configure structure to default value. The default value are: flexcan-
Config->clkSrc = KFLEXCAN_ClkSrcOsc; flexcanConfig->baudRate = 125000U; flexcanConfig-
>maxMbNum = 16; flexcanConfig->enableLoopBack = false; flexcanConfig->enableSelfWakeup =
false; flexcanConfig->enableIndividMask = false; flexcanConfig->enableDoze = false;
Parameters
config Pointer to FlexCAN configuration structure.
21.2.7.4 void FLEXCAN_SetTimingConfig ( CAN_Type ∗base, const
flexcan_timing_config_t ∗config )
This function gives user settings to CAN bus timing characteristic. The function is for an experienced
user. For less experienced users, call the FLEXCAN_Init() and fill the baud rate field with a desired value.
This provides the default timing characteristics to the module.
Note that calling FLEXCAN_SetTimingConfig() overrides the baud rate set in FLEXCAN_Init().
Parameters
base FlexCAN peripheral base address.
config Pointer to the timing configuration structure.
21.2.7.5 void FlEXCAN_SetRxMbGlobalMask ( CAN_Type ∗base, uint32_t mask )
This function sets the global mask for FlexCAN message buffer in a matching process. The configuration
is only effective when the Rx individual mask is disabled in the FLEXCAN_Init().
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
323
FlexCAN Driver
Parameters
base FlexCAN peripheral base address.
mask Rx Message Buffer Global Mask value.
21.2.7.6 void FlEXCAN_SetRxFifoGlobalMask ( CAN_Type ∗base, uint32_t mask )
This function sets the global mask for FlexCAN FIFO in a matching process.
Parameters
base FlexCAN peripheral base address.
mask Rx Fifo Global Mask value.
21.2.7.7 void FlEXCAN_SetRxIndividualMask ( CAN_Type ∗base, uint8_t maskIdx,
uint32_t mask )
This function sets the individual mask for FlexCAN matching process. The configuration is only effective
when the Rx individual mask is enabled in FLEXCAN_Init(). If Rx FIFO is disabled, the individual mask
is applied to the corresponding Message Buffer. If Rx FIFO is enabled, the individual mask for Rx FIFO
occupied Message Buffer is applied to the Rx Filter with same index. What calls for special attention is
that only the first 32 individual masks can be used as Rx FIFO filter mask.
Parameters
base FlexCAN peripheral base address.
maskIdx The Index of individual Mask.
mask Rx Individual Mask value.
21.2.7.8 void FLEXCAN_SetTxMbConfig ( CAN_Type ∗base, uint8_t mbIdx, bool enable
)
This function aborts the previous transmission, cleans the Message Buffer, and configures it as a Transmit
Message Buffer.
Parameters
324
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
base FlexCAN peripheral base address.
mbIdx The Message Buffer index.
enable Enable/Disable Tx Message Buffer.
• true: Enable Tx Message Buffer.
• false: Disable Tx Message Buffer.
21.2.7.9 void FLEXCAN_SetRxMbConfig ( CAN_Type ∗base, uint8_t mbIdx, const
flexcan_rx_mb_config_t ∗config, bool enable )
This function cleans a FlexCAN build-in Message Buffer and configures it as a Receive Message Buffer.
Parameters
base FlexCAN peripheral base address.
mbIdx The Message Buffer index.
config Pointer to FlexCAN Message Buffer configuration structure.
enable Enable/Disable Rx Message Buffer.
• true: Enable Rx Message Buffer.
• false: Disable Rx Message Buffer.
21.2.7.10 void FlEXCAN_SetRxFifoConfig ( CAN_Type ∗base, const
flexcan_rx_fifo_config_t ∗config, bool enable )
This function configures the Rx FIFO with given Rx FIFO configuration.
Parameters
base FlexCAN peripheral base address.
config Pointer to FlexCAN Rx FIFO configuration structure.
enable Enable/Disable Rx FIFO.
• true: Enable Rx FIFO.
• false: Disable Rx FIFO.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
325
FlexCAN Driver
21.2.7.11 static uint32_t FLEXCAN_GetStatusFlags ( CAN_Type ∗base )[inline],
[static]
This function gets all FlexCAN status flags. The flags are returned as the logical OR value of the enumer-
ators _flexcan_flags. To check the specific status, compare the return value with enumerators in _flexcan-
_flags.
Parameters
base FlexCAN peripheral base address.
Returns
FlexCAN status flags which are ORed by the enumerators in the _flexcan_flags.
21.2.7.12 static void FLEXCAN_ClearStatusFlags ( CAN_Type ∗base, uint32_t mask )
[inline],[static]
This function clears the FlexCAN status flags with a provided mask. An automatically cleared flag can’t
be cleared by this function.
Parameters
base FlexCAN peripheral base address.
mask The status flags to be cleared, it is logical OR value of _flexcan_flags.
21.2.7.13 static void FlEXCAN_GetBusErrCount ( CAN_Type ∗base, uint8_t ∗txErrBuf,
uint8_t ∗rxErrBuf )[inline],[static]
This function gets the FlexCAN Bus Error Counter value for both Tx and Rx direction. These values may
be needed in the upper layer error handling.
Parameters
base FlexCAN peripheral base address.
txErrBuf Buffer to store Tx Error Counter value.
rxErrBuf Buffer to store Rx Error Counter value.
21.2.7.14 static uint32_t FLEXCAN_GetMbStatusFlags ( CAN_Type ∗base, uint32_t mask
)[inline],[static]
This function gets the interrupt flags of a given Message Buffers.
326
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
Parameters
base FlexCAN peripheral base address.
mask The ORed FlexCAN Message Buffer mask.
Returns
The status of given Message Buffers.
21.2.7.15 static void FLEXCAN_ClearMbStatusFlags ( CAN_Type ∗base, uint32_t mask )
[inline],[static]
This function clears the interrupt flags of a given Message Buffers.
Parameters
base FlexCAN peripheral base address.
mask The ORed FlexCAN Message Buffer mask.
21.2.7.16 static void FLEXCAN_EnableInterrupts ( CAN_Type ∗base, uint32_t mask )
[inline],[static]
This function enables the FlexCAN interrupts according to provided mask. The mask is a logical OR of
enumeration members, see _flexcan_interrupt_enable.
Parameters
base FlexCAN peripheral base address.
mask The interrupts to enable. Logical OR of _flexcan_interrupt_enable.
21.2.7.17 static void FLEXCAN_DisableInterrupts ( CAN_Type ∗base, uint32_t mask )
[inline],[static]
This function disables the FlexCAN interrupts according to provided mask. The mask is a logical OR of
enumeration members, see _flexcan_interrupt_enable.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
327
FlexCAN Driver
Parameters
base FlexCAN peripheral base address.
mask The interrupts to disable. Logical OR of _flexcan_interrupt_enable.
21.2.7.18 static void FLEXCAN_EnableMbInterrupts ( CAN_Type ∗base, uint32_t mask )
[inline],[static]
This function enables the interrupts of given Message Buffers
Parameters
base FlexCAN peripheral base address.
mask The ORed FlexCAN Message Buffer mask.
21.2.7.19 static void FLEXCAN_DisableMbInterrupts ( CAN_Type ∗base, uint32_t mask )
[inline],[static]
This function disables the interrupts of given Message Buffers
Parameters
base FlexCAN peripheral base address.
mask The ORed FlexCAN Message Buffer mask.
21.2.7.20 static void FLEXCAN_Enable ( CAN_Type ∗base, bool enable )[inline],
[static]
This function enables or disables the FlexCAN module.
Parameters
base FlexCAN base pointer.
enable true to enable, false to disable.
21.2.7.21 status_t FLEXCAN_WriteTxMb ( CAN_Type ∗base, uint8_t mbIdx, const
flexcan_frame_t ∗txFrame )
This function writes a CAN Message to the specified Transmit Message Buffer and changes the Message
Buffer state to start CAN Message transmit. After that the function returns immediately.
328
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
Parameters
base FlexCAN peripheral base address.
mbIdx The FlexCAN Message Buffer index.
txFrame Pointer to CAN message frame to be sent.
Return values
kStatus_Success - Write Tx Message Buffer Successfully.
kStatus_Fail - Tx Message Buffer is currently in use.
21.2.7.22 status_t FLEXCAN_ReadRxMb ( CAN_Type ∗base, uint8_t mbIdx,
flexcan_frame_t ∗rxFrame )
This function reads a CAN message from a specified Receive Message Buffer. The function fills a receive
CAN message frame structure with just received data and activates the Message Buffer again. The function
returns immediately.
Parameters
base FlexCAN peripheral base address.
mbIdx The FlexCAN Message Buffer index.
rxFrame Pointer to CAN message frame structure for reception.
Return values
kStatus_Success - Rx Message Buffer is full and has been read successfully.
kStatus_FLEXCAN_Rx-
Overflow
- Rx Message Buffer is already overflowed and has been read successfully.
kStatus_Fail - Rx Message Buffer is empty.
21.2.7.23 status_t FlEXCAN_ReadRxFifo ( CAN_Type ∗base, flexcan_frame_t ∗rxFrame
)
This function reads a CAN message from the FlexCAN build-in Rx FIFO.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
329
FlexCAN Driver
Parameters
base FlexCAN peripheral base address.
rxFrame Pointer to CAN message frame structure for reception.
Return values
kStatus_Success - Read Message from Rx FIFO successfully.
kStatus_Fail - Rx FIFO is not enabled.
21.2.7.24 status_t FlEXCAN_TransferSendBlocking ( CAN_Type ∗base, uint8_t mbIdx,
flexcan_frame_t ∗txFrame )
Note that a transfer handle does not need to be created before calling this API.
Parameters
base FlexCAN peripheral base pointer.
mbIdx The FlexCAN Message Buffer index.
txFrame Pointer to CAN message frame to be sent.
Return values
kStatus_Success - Write Tx Message Buffer Successfully.
kStatus_Fail - Tx Message Buffer is currently in use.
21.2.7.25 status_t FlEXCAN_TransferReceiveBlocking ( CAN_Type ∗base, uint8_t mbIdx,
flexcan_frame_t ∗rxFrame )
Note that a transfer handle does not need to be created before calling this API.
Parameters
base FlexCAN peripheral base pointer.
mbIdx The FlexCAN Message Buffer index.
330
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
rxFrame Pointer to CAN message frame structure for reception.
Return values
kStatus_Success - Rx Message Buffer is full and has been read successfully.
kStatus_FLEXCAN_Rx-
Overflow
- Rx Message Buffer is already overflowed and has been read successfully.
kStatus_Fail - Rx Message Buffer is empty.
21.2.7.26 status_t FlEXCAN_TransferReceiveFifoBlocking ( CAN_Type ∗base,
flexcan_frame_t ∗rxFrame )
Note that a transfer handle does not need to be created before calling this API.
Parameters
base FlexCAN peripheral base pointer.
rxFrame Pointer to CAN message frame structure for reception.
Return values
kStatus_Success - Read Message from Rx FIFO successfully.
kStatus_Fail - Rx FIFO is not enabled.
21.2.7.27 void FLEXCAN_TransferCreateHandle ( CAN_Type ∗base, flexcan_handle_t ∗
handle, flexcan_transfer_callback_t callback, void ∗userData )
This function initializes the FlexCAN handle which can be used for other FlexCAN transactional APIs.
Usually, for a specified FlexCAN instance, call this API once to get the initialized handle.
Parameters
base FlexCAN peripheral base address.
handle FlexCAN handle pointer.
callback The callback function.
userData The parameter of the callback function.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
331
FlexCAN Driver
21.2.7.28 status_t FLEXCAN_TransferSendNonBlocking ( CAN_Type ∗base,
flexcan_handle_t ∗handle, flexcan_mb_transfer_t ∗xfer )
This function sends a message using IRQ. This is a non-blocking function, which returns right away.
When messages have been sent out, the send callback function is called.
332
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
Parameters
base FlexCAN peripheral base address.
handle FlexCAN handle pointer.
xfer FlexCAN Message Buffer transfer structure. See the flexcan_mb_transfer_t.
Return values
kStatus_Success Start Tx Message Buffer sending process successfully.
kStatus_Fail Write Tx Message Buffer failed.
kStatus_FLEXCAN_Tx-
Busy
Tx Message Buffer is in use.
21.2.7.29 status_t FLEXCAN_TransferReceiveNonBlocking ( CAN_Type ∗base,
flexcan_handle_t ∗handle, flexcan_mb_transfer_t ∗xfer )
This function receives a message using IRQ. This is non-blocking function, which returns right away.
When the message has been received, the receive callback function is called.
Parameters
base FlexCAN peripheral base address.
handle FlexCAN handle pointer.
xfer FlexCAN Message Buffer transfer structure. See the flexcan_mb_transfer_t.
Return values
kStatus_Success - Start Rx Message Buffer receiving process successfully.
kStatus_FLEXCAN_Rx-
Busy
- Rx Message Buffer is in use.
21.2.7.30 status_t FLEXCAN_TransferReceiveFifoNonBlocking ( CAN_Type ∗base,
flexcan_handle_t ∗handle, flexcan_fifo_transfer_t ∗xfer )
This function receives a message using IRQ. This is a non-blocking function, which returns right away.
When all messages have been received, the receive callback function is called.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
333
FlexCAN Driver
Parameters
base FlexCAN peripheral base address.
handle FlexCAN handle pointer.
xfer FlexCAN Rx FIFO transfer structure. See the flexcan_fifo_transfer_t.
Return values
kStatus_Success - Start Rx FIFO receiving process successfully.
kStatus_FLEXCAN_Rx-
FifoBusy
- Rx FIFO is currently in use.
21.2.7.31 void FLEXCAN_TransferAbortSend ( CAN_Type ∗base, flexcan_handle_t ∗
handle, uint8_t mbIdx )
This function aborts the interrupt driven message send process.
Parameters
base FlexCAN peripheral base address.
handle FlexCAN handle pointer.
mbIdx The FlexCAN Message Buffer index.
21.2.7.32 void FLEXCAN_TransferAbortReceive ( CAN_Type ∗base, flexcan_handle_t ∗
handle, uint8_t mbIdx )
This function aborts the interrupt driven message receive process.
Parameters
base FlexCAN peripheral base address.
handle FlexCAN handle pointer.
mbIdx The FlexCAN Message Buffer index.
21.2.7.33 void FLEXCAN_TransferAbortReceiveFifo ( CAN_Type ∗base, flexcan_handle_t
∗handle )
This function aborts the interrupt driven message receive from Rx FIFO process.
334
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN Driver
Parameters
base FlexCAN peripheral base address.
handle FlexCAN handle pointer.
21.2.7.34 void FLEXCAN_TransferHandleIRQ ( CAN_Type ∗base, flexcan_handle_t ∗
handle )
This function handles the FlexCAN Error, the Message Buffer, and the Rx FIFO IRQ request.
Parameters
base FlexCAN peripheral base address.
handle FlexCAN handle pointer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
335
FlexCAN eDMA Driver
21.3 FlexCAN eDMA Driver
21.3.1 Overview
Files
• file fsl_flexcan_edma.h
Data Structures
• struct flexcan_edma_handle_t
FlexCAN eDMA handle. More...
Typedefs
• typedef void(∗flexcan_edma_transfer_callback_t )(CAN_Type ∗base, flexcan_edma_handle_t
∗handle, status_t status, void ∗userData)
FlexCAN transfer callback function.
eDMA transactional
• void FLEXCAN_TransferCreateHandleEDMA (CAN_Type ∗base, flexcan_edma_handle_-
t∗handle, flexcan_edma_transfer_callback_t callback, void ∗userData, edma_handle_t ∗rxFifo-
EdmaHandle)
Initializes the FlexCAN handle, which is used in transactional functions.
• status_t FLEXCAN_TransferReceiveFifoEDMA (CAN_Type ∗base, flexcan_edma_handle_t
∗handle, flexcan_fifo_transfer_t ∗xfer)
Receives the CAN Message from the Rx FIFO using eDMA.
• void FLEXCAN_TransferAbortReceiveFifoEDMA (CAN_Type ∗base, flexcan_edma_handle_t
∗handle)
Aborts the receive process which used eDMA.
21.3.2 Data Structure Documentation
21.3.2.1 struct _flexcan_edma_handle
Data Fields
•flexcan_edma_transfer_callback_t callback
Callback function.
• void ∗userData
FlexCAN callback function parameter.
•edma_handle_t ∗rxFifoEdmaHandle
The EDMA Rx FIFO channel used.
336
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexCAN eDMA Driver
• volatile uint8_t rxFifoState
Rx FIFO transfer state.
21.3.2.1.0.55 Field Documentation
21.3.2.1.0.55.1 flexcan_edma_transfer_callback_t flexcan_edma_handle_t::callback
21.3.2.1.0.55.2 void∗flexcan_edma_handle_t::userData
21.3.2.1.0.55.3 edma_handle_t∗flexcan_edma_handle_t::rxFifoEdmaHandle
21.3.2.1.0.55.4 volatile uint8_t flexcan_edma_handle_t::rxFifoState
21.3.3 Typedef Documentation
21.3.3.1 typedef void(∗flexcan_edma_transfer_callback_t)(CAN_Type ∗base,
flexcan_edma_handle_t ∗handle, status_t status, void ∗userData)
21.3.4 Function Documentation
21.3.4.1 void FLEXCAN_TransferCreateHandleEDMA ( CAN_Type ∗base,
flexcan_edma_handle_t ∗handle, flexcan_edma_transfer_callback_t callback,
void ∗userData, edma_handle_t ∗rxFifoEdmaHandle )
Parameters
base FlexCAN peripheral base address.
handle Pointer to flexcan_edma_handle_t structure.
callback The callback function.
userData The parameter of the callback function.
rxFifoEdma-
Handle
User-requested DMA handle for Rx FIFO DMA transfer.
21.3.4.2 status_t FLEXCAN_TransferReceiveFifoEDMA ( CAN_Type ∗base,
flexcan_edma_handle_t ∗handle, flexcan_fifo_transfer_t ∗xfer )
This function receives the CAN Message using eDMA. This is a non-blocking function, which returns
right away. After the CAN Message is received, the receive callback function is called.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
337
FlexCAN eDMA Driver
Parameters
base FlexCAN peripheral base address.
handle Pointer to flexcan_edma_handle_t structure.
xfer FlexCAN Rx FIFO EDMA transfer structure, see flexcan_fifo_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_FLEXCAN_Rx-
FifoBusy
Previous transfer ongoing.
21.3.4.3 void FLEXCAN_TransferAbortReceiveFifoEDMA ( CAN_Type ∗base,
flexcan_edma_handle_t ∗handle )
This function aborts the receive process which used eDMA.
Parameters
base FlexCAN peripheral base address.
handle Pointer to flexcan_edma_handle_t structure.
338
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 22
FlexIO: FlexIO Driver
22.1 Overview
The KSDK provides a generic driver for the FlexIO module of Kinetis devices, as well as multiple
protocol-specific FlexIO drivers.
Modules
•FlexIO Camera Driver
•FlexIO Driver
•FlexIO I2C Master Driver
•FlexIO I2S Driver
•FlexIO SPI Driver
•FlexIO UART Driver
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
339
FlexIO Driver
22.2 FlexIO Driver
22.2.1 Overview
Files
• file fsl_flexio.h
Data Structures
• struct flexio_config_t
Define FlexIO user configuration structure. More...
• struct flexio_timer_config_t
Define FlexIO timer configuration structure. More...
• struct flexio_shifter_config_t
Define FlexIO shifter configuration structure. More...
Macros
• #define FLEXIO_TIMER_TRIGGER_SEL_PININPUT(x) ((uint32_t)(x) << 1U)
Calculate FlexIO timer trigger.
Typedefs
• typedef void(∗flexio_isr_t )(void ∗base, void ∗handle)
typedef for FlexIO simulated driver interrupt handler.
Enumerations
• enum flexio_timer_trigger_polarity_t {
kFLEXIO_TimerTriggerPolarityActiveHigh = 0x0U,
kFLEXIO_TimerTriggerPolarityActiveLow = 0x1U }
Define time of timer trigger polarity.
• enum flexio_timer_trigger_source_t {
kFLEXIO_TimerTriggerSourceExternal = 0x0U,
kFLEXIO_TimerTriggerSourceInternal = 0x1U }
Define type of timer trigger source.
• enum flexio_pin_config_t {
kFLEXIO_PinConfigOutputDisabled = 0x0U,
kFLEXIO_PinConfigOpenDrainOrBidirection = 0x1U,
kFLEXIO_PinConfigBidirectionOutputData = 0x2U,
kFLEXIO_PinConfigOutput = 0x3U }
Define type of timer/shifter pin configuration.
340
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
• enum flexio_pin_polarity_t {
kFLEXIO_PinActiveHigh = 0x0U,
kFLEXIO_PinActiveLow = 0x1U }
Definition of pin polarity.
• enum flexio_timer_mode_t {
kFLEXIO_TimerModeDisabled = 0x0U,
kFLEXIO_TimerModeDual8BitBaudBit = 0x1U,
kFLEXIO_TimerModeDual8BitPWM = 0x2U,
kFLEXIO_TimerModeSingle16Bit = 0x3U }
Define type of timer work mode.
• enum flexio_timer_output_t {
kFLEXIO_TimerOutputOneNotAffectedByReset = 0x0U,
kFLEXIO_TimerOutputZeroNotAffectedByReset = 0x1U,
kFLEXIO_TimerOutputOneAffectedByReset = 0x2U,
kFLEXIO_TimerOutputZeroAffectedByReset = 0x3U }
Define type of timer initial output or timer reset condition.
• enum flexio_timer_decrement_source_t {
kFLEXIO_TimerDecSrcOnFlexIOClockShiftTimerOutput = 0x0U,
kFLEXIO_TimerDecSrcOnTriggerInputShiftTimerOutput = 0x1U,
kFLEXIO_TimerDecSrcOnPinInputShiftPinInput = 0x2U,
kFLEXIO_TimerDecSrcOnTriggerInputShiftTriggerInput = 0x3U }
Define type of timer decrement.
• enum flexio_timer_reset_condition_t {
kFLEXIO_TimerResetNever = 0x0U,
kFLEXIO_TimerResetOnTimerPinEqualToTimerOutput = 0x2U,
kFLEXIO_TimerResetOnTimerTriggerEqualToTimerOutput = 0x3U,
kFLEXIO_TimerResetOnTimerPinRisingEdge = 0x4U,
kFLEXIO_TimerResetOnTimerTriggerRisingEdge = 0x6U,
kFLEXIO_TimerResetOnTimerTriggerBothEdge = 0x7U }
Define type of timer reset condition.
• enum flexio_timer_disable_condition_t {
kFLEXIO_TimerDisableNever = 0x0U,
kFLEXIO_TimerDisableOnPreTimerDisable = 0x1U,
kFLEXIO_TimerDisableOnTimerCompare = 0x2U,
kFLEXIO_TimerDisableOnTimerCompareTriggerLow = 0x3U,
kFLEXIO_TimerDisableOnPinBothEdge = 0x4U,
kFLEXIO_TimerDisableOnPinBothEdgeTriggerHigh = 0x5U,
kFLEXIO_TimerDisableOnTriggerFallingEdge = 0x6U }
Define type of timer disable condition.
• enum flexio_timer_enable_condition_t {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
341
FlexIO Driver
kFLEXIO_TimerEnabledAlways = 0x0U,
kFLEXIO_TimerEnableOnPrevTimerEnable = 0x1U,
kFLEXIO_TimerEnableOnTriggerHigh = 0x2U,
kFLEXIO_TimerEnableOnTriggerHighPinHigh = 0x3U,
kFLEXIO_TimerEnableOnPinRisingEdge = 0x4U,
kFLEXIO_TimerEnableOnPinRisingEdgeTriggerHigh = 0x5U,
kFLEXIO_TimerEnableOnTriggerRisingEdge = 0x6U,
kFLEXIO_TimerEnableOnTriggerBothEdge = 0x7U }
Define type of timer enable condition.
• enum flexio_timer_stop_bit_condition_t {
kFLEXIO_TimerStopBitDisabled = 0x0U,
kFLEXIO_TimerStopBitEnableOnTimerCompare = 0x1U,
kFLEXIO_TimerStopBitEnableOnTimerDisable = 0x2U,
kFLEXIO_TimerStopBitEnableOnTimerCompareDisable = 0x3U }
Define type of timer stop bit generate condition.
• enum flexio_timer_start_bit_condition_t {
kFLEXIO_TimerStartBitDisabled = 0x0U,
kFLEXIO_TimerStartBitEnabled = 0x1U }
Define type of timer start bit generate condition.
• enum flexio_shifter_timer_polarity_t
Define type of timer polarity for shifter control.
• enum flexio_shifter_mode_t {
kFLEXIO_ShifterDisabled = 0x0U,
kFLEXIO_ShifterModeReceive = 0x1U,
kFLEXIO_ShifterModeTransmit = 0x2U,
kFLEXIO_ShifterModeMatchStore = 0x4U,
kFLEXIO_ShifterModeMatchContinuous = 0x5U }
Define type of shifter working mode.
• enum flexio_shifter_input_source_t {
kFLEXIO_ShifterInputFromPin = 0x0U,
kFLEXIO_ShifterInputFromNextShifterOutput = 0x1U }
Define type of shifter input source.
• enum flexio_shifter_stop_bit_t {
kFLEXIO_ShifterStopBitDisable = 0x0U,
kFLEXIO_ShifterStopBitLow = 0x2U,
kFLEXIO_ShifterStopBitHigh = 0x3U }
Define of STOP bit configuration.
• enum flexio_shifter_start_bit_t {
kFLEXIO_ShifterStartBitDisabledLoadDataOnEnable = 0x0U,
kFLEXIO_ShifterStartBitDisabledLoadDataOnShift = 0x1U,
kFLEXIO_ShifterStartBitLow = 0x2U,
kFLEXIO_ShifterStartBitHigh = 0x3U }
Define type of START bit configuration.
• enum flexio_shifter_buffer_type_t {
kFLEXIO_ShifterBuffer = 0x0U,
kFLEXIO_ShifterBufferBitSwapped = 0x1U,
kFLEXIO_ShifterBufferByteSwapped = 0x2U,
342
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
kFLEXIO_ShifterBufferBitByteSwapped = 0x3U }
Define FlexIO shifter buffer type.
Driver version
• #define FSL_FLEXIO_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
FlexIO driver version 2.0.0.
FlexIO Initialization and De-initialization
• void FLEXIO_GetDefaultConfig (flexio_config_t ∗userConfig)
Gets the default configuration to configure FlexIO module.
• void FLEXIO_Init (FLEXIO_Type ∗base, const flexio_config_t ∗userConfig)
Configures the FlexIO with FlexIO configuration.
• void FLEXIO_Deinit (FLEXIO_Type ∗base)
Gates the FlexIO clock.
FlexIO Basic Operation
• void FLEXIO_Reset (FLEXIO_Type ∗base)
Resets the FlexIO module.
• static void FLEXIO_Enable (FLEXIO_Type ∗base, bool enable)
Enables the FlexIO module operation.
• void FLEXIO_SetShifterConfig (FLEXIO_Type ∗base, uint8_t index, const flexio_shifter_config_t
∗shifterConfig)
Configures the shifter with shifter configuration.
• void FLEXIO_SetTimerConfig (FLEXIO_Type ∗base, uint8_t index, const flexio_timer_config_t
∗timerConfig)
Configures the timer with the timer configuration.
FlexIO Interrupt Operation
• static void FLEXIO_EnableShifterStatusInterrupts (FLEXIO_Type ∗base, uint32_t mask)
Enables the shifter status interrupt.
• static void FLEXIO_DisableShifterStatusInterrupts (FLEXIO_Type ∗base, uint32_t mask)
Disables the shifter status interrupt.
• static void FLEXIO_EnableShifterErrorInterrupts (FLEXIO_Type ∗base, uint32_t mask)
Enables the shifter error interrupt.
• static void FLEXIO_DisableShifterErrorInterrupts (FLEXIO_Type ∗base, uint32_t mask)
Disables the shifter error interrupt.
• static void FLEXIO_EnableTimerStatusInterrupts (FLEXIO_Type ∗base, uint32_t mask)
Enables the timer status interrupt.
• static void FLEXIO_DisableTimerStatusInterrupts (FLEXIO_Type ∗base, uint32_t mask)
Disables the timer status interrupt.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
343
FlexIO Driver
FlexIO Status Operation
• static uint32_t FLEXIO_GetShifterStatusFlags (FLEXIO_Type ∗base)
Gets the shifter status flags.
• static void FLEXIO_ClearShifterStatusFlags (FLEXIO_Type ∗base, uint32_t mask)
Clears the shifter status flags.
• static uint32_t FLEXIO_GetShifterErrorFlags (FLEXIO_Type ∗base)
Gets the shifter error flags.
• static void FLEXIO_ClearShifterErrorFlags (FLEXIO_Type ∗base, uint32_t mask)
Clears the shifter error flags.
• static uint32_t FLEXIO_GetTimerStatusFlags (FLEXIO_Type ∗base)
Gets the timer status flags.
• static void FLEXIO_ClearTimerStatusFlags (FLEXIO_Type ∗base, uint32_t mask)
Clears the timer status flags.
FlexIO DMA Operation
• static void FLEXIO_EnableShifterStatusDMA (FLEXIO_Type ∗base, uint32_t mask, bool enable)
Enables/disables the shifter status DMA.
• uint32_t FLEXIO_GetShifterBufferAddress (FLEXIO_Type ∗base, flexio_shifter_buffer_type_-
ttype, uint8_t index)
Gets the shifter buffer address for the DMA transfer usage.
• status_t FLEXIO_RegisterHandleIRQ (void ∗base, void ∗handle, flexio_isr_t isr)
Registers the handle and the interrupt handler for the FlexIO-simulated peripheral.
• status_t FLEXIO_UnregisterHandleIRQ (void ∗base)
Unregisters the handle and the interrupt handler for the FlexIO-simulated peripheral.
22.2.2 Data Structure Documentation
22.2.2.1 struct flexio_config_t
Data Fields
• bool enableFlexio
Enable/disable FlexIO module.
• bool enableInDoze
Enable/disable FlexIO operation in doze mode.
• bool enableInDebug
Enable/disable FlexIO operation in debug mode.
• bool enableFastAccess
Enable/disable fast access to FlexIO registers, fast access requires the FlexIO clock to be at least twice
the frequency of the bus clock.
344
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
22.2.2.1.0.56 Field Documentation
22.2.2.1.0.56.1 bool flexio_config_t::enableFastAccess
22.2.2.2 struct flexio_timer_config_t
Data Fields
• uint32_t triggerSelect
The internal trigger selection number using MACROs.
•flexio_timer_trigger_polarity_t triggerPolarity
Trigger Polarity.
•flexio_timer_trigger_source_t triggerSource
Trigger Source, internal (see ’trgsel’) or external.
•flexio_pin_config_t pinConfig
Timer Pin Configuration.
• uint32_t pinSelect
Timer Pin number Select.
•flexio_pin_polarity_t pinPolarity
Timer Pin Polarity.
•flexio_timer_mode_t timerMode
Timer work Mode.
•flexio_timer_output_t timerOutput
Configures the initial state of the Timer Output and whether it is affected by the Timer reset.
•flexio_timer_decrement_source_t timerDecrement
Configures the source of the Timer decrement and the source of the Shift clock.
•flexio_timer_reset_condition_t timerReset
Configures the condition that causes the timer counter (and optionally the timer output) to be reset.
•flexio_timer_disable_condition_t timerDisable
Configures the condition that causes the Timer to be disabled and stop decrementing.
•flexio_timer_enable_condition_t timerEnable
Configures the condition that causes the Timer to be enabled and start decrementing.
•flexio_timer_stop_bit_condition_t timerStop
Timer STOP Bit generation.
•flexio_timer_start_bit_condition_t timerStart
Timer STRAT Bit generation.
• uint32_t timerCompare
Value for Timer Compare N Register.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
345
FlexIO Driver
22.2.2.2.0.57 Field Documentation
22.2.2.2.0.57.1 uint32_t flexio_timer_config_t::triggerSelect
22.2.2.2.0.57.2 flexio_timer_trigger_polarity_t flexio_timer_config_t::triggerPolarity
22.2.2.2.0.57.3 flexio_timer_trigger_source_t flexio_timer_config_t::triggerSource
22.2.2.2.0.57.4 flexio_pin_config_t flexio_timer_config_t::pinConfig
22.2.2.2.0.57.5 uint32_t flexio_timer_config_t::pinSelect
22.2.2.2.0.57.6 flexio_pin_polarity_t flexio_timer_config_t::pinPolarity
22.2.2.2.0.57.7 flexio_timer_mode_t flexio_timer_config_t::timerMode
22.2.2.2.0.57.8 flexio_timer_output_t flexio_timer_config_t::timerOutput
22.2.2.2.0.57.9 flexio_timer_decrement_source_t flexio_timer_config_t::timerDecrement
22.2.2.2.0.57.10 flexio_timer_reset_condition_t flexio_timer_config_t::timerReset
22.2.2.2.0.57.11 flexio_timer_disable_condition_t flexio_timer_config_t::timerDisable
22.2.2.2.0.57.12 flexio_timer_enable_condition_t flexio_timer_config_t::timerEnable
22.2.2.2.0.57.13 flexio_timer_stop_bit_condition_t flexio_timer_config_t::timerStop
22.2.2.2.0.57.14 flexio_timer_start_bit_condition_t flexio_timer_config_t::timerStart
22.2.2.2.0.57.15 uint32_t flexio_timer_config_t::timerCompare
22.2.2.3 struct flexio_shifter_config_t
Data Fields
• uint32_t timerSelect
Selects which Timer is used for controlling the logic/shift register and generating the Shift clock.
•flexio_shifter_timer_polarity_t timerPolarity
Timer Polarity.
•flexio_pin_config_t pinConfig
Shifter Pin Configuration.
• uint32_t pinSelect
Shifter Pin number Select.
•flexio_pin_polarity_t pinPolarity
Shifter Pin Polarity.
•flexio_shifter_mode_t shifterMode
Configures the mode of the Shifter.
•flexio_shifter_input_source_t inputSource
Selects the input source for the shifter.
•flexio_shifter_stop_bit_t shifterStop
346
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
Shifter STOP bit.
•flexio_shifter_start_bit_t shifterStart
Shifter START bit.
22.2.2.3.0.58 Field Documentation
22.2.2.3.0.58.1 uint32_t flexio_shifter_config_t::timerSelect
22.2.2.3.0.58.2 flexio_shifter_timer_polarity_t flexio_shifter_config_t::timerPolarity
22.2.2.3.0.58.3 flexio_pin_config_t flexio_shifter_config_t::pinConfig
22.2.2.3.0.58.4 uint32_t flexio_shifter_config_t::pinSelect
22.2.2.3.0.58.5 flexio_pin_polarity_t flexio_shifter_config_t::pinPolarity
22.2.2.3.0.58.6 flexio_shifter_mode_t flexio_shifter_config_t::shifterMode
22.2.2.3.0.58.7 flexio_shifter_input_source_t flexio_shifter_config_t::inputSource
22.2.2.3.0.58.8 flexio_shifter_stop_bit_t flexio_shifter_config_t::shifterStop
22.2.2.3.0.58.9 flexio_shifter_start_bit_t flexio_shifter_config_t::shifterStart
22.2.3 Macro Definition Documentation
22.2.3.1 #define FSL_FLEXIO_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
22.2.3.2 #define FLEXIO_TIMER_TRIGGER_SEL_PININPUT( x) ((uint32_t)(x) << 1U)
22.2.4 Typedef Documentation
22.2.4.1 typedef void(∗flexio_isr_t)(void ∗base, void ∗handle)
22.2.5 Enumeration Type Documentation
22.2.5.1 enum flexio_timer_trigger_polarity_t
Enumerator
kFLEXIO_TimerTriggerPolarityActiveHigh Active high.
kFLEXIO_TimerTriggerPolarityActiveLow Active low.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
347
FlexIO Driver
22.2.5.2 enum flexio_timer_trigger_source_t
Enumerator
kFLEXIO_TimerTriggerSourceExternal External trigger selected.
kFLEXIO_TimerTriggerSourceInternal Internal trigger selected.
22.2.5.3 enum flexio_pin_config_t
Enumerator
kFLEXIO_PinConfigOutputDisabled Pin output disabled.
kFLEXIO_PinConfigOpenDrainOrBidirection Pin open drain or bidirectional output enable.
kFLEXIO_PinConfigBidirectionOutputData Pin bidirectional output data.
kFLEXIO_PinConfigOutput Pin output.
22.2.5.4 enum flexio_pin_polarity_t
Enumerator
kFLEXIO_PinActiveHigh Active high.
kFLEXIO_PinActiveLow Active low.
22.2.5.5 enum flexio_timer_mode_t
Enumerator
kFLEXIO_TimerModeDisabled Timer Disabled.
kFLEXIO_TimerModeDual8BitBaudBit Dual 8-bit counters baud/bit mode.
kFLEXIO_TimerModeDual8BitPWM Dual 8-bit counters PWM mode.
kFLEXIO_TimerModeSingle16Bit Single 16-bit counter mode.
22.2.5.6 enum flexio_timer_output_t
Enumerator
kFLEXIO_TimerOutputOneNotAffectedByReset Logic one when enabled and is not affected by
timer reset.
kFLEXIO_TimerOutputZeroNotAffectedByReset Logic zero when enabled and is not affected by
timer reset.
kFLEXIO_TimerOutputOneAffectedByReset Logic one when enabled and on timer reset.
kFLEXIO_TimerOutputZeroAffectedByReset Logic zero when enabled and on timer reset.
348
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
22.2.5.7 enum flexio_timer_decrement_source_t
Enumerator
kFLEXIO_TimerDecSrcOnFlexIOClockShiftTimerOutput Decrement counter on FlexIO clock,
Shift clock equals Timer output.
kFLEXIO_TimerDecSrcOnTriggerInputShiftTimerOutput Decrement counter on Trigger input
(both edges), Shift clock equals Timer output.
kFLEXIO_TimerDecSrcOnPinInputShiftPinInput Decrement counter on Pin input (both edges),
Shift clock equals Pin input.
kFLEXIO_TimerDecSrcOnTriggerInputShiftTriggerInput Decrement counter on Trigger input
(both edges), Shift clock equals Trigger input.
22.2.5.8 enum flexio_timer_reset_condition_t
Enumerator
kFLEXIO_TimerResetNever Timer never reset.
kFLEXIO_TimerResetOnTimerPinEqualToTimerOutput Timer reset on Timer Pin equal to Timer
Output.
kFLEXIO_TimerResetOnTimerTriggerEqualToTimerOutput Timer reset on Timer Trigger equal
to Timer Output.
kFLEXIO_TimerResetOnTimerPinRisingEdge Timer reset on Timer Pin rising edge.
kFLEXIO_TimerResetOnTimerTriggerRisingEdge Timer reset on Trigger rising edge.
kFLEXIO_TimerResetOnTimerTriggerBothEdge Timer reset on Trigger rising or falling edge.
22.2.5.9 enum flexio_timer_disable_condition_t
Enumerator
kFLEXIO_TimerDisableNever Timer never disabled.
kFLEXIO_TimerDisableOnPreTimerDisable Timer disabled on Timer N-1 disable.
kFLEXIO_TimerDisableOnTimerCompare Timer disabled on Timer compare.
kFLEXIO_TimerDisableOnTimerCompareTriggerLow Timer disabled on Timer compare and
Trigger Low.
kFLEXIO_TimerDisableOnPinBothEdge Timer disabled on Pin rising or falling edge.
kFLEXIO_TimerDisableOnPinBothEdgeTriggerHigh Timer disabled on Pin rising or falling edge
provided Trigger is high.
kFLEXIO_TimerDisableOnTriggerFallingEdge Timer disabled on Trigger falling edge.
22.2.5.10 enum flexio_timer_enable_condition_t
Enumerator
kFLEXIO_TimerEnabledAlways Timer always enabled.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
349
FlexIO Driver
kFLEXIO_TimerEnableOnPrevTimerEnable Timer enabled on Timer N-1 enable.
kFLEXIO_TimerEnableOnTriggerHigh Timer enabled on Trigger high.
kFLEXIO_TimerEnableOnTriggerHighPinHigh Timer enabled on Trigger high and Pin high.
kFLEXIO_TimerEnableOnPinRisingEdge Timer enabled on Pin rising edge.
kFLEXIO_TimerEnableOnPinRisingEdgeTriggerHigh Timer enabled on Pin rising edge and Trig-
ger high.
kFLEXIO_TimerEnableOnTriggerRisingEdge Timer enabled on Trigger rising edge.
kFLEXIO_TimerEnableOnTriggerBothEdge Timer enabled on Trigger rising or falling edge.
22.2.5.11 enum flexio_timer_stop_bit_condition_t
Enumerator
kFLEXIO_TimerStopBitDisabled Stop bit disabled.
kFLEXIO_TimerStopBitEnableOnTimerCompare Stop bit is enabled on timer compare.
kFLEXIO_TimerStopBitEnableOnTimerDisable Stop bit is enabled on timer disable.
kFLEXIO_TimerStopBitEnableOnTimerCompareDisable Stop bit is enabled on timer compare
and timer disable.
22.2.5.12 enum flexio_timer_start_bit_condition_t
Enumerator
kFLEXIO_TimerStartBitDisabled Start bit disabled.
kFLEXIO_TimerStartBitEnabled Start bit enabled.
22.2.5.13 enum flexio_shifter_timer_polarity_t
22.2.5.14 enum flexio_shifter_mode_t
Enumerator
kFLEXIO_ShifterDisabled Shifter is disabled.
kFLEXIO_ShifterModeReceive Receive mode.
kFLEXIO_ShifterModeTransmit Transmit mode.
kFLEXIO_ShifterModeMatchStore Match store mode.
kFLEXIO_ShifterModeMatchContinuous Match continuous mode.
22.2.5.15 enum flexio_shifter_input_source_t
Enumerator
kFLEXIO_ShifterInputFromPin Shifter input from pin.
kFLEXIO_ShifterInputFromNextShifterOutput Shifter input from Shifter N+1.
350
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
22.2.5.16 enum flexio_shifter_stop_bit_t
Enumerator
kFLEXIO_ShifterStopBitDisable Disable shifter stop bit.
kFLEXIO_ShifterStopBitLow Set shifter stop bit to logic low level.
kFLEXIO_ShifterStopBitHigh Set shifter stop bit to logic high level.
22.2.5.17 enum flexio_shifter_start_bit_t
Enumerator
kFLEXIO_ShifterStartBitDisabledLoadDataOnEnable Disable shifter start bit, transmitter loads
data on enable.
kFLEXIO_ShifterStartBitDisabledLoadDataOnShift Disable shifter start bit, transmitter loads
data on first shift.
kFLEXIO_ShifterStartBitLow Set shifter start bit to logic low level.
kFLEXIO_ShifterStartBitHigh Set shifter start bit to logic high level.
22.2.5.18 enum flexio_shifter_buffer_type_t
Enumerator
kFLEXIO_ShifterBuffer Shifter Buffer N Register.
kFLEXIO_ShifterBufferBitSwapped Shifter Buffer N Bit Byte Swapped Register.
kFLEXIO_ShifterBufferByteSwapped Shifter Buffer N Byte Swapped Register.
kFLEXIO_ShifterBufferBitByteSwapped Shifter Buffer N Bit Swapped Register.
22.2.6 Function Documentation
22.2.6.1 void FLEXIO_GetDefaultConfig ( flexio_config_t ∗userConfig )
The configuration can used directly for calling FLEXIO_Configure().
Example:
flexio_config_t config;
FLEXIO_GetDefaultConfig(&config);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
351
FlexIO Driver
Parameters
userConfig pointer to flexio_config_t structure
22.2.6.2 void FLEXIO_Init ( FLEXIO_Type ∗base, const flexio_config_t ∗userConfig )
The configuration structure can be filled by the user, or be set with default values by FLEXIO_GetDefault-
Config().
Example
flexio_config_t config = {
.enableFlexio =true,
.enableInDoze = false,
.enableInDebug = true,
.enableFastAccess = false
};
FLEXIO_Configure(base, &config);
Parameters
base FlexIO peripheral base address
userConfig pointer to flexio_config_t structure
22.2.6.3 void FLEXIO_Deinit ( FLEXIO_Type ∗base )
Call this API to stop the FlexIO clock.
Note
After calling this API, call the FLEXO_Init to use the FlexIO module.
Parameters
base FlexIO peripheral base address
22.2.6.4 void FLEXIO_Reset ( FLEXIO_Type ∗base )
352
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
Parameters
base FlexIO peripheral base address
22.2.6.5 static void FLEXIO_Enable ( FLEXIO_Type ∗base, bool enable )[inline],
[static]
Parameters
base FlexIO peripheral base address
enable true to enable, false to disable.
22.2.6.6 void FLEXIO_SetShifterConfig ( FLEXIO_Type ∗base, uint8_t index, const
flexio_shifter_config_t ∗shifterConfig )
The configuration structure covers both the SHIFTCTL and SHIFTCFG registers. To configure the shifter
to the proper mode, select which timer controls the shifter to shift, whether to generate start bit/stop bit,
and the polarity of start bit and stop bit.
Example
flexio_shifter_config_t config = {
.timerSelect = 0,
.timerPolarity = kFLEXIO_ShifterTimerPolarityOnPositive,
.pinConfig = kFLEXIO_PinConfigOpenDrainOrBidirection,
.pinPolarity = kFLEXIO_PinActiveLow,
.shifterMode = kFLEXIO_ShifterModeTransmit,
.inputSource = kFLEXIO_ShifterInputFromPin,
.shifterStop = kFLEXIO_ShifterStopBitHigh,
.shifterStart = kFLEXIO_ShifterStartBitLow
};
FLEXIO_SetShifterConfig(base, &config);
Parameters
base FlexIO peripheral base address
index shifter index
shifterConfig pointer to flexio_shifter_config_t structure
22.2.6.7 void FLEXIO_SetTimerConfig ( FLEXIO_Type ∗base, uint8_t index, const
flexio_timer_config_t ∗timerConfig )
The configuration structure covers both the TIMCTL and TIMCFG registers. To configure the timer to the
proper mode, select trigger source for timer and the timer pin output and the timing for timer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
353
FlexIO Driver
Example
flexio_timer_config_t config = {
.triggerSelect = FLEXIO_TIMER_TRIGGER_SEL_SHIFTnSTAT(0),
.triggerPolarity = kFLEXIO_TimerTriggerPolarityActiveLow,
.triggerSource = kFLEXIO_TimerTriggerSourceInternal,
.pinConfig = kFLEXIO_PinConfigOpenDrainOrBidirection,
.pinSelect = 0,
.pinPolarity = kFLEXIO_PinActiveHigh,
.timerMode = kFLEXIO_TimerModeDual8BitBaudBit,
.timerOutput = kFLEXIO_TimerOutputZeroNotAffectedByReset,
.timerDecrement = kFLEXIO_TimerDecSrcOnFlexIOClockShiftTimerOutput
,
.timerReset = kFLEXIO_TimerResetOnTimerPinEqualToTimerOutput,
.timerDisable = kFLEXIO_TimerDisableOnTimerCompare,
.timerEnable = kFLEXIO_TimerEnableOnTriggerHigh,
.timerStop = kFLEXIO_TimerStopBitEnableOnTimerDisable,
.timerStart = kFLEXIO_TimerStartBitEnabled
};
FLEXIO_SetTimerConfig(base, &config);
Parameters
base FlexIO peripheral base address
index timer index
timerConfig pointer to flexio_timer_config_t structure
22.2.6.8 static void FLEXIO_EnableShifterStatusInterrupts ( FLEXIO_Type ∗base,
uint32_t mask )[inline],[static]
The interrupt generates when the corresponding SSF is set.
Parameters
base FlexIO peripheral base address
mask the shifter status mask which could be calculated by (1 << shifter index)
Note
for multiple shifter status interrupt enable, for example, two shifter status enable, could calculate the
mask by using ((1 << shifter index0) |(1 << shifter index1))
22.2.6.9 static void FLEXIO_DisableShifterStatusInterrupts ( FLEXIO_Type ∗base,
uint32_t mask )[inline],[static]
The interrupt won’t generate when the corresponding SSF is set.
354
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
Parameters
base FlexIO peripheral base address
mask the shifter status mask which could be calculated by (1 << shifter index)
Note
for multiple shifter status interrupt enable, for example, two shifter status enable, could calculate the
mask by using ((1 << shifter index0) |(1 << shifter index1))
22.2.6.10 static void FLEXIO_EnableShifterErrorInterrupts ( FLEXIO_Type ∗base,
uint32_t mask )[inline],[static]
The interrupt generates when the corresponding SEF is set.
Parameters
base FlexIO peripheral base address
mask the shifter error mask which could be calculated by (1 << shifter index)
Note
for multiple shifter error interrupt enable, for example, two shifter error enable, could calculate the
mask by using ((1 << shifter index0) |(1 << shifter index1))
22.2.6.11 static void FLEXIO_DisableShifterErrorInterrupts ( FLEXIO_Type ∗base,
uint32_t mask )[inline],[static]
The interrupt won’t generate when the corresponding SEF is set.
Parameters
base FlexIO peripheral base address
mask the shifter error mask which could be calculated by (1 << shifter index)
Note
for multiple shifter error interrupt enable, for example, two shifter error enable, could calculate the
mask by using ((1 << shifter index0) |(1 << shifter index1))
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
355
FlexIO Driver
22.2.6.12 static void FLEXIO_EnableTimerStatusInterrupts ( FLEXIO_Type ∗base,
uint32_t mask )[inline],[static]
The interrupt generates when the corresponding SSF is set.
356
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
Parameters
base FlexIO peripheral base address
mask the timer status mask which could be calculated by (1 << timer index)
Note
for multiple timer status interrupt enable, for example, two timer status enable, could calculate the
mask by using ((1 << timer index0) |(1 << timer index1))
22.2.6.13 static void FLEXIO_DisableTimerStatusInterrupts ( FLEXIO_Type ∗base,
uint32_t mask )[inline],[static]
The interrupt won’t generate when the corresponding SSF is set.
Parameters
base FlexIO peripheral base address
mask the timer status mask which could be calculated by (1 << timer index)
Note
for multiple timer status interrupt enable, for example, two timer status enable, could calculate the
mask by using ((1 << timer index0) |(1 << timer index1))
22.2.6.14 static uint32_t FLEXIO_GetShifterStatusFlags ( FLEXIO_Type ∗base )
[inline],[static]
Parameters
base FlexIO peripheral base address
Returns
shifter status flags
22.2.6.15 static void FLEXIO_ClearShifterStatusFlags ( FLEXIO_Type ∗base, uint32_t
mask )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
357
FlexIO Driver
Parameters
base FlexIO peripheral base address
mask the shifter status mask which could be calculated by (1 << shifter index)
Note
for clearing multiple shifter status flags, for example, two shifter status flags, could calculate the
mask by using ((1 << shifter index0) |(1 << shifter index1))
22.2.6.16 static uint32_t FLEXIO_GetShifterErrorFlags ( FLEXIO_Type ∗base )
[inline],[static]
Parameters
base FlexIO peripheral base address
Returns
shifter error flags
22.2.6.17 static void FLEXIO_ClearShifterErrorFlags ( FLEXIO_Type ∗base, uint32_t
mask )[inline],[static]
Parameters
base FlexIO peripheral base address
mask the shifter error mask which could be calculated by (1 << shifter index)
Note
for clearing multiple shifter error flags, for example, two shifter error flags, could calculate the mask
by using ((1 << shifter index0) |(1 << shifter index1))
22.2.6.18 static uint32_t FLEXIO_GetTimerStatusFlags ( FLEXIO_Type ∗base )
[inline],[static]
358
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
Parameters
base FlexIO peripheral base address
Returns
timer status flags
22.2.6.19 static void FLEXIO_ClearTimerStatusFlags ( FLEXIO_Type ∗base, uint32_t
mask )[inline],[static]
Parameters
base FlexIO peripheral base address
mask the timer status mask which could be calculated by (1 << timer index)
Note
for clearing multiple timer status flags, for example, two timer status flags, could calculate the mask
by using ((1 << timer index0) |(1 << timer index1))
22.2.6.20 static void FLEXIO_EnableShifterStatusDMA ( FLEXIO_Type ∗base, uint32_t
mask, bool enable )[inline],[static]
The DMA request generates when the corresponding SSF is set.
Note
For multiple shifter status DMA enables, for example, calculate the mask by using ((1 << shifter
index0) |(1 << shifter index1))
Parameters
base FlexIO peripheral base address
mask the shifter status mask which could be calculated by (1 << shifter index)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
359
FlexIO Driver
enable True to enable, false to disable.
22.2.6.21 uint32_t FLEXIO_GetShifterBufferAddress ( FLEXIO_Type ∗base,
flexio_shifter_buffer_type_t type, uint8_t index )
Parameters
base FlexIO peripheral base address
type shifter type of flexio_shifter_buffer_type_t
index shifter index
Returns
corresponding shifter buffer index
22.2.6.22 status_t FLEXIO_RegisterHandleIRQ ( void ∗base, void ∗handle, flexio_isr_t
isr )
Parameters
base pointer to FlexIO simulated peripheral type.
handle pointer to handler for FlexIO simulated peripheral.
isr FlexIO simulated peripheral interrupt handler.
Return values
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The FlexIO type/handle/ISR table out of range.
22.2.6.23 status_t FLEXIO_UnregisterHandleIRQ ( void ∗base )
Parameters
360
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Driver
base pointer to FlexIO simulated peripheral type.
Return values
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The FlexIO type/handle/ISR table out of range.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
361
FlexIO Camera Driver
22.3 FlexIO Camera Driver
22.3.1 Overview
The KSDK provides driver for the camera function using Flexible I/O.
22.3.2 Overview
FlexIO CAMERA driver includes 2 parts: functional APIs and EDMA transactional APIs. Functional
APIs are feature/property target low level APIs. User can use functional APIs for FLEXIO CAMERA
initialization/configuration/operation purpose. Using the functional API require user get knowledge of
the FLEXIO CAMERA peripheral and know how to organize functional APIs to meet the requirement
of application. All functional API use the FLEXIO_CAMERA_Type ∗as the first parameter. FLEXIO
CAMERA functional operation groups provide the functional APIs set.
EDMA transactional APIs are transaction target high level APIs. User can use the transactional API to
enable the peripheral quickly and can also use in the application if the code size and performance of
transactional APIs can satisfy requirement. If the code size and performance are critical requirement, user
can refer to the transactional API implementation and write their own code. All transactional APIs use the
flexio_camera_edma_handle_t as the second parameter and user need to initialize the handle by calling
FLEXIO_CAMERA_TransferCreateHandleEDMA() API.
EDMA transactional APIs support asynchronized receive. It means, the functions FLEXIO_CAMER-
A_TransferReceiveEDMA() setup interrupt for data receive, when the receive complete, upper layer is
notified through callback function with status kStatus_FLEXIO_CAMERA_RxIdle.
22.3.3 Typical use case
22.3.3.1 FLEXIO CAMERA Receive in EDMA way
volatile uint32_t isEDMAGetOnePictureFinish = false;
edma_handle_t g_edmaHandle;
flexio_camera_edma_handle_t g_cameraEdmaHandle;
edma_config_t edmaConfig;
FLEXIO_CAMERA_Type g_FlexioCameraDevice = {.flexioBase = FLEXIO0,
.datPinStartIdx = 24U, /*fxio_pin 24 -31 are used.
.pclkPinIdx = 1U, /*fxio_pin 1 is used as pclk pin.
.hrefPinIdx = 18U, /*flexio_pin 18 is used as href pin.
.shifterStartIdx = 0U, /*Shifter 0 = 7 are used.
.shifterCount = 8U,
.timerIdx = 0U};
flexio_camera_config_t cameraConfig;
/*Configure DMAMUX
DMAMUX_Init(DMAMUX0);
/*Configure DMA
EDMA_GetDefaultConfig(&edmaConfig);
EDMA_Init(DMA0, &edmaConfig);
DMAMUX_SetSource(DMAMUX0, DMA_CHN_FLEXIO_TO_FRAMEBUFF, (g_FlexioCameraDevice.shifterStartIdx + 1U));
DMAMUX_EnableChannel(DMAMUX0, DMA_CHN_FLEXIO_TO_FRAMEBUFF);
EDMA_CreateHandle(&g_edmaHandle, DMA0, DMA_CHN_FLEXIO_TO_FRAMEBUFF);
362
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
FLEXIO_CAMERA_GetDefaultConfig(&cameraConfig);
FLEXIO_CAMERA_Init(&g_FlexioCameraDevice, &cameraConfig);
/*Clear all the flag.
FLEXIO_CAMERA_ClearStatusFlags(&g_FlexioCameraDevice,
kFLEXIO_CAMERA_RxDataRegFullFlag | kFLEXIO_CAMERA_RxErrorFlag);
FLEXIO_ClearTimerStatusFlags(FLEXIO0, 0xFF);
FLEXIO_CAMERA_TransferCreateHandleEDMA(&g_FlexioCameraDevice, &g_cameraEdmaHandle,
FLEXIO_CAMERA_UserCallback, NULL,
&g_edmaHandle);
cameraTransfer.dataAddress = (uint32_t)u16CameraFrameBuffer;
cameraTransfer.dataNum = sizeof(u16CameraFrameBuffer);
FLEXIO_CAMERA_TransferReceiveEDMA(&g_FlexioCameraDevice, &g_cameraEdmaHandle, &cameraTransfer);
while (!(isEDMAGetOnePictureFinish))
{
;
}
/*A callback function is also needed
void FLEXIO_CAMERA_UserCallback(FLEXIO_CAMERA_Type *base,
flexio_camera_edma_handle_t *handle,
status_t status,
void *userData)
{
userData = userData;
/*EDMA Transfer finished
if (kStatus_FLEXIO_CAMERA_RxIdle == status)
{
isEDMAGetOnePictureFinish = true;
}
}
Modules
•FlexIO eDMA Camera Driver
Files
• file fsl_flexio_camera.h
Data Structures
• struct FLEXIO_CAMERA_Type
Define structure of configuring the FlexIO camera device. More...
• struct flexio_camera_config_t
Define FLEXIO camera user configuration structure. More...
• struct flexio_camera_transfer_t
Define FLEXIO CAMERA transfer structure. More...
Macros
• #define FLEXIO_CAMERA_PARALLEL_DATA_WIDTH (8U)
Define the camera CPI interface is constantly 8-bit width.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
363
FlexIO Camera Driver
Enumerations
• enum _flexio_camera_status {
kStatus_FLEXIO_CAMERA_RxBusy = MAKE_STATUS(kStatusGroup_FLEXIO_CAMERA,
0),
kStatus_FLEXIO_CAMERA_RxIdle = MAKE_STATUS(kStatusGroup_FLEXIO_CAMERA, 1)
}
Error codes for the CAMERA driver.
• enum _flexio_camera_status_flags {
kFLEXIO_CAMERA_RxDataRegFullFlag = 0x1U,
kFLEXIO_CAMERA_RxErrorFlag = 0x2U }
Define FlexIO CAMERA status mask.
Driver version
• #define FSL_FLEXIO_CAMERA_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
FlexIO camera driver version 2.1.0.
Initialize and configuration
• void FLEXIO_CAMERA_Init (FLEXIO_CAMERA_Type ∗base, const flexio_camera_config_-
t∗config)
Ungates the FlexIO clock, reset the FlexIO module and do FlexIO CAMERA hardware configuration.
• void FLEXIO_CAMERA_Deinit (FLEXIO_CAMERA_Type ∗base)
Disables the FlexIO CAMERA and gate the FlexIO clock.
• void FLEXIO_CAMERA_GetDefaultConfig (flexio_camera_config_t ∗config)
Get the default configuration to configure FLEXIO CAMERA.
• static void FLEXIO_CAMERA_Enable (FLEXIO_CAMERA_Type ∗base, bool enable)
Enables/disables the FlexIO CAMERA module operation.
Status
• uint32_t FLEXIO_CAMERA_GetStatusFlags (FLEXIO_CAMERA_Type ∗base)
Gets the FlexIO CAMERA status flags.
• void FLEXIO_CAMERA_ClearStatusFlags (FLEXIO_CAMERA_Type ∗base, uint32_t mask)
Clears the receive buffer full flag manually.
Interrupts
• void FLEXIO_CAMERA_EnableInterrupt (FLEXIO_CAMERA_Type ∗base)
Switches on the interrupt for receive buffer full event.
• void FLEXIO_CAMERA_DisableInterrupt (FLEXIO_CAMERA_Type ∗base)
Switches off the interrupt for receive buffer full event.
364
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
DMA support
• static void FLEXIO_CAMERA_EnableRxDMA (FLEXIO_CAMERA_Type ∗base, bool enable)
Enables/disables the FlexIO CAMERA receive DMA.
• static uint32_t FLEXIO_CAMERA_GetRxBufferAddress (FLEXIO_CAMERA_Type ∗base)
Gets the data from the receive buffer.
22.3.4 Data Structure Documentation
22.3.4.1 struct FLEXIO_CAMERA_Type
Data Fields
• FLEXIO_Type ∗flexioBase
FlexIO module base address.
• uint32_t datPinStartIdx
First data pin (D0) index for flexio_camera.
• uint32_t pclkPinIdx
Pixel clock pin (PCLK) index for flexio_camera.
• uint32_t hrefPinIdx
Horizontal sync pin (HREF) index for flexio_camera.
• uint32_t shifterStartIdx
First shifter index used for flexio_camera data FIFO.
• uint32_t shifterCount
The count of shifters that are used as flexio_camera data FIFO.
• uint32_t timerIdx
Timer index used for flexio_camera in FlexIO.
22.3.4.1.0.59 Field Documentation
22.3.4.1.0.59.1 FLEXIO_Type∗FLEXIO_CAMERA_Type::flexioBase
22.3.4.1.0.59.2 uint32_t FLEXIO_CAMERA_Type::datPinStartIdx
Then the successive following FLEXIO_CAMERA_DATA_WIDTH-1 pins would be used as D1-D7.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
365
FlexIO Camera Driver
22.3.4.1.0.59.3 uint32_t FLEXIO_CAMERA_Type::pclkPinIdx
22.3.4.1.0.59.4 uint32_t FLEXIO_CAMERA_Type::hrefPinIdx
22.3.4.1.0.59.5 uint32_t FLEXIO_CAMERA_Type::shifterStartIdx
22.3.4.1.0.59.6 uint32_t FLEXIO_CAMERA_Type::shifterCount
22.3.4.1.0.59.7 uint32_t FLEXIO_CAMERA_Type::timerIdx
22.3.4.2 struct flexio_camera_config_t
Data Fields
• bool enablecamera
Enable/disable FLEXIO camera TX & RX.
• bool enableInDoze
Enable/disable FLEXIO operation in doze mode.
• bool enableInDebug
Enable/disable FLEXIO operation in debug mode.
• bool enableFastAccess
Enable/disable fast access to FLEXIO registers, fast access requires the FLEXIO clock to be at least twice
the frequency of the bus clock.
22.3.4.2.0.60 Field Documentation
22.3.4.2.0.60.1 bool flexio_camera_config_t::enablecamera
22.3.4.2.0.60.2 bool flexio_camera_config_t::enableFastAccess
22.3.4.3 struct flexio_camera_transfer_t
Data Fields
• uint32_t dataAddress
Transfer buffer.
• uint32_t dataNum
Transfer num.
366
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
22.3.5 Macro Definition Documentation
22.3.5.1 #define FSL_FLEXIO_CAMERA_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
22.3.5.2 #define FLEXIO_CAMERA_PARALLEL_DATA_WIDTH (8U)
22.3.6 Enumeration Type Documentation
22.3.6.1 enum _flexio_camera_status
Enumerator
kStatus_FLEXIO_CAMERA_RxBusy Receiver is busy.
kStatus_FLEXIO_CAMERA_RxIdle CAMERA receiver is idle.
22.3.6.2 enum _flexio_camera_status_flags
Enumerator
kFLEXIO_CAMERA_RxDataRegFullFlag Receive buffer full flag.
kFLEXIO_CAMERA_RxErrorFlag Receive buffer error flag.
22.3.7 Function Documentation
22.3.7.1 void FLEXIO_CAMERA_Init ( FLEXIO_CAMERA_Type ∗base, const
flexio_camera_config_t ∗config )
Parameters
base pointer to FLEXIO_CAMERA_Type structure
config pointer to flexio_camera_config_t structure
22.3.7.2 void FLEXIO_CAMERA_Deinit ( FLEXIO_CAMERA_Type ∗base )
Note
After calling this API, user need to call FLEXO_CAMERA_Init to use the FlexIO CAMERA mod-
ule.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
367
FlexIO Camera Driver
Parameters
base pointer to FLEXIO_CAMERA_Type structure
22.3.7.3 void FLEXIO_CAMERA_GetDefaultConfig ( flexio_camera_config_t ∗config )
The configuration could be used directly for calling FLEXIO_CAMERA_Init(). Example:
flexio_camera_config_t config;
FLEXIO_CAMERA_GetDefaultConfig(&userConfig);
Parameters
config pointer to flexio_camera_config_t structure
22.3.7.4 static void FLEXIO_CAMERA_Enable ( FLEXIO_CAMERA_Type ∗base, bool
enable )[inline],[static]
Parameters
base pointer to FLEXIO_CAMERA_Type
enable True to enable, false to disable.
22.3.7.5 uint32_t FLEXIO_CAMERA_GetStatusFlags ( FLEXIO_CAMERA_Type ∗base )
Parameters
base pointer to FLEXIO_CAMERA_Type structure
Returns
FlexIO shifter status flags
• FLEXIO_SHIFTSTAT_SSF_MASK
• 0
22.3.7.6 void FLEXIO_CAMERA_ClearStatusFlags ( FLEXIO_CAMERA_Type ∗base,
uint32_t mask )
368
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Parameters
base pointer to the device.
mask status flag The parameter could be any combination of the following values:
• kFLEXIO_CAMERA_RxDataRegFullFlag
• kFLEXIO_CAMERA_RxErrorFlag
22.3.7.7 void FLEXIO_CAMERA_EnableInterrupt ( FLEXIO_CAMERA_Type ∗base )
Parameters
base pointer to the device.
22.3.7.8 void FLEXIO_CAMERA_DisableInterrupt ( FLEXIO_CAMERA_Type ∗base )
Parameters
base pointer to the device.
22.3.7.9 static void FLEXIO_CAMERA_EnableRxDMA ( FLEXIO_CAMERA_Type ∗base,
bool enable )[inline],[static]
Parameters
base pointer to FLEXIO_CAMERA_Type structure
enable True to enable, false to disable.
The FlexIO camera mode can’t work without the DMA or EDMA support, Usually, it needs at least two
DMA or EDMA channel, one for transferring data from camera, such as 0V7670 to FlexIO buffer, another
is for transferring data from FlexIO buffer to LCD.
22.3.7.10 static uint32_t FLEXIO_CAMERA_GetRxBufferAddress (
FLEXIO_CAMERA_Type ∗base )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
369
FlexIO Camera Driver
Parameters
base pointer to the device.
Returns
data pointer to the buffer that would keep the data with count of base->shifterCount .
370
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
22.3.8 FlexIO DMA I2S Driver
22.3.8.1 Overview
Files
• file fsl_flexio_i2s_dma.h
Data Structures
• struct flexio_i2s_dma_handle_t
FlexIO I2S DMA transfer handle, users should not touch the content of the handle. More...
Typedefs
• typedef void(∗flexio_i2s_dma_callback_t )(FLEXIO_I2S_Type ∗base, flexio_i2s_dma_handle_-
t∗handle, status_t status, void ∗userData)
FlexIO I2S DMA transfer callback function for finish and error.
DMA Transactional
• void FLEXIO_I2S_TransferTxCreateHandleDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_dma-
_handle_t ∗handle, flexio_i2s_dma_callback_t callback, void ∗userData, dma_handle_t ∗dma-
Handle)
Initializes the FlexIO I2S DMA handle.
• void FLEXIO_I2S_TransferRxCreateHandleDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_dma-
_handle_t ∗handle, flexio_i2s_dma_callback_t callback, void ∗userData, dma_handle_t ∗dma-
Handle)
Initializes the FlexIO I2S Rx DMA handle.
• void FLEXIO_I2S_TransferSetFormatDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_dma_handle_t
∗handle, flexio_i2s_format_t ∗format, uint32_t srcClock_Hz)
Configures the FlexIO I2S Tx audio format.
• status_t FLEXIO_I2S_TransferSendDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_dma_handle_-
t∗handle, flexio_i2s_transfer_t ∗xfer)
Performs a non-blocking FlexIO I2S transfer using DMA.
• status_t FLEXIO_I2S_TransferReceiveDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_dma_handle_t
∗handle, flexio_i2s_transfer_t ∗xfer)
Performs a non-blocking FlexIO I2S receive using DMA.
• void FLEXIO_I2S_TransferAbortSendDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_dma_handle_t
∗handle)
Aborts a FlexIO I2S transfer using DMA.
• void FLEXIO_I2S_TransferAbortReceiveDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_dma_-
handle_t ∗handle)
Aborts a FlexIO I2S receive using DMA.
• status_t FLEXIO_I2S_TransferGetSendCountDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_dma_-
handle_t ∗handle, size_t ∗count)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
371
FlexIO Camera Driver
Gets the remaining bytes to be sent.
• status_t FLEXIO_I2S_TransferGetReceiveCountDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_-
dma_handle_t ∗handle, size_t ∗count)
Gets the remaining bytes to be received.
22.3.8.2 Data Structure Documentation
22.3.8.2.1 struct _flexio_i2s_dma_handle
Data Fields
•dma_handle_t ∗dmaHandle
DMA handler for FlexIO I2S send.
• uint8_t bytesPerFrame
Bytes in a frame.
• uint32_t state
Internal state for FlexIO I2S DMA transfer.
•flexio_i2s_dma_callback_t callback
Callback for users while transfer finish or error occurred.
• void ∗userData
User callback parameter.
•flexio_i2s_transfer_t queue [FLEXIO_I2S_XFER_QUEUE_SIZE]
Transfer queue storing queued transfer.
• size_t transferSize [FLEXIO_I2S_XFER_QUEUE_SIZE]
Data bytes need to transfer.
• volatile uint8_t queueUser
Index for user to queue transfer.
• volatile uint8_t queueDriver
Index for driver to get the transfer data and size.
22.3.8.2.1.1 Field Documentation
22.3.8.2.1.1.1 flexio_i2s_transfer_t flexio_i2s_dma_handle_t::queue[FLEXIO_I2S_XFER_QUE-
UE_SIZE]
22.3.8.2.1.1.2 volatile uint8_t flexio_i2s_dma_handle_t::queueUser
22.3.8.3 Function Documentation
22.3.8.3.1 void FLEXIO_I2S_TransferTxCreateHandleDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_dma_handle_t ∗handle, flexio_i2s_dma_callback_t callback, void ∗
userData, dma_handle_t ∗dmaHandle )
This function initializes the FlexIO I2S master DMA handle which can be used for other FlexIO I2S
master transactional APIs. Usually, for a specified FlexIO I2S instance, user need only call this API once
to get the initialized handle.
372
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
callback FlexIO I2S DMA callback function called while finished a block.
userData User parameter for callback.
dmaHandle DMA handle for FlexIO I2S. This handle shall be a static value allocated by users.
22.3.8.3.2 void FLEXIO_I2S_TransferRxCreateHandleDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_dma_handle_t ∗handle, flexio_i2s_dma_callback_t callback, void ∗
userData, dma_handle_t ∗dmaHandle )
This function initializes the FlexIO I2S slave DMA handle which can be used for other FlexIO I2S master
transactional APIs. Usually, for a specified FlexIO I2S instance, user need only call this API once to get
the initialized handle.
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
callback FlexIO I2S DMA callback function called while finished a block.
userData User parameter for callback.
dmaHandle DMA handle for FlexIO I2S. This handle shall be a static value allocated by users.
22.3.8.3.3 void FLEXIO_I2S_TransferSetFormatDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_dma_handle_t ∗handle, flexio_i2s_format_t ∗format, uint32_t srcClock_Hz
)
Audio format can be changed in run-time of FlexIO I2S. This function configures the sample rate and
audio data format to be transferred. This function also sets DMA parameter according to format.
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
373
FlexIO Camera Driver
format Pointer to FlexIO I2S audio data format structure.
srcClock_Hz FlexIO I2S clock source frequency in Hz. It should be 0 while in slave mode.
Return values
kStatus_Success Audio format set successfully.
kStatus_InvalidArgument The input arguments is invalid.
22.3.8.3.4 status_t FLEXIO_I2S_TransferSendDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_dma_handle_t ∗handle, flexio_i2s_transfer_t ∗xfer )
Note
This interface returns immediately after transfer initiates. Call FLEXIO_I2S_GetTransferStatus to
poll the transfer status and check whether FLEXIO I2S transfer finished.
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
xfer Pointer to DMA transfer structure.
Return values
kStatus_Success Start a FlexIO I2S DMA send successfully.
kStatus_InvalidArgument The input arguments is invalid.
kStatus_TxBusy FlexIO I2S is busy sending data.
22.3.8.3.5 status_t FLEXIO_I2S_TransferReceiveDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_dma_handle_t ∗handle, flexio_i2s_transfer_t ∗xfer )
Note
This interface returns immediately after transfer initiates. Call FLEXIO_I2S_GetReceive-
RemainingBytes to poll the transfer status to check whether the FlexIO I2S transfer is finished.
374
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
xfer Pointer to DMA transfer structure.
Return values
kStatus_Success Start a FlexIO I2S DMA receive successfully.
kStatus_InvalidArgument The input arguments is invalid.
kStatus_RxBusy FlexIO I2S is busy receiving data.
22.3.8.3.6 void FLEXIO_I2S_TransferAbortSendDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_dma_handle_t ∗handle )
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
22.3.8.3.7 void FLEXIO_I2S_TransferAbortReceiveDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_dma_handle_t ∗handle )
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
22.3.8.3.8 status_t FLEXIO_I2S_TransferGetSendCountDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_dma_handle_t ∗handle, size_t ∗count )
Parameters
base FlexIO I2S peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
375
FlexIO Camera Driver
handle FlexIO I2S DMA handle pointer.
count Bytes sent.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
22.3.8.3.9 status_t FLEXIO_I2S_TransferGetReceiveCountDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_dma_handle_t ∗handle, size_t ∗count )
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
count Bytes received.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
376
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
22.3.9 FlexIO DMA SPI Driver
22.3.9.1 Overview
Files
• file fsl_flexio_spi_dma.h
Data Structures
• struct flexio_spi_master_dma_handle_t
FlexIO SPI DMA transfer handle, users should not touch the content of the handle. More...
Typedefs
• typedef
flexio_spi_master_dma_handle_t flexio_spi_slave_dma_handle_t
Slave handle is the same with master handle.
• typedef void(∗flexio_spi_master_dma_transfer_callback_t )(FLEXIO_SPI_Type ∗base, flexio_spi-
_master_dma_handle_t ∗handle, status_t status, void ∗userData)
FlexIO SPI master callback for finished transmit.
• typedef void(∗flexio_spi_slave_dma_transfer_callback_t )(FLEXIO_SPI_Type ∗base, flexio_spi_-
slave_dma_handle_t ∗handle, status_t status, void ∗userData)
FlexIO SPI slave callback for finished transmit.
DMA Transactional
• status_t FLEXIO_SPI_MasterTransferCreateHandleDMA (FLEXIO_SPI_Type ∗base, flexio_spi-
_master_dma_handle_t ∗handle, flexio_spi_master_dma_transfer_callback_t callback, void ∗user-
Data, dma_handle_t ∗txHandle, dma_handle_t ∗rxHandle)
Initializes the FLEXO SPI master DMA handle.
• status_t FLEXIO_SPI_MasterTransferDMA (FLEXIO_SPI_Type ∗base, flexio_spi_master_dma_-
handle_t ∗handle, flexio_spi_transfer_t ∗xfer)
Performs a non-blocking FlexIO SPI transfer using DMA.
• void FLEXIO_SPI_MasterTransferAbortDMA (FLEXIO_SPI_Type ∗base, flexio_spi_master_-
dma_handle_t ∗handle)
Aborts a FlexIO SPI transfer using DMA.
• status_t FLEXIO_SPI_MasterTransferGetCountDMA (FLEXIO_SPI_Type ∗base, flexio_spi_-
master_dma_handle_t ∗handle, size_t ∗count)
Gets the remaining bytes for FlexIO SPI DMA transfer.
• static void FLEXIO_SPI_SlaveTransferCreateHandleDMA (FLEXIO_SPI_Type ∗base, flexio_spi-
_slave_dma_handle_t ∗handle, flexio_spi_slave_dma_transfer_callback_t callback, void ∗userData,
dma_handle_t ∗txHandle, dma_handle_t ∗rxHandle)
Initializes the FlexIO SPI slave DMA handle.
• status_t FLEXIO_SPI_SlaveTransferDMA (FLEXIO_SPI_Type ∗base, flexio_spi_slave_dma_-
handle_t ∗handle, flexio_spi_transfer_t ∗xfer)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
377
FlexIO Camera Driver
Performs a non-blocking FlexIO SPI transfer using DMA.
• static void FLEXIO_SPI_SlaveTransferAbortDMA (FLEXIO_SPI_Type ∗base, flexio_spi_slave_-
dma_handle_t ∗handle)
Aborts a FlexIO SPI transfer using DMA.
• static status_t FLEXIO_SPI_SlaveTransferGetCountDMA (FLEXIO_SPI_Type ∗base, flexio_spi_-
slave_dma_handle_t ∗handle, size_t ∗count)
Gets the remaining bytes to be transferred for FlexIO SPI DMA.
22.3.9.2 Data Structure Documentation
22.3.9.2.1 struct _flexio_spi_master_dma_handle
typedef for flexio_spi_master_dma_handle_t in advance.
Data Fields
• size_t transferSize
Total bytes to be transferred.
• bool txInProgress
Send transfer in progress.
• bool rxInProgress
Receive transfer in progress.
•dma_handle_t ∗txHandle
DMA handler for SPI send.
•dma_handle_t ∗rxHandle
DMA handler for SPI receive.
•flexio_spi_master_dma_transfer_callback_t callback
Callback for SPI DMA transfer.
• void ∗userData
User Data for SPI DMA callback.
378
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
22.3.9.2.1.1 Field Documentation
22.3.9.2.1.1.1 size_t flexio_spi_master_dma_handle_t::transferSize
22.3.9.3 Typedef Documentation
22.3.9.3.1 typedef flexio_spi_master_dma_handle_t flexio_spi_slave_dma_handle_t
22.3.9.4 Function Documentation
22.3.9.4.1 status_t FLEXIO_SPI_MasterTransferCreateHandleDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_dma_handle_t ∗handle, flexio_spi_master_dma_transfer_callback-
_t callback, void ∗userData, dma_handle_t ∗txHandle, dma_handle_t ∗rxHandle
)
This function initializes the FLEXO SPI master DMA handle which can be used for other FLEXO SPI
master transactional APIs. Usually, for a specified FLEXO SPI instance, user need only call this API once
to get the initialized handle.
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle pointer to flexio_spi_master_dma_handle_t structure to store the transfer state.
callback SPI callback, NULL means no callback.
userData callback function parameter.
txHandle User requested DMA handle for FlexIO SPI RX DMA transfer.
rxHandle User requested DMA handle for FlexIO SPI TX DMA transfer.
Return values
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The FlexIO SPI DMA type/handle table out of range.
22.3.9.4.2 status_t FLEXIO_SPI_MasterTransferDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_dma_handle_t ∗handle, flexio_spi_transfer_t ∗xfer )
Note
This interface returned immediately after transfer initiates, users could call FLEXIO_SPI_Master-
GetTransferCountDMA to poll the transfer status to check whether FlexIO SPI transfer finished.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
379
FlexIO Camera Driver
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle pointer to flexio_spi_master_dma_handle_t structure to store the transfer state.
xfer Pointer to FlexIO SPI transfer structure.
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
kStatus_FLEXIO_SPI_-
Busy
FlexIO SPI is not idle, is running another transfer.
22.3.9.4.3 void FLEXIO_SPI_MasterTransferAbortDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_dma_handle_t ∗handle )
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle FlexIO SPI DMA handle pointer.
22.3.9.4.4 status_t FLEXIO_SPI_MasterTransferGetCountDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_dma_handle_t ∗handle, size_t ∗count )
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle FlexIO SPI DMA handle pointer.
count Number of bytes transferred so far by the non-blocking transaction.
22.3.9.4.5 static void FLEXIO_SPI_SlaveTransferCreateHandleDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_slave_dma_handle_t ∗handle, flexio_spi_slave_dma_transfer_callback_t
callback, void ∗userData, dma_handle_t ∗txHandle, dma_handle_t ∗rxHandle )
[inline],[static]
This function initializes the FlexIO SPI slave DMA handle.
380
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle pointer to flexio_spi_slave_dma_handle_t structure to store the transfer state.
callback SPI callback, NULL means no callback.
userData callback function parameter.
txHandle User requested DMA handle for FlexIO SPI TX DMA transfer.
rxHandle User requested DMA handle for FlexIO SPI RX DMA transfer.
22.3.9.4.6 status_t FLEXIO_SPI_SlaveTransferDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_slave_dma_handle_t ∗handle, flexio_spi_transfer_t ∗xfer )
Note
This interface returned immediately after transfer initiates, users could call FLEXIO_SPI_SlaveGet-
TransferCountDMA to poll the transfer status to check whether FlexIO SPI transfer finished.
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle pointer to flexio_spi_slave_dma_handle_t structure to store the transfer state.
xfer Pointer to FlexIO SPI transfer structure.
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
kStatus_FLEXIO_SPI_-
Busy
FlexIO SPI is not idle, is running another transfer.
22.3.9.4.7 static void FLEXIO_SPI_SlaveTransferAbortDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_slave_dma_handle_t ∗handle )[inline],[static]
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
381
FlexIO Camera Driver
base pointer to FLEXIO_SPI_Type structure.
handle pointer to flexio_spi_slave_dma_handle_t structure to store the transfer state.
22.3.9.4.8 static status_t FLEXIO_SPI_SlaveTransferGetCountDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_slave_dma_handle_t ∗handle, size_t ∗count )[inline],[static]
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle FlexIO SPI DMA handle pointer.
count Number of bytes transferred so far by the non-blocking transaction.
382
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
22.3.10 FlexIO DMA UART Driver
22.3.10.1 Overview
Files
• file fsl_flexio_uart_dma.h
Data Structures
• struct flexio_uart_dma_handle_t
UART DMA handle. More...
Typedefs
• typedef void(∗flexio_uart_dma_transfer_callback_t )(FLEXIO_UART_Type ∗base, flexio_uart_-
dma_handle_t ∗handle, status_t status, void ∗userData)
UART transfer callback function.
eDMA transactional
• status_t FLEXIO_UART_TransferCreateHandleDMA (FLEXIO_UART_Type ∗base, flexio_uart-
_dma_handle_t ∗handle, flexio_uart_dma_transfer_callback_t callback, void ∗userData, dma_-
handle_t ∗txDmaHandle, dma_handle_t ∗rxDmaHandle)
Initializes the FLEXIO_UART handle which is used in transactional functions.
• status_t FLEXIO_UART_TransferSendDMA (FLEXIO_UART_Type ∗base, flexio_uart_dma_-
handle_t ∗handle, flexio_uart_transfer_t ∗xfer)
Sends data using DMA.
• status_t FLEXIO_UART_TransferReceiveDMA (FLEXIO_UART_Type ∗base, flexio_uart_dma_-
handle_t ∗handle, flexio_uart_transfer_t ∗xfer)
Receives data using DMA.
• void FLEXIO_UART_TransferAbortSendDMA (FLEXIO_UART_Type ∗base, flexio_uart_dma_-
handle_t ∗handle)
Aborts the sent data which using DMA.
• void FLEXIO_UART_TransferAbortReceiveDMA (FLEXIO_UART_Type ∗base, flexio_uart_-
dma_handle_t ∗handle)
Aborts the receive data which using DMA.
• status_t FLEXIO_UART_TransferGetSendCountDMA (FLEXIO_UART_Type ∗base, flexio_uart-
_dma_handle_t ∗handle, size_t ∗count)
Gets the number of bytes still not sent out.
• status_t FLEXIO_UART_TransferGetReceiveCountDMA (FLEXIO_UART_Type ∗base, flexio_-
uart_dma_handle_t ∗handle, size_t ∗count)
Gets the number of bytes still not received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
383
FlexIO Camera Driver
22.3.10.2 Data Structure Documentation
22.3.10.2.1 struct _flexio_uart_dma_handle
Data Fields
•flexio_uart_dma_transfer_callback_t callback
Callback function.
• void ∗userData
UART callback function parameter.
• size_t txSize
Total bytes to be sent.
• size_t rxSize
Total bytes to be received.
•dma_handle_t ∗txDmaHandle
The DMA TX channel used.
•dma_handle_t ∗rxDmaHandle
The DMA RX channel used.
• volatile uint8_t txState
TX transfer state.
• volatile uint8_t rxState
RX transfer state.
22.3.10.2.1.1 Field Documentation
22.3.10.2.1.1.1 flexio_uart_dma_transfer_callback_t flexio_uart_dma_handle_t::callback
22.3.10.2.1.1.2 void∗flexio_uart_dma_handle_t::userData
22.3.10.2.1.1.3 size_t flexio_uart_dma_handle_t::txSize
22.3.10.2.1.1.4 size_t flexio_uart_dma_handle_t::rxSize
22.3.10.2.1.1.5 dma_handle_t∗flexio_uart_dma_handle_t::txDmaHandle
22.3.10.2.1.1.6 dma_handle_t∗flexio_uart_dma_handle_t::rxDmaHandle
22.3.10.2.1.1.7 volatile uint8_t flexio_uart_dma_handle_t::txState
22.3.10.3 Typedef Documentation
22.3.10.3.1 typedef void(∗flexio_uart_dma_transfer_callback_t)(FLEXIO_UART_Type ∗base,
flexio_uart_dma_handle_t ∗handle, status_t status, void ∗userData)
22.3.10.4 Function Documentation
22.3.10.4.1 status_t FLEXIO_UART_TransferCreateHandleDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_dma_handle_t ∗handle, flexio_uart_dma_transfer_callback_t callback,
void ∗userData, dma_handle_t ∗txDmaHandle, dma_handle_t ∗rxDmaHandle )
384
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Parameters
base Pointer to FLEXIO_UART_Type structure.
handle Pointer to flexio_uart_dma_handle_t structure.
callback FlexIO UART callback, NULL means no callback.
userData User callback function data.
txDmaHandle User requested DMA handle for TX DMA transfer.
rxDmaHandle User requested DMA handle for RX DMA transfer.
Return values
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The FlexIO UART DMA type/handle table out of range.
22.3.10.4.2 status_t FLEXIO_UART_TransferSendDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_dma_handle_t ∗handle, flexio_uart_transfer_t ∗xfer )
This function send data using DMA, this is non-blocking function, which return right away. When all data
have been sent out, the send callback function is called.
Parameters
base Pointer to FLEXIO_UART_Type structure
handle Pointer to flexio_uart_dma_handle_t structure
xfer FLEXIO_UART DMA transfer structure, refer to flexio_uart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_FLEXIO_UART-
_TxBusy
Previous transfer on going.
22.3.10.4.3 status_t FLEXIO_UART_TransferReceiveDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_dma_handle_t ∗handle, flexio_uart_transfer_t ∗xfer )
This function receives data using DMA. This is non-blocking function, which returns right away. When
all data have been received, the receive callback function is called.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
385
FlexIO Camera Driver
Parameters
base Pointer to FLEXIO_UART_Type structure
handle Pointer to flexio_uart_dma_handle_t structure
xfer FLEXIO_UART DMA transfer sturcture, refer to flexio_uart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_FLEXIO_UART-
_RxBusy
Previous transfer on going.
22.3.10.4.4 void FLEXIO_UART_TransferAbortSendDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_dma_handle_t ∗handle )
This function aborts the sent data which using DMA.
Parameters
base Pointer to FLEXIO_UART_Type structure
handle Pointer to flexio_uart_dma_handle_t structure
22.3.10.4.5 void FLEXIO_UART_TransferAbortReceiveDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_dma_handle_t ∗handle )
This function aborts the receive data which using DMA.
Parameters
base Pointer to FLEXIO_UART_Type structure
handle Pointer to flexio_uart_dma_handle_t structure
22.3.10.4.6 status_t FLEXIO_UART_TransferGetSendCountDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_dma_handle_t ∗handle, size_t ∗count )
This function gets the number of bytes still not sent out.
386
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Parameters
base Pointer to FLEXIO_UART_Type structure
handle Pointer to flexio_uart_dma_handle_t structure
count Number of bytes sent so far by the non-blocking transaction.
22.3.10.4.7 status_t FLEXIO_UART_TransferGetReceiveCountDMA ( FLEXIO_UART_Type ∗
base, flexio_uart_dma_handle_t ∗handle, size_t ∗count )
This function gets the number of bytes still not received.
Parameters
base Pointer to FLEXIO_UART_Type structure
handle Pointer to flexio_uart_dma_handle_t structure
count Number of bytes received so far by the non-blocking transaction.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
387
FlexIO Camera Driver
22.3.11 FlexIO eDMA Camera Driver
22.3.11.1 Overview
Files
• file fsl_flexio_camera_edma.h
Data Structures
• struct flexio_camera_edma_handle_t
CAMERA eDMA handle. More...
Typedefs
• typedef void(∗flexio_camera_edma_transfer_callback_t )(FLEXIO_CAMERA_Type ∗base, flexio-
_camera_edma_handle_t ∗handle, status_t status, void ∗userData)
CAMERA transfer callback function.
eDMA transactional
• status_t FLEXIO_CAMERA_TransferCreateHandleEDMA (FLEXIO_CAMERA_Type ∗base,
flexio_camera_edma_handle_t ∗handle, flexio_camera_edma_transfer_callback_t callback, void
∗userData, edma_handle_t ∗rxEdmaHandle)
Initializes the camera handle, which is used in transactional functions.
• status_t FLEXIO_CAMERA_TransferReceiveEDMA (FLEXIO_CAMERA_Type ∗base, flexio_-
camera_edma_handle_t ∗handle, flexio_camera_transfer_t ∗xfer)
Receives data using eDMA.
• void FLEXIO_CAMERA_TransferAbortReceiveEDMA (FLEXIO_CAMERA_Type ∗base, flexio-
_camera_edma_handle_t ∗handle)
Aborts the receive data which used the eDMA.
• status_t FLEXIO_CAMERA_TransferGetReceiveCountEDMA (FLEXIO_CAMERA_Type ∗base,
flexio_camera_edma_handle_t ∗handle, size_t ∗count)
Gets the remaining bytes to be received.
22.3.11.2 Data Structure Documentation
22.3.11.2.1 struct _flexio_camera_edma_handle
Forward declaration of the handle typedef.
Data Fields
•flexio_camera_edma_transfer_callback_t callback
Callback function.
388
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
• void ∗userData
CAMERA callback function parameter.
• size_t rxSize
Total bytes to be received.
•edma_handle_t ∗rxEdmaHandle
The eDMA RX channel used.
• volatile uint8_t rxState
RX transfer state.
22.3.11.2.1.1 Field Documentation
22.3.11.2.1.1.1 flexio_camera_edma_transfer_callback_t flexio_camera_edma_handle_t::callback
22.3.11.2.1.1.2 void∗flexio_camera_edma_handle_t::userData
22.3.11.2.1.1.3 size_t flexio_camera_edma_handle_t::rxSize
22.3.11.2.1.1.4 edma_handle_t∗flexio_camera_edma_handle_t::rxEdmaHandle
22.3.11.3 Typedef Documentation
22.3.11.3.1 typedef void(∗flexio_camera_edma_transfer_callback_t)(FLEXIO_CAMERA_Type
∗base, flexio_camera_edma_handle_t ∗handle, status_t status, void ∗userData)
22.3.11.4 Function Documentation
22.3.11.4.1 status_t FLEXIO_CAMERA_TransferCreateHandleEDMA ( FLEXIO_CAMERA_Type
∗base, flexio_camera_edma_handle_t ∗handle, flexio_camera_edma_transfer-
_callback_t callback, void ∗userData, edma_handle_t ∗rxEdmaHandle
)
Parameters
base pointer to FLEXIO_CAMERA_Type.
handle Pointer to flexio_camera_edma_handle_t structure.
callback The callback function.
userData The parameter of the callback function.
rxEdmaHandle User requested DMA handle for RX DMA transfer.
Return values
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
389
FlexIO Camera Driver
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The FlexIO camera eDMA type/handle table out of range.
22.3.11.4.2 status_t FLEXIO_CAMERA_TransferReceiveEDMA ( FLEXIO_CAMERA_Type ∗
base, flexio_camera_edma_handle_t ∗handle, flexio_camera_transfer_t ∗xfer )
This function receives data using eDMA. This is a non-blocking function, which returns right away. When
all data is received, the receive callback function is called.
Parameters
base Pointer to the FLEXIO_CAMERA_Type.
handle Pointer to the flexio_camera_edma_handle_t structure.
xfer CAMERA eDMA transfer structure, see flexio_camera_transfer_t.
Return values
kStatus_Success if succeeded, others failed.
kStatus_CAMERA_Rx-
Busy
Previous transfer on going.
22.3.11.4.3 void FLEXIO_CAMERA_TransferAbortReceiveEDMA ( FLEXIO_CAMERA_Type ∗
base, flexio_camera_edma_handle_t ∗handle )
This function aborts the receive data which used the eDMA.
Parameters
base Pointer to the FLEXIO_CAMERA_Type.
handle Pointer to the flexio_camera_edma_handle_t structure.
22.3.11.4.4 status_t FLEXIO_CAMERA_TransferGetReceiveCountEDMA ( FLEXIO_CA-
MERA_Type ∗base, flexio_camera_edma_handle_t ∗handle, size_t ∗count
)
This function gets the number of bytes still not received.
390
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Parameters
base Pointer to the FLEXIO_CAMERA_Type.
handle Pointer to the flexio_camera_edma_handle_t structure.
count Number of bytes sent so far by the non-blocking transaction.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_InvalidArgument The count parameter is invalid.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
391
FlexIO Camera Driver
22.3.12 FlexIO eDMA I2S Driver
22.3.12.1 Overview
Files
• file fsl_flexio_i2s_edma.h
Data Structures
• struct flexio_i2s_edma_handle_t
FlexIO I2S DMA transfer handle, users should not touch the content of the handle. More...
Typedefs
• typedef void(∗flexio_i2s_edma_callback_t )(FLEXIO_I2S_Type ∗base, flexio_i2s_edma_handle_t
∗handle, status_t status, void ∗userData)
FlexIO I2S eDMA transfer callback function for finish and error.
eDMA Transactional
• void FLEXIO_I2S_TransferTxCreateHandleEDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_edma-
_handle_t ∗handle, flexio_i2s_edma_callback_t callback, void ∗userData, edma_handle_t ∗dma-
Handle)
Initializes the FlexIO I2S eDMA handle.
• void FLEXIO_I2S_TransferRxCreateHandleEDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_edma-
_handle_t ∗handle, flexio_i2s_edma_callback_t callback, void ∗userData, edma_handle_t ∗dma-
Handle)
Initializes the FlexIO I2S Rx eDMA handle.
• void FLEXIO_I2S_TransferSetFormatEDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_edma_-
handle_t ∗handle, flexio_i2s_format_t ∗format, uint32_t srcClock_Hz)
Configures the FlexIO I2S Tx audio format.
• status_t FLEXIO_I2S_TransferSendEDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_edma_handle_t
∗handle, flexio_i2s_transfer_t ∗xfer)
Performs a non-blocking FlexIO I2S transfer using DMA.
• status_t FLEXIO_I2S_TransferReceiveEDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_edma_-
handle_t ∗handle, flexio_i2s_transfer_t ∗xfer)
Performs a non-blocking FlexIO I2S receive using eDMA.
• void FLEXIO_I2S_TransferAbortSendEDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_edma_-
handle_t ∗handle)
Aborts a FlexIO I2S transfer using eDMA.
• void FLEXIO_I2S_TransferAbortReceiveEDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_edma_-
handle_t ∗handle)
Aborts a FlexIO I2S receive using eDMA.
• status_t FLEXIO_I2S_TransferGetSendCountEDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_edma-
_handle_t ∗handle, size_t ∗count)
392
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Gets the remaining bytes to be sent.
• status_t FLEXIO_I2S_TransferGetReceiveCountEDMA (FLEXIO_I2S_Type ∗base, flexio_i2s_-
edma_handle_t ∗handle, size_t ∗count)
Get the remaining bytes to be received.
22.3.12.2 Data Structure Documentation
22.3.12.2.1 struct _flexio_i2s_edma_handle
Data Fields
•edma_handle_t ∗dmaHandle
DMA handler for FlexIO I2S send.
• uint8_t bytesPerFrame
Bytes in a frame.
• uint32_t state
Internal state for FlexIO I2S eDMA transfer.
•flexio_i2s_edma_callback_t callback
Callback for users while transfer finish or error occurred.
• void ∗userData
User callback parameter.
•edma_tcd_t tcd [FLEXIO_I2S_XFER_QUEUE_SIZE+1U]
TCD pool for eDMA transfer.
•flexio_i2s_transfer_t queue [FLEXIO_I2S_XFER_QUEUE_SIZE]
Transfer queue storing queued transfer.
• size_t transferSize [FLEXIO_I2S_XFER_QUEUE_SIZE]
Data bytes need to transfer.
• volatile uint8_t queueUser
Index for user to queue transfer.
• volatile uint8_t queueDriver
Index for driver to get the transfer data and size.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
393
FlexIO Camera Driver
22.3.12.2.1.1 Field Documentation
22.3.12.2.1.1.1 edma_tcd_t flexio_i2s_edma_handle_t::tcd[FLEXIO_I2S_XFER_QUEUE_SIZ-
E+1U]
22.3.12.2.1.1.2 flexio_i2s_transfer_t flexio_i2s_edma_handle_t::queue[FLEXIO_I2S_XFER_QU-
EUE_SIZE]
22.3.12.2.1.1.3 volatile uint8_t flexio_i2s_edma_handle_t::queueUser
22.3.12.3 Function Documentation
22.3.12.3.1 void FLEXIO_I2S_TransferTxCreateHandleEDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_edma_handle_t ∗handle, flexio_i2s_edma_callback_t callback, void ∗
userData, edma_handle_t ∗dmaHandle )
This function initializes the FlexIO I2S master DMA handle which can be used for other FlexIO I2S
master transactional APIs. Usually, for a specified FlexIO I2S instance, user need only call this API once
to get the initialized handle.
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S eDMA handle pointer.
callback FlexIO I2S eDMA callback function called while finished a block.
userData User parameter for callback.
dmaHandle eDMA handle for FlexIO I2S. This handle shall be a static value allocated by users.
22.3.12.3.2 void FLEXIO_I2S_TransferRxCreateHandleEDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_edma_handle_t ∗handle, flexio_i2s_edma_callback_t callback, void ∗
userData, edma_handle_t ∗dmaHandle )
This function initializes the FlexIO I2S slave DMA handle which can be used for other FlexIO I2S master
transactional APIs. Usually, for a specified FlexIO I2S instance, user need only call this API once to get
the initialized handle.
Parameters
base FlexIO I2S peripheral base address.
394
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
handle FlexIO I2S eDMA handle pointer.
callback FlexIO I2S eDMA callback function called while finished a block.
userData User parameter for callback.
dmaHandle eDMA handle for FlexIO I2S. This handle shall be a static value allocated by users.
22.3.12.3.3 void FLEXIO_I2S_TransferSetFormatEDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_edma_handle_t ∗handle, flexio_i2s_format_t ∗format, uint32_t
srcClock_Hz )
Audio format can be changed in run-time of FlexIO I2S. This function configures the sample rate and
audio data format to be transferred. This function also sets eDMA parameter according to format.
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S eDMA handle pointer
format Pointer to FlexIO I2S audio data format structure.
srcClock_Hz FlexIO I2S clock source frequency in Hz, it should be 0 while in slave mode.
Return values
kStatus_Success Audio format set successfully.
kStatus_InvalidArgument The input arguments is invalid.
22.3.12.3.4 status_t FLEXIO_I2S_TransferSendEDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_edma_handle_t ∗handle, flexio_i2s_transfer_t ∗xfer )
Note
This interface returned immediately after transfer initiates, users should call FLEXIO_I2S_Get-
TransferStatus to poll the transfer status to check whether FlexIO I2S transfer finished.
Parameters
base FlexIO I2S peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
395
FlexIO Camera Driver
handle FlexIO I2S DMA handle pointer.
xfer Pointer to DMA transfer structure.
Return values
kStatus_Success Start a FlexIO I2S eDMA send successfully.
kStatus_InvalidArgument The input arguments is invalid.
kStatus_TxBusy FlexIO I2S is busy sending data.
22.3.12.3.5 status_t FLEXIO_I2S_TransferReceiveEDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_edma_handle_t ∗handle, flexio_i2s_transfer_t ∗xfer )
Note
This interface returned immediately after transfer initiates, users should call FLEXIO_I2S_Get-
ReceiveRemainingBytes to poll the transfer status to check whether FlexIO I2S transfer finished.
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
xfer Pointer to DMA transfer structure.
Return values
kStatus_Success Start a FlexIO I2S eDMA receive successfully.
kStatus_InvalidArgument The input arguments is invalid.
kStatus_RxBusy FlexIO I2S is busy receiving data.
22.3.12.3.6 void FLEXIO_I2S_TransferAbortSendEDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_edma_handle_t ∗handle )
Parameters
base FlexIO I2S peripheral base address.
396
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
handle FlexIO I2S DMA handle pointer.
22.3.12.3.7 void FLEXIO_I2S_TransferAbortReceiveEDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_edma_handle_t ∗handle )
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
22.3.12.3.8 status_t FLEXIO_I2S_TransferGetSendCountEDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_edma_handle_t ∗handle, size_t ∗count )
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
count Bytes sent.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
22.3.12.3.9 status_t FLEXIO_I2S_TransferGetReceiveCountEDMA ( FLEXIO_I2S_Type ∗base,
flexio_i2s_edma_handle_t ∗handle, size_t ∗count )
Parameters
base FlexIO I2S peripheral base address.
handle FlexIO I2S DMA handle pointer.
count Bytes received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
397
FlexIO Camera Driver
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
398
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
22.3.13 FlexIO eDMA SPI Driver
22.3.13.1 Overview
Files
• file fsl_flexio_spi_edma.h
Data Structures
• struct flexio_spi_master_edma_handle_t
FlexIO SPI eDMA transfer handle, users should not touch the content of the handle. More...
Typedefs
• typedef
flexio_spi_master_edma_handle_t flexio_spi_slave_edma_handle_t
Slave handle is the same with master handle.
• typedef void(∗flexio_spi_master_edma_transfer_callback_t )(FLEXIO_SPI_Type ∗base, flexio_-
spi_master_edma_handle_t ∗handle, status_t status, void ∗userData)
FlexIO SPI master callback for finished transmit.
• typedef void(∗flexio_spi_slave_edma_transfer_callback_t )(FLEXIO_SPI_Type ∗base, flexio_spi-
_slave_edma_handle_t ∗handle, status_t status, void ∗userData)
FlexIO SPI slave callback for finished transmit.
eDMA Transactional
• status_t FLEXIO_SPI_MasterTransferCreateHandleEDMA (FLEXIO_SPI_Type ∗base, flexio_-
spi_master_edma_handle_t ∗handle, flexio_spi_master_edma_transfer_callback_t callback, void
∗userData, edma_handle_t ∗txHandle, edma_handle_t ∗rxHandle)
Initializes the FLEXO SPI master eDMA handle.
• status_t FLEXIO_SPI_MasterTransferEDMA (FLEXIO_SPI_Type ∗base, flexio_spi_master_-
edma_handle_t ∗handle, flexio_spi_transfer_t ∗xfer)
Performs a non-blocking FlexIO SPI transfer using eDMA.
• void FLEXIO_SPI_MasterTransferAbortEDMA (FLEXIO_SPI_Type ∗base, flexio_spi_master_-
edma_handle_t ∗handle)
Aborts a FlexIO SPI transfer using eDMA.
• status_t FLEXIO_SPI_MasterTransferGetCountEDMA (FLEXIO_SPI_Type ∗base, flexio_spi_-
master_edma_handle_t ∗handle, size_t ∗count)
Gets the remaining bytes for FlexIO SPI eDMA transfer.
• static void FLEXIO_SPI_SlaveTransferCreateHandleEDMA (FLEXIO_SPI_Type ∗base, flexio-
_spi_slave_edma_handle_t ∗handle, flexio_spi_slave_edma_transfer_callback_t callback, void
∗userData, edma_handle_t ∗txHandle, edma_handle_t ∗rxHandle)
Initializes the FlexIO SPI slave eDMA handle.
• status_t FLEXIO_SPI_SlaveTransferEDMA (FLEXIO_SPI_Type ∗base, flexio_spi_slave_edma_-
handle_t ∗handle, flexio_spi_transfer_t ∗xfer)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
399
FlexIO Camera Driver
Performs a non-blocking FlexIO SPI transfer using eDMA.
• static void FLEXIO_SPI_SlaveTransferAbortEDMA (FLEXIO_SPI_Type ∗base, flexio_spi_slave-
_edma_handle_t ∗handle)
Aborts a FlexIO SPI transfer using eDMA.
• static status_t FLEXIO_SPI_SlaveTransferGetCountEDMA (FLEXIO_SPI_Type ∗base, flexio_spi-
_slave_edma_handle_t ∗handle, size_t ∗count)
Gets the remaining bytes to be transferred for FlexIO SPI eDMA.
22.3.13.2 Data Structure Documentation
22.3.13.2.1 struct _flexio_spi_master_edma_handle
typedef for flexio_spi_master_edma_handle_t in advance.
Data Fields
• size_t transferSize
Total bytes to be transferred.
• bool txInProgress
Send transfer in progress.
• bool rxInProgress
Receive transfer in progress.
•edma_handle_t ∗txHandle
DMA handler for SPI send.
•edma_handle_t ∗rxHandle
DMA handler for SPI receive.
•flexio_spi_master_edma_transfer_callback_t callback
Callback for SPI DMA transfer.
• void ∗userData
User Data for SPI DMA callback.
400
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
22.3.13.2.1.1 Field Documentation
22.3.13.2.1.1.1 size_t flexio_spi_master_edma_handle_t::transferSize
22.3.13.3 Typedef Documentation
22.3.13.3.1 typedef flexio_spi_master_edma_handle_t flexio_spi_slave_edma_handle_t
22.3.13.4 Function Documentation
22.3.13.4.1 status_t FLEXIO_SPI_MasterTransferCreateHandleEDMA ( FLEXIO_SPI_Type ∗
base, flexio_spi_master_edma_handle_t ∗handle, flexio_spi_master_edma_transfer-
_callback_t callback, void ∗userData, edma_handle_t ∗txHandle, edma_handle_t ∗
rxHandle )
This function initializes the FLEXO SPI master eDMA handle which can be used for other FLEXO SPI
master transactional APIs. For a specified FLEXO SPI instance, call this API once to get the initialized
handle.
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle pointer to flexio_spi_master_edma_handle_t structure to store the transfer state.
callback SPI callback, NULL means no callback.
userData callback function parameter.
txHandle User requested eDMA handle for FlexIO SPI RX eDMA transfer.
rxHandle User requested eDMA handle for FlexIO SPI TX eDMA transfer.
Return values
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The FlexIO SPI eDMA type/handle table out of range.
22.3.13.4.2 status_t FLEXIO_SPI_MasterTransferEDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_edma_handle_t ∗handle, flexio_spi_transfer_t ∗xfer )
Note
This interface returns immediately after transfer initiates. Call FLEXIO_SPI_MasterGetTransfer-
CountEDMA to poll the transfer status to check whether FlexIO SPI transfer finished.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
401
FlexIO Camera Driver
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle pointer to flexio_spi_master_edma_handle_t structure to store the transfer state.
xfer Pointer to FlexIO SPI transfer structure.
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
kStatus_FLEXIO_SPI_-
Busy
FlexIO SPI is not idle, is running another transfer.
22.3.13.4.3 void FLEXIO_SPI_MasterTransferAbortEDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_edma_handle_t ∗handle )
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle FlexIO SPI eDMA handle pointer.
22.3.13.4.4 status_t FLEXIO_SPI_MasterTransferGetCountEDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_edma_handle_t ∗handle, size_t ∗count )
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle FlexIO SPI eDMA handle pointer.
count Number of bytes transferred so far by the non-blocking transaction.
22.3.13.4.5 static void FLEXIO_SPI_SlaveTransferCreateHandleEDMA ( FLEXIO_SPI_Type ∗
base, flexio_spi_slave_edma_handle_t ∗handle, flexio_spi_slave_edma_transfer_-
callback_t callback, void ∗userData, edma_handle_t ∗txHandle, edma_handle_t ∗
rxHandle )[inline],[static]
This function initializes the FlexIO SPI slave eDMA handle.
402
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle pointer to flexio_spi_slave_edma_handle_t structure to store the transfer state.
callback SPI callback, NULL means no callback.
userData callback function parameter.
txHandle User requested eDMA handle for FlexIO SPI TX eDMA transfer.
rxHandle User requested eDMA handle for FlexIO SPI RX eDMA transfer.
22.3.13.4.6 status_t FLEXIO_SPI_SlaveTransferEDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_slave_edma_handle_t ∗handle, flexio_spi_transfer_t ∗xfer )
Note
This interface returns immediately after transfer initiates. Call FLEXIO_SPI_SlaveGetTransfer-
CountEDMA to poll the transfer status to check whether FlexIO SPI transfer finished.
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle pointer to flexio_spi_slave_edma_handle_t structure to store the transfer state.
xfer Pointer to FlexIO SPI transfer structure.
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
kStatus_FLEXIO_SPI_-
Busy
FlexIO SPI is not idle, is running another transfer.
22.3.13.4.7 static void FLEXIO_SPI_SlaveTransferAbortEDMA ( FLEXIO_SPI_Type ∗base,
flexio_spi_slave_edma_handle_t ∗handle )[inline],[static]
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
403
FlexIO Camera Driver
base pointer to FLEXIO_SPI_Type structure.
handle pointer to flexio_spi_slave_edma_handle_t structure to store the transfer state.
22.3.13.4.8 static status_t FLEXIO_SPI_SlaveTransferGetCountEDMA ( FLEXIO_SPI_Type ∗
base, flexio_spi_slave_edma_handle_t ∗handle, size_t ∗count )[inline],
[static]
Parameters
base pointer to FLEXIO_SPI_Type structure.
handle FlexIO SPI eDMA handle pointer.
count Number of bytes transferred so far by the non-blocking transaction.
404
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
22.3.14 FlexIO eDMA UART Driver
22.3.14.1 Overview
Files
• file fsl_flexio_uart_edma.h
Data Structures
• struct flexio_uart_edma_handle_t
UART eDMA handle. More...
Typedefs
• typedef void(∗flexio_uart_edma_transfer_callback_t )(FLEXIO_UART_Type ∗base, flexio_uart_-
edma_handle_t ∗handle, status_t status, void ∗userData)
UART transfer callback function.
eDMA transactional
• status_t FLEXIO_UART_TransferCreateHandleEDMA (FLEXIO_UART_Type ∗base, flexio_uart-
_edma_handle_t ∗handle, flexio_uart_edma_transfer_callback_t callback, void ∗userData, edma_-
handle_t ∗txEdmaHandle, edma_handle_t ∗rxEdmaHandle)
Initializes the UART handle which is used in transactional functions.
• status_t FLEXIO_UART_TransferSendEDMA (FLEXIO_UART_Type ∗base, flexio_uart_edma_-
handle_t ∗handle, flexio_uart_transfer_t ∗xfer)
Sends data using eDMA.
• status_t FLEXIO_UART_TransferReceiveEDMA (FLEXIO_UART_Type ∗base, flexio_uart_-
edma_handle_t ∗handle, flexio_uart_transfer_t ∗xfer)
Receives data using eDMA.
• void FLEXIO_UART_TransferAbortSendEDMA (FLEXIO_UART_Type ∗base, flexio_uart_-
edma_handle_t ∗handle)
Aborts the sent data which using eDMA.
• void FLEXIO_UART_TransferAbortReceiveEDMA (FLEXIO_UART_Type ∗base, flexio_uart_-
edma_handle_t ∗handle)
Aborts the receive data which using eDMA.
• status_t FLEXIO_UART_TransferGetSendCountEDMA (FLEXIO_UART_Type ∗base, flexio_-
uart_edma_handle_t ∗handle, size_t ∗count)
Gets the number of bytes still not sent out.
• status_t FLEXIO_UART_TransferGetReceiveCountEDMA (FLEXIO_UART_Type ∗base, flexio-
_uart_edma_handle_t ∗handle, size_t ∗count)
Gets the number of bytes still not received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
405
FlexIO Camera Driver
22.3.14.2 Data Structure Documentation
22.3.14.2.1 struct _flexio_uart_edma_handle
Data Fields
•flexio_uart_edma_transfer_callback_t callback
Callback function.
• void ∗userData
UART callback function parameter.
• size_t txSize
Total bytes to be sent.
• size_t rxSize
Total bytes to be received.
•edma_handle_t ∗txEdmaHandle
The eDMA TX channel used.
•edma_handle_t ∗rxEdmaHandle
The eDMA RX channel used.
• volatile uint8_t txState
TX transfer state.
• volatile uint8_t rxState
RX transfer state.
22.3.14.2.1.1 Field Documentation
22.3.14.2.1.1.1 flexio_uart_edma_transfer_callback_t flexio_uart_edma_handle_t::callback
22.3.14.2.1.1.2 void∗flexio_uart_edma_handle_t::userData
22.3.14.2.1.1.3 size_t flexio_uart_edma_handle_t::txSize
22.3.14.2.1.1.4 size_t flexio_uart_edma_handle_t::rxSize
22.3.14.2.1.1.5 edma_handle_t∗flexio_uart_edma_handle_t::txEdmaHandle
22.3.14.2.1.1.6 edma_handle_t∗flexio_uart_edma_handle_t::rxEdmaHandle
22.3.14.2.1.1.7 volatile uint8_t flexio_uart_edma_handle_t::txState
22.3.14.3 Typedef Documentation
22.3.14.3.1 typedef void(∗flexio_uart_edma_transfer_callback_t)(FLEXIO_UART_Type ∗base,
flexio_uart_edma_handle_t ∗handle, status_t status, void ∗userData)
22.3.14.4 Function Documentation
22.3.14.4.1 status_t FLEXIO_UART_TransferCreateHandleEDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_edma_handle_t ∗handle, flexio_uart_edma_transfer_callback_t callback,
void ∗userData, edma_handle_t ∗txEdmaHandle, edma_handle_t ∗rxEdmaHandle )
406
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Parameters
base pointer to FLEXIO_UART_Type.
handle Pointer to flexio_uart_edma_handle_t structure.
callback The callback function.
userData The parameter of the callback function.
rxEdmaHandle User requested DMA handle for RX DMA transfer.
txEdmaHandle User requested DMA handle for TX DMA transfer.
Return values
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The flexIO SPI eDMA type/handle table out of range.
22.3.14.4.2 status_t FLEXIO_UART_TransferSendEDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_edma_handle_t ∗handle, flexio_uart_transfer_t ∗xfer )
This function sends data using eDMA. This is a non-blocking function, which returns right away. When
all data have been sent out, the send callback function is called.
Parameters
base pointer to FLEXIO_UART_Type
handle UART handle pointer.
xfer UART EDMA transfer structure, refer to flexio_uart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_FLEXIO_UART-
_TxBusy
Previous transfer on going.
22.3.14.4.3 status_t FLEXIO_UART_TransferReceiveEDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_edma_handle_t ∗handle, flexio_uart_transfer_t ∗xfer )
This function receives data using eDMA. This is a non-blocking function, which returns right away. When
all data have been received, the receive callback function is called.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
407
FlexIO Camera Driver
Parameters
base pointer to FLEXIO_UART_Type
handle Pointer to flexio_uart_edma_handle_t structure
xfer UART eDMA transfer structure, refer to flexio_uart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_UART_RxBusy Previous transfer on going.
22.3.14.4.4 void FLEXIO_UART_TransferAbortSendEDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_edma_handle_t ∗handle )
This function aborts sent data which using eDMA.
Parameters
base pointer to FLEXIO_UART_Type
handle Pointer to flexio_uart_edma_handle_t structure
22.3.14.4.5 void FLEXIO_UART_TransferAbortReceiveEDMA ( FLEXIO_UART_Type ∗base,
flexio_uart_edma_handle_t ∗handle )
This function aborts the receive data which using eDMA.
Parameters
base pointer to FLEXIO_UART_Type
handle Pointer to flexio_uart_edma_handle_t structure
22.3.14.4.6 status_t FLEXIO_UART_TransferGetSendCountEDMA ( FLEXIO_UART_Type ∗
base, flexio_uart_edma_handle_t ∗handle, size_t ∗count )
This function gets the number of bytes still not sent out.
408
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO Camera Driver
Parameters
base pointer to FLEXIO_UART_Type
handle Pointer to flexio_uart_edma_handle_t structure
count Number of bytes sent so far by the non-blocking transaction.
22.3.14.4.7 status_t FLEXIO_UART_TransferGetReceiveCountEDMA ( FLEXIO_UART_Type ∗
base, flexio_uart_edma_handle_t ∗handle, size_t ∗count )
This function gets the number of bytes still not received.
Parameters
base pointer to FLEXIO_UART_Type
handle Pointer to flexio_uart_edma_handle_t structure
count Number of bytes sent so far by the non-blocking transaction.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
409
FlexIO I2C Master Driver
22.4 FlexIO I2C Master Driver
22.4.1 Overview
The KSDK provides a peripheral driver for I2C master function using Flexible I/O module of Kinetis
devices.
22.4.2 Overview
The FlexIO I2C master driver includes functional APIs and transactional APIs.
Functional APIs are feature/property target low level APIs. Functional APIs can be used for the FlexIO I2C
master initialization/configuration/operation for optimization/customization purpose. Using the functional
APIs requires the knowledge of the FlexIO I2C master peripheral and how to organize functional APIs
to meet the application requirements. The FlexIO I2C master functional operation groups provide the
functional APIs set.
Transactional APIs are transaction target high level APIs. The transactional APIs can be used to enable
the peripheral quickly and also in the application if the code size and performance of transactional APIs
satisfy the requirements. If the code size and performance are critical requirements, see the transactional
API implementation and write custom code using the functional APIs or accessing the hardware registers.
Transactional APIs support asynchronous transfer. This means that the functions FLEXIO_I2C_Master-
TransferNonBlocking() set up the interrupt non-blocking transfer. When the transfer completes, the upper
layer is notified through a callback function with the kStatus_Success status.
22.4.3 Typical use case
22.4.3.1 FlexIO I2C master transfer using an interrupt method
flexio_i2c_master_handle_t g_m_handle;
flexio_i2c_master_config_t masterConfig;
flexio_i2c_master_transfer_t masterXfer;
volatile bool completionFlag = false;
const uint8_t sendData[] = [......];
FLEXIO_I2C_Type i2cDev;
void FLEXIO_I2C_MasterCallback(FLEXIO_I2C_Type *base, status_t status, void *userData)
{
userData = userData;
if (kStatus_Success == status)
{
completionFlag = true;
}
}
void main(void)
{
//...
FLEXIO_I2C_MasterGetDefaultConfig(&masterConfig);
410
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2C Master Driver
FLEXIO_I2C_MasterInit(&i2cDev, &user_config);
FLEXIO_I2C_MasterTransferCreateHandle(&i2cDev, &g_m_handle,
FLEXIO_I2C_MasterCallback, NULL);
// Prepares to send.
masterXfer.slaveAddress = g_accel_address[0];
masterXfer.direction =kI2C_Read;
masterXfer.subaddress = &who_am_i_reg;
masterXfer.subaddressSize = 1;
masterXfer.data = &who_am_i_value;
masterXfer.dataSize = 1;
masterXfer.flags =kI2C_TransferDefaultFlag;
// Sends out.
FLEXIO_I2C_MasterTransferNonBlocking(&i2cDev, &g_m_handle, &
masterXfer);
// Wait for sending is complete.
while (!completionFlag)
{
}
// ...
}
Files
• file fsl_flexio_i2c_master.h
Data Structures
• struct FLEXIO_I2C_Type
Define FlexIO I2C master access structure typedef. More...
• struct flexio_i2c_master_config_t
Define FlexIO I2C master user configuration structure. More...
• struct flexio_i2c_master_transfer_t
Define FlexIO I2C master transfer structure. More...
• struct flexio_i2c_master_handle_t
Define FlexIO I2C master handle structure. More...
Typedefs
• typedef void(∗flexio_i2c_master_transfer_callback_t )(FLEXIO_I2C_Type ∗base, flexio_i2c_-
master_handle_t ∗handle, status_t status, void ∗userData)
FlexIO I2C master transfer callback typedef.
Enumerations
• enum _flexio_i2c_status {
kStatus_FLEXIO_I2C_Busy = MAKE_STATUS(kStatusGroup_FLEXIO_I2C, 0),
kStatus_FLEXIO_I2C_Idle = MAKE_STATUS(kStatusGroup_FLEXIO_I2C, 1),
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
411
FlexIO I2C Master Driver
kStatus_FLEXIO_I2C_Nak = MAKE_STATUS(kStatusGroup_FLEXIO_I2C, 2) }
FlexIO I2C transfer status.
• enum _flexio_i2c_master_interrupt {
kFLEXIO_I2C_TxEmptyInterruptEnable = 0x1U,
kFLEXIO_I2C_RxFullInterruptEnable = 0x2U }
Define FlexIO I2C master interrupt mask.
• enum _flexio_i2c_master_status_flags {
kFLEXIO_I2C_TxEmptyFlag = 0x1U,
kFLEXIO_I2C_RxFullFlag = 0x2U,
kFLEXIO_I2C_ReceiveNakFlag = 0x4U }
Define FlexIO I2C master status mask.
• enum flexio_i2c_direction_t {
kFLEXIO_I2C_Write = 0x0U,
kFLEXIO_I2C_Read = 0x1U }
Direction of master transfer.
Driver version
• #define FSL_FLEXIO_I2C_MASTER_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
FlexIO I2C master driver version 2.1.0.
Initialization and deinitialization
• void FLEXIO_I2C_MasterInit (FLEXIO_I2C_Type ∗base, flexio_i2c_master_config_t ∗master-
Config, uint32_t srcClock_Hz)
Ungates the FlexIO clock, resets the FlexIO module, and configures the FlexIO I2C hardware configura-
tion.
• void FLEXIO_I2C_MasterDeinit (FLEXIO_I2C_Type ∗base)
De-initializes the FlexIO I2C master peripheral.
• void FLEXIO_I2C_MasterGetDefaultConfig (flexio_i2c_master_config_t ∗masterConfig)
Gets the default configuration to configure the FlexIO module.
• static void FLEXIO_I2C_MasterEnable (FLEXIO_I2C_Type ∗base, bool enable)
Enables/disables the FlexIO module operation.
Status
• uint32_t FLEXIO_I2C_MasterGetStatusFlags (FLEXIO_I2C_Type ∗base)
Gets the FlexIO I2C master status flags.
• void FLEXIO_I2C_MasterClearStatusFlags (FLEXIO_I2C_Type ∗base, uint32_t mask)
Clears the FlexIO I2C master status flags.
Interrupts
• void FLEXIO_I2C_MasterEnableInterrupts (FLEXIO_I2C_Type ∗base, uint32_t mask)
412
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2C Master Driver
Enables the FlexIO i2c master interrupt requests.
• void FLEXIO_I2C_MasterDisableInterrupts (FLEXIO_I2C_Type ∗base, uint32_t mask)
Disables the FlexIO I2C master interrupt requests.
Bus Operations
• void FLEXIO_I2C_MasterSetBaudRate (FLEXIO_I2C_Type ∗base, uint32_t baudRate_Bps,
uint32_t srcClock_Hz)
Sets the FlexIO I2C master transfer baudrate.
• void FLEXIO_I2C_MasterStart (FLEXIO_I2C_Type ∗base, uint8_t address, flexio_i2c_direction_t
direction)
Sends START + 7-bit address to the bus.
• void FLEXIO_I2C_MasterStop (FLEXIO_I2C_Type ∗base)
Sends the stop signal on the bus.
• void FLEXIO_I2C_MasterRepeatedStart (FLEXIO_I2C_Type ∗base)
Sends the repeated start signal on the bus.
• void FLEXIO_I2C_MasterAbortStop (FLEXIO_I2C_Type ∗base)
Sends the stop signal when transfer is still on-going.
• void FLEXIO_I2C_MasterEnableAck (FLEXIO_I2C_Type ∗base, bool enable)
Configures the sent ACK/NAK for the following byte.
• status_t FLEXIO_I2C_MasterSetTransferCount (FLEXIO_I2C_Type ∗base, uint8_t count)
Sets the number of bytes to be transferred from a start signal to a stop signal.
• static void FLEXIO_I2C_MasterWriteByte (FLEXIO_I2C_Type ∗base, uint32_t data)
Writes one byte of data to the I2C bus.
• static uint8_t FLEXIO_I2C_MasterReadByte (FLEXIO_I2C_Type ∗base)
Reads one byte of data from the I2C bus.
• status_t FLEXIO_I2C_MasterWriteBlocking (FLEXIO_I2C_Type ∗base, const uint8_t ∗txBuff,
uint8_t txSize)
Sends a buffer of data in bytes.
• void FLEXIO_I2C_MasterReadBlocking (FLEXIO_I2C_Type ∗base, uint8_t ∗rxBuff, uint8_t rx-
Size)
Receives a buffer of bytes.
• status_t FLEXIO_I2C_MasterTransferBlocking (FLEXIO_I2C_Type ∗base, flexio_i2c_master_-
handle_t ∗handle, flexio_i2c_master_transfer_t ∗xfer)
Performs a master polling transfer on the I2C bus.
Transactional
• status_t FLEXIO_I2C_MasterTransferCreateHandle (FLEXIO_I2C_Type ∗base, flexio_i2c_-
master_handle_t ∗handle, flexio_i2c_master_transfer_callback_t callback, void ∗userData)
Initializes the I2C handle which is used in transactional functions.
• status_t FLEXIO_I2C_MasterTransferNonBlocking (FLEXIO_I2C_Type ∗base, flexio_i2c_-
master_handle_t ∗handle, flexio_i2c_master_transfer_t ∗xfer)
Performs a master interrupt non-blocking transfer on the I2C bus.
• status_t FLEXIO_I2C_MasterTransferGetCount (FLEXIO_I2C_Type ∗base, flexio_i2c_master_-
handle_t ∗handle, size_t ∗count)
Gets the master transfer status during a interrupt non-blocking transfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
413
FlexIO I2C Master Driver
• void FLEXIO_I2C_MasterTransferAbort (FLEXIO_I2C_Type ∗base, flexio_i2c_master_handle_t
∗handle)
Aborts an interrupt non-blocking transfer early.
• void FLEXIO_I2C_MasterTransferHandleIRQ (void ∗i2cType, void ∗i2cHandle)
Master interrupt handler.
22.4.4 Data Structure Documentation
22.4.4.1 struct FLEXIO_I2C_Type
Data Fields
• FLEXIO_Type ∗flexioBase
FlexIO base pointer.
• uint8_t SDAPinIndex
Pin select for I2C SDA.
• uint8_t SCLPinIndex
Pin select for I2C SCL.
• uint8_t shifterIndex [2]
Shifter index used in FlexIO I2C.
• uint8_t timerIndex [2]
Timer index used in FlexIO I2C.
22.4.4.1.0.1 Field Documentation
22.4.4.1.0.1.1 FLEXIO_Type∗FLEXIO_I2C_Type::flexioBase
22.4.4.1.0.1.2 uint8_t FLEXIO_I2C_Type::SDAPinIndex
22.4.4.1.0.1.3 uint8_t FLEXIO_I2C_Type::SCLPinIndex
22.4.4.1.0.1.4 uint8_t FLEXIO_I2C_Type::shifterIndex[2]
22.4.4.1.0.1.5 uint8_t FLEXIO_I2C_Type::timerIndex[2]
22.4.4.2 struct flexio_i2c_master_config_t
Data Fields
• bool enableMaster
Enables the FLEXIO I2C peripheral at initialization time.
• bool enableInDoze
Enable/disable FlexIO operation in doze mode.
• bool enableInDebug
Enable/disable FlexIO operation in debug mode.
• bool enableFastAccess
Enable/disable fast access to FlexIO registers, fast access requires the FlexIO clock to be at least twice
the frequency of the bus clock.
• uint32_t baudRate_Bps
414
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2C Master Driver
Baud rate in Bps.
22.4.4.2.0.2 Field Documentation
22.4.4.2.0.2.1 bool flexio_i2c_master_config_t::enableMaster
22.4.4.2.0.2.2 bool flexio_i2c_master_config_t::enableInDoze
22.4.4.2.0.2.3 bool flexio_i2c_master_config_t::enableInDebug
22.4.4.2.0.2.4 bool flexio_i2c_master_config_t::enableFastAccess
22.4.4.2.0.2.5 uint32_t flexio_i2c_master_config_t::baudRate_Bps
22.4.4.3 struct flexio_i2c_master_transfer_t
Data Fields
• uint32_t flags
Transfer flag which controls the transfer, reserved for flexio i2c.
• uint8_t slaveAddress
7-bit slave address.
•flexio_i2c_direction_t direction
Transfer direction, read or write.
• uint32_t subaddress
Sub address.
• uint8_t subaddressSize
Size of command buffer.
• uint8_t volatile ∗data
Transfer buffer.
• volatile size_t dataSize
Transfer size.
22.4.4.3.0.3 Field Documentation
22.4.4.3.0.3.1 uint32_t flexio_i2c_master_transfer_t::flags
22.4.4.3.0.3.2 uint8_t flexio_i2c_master_transfer_t::slaveAddress
22.4.4.3.0.3.3 flexio_i2c_direction_t flexio_i2c_master_transfer_t::direction
22.4.4.3.0.3.4 uint32_t flexio_i2c_master_transfer_t::subaddress
Transferred MSB first.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
415
FlexIO I2C Master Driver
22.4.4.3.0.3.5 uint8_t flexio_i2c_master_transfer_t::subaddressSize
22.4.4.3.0.3.6 uint8_t volatile∗flexio_i2c_master_transfer_t::data
22.4.4.3.0.3.7 volatile size_t flexio_i2c_master_transfer_t::dataSize
22.4.4.4 struct _flexio_i2c_master_handle
FlexIO I2C master handle typedef.
Data Fields
•flexio_i2c_master_transfer_t transfer
FlexIO I2C master transfer copy.
• size_t transferSize
Total bytes to be transferred.
• uint8_t state
Transfer state maintained during transfer.
•flexio_i2c_master_transfer_callback_t completionCallback
Callback function called at transfer event.
• void ∗userData
Callback parameter passed to callback function.
22.4.4.4.0.4 Field Documentation
22.4.4.4.0.4.1 flexio_i2c_master_transfer_t flexio_i2c_master_handle_t::transfer
22.4.4.4.0.4.2 size_t flexio_i2c_master_handle_t::transferSize
22.4.4.4.0.4.3 uint8_t flexio_i2c_master_handle_t::state
22.4.4.4.0.4.4 flexio_i2c_master_transfer_callback_t flexio_i2c_master_handle_t::completion-
Callback
Callback function called at transfer event.
416
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2C Master Driver
22.4.4.4.0.4.5 void∗flexio_i2c_master_handle_t::userData
22.4.5 Macro Definition Documentation
22.4.5.1 #define FSL_FLEXIO_I2C_MASTER_DRIVER_VERSION (MAKE_VERSION(2, 1,
0))
22.4.6 Typedef Documentation
22.4.6.1 typedef void(∗flexio_i2c_master_transfer_callback_t)(FLEXIO_I2C_Type ∗base,
flexio_i2c_master_handle_t ∗handle, status_t status, void ∗userData)
22.4.7 Enumeration Type Documentation
22.4.7.1 enum _flexio_i2c_status
Enumerator
kStatus_FLEXIO_I2C_Busy I2C is busy doing transfer.
kStatus_FLEXIO_I2C_Idle I2C is busy doing transfer.
kStatus_FLEXIO_I2C_Nak NAK received during transfer.
22.4.7.2 enum _flexio_i2c_master_interrupt
Enumerator
kFLEXIO_I2C_TxEmptyInterruptEnable Tx buffer empty interrupt enable.
kFLEXIO_I2C_RxFullInterruptEnable Rx buffer full interrupt enable.
22.4.7.3 enum _flexio_i2c_master_status_flags
Enumerator
kFLEXIO_I2C_TxEmptyFlag Tx shifter empty flag.
kFLEXIO_I2C_RxFullFlag Rx shifter full/Transfer complete flag.
kFLEXIO_I2C_ReceiveNakFlag Receive NAK flag.
22.4.7.4 enum flexio_i2c_direction_t
Enumerator
kFLEXIO_I2C_Write Master send to slave.
kFLEXIO_I2C_Read Master receive from slave.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
417
FlexIO I2C Master Driver
22.4.8 Function Documentation
22.4.8.1 void FLEXIO_I2C_MasterInit ( FLEXIO_I2C_Type ∗base,
flexio_i2c_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
Example
FLEXIO_I2C_Type base = {
.flexioBase = FLEXIO,
.SDAPinIndex = 0,
.SCLPinIndex = 1,
.shifterIndex = {0,1},
.timerIndex = {0,1}
};
flexio_i2c_master_config_t config = {
.enableInDoze =false,
.enableInDebug = true,
.enableFastAccess = false,
.baudRate_Bps = 100000
};
FLEXIO_I2C_MasterInit(base, &config, srcClock_Hz);
Parameters
base pointer to FLEXIO_I2C_Type structure.
masterConfig pointer to flexio_i2c_master_config_t structure.
srcClock_Hz FlexIO source clock in Hz.
22.4.8.2 void FLEXIO_I2C_MasterDeinit ( FLEXIO_I2C_Type ∗base )
Calling this API gates the FlexIO clock, so the FlexIO I2C master module can’t work unless call FLEXI-
O_I2C_MasterInit.
Parameters
base pointer to FLEXIO_I2C_Type structure.
22.4.8.3 void FLEXIO_I2C_MasterGetDefaultConfig ( flexio_i2c_master_config_t ∗
masterConfig )
The configuration can be used directly for calling FLEXIO_I2C_MasterInit().
Example:
flexio_i2c_master_config_t config;
FLEXIO_I2C_MasterGetDefaultConfig(&config);
418
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2C Master Driver
Parameters
masterConfig pointer to flexio_i2c_master_config_t structure.
22.4.8.4 static void FLEXIO_I2C_MasterEnable ( FLEXIO_I2C_Type ∗base, bool enable
)[inline],[static]
Parameters
base pointer to FLEXIO_I2C_Type structure.
enable pass true to enable module, false to disable module.
22.4.8.5 uint32_t FLEXIO_I2C_MasterGetStatusFlags ( FLEXIO_I2C_Type ∗base )
Parameters
base pointer to FLEXIO_I2C_Type structure
Returns
status flag, use status flag to AND _flexio_i2c_master_status_flags could get the related status.
22.4.8.6 void FLEXIO_I2C_MasterClearStatusFlags ( FLEXIO_I2C_Type ∗base, uint32_t
mask )
Parameters
base pointer to FLEXIO_I2C_Type structure.
mask status flag. The parameter could be any combination of the following values:
• kFLEXIO_I2C_RxFullFlag
• kFLEXIO_I2C_ReceiveNakFlag
22.4.8.7 void FLEXIO_I2C_MasterEnableInterrupts ( FLEXIO_I2C_Type ∗base, uint32_t
mask )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
419
FlexIO I2C Master Driver
Parameters
base pointer to FLEXIO_I2C_Type structure.
mask interrupt source. Currently only one interrupt request source:
• kFLEXIO_I2C_TransferCompleteInterruptEnable
22.4.8.8 void FLEXIO_I2C_MasterDisableInterrupts ( FLEXIO_I2C_Type ∗base, uint32_t
mask )
Parameters
base pointer to FLEXIO_I2C_Type structure.
mask interrupt source.
22.4.8.9 void FLEXIO_I2C_MasterSetBaudRate ( FLEXIO_I2C_Type ∗base, uint32_t
baudRate_Bps, uint32_t srcClock_Hz )
Parameters
base pointer to FLEXIO_I2C_Type structure
baudRate_Bps the baud rate value in HZ
srcClock_Hz source clock in HZ
22.4.8.10 void FLEXIO_I2C_MasterStart ( FLEXIO_I2C_Type ∗base, uint8_t address,
flexio_i2c_direction_t direction )
Note
This is API should be called when transfer configuration is ready to send a START signal and 7-bit
address to the bus. This is a non-blocking API, which returns directly after the address is put into the
data register but not address transfer finished on the bus. Ensure that the kFLEXIO_I2C_RxFullFlag
status is asserted before calling this API.
420
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2C Master Driver
Parameters
base pointer to FLEXIO_I2C_Type structure.
address 7-bit address.
direction transfer direction. This parameter is one of the values in flexio_i2c_direction_t:
• kFLEXIO_I2C_Write: Transmit
• kFLEXIO_I2C_Read: Receive
22.4.8.11 void FLEXIO_I2C_MasterStop ( FLEXIO_I2C_Type ∗base )
Parameters
base pointer to FLEXIO_I2C_Type structure.
22.4.8.12 void FLEXIO_I2C_MasterRepeatedStart ( FLEXIO_I2C_Type ∗base )
Parameters
base pointer to FLEXIO_I2C_Type structure.
22.4.8.13 void FLEXIO_I2C_MasterAbortStop ( FLEXIO_I2C_Type ∗base )
Parameters
base pointer to FLEXIO_I2C_Type structure.
22.4.8.14 void FLEXIO_I2C_MasterEnableAck ( FLEXIO_I2C_Type ∗base, bool enable )
Parameters
base pointer to FLEXIO_I2C_Type structure.
enable true to configure send ACK, false configure to send NAK.
22.4.8.15 status_t FLEXIO_I2C_MasterSetTransferCount ( FLEXIO_I2C_Type ∗base,
uint8_t count )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
421
FlexIO I2C Master Driver
Note
Call this API before a transfer begins because the timer generates a number of clocks according to
the number of bytes that need to be transferred.
Parameters
base pointer to FLEXIO_I2C_Type structure.
count number of bytes need to be transferred from a start signal to a re-start/stop signal
Return values
kStatus_Success Successfully configured the count.
kStatus_InvalidArgument Input argument is invalid.
22.4.8.16 static void FLEXIO_I2C_MasterWriteByte ( FLEXIO_I2C_Type ∗base, uint32_t
data )[inline],[static]
Note
This is a non-blocking API, which returns directly after the data is put into the data register but not
data transfer finished on the bus. Ensure that the TxEmptyFlag is asserted before calling this API.
Parameters
base pointer to FLEXIO_I2C_Type structure.
data a byte of data.
22.4.8.17 static uint8_t FLEXIO_I2C_MasterReadByte ( FLEXIO_I2C_Type ∗base )
[inline],[static]
Note
This is a non-blocking API, which returns directly after the data is read from the data register. Ensure
that the data is ready in the register.
Parameters
422
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2C Master Driver
base pointer to FLEXIO_I2C_Type structure.
Returns
data byte read.
22.4.8.18 status_t FLEXIO_I2C_MasterWriteBlocking ( FLEXIO_I2C_Type ∗base, const
uint8_t ∗txBuff, uint8_t txSize )
Note
This function blocks via polling until all bytes have been sent.
Parameters
base pointer to FLEXIO_I2C_Type structure.
txBuff The data bytes to send.
txSize The number of data bytes to send.
Return values
kStatus_Success Successfully write data.
kStatus_FLEXIO_I2C_-
Nak
Receive NAK during writing data.
22.4.8.19 void FLEXIO_I2C_MasterReadBlocking ( FLEXIO_I2C_Type ∗base, uint8_t ∗
rxBuff, uint8_t rxSize )
Note
This function blocks via polling until all bytes have been received.
Parameters
base pointer to FLEXIO_I2C_Type structure.
rxBuff The buffer to store the received bytes.
rxSize The number of data bytes to be received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
423
FlexIO I2C Master Driver
22.4.8.20 status_t FLEXIO_I2C_MasterTransferBlocking ( FLEXIO_I2C_Type ∗base,
flexio_i2c_master_handle_t ∗handle, flexio_i2c_master_transfer_t ∗xfer )
Note
The API does not return until the transfer succeeds or fails due to receiving NAK.
Parameters
base pointer to FLEXIO_I2C_Type structure.
handle pointer to flexio_i2c_master_handle_t structure which stores the transfer state.
xfer pointer to flexio_i2c_master_transfer_t structure.
Returns
status of status_t.
22.4.8.21 status_t FLEXIO_I2C_MasterTransferCreateHandle ( FLEXIO_I2C_Type ∗base,
flexio_i2c_master_handle_t ∗handle, flexio_i2c_master_transfer_callback_t
callback, void ∗userData )
Parameters
base pointer to FLEXIO_I2C_Type structure.
handle pointer to flexio_i2c_master_handle_t structure to store the transfer state.
callback pointer to user callback function.
userData user param passed to the callback function.
Return values
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The FlexIO type/handle/isr table out of range.
22.4.8.22 status_t FLEXIO_I2C_MasterTransferNonBlocking ( FLEXIO_I2C_Type ∗base,
flexio_i2c_master_handle_t ∗handle, flexio_i2c_master_transfer_t ∗xfer )
Note
The API returns immediately after the transfer initiates. Call FLEXIO_I2C_MasterGetTransfer-
Count to poll the transfer status to check whether the transfer is finished. If the return status is not
kStatus_FLEXIO_I2C_Busy, the transfer is finished.
424
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2C Master Driver
Parameters
base pointer to FLEXIO_I2C_Type structure
handle pointer to flexio_i2c_master_handle_t structure which stores the transfer state
xfer pointer to flexio_i2c_master_transfer_t structure
Return values
kStatus_Success Successfully start a transfer.
kStatus_FLEXIO_I2C_-
Busy
FLEXIO I2C is not idle, is running another transfer.
22.4.8.23 status_t FLEXIO_I2C_MasterTransferGetCount ( FLEXIO_I2C_Type ∗base,
flexio_i2c_master_handle_t ∗handle, size_t ∗count )
Parameters
base pointer to FLEXIO_I2C_Type structure.
handle pointer to flexio_i2c_master_handle_t structure which stores the transfer state.
count Number of bytes transferred so far by the non-blocking transaction.
Return values
kStatus_InvalidArgument count is Invalid.
kStatus_Success Successfully return the count.
22.4.8.24 void FLEXIO_I2C_MasterTransferAbort ( FLEXIO_I2C_Type ∗base,
flexio_i2c_master_handle_t ∗handle )
Note
This API can be called at any time when an interrupt non-blocking transfer initiates to abort the
transfer early.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
425
FlexIO I2C Master Driver
base pointer to FLEXIO_I2C_Type structure
handle pointer to flexio_i2c_master_handle_t structure which stores the transfer state
22.4.8.25 void FLEXIO_I2C_MasterTransferHandleIRQ ( void ∗i2cType, void ∗i2cHandle
)
Parameters
i2cType pointer to FLEXIO_I2C_Type structure
i2cHandle pointer to flexio_i2c_master_transfer_t structure
426
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2S Driver
22.5 FlexIO I2S Driver
22.5.1 Overview
The KSDK provides a peripheral driver for I2S function using Flexible I/O module of Kinetis devices.
22.5.2 Overview
The FlexIO I2S driver includes functional APIs and transactional APIs.
Functional APIs are feature/property target low level APIs. Functional APIs can be used for FlexIO I2S
initialization/configuration/operation for optimization/customization purpose. Using the functional API
requires the knowledge of the FlexIO I2S peripheral and how to organize functional APIs to meet the
application requirements. All functional API use the peripheral base address as the first parameter. FlexIO
I2S functional operation groups provide the functional APIs set.
Transactional APIs are transaction target high level APIs. The transactional APIs can be used to enable
the peripheral and also in the application if the code size and performance of transactional APIs can
satisfy requirements. If the code size and performance are critical requirements, see the transactional
API implementation and write custom code. All transactional APIs use the the sai_handle_t as the first
parameter. Initialize the handle by calling the FlexIO_I2S_TransferTxCreateHandle() or FlexIO_I2S_-
TransferRxCreateHandle() API.
Transactional APIs support asynchronous transfer. This means that the functions FLEXIO_I2S_Transfer-
SendNonBlocking() and FLEXIO_I2S_TransferReceiveNonBlocking() set up an interrupt for data trans-
fer. When the transfer completes, the upper layer is notified through a callback function with the kStatus-
_FLEXIO_I2S_TxIdle and kStatus_FLEXIO_I2S_RxIdle status.
22.5.3 Typical use case
22.5.3.1 FlexIO I2S send/receive using an interrupt method
sai_handle_t g_saiTxHandle;
sai_config_t user_config;
sai_transfer_t sendXfer;
volatile bool txFinished;
volatile bool rxFinished;
const uint8_t sendData[] = [......];
void FLEXIO_I2S_UserCallback(sai_handle_t *handle, status_t status, void *userData)
{
userData = userData;
if (kStatus_FLEXIO_I2S_TxIdle == status)
{
txFinished = true;
}
}
void main(void)
{
//...
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
427
FlexIO I2S Driver
FLEXIO_I2S_TxGetDefaultConfig(&user_config);
FLEXIO_I2S_TxInit(FLEXIO I2S0, &user_config);
FLEXIO_I2S_TransferTxCreateHandle(FLEXIO I2S0, &g_saiHandle,
FLEXIO_I2S_UserCallback, NULL);
//Configures the SAI format.
FLEXIO_I2S_TransferTxSetTransferFormat(FLEXIO I2S0, &g_saiHandle, mclkSource, mclk);
// Prepares to send.
sendXfer.data = sendData
sendXfer.dataSize =sizeof(sendData)/sizeof(sendData[0]);
txFinished = false;
// Sends out.
FLEXIO_I2S_TransferSendNonBlocking(FLEXIO I2S0, &g_saiHandle, &
sendXfer);
// Waiting to send is finished.
while (!txFinished)
{
}
// ...
}
22.5.3.2 FLEXIO_I2S send/receive using a DMA method
sai_handle_t g_saiHandle;
dma_handle_t g_saiTxDmaHandle;
dma_handle_t g_saiRxDmaHandle;
sai_config_t user_config;
sai_transfer_t sendXfer;
volatile bool txFinished;
uint8_t sendData[] = ...;
void FLEXIO_I2S_UserCallback(sai_handle_t *handle, status_t status, void *userData)
{
userData = userData;
if (kStatus_FLEXIO_I2S_TxIdle == status)
{
txFinished = true;
}
}
void main(void)
{
//...
FLEXIO_I2S_TxGetDefaultConfig(&user_config);
FLEXIO_I2S_TxInit(FLEXIO I2S0, &user_config);
// Sets up the DMA.
DMAMUX_Init(DMAMUX0);
DMAMUX_SetSource(DMAMUX0, FLEXIO_I2S_TX_DMA_CHANNEL, FLEXIO_I2S_TX_DMA_REQUEST);
DMAMUX_EnableChannel(DMAMUX0, FLEXIO_I2S_TX_DMA_CHANNEL);
DMA_Init(DMA0);
/*Creates the DMA handle.
DMA_TransferTxCreateHandle(&g_saiTxDmaHandle, DMA0, FLEXIO_I2S_TX_DMA_CHANNEL);
FLEXIO_I2S_TransferTxCreateHandleDMA(FLEXIO I2S0, &g_saiTxDmaHandle, FLEXIO_I2S_UserCallback, NULL);
428
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2S Driver
// Prepares to send.
sendXfer.data = sendData
sendXfer.dataSize = sizeof(sendData)/sizeof(sendData[0]);
txFinished = false;
// Sends out.
FLEXIO_I2S_TransferSendDMA(&g_saiHandle, &sendXfer);
// Waiting to send is finished.
while (!txFinished)
{
}
// ...
}
Modules
•FlexIO DMA I2S Driver
•FlexIO eDMA I2S Driver
Files
• file fsl_flexio_i2s.h
Data Structures
• struct FLEXIO_I2S_Type
Define FlexIO I2S access structure typedef. More...
• struct flexio_i2s_config_t
FlexIO I2S configure structure. More...
• struct flexio_i2s_format_t
FlexIO I2S audio format, FlexIO I2S only support the same format in Tx and Rx. More...
• struct flexio_i2s_transfer_t
Define FlexIO I2S transfer structure. More...
• struct flexio_i2s_handle_t
Define FlexIO I2S handle structure. More...
Macros
• #define FLEXIO_I2S_XFER_QUEUE_SIZE (4)
FlexIO I2S transfer queue size, user can refine it according to use case.
Typedefs
• typedef void(∗flexio_i2s_callback_t )(FLEXIO_I2S_Type ∗base, flexio_i2s_handle_t ∗handle,
status_t status, void ∗userData)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
429
FlexIO I2S Driver
FlexIO I2S xfer callback prototype.
Enumerations
• enum _flexio_i2s_status {
kStatus_FLEXIO_I2S_Idle = MAKE_STATUS(kStatusGroup_FLEXIO_I2S, 0),
kStatus_FLEXIO_I2S_TxBusy = MAKE_STATUS(kStatusGroup_FLEXIO_I2S, 1),
kStatus_FLEXIO_I2S_RxBusy = MAKE_STATUS(kStatusGroup_FLEXIO_I2S, 2),
kStatus_FLEXIO_I2S_Error = MAKE_STATUS(kStatusGroup_FLEXIO_I2S, 3),
kStatus_FLEXIO_I2S_QueueFull = MAKE_STATUS(kStatusGroup_FLEXIO_I2S, 4) }
FlexIO I2S transfer status.
• enum flexio_i2s_master_slave_t {
kFLEXIO_I2S_Master = 0x0U,
kFLEXIO_I2S_Slave = 0x1U }
Master or slave mode.
• enum _flexio_i2s_interrupt_enable {
kFLEXIO_I2S_TxDataRegEmptyInterruptEnable = 0x1U,
kFLEXIO_I2S_RxDataRegFullInterruptEnable = 0x2U }
Define FlexIO FlexIO I2S interrupt mask.
• enum _flexio_i2s_status_flags {
kFLEXIO_I2S_TxDataRegEmptyFlag = 0x1U,
kFLEXIO_I2S_RxDataRegFullFlag = 0x2U }
Define FlexIO FlexIO I2S status mask.
• enum flexio_i2s_sample_rate_t {
kFLEXIO_I2S_SampleRate8KHz = 8000U,
kFLEXIO_I2S_SampleRate11025Hz = 11025U,
kFLEXIO_I2S_SampleRate12KHz = 12000U,
kFLEXIO_I2S_SampleRate16KHz = 16000U,
kFLEXIO_I2S_SampleRate22050Hz = 22050U,
kFLEXIO_I2S_SampleRate24KHz = 24000U,
kFLEXIO_I2S_SampleRate32KHz = 32000U,
kFLEXIO_I2S_SampleRate44100Hz = 44100U,
kFLEXIO_I2S_SampleRate48KHz = 48000U,
kFLEXIO_I2S_SampleRate96KHz = 96000U }
Audio sample rate.
• enum flexio_i2s_word_width_t {
kFLEXIO_I2S_WordWidth8bits = 8U,
kFLEXIO_I2S_WordWidth16bits = 16U,
kFLEXIO_I2S_WordWidth24bits = 24U,
kFLEXIO_I2S_WordWidth32bits = 32U }
Audio word width.
Driver version
• #define FSL_FLEXIO_I2S_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
430
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2S Driver
FlexIO I2S driver version 2.1.0.
Initialization and deinitialization
• void FLEXIO_I2S_Init (FLEXIO_I2S_Type ∗base, const flexio_i2s_config_t ∗config)
Initializes the FlexIO I2S.
• void FLEXIO_I2S_GetDefaultConfig (flexio_i2s_config_t ∗config)
Sets the FlexIO I2S configuration structure to default values.
• void FLEXIO_I2S_Deinit (FLEXIO_I2S_Type ∗base)
De-initializes the FlexIO I2S.
• static void FLEXIO_I2S_Enable (FLEXIO_I2S_Type ∗base, bool enable)
Enables/disables the FlexIO I2S module operation.
Status
• uint32_t FLEXIO_I2S_GetStatusFlags (FLEXIO_I2S_Type ∗base)
Gets the FlexIO I2S status flags.
Interrupts
• void FLEXIO_I2S_EnableInterrupts (FLEXIO_I2S_Type ∗base, uint32_t mask)
Enables the FlexIO I2S interrupt.
• void FLEXIO_I2S_DisableInterrupts (FLEXIO_I2S_Type ∗base, uint32_t mask)
Disables the FlexIO I2S interrupt.
DMA Control
• static void FLEXIO_I2S_TxEnableDMA (FLEXIO_I2S_Type ∗base, bool enable)
Enables/disables the FlexIO I2S Tx DMA requests.
• static void FLEXIO_I2S_RxEnableDMA (FLEXIO_I2S_Type ∗base, bool enable)
Enables/disables the FlexIO I2S Rx DMA requests.
• static uint32_t FLEXIO_I2S_TxGetDataRegisterAddress (FLEXIO_I2S_Type ∗base)
Gets the FlexIO I2S send data register address.
• static uint32_t FLEXIO_I2S_RxGetDataRegisterAddress (FLEXIO_I2S_Type ∗base)
Gets the FlexIO I2S receive data register address.
Bus Operations
• void FLEXIO_I2S_MasterSetFormat (FLEXIO_I2S_Type ∗base, flexio_i2s_format_t ∗format,
uint32_t srcClock_Hz)
Configures the FlexIO I2S audio format in master mode.
• void FLEXIO_I2S_SlaveSetFormat (FLEXIO_I2S_Type ∗base, flexio_i2s_format_t ∗format)
Configures the FlexIO I2S audio format in slave mode.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
431
FlexIO I2S Driver
• void FLEXIO_I2S_WriteBlocking (FLEXIO_I2S_Type ∗base, uint8_t bitWidth, uint8_t ∗txData,
size_t size)
Sends a piece of data using a blocking method.
• static void FLEXIO_I2S_WriteData (FLEXIO_I2S_Type ∗base, uint8_t bitWidth, uint32_t data)
Writes a data into data register.
• void FLEXIO_I2S_ReadBlocking (FLEXIO_I2S_Type ∗base, uint8_t bitWidth, uint8_t ∗rxData,
size_t size)
Receives a piece of data using a blocking method.
• static uint32_t FLEXIO_I2S_ReadData (FLEXIO_I2S_Type ∗base)
Reads a data from the data register.
Transactional
• void FLEXIO_I2S_TransferTxCreateHandle (FLEXIO_I2S_Type ∗base, flexio_i2s_handle_t
∗handle, flexio_i2s_callback_t callback, void ∗userData)
Initializes the FlexIO I2S handle.
• void FLEXIO_I2S_TransferSetFormat (FLEXIO_I2S_Type ∗base, flexio_i2s_handle_t ∗handle,
flexio_i2s_format_t ∗format, uint32_t srcClock_Hz)
Configures the FlexIO I2S audio format.
• void FLEXIO_I2S_TransferRxCreateHandle (FLEXIO_I2S_Type ∗base, flexio_i2s_handle_t
∗handle, flexio_i2s_callback_t callback, void ∗userData)
Initializes the FlexIO I2S receive handle.
• status_t FLEXIO_I2S_TransferSendNonBlocking (FLEXIO_I2S_Type ∗base, flexio_i2s_handle_t
∗handle, flexio_i2s_transfer_t ∗xfer)
Performs an interrupt non-blocking send transfer on FlexIO I2S.
• status_t FLEXIO_I2S_TransferReceiveNonBlocking (FLEXIO_I2S_Type ∗base, flexio_i2s_-
handle_t ∗handle, flexio_i2s_transfer_t ∗xfer)
Performs an interrupt non-blocking receive transfer on FlexIO I2S.
• void FLEXIO_I2S_TransferAbortSend (FLEXIO_I2S_Type ∗base, flexio_i2s_handle_t ∗handle)
Aborts the current send.
• void FLEXIO_I2S_TransferAbortReceive (FLEXIO_I2S_Type ∗base, flexio_i2s_handle_t ∗handle)
Aborts the current receive.
• status_t FLEXIO_I2S_TransferGetSendCount (FLEXIO_I2S_Type ∗base, flexio_i2s_handle_t
∗handle, size_t ∗count)
Gets the remaining bytes to be sent.
• status_t FLEXIO_I2S_TransferGetReceiveCount (FLEXIO_I2S_Type ∗base, flexio_i2s_handle_t
∗handle, size_t ∗count)
Gets the remaining bytes to be received.
• void FLEXIO_I2S_TransferTxHandleIRQ (void ∗i2sBase, void ∗i2sHandle)
Tx interrupt handler.
• void FLEXIO_I2S_TransferRxHandleIRQ (void ∗i2sBase, void ∗i2sHandle)
Rx interrupt handler.
432
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2S Driver
22.5.4 Data Structure Documentation
22.5.4.1 struct FLEXIO_I2S_Type
Data Fields
• FLEXIO_Type ∗flexioBase
FlexIO base pointer.
• uint8_t txPinIndex
Tx data pin index in FlexIO pins.
• uint8_t rxPinIndex
Rx data pin index.
• uint8_t bclkPinIndex
Bit clock pin index.
• uint8_t fsPinIndex
Frame sync pin index.
• uint8_t txShifterIndex
Tx data shifter index.
• uint8_t rxShifterIndex
Rx data shifter index.
• uint8_t bclkTimerIndex
Bit clock timer index.
• uint8_t fsTimerIndex
Frame sync timer index.
22.5.4.2 struct flexio_i2s_config_t
Data Fields
• bool enableI2S
Enable FlexIO I2S.
•flexio_i2s_master_slave_t masterSlave
Master or slave.
22.5.4.3 struct flexio_i2s_format_t
Data Fields
• uint8_t bitWidth
Bit width of audio data, always 8/16/24/32 bits.
• uint32_t sampleRate_Hz
Sample rate of the audio data.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
433
FlexIO I2S Driver
22.5.4.4 struct flexio_i2s_transfer_t
Data Fields
• uint8_t ∗data
Data buffer start pointer.
• size_t dataSize
Bytes to be transferred.
22.5.4.4.0.5 Field Documentation
22.5.4.4.0.5.1 size_t flexio_i2s_transfer_t::dataSize
22.5.4.5 struct _flexio_i2s_handle
Data Fields
• uint32_t state
Internal state.
•flexio_i2s_callback_t callback
Callback function called at transfer event.
• void ∗userData
Callback parameter passed to callback function.
• uint8_t bitWidth
Bit width for transfer, 8/16/24/32bits.
•flexio_i2s_transfer_t queue [FLEXIO_I2S_XFER_QUEUE_SIZE]
Transfer queue storing queued transfer.
• size_t transferSize [FLEXIO_I2S_XFER_QUEUE_SIZE]
Data bytes need to transfer.
• volatile uint8_t queueUser
Index for user to queue transfer.
• volatile uint8_t queueDriver
Index for driver to get the transfer data and size.
22.5.5 Macro Definition Documentation
22.5.5.1 #define FSL_FLEXIO_I2S_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
22.5.5.2 #define FLEXIO_I2S_XFER_QUEUE_SIZE (4)
22.5.6 Enumeration Type Documentation
22.5.6.1 enum _flexio_i2s_status
Enumerator
kStatus_FLEXIO_I2S_Idle FlexIO I2S is in idle state.
kStatus_FLEXIO_I2S_TxBusy FlexIO I2S Tx is busy.
434
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2S Driver
kStatus_FLEXIO_I2S_RxBusy FlexIO I2S Tx is busy.
kStatus_FLEXIO_I2S_Error FlexIO I2S error occurred.
kStatus_FLEXIO_I2S_QueueFull FlexIO I2S transfer queue is full.
22.5.6.2 enum flexio_i2s_master_slave_t
Enumerator
kFLEXIO_I2S_Master Master mode.
kFLEXIO_I2S_Slave Slave mode.
22.5.6.3 enum _flexio_i2s_interrupt_enable
Enumerator
kFLEXIO_I2S_TxDataRegEmptyInterruptEnable Transmit buffer empty interrupt enable.
kFLEXIO_I2S_RxDataRegFullInterruptEnable Receive buffer full interrupt enable.
22.5.6.4 enum _flexio_i2s_status_flags
Enumerator
kFLEXIO_I2S_TxDataRegEmptyFlag Transmit buffer empty flag.
kFLEXIO_I2S_RxDataRegFullFlag Receive buffer full flag.
22.5.6.5 enum flexio_i2s_sample_rate_t
Enumerator
kFLEXIO_I2S_SampleRate8KHz Sample rate 8000Hz.
kFLEXIO_I2S_SampleRate11025Hz Sample rate 11025Hz.
kFLEXIO_I2S_SampleRate12KHz Sample rate 12000Hz.
kFLEXIO_I2S_SampleRate16KHz Sample rate 16000Hz.
kFLEXIO_I2S_SampleRate22050Hz Sample rate 22050Hz.
kFLEXIO_I2S_SampleRate24KHz Sample rate 24000Hz.
kFLEXIO_I2S_SampleRate32KHz Sample rate 32000Hz.
kFLEXIO_I2S_SampleRate44100Hz Sample rate 44100Hz.
kFLEXIO_I2S_SampleRate48KHz Sample rate 48000Hz.
kFLEXIO_I2S_SampleRate96KHz Sample rate 96000Hz.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
435
FlexIO I2S Driver
22.5.6.6 enum flexio_i2s_word_width_t
Enumerator
kFLEXIO_I2S_WordWidth8bits Audio data width 8 bits.
kFLEXIO_I2S_WordWidth16bits Audio data width 16 bits.
kFLEXIO_I2S_WordWidth24bits Audio data width 24 bits.
kFLEXIO_I2S_WordWidth32bits Audio data width 32 bits.
22.5.7 Function Documentation
22.5.7.1 void FLEXIO_I2S_Init ( FLEXIO_I2S_Type ∗base, const flexio_i2s_config_t ∗
config )
This API configures FlexIO pins and shifter to I2S and configure FlexIO I2S with configuration structure.
The configuration structure can be filled by the user, or be set with default values by FLEXIO_I2S_Get-
DefaultConfig().
Note
This API should be called at the beginning of the application to use the FlexIO I2S driver, or any
access to the FlexIO I2S module could cause hard fault because clock is not enabled.
Parameters
base FlexIO I2S base pointer
config FlexIO I2S configure structure.
22.5.7.2 void FLEXIO_I2S_GetDefaultConfig ( flexio_i2s_config_t ∗config )
The purpose of this API is to get the configuration structure initialized for use in FLEXIO_I2S_Init(). User
may use the initialized structure unchanged in FLEXIO_I2S_Init(), or modify some fields of the structure
before calling FLEXIO_I2S_Init().
Parameters
config pointer to master configuration structure
22.5.7.3 void FLEXIO_I2S_Deinit ( FLEXIO_I2S_Type ∗base )
Calling this API gates the FlexIO i2s clock. After calling this API, call the FLEXO_I2S_Init to use the
FlexIO I2S module.
436
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2S Driver
Parameters
base FlexIO I2S base pointer
22.5.7.4 static void FLEXIO_I2S_Enable ( FLEXIO_I2S_Type ∗base, bool enable )
[inline],[static]
Parameters
base pointer to FLEXIO_I2S_Type
enable True to enable, false to disable.
22.5.7.5 uint32_t FLEXIO_I2S_GetStatusFlags ( FLEXIO_I2S_Type ∗base )
Parameters
base pointer to FLEXIO_I2S_Type structure
Returns
Status flag, which are ORed by the enumerators in the _flexio_i2s_status_flags.
22.5.7.6 void FLEXIO_I2S_EnableInterrupts ( FLEXIO_I2S_Type ∗base, uint32_t mask )
This function enables the FlexIO UART interrupt.
Parameters
base pointer to FLEXIO_I2S_Type structure
mask interrupt source
22.5.7.7 void FLEXIO_I2S_DisableInterrupts ( FLEXIO_I2S_Type ∗base, uint32_t mask
)
This function enables the FlexIO UART interrupt.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
437
FlexIO I2S Driver
Parameters
base pointer to FLEXIO_I2S_Type structure
mask interrupt source
22.5.7.8 static void FLEXIO_I2S_TxEnableDMA ( FLEXIO_I2S_Type ∗base, bool enable
)[inline],[static]
Parameters
base FlexIO I2S base pointer
enable True means enable DMA, false means disable DMA.
22.5.7.9 static void FLEXIO_I2S_RxEnableDMA ( FLEXIO_I2S_Type ∗base, bool enable
)[inline],[static]
Parameters
base FlexIO I2S base pointer
enable True means enable DMA, false means disable DMA.
22.5.7.10 static uint32_t FLEXIO_I2S_TxGetDataRegisterAddress ( FLEXIO_I2S_Type ∗
base )[inline],[static]
This function returns the I2S data register address, mainly used by DMA/eDMA.
Parameters
base pointer to FLEXIO_I2S_Type structure
Returns
FlexIO i2s send data register address.
22.5.7.11 static uint32_t FLEXIO_I2S_RxGetDataRegisterAddress ( FLEXIO_I2S_Type ∗
base )[inline],[static]
This function returns the I2S data register address, mainly used by DMA/eDMA.
438
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2S Driver
Parameters
base pointer to FLEXIO_I2S_Type structure
Returns
FlexIO i2s receive data register address.
22.5.7.12 void FLEXIO_I2S_MasterSetFormat ( FLEXIO_I2S_Type ∗base,
flexio_i2s_format_t ∗format, uint32_t srcClock_Hz )
Audio format can be changed in run-time of FlexIO I2S. This function configures the sample rate and
audio data format to be transferred.
Parameters
base pointer to FLEXIO_I2S_Type structure
format Pointer to FlexIO I2S audio data format structure.
srcClock_Hz I2S master clock source frequency in Hz.
22.5.7.13 void FLEXIO_I2S_SlaveSetFormat ( FLEXIO_I2S_Type ∗base,
flexio_i2s_format_t ∗format )
Audio format can be changed in run-time of FlexIO I2S. This function configures the sample rate and
audio data format to be transferred.
Parameters
base pointer to FLEXIO_I2S_Type structure
format Pointer to FlexIO I2S audio data format structure.
22.5.7.14 void FLEXIO_I2S_WriteBlocking ( FLEXIO_I2S_Type ∗base, uint8_t bitWidth,
uint8_t ∗txData, size_t size )
Note
This function blocks via polling until data is ready to be sent.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
439
FlexIO I2S Driver
Parameters
base FlexIO I2S base pointer.
bitWidth How many bits in a audio word, usually 8/16/24/32 bits.
txData Pointer to the data to be written.
size Bytes to be written.
22.5.7.15 static void FLEXIO_I2S_WriteData ( FLEXIO_I2S_Type ∗base, uint8_t
bitWidth, uint32_t data )[inline],[static]
Parameters
base FlexIO I2S base pointer.
bitWidth How many bits in a audio word, usually 8/16/24/32 bits.
data Data to be written.
22.5.7.16 void FLEXIO_I2S_ReadBlocking ( FLEXIO_I2S_Type ∗base, uint8_t bitWidth,
uint8_t ∗rxData, size_t size )
Note
This function blocks via polling until data is ready to be sent.
Parameters
base FlexIO I2S base pointer
bitWidth How many bits in a audio word, usually 8/16/24/32 bits.
rxData Pointer to the data to be read.
size Bytes to be read.
22.5.7.17 static uint32_t FLEXIO_I2S_ReadData ( FLEXIO_I2S_Type ∗base )
[inline],[static]
440
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2S Driver
Parameters
base FlexIO I2S base pointer
Returns
Data read from data register.
22.5.7.18 void FLEXIO_I2S_TransferTxCreateHandle ( FLEXIO_I2S_Type ∗base,
flexio_i2s_handle_t ∗handle, flexio_i2s_callback_t callback, void ∗userData )
This function initializes the FlexIO I2S handle which can be used for other FlexIO I2S transactional APIs.
Call this API once to get the initialized handle.
Parameters
base pointer to FLEXIO_I2S_Type structure
handle pointer to flexio_i2s_handle_t structure to store the transfer state.
callback FlexIO I2S callback function, which is called while finished a block.
userData User parameter for the FlexIO I2S callback.
22.5.7.19 void FLEXIO_I2S_TransferSetFormat ( FLEXIO_I2S_Type ∗base,
flexio_i2s_handle_t ∗handle, flexio_i2s_format_t ∗format, uint32_t
srcClock_Hz )
Audio format can be changed in run-time of FlexIO i2s. This function configures the sample rate and
audio data format to be transferred.
Parameters
base pointer to FLEXIO_I2S_Type structure.
handle FlexIO I2S handle pointer.
format Pointer to audio data format structure.
srcClock_Hz FlexIO I2S bit clock source frequency in Hz. This parameter should be 0 while in
slave mode.
22.5.7.20 void FLEXIO_I2S_TransferRxCreateHandle ( FLEXIO_I2S_Type ∗base,
flexio_i2s_handle_t ∗handle, flexio_i2s_callback_t callback, void ∗userData )
This function initializes the FlexIO I2S handle which can be used for other FlexIO I2S transactional APIs.
Usually, user only need to call this API once to get the initialized handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
441
FlexIO I2S Driver
Parameters
base pointer to FLEXIO_I2S_Type structure.
handle pointer to flexio_i2s_handle_t structure to store the transfer state.
callback FlexIO I2S callback function, which is called while finished a block.
userData User parameter for the FlexIO I2S callback.
22.5.7.21 status_t FLEXIO_I2S_TransferSendNonBlocking ( FLEXIO_I2S_Type ∗base,
flexio_i2s_handle_t ∗handle, flexio_i2s_transfer_t ∗xfer )
Note
Calling the API returns immediately after transfer initiates. Call FLEXIO_I2S_GetRemainingBytes
to poll the transfer status and check whether the transfer is finished. If the return status is 0, the
transfer is finished.
Parameters
base pointer to FLEXIO_I2S_Type structure.
handle pointer to flexio_i2s_handle_t structure which stores the transfer state
xfer pointer to flexio_i2s_transfer_t structure
Return values
kStatus_Success Successfully start the data transmission.
kStatus_FLEXIO_I2S_Tx-
Busy
Previous transmission still not finished, data not all written to TX register
yet.
kStatus_InvalidArgument The input parameter is invalid.
22.5.7.22 status_t FLEXIO_I2S_TransferReceiveNonBlocking ( FLEXIO_I2S_Type ∗
base, flexio_i2s_handle_t ∗handle, flexio_i2s_transfer_t ∗xfer )
Note
The API returns immediately after transfer initiates. Call FLEXIO_I2S_GetRemainingBytes to poll
the transfer status to check whether the transfer is finished. If the return status is 0, the transfer is
finished.
442
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2S Driver
Parameters
base pointer to FLEXIO_I2S_Type structure.
handle pointer to flexio_i2s_handle_t structure which stores the transfer state
xfer pointer to flexio_i2s_transfer_t structure
Return values
kStatus_Success Successfully start the data receive.
kStatus_FLEXIO_I2S_-
RxBusy
Previous receive still not finished.
kStatus_InvalidArgument The input parameter is invalid.
22.5.7.23 void FLEXIO_I2S_TransferAbortSend ( FLEXIO_I2S_Type ∗base,
flexio_i2s_handle_t ∗handle )
Note
This API can be called at any time when interrupt non-blocking transfer initiates to abort the transfer
in a early time.
Parameters
base pointer to FLEXIO_I2S_Type structure.
handle pointer to flexio_i2s_handle_t structure which stores the transfer state
22.5.7.24 void FLEXIO_I2S_TransferAbortReceive ( FLEXIO_I2S_Type ∗base,
flexio_i2s_handle_t ∗handle )
Note
This API can be called at any time when interrupt non-blocking transfer initiates to abort the transfer
in a early time.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
443
FlexIO I2S Driver
base pointer to FLEXIO_I2S_Type structure.
handle pointer to flexio_i2s_handle_t structure which stores the transfer state
22.5.7.25 status_t FLEXIO_I2S_TransferGetSendCount ( FLEXIO_I2S_Type ∗base,
flexio_i2s_handle_t ∗handle, size_t ∗count )
Parameters
base pointer to FLEXIO_I2S_Type structure.
handle pointer to flexio_i2s_handle_t structure which stores the transfer state
count Bytes sent.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
22.5.7.26 status_t FLEXIO_I2S_TransferGetReceiveCount ( FLEXIO_I2S_Type ∗base,
flexio_i2s_handle_t ∗handle, size_t ∗count )
Parameters
base pointer to FLEXIO_I2S_Type structure.
handle pointer to flexio_i2s_handle_t structure which stores the transfer state
Returns
count Bytes received.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
22.5.7.27 void FLEXIO_I2S_TransferTxHandleIRQ ( void ∗i2sBase, void ∗i2sHandle )
444
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO I2S Driver
Parameters
i2sBase pointer to FLEXIO_I2S_Type structure.
i2sHandle pointer to flexio_i2s_handle_t structure
22.5.7.28 void FLEXIO_I2S_TransferRxHandleIRQ ( void ∗i2sBase, void ∗i2sHandle )
Parameters
i2sBase pointer to FLEXIO_I2S_Type structure.
i2sHandle pointer to flexio_i2s_handle_t structure
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
445
FlexIO SPI Driver
22.6 FlexIO SPI Driver
22.6.1 Overview
The KSDK provides a peripheral driver for an SPI function using the Flexible I/O module of Kinetis
devices.
22.6.2 Overview
FlexIO SPI driver includes functional APIs and transactional APIs.
Functional APIs are feature/property target low level APIs. Functional APIs can be used for FlexIO SPI
initialization/configuration/operation for optimization/customization purpose. Using the functional API
requires the knowledge of the FlexIO SPI peripheral and how to organize functional APIs to meet the
application requirements. All functional API use the FLEXIO_SPI_Type ∗base as the first parameter.
FlexIO SPI functional operation groups provide the functional API set.
Transactional APIs are transaction target high level APIs. Transactional APIs can be used to enable the
peripheral and also in the application if the code size and performance of transactional APIs can sat-
isfy requirements. If the code size and performance are critical requirements, see the transactional API
implementation and write custom code. All transactional APIs use the flexio_spi_master_handle_t/flexio-
_spi_slave_handle_t as the second parameter. Initialize the handle by calling the FLEXIO_SPI_Master-
TransferCreateHandle() or FLEXIO_SPI_SlaveTransferCreateHandle() API.
Transactional APIs support asynchronous transfer. This means that the functions FLEXIO_SPI_Master-
TransferNonBlocking()/FLEXIO_SPI_SlaveTransferNonBlocking() set up an interrupt for data transfer.
When the transfer is complete, the upper layer is notified through a callback function with the kStatus_-
FLEXIO_SPI_Idle status. Please notice that FLEXIO SPI slave driver only support discontinuous PCS
access, this is a limitation. The FLEXIO SPI slave driver could support continuous PCS, but the slave
can’t adapt discontinuous and continuous PCS automatically. User could change the timer disable mode in
FLEXIO_SPI_SlaveInit manually, from kFLEXIO_TimerDisableOnTimerCompare to kFLEXIO_Timer-
DisableNever to enable discontinuous PCS access, only support CPHA = 0.
22.6.3 Typical use case
22.6.3.1 FlexIO SPI send/receive using an interrupt method
flexio_spi_master_handle_t g_spiHandle;
FLEXIO_SPI_Type spiDev;
volatile bool txFinished;
static uint8_t srcBuff[BUFFER_SIZE];
static uint8_t destBuff[BUFFER_SIZE];
void FLEXIO_SPI_MasterUserCallback(FLEXIO_SPI_Type *base, flexio_spi_master_handle_t *handle
, status_t status, void *userData)
{
userData = userData;
if (kStatus_FLEXIO_SPI_Idle == status)
446
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
{
txFinished = true;
}
}
void main(void)
{
//...
flexio_spi_transfer_t xfer = {0};
flexio_spi_master_config_t userConfig;
FLEXIO_SPI_MasterGetDefaultConfig(&userConfig);
userConfig.baudRate_Bps = 500000U;
spiDev.flexioBase = BOARD_FLEXIO_BASE;
spiDev.SDOPinIndex = FLEXIO_SPI_MOSI_PIN;
spiDev.SDIPinIndex = FLEXIO_SPI_MISO_PIN;
spiDev.SCKPinIndex = FLEXIO_SPI_SCK_PIN;
spiDev.CSnPinIndex = FLEXIO_SPI_CSn_PIN;
spiDev.shifterIndex[0] = 0U;
spiDev.shifterIndex[1] = 1U;
spiDev.timerIndex[0] = 0U;
spiDev.timerIndex[1] = 1U;
FLEXIO_SPI_MasterInit(&spiDev, &userConfig, FLEXIO_CLOCK_FREQUENCY);
xfer.txData = srcBuff;
xfer.rxData = destBuff;
xfer.dataSize = BUFFER_SIZE;
xfer.flags =kFLEXIO_SPI_8bitMsb;
FLEXIO_SPI_MasterTransferCreateHandle(&spiDev, &g_spiHandle,
FLEXIO_SPI_MasterUserCallback, NULL);
FLEXIO_SPI_MasterTransferNonBlocking(&spiDev, &g_spiHandle, &xfer);
// Send finished.
while (!txFinished)
{
}
// ...
}
22.6.3.2 FlexIO_SPI Send/Receive in DMA way
dma_handle_t g_spiTxDmaHandle;
dma_handle_t g_spiRxDmaHandle;
flexio_spi_master_handle_t g_spiHandle;
FLEXIO_SPI_Type spiDev;
volatile bool txFinished;
static uint8_t srcBuff[BUFFER_SIZE];
static uint8_t destBuff[BUFFER_SIZE];
void FLEXIO_SPI_MasterUserCallback(FLEXIO_SPI_Type *base, flexio_spi_master_dma_handle_t *
handle, status_t status, void *userData)
{
userData = userData;
if (kStatus_FLEXIO_SPI_Idle == status)
{
txFinished = true;
}
}
void main(void)
{
flexio_spi_transfer_t xfer = {0};
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
447
FlexIO SPI Driver
flexio_spi_master_config_t userConfig;
FLEXIO_SPI_MasterGetDefaultConfig(&userConfig);
userConfig.baudRate_Bps = 500000U;
spiDev.flexioBase = BOARD_FLEXIO_BASE;
spiDev.SDOPinIndex = FLEXIO_SPI_MOSI_PIN;
spiDev.SDIPinIndex = FLEXIO_SPI_MISO_PIN;
spiDev.SCKPinIndex = FLEXIO_SPI_SCK_PIN;
spiDev.CSnPinIndex = FLEXIO_SPI_CSn_PIN;
spiDev.shifterIndex[0] = 0U;
spiDev.shifterIndex[1] = 1U;
spiDev.timerIndex[0] = 0U;
spiDev.timerIndex[1] = 1U;
/*Initializes the DMA for the example.
DMAMGR_Init();
dma_request_source_tx = (dma_request_source_t)(FLEXIO_DMA_REQUEST_BASE + spiDev.shifterIndex[0]);
dma_request_source_rx = (dma_request_source_t)(FLEXIO_DMA_REQUEST_BASE + spiDev.shifterIndex[1]);
/*Requests DMA channels for transmit and receive.
DMAMGR_RequestChannel((dma_request_source_t)dma_request_source_tx, 0, &txHandle);
DMAMGR_RequestChannel((dma_request_source_t)dma_request_source_rx, 1, &rxHandle);
FLEXIO_SPI_MasterInit(&spiDev, &userConfig, FLEXIO_CLOCK_FREQUENCY);
/*Initializes the buffer.
for (i = 0; i < BUFFER_SIZE; i++)
{
srcBuff[i] = i;
}
/*Sends to the slave.
xfer.txData = srcBuff;
xfer.rxData = destBuff;
xfer.dataSize = BUFFER_SIZE;
xfer.flags = kFLEXIO_SPI_8bitMsb;
FLEXIO_SPI_MasterTransferCreateHandleDMA(&spiDev, &g_spiHandle, FLEXIO_SPI_MasterUserCallback, NULL,
&g_spiTxDmaHandle, &g_spiRxDmaHandle);
FLEXIO_SPI_MasterTransferDMA(&spiDev, &g_spiHandle, &xfer);
// Send finished.
while (!txFinished)
{
}
// ...
}
Modules
•FlexIO DMA SPI Driver
•FlexIO eDMA SPI Driver
Files
• file fsl_flexio_spi.h
448
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
Data Structures
• struct FLEXIO_SPI_Type
Define FlexIO SPI access structure typedef. More...
• struct flexio_spi_master_config_t
Define FlexIO SPI master configuration structure. More...
• struct flexio_spi_slave_config_t
Define FlexIO SPI slave configuration structure. More...
• struct flexio_spi_transfer_t
Define FlexIO SPI transfer structure. More...
• struct flexio_spi_master_handle_t
Define FlexIO SPI handle structure. More...
Macros
• #define FLEXIO_SPI_DUMMYDATA (0xFFFFU)
FlexIO SPI dummy transfer data, the data is sent while txData is NULL.
Typedefs
• typedef flexio_spi_master_handle_t flexio_spi_slave_handle_t
Slave handle is the same with master handle.
• typedef void(∗flexio_spi_master_transfer_callback_t )(FLEXIO_SPI_Type ∗base, flexio_spi_-
master_handle_t ∗handle, status_t status, void ∗userData)
FlexIO SPI master callback for finished transmit.
• typedef void(∗flexio_spi_slave_transfer_callback_t )(FLEXIO_SPI_Type ∗base, flexio_spi_slave-
_handle_t ∗handle, status_t status, void ∗userData)
FlexIO SPI slave callback for finished transmit.
Enumerations
• enum _flexio_spi_status {
kStatus_FLEXIO_SPI_Busy = MAKE_STATUS(kStatusGroup_FLEXIO_SPI, 1),
kStatus_FLEXIO_SPI_Idle = MAKE_STATUS(kStatusGroup_FLEXIO_SPI, 2),
kStatus_FLEXIO_SPI_Error = MAKE_STATUS(kStatusGroup_FLEXIO_SPI, 3) }
Error codes for the FlexIO SPI driver.
• enum flexio_spi_clock_phase_t {
kFLEXIO_SPI_ClockPhaseFirstEdge = 0x0U,
kFLEXIO_SPI_ClockPhaseSecondEdge = 0x1U }
FlexIO SPI clock phase configuration.
• enum flexio_spi_shift_direction_t {
kFLEXIO_SPI_MsbFirst = 0,
kFLEXIO_SPI_LsbFirst =1}
FlexIO SPI data shifter direction options.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
449
FlexIO SPI Driver
• enum flexio_spi_data_bitcount_mode_t {
kFLEXIO_SPI_8BitMode = 0x08U,
kFLEXIO_SPI_16BitMode = 0x10U }
FlexIO SPI data length mode options.
• enum _flexio_spi_interrupt_enable {
kFLEXIO_SPI_TxEmptyInterruptEnable = 0x1U,
kFLEXIO_SPI_RxFullInterruptEnable = 0x2U }
Define FlexIO SPI interrupt mask.
• enum _flexio_spi_status_flags {
kFLEXIO_SPI_TxBufferEmptyFlag = 0x1U,
kFLEXIO_SPI_RxBufferFullFlag = 0x2U }
Define FlexIO SPI status mask.
• enum _flexio_spi_dma_enable {
kFLEXIO_SPI_TxDmaEnable = 0x1U,
kFLEXIO_SPI_RxDmaEnable = 0x2U,
kFLEXIO_SPI_DmaAllEnable = 0x3U }
Define FlexIO SPI DMA mask.
• enum _flexio_spi_transfer_flags {
kFLEXIO_SPI_8bitMsb = 0x1U,
kFLEXIO_SPI_8bitLsb = 0x2U,
kFLEXIO_SPI_16bitMsb = 0x9U,
kFLEXIO_SPI_16bitLsb = 0xaU }
Define FlexIO SPI transfer flags.
Driver version
• #define FSL_FLEXIO_SPI_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
FlexIO SPI driver version 2.1.0.
FlexIO SPI Configuration
• void FLEXIO_SPI_MasterInit (FLEXIO_SPI_Type ∗base, flexio_spi_master_config_t ∗master-
Config, uint32_t srcClock_Hz)
Ungates the FlexIO clock, resets the FlexIO module and configures the FlexIO SPI master hardware, and
configures the FlexIO SPI with FlexIO SPI master configuration.
• void FLEXIO_SPI_MasterDeinit (FLEXIO_SPI_Type ∗base)
Gates the FlexIO clock.
• void FLEXIO_SPI_MasterGetDefaultConfig (flexio_spi_master_config_t ∗masterConfig)
Gets the default configuration to configure the FlexIO SPI master.
• void FLEXIO_SPI_SlaveInit (FLEXIO_SPI_Type ∗base, flexio_spi_slave_config_t ∗slaveConfig)
Ungates the FlexIO clock, resets the FlexIO module, configures the FlexIO SPI slave hardware configura-
tion, and configures the FlexIO SPI with FlexIO SPI slave configuration.
• void FLEXIO_SPI_SlaveDeinit (FLEXIO_SPI_Type ∗base)
Gates the FlexIO clock.
• void FLEXIO_SPI_SlaveGetDefaultConfig (flexio_spi_slave_config_t ∗slaveConfig)
Gets the default configuration to configure the FlexIO SPI slave.
450
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
Status
• uint32_t FLEXIO_SPI_GetStatusFlags (FLEXIO_SPI_Type ∗base)
Gets FlexIO SPI status flags.
• void FLEXIO_SPI_ClearStatusFlags (FLEXIO_SPI_Type ∗base, uint32_t mask)
Clears FlexIO SPI status flags.
Interrupts
• void FLEXIO_SPI_EnableInterrupts (FLEXIO_SPI_Type ∗base, uint32_t mask)
Enables the FlexIO SPI interrupt.
• void FLEXIO_SPI_DisableInterrupts (FLEXIO_SPI_Type ∗base, uint32_t mask)
Disables the FlexIO SPI interrupt.
DMA Control
• void FLEXIO_SPI_EnableDMA (FLEXIO_SPI_Type ∗base, uint32_t mask, bool enable)
Enables/disables the FlexIO SPI transmit DMA.
• static uint32_t FLEXIO_SPI_GetTxDataRegisterAddress (FLEXIO_SPI_Type ∗base, flexio_spi_-
shift_direction_t direction)
Gets the FlexIO SPI transmit data register address for MSB first transfer.
• static uint32_t FLEXIO_SPI_GetRxDataRegisterAddress (FLEXIO_SPI_Type ∗base, flexio_spi_-
shift_direction_t direction)
Gets the FlexIO SPI receive data register address for the MSB first transfer.
Bus Operations
• static void FLEXIO_SPI_Enable (FLEXIO_SPI_Type ∗base, bool enable)
Enables/disables the FlexIO SPI module operation.
• void FLEXIO_SPI_MasterSetBaudRate (FLEXIO_SPI_Type ∗base, uint32_t baudRate_Bps,
uint32_t srcClockHz)
Sets baud rate for the FlexIO SPI transfer, which is only used for the master.
• static void FLEXIO_SPI_WriteData (FLEXIO_SPI_Type ∗base, flexio_spi_shift_direction_t direc-
tion, uint16_t data)
Writes one byte of data, which is sent using the MSB method.
• static uint16_t FLEXIO_SPI_ReadData (FLEXIO_SPI_Type ∗base, flexio_spi_shift_direction_t di-
rection)
Reads 8 bit/16 bit data.
• void FLEXIO_SPI_WriteBlocking (FLEXIO_SPI_Type ∗base, flexio_spi_shift_direction_t direc-
tion, const uint8_t ∗buffer, size_t size)
Sends a buffer of data bytes.
• void FLEXIO_SPI_ReadBlocking (FLEXIO_SPI_Type ∗base, flexio_spi_shift_direction_t direc-
tion, uint8_t ∗buffer, size_t size)
Receives a buffer of bytes.
• void FLEXIO_SPI_MasterTransferBlocking (FLEXIO_SPI_Type ∗base, flexio_spi_transfer_t
∗xfer)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
451
FlexIO SPI Driver
Receives a buffer of bytes.
Transactional
• status_t FLEXIO_SPI_MasterTransferCreateHandle (FLEXIO_SPI_Type ∗base, flexio_spi_-
master_handle_t ∗handle, flexio_spi_master_transfer_callback_t callback, void ∗userData)
Initializes the FlexIO SPI Master handle, which is used in transactional functions.
• status_t FLEXIO_SPI_MasterTransferNonBlocking (FLEXIO_SPI_Type ∗base, flexio_spi_master-
_handle_t ∗handle, flexio_spi_transfer_t ∗xfer)
Master transfer data using IRQ.
• void FLEXIO_SPI_MasterTransferAbort (FLEXIO_SPI_Type ∗base, flexio_spi_master_handle_t
∗handle)
Aborts the master data transfer, which used IRQ.
• status_t FLEXIO_SPI_MasterTransferGetCount (FLEXIO_SPI_Type ∗base, flexio_spi_master_-
handle_t ∗handle, size_t ∗count)
Gets the data transfer status which used IRQ.
• void FLEXIO_SPI_MasterTransferHandleIRQ (void ∗spiType, void ∗spiHandle)
FlexIO SPI master IRQ handler function.
• status_t FLEXIO_SPI_SlaveTransferCreateHandle (FLEXIO_SPI_Type ∗base, flexio_spi_slave_-
handle_t ∗handle, flexio_spi_slave_transfer_callback_t callback, void ∗userData)
Initializes the FlexIO SPI Slave handle, which is used in transactional functions.
• status_t FLEXIO_SPI_SlaveTransferNonBlocking (FLEXIO_SPI_Type ∗base, flexio_spi_slave_-
handle_t ∗handle, flexio_spi_transfer_t ∗xfer)
Slave transfer data using IRQ.
• static void FLEXIO_SPI_SlaveTransferAbort (FLEXIO_SPI_Type ∗base, flexio_spi_slave_handle-
_t ∗handle)
Aborts the slave data transfer which used IRQ, share same API with master.
• static status_t FLEXIO_SPI_SlaveTransferGetCount (FLEXIO_SPI_Type ∗base, flexio_spi_slave-
_handle_t ∗handle, size_t ∗count)
Gets the data transfer status which used IRQ, share same API with master.
• void FLEXIO_SPI_SlaveTransferHandleIRQ (void ∗spiType, void ∗spiHandle)
FlexIO SPI slave IRQ handler function.
22.6.4 Data Structure Documentation
22.6.4.1 struct FLEXIO_SPI_Type
Data Fields
• FLEXIO_Type ∗flexioBase
FlexIO base pointer.
• uint8_t SDOPinIndex
Pin select for data output.
• uint8_t SDIPinIndex
Pin select for data input.
• uint8_t SCKPinIndex
Pin select for clock.
452
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
• uint8_t CSnPinIndex
Pin select for enable.
• uint8_t shifterIndex [2]
Shifter index used in FlexIO SPI.
• uint8_t timerIndex [2]
Timer index used in FlexIO SPI.
22.6.4.1.0.6 Field Documentation
22.6.4.1.0.6.1 FLEXIO_Type∗FLEXIO_SPI_Type::flexioBase
22.6.4.1.0.6.2 uint8_t FLEXIO_SPI_Type::SDOPinIndex
22.6.4.1.0.6.3 uint8_t FLEXIO_SPI_Type::SDIPinIndex
22.6.4.1.0.6.4 uint8_t FLEXIO_SPI_Type::SCKPinIndex
22.6.4.1.0.6.5 uint8_t FLEXIO_SPI_Type::CSnPinIndex
22.6.4.1.0.6.6 uint8_t FLEXIO_SPI_Type::shifterIndex[2]
22.6.4.1.0.6.7 uint8_t FLEXIO_SPI_Type::timerIndex[2]
22.6.4.2 struct flexio_spi_master_config_t
Data Fields
• bool enableMaster
Enable/disable FlexIO SPI master after configuration.
• bool enableInDoze
Enable/disable FlexIO operation in doze mode.
• bool enableInDebug
Enable/disable FlexIO operation in debug mode.
• bool enableFastAccess
Enable/disable fast access to FlexIO registers, fast access requires the FlexIO clock to be at least twice
the frequency of the bus clock.
• uint32_t baudRate_Bps
Baud rate in Bps.
•flexio_spi_clock_phase_t phase
Clock phase.
•flexio_spi_data_bitcount_mode_t dataMode
8bit or 16bit mode.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
453
FlexIO SPI Driver
22.6.4.2.0.7 Field Documentation
22.6.4.2.0.7.1 bool flexio_spi_master_config_t::enableMaster
22.6.4.2.0.7.2 bool flexio_spi_master_config_t::enableInDoze
22.6.4.2.0.7.3 bool flexio_spi_master_config_t::enableInDebug
22.6.4.2.0.7.4 bool flexio_spi_master_config_t::enableFastAccess
22.6.4.2.0.7.5 uint32_t flexio_spi_master_config_t::baudRate_Bps
22.6.4.2.0.7.6 flexio_spi_clock_phase_t flexio_spi_master_config_t::phase
22.6.4.2.0.7.7 flexio_spi_data_bitcount_mode_t flexio_spi_master_config_t::dataMode
22.6.4.3 struct flexio_spi_slave_config_t
Data Fields
• bool enableSlave
Enable/disable FlexIO SPI slave after configuration.
• bool enableInDoze
Enable/disable FlexIO operation in doze mode.
• bool enableInDebug
Enable/disable FlexIO operation in debug mode.
• bool enableFastAccess
Enable/disable fast access to FlexIO registers, fast access requires the FlexIO clock to be at least twice
the frequency of the bus clock.
•flexio_spi_clock_phase_t phase
Clock phase.
•flexio_spi_data_bitcount_mode_t dataMode
8bit or 16bit mode.
454
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
22.6.4.3.0.8 Field Documentation
22.6.4.3.0.8.1 bool flexio_spi_slave_config_t::enableSlave
22.6.4.3.0.8.2 bool flexio_spi_slave_config_t::enableInDoze
22.6.4.3.0.8.3 bool flexio_spi_slave_config_t::enableInDebug
22.6.4.3.0.8.4 bool flexio_spi_slave_config_t::enableFastAccess
22.6.4.3.0.8.5 flexio_spi_clock_phase_t flexio_spi_slave_config_t::phase
22.6.4.3.0.8.6 flexio_spi_data_bitcount_mode_t flexio_spi_slave_config_t::dataMode
22.6.4.4 struct flexio_spi_transfer_t
Data Fields
• uint8_t ∗txData
Send buffer.
• uint8_t ∗rxData
Receive buffer.
• size_t dataSize
Transfer bytes.
• uint8_t flags
FlexIO SPI control flag, MSB first or LSB first.
22.6.4.4.0.9 Field Documentation
22.6.4.4.0.9.1 uint8_t∗flexio_spi_transfer_t::txData
22.6.4.4.0.9.2 uint8_t∗flexio_spi_transfer_t::rxData
22.6.4.4.0.9.3 size_t flexio_spi_transfer_t::dataSize
22.6.4.4.0.9.4 uint8_t flexio_spi_transfer_t::flags
22.6.4.5 struct _flexio_spi_master_handle
typedef for flexio_spi_master_handle_t in advance.
Data Fields
• uint8_t ∗txData
Transfer buffer.
• uint8_t ∗rxData
Receive buffer.
• size_t transferSize
Total bytes to be transferred.
• volatile size_t txRemainingBytes
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
455
FlexIO SPI Driver
Send data remaining in bytes.
• volatile size_t rxRemainingBytes
Receive data remaining in bytes.
• volatile uint32_t state
FlexIO SPI internal state.
• uint8_t bytePerFrame
SPI mode, 2bytes or 1byte in a frame.
•flexio_spi_shift_direction_t direction
Shift direction.
•flexio_spi_master_transfer_callback_t callback
FlexIO SPI callback.
• void ∗userData
Callback parameter.
456
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
22.6.4.5.0.10 Field Documentation
22.6.4.5.0.10.1 uint8_t∗flexio_spi_master_handle_t::txData
22.6.4.5.0.10.2 uint8_t∗flexio_spi_master_handle_t::rxData
22.6.4.5.0.10.3 size_t flexio_spi_master_handle_t::transferSize
22.6.4.5.0.10.4 volatile size_t flexio_spi_master_handle_t::txRemainingBytes
22.6.4.5.0.10.5 volatile size_t flexio_spi_master_handle_t::rxRemainingBytes
22.6.4.5.0.10.6 volatile uint32_t flexio_spi_master_handle_t::state
22.6.4.5.0.10.7 flexio_spi_shift_direction_t flexio_spi_master_handle_t::direction
22.6.4.5.0.10.8 flexio_spi_master_transfer_callback_t flexio_spi_master_handle_t::callback
22.6.4.5.0.10.9 void∗flexio_spi_master_handle_t::userData
22.6.5 Macro Definition Documentation
22.6.5.1 #define FSL_FLEXIO_SPI_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
22.6.5.2 #define FLEXIO_SPI_DUMMYDATA (0xFFFFU)
22.6.6 Typedef Documentation
22.6.6.1 typedef flexio_spi_master_handle_t flexio_spi_slave_handle_t
22.6.7 Enumeration Type Documentation
22.6.7.1 enum _flexio_spi_status
Enumerator
kStatus_FLEXIO_SPI_Busy FlexIO SPI is busy.
kStatus_FLEXIO_SPI_Idle SPI is idle.
kStatus_FLEXIO_SPI_Error FlexIO SPI error.
22.6.7.2 enum flexio_spi_clock_phase_t
Enumerator
kFLEXIO_SPI_ClockPhaseFirstEdge First edge on SPSCK occurs at the middle of the first cycle
of a data transfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
457
FlexIO SPI Driver
kFLEXIO_SPI_ClockPhaseSecondEdge First edge on SPSCK occurs at the start of the first cycle
of a data transfer.
22.6.7.3 enum flexio_spi_shift_direction_t
Enumerator
kFLEXIO_SPI_MsbFirst Data transfers start with most significant bit.
kFLEXIO_SPI_LsbFirst Data transfers start with least significant bit.
22.6.7.4 enum flexio_spi_data_bitcount_mode_t
Enumerator
kFLEXIO_SPI_8BitMode 8-bit data transmission mode.
kFLEXIO_SPI_16BitMode 16-bit data transmission mode.
22.6.7.5 enum _flexio_spi_interrupt_enable
Enumerator
kFLEXIO_SPI_TxEmptyInterruptEnable Transmit buffer empty interrupt enable.
kFLEXIO_SPI_RxFullInterruptEnable Receive buffer full interrupt enable.
22.6.7.6 enum _flexio_spi_status_flags
Enumerator
kFLEXIO_SPI_TxBufferEmptyFlag Transmit buffer empty flag.
kFLEXIO_SPI_RxBufferFullFlag Receive buffer full flag.
22.6.7.7 enum _flexio_spi_dma_enable
Enumerator
kFLEXIO_SPI_TxDmaEnable Tx DMA request source.
kFLEXIO_SPI_RxDmaEnable Rx DMA request source.
kFLEXIO_SPI_DmaAllEnable All DMA request source.
458
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
22.6.7.8 enum _flexio_spi_transfer_flags
Enumerator
kFLEXIO_SPI_8bitMsb FlexIO SPI 8-bit MSB first.
kFLEXIO_SPI_8bitLsb FlexIO SPI 8-bit LSB first.
kFLEXIO_SPI_16bitMsb FlexIO SPI 16-bit MSB first.
kFLEXIO_SPI_16bitLsb FlexIO SPI 16-bit LSB first.
22.6.8 Function Documentation
22.6.8.1 void FLEXIO_SPI_MasterInit ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
The configuration structure can be filled by the user, or be set with default values by the FLEXIO_SPI_-
MasterGetDefaultConfig().
Note
FlexIO SPI master only support CPOL = 0, which means clock inactive low.
Example
FLEXIO_SPI_Type spiDev = {
.flexioBase = FLEXIO,
.SDOPinIndex = 0,
.SDIPinIndex = 1,
.SCKPinIndex = 2,
.CSnPinIndex = 3,
.shifterIndex = {0,1},
.timerIndex = {0,1}
};
flexio_spi_master_config_t config = {
.enableMaster =true,
.enableInDoze = false,
.enableInDebug = true,
.enableFastAccess = false,
.baudRate_Bps = 500000,
.phase = kFLEXIO_SPI_ClockPhaseFirstEdge,
.direction = kFLEXIO_SPI_MsbFirst,
.dataMode = kFLEXIO_SPI_8BitMode
};
FLEXIO_SPI_MasterInit(&spiDev, &config, srcClock_Hz);
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
459
FlexIO SPI Driver
base Pointer to the FLEXIO_SPI_Type structure.
masterConfig Pointer to the flexio_spi_master_config_t structure.
srcClock_Hz FlexIO source clock in Hz.
22.6.8.2 void FLEXIO_SPI_MasterDeinit ( FLEXIO_SPI_Type ∗base )
Parameters
base Pointer to the FLEXIO_SPI_Type.
22.6.8.3 void FLEXIO_SPI_MasterGetDefaultConfig ( flexio_spi_master_config_t ∗
masterConfig )
The configuration can be used directly by calling the FLEXIO_SPI_MasterConfigure(). Example:
flexio_spi_master_config_t masterConfig;
FLEXIO_SPI_MasterGetDefaultConfig(&masterConfig);
Parameters
masterConfig Pointer to the flexio_spi_master_config_t structure.
22.6.8.4 void FLEXIO_SPI_SlaveInit ( FLEXIO_SPI_Type ∗base,
flexio_spi_slave_config_t ∗slaveConfig )
The configuration structure can be filled by the user, or be set with default values by the FLEXIO_SPI_-
SlaveGetDefaultConfig().
Note
Only one timer is needed in the FlexIO SPI slave. As a result, the second timer index is ignored.
FlexIO SPI slave only support CPOL = 0, which means clock inactive low. Example
FLEXIO_SPI_Type spiDev = {
.flexioBase = FLEXIO,
.SDOPinIndex = 0,
.SDIPinIndex = 1,
.SCKPinIndex = 2,
.CSnPinIndex = 3,
.shifterIndex = {0,1},
.timerIndex = {0}
};
flexio_spi_slave_config_t config = {
.enableSlave =true,
.enableInDoze = false,
460
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
.enableInDebug = true,
.enableFastAccess = false,
.phase = kFLEXIO_SPI_ClockPhaseFirstEdge,
.direction = kFLEXIO_SPI_MsbFirst,
.dataMode = kFLEXIO_SPI_8BitMode
};
FLEXIO_SPI_SlaveInit(&spiDev, &config);
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
slaveConfig Pointer to the flexio_spi_slave_config_t structure.
22.6.8.5 void FLEXIO_SPI_SlaveDeinit ( FLEXIO_SPI_Type ∗base )
Parameters
base Pointer to the FLEXIO_SPI_Type.
22.6.8.6 void FLEXIO_SPI_SlaveGetDefaultConfig ( flexio_spi_slave_config_t ∗
slaveConfig )
The configuration can be used directly for calling the FLEXIO_SPI_SlaveConfigure(). Example:
flexio_spi_slave_config_t slaveConfig;
FLEXIO_SPI_SlaveGetDefaultConfig(&slaveConfig);
Parameters
slaveConfig Pointer to the flexio_spi_slave_config_t structure.
22.6.8.7 uint32_t FLEXIO_SPI_GetStatusFlags ( FLEXIO_SPI_Type ∗base )
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
Returns
status flag; Use the status flag to AND the following flag mask and get the status.
• kFLEXIO_SPI_TxEmptyFlag
• kFLEXIO_SPI_RxEmptyFlag
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
461
FlexIO SPI Driver
22.6.8.8 void FLEXIO_SPI_ClearStatusFlags ( FLEXIO_SPI_Type ∗base, uint32_t mask
)
462
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
mask status flag The parameter can be any combination of the following values:
• kFLEXIO_SPI_TxEmptyFlag
• kFLEXIO_SPI_RxEmptyFlag
22.6.8.9 void FLEXIO_SPI_EnableInterrupts ( FLEXIO_SPI_Type ∗base, uint32_t mask
)
This function enables the FlexIO SPI interrupt.
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
mask interrupt source. The parameter can be any combination of the following values:
• kFLEXIO_SPI_RxFullInterruptEnable
• kFLEXIO_SPI_TxEmptyInterruptEnable
22.6.8.10 void FLEXIO_SPI_DisableInterrupts ( FLEXIO_SPI_Type ∗base, uint32_t
mask )
This function disables the FlexIO SPI interrupt.
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
mask interrupt source The parameter can be any combination of the following values:
• kFLEXIO_SPI_RxFullInterruptEnable
• kFLEXIO_SPI_TxEmptyInterruptEnable
22.6.8.11 void FLEXIO_SPI_EnableDMA ( FLEXIO_SPI_Type ∗base, uint32_t mask,
bool enable )
This function enables/disables the FlexIO SPI Tx DMA, which means that asserting the kFLEXIO_SPI_-
TxEmptyFlag does/doesn’t trigger the DMA request.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
463
FlexIO SPI Driver
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
mask SPI DMA source.
enable True means enable DMA, false means disable DMA.
22.6.8.12 static uint32_t FLEXIO_SPI_GetTxDataRegisterAddress ( FLEXIO_SPI_Type ∗
base, flexio_spi_shift_direction_t direction )[inline],[static]
This function returns the SPI data register address, which is mainly used by DMA/eDMA.
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
direction Shift direction of MSB first or LSB first.
Returns
FlexIO SPI transmit data register address.
22.6.8.13 static uint32_t FLEXIO_SPI_GetRxDataRegisterAddress ( FLEXIO_SPI_Type ∗
base, flexio_spi_shift_direction_t direction )[inline],[static]
This function returns the SPI data register address, which is mainly used by DMA/eDMA.
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
direction Shift direction of MSB first or LSB first.
Returns
FlexIO SPI receive data register address.
22.6.8.14 static void FLEXIO_SPI_Enable ( FLEXIO_SPI_Type ∗base, bool enable )
[inline],[static]
464
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
Parameters
base Pointer to the FLEXIO_SPI_Type.
enable True to enable, false to disable.
22.6.8.15 void FLEXIO_SPI_MasterSetBaudRate ( FLEXIO_SPI_Type ∗base, uint32_t
baudRate_Bps, uint32_t srcClockHz )
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
baudRate_Bps Baud Rate needed in Hz.
srcClockHz SPI source clock frequency in Hz.
22.6.8.16 static void FLEXIO_SPI_WriteData ( FLEXIO_SPI_Type ∗base,
flexio_spi_shift_direction_t direction, uint16_t data )[inline],[static]
Note
This is a non-blocking API, which returns directly after the data is put into the data register but the
data transfer is not finished on the bus. Ensure that the TxEmptyFlag is asserted before calling this
API.
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
direction Shift direction of MSB first or LSB first.
data 8 bit/16 bit data.
22.6.8.17 static uint16_t FLEXIO_SPI_ReadData ( FLEXIO_SPI_Type ∗base,
flexio_spi_shift_direction_t direction )[inline],[static]
Note
This is a non-blocking API, which returns directly after the data is read from the data register. Ensure
that the RxFullFlag is asserted before calling this API.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
465
FlexIO SPI Driver
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
direction Shift direction of MSB first or LSB first.
Returns
8 bit/16 bit data received.
22.6.8.18 void FLEXIO_SPI_WriteBlocking ( FLEXIO_SPI_Type ∗base,
flexio_spi_shift_direction_t direction, const uint8_t ∗buffer, size_t size )
Note
This function blocks using the polling method until all bytes have been sent.
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
direction Shift direction of MSB first or LSB first.
buffer The data bytes to send.
size The number of data bytes to send.
22.6.8.19 void FLEXIO_SPI_ReadBlocking ( FLEXIO_SPI_Type ∗base,
flexio_spi_shift_direction_t direction, uint8_t ∗buffer, size_t size )
Note
This function blocks using the polling method until all bytes have been received.
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
direction Shift direction of MSB first or LSB first.
buffer The buffer to store the received bytes.
466
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
size The number of data bytes to be received.
direction Shift direction of MSB first or LSB first.
22.6.8.20 void FLEXIO_SPI_MasterTransferBlocking ( FLEXIO_SPI_Type ∗base,
flexio_spi_transfer_t ∗xfer )
Note
This function blocks via polling until all bytes have been received.
Parameters
base pointer to FLEXIO_SPI_Type structure
xfer FlexIO SPI transfer structure, see flexio_spi_transfer_t.
22.6.8.21 status_t FLEXIO_SPI_MasterTransferCreateHandle ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_handle_t ∗handle, flexio_spi_master_transfer_callback_t
callback, void ∗userData )
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
handle Pointer to the flexio_spi_master_handle_t structure to store the transfer state.
callback The callback function.
userData The parameter of the callback function.
Return values
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The FlexIO type/handle/ISR table out of range.
22.6.8.22 status_t FLEXIO_SPI_MasterTransferNonBlocking ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_handle_t ∗handle, flexio_spi_transfer_t ∗xfer )
This function sends data using IRQ. This is a non-blocking function, which returns right away. When all
data is sent out/received, the callback function is called.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
467
FlexIO SPI Driver
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
handle Pointer to the flexio_spi_master_handle_t structure to store the transfer state.
xfer FlexIO SPI transfer structure. See flexio_spi_transfer_t.
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
kStatus_FLEXIO_SPI_-
Busy
SPI is not idle, is running another transfer.
22.6.8.23 void FLEXIO_SPI_MasterTransferAbort ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_handle_t ∗handle )
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
handle Pointer to the flexio_spi_master_handle_t structure to store the transfer state.
22.6.8.24 status_t FLEXIO_SPI_MasterTransferGetCount ( FLEXIO_SPI_Type ∗base,
flexio_spi_master_handle_t ∗handle, size_t ∗count )
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
handle Pointer to the flexio_spi_master_handle_t structure to store the transfer state.
count Number of bytes transferred so far by the non-blocking transaction.
Return values
kStatus_InvalidArgument count is Invalid.
kStatus_Success Successfully return the count.
22.6.8.25 void FLEXIO_SPI_MasterTransferHandleIRQ ( void ∗spiType, void ∗spiHandle
)
468
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
Parameters
spiType Pointer to the FLEXIO_SPI_Type structure.
spiHandle Pointer to the flexio_spi_master_handle_t structure to store the transfer state.
22.6.8.26 status_t FLEXIO_SPI_SlaveTransferCreateHandle ( FLEXIO_SPI_Type ∗base,
flexio_spi_slave_handle_t ∗handle, flexio_spi_slave_transfer_callback_t
callback, void ∗userData )
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
handle Pointer to the flexio_spi_slave_handle_t structure to store the transfer state.
callback The callback function.
userData The parameter of the callback function.
Return values
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The FlexIO type/handle/ISR table out of range.
22.6.8.27 status_t FLEXIO_SPI_SlaveTransferNonBlocking ( FLEXIO_SPI_Type ∗base,
flexio_spi_slave_handle_t ∗handle, flexio_spi_transfer_t ∗xfer )
This function sends data using IRQ. This is a non-blocking function, which returns right away. When all
data is sent out/received, the callback function is called.
Parameters
handle Pointer to the flexio_spi_slave_handle_t structure to store the transfer state.
base Pointer to the FLEXIO_SPI_Type structure.
xfer FlexIO SPI transfer structure. See flexio_spi_transfer_t.
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
kStatus_FLEXIO_SPI_-
Busy
SPI is not idle; it is running another transfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
469
FlexIO SPI Driver
22.6.8.28 static void FLEXIO_SPI_SlaveTransferAbort ( FLEXIO_SPI_Type ∗base,
flexio_spi_slave_handle_t ∗handle )[inline],[static]
470
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO SPI Driver
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
handle Pointer to the flexio_spi_slave_handle_t structure to store the transfer state.
22.6.8.29 static status_t FLEXIO_SPI_SlaveTransferGetCount ( FLEXIO_SPI_Type
∗base, flexio_spi_slave_handle_t ∗handle, size_t ∗count )[inline],
[static]
Parameters
base Pointer to the FLEXIO_SPI_Type structure.
handle Pointer to the flexio_spi_slave_handle_t structure to store the transfer state.
count Number of bytes transferred so far by the non-blocking transaction.
Return values
kStatus_InvalidArgument count is Invalid.
kStatus_Success Successfully return the count.
22.6.8.30 void FLEXIO_SPI_SlaveTransferHandleIRQ ( void ∗spiType, void ∗spiHandle )
Parameters
spiType Pointer to the FLEXIO_SPI_Type structure.
spiHandle Pointer to the flexio_spi_slave_handle_t structure to store the transfer state.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
471
FlexIO UART Driver
22.7 FlexIO UART Driver
22.7.1 Overview
The KSDK provides a peripheral driver for the Universal Asynchronous Receiver/Transmitter (UART)
function using the Flexible I/O.
22.7.2 Overview
FlexIO UART driver includes 2 parts: functional APIs and transactional APIs. Functional APIs are
feature/property target low level APIs. Functional APIs can be used for the FlexIO UART initializa-
tion/configuration/operation for optimization/customization purpose. Using the functional APIs requires
the knowledge of the FlexIO UART peripheral and how to organize functional APIs to meet the appli-
cation requirements. All functional API use the FLEXIO_UART_Type ∗as the first parameter. FlexIO
UART functional operation groups provide the functional APIs set.
Transactional APIs are transaction target high level APIs. Transactional APIs can be used to enable the
peripheral and also in the application if the code size and performance of transactional APIs can satisfy
requirements. If the code size and performance are critical requirements, see the transactional API im-
plementation and write custom code. All transactional APIs use the flexio_uart_handle_t as the second
parameter. Initialize the handle by calling the FLEXIO_UART_TransferCreateHandle() API.
Transactional APIs support asynchronous transfer. This means that the functions FLEXIO_UART_Send-
NonBlocking() and FLEXIO_UART_ReceiveNonBlocking() set up an interrupt for data transfer. When
the transfer is complete, the upper layer is notified through a callback function with the kStatus_FLEXI-
O_UART_TxIdle and kStatus_FLEXIO_UART_RxIdle status.
Transactional receive APIs support the ring buffer. Prepare the memory for the ring buffer and pass in the
start address and size through calling the FLEXIO_UART_InstallRingBuffer(). When the ring buffer is
enabled, the received data is saved to the ring buffer in the background. The function FLEXIO_UART_-
ReceiveNonBlocking() first gets data the from the ring buffer. If ring buffer does not have enough data,
the function returns the data to the ring buffer and saves the received data to user memory. When all data is
received, the upper layer is informed through a callback with the statuskStatus_FLEXIO_UART_RxIdle
status.
If the receive ring buffer is full, the upper layer is informed through a callback with status kStatus_FL-
EXIO_UART_RxRingBufferOverrun. In the callback function, the upper layer reads data from the ring
buffer. If not, the oldest data is overwritten by the new data.
The ring buffer size is specified when calling the FLEXIO_UART_InstallRingBuffer. Note that one byte
is reserved for the ring buffer maintenance. Create a handle as follows:
FLEXIO_UART_InstallRingBuffer(&uartDev, &handle, &ringBuffer, 32);
In this example, the buffer size is 32. However, only 31 bytes are used for saving data.
472
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
22.7.3 Typical use case
22.7.3.1 FlexIO UART send/receive using a polling method
uint8_t ch;
FLEXIO_UART_Type uartDev;
flexio_uart_user_config user_config;
FLEXIO_UART_GetDefaultConfig(&user_config);
user_config.baudRate_Bps = 115200U;
user_config.enableUart = true;
uartDev.flexioBase = BOARD_FLEXIO_BASE;
uartDev.TxPinIndex = FLEXIO_UART_TX_PIN;
uartDev.RxPinIndex = FLEXIO_UART_RX_PIN;
uartDev.shifterIndex[0] = 0U;
uartDev.shifterIndex[1] = 1U;
uartDev.timerIndex[0] = 0U;
uartDev.timerIndex[1] = 1U;
FLEXIO_UART_Init(&uartDev, &user_config, 48000000U);
FLEXIO_UART_WriteBlocking(&uartDev, txbuff, sizeof(txbuff));
while(1)
{
FLEXIO_UART_ReadBlocking(&uartDev, &ch, 1);
FLEXIO_UART_WriteBlocking(&uartDev, &ch, 1);
}
22.7.3.2 FlexIO UART send/receive using an interrupt method
FLEXIO_UART_Type uartDev;
flexio_uart_handle_t g_uartHandle;
flexio_uart_config_t user_config;
flexio_uart_transfer_t sendXfer;
flexio_uart_transfer_t receiveXfer;
volatile bool txFinished;
volatile bool rxFinished;
uint8_t sendData[] = [’H’,’e’,’l’,’l’,’o’];
uint8_t receiveData[32];
void FLEXIO_UART_UserCallback(FLEXIO_UART_Type *base, flexio_uart_handle_t *handle,
status_t status, void *userData)
{
userData = userData;
if (kStatus_FLEXIO_UART_TxIdle == status)
{
txFinished = true;
}
if (kStatus_FLEXIO_UART_RxIdle == status)
{
rxFinished = true;
}
}
void main(void)
{
//...
FLEXIO_UART_GetDefaultConfig(&user_config);
user_config.baudRate_Bps = 115200U;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
473
FlexIO UART Driver
user_config.enableUart =true;
uartDev.flexioBase = BOARD_FLEXIO_BASE;
uartDev.TxPinIndex = FLEXIO_UART_TX_PIN;
uartDev.RxPinIndex = FLEXIO_UART_RX_PIN;
uartDev.shifterIndex[0] = 0U;
uartDev.shifterIndex[1] = 1U;
uartDev.timerIndex[0] = 0U;
uartDev.timerIndex[1] = 1U;
FLEXIO_UART_Init(&uartDev, &user_config, 120000000U);
FLEXIO_UART_TransferCreateHandle(&uartDev, &g_uartHandle,
FLEXIO_UART_UserCallback, NULL);
// Prepares to send.
sendXfer.data = sendData;
sendXfer.dataSize =sizeof(sendData)/sizeof(sendData[0]);
txFinished = false;
// Sends out.
FLEXIO_UART_SendNonBlocking(&uartDev, &g_uartHandle, &sendXfer);
// Send finished.
while (!txFinished)
{
}
// Prepares to receive.
receiveXfer.data = receiveData;
receiveXfer.dataSize =sizeof(receiveData)/sizeof(receiveData[0]);
rxFinished = false;
// Receives.
FLEXIO_UART_ReceiveNonBlocking(&uartDev, &g_uartHandle, &receiveXfer, NULL);
// Receive finished.
while (!rxFinished)
{
}
// ...
}
22.7.3.3 FlexIO UART receive using the ringbuffer feature
#define RING_BUFFER_SIZE 64
#define RX_DATA_SIZE 32
FLEXIO_UART_Type uartDev;
flexio_uart_handle_t g_uartHandle;
flexio_uart_config_t user_config;
flexio_uart_transfer_t sendXfer;
flexio_uart_transfer_t receiveXfer;
volatile bool txFinished;
volatile bool rxFinished;
uint8_t receiveData[RX_DATA_SIZE];
uint8_t ringBuffer[RING_BUFFER_SIZE];
void FLEXIO_UART_UserCallback(FLEXIO_UART_Type *base, flexio_uart_handle_t *handle,
status_t status, void *userData)
{
userData = userData;
if (kStatus_FLEXIO_UART_RxIdle == status)
{
474
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
rxFinished = true;
}
}
void main(void)
{
size_t bytesRead;
//...
FLEXIO_UART_GetDefaultConfig(&user_config);
user_config.baudRate_Bps = 115200U;
user_config.enableUart =true;
uartDev.flexioBase = BOARD_FLEXIO_BASE;
uartDev.TxPinIndex = FLEXIO_UART_TX_PIN;
uartDev.RxPinIndex = FLEXIO_UART_RX_PIN;
uartDev.shifterIndex[0] = 0U;
uartDev.shifterIndex[1] = 1U;
uartDev.timerIndex[0] = 0U;
uartDev.timerIndex[1] = 1U;
FLEXIO_UART_Init(&uartDev, &user_config, 48000000U);
FLEXIO_UART_TransferCreateHandle(&uartDev, &g_uartHandle,
FLEXIO_UART_UserCallback, NULL);
FLEXIO_UART_InstallRingBuffer(&uartDev, &g_uartHandle, ringBuffer, RING_BUFFER_SIZE);
// Receive is working in the background to the ring buffer.
// Prepares to receive.
receiveXfer.data = receiveData;
receiveXfer.dataSize = RX_DATA_SIZE;
rxFinished = false;
// Receives.
FLEXIO_UART_ReceiveNonBlocking(&uartDev, &g_uartHandle, &receiveXfer, &bytesRead);
if (bytesRead = RX_DATA_SIZE) /*Have read enough data.
{
;
}
else
{
if (bytesRead) /*Received some data, process first.
{
;
}
// Receive finished.
while (!rxFinished)
{
}
}
// ...
}
22.7.3.4 FlexIO UART send/receive using a DMA method
FLEXIO_UART_Type uartDev;
flexio_uart_handle_t g_uartHandle;
dma_handle_t g_uartTxDmaHandle;
dma_handle_t g_uartRxDmaHandle;
flexio_uart_config_t user_config;
flexio_uart_transfer_t sendXfer;
flexio_uart_transfer_t receiveXfer;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
475
FlexIO UART Driver
volatile bool txFinished;
volatile bool rxFinished;
uint8_t sendData[] = [’H’,’e’,’l’,’l’,’o’];
uint8_t receiveData[32];
void FLEXIO_UART_UserCallback(FLEXIO_UART_Type *base, flexio_uart_handle_t *handle,
status_t status, void *userData)
{
userData = userData;
if (kStatus_FLEXIO_UART_TxIdle == status)
{
txFinished = true;
}
if (kStatus_FLEXIO_UART_RxIdle == status)
{
rxFinished = true;
}
}
void main(void)
{
//...
FLEXIO_UART_GetDefaultConfig(&user_config);
user_config.baudRate_Bps = 115200U;
user_config.enableUart =true;
uartDev.flexioBase = BOARD_FLEXIO_BASE;
uartDev.TxPinIndex = FLEXIO_UART_TX_PIN;
uartDev.RxPinIndex = FLEXIO_UART_RX_PIN;
uartDev.shifterIndex[0] = 0U;
uartDev.shifterIndex[1] = 1U;
uartDev.timerIndex[0] = 0U;
uartDev.timerIndex[1] = 1U;
FLEXIO_UART_Init(&uartDev, &user_config, 48000000U);
/*Initializes the DMA for the example
DMAMGR_Init();
dma_request_source_tx = (dma_request_source_t)(FLEXIO_DMA_REQUEST_BASE + uartDev.shifterIndex[0]);
dma_request_source_rx = (dma_request_source_t)(FLEXIO_DMA_REQUEST_BASE + uartDev.shifterIndex[1]);
/*Requests DMA channels for transmit and receive.
DMAMGR_RequestChannel((dma_request_source_t)dma_request_source_tx, 0, &g_uartTxDmaHandle);
DMAMGR_RequestChannel((dma_request_source_t)dma_request_source_rx, 1, &g_uartRxDmaHandle);
FLEXIO_UART_TransferCreateHandleDMA(&uartDev, &g_uartHandle, FLEXIO_UART_UserCallback, NULL,
&g_uartTxDmaHandle, &g_uartRxDmaHandle);
// Prepares to send.
sendXfer.data = sendData
sendXfer.dataSize = sizeof(sendData)/sizeof(sendData[0]);
txFinished = false;
// Sends out.
FLEXIO_UART_SendDMA(&uartDev, &g_uartHandle, &sendXfer);
// Send finished.
while (!txFinished)
{
}
// Prepares to receive.
receiveXfer.data = receiveData;
receiveXfer.dataSize = sizeof(receiveData)/sizeof(receiveData[0]);
rxFinished = false;
476
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
// Receives.
FLEXIO_UART_ReceiveDMA(&uartDev, &g_uartHandle, &receiveXfer, NULL);
// Receive finished.
while (!rxFinished)
{
}
// ...
}
Modules
•FlexIO DMA UART Driver
•FlexIO eDMA UART Driver
Files
• file fsl_flexio_uart.h
Data Structures
• struct FLEXIO_UART_Type
Define FlexIO UART access structure typedef. More...
• struct flexio_uart_config_t
Define FlexIO UART user configuration structure. More...
• struct flexio_uart_transfer_t
Define FlexIO UART transfer structure. More...
• struct flexio_uart_handle_t
Define FLEXIO UART handle structure. More...
Typedefs
• typedef void(∗flexio_uart_transfer_callback_t )(FLEXIO_UART_Type ∗base, flexio_uart_handle-
_t ∗handle, status_t status, void ∗userData)
FlexIO UART transfer callback function.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
477
FlexIO UART Driver
Enumerations
• enum _flexio_uart_status {
kStatus_FLEXIO_UART_TxBusy = MAKE_STATUS(kStatusGroup_FLEXIO_UART, 0),
kStatus_FLEXIO_UART_RxBusy = MAKE_STATUS(kStatusGroup_FLEXIO_UART, 1),
kStatus_FLEXIO_UART_TxIdle = MAKE_STATUS(kStatusGroup_FLEXIO_UART, 2),
kStatus_FLEXIO_UART_RxIdle = MAKE_STATUS(kStatusGroup_FLEXIO_UART, 3),
kStatus_FLEXIO_UART_ERROR = MAKE_STATUS(kStatusGroup_FLEXIO_UART, 4),
kStatus_FLEXIO_UART_RxRingBufferOverrun,
kStatus_FLEXIO_UART_RxHardwareOverrun = MAKE_STATUS(kStatusGroup_FLEXIO_UA-
RT, 6) }
Error codes for the UART driver.
• enum flexio_uart_bit_count_per_char_t {
kFLEXIO_UART_7BitsPerChar = 7U,
kFLEXIO_UART_8BitsPerChar = 8U,
kFLEXIO_UART_9BitsPerChar = 9U }
FlexIO UART bit count per char.
• enum _flexio_uart_interrupt_enable {
kFLEXIO_UART_TxDataRegEmptyInterruptEnable = 0x1U,
kFLEXIO_UART_RxDataRegFullInterruptEnable = 0x2U }
Define FlexIO UART interrupt mask.
• enum _flexio_uart_status_flags {
kFLEXIO_UART_TxDataRegEmptyFlag = 0x1U,
kFLEXIO_UART_RxDataRegFullFlag = 0x2U,
kFLEXIO_UART_RxOverRunFlag = 0x4U }
Define FlexIO UART status mask.
Driver version
• #define FSL_FLEXIO_UART_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
FlexIO UART driver version 2.1.0.
Initialization and deinitialization
• void FLEXIO_UART_Init (FLEXIO_UART_Type ∗base, const flexio_uart_config_t ∗userConfig,
uint32_t srcClock_Hz)
Ungates the FlexIO clock, resets the FlexIO module, configures FlexIO UART hardware, and configures
the FlexIO UART with FlexIO UART configuration.
• void FLEXIO_UART_Deinit (FLEXIO_UART_Type ∗base)
Disables the FlexIO UART and gates the FlexIO clock.
• void FLEXIO_UART_GetDefaultConfig (flexio_uart_config_t ∗userConfig)
Gets the default configuration to configure the FlexIO UART.
478
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
Status
• uint32_t FLEXIO_UART_GetStatusFlags (FLEXIO_UART_Type ∗base)
Gets the FlexIO UART status flags.
• void FLEXIO_UART_ClearStatusFlags (FLEXIO_UART_Type ∗base, uint32_t mask)
Gets the FlexIO UART status flags.
Interrupts
• void FLEXIO_UART_EnableInterrupts (FLEXIO_UART_Type ∗base, uint32_t mask)
Enables the FlexIO UART interrupt.
• void FLEXIO_UART_DisableInterrupts (FLEXIO_UART_Type ∗base, uint32_t mask)
Disables the FlexIO UART interrupt.
DMA Control
• static uint32_t FLEXIO_UART_GetTxDataRegisterAddress (FLEXIO_UART_Type ∗base)
Gets the FlexIO UARt transmit data register address.
• static uint32_t FLEXIO_UART_GetRxDataRegisterAddress (FLEXIO_UART_Type ∗base)
Gets the FlexIO UART receive data register address.
• static void FLEXIO_UART_EnableTxDMA (FLEXIO_UART_Type ∗base, bool enable)
Enables/disables the FlexIO UART transmit DMA.
• static void FLEXIO_UART_EnableRxDMA (FLEXIO_UART_Type ∗base, bool enable)
Enables/disables the FlexIO UART receive DMA.
Bus Operations
• static void FLEXIO_UART_Enable (FLEXIO_UART_Type ∗base, bool enable)
Enables/disables the FlexIO UART module operation.
• static void FLEXIO_UART_WriteByte (FLEXIO_UART_Type ∗base, const uint8_t ∗buffer)
Writes one byte of data.
• static void FLEXIO_UART_ReadByte (FLEXIO_UART_Type ∗base, uint8_t ∗buffer)
Reads one byte of data.
• void FLEXIO_UART_WriteBlocking (FLEXIO_UART_Type ∗base, const uint8_t ∗txData, size_t
txSize)
Sends a buffer of data bytes.
• void FLEXIO_UART_ReadBlocking (FLEXIO_UART_Type ∗base, uint8_t ∗rxData, size_t rx-
Size)
Receives a buffer of bytes.
Transactional
• status_t FLEXIO_UART_TransferCreateHandle (FLEXIO_UART_Type ∗base, flexio_uart_-
handle_t ∗handle, flexio_uart_transfer_callback_t callback, void ∗userData)
Initializes the UART handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
479
FlexIO UART Driver
• void FLEXIO_UART_TransferStartRingBuffer (FLEXIO_UART_Type ∗base, flexio_uart_handle-
_t ∗handle, uint8_t ∗ringBuffer, size_t ringBufferSize)
Sets up the RX ring buffer.
• void FLEXIO_UART_StopRingBuffer (FLEXIO_UART_Type ∗base, flexio_uart_handle_-
t∗handle)
Aborts the background transfer and uninstalls the ring buffer.
• status_t FLEXIO_UART_TransferSendNonBlocking (FLEXIO_UART_Type ∗base, flexio_uart_-
handle_t ∗handle, flexio_uart_transfer_t ∗xfer)
Transmits a buffer of data using the interrupt method.
• void FLEXIO_UART_TransferAbortSend (FLEXIO_UART_Type ∗base, flexio_uart_handle_t
∗handle)
Aborts the interrupt-driven data transmit.
• status_t FLEXIO_UART_TransferGetSendCount (FLEXIO_UART_Type ∗base, flexio_uart_-
handle_t ∗handle, size_t ∗count)
Gets the number of remaining bytes not sent.
• status_t FLEXIO_UART_TransferReceiveNonBlocking (FLEXIO_UART_Type ∗base, flexio_-
uart_handle_t ∗handle, flexio_uart_transfer_t ∗xfer, size_t ∗receivedBytes)
Receives a buffer of data using the interrupt method.
• void FLEXIO_UART_TransferAbortReceive (FLEXIO_UART_Type ∗base, flexio_uart_handle_t
∗handle)
Aborts the receive data which was using IRQ.
• status_t FLEXIO_UART_TransferGetReceiveCount (FLEXIO_UART_Type ∗base, flexio_uart_-
handle_t ∗handle, size_t ∗count)
Gets the number of remaining bytes not received.
• void FLEXIO_UART_TransferHandleIRQ (void ∗uartType, void ∗uartHandle)
FlexIO UART IRQ handler function.
22.7.4 Data Structure Documentation
22.7.4.1 struct FLEXIO_UART_Type
Data Fields
• FLEXIO_Type ∗flexioBase
FlexIO base pointer.
• uint8_t TxPinIndex
Pin select for UART_Tx.
• uint8_t RxPinIndex
Pin select for UART_Rx.
• uint8_t shifterIndex [2]
Shifter index used in FlexIO UART.
• uint8_t timerIndex [2]
Timer index used in FlexIO UART.
480
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
22.7.4.1.0.11 Field Documentation
22.7.4.1.0.11.1 FLEXIO_Type∗FLEXIO_UART_Type::flexioBase
22.7.4.1.0.11.2 uint8_t FLEXIO_UART_Type::TxPinIndex
22.7.4.1.0.11.3 uint8_t FLEXIO_UART_Type::RxPinIndex
22.7.4.1.0.11.4 uint8_t FLEXIO_UART_Type::shifterIndex[2]
22.7.4.1.0.11.5 uint8_t FLEXIO_UART_Type::timerIndex[2]
22.7.4.2 struct flexio_uart_config_t
Data Fields
• bool enableUart
Enable/disable FlexIO UART TX & RX.
• bool enableInDoze
Enable/disable FlexIO operation in doze mode.
• bool enableInDebug
Enable/disable FlexIO operation in debug mode.
• bool enableFastAccess
Enable/disable fast access to FlexIO registers, fast access requires the FlexIO clock to be at least twice
the frequency of the bus clock.
• uint32_t baudRate_Bps
Baud rate in Bps.
•flexio_uart_bit_count_per_char_t bitCountPerChar
number of bits, 7/8/9 -bit
22.7.4.2.0.12 Field Documentation
22.7.4.2.0.12.1 bool flexio_uart_config_t::enableUart
22.7.4.2.0.12.2 bool flexio_uart_config_t::enableFastAccess
22.7.4.2.0.12.3 uint32_t flexio_uart_config_t::baudRate_Bps
22.7.4.3 struct flexio_uart_transfer_t
Data Fields
• uint8_t ∗data
Transfer buffer.
• size_t dataSize
Transfer size.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
481
FlexIO UART Driver
22.7.4.4 struct _flexio_uart_handle
Data Fields
• uint8_t ∗volatile txData
Address of remaining data to send.
• volatile size_t txDataSize
Size of the remaining data to send.
• uint8_t ∗volatile rxData
Address of remaining data to receive.
• volatile size_t rxDataSize
Size of the remaining data to receive.
• size_t txSize
Total bytes to be sent.
• size_t rxSize
Total bytes to be received.
• uint8_t ∗rxRingBuffer
Start address of the receiver ring buffer.
• size_t rxRingBufferSize
Size of the ring buffer.
• volatile uint16_t rxRingBufferHead
Index for the driver to store received data into ring buffer.
• volatile uint16_t rxRingBufferTail
Index for the user to get data from the ring buffer.
•flexio_uart_transfer_callback_t callback
Callback function.
• void ∗userData
UART callback function parameter.
• volatile uint8_t txState
TX transfer state.
• volatile uint8_t rxState
RX transfer state.
482
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
22.7.4.4.0.13 Field Documentation
22.7.4.4.0.13.1 uint8_t∗volatile flexio_uart_handle_t::txData
22.7.4.4.0.13.2 volatile size_t flexio_uart_handle_t::txDataSize
22.7.4.4.0.13.3 uint8_t∗volatile flexio_uart_handle_t::rxData
22.7.4.4.0.13.4 volatile size_t flexio_uart_handle_t::rxDataSize
22.7.4.4.0.13.5 size_t flexio_uart_handle_t::txSize
22.7.4.4.0.13.6 size_t flexio_uart_handle_t::rxSize
22.7.4.4.0.13.7 uint8_t∗flexio_uart_handle_t::rxRingBuffer
22.7.4.4.0.13.8 size_t flexio_uart_handle_t::rxRingBufferSize
22.7.4.4.0.13.9 volatile uint16_t flexio_uart_handle_t::rxRingBufferHead
22.7.4.4.0.13.10 volatile uint16_t flexio_uart_handle_t::rxRingBufferTail
22.7.4.4.0.13.11 flexio_uart_transfer_callback_t flexio_uart_handle_t::callback
22.7.4.4.0.13.12 void∗flexio_uart_handle_t::userData
22.7.4.4.0.13.13 volatile uint8_t flexio_uart_handle_t::txState
22.7.5 Macro Definition Documentation
22.7.5.1 #define FSL_FLEXIO_UART_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
22.7.6 Typedef Documentation
22.7.6.1 typedef void(∗flexio_uart_transfer_callback_t)(FLEXIO_UART_Type ∗base,
flexio_uart_handle_t ∗handle, status_t status, void ∗userData)
22.7.7 Enumeration Type Documentation
22.7.7.1 enum _flexio_uart_status
Enumerator
kStatus_FLEXIO_UART_TxBusy Transmitter is busy.
kStatus_FLEXIO_UART_RxBusy Receiver is busy.
kStatus_FLEXIO_UART_TxIdle UART transmitter is idle.
kStatus_FLEXIO_UART_RxIdle UART receiver is idle.
kStatus_FLEXIO_UART_ERROR ERROR happens on UART.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
483
FlexIO UART Driver
kStatus_FLEXIO_UART_RxRingBufferOverrun UART RX software ring buffer overrun.
kStatus_FLEXIO_UART_RxHardwareOverrun UART RX receiver overrun.
22.7.7.2 enum flexio_uart_bit_count_per_char_t
Enumerator
kFLEXIO_UART_7BitsPerChar 7-bit data characters
kFLEXIO_UART_8BitsPerChar 8-bit data characters
kFLEXIO_UART_9BitsPerChar 9-bit data characters
22.7.7.3 enum _flexio_uart_interrupt_enable
Enumerator
kFLEXIO_UART_TxDataRegEmptyInterruptEnable Transmit buffer empty interrupt enable.
kFLEXIO_UART_RxDataRegFullInterruptEnable Receive buffer full interrupt enable.
22.7.7.4 enum _flexio_uart_status_flags
Enumerator
kFLEXIO_UART_TxDataRegEmptyFlag Transmit buffer empty flag.
kFLEXIO_UART_RxDataRegFullFlag Receive buffer full flag.
kFLEXIO_UART_RxOverRunFlag Receive buffer over run flag.
22.7.8 Function Documentation
22.7.8.1 void FLEXIO_UART_Init ( FLEXIO_UART_Type ∗base, const
flexio_uart_config_t ∗userConfig, uint32_t srcClock_Hz )
The configuration structure can be filled by the user, or be set with default values by FLEXIO_UART_-
GetDefaultConfig().
Example
FLEXIO_UART_Type base = {
.flexioBase = FLEXIO,
.TxPinIndex = 0,
.RxPinIndex = 1,
.shifterIndex = {0,1},
.timerIndex = {0,1}
};
flexio_uart_config_t config = {
.enableInDoze =false,
484
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
.enableInDebug = true,
.enableFastAccess = false,
.baudRate_Bps = 115200U,
.bitCountPerChar = 8
};
FLEXIO_UART_Init(base, &config, srcClock_Hz);
Parameters
base Pointer to the FLEXIO_UART_Type structure.
userConfig Pointer to the flexio_uart_config_t structure.
srcClock_Hz FlexIO source clock in Hz.
22.7.8.2 void FLEXIO_UART_Deinit ( FLEXIO_UART_Type ∗base )
Note
After calling this API, call the FLEXO_UART_Init to use the FlexIO UART module.
Parameters
base pointer to FLEXIO_UART_Type structure
22.7.8.3 void FLEXIO_UART_GetDefaultConfig ( flexio_uart_config_t ∗userConfig )
The configuration can be used directly for calling the FLEXIO_UART_Init(). Example:
flexio_uart_config_t config;
FLEXIO_UART_GetDefaultConfig(&userConfig);
Parameters
userConfig Pointer to the flexio_uart_config_t structure.
22.7.8.4 uint32_t FLEXIO_UART_GetStatusFlags ( FLEXIO_UART_Type ∗base )
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
485
FlexIO UART Driver
base Pointer to the FLEXIO_UART_Type structure.
Returns
FlexIO UART status flags.
22.7.8.5 void FLEXIO_UART_ClearStatusFlags ( FLEXIO_UART_Type ∗base, uint32_t
mask )
Parameters
base Pointer to the FLEXIO_UART_Type structure.
mask Status flag. The parameter can be any combination of the following values:
• kFLEXIO_UART_TxDataRegEmptyFlag
• kFLEXIO_UART_RxEmptyFlag
• kFLEXIO_UART_RxOverRunFlag
22.7.8.6 void FLEXIO_UART_EnableInterrupts ( FLEXIO_UART_Type ∗base, uint32_t
mask )
This function enables the FlexIO UART interrupt.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
mask Interrupt source.
22.7.8.7 void FLEXIO_UART_DisableInterrupts ( FLEXIO_UART_Type ∗base, uint32_t
mask )
This function disables the FlexIO UART interrupt.
Parameters
486
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
base Pointer to the FLEXIO_UART_Type structure.
mask Interrupt source.
22.7.8.8 static uint32_t FLEXIO_UART_GetTxDataRegisterAddress (
FLEXIO_UART_Type ∗base )[inline],[static]
This function returns the UART data register address, which is mainly used by DMA/eDMA.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
Returns
FlexIO UART transmit data register address.
22.7.8.9 static uint32_t FLEXIO_UART_GetRxDataRegisterAddress (
FLEXIO_UART_Type ∗base )[inline],[static]
This function returns the UART data register address, which is mainly used by DMA/eDMA.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
Returns
FlexIO UART receive data register address.
22.7.8.10 static void FLEXIO_UART_EnableTxDMA ( FLEXIO_UART_Type ∗base, bool
enable )[inline],[static]
This function enables/disables the FlexIO UART Tx DMA, which means asserting the kFLEXIO_UAR-
T_TxDataRegEmptyFlag does/doesn’t trigger the DMA request.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
487
FlexIO UART Driver
base Pointer to the FLEXIO_UART_Type structure.
enable True to enable, false to disable.
22.7.8.11 static void FLEXIO_UART_EnableRxDMA ( FLEXIO_UART_Type ∗base, bool
enable )[inline],[static]
This function enables/disables the FlexIO UART Rx DMA, which means asserting kFLEXIO_UART_-
RxDataRegFullFlag does/doesn’t trigger the DMA request.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
enable True to enable, false to disable.
22.7.8.12 static void FLEXIO_UART_Enable ( FLEXIO_UART_Type ∗base, bool enable
)[inline],[static]
Parameters
base Pointer to the FLEXIO_UART_Type.
enable True to enable, false to disable.
22.7.8.13 static void FLEXIO_UART_WriteByte ( FLEXIO_UART_Type ∗base, const
uint8_t ∗buffer )[inline],[static]
Note
This is a non-blocking API, which returns directly after the data is put into the data register. Ensure
that the TxEmptyFlag is asserted before calling this API.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
buffer The data bytes to send.
22.7.8.14 static void FLEXIO_UART_ReadByte ( FLEXIO_UART_Type ∗base, uint8_t ∗
buffer )[inline],[static]
488
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
Note
This is a non-blocking API, which returns directly after the data is read from the data register. Ensure
that the RxFullFlag is asserted before calling this API.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
buffer The buffer to store the received bytes.
22.7.8.15 void FLEXIO_UART_WriteBlocking ( FLEXIO_UART_Type ∗base, const
uint8_t ∗txData, size_t txSize )
Note
This function blocks using the polling method until all bytes have been sent.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
txData The data bytes to send.
txSize The number of data bytes to send.
22.7.8.16 void FLEXIO_UART_ReadBlocking ( FLEXIO_UART_Type ∗base, uint8_t ∗
rxData, size_t rxSize )
Note
This function blocks using the polling method until all bytes have been received.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
rxData The buffer to store the received bytes.
rxSize The number of data bytes to be received.
22.7.8.17 status_t FLEXIO_UART_TransferCreateHandle ( FLEXIO_UART_Type ∗base,
flexio_uart_handle_t ∗handle, flexio_uart_transfer_callback_t callback, void ∗
userData )
This function initializes the FlexIO UART handle, which can be used for other FlexIO UART transactional
APIs. Call this API once to get the initialized handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
489
FlexIO UART Driver
The UART driver supports the "background" receiving, which means that user can set up a RX ring buffer
optionally. Data received is stored into the ring buffer even when the user doesn’t call the FLEXIO_UAR-
T_TransferReceiveNonBlocking() API. If there is already data received in the ring buffer, user can get the
received data from the ring buffer directly. The ring buffer is disabled if passing NULL as ringBuffer.
Parameters
base to FLEXIO_UART_Type structure.
handle Pointer to the flexio_uart_handle_t structure to store the transfer state.
callback The callback function.
userData The parameter of the callback function.
Return values
kStatus_Success Successfully create the handle.
kStatus_OutOfRange The FlexIO type/handle/ISR table out of range.
22.7.8.18 void FLEXIO_UART_TransferStartRingBuffer ( FLEXIO_UART_Type ∗base,
flexio_uart_handle_t ∗handle, uint8_t ∗ringBuffer, size_t ringBufferSize )
This function sets up the RX ring buffer to a specific UART handle.
When the RX ring buffer is used, data received is stored into the ring buffer even when the user doesn’t
call the UART_ReceiveNonBlocking() API. If there are already data received in the ring buffer, user can
get the received data from the ring buffer directly.
Note
When using the RX ring buffer, one byte is reserved for internal use. In other words, if ring-
BufferSize is 32, only 31 bytes are used for saving data.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
handle Pointer to the flexio_uart_handle_t structure to store the transfer state.
ringBuffer Start address of ring buffer for background receiving. Pass NULL to disable the ring
buffer.
ringBufferSize Size of the ring buffer.
490
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
22.7.8.19 void FLEXIO_UART_StopRingBuffer ( FLEXIO_UART_Type ∗base,
flexio_uart_handle_t ∗handle )
This function aborts the background transfer and uninstalls the ring buffer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
491
FlexIO UART Driver
Parameters
base Pointer to the FLEXIO_UART_Type structure.
handle Pointer to the flexio_uart_handle_t structure to store the transfer state.
22.7.8.20 status_t FLEXIO_UART_TransferSendNonBlocking ( FLEXIO_UART_Type ∗
base, flexio_uart_handle_t ∗handle, flexio_uart_transfer_t ∗xfer )
This function sends data using an interrupt method. This is a non-blocking function, which returns directly
without waiting for all data to be written to the TX register. When all data are written to TX register in
ISR, the FlexIO UART driver calls the callback function and passes the kStatus_FLEXIO_UART_TxIdle
as status parameter.
Note
The kStatus_FLEXIO_UART_TxIdle is passed to the upper layer when all data is written to the TX
register. However, it does not ensure that all data is sent out.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
handle Pointer to the flexio_uart_handle_t structure to store the transfer state.
xfer FlexIO UART transfer structure. See flexio_uart_transfer_t.
Return values
kStatus_Success Successfully starts the data transmission.
kStatus_UART_TxBusy Previous transmission still not finished, data not written to the TX register.
22.7.8.21 void FLEXIO_UART_TransferAbortSend ( FLEXIO_UART_Type ∗base,
flexio_uart_handle_t ∗handle )
This function aborts the interrupt-driven data sending. Get the remainBytes to know how many bytes are
still not sent out.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
handle Pointer to the flexio_uart_handle_t structure to store the transfer state.
492
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
22.7.8.22 status_t FLEXIO_UART_TransferGetSendCount ( FLEXIO_UART_Type ∗
base, flexio_uart_handle_t ∗handle, size_t ∗count )
This function gets the number of remaining bytes not sent driven by interrupt.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
493
FlexIO UART Driver
Parameters
base Pointer to the FLEXIO_UART_Type structure.
handle Pointer to the flexio_uart_handle_t structure to store the transfer state.
count Number of bytes sent so far by the non-blocking transaction.
Return values
kStatus_InvalidArgument count is Invalid.
kStatus_Success Successfully return the count.
22.7.8.23 status_t FLEXIO_UART_TransferReceiveNonBlocking ( FLEXIO_UART_Type
∗base, flexio_uart_handle_t ∗handle, flexio_uart_transfer_t ∗xfer, size_t ∗
receivedBytes )
This function receives data using the interrupt method. This is a non-blocking function, which returns
without waiting for all data to be received. If the RX ring buffer is used and not empty, the data in ring
buffer is copied and the parameter receivedBytes shows how many bytes are copied from the ring
buffer. After copying, if the data in ring buffer is not enough to read, the receive request is saved by the
UART driver. When new data arrives, the receive request is serviced first. When all data is received, the
UART driver notifies the upper layer through a callback function and passes the status parameter kStatus_-
UART_RxIdle. For example, if the upper layer needs 10 bytes but there are only 5 bytes in the ring buffer,
the 5 bytes are copied to xfer->data. This function returns with the parameter receivedBytes set to
5. For the last 5 bytes, newly arrived data is saved from the xfer->data[5]. When 5 bytes are received, the
UART driver notifies upper layer. If the RX ring buffer is not enabled, this function enables the RX and
RX interrupt to receive data to xfer->data. When all data is received, the upper layer is notified.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
handle Pointer to the flexio_uart_handle_t structure to store the transfer state.
xfer UART transfer structure. See flexio_uart_transfer_t.
receivedBytes Bytes received from the ring buffer directly.
Return values
kStatus_Success Successfully queue the transfer into the transmit queue.
kStatus_FLEXIO_UART-
_RxBusy
Previous receive request is not finished.
494
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FlexIO UART Driver
22.7.8.24 void FLEXIO_UART_TransferAbortReceive ( FLEXIO_UART_Type ∗base,
flexio_uart_handle_t ∗handle )
This function aborts the receive data which was using IRQ.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
495
FlexIO UART Driver
Parameters
base Pointer to the FLEXIO_UART_Type structure.
handle Pointer to the flexio_uart_handle_t structure to store the transfer state.
22.7.8.25 status_t FLEXIO_UART_TransferGetReceiveCount ( FLEXIO_UART_Type ∗
base, flexio_uart_handle_t ∗handle, size_t ∗count )
This function gets the number of remaining bytes not received driven by interrupt.
Parameters
base Pointer to the FLEXIO_UART_Type structure.
handle Pointer to the flexio_uart_handle_t structure to store the transfer state.
count Number of bytes received so far by the non-blocking transaction.
Return values
kStatus_InvalidArgument count is Invalid.
kStatus_Success Successfully return the count.
22.7.8.26 void FLEXIO_UART_TransferHandleIRQ ( void ∗uartType, void ∗uartHandle )
This function processes the FlexIO UART transmit and receives the IRQ request.
Parameters
uartType Pointer to the FLEXIO_UART_Type structure.
uartHandle Pointer to the flexio_uart_handle_t structure to store the transfer state.
496
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 23
FTM: FlexTimer Driver
23.1 Overview
The KSDK provides a driver for the FlexTimer Module (FTM) of Kinetis devices.
23.2 Function groups
The FTM driver supports the generation of PWM signals, input capture, dual edge capture, output com-
pare, and quadrature decoder modes. The driver also supports configuring each of the FTM fault inputs.
23.2.1 Initialization and deinitialization
The function FTM_Init() initializes the FTM with specified configurations. The function FTM_Get-
DefaultConfig() gets the default configurations. The initialization function configures the FTM for the
requested register update mode for registers with buffers. It also sets up the FTM’s fault operation mode
and FTM behavior in BDM mode.
23.2.2 PWM Operations
The function FTM_SetupPwm() sets up FTM channels for PWM output. The function can set up the PW-
M signal properties for multiple channels. Each channel has its own duty cycle and level-mode specified.
However, the same PWM period and PWM mode is applied to all channels requesting the PWM output.
The signal duty cycle is provided as a percentage of the PWM period. Its value should be between 0 and
100 0=inactive signal(0% duty cycle) and 100=always active signal (100% duty cycle).
The function FTM_UpdatePwmDutycycle() updates the PWM signal duty cycle of a particular FTM chan-
nel.
The function FTM_UpdateChnlEdgeLevelSelect() updates the level select bits of a particular FTM chan-
nel. This can be used to disable the PWM output when making changes to the PWM signal.
23.2.3 Input capture operations
The function FTM_SetupInputCapture() sets up an FTM channel for input capture. The user can specify
the capture edge and a filter value to be used when processing the input signal.
The function FTM_SetupDualEdgeCapture() can be used to measure the pulse width of a signal. A channel
pair is used during capture with the input signal coming through a channel n. The user can specify whether
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
497
Register Update
to use one-shot or continuous capture, the capture edge for each channel, and any filter value to be used
when processing the input signal.
23.2.4 Output compare operations
The function FTM_SetupOutputCompare() sets up an FTM channel for output compare. The user can
specify the channel output on a successful comparison and a comparison value.
23.2.5 Quad decode
The function FTM_SetupQuadDecode() sets up FTM channels 0 and 1 for quad decoding. The user can
specify the quad decoding mode, polarity, and filter properties for each input signal.
23.2.6 Fault operation
The function FTM_SetupFault() sets up the properties for each fault. The user can specify the fault polarity
and whether to use a filter on a fault input. The overall fault filter value and fault control mode are set up
during initialization.
23.3 Register Update
Some of the FTM registers have buffers. The driver support various methods to update these registers with
the content of the register buffer. The registers can be updated using the PWM synchronized loading or an
intermediate point loading. The update mechanism for register with buffers can be specified through the
following fields available in the configuration structure.
uint32_t pwmSyncMode;
uint32_t reloadPoints;
Multiple PWM synchronization update modes can be used by providing an OR’ed list of options available
in the enumeration ftm_pwm_sync_method_t to the pwmSyncMode field.
When using an intermediate reload points, the PWM synchnronization is not required. Multiple reload
points can be used by providing an OR’ed list of options available in the enumeration ftm_reload_point_t
to the reloadPoints field.
The driver initialization function sets up the appropriate bits in the FTM module based on the register
update options selected.
If software PWM synchronization is used, the below function can be used to initiate a software trigger
FTM_SetSoftwareTrigger(FTM0, true)
498
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
23.4 Typical use case
23.4.1 PWM output
Output a PWM signal on 2 FTM channels with different duty cycles. Periodically update the PWM signal
duty cycle.
int main(void)
{
bool brightnessUp = true;/*Indicates whether LEDs are brighter or dimmer.
ftm_config_t ftmInfo;
uint8_t updatedDutycycle = 0U;
ftm_chnl_pwm_signal_param_t ftmParam[2];
/*Configure ftm params with frequency 24kHZ
ftmParam[0].chnlNumber = (ftm_chnl_t)BOARD_FIRST_FTM_CHANNEL;
ftmParam[0].level = kFTM_LowTrue;
ftmParam[0].dutyCyclePercent = 0U;
ftmParam[0].firstEdgeDelayPercent = 0U;
ftmParam[1].chnlNumber = (ftm_chnl_t)BOARD_SECOND_FTM_CHANNEL;
ftmParam[1].level = kFTM_LowTrue;
ftmParam[1].dutyCyclePercent = 0U;
ftmParam[1].firstEdgeDelayPercent = 0U;
FTM_GetDefaultConfig(&ftmInfo);
/*Initializes the FTM module.
FTM_Init(BOARD_FTM_BASEADDR, &ftmInfo);
FTM_SetupPwm(BOARD_FTM_BASEADDR, ftmParam, 2U, kFTM_EdgeAlignedPwm, 24000U, FTM_SOURCE_CLOCK);
FTM_StartTimer(BOARD_FTM_BASEADDR, kFTM_SystemClock);
while (1)
{
/*Delays to see the change of LEDs brightness.
delay();
if (brightnessUp)
{
/*Increases the duty cycle until it reaches a limited value.
if (++updatedDutycycle == 100U)
{
brightnessUp = false;
}
}
else
{
/*Decreases the duty cycle until it reaches a limited value.
if (--updatedDutycycle == 0U)
{
brightnessUp = true;
}
}
/*Starts the PWM mode with an updated duty cycle.
FTM_UpdatePwmDutycycle(BOARD_FTM_BASEADDR, (ftm_chnl_t)BOARD_FIRST_FTM_CHANNEL,
kFTM_EdgeAlignedPwm,
updatedDutycycle);
FTM_UpdatePwmDutycycle(BOARD_FTM_BASEADDR, (ftm_chnl_t)BOARD_SECOND_FTM_CHANNEL,
kFTM_EdgeAlignedPwm,
updatedDutycycle);
/*Software trigger to update registers.
FTM_SetSoftwareTrigger(BOARD_FTM_BASEADDR, true);
}
}
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
499
Typical use case
Files
• file fsl_ftm.h
Data Structures
• struct ftm_chnl_pwm_signal_param_t
Options to configure a FTM channel’s PWM signal. More...
• struct ftm_dual_edge_capture_param_t
FlexTimer dual edge capture parameters. More...
• struct ftm_phase_params_t
FlexTimer quadrature decode phase parameters. More...
• struct ftm_fault_param_t
Structure is used to hold the parameters to configure a FTM fault. More...
• struct ftm_config_t
FTM configuration structure. More...
Enumerations
• enum ftm_chnl_t {
kFTM_Chnl_0 = 0U,
kFTM_Chnl_1,
kFTM_Chnl_2,
kFTM_Chnl_3,
kFTM_Chnl_4,
kFTM_Chnl_5,
kFTM_Chnl_6,
kFTM_Chnl_7 }
List of FTM channels.
• enum ftm_fault_input_t {
kFTM_Fault_0 = 0U,
kFTM_Fault_1,
kFTM_Fault_2,
kFTM_Fault_3 }
List of FTM faults.
• enum ftm_pwm_mode_t {
kFTM_EdgeAlignedPwm = 0U,
kFTM_CenterAlignedPwm,
kFTM_CombinedPwm }
FTM PWM operation modes.
• enum ftm_pwm_level_select_t {
kFTM_NoPwmSignal = 0U,
kFTM_LowTrue,
kFTM_HighTrue }
FTM PWM output pulse mode: high-true, low-true or no output.
• enum ftm_output_compare_mode_t {
kFTM_NoOutputSignal = (1U << FTM_CnSC_MSA_SHIFT),
kFTM_ToggleOnMatch = ((1U << FTM_CnSC_MSA_SHIFT) |(1U << FTM_CnSC_ELSA_S-
500
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
HIFT)),
kFTM_ClearOnMatch = ((1U << FTM_CnSC_MSA_SHIFT) |(2U << FTM_CnSC_ELSA_SH-
IFT)),
kFTM_SetOnMatch = ((1U << FTM_CnSC_MSA_SHIFT) |(3U << FTM_CnSC_ELSA_SHIF-
T)) }
FlexTimer output compare mode.
• enum ftm_input_capture_edge_t {
kFTM_RisingEdge = (1U << FTM_CnSC_ELSA_SHIFT),
kFTM_FallingEdge = (2U << FTM_CnSC_ELSA_SHIFT),
kFTM_RiseAndFallEdge = (3U << FTM_CnSC_ELSA_SHIFT) }
FlexTimer input capture edge.
• enum ftm_dual_edge_capture_mode_t {
kFTM_OneShot = 0U,
kFTM_Continuous = (1U << FTM_CnSC_MSA_SHIFT) }
FlexTimer dual edge capture modes.
• enum ftm_quad_decode_mode_t {
kFTM_QuadPhaseEncode = 0U,
kFTM_QuadCountAndDir }
FlexTimer quadrature decode modes.
• enum ftm_phase_polarity_t {
kFTM_QuadPhaseNormal = 0U,
kFTM_QuadPhaseInvert }
FlexTimer quadrature phase polarities.
• enum ftm_deadtime_prescale_t {
kFTM_Deadtime_Prescale_1 = 1U,
kFTM_Deadtime_Prescale_4,
kFTM_Deadtime_Prescale_16 }
FlexTimer pre-scaler factor for the dead time insertion.
• enum ftm_clock_source_t {
kFTM_SystemClock = 1U,
kFTM_FixedClock,
kFTM_ExternalClock }
FlexTimer clock source selection.
• enum ftm_clock_prescale_t {
kFTM_Prescale_Divide_1 = 0U,
kFTM_Prescale_Divide_2,
kFTM_Prescale_Divide_4,
kFTM_Prescale_Divide_8,
kFTM_Prescale_Divide_16,
kFTM_Prescale_Divide_32,
kFTM_Prescale_Divide_64,
kFTM_Prescale_Divide_128 }
FlexTimer pre-scaler factor selection for the clock source.
• enum ftm_bdm_mode_t {
kFTM_BdmMode_0 = 0U,
kFTM_BdmMode_1,
kFTM_BdmMode_2,
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
501
Typical use case
kFTM_BdmMode_3 }
Options for the FlexTimer behaviour in BDM Mode.
• enum ftm_fault_mode_t {
kFTM_Fault_Disable = 0U,
kFTM_Fault_EvenChnls,
kFTM_Fault_AllChnlsMan,
kFTM_Fault_AllChnlsAuto }
Options for the FTM fault control mode.
• enum ftm_external_trigger_t {
kFTM_Chnl0Trigger = (1U << 4),
kFTM_Chnl1Trigger = (1U << 5),
kFTM_Chnl2Trigger = (1U << 0),
kFTM_Chnl3Trigger = (1U << 1),
kFTM_Chnl4Trigger = (1U << 2),
kFTM_Chnl5Trigger = (1U << 3),
kFTM_Chnl6Trigger,
kFTM_Chnl7Trigger,
kFTM_InitTrigger = (1U << 6),
kFTM_ReloadInitTrigger = (1U << 7) }
FTM external trigger options.
• enum ftm_pwm_sync_method_t {
kFTM_SoftwareTrigger = FTM_SYNC_SWSYNC_MASK,
kFTM_HardwareTrigger_0 = FTM_SYNC_TRIG0_MASK,
kFTM_HardwareTrigger_1 = FTM_SYNC_TRIG1_MASK,
kFTM_HardwareTrigger_2 = FTM_SYNC_TRIG2_MASK }
FlexTimer PWM sync options to update registers with buffer.
• enum ftm_reload_point_t {
kFTM_Chnl0Match = (1U << 0),
kFTM_Chnl1Match = (1U << 1),
kFTM_Chnl2Match = (1U << 2),
kFTM_Chnl3Match = (1U << 3),
kFTM_Chnl4Match = (1U << 4),
kFTM_Chnl5Match = (1U << 5),
kFTM_Chnl6Match = (1U << 6),
kFTM_Chnl7Match = (1U << 7),
kFTM_CntMax = (1U << 8),
kFTM_CntMin = (1U << 9),
kFTM_HalfCycMatch = (1U << 10) }
FTM options available as loading point for register reload.
• enum ftm_interrupt_enable_t {
502
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
kFTM_Chnl0InterruptEnable = (1U << 0),
kFTM_Chnl1InterruptEnable = (1U << 1),
kFTM_Chnl2InterruptEnable = (1U << 2),
kFTM_Chnl3InterruptEnable = (1U << 3),
kFTM_Chnl4InterruptEnable = (1U << 4),
kFTM_Chnl5InterruptEnable = (1U << 5),
kFTM_Chnl6InterruptEnable = (1U << 6),
kFTM_Chnl7InterruptEnable = (1U << 7),
kFTM_FaultInterruptEnable = (1U << 8),
kFTM_TimeOverflowInterruptEnable = (1U << 9),
kFTM_ReloadInterruptEnable = (1U << 10) }
List of FTM interrupts.
• enum ftm_status_flags_t {
kFTM_Chnl0Flag = (1U << 0),
kFTM_Chnl1Flag = (1U << 1),
kFTM_Chnl2Flag = (1U << 2),
kFTM_Chnl3Flag = (1U << 3),
kFTM_Chnl4Flag = (1U << 4),
kFTM_Chnl5Flag = (1U << 5),
kFTM_Chnl6Flag = (1U << 6),
kFTM_Chnl7Flag = (1U << 7),
kFTM_FaultFlag = (1U << 8),
kFTM_TimeOverflowFlag = (1U << 9),
kFTM_ChnlTriggerFlag = (1U << 10),
kFTM_ReloadFlag = (1U << 11) }
List of FTM flags.
Functions
• void FTM_SetupQuadDecode (FTM_Type ∗base, const ftm_phase_params_t ∗phaseAParams,
const ftm_phase_params_t ∗phaseBParams, ftm_quad_decode_mode_t quadMode)
Configures the parameters and activates the quadrature decoder mode.
• void FTM_SetupFault (FTM_Type ∗base, ftm_fault_input_t faultNumber, const ftm_fault_param_t
∗faultParams)
Sets up the working of the FTM fault protection.
• static void FTM_SetGlobalTimeBaseOutputEnable (FTM_Type ∗base, bool enable)
Enables or disables the FTM global time base signal generation to other FTMs.
• static void FTM_SetOutputMask (FTM_Type ∗base, ftm_chnl_t chnlNumber, bool mask)
Sets the FTM peripheral timer channel output mask.
• static void FTM_SetSoftwareTrigger (FTM_Type ∗base, bool enable)
Enables or disables the FTM software trigger for PWM synchronization.
• static void FTM_SetWriteProtection (FTM_Type ∗base, bool enable)
Enables or disables the FTM write protection.
Driver version
• #define FSL_FTM_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
503
Typical use case
Initialization and deinitialization
• status_t FTM_Init (FTM_Type ∗base, const ftm_config_t ∗config)
Ungates the FTM clock and configures the peripheral for basic operation.
• void FTM_Deinit (FTM_Type ∗base)
Gates the FTM clock.
• void FTM_GetDefaultConfig (ftm_config_t ∗config)
Fills in the FTM configuration structure with the default settings.
Channel mode operations
• status_t FTM_SetupPwm (FTM_Type ∗base, const ftm_chnl_pwm_signal_param_t ∗chnlParams,
uint8_t numOfChnls, ftm_pwm_mode_t mode, uint32_t pwmFreq_Hz, uint32_t srcClock_Hz)
Configures the PWM signal parameters.
• void FTM_UpdatePwmDutycycle (FTM_Type ∗base, ftm_chnl_t chnlNumber, ftm_pwm_mode_t
currentPwmMode, uint8_t dutyCyclePercent)
Updates the duty cycle of an active PWM signal.
• void FTM_UpdateChnlEdgeLevelSelect (FTM_Type ∗base, ftm_chnl_t chnlNumber, uint8_t level)
Updates the edge level selection for a channel.
• void FTM_SetupInputCapture (FTM_Type ∗base, ftm_chnl_t chnlNumber, ftm_input_capture_-
edge_t captureMode, uint32_t filterValue)
Enables capturing an input signal on the channel using the function parameters.
• void FTM_SetupOutputCompare (FTM_Type ∗base, ftm_chnl_t chnlNumber, ftm_output_-
compare_mode_t compareMode, uint32_t compareValue)
Configures the FTM to generate timed pulses.
• void FTM_SetupDualEdgeCapture (FTM_Type ∗base, ftm_chnl_t chnlPairNumber, const ftm_-
dual_edge_capture_param_t ∗edgeParam, uint32_t filterValue)
Configures the dual edge capture mode of the FTM.
Interrupt Interface
• void FTM_EnableInterrupts (FTM_Type ∗base, uint32_t mask)
Enables the selected FTM interrupts.
• void FTM_DisableInterrupts (FTM_Type ∗base, uint32_t mask)
Disables the selected FTM interrupts.
• uint32_t FTM_GetEnabledInterrupts (FTM_Type ∗base)
Gets the enabled FTM interrupts.
Status Interface
• uint32_t FTM_GetStatusFlags (FTM_Type ∗base)
Gets the FTM status flags.
• void FTM_ClearStatusFlags (FTM_Type ∗base, uint32_t mask)
Clears the FTM status flags.
Timer Start and Stop
• static void FTM_StartTimer (FTM_Type ∗base, ftm_clock_source_t clockSource)
Starts the FTM counter.
• static void FTM_StopTimer (FTM_Type ∗base)
Stops the FTM counter.
504
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
Software output control
• static void FTM_SetSoftwareCtrlEnable (FTM_Type ∗base, ftm_chnl_t chnlNumber, bool value)
Enables or disables the channel software output control.
• static void FTM_SetSoftwareCtrlVal (FTM_Type ∗base, ftm_chnl_t chnlNumber, bool value)
Sets the channel software output control value.
Channel pair operations
• static void FTM_SetFaultControlEnable (FTM_Type ∗base, ftm_chnl_t chnlPairNumber, bool
value)
This function enables/disables the fault control in a channel pair.
• static void FTM_SetDeadTimeEnable (FTM_Type ∗base, ftm_chnl_t chnlPairNumber, bool value)
This function enables/disables the dead time insertion in a channel pair.
• static void FTM_SetComplementaryEnable (FTM_Type ∗base, ftm_chnl_t chnlPairNumber, bool
value)
This function enables/disables complementary mode in a channel pair.
• static void FTM_SetInvertEnable (FTM_Type ∗base, ftm_chnl_t chnlPairNumber, bool value)
This function enables/disables inverting control in a channel pair.
23.5 Data Structure Documentation
23.5.1 struct ftm_chnl_pwm_signal_param_t
Data Fields
•ftm_chnl_t chnlNumber
The channel/channel pair number.
•ftm_pwm_level_select_t level
PWM output active level select.
• uint8_t dutyCyclePercent
PWM pulse width, value should be between 0 to 100 0 = inactive signal(0% duty cycle)...
• uint8_t firstEdgeDelayPercent
Used only in combined PWM mode to generate an asymmetrical PWM.
23.5.1.0.0.14 Field Documentation
23.5.1.0.0.14.1 ftm_chnl_t ftm_chnl_pwm_signal_param_t::chnlNumber
In combined mode, this represents the channel pair number.
23.5.1.0.0.14.2 ftm_pwm_level_select_t ftm_chnl_pwm_signal_param_t::level
23.5.1.0.0.14.3 uint8_t ftm_chnl_pwm_signal_param_t::dutyCyclePercent
100 = always active signal (100% duty cycle).
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
505
Data Structure Documentation
23.5.1.0.0.14.4 uint8_t ftm_chnl_pwm_signal_param_t::firstEdgeDelayPercent
Specifies the delay to the first edge in a PWM period. If unsure leave as 0; Should be specified as a
percentage of the PWM period
23.5.2 struct ftm_dual_edge_capture_param_t
Data Fields
•ftm_dual_edge_capture_mode_t mode
Dual Edge Capture mode.
•ftm_input_capture_edge_t currChanEdgeMode
Input capture edge select for channel n.
•ftm_input_capture_edge_t nextChanEdgeMode
Input capture edge select for channel n+1.
23.5.3 struct ftm_phase_params_t
Data Fields
• bool enablePhaseFilter
True: enable phase filter; false: disable filter.
• uint32_t phaseFilterVal
Filter value, used only if phase filter is enabled.
•ftm_phase_polarity_t phasePolarity
Phase polarity.
23.5.4 struct ftm_fault_param_t
Data Fields
• bool enableFaultInput
True: Fault input is enabled; false: Fault input is disabled.
• bool faultLevel
True: Fault polarity is active low i.e ’0’ indicates a fault; False: Fault polarity is active high.
• bool useFaultFilter
True: Use the filtered fault signal; False: Use the direct path from fault input.
23.5.5 struct ftm_config_t
This structure holds the configuration settings for the FTM peripheral. To initialize this structure to reason-
able defaults, call the FTM_GetDefaultConfig() function and pass a pointer to the configuration structure
instance.
506
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
The configuration structure can be made constant so as to reside in flash.
Data Fields
•ftm_clock_prescale_t prescale
FTM clock prescale value.
•ftm_bdm_mode_t bdmMode
FTM behavior in BDM mode.
• uint32_t pwmSyncMode
Synchronization methods to use to update buffered registers; Multiple update modes can be used by pro-
viding an OR’ed list of options available in enumeration ftm_pwm_sync_method_t.
• uint32_t reloadPoints
FTM reload points; When using this, the PWM synchronization is not required.
•ftm_fault_mode_t faultMode
FTM fault control mode.
• uint8_t faultFilterValue
Fault input filter value.
•ftm_deadtime_prescale_t deadTimePrescale
The dead time prescalar value.
• uint8_t deadTimeValue
The dead time value.
• uint32_t extTriggers
External triggers to enable.
• uint8_t chnlInitState
Defines the initialization value of the channels in OUTINT register.
• uint8_t chnlPolarity
Defines the output polarity of the channels in POL register.
• bool useGlobalTimeBase
True: Use of an external global time base is enabled; False: disabled.
23.5.5.0.0.15 Field Documentation
23.5.5.0.0.15.1 uint32_t ftm_config_t::pwmSyncMode
23.5.5.0.0.15.2 uint32_t ftm_config_t::reloadPoints
Multiple reload points can be used by providing an OR’ed list of options available in enumeration ftm_-
reload_point_t.
23.5.5.0.0.15.3 uint32_t ftm_config_t::extTriggers
Multiple trigger sources can be enabled by providing an OR’ed list of options available in enumeration
ftm_external_trigger_t.
23.6 Enumeration Type Documentation
23.6.1 enum ftm_chnl_t
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
507
Enumeration Type Documentation
Note
Actual number of available channels is SoC dependent
Enumerator
kFTM_Chnl_0 FTM channel number 0.
kFTM_Chnl_1 FTM channel number 1.
kFTM_Chnl_2 FTM channel number 2.
kFTM_Chnl_3 FTM channel number 3.
kFTM_Chnl_4 FTM channel number 4.
kFTM_Chnl_5 FTM channel number 5.
kFTM_Chnl_6 FTM channel number 6.
kFTM_Chnl_7 FTM channel number 7.
23.6.2 enum ftm_fault_input_t
Enumerator
kFTM_Fault_0 FTM fault 0 input pin.
kFTM_Fault_1 FTM fault 1 input pin.
kFTM_Fault_2 FTM fault 2 input pin.
kFTM_Fault_3 FTM fault 3 input pin.
23.6.3 enum ftm_pwm_mode_t
Enumerator
kFTM_EdgeAlignedPwm Edge-aligned PWM.
kFTM_CenterAlignedPwm Center-aligned PWM.
kFTM_CombinedPwm Combined PWM.
23.6.4 enum ftm_pwm_level_select_t
Enumerator
kFTM_NoPwmSignal No PWM output on pin.
kFTM_LowTrue Low true pulses.
kFTM_HighTrue High true pulses.
508
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
23.6.5 enum ftm_output_compare_mode_t
Enumerator
kFTM_NoOutputSignal No channel output when counter reaches CnV.
kFTM_ToggleOnMatch Toggle output.
kFTM_ClearOnMatch Clear output.
kFTM_SetOnMatch Set output.
23.6.6 enum ftm_input_capture_edge_t
Enumerator
kFTM_RisingEdge Capture on rising edge only.
kFTM_FallingEdge Capture on falling edge only.
kFTM_RiseAndFallEdge Capture on rising or falling edge.
23.6.7 enum ftm_dual_edge_capture_mode_t
Enumerator
kFTM_OneShot One-shot capture mode.
kFTM_Continuous Continuous capture mode.
23.6.8 enum ftm_quad_decode_mode_t
Enumerator
kFTM_QuadPhaseEncode Phase A and Phase B encoding mode.
kFTM_QuadCountAndDir Count and direction encoding mode.
23.6.9 enum ftm_phase_polarity_t
Enumerator
kFTM_QuadPhaseNormal Phase input signal is not inverted.
kFTM_QuadPhaseInvert Phase input signal is inverted.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
509
Enumeration Type Documentation
23.6.10 enum ftm_deadtime_prescale_t
Enumerator
kFTM_Deadtime_Prescale_1 Divide by 1.
kFTM_Deadtime_Prescale_4 Divide by 4.
kFTM_Deadtime_Prescale_16 Divide by 16.
23.6.11 enum ftm_clock_source_t
Enumerator
kFTM_SystemClock System clock selected.
kFTM_FixedClock Fixed frequency clock.
kFTM_ExternalClock External clock.
23.6.12 enum ftm_clock_prescale_t
Enumerator
kFTM_Prescale_Divide_1 Divide by 1.
kFTM_Prescale_Divide_2 Divide by 2.
kFTM_Prescale_Divide_4 Divide by 4.
kFTM_Prescale_Divide_8 Divide by 8.
kFTM_Prescale_Divide_16 Divide by 16.
kFTM_Prescale_Divide_32 Divide by 32.
kFTM_Prescale_Divide_64 Divide by 64.
kFTM_Prescale_Divide_128 Divide by 128.
23.6.13 enum ftm_bdm_mode_t
Enumerator
kFTM_BdmMode_0 FTM counter stopped, CH(n)F bit can be set, FTM channels in functional
mode, writes to MOD,CNTIN and C(n)V registers bypass the register buffers.
kFTM_BdmMode_1 FTM counter stopped, CH(n)F bit is not set, FTM channels outputs are forced
to their safe value , writes to MOD,CNTIN and C(n)V registers bypass the register buffers.
kFTM_BdmMode_2 FTM counter stopped, CH(n)F bit is not set, FTM channels outputs are frozen
when chip enters in BDM mode, writes to MOD,CNTIN and C(n)V registers bypass the register
buffers.
kFTM_BdmMode_3 FTM counter in functional mode, CH(n)F bit can be set, FTM channels in
functional mode, writes to MOD,CNTIN and C(n)V registers is in fully functional mode.
510
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
23.6.14 enum ftm_fault_mode_t
Enumerator
kFTM_Fault_Disable Fault control is disabled for all channels.
kFTM_Fault_EvenChnls Enabled for even channels only(0,2,4,6) with manual fault clearing.
kFTM_Fault_AllChnlsMan Enabled for all channels with manual fault clearing.
kFTM_Fault_AllChnlsAuto Enabled for all channels with automatic fault clearing.
23.6.15 enum ftm_external_trigger_t
Note
Actual available external trigger sources are SoC-specific
Enumerator
kFTM_Chnl0Trigger Generate trigger when counter equals chnl 0 CnV reg.
kFTM_Chnl1Trigger Generate trigger when counter equals chnl 1 CnV reg.
kFTM_Chnl2Trigger Generate trigger when counter equals chnl 2 CnV reg.
kFTM_Chnl3Trigger Generate trigger when counter equals chnl 3 CnV reg.
kFTM_Chnl4Trigger Generate trigger when counter equals chnl 4 CnV reg.
kFTM_Chnl5Trigger Generate trigger when counter equals chnl 5 CnV reg.
kFTM_Chnl6Trigger Available on certain SoC’s, generate trigger when counter equals chnl 6 CnV
reg.
kFTM_Chnl7Trigger Available on certain SoC’s, generate trigger when counter equals chnl 7 CnV
reg.
kFTM_InitTrigger Generate Trigger when counter is updated with CNTIN.
kFTM_ReloadInitTrigger Available on certain SoC’s, trigger on reload point.
23.6.16 enum ftm_pwm_sync_method_t
Enumerator
kFTM_SoftwareTrigger Software triggers PWM sync.
kFTM_HardwareTrigger_0 Hardware trigger 0 causes PWM sync.
kFTM_HardwareTrigger_1 Hardware trigger 1 causes PWM sync.
kFTM_HardwareTrigger_2 Hardware trigger 2 causes PWM sync.
23.6.17 enum ftm_reload_point_t
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
511
Enumeration Type Documentation
Note
Actual available reload points are SoC-specific
Enumerator
kFTM_Chnl0Match Channel 0 match included as a reload point.
kFTM_Chnl1Match Channel 1 match included as a reload point.
kFTM_Chnl2Match Channel 2 match included as a reload point.
kFTM_Chnl3Match Channel 3 match included as a reload point.
kFTM_Chnl4Match Channel 4 match included as a reload point.
kFTM_Chnl5Match Channel 5 match included as a reload point.
kFTM_Chnl6Match Channel 6 match included as a reload point.
kFTM_Chnl7Match Channel 7 match included as a reload point.
kFTM_CntMax Use in up-down count mode only, reload when counter reaches the maximum value.
kFTM_CntMin Use in up-down count mode only, reload when counter reaches the minimum value.
kFTM_HalfCycMatch Available on certain SoC’s, half cycle match reload point.
23.6.18 enum ftm_interrupt_enable_t
Note
Actual available interrupts are SoC-specific
Enumerator
kFTM_Chnl0InterruptEnable Channel 0 interrupt.
kFTM_Chnl1InterruptEnable Channel 1 interrupt.
kFTM_Chnl2InterruptEnable Channel 2 interrupt.
kFTM_Chnl3InterruptEnable Channel 3 interrupt.
kFTM_Chnl4InterruptEnable Channel 4 interrupt.
kFTM_Chnl5InterruptEnable Channel 5 interrupt.
kFTM_Chnl6InterruptEnable Channel 6 interrupt.
kFTM_Chnl7InterruptEnable Channel 7 interrupt.
kFTM_FaultInterruptEnable Fault interrupt.
kFTM_TimeOverflowInterruptEnable Time overflow interrupt.
kFTM_ReloadInterruptEnable Reload interrupt; Available only on certain SoC’s.
23.6.19 enum ftm_status_flags_t
512
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Note
Actual available flags are SoC-specific
Enumerator
kFTM_Chnl0Flag Channel 0 Flag.
kFTM_Chnl1Flag Channel 1 Flag.
kFTM_Chnl2Flag Channel 2 Flag.
kFTM_Chnl3Flag Channel 3 Flag.
kFTM_Chnl4Flag Channel 4 Flag.
kFTM_Chnl5Flag Channel 5 Flag.
kFTM_Chnl6Flag Channel 6 Flag.
kFTM_Chnl7Flag Channel 7 Flag.
kFTM_FaultFlag Fault Flag.
kFTM_TimeOverflowFlag Time overflow Flag.
kFTM_ChnlTriggerFlag Channel trigger Flag.
kFTM_ReloadFlag Reload Flag; Available only on certain SoC’s.
23.7 Function Documentation
23.7.1 status_t FTM_Init ( FTM_Type ∗base, const ftm_config_t ∗config )
Note
This API should be called at the beginning of the application using the FTM driver.
Parameters
base FTM peripheral base address
config Pointer to the user configuration structure.
Returns
kStatus_Success indicates success; Else indicates failure.
23.7.2 void FTM_Deinit ( FTM_Type ∗base )
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
513
Function Documentation
base FTM peripheral base address
23.7.3 void FTM_GetDefaultConfig ( ftm_config_t ∗config )
The default values are:
config->prescale = kFTM_Prescale_Divide_1;
config->bdmMode = kFTM_BdmMode_0;
config->pwmSyncMode = kFTM_SoftwareTrigger;
config->reloadPoints = 0;
config->faultMode = kFTM_Fault_Disable;
config->faultFilterValue = 0;
config->deadTimePrescale = kFTM_Deadtime_Prescale_1;
config->deadTimeValue = 0;
config->extTriggers = 0;
config->chnlInitState = 0;
config->chnlPolarity = 0;
config->useGlobalTimeBase = false;
Parameters
config Pointer to the user configuration structure.
23.7.4 status_t FTM_SetupPwm ( FTM_Type ∗base, const ftm_chnl_pwm_signal-
_param_t ∗chnlParams, uint8_t numOfChnls, ftm_pwm_mode_t mode,
uint32_t pwmFreq_Hz, uint32_t srcClock_Hz )
Call this function to configure the PWM signal period, mode, duty cycle, and edge. Use this function to
configure all FTM channels that are used to output a PWM signal.
Parameters
base FTM peripheral base address
chnlParams Array of PWM channel parameters to configure the channel(s)
numOfChnls Number of channels to configure; This should be the size of the array passed in
mode PWM operation mode, options available in enumeration ftm_pwm_mode_t
pwmFreq_Hz PWM signal frequency in Hz
514
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
srcClock_Hz FTM counter clock in Hz
Returns
kStatus_Success if the PWM setup was successful kStatus_Error on failure
23.7.5 void FTM_UpdatePwmDutycycle ( FTM_Type ∗base, ftm_chnl_t
chnlNumber, ftm_pwm_mode_t currentPwmMode, uint8_t
dutyCyclePercent )
Parameters
base FTM peripheral base address
chnlNumber The channel/channel pair number. In combined mode, this represents the channel pair
number
currentPwm-
Mode
The current PWM mode set during PWM setup
dutyCycle-
Percent
New PWM pulse width; The value should be between 0 to 100 0=inactive signal(0%
duty cycle)... 100=active signal (100% duty cycle)
23.7.6 void FTM_UpdateChnlEdgeLevelSelect ( FTM_Type ∗base, ftm_chnl_t
chnlNumber, uint8_t level )
Parameters
base FTM peripheral base address
chnlNumber The channel number
level The level to be set to the ELSnB:ELSnA field; Valid values are 00, 01, 10, 11. See
the Kinetis SoC reference manual for details about this field.
23.7.7 void FTM_SetupInputCapture ( FTM_Type ∗base, ftm_chnl_t chnlNumber,
ftm_input_capture_edge_t captureMode, uint32_t filterValue )
When the edge specified in the captureMode argument occurs on the channel, the FTM counter is captured
into the CnV register. The user has to read the CnV register separately to get this value. The filter function
is disabled if the filterVal argument passed in is 0. The filter function is available only for channels 0, 1, 2,
3.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
515
Function Documentation
Parameters
base FTM peripheral base address
chnlNumber The channel number
captureMode Specifies which edge to capture
filterValue Filter value, specify 0 to disable filter. Available only for channels 0-3.
23.7.8 void FTM_SetupOutputCompare ( FTM_Type ∗base, ftm_chnl_t
chnlNumber, ftm_output_compare_mode_t compareMode, uint32_t
compareValue )
When the FTM counter matches the value of compareVal argument (this is written into CnV reg), the
channel output is changed based on what is specified in the compareMode argument.
Parameters
base FTM peripheral base address
chnlNumber The channel number
compareMode Action to take on the channel output when the compare condition is met
compareValue Value to be programmed in the CnV register.
23.7.9 void FTM_SetupDualEdgeCapture ( FTM_Type ∗base, ftm_chnl_t
chnlPairNumber, const ftm_dual_edge_capture_param_t ∗edgeParam,
uint32_t filterValue )
This function sets up the dual edge capture mode on a channel pair. The capture edge for the channel pair
and the capture mode (one-shot or continuous) is specified in the parameter argument. The filter function
is disabled if the filterVal argument passed is zero. The filter function is available only on channels 0 and
2. The user has to read the channel CnV registers separately to get the capture values.
Parameters
base FTM peripheral base address
chnlPair-
Number
The FTM channel pair number; options are 0, 1, 2, 3
516
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
edgeParam Sets up the dual edge capture function
filterValue Filter value, specify 0 to disable filter. Available only for channel pair 0 and 1.
23.7.10 void FTM_SetupQuadDecode ( FTM_Type ∗base, const
ftm_phase_params_t ∗phaseAParams, const ftm_phase_params_t ∗
phaseBParams, ftm_quad_decode_mode_t quadMode )
Parameters
base FTM peripheral base address
phaseAParams Phase A configuration parameters
phaseBParams Phase B configuration parameters
quadMode Selects encoding mode used in quadrature decoder mode
23.7.11 void FTM_SetupFault ( FTM_Type ∗base, ftm_fault_input_t faultNumber,
const ftm_fault_param_t ∗faultParams )
FTM can have up to 4 fault inputs. This function sets up fault parameters, fault level, and a filter.
Parameters
base FTM peripheral base address
faultNumber FTM fault to configure.
faultParams Parameters passed in to set up the fault
23.7.12 void FTM_EnableInterrupts ( FTM_Type ∗base, uint32_t mask )
Parameters
base FTM peripheral base address
mask The interrupts to enable. This is a logical OR of members of the enumeration ftm_-
interrupt_enable_t
23.7.13 void FTM_DisableInterrupts ( FTM_Type ∗base, uint32_t mask )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
517
Function Documentation
Parameters
base FTM peripheral base address
mask The interrupts to enable. This is a logical OR of members of the enumeration ftm_-
interrupt_enable_t
23.7.14 uint32_t FTM_GetEnabledInterrupts ( FTM_Type ∗base )
Parameters
base FTM peripheral base address
Returns
The enabled interrupts. This is the logical OR of members of the enumeration ftm_interrupt_enable-
_t
23.7.15 uint32_t FTM_GetStatusFlags ( FTM_Type ∗base )
Parameters
base FTM peripheral base address
Returns
The status flags. This is the logical OR of members of the enumeration ftm_status_flags_t
23.7.16 void FTM_ClearStatusFlags ( FTM_Type ∗base, uint32_t mask )
Parameters
base FTM peripheral base address
518
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
mask The status flags to clear. This is a logical OR of members of the enumeration ftm_-
status_flags_t
23.7.17 static void FTM_StartTimer ( FTM_Type ∗base, ftm_clock_source_t
clockSource )[inline],[static]
Parameters
base FTM peripheral base address
clockSource FTM clock source; After the clock source is set, the counter starts running.
23.7.18 static void FTM_StopTimer ( FTM_Type ∗base )[inline],[static]
Parameters
base FTM peripheral base address
23.7.19 static void FTM_SetSoftwareCtrlEnable ( FTM_Type ∗base, ftm_chnl_t
chnlNumber, bool value )[inline],[static]
Parameters
base FTM peripheral base address
chnlNumber Channel to be enabled or disabled
value true: channel output is affected by software output control false: channel output is
unaffected by software output control
23.7.20 static void FTM_SetSoftwareCtrlVal ( FTM_Type ∗base, ftm_chnl_t
chnlNumber, bool value )[inline],[static]
Parameters
base FTM peripheral base address.
chnlNumber Channel to be configured
value true to set 1, false to set 0
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
519
Function Documentation
23.7.21 static void FTM_SetGlobalTimeBaseOutputEnable ( FTM_Type ∗base,
bool enable )[inline],[static]
520
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base FTM peripheral base address
enable true to enable, false to disable
23.7.22 static void FTM_SetOutputMask ( FTM_Type ∗base, ftm_chnl_t
chnlNumber, bool mask )[inline],[static]
Parameters
base FTM peripheral base address
chnlNumber Channel to be configured
mask true: masked, channel is forced to its inactive state; false: unmasked
23.7.23 static void FTM_SetFaultControlEnable ( FTM_Type ∗base, ftm_chnl_t
chnlPairNumber, bool value )[inline],[static]
Parameters
base FTM peripheral base address
chnlPair-
Number
The FTM channel pair number; options are 0, 1, 2, 3
value true: Enable fault control for this channel pair; false: No fault control
23.7.24 static void FTM_SetDeadTimeEnable ( FTM_Type ∗base, ftm_chnl_t
chnlPairNumber, bool value )[inline],[static]
Parameters
base FTM peripheral base address
chnlPair-
Number
The FTM channel pair number; options are 0, 1, 2, 3
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
521
Function Documentation
value true: Insert dead time in this channel pair; false: No dead time inserted
23.7.25 static void FTM_SetComplementaryEnable ( FTM_Type ∗base, ftm_chnl_t
chnlPairNumber, bool value )[inline],[static]
Parameters
base FTM peripheral base address
chnlPair-
Number
The FTM channel pair number; options are 0, 1, 2, 3
value true: enable complementary mode; false: disable complementary mode
23.7.26 static void FTM_SetInvertEnable ( FTM_Type ∗base, ftm_chnl_t
chnlPairNumber, bool value )[inline],[static]
Parameters
base FTM peripheral base address
chnlPair-
Number
The FTM channel pair number; options are 0, 1, 2, 3
value true: enable inverting; false: disable inverting
23.7.27 static void FTM_SetSoftwareTrigger ( FTM_Type ∗base, bool enable )
[inline],[static]
Parameters
base FTM peripheral base address
enable true: software trigger is selected, false: software trigger is not selected
23.7.28 static void FTM_SetWriteProtection ( FTM_Type ∗base, bool enable )
[inline],[static]
522
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base FTM peripheral base address
enable true: Write-protection is enabled, false: Write-protection is disabled
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
523
Function Documentation
524
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 24
GPIO: General-Purpose Input/Output Driver
24.1 Overview
Modules
•FGPIO Driver
•GPIO Driver
Files
• file fsl_gpio.h
Data Structures
• struct gpio_pin_config_t
The GPIO pin configuration structure. More...
Enumerations
• enum gpio_pin_direction_t {
kGPIO_DigitalInput = 0U,
kGPIO_DigitalOutput = 1U }
GPIO direction definition.
Driver version
• #define FSL_GPIO_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
GPIO driver version 2.1.0.
24.2 Data Structure Documentation
24.2.1 struct gpio_pin_config_t
Every pin can only be configured as either output pin or input pin at a time. If configured as a input
pin, then leave the outputConfig unused Note : In some cases, the corresponding port property should be
configured in advance with the PORT_SetPinConfig()
Data Fields
•gpio_pin_direction_t pinDirection
gpio direction, input or output
• uint8_t outputLogic
Set default output logic, no use in input.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
525
Enumeration Type Documentation
24.3 Macro Definition Documentation
24.3.1 #define FSL_GPIO_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
24.4 Enumeration Type Documentation
24.4.1 enum gpio_pin_direction_t
Enumerator
kGPIO_DigitalInput Set current pin as digital input.
kGPIO_DigitalOutput Set current pin as digital output.
526
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
GPIO Driver
24.5 GPIO Driver
24.5.1 Overview
The KSDK provides a peripheral driver for the General-Purpose Input/Output (GPIO) module of Kinetis
devices.
24.5.2 Typical use case
24.5.2.1 Output Operation
/*Output pin configuration
gpio_pin_config_t led_config =
{
kGpioDigitalOutput,
1,
};
/*Sets the configuration
GPIO_PinInit(GPIO_LED, LED_PINNUM, &led_config);
24.5.2.2 Input Operation
/*Input pin configuration
PORT_SetPinInterruptConfig(BOARD_SW2_PORT, BOARD_SW2_GPIO_PIN, kPORT_InterruptFallingEdge);
NVIC_EnableIRQ(BOARD_SW2_IRQ);
gpio_pin_config_t sw1_config =
{
kGpioDigitalInput,
0,
};
/*Sets the input pin configuration
GPIO_PinInit(GPIO_SW1, SW1_PINNUM, &sw1_config);
GPIO Configuration
• void GPIO_PinInit (GPIO_Type ∗base, uint32_t pin, const gpio_pin_config_t ∗config)
Initializes a GPIO pin used by the board.
GPIO Output Operations
• static void GPIO_WritePinOutput (GPIO_Type ∗base, uint32_t pin, uint8_t output)
Sets the output level of one GPIO pin to the logic 1 or 0.
• static void GPIO_SetPinsOutput (GPIO_Type ∗base, uint32_t mask)
Sets the output level of the multiple GPIO pins to the logic 1.
• static void GPIO_ClearPinsOutput (GPIO_Type ∗base, uint32_t mask)
Sets the output level of the multiple GPIO pins to the logic 0.
• static void GPIO_TogglePinsOutput (GPIO_Type ∗base, uint32_t mask)
Reverses current output logic of the multiple GPIO pins.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
527
GPIO Driver
GPIO Input Operations
• static uint32_t GPIO_ReadPinInput (GPIO_Type ∗base, uint32_t pin)
Reads the current input value of the specified GPIO pin.
GPIO Interrupt
• uint32_t GPIO_GetPinsInterruptFlags (GPIO_Type ∗base)
Reads whole GPIO port interrupt status flag.
• void GPIO_ClearPinsInterruptFlags (GPIO_Type ∗base, uint32_t mask)
Clears multiple GPIO pins’ interrupt status flag.
24.5.3 Function Documentation
24.5.3.1 void GPIO_PinInit ( GPIO_Type ∗base, uint32_t pin, const gpio_pin_config_t ∗
config )
To initialize the GPIO, define a pin configuration, either input or output, in the user file. Then, call the
GPIO_PinInit() function.
This is an example to define an input pin or output pin configuration:
// Define a digital input pin configuration,
gpio_pin_config_t config =
{
kGPIO_DigitalInput,
0,
}
//Define a digital output pin configuration,
gpio_pin_config_t config =
{
kGPIO_DigitalOutput,
0,
}
Parameters
base GPIO peripheral base pointer(GPIOA, GPIOB, GPIOC, and so on.)
pin GPIO port pin number
config GPIO pin configuration pointer
24.5.3.2 static void GPIO_WritePinOutput ( GPIO_Type ∗base, uint32_t pin, uint8_t
output )[inline],[static]
528
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
GPIO Driver
Parameters
base GPIO peripheral base pointer(GPIOA, GPIOB, GPIOC, and so on.)
pin GPIO pin’s number
output GPIO pin output logic level.
• 0: corresponding pin output low logic level.
• 1: corresponding pin output high logic level.
24.5.3.3 static void GPIO_SetPinsOutput ( GPIO_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base GPIO peripheral base pointer(GPIOA, GPIOB, GPIOC, and so on.)
mask GPIO pins’ numbers macro
24.5.3.4 static void GPIO_ClearPinsOutput ( GPIO_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base GPIO peripheral base pointer(GPIOA, GPIOB, GPIOC, and so on.)
mask GPIO pins’ numbers macro
24.5.3.5 static void GPIO_TogglePinsOutput ( GPIO_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base GPIO peripheral base pointer(GPIOA, GPIOB, GPIOC, and so on.)
mask GPIO pins’ numbers macro
24.5.3.6 static uint32_t GPIO_ReadPinInput ( GPIO_Type ∗base, uint32_t pin )
[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
529
GPIO Driver
Parameters
base GPIO peripheral base pointer(GPIOA, GPIOB, GPIOC, and so on.)
pin GPIO pin’s number
Return values
GPIO port input value
• 0: corresponding pin input low logic level.
• 1: corresponding pin input high logic level.
24.5.3.7 uint32_t GPIO_GetPinsInterruptFlags ( GPIO_Type ∗base )
If a pin is configured to generate the DMA request, the corresponding flag is cleared automatically at the
completion of the requested DMA transfer. Otherwise, the flag remains set until a logic one is written to
that flag. If configured for a level sensitive interrupt that remains asserted, the flag is set again immediately.
Parameters
base GPIO peripheral base pointer(GPIOA, GPIOB, GPIOC, and so on.)
Return values
Current GPIO port interrupt status flag, for example, 0x00010001 means the pin 0
and 17 have the interrupt.
24.5.3.8 void GPIO_ClearPinsInterruptFlags ( GPIO_Type ∗base, uint32_t mask )
Parameters
base GPIO peripheral base pointer(GPIOA, GPIOB, GPIOC, and so on.)
mask GPIO pins’ numbers macro
530
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
FGPIO Driver
24.6 FGPIO Driver
This chapter describes the programming interface of the FGPIO driver. The FGPIO driver configures the
FGPIO module and provides a functional interface to build the GPIO application.
Note
FGPIO (Fast GPIO) is only available in a few MCUs. FGPIO and GPIO share the same peripheral
but use different registers. FGPIO is closer to the core than the regular GPIO and it’s faster to read
and write.
24.6.1 Typical use case
24.6.1.1 Output Operation
/*Output pin configuration
gpio_pin_config_t led_config =
{
kGpioDigitalOutput,
1,
};
/*Sets the configuration
FGPIO_PinInit(FGPIO_LED, LED_PINNUM, &led_config);
24.6.1.2 Input Operation
/*Input pin configuration
PORT_SetPinInterruptConfig(BOARD_SW2_PORT, BOARD_SW2_FGPIO_PIN, kPORT_InterruptFallingEdge);
NVIC_EnableIRQ(BOARD_SW2_IRQ);
gpio_pin_config_t sw1_config =
{
kGpioDigitalInput,
0,
};
/*Sets the input pin configuration
FGPIO_PinInit(FGPIO_SW1, SW1_PINNUM, &sw1_config);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
531
FGPIO Driver
532
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 25
I2C: Inter-Integrated Circuit Driver
25.1 Overview
Modules
•I2C DMA Driver
•I2C Driver
•I2C FreeRTOS Driver
•I2C eDMA Driver
•I2C µCOS/II Driver
•I2C µCOS/III Driver
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
533
I2C Driver
25.2 I2C Driver
25.2.1 Overview
The KSDK provides a peripheral driver for the Inter-Integrated Circuit (I2C) module of Kinetis devices.
25.2.2 Overview
The I2C driver includes functional APIs and transactional APIs.
Functional APIs are feature/property target low level APIs. Functional APIs can be used for the I2-
C master/slave initialization/configuration/operation for optimization/customization purpose. Using the
functional APIs requires the knowledge of the I2C master peripheral and how to organize functional APIs
to meet the application requirements. The I2C functional operation groups provide the functional APIs
set.
Transactional APIs are transaction target high level APIs. The transactional APIs can be used to enable
the peripheral quickly and also in the application if the code size and performance of transactional APIs
satisfy the requirements. If the code size and performance are critical requirements, see the transactional
API implementation and write custom code using the functional APIs or accessing the hardware registers.
Transactional APIs support asynchronous transfer. This means that the functions I2C_MasterTransfer-
NonBlocking() set up the interrupt non-blocking transfer. When the transfer completes, the upper layer is
notified through a callback function with the status.
25.2.3 Typical use case
25.2.3.1 Master Operation in functional method
i2c_master_config_t masterConfig;
uint8_t status;
status_t result = kStatus_Success;
uint8_t txBuff[BUFFER_SIZE];
/*Get default configuration for master.
I2C_MasterGetDefaultConfig(&masterConfig);
/*Init I2C master.
I2C_MasterInit(EXAMPLE_I2C_MASTER_BASEADDR, &masterConfig, I2C_MASTER_CLK);
/*Send start and slave address.
I2C_MasterStart(EXAMPLE_I2C_MASTER_BASEADDR, 7-bit slave address, kI2C_Write/kI2C_Read);
/*Wait address sent out.
while(!((status = I2C_GetStatusFlag(EXAMPLE_I2C_MASTER_BASEADDR)) & kI2C_IntPendingFlag))
{
}
if(status & kI2C_ReceiveNakFlag)
{
return kStatus_I2C_Nak;
}
534
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
result = I2C_MasterWriteBlocking(EXAMPLE_I2C_MASTER_BASEADDR, txBuff, BUFFER_SIZE);
if(result)
{
/*If error occours, send STOP.
I2C_MasterStop(EXAMPLE_I2C_MASTER_BASEADDR, kI2CStop);
return result;
}
while(!(I2C_GetStatusFlag(EXAMPLE_I2C_MASTER_BASEADDR) & kI2C_IntPendingFlag))
{
}
/*Wait all data sent out, send STOP.
I2C_MasterStop(EXAMPLE_I2C_MASTER_BASEADDR, kI2CStop);
25.2.3.2 Master Operation in interrupt transactional method
i2c_master_handle_t g_m_handle;
volatile bool g_MasterCompletionFlag = false;
i2c_master_config_t masterConfig;
uint8_t status;
status_t result = kStatus_Success;
uint8_t txBuff[BUFFER_SIZE];
i2c_master_transfer_t masterXfer;
static void i2c_master_callback(I2C_Type *base, i2c_master_handle_t *handle, status_t status, void *
userData)
{
/*Signal transfer success when received success status.
if (status == kStatus_Success)
{
g_MasterCompletionFlag = true;
}
}
/*Get default configuration for master.
I2C_MasterGetDefaultConfig(&masterConfig);
/*Init I2C master.
I2C_MasterInit(EXAMPLE_I2C_MASTER_BASEADDR, &masterConfig, I2C_MASTER_CLK);
masterXfer.slaveAddress = I2C_MASTER_SLAVE_ADDR_7BIT;
masterXfer.direction = kI2C_Write;
masterXfer.subaddress = NULL;
masterXfer.subaddressSize = 0;
masterXfer.data = txBuff;
masterXfer.dataSize = BUFFER_SIZE;
masterXfer.flags = kI2C_TransferDefaultFlag;
I2C_MasterTransferCreateHandle(EXAMPLE_I2C_MASTER_BASEADDR, &g_m_handle, i2c_master_callback, NULL);
I2C_MasterTransferNonBlocking(EXAMPLE_I2C_MASTER_BASEADDR, &g_m_handle, &masterXfer);
/*Wait for transfer completed.
while (!g_MasterCompletionFlag)
{
}
g_MasterCompletionFlag = false;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
535
I2C Driver
25.2.3.3 Master Operation in DMA transactional method
i2c_master_dma_handle_t g_m_dma_handle;
dma_handle_t dmaHandle;
volatile bool g_MasterCompletionFlag = false;
i2c_master_config_t masterConfig;
uint8_t txBuff[BUFFER_SIZE];
i2c_master_transfer_t masterXfer;
static void i2c_master_callback(I2C_Type *base, i2c_master_dma_handle_t *handle, status_t status, void *
userData)
{
/*Signal transfer success when received success status.
if (status == kStatus_Success)
{
g_MasterCompletionFlag = true;
}
}
/*Get default configuration for master.
I2C_MasterGetDefaultConfig(&masterConfig);
/*Init I2C master.
I2C_MasterInit(EXAMPLE_I2C_MASTER_BASEADDR, &masterConfig, I2C_MASTER_CLK);
masterXfer.slaveAddress = I2C_MASTER_SLAVE_ADDR_7BIT;
masterXfer.direction = kI2C_Write;
masterXfer.subaddress = NULL;
masterXfer.subaddressSize = 0;
masterXfer.data = txBuff;
masterXfer.dataSize = BUFFER_SIZE;
masterXfer.flags = kI2C_TransferDefaultFlag;
DMAMGR_RequestChannel((dma_request_source_t)DMA_REQUEST_SRC, 0, &dmaHandle);
I2C_MasterTransferCreateHandleDMA(EXAMPLE_I2C_MASTER_BASEADDR, &g_m_dma_handle, i2c_master_callback, NULL,
&dmaHandle);
I2C_MasterTransferDMA(EXAMPLE_I2C_MASTER_BASEADDR, &g_m_dma_handle, &masterXfer);
/*Wait for transfer completed.
while (!g_MasterCompletionFlag)
{
}
g_MasterCompletionFlag = false;
25.2.3.4 Slave Operation in functional method
i2c_slave_config_t slaveConfig;
uint8_t status;
status_t result = kStatus_Success;
I2C_SlaveGetDefaultConfig(&slaveConfig); /*default configuration 7-bit addressing
mode
slaveConfig.slaveAddr = 7-bit address
slaveConfig.addressingMode = kI2C_Address7bit/kI2C_RangeMatch;
I2C_SlaveInit(EXAMPLE_I2C_SLAVE_BASEADDR, &slaveConfig);
/*Wait address match.
while(!((status = I2C_GetStatusFlag(EXAMPLE_I2C_SLAVE_BASEADDR)) & kI2C_AddressMatchFlag))
{
}
/*Slave transmit, master reading from slave.
if (status & kI2C_TransferDirectionFlag)
536
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
{
result = I2C_SlaveWriteBlocking(EXAMPLE_I2C_SLAVE_BASEADDR);
}
else
{
I2C_SlaveReadBlocking(EXAMPLE_I2C_SLAVE_BASEADDR);
}
return result;
25.2.3.5 Slave Operation in interrupt transactional method
i2c_slave_config_t slaveConfig;
i2c_slave_handle_t g_s_handle;
volatile bool g_SlaveCompletionFlag = false;
static void i2c_slave_callback(I2C_Type *base, i2c_slave_transfer_t *xfer, void *
userData)
{
switch (xfer->event)
{
/*Transmit request
case kI2C_SlaveTransmitEvent:
/*Update information for transmit process
xfer->data = g_slave_buff;
xfer->dataSize = I2C_DATA_LENGTH;
break;
/*Receive request
case kI2C_SlaveReceiveEvent:
/*Update information for received process
xfer->data = g_slave_buff;
xfer->dataSize = I2C_DATA_LENGTH;
break;
/*Transfer done
case kI2C_SlaveCompletionEvent:
g_SlaveCompletionFlag = true;
break;
default:
g_SlaveCompletionFlag = true;
break;
}
}
I2C_SlaveGetDefaultConfig(&slaveConfig); /*default configuration 7-bit addressing mode
slaveConfig.slaveAddr = 7-bit address
slaveConfig.addressingMode = kI2C_Address7bit/kI2C_RangeMatch;
I2C_SlaveInit(EXAMPLE_I2C_SLAVE_BASEADDR, &slaveConfig);
I2C_SlaveTransferCreateHandle(EXAMPLE_I2C_SLAVE_BASEADDR, &g_s_handle, i2c_slave_callback, NULL);
I2C_SlaveTransferNonBlocking(EXAMPLE_I2C_SLAVE_BASEADDR, &g_s_handle, kI2C_SlaveCompletionEvent);
/*Wait for transfer completed.
while (!g_SlaveCompletionFlag)
{
}
g_SlaveCompletionFlag = false;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
537
I2C Driver
Files
• file fsl_i2c.h
Data Structures
• struct i2c_master_config_t
I2C master user configuration. More...
• struct i2c_slave_config_t
I2C slave user configuration. More...
• struct i2c_master_transfer_t
I2C master transfer structure. More...
• struct i2c_master_handle_t
I2C master handle structure. More...
• struct i2c_slave_transfer_t
I2C slave transfer structure. More...
• struct i2c_slave_handle_t
I2C slave handle structure. More...
Typedefs
• typedef void(∗i2c_master_transfer_callback_t )(I2C_Type ∗base, i2c_master_handle_t ∗handle,
status_t status, void ∗userData)
I2C master transfer callback typedef.
• typedef void(∗i2c_slave_transfer_callback_t )(I2C_Type ∗base, i2c_slave_transfer_t ∗xfer, void
∗userData)
I2C slave transfer callback typedef.
Enumerations
• enum _i2c_status {
kStatus_I2C_Busy = MAKE_STATUS(kStatusGroup_I2C, 0),
kStatus_I2C_Idle = MAKE_STATUS(kStatusGroup_I2C, 1),
kStatus_I2C_Nak = MAKE_STATUS(kStatusGroup_I2C, 2),
kStatus_I2C_ArbitrationLost = MAKE_STATUS(kStatusGroup_I2C, 3),
kStatus_I2C_Timeout = MAKE_STATUS(kStatusGroup_I2C, 4) }
I2C status return codes.
• enum _i2c_flags {
kI2C_ReceiveNakFlag = I2C_S_RXAK_MASK,
kI2C_IntPendingFlag = I2C_S_IICIF_MASK,
kI2C_TransferDirectionFlag = I2C_S_SRW_MASK,
kI2C_RangeAddressMatchFlag = I2C_S_RAM_MASK,
kI2C_ArbitrationLostFlag = I2C_S_ARBL_MASK,
kI2C_BusBusyFlag = I2C_S_BUSY_MASK,
kI2C_AddressMatchFlag = I2C_S_IAAS_MASK,
538
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
kI2C_TransferCompleteFlag = I2C_S_TCF_MASK }
I2C peripheral flags.
• enum _i2c_interrupt_enable {kI2C_GlobalInterruptEnable = I2C_C1_IICIE_MASK }
I2C feature interrupt source.
• enum i2c_direction_t {
kI2C_Write = 0x0U,
kI2C_Read = 0x1U }
Direction of master and slave transfers.
• enum i2c_slave_address_mode_t {
kI2C_Address7bit = 0x0U,
kI2C_RangeMatch = 0X2U }
Addressing mode.
• enum _i2c_master_transfer_flags {
kI2C_TransferDefaultFlag = 0x0U,
kI2C_TransferNoStartFlag = 0x1U,
kI2C_TransferRepeatedStartFlag = 0x2U,
kI2C_TransferNoStopFlag = 0x4U }
I2C transfer control flag.
• enum i2c_slave_transfer_event_t {
kI2C_SlaveAddressMatchEvent = 0x01U,
kI2C_SlaveTransmitEvent = 0x02U,
kI2C_SlaveReceiveEvent = 0x04U,
kI2C_SlaveTransmitAckEvent = 0x08U,
kI2C_SlaveCompletionEvent = 0x20U,
kI2C_SlaveAllEvents }
Set of events sent to the callback for nonblocking slave transfers.
Driver version
• #define FSL_I2C_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
I2C driver version 2.0.0.
Initialization and deinitialization
• void I2C_MasterInit (I2C_Type ∗base, const i2c_master_config_t ∗masterConfig, uint32_t src-
Clock_Hz)
Initializes the I2C peripheral.
• void I2C_SlaveInit (I2C_Type ∗base, const i2c_slave_config_t ∗slaveConfig)
Initializes the I2C peripheral.
• void I2C_MasterDeinit (I2C_Type ∗base)
De-initializes the I2C master peripheral.
• void I2C_SlaveDeinit (I2C_Type ∗base)
De-initializes the I2C slave peripheral.
• void I2C_MasterGetDefaultConfig (i2c_master_config_t ∗masterConfig)
Sets the I2C master configuration structure to default values.
• void I2C_SlaveGetDefaultConfig (i2c_slave_config_t ∗slaveConfig)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
539
I2C Driver
Sets the I2C slave configuration structure to default values.
• static void I2C_Enable (I2C_Type ∗base, bool enable)
Enables or disabless the I2C peripheral operation.
Status
• uint32_t I2C_MasterGetStatusFlags (I2C_Type ∗base)
Gets the I2C status flags.
• static uint32_t I2C_SlaveGetStatusFlags (I2C_Type ∗base)
Gets the I2C status flags.
• static void I2C_MasterClearStatusFlags (I2C_Type ∗base, uint32_t statusMask)
Clears the I2C status flag state.
• static void I2C_SlaveClearStatusFlags (I2C_Type ∗base, uint32_t statusMask)
Clears the I2C status flag state.
Interrupts
• void I2C_EnableInterrupts (I2C_Type ∗base, uint32_t mask)
Enables I2C interrupt requests.
• void I2C_DisableInterrupts (I2C_Type ∗base, uint32_t mask)
Disables I2C interrupt requests.
DMA Control
• static uint32_t I2C_GetDataRegAddr (I2C_Type ∗base)
Gets the I2C tx/rx data register address.
Bus Operations
• void I2C_MasterSetBaudRate (I2C_Type ∗base, uint32_t baudRate_Bps, uint32_t srcClock_Hz)
Sets the I2C master transfer baud rate.
• status_t I2C_MasterStart (I2C_Type ∗base, uint8_t address, i2c_direction_t direction)
Sends a START on the I2C bus.
• status_t I2C_MasterStop (I2C_Type ∗base)
Sends a STOP signal on the I2C bus.
• status_t I2C_MasterRepeatedStart (I2C_Type ∗base, uint8_t address, i2c_direction_t direction)
Sends a REPEATED START on the I2C bus.
• status_t I2C_MasterWriteBlocking (I2C_Type ∗base, const uint8_t ∗txBuff, size_t txSize)
Performs a polling send transaction on the I2C bus without a STOP signal.
• status_t I2C_MasterReadBlocking (I2C_Type ∗base, uint8_t ∗rxBuff, size_t rxSize)
Performs a polling receive transaction on the I2C bus with a STOP signal.
• status_t I2C_SlaveWriteBlocking (I2C_Type ∗base, const uint8_t ∗txBuff, size_t txSize)
Performs a polling send transaction on the I2C bus.
• void I2C_SlaveReadBlocking (I2C_Type ∗base, uint8_t ∗rxBuff, size_t rxSize)
Performs a polling receive transaction on the I2C bus.
• status_t I2C_MasterTransferBlocking (I2C_Type ∗base, i2c_master_transfer_t ∗xfer)
540
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
Performs a master polling transfer on the I2C bus.
Transactional
• void I2C_MasterTransferCreateHandle (I2C_Type ∗base, i2c_master_handle_t ∗handle, i2c_-
master_transfer_callback_t callback, void ∗userData)
Initializes the I2C handle which is used in transactional functions.
• status_t I2C_MasterTransferNonBlocking (I2C_Type ∗base, i2c_master_handle_t ∗handle, i2c_-
master_transfer_t ∗xfer)
Performs a master interrupt non-blocking transfer on the I2C bus.
• status_t I2C_MasterTransferGetCount (I2C_Type ∗base, i2c_master_handle_t ∗handle, size_t
∗count)
Gets the master transfer status during a interrupt non-blocking transfer.
• void I2C_MasterTransferAbort (I2C_Type ∗base, i2c_master_handle_t ∗handle)
Aborts an interrupt non-blocking transfer early.
• void I2C_MasterTransferHandleIRQ (I2C_Type ∗base, void ∗i2cHandle)
Master interrupt handler.
• void I2C_SlaveTransferCreateHandle (I2C_Type ∗base, i2c_slave_handle_t ∗handle, i2c_slave_-
transfer_callback_t callback, void ∗userData)
Initializes the I2C handle which is used in transactional functions.
• status_t I2C_SlaveTransferNonBlocking (I2C_Type ∗base, i2c_slave_handle_t ∗handle, uint32_t
eventMask)
Starts accepting slave transfers.
• void I2C_SlaveTransferAbort (I2C_Type ∗base, i2c_slave_handle_t ∗handle)
Aborts the slave transfer.
• status_t I2C_SlaveTransferGetCount (I2C_Type ∗base, i2c_slave_handle_t ∗handle, size_t ∗count)
Gets the slave transfer remaining bytes during a interrupt non-blocking transfer.
• void I2C_SlaveTransferHandleIRQ (I2C_Type ∗base, void ∗i2cHandle)
Slave interrupt handler.
25.2.4 Data Structure Documentation
25.2.4.1 struct i2c_master_config_t
Data Fields
• bool enableMaster
Enables the I2C peripheral at initialization time.
• uint32_t baudRate_Bps
Baud rate configuration of I2C peripheral.
• uint8_t glitchFilterWidth
Controls the width of the glitch.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
541
I2C Driver
25.2.4.1.0.16 Field Documentation
25.2.4.1.0.16.1 bool i2c_master_config_t::enableMaster
25.2.4.1.0.16.2 uint32_t i2c_master_config_t::baudRate_Bps
25.2.4.1.0.16.3 uint8_t i2c_master_config_t::glitchFilterWidth
25.2.4.2 struct i2c_slave_config_t
Data Fields
• bool enableSlave
Enables the I2C peripheral at initialization time.
• bool enableGeneralCall
Enable general call addressing mode.
• bool enableWakeUp
Enables/disables waking up MCU from low power mode.
• bool enableBaudRateCtl
Enables/disables independent slave baud rate on SCL in very fast I2C modes.
• uint16_t slaveAddress
Slave address configuration.
• uint16_t upperAddress
Maximum boundary slave address used in range matching mode.
•i2c_slave_address_mode_t addressingMode
Addressing mode configuration of i2c_slave_address_mode_config_t.
25.2.4.2.0.17 Field Documentation
25.2.4.2.0.17.1 bool i2c_slave_config_t::enableSlave
25.2.4.2.0.17.2 bool i2c_slave_config_t::enableGeneralCall
25.2.4.2.0.17.3 bool i2c_slave_config_t::enableWakeUp
25.2.4.2.0.17.4 bool i2c_slave_config_t::enableBaudRateCtl
25.2.4.2.0.17.5 uint16_t i2c_slave_config_t::slaveAddress
25.2.4.2.0.17.6 uint16_t i2c_slave_config_t::upperAddress
25.2.4.2.0.17.7 i2c_slave_address_mode_t i2c_slave_config_t::addressingMode
25.2.4.3 struct i2c_master_transfer_t
Data Fields
• uint32_t flags
Transfer flag which controls the transfer.
• uint8_t slaveAddress
7-bit slave address.
542
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
•i2c_direction_t direction
Transfer direction, read or write.
• uint32_t subaddress
Sub address.
• uint8_t subaddressSize
Size of command buffer.
• uint8_t ∗volatile data
Transfer buffer.
• volatile size_t dataSize
Transfer size.
25.2.4.3.0.18 Field Documentation
25.2.4.3.0.18.1 uint32_t i2c_master_transfer_t::flags
25.2.4.3.0.18.2 uint8_t i2c_master_transfer_t::slaveAddress
25.2.4.3.0.18.3 i2c_direction_t i2c_master_transfer_t::direction
25.2.4.3.0.18.4 uint32_t i2c_master_transfer_t::subaddress
Transferred MSB first.
25.2.4.3.0.18.5 uint8_t i2c_master_transfer_t::subaddressSize
25.2.4.3.0.18.6 uint8_t∗volatile i2c_master_transfer_t::data
25.2.4.3.0.18.7 volatile size_t i2c_master_transfer_t::dataSize
25.2.4.4 struct _i2c_master_handle
I2C master handle typedef.
Data Fields
•i2c_master_transfer_t transfer
I2C master transfer copy.
• size_t transferSize
Total bytes to be transferred.
• uint8_t state
Transfer state maintained during transfer.
•i2c_master_transfer_callback_t completionCallback
Callback function called when transfer finished.
• void ∗userData
Callback parameter passed to callback function.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
543
I2C Driver
25.2.4.4.0.19 Field Documentation
25.2.4.4.0.19.1 i2c_master_transfer_t i2c_master_handle_t::transfer
25.2.4.4.0.19.2 size_t i2c_master_handle_t::transferSize
25.2.4.4.0.19.3 uint8_t i2c_master_handle_t::state
25.2.4.4.0.19.4 i2c_master_transfer_callback_t i2c_master_handle_t::completionCallback
25.2.4.4.0.19.5 void∗i2c_master_handle_t::userData
25.2.4.5 struct i2c_slave_transfer_t
Data Fields
•i2c_slave_transfer_event_t event
Reason the callback is being invoked.
• uint8_t ∗volatile data
Transfer buffer.
• volatile size_t dataSize
Transfer size.
• status_t completionStatus
Success or error code describing how the transfer completed.
• size_t transferredCount
Number of bytes actually transferred since start or last repeated start.
25.2.4.5.0.20 Field Documentation
25.2.4.5.0.20.1 i2c_slave_transfer_event_t i2c_slave_transfer_t::event
25.2.4.5.0.20.2 uint8_t∗volatile i2c_slave_transfer_t::data
25.2.4.5.0.20.3 volatile size_t i2c_slave_transfer_t::dataSize
25.2.4.5.0.20.4 status_t i2c_slave_transfer_t::completionStatus
Only applies for kI2C_SlaveCompletionEvent.
25.2.4.5.0.20.5 size_t i2c_slave_transfer_t::transferredCount
25.2.4.6 struct _i2c_slave_handle
I2C slave handle typedef.
Data Fields
• bool isBusy
Whether transfer is busy.
•i2c_slave_transfer_t transfer
544
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
I2C slave transfer copy.
• uint32_t eventMask
Mask of enabled events.
•i2c_slave_transfer_callback_t callback
Callback function called at transfer event.
• void ∗userData
Callback parameter passed to callback.
25.2.4.6.0.21 Field Documentation
25.2.4.6.0.21.1 bool i2c_slave_handle_t::isBusy
25.2.4.6.0.21.2 i2c_slave_transfer_t i2c_slave_handle_t::transfer
25.2.4.6.0.21.3 uint32_t i2c_slave_handle_t::eventMask
25.2.4.6.0.21.4 i2c_slave_transfer_callback_t i2c_slave_handle_t::callback
25.2.4.6.0.21.5 void∗i2c_slave_handle_t::userData
25.2.5 Macro Definition Documentation
25.2.5.1 #define FSL_I2C_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
25.2.6 Typedef Documentation
25.2.6.1 typedef void(∗i2c_master_transfer_callback_t)(I2C_Type ∗base,
i2c_master_handle_t ∗handle, status_t status, void ∗userData)
25.2.6.2 typedef void(∗i2c_slave_transfer_callback_t)(I2C_Type ∗base,
i2c_slave_transfer_t ∗xfer, void ∗userData)
25.2.7 Enumeration Type Documentation
25.2.7.1 enum _i2c_status
Enumerator
kStatus_I2C_Busy I2C is busy with current transfer.
kStatus_I2C_Idle Bus is Idle.
kStatus_I2C_Nak NAK received during transfer.
kStatus_I2C_ArbitrationLost Arbitration lost during transfer.
kStatus_I2C_Timeout Wait event timeout.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
545
I2C Driver
25.2.7.2 enum _i2c_flags
The following status register flags can be cleared:
•kI2C_ArbitrationLostFlag
•kI2C_IntPendingFlag
• #kI2C_StartDetectFlag
• #kI2C_StopDetectFlag
Note
These enumerations are meant to be OR’d together to form a bit mask.
Enumerator
kI2C_ReceiveNakFlag I2C receive NAK flag.
kI2C_IntPendingFlag I2C interrupt pending flag.
kI2C_TransferDirectionFlag I2C transfer direction flag.
kI2C_RangeAddressMatchFlag I2C range address match flag.
kI2C_ArbitrationLostFlag I2C arbitration lost flag.
kI2C_BusBusyFlag I2C bus busy flag.
kI2C_AddressMatchFlag I2C address match flag.
kI2C_TransferCompleteFlag I2C transfer complete flag.
25.2.7.3 enum _i2c_interrupt_enable
Enumerator
kI2C_GlobalInterruptEnable I2C global interrupt.
25.2.7.4 enum i2c_direction_t
Enumerator
kI2C_Write Master transmit to slave.
kI2C_Read Master receive from slave.
25.2.7.5 enum i2c_slave_address_mode_t
Enumerator
kI2C_Address7bit 7-bit addressing mode.
kI2C_RangeMatch Range address match addressing mode.
546
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
25.2.7.6 enum _i2c_master_transfer_flags
Enumerator
kI2C_TransferDefaultFlag Transfer starts with a start signal, stops with a stop signal.
kI2C_TransferNoStartFlag Transfer starts without a start signal.
kI2C_TransferRepeatedStartFlag Transfer starts with a repeated start signal.
kI2C_TransferNoStopFlag Transfer ends without a stop signal.
25.2.7.7 enum i2c_slave_transfer_event_t
These event enumerations are used for two related purposes. First, a bit mask created by OR’ing together
events is passed to I2C_SlaveTransferNonBlocking() in order to specify which events to enable. Then,
when the slave callback is invoked, it is passed the current event through its transfer parameter.
Note
These enumerations are meant to be OR’d together to form a bit mask of events.
Enumerator
kI2C_SlaveAddressMatchEvent Received the slave address after a start or repeated start.
kI2C_SlaveTransmitEvent Callback is requested to provide data to transmit (slave-transmitter role).
kI2C_SlaveReceiveEvent Callback is requested to provide a buffer in which to place received data
(slave-receiver role).
kI2C_SlaveTransmitAckEvent Callback needs to either transmit an ACK or NACK.
kI2C_SlaveCompletionEvent A stop was detected or finished transfer, completing the transfer.
kI2C_SlaveAllEvents Bit mask of all available events.
25.2.8 Function Documentation
25.2.8.1 void I2C_MasterInit ( I2C_Type ∗base, const i2c_master_config_t ∗
masterConfig, uint32_t srcClock_Hz )
Call this API to ungate the I2C clock and configure the I2C with master configuration.
Note
This API should be called at the beginning of the application to use the I2C driver, or any operation
to the I2C module could cause hard fault because clock is not enabled. The configuration structure
can be filled by user from scratch, or be set with default values by I2C_MasterGetDefaultConfig().
After calling this API, the master is ready to transfer. Example:
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
547
I2C Driver
i2c_master_config_t config = {
.enableMaster =true,
.enableStopHold = false,
.highDrive = false,
.baudRate_Bps = 100000,
.glitchFilterWidth = 0
};
I2C_MasterInit(I2C0, &config, 12000000U);
Parameters
base I2C base pointer
masterConfig pointer to master configuration structure
srcClock_Hz I2C peripheral clock frequency in Hz
25.2.8.2 void I2C_SlaveInit ( I2C_Type ∗base, const i2c_slave_config_t ∗slaveConfig )
Call this API to ungate the I2C clock and initializes the I2C with slave configuration.
Note
This API should be called at the beginning of the application to use the I2C driver, or any operation to
the I2C module can cause a hard fault because the clock is not enabled. The configuration structure
can partly be set with default values by I2C_SlaveGetDefaultConfig(), or can be filled by the user.
Example
i2c_slave_config_t config = {
.enableSlave =true,
.enableGeneralCall = false,
.addressingMode = kI2C_Address7bit,
.slaveAddress = 0x1DU,
.enableWakeUp = false,
.enablehighDrive = false,
.enableBaudRateCtl = false
};
I2C_SlaveInit(I2C0, &config);
Parameters
base I2C base pointer
slaveConfig pointer to slave configuration structure
25.2.8.3 void I2C_MasterDeinit ( I2C_Type ∗base )
Call this API to gate the I2C clock. The I2C master module can’t work unless the I2C_MasterInit is called.
548
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
Parameters
base I2C base pointer
25.2.8.4 void I2C_SlaveDeinit ( I2C_Type ∗base )
Calling this API gates the I2C clock. The I2C slave module can’t work unless the I2C_SlaveInit is called
to enable the clock.
Parameters
base I2C base pointer
25.2.8.5 void I2C_MasterGetDefaultConfig ( i2c_master_config_t ∗masterConfig )
The purpose of this API is to get the configuration structure initialized for use in the I2C_Master-
Configure(). Use the initialized structure unchanged in I2C_MasterConfigure(), or modify some fields
of the structure before calling I2C_MasterConfigure(). Example:
i2c_master_config_t config;
I2C_MasterGetDefaultConfig(&config);
Parameters
masterConfig Pointer to the master configuration structure.
25.2.8.6 void I2C_SlaveGetDefaultConfig ( i2c_slave_config_t ∗slaveConfig )
The purpose of this API is to get the configuration structure initialized for use in I2C_SlaveConfigure().
Modify fields of the structure before calling the I2C_SlaveConfigure(). Example:
i2c_slave_config_t config;
I2C_SlaveGetDefaultConfig(&config);
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
549
I2C Driver
slaveConfig Pointer to the slave configuration structure.
25.2.8.7 static void I2C_Enable ( I2C_Type ∗base, bool enable )[inline],[static]
Parameters
base I2C base pointer
enable pass true to enable module, false to disable module
25.2.8.8 uint32_t I2C_MasterGetStatusFlags ( I2C_Type ∗base )
Parameters
base I2C base pointer
Returns
status flag, use status flag to AND _i2c_flags could get the related status.
25.2.8.9 static uint32_t I2C_SlaveGetStatusFlags ( I2C_Type ∗base )[inline],
[static]
Parameters
base I2C base pointer
Returns
status flag, use status flag to AND _i2c_flags could get the related status.
25.2.8.10 static void I2C_MasterClearStatusFlags ( I2C_Type ∗base, uint32_t statusMask
)[inline],[static]
The following status register flags can be cleared: kI2C_ArbitrationLostFlag and kI2C_IntPendingFlag
550
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
Parameters
base I2C base pointer
statusMask The status flag mask, defined in type i2c_status_flag_t. The parameter could be any
combination of the following values:
• kI2C_StartDetectFlag (if available)
• kI2C_StopDetectFlag (if available)
• kI2C_ArbitrationLostFlag
• kI2C_IntPendingFlagFlag
25.2.8.11 static void I2C_SlaveClearStatusFlags ( I2C_Type ∗base, uint32_t statusMask
)[inline],[static]
The following status register flags can be cleared: kI2C_ArbitrationLostFlag and kI2C_IntPendingFlag
Parameters
base I2C base pointer
statusMask The status flag mask, defined in type i2c_status_flag_t. The parameter could be any
combination of the following values:
• kI2C_StartDetectFlag (if available)
• kI2C_StopDetectFlag (if available)
• kI2C_ArbitrationLostFlag
• kI2C_IntPendingFlagFlag
25.2.8.12 void I2C_EnableInterrupts ( I2C_Type ∗base, uint32_t mask )
Parameters
base I2C base pointer
mask interrupt source The parameter can be combination of the following source if defined:
• kI2C_GlobalInterruptEnable
• kI2C_StopDetectInterruptEnable/kI2C_StartDetectInterruptEnable
• kI2C_SdaTimeoutInterruptEnable
25.2.8.13 void I2C_DisableInterrupts ( I2C_Type ∗base, uint32_t mask )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
551
I2C Driver
Parameters
base I2C base pointer
mask interrupt source The parameter can be combination of the following source if defined:
• kI2C_GlobalInterruptEnable
• kI2C_StopDetectInterruptEnable/kI2C_StartDetectInterruptEnable
• kI2C_SdaTimeoutInterruptEnable
25.2.8.14 static uint32_t I2C_GetDataRegAddr ( I2C_Type ∗base )[inline],
[static]
This API is used to provide a transfer address for I2C DMA transfer configuration.
Parameters
base I2C base pointer
Returns
data register address
25.2.8.15 void I2C_MasterSetBaudRate ( I2C_Type ∗base, uint32_t baudRate_Bps,
uint32_t srcClock_Hz )
Parameters
base I2C base pointer
baudRate_Bps the baud rate value in bps
srcClock_Hz Source clock
25.2.8.16 status_t I2C_MasterStart ( I2C_Type ∗base, uint8_t address, i2c_direction_t
direction )
This function is used to initiate a new master mode transfer by sending the START signal. The slave
address is sent following the I2C START signal.
552
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
Parameters
base I2C peripheral base pointer
address 7-bit slave device address.
direction Master transfer directions(transmit/receive).
Return values
kStatus_Success Successfully send the start signal.
kStatus_I2C_Busy Current bus is busy.
25.2.8.17 status_t I2C_MasterStop ( I2C_Type ∗base )
Return values
kStatus_Success Successfully send the stop signal.
kStatus_I2C_Timeout Send stop signal failed, timeout.
25.2.8.18 status_t I2C_MasterRepeatedStart ( I2C_Type ∗base, uint8_t address,
i2c_direction_t direction )
Parameters
base I2C peripheral base pointer
address 7-bit slave device address.
direction Master transfer directions(transmit/receive).
Return values
kStatus_Success Successfully send the start signal.
kStatus_I2C_Busy Current bus is busy but not occupied by current I2C master.
25.2.8.19 status_t I2C_MasterWriteBlocking ( I2C_Type ∗base, const uint8_t ∗txBuff,
size_t txSize )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
553
I2C Driver
Parameters
base The I2C peripheral base pointer.
txBuff The pointer to the data to be transferred.
txSize The length in bytes of the data to be transferred.
Return values
kStatus_Success Successfully complete the data transmission.
kStatus_I2C_Arbitration-
Lost
Transfer error, arbitration lost.
kStataus_I2C_Nak Transfer error, receive NAK during transfer.
25.2.8.20 status_t I2C_MasterReadBlocking ( I2C_Type ∗base, uint8_t ∗rxBuff, size_t
rxSize )
Note
The I2C_MasterReadBlocking function stops the bus before reading the final byte. Without stopping
the bus prior for the final read, the bus issues another read, resulting in garbage data being read into
the data register.
Parameters
base I2C peripheral base pointer.
rxBuff The pointer to the data to store the received data.
rxSize The length in bytes of the data to be received.
Return values
kStatus_Success Successfully complete the data transmission.
kStatus_I2C_Timeout Send stop signal failed, timeout.
25.2.8.21 status_t I2C_SlaveWriteBlocking ( I2C_Type ∗base, const uint8_t ∗txBuff,
size_t txSize )
554
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
Parameters
base The I2C peripheral base pointer.
txBuff The pointer to the data to be transferred.
txSize The length in bytes of the data to be transferred.
Return values
kStatus_Success Successfully complete the data transmission.
kStatus_I2C_Arbitration-
Lost
Transfer error, arbitration lost.
kStataus_I2C_Nak Transfer error, receive NAK during transfer.
25.2.8.22 void I2C_SlaveReadBlocking ( I2C_Type ∗base, uint8_t ∗rxBuff, size_t rxSize
)
Parameters
base I2C peripheral base pointer.
rxBuff The pointer to the data to store the received data.
rxSize The length in bytes of the data to be received.
25.2.8.23 status_t I2C_MasterTransferBlocking ( I2C_Type ∗base, i2c_master_transfer_t
∗xfer )
Note
The API does not return until the transfer succeeds or fails due to arbitration lost or receiving a NAK.
Parameters
base I2C peripheral base address.
xfer Pointer to the transfer structure.
Return values
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
555
I2C Driver
kStatus_Success Successfully complete the data transmission.
kStatus_I2C_Busy Previous transmission still not finished.
kStatus_I2C_Timeout Transfer error, wait signal timeout.
kStatus_I2C_Arbitration-
Lost
Transfer error, arbitration lost.
kStataus_I2C_Nak Transfer error, receive NAK during transfer.
25.2.8.24 void I2C_MasterTransferCreateHandle ( I2C_Type ∗base, i2c_master_handle_t
∗handle, i2c_master_transfer_callback_t callback, void ∗userData )
Parameters
base I2C base pointer.
handle pointer to i2c_master_handle_t structure to store the transfer state.
callback pointer to user callback function.
userData user paramater passed to the callback function.
25.2.8.25 status_t I2C_MasterTransferNonBlocking ( I2C_Type ∗base,
i2c_master_handle_t ∗handle, i2c_master_transfer_t ∗xfer )
Note
Calling the API will return immediately after transfer initiates, user needs to call I2C_MasterGet-
TransferCount to poll the transfer status to check whether the transfer is finished, if the return status
is not kStatus_I2C_Busy, the transfer is finished.
Parameters
base I2C base pointer.
handle pointer to i2c_master_handle_t structure which stores the transfer state.
xfer pointer to i2c_master_transfer_t structure.
Return values
kStatus_Success Sucessully start the data transmission.
kStatus_I2C_Busy Previous transmission still not finished.
kStatus_I2C_Timeout Transfer error, wait signal timeout.
556
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
25.2.8.26 status_t I2C_MasterTransferGetCount ( I2C_Type ∗base, i2c_master_handle_t
∗handle, size_t ∗count )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
557
I2C Driver
Parameters
base I2C base pointer.
handle pointer to i2c_master_handle_t structure which stores the transfer state.
count Number of bytes transferred so far by the non-blocking transaction.
Return values
kStatus_InvalidArgument count is Invalid.
kStatus_Success Successfully return the count.
25.2.8.27 void I2C_MasterTransferAbort ( I2C_Type ∗base, i2c_master_handle_t ∗
handle )
Note
This API can be called at any time when an interrupt non-blocking transfer initiates to abort the
transfer early.
Parameters
base I2C base pointer.
handle pointer to i2c_master_handle_t structure which stores the transfer state
25.2.8.28 void I2C_MasterTransferHandleIRQ ( I2C_Type ∗base, void ∗i2cHandle )
Parameters
base I2C base pointer.
i2cHandle pointer to i2c_master_handle_t structure.
25.2.8.29 void I2C_SlaveTransferCreateHandle ( I2C_Type ∗base, i2c_slave_handle_t ∗
handle, i2c_slave_transfer_callback_t callback, void ∗userData )
558
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C Driver
Parameters
base I2C base pointer.
handle pointer to i2c_slave_handle_t structure to store the transfer state.
callback pointer to user callback function.
userData user parameter passed to the callback function.
25.2.8.30 status_t I2C_SlaveTransferNonBlocking ( I2C_Type ∗base, i2c_slave_handle_t
∗handle, uint32_t eventMask )
Call this API after calling the I2C_SlaveInit() and I2C_SlaveTransferCreateHandle() to start processing
transactions driven by an I2C master. The slave monitors the I2C bus and passes events to the callback
that was passed into the call to I2C_SlaveTransferCreateHandle(). The callback is always invoked from
the interrupt context.
The set of events received by the callback is customizable. To do so, set the eventMask parameter to the
OR’d combination of i2c_slave_transfer_event_t enumerators for the events you wish to receive. The k-
I2C_SlaveTransmitEvent and kLPI2C_SlaveReceiveEvent events are always enabled and do not need to
be included in the mask. Alternatively, pass 0 to get a default set of only the transmit and receive events
that are always enabled. In addition, the kI2C_SlaveAllEvents constant is provided as a convenient way
to enable all events.
Parameters
base The I2C peripheral base address.
handle Pointer to #i2c_slave_handle_t structure which stores the transfer state.
eventMask Bit mask formed by OR’ing together i2c_slave_transfer_event_t enumerators to spec-
ify which events to send to the callback. Other accepted values are 0 to get a default
set of only the transmit and receive events, and kI2C_SlaveAllEvents to enable all
events.
Return values
#kStatus_Success Slave transfers were successfully started.
kStatus_I2C_Busy Slave transfers have already been started on this handle.
25.2.8.31 void I2C_SlaveTransferAbort ( I2C_Type ∗base, i2c_slave_handle_t ∗handle )
Note
This API can be called at any time to stop slave for handling the bus events.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
559
I2C Driver
Parameters
base I2C base pointer.
handle pointer to i2c_slave_handle_t structure which stores the transfer state.
25.2.8.32 status_t I2C_SlaveTransferGetCount ( I2C_Type ∗base, i2c_slave_handle_t ∗
handle, size_t ∗count )
Parameters
base I2C base pointer.
handle pointer to i2c_slave_handle_t structure.
count Number of bytes transferred so far by the non-blocking transaction.
Return values
kStatus_InvalidArgument count is Invalid.
kStatus_Success Successfully return the count.
25.2.8.33 void I2C_SlaveTransferHandleIRQ ( I2C_Type ∗base, void ∗i2cHandle )
Parameters
base I2C base pointer.
i2cHandle pointer to i2c_slave_handle_t structure which stores the transfer state
560
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C DMA Driver
25.3 I2C DMA Driver
25.3.1 Overview
Files
• file fsl_i2c_dma.h
Data Structures
• struct i2c_master_dma_handle_t
I2C master dma transfer structure. More...
Typedefs
• typedef void(∗i2c_master_dma_transfer_callback_t )(I2C_Type ∗base, i2c_master_dma_handle_t
∗handle, status_t status, void ∗userData)
I2C master dma transfer callback typedef.
I2C Block DMA Transfer Operation
• void I2C_MasterTransferCreateHandleDMA (I2C_Type ∗base, i2c_master_dma_handle_t ∗handle,
i2c_master_dma_transfer_callback_t callback, void ∗userData, dma_handle_t ∗dmaHandle)
Init the I2C handle which is used in transcational functions.
• status_t I2C_MasterTransferDMA (I2C_Type ∗base, i2c_master_dma_handle_t ∗handle, i2c_-
master_transfer_t ∗xfer)
Performs a master dma non-blocking transfer on the I2C bus.
• status_t I2C_MasterTransferGetCountDMA (I2C_Type ∗base, i2c_master_dma_handle_t ∗handle,
size_t ∗count)
Get master transfer status during a dma non-blocking transfer.
• void I2C_MasterTransferAbortDMA (I2C_Type ∗base, i2c_master_dma_handle_t ∗handle)
Abort a master dma non-blocking transfer in a early time.
25.3.2 Data Structure Documentation
25.3.2.1 struct _i2c_master_dma_handle
I2C master dma handle typedef.
Data Fields
•i2c_master_transfer_t transfer
I2C master transfer struct.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
561
I2C DMA Driver
• size_t transferSize
Total bytes to be transferred.
• uint8_t state
I2C master transfer status.
•dma_handle_t ∗dmaHandle
The DMA handler used.
•i2c_master_dma_transfer_callback_t completionCallback
Callback function called after dma transfer finished.
• void ∗userData
Callback parameter passed to callback function.
25.3.2.1.0.22 Field Documentation
25.3.2.1.0.22.1 i2c_master_transfer_t i2c_master_dma_handle_t::transfer
25.3.2.1.0.22.2 size_t i2c_master_dma_handle_t::transferSize
25.3.2.1.0.22.3 uint8_t i2c_master_dma_handle_t::state
25.3.2.1.0.22.4 dma_handle_t∗i2c_master_dma_handle_t::dmaHandle
25.3.2.1.0.22.5 i2c_master_dma_transfer_callback_t i2c_master_dma_handle_t::completion-
Callback
25.3.2.1.0.22.6 void∗i2c_master_dma_handle_t::userData
25.3.3 Typedef Documentation
25.3.3.1 typedef void(∗i2c_master_dma_transfer_callback_t)(I2C_Type ∗base,
i2c_master_dma_handle_t ∗handle, status_t status, void ∗userData)
25.3.4 Function Documentation
25.3.4.1 void I2C_MasterTransferCreateHandleDMA ( I2C_Type ∗base,
i2c_master_dma_handle_t ∗handle, i2c_master_dma_transfer_callback_t
callback, void ∗userData, dma_handle_t ∗dmaHandle )
Parameters
base I2C peripheral base address
handle pointer to i2c_master_dma_handle_t structure
562
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C DMA Driver
callback pointer to user callback function
userData user param passed to the callback function
dmaHandle DMA handle pointer
25.3.4.2 status_t I2C_MasterTransferDMA ( I2C_Type ∗base, i2c_master_dma_handle_t
∗handle, i2c_master_transfer_t ∗xfer )
Parameters
base I2C peripheral base address
handle pointer to i2c_master_dma_handle_t structure
xfer pointer to transfer structure of i2c_master_transfer_t
Return values
kStatus_Success Sucessully complete the data transmission.
kStatus_I2C_Busy Previous transmission still not finished.
kStatus_I2C_Timeout Transfer error, wait signal timeout.
kStatus_I2C_Arbitration-
Lost
Transfer error, arbitration lost.
kStataus_I2C_Nak Transfer error, receive Nak during transfer.
25.3.4.3 status_t I2C_MasterTransferGetCountDMA ( I2C_Type ∗base,
i2c_master_dma_handle_t ∗handle, size_t ∗count )
Parameters
base I2C peripheral base address
handle pointer to i2c_master_dma_handle_t structure
count Number of bytes transferred so far by the non-blocking transaction.
25.3.4.4 void I2C_MasterTransferAbortDMA ( I2C_Type ∗base, i2c_master_dma_handle_t
∗handle )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
563
I2C DMA Driver
Parameters
base I2C peripheral base address
handle pointer to i2c_master_dma_handle_t structure
564
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C eDMA Driver
25.4 I2C eDMA Driver
25.4.1 Overview
Files
• file fsl_i2c_edma.h
Data Structures
• struct i2c_master_edma_handle_t
I2C master edma transfer structure. More...
Typedefs
• typedef void(∗i2c_master_edma_transfer_callback_t )(I2C_Type ∗base, i2c_master_edma_handle-
_t ∗handle, status_t status, void ∗userData)
I2C master edma transfer callback typedef.
I2C Block EDMA Transfer Operation
• void I2C_MasterCreateEDMAHandle (I2C_Type ∗base, i2c_master_edma_handle_t ∗handle, i2c_-
master_edma_transfer_callback_t callback, void ∗userData, edma_handle_t ∗edmaHandle)
Init the I2C handle which is used in transcational functions.
• status_t I2C_MasterTransferEDMA (I2C_Type ∗base, i2c_master_edma_handle_t ∗handle, i2c_-
master_transfer_t ∗xfer)
Performs a master edma non-blocking transfer on the I2C bus.
• status_t I2C_MasterTransferGetCountEDMA (I2C_Type ∗base, i2c_master_edma_handle_-
t∗handle, size_t ∗count)
Get master transfer status during a edma non-blocking transfer.
• void I2C_MasterTransferAbortEDMA (I2C_Type ∗base, i2c_master_edma_handle_t ∗handle)
Abort a master edma non-blocking transfer in a early time.
25.4.2 Data Structure Documentation
25.4.2.1 struct _i2c_master_edma_handle
I2C master edma handle typedef.
Data Fields
•i2c_master_transfer_t transfer
I2C master transfer struct.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
565
I2C eDMA Driver
• size_t transferSize
Total bytes to be transferred.
• uint8_t state
I2C master transfer status.
•edma_handle_t ∗dmaHandle
The eDMA handler used.
•i2c_master_edma_transfer_callback_t completionCallback
Callback function called after edma transfer finished.
• void ∗userData
Callback parameter passed to callback function.
25.4.2.1.0.23 Field Documentation
25.4.2.1.0.23.1 i2c_master_transfer_t i2c_master_edma_handle_t::transfer
25.4.2.1.0.23.2 size_t i2c_master_edma_handle_t::transferSize
25.4.2.1.0.23.3 uint8_t i2c_master_edma_handle_t::state
25.4.2.1.0.23.4 edma_handle_t∗i2c_master_edma_handle_t::dmaHandle
25.4.2.1.0.23.5 i2c_master_edma_transfer_callback_t i2c_master_edma_handle_t::completion-
Callback
25.4.2.1.0.23.6 void∗i2c_master_edma_handle_t::userData
25.4.3 Typedef Documentation
25.4.3.1 typedef void(∗i2c_master_edma_transfer_callback_t)(I2C_Type ∗base,
i2c_master_edma_handle_t ∗handle, status_t status, void ∗userData)
25.4.4 Function Documentation
25.4.4.1 void I2C_MasterCreateEDMAHandle ( I2C_Type ∗base, i2c_master_edma_-
handle_t ∗handle, i2c_master_edma_transfer_callback_t callback, void ∗
userData, edma_handle_t ∗edmaHandle )
Parameters
base I2C peripheral base address.
handle pointer to i2c_master_edma_handle_t structure.
566
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C eDMA Driver
callback pointer to user callback function.
userData user param passed to the callback function.
edmaHandle EDMA handle pointer.
25.4.4.2 status_t I2C_MasterTransferEDMA ( I2C_Type ∗base, i2c_-
master_edma_handle_t ∗handle, i2c_master_transfer_t ∗xfer
)
Parameters
base I2C peripheral base address.
handle pointer to i2c_master_edma_handle_t structure.
xfer pointer to transfer structure of i2c_master_transfer_t.
Return values
kStatus_Success Sucessully complete the data transmission.
kStatus_I2C_Busy Previous transmission still not finished.
kStatus_I2C_Timeout Transfer error, wait signal timeout.
kStatus_I2C_Arbitration-
Lost
Transfer error, arbitration lost.
kStataus_I2C_Nak Transfer error, receive Nak during transfer.
25.4.4.3 status_t I2C_MasterTransferGetCountEDMA ( I2C_Type ∗base,
i2c_master_edma_handle_t ∗handle, size_t ∗count )
Parameters
base I2C peripheral base address.
handle pointer to i2c_master_edma_handle_t structure.
count Number of bytes transferred so far by the non-blocking transaction.
25.4.4.4 void I2C_MasterTransferAbortEDMA ( I2C_Type ∗base, i2c_master_edma_-
handle_t ∗handle )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
567
I2C eDMA Driver
Parameters
base I2C peripheral base address.
handle pointer to i2c_master_edma_handle_t structure.
568
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C FreeRTOS Driver
25.5 I2C FreeRTOS Driver
25.5.1 Overview
Files
• file fsl_i2c_freertos.h
Data Structures
• struct i2c_rtos_handle_t
I2C FreeRTOS handle. More...
Driver version
• #define FSL_I2C_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
I2C FreeRTOS driver version 2.0.0.
I2C RTOS Operation
• status_t I2C_RTOS_Init (i2c_rtos_handle_t ∗handle, I2C_Type ∗base, const i2c_master_config_t
∗masterConfig, uint32_t srcClock_Hz)
Initializes I2C.
• status_t I2C_RTOS_Deinit (i2c_rtos_handle_t ∗handle)
Deinitializes the I2C.
• status_t I2C_RTOS_Transfer (i2c_rtos_handle_t ∗handle, i2c_master_transfer_t ∗transfer)
Performs I2C transfer.
25.5.2 Data Structure Documentation
25.5.2.1 struct i2c_rtos_handle_t
Data Fields
• I2C_Type ∗base
I2C base address.
• i2c_master_handle_t drv_handle
Handle of the underlying driver, treated as opaque by the RTOS layer.
• SemaphoreHandle_t mutex
Mutex to lock the handle during a trasfer.
• SemaphoreHandle_t sem
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a trasfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
569
I2C FreeRTOS Driver
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
25.5.3 Macro Definition Documentation
25.5.3.1 #define FSL_I2C_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
25.5.4 Function Documentation
25.5.4.1 status_t I2C_RTOS_Init ( i2c_rtos_handle_t ∗handle, I2C_Type ∗base, const
i2c_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the I2C module and related RTOS context.
Parameters
handle The RTOS I2C handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the I2C instance to initialize.
masterConfig Configuration structure to set-up I2C in master mode.
srcClock_Hz Frequency of input clock of the I2C module.
Returns
status of the operation.
25.5.4.2 status_t I2C_RTOS_Deinit ( i2c_rtos_handle_t ∗handle )
This function deinitializes the I2C module and related RTOS context.
Parameters
handle The RTOS I2C handle.
25.5.4.3 status_t I2C_RTOS_Transfer ( i2c_rtos_handle_t ∗handle, i2c_master_transfer_t
∗transfer )
This function performs an I2C transfer according to data given in the transfer structure.
570
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C FreeRTOS Driver
Parameters
handle The RTOS I2C handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
571
I2C µCOS/II Driver
25.6 I2C µCOS/II Driver
25.6.1 Overview
Files
• file fsl_i2c_ucosii.h
• file fsl_i2c_ucosiii.h
Data Structures
• struct i2c_rtos_handle_t
I2C FreeRTOS handle. More...
Driver version
• #define FSL_I2C_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
I2C uCOS II driver version 2.0.0.
I2C RTOS Operation
• status_t I2C_RTOS_Init (i2c_rtos_handle_t ∗handle, I2C_Type ∗base, const i2c_master_config_t
∗masterConfig, uint32_t srcClock_Hz)
Initializes I2C.
• status_t I2C_RTOS_Deinit (i2c_rtos_handle_t ∗handle)
Deinitializes the I2C.
• status_t I2C_RTOS_Transfer (i2c_rtos_handle_t ∗handle, i2c_master_transfer_t ∗transfer)
Performs I2C transfer.
Driver version
• #define FSL_I2C_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
I2C uCOS III driver version 2.0.0.
25.6.2 Data Structure Documentation
25.6.2.1 struct i2c_rtos_handle_t
Data Fields
• I2C_Type ∗base
I2C base address.
• i2c_master_handle_t drv_handle
572
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C µCOS/II Driver
Handle of the underlying driver, treated as opaque by the RTOS layer.
• SemaphoreHandle_t mutex
Mutex to lock the handle during a trasfer.
• SemaphoreHandle_t sem
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
25.6.3 Macro Definition Documentation
25.6.3.1 #define FSL_I2C_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
25.6.3.2 #define FSL_I2C_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
25.6.4 Function Documentation
25.6.4.1 status_t I2C_RTOS_Init ( i2c_rtos_handle_t ∗handle, I2C_Type ∗base, const
i2c_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the I2C module and related RTOS context.
Parameters
handle The RTOS I2C handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the I2C instance to initialize.
masterConfig Configuration structure to set-up I2C in master mode.
srcClock_Hz Frequency of input clock of the I2C module.
Returns
status of the operation.
25.6.4.2 status_t I2C_RTOS_Deinit ( i2c_rtos_handle_t ∗handle )
This function deinitializes the I2C module and related RTOS context.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
573
I2C µCOS/II Driver
Parameters
handle The RTOS I2C handle.
25.6.4.3 status_t I2C_RTOS_Transfer ( i2c_rtos_handle_t ∗handle, i2c_master_transfer_t
∗transfer )
This function performs an I2C transfer according to data given in the transfer structure.
Parameters
handle The RTOS I2C handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
574
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
I2C µCOS/III Driver
25.7 I2C µCOS/III Driver
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
575
I2C µCOS/III Driver
576
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 26
LLWU: Low-Leakage Wakeup Unit Driver
26.1 Overview
The KSDK provides a Peripheral driver for the Low-Leakage Wakeup Unit (LLWU) module of Kinetis
devices. The LLWU module allows the user to select external pin sources and internal modules as a
wake-up source from low-leakage power modes.
26.2 External wakeup pins configurations
Configures the external wakeup pins’ working modes, gets and clears the wake pin flags. External wakeup
pins are accessed by pinIndex which is started from 1. Numbers of external pins depend on the SoC
configuration.
26.3 Internal wakeup modules configurations
Enables/disables the internal wakeup modules, and gets the modules flags. Internal modules are accessed
by moduleIndex which is started from 1. Numbers of external pins depend the on SoC configuration.
26.4 Digital pin filter for external wakeup pin configurations
Configures the digital pin filter of the external wakeup pins’ working modes, gets and clears the pin filter
flags. Digital pins filters are accessed by filterIndex which is started from 1. Numbers of external
pins depends on the SoC configuration.
Files
• file fsl_llwu.h
Enumerations
• enum llwu_external_pin_mode_t {
kLLWU_ExternalPinDisable = 0U,
kLLWU_ExternalPinRisingEdge = 1U,
kLLWU_ExternalPinFallingEdge = 2U,
kLLWU_ExternalPinAnyEdge = 3U }
External input pin control modes.
• enum llwu_pin_filter_mode_t {
kLLWU_PinFilterDisable = 0U,
kLLWU_PinFilterRisingEdge = 1U,
kLLWU_PinFilterFallingEdge = 2U,
kLLWU_PinFilterAnyEdge = 3U }
Digital filter control modes.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
577
Enumeration Type Documentation
Driver version
• #define FSL_LLWU_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
LLWU driver version 2.0.1.
26.5 Macro Definition Documentation
26.5.1 #define FSL_LLWU_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
26.6 Enumeration Type Documentation
26.6.1 enum llwu_external_pin_mode_t
Enumerator
kLLWU_ExternalPinDisable Pin disabled as wakeup input.
kLLWU_ExternalPinRisingEdge Pin enabled with rising edge detection.
kLLWU_ExternalPinFallingEdge Pin enabled with falling edge detection.
kLLWU_ExternalPinAnyEdge Pin enabled with any change detection.
26.6.2 enum llwu_pin_filter_mode_t
Enumerator
kLLWU_PinFilterDisable Filter disabled.
kLLWU_PinFilterRisingEdge Filter positive edge detection.
kLLWU_PinFilterFallingEdge Filter negative edge detection.
kLLWU_PinFilterAnyEdge Filter any edge detection.
578
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 27
LMEM: Local Memory Controller Cache Control Driver
27.1 Overview
The KSDK provides a peripheral driver for the Local Memory Controller Cache Controller module of
Kinetis devices.
27.2 Descriptions
The LMEM Cache peripheral driver allows the user to enable/disable the cache and to perform cache main-
tenance operations such as invalidate, push, and clear. These maintenance operations may be performed
on the Processor Code (PC) bus or Both Processor Code (PC) and Processor System (PS) bus.
The Kinetis devices contain a Processor Code (PC) bus and a Processor System (PS) bus: The Processor
Code (PC) bus - a 32-bit address space bus with low-order addresses (0x0000_0000 through 0x1FFF_F-
FFF) used normally for code access. The Processor System (PS) bus - a 32-bit address space bus with
high-order addresses (0x2000_0000 through 0xFFFF_FFFF) used normally for data accesses.
Some Kinetic MCU devices have caches available for the PC bus and PS bus, others may only have a PC
bus cache, while some do not have PC or PS caches at all. See the appropriate Kinetis reference manual
for cache availability.
Cache maintenance operations:
Command Description
Invalidate Unconditionally clear valid and modify bits of a cache entry. clear valid and modify bits of a cache entry.
Push
Push a cache entry if it is valid and modified, then
clear the modififcation
leav
cache push is synonymous with a cache flush.
Clear Push a cache entry if it is valid
is not valid or not modified, clear the valid bit.
The above cache maintenance operations may be performed on the entire cache or on a line-basis. The
peripheral driver API names distinguish between the two using the terms "All" or Line".
27.3 Function groups
27.3.1 Local Memory Processor Code Bus Cache Control
The invalidate command can be performed on the entire cache, one line and multiple lines by calling LM-
EM_CodeCacheInvalidateAll(),LMEM_CodeCacheInvalidateLine(), and LMEM_CodeCacheInvalidate-
MultiLines().
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
579
Function groups
The push command can be performed on the entire cache, one line and multiple lines by calling LMEM_-
CodeCachePushAll(),LMEM_CodeCachePushLine(), and LMEM_CodeCachePushMultiLines().
The clear command can be performed on the entire cache, one line and multiple lines by calling LMEM-
_CodeCacheClearAll(),LMEM_CodeCacheClearLine(), and LMEM_CodeCacheClearMultiLines().
Note that the parameter "address" must be supplied which indicates the physical address of the line you
wish to perform the one line cache maintenance operation. In addition, the length the number of bytes
should be supplied for multiple lines operation. The function determines if the length meets or exceeds
1/2 the cache size because the cache contains 2 WAYs, half of the cache is in WAY0 and the other half in
WAY1 and if so, performs a cache maintenance "all" operation which is faster than performing the cache
maintenance on a line-basis.
Cache Demotion: Cache region demotion - Demoting the cache mode reduces the cache function applied
to a memory region from write-back to write-through to non-cacheable. The cache region demote function
checks to see if the requested cache mode is higher than or equal to the current cache mode, and if so,
returns an error. After a region is demoted, its cache mode can only be raised by a reset, which returns it
to its default state. To demote a cache region, call the LMEM_CodeCacheDemoteRegion().
Note that the address region assignment of the 16 subregions is device-specific and is detailed in the Chip
Configuration part of the SoC Kinetis reference manual. The LMEM provides typedef enums for each
of the 16 regions, starting with "kLMEM_CacheRegion0" and ending with "kLMEM_CacheRegion15".
The parameter cacheMode is of type lmem_cache_mode_t. This provides typedef enums for each of the
cache modes, such as "kLMEM_CacheNonCacheable", "kLMEM_CacheWriteThrough", and "kLMEM-
_CacheWriteBack". Cache Enable and Disable: The cache enable function enables the PC bus cache and
the write buffer. However, before enabling these, the function first performs an invalidate all. The user
should call LMEM_EnableCodeCache() to enable a particular bus cache.
27.3.2 Local Memory Processor System Bus Cache Control
The invalidate command can be performed on the entire cache, one line and multiple lines by calling
LMEM_SystemCacheInvalidateAll(), LMEM_SystemCacheInvalidateLine(), and LMEM_SystemCache-
InvalidateMultiLines().
The push command can be performed on the entire cache, one line and multiple lines by calling LMEM_-
SystemCachePushAll(), LMEM_SystemCachePushLine(), and LMEM_SystemCachePushMultiLines().
The clear command can be performed on the entire cache, one line and multiple lines by calling LM-
EM_SystemCacheClearAll(), LMEM_SystemCacheClearLine(), and LMEM_SystemCacheClearMulti-
Lines().
Note that the parameter "address" must be supplied, which indicates the physical address of the line you
wish to perform the one line cache maintenance operation. In addition, the length the number of bytes
should be supplied for multiple lines operation. The function determines if the length meets or exceeds
1/2 the cache size because the cache contains 2 WAYs, half of the cache is in WAY0 and the other half in
WAY1 and if so, performs a cache maintenance "all" operation which is faster than performing the cache
maintenance on a line-basis.
580
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function groups
Cache Demotion: Cache region demotion - Demoting the cache mode reduces the cache function applied
to a memory region from write-back to write-through to non-cacheable. The cache region demote function
checks to see if the requested cache mode is higher than or equal to the current cache mode, and if so,
returns an error. After a region is demoted, its cache mode can only be raised by a reset, which returns it
to its default state. To demote a cache region, call the LMEM_SystemCacheDemoteRegion().
Note that the address region assignment of the 16 subregions is device-specific and is detailed in the Chip
Configuration part of the Kinetis SoC reference manual. The LMEM provides typedef enums for each
of the 16 regions, starting with "kLMEM_CacheRegion0" and ending with "kLMEM_CacheRegion15".
The parameter cacheMode is of type lmem_cache_mode_t. This provides typedef enums for each of the
cache modes, such as "kLMEM_CacheNonCacheable", "kLMEM_CacheWriteThrough", and "kLMEM-
_CacheWriteBack". Cache Enable and Disable: The cache enable function enables the PS bus cache and
the write buffer. However, before enabling these, the function first performs an invalidate all. The user
should call LMEM_EnableSystemCache() to enable a particular bus cache.
Files
• file fsl_lmem_cache.h
Macros
• #define LMEM_CACHE_LINE_SIZE (0x10U)
Cache line is 16-bytes.
• #define LMEM_CACHE_SIZE_ONEWAY (4096U)
Cache size is 4K-bytes one way.
Enumerations
• enum lmem_cache_mode_t {
kLMEM_NonCacheable = 0x0U,
kLMEM_CacheWriteThrough = 0x2U,
kLMEM_CacheWriteBack = 0x3U }
LMEM cache mode options.
• enum lmem_cache_region_t {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
581
Function groups
kLMEM_CacheRegion15 = 0U,
kLMEM_CacheRegion14,
kLMEM_CacheRegion13,
kLMEM_CacheRegion12,
kLMEM_CacheRegion11,
kLMEM_CacheRegion10,
kLMEM_CacheRegion9,
kLMEM_CacheRegion8,
kLMEM_CacheRegion7,
kLMEM_CacheRegion6,
kLMEM_CacheRegion5,
kLMEM_CacheRegion4,
kLMEM_CacheRegion3,
kLMEM_CacheRegion2,
kLMEM_CacheRegion1,
kLMEM_CacheRegion0 }
LMEM cache regions.
• enum lmem_cache_line_command_t {
kLMEM_CacheLineSearchReadOrWrite = 0U,
kLMEM_CacheLineInvalidate,
kLMEM_CacheLinePush,
kLMEM_CacheLineClear }
LMEM cache line command.
Driver version
• #define FSL_LMEM_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
LMEM controller driver version 2.0.0.
Local Memory Processor Code Bus Cache Control
• void LMEM_EnableCodeCache (LMEM_Type ∗base, bool enable)
Enables/disables the processor code bus cache.
• void LMEM_CodeCacheInvalidateAll (LMEM_Type ∗base)
Invalidates the processor code bus cache.
• void LMEM_CodeCachePushAll (LMEM_Type ∗base)
Pushes all modified lines in the processor code bus cache.
• void LMEM_CodeCacheClearAll (LMEM_Type ∗base)
Clears the processor code bus cache.
• void LMEM_CodeCacheInvalidateLine (LMEM_Type ∗base, uint32_t address)
Invalidates a specific line in the processor code bus cache.
• void LMEM_CodeCacheInvalidateMultiLines (LMEM_Type ∗base, uint32_t address, uint32_-
t length)
Invalidates multiple lines in the processor code bus cache.
• void LMEM_CodeCachePushLine (LMEM_Type ∗base, uint32_t address)
Pushes a specific modified line in the processor code bus cache.
• void LMEM_CodeCachePushMultiLines (LMEM_Type ∗base, uint32_t address, uint32_t length)
Pushes multiple modified lines in the processor code bus cache.
582
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
• void LMEM_CodeCacheClearLine (LMEM_Type ∗base, uint32_t address)
Clears a specific line in the processor code bus cache.
• void LMEM_CodeCacheClearMultiLines (LMEM_Type ∗base, uint32_t address, uint32_t length)
Clears multiple lines in the processor code bus cache.
• status_t LMEM_CodeCacheDemoteRegion (LMEM_Type ∗base, lmem_cache_region_t region,
lmem_cache_mode_t cacheMode)
Demotes the cache mode of a region in processor code bus cache.
27.4 Macro Definition Documentation
27.4.1 #define FSL_LMEM_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
27.4.2 #define LMEM_CACHE_LINE_SIZE (0x10U)
27.4.3 #define LMEM_CACHE_SIZE_ONEWAY (4096U)
27.5 Enumeration Type Documentation
27.5.1 enum lmem_cache_mode_t
Enumerator
kLMEM_NonCacheable CACHE mode: non-cacheable.
kLMEM_CacheWriteThrough CACHE mode: write-through.
kLMEM_CacheWriteBack CACHE mode: write-back.
27.5.2 enum lmem_cache_region_t
Enumerator
kLMEM_CacheRegion15 Cache Region 15.
kLMEM_CacheRegion14 Cache Region 14.
kLMEM_CacheRegion13 Cache Region 13.
kLMEM_CacheRegion12 Cache Region 12.
kLMEM_CacheRegion11 Cache Region 11.
kLMEM_CacheRegion10 Cache Region 10.
kLMEM_CacheRegion9 Cache Region 9.
kLMEM_CacheRegion8 Cache Region 8.
kLMEM_CacheRegion7 Cache Region 7.
kLMEM_CacheRegion6 Cache Region 6.
kLMEM_CacheRegion5 Cache Region 5.
kLMEM_CacheRegion4 Cache Region 4.
kLMEM_CacheRegion3 Cache Region 3.
kLMEM_CacheRegion2 Cache Region 2.
kLMEM_CacheRegion1 Cache Region 1.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
583
Function Documentation
kLMEM_CacheRegion0 Cache Region 0.
27.5.3 enum lmem_cache_line_command_t
Enumerator
kLMEM_CacheLineSearchReadOrWrite Cache line search and read or write.
kLMEM_CacheLineInvalidate Cache line invalidate.
kLMEM_CacheLinePush Cache line push.
kLMEM_CacheLineClear Cache line clear.
27.6 Function Documentation
27.6.1 void LMEM_EnableCodeCache ( LMEM_Type ∗base, bool enable )
This function enables/disables the cache. The function first invalidates the entire cache and then en-
ables/disable both the cache and write buffers.
Parameters
base LMEM peripheral base address.
enable The enable or disable flag. true - enable the code cache. false - disable the code cache.
27.6.2 void LMEM_CodeCacheInvalidateAll ( LMEM_Type ∗base )
This function invalidates the cache both ways, which means that it unconditionally clears valid bits and
modifies bits of a cache entry.
Parameters
base LMEM peripheral base address.
27.6.3 void LMEM_CodeCachePushAll ( LMEM_Type ∗base )
This function pushes all modified lines in both ways in the entire cache. It pushes a cache entry if it is
valid and modified and clears the modified bit. If the entry is not valid or not modified, leave as is. This
action does not clear the valid bit. A cache push is synonymous with a cache flush.
584
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base LMEM peripheral base address.
27.6.4 void LMEM_CodeCacheClearAll ( LMEM_Type ∗base )
This function clears the entire cache and pushes (flushes) and invalidates the operation. Clear - Pushes a
cache entry if it is valid and modified, then clears the valid and modified bits. If the entry is not valid or
not modified, clear the valid bit.
Parameters
base LMEM peripheral base address.
27.6.5 void LMEM_CodeCacheInvalidateLine ( LMEM_Type ∗base, uint32_t
address )
This function invalidates a specific line in the cache based on the physical address passed in by the user.
Invalidate - Unconditionally clears valid and modified bits of a cache entry.
Parameters
base LMEM peripheral base address.
address The physical address of the cache line. Should be 16-byte aligned address. If not, it
is changed to the 16-byte aligned memory address.
27.6.6 void LMEM_CodeCacheInvalidateMultiLines ( LMEM_Type ∗base, uint32_t
address, uint32_t length )
This function invalidates multiple lines in the cache based on the physical address and length in bytes
passed in by the user. If the function detects that the length meets or exceeds half the cache. Then the
function performs an entire cache invalidate function, which is more efficient than invalidating the cache
line-by-line. The need to check half the total amount of cache is due to the fact that the cache consists
of two ways and that line commands based on the physical address searches both ways. Invalidate -
Unconditionally clear valid and modified bits of a cache entry.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
585
Function Documentation
Parameters
base LMEM peripheral base address.
address The physical address of the cache line. Should be 16-byte aligned address. If not, it
is changed to the 16-byte aligned memory address.
length The length in bytes of the total amount of cache lines.
27.6.7 void LMEM_CodeCachePushLine ( LMEM_Type ∗base, uint32_t address )
This function pushes a specific modified line based on the physical address passed in by the user. Push -
Push a cache entry if it is valid and modified, then clear the modified bit. If the entry is not valid or not
modified, leave as is. This action does not clear the valid bit. A cache push is synonymous with a cache
flush.
Parameters
base LMEM peripheral base address.
address The physical address of the cache line. Should be 16-byte aligned address. If not, it
is changed to the 16-byte aligned memory address.
27.6.8 void LMEM_CodeCachePushMultiLines ( LMEM_Type ∗base, uint32_t
address, uint32_t length )
This function pushes multiple modified lines in the cache based on the physical address and length in
bytes passed in by the user. If the function detects that the length meets or exceeds half of the cache,
the function performs an cache push function, which is more efficient than pushing the modified lines in
the cache line-by-line. The need to check half the total amount of cache is due to the fact that the cache
consists of two ways and that line commands based on the physical address searches both ways. Push -
Push a cache entry if it is valid and modified, then clear the modified bit. If the entry is not valid or not
modified, leave as is. This action does not clear the valid bit. A cache push is synonymous with a cache
flush.
Parameters
base LMEM peripheral base address.
address The physical address of the cache line. Should be 16-byte aligned address. If not, it
is changed to the 16-byte aligned memory address.
586
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
length The length in bytes of the total amount of cache lines.
27.6.9 void LMEM_CodeCacheClearLine ( LMEM_Type ∗base, uint32_t address )
This function clears a specific line based on the physical address passed in by the user. Clear - Push a cache
entry if it is valid and modified, then clear the valid and modify bits. If entry not valid or not modified,
clear the valid bit.
Parameters
base LMEM peripheral base address.
address The physical address of the cache line. Should be 16-byte aligned address. If not, it
is changed to the 16-byte aligned memory address.
27.6.10 void LMEM_CodeCacheClearMultiLines ( LMEM_Type ∗base, uint32_t
address, uint32_t length )
This function clears multiple lines in the cache based on the physical address and length in bytes passed
in by the user. If the function detects that the length meets or exceeds half the total amount of cache,
the function performs a cache clear function which is more efficient than clearing the lines in the cache
line-by-line. The need to check half the total amount of cache is due to the fact that the cache consists of
two ways and that line commands based on the physical address searches both ways. Clear - Push a cache
entry if it is valid and modified, then clear the valid and modify bits. If entry not valid or not modified,
clear the valid bit.
Parameters
base LMEM peripheral base address.
address The physical address of the cache line. Should be 16-byte aligned address. If not, it
is changed to the 16-byte aligned memory address.
length The length in bytes of the total amount of cache lines.
27.6.11 status_t LMEM_CodeCacheDemoteRegion ( LMEM_Type ∗base,
lmem_cache_region_t region, lmem_cache_mode_t cacheMode )
This function allows the user to demote the cache mode of a region within the device’s memory map.
Demoting the cache mode reduces the cache function applied to a memory region from write-back to
write-through to non-cacheable. The function checks to see if the requested cache mode is higher than
or equal to the current cache mode, and if so, returns an error. After a region is demoted, its cache mode
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
587
Function Documentation
can only be raised by a reset, which returns it to its default state which is the highest cache configure for
each region. To maintain cache coherency, changes to the cache mode should be completed while the
address space being changed is not being accessed or the cache is disabled. Before a cache mode change,
this function completes a cache clear all command to push and invalidate any cache entries that may have
changed.
Parameters
base LMEM peripheral base address.
region The desired region to demote of type lmem_cache_region_t.
cacheMode The new, demoted cache mode of type lmem_cache_mode_t.
Returns
The execution result. kStatus_Success The cache demote operation is successful. kStatus_Fail The
cache demote operation is failure.
588
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 28
LPI2C: Low Power I2C Driver
28.1 Overview
Modules
•LPI2C FreeRTOS Driver
•LPI2C Master DMA Driver
•LPI2C Master Driver
•LPI2C Slave DMA Driver
•LPI2C Slave Driver
•LPI2C µCOS/II Driver
•LPI2C µCOS/III Driver
Files
• file fsl_lpi2c.h
Enumerations
• enum _lpi2c_status {
kStatus_LPI2C_Busy = MAKE_STATUS(kStatusGroup_LPI2C, 0),
kStatus_LPI2C_Idle = MAKE_STATUS(kStatusGroup_LPI2C, 1),
kStatus_LPI2C_Nak = MAKE_STATUS(kStatusGroup_LPI2C, 2),
kStatus_LPI2C_FifoError = MAKE_STATUS(kStatusGroup_LPI2C, 3),
kStatus_LPI2C_BitError = MAKE_STATUS(kStatusGroup_LPI2C, 4),
kStatus_LPI2C_ArbitrationLost = MAKE_STATUS(kStatusGroup_LPI2C, 5),
kStatus_LPI2C_PinLowTimeout,
kStatus_LPI2C_NoTransferInProgress,
kStatus_LPI2C_DmaRequestFail = MAKE_STATUS(kStatusGroup_LPI2C, 7) }
LPI2C status return codes.
Driver version
• #define FSL_LPI2C_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
LPI2C driver version 2.1.0.
28.2 Macro Definition Documentation
28.2.1 #define FSL_LPI2C_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
589
Enumeration Type Documentation
28.3 Enumeration Type Documentation
28.3.1 enum _lpi2c_status
Enumerator
kStatus_LPI2C_Busy The master is already performing a transfer.
kStatus_LPI2C_Idle The slave driver is idle.
kStatus_LPI2C_Nak The slave device sent a NAK in response to a byte.
kStatus_LPI2C_FifoError FIFO under run or overrun.
kStatus_LPI2C_BitError Transferred bit was not seen on the bus.
kStatus_LPI2C_ArbitrationLost Arbitration lost error.
kStatus_LPI2C_PinLowTimeout SCL or SDA were held low longer than the timeout.
kStatus_LPI2C_NoTransferInProgress Attempt to abort a transfer when one is not in progress.
kStatus_LPI2C_DmaRequestFail DMA request failed.
590
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C FreeRTOS Driver
28.4 LPI2C FreeRTOS Driver
28.4.1 Overview
Files
• file fsl_lpi2c_freertos.h
Data Structures
• struct lpi2c_rtos_handle_t
LPI2C FreeRTOS handle. More...
Driver version
• #define FSL_LPI2C_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
LPI2C FreeRTOS driver version 2.0.0.
LPI2C RTOS Operation
• status_t LPI2C_RTOS_Init (lpi2c_rtos_handle_t ∗handle, LPI2C_Type ∗base, const lpi2c_master-
_config_t ∗masterConfig, uint32_t srcClock_Hz)
Initializes LPI2C.
• status_t LPI2C_RTOS_Deinit (lpi2c_rtos_handle_t ∗handle)
Deinitializes the LPI2C.
• status_t LPI2C_RTOS_Transfer (lpi2c_rtos_handle_t ∗handle, lpi2c_master_transfer_t ∗transfer)
Performs I2C transfer.
28.4.2 Data Structure Documentation
28.4.2.1 struct lpi2c_rtos_handle_t
LPI2C uCOS III handle.
LPI2C uCOS II handle.
Data Fields
• LPI2C_Type ∗base
LPI2C base address.
• lpi2c_master_handle_t drv_handle
Handle of the underlying driver, treated as opaque by the RTOS layer.
• SemaphoreHandle_t mutex
Mutex to lock the handle during a trasfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
591
LPI2C FreeRTOS Driver
• SemaphoreHandle_t sem
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
28.4.3 Macro Definition Documentation
28.4.3.1 #define FSL_LPI2C_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
28.4.4 Function Documentation
28.4.4.1 status_t LPI2C_RTOS_Init ( lpi2c_rtos_handle_t ∗handle, LPI2C_Type ∗base,
const lpi2c_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the LPI2C module and related RTOS context.
Parameters
handle The RTOS LPI2C handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the LPI2C instance to initialize.
masterConfig Configuration structure to set-up LPI2C in master mode.
srcClock_Hz Frequency of input clock of the LPI2C module.
Returns
status of the operation.
28.4.4.2 status_t LPI2C_RTOS_Deinit ( lpi2c_rtos_handle_t ∗handle )
This function deinitializes the LPI2C module and related RTOS context.
Parameters
592
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C FreeRTOS Driver
handle The RTOS LPI2C handle.
28.4.4.3 status_t LPI2C_RTOS_Transfer ( lpi2c_rtos_handle_t ∗handle,
lpi2c_master_transfer_t ∗transfer )
This function performs an I2C transfer using LPI2C module according to data given in the transfer struc-
ture.
Parameters
handle The RTOS LPI2C handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
593
LPI2C Master Driver
28.5 LPI2C Master Driver
28.5.1 Overview
Data Structures
• struct lpi2c_master_config_t
Structure with settings to initialize the LPI2C master module. More...
• struct lpi2c_data_match_config_t
LPI2C master data match configuration structure. More...
• struct lpi2c_master_transfer_t
Non-blocking transfer descriptor structure. More...
• struct lpi2c_master_handle_t
Driver handle for master non-blocking APIs. More...
Typedefs
• typedef void(∗lpi2c_master_transfer_callback_t )(LPI2C_Type ∗base, lpi2c_master_handle_t
∗handle, status_t completionStatus, void ∗userData)
Master completion callback function pointer type.
Enumerations
• enum _lpi2c_master_flags {
kLPI2C_MasterTxReadyFlag = LPI2C_MSR_TDF_MASK,
kLPI2C_MasterRxReadyFlag = LPI2C_MSR_RDF_MASK,
kLPI2C_MasterEndOfPacketFlag = LPI2C_MSR_EPF_MASK,
kLPI2C_MasterStopDetectFlag = LPI2C_MSR_SDF_MASK,
kLPI2C_MasterNackDetectFlag = LPI2C_MSR_NDF_MASK,
kLPI2C_MasterArbitrationLostFlag = LPI2C_MSR_ALF_MASK,
kLPI2C_MasterFifoErrFlag = LPI2C_MSR_FEF_MASK,
kLPI2C_MasterPinLowTimeoutFlag = LPI2C_MSR_PLTF_MASK,
kLPI2C_MasterDataMatchFlag = LPI2C_MSR_DMF_MASK,
kLPI2C_MasterBusyFlag = LPI2C_MSR_MBF_MASK,
kLPI2C_MasterBusBusyFlag = LPI2C_MSR_BBF_MASK }
LPI2C master peripheral flags.
• enum lpi2c_direction_t {
kLPI2C_Write = 0U,
kLPI2C_Read = 1U }
Direction of master and slave transfers.
• enum lpi2c_master_pin_config_t {
594
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
kLPI2C_2PinOpenDrain = 0x0U,
kLPI2C_2PinOutputOnly = 0x1U,
kLPI2C_2PinPushPull = 0x2U,
kLPI2C_4PinPushPull = 0x3U,
kLPI2C_2PinOpenDrainWithSeparateSlave,
kLPI2C_2PinOutputOnlyWithSeparateSlave,
kLPI2C_2PinPushPullWithSeparateSlave,
kLPI2C_4PinPushPullWithInvertedOutput = 0x7U }
LPI2C pin configuration.
• enum lpi2c_host_request_source_t {
kLPI2C_HostRequestExternalPin = 0x0U,
kLPI2C_HostRequestInputTrigger = 0x1U }
LPI2C master host request selection.
• enum lpi2c_host_request_polarity_t {
kLPI2C_HostRequestPinActiveLow = 0x0U,
kLPI2C_HostRequestPinActiveHigh = 0x1U }
LPI2C master host request pin polarity configuration.
• enum lpi2c_data_match_config_mode_t {
kLPI2C_MatchDisabled = 0x0U,
kLPI2C_1stWordEqualsM0OrM1 = 0x2U,
kLPI2C_AnyWordEqualsM0OrM1 = 0x3U,
kLPI2C_1stWordEqualsM0And2ndWordEqualsM1,
kLPI2C_AnyWordEqualsM0AndNextWordEqualsM1,
kLPI2C_1stWordAndM1EqualsM0AndM1,
kLPI2C_AnyWordAndM1EqualsM0AndM1 }
LPI2C master data match configuration modes.
• enum _lpi2c_master_transfer_flags {
kLPI2C_TransferDefaultFlag = 0x00U,
kLPI2C_TransferNoStartFlag = 0x01U,
kLPI2C_TransferRepeatedStartFlag = 0x02U,
kLPI2C_TransferNoStopFlag = 0x04U }
Transfer option flags.
Initialization and deinitialization
• void LPI2C_MasterGetDefaultConfig (lpi2c_master_config_t ∗masterConfig)
Provides a default configuration for the LPI2C master peripheral.
• void LPI2C_MasterInit (LPI2C_Type ∗base, const lpi2c_master_config_t ∗masterConfig, uint32_t
sourceClock_Hz)
Initializes the LPI2C master peripheral.
• void LPI2C_MasterDeinit (LPI2C_Type ∗base)
Deinitializes the LPI2C master peripheral.
• void LPI2C_MasterConfigureDataMatch (LPI2C_Type ∗base, const lpi2c_data_match_config_-
t∗config)
Configures LPI2C master data match feature.
• static void LPI2C_MasterReset (LPI2C_Type ∗base)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
595
LPI2C Master Driver
Performs a software reset.
• static void LPI2C_MasterEnable (LPI2C_Type ∗base, bool enable)
Enables or disables the LPI2C module as master.
Status
• static uint32_t LPI2C_MasterGetStatusFlags (LPI2C_Type ∗base)
Gets the LPI2C master status flags.
• static void LPI2C_MasterClearStatusFlags (LPI2C_Type ∗base, uint32_t statusMask)
Clears the LPI2C master status flag state.
Interrupts
• static void LPI2C_MasterEnableInterrupts (LPI2C_Type ∗base, uint32_t interruptMask)
Enables the LPI2C master interrupt requests.
• static void LPI2C_MasterDisableInterrupts (LPI2C_Type ∗base, uint32_t interruptMask)
Disables the LPI2C master interrupt requests.
• static uint32_t LPI2C_MasterGetEnabledInterrupts (LPI2C_Type ∗base)
Returns the set of currently enabled LPI2C master interrupt requests.
DMA control
• static void LPI2C_MasterEnableDMA (LPI2C_Type ∗base, bool enableTx, bool enableRx)
Enables or disables LPI2C master DMA requests.
• static uint32_t LPI2C_MasterGetTxFifoAddress (LPI2C_Type ∗base)
Gets LPI2C master transmit data register address for DMA transfer.
• static uint32_t LPI2C_MasterGetRxFifoAddress (LPI2C_Type ∗base)
Gets LPI2C master receive data register address for DMA transfer.
FIFO control
• static void LPI2C_MasterSetWatermarks (LPI2C_Type ∗base, size_t txWords, size_t rxWords)
Sets the watermarks for LPI2C master FIFOs.
• static void LPI2C_MasterGetFifoCounts (LPI2C_Type ∗base, size_t ∗rxCount, size_t ∗txCount)
Gets the current number of words in the LPI2C master FIFOs.
Bus operations
• void LPI2C_MasterSetBaudRate (LPI2C_Type ∗base, uint32_t sourceClock_Hz, uint32_t baud-
Rate_Hz)
Sets the I2C bus frequency for master transactions.
• static bool LPI2C_MasterGetBusIdleState (LPI2C_Type ∗base)
Returns whether the bus is idle.
• status_t LPI2C_MasterStart (LPI2C_Type ∗base, uint8_t address, lpi2c_direction_t dir)
596
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
Sends a START signal and slave address on the I2C bus.
• static status_t LPI2C_MasterRepeatedStart (LPI2C_Type ∗base, uint8_t address, lpi2c_direction_t
dir)
Sends a repeated START signal and slave address on the I2C bus.
• status_t LPI2C_MasterSend (LPI2C_Type ∗base, const void ∗txBuff, size_t txSize)
Performs a polling send transfer on the I2C bus.
• status_t LPI2C_MasterReceive (LPI2C_Type ∗base, void ∗rxBuff, size_t rxSize)
Performs a polling receive transfer on the I2C bus.
• status_t LPI2C_MasterStop (LPI2C_Type ∗base)
Sends a STOP signal on the I2C bus.
Non-blocking
• void LPI2C_MasterTransferCreateHandle (LPI2C_Type ∗base, lpi2c_master_handle_t ∗handle,
lpi2c_master_transfer_callback_t callback, void ∗userData)
Creates a new handle for the LPI2C master non-blocking APIs.
• status_t LPI2C_MasterTransferNonBlocking (LPI2C_Type ∗base, lpi2c_master_handle_t ∗handle,
lpi2c_master_transfer_t ∗transfer)
Performs a non-blocking transaction on the I2C bus.
• status_t LPI2C_MasterTransferGetCount (LPI2C_Type ∗base, lpi2c_master_handle_t ∗handle,
size_t ∗count)
Returns number of bytes transferred so far.
• void LPI2C_MasterTransferAbort (LPI2C_Type ∗base, lpi2c_master_handle_t ∗handle)
Terminates a non-blocking LPI2C master transmission early.
IRQ handler
• void LPI2C_MasterTransferHandleIRQ (LPI2C_Type ∗base, lpi2c_master_handle_t ∗handle)
Reusable routine to handle master interrupts.
28.5.2 Data Structure Documentation
28.5.2.1 struct lpi2c_master_config_t
This structure holds configuration settings for the LPI2C peripheral. To initialize this structure to reason-
able defaults, call the LPI2C_MasterGetDefaultConfig() function and pass a pointer to your configuration
structure instance.
The configuration structure can be made constant so it resides in flash.
Data Fields
• bool enableMaster
Whether to enable master mode.
• bool enableDoze
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
597
LPI2C Master Driver
Whether master is enabled in doze mode.
• bool debugEnable
Enable transfers to continue when halted in debug mode.
• bool ignoreAck
Whether to ignore ACK/NACK.
•lpi2c_master_pin_config_t pinConfig
The pin configuration option.
• uint32_t baudRate_Hz
Desired baud rate in Hertz.
• uint32_t busIdleTimeout_ns
Bus idle timeout in nanoseconds.
• uint32_t pinLowTimeout_ns
Pin low timeout in nanoseconds.
• uint8_t sdaGlitchFilterWidth_ns
Width in nanoseconds of glitch filter on SDA pin.
• uint8_t sclGlitchFilterWidth_ns
Width in nanoseconds of glitch filter on SCL pin.
• struct {
bool enable
Enable host request.
lpi2c_host_request_source_t source
Host request source.
lpi2c_host_request_polarity_t polarity
Host request pin polarity.
}hostRequest
Host request options.
28.5.2.1.0.24 Field Documentation
28.5.2.1.0.24.1 bool lpi2c_master_config_t::enableMaster
28.5.2.1.0.24.2 bool lpi2c_master_config_t::enableDoze
28.5.2.1.0.24.3 bool lpi2c_master_config_t::debugEnable
28.5.2.1.0.24.4 bool lpi2c_master_config_t::ignoreAck
28.5.2.1.0.24.5 lpi2c_master_pin_config_t lpi2c_master_config_t::pinConfig
28.5.2.1.0.24.6 uint32_t lpi2c_master_config_t::baudRate_Hz
28.5.2.1.0.24.7 uint32_t lpi2c_master_config_t::busIdleTimeout_ns
Set to 0 to disable.
28.5.2.1.0.24.8 uint32_t lpi2c_master_config_t::pinLowTimeout_ns
Set to 0 to disable.
598
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
28.5.2.1.0.24.9 uint8_t lpi2c_master_config_t::sdaGlitchFilterWidth_ns
Set to 0 to disable.
28.5.2.1.0.24.10 uint8_t lpi2c_master_config_t::sclGlitchFilterWidth_ns
Set to 0 to disable.
28.5.2.1.0.24.11 bool lpi2c_master_config_t::enable
28.5.2.1.0.24.12 lpi2c_host_request_source_t lpi2c_master_config_t::source
28.5.2.1.0.24.13 lpi2c_host_request_polarity_t lpi2c_master_config_t::polarity
28.5.2.1.0.24.14 struct { ... } lpi2c_master_config_t::hostRequest
28.5.2.2 struct lpi2c_data_match_config_t
Data Fields
•lpi2c_data_match_config_mode_t matchMode
Data match configuration setting.
• bool rxDataMatchOnly
When set to true, received data is ignored until a successful match.
• uint32_t match0
Match value 0.
• uint32_t match1
Match value 1.
28.5.2.2.0.25 Field Documentation
28.5.2.2.0.25.1 lpi2c_data_match_config_mode_t lpi2c_data_match_config_t::matchMode
28.5.2.2.0.25.2 bool lpi2c_data_match_config_t::rxDataMatchOnly
28.5.2.2.0.25.3 uint32_t lpi2c_data_match_config_t::match0
28.5.2.2.0.25.4 uint32_t lpi2c_data_match_config_t::match1
28.5.2.3 struct _lpi2c_master_transfer
This structure is used to pass transaction parameters to the LPI2C_MasterTransferNonBlocking() API.
Data Fields
• uint32_t flags
Bit mask of options for the transfer.
• uint16_t slaveAddress
The 7-bit slave address.
•lpi2c_direction_t direction
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
599
LPI2C Master Driver
Either kLPI2C_Read or kLPI2C_Write.
• uint32_t subaddress
Sub address.
• size_t subaddressSize
Length of sub address to send in bytes.
• void ∗data
Pointer to data to transfer.
• size_t dataSize
Number of bytes to transfer.
28.5.2.3.0.26 Field Documentation
28.5.2.3.0.26.1 uint32_t lpi2c_master_transfer_t::flags
See enumeration _lpi2c_master_transfer_flags for available options. Set to 0 or kLPI2C_TransferDefault-
Flag for normal transfers.
28.5.2.3.0.26.2 uint16_t lpi2c_master_transfer_t::slaveAddress
28.5.2.3.0.26.3 lpi2c_direction_t lpi2c_master_transfer_t::direction
28.5.2.3.0.26.4 uint32_t lpi2c_master_transfer_t::subaddress
Transferred MSB first.
28.5.2.3.0.26.5 size_t lpi2c_master_transfer_t::subaddressSize
Maximum size is 4 bytes.
28.5.2.3.0.26.6 void∗lpi2c_master_transfer_t::data
28.5.2.3.0.26.7 size_t lpi2c_master_transfer_t::dataSize
28.5.2.4 struct _lpi2c_master_handle
Note
The contents of this structure are private and subject to change.
Data Fields
• uint8_t state
Transfer state machine current state.
• uint16_t remainingBytes
Remaining byte count in current state.
• uint8_t ∗buf
Buffer pointer for current state.
• uint16_t commandBuffer [7]
LPI2C command sequence.
• lpi2c_master_transfer_t transfer
600
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
Copy of the current transfer info.
•lpi2c_master_transfer_callback_t completionCallback
Callback function pointer.
• void ∗userData
Application data passed to callback.
28.5.2.4.0.27 Field Documentation
28.5.2.4.0.27.1 uint8_t lpi2c_master_handle_t::state
28.5.2.4.0.27.2 uint16_t lpi2c_master_handle_t::remainingBytes
28.5.2.4.0.27.3 uint8_t∗lpi2c_master_handle_t::buf
28.5.2.4.0.27.4 uint16_t lpi2c_master_handle_t::commandBuffer[7]
28.5.2.4.0.27.5 lpi2c_master_transfer_t lpi2c_master_handle_t::transfer
28.5.2.4.0.27.6 lpi2c_master_transfer_callback_t lpi2c_master_handle_t::completionCallback
28.5.2.4.0.27.7 void∗lpi2c_master_handle_t::userData
28.5.3 Typedef Documentation
28.5.3.1 typedef void(∗lpi2c_master_transfer_callback_t)(LPI2C_Type ∗base,
lpi2c_master_handle_t ∗handle, status_t completionStatus, void ∗userData)
This callback is used only for the non-blocking master transfer API. Specify the callback you wish to use
in the call to LPI2C_MasterTransferCreateHandle().
Parameters
base The LPI2C peripheral base address.
completion-
Status
Either #kStatus_Success or an error code describing how the transfer completed.
userData Arbitrary pointer-sized value passed from the application.
28.5.4 Enumeration Type Documentation
28.5.4.1 enum _lpi2c_master_flags
The following status register flags can be cleared:
•kLPI2C_MasterEndOfPacketFlag
•kLPI2C_MasterStopDetectFlag
•kLPI2C_MasterNackDetectFlag
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
601
LPI2C Master Driver
•kLPI2C_MasterArbitrationLostFlag
•kLPI2C_MasterFifoErrFlag
•kLPI2C_MasterPinLowTimeoutFlag
•kLPI2C_MasterDataMatchFlag
All flags except kLPI2C_MasterBusyFlag and kLPI2C_MasterBusBusyFlag can be enabled as interrupts.
Note
These enums are meant to be OR’d together to form a bit mask.
Enumerator
kLPI2C_MasterTxReadyFlag Transmit data flag.
kLPI2C_MasterRxReadyFlag Receive data flag.
kLPI2C_MasterEndOfPacketFlag End Packet flag.
kLPI2C_MasterStopDetectFlag Stop detect flag.
kLPI2C_MasterNackDetectFlag NACK detect flag.
kLPI2C_MasterArbitrationLostFlag Arbitration lost flag.
kLPI2C_MasterFifoErrFlag FIFO error flag.
kLPI2C_MasterPinLowTimeoutFlag Pin low timeout flag.
kLPI2C_MasterDataMatchFlag Data match flag.
kLPI2C_MasterBusyFlag Master busy flag.
kLPI2C_MasterBusBusyFlag Bus busy flag.
28.5.4.2 enum lpi2c_direction_t
Enumerator
kLPI2C_Write Master transmit.
kLPI2C_Read Master receive.
28.5.4.3 enum lpi2c_master_pin_config_t
Enumerator
kLPI2C_2PinOpenDrain LPI2C Configured for 2-pin open drain mode.
kLPI2C_2PinOutputOnly LPI2C Configured for 2-pin output only mode (ultra-fast mode)
kLPI2C_2PinPushPull LPI2C Configured for 2-pin push-pull mode.
kLPI2C_4PinPushPull LPI2C Configured for 4-pin push-pull mode.
kLPI2C_2PinOpenDrainWithSeparateSlave LPI2C Configured for 2-pin open drain mode with
separate LPI2C slave.
kLPI2C_2PinOutputOnlyWithSeparateSlave LPI2C Configured for 2-pin output only mode(ultra-
fast mode) with separate LPI2C slave.
602
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
kLPI2C_2PinPushPullWithSeparateSlave LPI2C Configured for 2-pin push-pull mode with sepa-
rate LPI2C slave.
kLPI2C_4PinPushPullWithInvertedOutput LPI2C Configured for 4-pin push-pull mode(inverted
outputs)
28.5.4.4 enum lpi2c_host_request_source_t
Enumerator
kLPI2C_HostRequestExternalPin Select the LPI2C_HREQ pin as the host request input.
kLPI2C_HostRequestInputTrigger Select the input trigger as the host request input.
28.5.4.5 enum lpi2c_host_request_polarity_t
Enumerator
kLPI2C_HostRequestPinActiveLow Configure the LPI2C_HREQ pin active low.
kLPI2C_HostRequestPinActiveHigh Configure the LPI2C_HREQ pin active high.
28.5.4.6 enum lpi2c_data_match_config_mode_t
Enumerator
kLPI2C_MatchDisabled LPI2C Match Disabled.
kLPI2C_1stWordEqualsM0OrM1 LPI2C Match Enabled and 1st data word equals MATCH0 OR
MATCH1.
kLPI2C_AnyWordEqualsM0OrM1 LPI2C Match Enabled and any data word equals MATCH0 OR
MATCH1.
kLPI2C_1stWordEqualsM0And2ndWordEqualsM1 LPI2C Match Enabled and 1st data word
equals MATCH0, 2nd data equals MATCH1.
kLPI2C_AnyWordEqualsM0AndNextWordEqualsM1 LPI2C Match Enabled and any data word
equals MATCH0, next data equals MATCH1.
kLPI2C_1stWordAndM1EqualsM0AndM1 LPI2C Match Enabled and 1st data word and MATCH0
equals MATCH0 and MATCH1.
kLPI2C_AnyWordAndM1EqualsM0AndM1 LPI2C Match Enabled and any data word and MAT-
CH0 equals MATCH0 and MATCH1.
28.5.4.7 enum _lpi2c_master_transfer_flags
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
603
LPI2C Master Driver
Note
These enumerations are intended to be OR’d together to form a bit mask of options for the _lpi2c_-
master_transfer::flags field.
Enumerator
kLPI2C_TransferDefaultFlag Transfer starts with a start signal, stops with a stop signal.
kLPI2C_TransferNoStartFlag Don’t send a start condition, address, and sub address.
kLPI2C_TransferRepeatedStartFlag Send a repeated start condition.
kLPI2C_TransferNoStopFlag Don’t send a stop condition.
28.5.5 Function Documentation
28.5.5.1 void LPI2C_MasterGetDefaultConfig ( lpi2c_master_config_t ∗masterConfig )
This function provides the following default configuration for the LPI2C master peripheral:
masterConfig->enableMaster =true;
masterConfig->debugEnable = false;
masterConfig->ignoreAck = false;
masterConfig->pinConfig = kLPI2C_2PinOpenDrain;
masterConfig->baudRate_Hz = 100000U;
masterConfig->busIdleTimeout_ns = 0;
masterConfig->pinLowTimeout_ns = 0;
masterConfig->sdaGlitchFilterWidth_ns = 0;
masterConfig->sclGlitchFilterWidth_ns = 0;
masterConfig->hostRequest.enable = false;
masterConfig->hostRequest.source = kLPI2C_HostRequestExternalPin;
masterConfig->hostRequest.polarity = kLPI2C_HostRequestPinActiveHigh;
After calling this function, you can override any settings in order to customize the configuration, prior to
initializing the master driver with LPI2C_MasterInit().
Parameters
out masterConfig User provided configuration structure for default values. Refer to lpi2c-
_master_config_t.
28.5.5.2 void LPI2C_MasterInit ( LPI2C_Type ∗base, const lpi2c_master_config_t ∗
masterConfig, uint32_t sourceClock_Hz )
This function enables the peripheral clock and initializes the LPI2C master peripheral as described by the
user provided configuration. A software reset is performed prior to configuration.
604
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
Parameters
base The LPI2C peripheral base address.
masterConfig User provided peripheral configuration. Use LPI2C_MasterGetDefaultConfig() to get
a set of defaults that you can override.
sourceClock_-
Hz
Frequency in Hertz of the LPI2C functional clock. Used to calculate the baud rate
divisors, filter widths, and timeout periods.
28.5.5.3 void LPI2C_MasterDeinit ( LPI2C_Type ∗base )
This function disables the LPI2C master peripheral and gates the clock. It also performs a software reset
to restore the peripheral to reset conditions.
Parameters
base The LPI2C peripheral base address.
28.5.5.4 void LPI2C_MasterConfigureDataMatch ( LPI2C_Type ∗base, const
lpi2c_data_match_config_t ∗config )
Parameters
base The LPI2C peripheral base address.
config Settings for the data match feature.
28.5.5.5 static void LPI2C_MasterReset ( LPI2C_Type ∗base )[inline],[static]
Restores the LPI2C master peripheral to reset conditions.
Parameters
base The LPI2C peripheral base address.
28.5.5.6 static void LPI2C_MasterEnable ( LPI2C_Type ∗base, bool enable )[inline],
[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
605
LPI2C Master Driver
Parameters
base The LPI2C peripheral base address.
enable Pass true to enable or false to disable the specified LPI2C as master.
28.5.5.7 static uint32_t LPI2C_MasterGetStatusFlags ( LPI2C_Type ∗base )[inline],
[static]
A bit mask with the state of all LPI2C master status flags is returned. For each flag, the corresponding bit
in the return value is set if the flag is asserted.
Parameters
base The LPI2C peripheral base address.
Returns
State of the status flags:
• 1: related status flag is set.
• 0: related status flag is not set.
See Also
_lpi2c_master_flags
28.5.5.8 static void LPI2C_MasterClearStatusFlags ( LPI2C_Type ∗base, uint32_t
statusMask )[inline],[static]
The following status register flags can be cleared:
•kLPI2C_MasterEndOfPacketFlag
•kLPI2C_MasterStopDetectFlag
•kLPI2C_MasterNackDetectFlag
•kLPI2C_MasterArbitrationLostFlag
•kLPI2C_MasterFifoErrFlag
•kLPI2C_MasterPinLowTimeoutFlag
•kLPI2C_MasterDataMatchFlag
Attempts to clear other flags has no effect.
606
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
Parameters
base The LPI2C peripheral base address.
statusMask A bitmask of status flags that are to be cleared. The mask is composed of _lpi2c_-
master_flags enumerators OR’d together. You may pass the result of a previous call
to LPI2C_MasterGetStatusFlags().
See Also
_lpi2c_master_flags.
28.5.5.9 static void LPI2C_MasterEnableInterrupts ( LPI2C_Type ∗base, uint32_t
interruptMask )[inline],[static]
All flags except kLPI2C_MasterBusyFlag and kLPI2C_MasterBusBusyFlag can be enabled as interrupts.
Parameters
base The LPI2C peripheral base address.
interruptMask Bit mask of interrupts to enable. See _lpi2c_master_flags for the set of constants that
should be OR’d together to form the bit mask.
28.5.5.10 static void LPI2C_MasterDisableInterrupts ( LPI2C_Type ∗base, uint32_t
interruptMask )[inline],[static]
All flags except kLPI2C_MasterBusyFlag and kLPI2C_MasterBusBusyFlag can be enabled as interrupts.
Parameters
base The LPI2C peripheral base address.
interruptMask Bit mask of interrupts to disable. See _lpi2c_master_flags for the set of constants that
should be OR’d together to form the bit mask.
28.5.5.11 static uint32_t LPI2C_MasterGetEnabledInterrupts ( LPI2C_Type ∗base )
[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
607
LPI2C Master Driver
Parameters
base The LPI2C peripheral base address.
Returns
A bitmask composed of _lpi2c_master_flags enumerators OR’d together to indicate the set of en-
abled interrupts.
28.5.5.12 static void LPI2C_MasterEnableDMA ( LPI2C_Type ∗base, bool enableTx, bool
enableRx )[inline],[static]
Parameters
base The LPI2C peripheral base address.
enableTx Enable flag for transmit DMA request. Pass true for enable, false for disable.
enableRx Enable flag for receive DMA request. Pass true for enable, false for disable.
28.5.5.13 static uint32_t LPI2C_MasterGetTxFifoAddress ( LPI2C_Type ∗base )
[inline],[static]
Parameters
base The LPI2C peripheral base address.
Returns
The LPI2C Master Transmit Data Register address.
28.5.5.14 static uint32_t LPI2C_MasterGetRxFifoAddress ( LPI2C_Type ∗base )
[inline],[static]
Parameters
608
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
base The LPI2C peripheral base address.
Returns
The LPI2C Master Receive Data Register address.
28.5.5.15 static void LPI2C_MasterSetWatermarks ( LPI2C_Type ∗base, size_t txWords,
size_t rxWords )[inline],[static]
Parameters
base The LPI2C peripheral base address.
txWords Transmit FIFO watermark value in words. The kLPI2C_MasterTxReadyFlag flag is
set whenever the number of words in the transmit FIFO is equal or less than txWords.
Writing a value equal or greater than the FIFO size is truncated.
rxWords Receive FIFO watermark value in words. The kLPI2C_MasterRxReadyFlag flag is
set whenever the number of words in the receive FIFO is greater than rxWords. Writ-
ing a value equal or greater than the FIFO size is truncated.
28.5.5.16 static void LPI2C_MasterGetFifoCounts ( LPI2C_Type ∗base, size_t ∗rxCount,
size_t ∗txCount )[inline],[static]
Parameters
base The LPI2C peripheral base address.
out txCount Pointer through which the current number of words in the transmit FIFO
is returned. Pass NULL if this value is not required.
out rxCount Pointer through which the current number of words in the receive FIFO
is returned. Pass NULL if this value is not required.
28.5.5.17 void LPI2C_MasterSetBaudRate ( LPI2C_Type ∗base, uint32_t sourceClock_Hz,
uint32_t baudRate_Hz )
The LPI2C master is automatically disabled and re-enabled as necessary to configure the baud rate. Do
not call this function during a transfer, or the transfer is aborted.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
609
LPI2C Master Driver
Parameters
base The LPI2C peripheral base address.
sourceClock_-
Hz
LPI2C functional clock frequency in Hertz.
baudRate_Hz Requested bus frequency in Hertz.
28.5.5.18 static bool LPI2C_MasterGetBusIdleState ( LPI2C_Type ∗base )[inline],
[static]
Requires the master mode to be enabled.
Parameters
base The LPI2C peripheral base address.
Return values
true Bus is busy.
false Bus is idle.
28.5.5.19 status_t LPI2C_MasterStart ( LPI2C_Type ∗base, uint8_t address,
lpi2c_direction_t dir )
This function is used to initiate a new master mode transfer. First, the bus state is checked to ensure
that another master is not occupying the bus. Then a START signal is transmitted, followed by the 7-bit
address specified in the address parameter. Note that this function does not actually wait until the START
and address are successfully sent on the bus before returning.
Parameters
base The LPI2C peripheral base address.
address 7-bit slave device address, in bits [6:0].
dir Master transfer direction, either kLPI2C_Read or kLPI2C_Write. This parameter is
used to set the R/w bit (bit 0) in the transmitted slave address.
610
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
Return values
#kStatus_Success START signal and address were successfully enqueued in the transmit FI-
FO.
kStatus_LPI2C_Busy Another master is currently utilizing the bus.
28.5.5.20 static status_t LPI2C_MasterRepeatedStart ( LPI2C_Type ∗base, uint8_t
address, lpi2c_direction_t dir )[inline],[static]
This function is used to send a Repeated START signal when a transfer is already in progress. Like
LPI2C_MasterStart(), it also sends the specified 7-bit address.
Note
This function exists primarily to maintain compatible APIs between LPI2C and I2C drivers, as well
as to better document the intent of code that uses these APIs.
Parameters
base The LPI2C peripheral base address.
address 7-bit slave device address, in bits [6:0].
dir Master transfer direction, either kLPI2C_Read or kLPI2C_Write. This parameter is
used to set the R/w bit (bit 0) in the transmitted slave address.
Return values
#kStatus_Success Repeated START signal and address were successfully enqueued in the
transmit FIFO.
kStatus_LPI2C_Busy Another master is currently utilizing the bus.
28.5.5.21 status_t LPI2C_MasterSend ( LPI2C_Type ∗base, const void ∗txBuff, size_t
txSize )
Sends up to txSize number of bytes to the previously addressed slave device. The slave may reply with a
NAK to any byte in order to terminate the transfer early. If this happens, this function returns kStatus_L-
PI2C_Nak.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
611
LPI2C Master Driver
Parameters
base The LPI2C peripheral base address.
txBuff The pointer to the data to be transferred.
txSize The length in bytes of the data to be transferred.
Return values
#kStatus_Success Data was sent successfully.
kStatus_LPI2C_Busy Another master is currently utilizing the bus.
kStatus_LPI2C_Nak The slave device sent a NAK in response to a byte.
kStatus_LPI2C_FifoError FIFO under run or over run.
kStatus_LPI2C_-
ArbitrationLost
Arbitration lost error.
kStatus_LPI2C_PinLow-
Timeout
SCL or SDA were held low longer than the timeout.
28.5.5.22 status_t LPI2C_MasterReceive ( LPI2C_Type ∗base, void ∗rxBuff, size_t
rxSize )
Parameters
base The LPI2C peripheral base address.
rxBuff The pointer to the data to be transferred.
rxSize The length in bytes of the data to be transferred.
Return values
#kStatus_Success Data was received successfully.
kStatus_LPI2C_Busy Another master is currently utilizing the bus.
kStatus_LPI2C_Nak The slave device sent a NAK in response to a byte.
kStatus_LPI2C_FifoError FIFO under run or overrun.
kStatus_LPI2C_-
ArbitrationLost
Arbitration lost error.
612
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
kStatus_LPI2C_PinLow-
Timeout
SCL or SDA were held low longer than the timeout.
28.5.5.23 status_t LPI2C_MasterStop ( LPI2C_Type ∗base )
This function does not return until the STOP signal is seen on the bus, or an error occurs.
Parameters
base The LPI2C peripheral base address.
Return values
#kStatus_Success The STOP signal was successfully sent on the bus and the transaction ter-
minated.
kStatus_LPI2C_Busy Another master is currently utilizing the bus.
kStatus_LPI2C_Nak The slave device sent a NAK in response to a byte.
kStatus_LPI2C_FifoError FIFO under run or overrun.
kStatus_LPI2C_-
ArbitrationLost
Arbitration lost error.
kStatus_LPI2C_PinLow-
Timeout
SCL or SDA were held low longer than the timeout.
28.5.5.24 void LPI2C_MasterTransferCreateHandle ( LPI2C_Type ∗base,
lpi2c_master_handle_t ∗handle, lpi2c_master_transfer_callback_t callback,
void ∗userData )
The creation of a handle is for use with the non-blocking APIs. Once a handle is created, there is not a
corresponding destroy handle. If the user wants to terminate a transfer, the LPI2C_MasterTransferAbort()
API shall be called.
Parameters
base The LPI2C peripheral base address.
out handle Pointer to the LPI2C master driver handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
613
LPI2C Master Driver
callback User provided pointer to the asynchronous callback function.
userData User provided pointer to the application callback data.
28.5.5.25 status_t LPI2C_MasterTransferNonBlocking ( LPI2C_Type ∗base,
lpi2c_master_handle_t ∗handle, lpi2c_master_transfer_t ∗transfer )
Parameters
base The LPI2C peripheral base address.
handle Pointer to the LPI2C master driver handle.
transfer The pointer to the transfer descriptor.
Return values
#kStatus_Success The transaction was started successfully.
kStatus_LPI2C_Busy Either another master is currently utilizing the bus, or a non-blocking trans-
action is already in progress.
28.5.5.26 status_t LPI2C_MasterTransferGetCount ( LPI2C_Type ∗base,
lpi2c_master_handle_t ∗handle, size_t ∗count )
Parameters
base The LPI2C peripheral base address.
handle Pointer to the LPI2C master driver handle.
out count Number of bytes transferred so far by the non-blocking transaction.
Return values
#kStatus_Success
#kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
28.5.5.27 void LPI2C_MasterTransferAbort ( LPI2C_Type ∗base, lpi2c_master_handle_t
∗handle )
614
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master Driver
Note
It is not safe to call this function from an IRQ handler that has a higher priority than the LPI2C
peripheral’s IRQ priority.
Parameters
base The LPI2C peripheral base address.
handle Pointer to the LPI2C master driver handle.
Return values
#kStatus_Success A transaction was successfully aborted.
kStatus_LPI2C_Idle There is not a non-blocking transaction currently in progress.
28.5.5.28 void LPI2C_MasterTransferHandleIRQ ( LPI2C_Type ∗base,
lpi2c_master_handle_t ∗handle )
Note
This function does not need to be called unless you are reimplementing the nonblocking API’s inter-
rupt handler routines to add special functionality.
Parameters
base The LPI2C peripheral base address.
handle Pointer to the LPI2C master driver handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
615
LPI2C Master DMA Driver
28.6 LPI2C Master DMA Driver
28.6.1 Overview
Data Structures
• struct lpi2c_master_edma_handle_t
Driver handle for master DMA APIs. More...
Typedefs
• typedef void(∗lpi2c_master_edma_transfer_callback_t )(LPI2C_Type ∗base, lpi2c_master_edma_-
handle_t ∗handle, status_t completionStatus, void ∗userData)
Master DMA completion callback function pointer type.
Master DMA
• void LPI2C_MasterCreateEDMAHandle (LPI2C_Type ∗base, lpi2c_master_edma_handle_t
∗handle, edma_handle_t ∗rxDmaHandle, edma_handle_t ∗txDmaHandle, lpi2c_master_edma_-
transfer_callback_t callback, void ∗userData)
Create a new handle for the LPI2C master DMA APIs.
• status_t LPI2C_MasterTransferEDMA (LPI2C_Type ∗base, lpi2c_master_edma_handle_t ∗handle,
lpi2c_master_transfer_t ∗transfer)
Performs a non-blocking DMA-based transaction on the I2C bus.
• status_t LPI2C_MasterTransferGetCountEDMA (LPI2C_Type ∗base, lpi2c_master_edma_handle-
_t ∗handle, size_t ∗count)
Returns number of bytes transferred so far.
• status_t LPI2C_MasterTransferAbortEDMA (LPI2C_Type ∗base, lpi2c_master_edma_handle_-
t∗handle)
Terminates a non-blocking LPI2C master transmission early.
28.6.2 Data Structure Documentation
28.6.2.1 struct _lpi2c_master_edma_handle
Note
The contents of this structure are private and subject to change.
Data Fields
• LPI2C_Type ∗base
LPI2C base pointer.
• bool isBusy
616
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master DMA Driver
Transfer state machine current state.
• uint16_t commandBuffer [7]
LPI2C command sequence.
• lpi2c_master_transfer_t transfer
Copy of the current transfer info.
•lpi2c_master_edma_transfer_callback_t completionCallback
Callback function pointer.
• void ∗userData
Application data passed to callback.
•edma_handle_t ∗rx
Handle for receive DMA channel.
•edma_handle_t ∗tx
Handle for transmit DMA channel.
•edma_tcd_t tcds [2]
Software TCD.
28.6.2.1.0.28 Field Documentation
28.6.2.1.0.28.1 LPI2C_Type∗lpi2c_master_edma_handle_t::base
28.6.2.1.0.28.2 bool lpi2c_master_edma_handle_t::isBusy
28.6.2.1.0.28.3 uint16_t lpi2c_master_edma_handle_t::commandBuffer[7]
28.6.2.1.0.28.4 lpi2c_master_transfer_t lpi2c_master_edma_handle_t::transfer
28.6.2.1.0.28.5 lpi2c_master_edma_transfer_callback_t lpi2c_master_edma_handle_t-
::completionCallback
28.6.2.1.0.28.6 void∗lpi2c_master_edma_handle_t::userData
28.6.2.1.0.28.7 edma_handle_t∗lpi2c_master_edma_handle_t::rx
28.6.2.1.0.28.8 edma_handle_t∗lpi2c_master_edma_handle_t::tx
28.6.2.1.0.28.9 edma_tcd_t lpi2c_master_edma_handle_t::tcds[2]
Two are allocated to provide enough room to align to 32-bytes.
28.6.3 Typedef Documentation
28.6.3.1 typedef void(∗lpi2c_master_edma_transfer_callback_t)(LPI2C_Type ∗base,
lpi2c_master_edma_handle_t ∗handle, status_t completionStatus, void
∗userData)
This callback is used only for the non-blocking master transfer API. Specify the callback you wish to use
in the call to LPI2C_MasterCreateEDMAHandle().
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
617
LPI2C Master DMA Driver
Parameters
base The LPI2C peripheral base address.
handle Handle associated with the completed transfer.
completion-
Status
Either #kStatus_Success or an error code describing how the transfer completed.
userData Arbitrary pointer-sized value passed from the application.
28.6.4 Function Documentation
28.6.4.1 void LPI2C_MasterCreateEDMAHandle ( LPI2C_Type ∗base, lpi2c_master_-
edma_handle_t ∗handle, edma_handle_t ∗rxDmaHandle, edma_handle_t
∗txDmaHandle, lpi2c_master_edma_transfer_callback_t callback, void ∗
userData )
The creation of a handle is for use with the DMA APIs. Once a handle is created, there is not a correspond-
ing destroy handle. If the user wants to terminate a transfer, the LPI2C_MasterTransferAbortEDMA() API
shall be called.
For devices where the LPI2C send and receive DMA requests are OR’d together, the txDmaHandle pa-
rameter is ignored and may be set to NULL.
Parameters
base The LPI2C peripheral base address.
out handle Pointer to the LPI2C master driver handle.
rxDmaHandle Handle for the eDMA receive channel. Created by the user prior to
calling this function.
txDmaHandle Handle for the eDMA transmit channel. Created by the user prior to
calling this function.
callback User provided pointer to the asynchronous callback function.
userData User provided pointer to the application callback data.
28.6.4.2 status_t LPI2C_MasterTransferEDMA ( LPI2C_Type ∗base, lpi2c_-
master_edma_handle_t ∗handle, lpi2c_master_transfer_t ∗transfer
)
The callback specified when the handle was created is invoked when the transaction has completed.
618
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Master DMA Driver
Parameters
base The LPI2C peripheral base address.
handle Pointer to the LPI2C master driver handle.
transfer The pointer to the transfer descriptor.
Return values
#kStatus_Success The transaction was started successfully.
kStatus_LPI2C_Busy Either another master is currently utilizing the bus, or another DMA trans-
action is already in progress.
28.6.4.3 status_t LPI2C_MasterTransferGetCountEDMA ( LPI2C_Type ∗base,
lpi2c_master_edma_handle_t ∗handle, size_t ∗count )
Parameters
base The LPI2C peripheral base address.
handle Pointer to the LPI2C master driver handle.
out count Number of bytes transferred so far by the non-blocking transaction.
Return values
#kStatus_Success
#kStatus_NoTransferIn-
Progress
There is not a DMA transaction currently in progress.
28.6.4.4 status_t LPI2C_MasterTransferAbortEDMA ( LPI2C_Type ∗base,
lpi2c_master_edma_handle_t ∗handle )
Note
It is not safe to call this function from an IRQ handler that has a higher priority than the eDMA
peripheral’s IRQ priority.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
619
LPI2C Master DMA Driver
Parameters
base The LPI2C peripheral base address.
handle Pointer to the LPI2C master driver handle.
Return values
#kStatus_Success A transaction was successfully aborted.
kStatus_LPI2C_Idle There is not a DMA transaction currently in progress.
620
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Slave Driver
28.7 LPI2C Slave Driver
28.7.1 Overview
Data Structures
• struct lpi2c_slave_config_t
Structure with settings to initialize the LPI2C slave module. More...
• struct lpi2c_slave_transfer_t
LPI2C slave transfer structure. More...
• struct lpi2c_slave_handle_t
LPI2C slave handle structure. More...
Typedefs
• typedef void(∗lpi2c_slave_transfer_callback_t )(LPI2C_Type ∗base, lpi2c_slave_transfer_-
t∗transfer, void ∗userData)
Slave event callback function pointer type.
Enumerations
• enum _lpi2c_slave_flags {
kLPI2C_SlaveTxReadyFlag = LPI2C_SSR_TDF_MASK,
kLPI2C_SlaveRxReadyFlag = LPI2C_SSR_RDF_MASK,
kLPI2C_SlaveAddressValidFlag = LPI2C_SSR_AVF_MASK,
kLPI2C_SlaveTransmitAckFlag = LPI2C_SSR_TAF_MASK,
kLPI2C_SlaveRepeatedStartDetectFlag = LPI2C_SSR_RSF_MASK,
kLPI2C_SlaveStopDetectFlag = LPI2C_SSR_SDF_MASK,
kLPI2C_SlaveBitErrFlag = LPI2C_SSR_BEF_MASK,
kLPI2C_SlaveFifoErrFlag = LPI2C_SSR_FEF_MASK,
kLPI2C_SlaveAddressMatch0Flag = LPI2C_SSR_AM0F_MASK,
kLPI2C_SlaveAddressMatch1Flag = LPI2C_SSR_AM1F_MASK,
kLPI2C_SlaveGeneralCallFlag = LPI2C_SSR_GCF_MASK,
kLPI2C_SlaveBusyFlag = LPI2C_SSR_SBF_MASK,
kLPI2C_SlaveBusBusyFlag = LPI2C_SSR_BBF_MASK }
LPI2C slave peripheral flags.
• enum lpi2c_slave_address_match_t {
kLPI2C_MatchAddress0 = 0U,
kLPI2C_MatchAddress0OrAddress1 = 2U,
kLPI2C_MatchAddress0ThroughAddress1 = 6U }
LPI2C slave address match options.
• enum lpi2c_slave_transfer_event_t {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
621
LPI2C Slave Driver
kLPI2C_SlaveAddressMatchEvent = 0x01U,
kLPI2C_SlaveTransmitEvent = 0x02U,
kLPI2C_SlaveReceiveEvent = 0x04U,
kLPI2C_SlaveTransmitAckEvent = 0x08U,
kLPI2C_SlaveRepeatedStartEvent = 0x10U,
kLPI2C_SlaveCompletionEvent = 0x20U,
kLPI2C_SlaveAllEvents }
Set of events sent to the callback for non blocking slave transfers.
Slave initialization and deinitialization
• void LPI2C_SlaveGetDefaultConfig (lpi2c_slave_config_t ∗slaveConfig)
Provides a default configuration for the LPI2C slave peripheral.
• void LPI2C_SlaveInit (LPI2C_Type ∗base, const lpi2c_slave_config_t ∗slaveConfig, uint32_-
t sourceClock_Hz)
Initializes the LPI2C slave peripheral.
• void LPI2C_SlaveDeinit (LPI2C_Type ∗base)
Deinitializes the LPI2C slave peripheral.
• static void LPI2C_SlaveReset (LPI2C_Type ∗base)
Performs a software reset of the LPI2C slave peripheral.
• static void LPI2C_SlaveEnable (LPI2C_Type ∗base, bool enable)
Enables or disables the LPI2C module as slave.
Slave status
• static uint32_t LPI2C_SlaveGetStatusFlags (LPI2C_Type ∗base)
Gets the LPI2C slave status flags.
• static void LPI2C_SlaveClearStatusFlags (LPI2C_Type ∗base, uint32_t statusMask)
Clears the LPI2C status flag state.
Slave interrupts
• static void LPI2C_SlaveEnableInterrupts (LPI2C_Type ∗base, uint32_t interruptMask)
Enables the LPI2C slave interrupt requests.
• static void LPI2C_SlaveDisableInterrupts (LPI2C_Type ∗base, uint32_t interruptMask)
Disables the LPI2C slave interrupt requests.
• static uint32_t LPI2C_SlaveGetEnabledInterrupts (LPI2C_Type ∗base)
Returns the set of currently enabled LPI2C slave interrupt requests.
Slave DMA control
• static void LPI2C_SlaveEnableDMA (LPI2C_Type ∗base, bool enableAddressValid, bool enable-
Rx, bool enableTx)
Enables or disables the LPI2C slave peripheral DMA requests.
622
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Slave Driver
Slave bus operations
• static bool LPI2C_SlaveGetBusIdleState (LPI2C_Type ∗base)
Returns whether the bus is idle.
• static void LPI2C_SlaveTransmitAck (LPI2C_Type ∗base, bool ackOrNack)
Transmits either an ACK or NAK on the I2C bus in response to a byte from the master.
• static uint32_t LPI2C_SlaveGetReceivedAddress (LPI2C_Type ∗base)
Returns the slave address sent by the I2C master.
• status_t LPI2C_SlaveSend (LPI2C_Type ∗base, const void ∗txBuff, size_t txSize, size_t ∗actualTx-
Size)
Performs a polling send transfer on the I2C bus.
• status_t LPI2C_SlaveReceive (LPI2C_Type ∗base, void ∗rxBuff, size_t rxSize, size_t ∗actualRx-
Size)
Performs a polling receive transfer on the I2C bus.
Slave non-blocking
• void LPI2C_SlaveTransferCreateHandle (LPI2C_Type ∗base, lpi2c_slave_handle_t ∗handle, lpi2c-
_slave_transfer_callback_t callback, void ∗userData)
Creates a new handle for the LPI2C slave non-blocking APIs.
• status_t LPI2C_SlaveTransferNonBlocking (LPI2C_Type ∗base, lpi2c_slave_handle_t ∗handle,
uint32_t eventMask)
Starts accepting slave transfers.
• status_t LPI2C_SlaveTransferGetCount (LPI2C_Type ∗base, lpi2c_slave_handle_t ∗handle, size_t
∗count)
Gets the slave transfer status during a non-blocking transfer.
• void LPI2C_SlaveTransferAbort (LPI2C_Type ∗base, lpi2c_slave_handle_t ∗handle)
Aborts the slave non-blocking transfers.
Slave IRQ handler
• void LPI2C_SlaveTransferHandleIRQ (LPI2C_Type ∗base, lpi2c_slave_handle_t ∗handle)
Reusable routine to handle slave interrupts.
28.7.2 Data Structure Documentation
28.7.2.1 struct lpi2c_slave_config_t
This structure holds configuration settings for the LPI2C slave peripheral. To initialize this structure to
reasonable defaults, call the LPI2C_SlaveGetDefaultConfig() function and pass a pointer to your configu-
ration structure instance.
The configuration structure can be made constant so it resides in flash.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
623
LPI2C Slave Driver
Data Fields
• bool enableSlave
Enable slave mode.
• uint8_t address0
Slave’s 7-bit address.
• uint8_t address1
Alternate slave 7-bit address.
•lpi2c_slave_address_match_t addressMatchMode
Address matching options.
• bool filterDozeEnable
Enable digital glitch filter in doze mode.
• bool filterEnable
Enable digital glitch filter.
• bool enableGeneralCall
Enable general call address matching.
• bool ignoreAck
Continue transfers after a NACK is detected.
• bool enableReceivedAddressRead
Enable reading the address received address as the first byte of data.
• uint32_t sdaGlitchFilterWidth_ns
Width in nanoseconds of the digital filter on the SDA signal.
• uint32_t sclGlitchFilterWidth_ns
Width in nanoseconds of the digital filter on the SCL signal.
• uint32_t dataValidDelay_ns
Width in nanoseconds of the data valid delay.
• uint32_t clockHoldTime_ns
Width in nanoseconds of the clock hold time.
• bool enableAck
Enables SCL clock stretching during slave-transmit address byte(s) and slave-receiver address and data
byte(s) to allow software to write the Transmit ACK Register before the ACK or NACK is transmitted.
• bool enableTx
Enables SCL clock stretching when the transmit data flag is set during a slave-transmit transfer.
• bool enableRx
Enables SCL clock stretching when receive data flag is set during a slave-receive transfer.
• bool enableAddress
Enables SCL clock stretching when the address valid flag is asserted.
624
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Slave Driver
28.7.2.1.0.29 Field Documentation
28.7.2.1.0.29.1 bool lpi2c_slave_config_t::enableSlave
28.7.2.1.0.29.2 uint8_t lpi2c_slave_config_t::address0
28.7.2.1.0.29.3 uint8_t lpi2c_slave_config_t::address1
28.7.2.1.0.29.4 lpi2c_slave_address_match_t lpi2c_slave_config_t::addressMatchMode
28.7.2.1.0.29.5 bool lpi2c_slave_config_t::filterDozeEnable
28.7.2.1.0.29.6 bool lpi2c_slave_config_t::filterEnable
28.7.2.1.0.29.7 bool lpi2c_slave_config_t::enableGeneralCall
28.7.2.1.0.29.8 bool lpi2c_slave_config_t::enableAck
Clock stretching occurs when transmitting the 9th bit. When enableAckSCLStall is enabled, there is no
need to set either enableRxDataSCLStall or enableAddressSCLStall.
28.7.2.1.0.29.9 bool lpi2c_slave_config_t::enableTx
28.7.2.1.0.29.10 bool lpi2c_slave_config_t::enableRx
28.7.2.1.0.29.11 bool lpi2c_slave_config_t::enableAddress
28.7.2.1.0.29.12 bool lpi2c_slave_config_t::ignoreAck
28.7.2.1.0.29.13 bool lpi2c_slave_config_t::enableReceivedAddressRead
28.7.2.1.0.29.14 uint32_t lpi2c_slave_config_t::sdaGlitchFilterWidth_ns
28.7.2.1.0.29.15 uint32_t lpi2c_slave_config_t::sclGlitchFilterWidth_ns
28.7.2.1.0.29.16 uint32_t lpi2c_slave_config_t::dataValidDelay_ns
28.7.2.1.0.29.17 uint32_t lpi2c_slave_config_t::clockHoldTime_ns
28.7.2.2 struct lpi2c_slave_transfer_t
Data Fields
•lpi2c_slave_transfer_event_t event
Reason the callback is being invoked.
• uint8_t receivedAddress
Matching address send by master.
• uint8_t ∗data
Transfer buffer.
• size_t dataSize
Transfer size.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
625
LPI2C Slave Driver
• status_t completionStatus
Success or error code describing how the transfer completed.
• size_t transferredCount
Number of bytes actually transferred since start or last repeated start.
28.7.2.2.0.30 Field Documentation
28.7.2.2.0.30.1 lpi2c_slave_transfer_event_t lpi2c_slave_transfer_t::event
28.7.2.2.0.30.2 uint8_t lpi2c_slave_transfer_t::receivedAddress
28.7.2.2.0.30.3 status_t lpi2c_slave_transfer_t::completionStatus
Only applies for kLPI2C_SlaveCompletionEvent.
28.7.2.2.0.30.4 size_t lpi2c_slave_transfer_t::transferredCount
28.7.2.3 struct _lpi2c_slave_handle
Note
The contents of this structure are private and subject to change.
Data Fields
•lpi2c_slave_transfer_t transfer
LPI2C slave transfer copy.
• bool isBusy
Whether transfer is busy.
• bool wasTransmit
Whether the last transfer was a transmit.
• uint32_t eventMask
Mask of enabled events.
• uint32_t transferredCount
Count of bytes transferred.
•lpi2c_slave_transfer_callback_t callback
Callback function called at transfer event.
• void ∗userData
Callback parameter passed to callback.
626
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Slave Driver
28.7.2.3.0.31 Field Documentation
28.7.2.3.0.31.1 lpi2c_slave_transfer_t lpi2c_slave_handle_t::transfer
28.7.2.3.0.31.2 bool lpi2c_slave_handle_t::isBusy
28.7.2.3.0.31.3 bool lpi2c_slave_handle_t::wasTransmit
28.7.2.3.0.31.4 uint32_t lpi2c_slave_handle_t::eventMask
28.7.2.3.0.31.5 uint32_t lpi2c_slave_handle_t::transferredCount
28.7.2.3.0.31.6 lpi2c_slave_transfer_callback_t lpi2c_slave_handle_t::callback
28.7.2.3.0.31.7 void∗lpi2c_slave_handle_t::userData
28.7.3 Typedef Documentation
28.7.3.1 typedef void(∗lpi2c_slave_transfer_callback_t)(LPI2C_Type ∗base,
lpi2c_slave_transfer_t ∗transfer, void ∗userData)
This callback is used only for the slave non-blocking transfer API. To install a callback, use the LPI2C_-
SlaveSetCallback() function after you have created a handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
627
LPI2C Slave Driver
Parameters
base Base address for the LPI2C instance on which the event occurred.
transfer Pointer to transfer descriptor containing values passed to and/or from the callback.
userData Arbitrary pointer-sized value passed from the application.
28.7.4 Enumeration Type Documentation
28.7.4.1 enum _lpi2c_slave_flags
The following status register flags can be cleared:
•kLPI2C_SlaveRepeatedStartDetectFlag
•kLPI2C_SlaveStopDetectFlag
•kLPI2C_SlaveBitErrFlag
•kLPI2C_SlaveFifoErrFlag
All flags except kLPI2C_SlaveBusyFlag and kLPI2C_SlaveBusBusyFlag can be enabled as interrupts.
Note
These enumerations are meant to be OR’d together to form a bit mask.
Enumerator
kLPI2C_SlaveTxReadyFlag Transmit data flag.
kLPI2C_SlaveRxReadyFlag Receive data flag.
kLPI2C_SlaveAddressValidFlag Address valid flag.
kLPI2C_SlaveTransmitAckFlag Transmit ACK flag.
kLPI2C_SlaveRepeatedStartDetectFlag Repeated start detect flag.
kLPI2C_SlaveStopDetectFlag Stop detect flag.
kLPI2C_SlaveBitErrFlag Bit error flag.
kLPI2C_SlaveFifoErrFlag FIFO error flag.
kLPI2C_SlaveAddressMatch0Flag Address match 0 flag.
kLPI2C_SlaveAddressMatch1Flag Address match 1 flag.
kLPI2C_SlaveGeneralCallFlag General call flag.
kLPI2C_SlaveBusyFlag Master busy flag.
kLPI2C_SlaveBusBusyFlag Bus busy flag.
28.7.4.2 enum lpi2c_slave_address_match_t
Enumerator
kLPI2C_MatchAddress0 Match only address 0.
628
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Slave Driver
kLPI2C_MatchAddress0OrAddress1 Match either address 0 or address 1.
kLPI2C_MatchAddress0ThroughAddress1 Match a range of slave addresses from address 0
through address 1.
28.7.4.3 enum lpi2c_slave_transfer_event_t
These event enumerations are used for two related purposes. First, a bit mask created by OR’ing together
events is passed to LPI2C_SlaveTransferNonBlocking() in order to specify which events to enable. Then,
when the slave callback is invoked, it is passed the current event through its transfer parameter.
Note
These enumerations are meant to be OR’d together to form a bit mask of events.
Enumerator
kLPI2C_SlaveAddressMatchEvent Received the slave address after a start or repeated start.
kLPI2C_SlaveTransmitEvent Callback is requested to provide data to transmit (slave-transmitter
role).
kLPI2C_SlaveReceiveEvent Callback is requested to provide a buffer in which to place received
data (slave-receiver role).
kLPI2C_SlaveTransmitAckEvent Callback needs to either transmit an ACK or NACK.
kLPI2C_SlaveRepeatedStartEvent A repeated start was detected.
kLPI2C_SlaveCompletionEvent A stop was detected, completing the transfer.
kLPI2C_SlaveAllEvents Bit mask of all available events.
28.7.5 Function Documentation
28.7.5.1 void LPI2C_SlaveGetDefaultConfig ( lpi2c_slave_config_t ∗slaveConfig )
This function provides the following default configuration for the LPI2C slave peripheral:
slaveConfig->enableSlave =true;
slaveConfig->address0 = 0U;
slaveConfig->address1 = 0U;
slaveConfig->addressMatchMode = kLPI2C_MatchAddress0;
slaveConfig->filterDozeEnable = true;
slaveConfig->filterEnable = true;
slaveConfig->enableGeneralCall =false;
slaveConfig->sclStall.enableAck = false;
slaveConfig->sclStall.enableTx = true;
slaveConfig->sclStall.enableRx = true;
slaveConfig->sclStall.enableAddress = true;
slaveConfig->ignoreAck = false;
slaveConfig->enableReceivedAddressRead = false;
slaveConfig->sdaGlitchFilterWidth_ns = 0; // TODO determine default width values
slaveConfig->sclGlitchFilterWidth_ns = 0;
slaveConfig->dataValidDelay_ns = 0;
slaveConfig->clockHoldTime_ns = 0;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
629
LPI2C Slave Driver
After calling this function, override any settings to customize the configuration, prior to initializing the
master driver with LPI2C_SlaveInit(). Be sure to override at least the address0 member of the configura-
tion structure with the desired slave address.
Parameters
out slaveConfig User provided configuration structure that is set to default values. Refer
to lpi2c_slave_config_t.
28.7.5.2 void LPI2C_SlaveInit ( LPI2C_Type ∗base, const lpi2c_slave_config_t ∗
slaveConfig, uint32_t sourceClock_Hz )
This function enables the peripheral clock and initializes the LPI2C slave peripheral as described by the
user provided configuration.
Parameters
base The LPI2C peripheral base address.
slaveConfig User provided peripheral configuration. Use LPI2C_SlaveGetDefaultConfig() to get
a set of defaults that you can override.
sourceClock_-
Hz
Frequency in Hertz of the LPI2C functional clock. Used to calculate the filter widths,
data valid delay, and clock hold time.
28.7.5.3 void LPI2C_SlaveDeinit ( LPI2C_Type ∗base )
This function disables the LPI2C slave peripheral and gates the clock. It also performs a software reset to
restore the peripheral to reset conditions.
Parameters
base The LPI2C peripheral base address.
28.7.5.4 static void LPI2C_SlaveReset ( LPI2C_Type ∗base )[inline],[static]
Parameters
630
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Slave Driver
base The LPI2C peripheral base address.
28.7.5.5 static void LPI2C_SlaveEnable ( LPI2C_Type ∗base, bool enable )[inline],
[static]
Parameters
base The LPI2C peripheral base address.
enable Pass true to enable or false to disable the specified LPI2C as slave.
28.7.5.6 static uint32_t LPI2C_SlaveGetStatusFlags ( LPI2C_Type ∗base )[inline],
[static]
A bit mask with the state of all LPI2C slave status flags is returned. For each flag, the corresponding bit
in the return value is set if the flag is asserted.
Parameters
base The LPI2C peripheral base address.
Returns
State of the status flags:
• 1: related status flag is set.
• 0: related status flag is not set.
See Also
_lpi2c_slave_flags
28.7.5.7 static void LPI2C_SlaveClearStatusFlags ( LPI2C_Type ∗base, uint32_t
statusMask )[inline],[static]
The following status register flags can be cleared:
•kLPI2C_SlaveRepeatedStartDetectFlag
•kLPI2C_SlaveStopDetectFlag
•kLPI2C_SlaveBitErrFlag
•kLPI2C_SlaveFifoErrFlag
Attempts to clear other flags has no effect.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
631
LPI2C Slave Driver
Parameters
base The LPI2C peripheral base address.
statusMask A bitmask of status flags that are to be cleared. The mask is composed of _lpi2c_-
slave_flags enumerators OR’d together. You may pass the result of a previous call to
LPI2C_SlaveGetStatusFlags().
See Also
_lpi2c_slave_flags.
28.7.5.8 static void LPI2C_SlaveEnableInterrupts ( LPI2C_Type ∗base, uint32_t
interruptMask )[inline],[static]
All flags except kLPI2C_SlaveBusyFlag and kLPI2C_SlaveBusBusyFlag can be enabled as interrupts.
Parameters
base The LPI2C peripheral base address.
interruptMask Bit mask of interrupts to enable. See _lpi2c_slave_flags for the set of constants that
should be OR’d together to form the bit mask.
28.7.5.9 static void LPI2C_SlaveDisableInterrupts ( LPI2C_Type ∗base, uint32_t
interruptMask )[inline],[static]
All flags except kLPI2C_SlaveBusyFlag and kLPI2C_SlaveBusBusyFlag can be enabled as interrupts.
Parameters
base The LPI2C peripheral base address.
interruptMask Bit mask of interrupts to disable. See _lpi2c_slave_flags for the set of constants that
should be OR’d together to form the bit mask.
28.7.5.10 static uint32_t LPI2C_SlaveGetEnabledInterrupts ( LPI2C_Type ∗base )
[inline],[static]
632
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Slave Driver
Parameters
base The LPI2C peripheral base address.
Returns
A bitmask composed of _lpi2c_slave_flags enumerators OR’d together to indicate the set of enabled
interrupts.
28.7.5.11 static void LPI2C_SlaveEnableDMA ( LPI2C_Type ∗base, bool
enableAddressValid, bool enableRx, bool enableTx )[inline],[static]
Parameters
base The LPI2C peripheral base address.
enableAddress-
Valid
Enable flag for the address valid DMA request. Pass true for enable, false for disable.
The address valid DMA request is shared with the receive data DMA request.
enableRx Enable flag for the receive data DMA request. Pass true for enable, false for disable.
enableTx Enable flag for the transmit data DMA request. Pass true for enable, false for disable.
28.7.5.12 static bool LPI2C_SlaveGetBusIdleState ( LPI2C_Type ∗base )[inline],
[static]
Requires the slave mode to be enabled.
Parameters
base The LPI2C peripheral base address.
Return values
true Bus is busy.
false Bus is idle.
28.7.5.13 static void LPI2C_SlaveTransmitAck ( LPI2C_Type ∗base, bool ackOrNack )
[inline],[static]
Use this function to send an ACK or NAK when the kLPI2C_SlaveTransmitAckFlag is asserted. This
only happens if you enable the sclStall.enableAck field of the lpi2c_slave_config_t configuration structure
used to initialize the slave peripheral.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
633
LPI2C Slave Driver
Parameters
base The LPI2C peripheral base address.
ackOrNack Pass true for an ACK or false for a NAK.
28.7.5.14 static uint32_t LPI2C_SlaveGetReceivedAddress ( LPI2C_Type ∗base )
[inline],[static]
This function should only be called if the kLPI2C_SlaveAddressValidFlag is asserted.
Parameters
base The LPI2C peripheral base address.
Returns
The 8-bit address matched by the LPI2C slave. Bit 0 contains the R/w direction bit, and the 7-bit
slave address is in the upper 7 bits.
28.7.5.15 status_t LPI2C_SlaveSend ( LPI2C_Type ∗base, const void ∗txBuff, size_t
txSize, size_t ∗actualTxSize )
Parameters
base The LPI2C peripheral base address.
txBuff The pointer to the data to be transferred.
txSize The length in bytes of the data to be transferred.
out actualTxSize
Returns
Error or success status returned by API.
28.7.5.16 status_t LPI2C_SlaveReceive ( LPI2C_Type ∗base, void ∗rxBuff, size_t rxSize,
size_t ∗actualRxSize )
634
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Slave Driver
Parameters
base The LPI2C peripheral base address.
rxBuff The pointer to the data to be transferred.
rxSize The length in bytes of the data to be transferred.
out actualRxSize
Returns
Error or success status returned by API.
28.7.5.17 void LPI2C_SlaveTransferCreateHandle ( LPI2C_Type ∗base,
lpi2c_slave_handle_t ∗handle, lpi2c_slave_transfer_callback_t callback, void ∗
userData )
The creation of a handle is for use with the non-blocking APIs. Once a handle is created, there is not a
corresponding destroy handle. If the user wants to terminate a transfer, the LPI2C_SlaveTransferAbort()
API shall be called.
Parameters
base The LPI2C peripheral base address.
out handle Pointer to the LPI2C slave driver handle.
callback User provided pointer to the asynchronous callback function.
userData User provided pointer to the application callback data.
28.7.5.18 status_t LPI2C_SlaveTransferNonBlocking ( LPI2C_Type ∗base,
lpi2c_slave_handle_t ∗handle, uint32_t eventMask )
Call this API after calling I2C_SlaveInit() and LPI2C_SlaveTransferCreateHandle() to start processing
transactions driven by an I2C master. The slave monitors the I2C bus and pass events to the callback that
was passed into the call to LPI2C_SlaveTransferCreateHandle(). The callback is always invoked from the
interrupt context.
The set of events received by the callback is customizable. To do so, set the eventMask parameter to the
OR’d combination of lpi2c_slave_transfer_event_t enumerators for the events you wish to receive. The
kLPI2C_SlaveTransmitEvent and kLPI2C_SlaveReceiveEvent events are always enabled and do not need
to be included in the mask. Alternatively, you can pass 0 to get a default set of only the transmit and
receive events that are always enabled. In addition, the kLPI2C_SlaveAllEvents constant is provided as a
convenient way to enable all events.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
635
LPI2C Slave Driver
Parameters
base The LPI2C peripheral base address.
handle Pointer to #lpi2c_slave_handle_t structure which stores the transfer state.
eventMask Bit mask formed by OR’ing together lpi2c_slave_transfer_event_t enumerators to
specify which events to send to the callback. Other accepted values are 0 to get a
default set of only the transmit and receive events, and kLPI2C_SlaveAllEvents to
enable all events.
Return values
#kStatus_Success Slave transfers were successfully started.
kStatus_LPI2C_Busy Slave transfers have already been started on this handle.
28.7.5.19 status_t LPI2C_SlaveTransferGetCount ( LPI2C_Type ∗base,
lpi2c_slave_handle_t ∗handle, size_t ∗count )
Parameters
base The LPI2C peripheral base address.
handle Pointer to i2c_slave_handle_t structure.
out count Pointer to a value to hold the number of bytes transferred. May be NU-
LL if the count is not required.
Return values
#kStatus_Success
#kStatus_NoTransferIn-
Progress
28.7.5.20 void LPI2C_SlaveTransferAbort ( LPI2C_Type ∗base, lpi2c_slave_handle_t ∗
handle )
Note
This API could be called at any time to stop slave for handling the bus events.
636
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C Slave Driver
Parameters
base The LPI2C peripheral base address.
handle Pointer to #lpi2c_slave_handle_t structure which stores the transfer state.
Return values
#kStatus_Success
kStatus_LPI2C_Idle
28.7.5.21 void LPI2C_SlaveTransferHandleIRQ ( LPI2C_Type ∗base, lpi2c_slave_handle_t
∗handle )
Note
This function does not need to be called unless you are reimplementing the non blocking API’s
interrupt handler routines to add special functionality.
Parameters
base The LPI2C peripheral base address.
handle Pointer to #lpi2c_slave_handle_t structure which stores the transfer state.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
637
LPI2C Slave DMA Driver
28.8 LPI2C Slave DMA Driver
638
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C µCOS/II Driver
28.9 LPI2C µCOS/II Driver
28.9.1 Overview
Files
• file fsl_lpi2c_ucosii.h
Data Structures
• struct lpi2c_rtos_handle_t
LPI2C FreeRTOS handle. More...
Driver version
• #define FSL_LPI2C_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
LPI2C uCOS II driver version 2.0.0.
LPI2C RTOS Operation
• status_t LPI2C_RTOS_Init (lpi2c_rtos_handle_t ∗handle, LPI2C_Type ∗base, const lpi2c_master-
_config_t ∗masterConfig, uint32_t srcClock_Hz)
Initializes LPI2C.
• status_t LPI2C_RTOS_Deinit (lpi2c_rtos_handle_t ∗handle)
Deinitializes the LPI2C.
• status_t LPI2C_RTOS_Transfer (lpi2c_rtos_handle_t ∗handle, lpi2c_master_transfer_t ∗transfer)
Performs I2C transfer.
28.9.2 Data Structure Documentation
28.9.2.1 struct lpi2c_rtos_handle_t
LPI2C uCOS III handle.
LPI2C uCOS II handle.
Data Fields
• LPI2C_Type ∗base
LPI2C base address.
• lpi2c_master_handle_t drv_handle
Handle of the underlying driver, treated as opaque by the RTOS layer.
• SemaphoreHandle_t mutex
Mutex to lock the handle during a trasfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
639
LPI2C µCOS/II Driver
• SemaphoreHandle_t sem
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
28.9.3 Macro Definition Documentation
28.9.3.1 #define FSL_LPI2C_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
28.9.4 Function Documentation
28.9.4.1 status_t LPI2C_RTOS_Init ( lpi2c_rtos_handle_t ∗handle, LPI2C_Type ∗base,
const lpi2c_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the LPI2C module and related RTOS context.
Parameters
handle The RTOS LPI2C handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the LPI2C instance to initialize.
masterConfig Configuration structure to set-up LPI2C in master mode.
srcClock_Hz Frequency of input clock of the LPI2C module.
Returns
status of the operation.
28.9.4.2 status_t LPI2C_RTOS_Deinit ( lpi2c_rtos_handle_t ∗handle )
This function deinitializes the LPI2C module and related RTOS context.
Parameters
640
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C µCOS/II Driver
handle The RTOS LPI2C handle.
28.9.4.3 status_t LPI2C_RTOS_Transfer ( lpi2c_rtos_handle_t ∗handle,
lpi2c_master_transfer_t ∗transfer )
This function performs an I2C transfer using LPI2C module according to data given in the transfer struc-
ture.
Parameters
handle The RTOS LPI2C handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
641
LPI2C µCOS/III Driver
28.10 LPI2C µCOS/III Driver
28.10.1 Overview
Files
• file fsl_lpi2c_ucosiii.h
Data Structures
• struct lpi2c_rtos_handle_t
LPI2C FreeRTOS handle. More...
Driver version
• #define FSL_LPI2C_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
LPI2C uCOS III driver version 2.0.0.
LPI2C RTOS Operation
• status_t LPI2C_RTOS_Init (lpi2c_rtos_handle_t ∗handle, LPI2C_Type ∗base, const lpi2c_master-
_config_t ∗masterConfig, uint32_t srcClock_Hz)
Initializes LPI2C.
• status_t LPI2C_RTOS_Deinit (lpi2c_rtos_handle_t ∗handle)
Deinitializes the LPI2C.
• status_t LPI2C_RTOS_Transfer (lpi2c_rtos_handle_t ∗handle, lpi2c_master_transfer_t ∗transfer)
Performs I2C transfer.
28.10.2 Data Structure Documentation
28.10.2.1 struct lpi2c_rtos_handle_t
LPI2C uCOS III handle.
LPI2C uCOS II handle.
Data Fields
• LPI2C_Type ∗base
LPI2C base address.
• lpi2c_master_handle_t drv_handle
Handle of the underlying driver, treated as opaque by the RTOS layer.
• SemaphoreHandle_t mutex
Mutex to lock the handle during a trasfer.
642
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPI2C µCOS/III Driver
• SemaphoreHandle_t sem
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
28.10.3 Macro Definition Documentation
28.10.3.1 #define FSL_LPI2C_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
28.10.4 Function Documentation
28.10.4.1 status_t LPI2C_RTOS_Init ( lpi2c_rtos_handle_t ∗handle, LPI2C_Type ∗base,
const lpi2c_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the LPI2C module and related RTOS context.
Parameters
handle The RTOS LPI2C handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the LPI2C instance to initialize.
masterConfig Configuration structure to set-up LPI2C in master mode.
srcClock_Hz Frequency of input clock of the LPI2C module.
Returns
status of the operation.
28.10.4.2 status_t LPI2C_RTOS_Deinit ( lpi2c_rtos_handle_t ∗handle )
This function deinitializes the LPI2C module and related RTOS context.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
643
LPI2C µCOS/III Driver
handle The RTOS LPI2C handle.
28.10.4.3 status_t LPI2C_RTOS_Transfer ( lpi2c_rtos_handle_t ∗handle,
lpi2c_master_transfer_t ∗transfer )
This function performs an I2C transfer using LPI2C module according to data given in the transfer struc-
ture.
Parameters
handle The RTOS LPI2C handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
644
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 29
LPTMR: LPTMR Driver
29.1 Overview
The KSDK provides a driver for the LPTMR module of Kinetis devices.
Files
• file fsl_lptmr.h
Data Structures
• struct lptmr_config_t
LPTMR config structure. More...
Enumerations
• enum lptmr_pin_select_t {
kLPTMR_PinSelectInput_0 = 0x0U,
kLPTMR_PinSelectInput_1 = 0x1U,
kLPTMR_PinSelectInput_2 = 0x2U,
kLPTMR_PinSelectInput_3 = 0x3U }
LPTMR pin selection, used in pulse counter mode.
• enum lptmr_pin_polarity_t {
kLPTMR_PinPolarityActiveHigh = 0x0U,
kLPTMR_PinPolarityActiveLow = 0x1U }
LPTMR pin polarity, used in pulse counter mode.
• enum lptmr_timer_mode_t {
kLPTMR_TimerModeTimeCounter = 0x0U,
kLPTMR_TimerModePulseCounter = 0x1U }
LPTMR timer mode selection.
• enum lptmr_prescaler_glitch_value_t {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
645
Overview
kLPTMR_Prescale_Glitch_0 = 0x0U,
kLPTMR_Prescale_Glitch_1 = 0x1U,
kLPTMR_Prescale_Glitch_2 = 0x2U,
kLPTMR_Prescale_Glitch_3 = 0x3U,
kLPTMR_Prescale_Glitch_4 = 0x4U,
kLPTMR_Prescale_Glitch_5 = 0x5U,
kLPTMR_Prescale_Glitch_6 = 0x6U,
kLPTMR_Prescale_Glitch_7 = 0x7U,
kLPTMR_Prescale_Glitch_8 = 0x8U,
kLPTMR_Prescale_Glitch_9 = 0x9U,
kLPTMR_Prescale_Glitch_10 = 0xAU,
kLPTMR_Prescale_Glitch_11 = 0xBU,
kLPTMR_Prescale_Glitch_12 = 0xCU,
kLPTMR_Prescale_Glitch_13 = 0xDU,
kLPTMR_Prescale_Glitch_14 = 0xEU,
kLPTMR_Prescale_Glitch_15 = 0xFU }
LPTMR prescaler/glitch filter values.
• enum lptmr_prescaler_clock_select_t {
kLPTMR_PrescalerClock_0 = 0x0U,
kLPTMR_PrescalerClock_1 = 0x1U,
kLPTMR_PrescalerClock_2 = 0x2U,
kLPTMR_PrescalerClock_3 = 0x3U }
LPTMR prescaler/glitch filter clock select.
• enum lptmr_interrupt_enable_t {kLPTMR_TimerInterruptEnable = LPTMR_CSR_TIE_MASK }
List of LPTMR interrupts.
• enum lptmr_status_flags_t {kLPTMR_TimerCompareFlag = LPTMR_CSR_TCF_MASK }
List of LPTMR status flags.
Driver version
• #define FSL_LPTMR_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
Initialization and deinitialization
• void LPTMR_Init (LPTMR_Type ∗base, const lptmr_config_t ∗config)
Ungate the LPTMR clock and configures the peripheral for basic operation.
• void LPTMR_Deinit (LPTMR_Type ∗base)
Gate the LPTMR clock.
• void LPTMR_GetDefaultConfig (lptmr_config_t ∗config)
Fill in the LPTMR config struct with the default settings.
Interrupt Interface
• static void LPTMR_EnableInterrupts (LPTMR_Type ∗base, uint32_t mask)
Enables the selected LPTMR interrupts.
• static void LPTMR_DisableInterrupts (LPTMR_Type ∗base, uint32_t mask)
Disables the selected LPTMR interrupts.
646
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
• static uint32_t LPTMR_GetEnabledInterrupts (LPTMR_Type ∗base)
Gets the enabled LPTMR interrupts.
Status Interface
• static uint32_t LPTMR_GetStatusFlags (LPTMR_Type ∗base)
Gets the LPTMR status flags.
• static void LPTMR_ClearStatusFlags (LPTMR_Type ∗base, uint32_t mask)
Clears the LPTMR status flags.
Read and Write the timer period
• static void LPTMR_SetTimerPeriod (LPTMR_Type ∗base, uint16_t ticks)
Sets the timer period in units of count.
• static uint16_t LPTMR_GetCurrentTimerCount (LPTMR_Type ∗base)
Reads the current timer counting value.
Timer Start and Stop
• static void LPTMR_StartTimer (LPTMR_Type ∗base)
Starts the timer counting.
• static void LPTMR_StopTimer (LPTMR_Type ∗base)
Stops the timer counting.
29.2 Data Structure Documentation
29.2.1 struct lptmr_config_t
This structure holds the configuration settings for the LPTMR peripheral. To initialize this structure to rea-
sonable defaults, call the LPTMR_GetDefaultConfig() function and pass a pointer to your config structure
instance.
The config struct can be made const so it resides in flash
Data Fields
•lptmr_timer_mode_t timerMode
Time counter mode or pulse counter mode.
•lptmr_pin_select_t pinSelect
LPTMR pulse input pin select; used only in pulse counter mode.
•lptmr_pin_polarity_t pinPolarity
LPTMR pulse input pin polarity; used only in pulse counter mode.
• bool enableFreeRunning
true: enable free running, counter is reset on overflow false: counter is reset when the compare flag is set
• bool bypassPrescaler
true: bypass prescaler; false: use clock from prescaler
•lptmr_prescaler_clock_select_t prescalerClockSource
LPTMR clock source.
•lptmr_prescaler_glitch_value_t value
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
647
Enumeration Type Documentation
Prescaler or glitch filter value.
29.3 Enumeration Type Documentation
29.3.1 enum lptmr_pin_select_t
Enumerator
kLPTMR_PinSelectInput_0 Pulse counter input 0 is selected.
kLPTMR_PinSelectInput_1 Pulse counter input 1 is selected.
kLPTMR_PinSelectInput_2 Pulse counter input 2 is selected.
kLPTMR_PinSelectInput_3 Pulse counter input 3 is selected.
29.3.2 enum lptmr_pin_polarity_t
Enumerator
kLPTMR_PinPolarityActiveHigh Pulse Counter input source is active-high.
kLPTMR_PinPolarityActiveLow Pulse Counter input source is active-low.
29.3.3 enum lptmr_timer_mode_t
Enumerator
kLPTMR_TimerModeTimeCounter Time Counter mode.
kLPTMR_TimerModePulseCounter Pulse Counter mode.
29.3.4 enum lptmr_prescaler_glitch_value_t
Enumerator
kLPTMR_Prescale_Glitch_0 Prescaler divide 2, glitch filter does not support this setting.
kLPTMR_Prescale_Glitch_1 Prescaler divide 4, glitch filter 2.
kLPTMR_Prescale_Glitch_2 Prescaler divide 8, glitch filter 4.
kLPTMR_Prescale_Glitch_3 Prescaler divide 16, glitch filter 8.
kLPTMR_Prescale_Glitch_4 Prescaler divide 32, glitch filter 16.
kLPTMR_Prescale_Glitch_5 Prescaler divide 64, glitch filter 32.
kLPTMR_Prescale_Glitch_6 Prescaler divide 128, glitch filter 64.
kLPTMR_Prescale_Glitch_7 Prescaler divide 256, glitch filter 128.
kLPTMR_Prescale_Glitch_8 Prescaler divide 512, glitch filter 256.
kLPTMR_Prescale_Glitch_9 Prescaler divide 1024, glitch filter 512.
kLPTMR_Prescale_Glitch_10 Prescaler divide 2048 glitch filter 1024.
648
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
kLPTMR_Prescale_Glitch_11 Prescaler divide 4096, glitch filter 2048.
kLPTMR_Prescale_Glitch_12 Prescaler divide 8192, glitch filter 4096.
kLPTMR_Prescale_Glitch_13 Prescaler divide 16384, glitch filter 8192.
kLPTMR_Prescale_Glitch_14 Prescaler divide 32768, glitch filter 16384.
kLPTMR_Prescale_Glitch_15 Prescaler divide 65536, glitch filter 32768.
29.3.5 enum lptmr_prescaler_clock_select_t
Note
Clock connections are SoC-specific
Enumerator
kLPTMR_PrescalerClock_0 Prescaler/glitch filter clock 0 selected.
kLPTMR_PrescalerClock_1 Prescaler/glitch filter clock 1 selected.
kLPTMR_PrescalerClock_2 Prescaler/glitch filter clock 2 selected.
kLPTMR_PrescalerClock_3 Prescaler/glitch filter clock 3 selected.
29.3.6 enum lptmr_interrupt_enable_t
Enumerator
kLPTMR_TimerInterruptEnable Timer interrupt enable.
29.3.7 enum lptmr_status_flags_t
Enumerator
kLPTMR_TimerCompareFlag Timer compare flag.
29.4 Function Documentation
29.4.1 void LPTMR_Init ( LPTMR_Type ∗base, const lptmr_config_t ∗config )
Note
This API should be called at the beginning of the application using the LPTMR driver.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
649
Function Documentation
Parameters
base LPTMR peripheral base address
config Pointer to user’s LPTMR config structure.
29.4.2 void LPTMR_Deinit ( LPTMR_Type ∗base )
Parameters
base LPTMR peripheral base address
29.4.3 void LPTMR_GetDefaultConfig ( lptmr_config_t ∗config )
The default values are:
config->timerMode = kLPTMR_TimerModeTimeCounter;
config->pinSelect = kLPTMR_PinSelectInput_0;
config->pinPolarity = kLPTMR_PinPolarityActiveHigh;
config->enableFreeRunning = false;
config->bypassPrescaler = true;
config->prescalerClockSource = kLPTMR_PrescalerClock_1;
config->value = kLPTMR_Prescale_Glitch_0;
Parameters
config Pointer to user’s LPTMR config structure.
29.4.4 static void LPTMR_EnableInterrupts ( LPTMR_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base LPTMR peripheral base address
mask The interrupts to enable. This is a logical OR of members of the enumeration lptmr-
_interrupt_enable_t
29.4.5 static void LPTMR_DisableInterrupts ( LPTMR_Type ∗base, uint32_t mask
)[inline],[static]
650
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base LPTMR peripheral base address
mask The interrupts to disable. This is a logical OR of members of the enumeration lptmr-
_interrupt_enable_t
29.4.6 static uint32_t LPTMR_GetEnabledInterrupts ( LPTMR_Type ∗base )
[inline],[static]
Parameters
base LPTMR peripheral base address
Returns
The enabled interrupts. This is the logical OR of members of the enumeration lptmr_interrupt_-
enable_t
29.4.7 static uint32_t LPTMR_GetStatusFlags ( LPTMR_Type ∗base )[inline],
[static]
Parameters
base LPTMR peripheral base address
Returns
The status flags. This is the logical OR of members of the enumeration lptmr_status_flags_t
29.4.8 static void LPTMR_ClearStatusFlags ( LPTMR_Type ∗base, uint32_t mask
)[inline],[static]
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
651
Function Documentation
base LPTMR peripheral base address
mask The status flags to clear. This is a logical OR of members of the enumeration lptmr_-
status_flags_t
29.4.9 static void LPTMR_SetTimerPeriod ( LPTMR_Type ∗base, uint16_t ticks )
[inline],[static]
Timers counts from 0 till it equals the count value set here. The count value is written to the CMR register.
Note
1. The TCF flag is set with the CNR equals the count provided here and then increments.
2. User can call the utility macros provided in fsl_common.h to convert to ticks
Parameters
base LPTMR peripheral base address
ticks Timer period in units of ticks
29.4.10 static uint16_t LPTMR_GetCurrentTimerCount ( LPTMR_Type ∗base )
[inline],[static]
This function returns the real-time timer counting value, in a range from 0 to a timer period.
Note
User can call the utility macros provided in fsl_common.h to convert ticks to usec or msec
Parameters
base LPTMR peripheral base address
Returns
Current counter value in ticks
652
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
29.4.11 static void LPTMR_StartTimer ( LPTMR_Type ∗base )[inline],
[static]
After calling this function, the timer counts up to the CMR register value. Each time the timer reaches C-
MR value and then increments, it generates a trigger pulse and sets the timeout interrupt flag. An interrupt
will also be triggered if the timer interrupt is enabled.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
653
Function Documentation
Parameters
base LPTMR peripheral base address
29.4.12 static void LPTMR_StopTimer ( LPTMR_Type ∗base )[inline],
[static]
This function stops the timer counting and resets the timer’s counter register
Parameters
base LPTMR peripheral base address
654
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 30
LPUART: Low Power UART Driver
30.1 Overview
Modules
•LPUART Driver
•LPUART FreeRTOS Driver
•LPUART µCOS/II Driver
•LPUART µCOS/III Driver
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
655
LPUART Driver
30.2 LPUART Driver
30.2.1 Overview
The KSDK provides a peripheral driver for the Low Power UART (LPUART) module of Kinetis devices.
Typical use case
uint8_t ch;
LPUART_GetDefaultConfig(&user_config);
user_config.baudRate = 115200U;
LPUART_Init(LPUART1,&user_config,120000000U);
LPUART_SendDataPolling(LPUART1, txbuff, sizeof(txbuff));
while(1)
{
LPUART_ReceiveDataPolling(LPUART1,&ch, 1);
LPUART_SendDataPolling(LPUART1, &ch, 1);
}
Modules
•LPUART DMA Driver
•LPUART eDMA Driver
Files
• file fsl_lpuart.h
Data Structures
• struct lpuart_config_t
LPUART configure structure. More...
• struct lpuart_transfer_t
LPUART transfer structure. More...
• struct lpuart_handle_t
LPUART handle structure. More...
Typedefs
• typedef void(∗lpuart_transfer_callback_t )(LPUART_Type ∗base, lpuart_handle_t ∗handle, status-
_t status, void ∗userData)
LPUART transfer callback function.
656
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
Enumerations
• enum _lpuart_status {
kStatus_LPUART_TxBusy = MAKE_STATUS(kStatusGroup_LPUART, 0),
kStatus_LPUART_RxBusy = MAKE_STATUS(kStatusGroup_LPUART, 1),
kStatus_LPUART_TxIdle = MAKE_STATUS(kStatusGroup_LPUART, 2),
kStatus_LPUART_RxIdle = MAKE_STATUS(kStatusGroup_LPUART, 3),
kStatus_LPUART_TxWatermarkTooLarge = MAKE_STATUS(kStatusGroup_LPUART, 4),
kStatus_LPUART_RxWatermarkTooLarge = MAKE_STATUS(kStatusGroup_LPUART, 5),
kStatus_LPUART_FlagCannotClearManually,
kStatus_LPUART_Error = MAKE_STATUS(kStatusGroup_LPUART, 7),
kStatus_LPUART_RxRingBufferOverrun,
kStatus_LPUART_RxHardwareOverrun = MAKE_STATUS(kStatusGroup_LPUART, 9),
kStatus_LPUART_NoiseError = MAKE_STATUS(kStatusGroup_LPUART, 10),
kStatus_LPUART_FramingError = MAKE_STATUS(kStatusGroup_LPUART, 11),
kStatus_LPUART_ParityError = MAKE_STATUS(kStatusGroup_LPUART, 12) }
Error codes for the LPUART driver.
• enum lpuart_parity_mode_t {
kLPUART_ParityDisabled = 0x0U,
kLPUART_ParityEven = 0x2U,
kLPUART_ParityOdd = 0x3U }
LPUART parity mode.
• enum lpuart_stop_bit_count_t {
kLPUART_OneStopBit = 0U,
kLPUART_TwoStopBit = 1U }
LPUART stop bit count.
• enum _lpuart_interrupt_enable {
kLPUART_RxActiveEdgeInterruptEnable = (LPUART_BAUD_RXEDGIE_MASK >> 8),
kLPUART_TxDataRegEmptyInterruptEnable = (LPUART_CTRL_TIE_MASK),
kLPUART_TransmissionCompleteInterruptEnable = (LPUART_CTRL_TCIE_MASK),
kLPUART_RxDataRegFullInterruptEnable = (LPUART_CTRL_RIE_MASK),
kLPUART_IdleLineInterruptEnable = (LPUART_CTRL_ILIE_MASK),
kLPUART_RxOverrunInterruptEnable = (LPUART_CTRL_ORIE_MASK),
kLPUART_NoiseErrorInterruptEnable = (LPUART_CTRL_NEIE_MASK),
kLPUART_FramingErrorInterruptEnable = (LPUART_CTRL_FEIE_MASK),
kLPUART_ParityErrorInterruptEnable = (LPUART_CTRL_PEIE_MASK) }
LPUART interrupt configuration structure, default settings all disabled.
• enum _lpuart_flags {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
657
LPUART Driver
kLPUART_TxDataRegEmptyFlag,
kLPUART_TransmissionCompleteFlag,
kLPUART_RxDataRegFullFlag,
kLPUART_IdleLineFlag = (LPUART_STAT_IDLE_MASK),
kLPUART_RxOverrunFlag = (LPUART_STAT_OR_MASK),
kLPUART_NoiseErrorFlag = (LPUART_STAT_NF_MASK),
kLPUART_FramingErrorFlag,
kLPUART_ParityErrorFlag = (LPUART_STAT_PF_MASK),
kLPUART_RxActiveEdgeFlag,
kLPUART_RxActiveFlag }
LPUART status flags.
Driver version
• #define FSL_LPUART_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
LPUART driver version 2.1.0.
Initialization and deinitialization
• void LPUART_Init (LPUART_Type ∗base, const lpuart_config_t ∗config, uint32_t srcClock_Hz)
Initializes an LPUART instance with the user configuration structure and the peripheral clock.
• void LPUART_Deinit (LPUART_Type ∗base)
Deinitializes a LPUART instance.
• void LPUART_GetDefaultConfig (lpuart_config_t ∗config)
Gets the default configuration structure.
• void LPUART_SetBaudRate (LPUART_Type ∗base, uint32_t baudRate_Bps, uint32_t srcClock_-
Hz)
Sets the LPUART instance baudrate.
Status
• uint32_t LPUART_GetStatusFlags (LPUART_Type ∗base)
Gets LPUART status flags.
• status_t LPUART_ClearStatusFlags (LPUART_Type ∗base, uint32_t mask)
Clears status flags with a provided mask.
Interrupts
• void LPUART_EnableInterrupts (LPUART_Type ∗base, uint32_t mask)
Enables LPUART interrupts according to a provided mask.
• void LPUART_DisableInterrupts (LPUART_Type ∗base, uint32_t mask)
Disables LPUART interrupts according to a provided mask.
• uint32_t LPUART_GetEnabledInterrupts (LPUART_Type ∗base)
Gets enabled LPUART interrupts.
658
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
Bus Operations
• static void LPUART_EnableTx (LPUART_Type ∗base, bool enable)
Enables or disables the LPUART transmitter.
• static void LPUART_EnableRx (LPUART_Type ∗base, bool enable)
Enables or disables the LPUART receiver.
• static void LPUART_WriteByte (LPUART_Type ∗base, uint8_t data)
Writes to the transmitter register.
• static uint8_t LPUART_ReadByte (LPUART_Type ∗base)
Reads the RX register.
• void LPUART_WriteBlocking (LPUART_Type ∗base, const uint8_t ∗data, size_t length)
Writes to transmitter register using a blocking method.
• status_t LPUART_ReadBlocking (LPUART_Type ∗base, uint8_t ∗data, size_t length)
Reads the RX data register using a blocking method.
Transactional
• void LPUART_TransferCreateHandle (LPUART_Type ∗base, lpuart_handle_t ∗handle, lpuart_-
transfer_callback_t callback, void ∗userData)
Initializes the LPUART handle.
• status_t LPUART_TransferSendNonBlocking (LPUART_Type ∗base, lpuart_handle_t ∗handle,
lpuart_transfer_t ∗xfer)
Transmits a buffer of data using the interrupt method.
• void LPUART_TransferStartRingBuffer (LPUART_Type ∗base, lpuart_handle_t ∗handle, uint8_t
∗ringBuffer, size_t ringBufferSize)
Sets up the RX ring buffer.
• void LPUART_TransferStopRingBuffer (LPUART_Type ∗base, lpuart_handle_t ∗handle)
Abort the background transfer and uninstall the ring buffer.
• void LPUART_TransferAbortSend (LPUART_Type ∗base, lpuart_handle_t ∗handle)
Aborts the interrupt-driven data transmit.
• status_t LPUART_TransferGetSendCount (LPUART_Type ∗base, lpuart_handle_t ∗handle, uint32-
_t ∗count)
Get the number of bytes that have been written to LPUART TX register.
• status_t LPUART_TransferReceiveNonBlocking (LPUART_Type ∗base, lpuart_handle_t ∗handle,
lpuart_transfer_t ∗xfer, size_t ∗receivedBytes)
Receives a buffer of data using the interrupt method.
• void LPUART_TransferAbortReceive (LPUART_Type ∗base, lpuart_handle_t ∗handle)
Aborts the interrupt-driven data receiving.
• status_t LPUART_TransferGetReceiveCount (LPUART_Type ∗base, lpuart_handle_t ∗handle,
uint32_t ∗count)
Get the number of bytes that have been received.
• void LPUART_TransferHandleIRQ (LPUART_Type ∗base, lpuart_handle_t ∗handle)
LPUART IRQ handle function.
• void LPUART_TransferHandleErrorIRQ (LPUART_Type ∗base, lpuart_handle_t ∗handle)
LPUART Error IRQ handle function.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
659
LPUART Driver
30.2.2 Data Structure Documentation
30.2.2.1 struct lpuart_config_t
Data Fields
• uint32_t baudRate_Bps
LPUART baud rate.
•lpuart_parity_mode_t parityMode
Parity mode, disabled (default), even, odd.
• bool enableTx
Enable TX.
• bool enableRx
Enable RX.
30.2.2.2 struct lpuart_transfer_t
Data Fields
• uint8_t ∗data
The buffer of data to be transfer.
• size_t dataSize
The byte count to be transfer.
30.2.2.2.0.32 Field Documentation
30.2.2.2.0.32.1 uint8_t∗lpuart_transfer_t::data
30.2.2.2.0.32.2 size_t lpuart_transfer_t::dataSize
30.2.2.3 struct _lpuart_handle
Data Fields
• uint8_t ∗volatile txData
Address of remaining data to send.
• volatile size_t txDataSize
Size of the remaining data to send.
• size_t txDataSizeAll
Size of the data to send out.
• uint8_t ∗volatile rxData
Address of remaining data to receive.
• volatile size_t rxDataSize
Size of the remaining data to receive.
• size_t rxDataSizeAll
Size of the data to receive.
• uint8_t ∗rxRingBuffer
Start address of the receiver ring buffer.
• size_t rxRingBufferSize
660
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
Size of the ring buffer.
• volatile uint16_t rxRingBufferHead
Index for the driver to store received data into ring buffer.
• volatile uint16_t rxRingBufferTail
Index for the user to get data from the ring buffer.
•lpuart_transfer_callback_t callback
Callback function.
• void ∗userData
LPUART callback function parameter.
• volatile uint8_t txState
TX transfer state.
• volatile uint8_t rxState
RX transfer state.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
661
LPUART Driver
30.2.2.3.0.33 Field Documentation
30.2.2.3.0.33.1 uint8_t∗volatile lpuart_handle_t::txData
30.2.2.3.0.33.2 volatile size_t lpuart_handle_t::txDataSize
30.2.2.3.0.33.3 size_t lpuart_handle_t::txDataSizeAll
30.2.2.3.0.33.4 uint8_t∗volatile lpuart_handle_t::rxData
30.2.2.3.0.33.5 volatile size_t lpuart_handle_t::rxDataSize
30.2.2.3.0.33.6 size_t lpuart_handle_t::rxDataSizeAll
30.2.2.3.0.33.7 uint8_t∗lpuart_handle_t::rxRingBuffer
30.2.2.3.0.33.8 size_t lpuart_handle_t::rxRingBufferSize
30.2.2.3.0.33.9 volatile uint16_t lpuart_handle_t::rxRingBufferHead
30.2.2.3.0.33.10 volatile uint16_t lpuart_handle_t::rxRingBufferTail
30.2.2.3.0.33.11 lpuart_transfer_callback_t lpuart_handle_t::callback
30.2.2.3.0.33.12 void∗lpuart_handle_t::userData
30.2.2.3.0.33.13 volatile uint8_t lpuart_handle_t::txState
30.2.3 Macro Definition Documentation
30.2.3.1 #define FSL_LPUART_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
30.2.4 Typedef Documentation
30.2.4.1 typedef void(∗lpuart_transfer_callback_t)(LPUART_Type ∗base, lpuart_handle_t
∗handle, status_t status, void ∗userData)
30.2.5 Enumeration Type Documentation
30.2.5.1 enum _lpuart_status
Enumerator
kStatus_LPUART_TxBusy TX busy.
kStatus_LPUART_RxBusy RX busy.
kStatus_LPUART_TxIdle LPUART transmitter is idle.
kStatus_LPUART_RxIdle LPUART receiver is idle.
kStatus_LPUART_TxWatermarkTooLarge TX FIFO watermark too large.
662
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
kStatus_LPUART_RxWatermarkTooLarge RX FIFO watermark too large.
kStatus_LPUART_FlagCannotClearManually Some flag can’t manually clear.
kStatus_LPUART_Error Error happens on LPUART.
kStatus_LPUART_RxRingBufferOverrun LPUART RX software ring buffer overrun.
kStatus_LPUART_RxHardwareOverrun LPUART RX receiver overrun.
kStatus_LPUART_NoiseError LPUART noise error.
kStatus_LPUART_FramingError LPUART framing error.
kStatus_LPUART_ParityError LPUART parity error.
30.2.5.2 enum lpuart_parity_mode_t
Enumerator
kLPUART_ParityDisabled Parity disabled.
kLPUART_ParityEven Parity enabled, type even, bit setting: PE|PT = 10.
kLPUART_ParityOdd Parity enabled, type odd, bit setting: PE|PT = 11.
30.2.5.3 enum lpuart_stop_bit_count_t
Enumerator
kLPUART_OneStopBit One stop bit.
kLPUART_TwoStopBit Two stop bits.
30.2.5.4 enum _lpuart_interrupt_enable
This structure contains the settings for all LPUART interrupt configurations.
Enumerator
kLPUART_RxActiveEdgeInterruptEnable Receive Active Edge.
kLPUART_TxDataRegEmptyInterruptEnable Transmit data register empty.
kLPUART_TransmissionCompleteInterruptEnable Transmission complete.
kLPUART_RxDataRegFullInterruptEnable Receiver data register full.
kLPUART_IdleLineInterruptEnable Idle line.
kLPUART_RxOverrunInterruptEnable Receiver Overrun.
kLPUART_NoiseErrorInterruptEnable Noise error flag.
kLPUART_FramingErrorInterruptEnable Framing error flag.
kLPUART_ParityErrorInterruptEnable Parity error flag.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
663
LPUART Driver
30.2.5.5 enum _lpuart_flags
This provides constants for the LPUART status flags for use in the LPUART functions.
Enumerator
kLPUART_TxDataRegEmptyFlag Transmit data register empty flag, sets when transmit buffer is
empty.
kLPUART_TransmissionCompleteFlag Transmission complete flag, sets when transmission activ-
ity complete.
kLPUART_RxDataRegFullFlag Receive data register full flag, sets when the receive data buffer is
full.
kLPUART_IdleLineFlag Idle line detect flag, sets when idle line detected.
kLPUART_RxOverrunFlag Receive Overrun, sets when new data is received before data is read
from receive register.
kLPUART_NoiseErrorFlag Receive takes 3 samples of each received bit. If any of these samples
differ, noise flag sets
kLPUART_FramingErrorFlag Frame error flag, sets if logic 0 was detected where stop bit ex-
pected.
kLPUART_ParityErrorFlag If parity enabled, sets upon parity error detection.
kLPUART_RxActiveEdgeFlag Receive pin active edge interrupt flag, sets when active edge de-
tected.
kLPUART_RxActiveFlag Receiver Active Flag (RAF), sets at beginning of valid start bit.
30.2.6 Function Documentation
30.2.6.1 void LPUART_Init ( LPUART_Type ∗base, const lpuart_config_t ∗config,
uint32_t srcClock_Hz )
This function configures the LPUART module with user-defined settings. Call the LPUART_GetDefault-
Config() function to configure the configuration structure and get the default configuration. The example
below shows how to use this API to configure the LPUART.
lpuart_config_t lpuartConfig;
lpuartConfig.baudRate_Bps = 115200U;
lpuartConfig.parityMode =kLPUART_ParityDisabled;
lpuartConfig.stopBitCount = kLPUART_OneStopBit;
lpuartConfig.txFifoWatermark = 0;
lpuartConfig.rxFifoWatermark = 1;
LPUART_Init(LPUART1, &lpuartConfig, 20000000U);
664
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
Parameters
base LPUART peripheral base address.
config Pointer to a user-defined configuration structure.
srcClock_Hz LPUART clock source frequency in HZ.
30.2.6.2 void LPUART_Deinit ( LPUART_Type ∗base )
This function waits for transmit to complete, disables TX and RX, and disables the LPUART clock.
Parameters
base LPUART peripheral base address.
30.2.6.3 void LPUART_GetDefaultConfig ( lpuart_config_t ∗config )
This function initializes the LPUART configuration structure to a default value. The default values are-
: lpuartConfig->baudRate_Bps = 115200U; lpuartConfig->parityMode = kLPUART_ParityDisabled;
lpuartConfig->stopBitCount = kLPUART_OneStopBit; lpuartConfig->txFifoWatermark = 0; lpuart-
Config->rxFifoWatermark = 1; lpuartConfig->enableTx = false; lpuartConfig->enableRx = false;
Parameters
config Pointer to a configuration structure.
30.2.6.4 void LPUART_SetBaudRate ( LPUART_Type ∗base, uint32_t baudRate_Bps,
uint32_t srcClock_Hz )
This function configures the LPUART module baudrate. This function is used to update the LPUART
module baudrate after the LPUART module is initialized by the LPUART_Init.
LPUART_SetBaudRate(LPUART1, 115200U, 20000000U);
Parameters
base LPUART peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
665
LPUART Driver
baudRate_Bps LPUART baudrate to be set.
srcClock_Hz LPUART clock source frequency in HZ.
30.2.6.5 uint32_t LPUART_GetStatusFlags ( LPUART_Type ∗base )
This function gets all LPUART status flags. The flags are returned as the logical OR value of the enu-
merators _lpuart_flags. To check for a specific status, compare the return value with enumerators in the
_lpuart_flags. For example, to check whether the TX is empty:
if (kLPUART_TxDataRegEmptyFlag &LPUART_GetStatusFlags(
LPUART1))
{
...
}
Parameters
base LPUART peripheral base address.
Returns
LPUART status flags which are ORed by the enumerators in the _lpuart_flags.
30.2.6.6 status_t LPUART_ClearStatusFlags ( LPUART_Type ∗base, uint32_t mask )
This function clears LPUART status flags with a provided mask. Automatically cleared flags can’t
be cleared by this function. Flags that can only cleared or set by hardware are: kLPUART_TxData-
RegEmptyFlag, kLPUART_TransmissionCompleteFlag, kLPUART_RxDataRegFullFlag, kLPUART_-
RxActiveFlag, kLPUART_NoiseErrorInRxDataRegFlag, kLPUART_ParityErrorInRxDataRegFlag, kL-
PUART_TxFifoEmptyFlag,kLPUART_RxFifoEmptyFlag Note: This API should be called when the Tx/-
Rx is idle, otherwise it takes no effects.
Parameters
base LPUART peripheral base address.
mask the status flags to be cleared. The user can use the enumerators in the _lpuart_status-
_flag_t to do the OR operation and get the mask.
Returns
0 succeed, others failed.
666
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
Return values
kStatus_LPUART_Flag-
CannotClearManually
The flag can’t be cleared by this function but it is cleared automatically by
hardware.
kStatus_Success Status in the mask are cleared.
30.2.6.7 void LPUART_EnableInterrupts ( LPUART_Type ∗base, uint32_t mask )
This function enables the LPUART interrupts according to a provided mask. The mask is a logical OR of
enumeration members. See the _lpuart_interrupt_enable. This examples shows how to enable TX empty
interrupt and RX full interrupt:
LPUART_EnableInterrupts(LPUART1,
kLPUART_TxDataRegEmptyInterruptEnable |
kLPUART_RxDataRegFullInterruptEnable);
Parameters
base LPUART peripheral base address.
mask The interrupts to enable. Logical OR of _uart_interrupt_enable.
30.2.6.8 void LPUART_DisableInterrupts ( LPUART_Type ∗base, uint32_t mask )
This function disables the LPUART interrupts according to a provided mask. The mask is a logical OR of
enumeration members. See _lpuart_interrupt_enable. This example shows how to disable the TX empty
interrupt and RX full interrupt:
LPUART_DisableInterrupts(LPUART1,
kLPUART_TxDataRegEmptyInterruptEnable |
kLPUART_RxDataRegFullInterruptEnable);
Parameters
base LPUART peripheral base address.
mask The interrupts to disable. Logical OR of _lpuart_interrupt_enable.
30.2.6.9 uint32_t LPUART_GetEnabledInterrupts ( LPUART_Type ∗base )
This function gets the enabled LPUART interrupts. The enabled interrupts are returned as the logical OR
value of the enumerators _lpuart_interrupt_enable. To check a specific interrupt enable status, compare
the return value with enumerators in _lpuart_interrupt_enable. For example, to check whether the TX
empty interrupt is enabled:
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
667
LPUART Driver
uint32_t enabledInterrupts = LPUART_GetEnabledInterrupts(LPUART1);
if (kLPUART_TxDataRegEmptyInterruptEnable & enabledInterrupts)
{
...
}
Parameters
base LPUART peripheral base address.
Returns
LPUART interrupt flags which are logical OR of the enumerators in _lpuart_interrupt_enable.
30.2.6.10 static void LPUART_EnableTx ( LPUART_Type ∗base, bool enable )
[inline],[static]
This function enables or disables the LPUART transmitter.
Parameters
base LPUART peripheral base address.
enable True to enable, false to disable.
30.2.6.11 static void LPUART_EnableRx ( LPUART_Type ∗base, bool enable )
[inline],[static]
This function enables or disables the LPUART receiver.
Parameters
base LPUART peripheral base address.
enable True to enable, false to disable.
30.2.6.12 static void LPUART_WriteByte ( LPUART_Type ∗base, uint8_t data )
[inline],[static]
This function writes data to the transmitter register directly. The upper layer must ensure that the TX
register is empty or that the TX FIFO has room before calling this function.
668
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
Parameters
base LPUART peripheral base address.
data Data write to the TX register.
30.2.6.13 static uint8_t LPUART_ReadByte ( LPUART_Type ∗base )[inline],
[static]
This function reads data from the TX register directly. The upper layer must ensure that the RX register is
full or that the TX FIFO has data before calling this function.
Parameters
base LPUART peripheral base address.
Returns
Data read from data register.
30.2.6.14 void LPUART_WriteBlocking ( LPUART_Type ∗base, const uint8_t ∗data,
size_t length )
This function polls the transmitter register, waits for the register to be empty or for TX FIFO to have room
and then writes data to the transmitter buffer.
Note
This function does not check whether all data has been sent out to the bus. Before disabling the
transmitter, check the kLPUART_TransmissionCompleteFlag to ensure that the transmit is finished.
Parameters
base LPUART peripheral base address.
data Start address of the data to write.
length Size of the data to write.
30.2.6.15 status_t LPUART_ReadBlocking ( LPUART_Type ∗base, uint8_t ∗data, size_t
length )
This function polls the RX register, waits for the RX register full or RX FIFO has data then reads data
from the TX register.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
669
LPUART Driver
Parameters
base LPUART peripheral base address.
data Start address of the buffer to store the received data.
length Size of the buffer.
Return values
kStatus_LPUART_Rx-
HardwareOverrun
Receiver overrun happened while receiving data.
kStatus_LPUART_Noise-
Error
Noise error happened while receiving data.
kStatus_LPUART_-
FramingError
Framing error happened while receiving data.
kStatus_LPUART_Parity-
Error
Parity error happened while receiving data.
kStatus_Success Successfully received all data.
30.2.6.16 void LPUART_TransferCreateHandle ( LPUART_Type ∗base, lpuart_handle_t ∗
handle, lpuart_transfer_callback_t callback, void ∗userData )
This function initializes the LPUART handle, which can be used for other LPUART transactional APIs.
Usually, for a specified LPUART instance, call this API once to get the initialized handle.
The LPUART driver supports the "background" receiving, which means that user can set up an RX ring
buffer optionally. Data received is stored into the ring buffer even when the user doesn’t call the LP-
UART_TransferReceiveNonBlocking() API. If there is already data received in the ring buffer, the user
can get the received data from the ring buffer directly. The ring buffer is disabled if passing NULL as
ringBuffer.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
callback Callback function.
userData User data.
670
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
30.2.6.17 status_t LPUART_TransferSendNonBlocking ( LPUART_Type ∗base,
lpuart_handle_t ∗handle, lpuart_transfer_t ∗xfer )
This function send data using an interrupt method. This is a non-blocking function, which returns directly
without waiting for all data written to the transmitter register. When all data is written to the TX register
in the ISR, the LPUART driver calls the callback function and passes the kStatus_LPUART_TxIdle as
status parameter.
Note
The kStatus_LPUART_TxIdle is passed to the upper layer when all data are written to the TX
register. However, there is no check to ensure that all the data sent out. Before disabling the T-
X, check the kLPUART_TransmissionCompleteFlag to ensure that the transmit is finished.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
xfer LPUART transfer structure, refer to lpuart_transfer_t.
Return values
kStatus_Success Successfully start the data transmission.
kStatus_LPUART_TxBusy Previous transmission still not finished, data not all written to the TX reg-
ister.
kStatus_InvalidArgument Invalid argument.
30.2.6.18 void LPUART_TransferStartRingBuffer ( LPUART_Type ∗base, lpuart_handle_t
∗handle, uint8_t ∗ringBuffer, size_t ringBufferSize )
This function sets up the RX ring buffer to a specific UART handle.
When the RX ring buffer is used, data received is stored into the ring buffer even when the user doesn’t
call the UART_TransferReceiveNonBlocking() API. If there is already data received in the ring buffer, the
user can get the received data from the ring buffer directly.
Note
When using RX ring buffer, one byte is reserved for internal use. In other words, if ringBuffer-
Size is 32, then only 31 bytes are used for saving data.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
671
LPUART Driver
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
ringBuffer Start address of ring buffer for background receiving. Pass NULL to disable the ring
buffer.
ringBufferSize size of the ring buffer.
30.2.6.19 void LPUART_TransferStopRingBuffer ( LPUART_Type ∗base, lpuart_handle_t
∗handle )
This function aborts the background transfer and uninstalls the ring buffer.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
30.2.6.20 void LPUART_TransferAbortSend ( LPUART_Type ∗base, lpuart_handle_t ∗
handle )
This function aborts the interrupt driven data sending. The user can get the remainBtyes to find out how
many bytes are still not sent out.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
30.2.6.21 status_t LPUART_TransferGetSendCount ( LPUART_Type ∗base,
lpuart_handle_t ∗handle, uint32_t ∗count )
This function gets the number of bytes that have been written to LPUART TX register by interrupt method.
Parameters
672
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
base LPUART peripheral base address.
handle LPUART handle pointer.
count Send bytes count.
Return values
kStatus_NoTransferIn-
Progress
No send in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
30.2.6.22 status_t LPUART_TransferReceiveNonBlocking ( LPUART_Type ∗base,
lpuart_handle_t ∗handle, lpuart_transfer_t ∗xfer, size_t ∗receivedBytes )
This function receives data using an interrupt method. This is a non-blocking function which returns
without waiting to ensure that all data are received. If the RX ring buffer is used and not empty, the data in
the ring buffer is copied and the parameter receivedBytes shows how many bytes are copied from the
ring buffer. After copying, if the data in the ring buffer is not enough for read, the receive request is saved
by the LPUART driver. When the new data arrives, the receive request is serviced first. When all data
is received, the LPUART driver notifies the upper layer through a callback function and passes a status
parameter kStatus_UART_RxIdle. For example, the upper layer needs 10 bytes but there are only 5 bytes
in ring buffer. The 5 bytes are copied to xfer->data, which returns with the parameter receivedBytes
set to 5. For the remaining 5 bytes, the newly arrived data is saved from xfer->data[5]. When 5 bytes are
received, the LPUART driver notifies the upper layer. If the RX ring buffer is not enabled, this function
enables the RX and RX interrupt to receive data to xfer->data. When all data is received, the upper layer
is notified.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
xfer LPUART transfer structure, refer to uart_transfer_t.
receivedBytes Bytes received from the ring buffer directly.
Return values
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
673
LPUART Driver
kStatus_Success Successfully queue the transfer into the transmit queue.
kStatus_LPUART_Rx-
Busy
Previous receive request is not finished.
kStatus_InvalidArgument Invalid argument.
30.2.6.23 void LPUART_TransferAbortReceive ( LPUART_Type ∗base, lpuart_handle_t ∗
handle )
This function aborts the interrupt-driven data receiving. The user can get the remainBytes to find out how
many bytes not received yet.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
30.2.6.24 status_t LPUART_TransferGetReceiveCount ( LPUART_Type ∗base,
lpuart_handle_t ∗handle, uint32_t ∗count )
This function gets the number of bytes that have been received.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
count Receive bytes count.
Return values
kStatus_NoTransferIn-
Progress
No receive in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
30.2.6.25 void LPUART_TransferHandleIRQ ( LPUART_Type ∗base, lpuart_handle_t ∗
handle )
This function handles the LPUART transmit and receive IRQ request.
674
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
30.2.6.26 void LPUART_TransferHandleErrorIRQ ( LPUART_Type ∗base, lpuart_handle_t
∗handle )
This function handles the LPUART error IRQ request.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
675
LPUART Driver
30.2.7 LPUART DMA Driver
30.2.7.1 Overview
Files
• file fsl_lpuart_dma.h
Data Structures
• struct lpuart_dma_handle_t
LPUART DMA handle. More...
Typedefs
• typedef void(∗lpuart_dma_transfer_callback_t )(LPUART_Type ∗base, lpuart_dma_handle_t
∗handle, status_t status, void ∗userData)
LPUART transfer callback function.
EDMA transactional
• void LPUART_TransferCreateHandleDMA (LPUART_Type ∗base, lpuart_dma_handle_t ∗handle,
lpuart_dma_transfer_callback_t callback, void ∗userData, dma_handle_t ∗txDmaHandle, dma_-
handle_t ∗rxDmaHandle)
Initializes the LPUART handle which is used in transactional functions.
• status_t LPUART_TransferSendDMA (LPUART_Type ∗base, lpuart_dma_handle_t ∗handle,
lpuart_transfer_t ∗xfer)
Sends data using DMA.
• status_t LPUART_TransferReceiveDMA (LPUART_Type ∗base, lpuart_dma_handle_t ∗handle,
lpuart_transfer_t ∗xfer)
Receives data using DMA.
• void LPUART_TransferAbortSendDMA (LPUART_Type ∗base, lpuart_dma_handle_t ∗handle)
Aborts the sent data using DMA.
• void LPUART_TransferAbortReceiveDMA (LPUART_Type ∗base, lpuart_dma_handle_t ∗handle)
Aborts the received data using DMA.
• status_t LPUART_TransferGetSendCountDMA (LPUART_Type ∗base, lpuart_dma_handle_t
∗handle, uint32_t ∗count)
Get the number of bytes that have been written to LPUART TX register.
• status_t LPUART_TransferGetReceiveCountDMA (LPUART_Type ∗base, lpuart_dma_handle_-
t∗handle, uint32_t ∗count)
Get the number of bytes that have been received.
676
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
30.2.7.2 Data Structure Documentation
30.2.7.2.1 struct _lpuart_dma_handle
Data Fields
•lpuart_dma_transfer_callback_t callback
Callback function.
• void ∗userData
LPUART callback function parameter.
• size_t rxDataSizeAll
Size of the data to receive.
• size_t txDataSizeAll
Size of the data to send out.
•dma_handle_t ∗txDmaHandle
The DMA TX channel used.
•dma_handle_t ∗rxDmaHandle
The DMA RX channel used.
• volatile uint8_t txState
TX transfer state.
• volatile uint8_t rxState
RX transfer state.
30.2.7.2.1.1 Field Documentation
30.2.7.2.1.1.1 lpuart_dma_transfer_callback_t lpuart_dma_handle_t::callback
30.2.7.2.1.1.2 void∗lpuart_dma_handle_t::userData
30.2.7.2.1.1.3 size_t lpuart_dma_handle_t::rxDataSizeAll
30.2.7.2.1.1.4 size_t lpuart_dma_handle_t::txDataSizeAll
30.2.7.2.1.1.5 dma_handle_t∗lpuart_dma_handle_t::txDmaHandle
30.2.7.2.1.1.6 dma_handle_t∗lpuart_dma_handle_t::rxDmaHandle
30.2.7.2.1.1.7 volatile uint8_t lpuart_dma_handle_t::txState
30.2.7.3 Typedef Documentation
30.2.7.3.1 typedef void(∗lpuart_dma_transfer_callback_t)(LPUART_Type ∗base,
lpuart_dma_handle_t ∗handle, status_t status, void ∗userData)
30.2.7.4 Function Documentation
30.2.7.4.1 void LPUART_TransferCreateHandleDMA ( LPUART_Type ∗base,
lpuart_dma_handle_t ∗handle, lpuart_dma_transfer_callback_t callback, void ∗
userData, dma_handle_t ∗txDmaHandle, dma_handle_t ∗rxDmaHandle )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
677
LPUART Driver
Parameters
base LPUART peripheral base address.
handle Pointer to lpuart_dma_handle_t structure.
callback Callback function.
userData User data.
txDmaHandle User-requested DMA handle for TX DMA transfer.
rxDmaHandle User-requested DMA handle for RX DMA transfer.
30.2.7.4.2 status_t LPUART_TransferSendDMA ( LPUART_Type ∗base, lpuart_dma_handle_t ∗
handle, lpuart_transfer_t ∗xfer )
This function sends data using DMA. This is a non-blocking function, which returns right away. When all
data is sent, the send callback function is called.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
xfer LPUART DMA transfer structure. See lpuart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_LPUART_TxBusy Previous transfer on going.
kStatus_InvalidArgument Invalid argument.
30.2.7.4.3 status_t LPUART_TransferReceiveDMA ( LPUART_Type ∗base, lpuart_dma_handle_t
∗handle, lpuart_transfer_t ∗xfer )
This function receives data using DMA. This is a non-blocking function, which returns right away. When
all data is received, the receive callback function is called.
Parameters
678
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
base LPUART peripheral base address.
handle Pointer to lpuart_dma_handle_t structure.
xfer LPUART DMA transfer structure. See lpuart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_LPUART_Rx-
Busy
Previous transfer on going.
kStatus_InvalidArgument Invalid argument.
30.2.7.4.4 void LPUART_TransferAbortSendDMA ( LPUART_Type ∗base, lpuart_dma_handle_t ∗
handle )
This function aborts send data using DMA.
Parameters
base LPUART peripheral base address
handle Pointer to lpuart_dma_handle_t structure
30.2.7.4.5 void LPUART_TransferAbortReceiveDMA ( LPUART_Type ∗base,
lpuart_dma_handle_t ∗handle )
This function aborts the received data using DMA.
Parameters
base LPUART peripheral base address
handle Pointer to lpuart_dma_handle_t structure
30.2.7.4.6 status_t LPUART_TransferGetSendCountDMA ( LPUART_Type ∗base,
lpuart_dma_handle_t ∗handle, uint32_t ∗count )
This function gets the number of bytes that have been written to LPUART TX register by DMA.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
679
LPUART Driver
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
count Send bytes count.
Return values
kStatus_NoTransferIn-
Progress
No send in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
30.2.7.4.7 status_t LPUART_TransferGetReceiveCountDMA ( LPUART_Type ∗base,
lpuart_dma_handle_t ∗handle, uint32_t ∗count )
This function gets the number of bytes that have been received.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
count Receive bytes count.
Return values
kStatus_NoTransferIn-
Progress
No receive in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
680
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
30.2.8 LPUART eDMA Driver
30.2.8.1 Overview
Files
• file fsl_lpuart_edma.h
Data Structures
• struct lpuart_edma_handle_t
LPUART eDMA handle. More...
Typedefs
• typedef void(∗lpuart_edma_transfer_callback_t )(LPUART_Type ∗base, lpuart_edma_handle_-
t∗handle, status_t status, void ∗userData)
LPUART transfer callback function.
eDMA transactional
• void LPUART_TransferCreateHandleEDMA (LPUART_Type ∗base, lpuart_edma_handle_-
t∗handle, lpuart_edma_transfer_callback_t callback, void ∗userData, edma_handle_t ∗txEdma-
Handle, edma_handle_t ∗rxEdmaHandle)
Initializes the LPUART handle which is used in transactional functions.
• status_t LPUART_SendEDMA (LPUART_Type ∗base, lpuart_edma_handle_t ∗handle, lpuart_-
transfer_t ∗xfer)
Sends data using eDMA.
• status_t LPUART_ReceiveEDMA (LPUART_Type ∗base, lpuart_edma_handle_t ∗handle, lpuart_-
transfer_t ∗xfer)
Receives data using eDMA.
• void LPUART_TransferAbortSendEDMA (LPUART_Type ∗base, lpuart_edma_handle_t ∗handle)
Aborts the sent data using eDMA.
• void LPUART_TransferAbortReceiveEDMA (LPUART_Type ∗base, lpuart_edma_handle_-
t∗handle)
Aborts the received data using eDMA.
• status_t LPUART_TransferGetSendCountEDMA (LPUART_Type ∗base, lpuart_edma_handle_-
t∗handle, uint32_t ∗count)
Get the number of bytes that have been written to LPUART TX register.
• status_t LPUART_TransferGetReceiveCountEDMA (LPUART_Type ∗base, lpuart_edma_handle-
_t ∗handle, uint32_t ∗count)
Get the number of bytes that have been received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
681
LPUART Driver
30.2.8.2 Data Structure Documentation
30.2.8.2.1 struct _lpuart_edma_handle
Data Fields
•lpuart_edma_transfer_callback_t callback
Callback function.
• void ∗userData
LPUART callback function parameter.
• size_t rxDataSizeAll
Size of the data to receive.
• size_t txDataSizeAll
Size of the data to send out.
•edma_handle_t ∗txEdmaHandle
The eDMA TX channel used.
•edma_handle_t ∗rxEdmaHandle
The eDMA RX channel used.
• volatile uint8_t txState
TX transfer state.
• volatile uint8_t rxState
RX transfer state.
30.2.8.2.1.1 Field Documentation
30.2.8.2.1.1.1 lpuart_edma_transfer_callback_t lpuart_edma_handle_t::callback
30.2.8.2.1.1.2 void∗lpuart_edma_handle_t::userData
30.2.8.2.1.1.3 size_t lpuart_edma_handle_t::rxDataSizeAll
30.2.8.2.1.1.4 size_t lpuart_edma_handle_t::txDataSizeAll
30.2.8.2.1.1.5 edma_handle_t∗lpuart_edma_handle_t::txEdmaHandle
30.2.8.2.1.1.6 edma_handle_t∗lpuart_edma_handle_t::rxEdmaHandle
30.2.8.2.1.1.7 volatile uint8_t lpuart_edma_handle_t::txState
30.2.8.3 Typedef Documentation
30.2.8.3.1 typedef void(∗lpuart_edma_transfer_callback_t)(LPUART_Type ∗base,
lpuart_edma_handle_t ∗handle, status_t status, void ∗userData)
30.2.8.4 Function Documentation
30.2.8.4.1 void LPUART_TransferCreateHandleEDMA ( LPUART_Type ∗base,
lpuart_edma_handle_t ∗handle, lpuart_edma_transfer_callback_t callback, void ∗
userData, edma_handle_t ∗txEdmaHandle, edma_handle_t ∗rxEdmaHandle )
682
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
Parameters
base LPUART peripheral base address.
handle Pointer to lpuart_edma_handle_t structure.
callback Callback function.
userData User data.
txEdmaHandle User requested DMA handle for TX DMA transfer.
rxEdmaHandle User requested DMA handle for RX DMA transfer.
30.2.8.4.2 status_t LPUART_SendEDMA ( LPUART_Type ∗base, lpuart_edma_handle_t ∗
handle, lpuart_transfer_t ∗xfer )
This function sends data using eDMA. This is a non-blocking function, which returns right away. When
all data is sent, the send callback function is called.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
xfer LPUART eDMA transfer structure. See lpuart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_LPUART_TxBusy Previous transfer on going.
kStatus_InvalidArgument Invalid argument.
30.2.8.4.3 status_t LPUART_ReceiveEDMA ( LPUART_Type ∗base, lpuart_edma_handle_t ∗
handle, lpuart_transfer_t ∗xfer )
This function receives data using eDMA. This is non-blocking function, which returns right away. When
all data is received, the receive callback function is called.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
683
LPUART Driver
base LPUART peripheral base address.
handle Pointer to lpuart_edma_handle_t structure.
xfer LPUART eDMA transfer structure, refer to lpuart_transfer_t.
Return values
kStatus_Success if succeed, others fail.
kStatus_LPUART_Rx-
Busy
Previous transfer ongoing.
kStatus_InvalidArgument Invalid argument.
30.2.8.4.4 void LPUART_TransferAbortSendEDMA ( LPUART_Type ∗base,
lpuart_edma_handle_t ∗handle )
This function aborts the sent data using eDMA.
Parameters
base LPUART peripheral base address.
handle Pointer to lpuart_edma_handle_t structure.
30.2.8.4.5 void LPUART_TransferAbortReceiveEDMA ( LPUART_Type ∗base,
lpuart_edma_handle_t ∗handle )
This function aborts the received data using eDMA.
Parameters
base LPUART peripheral base address.
handle Pointer to lpuart_edma_handle_t structure.
30.2.8.4.6 status_t LPUART_TransferGetSendCountEDMA ( LPUART_Type ∗base,
lpuart_edma_handle_t ∗handle, uint32_t ∗count )
This function gets the number of bytes that have been written to LPUART TX register by DMA.
684
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART Driver
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
count Send bytes count.
Return values
kStatus_NoTransferIn-
Progress
No send in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
30.2.8.4.7 status_t LPUART_TransferGetReceiveCountEDMA ( LPUART_Type ∗base,
lpuart_edma_handle_t ∗handle, uint32_t ∗count )
This function gets the number of bytes that have been received.
Parameters
base LPUART peripheral base address.
handle LPUART handle pointer.
count Receive bytes count.
Return values
kStatus_NoTransferIn-
Progress
No receive in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
685
LPUART FreeRTOS Driver
30.3 LPUART FreeRTOS Driver
30.3.1 Overview
Files
• file fsl_lpuart_freertos.h
Driver version
• #define FSL_LPUART_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
LPUART FreeRTOS driver version 2.0.0.
LPUART RTOS Operation
• int LPUART_RTOS_Init (lpuart_rtos_handle_t ∗handle, lpuart_handle_t ∗t_handle, const struct
rtos_lpuart_config ∗cfg)
Initializes an LPUART instance for operation in RTOS.
• int LPUART_RTOS_Deinit (lpuart_rtos_handle_t ∗handle)
Deinitializes an LPUART instance for operation.
LPUART transactional Operation
• int LPUART_RTOS_Send (lpuart_rtos_handle_t ∗handle, const uint8_t ∗buffer, uint32_t length)
Sends data in background.
• int LPUART_RTOS_Receive (lpuart_rtos_handle_t ∗handle, uint8_t ∗buffer, uint32_t length, size_t
∗received)
Receives data.
30.3.2 Macro Definition Documentation
30.3.2.1 #define FSL_LPUART_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0,
0))
30.3.3 Function Documentation
30.3.3.1 int LPUART_RTOS_Init ( lpuart_rtos_handle_t ∗handle, lpuart_handle_t ∗
t_handle, const struct rtos_lpuart_config ∗cfg )
686
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART FreeRTOS Driver
Parameters
handle The RTOS LPUART handle, the pointer to an allocated space for RTOS context.
t_handle The pointer to an allocated space to store the transactional layer internal state.
cfg The pointer to the parameters required to configure the LPUART after initialization.
Returns
0 succeed, others failed
30.3.3.2 int LPUART_RTOS_Deinit ( lpuart_rtos_handle_t ∗handle )
This function deinitializes the LPUART module, sets all register value to the reset value, and releases the
resources.
Parameters
handle The RTOS LPUART handle.
30.3.3.3 int LPUART_RTOS_Send ( lpuart_rtos_handle_t ∗handle, const uint8_t ∗buffer,
uint32_t length )
This function sends data. It is an synchronous API. If the hardware buffer is full, the task is in the blocked
state.
Parameters
handle The RTOS LPUART handle.
buffer The pointer to buffer to send.
length The number of bytes to send.
30.3.3.4 int LPUART_RTOS_Receive ( lpuart_rtos_handle_t ∗handle, uint8_t ∗buffer,
uint32_t length, size_t ∗received )
This function receives data from LPUART. It is an synchronous API. If any data is immediately available
it is returned immediately and the number of bytes received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
687
LPUART FreeRTOS Driver
Parameters
handle The RTOS LPUART handle.
buffer The pointer to buffer where to write received data.
length The number of bytes to receive.
received The pointer to a variable of size_t where the number of received data is filled.
688
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART µCOS/II Driver
30.4 LPUART µCOS/II Driver
30.4.1 Overview
Files
• file fsl_lpuart_ucosii.h
Driver version
• #define FSL_LPUART_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
LPUART µCOS-II driver version 2.0.0.
LPUART RTOS Operation
• int LPUART_RTOS_Init (lpuart_rtos_handle_t ∗handle, lpuart_handle_t ∗t_handle, const struct
rtos_lpuart_config ∗cfg)
Initializes an LPUART instance for operation in RTOS.
• int LPUART_RTOS_Deinit (lpuart_rtos_handle_t ∗handle)
Deinitializes an LPUART instance for operation.
LPUART transactional Operation
• int LPUART_RTOS_Send (lpuart_rtos_handle_t ∗handle, const uint8_t ∗buffer, uint32_t length)
Sends data in the background.
• int LPUART_RTOS_Receive (lpuart_rtos_handle_t ∗handle, uint8_t ∗buffer, uint32_t length, size_t
∗received)
Receives data.
30.4.2 Macro Definition Documentation
30.4.2.1 #define FSL_LPUART_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
30.4.3 Function Documentation
30.4.3.1 int LPUART_RTOS_Init ( lpuart_rtos_handle_t ∗handle, lpuart_handle_t ∗
t_handle, const struct rtos_lpuart_config ∗cfg )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
689
LPUART µCOS/II Driver
Parameters
handle The RTOS LPUART handle, the pointer to an allocated space for RTOS context.
lpuart_t_-
handle
The pointer to an allocated space to store the transactional layer internal state.
cfg The pointer to the parameters required to configure the LPUART after initialization.
Returns
0 succeed, others failed
30.4.3.2 int LPUART_RTOS_Deinit ( lpuart_rtos_handle_t ∗handle )
This function deinitializes the LPUART module, sets all register values to the reset value, and releases the
resources.
Parameters
handle The RTOS LPUART handle.
30.4.3.3 int LPUART_RTOS_Send ( lpuart_rtos_handle_t ∗handle, const uint8_t ∗buffer,
uint32_t length )
This function sends data. It is a synchronous API. If the hardware buffer is full, the task is in the blocked
state.
Parameters
handle The RTOS LPUART handle.
buffer The pointer to buffer to send.
length The number of bytes to send.
30.4.3.4 int LPUART_RTOS_Receive ( lpuart_rtos_handle_t ∗handle, uint8_t ∗buffer,
uint32_t length, size_t ∗received )
This function receives data from LPUART. It is a synchronous API. If any data is immediately available
it is returned immediately and the number of bytes received.
690
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART µCOS/II Driver
Parameters
handle The RTOS LPUART handle.
buffer The pointer to buffer where to write received data.
length The number of bytes to receive.
received The pointer to a variable of size_t where the number of received data is filled.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
691
LPUART µCOS/III Driver
30.5 LPUART µCOS/III Driver
30.5.1 Overview
Files
• file fsl_lpuart_ucosiii.h
Driver version
• #define FSL_LPUART_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
LPUART µCOS-III driver version 2.0.0.
LPUART RTOS Operation
• int LPUART_RTOS_Init (lpuart_rtos_handle_t ∗handle, lpuart_handle_t ∗t_handle, const struct
rtos_lpuart_config ∗cfg)
Initializes an LPUART instance for operation in RTOS.
• int LPUART_RTOS_Deinit (lpuart_rtos_handle_t ∗handle)
Deinitializes an LPUART instance for operation.
LPUART transactional Operation
• int LPUART_RTOS_Send (lpuart_rtos_handle_t ∗handle, const uint8_t ∗buffer, uint32_t length)
Send data in background.
• int LPUART_RTOS_Receive (lpuart_rtos_handle_t ∗handle, uint8_t ∗buffer, uint32_t length, size_t
∗received)
Receives data.
30.5.2 Macro Definition Documentation
30.5.2.1 #define FSL_LPUART_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
30.5.3 Function Documentation
30.5.3.1 int LPUART_RTOS_Init ( lpuart_rtos_handle_t ∗handle, lpuart_handle_t ∗
t_handle, const struct rtos_lpuart_config ∗cfg )
692
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LPUART µCOS/III Driver
Parameters
handle The RTOS LPUART handle, the pointer to allocated space for RTOS context.
lpuart_t_-
handle
The pointer to allocated space where to store transactional layer internal state.
cfg The pointer to the parameters required to configure the LPUART after initialization.
Returns
0 succeed, others failed
30.5.3.2 int LPUART_RTOS_Deinit ( lpuart_rtos_handle_t ∗handle )
This function deinitializes the LPUART modulem, set all register value to reset value and releases the
resources.
Parameters
handle The RTOS LPUART handle.
30.5.3.3 int LPUART_RTOS_Send ( lpuart_rtos_handle_t ∗handle, const uint8_t ∗buffer,
uint32_t length )
This function sends data. It is synchronous API. If the HW buffer is full, the task is in the blocked state.
Parameters
handle The RTOS LPUART handle.
buffer The pointer to buffer to send.
length The number of bytes to send.
30.5.3.4 int LPUART_RTOS_Receive ( lpuart_rtos_handle_t ∗handle, uint8_t ∗buffer,
uint32_t length, size_t ∗received )
It is synchronous API.
This function receives data from LPUART. If any data is immediately available it will be returned imidi-
ately and the number of bytes received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
693
LPUART µCOS/III Driver
Parameters
handle The RTOS LPUART handle.
buffer The pointer to buffer where to write received data.
length The number of bytes to receive.
received The pointer to variable of size_t where the number of received data will be filled.
694
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 31
LTC: LP Trusted Cryptography
31.1 Overview
The Kinetis SDK provides the Peripheral driver for the LP Trusted Cryptography (LTC) module of Kinetis
devices. LP Trusted Cryptography is a set of cryptograhpic hardware accelerator engines that share com-
mon registers. LTC architecture can support AES, DES, 3DES, MDHA (SHA), RSA and ECC. Actual list
of implemented cryptograhpic hardware accelerator engines depends on specific Kinetis microcontroller.
The driver comprises two sets of API functions.
In the first set, blocking synchronous APIs are provided, for all operations supported by LTC hardware.
The LTC operations are complete (and results are made availabe for further usage) when a function re-
turns. When called, these functions don’t return until an LTC operation is complete. These functions use
main CPU for simple polling loops to determine operation complete or error status and also for plaintext
or ciphertext data movements. The driver functions are not re-entrant. These functions provide typical
interface to upper layer or application software.
In the second set, DMA support for symmetric LTC processing is provided, for AES and DES engines. A-
PIs in the second set use DMA for data movement to and from the LTC input and output FIFOs. By using
these functions, main CPU is not used for plaintext or ciphertext data movements (DMA is used instead).
Thus, CPU processing power can be used for other application tasks, at cost of decreased maximum data
throughput (because of DMA module and transactions management overhead). These functions provide
less typical interface, for applications that must offload main CPU while ciphertext or plaintext is being
processed, at cost of longer cryptograhpic processing time.
31.2 LTC Driver Initialization and Configuration
LTC Driver is initialized by calling the LTC_Init() function, it enables the LTC module clock in the Kinetis
SIM module. If AES or DES engine is used and the LTC module implementation features the LTC DPA
Mask Seed register, seed the DPA mask generator by using the seed from a random number generator.
The LTC_SetDpaMaskSeed() function is provided to set the DPA mask seed.
31.3 Comments about API usage in RTOS
LTC operations provided by this driver are not re-entrant. Thus, application software shall ensure the LTC
module operation is not requested from different tasks or interrupt service routines while an operation is
in progress.
31.4 Comments about API usage in interrupt handler
All APIs can be used from interrupt handler although execution time shall be considered (interrupt latency
of equal and lower priority interrupts increases).
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
695
LTC Driver Examples
31.5 LTC Driver Examples
Simple examples
Initialize LTC after Power On Reset or reset cycle
~~~~~{.c}
LTC_Init(LTC0);
/*optionally initialize DPA mask seed register */
LTC_SetDpaMaskSeed(randomNumber);
~~~~~
Encrypt plaintext by DES engine
~~~~~{.c}
char plain[16];
char cipher[16];
char iv[LTC_DES_IV_SIZE];
char key1[LTC_DES_KEY_SIZE];
char key2[LTC_DES_KEY_SIZE];
char key3[LTC_DES_KEY_SIZE];
memcpy(plain, "Hello World!", 12);
memcpy(iv, "initvect",LTC_DES_IV_SIZE);
memcpy(key1, "mykey1aa",LTC_DES_KEY_SIZE);
memcpy(key2, "mykey2bb",LTC_DES_KEY_SIZE);
memcpy(key3, "mykey3cc",LTC_DES_KEY_SIZE);
LTC_DES3_EncryptCbc(LTC0, plain, cipher, 16, iv, key1, key2, key3);
~~~~~
Encrypt ciphertext by AES engine
~~~~~{.c}
char plain[16] = {0};
char cipher[16];
char iv[16] = {0};
char key[16] = {0};
memcpy(plain, "Hello World!", 12);
memcpy(iv, "initvectorinitve", 16);
memcpy(key, "__mykey1aa__^^..", 16);
LTC_AES_EncryptCbc(LTC0, plain, cipher, 16, iv, key, 16);
~~~~~
Compute keyed hash by AES engine (CMAC)
~~~~~{.c}
char message[] = "Hello World!";
char key[16] = {0};
char output[16];
uint32_t szOutput = 16u;
memcpy(key, "__mykey1aa__^^..", 16);
LTC_HASH(LTC0, kLTC_Cmac, message, sizeof(message), key, 16, output, &szOutput);
~~~~~
696
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Driver Examples
Compute hash by MDHA engine (SHA-256)
~~~~~{.c}
char message[] = "Hello World!";
char output[32];
uint32_t szOutput = 32u;
LTC_HASH(LTC0, kLTC_Sha256, message, sizeof(message), NULL, output, &szOutput);
~~~~~
Compute modular integer exponentiation
~~~~~{.c}
status_t status;
const char bigA[] = "112233445566778899aabbccddeeff";
const char bigN[] = "aabbaabbaabb112233445566778899aabbccddeefe";
const char bigE[] = "065537";
char A[256], E[256], N[256], res[256];
uint16_t sizeA, sizeE, sizeN, sizeRes;
/*Note LTC PKHA integer format is least significant byte at lowest address.
*The _read_string() function converts the input string to LTC PKHA integer format
*and writes sizeof() the integer to the size variable (sizeA, sizeE, sizeN).
*/
_read_string(A, &sizeA, bigA);
_read_string(E, &sizeE, bigN);
_read_string(N, &sizeN, bigE);
status = LTC_PKHA_ModExp(base, A, sizeA, N, sizeN, E, sizeE, res, &sizeRes,
kLTC_PKHA_IntegerArith,
kLTC_PKHA_NormalValue, kLTC_PKHA_TimingEqualized);
~~~~~
Compute elliptic curve point multiplication
~~~~~{.c}
status_t status;
ltc_pkha_ecc_point_t B0, res0;
uint8_t bx, by, resx, resy;
uint8_t E[256];
bool isPointOfInfinity;
uint16_t resultSize, sizeE;
/*Example carried out with 1-byte curve params and point coordinates. */
uint8_t size = 1;
uint8_t aCurveParam = 1;
uint8_t bCurveParam = 0;
bx = 9;
by = 5;
B0.X= &bx;
B0.Y= &by;
res0.X= &resx;
res0.Y= &resy;
/*Prime modulus of the field. */
N[0] = 23;
/*Note LTC PKHA integer has least significant byte at lowest address */
/*Scalar multiplier */
char ew[] = "0100";/*256 in decimal */
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
697
Function Documentation
_read_string(E, &sizeE, ew);
status = LTC_PKHA_ECC_PointMul(LTC0, &B0, E, sizeE, N, NULL, &aCurveParam, &
bCurveParam, size,
kLTC_PKHA_TimingEqualized,
kLTC_PKHA_IntegerArith, &res0, &isPointOfInfinity);
~~~~~
Modules
•LTC Blocking APIs
•LTC Non-blocking eDMA APIs
Files
• file fsl_ltc.h
Functions
• void LTC_Init (LTC_Type ∗base)
Initializes the LTC driver.
• void LTC_Deinit (LTC_Type ∗base)
Deinitializes the LTC driver.
• void LTC_SetDpaMaskSeed (LTC_Type ∗base, uint32_t mask)
Sets the DPA Mask Seed register.
Driver version
• #define FSL_LTC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
LTC driver version.
31.6 Macro Definition Documentation
31.6.1 #define FSL_LTC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
31.7 Function Documentation
31.7.1 void LTC_Init ( LTC_Type ∗base )
This function initializes the LTC driver.
Parameters
698
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
base LTC peripheral base address
31.7.2 void LTC_Deinit ( LTC_Type ∗base )
This function deinitializes the LTC driver.
Parameters
base LTC peripheral base address
31.7.3 void LTC_SetDpaMaskSeed ( LTC_Type ∗base, uint32_t mask )
The DPA Mask Seed register reseeds the mask that provides resistance against DPA (differential power
analysis) attacks on AES or DES keys.
Differential Power Analysis Mask (DPA) resistance uses a randomly changing mask that introduces
"noise" into the power consumed by the AES or DES. This reduces the signal-to-noise ratio that dif-
ferential power analysis attacks use to "guess" bits of the key. This randomly changing mask should be
seeded at POR, and continues to provide DPA resistance from that point on. However, to provide even
more DPA protection it is recommended that the DPA mask be reseeded after every 50,000 blocks have
been processed. At that time, software can opt to write a new seed (preferably obtained from an RNG)
into the DPA Mask Seed register (DPAMS), or software can opt to provide the new seed earlier or later,
or not at all. DPA resistance continues even if the DPA mask is never reseeded.
Parameters
base LTC peripheral base address
mask The DPA mask seed.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
699
LTC Blocking APIs
31.8 LTC Blocking APIs
31.8.1 Overview
This section describes the programming interface of the LTC Synchronous Blocking functions
Modules
•LTC AES driver
•LTC DES driver
•LTC HASH driver
•LTC PKHA driver
700
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
31.8.2 LTC AES driver
31.8.2.1 Overview
This section describes the programming interface of the LTC AES driver.
Macros
• #define LTC_AES_BLOCK_SIZE 16
AES block size in bytes.
• #define LTC_AES_IV_SIZE 16
AES Input Vector size in bytes.
• #define LTC_AES_DecryptCtr(base, input, output, size, counter, key, keySize, counterlast, sz-
Left) LTC_AES_CryptCtr(base, input, output, size, counter, key, keySize, counterlast, szLeft)
AES CTR decrypt is mapped to the AES CTR generic operation.
• #define LTC_AES_EncryptCtr(base, input, output, size, counter, key, keySize, counterlast, sz-
Left) LTC_AES_CryptCtr(base, input, output, size, counter, key, keySize, counterlast, szLeft)
AES CTR encrypt is mapped to the AES CTR generic operation.
Enumerations
• enum ltc_aes_key_t {
kLTC_EncryptKey = 0U,
kLTC_DecryptKey = 1U }
Type of AES key for ECB and CBC decrypt operations.
Functions
• status_t LTC_AES_GenerateDecryptKey (LTC_Type ∗base, const uint8_t ∗encryptKey, uint8_t
∗decryptKey, uint32_t keySize)
Transforms an AES encrypt key (forward AES) into the decrypt key (inverse AES).
• status_t LTC_AES_EncryptEcb (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t ∗key, uint32_t keySize)
Encrypts AES using the ECB block mode.
• status_t LTC_AES_DecryptEcb (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t ∗key, uint32_t keySize, ltc_aes_key_t keyType)
Decrypts AES using ECB block mode.
• status_t LTC_AES_EncryptCbc (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t iv[LTC_AES_IV_SIZE], const uint8_t ∗key, uint32_t keySize)
Encrypts AES using CBC block mode.
• status_t LTC_AES_DecryptCbc (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t iv[LTC_AES_IV_SIZE], const uint8_t ∗key, uint32_t keySize, ltc_aes-
_key_t keyType)
Decrypts AES using CBC block mode.
• status_t LTC_AES_CryptCtr (LTC_Type ∗base, const uint8_t ∗input, uint8_t ∗output, uint32_-
t size, uint8_t counter[LTC_AES_BLOCK_SIZE], const uint8_t ∗key, uint32_t keySize, uint8_t
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
701
LTC Blocking APIs
counterlast[LTC_AES_BLOCK_SIZE], uint32_t ∗szLeft)
Encrypts or decrypts AES using CTR block mode.
• status_t LTC_AES_EncryptTagGcm (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_-
t∗ciphertext, uint32_t size, const uint8_t ∗iv, uint32_t ivSize, const uint8_t ∗aad, uint32_t aadSize,
const uint8_t ∗key, uint32_t keySize, uint8_t ∗tag, uint32_t tagSize)
Encrypts AES and tags using GCM block mode.
• status_t LTC_AES_DecryptTagGcm (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_-
t∗plaintext, uint32_t size, const uint8_t ∗iv, uint32_t ivSize, const uint8_t ∗aad, uint32_t aadSize,
const uint8_t ∗key, uint32_t keySize, const uint8_t ∗tag, uint32_t tagSize)
Decrypts AES and authenticates using GCM block mode.
• status_t LTC_AES_EncryptTagCcm (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_-
t∗ciphertext, uint32_t size, const uint8_t ∗iv, uint32_t ivSize, const uint8_t ∗aad, uint32_t aadSize,
const uint8_t ∗key, uint32_t keySize, uint8_t ∗tag, uint32_t tagSize)
Encrypts AES and tags using CCM block mode.
• status_t LTC_AES_DecryptTagCcm (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_-
t∗plaintext, uint32_t size, const uint8_t ∗iv, uint32_t ivSize, const uint8_t ∗aad, uint32_t aadSize,
const uint8_t ∗key, uint32_t keySize, const uint8_t ∗tag, uint32_t tagSize)
Decrypts AES and authenticates using CCM block mode.
31.8.2.2 Enumeration Type Documentation
31.8.2.2.1 enum ltc_aes_key_t
Enumerator
kLTC_EncryptKey Input key is an encrypt key.
kLTC_DecryptKey Input key is a decrypt key.
31.8.2.3 Function Documentation
31.8.2.3.1 status_t LTC_AES_GenerateDecryptKey ( LTC_Type ∗base, const uint8_t ∗
encryptKey, uint8_t ∗decryptKey, uint32_t keySize )
Transforms the AES encrypt key (forward AES) into the decrypt key (inverse AES). The key derived
by this function can be used as a direct load decrypt key for AES ECB and CBC decryption operations
(keyType argument).
Parameters
base LTC peripheral base address
702
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
encryptKey Input key for decrypt key transformation
out decryptKey Output key, the decrypt form of the AES key.
keySize Size of the input key and output key in bytes. Must be 16, 24, or 32.
Returns
Status from key generation operation
31.8.2.3.2 status_t LTC_AES_EncryptEcb ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗
ciphertext, uint32_t size, const uint8_t ∗key, uint32_t keySize )
Encrypts AES using the ECB block mode.
Parameters
base LTC peripheral base address
plaintext Input plain text to encrypt
out ciphertext Output cipher text
size Size of input and output data in bytes. Must be multiple of 16 bytes.
key Input key to use for encryption
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
Returns
Status from encrypt operation
31.8.2.3.3 status_t LTC_AES_DecryptEcb ( LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t
∗plaintext, uint32_t size, const uint8_t ∗key, uint32_t keySize, ltc_aes_key_t keyType
)
Decrypts AES using ECB block mode.
Parameters
base LTC peripheral base address
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
703
LTC Blocking APIs
ciphertext Input cipher text to decrypt
out plaintext Output plain text
size Size of input and output data in bytes. Must be multiple of 16 bytes.
key Input key.
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
keyType Input type of the key (allows to directly load decrypt key for AES ECB
decrypt operation.)
Returns
Status from decrypt operation
31.8.2.3.4 status_t LTC_AES_EncryptCbc ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗
ciphertext, uint32_t size, const uint8_t iv[LTC_AES_IV_SIZE], const uint8_t ∗key,
uint32_t keySize )
Parameters
base LTC peripheral base address
plaintext Input plain text to encrypt
out ciphertext Output cipher text
size Size of input and output data in bytes. Must be multiple of 16 bytes.
iv Input initial vector to combine with the first input block.
key Input key to use for encryption
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
Returns
Status from encrypt operation
31.8.2.3.5 status_t LTC_AES_DecryptCbc ( LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t
∗plaintext, uint32_t size, const uint8_t iv[LTC_AES_IV_SIZE], const uint8_t ∗key,
uint32_t keySize, ltc_aes_key_t keyType )
704
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input cipher text to decrypt
out plaintext Output plain text
size Size of input and output data in bytes. Must be multiple of 16 bytes.
iv Input initial vector to combine with the first input block.
key Input key to use for decryption
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
keyType Input type of the key (allows to directly load decrypt key for AES CBC
decrypt operation.)
Returns
Status from decrypt operation
31.8.2.3.6 status_t LTC_AES_CryptCtr ( LTC_Type ∗base, const uint8_t ∗input, uint8_t ∗
output, uint32_t size, uint8_t counter[LTC_AES_BLOCK_SIZE], const uint8_t ∗key,
uint32_t keySize, uint8_t counterlast[LTC_AES_BLOCK_SIZE], uint32_t ∗szLeft )
Encrypts or decrypts AES using CTR block mode. AES CTR mode uses only forward AES cipher and
same algorithm for encryption and decryption. The only difference between encryption and decryption is
that, for encryption, the input argument is plain text and the output argument is cipher text. For decryption,
the input argument is cipher text and the output argument is plain text.
Parameters
base LTC peripheral base address
input Input data for CTR block mode
out output Output data for CTR block mode
size Size of input and output data in bytes
in,out counter Input counter (updates on return)
key Input key to use for forward AES cipher
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
705
LTC Blocking APIs
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
out counterlast Output cipher of last counter, for chained CTR calls. NULL can be
passed if chained calls are not used.
out szLeft Output number of bytes in left unused in counterlast block. NULL can
be passed if chained calls are not used.
Returns
Status from encrypt operation
31.8.2.3.7 status_t LTC_AES_EncryptTagGcm ( LTC_Type ∗base, const uint8_t ∗plaintext,
uint8_t ∗ciphertext, uint32_t size, const uint8_t ∗iv, uint32_t ivSize, const uint8_t ∗
aad, uint32_t aadSize, const uint8_t ∗key, uint32_t keySize, uint8_t ∗tag, uint32_t
tagSize )
Encrypts AES and optionally tags using GCM block mode. If plaintext is NULL, only the GHASH is
calculated and output in the ’tag’ field.
Parameters
base LTC peripheral base address
plaintext Input plain text to encrypt
out ciphertext Output cipher text.
size Size of input and output data in bytes
iv Input initial vector
ivSize Size of the IV
aad Input additional authentication data
aadSize Input size in bytes of AAD
key Input key to use for encryption
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
out tag Output hash tag. Set to NULL to skip tag processing.
tagSize Input size of the tag to generate, in bytes. Must be 4,8,12,13,14,15 or
16.
Returns
Status from encrypt operation
706
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
31.8.2.3.8 status_t LTC_AES_DecryptTagGcm ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t ∗iv, uint32_t ivSize, const uint8_t ∗
aad, uint32_t aadSize, const uint8_t ∗key, uint32_t keySize, const uint8_t ∗tag,
uint32_t tagSize )
Decrypts AES and optionally authenticates using GCM block mode. If ciphertext is NULL, only the
GHASH is calculated and compared with the received GHASH in ’tag’ field.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
707
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input cipher text to decrypt
out plaintext Output plain text.
size Size of input and output data in bytes
iv Input initial vector
ivSize Size of the IV
aad Input additional authentication data
aadSize Input size in bytes of AAD
key Input key to use for encryption
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
tag Input hash tag to compare. Set to NULL to skip tag processing.
tagSize Input size of the tag, in bytes. Must be 4, 8, 12, 13, 14, 15, or 16.
Returns
Status from decrypt operation
31.8.2.3.9 status_t LTC_AES_EncryptTagCcm ( LTC_Type ∗base, const uint8_t ∗plaintext,
uint8_t ∗ciphertext, uint32_t size, const uint8_t ∗iv, uint32_t ivSize, const uint8_t ∗
aad, uint32_t aadSize, const uint8_t ∗key, uint32_t keySize, uint8_t ∗tag, uint32_t
tagSize )
Encrypts AES and optionally tags using CCM block mode.
Parameters
base LTC peripheral base address
plaintext Input plain text to encrypt
out ciphertext Output cipher text.
size Size of input and output data in bytes. Zero means authentication only.
iv Nonce
708
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
ivSize Length of the Nonce in bytes. Must be 7, 8, 9, 10, 11, 12, or 13.
aad Input additional authentication data. Can be NULL if aadSize is zero.
aadSize Input size in bytes of AAD. Zero means data mode only (authentication
skipped).
key Input key to use for encryption
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
out tag Generated output tag. Set to NULL to skip tag processing.
tagSize Input size of the tag to generate, in bytes. Must be 4, 6, 8, 10, 12, 14, or
16.
Returns
Status from encrypt operation
31.8.2.3.10 status_t LTC_AES_DecryptTagCcm ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t ∗iv, uint32_t ivSize, const uint8_t ∗
aad, uint32_t aadSize, const uint8_t ∗key, uint32_t keySize, const uint8_t ∗tag,
uint32_t tagSize )
Decrypts AES and optionally authenticates using CCM block mode.
Parameters
base LTC peripheral base address
ciphertext Input cipher text to decrypt
out plaintext Output plain text.
size Size of input and output data in bytes. Zero means authentication only.
iv Nonce
ivSize Length of the Nonce in bytes. Must be 7, 8, 9, 10, 11, 12, or 13.
aad Input additional authentication data. Can be NULL if aadSize is zero.
aadSize Input size in bytes of AAD. Zero means data mode only (authentication
skipped).
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
709
LTC Blocking APIs
key Input key to use for decryption
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
tag Received tag. Set to NULL to skip tag processing.
tagSize Input size of the received tag to compare with the computed tag, in bytes.
Must be 4, 6, 8, 10, 12, 14, or 16.
Returns
Status from decrypt operation
710
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
31.8.3 LTC DES driver
31.8.3.1 Overview
This section describes the programming interface of the LTC DES driver.
Macros
• #define LTC_DES_KEY_SIZE 8
LTC DES key size - 64 bits.
• #define LTC_DES_IV_SIZE 8
LTC DES IV size - 8 bytes.
Functions
• status_t LTC_DES_EncryptEcb (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t key[LTC_DES_KEY_SIZE])
Encrypts DES using ECB block mode.
• status_t LTC_DES_DecryptEcb (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t key[LTC_DES_KEY_SIZE])
Decrypts DES using ECB block mode.
• status_t LTC_DES_EncryptCbc (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE])
Encrypts DES using CBC block mode.
• status_t LTC_DES_DecryptCbc (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE])
Decrypts DES using CBC block mode.
• status_t LTC_DES_EncryptCfb (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE])
Encrypts DES using CFB block mode.
• status_t LTC_DES_DecryptCfb (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE])
Decrypts DES using CFB block mode.
• status_t LTC_DES_EncryptOfb (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE])
Encrypts DES using OFB block mode.
• status_t LTC_DES_DecryptOfb (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE])
Decrypts DES using OFB block mode.
• status_t LTC_DES2_EncryptEcb (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_S-
IZE])
Encrypts triple DES using ECB block mode with two keys.
• status_t LTC_DES2_DecryptEcb (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_S-
IZE])
Decrypts triple DES using ECB block mode with two keys.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
711
LTC Blocking APIs
• status_t LTC_DES2_EncryptCbc (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE])
Encrypts triple DES using CBC block mode with two keys.
• status_t LTC_DES2_DecryptCbc (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE])
Decrypts triple DES using CBC block mode with two keys.
• status_t LTC_DES2_EncryptCfb (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE])
Encrypts triple DES using CFB block mode with two keys.
• status_t LTC_DES2_DecryptCfb (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE])
Decrypts triple DES using CFB block mode with two keys.
• status_t LTC_DES2_EncryptOfb (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE])
Encrypts triple DES using OFB block mode with two keys.
• status_t LTC_DES2_DecryptOfb (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE])
Decrypts triple DES using OFB block mode with two keys.
• status_t LTC_DES3_EncryptEcb (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_S-
IZE], const uint8_t key3[LTC_DES_KEY_SIZE])
Encrypts triple DES using ECB block mode with three keys.
• status_t LTC_DES3_DecryptEcb (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_S-
IZE], const uint8_t key3[LTC_DES_KEY_SIZE])
Decrypts triple DES using ECB block mode with three keys.
• status_t LTC_DES3_EncryptCbc (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE])
Encrypts triple DES using CBC block mode with three keys.
• status_t LTC_DES3_DecryptCbc (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE])
Decrypts triple DES using CBC block mode with three keys.
• status_t LTC_DES3_EncryptCfb (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE])
Encrypts triple DES using CFB block mode with three keys.
• status_t LTC_DES3_DecryptCfb (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE])
Decrypts triple DES using CFB block mode with three keys.
712
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
• status_t LTC_DES3_EncryptOfb (LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗ciphertext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE])
Encrypts triple DES using OFB block mode with three keys.
• status_t LTC_DES3_DecryptOfb (LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t ∗plaintext,
uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE])
Decrypts triple DES using OFB block mode with three keys.
31.8.3.2 Macro Definition Documentation
31.8.3.2.1 #define LTC_DES_KEY_SIZE 8
31.8.3.3 Function Documentation
31.8.3.3.1 status_t LTC_DES_EncryptEcb ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t ∗
ciphertext, uint32_t size, const uint8_t key[LTC_DES_KEY_SIZE] )
Encrypts DES using ECB block mode.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key Input key to use for encryption
Returns
Status from encrypt/decrypt operation
31.8.3.3.2 status_t LTC_DES_DecryptEcb ( LTC_Type ∗base, const uint8_t ∗ciphertext, uint8_t
∗plaintext, uint32_t size, const uint8_t key[LTC_DES_KEY_SIZE] )
Decrypts DES using ECB block mode.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
713
LTC Blocking APIs
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key Input key to use for decryption
Returns
Status from encrypt/decrypt operation
31.8.3.3.3 status_t LTC_DES_EncryptCbc ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t
∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key[LTC_DES_KEY_SIZE] )
Encrypts DES using CBC block mode.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Ouput ciphertext
size Size of input and output data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key Input key to use for encryption
Returns
Status from encrypt/decrypt operation
31.8.3.3.4 status_t LTC_DES_DecryptCbc ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key[LTC_DES_KEY_SIZE] )
Decrypts DES using CBC block mode.
714
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key Input key to use for decryption
Returns
Status from encrypt/decrypt operation
31.8.3.3.5 status_t LTC_DES_EncryptCfb ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t
∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key[LTC_DES_KEY_SIZE] )
Encrypts DES using CFB block mode.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
size Size of input data in bytes
iv Input initial block.
key Input key to use for encryption
out ciphertext Output ciphertext
Returns
Status from encrypt/decrypt operation
31.8.3.3.6 status_t LTC_DES_DecryptCfb ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key[LTC_DES_KEY_SIZE] )
Decrypts DES using CFB block mode.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
715
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input initial block.
key Input key to use for decryption
Returns
Status from encrypt/decrypt operation
31.8.3.3.7 status_t LTC_DES_EncryptOfb ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t
∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key[LTC_DES_KEY_SIZE] )
Encrypts DES using OFB block mode.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key Input key to use for encryption
Returns
Status from encrypt/decrypt operation
31.8.3.3.8 status_t LTC_DES_DecryptOfb ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key[LTC_DES_KEY_SIZE] )
Decrypts DES using OFB block mode.
716
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key Input key to use for decryption
Returns
Status from encrypt/decrypt operation
31.8.3.3.9 status_t LTC_DES2_EncryptEcb ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t
∗ciphertext, uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE] )
Encrypts triple DES using ECB block mode with two keys.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.10 status_t LTC_DES2_DecryptEcb ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE], const
uint8_t key2[LTC_DES_KEY_SIZE] )
Decrypts triple DES using ECB block mode with two keys.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
717
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.11 status_t LTC_DES2_EncryptCbc ( LTC_Type ∗base, const uint8_t ∗plaintext,
uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE] )
Encrypts triple DES using CBC block mode with two keys.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.12 status_t LTC_DES2_DecryptCbc ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE] )
Decrypts triple DES using CBC block mode with two keys.
718
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.13 status_t LTC_DES2_EncryptCfb ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t
∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE] )
Encrypts triple DES using CFB block mode with two keys.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes
iv Input initial block.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.14 status_t LTC_DES2_DecryptCfb ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE] )
Decrypts triple DES using CFB block mode with two keys.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
719
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input initial block.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.15 status_t LTC_DES2_EncryptOfb ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t
∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE] )
Encrypts triple DES using OFB block mode with two keys.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.16 status_t LTC_DES2_DecryptOfb ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE] )
Decrypts triple DES using OFB block mode with two keys.
720
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.17 status_t LTC_DES3_EncryptEcb ( LTC_Type ∗base, const uint8_t ∗plaintext,
uint8_t ∗ciphertext, uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE], const
uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE] )
Encrypts triple DES using ECB block mode with three keys.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.18 status_t LTC_DES3_DecryptEcb ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE], const
uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE] )
Decrypts triple DES using ECB block mode with three keys.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
721
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.19 status_t LTC_DES3_EncryptCbc ( LTC_Type ∗base, const uint8_t ∗plaintext,
uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE] )
Encrypts triple DES using CBC block mode with three keys.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
722
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
31.8.3.3.20 status_t LTC_DES3_DecryptCbc ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE] )
Decrypts triple DES using CBC block mode with three keys.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
723
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.21 status_t LTC_DES3_EncryptCfb ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t
∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE] )
Encrypts triple DES using CFB block mode with three keys.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and ouput data in bytes
iv Input initial block.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
724
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
31.8.3.3.22 status_t LTC_DES3_DecryptCfb ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE] )
Decrypts triple DES using CFB block mode with three keys.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
725
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input data in bytes
iv Input initial block.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.8.3.3.23 status_t LTC_DES3_EncryptOfb ( LTC_Type ∗base, const uint8_t ∗plaintext, uint8_t
∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE] )
Encrypts triple DES using OFB block mode with three keys.
Parameters
base LTC peripheral base address
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
726
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
31.8.3.3.24 status_t LTC_DES3_DecryptOfb ( LTC_Type ∗base, const uint8_t ∗ciphertext,
uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE] )
Decrypts triple DES using OFB block mode with three keys.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
727
LTC Blocking APIs
Parameters
base LTC peripheral base address
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
728
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
31.8.4 LTC HASH driver
31.8.4.1 Overview
This section describes the programming interface of the LTC HASH driver.
Macros
• #define LTC_HASH_CTX_SIZE 29
LTC HASH Context size.
Typedefs
• typedef uint32_t ltc_hash_ctx_t [LTC_HASH_CTX_SIZE]
Storage type used to save hash context.
Enumerations
• enum ltc_hash_algo_t {
kLTC_XcbcMac = 0,
kLTC_Cmac }
Supported cryptographic block cipher functions for HASH creation.
Functions
• status_t LTC_HASH_Init (LTC_Type ∗base, ltc_hash_ctx_t ∗ctx, ltc_hash_algo_t algo, const uint8-
_t ∗key, uint32_t keySize)
Initialize HASH context.
• status_t LTC_HASH_Update (ltc_hash_ctx_t ∗ctx, const uint8_t ∗input, uint32_t inputSize)
Add data to current HASH.
• status_t LTC_HASH_Finish (ltc_hash_ctx_t ∗ctx, uint8_t ∗output, uint32_t ∗outputSize)
Finalize hashing.
• status_t LTC_HASH (LTC_Type ∗base, ltc_hash_algo_t algo, const uint8_t ∗input, uint32_t input-
Size, const uint8_t ∗key, uint32_t keySize, uint8_t ∗output, uint32_t ∗outputSize)
Create HASH on given data.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
729
LTC Blocking APIs
31.8.4.2 Macro Definition Documentation
31.8.4.2.1 #define LTC_HASH_CTX_SIZE 29
31.8.4.3 Typedef Documentation
31.8.4.3.1 typedef uint32_t ltc_hash_ctx_t[LTC_HASH_CTX_SIZE]
31.8.4.4 Enumeration Type Documentation
31.8.4.4.1 enum ltc_hash_algo_t
Enumerator
kLTC_XcbcMac XCBC-MAC (AES engine)
kLTC_Cmac CMAC (AES engine)
31.8.4.5 Function Documentation
31.8.4.5.1 status_t LTC_HASH_Init ( LTC_Type ∗base, ltc_hash_ctx_t ∗ctx, ltc_hash_algo_t
algo, const uint8_t ∗key, uint32_t keySize )
This function initialize the HASH. Key shall be supplied if the underlaying algoritm is AES XCBC-MAC
or CMAC. Key shall be NULL if the underlaying algoritm is SHA.
For XCBC-MAC, the key length must be 16. For CMAC, the key length can be the AES key lengths
supported by AES engine. For MDHA the key length argument is ignored.
Parameters
base LTC peripheral base address
out ctx Output hash context
algo Underlaying algorithm to use for hash computation.
key Input key (NULL if underlaying algorithm is SHA)
keySize Size of input key in bytes
Returns
Status of initialization
31.8.4.5.2 status_t LTC_HASH_Update ( ltc_hash_ctx_t ∗ctx, const uint8_t ∗input, uint32_t
inputSize )
Add data to current HASH. This can be called repeatedly with an arbitrary amount of data to be hashed.
730
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
Parameters
in,out ctx HASH context
input Input data
inputSize Size of input data in bytes
Returns
Status of the hash update operation
31.8.4.5.3 status_t LTC_HASH_Finish ( ltc_hash_ctx_t ∗ctx, uint8_t ∗output, uint32_t ∗
outputSize )
Outputs the final hash and erases the context.
Parameters
in,out ctx Input hash context
out output Output hash data
out outputSize Output parameter storing the size of the output hash in bytes
Returns
Status of the hash finish operation
31.8.4.5.4 status_t LTC_HASH ( LTC_Type ∗base, ltc_hash_algo_t algo, const uint8_t ∗input,
uint32_t inputSize, const uint8_t ∗key, uint32_t keySize, uint8_t ∗output, uint32_t ∗
outputSize )
Perform the full keyed HASH in one function call.
Parameters
base LTC peripheral base address
algo Block cipher algorithm to use for CMAC creation
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
731
LTC Blocking APIs
input Input data
inputSize Size of input data in bytes
key Input key
keySize Size of input key in bytes
out output Output hash data
out outputSize Output parameter storing the size of the output hash in bytes
Returns
Status of the one call hash operation.
732
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
31.8.5 LTC PKHA driver
31.8.5.1 Overview
This section describes the programming interface of the LTC PKHA driver.
Data Structures
• struct ltc_pkha_ecc_point_t
PKHA ECC point structure. More...
Enumerations
• enum ltc_pkha_timing_t
Use of timing equalized version of a PKHA function.
• enum ltc_pkha_f2m_t {
kLTC_PKHA_IntegerArith = 0U,
kLTC_PKHA_F2mArith = 1U }
Integer vs binary polynomial arithmetic selection.
• enum ltc_pkha_montgomery_form_t
Montgomery or normal PKHA input format.
Functions
• int LTC_PKHA_CompareBigNum (const uint8_t ∗a, size_t sizeA, const uint8_t ∗b, size_t sizeB)
Compare two PKHA big numbers.
• status_t LTC_PKHA_NormalToMontgomery (LTC_Type ∗base, const uint8_t ∗N, uint16_t sizeN,
uint8_t ∗A, uint16_t ∗sizeA, uint8_t ∗B, uint16_t ∗sizeB, uint8_t ∗R2, uint16_t ∗sizeR2, ltc_pkha-
_timing_t equalTime, ltc_pkha_f2m_t arithType)
Converts from integer to Montgomery format.
• status_t LTC_PKHA_MontgomeryToNormal (LTC_Type ∗base, const uint8_t ∗N, uint16_t sizeN,
uint8_t ∗A, uint16_t ∗sizeA, uint8_t ∗B, uint16_t ∗sizeB, ltc_pkha_timing_t equalTime, ltc_pkha_-
f2m_t arithType)
Converts from Montgomery format to int.
• status_t LTC_PKHA_ModAdd (LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA, const uint8_t
∗B, uint16_t sizeB, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result, uint16_t ∗resultSize, ltc_pkha-
_f2m_t arithType)
Performs modular addition - (A + B) mod N.
• status_t LTC_PKHA_ModSub1 (LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA, const uint8_t
∗B, uint16_t sizeB, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result, uint16_t ∗resultSize)
Performs modular subtraction - (A - B) mod N.
• status_t LTC_PKHA_ModSub2 (LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA, const uint8_t
∗B, uint16_t sizeB, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result, uint16_t ∗resultSize)
Performs modular subtraction - (B - A) mod N.
• status_t LTC_PKHA_ModMul (LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA, const uint8_t
∗B, uint16_t sizeB, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result, uint16_t ∗resultSize, ltc_pkha-
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
733
LTC Blocking APIs
_f2m_t arithType, ltc_pkha_montgomery_form_t montIn, ltc_pkha_montgomery_form_t montOut,
ltc_pkha_timing_t equalTime)
Performs modular multiplication - (A x B) mod N.
• status_t LTC_PKHA_ModExp (LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA, const uint8_t
∗N, uint16_t sizeN, const uint8_t ∗E, uint16_t sizeE, uint8_t ∗result, uint16_t ∗resultSize, ltc_pkha-
_f2m_t arithType, ltc_pkha_montgomery_form_t montIn, ltc_pkha_timing_t equalTime)
Performs modular exponentiation - (A∧E) mod N.
• status_t LTC_PKHA_ModRed (LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA, const uint8_t
∗N, uint16_t sizeN, uint8_t ∗result, uint16_t ∗resultSize, ltc_pkha_f2m_t arithType)
Performs modular reduction - (A) mod N.
• status_t LTC_PKHA_ModInv (LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA, const uint8_t
∗N, uint16_t sizeN, uint8_t ∗result, uint16_t ∗resultSize, ltc_pkha_f2m_t arithType)
Performs modular inversion - (A∧-1) mod N.
• status_t LTC_PKHA_ModR2 (LTC_Type ∗base, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result,
uint16_t ∗resultSize, ltc_pkha_f2m_t arithType)
Computes integer Montgomery factor R∧2 mod N.
• status_t LTC_PKHA_GCD (LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA, const uint8_t ∗N,
uint16_t sizeN, uint8_t ∗result, uint16_t ∗resultSize, ltc_pkha_f2m_t arithType)
Calculates the greatest common divisor - GCD (A, N).
• status_t LTC_PKHA_PrimalityTest (LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA, const
uint8_t ∗B, uint16_t sizeB, const uint8_t ∗N, uint16_t sizeN, bool ∗res)
Executes Miller-Rabin primality test.
• status_t LTC_PKHA_ECC_PointAdd (LTC_Type ∗base, const ltc_pkha_ecc_point_t ∗A, const ltc-
_pkha_ecc_point_t ∗B, const uint8_t ∗N, const uint8_t ∗R2modN, const uint8_t ∗aCurveParam,
const uint8_t ∗bCurveParam, uint8_t size, ltc_pkha_f2m_t arithType, ltc_pkha_ecc_point_t ∗result)
Adds elliptic curve points - A + B.
• status_t LTC_PKHA_ECC_PointDouble (LTC_Type ∗base, const ltc_pkha_ecc_point_t ∗B, const
uint8_t ∗N, const uint8_t ∗aCurveParam, const uint8_t ∗bCurveParam, uint8_t size, ltc_pkha_f2m_t
arithType, ltc_pkha_ecc_point_t ∗result)
Doubles elliptic curve points - B + B.
• status_t LTC_PKHA_ECC_PointMul (LTC_Type ∗base, const ltc_pkha_ecc_point_t ∗A, const
uint8_t ∗E, uint8_t sizeE, const uint8_t ∗N, const uint8_t ∗R2modN, const uint8_t ∗aCurveParam,
const uint8_t ∗bCurveParam, uint8_t size, ltc_pkha_timing_t equalTime, ltc_pkha_f2m_t arithType,
ltc_pkha_ecc_point_t ∗result, bool ∗infinity)
Multiplies an elliptic curve point by a scalar - E x (A0, A1).
31.8.5.2 Data Structure Documentation
31.8.5.2.1 struct ltc_pkha_ecc_point_t
Data Fields
• uint8_t ∗X
X coordinate (affine)
• uint8_t ∗Y
Y coordinate (affine)
734
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
31.8.5.3 Enumeration Type Documentation
31.8.5.3.1 enum ltc_pkha_timing_t
31.8.5.3.2 enum ltc_pkha_f2m_t
Enumerator
kLTC_PKHA_IntegerArith Use integer arithmetic.
kLTC_PKHA_F2mArith Use binary polynomial arithmetic.
31.8.5.3.3 enum ltc_pkha_montgomery_form_t
31.8.5.4 Function Documentation
31.8.5.4.1 int LTC_PKHA_CompareBigNum ( const uint8_t ∗a, size_t sizeA, const uint8_t ∗b,
size_t sizeB )
Compare two PKHA big numbers. Return 1 for a >b, -1 for a <b and 0 if they are same. PKHA big
number is lsbyte first. Thus the comparison starts at msbyte which is the last member of tested arrays.
Parameters
aFirst integer represented as an array of bytes, lsbyte first.
sizeA Size in bytes of the first integer.
bSecond integer represented as an array of bytes, lsbyte first.
sizeB Size in bytes of the second integer.
Returns
1 if a >b.
-1 if a <b.
0ifa=b.
31.8.5.4.2 status_t LTC_PKHA_NormalToMontgomery ( LTC_Type ∗base, const uint8_t ∗N,
uint16_t sizeN, uint8_t ∗A, uint16_t ∗sizeA, uint8_t ∗B, uint16_t ∗sizeB, uint8_t ∗
R2, uint16_t ∗sizeR2, ltc_pkha_timing_t equalTime, ltc_pkha_f2m_t arithType )
This function computes R2 mod N and optionally converts A or B into Montgomery format of A or B.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
735
LTC Blocking APIs
Parameters
base LTC peripheral base address
Nmodulus
sizeN size of N in bytes
in,out AThe first input in non-Montgomery format. Output Montgomery format
of the first input.
in,out sizeA pointer to size variable. On input it holds size of input A in bytes. On
output it holds size of Montgomery format of A in bytes.
in,out BSecond input in non-Montgomery format. Output Montgomery format
of the second input.
in,out sizeB pointer to size variable. On input it holds size of input B in bytes. On
output it holds size of Montgomery format of B in bytes.
out R2 Output Montgomery factor R2 mod N.
out sizeR2 pointer to size variable. On output it holds size of Montgomery factor
R2 mod N in bytes.
equalTime Run the function time equalized or no timing equalization.
arithType Type of arithmetic to perform (integer or F2m)
Returns
Operation status.
31.8.5.4.3 status_t LTC_PKHA_MontgomeryToNormal ( LTC_Type ∗base, const uint8_t ∗
N, uint16_t sizeN, uint8_t ∗A, uint16_t ∗sizeA, uint8_t ∗B, uint16_t ∗sizeB,
ltc_pkha_timing_t equalTime, ltc_pkha_f2m_t arithType )
This function converts Montgomery format of A or B into int A or B.
Parameters
base LTC peripheral base address
Nmodulus.
sizeN size of N modulus in bytes.
736
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
in,out AInput first number in Montgomery format. Output is non-Montgomery
format.
in,out sizeA pointer to size variable. On input it holds size of the input A in bytes.
On output it holds size of non-Montgomery A in bytes.
in,out BInput first number in Montgomery format. Output is non-Montgomery
format.
in,out sizeB pointer to size variable. On input it holds size of the input B in bytes.
On output it holds size of non-Montgomery B in bytes.
equalTime Run the function time equalized or no timing equalization.
arithType Type of arithmetic to perform (integer or F2m)
Returns
Operation status.
31.8.5.4.4 status_t LTC_PKHA_ModAdd ( LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA,
const uint8_t ∗B, uint16_t sizeB, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result,
uint16_t ∗resultSize, ltc_pkha_f2m_t arithType )
This function performs modular addition of (A + B) mod N, with either integer or binary polynomial
(F2m) inputs. In the F2m form, this function is equivalent to a bitwise XOR and it is functionally the same
as subtraction.
Parameters
base LTC peripheral base address
Afirst addend (integer or binary polynomial)
sizeA Size of A in bytes
Bsecond addend (integer or binary polynomial)
sizeB Size of B in bytes
Nmodulus. For F2m operation this can be NULL, as N is ignored during
F2m polynomial addition.
sizeN Size of N in bytes. This must be given for both integer and F2m poly-
nomial additions.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
737
LTC Blocking APIs
out result Output array to store result of operation
out resultSize Output size of operation in bytes
arithType Type of arithmetic to perform (integer or F2m)
Returns
Operation status.
31.8.5.4.5 status_t LTC_PKHA_ModSub1 ( LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA,
const uint8_t ∗B, uint16_t sizeB, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result,
uint16_t ∗resultSize )
This function performs modular subtraction of (A - B) mod N with integer inputs.
Parameters
base LTC peripheral base address
Afirst addend (integer or binary polynomial)
sizeA Size of A in bytes
Bsecond addend (integer or binary polynomial)
sizeB Size of B in bytes
Nmodulus
sizeN Size of N in bytes
out result Output array to store result of operation
out resultSize Output size of operation in bytes
Returns
Operation status.
31.8.5.4.6 status_t LTC_PKHA_ModSub2 ( LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA,
const uint8_t ∗B, uint16_t sizeB, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result,
uint16_t ∗resultSize )
This function performs modular subtraction of (B - A) mod N, with integer inputs.
738
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
Parameters
base LTC peripheral base address
Afirst addend (integer or binary polynomial)
sizeA Size of A in bytes
Bsecond addend (integer or binary polynomial)
sizeB Size of B in bytes
Nmodulus
sizeN Size of N in bytes
out result Output array to store result of operation
out resultSize Output size of operation in bytes
Returns
Operation status.
31.8.5.4.7 status_t LTC_PKHA_ModMul ( LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA,
const uint8_t ∗B, uint16_t sizeB, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result,
uint16_t ∗resultSize, ltc_pkha_f2m_t arithType, ltc_pkha_montgomery_form_t
montIn, ltc_pkha_montgomery_form_t montOut, ltc_pkha_timing_t equalTime )
This function performs modular multiplication with either integer or binary polynomial (F2m) inputs. It
can optionally specify whether inputs and/or outputs will be in Montgomery form or not.
Parameters
base LTC peripheral base address
Afirst addend (integer or binary polynomial)
sizeA Size of A in bytes
Bsecond addend (integer or binary polynomial)
sizeB Size of B in bytes
Nmodulus.
sizeN Size of N in bytes
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
739
LTC Blocking APIs
out result Output array to store result of operation
out resultSize Output size of operation in bytes
arithType Type of arithmetic to perform (integer or F2m)
montIn Format of inputs
montOut Format of output
equalTime Run the function time equalized or no timing equalization. This argu-
ment is ignored for F2m modular multiplication.
Returns
Operation status.
31.8.5.4.8 status_t LTC_PKHA_ModExp ( LTC_Type ∗base, const uint8_t ∗A, uint16_t sizeA,
const uint8_t ∗N, uint16_t sizeN, const uint8_t ∗E, uint16_t sizeE, uint8_t ∗result,
uint16_t ∗resultSize, ltc_pkha_f2m_t arithType, ltc_pkha_montgomery_form_t
montIn, ltc_pkha_timing_t equalTime )
This function performs modular exponentiation with either integer or binary polynomial (F2m) inputs.
Parameters
base LTC peripheral base address
Afirst addend (integer or binary polynomial)
sizeA Size of A in bytes
Nmodulus
sizeN Size of N in bytes
Eexponent
sizeE Size of E in bytes
out result Output array to store result of operation
out resultSize Output size of operation in bytes
montIn Format of A input (normal or Montgomery)
arithType Type of arithmetic to perform (integer or F2m)
740
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
equalTime Run the function time equalized or no timing equalization.
Returns
Operation status.
31.8.5.4.9 status_t LTC_PKHA_ModRed ( LTC_Type ∗base, const uint8_t ∗A, uint16_t
sizeA, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result, uint16_t ∗resultSize,
ltc_pkha_f2m_t arithType )
This function performs modular reduction with either integer or binary polynomial (F2m) inputs.
Parameters
base LTC peripheral base address
Afirst addend (integer or binary polynomial)
sizeA Size of A in bytes
Nmodulus
sizeN Size of N in bytes
out result Output array to store result of operation
out resultSize Output size of operation in bytes
arithType Type of arithmetic to perform (integer or F2m)
Returns
Operation status.
31.8.5.4.10 status_t LTC_PKHA_ModInv ( LTC_Type ∗base, const uint8_t ∗A, uint16_t
sizeA, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result, uint16_t ∗resultSize,
ltc_pkha_f2m_t arithType )
This function performs modular inversion with either integer or binary polynomial (F2m) inputs.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
741
LTC Blocking APIs
base LTC peripheral base address
Afirst addend (integer or binary polynomial)
sizeA Size of A in bytes
Nmodulus
sizeN Size of N in bytes
out result Output array to store result of operation
out resultSize Output size of operation in bytes
arithType Type of arithmetic to perform (integer or F2m)
Returns
Operation status.
31.8.5.4.11 status_t LTC_PKHA_ModR2 ( LTC_Type ∗base, const uint8_t ∗N, uint16_t sizeN,
uint8_t ∗result, uint16_t ∗resultSize, ltc_pkha_f2m_t arithType )
This function computes a constant to assist in converting operands into the Montgomery residue system
representation.
Parameters
base LTC peripheral base address
Nmodulus
sizeN Size of N in bytes
out result Output array to store result of operation
out resultSize Output size of operation in bytes
arithType Type of arithmetic to perform (integer or F2m)
Returns
Operation status.
31.8.5.4.12 status_t LTC_PKHA_GCD ( LTC_Type ∗base, const uint8_t ∗A, uint16_t
sizeA, const uint8_t ∗N, uint16_t sizeN, uint8_t ∗result, uint16_t ∗resultSize,
ltc_pkha_f2m_t arithType )
This function calculates the greatest common divisor of two inputs with either integer or binary polynomial
(F2m) inputs.
742
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
Parameters
base LTC peripheral base address
Afirst value (must be smaller than or equal to N)
sizeA Size of A in bytes
Nsecond value (must be non-zero)
sizeN Size of N in bytes
out result Output array to store result of operation
out resultSize Output size of operation in bytes
arithType Type of arithmetic to perform (integer or F2m)
Returns
Operation status.
31.8.5.4.13 status_t LTC_PKHA_PrimalityTest ( LTC_Type ∗base, const uint8_t ∗A, uint16_t
sizeA, const uint8_t ∗B, uint16_t sizeB, const uint8_t ∗N, uint16_t sizeN, bool ∗
res )
This function calculates whether or not a candidate prime number is likely to be a prime.
Parameters
base LTC peripheral base address
Ainitial random seed
sizeA Size of A in bytes
Bnumber of trial runs
sizeB Size of B in bytes
Ncandidate prime integer
sizeN Size of N in bytes
out res True if the value is likely prime or false otherwise
Returns
Operation status.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
743
LTC Blocking APIs
31.8.5.4.14 status_t LTC_PKHA_ECC_PointAdd ( LTC_Type ∗base, const ltc_pkha_ecc_point_t
∗A, const ltc_pkha_ecc_point_t ∗B, const uint8_t ∗N, const uint8_t ∗R2modN,
const uint8_t ∗aCurveParam, const uint8_t ∗bCurveParam, uint8_t size,
ltc_pkha_f2m_t arithType, ltc_pkha_ecc_point_t ∗result )
This function performs ECC point addition over a prime field (Fp) or binary field (F2m) using affine
coordinates.
744
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
Parameters
base LTC peripheral base address
ALeft-hand point
BRight-hand point
NPrime modulus of the field
R2modN NULL (the function computes R2modN internally) or pointer to pre-
computed R2modN (obtained from LTC_PKHA_ModR2() function).
aCurveParam A parameter from curve equation
bCurveParam B parameter from curve equation (constant)
size Size in bytes of curve points and parameters
arithType Type of arithmetic to perform (integer or F2m)
out result Result point
Returns
Operation status.
31.8.5.4.15 status_t LTC_PKHA_ECC_PointDouble ( LTC_Type ∗base, const
ltc_pkha_ecc_point_t ∗B, const uint8_t ∗N, const uint8_t ∗aCurveParam,
const uint8_t ∗bCurveParam, uint8_t size, ltc_pkha_f2m_t arithType,
ltc_pkha_ecc_point_t ∗result )
This function performs ECC point doubling over a prime field (Fp) or binary field (F2m) using affine
coordinates.
Parameters
base LTC peripheral base address
BPoint to double
NPrime modulus of the field
aCurveParam A parameter from curve equation
bCurveParam B parameter from curve equation (constant)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
745
LTC Blocking APIs
size Size in bytes of curve points and parameters
arithType Type of arithmetic to perform (integer or F2m)
out result Result point
Returns
Operation status.
31.8.5.4.16 status_t LTC_PKHA_ECC_PointMul ( LTC_Type ∗base, const ltc_pkha_ecc_point_t
∗A, const uint8_t ∗E, uint8_t sizeE, const uint8_t ∗N, const uint8_t ∗R2modN,
const uint8_t ∗aCurveParam, const uint8_t ∗bCurveParam, uint8_t size,
ltc_pkha_timing_t equalTime, ltc_pkha_f2m_t arithType, ltc_pkha_ecc_point_t ∗
result, bool ∗infinity )
This function performs ECC point multiplication to multiply an ECC point by a scalar integer multiplier
over a prime field (Fp) or a binary field (F2m).
Parameters
base LTC peripheral base address
APoint as multiplicand
EScalar multiple
sizeE The size of E, in bytes
NModulus, a prime number for the Fp field or Irreducible polynomial for
F2m field.
R2modN NULL (the function computes R2modN internally) or pointer to pre-
computed R2modN (obtained from LTC_PKHA_ModR2() function).
aCurveParam A parameter from curve equation
bCurveParam B parameter from curve equation (C parameter for operation over F2m).
size Size in bytes of curve points and parameters
equalTime Run the function time equalized or no timing equalization.
arithType Type of arithmetic to perform (integer or F2m)
746
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Blocking APIs
out result Result point
out infinity Output true if the result is point of infinity, and false otherwise. Writing
of this output will be ignored if the argument is NULL.
Returns
Operation status.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
747
LTC Non-blocking eDMA APIs
31.9 LTC Non-blocking eDMA APIs
31.9.1 Overview
This section describes the programming interface of the LTC EDMA Non Blocking functions
Modules
•LTC eDMA AES driver
•LTC eDMA DES driver
Data Structures
• struct ltc_edma_handle_t
LTC EDMA handle. More...
Typedefs
• typedef void(∗ltc_edma_callback_t )(LTC_Type ∗base, ltc_edma_handle_t ∗handle, status_t status,
void ∗userData)
LTC EDMA callback function.
• typedef status_t(∗ltc_edma_state_machine_t )(LTC_Type ∗base, ltc_edma_handle_t ∗handle)
LTC EDMA state machine function.
Functions
• void LTC_CreateHandleEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, ltc_edma_-
callback_t callback, void ∗userData, edma_handle_t ∗inputFifoEdmaHandle, edma_handle_t
∗outputFifoEdmaHandle)
Init the LTC EDMA handle which is used in transcational functions.
31.9.2 Data Structure Documentation
31.9.2.1 struct _ltc_edma_handle
It is defined only for private usage inside LTC EDMA driver.
Data Fields
•ltc_edma_callback_t callback
Callback function.
• void ∗userData
748
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
LTC callback function parameter.
•edma_handle_t ∗inputFifoEdmaHandle
The EDMA TX channel used.
•edma_handle_t ∗outputFifoEdmaHandle
The EDMA RX channel used.
•ltc_edma_state_machine_t state_machine
State machine.
• uint32_t state
Internal state.
• const uint8_t ∗inData
Input data.
• uint8_t ∗outData
Output data.
• uint32_t size
Size of input and output data in bytes.
• uint32_t modeReg
LTC mode register.
• uint8_t ∗counter
Input counter (updates on return)
• const uint8_t ∗key
Input key to use for forward AES cipher.
• uint32_t keySize
Size of the input key, in bytes.
• uint8_t ∗counterlast
Output cipher of last counter, for chained CTR calls.
• uint32_t ∗szLeft
Output number of bytes in left unused in counterlast block.
• uint32_t lastSize
Last size.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
749
LTC Non-blocking eDMA APIs
31.9.2.1.0.1 Field Documentation
31.9.2.1.0.1.1 ltc_edma_callback_t ltc_edma_handle_t::callback
31.9.2.1.0.1.2 void∗ltc_edma_handle_t::userData
31.9.2.1.0.1.3 edma_handle_t∗ltc_edma_handle_t::inputFifoEdmaHandle
31.9.2.1.0.1.4 edma_handle_t∗ltc_edma_handle_t::outputFifoEdmaHandle
31.9.2.1.0.1.5 ltc_edma_state_machine_t ltc_edma_handle_t::state_machine
31.9.2.1.0.1.6 uint32_t ltc_edma_handle_t::state
31.9.2.1.0.1.7 const uint8_t∗ltc_edma_handle_t::inData
31.9.2.1.0.1.8 uint8_t∗ltc_edma_handle_t::outData
31.9.2.1.0.1.9 uint32_t ltc_edma_handle_t::size
31.9.2.1.0.1.10 uint32_t ltc_edma_handle_t::modeReg
31.9.2.1.0.1.11 uint32_t ltc_edma_handle_t::keySize
Must be 16, 24, or 32.
31.9.2.1.0.1.12 uint8_t∗ltc_edma_handle_t::counterlast
NULL can be passed if chained calls are not used.
31.9.2.1.0.1.13 uint32_t∗ltc_edma_handle_t::szLeft
NULL can be passed if chained calls are not used.
31.9.2.1.0.1.14 uint32_t ltc_edma_handle_t::lastSize
31.9.3 Typedef Documentation
31.9.3.1 typedef void(∗ltc_edma_callback_t)(LTC_Type ∗base, ltc_edma_handle_t
∗handle, status_t status, void ∗userData)
31.9.3.2 typedef status_t(∗ltc_edma_state_machine_t)(LTC_Type ∗base,
ltc_edma_handle_t ∗handle)
It is defined only for private usage inside LTC EDMA driver.
750
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
31.9.4 Function Documentation
31.9.4.1 void LTC_CreateHandleEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, ltc_edma_callback_t callback, void ∗userData, edma_handle_t ∗
inputFifoEdmaHandle, edma_handle_t ∗outputFifoEdmaHandle )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
751
LTC Non-blocking eDMA APIs
Parameters
base LTC module base address
handle Pointer to ltc_edma_handle_t structure
callback Callback function, NULL means no callback.
userData Callback function parameter.
inputFifo-
EdmaHandle
User requested EDMA handle for Input FIFO EDMA.
outputFifo-
EdmaHandle
User requested EDMA handle for Output FIFO EDMA.
752
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
31.9.5 LTC eDMA AES driver
31.9.5.1 Overview
This section describes the programming interface of the LTC EDMA AES driver.
Macros
• #define LTC_AES_DecryptCtrEDMA(base, handle, input, output, size, counter, key, keySize, coun-
terlast, szLeft) LTC_AES_CryptCtrEDMA(base, handle, input, output, size, counter, key, keySize,
counterlast, szLeft)
AES CTR decrypt is mapped to the AES CTR generic operation.
• #define LTC_AES_EncryptCtrEDMA(base, handle, input, output, size, counter, key, keySize, coun-
terlast, szLeft) LTC_AES_CryptCtrEDMA(base, handle, input, output, size, counter, key, keySize,
counterlast, szLeft)
AES CTR encrypt is mapped to the AES CTR generic operation.
Functions
• status_t LTC_AES_EncryptEcbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8-
_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t ∗key, uint32_t keySize)
Encrypts AES using the ECB block mode.
• status_t LTC_AES_DecryptEcbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8-
_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t ∗key, uint32_t keySize, ltc_aes_key_t
keyType)
Decrypts AES using ECB block mode.
• status_t LTC_AES_EncryptCbcEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8-
_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_AES_IV_SIZE], const uint8-
_t ∗key, uint32_t keySize)
Encrypts AES using CBC block mode.
• status_t LTC_AES_DecryptCbcEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_AES_IV_SIZE], const
uint8_t ∗key, uint32_t keySize, ltc_aes_key_t keyType)
Decrypts AES using CBC block mode.
• status_t LTC_AES_CryptCtrEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8_-
t∗input, uint8_t ∗output, uint32_t size, uint8_t counter[LTC_AES_BLOCK_SIZE], const uint8_t
∗key, uint32_t keySize, uint8_t counterlast[LTC_AES_BLOCK_SIZE], uint32_t ∗szLeft)
Encrypts or decrypts AES using CTR block mode.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
753
LTC Non-blocking eDMA APIs
31.9.5.2 Function Documentation
31.9.5.2.1 status_t LTC_AES_EncryptEcbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t ∗
key, uint32_t keySize )
Encrypts AES using the ECB block mode.
754
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plain text to encrypt
out ciphertext Output cipher text
size Size of input and output data in bytes. Must be multiple of 16 bytes.
key Input key to use for encryption
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
Returns
Status from encrypt operation
31.9.5.2.2 status_t LTC_AES_DecryptEcbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t ∗
key, uint32_t keySize, ltc_aes_key_t keyType )
Decrypts AES using ECB block mode.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input cipher text to decrypt
out plaintext Output plain text
size Size of input and output data in bytes. Must be multiple of 16 bytes.
key Input key.
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
keyType Input type of the key (allows to directly load decrypt key for AES ECB
decrypt operation.)
Returns
Status from decrypt operation
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
755
LTC Non-blocking eDMA APIs
31.9.5.2.3 status_t LTC_AES_EncryptCbcEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
iv[LTC_AES_IV_SIZE], const uint8_t ∗key, uint32_t keySize )
756
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plain text to encrypt
out ciphertext Output cipher text
size Size of input and output data in bytes. Must be multiple of 16 bytes.
iv Input initial vector to combine with the first input block.
key Input key to use for encryption
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
Returns
Status from encrypt operation
31.9.5.2.4 status_t LTC_AES_DecryptCbcEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
iv[LTC_AES_IV_SIZE], const uint8_t ∗key, uint32_t keySize, ltc_aes_key_t keyType )
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input cipher text to decrypt
out plaintext Output plain text
size Size of input and output data in bytes. Must be multiple of 16 bytes.
iv Input initial vector to combine with the first input block.
key Input key to use for decryption
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
keyType Input type of the key (allows to directly load decrypt key for AES CBC
decrypt operation.)
Returns
Status from decrypt operation
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
757
LTC Non-blocking eDMA APIs
31.9.5.2.5 status_t LTC_AES_CryptCtrEDMA ( LTC_Type ∗base, ltc_edma_handle_t
∗handle, const uint8_t ∗input, uint8_t ∗output, uint32_t size, uint8_t
counter[LTC_AES_BLOCK_SIZE], const uint8_t ∗key, uint32_t keySize, uint8_t
counterlast[LTC_AES_BLOCK_SIZE], uint32_t ∗szLeft )
Encrypts or decrypts AES using CTR block mode. AES CTR mode uses only forward AES cipher and
same algorithm for encryption and decryption. The only difference between encryption and decryption is
that, for encryption, the input argument is plain text and the output argument is cipher text. For decryption,
the input argument is cipher text and the output argument is plain text.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
input Input data for CTR block mode
out output Output data for CTR block mode
size Size of input and output data in bytes
in,out counter Input counter (updates on return)
key Input key to use for forward AES cipher
keySize Size of the input key, in bytes. Must be 16, 24, or 32.
out counterlast Output cipher of last counter, for chained CTR calls. NULL can be
passed if chained calls are not used.
out szLeft Output number of bytes in left unused in counterlast block. NULL can
be passed if chained calls are not used.
Returns
Status from encrypt operation
758
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
31.9.6 LTC eDMA DES driver
31.9.6.1 Overview
This section describes the programming interface of the LTC EDMA DES driver.
Functions
• status_t LTC_DES_EncryptEcbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8-
_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t key[LTC_DES_KEY_SIZE])
Encrypts DES using ECB block mode.
• status_t LTC_DES_DecryptEcbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8-
_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t key[LTC_DES_KEY_SIZE])
Decrypts DES using ECB block mode.
• status_t LTC_DES_EncryptCbcEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8-
_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8-
_t key[LTC_DES_KEY_SIZE])
Encrypts DES using CBC block mode.
• status_t LTC_DES_DecryptCbcEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key[LTC_DES_KEY_SIZE])
Decrypts DES using CBC block mode.
• status_t LTC_DES_EncryptCfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8-
_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8-
_t key[LTC_DES_KEY_SIZE])
Encrypts DES using CFB block mode.
• status_t LTC_DES_DecryptCfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8-
_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8-
_t key[LTC_DES_KEY_SIZE])
Decrypts DES using CFB block mode.
• status_t LTC_DES_EncryptOfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8-
_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8-
_t key[LTC_DES_KEY_SIZE])
Encrypts DES using OFB block mode.
• status_t LTC_DES_DecryptOfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const uint8-
_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const uint8-
_t key[LTC_DES_KEY_SIZE])
Decrypts DES using OFB block mode.
• status_t LTC_DES2_EncryptEcbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE])
Encrypts triple DES using ECB block mode with two keys.
• status_t LTC_DES2_DecryptEcbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE])
Decrypts triple DES using ECB block mode with two keys.
• status_t LTC_DES2_EncryptCbcEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
759
LTC Non-blocking eDMA APIs
uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE])
Encrypts triple DES using CBC block mode with two keys.
• status_t LTC_DES2_DecryptCbcEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE])
Decrypts triple DES using CBC block mode with two keys.
• status_t LTC_DES2_EncryptCfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE])
Encrypts triple DES using CFB block mode with two keys.
• status_t LTC_DES2_DecryptCfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE])
Decrypts triple DES using CFB block mode with two keys.
• status_t LTC_DES2_EncryptOfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE])
Encrypts triple DES using OFB block mode with two keys.
• status_t LTC_DES2_DecryptOfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE])
Decrypts triple DES using OFB block mode with two keys.
• status_t LTC_DES3_EncryptEcbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE])
Encrypts triple DES using ECB block mode with three keys.
• status_t LTC_DES3_DecryptEcbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t key1[LTC_DES_KEY_SIZE],
const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE])
Decrypts triple DES using ECB block mode with three keys.
• status_t LTC_DES3_EncryptCbcEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE])
Encrypts triple DES using CBC block mode with three keys.
• status_t LTC_DES3_DecryptCbcEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE])
Decrypts triple DES using CBC block mode with three keys.
• status_t LTC_DES3_EncryptCfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE])
Encrypts triple DES using CFB block mode with three keys.
• status_t LTC_DES3_DecryptCfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
760
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE])
Decrypts triple DES using CFB block mode with three keys.
• status_t LTC_DES3_EncryptOfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE])
Encrypts triple DES using OFB block mode with three keys.
• status_t LTC_DES3_DecryptOfbEDMA (LTC_Type ∗base, ltc_edma_handle_t ∗handle, const
uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t iv[LTC_DES_IV_SIZE], const
uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE])
Decrypts triple DES using OFB block mode with three keys.
31.9.6.2 Function Documentation
31.9.6.2.1 status_t LTC_DES_EncryptEcbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
key[LTC_DES_KEY_SIZE] )
Encrypts DES using ECB block mode.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key Input key to use for encryption
Returns
Status from encrypt/decrypt operation
31.9.6.2.2 status_t LTC_DES_DecryptEcbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
key[LTC_DES_KEY_SIZE] )
Decrypts DES using ECB block mode.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
761
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key Input key to use for decryption
Returns
Status from encrypt/decrypt operation
31.9.6.2.3 status_t LTC_DES_EncryptCbcEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE] )
Encrypts DES using CBC block mode.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Ouput ciphertext
size Size of input and output data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key Input key to use for encryption
Returns
Status from encrypt/decrypt operation
31.9.6.2.4 status_t LTC_DES_DecryptCbcEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE] )
Decrypts DES using CBC block mode.
762
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key Input key to use for decryption
Returns
Status from encrypt/decrypt operation
31.9.6.2.5 status_t LTC_DES_EncryptCfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE] )
Encrypts DES using CFB block mode.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
size Size of input data in bytes
iv Input initial block.
key Input key to use for encryption
out ciphertext Output ciphertext
Returns
Status from encrypt/decrypt operation
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
763
LTC Non-blocking eDMA APIs
31.9.6.2.6 status_t LTC_DES_DecryptCfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE] )
Decrypts DES using CFB block mode.
764
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input initial block.
key Input key to use for decryption
Returns
Status from encrypt/decrypt operation
31.9.6.2.7 status_t LTC_DES_EncryptOfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE] )
Encrypts DES using OFB block mode.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key Input key to use for encryption
Returns
Status from encrypt/decrypt operation
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
765
LTC Non-blocking eDMA APIs
31.9.6.2.8 status_t LTC_DES_DecryptOfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key[LTC_DES_KEY_SIZE] )
Decrypts DES using OFB block mode.
766
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key Input key to use for decryption
Returns
Status from encrypt/decrypt operation
31.9.6.2.9 status_t LTC_DES2_EncryptEcbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE] )
Encrypts triple DES using ECB block mode with two keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
767
LTC Non-blocking eDMA APIs
31.9.6.2.10 status_t LTC_DES2_DecryptEcbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE] )
Decrypts triple DES using ECB block mode with two keys.
768
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.11 status_t LTC_DES2_EncryptCbcEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE] )
Encrypts triple DES using CBC block mode with two keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key1 First input key for key bundle
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
769
LTC Non-blocking eDMA APIs
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.12 status_t LTC_DES2_DecryptCbcEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE] )
Decrypts triple DES using CBC block mode with two keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.13 status_t LTC_DES2_EncryptCfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE] )
Encrypts triple DES using CFB block mode with two keys.
770
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes
iv Input initial block.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.14 status_t LTC_DES2_DecryptCfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE] )
Decrypts triple DES using CFB block mode with two keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input initial block.
key1 First input key for key bundle
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
771
LTC Non-blocking eDMA APIs
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.15 status_t LTC_DES2_EncryptOfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE] )
Encrypts triple DES using OFB block mode with two keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.16 status_t LTC_DES2_DecryptOfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE] )
Decrypts triple DES using OFB block mode with two keys.
772
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key1 First input key for key bundle
key2 Second input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.17 status_t LTC_DES3_EncryptEcbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE] )
Encrypts triple DES using ECB block mode with three keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key1 First input key for key bundle
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
773
LTC Non-blocking eDMA APIs
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.18 status_t LTC_DES3_DecryptEcbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
key1[LTC_DES_KEY_SIZE], const uint8_t key2[LTC_DES_KEY_SIZE], const uint8_t
key3[LTC_DES_KEY_SIZE] )
Decrypts triple DES using ECB block mode with three keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes. Must be multiple of 8 bytes.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.19 status_t LTC_DES3_EncryptCbcEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE] )
Encrypts triple DES using CBC block mode with three keys.
774
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.20 status_t LTC_DES3_DecryptCbcEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE] )
Decrypts triple DES using CBC block mode with three keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input initial vector to combine with the first plaintext block. The iv does
not need to be secret, but it must be unpredictable.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
775
LTC Non-blocking eDMA APIs
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.21 status_t LTC_DES3_EncryptCfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE] )
Encrypts triple DES using CFB block mode with three keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and ouput data in bytes
iv Input initial block.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.22 status_t LTC_DES3_DecryptCfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE] )
Decrypts triple DES using CFB block mode with three keys.
776
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
LTC Non-blocking eDMA APIs
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input data in bytes
iv Input initial block.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.23 status_t LTC_DES3_EncryptOfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗plaintext, uint8_t ∗ciphertext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE] )
Encrypts triple DES using OFB block mode with three keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
plaintext Input plaintext to encrypt
out ciphertext Output ciphertext
size Size of input and output data in bytes
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
777
LTC Non-blocking eDMA APIs
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
31.9.6.2.24 status_t LTC_DES3_DecryptOfbEDMA ( LTC_Type ∗base, ltc_edma_handle_t ∗
handle, const uint8_t ∗ciphertext, uint8_t ∗plaintext, uint32_t size, const uint8_t
iv[LTC_DES_IV_SIZE], const uint8_t key1[LTC_DES_KEY_SIZE], const uint8_t
key2[LTC_DES_KEY_SIZE], const uint8_t key3[LTC_DES_KEY_SIZE] )
Decrypts triple DES using OFB block mode with three keys.
Parameters
base LTC peripheral base address
handle pointer to ltc_edma_handle_t structure which stores the transaction
state.
ciphertext Input ciphertext to decrypt
out plaintext Output plaintext
size Size of input and output data in bytes
iv Input unique input vector. The OFB mode requires that the IV be unique
for each execution of the mode under the given key.
key1 First input key for key bundle
key2 Second input key for key bundle
key3 Third input key for key bundle
Returns
Status from encrypt/decrypt operation
778
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 32
MPU: Memory Protection Unit
32.1 Overview
The MPU driver provides hardware access control for all memory references generated in the device. Use
the MPU driver to program the region descriptors that define memory spaces and their access rights. After
initialization, the MPU concurrently monitors the system bus transactions and evaluates the appropriate-
ness.
32.2 Initialization and Deinitialize
To initialize the MPU module, call the MPU_Init() function and provide the user configuration data struc-
ture. This function sets the configuration of the MPU module automatically and enables the MPU module.
Note that the configuration start address, end address, the region valid value, and the debugger’s access
permission for the MPU region 0 cannot be changed.
This is example code to configure the MPU driver:
// Defines the MPU memory access permission configuration structure . //
mpu_low_masters_access_rights_t mpuLowAccessRights =
{
kMPU_SupervisorReadWriteExecute,
kMPU_UserNoAccessRights,
kMPU_IdentifierDisable,
kMPU_SupervisorEqualToUsermode,
kMPU_UserNoAccessRights,
kMPU_IdentifierDisable,
kMPU_SupervisorEqualToUsermode,
kMPU_UserNoAccessRights,
kMPU_IdentifierDisable,
kMPU_SupervisorEqualToUsermode,
kMPU_UserNoAccessRights,
kMPU_IdentifierDisable
}
mpu_high_masters_access_rights_t mpuHighAccessRights =
{
false,
false,
false,
false,
false,
false,
false,
false
};
// Defines the MPU region configuration structure. //
mpu_region_config_t mpuRegionConfig =
{
kMPU_RegionNum00,
0x0,
0xffffffff,
mpuLowAccessRights,
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
779
Basic Control Operations
mpuHighAccessRights,
0,
0
};
// Defines the MPU user configuration structure. //
mpu_config_t mpuUserConfig =
{
mpuRegionConfig,
NULL
};
// Initializes the MPU region 0. //
MPU_Init(MPU, &mpuUserConfig);
32.3 Basic Control Operations
MPU can be enabled/disabled for the entire memory protection region by calling the MPU_Enable(). To
save the power for any unused special regions when the entire memory protection region is disabled, call
the MPU_RegionEnable().
After MPU initialization, the MPU_SetRegionLowMasterAccessRights() and MPU_SetRegionHigh-
MasterAccessRights() can be used to change the access rights for special master ports and for special
region numbers. The MPU_SetRegionConfig can be used to set the whole region with the start/end ad-
dress with access rights.
The MPU_GetHardwareInfo() API is provided to get the hardware information for the device. The M-
PU_GetSlavePortErrorStatus() API is provided to get the error status of a special slave port. When an
error happens in this port, the MPU_GetDetailErrorAccessInfo() API is provided to get the detailed error
information.
Files
• file fsl_mpu.h
Data Structures
• struct mpu_hardware_info_t
MPU hardware basic information. More...
• struct mpu_access_err_info_t
MPU detail error access information. More...
• struct mpu_low_masters_access_rights_t
MPU access rights for low master master port 0 ∼port 3. More...
• struct mpu_high_masters_access_rights_t
MPU access rights mode for high master port 4 ∼port 7. More...
• struct mpu_region_config_t
MPU region configuration structure. More...
• struct mpu_config_t
The configuration structure for the MPU initialization. More...
Macros
• #define MPU_WORD_LOW_MASTER_SHIFT(n) (n ∗6)
780
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Basic Control Operations
MPU low master bit shift.
• #define MPU_WORD_LOW_MASTER_MASK(n) (0x1Fu << MPU_WORD_LOW_MASTER-
_SHIFT(n))
MPU low master bit mask.
• #define MPU_WORD_LOW_MASTER_WIDTH 5
MPU low master bit width.
• #define MPU_WORD_LOW_MASTER(n, x) (((uint32_t)(((uint32_t)(x)) << MPU_WORD_LO-
W_MASTER_SHIFT(n))) & MPU_WORD_LOW_MASTER_MASK(n))
MPU low master priority setting.
• #define MPU_LOW_MASTER_PE_SHIFT(n) (n ∗6 + 5)
MPU low master process enable bit shift.
• #define MPU_LOW_MASTER_PE_MASK(n) (0x1u << MPU_LOW_MASTER_PE_SHIFT(n))
MPU low master process enable bit mask.
• #define MPU_WORD_MASTER_PE_WIDTH 1
MPU low master process enable width.
• #define MPU_WORD_MASTER_PE(n, x) (((uint32_t)(((uint32_t)(x)) << MPU_LOW_MASTE-
R_PE_SHIFT(n))) & MPU_LOW_MASTER_PE_MASK(n))
MPU low master process enable setting.
• #define MPU_WORD_HIGH_MASTER_SHIFT(n) (n ∗2 + 24)
MPU high master bit shift.
• #define MPU_WORD_HIGH_MASTER_MASK(n) (0x03u << MPU_WORD_HIGH_MASTER-
_SHIFT(n))
MPU high master bit mask.
• #define MPU_WORD_HIGH_MASTER_WIDTH 2
MPU high master bit width.
• #define MPU_WORD_HIGH_MASTER(n, x) (((uint32_t)(((uint32_t)(x)) << MPU_WORD_HI-
GH_MASTER_SHIFT(n))) & MPU_WORD_HIGH_MASTER_MASK(n))
MPU high master priority setting.
Enumerations
• enum mpu_region_num_t
MPU region number.
• enum mpu_master_t
MPU master number.
• enum mpu_region_total_num_t {
kMPU_8Regions = 0x0U,
kMPU_12Regions = 0x1U,
kMPU_16Regions = 0x2U }
Describes the number of MPU regions.
• enum mpu_slave_t {
kMPU_Slave0 = 4U,
kMPU_Slave1 = 3U,
kMPU_Slave2 = 2U,
kMPU_Slave3 = 1U,
kMPU_Slave4 = 0U }
MPU slave port number.
• enum mpu_err_access_control_t {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
781
Basic Control Operations
kMPU_NoRegionHit = 0U,
kMPU_NoneOverlappRegion = 1U,
kMPU_OverlappRegion = 2U }
MPU error access control detail.
• enum mpu_err_access_type_t {
kMPU_ErrTypeRead = 0U,
kMPU_ErrTypeWrite = 1U }
MPU error access type.
• enum mpu_err_attributes_t {
kMPU_InstructionAccessInUserMode = 0U,
kMPU_DataAccessInUserMode = 1U,
kMPU_InstructionAccessInSupervisorMode = 2U,
kMPU_DataAccessInSupervisorMode = 3U }
MPU access error attributes.
• enum mpu_supervisor_access_rights_t {
kMPU_SupervisorReadWriteExecute = 0U,
kMPU_SupervisorReadExecute = 1U,
kMPU_SupervisorReadWrite = 2U,
kMPU_SupervisorEqualToUsermode = 3U }
MPU access rights in supervisor mode for master port 0 ∼port 3.
• enum mpu_user_access_rights_t {
kMPU_UserNoAccessRights = 0U,
kMPU_UserExecute = 1U,
kMPU_UserWrite = 2U,
kMPU_UserWriteExecute = 3U,
kMPU_UserRead = 4U,
kMPU_UserReadExecute = 5U,
kMPU_UserReadWrite = 6U,
kMPU_UserReadWriteExecute = 7U }
MPU access rights in user mode for master port 0 ∼port 3.
Driver version
• #define FSL_MPU_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
MPU driver version 2.0.0.
Initialization and deinitialization
• void MPU_Init (MPU_Type ∗base, const mpu_config_t ∗config)
Initializes the MPU with the user configuration structure.
• void MPU_Deinit (MPU_Type ∗base)
Deinitializes the MPU regions.
Basic Control Operations
• static void MPU_Enable (MPU_Type ∗base, bool enable)
Enables/disables the MPU globally.
• static void MPU_RegionEnable (MPU_Type ∗base, mpu_region_num_t number, bool enable)
782
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
Enables/disables the MPU for a special region.
• void MPU_GetHardwareInfo (MPU_Type ∗base, mpu_hardware_info_t ∗hardwareInform)
Gets the MPU basic hardware information.
• void MPU_SetRegionConfig (MPU_Type ∗base, const mpu_region_config_t ∗regionConfig)
Sets the MPU region.
• void MPU_SetRegionAddr (MPU_Type ∗base, mpu_region_num_t regionNum, uint32_t startAddr,
uint32_t endAddr)
Sets the region start and end address.
• void MPU_SetRegionLowMasterAccessRights (MPU_Type ∗base, mpu_region_num_t region-
Num, mpu_master_t masterNum, const mpu_low_masters_access_rights_t ∗accessRights)
Sets the MPU region access rights for low master port 0 ∼port 3.
• void MPU_SetRegionHighMasterAccessRights (MPU_Type ∗base, mpu_region_num_t region-
Num, mpu_master_t masterNum, const mpu_high_masters_access_rights_t ∗accessRights)
Sets the MPU region access rights for high master port 4 ∼port 7.
• bool MPU_GetSlavePortErrorStatus (MPU_Type ∗base, mpu_slave_t slaveNum)
Gets the numbers of slave ports where errors occur.
• void MPU_GetDetailErrorAccessInfo (MPU_Type ∗base, mpu_slave_t slaveNum, mpu_access_-
err_info_t ∗errInform)
Gets the MPU detailed error access information.
32.4 Data Structure Documentation
32.4.1 struct mpu_hardware_info_t
Data Fields
• uint8_t hardwareRevisionLevel
Specifies the MPU’s hardware and definition reversion level.
• uint8_t slavePortsNumbers
Specifies the number of slave ports connected to MPU.
•mpu_region_total_num_t regionsNumbers
Indicates the number of region descriptors implemented.
32.4.1.0.24.1 Field Documentation
32.4.1.0.24.1.1 uint8_t mpu_hardware_info_t::hardwareRevisionLevel
32.4.1.0.24.1.2 uint8_t mpu_hardware_info_t::slavePortsNumbers
32.4.1.0.24.1.3 mpu_region_total_num_t mpu_hardware_info_t::regionsNumbers
32.4.2 struct mpu_access_err_info_t
Data Fields
•mpu_master_t master
Access error master.
•mpu_err_attributes_t attributes
Access error attributes.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
783
Data Structure Documentation
•mpu_err_access_type_t accessType
Access error type.
•mpu_err_access_control_t accessControl
Access error control.
• uint32_t address
Access error address.
32.4.2.0.24.2 Field Documentation
32.4.2.0.24.2.1 mpu_master_t mpu_access_err_info_t::master
32.4.2.0.24.2.2 mpu_err_attributes_t mpu_access_err_info_t::attributes
32.4.2.0.24.2.3 mpu_err_access_type_t mpu_access_err_info_t::accessType
32.4.2.0.24.2.4 mpu_err_access_control_t mpu_access_err_info_t::accessControl
32.4.2.0.24.2.5 uint32_t mpu_access_err_info_t::address
32.4.3 struct mpu_low_masters_access_rights_t
Data Fields
•mpu_supervisor_access_rights_t superAccessRights
Master access rights in supervisor mode.
•mpu_user_access_rights_t userAccessRights
Master access rights in user mode.
32.4.3.0.24.3 Field Documentation
32.4.3.0.24.3.1 mpu_supervisor_access_rights_t mpu_low_masters_access_rights_t::super-
AccessRights
32.4.3.0.24.3.2 mpu_user_access_rights_t mpu_low_masters_access_rights_t::userAccessRights
32.4.4 struct mpu_high_masters_access_rights_t
Data Fields
• bool writeEnable
Enables or disables write permission.
• bool readEnable
Enables or disables read permission.
784
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
32.4.4.0.24.4 Field Documentation
32.4.4.0.24.4.1 bool mpu_high_masters_access_rights_t::writeEnable
32.4.4.0.24.4.2 bool mpu_high_masters_access_rights_t::readEnable
32.4.5 struct mpu_region_config_t
This structure is used to configure the regionNum region. The accessRights1[0] ∼accessRights1[3] are
used to configure the four low master numbers: master 0 ∼master 3. The accessRights2[0] ∼access-
Rights2[3] are used to configure the four high master numbers: master 4 ∼master 7. The master port
assignment is the chip configuration. Normally, the core is the master 0, debugger is the master 1. Note:
MPU assigns a priority scheme where the debugger is treated as the highest priority master followed by the
core and then all the remaining masters. MPU protection does not allow writes from the core to affect the
"regionNum 0" start and end address nor the permissions associated with the debugger. It can only write
the permission fields associated with the other masters. This protection guarantee the debugger always has
access to the entire address space and those rights can’t be changed by the core or any other bus master.
Prepare the region configuration when regionNum is kMPU_RegionNum00.
Data Fields
•mpu_region_num_t regionNum
MPU region number.
• uint32_t startAddress
Memory region start address.
• uint32_t endAddress
Memory region end address.
•mpu_low_masters_access_rights_t accessRights1 [4]
Low masters access permission.
•mpu_high_masters_access_rights_t accessRights2 [4]
High masters access permission.
32.4.5.0.24.5 Field Documentation
32.4.5.0.24.5.1 mpu_region_num_t mpu_region_config_t::regionNum
32.4.5.0.24.5.2 uint32_t mpu_region_config_t::startAddress
Note: bit0 ∼bit4 always be marked as 0 by MPU. The actual start address is 0-modulo-32 byte address.
32.4.5.0.24.5.3 uint32_t mpu_region_config_t::endAddress
Note: bit0 ∼bit4 always be marked as 1 by MPU. The actual end address is 31-modulo-32 byte address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
785
Data Structure Documentation
32.4.5.0.24.5.4 mpu_low_masters_access_rights_t mpu_region_config_t::accessRights1[4]
32.4.5.0.24.5.5 mpu_high_masters_access_rights_t mpu_region_config_t::accessRights2[4]
32.4.6 struct mpu_config_t
This structure is used when calling the MPU_Init function.
Data Fields
•mpu_region_config_t regionConfig
region access permission.
• struct _mpu_config ∗next
pointer to the next structure.
32.4.6.0.24.6 Field Documentation
32.4.6.0.24.6.1 mpu_region_config_t mpu_config_t::regionConfig
32.4.6.0.24.6.2 struct _mpu_config∗mpu_config_t::next
786
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Macro Definition Documentation
32.5 Macro Definition Documentation
32.5.1 #define FSL_MPU_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
32.5.2 #define MPU_WORD_LOW_MASTER_SHIFT( n) (n ∗6)
32.5.3 #define MPU_WORD_LOW_MASTER_MASK( n) (0x1Fu <<
MPU_WORD_LOW_MASTER_SHIFT(n))
32.5.4 #define MPU_WORD_LOW_MASTER_WIDTH 5
32.5.5 #define MPU_WORD_LOW_MASTER( n, x ) (((uint32_-
t)(((uint32_t)(x)) << MPU_WORD_LOW_MASTER_SHIFT(n))) &
MPU_WORD_LOW_MASTER_MASK(n))
32.5.6 #define MPU_LOW_MASTER_PE_SHIFT( n) (n ∗6 + 5)
32.5.7 #define MPU_LOW_MASTER_PE_MASK( n) (0x1u <<
MPU_LOW_MASTER_PE_SHIFT(n))
32.5.8 #define MPU_WORD_MASTER_PE_WIDTH 1
32.5.9 #define MPU_WORD_MASTER_PE( n, x ) (((uint32_-
t)(((uint32_t)(x)) << MPU_LOW_MASTER_PE_SHIFT(n))) &
MPU_LOW_MASTER_PE_MASK(n))
32.5.10 #define MPU_WORD_HIGH_MASTER_SHIFT( n) (n ∗2 + 24)
32.5.11 #define MPU_WORD_HIGH_MASTER_MASK( n) (0x03u <<
MPU_WORD_HIGH_MASTER_SHIFT(n))
32.5.12 #define MPU_WORD_HIGH_MASTER_WIDTH 2
32.5.13 #define MPU_WORD_HIGH_MASTER( n, x ) (((uint32_-
t)(((uint32_t)(x)) << MPU_WORD_HIGH_MASTER_SHIFT(n))) &
MPU_WORD_HIGH_MASTER_MASK(n))
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
787
Enumeration Type Documentation
32.6 Enumeration Type Documentation
32.6.1 enum mpu_region_num_t
32.6.2 enum mpu_master_t
32.6.3 enum mpu_region_total_num_t
Enumerator
kMPU_8Regions MPU supports 8 regions.
kMPU_12Regions MPU supports 12 regions.
kMPU_16Regions MPU supports 16 regions.
32.6.4 enum mpu_slave_t
Enumerator
kMPU_Slave0 MPU slave port 0.
kMPU_Slave1 MPU slave port 1.
kMPU_Slave2 MPU slave port 2.
kMPU_Slave3 MPU slave port 3.
kMPU_Slave4 MPU slave port 4.
32.6.5 enum mpu_err_access_control_t
Enumerator
kMPU_NoRegionHit No region hit error.
kMPU_NoneOverlappRegion Access single region error.
kMPU_OverlappRegion Access overlapping region error.
32.6.6 enum mpu_err_access_type_t
Enumerator
kMPU_ErrTypeRead MPU error access type — read.
kMPU_ErrTypeWrite MPU error access type — write.
788
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
32.6.7 enum mpu_err_attributes_t
Enumerator
kMPU_InstructionAccessInUserMode Access instruction error in user mode.
kMPU_DataAccessInUserMode Access data error in user mode.
kMPU_InstructionAccessInSupervisorMode Access instruction error in supervisor mode.
kMPU_DataAccessInSupervisorMode Access data error in supervisor mode.
32.6.8 enum mpu_supervisor_access_rights_t
Enumerator
kMPU_SupervisorReadWriteExecute Read write and execute operations are allowed in supervisor
mode.
kMPU_SupervisorReadExecute Read and execute operations are allowed in supervisor mode.
kMPU_SupervisorReadWrite Read write operations are allowed in supervisor mode.
kMPU_SupervisorEqualToUsermode Access permission equal to user mode.
32.6.9 enum mpu_user_access_rights_t
Enumerator
kMPU_UserNoAccessRights No access allowed in user mode.
kMPU_UserExecute Execute operation is allowed in user mode.
kMPU_UserWrite Write operation is allowed in user mode.
kMPU_UserWriteExecute Write and execute operations are allowed in user mode.
kMPU_UserRead Read is allowed in user mode.
kMPU_UserReadExecute Read and execute operations are allowed in user mode.
kMPU_UserReadWrite Read and write operations are allowed in user mode.
kMPU_UserReadWriteExecute Read write and execute operations are allowed in user mode.
32.7 Function Documentation
32.7.1 void MPU_Init ( MPU_Type ∗base, const mpu_config_t ∗config )
This function configures the MPU module with the user-defined configuration.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
789
Function Documentation
Parameters
base MPU peripheral base address.
config The pointer to the configuration structure.
32.7.2 void MPU_Deinit ( MPU_Type ∗base )
Parameters
base MPU peripheral base address.
32.7.3 static void MPU_Enable ( MPU_Type ∗base, bool enable )[inline],
[static]
Call this API to enable or disable the MPU module.
Parameters
base MPU peripheral base address.
enable True enable MPU, false disable MPU.
32.7.4 static void MPU_RegionEnable ( MPU_Type ∗base, mpu_region_num_t
number, bool enable )[inline],[static]
When MPU is enabled, call this API to disable an unused region of an enabled MPU. Call this API to
minimize the power dissipation.
Parameters
base MPU peripheral base address.
number MPU region number.
enable True enable the special region MPU, false disable the special region MPU.
32.7.5 void MPU_GetHardwareInfo ( MPU_Type ∗base, mpu_hardware_info_t ∗
hardwareInform )
790
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base MPU peripheral base address.
hardware-
Inform
The pointer to the MPU hardware information structure. See "mpu_hardware_info_-
t".
32.7.6 void MPU_SetRegionConfig ( MPU_Type ∗base, const mpu_region_config_t
∗regionConfig )
Note: Due to the MPU protection, the kMPU_RegionNum00 does not allow writes from the core to affect
the start and end address nor the permissions associated with the debugger. It can only write the permission
fields associated with the other masters.
Parameters
base MPU peripheral base address.
regionConfig The pointer to the MPU user configuration structure. See "mpu_region_config_t".
32.7.7 void MPU_SetRegionAddr ( MPU_Type ∗base, mpu_region_num_t
regionNum, uint32_t startAddr, uint32_t endAddr )
Memory region start address. Note: bit0 ∼bit4 is always marked as 0 by MPU. The actual start address
by MPU is 0-modulo-32 byte address. Memory region end address. Note: bit0 ∼bit4 always be marked
as 1 by MPU. The actual end address used by MPU is 31-modulo-32 byte address. Note: Due to the MPU
protection, the startAddr and endAddr can’t be changed by the core when regionNum is "kMPU_Region-
Num00".
Parameters
base MPU peripheral base address.
regionNum MPU region number.
startAddr Region start address.
endAddr Region end address.
32.7.8 void MPU_SetRegionLowMasterAccessRights ( MPU_Type ∗base,
mpu_region_num_t regionNum, mpu_master_t masterNum, const
mpu_low_masters_access_rights_t ∗accessRights )
This can be used to change the region access rights for any master port for any region.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
791
Function Documentation
Parameters
base MPU peripheral base address.
regionNum MPU region number.
masterNum MPU master number. Should range from kMPU_Master0 ∼kMPU_Master3.
accessRights The pointer to the MPU access rights configuration. See "mpu_low_masters_access-
_rights_t".
32.7.9 void MPU_SetRegionHighMasterAccessRights ( MPU_Type ∗base,
mpu_region_num_t regionNum, mpu_master_t masterNum, const
mpu_high_masters_access_rights_t ∗accessRights )
This can be used to change the region access rights for any master port for any region.
Parameters
base MPU peripheral base address.
regionNum MPU region number.
masterNum MPU master number. Should range from kMPU_Master4 ∼kMPU_Master7.
accessRights The pointer to the MPU access rights configuration. See "mpu_high_masters_access-
_rights_t".
32.7.10 bool MPU_GetSlavePortErrorStatus ( MPU_Type ∗base, mpu_slave_t
slaveNum )
Parameters
base MPU peripheral base address.
slaveNum MPU slave port number.
Returns
The slave ports error status. true - error happens in this slave port. false - error didn’t happen in this
slave port.
32.7.11 void MPU_GetDetailErrorAccessInfo ( MPU_Type ∗base, mpu_slave_t
slaveNum, mpu_access_err_info_t ∗errInform )
792
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base MPU peripheral base address.
slaveNum MPU slave port number.
errInform The pointer to the MPU access error information. See "mpu_access_err_info_t".
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
793
Function Documentation
794
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 33
Notification Framework
33.1 Overview
This section describes the programming interface of the Notifier driver.
33.2 Notifier Overview
The Notifier provides a configuration dynamic change service. Based on this service, applications can
switch between pre-defined configurations. The Notifier enables drivers and applications to register call-
back functions to this framework. Each time that the configuration is changed, drivers and applications
receive a notification and change their settings. To simplify, the Notifier only supports the static callback
registration. This means that, for applications, all callback functions are collected into a static table and
passed to the Notifier.
The configuration transition includes 3 steps:
1. Before configuration transition, the Notifier sends a "BEFORE" message to the callback table. When
this message is received, IP drivers should check whether any current processes can be stopped and
stop them. If the processes cannot be stopped, the callback function returns an error.
The Notifier supports two types of transition policies, a graceful policy and a forceful policy. When the
graceful policy is used, if some callbacks return an error while sending "BEFORE" message, the con-
figuration transition stops and the Notifier sends a "RECOVER" message to all drivers that have stopped.
Then, these drivers can recover the previous status and continue to work. When the forceful policy is used,
drivers are stopped forcefully.
1. After the "BEFORE" message is processed successfully, the system changes to the new configura-
tion.
2. After the configuration changes, the Notifier sends an "AFTER" message to the callback table to
notify drivers that the configuration transition is finished.
This is an example to use the Notifier in the Power Manager application:
∼∼∼∼∼{.c}
#include "fsl_notifier.h"
/*Definition of the Power Manager callback
status_t callback0(notifier_notification_block_t *notify, void *data)
{
status_t ret = kStatus_Success;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
795
Notifier Overview
...
...
...
return ret;
}
/*Definition of the Power Manager user function
status_t APP_PowerModeSwitch(notifier_user_config_t *targetConfig, void *userData)
{
...
...
...
}
...
...
...
...
...
/*Main function
int main(void)
{
/*Define a notifier handle
notifier_handle_t powerModeHandle;
/*Callback configuration
user_callback_data_t callbackData0;
notifier_callback_config_t callbackCfg0 = {callback0,
kNOTIFIER_CallbackBeforeAfter,
(void *)&callbackData0};
notifier_callback_config_t callbacks[] = {callbackCfg0};
/*Power mode configurations
power_user_config_t vlprConfig;
power_user_config_t stopConfig;
notifier_user_config_t *powerConfigs[] = {&vlprConfig, &stopConfig};
/*Definition of a transition to and out the power modes
vlprConfig.mode = kAPP_PowerModeVlpr;
vlprConfig.enableLowPowerWakeUpOnInterrupt = false;
stopConfig = vlprConfig;
stopConfig.mode = kAPP_PowerModeStop;
/*Create Notifier handle
NOTIFIER_CreateHandle(&powerModeHandle, powerConfigs, 2U, callbacks, 1U, APP_PowerModeSwitch, NULL);
...
...
/*Power mode switch
NOTIFIER_switchConfig(&powerModeHandle, targetConfigIndex, kNOTIFIER_PolicyAgreement);
}
796
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Notifier Overview
∼∼∼∼∼{.c}
Data Structures
• struct notifier_notification_block_t
notification block passed to the registered callback function. More...
• struct notifier_callback_config_t
callback configuration structure More...
• struct notifier_handle_t
Notifier handle structure. More...
Typedefs
• typedef void notifier_user_config_t
notifier user configuration type.
• typedef status_t(∗notifier_user_function_t )(notifier_user_config_t ∗targetConfig, void ∗userData)
notifier user function prototype User can use this function to execute specific operations in configuration
switch.
• typedef status_t(∗notifier_callback_t )(notifier_notification_block_t ∗notify, void ∗data)
Callback prototype.
Enumerations
• enum _notifier_status {
kStatus_NOTIFIER_ErrorNotificationBefore,
kStatus_NOTIFIER_ErrorNotificationAfter }
Notifier error codes.
• enum notifier_policy_t {
kNOTIFIER_PolicyAgreement,
kNOTIFIER_PolicyForcible }
Notifier policies.
• enum notifier_notification_type_t {
kNOTIFIER_NotifyRecover = 0x00U,
kNOTIFIER_NotifyBefore = 0x01U,
kNOTIFIER_NotifyAfter = 0x02U }
Notification type.
• enum notifier_callback_type_t {
kNOTIFIER_CallbackBefore = 0x01U,
kNOTIFIER_CallbackAfter = 0x02U,
kNOTIFIER_CallbackBeforeAfter = 0x03U }
The callback type, indicates what kinds of notification the callback handles.
Functions
• status_t NOTIFIER_CreateHandle (notifier_handle_t ∗notifierHandle, notifier_user_config_t
∗∗configs, uint8_t configsNumber, notifier_callback_config_t ∗callbacks, uint8_t callbacksNumber,
notifier_user_function_t userFunction, void ∗userData)
Create Notifier handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
797
Data Structure Documentation
• status_t NOTIFIER_SwitchConfig (notifier_handle_t ∗notifierHandle, uint8_t configIndex, notifier-
_policy_t policy)
Switch configuration according to a pre-defined structure.
• uint8_t NOTIFIER_GetErrorCallbackIndex (notifier_handle_t ∗notifierHandle)
This function returns the last failed notification callback.
33.3 Data Structure Documentation
33.3.1 struct notifier_notification_block_t
Data Fields
•notifier_user_config_t ∗targetConfig
Pointer to target configuration.
•notifier_policy_t policy
Configure transition policy.
•notifier_notification_type_t notifyType
Configure notification type.
33.3.1.0.24.7 Field Documentation
33.3.1.0.24.7.1 notifier_user_config_t∗notifier_notification_block_t::targetConfig
33.3.1.0.24.7.2 notifier_policy_t notifier_notification_block_t::policy
33.3.1.0.24.7.3 notifier_notification_type_t notifier_notification_block_t::notifyType
33.3.2 struct notifier_callback_config_t
This structure holds configuration of callbacks. Callbacks of this type are expected to be statically al-
located. This structure contains following application-defined data: callback - pointer to the callback
function callbackType - specifies when the callback is called callbackData - pointer to the data passed to
the callback.
Data Fields
•notifier_callback_t callback
Pointer to the callback function.
•notifier_callback_type_t callbackType
Callback type.
• void ∗callbackData
Pointer to the data passed to the callback.
798
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
33.3.2.0.24.8 Field Documentation
33.3.2.0.24.8.1 notifier_callback_t notifier_callback_config_t::callback
33.3.2.0.24.8.2 notifier_callback_type_t notifier_callback_config_t::callbackType
33.3.2.0.24.8.3 void∗notifier_callback_config_t::callbackData
33.3.3 struct notifier_handle_t
Notifier handle structure. Contains data necessary for Notifier proper function. Stores references to regis-
tered configurations, callbacks, information about their numbers, user function, user data and other internal
data. NOTIFIER_CreateHandle() must be called to intialize this handle.
Data Fields
•notifier_user_config_t ∗∗ configsTable
Pointer to configure table.
• uint8_t configsNumber
Number of configurations.
•notifier_callback_config_t ∗callbacksTable
Pointer to callback table.
• uint8_t callbacksNumber
Maximum number of callback configurations.
• uint8_t errorCallbackIndex
Index of callback returns error.
• uint8_t currentConfigIndex
Index of current configuration.
•notifier_user_function_t userFunction
user function.
• void ∗userData
user data passed to user function.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
799
Typedef Documentation
33.3.3.0.24.9 Field Documentation
33.3.3.0.24.9.1 notifier_user_config_t∗∗ notifier_handle_t::configsTable
33.3.3.0.24.9.2 uint8_t notifier_handle_t::configsNumber
33.3.3.0.24.9.3 notifier_callback_config_t∗notifier_handle_t::callbacksTable
33.3.3.0.24.9.4 uint8_t notifier_handle_t::callbacksNumber
33.3.3.0.24.9.5 uint8_t notifier_handle_t::errorCallbackIndex
33.3.3.0.24.9.6 uint8_t notifier_handle_t::currentConfigIndex
33.3.3.0.24.9.7 notifier_user_function_t notifier_handle_t::userFunction
33.3.3.0.24.9.8 void∗notifier_handle_t::userData
33.4 Typedef Documentation
33.4.1 typedef void notifier_user_config_t
Reference of user defined configuration is stored in an array, notifer switch between these configurations
based on this array.
33.4.2 typedef status_t(∗notifier_user_function_t)(notifier_user_config_t
∗targetConfig, void ∗userData)
Before and after this function execution, different notification will be sent to registered callbacks. If this
function returns any error code, NOTIFIER_SwitchConfig() will exit.
Parameters
targetConfig target Configuration.
userData Refers to other specific data passed to user function.
Returns
An error code or kStatus_Success.
33.4.3 typedef status_t(∗notifier_callback_t)(notifier_notification_block_t ∗notify,
void ∗data)
Declaration of callback. It is common for registered callbacks. Reference to function of this type is part of
notifier_callback_config_t callback configuration structure. Depending on callback type, function of this
800
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
prototype is called (see NOTIFIER_SwitchConfig()) before configuration switch, after it or in both cases
to notify about the switch progress (see notifier_callback_type_t). When called, type of the notification is
passed as parameter along with reference to the target configuration structure (see notifier_notification_-
block_t) and any data passed during the callback registration. When notified before configuration switch,
depending on the configuration switch policy (see notifier_policy_t) the callback may deny the execution
of user function by returning any error code different from kStatus_Success (see NOTIFIER_Switch-
Config()).
Parameters
notify Notification block.
data Callback data. Refers to the data passed during callback registration. Intended to pass
any driver or application data such as internal state information.
Returns
An error code or kStatus_Success.
33.5 Enumeration Type Documentation
33.5.1 enum _notifier_status
Used as return value of Notifier functions.
Enumerator
kStatus_NOTIFIER_ErrorNotificationBefore Error occurs during send "BEFORE" notification.
kStatus_NOTIFIER_ErrorNotificationAfter Error occurs during send "AFTER" notification.
33.5.2 enum notifier_policy_t
Defines whether user function execution is forced or not. For kNOTIFIER_PolicyForcible, the user func-
tion is executed regardless of the callback results, while kNOTIFIER_PolicyAgreement policy is used
to exit NOTIFIER_SwitchConfig() when any of the callbacks returns error code. See also NOTIFIER_-
SwitchConfig() description.
Enumerator
kNOTIFIER_PolicyAgreement NOTIFIER_SwitchConfig() method is exited when any of the call-
backs returns error code.
kNOTIFIER_PolicyForcible user function is executed regardless of the results.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
801
Function Documentation
33.5.3 enum notifier_notification_type_t
Used to notify registered callbacks
Enumerator
kNOTIFIER_NotifyRecover Notify IP to recover to previous work state.
kNOTIFIER_NotifyBefore Notify IP that configuration setting is going to change.
kNOTIFIER_NotifyAfter Notify IP that configuration setting has been changed.
33.5.4 enum notifier_callback_type_t
Used in the callback configuration structure (notifier_callback_config_t) to specify when the registered
callback is called during configuration switch initiated by NOTIFIER_SwitchConfig(). Callback can be
invoked in following situations:
• before the configuration switch (Callback return value can affect NOTIFIER_SwitchConfig() exe-
cution. Refer to the NOTIFIER_SwitchConfig() and notifier_policy_t documentation).
• after unsuccessful attempt to switch configuration
• after sucecessful configuration switch
Enumerator
kNOTIFIER_CallbackBefore Callback handles BEFORE notification.
kNOTIFIER_CallbackAfter Callback handles AFTER notification.
kNOTIFIER_CallbackBeforeAfter Callback handles BEFORE and AFTER notification.
33.6 Function Documentation
33.6.1 status_t NOTIFIER_CreateHandle ( notifier_handle_t ∗notifierHandle,
notifier_user_config_t ∗∗ configs, uint8_t configsNumber, notifier_callback-
_config_t ∗callbacks, uint8_t callbacksNumber, notifier_user_function_t
userFunction, void ∗userData )
Parameters
notifierHandle A pointer to notifier handle
configs A pointer to an array with references to all configurations which is handled by the
Notifier.
802
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
configsNumber Number of configurations. Size of configs array.
callbacks A pointer to an array of callback configurations. If there are no callbacks to register
during Notifier initialization, use NULL value.
callbacks-
Number
Number of registered callbacks. Size of callbacks array.
userFunction user function.
userData user data passed to user function.
Returns
An error code or kStatus_Success.
33.6.2 status_t NOTIFIER_SwitchConfig ( notifier_handle_t ∗notifierHandle,
uint8_t configIndex, notifier_policy_t policy )
This function sets the system to the target configuration. Before transition, the Notifier sends notifications
to all callbacks registered to the callback table. Callbacks are invoked in the following order: All registered
callbacks are notified ordered by index in the callbacks array. The same order is used for before and after
switch notifications. The notifications before the configuration switch can be used to obtain confirmation
about the change from registered callbacks. If any registered callback denies the configuration change,
further execution of this function depends on the notifier policy: the configuration change is either forced
(kNOTIFIER_PolicyForcible) or exited (kNOTIFIER_PolicyAgreement). When configuration change is
forced, the result of the before switch notifications are ignored. If agreement is required, if any callback
returns an error code then further notifications before switch notifications are cancelled and all already
notified callbacks are re-invoked The index of the callback which returned error code during pre-switch
notifications is stored (any error codes during callbacks re-invocation are ignored) and NOTIFIER_Get-
ErrorCallback() can be used to get it. Regardless of the policies, if any callback returned an error code, an
error code denoting in which phase the error occurred is returned when NOTIFIER_SwitchConfig() exits.
Parameters
notifierHandle pointer to notifier handle
configIndex Index of the target configuration.
policy Transaction policy, kNOTIFIER_PolicyAgreement or kNOTIFIER_PolicyForcible.
Returns
An error code or kStatus_Success.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
803
Function Documentation
33.6.3 uint8_t NOTIFIER_GetErrorCallbackIndex ( notifier_handle_t ∗
notifierHandle )
This function returns index of the last callback that failed during the configuration switch while the last N-
OTIFIER_SwitchConfig() was called. If the last NOTIFIER_SwitchConfig() call ended successfully value
equal to callbacks number is returned. Returned value represents index in the array of static call-backs.
Parameters
notifierHandle pointer to notifier handle
Returns
Callback index of last failed callback or value equal to callbacks count.
804
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 34
PDB: Programmable Delay Block
34.1 Overview
The KSDK provides a peripheral driver for the Programmable Delay Block (PDB) module of Kinetis
devices.
Overview
The PDB driver includes a basic PDB counter, trigger generators for ADC, DAC, and pulse-out.
The basic PDB counter can be used as a general programmable time with an interrupt. The counter
increases automatically with the divided clock signal after it is triggered to start by an external trigger
input or the software trigger. There are "milestones" for output trigger event. When the counter is equal
to any of these "milestones", the corresponding trigger is generated and sent out to other modules. These
"milestones" are for the following:
• Counter delay interrupt, which is the interrupt for the PDB module
• ADC pre-trigger to trigger the ADC conversion
• DAC interval trigger to trigger the DAC buffer and move the buffer read pointer
• Pulse-out triggers to generate a single of rising and falling edges, which can be assembled to a
window.
The "milestone" values have a flexible load mode. To call the APIs to set these value is equivalent to
writing data to their buffer. The loading event occurs as the load mode describes. This design ensures that
all "milestones" can be updated at the same time.
Typical use case
Working as basic DPB counter with a PDB interrupt.
int main(void)
{
// ...
EnableIRQ(DEMO_PDB_IRQ_ID);
// ...
// Configures the PDB counter.
PDB_GetDefaultConfig(&pdbConfigStruct);
PDB_Init(DEMO_PDB_INSTANCE, &pdbConfigStruct);
// Configures the delay interrupt.
PDB_SetModulusValue(DEMO_PDB_INSTANCE, 1000U);
PDB_SetCounterDelayValue(DEMO_PDB_INSTANCE, 1000U); // The available delay
value is less than or equal to the modulus value.
PDB_EnableInterrupts(DEMO_PDB_INSTANCE,
kPDB_DelayInterruptEnable);
PDB_DoLoadValues(DEMO_PDB_INSTANCE);
while (1)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
805
Overview
{
// ...
g_PdbDelayInterruptFlag = false;
PDB_DoSoftwareTrigger(DEMO_PDB_INSTANCE);
while (!g_PdbDelayInterruptFlag)
{
}
}
}
void DEMO_PDB_IRQ_HANDLER_FUNC(void)
{
// ...
g_PdbDelayInterruptFlag = true;
PDB_ClearStatusFlags(DEMO_PDB_INSTANCE,
kPDB_DelayEventFlag);
}
Working with an additional trigger. The ADC trigger is used as an example.
void DEMO_PDB_IRQ_HANDLER_FUNC(void)
{
PDB_ClearStatusFlags(DEMO_PDB_INSTANCE,
kPDB_DelayEventFlag);
g_PdbDelayInterruptCounter++;
g_PdbDelayInterruptFlag = true;
}
void DEMO_PDB_InitADC(void)
{
adc16_config_t adc16ConfigStruct;
adc16_channel_config_t adc16ChannelConfigStruct;
ADC16_GetDefaultConfig(&adc16ConfigStruct);
ADC16_Init(DEMO_PDB_ADC_INSTANCE, &adc16ConfigStruct);
#if defined(FSL_FEATURE_ADC16_HAS_CALIBRATION) && FSL_FEATURE_ADC16_HAS_CALIBRATION
ADC16_EnableHardwareTrigger(DEMO_PDB_ADC_INSTANCE, false);
ADC16_DoAutoCalibration(DEMO_PDB_ADC_INSTANCE);
#endif /*FSL_FEATURE_ADC16_HAS_CALIBRATION
ADC16_EnableHardwareTrigger(DEMO_PDB_ADC_INSTANCE, true);
adc16ChannelConfigStruct.channelNumber = DEMO_PDB_ADC_USER_CHANNEL;
adc16ChannelConfigStruct.enableInterruptOnConversionCompleted = true; /*Enable the interrupt.
#if defined(FSL_FEATURE_ADC16_HAS_DIFF_MODE) && FSL_FEATURE_ADC16_HAS_DIFF_MODE
adc16ChannelConfigStruct.enableDifferentialConversion = false;
#endif /*FSL_FEATURE_ADC16_HAS_DIFF_MODE
ADC16_SetChannelConfig(DEMO_PDB_ADC_INSTANCE, DEMO_PDB_ADC_CHANNEL_GROUP, &adc16ChannelConfigStruct);
}
void DEMO_PDB_ADC_IRQ_HANDLER_FUNCTION(void)
{
uint32_t tmp32;
tmp32 = ADC16_GetChannelConversionValue(DEMO_PDB_ADC_INSTANCE, DEMO_PDB_ADC_CHANNEL_GROUP); /*Read to
clear COCO flag.
g_AdcInterruptCounter++;
g_AdcInterruptFlag = true;
}
int main(void)
{
// ...
EnableIRQ(DEMO_PDB_IRQ_ID);
EnableIRQ(DEMO_PDB_ADC_IRQ_ID);
806
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
// ...
// Configures the PDB counter.
PDB_GetDefaultConfig(&pdbConfigStruct);
PDB_Init(DEMO_PDB_INSTANCE, &pdbConfigStruct);
// Configures the delay interrupt.
PDB_SetModulusValue(DEMO_PDB_INSTANCE, 1000U);
PDB_SetCounterDelayValue(DEMO_PDB_INSTANCE, 1000U); // The available delay value is less than or equal
to the modulus value.
PDB_EnableInterrupts(DEMO_PDB_INSTANCE, kPDB_DelayInterruptEnable);
// Configures the ADC pre-trigger.
pdbAdcPreTriggerConfigStruct.enablePreTriggerMask = 1U << DEMO_PDB_ADC_PRETRIGGER_CHANNEL;
pdbAdcPreTriggerConfigStruct.enableOutputMask = 1U << DEMO_PDB_ADC_PRETRIGGER_CHANNEL;
pdbAdcPreTriggerConfigStruct.enableBackToBackOperationMask = 0U;
PDB_SetADCPreTriggerConfig(DEMO_PDB_INSTANCE, DEMO_PDB_ADC_TRIGGER_CHANNEL,
&pdbAdcPreTriggerConfigStruct);
PDB_SetADCPreTriggerDelayValue(DEMO_PDB_INSTANCE,
DEMO_PDB_ADC_TRIGGER_CHANNEL, DEMO_PDB_ADC_PRETRIGGER_CHANNEL, 200U);
// The available pre-trigger delay value is less than or equal to the modulus
value.
PDB_DoLoadValues(DEMO_PDB_INSTANCE);
// Configures the ADC.
DEMO_PDB_InitADC();
while (1)
{
g_PdbDelayInterruptFlag = false;
g_AdcInterruptFlag = false;
PDB_DoSoftwareTrigger(DEMO_PDB_INSTANCE);
while ((!g_PdbDelayInterruptFlag) || (!g_AdcInterruptFlag))
{
}
// ...
}
}
Files
• file fsl_pdb.h
Data Structures
• struct pdb_config_t
PDB module configuration. More...
• struct pdb_adc_pretrigger_config_t
PDB ADC Pre-Trigger configuration. More...
• struct pdb_dac_trigger_config_t
PDB DAC trigger configuration. More...
Enumerations
• enum _pdb_status_flags {
kPDB_LoadOKFlag = PDB_SC_LDOK_MASK,
kPDB_DelayEventFlag = PDB_SC_PDBIF_MASK }
PDB flags.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
807
Overview
• enum _pdb_adc_pretrigger_flags {
kPDB_ADCPreTriggerChannel0Flag = PDB_S_CF(1U << 0),
kPDB_ADCPreTriggerChannel1Flag = PDB_S_CF(1U << 1),
kPDB_ADCPreTriggerChannel0ErrorFlag = PDB_S_ERR(1U << 0),
kPDB_ADCPreTriggerChannel1ErrorFlag = PDB_S_ERR(1U << 1) }
PDB ADC PreTrigger channel flags.
• enum _pdb_interrupt_enable {
kPDB_SequenceErrorInterruptEnable = PDB_SC_PDBEIE_MASK,
kPDB_DelayInterruptEnable = PDB_SC_PDBIE_MASK }
PDB buffer interrupts.
• enum pdb_load_value_mode_t {
kPDB_LoadValueImmediately = 0U,
kPDB_LoadValueOnCounterOverflow = 1U,
kPDB_LoadValueOnTriggerInput = 2U,
kPDB_LoadValueOnCounterOverflowOrTriggerInput = 3U }
PDB load value mode.
• enum pdb_prescaler_divider_t {
kPDB_PrescalerDivider1 = 0U,
kPDB_PrescalerDivider2 = 1U,
kPDB_PrescalerDivider4 = 2U,
kPDB_PrescalerDivider8 = 3U,
kPDB_PrescalerDivider16 = 4U,
kPDB_PrescalerDivider32 = 5U,
kPDB_PrescalerDivider64 = 6U,
kPDB_PrescalerDivider128 = 7U }
Prescaler divider.
• enum pdb_divider_multiplication_factor_t {
kPDB_DividerMultiplicationFactor1 = 0U,
kPDB_DividerMultiplicationFactor10 = 1U,
kPDB_DividerMultiplicationFactor20 = 2U,
kPDB_DividerMultiplicationFactor40 = 3U }
Multiplication factor select for prescaler.
• enum pdb_trigger_input_source_t {
808
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
kPDB_TriggerInput0 = 0U,
kPDB_TriggerInput1 = 1U,
kPDB_TriggerInput2 = 2U,
kPDB_TriggerInput3 = 3U,
kPDB_TriggerInput4 = 4U,
kPDB_TriggerInput5 = 5U,
kPDB_TriggerInput6 = 6U,
kPDB_TriggerInput7 = 7U,
kPDB_TriggerInput8 = 8U,
kPDB_TriggerInput9 = 9U,
kPDB_TriggerInput10 = 10U,
kPDB_TriggerInput11 = 11U,
kPDB_TriggerInput12 = 12U,
kPDB_TriggerInput13 = 13U,
kPDB_TriggerInput14 = 14U,
kPDB_TriggerSoftware = 15U }
Trigger input source.
Driver version
• #define FSL_PDB_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
PDB driver version 2.0.1.
Initialization
• void PDB_Init (PDB_Type ∗base, const pdb_config_t ∗config)
Initializes the PDB module.
• void PDB_Deinit (PDB_Type ∗base)
De-initializes the PDB module.
• void PDB_GetDefaultConfig (pdb_config_t ∗config)
Initializes the PDB user configure structure.
• static void PDB_Enable (PDB_Type ∗base, bool enable)
Enables the PDB module.
Basic Counter
• static void PDB_DoSoftwareTrigger (PDB_Type ∗base)
Triggers the PDB counter by software.
• static void PDB_DoLoadValues (PDB_Type ∗base)
Loads the counter values.
• static void PDB_EnableDMA (PDB_Type ∗base, bool enable)
Enables the DMA for the PDB module.
• static void PDB_EnableInterrupts (PDB_Type ∗base, uint32_t mask)
Enables the interrupts for the PDB module.
• static void PDB_DisableInterrupts (PDB_Type ∗base, uint32_t mask)
Disables the interrupts for the PDB module.
• static uint32_t PDB_GetStatusFlags (PDB_Type ∗base)
Gets the status flags of the PDB module.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
809
Data Structure Documentation
• static void PDB_ClearStatusFlags (PDB_Type ∗base, uint32_t mask)
Clears the status flags of the PDB module.
• static void PDB_SetModulusValue (PDB_Type ∗base, uint32_t value)
Specifies the period of the counter.
• static uint32_t PDB_GetCounterValue (PDB_Type ∗base)
Gets the PDB counter’s current value.
• static void PDB_SetCounterDelayValue (PDB_Type ∗base, uint32_t value)
Sets the value for PDB counter delay event.
ADC Pre-Trigger
• static void PDB_SetADCPreTriggerConfig (PDB_Type ∗base, uint32_t channel, pdb_adc_-
pretrigger_config_t ∗config)
Configures the ADC PreTrigger in PDB module.
• static void PDB_SetADCPreTriggerDelayValue (PDB_Type ∗base, uint32_t channel, uint32_t pre-
Channel, uint32_t value)
Sets the value for ADC Pre-Trigger delay event.
• static uint32_t PDB_GetADCPreTriggerStatusFlags (PDB_Type ∗base, uint32_t channel)
Gets the ADC Pre-Trigger’s status flags.
• static void PDB_ClearADCPreTriggerStatusFlags (PDB_Type ∗base, uint32_t channel, uint32_-
t mask)
Clears the ADC Pre-Trigger’s status flags.
Pulse-Out Trigger
• static void PDB_EnablePulseOutTrigger (PDB_Type ∗base, uint32_t channelMask, bool enable)
Enables the pulse out trigger channels.
• static void PDB_SetPulseOutTriggerDelayValue (PDB_Type ∗base, uint32_t channel, uint32_-
t value1, uint32_t value2)
Sets event values for pulse out trigger.
34.2 Data Structure Documentation
34.2.1 struct pdb_config_t
Data Fields
•pdb_load_value_mode_t loadValueMode
Select the load value mode.
•pdb_prescaler_divider_t prescalerDivider
Select the prescaler divider.
•pdb_divider_multiplication_factor_t dividerMultiplicationFactor
Multiplication factor select for prescaler.
•pdb_trigger_input_source_t triggerInputSource
Select the trigger input source.
• bool enableContinuousMode
Enable the PDB operation in Continuous mode.
810
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
34.2.1.0.24.10 Field Documentation
34.2.1.0.24.10.1 pdb_load_value_mode_t pdb_config_t::loadValueMode
34.2.1.0.24.10.2 pdb_prescaler_divider_t pdb_config_t::prescalerDivider
34.2.1.0.24.10.3 pdb_divider_multiplication_factor_t pdb_config_t::dividerMultiplicationFactor
34.2.1.0.24.10.4 pdb_trigger_input_source_t pdb_config_t::triggerInputSource
34.2.1.0.24.10.5 bool pdb_config_t::enableContinuousMode
34.2.2 struct pdb_adc_pretrigger_config_t
Data Fields
• uint32_t enablePreTriggerMask
PDB Channel Pre-Trigger Enable.
• uint32_t enableOutputMask
PDB Channel Pre-Trigger Output Select.
• uint32_t enableBackToBackOperationMask
PDB Channel Pre-Trigger Back-to-Back Operation Enable.
34.2.2.0.24.11 Field Documentation
34.2.2.0.24.11.1 uint32_t pdb_adc_pretrigger_config_t::enablePreTriggerMask
34.2.2.0.24.11.2 uint32_t pdb_adc_pretrigger_config_t::enableOutputMask
PDB channel’s corresponding pre-trigger asserts when the counter reaches the channel delay register.
34.2.2.0.24.11.3 uint32_t pdb_adc_pretrigger_config_t::enableBackToBackOperationMask
Back-to-back operation enables the ADC conversions complete to trigger the next PDB channel pre-trigger
and trigger output, so that the ADC conversions can be triggered on next set of configuration and results
registers.
34.2.3 struct pdb_dac_trigger_config_t
Data Fields
• bool enableExternalTriggerInput
Enables the external trigger for DAC interval counter.
• bool enableIntervalTrigger
Enables the DAC interval trigger.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
811
Enumeration Type Documentation
34.2.3.0.24.12 Field Documentation
34.2.3.0.24.12.1 bool pdb_dac_trigger_config_t::enableExternalTriggerInput
34.2.3.0.24.12.2 bool pdb_dac_trigger_config_t::enableIntervalTrigger
34.3 Macro Definition Documentation
34.3.1 #define FSL_PDB_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
34.4 Enumeration Type Documentation
34.4.1 enum _pdb_status_flags
Enumerator
kPDB_LoadOKFlag This flag is automatically cleared when the values in buffers are loaded into
the internal registers after the LDOK bit is set or the PDBEN is cleared.
kPDB_DelayEventFlag PDB timer delay event flag.
34.4.2 enum _pdb_adc_pretrigger_flags
Enumerator
kPDB_ADCPreTriggerChannel0Flag Pre-Trigger 0 flag.
kPDB_ADCPreTriggerChannel1Flag Pre-Trigger 1 flag.
kPDB_ADCPreTriggerChannel0ErrorFlag Pre-Trigger 0 Error.
kPDB_ADCPreTriggerChannel1ErrorFlag Pre-Trigger 1 Error.
34.4.3 enum _pdb_interrupt_enable
Enumerator
kPDB_SequenceErrorInterruptEnable PDB sequence error interrupt enable.
kPDB_DelayInterruptEnable PDB delay interrupt enable.
34.4.4 enum pdb_load_value_mode_t
Selects the mode to load the internal values after doing the load operation (write 1 to PDBx_SC[LDOK]).
These values are for:
• PDB counter (PDBx_MOD, PDBx_IDLY)
• ADC trigger (PDBx_CHnDLYm)
812
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
• DAC trigger (PDBx_DACINTx)
• CMP trigger (PDBx_POyDLY)
Enumerator
kPDB_LoadValueImmediately Load immediately after 1 is written to LDOK.
kPDB_LoadValueOnCounterOverflow Load when the PDB counter overflows (reaches the MOD
register value).
kPDB_LoadValueOnTriggerInput Load a trigger input event is detected.
kPDB_LoadValueOnCounterOverflowOrTriggerInput Load either when the PDB counter over-
flows or a trigger input is detected.
34.4.5 enum pdb_prescaler_divider_t
Counting uses the peripheral clock divided by multiplication factor selected by times of MULT.
Enumerator
kPDB_PrescalerDivider1 Divider x1.
kPDB_PrescalerDivider2 Divider x2.
kPDB_PrescalerDivider4 Divider x4.
kPDB_PrescalerDivider8 Divider x8.
kPDB_PrescalerDivider16 Divider x16.
kPDB_PrescalerDivider32 Divider x32.
kPDB_PrescalerDivider64 Divider x64.
kPDB_PrescalerDivider128 Divider x128.
34.4.6 enum pdb_divider_multiplication_factor_t
Selects the multiplication factor of the prescaler divider for the counter clock.
Enumerator
kPDB_DividerMultiplicationFactor1 Multiplication factor is 1.
kPDB_DividerMultiplicationFactor10 Multiplication factor is 10.
kPDB_DividerMultiplicationFactor20 Multiplication factor is 20.
kPDB_DividerMultiplicationFactor40 Multiplication factor is 40.
34.4.7 enum pdb_trigger_input_source_t
Selects the trigger input source for the PDB. The trigger input source can be internal or external (EX-
TRG pin), or the software trigger. Refer to chip configuration details for the actual PDB input trigger
connections.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
813
Function Documentation
Enumerator
kPDB_TriggerInput0 Trigger-In 0.
kPDB_TriggerInput1 Trigger-In 1.
kPDB_TriggerInput2 Trigger-In 2.
kPDB_TriggerInput3 Trigger-In 3.
kPDB_TriggerInput4 Trigger-In 4.
kPDB_TriggerInput5 Trigger-In 5.
kPDB_TriggerInput6 Trigger-In 6.
kPDB_TriggerInput7 Trigger-In 7.
kPDB_TriggerInput8 Trigger-In 8.
kPDB_TriggerInput9 Trigger-In 9.
kPDB_TriggerInput10 Trigger-In 10.
kPDB_TriggerInput11 Trigger-In 11.
kPDB_TriggerInput12 Trigger-In 12.
kPDB_TriggerInput13 Trigger-In 13.
kPDB_TriggerInput14 Trigger-In 14.
kPDB_TriggerSoftware Trigger-In 15.
34.5 Function Documentation
34.5.1 void PDB_Init ( PDB_Type ∗base, const pdb_config_t ∗config )
This function is to make the initialization for PDB module. The operations includes are:
• Enable the clock for PDB instance.
• Configure the PDB module.
• Enable the PDB module.
Parameters
base PDB peripheral base address.
config Pointer to configuration structure. See "pdb_config_t".
34.5.2 void PDB_Deinit ( PDB_Type ∗base )
Parameters
base PDB peripheral base address.
34.5.3 void PDB_GetDefaultConfig ( pdb_config_t ∗config )
This function initializes the user configure structure to default value. the default value are:
814
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
config->loadValueMode = kPDB_LoadValueImmediately;
config->prescalerDivider = kPDB_PrescalerDivider1;
config->dividerMultiplicationFactor = kPDB_DividerMultiplicationFactor1;
config->triggerInputSource = kPDB_TriggerSoftware;
config->enableContinuousMode = false;
Parameters
config Pointer to configuration structure. See "pdb_config_t".
34.5.4 static void PDB_Enable ( PDB_Type ∗base, bool enable )[inline],
[static]
Parameters
base PDB peripheral base address.
enable Enable the module or not.
34.5.5 static void PDB_DoSoftwareTrigger ( PDB_Type ∗base )[inline],
[static]
Parameters
base PDB peripheral base address.
34.5.6 static void PDB_DoLoadValues ( PDB_Type ∗base )[inline],
[static]
This function is to load the counter values from their internal buffer. See "pdb_load_value_mode_t" about
PDB’s load mode.
Parameters
base PDB peripheral base address.
34.5.7 static void PDB_EnableDMA ( PDB_Type ∗base, bool enable )[inline],
[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
815
Function Documentation
Parameters
base PDB peripheral base address.
enable Enable the feature or not.
34.5.8 static void PDB_EnableInterrupts ( PDB_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base PDB peripheral base address.
mask Mask value for interrupts. See "_pdb_interrupt_enable".
34.5.9 static void PDB_DisableInterrupts ( PDB_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base PDB peripheral base address.
mask Mask value for interrupts. See "_pdb_interrupt_enable".
34.5.10 static uint32_t PDB_GetStatusFlags ( PDB_Type ∗base )[inline],
[static]
Parameters
base PDB peripheral base address.
Returns
Mask value for asserted flags. See "_pdb_status_flags".
34.5.11 static void PDB_ClearStatusFlags ( PDB_Type ∗base, uint32_t mask )
[inline],[static]
816
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base PDB peripheral base address.
mask Mask value of flags. See "_pdb_status_flags".
34.5.12 static void PDB_SetModulusValue ( PDB_Type ∗base, uint32_t value )
[inline],[static]
Parameters
base PDB peripheral base address.
value Setting value for the modulus. 16-bit is available.
34.5.13 static uint32_t PDB_GetCounterValue ( PDB_Type ∗base )[inline],
[static]
Parameters
base PDB peripheral base address.
Returns
PDB counter’s current value.
34.5.14 static void PDB_SetCounterDelayValue ( PDB_Type ∗base, uint32_t value
)[inline],[static]
Parameters
base PDB peripheral base address.
value Setting value for PDB counter delay event. 16-bit is available.
34.5.15 static void PDB_SetADCPreTriggerConfig ( PDB_Type ∗base, uint32_t
channel, pdb_adc_pretrigger_config_t ∗config )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
817
Function Documentation
Parameters
base PDB peripheral base address.
channel Channel index for ADC instance.
config Pointer to configuration structure. See "pdb_adc_pretrigger_config_t".
34.5.16 static void PDB_SetADCPreTriggerDelayValue ( PDB_Type ∗base, uint32_t
channel, uint32_t preChannel, uint32_t value )[inline],[static]
This function is to set the value for ADC Pre-Trigger delay event. IT Specifies the delay value for the
channel’s corresponding pre-trigger. The pre-trigger asserts when the PDB counter is equal to the setting
value here.
Parameters
base PDB peripheral base address.
channel Channel index for ADC instance.
preChannel Channel group index for ADC instance.
value Setting value for ADC Pre-Trigger delay event. 16-bit is available.
34.5.17 static uint32_t PDB_GetADCPreTriggerStatusFlags ( PDB_Type ∗base,
uint32_t channel )[inline],[static]
Parameters
base PDB peripheral base address.
channel Channel index for ADC instance.
Returns
Mask value for asserted flags. See "_pdb_adc_pretrigger_flags".
34.5.18 static void PDB_ClearADCPreTriggerStatusFlags ( PDB_Type ∗base,
uint32_t channel, uint32_t mask )[inline],[static]
818
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base PDB peripheral base address.
channel Channel index for ADC instance.
mask Mask value for flags. See "_pdb_adc_pretrigger_flags".
34.5.19 static void PDB_EnablePulseOutTrigger ( PDB_Type ∗base, uint32_t
channelMask, bool enable )[inline],[static]
Parameters
base PDB peripheral base address.
channelMask Channel mask value for multiple pulse out trigger channel.
enable Enable the feature or not.
34.5.20 static void PDB_SetPulseOutTriggerDelayValue ( PDB_Type ∗base,
uint32_t channel, uint32_t value1, uint32_t value2 )[inline],
[static]
This function is used to set event values for pulse output trigger. These pulse output trigger delay values
specify the delay for the PDB Pulse-Out. Pulse-Out goes high when the PDB counter is equal to the pulse
output high value (value1). Pulse-Out goes low when the PDB counter is equal to the pulse output low
value (value2).
Parameters
base PDB peripheral base address.
channel Channel index for pulse out trigger channel.
value1 Setting value for pulse out high.
value2 Setting value for pulse out low.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
819
Function Documentation
820
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 35
PIT: Periodic Interrupt Timer Driver
35.1 Overview
The KSDK provides a driver for the PIT module of Kinetis devices.
Files
• file fsl_pit.h
Data Structures
• struct pit_config_t
PIT config structure. More...
Enumerations
• enum pit_chnl_t {
kPIT_Chnl_0 = 0U,
kPIT_Chnl_1,
kPIT_Chnl_2,
kPIT_Chnl_3 }
List of PIT channels.
• enum pit_interrupt_enable_t {kPIT_TimerInterruptEnable = PIT_TCTRL_TIE_MASK }
List of PIT interrupts.
• enum pit_status_flags_t {kPIT_TimerFlag = PIT_TFLG_TIF_MASK }
List of PIT status flags.
Driver version
• #define FSL_PIT_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
Initialization and deinitialization
• void PIT_Init (PIT_Type ∗base, const pit_config_t ∗config)
Ungates the PIT clock, enables the PIT module and configures the peripheral for basic operation.
• void PIT_Deinit (PIT_Type ∗base)
Gate the PIT clock and disable the PIT module.
• static void PIT_GetDefaultConfig (pit_config_t ∗config)
Fill in the PIT config struct with the default settings.
Interrupt Interface
• static void PIT_EnableInterrupts (PIT_Type ∗base, pit_chnl_t channel, uint32_t mask)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
821
Enumeration Type Documentation
Enables the selected PIT interrupts.
• static void PIT_DisableInterrupts (PIT_Type ∗base, pit_chnl_t channel, uint32_t mask)
Disables the selected PIT interrupts.
• static uint32_t PIT_GetEnabledInterrupts (PIT_Type ∗base, pit_chnl_t channel)
Gets the enabled PIT interrupts.
Status Interface
• static uint32_t PIT_GetStatusFlags (PIT_Type ∗base, pit_chnl_t channel)
Gets the PIT status flags.
• static void PIT_ClearStatusFlags (PIT_Type ∗base, pit_chnl_t channel, uint32_t mask)
Clears the PIT status flags.
Read and Write the timer period
• static void PIT_SetTimerPeriod (PIT_Type ∗base, pit_chnl_t channel, uint32_t count)
Sets the timer period in units of count.
• static uint32_t PIT_GetCurrentTimerCount (PIT_Type ∗base, pit_chnl_t channel)
Reads the current timer counting value.
Timer Start and Stop
• static void PIT_StartTimer (PIT_Type ∗base, pit_chnl_t channel)
Starts the timer counting.
• static void PIT_StopTimer (PIT_Type ∗base, pit_chnl_t channel)
Stops the timer counting.
35.2 Data Structure Documentation
35.2.1 struct pit_config_t
This structure holds the configuration settings for the PIT peripheral. To initialize this structure to rea-
sonable defaults, call the PIT_GetDefaultConfig() function and pass a pointer to your config structure
instance.
The config struct can be made const so it resides in flash
Data Fields
• bool enableRunInDebug
true: Timers run in debug mode; false: Timers stop in debug mode
35.3 Enumeration Type Documentation
35.3.1 enum pit_chnl_t
822
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Note
Actual number of available channels is SoC dependent
Enumerator
kPIT_Chnl_0 PIT channel number 0.
kPIT_Chnl_1 PIT channel number 1.
kPIT_Chnl_2 PIT channel number 2.
kPIT_Chnl_3 PIT channel number 3.
35.3.2 enum pit_interrupt_enable_t
Enumerator
kPIT_TimerInterruptEnable Timer interrupt enable.
35.3.3 enum pit_status_flags_t
Enumerator
kPIT_TimerFlag Timer flag.
35.4 Function Documentation
35.4.1 void PIT_Init ( PIT_Type ∗base, const pit_config_t ∗config )
Note
This API should be called at the beginning of the application using the PIT driver.
Parameters
base PIT peripheral base address
config Pointer to user’s PIT config structure
35.4.2 void PIT_Deinit ( PIT_Type ∗base )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
823
Function Documentation
Parameters
base PIT peripheral base address
35.4.3 static void PIT_GetDefaultConfig ( pit_config_t ∗config )[inline],
[static]
The default values are:
config->enableRunInDebug = false;
Parameters
config Pointer to user’s PIT config structure.
35.4.4 static void PIT_EnableInterrupts ( PIT_Type ∗base, pit_chnl_t channel,
uint32_t mask )[inline],[static]
Parameters
base PIT peripheral base address
channel Timer channel number
mask The interrupts to enable. This is a logical OR of members of the enumeration pit_-
interrupt_enable_t
35.4.5 static void PIT_DisableInterrupts ( PIT_Type ∗base, pit_chnl_t channel,
uint32_t mask )[inline],[static]
Parameters
base PIT peripheral base address
channel Timer channel number
824
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
mask The interrupts to disable. This is a logical OR of members of the enumeration pit_-
interrupt_enable_t
35.4.6 static uint32_t PIT_GetEnabledInterrupts ( PIT_Type ∗base, pit_chnl_t
channel )[inline],[static]
Parameters
base PIT peripheral base address
channel Timer channel number
Returns
The enabled interrupts. This is the logical OR of members of the enumeration pit_interrupt_enable_t
35.4.7 static uint32_t PIT_GetStatusFlags ( PIT_Type ∗base, pit_chnl_t channel )
[inline],[static]
Parameters
base PIT peripheral base address
channel Timer channel number
Returns
The status flags. This is the logical OR of members of the enumeration pit_status_flags_t
35.4.8 static void PIT_ClearStatusFlags ( PIT_Type ∗base, pit_chnl_t channel,
uint32_t mask )[inline],[static]
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
825
Function Documentation
base PIT peripheral base address
channel Timer channel number
mask The status flags to clear. This is a logical OR of members of the enumeration pit_-
status_flags_t
35.4.9 static void PIT_SetTimerPeriod ( PIT_Type ∗base, pit_chnl_t channel,
uint32_t count )[inline],[static]
Timers begin counting from the value set by this function until it reaches 0, then it will generate an interrupt
and load this regiter value again. Writing a new value to this register will not restart the timer; instead the
value will be loaded after the timer expires.
Note
User can call the utility macros provided in fsl_common.h to convert to ticks
Parameters
base PIT peripheral base address
channel Timer channel number
count Timer period in units of ticks
35.4.10 static uint32_t PIT_GetCurrentTimerCount ( PIT_Type ∗base, pit_chnl_t
channel )[inline],[static]
This function returns the real-time timer counting value, in a range from 0 to a timer period.
Note
User can call the utility macros provided in fsl_common.h to convert ticks to usec or msec
Parameters
base PIT peripheral base address
826
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
channel Timer channel number
Returns
Current timer counting value in ticks
35.4.11 static void PIT_StartTimer ( PIT_Type ∗base, pit_chnl_t channel )
[inline],[static]
After calling this function, timers load period value, count down to 0 and then load the respective start
value again. Each time a timer reaches 0, it generates a trigger pulse and sets the timeout interrupt flag.
Parameters
base PIT peripheral base address
channel Timer channel number.
35.4.12 static void PIT_StopTimer ( PIT_Type ∗base, pit_chnl_t channel )
[inline],[static]
This function stops every timer counting. Timers reload their periods respectively after the next time they
call the PIT_DRV_StartTimer.
Parameters
base PIT peripheral base address
channel Timer channel number.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
827
Function Documentation
828
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 36
PMC: Power Management Controller
36.1 Overview
The KSDK provides a Peripheral driver for the Power Management Controller (PMC) module of Kinetis
devices. The PMC module contains internal voltage regulator, power on reset, low voltage detect system,
and high voltage detect system.
Files
• file fsl_pmc.h
Data Structures
• struct pmc_low_volt_detect_config_t
Low-Voltage Detect Configuration Structure. More...
• struct pmc_low_volt_warning_config_t
Low-Voltage Warning Configuration Structure. More...
Driver version
• #define FSL_PMC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
PMC driver version.
Power Management Controller Control APIs
• void PMC_ConfigureLowVoltDetect (PMC_Type ∗base, const pmc_low_volt_detect_config_-
t∗config)
Configure the low voltage detect setting.
• static bool PMC_GetLowVoltDetectFlag (PMC_Type ∗base)
Get Low-Voltage Detect Flag status.
• static void PMC_ClearLowVoltDetectFlag (PMC_Type ∗base)
Acknowledge to clear the Low-Voltage Detect flag.
• void PMC_ConfigureLowVoltWarning (PMC_Type ∗base, const pmc_low_volt_warning_config_t
∗config)
Configure the low voltage warning setting.
• static bool PMC_GetLowVoltWarningFlag (PMC_Type ∗base)
Get Low-Voltage Warning Flag status.
• static void PMC_ClearLowVoltWarningFlag (PMC_Type ∗base)
Acknowledge to Low-Voltage Warning flag.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
829
Function Documentation
36.2 Data Structure Documentation
36.2.1 struct pmc_low_volt_detect_config_t
Data Fields
• bool enableInt
Enable interrupt when low voltage detect.
• bool enableReset
Enable system reset when low voltage detect.
36.2.2 struct pmc_low_volt_warning_config_t
Data Fields
• bool enableInt
Enable interrupt when low voltage warning.
36.3 Macro Definition Documentation
36.3.1 #define FSL_PMC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
36.4 Function Documentation
36.4.1 void PMC_ConfigureLowVoltDetect ( PMC_Type ∗base, const
pmc_low_volt_detect_config_t ∗config )
This function configures the low voltage detect setting, including the trip point voltage setting, enable
interrupt or not, enable system reset or not.
Parameters
base PMC peripheral base address.
config Low-Voltage detect configuration structure.
36.4.2 static bool PMC_GetLowVoltDetectFlag ( PMC_Type ∗base )[inline],
[static]
This function reads the current LVDF status. If it returns 1, a low voltage event is detected.
830
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base PMC peripheral base address.
Returns
Current low voltage detect flag
• true: Low-Voltage detected
• false: Low-Voltage not detected
36.4.3 static void PMC_ClearLowVoltDetectFlag ( PMC_Type ∗base )[inline],
[static]
This function acknowledges the low voltage detection errors (write 1 to clear LVDF).
Parameters
base PMC peripheral base address.
36.4.4 void PMC_ConfigureLowVoltWarning ( PMC_Type ∗base, const
pmc_low_volt_warning_config_t ∗config )
This function configures the low voltage warning setting, including the trip point voltage setting and enable
interrupt or not.
Parameters
base PMC peripheral base address.
config Low-Voltage warning configuration structure.
36.4.5 static bool PMC_GetLowVoltWarningFlag ( PMC_Type ∗base )[inline],
[static]
This function polls the current LVWF status. When 1 is returned, it indicates a low-voltage warning event.
LVWF is set when V Supply transitions below the trip point or after reset and V Supply is already below
the V LVW.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
831
Function Documentation
Parameters
base PMC peripheral base address.
Returns
Current LVWF status
• true: Low-Voltage Warning Flag is set.
• false: the Low-Voltage Warning does not happen.
36.4.6 static void PMC_ClearLowVoltWarningFlag ( PMC_Type ∗base )
[inline],[static]
This function acknowledges the low voltage warning errors (write 1 to clear LVWF).
Parameters
base PMC peripheral base address.
832
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 37
PORT: Port Control and Interrupts
37.1 Overview
The KSDK provides a driver for the Port Control and Interrupts (PORT) module of Kinetis devices.
37.2 Typical configuration case
37.2.1 Input PORT Configuration
/*Input pin PORT configuration
port_pin_config_t config = {
kPORT_PullUp,
kPORT_FastSlewRate,
kPORT_PassiveFilterDisable,
kPORT_OpenDrainDisable,
kPORT_LowDriveStrength,
kPORT_MuxAsGpio,
kPORT_UnLockRegister,
};
/*Sets the configuration
PORT_SetPinConfig(PORTA, 4, &config);
37.2.2 I2C PORT Configuration
/*I2C pin PORTconfiguration
port_pin_config_t config = {
kPORT_PullUp,
kPORT_FastSlewRate,
kPORT_PassiveFilterDisable,
kPORT_OpenDrainEnable,
kPORT_LowDriveStrength,
kPORT_MuxAlt5,
kPORT_UnLockRegister,
};
PORT_SetPinConfig(PORTE,24u,&config);
PORT_SetPinConfig(PORTE,25u,&config);
Files
• file fsl_port.h
Data Structures
• struct port_pin_config_t
PORT pin config structure. More...
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
833
Typical configuration case
Enumerations
• enum _port_pull {
kPORT_PullDisable = 0U,
kPORT_PullDown = 2U,
kPORT_PullUp = 3U }
Internal resistor pull feature selection.
• enum _port_slew_rate {
kPORT_FastSlewRate = 0U,
kPORT_SlowSlewRate = 1U }
Slew rate selection.
• enum _port_passive_filter_enable {
kPORT_PassiveFilterDisable = 0U,
kPORT_PassiveFilterEnable = 1U }
Passive filter feature enable/disable.
• enum _port_drive_strength {
kPORT_LowDriveStrength = 0U,
kPORT_HighDriveStrength = 1U }
Configures the drive strength.
• enum port_mux_t {
kPORT_PinDisabledOrAnalog = 0U,
kPORT_MuxAsGpio = 1U,
kPORT_MuxAlt2 = 2U,
kPORT_MuxAlt3 = 3U,
kPORT_MuxAlt4 = 4U,
kPORT_MuxAlt5 = 5U,
kPORT_MuxAlt6 = 6U,
kPORT_MuxAlt7 = 7U }
Pin mux selection.
• enum port_interrupt_t {
kPORT_InterruptOrDMADisabled = 0x0U,
kPORT_InterruptLogicZero = 0x8U,
kPORT_InterruptRisingEdge = 0x9U,
kPORT_InterruptFallingEdge = 0xAU,
kPORT_InterruptEitherEdge = 0xBU,
kPORT_InterruptLogicOne = 0xCU }
Configures the interrupt generation condition.
Driver version
• #define FSL_PORT_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
Version 2.0.1.
Configuration
• static void PORT_SetPinConfig (PORT_Type ∗base, uint32_t pin, const port_pin_config_t ∗config)
Sets the port PCR register.
834
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
• static void PORT_SetMultiplePinsConfig (PORT_Type ∗base, uint32_t mask, const port_pin_-
config_t ∗config)
Sets the port PCR register for multiple pins.
• static void PORT_SetPinMux (PORT_Type ∗base, uint32_t pin, port_mux_t mux)
Configures the pin muxing.
Interrupt
• static void PORT_SetPinInterruptConfig (PORT_Type ∗base, uint32_t pin, port_interrupt_t config)
Configures the port pin interrupt/DMA request.
• static uint32_t PORT_GetPinsInterruptFlags (PORT_Type ∗base)
Reads the whole port status flag.
• static void PORT_ClearPinsInterruptFlags (PORT_Type ∗base, uint32_t mask)
Clears the multiple pins’ interrupt status flag.
37.3 Data Structure Documentation
37.3.1 struct port_pin_config_t
Data Fields
• uint16_t pullSelect: 2
no-pull/pull-down/pull-up select
• uint16_t slewRate: 1
fast/slow slew rate Configure
• uint16_t passiveFilterEnable: 1
passive filter enable/disable
• uint16_t driveStrength: 1
fast/slow drive strength configure
• uint16_t mux: 3
pin mux Configure
37.4 Macro Definition Documentation
37.4.1 #define FSL_PORT_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
37.5 Enumeration Type Documentation
37.5.1 enum _port_pull
Enumerator
kPORT_PullDisable internal pull-up/down resistor is disabled.
kPORT_PullDown internal pull-down resistor is enabled.
kPORT_PullUp internal pull-up resistor is enabled.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
835
Enumeration Type Documentation
37.5.2 enum _port_slew_rate
Enumerator
kPORT_FastSlewRate fast slew rate is configured.
kPORT_SlowSlewRate slow slew rate is configured.
37.5.3 enum _port_passive_filter_enable
Enumerator
kPORT_PassiveFilterDisable fast slew rate is configured.
kPORT_PassiveFilterEnable slow slew rate is configured.
37.5.4 enum _port_drive_strength
Enumerator
kPORT_LowDriveStrength low drive strength is configured.
kPORT_HighDriveStrength high drive strength is configured.
37.5.5 enum port_mux_t
Enumerator
kPORT_PinDisabledOrAnalog corresponding pin is disabled, but is used as an analog pin.
kPORT_MuxAsGpio corresponding pin is configured as GPIO.
kPORT_MuxAlt2 chip-specific
kPORT_MuxAlt3 chip-specific
kPORT_MuxAlt4 chip-specific
kPORT_MuxAlt5 chip-specific
kPORT_MuxAlt6 chip-specific
kPORT_MuxAlt7 chip-specific
37.5.6 enum port_interrupt_t
Enumerator
kPORT_InterruptOrDMADisabled Interrupt/DMA request is disabled.
kPORT_InterruptLogicZero Interrupt when logic zero.
836
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
kPORT_InterruptRisingEdge Interrupt on rising edge.
kPORT_InterruptFallingEdge Interrupt on falling edge.
kPORT_InterruptEitherEdge Interrupt on either edge.
kPORT_InterruptLogicOne Interrupt when logic one.
37.6 Function Documentation
37.6.1 static void PORT_SetPinConfig ( PORT_Type ∗base, uint32_t pin, const
port_pin_config_t ∗config )[inline],[static]
This is an example to define an input pin or output pin PCR configuration:
// Define a digital input pin PCR configuration
port_pin_config_t config = {
kPORT_PullUp,
kPORT_FastSlewRate,
kPORT_PassiveFilterDisable,
kPORT_OpenDrainDisable,
kPORT_LowDriveStrength,
kPORT_MuxAsGpio,
kPORT_UnLockRegister,
};
Parameters
base PORT peripheral base pointer.
pin PORT pin number.
config PORT PCR register configure structure.
37.6.2 static void PORT_SetMultiplePinsConfig ( PORT_Type ∗base, uint32_t
mask, const port_pin_config_t ∗config )[inline],[static]
This is an example to define input pins or output pins PCR configuration:
// Define a digital input pin PCR configuration
port_pin_config_t config = {
kPORT_PullUp ,
kPORT_PullEnable,
kPORT_FastSlewRate,
kPORT_PassiveFilterDisable,
kPORT_OpenDrainDisable,
kPORT_LowDriveStrength,
kPORT_MuxAsGpio,
kPORT_UnlockRegister,
};
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
837
Function Documentation
Parameters
base PORT peripheral base pointer.
mask PORT pins’ numbers macro.
config PORT PCR register configure structure.
37.6.3 static void PORT_SetPinMux ( PORT_Type ∗base, uint32_t pin,
port_mux_t mux )[inline],[static]
Parameters
base PORT peripheral base pointer.
pin PORT pin number.
mux pin muxing slot selection.
•kPORT_PinDisabledOrAnalog: Pin disabled or work in analog function.
•kPORT_MuxAsGpio : Set as GPIO.
•kPORT_MuxAlt2 : chip-specific.
•kPORT_MuxAlt3 : chip-specific.
•kPORT_MuxAlt4 : chip-specific.
•kPORT_MuxAlt5 : chip-specific.
•kPORT_MuxAlt6 : chip-specific.
•kPORT_MuxAlt7 : chip-specific. : This function is NOT recommended to
use together with the PORT_SetPinsConfig, because the PORT_SetPinsConfig
need to configure the pin mux anyway (Otherwise the pin mux will be reset to
zero : kPORT_PinDisabledOrAnalog). This function is recommended to use
in the case you just need to reset the pin mux
37.6.4 static void PORT_SetPinInterruptConfig ( PORT_Type ∗base, uint32_t pin,
port_interrupt_t config )[inline],[static]
Parameters
base PORT peripheral base pointer.
838
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
pin PORT pin number.
config PORT pin interrupt configuration.
•kPORT_InterruptOrDMADisabled: Interrupt/DMA request disabled.
• #kPORT_DMARisingEdge : DMA request on rising edge(if the DMA requests
exit).
• #kPORT_DMAFallingEdge: DMA request on falling edge(if the DMA re-
quests exit).
• #kPORT_DMAEitherEdge : DMA request on either edge(if the DMA requests
exit).
• #kPORT_FlagRisingEdge : Flag sets on rising edge(if the Flag states exit).
• #kPORT_FlagFallingEdge : Flag sets on falling edge(if the Flag states exit).
• #kPORT_FlagEitherEdge : Flag sets on either edge(if the Flag states exit).
•kPORT_InterruptLogicZero : Interrupt when logic zero.
•kPORT_InterruptRisingEdge : Interrupt on rising edge.
•kPORT_InterruptFallingEdge: Interrupt on falling edge.
•kPORT_InterruptEitherEdge : Interrupt on either edge.
•kPORT_InterruptLogicOne : Interrupt when logic one.
• #kPORT_ActiveHighTriggerOutputEnable : Enable active high trigger out-
put(if the trigger states exit).
• #kPORT_ActiveLowTriggerOutputEnable : Enable active low trigger output(if
the trigger states exit).
37.6.5 static uint32_t PORT_GetPinsInterruptFlags ( PORT_Type ∗base )
[inline],[static]
If a pin is configured to generate the DMA request, the corresponding flag is cleared automatically at the
completion of the requested DMA transfer. Otherwise, the flag remains set until a logic one is written to
that flag. If configured for a level sensitive interrupt that remains asserted, the flag is set again immediately.
Parameters
base PORT peripheral base pointer.
Returns
Current port interrupt status flags, for example, 0x00010001 means the pin 0 and 17 have the inter-
rupt.
37.6.6 static void PORT_ClearPinsInterruptFlags ( PORT_Type ∗base, uint32_t
mask )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
839
Function Documentation
Parameters
base PORT peripheral base pointer.
mask PORT pins’ numbers macro.
840
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 38
QSPI: Quad Serial Peripheral Interface Driver
38.1 Overview
The KSDK provides a peripheral driver for the Quad Serial Peripheral Interface (QSPI) module of Kinetis
devices.
38.2 Overview
QSPI driver includes functional APIs and EDMA transactional APIs.
Functional APIs are feature/property target low level APIs. Functional APIs can be used for QSPI initial-
ization/configuration/operation for optimization/customization purpose. Using the functional API requires
the knowledge of the QSPI peripheral and how to organize functional APIs to meet the application require-
ments. All functional API use the peripheral base address as the first parameter. QSPI functional operation
groups provide the functional API set.
Transactional APIs are transaction target high level APIs. Transactional APIs can be used to enable the
peripheral and in the application if the code size and performance of transactional APIs satisfy the require-
ments. If the code size and performance are a critical requirement, see the transactional API implementa-
tion and write a custom code. All transactional APIs use the qspi_handle_t as the first parameter. Initialize
the handle by calling the QSPI_TransferTxCreateHandleEDMA() or QSPI_TransferRxCreateHandleED-
MA() API.
Transactional APIs support asynchronous transfer. This means that the functions QSPI_TransferSendED-
MA() and QSPI_TransferReceiveEDMA() set up EDMA for data transfer. When the transfer completes,
the upper layer is notified through a callback function with the kStatus_QSPI_Idle status.
Modules
•QSPI eDMA Driver
Files
• file fsl_qspi.h
Data Structures
• struct qspi_dqs_config_t
DQS configure features. More...
• struct qspi_flash_timing_t
Flash timing configuration. More...
• struct qspi_config_t
QSPI configuration structure. More...
• struct qspi_flash_config_t
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
841
Overview
External flash configuration items. More...
• struct qspi_transfer_t
Transfer structure for QSPI. More...
Enumerations
• enum _status_t {
kStatus_QSPI_Idle = MAKE_STATUS(kStatusGroup_QSPI, 0),
kStatus_QSPI_Busy = MAKE_STATUS(kStatusGroup_QSPI, 1),
kStatus_QSPI_Error = MAKE_STATUS(kStatusGroup_QSPI, 2) }
Status structure of QSPI.
• enum qspi_read_area_t {
kQSPI_ReadAHB = 0x0U,
kQSPI_ReadIP }
QSPI read data area, from IP FIFO or AHB buffer.
• enum qspi_command_seq_t {
kQSPI_IPSeq = QuadSPI_SPTRCLR_IPPTRC_MASK,
kQSPI_BufferSeq = QuadSPI_SPTRCLR_BFPTRC_MASK }
QSPI command sequence type.
• enum qspi_fifo_t {
kQSPI_TxFifo = QuadSPI_MCR_CLR_TXF_MASK,
kQSPI_RxFifo = QuadSPI_MCR_CLR_RXF_MASK,
kQSPI_AllFifo = QuadSPI_MCR_CLR_TXF_MASK |QuadSPI_MCR_CLR_RXF_MASK }
QSPI buffer type.
• enum qspi_endianness_t {
kQSPI_64BigEndian = 0x0U,
kQSPI_32LittleEndian,
kQSPI_32BigEndian,
kQSPI_64LittleEndian }
QSPI transfer endianess.
• enum _qspi_error_flags {
kQSPI_DataLearningFail = QuadSPI_FR_DLPFF_MASK,
kQSPI_TxBufferFill = QuadSPI_FR_TBFF_MASK,
kQSPI_TxBufferUnderrun = QuadSPI_FR_TBUF_MASK,
kQSPI_IllegalInstruction = QuadSPI_FR_ILLINE_MASK,
kQSPI_RxBufferOverflow = QuadSPI_FR_RBOF_MASK,
kQSPI_RxBufferDrain = QuadSPI_FR_RBDF_MASK,
kQSPI_AHBSequenceError = QuadSPI_FR_ABSEF_MASK,
kQSPI_AHBIllegalTransaction = QuadSPI_FR_AITEF_MASK,
kQSPI_AHBIllegalBurstSize = QuadSPI_FR_AIBSEF_MASK,
kQSPI_AHBBufferOverflow = QuadSPI_FR_ABOF_MASK,
kQSPI_IPCommandUsageError = QuadSPI_FR_IUEF_MASK,
kQSPI_IPCommandTriggerDuringAHBAccess = QuadSPI_FR_IPAEF_MASK,
kQSPI_IPCommandTriggerDuringIPAccess = QuadSPI_FR_IPIEF_MASK,
kQSPI_IPCommandTriggerDuringAHBGrant = QuadSPI_FR_IPGEF_MASK,
kQSPI_IPCommandTransactionFinished = QuadSPI_FR_TFF_MASK,
kQSPI_FlagAll = 0x8C83F8D1U }
842
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
QSPI error flags.
• enum _qspi_flags {
kQSPI_DataLearningSamplePoint = QuadSPI_SR_DLPSMP_MASK,
kQSPI_TxBufferFull = QuadSPI_SR_TXFULL_MASK,
kQSPI_TxDMA = QuadSPI_SR_TXDMA_MASK,
kQSPI_TxWatermark = QuadSPI_SR_TXWA_MASK,
kQSPI_TxBufferEnoughData = QuadSPI_SR_TXEDA_MASK,
kQSPI_RxDMA = QuadSPI_SR_RXDMA_MASK,
kQSPI_RxBufferFull = QuadSPI_SR_RXFULL_MASK,
kQSPI_RxWatermark = QuadSPI_SR_RXWE_MASK,
kQSPI_AHB3BufferFull = QuadSPI_SR_AHB3FUL_MASK,
kQSPI_AHB2BufferFull = QuadSPI_SR_AHB2FUL_MASK,
kQSPI_AHB1BufferFull = QuadSPI_SR_AHB1FUL_MASK,
kQSPI_AHB0BufferFull = QuadSPI_SR_AHB0FUL_MASK,
kQSPI_AHB3BufferNotEmpty = QuadSPI_SR_AHB3NE_MASK,
kQSPI_AHB2BufferNotEmpty = QuadSPI_SR_AHB2NE_MASK,
kQSPI_AHB1BufferNotEmpty = QuadSPI_SR_AHB1NE_MASK,
kQSPI_AHB0BufferNotEmpty = QuadSPI_SR_AHB0NE_MASK,
kQSPI_AHBTransactionPending = QuadSPI_SR_AHBTRN_MASK,
kQSPI_AHBCommandPriorityGranted = QuadSPI_SR_AHBGNT_MASK,
kQSPI_AHBAccess = QuadSPI_SR_AHB_ACC_MASK,
kQSPI_IPAccess = QuadSPI_SR_IP_ACC_MASK,
kQSPI_Busy = QuadSPI_SR_BUSY_MASK,
kQSPI_StateAll = 0xEF897FE7U }
QSPI state bit.
• enum _qspi_interrupt_enable {
kQSPI_DataLearningFailInterruptEnable,
kQSPI_TxBufferFillInterruptEnable = QuadSPI_RSER_TBFIE_MASK,
kQSPI_TxBufferUnderrunInterruptEnable = QuadSPI_RSER_TBUIE_MASK,
kQSPI_IllegalInstructionInterruptEnable,
kQSPI_RxBufferOverflowInterruptEnable = QuadSPI_RSER_RBOIE_MASK,
kQSPI_RxBufferDrainInterruptEnable = QuadSPI_RSER_RBDIE_MASK,
kQSPI_AHBSequenceErrorInterruptEnable = QuadSPI_RSER_ABSEIE_MASK,
kQSPI_AHBIllegalTransactionInterruptEnable,
kQSPI_AHBIllegalBurstSizeInterruptEnable,
kQSPI_AHBBufferOverflowInterruptEnable = QuadSPI_RSER_ABOIE_MASK,
kQSPI_IPCommandUsageErrorInterruptEnable = QuadSPI_RSER_IUEIE_MASK,
kQSPI_IPCommandTriggerDuringAHBAccessInterruptEnable,
kQSPI_IPCommandTriggerDuringIPAccessInterruptEnable,
kQSPI_IPCommandTriggerDuringAHBGrantInterruptEnable,
kQSPI_IPCommandTransactionFinishedInterruptEnable,
kQSPI_AllInterruptEnable = 0x8C83F8D1U }
QSPI interrupt enable.
• enum _qspi_dma_enable {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
843
Overview
kQSPI_TxBufferFillDMAEnable = QuadSPI_RSER_TBFDE_MASK,
kQSPI_RxBufferDrainDMAEnable = QuadSPI_RSER_RBDDE_MASK,
kQSPI_AllDDMAEnable = QuadSPI_RSER_TBFDE_MASK |QuadSPI_RSER_RBDDE_MASK
}
QSPI DMA request flag.
• enum qspi_dqs_phrase_shift_t {
kQSPI_DQSNoPhraseShift = 0x0U,
kQSPI_DQSPhraseShift45Degree,
kQSPI_DQSPhraseShift90Degree,
kQSPI_DQSPhraseShift135Degree }
Phrase shift number for DQS mode.
Driver version
• #define FSL_QSPI_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
I2C driver version 2.0.0.
Initialization and deinitialization
• void QSPI_Init (QuadSPI_Type ∗base, qspi_config_t ∗config, uint32_t srcClock_Hz)
Initializes the QSPI module and internal state.
• void QSPI_GetDefaultQspiConfig (qspi_config_t ∗config)
Gets default settings for QSPI.
• void QSPI_Deinit (QuadSPI_Type ∗base)
Deinitializes the QSPI module.
• void QSPI_SetFlashConfig (QuadSPI_Type ∗base, qspi_flash_config_t ∗config)
Configures the serial flash parameter.
• void QSPI_SoftwareReset (QuadSPI_Type ∗base)
Software reset for the QSPI logic.
• static void QSPI_Enable (QuadSPI_Type ∗base, bool enable)
Enables or disables the QSPI module.
Status
• static uint32_t QSPI_GetStatusFlags (QuadSPI_Type ∗base)
Gets the state value of QSPI.
• static uint32_t QSPI_GetErrorStatusFlags (QuadSPI_Type ∗base)
Gets QSPI error status flags.
• static void QSPI_ClearErrorFlag (QuadSPI_Type ∗base, uint32_t mask)
Clears the QSPI error flags.
Interrupts
• static void QSPI_EnableInterrupts (QuadSPI_Type ∗base, uint32_t mask)
Enables the QSPI interrupts.
• static void QSPI_DisableInterrupts (QuadSPI_Type ∗base, uint32_t mask)
Disables the QSPI interrupts.
844
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
DMA Control
• static void QSPI_EnableDMA (QuadSPI_Type ∗base, uint32_t mask, bool enable)
Enables the QSPI DMA source.
• static uint32_t QSPI_GetTxDataRegisterAddress (QuadSPI_Type ∗base)
Gets the Tx data register address.
• uint32_t QSPI_GetRxDataRegisterAddress (QuadSPI_Type ∗base)
Gets the Rx data register address used for DMA operation.
Bus Operations
• static void QSPI_SetIPCommandAddress (QuadSPI_Type ∗base, uint32_t addr)
Sets the IP command address.
• static void QSPI_SetIPCommandSize (QuadSPI_Type ∗base, uint32_t size)
Sets the IP command size.
• void QSPI_ExecuteIPCommand (QuadSPI_Type ∗base, uint32_t index)
Executes IP commands located in LUT table.
• void QSPI_ExecuteAHBCommand (QuadSPI_Type ∗base, uint32_t index)
Executes AHB commands located in LUT table.
• static void QSPI_EnableIPParallelMode (QuadSPI_Type ∗base, bool enable)
Enables/disables the QSPI IP command parallel mode.
• static void QSPI_EnableAHBParallelMode (QuadSPI_Type ∗base, bool enable)
Enables/disables the QSPI AHB command parallel mode.
• void QSPI_UpdateLUT (QuadSPI_Type ∗base, uint32_t index, uint32_t ∗cmd)
Updates the LUT table.
• static void QSPI_ClearFifo (QuadSPI_Type ∗base, uint32_t mask)
Clears the QSPI FIFO logic.
• static void QSPI_ClearCommandSequence (QuadSPI_Type ∗base, qspi_command_seq_t seq)
@ brief Clears the command sequence for the IP/buffer command.
• void QSPI_WriteBlocking (QuadSPI_Type ∗base, uint32_t ∗buffer, size_t size)
Sends a buffer of data bytes using a blocking method.
• static void QSPI_WriteData (QuadSPI_Type ∗base, uint32_t data)
Writes data into FIFO.
• void QSPI_ReadBlocking (QuadSPI_Type ∗base, uint32_t ∗buffer, size_t size)
Receives a buffer of data bytes using a blocking method.
• uint32_t QSPI_ReadData (QuadSPI_Type ∗base)
Receives data from data FIFO.
Transactional
• static void QSPI_TransferSendBlocking (QuadSPI_Type ∗base, qspi_transfer_t ∗xfer)
Writes data to the QSPI transmit buffer.
• static void QSPI_TransferReceiveBlocking (QuadSPI_Type ∗base, qspi_transfer_t ∗xfer)
Reads data from the QSPI receive buffer in polling way.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
845
Data Structure Documentation
38.3 Data Structure Documentation
38.3.1 struct qspi_dqs_config_t
Data Fields
• uint32_t portADelayTapNum
Delay chain tap number selection for QSPI port A DQS.
• uint32_t portBDelayTapNum
Delay chain tap number selection for QSPI port B DQS.
•qspi_dqs_phrase_shift_t shift
Phase shift for internal DQS generation.
• bool enableDQSClkInverse
Enable inverse clock for internal DQS generation.
• bool enableDQSPadLoopback
Enable DQS loop back from DQS pad.
• bool enableDQSLoopback
Enable DQS loop back.
38.3.2 struct qspi_flash_timing_t
Data Fields
• uint32_t dataHoldTime
Serial flash data in hold time.
• uint32_t CSHoldTime
Serial flash CS hold time in terms of serial flash clock cycles.
• uint32_t CSSetupTime
Serial flash CS setup time in terms of serial flash clock cycles.
38.3.3 struct qspi_config_t
Data Fields
• uint32_t clockSource
Clock source for QSPI module.
• uint32_t baudRate
Serial flash clock baud rate.
• uint8_t txWatermark
QSPI transmit watermark value.
• uint8_t rxWatermark
QSPI receive watermark value.
• uint32_t AHBbufferSize [FSL_FEATURE_QSPI_AHB_BUFFER_COUNT]
AHB buffer size.
• uint8_t AHBbufferMaster [FSL_FEATURE_QSPI_AHB_BUFFER_COUNT]
AHB buffer master.
• bool enableAHBbuffer3AllMaster
846
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
Is AHB buffer3 for all master.
•qspi_read_area_t area
Which area Rx data readout.
• bool enableQspi
Enable QSPI after initialization.
38.3.3.0.24.13 Field Documentation
38.3.3.0.24.13.1 uint8_t qspi_config_t::rxWatermark
38.3.3.0.24.13.2 uint32_t qspi_config_t::AHBbufferSize[FSL_FEATURE_QSPI_AHB_BUFFER_CO-
UNT]
38.3.3.0.24.13.3 uint8_t qspi_config_t::AHBbufferMaster[FSL_FEATURE_QSPI_AHB_BUFFER_C-
OUNT]
38.3.3.0.24.13.4 bool qspi_config_t::enableAHBbuffer3AllMaster
38.3.4 struct qspi_flash_config_t
Data Fields
• uint32_t flashA1Size
Flash A1 size.
• uint32_t flashA2Size
Flash A2 size.
• uint32_t flashB1Size
Flash B1 size.
• uint32_t flashB2Size
Flash B2 size.
• uint32_t lookuptable [FSL_FEATURE_QSPI_LUT_DEPTH]
Flash command in LUT.
• uint32_t dataHoldTime
Data line hold time.
• uint32_t CSHoldTime
CS line hold time.
• uint32_t CSSetupTime
CS line setup time.
• uint32_t cloumnspace
Column space size.
• uint32_t dataLearnValue
Data Learn value if enable data learn.
•qspi_endianness_t endian
Flash data endianess.
• bool enableWordAddress
If enable word address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
847
Enumeration Type Documentation
38.3.4.0.24.14 Field Documentation
38.3.4.0.24.14.1 uint32_t qspi_flash_config_t::dataHoldTime
38.3.4.0.24.14.2 qspi_endianness_t qspi_flash_config_t::endian
38.3.4.0.24.14.3 bool qspi_flash_config_t::enableWordAddress
38.3.5 struct qspi_transfer_t
Data Fields
• uint32_t ∗data
Pointer to data to transmit.
• size_t dataSize
Bytes to be transmit.
38.4 Macro Definition Documentation
38.4.1 #define FSL_QSPI_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
38.5 Enumeration Type Documentation
38.5.1 enum _status_t
Enumerator
kStatus_QSPI_Idle QSPI is in idle state.
kStatus_QSPI_Busy QSPI is busy.
kStatus_QSPI_Error Error occurred during QSPI transfer.
38.5.2 enum qspi_read_area_t
Enumerator
kQSPI_ReadAHB QSPI read from AHB buffer.
kQSPI_ReadIP QSPI read from IP FIFO.
38.5.3 enum qspi_command_seq_t
Enumerator
kQSPI_IPSeq IP command sequence.
kQSPI_BufferSeq Buffer command sequence.
848
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
38.5.4 enum qspi_fifo_t
Enumerator
kQSPI_TxFifo QSPI Tx FIFO.
kQSPI_RxFifo QSPI Rx FIFO.
kQSPI_AllFifo QSPI all FIFO, including Tx and Rx.
38.5.5 enum qspi_endianness_t
Enumerator
kQSPI_64BigEndian 64 bits big endian
kQSPI_32LittleEndian 32 bit little endian
kQSPI_32BigEndian 32 bit big endian
kQSPI_64LittleEndian 64 bit little endian
38.5.6 enum _qspi_error_flags
Enumerator
kQSPI_DataLearningFail Data learning pattern failure flag.
kQSPI_TxBufferFill Tx buffer fill flag.
kQSPI_TxBufferUnderrun Tx buffer underrun flag.
kQSPI_IllegalInstruction Illegal instruction error flag.
kQSPI_RxBufferOverflow Rx buffer overflow flag.
kQSPI_RxBufferDrain Rx buffer drain flag.
kQSPI_AHBSequenceError AHB sequence error flag.
kQSPI_AHBIllegalTransaction AHB illegal transaction error flag.
kQSPI_AHBIllegalBurstSize AHB illegal burst error flag.
kQSPI_AHBBufferOverflow AHB buffer overflow flag.
kQSPI_IPCommandUsageError IP command usage error flag.
kQSPI_IPCommandTriggerDuringAHBAccess IP command trigger during AHB access error.
kQSPI_IPCommandTriggerDuringIPAccess IP command trigger cannot be executed.
kQSPI_IPCommandTriggerDuringAHBGrant IP command trigger during AHB grant error.
kQSPI_IPCommandTransactionFinished IP command transaction finished flag.
kQSPI_FlagAll All error flag.
38.5.7 enum _qspi_flags
Enumerator
kQSPI_DataLearningSamplePoint Data learning sample point.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
849
Enumeration Type Documentation
kQSPI_TxBufferFull Tx buffer full flag.
kQSPI_TxDMA Tx DMA is requested or running.
kQSPI_TxWatermark Tx buffer watermark available.
kQSPI_TxBufferEnoughData Tx buffer enough data available.
kQSPI_RxDMA Rx DMA is requesting or running.
kQSPI_RxBufferFull Rx buffer full.
kQSPI_RxWatermark Rx buffer watermark exceeded.
kQSPI_AHB3BufferFull AHB buffer 3 full.
kQSPI_AHB2BufferFull AHB buffer 2 full.
kQSPI_AHB1BufferFull AHB buffer 1 full.
kQSPI_AHB0BufferFull AHB buffer 0 full.
kQSPI_AHB3BufferNotEmpty AHB buffer 3 not empty.
kQSPI_AHB2BufferNotEmpty AHB buffer 2 not empty.
kQSPI_AHB1BufferNotEmpty AHB buffer 1 not empty.
kQSPI_AHB0BufferNotEmpty AHB buffer 0 not empty.
kQSPI_AHBTransactionPending AHB access transaction pending.
kQSPI_AHBCommandPriorityGranted AHB command priority granted.
kQSPI_AHBAccess AHB access.
kQSPI_IPAccess IP access.
kQSPI_Busy Module busy.
kQSPI_StateAll All flags.
38.5.8 enum _qspi_interrupt_enable
Enumerator
kQSPI_DataLearningFailInterruptEnable Data learning pattern failure interrupt enable.
kQSPI_TxBufferFillInterruptEnable Tx buffer fill interrupt enable.
kQSPI_TxBufferUnderrunInterruptEnable Tx buffer underrun interrupt enable.
kQSPI_IllegalInstructionInterruptEnable Illegal instruction error interrupt enable.
kQSPI_RxBufferOverflowInterruptEnable Rx buffer overflow interrupt enable.
kQSPI_RxBufferDrainInterruptEnable Rx buffer drain interrupt enable.
kQSPI_AHBSequenceErrorInterruptEnable AHB sequence error interrupt enable.
kQSPI_AHBIllegalTransactionInterruptEnable AHB illegal transaction error interrupt enable.
kQSPI_AHBIllegalBurstSizeInterruptEnable AHB illegal burst error interrupt enable.
kQSPI_AHBBufferOverflowInterruptEnable AHB buffer overflow interrupt enable.
kQSPI_IPCommandUsageErrorInterruptEnable IP command usage error interrupt enable.
kQSPI_IPCommandTriggerDuringAHBAccessInterruptEnable IP command trigger during AHB
access error.
kQSPI_IPCommandTriggerDuringIPAccessInterruptEnable IP command trigger cannot be exe-
cuted.
kQSPI_IPCommandTriggerDuringAHBGrantInterruptEnable IP command trigger during AHB
grant error.
850
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
kQSPI_IPCommandTransactionFinishedInterruptEnable IP command transaction finished inter-
rupt enable.
kQSPI_AllInterruptEnable All error interrupt enable.
38.5.9 enum _qspi_dma_enable
Enumerator
kQSPI_TxBufferFillDMAEnable Tx buffer fill DMA.
kQSPI_RxBufferDrainDMAEnable Rx buffer drain DMA.
kQSPI_AllDDMAEnable All DMA source.
38.5.10 enum qspi_dqs_phrase_shift_t
Enumerator
kQSPI_DQSNoPhraseShift No phase shift.
kQSPI_DQSPhraseShift45Degree Select 45 degree phase shift.
kQSPI_DQSPhraseShift90Degree Select 90 degree phase shift.
kQSPI_DQSPhraseShift135Degree Select 135 degree phase shift.
38.6 Function Documentation
38.6.1 void QSPI_Init ( QuadSPI_Type ∗base, qspi_config_t ∗config, uint32_t
srcClock_Hz )
This function enables the clock for QSPI and also configures the QSPI with the input configure parameters.
Users should call this function before any QSPI operations.
Parameters
base Pointer to QuadSPI Type.
config QSPI configure structure.
srcClock_Hz QSPI source clock frequency in Hz.
38.6.2 void QSPI_GetDefaultQspiConfig ( qspi_config_t ∗config )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
851
Function Documentation
Parameters
config QSPI configuration structure.
38.6.3 void QSPI_Deinit ( QuadSPI_Type ∗base )
Clears the QSPI state and QSPI module registers.
Parameters
base Pointer to QuadSPI Type.
38.6.4 void QSPI_SetFlashConfig ( QuadSPI_Type ∗base, qspi_flash_config_t ∗
config )
This function configures the serial flash relevant parameters, such as the size, command, and so on. The
flash configuration value cannot have a default value. The user needs to configure it according to the QSPI
features.
Parameters
base Pointer to QuadSPI Type.
config Flash configuration parameters.
38.6.5 void QSPI_SoftwareReset ( QuadSPI_Type ∗base )
This function sets the software reset flags for both AHB and buffer domain and resets both AHB buffer
and also IP FIFOs.
Parameters
base Pointer to QuadSPI Type.
38.6.6 static void QSPI_Enable ( QuadSPI_Type ∗base, bool enable )[inline],
[static]
852
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base Pointer to QuadSPI Type.
enable True means enable QSPI, false means disable.
38.6.7 static uint32_t QSPI_GetStatusFlags ( QuadSPI_Type ∗base )[inline],
[static]
Parameters
base Pointer to QuadSPI Type.
Returns
status flag, use status flag to AND _qspi_flags could get the related status.
38.6.8 static uint32_t QSPI_GetErrorStatusFlags ( QuadSPI_Type ∗base )
[inline],[static]
Parameters
base Pointer to QuadSPI Type.
Returns
status flag, use status flag to AND _qspi_error_flags could get the related status.
38.6.9 static void QSPI_ClearErrorFlag ( QuadSPI_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base Pointer to QuadSPI Type.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
853
Function Documentation
mask Which kind of QSPI flags to be cleared, a combination of _qspi_error_flags.
38.6.10 static void QSPI_EnableInterrupts ( QuadSPI_Type ∗base, uint32_t mask
)[inline],[static]
Parameters
base Pointer to QuadSPI Type.
mask QSPI interrupt source.
38.6.11 static void QSPI_DisableInterrupts ( QuadSPI_Type ∗base, uint32_t mask
)[inline],[static]
Parameters
base Pointer to QuadSPI Type.
mask QSPI interrupt source.
38.6.12 static void QSPI_EnableDMA ( QuadSPI_Type ∗base, uint32_t mask, bool
enable )[inline],[static]
Parameters
base Pointer to QuadSPI Type.
mask QSPI DMA source.
enable True means enable DMA, false means disable.
38.6.13 static uint32_t QSPI_GetTxDataRegisterAddress ( QuadSPI_Type ∗base )
[inline],[static]
It is used for DMA operation.
854
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base Pointer to QuadSPI Type.
Returns
QSPI Tx data register address.
38.6.14 uint32_t QSPI_GetRxDataRegisterAddress ( QuadSPI_Type ∗base )
This function returns the Rx data register address or Rx buffer address according to the Rx read area
settings.
Parameters
base Pointer to QuadSPI Type.
Returns
QSPI Rx data register address.
38.6.15 static void QSPI_SetIPCommandAddress ( QuadSPI_Type ∗base, uint32_t
addr )[inline],[static]
Parameters
base Pointer to QuadSPI Type.
addr IP command address.
38.6.16 static void QSPI_SetIPCommandSize ( QuadSPI_Type ∗base, uint32_t
size )[inline],[static]
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
855
Function Documentation
base Pointer to QuadSPI Type.
size IP command size.
38.6.17 void QSPI_ExecuteIPCommand ( QuadSPI_Type ∗base, uint32_t index )
Parameters
base Pointer to QuadSPI Type.
index IP command located in which LUT table index.
38.6.18 void QSPI_ExecuteAHBCommand ( QuadSPI_Type ∗base, uint32_t index
)
Parameters
base Pointer to QuadSPI Type.
index AHB command located in which LUT table index.
38.6.19 static void QSPI_EnableIPParallelMode ( QuadSPI_Type ∗base, bool
enable )[inline],[static]
Parameters
base Pointer to QuadSPI Type.
enable True means enable parallel mode, false means disable parallel mode.
38.6.20 static void QSPI_EnableAHBParallelMode ( QuadSPI_Type ∗base, bool
enable )[inline],[static]
Parameters
856
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
base Pointer to QuadSPI Type.
enable True means enable parallel mode, false means disable parallel mode.
38.6.21 void QSPI_UpdateLUT ( QuadSPI_Type ∗base, uint32_t index, uint32_t ∗
cmd )
Parameters
base Pointer to QuadSPI Type.
index Which LUT index needs to be located. It should be an integer divided by 4.
cmd Command sequence array.
38.6.22 static void QSPI_ClearFifo ( QuadSPI_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base Pointer to QuadSPI Type.
mask Which kind of QSPI FIFO to be cleared.
38.6.23 static void QSPI_ClearCommandSequence ( QuadSPI_Type ∗base,
qspi_command_seq_t seq )[inline],[static]
This function can reset the command sequence.
Parameters
base QSPI base address.
seq Which command sequence need to reset, IP command, buffer command or both.
38.6.24 void QSPI_WriteBlocking ( QuadSPI_Type ∗base, uint32_t ∗buffer, size_t
size )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
857
Function Documentation
Note
This function blocks via polling until all bytes have been sent.
Parameters
base QSPI base pointer
buffer The data bytes to send
size The number of data bytes to send
38.6.25 static void QSPI_WriteData ( QuadSPI_Type ∗base, uint32_t data )
[inline],[static]
Parameters
base QSPI base pointer
data The data bytes to send
38.6.26 void QSPI_ReadBlocking ( QuadSPI_Type ∗base, uint32_t ∗buffer, size_t
size )
Note
This function blocks via polling until all bytes have been sent.
Parameters
base QSPI base pointer
buffer The data bytes to send
size The number of data bytes to receive
38.6.27 uint32_t QSPI_ReadData ( QuadSPI_Type ∗base )
858
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base QSPI base pointer
Returns
The data in the FIFO.
38.6.28 static void QSPI_TransferSendBlocking ( QuadSPI_Type ∗base,
qspi_transfer_t ∗xfer )[inline],[static]
This function writes a continuous data to the QSPI transmit FIFO. This function is a block function and
can return only when finished. This function uses polling methods.
Parameters
base Pointer to QuadSPI Type.
xfer QSPI transfer structure.
38.6.29 static void QSPI_TransferReceiveBlocking ( QuadSPI_Type ∗base,
qspi_transfer_t ∗xfer )[inline],[static]
This function reads continuous data from the QSPI receive buffer/FIFO. This function is a blocking func-
tion and can return only when finished. This function uses polling methods.
Parameters
base Pointer to QuadSPI Type.
xfer QSPI transfer structure.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
859
QSPI eDMA Driver
38.7 QSPI eDMA Driver
38.7.1 Overview
Files
• file fsl_qspi_edma.h
Data Structures
• struct qspi_edma_handle_t
QSPI DMA transfer handle, users should not touch the content of the handle. More...
Typedefs
• typedef void(∗qspi_edma_callback_t )(QuadSPI_Type ∗base, qspi_edma_handle_t ∗handle, status-
_t status, void ∗userData)
QSPI eDMA transfer callback function for finish and error.
eDMA Transactional
• void QSPI_TransferTxCreateHandleEDMA (QuadSPI_Type ∗base, qspi_edma_handle_t ∗handle,
qspi_edma_callback_t callback, void ∗userData, edma_handle_t ∗dmaHandle)
Initializes the QSPI handle for send which is used in transactional functions and set the callback.
• void QSPI_TransferRxCreateHandleEDMA (QuadSPI_Type ∗base, qspi_edma_handle_t ∗handle,
qspi_edma_callback_t callback, void ∗userData, edma_handle_t ∗dmaHandle)
Initializes the QSPI handle for receive which is used in transactional functions and set the callback.
• status_t QSPI_TransferSendEDMA (QuadSPI_Type ∗base, qspi_edma_handle_t ∗handle, qspi_-
transfer_t ∗xfer)
Transfers QSPI data using an eDMA non-blocking method.
• status_t QSPI_TransferReceiveEDMA (QuadSPI_Type ∗base, qspi_edma_handle_t ∗handle, qspi_-
transfer_t ∗xfer)
Receives data using an eDMA non-blocking method.
• void QSPI_TransferAbortSendEDMA (QuadSPI_Type ∗base, qspi_edma_handle_t ∗handle)
Aborts the sent data using eDMA.
• void QSPI_TransferAbortReceiveEDMA (QuadSPI_Type ∗base, qspi_edma_handle_t ∗handle)
Aborts the receive data using eDMA.
• status_t QSPI_TransferGetSendCountEDMA (QuadSPI_Type ∗base, qspi_edma_handle_t ∗handle,
size_t ∗count)
Gets the transferred counts of send.
• status_t QSPI_TransferGetReceiveCountEDMA (QuadSPI_Type ∗base, qspi_edma_handle_t
∗handle, size_t ∗count)
Gets the status of the receive transfer.
860
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
QSPI eDMA Driver
38.7.2 Data Structure Documentation
38.7.2.1 struct _qspi_edma_handle
Data Fields
•edma_handle_t ∗dmaHandle
eDMA handler for QSPI send
• size_t transferSize
Bytes need to transfer.
• uint8_t count
The transfer data count in a DMA request.
• uint32_t state
Internal state for QSPI eDMA transfer.
•qspi_edma_callback_t callback
Callback for users while transfer finish or error occurred.
• void ∗userData
User callback parameter.
38.7.2.1.0.15 Field Documentation
38.7.2.1.0.15.1 size_t qspi_edma_handle_t::transferSize
38.7.3 Function Documentation
38.7.3.1 void QSPI_TransferTxCreateHandleEDMA ( QuadSPI_Type ∗base,
qspi_edma_handle_t ∗handle, qspi_edma_callback_t callback, void ∗userData,
edma_handle_t ∗dmaHandle )
Parameters
base QSPI peripheral base address
handle Pointer to qspi_edma_handle_t structure
callback QSPI callback, NULL means no callback.
userData User callback function data.
rxDmaHandle User requested eDMA handle for eDMA transfer
38.7.3.2 void QSPI_TransferRxCreateHandleEDMA ( QuadSPI_Type ∗base,
qspi_edma_handle_t ∗handle, qspi_edma_callback_t callback, void ∗userData,
edma_handle_t ∗dmaHandle )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
861
QSPI eDMA Driver
Parameters
base QSPI peripheral base address
handle Pointer to qspi_edma_handle_t structure
callback QSPI callback, NULL means no callback.
userData User callback function data.
rxDmaHandle User requested eDMA handle for eDMA transfer
38.7.3.3 status_t QSPI_TransferSendEDMA ( QuadSPI_Type ∗base, qspi_edma_handle_t
∗handle, qspi_transfer_t ∗xfer )
This function writes data to the QSPI transmit FIFO. This function is non-blocking.
Parameters
base Pointer to QuadSPI Type.
handle Pointer to qspi_edma_handle_t structure
xfer QSPI transfer structure.
38.7.3.4 status_t QSPI_TransferReceiveEDMA ( QuadSPI_Type ∗base,
qspi_edma_handle_t ∗handle, qspi_transfer_t ∗xfer )
This function receive data from the QSPI receive buffer/FIFO. This function is non-blocking.
Parameters
base Pointer to QuadSPI Type.
handle Pointer to qspi_edma_handle_t structure
xfer QSPI transfer structure.
38.7.3.5 void QSPI_TransferAbortSendEDMA ( QuadSPI_Type ∗base,
qspi_edma_handle_t ∗handle )
This function aborts the sent data using eDMA.
862
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
QSPI eDMA Driver
Parameters
base QSPI peripheral base address.
handle Pointer to qspi_edma_handle_t structure
38.7.3.6 void QSPI_TransferAbortReceiveEDMA ( QuadSPI_Type ∗base,
qspi_edma_handle_t ∗handle )
This function abort receive data which using eDMA.
Parameters
base QSPI peripheral base address.
handle Pointer to qspi_edma_handle_t structure
38.7.3.7 status_t QSPI_TransferGetSendCountEDMA ( QuadSPI_Type ∗base,
qspi_edma_handle_t ∗handle, size_t ∗count )
Parameters
base Pointer to QuadSPI Type.
handle Pointer to qspi_edma_handle_t structure.
count Bytes sent.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
38.7.3.8 status_t QSPI_TransferGetReceiveCountEDMA ( QuadSPI_Type ∗base,
qspi_edma_handle_t ∗handle, size_t ∗count )
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
863
QSPI eDMA Driver
base Pointer to QuadSPI Type.
handle Pointer to qspi_edma_handle_t structure
count Bytes received.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
864
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 39
RCM: Reset Control Module Driver
39.1 Overview
The KSDK provides a Peripheral driver for the Reset Control Module (RCM) module of Kinetis devices.
Files
• file fsl_rcm.h
Data Structures
• struct rcm_reset_pin_filter_config_t
Reset pin filter configuration. More...
Enumerations
• enum rcm_reset_source_t {
kRCM_SourceLvd = RCM_SRS0_LVD_MASK,
kRCM_SourceWdog = RCM_SRS0_WDOG_MASK,
kRCM_SourcePin = RCM_SRS0_PIN_MASK,
kRCM_SourcePor = RCM_SRS0_POR_MASK,
kRCM_SourceLockup = RCM_SRS1_LOCKUP_MASK << 8U,
kRCM_SourceSw = RCM_SRS1_SW_MASK,
kRCM_SourceSackerr = RCM_SRS1_SACKERR_MASK << 8U }
System Reset Source Name definitions.
• enum rcm_run_wait_filter_mode_t {
kRCM_FilterDisable = 0U,
kRCM_FilterBusClock = 1U,
kRCM_FilterLpoClock = 2U }
Reset pin filter select in Run and Wait modes.
Driver version
• #define FSL_RCM_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
RCM driver version 2.0.0.
Reset Control Module APIs
• static uint32_t RCM_GetPreviousResetSources (RCM_Type ∗base)
Gets the reset source status which caused a previous reset.
• void RCM_ConfigureResetPinFilter (RCM_Type ∗base, const rcm_reset_pin_filter_config_t
∗config)
Configures the reset pin filter.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
865
Enumeration Type Documentation
39.2 Data Structure Documentation
39.2.1 struct rcm_reset_pin_filter_config_t
Data Fields
• bool enableFilterInStop
Reset pin filter select in stop mode.
•rcm_run_wait_filter_mode_t filterInRunWait
Reset pin filter in run/wait mode.
• uint8_t busClockFilterCount
Reset pin bus clock filter width.
39.2.1.0.0.16 Field Documentation
39.2.1.0.0.16.1 bool rcm_reset_pin_filter_config_t::enableFilterInStop
39.2.1.0.0.16.2 rcm_run_wait_filter_mode_t rcm_reset_pin_filter_config_t::filterInRunWait
39.2.1.0.0.16.3 uint8_t rcm_reset_pin_filter_config_t::busClockFilterCount
39.3 Macro Definition Documentation
39.3.1 #define FSL_RCM_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
39.4 Enumeration Type Documentation
39.4.1 enum rcm_reset_source_t
Enumerator
kRCM_SourceLvd low voltage detect reset
kRCM_SourceWdog Watchdog reset.
kRCM_SourcePin External pin reset.
kRCM_SourcePor Power on reset.
kRCM_SourceLockup Core lock up reset.
kRCM_SourceSw Software reset.
kRCM_SourceSackerr Parameter could get all reset flags.
39.4.2 enum rcm_run_wait_filter_mode_t
Enumerator
kRCM_FilterDisable All filtering disabled.
kRCM_FilterBusClock Bus clock filter enabled.
kRCM_FilterLpoClock LPO clock filter enabled.
866
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
39.5 Function Documentation
39.5.1 static uint32_t RCM_GetPreviousResetSources ( RCM_Type ∗base )
[inline],[static]
This function gets the current reset source status. Use source masks defined in the rcm_reset_source_t to
get the desired source status.
Example:
uint32_t resetStatus;
// To get all reset source statuses.
resetStatus = RCM_GetPreviousResetSources(RCM) & kRCM_SourceAll;
// To test whether the MCU is reset using Watchdog.
resetStatus = RCM_GetPreviousResetSources(RCM) &
kRCM_SourceWdog;
// To test multiple reset sources.
resetStatus = RCM_GetPreviousResetSources(RCM) & (
kRCM_SourceWdog |kRCM_SourcePin);
Parameters
base RCM peripheral base address.
Returns
All reset source status bit map.
39.5.2 void RCM_ConfigureResetPinFilter ( RCM_Type ∗base, const
rcm_reset_pin_filter_config_t ∗config )
This function sets the reset pin filter including the filter source, filter width, and so on.
Parameters
base RCM peripheral base address.
config Pointer to the configuration structure.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
867
Function Documentation
868
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 40
RNGA: Random Number Generator Accelerator Driver
40.1 Overview
The Kinetis SDK provides Peripheral driver for the Random Number Generator Accelerator (RNGA)
block of Kinetis devices.
40.2 RNGA Initialization
1. To initialize the RNGA module, call the RNGA_Init() function. This function automatically enables
the RNGA module and its clock.
2. After calling the RNGA_Init() function, the RNGA is enabled and the counter starts working.
3. To disable the RNGA module, call the RNGA_Deinit() function.
40.3 Get random data from RNGA
1. RNGA_GetRandomData() function gets random data from the RNGA module.
40.4 RNGA Set/Get Working Mode
The RNGA works either in sleep mode or normal mode
1. RNGA_SetMode() function sets the RNGA mode.
2. RNGA_GetMode() function gets the RNGA working mode.
40.5 Seed RNGA
1. RNGA_Seed() function inputs an entropy value that the RNGA can use to seed the pseudo random
algorithm.
This example code shows how to initialize and get random data from the RNGA driver:
{
status_t status;
uint32_t data;
/*Initialize RNGA
status = RNGA_Init(RNG);
/*Read Random data
status = RNGA_GetRandomData(RNG, data, sizeof(data));
if(status == kStatus_Success)
{
/*Print data
PRINTF("Random = 0x%X\r\n", i, data );
PRINTF("Succeed.\r\n");
}
else
{
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
869
Seed RNGA
PRINTF("RNGA failed! (0x%x)\r\n", status);
}
/*Deinitialize RNGA
RNGA_Deinit(RNG);
}
Note
It is important to note there is no known cryptographic proof showing this is a secure method of
generating random data. In fact, there may be an attack against this random number generator if
its output is used directly in a cryptographic application. The attack is based on the linearity of the
internal shift registers. Therefore, it is highly recommended that this random data produced by this
module be used as an entropy source to provide an input seed to a NIST-approved pseudo-random-
number generator based on DES or SHA-1 and defined in NIST FIPS PUB 186-2 Appendix 3 and
NIST FIPS PUB SP 800-90. The requirement is to maximize the entropy of this input seed. In order
to do this, when data is extracted from RNGA as quickly as the hardware allows, there are about
one or two bits of added entropy per 32-bit word. Any single bit of that word contains that entropy.
Therefore, when used as an entropy source, a random number should be generated for each bit of
entropy required, and the least significant bit (any bit would be equivalent) of each word retained.
The remainder of each random number should then be discarded. Used this way, even with full
knowledge of the internal state of RNGA and all prior random numbers, an attacker is not able to
predict the values of the extracted bits. Other sources of entropy can be used along with RNGA to
generate the seed to the pseudorandom algorithm. The more random sources combined to create the
seed, the better. The following is a list of sources that can be easily combined with the output of this
module:
• Current time using highest precision possible
• Real-time system inputs that can be characterized as "random"
• Other entropy supplied directly by the user
Files
• file fsl_rnga.h
Enumerations
• enum rnga_mode_t {
kRNGA_ModeNormal = 0U,
kRNGA_ModeSleep = 1U }
RNGA working mode.
Functions
• void RNGA_Init (RNG_Type ∗base)
Initializes the RNGA.
• void RNGA_Deinit (RNG_Type ∗base)
Shuts down the RNGA.
• status_t RNGA_GetRandomData (RNG_Type ∗base, void ∗data, size_t data_size)
870
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Gets random data.
• void RNGA_Seed (RNG_Type ∗base, uint32_t seed)
Feeds the RNGA module.
• void RNGA_SetMode (RNG_Type ∗base, rnga_mode_t mode)
Sets the RNGA in normal mode or sleep mode.
•rnga_mode_t RNGA_GetMode (RNG_Type ∗base)
Gets the RNGA working mode.
Driver version
• #define FSL_RNGA_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
RNGA driver version 2.0.1.
40.6 Macro Definition Documentation
40.6.1 #define FSL_RNGA_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
40.7 Enumeration Type Documentation
40.7.1 enum rnga_mode_t
Enumerator
kRNGA_ModeNormal Normal Mode. The ring-oscillator clocks are active; RNGA generates en-
tropy (randomness) from the clocks and stores it in shift registers.
kRNGA_ModeSleep Sleep Mode. The ring-oscillator clocks are inactive; RNGA does not generate
entropy.
40.8 Function Documentation
40.8.1 void RNGA_Init ( RNG_Type ∗base )
This function initializes the RNGA. When called, the RNGA entropy generation starts immediately.
Parameters
base RNGA base address
40.8.2 void RNGA_Deinit ( RNG_Type ∗base )
This function shuts down the RNGA.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
871
Function Documentation
Parameters
base RNGA base address
40.8.3 status_t RNGA_GetRandomData ( RNG_Type ∗base, void ∗data, size_t
data_size )
This function gets random data from the RNGA.
Parameters
base RNGA base address
data pointer to user buffer to be filled by random data
data_size size of data in bytes
Returns
RNGA status
40.8.4 void RNGA_Seed ( RNG_Type ∗base, uint32_t seed )
This function inputs an entropy value that the RNGA uses to seed its pseudo-random algorithm.
Parameters
base RNGA base address
seed input seed value
40.8.5 void RNGA_SetMode ( RNG_Type ∗base, rnga_mode_t mode )
This function sets the RNGA in sleep mode or normal mode.
Parameters
872
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
base RNGA base address
mode normal mode or sleep mode
40.8.6 rnga_mode_t RNGA_GetMode ( RNG_Type ∗base )
This function gets the RNGA working mode.
Parameters
base RNGA base address
Returns
normal mode or sleep mode
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
873
Function Documentation
874
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 41
RTC: Real Time Clock Driver
41.1 Overview
The KSDK provides a driver for the RTC module of Kinetis devices.
Files
• file fsl_rtc.h
Data Structures
• struct rtc_datetime_t
Structure is used to hold the date and time. More...
• struct rtc_config_t
RTC config structure. More...
Enumerations
• enum rtc_interrupt_enable_t {
kRTC_TimeInvalidInterruptEnable = RTC_IER_TIIE_MASK,
kRTC_TimeOverflowInterruptEnable = RTC_IER_TOIE_MASK,
kRTC_AlarmInterruptEnable = RTC_IER_TAIE_MASK,
kRTC_SecondsInterruptEnable = RTC_IER_TSIE_MASK }
List of RTC interrupts.
• enum rtc_status_flags_t {
kRTC_TimeInvalidFlag = RTC_SR_TIF_MASK,
kRTC_TimeOverflowFlag = RTC_SR_TOF_MASK,
kRTC_AlarmFlag = RTC_SR_TAF_MASK }
List of RTC flags.
• enum rtc_osc_cap_load_t {
kRTC_Capacitor_2p = RTC_CR_SC2P_MASK,
kRTC_Capacitor_4p = RTC_CR_SC4P_MASK,
kRTC_Capacitor_8p = RTC_CR_SC8P_MASK,
kRTC_Capacitor_16p = RTC_CR_SC16P_MASK }
List of RTC Oscillator capacitor load settings.
Functions
• static void RTC_SetOscCapLoad (RTC_Type ∗base, uint32_t capLoad)
This function sets the specified capacitor configuration for the RTC oscillator.
• static void RTC_Reset (RTC_Type ∗base)
Performs a software reset on the RTC module.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
875
Overview
Driver version
• #define FSL_RTC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
Initialization and deinitialization
• void RTC_Init (RTC_Type ∗base, const rtc_config_t ∗config)
Ungates the RTC clock and configures the peripheral for basic operation.
• static void RTC_Deinit (RTC_Type ∗base)
Stop the timer and gate the RTC clock.
• void RTC_GetDefaultConfig (rtc_config_t ∗config)
Fill in the RTC config struct with the default settings.
Current Time & Alarm
• status_t RTC_SetDatetime (RTC_Type ∗base, const rtc_datetime_t ∗datetime)
Sets the RTC date and time according to the given time structure.
• void RTC_GetDatetime (RTC_Type ∗base, rtc_datetime_t ∗datetime)
Gets the RTC time and stores it in the given time structure.
• status_t RTC_SetAlarm (RTC_Type ∗base, const rtc_datetime_t ∗alarmTime)
Sets the RTC alarm time.
• void RTC_GetAlarm (RTC_Type ∗base, rtc_datetime_t ∗datetime)
Returns the RTC alarm time.
Interrupt Interface
• static void RTC_EnableInterrupts (RTC_Type ∗base, uint32_t mask)
Enables the selected RTC interrupts.
• static void RTC_DisableInterrupts (RTC_Type ∗base, uint32_t mask)
Disables the selected RTC interrupts.
• static uint32_t RTC_GetEnabledInterrupts (RTC_Type ∗base)
Gets the enabled RTC interrupts.
Status Interface
• static uint32_t RTC_GetStatusFlags (RTC_Type ∗base)
Gets the RTC status flags.
• void RTC_ClearStatusFlags (RTC_Type ∗base, uint32_t mask)
Clears the RTC status flags.
Timer Start and Stop
• static void RTC_StartTimer (RTC_Type ∗base)
Starts the RTC time counter.
• static void RTC_StopTimer (RTC_Type ∗base)
Stops the RTC time counter.
876
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
41.2 Data Structure Documentation
41.2.1 struct rtc_datetime_t
Data Fields
• uint16_t year
Range from 1970 to 2099.
• uint8_t month
Range from 1 to 12.
• uint8_t day
Range from 1 to 31 (depending on month).
• uint8_t hour
Range from 0 to 23.
• uint8_t minute
Range from 0 to 59.
• uint8_t second
Range from 0 to 59.
41.2.1.0.0.17 Field Documentation
41.2.1.0.0.17.1 uint16_t rtc_datetime_t::year
41.2.1.0.0.17.2 uint8_t rtc_datetime_t::month
41.2.1.0.0.17.3 uint8_t rtc_datetime_t::day
41.2.1.0.0.17.4 uint8_t rtc_datetime_t::hour
41.2.1.0.0.17.5 uint8_t rtc_datetime_t::minute
41.2.1.0.0.17.6 uint8_t rtc_datetime_t::second
41.2.2 struct rtc_config_t
This structure holds the configuration settings for the RTC peripheral. To initialize this structure to rea-
sonable defaults, call the RTC_GetDefaultConfig() function and pass a pointer to your config structure
instance.
The config struct can be made const so it resides in flash
Data Fields
• bool wakeupSelect
true: Wakeup pin outputs the 32KHz clock; false:Wakeup pin used to wakeup the chip
• bool updateMode
true: Registers can be written even when locked under certain conditions, false: No writes allowed when
registers are locked
• bool supervisorAccess
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
877
Function Documentation
true: Non-supervisor accesses are allowed; false: Non-supervisor accesses are not supported
• uint32_t compensationInterval
Compensation interval that is written to the CIR field in RTC TCR Register.
• uint32_t compensationTime
Compensation time that is written to the TCR field in RTC TCR Register.
41.3 Enumeration Type Documentation
41.3.1 enum rtc_interrupt_enable_t
Enumerator
kRTC_TimeInvalidInterruptEnable Time invalid interrupt.
kRTC_TimeOverflowInterruptEnable Time overflow interrupt.
kRTC_AlarmInterruptEnable Alarm interrupt.
kRTC_SecondsInterruptEnable Seconds interrupt.
41.3.2 enum rtc_status_flags_t
Enumerator
kRTC_TimeInvalidFlag Time invalid flag.
kRTC_TimeOverflowFlag Time overflow flag.
kRTC_AlarmFlag Alarm flag.
41.3.3 enum rtc_osc_cap_load_t
Enumerator
kRTC_Capacitor_2p 2pF capacitor load
kRTC_Capacitor_4p 4pF capacitor load
kRTC_Capacitor_8p 8pF capacitor load
kRTC_Capacitor_16p 16pF capacitor load
41.4 Function Documentation
41.4.1 void RTC_Init ( RTC_Type ∗base, const rtc_config_t ∗config )
This function will issue a software reset if the timer invalid flag is set.
Note
This API should be called at the beginning of the application using the RTC driver.
878
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base RTC peripheral base address
config Pointer to user’s RTC config structure.
41.4.2 static void RTC_Deinit ( RTC_Type ∗base )[inline],[static]
Parameters
base RTC peripheral base address
41.4.3 void RTC_GetDefaultConfig ( rtc_config_t ∗config )
The default values are:
config->wakeupSelect = false;
config->updateMode = false;
config->supervisorAccess = false;
config->compensationInterval = 0;
config->compensationTime = 0;
Parameters
config Pointer to user’s RTC config structure.
41.4.4 status_t RTC_SetDatetime ( RTC_Type ∗base, const rtc_datetime_t ∗
datetime )
The RTC counter must be stopped prior to calling this function as writes to the RTC seconds register will
fail if the RTC counter is running.
Parameters
base RTC peripheral base address
datetime Pointer to structure where the date and time details to set are stored
Returns
kStatus_Success: Success in setting the time and starting the RTC kStatus_InvalidArgument: Error
because the datetime format is incorrect
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
879
Function Documentation
41.4.5 void RTC_GetDatetime ( RTC_Type ∗base, rtc_datetime_t ∗datetime )
880
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base RTC peripheral base address
datetime Pointer to structure where the date and time details are stored.
41.4.6 status_t RTC_SetAlarm ( RTC_Type ∗base, const rtc_datetime_t ∗
alarmTime )
The function checks whether the specified alarm time is greater than the present time. If not, the function
does not set the alarm and returns an error.
Parameters
base RTC peripheral base address
alarmTime Pointer to structure where the alarm time is stored.
Returns
kStatus_Success: success in setting the RTC alarm kStatus_InvalidArgument: Error because the
alarm datetime format is incorrect kStatus_Fail: Error because the alarm time has already passed
41.4.7 void RTC_GetAlarm ( RTC_Type ∗base, rtc_datetime_t ∗datetime )
Parameters
base RTC peripheral base address
datetime Pointer to structure where the alarm date and time details are stored.
41.4.8 static void RTC_EnableInterrupts ( RTC_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
881
Function Documentation
base RTC peripheral base address
mask The interrupts to enable. This is a logical OR of members of the enumeration rtc_-
interrupt_enable_t
41.4.9 static void RTC_DisableInterrupts ( RTC_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base RTC peripheral base address
mask The interrupts to enable. This is a logical OR of members of the enumeration rtc_-
interrupt_enable_t
41.4.10 static uint32_t RTC_GetEnabledInterrupts ( RTC_Type ∗base )
[inline],[static]
Parameters
base RTC peripheral base address
Returns
The enabled interrupts. This is the logical OR of members of the enumeration rtc_interrupt_enable_t
41.4.11 static uint32_t RTC_GetStatusFlags ( RTC_Type ∗base )[inline],
[static]
Parameters
base RTC peripheral base address
Returns
The status flags. This is the logical OR of members of the enumeration rtc_status_flags_t
41.4.12 void RTC_ClearStatusFlags ( RTC_Type ∗base, uint32_t mask )
882
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base RTC peripheral base address
mask The status flags to clear. This is a logical OR of members of the enumeration rtc_-
status_flags_t
41.4.13 static void RTC_StartTimer ( RTC_Type ∗base )[inline],[static]
After calling this function, the timer counter increments once a second provided SR[TOF] or SR[TIF] are
not set.
Parameters
base RTC peripheral base address
41.4.14 static void RTC_StopTimer ( RTC_Type ∗base )[inline],[static]
RTC’s seconds register can be written to only when the timer is stopped.
Parameters
base RTC peripheral base address
41.4.15 static void RTC_SetOscCapLoad ( RTC_Type ∗base, uint32_t capLoad )
[inline],[static]
Parameters
base RTC peripheral base address
capLoad Oscillator loads to enable. This is a logical OR of members of the enumeration rtc_-
osc_cap_load_t
41.4.16 static void RTC_Reset ( RTC_Type ∗base )[inline],[static]
This resets all RTC registers except for the SWR bit and the RTC_WAR and RTC_RAR registers. The
SWR bit is cleared by software explicitly clearing it.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
883
Function Documentation
Parameters
base RTC peripheral base address
884
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 42
SAI: Serial Audio Interface
42.1 Overview
The KSDK provides a peripheral driver for the Serial Audio Interface (SAI) module of Kinetis devices.
42.2 Overview
SAI driver includes functional APIs and transactional APIs.
Functional APIs are feature/property target low level APIs. Functional APIs can be used for SAI initial-
ization/configuration/operation for optimization/customization purpose. Using the functional API requires
the knowledge of the SAI peripheral and how to organize functional APIs to meet the application require-
ments. All functional API use the peripheral base address as the first parameter. SAI functional operation
groups provide the functional API set.
Transactional APIs are transaction target high level APIs. Transactional APIs can be used to enable the
peripheral and in the application if the code size and performance of transactional APIs satisfy the require-
ments. If the code size and performance are a critical requirement, see the transactional API implementa-
tion and write a custom code. All transactional APIs use the sai_handle_t as the first parameter. Initialize
the handle by calling the SAI_TransferTxCreateHandle() or SAI_TransferRxCreateHandle() API.
Transactional APIs support asynchronous transfer. This means that the functions SAI_TransferSendNon-
Blocking() and SAI_TransfferReceiveNonBlocking() set up the interrupt for data transfer. When the trans-
fer completes, the upper layer is notified through a callback function with the kStatus_SAI_TxIdle and
kStatus_SAI_RxIdle status.
42.3 Typical use case
42.3.1 SAI Send/Receive using an interrupt method
sai_handle_t g_saiTxHandle;
sai_config_t user_config;
sai_transfer_t sendXfer;
volatile bool txFinished;
volatile bool rxFinished;
const uint8_t sendData[] = [......];
void SAI_UserCallback(sai_handle_t *handle, status_t status, void *userData)
{
userData = userData;
if (kStatus_SAI_TxIdle == status)
{
txFinished = true;
}
}
void main(void)
{
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
885
Typical use case
//...
SAI_TxGetDefaultConfig(&user_config);
SAI_TxInit(SAI0, &user_config);
SAI_TransferTxCreateHandle(SAI0, &g_saiHandle, SAI_UserCallback, NULL);
//Configure sai format
SAI_TransferTxSetTransferFormat(SAI0, &g_saiHandle, mclkSource, mclk);
// Prepare to send.
sendXfer.data = sendData
sendXfer.dataSize =sizeof(sendData)/sizeof(sendData[0]);
txFinished = false;
// Send out.
SAI_TransferSendNonBlocking(SAI0, &g_saiHandle, &sendXfer);
// Wait send finished.
while (!txFinished)
{
}
// ...
}
42.3.2 SAI Send/receive using a DMA method
sai_handle_t g_saiHandle;
dma_handle_t g_saiTxDmaHandle;
dma_handle_t g_saiRxDmaHandle;
sai_config_t user_config;
sai_transfer_t sendXfer;
volatile bool txFinished;
uint8_t sendData[] = ...;
void SAI_UserCallback(sai_handle_t *handle, status_t status, void *userData)
{
userData = userData;
if (kStatus_SAI_TxIdle == status)
{
txFinished = true;
}
}
void main(void)
{
//...
SAI_TxGetDefaultConfig(&user_config);
SAI_TxInit(SAI0, &user_config);
// Sets up the DMA.
DMAMUX_Init(DMAMUX0);
DMAMUX_SetSource(DMAMUX0, SAI_TX_DMA_CHANNEL, SAI_TX_DMA_REQUEST);
DMAMUX_EnableChannel(DMAMUX0, SAI_TX_DMA_CHANNEL);
DMA_Init(DMA0);
/*Creates the DMA handle.
DMA_CreateHandle(&g_saiTxDmaHandle, DMA0, SAI_TX_DMA_CHANNEL);
SAI_TransferTxCreateHandleDMA(SAI0, &g_saiTxDmaHandle, SAI_UserCallback, NULL);
886
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
// Prepares to send.
sendXfer.data = sendData
sendXfer.dataSize = sizeof(sendData)/sizeof(sendData[0]);
txFinished = false;
// Sends out.
SAI_TransferSendDMA(&g_saiHandle, &sendXfer);
// Waits for send to complete.
while (!txFinished)
{
}
// ...
}
Modules
•SAI DMA Driver
•SAI eDMA Driver
Files
• file fsl_sai.h
Data Structures
• struct sai_config_t
SAI user configure structure. More...
• struct sai_transfer_format_t
sai transfer format More...
• struct sai_transfer_t
SAI transfer structure. More...
• struct sai_handle_t
SAI handle structure. More...
Macros
• #define SAI_XFER_QUEUE_SIZE (4)
SAI transfer queue size, user can refine it according to use case.
Typedefs
• typedef void(∗sai_transfer_callback_t )(I2S_Type ∗base, sai_handle_t ∗handle, status_t status, void
∗userData)
SAI transfer callback prototype.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
887
Typical use case
Enumerations
• enum _sai_status_t {
kStatus_SAI_TxBusy = MAKE_STATUS(kStatusGroup_SAI, 0),
kStatus_SAI_RxBusy = MAKE_STATUS(kStatusGroup_SAI, 1),
kStatus_SAI_TxError = MAKE_STATUS(kStatusGroup_SAI, 2),
kStatus_SAI_RxError = MAKE_STATUS(kStatusGroup_SAI, 3),
kStatus_SAI_QueueFull = MAKE_STATUS(kStatusGroup_SAI, 4),
kStatus_SAI_TxIdle = MAKE_STATUS(kStatusGroup_SAI, 5),
kStatus_SAI_RxIdle = MAKE_STATUS(kStatusGroup_SAI, 6) }
SAI return status.
• enum sai_protocol_t {
kSAI_BusLeftJustified = 0x0U,
kSAI_BusRightJustified,
kSAI_BusI2S,
kSAI_BusPCMA,
kSAI_BusPCMB }
Define the SAI bus type.
• enum sai_master_slave_t {
kSAI_Master = 0x0U,
kSAI_Slave = 0x1U }
Master or slave mode.
• enum sai_mono_stereo_t {
kSAI_Stereo = 0x0U,
kSAI_MonoLeft,
kSAI_MonoRight }
Mono or stereo audio format.
• enum sai_sync_mode_t {
kSAI_ModeAsync = 0x0U,
kSAI_ModeSync,
kSAI_ModeSyncWithOtherTx,
kSAI_ModeSyncWithOtherRx }
Synchronous or asynchronous mode.
• enum sai_mclk_source_t {
kSAI_MclkSourceSysclk = 0x0U,
kSAI_MclkSourceSelect1,
kSAI_MclkSourceSelect2,
kSAI_MclkSourceSelect3 }
Mater clock source.
• enum sai_bclk_source_t {
kSAI_BclkSourceBusclk = 0x0U,
kSAI_BclkSourceMclkDiv,
kSAI_BclkSourceOtherSai0,
kSAI_BclkSourceOtherSai1 }
Bit clock source.
• enum _sai_interrupt_enable_t {
888
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
kSAI_WordStartInterruptEnable,
kSAI_SyncErrorInterruptEnable = I2S_TCSR_SEIE_MASK,
kSAI_FIFOWarningInterruptEnable = I2S_TCSR_FWIE_MASK,
kSAI_FIFOErrorInterruptEnable = I2S_TCSR_FEIE_MASK }
The SAI interrupt enable flag.
• enum _sai_dma_enable_t {kSAI_FIFOWarningDMAEnable = I2S_TCSR_FWDE_MASK }
The DMA request sources.
• enum _sai_flags {
kSAI_WordStartFlag = I2S_TCSR_WSF_MASK,
kSAI_SyncErrorFlag = I2S_TCSR_SEF_MASK,
kSAI_FIFOErrorFlag = I2S_TCSR_FEF_MASK,
kSAI_FIFOWarningFlag = I2S_TCSR_FWF_MASK }
The SAI status flag.
• enum sai_reset_type_t {
kSAI_ResetTypeSoftware = I2S_TCSR_SR_MASK,
kSAI_ResetTypeFIFO = I2S_TCSR_FR_MASK,
kSAI_ResetAll = I2S_TCSR_SR_MASK |I2S_TCSR_FR_MASK }
The reset type.
• enum sai_sample_rate_t {
kSAI_SampleRate8KHz = 8000U,
kSAI_SampleRate11025Hz = 11025U,
kSAI_SampleRate12KHz = 12000U,
kSAI_SampleRate16KHz = 16000U,
kSAI_SampleRate22050Hz = 22050U,
kSAI_SampleRate24KHz = 24000U,
kSAI_SampleRate32KHz = 32000U,
kSAI_SampleRate44100Hz = 44100U,
kSAI_SampleRate48KHz = 48000U,
kSAI_SampleRate96KHz = 96000U }
Audio sample rate.
• enum sai_word_width_t {
kSAI_WordWidth8bits = 8U,
kSAI_WordWidth16bits = 16U,
kSAI_WordWidth24bits = 24U,
kSAI_WordWidth32bits = 32U }
Audio word width.
Driver version
• #define FSL_SAI_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
Version 2.1.0.
Initialization and deinitialization
• void SAI_TxInit (I2S_Type ∗base, const sai_config_t ∗config)
Initializes the SAI Tx peripheral.
• void SAI_RxInit (I2S_Type ∗base, const sai_config_t ∗config)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
889
Typical use case
Initializes the the SAI Rx peripheral.
• void SAI_TxGetDefaultConfig (sai_config_t ∗config)
Sets the SAI Tx configuration structure to default values.
• void SAI_RxGetDefaultConfig (sai_config_t ∗config)
Sets the SAI Rx configuration structure to default values.
• void SAI_Deinit (I2S_Type ∗base)
De-initializes the SAI peripheral.
• void SAI_TxReset (I2S_Type ∗base)
Resets the SAI Tx.
• void SAI_RxReset (I2S_Type ∗base)
Resets the SAI Rx.
• void SAI_TxEnable (I2S_Type ∗base, bool enable)
Enables/disables SAI Tx.
• void SAI_RxEnable (I2S_Type ∗base, bool enable)
Enables/disables SAI Rx.
Status
• static uint32_t SAI_TxGetStatusFlag (I2S_Type ∗base)
Gets the SAI Tx status flag state.
• static void SAI_TxClearStatusFlags (I2S_Type ∗base, uint32_t mask)
Clears the SAI Tx status flag state.
• static uint32_t SAI_RxGetStatusFlag (I2S_Type ∗base)
Gets the SAI Tx status flag state.
• static void SAI_RxClearStatusFlags (I2S_Type ∗base, uint32_t mask)
Clears the SAI Rx status flag state.
Interrupts
• static void SAI_TxEnableInterrupts (I2S_Type ∗base, uint32_t mask)
Enables SAI Tx interrupt requests.
• static void SAI_RxEnableInterrupts (I2S_Type ∗base, uint32_t mask)
Enables SAI Rx interrupt requests.
• static void SAI_TxDisableInterrupts (I2S_Type ∗base, uint32_t mask)
Disables SAI Tx interrupt requests.
• static void SAI_RxDisableInterrupts (I2S_Type ∗base, uint32_t mask)
Disables SAI Rx interrupt requests.
DMA Control
• static void SAI_TxEnableDMA (I2S_Type ∗base, uint32_t mask, bool enable)
Enables/disables SAI Tx DMA requests.
• static void SAI_RxEnableDMA (I2S_Type ∗base, uint32_t mask, bool enable)
Enables/disables SAI Rx DMA requests.
• static uint32_t SAI_TxGetDataRegisterAddress (I2S_Type ∗base, uint32_t channel)
Gets the SAI Tx data register address.
• static uint32_t SAI_RxGetDataRegisterAddress (I2S_Type ∗base, uint32_t channel)
Gets the SAI Rx data register address.
890
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
Bus Operations
• void SAI_TxSetFormat (I2S_Type ∗base, sai_transfer_format_t ∗format, uint32_t mclkSource-
ClockHz, uint32_t bclkSourceClockHz)
Configures the SAI Tx audio format.
• void SAI_RxSetFormat (I2S_Type ∗base, sai_transfer_format_t ∗format, uint32_t mclkSource-
ClockHz, uint32_t bclkSourceClockHz)
Configures the SAI Rx audio format.
• void SAI_WriteBlocking (I2S_Type ∗base, uint32_t channel, uint32_t bitWidth, uint8_t ∗buffer,
uint32_t size)
Sends data using a blocking method.
• static void SAI_WriteData (I2S_Type ∗base, uint32_t channel, uint32_t data)
Writes data into SAI FIFO.
• void SAI_ReadBlocking (I2S_Type ∗base, uint32_t channel, uint32_t bitWidth, uint8_t ∗buffer,
uint32_t size)
Receives data using a blocking method.
• static uint32_t SAI_ReadData (I2S_Type ∗base, uint32_t channel)
Reads data from SAI FIFO.
Transactional
• void SAI_TransferTxCreateHandle (I2S_Type ∗base, sai_handle_t ∗handle, sai_transfer_callback_t
callback, void ∗userData)
Initializes the SAI Tx handle.
• void SAI_TransferRxCreateHandle (I2S_Type ∗base, sai_handle_t ∗handle, sai_transfer_callback_t
callback, void ∗userData)
Initializes the SAI Rx handle.
• status_t SAI_TransferTxSetFormat (I2S_Type ∗base, sai_handle_t ∗handle, sai_transfer_format_t
∗format, uint32_t mclkSourceClockHz, uint32_t bclkSourceClockHz)
Configures the SAI Tx audio format.
• status_t SAI_TransferRxSetFormat (I2S_Type ∗base, sai_handle_t ∗handle, sai_transfer_format_t
∗format, uint32_t mclkSourceClockHz, uint32_t bclkSourceClockHz)
Configures the SAI Rx audio format.
• status_t SAI_TransferSendNonBlocking (I2S_Type ∗base, sai_handle_t ∗handle, sai_transfer_-
t∗xfer)
Performs an interrupt non-blocking send transfer on SAI.
• status_t SAI_TransferReceiveNonBlocking (I2S_Type ∗base, sai_handle_t ∗handle, sai_transfer_t
∗xfer)
Performs an interrupt non-blocking receive transfer on SAI.
• status_t SAI_TransferGetSendCount (I2S_Type ∗base, sai_handle_t ∗handle, size_t ∗count)
Gets a set byte count.
• status_t SAI_TransferGetReceiveCount (I2S_Type ∗base, sai_handle_t ∗handle, size_t ∗count)
Gets a received byte count.
• void SAI_TransferAbortSend (I2S_Type ∗base, sai_handle_t ∗handle)
Aborts the current send.
• void SAI_TransferAbortReceive (I2S_Type ∗base, sai_handle_t ∗handle)
Aborts the the current IRQ receive.
• void SAI_TransferTxHandleIRQ (I2S_Type ∗base, sai_handle_t ∗handle)
Tx interrupt handler.
• void SAI_TransferRxHandleIRQ (I2S_Type ∗base, sai_handle_t ∗handle)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
891
Data Structure Documentation
Tx interrupt handler.
42.4 Data Structure Documentation
42.4.1 struct sai_config_t
Data Fields
•sai_protocol_t protocol
Audio bus protocol in SAI.
•sai_sync_mode_t syncMode
SAI sync mode, control Tx/Rx clock sync.
•sai_mclk_source_t mclkSource
Master Clock source.
•sai_bclk_source_t bclkSource
Bit Clock source.
•sai_master_slave_t masterSlave
Master or slave.
42.4.2 struct sai_transfer_format_t
Data Fields
• uint32_t sampleRate_Hz
Sample rate of audio data.
• uint32_t bitWidth
Data length of audio data, usually 8/16/24/32bits.
•sai_mono_stereo_t stereo
Mono or stereo.
• uint32_t masterClockHz
Master clock frequency in Hz.
• uint8_t channel
Data channel used in transfer.
•sai_protocol_t protocol
Which audio protocol used.
42.4.2.0.0.18 Field Documentation
42.4.2.0.0.18.1 uint8_t sai_transfer_format_t::channel
42.4.3 struct sai_transfer_t
Data Fields
• uint8_t ∗data
Data start address to transfer.
• size_t dataSize
892
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
Transfer size.
42.4.3.0.0.19 Field Documentation
42.4.3.0.0.19.1 uint8_t∗sai_transfer_t::data
42.4.3.0.0.19.2 size_t sai_transfer_t::dataSize
42.4.4 struct _sai_handle
Data Fields
• uint32_t state
Transfer status.
•sai_transfer_callback_t callback
Callback function called at transfer event.
• void ∗userData
Callback parameter passed to callback function.
• uint8_t bitWidth
Bit width for transfer, 8/16/24/32bits.
• uint8_t channel
Transfer channel.
•sai_transfer_t saiQueue [SAI_XFER_QUEUE_SIZE]
Transfer queue storing queued transfer.
• size_t transferSize [SAI_XFER_QUEUE_SIZE]
Data bytes need to transfer.
• volatile uint8_t queueUser
Index for user to queue transfer.
• volatile uint8_t queueDriver
Index for driver to get the transfer data and size.
42.5 Macro Definition Documentation
42.5.1 #define SAI_XFER_QUEUE_SIZE (4)
42.6 Enumeration Type Documentation
42.6.1 enum _sai_status_t
Enumerator
kStatus_SAI_TxBusy SAI Tx is busy.
kStatus_SAI_RxBusy SAI Rx is busy.
kStatus_SAI_TxError SAI Tx FIFO error.
kStatus_SAI_RxError SAI Rx FIFO error.
kStatus_SAI_QueueFull SAI transfer queue is full.
kStatus_SAI_TxIdle SAI Tx is idle.
kStatus_SAI_RxIdle SAI Rx is idle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
893
Enumeration Type Documentation
42.6.2 enum sai_protocol_t
Enumerator
kSAI_BusLeftJustified Uses left justified format.
kSAI_BusRightJustified Uses right justified format.
kSAI_BusI2S Uses I2S format.
kSAI_BusPCMA Uses I2S PCM A format.
kSAI_BusPCMB Uses I2S PCM B format.
42.6.3 enum sai_master_slave_t
Enumerator
kSAI_Master Master mode.
kSAI_Slave Slave mode.
42.6.4 enum sai_mono_stereo_t
Enumerator
kSAI_Stereo Stereo sound.
kSAI_MonoLeft Only left channel have sound.
kSAI_MonoRight Only Right channel have sound.
42.6.5 enum sai_sync_mode_t
Enumerator
kSAI_ModeAsync Asynchronous mode.
kSAI_ModeSync Synchronous mode (with receiver or transmit)
kSAI_ModeSyncWithOtherTx Synchronous with another SAI transmit.
kSAI_ModeSyncWithOtherRx Synchronous with another SAI receiver.
42.6.6 enum sai_mclk_source_t
Enumerator
kSAI_MclkSourceSysclk Master clock from the system clock.
kSAI_MclkSourceSelect1 Master clock from source 1.
kSAI_MclkSourceSelect2 Master clock from source 2.
kSAI_MclkSourceSelect3 Master clock from source 3.
894
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
42.6.7 enum sai_bclk_source_t
Enumerator
kSAI_BclkSourceBusclk Bit clock using bus clock.
kSAI_BclkSourceMclkDiv Bit clock using master clock divider.
kSAI_BclkSourceOtherSai0 Bit clock from other SAI device.
kSAI_BclkSourceOtherSai1 Bit clock from other SAI device.
42.6.8 enum _sai_interrupt_enable_t
Enumerator
kSAI_WordStartInterruptEnable Word start flag, means the first word in a frame detected.
kSAI_SyncErrorInterruptEnable Sync error flag, means the sync error is detected.
kSAI_FIFOWarningInterruptEnable FIFO warning flag, means the FIFO is empty.
kSAI_FIFOErrorInterruptEnable FIFO error flag.
42.6.9 enum _sai_dma_enable_t
Enumerator
kSAI_FIFOWarningDMAEnable FIFO warning caused by the DMA request.
42.6.10 enum _sai_flags
Enumerator
kSAI_WordStartFlag Word start flag, means the first word in a frame detected.
kSAI_SyncErrorFlag Sync error flag, means the sync error is detected.
kSAI_FIFOErrorFlag FIFO error flag.
kSAI_FIFOWarningFlag FIFO warning flag.
42.6.11 enum sai_reset_type_t
Enumerator
kSAI_ResetTypeSoftware Software reset, reset the logic state.
kSAI_ResetTypeFIFO FIFO reset, reset the FIFO read and write pointer.
kSAI_ResetAll All reset.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
895
Function Documentation
42.6.12 enum sai_sample_rate_t
Enumerator
kSAI_SampleRate8KHz Sample rate 8000Hz.
kSAI_SampleRate11025Hz Sample rate 11025Hz.
kSAI_SampleRate12KHz Sample rate 12000Hz.
kSAI_SampleRate16KHz Sample rate 16000Hz.
kSAI_SampleRate22050Hz Sample rate 22050Hz.
kSAI_SampleRate24KHz Sample rate 24000Hz.
kSAI_SampleRate32KHz Sample rate 32000Hz.
kSAI_SampleRate44100Hz Sample rate 44100Hz.
kSAI_SampleRate48KHz Sample rate 48000Hz.
kSAI_SampleRate96KHz Sample rate 96000Hz.
42.6.13 enum sai_word_width_t
Enumerator
kSAI_WordWidth8bits Audio data width 8 bits.
kSAI_WordWidth16bits Audio data width 16 bits.
kSAI_WordWidth24bits Audio data width 24 bits.
kSAI_WordWidth32bits Audio data width 32 bits.
42.7 Function Documentation
42.7.1 void SAI_TxInit ( I2S_Type ∗base, const sai_config_t ∗config )
Ungates the SAI clock, resets the module, and configures SAI Tx with a configuration structure. The
configuration structure can be custom filled or set with default values by SAI_TxGetDefaultConfig().
Note
This API should be called at the beginning of the application to use the SAI driver. Otherwise,
accessing the SAIM module can cause a hard fault because the clock is not enabled.
Parameters
base SAI base pointer
896
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
config SAI configure structure.
42.7.2 void SAI_RxInit ( I2S_Type ∗base, const sai_config_t ∗config )
Ungates the SAI clock, resets the module, and configures the SAI Rx with a configuration structure. The
configuration structure can be custom filled or set with default values by SAI_RxGetDefaultConfig().
Note
This API should be called at the beginning of the application to use the SAI driver. Otherwise,
accessing the SAI module can cause a hard fault because the clock is not enabled.
Parameters
base SAI base pointer
config SAI configure structure.
42.7.3 void SAI_TxGetDefaultConfig ( sai_config_t ∗config )
This API initializes the configuration structure for use in SAI_TxConfig(). The initialized structure can
remain unchanged in SAI_TxConfig(), or it can be modified before calling SAI_TxConfig(). Example:
sai_config_t config;
SAI_TxGetDefaultConfig(&config);
Parameters
config pointer to master configuration structure
42.7.4 void SAI_RxGetDefaultConfig ( sai_config_t ∗config )
This API initializes the configuration structure for use in SAI_RxConfig(). The initialized structure can
remain unchanged in SAI_RxConfig() or it can be modified before calling SAI_RxConfig(). Example:
sai_config_t config;
SAI_RxGetDefaultConfig(&config);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
897
Function Documentation
Parameters
config pointer to master configuration structure
42.7.5 void SAI_Deinit ( I2S_Type ∗base )
This API gates the SAI clock. The SAI module can’t operate unless SAI_TxInit or SAI_RxInit is called
to enable the clock.
Parameters
base SAI base pointer
42.7.6 void SAI_TxReset ( I2S_Type ∗base )
This function enables the software reset and FIFO reset of SAI Tx. After reset, clear the reset bit.
Parameters
base SAI base pointer
42.7.7 void SAI_RxReset ( I2S_Type ∗base )
This function enables the software reset and FIFO reset of SAI Rx. After reset, clear the reset bit.
Parameters
base SAI base pointer
42.7.8 void SAI_TxEnable ( I2S_Type ∗base, bool enable )
Parameters
base SAI base pointer
898
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
enable True means enable SAI Tx, false means disable.
42.7.9 void SAI_RxEnable ( I2S_Type ∗base, bool enable )
Parameters
base SAI base pointer
enable True means enable SAI Rx, false means disable.
42.7.10 static uint32_t SAI_TxGetStatusFlag ( I2S_Type ∗base )[inline],
[static]
Parameters
base SAI base pointer
Returns
SAI Tx status flag value. Use the Status Mask to get the status value needed.
42.7.11 static void SAI_TxClearStatusFlags ( I2S_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base SAI base pointer
mask State mask. It can be a combination of the following source if defined:
• kSAI_WordStartFlag
• kSAI_SyncErrorFlag
• kSAI_FIFOErrorFlag
42.7.12 static uint32_t SAI_RxGetStatusFlag ( I2S_Type ∗base )[inline],
[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
899
Function Documentation
Parameters
base SAI base pointer
Returns
SAI Rx status flag value. Use the Status Mask to get the status value needed.
42.7.13 static void SAI_RxClearStatusFlags ( I2S_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base SAI base pointer
mask State mask. It can be a combination of the following source if defined:
• kSAI_WordStartFlag
• kSAI_SyncErrorFlag
• kSAI_FIFOErrorFlag
42.7.14 static void SAI_TxEnableInterrupts ( I2S_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base SAI base pointer
mask interrupt source The parameter can be a combination of the following source if
defined:
• kSAI_WordStartInterruptEnable
• kSAI_SyncErrorInterruptEnable
• kSAI_FIFOWarningInterruptEnable
• kSAI_FIFORequestInterruptEnable
• kSAI_FIFOErrorInterruptEnable
42.7.15 static void SAI_RxEnableInterrupts ( I2S_Type ∗base, uint32_t mask )
[inline],[static]
900
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base SAI base pointer
mask interrupt source The parameter can be a combination of the following source if
defined:
• kSAI_WordStartInterruptEnable
• kSAI_SyncErrorInterruptEnable
• kSAI_FIFOWarningInterruptEnable
• kSAI_FIFORequestInterruptEnable
• kSAI_FIFOErrorInterruptEnable
42.7.16 static void SAI_TxDisableInterrupts ( I2S_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base SAI base pointer
mask interrupt source The parameter can be a combination of the following source if
defined:
• kSAI_WordStartInterruptEnable
• kSAI_SyncErrorInterruptEnable
• kSAI_FIFOWarningInterruptEnable
• kSAI_FIFORequestInterruptEnable
• kSAI_FIFOErrorInterruptEnable
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
901
Function Documentation
42.7.17 static void SAI_RxDisableInterrupts ( I2S_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base SAI base pointer
mask interrupt source The parameter can be a combination of the following source if
defined:
• kSAI_WordStartInterruptEnable
• kSAI_SyncErrorInterruptEnable
• kSAI_FIFOWarningInterruptEnable
• kSAI_FIFORequestInterruptEnable
• kSAI_FIFOErrorInterruptEnable
42.7.18 static void SAI_TxEnableDMA ( I2S_Type ∗base, uint32_t mask, bool
enable )[inline],[static]
Parameters
base SAI base pointer
mask DMA source The parameter can be combination of the following source if defined:
• kSAI_FIFOWarningDMAEnable
• kSAI_FIFORequestDMAEnable
enable True means enable DMA, false means disable DMA.
42.7.19 static void SAI_RxEnableDMA ( I2S_Type ∗base, uint32_t mask, bool
enable )[inline],[static]
Parameters
base SAI base pointer
mask DMA source The parameter can be a combination of the following source if defined:
• kSAI_FIFOWarningDMAEnable
• kSAI_FIFORequestDMAEnable
enable True means enable DMA, false means disable DMA.
902
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
42.7.20 static uint32_t SAI_TxGetDataRegisterAddress ( I2S_Type ∗base, uint32_t
channel )[inline],[static]
This API is used to provide a transfer address for SAI DMA transfer configuration.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
903
Function Documentation
Parameters
base SAI base pointer.
channel Which data channel used.
Returns
data register address.
42.7.21 static uint32_t SAI_RxGetDataRegisterAddress ( I2S_Type ∗base, uint32_t
channel )[inline],[static]
This API is used to provide a transfer address for SAI DMA transfer configuration.
Parameters
base SAI base pointer.
channel Which data channel used.
Returns
data register address.
42.7.22 void SAI_TxSetFormat ( I2S_Type ∗base, sai_transfer_format_t ∗format,
uint32_t mclkSourceClockHz, uint32_t bclkSourceClockHz )
The audio format can be changed at run-time. This function configures the sample rate and audio data
format to be transferred.
Parameters
base SAI base pointer.
format Pointer to SAI audio data format structure.
mclkSource-
ClockHz
SAI master clock source frequency in Hz.
904
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
bclkSource-
ClockHz
SAI bit clock source frequency in Hz. If bit clock source is master clock, this value
should equals to masterClockHz in format.
42.7.23 void SAI_RxSetFormat ( I2S_Type ∗base, sai_transfer_format_t ∗format,
uint32_t mclkSourceClockHz, uint32_t bclkSourceClockHz )
The audio format can be changed at run-time. This function configures the sample rate and audio data
format to be transferred.
Parameters
base SAI base pointer.
format Pointer to SAI audio data format structure.
mclkSource-
ClockHz
SAI master clock source frequency in Hz.
bclkSource-
ClockHz
SAI bit clock source frequency in Hz. If bit clock source is master clock, this value
should equals to masterClockHz in format.
42.7.24 void SAI_WriteBlocking ( I2S_Type ∗base, uint32_t channel, uint32_t
bitWidth, uint8_t ∗buffer, uint32_t size )
Note
This function blocks by polling until data is ready to be sent.
Parameters
base SAI base pointer.
channel Data channel used.
bitWidth How many bits in a audio word, usually 8/16/24/32 bits.
buffer Pointer to the data to be written.
size Bytes to be written.
42.7.25 static void SAI_WriteData ( I2S_Type ∗base, uint32_t channel, uint32_t
data )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
905
Function Documentation
Parameters
base SAI base pointer.
channel Data channel used.
data Data needs to be written.
42.7.26 void SAI_ReadBlocking ( I2S_Type ∗base, uint32_t channel, uint32_t
bitWidth, uint8_t ∗buffer, uint32_t size )
Note
This function blocks by polling until data is ready to be sent.
Parameters
base SAI base pointer.
channel Data channel used.
bitWidth How many bits in a audio word, usually 8/16/24/32 bits.
buffer Pointer to the data to be read.
size Bytes to be read.
42.7.27 static uint32_t SAI_ReadData ( I2S_Type ∗base, uint32_t channel )
[inline],[static]
Parameters
base SAI base pointer.
channel Data channel used.
Returns
Data in SAI FIFO.
42.7.28 void SAI_TransferTxCreateHandle ( I2S_Type ∗base, sai_handle_t ∗
handle, sai_transfer_callback_t callback, void ∗userData )
This function initializes the Tx handle for SAI Tx transactional APIs. Call this function one time to get
the handle initialized.
906
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base SAI base pointer
handle SAI handle pointer.
callback pointer to user callback function
userData user parameter passed to the callback function
42.7.29 void SAI_TransferRxCreateHandle ( I2S_Type ∗base, sai_handle_t ∗
handle, sai_transfer_callback_t callback, void ∗userData )
This function initializes the Rx handle for SAI Rx transactional APIs. Call this function one time to get
the handle initialized.
Parameters
base SAI base pointer.
handle SAI handle pointer.
callback pointer to user callback function
userData user parameter passed to the callback function
42.7.30 status_t SAI_TransferTxSetFormat ( I2S_Type ∗base, sai_handle_t ∗
handle, sai_transfer_format_t ∗format, uint32_t mclkSourceClockHz,
uint32_t bclkSourceClockHz )
The audio format can be changed at run-time. This function configures the sample rate and audio data
format to be transferred.
Parameters
base SAI base pointer.
handle SAI handle pointer.
format Pointer to SAI audio data format structure.
mclkSource-
ClockHz
SAI master clock source frequency in Hz.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
907
Function Documentation
bclkSource-
ClockHz
SAI bit clock source frequency in Hz. If a bit clock source is a master clock, this
value should equal to masterClockHz in format.
Returns
Status of this function. Return value is one of status_t.
42.7.31 status_t SAI_TransferRxSetFormat ( I2S_Type ∗base, sai_handle_t ∗
handle, sai_transfer_format_t ∗format, uint32_t mclkSourceClockHz,
uint32_t bclkSourceClockHz )
The audio format can be changed at run-time. This function configures the sample rate and audio data
format to be transferred.
Parameters
base SAI base pointer.
handle SAI handle pointer.
format Pointer to SAI audio data format structure.
mclkSource-
ClockHz
SAI master clock source frequency in Hz.
bclkSource-
ClockHz
SAI bit clock source frequency in Hz. If bit clock source is master clock, this value
should equals to masterClockHz in format.
Returns
Status of this function. Return value is one of status_t.
42.7.32 status_t SAI_TransferSendNonBlocking ( I2S_Type ∗base, sai_handle_t ∗
handle, sai_transfer_t ∗xfer )
Note
This API returns immediately after the transfer initiates. Call the SAI_TxGetTransferStatusIRQ to
poll the transfer status and check whether the transfer is finished. If the return status is not kStatus_-
SAI_Busy, the transfer is finished.
908
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base SAI base pointer
handle pointer to sai_handle_t structure which stores the transfer state
xfer pointer to sai_transfer_t structure
Return values
kStatus_Success Successfully started the data receive.
kStatus_SAI_TxBusy Previous receive still not finished.
kStatus_InvalidArgument The input parameter is invalid.
42.7.33 status_t SAI_TransferReceiveNonBlocking ( I2S_Type ∗base, sai_handle_t
∗handle, sai_transfer_t ∗xfer )
Note
This API returns immediately after the transfer initiates. Call the SAI_RxGetTransferStatusIRQ to
poll the transfer status and check whether the transfer is finished. If the return status is not kStatus_-
SAI_Busy, the transfer is finished.
Parameters
base SAI base pointer
handle pointer to sai_handle_t structure which stores the transfer state
xfer pointer to sai_transfer_t structure
Return values
kStatus_Success Successfully started the data receive.
kStatus_SAI_RxBusy Previous receive still not finished.
kStatus_InvalidArgument The input parameter is invalid.
42.7.34 status_t SAI_TransferGetSendCount ( I2S_Type ∗base, sai_handle_t ∗
handle, size_t ∗count )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
909
Function Documentation
Parameters
base SAI base pointer.
handle pointer to sai_handle_t structure which stores the transfer state.
count Bytes count sent.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
42.7.35 status_t SAI_TransferGetReceiveCount ( I2S_Type ∗base, sai_handle_t ∗
handle, size_t ∗count )
Parameters
base SAI base pointer.
handle pointer to sai_handle_t structure which stores the transfer state.
count Bytes count received.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
42.7.36 void SAI_TransferAbortSend ( I2S_Type ∗base, sai_handle_t ∗handle )
Note
This API can be called any time when an interrupt non-blocking transfer initiates to abort the transfer
early.
910
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base SAI base pointer.
handle pointer to sai_handle_t structure which stores the transfer state.
42.7.37 void SAI_TransferAbortReceive ( I2S_Type ∗base, sai_handle_t ∗handle )
Note
This API can be called any time when an interrupt non-blocking transfer initiates to abort the transfer
early.
Parameters
base SAI base pointer
handle pointer to sai_handle_t structure which stores the transfer state.
42.7.38 void SAI_TransferTxHandleIRQ ( I2S_Type ∗base, sai_handle_t ∗handle )
Parameters
base SAI base pointer.
handle pointer to sai_handle_t structure.
42.7.39 void SAI_TransferRxHandleIRQ ( I2S_Type ∗base, sai_handle_t ∗handle )
Parameters
base SAI base pointer.
handle pointer to sai_handle_t structure.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
911
SAI DMA Driver
42.8 SAI DMA Driver
42.8.1 Overview
Files
• file fsl_sai_dma.h
Data Structures
• struct sai_dma_handle_t
SAI DMA transfer handle, users should not touch the content of the handle. More...
Typedefs
• typedef void(∗sai_dma_callback_t )(I2S_Type ∗base, sai_dma_handle_t ∗handle, status_t status,
void ∗userData)
Define SAI DMA callback.
DMA Transactional
• void SAI_TransferTxCreateHandleDMA (I2S_Type ∗base, sai_dma_handle_t ∗handle, sai_dma_-
callback_t callback, void ∗userData, dma_handle_t ∗dmaHandle)
Initializes the SAI master DMA handle.
• void SAI_TransferRxCreateHandleDMA (I2S_Type ∗base, sai_dma_handle_t ∗handle, sai_dma_-
callback_t callback, void ∗userData, dma_handle_t ∗dmaHandle)
Initializes the SAI slave DMA handle.
• void SAI_TransferTxSetFormatDMA (I2S_Type ∗base, sai_dma_handle_t ∗handle, sai_transfer_-
format_t ∗format, uint32_t mclkSourceClockHz, uint32_t bclkSourceClockHz)
Configures the SAI Tx audio format.
• void SAI_TransferRxSetFormatDMA (I2S_Type ∗base, sai_dma_handle_t ∗handle, sai_transfer_-
format_t ∗format, uint32_t mclkSourceClockHz, uint32_t bclkSourceClockHz)
Configures the SAI Rx audio format.
• status_t SAI_TransferSendDMA (I2S_Type ∗base, sai_dma_handle_t ∗handle, sai_transfer_t ∗xfer)
Performs a non-blocking SAI transfer using DMA.
• status_t SAI_TransferReceiveDMA (I2S_Type ∗base, sai_dma_handle_t ∗handle, sai_transfer_-
t∗xfer)
Performs a non-blocking SAI transfer using DMA.
• void SAI_TransferAbortSendDMA (I2S_Type ∗base, sai_dma_handle_t ∗handle)
Aborts a SAI transfer using DMA.
• void SAI_TransferAbortReceiveDMA (I2S_Type ∗base, sai_dma_handle_t ∗handle)
Aborts a SAI transfer using DMA.
• status_t SAI_TransferGetSendCountDMA (I2S_Type ∗base, sai_dma_handle_t ∗handle, size_-
t∗count)
Gets byte count sent by SAI.
912
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SAI DMA Driver
• status_t SAI_TransferGetReceiveCountDMA (I2S_Type ∗base, sai_dma_handle_t ∗handle, size_t
∗count)
Gets byte count received by SAI.
42.8.2 Data Structure Documentation
42.8.2.1 struct _sai_dma_handle
Data Fields
•dma_handle_t ∗dmaHandle
DMA handler for SAI send.
• uint8_t bytesPerFrame
Bytes in a frame.
• uint8_t channel
Which Data channel SAI use.
• uint32_t state
SAI DMA transfer internal state.
•sai_dma_callback_t callback
Callback for users while transfer finish or error occured.
• void ∗userData
User callback parameter.
•sai_transfer_t saiQueue [SAI_XFER_QUEUE_SIZE]
Transfer queue storing queued transfer.
• size_t transferSize [SAI_XFER_QUEUE_SIZE]
Data bytes need to transfer.
• volatile uint8_t queueUser
Index for user to queue transfer.
• volatile uint8_t queueDriver
Index for driver to get the transfer data and size.
42.8.2.1.0.20 Field Documentation
42.8.2.1.0.20.1 sai_transfer_t sai_dma_handle_t::saiQueue[SAI_XFER_QUEUE_SIZE]
42.8.2.1.0.20.2 volatile uint8_t sai_dma_handle_t::queueUser
42.8.3 Function Documentation
42.8.3.1 void SAI_TransferTxCreateHandleDMA ( I2S_Type ∗base, sai_dma_handle_t
∗handle, sai_dma_callback_t callback, void ∗userData, dma_handle_t ∗
dmaHandle )
This function initializes the SAI master DMA handle, which can be used for other SAI master transactional
APIs. Usually, for a specified SAI instance, call this API once to get the initialized handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
913
SAI DMA Driver
Parameters
base SAI base pointer.
handle SAI DMA handle pointer.
base SAI peripheral base address.
callback Pointer to user callback function.
userData User parameter passed to the callback function.
dmaHandle DMA handle pointer, this handle shall be static allocated by users.
42.8.3.2 void SAI_TransferRxCreateHandleDMA ( I2S_Type ∗base, sai_dma_handle_t
∗handle, sai_dma_callback_t callback, void ∗userData, dma_handle_t ∗
dmaHandle )
This function initializes the SAI slave DMA handle, which can be used for other SAI master transactional
APIs. Usually, for a specified SAI instance, call this API once to get the initialized handle.
Parameters
base SAI base pointer.
handle SAI DMA handle pointer.
base SAI peripheral base address.
callback Pointer to user callback function.
userData User parameter passed to the callback function.
dmaHandle DMA handle pointer, this handle shall be static allocated by users.
42.8.3.3 void SAI_TransferTxSetFormatDMA ( I2S_Type ∗base, sai_dma_handle_t ∗
handle, sai_transfer_format_t ∗format, uint32_t mclkSourceClockHz, uint32_t
bclkSourceClockHz )
The audio format can be changed at run-time. This function configures the sample rate and audio data
format to be transferred. This function also sets the eDMA parameter according to the format.
Parameters
base SAI base pointer.
914
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SAI DMA Driver
handle SAI DMA handle pointer.
format Pointer to SAI audio data format structure.
mclkSource-
ClockHz
SAI master clock source frequency in Hz.
bclkSource-
ClockHz
SAI bit clock source frequency in Hz. If bit clock source is master. clock, this value
should equals to masterClockHz in format.
Return values
kStatus_Success Audio format set successfully.
kStatus_InvalidArgument The input arguments is invalid.
42.8.3.4 void SAI_TransferRxSetFormatDMA ( I2S_Type ∗base, sai_dma_handle_t ∗
handle, sai_transfer_format_t ∗format, uint32_t mclkSourceClockHz, uint32_t
bclkSourceClockHz )
The audio format can be changed at run-time. This function configures the sample rate and audio data
format to be transferred. This function also sets EDMA parameter according to format.
Parameters
base SAI base pointer.
handle SAI DMA handle pointer.
format Pointer to SAI audio data format structure.
mclkSource-
ClockHz
SAI master clock source frequency in Hz.
bclkSource-
ClockHz
SAI bit clock source frequency in Hz. If bit clock source is master. clock, this value
should equals to masterClockHz in format.
Return values
kStatus_Success Audio format set successfully.
kStatus_InvalidArgument The input arguments is invalid.
42.8.3.5 status_t SAI_TransferSendDMA ( I2S_Type ∗base, sai_dma_handle_t ∗handle,
sai_transfer_t ∗xfer )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
915
SAI DMA Driver
Note
This interface returns immediately after the transfer initiates. Call the SAI_GetTransferStatus to poll
the transfer status to check whether the SAI transfer finished.
Parameters
base SAI base pointer.
handle SAI DMA handle pointer.
xfer Pointer to DMA transfer structure.
Return values
kStatus_Success Successfully start the data receive.
kStatus_SAI_TxBusy Previous receive still not finished.
kStatus_InvalidArgument The input parameter is invalid.
42.8.3.6 status_t SAI_TransferReceiveDMA ( I2S_Type ∗base, sai_dma_handle_t ∗
handle, sai_transfer_t ∗xfer )
Note
This interface returns immediately after transfer initiates. Call SAI_GetTransferStatus to poll the
transfer status to check whether the SAI transfer is finished.
Parameters
base SAI base pointer
handle SAI DMA handle pointer.
xfer Pointer to DMA transfer structure.
Return values
kStatus_Success Successfully start the data receive.
kStatus_SAI_RxBusy Previous receive still not finished.
kStatus_InvalidArgument The input parameter is invalid.
42.8.3.7 void SAI_TransferAbortSendDMA ( I2S_Type ∗base, sai_dma_handle_t ∗handle
)
916
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SAI DMA Driver
Parameters
base SAI base pointer.
handle SAI DMA handle pointer.
42.8.3.8 void SAI_TransferAbortReceiveDMA ( I2S_Type ∗base, sai_dma_handle_t ∗
handle )
Parameters
base SAI base pointer.
handle SAI DMA handle pointer.
42.8.3.9 status_t SAI_TransferGetSendCountDMA ( I2S_Type ∗base, sai_dma_handle_t
∗handle, size_t ∗count )
Parameters
base SAI base pointer.
handle SAI DMA handle pointer.
count Bytes count sent by SAI.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
42.8.3.10 status_t SAI_TransferGetReceiveCountDMA ( I2S_Type ∗base,
sai_dma_handle_t ∗handle, size_t ∗count )
Parameters
base SAI base pointer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
917
SAI DMA Driver
handle SAI DMA handle pointer.
count Bytes count received by SAI.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
918
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SAI eDMA Driver
42.9 SAI eDMA Driver
42.9.1 Overview
Files
• file fsl_sai_edma.h
Data Structures
• struct sai_edma_handle_t
SAI DMA transfer handle, users should not touch the content of the handle. More...
Typedefs
• typedef void(∗sai_edma_callback_t )(I2S_Type ∗base, sai_edma_handle_t ∗handle, status_t status,
void ∗userData)
SAI eDMA transfer callback function for finish and error.
eDMA Transactional
• void SAI_TransferTxCreateHandleEDMA (I2S_Type ∗base, sai_edma_handle_t ∗handle, sai_-
edma_callback_t callback, void ∗userData, edma_handle_t ∗dmaHandle)
Initializes the SAI eDMA handle.
• void SAI_TransferRxCreateHandleEDMA (I2S_Type ∗base, sai_edma_handle_t ∗handle, sai_-
edma_callback_t callback, void ∗userData, edma_handle_t ∗dmaHandle)
Initializes the SAI Rx eDMA handle.
• void SAI_TransferTxSetFormatEDMA (I2S_Type ∗base, sai_edma_handle_t ∗handle, sai_transfer-
_format_t ∗format, uint32_t mclkSourceClockHz, uint32_t bclkSourceClockHz)
Configures the SAI Tx audio format.
• void SAI_TransferRxSetFormatEDMA (I2S_Type ∗base, sai_edma_handle_t ∗handle, sai_transfer-
_format_t ∗format, uint32_t mclkSourceClockHz, uint32_t bclkSourceClockHz)
Configures the SAI Rx audio format.
• status_t SAI_TransferSendEDMA (I2S_Type ∗base, sai_edma_handle_t ∗handle, sai_transfer_-
t∗xfer)
Performs a non-blocking SAI transfer using DMA.
• status_t SAI_TransferReceiveEDMA (I2S_Type ∗base, sai_edma_handle_t ∗handle, sai_transfer_t
∗xfer)
Performs a non-blocking SAI receive using eDMA.
• void SAI_TransferAbortSendEDMA (I2S_Type ∗base, sai_edma_handle_t ∗handle)
Aborts a SAI transfer using eDMA.
• void SAI_TransferAbortReceiveEDMA (I2S_Type ∗base, sai_edma_handle_t ∗handle)
Aborts a SAI receive using eDMA.
• status_t SAI_TransferGetSendCountEDMA (I2S_Type ∗base, sai_edma_handle_t ∗handle, size_t
∗count)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
919
SAI eDMA Driver
Gets byte count sent by SAI.
• status_t SAI_TransferGetReceiveCountEDMA (I2S_Type ∗base, sai_edma_handle_t ∗handle, size-
_t ∗count)
Gets byte count received by SAI.
42.9.2 Data Structure Documentation
42.9.2.1 struct _sai_edma_handle
Data Fields
•edma_handle_t ∗dmaHandle
DMA handler for SAI send.
• uint8_t bytesPerFrame
Bytes in a frame.
• uint8_t channel
Which data channel.
• uint8_t count
The transfer data count in a DMA request.
• uint32_t state
Internal state for SAI eDMA transfer.
•sai_edma_callback_t callback
Callback for users while transfer finish or error occurs.
• void ∗userData
User callback parameter.
•edma_tcd_t tcd [SAI_XFER_QUEUE_SIZE+1U]
TCD pool for eDMA transfer.
•sai_transfer_t saiQueue [SAI_XFER_QUEUE_SIZE]
Transfer queue storing queued transfer.
• size_t transferSize [SAI_XFER_QUEUE_SIZE]
Data bytes need to transfer.
• volatile uint8_t queueUser
Index for user to queue transfer.
• volatile uint8_t queueDriver
Index for driver to get the transfer data and size.
920
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SAI eDMA Driver
42.9.2.1.0.21 Field Documentation
42.9.2.1.0.21.1 edma_tcd_t sai_edma_handle_t::tcd[SAI_XFER_QUEUE_SIZE+1U]
42.9.2.1.0.21.2 sai_transfer_t sai_edma_handle_t::saiQueue[SAI_XFER_QUEUE_SIZE]
42.9.2.1.0.21.3 volatile uint8_t sai_edma_handle_t::queueUser
42.9.3 Function Documentation
42.9.3.1 void SAI_TransferTxCreateHandleEDMA ( I2S_Type ∗base, sai_edma_handle_t
∗handle, sai_edma_callback_t callback, void ∗userData, edma_handle_t ∗
dmaHandle )
This function initializes the SAI master DMA handle, which can be used for other SAI master transactional
APIs. Usually, for a specified SAI instance, call this API once to get the initialized handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
921
SAI eDMA Driver
Parameters
base SAI base pointer.
handle SAI eDMA handle pointer.
base SAI peripheral base address.
callback Pointer to user callback function.
userData User parameter passed to the callback function.
dmaHandle eDMA handle pointer, this handle shall be static allocated by users.
42.9.3.2 void SAI_TransferRxCreateHandleEDMA ( I2S_Type ∗base, sai_edma_handle_t
∗handle, sai_edma_callback_t callback, void ∗userData, edma_handle_t ∗
dmaHandle )
This function initializes the SAI slave DMA handle, which can be used for other SAI master transactional
APIs. Usually, for a specified SAI instance, call this API once to get the initialized handle.
Parameters
base SAI base pointer.
handle SAI eDMA handle pointer.
base SAI peripheral base address.
callback Pointer to user callback function.
userData User parameter passed to the callback function.
dmaHandle eDMA handle pointer, this handle shall be static allocated by users.
42.9.3.3 void SAI_TransferTxSetFormatEDMA ( I2S_Type ∗base, sai_edma_handle_t ∗
handle, sai_transfer_format_t ∗format, uint32_t mclkSourceClockHz, uint32_t
bclkSourceClockHz )
The audio format can be changed at run-time. This function configures the sample rate and audio data for-
mat to be transferred. This function also sets the eDMA parameter according to formatting requirements.
Parameters
base SAI base pointer.
922
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SAI eDMA Driver
handle SAI eDMA handle pointer.
format Pointer to SAI audio data format structure.
mclkSource-
ClockHz
SAI master clock source frequency in Hz.
bclkSource-
ClockHz
SAI bit clock source frequency in Hz. If bit clock source is master clock, this value
should equals to masterClockHz in format.
Return values
kStatus_Success Audio format set successfully.
kStatus_InvalidArgument The input argument is invalid.
42.9.3.4 void SAI_TransferRxSetFormatEDMA ( I2S_Type ∗base, sai_edma_handle_t ∗
handle, sai_transfer_format_t ∗format, uint32_t mclkSourceClockHz, uint32_t
bclkSourceClockHz )
The audio format can be changed at run-time. This function configures the sample rate and audio data for-
mat to be transferred. This function also sets the eDMA parameter according to formatting requirements.
Parameters
base SAI base pointer.
handle SAI eDMA handle pointer.
format Pointer to SAI audio data format structure.
mclkSource-
ClockHz
SAI master clock source frequency in Hz.
bclkSource-
ClockHz
SAI bit clock source frequency in Hz. If a bit clock source is the master clock, this
value should equal to masterClockHz in format.
Return values
kStatus_Success Audio format set successfully.
kStatus_InvalidArgument The input argument is invalid.
42.9.3.5 status_t SAI_TransferSendEDMA ( I2S_Type ∗base, sai_edma_handle_t ∗
handle, sai_transfer_t ∗xfer )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
923
SAI eDMA Driver
Note
This interface returns immediately after the transfer initiates. Call SAI_GetTransferStatus to poll the
transfer status and check whether the SAI transfer is finished.
Parameters
base SAI base pointer.
handle SAI eDMA handle pointer.
xfer Pointer to the DMA transfer structure.
Return values
kStatus_Success Start a SAI eDMA send successfully.
kStatus_InvalidArgument The input argument is invalid.
kStatus_TxBusy SAI is busy sending data.
42.9.3.6 status_t SAI_TransferReceiveEDMA ( I2S_Type ∗base, sai_edma_handle_t ∗
handle, sai_transfer_t ∗xfer )
Note
This interface returns immediately after the transfer initiates. Call the SAI_GetReceiveRemaining-
Bytes to poll the transfer status and check whether the SAI transfer is finished.
Parameters
base SAI base pointer
handle SAI eDMA handle pointer.
xfer Pointer to DMA transfer structure.
Return values
kStatus_Success Start a SAI eDMA receive successfully.
kStatus_InvalidArgument The input argument is invalid.
kStatus_RxBusy SAI is busy receiving data.
42.9.3.7 void SAI_TransferAbortSendEDMA ( I2S_Type ∗base, sai_edma_handle_t ∗
handle )
924
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SAI eDMA Driver
Parameters
base SAI base pointer.
handle SAI eDMA handle pointer.
42.9.3.8 void SAI_TransferAbortReceiveEDMA ( I2S_Type ∗base, sai_edma_handle_t ∗
handle )
Parameters
base SAI base pointer
handle SAI eDMA handle pointer.
42.9.3.9 status_t SAI_TransferGetSendCountEDMA ( I2S_Type ∗base,
sai_edma_handle_t ∗handle, size_t ∗count )
Parameters
base SAI base pointer.
handle SAI eDMA handle pointer.
count Bytes count sent by SAI.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is no non-blocking transaction in progress.
42.9.3.10 status_t SAI_TransferGetReceiveCountEDMA ( I2S_Type ∗base,
sai_edma_handle_t ∗handle, size_t ∗count )
Parameters
base SAI base pointer
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
925
SAI eDMA Driver
handle SAI eDMA handle pointer.
count Bytes count received by SAI.
Return values
kStatus_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is no non-blocking transaction in progress.
926
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 43
SDHC: Secured Digital Host Controller Driver
43.1 Overview
The KSDK provides a peripheral driver for the Secured Digital Host Controller (SDHC) module of Kinetis
devices.
Typical use case
/*Initializes the SDHC.
sdhcConfig->cardDetectDat3 = false;
sdhcConfig->endianMode = kSDHC_EndianModeLittle;
sdhcConfig->dmaMode = kSDHC_DmaModeAdma2;
sdhcConfig->readWatermarkLevel = 0x80U;
sdhcConfig->writeWatermarkLevel = 0x80U;
SDHC_Init(BOARD_SDHC_BASEADDR, sdhcConfig);
/*Fills state in the card driver.
card->sdhcBase = BOARD_SDHC_BASEADDR;
card->sdhcSourceClock = CLOCK_GetFreq(BOARD_SDHC_CLKSRC);
card->sdhcTransfer = sdhc_transfer_function;
/*Initializes the card.
if (SD_Init(card))
{
PRINTF("\r\nSD card init failed.\r\n");
}
PRINTF("\r\nRead/Write/Erase the card continuously until it encounters error......\r\n");
while (true)
{
if (kStatus_Success != SD_WriteBlocks(card, g_dataWrite, DATA_BLOCK_START, DATA_BLOCK_COUNT))
{
PRINTF("Write multiple data blocks failed.\r\n");
}
if (kStatus_Success != SD_ReadBlocks(card, g_dataRead, DATA_BLOCK_START, DATA_BLOCK_COUNT))
{
PRINTF("Read multiple data blocks failed.\r\n");
}
if (kStatus_Success != SD_EraseBlocks(card, DATA_BLOCK_START, DATA_BLOCK_COUNT))
{
PRINTF("Erase multiple data blocks failed.\r\n");
}
}
SD_Deinit(card);
Files
• file fsl_sdhc.h
Data Structures
• struct sdhc_adma2_descriptor_t
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
927
Overview
Define the ADMA2 descriptor structure. More...
• struct sdhc_capability_t
SDHC capability information. More...
• struct sdhc_transfer_config_t
Card transfer configuration. More...
• struct sdhc_boot_config_t
Data structure to configure the MMC boot feature. More...
• struct sdhc_config_t
Data structure to initialize the SDHC. More...
• struct sdhc_data_t
Card data descriptor. More...
• struct sdhc_command_t
Card command descriptor. More...
• struct sdhc_transfer_t
Transfer state. More...
• struct sdhc_transfer_callback_t
SDHC callback functions. More...
• struct sdhc_handle_t
Host descriptor. More...
• struct sdhc_host_t
SDHC host descriptor. More...
Macros
• #define SDHC_MAX_BLOCK_COUNT (SDHC_BLKATTR_BLKCNT_MASK >> SDHC_BL-
KATTR_BLKCNT_SHIFT)
Maximum block count can be set one time.
• #define SDHC_ADMA1_ADDRESS_ALIGN (4096U)
The alignment size for ADDRESS filed in ADMA1’s descriptor.
• #define SDHC_ADMA1_LENGTH_ALIGN (4096U)
The alignment size for LENGTH field in ADMA1’s descriptor.
• #define SDHC_ADMA2_ADDRESS_ALIGN (4U)
The alignment size for ADDRESS field in ADMA2’s descriptor.
• #define SDHC_ADMA2_LENGTH_ALIGN (4U)
The alignment size for LENGTH filed in ADMA2’s descriptor.
• #define SDHC_ADMA1_DESCRIPTOR_ADDRESS_SHIFT (12U)
The bit shift for ADDRESS filed in ADMA1’s descriptor.
• #define SDHC_ADMA1_DESCRIPTOR_ADDRESS_MASK (0xFFFFFU)
The bit mask for ADDRESS field in ADMA1’s descriptor.
• #define SDHC_ADMA1_DESCRIPTOR_LENGTH_SHIFT (12U)
The bit shift for LENGTH filed in ADMA1’s descriptor.
• #define SDHC_ADMA1_DESCRIPTOR_LENGTH_MASK (0xFFFFU)
The mask for LENGTH field in ADMA1’s descriptor.
• #define SDHC_ADMA1_DESCRIPTOR_MAX_LENGTH_PER_ENTRY (SDHC_ADMA1_DE-
SCRIPTOR_LENGTH_MASK + 1U)
The max value of LENGTH filed in ADMA1’s descriptor.
• #define SDHC_ADMA2_DESCRIPTOR_LENGTH_SHIFT (16U)
The bit shift for LENGTH field in ADMA2’s descriptor.
• #define SDHC_ADMA2_DESCRIPTOR_LENGTH_MASK (0xFFFFU)
The bit mask for LENGTH field in ADMA2’s descriptor.
• #define SDHC_ADMA2_DESCRIPTOR_MAX_LENGTH_PER_ENTRY (SDHC_ADMA2_DE-
928
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
SCRIPTOR_LENGTH_MASK)
The max value of LENGTH field in ADMA2’s descriptor.
Typedefs
• typedef uint32_t sdhc_adma1_descriptor_t
Define the adma1 descriptor structure.
• typedef status_t(∗sdhc_transfer_function_t )(SDHC_Type ∗base, sdhc_transfer_t ∗content)
SDHC transfer function.
Enumerations
• enum _sdhc_status {
kStatus_SDHC_BusyTransferring = MAKE_STATUS(kStatusGroup_SDHC, 0U),
kStatus_SDHC_PrepareAdmaDescriptorFailed = MAKE_STATUS(kStatusGroup_SDHC, 1U),
kStatus_SDHC_SendCommandFailed = MAKE_STATUS(kStatusGroup_SDHC, 2U),
kStatus_SDHC_TransferDataFailed = MAKE_STATUS(kStatusGroup_SDHC, 3U) }
SDHC status.
• enum _sdhc_capability_flag {
kSDHC_SupportAdmaFlag = SDHC_HTCAPBLT_ADMAS_MASK,
kSDHC_SupportHighSpeedFlag = SDHC_HTCAPBLT_HSS_MASK,
kSDHC_SupportDmaFlag = SDHC_HTCAPBLT_DMAS_MASK,
kSDHC_SupportSuspendResumeFlag = SDHC_HTCAPBLT_SRS_MASK,
kSDHC_SupportV330Flag = SDHC_HTCAPBLT_VS33_MASK,
kSDHC_Support4BitFlag = (SDHC_HTCAPBLT_MBL_SHIFT << 0U),
kSDHC_Support8BitFlag = (SDHC_HTCAPBLT_MBL_SHIFT << 1U) }
Host controller capabilities flag mask.
• enum _sdhc_wakeup_event {
kSDHC_WakeupEventOnCardInt = SDHC_PROCTL_WECINT_MASK,
kSDHC_WakeupEventOnCardInsert = SDHC_PROCTL_WECINS_MASK,
kSDHC_WakeupEventOnCardRemove = SDHC_PROCTL_WECRM_MASK,
kSDHC_WakeupEventsAll }
Wakeup event mask.
• enum _sdhc_reset {
kSDHC_ResetAll = SDHC_SYSCTL_RSTA_MASK,
kSDHC_ResetCommand = SDHC_SYSCTL_RSTC_MASK,
kSDHC_ResetData = SDHC_SYSCTL_RSTD_MASK,
kSDHC_ResetsAll = (kSDHC_ResetAll |kSDHC_ResetCommand |kSDHC_ResetData) }
Reset type mask.
• enum _sdhc_transfer_flag {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
929
Overview
kSDHC_EnableDmaFlag = SDHC_XFERTYP_DMAEN_MASK,
kSDHC_CommandTypeSuspendFlag = (SDHC_XFERTYP_CMDTYP(1U)),
kSDHC_CommandTypeResumeFlag = (SDHC_XFERTYP_CMDTYP(2U)),
kSDHC_CommandTypeAbortFlag = (SDHC_XFERTYP_CMDTYP(3U)),
kSDHC_EnableBlockCountFlag = SDHC_XFERTYP_BCEN_MASK,
kSDHC_EnableAutoCommand12Flag = SDHC_XFERTYP_AC12EN_MASK,
kSDHC_DataReadFlag = SDHC_XFERTYP_DTDSEL_MASK,
kSDHC_MultipleBlockFlag = SDHC_XFERTYP_MSBSEL_MASK,
kSDHC_ResponseLength136Flag = SDHC_XFERTYP_RSPTYP(1U),
kSDHC_ResponseLength48Flag = SDHC_XFERTYP_RSPTYP(2U),
kSDHC_ResponseLength48BusyFlag = SDHC_XFERTYP_RSPTYP(3U),
kSDHC_EnableCrcCheckFlag = SDHC_XFERTYP_CCCEN_MASK,
kSDHC_EnableIndexCheckFlag = SDHC_XFERTYP_CICEN_MASK,
kSDHC_DataPresentFlag = SDHC_XFERTYP_DPSEL_MASK }
Transfer flag mask.
• enum _sdhc_present_status_flag {
kSDHC_CommandInhibitFlag = SDHC_PRSSTAT_CIHB_MASK,
kSDHC_DataInhibitFlag = SDHC_PRSSTAT_CDIHB_MASK,
kSDHC_DataLineActiveFlag = SDHC_PRSSTAT_DLA_MASK,
kSDHC_SdClockStableFlag = SDHC_PRSSTAT_SDSTB_MASK,
kSDHC_WriteTransferActiveFlag = SDHC_PRSSTAT_WTA_MASK,
kSDHC_ReadTransferActiveFlag = SDHC_PRSSTAT_RTA_MASK,
kSDHC_BufferWriteEnableFlag = SDHC_PRSSTAT_BWEN_MASK,
kSDHC_BufferReadEnableFlag = SDHC_PRSSTAT_BREN_MASK,
kSDHC_CardInsertedFlag = SDHC_PRSSTAT_CINS_MASK,
kSDHC_CommandLineLevelFlag = SDHC_PRSSTAT_CLSL_MASK,
kSDHC_Data0LineLevelFlag = (1U << 24U),
kSDHC_Data1LineLevelFlag = (1U << 25U),
kSDHC_Data2LineLevelFlag = (1U << 26U),
kSDHC_Data3LineLevelFlag = (1U << 27U),
kSDHC_Data4LineLevelFlag = (1U << 28U),
kSDHC_Data5LineLevelFlag = (1U << 29U),
kSDHC_Data6LineLevelFlag = (1U << 30U),
kSDHC_Data7LineLevelFlag = (1U << 31U) }
Present status flag mask.
• enum _sdhc_interrupt_status_flag {
930
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
kSDHC_CommandCompleteFlag = SDHC_IRQSTAT_CC_MASK,
kSDHC_DataCompleteFlag = SDHC_IRQSTAT_TC_MASK,
kSDHC_BlockGapEventFlag = SDHC_IRQSTAT_BGE_MASK,
kSDHC_DmaCompleteFlag = SDHC_IRQSTAT_DINT_MASK,
kSDHC_BufferWriteReadyFlag = SDHC_IRQSTAT_BWR_MASK,
kSDHC_BufferReadReadyFlag = SDHC_IRQSTAT_BRR_MASK,
kSDHC_CardInsertionFlag = SDHC_IRQSTAT_CINS_MASK,
kSDHC_CardRemovalFlag = SDHC_IRQSTAT_CRM_MASK,
kSDHC_CardInterruptFlag = SDHC_IRQSTAT_CINT_MASK,
kSDHC_CommandTimeoutFlag = SDHC_IRQSTAT_CTOE_MASK,
kSDHC_CommandCrcErrorFlag = SDHC_IRQSTAT_CCE_MASK,
kSDHC_CommandEndBitErrorFlag = SDHC_IRQSTAT_CEBE_MASK,
kSDHC_CommandIndexErrorFlag = SDHC_IRQSTAT_CIE_MASK,
kSDHC_DataTimeoutFlag = SDHC_IRQSTAT_DTOE_MASK,
kSDHC_DataCrcErrorFlag = SDHC_IRQSTAT_DCE_MASK,
kSDHC_DataEndBitErrorFlag = SDHC_IRQSTAT_DEBE_MASK,
kSDHC_AutoCommand12ErrorFlag = SDHC_IRQSTAT_AC12E_MASK,
kSDHC_DmaErrorFlag = SDHC_IRQSTAT_DMAE_MASK,
kSDHC_CommandErrorFlag,
kSDHC_DataErrorFlag,
kSDHC_ErrorFlag = (kSDHC_CommandErrorFlag |kSDHC_DataErrorFlag |kSDHC_DmaError-
Flag),
kSDHC_DataFlag,
kSDHC_CommandFlag = (kSDHC_CommandErrorFlag |kSDHC_CommandCompleteFlag),
kSDHC_CardDetectFlag = (kSDHC_CardInsertionFlag |kSDHC_CardRemovalFlag),
kSDHC_AllInterruptFlags }
Interrupt status flag mask.
• enum _sdhc_auto_command12_error_status_flag {
kSDHC_AutoCommand12NotExecutedFlag = SDHC_AC12ERR_AC12NE_MASK,
kSDHC_AutoCommand12TimeoutFlag = SDHC_AC12ERR_AC12TOE_MASK,
kSDHC_AutoCommand12EndBitErrorFlag = SDHC_AC12ERR_AC12EBE_MASK,
kSDHC_AutoCommand12CrcErrorFlag = SDHC_AC12ERR_AC12CE_MASK,
kSDHC_AutoCommand12IndexErrorFlag = SDHC_AC12ERR_AC12IE_MASK,
kSDHC_AutoCommand12NotIssuedFlag = SDHC_AC12ERR_CNIBAC12E_MASK }
Auto CMD12 error status flag mask.
• enum _sdhc_adma_error_status_flag {
kSDHC_AdmaLenghMismatchFlag = SDHC_ADMAES_ADMALME_MASK,
kSDHC_AdmaDescriptorErrorFlag = SDHC_ADMAES_ADMADCE_MASK }
ADMA error status flag mask.
• enum sdhc_adma_error_state_t {
kSDHC_AdmaErrorStateStopDma = 0x00U,
kSDHC_AdmaErrorStateFetchDescriptor = 0x01U,
kSDHC_AdmaErrorStateChangeAddress = 0x02U,
kSDHC_AdmaErrorStateTransferData = 0x03U }
ADMA error state.
• enum _sdhc_force_event {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
931
Overview
kSDHC_ForceEventAutoCommand12NotExecuted = SDHC_FEVT_AC12NE_MASK,
kSDHC_ForceEventAutoCommand12Timeout = SDHC_FEVT_AC12TOE_MASK,
kSDHC_ForceEventAutoCommand12CrcError = SDHC_FEVT_AC12CE_MASK,
kSDHC_ForceEventEndBitError = SDHC_FEVT_AC12EBE_MASK,
kSDHC_ForceEventAutoCommand12IndexError = SDHC_FEVT_AC12IE_MASK,
kSDHC_ForceEventAutoCommand12NotIssued = SDHC_FEVT_CNIBAC12E_MASK,
kSDHC_ForceEventCommandTimeout = SDHC_FEVT_CTOE_MASK,
kSDHC_ForceEventCommandCrcError = SDHC_FEVT_CCE_MASK,
kSDHC_ForceEventCommandEndBitError = SDHC_FEVT_CEBE_MASK,
kSDHC_ForceEventCommandIndexError = SDHC_FEVT_CIE_MASK,
kSDHC_ForceEventDataTimeout = SDHC_FEVT_DTOE_MASK,
kSDHC_ForceEventDataCrcError = SDHC_FEVT_DCE_MASK,
kSDHC_ForceEventDataEndBitError = SDHC_FEVT_DEBE_MASK,
kSDHC_ForceEventAutoCommand12Error = SDHC_FEVT_AC12E_MASK,
kSDHC_ForceEventCardInt = SDHC_FEVT_CINT_MASK,
kSDHC_ForceEventDmaError = SDHC_FEVT_DMAE_MASK,
kSDHC_ForceEventsAll }
Force event mask.
• enum sdhc_data_bus_width_t {
kSDHC_DataBusWidth1Bit = 0U,
kSDHC_DataBusWidth4Bit = 1U,
kSDHC_DataBusWidth8Bit = 2U }
Data transfer width.
• enum sdhc_endian_mode_t {
kSDHC_EndianModeBig = 0U,
kSDHC_EndianModeHalfWordBig = 1U,
kSDHC_EndianModeLittle = 2U }
Endian mode.
• enum sdhc_dma_mode_t {
kSDHC_DmaModeNo = 0U,
kSDHC_DmaModeAdma1 = 1U,
kSDHC_DmaModeAdma2 = 2U }
DMA mode.
• enum _sdhc_sdio_control_flag {
kSDHC_StopAtBlockGapFlag = 0x01,
kSDHC_ReadWaitControlFlag = 0x02,
kSDHC_InterruptAtBlockGapFlag = 0x04,
kSDHC_ExactBlockNumberReadFlag = 0x08 }
SDIO control flag mask.
• enum sdhc_boot_mode_t {
kSDHC_BootModeNormal = 0U,
kSDHC_BootModeAlternative = 1U }
MMC card boot mode.
• enum sdhc_command_type_t {
932
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Overview
kSDHC_CommandTypeNormal = 0U,
kSDHC_CommandTypeSuspend = 1U,
kSDHC_CommandTypeResume = 2U,
kSDHC_CommandTypeAbort = 3U }
The command type.
• enum sdhc_response_type_t {
kSDHC_ResponseTypeNone = 0U,
kSDHC_ResponseTypeR1 = 1U,
kSDHC_ResponseTypeR1b = 2U,
kSDHC_ResponseTypeR2 = 3U,
kSDHC_ResponseTypeR3 = 4U,
kSDHC_ResponseTypeR4 = 5U,
kSDHC_ResponseTypeR5 = 6U,
kSDHC_ResponseTypeR5b = 7U,
kSDHC_ResponseTypeR6 = 8U,
kSDHC_ResponseTypeR7 = 9U }
The command response type.
• enum _sdhc_adma1_descriptor_flag {
kSDHC_Adma1DescriptorValidFlag = (1U << 0U),
kSDHC_Adma1DescriptorEndFlag = (1U << 1U),
kSDHC_Adma1DescriptorInterrupFlag = (1U << 2U),
kSDHC_Adma1DescriptorActivity1Flag = (1U << 4U),
kSDHC_Adma1DescriptorActivity2Flag = (1U << 5U),
kSDHC_Adma1DescriptorTypeNop = (kSDHC_Adma1DescriptorValidFlag),
kSDHC_Adma1DescriptorTypeTransfer,
kSDHC_Adma1DescriptorTypeLink,
kSDHC_Adma1DescriptorTypeSetLength }
The mask for the control/status field in ADMA1 descriptor.
• enum _sdhc_adma2_descriptor_flag {
kSDHC_Adma2DescriptorValidFlag = (1U << 0U),
kSDHC_Adma2DescriptorEndFlag = (1U << 1U),
kSDHC_Adma2DescriptorInterruptFlag = (1U << 2U),
kSDHC_Adma2DescriptorActivity1Flag = (1U << 4U),
kSDHC_Adma2DescriptorActivity2Flag = (1U << 5U),
kSDHC_Adma2DescriptorTypeNop = (kSDHC_Adma2DescriptorValidFlag),
kSDHC_Adma2DescriptorTypeReserved,
kSDHC_Adma2DescriptorTypeTransfer,
kSDHC_Adma2DescriptorTypeLink }
ADMA1 descriptor control and status mask.
Driver version
• #define FSL_SDHC_DRIVER_VERSION (MAKE_VERSION(2U, 0U, 0U))
Driver version 2.0.0.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
933
Overview
Initialization and deinitialization
• void SDHC_Init (SDHC_Type ∗base, const sdhc_config_t ∗config)
SDHC module initialization function.
• void SDHC_Deinit (SDHC_Type ∗base)
Deinitialize the SDHC.
• bool SDHC_Reset (SDHC_Type ∗base, uint32_t mask, uint32_t timeout)
Reset the SDHC.
DMA Control
• status_t SDHC_SetAdmaTableConfig (SDHC_Type ∗base, sdhc_dma_mode_t dmaMode, uint32_t
∗table, uint32_t tableWords, const uint32_t ∗data, uint32_t dataBytes)
Set ADMA descriptor table configuration.
Interrupts
• static void SDHC_EnableInterruptStatus (SDHC_Type ∗base, uint32_t mask)
Enable interrupt status.
• static void SDHC_DisableInterruptStatus (SDHC_Type ∗base, uint32_t mask)
Disable interrupt status.
• static void SDHC_EnableInterruptSignal (SDHC_Type ∗base, uint32_t mask)
Enable interrupts signal corresponding to the interrupt status flag.
• static void SDHC_DisableInterruptSignal (SDHC_Type ∗base, uint32_t mask)
Disable interrupts signal corresponding to the interrupt status flag.
Status
• static uint32_t SDHC_GetInterruptStatusFlags (SDHC_Type ∗base)
Get current interrupt status.
• static void SDHC_ClearInterruptStatusFlags (SDHC_Type ∗base, uint32_t mask)
Clear specified interrupt status.
• static uint32_t SDHC_GetAutoCommand12ErrorStatusFlags (SDHC_Type ∗base)
Get the status of auto command 12 error.
• static uint32_t SDHC_GetAdmaErrorStatusFlags (SDHC_Type ∗base)
Get the status of ADMA error.
• static uint32_t SDHC_GetPresentStatusFlags (SDHC_Type ∗base)
Get present status.
Bus Operations
• void SDHC_GetCapability (SDHC_Type ∗base, sdhc_capability_t ∗capability)
Get the capability information.
• static void SDHC_EnableSdClock (SDHC_Type ∗base, bool enable)
Enable or disable SD bus clock.
• uint32_t SDHC_SetSdClock (SDHC_Type ∗base, uint32_t srcClock_Hz, uint32_t busClock_Hz)
Set SD bus clock frequency.
• bool SDHC_SetCardActive (SDHC_Type ∗base, uint32_t timeout)
Send 80 clocks to the card to set it to be active state.
• static void SDHC_SetDataBusWidth (SDHC_Type ∗base, sdhc_data_bus_width_t width)
Set the data transfer width.
934
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
• void SDHC_SetTransferConfig (SDHC_Type ∗base, const sdhc_transfer_config_t ∗config)
Set card transfer-related configuration.
• static uint32_t SDHC_GetCommandResponse (SDHC_Type ∗base, uint32_t index)
Get the command response.
• static void SDHC_WriteData (SDHC_Type ∗base, uint32_t data)
Fill the the data port.
• static uint32_t SDHC_ReadData (SDHC_Type ∗base)
Retrieve the data from the data port.
• static void SDHC_EnableWakeupEvent (SDHC_Type ∗base, uint32_t mask, bool enable)
Enable or disable wakeup event in low power mode.
• static void SDHC_EnableCardDetectTest (SDHC_Type ∗base, bool enable)
Enable or disable card detection level for test.
• static void SDHC_SetCardDetectTestLevel (SDHC_Type ∗base, bool high)
Set card detection test level.
• void SDHC_EnableSdioControl (SDHC_Type ∗base, uint32_t mask, bool enable)
Enable or disable SDIO card control.
• static void SDHC_SetContinueRequest (SDHC_Type ∗base)
Restart a transaction which has stopped at the block gap for SDIO card.
• void SDHC_SetMmcBootConfig (SDHC_Type ∗base, const sdhc_boot_config_t ∗config)
Configure the MMC boot feature.
• static void SDHC_SetForceEvent (SDHC_Type ∗base, uint32_t mask)
Force to generate events according to the given mask.
Transactional
• status_t SDHC_TransferBlocking (SDHC_Type ∗base, uint32_t ∗admaTable, uint32_t admaTable-
Words, sdhc_transfer_t ∗transfer)
Transfer command/data using blocking way.
• void SDHC_TransferCreateHandle (SDHC_Type ∗base, sdhc_handle_t ∗handle, const sdhc_-
transfer_callback_t ∗callback, void ∗userData)
Create the SDHC handle.
• status_t SDHC_TransferNonBlocking (SDHC_Type ∗base, sdhc_handle_t ∗handle, uint32_t
∗admaTable, uint32_t admaTableWords, sdhc_transfer_t ∗transfer)
Transfer command/data using interrupt and asynchronous way.
• void SDHC_TransferHandleIRQ (SDHC_Type ∗base, sdhc_handle_t ∗handle)
IRQ handler for SDHC.
43.2 Data Structure Documentation
43.2.1 struct sdhc_adma2_descriptor_t
Data Fields
• uint32_t attribute
The control and status field.
• const uint32_t ∗address
The address field.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
935
Data Structure Documentation
43.2.2 struct sdhc_capability_t
Define structure to save the capability information of SDHC.
Data Fields
• uint32_t specVersion
Specification version.
• uint32_t vendorVersion
Vendor version.
• uint32_t maxBlockLength
Maximum block length united as byte.
• uint32_t maxBlockCount
Maximum block count can be set one time.
• uint32_t flags
Capability flags to indicate the support information(_sdhc_capability_flag)
43.2.3 struct sdhc_transfer_config_t
Define structure to configure the transfer-related command index/argument/flags and data block size/data
block numbers. This structure needs to be filled each time a command is sent to the card.
Data Fields
• size_t dataBlockSize
Data block size.
• uint32_t dataBlockCount
Data block count.
• uint32_t commandArgument
Command argument.
• uint32_t commandIndex
Command index.
• uint32_t flags
Transfer flags(_sdhc_transfer_flag)
43.2.4 struct sdhc_boot_config_t
Data Fields
• uint32_t ackTimeoutCount
Timeout value for the boot ACK.
•sdhc_boot_mode_t bootMode
Boot mode selection.
• uint32_t blockCount
936
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
Stop at block gap value of automatic mode.
• bool enableBootAck
Enable or disable boot ACK.
• bool enableBoot
Enable or disable fast boot.
• bool enableAutoStopAtBlockGap
Enable or disable auto stop at block gap function in boot period.
43.2.4.0.0.22 Field Documentation
43.2.4.0.0.22.1 sdhc_boot_mode_t sdhc_boot_config_t::bootMode
43.2.5 struct sdhc_config_t
Data Fields
• bool cardDetectDat3
Enable DAT3 as card detection pin.
•sdhc_endian_mode_t endianMode
Endian mode.
•sdhc_dma_mode_t dmaMode
DMA mode.
• uint32_t readWatermarkLevel
Watermark level for DMA read operation.
• uint32_t writeWatermarkLevel
Watermark level for DMA write operation.
43.2.6 struct sdhc_data_t
Define structure to contain data-related attribute. ’enableIgnoreError’ is used for the case that upper card
driver want to ignore the error event to read/write all the data not to stop read/write immediately when
error event happen for example bus testing procedure for MMC card.
Data Fields
• bool enableAutoCommand12
Enable auto CMD12.
• bool enableIgnoreError
Enable to ignore error event to read/write all the data.
• size_t blockSize
Block size.
• uint32_t blockCount
Block count.
• uint32_t ∗rxData
Buffer to save data read.
• const uint32_t ∗txData
Data buffer to write.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
937
Data Structure Documentation
43.2.7 struct sdhc_command_t
Define card command-related attribute.
Data Fields
• uint32_t index
Command index.
• uint32_t argument
Command argument.
•sdhc_command_type_t type
Command type.
•sdhc_response_type_t responseType
Command response type.
• uint32_t response [4U]
Response for this command.
43.2.8 struct sdhc_transfer_t
Data Fields
•sdhc_data_t ∗data
Data to transfer.
•sdhc_command_t ∗command
Command to send.
43.2.9 struct sdhc_transfer_callback_t
Data Fields
• void(∗CardInserted )(void)
Card inserted occurs when DAT3/CD pin is for card detect.
• void(∗CardRemoved )(void)
Card removed occurs.
• void(∗SdioInterrupt )(void)
SDIO card interrupt occurs.
• void(∗SdioBlockGap )(void)
SDIO card stopped at block gap occurs.
• void(∗TransferComplete )(SDHC_Type ∗base, sdhc_handle_t ∗handle, status_t status, void ∗user-
Data)
Transfer complete callback.
938
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Macro Definition Documentation
43.2.10 struct _sdhc_handle
SDHC handle typedef.
Define the structure to save the SDHC state information and callback function. The detail interrupt status
when send command or transfer data can be obtained from interruptFlags field by using mask defined in
sdhc_interrupt_flag_t;
Note
All the fields except interruptFlags and transferredWords must be allocated by the user.
Data Fields
•sdhc_data_t ∗volatile data
Data to transfer.
•sdhc_command_t ∗volatile command
Command to send.
• volatile uint32_t interruptFlags
Interrupt flags of last transaction.
• volatile uint32_t transferredWords
Words transferred by DATAPORT way.
•sdhc_transfer_callback_t callback
Callback function.
• void ∗userData
Parameter for transfer complete callback.
43.2.11 struct sdhc_host_t
Data Fields
• SDHC_Type ∗base
SDHC peripheral base address.
• uint32_t sourceClock_Hz
SDHC source clock frequency united in Hz.
•sdhc_config_t config
SDHC configuration.
•sdhc_capability_t capability
SDHC capability information.
•sdhc_transfer_function_t transfer
SDHC transfer function.
43.3 Macro Definition Documentation
43.3.1 #define FSL_SDHC_DRIVER_VERSION (MAKE_VERSION(2U, 0U, 0U))
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
939
Enumeration Type Documentation
43.4 Typedef Documentation
43.4.1 typedef uint32_t sdhc_adma1_descriptor_t
43.4.2 typedef status_t(∗sdhc_transfer_function_t)(SDHC_Type ∗base,
sdhc_transfer_t ∗content)
43.5 Enumeration Type Documentation
43.5.1 enum _sdhc_status
Enumerator
kStatus_SDHC_BusyTransferring Transfer is on-going.
kStatus_SDHC_PrepareAdmaDescriptorFailed Set DMA descriptor failed.
kStatus_SDHC_SendCommandFailed Send command failed.
kStatus_SDHC_TransferDataFailed Transfer data failed.
43.5.2 enum _sdhc_capability_flag
Enumerator
kSDHC_SupportAdmaFlag Support ADMA.
kSDHC_SupportHighSpeedFlag Support high-speed.
kSDHC_SupportDmaFlag Support DMA.
kSDHC_SupportSuspendResumeFlag Support suspend/resume.
kSDHC_SupportV330Flag Support voltage 3.3V.
kSDHC_Support4BitFlag Support 4 bit mode.
kSDHC_Support8BitFlag Support 8 bit mode.
43.5.3 enum _sdhc_wakeup_event
Enumerator
kSDHC_WakeupEventOnCardInt Wakeup on card interrupt.
kSDHC_WakeupEventOnCardInsert Wakeup on card insertion.
kSDHC_WakeupEventOnCardRemove Wakeup on card removal.
kSDHC_WakeupEventsAll All wakeup events.
43.5.4 enum _sdhc_reset
Enumerator
kSDHC_ResetAll Reset all except card detection.
940
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
kSDHC_ResetCommand Reset command line.
kSDHC_ResetData Reset data line.
kSDHC_ResetsAll All reset types.
43.5.5 enum _sdhc_transfer_flag
Enumerator
kSDHC_EnableDmaFlag Enable DMA.
kSDHC_CommandTypeSuspendFlag Suspend command.
kSDHC_CommandTypeResumeFlag Resume command.
kSDHC_CommandTypeAbortFlag Abort command.
kSDHC_EnableBlockCountFlag Enable block count.
kSDHC_EnableAutoCommand12Flag Enable auto CMD12.
kSDHC_DataReadFlag Enable data read.
kSDHC_MultipleBlockFlag Multiple block data read/write.
kSDHC_ResponseLength136Flag 136 bit response length
kSDHC_ResponseLength48Flag 48 bit response length
kSDHC_ResponseLength48BusyFlag 48 bit response length with busy status
kSDHC_EnableCrcCheckFlag Enable CRC check.
kSDHC_EnableIndexCheckFlag Enable index check.
kSDHC_DataPresentFlag Data present flag.
43.5.6 enum _sdhc_present_status_flag
Enumerator
kSDHC_CommandInhibitFlag Command inhibit.
kSDHC_DataInhibitFlag Data inhibit.
kSDHC_DataLineActiveFlag Data line active.
kSDHC_SdClockStableFlag SD bus clock stable.
kSDHC_WriteTransferActiveFlag Write transfer active.
kSDHC_ReadTransferActiveFlag Read transfer active.
kSDHC_BufferWriteEnableFlag Buffer write enable.
kSDHC_BufferReadEnableFlag Buffer read enable.
kSDHC_CardInsertedFlag Card inserted.
kSDHC_CommandLineLevelFlag Command line signal level.
kSDHC_Data0LineLevelFlag Data0 line signal level.
kSDHC_Data1LineLevelFlag Data1 line signal level.
kSDHC_Data2LineLevelFlag Data2 line signal level.
kSDHC_Data3LineLevelFlag Data3 line signal level.
kSDHC_Data4LineLevelFlag Data4 line signal level.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
941
Enumeration Type Documentation
kSDHC_Data5LineLevelFlag Data5 line signal level.
kSDHC_Data6LineLevelFlag Data6 line signal level.
kSDHC_Data7LineLevelFlag Data7 line signal level.
43.5.7 enum _sdhc_interrupt_status_flag
Enumerator
kSDHC_CommandCompleteFlag Command complete.
kSDHC_DataCompleteFlag Data complete.
kSDHC_BlockGapEventFlag Block gap event.
kSDHC_DmaCompleteFlag DMA interrupt.
kSDHC_BufferWriteReadyFlag Buffer write ready.
kSDHC_BufferReadReadyFlag Buffer read ready.
kSDHC_CardInsertionFlag Card inserted.
kSDHC_CardRemovalFlag Card removed.
kSDHC_CardInterruptFlag Card interrupt.
kSDHC_CommandTimeoutFlag Command timeout error.
kSDHC_CommandCrcErrorFlag Command CRC error.
kSDHC_CommandEndBitErrorFlag Command end bit error.
kSDHC_CommandIndexErrorFlag Command index error.
kSDHC_DataTimeoutFlag Data timeout error.
kSDHC_DataCrcErrorFlag Data CRC error.
kSDHC_DataEndBitErrorFlag Data end bit error.
kSDHC_AutoCommand12ErrorFlag Auto CMD12 error.
kSDHC_DmaErrorFlag DMA error.
kSDHC_CommandErrorFlag Command error.
kSDHC_DataErrorFlag Data error.
kSDHC_ErrorFlag All error.
kSDHC_DataFlag Data interrupts.
kSDHC_CommandFlag Command interrupts.
kSDHC_CardDetectFlag Card detection interrupts.
kSDHC_AllInterruptFlags All flags mask.
43.5.8 enum _sdhc_auto_command12_error_status_flag
Enumerator
kSDHC_AutoCommand12NotExecutedFlag Not executed error.
kSDHC_AutoCommand12TimeoutFlag Timeout error.
kSDHC_AutoCommand12EndBitErrorFlag End bit error.
kSDHC_AutoCommand12CrcErrorFlag CRC error.
942
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
kSDHC_AutoCommand12IndexErrorFlag Index error.
kSDHC_AutoCommand12NotIssuedFlag Not issued error.
43.5.9 enum _sdhc_adma_error_status_flag
Enumerator
kSDHC_AdmaLenghMismatchFlag Length mismatch error.
kSDHC_AdmaDescriptorErrorFlag Descriptor error.
43.5.10 enum sdhc_adma_error_state_t
This state is the detail state when ADMA error has occurred.
Enumerator
kSDHC_AdmaErrorStateStopDma Stop DMA.
kSDHC_AdmaErrorStateFetchDescriptor Fetch descriptor.
kSDHC_AdmaErrorStateChangeAddress Change address.
kSDHC_AdmaErrorStateTransferData Transfer data.
43.5.11 enum _sdhc_force_event
Enumerator
kSDHC_ForceEventAutoCommand12NotExecuted Auto CMD12 not executed error.
kSDHC_ForceEventAutoCommand12Timeout Auto CMD12 timeout error.
kSDHC_ForceEventAutoCommand12CrcError Auto CMD12 CRC error.
kSDHC_ForceEventEndBitError Auto CMD12 end bit error.
kSDHC_ForceEventAutoCommand12IndexError Auto CMD12 index error.
kSDHC_ForceEventAutoCommand12NotIssued Auto CMD12 not issued error.
kSDHC_ForceEventCommandTimeout Command timeout error.
kSDHC_ForceEventCommandCrcError Command CRC error.
kSDHC_ForceEventCommandEndBitError Command end bit error.
kSDHC_ForceEventCommandIndexError Command index error.
kSDHC_ForceEventDataTimeout Data timeout error.
kSDHC_ForceEventDataCrcError Data CRC error.
kSDHC_ForceEventDataEndBitError Data end bit error.
kSDHC_ForceEventAutoCommand12Error Auto CMD12 error.
kSDHC_ForceEventCardInt Card interrupt.
kSDHC_ForceEventDmaError Dma error.
kSDHC_ForceEventsAll All force event flags mask.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
943
Enumeration Type Documentation
43.5.12 enum sdhc_data_bus_width_t
Enumerator
kSDHC_DataBusWidth1Bit 1-bit mode
kSDHC_DataBusWidth4Bit 4-bit mode
kSDHC_DataBusWidth8Bit 8-bit mode
43.5.13 enum sdhc_endian_mode_t
Enumerator
kSDHC_EndianModeBig Big endian mode.
kSDHC_EndianModeHalfWordBig Half word big endian mode.
kSDHC_EndianModeLittle Little endian mode.
43.5.14 enum sdhc_dma_mode_t
Enumerator
kSDHC_DmaModeNo No DMA.
kSDHC_DmaModeAdma1 ADMA1 is selected.
kSDHC_DmaModeAdma2 ADMA2 is selected.
43.5.15 enum _sdhc_sdio_control_flag
Enumerator
kSDHC_StopAtBlockGapFlag Stop at block gap.
kSDHC_ReadWaitControlFlag Read wait control.
kSDHC_InterruptAtBlockGapFlag Interrupt at block gap.
kSDHC_ExactBlockNumberReadFlag Exact block number read.
43.5.16 enum sdhc_boot_mode_t
Enumerator
kSDHC_BootModeNormal Normal boot.
kSDHC_BootModeAlternative Alternative boot.
944
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
43.5.17 enum sdhc_command_type_t
Enumerator
kSDHC_CommandTypeNormal Normal command.
kSDHC_CommandTypeSuspend Suspend command.
kSDHC_CommandTypeResume Resume command.
kSDHC_CommandTypeAbort Abort command.
43.5.18 enum sdhc_response_type_t
Define the command response type from card to host controller.
Enumerator
kSDHC_ResponseTypeNone Response type: none.
kSDHC_ResponseTypeR1 Response type: R1.
kSDHC_ResponseTypeR1b Response type: R1b.
kSDHC_ResponseTypeR2 Response type: R2.
kSDHC_ResponseTypeR3 Response type: R3.
kSDHC_ResponseTypeR4 Response type: R4.
kSDHC_ResponseTypeR5 Response type: R5.
kSDHC_ResponseTypeR5b Response type: R5b.
kSDHC_ResponseTypeR6 Response type: R6.
kSDHC_ResponseTypeR7 Response type: R7.
43.5.19 enum _sdhc_adma1_descriptor_flag
Enumerator
kSDHC_Adma1DescriptorValidFlag Valid flag.
kSDHC_Adma1DescriptorEndFlag End flag.
kSDHC_Adma1DescriptorInterrupFlag Interrupt flag.
kSDHC_Adma1DescriptorActivity1Flag Activity 1 flag.
kSDHC_Adma1DescriptorActivity2Flag Activity 2 flag.
kSDHC_Adma1DescriptorTypeNop No operation.
kSDHC_Adma1DescriptorTypeTransfer Transfer data.
kSDHC_Adma1DescriptorTypeLink Link descriptor.
kSDHC_Adma1DescriptorTypeSetLength Set data length.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
945
Function Documentation
43.5.20 enum _sdhc_adma2_descriptor_flag
Enumerator
kSDHC_Adma2DescriptorValidFlag Valid flag.
kSDHC_Adma2DescriptorEndFlag End flag.
kSDHC_Adma2DescriptorInterruptFlag Interrupt flag.
kSDHC_Adma2DescriptorActivity1Flag Activity 1 mask.
kSDHC_Adma2DescriptorActivity2Flag Activity 2 mask.
kSDHC_Adma2DescriptorTypeNop No operation.
kSDHC_Adma2DescriptorTypeReserved Reserved.
kSDHC_Adma2DescriptorTypeTransfer Transfer type.
kSDHC_Adma2DescriptorTypeLink Link type.
43.6 Function Documentation
43.6.1 void SDHC_Init ( SDHC_Type ∗base, const sdhc_config_t ∗config )
Configure the SDHC according to the user configuration.
Example:
sdhc_config_t config;
config.enableDat3AsCDPin = false;
config.endianMode =kSDHC_EndianModeLittle;
config.dmaMode =kSDHC_DmaModeAdma2;
config.readWatermarkLevel = 512U;
config.writeWatermarkLevel = 512U;
SDHC_Init(SDHC, &config);
Parameters
base SDHC peripheral base address.
config SDHC configuration information.
Return values
kStatus_Success Operate successfully.
43.6.2 void SDHC_Deinit ( SDHC_Type ∗base )
946
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base SDHC peripheral base address.
43.6.3 bool SDHC_Reset ( SDHC_Type ∗base, uint32_t mask, uint32_t timeout )
Parameters
base SDHC peripheral base address.
mask The reset type mask(_sdhc_reset).
timeout Timeout for reset.
Return values
true Reset successfully.
false Reset failed.
43.6.4 status_t SDHC_SetAdmaTableConfig ( SDHC_Type ∗base,
sdhc_dma_mode_t dmaMode, uint32_t ∗table, uint32_t tableWords, const
uint32_t ∗data, uint32_t dataBytes )
Parameters
base SDHC peripheral base address.
dmaMode DMA mode.
table ADMA table address.
tableWords ADMA table buffer length united as Words.
data Data buffer address.
dataBytes Data length united as bytes.
Return values
kStatus_OutOfRange ADMA descriptor table length isn’t enough to describe data.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
947
Function Documentation
kStatus_Success Operate successfully.
43.6.5 static void SDHC_EnableInterruptStatus ( SDHC_Type ∗base, uint32_t
mask )[inline],[static]
Parameters
base SDHC peripheral base address.
mask Interrupt status flags mask(_sdhc_interrupt_status_flag).
43.6.6 static void SDHC_DisableInterruptStatus ( SDHC_Type ∗base, uint32_t
mask )[inline],[static]
Parameters
base SDHC peripheral base address.
mask The interrupt status flags mask(_sdhc_interrupt_status_flag).
43.6.7 static void SDHC_EnableInterruptSignal ( SDHC_Type ∗base, uint32_t
mask )[inline],[static]
Parameters
base SDHC peripheral base address.
mask The interrupt status flags mask(_sdhc_interrupt_status_flag).
43.6.8 static void SDHC_DisableInterruptSignal ( SDHC_Type ∗base, uint32_t
mask )[inline],[static]
Parameters
948
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
base SDHC peripheral base address.
mask The interrupt status flags mask(_sdhc_interrupt_status_flag).
43.6.9 static uint32_t SDHC_GetInterruptStatusFlags ( SDHC_Type ∗base )
[inline],[static]
Parameters
base SDHC peripheral base address.
Returns
Current interrupt status flags mask(_sdhc_interrupt_status_flag).
43.6.10 static void SDHC_ClearInterruptStatusFlags ( SDHC_Type ∗base, uint32_t
mask )[inline],[static]
Parameters
base SDHC peripheral base address.
mask The interrupt status flags mask(_sdhc_interrupt_status_flag).
43.6.11 static uint32_t SDHC_GetAutoCommand12ErrorStatusFlags ( SDHC_Type
∗base )[inline],[static]
Parameters
base SDHC peripheral base address.
Returns
Auto command 12 error status flags mask(_sdhc_auto_command12_error_status_flag).
43.6.12 static uint32_t SDHC_GetAdmaErrorStatusFlags ( SDHC_Type ∗base )
[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
949
Function Documentation
Parameters
base SDHC peripheral base address.
Returns
ADMA error status flags mask(_sdhc_adma_error_status_flag).
43.6.13 static uint32_t SDHC_GetPresentStatusFlags ( SDHC_Type ∗base )
[inline],[static]
This function gets the present SDHC’s status except for interrupt status and error status.
Parameters
base SDHC peripheral base address.
Returns
Present SDHC’s status flags mask(_sdhc_present_status_flag).
43.6.14 void SDHC_GetCapability ( SDHC_Type ∗base, sdhc_capability_t ∗
capability )
Parameters
base SDHC peripheral base address.
capability Structure to save capability information.
43.6.15 static void SDHC_EnableSdClock ( SDHC_Type ∗base, bool enable )
[inline],[static]
Parameters
950
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
base SDHC peripheral base address.
enable True to enable, false to disable.
43.6.16 uint32_t SDHC_SetSdClock ( SDHC_Type ∗base, uint32_t srcClock_Hz,
uint32_t busClock_Hz )
Parameters
base SDHC peripheral base address.
srcClock_Hz SDHC source clock frequency united in Hz.
busClock_Hz SD bus clock frequency united in Hz.
Returns
The nearest frequency of busClock_Hz configured to SD bus.
43.6.17 bool SDHC_SetCardActive ( SDHC_Type ∗base, uint32_t timeout )
This function must be called after each time the card is inserted to make card can receive command
correctly.
Parameters
base SDHC peripheral base address.
timeout Timeout to initialize card.
Return values
true Set card active successfully.
false Set card active failed.
43.6.18 static void SDHC_SetDataBusWidth ( SDHC_Type ∗base,
sdhc_data_bus_width_t width )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
951
Function Documentation
Parameters
base SDHC peripheral base address.
width Data transfer width.
43.6.19 void SDHC_SetTransferConfig ( SDHC_Type ∗base, const
sdhc_transfer_config_t ∗config )
This function fills card transfer-related command argument/transfer flag/data size. Command and data will
be sent by SDHC after calling this function.
Example:
sdhc_transfer_config_t transferConfig;
transferConfig.dataBlockSize = 512U;
transferConfig.dataBlockCount = 2U;
transferConfig.commandArgument = 0x01AAU;
transferConfig.commandIndex = 8U;
transferConfig.flags |= (kSDHC_EnableDmaFlag |
kSDHC_EnableAutoCommand12Flag |
kSDHC_MultipleBlockFlag);
SDHC_SetTransferConfig(SDHC, &transferConfig);
Parameters
base SDHC peripheral base address.
config Command configuration structure.
43.6.20 static uint32_t SDHC_GetCommandResponse ( SDHC_Type ∗base,
uint32_t index )[inline],[static]
Parameters
base SDHC peripheral base address.
index The index of response register, range from 0 to 3.
Returns
Response register transfer.
952
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
43.6.21 static void SDHC_WriteData ( SDHC_Type ∗base, uint32_t data )
[inline],[static]
This function is mainly used to implement the data transfer by Data Port instead of DMA.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
953
Function Documentation
Parameters
base SDHC peripheral base address.
data The data about to be sent.
43.6.22 static uint32_t SDHC_ReadData ( SDHC_Type ∗base )[inline],
[static]
This function is mainly used to implement the data transfer by Data Port instead of DMA.
Parameters
base SDHC peripheral base address.
Returns
The data has been read.
43.6.23 static void SDHC_EnableWakeupEvent ( SDHC_Type ∗base, uint32_t
mask, bool enable )[inline],[static]
Parameters
base SDHC peripheral base address.
mask Wakeup events mask(_sdhc_wakeup_event).
enable True to enable, false to disable.
43.6.24 static void SDHC_EnableCardDetectTest ( SDHC_Type ∗base, bool enable
)[inline],[static]
Parameters
base SDHC peripheral base address.
954
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
enable True to enable, false to disable.
43.6.25 static void SDHC_SetCardDetectTestLevel ( SDHC_Type ∗base, bool high
)[inline],[static]
This function set the card detection test level to indicate whether the card is inserted into SDHC when DA-
T[3]/ CD pin is selected as card detection pin. This function can also assert the pin logic when DAT[3]/CD
pin is select as the card detection pin.
Parameters
base SDHC peripheral base address.
high True to set the card detect level to high.
43.6.26 void SDHC_EnableSdioControl ( SDHC_Type ∗base, uint32_t mask, bool
enable )
Parameters
base SDHC peripheral base address.
mask SDIO card control flags mask(_sdhc_sdio_control_flag).
enable True to enable, false to disable.
43.6.27 static void SDHC_SetContinueRequest ( SDHC_Type ∗base )[inline],
[static]
Parameters
base SDHC peripheral base address.
43.6.28 void SDHC_SetMmcBootConfig ( SDHC_Type ∗base, const
sdhc_boot_config_t ∗config )
Example:
sdhc_boot_config_t bootConfig;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
955
Function Documentation
bootConfig.ackTimeoutCount = 4;
bootConfig.bootMode =kSDHC_BootModeNormal;
bootConfig.blockCount = 5;
bootConfig.enableBootAck =true;
bootConfig.enableBoot =true;
enableBoot.enableAutoStopAtBlockGap = true;
SDHC_SetMmcBootConfig(SDHC, &bootConfig);
Parameters
base SDHC peripheral base address.
config The MMC boot configuration information.
43.6.29 static void SDHC_SetForceEvent ( SDHC_Type ∗base, uint32_t mask )
[inline],[static]
Parameters
base SDHC peripheral base address.
mask The force events mask(_sdhc_force_event).
43.6.30 status_t SDHC_TransferBlocking ( SDHC_Type ∗base, uint32_t ∗
admaTable, uint32_t admaTableWords, sdhc_transfer_t ∗transfer )
This function waits until the command response/data is got or SDHC encounters error by polling the
status flag. Application must not call this API in multiple threads at the same time because of that this API
doesn’t support reentry mechanism.
Note
Needn’t to call the API ’SDHC_TransferCreateHandle’ when calling this API.
Parameters
base SDHC peripheral base address.
admaTable ADMA table address, can’t be null if transfer way is ADMA1/ADMA2.
956
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
admaTable-
Words
ADMA table length united as words, can’t be 0 if transfer way is ADMA1/ADMA2.
transfer Transfer content.
Return values
kStatus_InvalidArgument Argument is invalid.
kStatus_SDHC_Prepare-
AdmaDescriptorFailed
Prepare ADMA descriptor failed.
kStatus_SDHC_Send-
CommandFailed
Send command failed.
kStatus_SDHC_Transfer-
DataFailed
Transfer data failed.
kStatus_Success Operate successfully.
43.6.31 void SDHC_TransferCreateHandle ( SDHC_Type ∗base, sdhc_handle_t ∗
handle, const sdhc_transfer_callback_t ∗callback, void ∗userData )
Parameters
base SDHC peripheral base address.
handle SDHC handle pointer.
callback Structure pointer to contain all callback functions.
userData Callback function parameter.
43.6.32 status_t SDHC_TransferNonBlocking ( SDHC_Type ∗base, sdhc_handle_t
∗handle, uint32_t ∗admaTable, uint32_t admaTableWords,
sdhc_transfer_t ∗transfer )
This function send command and data and return immediately. It doesn’t wait the transfer complete or
encounter error. Application must not call this API in multiple threads at the same time because of that
this API doesn’t support reentry mechanism.
Note
Must call the API ’SDHC_TransferCreateHandle’ when calling this API.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
957
Function Documentation
Parameters
base SDHC peripheral base address.
handle SDHC handle.
admaTable ADMA table address, can’t be null if transfer way is ADMA1/ADMA2.
admaTable-
Words
ADMA table length united as words, can’t be 0 if transfer way is ADMA1/ADMA2.
transfer Transfer content.
Return values
kStatus_InvalidArgument Argument is invalid.
kStatus_SDHC_Busy-
Transferring
Busy transferring.
kStatus_SDHC_Prepare-
AdmaDescriptorFailed
Prepare ADMA descriptor failed.
kStatus_Success Operate successfully.
43.6.33 void SDHC_TransferHandleIRQ ( SDHC_Type ∗base, sdhc_handle_t ∗
handle )
This function deals with IRQs on the given host controller.
Parameters
base SDHC peripheral base address.
handle SDHC handle.
958
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 44
SDRAMC: Synchronous DRAM Controller Driver
44.1 Overview
The KSDK provides a peripheral driver for the Synchronous DRAM Controller block of Kinetis devices.
The SDRAM controller commands include the initialize MRS command, precharge command, enter/exit
self-refresh command, and enable/disable auto-refresh command. Use the SDRAMC_SendCommand()
to send these commands to SDRAM to initialize it. The SDRAMC_EnableWriteProtect() is provided to
enable/disable the write protection. The SDRAMC_EnableOperateValid() is provided to enable/disable
the operation valid.
44.2 Typical use case
This example shows how to use the SDRAM Controller driver to initialize the external 16 bit port-size 8-
column SDRAM chip. Initialize the SDRAM controller and run the initialization sequence. The external
SDRAM is initialized and the SDRAM read and write is available.
First, initialize the SDRAM Controller.
sdramc_config_t config;
uint32_t clockSrc;
// SDRAM refresh timing configuration.
clockSrc = CLOCK_GetFreq(kCLOCK_BusClk);
sdramc_refresh_config_t refConfig =
{
kSDRAMC_RefreshThreeClocks,
15625, // SDRAM: 4096 rows/ 64ms.
clockSrc,
};
// SDRAM controller configuration.
sdramc_blockctl_config_t ctlConfig =
{
kSDRAMC_Block0,
kSDRAMC_PortSize16Bit,
kSDRAMC_Commandbit19,
kSDRAMC_LatencyOne,
SDRAM_START_ADDRESS,
0x7c0000,
};
config.refreshConfig = &refConfig;
config.blockConfig = &ctlConfig;
config.numBlockConfig = 1;
// SDRAM controller initialization.
SDRAMC_Init(base, &config);
Then, run the initialization sequence.
// Issues a PALL command.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
959
Typical use case
SDRAMC_SendCommand(base, whichBlock, kSDRAMC_PrechargeCommand);
// Accesses an SDRAM location.
(uint8_t *)(SDRAM_START_ADDRESS) = SDRAM_COMMAND_ACCESSVALUE;
// Enables the refresh.
SDRAMC_SendCommand(base, whichBlock,
kSDRAMC_AutoRefreshEnableCommand);
// Waits for 8 refresh cycles less than one microsecond.
delay;
// Issues the MSR command.
SDRAMC_SendCommand(base, whichBlock, kSDRAMC_ImrsCommand);
// Puts the correct value on the SDRAM address bus for the SDRAM mode register.
addr = ....;
// Set MRS register.
mrsAddr = (uint8_t *)(SDRAM_START_ADDRESS + addr);
mrsAddr = SDRAM_COMMAND_ACCESSVALUE;
Files
• file fsl_sdramc.h
Data Structures
• struct sdramc_blockctl_config_t
SDRAM controller block control configuration structure. More...
• struct sdramc_refresh_config_t
SDRAM controller refresh timing configuration structure. More...
• struct sdramc_config_t
SDRAM controller configuration structure. More...
Enumerations
• enum sdramc_refresh_time_t {
kSDRAMC_RefreshThreeClocks = 0x0U,
kSDRAMC_RefreshSixClocks,
kSDRAMC_RefreshNineClocks }
SDRAM controller auto-refresh timing.
• enum sdramc_latency_t {
kSDRAMC_LatencyZero = 0x0U,
kSDRAMC_LatencyOne,
kSDRAMC_LatencyTwo,
kSDRAMC_LatencyThree }
Setting latency for SDRAM controller timing specifications.
• enum sdramc_command_bit_location_t {
960
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
kSDRAMC_Commandbit17 = 0x0U,
kSDRAMC_Commandbit18,
kSDRAMC_Commandbit19,
kSDRAMC_Commandbit20,
kSDRAMC_Commandbit21,
kSDRAMC_Commandbit22,
kSDRAMC_Commandbit23,
kSDRAMC_Commandbit24 }
SDRAM controller command bit location.
• enum sdramc_command_t {
kSDRAMC_ImrsCommand = 0x0U,
kSDRAMC_PrechargeCommand,
kSDRAMC_SelfrefreshEnterCommand,
kSDRAMC_SelfrefreshExitCommand,
kSDRAMC_AutoRefreshEnableCommand,
kSDRAMC_AutoRefreshDisableCommand }
SDRAM controller command.
• enum sdramc_port_size_t {
kSDRAMC_PortSize32Bit = 0x0U,
kSDRAMC_PortSize8Bit,
kSDRAMC_PortSize16Bit }
SDRAM port size.
• enum sdramc_block_selection_t {
kSDRAMC_Block0 = 0x0U,
kSDRAMC_Block1 }
SDRAM controller block selection.
Driver version
• #define FSL_SDRAMC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
SDRAMC driver version 2.0.0.
SDRAM Controller Initialization and De-initialization
• void SDRAMC_Init (SDRAM_Type ∗base, sdramc_config_t ∗configure)
Initializes the SDRAM controller.
• void SDRAMC_Deinit (SDRAM_Type ∗base)
Deinitializes the SDRAM controller module and gates the clock.
SDRAM Controller Basic Operation
• status_t SDRAMC_SendCommand (SDRAM_Type ∗base, sdramc_block_selection_t block,
sdramc_command_t command)
Sends the SDRAM command.
• static void SDRAMC_EnableWriteProtect (SDRAM_Type ∗base, sdramc_block_selection_t block,
bool enable)
Enables/disables the write protection.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
961
Data Structure Documentation
• static void SDRAMC_EnableOperateValid (SDRAM_Type ∗base, sdramc_block_selection_t block,
bool enable)
Enables/disables the operation valid.
44.3 Data Structure Documentation
44.3.1 struct sdramc_blockctl_config_t
Data Fields
•sdramc_block_selection_t block
The block number.
•sdramc_port_size_t portSize
The port size of the associated SDRAM block.
•sdramc_command_bit_location_t location
The command bit location.
•sdramc_latency_t latency
The latency for some timing specifications.
• uint32_t address
The base address of the SDRAM block.
• uint32_t addressMask
The base address mask of the SDRAM block.
44.3.1.0.0.23 Field Documentation
44.3.1.0.0.23.1 sdramc_block_selection_t sdramc_blockctl_config_t::block
44.3.1.0.0.23.2 sdramc_port_size_t sdramc_blockctl_config_t::portSize
44.3.1.0.0.23.3 sdramc_command_bit_location_t sdramc_blockctl_config_t::location
44.3.1.0.0.23.4 sdramc_latency_t sdramc_blockctl_config_t::latency
44.3.1.0.0.23.5 uint32_t sdramc_blockctl_config_t::address
44.3.1.0.0.23.6 uint32_t sdramc_blockctl_config_t::addressMask
44.3.2 struct sdramc_refresh_config_t
Data Fields
•sdramc_refresh_time_t refreshTime
Trc:The number of bus clocks inserted between a REF and next ACTIVE command.
• uint32_t sdramRefreshRow
The SDRAM refresh time each row: ns/row.
• uint32_t busClock_Hz
The bus clock for SDRAMC.
962
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
44.3.2.0.0.24 Field Documentation
44.3.2.0.0.24.1 sdramc_refresh_time_t sdramc_refresh_config_t::refreshTime
44.3.2.0.0.24.2 uint32_t sdramc_refresh_config_t::sdramRefreshRow
44.3.2.0.0.24.3 uint32_t sdramc_refresh_config_t::busClock_Hz
44.3.3 struct sdramc_config_t
Defines a configure structure and uses the SDRAMC_Configure() function to make necessary initializa-
tions.
Data Fields
•sdramc_refresh_config_t ∗refreshConfig
Refresh timing configure structure pointer.
•sdramc_blockctl_config_t ∗blockConfig
Block configure structure pointer.
• uint8_t numBlockConfig
SDRAM block numbers for configuration.
44.3.3.0.0.25 Field Documentation
44.3.3.0.0.25.1 sdramc_refresh_config_t∗sdramc_config_t::refreshConfig
44.3.3.0.0.25.2 sdramc_blockctl_config_t∗sdramc_config_t::blockConfig
If both SDRAM blocks are used, use the two continuous blockConfig.
44.3.3.0.0.25.3 uint8_t sdramc_config_t::numBlockConfig
44.4 Macro Definition Documentation
44.4.1 #define FSL_SDRAMC_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
44.5 Enumeration Type Documentation
44.5.1 enum sdramc_refresh_time_t
Enumerator
kSDRAMC_RefreshThreeClocks The refresh timing with three bus clocks.
kSDRAMC_RefreshSixClocks The refresh timing with six bus clocks.
kSDRAMC_RefreshNineClocks The refresh timing with nine bus clocks.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
963
Enumeration Type Documentation
44.5.2 enum sdramc_latency_t
The latency setting will affects the following SDRAM timing specifications:
• trcd: SRAS assertion to SCAS assertion
• tcasl: SCAS assertion to data out
• tras: ACTV command to Precharge command
• trp: Precharge command to ACTV command
• trwl, trdl: Last data input to Precharge command
• tep: Last data out to Precharge command
the details of the latency setting and timing specifications are shown on the following table list:
latency trcd: tcasl tras trp trwl,trdl tep
0 1 bus clock 1 bus clock 2 bus clocks 1 bus clock 1 bus clock 1 bus clock
1 2 bus clock 2 bus clock 4 bus clocks 2 bus clock 1 bus clock 1 bus clock
2 3 bus clock 3 bus clock 6 bus clocks 3 bus clock 1 bus clock 1 bus clock
3 3 bus clock 3 bus clock 6 bus clocks 3 bus clock 1 bus clock 1 bus clock
Enumerator
kSDRAMC_LatencyZero Latency 0.
kSDRAMC_LatencyOne Latency 1.
kSDRAMC_LatencyTwo Latency 2.
kSDRAMC_LatencyThree Latency 3.
44.5.3 enum sdramc_command_bit_location_t
Enumerator
kSDRAMC_Commandbit17 Command bit location is bit 17.
kSDRAMC_Commandbit18 Command bit location is bit 18.
kSDRAMC_Commandbit19 Command bit location is bit 19.
kSDRAMC_Commandbit20 Command bit location is bit 20.
kSDRAMC_Commandbit21 Command bit location is bit 21.
kSDRAMC_Commandbit22 Command bit location is bit 22.
kSDRAMC_Commandbit23 Command bit location is bit 23.
kSDRAMC_Commandbit24 Command bit location is bit 24.
44.5.4 enum sdramc_command_t
Enumerator
kSDRAMC_ImrsCommand Initiate MRS command.
kSDRAMC_PrechargeCommand Initiate precharge command.
kSDRAMC_SelfrefreshEnterCommand Enter self-refresh command.
964
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
kSDRAMC_SelfrefreshExitCommand Exit self-refresh command.
kSDRAMC_AutoRefreshEnableCommand Enable Auto refresh command.
kSDRAMC_AutoRefreshDisableCommand Disable Auto refresh command.
44.5.5 enum sdramc_port_size_t
Enumerator
kSDRAMC_PortSize32Bit 32-Bit port size.
kSDRAMC_PortSize8Bit 8-Bit port size.
kSDRAMC_PortSize16Bit 16-Bit port size.
44.5.6 enum sdramc_block_selection_t
Enumerator
kSDRAMC_Block0 Select SDRAM block 0.
kSDRAMC_Block1 Select SDRAM block 1.
44.6 Function Documentation
44.6.1 void SDRAMC_Init ( SDRAM_Type ∗base, sdramc_config_t ∗configure )
This function ungates the SDRAM controller clock and initializes the SDRAM controller. This function
must be called before calling any other SDRAM controller driver functions. Example
sdramc_refresh_config_t refreshConfig;
sdramc_blockctl_config_t blockConfig;
sdramc_config_t config;
refreshConfig.refreshTime = kSDRAM_RefreshThreeClocks;
refreshConfig.sdramRefreshRow = 15625;
refreshConfig.busClock = 60000000;
blockConfig.block =kSDRAMC_Block0;
blockConfig.portSize =kSDRAMC_PortSize16Bit;
blockConfig.location =kSDRAMC_Commandbit19;
blockConfig.latency =kSDRAMC_RefreshThreeClocks;
blockConfig.address = SDRAM_START_ADDRESS;
blockConfig.addressMask = 0x7c0000;
config.refreshConfig = &refreshConfig,
config.blockConfig = &blockConfig,
config.totalBlocks = 1;
SDRAMC_Init(SDRAM, &config);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
965
Function Documentation
Parameters
base SDRAM controller peripheral base address.
configure The SDRAM configuration structure pointer.
44.6.2 void SDRAMC_Deinit ( SDRAM_Type ∗base )
This function gates the SDRAM controller clock. As a result, the SDRAM controller module doesn’t work
after calling this function.
Parameters
base SDRAM controller peripheral base address.
44.6.3 status_t SDRAMC_SendCommand ( SDRAM_Type ∗base,
sdramc_block_selection_t block, sdramc_command_t command )
This function sends the command to SDRAM. There are precharge command, initialize MRS command,
auto-refresh enable/disable command, and self-refresh enter/exit commands. Note the self-refresh en-
ter/exit commands are all blocks setting and "block" are ignored. Ensure to set the right "block" when
send other commands.
Parameters
base SDRAM controller peripheral base address.
block The block selection.
command The SDRAM command, see "sdramc_command_t". kSDRAMC_ImrsCommand -
Initialize MRS command
kSDRAMC_PrechargeCommand - Initialize precharge command
kSDRAMC_SelfrefreshEnterCommand - Enter self-refresh command
kSDRAMC_SelfrefreshExitCommand - Exit self-refresh command
kSDRAMC_AutoRefreshEnableCommand - Enable auto refresh command
kSDRAMC_AutoRefreshDisableCommand - Disable auto refresh command
Returns
Command execution status. All commands except the "initialize MRS command" and "precharge
command" return kStatus_Success directly. For "initialize MRS command" and "precharge com-
mand" return kStatus_Success when the command success else return kStatus_Fail.
966
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
44.6.4 static void SDRAMC_EnableWriteProtect ( SDRAM_Type ∗base,
sdramc_block_selection_t block, bool enable )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
967
Function Documentation
Parameters
base SDRAM peripheral base address.
block The block which is selected.
enable True enable write protection, false disable write protection.
44.6.5 static void SDRAMC_EnableOperateValid ( SDRAM_Type ∗base,
sdramc_block_selection_t block, bool enable )[inline],[static]
Parameters
base SDRAM peripheral base address.
block The block which is selected.
enable True enable the operation valid, false disable the operation valid.
968
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 45
SIM: System Integration Module Driver
45.1 Overview
The KSDK provides a peripheral driver for the System Integration Module (SIM) of Kinetis devices.
Files
• file fsl_sim.h
Data Structures
• struct sim_uid_t
Unique ID. More...
Enumerations
• enum _sim_flash_mode {
kSIM_FlashDisableInWait = SIM_FCFG1_FLASHDOZE_MASK,
kSIM_FlashDisable = SIM_FCFG1_FLASHDIS_MASK }
Flash enable mode.
Functions
• void SIM_GetUniqueId (sim_uid_t ∗uid)
Get the unique identification register value.
• static void SIM_SetFlashMode (uint8_t mode)
Set the flash enable mode.
Driver version
• #define FSL_SIM_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Driver version 2.0.0.
45.2 Data Structure Documentation
45.2.1 struct sim_uid_t
Data Fields
• uint32_t MH
UIDMH.
• uint32_t ML
UIDML.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
969
Function Documentation
• uint32_t L
UIDL.
45.2.1.0.0.26 Field Documentation
45.2.1.0.0.26.1 uint32_t sim_uid_t::MH
45.2.1.0.0.26.2 uint32_t sim_uid_t::ML
45.2.1.0.0.26.3 uint32_t sim_uid_t::L
45.3 Enumeration Type Documentation
45.3.1 enum _sim_flash_mode
Enumerator
kSIM_FlashDisableInWait Disable flash in wait mode.
kSIM_FlashDisable Disable flash in normal mode.
45.4 Function Documentation
45.4.1 void SIM_GetUniqueId ( sim_uid_t ∗uid )
Parameters
uid Pointer to the structure to save the UID value.
45.4.2 static void SIM_SetFlashMode ( uint8_t mode )[inline],[static]
Parameters
mode The mode to set, see _sim_flash_mode for mode details.
970
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 46
SLCD: Segment LCD Driver
46.1 Overview
The KSDK provides a peripheral driver for the Segment LCD (SLCD) module of Kinetis devices. The
SLCD module is a CMOS charge pump voltage inverter that is designed for low voltage and low-power
operation. SLCD is designed to generate the appropriate waveforms to drive multiplexed numeric, al-
phanumeric, or custom segment LCD panels. SLCD also has several timing and control settings that
can be software-configured depending on the application’s requirements. Timing and control consists of
registers and control logic for the following:
1. LCD frame frequency
2. Duty cycle selection
3. Front plane/back plane selection and enabling
4. Blink modes and frequency
5. Operation in low-power modes
After the SLCD general initialization, the SLCD_SetBackPlanePhase(),SLCD_SetFrontPlaneSegments(),
and SLCD_SetFrontPlaneOnePhase() are used to set the special back/front Plane to make SLCD display
correctly. Then, the independent display control APIs, SLCD_StartDisplay() and SLCD_StopDisplay(),
start and stop the SLCD display.
The SLCD_StartBlinkMode() and SLCD_StopBlinkMode() are provided for the runtime special blink
mode control. To get the SLCD fault detection result, call the SLCD_GetFaultDetectCounter().
46.2 Typical use case
46.2.1 SLCD Initialization operation
slcd_config_t configure = 0;
slcd_clock_config_t clkConfig =
{
kSLCD_AlternateClk1,
kSLCD_AltClkDivFactor1,
kSLCD_ClkPrescaler00
#if FSL_FEATURE_SLCD_HAS_FAST_FRAME_RATE
,
false
#endif
};
SLCD_GetDefaultConfig(&configure);
configure.clkConfig. = &clkConfig;
configure.loadAdjust =kSLCD_LowLoadOrIntermediateClkSrc
;
configure.dutyCycle =kSLCD_1Div4DutyCycle;
configure.slcdlowPinEnabled = 0x1a44;
configure.backPlanelowPin = 0x0822;
configure.faultConfig = NULL;
SLCD_Init(base, &configure);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
971
Typical use case
SLCD_SetBackPlanePhase(base, 1, kSLCD_PhaseAActivate);
SLCD_SetBackPlanePhase(base, 5, kSLCD_PhaseBActivate);
SLCD_SetBackPlanePhase(base, 11, kSLCD_PhaseCActivate);
SLCD_SetFrontPlaneSegments(base, 0, (
kSLCD_PhaseAActivate |kSLCD_PhaseBActivate));
SLCD_SetFrontPlaneSegments(base, 9, (
kSLCD_PhaseBActivate |kSLCD_PhaseCActivate));
SLCD_StartDisplay(base);
Files
• file fsl_slcd.h
Data Structures
• struct slcd_fault_detect_config_t
SLCD fault frame detection configure structure. More...
• struct slcd_clock_config_t
SLCD clock configure structure. More...
• struct slcd_config_t
SLCD configure structure. More...
Enumerations
• enum slcd_power_supply_option_t {
kSLCD_InternalVll3UseChargePump,
kSLCD_ExternalVll3UseResistorBiasNetwork,
kSLCD_ExteranlVll3UseChargePump,
kSLCD_InternalVll1UseChargePump }
SLCD power supply option.
• enum slcd_regulated_voltage_trim_t {
kSLCD_RegulatedVolatgeTrim00 = 0U,
kSLCD_RegulatedVolatgeTrim01,
kSLCD_RegulatedVolatgeTrim02,
kSLCD_RegulatedVolatgeTrim03,
kSLCD_RegulatedVolatgeTrim04,
kSLCD_RegulatedVolatgeTrim05,
kSLCD_RegulatedVolatgeTrim06,
kSLCD_RegulatedVolatgeTrim07,
kSLCD_RegulatedVolatgeTrim08,
kSLCD_RegulatedVolatgeTrim09,
kSLCD_RegulatedVolatgeTrim10,
kSLCD_RegulatedVolatgeTrim11,
kSLCD_RegulatedVolatgeTrim12,
kSLCD_RegulatedVolatgeTrim13,
kSLCD_RegulatedVolatgeTrim14,
kSLCD_RegulatedVolatgeTrim15 }
SLCD regulated voltage trim parameter, be used to meet the desired contrast.
972
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
• enum slcd_load_adjust_t {
kSLCD_LowLoadOrFastestClkSrc = 0U,
kSLCD_LowLoadOrIntermediateClkSrc,
kSLCD_HighLoadOrIntermediateClkSrc,
kSLCD_HighLoadOrSlowestClkSrc }
SLCD load adjust to handle different LCD glass capacitance or configure the LCD charge pump clock
source.
• enum slcd_clock_src_t {
kSLCD_DefaultClk = 0U,
kSLCD_AlternateClk1 = 1U }
SLCD clock source.
• enum slcd_alt_clock_div_t {
kSLCD_AltClkDivFactor1 = 0U,
kSLCD_AltClkDivFactor64,
kSLCD_AltClkDivFactor256,
kSLCD_AltClkDivFactor512 }
SLCD alternate clock divider.
• enum slcd_clock_prescaler_t {
kSLCD_ClkPrescaler00 = 0U,
kSLCD_ClkPrescaler01,
kSLCD_ClkPrescaler02,
kSLCD_ClkPrescaler03,
kSLCD_ClkPrescaler04,
kSLCD_ClkPrescaler05,
kSLCD_ClkPrescaler06,
kSLCD_ClkPrescaler07 }
SLCD clock prescaler to generate frame frequency.
• enum slcd_duty_cycle_t {
kSLCD_1Div1DutyCycle = 0U,
kSLCD_1Div2DutyCycle,
kSLCD_1Div3DutyCycle,
kSLCD_1Div4DutyCycle,
kSLCD_1Div5DutyCycle,
kSLCD_1Div6DutyCycle,
kSLCD_1Div7DutyCycle,
kSLCD_1Div8DutyCycle }
SLCD duty cycle.
• enum slcd_phase_type_t {
kSLCD_NoPhaseActivate = 0x00U,
kSLCD_PhaseAActivate = 0x01U,
kSLCD_PhaseBActivate = 0x02U,
kSLCD_PhaseCActivate = 0x04U,
kSLCD_PhaseDActivate = 0x08U,
kSLCD_PhaseEActivate = 0x10U,
kSLCD_PhaseFActivate = 0x20U,
kSLCD_PhaseGActivate = 0x40U,
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
973
Typical use case
kSLCD_PhaseHActivate = 0x80U }
SLCD segment phase type.
• enum slcd_phase_index_t {
kSLCD_PhaseAIndex = 0x0U,
kSLCD_PhaseBIndex = 0x1U,
kSLCD_PhaseCIndex = 0x2U,
kSLCD_PhaseDIndex = 0x3U,
kSLCD_PhaseEIndex = 0x4U,
kSLCD_PhaseFIndex = 0x5U,
kSLCD_PhaseGIndex = 0x6U,
kSLCD_PhaseHIndex = 0x7U }
SLCD segment phase bit index.
• enum slcd_display_mode_t {
kSLCD_NormalMode = 0U,
kSLCD_AlternateMode,
kSLCD_BlankMode }
SLCD display mode.
• enum slcd_blink_mode_t {
kSLCD_BlankDisplayBlink = 0U,
kSLCD_AltDisplayBlink }
SLCD blink mode.
• enum slcd_blink_rate_t {
kSLCD_BlinkRate00 = 0U,
kSLCD_BlinkRate01,
kSLCD_BlinkRate02,
kSLCD_BlinkRate03,
kSLCD_BlinkRate04,
kSLCD_BlinkRate05,
kSLCD_BlinkRate06,
kSLCD_BlinkRate07 }
SLCD blink rate.
• enum slcd_fault_detect_clock_prescaler_t {
kSLCD_FaultSampleFreqDivider1 = 0U,
kSLCD_FaultSampleFreqDivider2,
kSLCD_FaultSampleFreqDivider4,
kSLCD_FaultSampleFreqDivider8,
kSLCD_FaultSampleFreqDivider16,
kSLCD_FaultSampleFreqDivider32,
kSLCD_FaultSampleFreqDivider64,
kSLCD_FaultSampleFreqDivider128 }
SLCD fault detect clock prescaler.
• enum slcd_fault_detect_sample_window_width_t {
974
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
kSLCD_FaultDetectWindowWidth4SampleClk = 0U,
kSLCD_FaultDetectWindowWidth8SampleClk,
kSLCD_FaultDetectWindowWidth16SampleClk,
kSLCD_FaultDetectWindowWidth32SampleClk,
kSLCD_FaultDetectWindowWidth64SampleClk,
kSLCD_FaultDetectWindowWidth128SampleClk,
kSLCD_FaultDetectWindowWidth256SampleClk,
kSLCD_FaultDetectWindowWidth512SampleClk }
SLCD fault detect sample window width.
• enum slcd_interrupt_enable_t {kSLCD_FaultDetectCompleteInterrupt = 1U }
SLCD interrupt source.
• enum slcd_lowpower_behavior {
kSLCD_EnabledInWaitStop = 0,
kSLCD_EnabledInWaitOnly,
kSLCD_EnabledInStopOnly,
kSLCD_DisabledInWaitStop }
SLCD behavior in low power mode.
Driver version
• #define FSL_SLCD_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
SLCD driver version 2.0.0.
Initialization and deinitialization
• void SLCD_Init (LCD_Type ∗base, slcd_config_t ∗configure)
Initializes the SLCD, ungates the module clock, initializes the power setting, enables all used plane pins,
and sets with interrupt and work mode with configuration.
• void SLCD_Deinit (LCD_Type ∗base)
Deinitializes the SLCD module, gates the module clock, disables an interrupt, and displays the SLCD.
• void SLCD_GetDefaultConfig (slcd_config_t ∗configure)
Gets the SLCD default configuration structure.
Plane Setting and Display Control
• static void SLCD_StartDisplay (LCD_Type ∗base)
Enables the SLCD controller, starts generate, and displays the front plane and back plane waveform.
• static void SLCD_StopDisplay (LCD_Type ∗base)
Stops the SLCD controller.
• void SLCD_StartBlinkMode (LCD_Type ∗base, slcd_blink_mode_t mode, slcd_blink_rate_t rate)
Starts the SLCD blink mode.
• static void SLCD_StopBlinkMode (LCD_Type ∗base)
Stops the SLCD blink mode.
• static void SLCD_SetBackPlanePhase (LCD_Type ∗base, uint32_t pinIndx, slcd_phase_type_-
tphase)
Sets the SLCD back plane pin phase.
• static void SLCD_SetFrontPlaneSegments (LCD_Type ∗base, uint32_t pinIndx, uint8_t operation)
Sets the SLCD front plane segment operation for a front plane pin.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
975
Data Structure Documentation
• static void SLCD_SetFrontPlaneOnePhase (LCD_Type ∗base, uint32_t pinIndx, slcd_phase_index-
_t phaseIndx, bool enable)
Sets one SLCD front plane pin for one phase.
• static uint32_t SLCD_GetFaultDetectCounter (LCD_Type ∗base)
Gets the SLCD fault detect counter.
Interrupts.
• void SLCD_EnableInterrupts (LCD_Type ∗base, uint32_t mask)
Enables the SLCD interrupt.
• void SLCD_DisableInterrupts (LCD_Type ∗base, uint32_t mask)
Disables the SLCD interrupt.
• uint32_t SLCD_GetInterruptStatus (LCD_Type ∗base)
Gets the SLCD interrupt status flag.
• void SLCD_ClearInterruptStatus (LCD_Type ∗base, uint32_t mask)
Clears the SLCD interrupt events status flag.
46.3 Data Structure Documentation
46.3.1 struct slcd_fault_detect_config_t
Data Fields
• bool faultDetectIntEnable
Fault frame detection interrupt enable flag.
• bool faultDetectBackPlaneEnable
True means the pin id fault detected is back plane otherwise front plane.
• uint8_t faultDetectPinIndex
Fault detected pin id from 0 to 63.
•slcd_fault_detect_clock_prescaler_t faultPrescaler
Fault detect clock prescaler.
•slcd_fault_detect_sample_window_width_t width
Fault detect sample window width.
976
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
46.3.1.0.0.27 Field Documentation
46.3.1.0.0.27.1 bool slcd_fault_detect_config_t::faultDetectIntEnable
46.3.1.0.0.27.2 bool slcd_fault_detect_config_t::faultDetectBackPlaneEnable
46.3.1.0.0.27.3 uint8_t slcd_fault_detect_config_t::faultDetectPinIndex
46.3.1.0.0.27.4 slcd_fault_detect_clock_prescaler_t slcd_fault_detect_config_t::faultPrescaler
46.3.1.0.0.27.5 slcd_fault_detect_sample_window_width_t slcd_fault_detect_config_t::width
46.3.2 struct slcd_clock_config_t
Data Fields
•slcd_clock_src_t clkSource
Clock source.
•slcd_alt_clock_div_t altClkDivider
The divider to divide the alternate clock used for alternate clock source.
•slcd_clock_prescaler_t clkPrescaler
Clock prescaler.
46.3.2.0.0.28 Field Documentation
46.3.2.0.0.28.1 slcd_clock_src_t slcd_clock_config_t::clkSource
"slcd_clock_src_t" is recommended to be used. The SLCD is optimized to operate using a 32.768kHz
clock input.
46.3.2.0.0.28.2 slcd_alt_clock_div_t slcd_clock_config_t::altClkDivider
46.3.2.0.0.28.3 slcd_clock_prescaler_t slcd_clock_config_t::clkPrescaler
46.3.3 struct slcd_config_t
Data Fields
•slcd_power_supply_option_t powerSupply
Power supply option.
•slcd_regulated_voltage_trim_t voltageTrim
Regulated voltage trim used for the internal regulator VIREG to adjust to facilitate contrast control.
•slcd_clock_config_t ∗clkConfig
Clock configure.
•slcd_display_mode_t displayMode
SLCD display mode.
•slcd_load_adjust_t loadAdjust
Load adjust to handle glass capacitance.
•slcd_duty_cycle_t dutyCycle
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
977
Data Structure Documentation
Duty cycle.
•slcd_lowpower_behavior lowPowerBehavior
SLCD behavior in low power mode.
• uint32_t slcdLowPinEnabled
Setting enabled SLCD pin 0 ∼pin 31.
• uint32_t slcdHighPinEnabled
Setting enabled SLCD pin 32 ∼pin 63.
• uint32_t backPlaneLowPin
Setting back plane pin 0 ∼pin 31.
• uint32_t backPlaneHighPin
Setting back plane pin 32 ∼pin 63.
•slcd_fault_detect_config_t ∗faultConfig
Fault frame detection configure.
46.3.3.0.0.29 Field Documentation
46.3.3.0.0.29.1 slcd_power_supply_option_t slcd_config_t::powerSupply
46.3.3.0.0.29.2 slcd_regulated_voltage_trim_t slcd_config_t::voltageTrim
46.3.3.0.0.29.3 slcd_clock_config_t∗slcd_config_t::clkConfig
46.3.3.0.0.29.4 slcd_display_mode_t slcd_config_t::displayMode
46.3.3.0.0.29.5 slcd_load_adjust_t slcd_config_t::loadAdjust
46.3.3.0.0.29.6 slcd_duty_cycle_t slcd_config_t::dutyCycle
46.3.3.0.0.29.7 slcd_lowpower_behavior slcd_config_t::lowPowerBehavior
46.3.3.0.0.29.8 uint32_t slcd_config_t::slcdLowPinEnabled
Setting bit n to 1 means enable pin n.
46.3.3.0.0.29.9 uint32_t slcd_config_t::slcdHighPinEnabled
Setting bit n to 1 means enable pin (n + 32).
46.3.3.0.0.29.10 uint32_t slcd_config_t::backPlaneLowPin
Setting bit n to 1 means setting pin n as back plane. It should never have the same bit setting as the
frontPlane Pin.
46.3.3.0.0.29.11 uint32_t slcd_config_t::backPlaneHighPin
Setting bit n to 1 means setting pin (n + 32) as back plane. It should never have the same bit setting as the
frontPlane Pin.
46.3.3.0.0.29.12 slcd_fault_detect_config_t∗slcd_config_t::faultConfig
If not requirement, set to NULL.
978
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
46.4 Macro Definition Documentation
46.4.1 #define FSL_SLCD_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
46.5 Enumeration Type Documentation
46.5.1 enum slcd_power_supply_option_t
Enumerator
kSLCD_InternalVll3UseChargePump VLL3 connected to VDD internally, charge pump is used to
generate VLL1 and VLL2.
kSLCD_ExternalVll3UseResistorBiasNetwork VLL3 is driven externally and resistor bias network
is used to generate VLL1 and VLL2.
kSLCD_ExteranlVll3UseChargePump VLL3 is driven externally and charge pump is used to gen-
erate VLL1 and VLL2.
kSLCD_InternalVll1UseChargePump VIREG is connected to VLL1 internally and charge pump is
used to generate VLL2 and VLL3.
46.5.2 enum slcd_regulated_voltage_trim_t
Enumerator
kSLCD_RegulatedVolatgeTrim00 Increase the voltage to 0.91 V.
kSLCD_RegulatedVolatgeTrim01 Increase the voltage to 1.01 V.
kSLCD_RegulatedVolatgeTrim02 Increase the voltage to 0.96 V.
kSLCD_RegulatedVolatgeTrim03 Increase the voltage to 1.06 V.
kSLCD_RegulatedVolatgeTrim04 Increase the voltage to 0.93 V.
kSLCD_RegulatedVolatgeTrim05 Increase the voltage to 1.02 V.
kSLCD_RegulatedVolatgeTrim06 Increase the voltage to 0.98 V.
kSLCD_RegulatedVolatgeTrim07 Increase the voltage to 1.08 V.
kSLCD_RegulatedVolatgeTrim08 Increase the voltage to 0.92 V.
kSLCD_RegulatedVolatgeTrim09 Increase the voltage to 1.02 V.
kSLCD_RegulatedVolatgeTrim10 Increase the voltage to 0.97 V.
kSLCD_RegulatedVolatgeTrim11 Increase the voltage to 1.07 V.
kSLCD_RegulatedVolatgeTrim12 Increase the voltage to 0.94 V.
kSLCD_RegulatedVolatgeTrim13 Increase the voltage to 1.05 V.
kSLCD_RegulatedVolatgeTrim14 Increase the voltage to 0.99 V.
kSLCD_RegulatedVolatgeTrim15 Increase the voltage to 1.09 V.
46.5.3 enum slcd_load_adjust_t
Adjust the LCD glass capacitance if resistor bias network is enabled: kSLCD_LowLoadOrFastestClkSrc
- Low load (LCD glass capacitance 2000pF or lower. LCD or GPIO function can be used on VLL1,V-
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
979
Enumeration Type Documentation
LL2,Vcap1 and Vcap2 pins) kSLCD_LowLoadOrIntermediateClkSrc - low load (LCD glass capacitance
2000pF or lower. LCD or GPIO function can be used on VLL1,VLL2,Vcap1 and Vcap2 pins) kSLCD-
_HighLoadOrIntermediateClkSrc - high load (LCD glass capacitance 8000pF or lower. LCD or GPIO
function can be used on Vcap1 and Vcap2 pins) kSLCD_HighLoadOrSlowestClkSrc - high load (LC-
D glass capacitance 8000pF or lower LCD or GPIO function can be used on Vcap1 and Vcap2 pins)
Adjust clock for charge pump if charge pump is enabled: kSLCD_LowLoadOrFastestClkSrc - Fasten
clock source (LCD glass capacitance 8000pF or 4000pF or lower if Fast Frame Rate is set) kSLCD_-
LowLoadOrIntermediateClkSrc - Intermediate clock source (LCD glass capacitance 4000pF or 2000pF
or lower if Fast Frame Rate is set) kSLCD_HighLoadOrIntermediateClkSrc - Intermediate clock source
(LCD glass capacitance 2000pF or 1000pF or lower if Fast Frame Rate is set) kSLCD_HighLoadOr-
SlowestClkSrc - slowest clock source (LCD glass capacitance 1000pF or 500pF or lower if Fast Frame
Rate is set)
Enumerator
kSLCD_LowLoadOrFastestClkSrc Adjust in low load or selects fastest clock.
kSLCD_LowLoadOrIntermediateClkSrc Adjust in low load or selects intermediate clock.
kSLCD_HighLoadOrIntermediateClkSrc Adjust in high load or selects intermediate clock.
kSLCD_HighLoadOrSlowestClkSrc Adjust in high load or selects slowest clock.
46.5.4 enum slcd_clock_src_t
Enumerator
kSLCD_DefaultClk Select default clock ERCLK32K.
kSLCD_AlternateClk1 Select alternate clock source 1 : MCGIRCLK.
46.5.5 enum slcd_alt_clock_div_t
Enumerator
kSLCD_AltClkDivFactor1 No divide for alternate clock.
kSLCD_AltClkDivFactor64 Divide alternate clock with factor 64.
kSLCD_AltClkDivFactor256 Divide alternate clock with factor 256.
kSLCD_AltClkDivFactor512 Divide alternate clock with factor 512.
46.5.6 enum slcd_clock_prescaler_t
Enumerator
kSLCD_ClkPrescaler00 Prescaler 0.
kSLCD_ClkPrescaler01 Prescaler 1.
980
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
kSLCD_ClkPrescaler02 Prescaler 2.
kSLCD_ClkPrescaler03 Prescaler 3.
kSLCD_ClkPrescaler04 Prescaler 4.
kSLCD_ClkPrescaler05 Prescaler 5.
kSLCD_ClkPrescaler06 Prescaler 6.
kSLCD_ClkPrescaler07 Prescaler 7.
46.5.7 enum slcd_duty_cycle_t
Enumerator
kSLCD_1Div1DutyCycle LCD use 1 BP 1/1 duty cycle.
kSLCD_1Div2DutyCycle LCD use 2 BP 1/2 duty cycle.
kSLCD_1Div3DutyCycle LCD use 3 BP 1/3 duty cycle.
kSLCD_1Div4DutyCycle LCD use 4 BP 1/4 duty cycle.
kSLCD_1Div5DutyCycle LCD use 5 BP 1/5 duty cycle.
kSLCD_1Div6DutyCycle LCD use 6 BP 1/6 duty cycle.
kSLCD_1Div7DutyCycle LCD use 7 BP 1/7 duty cycle.
kSLCD_1Div8DutyCycle LCD use 8 BP 1/8 duty cycle.
46.5.8 enum slcd_phase_type_t
Enumerator
kSLCD_NoPhaseActivate LCD wareform no phase activates.
kSLCD_PhaseAActivate LCD waveform phase A activates.
kSLCD_PhaseBActivate LCD waveform phase B activates.
kSLCD_PhaseCActivate LCD waveform phase C activates.
kSLCD_PhaseDActivate LCD waveform phase D activates.
kSLCD_PhaseEActivate LCD waveform phase E activates.
kSLCD_PhaseFActivate LCD waveform phase F activates.
kSLCD_PhaseGActivate LCD waveform phase G activates.
kSLCD_PhaseHActivate LCD waveform phase H activates.
46.5.9 enum slcd_phase_index_t
Enumerator
kSLCD_PhaseAIndex LCD phase A bit index.
kSLCD_PhaseBIndex LCD phase B bit index.
kSLCD_PhaseCIndex LCD phase C bit index.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
981
Enumeration Type Documentation
kSLCD_PhaseDIndex LCD phase D bit index.
kSLCD_PhaseEIndex LCD phase E bit index.
kSLCD_PhaseFIndex LCD phase F bit index.
kSLCD_PhaseGIndex LCD phase G bit index.
kSLCD_PhaseHIndex LCD phase H bit index.
46.5.10 enum slcd_display_mode_t
Enumerator
kSLCD_NormalMode LCD Normal display mode.
kSLCD_AlternateMode LCD Alternate display mode. For four back planes or less.
kSLCD_BlankMode LCD Blank display mode.
46.5.11 enum slcd_blink_mode_t
Enumerator
kSLCD_BlankDisplayBlink Display blank during the blink period.
kSLCD_AltDisplayBlink Display alternate display during the blink period if duty cycle is lower than
5.
46.5.12 enum slcd_blink_rate_t
Enumerator
kSLCD_BlinkRate00 SLCD blink rate is LCD clock/((2∧12)).
kSLCD_BlinkRate01 SLCD blink rate is LCD clock/((2∧13)).
kSLCD_BlinkRate02 SLCD blink rate is LCD clock/((2∧14)).
kSLCD_BlinkRate03 SLCD blink rate is LCD clock/((2∧15)).
kSLCD_BlinkRate04 SLCD blink rate is LCD clock/((2∧16)).
kSLCD_BlinkRate05 SLCD blink rate is LCD clock/((2∧17)).
kSLCD_BlinkRate06 SLCD blink rate is LCD clock/((2∧18)).
kSLCD_BlinkRate07 SLCD blink rate is LCD clock/((2∧19)).
46.5.13 enum slcd_fault_detect_clock_prescaler_t
Enumerator
kSLCD_FaultSampleFreqDivider1 Fault detect sample clock frequency is 1/1 bus clock.
982
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
kSLCD_FaultSampleFreqDivider2 Fault detect sample clock frequency is 1/2 bus clock.
kSLCD_FaultSampleFreqDivider4 Fault detect sample clock frequency is 1/4 bus clock.
kSLCD_FaultSampleFreqDivider8 Fault detect sample clock frequency is 1/8 bus clock.
kSLCD_FaultSampleFreqDivider16 Fault detect sample clock frequency is 1/16 bus clock.
kSLCD_FaultSampleFreqDivider32 Fault detect sample clock frequency is 1/32 bus clock.
kSLCD_FaultSampleFreqDivider64 Fault detect sample clock frequency is 1/64 bus clock.
kSLCD_FaultSampleFreqDivider128 Fault detect sample clock frequency is 1/128 bus clock.
46.5.14 enum slcd_fault_detect_sample_window_width_t
Enumerator
kSLCD_FaultDetectWindowWidth4SampleClk Sample window width is 4 sample clock cycles.
kSLCD_FaultDetectWindowWidth8SampleClk Sample window width is 8 sample clock cycles.
kSLCD_FaultDetectWindowWidth16SampleClk Sample window width is 16 sample clock cycles.
kSLCD_FaultDetectWindowWidth32SampleClk Sample window width is 32 sample clock cycles.
kSLCD_FaultDetectWindowWidth64SampleClk Sample window width is 64 sample clock cycles.
kSLCD_FaultDetectWindowWidth128SampleClk Sample window width is 128 sample clock cy-
cles.
kSLCD_FaultDetectWindowWidth256SampleClk Sample window width is 256 sample clock cy-
cles.
kSLCD_FaultDetectWindowWidth512SampleClk Sample window width is 512 sample clock cy-
cles.
46.5.15 enum slcd_interrupt_enable_t
Enumerator
kSLCD_FaultDetectCompleteInterrupt SLCD fault detection complete interrupt source.
46.5.16 enum slcd_lowpower_behavior
Enumerator
kSLCD_EnabledInWaitStop SLCD works in wait and stop mode.
kSLCD_EnabledInWaitOnly SLCD works in wait mode and is disabled in stop mode.
kSLCD_EnabledInStopOnly SLCD works in stop mode and is disabled in wait mode.
kSLCD_DisabledInWaitStop SLCD is disabled in stop mode and wait mode.
46.6 Function Documentation
46.6.1 void SLCD_Init ( LCD_Type ∗base, slcd_config_t ∗configure )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
983
Function Documentation
Parameters
base SLCD peripheral base address.
configure SLCD configuration pointer. For the configuration structure, many parameters have
the default setting and the SLCD_Getdefaultconfig() is provided to get them. Use it
verified for their applications. The others have no default settings such as "clkConfig"
and must be provided by the application before calling the SLCD_Init() API.
46.6.2 void SLCD_Deinit ( LCD_Type ∗base )
Parameters
base SLCD peripheral base address.
46.6.3 void SLCD_GetDefaultConfig ( slcd_config_t ∗configure )
The purpose of this API is to get default parameters of the configuration structure for the SLCD_Init().
Use these initialized parameters unchanged in SLCD_Init(), or modify some fields of the structure before
the calling SLCD_Init(). All default parameters of the configure structure are listed:
config.displayMode = kSLCD_NormalMode;// SLCD normal mode
config.powerSupply = kSLCD_InternalVll3UseChargePump;// Use charge
pump internal VLL3
config.voltageTrim = kSLCD_RegulatedVolatgeTrim00;
config.lowPowerBehavior = kSLCD_EnabledInWaitStop;// Work on low power mode
config.interruptSrc = 0; // No interrupt source is enabled
config.faultConfig = NULL; // Fault detection is disabled
config.frameFreqIntEnable = false;
Parameters
configure The SLCD configuration structure pointer.
46.6.4 static void SLCD_StartDisplay ( LCD_Type ∗base )[inline],[static]
Parameters
984
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
base SLCD peripheral base address.
46.6.5 static void SLCD_StopDisplay ( LCD_Type ∗base )[inline],[static]
There is no waveform generator and all enabled pins only output a low value.
Parameters
base SLCD peripheral base address.
46.6.6 void SLCD_StartBlinkMode ( LCD_Type ∗base, slcd_blink_mode_t mode,
slcd_blink_rate_t rate )
Parameters
base SLCD peripheral base address.
mode SLCD blink mode.
rate SLCD blink rate.
46.6.7 static void SLCD_StopBlinkMode ( LCD_Type ∗base )[inline],
[static]
Parameters
base SLCD peripheral base address.
46.6.8 static void SLCD_SetBackPlanePhase ( LCD_Type ∗base, uint32_t pinIndx,
slcd_phase_type_t phase )[inline],[static]
This function sets the SLCD back plane pin phase. "kSLCD_PhaseXActivate" setting means the phase X
is active for the back plane pin. "kSLCD_NoPhaseActivate" setting means there is no phase active for the
back plane pin. register value. For example, set the back plane pin 20 for phase A:
SLCD_SetBackPlanePhase(LCD, 20, kSLCD_PhaseAActivate);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
985
Function Documentation
Parameters
base SLCD peripheral base address.
pinIndx SLCD back plane pin index. Range from 0 to 63.
phase The phase activates for the back plane pin.
46.6.9 static void SLCD_SetFrontPlaneSegments ( LCD_Type ∗base, uint32_t
pinIndx, uint8_t operation )[inline],[static]
This function sets the SLCD front plane segment on or off operation. Each bit turns on or off the segments
associated with the front plane pin in the following pattern: HGFEDCBA (most significant bit controls
segment H and least significant bit controls segment A). For example, turn on the front plane pin 20 for
phase B and phase C:
SLCD_SetFrontPlaneSegments(LCD, 20, (
kSLCD_PhaseBActivate |kSLCD_PhaseCActivate));
Parameters
base SLCD peripheral base address.
pinIndx SLCD back plane pin index. Range from 0 to 63.
operation The operation for the segment on the front plane pin. This is a logical OR of the
enumeration :: slcd_phase_type_t.
46.6.10 static void SLCD_SetFrontPlaneOnePhase ( LCD_Type ∗base, uint32_t
pinIndx, slcd_phase_index_t phaseIndx, bool enable )[inline],
[static]
This function can be used to set one phase on or off for the front plane pin. It can be call many times to
set the plane pin for different phase indexes. For example, turn on the front plane pin 20 for phase B and
phase C:
SLCD_SetFrontPlaneOnePhase(LCD, 20, kSLCD_PhaseBIndex,true);
SLCD_SetFrontPlaneOnePhase(LCD, 20, kSLCD_PhaseCIndex,true);
986
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base SLCD peripheral base address.
pinIndx SLCD back plane pin index. Range from 0 to 63.
phaseIndx The phase bit index slcd_phase_index_t.
enable True to turn on the segment for phaseIndx phase false to turn off the segment for
phaseIndx phase.
46.6.11 static uint32_t SLCD_GetFaultDetectCounter ( LCD_Type ∗base )
[inline],[static]
This function gets the number of samples inside the fault detection sample window.
Parameters
base SLCD peripheral base address.
Returns
The fault detect counter. The maximum return value is 255. If the maximum 255 returns, the
overflow may happen. Reconfigure the fault detect sample window and fault detect clock prescaler
for proper sampling.
46.6.12 void SLCD_EnableInterrupts ( LCD_Type ∗base, uint32_t mask )
For example, to enable fault detect complete interrupt and frame frequency interrupt, for FSL_FEATUR-
E_SLCD_HAS_FRAME_FREQUENCY_INTERRUPT enabled case, do the following.
SLCD_EnableInterrupts(LCD,
kSLCD_FaultDetectCompleteInterrupt | kSLCD_FrameFreqInterrupt);
Parameters
base SLCD peripheral base address.
mask SLCD interrupts to enable. This is a logical OR of the enumeration :: slcd_interrupt-
_enable_t.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
987
Function Documentation
46.6.13 void SLCD_DisableInterrupts ( LCD_Type ∗base, uint32_t mask )
For example, to disable fault detect complete interrupt and frame frequency interrupt, for FSL_FEATUR-
E_SLCD_HAS_FRAME_FREQUENCY_INTERRUPT enabled case, do the following.
SLCD_DisableInterrupts(LCD,
kSLCD_FaultDetectCompleteInterrupt | kSLCD_FrameFreqInterrupt);
Parameters
base SLCD peripheral base address.
mask SLCD interrupts to disable. This is a logical OR of the enumeration :: slcd_interrupt-
_enable_t.
46.6.14 uint32_t SLCD_GetInterruptStatus ( LCD_Type ∗base )
Parameters
base SLCD peripheral base address.
Returns
The event status of the interrupt source. This is the logical OR of members of the enumeration ::
slcd_interrupt_enable_t.
46.6.15 void SLCD_ClearInterruptStatus ( LCD_Type ∗base, uint32_t mask )
Parameters
base SLCD peripheral base address.
mask SLCD interrupt source to be cleared. This is the logical OR of members of the enu-
meration :: slcd_interrupt_enable_t.
988
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 47
SMC: System Mode Controller Driver
47.1 Overview
The KSDK provides a Peripheral driver for the System Mode Controller (SMC) module of Kinetis devices.
The SMC module is responsible for sequencing the system into and out of all low-power Stop and Run
modes
API functions are provided for configuring the system working in a dedicated power mode. For different
power modes, function SMC_SetPowerModexxx accepts different parameters. System power mode
state transitions are not available for between power modes. For details about available transitions, see the
Power mode transitions section in the SoC reference manual.
Files
• file fsl_smc.h
Enumerations
• enum smc_power_mode_protection_t {
kSMC_AllowPowerModeVlp = SMC_PMPROT_AVLP_MASK,
kSMC_AllowPowerModeAll }
Power Modes Protection.
• enum smc_power_state_t {
kSMC_PowerStateRun = 0x01U << 0U,
kSMC_PowerStateStop = 0x01U << 1U,
kSMC_PowerStateVlpr = 0x01U << 2U,
kSMC_PowerStateVlpw = 0x01U << 3U,
kSMC_PowerStateVlps = 0x01U << 4U }
Power Modes in PMSTAT.
• enum smc_run_mode_t {
kSMC_RunNormal = 0U,
kSMC_RunVlpr = 2U }
Run mode definition.
• enum smc_stop_mode_t {
kSMC_StopNormal = 0U,
kSMC_StopVlps = 2U }
Stop mode definition.
• enum smc_partial_stop_option_t {
kSMC_PartialStop = 0U,
kSMC_PartialStop1 = 1U,
kSMC_PartialStop2 = 2U }
Partial STOP option.
• enum _smc_status {kStatus_SMC_StopAbort = MAKE_STATUS(kStatusGroup_POWER, 0) }
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
989
Enumeration Type Documentation
SMC configuration status.
Driver version
• #define FSL_SMC_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
SMC driver version 2.0.1.
System mode controller APIs
• static void SMC_SetPowerModeProtection (SMC_Type ∗base, uint8_t allowedModes)
Configures all power mode protection settings.
• static smc_power_state_t SMC_GetPowerModeState (SMC_Type ∗base)
Gets the current power mode status.
• status_t SMC_SetPowerModeRun (SMC_Type ∗base)
Configure the system to RUN power mode.
• status_t SMC_SetPowerModeWait (SMC_Type ∗base)
Configure the system to WAIT power mode.
• status_t SMC_SetPowerModeStop (SMC_Type ∗base, smc_partial_stop_option_t option)
Configure the system to Stop power mode.
• status_t SMC_SetPowerModeVlpr (SMC_Type ∗base)
Configure the system to VLPR power mode.
• status_t SMC_SetPowerModeVlpw (SMC_Type ∗base)
Configure the system to VLPW power mode.
• status_t SMC_SetPowerModeVlps (SMC_Type ∗base)
Configure the system to VLPS power mode.
47.2 Macro Definition Documentation
47.2.1 #define FSL_SMC_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
47.3 Enumeration Type Documentation
47.3.1 enum smc_power_mode_protection_t
Enumerator
kSMC_AllowPowerModeVlp Allow Very-Low-Power Mode.
kSMC_AllowPowerModeAll Allow all power mode.
47.3.2 enum smc_power_state_t
Enumerator
kSMC_PowerStateRun 0000_0001 - Current power mode is RUN
kSMC_PowerStateStop 0000_0010 - Current power mode is STOP
kSMC_PowerStateVlpr 0000_0100 - Current power mode is VLPR
kSMC_PowerStateVlpw 0000_1000 - Current power mode is VLPW
kSMC_PowerStateVlps 0001_0000 - Current power mode is VLPS
990
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
47.3.3 enum smc_run_mode_t
Enumerator
kSMC_RunNormal normal RUN mode.
kSMC_RunVlpr Very-Low-Power RUN mode.
47.3.4 enum smc_stop_mode_t
Enumerator
kSMC_StopNormal Normal STOP mode.
kSMC_StopVlps Very-Low-Power STOP mode.
47.3.5 enum smc_partial_stop_option_t
Enumerator
kSMC_PartialStop STOP - Normal Stop mode.
kSMC_PartialStop1 Partial Stop with both system and bus clocks disabled.
kSMC_PartialStop2 Partial Stop with system clock disabled and bus clock enabled.
47.3.6 enum _smc_status
Enumerator
kStatus_SMC_StopAbort Entering Stop mode is abort.
47.4 Function Documentation
47.4.1 static void SMC_SetPowerModeProtection ( SMC_Type ∗base, uint8_t
allowedModes )[inline],[static]
This function configures the power mode protection settings for supported power modes in the specified
chip family. The available power modes are defined in the smc_power_mode_protection_t. This should
be done at an early system level initialization stage. See the reference manual for details. This register can
only write once after the power reset.
The allowed modes are passed as bit map, for example, to allow LLS and VLLS, use SMC_SetPower-
ModeProtection(kSMC_AllowPowerModeVlls |kSMC_AllowPowerModeVlps). To allow all modes, use
SMC_SetPowerModeProtection(kSMC_AllowPowerModeAll).
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
991
Function Documentation
Parameters
base SMC peripheral base address.
allowedModes Bitmap of the allowed power modes.
47.4.2 static smc_power_state_t SMC_GetPowerModeState ( SMC_Type ∗base )
[inline],[static]
This function returns the current power mode stat. Once application switches the power mode, it should
always check the stat to check whether it runs into the specified mode or not. An application should check
this mode before switching to a different mode. The system requires that only certain modes can switch
to other specific modes. See the reference manual for details and the smc_power_state_t for information
about the power stat.
Parameters
base SMC peripheral base address.
Returns
Current power mode status.
47.4.3 status_t SMC_SetPowerModeRun ( SMC_Type ∗base )
Parameters
base SMC peripheral base address.
Returns
SMC configuration error code.
47.4.4 status_t SMC_SetPowerModeWait ( SMC_Type ∗base )
992
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base SMC peripheral base address.
Returns
SMC configuration error code.
47.4.5 status_t SMC_SetPowerModeStop ( SMC_Type ∗base,
smc_partial_stop_option_t option )
Parameters
base SMC peripheral base address.
option Partial Stop mode option.
Returns
SMC configuration error code.
47.4.6 status_t SMC_SetPowerModeVlpr ( SMC_Type ∗base )
Parameters
base SMC peripheral base address.
Returns
SMC configuration error code.
47.4.7 status_t SMC_SetPowerModeVlpw ( SMC_Type ∗base )
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
993
Function Documentation
base SMC peripheral base address.
Returns
SMC configuration error code.
47.4.8 status_t SMC_SetPowerModeVlps ( SMC_Type ∗base )
Parameters
base SMC peripheral base address.
Returns
SMC configuration error code.
994
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 48
SPI: Serial Peripheral Interface Driver
48.1 Overview
Modules
•SPI Driver
48.2 Overview
•SPI FreeRTOS driver
•SPI µCOS/II driver
•SPI µCOS/III driver
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
995
SPI Driver
48.3 SPI Driver
48.3.1 Overview
48.3.2 Overview
SPI driver includes functional APIs and transactional APIs.
Functional APIs are feature/property target low level APIs. Functional APIs can be used for SPI initializa-
tion/configuration/operation for optimization/customization purpose. Using the functional API requires
the knowledge of the SPI peripheral and how to organize functional APIs to meet the application require-
ments. All functional API use the peripheral base address as the first parameter. SPI functional operation
groups provide the functional API set.
Transactional APIs are transaction target high level APIs. Transactional APIs can be used to enable the
peripheral and in the application if the code size and performance of transactional APIs satisfy the require-
ments. If the code size and performance are a critical requirement, see the transactional API implementa-
tion and write a custom code. All transactional APIs use the spi_handle_t as the first parameter. Initialize
the handle by calling the SPI_MasterTransferCreateHandle() or SPI_SlaveTransferCreateHandle() API.
Transactional APIs support asynchronous transfer. This means that the functions SPI_MasterTransferNon-
Blocking() and SPI_SlaveTransferNonBlocking() set up the interrupt for data transfer. When the transfer
completes, the upper layer is notified through a callback function with the kStatus_SPI_Idle status.
48.3.3 Typical use case
48.3.3.1 SPI master transfer using an interrupt method
#define BUFFER_LEN (64)
spi_master_handle_t spiHandle;
spi_master_config_t masterConfig;
spi_transfer_t xfer;
volatile bool isFinished = false;
const uint8_t sendData[BUFFER_LEN] = [......];
uint8_t receiveBuff[BUFFER_LEN];
void SPI_UserCallback(SPI_Type *base, spi_master_handle_t *handle, status_t status, void *userData)
{
isFinished = true;
}
void main(void)
{
//...
SPI_MasterGetDefaultConfig(&masterConfig);
SPI_MasterInit(SPI0, &masterConfig);
SPI_MasterTransferCreateHandle(SPI0, &spiHandle, SPI_UserCallback, NULL);
// Prepare to send.
xfer.txData = sendData;
xfer.rxData = receiveBuff;
xfer.dataSize = BUFFER_LEN;
996
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
// Send out.
SPI_MasterTransferNonBlocking(SPI0, &spiHandle, &xfer);
// Wait send finished.
while (!isFinished)
{
}
// ...
}
48.3.3.2 SPI Send/receive using a DMA method
#define BUFFER_LEN (64)
spi_dma_handle_t spiHandle;
dma_handle_t g_spiTxDmaHandle;
dma_handle_t g_spiRxDmaHandle;
spi_config_t masterConfig;
spi_transfer_t xfer;
volatile bool isFinished;
uint8_t sendData[BUFFER_LEN] = ...;
uint8_t receiveBuff[BUFFER_LEN];
void SPI_UserCallback(SPI_Type *base, spi_dma_handle_t *handle, status_t status, void *userData)
{
isFinished = true;
}
void main(void)
{
//...
SPI_MasterGetDefaultConfig(&masterConfig);
SPI_MasterInit(SPI0, &masterConfig);
// Sets up the DMA.
DMAMUX_Init(DMAMUX0);
DMAMUX_SetSource(DMAMUX0, SPI_TX_DMA_CHANNEL, SPI_TX_DMA_REQUEST);
DMAMUX_EnableChannel(DMAMUX0, SPI_TX_DMA_CHANNEL);
DMAMUX_SetSource(DMAMUX0, SPI_RX_DMA_CHANNEL, SPI_RX_DMA_REQUEST);
DMAMUX_EnableChannel(DMAMUX0, SPI_RX_DMA_CHANNEL);
DMA_Init(DMA0);
/*Creates the DMA handle.
DMA_CreateHandle(&g_spiTxDmaHandle, DMA0, SPI_TX_DMA_CHANNEL);
DMA_CreateHandle(&g_spiRxDmaHandle, DMA0, SPI_RX_DMA_CHANNEL);
SPI_MasterTransferCreateHandleDMA(SPI0, spiHandle, &g_spiTxDmaHandle, &g_spiRxDmaHandle,
SPI_UserCallback, NULL);
// Prepares to send.
xfer.txData = sendData;
xfer.rxData = receiveBuff;
xfer.dataSize = BUFFER_LEN;
// Sends out.
SPI_MasterTransferDMA(SPI0, &spiHandle, &xfer);
// Waits for send to complete.
while (!isFinished)
{
}
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
997
SPI Driver
// ...
}
Modules
•SPI DMA Driver
Files
• file fsl_spi.h
Data Structures
• struct spi_master_config_t
SPI master user configure structure. More...
• struct spi_slave_config_t
SPI slave user configure structure. More...
• struct spi_transfer_t
SPI transfer structure. More...
• struct spi_master_handle_t
SPI transfer handle structure. More...
Macros
• #define SPI_DUMMYDATA (0xFFU)
SPI dummy transfer data, the data is sent while txBuff is NULL.
Typedefs
• typedef spi_master_handle_t spi_slave_handle_t
Slave handle is the same with master handle.
• typedef void(∗spi_master_callback_t )(SPI_Type ∗base, spi_master_handle_t ∗handle, status_t sta-
tus, void ∗userData)
SPI master callback for finished transmit.
• typedef void(∗spi_slave_callback_t )(SPI_Type ∗base, spi_slave_handle_t ∗handle, status_t status,
void ∗userData)
SPI master callback for finished transmit.
Enumerations
• enum _spi_status {
kStatus_SPI_Busy = MAKE_STATUS(kStatusGroup_SPI, 0),
kStatus_SPI_Idle = MAKE_STATUS(kStatusGroup_SPI, 1),
998
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
kStatus_SPI_Error = MAKE_STATUS(kStatusGroup_SPI, 2) }
Return status for the SPI driver.
• enum spi_clock_polarity_t {
kSPI_ClockPolarityActiveHigh = 0x0U,
kSPI_ClockPolarityActiveLow }
SPI clock polarity configuration.
• enum spi_clock_phase_t {
kSPI_ClockPhaseFirstEdge = 0x0U,
kSPI_ClockPhaseSecondEdge }
SPI clock phase configuration.
• enum spi_shift_direction_t {
kSPI_MsbFirst = 0x0U,
kSPI_LsbFirst }
SPI data shifter direction options.
• enum spi_ss_output_mode_t {
kSPI_SlaveSelectAsGpio = 0x0U,
kSPI_SlaveSelectFaultInput = 0x2U,
kSPI_SlaveSelectAutomaticOutput = 0x3U }
SPI slave select output mode options.
• enum spi_pin_mode_t {
kSPI_PinModeNormal = 0x0U,
kSPI_PinModeInput = 0x1U,
kSPI_PinModeOutput = 0x3U }
SPI pin mode options.
• enum spi_data_bitcount_mode_t {
kSPI_8BitMode = 0x0U,
kSPI_16BitMode }
SPI data length mode options.
• enum _spi_interrupt_enable {
kSPI_RxFullAndModfInterruptEnable = 0x1U,
kSPI_TxEmptyInterruptEnable = 0x2U,
kSPI_MatchInterruptEnable = 0x4U }
SPI interrupt sources.
• enum _spi_flags {
kSPI_RxBufferFullFlag = SPI_S_SPRF_MASK,
kSPI_MatchFlag = SPI_S_SPMF_MASK,
kSPI_TxBufferEmptyFlag = SPI_S_SPTEF_MASK,
kSPI_ModeFaultFlag = SPI_S_MODF_MASK }
SPI status flags.
Driver version
• #define FSL_SPI_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
SPI driver version 2.0.0.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
999
SPI Driver
Initialization and deinitialization
• void SPI_MasterGetDefaultConfig (spi_master_config_t ∗config)
Sets the SPI master configuration structure to default values.
• void SPI_MasterInit (SPI_Type ∗base, const spi_master_config_t ∗config, uint32_t srcClock_Hz)
Initializes the SPI with master configuration.
• void SPI_SlaveGetDefaultConfig (spi_slave_config_t ∗config)
Sets the SPI slave configuration structure to default values.
• void SPI_SlaveInit (SPI_Type ∗base, const spi_slave_config_t ∗config)
Initializes the SPI with slave configuration.
• void SPI_Deinit (SPI_Type ∗base)
De-initializes the SPI.
• static void SPI_Enable (I2C_Type ∗base, bool enable)
Enables or disables the SPI.
Status
• uint32_t SPI_GetStatusFlags (SPI_Type ∗base)
Gets the status flag.
Interrupts
• void SPI_EnableInterrupts (SPI_Type ∗base, uint32_t mask)
Enables the interrupt for the SPI.
• void SPI_DisableInterrupts (SPI_Type ∗base, uint32_t mask)
Disables the interrupt for the SPI.
DMA Control
• static uint32_t SPI_GetDataRegisterAddress (SPI_Type ∗base)
Gets the SPI tx/rx data register address.
Bus Operations
• void SPI_MasterSetBaudRate (SPI_Type ∗base, uint32_t baudRate_Bps, uint32_t srcClock_Hz)
Sets the baud rate for SPI transfer.
• static void SPI_SetMatchData (SPI_Type ∗base, uint32_t matchData)
Sets the match data for SPI.
• void SPI_WriteBlocking (SPI_Type ∗base, uint8_t ∗buffer, size_t size)
Sends a buffer of data bytes using a blocking method.
• void SPI_WriteData (SPI_Type ∗base, uint16_t data)
Writes a data into the SPI data register.
• uint16_t SPI_ReadData (SPI_Type ∗base)
Gets a data from the SPI data register.
1000
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
Transactional
• void SPI_MasterTransferCreateHandle (SPI_Type ∗base, spi_master_handle_t ∗handle, spi_master-
_callback_t callback, void ∗userData)
Initializes the SPI master handle.
• status_t SPI_MasterTransferBlocking (SPI_Type ∗base, spi_transfer_t ∗xfer)
Transfers a block of data using a polling method.
• status_t SPI_MasterTransferNonBlocking (SPI_Type ∗base, spi_master_handle_t ∗handle, spi_-
transfer_t ∗xfer)
Performs a non-blocking SPI interrupt transfer.
• status_t SPI_MasterTransferGetCount (SPI_Type ∗base, spi_master_handle_t ∗handle, size_t
∗count)
Gets the bytes of the SPI interrupt transferred.
• void SPI_MasterTransferAbort (SPI_Type ∗base, spi_master_handle_t ∗handle)
Aborts an SPI transfer using interrupt.
• void SPI_MasterTransferHandleIRQ (SPI_Type ∗base, spi_master_handle_t ∗handle)
Interrupts the handler for the SPI.
• static void SPI_SlaveTransferCreateHandle (SPI_Type ∗base, spi_slave_handle_t ∗handle, spi_-
slave_callback_t callback, void ∗userData)
Initializes the SPI slave handle.
• static status_t SPI_SlaveTransferNonBlocking (SPI_Type ∗base, spi_slave_handle_t ∗handle, spi_-
transfer_t ∗xfer)
Performs a non-blocking SPI slave interrupt transfer.
• static status_t SPI_SlaveTransferGetCount (SPI_Type ∗base, spi_slave_handle_t ∗handle, size_t
∗count)
Gets the bytes of the SPI interrupt transferred.
• static void SPI_SlaveTransferAbort (SPI_Type ∗base, spi_slave_handle_t ∗handle)
Aborts an SPI slave transfer using interrupt.
• static void SPI_SlaveTransferHandleIRQ (SPI_Type ∗base, spi_slave_handle_t ∗handle)
Interrupts a handler for the SPI slave.
48.3.4 Data Structure Documentation
48.3.4.1 struct spi_master_config_t
Data Fields
• bool enableMaster
Enable SPI at initialization time.
• bool enableStopInWaitMode
SPI stop in wait mode.
•spi_clock_polarity_t polarity
Clock polarity.
•spi_clock_phase_t phase
Clock phase.
•spi_shift_direction_t direction
MSB or LSB.
•spi_ss_output_mode_t outputMode
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1001
SPI Driver
SS pin setting.
•spi_pin_mode_t pinMode
SPI pin mode select.
• uint32_t baudRate_Bps
Baud Rate for SPI in Hz.
48.3.4.2 struct spi_slave_config_t
Data Fields
• bool enableSlave
Enable SPI at initialization time.
• bool enableStopInWaitMode
SPI stop in wait mode.
•spi_clock_polarity_t polarity
Clock polarity.
•spi_clock_phase_t phase
Clock phase.
•spi_shift_direction_t direction
MSB or LSB.
48.3.4.3 struct spi_transfer_t
Data Fields
• uint8_t ∗txData
Send buffer.
• uint8_t ∗rxData
Receive buffer.
• size_t dataSize
Transfer bytes.
• uint32_t flags
SPI control flag, useless to SPI.
48.3.4.3.0.30 Field Documentation
48.3.4.3.0.30.1 uint32_t spi_transfer_t::flags
48.3.4.4 struct _spi_master_handle
Data Fields
• uint8_t ∗volatile txData
Transfer buffer.
• uint8_t ∗volatile rxData
Receive buffer.
• volatile size_t txRemainingBytes
Send data remaining in bytes.
• volatile size_t rxRemainingBytes
1002
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
Receive data remaining in bytes.
• volatile uint32_t state
SPI internal state.
• size_t transferSize
Bytes to be transferred.
• uint8_t bytePerFrame
SPI mode, 2bytes or 1byte in a frame.
• uint8_t watermark
Watermark value for SPI transfer.
•spi_master_callback_t callback
SPI callback.
• void ∗userData
Callback parameter.
48.3.5 Macro Definition Documentation
48.3.5.1 #define FSL_SPI_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
48.3.5.2 #define SPI_DUMMYDATA (0xFFU)
48.3.6 Enumeration Type Documentation
48.3.6.1 enum _spi_status
Enumerator
kStatus_SPI_Busy SPI bus is busy.
kStatus_SPI_Idle SPI is idle.
kStatus_SPI_Error SPI error.
48.3.6.2 enum spi_clock_polarity_t
Enumerator
kSPI_ClockPolarityActiveHigh Active-high SPI clock (idles low).
kSPI_ClockPolarityActiveLow Active-low SPI clock (idles high).
48.3.6.3 enum spi_clock_phase_t
Enumerator
kSPI_ClockPhaseFirstEdge First edge on SPSCK occurs at the middle of the first cycle of a data
transfer.
kSPI_ClockPhaseSecondEdge First edge on SPSCK occurs at the start of the first cycle of a data
transfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1003
SPI Driver
48.3.6.4 enum spi_shift_direction_t
Enumerator
kSPI_MsbFirst Data transfers start with most significant bit.
kSPI_LsbFirst Data transfers start with least significant bit.
48.3.6.5 enum spi_ss_output_mode_t
Enumerator
kSPI_SlaveSelectAsGpio Slave select pin configured as GPIO.
kSPI_SlaveSelectFaultInput Slave select pin configured for fault detection.
kSPI_SlaveSelectAutomaticOutput Slave select pin configured for automatic SPI output.
48.3.6.6 enum spi_pin_mode_t
Enumerator
kSPI_PinModeNormal Pins operate in normal, single-direction mode.
kSPI_PinModeInput Bidirectional mode. Master: MOSI pin is input; Slave: MISO pin is input.
kSPI_PinModeOutput Bidirectional mode. Master: MOSI pin is output; Slave: MISO pin is output.
48.3.6.7 enum spi_data_bitcount_mode_t
Enumerator
kSPI_8BitMode 8-bit data transmission mode
kSPI_16BitMode 16-bit data transmission mode
48.3.6.8 enum _spi_interrupt_enable
Enumerator
kSPI_RxFullAndModfInterruptEnable Receive buffer full (SPRF) and mode fault (MODF) inter-
rupt.
kSPI_TxEmptyInterruptEnable Transmit buffer empty interrupt.
kSPI_MatchInterruptEnable Match interrupt.
1004
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
48.3.6.9 enum _spi_flags
Enumerator
kSPI_RxBufferFullFlag Read buffer full flag.
kSPI_MatchFlag Match flag.
kSPI_TxBufferEmptyFlag Transmit buffer empty flag.
kSPI_ModeFaultFlag Mode fault flag.
48.3.7 Function Documentation
48.3.7.1 void SPI_MasterGetDefaultConfig ( spi_master_config_t ∗config )
The purpose of this API is to get the configuration structure initialized for use in SPI_MasterInit(). User
may use the initialized structure unchanged in SPI_MasterInit(), or modify some fields of the structure
before calling SPI_MasterInit(). After calling this API, the master is ready to transfer. Example:
spi_master_config_t config;
SPI_MasterGetDefaultConfig(&config);
Parameters
config pointer to master config structure
48.3.7.2 void SPI_MasterInit ( SPI_Type ∗base, const spi_master_config_t ∗config,
uint32_t srcClock_Hz )
The configuration structure can be filled by user from scratch, or be set with default values by SPI_Master-
GetDefaultConfig(). After calling this API, the slave is ready to transfer. Example
spi_master_config_t config = {
.baudRate_Bps = 400000,
...
};
SPI_MasterInit(SPI0, &config);
Parameters
base SPI base pointer
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1005
SPI Driver
config pointer to master configuration structure
srcClock_Hz Source clock frequency.
48.3.7.3 void SPI_SlaveGetDefaultConfig ( spi_slave_config_t ∗config )
The purpose of this API is to get the configuration structure initialized for use in SPI_SlaveInit(). Modify
some fields of the structure before calling SPI_SlaveInit(). Example:
spi_slave_config_t config;
SPI_SlaveGetDefaultConfig(&config);
Parameters
config pointer to slave configuration structure
48.3.7.4 void SPI_SlaveInit ( SPI_Type ∗base, const spi_slave_config_t ∗config )
The configuration structure can be filled by user from scratch or be set with default values by SPI_Slave-
GetDefaultConfig(). After calling this API, the slave is ready to transfer. Example
spi_slave_config_t config = {
.polarity = kSPIClockPolarity_ActiveHigh;
.phase = kSPIClockPhase_FirstEdge;
.direction = kSPIMsbFirst;
...
};
SPI_MasterInit(SPI0, &config);
Parameters
base SPI base pointer
config pointer to master configuration structure
48.3.7.5 void SPI_Deinit ( SPI_Type ∗base )
Calling this API resets the SPI module, gates the SPI clock. The SPI module can’t work unless calling the
SPI_MasterInit/SPI_SlaveInit to initialize module.
1006
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
Parameters
base SPI base pointer
48.3.7.6 static void SPI_Enable ( I2C_Type ∗base, bool enable )[inline],[static]
Parameters
base SPI base pointer
enable pass true to enable module, false to disable module
48.3.7.7 uint32_t SPI_GetStatusFlags ( SPI_Type ∗base )
Parameters
base SPI base pointer
Returns
SPI Status, use status flag to AND _spi_flags could get the related status.
48.3.7.8 void SPI_EnableInterrupts ( SPI_Type ∗base, uint32_t mask )
Parameters
base SPI base pointer
mask SPI interrupt source. The parameter can be any combination of the following values:
• kSPI_RxFullAndModfInterruptEnable
• kSPI_TxEmptyInterruptEnable
• kSPI_MatchInterruptEnable
• kSPI_RxFifoNearFullInterruptEnable
• kSPI_TxFifoNearEmptyInterruptEnable
48.3.7.9 void SPI_DisableInterrupts ( SPI_Type ∗base, uint32_t mask )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1007
SPI Driver
Parameters
base SPI base pointer
mask SPI interrupt source. The parameter can be any combination of the following values:
• kSPI_RxFullAndModfInterruptEnable
• kSPI_TxEmptyInterruptEnable
• kSPI_MatchInterruptEnable
• kSPI_RxFifoNearFullInterruptEnable
• kSPI_TxFifoNearEmptyInterruptEnable
48.3.7.10 static uint32_t SPI_GetDataRegisterAddress ( SPI_Type ∗base )[inline],
[static]
This API is used to provide a transfer address for the SPI DMA transfer configuration.
Parameters
base SPI base pointer
Returns
data register address
48.3.7.11 void SPI_MasterSetBaudRate ( SPI_Type ∗base, uint32_t baudRate_Bps,
uint32_t srcClock_Hz )
This is only used in master.
Parameters
base SPI base pointer
baudRate_Bps baud rate needed in Hz.
srcClock_Hz SPI source clock frequency in Hz.
48.3.7.12 static void SPI_SetMatchData ( SPI_Type ∗base, uint32_t matchData )
[inline],[static]
The match data is a hardware comparison value. When the value received in the SPI receive data buffer
equals the hardware comparison value, the SPI Match Flag in the S register (S[SPMF]) sets. This can also
generate an interrupt if the enable bit sets.
1008
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
Parameters
base SPI base pointer
matchData Match data.
48.3.7.13 void SPI_WriteBlocking ( SPI_Type ∗base, uint8_t ∗buffer, size_t size )
Note
This function blocks via polling until all bytes have been sent.
Parameters
base SPI base pointer
buffer The data bytes to send
size The number of data bytes to send
48.3.7.14 void SPI_WriteData ( SPI_Type ∗base, uint16_t data )
Parameters
base SPI base pointer
data needs to be write.
48.3.7.15 uint16_t SPI_ReadData ( SPI_Type ∗base )
Parameters
base SPI base pointer
Returns
Data in the register.
48.3.7.16 void SPI_MasterTransferCreateHandle ( SPI_Type ∗base, spi_master_handle_t
∗handle, spi_master_callback_t callback, void ∗userData )
This function initializes the SPI master handle which can be used for other SPI master transactional APIs.
Usually, for a specified SPI instance, call this API once to get the initialized handle.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1009
SPI Driver
Parameters
base SPI peripheral base address.
handle SPI handle pointer.
callback Callback function.
userData User data.
48.3.7.17 status_t SPI_MasterTransferBlocking ( SPI_Type ∗base, spi_transfer_t ∗xfer )
Parameters
base SPI base pointer
xfer pointer to spi_xfer_config_t structure
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
48.3.7.18 status_t SPI_MasterTransferNonBlocking ( SPI_Type ∗base,
spi_master_handle_t ∗handle, spi_transfer_t ∗xfer )
Note
The API immediately returns after transfer initialization is finished. Call SPI_GetStatusIRQ() to get
the transfer status.
If using the SPI with FIFO for the interrupt transfer, the transfer size is the integer times of the
watermark. Otherwise, the last data may be lost because it cannot generate an interrupt request.
Users can also call the functional API to get the last received data.
Parameters
base SPI peripheral base address.
handle pointer to spi_master_handle_t structure which stores the transfer state
1010
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
xfer pointer to spi_xfer_config_t structure
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
kStatus_SPI_Busy SPI is not idle, is running another transfer.
48.3.7.19 status_t SPI_MasterTransferGetCount ( SPI_Type ∗base, spi_master_handle_t
∗handle, size_t ∗count )
Parameters
base SPI peripheral base address.
handle Pointer to SPI transfer handle, this should be a static variable.
count Transferred bytes of SPI master.
Return values
kStatus_SPI_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
48.3.7.20 void SPI_MasterTransferAbort ( SPI_Type ∗base, spi_master_handle_t ∗
handle )
Parameters
base SPI peripheral base address.
handle Pointer to SPI transfer handle, this should be a static variable.
48.3.7.21 void SPI_MasterTransferHandleIRQ ( SPI_Type ∗base, spi_master_handle_t ∗
handle )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1011
SPI Driver
Parameters
base SPI peripheral base address.
handle pointer to spi_master_handle_t structure which stores the transfer state.
48.3.7.22 static void SPI_SlaveTransferCreateHandle ( SPI_Type ∗base,
spi_slave_handle_t ∗handle, spi_slave_callback_t callback, void ∗userData )
[inline],[static]
This function initializes the SPI slave handle which can be used for other SPI slave transactional APIs.
Usually, for a specified SPI instance, call this API once to get the initialized handle.
Parameters
base SPI peripheral base address.
handle SPI handle pointer.
callback Callback function.
userData User data.
48.3.7.23 static status_t SPI_SlaveTransferNonBlocking ( SPI_Type ∗base,
spi_slave_handle_t ∗handle, spi_transfer_t ∗xfer )[inline],[static]
Note
The API returns immediately after the transfer initialization is finished. Call SPI_GetStatusIRQ() to
get the transfer status.
If using the SPI with FIFO for the interrupt transfer, the transfer size is the integer times the water-
mark. Otherwise, the last data may be lost because it cannot generate an interrupt request. Call the
functional API to get the last several receive data.
Parameters
base SPI peripheral base address.
handle pointer to spi_master_handle_t structure which stores the transfer state
xfer pointer to spi_xfer_config_t structure
1012
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
kStatus_SPI_Busy SPI is not idle, is running another transfer.
48.3.7.24 static status_t SPI_SlaveTransferGetCount ( SPI_Type ∗base,
spi_slave_handle_t ∗handle, size_t ∗count )[inline],[static]
Parameters
base SPI peripheral base address.
handle Pointer to SPI transfer handle, this should be a static variable.
count Transferred bytes of SPI slave.
Return values
kStatus_SPI_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
48.3.7.25 static void SPI_SlaveTransferAbort ( SPI_Type ∗base, spi_slave_handle_t ∗
handle )[inline],[static]
Parameters
base SPI peripheral base address.
handle Pointer to SPI transfer handle, this should be a static variable.
48.3.7.26 static void SPI_SlaveTransferHandleIRQ ( SPI_Type ∗base, spi_slave_handle_t
∗handle )[inline],[static]
Parameters
base SPI peripheral base address.
handle pointer to spi_slave_handle_t structure which stores the transfer state
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1013
SPI Driver
48.3.8 SPI DMA Driver
48.3.8.1 Overview
This section describes the programming interface of the SPI DMA driver.
Files
• file fsl_spi_dma.h
Data Structures
• struct spi_dma_handle_t
SPI DMA transfer handle, users should not touch the content of the handle. More...
Typedefs
• typedef void(∗spi_dma_callback_t )(SPI_Type ∗base, spi_dma_handle_t ∗handle, status_t status,
void ∗userData)
SPI DMA callback called at the end of transfer.
DMA Transactional
• void SPI_MasterTransferCreateHandleDMA (SPI_Type ∗base, spi_dma_handle_t ∗handle, spi_-
dma_callback_t callback, void ∗userData, dma_handle_t ∗txHandle, dma_handle_t ∗rxHandle)
Initialize the SPI master DMA handle.
• status_t SPI_MasterTransferDMA (SPI_Type ∗base, spi_dma_handle_t ∗handle, spi_transfer_-
t∗xfer)
Perform a non-blocking SPI transfer using DMA.
• void SPI_MasterTransferAbortDMA (SPI_Type ∗base, spi_dma_handle_t ∗handle)
Abort a SPI transfer using DMA.
• status_t SPI_MasterTransferGetCountDMA (SPI_Type ∗base, spi_dma_handle_t ∗handle, size_-
t∗count)
Get the transferred bytes for SPI slave DMA.
• static void SPI_SlaveTransferCreateHandleDMA (SPI_Type ∗base, spi_dma_handle_t ∗handle, spi-
_dma_callback_t callback, void ∗userData, dma_handle_t ∗txHandle, dma_handle_t ∗rxHandle)
Initialize the SPI slave DMA handle.
• static status_t SPI_SlaveTransferDMA (SPI_Type ∗base, spi_dma_handle_t ∗handle, spi_transfer_t
∗xfer)
Perform a non-blocking SPI transfer using DMA.
• static void SPI_SlaveTransferAbortDMA (SPI_Type ∗base, spi_dma_handle_t ∗handle)
Abort a SPI transfer using DMA.
• static status_t SPI_SlaveTransferGetCountDMA (SPI_Type ∗base, spi_dma_handle_t ∗handle, size-
_t ∗count)
Get the transferred bytes for SPI slave DMA.
1014
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
48.3.8.2 Data Structure Documentation
48.3.8.2.1 struct _spi_dma_handle
Data Fields
• bool txInProgress
Send transfer finished.
• bool rxInProgress
Receive transfer finished.
•dma_handle_t ∗txHandle
DMA handler for SPI send.
•dma_handle_t ∗rxHandle
DMA handler for SPI receive.
• uint8_t bytesPerFrame
Bytes in a frame for SPI tranfer.
•spi_dma_callback_t callback
Callback for SPI DMA transfer.
• void ∗userData
User Data for SPI DMA callback.
• uint32_t state
Internal state of SPI DMA transfer.
• size_t transferSize
Bytes need to be transfer.
48.3.8.3 Typedef Documentation
48.3.8.3.1 typedef void(∗spi_dma_callback_t)(SPI_Type ∗base, spi_dma_handle_t ∗handle,
status_t status, void ∗userData)
48.3.8.4 Function Documentation
48.3.8.4.1 void SPI_MasterTransferCreateHandleDMA ( SPI_Type ∗base, spi_dma_handle_t ∗
handle, spi_dma_callback_t callback, void ∗userData, dma_handle_t ∗txHandle,
dma_handle_t ∗rxHandle )
This function initializes the SPI master DMA handle which can be used for other SPI master transactional
APIs. Usually, for a specified SPI instance, user need only call this API once to get the initialized handle.
Parameters
base SPI peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1015
SPI Driver
handle SPI handle pointer.
callback User callback function called at the end of a transfer.
userData User data for callback.
txHandle DMA handle pointer for SPI Tx, the handle shall be static allocated by users.
rxHandle DMA handle pointer for SPI Rx, the handle shall be static allocated by users.
48.3.8.4.2 status_t SPI_MasterTransferDMA ( SPI_Type ∗base, spi_dma_handle_t ∗handle,
spi_transfer_t ∗xfer )
Note
This interface returned immediately after transfer initiates, users should call SPI_GetTransferStatus
to poll the transfer status to check whether SPI transfer finished.
Parameters
base SPI peripheral base address.
handle SPI DMA handle pointer.
xfer Pointer to dma transfer structure.
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
kStatus_SPI_Busy SPI is not idle, is running another transfer.
48.3.8.4.3 void SPI_MasterTransferAbortDMA ( SPI_Type ∗base, spi_dma_handle_t ∗handle )
Parameters
base SPI peripheral base address.
handle SPI DMA handle pointer.
48.3.8.4.4 status_t SPI_MasterTransferGetCountDMA ( SPI_Type ∗base, spi_dma_handle_t ∗
handle, size_t ∗count )
1016
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI Driver
Parameters
base SPI peripheral base address.
handle SPI DMA handle pointer.
count Transferred bytes.
Return values
kStatus_SPI_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
48.3.8.4.5 static void SPI_SlaveTransferCreateHandleDMA ( SPI_Type ∗base, spi_dma_handle_t
∗handle, spi_dma_callback_t callback, void ∗userData, dma_handle_t ∗txHandle,
dma_handle_t ∗rxHandle )[inline],[static]
This function initializes the SPI slave DMA handle which can be used for other SPI master transactional
APIs. Usually, for a specified SPI instance, user need only call this API once to get the initialized handle.
Parameters
base SPI peripheral base address.
handle SPI handle pointer.
callback User callback function called at the end of a transfer.
userData User data for callback.
txHandle DMA handle pointer for SPI Tx, the handle shall be static allocated by users.
rxHandle DMA handle pointer for SPI Rx, the handle shall be static allocated by users.
48.3.8.4.6 static status_t SPI_SlaveTransferDMA ( SPI_Type ∗base, spi_dma_handle_t ∗handle,
spi_transfer_t ∗xfer )[inline],[static]
Note
This interface returned immediately after transfer initiates, users should call SPI_GetTransferStatus
to poll the transfer status to check whether SPI transfer finished.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1017
SPI Driver
Parameters
base SPI peripheral base address.
handle SPI DMA handle pointer.
xfer Pointer to dma transfer structure.
Return values
kStatus_Success Successfully start a transfer.
kStatus_InvalidArgument Input argument is invalid.
kStatus_SPI_Busy SPI is not idle, is running another transfer.
48.3.8.4.7 static void SPI_SlaveTransferAbortDMA ( SPI_Type ∗base, spi_dma_handle_t ∗
handle )[inline],[static]
Parameters
base SPI peripheral base address.
handle SPI DMA handle pointer.
48.3.8.4.8 static status_t SPI_SlaveTransferGetCountDMA ( SPI_Type ∗base, spi_dma_handle_t
∗handle, size_t ∗count )[inline],[static]
Parameters
base SPI peripheral base address.
handle SPI DMA handle pointer.
count Transferred bytes.
Return values
kStatus_SPI_Success Succeed get the transfer count.
kStatus_NoTransferIn-
Progress
There is not a non-blocking transaction currently in progress.
1018
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI FreeRTOS driver
48.4 SPI FreeRTOS driver
48.4.1 Overview
This section describes the programming interface of the SPI FreeRTOS driver.
Files
• file fsl_spi_freertos.h
Data Structures
• struct spi_rtos_handle_t
SPI FreeRTOS handle. More...
Driver version
• #define FSL_SPI_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
SPI FreeRTOS driver version 2.0.0.
SPI RTOS Operation
• status_t SPI_RTOS_Init (spi_rtos_handle_t ∗handle, SPI_Type ∗base, const spi_master_config_t
∗masterConfig, uint32_t srcClock_Hz)
Initializes SPI.
• status_t SPI_RTOS_Deinit (spi_rtos_handle_t ∗handle)
Deinitializes the SPI.
• status_t SPI_RTOS_Transfer (spi_rtos_handle_t ∗handle, spi_transfer_t ∗transfer)
Performs SPI transfer.
48.4.2 Data Structure Documentation
48.4.2.1 struct spi_rtos_handle_t
SPI RTOS handle.
Data Fields
• SPI_Type ∗base
SPI base address.
• spi_master_handle_t drv_handle
Handle of the underlying driver, treated as opaque by the RTOS layer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1019
SPI FreeRTOS driver
• SemaphoreHandle_t mutex
Mutex to lock the handle during a trasfer.
• SemaphoreHandle_t event
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
48.4.3 Macro Definition Documentation
48.4.3.1 #define FSL_SPI_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
48.4.4 Function Documentation
48.4.4.1 status_t SPI_RTOS_Init ( spi_rtos_handle_t ∗handle, SPI_Type ∗base, const
spi_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the SPI module and related RTOS context.
Parameters
handle The RTOS SPI handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the SPI instance to initialize.
masterConfig Configuration structure to set-up SPI in master mode.
srcClock_Hz Frequency of input clock of the SPI module.
Returns
status of the operation.
48.4.4.2 status_t SPI_RTOS_Deinit ( spi_rtos_handle_t ∗handle )
This function deinitializes the SPI module and related RTOS context.
1020
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI FreeRTOS driver
Parameters
handle The RTOS SPI handle.
48.4.4.3 status_t SPI_RTOS_Transfer ( spi_rtos_handle_t ∗handle, spi_transfer_t ∗
transfer )
This function performs an SPI transfer according to data given in the transfer structure.
Parameters
handle The RTOS SPI handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1021
SPI µCOS/II driver
48.5 SPI µCOS/II driver
48.5.1 Overview
This section describes the programming interface of the SPI µCOS/II driver.
Files
• file fsl_spi_ucosii.h
Data Structures
• struct spi_rtos_handle_t
SPI FreeRTOS handle. More...
Driver version
• #define FSL_SPI_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
SPI uCOS II driver version 2.0.0.
SPI RTOS Operation
• status_t SPI_RTOS_Init (spi_rtos_handle_t ∗handle, SPI_Type ∗base, const spi_master_config_t
∗masterConfig, uint32_t srcClock_Hz)
Initializes SPI.
• status_t SPI_RTOS_Deinit (spi_rtos_handle_t ∗handle)
Deinitializes the SPI.
• status_t SPI_RTOS_Transfer (spi_rtos_handle_t ∗handle, spi_transfer_t ∗transfer)
Performs SPI transfer.
48.5.2 Data Structure Documentation
48.5.2.1 struct spi_rtos_handle_t
SPI RTOS handle.
Data Fields
• SPI_Type ∗base
SPI base address.
• spi_master_handle_t drv_handle
Handle of the underlying driver, treated as opaque by the RTOS layer.
1022
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI µCOS/II driver
• SemaphoreHandle_t mutex
Mutex to lock the handle during a trasfer.
• SemaphoreHandle_t event
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
48.5.3 Macro Definition Documentation
48.5.3.1 #define FSL_SPI_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
48.5.4 Function Documentation
48.5.4.1 status_t SPI_RTOS_Init ( spi_rtos_handle_t ∗handle, SPI_Type ∗base, const
spi_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the SPI module and related RTOS context.
Parameters
handle The RTOS SPI handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the SPI instance to initialize.
masterConfig Configuration structure to set-up SPI in master mode.
srcClock_Hz Frequency of input clock of the SPI module.
Returns
status of the operation.
48.5.4.2 status_t SPI_RTOS_Deinit ( spi_rtos_handle_t ∗handle )
This function deinitializes the SPI module and related RTOS context.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1023
SPI µCOS/II driver
Parameters
handle The RTOS SPI handle.
48.5.4.3 status_t SPI_RTOS_Transfer ( spi_rtos_handle_t ∗handle, spi_transfer_t ∗
transfer )
This function performs an SPI transfer according to data given in the transfer structure.
Parameters
handle The RTOS SPI handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
1024
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI µCOS/III driver
48.6 SPI µCOS/III driver
48.6.1 Overview
This section describes the programming interface of the SPI µCOS/III driver.
Files
• file fsl_spi_ucosiii.h
Data Structures
• struct spi_rtos_handle_t
SPI FreeRTOS handle. More...
Driver version
• #define FSL_SPI_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
SPI uCOS III driver version 2.0.0.
SPI RTOS Operation
• status_t SPI_RTOS_Init (spi_rtos_handle_t ∗handle, SPI_Type ∗base, const spi_master_config_t
∗masterConfig, uint32_t srcClock_Hz)
Initializes SPI.
• status_t SPI_RTOS_Deinit (spi_rtos_handle_t ∗handle)
Deinitializes the SPI.
• status_t SPI_RTOS_Transfer (spi_rtos_handle_t ∗handle, spi_transfer_t ∗transfer)
Performs SPI transfer.
48.6.2 Data Structure Documentation
48.6.2.1 struct spi_rtos_handle_t
SPI RTOS handle.
Data Fields
• SPI_Type ∗base
SPI base address.
• spi_master_handle_t drv_handle
Handle of the underlying driver, treated as opaque by the RTOS layer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1025
SPI µCOS/III driver
• SemaphoreHandle_t mutex
Mutex to lock the handle during a trasfer.
• SemaphoreHandle_t event
Semaphore to notify and unblock task when transfer ends.
• OS_EVENT ∗mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP ∗event
Semaphore to notify and unblock task when transfer ends.
• OS_SEM mutex
Mutex to lock the handle during a trasfer.
• OS_FLAG_GRP event
Semaphore to notify and unblock task when transfer ends.
48.6.3 Macro Definition Documentation
48.6.3.1 #define FSL_SPI_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
48.6.4 Function Documentation
48.6.4.1 status_t SPI_RTOS_Init ( spi_rtos_handle_t ∗handle, SPI_Type ∗base, const
spi_master_config_t ∗masterConfig, uint32_t srcClock_Hz )
This function initializes the SPI module and related RTOS context.
Parameters
handle The RTOS SPI handle, the pointer to an allocated space for RTOS context.
base The pointer base address of the SPI instance to initialize.
masterConfig Configuration structure to set-up SPI in master mode.
srcClock_Hz Frequency of input clock of the SPI module.
Returns
status of the operation.
48.6.4.2 status_t SPI_RTOS_Deinit ( spi_rtos_handle_t ∗handle )
This function deinitializes the SPI module and related RTOS context.
1026
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
SPI µCOS/III driver
Parameters
handle The RTOS SPI handle.
48.6.4.3 status_t SPI_RTOS_Transfer ( spi_rtos_handle_t ∗handle, spi_transfer_t ∗
transfer )
This function performs an SPI transfer according to data given in the transfer structure.
Parameters
handle The RTOS SPI handle.
transfer Structure specifying the transfer parameters.
Returns
status of the operation.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1027
SPI µCOS/III driver
1028
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 49
Smart Card
49.1 Overview
The Kinetis SDK provides Peripheral drivers for the UART-ISO7816 and EMVSIM modules of Kinetis
devices.
Smart Card driver provides the necessary functions to access and control integrated circuit cards. The
driver controls communication modules (UART/EMVSIM) and handles special ICC sequences, such as
the activation/deactivation (using EMVSIM IP or external interface chip). The Smart Card driver consists
of two IPs (SmartCard_Uart and SmartCard_EmvSim drivers) and three PHY drivers (smartcard_phy-
_emvsim, smartcard_phy_ncn8025 and smartcard_phy_gpio drivers). These drivers can be combined,
which means that the Smart Card driver wraps one IP (transmission) and one PHY (interface) driver.
The driver provides asynchronous functions to communicate with the Integrated Circuit Card (ICC). The
driver contains RTOS adaptation layers which use semaphores as synchronization objects of synchronous
transfers. The RTOS driver support also provides protection for multithreading.
49.2 SmartCard Driver Initialization
The Smart Card Driver is initialized by calling the SMARTCARD_Init() and SMARTCARD_PHY_Init()
functions. The Smart Card Driver initialization configuration structure requires these settings:
• Smart Card voltage class
• Smart Card Interface options such as the RST, IRQ, CLK pins, and so on.
The driver also supports user callbacks for assertion/de-assertion Smart Card events and transfer finish
event. This feature is useful to detect the card presence or for handling transfer events i.e., in RTOS. The
user should initialize the Smart Card driver, which consist of IP and PHY drivers.
49.3 SmartCard Call diagram
Because the call diagram is complex, the detailed use of the Smart Card driver is not described in this part.
For details about using the Smart Card driver, see the Smart Card driver example which describes a simple
use case.
PHY driver
The Smart Card interface driver is initialized by calling the function SMARTCARD_PHY_Init(). Dur-
ing the initialization phase, Smart Card clock is configured and all hardware pins for IC handling are
configured.
Modules
•Smart Card EMVSIM Driver
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1029
SmartCard Call diagram
•Smart Card FreeRTOS Driver
•Smart Card PHY EMVSIM Driver
•Smart Card PHY GPIO Driver
•Smart Card PHY NCN8025 Driver
•Smart Card UART Driver
•Smart Card µCOS/II Driver
•Smart Card µCOS/III Driver
Files
• file fsl_smartcard.h
Data Structures
• struct smartcard_card_params_t
Defines card-specific parameters for Smart card driver. More...
• struct smartcard_timers_state_t
Smart card Defines the state of the EMV timers in the Smart card driver. More...
• struct smartcard_interface_config_t
Defines user specified configuration of Smart card interface. More...
• struct smartcard_xfer_t
Defines user transfer structure used to initialize transfer. More...
• struct smartcard_context_t
Runtime state of the Smart card driver. More...
Macros
• #define SMARTCARD_INIT_DELAY_CLOCK_CYCLES (42000u)
Smart card global define which specify number of clock cycles until initial ’TS’ character has to be re-
ceived.
• #define SMARTCARD_EMV_ATR_DURATION_ETU (20150u)
Smart card global define which specify number of clock cycles during which ATR string has to be received.
• #define SMARTCARD_TS_DIRECT_CONVENTION (0x3Bu)
Smart card specification initial TS character definition of direct convention.
• #define SMARTCARD_TS_INVERSE_CONVENTION (0x3Fu)
Smart card specification initial TS character definition of inverse convention.
Typedefs
• typedef void(∗smartcard_interface_callback_t )(void ∗smartcardContext, void ∗param)
Smart card interface interrupt callback function type.
• typedef void(∗smartcard_transfer_callback_t )(void ∗smartcardContext, void ∗param)
Smart card transfer interrupt callback function type.
• typedef void(∗smartcard_time_delay_t )(uint32_t miliseconds)
Time Delay function used to passive waiting using RTOS [ms].
1030
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
Enumerations
• enum smartcard_status_t {
kStatus_SMARTCARD_Success = MAKE_STATUS(kStatusGroup_SMARTCARD, 0),
kStatus_SMARTCARD_TxBusy = MAKE_STATUS(kStatusGroup_SMARTCARD, 1),
kStatus_SMARTCARD_RxBusy = MAKE_STATUS(kStatusGroup_SMARTCARD, 2),
kStatus_SMARTCARD_NoTransferInProgress = MAKE_STATUS(kStatusGroup_SMARTCAR-
D, 3),
kStatus_SMARTCARD_Timeout = MAKE_STATUS(kStatusGroup_SMARTCARD, 4),
kStatus_SMARTCARD_Initialized = MAKE_STATUS(kStatusGroup_SMARTCARD, 5),
kStatus_SMARTCARD_PhyInitialized = MAKE_STATUS(kStatusGroup_SMARTCARD, 6),
kStatus_SMARTCARD_CardNotActivated = MAKE_STATUS(kStatusGroup_SMARTCARD, 7),
kStatus_SMARTCARD_InvalidInput = MAKE_STATUS(kStatusGroup_SMARTCARD, 8),
kStatus_SMARTCARD_OtherError = MAKE_STATUS(kStatusGroup_SMARTCARD, 9) }
Smart card Error codes.
• enum smartcard_control_t
Control codes for the Smart card protocol timers and misc.
• enum smartcard_card_voltage_class_t
Defines Smart card interface voltage class values.
• enum smartcard_transfer_state_t
Defines Smart card I/O transfer states.
• enum smartcard_reset_type_t
Defines Smart card reset types.
• enum smartcard_transport_type_t
Defines Smart card transport protocol types.
• enum smartcard_parity_type_t
Defines Smart card data parity types.
• enum smartcard_card_convention_t
Defines data Convention format.
• enum smartcard_interface_control_t
Defines Smart card interface IC control types.
• enum smartcard_direction_t
Defines transfer direction.
Driver version
• #define FSL_SMARTCARD_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
Smart card driver version 2.1.0.
49.4 Data Structure Documentation
49.4.1 struct smartcard_card_params_t
Data Fields
• uint16_t Fi
4 bits Fi - clock rate conversion integer
• uint8_t fMax
Maximum Smart card frequency in MHz.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1031
Data Structure Documentation
• uint8_t WI
8 bits WI - work wait time integer
• uint8_t Di
4 bits DI - baud rate divisor
• uint8_t BWI
4 bits BWI - block wait time integer
• uint8_t CWI
4 bits CWI - character wait time integer
• uint8_t BGI
4 bits BGI - block guard time integer
• uint8_t GTN
8 bits GTN - extended guard time integer
• uint8_t IFSC
Indicates IFSC value of the card.
• uint8_t modeNegotiable
Indicates if the card acts in negotiable or a specific mode.
• uint8_t currentD
4 bits DI - current baud rate divisor
• uint8_t status
Indicates smart card status.
• bool t0Indicated
Indicates ff T=0 indicated in TD1 byte.
• bool t1Indicated
Indicates if T=1 indicated in TD2 byte.
• bool atrComplete
Indicates whether the ATR received from the card was complete or not.
• bool atrValid
Indicates whether the ATR received from the card was valid or not.
• bool present
Indicates if a smart card is present.
• bool active
Indicates if the smart card is activated.
• bool faulty
Indicates whether smart card/interface is faulty.
•smartcard_card_convention_t convention
Card convention, kSMARTCARD_DirectConvention for direct convention, kSMARTCARD_Inverse-
Convention for inverse convention.
49.4.1.0.0.1 Field Documentation
49.4.1.0.0.1.1 uint8_t smartcard_card_params_t::modeNegotiable
49.4.2 struct smartcard_timers_state_t
Data Fields
• volatile bool adtExpired
Indicates whether ADT timer expired.
• volatile bool wwtExpired
Indicates whether WWT timer expired.
1032
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
• volatile bool cwtExpired
Indicates whether CWT timer expired.
• volatile bool bwtExpired
Indicates whether BWT timer expired.
• volatile bool initCharTimerExpired
Indicates whether reception timer for initialization character (TS) after the RST has expired.
49.4.3 struct smartcard_interface_config_t
Data Fields
• uint32_t smartCardClock
Smart card interface clock [Hz].
• uint32_t clockToResetDelay
Indicates clock to RST apply delay [smart card clock cycles].
• uint8_t clockModule
Smart card clock module number.
• uint8_t clockModuleChannel
Smart card clock module channel number.
• uint8_t clockModuleSourceClock
Smart card clock module source clock [e.g., BusClk].
•smartcard_card_voltage_class_t vcc
Smart card voltage class.
• uint8_t controlPort
Smart card PHY control port instance.
• uint8_t controlPin
Smart card PHY control pin instance.
• uint8_t irqPort
Smart card PHY Interrupt port instance.
• uint8_t irqPin
Smart card PHY Interrupt pin instance.
• uint8_t resetPort
Smart card reset port instance.
• uint8_t resetPin
Smart card reset pin instance.
• uint8_t vsel0Port
Smart card PHY Vsel0 control port instance.
• uint8_t vsel0Pin
Smart card PHY Vsel0 control pin instance.
• uint8_t vsel1Port
Smart card PHY Vsel1 control port instance.
• uint8_t vsel1Pin
Smart card PHY Vsel1 control pin instance.
• uint8_t dataPort
Smart card PHY data port instance.
• uint8_t dataPin
Smart card PHY data pin instance.
• uint8_t dataPinMux
Smart card PHY data pin mux option.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1033
Data Structure Documentation
• uint8_t tsTimerId
Numerical identifier of the External HW timer for Initial character detection.
49.4.4 struct smartcard_xfer_t
Data Fields
•smartcard_direction_t direction
Direction of communication.
• uint8_t ∗buff
The buffer of data.
• size_t size
The number of transferred units.
49.4.4.0.0.2 Field Documentation
49.4.4.0.0.2.1 smartcard_direction_t smartcard_xfer_t::direction
(RX/TX)
49.4.4.0.0.2.2 uint8_t∗smartcard_xfer_t::buff
49.4.4.0.0.2.3 size_t smartcard_xfer_t::size
49.4.5 struct smartcard_context_t
Data Fields
• void ∗base
Smart card module base address.
•smartcard_direction_t direction
Direction of communication.
• uint8_t ∗xBuff
The buffer of data being transferred.
• volatile size_t xSize
The number of bytes to be transferred.
• volatile bool xIsBusy
True if there is an active transfer.
• uint8_t txFifoEntryCount
Number of data word entries in transmit FIFO.
•smartcard_interface_callback_t interfaceCallback
Callback to invoke after interface IC raised interrupt.
•smartcard_transfer_callback_t transferCallback
Callback to invoke after transfer event occur.
• void ∗interfaceCallbackParam
Interface callback parameter pointer.
• void ∗transferCallbackParam
Transfer callback parameter pointer.
1034
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
•smartcard_time_delay_t timeDelay
Function which handles time delay defined by user or RTOS.
•smartcard_reset_type_t resetType
Indicates whether a Cold reset or Warm reset was requested.
•smartcard_transport_type_t tType
Indicates current transfer protocol (T0 or T1)
• volatile smartcard_transfer_state_t transferState
Indicates the current transfer state.
•smartcard_timers_state_t timersState
Indicates the state of different protocol timers used in driver.
•smartcard_card_params_t cardParams
Smart card parameters(ATR and current) and interface slots states(ATR and current)
• uint8_t IFSD
Indicates the terminal IFSD.
•smartcard_parity_type_t parity
Indicates current parity even/odd.
• volatile bool rxtCrossed
Indicates whether RXT thresholds has been crossed.
• volatile bool txtCrossed
Indicates whether TXT thresholds has been crossed.
• volatile bool wtxRequested
Indicates whether WTX has been requested or not.
• volatile bool parityError
Indicates whether a parity error has been detected.
• uint8_t statusBytes [2]
Used to store Status bytes SW1, SW2 of the last executed card command response.
•smartcard_interface_config_t interfaceConfig
Smart card interface configuration structure.
49.4.5.0.0.3 Field Documentation
49.4.5.0.0.3.1 smartcard_direction_t smartcard_context_t::direction
(RX/TX)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1035
Enumeration Type Documentation
49.4.5.0.0.3.2 uint8_t∗smartcard_context_t::xBuff
49.4.5.0.0.3.3 volatile size_t smartcard_context_t::xSize
49.4.5.0.0.3.4 volatile bool smartcard_context_t::xIsBusy
49.4.5.0.0.3.5 uint8_t smartcard_context_t::txFifoEntryCount
49.4.5.0.0.3.6 smartcard_interface_callback_t smartcard_context_t::interfaceCallback
49.4.5.0.0.3.7 smartcard_transfer_callback_t smartcard_context_t::transferCallback
49.4.5.0.0.3.8 void∗smartcard_context_t::interfaceCallbackParam
49.4.5.0.0.3.9 void∗smartcard_context_t::transferCallbackParam
49.4.5.0.0.3.10 smartcard_time_delay_t smartcard_context_t::timeDelay
49.4.5.0.0.3.11 smartcard_reset_type_t smartcard_context_t::resetType
49.5 Macro Definition Documentation
49.5.1 #define FSL_SMARTCARD_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
49.6 Enumeration Type Documentation
49.6.1 enum smartcard_status_t
Enumerator
kStatus_SMARTCARD_Success Transfer ends successfully.
kStatus_SMARTCARD_TxBusy Transmit in progress.
kStatus_SMARTCARD_RxBusy Receiving in progress.
kStatus_SMARTCARD_NoTransferInProgress No transfer in progress.
kStatus_SMARTCARD_Timeout Transfer ends with time-out.
kStatus_SMARTCARD_Initialized Smart card driver is already initialized.
kStatus_SMARTCARD_PhyInitialized Smart card PHY drive is already initialized.
kStatus_SMARTCARD_CardNotActivated Smart card is not activated.
kStatus_SMARTCARD_InvalidInput Function called with invalid input arguments.
kStatus_SMARTCARD_OtherError Some other error occur.
49.6.2 enum smartcard_control_t
49.6.3 enum smartcard_direction_t
1036
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card EMVSIM Driver
49.7 Smart Card EMVSIM Driver
49.7.1 Overview
The SmartCard EMVSIM driver covers the transmission functionality in the CPU mode. The driver sup-
ports non-blocking (asynchronous) type of data transfers. The blocking (synchronous) transfer is sup-
ported only by the RTOS adaptation layer.
Files
• file fsl_smartcard_emvsim.h
Macros
• #define SMARTCARD_EMV_RX_NACK_THRESHOLD (5u)
EMV RX NACK interrupt generation threshold.
• #define SMARTCARD_EMV_TX_NACK_THRESHOLD (5u)
EMV TX NACK interrupt generation threshold.
• #define SMARTCARD_WWT_ADJUSTMENT (180u)
Smart card Word Wait Timer adjustment value.
• #define SMARTCARD_CWT_ADJUSTMENT (3u)
Smart card Character Wait Timer adjustment value.
Enumerations
• enum emvsim_gpc_clock_select_t {
kEMVSIM_GPCClockDisable = 0u,
kEMVSIM_GPCCardClock = 1u,
kEMVSIM_GPCRxClock = 2u,
kEMVSIM_GPCTxClock = 3u }
General Purpose Counter clock selections.
• enum emvsim_presence_detect_edge_t {
kEMVSIM_DetectOnFallingEdge = 0u,
kEMVSIM_DetectOnRisingEdge = 1u }
EMVSIM card presence detection edge control.
• enum emvsim_presence_detect_status_t {
kEMVSIM_DetectPinIsLow = 0u,
kEMVSIM_DetectPinIsHigh = 1u }
EMVSIM card presence detection status.
Smart card EMVSIM Driver
• void SMARTCARD_EMVSIM_GetDefaultConfig (smartcard_card_params_t ∗cardParams)
Fill in smartcard_card_params structure with default values according EMV 4.3 specification.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1037
Smart Card EMVSIM Driver
• status_t SMARTCARD_EMVSIM_Init (EMVSIM_Type ∗base, smartcard_context_t ∗context,
uint32_t srcClock_Hz)
Initializes an EMVSIM peripheral for smart card/ISO-7816 operation.
• void SMARTCARD_EMVSIM_Deinit (EMVSIM_Type ∗base)
This function disables the EMVSIM interrupts, disables the transmitter and receiver, flushes the FIFOs
and gates EMVSIM clock in SIM.
• int32_t SMARTCARD_EMVSIM_GetTransferRemainingBytes (EMVSIM_Type ∗base, smartcard-
_context_t ∗context)
Returns whether the previous EMVSIM transfer has finished.
• status_t SMARTCARD_EMVSIM_AbortTransfer (EMVSIM_Type ∗base, smartcard_context_-
t∗context)
Terminates an asynchronous EMVSIM transfer early.
• status_t SMARTCARD_EMVSIM_TransferNonBlocking (EMVSIM_Type ∗base, smartcard_-
context_t ∗context, smartcard_xfer_t ∗xfer)
Transfer data using interrupts.
• status_t SMARTCARD_EMVSIM_Control (EMVSIM_Type ∗base, smartcard_context_t ∗context,
smartcard_control_t control, uint32_t param)
Controls EMVSIM module as per different user request.
• void SMARTCARD_EMVSIM_IRQHandler (EMVSIM_Type ∗base, smartcard_context_-
t∗context)
Handles EMVSIM module interrupts.
49.7.2 Enumeration Type Documentation
49.7.2.1 enum emvsim_gpc_clock_select_t
Enumerator
kEMVSIM_GPCClockDisable disabled
kEMVSIM_GPCCardClock card clock
kEMVSIM_GPCRxClock receive clock
kEMVSIM_GPCTxClock transmit ETU clock
49.7.2.2 enum emvsim_presence_detect_edge_t
Enumerator
kEMVSIM_DetectOnFallingEdge presence detect on falling edge
kEMVSIM_DetectOnRisingEdge presence detect on rising edge
49.7.2.3 enum emvsim_presence_detect_status_t
Enumerator
kEMVSIM_DetectPinIsLow presence detect pin is logic low
kEMVSIM_DetectPinIsHigh presence detect pin is logic high
1038
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card EMVSIM Driver
49.7.3 Function Documentation
49.7.3.1 void SMARTCARD_EMVSIM_GetDefaultConfig ( smartcard_card_params_t ∗
cardParams )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1039
Fill in smartcard_card_params structure with default values according EMV 4.3 specification.
Smart Card EMVSIM Driver
Parameters
cardParams The configuration structure of type smartcard_interface_config_t. Function fill in
members: Fi = 372; Di = 1; currentD = 1; WI = 0x0A; GTN = 0x00; with default
values.
49.7.3.2 status_t SMARTCARD_EMVSIM_Init ( EMVSIM_Type ∗base,
smartcard_context_t ∗context, uint32_t srcClock_Hz )
This function Un-gate EMVSIM clock, initializes the module to EMV default settings, configures the IRQ,
enables the module-level interrupt to the core and initialize driver context.
Parameters
base The EMVSIM peripheral base address.
context A pointer to a smart card driver context structure.
srcClock_Hz Smart card clock generation module source clock.
Returns
An error code or kStatus_SMARTCARD_Success.
49.7.3.3 void SMARTCARD_EMVSIM_Deinit ( EMVSIM_Type ∗base )
Parameters
base The EMVSIM module base address.
49.7.3.4 int32_t SMARTCARD_EMVSIM_GetTransferRemainingBytes ( EMVSIM_Type ∗
base, smartcard_context_t ∗context )
When performing an async transfer, call this function to ascertain the context of the current transfer: in
progress (or busy) or complete (success). If the transfer is still in progress, the user can obtain the number
of words that have not been transferred.
Parameters
1040
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
This function disables the EMVSIM interrupts, disables the transmitter and receiver, flushes the FIFOs
and gates EMVSIM clock in SIM.
Smart Card EMVSIM Driver
base The EMVSIM module base address.
context A pointer to a smart card driver context structure.
Returns
The number of bytes not transferred.
49.7.3.5 status_t SMARTCARD_EMVSIM_AbortTransfer ( EMVSIM_Type ∗base,
smartcard_context_t ∗context )
During an async EMVSIM transfer, the user can terminate the transfer early if the transfer is still in
progress.
Parameters
base The EMVSIM peripheral address.
context A pointer to a smart card driver context structure.
Return values
kStatus_SMARTCARD_-
Success
The transmit abort was successful.
kStatus_SMARTCARD_-
NoTransmitInProgress
No transmission is currently in progress.
49.7.3.6 status_t SMARTCARD_EMVSIM_TransferNonBlocking ( EMVSIM_Type ∗base,
smartcard_context_t ∗context, smartcard_xfer_t ∗xfer )
A non-blocking (also known as asynchronous) function means that the function returns immediately after
initiating the transfer function. The application has to get the transfer status to see when the transfer is
complete. In other words, after calling non-blocking (asynchronous) transfer function, the application
must get the transfer status to check if transmit is completed or not.
Parameters
base The EMVSIM peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1041
Smart Card EMVSIM Driver
context A pointer to a smart card driver context structure.
xfer A pointer to smart card transfer structure where are linked buffers and sizes.
Returns
An error code or kStatus_SMARTCARD_Success.
49.7.3.7 status_t SMARTCARD_EMVSIM_Control ( EMVSIM_Type ∗base,
smartcard_context_t ∗context, smartcard_control_t control, uint32_t param )
Parameters
base The EMVSIM peripheral base address.
context A pointer to a smart card driver context structure.
control Control type
param Integer value of specific to control command.
return kStatus_SMARTCARD_Success in success. return kStatus_SMARTCARD_OtherError in case of
error.
49.7.3.8 void SMARTCARD_EMVSIM_IRQHandler ( EMVSIM_Type ∗base,
smartcard_context_t ∗context )
Parameters
base The EMVSIM peripheral base address.
context A pointer to a smart card driver context structure.
1042
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Controls EMVSIM module as per different user request.
Handles EMVSIM module interrupts.
Smart Card FreeRTOS Driver
49.8 Smart Card FreeRTOS Driver
49.8.1 Overview
Data Structures
• struct rtos_smartcard_context_t
Runtime RTOS smart card driver context. More...
Macros
• #define RTOS_SMARTCARD_COMPLETE 0x1u
smart card RTOS transfer complete flag
• #define RTOS_SMARTCARD_TIMEOUT 0x2u
smart card RTOS transfer time-out flag
• #define SMARTCARD_Control(base, context, control, param) SMARTCARD_UART_-
Control(base, context, control, 0)
Common smart card driver API defines.
• #define SMARTCARD_Transfer(base, context, xfer) SMARTCARD_UART_TransferNon-
Blocking(base, context, xfer)
Common smart card API macro.
• #define SMARTCARD_Init(base, context, sourceClockHz) SMARTCARD_UART_Init(base, con-
text, sourceClockHz)
Common smart card API macro.
• #define SMARTCARD_Deinit(base) SMARTCARD_UART_Deinit(base)
Common smart card API macro.
• #define SMARTCARD_GetTransferRemainingBytes(base, context) SMARTCARD_UART_Get-
TransferRemainingBytes(base, context)
Common smart card API macro.
• #define SMARTCARD_GetDefaultConfig(cardParams) SMARTCARD_UART_GetDefault-
Config(cardParams)
Common smart card API macro.
Functions
• int SMARTCARD_RTOS_Init (void ∗base, rtos_smartcard_context_t ∗ctx, uint32_t sourceClock-
Hz)
Initializes a smart card (EMVSIM/UART) peripheral for smart card/ISO-7816 operation.
• int SMARTCARD_RTOS_Deinit (rtos_smartcard_context_t ∗ctx)
This function disables the smart card (EMVSIM/UART) interrupts, disables the transmitter and receiver,
and flushes the FIFOs (for modules that support FIFOs) and gates smart card clock in SIM.
• int SMARTCARD_RTOS_Transfer (rtos_smartcard_context_t ∗ctx, smartcard_xfer_t ∗xfer)
Transfers data using interrupts.
• int SMARTCARD_RTOS_WaitForXevent (rtos_smartcard_context_t ∗ctx)
Waits until the transfer is finished.
• int SMARTCARD_RTOS_Control (rtos_smartcard_context_t ∗ctx, smartcard_control_t control,
uint32_t param)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1043
Smart Card FreeRTOS Driver
Controls the smart card module as per different user request.
• int SMARTCARD_RTOS_PHY_Control (rtos_smartcard_context_t ∗ctx, smartcard_interface_-
control_t control, uint32_t param)
Controls the smart card module as per different user request.
• int SMARTCARD_RTOS_PHY_Activate (rtos_smartcard_context_t ∗ctx, smartcard_reset_type_t
resetType)
Activates the smart card interface.
•int SMARTCARD_RTOS_PHY_Deactivate (rtos_smartcard_context_t ∗ctx)
Deactivates the smart card interface.
49.8.2 Data Structure Documentation
49.8.2.1 struct rtos_smartcard_context_t
Runtime RTOS Smart card driver context.
Data Fields
• SemaphoreHandle_t x_sem
RTOS unique access assurance object.
• EventGroupHandle_t x_event
RTOS synchronization object.
•smartcard_context_t x_context
transactional layer state
• OS_EVENT ∗x_sem
RTOS unique access assurance object.
• OS_FLAG_GRP ∗x_event
RTOS synchronization object.
• OS_SEM x_sem
RTOS unique access assurance object.
• OS_FLAG_GRP x_event
RTOS synchronization object.
49.8.2.1.0.4 Field Documentation
49.8.2.1.0.4.1 smartcard_context_t rtos_smartcard_context_t::x_context
Transactional layer state.
49.8.3 Macro Definition Documentation
49.8.3.1 #define SMARTCARD_Control( base, context, control, param
)SMARTCARD_UART_Control(base, context, control, 0)
Common smart card API macro
1044
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card FreeRTOS Driver
49.8.4 Function Documentation
49.8.4.1 int SMARTCARD_RTOS_Init ( void ∗base, rtos_smartcard_context_t ∗ctx,
uint32_t sourceClockHz )
Also initialize smart card PHY interface .
This function ungates the smart card clock, initializes the module to EMV default settings, configures the
IRQ state structure, and enables the module-level interrupt to the core. Initialize RTOS synchronization
objects and context.
Parameters
base The smart card peripheral base address.
ctx The smart card RTOS structure.
sourceClockHz smart card clock generation module source clock.
Returns
An zero in Success or error code.
49.8.4.2 int SMARTCARD_RTOS_Deinit ( rtos_smartcard_context_t ∗ctx )
Deactivates also smart card PHY interface, stops smart card clocks. Free all synchronization objects
allocated in RTOS smart card context.
Parameters
ctx The smart card RTOS state.
Returns
An zero in Success or error code.
49.8.4.3 int SMARTCARD_RTOS_Transfer ( rtos_smartcard_context_t ∗ctx,
smartcard_xfer_t ∗xfer )
A blocking (also known as synchronous) function means that the function returns after the transfer is done.
User can cancel this transfer by calling function AbortTransfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1045
Smart Card FreeRTOS Driver
Parameters
ctx A pointer to the RTOS smart card driver context.
xfer smart card transfer structure.
Returns
An zero in Success or error code.
49.8.4.4 int SMARTCARD_RTOS_WaitForXevent ( rtos_smartcard_context_t ∗ctx )
Task waits on a transfer finish event. Don’t initialize the transfer. Instead, wait for transfer callback. Can
be used while waiting on initial TS character.
Parameters
ctx A pointer to the RTOS smart card driver context.
Returns
A zero in Success or error code.
49.8.4.5 int SMARTCARD_RTOS_Control ( rtos_smartcard_context_t ∗ctx,
smartcard_control_t control, uint32_t param )
Parameters
ctx The smart card RTOS context pointer.
control Control type
param Integer value of specific to control command.
Returns
An zero in Success or error code.
49.8.4.6 int SMARTCARD_RTOS_PHY_Control ( rtos_smartcard_context_t ∗ctx,
smartcard_interface_control_t control, uint32_t param )
1046
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Controls the smart card module as per different user request.
Controls Smart card module as per different user request.
Smart Card FreeRTOS Driver
Parameters
ctx The smart card RTOS context pointer.
control Control type
param Integer value of specific to control command.
Returns
An zero in Success or error code.
49.8.4.7 int SMARTCARD_RTOS_PHY_Activate ( rtos_smartcard_context_t ∗ctx,
smartcard_reset_type_t resetType )
Parameters
ctx The smart card RTOS driver context structure.
resetType type of reset to be performed, possible values = kSmartcardColdReset, kSmartcard-
WarmReset
Returns
An zero in Success or error code.
49.8.4.8 int SMARTCARD_RTOS_PHY_Deactivate ( rtos_smartcard_context_t ∗ctx )
Parameters
ctx The smart card RTOS driver context structure.
Returns
An zero in Success or error code.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1047
Activates the Smart card interface.
Smart Card PHY EMVSIM Driver
49.9 Smart Card PHY EMVSIM Driver
49.9.1 Overview
The Smart Card interface EMVSIM driver handles the EMVSIM peripheral, which covers all necessary
functions to control the ICC. These functions are ICC clock setup, ICC voltage turning on/off, ICC card
detection, activation/deactivation, and ICC reset sequences. The EMVSIM peripheral covers all features
of interface ICC chips.
Files
• file fsl_smartcard_phy_emvsim.h
Macros
• #define SMARTCARD_ATR_DURATION_ADJUSTMENT (360u)
SMARTCARD define which specify adjustment number of clock cycles during which ATR string has to be
received.
• #define SMARTCARD_INIT_DELAY_CLOCK_CYCLES_ADJUSTMENT (4200u)
SMARTCARD define which specify adjustment number of clock cycles until initial ’TS’ character has to
be received.
Functions
• void SMARTCARD_PHY_EMVSIM_GetDefaultConfig (smartcard_interface_config_t ∗config)
Fill in smartcardInterfaceConfig structure with default values.
• status_t SMARTCARD_PHY_EMVSIM_Init (EMVSIM_Type ∗base, const smartcard_interface_-
config_t ∗config, uint32_t srcClock_Hz)
Configures an SMARTCARD interface for operation.
• void SMARTCARD_PHY_EMVSIM_Deinit (EMVSIM_Type ∗base, const smartcard_interface_-
config_t ∗config)
De-initializes an SMARTCARD interface.
• status_t SMARTCARD_PHY_EMVSIM_Activate (EMVSIM_Type ∗base, smartcard_context_-
t∗context, smartcard_reset_type_t resetType)
Activates the smart card IC.
• status_t SMARTCARD_PHY_EMVSIM_Deactivate (EMVSIM_Type ∗base, smartcard_context_t
∗context)
De-activates the smart card IC.
• status_t SMARTCARD_PHY_EMVSIM_Control (EMVSIM_Type ∗base, smartcard_context_t
∗context, smartcard_interface_control_t control, uint32_t param)
Controls SMARTCARD interface IC.
1048
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card PHY EMVSIM Driver
49.9.2 Function Documentation
49.9.2.1 void SMARTCARD_PHY_EMVSIM_GetDefaultConfig ( smartcard_interface_-
config_t ∗config )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1049
Fill in smartcardInterfaceConfig structure with default values.
Smart Card PHY EMVSIM Driver
Parameters
config The user configuration structure of type smartcard_interface_config_t. Function fill
in members: clockToResetDelay = 40000, vcc = kSmartcardVoltageClassB3_3V with
default values.
49.9.2.2 status_t SMARTCARD_PHY_EMVSIM_Init ( EMVSIM_Type ∗base, const
smartcard_interface_config_t ∗config, uint32_t srcClock_Hz )
Parameters
base The SMARTCARD peripheral module base address.
config The user configuration structure of type smartcard_interface_config_t. The user is
responsible to fill out the members of this structure and to pass the pointer of this
structure into this function or call SMARTCARD_PHY_EMVSIMInitUserConfig-
Default to fill out structure with default values.
srcClock_Hz SMARTCARD clock generation module source clock.
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
49.9.2.3 void SMARTCARD_PHY_EMVSIM_Deinit ( EMVSIM_Type ∗base, const
smartcard_interface_config_t ∗config )
Stops SMARTCARD clock and disable VCC.
Parameters
base Smartcard peripheral module base address.
config SMARTCARD configuration structure.
49.9.2.4 status_t SMARTCARD_PHY_EMVSIM_Activate ( EMVSIM_Type ∗base,
smartcard_context_t ∗context, smartcard_reset_type_t resetType )
1050
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Configures an SMARTCARD interface for operation.
Activates the smart card IC.
Smart Card PHY EMVSIM Driver
Parameters
base The EMVSIM peripheral base address.
context A pointer to a SMARTCARD driver context structure.
resetType type of reset to be performed, possible values = kSmartcardColdReset, kSmartcard-
WarmReset
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
49.9.2.5 status_t SMARTCARD_PHY_EMVSIM_Deactivate ( EMVSIM_Type ∗base,
smartcard_context_t ∗context )
Parameters
base The EMVSIM peripheral base address.
context A pointer to a smartcard driver context structure.
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
49.9.2.6 status_t SMARTCARD_PHY_EMVSIM_Control ( EMVSIM_Type ∗base,
smartcard_context_t ∗context, smartcard_interface_control_t control, uint32_t
param )
Parameters
base The EMVSIM peripheral base address.
context A pointer to a SMARTCARD driver context structure.
control A interface command type.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1051
De-activates the smart card IC.
Controls SMARTCARD interface IC.
Smart Card PHY EMVSIM Driver
param Integer value specific to control type
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
1052
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card PHY GPIO Driver
49.10 Smart Card PHY GPIO Driver
49.10.1 Overview
The Smart Card interface GPIO driver handles the GPIO and FTM/TPM peripheral for clock generation,
which covers all necessary functions to control the ICC. These functions are ICC clock setup, ICC voltage
turning on/off, activation/deactivation, and ICC reset sequences. This driver doesn’t support the ICC pin
short circuit protection and an emergency deactivation.
Files
• file fsl_smartcard_phy_gpio.h
Macros
• #define SMARTCARD_ATR_DURATION_ADJUSTMENT (360u)
SMARTCARD define which specify adjustment number of clock cycles during which ATR string has to be
received.
• #define SMARTCARD_INIT_DELAY_CLOCK_CYCLES_ADJUSTMENT (4200u)
SMARTCARD define which specify adjustment number of clock cycles until initial ’TS’ character has to
be received.
Functions
• void SMARTCARD_PHY_GPIO_GetDefaultConfig (smartcard_interface_config_t ∗config)
Fill in config structure with default values.
• status_t SMARTCARD_PHY_GPIO_Init (UART_Type ∗base, smartcard_interface_config_t const
∗config, uint32_t srcClock_Hz)
Initializes an SMARTCARD interface instance for operation.
• void SMARTCARD_PHY_GPIO_Deinit (UART_Type ∗base, smartcard_interface_config_-
t∗config)
De-initializes an SMARTCARD interface.
• status_t SMARTCARD_PHY_GPIO_Activate (UART_Type ∗base, smartcard_context_t ∗context,
smartcard_reset_type_t resetType)
Activates the smart card IC.
• status_t SMARTCARD_PHY_GPIO_Deactivate (UART_Type ∗base, smartcard_context_-
t∗context)
De-activates the smart card IC.
• status_t SMARTCARD_PHY_GPIO_Control (UART_Type ∗base, smartcard_context_t ∗context,
smartcard_interface_control_t control, uint32_t param)
Controls SMARTCARD interface IC.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1053
Smart Card PHY GPIO Driver
49.10.2 Function Documentation
49.10.2.1 void SMARTCARD_PHY_GPIO_GetDefaultConfig ( smartcard_interface_config-
_t ∗config )
1054
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Controls SMARTCARD interface IC.
Smart Card PHY GPIO Driver
Parameters
config The smartcard user configuration structure which contains configuration structure of
type smartcard_interface_config_t. Function fill in members: clockToResetDelay =
42000, vcc = kSmartcardVoltageClassB3_3V, with default values.
49.10.2.2 status_t SMARTCARD_PHY_GPIO_Init ( UART_Type ∗base,
smartcard_interface_config_t const ∗config, uint32_t srcClock_Hz )
Parameters
base The SMARTCARD peripheral module base address.
config The user configuration structure of type smartcard_interface_config_t. The user
can call to fill out configuration structure function SMARTCARD_PHY_GPIO_Get-
DefaultConfig().
srcClock_Hz Smartcard clock generation module source clock.
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
49.10.2.3 void SMARTCARD_PHY_GPIO_Deinit ( UART_Type ∗base,
smartcard_interface_config_t ∗config )
Stops smartcard clock and disable VCC.
Parameters
base The SMARTCARD peripheral module base address.
config The user configuration structure of type smartcard_interface_config_t.
49.10.2.4 status_t SMARTCARD_PHY_GPIO_Activate ( UART_Type ∗base,
smartcard_context_t ∗context, smartcard_reset_type_t resetType )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1055
Initializes an SMARTCARD interface instance for operation.
Activates the smart card IC.
Smart Card PHY GPIO Driver
Parameters
base The SMARTCARD peripheral module base address.
context A pointer to a smartcard driver context structure.
resetType type of reset to be performed, possible values = kSmartcardColdReset, kSmartcard-
WarmReset
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
49.10.2.5 status_t SMARTCARD_PHY_GPIO_Deactivate ( UART_Type ∗base,
smartcard_context_t ∗context )
Parameters
base The SMARTCARD peripheral module base address.
context A pointer to a smartcard driver context structure.
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
49.10.2.6 status_t SMARTCARD_PHY_GPIO_Control ( UART_Type ∗base,
smartcard_context_t ∗context, smartcard_interface_control_t control,
uint32_t param )
Parameters
base The SMARTCARD peripheral module base address.
context A pointer to a smartcard driver context structure.
control A interface command type.
1056
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
De-activates the smart card IC.
Controls SMARTCARD interface IC.
Smart Card PHY GPIO Driver
param Integer value specific to control type
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1057
Smart Card PHY NCN8025 Driver
49.11 Smart Card PHY NCN8025 Driver
49.11.1 Overview
The Smart Card interface NCN8025 driver handles the external interface chip NCN8025 which supports
all necessary functions to control the ICC. These functions involve PHY pin initialization, ICC voltage
selection and activation, ICC clock generation, ICC card detection, and activation/deactivation sequences.
Files
• file fsl_smartcard_phy_ncn8025.h
Macros
• #define SMARTCARD_ATR_DURATION_ADJUSTMENT (360u)
SMARTCARD define which specify adjustment number of clock cycles during which ATR string has to be
received.
• #define SMARTCARD_INIT_DELAY_CLOCK_CYCLES_ADJUSTMENT (4200u)
SMARTCARD define which specify adjustment number of clock cycles until initial ’TS’ character has to
be received.
• #define SMARTCARD_NCN8025_STATUS_PRES (0x01u)
Masks for NCN8025 status register.
• #define SMARTCARD_NCN8025_STATUS_ACTIVE (0x02u)
SMARTCARD phy NCN8025 smartcard active status.
• #define SMARTCARD_NCN8025_STATUS_FAULTY (0x04u)
SMARTCARD phy NCN8025 smartcard faulty status.
• #define SMARTCARD_NCN8025_STATUS_CARD_REMOVED (0x08u)
SMARTCARD phy NCN8025 smartcard removed status.
• #define SMARTCARD_NCN8025_STATUS_CARD_DEACTIVATED (0x10u)
SMARTCARD phy NCN8025 smartcard deactivated status.
Functions
• void SMARTCARD_PHY_NCN8025_GetDefaultConfig (smartcard_interface_config_t ∗config)
Fill in config structure with default values.
• status_t SMARTCARD_PHY_NCN8025_Init (void ∗base, smartcard_interface_config_t const
∗config, uint32_t srcClock_Hz)
Initializes an SMARTCARD interface instance for operation.
• void SMARTCARD_PHY_NCN8025_Deinit (void ∗base, smartcard_interface_config_t ∗config)
De-initializes an SMARTCARD interface.
• status_t SMARTCARD_PHY_NCN8025_Activate (void ∗base, smartcard_context_t ∗context,
smartcard_reset_type_t resetType)
Activates the smart card IC.
• status_t SMARTCARD_PHY_NCN8025_Deactivate (void ∗base, smartcard_context_t ∗context)
De-activates the smart card IC.
1058
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card PHY NCN8025 Driver
• status_t SMARTCARD_PHY_NCN8025_Control (void ∗base, smartcard_context_t ∗context,
smartcard_interface_control_t control, uint32_t param)
Controls SMARTCARD interface IC.
• void SMARTCARD_PHY_NCN8025_IRQHandler (void ∗base, smartcard_context_t ∗context)
SMARTCARD interface IC IRQ ISR.
49.11.2 Macro Definition Documentation
49.11.2.1 #define SMARTCARD_NCN8025_STATUS_PRES (0x01u)
SMARTCARD phy NCN8025 smartcard present status
49.11.3 Function Documentation
49.11.3.1 void SMARTCARD_PHY_NCN8025_GetDefaultConfig ( smartcard_interface_-
config_t ∗config )
Parameters
config The smartcard user configuration structure which contains configuration structure of
type smartcard_interface_config_t. Function fill in members: clockToResetDelay =
42000, vcc = kSmartcardVoltageClassB3_3V, with default values.
49.11.3.2 status_t SMARTCARD_PHY_NCN8025_Init ( void ∗base,
smartcard_interface_config_t const ∗config, uint32_t srcClock_Hz )
Parameters
base The SMARTCARD peripheral base address.
config The user configuration structure of type smartcard_interface_config_t. The user can
call to fill out configuration structure function SMARTCARD_PHY_NCN8025_Get-
DefaultConfig().
srcClock_Hz Smartcard clock generation module source clock.
Return values
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1059
Fill in config structure with default values.
Initializes an SMARTCARD interface instance for operation.
Smart Card PHY NCN8025 Driver
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
49.11.3.3 void SMARTCARD_PHY_NCN8025_Deinit ( void ∗base,
smartcard_interface_config_t ∗config )
Stops smartcard clock and disable VCC.
Parameters
base The SMARTCARD peripheral module base address.
config The user configuration structure of type smartcard_interface_config_t.
49.11.3.4 status_t SMARTCARD_PHY_NCN8025_Activate ( void ∗base,
smartcard_context_t ∗context, smartcard_reset_type_t resetType )
Parameters
base The SMARTCARD peripheral module base address.
context A pointer to a smartcard driver context structure.
resetType type of reset to be performed, possible values = kSmartcardColdReset, kSmartcard-
WarmReset
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
49.11.3.5 status_t SMARTCARD_PHY_NCN8025_Deactivate ( void ∗base,
smartcard_context_t ∗context )
Parameters
base The SMARTCARD peripheral module base address.
1060
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Activates the smart card IC.
De-activates the smart card IC.
Smart Card PHY NCN8025 Driver
context A pointer to a smartcard driver context structure.
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
49.11.3.6 status_t SMARTCARD_PHY_NCN8025_Control ( void ∗base,
smartcard_context_t ∗context, smartcard_interface_control_t control,
uint32_t param )
Parameters
base The SMARTCARD peripheral module base address.
context A pointer to a smartcard driver context structure.
control A interface command type.
param Integer value specific to control type
Return values
kStatus_SMARTCARD_-
Success
or kStatus_SMARTCARD_OtherError in case of error.
49.11.3.7 void SMARTCARD_PHY_NCN8025_IRQHandler ( void ∗base,
smartcard_context_t ∗context )
Parameters
base The SMARTCARD peripheral module base address.
context The smartcard context pointer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1061
De-activates the smart card IC.
SMARTCARD interface IC IRQ ISR.
Smart Card UART Driver
49.12 Smart Card UART Driver
49.12.1 Overview
The Smart Card UART driver uses a standard UART peripheral which supports the ISO-7816 standard.
The driver supports transmission functionality in the CPU mode. The driver also supports non-blocking
(asynchronous) type of data transfers. The blocking (synchronous) transfer is supported only by the RTOS
adaptation layer.
Files
• file fsl_smartcard_uart.h
Macros
• #define SMARTCARD_EMV_RX_NACK_THRESHOLD (5u)
EMV RX NACK interrupt generation threshold.
• #define SMARTCARD_EMV_TX_NACK_THRESHOLD (3u)
EMV TX NACK interrupt generation threshold.
• #define SMARTCARD_EMV_RX_TO_TX_GUARD_TIME_T0 (0x0u)
EMV TX & RX GUART TIME default value.
Functions
• void SMARTCARD_UART_GetDefaultConfig (smartcard_card_params_t ∗cardParams)
Fill in smartcard_card_params structure with default values according EMV 4.3 specification.
• status_t SMARTCARD_UART_Init (UART_Type ∗base, smartcard_context_t ∗context, uint32_t
srcClock_Hz)
Initializes an UART peripheral for smart card/ISO-7816 operation.
• void SMARTCARD_UART_Deinit (UART_Type ∗base)
This function disables the UART interrupts, disables the transmitter and receiver, and flushes the FIFOs
(for modules that support FIFOs) and gates UART clock in SIM.
• int32_t SMARTCARD_UART_GetTransferRemainingBytes (UART_Type ∗base, smartcard_-
context_t ∗context)
Returns whether the previous UART transfer has finished.
• status_t SMARTCARD_UART_AbortTransfer (UART_Type ∗base, smartcard_context_t ∗context)
Terminates an asynchronous UART transfer early.
• status_t SMARTCARD_UART_TransferNonBlocking (UART_Type ∗base, smartcard_context_-
t∗context, smartcard_xfer_t ∗xfer)
Transfer data using interrupts.
• status_t SMARTCARD_UART_Control (UART_Type ∗base, smartcard_context_t ∗context,
smartcard_control_t control, uint32_t param)
Controls UART module as per different user request.
• void SMARTCARD_UART_IRQHandler (UART_Type ∗base, smartcard_context_t ∗context)
Interrupt handler for UART.
• void SMARTCARD_UART_ErrIRQHandler (UART_Type ∗base, smartcard_context_t ∗context)
1062
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card UART Driver
Error Interrupt handler for UART.
• void SMARTCARD_UART_TSExpiryCallback (UART_Type ∗base, smartcard_context_-
t∗context)
Handles initial TS character timer time-out event.
49.12.2 Function Documentation
49.12.2.1 void SMARTCARD_UART_GetDefaultConfig ( smartcard_card_params_t ∗
cardParams )
Parameters
cardParams The configuration structure of type smartcard_interface_config_t. Function fill in
members: Fi = 372; Di = 1; currentD = 1; WI = 0x0A; GTN = 0x00; with default
values.
49.12.2.2 status_t SMARTCARD_UART_Init ( UART_Type ∗base, smartcard_context_t ∗
context, uint32_t srcClock_Hz )
This function Un-gate UART clock, initializes the module to EMV default settings, configures the IRQ,
enables the module-level interrupt to the core and initialize driver context.
Parameters
base The UART peripheral base address.
context A pointer to a smart card driver context structure.
srcClock_Hz Smart card clock generation module source clock.
Returns
An error code or kStatus_SMARTCARD_Success.
49.12.2.3 void SMARTCARD_UART_Deinit ( UART_Type ∗base )
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1063
SMARTCARD interface IC IRQ ISR.
SMARTCARD interface IC IRQ ISR.
Smart Card UART Driver
base The UART peripheral base address.
49.12.2.4 int32_t SMARTCARD_UART_GetTransferRemainingBytes ( UART_Type ∗base,
smartcard_context_t ∗context )
When performing an async transfer, call this function to ascertain the context of the current transfer: in
progress (or busy) or complete (success). If the transfer is still in progress, the user can obtain the number
of words that have not been transferred, by reading xSize of smart card context structure.
Parameters
base The UART peripheral base address.
context A pointer to a smart card driver context structure.
Returns
The number of bytes not transferred.
49.12.2.5 status_t SMARTCARD_UART_AbortTransfer ( UART_Type ∗base,
smartcard_context_t ∗context )
During an async UART transfer, the user can terminate the transfer early if the transfer is still in progress.
Parameters
base The UART peripheral base address.
context A pointer to a smart card driver context structure.
Return values
kStatus_SMARTCARD_-
Success
The transfer abort was successful.
kStatus_SMARTCARD_-
NoTransmitInProgress
No transmission is currently in progress.
49.12.2.6 status_t SMARTCARD_UART_TransferNonBlocking ( UART_Type ∗base,
smartcard_context_t ∗context, smartcard_xfer_t ∗xfer )
A non-blocking (also known as asynchronous) function means that the function returns immediately after
initiating the transfer function. The application has to get the transfer status to see when the transfer is
1064
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card UART Driver
complete. In other words, after calling non-blocking (asynchronous) transfer function, the application
must get the transfer status to check if transmit is completed or not.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1065
Smart Card UART Driver
Parameters
base The UART peripheral base address.
context A pointer to a smart card driver context structure.
xfer A pointer to smart card transfer structure where are linked buffers and sizes.
Returns
An error code or kStatus_SMARTCARD_Success.
49.12.2.7 status_t SMARTCARD_UART_Control ( UART_Type ∗base,
smartcard_context_t ∗context, smartcard_control_t control, uint32_t param )
Parameters
base The UART peripheral base address.
context A pointer to a smart card driver context structure.
control Smart card command type.
param Integer value of specific to control command.
return An kStatus_SMARTCARD_OtherError in case of error return kStatus_SMARTCARD_Success in
success
49.12.2.8 void SMARTCARD_UART_IRQHandler ( UART_Type ∗base,
smartcard_context_t ∗context )
This handler uses the buffers stored in the smartcard_context_t structures to transfer data. Smart card
driver requires this function to call when UART interrupt occurs.
Parameters
base The UART peripheral base address.
context A pointer to a smart card driver context structure.
49.12.2.9 void SMARTCARD_UART_ErrIRQHandler ( UART_Type ∗base,
smartcard_context_t ∗context )
This function handles error conditions during transfer.
1066
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Controls UART module as per different user request.
Smart Card UART Driver
Parameters
base The UART peripheral base address.
context A pointer to a smart card driver context structure.
49.12.2.10 void SMARTCARD_UART_TSExpiryCallback ( UART_Type ∗base,
smartcard_context_t ∗context )
Parameters
base The UART peripheral base address.
context A pointer to a smart card driver context structure.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1067
Handles initial TS character timer time-out event.
Smart Card µCOS/II Driver
49.13 Smart Card µCOS/II Driver
49.13.1 Overview
Files
• file fsl_smartcard_ucosii.h
Data Structures
• struct rtos_smartcard_context_t
Runtime RTOS smart card driver context. More...
Macros
• #define RTOS_SMARTCARD_COMPLETE 0x1u
Smart card RTOS transfer complete flag.
• #define RTOS_SMARTCARD_TIMEOUT 0x2u
Smart card RTOS transfer time-out flag.
• #define SMARTCARD_Control(base, context, control, param) SMARTCARD_UART_-
Control(base, context, control, 0)
Common Smart card driver API defines.
• #define SMARTCARD_Transfer(base, context, xfer) SMARTCARD_UART_TransferNon-
Blocking(base, context, xfer)
Common Smart card API macro.
• #define SMARTCARD_Init(base, context, sourceClockHz) SMARTCARD_UART_Init(base, con-
text, sourceClockHz)
Common Smart card API macro.
• #define SMARTCARD_Deinit(base) SMARTCARD_UART_Deinit(base)
Common Smart card API macro.
• #define SMARTCARD_GetTransferRemainingBytes(base, context) SMARTCARD_UART_Get-
TransferRemainingBytes(base, context)
Common Smart card API macro.
• #define SMARTCARD_GetDefaultConfig(cardParams) SMARTCARD_UART_GetDefault-
Config(cardParams)
Common Smart card API macro.
Functions
• int SMARTCARD_RTOS_Init (void ∗base, rtos_smartcard_context_t ∗ctx, uint32_t sourceClock-
Hz)
Initializes an Smart card (EMVSIM/UART) peripheral for Smart card/ISO-7816 operation.
• int SMARTCARD_RTOS_Deinit (rtos_smartcard_context_t ∗ctx)
This function disables the Smart card (EMVSIM/UART) interrupts, disables the transmitter and receiver,
and flushes the FIFOs (for modules that support FIFOs) and gates Smart card clock in SIM.
• int SMARTCARD_RTOS_Transfer (rtos_smartcard_context_t ∗ctx, smartcard_xfer_t ∗xfer)
1068
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card µCOS/II Driver
Transfers data using interrupts.
• int SMARTCARD_RTOS_WaitForXevent (rtos_smartcard_context_t ∗ctx)
Waits until transfer is finished.
• int SMARTCARD_RTOS_Control (rtos_smartcard_context_t ∗ctx, smartcard_control_t control,
uint32_t param)
Controls Smart card module as per different user request.
• int SMARTCARD_RTOS_PHY_Control (rtos_smartcard_context_t ∗ctx, smartcard_interface_-
control_t control, uint32_t param)
Controls the Smart card module as per different user request.
• int SMARTCARD_RTOS_PHY_Activate (rtos_smartcard_context_t ∗ctx, smartcard_reset_type_t
resetType)
Activates the Smart card interface.
• int SMARTCARD_RTOS_PHY_Deactivate (rtos_smartcard_context_t ∗ctx)
Deactivates the Smart card interface.
49.13.2 Data Structure Documentation
49.13.2.1 struct rtos_smartcard_context_t
Runtime RTOS Smart card driver context.
Data Fields
• SemaphoreHandle_t x_sem
RTOS unique access assurance object.
• EventGroupHandle_t x_event
RTOS synchronization object.
•smartcard_context_t x_context
transactional layer state
• OS_EVENT ∗x_sem
RTOS unique access assurance object.
• OS_FLAG_GRP ∗x_event
RTOS synchronization object.
• OS_SEM x_sem
RTOS unique access assurance object.
• OS_FLAG_GRP x_event
RTOS synchronization object.
49.13.2.1.0.5 Field Documentation
49.13.2.1.0.5.1 smartcard_context_t rtos_smartcard_context_t::x_context
Transactional layer state.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1069
Smart Card µCOS/II Driver
49.13.3 Macro Definition Documentation
49.13.3.1 #define SMARTCARD_Control( base, context, control, param
)SMARTCARD_UART_Control(base, context, control, 0)
Common Smart card API macro
49.13.4 Function Documentation
49.13.4.1 int SMARTCARD_RTOS_Init ( void ∗base, rtos_smartcard_context_t ∗ctx,
uint32_t sourceClockHz )
Also initialize Smart card PHY interface .
This function ungates the Smart card clock, initializes the module to EMV default settings, configures the
IRQ state structure, and enables the module-level interrupt to the core. Initialize RTOS synchronization
objects and context.
Parameters
base The Smart card peripheral base address.
ctx The Smart card RTOS structure.
sourceClockHz Smart card clock generation module source clock.
Returns
An zero in Success or error code.
49.13.4.2 int SMARTCARD_RTOS_Deinit ( rtos_smartcard_context_t ∗ctx )
Deactivates also Smart card PHY interface, stops Smart card clocks. Free all synchronization objects
allocated in RTOS Smart card context.
Parameters
ctx The Smart card RTOS state.
Returns
An zero in Success or error code.
1070
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card µCOS/II Driver
49.13.4.3 int SMARTCARD_RTOS_Transfer ( rtos_smartcard_context_t ∗ctx,
smartcard_xfer_t ∗xfer )
A blocking (also known as synchronous) function means that the function returns after the transfer is done.
User can cancel this transfer by calling function AbortTransfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1071
Smart Card µCOS/II Driver
Parameters
ctx A pointer to the RTOS Smart card driver context.
xfer Smart card transfer structure.
Returns
An zero in Success or error code.
49.13.4.4 int SMARTCARD_RTOS_WaitForXevent ( rtos_smartcard_context_t ∗ctx )
Task waits on the transfer finish event. Don’t initialize transfer, just wait for transfer callback. Can be used
while waiting on initial TS character.
Parameters
ctx A pointer to the RTOS Smart card driver context.
Returns
An zero in Success or error code.
49.13.4.5 int SMARTCARD_RTOS_Control ( rtos_smartcard_context_t ∗ctx,
smartcard_control_t control, uint32_t param )
Parameters
ctx The Smart card RTOS context pointer.
control Control type
param Integer value of specific to control command.
Returns
An zero in Success or error code.
49.13.4.6 int SMARTCARD_RTOS_PHY_Control ( rtos_smartcard_context_t ∗ctx,
smartcard_interface_control_t control, uint32_t param )
1072
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Controls Smart card module as per different user request.
Smart Card µCOS/II Driver
Parameters
ctx The Smart card RTOS context pointer.
control Control type
param Integer value of specific to control command.
Returns
An zero in Success or error code.
49.13.4.7 int SMARTCARD_RTOS_PHY_Activate ( rtos_smartcard_context_t ∗ctx,
smartcard_reset_type_t resetType )
Parameters
ctx The Smart card RTOS driver context structure.
resetType type of reset to be performed, possible values = kSmartcardColdReset, kSmartcard-
WarmReset
Returns
An zero in Success or error code.
49.13.4.8 int SMARTCARD_RTOS_PHY_Deactivate ( rtos_smartcard_context_t ∗ctx )
Parameters
ctx The Smart card RTOS driver context structure.
Returns
An zero in Success or error code.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1073
Controls the Smart card module as per different user request.
Activates the Smart card interface.
Deactivates the Smart card interface.
Smart Card µCOS/III Driver
49.14 Smart Card µCOS/III Driver
49.14.1 Overview
Files
• file fsl_smartcard_ucosiii.h
Data Structures
• struct rtos_smartcard_context_t
Runtime RTOS smart card driver context. More...
Macros
• #define RTOS_SMARTCARD_COMPLETE 0x1u
Smart card RTOS transfer complete flag.
• #define RTOS_SMARTCARD_TIMEOUT 0x2u
Smart card RTOS transfer time-out flag.
• #define SMARTCARD_Control(base, context, control, param) SMARTCARD_UART_-
Control(base, context, control, 0)
Common Smart card driver API defines.
• #define SMARTCARD_Transfer(base, context, xfer) SMARTCARD_UART_TransferNon-
Blocking(base, context, xfer)
Common Smart card API macro.
• #define SMARTCARD_Init(base, context, sourceClockHz) SMARTCARD_UART_Init(base, con-
text, sourceClockHz)
Common Smart card API macro.
• #define SMARTCARD_Deinit(base) SMARTCARD_UART_Deinit(base)
Common Smart card API macro.
• #define SMARTCARD_GetTransferRemainingBytes(base, context) SMARTCARD_UART_Get-
TransferRemainingBytes(base, context)
Common Smart card API macro.
• #define SMARTCARD_GetDefaultConfig(cardParams) SMARTCARD_UART_GetDefault-
Config(cardParams)
Common Smart card API macro.
Functions
• int SMARTCARD_RTOS_Init (void ∗base, rtos_smartcard_context_t ∗ctx, uint32_t sourceClock-
Hz)
Initializes an Smart card (EMVSIM/UART) peripheral for Smart card/ISO-7816 operation.
• int SMARTCARD_RTOS_Deinit (rtos_smartcard_context_t ∗ctx)
This function disables the Smart card (EMVSIM/UART) interrupts, disables the transmitter and receiver,
and flushes the FIFOs (for modules that support FIFOs) and gates Smart card clock in SIM.
• int SMARTCARD_RTOS_Transfer (rtos_smartcard_context_t ∗ctx, smartcard_xfer_t ∗xfer)
1074
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card µCOS/III Driver
Transfers data using interrupts.
• int SMARTCARD_RTOS_WaitForXevent (rtos_smartcard_context_t ∗ctx)
Waits until transfer is finished.
• int SMARTCARD_RTOS_Control (rtos_smartcard_context_t ∗ctx, smartcard_control_t control,
uint32_t param)
Controls Smart card module as per different user request.
• int SMARTCARD_RTOS_PHY_Control (rtos_smartcard_context_t ∗ctx, smartcard_interface_-
control_t control, uint32_t param)
Controls Smart card module as per different user request.
• int SMARTCARD_RTOS_PHY_Activate (rtos_smartcard_context_t ∗ctx, smartcard_reset_type_t
resetType)
Activates the Smart card interface.
• int SMARTCARD_RTOS_PHY_Deactivate (rtos_smartcard_context_t ∗ctx)
Deactivates the Smart card interface.
49.14.2 Data Structure Documentation
49.14.2.1 struct rtos_smartcard_context_t
Runtime RTOS Smart card driver context.
Data Fields
• SemaphoreHandle_t x_sem
RTOS unique access assurance object.
• EventGroupHandle_t x_event
RTOS synchronization object.
•smartcard_context_t x_context
transactional layer state
• OS_EVENT ∗x_sem
RTOS unique access assurance object.
• OS_FLAG_GRP ∗x_event
RTOS synchronization object.
• OS_SEM x_sem
RTOS unique access assurance object.
• OS_FLAG_GRP x_event
RTOS synchronization object.
49.14.2.1.0.6 Field Documentation
49.14.2.1.0.6.1 smartcard_context_t rtos_smartcard_context_t::x_context
Transactional layer state.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1075
Smart Card µCOS/III Driver
49.14.3 Macro Definition Documentation
49.14.3.1 #define SMARTCARD_Control( base, context, control, param
)SMARTCARD_UART_Control(base, context, control, 0)
Common Smart card API macro
49.14.4 Function Documentation
49.14.4.1 int SMARTCARD_RTOS_Init ( void ∗base, rtos_smartcard_context_t ∗ctx,
uint32_t sourceClockHz )
Also initialize Smart card PHY interface .
This function ungates the Smart card clock, initializes the module to EMV default settings, configures the
IRQ state structure, and enables the module-level interrupt to the core. Initialize RTOS synchronization
objects and context.
Parameters
base The Smart card peripheral base address.
ctx The Smart card RTOS structure.
sourceClockHz Smart card clock generation module source clock.
Returns
An zero in Success or error code.
49.14.4.2 int SMARTCARD_RTOS_Deinit ( rtos_smartcard_context_t ∗ctx )
Deactivates also Smart card PHY interface, stops Smart card clocks. Free all synchronization objects
allocated in RTOS Smart card context.
Parameters
ctx The Smart card RTOS state.
Returns
An zero in Success or error code.
1076
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Smart Card µCOS/III Driver
49.14.4.3 int SMARTCARD_RTOS_Transfer ( rtos_smartcard_context_t ∗ctx,
smartcard_xfer_t ∗xfer )
A blocking (also known as synchronous) function means that the function returns after the transfer is done.
User can cancel this transfer by calling function AbortTransfer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1077
Smart Card µCOS/III Driver
Parameters
ctx A pointer to the RTOS Smart card driver context.
xfer Smart card transfer structure.
Returns
An zero in Success or error code.
49.14.4.4 int SMARTCARD_RTOS_WaitForXevent ( rtos_smartcard_context_t ∗ctx )
Task waits on the transfer finish event. Don’t initialize transfer, just wait for transfer callback. Can be used
while waiting on initial TS character.
Parameters
ctx A pointer to the RTOS Smart card driver context.
Returns
An zero in Success or error code.
49.14.4.5 int SMARTCARD_RTOS_Control ( rtos_smartcard_context_t ∗ctx,
smartcard_control_t control, uint32_t param )
Parameters
ctx The Smart card RTOS context pointer.
control Control type
param Integer value of specific to control command.
Returns
An zero in Success or error code.
49.14.4.6 int SMARTCARD_RTOS_PHY_Control ( rtos_smartcard_context_t ∗ctx,
smartcard_interface_control_t control, uint32_t param )
1078
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Controls Smart card module as per different user request.
Smart Card µCOS/III Driver
Parameters
ctx The Smart card RTOS context pointer.
control Control type
param Integer value of specific to control command.
Returns
An zero in Success or error code.
49.14.4.7 int SMARTCARD_RTOS_PHY_Activate ( rtos_smartcard_context_t ∗ctx,
smartcard_reset_type_t resetType )
Parameters
ctx The Smart card RTOS driver context structure.
resetType type of reset to be performed, possible values = kSmartcardColdReset, kSmartcard-
WarmReset
Returns
An zero in Success or error code.
49.14.4.8 int SMARTCARD_RTOS_PHY_Deactivate ( rtos_smartcard_context_t ∗ctx )
Parameters
ctx The Smart card RTOS driver context structure.
Returns
An zero in Success or error code.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1079
Activates the Smart card interface.
Deactivates the Smart card interface.
Smart Card µCOS/III Driver
1080
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 50
TPM: Timer PWM Module
50.1 Overview
The KSDK provides a driver for the Timer PWM Module (TPM) of Kinetis devices.
The KSDK TPM driver supports the generation of PWM signals, input capture, and output compare
modes. On some SoC’s, the driver supports the generation of combined PWM signals, dual-edge cap-
ture, and quadrature decode modes. The driver also supports configuring each of the TPM fault inputs.
The fault input is available only on some SoC’s.
The function TPM_Init() initializes the TPM with specified configurations. The function TPM_Get-
DefaultConfig() gets the default configurations. On some SoC’s, the initialization function issues a soft-
ware reset to reset the TPM internal logic. The initialization function configures the TPM’s behavior when
it receives a trigger input and its operation in doze and debug modes.
The function TPM_SetupPwm() sets up TPM channels for the PWM output. The function can set up the
PWM signal properties for multiple channels. Each channel has its own tpm_chnl_pwm_signal_param_t
structure that is used to specify the output signals duty cycle and level-mode. However, the same PWM
period and PWM mode is applied to all channels requesting a PWM output. The signal duty cycle is
provided as a percentage of the PWM period. Its value should be between 0 and 100 where 0=inactive
signal (0% duty cycle) and 100=always active signal (100% duty cycle). When generating a combined
PWM signal, the channel number passed refers to a channel pair number, for example 0 refers to channel
0 and 1, 1 refers to channels 2 and 3.
The function TPM_UpdatePwmDutycycle() updates the PWM signal duty cycle of a particular TPM chan-
nel.
The function TPM_UpdateChnlEdgeLevelSelect() updates the level select bits of a particular TPM chan-
nel. This can be used to disable the PWM output when making changes to the PWM signal.
The function TPM_SetupInputCapture() sets up a TPM channel for input capture. The user can specify
the capture edge.
The function TPM_SetupDualEdgeCapture() can be used to measure the pulse width of a signal. This is
available only for certain SoC’s. A channel pair is used during the capture with the input signal coming
through a channel that can be configured. The user can specify the capture edge for each channel and any
filter value to be used when processing the input signal.
The function TPM_SetupOutputCompare() sets up a TPM channel for output comparison. The user can
specify the channel output on a successful comparison and a comparison value.
The function TPM_SetupQuadDecode() sets up TPM channels 0 and 1 for quad decode, which is available
only for certain SoC’s. The user can specify the quad decode mode, polarity, and filter properties for each
input signal.
The function TPM_SetupFault() sets up the properties for each fault, which is available only for certain
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1081
Typical use case
SoC’s. The user can specify the fault polarity and whether to use a filter on a fault input. The overall fault
filter value and fault control mode are set up during initialization.
Provides functions to get and clear the TPM status.
Provides functions to enable/disable TPM interrupts and get current enabled interrupts.
50.2 Typical use case
50.2.1 PWM output
Output the PWM signal on 2 TPM channels with different duty cycles. Periodically update the PWM
signal duty cycle.
int main(void)
{
bool brightnessUp = true;/*Indicates whether the LED is brighter or dimmer.
tpm_config_t tpmInfo;
uint8_t updatedDutycycle = 0U;
tpm_chnl_pwm_signal_param_t tpmParam[2];
/*Configures the TPM parameters with frequency 24 kHZ.
tpmParam[0].chnlNumber = (tpm_chnl_t)BOARD_FIRST_TPM_CHANNEL;
tpmParam[0].level = kTPM_LowTrue;
tpmParam[0].dutyCyclePercent = 0U;
tpmParam[1].chnlNumber = (tpm_chnl_t)BOARD_SECOND_TPM_CHANNEL;
tpmParam[1].level = kTPM_LowTrue;
tpmParam[1].dutyCyclePercent = 0U;
/*Board pin, clock, and debug console initialization.
BOARD_InitHardware();
TPM_GetDefaultConfig(&tpmInfo);
/*Initializes the TPM module.
TPM_Init(BOARD_TPM_BASEADDR, &tpmInfo);
TPM_SetupPwm(BOARD_TPM_BASEADDR, tpmParam, 2U, kTPM_EdgeAlignedPwm, 24000U, TPM_SOURCE_CLOCK);
TPM_StartTimer(BOARD_TPM_BASEADDR, kTPM_SystemClock);
while (1)
{
/*Delays to see the change of LED brightness.
delay();
if (brightnessUp)
{
/*Increases a duty cycle until it reaches a limited value.
if (++updatedDutycycle == 100U)
{
brightnessUp = false;
}
}
else
{
/*Decreases a duty cycle until it reaches a limited value.
if (--updatedDutycycle == 0U)
{
brightnessUp = true;
}
}
/*Starts PWM mode with an updated duty cycle.
TPM_UpdatePwmDutycycle(BOARD_TPM_BASEADDR, (tpm_chnl_t)BOARD_FIRST_TPM_CHANNEL,
kTPM_EdgeAlignedPwm,
1082
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
updatedDutycycle);
TPM_UpdatePwmDutycycle(BOARD_TPM_BASEADDR, (tpm_chnl_t)BOARD_SECOND_TPM_CHANNEL,
kTPM_EdgeAlignedPwm,
updatedDutycycle);
}
}
Files
• file fsl_tpm.h
Data Structures
• struct tpm_chnl_pwm_signal_param_t
Options to configure a TPM channel’s PWM signal. More...
• struct tpm_config_t
TPM config structure. More...
Enumerations
• enum tpm_chnl_t {
kTPM_Chnl_0 = 0U,
kTPM_Chnl_1,
kTPM_Chnl_2,
kTPM_Chnl_3,
kTPM_Chnl_4,
kTPM_Chnl_5,
kTPM_Chnl_6,
kTPM_Chnl_7 }
List of TPM channels.
• enum tpm_pwm_mode_t {
kTPM_EdgeAlignedPwm = 0U,
kTPM_CenterAlignedPwm }
TPM PWM operation modes.
• enum tpm_pwm_level_select_t {
kTPM_NoPwmSignal = 0U,
kTPM_LowTrue,
kTPM_HighTrue }
TPM PWM output pulse mode: high-true, low-true or no output.
• enum tpm_trigger_select_t
Trigger options available.
• enum tpm_output_compare_mode_t {
kTPM_NoOutputSignal = (1U << TPM_CnSC_MSA_SHIFT),
kTPM_ToggleOnMatch = ((1U << TPM_CnSC_MSA_SHIFT) |(1U << TPM_CnSC_ELSA_S-
HIFT)),
kTPM_ClearOnMatch = ((1U << TPM_CnSC_MSA_SHIFT) |(2U << TPM_CnSC_ELSA_SH-
IFT)),
kTPM_SetOnMatch = ((1U << TPM_CnSC_MSA_SHIFT) |(3U << TPM_CnSC_ELSA_SHIF-
T)),
kTPM_HighPulseOutput = ((3U << TPM_CnSC_MSA_SHIFT) |(1U << TPM_CnSC_ELSA_-
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1083
Typical use case
SHIFT)),
kTPM_LowPulseOutput = ((3U << TPM_CnSC_MSA_SHIFT) |(2U << TPM_CnSC_ELSA_S-
HIFT)) }
TPM output compare modes.
• enum tpm_input_capture_edge_t {
kTPM_RisingEdge = (1U << TPM_CnSC_ELSA_SHIFT),
kTPM_FallingEdge = (2U << TPM_CnSC_ELSA_SHIFT),
kTPM_RiseAndFallEdge = (3U << TPM_CnSC_ELSA_SHIFT) }
TPM input capture edge.
• enum tpm_clock_source_t {
kTPM_SystemClock = 1U,
kTPM_ExternalClock }
TPM clock source selection.
• enum tpm_clock_prescale_t {
kTPM_Prescale_Divide_1 = 0U,
kTPM_Prescale_Divide_2,
kTPM_Prescale_Divide_4,
kTPM_Prescale_Divide_8,
kTPM_Prescale_Divide_16,
kTPM_Prescale_Divide_32,
kTPM_Prescale_Divide_64,
kTPM_Prescale_Divide_128 }
TPM prescale value selection for the clock source.
• enum tpm_interrupt_enable_t {
kTPM_Chnl0InterruptEnable = (1U << 0),
kTPM_Chnl1InterruptEnable = (1U << 1),
kTPM_Chnl2InterruptEnable = (1U << 2),
kTPM_Chnl3InterruptEnable = (1U << 3),
kTPM_Chnl4InterruptEnable = (1U << 4),
kTPM_Chnl5InterruptEnable = (1U << 5),
kTPM_Chnl6InterruptEnable = (1U << 6),
kTPM_Chnl7InterruptEnable = (1U << 7),
kTPM_TimeOverflowInterruptEnable = (1U << 8) }
List of TPM interrupts.
• enum tpm_status_flags_t {
kTPM_Chnl0Flag = (1U << 0),
kTPM_Chnl1Flag = (1U << 1),
kTPM_Chnl2Flag = (1U << 2),
kTPM_Chnl3Flag = (1U << 3),
kTPM_Chnl4Flag = (1U << 4),
kTPM_Chnl5Flag = (1U << 5),
kTPM_Chnl6Flag = (1U << 6),
kTPM_Chnl7Flag = (1U << 7),
kTPM_TimeOverflowFlag = (1U << 8) }
List of TPM flags.
1084
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Typical use case
Driver version
• #define FSL_TPM_DRIVER_VERSION (MAKE_VERSION(2, 0, 1))
Version 2.0.1.
Initialization and deinitialization
• void TPM_Init (TPM_Type ∗base, const tpm_config_t ∗config)
Ungates the TPM clock and configures the peripheral for basic operation.
• void TPM_Deinit (TPM_Type ∗base)
Stops the counter and gates the TPM clock.
• void TPM_GetDefaultConfig (tpm_config_t ∗config)
Fill in the TPM config struct with the default settings.
Channel mode operations
• status_t TPM_SetupPwm (TPM_Type ∗base, const tpm_chnl_pwm_signal_param_t ∗chnlParams,
uint8_t numOfChnls, tpm_pwm_mode_t mode, uint32_t pwmFreq_Hz, uint32_t srcClock_Hz)
Configures the PWM signal parameters.
• void TPM_UpdatePwmDutycycle (TPM_Type ∗base, tpm_chnl_t chnlNumber, tpm_pwm_mode_t
currentPwmMode, uint8_t dutyCyclePercent)
Update the duty cycle of an active PWM signal.
• void TPM_UpdateChnlEdgeLevelSelect (TPM_Type ∗base, tpm_chnl_t chnlNumber, uint8_t level)
Update the edge level selection for a channel.
• void TPM_SetupInputCapture (TPM_Type ∗base, tpm_chnl_t chnlNumber, tpm_input_capture_-
edge_t captureMode)
Enables capturing an input signal on the channel using the function parameters.
• void TPM_SetupOutputCompare (TPM_Type ∗base, tpm_chnl_t chnlNumber, tpm_output_-
compare_mode_t compareMode, uint32_t compareValue)
Configures the TPM to generate timed pulses.
Interrupt Interface
• void TPM_EnableInterrupts (TPM_Type ∗base, uint32_t mask)
Enables the selected TPM interrupts.
• void TPM_DisableInterrupts (TPM_Type ∗base, uint32_t mask)
Disables the selected TPM interrupts.
• uint32_t TPM_GetEnabledInterrupts (TPM_Type ∗base)
Gets the enabled TPM interrupts.
Status Interface
• uint32_t TPM_GetStatusFlags (TPM_Type ∗base)
Gets the TPM status flags.
• void TPM_ClearStatusFlags (TPM_Type ∗base, uint32_t mask)
Clears the TPM status flags.
Timer Start and Stop
• static void TPM_StartTimer (TPM_Type ∗base, tpm_clock_source_t clockSource)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1085
Data Structure Documentation
Starts the TPM counter.
• static void TPM_StopTimer (TPM_Type ∗base)
Stops the TPM counter.
50.3 Data Structure Documentation
50.3.1 struct tpm_chnl_pwm_signal_param_t
Data Fields
•tpm_chnl_t chnlNumber
TPM channel to configure.
•tpm_pwm_level_select_t level
PWM output active level select.
• uint8_t dutyCyclePercent
PWM pulse width, value should be between 0 to 100 0=inactive signal(0% duty cycle)...
50.3.1.0.0.7 Field Documentation
50.3.1.0.0.7.1 tpm_chnl_t tpm_chnl_pwm_signal_param_t::chnlNumber
In combined mode (available in some SoC’s, this represents the channel pair number
50.3.1.0.0.7.2 uint8_t tpm_chnl_pwm_signal_param_t::dutyCyclePercent
100=always active signal (100% duty cycle)
50.3.2 struct tpm_config_t
This structure holds the configuration settings for the TPM peripheral. To initialize this structure to rea-
sonable defaults, call the TPM_GetDefaultConfig() function and pass a pointer to your config structure
instance.
The config struct can be made const so it resides in flash
Data Fields
•tpm_clock_prescale_t prescale
Select TPM clock prescale value.
• bool useGlobalTimeBase
true: Use of an external global time base is enabled; false: disabled
•tpm_trigger_select_t triggerSelect
Input trigger to use for controlling the counter operation.
• bool enableDoze
true: TPM counter is paused in doze mode; false: TPM counter continues in doze mode
• bool enableDebugMode
true: TPM counter continues in debug mode; false: TPM counter is paused in debug mode
1086
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
• bool enableReloadOnTrigger
true: TPM counter is reloaded on trigger; false: TPM counter not reloaded
• bool enableStopOnOverflow
true: TPM counter stops after overflow; false: TPM counter continues running after overflow
• bool enableStartOnTrigger
true: TPM counter only starts when a trigger is detected; false: TPM counter starts immediately
50.4 Enumeration Type Documentation
50.4.1 enum tpm_chnl_t
Note
Actual number of available channels is SoC dependent
Enumerator
kTPM_Chnl_0 TPM channel number 0.
kTPM_Chnl_1 TPM channel number 1.
kTPM_Chnl_2 TPM channel number 2.
kTPM_Chnl_3 TPM channel number 3.
kTPM_Chnl_4 TPM channel number 4.
kTPM_Chnl_5 TPM channel number 5.
kTPM_Chnl_6 TPM channel number 6.
kTPM_Chnl_7 TPM channel number 7.
50.4.2 enum tpm_pwm_mode_t
Enumerator
kTPM_EdgeAlignedPwm Edge aligned PWM.
kTPM_CenterAlignedPwm Center aligned PWM.
50.4.3 enum tpm_pwm_level_select_t
Enumerator
kTPM_NoPwmSignal No PWM output on pin.
kTPM_LowTrue Low true pulses.
kTPM_HighTrue High true pulses.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1087
Enumeration Type Documentation
50.4.4 enum tpm_trigger_select_t
This is used for both internal & external trigger sources (external option available in certain SoC’s)
Note
The actual trigger options available is SoC-specific.
50.4.5 enum tpm_output_compare_mode_t
Enumerator
kTPM_NoOutputSignal No channel output when counter reaches CnV.
kTPM_ToggleOnMatch Toggle output.
kTPM_ClearOnMatch Clear output.
kTPM_SetOnMatch Set output.
kTPM_HighPulseOutput Pulse output high.
kTPM_LowPulseOutput Pulse output low.
50.4.6 enum tpm_input_capture_edge_t
Enumerator
kTPM_RisingEdge Capture on rising edge only.
kTPM_FallingEdge Capture on falling edge only.
kTPM_RiseAndFallEdge Capture on rising or falling edge.
50.4.7 enum tpm_clock_source_t
Enumerator
kTPM_SystemClock System clock.
kTPM_ExternalClock External clock.
50.4.8 enum tpm_clock_prescale_t
Enumerator
kTPM_Prescale_Divide_1 Divide by 1.
kTPM_Prescale_Divide_2 Divide by 2.
1088
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
kTPM_Prescale_Divide_4 Divide by 4.
kTPM_Prescale_Divide_8 Divide by 8.
kTPM_Prescale_Divide_16 Divide by 16.
kTPM_Prescale_Divide_32 Divide by 32.
kTPM_Prescale_Divide_64 Divide by 64.
kTPM_Prescale_Divide_128 Divide by 128.
50.4.9 enum tpm_interrupt_enable_t
Enumerator
kTPM_Chnl0InterruptEnable Channel 0 interrupt.
kTPM_Chnl1InterruptEnable Channel 1 interrupt.
kTPM_Chnl2InterruptEnable Channel 2 interrupt.
kTPM_Chnl3InterruptEnable Channel 3 interrupt.
kTPM_Chnl4InterruptEnable Channel 4 interrupt.
kTPM_Chnl5InterruptEnable Channel 5 interrupt.
kTPM_Chnl6InterruptEnable Channel 6 interrupt.
kTPM_Chnl7InterruptEnable Channel 7 interrupt.
kTPM_TimeOverflowInterruptEnable Time overflow interrupt.
50.4.10 enum tpm_status_flags_t
Enumerator
kTPM_Chnl0Flag Channel 0 flag.
kTPM_Chnl1Flag Channel 1 flag.
kTPM_Chnl2Flag Channel 2 flag.
kTPM_Chnl3Flag Channel 3 flag.
kTPM_Chnl4Flag Channel 4 flag.
kTPM_Chnl5Flag Channel 5 flag.
kTPM_Chnl6Flag Channel 6 flag.
kTPM_Chnl7Flag Channel 7 flag.
kTPM_TimeOverflowFlag Time overflow flag.
50.5 Function Documentation
50.5.1 void TPM_Init ( TPM_Type ∗base, const tpm_config_t ∗config )
Note
This API should be called at the beginning of the application using the TPM driver.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1089
Function Documentation
Parameters
base TPM peripheral base address
config Pointer to user’s TPM config structure.
50.5.2 void TPM_Deinit ( TPM_Type ∗base )
Parameters
base TPM peripheral base address
50.5.3 void TPM_GetDefaultConfig ( tpm_config_t ∗config )
The default values are:
config->prescale = kTPM_Prescale_Divide_1;
config->useGlobalTimeBase = false;
config->dozeEnable = false;
config->dbgMode = false;
config->enableReloadOnTrigger = false;
config->enableStopOnOverflow = false;
config->enableStartOnTrigger = false;
#if FSL_FEATURE_TPM_HAS_PAUSE_COUNTER_ON_TRIGGER
config->enablePauseOnTrigger = false;
#endif
config->triggerSelect = kTPM_Trigger_Select_0;
#if FSL_FEATURE_TPM_HAS_EXTERNAL_TRIGGER_SELECTION
config->triggerSource = kTPM_TriggerSource_External;
#endif
Parameters
config Pointer to user’s TPM config structure.
50.5.4 status_t TPM_SetupPwm ( TPM_Type ∗base, const tpm_chnl_pwm_signal-
_param_t ∗chnlParams, uint8_t numOfChnls, tpm_pwm_mode_t mode,
uint32_t pwmFreq_Hz, uint32_t srcClock_Hz )
User calls this function to configure the PWM signals period, mode, dutycycle and edge. Use this function
to configure all the TPM channels that will be used to output a PWM signal
1090
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base TPM peripheral base address
chnlParams Array of PWM channel parameters to configure the channel(s)
numOfChnls Number of channels to configure, this should be the size of the array passed in
mode PWM operation mode, options available in enumeration tpm_pwm_mode_t
pwmFreq_Hz PWM signal frequency in Hz
srcClock_Hz TPM counter clock in Hz
Returns
kStatus_Success if the PWM setup was successful, kStatus_Error on failure
50.5.5 void TPM_UpdatePwmDutycycle ( TPM_Type ∗base, tpm_chnl_t
chnlNumber, tpm_pwm_mode_t currentPwmMode, uint8_t
dutyCyclePercent )
Parameters
base TPM peripheral base address
chnlNumber The channel number. In combined mode, this represents the channel pair number
currentPwm-
Mode
The current PWM mode set during PWM setup
dutyCycle-
Percent
New PWM pulse width, value should be between 0 to 100 0=inactive signal(0% duty
cycle)... 100=active signal (100% duty cycle)
50.5.6 void TPM_UpdateChnlEdgeLevelSelect ( TPM_Type ∗base, tpm_chnl_t
chnlNumber, uint8_t level )
Parameters
base TPM peripheral base address
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1091
Function Documentation
chnlNumber The channel number
level The level to be set to the ELSnB:ELSnA field; valid values are 00, 01, 10, 11. See the
appropriate SoC reference manual for details about this field.
50.5.7 void TPM_SetupInputCapture ( TPM_Type ∗base, tpm_chnl_t chnlNumber,
tpm_input_capture_edge_t captureMode )
When the edge specified in the captureMode argument occurs on the channel, the TPM counter is captured
into the CnV register. The user has to read the CnV register separately to get this value.
Parameters
base TPM peripheral base address
chnlNumber The channel number
captureMode Specifies which edge to capture
50.5.8 void TPM_SetupOutputCompare ( TPM_Type ∗base, tpm_chnl_t
chnlNumber, tpm_output_compare_mode_t compareMode, uint32_t
compareValue )
When the TPM counter matches the value of compareVal argument (this is written into CnV reg), the
channel output is changed based on what is specified in the compareMode argument.
Parameters
base TPM peripheral base address
chnlNumber The channel number
compareMode Action to take on the channel output when the compare condition is met
compareValue Value to be programmed in the CnV register.
50.5.9 void TPM_EnableInterrupts ( TPM_Type ∗base, uint32_t mask )
Parameters
1092
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
base TPM peripheral base address
mask The interrupts to enable. This is a logical OR of members of the enumeration tpm_-
interrupt_enable_t
50.5.10 void TPM_DisableInterrupts ( TPM_Type ∗base, uint32_t mask )
Parameters
base TPM peripheral base address
mask The interrupts to disable. This is a logical OR of members of the enumeration tpm_-
interrupt_enable_t
50.5.11 uint32_t TPM_GetEnabledInterrupts ( TPM_Type ∗base )
Parameters
base TPM peripheral base address
Returns
The enabled interrupts. This is the logical OR of members of the enumeration tpm_interrupt_enable-
_t
50.5.12 uint32_t TPM_GetStatusFlags ( TPM_Type ∗base )
Parameters
base TPM peripheral base address
Returns
The status flags. This is the logical OR of members of the enumeration tpm_status_flags_t
50.5.13 void TPM_ClearStatusFlags ( TPM_Type ∗base, uint32_t mask )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1093
Function Documentation
Parameters
base TPM peripheral base address
mask The status flags to clear. This is a logical OR of members of the enumeration tpm_-
status_flags_t
50.5.14 static void TPM_StartTimer ( TPM_Type ∗base, tpm_clock_source_t
clockSource )[inline],[static]
Parameters
base TPM peripheral base address
clockSource TPM clock source; once clock source is set the counter will start running
50.5.15 static void TPM_StopTimer ( TPM_Type ∗base )[inline],[static]
Parameters
base TPM peripheral base address
1094
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 51
TRNG: True Random Number Generator
51.1 Overview
The Kinetis SDK provides the peripheral driver for the True Random Number Generator (TRNG) module
of Kinetis devices.
The True Random Number Generator is hardware accelerator module that generates a 512-bit entropy
as needed by an entropy consuming module or by other post processing functions. A typical entropy
consumer is a pseudo random number generator (PRNG) which can be implemented to achieve both true
randomness and cryptographic strength random numbers using the TRNG output as its entropy seed. The
entropy generated by a TRNG is intended for direct use by functions that generate secret keys, per-message
secrets, random challenges, and other similar quantities used in cryptographic algorithms.
51.2 TRNG Initialization
1. Define the TRNG user configuration structure. Use TRNG_InitUserConfigDefault() function to set
it to default TRNG configuration values.
2. Initialize the TRNG module, call the TRNG_Init() function and pass the user configuration structure.
This function automatically enables the TRNG module and its clock. After that, the TRNG is
enabled and the entropy generation starts working.
3. To disable the TRNG module, call the TRNG_Deinit() function.
51.3 Get random data from TRNG
1. TRNG_GetRandomData() function gets random data from the TRNG module.
This example code shows how to initialize and get random data from the TRNG driver:
{
trng_user_config_t trngConfig;
status_t status;
uint32_t data;
/*Initialize TRNG configuration structure to default.
TRNG_InitUserConfigDefault(&trngConfig);
/*Initialize TRNG
status = TRNG_Init(TRNG0, &trngConfig);
if (status == kStatus_Success)
{
/*Read Random data
if((status = TRNG_GetRandomData(TRNG0, data, sizeof(data))) == kStatus_TRNG_Success)
{
/*Print data
PRINTF("Random = 0x%X\r\n", i, data );
PRINTF("Succeed.\r\n");
}
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1095
Get random data from TRNG
else
{
PRINTF("TRNG failed! (0x%x)\r\n", status);
}
/*Deinitialize TRNG
TRNG_Deinit(TRNG0);
}
else
{
PRINTF("TRNG initialization failed!\r\n");
}
}
Files
• file fsl_trng.h
Data Structures
• struct trng_statistical_check_limit_t
Data structure for definition of statistical check limits. More...
• struct trng_config_t
Data structure for the TRNG initialization. More...
Enumerations
• enum trng_sample_mode_t {
kTRNG_SampleModeVonNeumann = 0U,
kTRNG_SampleModeRaw = 1U,
kTRNG_SampleModeVonNeumannRaw }
TRNG sample mode.
• enum trng_clock_mode_t {
kTRNG_ClockModeRingOscillator = 0U,
kTRNG_ClockModeSystem = 1U }
TRNG clock mode.
• enum trng_ring_osc_div_t {
kTRNG_RingOscDiv0 = 0U,
kTRNG_RingOscDiv2 = 1U,
kTRNG_RingOscDiv4 = 2U,
kTRNG_RingOscDiv8 = 3U }
TRNG ring oscillator divide.
Functions
• status_t TRNG_GetDefaultConfig (trng_config_t ∗userConfig)
Initializes user configuration structure to default.
• status_t TRNG_Init (TRNG_Type ∗base, const trng_config_t ∗userConfig)
Initializes the TRNG.
• void TRNG_Deinit (TRNG_Type ∗base)
Shuts down the TRNG.
• status_t TRNG_GetRandomData (TRNG_Type ∗base, void ∗data, size_t dataSize)
Gets random data.
1096
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
Driver version
• #define FSL_TRNG_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
TRNG driver version 2.0.0.
51.4 Data Structure Documentation
51.4.1 struct trng_statistical_check_limit_t
Used by trng_config_t.
Data Fields
• uint32_t maximum
Maximum limit.
• uint32_t minimum
Minimum limit.
51.4.1.0.0.8 Field Documentation
51.4.1.0.0.8.1 uint32_t trng_statistical_check_limit_t::maximum
51.4.1.0.0.8.2 uint32_t trng_statistical_check_limit_t::minimum
51.4.2 struct trng_config_t
This structure initializes the TRNG by calling the the TRNG_Init() function. It contains all TRNG con-
figurations.
Data Fields
• bool lock
Disable programmability of TRNG registers.
•trng_clock_mode_t clockMode
Clock mode used to operate TRNG.
•trng_ring_osc_div_t ringOscDiv
Ring oscillator divide used by TRNG.
•trng_sample_mode_t sampleMode
Sample mode of the TRNG ring oscillator.
• uint16_t entropyDelay
Entropy Delay.
• uint16_t sampleSize
Sample Size.
• uint16_t sparseBitLimit
Sparse Bit Limit which defines the maximum number of consecutive samples that may be discarded before
an error is generated.
• uint8_t retryCount
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1097
Data Structure Documentation
Retry count.
• uint8_t longRunMaxLimit
Largest allowable number of consecutive samples of all 1, or all 0, that is allowed during the Entropy
generation.
•trng_statistical_check_limit_t monobitLimit
Maximum and minimum limits for statistical check of number of ones/zero detected during entropy gener-
ation.
•trng_statistical_check_limit_t runBit1Limit
Maximum and minimum limits for statistical check of number of runs of length 1 detected during entropy
generation.
•trng_statistical_check_limit_t runBit2Limit
Maximum and minimum limits for statistical check of number of runs of length 2 detected during entropy
generation.
•trng_statistical_check_limit_t runBit3Limit
Maximum and minimum limits for statistical check of number of runs of length 3 detected during entropy
generation.
•trng_statistical_check_limit_t runBit4Limit
Maximum and minimum limits for statistical check of number of runs of length 4 detected during entropy
generation.
•trng_statistical_check_limit_t runBit5Limit
Maximum and minimum limits for statistical check of number of runs of length 5 detected during entropy
generation.
•trng_statistical_check_limit_t runBit6PlusLimit
Maximum and minimum limits for statistical check of number of runs of length 6 or more detected during
entropy generation.
•trng_statistical_check_limit_t pokerLimit
Maximum and minimum limits for statistical check of "Poker Test".
•trng_statistical_check_limit_t frequencyCountLimit
Maximum and minimum limits for statistical check of entropy sample frequency count.
51.4.2.0.0.9 Field Documentation
51.4.2.0.0.9.1 bool trng_config_t::lock
51.4.2.0.0.9.2 trng_clock_mode_t trng_config_t::clockMode
51.4.2.0.0.9.3 trng_ring_osc_div_t trng_config_t::ringOscDiv
51.4.2.0.0.9.4 trng_sample_mode_t trng_config_t::sampleMode
51.4.2.0.0.9.5 uint16_t trng_config_t::entropyDelay
Defines the length (in system clocks) of each Entropy sample taken.
51.4.2.0.0.9.6 uint16_t trng_config_t::sampleSize
Defines the total number of Entropy samples that will be taken during Entropy generation.
1098
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
51.4.2.0.0.9.7 uint16_t trng_config_t::sparseBitLimit
This limit is used only for During Von Neumann sampling (enabled by TRNG_HAL_SetSampleMode()).
Samples are discarded if two consecutive raw samples are both 0 or both 1. If this discarding occurs for a
long period of time, it indicates that there is insufficient Entropy.
51.4.2.0.0.9.8 uint8_t trng_config_t::retryCount
It defines the number of times a statistical check may fails during the TRNG Entropy Generation before
generating an error.
51.4.2.0.0.9.9 uint8_t trng_config_t::longRunMaxLimit
51.4.2.0.0.9.10 trng_statistical_check_limit_t trng_config_t::monobitLimit
51.4.2.0.0.9.11 trng_statistical_check_limit_t trng_config_t::runBit1Limit
51.4.2.0.0.9.12 trng_statistical_check_limit_t trng_config_t::runBit2Limit
51.4.2.0.0.9.13 trng_statistical_check_limit_t trng_config_t::runBit3Limit
51.4.2.0.0.9.14 trng_statistical_check_limit_t trng_config_t::runBit4Limit
51.4.2.0.0.9.15 trng_statistical_check_limit_t trng_config_t::runBit5Limit
51.4.2.0.0.9.16 trng_statistical_check_limit_t trng_config_t::runBit6PlusLimit
51.4.2.0.0.9.17 trng_statistical_check_limit_t trng_config_t::pokerLimit
51.4.2.0.0.9.18 trng_statistical_check_limit_t trng_config_t::frequencyCountLimit
51.5 Macro Definition Documentation
51.5.1 #define FSL_TRNG_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
51.6 Enumeration Type Documentation
51.6.1 enum trng_sample_mode_t
Used by trng_config_t.
Enumerator
kTRNG_SampleModeVonNeumann Use Von Neumann data into both Entropy shifter and Statisti-
cal Checker.
kTRNG_SampleModeRaw Use raw data into both Entropy shifter and Statistical Checker.
kTRNG_SampleModeVonNeumannRaw Use Von Neumann data into Entropy shifter. Use raw data
into Statistical Checker.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1099
Function Documentation
51.6.2 enum trng_clock_mode_t
Used by trng_config_t.
Enumerator
kTRNG_ClockModeRingOscillator Ring oscillator is used to operate the TRNG (default).
kTRNG_ClockModeSystem System clock is used to operate the TRNG. This is for test use only, and
indeterminate results may occur.
51.6.3 enum trng_ring_osc_div_t
Used by trng_config_t.
Enumerator
kTRNG_RingOscDiv0 Ring oscillator with no divide (default).
kTRNG_RingOscDiv2 Ring oscillator divided-by-2.
kTRNG_RingOscDiv4 Ring oscillator divided-by-4.
kTRNG_RingOscDiv8 Ring oscillator divided-by-8.
51.7 Function Documentation
51.7.1 status_t TRNG_GetDefaultConfig ( trng_config_t ∗userConfig )
This function initializes the configure structure to default value. the default value are:
user_config->lock = 0;
user_config->clockMode = kTRNG_ClockModeRingOscillator;
user_config->ringOscDiv = kTRNG_RingOscDiv0; Or to other kTRNG_RingOscDiv[2|8] depending
on platform.
user_config->sampleMode = kTRNG_SampleModeRaw;
user_config->entropyDelay = 3200;
user_config->sampleSize = 2500;
user_config->sparseBitLimit = TRNG_USER_CONFIG_DEFAULT_SPARSE_BIT_LIMIT;
user_config->retryCount = 63;
user_config->longRunMaxLimit = 34;
user_config->monobitLimit.maximum = 1384;
user_config->monobitLimit.minimum = 1116;
user_config->runBit1Limit.maximum = 405;
user_config->runBit1Limit.minimum = 227;
user_config->runBit2Limit.maximum = 220;
user_config->runBit2Limit.minimum = 98;
user_config->runBit3Limit.maximum = 125;
user_config->runBit3Limit.minimum = 37;
user_config->runBit4Limit.maximum = 75;
user_config->runBit4Limit.minimum = 11;
user_config->runBit5Limit.maximum = 47;
user_config->runBit5Limit.minimum = 1;
user_config->runBit6PlusLimit.maximum = 47;
user_config->runBit6PlusLimit.minimum = 1;
user_config->pokerLimit.maximum = 26912;
user_config->pokerLimit.minimum = 24445;
user_config->frequencyCountLimit.maximum = 25600;
user_config->frequencyCountLimit.minimum = 1600;
1100
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
user_config User configuration structure.
Returns
If successful, returns the kStatus_TRNG_Success. Otherwise, it returns an error.
51.7.2 status_t TRNG_Init ( TRNG_Type ∗base, const trng_config_t ∗userConfig )
This function initializes the TRNG. When called, the TRNG entropy generation starts immediately.
Parameters
base TRNG base address
userConfig Pointer to initialize configuration structure.
Returns
If successful, returns the kStatus_TRNG_Success. Otherwise, it returns an error.
51.7.3 void TRNG_Deinit ( TRNG_Type ∗base )
This function shuts down the TRNG.
Parameters
base TRNG base address
51.7.4 status_t TRNG_GetRandomData ( TRNG_Type ∗base, void ∗data, size_t
dataSize )
This function gets random data from the TRNG.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1101
Function Documentation
base TRNG base address
data Pointer address used to store random data
dataSize Size of the buffer pointed by the data parameter
Returns
random data
1102
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 52
TSI: Touch Sensing Input
52.1 Overview
Modules
•TSIv2 Driver
•TSIv4 Driver
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1103
TSIv2 Driver
52.2 TSIv2 Driver
52.2.1 Overview
The KSDK provides a driver for the Touch Sensing Input (TSI) module of Kinetis devices.
Typical use case
TSI_Init(TSI0);
TSI_Configure(TSI0, &user_config);
TSI_EnableChannel(TSI0, channelMask);
TSI_EnableInterrupts(TSI0, kTSI_GlobalInterruptEnable |
kTSI_EndOfScanInterruptEnable);
TSI_EnablePeriodicalScan(TSI0);
TSI_EnableModule(TSI0);
while(1);
Files
• file fsl_tsi_v2.h
Data Structures
• struct tsi_calibration_data_t
TSI calibration data storage. More...
• struct tsi_config_t
TSI configuration structure. More...
1104
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
Enumerations
• enum tsi_n_consecutive_scans_t {
kTSI_ConsecutiveScansNumber_1time = 0U,
kTSI_ConsecutiveScansNumber_2time = 1U,
kTSI_ConsecutiveScansNumber_3time = 2U,
kTSI_ConsecutiveScansNumber_4time = 3U,
kTSI_ConsecutiveScansNumber_5time = 4U,
kTSI_ConsecutiveScansNumber_6time = 5U,
kTSI_ConsecutiveScansNumber_7time = 6U,
kTSI_ConsecutiveScansNumber_8time = 7U,
kTSI_ConsecutiveScansNumber_9time = 8U,
kTSI_ConsecutiveScansNumber_10time = 9U,
kTSI_ConsecutiveScansNumber_11time = 10U,
kTSI_ConsecutiveScansNumber_12time = 11U,
kTSI_ConsecutiveScansNumber_13time = 12U,
kTSI_ConsecutiveScansNumber_14time = 13U,
kTSI_ConsecutiveScansNumber_15time = 14U,
kTSI_ConsecutiveScansNumber_16time = 15U,
kTSI_ConsecutiveScansNumber_17time = 16U,
kTSI_ConsecutiveScansNumber_18time = 17U,
kTSI_ConsecutiveScansNumber_19time = 18U,
kTSI_ConsecutiveScansNumber_20time = 19U,
kTSI_ConsecutiveScansNumber_21time = 20U,
kTSI_ConsecutiveScansNumber_22time = 21U,
kTSI_ConsecutiveScansNumber_23time = 22U,
kTSI_ConsecutiveScansNumber_24time = 23U,
kTSI_ConsecutiveScansNumber_25time = 24U,
kTSI_ConsecutiveScansNumber_26time = 25U,
kTSI_ConsecutiveScansNumber_27time = 26U,
kTSI_ConsecutiveScansNumber_28time = 27U,
kTSI_ConsecutiveScansNumber_29time = 28U,
kTSI_ConsecutiveScansNumber_30time = 29U,
kTSI_ConsecutiveScansNumber_31time = 30U,
kTSI_ConsecutiveScansNumber_32time = 31U,
kTSI_ConsecutiveScansNumber_1time = 0U,
kTSI_ConsecutiveScansNumber_2time = 1U,
kTSI_ConsecutiveScansNumber_3time = 2U,
kTSI_ConsecutiveScansNumber_4time = 3U,
kTSI_ConsecutiveScansNumber_5time = 4U,
kTSI_ConsecutiveScansNumber_6time = 5U,
kTSI_ConsecutiveScansNumber_7time = 6U,
kTSI_ConsecutiveScansNumber_8time = 7U,
kTSI_ConsecutiveScansNumber_9time = 8U,
kTSI_ConsecutiveScansNumber_10time = 9U,
kTSI_ConsecutiveScansNumber_11time = 10U,
kTSI_ConsecutiveScansNumber_12time = 11U,
kTSI_ConsecutiveScansNumber_13time = 12U,
kTSI_ConsecutiveScansNumber_14time = 13U,
kTSI_ConsecutiveScansNumber_15time = 14U,
kTSI_ConsecutiveScansNumber_16time = 15U,
kTSI_ConsecutiveScansNumber_17time = 16U,
kTSI_ConsecutiveScansNumber_18time = 17U,
kTSI_ConsecutiveScansNumber_19time = 18U,
kTSI_ConsecutiveScansNumber_20time = 19U,
kTSI_ConsecutiveScansNumber_21time = 20U,
kTSI_ConsecutiveScansNumber_22time = 21U,
kTSI_ConsecutiveScansNumber_23time = 22U,
kTSI_ConsecutiveScansNumber_24time = 23U,
kTSI_ConsecutiveScansNumber_25time = 24U,
kTSI_ConsecutiveScansNumber_26time = 25U,
kTSI_ConsecutiveScansNumber_27time = 26U,
kTSI_ConsecutiveScansNumber_28time = 27U,
kTSI_ConsecutiveScansNumber_29time = 28U,
kTSI_ConsecutiveScansNumber_30time = 29U,
kTSI_ConsecutiveScansNumber_31time = 30U,
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1105
TSIv2 Driver
kTSI_ConsecutiveScansNumber_32time = 31U }
TSI number of scan intervals for each electrode.
• enum tsi_electrode_osc_prescaler_t {
kTSI_ElecOscPrescaler_1div = 0U,
kTSI_ElecOscPrescaler_2div = 1U,
kTSI_ElecOscPrescaler_4div = 2U,
kTSI_ElecOscPrescaler_8div = 3U,
kTSI_ElecOscPrescaler_16div = 4U,
kTSI_ElecOscPrescaler_32div = 5U,
kTSI_ElecOscPrescaler_64div = 6U,
kTSI_ElecOscPrescaler_128div = 7U,
kTSI_ElecOscPrescaler_1div = 0U,
kTSI_ElecOscPrescaler_2div = 1U,
kTSI_ElecOscPrescaler_4div = 2U,
kTSI_ElecOscPrescaler_8div = 3U,
kTSI_ElecOscPrescaler_16div = 4U,
kTSI_ElecOscPrescaler_32div = 5U,
kTSI_ElecOscPrescaler_64div = 6U,
kTSI_ElecOscPrescaler_128div = 7U }
TSI electrode oscillator prescaler.
• enum tsi_low_power_clock_source_t {
kTSI_LowPowerClockSource_LPOCLK = 0U,
kTSI_LowPowerClockSource_VLPOSCCLK = 1U }
TSI low power mode clock source.
• enum tsi_low_power_scan_interval_t {
kTSI_LowPowerInterval_1ms = 0U,
kTSI_LowPowerInterval_5ms = 1U,
kTSI_LowPowerInterval_10ms = 2U,
kTSI_LowPowerInterval_15ms = 3U,
kTSI_LowPowerInterval_20ms = 4U,
kTSI_LowPowerInterval_30ms = 5U,
kTSI_LowPowerInterval_40ms = 6U,
kTSI_LowPowerInterval_50ms = 7U,
kTSI_LowPowerInterval_75ms = 8U,
kTSI_LowPowerInterval_100ms = 9U,
kTSI_LowPowerInterval_125ms = 10U,
kTSI_LowPowerInterval_150ms = 11U,
kTSI_LowPowerInterval_200ms = 12U,
kTSI_LowPowerInterval_300ms = 13U,
kTSI_LowPowerInterval_400ms = 14U,
kTSI_LowPowerInterval_500ms = 15U }
TSI low power scan intervals.
• enum tsi_reference_osc_charge_current_t {
1106
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
kTSI_RefOscChargeCurrent_2uA = 0U,
kTSI_RefOscChargeCurrent_4uA = 1U,
kTSI_RefOscChargeCurrent_6uA = 2U,
kTSI_RefOscChargeCurrent_8uA = 3U,
kTSI_RefOscChargeCurrent_10uA = 4U,
kTSI_RefOscChargeCurrent_12uA = 5U,
kTSI_RefOscChargeCurrent_14uA = 6U,
kTSI_RefOscChargeCurrent_16uA = 7U,
kTSI_RefOscChargeCurrent_18uA = 8U,
kTSI_RefOscChargeCurrent_20uA = 9U,
kTSI_RefOscChargeCurrent_22uA = 10U,
kTSI_RefOscChargeCurrent_24uA = 11U,
kTSI_RefOscChargeCurrent_26uA = 12U,
kTSI_RefOscChargeCurrent_28uA = 13U,
kTSI_RefOscChargeCurrent_30uA = 14U,
kTSI_RefOscChargeCurrent_32uA = 15U,
kTSI_RefOscChargeCurrent_500nA = 0U,
kTSI_RefOscChargeCurrent_1uA = 1U,
kTSI_RefOscChargeCurrent_2uA = 2U,
kTSI_RefOscChargeCurrent_4uA = 3U,
kTSI_RefOscChargeCurrent_8uA = 4U,
kTSI_RefOscChargeCurrent_16uA = 5U,
kTSI_RefOscChargeCurrent_32uA = 6U,
kTSI_RefOscChargeCurrent_64uA = 7U }
TSI Reference oscillator charge current select.
• enum tsi_external_osc_charge_current_t {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1107
TSIv2 Driver
kTSI_ExtOscChargeCurrent_2uA = 0U,
kTSI_ExtOscChargeCurrent_4uA = 1U,
kTSI_ExtOscChargeCurrent_6uA = 2U,
kTSI_ExtOscChargeCurrent_8uA = 3U,
kTSI_ExtOscChargeCurrent_10uA = 4U,
kTSI_ExtOscChargeCurrent_12uA = 5U,
kTSI_ExtOscChargeCurrent_14uA = 6U,
kTSI_ExtOscChargeCurrent_16uA = 7U,
kTSI_ExtOscChargeCurrent_18uA = 8U,
kTSI_ExtOscChargeCurrent_20uA = 9U,
kTSI_ExtOscChargeCurrent_22uA = 10U,
kTSI_ExtOscChargeCurrent_24uA = 11U,
kTSI_ExtOscChargeCurrent_26uA = 12U,
kTSI_ExtOscChargeCurrent_28uA = 13U,
kTSI_ExtOscChargeCurrent_30uA = 14U,
kTSI_ExtOscChargeCurrent_32uA = 15U,
kTSI_ExtOscChargeCurrent_500nA = 0U,
kTSI_ExtOscChargeCurrent_1uA = 1U,
kTSI_ExtOscChargeCurrent_2uA = 2U,
kTSI_ExtOscChargeCurrent_4uA = 3U,
kTSI_ExtOscChargeCurrent_8uA = 4U,
kTSI_ExtOscChargeCurrent_16uA = 5U,
kTSI_ExtOscChargeCurrent_32uA = 6U,
kTSI_ExtOscChargeCurrent_64uA = 7U }
TSI External oscillator charge current select.
• enum tsi_active_mode_clock_source_t {
kTSI_ActiveClkSource_LPOSCCLK = 0U,
kTSI_ActiveClkSource_MCGIRCLK = 1U,
kTSI_ActiveClkSource_OSCERCLK = 2U }
TSI Active mode clock source.
• enum tsi_active_mode_prescaler_t {
kTSI_ActiveModePrescaler_1div = 0U,
kTSI_ActiveModePrescaler_2div = 1U,
kTSI_ActiveModePrescaler_4div = 2U,
kTSI_ActiveModePrescaler_8div = 3U,
kTSI_ActiveModePrescaler_16div = 4U,
kTSI_ActiveModePrescaler_32div = 5U,
kTSI_ActiveModePrescaler_64div = 6U,
kTSI_ActiveModePrescaler_128div = 7U }
TSI active mode prescaler.
• enum tsi_status_flags_t {
1108
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
kTSI_EndOfScanFlag = TSI_GENCS_EOSF_MASK,
kTSI_OutOfRangeFlag = TSI_GENCS_OUTRGF_MASK,
kTSI_ExternalElectrodeErrorFlag = TSI_GENCS_EXTERF_MASK,
kTSI_OverrunErrorFlag = TSI_GENCS_OVRF_MASK,
kTSI_EndOfScanFlag = TSI_GENCS_EOSF_MASK,
kTSI_OutOfRangeFlag = TSI_GENCS_OUTRGF_MASK }
TSI status flags.
• enum tsi_interrupt_enable_t {
kTSI_GlobalInterruptEnable = 1U,
kTSI_OutOfRangeInterruptEnable = 2U,
kTSI_EndOfScanInterruptEnable = 4U,
kTSI_ErrorInterrruptEnable = 8U,
kTSI_GlobalInterruptEnable = 1U,
kTSI_OutOfRangeInterruptEnable = 2U,
kTSI_EndOfScanInterruptEnable = 4U }
TSI feature interrupt source.
Functions
• void TSI_Init (TSI_Type ∗base, const tsi_config_t ∗config)
Initializes hardware.
• void TSI_Deinit (TSI_Type ∗base)
De-initializes hardware.
• void TSI_GetNormalModeDefaultConfig (tsi_config_t ∗userConfig)
Gets TSI normal mode user configuration structure.
• void TSI_GetLowPowerModeDefaultConfig (tsi_config_t ∗userConfig)
Gets the TSI low power mode default user configuration structure.
• void TSI_Calibrate (TSI_Type ∗base, tsi_calibration_data_t ∗calBuff)
Hardware calibration.
• void TSI_EnableInterrupts (TSI_Type ∗base, uint32_t mask)
Enables the TSI interrupt requests.
• void TSI_DisableInterrupts (TSI_Type ∗base, uint32_t mask)
Disables the TSI interrupt requests.
• static uint32_t TSI_GetStatusFlags (TSI_Type ∗base)
Gets the interrupt flags.
• void TSI_ClearStatusFlags (TSI_Type ∗base, uint32_t mask)
Clears the interrupt flags.
• static uint32_t TSI_GetScanTriggerMode (TSI_Type ∗base)
Gets the TSI scan trigger mode.
• static bool TSI_IsScanInProgress (TSI_Type ∗base)
Gets the scan in progress flag.
• static void TSI_SetElectrodeOSCPrescaler (TSI_Type ∗base, tsi_electrode_osc_prescaler_-
tprescaler)
Sets the electrode oscillator prescaler.
• static void TSI_SetNumberOfScans (TSI_Type ∗base, tsi_n_consecutive_scans_t number)
Sets the number of scans (NSCN).
• static void TSI_EnableModule (TSI_Type ∗base, bool enable)
Enables/disables the TSI module.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1109
TSIv2 Driver
• static void TSI_EnableLowPower (TSI_Type ∗base, bool enable)
Enables/disables the TSI module in low power stop mode.
• static void TSI_EnablePeriodicalScan (TSI_Type ∗base, bool enable)
Enables/disables the periodical (hardware) trigger scan.
• static void TSI_StartSoftwareTrigger (TSI_Type ∗base)
Starts a measurement (trigger a new measurement).
• static void TSI_SetLowPowerScanInterval (TSI_Type ∗base, tsi_low_power_scan_interval_t inter-
val)
Sets a low power scan interval.
• static void TSI_SetLowPowerClock (TSI_Type ∗base, uint32_t clock)
Sets a low power clock.
• static void TSI_SetReferenceChargeCurrent (TSI_Type ∗base, tsi_reference_osc_charge_current_t
current)
Sets the reference oscillator charge current.
• static void TSI_SetElectrodeChargeCurrent (TSI_Type ∗base, tsi_external_osc_charge_current_-
tcurrent)
Sets the electrode charge current.
• static void TSI_SetScanModulo (TSI_Type ∗base, uint32_t modulo)
Sets the scan modulo value.
• static void TSI_SetActiveModeSource (TSI_Type ∗base, uint32_t source)
Sets the active mode source.
• static void TSI_SetActiveModePrescaler (TSI_Type ∗base, tsi_active_mode_prescaler_t prescaler)
Sets the active mode prescaler.
• static void TSI_SetLowPowerChannel (TSI_Type ∗base, uint16_t channel)
Sets the low power channel.
• static uint32_t TSI_GetLowPowerChannel (TSI_Type ∗base)
Gets the enabled channel in low power modes.
• static void TSI_EnableChannel (TSI_Type ∗base, uint16_t channel, bool enable)
Enables/disables a channel.
• static void TSI_EnableChannels (TSI_Type ∗base, uint16_t channelsMask, bool enable)
Enables/disables channels.
• static bool TSI_IsChannelEnabled (TSI_Type ∗base, uint16_t channel)
Returns if a channel is enabled.
• static uint16_t TSI_GetEnabledChannels (TSI_Type ∗base)
Returns the mask of enabled channels.
• static uint16_t TSI_GetWakeUpChannelCounter (TSI_Type ∗base)
Gets the wake up channel counter for low-power mode usage.
• static uint16_t TSI_GetNormalModeCounter (TSI_Type ∗base, uint16_t channel)
Gets the TSI conversion counter of a specific channel in normal mode.
• static void TSI_SetLowThreshold (TSI_Type ∗base, uint16_t low_threshold)
Sets a low threshold.
• static void TSI_SetHighThreshold (TSI_Type ∗base, uint16_t high_threshold)
Sets a high threshold.
Driver version
• #define FSL_TSI_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
TSI driver version 2.0.0.
1110
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
52.2.2 Data Structure Documentation
52.2.2.1 struct tsi_calibration_data_t
Data Fields
• uint16_t calibratedData [FSL_FEATURE_TSI_CHANNEL_COUNT]
TSI calibration data storage buffer.
52.2.2.2 struct tsi_config_t
This structure contains the settings for the most common TSI configurations including the TSI module
charge currents, number of scans, thresholds, and so on.
Data Fields
• uint16_t thresh
High threshold.
• uint16_t thresl
Low threshold.
•tsi_low_power_clock_source_t lpclks
Low power clock.
•tsi_low_power_scan_interval_t lpscnitv
Low power scan interval.
•tsi_active_mode_clock_source_t amclks
Active mode clock source.
•tsi_active_mode_prescaler_t ampsc
Active mode prescaler.
•tsi_electrode_osc_prescaler_t ps
Electrode Oscillator Prescaler.
•tsi_external_osc_charge_current_t extchrg
External Oscillator charge current.
•tsi_reference_osc_charge_current_t refchrg
Reference Oscillator charge current.
•tsi_n_consecutive_scans_t nscn
Number of scans.
•tsi_electrode_osc_prescaler_t prescaler
Prescaler.
•tsi_analog_mode_t mode
TSI mode of operation.
•tsi_osc_voltage_rails_t dvolt
Oscillator’s voltage rails.
•tsi_series_resistor_t resistor
Series resistance value.
•tsi_filter_bits_t filter
Noise mode filter bits.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1111
TSIv2 Driver
52.2.2.2.0.10 Field Documentation
52.2.2.2.0.10.1 uint16_t tsi_config_t::thresh
52.2.2.2.0.10.2 uint16_t tsi_config_t::thresl
52.2.2.2.0.10.3 tsi_low_power_clock_source_t tsi_config_t::lpclks
52.2.2.2.0.10.4 tsi_low_power_scan_interval_t tsi_config_t::lpscnitv
52.2.2.2.0.10.5 tsi_active_mode_clock_source_t tsi_config_t::amclks
52.2.2.2.0.10.6 tsi_active_mode_prescaler_t tsi_config_t::ampsc
52.2.2.2.0.10.7 tsi_external_osc_charge_current_t tsi_config_t::extchrg
Electrode charge current.
52.2.2.2.0.10.8 tsi_reference_osc_charge_current_t tsi_config_t::refchrg
Reference charge current.
52.2.2.2.0.10.9 tsi_n_consecutive_scans_t tsi_config_t::nscn
52.2.2.2.0.10.10 tsi_analog_mode_t tsi_config_t::mode
52.2.2.2.0.10.11 tsi_osc_voltage_rails_t tsi_config_t::dvolt
52.2.3 Macro Definition Documentation
52.2.3.1 #define FSL_TSI_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
52.2.4 Enumeration Type Documentation
52.2.4.1 enum tsi_n_consecutive_scans_t
These constants define the TSI number of consecutive scans in a TSI instance for each electrode.
Enumerator
kTSI_ConsecutiveScansNumber_1time Once per electrode.
kTSI_ConsecutiveScansNumber_2time Twice per electrode.
kTSI_ConsecutiveScansNumber_3time 3 times consecutive scan
kTSI_ConsecutiveScansNumber_4time 4 times consecutive scan
kTSI_ConsecutiveScansNumber_5time 5 times consecutive scan
kTSI_ConsecutiveScansNumber_6time 6 times consecutive scan
kTSI_ConsecutiveScansNumber_7time 7 times consecutive scan
kTSI_ConsecutiveScansNumber_8time 8 times consecutive scan
kTSI_ConsecutiveScansNumber_9time 9 times consecutive scan
1112
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
kTSI_ConsecutiveScansNumber_10time 10 times consecutive scan
kTSI_ConsecutiveScansNumber_11time 11 times consecutive scan
kTSI_ConsecutiveScansNumber_12time 12 times consecutive scan
kTSI_ConsecutiveScansNumber_13time 13 times consecutive scan
kTSI_ConsecutiveScansNumber_14time 14 times consecutive scan
kTSI_ConsecutiveScansNumber_15time 15 times consecutive scan
kTSI_ConsecutiveScansNumber_16time 16 times consecutive scan
kTSI_ConsecutiveScansNumber_17time 17 times consecutive scan
kTSI_ConsecutiveScansNumber_18time 18 times consecutive scan
kTSI_ConsecutiveScansNumber_19time 19 times consecutive scan
kTSI_ConsecutiveScansNumber_20time 20 times consecutive scan
kTSI_ConsecutiveScansNumber_21time 21 times consecutive scan
kTSI_ConsecutiveScansNumber_22time 22 times consecutive scan
kTSI_ConsecutiveScansNumber_23time 23 times consecutive scan
kTSI_ConsecutiveScansNumber_24time 24 times consecutive scan
kTSI_ConsecutiveScansNumber_25time 25 times consecutive scan
kTSI_ConsecutiveScansNumber_26time 26 times consecutive scan
kTSI_ConsecutiveScansNumber_27time 27 times consecutive scan
kTSI_ConsecutiveScansNumber_28time 28 times consecutive scan
kTSI_ConsecutiveScansNumber_29time 29 times consecutive scan
kTSI_ConsecutiveScansNumber_30time 30 times consecutive scan
kTSI_ConsecutiveScansNumber_31time 31 times consecutive scan
kTSI_ConsecutiveScansNumber_32time 32 times consecutive scan
kTSI_ConsecutiveScansNumber_1time Once per electrode.
kTSI_ConsecutiveScansNumber_2time Twice per electrode.
kTSI_ConsecutiveScansNumber_3time 3 times consecutive scan
kTSI_ConsecutiveScansNumber_4time 4 times consecutive scan
kTSI_ConsecutiveScansNumber_5time 5 times consecutive scan
kTSI_ConsecutiveScansNumber_6time 6 times consecutive scan
kTSI_ConsecutiveScansNumber_7time 7 times consecutive scan
kTSI_ConsecutiveScansNumber_8time 8 times consecutive scan
kTSI_ConsecutiveScansNumber_9time 9 times consecutive scan
kTSI_ConsecutiveScansNumber_10time 10 times consecutive scan
kTSI_ConsecutiveScansNumber_11time 11 times consecutive scan
kTSI_ConsecutiveScansNumber_12time 12 times consecutive scan
kTSI_ConsecutiveScansNumber_13time 13 times consecutive scan
kTSI_ConsecutiveScansNumber_14time 14 times consecutive scan
kTSI_ConsecutiveScansNumber_15time 15 times consecutive scan
kTSI_ConsecutiveScansNumber_16time 16 times consecutive scan
kTSI_ConsecutiveScansNumber_17time 17 times consecutive scan
kTSI_ConsecutiveScansNumber_18time 18 times consecutive scan
kTSI_ConsecutiveScansNumber_19time 19 times consecutive scan
kTSI_ConsecutiveScansNumber_20time 20 times consecutive scan
kTSI_ConsecutiveScansNumber_21time 21 times consecutive scan
kTSI_ConsecutiveScansNumber_22time 22 times consecutive scan
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1113
TSIv2 Driver
kTSI_ConsecutiveScansNumber_23time 23 times consecutive scan
kTSI_ConsecutiveScansNumber_24time 24 times consecutive scan
kTSI_ConsecutiveScansNumber_25time 25 times consecutive scan
kTSI_ConsecutiveScansNumber_26time 26 times consecutive scan
kTSI_ConsecutiveScansNumber_27time 27 times consecutive scan
kTSI_ConsecutiveScansNumber_28time 28 times consecutive scan
kTSI_ConsecutiveScansNumber_29time 29 times consecutive scan
kTSI_ConsecutiveScansNumber_30time 30 times consecutive scan
kTSI_ConsecutiveScansNumber_31time 31 times consecutive scan
kTSI_ConsecutiveScansNumber_32time 32 times consecutive scan
52.2.4.2 enum tsi_electrode_osc_prescaler_t
These constants define the TSI electrode oscillator prescaler in a TSI instance.
Enumerator
kTSI_ElecOscPrescaler_1div Electrode oscillator frequency divided by 1.
kTSI_ElecOscPrescaler_2div Electrode oscillator frequency divided by 2.
kTSI_ElecOscPrescaler_4div Electrode oscillator frequency divided by 4.
kTSI_ElecOscPrescaler_8div Electrode oscillator frequency divided by 8.
kTSI_ElecOscPrescaler_16div Electrode oscillator frequency divided by 16.
kTSI_ElecOscPrescaler_32div Electrode oscillator frequency divided by 32.
kTSI_ElecOscPrescaler_64div Electrode oscillator frequency divided by 64.
kTSI_ElecOscPrescaler_128div Electrode oscillator frequency divided by 128.
kTSI_ElecOscPrescaler_1div Electrode oscillator frequency divided by 1.
kTSI_ElecOscPrescaler_2div Electrode oscillator frequency divided by 2.
kTSI_ElecOscPrescaler_4div Electrode oscillator frequency divided by 4.
kTSI_ElecOscPrescaler_8div Electrode oscillator frequency divided by 8.
kTSI_ElecOscPrescaler_16div Electrode oscillator frequency divided by 16.
kTSI_ElecOscPrescaler_32div Electrode oscillator frequency divided by 32.
kTSI_ElecOscPrescaler_64div Electrode oscillator frequency divided by 64.
kTSI_ElecOscPrescaler_128div Electrode oscillator frequency divided by 128.
52.2.4.3 enum tsi_low_power_clock_source_t
Enumerator
kTSI_LowPowerClockSource_LPOCLK LPOCLK is selected.
kTSI_LowPowerClockSource_VLPOSCCLK VLPOSCCLK is selected.
1114
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
52.2.4.4 enum tsi_low_power_scan_interval_t
These constants define the TSI low power scan intervals in a TSI instance.
Enumerator
kTSI_LowPowerInterval_1ms 1 ms scan interval
kTSI_LowPowerInterval_5ms 5 ms scan interval
kTSI_LowPowerInterval_10ms 10 ms scan interval
kTSI_LowPowerInterval_15ms 15 ms scan interval
kTSI_LowPowerInterval_20ms 20 ms scan interval
kTSI_LowPowerInterval_30ms 30 ms scan interval
kTSI_LowPowerInterval_40ms 40 ms scan interval
kTSI_LowPowerInterval_50ms 50 ms scan interval
kTSI_LowPowerInterval_75ms 75 ms scan interval
kTSI_LowPowerInterval_100ms 100 ms scan interval
kTSI_LowPowerInterval_125ms 125 ms scan interval
kTSI_LowPowerInterval_150ms 150 ms scan interval
kTSI_LowPowerInterval_200ms 200 ms scan interval
kTSI_LowPowerInterval_300ms 300 ms scan interval
kTSI_LowPowerInterval_400ms 400 ms scan interval
kTSI_LowPowerInterval_500ms 500 ms scan interval
52.2.4.5 enum tsi_reference_osc_charge_current_t
These constants define the TSI Reference oscillator charge current select in a TSI instance.
Enumerator
kTSI_RefOscChargeCurrent_2uA Reference oscillator charge current is 2 µA.
kTSI_RefOscChargeCurrent_4uA Reference oscillator charge current is 4 µA.
kTSI_RefOscChargeCurrent_6uA Reference oscillator charge current is 6 µA.
kTSI_RefOscChargeCurrent_8uA Reference oscillator charge current is 8 µA.
kTSI_RefOscChargeCurrent_10uA Reference oscillator charge current is 10 µA.
kTSI_RefOscChargeCurrent_12uA Reference oscillator charge current is 12 µA.
kTSI_RefOscChargeCurrent_14uA Reference oscillator charge current is 14 µA.
kTSI_RefOscChargeCurrent_16uA Reference oscillator charge current is 16 µA.
kTSI_RefOscChargeCurrent_18uA Reference oscillator charge current is 18 µA.
kTSI_RefOscChargeCurrent_20uA Reference oscillator charge current is 20 µA.
kTSI_RefOscChargeCurrent_22uA Reference oscillator charge current is 22 µA.
kTSI_RefOscChargeCurrent_24uA Reference oscillator charge current is 24 µA.
kTSI_RefOscChargeCurrent_26uA Reference oscillator charge current is 26 µA.
kTSI_RefOscChargeCurrent_28uA Reference oscillator charge current is 28 µA.
kTSI_RefOscChargeCurrent_30uA Reference oscillator charge current is 30 µA.
kTSI_RefOscChargeCurrent_32uA Reference oscillator charge current is 32 µA.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1115
TSIv2 Driver
kTSI_RefOscChargeCurrent_500nA Reference oscillator charge current is 500 µA.
kTSI_RefOscChargeCurrent_1uA Reference oscillator charge current is 1 µA.
kTSI_RefOscChargeCurrent_2uA Reference oscillator charge current is 2 µA.
kTSI_RefOscChargeCurrent_4uA Reference oscillator charge current is 4 µA.
kTSI_RefOscChargeCurrent_8uA Reference oscillator charge current is 8 µA.
kTSI_RefOscChargeCurrent_16uA Reference oscillator charge current is 16 µA.
kTSI_RefOscChargeCurrent_32uA Reference oscillator charge current is 32 µA.
kTSI_RefOscChargeCurrent_64uA Reference oscillator charge current is 64 µA.
52.2.4.6 enum tsi_external_osc_charge_current_t
These constants define the TSI External oscillator charge current select in a TSI instance.
Enumerator
kTSI_ExtOscChargeCurrent_2uA External oscillator charge current is 2 µA.
kTSI_ExtOscChargeCurrent_4uA External oscillator charge current is 4 µA.
kTSI_ExtOscChargeCurrent_6uA External oscillator charge current is 6 µA.
kTSI_ExtOscChargeCurrent_8uA External oscillator charge current is 8 µA.
kTSI_ExtOscChargeCurrent_10uA External oscillator charge current is 10 µA.
kTSI_ExtOscChargeCurrent_12uA External oscillator charge current is 12 µA.
kTSI_ExtOscChargeCurrent_14uA External oscillator charge current is 14 µA.
kTSI_ExtOscChargeCurrent_16uA External oscillator charge current is 16 µA.
kTSI_ExtOscChargeCurrent_18uA External oscillator charge current is 18 µA.
kTSI_ExtOscChargeCurrent_20uA External oscillator charge current is 20 µA.
kTSI_ExtOscChargeCurrent_22uA External oscillator charge current is 22 µA.
kTSI_ExtOscChargeCurrent_24uA External oscillator charge current is 24 µA.
kTSI_ExtOscChargeCurrent_26uA External oscillator charge current is 26 µA.
kTSI_ExtOscChargeCurrent_28uA External oscillator charge current is 28 µA.
kTSI_ExtOscChargeCurrent_30uA External oscillator charge current is 30 µA.
kTSI_ExtOscChargeCurrent_32uA External oscillator charge current is 32 µA.
kTSI_ExtOscChargeCurrent_500nA External oscillator charge current is 500 µA.
kTSI_ExtOscChargeCurrent_1uA External oscillator charge current is 1 µA.
kTSI_ExtOscChargeCurrent_2uA External oscillator charge current is 2 µA.
kTSI_ExtOscChargeCurrent_4uA External oscillator charge current is 4 µA.
kTSI_ExtOscChargeCurrent_8uA External oscillator charge current is 8 µA.
kTSI_ExtOscChargeCurrent_16uA External oscillator charge current is 16 µA.
kTSI_ExtOscChargeCurrent_32uA External oscillator charge current is 32 µA.
kTSI_ExtOscChargeCurrent_64uA External oscillator charge current is 64 µA.
52.2.4.7 enum tsi_active_mode_clock_source_t
These constants define the active mode clock source in a TSI instance.
1116
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
Enumerator
kTSI_ActiveClkSource_LPOSCCLK Active mode clock source is set to LPOOSC Clock.
kTSI_ActiveClkSource_MCGIRCLK Active mode clock source is set to MCG Internal reference
clock.
kTSI_ActiveClkSource_OSCERCLK Active mode clock source is set to System oscillator output.
52.2.4.8 enum tsi_active_mode_prescaler_t
These constants define the TSI active mode prescaler in a TSI instance.
Enumerator
kTSI_ActiveModePrescaler_1div Input clock source divided by 1.
kTSI_ActiveModePrescaler_2div Input clock source divided by 2.
kTSI_ActiveModePrescaler_4div Input clock source divided by 4.
kTSI_ActiveModePrescaler_8div Input clock source divided by 8.
kTSI_ActiveModePrescaler_16div Input clock source divided by 16.
kTSI_ActiveModePrescaler_32div Input clock source divided by 32.
kTSI_ActiveModePrescaler_64div Input clock source divided by 64.
kTSI_ActiveModePrescaler_128div Input clock source divided by 128.
52.2.4.9 enum tsi_status_flags_t
Enumerator
kTSI_EndOfScanFlag End-Of-Scan flag.
kTSI_OutOfRangeFlag Out-Of-Range flag.
kTSI_ExternalElectrodeErrorFlag External electrode error flag.
kTSI_OverrunErrorFlag Overrun error flag.
kTSI_EndOfScanFlag End-Of-Scan flag.
kTSI_OutOfRangeFlag Out-Of-Range flag.
52.2.4.10 enum tsi_interrupt_enable_t
Enumerator
kTSI_GlobalInterruptEnable TSI module global interrupt.
kTSI_OutOfRangeInterruptEnable Out-Of-Range interrupt.
kTSI_EndOfScanInterruptEnable End-Of-Scan interrupt.
kTSI_ErrorInterrruptEnable Error interrupt.
kTSI_GlobalInterruptEnable TSI module global interrupt.
kTSI_OutOfRangeInterruptEnable Out-Of-Range interrupt.
kTSI_EndOfScanInterruptEnable End-Of-Scan interrupt.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1117
TSIv2 Driver
52.2.5 Function Documentation
52.2.5.1 void TSI_Init ( TSI_Type ∗base, const tsi_config_t ∗config )
Initializes the peripheral to the targeted state specified by the parameter configuration, such as initialize
and set prescalers, number of scans, clocks, delta voltage capacitance trimmer, reference, and electrode
charge current and threshold.
Parameters
base TSI peripheral base address.
config Pointer to the TSI peripheral configuration structure.
Returns
none
52.2.5.2 void TSI_Deinit ( TSI_Type ∗base )
De-initializes the peripheral to default state.
Parameters
base TSI peripheral base address.
Returns
none
52.2.5.3 void TSI_GetNormalModeDefaultConfig ( tsi_config_t ∗userConfig )
This interface sets the userConfig structure to a default value. The configuration structure only includes
the settings for the whole TSI. The user configure is set to these values:
userConfig.lpclks = kTSI_LowPowerClockSource_LPOCLK;
userConfig.lpscnitv = kTSI_LowPowerInterval_100ms;
userConfig.amclks = kTSI_ActiveClkSource_LPOSCCLK;
userConfig.ampsc = kTSI_ActiveModePrescaler_8div;
userConfig.ps = kTSI_ElecOscPrescaler_2div;
userConfig.extchrg = kTSI_ExtOscChargeCurrent_10uA;
userConfig.refchrg = kTSI_RefOscChargeCurrent_10uA;
userConfig.nscn = kTSI_ConsecutiveScansNumber_8time;
userConfig.thresh = 0U;
userConfig.thresl = 0U;
1118
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
Parameters
userConfig Pointer to the TSI user configuration structure.
52.2.5.4 void TSI_GetLowPowerModeDefaultConfig ( tsi_config_t ∗userConfig )
This interface sets userConfig structure to a default value. The configuration structure only includes the
settings for the whole TSI. The user configure is set to these values:
userConfig.lpclks = kTSI_LowPowerClockSource_LPOCLK;
userConfig.lpscnitv = kTSI_LowPowerInterval_100ms;
userConfig.amclks = kTSI_ActiveClkSource_LPOSCCLK;
userConfig.ampsc = kTSI_ActiveModePrescaler_64div;
userConfig.ps = kTSI_ElecOscPrescaler_1div;
userConfig.extchrg = kTSI_ExtOscChargeCurrent_2uA;
userConfig.refchrg = kTSI_RefOscChargeCurrent_32uA;
userConfig.nscn = kTSI_ConsecutiveScansNumber_26time;
userConfig.thresh = 15000U;
userConfig.thresl = 1000U;
Parameters
userConfig Pointer to the TSI user configuration structure.
52.2.5.5 void TSI_Calibrate ( TSI_Type ∗base, tsi_calibration_data_t ∗calBuff )
Calibrates the peripheral to fetch the initial counter value of the enabled electrodes. This API is mostly
used at the initial application setup. Call this function after the TSI_Init API and use the calibrated counter
values to set up applications (such as to determine under which counter value a touch event occurs).
Note
This API is called in normal power modes.
For K60 series, the calibrated baseline counter value CANNOT be used in low power modes. To
obtain the calibrated counter values in low power modes, see K60 Mask Set Errata for Mask 5N22D.
Parameters
base TSI peripheral base address.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1119
TSIv2 Driver
calBuff Data buffer that store the calibrated counter value.
Returns
none
52.2.5.6 void TSI_EnableInterrupts ( TSI_Type ∗base, uint32_t mask )
Parameters
base TSI peripheral base address.
mask interrupt source The parameter can be a combination of the following source if
defined:
• kTSI_GlobalInterruptEnable
• kTSI_EndOfScanInterruptEnable
• kTSI_OutOfRangeInterruptEnable
• kTSI_ErrorInterrruptEnable
52.2.5.7 void TSI_DisableInterrupts ( TSI_Type ∗base, uint32_t mask )
Parameters
base TSI peripheral base address.
mask interrupt source The parameter can be a combination of the following source if
defined:
• kTSI_GlobalInterruptEnable
• kTSI_EndOfScanInterruptEnable
• kTSI_OutOfRangeInterruptEnable
• kTSI_ErrorInterrruptEnable
52.2.5.8 static uint32_t TSI_GetStatusFlags ( TSI_Type ∗base )[inline],[static]
This function get TSI interrupt flags.
1120
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
Parameters
base TSI peripheral base address.
Returns
The mask of these status flag bits.
52.2.5.9 void TSI_ClearStatusFlags ( TSI_Type ∗base, uint32_t mask )
This function clears the TSI interrupt flags.
Note
The automatically cleared flags can’t be cleared by this function.
Parameters
base TSI peripheral base address.
mask the status flags to clear.
52.2.5.10 static uint32_t TSI_GetScanTriggerMode ( TSI_Type ∗base )[inline],
[static]
Parameters
base TSI peripheral base address.
Returns
Scan trigger mode.
52.2.5.11 static bool TSI_IsScanInProgress ( TSI_Type ∗base )[inline],[static]
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1121
TSIv2 Driver
base TSI peripheral base address.
Returns
True - if scan is in progress. False - if scan is not in progress.
52.2.5.12 static void TSI_SetElectrodeOSCPrescaler ( TSI_Type ∗base,
tsi_electrode_osc_prescaler_t prescaler )[inline],[static]
Parameters
base TSI peripheral base address.
prescaler Prescaler value.
Returns
none.
52.2.5.13 static void TSI_SetNumberOfScans ( TSI_Type ∗base,
tsi_n_consecutive_scans_t number )[inline],[static]
Parameters
base TSI peripheral base address.
number Number of scans.
Returns
none.
52.2.5.14 static void TSI_EnableModule ( TSI_Type ∗base, bool enable )[inline],
[static]
Parameters
base TSI peripheral base address.
enable Choose whether to enable TSI module.
• true Enable module;
• false Disable module;
1122
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
Returns
none.
52.2.5.15 static void TSI_EnableLowPower ( TSI_Type ∗base, bool enable )[inline],
[static]
Parameters
base TSI peripheral base address.
enable Choose whether to enable TSI module in low power modes.
• true Enable module in low power modes;
• false Disable module in low power modes;
Returns
none.
52.2.5.16 static void TSI_EnablePeriodicalScan ( TSI_Type ∗base, bool enable )
[inline],[static]
Parameters
base TSI peripheral base address.
enable Choose whether to enable periodical trigger scan.
• true Enable periodical trigger scan;
• false Enable software trigger scan;
Returns
none.
52.2.5.17 static void TSI_StartSoftwareTrigger ( TSI_Type ∗base )[inline],
[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1123
TSIv2 Driver
Parameters
base TSI peripheral base address.
Returns
none.
52.2.5.18 static void TSI_SetLowPowerScanInterval ( TSI_Type ∗base,
tsi_low_power_scan_interval_t interval )[inline],[static]
Parameters
base TSI peripheral base address.
interval Interval for low power scan.
Returns
none.
52.2.5.19 static void TSI_SetLowPowerClock ( TSI_Type ∗base, uint32_t clock )
[inline],[static]
Parameters
base TSI peripheral base address.
clock Low power clock selection.
52.2.5.20 static void TSI_SetReferenceChargeCurrent ( TSI_Type ∗base,
tsi_reference_osc_charge_current_t current )[inline],[static]
Parameters
base TSI peripheral base address.
current The reference oscillator charge current.
Returns
none.
1124
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
52.2.5.21 static void TSI_SetElectrodeChargeCurrent ( TSI_Type ∗base,
tsi_external_osc_charge_current_t current )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1125
TSIv2 Driver
Parameters
base TSI peripheral base address.
current The external electrode charge current.
Returns
none.
52.2.5.22 static void TSI_SetScanModulo ( TSI_Type ∗base, uint32_t modulo )
[inline],[static]
Parameters
base TSI peripheral base address.
modulo Scan modulo value.
Returns
none.
52.2.5.23 static void TSI_SetActiveModeSource ( TSI_Type ∗base, uint32_t source )
[inline],[static]
Parameters
base TSI peripheral base address.
source Active mode clock source (LPOSCCLK, MCGIRCLK, OSCERCLK).
Returns
none.
52.2.5.24 static void TSI_SetActiveModePrescaler ( TSI_Type ∗base,
tsi_active_mode_prescaler_t prescaler )[inline],[static]
1126
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
Parameters
base TSI peripheral base address.
prescaler Prescaler value.
Returns
none.
52.2.5.25 static void TSI_SetLowPowerChannel ( TSI_Type ∗base, uint16_t channel )
[inline],[static]
Only one channel can be enabled in low power mode.
Parameters
base TSI peripheral base address.
channel Channel number.
Returns
none.
52.2.5.26 static uint32_t TSI_GetLowPowerChannel ( TSI_Type ∗base )[inline],
[static]
Note
Only one channel can be enabled in low power mode.
Parameters
base TSI peripheral base address.
Returns
Channel number.
52.2.5.27 static void TSI_EnableChannel ( TSI_Type ∗base, uint16_t channel, bool
enable )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1127
TSIv2 Driver
Parameters
base TSI peripheral base address.
channel Channel to be enabled.
enable Choose whether to enable specific channel.
• true Enable the specific channel;
• false Disable the specific channel;
Returns
none.
52.2.5.28 static void TSI_EnableChannels ( TSI_Type ∗base, uint16_t channelsMask,
bool enable )[inline],[static]
The function enables or disables channels by mask. It can enable/disable all channels at once.
Parameters
base TSI peripheral base address.
channelsMask Channels mask that indicate channels that are to be enabled/disabled.
enable Choose to enable or disable the specified channels.
• true Enable the specified channels;
• false Disable the specified channels;
Returns
none.
52.2.5.29 static bool TSI_IsChannelEnabled ( TSI_Type ∗base, uint16_t channel )
[inline],[static]
Parameters
base TSI peripheral base address.
channel Channel to be checked.
Returns
true - if the channel is enabled; false - if the channel is disabled;
1128
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
52.2.5.30 static uint16_t TSI_GetEnabledChannels ( TSI_Type ∗base )[inline],
[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1129
TSIv2 Driver
Parameters
base TSI peripheral base address.
Returns
Channels mask that indicates currently enabled channels.
52.2.5.31 static uint16_t TSI_GetWakeUpChannelCounter ( TSI_Type ∗base )
[inline],[static]
Parameters
base TSI peripheral base address.
Returns
Wake up counter value.
52.2.5.32 static uint16_t TSI_GetNormalModeCounter ( TSI_Type ∗base, uint16_t
channel )[inline],[static]
Note
This API can only be used in normal active modes.
Parameters
base TSI peripheral base address.
channel Index of the specific TSI channel.
Returns
The counter value of the specific channel.
52.2.5.33 static void TSI_SetLowThreshold ( TSI_Type ∗base, uint16_t low_threshold )
[inline],[static]
1130
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv2 Driver
Parameters
base TSI peripheral base address.
low_threshold Low counter threshold.
Returns
none.
52.2.5.34 static void TSI_SetHighThreshold ( TSI_Type ∗base, uint16_t high_threshold )
[inline],[static]
Parameters
base TSI peripheral base address.
high_threshold High counter threshold.
Returns
none.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1131
TSIv4 Driver
52.3 TSIv4 Driver
52.3.1 Overview
The KSDK provides driver for the Touch Sensing Input (TSI) module of Kinetis devices.
Typical use case
TSI_Init(TSI0);
TSI_Configure(TSI0, &user_config);
TSI_SetMeasuredChannelNumber(TSI0, channelMask);
TSI_EnableInterrupts(TSI0, kTSI_GlobalInterruptEnable |
kTSI_EndOfScanInterruptEnable);
TSI_EnableSoftwareTriggerScan(TSI0);
TSI_EnableModule(TSI0);
while(1)
{
TSI_StartSoftwareTrigger(TSI0);
TSI_GetCounter(TSI0);
}
Files
• file fsl_tsi_v4.h
Data Structures
• struct tsi_calibration_data_t
TSI calibration data storage. More...
• struct tsi_config_t
TSI configuration structure. More...
Macros
• #define TSI_V4_EXTCHRG_RESISTOR_BIT_SHIFT TSI_GENCS_EXTCHRG_SHIFT
resistor bit shift in EXTCHRG bit-field
• #define TSI_V4_EXTCHRG_FILTER_BITS_SHIFT (1U + TSI_GENCS_EXTCHRG_SHIFT)
filter bits shift in EXTCHRG bit-field
• #define TSI_V4_EXTCHRG_RESISTOR_BIT_CLEAR ((uint32_t)((∼TSI_GENCS_EXTCHRG-
_MASK) |(3U << TSI_V4_EXTCHRG_FILTER_BITS_SHIFT)))
macro of clearing the resistor bit in EXTCHRG bit-field
• #define TSI_V4_EXTCHRG_FILTER_BITS_CLEAR ((uint32_t)((∼TSI_GENCS_EXTCHRG_-
MASK) |(1U << TSI_V4_EXTCHRG_RESISTOR_BIT_SHIFT)))
macro of clearing the filter bits in EXTCHRG bit-field
1132
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
Enumerations
• enum tsi_n_consecutive_scans_t {
kTSI_ConsecutiveScansNumber_1time = 0U,
kTSI_ConsecutiveScansNumber_2time = 1U,
kTSI_ConsecutiveScansNumber_3time = 2U,
kTSI_ConsecutiveScansNumber_4time = 3U,
kTSI_ConsecutiveScansNumber_5time = 4U,
kTSI_ConsecutiveScansNumber_6time = 5U,
kTSI_ConsecutiveScansNumber_7time = 6U,
kTSI_ConsecutiveScansNumber_8time = 7U,
kTSI_ConsecutiveScansNumber_9time = 8U,
kTSI_ConsecutiveScansNumber_10time = 9U,
kTSI_ConsecutiveScansNumber_11time = 10U,
kTSI_ConsecutiveScansNumber_12time = 11U,
kTSI_ConsecutiveScansNumber_13time = 12U,
kTSI_ConsecutiveScansNumber_14time = 13U,
kTSI_ConsecutiveScansNumber_15time = 14U,
kTSI_ConsecutiveScansNumber_16time = 15U,
kTSI_ConsecutiveScansNumber_17time = 16U,
kTSI_ConsecutiveScansNumber_18time = 17U,
kTSI_ConsecutiveScansNumber_19time = 18U,
kTSI_ConsecutiveScansNumber_20time = 19U,
kTSI_ConsecutiveScansNumber_21time = 20U,
kTSI_ConsecutiveScansNumber_22time = 21U,
kTSI_ConsecutiveScansNumber_23time = 22U,
kTSI_ConsecutiveScansNumber_24time = 23U,
kTSI_ConsecutiveScansNumber_25time = 24U,
kTSI_ConsecutiveScansNumber_26time = 25U,
kTSI_ConsecutiveScansNumber_27time = 26U,
kTSI_ConsecutiveScansNumber_28time = 27U,
kTSI_ConsecutiveScansNumber_29time = 28U,
kTSI_ConsecutiveScansNumber_30time = 29U,
kTSI_ConsecutiveScansNumber_31time = 30U,
kTSI_ConsecutiveScansNumber_32time = 31U,
kTSI_ConsecutiveScansNumber_1time = 0U,
kTSI_ConsecutiveScansNumber_2time = 1U,
kTSI_ConsecutiveScansNumber_3time = 2U,
kTSI_ConsecutiveScansNumber_4time = 3U,
kTSI_ConsecutiveScansNumber_5time = 4U,
kTSI_ConsecutiveScansNumber_6time = 5U,
kTSI_ConsecutiveScansNumber_7time = 6U,
kTSI_ConsecutiveScansNumber_8time = 7U,
kTSI_ConsecutiveScansNumber_9time = 8U,
kTSI_ConsecutiveScansNumber_10time = 9U,
kTSI_ConsecutiveScansNumber_11time = 10U,
kTSI_ConsecutiveScansNumber_12time = 11U,
kTSI_ConsecutiveScansNumber_13time = 12U,
kTSI_ConsecutiveScansNumber_14time = 13U,
kTSI_ConsecutiveScansNumber_15time = 14U,
kTSI_ConsecutiveScansNumber_16time = 15U,
kTSI_ConsecutiveScansNumber_17time = 16U,
kTSI_ConsecutiveScansNumber_18time = 17U,
kTSI_ConsecutiveScansNumber_19time = 18U,
kTSI_ConsecutiveScansNumber_20time = 19U,
kTSI_ConsecutiveScansNumber_21time = 20U,
kTSI_ConsecutiveScansNumber_22time = 21U,
kTSI_ConsecutiveScansNumber_23time = 22U,
kTSI_ConsecutiveScansNumber_24time = 23U,
kTSI_ConsecutiveScansNumber_25time = 24U,
kTSI_ConsecutiveScansNumber_26time = 25U,
kTSI_ConsecutiveScansNumber_27time = 26U,
kTSI_ConsecutiveScansNumber_28time = 27U,
kTSI_ConsecutiveScansNumber_29time = 28U,
kTSI_ConsecutiveScansNumber_30time = 29U,
kTSI_ConsecutiveScansNumber_31time = 30U,
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1133
TSIv4 Driver
kTSI_ConsecutiveScansNumber_32time = 31U }
TSI number of scan intervals for each electrode.
• enum tsi_electrode_osc_prescaler_t {
kTSI_ElecOscPrescaler_1div = 0U,
kTSI_ElecOscPrescaler_2div = 1U,
kTSI_ElecOscPrescaler_4div = 2U,
kTSI_ElecOscPrescaler_8div = 3U,
kTSI_ElecOscPrescaler_16div = 4U,
kTSI_ElecOscPrescaler_32div = 5U,
kTSI_ElecOscPrescaler_64div = 6U,
kTSI_ElecOscPrescaler_128div = 7U,
kTSI_ElecOscPrescaler_1div = 0U,
kTSI_ElecOscPrescaler_2div = 1U,
kTSI_ElecOscPrescaler_4div = 2U,
kTSI_ElecOscPrescaler_8div = 3U,
kTSI_ElecOscPrescaler_16div = 4U,
kTSI_ElecOscPrescaler_32div = 5U,
kTSI_ElecOscPrescaler_64div = 6U,
kTSI_ElecOscPrescaler_128div = 7U }
TSI electrode oscillator prescaler.
• enum tsi_analog_mode_t {
kTSI_AnalogModeSel_Capacitive = 0U,
kTSI_AnalogModeSel_NoiseNoFreqLim = 4U,
kTSI_AnalogModeSel_NoiseFreqLim = 8U,
kTSI_AnalogModeSel_AutoNoise = 12U }
TSI analog mode select.
• enum tsi_reference_osc_charge_current_t {
1134
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
kTSI_RefOscChargeCurrent_2uA = 0U,
kTSI_RefOscChargeCurrent_4uA = 1U,
kTSI_RefOscChargeCurrent_6uA = 2U,
kTSI_RefOscChargeCurrent_8uA = 3U,
kTSI_RefOscChargeCurrent_10uA = 4U,
kTSI_RefOscChargeCurrent_12uA = 5U,
kTSI_RefOscChargeCurrent_14uA = 6U,
kTSI_RefOscChargeCurrent_16uA = 7U,
kTSI_RefOscChargeCurrent_18uA = 8U,
kTSI_RefOscChargeCurrent_20uA = 9U,
kTSI_RefOscChargeCurrent_22uA = 10U,
kTSI_RefOscChargeCurrent_24uA = 11U,
kTSI_RefOscChargeCurrent_26uA = 12U,
kTSI_RefOscChargeCurrent_28uA = 13U,
kTSI_RefOscChargeCurrent_30uA = 14U,
kTSI_RefOscChargeCurrent_32uA = 15U,
kTSI_RefOscChargeCurrent_500nA = 0U,
kTSI_RefOscChargeCurrent_1uA = 1U,
kTSI_RefOscChargeCurrent_2uA = 2U,
kTSI_RefOscChargeCurrent_4uA = 3U,
kTSI_RefOscChargeCurrent_8uA = 4U,
kTSI_RefOscChargeCurrent_16uA = 5U,
kTSI_RefOscChargeCurrent_32uA = 6U,
kTSI_RefOscChargeCurrent_64uA = 7U }
TSI Reference oscillator charge and discharge current select.
• enum tsi_osc_voltage_rails_t {
kTSI_OscVolRailsOption_0 = 0U,
kTSI_OscVolRailsOption_1 = 1U,
kTSI_OscVolRailsOption_2 = 2U,
kTSI_OscVolRailsOption_3 = 3U }
TSI oscilator’s voltage rails.
• enum tsi_external_osc_charge_current_t {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1135
TSIv4 Driver
kTSI_ExtOscChargeCurrent_2uA = 0U,
kTSI_ExtOscChargeCurrent_4uA = 1U,
kTSI_ExtOscChargeCurrent_6uA = 2U,
kTSI_ExtOscChargeCurrent_8uA = 3U,
kTSI_ExtOscChargeCurrent_10uA = 4U,
kTSI_ExtOscChargeCurrent_12uA = 5U,
kTSI_ExtOscChargeCurrent_14uA = 6U,
kTSI_ExtOscChargeCurrent_16uA = 7U,
kTSI_ExtOscChargeCurrent_18uA = 8U,
kTSI_ExtOscChargeCurrent_20uA = 9U,
kTSI_ExtOscChargeCurrent_22uA = 10U,
kTSI_ExtOscChargeCurrent_24uA = 11U,
kTSI_ExtOscChargeCurrent_26uA = 12U,
kTSI_ExtOscChargeCurrent_28uA = 13U,
kTSI_ExtOscChargeCurrent_30uA = 14U,
kTSI_ExtOscChargeCurrent_32uA = 15U,
kTSI_ExtOscChargeCurrent_500nA = 0U,
kTSI_ExtOscChargeCurrent_1uA = 1U,
kTSI_ExtOscChargeCurrent_2uA = 2U,
kTSI_ExtOscChargeCurrent_4uA = 3U,
kTSI_ExtOscChargeCurrent_8uA = 4U,
kTSI_ExtOscChargeCurrent_16uA = 5U,
kTSI_ExtOscChargeCurrent_32uA = 6U,
kTSI_ExtOscChargeCurrent_64uA = 7U }
TSI External oscillator charge and discharge current select.
• enum tsi_series_resistor_t {
kTSI_SeriesResistance_32k = 0U,
kTSI_SeriesResistance_187k = 1U }
TSI series resistance RS value select.
• enum tsi_filter_bits_t {
kTSI_FilterBits_3 = 0U,
kTSI_FilterBits_2 = 1U,
kTSI_FilterBits_1 = 2U,
kTSI_FilterBits_0 = 3U }
TSI series filter bits select.
• enum tsi_status_flags_t {
kTSI_EndOfScanFlag = TSI_GENCS_EOSF_MASK,
kTSI_OutOfRangeFlag = TSI_GENCS_OUTRGF_MASK,
kTSI_ExternalElectrodeErrorFlag = TSI_GENCS_EXTERF_MASK,
kTSI_OverrunErrorFlag = TSI_GENCS_OVRF_MASK,
kTSI_EndOfScanFlag = TSI_GENCS_EOSF_MASK,
kTSI_OutOfRangeFlag = TSI_GENCS_OUTRGF_MASK }
TSI status flags.
• enum tsi_interrupt_enable_t {
1136
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
kTSI_GlobalInterruptEnable = 1U,
kTSI_OutOfRangeInterruptEnable = 2U,
kTSI_EndOfScanInterruptEnable = 4U,
kTSI_ErrorInterrruptEnable = 8U,
kTSI_GlobalInterruptEnable = 1U,
kTSI_OutOfRangeInterruptEnable = 2U,
kTSI_EndOfScanInterruptEnable = 4U }
TSI feature interrupt source.
Functions
• void TSI_Init (TSI_Type ∗base, const tsi_config_t ∗config)
Initializes hardware.
• void TSI_Deinit (TSI_Type ∗base)
De-initializes hardware.
• void TSI_GetNormalModeDefaultConfig (tsi_config_t ∗userConfig)
Gets the TSI normal mode user configuration structure.
• void TSI_GetLowPowerModeDefaultConfig (tsi_config_t ∗userConfig)
Gets the TSI low power mode default user configuration structure.
• void TSI_Calibrate (TSI_Type ∗base, tsi_calibration_data_t ∗calBuff)
Hardware calibration.
• void TSI_EnableInterrupts (TSI_Type ∗base, uint32_t mask)
Enables the TSI interrupt requests.
• void TSI_DisableInterrupts (TSI_Type ∗base, uint32_t mask)
Disables the TSI interrupt requests.
• static uint32_t TSI_GetStatusFlags (TSI_Type ∗base)
Gets an interrupt flag.
• void TSI_ClearStatusFlags (TSI_Type ∗base, uint32_t mask)
Clears the interrupt flag.
• static uint32_t TSI_GetScanTriggerMode (TSI_Type ∗base)
Gets the TSI scan trigger mode.
• static bool TSI_IsScanInProgress (TSI_Type ∗base)
Gets the scan in progress flag.
• static void TSI_SetElectrodeOSCPrescaler (TSI_Type ∗base, tsi_electrode_osc_prescaler_-
tprescaler)
Sets the prescaler.
• static void TSI_SetNumberOfScans (TSI_Type ∗base, tsi_n_consecutive_scans_t number)
Sets the number of scans (NSCN).
• static void TSI_EnableModule (TSI_Type ∗base, bool enable)
Enables/disables the TSI module.
• static void TSI_EnableLowPower (TSI_Type ∗base, bool enable)
Sets the TSI low power STOP mode as enabled or disabled.
• static void TSI_EnableHardwareTriggerScan (TSI_Type ∗base, bool enable)
Enables/disables the hardware trigger scan.
• static void TSI_StartSoftwareTrigger (TSI_Type ∗base)
Starts a software trigger measurement (triggers a new measurement).
• static void TSI_SetMeasuredChannelNumber (TSI_Type ∗base, uint8_t channel)
Sets the the measured channel number.
• static uint8_t TSI_GetMeasuredChannelNumber (TSI_Type ∗base)
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1137
TSIv4 Driver
Gets the current measured channel number.
• static void TSI_EnableDmaTransfer (TSI_Type ∗base, bool enable)
Enables/disables the DMA transfer.
• static uint16_t TSI_GetCounter (TSI_Type ∗base)
Gets the conversion counter value.
• static void TSI_SetLowThreshold (TSI_Type ∗base, uint16_t low_threshold)
Sets the TSI wake-up channel low threshold.
• static void TSI_SetHighThreshold (TSI_Type ∗base, uint16_t high_threshold)
Sets the TSI wake-up channel high threshold.
• static void TSI_SetAnalogMode (TSI_Type ∗base, tsi_analog_mode_t mode)
Sets the analog mode of the TSI module.
• static uint8_t TSI_GetNoiseModeResult (TSI_Type ∗base)
Gets the noise mode result of the TSI module.
• static void TSI_SetReferenceChargeCurrent (TSI_Type ∗base, tsi_reference_osc_charge_current_t
current)
Sets the reference oscillator charge current.
• static void TSI_SetElectrodeChargeCurrent (TSI_Type ∗base, tsi_external_osc_charge_current_-
tcurrent)
Sets the external electrode charge current.
• static void TSI_SetOscVoltageRails (TSI_Type ∗base, tsi_osc_voltage_rails_t dvolt)
Sets the oscillator’s voltage rails.
• static void TSI_SetElectrodeSeriesResistor (TSI_Type ∗base, tsi_series_resistor_t resistor)
Sets the electrode series resistance value in EXTCHRG[0] bit.
• static void TSI_SetFilterBits (TSI_Type ∗base, tsi_filter_bits_t filter)
Sets the electrode filter bits value in EXTCHRG[2:1] bits.
Driver version
• #define FSL_TSI_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
TSI driver version 2.0.0.
52.3.2 Data Structure Documentation
52.3.2.1 struct tsi_calibration_data_t
Data Fields
• uint16_t calibratedData [FSL_FEATURE_TSI_CHANNEL_COUNT]
TSI calibration data storage buffer.
52.3.2.2 struct tsi_config_t
This structure contains the settings for the most common TSI configurations including the TSI module
charge currents, number of scans, thresholds, and so on.
1138
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
Data Fields
• uint16_t thresh
High threshold.
• uint16_t thresl
Low threshold.
•tsi_low_power_clock_source_t lpclks
Low power clock.
•tsi_low_power_scan_interval_t lpscnitv
Low power scan interval.
•tsi_active_mode_clock_source_t amclks
Active mode clock source.
•tsi_active_mode_prescaler_t ampsc
Active mode prescaler.
•tsi_electrode_osc_prescaler_t ps
Electrode Oscillator Prescaler.
•tsi_external_osc_charge_current_t extchrg
External Oscillator charge current.
•tsi_reference_osc_charge_current_t refchrg
Reference Oscillator charge current.
•tsi_n_consecutive_scans_t nscn
Number of scans.
•tsi_electrode_osc_prescaler_t prescaler
Prescaler.
•tsi_analog_mode_t mode
TSI mode of operation.
•tsi_osc_voltage_rails_t dvolt
Oscillator’s voltage rails.
•tsi_series_resistor_t resistor
Series resistance value.
•tsi_filter_bits_t filter
Noise mode filter bits.
52.3.2.2.0.11 Field Documentation
52.3.2.2.0.11.1 uint16_t tsi_config_t::thresh
52.3.2.2.0.11.2 uint16_t tsi_config_t::thresl
52.3.2.2.0.11.3 tsi_low_power_clock_source_t tsi_config_t::lpclks
52.3.2.2.0.11.4 tsi_low_power_scan_interval_t tsi_config_t::lpscnitv
52.3.2.2.0.11.5 tsi_active_mode_clock_source_t tsi_config_t::amclks
52.3.2.2.0.11.6 tsi_active_mode_prescaler_t tsi_config_t::ampsc
52.3.2.2.0.11.7 tsi_external_osc_charge_current_t tsi_config_t::extchrg
Electrode charge current.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1139
TSIv4 Driver
52.3.2.2.0.11.8 tsi_reference_osc_charge_current_t tsi_config_t::refchrg
Reference charge current.
52.3.2.2.0.11.9 tsi_n_consecutive_scans_t tsi_config_t::nscn
52.3.2.2.0.11.10 tsi_analog_mode_t tsi_config_t::mode
52.3.2.2.0.11.11 tsi_osc_voltage_rails_t tsi_config_t::dvolt
52.3.3 Macro Definition Documentation
52.3.3.1 #define FSL_TSI_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
52.3.4 Enumeration Type Documentation
52.3.4.1 enum tsi_n_consecutive_scans_t
These constants define the tsi number of consecutive scans in a TSI instance for each electrode.
Enumerator
kTSI_ConsecutiveScansNumber_1time Once per electrode.
kTSI_ConsecutiveScansNumber_2time Twice per electrode.
kTSI_ConsecutiveScansNumber_3time 3 times consecutive scan
kTSI_ConsecutiveScansNumber_4time 4 times consecutive scan
kTSI_ConsecutiveScansNumber_5time 5 times consecutive scan
kTSI_ConsecutiveScansNumber_6time 6 times consecutive scan
kTSI_ConsecutiveScansNumber_7time 7 times consecutive scan
kTSI_ConsecutiveScansNumber_8time 8 times consecutive scan
kTSI_ConsecutiveScansNumber_9time 9 times consecutive scan
kTSI_ConsecutiveScansNumber_10time 10 times consecutive scan
kTSI_ConsecutiveScansNumber_11time 11 times consecutive scan
kTSI_ConsecutiveScansNumber_12time 12 times consecutive scan
kTSI_ConsecutiveScansNumber_13time 13 times consecutive scan
kTSI_ConsecutiveScansNumber_14time 14 times consecutive scan
kTSI_ConsecutiveScansNumber_15time 15 times consecutive scan
kTSI_ConsecutiveScansNumber_16time 16 times consecutive scan
kTSI_ConsecutiveScansNumber_17time 17 times consecutive scan
kTSI_ConsecutiveScansNumber_18time 18 times consecutive scan
kTSI_ConsecutiveScansNumber_19time 19 times consecutive scan
kTSI_ConsecutiveScansNumber_20time 20 times consecutive scan
kTSI_ConsecutiveScansNumber_21time 21 times consecutive scan
kTSI_ConsecutiveScansNumber_22time 22 times consecutive scan
kTSI_ConsecutiveScansNumber_23time 23 times consecutive scan
kTSI_ConsecutiveScansNumber_24time 24 times consecutive scan
1140
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
kTSI_ConsecutiveScansNumber_25time 25 times consecutive scan
kTSI_ConsecutiveScansNumber_26time 26 times consecutive scan
kTSI_ConsecutiveScansNumber_27time 27 times consecutive scan
kTSI_ConsecutiveScansNumber_28time 28 times consecutive scan
kTSI_ConsecutiveScansNumber_29time 29 times consecutive scan
kTSI_ConsecutiveScansNumber_30time 30 times consecutive scan
kTSI_ConsecutiveScansNumber_31time 31 times consecutive scan
kTSI_ConsecutiveScansNumber_32time 32 times consecutive scan
kTSI_ConsecutiveScansNumber_1time Once per electrode.
kTSI_ConsecutiveScansNumber_2time Twice per electrode.
kTSI_ConsecutiveScansNumber_3time 3 times consecutive scan
kTSI_ConsecutiveScansNumber_4time 4 times consecutive scan
kTSI_ConsecutiveScansNumber_5time 5 times consecutive scan
kTSI_ConsecutiveScansNumber_6time 6 times consecutive scan
kTSI_ConsecutiveScansNumber_7time 7 times consecutive scan
kTSI_ConsecutiveScansNumber_8time 8 times consecutive scan
kTSI_ConsecutiveScansNumber_9time 9 times consecutive scan
kTSI_ConsecutiveScansNumber_10time 10 times consecutive scan
kTSI_ConsecutiveScansNumber_11time 11 times consecutive scan
kTSI_ConsecutiveScansNumber_12time 12 times consecutive scan
kTSI_ConsecutiveScansNumber_13time 13 times consecutive scan
kTSI_ConsecutiveScansNumber_14time 14 times consecutive scan
kTSI_ConsecutiveScansNumber_15time 15 times consecutive scan
kTSI_ConsecutiveScansNumber_16time 16 times consecutive scan
kTSI_ConsecutiveScansNumber_17time 17 times consecutive scan
kTSI_ConsecutiveScansNumber_18time 18 times consecutive scan
kTSI_ConsecutiveScansNumber_19time 19 times consecutive scan
kTSI_ConsecutiveScansNumber_20time 20 times consecutive scan
kTSI_ConsecutiveScansNumber_21time 21 times consecutive scan
kTSI_ConsecutiveScansNumber_22time 22 times consecutive scan
kTSI_ConsecutiveScansNumber_23time 23 times consecutive scan
kTSI_ConsecutiveScansNumber_24time 24 times consecutive scan
kTSI_ConsecutiveScansNumber_25time 25 times consecutive scan
kTSI_ConsecutiveScansNumber_26time 26 times consecutive scan
kTSI_ConsecutiveScansNumber_27time 27 times consecutive scan
kTSI_ConsecutiveScansNumber_28time 28 times consecutive scan
kTSI_ConsecutiveScansNumber_29time 29 times consecutive scan
kTSI_ConsecutiveScansNumber_30time 30 times consecutive scan
kTSI_ConsecutiveScansNumber_31time 31 times consecutive scan
kTSI_ConsecutiveScansNumber_32time 32 times consecutive scan
52.3.4.2 enum tsi_electrode_osc_prescaler_t
These constants define the TSI electrode oscillator prescaler in a TSI instance.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1141
TSIv4 Driver
Enumerator
kTSI_ElecOscPrescaler_1div Electrode oscillator frequency divided by 1.
kTSI_ElecOscPrescaler_2div Electrode oscillator frequency divided by 2.
kTSI_ElecOscPrescaler_4div Electrode oscillator frequency divided by 4.
kTSI_ElecOscPrescaler_8div Electrode oscillator frequency divided by 8.
kTSI_ElecOscPrescaler_16div Electrode oscillator frequency divided by 16.
kTSI_ElecOscPrescaler_32div Electrode oscillator frequency divided by 32.
kTSI_ElecOscPrescaler_64div Electrode oscillator frequency divided by 64.
kTSI_ElecOscPrescaler_128div Electrode oscillator frequency divided by 128.
kTSI_ElecOscPrescaler_1div Electrode oscillator frequency divided by 1.
kTSI_ElecOscPrescaler_2div Electrode oscillator frequency divided by 2.
kTSI_ElecOscPrescaler_4div Electrode oscillator frequency divided by 4.
kTSI_ElecOscPrescaler_8div Electrode oscillator frequency divided by 8.
kTSI_ElecOscPrescaler_16div Electrode oscillator frequency divided by 16.
kTSI_ElecOscPrescaler_32div Electrode oscillator frequency divided by 32.
kTSI_ElecOscPrescaler_64div Electrode oscillator frequency divided by 64.
kTSI_ElecOscPrescaler_128div Electrode oscillator frequency divided by 128.
52.3.4.3 enum tsi_analog_mode_t
Set up TSI analog modes in a TSI instance.
Enumerator
kTSI_AnalogModeSel_Capacitive Active TSI capacitive sensing mode.
kTSI_AnalogModeSel_NoiseNoFreqLim Single threshold noise detection mode with no freq. lim-
itation.
kTSI_AnalogModeSel_NoiseFreqLim Single threshold noise detection mode with freq. limitation.
kTSI_AnalogModeSel_AutoNoise Active TSI analog in automatic noise detection mode.
52.3.4.4 enum tsi_reference_osc_charge_current_t
These constants define the TSI Reference oscillator charge current select in a TSI (REFCHRG) instance.
Enumerator
kTSI_RefOscChargeCurrent_2uA Reference oscillator charge current is 2 µA.
kTSI_RefOscChargeCurrent_4uA Reference oscillator charge current is 4 µA.
kTSI_RefOscChargeCurrent_6uA Reference oscillator charge current is 6 µA.
kTSI_RefOscChargeCurrent_8uA Reference oscillator charge current is 8 µA.
kTSI_RefOscChargeCurrent_10uA Reference oscillator charge current is 10 µA.
kTSI_RefOscChargeCurrent_12uA Reference oscillator charge current is 12 µA.
kTSI_RefOscChargeCurrent_14uA Reference oscillator charge current is 14 µA.
1142
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
kTSI_RefOscChargeCurrent_16uA Reference oscillator charge current is 16 µA.
kTSI_RefOscChargeCurrent_18uA Reference oscillator charge current is 18 µA.
kTSI_RefOscChargeCurrent_20uA Reference oscillator charge current is 20 µA.
kTSI_RefOscChargeCurrent_22uA Reference oscillator charge current is 22 µA.
kTSI_RefOscChargeCurrent_24uA Reference oscillator charge current is 24 µA.
kTSI_RefOscChargeCurrent_26uA Reference oscillator charge current is 26 µA.
kTSI_RefOscChargeCurrent_28uA Reference oscillator charge current is 28 µA.
kTSI_RefOscChargeCurrent_30uA Reference oscillator charge current is 30 µA.
kTSI_RefOscChargeCurrent_32uA Reference oscillator charge current is 32 µA.
kTSI_RefOscChargeCurrent_500nA Reference oscillator charge current is 500 µA.
kTSI_RefOscChargeCurrent_1uA Reference oscillator charge current is 1 µA.
kTSI_RefOscChargeCurrent_2uA Reference oscillator charge current is 2 µA.
kTSI_RefOscChargeCurrent_4uA Reference oscillator charge current is 4 µA.
kTSI_RefOscChargeCurrent_8uA Reference oscillator charge current is 8 µA.
kTSI_RefOscChargeCurrent_16uA Reference oscillator charge current is 16 µA.
kTSI_RefOscChargeCurrent_32uA Reference oscillator charge current is 32 µA.
kTSI_RefOscChargeCurrent_64uA Reference oscillator charge current is 64 µA.
52.3.4.5 enum tsi_osc_voltage_rails_t
These bits indicate the oscillator’s voltage rails.
Enumerator
kTSI_OscVolRailsOption_0 DVOLT value option 0, the value may differ on different platforms.
kTSI_OscVolRailsOption_1 DVOLT value option 1, the value may differ on different platforms.
kTSI_OscVolRailsOption_2 DVOLT value option 2, the value may differ on different platforms.
kTSI_OscVolRailsOption_3 DVOLT value option 3, the value may differ on different platforms.
52.3.4.6 enum tsi_external_osc_charge_current_t
These bits indicate the electrode oscillator charge and discharge current value in TSI (EXTCHRG) in-
stance.
Enumerator
kTSI_ExtOscChargeCurrent_2uA External oscillator charge current is 2 µA.
kTSI_ExtOscChargeCurrent_4uA External oscillator charge current is 4 µA.
kTSI_ExtOscChargeCurrent_6uA External oscillator charge current is 6 µA.
kTSI_ExtOscChargeCurrent_8uA External oscillator charge current is 8 µA.
kTSI_ExtOscChargeCurrent_10uA External oscillator charge current is 10 µA.
kTSI_ExtOscChargeCurrent_12uA External oscillator charge current is 12 µA.
kTSI_ExtOscChargeCurrent_14uA External oscillator charge current is 14 µA.
kTSI_ExtOscChargeCurrent_16uA External oscillator charge current is 16 µA.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1143
TSIv4 Driver
kTSI_ExtOscChargeCurrent_18uA External oscillator charge current is 18 µA.
kTSI_ExtOscChargeCurrent_20uA External oscillator charge current is 20 µA.
kTSI_ExtOscChargeCurrent_22uA External oscillator charge current is 22 µA.
kTSI_ExtOscChargeCurrent_24uA External oscillator charge current is 24 µA.
kTSI_ExtOscChargeCurrent_26uA External oscillator charge current is 26 µA.
kTSI_ExtOscChargeCurrent_28uA External oscillator charge current is 28 µA.
kTSI_ExtOscChargeCurrent_30uA External oscillator charge current is 30 µA.
kTSI_ExtOscChargeCurrent_32uA External oscillator charge current is 32 µA.
kTSI_ExtOscChargeCurrent_500nA External oscillator charge current is 500 µA.
kTSI_ExtOscChargeCurrent_1uA External oscillator charge current is 1 µA.
kTSI_ExtOscChargeCurrent_2uA External oscillator charge current is 2 µA.
kTSI_ExtOscChargeCurrent_4uA External oscillator charge current is 4 µA.
kTSI_ExtOscChargeCurrent_8uA External oscillator charge current is 8 µA.
kTSI_ExtOscChargeCurrent_16uA External oscillator charge current is 16 µA.
kTSI_ExtOscChargeCurrent_32uA External oscillator charge current is 32 µA.
kTSI_ExtOscChargeCurrent_64uA External oscillator charge current is 64 µA.
52.3.4.7 enum tsi_series_resistor_t
These bits indicate the electrode RS series resistance for the noise mode in TSI (EXTCHRG) instance.
Enumerator
kTSI_SeriesResistance_32k Series Resistance is 32 kilo ohms.
kTSI_SeriesResistance_187k Series Resistance is 18 7 kilo ohms.
52.3.4.8 enum tsi_filter_bits_t
These bits indicate the count of the filter bits in TSI noise mode EXTCHRG[2:1] bits
Enumerator
kTSI_FilterBits_3 3 filter bits, 8 peaks increments the cnt+1
kTSI_FilterBits_2 2 filter bits, 4 peaks increments the cnt+1
kTSI_FilterBits_1 1 filter bits, 2 peaks increments the cnt+1
kTSI_FilterBits_0 no filter bits,1 peak increments the cnt+1
52.3.4.9 enum tsi_status_flags_t
Enumerator
kTSI_EndOfScanFlag End-Of-Scan flag.
kTSI_OutOfRangeFlag Out-Of-Range flag.
1144
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
kTSI_ExternalElectrodeErrorFlag External electrode error flag.
kTSI_OverrunErrorFlag Overrun error flag.
kTSI_EndOfScanFlag End-Of-Scan flag.
kTSI_OutOfRangeFlag Out-Of-Range flag.
52.3.4.10 enum tsi_interrupt_enable_t
Enumerator
kTSI_GlobalInterruptEnable TSI module global interrupt.
kTSI_OutOfRangeInterruptEnable Out-Of-Range interrupt.
kTSI_EndOfScanInterruptEnable End-Of-Scan interrupt.
kTSI_ErrorInterrruptEnable Error interrupt.
kTSI_GlobalInterruptEnable TSI module global interrupt.
kTSI_OutOfRangeInterruptEnable Out-Of-Range interrupt.
kTSI_EndOfScanInterruptEnable End-Of-Scan interrupt.
52.3.5 Function Documentation
52.3.5.1 void TSI_Init ( TSI_Type ∗base, const tsi_config_t ∗config )
Initializes the peripheral to the targeted state specified by parameter configuration, such as sets prescalers,
number of scans, clocks, delta voltage series resistor, filter bits, reference, and electrode charge current
and threshold.
Parameters
base TSI peripheral base address.
config Pointer to TSI module configuration structure.
Returns
none
52.3.5.2 void TSI_Deinit ( TSI_Type ∗base )
De-initializes the peripheral to default state.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1145
TSIv4 Driver
Parameters
base TSI peripheral base address.
Returns
none
52.3.5.3 void TSI_GetNormalModeDefaultConfig ( tsi_config_t ∗userConfig )
This interface sets userConfig structure to a default value. The configuration structure only includes the
settings for the whole TSI. The user configure is set to these values:
userConfig->prescaler = kTSI_ElecOscPrescaler_2div;
userConfig->extchrg = kTSI_ExtOscChargeCurrent_4uA;
userConfig->refchrg = kTSI_RefOscChargeCurrent_4uA;
userConfig->nscn = kTSI_ConsecutiveScansNumber_10time;
userConfig->mode = kTSI_AnalogModeSel_Capacitive;
userConfig->dvolt = kTSI_OscVolRailsOption_0;
userConfig->resistor = kTSI_SeriesResistance_32k;
userConfig->filter = kTSI_FilterBits_1;
userConfig->thresh = 0U;
userConfig->thresl = 0U;
Parameters
userConfig Pointer to the TSI user configuration structure.
52.3.5.4 void TSI_GetLowPowerModeDefaultConfig ( tsi_config_t ∗userConfig )
This interface sets userConfig structure to a default value. The configuration structure only includes the
settings for the whole TSI. The user configure is set to these values:
userConfig->prescaler = kTSI_ElecOscPrescaler_2div;
userConfig->extchrg = kTSI_ExtOscChargeCurrent_4uA;
userConfig->refchrg = kTSI_RefOscChargeCurrent_4uA;
userConfig->nscn = kTSI_ConsecutiveScansNumber_10time;
userConfig->mode = kTSI_AnalogModeSel_Capacitive;
userConfig->dvolt = kTSI_OscVolRailsOption_0;
userConfig->resistor = kTSI_SeriesResistance_32k;
userConfig->filter = kTSI_FilterBits_1;
userConfig->thresh = 400U;
userConfig->thresl = 0U;
1146
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
Parameters
userConfig Pointer to the TSI user configuration structure.
52.3.5.5 void TSI_Calibrate ( TSI_Type ∗base, tsi_calibration_data_t ∗calBuff )
Calibrates the peripheral to fetch the initial counter value of the enabled electrodes. This API is mostly
used at initial application setup. Call this function after the TSI_Init API and use the calibrated counter
values to set up applications (such as to determine under which counter value we can confirm a touch event
occurs).
Parameters
base TSI peripheral base address.
calBuff Data buffer that store the calibrated counter value.
Returns
none
52.3.5.6 void TSI_EnableInterrupts ( TSI_Type ∗base, uint32_t mask )
Parameters
base TSI peripheral base address.
mask interrupt source The parameter can be combination of the following source if defined:
• kTSI_GlobalInterruptEnable
• kTSI_EndOfScanInterruptEnable
• kTSI_OutOfRangeInterruptEnable
52.3.5.7 void TSI_DisableInterrupts ( TSI_Type ∗base, uint32_t mask )
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1147
TSIv4 Driver
base TSI peripheral base address.
mask interrupt source The parameter can be combination of the following source if defined:
• kTSI_GlobalInterruptEnable
• kTSI_EndOfScanInterruptEnable
• kTSI_OutOfRangeInterruptEnable
52.3.5.8 static uint32_t TSI_GetStatusFlags ( TSI_Type ∗base )[inline],[static]
This function gets the TSI interrupt flags.
Parameters
base TSI peripheral base address.
Returns
The mask of these status flags combination.
52.3.5.9 void TSI_ClearStatusFlags ( TSI_Type ∗base, uint32_t mask )
This function clears the TSI interrupt flag, automatically cleared flags can’t be cleared by this function.
Parameters
base TSI peripheral base address.
mask The status flags to clear.
52.3.5.10 static uint32_t TSI_GetScanTriggerMode ( TSI_Type ∗base )[inline],
[static]
Parameters
base TSI peripheral base address.
Returns
Scan trigger mode.
52.3.5.11 static bool TSI_IsScanInProgress ( TSI_Type ∗base )[inline],[static]
1148
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
Parameters
base TSI peripheral base address.
Returns
True - scan is in progress. False - scan is not in progress.
52.3.5.12 static void TSI_SetElectrodeOSCPrescaler ( TSI_Type ∗base,
tsi_electrode_osc_prescaler_t prescaler )[inline],[static]
Parameters
base TSI peripheral base address.
prescaler Prescaler value.
Returns
none.
52.3.5.13 static void TSI_SetNumberOfScans ( TSI_Type ∗base,
tsi_n_consecutive_scans_t number )[inline],[static]
Parameters
base TSI peripheral base address.
number Number of scans.
Returns
none.
52.3.5.14 static void TSI_EnableModule ( TSI_Type ∗base, bool enable )[inline],
[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1149
TSIv4 Driver
Parameters
base TSI peripheral base address.
enable Choose whether to enable or disable module;
• true Enable TSI module;
• false Disable TSI module;
Returns
none.
52.3.5.15 static void TSI_EnableLowPower ( TSI_Type ∗base, bool enable )[inline],
[static]
This enables the TSI module function in low power modes.
Parameters
base TSI peripheral base address.
enable Choose to enable or disable STOP mode.
• true Enable module in STOP mode;
• false Disable module in STOP mode;
Returns
none.
52.3.5.16 static void TSI_EnableHardwareTriggerScan ( TSI_Type ∗base, bool enable )
[inline],[static]
Parameters
base TSI peripheral base address.
enable Choose to enable hardware trigger or software trigger scan.
• true Enable hardware trigger scan;
• false Enable software trigger scan;
Returns
none.
1150
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
52.3.5.17 static void TSI_StartSoftwareTrigger ( TSI_Type ∗base )[inline],
[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1151
TSIv4 Driver
Parameters
base TSI peripheral base address.
Returns
none.
52.3.5.18 static void TSI_SetMeasuredChannelNumber ( TSI_Type ∗base, uint8_t
channel )[inline],[static]
Parameters
base TSI peripheral base address.
channel Channel number 0 ... 15.
Returns
none.
52.3.5.19 static uint8_t TSI_GetMeasuredChannelNumber ( TSI_Type ∗base )
[inline],[static]
Parameters
base TSI peripheral base address.
Returns
uint8_t Channel number 0 ... 15.
52.3.5.20 static void TSI_EnableDmaTransfer ( TSI_Type ∗base, bool enable )
[inline],[static]
1152
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
Parameters
base TSI peripheral base address.
enable Choose to enable DMA transfer or not.
• true Enable DMA transfer;
• false Disable DMA transfer;
Returns
none.
52.3.5.21 static uint16_t TSI_GetCounter ( TSI_Type ∗base )[inline],[static]
Parameters
base TSI peripheral base address.
Returns
Accumulated scan counter value ticked by the reference clock.
52.3.5.22 static void TSI_SetLowThreshold ( TSI_Type ∗base, uint16_t low_threshold )
[inline],[static]
Parameters
base TSI peripheral base address.
low_threshold Low counter threshold.
Returns
none.
52.3.5.23 static void TSI_SetHighThreshold ( TSI_Type ∗base, uint16_t high_threshold )
[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1153
TSIv4 Driver
Parameters
base TSI peripheral base address.
high_threshold High counter threshold.
Returns
none.
52.3.5.24 static void TSI_SetAnalogMode ( TSI_Type ∗base, tsi_analog_mode_t mode )
[inline],[static]
Parameters
base TSI peripheral base address.
mode Mode value.
Returns
none.
52.3.5.25 static uint8_t TSI_GetNoiseModeResult ( TSI_Type ∗base )[inline],
[static]
Parameters
base TSI peripheral base address.
Returns
Value of the GENCS[MODE] bit-fields.
52.3.5.26 static void TSI_SetReferenceChargeCurrent ( TSI_Type ∗base,
tsi_reference_osc_charge_current_t current )[inline],[static]
1154
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
TSIv4 Driver
Parameters
base TSI peripheral base address.
current The reference oscillator charge current.
Returns
none.
52.3.5.27 static void TSI_SetElectrodeChargeCurrent ( TSI_Type ∗base,
tsi_external_osc_charge_current_t current )[inline],[static]
Parameters
base TSI peripheral base address.
current External electrode charge current.
Returns
none.
52.3.5.28 static void TSI_SetOscVoltageRails ( TSI_Type ∗base, tsi_osc_voltage_rails_t
dvolt )[inline],[static]
Parameters
base TSI peripheral base address.
dvolt The voltage rails.
Returns
none.
52.3.5.29 static void TSI_SetElectrodeSeriesResistor ( TSI_Type ∗base,
tsi_series_resistor_t resistor )[inline],[static]
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1155
TSIv4 Driver
Parameters
base TSI peripheral base address.
resistor Series resistance.
Returns
none.
52.3.5.30 static void TSI_SetFilterBits ( TSI_Type ∗base, tsi_filter_bits_t filter )
[inline],[static]
Parameters
base TSI peripheral base address.
filter Series resistance.
Returns
none.
1156
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 53
UART: Universal Asynchronous Receiver/Transmitter Driver
53.1 Overview
Modules
•UART Driver
•UART FreeRTOS Driver
•UART µCOS/II Driver
•UART µCOS/III Driver
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1157
UART Driver
53.2 UART Driver
53.2.1 Overview
The KSDK provides a peripheral driver for the Universal Asynchronous Receiver/Transmitter (UART)
module of Kinetis devices.
The UART driver includes two parts: functional APIs and transactional APIs.
Functional APIs are used for UART initialization/configuration/operation for optimization/customization
purpose. Using the functional API requires the knowledge of the UART peripheral and know how to
organize functional APIs to meet the application requirements. All functional API use the peripheral base
address as the first parameter. UART functional operation groups provide the functional APIs set.
Transactional APIs can be used to enable the peripheral quickly and in the application if the code size
and performance of transactional APIs can satisfy the requirements. If the code size and performance are
critical requirements, see the transactional API implementation and write custom code. All transactional
APIs use the uart_handle_t as the first parameter. Initialize the handle by calling the UART_Create-
Handle() API.
Transactional APIs support asynchronous transfer, which means that the functions UART_SendNon-
Blocking() and UART_ReceiveNonBlocking() set up an interrupt for data transfer. When the transfer
completes, the upper layer is notified through a callback function with the kStatus_UART_TxIdle and
kStatus_UART_RxIdle.
Transactional receive APIs support the ring buffer. Prepare the memory for the ring buffer and pass in the
start address and size while calling the UART_CreateHandle(). If passing NULL, the ring buffer feature is
disabled. When the ring buffer is enabled, the received data is saved to the ring buffer in the background.
The UART_ReceiveNonBlocking() function first gets data from the ring buffer. If the ring buffer does
not have enough data, the function first returns the data in the ring buffer and then saves the received
data to user memory. When all data is received, the upper layer is informed through a callback with the
kStatus_UART_RxIdle.
If the receive ring buffer is full, the upper layer is informed through a callback with the kStatus_UART-
_RxRingBufferOverrun. In the callback function, the upper layer reads data out from the ring buffer. If
not, the oldest data is overwritten by the new data.
The ring buffer size is specified when creating the handle. Note that one byte is reserved for the ring buffer
maintenance. When creating handle using the following code:
UART_CreateHandle(&handle, UART0, &ringBuffer, 32);
In this example, the buffer size is 32, but only 31 bytes are used for saving data.
53.2.2 Typical use case
53.2.2.1 UART Send/receive using a polling method
uint8_t ch;
1158
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
UART_GetDefaultConfig(&user_config);
user_config.baudRate_Bps = 115200U;
user_config.enableTx =true;
user_config.enableRx =true;
UART_Init(UART1,&user_config,120000000U);
while(1)
{
UART_TransferReceiveBlocking(UART1, &ch, 1);
UART_TransferSendBlocking(UART1, &ch, 1);
}
53.2.2.2 UART Send/receive using an interrupt method
uart_handle_t g_uartHandle;
uart_config_t user_config;
uart_transfer_t sendXfer;
uart_transfer_t receiveXfer;
volatile bool txFinished;
volatile bool rxFinished;
uint8_t sendData[] = [’H’,’e’,’l’,’l’,’o’];
uint8_t receiveData[32];
void UART_UserCallback(uart_handle_t *handle, status_t status, void *userData)
{
userData = userData;
if (kStatus_UART_TxIdle == status)
{
txFinished = true;
}
if (kStatus_UART_RxIdle == status)
{
rxFinished = true;
}
}
void main(void)
{
//...
UART_GetDefaultConfig(&user_config);
user_config.baudRate_Bps = 115200U;
user_config.enableTx =true;
user_config.enableRx =true;
UART_Init(UART1, &user_config, 120000000U);
UART_CreateHandle(&g_uartHandle, UART1, NULL, 0);
UART_SetTransferCallback(&g_uartHandle, UART_UserCallback, NULL);
// Prepare to send.
sendXfer.data = sendData
sendXfer.dataSize =sizeof(sendData)/sizeof(sendData[0]);
txFinished = false;
// Send out.
UART_SendNonBlocking(&g_uartHandle, &sendXfer);
// Wait send finished.
while (!txFinished)
{
}
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1159
UART Driver
// Prepare to receive.
receiveXfer.data = receiveData;
receiveXfer.dataSize =sizeof(receiveData)/sizeof(receiveData[0]);
rxFinished = false;
// Receive.
UART_ReceiveNonBlocking(&g_uartHandle, &receiveXfer, NULL);
// Wait receive finished.
while (!rxFinished)
{
}
// ...
}
53.2.2.3 UART Receive using the ringbuffer feature
#define RING_BUFFER_SIZE 64
#define RX_DATA_SIZE 32
uart_handle_t g_uartHandle;
uart_config_t user_config;
uart_transfer_t sendXfer;
uart_transfer_t receiveXfer;
volatile bool txFinished;
volatile bool rxFinished;
uint8_t receiveData[RX_DATA_SIZE];
uint8_t ringBuffer[RING_BUFFER_SIZE];
void UART_UserCallback(uart_handle_t *handle, status_t status, void *userData)
{
userData = userData;
if (kStatus_UART_RxIdle == status)
{
rxFinished = true;
}
}
void main(void)
{
size_t bytesRead;
//...
UART_GetDefaultConfig(&user_config);
user_config.baudRate_Bps = 115200U;
user_config.enableTx =true;
user_config.enableRx =true;
UART_Init(UART1, &user_config, 120000000U);
UART_CreateHandle(&g_uartHandle, UART1, &ringBuffer, RING_BUFFER_SIZE);
UART_SetTransferCallback(&g_uartHandle, UART_UserCallback, NULL);
// Now the RX is working in background, receive in to ring buffer.
// Prepare to receive.
receiveXfer.data = receiveData;
receiveXfer.dataSize = RX_DATA_SIZE;
rxFinished = false;
// Receive.
UART_ReceiveNonBlocking(&g_uartHandle, &receiveXfer, &bytesRead);
if (bytesRead = RX_DATA_SIZE) /*Have read enough data.
1160
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
{
;
}
else
{
if (bytesRead) /*Received some data, process first.
{
;
}
// Wait receive finished.
while (!rxFinished)
{
}
}
// ...
}
53.2.2.4 UART Send/Receive using the DMA method
uart_handle_t g_uartHandle;
dma_handle_t g_uartTxDmaHandle;
dma_handle_t g_uartRxDmaHandle;
uart_config_t user_config;
uart_transfer_t sendXfer;
uart_transfer_t receiveXfer;
volatile bool txFinished;
volatile bool rxFinished;
uint8_t sendData[] = [’H’,’e’,’l’,’l’,’o’];
uint8_t receiveData[32];
void UART_UserCallback(uart_handle_t *handle, status_t status, void *userData)
{
userData = userData;
if (kStatus_UART_TxIdle == status)
{
txFinished = true;
}
if (kStatus_UART_RxIdle == status)
{
rxFinished = true;
}
}
void main(void)
{
//...
UART_GetDefaultConfig(&user_config);
user_config.baudRate_Bps = 115200U;
user_config.enableTx =true;
user_config.enableRx =true;
UART_Init(UART1, &user_config, 120000000U);
// Set up the DMA
DMAMUX_Init(DMAMUX0);
DMAMUX_SetSource(DMAMUX0, UART_TX_DMA_CHANNEL, UART_TX_DMA_REQUEST);
DMAMUX_EnableChannel(DMAMUX0, UART_TX_DMA_CHANNEL);
DMAMUX_SetSource(DMAMUX0, UART_RX_DMA_CHANNEL, UART_RX_DMA_REQUEST);
DMAMUX_EnableChannel(DMAMUX0, UART_RX_DMA_CHANNEL);
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1161
UART Driver
DMA_Init(DMA0);
/*Create DMA handle.
DMA_CreateHandle(&g_uartTxDmaHandle, DMA0, UART_TX_DMA_CHANNEL);
DMA_CreateHandle(&g_uartRxDmaHandle, DMA0, UART_RX_DMA_CHANNEL);
UART_CreateHandleDMA(&g_uartHandle, UART1, &g_uartTxDmaHandle, &g_uartRxDmaHandle);
UART_SetTransferCallbackDMA(&g_uartDmaHandle, UART_UserCallback, NULL);
// Prepare to send.
sendXfer.data = sendData
sendXfer.dataSize = sizeof(sendData)/sizeof(sendData[0]);
txFinished = false;
// Send out.
UART_SendDMA(&g_uartHandle, &sendXfer);
// Wait send finished.
while (!txFinished)
{
}
// Prepare to receive.
receiveXfer.data = receiveData;
receiveXfer.dataSize = sizeof(receiveData)/sizeof(receiveData[0]);
rxFinished = false;
// Receive.
UART_ReceiveDMA(&g_uartHandle, &receiveXfer, NULL);
// Wait receive finished.
while (!rxFinished)
{
}
// ...
}
Modules
•UART DMA Driver
•UART eDMA Driver
Files
• file fsl_uart.h
Data Structures
• struct uart_config_t
UART configuration structure. More...
• struct uart_transfer_t
UART transfer structure. More...
• struct uart_handle_t
UART handle structure. More...
1162
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
Typedefs
• typedef void(∗uart_transfer_callback_t )(UART_Type ∗base, uart_handle_t ∗handle, status_t sta-
tus, void ∗userData)
UART transfer callback function.
Enumerations
• enum _uart_status {
kStatus_UART_TxBusy = MAKE_STATUS(kStatusGroup_UART, 0),
kStatus_UART_RxBusy = MAKE_STATUS(kStatusGroup_UART, 1),
kStatus_UART_TxIdle = MAKE_STATUS(kStatusGroup_UART, 2),
kStatus_UART_RxIdle = MAKE_STATUS(kStatusGroup_UART, 3),
kStatus_UART_TxWatermarkTooLarge = MAKE_STATUS(kStatusGroup_UART, 4),
kStatus_UART_RxWatermarkTooLarge = MAKE_STATUS(kStatusGroup_UART, 5),
kStatus_UART_FlagCannotClearManually,
kStatus_UART_Error = MAKE_STATUS(kStatusGroup_UART, 7),
kStatus_UART_RxRingBufferOverrun = MAKE_STATUS(kStatusGroup_UART, 8),
kStatus_UART_RxHardwareOverrun = MAKE_STATUS(kStatusGroup_UART, 9),
kStatus_UART_NoiseError = MAKE_STATUS(kStatusGroup_UART, 10),
kStatus_UART_FramingError = MAKE_STATUS(kStatusGroup_UART, 11),
kStatus_UART_ParityError = MAKE_STATUS(kStatusGroup_UART, 12) }
Error codes for the UART driver.
• enum uart_parity_mode_t {
kUART_ParityDisabled = 0x0U,
kUART_ParityEven = 0x2U,
kUART_ParityOdd = 0x3U }
UART parity mode.
• enum uart_stop_bit_count_t {
kUART_OneStopBit = 0U,
kUART_TwoStopBit = 1U }
UART stop bit count.
• enum _uart_interrupt_enable {
kUART_RxActiveEdgeInterruptEnable = (UART_BDH_RXEDGIE_MASK),
kUART_TxDataRegEmptyInterruptEnable = (UART_C2_TIE_MASK << 8),
kUART_TransmissionCompleteInterruptEnable = (UART_C2_TCIE_MASK << 8),
kUART_RxDataRegFullInterruptEnable = (UART_C2_RIE_MASK << 8),
kUART_IdleLineInterruptEnable = (UART_C2_ILIE_MASK << 8),
kUART_RxOverrunInterruptEnable = (UART_C3_ORIE_MASK << 16),
kUART_NoiseErrorInterruptEnable = (UART_C3_NEIE_MASK << 16),
kUART_FramingErrorInterruptEnable = (UART_C3_FEIE_MASK << 16),
kUART_ParityErrorInterruptEnable = (UART_C3_PEIE_MASK << 16) }
UART interrupt configuration structure, default settings all disabled.
• enum _uart_flags {
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1163
UART Driver
kUART_TxDataRegEmptyFlag = (UART_S1_TDRE_MASK),
kUART_TransmissionCompleteFlag = (UART_S1_TC_MASK),
kUART_RxDataRegFullFlag = (UART_S1_RDRF_MASK),
kUART_IdleLineFlag = (UART_S1_IDLE_MASK),
kUART_RxOverrunFlag = (UART_S1_OR_MASK),
kUART_NoiseErrorFlag = (UART_S1_NF_MASK),
kUART_FramingErrorFlag = (UART_S1_FE_MASK),
kUART_ParityErrorFlag = (UART_S1_PF_MASK),
kUART_RxActiveEdgeFlag = (UART_S2_RXEDGIF_MASK << 8),
kUART_RxActiveFlag = (UART_S2_RAF_MASK << 8) }
UART status flags.
Driver version
• #define FSL_UART_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
UART driver version 2.1.0.
Initialization and deinitialization
• void UART_Init (UART_Type ∗base, const uart_config_t ∗config, uint32_t srcClock_Hz)
Initializes a UART instance with user configuration structure and peripheral clock.
• void UART_Deinit (UART_Type ∗base)
Deinitializes a UART instance.
• void UART_GetDefaultConfig (uart_config_t ∗config)
Gets the default configuration structure.
• void UART_SetBaudRate (UART_Type ∗base, uint32_t baudRate_Bps, uint32_t srcClock_Hz)
Sets the UART instance baud rate.
Status
• uint32_t UART_GetStatusFlags (UART_Type ∗base)
Get UART status flags.
• status_t UART_ClearStatusFlags (UART_Type ∗base, uint32_t mask)
Clears status flags with the provided mask.
Interrupts
• void UART_EnableInterrupts (UART_Type ∗base, uint32_t mask)
Enables UART interrupts according to the provided mask.
• void UART_DisableInterrupts (UART_Type ∗base, uint32_t mask)
Disables the UART interrupts according to the provided mask.
• uint32_t UART_GetEnabledInterrupts (UART_Type ∗base)
Gets the enabled UART interrupts.
1164
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
Bus Operations
• static void UART_EnableTx (UART_Type ∗base, bool enable)
Enables or disables the UART transmitter.
• static void UART_EnableRx (UART_Type ∗base, bool enable)
Enables or disables the UART receiver.
• static void UART_WriteByte (UART_Type ∗base, uint8_t data)
Writes to the TX register.
• static uint8_t UART_ReadByte (UART_Type ∗base)
Reads the RX register directly.
• void UART_WriteBlocking (UART_Type ∗base, const uint8_t ∗data, size_t length)
Writes to the TX register using a blocking method.
• status_t UART_ReadBlocking (UART_Type ∗base, uint8_t ∗data, size_t length)
Read RX data register using a blocking method.
Transactional
• void UART_TransferCreateHandle (UART_Type ∗base, uart_handle_t ∗handle, uart_transfer_-
callback_t callback, void ∗userData)
Initializes the UART handle.
• void UART_TransferStartRingBuffer (UART_Type ∗base, uart_handle_t ∗handle, uint8_t ∗ring-
Buffer, size_t ringBufferSize)
Sets up the RX ring buffer.
• void UART_TransferStopRingBuffer (UART_Type ∗base, uart_handle_t ∗handle)
Aborts the background transfer and uninstalls the ring buffer.
• status_t UART_TransferSendNonBlocking (UART_Type ∗base, uart_handle_t ∗handle, uart_-
transfer_t ∗xfer)
Transmits a buffer of data using the interrupt method.
• void UART_TransferAbortSend (UART_Type ∗base, uart_handle_t ∗handle)
Aborts the interrupt driven data transmit.
• status_t UART_TransferGetSendCount (UART_Type ∗base, uart_handle_t ∗handle, uint32_t
∗count)
Get the number of bytes that have been written to UART TX register.
• status_t UART_TransferReceiveNonBlocking (UART_Type ∗base, uart_handle_t ∗handle, uart_-
transfer_t ∗xfer, size_t ∗receivedBytes)
Receives a buffer of data using an interrupt method.
• void UART_TransferAbortReceive (UART_Type ∗base, uart_handle_t ∗handle)
Aborts the interrupt-driven data receiving.
• status_t UART_TransferGetReceiveCount (UART_Type ∗base, uart_handle_t ∗handle, uint32_-
t∗count)
Get the number of bytes that have been received.
• void UART_TransferHandleIRQ (UART_Type ∗base, uart_handle_t ∗handle)
UART IRQ handle function.
• void UART_TransferHandleErrorIRQ (UART_Type ∗base, uart_handle_t ∗handle)
UART Error IRQ handle function.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1165
UART Driver
53.2.3 Data Structure Documentation
53.2.3.1 struct uart_config_t
Data Fields
• uint32_t baudRate_Bps
UART baud rate.
•uart_parity_mode_t parityMode
Parity mode, disabled (default), even, odd.
• bool enableTx
Enable TX.
• bool enableRx
Enable RX.
53.2.3.2 struct uart_transfer_t
Data Fields
• uint8_t ∗data
The buffer of data to be transfer.
• size_t dataSize
The byte count to be transfer.
53.2.3.2.0.12 Field Documentation
53.2.3.2.0.12.1 uint8_t∗uart_transfer_t::data
53.2.3.2.0.12.2 size_t uart_transfer_t::dataSize
53.2.3.3 struct _uart_handle
Data Fields
• uint8_t ∗volatile txData
Address of remaining data to send.
• volatile size_t txDataSize
Size of the remaining data to send.
• size_t txDataSizeAll
Size of the data to send out.
• uint8_t ∗volatile rxData
Address of remaining data to receive.
• volatile size_t rxDataSize
Size of the remaining data to receive.
• size_t rxDataSizeAll
Size of the data to receive.
• uint8_t ∗rxRingBuffer
Start address of the receiver ring buffer.
• size_t rxRingBufferSize
1166
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
Size of the ring buffer.
• volatile uint16_t rxRingBufferHead
Index for the driver to store received data into ring buffer.
• volatile uint16_t rxRingBufferTail
Index for the user to get data from the ring buffer.
•uart_transfer_callback_t callback
Callback function.
• void ∗userData
UART callback function parameter.
• volatile uint8_t txState
TX transfer state.
• volatile uint8_t rxState
RX transfer state.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1167
UART Driver
53.2.3.3.0.13 Field Documentation
53.2.3.3.0.13.1 uint8_t∗volatile uart_handle_t::txData
53.2.3.3.0.13.2 volatile size_t uart_handle_t::txDataSize
53.2.3.3.0.13.3 size_t uart_handle_t::txDataSizeAll
53.2.3.3.0.13.4 uint8_t∗volatile uart_handle_t::rxData
53.2.3.3.0.13.5 volatile size_t uart_handle_t::rxDataSize
53.2.3.3.0.13.6 size_t uart_handle_t::rxDataSizeAll
53.2.3.3.0.13.7 uint8_t∗uart_handle_t::rxRingBuffer
53.2.3.3.0.13.8 size_t uart_handle_t::rxRingBufferSize
53.2.3.3.0.13.9 volatile uint16_t uart_handle_t::rxRingBufferHead
53.2.3.3.0.13.10 volatile uint16_t uart_handle_t::rxRingBufferTail
53.2.3.3.0.13.11 uart_transfer_callback_t uart_handle_t::callback
53.2.3.3.0.13.12 void∗uart_handle_t::userData
53.2.3.3.0.13.13 volatile uint8_t uart_handle_t::txState
53.2.4 Macro Definition Documentation
53.2.4.1 #define FSL_UART_DRIVER_VERSION (MAKE_VERSION(2, 1, 0))
53.2.5 Typedef Documentation
53.2.5.1 typedef void(∗uart_transfer_callback_t)(UART_Type ∗base, uart_handle_t
∗handle, status_t status, void ∗userData)
53.2.6 Enumeration Type Documentation
53.2.6.1 enum _uart_status
Enumerator
kStatus_UART_TxBusy Transmitter is busy.
kStatus_UART_RxBusy Receiver is busy.
kStatus_UART_TxIdle UART transmitter is idle.
kStatus_UART_RxIdle UART receiver is idle.
kStatus_UART_TxWatermarkTooLarge TX FIFO watermark too large.
1168
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
kStatus_UART_RxWatermarkTooLarge RX FIFO watermark too large.
kStatus_UART_FlagCannotClearManually UART flag can’t be manually cleared.
kStatus_UART_Error Error happens on UART.
kStatus_UART_RxRingBufferOverrun UART RX software ring buffer overrun.
kStatus_UART_RxHardwareOverrun UART RX receiver overrun.
kStatus_UART_NoiseError UART noise error.
kStatus_UART_FramingError UART framing error.
kStatus_UART_ParityError UART parity error.
53.2.6.2 enum uart_parity_mode_t
Enumerator
kUART_ParityDisabled Parity disabled.
kUART_ParityEven Parity enabled, type even, bit setting: PE|PT = 10.
kUART_ParityOdd Parity enabled, type odd, bit setting: PE|PT = 11.
53.2.6.3 enum uart_stop_bit_count_t
Enumerator
kUART_OneStopBit One stop bit.
kUART_TwoStopBit Two stop bits.
53.2.6.4 enum _uart_interrupt_enable
This structure contains the settings for all of the UART interrupt configurations.
Enumerator
kUART_RxActiveEdgeInterruptEnable RX active edge interrupt.
kUART_TxDataRegEmptyInterruptEnable Transmit data register empty interrupt.
kUART_TransmissionCompleteInterruptEnable Transmission complete interrupt.
kUART_RxDataRegFullInterruptEnable Receiver data register full interrupt.
kUART_IdleLineInterruptEnable Idle line interrupt.
kUART_RxOverrunInterruptEnable Receiver overrun interrupt.
kUART_NoiseErrorInterruptEnable Noise error flag interrupt.
kUART_FramingErrorInterruptEnable Framing error flag interrupt.
kUART_ParityErrorInterruptEnable Parity error flag interrupt.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1169
UART Driver
53.2.6.5 enum _uart_flags
This provides constants for the UART status flags for use in the UART functions.
Enumerator
kUART_TxDataRegEmptyFlag TX data register empty flag.
kUART_TransmissionCompleteFlag Transmission complete flag.
kUART_RxDataRegFullFlag RX data register full flag.
kUART_IdleLineFlag Idle line detect flag.
kUART_RxOverrunFlag RX overrun flag.
kUART_NoiseErrorFlag RX takes 3 samples of each received bit. If any of these samples differ,
noise flag sets
kUART_FramingErrorFlag Frame error flag, sets if logic 0 was detected where stop bit expected.
kUART_ParityErrorFlag If parity enabled, sets upon parity error detection.
kUART_RxActiveEdgeFlag RX pin active edge interrupt flag, sets when active edge detected.
kUART_RxActiveFlag Receiver Active Flag (RAF), sets at beginning of valid start bit.
53.2.7 Function Documentation
53.2.7.1 void UART_Init ( UART_Type ∗base, const uart_config_t ∗config, uint32_t
srcClock_Hz )
This function configures the UART module with the user-defined settings. The user can configure the
configuration structure and also get the default configuration by using the UART_GetDefaultConfig()
function. Example below shows how to use this API to configure UART.
uart_config_t uartConfig;
uartConfig.baudRate_Bps = 115200U;
uartConfig.parityMode =kUART_ParityDisabled;
uartConfig.stopBitCount = kUART_OneStopBit;
uartConfig.txFifoWatermark = 0;
uartConfig.rxFifoWatermark = 1;
UART_Init(UART1, &uartConfig, 20000000U);
Parameters
base UART peripheral base address.
config Pointer to user-defined configuration structure.
srcClock_Hz UART clock source frequency in HZ.
53.2.7.2 void UART_Deinit ( UART_Type ∗base )
This function waits for TX complete, disables TX and RX, and disables the UART clock.
1170
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
Parameters
base UART peripheral base address.
53.2.7.3 void UART_GetDefaultConfig ( uart_config_t ∗config )
This function initializes the UART configuration structure to a default value. The default values are: uart-
Config->baudRate_Bps = 115200U; uartConfig->bitCountPerChar = kUART_8BitsPerChar; uartConfig-
>parityMode = kUART_ParityDisabled; uartConfig->stopBitCount = kUART_OneStopBit; uartConfig-
>txFifoWatermark = 0; uartConfig->rxFifoWatermark = 1; uartConfig->enableTx = false; uartConfig-
>enableRx = false;
Parameters
config Pointer to configuration structure.
53.2.7.4 void UART_SetBaudRate ( UART_Type ∗base, uint32_t baudRate_Bps, uint32_t
srcClock_Hz )
This function configures the UART module baud rate. This function is used to update the UART module
baud rate after the UART module is initialized by the UART_Init.
UART_SetBaudRate(UART1, 115200U, 20000000U);
Parameters
base UART peripheral base address.
baudRate_Bps UART baudrate to be set.
srcClock_Hz UART clock source freqency in HZ.
53.2.7.5 uint32_t UART_GetStatusFlags ( UART_Type ∗base )
This function get all UART status flags, the flags are returned as the logical OR value of the enumerators
_uart_flags. To check specific status, compare the return value with enumerators in _uart_flags. For
example, to check whether the TX is empty:
if (kUART_TxDataRegEmptyFlag &UART_GetStatusFlags(UART1))
{
...
}
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1171
UART Driver
Parameters
base UART peripheral base address.
Returns
UART status flags which are ORed by the enumerators in the _uart_flags.
53.2.7.6 status_t UART_ClearStatusFlags ( UART_Type ∗base, uint32_t mask )
This function clears UART status flags with a provided mask. Automatically cleared flag can’t be cleared
by this function. Some flags can only be cleared or set by hardware itself. These flags are: kUAR-
T_TxDataRegEmptyFlag, kUART_TransmissionCompleteFlag, kUART_RxDataRegFullFlag, kUART_-
RxActiveFlag, kUART_NoiseErrorInRxDataRegFlag, kUART_ParityErrorInRxDataRegFlag, kUART_-
TxFifoEmptyFlag,kUART_RxFifoEmptyFlag Note: This API should be called when the Tx/Rx is idle,
otherwise it takes no effects.
Parameters
base UART peripheral base address.
mask The status flags to be cleared, it is logical OR value of _uart_flags.
Return values
kStatus_UART_Flag-
CannotClearManually
The flag can’t be cleared by this function but it is cleared automatically by
hardware.
kStatus_Success Status in the mask are cleared.
53.2.7.7 void UART_EnableInterrupts ( UART_Type ∗base, uint32_t mask )
This function enables the UART interrupts according to the provided mask. The mask is a logical OR of
enumeration members. See _uart_interrupt_enable. For example, to enable TX empty interrupt and RX
full interrupt:
UART_EnableInterrupts(UART1,
kUART_TxDataRegEmptyInterruptEnable |
kUART_RxDataRegFullInterruptEnable);
1172
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
Parameters
base UART peripheral base address.
mask The interrupts to enable. Logical OR of _uart_interrupt_enable.
53.2.7.8 void UART_DisableInterrupts ( UART_Type ∗base, uint32_t mask )
This function disables the UART interrupts according to the provided mask. The mask is a logical OR of
enumeration members. See _uart_interrupt_enable. For example, to disable TX empty interrupt and RX
full interrupt:
UART_DisableInterrupts(UART1,
kUART_TxDataRegEmptyInterruptEnable |
kUART_RxDataRegFullInterruptEnable);
Parameters
base UART peripheral base address.
mask The interrupts to disable. Logical OR of _uart_interrupt_enable.
53.2.7.9 uint32_t UART_GetEnabledInterrupts ( UART_Type ∗base )
This function gets the enabled UART interrupts. The enabled interrupts are returned as the logical O-
R value of the enumerators _uart_interrupt_enable. To check specific interrupts enable status, compare
the return value with enumerators in _uart_interrupt_enable. For example, to check whether TX empty
interrupt is enabled:
uint32_t enabledInterrupts = UART_GetEnabledInterrupts(UART1);
if (kUART_TxDataRegEmptyInterruptEnable & enabledInterrupts)
{
...
}
Parameters
base UART peripheral base address.
Returns
UART interrupt flags which are logical OR of the enumerators in _uart_interrupt_enable.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1173
UART Driver
53.2.7.10 static void UART_EnableTx ( UART_Type ∗base, bool enable )[inline],
[static]
This function enables or disables the UART transmitter.
1174
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
Parameters
base UART peripheral base address.
enable True to enable, false to disable.
53.2.7.11 static void UART_EnableRx ( UART_Type ∗base, bool enable )[inline],
[static]
This function enables or disables the UART receiver.
Parameters
base UART peripheral base address.
enable True to enable, false to disable.
53.2.7.12 static void UART_WriteByte ( UART_Type ∗base, uint8_t data )[inline],
[static]
This function writes data to the TX register directly. The upper layer must ensure that the TX register is
empty or TX FIFO has empty room before calling this function.
Parameters
base UART peripheral base address.
data The byte to write.
53.2.7.13 static uint8_t UART_ReadByte ( UART_Type ∗base )[inline],[static]
This function reads data from the TX register directly. The upper layer must ensure that the RX register is
full or that the TX FIFO has data before calling this function.
Parameters
base UART peripheral base address.
Returns
The byte read from UART data register.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1175
UART Driver
53.2.7.14 void UART_WriteBlocking ( UART_Type ∗base, const uint8_t ∗data, size_t
length )
This function polls the TX register, waits for the TX register to be empty or for the TX FIFO to have room
and writes data to the TX buffer.
Note
This function does not check whether all the data has been sent out to the bus. Before disabling the
TX, check kUART_TransmissionCompleteFlag to ensure that the TX is finished.
Parameters
base UART peripheral base address.
data Start address of the data to write.
length Size of the data to write.
53.2.7.15 status_t UART_ReadBlocking ( UART_Type ∗base, uint8_t ∗data, size_t
length )
This function polls the RX register, waits for the RX register to be full or for RX FIFO to have data and
read data from the TX register.
Parameters
base UART peripheral base address.
data Start address of the buffer to store the received data.
length Size of the buffer.
Return values
kStatus_UART_Rx-
HardwareOverrun
Receiver overrun happened while receiving data.
kStatus_UART_Noise-
Error
Noise error happened while receiving data.
1176
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
kStatus_UART_Framing-
Error
Framing error happened while receiving data.
kStatus_UART_Parity-
Error
Parity error happened while receiving data.
kStatus_Success Successfully received all data.
53.2.7.16 void UART_TransferCreateHandle ( UART_Type ∗base, uart_handle_t ∗handle,
uart_transfer_callback_t callback, void ∗userData )
This function initializes the UART handle which can be used for other UART transactional APIs. Usually,
for a specified UART instance, call this API once to get the initialized handle.
Parameters
base UART peripheral base address.
handle UART handle pointer.
callback The callback function.
userData The parameter of the callback function.
53.2.7.17 void UART_TransferStartRingBuffer ( UART_Type ∗base, uart_handle_t ∗
handle, uint8_t ∗ringBuffer, size_t ringBufferSize )
This function sets up the RX ring buffer to a specific UART handle.
When the RX ring buffer is used, data received are stored into the ring buffer even when the user doesn’t
call the UART_TransferReceiveNonBlocking() API. If there is already data received in the ring buffer, the
user can get the received data from the ring buffer directly.
Note
When using the RX ring buffer, one byte is reserved for internal use. In other words, if ring-
BufferSize is 32, then only 31 bytes are used for saving data.
Parameters
base UART peripheral base address.
handle UART handle pointer.
ringBuffer Start address of the ring buffer for background receiving. Pass NULL to disable the
ring buffer.
ringBufferSize size of the ring buffer.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1177
UART Driver
53.2.7.18 void UART_TransferStopRingBuffer ( UART_Type ∗base, uart_handle_t ∗
handle )
This function aborts the background transfer and uninstalls the ring buffer.
1178
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
Parameters
base UART peripheral base address.
handle UART handle pointer.
53.2.7.19 status_t UART_TransferSendNonBlocking ( UART_Type ∗base, uart_handle_t
∗handle, uart_transfer_t ∗xfer )
This function sends data using an interrupt method. This is a non-blocking function, which returns directly
without waiting for all data to be written to the TX register. When all data is written to the TX register
in the ISR, the UART driver calls the callback function and passes the kStatus_UART_TxIdle as status
parameter.
Note
The kStatus_UART_TxIdle is passed to the upper layer when all data is written to the TX register.
However it does not ensure that all data are sent out. Before disabling the TX, check the kUART_-
TransmissionCompleteFlag to ensure that the TX is finished.
Parameters
base UART peripheral base address.
handle UART handle pointer.
xfer UART transfer structure. See uart_transfer_t.
Return values
kStatus_Success Successfully start the data transmission.
kStatus_UART_TxBusy Previous transmission still not finished, data not all written to TX register
yet.
kStatus_InvalidArgument Invalid argument.
53.2.7.20 void UART_TransferAbortSend ( UART_Type ∗base, uart_handle_t ∗handle )
This function aborts the interrupt driven data sending. The user can get the remainBytes to find out how
many bytes are still not sent out.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1179
UART Driver
Parameters
base UART peripheral base address.
handle UART handle pointer.
53.2.7.21 status_t UART_TransferGetSendCount ( UART_Type ∗base, uart_handle_t ∗
handle, uint32_t ∗count )
This function gets the number of bytes that have been written to UART TX register by interrupt method.
Parameters
base UART peripheral base address.
handle UART handle pointer.
count Send bytes count.
Return values
kStatus_NoTransferIn-
Progress
No send in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
53.2.7.22 status_t UART_TransferReceiveNonBlocking ( UART_Type ∗base,
uart_handle_t ∗handle, uart_transfer_t ∗xfer, size_t ∗receivedBytes )
This function receives data using an interrupt method. This is a non-blocking function, which returns
without waiting for all data to be received. If the RX ring buffer is used and not empty, the data in the ring
buffer is copied and the parameter receivedBytes shows how many bytes are copied from the ring
buffer. After copying, if the data in the ring buffer is not enough to read, the receive request is saved by the
UART driver. When the new data arrives, the receive request is serviced first. When all data is received,
the UART driver notifies the upper layer through a callback function and passes the status parameter k-
Status_UART_RxIdle. For example, the upper layer needs 10 bytes but there are only 5 bytes in the ring
buffer. The 5 bytes are copied to the xfer->data and this function returns with the parameter received-
Bytes set to 5. For the left 5 bytes, newly arrived data is saved from the xfer->data[5]. When 5 bytes
are received, the UART driver notifies the upper layer. If the RX ring buffer is not enabled, this function
enables the RX and RX interrupt to receive data to the xfer->data. When all data is received, the upper
layer is notified.
1180
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
Parameters
base UART peripheral base address.
handle UART handle pointer.
xfer UART transfer structure, refer to uart_transfer_t.
receivedBytes Bytes received from the ring buffer directly.
Return values
kStatus_Success Successfully queue the transfer into transmit queue.
kStatus_UART_RxBusy Previous receive request is not finished.
kStatus_InvalidArgument Invalid argument.
53.2.7.23 void UART_TransferAbortReceive ( UART_Type ∗base, uart_handle_t ∗handle
)
This function aborts the interrupt-driven data receiving. The user can get the remainBytes to know how
many bytes not received yet.
Parameters
base UART peripheral base address.
handle UART handle pointer.
53.2.7.24 status_t UART_TransferGetReceiveCount ( UART_Type ∗base, uart_handle_t ∗
handle, uint32_t ∗count )
This function gets the number of bytes that have been received.
Parameters
base UART peripheral base address.
handle UART handle pointer.
count Receive bytes count.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1181
UART Driver
Return values
kStatus_NoTransferIn-
Progress
No receive in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
53.2.7.25 void UART_TransferHandleIRQ ( UART_Type ∗base, uart_handle_t ∗handle )
This function handles the UART transmit and receive IRQ request.
Parameters
base UART peripheral base address.
handle UART handle pointer.
53.2.7.26 void UART_TransferHandleErrorIRQ ( UART_Type ∗base, uart_handle_t ∗
handle )
This function handle the UART error IRQ request.
Parameters
base UART peripheral base address.
handle UART handle pointer.
1182
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
53.2.8 UART DMA Driver
53.2.8.1 Overview
Files
• file fsl_uart_dma.h
Data Structures
• struct uart_dma_handle_t
UART DMA handle. More...
Typedefs
• typedef void(∗uart_dma_transfer_callback_t )(UART_Type ∗base, uart_dma_handle_t ∗handle,
status_t status, void ∗userData)
UART transfer callback function.
EDMA transactional
• void UART_TransferCreateHandleDMA (UART_Type ∗base, uart_dma_handle_t ∗handle, uart_-
dma_transfer_callback_t callback, void ∗userData, dma_handle_t ∗txDmaHandle, dma_handle_t
∗rxDmaHandle)
Initializes the UART handle which is used in transactional functions and sets the callback.
• status_t UART_TransferSendDMA (UART_Type ∗base, uart_dma_handle_t ∗handle, uart_-
transfer_t ∗xfer)
Sends data using DMA.
• status_t UART_TransferReceiveDMA (UART_Type ∗base, uart_dma_handle_t ∗handle, uart_-
transfer_t ∗xfer)
Receives data using DMA.
• void UART_TransferAbortSendDMA (UART_Type ∗base, uart_dma_handle_t ∗handle)
Aborts the send data using DMA.
• void UART_TransferAbortReceiveDMA (UART_Type ∗base, uart_dma_handle_t ∗handle)
Aborts the received data using DMA.
• status_t UART_TransferGetSendCountDMA (UART_Type ∗base, uart_dma_handle_t ∗handle,
uint32_t ∗count)
Get the number of bytes that have been written to UART TX register.
• status_t UART_TransferGetReceiveCountDMA (UART_Type ∗base, uart_dma_handle_t ∗handle,
uint32_t ∗count)
Get the number of bytes that have been received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1183
UART Driver
53.2.8.2 Data Structure Documentation
53.2.8.2.1 struct _uart_dma_handle
Data Fields
• UART_Type ∗base
UART peripheral base address.
•uart_dma_transfer_callback_t callback
Callback function.
• void ∗userData
UART callback function parameter.
• size_t rxDataSizeAll
Size of the data to receive.
• size_t txDataSizeAll
Size of the data to send out.
•dma_handle_t ∗txDmaHandle
The DMA TX channel used.
•dma_handle_t ∗rxDmaHandle
The DMA RX channel used.
• volatile uint8_t txState
TX transfer state.
• volatile uint8_t rxState
RX transfer state.
1184
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
53.2.8.2.1.1 Field Documentation
53.2.8.2.1.1.1 UART_Type∗uart_dma_handle_t::base
53.2.8.2.1.1.2 uart_dma_transfer_callback_t uart_dma_handle_t::callback
53.2.8.2.1.1.3 void∗uart_dma_handle_t::userData
53.2.8.2.1.1.4 size_t uart_dma_handle_t::rxDataSizeAll
53.2.8.2.1.1.5 size_t uart_dma_handle_t::txDataSizeAll
53.2.8.2.1.1.6 dma_handle_t∗uart_dma_handle_t::txDmaHandle
53.2.8.2.1.1.7 dma_handle_t∗uart_dma_handle_t::rxDmaHandle
53.2.8.2.1.1.8 volatile uint8_t uart_dma_handle_t::txState
53.2.8.3 Typedef Documentation
53.2.8.3.1 typedef void(∗uart_dma_transfer_callback_t)(UART_Type ∗base, uart_dma_handle_t
∗handle, status_t status, void ∗userData)
53.2.8.4 Function Documentation
53.2.8.4.1 void UART_TransferCreateHandleDMA ( UART_Type ∗base, uart_dma_handle_t ∗
handle, uart_dma_transfer_callback_t callback, void ∗userData, dma_handle_t ∗
txDmaHandle, dma_handle_t ∗rxDmaHandle )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1185
UART Driver
Parameters
base UART peripheral base address.
handle Pointer to uart_dma_handle_t structure.
callback UART callback, NULL means no callback.
userData User callback function data.
rxDmaHandle User requested DMA handle for RX DMA transfer.
txDmaHandle User requested DMA handle for TX DMA transfer.
53.2.8.4.2 status_t UART_TransferSendDMA ( UART_Type ∗base, uart_dma_handle_t ∗handle,
uart_transfer_t ∗xfer )
This function sends data using DMA. This is non-blocking function, which returns right away. When all
data is sent, the send callback function is called.
Parameters
base UART peripheral base address.
handle UART handle pointer.
xfer UART DMA transfer structure. See uart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_UART_TxBusy Previous transfer on going.
kStatus_InvalidArgument Invalid argument.
53.2.8.4.3 status_t UART_TransferReceiveDMA ( UART_Type ∗base, uart_dma_handle_t ∗
handle, uart_transfer_t ∗xfer )
This function receives data using DMA. This is non-blocking function, which returns right away. When
all data is received, the receive callback function is called.
Parameters
1186
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
base UART peripheral base address.
handle Pointer to uart_dma_handle_t structure.
xfer UART DMA transfer structure. See uart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_UART_RxBusy Previous transfer on going.
kStatus_InvalidArgument Invalid argument.
53.2.8.4.4 void UART_TransferAbortSendDMA ( UART_Type ∗base, uart_dma_handle_t ∗handle
)
This function aborts the sent data using DMA.
Parameters
base UART peripheral base address.
handle Pointer to uart_dma_handle_t structure.
53.2.8.4.5 void UART_TransferAbortReceiveDMA ( UART_Type ∗base, uart_dma_handle_t ∗
handle )
This function abort receive data which using DMA.
Parameters
base UART peripheral base address.
handle Pointer to uart_dma_handle_t structure.
53.2.8.4.6 status_t UART_TransferGetSendCountDMA ( UART_Type ∗base, uart_dma_handle_t
∗handle, uint32_t ∗count )
This function gets the number of bytes that have been written to UART TX register by DMA.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1187
UART Driver
Parameters
base UART peripheral base address.
handle UART handle pointer.
count Send bytes count.
Return values
kStatus_NoTransferIn-
Progress
No send in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
53.2.8.4.7 status_t UART_TransferGetReceiveCountDMA ( UART_Type ∗base,
uart_dma_handle_t ∗handle, uint32_t ∗count )
This function gets the number of bytes that have been received.
Parameters
base UART peripheral base address.
handle UART handle pointer.
count Receive bytes count.
Return values
kStatus_NoTransferIn-
Progress
No receive in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
1188
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
53.2.9 UART eDMA Driver
53.2.9.1 Overview
Files
• file fsl_uart_edma.h
Data Structures
• struct uart_edma_handle_t
UART eDMA handle. More...
Typedefs
• typedef void(∗uart_edma_transfer_callback_t )(UART_Type ∗base, uart_edma_handle_t ∗handle,
status_t status, void ∗userData)
UART transfer callback function.
eDMA transactional
• void UART_TransferCreateHandleEDMA (UART_Type ∗base, uart_edma_handle_t ∗handle, uart-
_edma_transfer_callback_t callback, void ∗userData, edma_handle_t ∗txEdmaHandle, edma_-
handle_t ∗rxEdmaHandle)
Initializes the UART handle which is used in transactional functions.
• status_t UART_SendEDMA (UART_Type ∗base, uart_edma_handle_t ∗handle, uart_transfer_-
t∗xfer)
Sends data using eDMA.
• status_t UART_ReceiveEDMA (UART_Type ∗base, uart_edma_handle_t ∗handle, uart_transfer_t
∗xfer)
Receive data using eDMA.
• void UART_TransferAbortSendEDMA (UART_Type ∗base, uart_edma_handle_t ∗handle)
Aborts the sent data using eDMA.
• void UART_TransferAbortReceiveEDMA (UART_Type ∗base, uart_edma_handle_t ∗handle)
Aborts the receive data using eDMA.
• status_t UART_TransferGetSendCountEDMA (UART_Type ∗base, uart_edma_handle_t ∗handle,
uint32_t ∗count)
Get the number of bytes that have been written to UART TX register.
• status_t UART_TransferGetReceiveCountEDMA (UART_Type ∗base, uart_edma_handle_-
t∗handle, uint32_t ∗count)
Get the number of bytes that have been received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1189
UART Driver
53.2.9.2 Data Structure Documentation
53.2.9.2.1 struct _uart_edma_handle
Data Fields
•uart_edma_transfer_callback_t callback
Callback function.
• void ∗userData
UART callback function parameter.
• size_t rxDataSizeAll
Size of the data to receive.
• size_t txDataSizeAll
Size of the data to send out.
•edma_handle_t ∗txEdmaHandle
The eDMA TX channel used.
•edma_handle_t ∗rxEdmaHandle
The eDMA RX channel used.
• volatile uint8_t txState
TX transfer state.
• volatile uint8_t rxState
RX transfer state.
53.2.9.2.1.1 Field Documentation
53.2.9.2.1.1.1 uart_edma_transfer_callback_t uart_edma_handle_t::callback
53.2.9.2.1.1.2 void∗uart_edma_handle_t::userData
53.2.9.2.1.1.3 size_t uart_edma_handle_t::rxDataSizeAll
53.2.9.2.1.1.4 size_t uart_edma_handle_t::txDataSizeAll
53.2.9.2.1.1.5 edma_handle_t∗uart_edma_handle_t::txEdmaHandle
53.2.9.2.1.1.6 edma_handle_t∗uart_edma_handle_t::rxEdmaHandle
53.2.9.2.1.1.7 volatile uint8_t uart_edma_handle_t::txState
53.2.9.3 Typedef Documentation
53.2.9.3.1 typedef void(∗uart_edma_transfer_callback_t)(UART_Type ∗base, uart_edma_handle_t
∗handle, status_t status, void ∗userData)
53.2.9.4 Function Documentation
53.2.9.4.1 void UART_TransferCreateHandleEDMA ( UART_Type ∗base, uart_edma_handle_t ∗
handle, uart_edma_transfer_callback_t callback, void ∗userData, edma_handle_t ∗
txEdmaHandle, edma_handle_t ∗rxEdmaHandle )
1190
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
Parameters
base UART peripheral base address.
handle Pointer to uart_edma_handle_t structure.
callback UART callback, NULL means no callback.
userData User callback function data.
rxEdmaHandle User requested DMA handle for RX DMA transfer.
txEdmaHandle User requested DMA handle for TX DMA transfer.
53.2.9.4.2 status_t UART_SendEDMA ( UART_Type ∗base, uart_edma_handle_t ∗handle,
uart_transfer_t ∗xfer )
This function sends data using eDMA. This is a non-blocking function, which returns right away. When
all data is sent, the send callback function is called.
Parameters
base UART peripheral base address.
handle UART handle pointer.
xfer UART eDMA transfer structure. See uart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_UART_TxBusy Previous transfer on going.
kStatus_InvalidArgument Invalid argument.
53.2.9.4.3 status_t UART_ReceiveEDMA ( UART_Type ∗base, uart_edma_handle_t ∗handle,
uart_transfer_t ∗xfer )
This function receives data using eDMA. This is a non-blocking function, which returns right away. When
all data is received, the receive callback function is called.
Parameters
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1191
UART Driver
base UART peripheral base address.
handle Pointer to uart_edma_handle_t structure.
xfer UART eDMA transfer structure. See uart_transfer_t.
Return values
kStatus_Success if succeed, others failed.
kStatus_UART_RxBusy Previous transfer on going.
kStatus_InvalidArgument Invalid argument.
53.2.9.4.4 void UART_TransferAbortSendEDMA ( UART_Type ∗base, uart_edma_handle_t ∗
handle )
This function aborts sent data using eDMA.
Parameters
base UART peripheral base address.
handle Pointer to uart_edma_handle_t structure.
53.2.9.4.5 void UART_TransferAbortReceiveEDMA ( UART_Type ∗base, uart_edma_handle_t ∗
handle )
This function aborts receive data using eDMA.
Parameters
base UART peripheral base address.
handle Pointer to uart_edma_handle_t structure.
53.2.9.4.6 status_t UART_TransferGetSendCountEDMA ( UART_Type ∗base,
uart_edma_handle_t ∗handle, uint32_t ∗count )
This function gets the number of bytes that have been written to UART TX register by DMA.
1192
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART Driver
Parameters
base UART peripheral base address.
handle UART handle pointer.
count Send bytes count.
Return values
kStatus_NoTransferIn-
Progress
No send in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
53.2.9.4.7 status_t UART_TransferGetReceiveCountEDMA ( UART_Type ∗base,
uart_edma_handle_t ∗handle, uint32_t ∗count )
This function gets the number of bytes that have been received.
Parameters
base UART peripheral base address.
handle UART handle pointer.
count Receive bytes count.
Return values
kStatus_NoTransferIn-
Progress
No receive in progress.
kStatus_InvalidArgument Parameter is invalid.
kStatus_Success Get successfully through the parameter count;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1193
UART FreeRTOS Driver
53.3 UART FreeRTOS Driver
53.3.1 Overview
Files
• file fsl_uart_freertos.h
Data Structures
• struct rtos_uart_config
UART configuration structure. More...
• struct uart_rtos_handle_t
UART FreeRTOS handle. More...
Driver version
• #define FSL_UART_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
UART FreeRTOS driver version 2.0.0.
UART RTOS Operation
• int UART_RTOS_Init (uart_rtos_handle_t ∗handle, uart_handle_t ∗t_handle, const struct rtos_uart-
_config ∗cfg)
Initializes a UART instance for operation in RTOS.
• int UART_RTOS_Deinit (uart_rtos_handle_t ∗handle)
Deinitializes a UART instance for operation.
UART transactional Operation
• int UART_RTOS_Send (uart_rtos_handle_t ∗handle, const uint8_t ∗buffer, uint32_t length)
Sends data in the background.
• int UART_RTOS_Receive (uart_rtos_handle_t ∗handle, uint8_t ∗buffer, uint32_t length, size_t
∗received)
Receives data.
53.3.2 Data Structure Documentation
53.3.2.1 struct rtos_uart_config
Data Fields
• UART_Type ∗base
1194
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART FreeRTOS Driver
UART base address.
• uint32_t srcclk
UART source clock in Hz.
• uint32_t baudrate
Desired communication speed.
•uart_parity_mode_t parity
Parity setting.
•uart_stop_bit_count_t stopbits
Number of stop bits to use.
• uint8_t ∗buffer
Buffer for background reception.
• uint32_t buffer_size
Size of buffer for background reception.
53.3.2.2 struct uart_rtos_handle_t
Data Fields
• UART_Type ∗base
UART base address.
• struct _uart_transfer tx_xfer
TX transfer structure.
• struct _uart_transfer rx_xfer
RX transfer structure.
• SemaphoreHandle_t rx_sem
RX semaphore for resource sharing.
• SemaphoreHandle_t tx_sem
TX semaphore for resource sharing.
• EventGroupHandle_t rx_event
RX completion event.
• EventGroupHandle_t tx_event
TX completion event.
• void ∗t_state
Transactional state of the underlying driver.
• OS_EVENT ∗rx_sem
RX semaphore for resource sharing.
• OS_EVENT ∗tx_sem
TX semaphore for resource sharing.
• OS_FLAG_GRP ∗rx_event
RX completion event.
• OS_FLAG_GRP ∗tx_event
TX completion event.
• OS_SEM rx_sem
RX semaphore for resource sharing.
• OS_SEM tx_sem
TX semaphore for resource sharing.
• OS_FLAG_GRP rx_event
RX completion event.
• OS_FLAG_GRP tx_event
TX completion event.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1195
UART FreeRTOS Driver
53.3.3 Macro Definition Documentation
53.3.3.1 #define FSL_UART_FREERTOS_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
53.3.4 Function Documentation
53.3.4.1 int UART_RTOS_Init ( uart_rtos_handle_t ∗handle, uart_handle_t ∗t_handle,
const struct rtos_uart_config ∗cfg )
1196
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART FreeRTOS Driver
Parameters
handle The RTOS UART handle, the pointer to allocated space for RTOS context.
t_handle The pointer to allocated space where to store transactional layer internal state.
cfg The pointer to the parameters required to configure the UART after initialization.
Returns
0 succeed, others fail.
53.3.4.2 int UART_RTOS_Deinit ( uart_rtos_handle_t ∗handle )
This function deinitializes the UART module, sets all register values to reset value, and releases the re-
sources.
Parameters
handle The RTOS UART handle.
53.3.4.3 int UART_RTOS_Send ( uart_rtos_handle_t ∗handle, const uint8_t ∗buffer,
uint32_t length )
This function sends data. It is a synchronous API. If the hardware buffer is full, the task is in the blocked
state.
Parameters
handle The RTOS UART handle.
buffer The pointer to buffer to send.
length The number of bytes to send.
53.3.4.4 int UART_RTOS_Receive ( uart_rtos_handle_t ∗handle, uint8_t ∗buffer,
uint32_t length, size_t ∗received )
This function receives data from UART. It is a synchronous API. If data is immediately available, it is
returned immediately and the number of bytes received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1197
UART FreeRTOS Driver
Parameters
handle The RTOS UART handle.
buffer The pointer to buffer where to write received data.
length The number of bytes to receive.
received The pointer to a variable of size_t where the number of received data is filled.
1198
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART µCOS/II Driver
53.4 UART µCOS/II Driver
53.4.1 Overview
Files
• file fsl_uart_ucosii.h
Data Structures
• struct rtos_uart_config
UART configuration structure. More...
• struct uart_rtos_handle_t
UART FreeRTOS handle. More...
Driver version
• #define FSL_UART_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
UART µCOS-II driver version 2.0.0.
UART RTOS Operation
• int UART_RTOS_Init (uart_rtos_handle_t ∗handle, uart_handle_t ∗t_handle, const struct rtos_uart-
_config ∗cfg)
Initializes a UART instance for operation in RTOS.
• int UART_RTOS_Deinit (uart_rtos_handle_t ∗handle)
Deinitializes a UART instance for operation.
UART transactional Operation
• int UART_RTOS_Send (uart_rtos_handle_t ∗handle, const uint8_t ∗buffer, uint32_t length)
Sends data in the background.
• int UART_RTOS_Receive (uart_rtos_handle_t ∗handle, uint8_t ∗buffer, uint32_t length, size_t
∗received)
Receives data.
53.4.2 Data Structure Documentation
53.4.2.1 struct rtos_uart_config
Data Fields
• UART_Type ∗base
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1199
UART µCOS/II Driver
UART base address.
• uint32_t srcclk
UART source clock in Hz.
• uint32_t baudrate
Desired communication speed.
•uart_parity_mode_t parity
Parity setting.
•uart_stop_bit_count_t stopbits
Number of stop bits to use.
• uint8_t ∗buffer
Buffer for background reception.
• uint32_t buffer_size
Size of buffer for background reception.
53.4.2.2 struct uart_rtos_handle_t
Data Fields
• UART_Type ∗base
UART base address.
• struct _uart_transfer tx_xfer
TX transfer structure.
• struct _uart_transfer rx_xfer
RX transfer structure.
• SemaphoreHandle_t rx_sem
RX semaphore for resource sharing.
• SemaphoreHandle_t tx_sem
TX semaphore for resource sharing.
• EventGroupHandle_t rx_event
RX completion event.
• EventGroupHandle_t tx_event
TX completion event.
• void ∗t_state
Transactional state of the underlying driver.
• OS_EVENT ∗rx_sem
RX semaphore for resource sharing.
• OS_EVENT ∗tx_sem
TX semaphore for resource sharing.
• OS_FLAG_GRP ∗rx_event
RX completion event.
• OS_FLAG_GRP ∗tx_event
TX completion event.
• OS_SEM rx_sem
RX semaphore for resource sharing.
• OS_SEM tx_sem
TX semaphore for resource sharing.
• OS_FLAG_GRP rx_event
RX completion event.
• OS_FLAG_GRP tx_event
TX completion event.
1200
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART µCOS/II Driver
53.4.3 Macro Definition Documentation
53.4.3.1 #define FSL_UART_UCOSII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
53.4.4 Function Documentation
53.4.4.1 int UART_RTOS_Init ( uart_rtos_handle_t ∗handle, uart_handle_t ∗t_handle,
const struct rtos_uart_config ∗cfg )
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1201
UART µCOS/II Driver
Parameters
handle The RTOS UART handle, the pointer to allocated space for RTOS context.
uart_t_handle The pointer to allocated space where to store transactional layer internal state.
cfg The pointer to the parameters required to configure the UART after initialization.
Returns
0 Succeed, others fail.
53.4.4.2 int UART_RTOS_Deinit ( uart_rtos_handle_t ∗handle )
This function deinitializes the UART module, sets all register values to reset value, and releases the re-
sources.
Parameters
handle The RTOS UART handle.
53.4.4.3 int UART_RTOS_Send ( uart_rtos_handle_t ∗handle, const uint8_t ∗buffer,
uint32_t length )
This function sends data. It is a synchronous API. If the hardware buffer is full, the task is in the blocked
state.
Parameters
handle The RTOS UART handle.
buffer The pointer to buffer to send.
length The number of bytes to send.
53.4.4.4 int UART_RTOS_Receive ( uart_rtos_handle_t ∗handle, uint8_t ∗buffer,
uint32_t length, size_t ∗received )
This function receives data from UART. It is a synchronous API. If any data is immediately available it is
returned immediately and the number of bytes received.
1202
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART µCOS/II Driver
Parameters
handle The RTOS UART handle.
buffer The pointer to buffer where to write received data.
length The number of bytes to receive.
received The pointer to a variable of size_t where the number of received data is filled.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1203
UART µCOS/III Driver
53.5 UART µCOS/III Driver
53.5.1 Overview
Files
• file fsl_uart_ucosiii.h
Data Structures
• struct rtos_uart_config
UART configuration structure. More...
• struct uart_rtos_handle_t
UART FreeRTOS handle. More...
Driver version
• #define FSL_UART_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
UART µCOS-III driver version 2.0.0.
UART RTOS Operation
• int UART_RTOS_Init (uart_rtos_handle_t ∗handle, uart_handle_t ∗t_handle, const struct rtos_uart-
_config ∗cfg)
Initializes a UART instance for operation in RTOS.
• int UART_RTOS_Deinit (uart_rtos_handle_t ∗handle)
Deinitializes a UART instance for operation.
UART transactional Operation
• int UART_RTOS_Send (uart_rtos_handle_t ∗handle, const uint8_t ∗buffer, uint32_t length)
Sends data in the background.
• int UART_RTOS_Receive (uart_rtos_handle_t ∗handle, uint8_t ∗buffer, uint32_t length, size_t
∗received)
Receives data.
53.5.2 Data Structure Documentation
53.5.2.1 struct rtos_uart_config
Data Fields
• UART_Type ∗base
1204
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART µCOS/III Driver
UART base address.
• uint32_t srcclk
UART source clock in Hz.
• uint32_t baudrate
Desired communication speed.
•uart_parity_mode_t parity
Parity setting.
•uart_stop_bit_count_t stopbits
Number of stop bits to use.
• uint8_t ∗buffer
Buffer for background reception.
• uint32_t buffer_size
Size of buffer for background reception.
53.5.2.2 struct uart_rtos_handle_t
Data Fields
• UART_Type ∗base
UART base address.
• struct _uart_transfer tx_xfer
TX transfer structure.
• struct _uart_transfer rx_xfer
RX transfer structure.
• SemaphoreHandle_t rx_sem
RX semaphore for resource sharing.
• SemaphoreHandle_t tx_sem
TX semaphore for resource sharing.
• EventGroupHandle_t rx_event
RX completion event.
• EventGroupHandle_t tx_event
TX completion event.
• void ∗t_state
Transactional state of the underlying driver.
• OS_EVENT ∗rx_sem
RX semaphore for resource sharing.
• OS_EVENT ∗tx_sem
TX semaphore for resource sharing.
• OS_FLAG_GRP ∗rx_event
RX completion event.
• OS_FLAG_GRP ∗tx_event
TX completion event.
• OS_SEM rx_sem
RX semaphore for resource sharing.
• OS_SEM tx_sem
TX semaphore for resource sharing.
• OS_FLAG_GRP rx_event
RX completion event.
• OS_FLAG_GRP tx_event
TX completion event.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1205
UART µCOS/III Driver
53.5.3 Macro Definition Documentation
53.5.3.1 #define FSL_UART_UCOSIII_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
53.5.4 Function Documentation
53.5.4.1 int UART_RTOS_Init ( uart_rtos_handle_t ∗handle, uart_handle_t ∗t_handle,
const struct rtos_uart_config ∗cfg )
1206
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
UART µCOS/III Driver
Parameters
handle The RTOS UART handle, the pointer to allocated space for RTOS context.
uart_t_handle The pointer to an allocated space where to store transactional layer internal state.
cfg The pointer to the parameters required to configure the UART after initialization.
Returns
0 Succeed, others fail.
53.5.4.2 int UART_RTOS_Deinit ( uart_rtos_handle_t ∗handle )
This function deinitializes the UART module, sets all register values to reset value, and releases the re-
sources.
Parameters
handle The RTOS UART handle.
53.5.4.3 int UART_RTOS_Send ( uart_rtos_handle_t ∗handle, const uint8_t ∗buffer,
uint32_t length )
This function sends data. It is a synchronous API. If the hardware buffer is full, the task is in the blocked
state.
Parameters
handle The RTOS UART handle.
buffer The pointer to buffer to send.
length The number of bytes to send.
53.5.4.4 int UART_RTOS_Receive ( uart_rtos_handle_t ∗handle, uint8_t ∗buffer,
uint32_t length, size_t ∗received )
This function receives data from UART. It is a synchronous API. If any data is immediately available, it
is returned immediately and the number of bytes received.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1207
UART µCOS/III Driver
Parameters
handle The RTOS UART handle.
buffer The pointer to buffer where to write received data.
length The number of bytes to receive.
received The pointer to variable of a size_t where the number of received data is filled.
1208
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 54
VREF: Voltage Reference Driver
54.1 Overview
The KSDK provides a peripheral driver for the Crossbar Voltage Reference (VREF) block of Kinetis
devices.
54.2 Overview
The Voltage Reference(VREF) is intended to supply an accurate 1.2 V voltage output that can be trimmed
in 0.5 mV steps. VREF can be used in applications to provide a reference voltage to external devices
and to internal analog peripherals, such as the ADC, DAC, or CMP. The voltage reference has operating
modes that provide different levels of supply rejection and power consumption.
54.2.1 VREF functional Operation
To configure the VREF driver, configure vref_config_t structure in one of two ways.
1. Use the VREF_GetDefaultConfig() function.
2. Sets the parameter in vref_config_t structure.
To initialize the VREF driver, call the VREF_Init() function and pass a pointer to the vref_config_t struc-
ture.
To de-initialize the VREF driver, call the VREF_Deinit() function.
54.3 Typical use case and example
This example shows how to generate a reference voltage by using the VREF module.
vref_config_t vrefUserConfig;
VREF_GetDefaultConfig(&vrefUserConfig); /*Gets a default configuration.
VREF_Init(VREF, &vrefUserConfig); /*Initializes and configures the VREF module
/*Do something
VREF_Deinit(VREF); /*De-initializes the VREF module
Files
• file fsl_vref.h
Data Structures
• struct vref_config_t
The description structure for the VREF module. More...
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1209
Enumeration Type Documentation
Enumerations
• enum vref_buffer_mode_t {
kVREF_ModeBandgapOnly = 0U,
kVREF_ModeTightRegulationBuffer = 2U }
VREF modes.
Driver version
• #define FSL_VREF_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Version 2.0.0.
VREF functional operation
• void VREF_Init (VREF_Type ∗base, const vref_config_t ∗config)
Enables the clock gate and configures the VREF module according to the configuration structure.
• void VREF_Deinit (VREF_Type ∗base)
Stops and disables the clock for the VREF module.
• void VREF_GetDefaultConfig (vref_config_t ∗config)
Initializes the VREF configuration structure.
• void VREF_SetTrimVal (VREF_Type ∗base, uint8_t trimValue)
Sets a TRIM value for reference voltage.
• static uint8_t VREF_GetTrimVal (VREF_Type ∗base)
Reads the value of the TRIM meaning output voltage.
54.4 Data Structure Documentation
54.4.1 struct vref_config_t
Data Fields
•vref_buffer_mode_t bufferMode
Buffer mode selection.
54.5 Macro Definition Documentation
54.5.1 #define FSL_VREF_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
54.6 Enumeration Type Documentation
54.6.1 enum vref_buffer_mode_t
Enumerator
kVREF_ModeBandgapOnly Bandgap on only, for stabilization and startup.
kVREF_ModeTightRegulationBuffer Tight regulation buffer enabled.
1210
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
54.7 Function Documentation
54.7.1 void VREF_Init ( VREF_Type ∗base, const vref_config_t ∗config )
This function must be called before calling all the other VREF driver functions, read/write registers, and
configurations with user-defined settings. The example below shows how to set up vref_config_t parame-
ters and how to call the VREF_Init function by passing in these parameters: Example:
vref_config_t vrefConfig;
vrefConfig.bufferMode = kVREF_ModeHighPowerBuffer;
vrefConfig.enableExternalVoltRef = false;
vrefConfig.enableLowRef = false;
VREF_Init(VREF, &vrefConfig);
Parameters
base VREF peripheral address.
config Pointer to the configuration structure.
54.7.2 void VREF_Deinit ( VREF_Type ∗base )
This function should be called to shut down the module. Example:
vref_config_t vrefUserConfig;
VREF_Init(VREF);
VREF_GetDefaultConfig(&vrefUserConfig);
...
VREF_Deinit(VREF);
Parameters
base VREF peripheral address.
54.7.3 void VREF_GetDefaultConfig ( vref_config_t ∗config )
This function initializes the VREF configuration structure to a default value. Example:
vrefConfig->bufferMode = kVREF_ModeHighPowerBuffer;
vrefConfig->enableExternalVoltRef = false;
vrefConfig->enableLowRef = false;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1211
Function Documentation
Parameters
config Pointer to the initialization structure.
54.7.4 void VREF_SetTrimVal ( VREF_Type ∗base, uint8_t trimValue )
This function sets a TRIM value for reference voltage. Note that the TRIM value maximum is 0x3F.
Parameters
base VREF peripheral address.
trimValue Value of the trim register to set the output reference voltage (maximum 0x3F (6-bit)).
54.7.5 static uint8_t VREF_GetTrimVal ( VREF_Type ∗base )[inline],
[static]
This function gets the TRIM value from the TRM register.
Parameters
base VREF peripheral address.
Returns
Six-bit value of trim setting.
1212
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Chapter 55
WDOG: Watchdog Timer Driver
55.1 Overview
The KSDK provides a peripheral driver for the Watchdog module (WDOG) of Kinetis devices.
Typical use case
wdog_config_t config;
WDOG_GetDefaultConfig(&config);
config.timeoutValue = 0x7ffU;
config.enableWindowMode =true;
config.windowValue = 0x1ffU;
WDOG_Init(wdog_base,&config);
Files
• file fsl_wdog.h
Data Structures
• struct wdog_work_mode_t
Defines WDOG work mode. More...
• struct wdog_config_t
Describes WDOG configuration structure. More...
• struct wdog_test_config_t
Describes WDOG test mode configuration structure. More...
Enumerations
• enum wdog_clock_source_t {
kWDOG_LpoClockSource = 0U,
kWDOG_AlternateClockSource = 1U }
Describes WDOG clock source.
• enum wdog_clock_prescaler_t {
kWDOG_ClockPrescalerDivide1 = 0x0U,
kWDOG_ClockPrescalerDivide2 = 0x1U,
kWDOG_ClockPrescalerDivide3 = 0x2U,
kWDOG_ClockPrescalerDivide4 = 0x3U,
kWDOG_ClockPrescalerDivide5 = 0x4U,
kWDOG_ClockPrescalerDivide6 = 0x5U,
kWDOG_ClockPrescalerDivide7 = 0x6U,
kWDOG_ClockPrescalerDivide8 = 0x7U }
Describes the selection of the clock prescaler.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1213
Overview
• enum wdog_test_mode_t {
kWDOG_QuickTest = 0U,
kWDOG_ByteTest = 1U }
Describes WDOG test mode.
• enum wdog_tested_byte_t {
kWDOG_TestByte0 = 0U,
kWDOG_TestByte1 = 1U,
kWDOG_TestByte2 = 2U,
kWDOG_TestByte3 = 3U }
Describes WDOG tested byte selection in byte test mode.
• enum _wdog_interrupt_enable_t {kWDOG_InterruptEnable = WDOG_STCTRLH_IRQRSTEN_-
MASK }
WDOG interrupt configuration structure, default settings all disabled.
• enum _wdog_status_flags_t {
kWDOG_RunningFlag = WDOG_STCTRLH_WDOGEN_MASK,
kWDOG_TimeoutFlag = WDOG_STCTRLL_INTFLG_MASK }
WDOG status flags.
Driver version
• #define FSL_WDOG_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
Defines WDOG driver version 2.0.0.
Unlock sequence
• #define WDOG_FIRST_WORD_OF_UNLOCK (0xC520U)
First word of unlock sequence.
• #define WDOG_SECOND_WORD_OF_UNLOCK (0xD928U)
Second word of unlock sequence.
Refresh sequence
• #define WDOG_FIRST_WORD_OF_REFRESH (0xA602U)
First word of refresh sequence.
• #define WDOG_SECOND_WORD_OF_REFRESH (0xB480U)
Second word of refresh sequence.
WDOG Initialization and De-initialization
• void WDOG_GetDefaultConfig (wdog_config_t ∗config)
Initializes WDOG configure sturcture.
• void WDOG_Init (WDOG_Type ∗base, const wdog_config_t ∗config)
Initializes the WDOG.
• void WDOG_Deinit (WDOG_Type ∗base)
Shuts down the WDOG.
• void WDOG_SetTestModeConfig (WDOG_Type ∗base, wdog_test_config_t ∗config)
Configures WDOG functional test.
1214
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Data Structure Documentation
WDOG Functional Operation
• static void WDOG_Enable (WDOG_Type ∗base)
Enables the WDOG module.
• static void WDOG_Disable (WDOG_Type ∗base)
Disables the WDOG module.
• static void WDOG_EnableInterrupts (WDOG_Type ∗base, uint32_t mask)
Enable WDOG interrupt.
• static void WDOG_DisableInterrupts (WDOG_Type ∗base, uint32_t mask)
Disable WDOG interrupt.
• uint32_t WDOG_GetStatusFlags (WDOG_Type ∗base)
Gets WDOG all status flags.
• void WDOG_ClearStatusFlags (WDOG_Type ∗base, uint32_t mask)
Clear WDOG flag.
• static void WDOG_SetTimeoutValue (WDOG_Type ∗base, uint32_t timeoutCount)
Set the WDOG timeout value.
• static void WDOG_SetWindowValue (WDOG_Type ∗base, uint32_t windowValue)
Sets the WDOG window value.
• static void WDOG_Unlock (WDOG_Type ∗base)
Unlocks the WDOG register written.
• void WDOG_Refresh (WDOG_Type ∗base)
Refreshes the WDOG timer.
• static uint16_t WDOG_GetResetCount (WDOG_Type ∗base)
Gets the WDOG reset count.
• static void WDOG_ClearResetCount (WDOG_Type ∗base)
Clears the WDOG reset count.
55.2 Data Structure Documentation
55.2.1 struct wdog_work_mode_t
Data Fields
• bool enableStop
Enables or disables WDOG in stop mode.
• bool enableDebug
Enables or disables WDOG in debug mode.
55.2.2 struct wdog_config_t
Data Fields
• bool enableWdog
Enables or disables WDOG.
•wdog_clock_source_t clockSource
Clock source select.
•wdog_clock_prescaler_t prescaler
Clock prescaler value.
•wdog_work_mode_t workMode
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1215
Enumeration Type Documentation
Configures WDOG work mode in debug stop and wait mode.
• bool enableUpdate
Update write-once register enable.
• bool enableInterrupt
Enables or disables WDOG interrupt.
• bool enableWindowMode
Enables or disables WDOG window mode.
• uint32_t windowValue
Window value.
• uint32_t timeoutValue
Timeout value.
55.2.3 struct wdog_test_config_t
Data Fields
•wdog_test_mode_t testMode
Selects test mode.
•wdog_tested_byte_t testedByte
Selects tested byte in byte test mode.
• uint32_t timeoutValue
Timeout value.
55.3 Macro Definition Documentation
55.3.1 #define FSL_WDOG_DRIVER_VERSION (MAKE_VERSION(2, 0, 0))
55.4 Enumeration Type Documentation
55.4.1 enum wdog_clock_source_t
Enumerator
kWDOG_LpoClockSource WDOG clock sourced from LPO.
kWDOG_AlternateClockSource WDOG clock sourced from alternate clock source.
55.4.2 enum wdog_clock_prescaler_t
Enumerator
kWDOG_ClockPrescalerDivide1 Divided by 1.
kWDOG_ClockPrescalerDivide2 Divided by 2.
kWDOG_ClockPrescalerDivide3 Divided by 3.
kWDOG_ClockPrescalerDivide4 Divided by 4.
kWDOG_ClockPrescalerDivide5 Divided by 5.
1216
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Enumeration Type Documentation
kWDOG_ClockPrescalerDivide6 Divided by 6.
kWDOG_ClockPrescalerDivide7 Divided by 7.
kWDOG_ClockPrescalerDivide8 Divided by 8.
55.4.3 enum wdog_test_mode_t
Enumerator
kWDOG_QuickTest Selects quick test.
kWDOG_ByteTest Selects byte test.
55.4.4 enum wdog_tested_byte_t
Enumerator
kWDOG_TestByte0 Byte 0 selected in byte test mode.
kWDOG_TestByte1 Byte 1 selected in byte test mode.
kWDOG_TestByte2 Byte 2 selected in byte test mode.
kWDOG_TestByte3 Byte 3 selected in byte test mode.
55.4.5 enum _wdog_interrupt_enable_t
This structure contains the settings for all of the WDOG interrupt configurations.
Enumerator
kWDOG_InterruptEnable WDOG timeout will generate interrupt before reset.
55.4.6 enum _wdog_status_flags_t
This structure contains the WDOG status flags for use in the WDOG functions.
Enumerator
kWDOG_RunningFlag Running flag, set when WDOG is enabled.
kWDOG_TimeoutFlag Interrupt flag, set when an exception occurs.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1217
Function Documentation
55.5 Function Documentation
55.5.1 void WDOG_GetDefaultConfig ( wdog_config_t ∗config )
This function initializes the WDOG configure structure to default value. The default value are:
wdogConfig->enableWdog = true;
wdogConfig->clockSource = kWDOG_LpoClockSource;
wdogConfig->prescaler = kWDOG_ClockPrescalerDivide1;
wdogConfig->workMode.enableWait = true;
wdogConfig->workMode.enableStop = false;
wdogConfig->workMode.enableDebug = false;
wdogConfig->enableUpdate = true;
wdogConfig->enableInterrupt = false;
wdogConfig->enableWindowMode = false;
wdogConfig->windowValue = 0;
wdogConfig->timeoutValue = 0xFFFFU;
Parameters
config Pointer to WDOG config structure.
See Also
wdog_config_t
55.5.2 void WDOG_Init ( WDOG_Type ∗base, const wdog_config_t ∗config )
This function initializes the WDOG. When called, the WDOG runs according to the configuration. If user
wants to reconfigure WDOG without forcing a reset first, enableUpdate must be set to true in configuration.
Example:
wdog_config_t config;
WDOG_GetDefaultConfig(&config);
config.timeoutValue = 0x7ffU;
config.enableUpdate =true;
WDOG_Init(wdog_base,&config);
Parameters
base WDOG peripheral base address
1218
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
config The configuration of WDOG
55.5.3 void WDOG_Deinit ( WDOG_Type ∗base )
This function shuts down the WDOG. Make sure that the WDOG_STCTRLH.ALLOWUPDATE is 1
which means that the register update is enabled.
55.5.4 void WDOG_SetTestModeConfig ( WDOG_Type ∗base, wdog_test_config_t
∗config )
This function is used to configure the WDOG functional test. When called, the WDOG goes into test
mode and runs according to the configuration. Make sure that the WDOG_STCTRLH.ALLOWUPDATE
is 1 which means that the register update is enabled.
Example:
wdog_test_config_t test_config;
test_config.testMode =kWDOG_QuickTest;
test_config.timeoutValue = 0xfffffu;
WDOG_SetTestModeConfig(wdog_base, &test_config);
Parameters
base WDOG peripheral base address
config The functional test configuration of WDOG
55.5.5 static void WDOG_Enable ( WDOG_Type ∗base )[inline],[static]
This function write value into WDOG_STCTRLH register to enable the WDOG, it is a write-once register,
make sure that the WCT window is still open and this register has not been written in this WCT while this
function is called.
Parameters
base WDOG peripheral base address
55.5.6 static void WDOG_Disable ( WDOG_Type ∗base )[inline],[static]
This function write value into WDOG_STCTRLH register to disable the WDOG, it is a write-once register,
make sure that the WCT window is still open and this register has not been written in this WCT while this
function is called.
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1219
Function Documentation
Parameters
base WDOG peripheral base address
55.5.7 static void WDOG_EnableInterrupts ( WDOG_Type ∗base, uint32_t mask )
[inline],[static]
This function write value into WDOG_STCTRLH register to enable WDOG interrupt, it is a write-once
register, make sure that the WCT window is still open and this register has not been written in this WCT
while this function is called.
Parameters
base WDOG peripheral base address
mask The interrupts to enable The parameter can be combination of the following source if
defined:
• kWDOG_InterruptEnable
55.5.8 static void WDOG_DisableInterrupts ( WDOG_Type ∗base, uint32_t mask )
[inline],[static]
This function write value into WDOG_STCTRLH register to disable WDOG interrupt, it is a write-once
register, make sure that the WCT window is still open and this register has not been written in this WCT
while this function is called.
Parameters
base WDOG peripheral base address
mask The interrupts to disable The parameter can be combination of the following source
if defined:
• kWDOG_InterruptEnable
55.5.9 uint32_t WDOG_GetStatusFlags ( WDOG_Type ∗base )
This function gets all status flags.
Example for getting Running Flag:
uint32_t status;
1220
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
status = WDOG_GetStatusFlags(wdog_base) & kWDOG_RunningFlag;
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1221
Function Documentation
Parameters
base WDOG peripheral base address
Returns
State of the status flag: asserted (true) or not-asserted (false).
See Also
_wdog_status_flags_t
• true: related status flag has been set.
• false: related status flag is not set.
55.5.10 void WDOG_ClearStatusFlags ( WDOG_Type ∗base, uint32_t mask )
This function clears WDOG status flag.
Example for clearing timeout(interrupt) flag:
WDOG_ClearStatusFlags(wdog_base,kWDOG_TimeoutFlag);
Parameters
base WDOG peripheral base address
mask The status flags to clear. The parameter could be any combination of the following
values: kWDOG_TimeoutFlag
55.5.11 static void WDOG_SetTimeoutValue ( WDOG_Type ∗base, uint32_t
timeoutCount )[inline],[static]
This function sets the timeout value. It should be ensured that the time-out value for the WDOG is always
greater than 2xWCT time + 20 bus clock cycles. This function write value into WDOG_TOVALH and
WDOG_TOVALL registers which are wirte-once. Make sure the WCT window is still open and these
two registers have not been written in this WCT while this function is called.
1222
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base WDOG peripheral base address
timeoutCount WDOG timeout value, count of WDOG clock tick.
55.5.12 static void WDOG_SetWindowValue ( WDOG_Type ∗base, uint32_t
windowValue )[inline],[static]
This function sets the WDOG window value. This function write value into WDOG_WINH and WDOG-
_WINL registers which are wirte-once. Make sure the WCT window is still open and these two registers
have not been written in this WCT while this function is called.
Parameters
base WDOG peripheral base address
windowValue WDOG window value.
55.5.13 static void WDOG_Unlock ( WDOG_Type ∗base )[inline],[static]
This function unlocks the WDOG register written. Before starting the unlock sequence and following
congfiguration, disable the global interrupts. Otherwise, an interrupt could effectively invalidate the unlock
sequence and the WCT may expire, After the configuration finishes, re-enable the global interrupts.
Parameters
base WDOG peripheral base address
55.5.14 void WDOG_Refresh ( WDOG_Type ∗base )
This function feeds the WDOG. This function should be called before WDOG timer is in timeout. Other-
wise, a reset is asserted.
Parameters
base WDOG peripheral base address
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1223
Function Documentation
55.5.15 static uint16_t WDOG_GetResetCount ( WDOG_Type ∗base )[inline],
[static]
This function gets the WDOG reset count value.
1224
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
Function Documentation
Parameters
base WDOG peripheral base address
Returns
WDOG reset count value
55.5.16 static void WDOG_ClearResetCount ( WDOG_Type ∗base )[inline],
[static]
This function clears the WDOG reset count value.
Parameters
base WDOG peripheral base address
Freescale Semiconductor
Kinetis SDK v.2.0 API Reference Manual
1225
Function Documentation
1226
Kinetis SDK v.2.0 API Reference Manual
Freescale Semiconductor
