the LBF range
Our high efficiency gas fired
balanced flue storage
water heaters
Technical
Specification
LBF range High output LBF range
Water Heater Model LBF-80 LBF-120 LBF-150 LBF-180 LBF-220 LBF-300 LBF-400 160-LBF 240-LBF 320-LBF 382-LBF
Nominal Input (Net) kW 5 5 18 19 28.5 31 31 44 66 88 106
Nominal Input (Gross) kW 5.6 5.6 20 21.1 31.7 34.5 34.5 48.9 73.3 97.7 117.7
Gas Flow Rate
(Natural Gas) m3/hr 0.53 0.53 1.9 2 3.01 3.28 3.28 4.54 6.8 8.4 10.93
Nominal Output kW 4.7 4.7 16.7 17.5 25.8 28 28 38.7 59.4 78.3 93.3
Efficiency
(Part L2 Gross CV) %79.63 79.63 76.26 76.93 77.21 77.06 77.06 78.47 80.25 79.48 78.63
NOx Emission,
(corrected to 0% O2)ppm 84 84 113 95 68 65 65 171 146 172 173
NOx Emission, mg/
(corrected to 0% O2)kWh 148 148 198 168 120 115 115 301 257 303 305
Storage Losses kWh
/I/day 0.0884 0.0633 0.0536 0.0472 0.0409 0.0343 0.0298 0.0326 0.0326 0.0326 0.0292
Recovery rate @ 44oCl/hr 87 87 298 317 477 518 518 749 1149 1517 1808
Recovery rate @ 50oCl/hr 76 76 262 279 420 456 456 659 1011 1335 1591
Recovery rate @ 56oCl/hr 72 72 256 268 395 428 428 592 909 1198 1428
Dimensions (Height)* mm 1040 1400 1925 2125 1665 2015 2365 1780 1780 1780 2005
Dimensions (Width) mm 450 450 520 520 720 720 720 720 720 720 720
Dimensions (Depth) mm 460 460 520 520 720 720 720 1140 1140 1140 1140
Water Content Litre 75 115 145 175 220 300 400 276 276 276 350
Weight (Empty) Kgs 49 74 100 110 202 245 286 340 340 345 381
Weight (Full) Kgs 124 189 245 195 422 545 686 616 616 641 727
Flow Connection BSP
½
”
½
”¾” ¾”1
¼
”1
¼
”1
¼
”1
½
”1
½
”1
½
”1
½
”
Return Connection BSP
½
”
½
”¾” ¾”1
¼
”1
¼
”1
¼
”1
½
”1
½
”1
½
”1
½
”
Gas Connection BSP
3/8
”
3/8
”
½
”
½
”
½
”½”½”¾”¾”¾”¾”
Flue Diameter
(Concentric) mm 38/60 38/60 60/100 60/100 60/100 60/100 60/100 100/150 100/150 130/200 130/200
Flue Diameter
(Twin-pipe) mm 38/60 38/60 80/80 80/80 80/80 80/80 80/80 n/a n/a n/a n/a
Flue Diameter
(Conventional) mm n/a n/a n/a n/a n/a n/a n/a 100 100 130 130
Electrical Requirements 230V/1PH/50HZ
Power Consumption W26 26 62 62 62 62 62 460 460 460 460
CO2- Flue Gas %66666666666
Maximum Flue Gas
Temperature oC99 89 196 177 200 194 168 220 220 220 220
Waterside Pressure
Loss @10oCkPa not applicable
Max. Outlet Temp. oC77 77 80 80 80 80 80 82 82 82 82
Maximum
Working Pressure bar 6 6 6 6 6 6 6 10.3 10.3 10.3 10.3
Note:* LBF range - dimension to top of flue fan housing
High output LBF range - dimension to top of flue spigot
LBF room sealed balanced flue water heaters offer all the advantages of Lochinvar’s
traditional Knight and Charger high efficiency gas fired storage water heaters, but
with the added benefit of having a concentric balanced flue. LBF water heaters draw
air for combustion directly from outside, ensuring safe and reliable operation and
offering significant installation cost savings when compared with conventionally
flued units. They are particularly suitable for use in areas of negative pressure such
as, for example, kitchens, eliminating potential 'spillage' that may be created where
extractor fans are installed.
Lochinvar
LBF balanced flue water heaters
Lochinvar LBF water heaters feature baffled
flueways for maximum heat transfer. Custom
designed steel baffles are suspended within
the flueways increasing the amount of heat
transferred from the products of combustion
to the water.
These combustion products are taken into
a common header and discharged via the
fan-assisted, concentric balanced flue,
either horizontally or vertically.
All models can be installed using either
horizontal or vertical flue assemblies. A basic
flue kit is available from Lochinvar, as well as
additional flue components including bends
and flue pipe.
All models feature automatic ignition as
standard and the facility to interface with
building management systems is also available.
The vitreous-enamelled steel tank is insulated in
expanded polyurethane to reduce heat losses.
With storage capacities from 75 litres
to 400 litres and recovery rates from 76 to
1591 litres/hour based upon a temperature
rise of 50
oC
Lochinvar LBF water heaters offer
a highly efficient solution for a wide variety
of commercial and industrial applications.
These two models are extremely compact,
wall mounted and have a flue diameter of
only 60mm.
Storage capacities are 75 litres and 115 litres
respectively and both have a recovery rate of
76 litres/hour based upon a temperature
rise of 50
oC
The LBF80 and LBF120 are particularly
suitable for smaller commercial and
industrial applications providing low
volume, instant hot water.
Features
•Wall mounted-saving on valuable
floor space
•Automatic ignition
•Stainless steel burner
•Room sealed fan assisted flue
•A wide range of ancillaries -
offering installation flexibility
(refer to back page for details).
•Available for Natural Gas or LPG
Models
LBF-80 |LBF-120

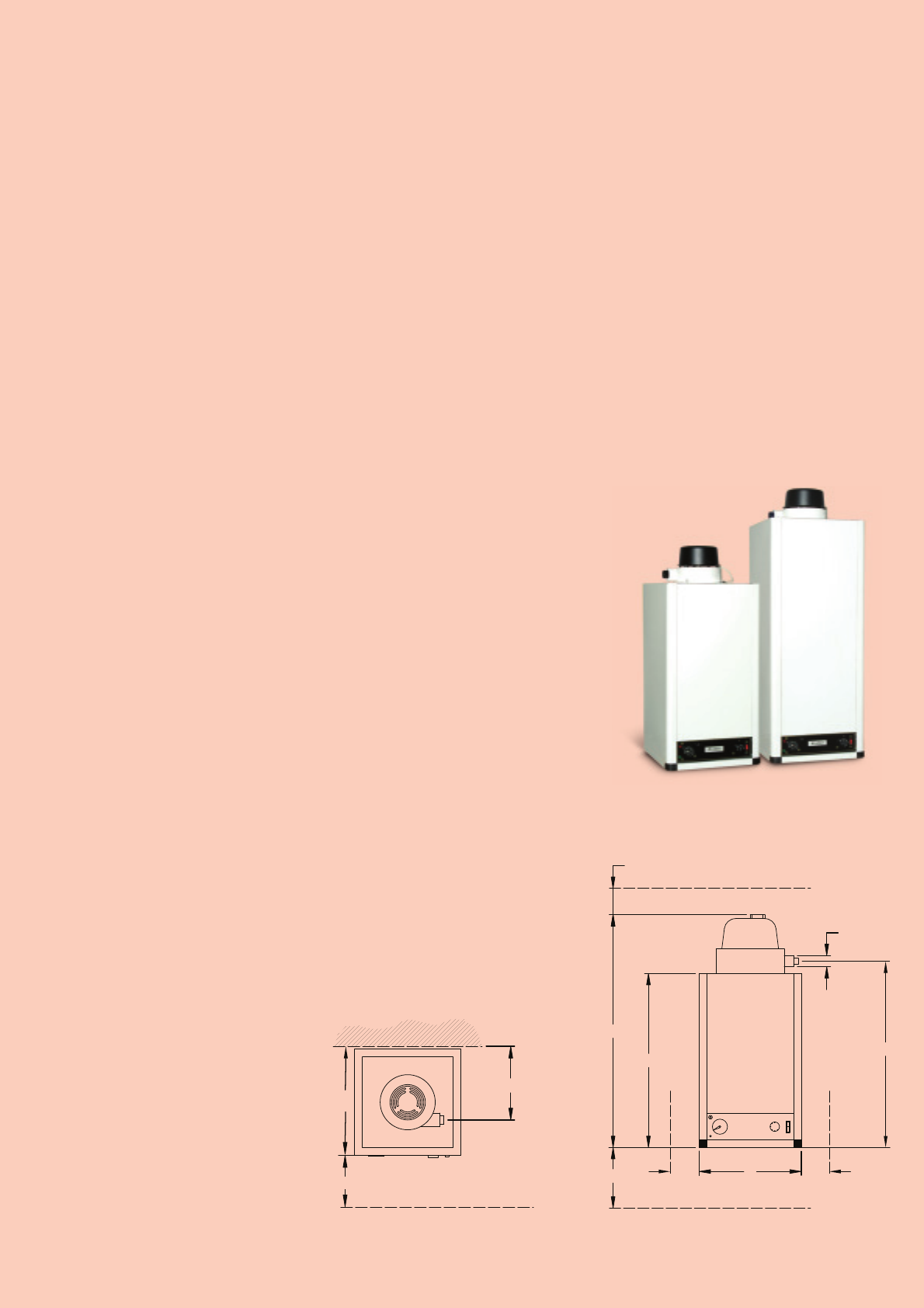

LBF-80 and LBF-120 water heaters
F
E
A
B
H
PJC
250
Front view
Top view
K
D
G
Models
LBF-150 |LBF-180
LBF-220 |LBF-300 |LBF-400

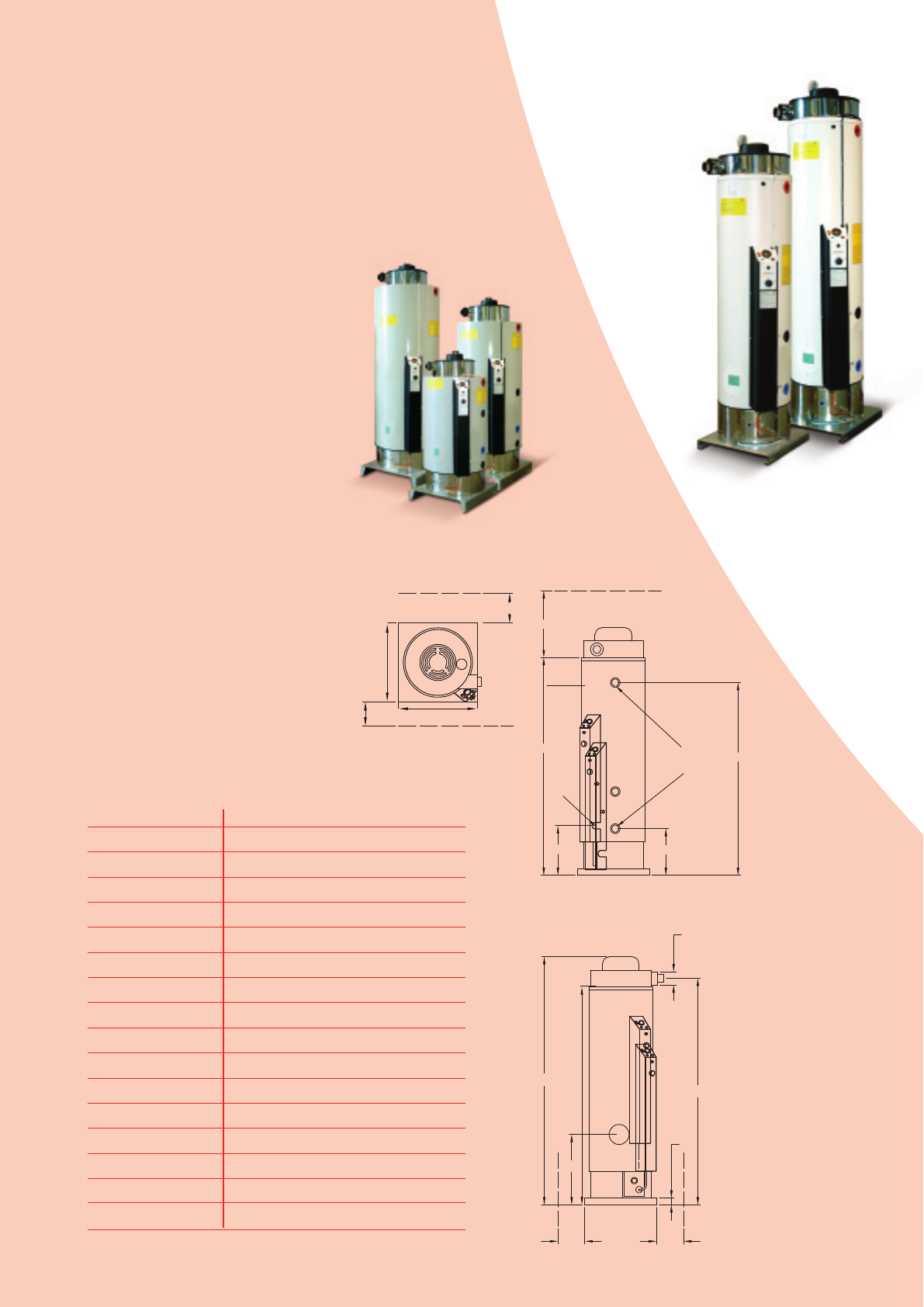

LBF-150 and LBF-180
water heaters
These five models offer storage capacities
from 145 to 400 litres and recovery rates
from 262 to 456 litres/hour based upon
a temperature rise of 50
oC
.
LBF water heaters are very compact,
with models LBF150 and LBF180 having
a footprint of only 520mm x 520mm. This
along with the flueing options with all five
models provides increased siting flexibility.
Concentric flue runs of up to 3m horizontal
or 2m vertical are possible and up to
6m horizontal or vertical if using a twin
pipe assembly.
Additional flue components
are available as ancillary options.
Features
•Automatic ignition
•Stainless steel burner
•Room sealed fan assisted flue
•A wide range of ancillaries - offering
installation flexibility
(refer to back page for details)
•Available for Natural Gas or LPG
LBF water heaters - dimensions (mm)
LBF-220, LBF-300 and LBF-400 water heaters
G
D
C
I
H
B
A
O
JK
50
E
F
B
LM
N
Model LBF-80 LBF-120 LBF-150 LBF-180 LBF-220 LBF-300 LBF-400
A1040 1400 1925 2125 1665 2015 2365
B895 1255 1700 1900 1350 1700 2050
C450 450 520 520 720 720 720
D460 460 520 520 720 720 720
E895 1255 1750 1950 1495 1840 2190
F60 60 100 100 100 100 100
G500 500 500 500 500 500 500
H200 200 200 200 200 200 200
In/a n/a 50 50 50 50 50
J50 50 200 200 50 50 50
K50 50 300 300 200 200 200
Ln/a n/a 420 420 470 470 470
Mn/a n/a 390 395 565 565 565
Nn/a n/a 1620 1825 1300 1655 2000
On/a n/a 460 465 570 570 570
P500 500 n/a n/a n/a n/a n/a
Top view
Front view
Hot outlet
RH side view
Cold inlet
Gas
inlet
the LBF range | Our high efficiency gas fired balanced flue storage water heaters
The high output LBF range comprises four
models with storage capacities of 276 or
350 litres. Recovery rates from 659 to 1591
litres/hour based upon a temperature rise
of 50
oC
are achievable from these highly
efficient water heaters.
Concentric flue runs of up to 6m horizontal or
7m vertical are possible providing increased
siting flexibility and installation cost savings
when compared with conventionally flued units

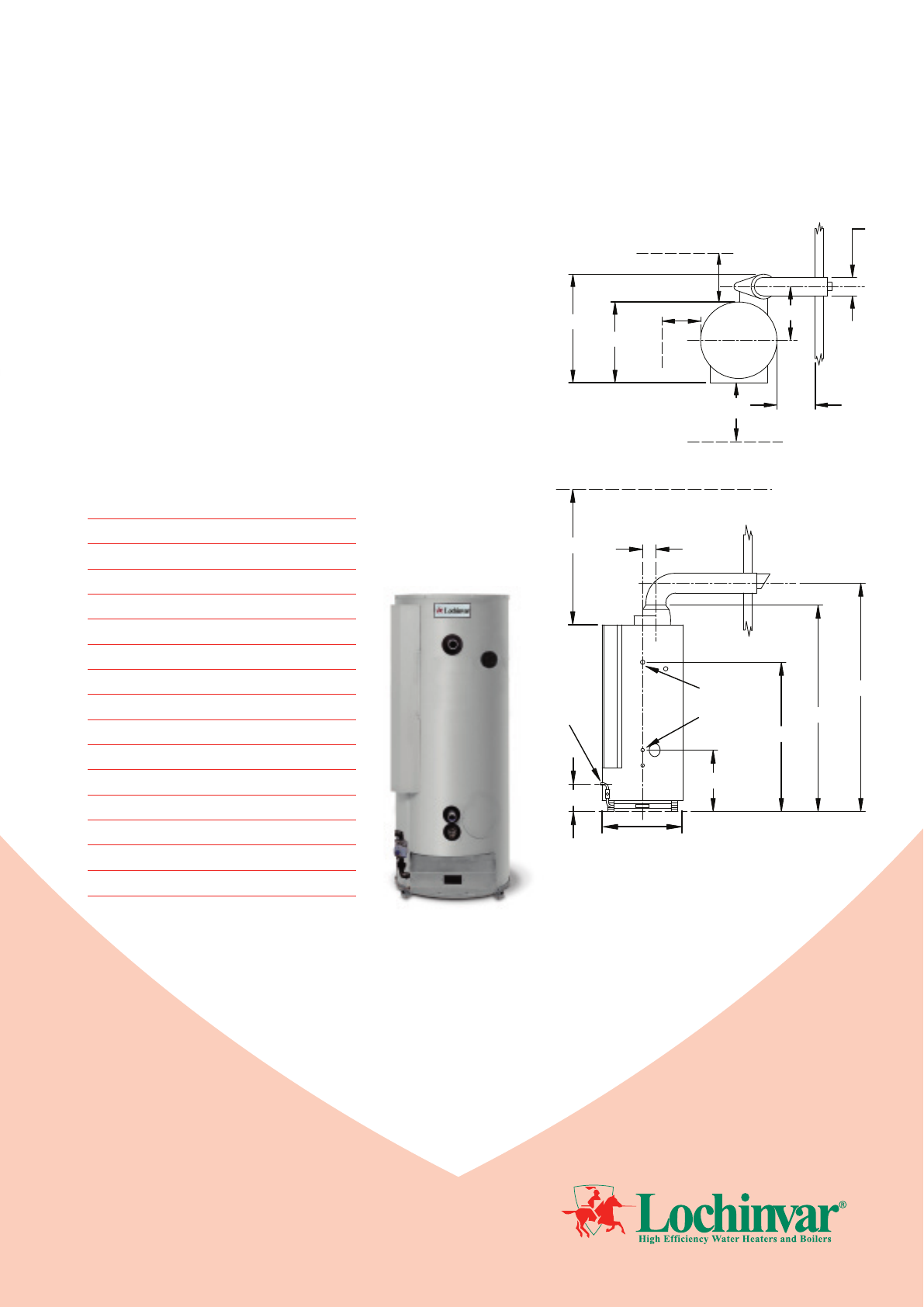

High output LBF range
Models 160-LBF |240-LBF
320-LBF |382 -LBF
Top view
I
High output LBF water heaters -
dimensions (mm)
Model 160-LBF 240-LBF 320-LBF 382-LBF
A1780 1780 1780 2005
B720 720 720 720
C1140 1140 1140 1140
D2055 2055 1955 2180
E150 150 200 200
F730 730 730 730
G1168 1168 1168 1168
H305 305 305 305
I305 305 305 305
J355 355 355 355
K130 130 130 130
L500 500 500 500
M825 825 825 825
N1307 1307 1307 1535
O530 530 530 530
E
I
L
H
F
H
M
C
High output LBF
water heater
Features
•Automatic ignition
•Stainless steel burner
•Room sealed concentric
fan assisted flue
•A wide range of
ancillaries - offering
installation flexibility
(refer to back page
for details)
•Available for
Natural Gas or LPG
Front view
Flue installation
When calculating the length
of your flue installation the
following should be taken into
consideration;
LBF range
Each 90
o
bend and 45
o
bend is
equivalent to 1m flue distance
High output LBF range
Each 90
o
bend is equivalent to 1m flue
distance and each 45
o
bend is equivalent
to 0.5m flue distance.
K
G
D
A
N
O
B
J
Gas inlet Cold inlet
Hot outlet
Lochinvar Limited reserve the right to
change specifications without prior notice.
cc6841LO | LBF | November 2009
Designed & produced by Cafécreate
Lochinvar Ltd
7 Lombard Way
The MXL Centre
Banbury
Oxon
OX16 4TJ
Tel: +44 (0) 1295 269981
Fax: +44 (0) 1295 271640
Email: sales@lochinvar.ltd.uk
www.lochinvar.ltd.uk
LBF water heater
ancillary options
• Flame failure relay
• Unvented system kits
• Direct storage vessels
• Correx® non sacrificial electrical anodes
• Horizontal or vertical room sealed
concentric flue assemblies
• Room sealed twin pipe flue assemblies
(not available on high output LBF models)
• De-stratification pump kit
Drawings
Dimensional drawings for all models are
available as hard copy or CAD files, that can be
downloaded from our website
www.lochinvar.ltd.uk.
Dakota Hotel, Nottingham
Hot water for the 92 bedroom hotel supplied
by 3 x high output LBF water heaters.
Morrisons Supermarkets
Hot water supplied by our LBF and high
output LBF range of water heaters.
