User’s Guide

871A and 872A

Digital Thermometers

eed for

ntrol?

s & Assemblies

Only model 871A has

CE certification

Servicing North America:

USA: One Omega Drive, Box 4047

ISO 9001 Certified Stamford, CT 06907-0047

Tel: (203) 359-1660 FAX: (203) 359-7700

e-mail: info@omega.com

Canada: 976 Bergar

Laval (Quebec) H7L 5A1

Tel: (514) 856-6928 FAX: (514) 856-6886

e-mail: canada@omega.com

For immediate technical or application assistance:

USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGASM

Customer Service: 1-800-622-2378 / 1-800-622-BESTSM

Engineering Service: 1-800-872-9436 / 1-800-USA-WHENSM

TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA

Mexico and

Latin America: Tel: (95) 800-TC-OMEGASM FAX: (95) 203-359-7807

En Espan˜ol: (203) 359-1660 ext: 2203 e-mail: espanol@omega.com

Servicing Europe:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands

Tel: (31) 20 6418405 FAX: (31) 20 6434643

Toll Free in Benelux: 06 0993344

e-mail: nl@omega.com

Czech Republic: Ostravska 767, 733 01 Karvina

Tel: 42 (69) 6311899 FAX: 42 (69) 6311114

e-mail: czech@omega.com

France: 9, rue Denis Papin, 78190 Trappes

Tel: (33) 130-621-400 FAX: (33) 130-699-120

Toll Free in France: 0800-4-06342

e-mail: france@omega.com

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

Tel: 49 (07056) 3017 FAX: 49 (07056) 8540

Toll Free in Germany: 0130 11 21 66

e-mail: germany@omega.com

United Kingdom: 25 Swannington Road, P.O. Box 7, Omega Drive,

ISO 9002 Certified Broughton Astley, Leicestershire, Irlam, Manchester,

LE9 6TU, England M44 5EX, England

Tel: 44 (1455) 285520 Tel: 44 (161) 777-6611

FAX: 44 (1455) 283912 FAX: 44 (161) 777-6622

Toll Free in England: 0800-488-488

e-mail: uk@omega.com

omega.com

OMEGA

OMEGAnetSM On-Line Service Internet e-mail

http://www.omega.com info@omega.com

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is

constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the

CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct but OMEGA Engineering, Inc. accepts no liability for any

errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, patient connected applications.

TABLE OF CONTENTS

MODEL 871A AND MODEL 872A

DIGITAL THERMOMETERS

SECTION PAGE

SECTION 1 INTRODUCTION .................................................................. 1

1.1 General Description ................................................................... 1

1.2 Features ..................................................................................... 1

2.1 Accessory Items......................................................................... 1

SECTION 2 INSTALLATION .................................................................... 2

2.1 Unpacking.................................................................................. 2

2.2 Battery Installation ..................................................................... 2

SECTION 3 OPERATION ......................................................................... 3

3.1 Controls and Indicators.............................................................. 3

3.2 Operating Procedure.................................................................. 5

SECTION 4 SERVICE INFORMATION .................................................... 5

4.1 Verification Check...................................................................... 5

4.1.1 Functionality Check ................................................................... 5

4.1.2 Accuracy Check......................................................................... 6

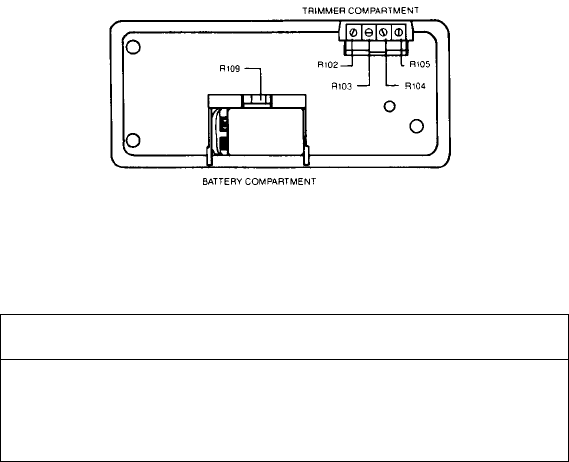

4.2 Calibration for Model 871A ........................................................ 6

4.2.1 Equipment Needed .................................................................... 6

4.2.2 Environmental Conditions.......................................................... 6

4.2.3 Setup.......................................................................................... 7

4.2.4 Calibration Procedure ................................................................ 7

4.3 Calibration for Model 872A ........................................................ 8

4.3.1 Equipment Needed .................................................................... 8

4.3.2 Environmental Conditions.......................................................... 8

4.3.3 Setup.......................................................................................... 8

4.3.4 Calibration Procedure ................................................................ 9

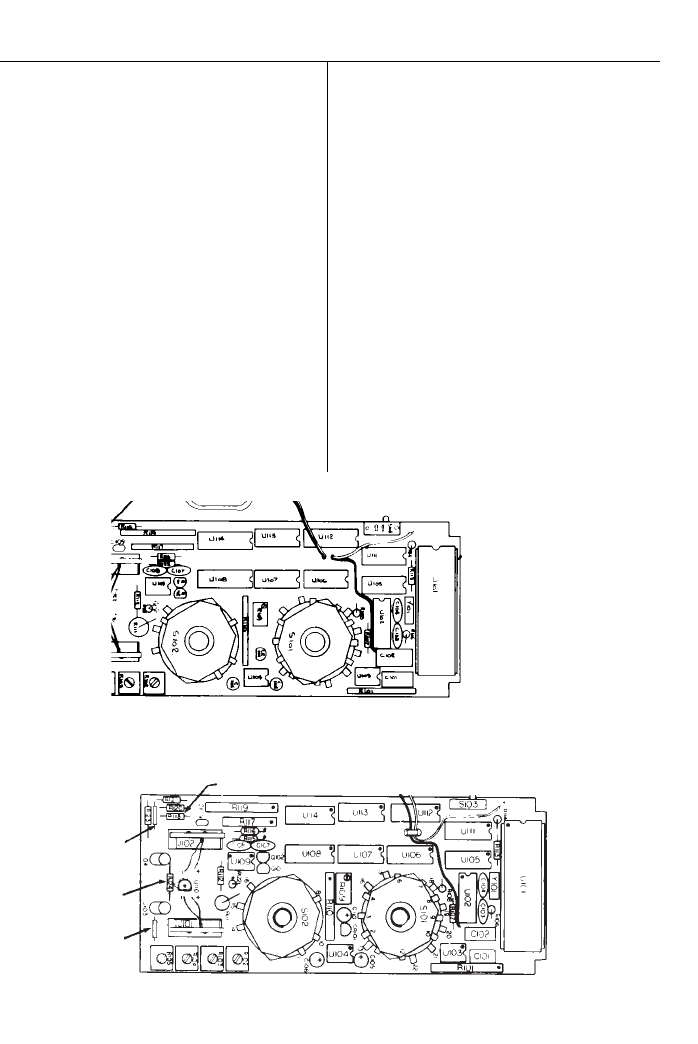

4.4 Disassembly for Model 871A and Model 872A.........................10

4.5 Troubleshooting Guide .............................................................11

4.5.1 DC Voltage checks Model 871A ...............................................12

4.5.2 DC Voltage Checks Model 872A ..............................................12

4.5.3 Waveform Checks Model 871A ................................................13

4.5.4 Waveform Checks Model 872A ................................................13

SECTION 5 SPECIFICATIONS FOR MODEL 871A

AND MODEL 872A .............................................................13

5.1 Parts List ...................................................................................16

SECTION 1 INTRODUCTION

1.1 GENERAL DESCRIPTION

The OMEGA® Model 871A and Model 872A Digital Thermometers are

ultrasensitive hand held instruments. Low power LSI devices combined

with a large 0.6" (15 mm) LCD, deliver reliability, extended battery life, and

an extremely readable readout. One nine volt battery will deliver 100 hours

of continuous operation.

The 871A and 872A are operationally identical except for minor differences

related to each model’s thermocouple input: Model 871A is designed for

use with type K (Chromel-Alumel) thermocouples; Model 872A is designed

for use with type J (Iron-Constantan) thermocouples.

Cold junction electronic circuitry in the Model 871A and Model 872A

automatically compensates for ambient temperature changes. A special

integrating A/D converter corrects for thermocouple non-linearity during

each digitization cycle. The resulting conformity to the standard

thermocouple voltage table is within 1ºC over the entire measurement span of

the instrument.

Although the 871A and 872A are ideal for temperature measurement in the

field, they also function well as bench instruments when equipped with the

optional tilt stand. The Model 871A and Model 872A provide dual inputs,

selectable scales (ºF/ºC), 1.0º and 0.1º resolution, and an analog output.

The versatile dual input configuration permits two point temperature

measurement such as those required in process monitoring. The analog

output allows interfacing with chart recorders or data acquisition system’s

functioning as an electronic ice-point reference.

1.2 FEATURES

• Wide temperature range • Dual thermocouple inputs

• Selectable scales (ºF/ºC) • Analog output

• 0.1º and 1.0º resolution • Heavy duty construction

• 0.25% accuracy

1.2.1 ACCESSORY ITEMS

SC-GG-[*]-30-36-SMP-M Thermocouple sensor (supplied with

unit) if purchased separately.

KS-871 Tilt stand

SC-800 Soft carrying case

880-A2 Deluxe carrying case

U9VL 9 V lithium battery

SMP-[*]-M Subminiature thermocouple connector, male

SMP-[*]-F Subminiature thermocouple connector,

female

OS-201-1 2 oz. jar of high thermal conductivity paste

for fast surface measurements

*Insert thermocouple type: J for Model 872, K for Model 871

SECTION 2 INSTALLATION

2.1 UNPACKING

Remove the Packing List and verify that all equipment has been received. If there

are any questions about the shipment, please call OMEGA Customer Service

Department at 800-622-2378 or (203) 359-1660.

The following items are included:

Quantity Description

1 871 or 872 Digital Thermometer

2 Beaded Wire Thermocouples

1 TAS Transition Adapter

1 9 Volt Alkaline Battery

1 Operator’s Manual

Upon receipt of shipment, inspect the container and equipment for any sign of

damage. Take particular note of any evidence of rough handling in transit.

Immediately report any damage to the shipping agent.

NOTE

The carrier will not honor any claims unless all shipping material is

saved for their examination. After examining and removing contents,

save packing material and carton in the event reshipment is necessary.

2.2 BATTERY INSTALLATION

A 9 V battery is supplied with the instrument but not installed. To install the

battery, remove the cover from the battery compartment by sliding it off in the

direction of the arrow located on the battery cover. The battery connector snaps

on and off the terminals of the battery. Improper installation of the battery will

cause the connecting wires to be severed by excess strain. Proper installation

requires that the battery be positioned in such a manner (see Figure 2-1) that the

leads protruding from the boot of the battery connector face toward the outside

of the battery compartment. If the instrument is going to be stored for a long

period of time or in a high temperature environment, remove the battery to

prevent damage due to leakage.

WARNING

Turn the model 871/872A off and disconnect the input probes before

replacing the battery. Put the cover back into place on the battery com-

partment before resuming use of the instrument.

Figure 2-1. Battery Installation

SECTION 3 OPERATION

The Model 871A is designed to work with any type K thermocouple probe or sen-

sor, fitted with an OMEGA miniature thermocouple connector SMP-K-M or industry

equivalent.

The Model 872A is designed to work with any type J thermocouple probe

or sensor, fitted with an OMEGA miniature connector SMP-J-M or

industry equivalent.

3.1 CONTROL AND INDICATORS

Figure 3-1 and Table 3-1 illustrate and describe the controls and indicators on the

871A and 872A.

Figure 3-1. Model 871A Controls and Indicators

*Model 872A has same controls and indicators, only range selections differ.

TABLE 3-1

MODEL 871A AND MODEL 872A

CONTROLS AND INDICATORS

ITEM CONTROL/INDICATOR FUNCTION

1. ON/OFF switch Turns unit on or off.

2. Scale and range selector Allows user to select: ºF or ºC scale,

any of four possible thermocouple

ranges, and 1.0º or 0.1º resolution.

3. Thermocouple selector Allows user to read either of two

thermocouples by simply turning

the dial.

4. Thermocouple input jacks Allows direct connection of two

thermocouples to the unit via an

OMEGA miniature male connector.

5. Analog output jack, The analog output is a nonlinearized,

+mV OUT and -mV OUT cold junction compensated, amplified

thermocouple output. (Not isolated

from selected TC input.) Use a

recorder to monitor temperature or

a sensitive DMM to make higher

resolution reading. Refer to mV

output specifications for mV output

to temperature ratios.

6. Low battery indicator When the battery level is low, BAT

will appear in upper left corner of

the display. Battery should then be

replaced to avoid error erroneous

readings due to battery failure.

7. Overrange/open When an overrange indication or

thermocouple indication open thermocouple condition exits,

a 1 followed by blanked digits will

appear in the display.

3.2 OPERATING PROCEDURE

1. Turn power on.

2. Select scale and range (see Tables 3-2 and 3-3).

3. Select thermocouple TC1 or TC2.

4. Connect one or two thermocouples to the input jacks.

5. Connect a recorder to the analog output to monitor temperatures,

or connect DMM to make high resolution readings, if desired.

TABLE 3-2

MODEL 871A TEMPERATURE RANGE

TABLE 3-3

MODEL 872A TEMPERATURE RANGE

SECTION 4 SERVICE INFORMATION

4.1 VERIFICATION CHECK

4.1.1 Functionality Check

Attach the GG-TC-K-24-36-SMP beaded wire thermocouple probe

(supplied) to the Model 871A and the GG-TC-J-24-36-SMP beaded wire

thermocouple probe (supplied) to the Model 872A. Hold the sensor end

between two fingers. The reading should change from ambient to between

77º to 104º F (25º to 40ºC).

Range Span Resolution

200°F -40.0° to 199.9°F 0.1°F

2000°F -40° to 1999°F 1°F

200°C -40.0° to 199.9°C 0.1°C

1370°C -40° to 1370°C 1°C

Range Span Resolution

200°F -40.0° to 199.9°F 0.1°F

1400°F -40° to 1400°F 1°F

200°C -40.0° to 199.9°C 0.1°C

760°C -40° to 760°C 1°C

4.1.2 Accuracy Check

1. Prepare a pure-water ice bath (see paragraph 4.2.3, step 5).

2. Connect a thermocouple probe to input 1 of the unit.

3. Immerse the probe into the pure-water ice bath and allow ten

minutes for thermal stabilization.

4. Turn on the instrument and use Tables 4-1 and 4-2 to verify

that the readings on each range are within specification.

TABLE 4-1

MODEL 871A RANGE CHART

TABLE 4-2

MODEL 872A RANGE CHART

4.2 CALIBRATION FOR MODEL 871A

4.2.1 Equipment Needed

1. DC Voltage Calibrator with 1 ±0.01% of setting ± 20 µV accuracy.

2. 100: 1 divider: 1.98 kilohm and 20 ohm wirewound resistors with

0.02% ratio accuracy or better.

3. OMEGA TRC III Ice Point Reference Chamber or distilled water ice

bath.

4. OMEGA type K TRP Reference Probe or make a thermocouple transi-

tion junction (see paragraph 4.2.3).

4.2.2 Environmental Conditions

To meet all specifications, the conditions for calibration should be an

ambient temperature 23º ± 1ºC; relative humidity less than 80%.

Range Allowable Reading

2000°F 32° ± 2°

200°F 32.0° ± 1.8°

1370°C 0° ± 1°

200°C 0.0° ± 1.0°

Range Allowable Reading

1400°F 32° ± 2°

200°F 32.0° ± 1.8°

760°C 0° ± 1°

200°C 0.0° ± 1.0°

4.2.3 Setup

(Refer to Figure 4-1.)

1. To make a thermocouple transition junction, silver solder a piece of

copper wire to each (type K) thermocouple wire and insulate the

junction with a waterproof jacket.

2. Connect the thermocouple wires from the type K transition junction to

an OMEGA miniature thermocouple connector SMP-K-M.

3. Plug in the miniature connector to input TC1 of the Model 871A.

4. Connect the copper wires to the 100:1 divider (see Figure 4-1) with the

copper/wire (positive) junction connected through the 1.98 kilohm

resistor, to the dc calibrator positive terminal.

5. Prepare a distilled water ice bath as follows:

a. Drill a hole in the cap of a Dewar flask or ThermosTM to accommodate

the transition junction.

b. Firmly pack the flask with pea-size ice chips made from distilled

water and then fill the flask with distilled water.*

c. Replace the melted ice with more ice while removing excess water.

d. Place cap on the flask and insert the transition junction into the

flask. Allow 20 minutes for temperature stabilization.

*Using tap water may cause inaccuracies due to contaminants.

*The 20Ωresistor must be held at a uniform

temperature during calibration.

Figure 4-1. Calibration Setup for Model 871A

4.2.4 Calibration Procedure

It is not necessary to disassemble the case for calibration. All adjustments

are accessible by removing the covers shown in Figure 4-2.

1. Remove the battery and trimmer compartment covers from the Model 871A.

2. Turn the Model 871A on and perform the calibration adjustments listed

in Table 4-3. 7

Figure 4-2. Access to Calibration Adjustments

TABLE 4-3

CALIBRATION ADJUSTMENTS FOR MODEL 871A

4.3 CALIBRATION FOR MODEL 872A

4.3.1 Equipment Needed

1. DC voltage calibrator with ±0.01% of setting and ± 20 µV accuracy.

2. 100: 1 divider: 1.98 kilohm and 20 ohm wirewound resistors with 0.02%

ratio accuracy or better.

3. OMEGA TRC III Ice Point Reference Chamber or distilled water ice bath.

4. OMEGA type J TRP Reference Probe or make a thermocouple

transition junction (see paragraph 4.3.3).

4.3.2 Environmental Conditions

To meet all specifications, the conditions for calibration should be: an

ambient temperature of 23º ± 1ºC; relative humidity less than 80%.

4.3.3 Setup

1. To make a thermocouple transition junction, silver solder a piece of

copper wire to each (type J) thermocouple wire and insulate the

junction with a waterproof jacket.

2. Connect the thermocouple wires from the type J transition junction to

an OMEGA miniature connector SMP-J-M.

871 Calibrator Trimmer Desired

Step Adjustment Range Setting (V) Adjust Reading

1 Input Offset Null 220ºC 0.0000 R109 00.0ºC

2 + Gain (X1) 1370ºC 5.3039 R104 1320ºC

3 + Gain (X10) 200ºC 0.6939 R105 170.0ºC

4 - Gain 200ºC -0.1527 R103 -40.0ºC

5 ºF Offset 200ºF 0.000 R102 32.0ºF

3. Plug in the miniature connector to input TC1 of the Model 872A.

4. Connect the copper wires to the 100:1 divider (see Figure 4-3) with the

iron wire connected through the 1.98 kilohm resistor, to the dc calibra-

tor positive terminal.

5. Prepare a distilled water bath as outlined in paragraph 4.2.3, step 5.

*The 20Ωresistor must be held at a uniform

temperature during calibration.

Figure 4-3. Calibration Setup for Model 872A

4.3.4 Calibration Procedure

It is not necessary to disassemble the case for calibration. All adjustments

are accessible by removing the covers shown in Figure 4.2.

1. Remove the battery and trimmer compartment covers from the Model

872A.

2. Turn the Model 872A on and perform the calibration adjustments listed

in Table 4-4.

TABLE 4-4

CALIBRATION ADJUSTMENTS FOR MODEL 872A

872A Calibrator Trimmer Desired

Step Adjustment Range Setting (V) Adjust Reading

1 Input Offset Null 200ºC 0.0000 R109 00.0ºC

2 + Gain (X1) 760ºC 4.2922 R104 760ºC

3 + Gain (X10) 200ºC 1.02217 R105 190.0ºC

4 - Gain 200ºC -.19604 R103 -40.0ºC

5 ºF Offset 200ºF 0.000 R102 32.0ºF

4.5.1 DC Voltage Checks For Model 871A

1. Battery: VBAT > 7 V

2. Power Supplies:

V + to (Analog Ground) = +2.8 ± 0.4 V

V + to (Digital Ground) = +5 ± 1 V

3. Reference Diode: CR101 to (Analog Ground) = -1.23 ± 0.03 V

4. Negative Reference Divider: (Reference to Analog Ground)

R119

Pin mV* Pin mV* Pin mV*

2 -210 5 -204 8 -195

3 -209 6 -199 9 -186

4 -204 7 -198 10 -173

*The setting of R104 and the tolerances of the resistors within the network

(R119) can affect these levels by ± 5%.

5. Deintegrate Comparators:

U103A PIN 3 to = 150 ±25mV

U103B, PIN 6 to = -150 ± 25 mV

6. Cold Junction Voltage:

(Ambient temperature 25º ±3ºC)

-COM to = 1.0 ±0.6 mV

4.5.2 DC Voltage Checks For Model 872A

1. Battery: VBAT > 7 V

2. Power Supplies:

V + to (Analog Ground) = +2.8 ± 0.4 V

V + to (Digital Ground) = +5 + 1 V

3. Reference Diode: CR101 to (Analog Ground)= -1.23 ±0.03 V

4. Negative Reference Divider: (Reference to Analog Ground)

R119

Pin mV* Pin mV* Pin mV*

2 -312 5 -274 8 -267

3 -293 6 -272 9 -254

4 -277 7 -271 10 -242

*The setting of R104 and the tolerances of the resistors within the network

(R119) can affect these levels by ±5%.

5. Deintegrate Comparators:

U103, Pin 3 to =190 ±30 mV

U103B, Pin 6 to = -180 ±30 mV

6. Cold Junction Voltage:

(Ambient temperature 25º ±3ºC)

-COM to = 1.3 mV ±0.6

➱➡

➱

➱➱

➱

➡➱

➱➱

➱

4.4 DISASSEMBLY FOR MODEL 871A AND MODEL 872A

The PC board and LCD assembly are not secured once the case retaining

screws are removed. Be careful not to allow the PC board and LCD

assembly to fall out or shift out of position.

1. Place the unit face down on a bench or other similar surface and

remove the battery compartment cover. Remove and disconnect the

battery. Remove the two #4-40 x 7/8 retaining screws.

2. Grasp the bottom cover at the input jack end and with a lifting

and forward pushing motion (see Figure 4-4 and Figure 4-5), carefully

remove the bottom cover. While removing the cover, feed the

battery connector through the access hole in bottom of the

battery compartment.

3. The component side of the PC board is now exposed and the battery

can be reconnected for troubleshooting. To read the display, some light

downward pressure at the top end of the circuit board may be required

in order to make contact through the conductive elastomer strip,

between the circuit board and the LCD.

4. To remove the PC board from the top cover, grasp the TC switch

assembly and lift until the input jacks become disengaged from the

cover. The PC board can now be removed using a slight clockwise

motion to free the two switch knobs from their normal positions in

the case.

5. The LCD assembly will remain in the top cover when the PC board is

removed. Again, be careful not to allow the LCD assembly to fall

out accidentally.

6. The two switch knobs can be removed from the PC board assembly by

simply pulling them off the switch shafts.

7. The LCD assembly, along with the strip connector, lifts out of the case.

8. To reassemble the unit, reverse the above procedure.

NOTE

Proper alignment of the strip connector is necessary when reinstalling the

LCD assembly. Make sure that the conductor side of the strip connector is

positioned against the plastic support of the assembly.

WARNING

Be sure to replace the on-off switch cover. Common-mode

voltage will be present on the switch, creating a possible hazard if

the cover is not replaced

Figure 4-4. Removing the Cover

Figure 4-5. Disassembled Model 871A and Model 872A

4.5 TROUBLESHOOTING GUIDE

The troubleshooting information is intended to be used by qualified elec-

tronic maintenance personnel who are familiar with the proper use of stan-

dard electronic test equipment.

To gain access to the PC board, refer to the first three paragraphs of the

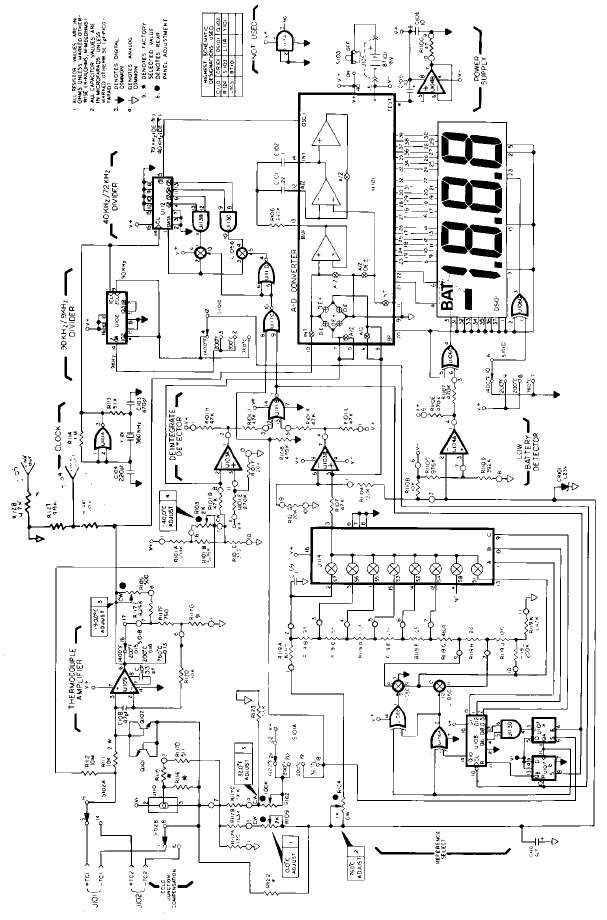

disassembly instructions. Utilize the Parts List, Schematic and Component

Layout for identifying parts and checkpoint locations. The following checks

should be made with the Models 871A and 872A set to the 200ºC Range.

4.5.1 DC Voltage Checks For Model 871A

1. Battery: VBAT > 7 V

2. Power Supplies:

V + to È(Analog Ground) = +2.8 ± 0.4 V

V + to È(Digital Ground) = +5 ± 1 V

3. Reference Diode: CR101 to È(Analog Ground) = -1.23 ± 0.03 V

4. Negative Reference Divider: (Reference to ÈAnalog Ground)

R119

Pin mV* Pin mV* Pin mV*

2 -210 5 -204 8 -195

3 -209 6 -199 9 -186

4 -204 7 -198 10 -173

*The setting of R104 and the tolerances of the resistors within the network

(R119) can affect these levels by ± 5%.

5. Deintegrate Comparators:

U103A PIN 3 to È= 150 ±25mV

U103B, PIN 6 to È= -150 ± 25 mV

6. Cold Junction Voltage:

(Ambient temperature 25º ±3ºC)

-COM to È= 1.0 ±0.6 mV

4.5.2 DC Voltage Checks For Model 872A

1. Battery: VBAT > 7 V

2. Power Supplies:

V + to È(Analog Ground) = +2.8 ± 0.4 V

V + to È(Digital Ground) = +5 + 1 V

3. Reference Diode: CR101 to È(Analog Ground)= -1.23 ±0.03 V

4. Negative Reference Divider: (Reference to ÈAnalog Ground)

R119

Pin mV* Pin mV* Pin mV*

2 -312 5 -274 8 -267

3 -293 6 -272 9 -254

4 -277 7 -271 10 -242

*The setting of R104 and the tolerances of the resistors within the network

(R119) can affect these levels by ±5%.

5. Deintegrate Comparators:

U103, Pin 3 to È =190 ±30 mV

U103B, Pin 6 to È = -180 ±30 mV

6. Cold Junction Voltage:

(Ambient temperature 25º ±3ºC)

-COM to È = 1.3 mV ±0.6

4.5.3 Waveform Checks For Model 871A

Waveform Checks: Referenced To È(Digital Ground)

Clock U111, Pin 3 360 kHz, 5V pp Square Wave

A/D Clock U112, Pin 5 40 kHz, 5V pp Rectangular Wave

Ref. Clock 1 U102, Pin 9 60 kHz, 5V pp Rectangular Wave

Ref. Clock 2 U102, Pin 14 6 kHz, 5V pp Rectangular Wave

Backplane U101, Pin 20 50 Hz, 5V pp Rectangular Wave

4.5.3 Waveform Checks For Model 872A

Waveform Checks: Referenced To È(Digital Ground)

Clock U111, Pin 3 360 kHz, 5V pp Square Wave

A/D Clock U112, Pin 5 40 kHz, 5V pp Rectangular Wave

Ref. Clock 1 U102, Pin 9 90 kHz, 5V pp Rectangular Wave

Ref. Clock 2 U102, Pin 14 9 kHz, 5V pp Rectangular Wave

Backplane U101, Pin 20 50 Hz, 5V pp Rectangular Wave

SECTION 5 SPECIFICATIONS FOR MODEL 871A AND

MODEL 872A

GENERAL

THERMOCOUPLE INPUTS: Two, switch selected

ACCURACY: ±0.25% of reading +1ºC (0.25% ±1.8ºF) for

one year, 64º to 82ºF (10º to 28ºC) ambient

EXTENDED SPAN ACCURACY: -40º to -55ºC: +2ºC, -0ºC

REPEATABILITY: ±0.2ºC Typical (one hr., constant

ambient temperature)

TEMPERATURE COEFFICIENT: 64º to 82ºF (18º to 28ºC); Less than

±(0.025% of reading +0.1ºC) 1ºC; for

temperatures less than 64ºF (18ºC) or

greater than 82ºF (28ºC)

MAXIMUM ALLOWABLE TC

INPUT OVERLOAD: 35Vdc (42 V peak AC)

NORMAL MODE REJECTION

RATIO: Greater than 45 dB at 50 and 60 Hz

COMMON MODE REJECTION

RATIO (1KΩUNBALANCE): Greater than 120 dB at dc, 50 and 60 Hz

DISPLAY: 3¹⁄₂ digit LCD, 0.6" height. Polarity and

decimal point indication

MAXIMUM COMMON MODE

VOLTAGE: 500 V

SPECIFICATION (con’t)

ENVIRONMENTAL LIMITS

OPERATING: 32º to 122º F (0º to 50ºC), less than 80%

relative humidity up to 95ºF (35ºC), less than

70% relative humidity from 95º to 122ºF (35º

to 50ºC); linearly derate 3% R.H./ºC 35º to

60ºC.

STORAGE: -30º to 140ºF (-35º TO 60ºC), less than 90%

relative humidity up to 95ºF (35ºC); linearly

derate 3% R.H./ºC 35º to 60ºC.

COLD-JUNCTION COMPENSATION: Semiconductor temperature sensor

INPUT CONNECTIONS: OMEGA subminiature thermocouple

connector (2)

mV OUTPUT CONNECTION: Dual banana jacks

POWER: 9 V alkaline or carbon-zinc (NEDA 1604)

battery

BATTERY LIFE CONTINUOUS: 100 hrs. typical with alkaline battery; 50 hrs.

typical with carbon-zinc battery

BATTERY INDICATOR: Display indicates “BAT” when less than

10% of life remains

DIMENSIONS: H: 7.0" (178 mm) x W: 3.1" (78 mm)

x D: 1.6" (42 mm)

WEIGHT: 10.6 oz. (300 grams)

FOR MODEL 871A

TEMPERATURE SENSOR: Type K (NiCr-NiAI) thermocouple

RANGES: 200ºF, 2000ºF, 200ºC, 1370ºC

TEMPERATURE SPAN: -40.0º to 199.9ºF, -40º to 1999ºF

-40.0º to 199.9ºC, -40º to 1370ºC

RESOLUTION: 0.1ºF, 1ºF, 0.1ºC, 1ºC

INPUT CURRENT: 200nA maximum

CONVERSION PERIOD: 400 ms (2.5 readings per sec)

OVERRANGE AND OPEN

THERMOCOUPLE INDICATION: Display blanked except for overrange digit

SPECIFICATION (con’t)

mV OUTPUT:

Non-linearized, cold-junction compensated,

amplified thermocouple output (Not isolated

from selected TC input.)

On ºC Scale:

1mV/ºC on 200º range

0.1mV/ºC on 1370º range

0ºC = OmV output

On º F Scale:

5/9 mV/ºF on 200º range

5/90 mV/ºF on 2000º range

0ºF = OmV output

mV OUTPUT ACCURACY

(18º - 28ºC) ±(3% + 1mV) on 200º ranges;

±(3% + 0.1mV) on High ranges

Includes TC non-linearity, excludes TC

errors. Output resistance: 10k ohms

mV OUTPUT TEMPERATURE

COEFFICIENT (0º - 18ºC & 28º -

50ºC): Less than (0.1 x accuracy specification)/ºC

mV OUTPUT PROTECTION: 35 V dc (42 V peak) max; +mV to -mV

and selected TC input to +mV or -mV.

THERMOCOUPLE

LINEARIZATION: Multi-scope A/D with 11 piecewise linear

segments between -40º and 1370ºC

FOR MODEL 872A

TEMPERATURE SENSOR: Type J (Fe-CuNi) thermocouple

RANGES: 200ºF, 1400ºF, 200ºC, 760ºC

TEMPERATURE SPAN: -40.0º TO 199.9ºF, -40º to 1400ºF

-40.0º TO 199.9ºC, -40º to 760ºC

RESOLUTION: 0.1ºF, 1ºF, 0.1ºC, 1ºC

INPUT CURRENT: 25 nA typical; 50 nA max

CONVERSION PERIOD: 400 ms (2.5 readings/sec.)

OVERRANGE AND OPEN

THERMOCOUPLE INDICATION: 3 least significant digits blanked

5.1 PARTS LIST

Circuit Description

Desig.

BT101 Battery, 9V NEDA 1604

C101 Cap, 0.22 µF, 100 V, Polyester

C102* Cap, 0.1 µF, 160 V,

Polypropylene

C102** Cap, 0.1 µF, 100 V,

Polypropylene

C103 Cap, 470pF, 1000 V, Ceramic

Disc

C104 Cap, 220pF, 1000 V, Ceramic

Disc

C105, 106 Cap, 10 µF, 16 V, Aluminum

Electrolytic

C107 Cap, 33pF, 1000 V, Ceramic

Disc

C108 Cap, 47pF, 1000 V, Ceramic

Disc

C109* Cap, 0.1 µF, 16 V, Ceramic

C109** Cap, 0.1 µF, 50 V, Ceramic

C110** Cap, 4.7 µF, 16 V, Aluminum

Electrolytic

CR101 Diode, Low Voltage Reference

DS101 Liquid Crystal Display, 31⁄2digit

J101, 102 TC Connector, Female

J103, J104** Jack, Female SMP Connector

J104, 105* Jack, Female

J105** Connector, Battery

J106* Connector, Battery

Q101, 102 Transistor, NPN, Switch, 2N3904

R101 Thick Film Resistor Network

Circuit Description

Desig.

R102 Pot, 100 kΩ

R103 Pot, 2 kΩ

R104 Pot, 1 kΩ

R105 Pot, 500 Ω

R106* Resistor, 180 kΩ, 5%, 1/4W,

Comp

R106** Resistor, 240 kΩ, 5%, 1/4W,

Comp

R107 Resistor, 47 kΩ, 5%, 1/4W,

Comp

R108 Resistor, 470 kΩ, 5%, 1/4W,

Comp

R109 Pot, 2 kΩ

R110 Thick Film Resistor Network

R111 Resistor, 10 kΩ, 10%, 2W,

Comp

R112 Resistor, 10 MΩ, 10%, 1/4W,

Comp

R113 Resistor, 5.1 kΩ, 5%, 1/4W,

Comp

R114* Resistor, 1 MΩ, 5%, 1/4W,

Comp

R114** Resistor, 1 MΩ, 10%, 1/4W,

Comp

R115, 116* Resistor, Selected, 1%, 1/8W,

Mtf.

R115** R115 and U110 are a selected

set

SPECIFICATION (con’t)

mV OUTPUT: Non-linearized, cold-junction compen-

sated, amplified thermocouple output

(Not isolated from selected TC input.)

On ºC Scale:

1mV/ºC on 200º range

0.1mVºC on 760º range

0ºC = OmV output

On ºF Scale:

5/9 mV/ºF on 200º range

5/90 mV/ºF on 1400º range

0ºF = OmV output

mV OUTPUT ACCURACY

(18º - 28º C) ±(5% + 1mV) on 200º ranges;

±(5% + 0.1mV) on High ranges

Includes TC non-linearity, excludes TC

errors. Output resistance: 10k ohms

mV OUTPUT TEMPERATURE

COEFFICIENT (0º - 18ºC

& 28º - 50°C) Less than (0.1 x accuracy specification)/ºC

mV OUTPUT PROTECTION: 35 V dc (42 V peak) max; +mV to -mV and

selected thermocouple input to +mV or -mV.

THERMOCOUPLE LINEARIZATION: Multi-scope A/D with nine piecewise linear

segments between -40º and 760º C

TABLE 3-1

MODEL 871A AND MODEL 872A

CONTROLS AND INDICATORS

ITEM CONTROL/INDICATOR FUNCTION

1. ON/OFF switch Turns unit on or off.

2. Scale and range selector Allows user to select: ºF or ºC scale,

any of four possible thermocouple

ranges, and 1.0º or 0.1º resolution.

3. Thermocouple selector Allows user to read either of two

thermocouples by simply turning

the dial.

4. Thermocouple input jacks Allows direct connection of two

thermocouples to the unit via an

OMEGA miniature male connector.

5. Analog output jack, The analog output is a nonlinearized,

+mV OUT and -mV OUT cold junction compensated, amplified

thermocouple output. (Not isolated

from selected TC input.) Use a

recorder to monitor temperature or

a sensitive DMM to make higher

resolution reading. Refer to mV

output specifications for mV output

to temperature ratios.

6. Low battery indicator When the battery level is low, BAT

will appear in upper left corner of

the display. Battery should then be

replaced to avoid error erroneous

readings due to battery failure.

7. Overrange/open When an overrange indication or

thermocouple indication open thermocouple condition exits,

a 1 followed by blanked digits will

appear in the display.

Circuit Description

Desig.

R116** R116, R122, and U109 are a

selected set

R117 Thick Film Resistor Network

R118* Resistor, 150 kΩ, 5%, 1/4W,

Comp

R118** Resistor, 5.6 kΩ, 5%, 1/4W,

Comp

R119 Thick Film Resistor Network

R120 Resistor, 10 kΩ, 5%, 1/4W,

Comp

R121** Resistor, 10.0 kΩ, 6.1%, Metal

Film

R122*† Resistor , Selected, 5%, 1/4W,

Comp

R122** R116, R122, and U109 are a

selected set

R123* Resistor, 324 kΩ, 1%, 1/8W, Mtf.

R123** Resistor, 316 kΩ, 1%, 1/8W, Mtf.

R124** Resistor, 10.0 Ω, 0.1%, Metal

film

R126* Resistor, 10 kΩ, 0.1%, MF

R127* Resistor, 9.9 kΩ, 0.1%, MF

R128* Resistor, 4.7 kΩ, 5%, 1/4 W,

Comp

S101 Switch, Rotary

S102 Switch, Rotary

S103 Switch, SPDT, ON-OFF

TC-1, 2 TC Cable

Circuit Description

Desig.

U101 31⁄2 Digit Single Chip A/D

Converter

U102 Dual Synchronous Up Counter

U103, U104* Low Power JFET Input Op Amp

U103, U104** Dual JFET Input Op Amp

U105 COS/MOS Quad Bilateral Switch

U106 CMOS Quad Exclusive OR Gate

U107 Dual “D” Type Flip-Flop

U108 14 Stage Binary Counter

U109* Linear Op Amp

U109** R116, R222, and U109 are a

selected set

U110* Current Source

U110** R115 and U110 are a

selected set

U111 Quad, 2 Input NOR Gate

U112 COS/MOS Divide by “N”

Counter

U113 Quad, 2 Input, AND Gate

U114 Analog Multiplexer

Y101 Resonator, 360 kHz

† Value selected during calibration at factory.

* For Model 871A only

** For Model 872A only

To order parts, specify model and circuit designation.

5.1 PARTS LIST (continued)

R120

R127

Jumper

R124

Jumper

R121

R118A

COMPONENT LAYOUT FOR MODEL 871A

COMPONENT LAYOUT FOR MODEL 872A

SCHEMATIC

MODEL 871A DIGITAL THERMOMETER

SCHEMATIC

MODEL 872A DIGITAL THERMOMETER

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a

period of 13 months from date of purchase. OMEGA Warranty adds an additional one (1) month

grace period to the normal one (1) year product warranty to cover handling and shipping time.

This ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit should malfunction, it must be returned to the factory for evaluation. OMEGA’s

Customer Service Department will issue an Authorized Return (AR) number immediately upon

phone or written request. Upon examination by OMEGA, if the unit is found to be defective it will

be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting

from any action of the purchaser, including but not limited to mishandling, improper interfacing,

operation outside of design limits, improper repair, or unauthorized modification. This

WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence

of being damaged as a result of excessive corrosion; or current, heat, moisture or vibration;

improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s

control. Components which wear are not warranted, including but not limited to

contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,

OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any

damages that result from the use of its products in accordance with information provided by

OMEGA, either verbal or written. OMEGA warrants only that the parts

manufactured by it will be as specified and free of defects. OMEGA MAKES NO OTHER

WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED,

EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED.

LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive and the total

liability of OMEGA with respect to this order, whether based on contract, warranty, negligence,

indemnification, strict liability or otherwise, shall not exceed the purchase price of the compo-

nent upon which liability is based. In no event shall OMEGA be liable for consequential, inciden-

tal or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a

“Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in

medical applications or used on humans. Should any Product(s) be used in or with any nuclear

installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes

no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language, and additionally,

purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever

arising out of the use of the Product(s) in such a manner.

RETURN REQUESTS / INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.

BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED

RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID

PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return

package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent

breakage in transit.

FOR WARRANTY RETURNS, please have the

following information available BEFORE

contacting OMEGA:

1. P.O. number under which the product was

PURCHASED,

2. Model and serial number of the product under

warranty, and

3. Repair instructions and/or specific

problems relative to the product.

FOR NON-WARRANTY REPAIRS,

consult

OMEGA for current repair charges. Have the fol-

lowing information available BEFORE

contacting OMEGA:

1. P.O. number to cover the COST

of the repair,

2. Model and serial number of product, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible.

This affords our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.

translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without prior written consent of

OMEGA ENGINEERING, INC.

USA

MADE

M618/0896

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

TEMPERATURE

MU Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

MU Wire: Thermocouple, RTD & Thermistor

MU Calibrators & Ice Point References

MU Recorders, Controllers & Process Monitors

MU Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

MU Transducers & Strain Gauges

MU Load Cells & Pressure Gauges

MU Displacement Transducers

MU Instrumentation & Accessories

FLOW/LEVEL

MU Rotameters, Gas Mass Flowmeters & Flow Computers

MU Air Velocity Indicators

MU Turbine/Paddlewheel Systems

MU Totalizers & Batch Controllers

pH/CONDUCTIVITY

UpH Electrodes, Testers & Accessories

MU Benchtop/Laboratory Meters

MU Controllers, Calibrators, Simulators & Pumps

MU Industrial pH & Conductivity Equipment

DATA ACQUISITION

MU Data Acquisition & Engineering Software

MU Communications-Based Acquisition Systems

MU Plug-in Cards for Apple, IBM & Compatibles

MU Datalogging Systems

MU Recorders, Printers & Plotters

HEATERS

MU Heating Cable

MU Cartridge & Strip Heaters

MU Immersion & Band Heaters

MU Flexible Heaters

MU Laboratory Heaters

ENVIRONMENTAL

MONITORING AND CONTROL

MU Metering & Control Instrumentation

MU Refractometers

MU Pumps & Tubing

MU Air, Soil & Water Monitors

MU Industrial Water & Wastewater Treatment

MU pH, Conductivity & Dissolved Oxygen Instruments

Handheld Temperature Meters A M0618

Navigation menu

Versions of this User Manual:

Views

Navigation
