1
Table of contents
INDEX
Subject Page
Quick Product Information ...……….……………………………………………………………..………………………………. 1
How To Order and Packaging Dimension/Quantity …….….….……………...………………………………………………. 2
The Outlines and External Dimensions of Capacitors …..……………………………...……………………………………. 3
General Purpose Caps (4V~100V) .…..………………………………………………………………………………………….…4
Ultra-small Caps (01R5 series) .…..……………………………………………………………………………………...………...9
Middle & High Voltage Caps (200V~3kV) ……………………………………………………………………..………...………10
High Q & Low ESR Caps (HH series) …………………………………………………………….….……………………......…13
Microwave Caps (RF series) ……………………….…………………………………………….….…………...……….………15
Soft Termination Capacitors (SH series) ……….………………………………………………..……….……..………..…….17
High Temperature Caps (HT series) ………...…….….……………………………………………………………..……….….23
Open-mode Design Caps (OP series) …………….….……………………………………………………….……..……….….25
Capacitor Arrays (Y4C2/Y4C3 series) ........….……………... ………………………………………..............…...…………..27
Low Profile Caps (TT series) …………….….………………………………………………………………………..…………..28
Low Inductance Caps (0612 series) ...………….…………..………………………………………………………….………...29
Safety Certificated Caps X1/Y2 (S2 series) ……………………………………………………………………………………..30
Safety Certificated Caps X2 (S3 series) ..…….…………...…………………………………………………………………….31
Automotive Capacitor Qualified to AEC-Q200 (MT series) …..……………………………………………………….……..32
Automotive Caps Without AEC-Q200 Certification (MG series) …..…..……………………………………………..…….33
Automotive Capacitor Arrays Qualified to AEC-Q200 (MY series) …..…..…………………………………………..…….36
Appendix | : Reliability Test Conditions and Requirements ….……………..…………………………………….…………….38
Appendix || : General Information ……...…………………………………………………………………………...……………..43
*The specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
*This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact
the approval sheet for product specifications before ordering.
2
Quick Product Information
■ QUICK PRODUCT INFORMATION
Series
Dielectric
Size
Rated voltage
Page
General Purpose Caps
(6.3V~100V)
NPO
0201, 0402, 0603, 0805, 1206,
1210, 1812,1825,2220,2225
10V, 16V, 25V, 50V, 100V
4
X7R
0201, 0402, 0603, 0805, 1206,
1210, 1812,1825,2220,2225
6.3V, 10V, 16V, 25V, 50V, 100V
X6S
0402, 0603, 0805, 1206,1210
6.3V, 10V, 16V, 25V
X7S
0402, 0603, 0805, 1206,1210
6.3V, 10V, 16V, 25V, 50V, 100V
X5R
0201, 0402, 0603, 0805,
1206,1210
6.3V, 10V, 16V, 25V, 50V
Y5V
0402, 0603, 0805, 1206, 1210,
1812
6.3V, 10V, 16V, 25V, 50V, 100V
Ultra-small Caps
(01R5 series)
NPO
01005
16V
9
X7R
01005
10V
X5R
01005
6.3V,10V
Middle & High Voltage Caps
(200V~4kV)
NPO
0603, 0805, 1206, 1210, 1808,
1812,1825,2220,2225
200V, 250V, 500V, 630V, 1kV, 2kV,
3kV, 4kV
10
X7R
0603, 0805, 1206, 1210, 1808,
1812,1825,2220,2225
200V, 250V, 400V, 450V, 500V, 630V,
1kV, 2kV, 3kV, 4kV
Y5V
0805, 1206, 1210,1812
200V, 250V
High Q & Low ESR Caps
(HH series)
NPO
0201,0402, 0603,0805
10V,16V, 25V, 50V, 100V, 200V, 250V,
500V, 630V
13
Microwave Caps
(RF series)
NPO
01005, 0201,0402,0603,
0805,0505,1111
6.3V, 10V, 25V,
50V,100V,250V,500V,1500V
15
Soft Termination Capacitors
(SH series)
NPO
0402,0603, 0805,1206, 1210,
1808, 1812,1825,2220,2225
10V,16V,25V,50V,100V,200V,250V,50
0V,630V,1kV, 3kV
17
X7R
0402,0603, 0805,1206, 1210,
1808, 1812,1825,2220,2225
10V,16V,25V,50V,100V,200V,250V,50
0V,630V, 1kV,2kV, 3kV
High Temperature Caps
(HT series)
X8G
0402,0603, 0805,1206, 1210
10V,16V,25V,50V,100V
23
X8R
0603, 0805,1206,
10V,16V,25V,50V
Open-mode Design Caps
(OP series)
X7R
0805, 1206, 1210, 1812
100V, 200V, 250V, 500V
25
Capacitor Arrays
(Y4C2/Y4C3 series)
NPO
0508 (4x0402),
0612 (4x0603)
25V, 50V,100V
27
X7R
0508 (4x0402),
0612 (4x0603)
10V, 16V, 25V, 50V
Y5V
0612 (4x0603)
16V, 50V
Low Profile Caps
(TT series)
X7R
0805, 1206
10V, 16V, 25V, 50V
28
X5R
0603, 0805, 1206, 1210
6.3V, 10V, 16V, 25V, 50V
Y5V
0805, 1206, 1210
10V, 16V, 25V, 50V
Low Inductance Caps
(0612 series)
X7R
0612
50V
29
Safety Certificated Caps X1/Y2
(S2 series)
NPO
1808, 1812, 2211
250Vac
30
X7R
1808, 1812, 2220, 2211
250Vac
Safety Certificated Caps X2
(S3 series)
NPO
1808, 1812
250Vrms
31
X7R
1808, 1812
250Vrms
Automotive Capacitor Qualified
to AEC-Q200 (MT series)
NPO
0201, 0402, 0603,
0805, 1206, 1210
10V,16V,25V,50V,100V, 250V, 500V,
630V
32
X7R
0402, 0603, 0805, 1206, 1210
10V,16V,25V,50V,100V, 250V, 500V,
630V,1kV
Automotive Caps
Without AEC-Q200
Certification
(MG series)
NPO
0402, 0603, 0805,
1206, 1210, 1812
10V,16V,25V,50V,100V,200V,250V
33
X7R
0402, 0603, 0805,
1206, 1210, 1812
10V,16V,25V,50V,100V,200V,250V
X5R
0402, 0603, 0805, 1206, 1210
6.3V,10V,16V,25V
Automotive Capacitor Arrays
Qualified AEC-Q200
(MY Series)
NPO
0612(4x0603), 0508(4x0402)
16V, 25V, 50V, 100V
36
X7R
0612(4x0603), 0508(4x0402)
10V, 16V, 25V, 50V
3
How To Order and
Packaging Dimension/Quantity
■ HOW TO ORDER
Type of MLCC
0805
B
104
K
500
C
T
General Purpose MLCC
Middle & High Voltage
MLCC
Ultra-small MLCC
Size
Dielectric
Capacitance
Tolerance
Rated voltage
Termination
Packaging
Inch (mm) : 01R5 (0402),
0201 (0603), 0402 (1005),
0603 (1608), 0805 (2012),
1206 (3216), 1210 (3225),
1808 (4520), 1812 (4532),
1825 (4563), 2220 (5750),
2225 (5763)
N=NP0
G=X8G
R=X8R
B=X7R
A=X7S
S=X6S
X=X5R
F=Y5V
Two
significant
digits
followed by
no. of zeros.
And R is in
place of
decimal
point.
R47=0.47pF
0R5=0.5pF
1R0=1pF
100=10pF
101=100pF
102=1000pF
103=0.01uF
104=0.1uF
105=1uF
106=10uF
107=100uF
A=
±0.05pF
B= ±0.1pF
C=
±0.25pF
D= ±0.5pF
F= ±1%
G= ±2%
J= ±5%
K= ±10%
M= ±20%
Z=-20/+80%
Two significant
digits followed
by no. of zeros.
And R is in
place of decimal
point.
4R0=4 Vdc
6R3=6.3 Vdc
100=10 Vdc
160=16 Vdc
250=25 Vdc
350=35 Vdc
500=50 Vdc
101=100 Vdc
201=200 Vdc
251=250 Vdc
401=400 Vdc
451=450 Vdc
501=500 Vdc
631=630 Vdc
102=1k Vdc
152=1.5k Vdc
202=2k Vdc
252=2.5k Vdc
302=3k Vdc
402=4k Vdc
502=5k Vdc
602=6k Vdc
L=Ag/Ni/Sn
C=Cu/Ni/Sn
T=7” reeled
Q=10” reeled
G=13” reeled
Low Inductance MLCC
0612 (1632)
High Q / Low ESR
MLCC
Microwave MLCC
Low Profile MLCC
Open Mode MLCC
Safety Certificated LCC
Automotive MLCC
RF
03
L=Ag/Ni/Sn
C=Cu/Ni/Sn
P=Cu/Polymer
/Ni/Sn
Series
Size
HH=High Q/ Low ESR
RF=Microwave
TT=Low profile
OP=Open-mode design
S2=X1/Y2 safety class
S3=X2 safety class
MG=Automotive Cap.
without AEC-Q200
MT=Automotive Cap.
with AEC-Q200
MY=Automotive Array
with AEC-Q200
Inch :
02=01005
03=0201
15=0402
11=0505
18=0603
21=0805
22=1111
31=1206
32=1210
42=1808
43=1812
52=2211
55=2220
56=2225
Soft Termination MLCC
SH=With Ag polymer
SH:C=
Ag
polymer/Ni/Sn
Cap Arrays MLCC
Y
4 C
3
C=Cu/Ni/Sn
Type
Y=Capacitor
array
Cap. Nr.
4C=4xCap
Termination
pitch
3=0.03 inch
2=0.02 inch
* The packaging code per each size of reel, please refer to following table "packaging style and quantity".
■ PACKAGING STYLE AND QUANTITY
Size
Thickness (mm)/Symbol
Paper tape
Plastic tape
7” reel
13” reel
7” reel
13” reel
01005 (0402)
0.20±0.02
V
20,000
-
40,000(W4P1)-
-
0201 (0603)
0.30±0.03
L
15,000
70,000
-
-
0402 (1005)
0.50±0.05
N
10,000
50,000
-
-
0.50+0.02/-0.05
Q
10,000
50,000
-
-
0.50±0.20
E
10,000
-
-
-
0603 (1608)
0.50±0.10
H
4,000
-
-
-
0.80±0.07
S
4,000
15,000
-
-
0.80+0.15/-0.10
X
4,000
15,000
-
-
0805 (2012)
0.50±0.10
H
4,000
15,000
-
-
0.60±0.10
A
4,000
15,000
-
-
0.80±0.10
B
4,000
15,000
-
-
0.85±0.10
T
4,000
15,000
-
-
1.25±0.10
D
-
-
3,000
10,000
1.25±0.20
I
-
-
3,000
10,000
1206 (3216)
0.80±0.10
B
4,000
15,000
-
-
0.85±0.10
T
4,000
15,000
-
-
0.95±0.10
C
-
-
3,000
10,000
1.15±0.15
J
-
-
3,000
10,000
1.25±0.10
D
-
-
3,000
10,000
1.60±0.20
G
-
-
2,000
10,000
1.60+0.30/-0.10
P
-
-
2,000
9,000
1210 (3225)
0.85±0.10
T
-
-
3,000
10,000
0.95±0.10
C
-
-
3,000
10,000
1.25±0.10
D
-
-
3,000
10,000
1.60±0.20
G
-
-
2,000
-
2.00±0.20
K
-
-
1,000
6,000
2.50±0.30
M
-
-
1,000
6,000
1808 (4520)
1.25±0.10
D
-
-
2,000
10,000
1.10±0.15
F
-
-
2,000
10,000
1.60±0.20
G
-
-
2,000
8,000
2.00±0.20
K
-
-
1,000
6,000
1812 (4532)
1.25±0.10
D
-
-
1,000
5,000
1.60±0.20
G
-
-
1,000
-
2.00±0.20
K
-
-
1,000
-
2.50±0.30
M
-
-
500
3,000
2.80±0.30
U
-
-
500
-
1825 (4563)
2220 (5750)
2225 (5763)
1.60±0.20
G
-
-
1,000
-
2.00±0.20
K
-
-
1,000
-
2.50±0.30
M
-
-
500
-
2.80±0.30
U
-
-
500
-
Unit: pieces
4

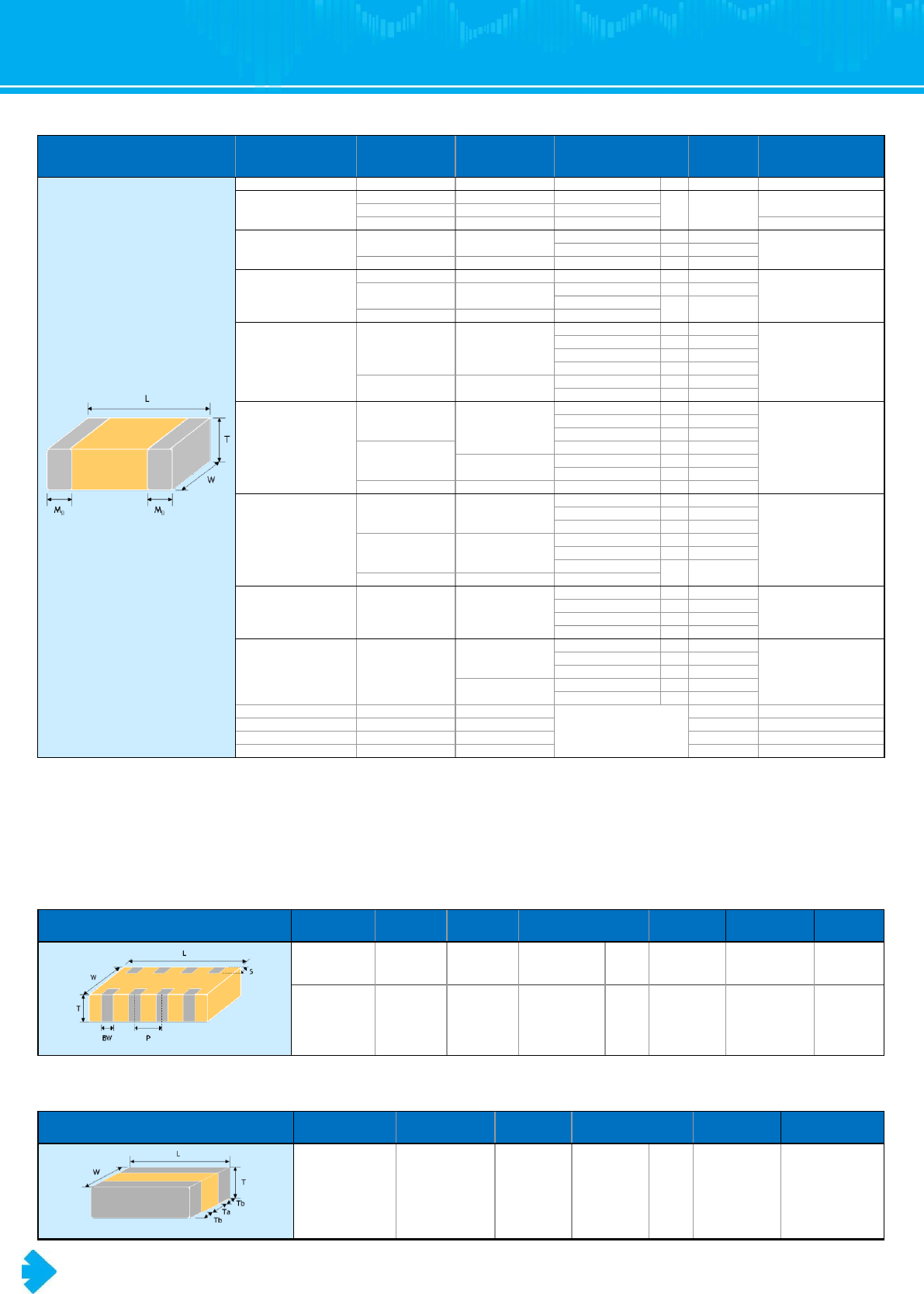

The Outlines and
External Dimensions of Capacitors
■ SINGLE CHIP CAPACITORS
Outline
Size
Inch (mm)
L (mm)
W (mm)
T (mm)/Symbol
Soldering
Method *
MB (mm)
01R5 (0402)
0.4±0.02
0.2±0.02
0.2±0.02
V
R
0.10±0.03
0201 (0603)
0.6±0.03
0.3±0.03
0.3±0.03
L
R
0.15±0.05
0.6±0.05#2
0.3±0.05#2
0.3±0.05#2
0.6±0.09#3
0.3±0.09#3
0.3±0.09#3
0.15+0.1/-0.05
0402 (1005)
1.00±0.05
0.50±0.05
0.50±0.05
N
R
0.25
+0.05/-0.10
0.50+0.02/-0.05
Q
R
1.00±0.20
0.50±0.20
0.5±0.20
E
R
0603 (1608)
1.60±0.10
0.80±0.10
0.80±0.07
S
R / W
0.40±0.15
1.60+0.15/-0.10
0.80+0.15/-0.10
0.50±0.10
H
R / W
0.80+0.15/-0.10
X
R / W
1.60±0.20#1
0.80±0.20#1
0.8±0.20#1
0805 (2012)
2.00±0.15
1.25±0.10
0.50±0.10
H
R / W
0.50±0.20
0.60±0.10
A
R / W
0.80±0.10
B
R / W
1.25±0.10
D
R
2.00±0.20
1.25±0.20
0.85±0.10
T
R / W
1.25±0.20
I
R
1206 (3216)
3.20±0.15
1.60±0.15
0.80±0.10
B
R / W
0.60±0.20
(0.5±0.25)***
0.95±0.10
C
R
1.25±0.10
D
R
3.20±0.20
1.15±0.15
J
R
1.60±0.20
1.60±0.20
G
R
0.85±0.10
T
R / W
3.20 +0.30/-0.10
1.60 +0.30/-0.10
1.60+0.30/-0.10
P
R
1210 (3225)
3.20±0.30
2.50±0.20
0.95±0.10
C
R
0.75±0.25
0.85±0.10
T
R
1.25±0.10
D
R
3.20±0.40
2.50±0.30
1.60±0.20
G
R
2.00±0.20
K
R
2.50±0.30
M
R
3.20±0.60#4
2.50±0.50#4
2.50±0.50#4
1808 (4520)
4.50±0.40
(4.5+0.5/-0.3)**
2.03±0.25
1.25±0.10
D
R
0.75±0.25
(0.5±0.25)***
1.40±0.15
F
R
1.60±0.20
G
R
2.00±0.20
K
R
1812 (4532)
4.50±0.40
(4.5+0.5/-0.3)**
3.20±0.30
1.25±0.10
D
R
0.75±0.25
(0.5±0.25)***
1.60±0.20
G
R
2.00±0.20
K
R
3.20±0.40
2.50±0.30
M
R
2.80±0.30
U
R
1825 (4563)
4.60±0.50
6.30±0.40
1.60±0.20 (G) 2.00±0.20
(K)
2.50±0.30 (M)
2.80±0.30 (U)
R
≧0.26
2211 (5728)
5.70±0.50
2.80±0.30
R
≧0.30
2220 (5750)
5.70±0.50
5.00±0.40
R
≧0.30
2225 (5763)
5.70±0.50
6.30±0.40
R
≧0.30
* R = Reflow soldering process ; W = Wave soldering process.
** For 1808_200V ~3kV, 1812_200V~3kV and safety certificated products.
*** For 1206_1000V ~3kV,1808_200V ~3kV, 1812_200V~3kV and safety certificated products.
#1 : For0603/Cap≧10μF or 0603(≦6.3V)/Cap≧4.7μFor 0603(>10V)/Cap>1μF products.
#2 : For 0201/Cap≧0.68μF products.
#3 : For 0201/Cap ≧1μF products.
#4 : For 1210(100V)/Cap>1μF or 1210(250V)/Cap>0.47μF or 1210(400V~630V)/Cap>0.22μF.
The table only for General Purpose Series, Soft termination and others please refer to individual sheet for details.
■ Capacitor Arrays
Outline
Size
Inch (mm)
L (mm)
W (mm)
T (mm)/Symbol
S (mm)
BW (mm)
P (mm)
0603 x 4
(0612 (1632)
3.20±0.15
1.60±0.15
0.80±0.10
B
0.30±0.20
0.40±0.15
0.80±0.15
0402 x 4
(0508 (1220)
2.00±0.15
1.25±0.15
0.85±0.10
T
0.20±0.10
0.25±0.10
0.50±0.10
Reflow soldering process only.
■ Low Inductance Capacitors
Outline
Size
Inch (mm)
L (mm)
W (mm)
T (mm)/Symbol
Ta min. (mm)
Tb min. (mm)
0612 (1632)
3.20±0.15
1.60±0.15
0.80±0.10
B
0.5
0.13
Reflow soldering process only.
5
General Purpose Capacitors
4V~100V
■ FEATURES
* A wide selection of sizes is available (0201 to 2225).
* High capacitance in given case size.
* Capacitor with lead-free termination (pure Tin).
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
X7R
X7S
X6S
X5R
Y5V
Size
0201, 0402, 0603, 0805, 1206, 1210, 1812, 1825, 2220, 2225
Capacitance range
0.1pF to 0.27μF
100pF to 47μF
1μF to 100μF
0.1μF to 100μF
100pF to 220μF
0.01μF to 100μF
Capacitance tolerance
Cap≤5pF#1:
A (±0.05pF), B (±0.1pF),
C (±0.25pF)
5pF<Cap<10pF:
C (±0.25pF), D (±0.5pF)
Cap≥10pF:
F(±1%), G (±2%), J (±5%),
K (±10%)
J (±5%),
K (±10%),
M (±20%)
K (±10%),
M (±20%)
K (±10%),
M (±20%)
K (±10%),
M (±20%)
M (±20%),
Z (-20/+80%)
Rated voltage (WVDC)
10V, 16V, 25V, 50V, 100V
4V, 6.3V, 10V, 16V, 25V, 50V, 100V
Operating temperature
-55 to +125°C
-55 to +105°C
-55 to +85°C
-25 to +85°C
Capacitance characteristic
±30ppm
±15%
±22%
±15%
+30/-80%
Termination
Ni/Sn (lead-free termination)
#1: NP0, 0.1pF product only provide B tolerance
■ EXPLANATION OF PART NUMBERS
1206
F
104
Z
500
C
T
Size (Inch (mm))
1206 (3216)
Dielectric
F=Y5V
Capacitance
104=10x104=100nF
Tolerance
Z=-20/+80%
Rated voltage
500=50 VDC
Termination
C=Cu/Ni/Sn
Packaging style
T=7” reeled
Please refer to page 2 “How to order” for more information.

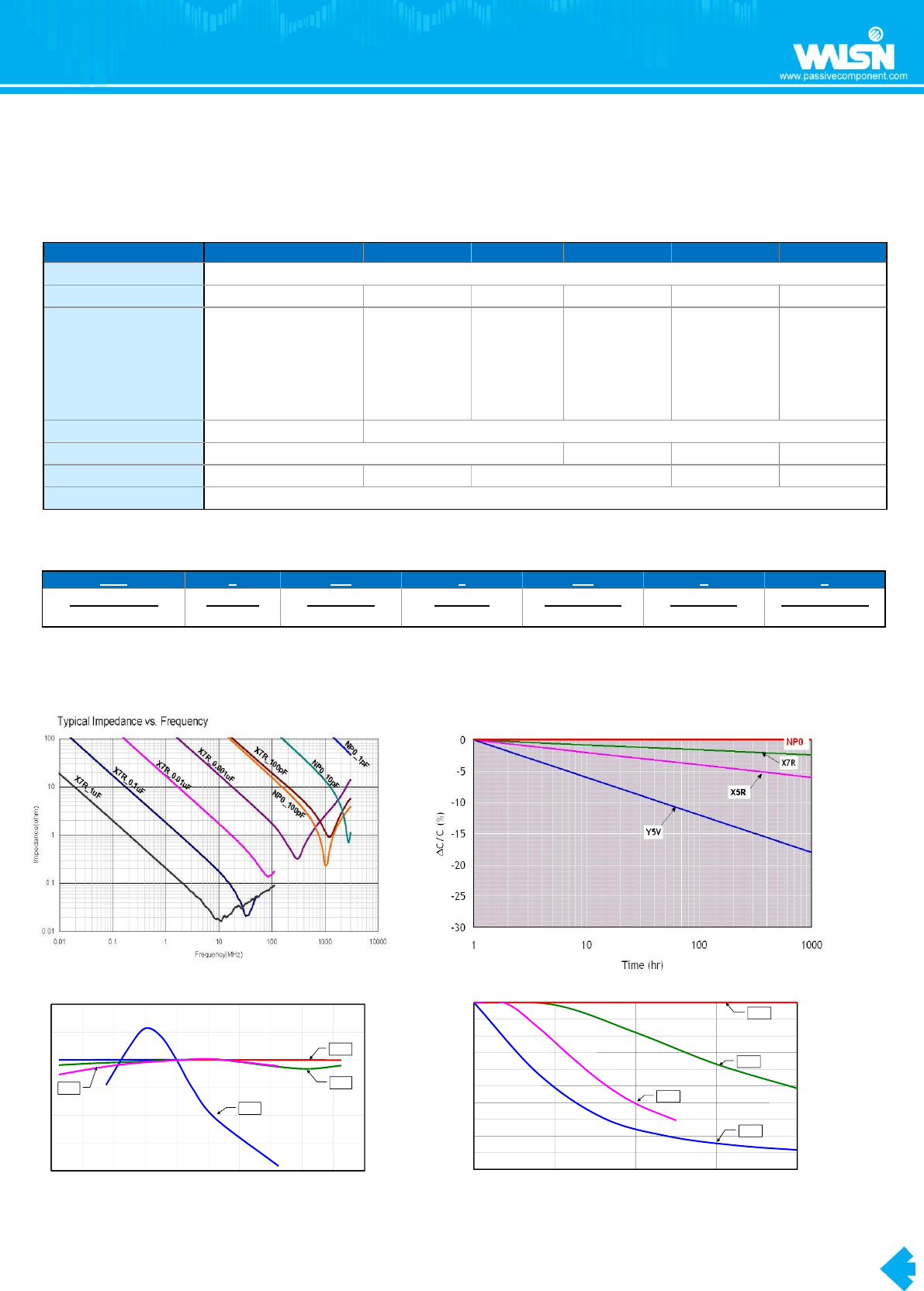

■ ELECTRICAL CHARACTERISTICS
1) Frequency characteristics 2) Capacitance Change - Typical aging rate
3) Temperature characteristics of capacitance (TCC) 4) DC Bias characteristics
All above typical electronic characteristics are for reference only.
Please contact with Walsin representative for detail information of any specific item.
Temperature Characteristics of Capacitance
-80
-60
-40
-20
0
20
40
-60 -40 -20 0 20 40 60 80 100 120 140
Temperature (℃)
△C/C (%)
NP0
X7R
Y5V
X5R
DC bias Characteristics
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
010 20 30 40
Voltage (dc)
△C/C (%)
NP0
X7R
X5R
Y5V
6
General Purpose Capacitors
4V~100V
■ CAPACITANCE RANGE
NP0 Dielectric
Dielectric
NP0
Size
0201
0402
0603
0805
1206
1210
1812
1825
2220
2225
Rated Voltage
(VDC)
16
25
50
10
16
25
50
100
10
16
25
50
100
10
16
25
50
100
10
16
25
50
100
10
16
25
50
100
10
16
25
50
100
50
100
50
100
50
100
Capacitance
0.3pF (0R3)
L
L
N
S
0.4pF (0R4)
L
L
N
S
0.5pF (0R5)
L
L
N
N
S
S
A
A
A
0.6pF (0R6)
L
L
N
N
S
S
A
A
A
0.7pF (0R7)
L
L
N
N
S
S
A
A
A
0.8pF (0R8)
L
L
N
N
S
S
A
A
A
0.9pF (0R9)
L
L
N
N
S
S
A
A
A
1.0pF (1R0)
L
L
N
N
S
S
A
A
A
1.2pF (1R2)
L
L
N
N
S
S
A
A
A
B
B
B
1.5pF (1R5)
L
L
N
N
S
S
A
A
A
B
B
B
1.8pF (1R8)
L
L
N
N
S
S
A
A
A
B
B
B
2.0pF (2R0)
L
L
N
N
S
S
A
A
A
B
B
B
2.2pF (2R2)
L
L
N
N
S
S
A
A
A
B
B
B
2.7pF (2R7)
L
L
N
N
S
S
A
A
A
B
B
B
3.0pF (3R0)
L
L
N
N
S
S
A
A
A
B
B
B
3.3pF (3R3)
L
L
N
N
S
S
A
A
A
B
B
B
3.9pF (3R9)
L
L
N
N
S
S
A
A
A
B
B
B
4.0pF (4R0)
L
L
N
N
S
S
A
A
A
B
B
B
4.7pF (4R7)
L
L
N
N
S
S
A
A
A
B
B
B
5.0pF (5R0)
L
L
N
N
S
S
A
A
A
B
B
B
5.6pF (5R6)
L
L
N
N
S
S
A
A
A
B
B
B
6.0pF (6R0)
L
L
N
N
S
S
A
A
A
B
B
B
6.8pF (6R8)
L
L
N
N
S
S
A
A
A
B
B
B
7.0pF (7R0)
L
L
N
N
S
S
A
A
A
B
B
B
8.0pF (8R0)
L
L
N
N
S
S
A
A
A
B
B
B
8.2pF (8R2)
L
L
N
N
S
S
A
A
A
B
B
B
9.0pF (9R0)
L
L
N
N
S
S
A
A
A
B
B
B
10pF (100)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
12pF (120)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
15pF (150)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
18pF (180)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
22pF (220)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
27pF (270)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
33pF (330)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
39pF (390)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
47pF (470)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
56pF (560)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
68pF (680)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
82pF (820)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
100pF (101)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
120pF (121)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
150pF (151)
L
L
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
180pF (181)
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
220pF (221)
N
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
270pF (271)
L
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
330pF (331)
L
N
S
S
A
A
A
B
B
B
C
C
C
D
D
G
G
G
G
G
G
390pF (391)
L
N
S
S
B
B
B
B
B
B
C
C
C
D
D
G
G
G
G
G
G
470pF (471)
L
N
S
S
B
B
B
B
B
B
C
C
C
D
D
G
G
G
G
G
G
560pF (561)
L
N
S
S
B
B
B
B
B
B
C
C
C
D
D
G
G
G
G
G
G
680pF (681)
N
S
S
B
B
B
B
B
B
C
C
C
D
D
G
G
G
G
G
G
820pF (821)
N
S
S
B
B
B
B
B
B
C
C
C
D
D
G
G
G
G
G
G
1,000pF (102)
N
S
S
B
B
B
B
B
B
C
C
C
D
D
G
G
G
G
G
G
1,200pF (122)
X
X
B
B
B
B
B
B
C
C
C
D
D
G
G
G
G
G
G
1,500pF (152)
X
X
B
B
B
B
B
B
C
C
C
D
D
G
G
G
G
G
G
1,800pF (182)
X
B
B
B
B
B
B
C
C
C
D
D
G
G
G
G
G
G
2,200pF (222)
X
B
B
B
B
B
B
C
C
C
D
D
G
G
G
G
G
G
2,700pF (272)
X
D
D
D
B
B
B
C
C
C
D
D
G
G
G
G
G
G
3,300pF (332)
X
D
D
D
B
B
B
C
C
C
D
D
G
G
G
G
G
G
3,900pF (392)
X
D
D
D
B
B
B
C
C
C
D
D
G
G
G
G
G
G
4,700pF (472)
X
D
D
D
B
B
B
C
C
C
D
D
G
G
G
G
G
G
5,600pF (562)
X
D
D
D
B
B
B
C
C
C
D
D
G
G
G
G
G
G
6,800pF (682)
X
D
D
D
C
C
C
C
C
C
D
D
G
G
G
G
G
G
8,200pF (822)
X
D
D
D
D
D
C
C
C
D
D
G
G
G
G
G
G
0.010uF (103)
X
D
D
D
D
D
C
C
C
D
D
G
G
G
G
G
G
0.012uF (123)
T
T
P
P
P
D
D
D
D
D
G
G
G
G
G
G
0.015uF (153)
T
T
P
P
P
D
D
D
D
D
G
G
G
G
G
G
0.018uF (183)
D
D
P
P
P
K
K
K
D
D
G
G
G
G
G
G
0.022uF (223)
D
D
P
P
P
K
K
K
D
D
G
G
G
G
G
G
0.027uF (273)
P
P
K
K
K
D
D
G
G
G
G
G
G
0.033uF (333)
P
P
T
K
K
K
D
D
G
G
G
G
G
G
0.039uF (393)
P
P
K
K
K
M
M
G
G
G
G
G
G
0.047uF (473)
J
J
K
K
K
M
M
G
G
G
G
G
G
0.056uF (563)
J
J
M
M
G
K
G
K
G
G
0.068uF (683)
G
G
M
M
G
K
K
K
G
K
0.082uF (823)
G
G
M
M
K
M
M
M
K
K
0.10uF (104)
G
G
M
M
M
M
M
M
K
M
0.12uF (124)
M
M
M
M
M
M
0.15uF (154)
M
M
M
M
0.18uF (184)
M
M
M
M
0.22uF (224)
M
M
0.27uF (274)
M
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
7
General Purpose Capacitors
4V~100V
X7R Dielectric
Dielectric
X7R
Size
0201
0402
0603
0805
1206
1210
1812
1825
2220
2225
Rated Voltage
(VDC)
6.3
10
16
25
50
6.3
10
16
25
50
100
6.3
10
16
25
50
100
6.3
10
16
25
50
100
6.3
10
16
25
50
100
10
16
25
50
100
10
16
25
50
100
50
100
25
50
100
25
50
100
Capacitance
100pF (101)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
120pF (121)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
150pF (151)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
180pF (181)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
220pF (221)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
270pF (271)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
330pF (331)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
390pF (391)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
470pF (471)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
560pF (561)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
680pF (681)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
820pF (821)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
1,000pF (102)
L
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
1,200pF (122)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
1,500pF (152)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
1,800pF (182)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
2,200pF (222)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
2,700pF (272)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
3,300pF (332)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
3,900pF (392)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
4,700pF (472)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
5,600pF (562)
L
L
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
6,800pF (682)
L
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
8,200pF (822)
L
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.010uF (103)
L
L
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.012uF (123)
N
N
E
S
S
S
X
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.015uF (153)
N
N
E
S
S
S
X
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.018uF (183)
N
N
E
S
S
S
X
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.022uF (223)
L
N
N
E
S
S
S
X
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.027uF (273)
N
N
E
S
S
S
X
B
B
B
D
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.033uF (333)
N
N
E
S
S
X
X
B
B
B
D
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.039uF (393)
N
N
E
S
S
X
X
B
B
B
D
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.047uF (473)
N
N
E
S
S
X
X
B
B
B
D
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.056uF (563)
N
N
E
S
S
X
X
B
B
B
D
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.068uF (683)
N
N
E
S
S
X
X
B
B
B
D
B
B
B
B
C
C
C
C
C
D
D
K
K
K
K
K
0.082uF (823)
N
N
E
S
S
X
X
B
B
B
D
B
B
B
D
C
C
C
C
C
D
D
K
K
K
K
K
0.10uF (104)
N
N
E
S
S
X
X
B
B
B
D
B
B
B
D
C
C
C
C
C
D
D
K
K
K
K
K
0.12uF (124)
S
X
B
B
D
I
B
B
B
D
C
C
C
C
C
D
D
K
K
K
K
K
0.15uF (154)
S
X
D
D
D
I
C
C
C
G
C
C
C
C
D
D
D
K
K
K
K
K
0.18uF (184)
S
X
D
D
D
I
C
C
C
G
C
C
C
C
D
D
D
K
K
K
K
K
0.22uF (224)
N
N
S
X
X
D
D
D
I
C
C
C
G
C
C
C
C
D
D
D
K
K
K
K
K
0.27uF (274)
X
X
D
D
I
C
C
D
G
C
C
C
C
G
D
D
K
K
K
K
K
0.33uF (334)
X
X
X
D
D
I
C
C
D
G
C
C
C
D
G
D
D
K
K
K
K
K
0.39uF (394)
X
X
D
D
I
C
J
P
G
C
C
C
D
M
D
D
K
K
K
K
K
0.47uF (474)
N
X
X
X
D
D
I
I
J
J
P
G
C
C
C
D
M
D
D
K
K
K
K
K
0.56uF (564)
X
D
D
J
J
P
P
D
D
D
D
M
D
D
K
K
K
K
K
0.68uF (684)
X
D
D
J
J
P
P
D
D
D
D
K
D
K
K
K
K
K
K
0.82uF (824)
X
D
D
J
J
P
P
D
D
D
D
K
D
K
K
K
K
K
K
1.0uF (105)
N
X
X
X
D
D
I
J
J
P
P
D
D
D
D
K
D
K
K
K
K
K
K
1.5uF (155)
I
I
J
P
G
G
M
M
K
K
K
K
K
K
2.2uF (225)
X
I
I
I
J
P
P
P
G
G
M
M
M
K
K
K
K
K
3.3uF (335)
P
P
G
G
M
K
K
K
K
K
4.7uF (475)
X
I
I
P
P
P
K
K
K
M
M
K
K
M
K
6.8uF (685)
M
U
M
10uF (106)
I*
P
P
K
K
K
M
U
U
U
22uF (226)
P*
M
M
M
47uF (476)
M
1. The letter in cell is expressed the symbol of product thickness.
2. 0402 size, Cap.1.0uF_6.3V only; 0603 size, Cap.4.7uF_6.3V only.
3. 0805/10uF/16V & 1206/22uF/16V : “M tolerance”(20%) only
4. For more information about products with special capacitance or other data, please contact WTC local representative.
8
General Purpose Capacitors
4V~100V
Y5V Dielectric (0402, 0603, 0805 Size)
Dielectric
Y5V
Size
0402
0603
0805
Rated Voltage
(VDC)
6.3
10
16
25
50
6.3
10
16
25
50
6.3
10
16
25
50
100
Capacitance
0.010uF (103)
N
N
N
N
S
S
S
S
A
A
A
A
B
0.015uF (153)
N
N
N
N
S
S
S
S
A
A
A
A
B
0.022uF (223)
N
N
N
N
S
S
S
S
A
A
A
A
B
0.033uF (333)
N
N
N
N
S
S
S
S
A
A
A
A
B
0.047uF (473)
N
N
N
S
S
S
S
A
A
A
A
B
0.068uF (683)
N
N
N
S
S
S
S
A
A
A
A
B
0.10uF (104)
N
N
N
S
S
S
S
A
A
A
A
B
0.15uF (154)
N
N
S
S
S
S
A
A
A
A
0.22uF (224)
N
N
N
S
S
S
S
S
A
A
A
A
0.33uF (334)
N
N
N
S
S
S
X
B
B
B
B
0.47uF (474)
N
N
N
S
S
X
X
B
B
B
B/D
0.68uF (684)
N
S
X
X
B
B
D
D
1.0uF (105)
N
N
S
X
X
B
B
D
D
1.5uF (155)
S
D
D
2.2uF (225)
S
S
X
D
D
I
3.3uF (335)
D
D
4.7uF (475)
X
X
D
D
I
6.8uF (685)
I
10uF (106)
I
I
I
22uF (226)
I
I
Y5V Dielectric (1206, 1210, 1812 Size)
Dielectric
Y5V
Size
1206
1210
1812
Rated Voltage
(VDC)
6.3
10
16
25
35
50
100
6.3
10
16
25
35
50
100
10
16
25
50
100
Capacitance
0.010uF (103)
B
B
B
B
B
C
D
0.015uF (153)
B
B
B
B
B
C
D
0.022uF (223)
B
B
B
B
B
C
D
0.033uF (333)
B
B
B
B
B
C
D
0.047uF (473)
B
B
B
B
B
C
D
0.068uF (683)
B
B
B
B
B
C
D
0.10uF (104)
B
B
B
B
B
C
C
C
C
C
D
D
D
D
D
0.15uF (154)
B
B
B
B
C
C
C
C
C
C
D
D
D
D
D
0.22uF (224)
B
B
B
B
C
C
C
C
C
C
D
D
D
D
D
0.33uF (334)
B
B
B
B
C
C
C
C
C
D
D
D
D
D
0.47uF (474)
B
B
B
B
C
C
C
C
D
D
D
D
D
0.68uF (684)
B
B
B
B
C
C
C
C
D
D
D
D
D
1.0uF (105)
C
C
C
C/D
C
C
C
C
D
D
D
D
D
1.5uF (155)
C
C
C
C
C
C
D
D
D
D
2.2uF (225)
C
C
C
J
C
C
C
G
D
D
D
D
3.3uF (335)
J
J
J
C
C
C
D
D
D
D
4.7uF (475)
J
J
J
J
P
C
C
D
G
D
D
D
D
6.8uF (685)
J
J
C
C
D
K
D
D
D
D
10uF (106)
J
J
P
D
D
G
K
K
D
D
D
K
22uF (226)
P
P
K
K
47uF (476)
P
K
K
M
100uF (107)
M
X7S Dielectric
Dielectric
X7S
Size
0402
0603
0805
1206
1210
Rated Voltage
(VDC)
6.3
10
16
25
6.3
10
16
25
10
16
25
50
100
6.3
10
16
25
50
6.3
10
16
25
50
Capacitance
1.0μF (105)
E
I
1.5μF (155)
2.2μF (225)
E
E
X
X
3.3μF (335)
4.7μF (475)
X
X
I
6.8uF (685)
10μF (106)
I
I
22μF (226)
P*
47μF (476)
P*
100μF (107)
M*
1. The letter in cell is expressed the symbol of product thickness.
2. The letter in cell with “ * ” mark is expressed: “M tolerance”(20%) only
3. For more information about products with special capacitance or other data, please contact WTC local representative.
9
General Purpose Capacitors
4V~100V
X5R Dielectric
1. The letter in cell is expressed the symbol of product thickness.
2. The letter in cell with “ * ” mark is expressed: “M tolerance”(20%) only
3. For more information about products with special capacitance or other data, please contact WTC local representative.
X6S Dielectric
Dielectric
X6S
Size
0201
0402
0603
0805
1206
1210
Rated Voltage (VDC)
6.3
10
16
25
6.3
10
16
25
4
6.3
10
16
25
4
6.3
10
16
25
50
6.3
10
16
25
50
6.3
10
16
25
50
Capacitance
0.10μF (104)
L
L
L
L
0.15μF (154)
0.22μF (224)
L
L*
0.33μF (334)
0.47μF (474)
E
0.68μF (684)
1.0μF (105)
L*
E
E
E
E
1.5μF (155)
2.2μF (225)
E
E
E
X
X
3.3μF (335)
4.7μF (475)
X
X
X
X
I
I
6.8uF (685)
10μF (106)
E*
X*
X*
X*
I
I
I
I
I
P
22μF (226)
X*
X*
I*
I*
I*
P
P*
P
M
47μF (476)
I*
I*
P
M
M
M
100μF (107)
I*
M*
M*
1. The letter in cell is expressed the symbol of product thickness.
2. The letter in cell with “ * ” mark is expressed: “M tolerance”(20%) only
3. For more information about products with special capacitance or other data, please contact WTC local representative.
Dielectric
X5R
Size
0201
0402
0603
0805
1206
1210
Rated Voltage
(VDC)
6.3
10
16
25
50
6.3
10
16
25
50
6.3
10
16
25
50
6.3
10
16
25
50
6.3
10
16
25
50
4
6.3
10
16
25
50
Capacitance
100pF (101)
L
L
L
L
L
220pF (221)
L
L
L
L
L
470pF (471)
L
L
L
L
L
1000pF (102)
L
L
L
L
L
2200pF (222)
L
L
L
L
4700pF (472)
L
L
L
L
0.010μF (103)
L
L
L
L
L
0.027μF (273)
L
L
N
0.033μF (333)
L
L
N
0.039μF (393)
L
L
N
0.047μF (473)
L
L
N
0.056μF (563)
L
L
N
N
0.068μF (683)
L
L
N
N
0.082μF (823)
L
L
N
N
N
0.10μF (104)
L
L
L
L
N
N
N
N
E
0.15μF (154)
N
N
N
N
0.22μF (224)
L
L
L*
N
N
N
N
N
X
X
X
0.27uF (274)
X
X
X
0.33μF (334)
L*
L*
N
N
X
X
X
X
0.39μF (394)
X
X
X
0.47μF (474)
L
N
N
E
E
E
X
X
X
X
X
0.68μF (684)
N
N
X
X
X
X
0.82uF (824)
X
X
X
X
1.0μF (105)
L*
L*
L*
N
N
N
N
X
X
X
X
X
D
D
D
I
1.5μF (155)
X
I
I
I
I
J
J
K
2.2μF (225)
L*
L*
N
N
E
E
X
X
X
X
X
I
I
I
I
I
J
J
P
P
K
3.3μF (335)
X
X
I
I
I
I
P
P
P
4.7μF (475)
E*
E*
E*
X
X
X
X
I
I
I
I
I
P
P
P
P
P
K
K
6.8uF (685)
P
P
10μF (106)
E*
E*
X
X
X
X*
I
I
I
I
I
P
P
P
P
P
K
K
K
M
22μF (226)
X*
X*
I
I*
I*
I*
P
P
P
P
M
M
M
47μF (476)
X*
I*
I*
P
P
P*
M
M
M*
100μF (107)
I*
P
M*
M*
220μF (227)
M*
M*
10
Ultra-small Capacitors
01R5 series
■ FEATURES
* High capacitance in unit size.
* High precision dimensional tolerances.
* Suitable used in high-accuracy automatic mounting machine.
■ GENERAL ELECTRICAL DATA
Size
01R5
Dielectric
NP0
X7R
X5R
Capacitance*
0.2pF to 100pF
100pF & 1000pF
1000pF to 0.1µF
Capacitance tolerance**
Cap≤10pF: C (±0.25pF)
Cap>10pF: J (±5%)
K (±10%), M (±20%)
Rated voltage (WVDC)
16V, 25V
10V
6.3V, 10V
Operating temperature
-55 to +125°C
-55 to +125°C
-55 to +85°C
Capacitance change
±30ppm
±15%
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
01R5
N
100
J
160
C
T
Size (Inch (mm))
01R5 =01005 (0402)
Dielectric
N=NP0(C0G)
Capacitance
100=10x100=10pF
Tolerance
J=±5%
Rated voltage
160=16 VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
Please refer to page 2 “ How to order” for more information.
■ CAPACITANCE RANGE
SIZE
01R5
DIELECTRIC
X7R
RATED VOLTAGE (VDC)
10
Capacitance
100pF (101)
V
120pF (121)
150pF (151)
V
180pF (181)
220pF (221)
V
270pF (271)
330pF (331)
V
390pF (391)
470pF (471)
V
560pF (561)
680pF (681)
820pF (821)
1,000pF (102)
V
SIZE
01R5
DIELECTRIC
X5R
RATED VOLTAGE (VDC)
6.3
10
Capacitance
1,000pF (102)
V
V
1,500pF (152)
V
2,200pF (222)
V
3,300pF (332)
V
4,700pF (472)
V
6,800pF (682)
V
0.010μF (103)
V
V
0.015μF (153)
0.022μF (223)
V
0.033μF (333)
V
0.047μF (473)
V
0.068μF (683)
0.10μF (104)
V
SIZE
01R5
DIELECTRIC
NP0
RATED VOLTAGE
(VDC)
16
25
50
Capacitance
0.2pF (0R2)
V
V
V
0.3pF (0R3)
V
V
V
0.4pF (0R4)
V
V
V
0.5pF (0R5)
V
V
V
1.0pF (1R0)
V
V
V
1.5pF (1R5)
V
V
V
2.0pF (2R0)
V
V
V
3.0pF (3R0)
V
V
V
4.0pF (4R0)
V
V
V
5.0pF (5R0)
V
V
V
6.0pF (6R0)
V
V
V
7.0pF (7R0)
V
V
V
8.0pF (8R0)
V
V
V
9.0pF (9R0)
V
V
V
10pF (100)
V
V
V
12pF (120)
V
V
V
15pF (150)
V
V
V
18pF (180)
V
V
V
22pF (220)
V
V
V
27pF (270)
V
V
V
33pF (330)
V
V
V
39pF (390)
V
V
V
47pF (470)
V
V
V
56pF (560)
V
V
V
68pF (680)
V
V
V
82pF (820)
V
V
V
100pF (101)
V
V
V
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance
or other data, please contact WTC local representative
11
Middle & High Voltage Capacitors
200V~4000V
■ FEATURES
* High voltage in a given case size.
* High stability and reliability.
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
X7R
Y5V
Size
0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225
0805, 1206, 1210, 1812
Capacitance
0.5pF to 0.12µF
100pF to 2.2µF
0.01µF to 0.68µF
Capacitance tolerance
Cap≤5pF: C (±0.25pF)
5pF<Cap<10pF: D (±0.5pF)
Cap≥10pF: J (±5%), K (±10%)
K (±10%), M (±20%)
Z (-20/+80%)
Rated voltage (WVDC)
200V to 4000V
200V, 250V
DF/ Q
Cap<30pF: Q≥400+20C
Cap≥30pF: Q≥1000
≤2.5%
≤5%
Insulation resistance at Ur
Ur=200~630V: ≥10GΩ or RxC≥100Ω-F whichever is smaller
Ur=1000~3000V: ≥10GΩ
Dielectric strength
200~300V: ≥2 x WVDC
400V~450V: ≥1.2 x WVDC
500~999V: ≥1.5 x WVDC
1000~3000V: ≥1.2 x WVDC
4000: ≥1.1 x WVDC
Operating temperature
-55 to +125°C
-25 to +85°C
Capacitance characteristic
±30ppm
±15%
+30/-80%
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
1808
N
100
J
202
C
T
Size (Inch (mm))
1808 (4520)
Dielectric
N=NP0(C0G)
Capacitance
100=10x100=10pF
Tolerance
J=±5%
Rated voltage
202=2000 VDC
Termination
C=Cu/Ni/Sn
Packaging style
T=7” reeled
Please refer to page 2 “How to order” for more information.
■ CAPACITANCE RANGE
Y5V Dielectric 200V to 250V
DIELECTRIC
Y5V
SIZE
0805
1206
1210
1812
RATED VOLTAGE (VDC)
200
250
200
250
200
250
200
250
Capacitance
0.010μF (103)
B
B
B
B
C
C
D
D
0.015μF (153)
B
B
B
B
C
C
D
D
0.022μF (223)
B
B
B
B
C
C
D
D
0.033μF (333)
B
B
B
B
C
C
D
D
0.047μF (473)
B
B
B
B
C
C
D
D
0.068μF (683)
B
B
B
B
C
C
D
D
0.10μF (104)
B
B
C
C
D
D
0.15μF (154)
C
C
C
C
D
D
0.22μF (224)
D
D
0.33μF (334)
D
D
0.47μF (474)
D
D
0.68μF (684)
D
D
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
12
Middle & High Voltage Capacitors
200V~4000V
NP0 Dielectric 200V to 4000V
DIELECTRIC
NP0
SIZE
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
RATED VOLTAGE
(VDC)
200
250
200, 250
200
250
500, 630
1000
200
250
500, 630
1000
1500, 2000
200, 250
500, 630
1000
1500 2000
500, 630
1000
1500, 2000
3000
4000
200, 250
500, 630
1000
1500, 2000
3000
4000
200, 250
500, 630
1000
2000
3000
4000
200, 250
500, 630
1000
2000
3000
4000
200, 250
500, 630
1000
2000
3000
4000
Capacitance
0.5pF (0R5)
N
N
S
A
A
A
D
1.0pF (1R0)
N
N
S
A
A
A
D
1.2pF (1R2)
N
N
S
A
A
A
D
1.5pF (1R5)
N
N
S
A
A
A
D
B
B
B
B
B
1.8pF (1R8)
N
N
S
A
A
A
D
B
B
B
B
B
2.2pF (2R2)
N
N
S
A
A
A
D
B
B
B
B
B
D
D
D
D
D
2.7pF (2R7)
N
N
S
A
A
A
D
B
B
B
B
B
D
D
D
D
D
3.3pF (3R3)
N
N
S
A
A
A
D
B
B
B
B
B
D
D
D
D
D
3.9pF (3R9)
N
N
S
A
A
A
D
B
B
B
B
B
D
D
D
D
D
4.7pF (4R7)
N
N
S
A
A
A
D
B
B
B
B
B
D
D
D
D
D
5.6pF (5R6)
N
N
S
A
A
A
D
B
B
B
B
B
D
D
D
D
D
6.8pF (6R8)
N
N
S
A
A
A
D
B
B
B
B
B
D
D
D
D
D
8.2pF (8R2)
N
N
S
A
A
A
D
B
B
B
B
B
D
D
D
D
D
10pF (100)
N
N
S
A
A
A
D
B
B
B
B
B
C
C
C
C
D
D
D
D
D
D
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
12pF (120)
N
N
S
A
A
A
D
B
B
B
B
B
C
C
C
C
D
D
D
D
D
D
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
15pF (150)
N
N
S
A
A
A
D
B
B
B
B
B
C
C
C
C
D
D
D
D
D
D
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
18pF (180)
N
N
S
A
A
A
D
B
B
B
B
B
C
C
C
C
D
D
D
D
D
D
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
22pF (220)
N
N
S
A
A
A
D
B
B
B
B
B
C
C
C
C
D
D
D
D
G
D
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
27pF (270)
N
N
S
A
A
A
D
B
B
B
B
B
C
C
C
C
D
D
D
D
G
D
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
33pF (330)
N
N
S
A
A
A
D
B
B
B
B
C
C
C
C
C
D
D
D
D
K
D
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
39pF (390)
N
N
S
A
A
A
D
B
B
B
B
C
C
C
C
C
D
D
D
D
K
D
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
47pF (470)
N
N
S
A
A
A
D
B
B
B
C
C
C
C
C
C
D
D
D
D
D
D
D
D
D
G
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
56pF (560)
N
N
S
A
A
A
D
B
B
B
C
D
C
C
C
D
D
D
D
D
D
D
D
D
D
G
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
68pF (680)
N
S
A
A
A
D
B
B
B
C
D
C
C
C
D
D
D
D
D
D
D
D
D
D
K
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
82pF (820)
N
S
A
A
B
D
B
B
B
D
D
C
C
C
D
D
D
D
D
D
D
D
D
D
K
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
100pF (101)
N
S
A
B
B
D
B
B
B
D
D
C
C
D
D
D
D
D
K
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
120pF (121)
S
A
B
D
D
B
B
B
D
G
C
C
D
D
D
D
D
K
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
150pF (151)
S
B
D
D
D
B
B
B
D
G
C
C
D
G
D
D
K
K
D
D
D
D
D
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
180pF (181)
S
B
D
D
D
B
B
B
G
G
C
C
D
G
D
D
K
K
D
D
D
D
K
G
G
K
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
220pF (221)
S
D
D
D
D
B
B
B
G
G
C
C
G
G
D
D
K
K
D
D
D
D
K
G
G
K
K
K
G
G
K
K
K
K
G
G
K
K
K
K
270pF (271)
X
D
D
D
D
B
C
C
G
P
C
C
G
K
K
K
K
K
D
D
D
K
K
G
G
K
K
K
G
G
K
K
K
M
G
G
K
K
K
330pF (331)
X
D
D
D
D
B
C
C
G
P
C
C
G
K
K
K
K
K
D
D
D
K
K
G
G
K
K
K
G
G
K
K
M
M
G
G
K
K
K
390pF (391)
X
D
D
D
D
B
C
C
G
P
C
C
G
M
K
K
K
D
D
D
K
K
G
G
K
K
K
G
G
K
K
M
G
G
K
K
K
470pF (471)
X
D
D
I
C
C
C
G
C
C
G
M
K
K
K
D
D
K
K
K
G
G
K
K
K
G
G
K
K
M
G
G
K
K
K
560pF (561)
X
D
D
I
C
D
D
G
C
C
G
K
K
K
D
D
K
K
G
G
K
K
K
G
G
K
K
M
G
G
K
K
K
680pF (681)
D
D
I
C
D
D
G
C
C
G
K
K
K
D
D
K
K
G
G
K
K
M
G
G
K
K
M
G
G
K
K
K
820pF (821)
D
D
I
C
G
G
G
C
C
G
K
K
D
D
K
K
G
G
K
K
M
G
G
K
K
M
G
G
K
M
M
1,000pF (102)
D
D
I
C
G
G
G
D
D
G
K
K
D
D
K
K
G
G
K
K
M
G
G
K
K
M
G
G
K
M
M
1,200pF (122)
D
D
C
G
G
D
D
G
K
D
D
K
G
G
K
K
M
G
G
M
M
M
G
G
K
M
M
1,500pF (152)
D
D
D
G
G
D
D
K
K
D
D
K
G
G
K
M
M
G
G
M
M
M
G
G
K
M
M
1,800pF (182)
D
D
D
G
G
D
D
M
K
D
D
G
G
K
M
M
G
G
M
M
M
G
G
K
M
M
2,200pF (222)
D
D
D
G
G
D
D
M
K
D
D
G
G
K
M
M
G
G
M
M
M
G
G
K
M
M
2,700pF (272)
D
G
D
D
M
D
D
G
G
K
M
M
G
G
M
M
M
G
G
K
M
M
3,300pF (332)
D
G
D
D
M
D
D
G
G
K
M
G
G
M
M
G
G
K
M
M
3,900pF (392)
D
G
D
D
M
D
K
G
G
M
M
G
G
M
M
G
G
K
M
4,700pF (472)
D
G
G
D
K
G
G
M
M
G
G
M
M
G
G
K
M
5,600pF (562)
G
D
K
G
G
M
M
G
G
M
M
G
G
M
M
6,800pF (682)
G
D
K
G
G
M
M
G
G
M
M
G
G
M
M
8,200pF (822)
G
M
G
G
M
M
G
G
M
M
G
G
M
M
0.010μF (103)
G
G
G
M
G
G
M
G
G
M
M
0.012μF (123)
K
G
G
M
G
G
M
G
G
M
0.015μF (153)
M
G
G
G
G
G
G
0.018μF (183)
M
G
G
G
G
G
G
0.022μF (223)
M
G
G
G
G
G
G
0.027μF (273)
M
G
K
G
K
G
G
0.033μF (333)
M
G
K
K
K
G
G
0.039μF (393)
K
M
K
M
K
K
0.047μF (473)
K
M
M
M
K
K
0.056μF (563)
M
M
M
M
M
M
0.068μF (683)
M
M
M
M
M
0.082μF (823)
M
M
M
M
0.1μF (104)
M
M
M
0.12μF (124)
M
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
13
Middle & High Voltage Capacitors
200V~4000V
X7R Dielectric 200V to 4000V
DIELECTRIC
X7R
SIZE
0603
0805
1206
1210
1808
1812
1825
2220
2225
RATED VOLTAGE
(VDC)
200, 250
200, 250
500, 630
1000
200, 250
400, 450
500, 630
1000
1500
2000
2500
200, 250
400, 450
500, 630
1000
1500, 2000
500, 630
1000
1500, 2000
2500, 3000
4000
200, 250
500, 630
1000
1500, 2000
3000
4000
200, 250
500, 630
1000
1500, 2000
3000
4000
200, 250
500, 630
1000
1500, 2000
3000
4000
200, 250
500, 630
1000
1500, 2000
3000
4000
Capacitance
100pF (101)
X
B
B
B
D
D
D
D
D
D
D
D
D
D
120pF (121)
X
B
B
B
D
D
D
D
D
D
D
D
D
D
150pF (151)
X
B
B
B
D
D
D
D
D
D
D
D
D
D
D
D
D
D
K
180pF (181)
X
B
B
B
D
D
D
D
D
D
D
D
D
D
D
D
D
D
K
220pF (221)
X
B
B
B
D
D
D
D
D
D
D
D
D
D
D
D
D
D
K
270pF (271)
X
B
B
B
D
D
D
D
D
D
D
D
D
D
D
D
D
D
K
D
D
D
D
K
K
K
K
K
330pF (331)
X
B
B
B
D
D
D
D
D
D
D
D
D
D
D
D
D
G
K
D
D
D
D
K
K
K
K
K
390pF (391)
X
B
B
B
D
D
D
D
D
D
D
D
D
D
D
D
D
G
K
D
D
D
D
K
K
K
K
K
470pF (471)
X
B
B
B
D
D
D
D
D
D
D
D
D
D
D
D
D
G
K
D
D
D
D
K
K
K
K
K
560pF (561)
X
B
B
B
D
D
D
D
D
D
D
D
D
D
D
D
D
G
K
D
D
D
D
K
K
K
K
K
680pF (681)
X
B
B
B
D
D
D
D
D
D
C
D
D
D
D
D
D
K
K
D
D
D
D
K
K
K
K
K
820pF (821)
X
B
B
B
D
D
D
D
D
D
C
D
D
D
D
D
D
K
K
D
D
D
D
K
K
K
K
K
1,000pF (102)
X
B
B
B
D
D
D
D
D
D
C
D
D
D
D
D
K
K
K
D
D
D
D
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
1,200pF (122)
X
B
B
B
D
D
D
G
G
G
C
D
D
M
D
D
K
K
D
D
D
D
K
M
K
K
K
K
K
M
K
K
K
K
K
M
K
K
K
K
K
M
1,500pF (152)
X
B
B
D
D
D
D
G
G
G
C
D
D
M
D
D
K
K
D
D
D
D
K
M
K
K
K
K
K
M
K
K
K
K
K
M
K
K
K
K
K
M
1,800pF (182)
X
B
B
D
D
D
D
G
G
G
C
D
D
M
D
D
K
K
D
D
D
D
M
M
K
K
K
K
K
M
K
K
K
K
K
M
K
K
K
K
K
M
2,200pF (222)
X
B
B
D
D
D
D
G
G
G
C
D
D
M
D
D
K
D
D
D
D
M
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
2,700pF (272)
X
B
B
D
D
D
D
G
G
C
D
D
M
D
D
K
D
D
D
D
M
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
3,300pF (332)
X
B
B
D
D
D
D
G
G
C
D
D
M
D
D
K
D
D
D
K
M
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
3,900pF (392)
X
B
B
D
D
D
D
G
C
D
G
M
D
D
K
D
D
D
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
4,700pF (472)
X
B
D
D
D
D
D
G
C
D
G
M
D
D
K
D
D
D
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
5,600pF (562)
X
D
D
D
D
D
D
G
C
D
G
M
K
K
K
D
D
D
M
K
K
K
K
M
K
K
K
K
K
K
K
K
K
M
6,800pF (682)
X
D
D
D
D
D
D
G
C
D
G
M
K
K
K
D
D
D
M
K
K
K
K
M
K
K
K
K
K
K
K
K
K
M
8,200pF (822)
X
D
D
D
D
D
D
C
D
G
M
K
K
D
D
D
M
K
K
K
K
M
K
K
K
M
M
K
K
K
K
M
0.010μF (103)
X
D
D
D
D
D
C
D
G
K
K
D
D
D
M
K
K
K
K
M
K
K
K
M
M
K
K
K
K
M
0.012μF (123)
D
D
D
D
G
C
D
G
K
K
D
D
K
K
K
K
M
U
K
K
K
M
U
K
K
K
M
M
0.015μF (153)
D
D
D
D
G
C
D
G
K
K
D
D
K
K
K
K
M
U
K
K
K
M
U
K
K
K
M
M
0.018μF (183)
D
D
D
D
C
D
G
K
K
D
D
M
K
K
K
M
U
K
K
K
U
U
K
K
K
M
U
0.022μF (223)
D
D
D
G
C
D
G
K
K
D
D
M
K
K
K
M
K
K
K
U
K
K
K
M
0.027μF (273)
D
D
G
C
G
G
K
K
D
D
M
K
K
K
U
K
K
K
U
K
K
K
M
0.033μF (333)
D
G
G
C
G
G
K
K
D
D
M
K
K
K
U
K
K
K
U
K
K
K
M
0.039μF (393)
D
G
G
C
G
K
K
K
D
D
M
K
K
K
U
K
K
K
U
K
K
K
U
0.047μF (473)
D
G
G
D
G
M
K
K
D
D
M
K
K
K
U
K
K
K
U
K
K
K
U
0.056μF (563)
D
G
G
D
G
M
K
K
D
K
M
K
K
K
U
K
K
K
U
K
K
K
U
0.068μF (683)
D
G
G
G
K
M
K
D
K
M
K
K
K
K
K
M
K
K
K
0.082μF (823)
D
G
G
G
K
K
D
K
M
K
K
M
K
K
M
K
K
K
0.10μF (104)
D
G
G
G
K
D
K
M
K
K
M
K
K
M
K
K
M
0.12μF (124)
G
G
M
M
D
M
K
K
U
K
K
M
K
K
U
0.15μF (154)
G
M
M
M
K
M
K
K
U
K
K
U
K
K
U
0.18μF (184)
G
M
M
K
M
K
K
U
K
K
U
K
K
U
0.22μF (224)
G
M
M
K
M
K
K
U
K
K
U
K
K
U
0.27μF (274)
M
M
K
M
K
K
U
K
K
U
K
K
U
0.33μF (334)
M
M
K
M
K
K
U
K
K
U
K
K
U
0.39μF (394)
M
K
M
K
K
K
K
U
K
K
U
0.47μF (474)
M
K
M
K
K
K
K
K
K
0.56μF (564)
M
M
K
M
K
M
K
K
0.68μF (684)
M
M
K
M
K
M
K
K
0.82μF (824)
M
K
U
K
U
K
M
1.0μF (105)
M
K
K
U
K
M
1.5μF (155)
M
M
M
U
2.2μF (225)
M
M
M
1. The letter in cell is expressed the symbol of product thickness.
2. 0805 size, Cap.>0.068uF_200V only.
3 For more information about products with special capacitance or other data, please contact WTC local representative.
14

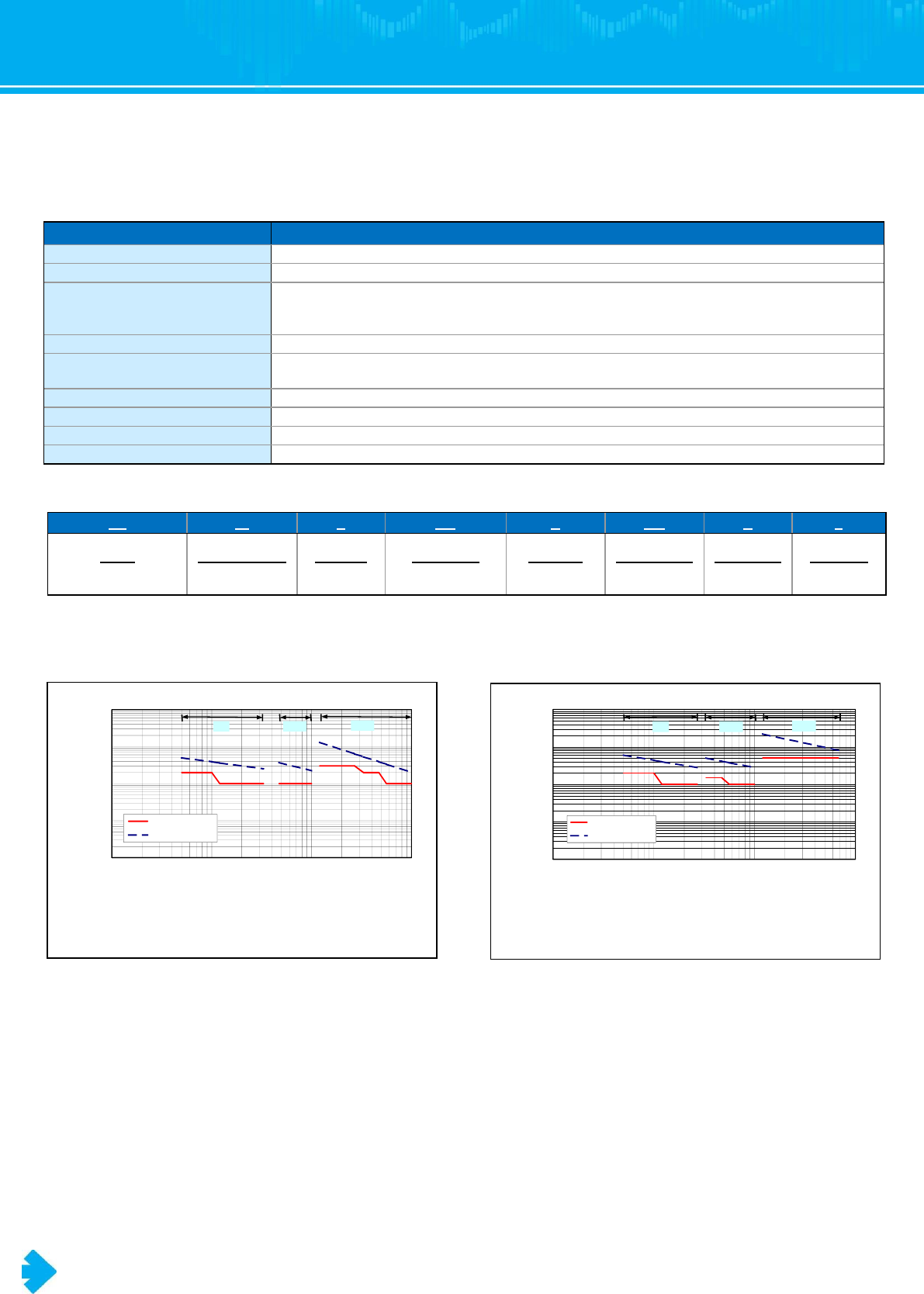

High Q / Low ESR Capacitors
HH series
■ FEATURES
* High Q and low ESR performance at high frequency.
* Quality improvement of telephone calls for low power loss and better performance.
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
Size
0201, 0402, 0603,0805
Capacitance
0.3pF to 3300pF
Capacitance tolerance
Cap≤5pF: B (±0.1pF), C (±0.25pF)
5pF<Cap<10pF: C (±0.25pF), D (±0.5pF)
Cap≥10pF: F (±1%), G (±2%), J (±5%)
Rated voltage (WVDC)
10V, 16V, 25V, 50V, 100V, 200V, 250V, 500V, 630V
Q
Cap<30pF: Q≥400+20C
Cap≥30pF: Q≥1000
Insulation resistance at Ur
≥10GΩ
Operating temperature
-55 to +125°C
Capacitance change
±30ppm
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
HH
15
N
100
G
500
C
T
Series
HH=High Q/ Low ESR
Size (Inch (mm))
15=0402 (1005)
Dielectric
N=NP0 (C0G)
Capacitance
100=10x100=10pF
Tolerance
G=±2%
Rated voltage
500=50 VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “ How to order” for more information.
■ ELECTRICAL CHARACTERISTICS
Q v a l u e c r ite r i a v s . S p e c i f i c f r e q u e n c y
H H s e r ie s , 0 4 0 2
1
10
100
1000
10000
0 . 1 1 10 100
C a p a c i t a n c e ( p F )
Q
M in im u m ( S o l id lin e )
T y p ic a l ( B ro k e n l in e )
1 G H z
5 0 0 M H z
1 0 0 M H z
Fig. 1 Q factor specification vs. Specific frequency 0402
Q v a l u e c r ite r i a v s . S p e c i f i c f r e q u e n c y
H H s e r ie s , 0 6 0 3
1
10
100
1000
10000
0 . 1 1 10 100
C a p a c i t a n c e ( p F )
Q
M in im u m ( S o l id lin e )
T y p ic a l ( B ro k e n l in e )
1 G H z
5 0 0 M H z
1 0 0 M H z
Fig. 2 Q factor specification vs. Specific frequency 0603
15
High Q / Low ESR Capacitors
HH series
■ CAPACITANCE RANGE
DIELECTRIC
NP0
SIZE
0201
0402
0603
0805
Rated Voltage
(VAC)
RATED VOLTAGE (VDC)
10,16
25,50
16
25
50
100
16
25
50
100
50
100
200, 250
500, 630
Capacitance
0.3pF (0R3)
L
L
N^
N^
N^
N^
0.4pF (0R4)
L
L
N^
N^
N^
N^
0.5pF (0R5)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
0.6pF (0R6)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
0.7pF (0R7)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
0.8pF (0R8)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
0.9pF (0R9)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
1.0pF (1R0)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
1.2pF (1R2)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
1.5pF (1R5)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
1.8pF (1R8)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
2.0pF (2R0)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
2.2pF (2R2)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
2.7pF (2R7)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
3.0pF (3R0)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
3.3pF (3R3)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
3.9pF (3R9)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
4.0pF (4R0)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
4.7pF (4R7)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
5.0pF (5R0)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
5.6pF (5R6)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
6.0pF (6R0)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
6.8pF (6R8)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
7.0pF (7R0)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
8.0pF (8R0)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
8.2pF (8R2)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
9.0pF (9R0)
L
L
N^
N^
N^
N^
S^
S^
S^
S^
B
B
B
B
10pF (100)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
12pF (120)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
15pF (150)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
18pF (180)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
22pF (220)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
27pF (270)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
33pF (330)
L
L
N
N
N
N
S
S
S
S
B
B
B
B
39pF (390)
N
N
N
N
S
S
S
S
B
B
B
B
47pF (470)
N
N
N
N
S
S
S
S
B
B
B
B
56pF (560)
N
N
N
N
S
S
S
S
B
B
B
B
68pF (680)
N
N
N
N
S
S
S
S
B
B
B
B
82pF (820)
N
N
N
N
S
S
S
S
B
B
B
B
100pF (101)
N
N
N
N
S
S
S
S
B
B
B
B
120pF (121)
N
N
N
N
S
S
S
S
D
D
D
D
150pF (151)
N
N
N
N
S
S
S
S
D
D
D
D
180pF (181)
N
N
N
N
S
S
S
S
D
D
220pF (221)
N
N
N
N
S
S
S
S
D
D
270pF (271)
N
N
N
S
S
S
S
D
D
330pF (331)
N
N
N
S
S
S
S
D
D
390pF (391)
N
N
N
S
S
S
S
D
D
470pF (471)
N
N
N
S
S
S
S
560pF (561)
S
S
S
S
680pF (681)
S
S
S
S
820pF (821)
S
S
S
S
1,000pF (102)
S
S
S
S
1,200pF (122)
X
X
X
1,500pF (152)
X
X
X
1,800pF (182)
X
X
X
2,200pF (222)
X
X
X
2,700pF (272)
X
X
X
3,300pF (332)
X
X
X
1. The letter in cell is expressed the symbol of product thickness.
2. The letter in cell with “^” mark is expressed product with Ag/Ni/Sn terminations.
3. For more information about products with special capacitance or other data, please contact WTC local representative.
16

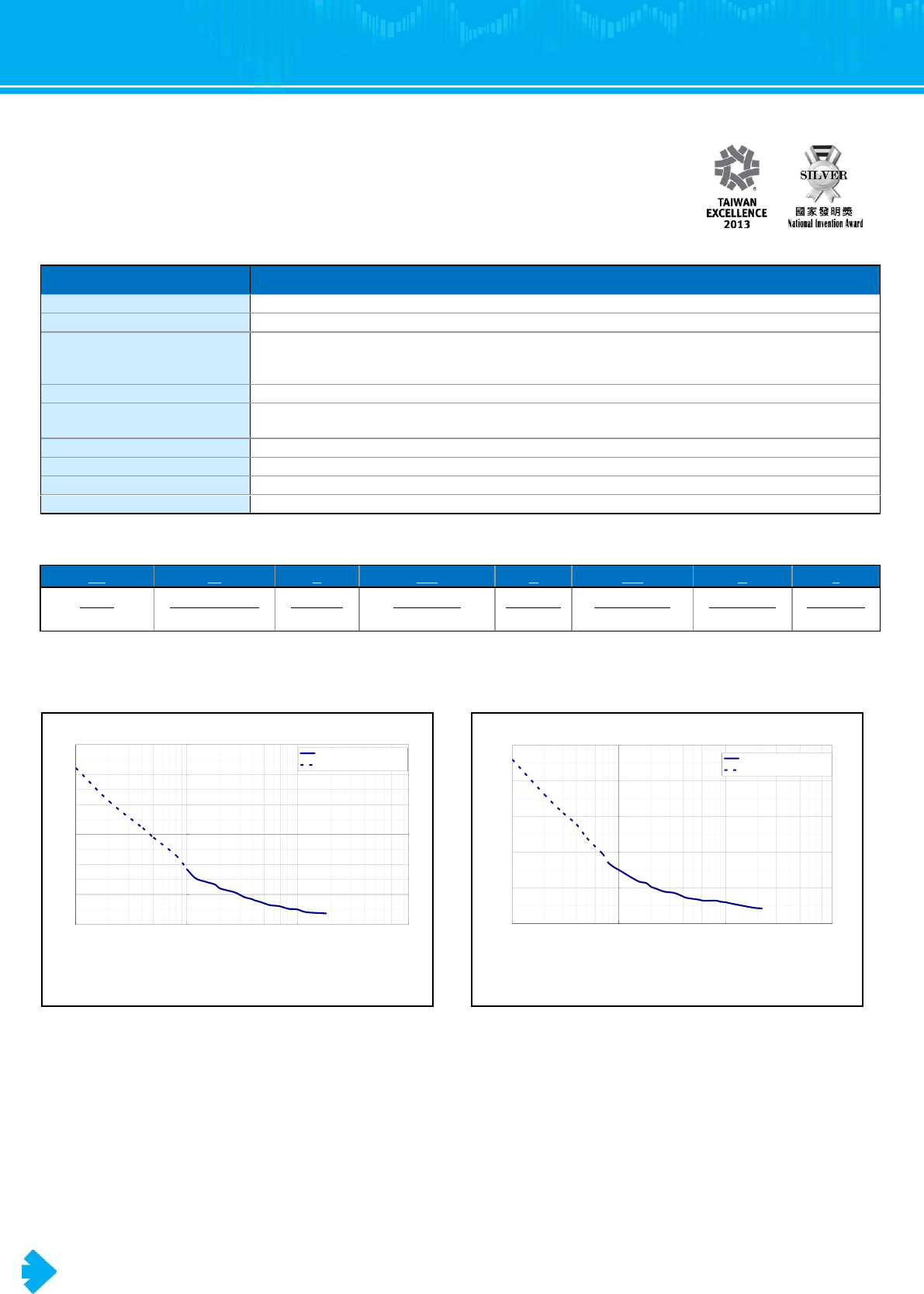

Microwave Capacitors
RF series
■ FEATURES
* Ultra high Q and low ESR performance at high frequency.
* Quality improvement of telephone calls for low power loss and better performance.
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
Size
01005, 0201, 0402, 0603, 0805, 0505, 1111
Capacitance
0.1pF to 1000pF
Capacitance tolerance
Cap≤5pF: A (±0.05pF ), B (±0.1pF), C (±0.25pF)
5pF<Cap<10pF: B (±0.1pF), C (±0.25pF), D (±0.5pF)
Cap≥10pF: F (±1%), G (±2%), J (±5%)
Rated voltage (WVDC)
6.3V, 10V, 25V, 50V, 100V, 250V, 500V, 1500V
Q
Cap≥30pF, Q≥1000
Cap<30pF,Q≥400+20C
Insulation resistance at Ur
≥10GΩ
Operating temperature
-55 to +125°C
Capacitance change
±30ppm/°C; 0201Cap≥22pF, ±60ppm/°C
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
RF
15
N
100
G
500
C
T
Series
RF=Microwave
Size (Inch (mm))
15=0402 (1005)
Dielectric
N=NP0
Capacitance
100=10x100=10pF
Tolerance
G=±2%
Rated voltage
500=50 VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “How to order” for more information.
■ ELECTRICAL CHARACTERISTICS
RF03, NP0, 25V
0
5
10
15
20
25
30
0.1 1 10 100
Capacitance (pF)
Self resonance frequency (GHz)
Measured data (<8.5GHz)
Simulation data
Fig. 3 Self resonance frequency vs. Capacitance (0201 size)
RF15, NP0, 50V
0
5
10
15
20
25
0.1 1 10 100
Capacitance (pF)
Self resonance frequency (GHz)
Measured data (<8.5GHz)
Simulation data
Fig. 4 Self resonance frequency vs. Capacitance (0402 size)
17
Microwave Capacitors
RF series
■ CAPACITANCE RANGE
DIELECTRIC
NP0
SIZE
01005
0201
0402
0603
0805
0505
1111
RATED VOLTAGE
(VDC)
16
25
6.3
10
25
50
100
25
50
100
200
50
100
250
50
100
250
500
50
100
250
50
100
200
250
500
1500
Capacitance
0.1pF (0R1)
L
L
L
N
N
N
N
H
H
H
0.2pF (0R2)
V
V
L
L
L
N
N
N
N
H
H
H
A
A
A
A
0.3pF (0R3)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
0.4pF (0R4)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
0.5pF (0R5)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
0.6pF (0R6)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
0.7pF (0R7)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
0.8pF (0R8)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
0.9pF (0R9)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
1.0pF (1R0)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
1.2pF (1R2)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
1.5pF (1R5)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
1.8pF (1R8)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
2.0pF (2R0)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
2.2pF (2R2)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
2.7pF (2R7)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
3.0pF (3R0)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
3.3pF (3R3)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
3.9pF (3R9)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
4.0pF (4R0)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
4.7pF (4R7)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
5.0pF (5R0)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
5.6pF (5R6)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
6.0pF (6R0)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
6.8pF (6R8)
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
7.0pF (7R0)
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
8.0pF (8R0)
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
8.2pF (8R2)
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
9.0pF (9R0)
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
10pF (100)
V
V
L
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
11pF (110)
V
V
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
12pF (120)
V
V
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
13pF (130)
V
V
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
15pF (150)
V
V
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
16pF (160)
V
V
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
18pF (180)
V
V
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
20pF (200)
V
V
L
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
22pF (220)
V
V
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
24pF (240)
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
27pF (270)
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
30pF (300)
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
33pF (330)
L
N
N
N
N
S
S
S
T
T
T
T
J
G
G
36pF (360)
N
N
N
S
S
S
T
T
T
T
J
G
G
39pF (390)
N
N
N
S
S
S
T
T
T
T
J
G
G
43pF (430)
N
N
N
S
S
S
T
T
T
T
J
G
G
47pF (470)
N
N
N
S
S
S
T
T
T
T
J
G
G
56pF (560)
N
N
N
S
S
S
T
T
T
T
J
G
G
68pF (680)
N
N
S
S
S
T
T
T
T
J
G
G
82pF (820)
N
N
S
S
S
T
T
T
J
G
G
100pF (101)
N
N
S
S
S
T
T
T
J
G
G
120pF (121)
T
T
T
G
G
150pF (151)
T
T
T
G
G
180pF (181)
T
T
T
G
G
220pF (221)
T
T
T
G
G
270pF (271)
G
G
330pF (331)
G
G
390pF (391)
G
G
470pF (471)
G
G
560pF (561)
G
680pF (681)
G
820pF (821)
G
1,000pF (102)
G
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
18
Soft Termination Capacitors
SH series
■ FEATURES
* MLCC’s terminations build a soft & flexible polymer layer to withstand high bending stress in SMT line.
* Available for any item in standard series range.
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
X7R
Size
0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225
Capacitance range
0.5pF to 0.22μF
100pF to 22μF
Capacitance tolerance
Cap≤5pF: B (±0.1pF), C (±0.25pF)
5pF<Cap<10pF: C (±0.25pF), D (±0.5pF)
Cap≥10pF: F (±1%), G (±2%), J (±5%), K (±10%)
J (±5%), K (±10%), M (±20%)
Rated voltage (WVDC)
10V, 16V, 25V, 50V, 100V, 200V, 250V, 500V, 630V, 1000V, 2000V, 3000V
Operating temperature
-55 to +125°C
Capacitance characteristic
±30ppm
±15%
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
SH
31
N
100
D
501
C
T
Series
SH=With Ag polymer
Size (Inch (mm))
31=1206 (3216)
Dielectric
N=NP0(C0G)
Capacitance
100=10x100=10pF
Tolerance
D=±0.5pF
Rated voltage
501=500 VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “How to order” for more information.
■ PACKAGING DIMENSION AND QUANTITY
Size
L(mm)
W(mm)
Thickness (mm)/Symbol
Paper tape
Plastic tape
7” reel
13” reel
7” reel
13” reel
0402 (1005)
1.00±0.20
0.50±0.20
0.50±0.20
E
1,000
-
-
-
0603 (1608)
1.60±0.20
0.80±0.10
0.80±0.07
S
4,000
15,000
-
-
1.60±0.30
0.80±0.30
0.80±0.30
X
4,000
15,000
-
-
0805 (2012)
2.00±0.20
1.25±0.10
0.60±0.10
A
4,000
15,000
-
-
0.80±0.10
B
4,000
15,000
-
-
1.25±0.10
D
-
-
3,000
10,000
2.00±0.30
1.25±0.30
1.25±0.30
I
-
-
3,000
10,000
1206 (3216)
3.20+0.4/-0.1
1.60±0.15
0.80±0.10
B
4,000
15,000
-
-
0.95±0.10
C
-
-
3,000
10,000
1.15±0.15
J
-
-
3,000
10,000
1.25±0.10
D
-
-
3,000
10,000
3.20+0.4/-0.1
1.60±0.20
1.60±0.20
G
-
-
2,000
10,000
3.20±0.50
1.60±0.50
1.60±0.50
P
-
-
2,000
9,000
1210 (3225)
3.20±0.40
2.50±0.20
0.95±0.10
C
-
-
3,000
10,000
1.25±0.10
D
-
-
3,000
10,000
3.20±0.60
2.50±0.50
1.60±0.20
G
-
-
2,000
10,000
2.00±0.20
K
-
-
1,000
6,000
2.50±0.50
M
-
-
1,000
6,000
1808 (4520)
4.50+0.60/-0.4
2.03±0.25
1.25±0.10
D
-
-
2,000
-
2.00±0.20
K
-
-
1,000
-
1812 (4532)
4.50+0.60/-0.4
3.20±0.30
1.25±0.10
D
-
-
1,000
-
2.00±0.20
K
-
-
1,000
-
3.20±0.40
2.50±0.50
M
-
-
500
3,000
1825 (4563)
4.50+0.6/-0.4
6.30±0.40
1.60±0.20
2.00±0.20
2.50±0.30
2.80±0.30
G
K
M
U
-
-
-
-
-
-
-
-
1000
1000
500
500
-
-
-
-
2220 (5750)
5.70±0.50
5.00±0.40
2225 (5763)
5.70±0.50
6.30±0.40
Unit: pieces
19
Soft Termination Capacitors
SH series
■ CAPACITANCE RANGE (SH Series)
NP0 Dielectric (0402 to 1812 Size)
DIELECTRIC
NP0
SIZE
0402
0603
0805
1206
1210
1808
1812
RATED VOLTAGE
(VDC)
10,
16,
25,
50
100
10,
16,
25,
50
100
200, 250
10,
16,
25,
50,
100
200
250
500, 630
1000
10,
16,
25,
50
100
200
250
500, 630
1000
1500, 2000
10,
16,
25,
50,
100
200, 250
500, 630
1000
1500, 2000
500, 630
1000
1500, 2000
3000
10,
16,
25,
50,
100
200, 250
500, 630
1000
1500, 2000
3000
Capacitance
0.5pF (0R5)
E
E
S
S
S
A
A
A
A
A
D
1.0pF (1R0)
E
E
S
S
S
A
A
A
A
A
D
1.2pF (1R2)
E
E
S
S
S
A
A
A
A
A
D
1.5pF (1R5)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
1.8pF (1R8)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
2.2pF (2R2)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
D
D
D
D
2.7pF (2R7)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
D
D
D
D
3.3pF (3R3)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
D
D
D
D
3.9pF (3R9)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
D
D
D
D
4.7pF (4R7)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
D
D
D
D
5.6pF (5R6)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
D
D
D
D
6.8pF (6R8)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
D
D
D
D
8.2pF (8R2)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
D
D
D
D
10pF (100)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
D
D
D
D
D
D
12pF (120)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
D
D
D
D
D
D
15pF (150)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
D
D
D
D
D
D
18pF (180)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
D
D
D
D
D
D
22pF (220)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
D
D
D
D
D
D
27pF (270)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
D
D
D
D
D
D
33pF (330)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
C
C
C
C
C
C
D
D
D
D
D
D
D
D
D
D
39pF (390)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
B
C
C
C
C
C
C
D
D
D
D
D
D
D
D
D
D
47pF (470)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
C
C
C
C
C
C
C
D
D
D
D
D
D
D
D
D
D
56pF (560)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
C
D
C
C
C
C
D
D
D
D
D
D
D
D
D
D
D
68pF (680)
E
E
S
S
S
A
A
A
A
A
D
B
B
B
B
B
C
D
C
C
C
C
D
D
D
D
D
D
D
D
D
D
D
82pF (820)
E
E
S
S
S
A
A
A
A
B
D
B
B
B
B
B
D
D
C
C
C
C
D
D
D
D
D
D
D
D
D
DD
D
100pF (101)
E
E
S
S
S
A
A
A
B
B
D
B
B
B
B
B
D
D
C
C
C
D
D
D
D
D
K
D
D
D
D
D
D
120pF (121)
E
E
S
S
S
A
A
A
B
D
D
B
B
B
B
B
D
G
C
C
C
D
D
D
D
D
K
D
D
D
D
D
D
150pF (151)
E
E
S
S
S
A
A
B
D
D
D
B
B
B
B
B
D
G
C
C
C
D
G
D
D
K
K
D
D
D
D
D
D
180pF (181)
E
E
S
S
S
A
A
B
D
D
D
B
B
B
B
B
G
G
C
C
C
D
G
D
D
K
K
D
D
D
D
D
K
220pF (221)
E
E
S
S
S
A
A
D
D
D
D
B
B
B
B
B
G
G
C
C
C
G
G
D
D
K
K
D
D
D
D
D
K
270pF (271)
E
S
S
X
A
A
D
D
D
D
B
B
B
C
C
G
P
C
C
C
G
K
K
K
K
K
D
D
D
D
K
K
330pF (331)
E
S
S
X
A
A
D
D
D
D
B
B
B
C
C
G
P
C
C
C
G
K
K
K
K
K
D
D
D
D
K
K
390pF (391)
E
S
S
X
B
B
D
D
D
D
B
B
B
C
C
G
P
C
C
C
G
M
K
K
K
D
D
D
D
K
K
470pF (471)
E
S
S
X
B
B
D
D
I
B
B
C
C
C
G
C
C
C
G
M
K
K
K
D
D
D
K
K
K
560pF (561)
E
S
S
B
B
D
D
I
B
B
C
D
D
G
C
C
C
G
K
K
K
D
D
D
K
K
680pF (681)
E
S
S
B
B
D
D
I
B
B
C
D
D
G
C
C
C
G
K
K
K
D
D
D
K
K
820pF (821)
E
S
S
B
B
D
D
I
B
B
C
G
G
G
C
C
C
G
K
K
D
D
D
K
K
1,000pF (102)
E
S
S
B
B
D
D
I
B
B
C
G
G
G
C
D
D
G
K
K
D
D
D
K
K
1,200pF (122)
X
B
B
D
D
B
B
C
G
G
C
D
D
G
K
D
D
D
K
1,500pF (152)
X
B
B
D
D
B
B
D
G
G
C
D
D
K
K
D
D
D
K
1,800pF (182)
X
B
B
D
D
B
B
D
G
G
C
D
D
M
K
D
D
D
K
2,200pF (222)
X
B
B
D
D
B
B
D
G
G
C
D
D
M
K
D
D
D
K
2,700pF (272)
X
D
D
B
B
D
G
C
D
D
M
D
D
D
K
3,300pF (332)
X
D
D
B
B
D
G
C
D
D
M
D
D
D
K
3,900pF (392)
D
D
B
B
D
G
C
D
D
M
D
D
M
4,700pF (472)
D
D
B
B
D
G
C
G
D
D
5,600pF (562)
D
D
B
B
C
G
D
D
6,800pF (682)
D
D
C
C
C
G
D
D
8,200pF (822)
D
D
D
C
G
D
0.010μF (103)
D
D
D
C
G
D
0.012μF (123)
P
P
D
K
D
0.015μF (153)
P
P
D
M
D
0.022μF (223)
P
P
M
D
0.033μF (333)
P
M
D
0.039μF (393)
P
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
20
Soft Termination Capacitors
SH series
■ CAPACITANCE RANGE (SH Series)
X7R Dielectric (0402 to 1812 Size, 10V~250V)
DIELECTRIC
X7R
SIZE
0402
0603
0805
1206
1210
1812
RATED VOLTAGE
(VDC)
10
16
25
50
100
10
16
25
50
100
200
250
10,
16,
25
50
100,
200
250
10,
16
25
50
100
200
250
10,
16
25
50
100
200
250
10,
16,
25
50
100
200
250
Capacitance
100pF (101)
E
E
E
E
S
S
S
S
X
D
D
D
D
120pF (121)
E
E
E
E
S
S
S
S
X
D
D
D
D
150pF (151)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
180pF (181)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
220pF (221)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
270pF (271)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
330pF (331)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
390pF (391)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
470pF (471)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
560pF (561)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
680pF (681)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
820pF (821)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
1,000pF (102)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
1,200pF (122)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
1,500pF (152)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
1,800pF (182)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
2,200pF (222)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
2,700pF (272)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
3,300pF (332)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
3,900pF (392)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
4,700pF (472)
E
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
5,600pF (562)
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
6,800pF (682)
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
8,200pF (822)
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
0.010μF (103)
E
E
E
S
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
0.012μF (123)
E
E
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
0.015μF (153)
E
E
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
0.018μF (183)
E
E
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
0.022μF (223)
E
E
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
0.027μF (273)
E
E
S
S
S
X
D
D
D
D
D
D
D
D
D
C
C
C
C
C
D
D
D
D
0.033μF (333)
E
E
S
S
X
X
D
D
D
D
D
D
D
D
G
C
C
C
C
C
D
D
D
D
0.039μF (393)
E
E
S
S
X
X
D
D
D
D
D
D
D
D
G
C
C
C
C
C
D
D
D
D
0.047μF (473)
E
E
S
S
X
X
D
D
D
D
D
D
D
D
G
C
C
C
C
D
D
D
D
D
0.056μF (563)
E
S
S
X
X
D
D
D
D
D
D
D
D
G
C
C
C
C
D
D
D
D
D
0.068μF (683)
E
S
S
X
X
D
D
D
D
D
D
D
D
G
C
C
C
C
G
D
D
D
D
0.082μF (823)
E
S
S
X
X
D
D
D
D
D
D
D
G
C
C
C
C
G
D
D
D
D
0.10μF (104)
E
S
S
X
X
D
D
D
D
D
D
D
G
C
C
C
C
G
D
D
D
D
0.12μF (124)
S
X
D
D
D
D
D
D
C
C
C
C
G
D
D
D
D
0.15μF (154)
S
X
D
D
C
C
C
G
C
C
C
D
M
D
D
D
K
0.18μF (184)
S
X
D
D
C
C
C
G
C
C
C
D
M
D
D
D
K
0.22μF (224)
S
X
X
D
D
I
C
C
C
G
C
C
C
D
M
D
D
D
K
0.27μF (274)
X
X
I
I
C
C
D
G
C
C
C
G
M
D
D
D
K
0.33μF (334)
X
X
I
I
C
C
D
G
C
C
C
G
M
D
D
D
K
0.39μF (394)
X
X
I
I
J
J
P
G
C
C
C
M
M
D
D
D
K
0.47μF (474)
X
X
I
I
J
J
P
G
C
C
C
M
M
D
D
K
K
0.56μF (564)
X
I
J
J
P
P
D
D
D
M
M
D
D
K
M
0.68μF (684)
X
I
J
J
P
P
D
D
D
K
M
D
K
K
M
0.82μF (824)
X
I
J
J
P
P
D
D
D
K
D
K
K
M
1.0μF (105)
X
I
I
J
J
P
P
D
D
D
K
D
K
K
M
1.5μF (155)
I
J
P
K
G
M
M
K
2.2μF (225)
I
J
P
P
K
G
M
M
M
M
3.3μF (335)
P
P
K
G
M
4.7μF (475)
I
P
P
K
K
M
10μF (106)
P
P
K
M
M
22μF (226)
P
M
47μF (476)
1. The letter in cell is expressed the symbol of product thickness.
2. 0805 size, Cap. 4.7uF_16V only, 0805 size, Cap. 0.22uF_100V only, 1210 size, Cap.22uF_10V only.
3. For more information about products with special capacitance or other data, please contact WTC local representative.
21
Soft Termination Capacitors
SH series
■ CAPACITANCE RANGE (SH Series)
X7R Dielectric (0805 to 1812 Size, 500V~3000V)
DIELECTRIC
X7R
SIZE
0805
1206
1210
1808
1812
RATED VOLTAGE
(VDC)
500
630
1000
500
630
1000
1500
2000
500
630
1000
1500,
2000
500,
630
1000
1500
2000
2500
3000
500
630
1000
1500
2000
3000
Capacitance
100pF (101)
D
D
D
120pF (121)
D
D
D
150pF (151)
D
D
D
D
D
D
D
D
D
D
D
D
180pF (181)
D
D
D
D
D
D
D
D
D
D
D
D
220pF (221)
D
D
D
D
D
D
D
D
D
D
D
D
270pF (271)
D
D
D
D
D
D
D
D
D
D
D
D
D
D
K
330pF (331)
D
D
D
D
D
D
D
D
D
D
D
K
D
D
K
390pF (391)
D
D
D
D
D
D
D
D
D
D
D
K
D
D
K
470pF (471)
D
D
D
D
D
D
D
D
D
D
D
K
D
D
K
560pF (561)
D
D
D
D
D
D
D
D
D
D
D
K
D
D
K
680pF (681)
D
D
D
D
D
D
D
D
D
D
D
K
D
D
K
820pF (821)
D
D
D
D
D
D
G
G
D
D
D
K
D
D
K
1,000pF (102)
D
D
D
D
D
D
G
G
D
D
D
M
D
D
K
K
D
D
D
K
1,200pF (122)
D
D
D
D
D
D
G
G
D
D
D
M
D
D
K
K
D
D
D
K
1,500pF (152)
D
D
D
D
D
D
G
G
D
D
D
M
D
D
K
K
D
D
D
K
1,800pF (182)
D
D
D
D
D
D
G
G
D
D
D
M
D
D
K
K
D
D
D
M
2,200pF (222)
D
D
D
D
D
D
G
G
D
D
D
M
D
D
K
D
D
D
M
2,700pF (272)
D
D
D
D
D
D
G
G
D
D
D
M
D
D
K
D
D
D
M
3,300pF (332)
D
D
D
D
D
D
G
G
D
D
D
M
D
D
K
D
D
K
M
3,900pF (392)
D
D
D
D
D
D
G
D
D
G
M
D
D
K
D
D
K
4,700pF (472)
D
D
D
D
D
D
G
D
D
G
M
D
D
K
D
D
K
5,600pF (562)
D
D
D
D
D
D
G
D
D
G
M
K
K
K
D
D
M
6,800pF (682)
D
D
D
D
D
D
G
D
D
G
M
K
K
K
D
D
M
8,200pF (822)
D
D
D
D
D
D
D
D
G
M
K
K
D
D
M
0.010μF (103)
D
D
D
D
D
D
D
G
K
K
D
D
M
0.012μF (123)
D
D
D
D
G
D
D
G
K
K
D
K
0.015μF (153)
D
D
D
D
G
D
D
G
K
K
D
K
0.018μF(183)
D
D
D
D
D
D
G
K
K
D
M
0.022μF (223)
D
D
G
G
D
D
G
K
K
D
M
0.027μF (273)
G
G
G
G
G
K
K
D
M
0.033μF (333)
G
G
G
G
G
K
K
D
M
0.039μF (393)
G
G
G
G
K
K
K
D
M
0.047μF (473)
G
G
G
G
M
K
K
D
M
0.056μF (563)
G
G
G
G
M
K
K
K
M
0.068μF (683)
K
K
M
K
K
M
0.082μF (823)
K
K
K
K
M
0.10μF (104)
K
K
K
M
0.12μF (124)
M
M
M
0.15μF (154)
M
M
M
0.18μF (184)
M
0.22μF (224)
M
0.27μF (274)
M
0.33μF (334)
M
0.39μF (394)
M
0.47μF (474)
M
0.56μF (564)
0.68μF (684)
0.82μF (824)
1.00μF (105)
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
22
Soft Termination Capacitors
SH series
■ CAPACITANCE RANGE (SH Series)
NP0 Dielectric 1825 to 2225 Sizes
DIELECTRIC
NP0
SIZE
1825
1206
2220
1808
2225
RATED VOLTAGE
(VDC)
100
200
250
500
630
1000
2000
3000
100
200
250
500
630
1000
2000
3000
100
200
250
500
630
1000
2000
3000
Capacitance
10pF (100)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
12pF (120)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
15pF (150)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
18pF (180)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
22pF (220)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
27pF (270)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
33pF (330)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
39pF (390)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
47pF (470)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
56pF (560)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
68pF (680)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
82pF (820)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
100pF (101)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
120pF (121)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
150pF (151)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
180pF (181)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
220pF (221)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
270pF (271)
G
G
G
K
K
K
G
G
G
K
K
K
G
G
G
K
K
K
330pF (331)
G
G
G
K
K
K
G
G
G
K
K
M
G
G
G
K
K
K
390pF (391)
G
G
G
K
K
K
G
G
G
K
K
M
G
G
G
K
K
K
470pF (471)
G
G
G
K
K
K
G
G
G
K
K
M
G
G
G
K
K
K
560pF (561)
G
G
G
K
K
K
G
G
G
K
K
M
G
G
G
K
K
K
680pF (681)
G
G
G
K
K
M
G
G
G
K
K
M
G
G
G
K
K
K
820pF (821)
G
G
G
K
K
M
G
G
G
K
K
M
G
G
G
K
M
M
1,000pF (102)
G
G
G
K
K
M
G
G
G
K
K
M
G
G
G
K
M
M
1,200pF (122)
G
G
G
K
K
M
G
G
G
M
M
M
G
G
G
K
M
M
1,500pF (152)
G
G
G
K
M
M
G
G
G
M
M
M
G
G
G
K
M
M
1,800pF (182)
G
G
G
K
M
M
G
G
G
M
M
M
G
G
G
K
M
M
2,200pF (222)
G
G
G
K
M
M
G
G
G
M
M
M
G
G
G
K
M
M
2,700pF (272)
G
G
G
K
M
M
G
G
G
M
M
M
G
G
G
K
M
M
3,300pF (332)
G
G
G
K
M
G
G
G
M
M
G
G
G
K
M
M
3,900pF (392)
G
G
G
M
M
G
G
G
M
M
G
G
G
K
M
4,700pF (472)
G
G
G
M
M
G
G
G
M
M
G
G
G
K
M
5,600pF (562)
G
G
G
M
M
G
G
G
M
M
G
G
G
M
M
6,800pF (682)
G
G
G
M
M
G
G
G
M
M
G
G
G
M
M
8,200pF (822)
G
G
G
M
M
G
G
G
M
M
G
G
G
M
M
0.010uF (103)
G
G
G
M
G
G
G
M
G
G
G
M
M
0.012μF (123)
G
G
G
M
G
G
G
M
G
G
G
M
0.015μF (153)
G
G
G
G
G
G
G
G
G
0.018μF (183)
G
G
G
G
G
G
G
G
G
0.022μF (223)
G
G
G
G
G
G
G
G
G
0.027μF (273)
G
G
K
G
G
K
G
G
G
0.033μF (333)
G
G
K
G
K
K
G
G
G
0.039μF (393)
G
K
M
G
K
M
G
K
K
0.047μF (473)
G
K
M
G
M
M
G
K
K
0.056μF (563)
K
M
M
K
M
M
G
M
M
0.068μF (683)
K
M
M
K
M
K
M
M
0.082μF (823)
M
M
M
M
K
M
M
0.1μF (104)
M
M
M
M
M
M
0.12μF (124)
M
M
M
M
0.18μF (184)
M
M
0.22μF (224)
M
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
23
Soft Termination Capacitors
SH series
■ CAPACITANCE RANGE (SH Series)
X7R Dielectric 1825 to 2225 Sizes
DIELECTRIC
X7R
SIZE
1825
2220
2225
RATED VOLTAGE
(VDC)
250
500
630
1000
2000
3000
25
50
100
250
500
630
1000
1500
2000
3000
500
630
1000
1500
2000
3000
Capacitance
1,000pF (102)
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
1,200pF (122)
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
1,500pF (152)
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
1,800pF (182)
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
2,200pF (222)
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
2,700pF (272)
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
3,300pF (332)
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
3,900pF (392)
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
4,700pF (472)
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
5,600pF (562)
K
K
K
K
K
M
K
K
K
K
K
K
K
K
K
K
K
M
6,800pF (682)
K
K
K
K
K
M
K
K
K
K
K
K
K
K
K
K
K
M
8,200pF (822)
K
K
K
K
K
M
K
K
K
K
K
M
M
K
K
K
K
M
0.010μF (103)
K
K
K
K
K
M
K
K
K
K
K
M
M
K
K
K
K
M
0.012μF (123)
K
K
K
K
M
U
K
K
K
K
K
M
U
K
K
K
M
M
0.015μF (153)
K
K
K
K
M
U
K
K
K
K
K
M
U
K
K
K
M
M
0.018μF (183)
K
K
K
K
M
U
K
K
K
K
K
U
U
K
K
K
M
U
0.022μF (223)
K
K
K
K
M
K
K
K
K
K
U
K
K
K
M
0.027μF (273)
K
K
K
K
U
K
K
K
K
K
U
K
K
K
M
0.033μF (333)
K
K
K
K
U
K
K
K
K
K
U
K
K
K
M
0.039μF (393)
K
K
K
K
U
K
K
K
K
K
U
K
K
K
U
0.047μF (473)
K
K
K
K
U
K
K
K
K
K
U
K
K
K
U
0.056μF (563)
K
K
K
K
U
K
K
K
K
K
U
K
K
K
U
0.068μF (683)
K
K
K
K
K
K
K
K
M
K
K
K
0.082μF (823)
K
K
K
M
K
K
K
K
M
K
K
K
0.10μF (104)
K
K
K
M
K
K
K
K
M
K
K
M
0.12μF (124)
K
K
K
U
K
K
K
K
M
K
K
U
0.15μF (154)
K
K
K
U
K
K
K
K
U
K
K
U
0.18μF (184)
K
K
K
U
K
K
K
K
U
K
K
U
0.22μF (224)
K
K
K
U
K
K
K
K
U
K
K
U
0.27μF (274)
K
K
K
U
K
K
K
K
U
K
K
U
0.33μF (334)
K
K
K
U
K
K
K
K
U
K
K
U
0.39μF (394)
K
K
K
K
K
K
K
U
K
K
U
0.47μF (474)
K
K
K
K
K
K
K
K
K
0.56μF (564)
K
M
M
K
K
K
M
K
K
0.68μF (684)
K
M
M
K
K
K
M
K
K
0.82μF (824)
K
U
U
K
K
K
U
M
M
1.0μF (105)
K
K
K
K
U
M
M
1.5μF (155)
M
K
K
M
U
U
2.2μF (225)
M
K
K
M
3.3μF (335)
K
K
4.7μF (475)
K
M
6.8μF (685)
M
U
10μF (106)
U
U
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
24
High Temperature Capacitors
HT series
■ FEATURES
* These products have no polarity.
* Their electrostatic capacity temperature response is stable at 15% even in high temperature ranges (up to 150°C).
* Larger capacity and smaller size (0402 size) with X8G/X8R characteristics
■ GENERAL ELECTRICAL DATA
Dielectric
X8G
X8R
Size
0402, 0603, 0805, 1206, 1210
Capacitance
0.2pF to 0.015µF
100pF to 0.1µF
Capacitance tolerance*
Cap≤5pF: A (±0.05pF), B (±0.1pF),C (±0.25pF)
5pF<Cap<10pF: C (±0.25pF), D (±0.5pF)
Cap≥10pF: F (±1%), G (±2%), J (±5%), K (±10%)
K (±10%), M (±20%)
Rated voltage (WVDC)
10V, 16V, 25V, 50V, 100V
Q/DF*
Cap<30pF: Q≥400+20C
Cap≥30pF: Q≥1000
DF≤5%
Insulation resistance at Ur**
10GΩ or RxC≥500Ω-F whichever is smaller
Operating temperature
-55 to +150°C
Capacitance characteristic
±30ppm/°C
±15%
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
HT
31
R
103
K
500
C
T
Series
HT=High Temperature
Size (Inch (mm))
31=1206 (3216)
Dielectric
R=X8R
Capacitance
103=10x103=10nF
Tolerance
K=±10%
Rated voltage
500=50 VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “How to order” for more information.
■ CAPACITANCE RANGE
X8R Dielectric 0603, 0805, 1206 Sizes
DIELECTRIC
X8R
SIZE
0603
0805
1206
RATED VOLTAGE (VDC)
10
16
25
50
10
16
25
50
10
16
25
50
Capacitance
100pF (101)
S
S
S
S
D
D
D
D
120pF (121)
S
S
S
S
D
D
D
D
150pF (151)
S
S
S
S
D
D
D
D
D
D
D
D
180pF (181)
S
S
S
S
D
D
D
D
D
D
D
D
220pF (221)
S
S
S
S
D
D
D
D
D
D
D
D
270pF (271)
S
S
S
S
D
D
D
D
D
D
D
D
330pF (331)
S
S
S
S
D
D
D
D
D
D
D
D
390pF (391)
S
S
S
S
D
D
D
D
D
D
D
D
470pF (471)
S
S
S
S
D
D
D
D
D
D
D
D
560pF (561)
S
S
S
S
D
D
D
D
D
D
D
D
680pF (681)
S
S
S
S
D
D
D
D
D
D
D
D
820pF (821)
S
S
S
S
D
D
D
D
D
D
D
D
1,000pF (102)
S
S
S
S
D
D
D
D
D
D
D
D
1,200pF (122)
S
S
S
S
D
D
D
D
D
D
D
D
1,500pF (152)
S
S
S
S
D
D
D
D
D
D
D
D
1,800pF (182)
S
S
S
S
D
D
D
D
D
D
D
D
2,200pF (222)
S
S
S
S
D
D
D
D
D
D
D
D
2,700pF (272)
S
S
S
S
D
D
D
D
D
D
D
D
3,300pF (332)
S
S
S
S
D
D
D
D
D
D
D
D
3,900pF (392)
S
S
S
S
D
D
D
D
D
D
D
D
4,700pF (472)
S
S
S
S
D
D
D
D
D
D
D
D
5,600pF (562)
S
S
S
S
D
D
D
D
D
D
D
D
6,800pF (682)
S
S
S
S
D
D
D
D
D
D
D
D
8,200pF (822)
S
S
S
S
D
D
D
D
D
D
D
D
0.010μF (103)
S
S
S
S
D
D
D
D
D
D
D
D
0.012μF (123)
D
D
D
D
D
D
D
D
0.015μF (153)
D
D
D
D
D
D
D
D
0.018μF (183)
D
D
D
D
D
D
D
D
0.022μF (223)
D
D
D
D
D
D
D
D
0.027μF (273)
D
D
D
D
D
D
D
D
0.033μF (333)
D
D
D
D
D
D
D
D
0.039μF (393)
D
D
D
D
D
D
D
D
0.047μF (473)
D
D
D
D
D
D
D
D
0.056μF (563)
D
D
D
D
0.068μF (683)
D
D
D
D
0.082μF (823)
D
D
D
D
0.10μF (104)
D
D
D
D
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
25
High Temperature Capacitors
HT series
■ CAPACITANCE RANGE
X8G Dielectric
DIELECTRIC
X8G
SIZE
0402
0603
0805
1206
1210
RATED VOLTAGE
(VDC)
10
16
25
50
10
16
25
50
100
10
16
25
50
100
10
16
25
50
100
10
16
25
50
100
Capacitance
0.1pF (0R1)
0.2pF (0R2)
N
N
N
N
0.3pF (0R3)
N
N
N
N
0.4pF (0R4)
N
N
N
N
0.5pF (0R5)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
1.0pF (1R0)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
1.2pF (1R2)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
1.5pF (1R5)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
1.8pF (1R8)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
2.0pF (2R0)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
2.2pF (2R2)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
2.7pF (2R7)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
3.0pF (3R0)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
3.3pF (3R3)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
3.9pF (3R9)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
4.0pF (4R0)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
4.7pF (4R7)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
5.0pF (5R0)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
5.6pF (5R6)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
6.0pF (6R0)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
6.8pF (6R8)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
7.0pF (7R0)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
8.0pF (8R0)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
8.2pF (8R2)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
9.0pF (9R0)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
10pF (100)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
12pF (120)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
15pF (150)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
18pF (180)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
22pF (220)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
27pF (270)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
33pF (330)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
39pF (390)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
47pF (470)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
56pF (560)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
68pF (680)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
82pF (820)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
100pF (101)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
120pF (121)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
150pF (151)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
180pF (181)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
220pF (221)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
270pF (271)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
330pF (331)
N
N
N
N
S
S
S
S
S
A
A
A
A
A
B
B
C
C
390pF (391)
N
N
N
N
S
S
S
S
S
B
B
B
B
B
B
B
C
C
470pF (471)
N
N
N
N
S
S
S
S
S
B
B
B
B
B
B
B
C
C
560pF (561)
S
S
S
S
S
B
B
B
B
B
B
B
C
C
680pF (681)
S
S
S
S
S
B
B
B
B
B
B
B
C
C
820pF (821)
S
S
S
S
S
B
B
B
B
B
B
B
C
C
1,000pF (102)
S
S
S
S
S
B
B
B
B
B
B
B
C
C
1,200pF (122)
X
X
X
X
B
B
B
B
B
B
B
C
C
1,500pF (152)
X
X
X
X
B
B
B
B
B
B
B
C
C
1,800pF (182)
X
X
X
X
B
B
B
B
B
B
B
C
C
2,200pF (222)
X
X
X
X
B
B
B
B
B
B
B
C
C
2,700pF (272)
X
X
X
X
D
D
D
D
D
B
B
C
C
3,300pF (332)
X
X
X
X
D
D
D
D
D
B
B
C
C
3,900pF (392)
D
D
D
D
D
B
B
C
C
4,700pF (472)
D
D
D
D
D
B
B
C
C
5,600pF (562)
D
D
D
D
B
B
C
C
6,800pF (682)
D
D
D
D
C
C
C
C
8,200pF (822)
D
D
D
D
D
D
C
C
0.010uF (103)
D
D
D
D
D
D
C
C
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
26

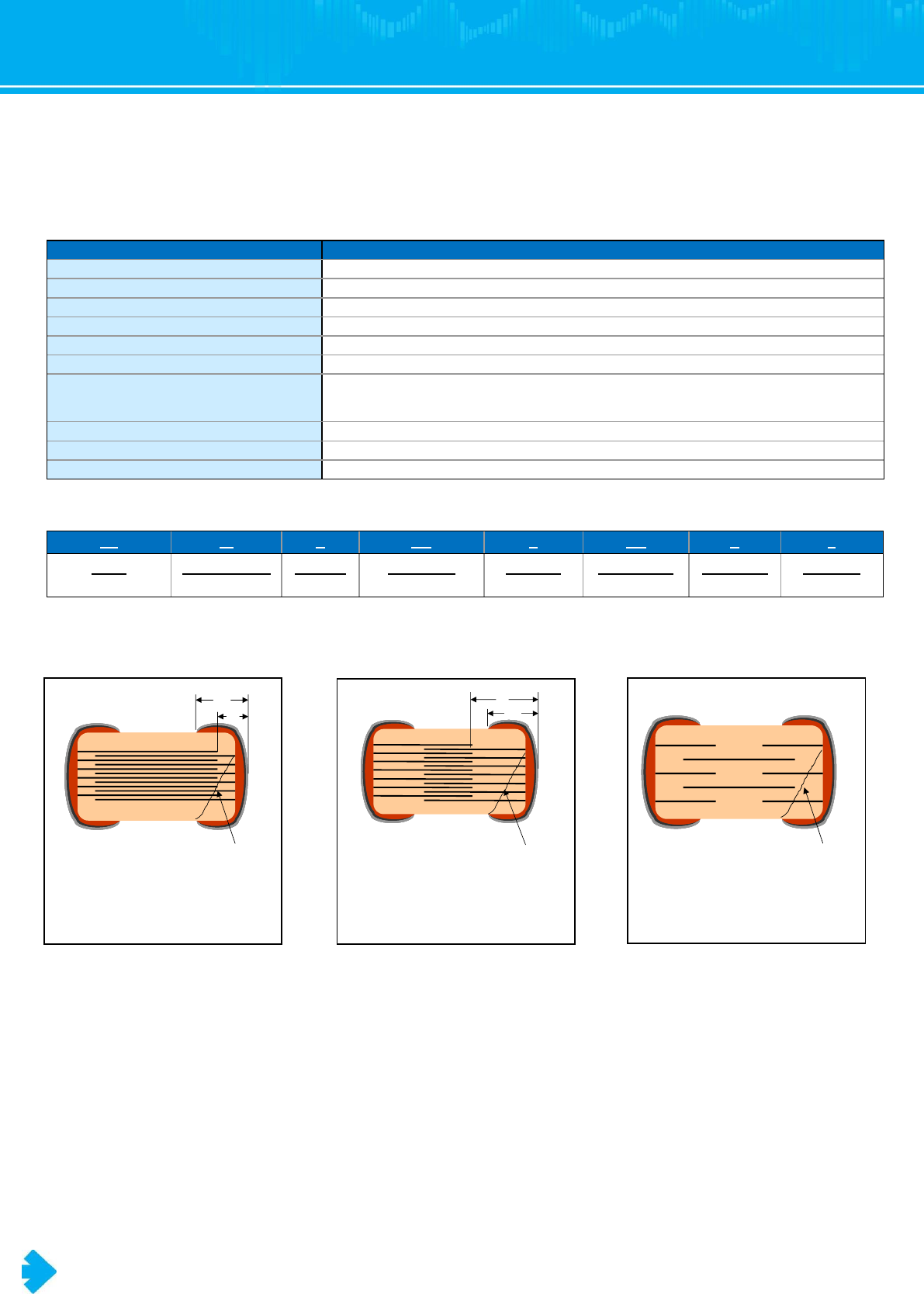

Open-mode Design Capacitors
OP series
■ FEATURES
* High voltage in a given case size.
* Circuit open during product cracking.
* High stability and reliability.
■ GENERAL ELECTRICAL DATA
Dielectric
X7R
Size
0805, 1206, 1210, 1812
Capacitance
100pF to 1µF
Capacitance tolerance
K (±10%), M (±20%)
Rated voltage (WVDC)
50V, 100V, 200V, 250V, 500V
DF(Tan δ)
≤2.5%
Insulation resistance at Ur
≥10GΩ or RxC≥500Ω-F whichever is smaller
Dielectric strength
100V: ≥2.5 x WVDC
200V and 250V: ≥2 x WVDC
500V: ≥1.5 x WVDC
Operating temperature
-55 to +125°C
Capacitance characteristic
±15%
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
OP
32
B
103
K
201
C
T
Series
OP=Open-mode
Size (Inch (mm))
32=1210 (3225)
Dielectric
B=X7R
Capacitance
103=10x103=10nF
Tolerance
K=±10%
Rated voltage
201=200 VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “How to order” for more information.
■ INNER CONSTRUCTION OF OPEN-MODE DESIGN
CP
MB
C r a c k
Fig.5 Normal design (CP<MB) – circuit
leakage during cracking.
MB
CP
C r a c k
Fig. 6 Open-mode design (CP>MB) – circuit
open during cracking.
C r a c k
Fig. 7 Floating design (one kind of
open-mode design) – circuit open during
cracking.
27
Open-mode Design Capacitors
OP series
■ CAPACITANCE RANGE
DIELECTRIC
X7R
SIZE
0805
1206
1210
1812
RATED VOLTAGE
(VDC)
100
200
250
500
630
50
100
200
250
500
630
100
200
250
500
630
100
200
250
500
630
Capacitance
100pF (101)
B
B
B
B
120pF (121)
B
B
B
B
150pF (151)
B
B
B
B
B
B
D
D
D
180pF (181)
B
B
B
B
B
B
D
D
D
220pF (221)
B
B
B
B
B
B
D
D
D
270pF (271)
B
B
B
B
B
B
D
D
D
330pF (331)
B
B
B
B
B
B
D
D
D
390pF (391)
B
B
B
B
B
B
D
D
D
470pF (471)
B
B
B
B
B
B
D
D
D
560pF (561)
B
B
B
B
B
B
D
D
D
680pF (681)
B
B
B
B
B
B
D
D
D
820pF (821)
B
B
B
B
B
B
D
D
D
1,000pF (102)
B
B
B
B
B
B
D
D
D
C
C
C
D
D
D
D
D
1,200pF (122)
B
B
B
B
B
B
D
D
D
C
C
C
D
D
D
D
D
1,500pF (152)
B
B
B
B
B
B
D
D
D
C
C
C
D
D
D
D
D
1,800pF (182)
B
B
B
B
B
B
D
D
D
C
C
C
D
D
D
D
D
2,200pF (222)
B
B
B
B
B
B
D
D
D
C
C
C
D
D
D
D
D
2,700pF (272)
B
B
B
B
B
B
D
D
D
C
C
C
D
D
D
D
D
3,300pF (332)
B
B
B
B
B
B
D
D
D
C
C
C
D
D
D
D
D
3,900pF (392)
B
B
B
B
B
B
D
D
D
C
C
C
D
D
D
D
D
4,700pF (472)
B
B
B
D
B
B
D
D
D
C
C
C
D
D
D
D
D
5,600pF (562)
B
D
D
D
B
B
D
D
D
C
C
C
D
D
D
D
D
6,800pF (682)
B
D
D
D
B
B
D
D
D
C
C
C
D
D
D
D
D
8,200pF (822)
B
D
D
D
B
B
D
D
D
C
C
C
D
D
D
D
D
0.010μF (103)
B
D
D
D
B
B
D
D
D
C
C
C
D
D
D
D
D
0.012μF (123)
B
D
D
B
B
D
D
D
C
C
C
D
D
D
D
D
0.015μF (153)
B
D
D
B
B
D
D
D
C
C
C
D
D
D
D
D
0.018μF (183)
B
D
D
B
B
D
D
D
C
C
C
D
D
D
D
D
0.022μF (223)
B
D
D
B
B
D
D
G
C
C
C
D
D
D
D
D
0.027μF (273)
D
B
B
D
D
G
C
C
C
D
D
D
D
D
0.033μF (333)
D
B
B
G
G
G
C
C
C
G
D
D
D
D
0.039μF (393)
D
B
B
G
G
C
C
C
G
D
D
D
D
0.047μF (473)
D
B
B
G
G
C
D
D
G
D
D
D
D
0.056μF (563)
B
B
G
G
C
D
D
G
D
D
D
K
0.068μF (683)
B
B
G
G
C
G
G
G
D
D
D
K
0.082μF (823)
D
D
G
G
C
G
G
D
D
D
K
0.10μF (104)
D
D
G
G
C
G
G
D
D
D
K
0.12μF (124)
D
D
C
G
G
D
D
D
0.15μF (154)
D
G
D
M
M
D
K
K
0.18μF (184)
D
G
D
M
M
D
K
K
0.22μF (224)
D
G
D
M
M
D
K
K
0.27μF (274)
D
G
D
K
K
0.33μF (334)
D
G
D
K
K
0.39μF (394)
D
M
D
K
K
0.47μF (474)
D
M
K
K
K
0.56μF (564)
M
K
0.68μF (684)
K
0.82μF (824)
K
1.0μF (105)
K
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
28
Capacitor Arrays Capacitors
Y4C2/Y4C3 series
■ FEATURES
* High density mounting due to mounting space saving.
* Mounting cost saving.
* Increased throughput.
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
X7R
Y5V
Size
4x0402
4x0603
4x0402
4x0603
4x0603
Capacitance*
10pF to 270pF
10pF to 470pF
1000pF to 100nF
180pF to 100nF
10nF to 100nF
Capacitance tolerance**
J (±5%), K (±10%)
K (±10%), M (±20%)
Z (-20/+80%)
Rated voltage (WVDC)
25,50V,100V
25, 50V,100V
10V, 16V, 25V, 50V
16V, 25V, 50V
16V, 50V
Q/DF(Tan δ)*
Cap<30pF: Q≥400+20C
Cap≥30pF: Q≥1000
Ur=50V, ≤2.5%
Ur=25V&16V, ≤3.5%
Ur=10V, ≤5.0%
Ur=50V, ≤5%
Ur=16V, ≤7%
Insulation resistance at Ur
≥10GΩ
≥10GΩ or RxC≥500ΩxF whichever is less
Operating temperature
-55 to +125°C
-25 to +85°C
Capacitance characteristic
±30ppm
±15%
+30/-80%
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
Y
4C
3
B
103
K
500
C
T
Series
Y=Capacitor array
Cap. Nr.
4C=4xCap
Termination pitch
3=0.03” pitch
2=0.02” pitch
Dielectric
B=X7R
Capacitance
103=10x103 =10nF
Tolerance
K=±10%
Rated voltage
500=50 VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “How to order” for more information.
■ CAPACITANCE RANGE
SIZE
4 x 0402
4 x 0603
DIELECTRIC
NP0
X7R
NP0
X7R
Y5V
RATED VOLTAGE
(VDC)
25
50
100
10
16
25
50
25
50
100
16
25
50
16
50
Capacitance
10pF (100)
T
B
15pF (150)
T
B
22pF (220)
T
B
33pF (330)
T
B
47pF (470)
T
B
68pF (680)
T
B
100pF (101)
T
B
150pF (151)
T
B
B
B
180pF (181)
T
B
B
B
220pF (221)
T
B
B
B
270pF (271)
T
B
B
B
330pF (331)
B
B
B
470pF (471)
B
B
B
6,80pF (681)
B
B
1,000pF (102)
T
T
T
T
B
B
1,500pF (152)
T
T
T
T
B
B
2,200pF (222)
T
T
T
T
B
B
3,300pF (332)
T
T
T
T
B
B
4,700pF (472)
T
T
T
T
B
B
6,800pF (682)
T
T
T
T
B
B
0.010μF (103)
T
T
T
T
B
B
B
0.015μF (153)
T
T
T
B
B
B
B
0.022μF (223)
T
T
T
B
B
B
B
0.033μF (333)
T
T
T
B
B
0.047μF (473)
T
T
T
B
B
0.068μF (683)
T
T
T
B
B
0.10μF (104)
T
T
T
B
B
B
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
29
Low Profile Capacitors
TT series
■ FEATURES
* Standard size with thin thickness.
* Small size with high capacitance.
* Capacitor with lead-free termination (pure Tin).
■ GENERAL ELECTRICAL DATA
Dielectric
X7R
X5R
Y5V
Size
0402, 0603, 0805, 1206, 1210
Capacitance range
0.22μF to 4.7μF
0.22μF to 22μF
1μF to 10μF
Capacitance tolerance
K (±10%), M (±20%)
Z (-20/+80%)
Rated voltage (WVDC)
6.3V, 10V, 16V, 25V
6.3V, 10V, 16V, 25V, 50V
10V, 16V, 25V, 50V
DF(Tan δ)*
16V, 10V: ≤10.0%
6.3V: ≤15.0%
50V: ≤7%
25V: ≤9%
16V, 10V: ≤12.5%
Insulation resistance at Ur
RxC≥100ΩxF
Operating temperature
-55 to +125°C
-55 to +85°C
-25 to +85°C
Capacitance characteristic
±15%
+30/-80%
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
TT
31
X
225
K
100
C
T
Series
TT=Low profile
Size (Inch (mm))
31=1206 (3216)
Dielectric
X=X5R
Capacitance
225=22x105 =2.2μF
Tolerance
K=±10%
Rated voltage
100=10 VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “How to order” for more information.
■ CAPACITANCE RANGE
Dielectric
X5R
Size
0402
0603
0805
1206
1210
Rated voltage (VDC)
6.3
25
10
16
6.3
10
16
25
6.3
10
16
25
50
10
16
25
Capacitance
0.22uF (224)
L
H
H
0.47uF (474)
L
L
1.0μF (105)
L
H
H
T
T
T
T
T
T
1.5μF (155)
T
T
T
T
T
2.2μF (225)
L
T
T
T
T
T
T
T
T
3.3μF (335)
T
T
T
T
4.7μF (475)
L
H
T
T
T
T
T
T
T
T
6.8μF (685)
10μF (106)
T
T
T
J
T
T
T
T
22μF (226)
T
T
T
T
T
47μF (476)
T
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
Dielectric
X7R
Y5V
Size
0805
1206
1210
0805
1206
1210
Rated voltage (VDC)
10
16, 25
10
25
50
100
10
16
25
50
10
16
25
50
10
Capacitance
1.0μF (105)
T
T
1.5μF (155)
2.2μF (225)
T
T
K
T
T
T
T
T
3.3μF (335)
T
4.7μF (475)
T
T
T
T
T
T
6.8μF (685)
T
10μF (106)
T
T
T
T
22μF (226)
30
Low Inductance Capacitors
0612 series
■ FEATURES
* Standard size with thin thickness.
* Small size with high capacitance.
* Capacitor with lead-free termination (pure Tin).
* MLCC with low ESL performance.
■ GENERAL ELECTRICAL DATA
Dielectric
X7R
Size
0612
Capacitance range
10nF to 150nF
Capacitance tolerance
K (±10%), M (±20%)
Rated voltage (WVDC)
50V
DF(Tan δ)*
≤2.5%
Insulation resistance at Ur
≥10GΩ or RxC≥500ΩxF whichever is less
Operating temperature
-55 to +125°C
Capacitance characteristic
±15%
Termination
Ni/Sn (lead-free termination)
ESL
500pH
■ EXPLANATION OF PART NUMBERS
0612
B
103
K
500
C
T
Size (Inch (mm))
0612 (1632)
Dielectric
B=X7R
Capacitance
103=10x103 =10nF
Tolerance
K=±10%
Rated voltage
500=50VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “How to order” for more information.
■ CAPACITANCE RANGE
DIELECTRIC
X7R
SIZE
0612
RATED VOLTAGE (VDC)
50
Capacitance
10nF (103)
B
12nF (123)
B
15nF (153)
B
18nF (183)
B
22nF (223)
B
27nF (273)
B
33nF (333)
B
39nF (393)
B
47nF (473)
B
56nF (563)
B
68nF (683)
B
82nF (823)
B
100nF (104)
B
120nF (124)
B
150nF (154)
B
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
31
Safety Certificated Capacitors X1/Y2
S2 series
■ FEATURES
* High voltage in a given case size.
* High stability and reliability.
* RoHS compliant.
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
X7R
Size
1808, 1812, 2211
1808, 1812, 2220, 2211
Capacitance
4pF to 680pF
100pF to 4700pF
Capacitance tolerance
J (±5%), K (±10%)
Rated voltage (WVAC)
250Vrms
Q/ DF(Tan δ)
Cap<30pF: Q≥400+20C
Cap≥30pF: Q≥1000
DF≤2.5%
Insulation resistance at Ur
≥10GΩ
Dielectric withstanding strength
1500VAC
Peak impulse voltage
5000V
Operating temperature
-55 to +125°C
Capacitance characteristic
±30ppm
±15%
Termination
Ni/Sn (lead-free termination)
Certified number
TUV: R50195920,UL: E250427, E182369
Test standard
EN 60384-14, UL 60950:2000, UL 60384-14
■ EXPLANATION OF PART NUMBERS
S2
42
N
100
J
302
L
T
Series
S2=X1/Y2
Size (Inch (mm))
42=1808 (4520)
Dielectric
N=NP0
Capacitance
100=10x100 =10pF
Tolerance
J=±5%
Rated voltage
302=3000 VDC
602=6000 Impulse Voltage
Termination
L=Ag/Ni/Sn
C=Cu/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “How to order” for more information.
■ CAPACITANCE RANGE
DIELECTRIC
NP0
SIZE
1808
1812
2211
RATED VOLTAGE (VDC)
3000
3000
3000
PEAK IMPULSE VOLTAGE
5000
5000
5000
6000
Capacitance
4pF (4R0)
F*
K*
K
5pF (5R0)
F*
K*
K
10pF (100)
F*
D
K*
K
12pF (120)
F*
D
K*
K
15pF (150)
F*
D
K*
K
18pF (180)
F*
D
K*
K
22pF (220)
F*
D
K*
K
27pF (270)
F*
D
K*
K
33pF (330)
F*
D
K*
K
39pF (390)
G*
D
K*
K
47pF (470)
G*
D
K*
K
56pF (560)
G*
D
K*
K
68pF (680)
G*
D
K*
K
82pF (820)
G*
D
K*
K
100pF (101)
K
D
K*
K
120pF (121)
K
D
M
150pF (151)
K
D
M
180pF (181)
D
M
220pF (221)
K
M
270pF (271)
K
M
330pF (331)
K
M
390pF (391)
K
M
470pF (471)
K
M
560pF (561)
M
680pF (681)
M
1. The letter in cell is expressed the symbol of product thickness. 2. The letter in cell with “*” mark is expressed product with Cu/Ni/Sn terminations.
3. For more information about products with special capacitance or other data, please contact WTC local representative.
■ PACKAGING DIMENSION AND QUANTITY (X1/Y2 & X2 Series) Unit: pieces
Size Inch (mm)
L (mm)
W (mm)
MB min(mm)
T (mm)/Symbol
7” Plastic tape
1808 (4520)
4.50+0.5/-0.3
2.03±0.25
0.26
1.40±0.15
F
2,000
1.60±0.20
G
1,000
2.00±0.20
K
1,000
1812 (4532)
4.50+0.5/-0.3
3.20±0.30
0.26
1.60±0.20
G
1,000
2.00±0.20
K
1,000
2.50±0.30
M
500
2220 (5750)
5.70±0.40
5.00±0.40
0.30
2.00±0.20
K
1,000
2.50±0.30
M
500
2211 (5728)
5.70±0.40
2.80±0.30
0.30
1.60±0.20
G
1,000
2.00±0.20
K
1,000
2.50±0.30
M
500
DIELECTRIC
X7R
SIZE
1808
1812
2211
2220
RATED VOLTAGE (VDC)
3000
PEAK IMPULSE VOLTAGE
5000
Capacitance
56pF (560)
68pF (680)
82pF (820)
100pF (101)
G
120pF (121)
G
150pF (151)
G
G
G*
180pF (181)
G
G
G*
K
220pF (221)
G
G
G*
K
270pF (271)
K
G
G*
K
330pF (331)
K
G
G*
K
390pF (391)
K
G
G*
K
470pF (471)
K
G
K*
K
560pF (561)
K
G
K*
K
680pF (681)
K
K
K*
K
820pF (821)
K
K
K*
K
1,000pF (102)
K
M
M*
K
1,200pF (122)
M
M
1,500pF (152)
M
M
1,800pF (182)
M
M
2,200pF (222)
M
M
3,300pF (332)
M
4,700pF (472)
M
32
Safety Certificated Capacitors X2
S3 series
■ FEATURES
* High voltage in a given case size.
* High stability and reliability.
* RoHS compliant.
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
X7R
Size
1808, 1812
Capacitance*
3.9pF to 1000pF
150pF to 5600pF
Capacitance tolerance
J (±5%), K (±10%)
K (±10%), M (±20%)
Rated voltage (WVDC)
2000V, 3000V
Rated voltage (WVAC)
250Vrms
Q/ DF(Tan δ)
Cap<30pF: Q≥400+20C
Cap≥30pF: Q≥1000
Tan δ≤2.5%
Insulation resistance at Ur
≥10GΩ
Dielectric withstanding strength
1500VAC
Peak impulse voltage (X2)
2500V
Operating temperature
-55 to +125°C
Capacitance characteristic
±30ppm
±15%
Termination
Ni/Sn (lead-free termination)
Certified number
TUV: R50195920,UL: E250427, E182369
Test standard
EN 60384-14, UL 60950:2000, UL 60384-14
■ EXPLANATION OF PART NUMBERS
S3
42
N
100
J
202
L
T
Series
S3=X2
Size (Inch (mm))
42=1808 (4520)
Dielectric
N=NP0
Capacitance
100=10x100 =10pF
Tolerance
J=±5%
Rated voltage
202=2000 VDC
Termination
L=Ag/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “ How to order” for more information.
■ CAPACITANCE RANGE
DIELECTRIC
NP0
SIZE
1808
1812
RATED VOLTAGE
(VDC)
2000
3000
3000
Capacitance
3.9pF (3R9)
F*
F*
4.7pF (4R7)
F*
F*
5.0pF (5R0)
F*
F*
5.6pF (5R6)
F*
F*
6.8pF (6R8)
F*
F*
8.2pF (8R2)
F*
F*
10pF (100)
F*
F*
D
12pF (120)
F*
F*
D
15pF (150)
F*
F*
D
18pF (180)
F*
F*
D
22pF (220)
F*
F*
D
27pF (270)
F*
F*
D
33pF (330)
F*
F*
D
39pF (390)
G*
G*
D
47pF (470)
G*
G*
D
56pF (560)
G*
G*
D
68pF (680)
G*
G*
D
82pF (820)
G*
G*
D
100pF (101)
K*
K*
D
120pF (121)
K*
K*
D
150pF (151)
K*
K*
D
180pF (181)
K*
K*
D
220pF (221)
K*
K*
D
270pF (271)
K*
K*
D
330pF (331)
K*
K*
D
390pF (391)
K*
K*
D
470pF (471)
K*
K*
D
560pF (561)
K*
K*
D
680pF (681)
K*
K*
K
820pF (821)
K*
K*
K
1,000pF (102)
K*
K*
K
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
DIELECTRIC
X7R
SIZE
1808
1812
RATED VOLTAGE
(VDC)
2000
3000
2000
3000
Capacitance
150pF (151)
G
180pF (181)
G*
G*
220pF (221)
G*
G*
270pF (271)
G*
G*
G
330pF (331)
G*
G*
G*
G*
390pF (391)
G*
G*
G*
G*
470pF (471)
G*
G*
G*
G*
560pF (561)
G*
G*
G*
G*
680pF (681)
G*
G*
G*
G*
820pF (821)
G*
G*
G*
G*
1,000pF (102)
K*
K*
G*
G*
1,200pF (122)
K*
K*
G*
G*
1,500pF (152)
K*
K*
K*
K*
1,800pF (182)
K*
K*
K*
K*
2,200pF (222)
K
M
M
2,700pF (272)
M
M
3,300pF (332)
M
3,900pF (392)
M
4,700pF (472)
M
5,600pF (562)
M
33
Automotive Capacitor Qualified to AEC-Q200
MT series
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
X7R
Size
0201, 0402, 0603, 0805, 1206, 1210
Capacitance range
0.5pF to 0.33uF
100pF to 1μF
Capacitance tolerance
Cap≤5pF:B,C; 5pF<Cap<10pF:C,D; Cap≥10pF:F, G, J
J (±5%), K (±10%), M (±20%)
Rated voltage (WVDC)
10V, 16V, 25V, 50V, 100V, 250V, 500V, 630V, 1000V
Operating temperature
-55 to +125°C
Capacitance characteristic
±30ppm/°C
±15%
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
MT
31
B
104
K
500
C
T
Series
MT= Automotive
(with AEC-Q200 qualification)
Size (Inch (mm))
31=1206 (3216)
Dielectric
B=X7R
Capacitance
104=10x104 =0.1uF
Tolerance
K=±10%
Rated voltage
500=50 VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
■ CAPACITANCE RANGE
NP0 Dielectric X7R Dielectric
Dielectric
NP0
Size
0201
0402
0603
0805
1206
1210
Rated Voltage
(VDC)
10,16,25, 50
10,16,25, 50
10,16, 25, 50
100
200, 250
10,16, 25, 50
100
200, 250
500, 630
10,16, 25, 50
100
200
250
500, 630
1000
10,16,25,50,100
200, 250
500, 630
Capacitance
0.5pF (0R5)
L
N
S
S
S
A
A
A
A
0.6pF (0R6)
L
N
S
S
S
A
A
A
A
0.7pF (0R7)
L
N
S
S
S
A
A
A
A
0.8pF (0R8)
L
N
S
S
S
A
A
A
A
0.9pF (0R9)
L
N
S
S
S
A
A
A
A
1.0pF (1R0)
L
N
S
S
S
A
A
A
A
1.2pF (1R2)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
1.5pF (1R5)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
1.8pF (1R8)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
2.2pF (2R2)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
2.7pF (2R7)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
3.3pF (3R3)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
3.9pF (3R9)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
4.7pF (4R7)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
5.6pF (5R6)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
6.8pF (6R8)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
8.2pF (8R2)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
10pF (100)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
C
C
C
12pF (120)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
C
C
C
15pF (150)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
C
C
C
18pF (180)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
B
C
C
C
22pF (220)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
D
C
C
C
27pF (270)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
D
C
C
C
33pF (330)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
D
C
C
C
39pF (390)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
D
C
C
C
47pF (470)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
D
C
C
C
56pF (560)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
D
C
C
C
68pF (680)
L
N
S
S
S
A
A
A
A
B
B
B
B
B
D
C
C
C
82pF (820)
L
N
S
S
S
A
A
A
B
B
B
B
B
B
D
C
C
C
100pF (101)
L
N
S
S
S
A
A
B
B
B
B
B
B
B
D
C
C
C
120pF (121)
L
N
S
S
S
A
A
B
D
B
B
B
B
B
D
C
C
C
150pF (151)
N
S
S
S
A
A
D
D
B
B
B
B
B
D
C
C
C
180pF (181)
N
S
S
S
A
A
D
D
B
B
B
B
B
G
C
C
C
220pF (221)
N
S
S
S
A
A
D
D
B
B
B
B
B
G
C
C
C
270pF (271)
N
S
S
X
A
A
D
D
B
B
B
C
C
G
C
C
C
330pF (331)
N
S
S
X
A
A
D
D
B
B
B
C
C
G
C
C
C
390pF (391)
N
S
S
X
B
B
D
D
B
B
B
C
C
C
G
C
C
C
470pF (471)
N
S
S
X
B
B
D
B
B
C
C
C
G
C
C
C
560pF (561)
N
S
S
B
B
D
B
B
C
D
D
G
C
C
C
680pF (681)
N
S
S
B
B
D
B
B
C
D
D
G
C
C
C
820pF (821)
N
S
S
B
B
D
B
B
C
G
G
G
C
C
C
1,000pF (102)
N
S
S
B
B
D
B
B
C
G
G
G
C
D
D
1,200pF (122)
X
B
B
D
B
B
C
G
G
C
D
D
1,500pF (152)
X
B
B
D
B
B
D
G
G
C
D
D
1,800pF (182)
X
B
B
D
B
B
D
G
G
C
D
D
2,200pF (222)
X
B
B
D
B
B
D
G
G
C
D
D
2,700pF (272)
X
D
D
B
B
D
G
C
D
D
3,300pF (332)
X
D
D
B
B
D
G
C
D
D
3,900pF (392)
D
D
B
B
D
G
C
D
D
4,700pF (472)
D
D
B
B
D
G
C
G
5,600pF (562)
D
D
B
B
C
G
6,800pF (682)
D
D
C
C
C
G
8,200pF (822)
D
D
D
C
G
0.010uF (103)
D
D
D
C
G
0.012uF (123)
D
0.015uF (153)
D
0.018uF (183)
K
0.022uF (223)
K
0.027uF (273)
K
0.033uF (333)
K
0.039uF (393)
Dielectric
X7R
Size
0402
0603
0805
1206
1210
Rated Voltage
(VDC)
10,16, 25, 50
10,16, 25
50
100
10,16,25
50
100
200, 250
500, 630
10, 16
25
50
100
200, 250
500, 630
10,16, 25, 50
100
200, 250
500
1000
Capacitance
100pF (101)
N
S
S
S
B
B
B
B
B
D
D
D
D
D
120pF (121)
N
S
S
S
B
B
B
B
B
D
D
D
D
D
150pF (151)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
D
D
D
180pF (181)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
D
D
D
220pF (221)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
D
D
D
270pF (271)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
D
D
D
330pF (331)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
D
D
D
390pF (391)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
D
D
D
470pF (471)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
D
D
D
560pF (561)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
D
D
D
680pF (681)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
C
D
D
820pF (821)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
C
D
D
1,000pF (102)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
C
C
C
D
D
1,200pF (122)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
C
C
C
D
D
1,500pF (152)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
C
C
C
D
D
1,800pF (182)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
C
C
C
D
D
2,200pF (222)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
C
C
C
D
D
2,700pF (272)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
C
C
C
D
D
3,300pF (332)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
C
C
C
D
D
3,900pF (392)
N
S
S
S
B
B
B
B
B
B
B
B
B
D
D
C
C
C
D
G
4,700pF (472)
N
S
S
S
B
B
B
B
D
B
B
B
B
D
D
C
C
C
D
G
5,600pF (562)
N
S
S
S
B
B
B
B
D
B
B
B
B
D
D
C
C
C
D
G
6,800pF (682)
N
S
S
S
B
B
B
B
D
B
B
B
B
D
D
C
C
C
D
G
8,200pF (822)
N
S
S
S
B
B
B
B
D
B
B
B
B
D
D
C
C
C
D
G
0.010uF (103)
N
S
S
S
B
B
B
D
D
B
B
B
B
D
D
C
C
C
D
G
0.012uF (123)
S
S
B
B
B
D
B
B
B
B
D
C
C
C
D
0.015uF (153)
S
S
B
B
B
D
B
B
B
B
D
C
C
C
D
0.018uF (183)
S
S
B
B
B
D
B
B
B
B
D
C
C
C
D
0.022uF (223)
S
S
B
B
B
D
B
B
B
B
D
C
C
C
D
0.027uF (273)
S
S
B
B
D
B
B
B
B
C
C
C
0.033uF (333)
S
X
B
B
D
B
B
B
B
C
C
C
0.039uF (393)
S
X
B
B
D
B
B
B
B
C
C
C
0.047uF (473)
S
X
B
B
D
B
B
B
B
C
C
D
0.056uF (563)
S
X
B
B
D
B
B
B
B
C
C
0.068uF (683)
S
X
B
B
D
B
B
B
B
C
C
0.082uF (823)
S
X
B
B
D
B
B
B
D
C
C
0.10uF (104)
S
X
B
B
D
B
B
B
D
C
C
0.12uF (124)
B
D
B
B
B
D
C
0.15uF (154)
D
D
C
C
C
G
C
0.18uF (184)
D
D
C
C
C
G
C
0.22uF (224)
D
D
C
C
C
G
C
0.27uF (274)
D
C
C
D
C
0.33uF (334)
D
C
C
D
C
0.39uF (394)
D
C
J
P
C
0.47uF (474)
D
J
J
P
C
0.56uF (564)
D
J
J
P
D
0.68uF (684)
D
J
J
P
D
0.82uF (824)
D
J
J
P
D
1.0uF (105)
D
J
J
P
D
1.5uF (155)
2.2uF (225)
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please
contact WTC local representative.
3. X7R/0805/1uF_10V & 16V only.
34
Automotive Capacitors without AEC-Q200 Certification
MG series
■ FEATURES
* A wide selection of sizes is available (0402 to 1812).
* High capacitance in given case size.
* Capacitor with lead-free termination (pure Tin).
* High reliability design with severe quality controls.
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
X7R
X5R
Size
0402, 0603, 0805, 1206, 1210, 1812
Capacitance range*
0.5pF to 0.033μF
100pF to 2.2μF
0.056μF to 10μF
Capacitance tolerance**
Cap≤5pF: B (±0.1pF), C (±0.25pF)
5pF<Cap<10pF: C (±0.25pF), D (±0.5pF)
Cap≥10pF: F (±1%), G (±2%), J (±5%)
J (±5%), K (±10%), M (±20%)
Rated voltage (WVDC)
16V, 25V, 50V, 100V
10V, 16V, 25V, 50V, 100V, 200V, 250V
6.3V, 10V, 16V, 25V
Operating temperature
-55 to +125°C
-55 to +85°C
Capacitance characteristic
±30ppm/°C
±15%
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
MG
31
B
104
K
500
C
T
Series
MG= Automotive
(without AEC-Q200 certification)
Size (Inch (mm))
31=1206 (3216)
Dielectric
B=X7R
Capacitance
104=10x104 =0.1uF
Tolerance
K=±10%
Rated voltage
500=50 VDC
Termination
C=Cu/Ni/Sn
Packaging
T=7” reeled
* Please refer to page 2 “How to order” for more information.
■ CAPACITANCE RANGE
X5R Dielectric
Dielectric
X5R
Size
0402
0603
0805
1206
1210
Rated Voltage
(VDC)
6.3
10
16
6.3
10
16
25
6.3
10
16
25
6.3
10
16
25
10
16
Capacitance
0.056μF (563)
N
0.068μF (683)
N
0.082μF (823)
N
0.10μF (104)
N
N
0.15μF (154)
N
N
0.22μF (224)
N
N
N
X
0.27uF (274)
N
N
X
X
X
0.33μF (334)
N
N
X
X
X
0.39μF (394)
N
X
X
X
0.47μF (474)
N
X
X
X
0.68μF (684)
N
X
X
X
0.82uF (824)
N
X
X
X
X
1.0μF (105)
X
X
X
X
1.5μF (155)
I
I
J
J
P
K
K
2.2μF (225)
I
I
I
I
J
J
P
K
K
3.3μF (335)
I
I
P
P
P
P
K
K
4.7μF (475)
I
I
P
P
P
P
K
K
6.8uF (685)
P
P
10μF (106)
P
P
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
35
Automotive Capacitors without AEC-Q200 Certification
MG series
NP0 Dielectric
Dielectric
NP0
Size
0402
0603
0805
1206
1210
1812
Rated Voltage
(VDC)
10,16,25,
50,100
10,16,25
,50,100
10,16,
25, 50
100
200
250
500,
630
10,16,
25,50
100
10,16
25,50
100
10,16,
25,50
100
Capacitance
0.1pF (0R1)
0.2pF (0R2)
0.3pF (0R3)
0.4pF (0R4)
0.5pF (0R5)
N
S
A
A
A
A
A
0.6pF (0R6)
N
S
A
A
A
A
A
0.7pF (0R7)
N
S
A
A
A
A
A
0.8pF (0R8)
N
S
A
A
A
A
A
0.9pF (0R9)
N
S
A
A
A
A
A
1.0pF (1R0)
N
S
A
A
A
A
A
1.2pF (1R2)
N
S
A
A
A
A
A
1.5pF (1R5)
N
S
A
A
A
A
A
B
B
1.8pF (1R8)
N
S
A
A
A
A
A
B
B
2.2pF (2R2)
N
S
A
A
A
A
A
B
B
2.7pF (2R7)
N
S
A
A
A
A
A
B
B
3.3pF (3R3)
N
S
A
A
A
A
A
B
B
3.9pF (3R9)
N
S
A
A
A
A
A
B
B
4.7pF (4R7)
N
S
A
A
A
A
A
B
B
5.6pF (5R6)
N
S
A
A
A
A
A
B
B
6.8pF (6R8)
N
S
A
A
A
A
A
B
B
8.2pF (8R2)
N
S
A
A
A
A
A
B
B
10pF (100)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
12pF (120)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
15pF (150)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
18pF (180)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
22pF (220)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
27pF (270)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
33pF (330)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
39pF (390)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
47pF (470)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
56pF (560)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
68pF (680)
N
S
A
A
A
A
A
B
B
C
C
C
D
D
82pF (820)
N
S
A
A
A
A
B
B
B
C
C
C
D
D
100pF (101)
N
S
A
A
A
B
B
B
B
C
C
C
D
D
120pF (121)
N
S
A
A
A
B
D
B
B
C
C
C
D
D
150pF (151)
N
S
A
A
B
D
D
B
B
C
C
C
D
D
180pF (181)
N
S
A
A
B
D
D
B
B
C
C
C
D
D
220pF (221)
N
S
A
A
D
D
D
B
B
C
C
C
D
D
270pF (271)
S
A
A
D
D
D
B
B
C
C
C
D
D
330pF (331)
S
A
A
D
D
D
B
B
C
C
C
D
D
390pF (391)
S
B
B
D
D
D
B
B
C
C
C
D
D
470pF (471)
S
B
B
D
D
B
B
C
C
C
D
D
560pF (561)
S
B
B
D
D
B
B
C
C
C
D
D
680pF (681)
S
B
B
D
D
B
B
C
C
C
D
D
820pF (821)
S
B
B
D
D
B
B
C
C
C
D
D
1,000pF (102)
S
B
B
D
D
B
B
C
C
C
D
D
1,200pF (122)
B
B
D
D
B
B
C
C
C
D
D
1,500pF (152)
B
B
D
D
B
B
C
C
C
D
D
1,800pF (182)
B
B
D
D
B
B
C
C
C
D
D
2,200pF (222)
B
B
D
D
B
B
C
C
C
D
D
2,700pF (272)
D
D
B
B
C
C
C
D
D
3,300pF (332)
D
B
B
C
C
C
D
D
3,900pF (392)
D
B
B
C
C
C
D
D
4,700pF (472)
D
B
B
C
C
C
D
D
5,600pF (562)
D
B
B
C
C
C
D
D
6,800pF (682)
D
C
C
C
C
D
D
8,200pF (822)
D
D
C
C
C
D
D
0.010uF (103)
D
D
C
C
C
D
D
0.012uF (123)
C
D
D
D
D
0.015uF (153)
C
D
D
D
D
0.018uF (183)
D
D
0.022uF (223)
D
D
0.027uF (273)
D
D
0.033uF (333)
D
D
1. The letter in cell is expressed the symbol of product thickness.
2. The letter in cell with “^” mark is expressed product with Ag/Ni/Sn terminations.
3. For more information about products with special capacitance or other data, please contact WTC local representative.
36
Automotive Capacitors without AEC-Q200 Certification
MG series
X7R Dielectric
Dielectric
X7R
Size
0402
0603
0805
1206
1210
1812
Rated Voltage (VDC)
10,
16
25
50
6.3,
10,
16
25
50
100
10,
16
25
50
100
200
250
10,
16
25
50
100
200,
250
10,
16
25
50
100
200,
250
10,
16,
25
50
100
200
250
Capacitance
100pF (101)
N
N
N
S
S
S
S
B
B
B
B
B
120pF (121)
N
N
N
S
S
S
S
B
B
B
B
B
150pF (151)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
180pF (181)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
220pF (221)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
270pF (271)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
330pF (331)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
390pF (391)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
470pF (471)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
560pF (561)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
680pF (681)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
820pF (821)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
1,000pF (102)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
1,200pF (122)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
1,500pF (152)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
1,800pF (182)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
2,200pF (222)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
2,700pF (272)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
3,300pF (332)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
3,900pF (392)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
4,700pF (472)
N
N
N
S
S
S
S
B
B
B
B
B
B
B
B
B
B
C
C
C
C
C
D
D
D
D
5,600pF (562)
N
N
N
S
S
S
S
B
B
B
B
D
B
B
B
B
B
C
C
C
C
C
D
D
D
D
6,800pF (682)
N
N
N
S
S
S
S
B
B
B
B
D
B
B
B
B
B
C
C
C
C
C
D
D
D
D
8,200pF (822)
N
N
N
S
S
S
S
B
B
B
B
D
B
B
B
B
B
C
C
C
C
C
D
D
D
D
0.010uF (103)
N
N
N
S
S
S
S
B
B
B
B
D
B
B
B
B
B
C
C
C
C
C
D
D
D
D
0.012uF (123)
N
N
S
S
S
B
B
B
B
D
B
B
B
B
B
C
C
C
C
C
D
D
D
D
0.015uF (153)
N
N
S
S
S
B
B
B
B
D
B
B
B
B
C
C
C
C
C
C
D
D
D
D
0.018uF (183)
N
N
S
S
S
B
B
B
B
D
B
B
B
B
C
C
C
C
C
C
D
D
D
D
0.022uF (223)
N
N
S
S
S
B
B
B
B
D
B
B
B
B
C
C
C
C
C
C
D
D
D
D
0.027uF (273)
N
N
S
S
S
B
B
B
D
B
B
B
B
C
C
C
C
C
C
D
D
D
D
0.033uF (333)
N
N
S
S
X
B
B
B
D
B
B
B
B
G
C
C
C
C
C
D
D
D
D
0.039uF (393)
N
N
S
S
X
B
B
B
D
B
B
B
B
G
C
C
C
C
C
D
D
D
D
0.047uF (473)
N
N
S
S
X
B
B
B
D
B
B
B
B
G
C
C
C
C
D
D
D
D
D
0.056uF (563)
N
S
S
X
B
B
B
D
B
B
B
B
G
C
C
C
C
D
D
D
D
D
0.068uF (683)
N
S
S
X
B
B
B
D
B
B
B
B
G
C
C
C
C
G
D
D
D
D
0.082uF (823)
N
S
S
X
B
B
B
D
B
B
B
D
G
C
C
C
C
G
D
D
D
D
0.10uF (104)
N
N
S
S
X
B
B
B
D
B
B
B
D
G
C
C
C
C
G
D
D
D
D
0.12uF (124)
S
X
D
D
D
B
B
B
D
C
C
C
C
G
D
D
D
D
0.15uF (154)
S
X
D
D
D
C
C
C
G
C
C
C
D
M
D
D
D
K
0.18uF (184)
S
X
D
D
D
C
C
C
G
C
C
C
D
M
D
D
D
K
0.22uF (224)
S
X
D
D
D
C
C
C
G
C
C
C
D
M
D
D
D
K
0.27uF (274)
X
D
D
C
C
D
C
C
C
G
M
D
D
D
K
0.33uF (334)
X
D
D
C
C
D
C
C
D
G
M
D
D
D
K
0.39uF (394)
X
D
D
C
J
P
C
C
D
M
M
D
D
D
K
0.47uF (474)
X
D
D
J
J
P
C
C
D
M
M
D
D
K
K
0.56uF (564)
D
D
J
J
P
D
D
D
M
D
D
K
0.68uF (684)
D
D
J
J
P
D
D
D
K
D
K
K
0.82uF (824)
D
D
J
J
P
D
D
D
K
D
K
K
1.0uF (105)
D
D
J
J
P
D
D
D
K
D
K
K
1.5uF (155)
J
P
K
G
K
2.2uF (225)
J
P
K
G
M
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
37
Automotive Capacitor Arrays Qualified to AEC-Q200
MY series
■ FEATURES
* High density mounting due to mounting space saving.
* Mounting cost saving.
* Increased throughput
■ GENERAL ELECTRICAL DATA
Dielectric
NP0
X7R
Size
4x0402, 4x0603
Capacitance*
10pF to 470pF
180pF to 0.1μF
Capacitance tolerance**
J (±5%), K (±10%)
K (±10%), M (±20%)
Rated voltage (WVDC)
25V, 50V, 100V
10V, 16V, 25V, 50V
Insulation resistance at Ur
≥10GΩ or RxC≥500ΩxF whichever is less
Operating temperature
-55 to +125°C
Capacitance characteristic
±30ppm
±15%
Termination
Ni/Sn (lead-free termination)
■ EXPLANATION OF PART NUMBERS
MY
24
N
102
J
500
C
T
Series
MY= Automotive
Capacitor array
(with AEC-Q200 qualification)
Size
24=4x0402
34=4x0603
Dielectric
N=NP0 (C0G)
B=X7R
Capacitance
102=10x102 =1000pF
Tolerance
J=±5%
Rated voltage
500=50 VDC
Termination
C=Cu/Ni/Sn
Packaging style
T=7” reeled
G=13” reeled
* Please refer to page 2 “ How to order” for more information.
■ CAPACITANCE RANGE
SIZE
Inch (mm)
4 x 0402
4x0603
DIELECTRIC
NP0
X7R
NP0
X7R
RATED VOLTAGE
(VDC)
50
10
16
25
25
50
100
16
25
50
Capacitance
10pF (100)
T
B
B
B
15pF (150)
T
B
B
B
22pF (220)
T
B
B
B
33pF (330)
T
B
B
B
47pF (470)
T
B
B
B
68pF (680)
T
B
B
B
100pF (101)
T
B
B
B
120pF (121)
T
B
B
B
150pF (151)
T
B
B
B
180pF (181)
T
B
B
B
B
B
220pF (221)
T
B
B
B
B
B
270pF (271)
B
B
B
B
B
330pF (331)
B
B
B
B
B
470pF (471)
B
B
B
B
B
6,80pF (681)
B
B
1,000pF (102)
T
T
T
B
B
1,500pF (152)
T
T
T
B
B
2,200pF (222)
T
T
T
B
B
3,300pF (332)
T
T
T
B
B
4,700pF (472)
T
T
T
B
B
6,800pF (682)
T
T
T
B
B
0.010μF (103)
T
T
T
B
B
0.015μF (153)
T
T
T
B
B
B
0.022μF (223)
T
T
T
B
B
B
0.033μF (333)
T
T
T
B
0.047μF (473)
T
T
T
B
0.068μF (683)
T
T
T
B
0.10μF (104)
T
T
T
B
1. The letter in cell is expressed the symbol of product thickness.
2. For more information about products with special capacitance or other data, please contact WTC local representative.
38
Appendix I
Reliability Test Conditions and Requirements
No.
Item
Test Condition
Requirements
1.
Visual and Mechanical
---
* No remarkable defect.
* Dimensions to conform to individual specification sheet.
2.
Capacitance
Class I: (NP0,X8G)
≦1000pF, 1.0±0.2Vrms，1MHz±10%
＞1000pF, 1.0±0.2Vrms，1KHz±10%
Class II: (X7R, X7E, X6S, X5R,X7S,Y5V, X8R)
C≦10µF, 1.0±0.2Vrms，1KHz±10% **
C＞10µF, 0.5±0.2Vrms，120Hz±20%
** Test condition: 0.5±0.2Vrms，1KHz±10%
X7R: 0805=106(6.3V), 0603/475(6.3V)
X5R: 01R5≧103, 0201≧224 (6.3V,10V,16V)#1,
0402≧475 (6.3V,16V), 0402≧225(10V),
0603=106 (6.3V,10V),
TT18X≧475(10V) , TT15X series
X6S: 0201≧104 (6.3V,10V), 0402≧225 (6.3V),
0402/475 (10V), 0603/106 (6.3V),
X7S: 0402/225(6.3V)
#1 Excluding X5R/0201/105(6.3V); 225(10V) ,
(1.0±0.2Vrms，1KHz±10%)
* Before initial measurement (Class II only):
To apply de-aging at 150°C for 1hr then set for
24±2 hrs at room temp.
* Shall not exceed the limits given in the detailed spec.
3.
Q/ D.F.
(Dissipation Factor)
NP0, X8G: Cap≥30pF, Q≥1000; Cap<30pF,Q≥400+20C#2
#2.RF15(≥100V), RF18, RF21, RF11,RF22: Cap<30pF:Q≥800+20C;Cap≥30pF:Q≥1400
X8R: D.F. ≤5%
X7R, X6S, X5R, X7S:
Rated vol.
D.F.≦
Exception of D.F. ≦
≧100V
≦2.5%
≦3%
1206≧0.47μF
≦5%
0805＞0.1µF;0603≧0.068μF;1206>1μF;1210≧2.2μF;TT series
≦10%
0805＞0.22µF;1210≧3.3μF
50V
≦2.5%
≦3%
0201(50V); 0603≧0.047μF; 0805≧0.18μF;1206≧0.47μF
≦5%
0201≧0.01uF; 1210≧4.7μF
≦10%
0402≧0.012μF;0603>0.1μF; 0805≧1μF;1206≧2.2μF;
1210≧10μF; TT series
35V
≦3.5%
≦10%
0603≧1μF;0805≥2.2µF;1206≧2.2μF;1210≧10μF
25V
≦3.5%
≦5%
0201≧0.01μF;0805≧1μF; 1210≧10μF
≦7%
0603≧0.33μF; 1206≧4.7μF
≦10%
0201≧0.1μF;0402≧0.10μF&(0402/X7R≧0.056μF); TT series
0603≧0.47μF; 0805≧2.2μF;1206≧6.8μF; 1210≧22μF
≦12.5%
0402≧0.47μF
16V
≦3.5%
≦5%
0201≧0.01μF;0402≧0.033μF;0603≧0.15μF;
0805≧0.68μF;1206≧2.2μF;1210≧4.7μF
≦10%
0201≧0.1uF(0201/X7R≧0.022μF); 0402≧ 0.22uF;
0603≧0.68μF;0805≧2.2μF;1206≧4.7μF; 1210≧22μF; TT series
10V
≦5%
≦10%
0201≧0.012μF;0402≧0.33μF(0402/X7R≧0.22μF); TT series
0603≧0.33μF; 0805≧2.2μF;1206≧2.2μF;1210≧22μF:01R5
≦15%
0201≧0.1μF; 0402≧1μF
6.3V
≦10%
≦15%
0201≧0.1μF;0402≧1μF;0603≧10μF; 0805≧4.7μF;
1206≧47μF :1210≧100μF; TT series
≦20%
0402≧2.2μF
4V
≦15%
---
---
Y5V:
Rated vol.
D.F. ≦
Exception of D.F.≦
≧50V
≦5%
≦7%
0603≧0.1μF; 0805≧0.47μF; 1206≧4.7μF; TT series & Cap≧1μF
≦12.5%
1210≧6.8μF
35V
≦7%
---
---
25V
≦5%
≦7%
0402≧0.047μF;0603≧0.1μF; 0805≧0.33μF;1206≧1μF; 1210≧4.7μF
≦9%
0402≧0.068μF;0603≧0.47μF; 1206≧4.7μF; 1210≧22μF;
TT series & Cap≧1μF
16V
(C<1.0μF)
≦7%
≦9%
0402≧0.068μF; 0603≧0.68μF
≦12.5%
0402≧0.22μF
16V
(C≧1.0μF)
≦9%
≦12.5%
0603≧2.2μF; 0805≧3.3μF;1206≧10μF; 1210≧22μF;
1812≧47μF; TT series & Cap≧1μF
10V
≦12.5%
≦20%
0402≧0.47μF
6.3V
≦20%
---
---
4a.
Dielectric Strength
*To apply voltage:
≦100V : 250% of rated voltage.
200V ~ 300V : 200% of rated voltage.
400V ~ 450V : 120% of rated voltage.
500V ~ 999V : 150% of rated voltage.
1000V ~ 3000V : 120% of rated voltage.
4000V : 110% of rated voltage.
*Duration: 1 to 5 sec.
*Charge & discharge current less than 50mA.
* No evidence of damage or flash over during test.
4b.
Dielectric Strength
(for X1/Y2 & X2)
* To apply 1500 VAC voltage.
* Duration: 60 sec.
* No evidence of damage or flash over during test.
5.
Insulation Resistance
To apply rated voltage for max. 120 sec.
*Before initial measurement (Class II only):
To apply de-aging at 150°C for 1hr then set for
24±2 hrs at room temp.
10GΩ or RxC≧500Ω-F whichever is smaller.
Class II (X7R, X6S, X5R, X7S,Y5V)
Rated voltage
Insulation Resistance
100V: X7R
10GΩ or RxC≧100 Ω-F
whichever is smaller.
50V: :0402>0.01µF;0603≥1µF;0805≥1µF; 1206≧4.7μF;1210≥4.7µF
35V:0805≥2.2µF; 1206≧2.2μF;1210≧10μF
25V:0402≥1µF;0603≥2.2µF;0805≥2.2µF;1206≥10µF;1210≥10µF
16V:0201≧0.1μF;0402≥0.22µF;0603≥1µF;0805≥2.2µF;1206≥10µF;1210≥47µF
10V:0201≥47nF;0402≥0.47µF;0603≥0.47µF;0805≥2.2µF;1206≥4.7µF;1210≥47µF
6.3V ; 4V ; TT series; Size≥1812
All X6S items , All X7S items
RxC≧50 Ω-F
100V: 1210≥3.3µF, 50V: 0402≥0.1µF; 0603≥2.2μF; 0805≥10µF;1206≥10µF / 35V:
0603≥1µF / 25V: 0201≥0.1µF; 0402≥0.22µF;0603≥10μF; 0805≥10µF;1206≥22µF /
16V: 0603≥10µF; 0402≥1µF; 0201≥0.22µF / 10V: 0201>0.1µF, 0402≥1µF; 0603≥10µF;
0805≥47µF; TT21>4.7µF / 6.3V: 0201≥0.1µF; 0603>4.7μF; 0805≥47µF;1206≥10µF;
TT15>1.0µF / 4V:0603≥22µF; 0805≥47µF; 1206≥100µF
Rated Voltage:
200V ~ 630V
To apply rated voltage (500V
max.) for 60 sec.
>10GΩ or 100Ω-F whichever is smaller.
Rated Voltage:
>630V
To apply 500V for 60sec.
>10GΩ or 100Ω-F whichever is smaller.
* This Reliability Test Conditions and Requirements only for General Purpose series, please refer to individual sheet for other products information.
39
Appendix I
Reliability Test Conditions and Requirements
No.
Item
Test Condition
Requirements
6.
Temperature Coefficient
With no electrical load.
T.C.
Operating Temp
NPO (C0G)
-55~125°C at 25°C
NPO (C0H)
-55~125°C at 25°C
NPO (C0J)
-55~125°C at 25°C
X8G
-55~125°C at 25°C
X8R
-55~125°C at 25°C
X7R
-55~125°C at 25°C
X7S
-55~125°C at 25°C
X6S
-55~105°C at 25°C
X5R
-55~ 85°C at 25°C
Y5V
-25~ 85°C at 20°C
*Measurement voltage for Class II:
*Before initial measurement (Class II only):
To apply de-aging at 150°C for 1hr then set for 24±2 hrs at room temp.
01005
0201
Cap≤0.01µF: 0.5V
Cap<0.1µF:1V
Cap>0.01µF: 0.2V
0.1µF≤Cap<1µF: 0.2V
Cap≥1µF: 0.1V
0402
0603
Cap<1µF: 1V
Cap≤1µF: 1V
Cap=1µF: 0.5V
1µF<Cap≤4.7µF: 0.5V
1µF<Cap<10µF: 0.2V
Cap>4.7µF: 0.2V
Cap≥10µF: 0.1V
0805
1206/1210
Cap<10µF: 1V
Cap≤10µF: 1V
Cap=10µF: 0.5V
10µF<Cap≤100µF: 0.5V
Cap>10µF: 0.2V
Cap>100µF: 0.2V
T.C.
Capacitance Change
NPO (C0G)
Within ±30ppm/°C
NPO (C0H)
Within ±60ppm/°C
NPO (C0J)
Within ±120ppm/°C
X8G
Within ±30ppm/°C
X8R
Within ±15%
X7R
Within ±15%
X7S
Within ±22%
X6S
Within ±22%
X5R
Within ±15%
Y5V
Within +30%/-80%
7.
Adhesive Strength of
Termination
*Pressurizing force:
01005:1N, 0201:2N, 0402 & 0603:5N,
>0603: 10N
*Test time：10 ±1 sec
* No remarkable damage or removal of the terminations.
8.
Vibration Resistance
*Vibration frequency: 10~55 Hz/min.
*Total amplitude: 1.5mm
*Test time: 6 hrs.(Two hrs each in three mutually perpendicular directions.)
*Before initial measurement (Class II only):
To apply de-aging at 150°C for 1hr then set for 24±2 hrs at room temp.
*Cap./DF(Q) Measurement to be made after de-aging at 150°C for 1hr then
set for 24±2 hrs at room temp.
* No remarkable damage.
* Cap change and Q/D.F.: To meet initial spec.
9.
Solderability
* Solder temperature: 235±5°C
* Dipping time: 2±0.5 sec.
95% MIN. coverage of all metalized area.**
**SH series: 75% MIN. coverage of all metalized area.
10.
Bending Test
*The middle part of substrate shall be pressurized by means of the
pressurizing rod at a rate of about 1 mm per second until the deflection
becomes 1 mm / SH series: 5 mm#3 and then the pressure shall be
maintained for 5±1 sec.
* Before initial measurement (Class II only):
To apply de-aging at 150°C for 1hr then set for 24±2 hrs at room temp.
#3.SH21B224_101/SH31B226_100/SH31B106_160/SH31B106_250/SH31
B225_500/SH31B474_101/SH31B105_101/SH32B476_6R3/SH32B226_16
0/SH32B106_250/SH32B225_500/SH32B475_500/SH32B106_500/SH32B
225_101/SH21B105_500/SH21B225_250/SH21B475_160
* No remarkable damage.
* Cap change:
NP0,X8G: within ±5% or 0.5pF whichever is larger
X7R, X7S, X6S, X5R,X8R: within ±12.5% ,
Y5V: within ±30%
(This capacitance change means the change of capacitance under specified flexure of
substrate from the capacitance measured before the test.)
11.
Resistance to Soldering
Heat
* Solder temperature: 260±5°C
* Dipping time: 10±1 sec
* Preheating: 120 to 150°C for 1 minute before immerse the capacitor in a
eutectic solder.
* Before initial measurement (Class II only):
To apply de-aging at 150°C for 1hr then set for 24±2 hrs at room temp.
* Cap. / DF(Q) / I.R. Measurement to be made after de-aging at 150°C for 1hr
then set for 24±2 hrs at room temp.
* No remarkable damage.
* Cap change:
NP0,X8G: within ±2.5% or 0.25pF whichever is larger
X7R, X7S, X6S, X5R,X8R: within ±7.5%
Y5V: within ±20%
* Q/D.F., I.R. and dielectric strength: To meet initial requirements.
* 25% max. leaching on each edge.
12.
Temperature Cycle
* Conduct the five cycles according to the temperatures and time.
Step
Temp. (°C)
Time (min.)
1
MIN. Operating Temp. +0/-3
30±3
2
Room Temp.
2~3
3
MAX. Operating Temp. +3/-0
30±3
4
Room Temp.
2~3
* Before initial measurement (Class II only):
To apply de-aging at 150°C for 1hr then set for 24±2 hrs at room temp.
* Cap. / DF(Q) / I.R. Measurement to be made after de-aging at 150°C for 1hr
then set for 24±2 hrs at room temp.
* No remarkable damage.
* Cap change:
NP0,X8G: within ±2.5% or 0.25pF whichever is larger
X7R, X7S, X6S, X5R,X8R: within ±7.5%
Y5V: within ±20%
* Q/D.F., I.R. and dielectric strength: To meet initial requirements.
* This Reliability Test Conditions and Requirements only for General Purpose series, please refer to individual sheet for other products information.
40
Appendix I
Reliability Test Conditions and Requirements
No.
Item
Test Condition
Requirements
13.
Humidity
(Damp Heat)
Steady State
* Test temp.: 40±2°C
* Humidity: 90~95%RH
* Test time: 500+24/-0hrs.
* Before initial measurement (Class II only):
To apply de-aging at 150°C for 1hr then set for 24±2 hrs at
room temp.
* Cap. / DF(Q) / I.R. Measurement to be made after de-aging at
150°C for 1hr then set for 24±2 hrs at room temp.
* No remarkable damage.
* Cap change: NP0, X8G: within ±5% or 0.5pF whichever is larger
X7R, X7S, X6S, X5R, X8R: ≥10V**,within ±12.5%;6.3V within ±25%;TT series,within ±25%
**10V:0603≧4.7μF;0402≧1μF;0201≧0.1μF, within ±25%;
Y5V: ≥10V, within ±30%; 6.3V, within +30/-40%
* Q/D.F. value:
NP0, X8R: More than 30pF Q≥350, 10pF≤C≤30pF, Q≥275+2.5C,Less than 10pF Q≥200+10C
X8R: ≤7.5%
X7R, X6S, X5R, X7S:
Rated vol.
D.F.≦
Exception of D.F.≦
≧100V
≦3%
≦6%
1206≧0.47μF
≦7.5%
0805＞0.1µF, 0603≧0.068μF, 1206>1μF;1210≧2.2μF;TT series
≦20%
0805＞0.22µF;1210≧3.3μF
≧50V
≦3%
≦6%
0201(50V);0603≧0.047μF; 0805≧0.18μF; 1206≧0.47μF
≦10%
0201≧0.01uF;1210≧4.7μF
≦20%
0402≧0.012μF; 0603>0.1μF; 0805≧1μF; 1206≧2.2μF;
1210≧10μF; TT series
35V
≦5%
≦20%
0603≧1μF;0805≥2.2µF;1206≧2.2μF;1210≧10μF
25V
≦5%
≦10%
0201≧0.01μF;0805≧1μF; 1210≧10μF
≦14%
0603≧0.33μF;1206≧4.7μF
≦15%
0201≧0.1μF;0402≧0.10μF&(0402/X7R≧0.056μF); TT series
0603≧0.47μF;0805≧2.2μF;1206≧6.8μF;1210≧22μF
≦20%
0402≧0.47μF
16V
≦5%
≦10%
0603≧0.15μF;0805≧0.68μF;1206≧2.2μF;1210≧4.7μF
≦15%
0201≧0.01μF(0201/X7R≧0.022μF);0402≧0.033μF;
0603≧0.68μF;0805≧2.2μF;1206≧4.7μF; 1210≧22μF; TT series
10V
≦7.5%
≦15%
0201≧0.012μF; 0402≧0.33μF(0402/X7R≧0.22μF);
0603≧0.33μF;0805≧2.2μF;1206≧2.2μF; 1210≧22μF
≦20%
0201≧0.1μF ;0402≧1μF; TT series; 01R5
6.3V
≦15%
≦30%
0201≧0.1μF;0402≧1μF;0603≧10μF;
0805≧4.7μF;1206≧47μF;1210≧100μF;TT series
4V
≦20%
---
---
Y5V:
Rated vol.
D.F.≦
Exception of D.F.≦
≧50V
≦7.5%
≦10%
0603≧0.1μF; 0805≧0.47μF;1206≧4.7μF;
TT series & Cap≧1μF
≦20%
1210≧6.8μF
35V
≦10%
---
---
25V
≦7.5%
≦10%
0402≧0.047μF;0603≧0.1μF;0805≧0.33μF;
1206≧1μF; 1210≧4.7μF
≦15%
0402≧0.068μF;0603≧0.47μF;1206≧4.7μF;
1210≧22μF; TT series & Cap≧1μF
16V
(C<1.0μF)
≦10%
≦12.5%
0402≧0.068μF; 0603≧0.68μF
≦20%
0402≧0.22μF
16V
(C≧1.0μF)
≦12.5%
≦20%
0603≧2.2μF;0805≧3.3μF;1206≧10μF;1210≧22μF;
1812≧47μF; TT series & Cap≧1μF
10V
≦20%
≦30%
0402≧0.47μF
6.3V
≦30%
---
---
* I.R.: ≥10V, 1GΩ or 50 Ω-F whichever is smaller.
Class II (X7R, X7E, X6S, X5R,X7S, Y5V)
Rated voltage
Insulation
Resistance
100V: All X7R;1210≥3.3µF
1GΩ or RxC≧
10 Ω-F
whichever is
smaller.
50V: 0402>0.01µF;0603≥1µF;0805≥1µF;1206≥4.7µF;1210≥4.7µF
35V:0603≥1µF;0805≥2.2µF; 1206≧2.2μF;1210≧10μF
25V:0201≧0.1uF; 0402≥0.22µF; 0603≥2.2µF;0805≥2.2µF; 1206≥10µF;1210≥10µF
16V: 0201≧0.1uF;0402≥0.22µF;0603≥1µF;0805≥2.2µF;
1206≥10µF;1210≥47µF
10V:0201≥47nF;0402≥0.47µF;0603≥0.47µF;0805≥2.2µF;
1206≥4.7µF;1210≥47µF
6.3V ; 4V ; TT series ; All X6S/X7S items; Size≥1812
* This Reliability Test Conditions and Requirements only for General Purpose series, please refer to individual sheet for other products information.
41
Appendix I
Reliability Test Conditions and Requirements
No.
Item
Test Condition
Requirements
14
Humidity
(Damp Heat)
Load
*Test temp.：40±2°C
*Humidity：90~95%RH
*Test time：500+24/-0 hrs.
*To apply voltage：rated voltage (MAX. 500V)
*Before initial measurement (Class II only): To apply de-aging at
150°C for 1hr then set for 24±2 hrs at room temp.
* Cap. / DF(Q) / I.R. Measurement to be made after de-aging at
150°C for 1hr then set for 24±2 hrs at room temp.
* No remarkable damage.
Cap change: NP0,X8G: ±7.5% or 0.75pF whichever is larger.
X7R, X7S, X6S, X5R,X8R: ≥10V**,within ±12.5%;6.3V within ±25%;TT series,within ±25%
**10V:0603≧4.7μF;0402≧1μF;0201≧0.1μF, within ±25%;
Y5V: ≥10V, within ±30%; 6.3V, within +30/-40%
Q/D.F. value: NP0,X8G: C≥30pF,Q≥200;C<30pF, Q≥100+10/3C
X8R: ≤7.5%
X7R, X6S, X5R, X7S:
Rated vol.
D.F.≦
Exception of D.F.≦
≧100V
≦3%
≦6%
1206≧0.47μF
≦7.5%
0805＞0.1µF, 0603≧0.068μF, 1206>1μF;1210≧2.2μF;TT series
≦20%
0805＞0.22µF;1210≧3.3μF
≧50V
≦3%
≦6%
0201(50V);0603≧0.047μF; 0805≧0.18μF; 1206≧0.47μF
≦10%
0201≧0.01uF;1210≧4.7μF
≦20%
0402≧0.012μF; 0603>0.1μF; 0805≧1μF; 1206≧2.2μF;
1210≧10μF; TT series
35V
≦5%
≦20%
0603≧1μF;0805≥2.2µF;1206≧2.2μF;1210≧10μF
25V
≦5%
≦10%
0201≧0.01μF;0805≧1μF; 1210≧10μF
≦14%
0603≧0.33μF;1206≧4.7μF
≦15%
0201≧0.1μF;0402≧0.10μF&(0402/X7R≧0.056μF); TT series
0603≧0.47μF;0805≧2.2μF; 1206≧6.8μF;1210≧22μF
≦20%
0402≧0.47μF
16V
≦5%
≦10%
0603≧0.15μF;0805≧0.68μF;1206≧2.2μF;1210≧4.7μF
≦15%
0201≧0.01μF(0201/X7R≧0.022μF);0402≧0.033μF;
0603≧0.68μF;0805≧2.2μF;1206≧4.7μF; 1210≧22μF; TT series
10V
≦7.5%
≦15%
0201≧0.012μF; 0402≧0.33μF(0402/X7R≧0.22μF);
0603≧0.33μF;0805≧2.2μF;1206≧2.2μF; 1210≧22μF
≦20%
0201≧0.1μF ;0402≧1μF; TT series; 01R5
6.3V
≦15%
≦30%
0201≧0.1μF;0402≧1μF;0603≧10μF;
0805≧4.7μF;1206≧47μF;1210≧100μF;TT series
4V
≦20%
---
---
Y5V:
Rated vol.
D.F.≦
Exception of D.F.≦
≧50V
≦7.5%
≦10%
0603≧0.1μF; 0805≧0.47μF;1206≧4.7μF;
TT series & Cap≧1μF
≦20%
1210≧6.8μF
35V
≦10%
---
---
25V
≦7.5%
≦10%
0402≧0.047μF;0603≧0.1μF;0805≧0.33μF;1206≧1μF;
1210≧4.7μF
≦15%
0402≧0.068μF;0603≧0.47μF;1206≧4.7μF; 1210≧22μF;
TT series & Cap≧1μF
16V
(C<1.0μF)
≦10%
≦12.5%
0402≧0.068μF; 0603≧0.68μF
≦20%
0402≧0.22μF
16V
(C≧1.0μF)
≦12.5%
≦20%
0603≧2.2μF;0805≧3.3μF;1206≧10μF;1210≧22μF;
1812≧47μF; TT series & Cap≧1μF
10V
≦20%
≦30%
0402≧0.47μF
6.3V
≦30%
---
---
*I.R.: ≥10V, 500MΩ or 25 Ω-F whichever is smaller.
Class II (X7R, X7S, X6S, X5R, Y5V)
Rated voltage
Insulation Resistance
100V: All X7R;1210≥3.3µF
500MΩ or RxC≧5 Ω-F
whichever is smaller.
50V: 0402>0.01µF;0603≥1µF;0805≥1µF;1206≥4.7µF;1210≥4.7µF
35V:0603≥1µF;0805≥2.2µF; 1206≧2.2μF;1210≧10μF
25V:0201≧0.1uF; 0402≥0.22µF; 0603≥2.2µF;0805≥2.2µF;
1206≥10µF;1210≥10µF
16V: 0201≧0.1uF;0402≥0.22µF;0603≥1µF;0805≥2.2µF;
1206≥10µF;1210≥47µF
10V:0201≥47nF;0402≥0.47µF;0603≥0.47µF;0805≥2.2µF;
1206≥4.7µF;1210≥47µF
6.3V ; 4V ; TT series ; All X6S/X7S items; Size≥1812
* This Reliability Test Conditions and Requirements only for General Purpose series, please refer to individual sheet for other products information.
42
Appendix I
Reliability Test Conditions and Requirements
No.
Item
Test Condition
Requirements
15.
High
Temperature
Load
(Endurance)
*Test temp.：
X8G, X8R: 150±3°C
NP0, X7R/ X7S: 125±3°C
X6S: 105±3°C
X5R, Y5V: 85±3°C
*Test time: 1000+24/-0 hrs.
*To apply voltage:
(1) 100% of rated voltage for below range.
Size
Dielectric
Rated voltage
Capacitance
0201
X5R/X7R/X6S
≦10V
C≧0.1µF
≧16V
C>0.1µF
0402
X5R/X7R/
X6S/X7S/Y5V
6.3V,10V,
16V, 25V
C≧1.0µF
0603
X5R/X7R/
X6S/X7S
4V
C≧22µF
6.3V,10V
C≧4.7µF
25V,35V
C≧1.0µF
0805
X5R/X7R/
X6S/X7S
4V
C≧47µF
6.3V
C≧22µF
10V~50V
C≧10µF
1206
X5R/X7R/X6S
≦6.3V
C≧47µF
NP0
3000V
C≧1.5pF
1210
X5R/X7R/X6S
16V
C≧47µF
X7R
100V
C≧3.3µF
TT15
X5R
6.3V
C >1.0µF
TT18
Y5V
6.3V,10V
C≧2.2µF
TT21
Y5V
6.3V
C≧10µF
X5R/X7R/X6S
≦10V
C≧10µF
TT31
Y5V
6.3V
C≧22µF
**1WV items must follow de-rating conditions
(2)150% of rated voltage for below range.
Size
Dielectric
Rated voltage
Capacitance
0201
X5R/X6S
16V/25V
C=0.1µF
X7R
16V
C≧0.022µF
0402
X5R/X7R/X6S
50V
C≧0.1µF
10~25V
C≧0.22µF
Y5V
16V
C≧0.47µF
0603
X7R
50V
C>0.1µF
X5R/X7R/
X6S/X7S
10V,16V, 50V
C≧1.0µF
Y5V
16V
C≧2.2µF
0805
X5R/X7R/
X6S/X7S
10~50V
C≧4.7µF
X5R/X7R/X7S
50V
C≧2.2µF
100V
C≧0.47µF
Y5V
16V
C≧4.7µF
1206
X5R/X7R/X6S
100V
C>1.0µF
1210
X5R/X7R/X6S
50V~100V
C≧2.2µF
1825
2220
2225
X7R
100V~250V
C≧1.0µF
(3) ≦6.3V or C≧10μF or TT series:150% of rated voltage.
(4) 10V~250V: 200% of rated voltage.
(5) 400V~450V: 120% of rated voltage.
(6) 500V: 150% of rated voltage.
(7) 630~3000V: 120% of rated voltage.
(8) Ur=4000V: 110% of rated voltage.
*Before initial measurement (Class II only): To apply de-aging at
150°C for 1hr then set for 24±2 hrs at room temp.
* Cap. / DF(Q) / I.R. Measurement to be made after de-aging at
150°C for 1hr then set for 24±2 hrs at room temp.
* No remarkable damage.
Cap change: NP0, X8G: ±3.0% or ±0.3pF whichever is larger
X7R, X7S, X6S, X5R, X8R: ≥10V**,within ±12.5%;6.3V within ±25%;TT series,within ±25%
**10V:0603≧4.7μF;0402≧1μF;0201≧0.1μF, within ±25%;
Y5V: ≥10V, within ±30%; 6.3V, within +30/-40%
Q/D.F. value: NP0,X8G: More than 30pF, Q≥350; 10pF≤C<30pF, Q≥275+2.5C; Less than 10pF, Q≥200+10C
X8R: ≤7.5%
X7R, X6S, X5R, X7S:
Rated vol.
D.F.≦
Exception of D.F.≦
≧100V
≦3%
≦6%
1206≧0.47μF
≦7.5%
0805＞0.1µF, 0603≧0.068μF, 1206>1μF;1210≧2.2μF;TT series
≦20%
0805＞0.22µF;1210≧3.3μF
≧50V
≦3%
≦6%
0201(50V);0603≧0.047μF; 0805≧0.18μF; 1206≧0.47μF
≦10%
0201≧0.01uF;1210≧4.7μF
≦20%
0402≧0.012μF; 0603>0.1μF; 0805≧1μF; 1206≧2.2μF;
1210≧10μF; TT series
35V
≦5%
≦20%
0603≧1μF;0805≥2.2µF;1206≧2.2μF;1210≧10μF
25V
≦5%
≦10%
0201≧0.01μF;0805≧1μF; 1210≧10μF
≦14%
0603≧0.33μF;1206≧4.7μF
≦15%
0201≧0.1μF;0402≧0.10μF&(0402/X7R≧0.056μF); TT series
;0603≧0.47μF;0805≧2.2μF;1206≧6.8μF;1210≧22μF
≦20%
0402≧0.47μF
16V
≦5%
≦10%
0603≧0.15μF;0805≧0.68μF;1206≧2.2μF;1210≧4.7μF
≦15%
0201≧0.01μF(0201/X7R≧0.022μF);0402≧0.033μF;
0603≧0.68μF;0805≧2.2μF;1206≧4.7μF; 1210≧22μF; TT series
10V
≦7.5%
≦15%
0201≧0.012μF; 0402≧0.33μF(0402/X7R≧0.22μF);
0603≧0.33μF;0805≧2.2μF;1206≧2.2μF; 1210≧22μF
≦20%
0201≧0.1μF ;0402≧1μF; TT series; 01R5
6.3V
≦15%
≦30%
0201≧0.1μF;0402≧1μF;0603≧10μF;
0805≧4.7μF;1206≧47μF;1210≧100μF;TT series
4V
≦20%
---
---
Y5V:
Rated vol.
D.F.≦
Exception of D.F.≦
≧50V
≦7.5%
≦10%
0603≧0.1μF; 0805≧0.47μF;1206≧4.7μF; TT series
≦20%
1210≧6.8μF
35V
≦10%
---
---
25V
≦7.5%
≦10%
0402≧0.047μF;0603≧0.1μF;0805≧0.33μF;
1206≧1μF; 1210≧4.7μF
≦15%
0402≧0.068μF;0603≧0.47μF;1206≧4.7μF;
1210≧22μF; TT series
16V
(C<1.0μF)
≦10%
≦12.5%
0402≧0.068μF; 0603≧0.68μF
≦20%
0402≧0.22μF
16V
(C≧1.0μF)
≦12.5%
≦20%
0603≧2.2μF;0805≧3.3μF;1206≧10μF;1210≧22μF;
1812≧47μF; TT series
10V
≦20%
≦30%
0402≧0.47μF
6.3V
≦30%
---
---
*I.R.: ≥10V, 1GΩ or 50 Ω-F whichever is smaller.
Class II (X7R, X7S, X6S, X5R, Y5V)
Rated voltage
Insulation Resistance
100V: All X7R;1210≥3.3µF
1GΩ or RxC≧10 Ω-F
whichever is smaller.
50V: 0402>0.01µF;0603≥1µF;0805≥1µF;1206≥4.7µF;1210≥4.7µF
35V:0603≥1µF;0805≥2.2µF; 1206≧2.2μF;1210≧10μF
25V:0201≧0.1uF; 0402≥0.22µF; 0603≥2.2µF;0805≥2.2µF;
1206≥10µF;1210≥10µF
16V: 0201≧0.1uF;0402≥0.22µF;0603≥1µF;0805≥2.2µF;
1206≥10µF;1210≥47µF
10V:0201≥47nF;0402≥0.47µF;0603≥0.47µF;0805≥2.2µF;
1206≥4.7µF;1210≥47µF
6.3V ; 4V ; TT series ; All X6S/X7S items; Size≥1812
16.
ESR
For RF Series only, refer to data sheet.
----
* This Reliability Test Conditions and Requirements only for General Purpose series, please refer to individual sheet for other products information.
43
Appendix II
General Information
■ Constructions
No.
Name
NP0
NPO/X7R/X7S/X6S/X5R/Y5V
Ceramic material
BaTiO3 based
Inner electrode
AgPd alloy
Ni
-
Termination
Inner layer
Ag
Cu
Middle layer
Ni
Outer layer
Sn
■ Storage and handling conditions
(1) To store products at 5 to 40C ambient temperature and 20 to 70%. related humidity conditions.
(2) The product is recommended to be used within one year after shipment. Check solderability in case of shelf life extension is needed.
Cautions:
a. The corrosive gas reacts on the terminal electrodes of capacitors, and results in the poor solderability. Do not store the capacitors in the ambience of corrosive gas
(e.g., hydrogen sulfide, sulfur dioxide, chlorine, ammonia gas etc.)
b. In corrosive atmosphere, solderability might be degraded, and silver migration might occur to cause low reliability.
c. Due to the dewing by rapid humidity change, or the photochemical change of the terminal electrode by direct sunlight,the solderability and electrical performance may
deteriorate. Do not store capacitors under direct sunlight or dewing condition. To store products on the shelf and avoid exposure to moisture.
■ Recommended soldering conditions
The lead-free termination MLCCs are not only to be used on SMT against lead-free solder paste, but also suitable against lead-containing solder paste. If the optimized
solder joint is requested, increasing soldering time, temperature and concentration of N2 within oven are recommended.
Fig. 1 The construction of MLCC
Fig. 2 Recommended reflow soldering profile for SMT process
with SnAgCu series solder paste.
4℃/ sec max
Over 60sec at least by
natural cooling
4℃/ sec max
Over 60sec at least by
natural cooling
Fig. 3 Recommended wave soldering profile for SMT process
with SnAgCu series solder.

Navigation menu
