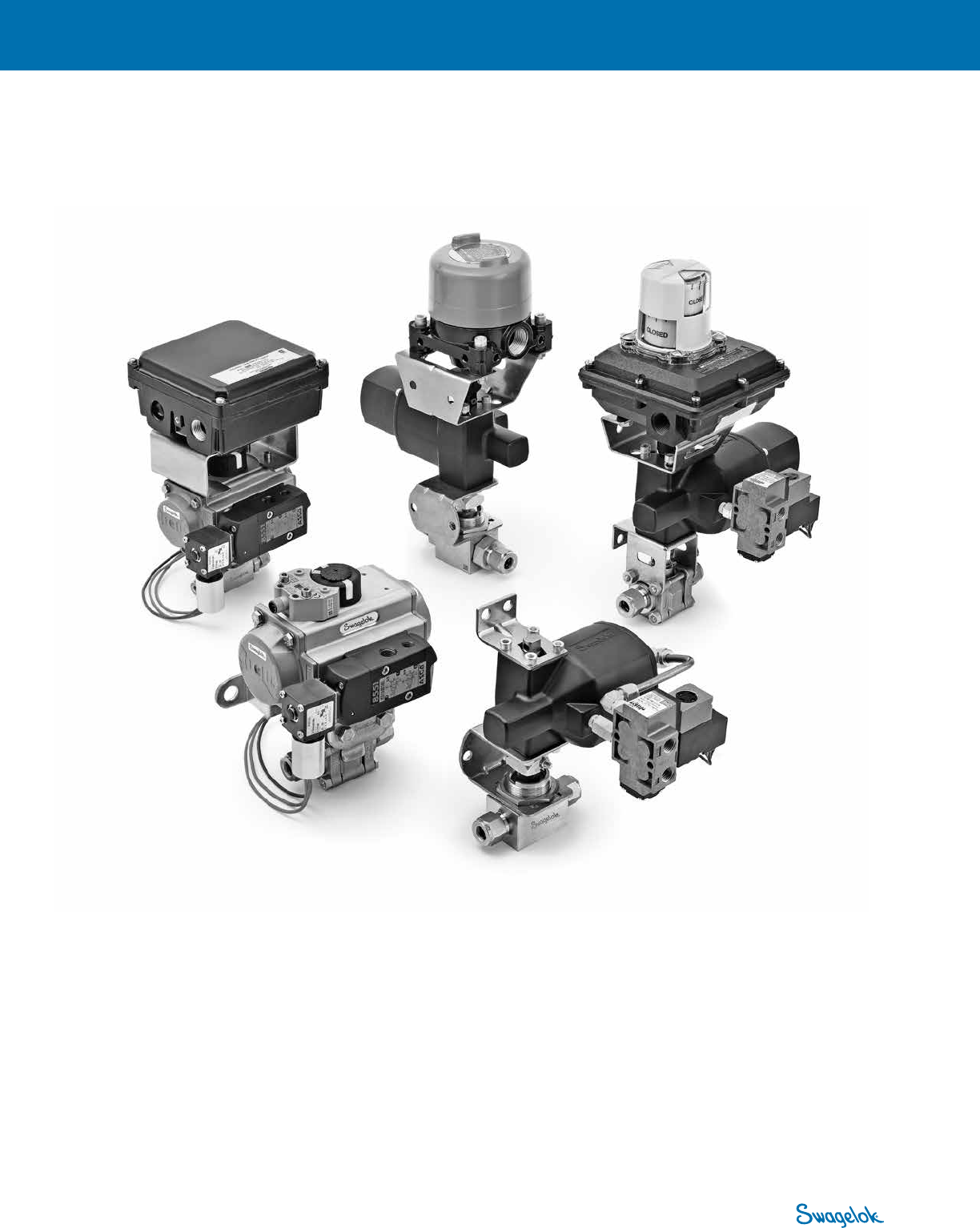

Swagelok Ball Valve Actuation Options 1
BALL VALVE
ACTUATION
OPTIONS
Swagelok® Ball Valve
Actuation Options
■Rack and pinion pneumatic actuators, solenoid valves, and limit switches
■ ISO 5211-compliant pneumatic actuators, solenoid valves, limit switches, and position sensors
■ Complete actuated assemblies and kits for field assembly available
www.swagelok.com
2 Ball Valves and Quarter-Turn Plug Valves
BALL VALVE
ACTUATION
OPTIONS
• Caution: Actuated assemblies must be properly
aligned and supported. Improper alignment or
inadequate support of the actuated assembly may
result in leakage or premature valve failure.
Contents
Swagelok Ball Valve Actuation Options ............ 2
Ordering Multiple Ball Valve Actuation Options ...... 2
Swagelok 130 and 150 Series
Pneumatic Actuators ........................ 3
Solenoid Valves for Swagelok 130 and 150 Series
Pneumatic Actuators ........................ 5
Limit Switches for Swagelok 130 and 150 Series
Pneumatic Actuators ........................ 7
Swagelok ISO 5211-Compliant Pneumatic
Actuators ................................ 10
Solenoid Valves for Swagelok ISO 5211-Compliant
Pneumatic Actuators ....................... 12
Limit Switches for Swagelok ISO 5211-Compliant
Pneumatic Actuators ....................... 14
Position Sensors for Swagelok ISO 5211-Compliant
Pneumatic Actuators ....................... 16
Swagelok Ball Valve Actuation Options
Swagelok offers a range of accessories to enhance
instrumentation and process ball valve performance and
control, including pneumatic actuators, solenoid valves, limit
switches, and position sensors.
■Pneumatic actuators are available in both our standard
130 and 150 series rack and pinion models and in our
ISO5211-compliant models.
■Solenoid valves attach to the actuator to create an
electropneumatically actuated assembly.
■Limit switches indicate actuator position by means of an
electrical signal.
■Position sensors provide visual status of a valve.
Factory assemblies and kits for eld assembly are available.
Regional Ordering Information
Pneumatic actuators and position sensors in this product
catalog are available to customers worldwide. Limit switches
and solenoid valves meet voltage and approval requirements
associated with the North American region. A wide variety of
limit switches and solenoid valves to meet the voltage and
approval requirements of your region are available. For the
products you need please contact your authorized Swagelok
sales and service representative.
Ordering Multiple Ball Valve Actuation Options
Swagelok ball valves are available with multiple actuation options to meet specic system requirements. Add
designators in the order shown. Contact your authorized Swagelok representative with any questions.
S S - 6 3 T S 8 - A 3 0 C 4 H T S 1 - N 1
1 Valve-Actuator-Solenoid
Operation (pages 6 and 13)
3 Limit Switch or Position Sensor
(limit switches—pages 7, 8,
and 14; position sensor—
page16)
2 Solenoid Voltage
(pages 6 and 13)
S S - 6 3 T S 8 - 3 3 C H T B - L 4
1
1
2
2
3
3
Swagelok Ball Valve Actuation Options 3
BALL VALVE
ACTUATION
OPTIONS
Swagelok 130 and 150 Series Pneumatic Actuators
Technical Data
Service Ratings
Actuator
Service
Temperature
Range
°F (°C)
Maximum Actuator Pressure
psig (bar)
At 100°F
(37°C)
At Maximum
Temperature
Standard –20 to 200 (–28 to 93)
200 (13.7)
165 (11.3)
High temperature 0 to 400 (–17 to 204) 100 (6.8)
Low temperature –40 to 200 (–40 to 93) 165 (11.3)
Nonfluorocarbon –20 to 200 (–28 to 93) 165 (11.3)
Features
■90° actuation
■ 2-way (straight and angle) flow
paths
■ 3-way (L and H special flow paths)
■ 4-way flow paths
■180° actuation for other 3-way flow
paths
■Spring-return and double-acting
models available
■Special service actuators
■ High temperature
■ Low temperature
■ Nonfluorocarbon
■Low-pressure spring-return actuators
for lower-pressure air are available.
Contact your authorized Swagelok
representative.
Air Displacement
Actuator
Model
Volume
in.3 (cm3)
90° Actuation
131 1.5 (24.6)
133 4.9 (80.3)
135 15.5 (254)
180° Actuation
151 3.0 (49.2)
153 9.6 (157)
155 30.5 (500)
Approximate Weight
Actuator and mounting kit
Actuator
Model
Weight
lb (kg)
Spring Return
131, 151 1.5 (0.7)
133, 153 3.8 (1.7)
135, 155 12.5 (5.7)
Double Acting
131, 151 1.3 (0.6)
133, 153 2.5 (1.1)
135, 155 9.7 (4.4)
For minimum required actuator operating pressures, see individual Swagelok ball valve product catalogs.

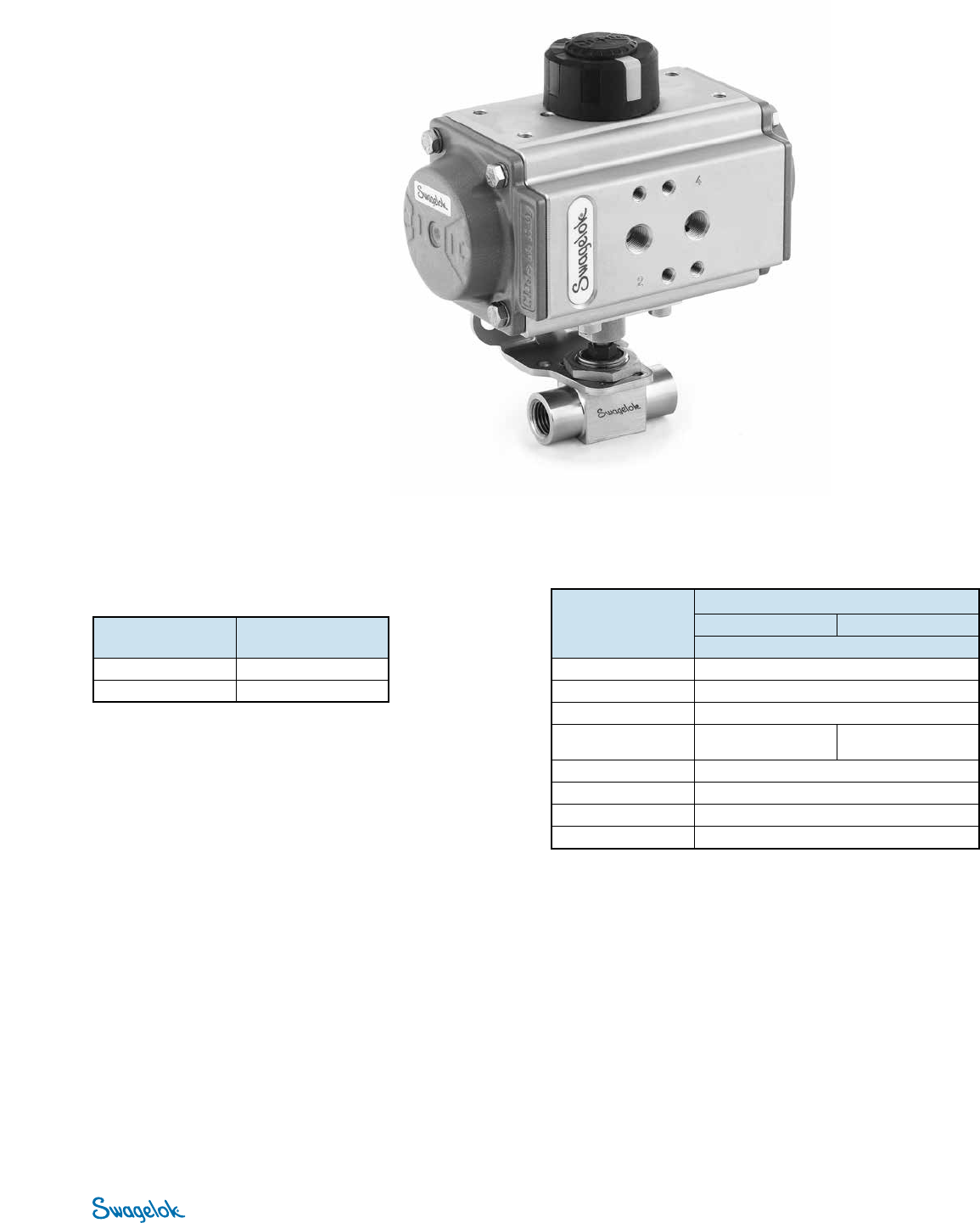

Swagelok Ball Valve
(60 series valve shown)

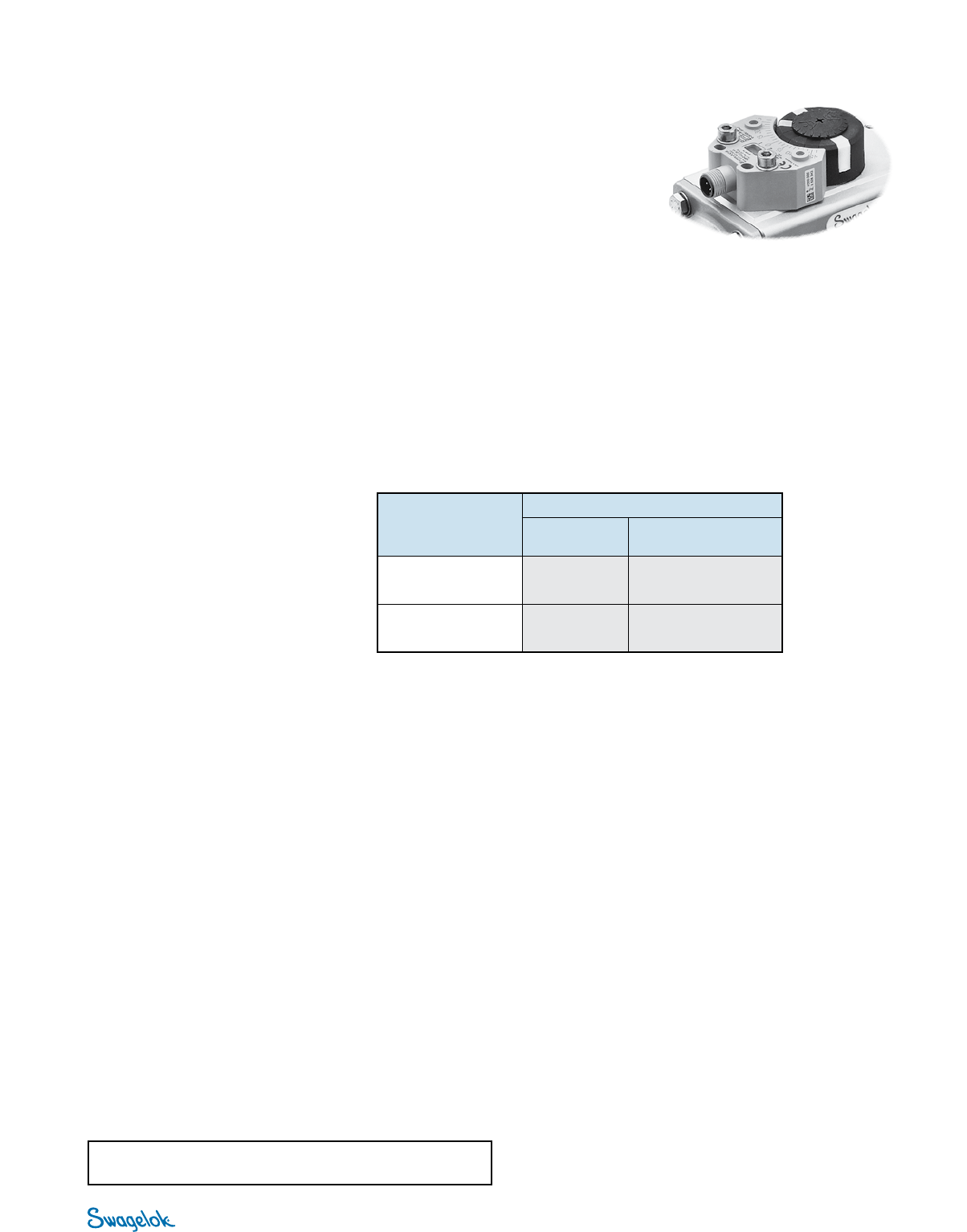

Swagelok 133 Series
Pneumatic Actuator
(spring-return model shown)
4 Ball Valves and Quarter-Turn Plug Valves
BALL VALVE
ACTUATION
OPTIONS
Ordering Information
Swagelok pneumatic actuators are available factory
assembled to valves or in kits for eld assembly. See
the Swagelok ball valve catalogs for complete ordering
instructions, including suggested actuators and necessary
mounting components.
■One-Piece Instrumentation Ball Valves—40G Series and
40Series (MS-02-331)
■ Ball Valves, General Purpose and Special Application—
60 Series (MS-01-146)
■ Trunnion Ball Valves—83 and H83 Series (MS-01-166)
■ Swagelok Alternative Fuel Service (AFS) Ball Valves for
High-Pressure, High-Flow Applications (MS-02-303)
■Multipurpose Ball Valves—SK Series (MS-02-345)
Materials of Construction
Component
Actuator Service
Standard
High
Temperature
Low
Temperature
Non-
fluorocarbon
Material
Body, cap Anodized cast aluminum alloy with black urethane exterior finish
Piston Cast aluminum alloy
Output shaft Hardened 416 SS
Shaft bushing(s)
(131, 133, 151, and 153
series—2;
135 and 155 series—1)
Bronze PEEK Bronze PEEK
O-rings Buna N Fluorocarbon
FKM Buna C Ethylene
propylene
Spring Zinc phosphate-plated alloy steel
Internal screw 131, 133, 151, and 153 series—cadmium-plated steel;
135 and 155 series—steel
Cap screws Cadmium-plated steel
Retaining rings Cadmium- or zinc-plated steel
Roll pin
(131, 133, 151, and 153
series)
420 SS
Wall mount bracket Stainless steel
Lubricant Multipurpose
hydrocarbon PTFE-based Hydrocarbon-
based Silicone-based
Swagelok Pneumatic Actuators
Swagelok Ball Valve Actuation Options 5
BALL VALVE
ACTUATION
OPTIONS
• Warning:
Following a signicant loss of air pressure to spring-return
actuators, the ball valve will return to the solenoid de-energized
position, whether the solenoid is energized or not.
Following a signicant loss of air pressure to double-acting
actuators, the ball valve may cycle.
Solenoid Valves for Swagelok 130 and 150 Series Pneumatic Actuators
Solenoid valves for Swagelok 130 and
150 series actuators are manufactured
by MAC Valves.
Features
Available for use with:
■Spring-return pneumatic actuators
(3-way, 2-position)
■Double-acting pneumatic actuators
(4-way, 2-position).
Technical Data
For additional technical information,
see MAC® 900 series (standard
solenoid) and MAC 200 series
(explosion-proof solenoid) product
literature.
Actuation Pressure
25➀ to 150 psig (1.7 to 10.3 bar)
➀ 25 psig (1.7 bar) is the minimum requirement
for the solenoid valve. See valve product
catalogs for minimum actuator pressure
requirements.
Temperature Range
0 to 120°F (–17 to 48°C)
Electrical Data
■General-purpose, class A coil,
continuous duty, encapsulated
■18 AWG lead wires, 18 in. (46 cm)
long
■1/2 in. female NPS electrical conduit
connection (enclosure)
■MAC 200 explosion-proof
models—CSA (Canada and U.S.A.)
compliance:
■ Division1, ClassI, Groups B, C
and D
■ ClassII, Groups E, F, and G.
Materials of Construction
Component Material
Solenoid body,
spool, poppet Aluminum
Spool O-ring Buna N
Fasteners Zinc-plated
alloy steel
Lubricants Silicone- and
PTFE-based
Solenoid valves are assembled with brass
Swagelok fittings. Copper tubing is used with
double-acting actuators.

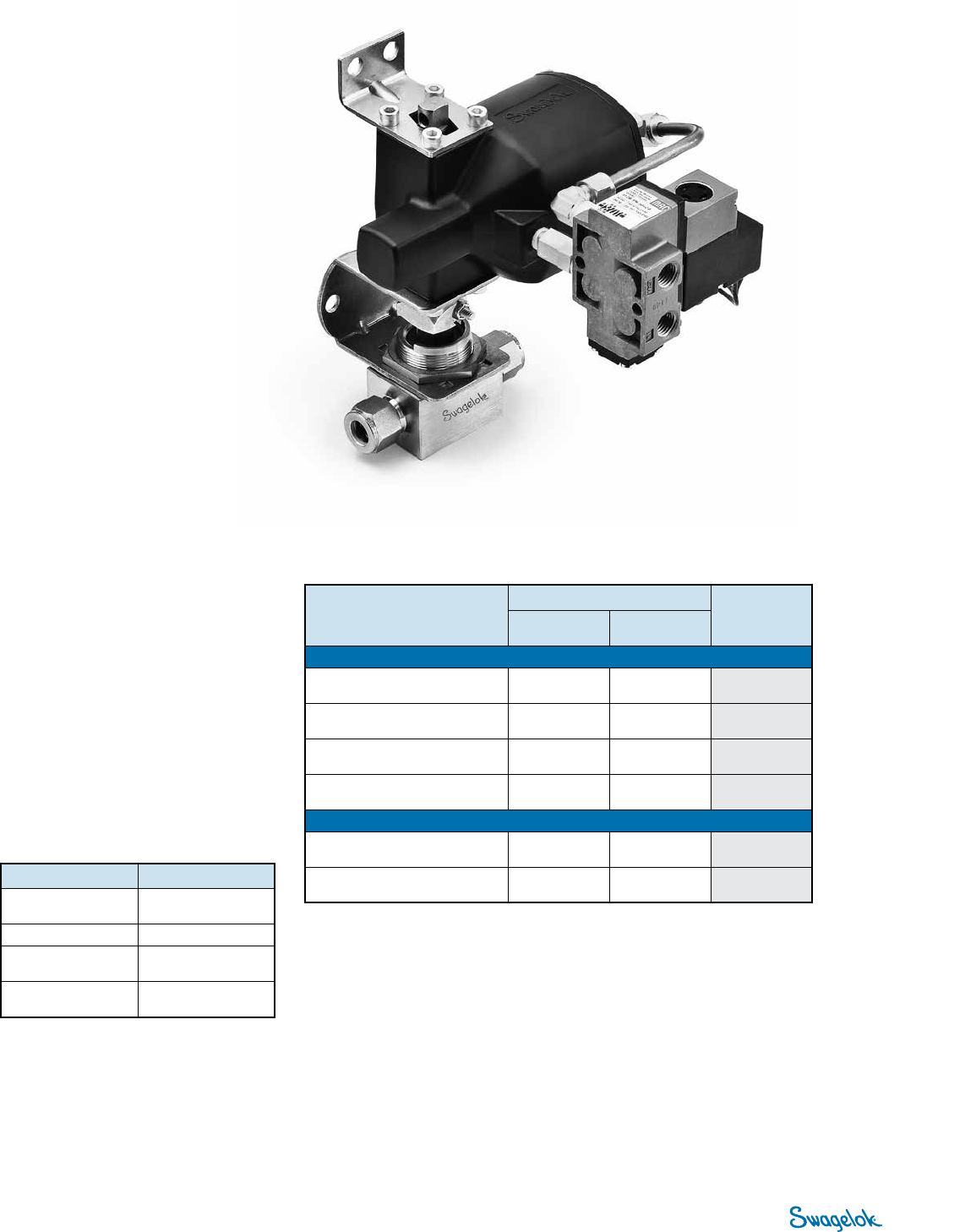

Solenoid Valve
(4-way, 2 position
model shown)
Operating Modes
Air pressure is required to cycle the ball valve. See valve product
catalogs for minimum actuator pressure requirements.
Actuator /
Solenoid Operation
Valve Position
Designator
Solenoid
Energized
Solenoid
De-energized
2-Way (90°) Actuation
Spring-return, normally closed /
energized to open Open Closed C
Spring-return, normally open /
energized to close Closed Open O
Double-acting /
energized to open Open Closed DC
Double-acting /
energized to close Closed Open DO
3-Way (90° and 180°) Actuation
Spring-return /
energized to switch Opposite port Initial position S
Double-acting /
energized to switch Opposite port Initial position D

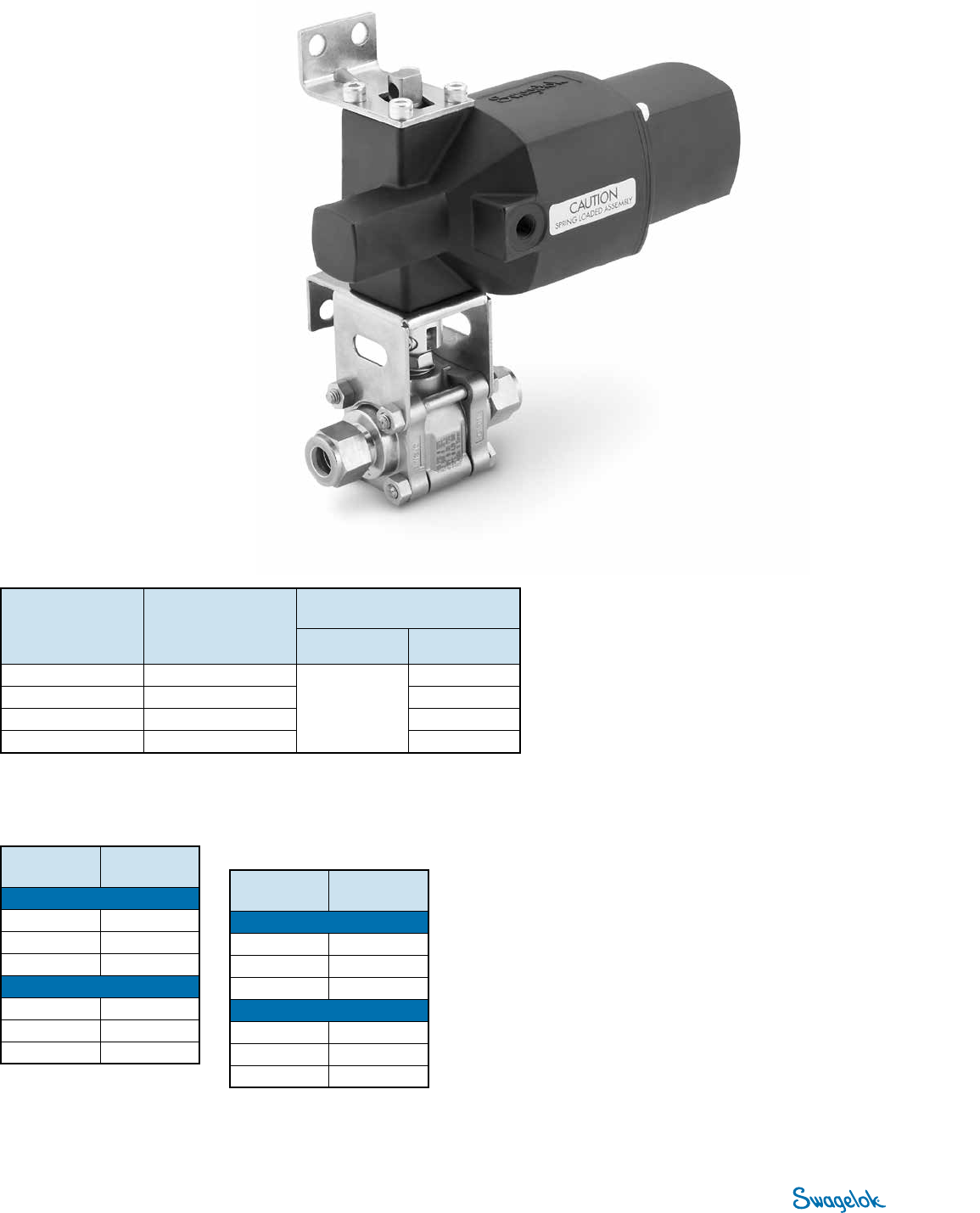

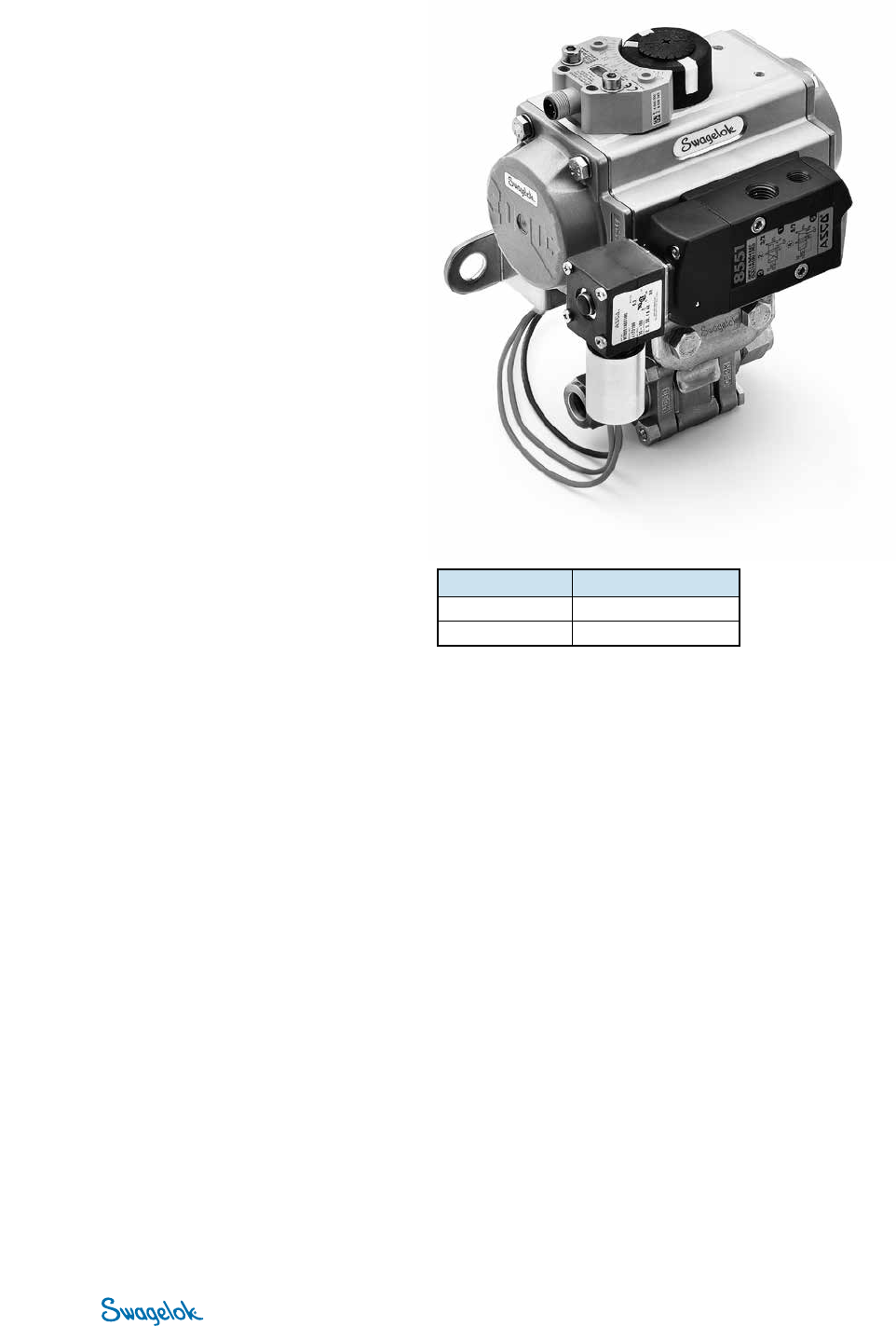

Swagelok Ball Valve
(40 series valve shown)
Swagelok 133 Series
Pneumatic Actuator
(double-acting model shown)
6 Ball Valves and Quarter-Turn Plug Valves
BALL VALVE
ACTUATION
OPTIONS
Solenoid Valves for Swagelok 130 and 150 Series Pneumatic Actuators
Solenoids for Field Assembly
Solenoid pneumatic ports are 1/4 in. female NPT
connections.
Kits for mounting solenoids to Swagelok 130 and 150
series pneumatic actuators are available separately.
Solenoid
Voltage
Solenoid
Ordering Number
12 V (dc) A-SVMF4-C12D
24 V (dc) A-SVMF4-C24D
110 / 120 V (ac) MS-SVMF4-C120A
220 / 240 V (ac) MS-SVMF4-C240A
Explosion proof
24 V (dc) / 120 V (ac),
spring-return actuator
MS-SV-64
Explosion proof
24 V (dc) / 120 V (ac),
double-acting actuator
MS-SV-55
B DA C
AValve-Actuator Ordering Number
Build a Swagelok ball valve-pneumatic
actuator assembly ordering number
from the product catalog.
B Actuator / Solenoid Operation
(see page 5)
2-Way (90°) Actuation
C = Spring return, normally closed /
energized to open 90°
DC = Double-acting / energized to
open
DO = Double-acting / energized to
close
O = Spring return, normally open /
energized to close
3-Way (90° and 180°) Actuation
D = Double acting / energized to
switch
S = Spring return, switching /
energized to switch 180°
DSolenoid Voltage
B = 12 V (dc)
C = 24 V (dc)
D = 110 / 120 V (ac)
E = 220 / 240 V (ac)
J = Explosion proof 24 V (dc) /
120V(ac) for spring-return
actuator
K = Explosion proof 24 V (dc) /
120 V (ac) for double-acting
actuator
SS-63TS8-33 C HT B
CActuator Service
FP = Fusible plug➀
HT = High temperature➁
LT = Low temperature
NF = Nonfluorocarbon➂
None = Standard
➀ Available for 60 series fire series (A60T) valves:
a fail-safe pneumatic actuator that contains a
Swagelok fusible plug and a Swagelok mud-
dauber fitting. The fusible plug melts if the
external temperature reaches 280°F (137°C),
relieving pressure in the actuator and allowing
the valve to cycle closed.
➁ Suggested for 60 series steam service (S60P)
and thermal service (T60M) valves.
➂ Suggested for factory-assembled valves with
UHMWPE seats and packing.
Factory-Assembled Valves with Solenoids
Typical Ordering Number
Ordering Information
Solenoid Mounting Kits
Solenoid kits for mounting to Swagelok 130 or 150 series
pneumatic actuators contain all connections needed for
direct mounting and manufacturer instructions.
Actuator
Series
Spring-Return
Actuator
Double-Acting
Actuator
131, 151 MS-1K-SOL-31S MS-1K-SOL-31D
133, 153 MS-1K-SOL-33S MS-1K-SOL-33D
135, 155 MS-1K-SOL-35S MS-1K-SOL-35D
Solenoid mounting kits for spring-return actuators include a
brass hex reducing nipple and steel ush plug.
■MS-SV-64 solenoid requires only a Swagelok hex reducing
nipple:
■ B-4-HRN-2 for 131 / 151 and 133 / 153 series actuators
■ B-8-HRN-4 for 135 / 155 series actuators.
Double-acting actuator solenoid kits include brass hex
reducing nipple, brass Swagelok male elbows, and pre-bent
copper tubing.
Swagelok Ball Valve Actuation Options 7
BALL VALVE
ACTUATION
OPTIONS
Limit Switches for Swagelok 130 and 150 Series Pneumatic Actuators—
Honeywell® MICRO SWITCH™ Models
Features
■Available for any Swagelok ball valve 130 or 150 series
pneumatic actuator assembly.
Technical Data
For additional technical information, see Honeywell MICRO
SWITCH product literature.
Temperature Rating
–13 to 185°F (–25 to 85°C)
Electrical Data
■Meets specications for NEC ClassI (NEMA7), Division
I, Groups C and D; and NEC Class II (NEMA 9), Division I,
Groups E, F, and G.
■L1 model—two switches: SPDT (single-pole, double-throw)
circuit
■L2 model—two switches: DPDT (double-pole, double-
throw) circuit
■UL listed and CSA certied.
Electrical Ratings
UL / CSA rating: L23
20 A; 120, 240, or 480 V (ac), inductive and resistive
1 hp, 120 V (ac); 2 hp, 240 V (ac)
0.5 A, 125 V (dc); 0.25 A, 250 V (dc) resistive
Materials of Construction
Component Material
Housing Epoxy-coated aluminum
Coupling Anodized aluminum
Actuator bracket Stainless steel
O-rings Buna N
Limit Switch
(L1 model shown)
Swagelok Ball Valve
(AFS ball valve shown)
Ordering Information
Factory-Assembled Valves with Limit Switches
To order a Swagelok 130 or 150 series actuator and valve
factory-assembled with a limit switch, add a limit switch
designator from the table at right to the ordering number.
Examples: SS-45F8-33C-L1 for a 45 series valve with normally
closed pneumatic actuator and limit switch with
two SPDT switches
SS-63TS8-33D-L2 for a 63 series valve with
double-acting pneumatic actuator and limit switch
with two DPDT switches
Limit Switch Kits for Field Assembly
Select a kit ordering number from the table at right. Limit
switch kits contain limit switch, actuator bracket, coupling,
mounting plate, and instructions.
Dimensions
See page 9.
Limit
Switch
Model
Actuator
Model
Limit
Switch
Designator
Kit Ordering
Number
L1
(Honeywell
SPDT)
131, 151
L1
MS-LSK-A1-131
133, 153 MS-LSK-A1-133
135, 155 MS-LSK-A1-135
L2
(Honeywell
DPDT)
131, 151
L2
MS-LSK-A2-131
133, 153 MS-LSK-A2-133
135, 155 MS-LSK-A2-135
Swagelok 133 Series
Pneumatic Actuator
(double-acting model
shown)
8 Ball Valves and Quarter-Turn Plug Valves
BALL VALVE
ACTUATION
OPTIONS
Limit Switches for Swagelok 130 and 150 Series Pneumatic Actuators—
Westlock® Models
Features
■Available for any Swagelok ball valve 130 or 150 series
pneumatic actuator assembly.
Technical Data
For additional technical information, see Westlock AccuTrak™
product literature.
Temperature Rating
–40 to 185°F (–40 to 85°C)
Electrical Data
L4 and L3B / L3BX Models
■NEMA 4, 4X: General purpose and watertight
■One 1/2 in. female NPT conduit
■Two SPDT switches
L5 and L5B / L5BX Models
■NEMA 4, 4X, 7, 9—UL, CSA:
Combination explosion-proof and watertight, Class I,
Groups C, D; Class II, Groups E, F, G; Div 1, 2
■Two 3/4 in. female NPT conduits
■Two SPDT switches
Materials of Construction
Component Material
Housing
Polyester-coated die-cast aluminum
(L5, L5B / L5BX models);
glass-filled nylon resin (L4, L3B / L3BX models)
Shaft, fasteners Stainless steel
Beacon monitor
(optional) Copolyester
Ordering Information
Factory-Assembled Valves with Limit Switches
To order a Swagelok 130 or 150 series actuator and valve
factory-assembled with a limit switch, add a limit switch
designator from the table at right to the ordering number.
Examples: SS-63TS8-33D-L4 for a 63 series valve with 133
series double-acting actuator and AccuTrak 1040
limit switch
SS-43GXS4-51S-L3BX for a 3-way 43G series
valves with 151 series spring-return actuator,
AccuTrak 1040 limit switch, and Beacon monitor
Limit Switch Kits for Field Assembly
Select a kit ordering number from the table at right. Kits
contain limit switch, mounting bracket, fasteners, and
manufacturer instructions.
Dimensions
See next page.
Limit
Switch
Model
Limit Switch
Designators Kit Ordering Numbers
130
Series
150
Series
130
Series
150
Series
L4
(Westlock
AccuTrak
1040)
-L4 MS-LSK-L4
L3B / L3BX
L4 with
Beacon
monitor➀
-L3B -L3BX MS-LSK-L3B MS-LSK-L3BX
L5
(Westlock
AccuTrak
2007)
-L5 MS-LSK-L5
L5B / L5BX
L5 with
Beacon
monitor➀
-L5B -L5BX MS-LSK-L5B MS-LSK-L5BX
➀ Contact your authorized Swagelok representative to order a limit switch kit
with a Beacon monitor for a 3-way valve with special flow path or for any
4-way or 5-way multiport valve.

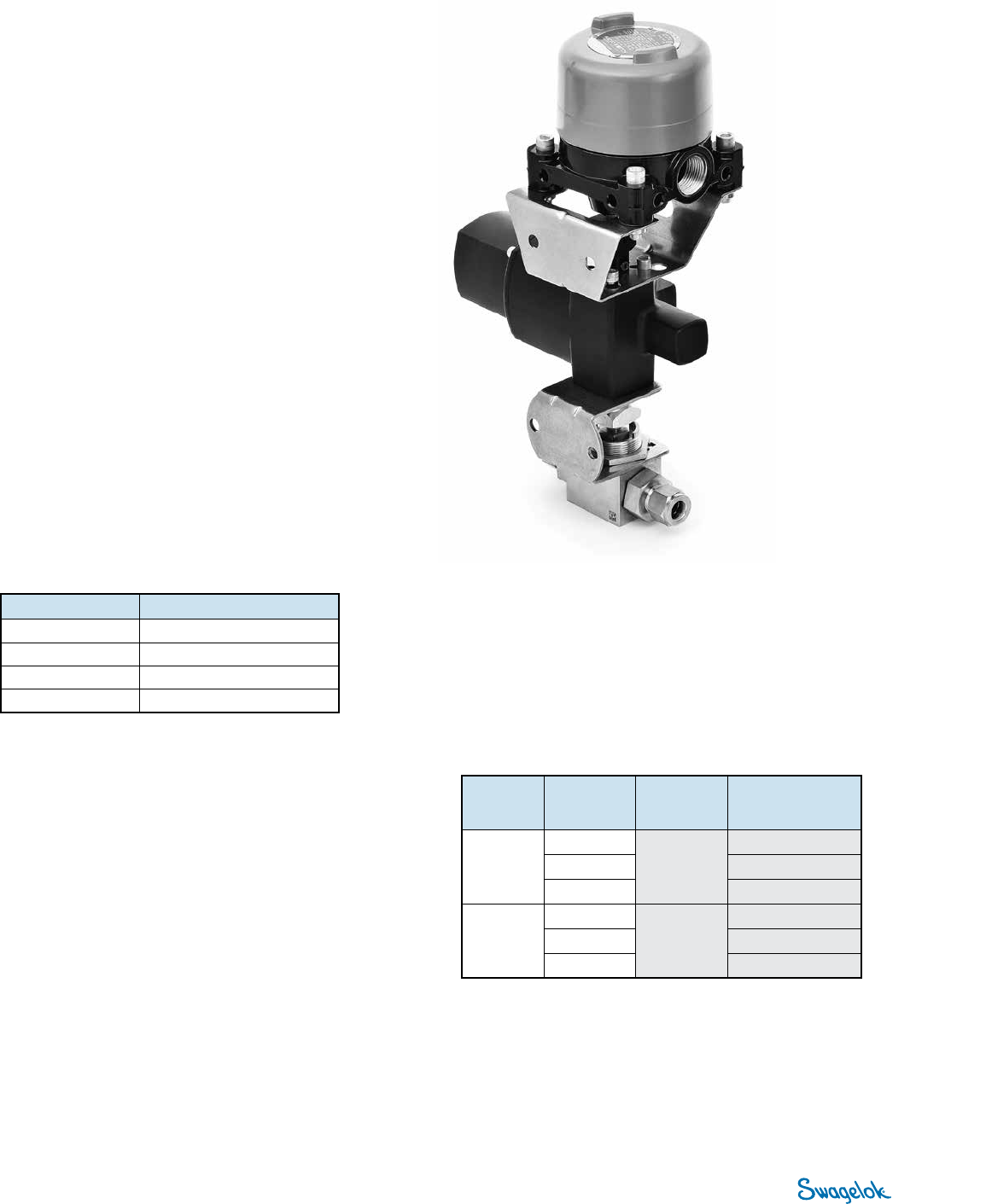

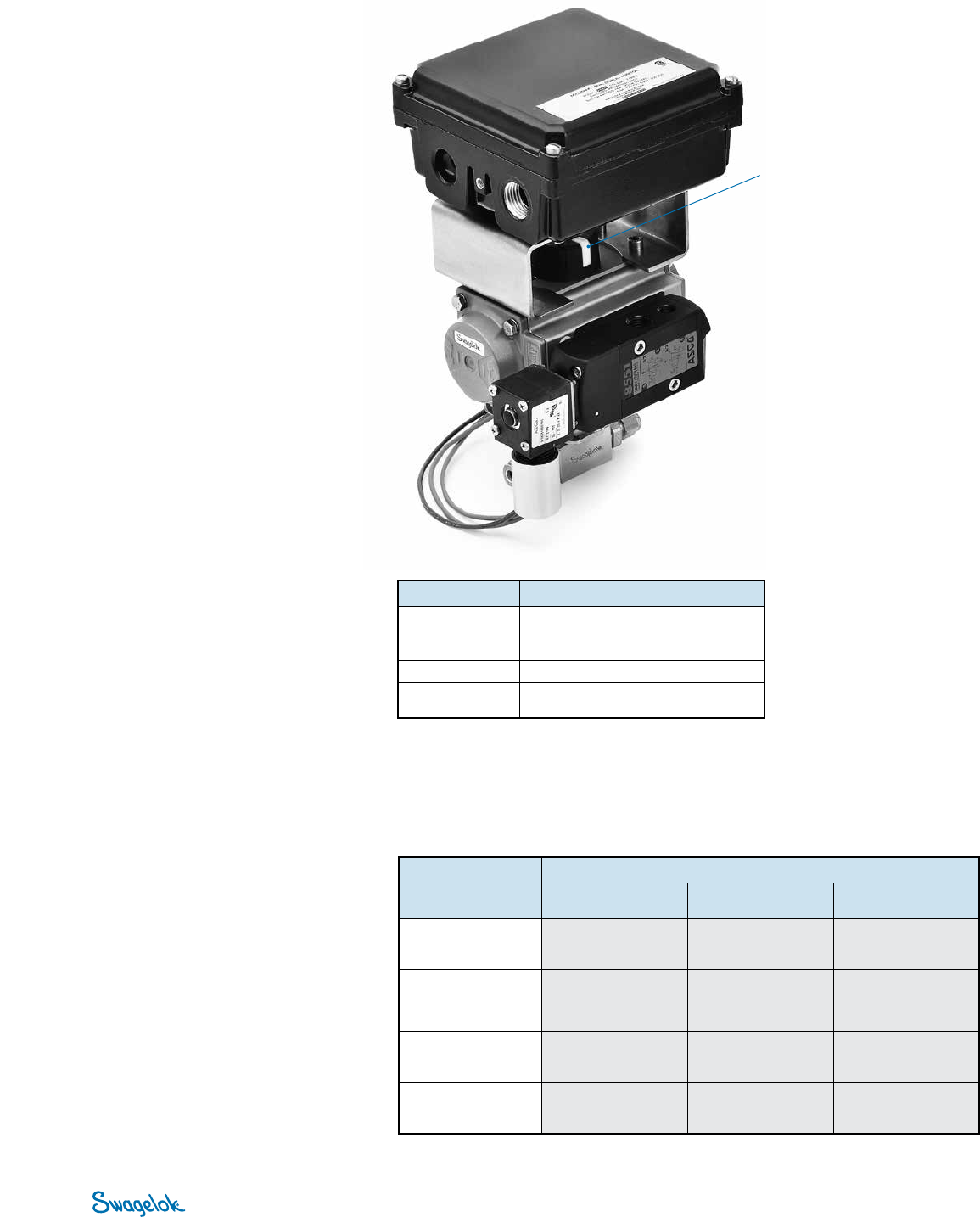

Limit Switch
(L3B model shown)
Swagelok Ball Valve
(63 series valve shown)
Swagelok 133 Series
Pneumatic Actuator
(double-acting model
with solenoid valve
shown)
Swagelok Ball Valve Actuation Options 9
BALL VALVE
ACTUATION
OPTIONS
Swagelok
Actuator
Model
Dimensions, in. (mm)
A B
131, 151 7.22 (183) 2.13 (54.1)
133, 153 7.65 (195) 2.56 (65.0)
135, 155 8.40 (214) 3.31 (84.1)
Limit
Switch
Model
Dimensions, in. (mm)
131, 151 Actuators 133, 153 Actuators 135, 155 Actuators
D E FA B C A B C A B C
L4 — 5.32
(135)
1.91
(48.5) —5.76
(126)
2.34
(59.4) —6.51
(165)
3.09
(78.5)
5.47
(139)
5.47
(139)
1/2 in.
NPT
L3B,
L3BX
8.26
(210) —1.91
(48.5)
8.70
(221) —2.34
(59.4)
9.45
(240) —3.09
(78.5)
5.47
(139)
5.47
(139)
1/2 in.
NPT
L5 — 6.00
(152)
1.91
(48.5) —6.44
(164)
2.34
(59.4) —7.19
(183)
3.09
(78.5)
6.13
(156)
6.42
(163)
3/4 in.
NPT
L5B,
L5BX
8.94
(227) —1.91
(48.5)
9.38
(238) —2.34
(59.4)
10.1
(257) —3.09
(78.5)
6.13
(156)
6.42
(163)
3/4 in.
NPT
Dimensions
Dimensions, in inches (millimeters), are for reference only and are subject to change.
A
A
B
B
C
DE
2.00
(50.8)
1.50
(3 8 .1)
1.00
(25.4)
0.34
(8.6) dia
mounting
holes
0.34
(8.6) dia
mounting
holes
4.00
(102)
Limit Switches for Swagelok 130 and 150 Series Pneumatic Actuators
4.00
(102)
1.75
(44.4)
1.75
(44.4)
3/4 in. NPT
conduit
connection
F
conduit
connection
0.61
(15.5)
Honeywell Limit Switches
Westlock Limit Switches
10 Ball Valves and Quarter-Turn Plug Valves
BALL VALVE
ACTUATION
OPTIONS
Service Ratings
Maximum actuator pressure is 116 psig (8.0 bar).
Actuator
Service
Temperature Range
°F (°C)
Standard –40 to 176 (–40 to 80)
High temperature 5 to 302 (–15 to 150)
Certifications
Factory-assembled Swagelok valve-actuator assemblies can
be ATEX certied on request at the time of quotation.
ATEX certication is not available for eld assemblies.
Materials of Construction
Component
Actuator Service
Standard High Temperature
Material
Housing Aluminum
End cap Cast aluminum
Plug Buna N
O-rings Buna N Fluorocarbon FKM
(FPM)
Drive shaft Alloy C-22
Spring cartridge SiCr spring alloy steel
Cap screws 304 SS
Position indicator Glass-reinforced polypropylene
Additional materials may be available. Contact your authorized Swagelok
representative.
Swagelok ISO 5211-Compliant Pneumatic Actuators
Features
■90° actuation
■ 2-way (straight and angle) flow
paths
■ 3-way (L and H special flow paths)
■ 4-way flow paths
■180° actuation for other 3-way flow
paths
■Spring-return and double-acting
models available
■High-temperature service actuators
available
Swagelok Ball Valve
(40 series valve shown)
Swagelok A15
Pneumatic Actuator
Swagelok Ball Valve Actuation Options 11
BALL VALVE
ACTUATION
OPTIONS
Actuator
Model
ISO 5211
Flange
Size
Dimensions, in. (mm)
A B C D
A10 F04 2.60 (66.0) 0.43 (11) 1.65 (42) M5 × 8
A15 F04 2.72 (69.0) 0.43 (11) 1.65 (42) M5 × 8
A30 F05 3.35 (85.0) 0.55 (14) 1.97 (50) M6 × 9
A60 F05 4.02 (102) 0.55 (14) 1.97 (50) M6 × 9
A100 F07 4.53 (115) 0.67 (17) 2.76 (70) M8 × 12
A150 F07 5.00 (127) 0.67 (17) 2.76 (70) M8 × 12
A220 F07 5.71 (145) 0.86 (22) 2.76 (70) M8 × 12
90° Actuation
Actuator
Kit
Weight
lb (kg)
MS-A10-DA-DIN
MS-A10-4-DIN
MS-A10-5-DIN
1.7 (0.75)
1.9 (0.88)
1.9 (0.89)
MS-A15-DA-DIN
MS-A15-3-DIN
MS-A15-4-DIN
2.4 (1.1)
2.6 (1.2)
2.6 (1.2)
MS-A30-DA-DIN
MS-A30-3-DIN
MS-A30-4-DIN
3.5 (1.6)
3.8 (1.7)
4.0 (1.8)
MS-A60-DA-DIN
MS-A60-3-DIN
MS-A60-4-DIN
MS-A60-5-DIN
6.0 (2.7)
6.4 (2.9)
6.4 (2.9)
6.6 (3.0)
MS-A100-DA-DIN
MS-A100-4-DIN
MS-A100-5-DIN
8.4 (3.8)
9.3 (4.2)
9.5 (4.3)
MS-A150-5-DIN 13.0 (5.9)
MS-A220-4-DIN➀19.8 (9.0)
➀ Requires adapter insert
MS-ADH22/17, available
separately, to reduce actuator
coupling receptacle to 0.67 in.
(17mm) square.

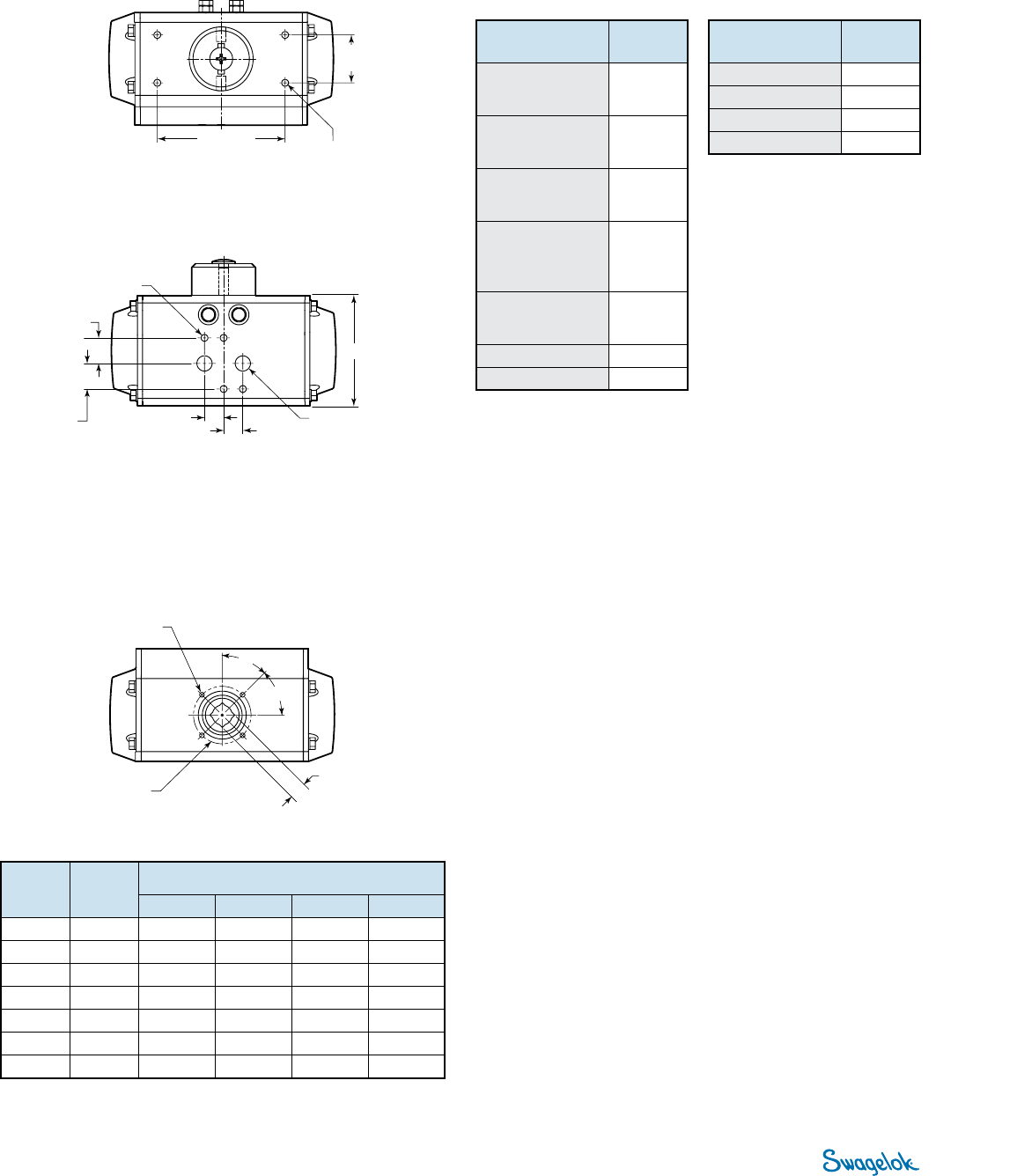

Dimensions
Dimensions, in inches (millimeters) and pounds (kilograms), are for reference only and are subject to change.
1.18
(30.0)
3.15 (80.0) M5 × 8
(A15 model: M5 × 4)
Top
VDI / VDE 3845 (NAMUR)
Interface
(Not applicable to A10 model actuators)
M5 × 8
D
C
B
square
45°
45°
Bottom
ISO 5211 Interface
180° Actuation
Actuator
Kit
Weight
lb (kg)
MS-A15-XDA-DIN 4.6 (2.1)
MS-A30-XDA-DIN 7.5 (3.4)
MS-A60-XDA-DIN 13.0 (5.9)
MS-A100-XDA-DIN 18.5 (8.4)
Ordering Information
Swagelok ISO 5211-compliant pneumatic actuators are
available factory assembled to valves or in kits for eld
assembly. See the Swagelok ball valve catalogs for complete
ordering instructions, including suggested actuators and
necessary mounting components.
■One-Piece Instrumentation Ball Valves—40G Series and
40Series (MS-02-331)
■ Ball Valves, General Purpose and Special Application—
60 Series (MS-01-146)
■ Trunnion Ball Valves—83 and H83 Series (MS-01-166)
■ Swagelok Alternative Fuel Service (AFS) Ball Valves For
High-Pressure, High-Flow Applications (MS-02-303)
■Multipurpose Ball Valves—SK Series (MS-02-345)
Swagelok ISO 5211-Compliant Pneumatic Actuators
A
0.63
(16.0)
0.63
(16.0)
Port 2 Port 4
G1/8
(A150 and A220
models: G1/4)➀
0.47 (12.0)
0.47 (12.0)
Side
VDI / VDE 3845 (NAMUR)
Interface
➀ To connect remote-mounted solenoids to 1/4 in. Swagelok tube fittings,
order Swagelok male ISO / BSP parallel thread (RS) connectors and
gaskets:
For G1/8 port: SS-400-1-2RS connector and SS-2-RS-2V gasket
For G1/4 port: SS-400-1-4RS connector and SS-4-RS-2V gasket
12 Ball Valves and Quarter-Turn Plug Valves
BALL VALVE
ACTUATION
OPTIONS
Solenoid Valves for Swagelok ISO 5211-Compliant Pneumatic Actuators
Solenoid valves for Swagelok
ISO5211-compliant actuators are
manufactured by ASCO.
Features
■Available for A10 through A220
size Swagelok ISO 5211-compliant
pneumatic actuators
Technical Data
For additional technical information,
see ASCO series 8551 product
literature.
Actuation Pressure
30➀ to 150 psig (2.1 to 10.3 bar)
➀ 30 psig (2.1 bar) is the minimum requirement
for the solenoid valve. See valve product
catalogs for minimum actuator pressure
requirements.
Temperature Range
■120 and 240 V (ac) models: 5 to
140ºF (–15 to 60ºC)
■12 and 24 V (dc) models: 5 to 77ºF
(–15 to 25ºC)
Electrical Data
■NEMA 4–CSA: General purpose and
watertight, meeting the requirements
of Type 1, 2, 3, 3S, 4, and 4X.
■NEMA 7–UL, CSA, CE: Combination
explosion proof and watertight,
meeting the requirements 3, 3S, 4,
4X, 6, 6P, 7, and 9, Class 1, Div1
(Groups A–D) and Class 1, Div 2
Type9 (Groups E–G).
Materials of Construction
Component Material
Solenoid body Anodized aluminum
O-rings Buna N
Swagelok A30
Pneumatic Actuator
(shown with position
sensor)
Solenoid Valve
Swagelok Ball Valve
(63 series valve shown)
Swagelok Ball Valve Actuation Options 13
BALL VALVE
ACTUATION
OPTIONS
Solenoid Valves for Swagelok ISO 5211-Compliant Pneumatic Actuators
Solenoid Kits for Field Assembly
Kits contain fasteners, adapter plates to assemble for either
spring-return or double-acting actuation, and manufacturer
instructions.
Solenoid
Voltage
Kit Ordering
Number
12 V (dc) / NEMA 4 MS-SV-S4
24 V (dc) / NEMA 4 MS-SV-S2
120 V (ac) / NEMA 4 MS-SV-S1
240 V (ac) / NEMA 4 MS-SV-S3
24 V (dc) /
NEMA 4, NEMA 7 MS-SV-S6
120V(ac) /
NEMA 4, NEMA 7 MS-SV-S5
B
B
A
A
C
C D
AValve Ordering Number
Build a Swagelok ball valve–
ISO5211-compliant pneumatic actuator
assembly ordering number from the
product catalog.
AValve Ordering Number
Build a Swagelok ball valve–
ISO5211-compliant pneumatic actuator
assembly ordering number from the
product catalog.
CSolenoid Voltage
S1 = 120 V (ac) / NEMA 4
S2 = 24 V (dc) / NEMA 4
S3 = 240 V (ac) / NEMA 4
S4 = 12 V (dc) / NEMA 4
S5 = 120V(ac) / NEMA 4, NEMA 7
S6 = 24 V (dc) / NEMA 4, NEMA 7
DSolenoid Voltage
S1 = 120 V (ac) / NEMA 4
S2 = 24 V (dc) / NEMA 4
S3 = 240 V (ac) / NEMA 4
S4 = 12 V (dc) / NEMA 4
S5 = 120V(ac) / NEMA 4, NEMA 7
S6 = 24 V (dc) / NEMA 4, NEMA 7
SS-63TS8-A30C4 HT S1
SS-63TS8-A30D C HT S1
BActuator Service
None = Standard
HT = High temperature
CActuator Service
None = Standard
HT = High temperature
Factory-Assembled Valves with Solenoids
Spring-Return Actuator Typical Ordering Number
Double-Acting Actuator Typical Ordering Number
Ordering Information
BSolenoid Operation
C = Energized to open
O = Energized to close
14 Ball Valves and Quarter-Turn Plug Valves
BALL VALVE
ACTUATION
OPTIONS
Limit Switches for Swagelok ISO 5211-Compliant Pneumatic Actuators
Limit switches for Swagelok
ISO5211-compliant pneumatic
actuators are manufactured by
Westlock.
Features
■Available for A15 through A220
size Swagelok ISO 5211-compliant
pneumatic actuators
Technical Data
For additional technical information,
see Westlock AccuTrak product
literature.
Temperature Rating
–40 to 185°F (–40 to 85°C)
Electrical Data
N1 and N1B Models
■NEMA 4, 4X: General purpose and
watertight
■One 1/2 in. female NPT conduit
■Two SPDT switches
N2 and N2B Models
■NEMA 4, 4X, 7, 9—UL, CSA:
Combination explosion-proof and
watertight, Class I, Groups C, D;
Class II, Groups E, F, G; Div 1, 2
■Two 3/4 in. female NPT conduits
■Two SPDT switches
Factory-Assembled Valves
with Limit Switches
To order a Swagelok ISO5211-compliant
actuator and valve factory-assembled
with a limit switch, add -N1 or -N2 to the
ordering number.
Example: SS-63TS8-A30C4-N1
To order a limit switch with Beacon
monitor, add B for a 2-way valve.
Example: SS-63TS8-A30C4-N1B
Contact your authorized Swagelok
representative to order a limit switch
with a Beacon monitor for a 3-way
valve.
Materials of Construction
Component Material
Housing
Polyester-coated die-cast aluminum
(N1, N2, N2B models);
glass-filled nylon resin (N1B model)
Shaft, fasteners Stainless steel
Beacon monitor
(optional) Copolyester
Limit Switch Kits for Field Assembly
Kits contain limit switch, mounting bracket, fasteners, and manufacturer
instructions.
Limit Switch
Model
Kit Ordering Numbers
A15
Actuator
A30 to A150
Actuators
A220
Actuator
N1
(Westlock
AccuTrak 2004)
MS-LSK-N1-A15 MS-LSK-N1 MS-LSK-N1-A220
N1B
Westlock
AccuTrak1040 with
Beacon monitor➀
MS-LSK-N1B-A15 MS-LSK-N1B MS-LSK-N1B-A220
N2
(Westlock
AccuTrak 2007)
MS-LSK-N2-A15 MS-LSK-N2 MS-LSK-N2-A220
N2B
N2 limit switch with
Beacon monitor➀
MS-LSK-N2B-A15 MS-LSK-N2B MS-LSK-N2B-A220
Ordering Information
Limit Switch
(N1 model shown)
Swagelok Ball Valve
(SK series valve shown)
Swagelok A15
Pneumatic Actuator
(shown with solenoid
valve)
➀ Contact your authorized Swagelok representative to order a limit switch kit with a Beacon monitor for a
3-way valve.
Indicator Puck
(may be removed for
limit switch installation)
Swagelok Ball Valve Actuation Options 15
BALL VALVE
ACTUATION
OPTIONS
Limit Switches for Swagelok ISO 5211-Compliant Pneumatic Actuators
Dimensions
Dimensions, in inches (millimeters), are for reference only and are subject to change.
Limit
Switch
Model
Dimensions, in. (mm)
A15 Actuator A30 Actuator A60 Actuator A100 Actuator A150 Actuator A220 Actuator
C D EA B A B A B A B A B A B
N1 — 5.77
(147) —6.09
(155) —6.42
(163) —6.68
(170) —6.91
(176) —7.65
(194)
5.47
(139)
5.47
(139)
1/2 in.
NPT
N1B 8.71
(221) —9.03
(229) —9.36
(238) —9.62
(244) —9.85
(250) —10.6
(269) —5.47
(139)
5.47
(139)
1/2 in.
NPT
N2 — 6.15
(164) —6.77
(172) —7.10
(254) —7.36
(187) —7.59
(193) —8.33
(212)
6.13
(156)
6.42
(163)
3/4 in.
NPT
N2B 9.39
(239) —9.71
(247) —10.0
(254) —10.3
(262) —10.5
(267) —11.3
(287) —6.13
(156)
6.42
(163)
3/4 in.
NPT
A
B
C D
E
conduit
connection
16 Ball Valves and Quarter-Turn Plug Valves
BALL VALVE
ACTUATION
OPTIONS
MS-02-343, R2, October 2017
Caution: Do not mix or interchange valve components
with those of other manufacturers.
Position Sensors for Swagelok ISO 5211-Compliant Pneumatic Actuators
Features
■Available for A15 through A220
size Swagelok ISO 5211-compliant
pneumatic actuators
Technical Data
For additional technical information,
see Pepperl & Fuchs product literature.
Temperature Rating
■N9 model: –14 to 158°F (–25 to 70°C)
■N10 model: –14 to 212°F (–25 to
100°C)
Ordering Information
Factory-Assembled Valves
with Position Sensors
To order an ISO-5211 compliant
actuator and valve factory-assembled
with a position sensor, add -N9 or -N10
to the ordering number.
Example: SS-63TS8-A30C4-N9
Position Sensor Kits for Field Assembly
Kits contain position sensor, fasteners, metal target, and
manufacturer instructions.
Position Sensor
Model
Kit Ordering Numbers➀
A15 to A150
Actuators
A220
Actuator
N9
(Pepperl & Fuchs
NBN3-F25-E8-V1)
MS-LSK-N9 MS-LSK-N9-A220
N10
(Pepperl & Fuchs
NCN3-F25-N4-V1)
MS-LSK-N10 MS-LSK-N10-A220
Electrical Data
■N9 model: general purpose—UL,
CSA, CE; nonincendive—FM
■N10 model: intrinsically safe—UL,
CSA, CE, FM, Ex
Electrical Connection
■Quick disconnect type V1
■Cord sets offered separately through
Pepperl & Fuchs.
Material
■Housing: Crastin® PBS thermoplastic
polyester resin
➀ For 3-way, 180° actuators, an additional metal target, available separately,
is required.
Ordering number: MS-PI-EISAMET
Position sensors for Swagelok ISO5211-compliant pneumatic actuators are
manufactured by Pepperl & Fuchs.
About this document
Thank you for downloading this electronic catalog, which is part of General Product
catalog Swagelok published in print. This type of electronic catalog is updated as new
information arises or revisions, which may be more current than the printed version.
Swagelok Company is a major developer and provider of uid system solutions,
including products, integration solutions and services for industry research,
instrumentation, pharmaceutical, oil and gas, power, petrochemical, alternative fuels,
and semiconductor. Our manufacturing facilities, research, service and distribution
facilities support a global network of more than 200 authorized sales and service
centers in 57 countries.
Visit www.swagelok.com to locate your Swagelok representative and obtain any
information on features, technical information and product references, or to learn about
the variety of services available only through authorized sales centers and service
Swagelok.
Safe Product Selection
When selecting a product, the total system design must be
considered to ensure safe, trouble-free performance. Function,
material compatibility, adequate ratings, proper installation,
operation, and maintenance are the responsibilities of the system
designer and user.
Warranty Information
Swagelok products are backed by The Swagelok Limited
Lifetime Warranty. For a copy, visit your Swagelok Web site or
contact your authorized Swagelok representative.
Swagelok, Ferrule-Pak, Goop, Hinging-Colleting, IGC, Kenmac,
Micro-Fit, Nupro, Snoop, Sno-Trik, SWAK, VCO, VCR, Ultra-
Torr, Whitey—TM Swagelok Company
Aflas—TM Asahi Glass Co. Ltd.
AL-6XN—TM Allegheny Ludlum Corporation
AutoCAD—TM Autodesk, Inc.
CSA—TM Canadian Standards Association
DeviceNet—TM ODVA
Kalrez, Krytox—TM DuPont
Elgiloy—TM Elgiloy Specialty Metals
FM—TM FM Global
Grafoil—TM GrafTech International Holdings, Inc.
MAC—TM MAC Valves Inc.
Microsoft, Windows—TM Microsoft Corp.
NACE—TM NACE International
Nitronic—TM AK Steel Corporation
picofast—TM HansTurck KG
Pillar—TM Nippon Pillar Packing Company, Ltd.
Rapid Tap—TM Relton Corporation
15-7 PH, 17-7 PH—TM AK Steel Corp.
Sandvik—TM SandvikAB
Silconert—TM Silcotek Corporation
Simriz—TM Freudenberg-NOK
SolidWorks—TM SolidWorks Corporation
© 2017 Swagelok Company

Navigation menu
