INSTALLATION AND OPERATION MANUAL
WARNING
•
Hot! Do not touch! The glass and surfaces of this appliance will
be hot during operation and will retain heat for a while after
shutting off the appliance. Severe burns may result.
•
Carefully supervise children in the same room as appliance.
Save These Instructions
For Future Reference
A French manual is available upon request. Order P/N 506223-28.
Ce manuel d’installation est disponible en francais, simplement en faire la demande. Numéro de la
pièce 506223-28.
This appliance must be properly installed and operated in order to prevent the
possibility of a house fire. Please read this entire installation and operation
manual before installing and using your wood stove. Failure to follow these
instructions could result in property damage, bodily injury or even death.
Contact your local building or fire officials to obtain a permit and
information on any installation requirements and inspection
requirements in your area.
Wood-Burning Stoves
Models Grandview™
GV230 and GV300
With Innovative Thermal Fin Technology (TFT™)
Free-Standing
EPA Certified
Wood-Burning Stoves
P/N 506031-01, Rev. F, 07/2013
4002589
P506031-01
2
USING THIS MANUAL
Please read and carefully follow all of the instructions found in this
manual. Please pay special attention to the safety instructions provided
in this manual.
PRODUCT IS SUBJECT TO CHANGE WITHOUT NOTICE
CONGRATULATIONS!
When you purchased your new wood stove, you joined the ranks of
thousands of individuals whose answer to their home heating needs
reflects their concern for aesthetics, efficiency and our environment. We
extend our continued support to help you achieve the maximum benefit
and enjoyment available from your new wood stove.
Thank you for selecting a Lennox Hearth Products wood stove as the
answer to your home supplemental heating needs.
TABLE OF CONTENTS
Using This Manual ......................................................................... 2
Important Safety Information ......................................................... 3
Testing Information ........................................................................ 4
Draft Requirements ........................................................................ 4
Selecting the Proper Venting System ............................................. 4
Chimney Height Requirements ....................................................... 5
Negative Pressure Warning ........................................................... 5
Clearances to Combustibles - GV230 ............................................ 7
Clearances to Combustibles - GV300 ............................................ 8
Floor Protection ........................................................................6-10
Alcove, Floor Protection - GV230 ................................................... 9
Alcove, Floor Protection - GV300 ................................................. 10
Specifications .............................................................................. 11
Typical Installation Figures ........................................................... 12
Chimney Installation .................................................................... 13
Manufacture (mobile) Home Installations .................................... 13
Chimney - Wall Pass-Through Requirements .............................. 14
Leg Installation ............................................................................ 15
Pedestal Installation ..................................................................... 15
Attaching Stove to Manufactured Home Floor - GV230 ............... 16
Outside Combustion Air Kit Installation ....................................... 17
Brick and Baffle Board Installation - GV230 ................................ 18
Brick and Baffle Board Installation - GV300 ................................ 19
For Mobile Home Installs ............................................................. 20
Post Installation Checks ............................................................... 20
Paint Curing ................................................................................. 21
Burn-In Period ............................................................................. 21
Operating Hints ............................................................................ 21
Door Operation ............................................................................ 21
Starting and Maintaining a Fire ...............................................22-23
Fuel .... ......................................................................................... 23
Getting the Most Out of Your Stove ............................................. 24
Maximizing Your Stove’s Overall Efficiency .................................. 24
Achieving Clean, Long Burns ....................................................... 24
Blower Operation (optional kit) ................................................... 25
Do’s and Don’ts ............................................................................ 26
Maintenance ........................................................................... 26-27
Troubleshooting ........................................................................... 28
Replacement Parts Lists .............................................................. 29
Accessories ................................................................................. 31
Product Reference Information .................................................... 32
3
IMPORTANT SAFETY AND WARNING
INFORMATION
READ THIS MANUAL IN ITS ENTIRETY AND UNDER-
STAND THESE RULES TO FOLLOW FOR SAFETY.
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories
1. When this room heater is not properly installed, a house
fire may result. To reduce the risk of fire, follow the instal-
lation instructions. Contact local building or fire officials
about restrictions and installation inspection requirements
in your area.
2. Wear gloves during installation to avoid injury from sharp
edges on the stove and/or its parts.
3. This unit is designed and engineered to burn only dry, well-
seasoned wood. Burning wet wood will greatly reduce the
stove’s efficiency, produce excessive amounts of smoke
and can cause dangerous chimney fires due to creosote
build-up.
4. Before opening the door, the draft control must be fully open
to avoid possible combustion flash (ignition of hot volatile
gases as the door is opened).
5. Never use gasoline, gasoline-type lantern fuel, kerosene,
charcoal lighter fluid, or similar liquids to start or ’freshenup’
a fire in this heater. Keep all such liquids well away from
the heater while it is in use. DO NOT USE CHEMICALS OR
FLUIDS TO START THE FIRE.
6. While burning, fuel utilizes oxygen from the air in the room.
Be sure to allow an adequate amount of fresh air into the
room where the stove is burning.
7. The outside surface of the stove will be hot while burning
properly and can set items like clothing and curtains on
fire. Keep furnishings and other combustible materials
away from the stove. Using the heat from the stove to dry
wet clothing can be hazardous if clothes are placed too
near the surface of the stove.
8. HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING
FURNISHINGS AND COMBUSTIBLE MATERIAL A CONSIDER-
ABLE DISTANCE AWAY. CONTACT MAY CAUSE SKIN BURNS.
Do not allow children to play near the stove without close
supervision. Do not touch the stove while it is burning.
Use extreme caution while the unit is in use. Surface tem-
peratures become dangerously hot and can cause serious
burns.
9. Do not allow anyone to operate the stove who is not familiar
with the operating instructions.
10. Attempts to achieve heat output rates that exceed stove
design specifications can result in permanent damage to
the stove. Never leave your stove unattended on high burn
rates. This may cause overfiring. Overfiring the stove may
cause a house fire. If the stove glows, you are overfiring.
11. Keep a water hose or hand-operated fire extinguisher close
for safety.
12. Smoke Detectors - Since there are always several poten-
tial sources of fire in any home, we recommend installing
smoke detectors. If possible, install the smoke detector in
a hallway adjacent to the room (to reduce the possibility
of occasional false activation from the heat produced by
the stove). If your local code requires a smoke detector
be installed within the same room, you must follow the
requirements of your local code. Check with your local
building department for requirements in your area.
13. Inspect your chimney at least once a month during the burn-
Safety and General
ing season to check for soot and creosote accumulations.
Any accumulations over 1/8” thick should be removed by
a professional chimney sweep. Do not attempt to burn out
heavy creosote accumulations with a hot fire. If large ac-
cumulations are occurring, review your burning procedures.
14. If a creosote fire should develop, the fire department should
be called immediately and then attempts should be made
to control the fire until assistance arrives. If a “runaway”
fire should develop causing over-heating of the stove, the
door and draft regulators should be closed immediately.
The fire should die down once deprived of oxygen. After a
severe chimney fire, the complete chimney system should
be checked before further use.
15. Do Not Use Grate Or Elevate Fire - Build Wood Fire Directly
On Hearth (firebrick). Do not use andirons or other methods
of supporting the fuel.
16. Please read this entire manual before you install and use
your new room heater. Failure to follow instructions may
result in property damage, bodily injury, or even death.
17. Check all local building and safety codes before installation.
The installation instructions and appropriate code require-
ments must be followed exactly and without compromise.
In the absence of local codes the following standards and
codes must be followed.
18. In the U.S.A, install in accordance with the National Fire
Protection Association’s Code, NFPA 211, Standards for
Chimneys, Fireplaces, Vents and Solid-Fuel-Burning Appli-
ances, or similar regulations, may apply to the installation
of a Solid-Fuel-Burning appliance in your area. In Canada,
the guideline is established by the CSA Standard, CAN/
CSA-B365-M93, Installation Code for Solid-Fuel-Burning
Appliances and Equipment.
19. DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY
AIR DISTRIBUTION DUCTWORK UNLESS SPECIFICALLY
APPROVED FOR SUCH INSTALLATIONS.
20. WARNING: BURNING IMPROPER FUEL (I.E. CHARCOAL)
CAN RESULT IN CARBON MONOXIDE POISONING, WHICH
MAY LEAD TO DEATH!
21. Carbon Monoxide Poisoning - Early signs of carbon monox-
ide poisoning resemble the flu with headaches, dizziness,
or nausea. If you have these signs, get fresh air at once!
Have the heater inspected by a qualified service technician.
Some people are more affected by carbon monoxide than
others. These include pregnant women, people with heart
or lung disease or anemia, those under the influence of
alcohol, and those at high altitudes.
22. Failure to use manufacturer provided parts, variations in
techniques and construction materials or practices other than
those described in this manual may create a fire hazard and
void the limited warranty.
23. Do not make any make-shift compromises during installa-
tion. Any modification or alteration may result in damage
to the appliance or dwelling and will void the warranty,
certification and listings of this unit.
24. These appliances are designed as supplemental heaters.
Therefore, it is advisable to have an alternate heat source
when installed in a dwelling.
25. Do Not Overfire - If Heater or Chimney Connector Glows,
You Are Overfiring.
26. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERV-
ING ANOTHER APPLIANCE.
27. DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS SUCH
AS GASOLINE, NAPHTHA OR ENGINE OIL.
4
This manual describes the installation and operation of the Grandview™
230 and Grandview 300 non-catalytic wood heaters. This heater meets
the U.S. Environmental Protection Agency’s emissions limits for wood
heaters sold on or after July 1, 1990. This heater has been developed,
tested and constructed in accordance with the requirements of UL 1482,
ULC S627 and HUD standards and is listed by Intertek Testing Services,
Portland, OR. It has been approved for residential, mobile home and
alcove installations.
The appliance is merely one component of a larger system. The other
equally important component is the venting system. This is necessary for
achieving the required flow of combustion air to the fire chamber and for
safely removing unwanted combustion by-products from the appliance.
If the venting system’s design does not promote these ends, the system
may not function properly. Poorly functioning venting systems may create
performance problems as well as be a safety hazard. A draft test should
read greater than .04’ W.C. (inches water column) and less than .08”
W.C. As per NFPA-211 standard (see paragraph below), the installer
must take into account all variables within the installation and install the
appliance in such a manner that satisfies the draft requirements of the
appliance. See Chimney Guidelines below to assist you in selecting the
proper venting system for your installation.
American National Standards Institute ANSI/NFPA 211, Standard for
Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances - See
Draft Section: A chimney or vent shall be so designed and constructed
to develop a flow sufficient to completely remove all flue and vent gases
to the outside atmosphere. The venting system shall satisfy the draft
requirements of the connected appliance in accordance with the manu-
facturer’s instructions.
Chimney Guidelines:
• Thisappliancerequiresapproximately12feetminimumof“effective
draw” provided by the venting system. As a rule of thumb, every 90
degree total direction change in the venting will result in a loss of
approximately5feetof“effectivedraw.”Example:Iftwo45degree
offsets are used, subtract 5 feet from the actual vertical vent height
todetermineyour“effectivedraw.”Inthiscaseifyouhad14feetof
vertical vent, the effective draw would only be approximately 9 feet
(14 ft. - 5 ft. = 9 ft.), therefore it may be necessary to add additional
height to the venting system.
• Donotinstallanoffsetwithinthersttwofeetabovetheueoutlet
on the appliance.
• Inwellinsulatedandweathertighthomes,itmaybedifculttoestablish
a good draft up your chimney. The poor draft is caused by a shortage
of air in the house. In this situation an Outside Air Kit may need to
be installed (See Negative Pressure Warning on Page 5 and Outside
Combustion Air on Page 17).
TESTING INFORMATION
DRAFT REQUIREMENTS
SELECTING THE PROPER VENTING SYSTEM
This appliance is dependent upon a properly functioning chimney for
optimum performance. It is a high efficiency appliance that loses much
less heat up the chimney than older appliances and fireplaces. For this
reason it is important to match the stove to the chimney. The chimney
hastwofunctions:
1. It draws combustion air into the appliance (without air, no fuel will
burn) and
2. It exhausts combustion by-products. Your new Country® Collection
stoveiswhatisknownasa“naturaldraft”appliance.
The appliance depends solely on the natural draft of the chimney system
to draw combustion air into the unit. Draft is the force that moves air
from the appliance up into the chimney. The amount of draft in your
chimney depends on the length of the chimney, local geography, nearby
obstructions and other factors. Too much draft may cause excessive
temperatures in the appliance (overfiring). Slow or inadequate draft
equals poor combustion and possible smoking problems. The following
aresomeconditionsthatmaycontributetopoorchimneydraft:
1. A chimney too large for your appliance.
2. A chimney with not enough height to produce adequate draft.
3. A chimney with excessive height (this may allow exhaust to cool too
much before exiting, which will stall the rate the exhaust exits).
4. Offsets in the venting system are too restrictive (see Chimney Guide-
lines).
Inadequate draft will cause the appliance to leak smoke into the room
through the stove and the chimney connector joints.
Excessive draft may cause an uncontrollable burn or a glowing red stove
or chimney part.
Overfiring Damage - If the heater or chimney connector glows, you are
overring.Othersymptomsmayinclude:Cracking,warpingorburning
out of components, plated accessories may turn color, stove glass may
develop a haze, which will not come off with cleaning.
Overfiring of a stove is a condition where excessive temperatures are
reached, beyond the design capabilities of the appliance. The damage
that occurs from overfiring is not covered under the manufacturer’s
limited warranty.
Also see Troubleshooting on Page 28.
5
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories
This appliance is not designed to be operated in a negative pressure.
In very airtight homes with large kitchen exhaust fans, furnace cold air
returns, fresh air exchange systems and any other air system in close
proximity to the heating appliance may create a negative pressure in the
same room as the heating appliance. This can create dangerous back
drafting of the stove and chimney joints, drawing combustion by-products
into the home. Be sure your home has adequate makeup air to eliminate
negative pressures caused by the above-mentioned sources. Outside air
connected to the appliance probably will not resolve such a problem as
the stove or fireplace insert is not the source of negative pressure. Lennox
Hearth Products accepts no liability for damages resulting from negative
pressures described here.
Ventilation Requirements - Provide adequate air for combustion. The
fresh air requirements of this appliance must be met within the space
where it will be installed. Ventilation is essential when using a Solid-Fuel-
Burning heater. In well insulated and weather tight homes, it may be
difficult to establish a good draft up the chimney (caused by a shortage
of air in the home). The lack of air is caused by many common household
appliances which exhaust air from the home (such as a furnace, heat
pump, air conditioner, clothes dryer, exhaust fans, fireplaces, and other
fuel burning appliances). Also, the combustion process of this heater
uses oxygen from inside the dwelling. If the available fresh air delivery
in the dwelling is insufficient to support the demands of these appliances,
problems can result (e.g. excessive negative pressure can develop in the
dwelling which will affect the rate at which this appliance can draft thus
resulting in performance problems). To correct this problem it may help
to open a window (preferably on the windward side of the house) or install
an optional outside air kit.

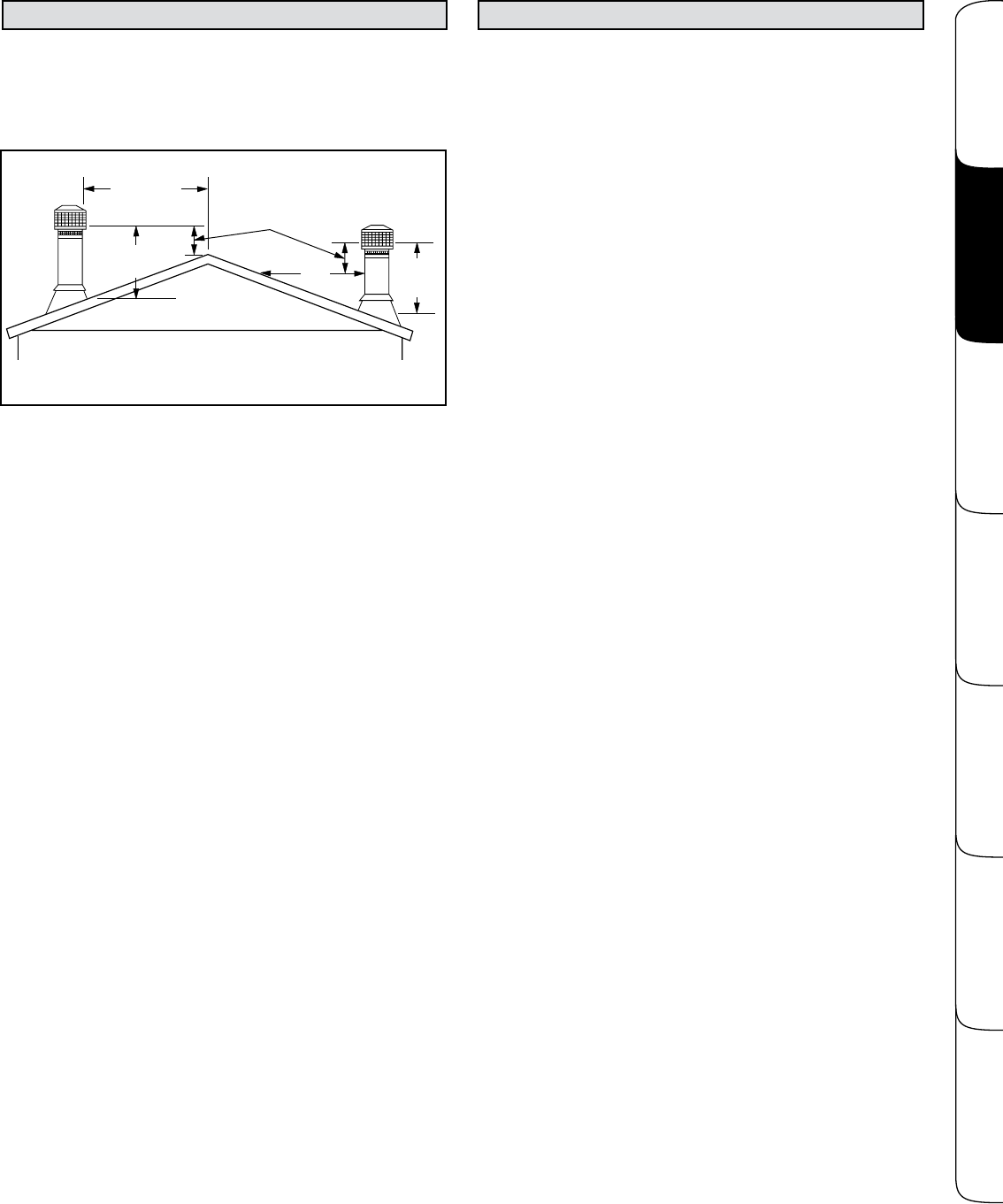

CHIMNEY HEIGHT REQUIREMENTS NEGATIVE PRESSURE WARNING
Figure 1 - Chimney Height Requirements
Less than
10' (3 m)
10'
(3 m)
3' (914 mm)
Min.
2’ (610 mm) Min.
(914 mm)
Min.
3'
To pass inspection in nearly any jurisdiction, the chimney must meet both
safety and exhaust flow requirements. The (3’ by) 2’ by 10’ rule applies
to both masonry and factory-built chimneys.
* Ref. USA - National Standard, NFPA 211-latest edition and Canada
National Standard CSA B365-01-latest edition. Vents installed with a
listed cap shall terminate in accordance with the terms of the cap’s
listings.
Planning Installation
The chimney must extend 3’ (.92m) above the level of roof penetration
and a minimum of 2’ (.61m) higher than any roof surface within 10’
(3m) (see below). Check with your local building officials for additional
requirements for your area.
6
WARNING: BE ABSOLUTELY SURE THE DISTANCE BETWEEN
THE HEATER AND THE SURFACE OF ANY COMBUSTIBLE CON-
STRUCTION IS NOT LESS THAN SHOWN IN THE FIGURES ON
PAGE 7 FOR MODEL GV230 WOODSTOVE AND ON PAGE 8 FOR
MODEL GV300 WOODSTOVE.
Floor Protection
USA - The floor in front and under the heater must be protected with
noncombustible material. The covering must extend 16” in front of the
door opening of the heater and 8” to either side of the door opening.
Canada - The floor in front and under the heater must be protected with
noncombustible material. The covering must extend 450 mm in front of
the door opening of the heater and 200 mm to either side of the stove
body and 200 mm to the rear or to the wall, whichever is smaller.
USA and Canada - A chimney connector / venting extends horizontally
over the floor, protection must also cover the floor under the connector
/ venting and at least 2” (51 mm) to either side.
Alcove Installations USA and Canada - The floor protection must be a
thermally rated non-combustible floor protector. See Page 9 for GV230
stoves or Page 10 for GV300 stoves for details on determining accept-
able floor protection materials or hearth pads for alcove installations.
Alcove Installation
Clearances - In alcove installations, only 6” double wall connector pipe
can be used (single wall or single wall pipe with shield is not allowed).
Minimumalcovewidthbetweencombustiblematerials:
GV230 - 52” (1321 mm)
GV300 - 54” (1372 mm)
Maximumalcovedepth:
GV230 and GV300 - 48” (1219 mm)
Minimumalcoveheight:
GV230 and GV300 - 72” (1829 mm)
Thermal Floor Protection
GV230 - Thermal floor protection is only required where the stove is
installed into an alcove.
GV300 - Thermal floor protection is required in all installations.
Chimney and Connector
Minimum 6" diameter, minimum 24 MSG black steel connector pipe with
UL103HT listed factory-built chimney suitable for use with solid fuels
or masonry chimney. Horizontal connection not tested, refer to local
building codes for installation. See installation instructions for details.
Restrictions apply! Read instructions before installing.
Residential chimney systems must be from the same brands as listed
for mobile homes but connector pipe may be double wall, single wall,
or single wall with shield as listed.
This appliance may be vented into a code-approved masonry chimney
with flue liner.
WARNING: CHIMNEY CONNECTOR MUST BE IN GOOD CONDITION AND
KEPT CLEAN. DO NOT INSTALL DAMAGED PARTS.
All of the stove connector pipe used must be of the same brand. The
chimney that the stove pipe transitions into may be a different brand.
Other than the transition of the stove pipe into the chimney, do Not mix
different brand vent components. Install all vent components per vent
manufacturer’s instructions.
The chimney connector shall not pass through an attic or roof space,
closet or similar concealed space, or a floor, or ceiling. Where passage
through a wall, or partition of combustible construction is desired, the
installation shall conform to CAN/CSA-B365, Installation Code for Solid-
Fuel-Burning Appliances and Equipment.
There must be an effective vapor barrier at the location where the chimney
or other component penetrates to the exterior of the structure. Follow
the vent manufacturer's detailed instructions.
IMPORTANT NOTE: See Draft Requirements and Selecting a Proper
Venting System on Page 4 to assist you in choosing the proper venting
system for your installation.
Clearance dimensions are to flue collar. If a single wall connector pipe
with shield is used, a 1 inch air space is needed between pipe and shield.
Shield attaches to rear of stove pipe and must run from stove top to
ceiling. Pipe shield shall be UL listed.
Components Required For Installations
Legs OR Pedestal Assembly.
Use all required components specified for this appliance. Do
not substitute.
WARNING: In the event that you remove the blower for any
reason, make sure a cover plate (available from Lennox Hearth
Products) is installed before using the heater. Note: The cover
plate is not necessary if a blower has never been installed
because a knock-out will be in place to act as the cover.
CLEARANCES TO COMBUSTIBLES
7
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Figure 4 - GV230
Figure 3 - GV230
Grandview™ GV230
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories
Footnotes:
1- These dimensions to the stove body are for reference
only. Actual distances should be measured from the
stove’s flue collar.
2- Minimum noncombustible hearth pad dimensions.
3- Clearances to connector pipe shall be measured from
the flue collar of the stove.
4- Not applicable to alcove installations.
INSTALLATION CLEARANCES - REFER TO FIGURES 2, 3 AND 4
Planning Installation
Stove
Stove
Stove
Alcove
Floor
Protection
Floor
Protection
Floor
Protection
Combustible Wall
Combustible Wall
Combustible
Wall
Alcove Depth
48" (1219mm) MAX.
E †
USA
E †
USA
K
K
J
D
C
B
AL
HITFF
GG
M
I
U
Corner Installation
Alcove or Parallel Installation
Alcove or Parallel Installation
Elbow
Elbow

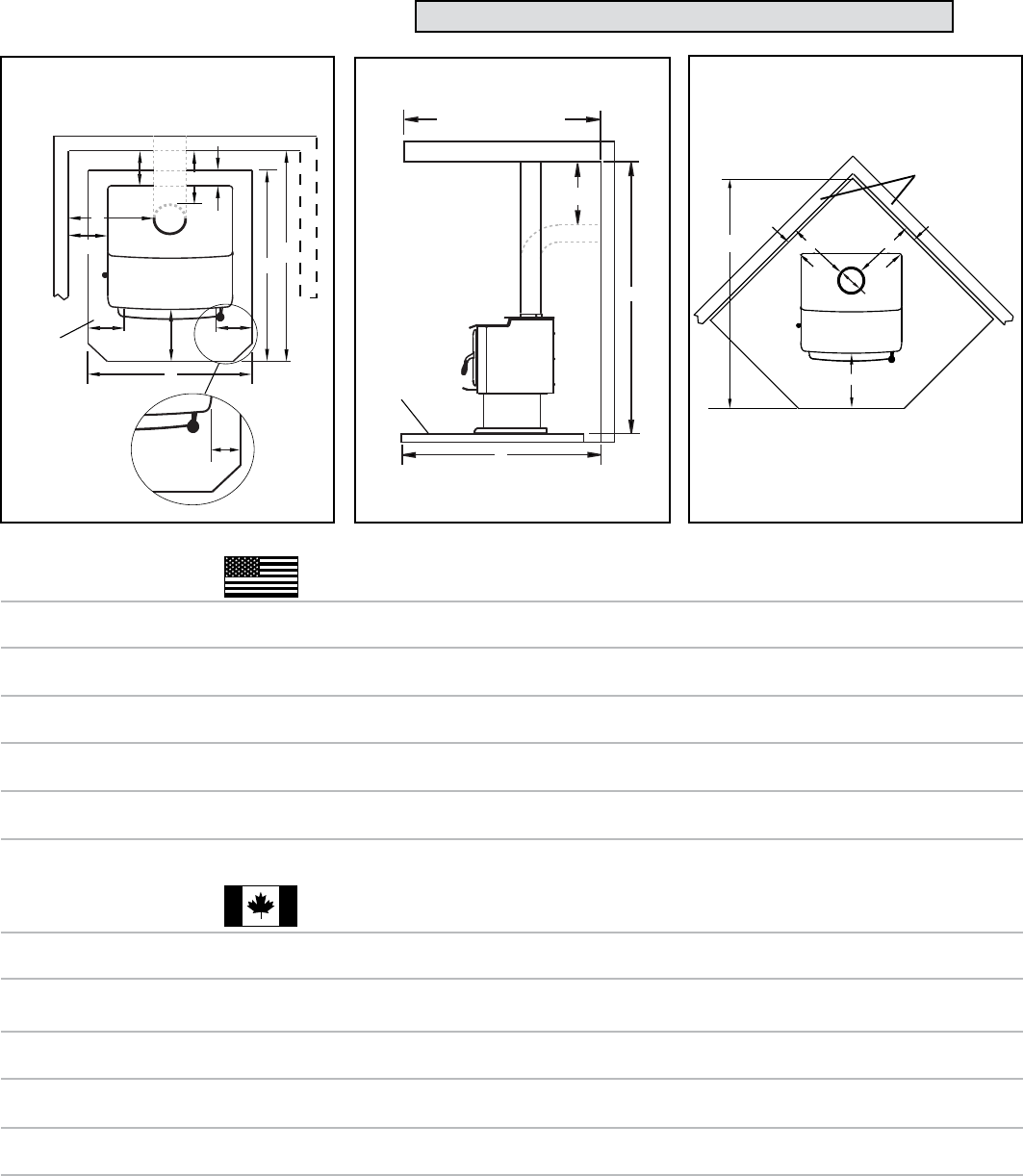

Figure 2 - GV230
Top View
Side View Top View
E
Canada
†
† See note 8
USA - inches (millimeters)
PIPE INSTALLATION A (3) B (1) C (3) D (1) E (8) F (1,4) G(3,4) H (2)
I
(6) J (2) K (7) L (5) M T (6) U
Single Wall Residential-Vertical Vent 16 12-3/8 22
12-1/2
8 5-11/16 16 38-5/8 51 33 16 0 84 58-7/8 N/A
(406) (314) (559) (318) (200) (145) (406) (981) (1295) (838) (406) (0) (2134) (1495) N/A
Single Wall Residential-With Elbow 19 15-3/8 23
13
-1/2 8 5-11/16 16 38-5/8 54 33 16 0 84 58-7/8 19
(483) (391) (584) (343) (200) (145) (406) (981) (1372) (838) (406) (0) (2134) (1495) N/A
Double Wall Residential or Mobile Home-Vertical Vent 10 6-3/8 20
10-1/2
8 4-11/16 15 38-5/8 45 33 16 0 84 57-1/2 N/A
(254) (162) (508) (267) (200) (119) (381) (981) (1143) (838) (406) (0) (2134) (1461) N/A
Double Wall Residential or Mobile Home-With Elbow 10 6-3/8 21
11-1/2
8 4-11/16 15 38-5/8 45 33 16 0 84 57-1/2 10
(254) (162) (533) (292) (200) (119) (381) (981) (1143) (838) (406) (0) (2134) (1461) N/A
Double Wall Alcove-Vertical Vent 13 9-3/8 22-1/2 13 8 N/A N/A 38-5/8 48 33 16 0 72 N/A N/A
(330) (238) (572) (330) (200) N/A N/A (981) (1219) (838) (406) (0) (1829) N/A N/A
CANADA
- inches (millimeters)
PIPE INSTALLATION A (3) B (1) C (3) D (1) E (8) F (1,4) G(3,4) H (2) I (6) J (2) K (7) L (5) M T (6) U
Single Wall Residential-Vertical Vent 16 12-3/8 22
12-1/2
8 5-11/16 16 49 53 41-1/8 18 8 84 58-7/8 N/A
(406) (314) (559) (
318)
(200) (145) (406) (1235) (1346) (1045) (450) (200) (2134) (1495) N/A
Single Wall Residential-With Elbow 19 15-3/8 23
13-1/2
8 5-11/16 16 49 56 41-1/8 18 8 84 58-7/8 19
(483) (391) (584) (
343
) (200) (145) (406) (1235) (1422) (1045) (450) (200) (2134) (1495) (483)
Double Wall Residential or Mobile Home-Vertical Vent 10 6-5/16 20
10-1/2
8 4-11/16 15 47 47 41-1/8 18 8 84 57-1/2 N/A
(254) (160) (508) (
267
) (200) (119) (381) (1193) (1193) (1045) (450) (200) (2134) (1461) N/A
Double Wall Residential or Mobile Home-With Elbow 10 6-5/16 21
11-9/16
8 4-11/16 15 47 47 41-1/8 18 8 84 57-1/2 10
(254) (160) (533) (
293
) (200) (119) (381) (1193) (1193) (1045) (450) (200) (2134) (1461) (254)
Double Wall Alcove-Vertical Vent 13 9-3/8 22-1/2 13-1/16 8 N/A N/A 49 50 41-1/8 18 8 72 N/A N/A
(330) (238) (572) (331) (200) N/A N/A (1235) (1270) (1045) (450) (200) (1829) N/A N/A
5- In corner applications, when installed at minimum
back wall clearances, the required floor protection
is dimensioned off the back plane of the stove,
therefore the floor protection required off the
back corners (at a 45 degree angle) only needs to
extend to the wall. This situation will only occur in
CANADA installations.
6- Reference dimension only, to assist in planning the
installation.
7- Measured from front of floor protection to the front of
firebox.
8- USA=8” (200mm) from door opening, Canada=8”
(200mm) from sides and back of unit.
8
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Figure 7 - GV300
Figure 6 - GV300
Footnotes:
1- These dimensions to the stove body are for reference
only. Actual distances should be measured from the
stove’s flue collar.
2- Minimum noncombustible hearth pad dimensions.
3- Clearances to connector pipe shall be measured from
the flue collar of the stove.
4- Not applicable to alcove installations.
INSTALLATION CLEARANCES - REFER TO FIGURES 5, 6 AND 7
Stove
Stove
Stove
Alcove
Floor
Protection
Floor
Protection
Floor
Protection
Combustible Wall
Combustible Wall
Combustible
Wall
Alcove Depth
48" (1219mm) MAX.
E †
USA
E †
USA
K
K
J
D
C
B
AL
HITFF
GG
M
I
U
Corner Installation
Alcove or Parallel Installation
Alcove or Parallel Installation
Elbow
Elbow

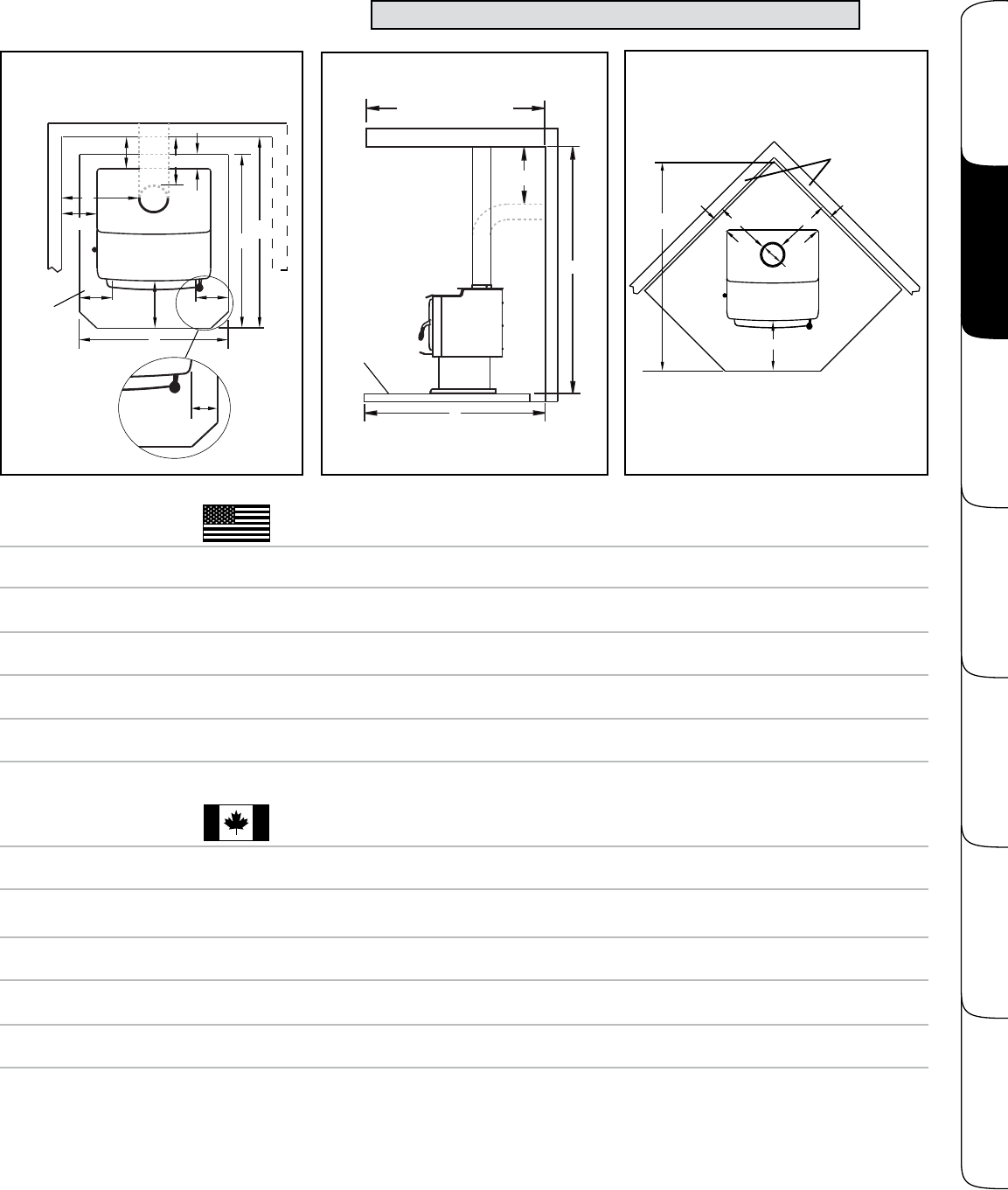

Figure 5 - GV300
Top View
Side View Top View
E
Canada
†
† See note 8
USA - inches (millimeters)
PIPE INSTALLATION A (3) B (1) C (3) D (1) E (8) F (1,4) G(3,4) H (2)
I
(6) J (2) K (7) L (5) M T (6) U
Single Wall Residential-Vertical Vent 16 12-3/8 25-1/8
15
8 6 17 41-1/8 53-1/2 33 16 0 84 62-7/8 N/A
(406) (314) (635) (381) (200) (152) (432) (1045) (1359) (838) (406) (0) (2134) (1597) N/A
Single Wall Residential-With Elbow 19-5/8 16 26-1/8
16
8 6 17 41-1/8 57-1/8 33 16 0 84 62-7/8 19
(499) (406) (664) (406) (200) (152) (432) (1045) (1451) (838) (406) (0) (2134) (1597) N/A
Double Wall Residential or Mobile Home-Vertical Vent 11-5/8 8 23-1/8
13
8 5 16 41-1/8 49-1/8 33 16 0 84 61-7/16 N/A
(295) (203) (587) (330) (200) (127) (406) (1045) (1248) (838) (406) (0) (2134) (1561) N/A
Double Wall Residential or Mobile Home-With Elbow 11-5/8 8 24-1/8
14
8 5 16 41-1/8 49-1/8 33 16 0 84 61-7/16 10
(295) (203) (613) (356) (200) (127) (406) (1045) (1248) (838) (406) (0) (2134) (1561) N/A
Double Wall Alcove-Vertical Vent 13-5/8 10 26-1/8
16
8 N/A N/A 41-1/8 51-1/8 33 16 0 72 N/A N/A
(346) (254) (664) (406) (200) N/A N/A (1045) (1299) (838) (406) (0) (1829) N/A N/A
CANADA
- inches (millimeters)
PIPE INSTALLATION A (3) B (1) C (3) D (1) E (8) F (1,4) G(3,4) H (2) I (6) J (2) K (7) L (5) M T (6) U
Single Wall Residential-Vertical Vent 16 12-3/8 25-1/8
15
8 6 17 51-1/8 55-1/2 41-1/8 18 8 84 64-7/8 N/A
(406) (314) (635) (381
)
(200) (152) (432) (1299) (1410) (1045) (450) (200) (2134) (1648) N/A
Single Wall Residential-With Elbow 19-5/8 16 26-1/8
16
8 6 17 51-1/8 59-1/8 41-1/8 18 8 84 64-7/8 19
(499) (406) (664) (406) (200) (152) (432) (1299) (1502) (1045) (450) (200) (2134) (1648) (483)
Double Wall Residential or Mobile Home-Vertical Vent 11-5/8 8 23-1/8
13
8 5 16 51-1/8 51-1/8 41-1/8 18 8 84 63-7/16 N/A
(295) (203) (587) (330) (200) (127) (406) (1299) (1299) (1045) (450) (200) (2134) (1611) N/A
Double Wall Residential or Mobile Home-With Elbow 11-5/8 8 24-1/8
14
8 5 16 51-1/8 51-1/8 41-1/8 18 8 84 63-7/16 10
(295) (203) (613) (356) (200) (127) (406) (1299) (1299) (1045) (450) (200) (2134) (1611) (254)
Double Wall Alcove-Vertical Vent 13-5/8 10 26-1/8
16
8 N/A N/A 51-1/8 53-1/8 41-1/8 18 8 72 N/A N/A
(346) (254) (664) (406) (200) N/A N/A (1299) (1349) (1045) (450) (200) (1829) N/A N/A
5- In corner applications, when installed at minimum
back wall clearances, the required floor protection
is dimensioned off the back plane of the stove,
therefore the floor protection required off the
back corners (at a 45 degree angle) only needs to
extend to the wall. This situation will only occur in
CANADA installations.
6- Reference dimension only, to assist in planning the
installation.
7- Measured from front of floor protection to the front of
firebox.
8- USA=8” (200mm) from door opening, Canada=8”
(200mm) from sides and back of unit.
Grandview™ GV300
9
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
When the Grandview™ 230 is installed in an Alcove, the floor protection
must be a thermally rated non-combustible floor protector meeting or
exceeding a thermal rating of k=.47 or equivalent with a listed thickness
of 1/2" (12.7 mm) minimum in the USA and Canada. The thermal protec-
tion must extend 16” in front of the heater and 8” to each side (measured
from the door opening).
Using Alternate Material As Floor Protection
The floor protection or alternate material used as a floor protector must
be constructed of a durable noncombustible material having an equal or
better thermal conductivity value (lower k value) of k =.47 BTU/IN FT2 HR
°F or a thermal resistance that equals or exceeds r = 2.13 HR °F FT2 IN/
BTU with a minimum thickness of 1/2”. With these values, determine the
minimum thickness of the alternate material required using the formula(s)
and shown in Table 1.
Note: Any noncombustible material having a minimum thickness of
1/2”(12.7mm) whose k value is less than .47 or whose r value is more
than 2.13 is acceptable. If the alternate material used has a higher k value
or lower r value will require a greater thickness of the material used. In
some cases, if the k value is less or the r value higher, a thinner material
may be used.
Methods of determining floor protection equivalents:
To determine the thickness required for the alternate material when
either the "k" value or "r" value is known, use either the k formula or r
formula.
Example: If Micore 160 Mineral Fiber Board is to be used for the
floor protection, how thick must this material be?
kM = k value per inch of alternate material
rM = r value per inch of alternate material
TM = minimum thickness required for alternate material
TS = standard thickness of the alternate material
kL = k value per inch of listed material
rL = r value per inch of listed material
TL = minimum thickness of listed material
Note: An asterisk "*" indicates, it is a value taken from Table 1.
Using the k formula:
k formula:
Minimum k-value (per Inch) of Specified min.
thickness of = alternate material (kM) x thickness
alternate k-value (per inch) of listed
material (TM) of listed material (kL) material (TL)
TM (inches) = kM x TL
*.47
TM (inches) = *.35 x .50"
*.47
.312 (inches)= .745 x .50"
Answer - The minimum required thickness of the Micore 160 is .372"
therefore round up to nearest standard thickness available which is
3/8” (.375”)
Minimum r-value (per Inch) Specified min.
thickness of = of listed material x thickness
alternate r-value (per inch) of listed
material of alternate material material
TM (inches) = rL x TL
rM
TM (inches) = *2.13 x .50"
*2.86
.312 (inches)= .745 x .50"
Answer - The minimum required thickness of the Micore 160 is .372"
therefore round up to nearest standard thickness available which is
3/8” (.375”)
Using the r formula:
Listed Material
k (per inch) r (per inch) Listed Min. Thickness
Listed Material .47
KL
2.13
rL
1/2" (.50")
TL
** Approved Alternate Materials for Floor/Hearth Protection
Alternative Materials Thermal Values Minimum Thickness
(rounded to nearest 1/8 inch)
k (per inch)
KM
r (per inch)
rM
Min. Thickness
TM
Kaowool M Board .47 2.13 .5" (1/2")
Micore 160™
U.S. Gypsum
.35 2.86 .37" (3/8")
Micore 300™
U.S. Gypsum
.46 2.17 .49" (1/2")
Durock™ Cement Board
U.S. Gypsum
1.92 .52 2.04" (2-1/8")
Hardibacker™ 1.95 .51 2.07" (2-1/8")
Hardibacker 500™ 2.30 .43 2.45" (2-1/2")
Cultured Stone Hearth-
stone™
2.82 .35 3" (3")
Wonderboard 3.23 .31 3.44" (3-1/2")
Super Firetemp M
Johns-Manville
.61 1.64 .65" (3/4")
Super Firetemp L
Johns-Manville
.54 1.85 .57" (5/8")
Face brick 9.00 .111 9.57" (9-5/8")
Common brick 5.00 .20 5.32” (5-3/8")
Cement mortar 5.00 .20 5.32” (5-3/8”)
Ceramic tile 12.5 .08 13.30" (13-3/8")
Marble ~11 ~.09 11.70" (11-3/4")
Table 1 - USA AND CANADA REQUIREMENTS - GV230
** If the hearth extension material(s) that is intended to be used is NOT
listed on Table 1, the material can still be used if the material(s) is non-
combustible. However, the manufacturer of the material must provide
either the listed k-value per inch or r-value per inch with listed thickness
so that the minimum thickness required for the hearth can be calculated
(per instructions here or as specified in the NFI Certification Manuals).
Note: Also see NFI (National Fireplace Institute) Certification Manuals show-
ing other acceptable calculation methods and acceptable alternate materials
which can be used.
ALCOVE INSTALLATIONS - FLOOR PROTECTION
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories Planning Installation
Grandview™ GV230
10
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Minimum k-value (per Inch) of Specified min.
thickness of = alternate material (kM) x thickness
alternate k-value (per inch) of listed
material (TM) of listed material (kL) material (TL)
TM (inches) = kM x TL
*.47
TM (inches) = *.35 x 1.50"
*.47
1.117 (inches)= .745 x 1.50”
Answer - The minimum required thickness of the Micore 160 is 1.117"
therefore round up to nearest total standard thickness - Example: Use
two 5/8” (.625”) boards for a total thickness of 1-1/4” (1.250”).
Using the r formula:
** If the hearth extension material(s) that is intended to be used is NOT
listed on Table 2, the material can still be used if the material(s) is non-
combustible. However, the manufacturer of the material must provide
either the listed k-value per inch or r-value per inch with listed thickness
so that the minimum thickness required for the hearth can be calculated
(per instructions here or as specified in the NFI Certification Manuals).
NOTE: Also see NFI (National Fireplace Institute) Certification Manuals
showing other acceptable calculation methods and acceptable alternate
materials which can be used.
FLOOR PROTECTION
The Grandview™ 300 floor protection must be a thermally rated non-
combustible floor protector meeting or exceeding a thermal rating of
k=.47 or equivalent with a listed thickness of 1-1/2" (38.1mm) minimum
in the USA and Canada. The thermal protection must extend 16” in front
of the heater (measuring from the front of the firebox) and the the width
of the heater (26-1/2”).
Using Alternate Material As Floor Protection
The floor protection or alternate material used as a floor protector must
be constructed of a durable noncombustible material having an equal
or better thermal conductivity value (lower k value) of k =.47 BTU/IN
FT2 HR °F or a thermal resistance that equals or exceeds r = 2.13 HR
°F FT2 IN/BTU with a minimum thickness of 1-1/2”. With these values,
determine the minimum thickness of the alternate material required using
the formula(s) and shown in Table 2.
Note: Any noncombustible material having a minimum thickness of
1-1/2” (38.1 mm) whose k value is less than .47 or whose r value is
more than 2.13 is acceptable. If the alternate material used has a higher
k value or lower r value will require a greater thickness of the material
used. In some cases, if the k value is less or the r value higher, a thinner
material may be used.
Methods of determining floor protection equivalents:
To determine the thickness required for the alternate material when
either the "k" value or "r" value is known, use either the k formula or r
formula.
Example: If Micore 160 Mineral Fiber Board is to be used for the
floor protection, how thick must this material be?
kM = k value per inch of alternate material
rM = r value per inch of alternate material
TM = minimum thickness required for alternate material
TS = standard thickness of the alternate material
kL = k value per inch of listed material
rL = r value per inch of listed material
TL = minimum thickness of listed material
Note: An asterisk "*" indicates, it is a value taken from Table 2.
Using the k formula:
k formula:
Minimum r-value (per Inch) Specified min.
thickness of = of listed material x thickness
alternate r-value (per inch) of listed
material of alternate material material
TM (inches) = rL x TL
rM
TM (inches) = *2.13 x 1.50"
*2.86
1.117 (inches)= .745 x 1.50”
Answer - The minimum required thickness of the Micore 160 is 1.117”
therefore round up to nearest total standard thickness - Example: Use
two 5/8” (.625”) boards for a total thickness of 1-1/4” (1.250”).
Listed Material
k (per inch) r (per inch) Listed Min. Thickness
Listed Material .47
KL
2.13
rL
1-1/2" (1.5")
TL
** Approved Alternate Materials for Floor/Hearth Protection
Alternative Materials Thermal Values Minimum Thickness
(rounded to nearest 1/8 inch)
k (per inch)
KM
r (per inch)
rM
Min. Thickness
TM
Kaowool M Board .47 2.13 1.5" (1-1/2")
Micore 160™
U.S. Gypsum
.35 2.86 1.12" (1-1/8")
Micore 300™
U.S. Gypsum
.46 2.17 1.47" (1-1/2")
Durock™ Cement Board
U.S. Gypsum
1.92 .52 6.13" (6-1/8")
Hardibacker™ 1.95 .51 6.22" (6-1/4")
Hardibacker 500™ 2.30 .43 7.34" (7-3/8")
Cultured Stone Hearth-
stone™
2.82 .35 9" (9")
Wonderboard 3.23 .31 10.3" (10-3/8")
Super Firetemp M
Johns-Manville
.61 1.64 1.95" (2")
Super Firetemp L
Johns-Manville
.54 1.85 1.72" (1-3/4")
Face brick 9.00 .111 28.72" (28-3/4")
Common brick 5.00 .20 15.96” (16")
Cement mortar 5.00 .20 15.96” (16”)
Ceramic tile 12.5 .08 39.89" (39-7/8")
Marble ~11 ~.09 35.12" (35-1/8")
Table 2 - USA AND CANADA REQUIREMENTS - GV300
Grandview™ GV300
11
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories
SPECIFICATIONS - GV230 AND GV300 GV230 Specifications
Stove Pipe Diameter
Single Wall or
Double Wall 6” (152 mm)
Log Length 16” W x 18” D Max.
(406mm W x 457mm D Max.)
Firebox 17” W x 19” D x 12-1/2” H Max.
(432mm W x 483mm D x 318mm
H Max.) Volume = 2.3 cu. ft.
Glass Viewing Area 16-1/2” W x 11-5/16” H
(419mm W x 287mm H)
EPA Test Load: 28,200 BTUs/hr.
Cord Wood: u 76,000 BTUs/hr.
Maximum Burn Times u 12 hours
Heating Capacity u 1200 to 2200 sq. ft.
EPA Grams Per Hour 3.6 gr/hr
EPA Phase II and Washington State Approved
GV300 Specifications
Stove Pipe Diameter
Single Wall or
Double Wall 6” (152 mm)
Log Length 17” W x 21” D Max.
(341.8mm W x 533mm D Max.)
Firebox 18.2” W x 21.23” D x 13” H Max.
(462.28mm W x 539.25mm D x
330.2mm H Max.)
Volume = 2.91 cu. ft.
Glass Viewing Area 16-1/2” W x 11-5/16” H
(419mm W x 287mm H)
EPA Test Load: 29,181 BTUs/hr.
Cord Wood: u 100,000 BTUs/hr.
Maximum Burn Times u 14 hours
Heating Capacity u 2000 to 3000 sq. ft.
EPA Grams Per Hour 3.09 gr/hr
EPA Phase II and Washington State Approved
Product Reference Information
Cat.
No.
Description Ship.
Wt.
Ship.
Volume
H8338 Grandview 230
Wood-Burning
Stove
385 lb. 20.09 cu. ft.
H8958 Grandview 300
Wood-Burning
Stove
445 lb. 20.09 cu. ft.
NOTES:
• Dimensions shown are approximations only
.25(+/- 1/4”)
• Diagrams, illustrations and photographs are
not to scale - consult installation instructions.
Product designs, materials, dimensions, specifica-
tions, colors and prices are subject to change or
discontinuance without notice.
• Approved for residential, manufactured home
(GV230 only), and alcove installations.
• Optional Kits Available:
Door Trim Kit
Blower
Outside Air Kit
Louvers
Legs (choice of three styles)
Pedestal
Ash Drawer for legs or for pedestal
u Square-foot heating capacities and burn times
are approximations only. Actual performance
may vary depending upon home design and
insulation, ceiling heights, climate, condition and
type of wood used, appliance location, burn rate,
accessories chosen, chimney installation and how
the appliance is operated.
The Grandview™ Models GV230 and GV300
woodstoves are safety listed with the following
agency:
• Intertek, Tested to UL 1482, ULC S627

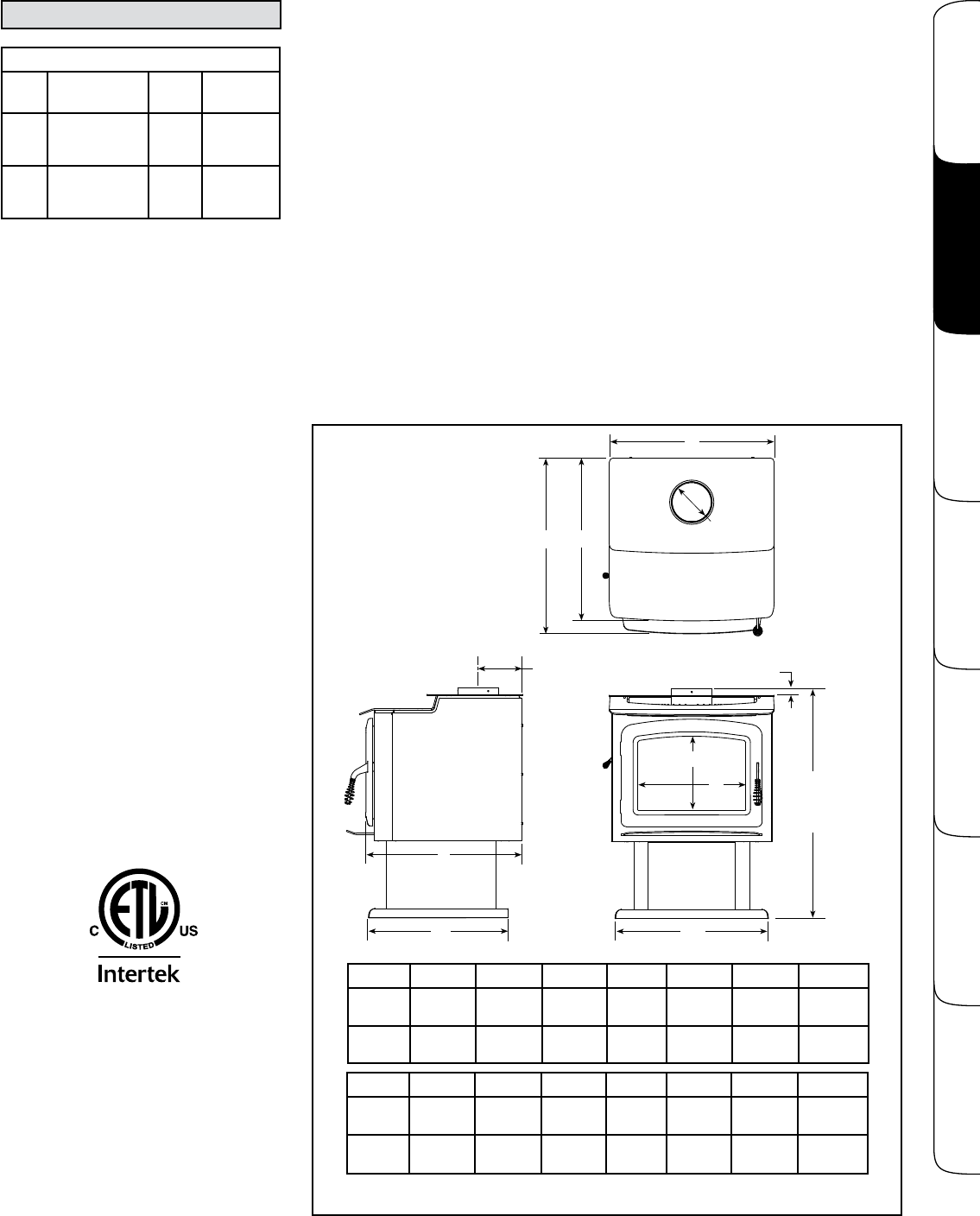

Figure 8 - Dimensions
I
H
E
F
G
D
BC
A
6”
(152mm)
Pedestal - J
Olympic Legs - K
Coastal Legs - L
Lakeview Legs - M
N
Planning Installation
Model A B C D E F G
GV230 25-1/8”
(638mm)
24-3/4”
(629mm)
26-5/8”
(676mm)
6-9/16”
(167mm)
23-3/4”
(603mm)
21-5/16”
(541mm)
1”
(25mm)
GV300 26-1/2”
(673mm)
27-3/8”
(695mm)
29-5/16”
(744mm)
6-5/8”
(169mm)
26-3/16”
(666mm)
21-7/16”
(544mm)
1-1/16”
(27mm)
Model H I J K L M N
GV230 11-5/16”
(287mm)
16-1/2”
(419mm)
35”
(889mm)
33-1/2”
(851mm)
32-1/2”
(826mm)
32-13/16”
(833mm)
23-1/8”
(587mm)
GV300 16-1/2”
(419mm)
11-5/16”
(287mm)
36-1/8
(917mm)
34-5/8
(880mm)
33-5/8
(854mm)
33-15/16”
(862mm)
23-1/8
(588mm)
4002589
12
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Chimney
Termination
Cap
Chimney
Termination
Rain Cap
Masonry
Adaptor
Length
90° Tee
Storm
Collar
Roof
Flashing
Flashing
Ceiling Support
Assembly
Slip
Adaptor
Chimney
Connector
6” x 24” 24-gage
black steel or 26
gage blued steel
single wall pipe
Single Wall Pipe
Using 6” Diameter Single Wall Connector Pipe
STAINLESS STEEL LINER
Using 6” Diameter Rigid Stainless Steel Liner
Figure 9 - Typical Installation
Figure 10 - Connected to a Masonry Chimney
Floor
Protector
Floor
Protector
Fasten each stove pipe
connection with at least
3 sheet metal screws.
Single wall stove pipe
must not pass through
attics, closets, walls or
ceilings. It is used to
connect this appliance
to a factory built or
masonry chimney.
INSTALL VENTING SYSTEM PER VENT MANUFACTURERS
INSTRUCTIONS!
INSTALL VENTING SYSTEM PER VENT MANUFACTURERS
INSTRUCTIONS!
Fasten stove pipe to
flue collar with 3 sheet
metal screws.
YOUR CHIMNEY INSTALLATION MUST COMPLY WITH LOCAL
BUILDING AND FIRE CODES.
13
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories Planning Installation
Manufactured Home Installations (GV230 ONLY)
(ref. Figure 11)
Model GV230 woodstove is approved for installation into a manu-
factured (mobile) home. NOTE: Model GV300 woodstove is not
approved for installation into a manufactured (mobile) home.
Installation should be in accordance with the Mobile Home
Construction and Safety Standard, Title 24 CFR, Part 3280 (in
Canada CAN/CSA Z240 MH), or, when such a standard is not
applicable, the Standard for Mobile Home Installations, ANSI
A225.1.
All mobile home installations require an outside air kit (see Page 31 for
ordering information). The stove must be secured to the floor and grounded
to the chassis of the mobile home (see Page 13 for detailed instructions).
WARNING: DO NOT INSTALL IN SLEEPING ROOM OF A MOBILE
HOME.
CAUTION: THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED.
Approved Chimney* - Your stove is approved for use with Class A, UL
103 HT (U.S.) / ULC-S629 (Canada) Listed Residential Type and Building
Heating Appliance Chimney (HT chimney - 2100° Fahrenheit) and double
wall connector pipe. Approved chimney brands are Security Chimneys™,
Jakes Evans/GSW, Dura-vent, Metal Fab, Ameri-Tec, Metalbestos and
Industrial Chimney (ICC).
Clearances to connector shall be measured from 6” flue collar. Restrictions
apply! Read instructions before installing.
YOUR CHIMNEY INSTALLATION MUST COMPLY WITH LOCAL
BUILDING AND FIRE CODES.
Termination Cap
with Spark Arrestor Remove, if mobile
home is transported
Storm
Collar
Flashing
Support
Box
DVL Close
Clearance
Connector Pipe
Floor
Protector
3 Feet (0.9M)
Minimum
Double Wall Pipe
Using 6” Diameter Type L-Vent Connector Pipe
Mobile (Manufactured) Home Installation Shown

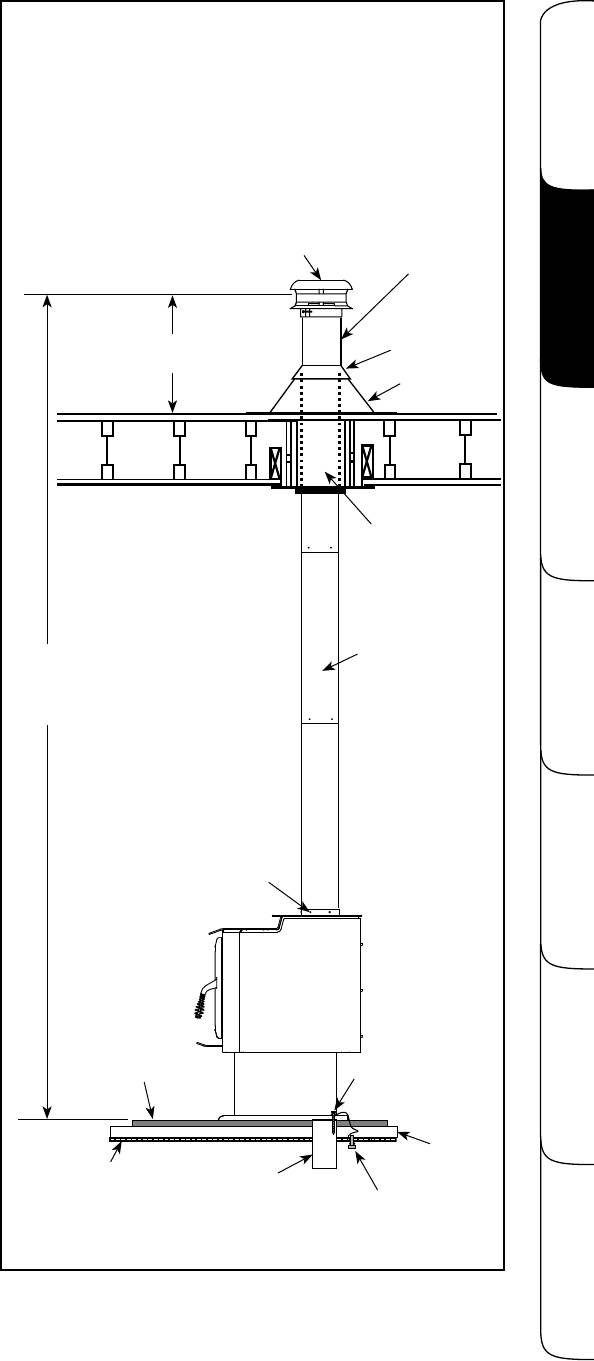

Figure 11 - Typical Installation
Minimum of
12-15’ (3.7-4.6M)
of Flue to achieve
a stable draft.
Fasten each stove pipe
connection with at least
3 sheet metal screws.
Mobile home installations
require a spark arrestor at the
chimney termination.
All mobile home
installations require
an outside air kit (see
Page 31 for ordering
information) and
the stove must be
secured to the floor
and grounded to the
mobile home chassis.
Install Outside Air
Kits per instructions
on Page 17
INSTALL VENTING SYSTEM PER VENT MANUFACTURERS
INSTRUCTIONS!
Fasten stove pipe to
flue collar using 3
sheet metal screws.
Secure to floor per
instructions on Page 16
Grounded to Steel Chassis
using a #8 AGW copper
wire or equivalent.
Chassis
Floor
CHIMNEY INSTALLATION
• Installchimneyaspermanufacturer’sinstructions.Somebrandsof
pipe may require removal of the spacer ring in the flue collar.
• Allhorizontalrunsofpipeshouldbeasshort aspossibleandare
required by NFPA No. 211 to have an upward pitch or rise in the same
direction the smoke travels of no less than 1/4” to the linear foot. The
connector pipe must meet minimum clearances in any direction to
walls or other combustible materials. It must attach to a listed double
wall metal chimney at least 6” in diameter or to a masonry chimney
with a flue passage of at least 48 square inches.
• Itisrequiredthatachimneyconnectorpipenotextendfurtherthan
the inner wall of the flue when it is connected to a masonry chimney
and that it either be cemented to the masonry or be installed without
cement in a thimble connected to the masonry wall. When the
connector is inserted into a thimble, the joint must be tight enough
so that it will not be dislodged in normal use. Install connector at
no less than the minimum clearances from the ceiling when using a
90-degree elbow to pass through combustible constructions.
• Chimneyconnectorpipesshouldneverpassthroughaoor,ceiling,
fire wall, partition, or combustible construction of any type unless
certain precautions are taken. The best method is to use a listed
thimble and a listed chimney in accordance with the manufacturer’s
directions. NFPA No. 211 gives approved methods for passing a flue
pipe through combustible constructions (see Page 14).
14
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Chimney Connector Systems and Clearances from Combustible
Walls for Residential Heating Appliances (NFPA 211) Refer to
Figure 12.
System A. Minimum 3.5 in. (90 mm) thick brick masonry wall
framed into combustible wall with a minimum of 12 in. (305 mm)
brick separation from clay liner to combustibles. Fireclay liner (ASTM
C 315, Standard Specification for Clay Flue Linings, or equivalent),
minimum 5/8 in. (16 mm) wall thickness, shall run from outer surface
of brick wall to, but not beyond, the inner surface of chimney flue
liner and shall be firmly cemented in place.
Clearance:12in.(305mm)
System B. Solid-insulated, listed factory-built chimney length of the
same inside diameter as the chimney connector and having 1 in.
(25.4 mm) or more of insulation with a minimum 9 in. (229 mm) air
space between the outer wall of the chimney length and combustibles.
The inner end of the chimney length shall be flush with the inside of
the masonry chimney flue and shall be sealed to the flue and to the
brick masonry penetration with non-water-soluble refractory cement.
Supports shall be securely fastened to wall surfaces on all sides.
Fasteners between supports and the chimney length shall not pen-
etrate the chimney liner.
Clearance:9in.(229mm)
System C. Sheet steel chimney connector, minimum 24 gauge [0.024
in. (0.61 mm)] in thickness, with a ventilated thimble, minimum 24
gauge [0.024 in. (0.61 mm)] in thickness, having two 1 in. (25.4
mm) air channels, separated from combustibles by a minimum of 6
in. (152 mm) of glass fiber insulation. Opening shall be covered, and
thimble supported with a sheet steel support, minimum 24 gauge
[0.024 in. (0.61 mm)] in thickness.
Supports shall be securely fastened to wall surfaces on all sides and
shall be sized to fit and hold chimney section. Fasteners used to secure
chimney section shall not penetrate chimney flue liner.
Clearance:6in.(152mm)
System D. Solid-insulated, listed factory-built chimney length with
an inside diameter 2 in. (51 mm) larger than the chimney connector
and having 1 in. (25.4 mm) or more of insulation, serving as a pass-
through for a single wall sheet steel chimney connector of minimum
24 gauge [0.024 in. (0.61 mm)] thickness, with a minimum 2 in.
(51 mm) air space between the outer wall of chimney section and
combustibles. Minimum length of chimney section shall be 12 in.
(305 mm). Chimney section concentric with and spaced 1 in. (25.4
mm) away from connector by means of sheet steel support plates
on both ends of chimney section. Opening shall be covered, and
chimney section supported on both sides with sheet steel supports
of minimum 24 gauge [0.024 in. (0.61 mm)] thickness.
Supports shall be securely fastened to wall surfaces on all sides and
shall be sized to fit and hold chimney section. Fasteners used to secure
chimney section shall not penetrate chimney flue liner.
Clearance:2in.(51mm)
Additional requirements:
1. Insulation material used as part of wall pass-through system shall be
of noncombustible material and shall have a thermal conductivity of
1.0 Btu-in./hr-ft2 - ºF (4.88 kg-cal/hr-m2 - ºC) or less.
2. All clearances and thicknesses are minimums; larger clearances and
thicknesses shall be permitted.
3. Any material used to close up an opening for the connector shall be of
noncombustible material.
4. A connector to a masonry chimney, except for System B, shall extend
in one continuous piece through the wall pass-through system and the
chimney wall to the inner face of the flue liner, but not beyond.
Factory Built
Chimney Length
Air Space – 9 in.
(228.6mm) Min.
Chimney Length
Flush with
Inside of Flue
Min. Clearance
9 in. (229mm)
Chimney
Connector
Use Chimney
Mfrs. Parts to
Attach
Connector
Solid-Insulated
Listed Factory-
Built Chimney
Length
Sheet Steel Supports
Sheet Steel Supports
Sheet Steel Supports
Minimum Chimney Clearance from Masonry to Sheet Steel
Supports & Combustibles – 2 in. (51mm)
Nonsoluble
Refractory
Cement
Minimum chimney clearance to sheet
steel supportrs and combustibles
2 in. (51mm)
Chimney
Connector
2 Air Channels, Each 1
in. (25.4 mm)
2 Ventilated Air
Channels, Each
1 in. (25.4 mm)
Construction of
Sheet Steel
Minimum chimney clearance to sheet steel
supports and combustibles 2 in. (51mm)
Sheet Steel
Supports
Chimney
Connector
Chimney
Section
Air Space – 2 in.
(51mm) Min.
Chimney connector
Chimney length
1 in. (25.4 mm)
air space to
chimney length
Min. Clearance
2 in. (51 mm)
Minimum
12 in.(305mm)
to combustibles
Masonrychimney
constructed to NFPA 211
Masonrychimney
constructed to NFPA 211
Masonry chimney
constructed to NFPA 211
Masonrychimney
constructed to NFPA 211
Minimum chimneyclearancetobrick
andcombustibles2in. (51mm)
Minimum clearance
12 in. (305mm)
of brick
Chimney
Chimney
flue
Chimney
flue
Chimney
flue
connector
Fireclay
liner

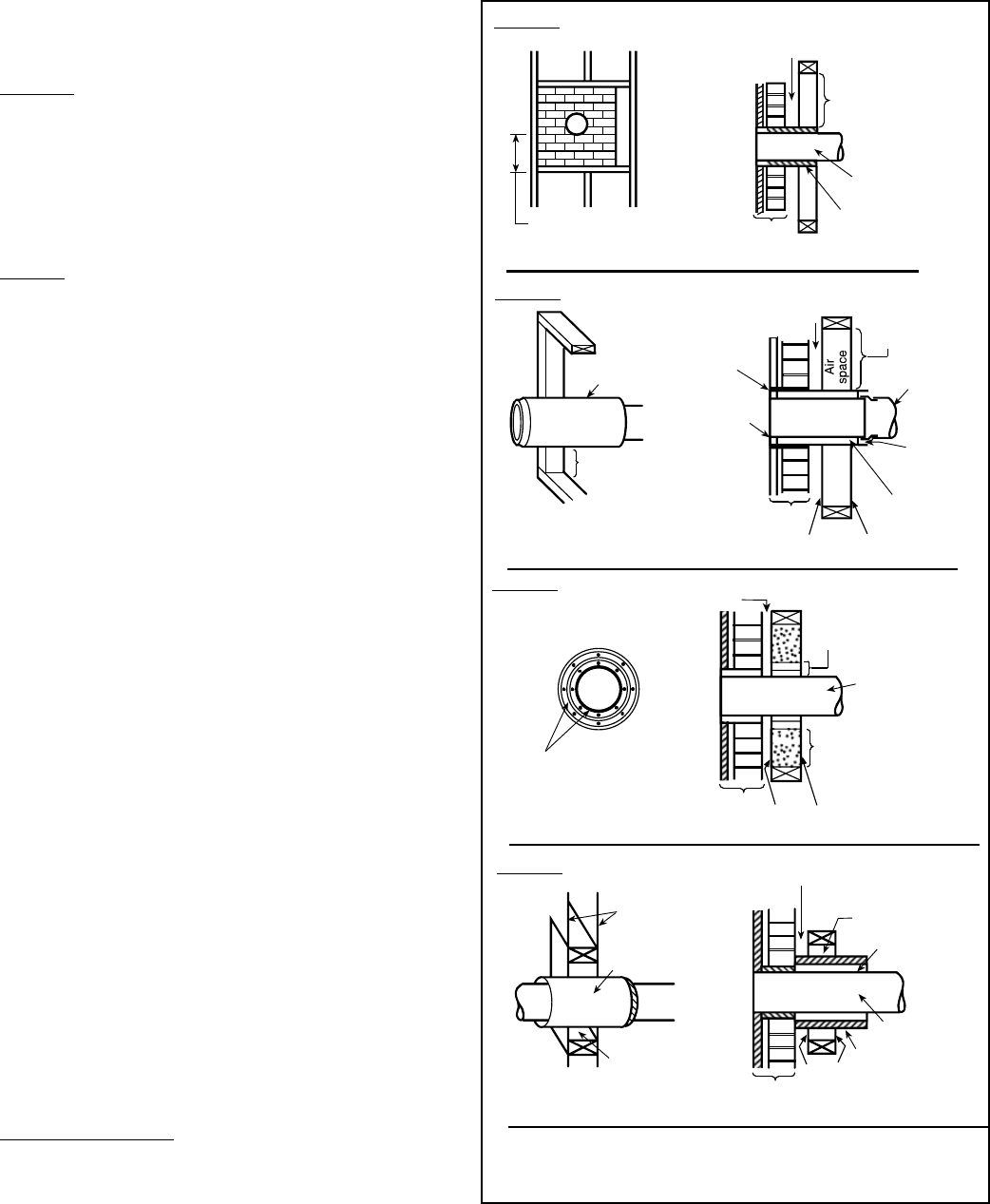

Figure 12 - Chimney Connector Systems and Clearances from Combustible Walls
System A
System B
System C
System D
15
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories Planning Installation
Figure 13
Residential and Mobile Homes
(Tieing down and grounding are required only in mobile homes)
Open all cartons, if any and remove the contents upon receipt and check
for any damaged or missing parts. If there is hidden damage, notify your
freight company or Lennox Hearth Products dealer immediately.
CAUTION: Wear gloves during installation in case of sharp
edges on the stove.
Leg Installation
1. Carefully place stove on it’s back. Be careful not to scratch the stove,
use a piece of cardboard or carpet to protect the back of the stove.
2. Using a 9/16” wrench or socket remove the bolt in each of the four
corners along with the attached shipping brackets.
3. Remove legs from the packaging and using the bolts and washers
that come with the legs install each leg in each corner with one bolt
and one washer.
4. Before the legs are fully tightened down make sure that they are aligned
correctly to match the front and side planes of the stove.
5. The stove can now be set up on the legs making sure that all baffle
boards and bricks are set back in place. These items may have shifted
when the stove was placed on it’s back.
6. If it is necessary to level, secure, or ground your stove, use the holes
in the bottom of the leg for those applications. To level the stove use
leg leveling kit (P/N H8407) or leveling pads (P/N H7638). Level by
adjusting the bolt or leveling pad down on each leg that is not in full
contact with the hearth or surface below that the stove in located on.

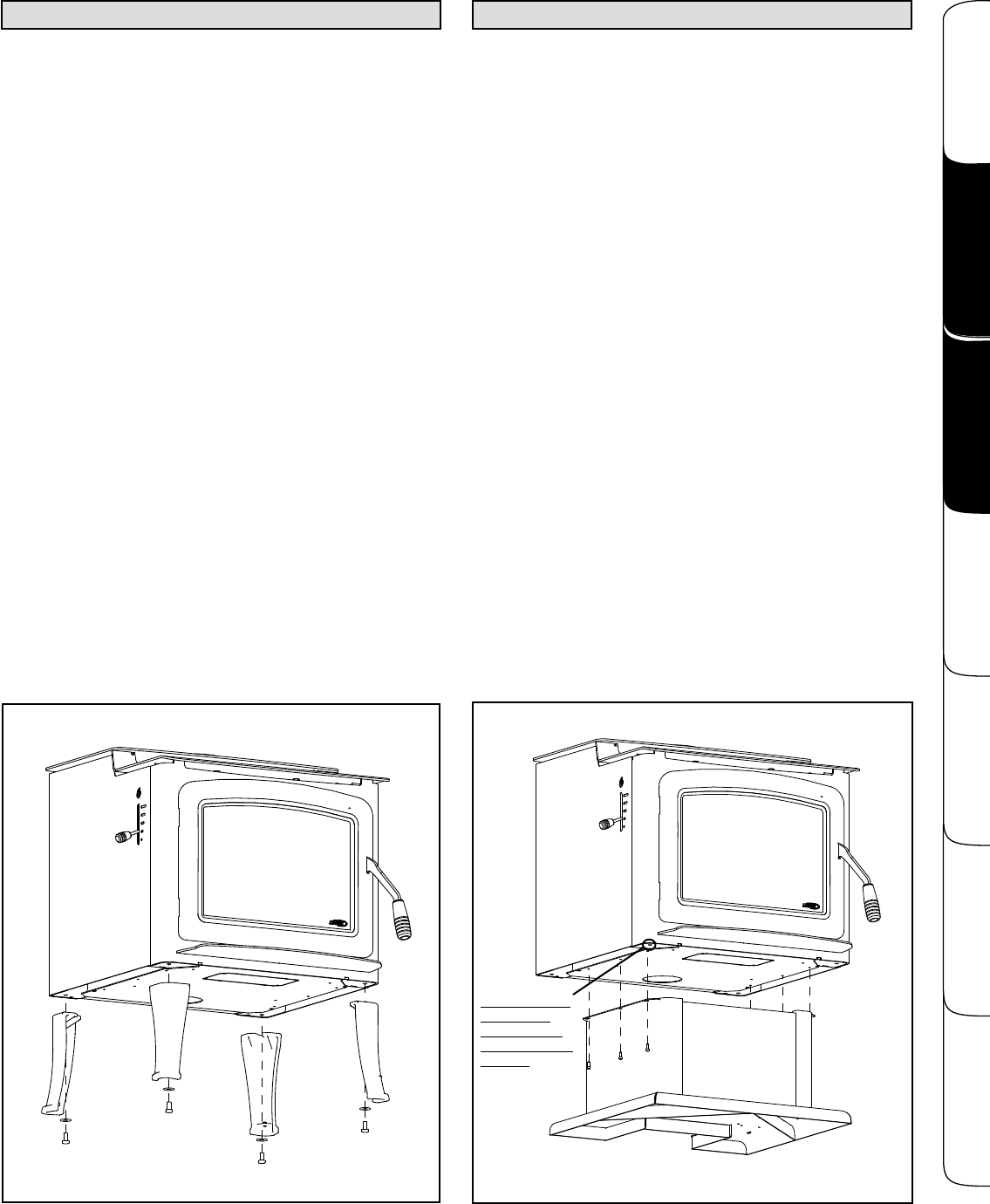

LEG INSTALLATION
Figure 14
PEDESTAL INSTALLATION
Residential and Mobile Homes
(Tieing down and grounding are required only in mobile homes)
Open all cartons, if any and remove the contents upon receipt and check
for any damaged or missing parts. If there is hidden damage, notify your
freight company or Lennox Hearth Products dealer immediately.
CAUTION: Wear gloves during installation in case of sharp
edges on the stove.
Pedestal Installation
1. Remove the heater from the carton, if packaged, upon receipt and
check for any damaged or missing parts.
2. Install the 10-24 screws included with the pedestal kit to the bottom
of the stove as seen in Figure 14. You will need a 5/32” allen wrench
to complete this.
3. Carefully place stove on it’s back. Be careful not to scratch the stove,
use a piece of cardboard or carpet to protect the back of the stove.
4. The pedestal will have key hole slots that line up with the screws that
were placed in the bottom of the stove. Carefully install pedestal on
the installed screws with the open end of the pedestal towards the
rear of the stove.
5. Assuring that the pedestal is placed correctly in slots then tighten all
six screws.
6. The stove can now be set up on the pedestal making sure that all
baffle boards and bricks are set back in place. These items may have
shifted when the stove was placed on it’s back.
7. When installing a pedestal on this stove you MUST plug the one leg
mounting bolt hole, located on the bottom of the stove in the front left
corner, with the bolt that was used to mount the shipping legs. FAIL-
URE TO INSTALL THIS BOLT PROPERLY WILL RESULT IN REDUCED
CONTROL OF THE STOVE’S COMBUSTION SYSTEM!
You MUST plug
this one leg
mounting bolt
hole. Read Step
7 above.
Installation
16
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

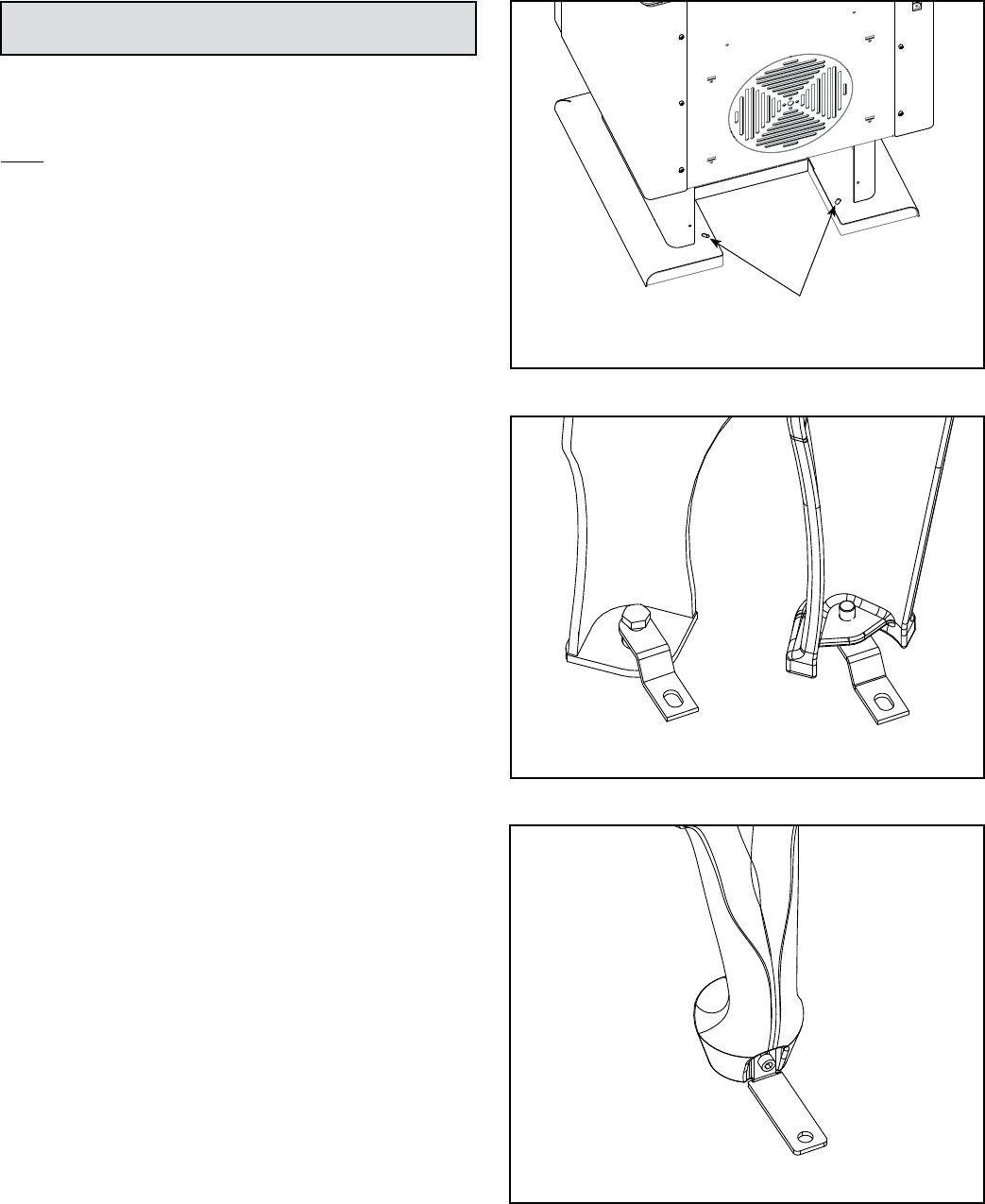

Figure 15 - Securing Pedestal to Floor
Figure 16 - Securing Coastal and Lakeview Legs to Floor
Figure 17 - Securing Olympic Legs to Floor
ATTACHING STOVE TO MANUFACTURED HOME FLOOR -
GV230 WOODSTOVE ONLY
Leg Tie Down Kits (Manufactured [mobile] Homes)
Order:
H7665 Leg Tie Down Kit, Coastal and Lakeview Legs
H5308 Leg Tie Down Kit, Olympic Legs
ATTACHING STOVE TO MANUFACTURED HOME FLOOR
THE STOVE MUST BE ATTACHED TO THE FLOOR AT NO LESS THAN
TWO POINTS
Pedestal
Locate the two holes on the back of the pedestal (Figure 15). Secure the
pedestal to the floor using two field provided 1/4” screws.
Lakeview and Coastal Legs
Connect the bolt down bracket to each leg using kit (P/N H7665) screw
as shown in Figure 16. Secure the leg bracket to the floor using one field
provided 1/4” bolt.
Olympic Legs
Connect the bolt down bracket to each leg using kit (P/N H5308) screw
as shown in Figure 17. Secure the leg bracket to the floor using one field
provided 1/4” screw.
Tie Down Holes
Stove Back
17
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Planning Installation Safety and General
Operation
Maintenance
Troubleshooting
Parts / Accessories Installation

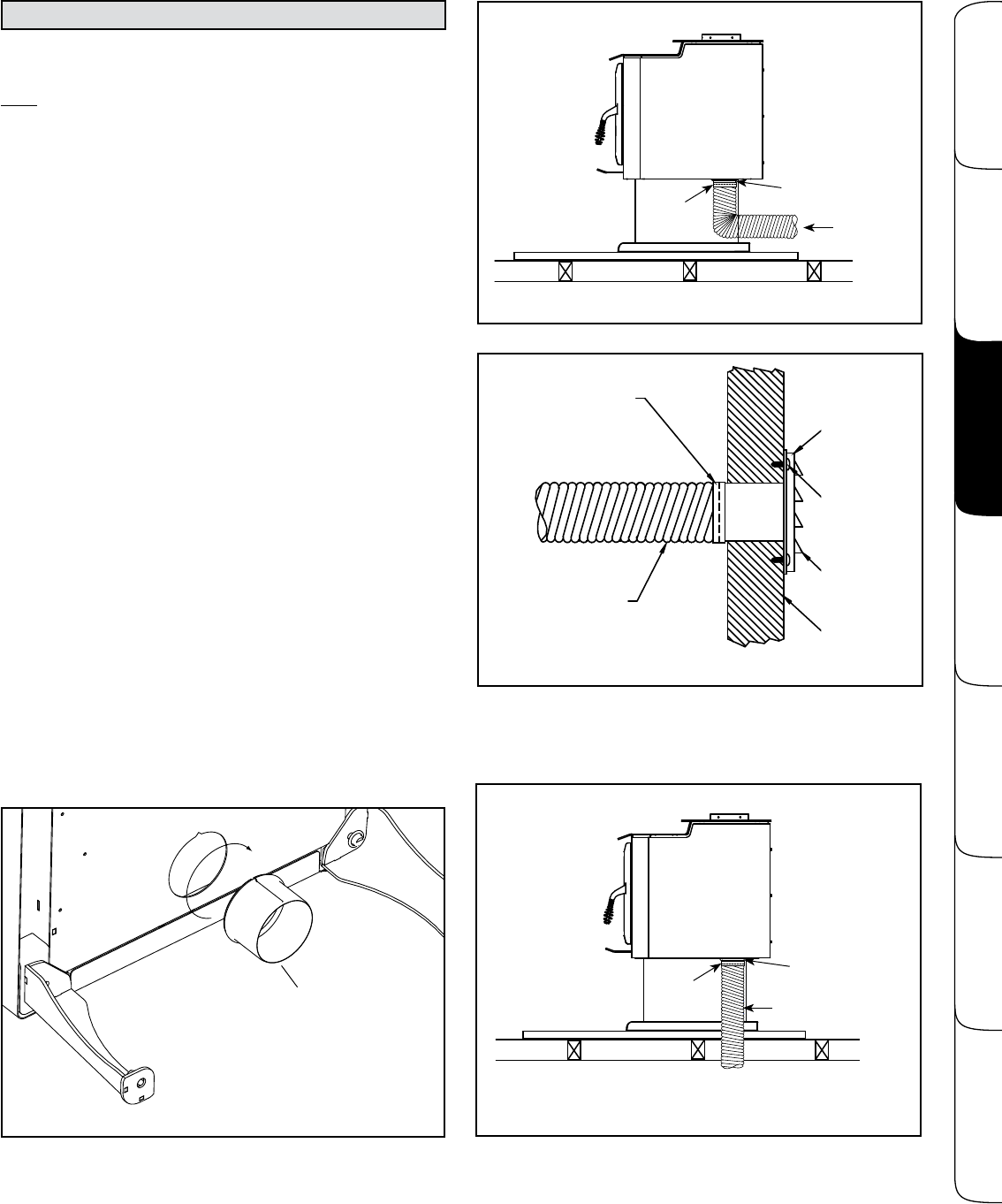

OUTSIDE COMBUSTION AIR KIT INSTALLATION - GV230 & GV300
Figure 19 - Outside Air Connection to Stove
Outside Air Kits
Order:
1 ea. P/N UZIAD Outside Air Coupler Kit (connects outside air ducting, UZI, to
stove)
AND
1 ea. P/N UZI Outside Air Ducting Kit (includes 4” insulated flex x 10’ long)
An outside air kit is required in Manufactured (mobile) Home installa-
tions. For residential installations, check with local authorities having
jurisdiction in your area, it may be mandatory.
Outside Air Kit Coupler
Toinstalltheoutsideairkitcouplerontothestove,lineupthe“V”notch
inthecouplerwiththe“V”notchintheopenonthebottomofthestove.
Push and twist so the rolled edge catches the bottom of the stove and
continue turning full 360° to lock the coupler in place.
Through the Wall Outside Air Kit Installation
(refer to Figures 18, 19 and 20)
The outside air assembly may be installed according to the following
requirements:
A) Duct length should be kept to a minimum.
B) The air intake register must not be installed more than ten (10) feet
(3050 mm) above the base of the stove.
C) The fresh air must come from outside the house. The air intake must
not draw air from the attic, from the basement or garage.
D) The air intake should be installed where it is not likely to be blocked by
snow or exposed to extreme wind and away from automobile exhaust
fumes, gas meters and other vents.
E) The duct and register may be installed above or below floor level.
- Make a 4-1/4” (110 mm) hole in the outside wall of the house at the
chosen location. From outside, place the outside air register in the
hole (open side down) and fasten the register to the wall, with screws
as shown (see Figure 20).
- Install the coupler onto the existing collar on stove (see Figure 18).
- Attach the duct to the coupler on stove (see Figure 19). Using the
aluminium tape provided, wrap the tape around the joint between the
flexible duct and the air inlet.
Figure 20 - Through the Wall, Outside Air Termination
Outside
Intake
OUTDOORS
INDOORS
Screw
Opening
Facing
Down
Wall
Aluminum Tape
Duct
Coupler (attached to
existing collar)
Duct
Manufactured Home Through the Floor Outside Air Kit Installa-
tion (refer to Figure 21) - Model GV230 wood stove only.
Figure 21 - Manufactured Home Installation
Figure 18
Aluminum
Tape
Coupler (attached to
existing collar)
UZIAD Outside Air Coupler Duct
Aluminum
Tape
18
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Grandview™ GV230
CAUTION: Wear gloves during brick installation in case of
sharp edges inside the stove.
WARNING: IF THE BRICKS ARE NOT INSTALLED EXACTLY AS
SHOWN BELOW, THEY COULD FALL OUT OF PLACE DURING
REFUELING OR BURNING OF THE STOVE CAUSING SERIOUS
INJURY.
BRICK AND BAFFLE INSTALLATION
Firebox Brick Layout as
Viewed from the Front

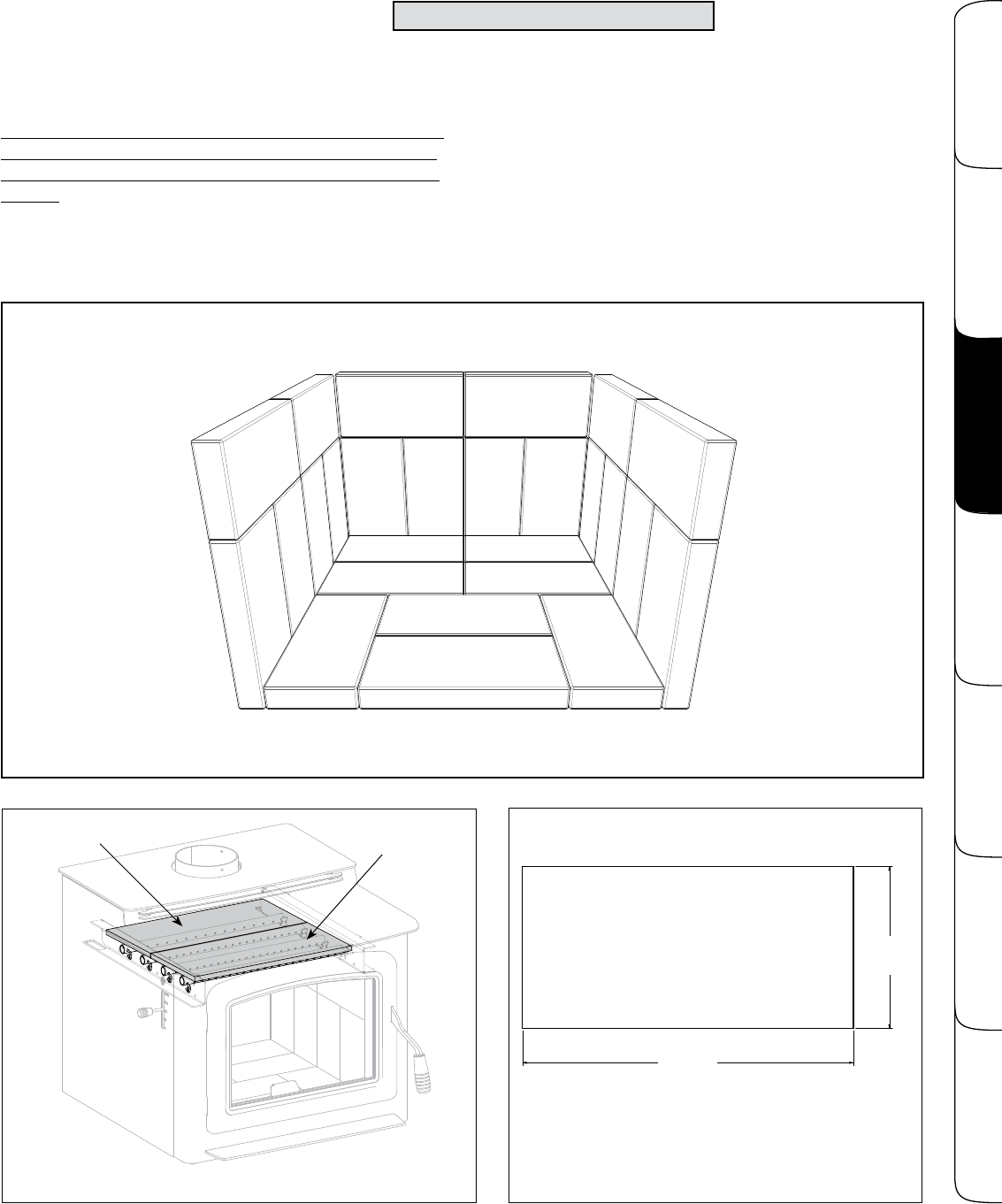

Figure 22 - GV230 Brick Diagram
Figure 23 - GV230 Baffle Boards Installed Figure 24 - GV230 Baffle Boards
Letter A Brick Are Full Size
9” (229mm) Long x
4-1/2” (114mm) Wide x
1-5/16” (33mm) Thick
6.5
7.7
Back Baffle Board
Back Baffle Board
7.7”
(196mm)
6.5”
(165mm)
Front Baffle Board
Front Baffle Board
1. Install firebox bottom brick spacers on both the left and right side of
firebox. The brick spacers are located in the package with the manual.
Assure that brick spacers are pushed to each side until they are in
full contact with the firebox side on each side.
2. Install brick #1-20 in the numbered sequence shown in Figure 22.
3. Brick’s 13 and 14 will be located between the steel firebox and rear
baffle board (already installed).
4. Once all bricks are installed confirm that the already installed baffle
boards are in there correct location and resting on the secondary
burn tubes.
8-A
4-A
2-A1-A
3-A
5-A
6-A
7-A
18-A
14-A
13-A
15-A
16-A
17-A
19-A
20-A
11-A 12-A
10-A
9-A
19
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Grandview™ GV300
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories
CAUTION: Wear gloves during brick installation in case of
sharp edges inside the stove.
WARNING: IF THE BRICKS ARE NOT INSTALLED EXACTLY AS
SHOWN BELOW, THEY COULD FALL OUT OF PLACE DURING
REFUELING OR BURNING OF THE STOVE CAUSING SERIOUS
INJURY.
BRICK AND BAFFLE INSTALLATION
Firebox Brick Layout as
Viewed from the Front
Figure 25 - GV300 Brick Diagram
Figure 26 - GV300 Baffle Boards Installed Figure 27 - GV300 Baffle Boards
Letter A Brick Are Full Size
9” (229mm) Long x
4-1/2” (114mm) Wide x
1-5/16” (33mm) Thick
1. Install brick #1-26 in the numbered sequence shown in Figure 25.
2. Once all bricks are installed confirm that the already installed baffle
boards are in there correct location and resting on the secondary
burn tubes.
Installation
19-A
21-A 22-A
24-A
23-A
12
A
11
A
9
A
8
A
1-A 2-A 3-A 4-A 14
A15
A
17
A
18
A
16-A
13-A
6-A
5-A
7-A
10-A
26-A
25-A
20-A
Back Baffle Board Front Baffle Board
8.741
17.870
8.741”
(222mm)
17.870”
(454mm)
Front and Back
Baffle Board
20
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Check that all chimney pipe joints are
secured and installed according to the
manufacturers instruction.
If used, make sure the outside air kit is
properly installed and unobstructed.
Make sure the legs or pedestal are securely
fastened to the stove.
Double check all stove clearances.
Be sure bricks and baffle boards are
properly installed.
If plated accessories are used, be sure
surfaces are clean prior to firing the stove.
See Page 21
FOR YOUR OWN PROTECTION AND INSURANCE PURPOSES,
HAVE YOUR CHIMNEY AND CONNECTOR PIPE INSTALLATION
INSPECTED BY YOUR LOCAL BUILDING CODE AUTHORITY OR
FIRE MARSHAL BEFORE STARTING A FIRE IN YOUR STOVE.
NOTIFY YOUR INSURANCE COMPANY.
POST INSTALLATION CHECKS
FOR MOBILE HOME INSTALLS
Be sure the stove is properly grounded
Be sure the stove is properly securely
fastened to the floor
Be sure the outside air vent is free of
obstructions and has a mesh screen in place
21
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Opening Door - Lift
handle and pull to
open door
Closing Door - Hold
handle lifted, swing door
closed then push handle
down to engage latch
Handle
Door
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories Installation
Do not operate the appliance with the door open or ajar other
than possibly during start up to create a draft (Do not leave the
unit unattended while the front door is slightly open during start
up). Operating the appliance with the door open other than in
initial start up if needed will produce extreme temperatures
within the appliance. Damage caused from over-firing is not
covered under the manufacturers limited warranty.

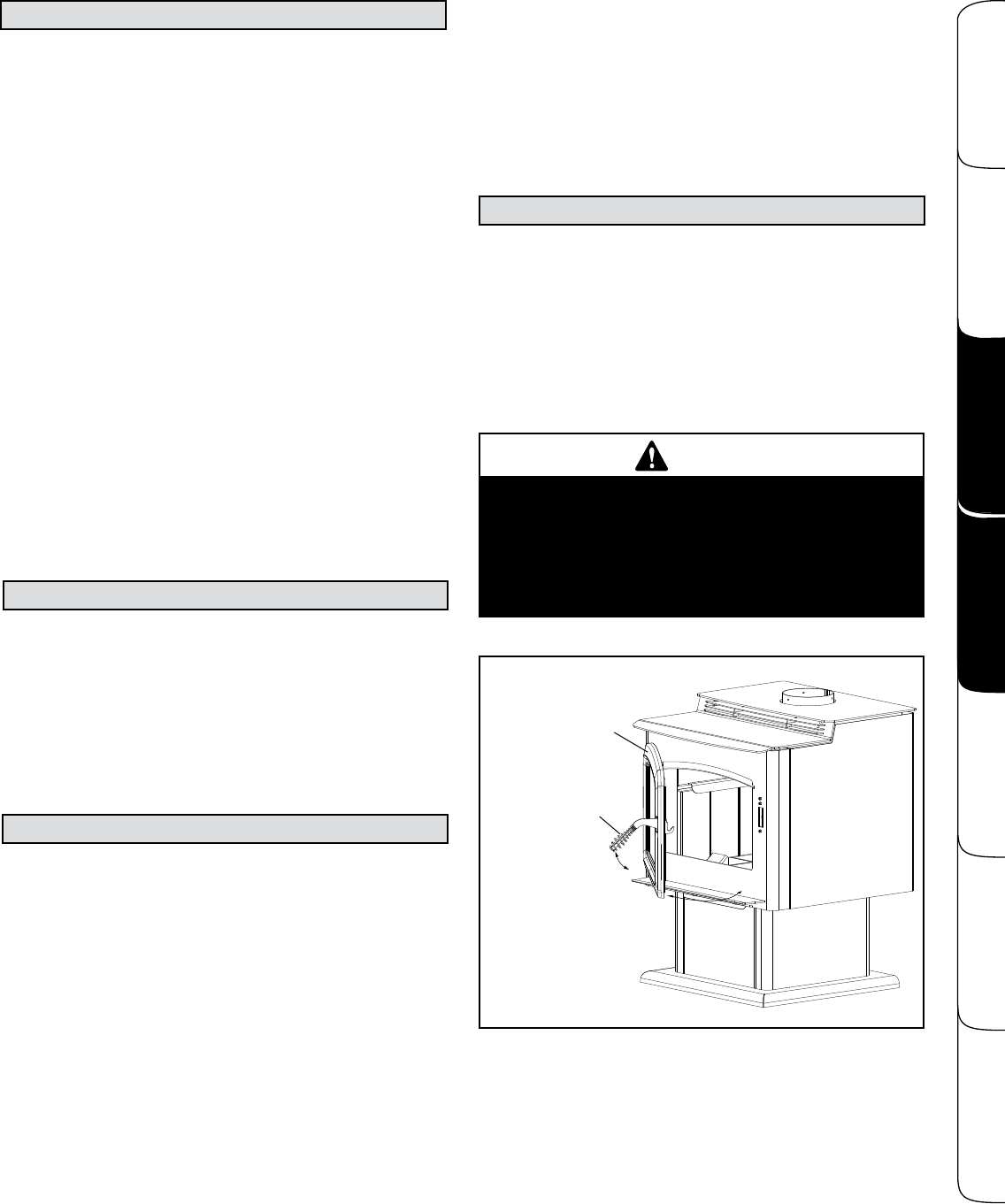

DOOR OPERATION
Figure 28
1. Burn only dry, well-seasoned cord wood. In some states it is illegal
to burn wet wood or anything other than clean, dry wood products.
2. Your stove or fireplace insert is designed to operate with the door
closed! Operate only with the door shut tightly at all times except when
loading wood and possibly on start up to establish a draft. Never leave
the unit unattended while the front door is opened.
3. DO NOT contact or move the baffle boards while loading wood. Oc-
casionally check the baffle to assure that the boards are in there correct
location.
WARNING
Be careful not to abuse door assembly by striking or
slamming it. If the door assembly or glass is broken or
damaged, they must be replaced with factory original
parts before heater can be safely operated. Use only
components provided by the manufacturer as replace-
ment parts.
OPERATING HINTS
If your stove has plated accessories, be sure to clean it with a household
type glass cleaner and a very soft cloth to remove any fingerprints and
residues prior to the first fire and before any fire if the plated surfaces
have been handled or soiled. Do not close the door tightly during the
“Burn-In Period.” Also, open the door frequently (every 5-10 minutes)
to keep the gasket from adhering to the curing paint. Ventilate the
house well during these first firings as the paint gives off carbon dioxide
and unpleasant odors. It is recommended that persons sensitive to an
imbalance in the indoor air quality avoid the stove or fireplace insert
during the curing process.
Your new stove is painted with a high temperature paint that cures during
the first few firings. We recommend that you put your stove or fireplace
insert through a regimen of three burns. The first two should last for
20 minutes each at 250 degrees (the stove or fireplace insert should be
allowed to cool completely between each burn). The third should be a
burn of at least 450 degrees F. for 45-60 minutes. The paint will become
soft, gummy and emit non-toxic smoke during these burns. During these
first burns, open the appliance door frequently to help prevent the door
gasket from adhering to the appliance. After the stove or fireplace insert
cools down for the third time, the paint will harden. DO NOT BUILD A
LARGE ROARING FIRE UNTIL THIS CURING EFFECT IS COMPLETE
OR YOU MAY DAMAGE THE FINISH OF YOUR STOVE. Spray can
touch-ups should be done only with a high temperature stove paint (cat.
no. H8159), available from all Lennox Hearth Products dealers.
Please be patient with the heat output of your stove or fireplace insert for
the first few weeks. The steel will go through a curing process that elimi-
nates moisture, which is deep in the steel and firebrick. This moisture will
reduce initial heat output of your stove or fireplace insert and may make
it difficult to start. (DO NOT OVERFIRE THE STOVE DURING THIS
PROCESS. IF THE STOVE OR CHIMNEY BECOMES RED, REDUCE
THE AMOUNT OF AIR ENTERING THE STOVE IMMEDIATELY).
BURN-IN PERIOD
PAINT CURING 4. CAUTION: THE DRAFT CONTROL MUST BE FULLY OPEN BE-
FORE OPENING THE DOOR TO AVOID POSSIBLE COMBUSTION
FLASH!! (Ignition of hot volatile gases as the door is opened).
5. Feeding excessive amounts of fuel to the stove or fireplace insert
should be avoided. It is important to supply it with sufficient draft
and fuel to maintain a moderately hot fire. If, during overnight burns,
heavy creosote deposits develop inside your stove and on the door,
the draft is set too low - review your burning habits!
Operation
22
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Place a small
amount of
crumpled paper
in the front of the
firebox
Cover paper with
a few pieces of
kindling
Light paper
STARTING AND MAINTAINING A FIRE
Figure 29
Figure 30
DO NOT LEAVE THE STOVE UNATTENDED WHILE THE FRONT
DOOR IS SLIGHTLY OPEN.
CAUTION: Do Not alter the adjustment range of the draft control
for increased firing for any reason.
Operate only with fuel door and ash drawer closed. Maintain
all seals in good condition. Do not operate with broken glass.
1. NEVER USE FLAMMABLE LIQUIDS TO START OR REKINDLE
A SOLID FUEL FIRE!!
2. Fully open the primary draft control by placing draft control (wood
handle located on left side of the stove) in the highest position. This
control determines the amount of air entering the stove. Lowering
this control reduces the burn rate of the stove. For your convenience,
the control is marked with five positions to assist you in obtaining
repeatable burn rates.
3. Place a small amount of crumpled paper in the front of the firebox
and cover it with a few pieces of kindling.
4. Light the paper and allow sufficient time for the kindling to become
fully engulfed in flames. You will now close the wood units front door.
Your wood units front door may or may not need to be left slightly
open during this start up process, this depends on the stove model
and the amount of draft present.
5. When operating any wood burning appliance, it is important to
become familiar with how the damper control affects heat output
and the overall temperature of the appliance. A stove thermom-
eter can be a helpful tool to help ensure you are not over-firing
your appliance and it will also ensure you are burning fuel at a
rate that is most efficient. Place a stove thermometer on the top
of the appliance as shown in Figure 29. Monitor the tempera-
ture every 15 minutes or so until you become more familiar with
your appliance. Close the damper all the way down if you begin
to reach 500 degrees, as this is a sign that you are operating
your appliance at too high a temperature.
Low Burn
Medium Burn
High Burn
SEE MAINTENANCE SECTION FOR GLASS CLEANING GUIDELINES AND
TIPS FOR KEEPING THE GLASS CLEAN (PAGE 27).
Magnetic Thermometer
(recommended)
Figure 31
6. Once kindling is burning well, larger pieces of wood may be added,
then the door should be fully closed if there was the need to keep it
slightly open during start up.
7. For best results, use smaller pieces of wood to get the stove or
fireplace insert temperature very high before loading larger wood
for sustained burns. If necessary, crack the door to allow ignition of
the fuel charge. Now you can add larger pieces of wood and after
several minutes of high burn, set the left control for the desired heat
output. Check the exhaust in about 15 to 20 minutes (see Figure 32).
Large amounts of smoke indicate an improper burn setting (either
too high or too low). Adjust and recheck in 5 to 10 minutes.
23
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories Operation
FUEL
This appliance is designed and engineered to burn, dry, well-seasoned
wood only.
Dry, seasoned wood is that which has been cut, split and allowed to dry
under a covered area where air is free to flow and circulate under and
around the wood (not under a tarp or plastic). Make sure wood is not
stacked directly on the ground, it may absorb moisture from the ground.
It should be allowed to dry in these conditions for a minimum of six
months, preferably one year or more. IT MUST BE UNDERSTOOD
THAT WOOD CANNOT BE LEFT IN ANY KIND OF WET OR DAMP
AREA OR IT WILL NEVER BECOME COMPLETELY SEASONED.
Your stove will not operate at the level that it is meant to unless you use
seasoned, dry wood. Do not burn driftwood or wood that has been in salt
water, doing so will void your warranty. Do not burn incorrect fuels such
as flammable liquids, grease, treated wood, coal, garbage, cardboard,
solvents, or colored paper. Burning treated wood, garbage, solvents,
or colored paper may result in the release of toxic fumes. This type of
burning will also void your warranty.
Do Not store fuel within space heater installation clearances or within
the space required for refueling and ash removal.

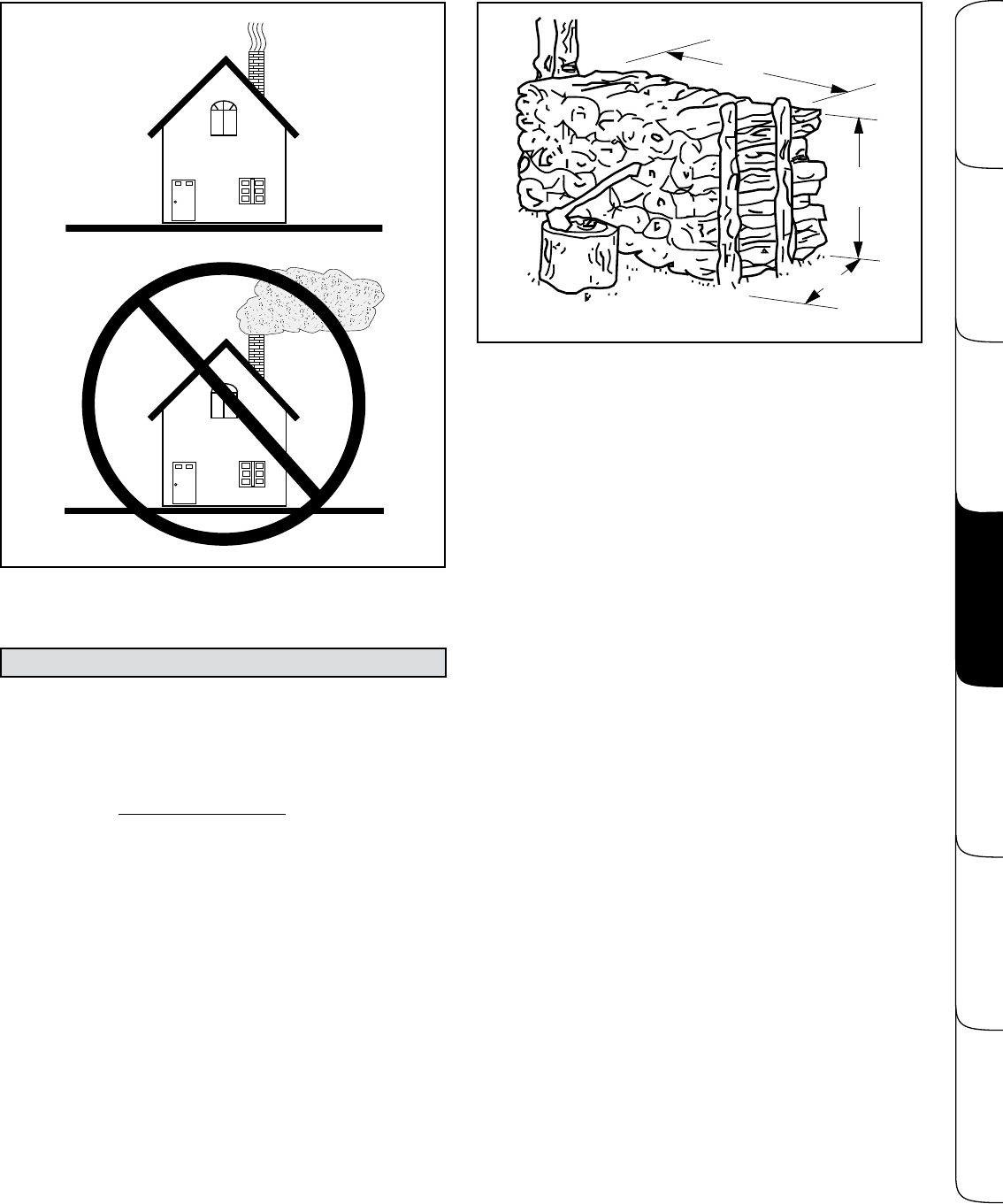

Figure 32
Figure 33
OK
4'
4'
8'
Standard
Cord of
Wood
What does “Well-Seasoned” mean?
When a tree is cut down, the wood is green, full of sap and moisture.
This moisture content can exceed 80%, which must be reduced to less
than 20%. Wood properly seasoned is then capable of generating the
heat the stove was designed to provide.
Green wood does not burn easily. Attempting to burn green wood often
results in a lot of smoke and very little fire. Time is the most important
factor in seasoning wood. Ideally the moisture content should be reduced
to 11-20%. NOTE: The use of a firewood moisture meter is recommended
to ensure the firewood contains less than 20% moisture.
Seasoning Guide
Softwoods - 6 months to 18 months
Hardwoods - 12 months to 24 months
Logs that are 5” diameter across or larger should be split in half, three
pieces if over 8 inches, and four pieces when over a foot across. If a tree
has been dead for 2 - 4 years it still needs to be cut, split, and seasoned
for 6 to 24 months depending on the wood.
8 Ft.
(2.4M)
4 Ft.
(1.2M)
4 Ft. (1.2M)
24
To achieve long burn times, after having thoroughly preheated the
stove, load the firebox without blocking the small air opening found in
the center front of the firebox. At this point, you may need to burn the
stove with the draft open for a few minutes to ignite the wood. All Lennox
Hearth Products stoves are EPA tested for emissions at low burn with the
air control completely closed. Whether or not you should burn your stove
withtheaircontrolcompletelyclosedwilldependonthefollowingfactors:
• Howyouloadyourwood
• Yourchimneytype,heightanddraft
• Yourwoodtypeanditsmoisturecontent
• Thetemperatureofthestoveorreplaceinsert
• Whichmodelstoveorinsertyouhave
In order to maximize the burn time of your stove you may need to experi-
ment to get the right balance of starting temperature, wood type, and
draft control setting for your particular venting configuration. Do not
reload the stove for long burns when the stainless secondary tubes or
baffles are glowing red, or when the stove is uncomfortably hot to load.
This indicates the stove is too hot to load for a long burn.
ACHIEVING CLEAN, LONG BURNS
It is important to know that for clean highly efficient burns you will
need to have sufficient temperatures inside the firebox for thorough
combustion. The best method for determining if you have sufficient
temperatures is to watch the brick lining in your firebox. When you first
light your stove or fireplace insert, the firebrick will turn a dark brown or
black. After 20 to 30 minutes of a hot fire, most of the bricks should return
to near their original beige color. This means the firebrick have reached
a high enough temperature for your stove to achieve high combustion
efficiency and you are ready to adjust the draft control to a lower setting.
Second and just as important, is achieving a high level of heat transfer
efficiency. Slowing the rate of flow through the stove or insert enhances
heat transfer, thus allowing more time for heat to be transferred into your
home. To do this, be sure to thoroughly preheat your stove and then
reduce the amount of primary air by closing the draft control down to a
lower setting. (More air may produce a slightly greater amount of heat,
but will greatly increase wood consumption).
To get the most out of your appliance, you will need to combine good
combustion efficiency with good heat transfer practices. The following
are some tips on how to operate your stove to achieve the highest overall
efficiency.
1. Thoroughly preheat your stove before slowing the burn rate by closing
the draft control.
2. When loading wood into a preheated stove or fireplace insert, allow
a vigorous fire to build before lowering the draft control.
3. Operate your stove as much as possible in the low to medium burn
ranges.
4. Do not lower the draft setting so low as to completely extinguish the
flames in the firebox. Check for at least some small flames twenty
minutes after setting the draft control.
5. Do not continually operate your stove or fireplace insert in the high
(wide open) setting. This wastes wood by carrying a great deal of
heat up the chimney and can damage your stove or fireplace insert
and chimney.
6. Go outside and check your chimney. More than a very small amount
of smoke indicates wasted heat, creosote build up and pollution (see
Figure 32).
MAXIMIZING YOUR STOVE’S OVERALL EFFICIENCY
GETTING THE MOST OUT OF YOUR STOVE
Recent developments in wood-burning technology have made wood-
burning a cleaner and more convenient way to heat your home. Overall
efficiency in a wood-burning appliance is a combination of combustion
efficiency and heat transfer efficiency. Whether heating your entire home or
just a room or two, your understanding of how to best operate your stove
or insert will enhance its overall efficiency and performance. What this
can mean to you is longer, cleaner burns, less wood use and more heat.
Thefollowingsectionswilloutlinetechniquesyoucanuseto“getthe
most out of your stove.” Please read them carefully.
25
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
ROOM AIR
BLOWER
SPEED
CONTROL/OFF
TWO POSITION
SWITCH
MANUAL/TEMPERATURE
AUTO-RESET TEMPERATURE
SWITCH N/O
POWER CORD
RED
BLK
RED
YLW
BLK
WHT
GRN
NOTE: SWITCH CONDITIONS
GIVEN AT ROOM TEMPERATURE
N/C = NORMALLY CLOSED
N/O = NORMALLY OPEN
= FEMALE DISCONNECT
= MALE DISCONNECT
= STUD CONNECTION
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories Operation
WARNING
The blower must be plugged directly into a properly
grounded three-prong receptacle, 120 VAC, 60 Hz, single
phase. Do not cut or remove the grounding prong from
this plug. Do not route power cord under or in front of
appliance.
Installation must be in accordance with National Elec-
trical Code, ANSI/NFPA 70 - latest edition. In Canada,
the current CSA C22.1 Canadian Electrical Code - latest
edition.
DANGER: Disconnect power before servicing blower.
In the event that you remove the blower for any reason,
make sure a cover plate (available from Lennox Hearth
Products) is installed before using the heater. Excessive
rear wall temperatures will result if the stove is burned
without the cover plate. The cover plate is not necessary
if a blower has never been installed because a knock-out
will be in place to act as the cover.

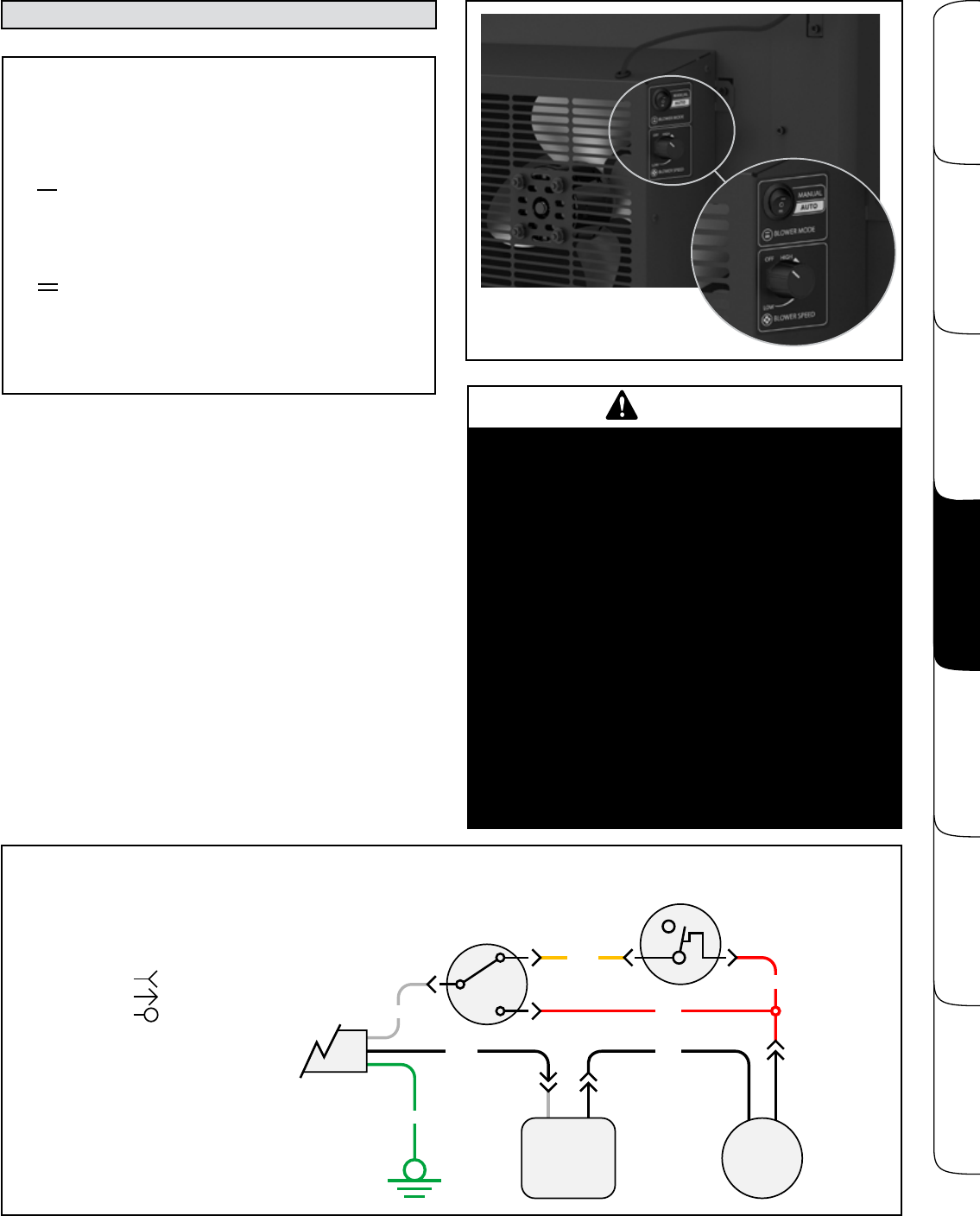

Figure 34 - Blower Wiring Schematic
Blower Operation Guidelines
While in auto operation mode, the blower will turn off and on based on
The temperature of the stove or fireplace insert. Auto operation ensures
there is sufficient heat build-up to warm the air being moved by the blow-
er before the blower is turned on. Likewise, when the stove cools off, the
blower is turned off to prevent circulating cool air. Depending on the size
and intensity of the fire it may be necessary to adjust the fan speed ac-
cordingly to ensure uninterrupted fan operation. For example a small fire
may require a slower fan speed to keep the heat output by the fan con-
sistent. If the blower is operated in manual mode, it may be necessary to
adjust the blower speed as the fire begins to burn down and the stove is
no longer hot enough to effectively heat the air moved by the blower. If
the air coming from the blower feels cool, one should either decrease the
blower speed or stoke the fire to build up more heat.
NOTE: Turn blower off before opening the door to load the fuel.
BLOWER OPERATION (OPTIONAL KIT)
Figure 35 - Blower Controls
Blower Operation
The blower can be operated in either manual or automatic mode. When
operated automatically, the blower will turn on when the stove is hot,
and turn off when the stove is cool.
MANUAL OPERATION: Flip blower mode switch to the
manual position (up) and adjust blower speed dial to desired setting.
To turn blower off, rotate blower speed dial counter clockwise until it
clicks“off.”
AUTO OPERATION: Flip blower mode switch to auto posi-
tion and turn blower speed dial clockwiseuntilitclicksoutofthe“off”
position. When the stove warms up (approx. 15-20 Mins), the blower
will automatically turn on (adjust blower speed dial to desired speed
setting). When the stove or insert cools down, the blower will auto-
matically turn off.
Manual / Auto
Rocker Switch
Blower Speed
Control Knob
26
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Door Gasket
Glass Retainer
Glass Retainer
Hex Head Screws
10 ea.
Glass with Gasket
Upper
Hinge Pin
Lower
Hinge Pin
Back View of Door
Back View of
Doorframe
DO NOT: Install or operate the stove or fireplace insert before reading this manual.
DO NOT: Close the draft beyond the point at which the flames are completely extinguished.
DO NOT: Open the stove or fireplace insert door without fully opening the draft first.
DO NOT: Burn driftwood or wood that has been in salt water. This includes some mill ends and scrap lumber that has been floated in salt water
on the way to the mill. (This will void your warranty).
DO NOT: Handle the Nickel Door Trim unnecessarily. Use the door handle only.
DO NOT: Force oversized logs into the firebox as this may dislodge the baffle assembly.
DO NOT: Close the door tightly during Burn-In Period.
DO: Be sure to clean any fingerprints from optional accessories that have plated surfaces before burning the appliance. Clean the plated
surfaces only with household type glass cleaner and a very soft cloth.
DO: Consult local building department if other than recommended clearances are desired.
DO: Read instructions for the baffle boards occasionally to ensure you have not bumped or moved them out of place when loading wood.
DO: Checkthechimneyandbafemonthlytomakesuretheyareclean.
DO: Burnseasoned,drywoodonly!(RAIN=WETWOOD)
DO: OpenthedoorfrequentlyduringBurn-InPeriodtokeepgasketfromadheringtothecuringpaint.
DO: Enjoy the warm feeling of your new Country® Collection stove.
DO’S AND DON’TS

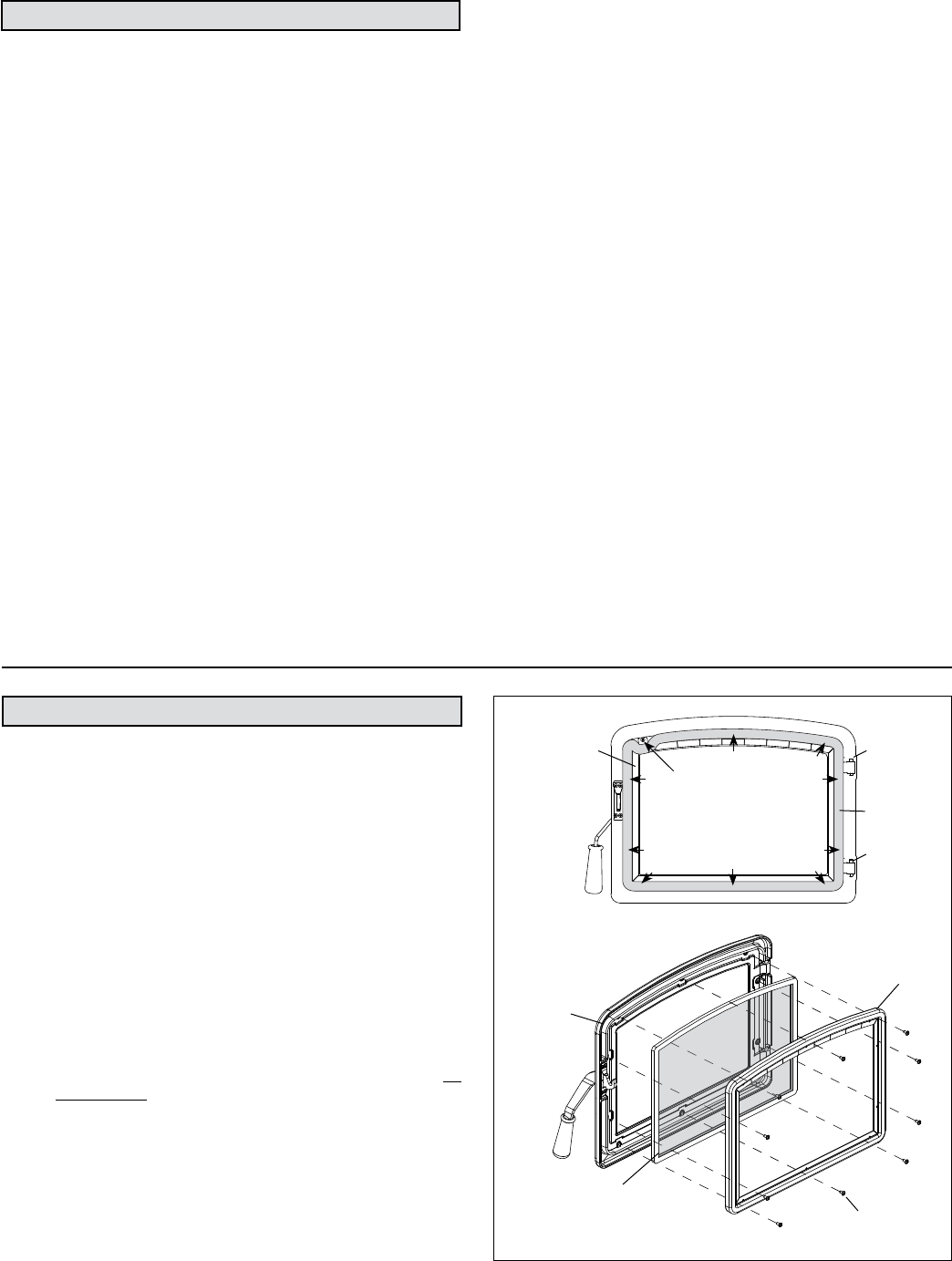

GLASS REPLACEMENT INSTRUCTIONS
(Refer to Figure 36)
Step 1. Remove Door Assembly - Remove the upper and lower hinge
pins by pressing the bottom of each hinge pin up, then pull out
from the top. Lift off door and place face down on a soft surface.
Step 2. Remove Glass Retainer Screws (10 ea.) - Using an 1/8” allen
wrench remove the ten glass retainer screws. To locate screws,
peel back the door gasket as necessary. The screws are located
by the holes in the stainless steel glass retainer strips.
Step 3. Remove Glass - Carefully remove broken glass one piece at a
time (protective leather gloves are recommended).
Step 4. Clean Door Frame - Clean the area of the door frame where the
new glass with gasket will be installed.
Step 5. Install New Glass Assembly - Install the new glass with gasket
(use only factory supplied 5mm ceramic glass with gasket. Do
not substitute).
Step 6. Reinstall Retainer and Screws - Carefully reinstall the glass
retainer and screws. Be very careful not to overtighten the screws
(this could result in glass breakage when the stove is hot).
Step 7. Reinstall Door - Align hinges on door frame with corresponding
hinge holes on the face of stove. Reinstall the upper and lower
hinge pins from the top.
MAINTENANCE
Figure 36 - Glass Replacement
Locate screws (10 ea.)
(peal back gasket as shown)
Arrows indicate
screw locations
27
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories Operation
Maintenance
DOOR GASKET: Periodically check gasket to make sure it is not over-
compressed. If compressed, replace with a special woven door rope.
(Don’t try substituting rope, only use Lennox Hearth Products door rope).
PLATED ACCESSORIES: Clean only with household type glass cleaner
and a very soft cotton cloth. Other products may damage plated finish,
paint and gaskets.
BAFFLE BOARDS: Your baffle boards should be inspected during ev-
ery chimney cleaning. If either board is damaged then replace baffle
boards.
GLASS CLEANING GUIDELINES
WARNING: DO NOT CLEAN GLASS WHEN APPLIANCE IS HOT!
Glass on any wood stove will not stay perfectly clean. Here are some
guidelinesforcleaningandcaringfortheglass:
• Ensure the stove is cold prior to cleaning glass.
• This appliance is designed to provide a flow of air over the inside of
the glass, where along with high heat helps inhibit build-up on the
glass. When build-up occurs, a commercial glass cleaner designed
for stoves is recommended. Regular household glass cleaners will
not clean creosote.
MAINTENANCE
DISPOSAL OF ASHES
Ashes should be scooped out of a cool stove or fireplace insert with a
small metal shovel. Ashes should be placed in a steel container with a
tight fitting lid and moved outdoors immediately. Other waste shall not
be placed in this container. The closed container of ashes should be
placed on a non-combustible floor or on the ground, well away from all
combustible materials, pending final disposal. If the ashes are disposed
of by burial in soil or otherwise locally dispersed, they should be retained
in the closed container until all the cinders have thoroughly cooled. Ashes
can ignite up to 72 hours after removal from the appliance.
Establish a routine for the fuel, wood burner and firing technique.
Check daily for creosote build-up until experience shows how often
you need to clean to be safe. Be aware that the hotter the fire the
less creosote is deposited, and weekly cleaning may be necessary
in mild weather even though monthly cleaning may be enough in
the coldest months. Contact your local municipal or provincial fire
authority for information on how to handle a chimney fire. Have a
clearly understood plan to handle a chimney fire.
DOOR HINGES: If door hinges need lubricating, use an anti-seize com-
pound (never use oil) available from your Lennox Hearth Products dealer.

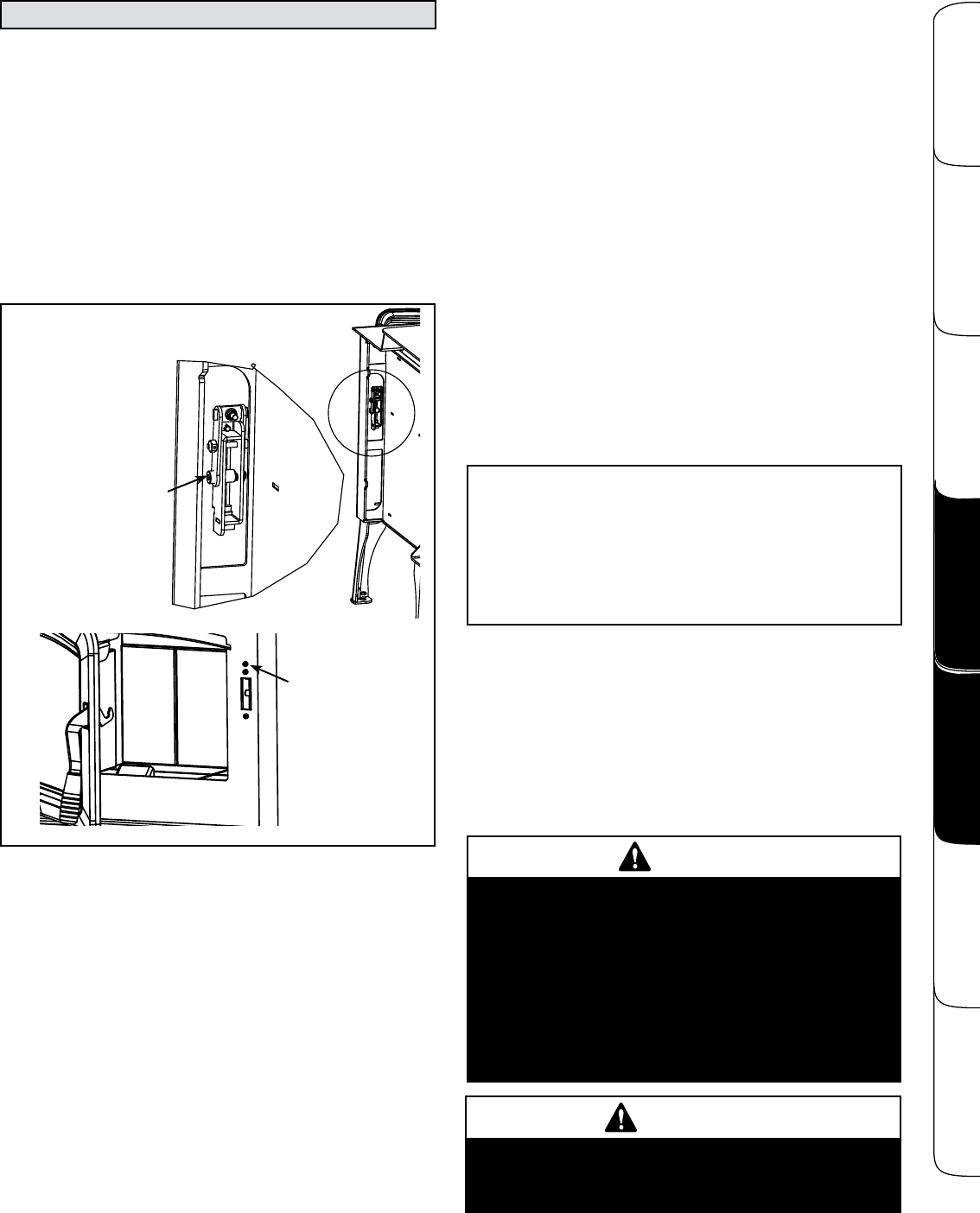

DOOR LATCH: Adjustment Instructions - Remove the right side heat
shield by loosening the 3 screws located on the back of the stove. Using
a“L”shaped5/32”allenwrench,loosenthelockingscrewinthelatch
assembly as shown in Figure 37. With the locking screw loosened, adjust
the top 5/32” allen screw (Figure 37) in the front of the stove to adjust
the door tension. Turning the screw to the right will tighten the door,
turning the screw to the left will loosen the door. When you loosen the
door it will be easiest to pull the roller pin to the full forward position and
make slight adjustments to tighten to the desired tension. Assure that
the tension on the front door creates a good seal between the gasket on
the front door and the firebox front. After adjusting the door tension,
re-tighten the lock screw and replace the heat shield.
Figure 37
CAUTION
Cleaning Glass: Ensure appliance is cold prior
to cleaning glass. A commercial glass cleaner
designed for stoves is recommended. Do not use
abrasive cleaners. Do not clean with any materials,
which may scratch or otherwise damage the glass.
Scratches on the glass can develop into cracks or
break. Inspect the glass regularly. If you detect a
crack, extinguish the fire and contact your dealer
for a replacement.
WARNING
Inspect and clean chimney and connector frequently.
Under certain conditions of use, creosote buildup
may occur rapidly.
• Donotuseabrasivessuchassteelpads,steelwoolorovencleaner
as they will scratch the glass. Never scrape glass with a razor blade
as this may pit the glass and make it impossible to clean in the future.
• Donotusechemicalglasscleanersastheymaydamagethegaskets
or painted surfaces.
TIPS FOR KEEPING THE GLASS CLEAN
• Burnonlydryseasonedcordwood.Wet wood = Dirty glass.
• Ashort,hotre(15-20minutes)mayhelptocleanoffsomeofthe
normal buildup. Lower burns = more build-up. Higher burns = less
build-up.
• Keepfreshlyloadedwoodawayfromtheglass.
• Afterreloading,allowallthewoodtocatchamebeforedampering
down the stove.
CREOSOTE FORMATION AND NEED FOR REMOVAL
When wood is burned slowly, it produces tar and other organic vapors,
which combine with expelled moisture to form creosote. The creosote
vapors condense in the relatively cool chimney flue of a slow-burning
fire. As a result, creosote residue accumulates on the flue lining. When
ignited, this creosote makes an extremely hot fire.
The chimney and chimney connector should be inspected at least once
monthly during the heating season to determine if a creosote buildup has
occurred. If creosote has accumulated (1/8” [3 mm] or more), it should
be removed to reduce the risk of a chimney fire.
Locking Screw
Adjustment Screw
28
Problem Solution
POOR DRAFT: Extend chimney in length or have the chimney realigned to the proper size flue. Oversized chimneys normally have
poor drafts. Remember, the stove or fireplace inserts’ draft depends solely on the natural draft of the chimney (See
Draft Requirements on Page 4). If your stove or fireplace insert is not drafting properly, your chimney is the problem.
All stoves are thoroughly tested to ensure proper draft with the correct size chimney flue.
EXCESSIVE DRAFT: With better chimneys being more common, excessive draft can be an issue. Alleviate excessive draft by slowing the
burn rate of the stove or fireplace insert once it has reached proper operating temperature (See Maximizing Your Stoves
Overall Efficiency on Page 24).
DIRTY GLASS: 1) Burn smaller, hotter fires and check to make sure you are not setting the draft down too far with the draft control.
2) Make sure your wood is well-seasoned and dry (not open to rain - see Creosote [Page 27] and Fuel [Page 23] sec-
tions).
3) See Poor Draft section (above) and Cleaning Glass on Page 27.
SMOKES WHEN 1) If smoke is entering the room, check to make sure your baffle boards are properly installed.
DOOR IS OPEN: 2) Check the chimney for blockage due to creosote (see Chimney [Page 6] and Creosote [Page 27] sections).
3) Check draft (See POOR DRAFT section above).
WOOD BURNS 1) The draft control must be closed further.
TOO FAST: 2) Add fuel at lower firebox temperatures.
3) Load wood side to side and reduce the flow of air under wood.
4) The door seal may need replacing, check for leakage.
5)See“ExcessiveDraft.”
POOR HEAT OUTPUT: 1) Check your wood. Wet, moist, unseasoned wood will not produce heat.
2) Your stove or fireplace insert needs to be seasoned (moisture removed from the steel and brick). Continue to burn a
fire. It normally takes from one to three weeks of burning to season your stove (See Burn-In procedures on Page 21).
3) See Excessive Draft section above.
PAINT GIVES OFF Paint is tempering-in. Burn only moderately hot for the first few days until paint is fully cured.
ODOR (smoke): Then burn a very hot fire to cure any paint that may not easily cure. Open windows or door to ventilate (See Burn-In
Period on Page 21).
TROUBLESHOOTING
29
Contact an Lennox Hearth Products dealer to obtain any of these
parts. Never use substitute materials. Use of non-approved parts
can result in poor performance and safety hazards.
REPLACEMENT PARTS - MODELS GRANDVIEW™ 230 AND 300
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories Troubleshooting
FRONT DOOR PARTS LIST
Item # Description GV230 GV300
1 Inner Door Frame, Cast Iron H8365
2 Outer Door Frame, Cast Iron H8366
3 Glass Gasket 1” H8380
4 Door Gasket 7/8” H5639
5 Ceramic Glass With Gasket H8392
6 Door Handle Kit H8395
7 Door Latch Assembly (4 button head screws
and latch)
H8397
8 Glass, Retainer Kit H8394
9 Door Hardware Kit (includes 2 pins, door
roller and 10 button head screws and door
set screw)
H8398
LEG PARTS
10 Coastal Brushed Nickel Leg - single leg H8383
10 Coastal, Nickel Leg - single leg H8384
10 Coastal, Black Leg - single leg H8385
11 Lakeview, Steel Black Leg - single leg H8386
--- Olympic, Brushed Nickel Cast Leg - single leg H5619
--- Olympic, Nickel Cast Leg - single leg H5621
--- Olympic, Black Cast Leg - single leg H5669
--- Leg, Hardware, Bolt, Kit H8382
PEDESTAL PARTS
14 Ash Plug Remover and Rake H5564
15 Removable Ash Plug H8381
BLOWER PARTS
Item # Description GV230 GV300
16 Blower Snap Switch H8374
17 Blower Blade H8375
18 Blower Cover H8376
19 Speed Control - High Temperature H5742
20 Blower Rocker Switch H8066
--- Blower Opening Cover Plate H8399
22 Blower Power Cord H5660
MISCELLANEOUS PARTS
--- Dry Graphite (apply to door handle
bushing)
71052
--- Anti Seize, 2 Gram Pouch H5633
23 Heat Exchanger Bolt Kit H8387
--- Flue Ring Bolt Kit H8388
--- Ash Drawer Hardware Kit H8389
--- Taptite Qty 8 (34055) H8390
--- Button Head Screw Qty 8 (34027) H8391
FIREBOX PARTS
--- Secondary Tube Retainer Clips H8367
--- Replacement Secondary Air Tube Kit H8373 H9081
27 Complete Firebrick Kit (GV230 - 20 bricks
included, GV300 - 26 bricks included)
H8378 H9082
28 Firebrick 4-1/2” X 9”, Each H5612
29 Baffle Board Kit H8379 H9083
BODY PARTS
30 Damper Rod H8393
31 Damper Assembly H8396
32 Stove Top Replacement H8368 H9084
33 Cast Iron Heat Exchanger (hardware
included)
H8369 H9085
35 Left Side Heat Shield (hardware
included)
H8370 H9086
34 Right Side Heat Shield (hardware
included)
H8371 H9087
36 Rear, Heat, Shield (hardware included) H8372 H9088
37 Heat Exchanger Gasket H8377
Parts / Accessories
30
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

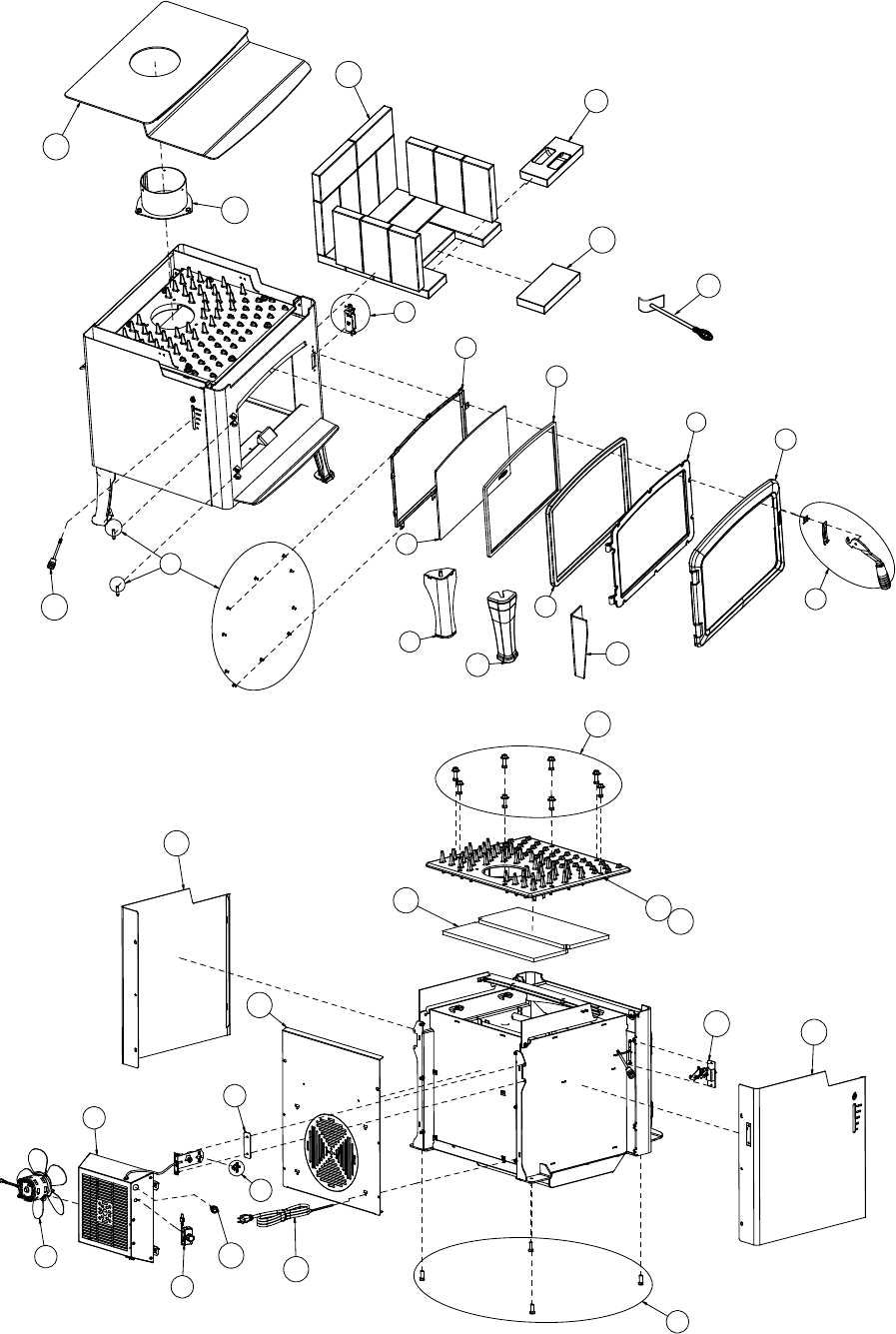

REPLACEMENT PARTS - MODELS GRANDVIEW™ 230 AND 300
32
15
28
14
2
1
3
5
4
12
10
11
8
7
27
24
6
9
30
17
19
20
16
21
18
22
13
34
31
33
37
23
29
36
35
31
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

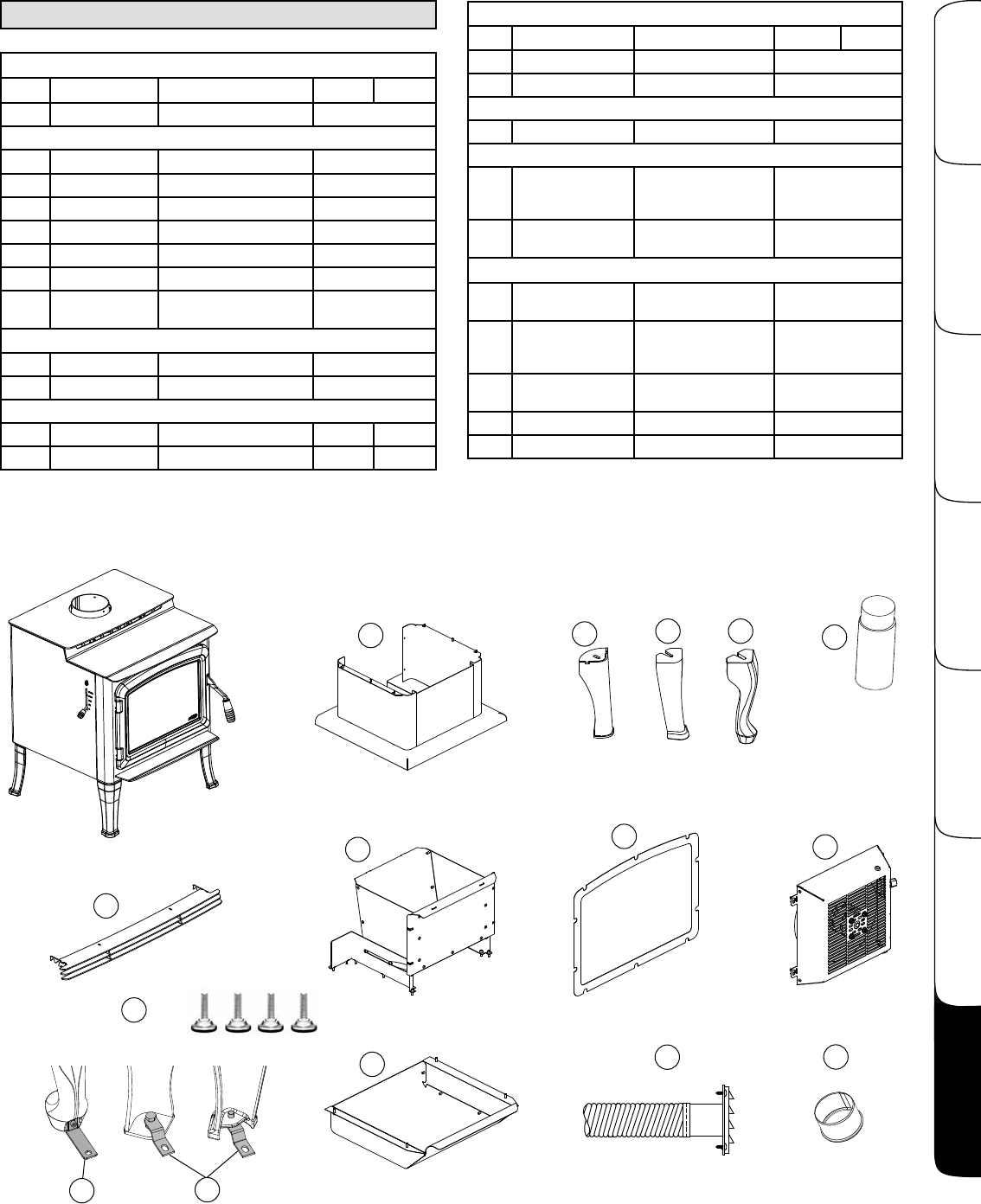

ACCESSORIES - MODELS GRANDVIEW™ 230 AND 300
Planning Installation Safety and General
Installation
Operation
Maintenance
Troubleshooting
Parts / Accessories
Parts / Accessories
DOOR TRIM
Item # Model Description GV230 GV300
8DRTRM-GV230-NKL Door Trim, Nickel H8346
8DRTRM-GV230-BRNKL Door Trim, Brushed Nickel H8347
BLOWER
9BLWR-GV-700-SS Blower H8350
OUTSIDE AIR KITS
10 UZIAD Outside Air Coupler for
Connection of UZI to
Fireplace
UZIAD
11 UZI Outside Air Kit (4’’ I.D. x
10 ft. long insulated flex)
UZI
COMMON ACCESSORIES
12 TSPK-B Touch-up Spray Paint Kit,
Black
H8159
13 WP-LEGF-LBRKT Leg Tie Down Kit, Coastal
& Lakeview Legs, Mobile
Homes
H7665
14 W-LEGF-LBRKT Leg Tie Down Kit, Olympic
Legs, Mobile Homes
H5308
15 BELLA-LLK Leg Leveling Pads H7638
---- W-LLK Leg Leveling Bolt Kit H8407
132 4
9
8
12
15
11
13
14
10
5
6
7
P
A
I
N
T
PEDESTAL (REQUIRED)
Item # Model Description GV230 GV300
1PED-GV Pedestal, Black H8343
OR LEGS (REQUIRED)
2LEG-COSTL-BLK Coastal Legs, Black H8339
2LEG-COSTL-BRNKL Coastal Legs, Brushed Nickel H8340
2LEG-COSTL-NKL Coastal Legs, Nickel H8341
3LEG-LKVIEW-BLK Lakeview Legs, Black H8342
4LEG-OLY-B Olympic Sculptured Black 70000
4LEG-OLY-N Olympic Sculptured Nickel 70002
4LEG-OLY-BRN Olympic Sculptured Brushed
Nickel
70008
ASH DRAWERS
5ASHDR-KIT-PED-GV Pedestal, Ash Drawer Kit H8344
6ASHDR-KIT-LEG-GV Leg, Ash Drawer Kit H8345
LOUVERS
7LVP-GV230-BLK Louvers, Black H8348 H8959
7LVR-GV230-BRNKL Louvers, Brushed Nickel H8349 H8960
Printed in U.S.A. © 2011 Lennox Hearth Products LLC
P/N 506031-01 Rev. F 07/2013
32
Your Appliance’s Model Number _______________________________________
Your Appliance’s Serial Number ________________________________________
The Date On Which Your Appliance Was Installed __________________________
Your Dealer's Name _________________________________________________
WARRANTY
Your wood appliance is covered by a limited warranty (provided with the
appliance). Please read the warranty to be familiar with its coverage.
Retain this manual. File it with your other documents for future refer-
ence.
REPLACEMENT PARTS
See Page 29 for a complete replacement parts list. Use only parts sup-
plied from the manufacturer.
Normally, all parts should be ordered through your Lennox Hearth
Products distributor or dealer. Parts will be shipped at prevailing prices
at time of order.
Whenorderingrepairparts,alwaysgivethefollowinginformation:
1. The model number of the appliance.
2. The serial number of the appliance.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the appliance.
If you encounter any problems or have any questions concerning the
installation or application of this system, please contact your dealer.
LENNOX HEARTH PRODUCTS
1508 Elm Hill Pike, Suite 108
Nashville, TN 37210
visit us at www.LennoxHearthProducts.com
1-800-655-2008
PRODUCT REFERENCE INFORMATION
We recommend that you record the following important information about
your appliance. If you did not purchase your appliance directly from a
Lennox Hearth Products dealer, then please call 1-800-655-2008 for the
name and phone number of your nearest Lennox Hearth Products dealer
who will answer your questions or address your concerns.
1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210
Lennox Hearth Products reserves the right to make changes at any time, without notice, in
design, materials, specifications, and prices, and also to discontinue colors, styles, and products.
Consult your local distributor for fireplace code information.
LENNOX®, the LENNOX design, DAVE LENNOX, the image of DAVE LENNOX and other related
LENNOX marks are registered or common law trademarks of Lennox Industries Inc. and are
used with permission.
P506031-01
