Power and industrial test equipment.

The word ‘Megger’ is a registered trademark

WWW.MEGGER.COM

More than 20 new products

Safer working

protect yourself with CAT IV 5kV and 10kV testers

At last

a complete transformer test system

Forms based

software that works the way you do

Any time, any place, anywhere

to your specification –

The new van based

cable fault location system

Turn that noise down

New earth ground testers

with switchable frequencies

WWW.CABLEJOINTS.CO.UK

THORNE & DERRICK UK

TEL 0044 191 490 1547 FAX 0044 477 5371

TEL 0044 117 977 4647 FAX 0044 977 5582

WWW.THORNEANDDERRICK.CO.UK

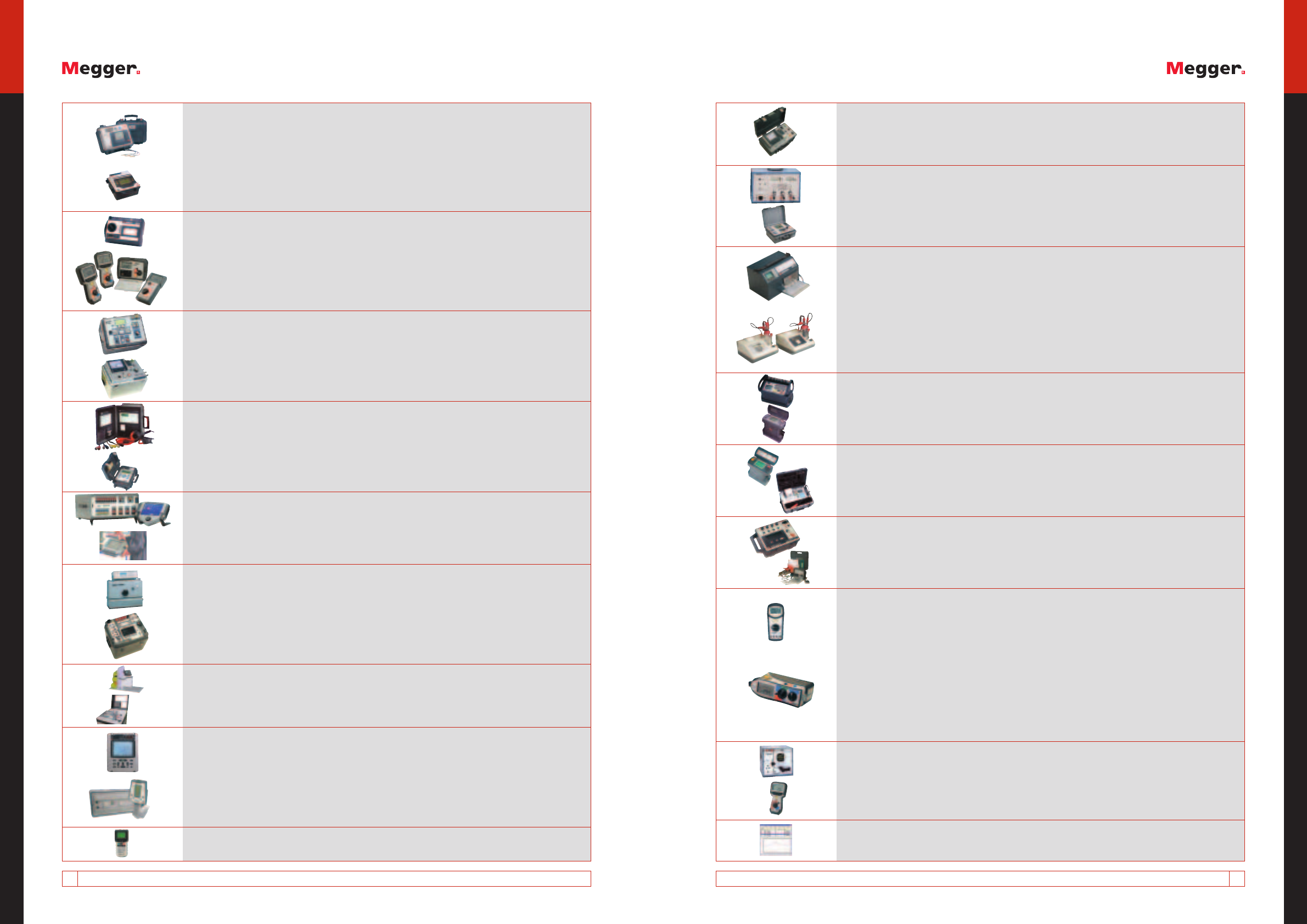

CONTENTS 3

Contents

2NEW PRODUCTS

New products

Advanced manufacturing technology

Megger believes that the best way to secure good quality products and intellectual property is through excellence in

engineering and its production facilities.

Key processes and expertise are kept in-house, and engineering teams are located on-site at all the company’s

factories.

Advanced manufacturing technology including automated wave-solder machinery and robotic surface mount

component technology help keep costs down and quality up.

Taking the lead for safety!

As an essential aid to safer testing, Megger has

introduced a new and comprehensive family of test

leads for use with its insulation resistance testers.

Three metres long, and made from ultra-flexible

silicone-insulated cable to ensure long life, the new

leads cover virtually all requirements related to

insulation resistance testing at up to 10 kV.

For use in applications where the space for making

test connections is not restricted, the test leads are

fitted with large insulated clips. They have a

maximum jaw capacity of 34 mm, and an insulation

rating of 10 kV.

For applications where space is more restricted, but a

useful level of protection from the output of the

insulation tester is nevertheless required, the range

includes leads that incorporate medium-sized

insulated clips. With an insulation rating of 6 kV,

these leads have a maximum capacity of 18 mm.

In some instances, such as motor terminal boxes,

space for connecting the test leads is so restricted

that insulated clips cannot be used. For these

applications, Megger offers test leads with

uninsulated clips that have a maximum capacity

of 18 mm.

Leads with large, medium and uninsulated clips are

supplied in colour-coded sets of three – positive,

negative and guard.

Also included in Megger’s new test lead family are

leads designed to allow insulation resistance testing

to be carried out more safely on low voltage control

circuits in the vicinity of high voltage equipment.

With insulation rated at 1 kV, these leads are supplied

in sets of two, and incorporate probe-type tips with

push-on crocodile-clip adaptors.

New products 2

Insulation test 4

Insulation tester guide 6

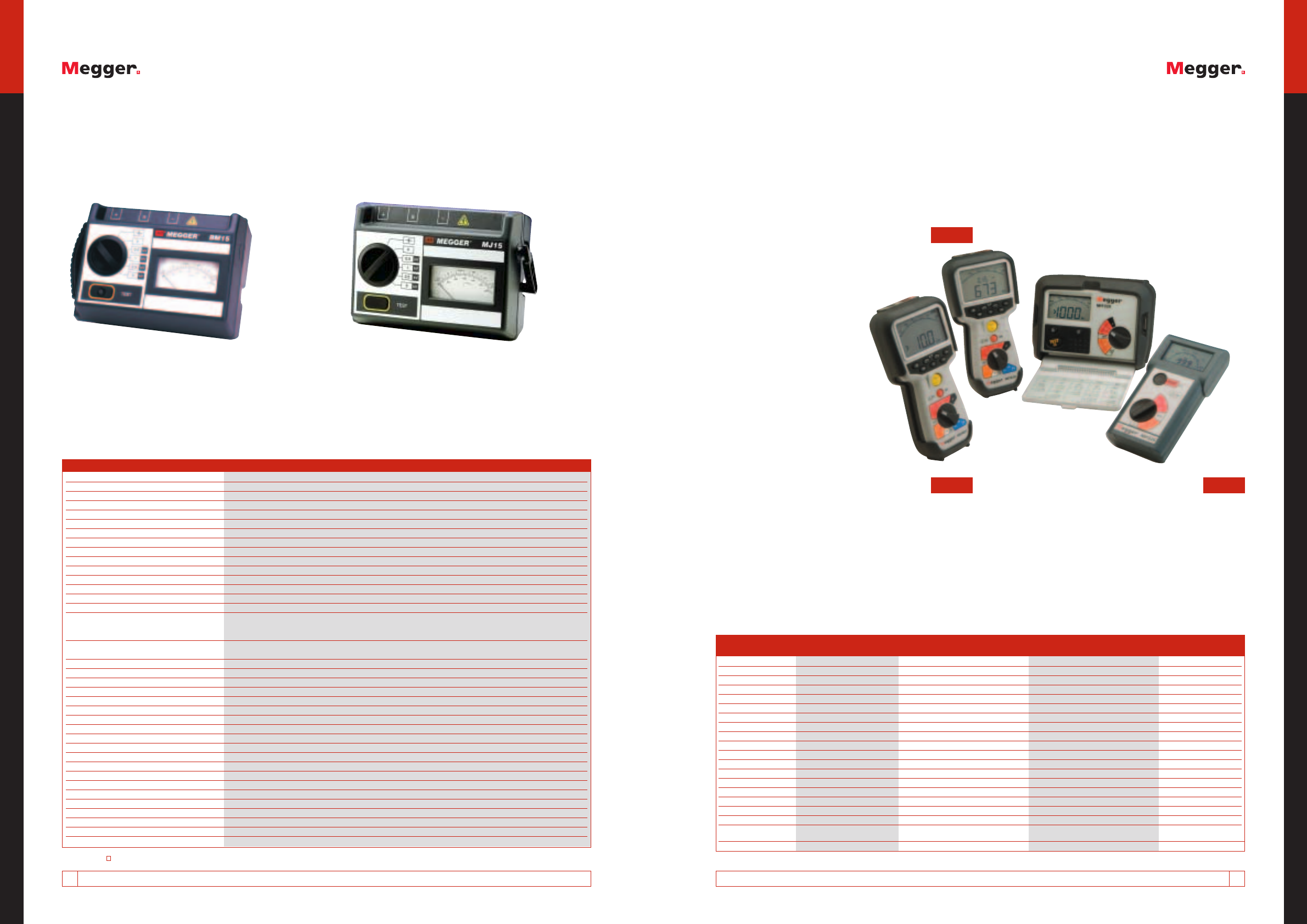

CATIII and CATIV hand-held insulation testers 7

High voltage test equipment 8

Tan delta 8

Capacitance dissipation factor and tan delta 9

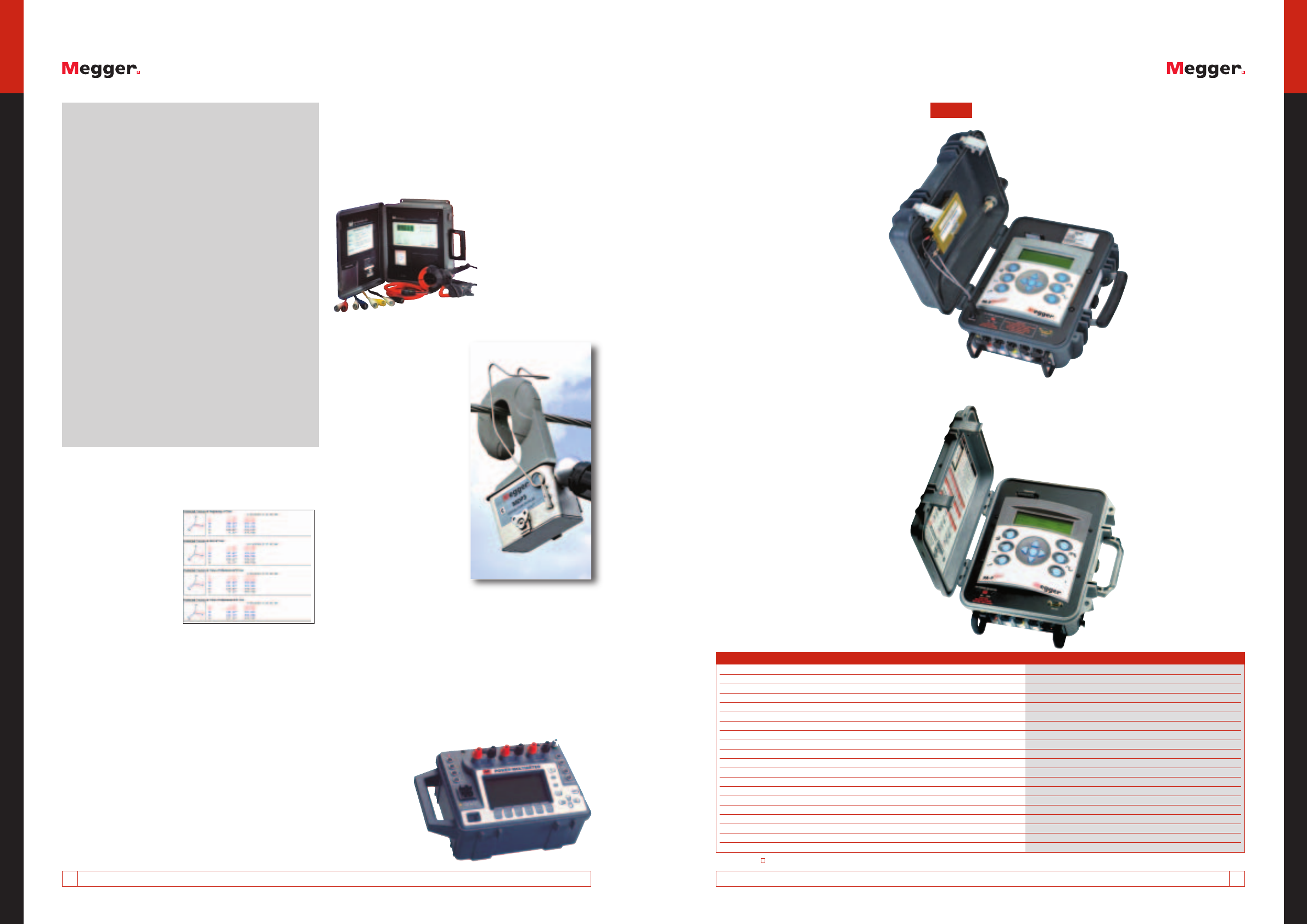

Power quality 10

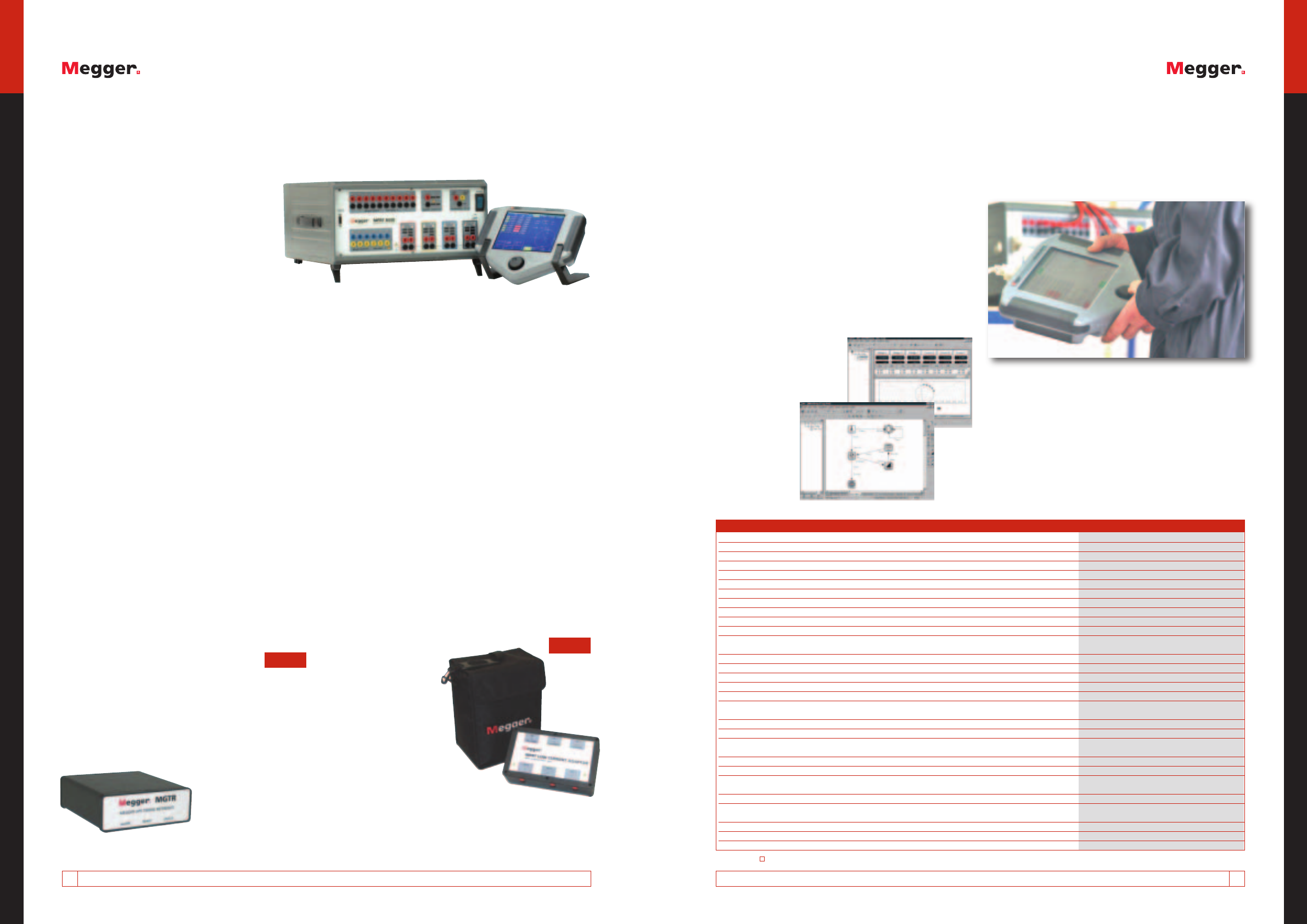

Automatic protection test 12

Primary injection test 14

Secondary injection test 15

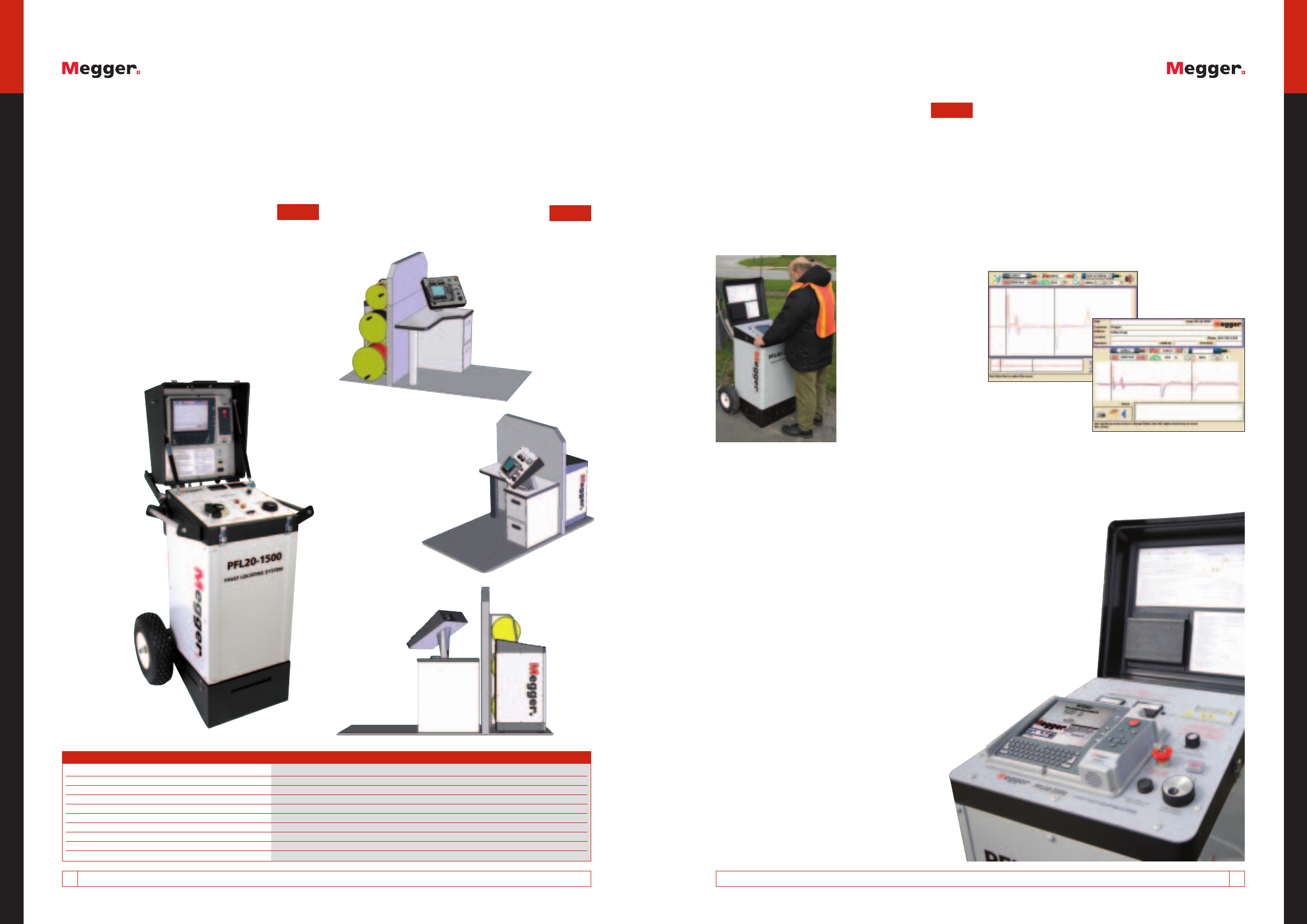

Cable fault location 16

Time domain reflectometry 18

Cable trace and voltage detection 19

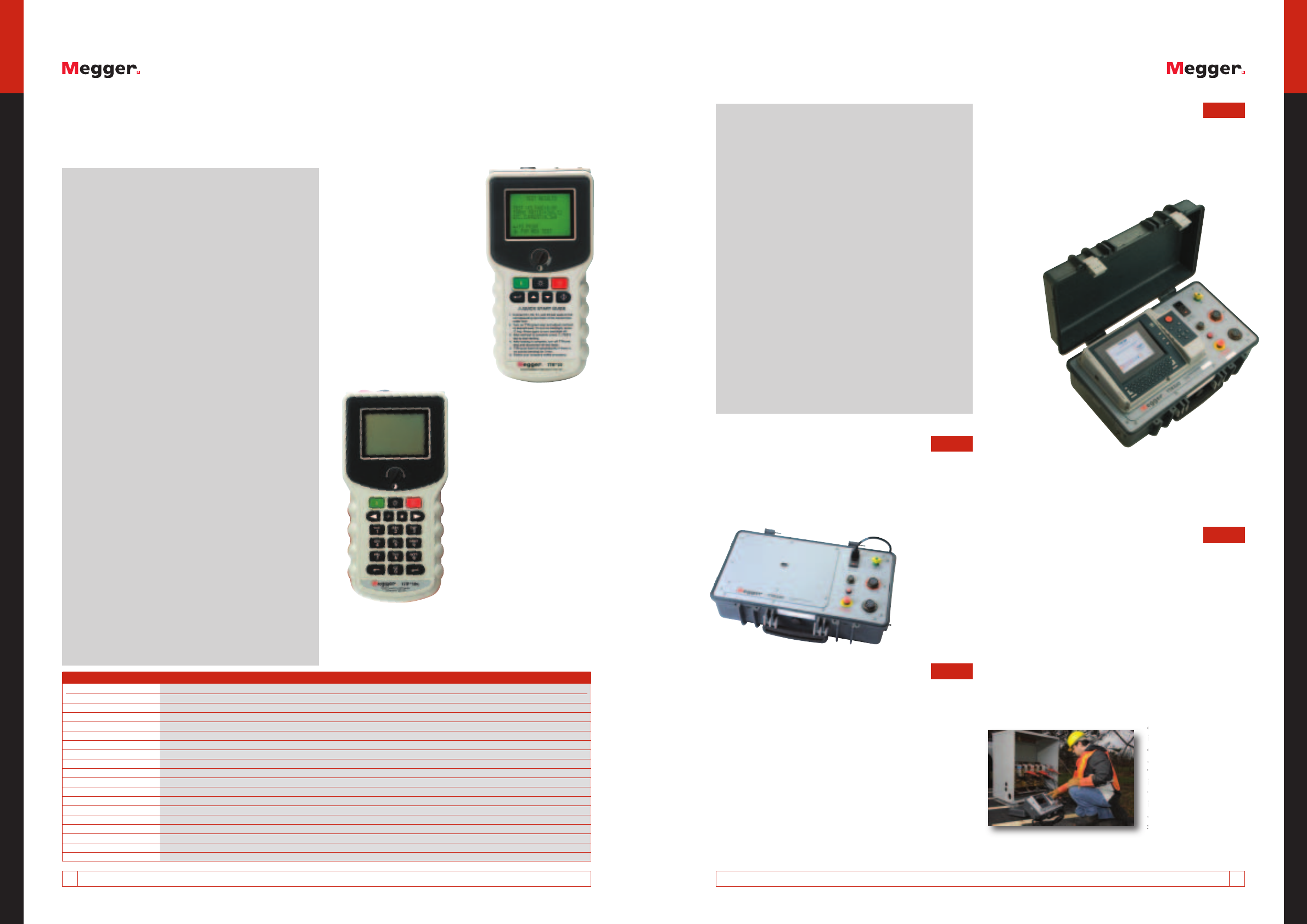

Transformer test 20

Transformer insulating oil testing 24

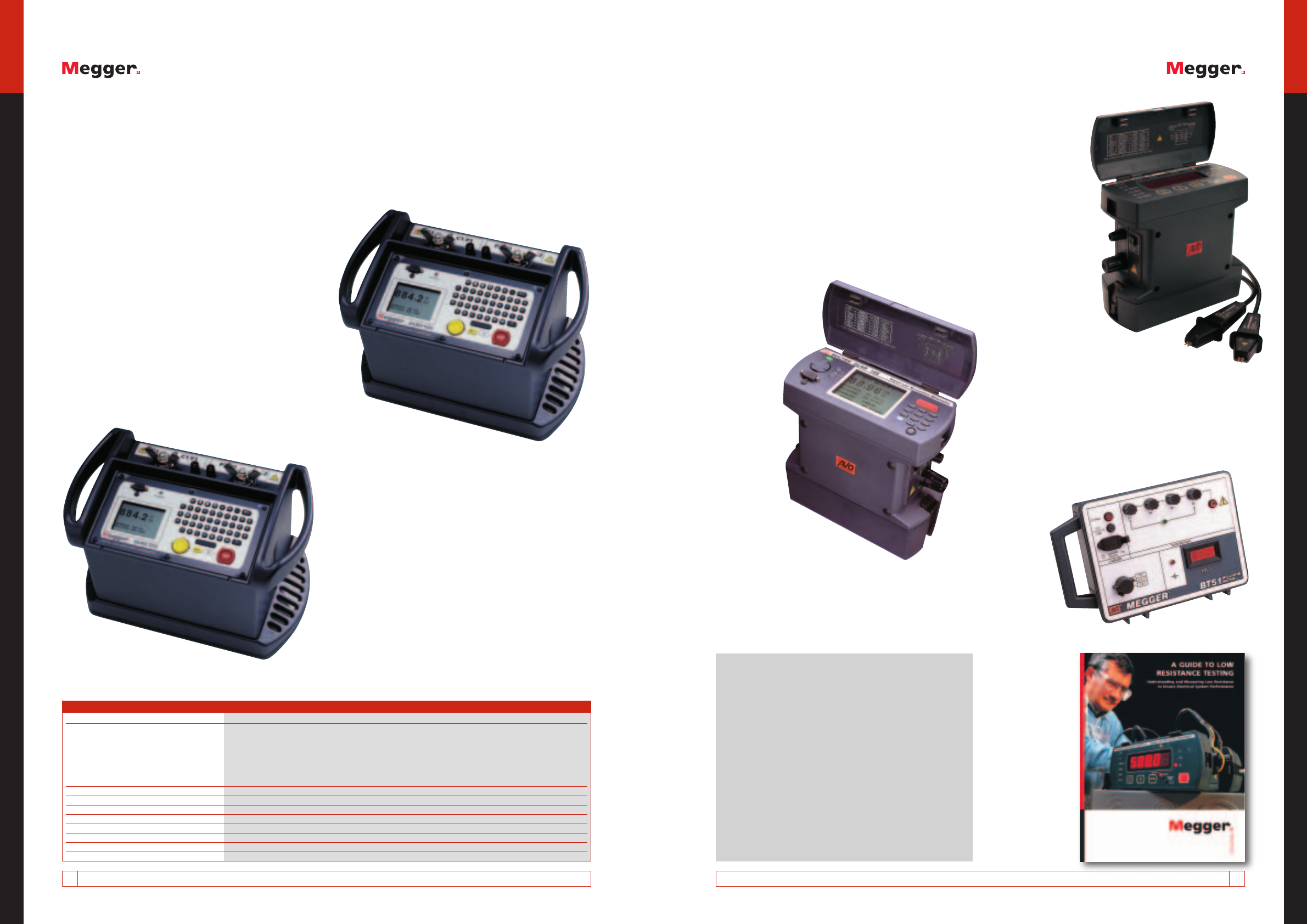

Low resistance test 26

Battery test 28

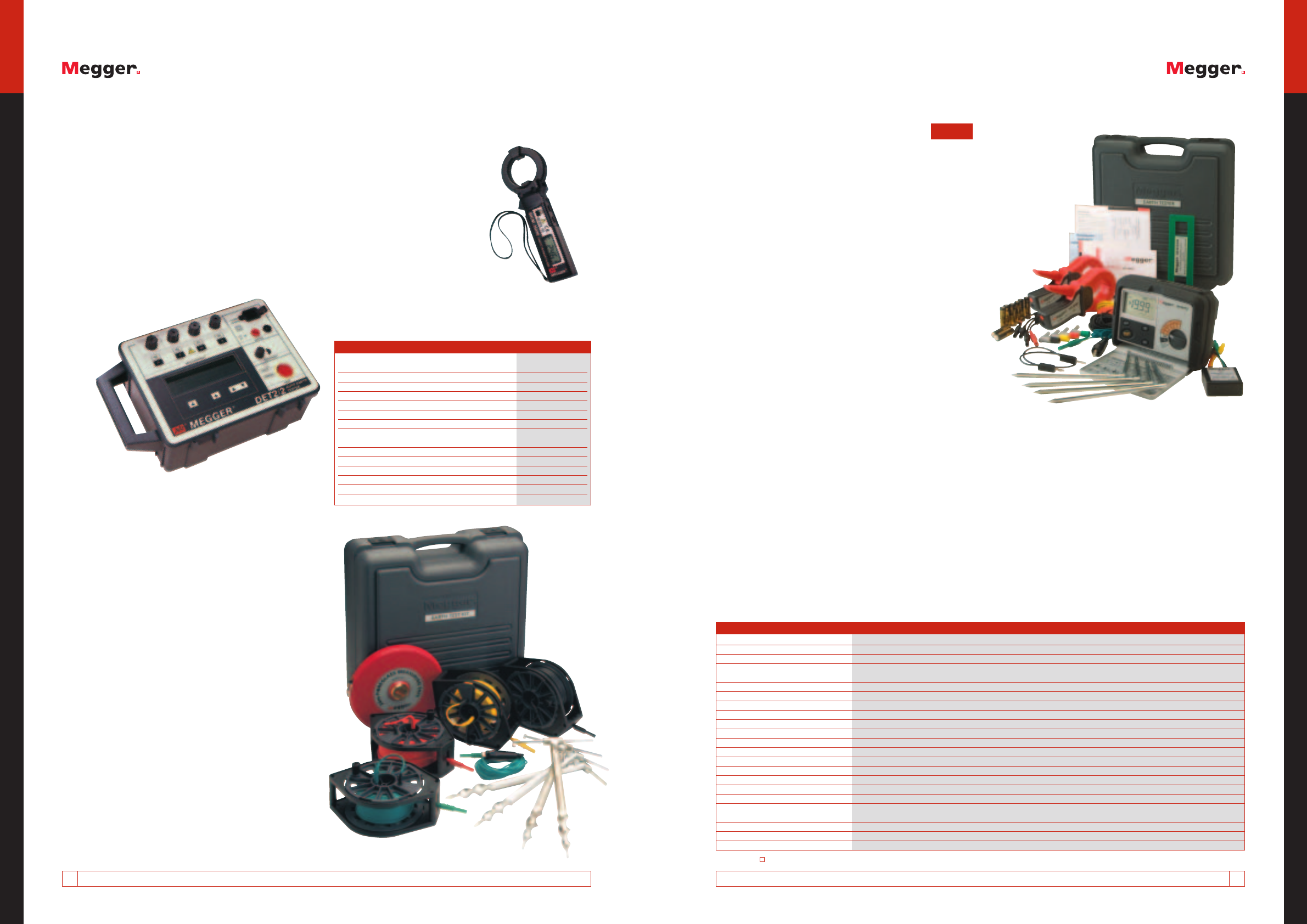

Earth ground resistance test 30

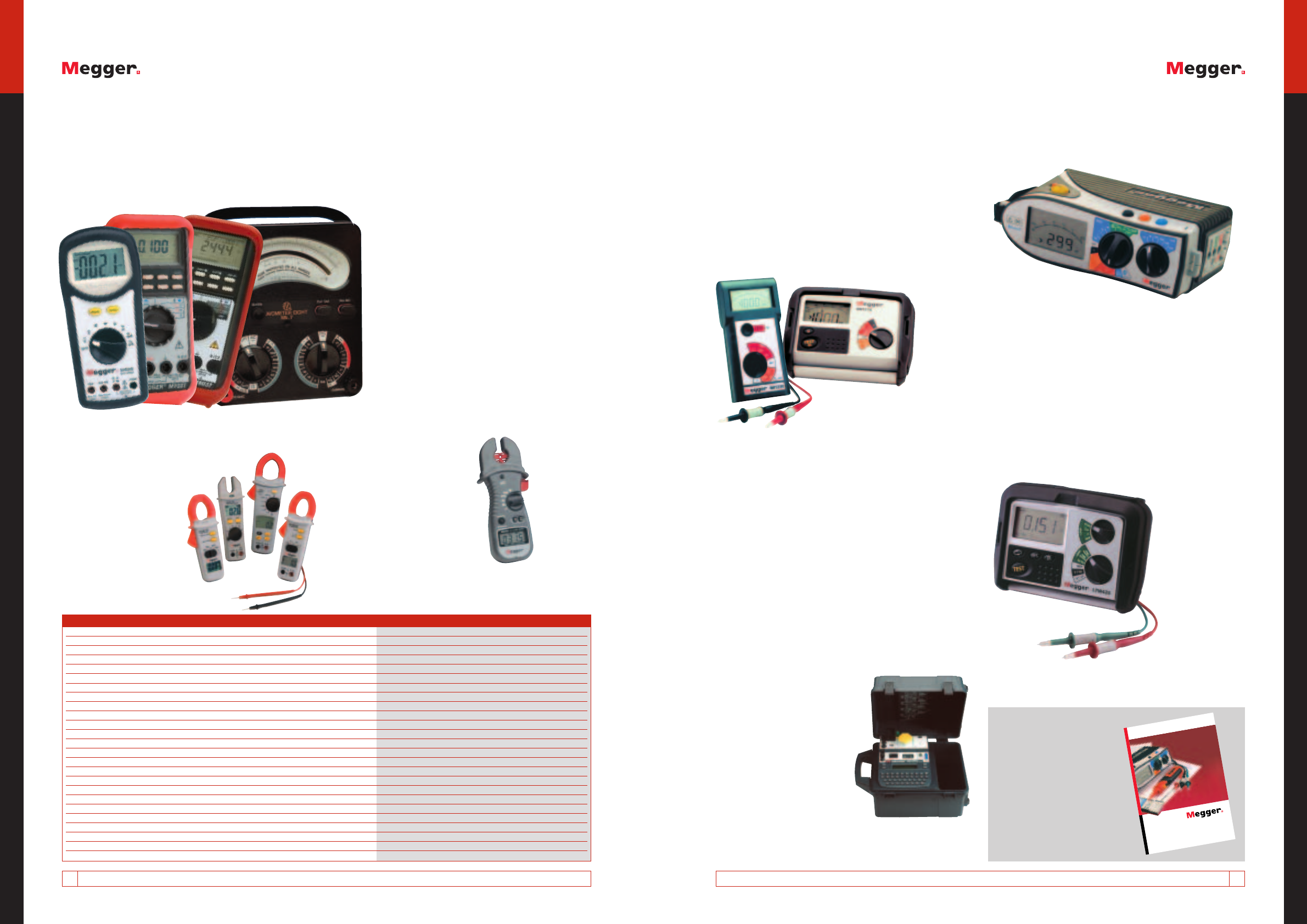

Multimeters and clampmeters 32

Hand-held electrical test tools 33

Watthour meter test 34

CATIV testing 35

Test and measurement software 36

Index 38

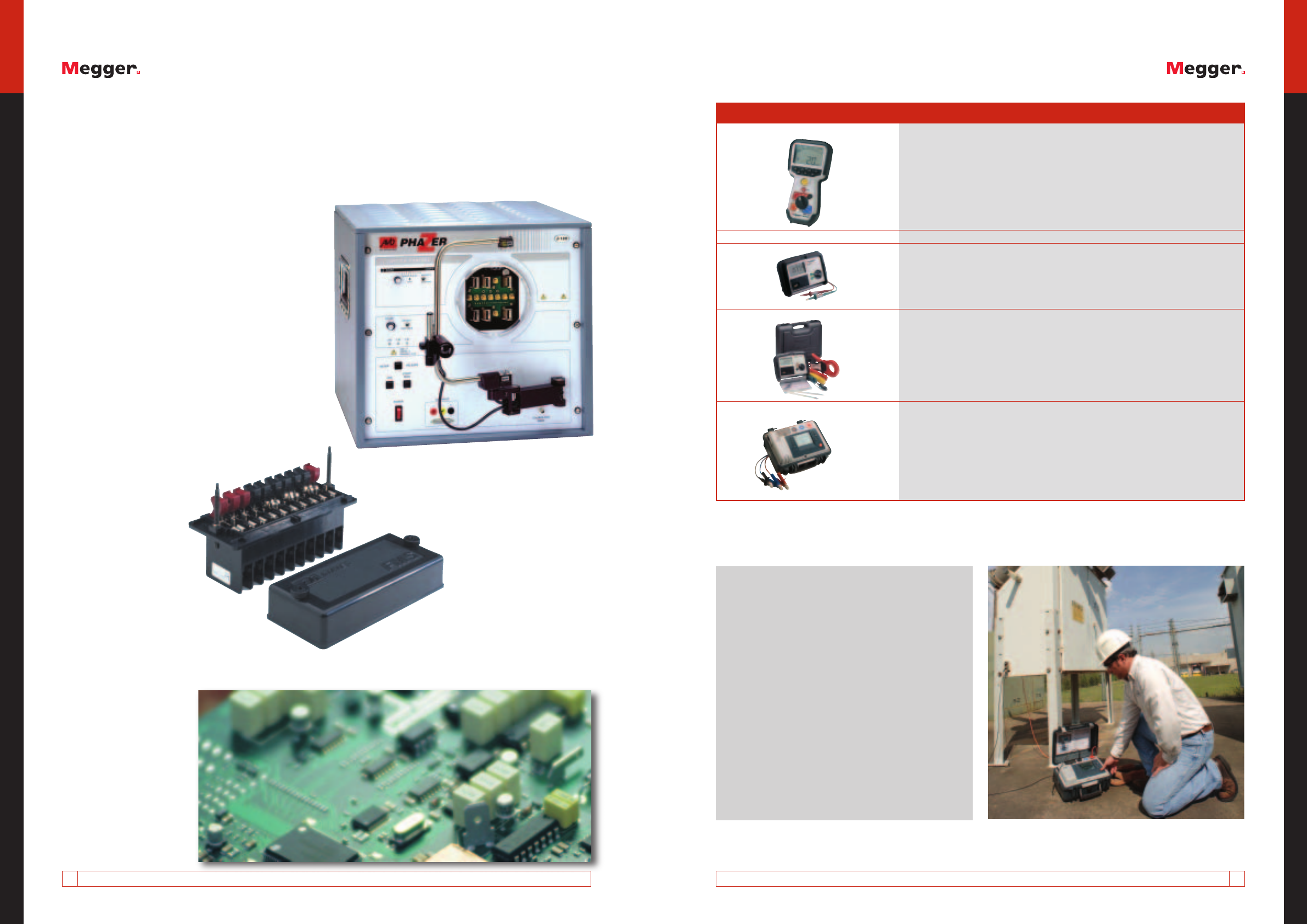

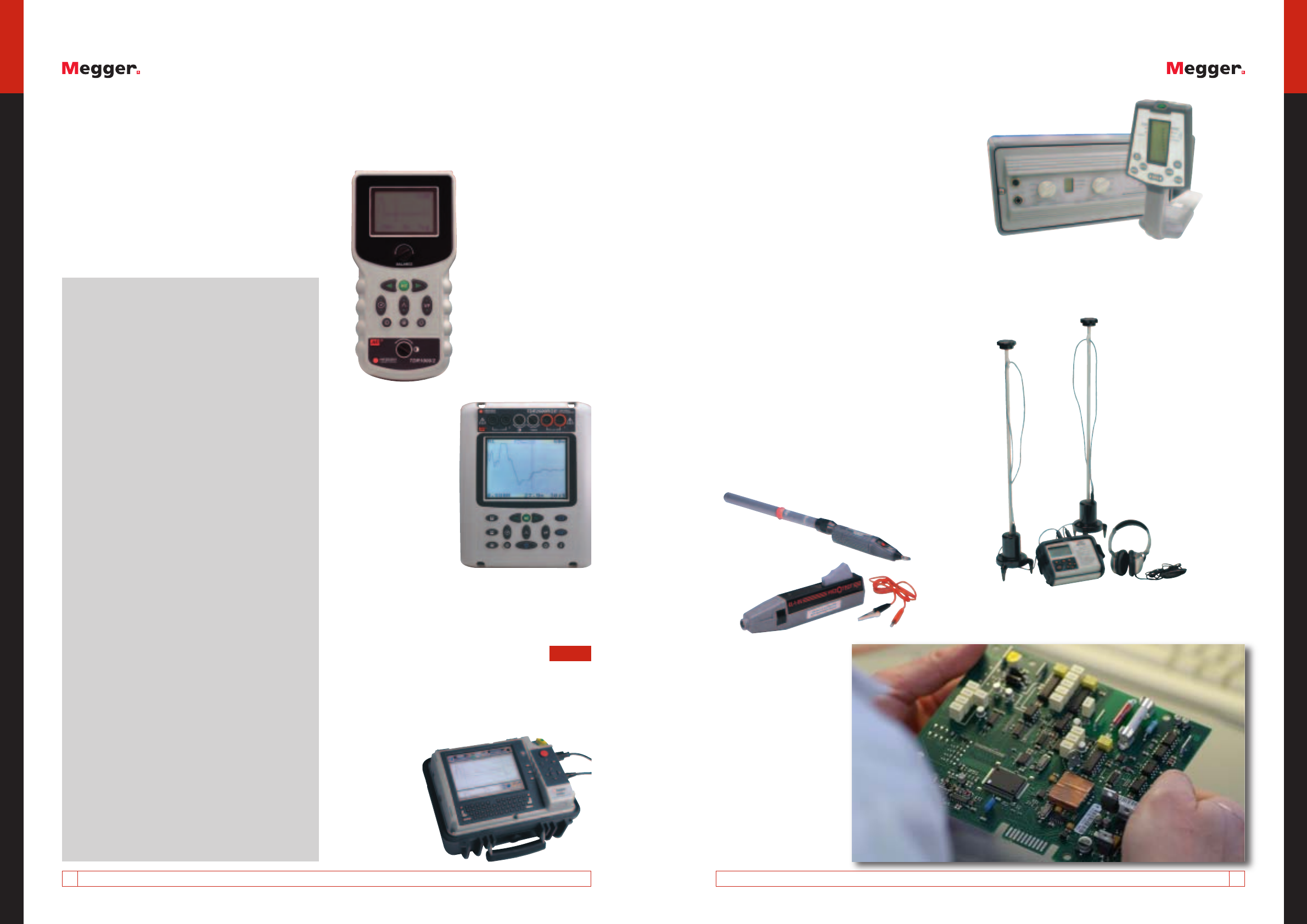

Printed circuit boards are purpose designed by Megger. Components are

supplied from reel-based automatic feeders

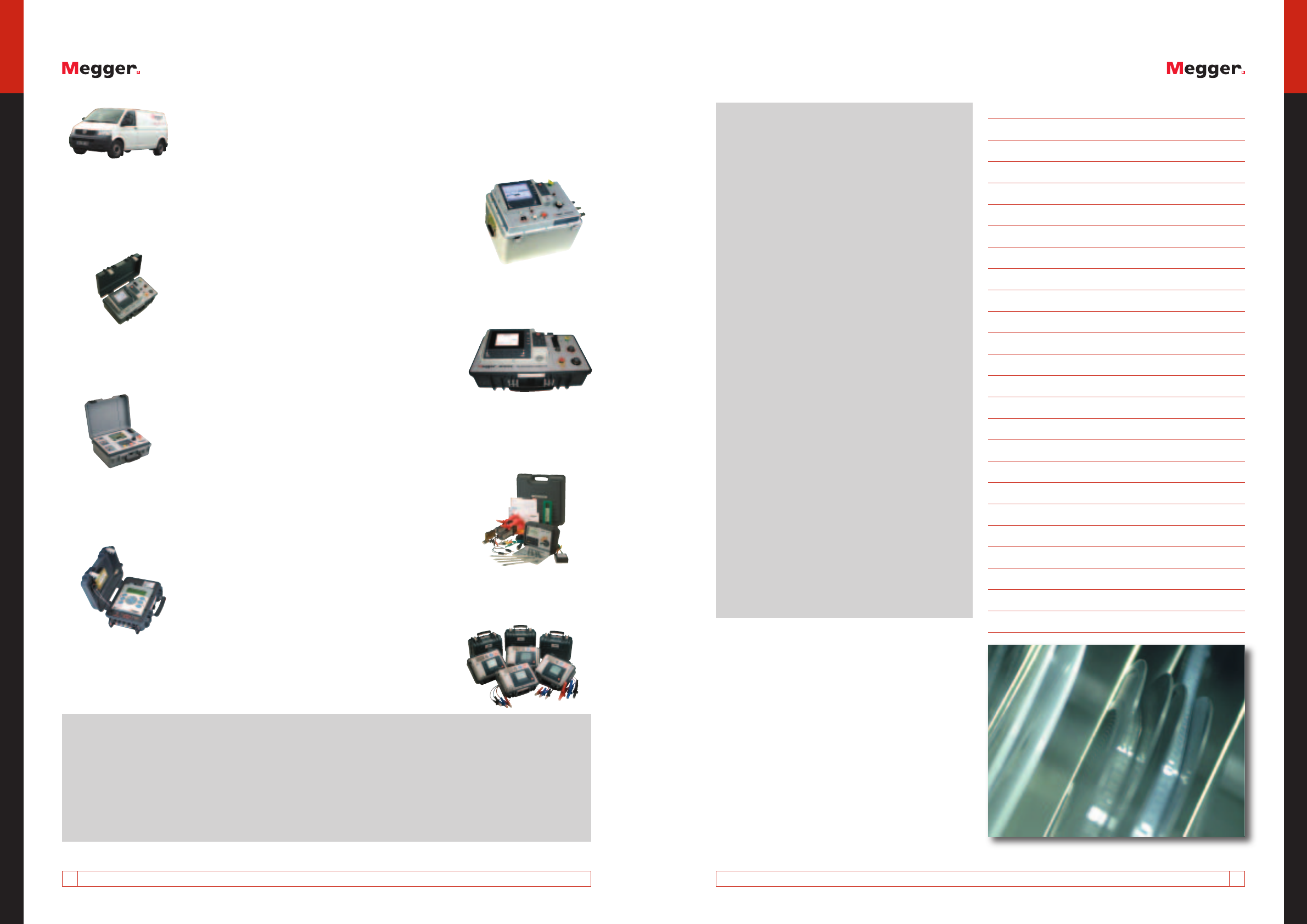

CFL40A

Van mountable cable fault locator

The TDR and all the control functions have been installed in a newly designed remote panel,

connected to the HV unit by a flexible umbilical cable for installation in to a suitable vehicle by

the customer, or Megger.

TTR300 series

Three-phase transformer turns ratio test set

Offering stand-alone or remote-control operation to accurately measures ratio, phase

deviation and excitation current. TTR330 has PowerDB OnBoard for automatically generating

test reports.

MCT1600

Current transformer test set

By performing a range of test automatically, including ratio, saturation knee point, burden,

polarity and phase deviation, MCT1600 offers huge productivity gains over conventional CT

testers reducing the cost of commissioning transformers.

PA9 Wireless

Power quality analyser

Simultaneously recording power quality and power flow information PA9 Wireless

incorporates a wireless modem to allow a remote user to configure the unit, to view and

download data.

Delta3000

10 kV automated insulation dissipation factor test set

Fully automatic 10 kV insulation dissipation factor test set for condition assessment of

electrical insulation in high voltage apparatus with PowerDB OnBoard for automatically

generating test reports.

MTO

Transformer ohmmeter

MTO series is a line-operated, field-portable instrument designed specifically to measure the

d.c. resistance of all types of magnetic windings, mainly in all types of transformer windings.

DET4T2 series

Earth ground resistance testers

DET4T2 series of earth testers now offers user selectable frequency and extended measurement

ranges. To make even more attractive it is available in a number of different kits.

S1/2, MIT5/2 and MIT10/2 series

5 kV and 10 kV insulation testers

Megger has up-rated the safety of its 5 kV and 10 kV insulation resistance testers to CATIV

600V and changed the test leads it supplies in the kit.

A history of firsts

1903: Megger trademark registered. It is jealously guarded

by the company.

1965: First low-voltage insulation power factor set,

weighing less than 6.5 kg

1980: First semi-automatic 2.5 kV and 10 kV insulation

power factor test set

1990: First fully automatic 10 kV insulation power factor

test set

2007: First portable cable fault locator with up to 2000

Joules in four ranges.

2007: Megger merges with Programma AB, a major test

and measurement products manufacturer.

The words Megger, Programma, PowerDB, DLRO, BITE, STATES, Microsoft, Bluetooth, MS Word and Access are

trademarks or registered trademarks of their respected owners. All other trademarks acknowledged.

S1-554/2

5 kV insulation resistance tester with high

noise rejection

Offering 4 mA noise rejection and software filtering the S1-

554/2 leads its class. It also offers variable test voltages from

50 to 5000 V. Measuring up to 15 TΩit allows automatic IR,

PI, DAR, SV and DD tests. The S1-554/2 is safety rated at CATIV

and can be powered using both mains and its on-board re-

chargeable battery, now with improved battery-life

management.

S1-1052/2

High current 10 kV insulation resistance

testers

With a high 5 mA output current for fast charging of

capacitive loads, the S1-1052/2 offers variable test voltages

from 50 V to 10,000 V. Measuring up to 35 TΩ, it allows

automatic IR, PI, DAR, SV and DD tests. It can be powered

using both mains and on-board re-chargeable battery with

improved battery life management. S1-1050/2 has a CATIV

safety rating.

INSULATION TEST 5

Insulation test

4INSULATION TEST

CATIV insulation test –

keeps you safe

Regular insulation resistance testing is one of the most cost effective methods of identifying

aging in electrical equipment, and with over 60% of equipment failures being ascribed to

insulation breakdown, it is a key area to monitor for high levels of customer satisfaction.

MIT510/2

5 kV insulation resistance tester

With CATIV safety, MIT510/2 is an easy to operate

insulation resistance tester that is very tough.

Measuring up to 15 TΩ, it allows automatic IR.

The built-in timer and high test ranges allow simple

and quick evaluation of the condition of the

insulation under test. The MIT510/2

is mains or battery powered,

now with improved

battery-life

management.

MIT520/2

5 kV diagnostic insulation resistance tester

MIT520/2, now with CATIV safety, offers the ability to test

insulation to 5 kV. It allows automatic IR, PI, DAR, SV and DD

tests. Measuring up to 15 TΩmeans the MIT520/2 can detect

insulation deterioration earlier than other testers. Results

storage and download give you full diagnostic information

for later analysis. MIT520/2 can be powered using either

mains or its on-board rechargeable battery, now with

improved battery-life management.

MIT1020/2

10 kV diagnostic insulation resistance tester

MIT1020/2 gives you the ability to test insulation to 10 kV,

giving greater flexibility, and also complies with

IEEE43:2000. With CATIV safety and measuring up to 35 TΩ,

it allows automatic IR, PI, DAR, SV and DD tests. Results

storage and download give full diagnostic information for

later analysis. MIT1020/2 can be powered using either

mains or its on-board rechargeable battery

with improved battery-life

management.

S1-552/2

High current 5 kV insulation resistance tester

With a high output current 5 mA for fast charging of

capacitive loads the S1- 552/2 offers variable test voltages

from 50 to 5000 V. Measuring up to 15 TΩ, it allows

automatic IR, PI, DAR, SV and DD tests. The S1-552/2 is safety

rated at CATIV and can be powered using both mains and its

on-board re-chargeable battery, now with improved battery-

life management.

A choice of 5 kV or 10 kV

insulation resistance

testers to suit needs and

budgets.

Why CATIV?

A small fault becomes a big problem on

Category IV high energy unfused supplies!

A distant lightning strike can produce a transient

of several kV on the supply. The transient may

only lasts for a few tens of microseconds and is

likely to do little damage.

The problem is that it may initiate an arc and

this arc then presents a low impedance path for

current from the mains supply.

Often, that supply can deliver 1000 A or more

until the breaker or other protective device

operates. In that time, the amount of energy

liberated is easily enough to start a fire or even

cause an explosion. If the arc is within a test

instrument there is a high probability that you

will be injured or worse!

The solution is simple – design the instruments

with protection and internal clearances that are

large enough to prevent transients from

establishing an arc and along with appropriate

protection devices. Guidance to this is given in

IEC61010 in order to comply with category

ratings defined in IEC60664.

In practice, transients are damped quite quickly

as they pass through a typical distribution

system. As you can see from the diagram CATIV is

recommended for use outside and to the

consumer unit. Specify Megger CATIV testers to

make sure you are safe and secure. Not only

could they save your life, but they are

economical too.

Using an instrument with a higher installation

category rating does not alone create a safer

working environment. You should always follow

correct work practices to keep you and others safe.

DISTRIBUTION LINES

ISOLATING

DEVICE OUTLET

DISTRIBUTION

BOARD

TRANSFORMER

CATEGORY I

CATEGORY II

CATEGORY III

CATEGORY IV

S1-1054/2

10 kV insulation resistance testers with high

noise rejection

With a high 5 mA output current S1-1054/2 offer variable test

voltages from 50 V to 10,000 V. Safety rated at CATIV and

measuring up to 35 TΩ, it allows automatic IR, PI, DAR, SV

and DD tests. It can be powered using both mains and on-

board re-chargeable battery with improved battery-life

management. S1-1054/2 offers 4 mA noise rejection and

software noise filtering, and class leading performance.

New New

New

New New

New

S1-5010

5 kV graphical

insulation resistance

tester

The S1-5010 is a heavy-

duty mains/battery

powered instrument.

Offering 5 mA high

power testing, auto test,

graphical

display and results

storage, it is a stand-alone

instrument for maximum

diagnostic information and

predictive maintenance.

S1-5010 is heavy duty and

mains or battery powered

5 kV and 10 kV insulation tester guide

INSULATION TEST 7

CATIII and CATIV hand held

insulation testers

6INSULATION TEST

Insulation test

MJ15 has an analogue display and offers

hand crank or battery power

BM15 is battery

powered, and very easy to use

Insulation resistance testing

Model

BM15 MJ15 MIT510 MIT520 S1-552 S1-554 MIT1020 S1-1052 S1-1054 S1-5010

Display Graphical ■

Analogue ■■

Analogue/Digital ■■ ■ ■ ■ ■■ ■

Power Supply Mains power ■■ ■ ■ ■ ■■ ■

Rechargeable  ■■ ■ ■ ■ ■■ ■

Hand crank ■

Dry cell ■■

Test Voltage 10.0 kV ■■■

5.0 kV ■■ ■ ■ ■ ■ ■ ■■ ■

2.5 kV ■■ ■ ■ ■ ■ ■ ■■ ■

1.0 kV ■■ ■ ■ ■ ■ ■ ■■ ■

500 V ■■ ■ ■ ■ ■ ■ ■■ ■

250 V ■■ ■ ■ ■ ■■

25 V steps 50 V to 5 kV ■■■ ■■■

10 V steps 50 V to 1 kV then

25 V steps 1 kV to max

test voltage ■■■■■■

Measurements Max reading 20 GΩ20 GΩ15 GΩ15 TΩ15 TΩ15 TΩ35 TΩ35 TΩ35 TΩ5 TΩ

Min reading 100 kΩ100 kΩ10 kΩ10 kΩ10 kΩ10 kΩ10 kΩ10 kΩ10 kΩ10 kΩ

Voltage ■■ ■ ■ ■ ■ ■ ■■ ■

Capacitance ■■ ■ ■ ■ ■■ ■

Leakage current ■■ ■ ■ ■ ■■ ■

Test Types Polarisation Index ■■■■■■■

Dielectric absorption ratio ■■■■■■

Step Voltage ■■■■■■■

Dielectric Discharge ■■■■■■■

Other Features Timer control ■■■■■■■

Timer display ■■ ■ ■ ■ ■■ ■

4 mA max noise rejection ■■

2 mA max noise rejection ■■ ■■

5 mA test current ■■ ■■■

3 mA test current ■■ ■

2 mA test current ■

1 mA test current ■■

USB output ■■

RS232 output ■■■

RS232 control ■

Software PowerDB lite ■■■■■■

PowerDB full version 

BM15

Basic 5 kV insulation resistance tester

With four test voltages and an analogue display the BM15 is

a tough, easy-to-use “go / no go” tester. With a test current

of 1 mA and a maximum reading of 20 GΩit can operate on

dry cells or rechargeable batteries.

■ feature option

MJ15

Basic 5 kV insulation resistance tester

MJ15 offers a unique combination of hand-cranked generator

and battery to give a “go / no go” tester with four test

voltages and an analogue display. The MJ15 is a tough and

easy to use and offers a test current of 1 mA and a maximum

reading of 20 GΩ

MIT200 series

Light-weight insulation and continuity tester

The MIT200 series are CATIII 600 V tested offering 250, 500

and 1000 V test voltages. They will find applications in

electrical contracting, both on domestic and industrial

systems, as well as site maintenance and service departments.

Their small size and lightness make them ideal for those

engineers that need to carry them for extended periods.

MIT300 series

Insulation resistance and continuity testers

for electricians

Designed to be tough enough to soak up the treatment

meted out to testers on site the MIT300 series offer CATIV

300 V safety with flexibility. The MIT300 comes in five versions

from a basic two-test voltages digital tester to a downloading

three-test voltages tester. All the digital testers include an

analogue arc display.

The MIT300A is a moving coil analogue tester offering 250,

500 and 1000 V test voltages.

MIT400 series

Insulation resistance and continuity

testers for industrial maintenance

MIT400 series testers offer CATIV 600 V safety in a

convenient easy to hold format. MIT400

series are true diagnostic instruments

measuring insulation resistance up

to 200 GΩ. They measure insulation

deterioration long before most

testers even offer a reading.

With functions such as TRMS voltage

measurement, polarisation index (PI),

dielectric absorption ratio (DAR),

capacitance measurement and high

insulation resistance ranges, makes the

MIT400 is suitable for the testing required in

manufacturing, panel building, railways,

motors, cable inspection, street lighting,

avionics as well as the electrical supply industry

MIT40X

Insulation resistance and continuity testers

for special applications

Based on the class leading MIT400 the MIT40X allows the user

to set the test voltage anywhere between 10 V and

100 V, depending on the application. It still offers CATIV

600 V safety and tests insulation resistance up to 20 GΩ.

MIT480 series

Insulation resistance and continuity

testers for telecommunications

MIT480 series testers offer 50 and 100 V test voltages, ideal

for the telecoms industry. They all provide CATIV 600 V safety.

MIT480 series also offers frequency, capacitance and distance

by capacitance functions and a 75 V live circuit inhibit feature

to match the special needs of telecoms engineers.

MIT480 series is a true diagnostic instrument measuring

insulation resistance up to 200 GΩ. They measure insulation

deterioration long before most testers even offer a reading.

New

New New

Light-weight Industrial maintenance Telecommunications

insulation and Electrician’s insulation and insulation and continuity insulation and continuity

continuity testers continuity testers testers testers

MIT200 MIT210 MIT220 MIT230 MIT300 MIT310 MIT310A MIT320 MIT330 MIT400 MIT410 MIT420 MIT430 MIT40X MIT480 MIT481 MIT485

1000 V insulation test   

500 V insulation test  

250 V insulation test        

50 V and 100 V insulation test  

10 V to 100 V in 1 V steps 

Resistance to 1000 MΩ1000 MΩ1000 MΩ1000 MΩ1000 MΩ1000 MΩ1000 MΩ1000 MΩ1000 MΩ20 GΩ100 GΩ200 GΩ200 GΩ20GΩ100 GΩ200 GΩ200 GΩ

Continuity 0.01 to 200 Ω     

Continuity 0.01 to 100 Ω    

Live circuit warning 25 V 25 V 25 V 25 V 25 V 25 V 25 V 25 V 25 V 50 V 50 V 50 V 50 V 50 V 75 V 75 V 75 V

Polarization Index PI  

Dielectric absorption rate DAR  

Frequency measurement 40-400 Hz 40-400 Hz 40-400 Hz 40-400 Hz 40-400 Hz

Capacitance measurement  

Capacitance by distance 

Data storage 

USB downloading 

Bluetooth downloading 

Safety CATIII CATIII CATIII CATIII CATIV CATIV CATIV CATIV CATIV CATIV CATIV CATIV CATIV CATIV CATIV CATIV CATIV

600 V 600 V 600 V 600 V 300 V 300 V 300 V 300 V 300 V 600 V 600 V 600 V 600 V 600 V 600 V 600 V 600 V

FREE calibration certificate        

CAPACITANCE DISSIPATION FACTOR AND TAN DELTA 9

Capacitance dissipation factor

and tan delta

Tan delta

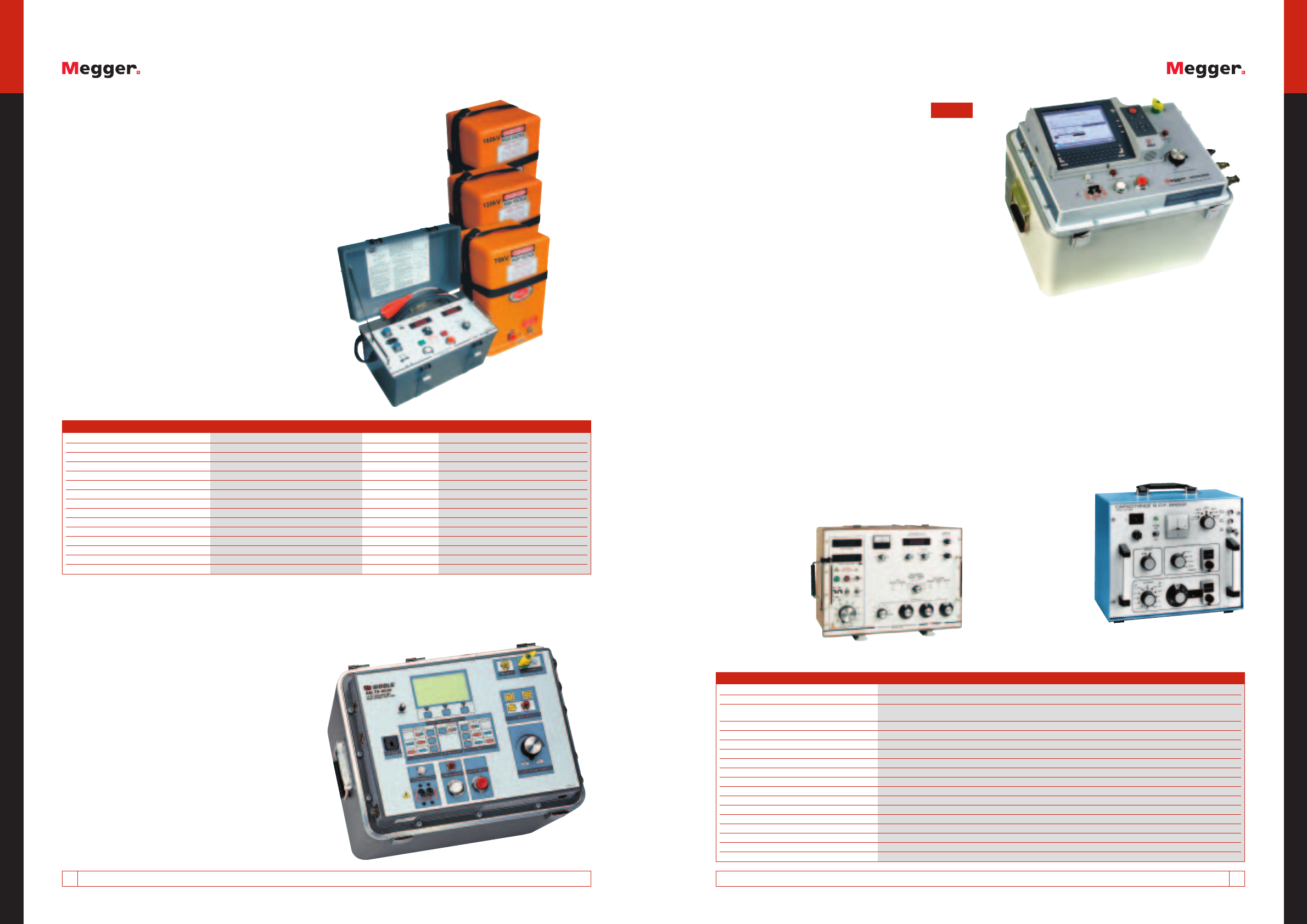

8HIGH VOLTAGE TEST EQUIPMENT

High voltage test equipment

220000 series has advanced

performance with long-term

reliability provided by filtered half-

wave rectification

681100 series

50/100 kV a.c. dielectric test sets

681100 series a.c. dielectric test sets are a.c. high-voltage

sources for testing electrical insulation. The standard system

includes a control/instrument cabinet, a high-voltage

transformer assembly and all necessary cables including

ground and input power.

220000 series

70 kV, 120 kV and 160 kV d.c. dielectric

test set

220000 series provides a dependable, safe, lightweight and

portable d.c. voltage source for testing the quality and

integrity of electrical power cables, cable installations,

motors, switchgear, insulators, transformers and capacitors.

High voltage test equipment

Model d.c. output a.c. output

d.c. test sets Continuous Short circuit Continuous Short circuit

220005 5 kV 5 mA 5 mA

220015 15 kV 2 mA 5 mA

220070 70 kV 3.5 mA 5 mA

220123 120 kV 2.5 mA 5 mA

220164 160 kV 2 mA 5 mA

a.c. test sets

230315 3 kV 12 mA

230415 4 kV 12 mA

230425 5 kV – 17 mA 4 kV 3 mA 12.6 mA

686100 Non-resonant 50/100 kV 80/150 mA

681100 Resonant 50/100 kV 80/150 mA

686100 Non-resonant 50/100 kV 40/75 mA

681100 Resonant 50/100 kV 40/75 mA

Delta 2000 is ideal for tan delta

testing on transformers

Delta 2000

10 kV fully automated capacitance and tanδ

test bridge

The ultimate instrument for dissipation factor testing,

DELTA2000 offers automatic measurement of dissipation

factor, capacitance, watts loss and leakage current. It is ideal

for the assessment of insulation in high voltage apparatus

such as transformers, bushings, circuit breakers, cables, surge

arresters and rotating machinery.

CB100 lets you read

capacitance and

dissipation factor directly

from the instrument – no

calculation required

Delta 3000

10 kV automated insulation dissipation

factor test set

A fully automatic 10 kV insulation dissipation factor test set

designed for condition assessment of electrical insulation in

high voltage apparatus such as transformers, bushings, circuit

breakers, cables, lightning arresters and rotating machinery.

In addition to performing insulation power factor tests, it can

be used for measuring the excitation current of transformer

windings.

DELTA 3000 allows for direct data feed into PowerDB for

automatically generating test reports. All data can be saved

in an XML file with all historical data. If a user also has a full

license of PowerDB, test sheets can be modified and

downloaded to the instrument. The unit’s intuitive, easy-to-

use interface allows the user to configure test sheets and

pop-up test procedures. A QWERTY keyboard makes it simple

for entering all nameplate and location information. The unit

has two USB ports. Measurements are performed

automatically, and results are displayed on a full VGA colour

display. Measured quantities include voltage, current, power

CB100

Low voltage capacitance and tanδtest bridge

Lightweight and low-cost the CB100 is ideal for workshop

use. Manually balanced it offers direct readout of tan delta

and capacitance, overcoming interference by using a test

frequency of 80 Hz or 100 Hz.

670000 series

2.5 and 12 kV semi-automatic capacitance

and tanδtest bridge

These instruments feature automatic balancing of dissipation

factor and manual balancing of capacitance and interference

suppression, allowing use in energised HV substations. There

is direct readout of tan delta, capacitance and watts

dissipated.

Insulation testing

Model Delta 3000 Delta 2000 CB100 670025 670065 670070

Output voltage 12 kV 12 kV 28 V 2.5 kV 12 kV 12 kV

Capacitance measuring range in µF 0-0.11 or 0-0.11 or 0-1.2 0-0.22 0-0.22 0-0.22 or

0-1 with inductor 0-1 with inductor 0-1 with inductor

Dissipation factor 0-90% 0-90% 0-30% 0-200% 0-200% 0-200%

UST test ■■■■■■

GST test ■■■■■■

GST guarded test ■■■■■■

Watts loss measurement ■■■■■■

Current measurement ■■ ■■■

Range extension ■■■ ■

Interference suppression Automatic Automatic Inherent Manual Manual Manual

Balancing Automatic Automatic Manual Manual Manual Manual

Data storage ■■

Bar code reader ■■

Comlink PC software ■■

RS232 printer output ■■

PowerDB Onboard

■

USB communications

■

670000 comes complete

with interference

suppression circuits for

testing in high-voltage

switchyards, automatic

balancing of dissipation

factor, and direct

readout of capacitance,

dissipation factor and

watts dissipated

New

(loss), dissipation factor and capacitance. The operator has

the option of correcting the current and loss readings to 2.5

kV or 10 kV equivalents. Information can be downloaded

directly to a PC or printer. An optional 10 nF TTR capacitor in

addition to two HV reference capacitors are also available.

Power Quality

Model PA9+ PA9+ wireless

Voltage range 20 V to 600 V

■■

ac or dc

■■

True RMS through 63rd harmonic

■■

Crest factor 1500 V peak

■■

Current 1.4 of full scale at peak

■■

Current Resolution 0.1% of full scale

■■

Accuracy ± 0.25% of reading ± 0.05% of range

■■

Voltage/Current connection V = 4 colour coded pairs of safety banana jacks

■■

I = 5 Amp miniature circular connector

■■

Power provided for ﬂexible CTs

■■

Frequency Fundamental 20 Hz to 70 Hz autoranging

■■

Power from phase A 90 V to 600 V ac, 100 V to 600 V dc

■■

Trigger events RMS level current or voltage

■■

Transient level current or voltage

■■

Harmonic content current or voltage

■■

Communications RS232

■■

Compact ﬂash card

■■

Wireless modem

■

Wired modem



POWER QUALITY 11

Power quality

10 POWER QUALITY

Power quality

PA9plus

Power quality analyser

The PA9plus has enhanced standard key features

including a fast digital signal processor to support

future evolving features and capabilities, a full 12

MB of internal, non-volatile memory and

incorporated auxiliary power input capabilities.

The product offers testing to the relevant

standards (EN50160, IEC61000 series,

IEEE1159, IEEE519).

Data can be downloaded from PA9 without

interrupting the instrument recording events.

The optional removable memory allows

internally recorded data to be copied to an

external compact flash card using the same

technology you see with most digital cameras.

Without a computer on site, data can be copied,

manually or unattended, from the instrument to

external memory cards, increasing the effective instrument

memory storage to the size of the memory card used. You can

program new configuration setups in the same, simple manner.

MetReport

Power quality analysis software

MetReport is an extremely

powerful, fully functional,

and stand-alone report

generation tool for the

Megger PA-9Plus power

quality analysers. Its primary

purpose is to dramatically

improve and extend

reporting capabilities.

In today’s economy, time is

money. Power and power quality professionals sometimes

spend countless hours every year creating customized reports

supporting their analysis studies. MetReport automates this

tedious task while improving the accuracy and reliability of

the entire reporting process.

MetReport utilizes data files obtained from the PA-9 and

PA-9Plus to rapidly produce completely customizable reports

targeted to your particular applications and requirements.

Some examples include: Power quality studies, harmonics

analysis, power factor and energy consultation, tolerance

curve studies (CBEMA/ITIC, SEMI F47, User Defined), auto data

analysis pass/fail reports, EN50160 compliance, and IEEE/IEC

Flicker. The key to quickly learning and using MetReport is

the integrated wizard function. This wizard effortlessly takes

you through the entire report creation, customization, and

generation process. Several sample report templates are

included for review, and may be modified to meet your

specific needs.

All reports are output as standard Microsoft Word

documents.

PMM-1

3 phase power measurement meter

Measures a.c. / d.c. voltage, a.c. primary and secondary

current, power, power factor, reactive power, phase angle and

frequency of single and three phase electrical systems with

extreme accuracy. Integral solid state timer for continuity and

voltage sensing and harmonic measurement up to 49th

harmonic. For detailed waveform analysis a high-speed

capture function allow 20

measurements per

second. An RS232

data port allows

bi-directional

communication.

On-site trending, analysis and data

retrieval without a computer and

intelligent downloading

Power multimeter

multi-function measuring

instrument with simultaneous

measurement and display of all

three-phase system parameters

Versatility is vital for measuring power quality.

There is a danger that by specifying an

instrument that only performs a limited number

of tests, you will need to purchase extra

equipment later. It is safest to specify a power

quality instrument that can make measurement of

frequency, flicker, dip/swell, interruption,

unbalance, and harmonics for these applications:

■Lamp flicker measurements and recordings

■Energy audits and forecasting

■Capacitor bank sizing

■Load balancing

■Power factor surveys

■Before/after studies

■Load profiling

■Substation monitoring

■Comprehensive power quality investigations

■Billing verification

■Motor, generator and transformer inrush

current studies

■Harmonic surveys, analysis, and filter design

PA9 Wireless

Power Quality Analyser

The new Megger PA9 Wireless is the latest

innovation of the successful PA-9 Power Quality

Analyser platform. It simultaneously records power

quality and power flow information.

PA9 Wireless incorporates newly enhanced

key features including a wireless modem

for remote communication, a full 12 MB

of nonvolatile internal memory and

standard auxiliary power input

capabilities as well as an optional external

flash card for added memory.

The unique wireless modem allows the user to

configure the unit remotely, view real-time data

via the remote screen, and preview all recorded

data without downloading the data. The wireless

modem allows for remote analysis of data, remote data

retrieval capabilities and remote unit configuration. The unit

intelligently downloads, previews and retrieves only the

information of interest. It trends voltage, current, imbalance,

PA9 Wireless Starter Kit, shown

here, includes 4 voltage cables

and 3 raintight CTs.

MDP series

Distribution profiler

With virtually unlimited data

recording capacity, easy

installation and lightweight

durable construction, MDP

gives power utilities a

convenient and accurate way

of acquiring information

needed to monitor power flow

on feeders and overhead lines.

MDP1 records actual current

RMS magnitude up to 1000 A,

with an additional 200 A over-

range. MDP2 adds recording of

relative voltage RMS

magnitude together with

power and power factor.

The MDP3 provides facilities

for waveform capture as well

as the recording harmonics

and THD.

SLM8 (not CE marked)

8 channel recording volt-ammeter

The SLM8 is a low cost, 8 channel paperless recording volt-

ammeter used for measuring and recording the true RMS

values of up to four voltage channels and four current

channels. It is the ideal investigative tool for utility

trouble-shooters, service

investigation groups,

meter shop technicians

and facility managers to

identify and document

the presence of three-

phase and single-phase

voltage problems using

associated load current

information to locate the

source.

■ feature option

New

power, energy, events, flicker (PST/PLT), THD, TDD, individual

harmonics, and frequency. Operating in real-time, it graphically

displays harmonic content, power and source direction. It has

remote communications and alarm capabilities. PA9

wireless includes enhanced MEGPA9IEC software.

AUTOMATIC PROTECTION TEST 13

Automatic protection test

12 AUTOMATIC PROTECTION TEST

Automatic protection test

now with ‘Click-on-Fault’, GPS and current adaptor options!

The MPRT is already recognized around the world as a premier protective relay test

instrument. It is currently in use at hundreds of electric utilities, generating

facilities, industrial plants, OEMs and testing service companies in over 60 different

countries worldwide.

MPRT relay test set with touch view interface makes is easy to perform

manual and semi-automatic relay testing

AVTS

Advanced visual test software

A version of AVTS can be supplied to meet individual

customers’ requirements. AVTS Basic is supplied with all MPRT

systems and can be upgraded to AVTS Advanced or the full

AVTS Professional packages. AVTS Basic allows full automatic

operation of the test set with pre-prepared test files, whilst

the Advanced and Professional options give increased

functionality for the preparation of automatic test files and

relay performance evaluation.

Automated relay testing enables the test engineer to save a

great deal of time and money by rapidly executing the test

process and minimising any protected power system

equipment down time.

AVTS packages have a powerful graphical interface that is

developed and continuously upgraded by Megger to simplify

fully automatic and complex relay testing. It is designed to

meet the existing and future needs of protection technicians

and engineers worldwide,

helping to improve efficiency

and reduce testing errors.

K500

Protective relay tool kit

A comprehensive range of relay tools containing over 40

specific items. The whole kit is supplied in either a

lightweight soft case or a tough lockable vinyl case.

AVTS can display the

voltage and current

output waveforms in

time sequence with

the binary inputs and

outputs.

What makes MPRT a World Class test

instrument?

There are three distinctive components of the Megger MPRT

Relay Test System that set it apart from any other. These are:

• The Power Box

• A hand-held controller we call the TVI

(TouchView Interface)

• AVTS Basic Software (Advanced Visual Test Software)

The Power Box

It’s lightweight (yet extremely rugged), with unmatched

versatility.

Constant Power Output is sustained through the entire

“power curve” of a test. With a CPO of 200 VA current and

150 VA voltage, the MPRT will test any protective relay.

A unique modular VI-Gen Design combines the voltage and

current generator (VI-Gen) components into one amplifier

package.

By using multiple VI-Gens, the system can deliver up to four

voltages and four currents or with convertible voltage

channels eight currents.

The modular configuration also allows you to order the

system to fit your precise testing requirements and budget,

with an easy, flexible upgrade path.

MPRT

Protective relay test system

Performance Proven

MPRT is recognized for its versatility, its impressive

power capability and an extra rugged design. Its

testing performance is proven every day in some of

the most remote areas of the world.

Plus, it keeps getting better with the addition of significant new

features and capabilities. These include:

Click-on-Fault – gives you the ability to define the type of

operating characteristic, then “click on” the characteristic to

test the relay.

Binary Search – used with Click-on-Fault, you can easily define

maximum values and type of fault or characteristics such as

constant current, constant voltage or source impedance.

RIO File Import – allows you to import an existing RIO file into

the click-on-fault diagram and then proceed with the test.

Dynamic Control – provides easy set up of multi-state dynamic

tests that are normally associated with trip and reclosing

schemes. In addition it gives you a simple means to create

complex waveforms for special test applications, using a new

feature called Wave Index. Wave Index can change the

waveform “on-the-fly” by incrementing individual harmonic

values in real time.

Recorder Capability – Used with Dynamic Control, capture all

analogue output waveforms, binary inputs and outputs, and

more.

Modbus Communications – automates communication with

various relays via Modbus protocol.

SSI File Reader – quick, easy import of state-sequence files

from ASPEN®and CAPE®Simulation programs.

Test Results Import – allows you to read other test set result

files and import them into the AVTS database.

MPRT now offers click-on-

fault and RIO file import

capability

Automatic protection test

Model MPRT8415 MPRT8430

Input voltage 90 to 264 Vac, 50/60 Hz 

Battery simulator d.c. output voltages of 24 V 

d.c. output voltages of 48 V 

d.c. output voltages of 125 V 

d.c. output voltages of 250 V 

Power output Max phase output at 150 VA per phase 150 Volts rms 300 Volts rms

Max phase output at 200 VA per phase 15 Amps 30 Amps

a.c. Voltage amplitude Accuracy ± 0.05% typical, 0.1% guaranteed 

Resolution: .001/.01 

Measurements: true RMS 

a.c. Current amplitude Accuracy: ±0.05% typical, 0.1% or ±20 mA,

whichever is greater, guaranteed 

Resolution: .001/.01 

Measurements: True RMS 

d.c. Voltage amplitude ±0.1% typical, 0.25% guaranteed. 

Resolution: .001/.01 

Measurements: True RMS 

d.c. Current amplitude Accuracy: ±0.1% typical, 0.25% or ±20 mA,

whichever is greater, guaranteed 

Resolution: .0001/.001 

Measurements: True RMS 

Convertible source in Accuracy: ±0.05% typical, 0.1% or ±12.5 mA,

a.c. Current mode whichever is greater, guaranteed 

Resolution: .0001 

Measurements: True RMS 

Phase Angle Ranges 0.01 to 359.99 degrees, counter clockwise, or

Clockwise rotation, or ±0.01 to ±180.00 degrees 

Accuracy: ± 0.02° typical ± 0.25° at 50/60 Hz max 

Safety, EMC, RFI, ESD conformance IEC 61010-1, Amendments 1 and 2, EN 50081-2, EN 50082-2,

EN 61000-3-2, 61000-3-3, IEC 61000-4-2/3/4/5/6/8/11. 

Weight 18.9 kg 

GPS unit MGTR GPS timing reference for synchronized end-to-end testing 

Low current adaptor maximum of three currents 10 to 200 milliamps each phase 

MGTR

MGTR is a small, lightweight,

field portable, GPS satellite

receiver system specifically

designed to perform end-to-

end tests of line protection

schemes, with Megger MPRT

relay test systems. MGTR

provides a precise

MGTR is a portable GPS

system designed to enable

end-to-end tests

MPRT LCA

LCA Low Current Adapter

is a lightweight, field

portable unit designed

to provide multiple precise

very low current sources

with the Megger MPRT

relay test system. The

combination of MPRT and

LCA provides a very

powerful test capability. A

single LCA unit can provide

a maximum of three

currents 10 to 200 milliamps

each phase. LCA is especially

designed for testing very

sensitive extremely low

current relays with high

accuracy amplitude and

phase angle. ■ feature option

New

Programmed Output Pulse

(POP), with 100 nanoseconds

of resolution. This output

pulse provides a trigger

synchronization of two or

more MPRT test systems to

less than ±1 µS of the

Universal Time Coordinated

(UTC).

With MPRT and LCA, you can test

relays which require three phase

voltage and three phase currents,

with currents as low as 7.5 mA up

to 0.20 A

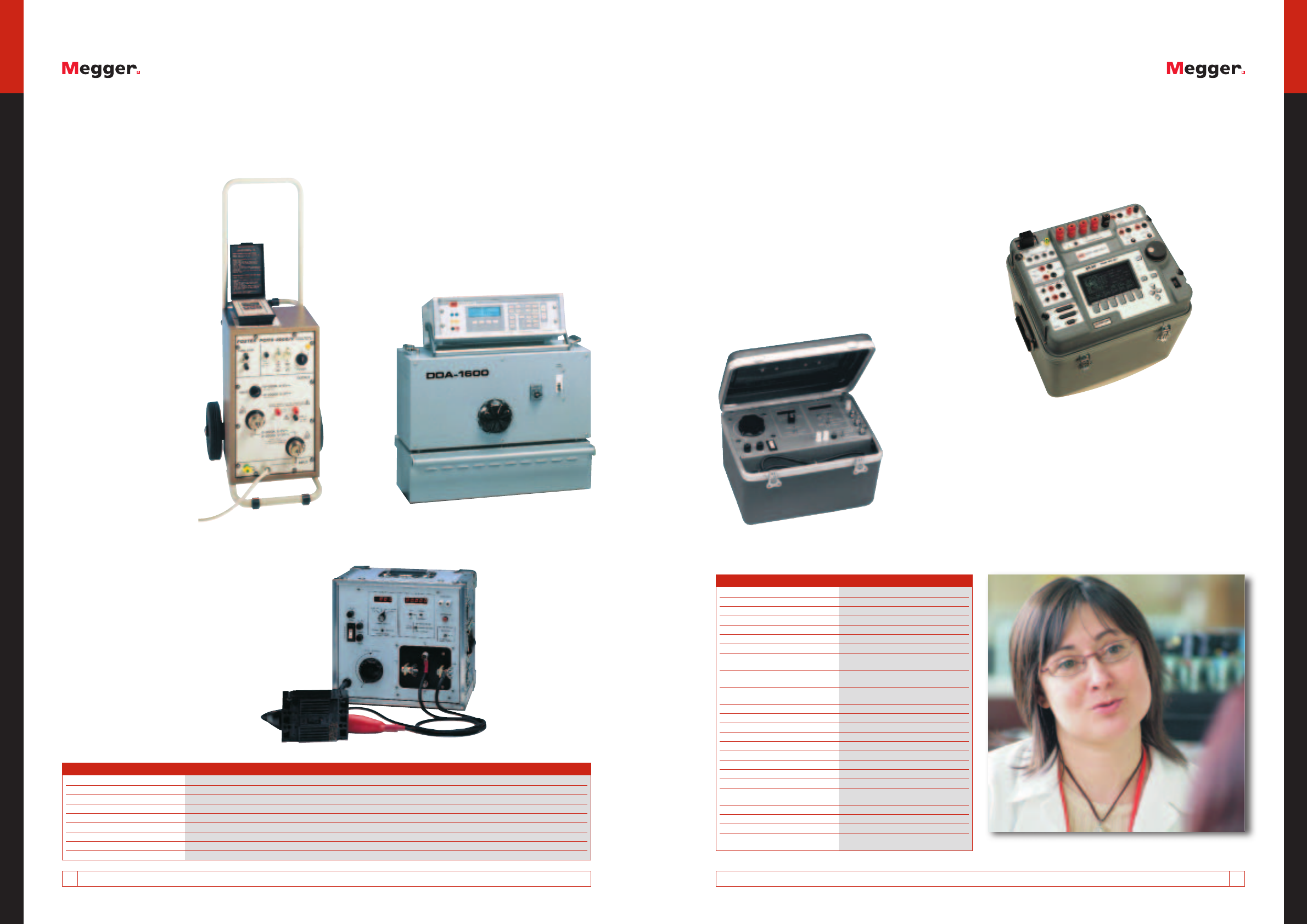

SECONDARY INJECTION TEST 1514 PRIMARY INJECTION TEST

Primary injection test

Protection testing

Model CB832 PCITS2000/2 CB845 MS2 DDA1600 DDA3000 DDA6000 SCITS100 SCITS120 SR98

Output current In Amps 0 - 1800 0 - 2000 0 - 5000 0 - 240 0 - 19200 0 - 35000 0 - 50000 0 - 100 0 - 120 0 -115

Number of ranges 3 2 4 344

Voltage output V a.c. 0 - 250 0 - 120 0 - 240 0 - 300

V d.c. 0 - 240 0 - 240 0 - 240

Power In VA 1750 7200 2400 700 920

Time Period in S 0 - 999.99 0 - 600 0 - 999.99 0 - 999.99 0 - 99999 0 - 99999 0 - 99999 0 - 599.99 0 - 999.99 0 - 9999.99

Resolution in S 0.001 0.01 0.001 0.001 0.0001 0.0001 0.0001 0.01 0.001 0.0001

Cycles 0 - 99999 0 - 99999 0 - 99999 0 - 99999 0 - 99999 0 - 99999 0 - 99999 0 - 99999.9

Circuit Breakers are one of the critical “safety-valves” of electrical systems, and basic

maintenance procedures are essential to maintain maximum reliability. As the leading

producer of circuit breaker test sets, Megger sets the standards for quality and reliability.

CB832 and CB845

Current injection sets

Capable of generating up to 1800 A and 5000 A respectively

for an instantaneous trip test, these units are ideal for

commissioning applications requiring high current injection.

The CB current injection sets offer adequate driving voltage

for all but the highest circuit impedance.

SCITS100

Current and voltage injection sets

Tough test sets suitable for general purpose relay testing.

A wide range of relays can be tested due to their operating

system flexibility. Current and voltage on the output

terminals are measured and displayed. An accurate timer

measures the relay operating time.

SR98

Voltage and current injection sets

SR98 is a lightweight, field portable test set capable of testing

a wide range of electro-mechanical solid-state and

microprocessor-based protective relay. Offering high current

and power output and 0 to 360° phase shift capability, SR98

has a large display, RS-232 and parallel printer ports.

CB-832 tests thermal, magnetic or

solid-state motor overload relays;

moulded-case circuit breakers; and

ground-fault trip devices

Secondary injection test

MS-2

Circuit breaker and overload relay test set

MS-2 is perfect for utilities, industrials and electrical service

organisations. It verifies the proper operation of thermal,

magnetic and solid-state overload relays; moulded-case

circuit breakers; and ground-fault trip devices.

Automatic protection testing

Relay type IEEE no.

SCITS100/2 SITS120 SR98

Time delay 2■■■

Impedance 21 ■

Volts per hertz 24

Synchronising 25 ■

Directional power 32 ■

Loss of excitation 40 ■

Negative sequence

over-current 46 ■

Negative sequence

under-voltage 47

Instantaneous

over-current 50 ■■■

Over-current 51 ■■■

Moulded case breaker 52 ■■

Over-voltage 59 ■■

Directional over-current 67 ■

Reclosing 79 ■

Frequency 81

Differential 87 ■**

Tripping 94 ■

Auto synchronising 25A

Voltage controlled

over-current 27 / 51 ■■■

Under / over voltage 27 / 59 ■■

d.c. under / over current 37 / 76 ■

Motor overload 51 / 86 ■■■

Ground directional

over-current 67N ■

**Two units required

PCITS2000/2

Primary current

injection test set

PCITS2000/P enables you to test

relay protection systems and

their current transformers

together. It has a built-in timer

to record protection

relay operation

DDA1600, DDA3000 and DDA6000

High current injection test sets

DDAs are a range of high current units capable of generating

a test current of up to 50,000 A through a circuit breaker. The

instrumentation and control system enable the operator to

vary the pulse time and firing angle of the injected signal.

They can be used for testing protection relays and low

voltage circuit breakers at the commissioning stage.

DDA-1600 is a digital data

acquisition system. It has a modular,

portable design, has variable pulse

time and firing-angle output

current control, and can test a wide

range of breakers

Customer service teams at every Megger location are there to help you

select the right product for your application

SITS120

Lighter weight current and voltage

injection sets

A lighter weight option, this tough test set is suitable for

general purpose relay testing.

A wide range of relays can be tested due to the flexibility

of its operating system. Current and voltage on the

output terminals are measured and displayed. An

accurate timer measures the relay operating time.

These tough self-contained

test sets are designed for

operation by one person

and are comparatively

light. With a separate

hand-held controller

connected by an

expandable cable it allows

the operator to work close

to a protective relay while

controlling a test.

MS2 is capable of

delivering 750 A

instantaneously. It is ideal

for over-current and earth

fault relays and moulded

case circuit breakers.

CABLE FAULT LOCATION 1716 CABLE FAULT LOCATION

Cable fault locationCable fault location

The fundamental objective of any cable fault location system is to provide quick, effective,

accurate and safe fault location, resulting in reduced system outages and “Customer

Minutes Lost”. Megger’s new PFL systems achieves all this, and more. The standard

system comes as a mobile, compact system to meet your local requirements. All systems

offer the facility to undertake cable testing.

PFL20-1500

Power cable fault locator system

The PFL20-1500 emphasizes portability, featuring all of the

basic fault locating tools within one compact package. It is a

flexible stand-alone unit with a MTDR mounted in the hinged

lid.

All important tools of cable fault locating are consolidated

into one package: dc/tester burner, surge generator, and

radar coupling. When utilized with the MTDR Cable Analysis

System, the combined instruments provide the following fault

location techniques:

Time Domain Reflectometry

Digital Arc Reflection

Surge Pulse

Reflection

Differential Arc

Reflection

PFL Series Cable Fault

Locators

The standard system comes as a mobile, compact unit to meet

your local requirements. All systems offer the facility to

undertake cable testing.

■Cable and fault diagnosis

■Prelocation of cable faults

■Fault conditioning

■Pinpointing locating using acoustic methods

Models PFL40-

1500 and 2000

Features include:

DC testing to 40 kV

Each instrument uses DC

testing to prove the integrity

and confirm fault conditions in

cable networks with a test

voltage up to 40 kV and a

current of 25 mA.

The variable output voltage

can also be used to test

sheaths requiring 5 or 10 kV

test voltages.

The operator selectable over-current trip levels provide

protection to the system under test in the event of the cable

under test breaking down.

Fault pre-location

Each system provides a variety of methods you can use to pre-

locate the fault position.

TDR mode – use a real time trace and a stored trace for

viewing simultaneously on the colour display, allowing

comparison and difference measurements to be determined.

Further, the TDR features auto-ranging, auto distance to fault

and operator assist functions that guide the operator through

the fault locating process.

A.R.M. (Arc Reflection Method) mode – the system stabilizes a

fault by creating a temporary “bridge” to earth. During this

condition a standard pulse echo measurement is taken into

what is basically a short circuit fault.

ICE (Impulse Current) and Voltage Decay methods – these are

also available and are transient analysis methods or pre-

location which utilize either a linear coupler or voltage

divider.

Fault conditioning

Also use the system to stabilize flashing, unstable or high

resistance faults, by employing A.R.M. and Proof/Burn

technology.

Proof/Burn

Following a breakdown of the cable under test, you can

employ the 40 kV dc output to apply a high current,

thus stabilizing the fault condition. This allows easier

and quicker pre-location and pinpointing of the unstable

faults.

PFL20M is easily manoeuvred

because of its compact design

and large wheels

A.R.M.

Although not widely thought of as a fault condition method,

the A.R.M. mode can be used in pinpointing faults.

Acoustic pinpoint fault location

Accurate acoustic pinpoint location of faults is achieved with

the powerful 8/16/34 kV (4 kV is optional) surge generator

(thumper), which comes in either 1500 Joules or 2000 Joules

configurations.

Additional accuracy can be achieved by using the Megger

MPP1001 or 1002 acoustic and electromagnetic pinpointer

which easily and accurately shows the direction and distance

to a fault.

PFL40 features a large, colour screen and intuitive software

which assists you in accurately tracing and locating cable

faults.

Included accessories

Each PFL40 unit comes

complete with:

■High voltage shielded

output cable (15 m)

■Supply cable (7.6 m)

■Flexible ground cable

(15 m)

■Ground rod

■Interlock shorting plug

■Cable bag and

instruction manual

Stand-alone and rack-

mounted cable reel

assemblies also

available.

ARC screen

Report screen

New New

New

Cable fault location systems

PFL40A PFL20A PFL20M CFL40A

Surge range 4kV / 8kV / 16kV / 34kV 

4kV / 8kV / 16kV 

16kV  

Voltage output 40kV 

20kV 

Joules 1500J   

2000J  

Transit Van mount   

Wheeled   

Van mountable cable

fault locator

CLF40A has been

designed to

complement the award

winning and successful

PFL40A series of

portable fault locators.

All the control functions

are installed in a newly

designed remote panel,

connected to the HV

unit by a flexible umbilical

cable. This configuration

lends itself to installation

into a suitable vehicle by

you, your designated

contractor or by Megger.

Every installation is

different, and we show some

options to you here. Ask to

see our fully equipped

demonstration vehicle

that shows PFL40A

in action. Megger

offers a full installation

and fitting service

throughout Europe.

Email us at CFL@Megger.com

for more details.

18 TIME DOMAIN REFLECTOMETERS

Time domain reflectometers

Time domain reflectometry – or TDR for short – is based on the simple notion of

reflecting an electrical signal from the fault back to your instrument, and measuring the

time. Megger has taken the concept, and added easy to use diagnostic tools that help

even inexperienced staff make expert assessments.

TDR1000/2P

Single channel cable fault locator

A state of the art TDR capable of identifying and locating

faults on metallic cables. The TDR1000 is suitable for use on

both dead or live cables without a blocking filter, up to CATIII

300 V phase-to-earth.

TDR2000/2P

Dual channel cable

fault locator

A state of the art mono or

colour display two-channel

TDR. capable of identifying

and locating faults on

metallic cables. The

TDR2000P is suitable for use

on dead or live cables

without a blocking filter, up

to CATIII 300 V phase-to-

earth with a range of up to

20 km. The TDR has an

internal memory and the

TraceMaster software

supplied allows storage and

analysis of waveforms on

a PC.

It takes less time to train users on

TDR1000/P, as each key has a

dedicated function, such as cursor

left and right, velocity factor,

range etc.

TDR2000/2P can identify and locate

a wide range of faults on metallic

cables from a few metres to 20 km

depending on cable type

How TDRs work

A TDR measures the time it takes a pulse to travel

down a cable, encounter an impedance change, and

reflect back. By knowing the velocity of the pulse the

TDR converts this time to distance. You can then

pin-point the exact location of the problem. Using a

Time Domain Reflectometer (TDR) such as

TDR1000/2 you can find the distance from the tester

to the end of the wire (up to 3,000 metres), along

with the distance to each anomaly within the circuit.

The problem could be in a terminal block, a wire

bundle, or a poor connection.

Problems with the dead zone

The width of the transmitted pulse affects the TDR’s

ability to identify reflections. The width of the pulse is

sometimes referred to as the dead zone. As the pulse

increases in width, it becomes more difficult to

identify reflections, because the dead zone may mask

closely spaced reflections. The TDR measures the

time it takes a pulse to travel down a cable,

encounter an impedance change, and reflect back. By

knowing the velocity of the pulse the TDR converts

this time to distance.

Velocity of Propagation

Pulses travel at different velocities on different cables.

The type of insulation and cross sectional area of a

cable will affect the velocity of a pulse. The velocity of

a cable can easily be determined by connecting onto

a sample of known length. Place the TDR’s cursor at

the reflection representing the end of the cable.

Adjust the velocity setting until the unit reports the

correct length. This setting will be the velocity of

propagation for the cable.

When the problem has been identified, it can be

corrected easily, certainly faster, and more efficiently

than rewiring the system.

MTDR1

Single-phase time domain reflectometer

Primarily used for the pre-location of cable faults using arc

reflection, differential arc reflection and impulse current

methods, the MTDR1 offers exceptional flexibility yet is

intuitive to use with facilities such as operator assist, auto-

ranging and auto distance to fault.

With a full built-in

keyboard and

Windows®XP

operating software

the MTDR has a

range of up to 30 km.

Cable trace and voltage

detectors

L1050, L1070, L1071 Accutrace, and

Cable Route Tracer

Portable cable locators

These instruments are used to locate the exact route and

depth of metallic cables. The instruments’ capabilities are

enhanced by offering both passive and active modes. For ease

of use, and improved efficiency, the instruments can be either

inductive or conductively coupled.

■Multiple output frequencies*

■Variable tx output power level*

■Peak and null detection*

■Push button depth measurement*

* dependent on model

DETEX®

Voltage detectors and phasing testers

The Detex range of testers is ideal for determining the

presence of voltage be it phase to earth or phase to phase.

A verification unit is available to ensure safe operation.

Voltage detectors are suitable for voltages from 2.3 kV to

550 kV. Models are available with electronic LED and

audible indication or neon indication.

Phasing testers are available from 2.4 kV to 69

kV with a choice of analogue or

neon voltage indication.

Capable of locating long or short

ranges, inductive or conductive,

active or passive, the L1070 delivers

quick and accurate results with a

user-friendly interface

DETEX Voltage detectors

are available in seven models

that cover a range from

distribution class to

transmission line

voltages up

to 550 kV

Megger designs and lays out its

own printed circuit boards. That

way, quality can be built into your

tester from the earliest moment

MPP1000

Cable Fault Pinpointer

MPP1000 series locators are used

to pinpoint faults in shielded,

direct buried cables by detecting

both the electromagnetic and

acoustic pulses emitted from an

arcing fault when it is surged.

MPP1000 Series is available as an

electromagnetic-only detector

with acoustic detector, or with

single or dual detector

configurations.

As a single detector, the set

provides detection of acoustic

emission, measurement of time

delay between the acoustic and

electromagnetic signals, and

distance to the fault. If a second

detector is added, the

set will also display

the direction to the

fault.

The

MPP1000

series of

locators can be

used with any

surge generator.

The MPP1000 is the accurate way to

pin-point a fault on buried cables

New

CABLE TRACE AND VOLTAGE DETECTORS 19

TTR300 series three-phase transformer turns ratio

test sets are designed to measure the turns ratio of

power, instrument, and distribution transformers in

a substation or manufacturing environment. A

rugged design makes the instruments well suited for

use in a variety of harsh environments. TTR300

series testers are ideal for use by power transformer

manufacturers. Their unique testing procedures and

storage capability allows you to set up and test

difficult three phase transformers (with multiple tap

changers and bushing CTs) in a fraction of the time

than it used to take. Tests include a pass/fail limit of

individual ratios and measuring the phase deviation

of the transformer primary versus secondary. This

quickly indicates problems in the transformer such

as partial shorted turns and core faults. This

measurement is useful in verifying phase errors in all

types of PTs and CTs. Each unit comes equipped

with a remote-control switch for single person

testing. This allows the operator to test transformers

with LTCs very quickly.

TRANSFORMER TESTING 2120 TRANSFORMER TESTING

Transformer testing

It’s tough work testing transformers when it’s cold and wet. Or even if it’s hot and the

sun’s baking on your back. Don’t worry, Megger’s new hand-held transformer test

equipment is tough and lightweight, with all the functionality you need for rapid testing.

PowerDB OnBoard - consistent and

repeatable

PowerDB OnBoard comprises the powerful PowerDB

asset management software embedded within the

instrument, running on a Windows operating system.

Without the need for an external computer, PowerDB

OnBoard brings field based users consistent,

repeatable tests across instruments, unprecedented

data analysis (including historical trend charting) and

asset management tools, all from on-screen ‘forms

based’ views.

Also included are a number of new communication

technologies, providing a near seamless interface

between the instrument and optional peripheral

equipment, such as an “in-lid” USB full-sheet (A4 or

letter) thermal-paper printer, USB flash drive, and

external PC (via Ethernet port). For advanced users, a

USB router can be connected to the instrument to

provide simultaneous access to other equipment,

such as a mouse or a keyboard. Storage space is

provided by either the internal flash memory or

external USB flash drive - sufficient to save literally

tens of thousands of test data sets.

Reduced training time

A common user interface reduces the training time

needed to understand the different instruments that a

busy test engineer has to use. New instruments with

PowerDB OnBoard such as TTR330 are truly forms-

based, have a large 8.4” full-VGA bright colour display,

and let you set up and control the instruments

through on-screen test form views. On-screen test

forms are exact replicas of the test forms which are

printed as a permanent test form record once testing

is complete. They are secure reports and generated

directly from instrument so no human interface is

needed.

TTR25

Hand-held TTR

TTR25 is an automatic hand-held

transformer ratio test set used to

measure the turns ratio, excitation

current and polarity of windings

distribution and power

transformers, potential and current

transformers, and tapped

transformers.

TTR100

Hand-held

transformer tester

Fully three-phase capable,

TTR100 is the low cost

solution for three-phase

transformer testing. The

lightest and most portable

TTR test set available, it

offers a full set of tests

including; transformer turns

ratio, excitation current,

phase angle deviation,

winding resistance and

transformer polarity, the

results can be stored on

board for later

downloading.

TTR25 is designed to operate in

tough environments. It is extra

rugged, with a high impact, shock

resistant case, yet incredibly

lightweight at a mere 870 g

With a turn ratio of 20,000:1, the

TTR100 offers the highest turns

ratio accuracy in the industry of

0.1%. The TTR100 features special

software capabilities

Transformer testing

TTR300

Basic TTR test set

TTR300 is designed to be completely remote controlled via a

PC running PowerDB LITE (included) or PowerDB (full version)

PC software. TTR300 is field upgradeable to TTR310, TTR320

or TTR330 without compromise to calibration. It has built-in

capability for

storing test

results into

internal memory

in an open XML

data format via

PowerDB LITE.

You can quickly

download test

results via RS-232

serial port.

TTR320

TTR with PowerDB lite and colour display

TTR320 has a high contrast bright 5.7” full VGA colour display

can be seen in direct sunlight. It has a full keyboard for

entering nameplate information. Communications ports

include RS-232, USB and Ethernet ports for easy on-board

printing, storage, and downloading of test results. PowerDB

LITE software is included, so you can

perform data analysis and trending

of results. TTR320 has fully

automatic operation

(stand-alone or

remote-control),

is field

upgradeable

to TTR330

without

compromise

to calibration

and has a

graphical user

interface with

easy-to-read ICON

based screens and

automated setup

and control. You can

store test results in an

open XML format, to

either internal memory or

to an external USB storage

device.

New

Transformer turns ratio testers

TTR25 TTR100 TTR550005 TTR300 TTR310 TTR320 TTR330

Turns ratio range 0.8 to 20,000 0.8 to 20,000 0.001 to 129.999 0.8 to 45,000 0.8 to 45,000 0.8 to 45,000 0.8 to 45,000

Excitation voltage 0.5 V, 1.5 V and 8 V 1.5 V and 8 V 8 V 8 V, 40 V, and 80 V 8 V, 40 V, and 80 V 8 V, 40 V, and 80 V 8 V, 40 V, and 80 V

Excitation current 0 -100 mA 0 -100 mA 0 -1 A 0 to 500 mA 0 to 500 mA 0 to 500 mA 0 to 500 mA

Single phase test     

Automatic three phase test  

Display Type 128 x 64 LCD 128 x 64 LCD Analogue 5.7” mono 5.7” colour VGA 8.4” colour VGA

On-screen view Text Text Text Graphical icons Test forms

Remote PC control RS-232 RS-232 Ethernet Ethernet

User defined settings 

Display % error 

Power DB Onboard 

Keypad 7 key 19 key 16 key Full QWERTY Full QWERTY

Internal storage 200 datasets 200 datasets 10,000 datasets 10,000 datasets

Printer interface RS-232 RS-232 RS-232 RS-232 USB

Software COMLINK 

PowerDB LITE  

Power source 6 x AA NiMH Hand -cranked 120/230 V a.c. 120/230 V a.c. 120/230 V a.c. 120/230 V a.c.

Weight 1.5 kg 1.5 kg 7.3 kg 9.1 kg 10.4 kg 11.3 kg 11.3 kg

TTR310

TTR with PowerDB lite

TTR310 has an easy-to-read, high-contrast LCD that can be

seen in bright sunlight and provides the user interface for

instrument set-up and test operation. It comes complete with

PowerDB LITE software. TTR310 can store test results, upload

results to a PC (via RS232 serial port), and/or print them in the

field via optional thermal paper printer, without the use of

an external computer. TTR310 has fully automatic operation

(either stand-alone or remote-control), is field upgradeable to

a TTR330 or TTR320 without compromise to calibration and

built-in capability for storing test results into internal memory

in an open data format for direct input into Excel®or XML

format via PowerDB LITE.

New

TTR330

Advanced TTR test set with PowerDB

onboard

TTR330 has a new user interface that lets you interact with

the PowerDB ONBOARD software system through keyboard

and navigation keypads as displayed on an 8.4” VGA bright-

colour screen. PowerDB ONBOARD displays the actual test

form directly on the screen. TTR330 also lets you customise

test forms via optional full-version PowerDB. TTR330 has

three communications ports (two USB, one Ethernet). The USB

host ports can be used for connecting directly to an optional

printer (to print full size A4 or letter completed test forms)

and for data storage to a USB memory device (for later

printing, analysis, archiving, and/or trending). The Ethernet

port allows TTR330 to interface bi-directionally to a PC.

TTR330 has fully automatic operation (stand-alone or remote-

control) with user

interface via on-screen

customizable test forms

and built-in capability

for storing test results,

in an open XML

format, to either

internal memory or to

an external USB

storage device.

New

TTR330 has PowerDB for rapid

report generation

See page 37 for more information on PowerDB.

Transformer Ohmmeter and Current Transformer

Model MTO210 MTO330 MCT1600

Instrument type Tranformer Ohmmeter 

Current Transformer test set 

Accuracy +/-0.25% +0.25% of FS 

Test voltage 50V 

Pre-test polarization check 

Demag after test 

Lead lengths 20 metres (66 feet) 

Printer paper width 10cm (4 inches) 

Field upgradable firmware 

Ouput range Variable 5 mA - 10 A (dc) 

Open-circuit test voltage: 50 V dc 

Rating: Continuous use on all ranges 

Display 8.4 in (210 mm) full colour VGA 

TRANSFORMER TESTING 23

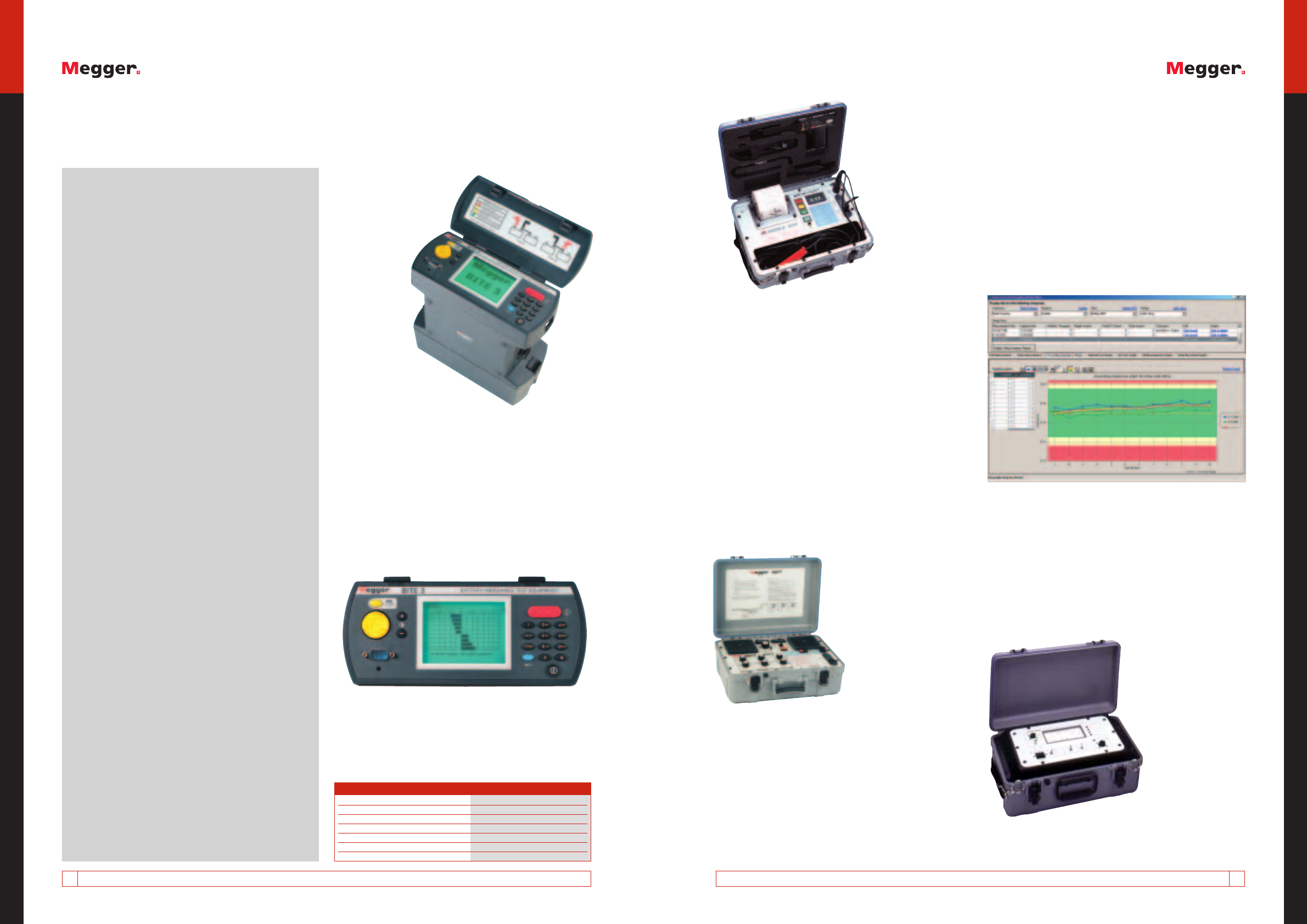

Transformer testingTransformer testing

Transformer ohmmeter

Transformer winding resistance and

tap-change test set

Field portable low resistance measuring instrument designed

to test transformer windings, motors, generators and tap

changers. The two independent measuring channels greatly

reduce the test duration of large inductive loads like

transmission transformers, where it is possible to measure

secondary and primary windings simultaneously.

A lightweight, field portable unit that safely and accurately measures the

DC winding resistance of all types of transformers and rotating machines

TTR550005

Single-phase transformer turns

ratio test set

The single-phase TTR measures power and distribution

transformers using the manual balancing method. Deviations

in turns ratio readings indicate problems in one or both

windings or the magnetic core circuit. A hand crank provides

power for the TTR550005.

The Single-phase TTR transformer

turns ratio test set measures the

turns ratio and exciting current of

windings in power, potential and

current transformers

MCTT-10

Current transformer tester

MCTT10 is a portable unit for performing saturation and ratio

tests on current transformers using the voltage-comparison

method. It provides a variable voltage output and precision

instrument for testing single and multi-ratio CTs. Saturation

and ratio tests can be performed without changing any leads.

Current transformers can be tested in their equipment

configuration, such as being mounted in transformers, oil

circuit breakers or switchgear. However it is necessary for the

equipment to be totally isolated from the electrical system

prior to testing.

MCTT-10 performs saturation and ratio tests on CTs using the voltage-

comparison method

MCT1600 has a manual

voltage output control

knob. The user can perform

any test required manually if

only a spot check is needed.

MTO210

Transformer ohmmeter

MTO210 is a line-operated, field-portable instrument

designed specifically to measure the d.c. resistance of all types

of magnetic windings safely and accurately. It is mainly used

all types of transformer windings but can also test rotating

machine windings and perform low-current resistance

measurements on connections, contacts and control circuits.

Three features combine to make this instrument unique

■dual measurement

■load tap-changer testing

■safety shutdown

The dual set of potential inputs measure the resistance of the

primary and secondary windings of a single- or three-phase

transformer simultaneously speeding up the measurement.

To achieve a tenfold improvement in reading time, a

balancing current is applied to the secondary to attenuate

the circulating current induced when the test current is

applied to the primary winding.

When testing the windings and contact resistance on tap-

changers with make-before-break contacts and voltage

regulators, the internal shutdown circuit of MTO210, which

will be triggered by a voltage kickback of a few microseconds

if the tap-changer contacts are opened, can be used to check

for pitted or misaligned contacts as the instrument will shut

down if either condition occurs.

Users are protected by the shutdown circuit safety feature:

any inadvertent disconnection of a test lead or loss of power

to the instrument will safely discharge the energy stored in

the test sample.

MTO320

Transformer ohmmeter with graphical

interface

MTO320 provides a fully automatic six-winding resistance

measurement capability, even on 3-phase transformers with

tap changers. During tap changes, the unit also continuously

monitors for any break-before-make conditions.

The high contrast bright 5.7” full VGA colour display can be

clearly read in direct sunlight. The graphical user interface

allows automated setup and control through easy-to-read

icon based screens. The full QWERTY keyboard speeds the

entering of information such as nameplate-type data.

Communications is via RS-232, USB and Ethernet ports for

easy on-board printing and storage, and downloading of test

results.

Once testing is complete, the unit will automatically

demagnetize the transformer.

Supplied with PowerDB LITE PC software application, the

user can perform data analysis and trending of results.

MTO measures dc resistance of all

types of transformer windings

within the defined ranges of

current and resistance.

New

MCT1600

Current transformer tester

A robust, portable unit to automatically or manually perform

saturation, ratio, polarity, demagnetising tests, CT burden and

insulation tests on current transformers using the voltage

comparison method. It has an integrated 1 kV insulation test

system. The colour display is viewable in daylight and shows

multiple instantaneous saturation curves with knee points.

Data is saved to a USB stick.

22 TRANSFORMER TESTING

TRANSFORMER TESTING 25

Transformer testing

24 TRANSFORMER TESTING

Transformer testing

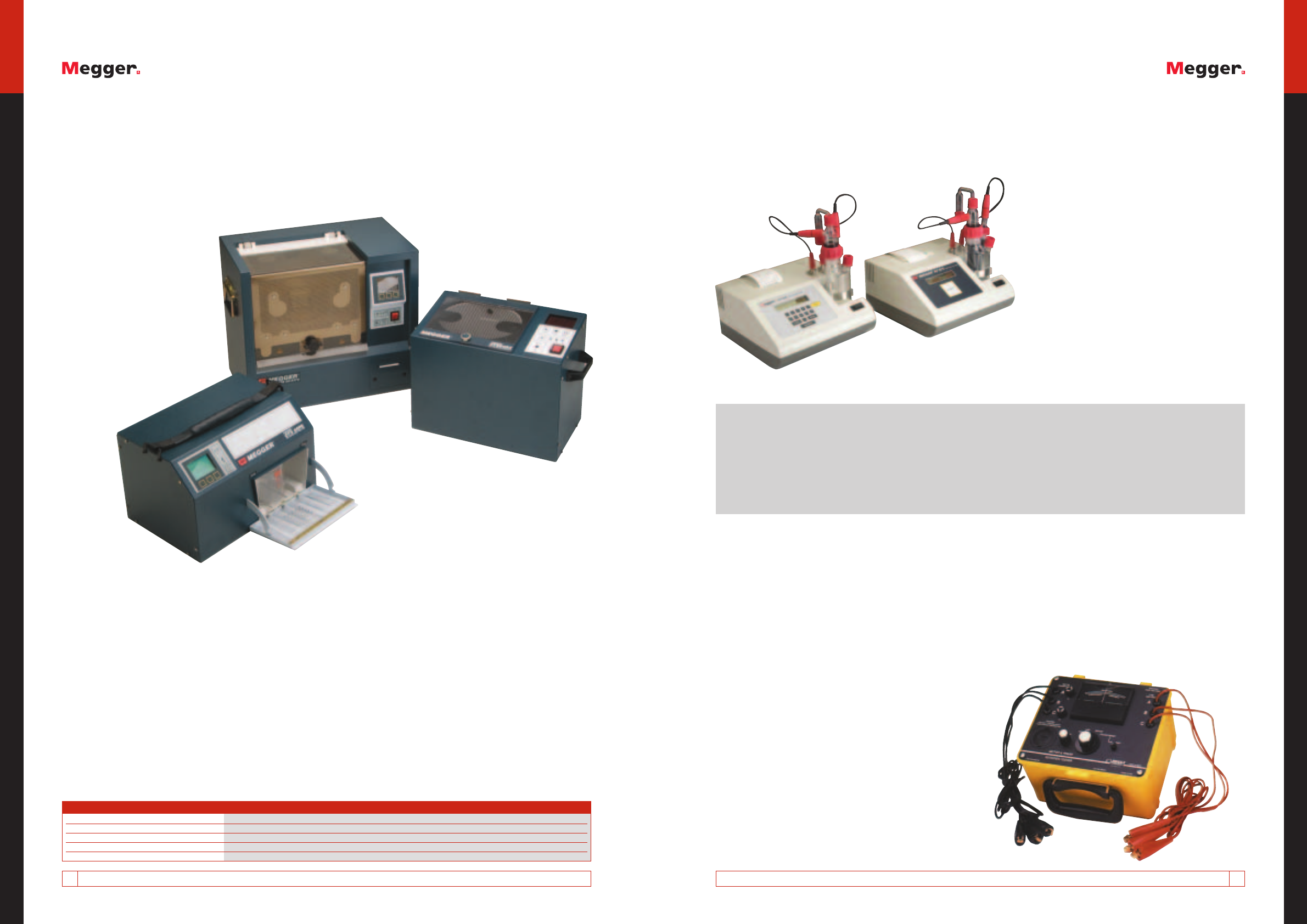

Karl Fischer testing uses the titration method to measure the amount of water in fluids

such as insulating oil. It has become a standard test done on transformer insulating oil.

Oil is an efficient coolant with a high flash point and high dielectric strength when used

as an insulator in transformers. The insulation properties can change due to oxidation,

acids, sludge, gas and water absorption. These changes can be monitored using a

dielectric Megger OTS test set.

KF-LAB

Variable specific gravity

moisture in oil test set

Easy to use test set that titrates for specific

gravities between 0.60 and 1.40. Designed

specifically for laboratory use, the KF-LAB is

mains powered only.

Polarity tester

Transformer polarity verifier

This simple device can help avoid an expensive mistake. Its

small size and reliable construction make it a useful addition

to any tool box.

Phase sequence and continuity

indicator

Providing positive indication of phase sequence on energized

lines and which phase, if any, is faulty.

Motor and phase rotation tester

A compact, rugged and portable instrument suitable for

phase sequence and motor ratio testing. Suitable for

determining the rotation direction of 1, 2 or 3-phase motors,

rotation or sequence of energized power circuits. Can also be

used to determine the polarity of instruments and power

transformers, and phase/polarity of unmarked

motor windings.

OTS60PB

Portable automatic testing

The smallest lightest fully automatic portable oil test set

available with test voltage up to 60 kV. Internal rechargeable

battery for operation in remote locations. Optional printer

and fully programmed international test sequences.

OTS60SX

Manual testing

Lightweight semi-automatic 60 kV oil dielectric strength test

set which is simple to use and can be powered from a range

of mains supplies.

KF875 uses coulometric

titrimetry technology

KF-LAB MkII analyzes

materials with a specific

gravity between 0.6 and 1.4,

plus insulating oils

Whether you test insulating

oil on-site or in the

laboratory, one of the

Megger oil test sets will

meet your requirements.

Motor and phase rotation tester

provides complete phase-sequence

and motor-rotation testing in one

instrument

Transformer insulating oil dielectric strength testing

Model OTS100AF/2 OTS80AF/2 OTS60AF/2 OTS60PB OTS60SX

Test voltage 100 kV 80 kV 60 kV 60 kV 60 kV

Function Automatic Automatic Automatic Automatic Semi-automatic

Power supply Mains Mains Mains Rechargeable battery Mains

Weight 40 kg 40 kg 40 kg 19 kg 17.5 kg

OTS100AF/2

100 kV automatic oil test

set

A laboratory instrument that

measures the dielectric strength

automatically with a test voltage up

to 100 kV. While the custom facility

allows the operator to vary the test

parameters, international test

specifications are pre-programmed,

making it easy to use.

OTS80AF/2

80 kV automatic oil test set

For laboratory use, this instrument measures the dielectric

strength automatically with a test voltage up to 80 kV. While

the custom facility allows the operator to vary the test

parameters, the international test specifications are pre-

programmed, making it easy to use.

OTS60AF/2

60 kV automatic oil test set

For users wanting to test up to 60 kV, this is the ideal

laboratory instrument for automatic dielectric strength

measurement. While the custom facility allows the operator

to vary the test parameters, the international test

specifications are pre-programmed, making it easy to use.

VCM100

Calibration meter

A useful device for verifying the calibration of the AF series

of oil test sets.

Insulating oil Karl Fischer

Polarity

Moisture in insulating oil not only reduces the

efficiency of the oil as an insulator but may also be

used to detect signs of degradation in the solid

insulation in transformers and switchgear since water

is a by-product of the breakdown of this type

insulation. However oil degrades in the light and

over time, and water content should be measured at

or near the normal operating temperature of the oil.

KF875

Portable moisture in insulating oil test set

Easy to use, portable one button test set with integral

printer. Can be powered from mains, internal rechargeable

battery or car battery. Ideal for on site use.

It is now recognised that inaccuracies can occur when

oil is sent to a central laboratory or workshop for

breakdown and water content analysis. Local testing

allows decisions to be made immediately reducing the

danger of putting the equipment back into service with

inadequate oil whilst waiting for results to come

through from a central laboratory.

BT51

2 A low resistance ohmmeter

Low resistance ohmmeter ideally suited for bond testing

applications, i.e. aircraft frames, electronic

discharge and fuel tanks. Four terminal

method of measurement

ranges 0-20.00mΩ

and 0-2000mΩ.

High test

current of

2A.

26 LOW RESISTANCE TESTING

Low resistance testing

Failing to spot gaps and cracks in aircraft wings or broken rails on railways can cause

disastrous failure causing devastation to the lives of passengers. Routine maintenance

using a low resistance tester (DLRO) sometimes known as a “Ducter” test can highlight

problems before they become catastrophic.

DLRO200

200 A low resistance ohmmeter

Provides the operator with high resolution, 0.1 µΩ,

lightweight and portable method of performing on-site low

resistance measurements. The test current is variable from

10 A to 200 A, in 1 A steps, enabling the user to perform all

the required test with a single instrument. The unit can be

used to test small circuit breaker contact resistance to IEC

62271-100, switch contacts, busbars, joints, splices and fuses.

DLRO600

600 A low resistance ohmmeter

Provides the operator with high resolution, 0.1 µΩ,

lightweight and portable method of performing on-site low

resistance measurements. The unit can be used to test circuit

breaker contact resistance to IEC 62271-100, switch contacts,

busbars, joints, splices and fuses. The test current is variable

from 10 A to 600 A, in 1 A steps, enabling the user to

perform all the required test with a single instrument.

Low resistance measurement

Model DLRO600 DLRO200 DLRO10X DLRO10 BT51

Measurement ranges 1.9999 mΩ1.9999 mΩ20.00 mΩ

19.999 mΩ19.999 mΩ2000 mΩ

199.99 mΩ199.99 mΩ

0.1 µΩ to 999.9 mΩ0.1 µΩ to 999.9 mΩ1.9999 Ω1.9999 Ω

auto ranging auto ranging

19.999 Ω19.999 Ω

199.99 Ω199.99 Ω

1999.9 Ω1999.9 Ω

Resolution 0.1 µΩ0.1 µΩ0.1 µΩ0.1 µΩ10 µΩ

Accuracy <1% <1% ±0.2% ±0.2% ±1%

Current test range 10 A - 600 A 10 A - 200 A 0.1 mA - 10 A 0.1 mA - 10 A 2.0 A

Results storage 300 300 700

RS232 ■■■

Power source Mains ■■

Rechargeable battery ■■■

Weight excluding leads 14.5 kg 14.5 kg 2.6 kg 2.6 kg 4.5 kg

A large liquid crystal display provides all the information needed to perform

a test; all test parameters and measurement results are displayed

DLRO600 measures resistances

between 0.1 Ωand 1 Ω, at high

currents. It can provide test

currents from 10 amps up to 600

amps subject to the load resistance

and supply voltage. It is ideal for

testing busbars

Low resistance testing

DLRO10

10 A low

resistance

ohmmeter

The DLRO10 offers a 0.1

µΩ resolution with a

maximum capability of 2

kΩ. Fast testing ability

means users can achieve

results in less than 3

seconds. At only 2.5 kg they

are the smallest, lightest

and simplest-to-use 10 A

low resistance ohmmeter

available. Uses easily

interchangeable batteries.

DLRO10X

10 A resistance ohmmeter with test results

storage and downloading

The DLRO10X offers a 0.1 µΩ resolution with a maximum

capability of 2 kΩ. Fast testing ability means users can achieve

results in less than 3 seconds. At only 2.5 kg it is the smallest,

lightest and most sophisticated 10 A low resistance ohmmeter

available making it. Ideal for jobs like rail bond testing.

The DLRO10X has the capability of measuring inductive loads

such as transformers and motor winding. Availability of

readings can vary from a few seconds up to minutes

depending on the inductance and resistance of the test item.

The DLRO10X adds on-board

memory, RS232 download

capability, maximum

setting and manual or

automatic range control

to the features of the

DLRO10. Uses easily

interchangeable

batteries.

DLRO10 has bright 41⁄2digit LED

display making it easy to read

under all lighting conditions

DLRO 10X has real-time

download of results and

on-board storage for later

download to a PC

Ask for the free Megger

guide to low resistance

testing. This 32 page

comprehensive guide is

written in a clear, easy

to read style. The

booklet

comprehensively covers

both theory and

practise. It has chapters

on how to measure low

resistance, choosing a

low resistance tester,

and evaluation and

interpretation of results

Why test for resistance?

Low resistance measurements are required to prevent

long term damage to existing equipment and to

minimize energy wasted as heat. They indicate any

restrictions in current flow that might prevent a

machine from generating its full power or allow

insufficient current to flow to activate protective

devices in the case of a fault. Periodic tests are made

to evaluate an initial condition or to identify

unexpected changes in the measured values, and the

trending of this data helps indicate and may forecast

possible failure conditions. Excessive changes in

measured values point to the need for corrective

action to prevent a major failure.

LOW RESISTANCE TESTING 27

BATTERY TESTING 2928 BATTERY TESTING

Battery testing

With the increasing dependency of back up systems on battery strings, and the escalating

cost of replacing failing cells; instrumentation and software systems that can measure

trend and manage the life-cycle of cells is a cost effective option.

Are batteries a waste of time and

money?

Batteries are indeed, a waste of money. This means to

say that if the power grid were 100% reliable,

batteries would not be necessary!

The many worldwide power outages over the past

several years make batteries essential as a backup

source. Who actually gives batteries a second

thought? We simply expect them to work when called

upon. Experience has shown that this expectation is

pure fiction.

Batteries are extremely important to provide

electricity to support many assets and revenue

streams during outages. For example, in a generating

station, if the turbine suffers an outage, without the

back-up battery the turbine lube oil priming pumps

would not continuously keep the bearings lubricated

causing major damage and lengthy outages. In

hospitals, who wants to be in the middle of an

operation when an a.c. outage occurs without proper

battery back-up? The applications for batteries are

innumerable and frequently unseen. In this world of

dependency upon electricity, it is impossible to

survive without battery back-up.

It is not enough to only check the voltage and

specific gravity. The sum of all of the cells’ voltages

equals the charger output. Voltage (and specific

gravity) of lead-acid batteries follows the sulphate. If a

battery is fully charged, the sulphate will be in the

acid and its voltage and specific gravity will be normal

(with few exceptions.) If it is in a discharged state,

the voltage will be low and as there will still be some

sulphate on the plates, the specific gravity will also be

low. If the battery has a normal voltage, there is no

indication of its condition. When the voltage is

abnormal, it may indicate a potential problem.

There are many failure modes for batteries. With care

and measurement these can be dramatically reduced,

especially if little to no testing is presently being

performed. The battery is installed, not to add to

work load, but to support critical electrical

equipment or revenue streams. Proper testing and

data analysis can help determine when a battery

should be replaced. Testing also helps reduce

emergency battery replacements and assists in

budgetary planning, thus reducing cost. A properly

implemented battery testing regime does not

necessarily reduce the work load but it will, most

likely, increase reliability of the entire d.c. network.

BITE®3

Battery impedance

test equipment

BITE3 battery impedance

test equipment

determines the

health of lead-

acid cells up to

2000 Ah by

taking

measurements of

the most

important battery

parameters, cell

impedance, an

internal ohmic test,

cell voltage, intercell

connection resistance and

ripple current.

For the first time in a battery

test instrument, BITE3

measures float current and

the harmonic content of the

ripple current. There is a

built-in spectrum analyser to

show the harmonic content

of the ripple current. It has

firmware that can be

upgraded through the

Internet and supports

English, French, German and

Spanish.

Battery testing

Model BITE3 BITE2P

For batteries of capacity 2000 Ah 7000 Ah

d.c. voltage range 0 - 30 V 0 - 25 V

d.c. voltage resolution 1 mV 1 mV

Impedance range 0 - 100 mΩ0 - 100 mΩ

Impedance resolution 1 µΩ1 µΩ

Weight 2.6 kg 14.5 kg

BITE3 with ProActiv software offer a comprehensive data analysis system to

provide reliable evaluation of batteries in the d.c. network. The analysis

helps you avoid battery failures, budget for future battery string and cell

replacements, and plan battery changeouts in an orderly manner

BITE3 determines the health of

lead-acid cells up to 2000 Ah by

taking measurements of the most

important battery parameters

Battery testing

BITE2P

Impedance tester for up to 7000 Ah cells

A rugged durable instrument whose enhanced capabilities

make it easier to determine the true state of health of a

battery system, terminal plate to terminal plate.

The BITE2P is ideal battery systems up to 7000 Ah, used in

substations, generating stations, telephone exchange UPS

systems and cabinetised UPS batteries, railway substations,

signal and communications installations.

PROACTIV

Battery database management software

ProActiv is a powerful yet easy-to-use battery database

management software designed to aid the analysis and

monitoring of each individual battery in a battery system.

Failure of a battery system within environments such as

utilities, hospitals or manufacturing plants can result in

operational failure of the devices connected to it.

ProActiv assists the user to avoid battery failures, budget for

future battery string and cell replacements, and plan battery

change-outs in an orderly manner. It utilizes a standard

Microsoft Access database format allowing the user to

organize and manage battery data such as voltages,

impedance, intercell connection resistance, ripple current,

specific gravity, and IR thermographs.

BGFT

Battery ground fault

tracer

A manually balanced

instrument that identifies,

tracks and locates ground

faults in unearthed d.c.

battery systems, on-line.

Effective in high electrical

noise environments, as the

strength of test current can

be adjusted. Useful for

industries where power

supply for operating

measurement,

communication and control

equipment is critical.

BGL (not CE marked)

Battery earth fault trace

This instrument detects, tracks and

locates earth faults

on battery or floating

systems by injecting a

21 Hz or 25 Hz signal

(depending on line

frequency) between the

system and earth. The

resulting current is then

traced through the

system with a clamp

accessory, knowing

that the fault current

will flow to earth

until the fault is

located. Designed for

operation on live

battery systems, hence there is

no requirement to isolate the system.

BITE 2P Battery Impedance Test

Equipment determines the

condition of lead-acid and nickel-

cadmium cells up to 7000 Ah

The Battery Ground-Fault Tracer is

an economical, manually-balanced

instrument that identifies, tracks

and locates ground faults in

ungrounded d.c. battery systems -

on-line. It is particularly effective in

a high electrical noise

environments, as the strength of

the test current can be adjusted

Proactiv uses a standard MS Access database format. It allows users to

organise and manage battery data such as voltages, impedance, intercell

connection resistance, ripple current, specific gravity, IR thermographs

and more

BGL simplifies fault tracing by

identifying fault characteristic

(resistive and capacitive)

magnitudes

EARTH GROUND RESISTANCE TESTING 3130 EARTH GROUND RESISTANCE TESTING

Earth ground resistance testing

Professional earth test kit

Megger’s Professional Earth Test Kit is designed to be as

practical as possible. Housed in a tough polyethylene carry

case, the kit is stored neatly, well-protected and easy to

transport. In use the reels are fitted and retained on the spike

handles, simply run out the test lead to the instrument and

plug in, plug the other end directly into the spike, and test.

When the test is complete, unplug the test leads and wind

them in, whilst still on the spike.

■Ideal for use with whole range of Megger earth testers

■4 wires on easy-wind reels make it quick to get testing

and quick to pack away again

■1 croc clip test wire

■Fibre glass measuring tape to assist accuracy

■Auger style spikes make it easy to deploy and

to check depth

■Tough easy store case

Earth ground resistance testing

Megger has more than 50 years experience of designing and building earth resistance

testers. The latest generation is CATIV rated, and have tough moulded cases.

Variable test frequency keeps noise down, reliability up.

DET2/2

High resolution earth tester

Our top of the range earth tester. High resolution to 1 mΩ.

This level is required to measure resistivity to adequate depth

on many substation and communication sites. Measurement

of the low earth values required on many installations, to

meet Ground Potential Rise (GPR) requirements need this

resolution to ensure valid results. Superior noise filtering

greater than 40 V peak to peak to retain resolution under

real test conditions.

DCM300E

Earth leakage clamp

Measurement of leakage

current. For stable readings

down to very low current

value with a 10 mA

resolution. Current

measurement up to 300 A.

DET3 and DET4

Earth ground testers

All models include these features

■Extra large selector switch

■Extra large, clear display for easier operation in outdoor

conditions

■Simple one button operation

■Battery powered with a bar graph that updates battery

strength

■Noise reduction up to 40 V peak to peak

■Safety rating of CATIV 100 V

■IP54 rated (water/dust ingress) for extra protection in harsh

conditions

DET3TD offers a complete kit for customers wishing to conduct

earth electrode testing using the two and three pole techniques

DET3TA is a three pole testing solution for users who prefer an

analogue instrument

DET3TC, when used with the optional ICLAMP allows fall of

potential testing using the ART technique without needing to

disconnect the electrode under test

DET4TD2 is a complete earth testing kit for users needing the

flexibility to use either the two and three pole electrode

techniques or the four pole soil resistivity test

DET4TR2 is similar to DET4TD2, with the added advantage of

using rechargeable batteries. You can also get an adaptor to

charge your tester from your vehicle.

DET4TC2 is a four pole tester with extended resistance range

and variable test frequency. Use it for ART testing, two or three

pole testing, four pole resistivity testing and stakeless testing.

DET4TCR2 is similar to DET4TC2, with the added advantage of

using rechargeable batteries. You can also get an adaptor to

charge your tester from your vehicle.

Each instrument includes everything you

need to test:

■Comes complete with test leads, stakes, batteries, calibration

certificate and rugged polypropylene carry case.

DET2/2 has excellent noise filtering

and is ideal for big earth systems

DCM300E was designed with

safety in mind. It exceeds the

requirements of IEC1010-2-32

Earth resistance testing

Feature DET2/2

Earth test technique 2-pole resistance measurement a.c. ■

3-pole earth measurement a.c. ■

4-pole earth measurement a.c. ■

Warnings or indicators Noise interference ■

P spike resistance high ■

C spike resistance high ■

Outputs Adjustable frequency 105 –160 Hz

0.5 Hz steps ■

Displays Max resolution 0.001 Ωhigh accuracy ■

Noise rejection 40 V peak to peak ■

Power supply Battery status indicator ■

Charge from vehicle battery ■

Case Weather and dust proof to IP54 ■

Operation instructions on lid ■

Earth ground testers

Description DET3TD DET3TA DET3TC DET4TD2 DET4TR2 DET4TC2 DET4TCR2 DET10C DET20C

Stakeless testing

■■

Stakeless testing with optional test clamps

■■

ART (Attached Rod Technique) with

optional clamp

■■■

Selectable test frequency

■■

Earth voltage range 0 to 100V

■■■■■■■

2-wire testing

■■■■■■■

3-wire testing

■■■■■■■

4-wire testing

■■■■

Dry cell batteries

■■■■ ■ ■■

Rechargeable batteries

■■

Backlit display

■■

Digital display

■ ■■■■■■■

Analogue display

■

Test results storage

■■

Downloadable test results storage

■

Earth current range 0.2 mA to 35 A

■■

Earth current range 0.5 mA to 19.9 A

(with optional measuring clamp)

■■■

Resistance range 0.1 to 2 kΩ0.1 to 2 kΩ0.1 to 2 kΩ0.1 to 20 kΩ0.1 to 20 kΩ0.1 to 200 kΩ0.1 to 200 kΩ0.025 to 1.5 kΩ0.025 to 1.5 kΩ

PowerDB lite

■■■■

PowerDB full version



DET10C and DET20C

Earth resistance clamp testers

Earth resistance clamp testers are suitable for measuring

earth resistance of installations such as buildings, pylons and

RF transmitter sites and for inspection of lightning protection

systems.

■Measures ground rod resistance

■Measures ground leakage current

■Automatically self calibrates

■Auto ranging

■High and low alarms

■Memory and downloading

Everything you need for earth

ground testing, including a tough

moulded polyethylene case

New

DET4TC2 comes as

a bare tester or in

a full kit

■ feature option

HAND-HELD ELECTRICAL TEST TOOLS 3332 MULTIMETERS AND CLAMPMETERS

Multimeters and clampmeters

Multimeters

AVO300 series

Tough and simple multimeters offering large single

parameter display and autoranging.

M7000 series

High specification dual parameter display multimeter

offering measurement accuracies up to 0.2%.

M8000 series

Professional dual parameter display multimeter

offering measurement accuracies up to 0.08%. The

M8037 also offers true RMS.

Model 8 Mark7

The multimeter that has become the industry

standard, due to its robust construction.

MMC850

MMC850 offers a unique

solution to current

measurement in multi-core

cables, without the need to

split cores. Simply clamp the

MMC850 to a multicore

cable and read the current

flowing. Not shown on

selection chart – please ask

for datasheet.

Portable appliances

testing

A range of testers are

offered for in-service

inspection and testing of

electrical equipment in

accordance with the IEE code

of practice. PAT4 series offer

a sophisticated tester with

on-board asset database for

high speed testing while the

PAT32 is a more manual

tester.

Donald MacAdie was a Scottish engineer who first put the measurement of Amps, Volts

and Ohms together, inventing the AVOmeter multimeter. The first multimeter was

manufactured by The Automatic Coil Winder Company (predecessor to AVO, later

Megger) in 1923. By 1965, the company had already created over one million AVOmeters.

Megger has a complete range of analogue, digital and analogue/digital multimeters to

provide the solution to electrical and electronic fault finding and testing

DCM clampmeters are ideal for use

in the installation, maintenance,

monitoring or checking of electrical

systems and equipment

The Model 8 Mk 7 being

manufactured here is a direct

descendant of MacAdie’s original

design

Hand-held electrical test tools

Insulation and continuity testers

MIT300 series

A CATIV 300 V insulation and continuity tester that comes in

five version from basic tough 2 voltage digital tester to a

downloading 3 voltage tester, there is also an analogue

3 voltage tester.

MIT200 series

A light-weight, CATIII 600 V insulation and continuity tester

ideal for the maintenance engineer whose on the move.

Earth loop impedance testers

LT300

A high current loop tester that is ideal for industrial

applications with 50 V to 500 V and 16 Hz to 400 Hz

operational range.

LTW300 Series

2-wire non-tripping loop testers that makes loop impedance

testing simple where there is no neutral present.

LTW425

2-wire non-tripping loop tester that makes measurement

close to the source of supply possible as it measure loop

impedance down to 3 decimal places.

Electrical contractors throughout the world depend on hand-held test equipment to

ensure installations are safe and function correctly. Count on Megger to produce tough

machines that are designed to surpass the requirements of wiring regulations.

MIT300 is ergonomically designed

in landscape format to suit

electrical contractors

MIT200 is an economical tester with

all the essential functions you need

LTW300 does not trip 30 mA

RCDs and can be used on a

wide range of voltages

MFT1500 series

Multifunction tester

Offering insulation resistance, continuity, earth loop

impedance and RCD testing in one tester. Ideal for installation

testing and periodic inspection, the top of the range model

offers Bluetooth connectivity for paperless certification. MFT1553 is the

latest multifunction tester

from Megger. It includes Bluetooth

for rapid downloading of test data

Ask for the free electrical

test instruments

catalogue. It includes a

comprehensive review of

hand-held test tools, and

has many interesting

technical articles.

Megger electrical test instruments

New Clamp meters

that are tough

and easy to use!

New Multifunction

tester with Bluetooth®

and auto RCD function

New earth testers designed

to work even in rocky soils

New! Earth

ground testers

with even better

noise rejection

The word ‘Megger’ is a registered trademark

WWW.MEGGER.COM



Clampmeters

DCM series

A choice of 3 clamp meters

and a fork multimeter for

use during the installation,

maintenance and checking

of electrical systems and

equipment.

Clampmeters and fork multimeter

Model DCM310 DCM320 DCM330 DCM340

Safety rating CAT III 600V  

CAT III 1000V 

CAT IV 600V 

DC and AC volts 0 - 200.0 V range, 200.0 - 600.0 V accuracy 

Continuity On < 20 W, Off >50 W, response time <50ms 

Resistance Range 200.0 Ω ±1%, Accuracy ±5% digits  

Range 0 - 400.0 Ω, Accuracy ±1% ±3 digits 

35mm diameter 

Maximum conductor size 27 mm diameter 

16 mm diameter 

Power requirement 1 x PP3 9 V alkaline battery 

2 x AAA 1.5 A alkaline battery 

AC current range 0-19.99 A 

0-40.00 A 

0-60.0 A 

20.0-199.9 A 

40.00-200.0 A 

60.0 - 400.0 A 

0 - 200.0 A 

200-400 A 

400 - 600 A 

DC current range 0 - 60.0A 

60.0 - 400.0A 

400 - 600 A 

CATIV TESTING 3534 WATTHOUR METER TESTING

Watthour meter testing

PHAZER®(not CE marked)

Watthour meter test system

The PHAZER family of watthour meter test sets are true

three-phase, fully automatic systems capable of testing

virtually all types of ANSI socket- mounted and bottom-

connected single- and three-phase (three and four wire)

electricity meters.

The PHAZER family consists of speciﬁc models for testing

socket-mounted meters and speciﬁc models for testing panel-

mounted and bottom-connected meters. Offering state of the

art optical sensing and a built-in automatic calibration

routine.

MA10

Portable watthour

meter standards

The MA10 watthour

standards are totally

autoranging on the

potential input, current

input and auxiliary power

input. The three summing

current inputs can be used

to perform closed link

testing. Models with

VARhour and Qhour

capabilities are available for

testing multi-function solid

state meters.

STATES®

switches

Test switches

Covers the complete area of

panel connections from

terminal block to knife

switches. All products give

long term connection quality

and mechanical stability.

Virtually all types of ANSI socket-mounted, panel-mounted and bottom-connected (3 or 4

wire) electricity meters can be tested with PHAZER instruments, while STATES Type FMS

Semiflush-Mounted Test Switches provide a compact, versatile means to disconnect, test

or measure devices and circuits in panelboards such as relays, metering, control circuits

and other instrumentation applications.

States switches are UL listed, and

CSA certified

Innovation in electrical, electronic

and physical design are

characteristics of Megger’s

engineering teams.

CATIV testing

CATIV protection gives confidence when insulation testing outside

CAT IV compliant instruments

1kV insulation testers MIT400 

MIT410 

MIT420 

MIT430 

MIT480 

MIT481 

MIT485 

MIT40X 

Clamp meters DCM330 

Loop testers LT300 

LTW315 

LTW325 

LTW335 

LTW425 

Ground earth testers DET3TA 

DET3TD 

DET3TC 

DET4TD2 

DET4TR2 

DET4TCR2 

DET4TC2 

5kV and 10kV insulation testers MIT520/2 

S1-552/2 

S1-554/2 

MIT1020/2 

MIT510/2 

S1-1052/2 

S1-1054/2 

You have a right to safety

EN61010 - 1:2001 is very specific about transient

immunity. In the section on "Circuits or components

used as transient overvoltage limited devices", the

standard specifies the performance of components

and their applicable impulse withstand voltage.

Megger recommends that wherever possible, you

should specify CAT IV instruments that keep you and

your electrical instrumentation safe. In most cases,

Megger has doubled the impulse withstand voltage

from 4kV to 8kV. In addition nominal mains supply

has increased from 300V to 600V for your protection.

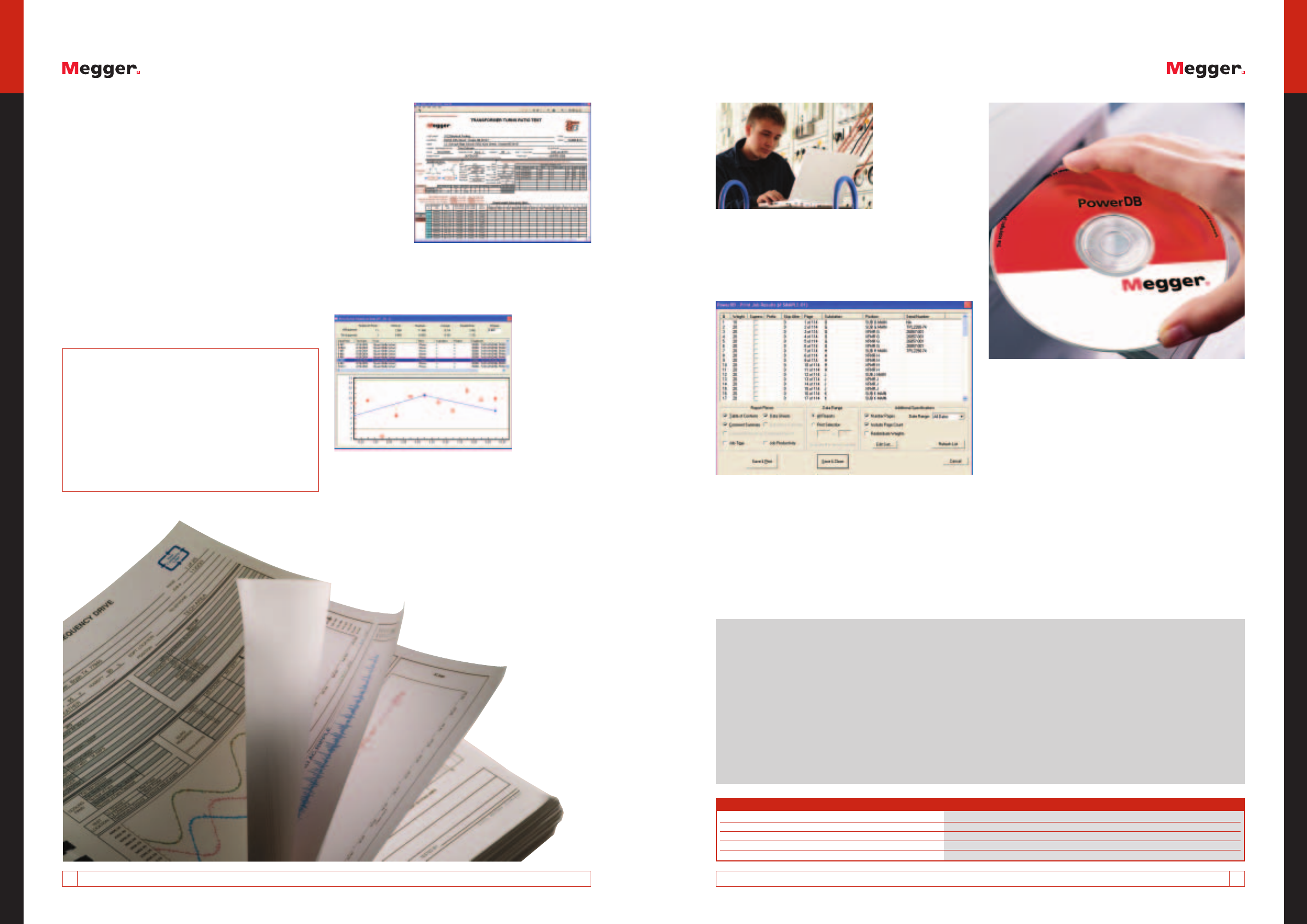

TEST AND MEASUREMENT SOFTWARE 3736 TEST AND MEASUREMENT SOFTWARE

Simplifying the Compilation and Reporting

Process

The new PowerDB software package eliminates many

common paperwork and recording problems. With the

software, the number of man-hours devoted to preparing

reports will be minimal. The user can customize the reports

to be what a job requires but will not have to write the

report, which is automatically generated by the software.

Included in the reports are a table of contents, data sheets,

as well as comment and deficiency summaries. PowerDB

even comes with a built-in spell check.

Automatically generated professional reports means that a

testing company, for instance, is able to complete jobs

faster and in a more efficient manner. PowerDB is

well-suited for technicians who prefer to spend a

minimum amount of time writing reports and want a more

concise way to process data.

Electronic records of test data can create a couple of

different problems for companies and utilities. While many

electronic records are hard to locate due to the vast

amount of records kept on one system PowerDB makes it

easier. By using its relational database it is much easier to

find present and past records. And, because it has multiple

safe guards, PowerDB prevents lost data. By saving

documents that are in progress to multiple places, the

problem of lost data is eliminated. PowerDB also

synchronizes the date to several machines, meaning that a

single crash does not create a costly loss of data.

Test and measurement softwareTest and measurement software

PowerDB

Acceptance and Maintenance test data

management software

A powerful software package that offers a revolutionary

approach to managing electric utility and industrial electrical

testing data. The software is designed from a ground-up

approach, and is easily the most advanced package on the

market. It employs over 160 industry standard test forms that

have been developed and used by industry specialists during

the last 20 years.

The software package provides data management for electric

utility companies, electrical testing services acceptance jobs,

or maintenance testing jobs. Data entry, storage and creating

reports are all features of the software. In a single step,

PowerDB is able to quickly create entire test documentation

packages that include test reports, comment and deficiency

summaries, table of contents and field service reports.

In addition, users are able to use this flexible software to

define data forms and customize them to different

device types.

PowerDB’s test forms are designed to be used with each

of the following Centres:

Batteries Insulation Fluids

Cables Loadbreak Switches

Circuit Breakers Motor Control

Coordination Data Power Factor Tests

Disconnects Relays

Generators Switchboards

Ground Fault Tests Transfer Switches

Ground Mat/Grid Tests Watthour Meters

Instrument Transformers Transducers

Power Transformers

Asset management system

PowerDB OnBoard PowerDB lite PowerDB full version

Product type Software 

Firmware 

Cost options Free with selected instruments 

Separate purchase 

directly into data

fields. Second,

forms can be filled

in using other

applications,

including Megger’s

Advanced Visual

Test Software,

entering data into

the fields using

information stored

in the other applications. Finally, data fields can be filled in

using manual entry. This allows the user to enter the exact

information that is desired.

Built-in Report Flexibility

PowerDB can create reports in one step, with customizable

sorting of the order of test forms. Forms can be removed, and

page numbering will be automatically adjusted. In a single

print job, supplemental reports can also be printed at the

same time as the primary report. The supplemental reports,

including comment and deficiency summary reports, open up

the data and information for all of the equipment tested on

one job. Finally, all of the information can be generated for

the on-demand world using the optional PowerDB Web

server. All of the user’s important information is published to

the Web and can be accessed from anywhere in the world.

Computerized Maintenance Management System Support

Many electrical utilities and other company operations have

invested in sophisticated CMMS systems, such as Digital

Inspection’s Cascade and MRO Software’s MAXIMO. However,

due to test instrument specific software packages and hand-

written test results, these firms often struggle to get test data

into their systems. One electric utility even referred to getting

data into the CMMS as ‘feeding the monster’. PowerDB’s

speciality IS ‘feeding the monster’.

PowerDB allows you to link easily with the CMMS system so

that the system can pre-populate the PowerDB equipment

database, send PowerDB all work orders, add forms based

on the job plans, and even return the measurement

points, obtained from a multitude of test sets, back to the

CMMS system.

Furthermore, Megger will work directly with your CMMS

personnel to integrate your data into your internal CMMS

system.

Easier

Management of

Test Data

This easy-to-

operate software

offers a straight-

forward approach

to data

management. The

first basic step in

creating this user-

friendly package

was to make test

data entry screens

and printed forms identical. Users will appreciate that what

they see on the screen is what they will see in the printed

version. PowerDB also simplifies testing and data

management by allowing users to deliver reports

electronically using e-mail, CD-ROM, web server and PDF files.

The software will

also execute

several tasks for

the user,

including

equation

calculations,

temperature

correction factors

and charting.

PowerDB helps

predict possible

equipment

failure by

trending previous results, which can be stored using PowerDB

or imported from other software. This makes transitions from

other software to PowerDB easy, and users can be prepared

for possible problems with equipment.

The industry standard test form is not always what a company

needs, and because of that, the PowerDB software allows the

user to customize forms. With a drag and drop feature

anyone, even those without database experience, can create

a form simply by dragging and dropping in tables, text boxes,

images, charts and more, to create a customized form. And,

with VBScript, calculations can be defined,

tables looked up, and it can even interact

with other applications. One time definition

of common items can be used to put logos,

headers and footers on every page or in

many multiple forms. One change will

automatically update every form the

common item is used in.

There are three

ways to document

testing using the

PowerDB software.

First, the software can

communicate directly

with test and measurement

equipment produced by

Megger. This allows

these products to

enter the

results

INDEX 39

IndexIndex

38 INDEX

Page

Insulation test

MIT520/2 5 kV diagnostic insulation resistance tester

S1-552/2 High current 5 kV insulation resistance tester

S1-554/2 5 kV insulation resistance tester with high noise rejection

S1-1052/2 High current 10 kV insulation resistance testers

MIT1020/2 10 kV diagnostic insulation resistance tester

S1-1054/2 10 kV insulation resistance testers with high noise rejection

MIT510/2 5 kV insulation resistance tester 5

S1-5010 5 kV graphical insulation resistance tester

Insulation test

BM15 Basic 5 kV insulation resistance tester

MJ15 Basic 5 kV insulation resistance tester

Hand held insulation testers

MIT200 series Light-weight insulation and continuity tester

MIT400 series Insulation resistance and continuity testers for industrial maintenance

MIT480 series Insulation resistance and continuity testers for telecommunications

MIT300 series Insulation resistance and continuity testers for electricians

MIT40X Insulation resistance and continuity testers for special applications

High voltage test equipment

681100 series 50/100 kV a.c. dielectric test sets

220000 series 70 kV, 120 kV and 160 kV d.c. dielectric test set

Capacitance dissipation factor and tan delta

Delta 2000 10 kV fully automated capacitance and tan delta test bridge

Delta 3000 10 kV automated insulation dissipation factor test set 9

670000 series 2.5 and 12 kV semi-automatic capacitance and tan test bridge

CB100 Low voltage capacitance and tan test bridge

Power quality

MetReport Power quality analysis software

SLM8 (not CE marked) 8 channel recording volt-ammeter

MDP series Distribution profiler

PMM-1 3 phase power measurement meter

PA9 Wireless Power Quality Analyser 11

PA9plus Power quality analyser

Automatic protection test

MPRT Protective relay test system

MGTR

MPRT LCA

AVTS Advanced visual test software 13

K500 Protective relay tool kit

Primary injection test

PCITS2000/2 Primary current injection test set

CB832 and CB845 Current injection sets

DDA1600, DDA3000 and DDA6000 High current injection test sets

Secondary injection test

SCITS100 Current and voltage injection sets

MS-2 Circuit breaker and overload relay test set

SR98 Voltage and current injection sets

SITS120 Lighter weight current and voltage injection sets

Cable fault location

PFL20-1500 Power cable fault locator system

CFL40A Van mountable cable fault locator

PFL Series Cable Fault Locators 17

Models PFL40-1500 and 2000

Time domain reflectometers

TDR1000/2P Single channel cable fault locator

TDR2000/2P Dual channel cable fault locator

MTDR1 Single-phase time domain reflectometer

Cable trace and voltage detectors

L1050, L1070, L1071 Accutrace, and

Cable Route Tracer Portable cable locators

DETEX®Voltage detectors and phasing testers

MPP1000 Cable Fault Pinpointer

Transformer testing

TTR25 Hand-held TTR

TTR100 Hand-held transformer tester

Page

Transformer testing

TTR300 Basic TTR test set

TTR310 TTR with PowerDB lite

TTR320 TTR with PowerDB lite and colour display

TTR330 Advanced TTR test set with PowerDB onboard

Transformer testing

Transformer ohmmeter Transformer winding resistance and tap-change test set

MCTT-10 Current transformer tester

TTR550005 Single-phase transformer turns ratio test set

MTO210 Transformer ohmmeter 23

MCT1600 Current transformer tester

MTO320 Transformer ohmmeter with graphical interface

Transformer testing

OTS100AF/2 100 kV automatic oil test set

OTS80AF/2 80 kV automatic oil test set

OTS60AF/2 60 kV automatic oil test set

OTS60SX Manual testing

OTS60PB Portable automatic testing

VCM100 Calibration meter

KF875 Portable moisture in insulating oil test set 25

KF-LAB Variable specific gravity moisture in oil test set

Polarity tester Transformer polarity verifier

Phase sequence and continuity indicator

Motor and phase rotation tester

Low resistance testing

DLRO600 600 A low resistance ohmmeter

DLRO200 200 A low resistance ohmmeter

DLRO10X 10 A resistance ohmmeter with test results storage and downloading 27

DLRO10 10 A low resistance ohmmeter

BT51 2 A low resistance ohmmeter

Battery testing

BITE®3Battery impedance test equipment

PROACTIV Battery database management software 29

BGFT Battery ground fault tracer

BITE2P Impedance tester for up to 7000 Ah cells

BGL (not CE marked) Battery earth fault trace

Earth ground resistance testing

DET2/2 High resolution earth tester

Professional earth test kit

DCM300E Earth leakage clamp

DET3 and DET4 Earth ground testers 31

DET10C and DET20C Earth resistance clamps

Multimeters and clampmeters

DCM series Clampmeters

AVO300 series Multimeters

M7000 series Multimeters

M8000 series Multimeters

Model 8 Mark7 Multimeters

MMC850

Hand-held electrical test tools

MFT1500 series Multifunction tester

LT300 Earth loop impedance testers

LTW300 Series Earth loop impedance testers

LTW425 Earth loop impedance testers

Portable appliances testing

MIT300 series Insulation and continuity testers

MIT200 series Insulation and continuity testers

Watthour meter testing

PHAZER®(not CE marked) Watthour meter test system

STATES®switches Test switches

MA10 Portable watthour meter standards

CATIV testing

Test and measurement software

PowerDB Acceptance and Maintenance test data management software

WWW.MEGGER.COM

The products featured in this catalogue are available from:

Printed in the UK BP/●●●. Part No 80132

Megger Limited

Archcliffe Road

Dover CT17 9EN

United Kingdom

T: 01304 502101

F: 01304 207342

E: UKenquiries@megger.com

Megger

4271 Bronze Way,

Dallas, Texas 75237-1019

USA

T: 1-800-723-2861

F: 1-214-331-7399

E: sales@megger.com

Local in more places

Megger has technical support offices in 14 locations, and distributors in

170 countries. Call Megger today for help with your application problems.

PowerDB

4064 State Highway 6 South

College Station

TX 77845

USA

T: 979-690-7925

F: 979-690-0276

E: sales@megger.com

Megger

Valley Forge Corporate Centre

2621 Van Buren Avenue

Norristown

PA 19403

USA

T: 610 676 8500

F: 610-676-8610

E: sales@megger.com

Megger

P.O. Box 15777

Kingdom of Bahrain

T: +973 (177) 40 620

E: MEenquiries@megger.com

Megger Limited

110 Milner Avenue Unit 1

Scarborough Ontario M1S 3R2

Canada

T: 1 416 298 6770

F: 1 416 298 0848

E: CAenquiries@megger.com

E: CAinfos@megger.com

Megger Pty Limited

Unit 26, 9 Hudson Avenue

Castle Hill

Sydney, NSW 2154

Australia

T: +61 (0)2 9659 2005

F: +61 (0)2 9659 2201

E: AUenquiries@megger.com

Megger SARL

23 rue Eugène Henaff

ZA du Buisson de la Couldre

78190 Trappes

France

T: 01 30 16 08 90

F: 01 34 61 23 77

E: Infos@megger.com

Programma GmbH

Obere Zeil 2

61440 Oberursel

Deutschland

T: 06171-92987-0

F: 06171-92987-19

E: DEanfrage@megger.com

Megger

501 Crystal Paradise Mall

Off Veera Desai Road

Andheri(w)

Mumbai - 400053

Maharashtra

T: +91 22 26740468

F: +91 22 26740465

E: INenquiries@megger.com

Megger

PO Box 10044

Edenglen, 1613 Johannesburg

South Africa

T: (011) 4526287

F: (011) 6096852

E: SAenquiries@megger.com

Programma Electric AB

Eldarvägen 4

Box 2970, SE-187 29

Täby

Sverige

T: +46 8 510 195 00

F: +46 8 510 195 95

E: SVinfo@megger.com

Programma Electric AG

Ob. Haselweg 630

5727 Oberkulm

Aargau

Schweiz

T: +41 62 768 20 30

F: +41 62 768 20 33

E: CHanfrage@megger.com

Megger

30 / 46 Moo 13

Nongprue, Banglamung

Chonburi 20150

Thailand

T: +66 860103395

E: THenquiries@megger.com

WWW.CABLEJOINTS.CO.UK

THORNE & DERRICK UK

TEL 0044 191 490 1547 FAX 0044 477 5371

TEL 0044 117 977 4647 FAX 0044 977 5582

WWW.THORNEANDDERRICK.CO.UK

MJ15 Megger Cable Fault Locators & Ers

Navigation menu

Versions of this User Manual:

Views

Navigation
