www.meridianmfg.com
OPERATOR’S MANUAL
2300L & 4600L Fuel Tanks
CAN-ULC-S601-07
This page intentionally left blank.
2300L & 4600L Fuel Tanks
Warranty Registration Form
www.meridianmfg.com
*Warranty Acknowledgement *
The “Product Warranty” along with the “Operator’s Manual” for this product purchase has been reviewed and
understood by the end user.
Dealer Information Customer Information
Name:_________________________________ Name:_________________________________
Address:_______________________________ Address:_______________________________
City, State, Code: ________________________ City, State, Code: ________________________
Phone:_________________________________ Phone:_________________________________
Note; registering a product in multiple entry format is only allowed when; the product has the same Model #
and the same dealer, however each serial number must be legibly listed for each unit. Delivery dates for a
multiple entry must be within a 1 month time frame.
Product Information: ________________________________________________________________
Model #: __________________________________________________________________________
Serial #: __________________________________________________________________________
Invoice Date: ______________________________________________________________________
Date:____________________________ Signature:________________________________
Important: Please send this form to the Meridian Manufacturing Location which built this product being registered;
if you require further assistance call your Dealer or the Meridian Manufacturing outlet nearest to your location.
We want to thank you for purchasing a Meridian manufactured product. Whether this is your rst Meridian
purchase or you have been a customer for years; you are now part of the Meridian community of customers and
we appreciate your business.
It is important that you now complete the product registration information and this form indicating you have
received delivery. This registration and information is necessary to ensure you have access to warranty and
product updates in the event it be required in the future.
Registration can be completed by using this form or visiting your dealer who will complete the form online. You will
be given access to the Meridian Community and become eligible for updates, special offers and prizes.
Again thank you for choosing Meridian.
ATTENTION DEALERS:
You can register your products online through the
Dealer Login: http://dealers.meridianmfg.com/login/
“Warranty Registration Form”:
It is mandatory to complete this form and return to the manufacturer in order to qualify for future warranties that
may arise; knowingly falsifying information on this form will result in the voiding of the product warranty.
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Warranty Registration Form
This page intentionally left blank.
2300L & 4600L Fuel Tanks
Table of Contents
www.meridianmfg.com Page 1
Table of Contents
Thank You! ............................................................................2
Codes, Regulations and Guidelines ........................................................2
Personal Safety ........................................................................3
Introduction ...........................................................................4
Standard Features .....................................................................4
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Decals ..........................................................................6
2300L Safety Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4600L Safety Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing The Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation ...........................................................................10
Choosing a Location ..................................................................10
Installing the Fuel Tank Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Lifting and Transporting Fuel Tanks ......................................................11
Inspecting Fuel Tanks ..................................................................11
Installation of Tank Venting ..............................................................11
Inspecting the Fuel Tank Containment System ...............................................11
Environmental Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Protect Fuel Tank Against Vehicle Trafc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Regular Inspection and Maintenance ......................................................11
2300L Vent & Port Locations .............................................................12
4600L Vent & Port Locations .............................................................12
Fuel Transfer Safety ...................................................................13
Top Fill Fuel Transfer ...................................................................14
Measuring Fuel Tank Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pump Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Dispensing Fuel (General) ..............................................................16
Locking The Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Trouble Shooting ......................................................................17
4600L Fuel Tank Dip Chart ..............................................................19
2300L Fuel Tank Dip Chart ..............................................................20
Limited Warranty ......................................................................21
Warranty Claim Procedure ..............................................................21
Fuel Tank Warranty Order Request .......................................................23
Index ................................................................................25
Page 2
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Table of Contents
Thank You!
Thank you for purchasing the Meridian 2300L or 4600L Fuel Tank and putting your trust in our hands. Setting
the standard for excellence in the storage and fuel handling industry our double wall fuel tanks meet and exceed
all safety and environmental standards. Built with meticulous attention to detail by an enthusiastic and skilled
production team our best references are thousands of customers, like you, who have placed their trust in our
superior design and technology.
Codes, Regulations and Guidelines
Built to exacting standards your 2300L and 4600L Fuel Tanks are designed to give years of trouble free use.
To ensure it provides that service, it is critical all operators read this entire manual before attempting to
install or operate your new tank. If you become familiar with all maintenance and safety procedures, pay close
attention to safety labels and diagrams your Meridian Fuel Tank will provide years of environmentally safe trouble
free service.
Fuel storage tanks fall under a variety of governmental jurisdictions; therefore the following references in this
manual are provided only as a general outline. You may be subject to different legislation and governing bodies
in your specic location.
IT IS THE TANK OWNER’S RESPONSIBILITY TO DETERMINE WHAT CODES AND REGULATIONS MUST
BE FOLLOWED IN YOUR LOCAL AREA
Meridian Manufacturing assumes no responsibility for any errors that may appear in this manual and shall not be
liable under any circumstances for incidental, consequential or punitive damages in connection with, or arising
from, the use of this manual. Meridian Manufacturing reserves the right to make changes to this manual at any
time without obligation or notice.
2300L & 4600L Fuel Tanks
Personal & Machine Safety
www.meridianmfg.com Page 3
Personal Safety
Throughout this manual and on fuel tank decals, in
accordance with ISO standards, you will nd the signal
words “DANGER”, “WARNING”, and “CAUTION”
followed by specic instructions. These instructions are
there to protect your personal safety and the personal
safety of those working with you. Take the time to read
these statements and follow the instructions.
Machine Safety
In addition to notes on personal safety the following
text notes on Machine Safety will appear as related to
machine safety. Following these instructions will help
the user avoid possible machine damage.
IMPORTANT: indicates a situation which, if not
followed, WILL involve deterioration or damage to
equipment.
General Notes
The following general notices also appear in the
manual. These notices draw attention to correct
procedures that will assist the operator.
NOTE: Indicates an important installation,
operation and/or maintenance procedure which if
not followed MAY result in deterioration or damage
to the equipment.
ATTENTION: Indicates important procedures
which should be followed.
SAFETY ALERT SYMBOL
DANGER
Indicates an imminently hazardous situation which,
if not avoided, WILL result in death or serious bodily
injury.
WARNING
Indicates a potentially hazardous situation which, if not
avoided COULD result in minor or severe bodily injury.
CAUTION
Indicates a potentially hazardous situation which, if not
avoided, MAY result in minor or moderate bodily injury.
Page 4
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Introduction
Introduction
The 2300L & 4600L Single Wall & Double Wall model
fuel tanks are designed to meet ULC S601-07 standards
for strength and durability. They can accommodate a
variety of fuel types and feature containment systems
designed to prevent costly leaks.
These steel lined tanks also feature a long lasting
durable powder coat paint nish. With proper care
and handling this tank will provide many years of
environmentally safe fuel storage.
Standard Features
• CAN-ULC-S601-07 APPROVED
• SINGLE or DOUBLE WALL OPTIONS
• HEAVY GAUGE CONSTRUCTION
• LIFTING LUGS
• EMERGENCY VENTS
• SPARE FITTINGS PORTS
• STURDY CRADLE
• PREMIUM POWDER COAT FINISH

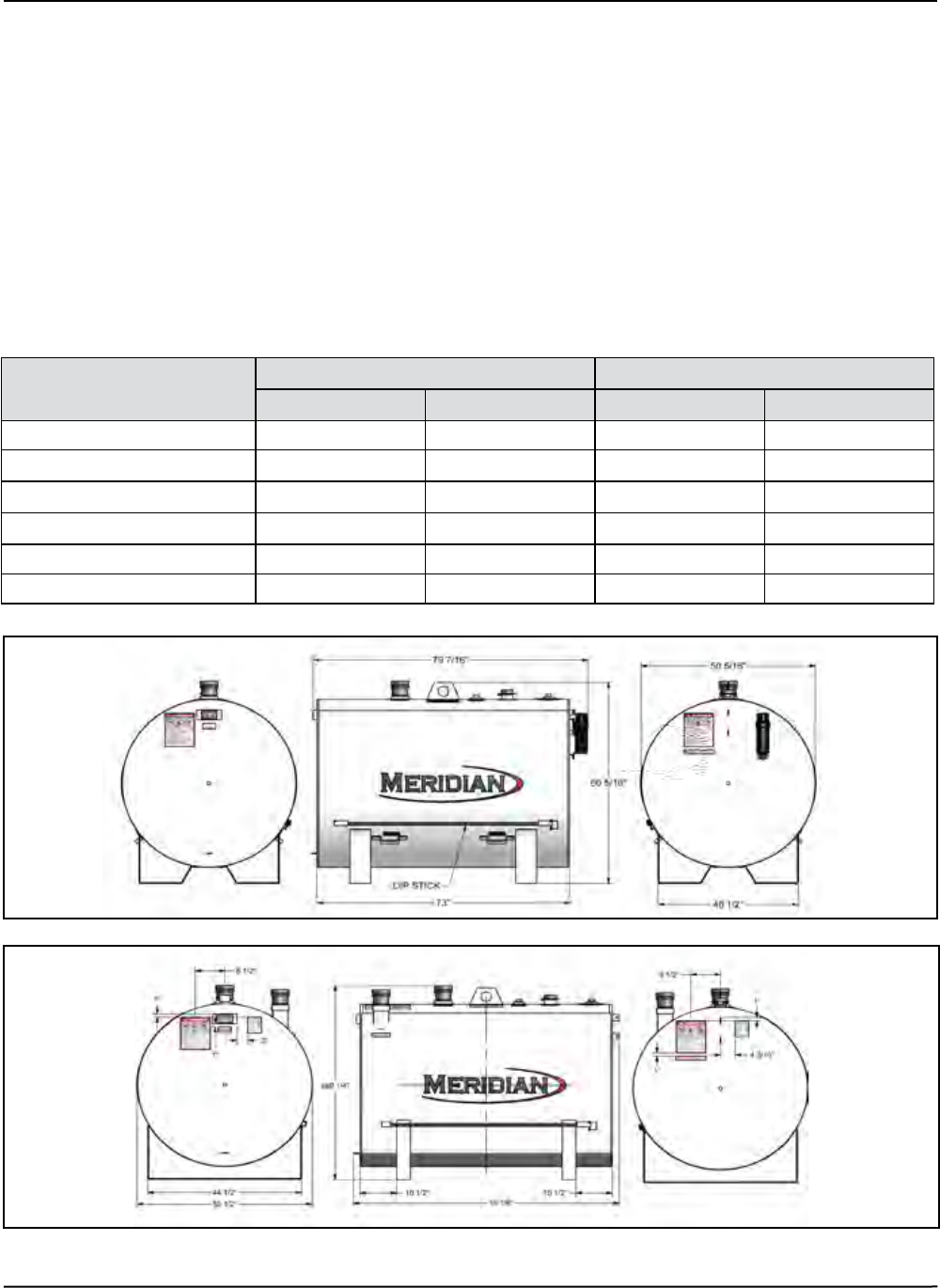

2300L Fuel Tank Single Wall Double Wall
Metric Imperial Metric Imperial
Volume 2,310 liters 508 gallons 2,310 liters 508 gallons
Diameter 127.79 cm 50 5/16 in. 128.27 cm 50 1/2 in.
Length (without Skid) 185.42 cm 73 in. 185.9 cm 73.2 in.
Length (with Skid) 201.77 cm 79 7/16 in. 195.58 cm 77 in.
Tank Weight (empty) 263 kg 579.81 lb. 441 kg 972 lb.
Skid Weight 157.85 kg 348 lb. 157.85 kg 348 lb.
2300L Double Wall
2300L Single Wall
2300L & 4600L Fuel Tanks
Introduction
www.meridianmfg.com Page 5

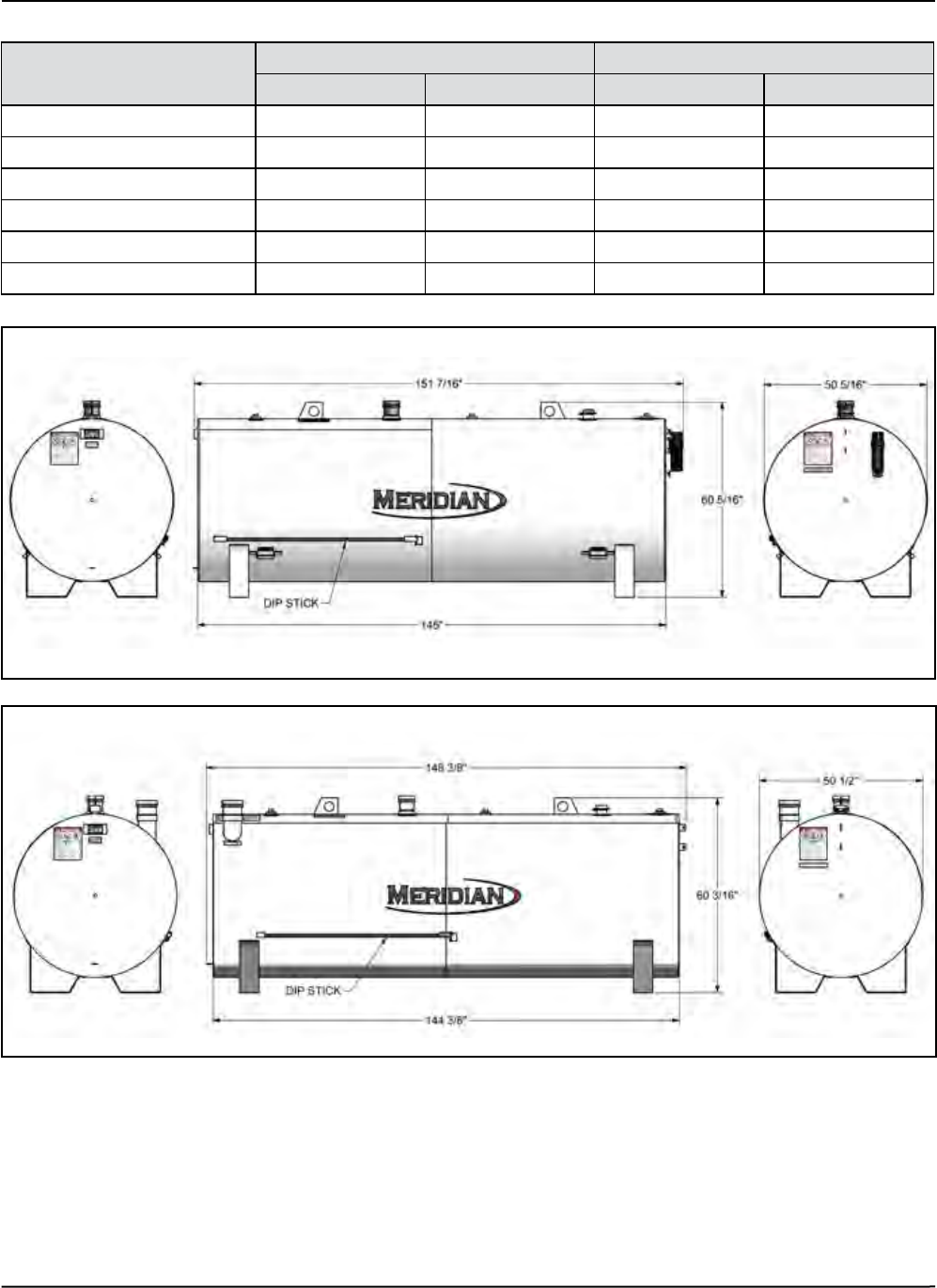

4600L Fuel Tank Single Wall Double Wall
Metric Imperial Metric Imperial
Volume 4,607 liters 1,217.4 gallons 4,607 liters 1,217.4 gallons
Diameter 127.79 cm 50 5/16 in. 128.27 cm 50 5/16 in.
Length (without Skid) 368.3 cm 145 in. 376.87 cm 148 3/8 in.
Length (with Skid) 384.64 cm 151 7/16 in. 406.4 cm 160 in.
Tank Weight (empty) 426 kg 939.16 lb. 728 kg 1604.8 lb.
Skid Weight 196.87 kg 434.03 lb 196.87 kg 434.03 lb.
4600L Single Wall
4600L Double Wall
Page 6
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Safety Decals
Safety Decals
The following warning decals (see table next page) are installed on the tank at the indicated areas. Decals will
vary dependent on the options associated with the selected model. They are intended for the safety of you and
those working with you. Please become familiar with the location of these warning decals and the information
contained on them.
WARNING
If the safety decals become damaged or cannot be
clearly or easily read they must be replaced.
12
8
8
4
6
3
457
6
3
5
3
3
7

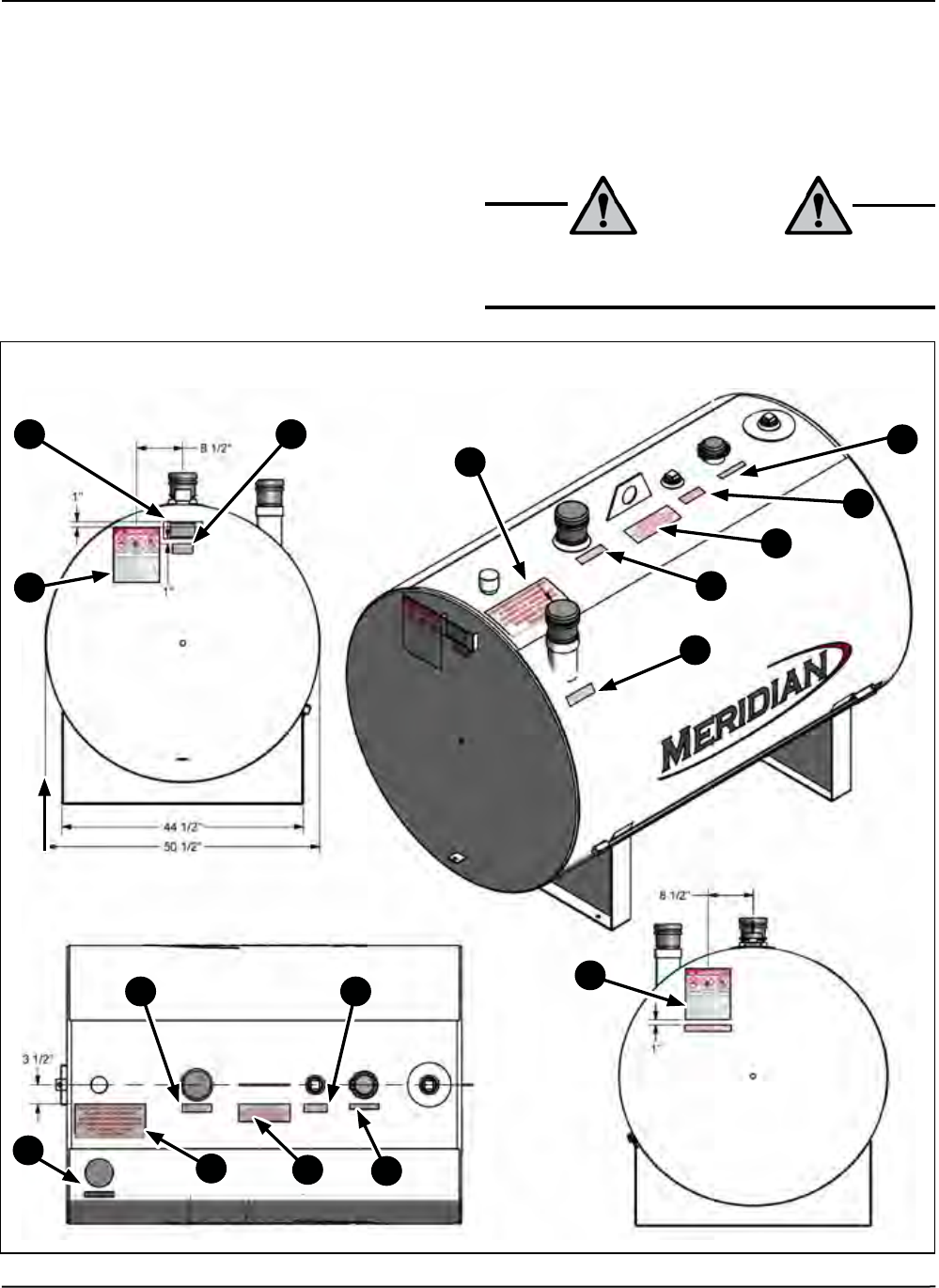

2300L Safety Decal Location
2300L & 4600L Fuel Tanks
Safety Decals
www.meridianmfg.com Page 7
3
1
8
4
3
5
6
7
8
2

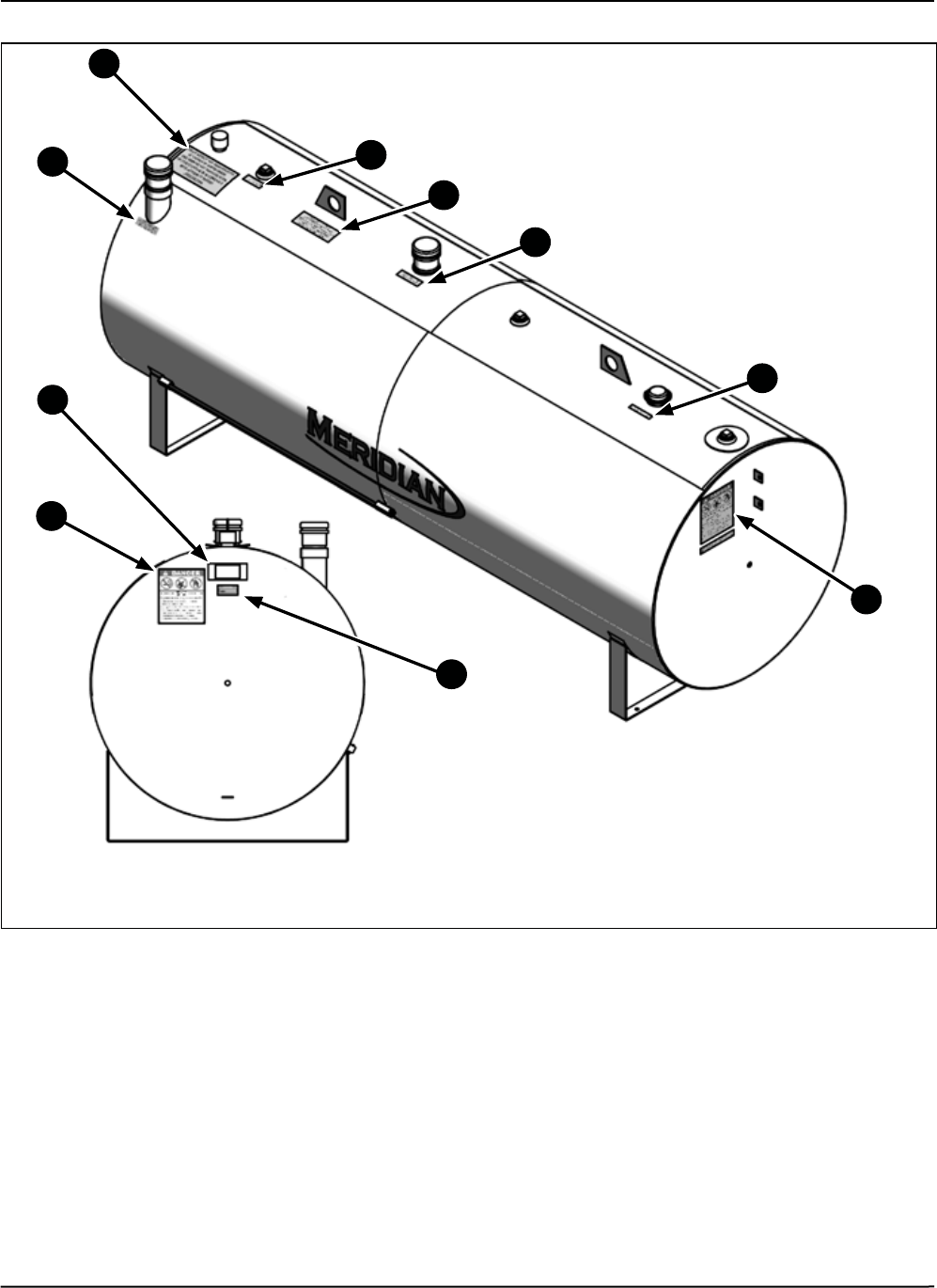

4600L Safety Decal Location
Page 8
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Safety Decals

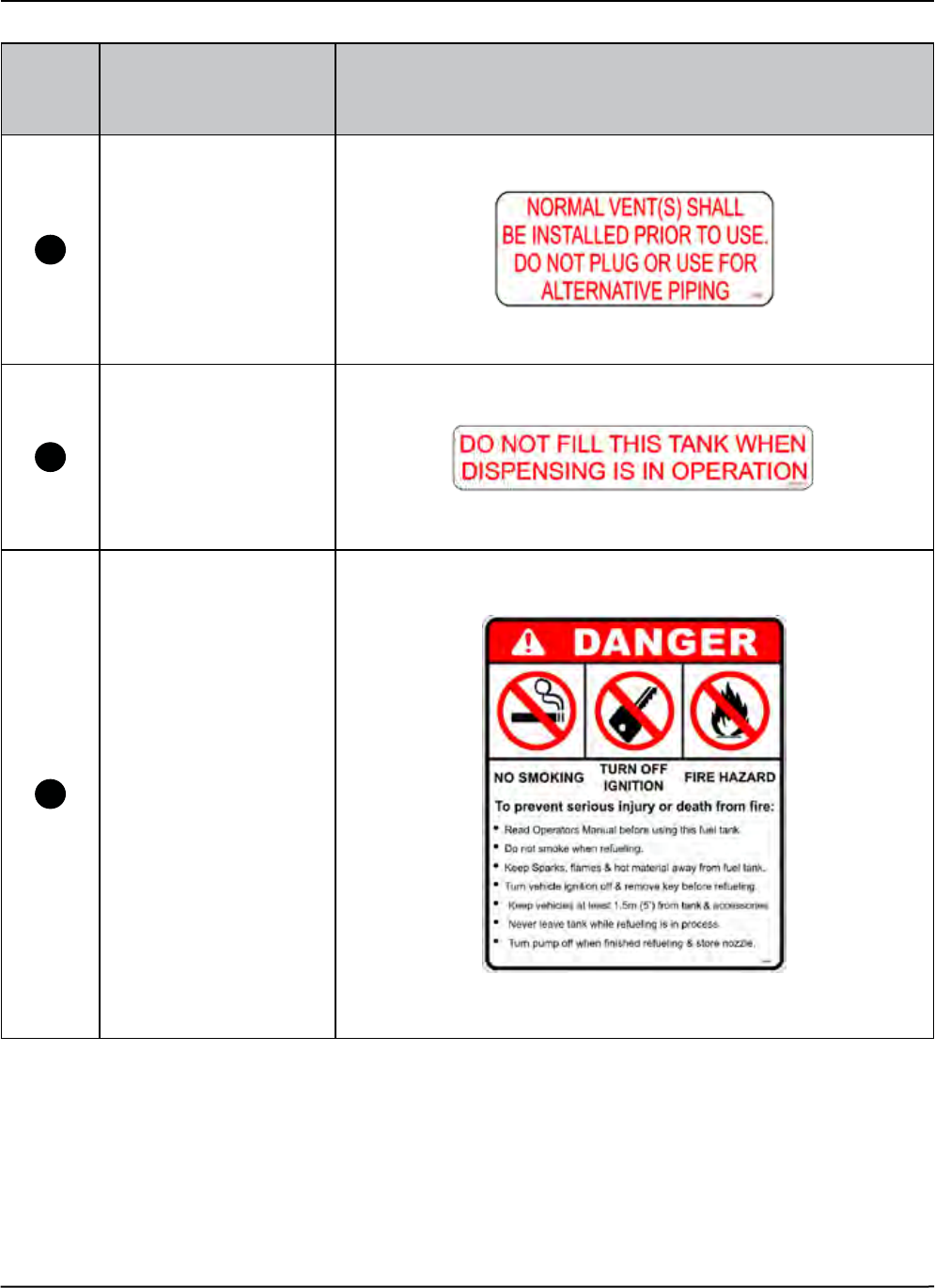

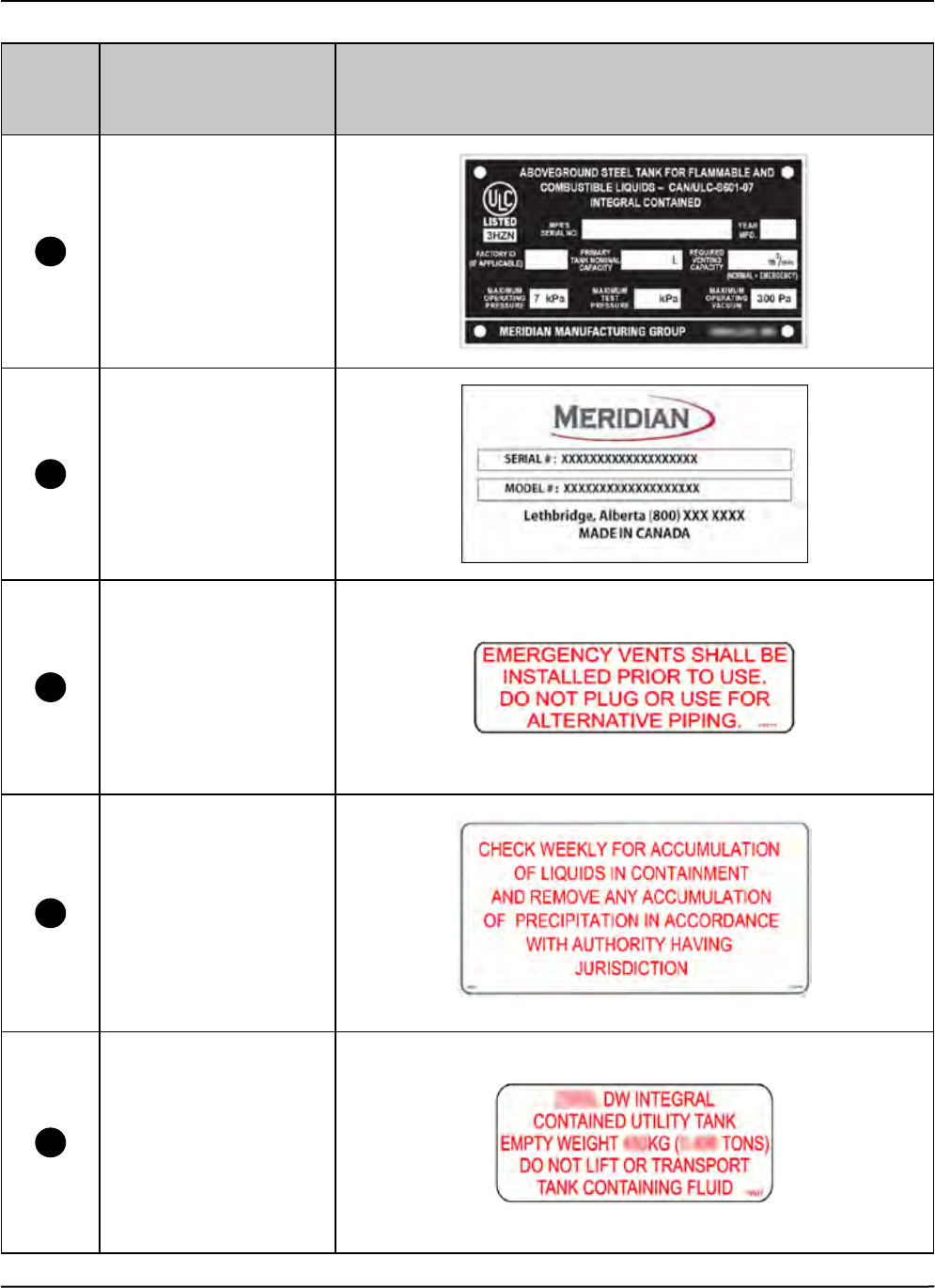

Decal
Number
Description, Part
Number and Location Image
1
ULC Plate
(P/N 20027) located on
rear of tank.
2
Serial Number Decal
(Located below ULC
Plate)
3
Emergency Vent Warning
(P/N 20105) Located
below Emergency Vents
4
Containment Inspection
Warning.
(P/N 20045)
Located below
Containment Inspection
Port
5
Lifting Lug Warning
(P/N 19037)
Located Below Lifting Lug.
2300L & 4600L Fuel Tanks
Safety Decals
www.meridianmfg.com Page 9
Decal
Number
Description, Part
Number and Location Image
6
Vent Warning.
(P/N 20026)
Located below 2 in Port
7
Fill Warning
(P/N 20022)
Located below Vented Fill
Cap.
8
Danger Safety Decal
(P/N 20048)
Located on both ends of
the tank.
Page 10
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Installing the Tank
Installing The Tank
This document only covers general installation instructions. Consult the correct authority having jurisdiction in
your area prior to tank installation.
NOTE: This tank must be installed by a qualied tank installer who shall consult with the proper
authorities with jurisdiction to ensure all requirements of CAN/ULC-S601-07 and all Federal, Provincial
and Local codes are being met prior to installation. Failure to do so, could void your warranty.
Installation
All timber/crates used in shipping must be completely removed from the tank prior to installation of tank.

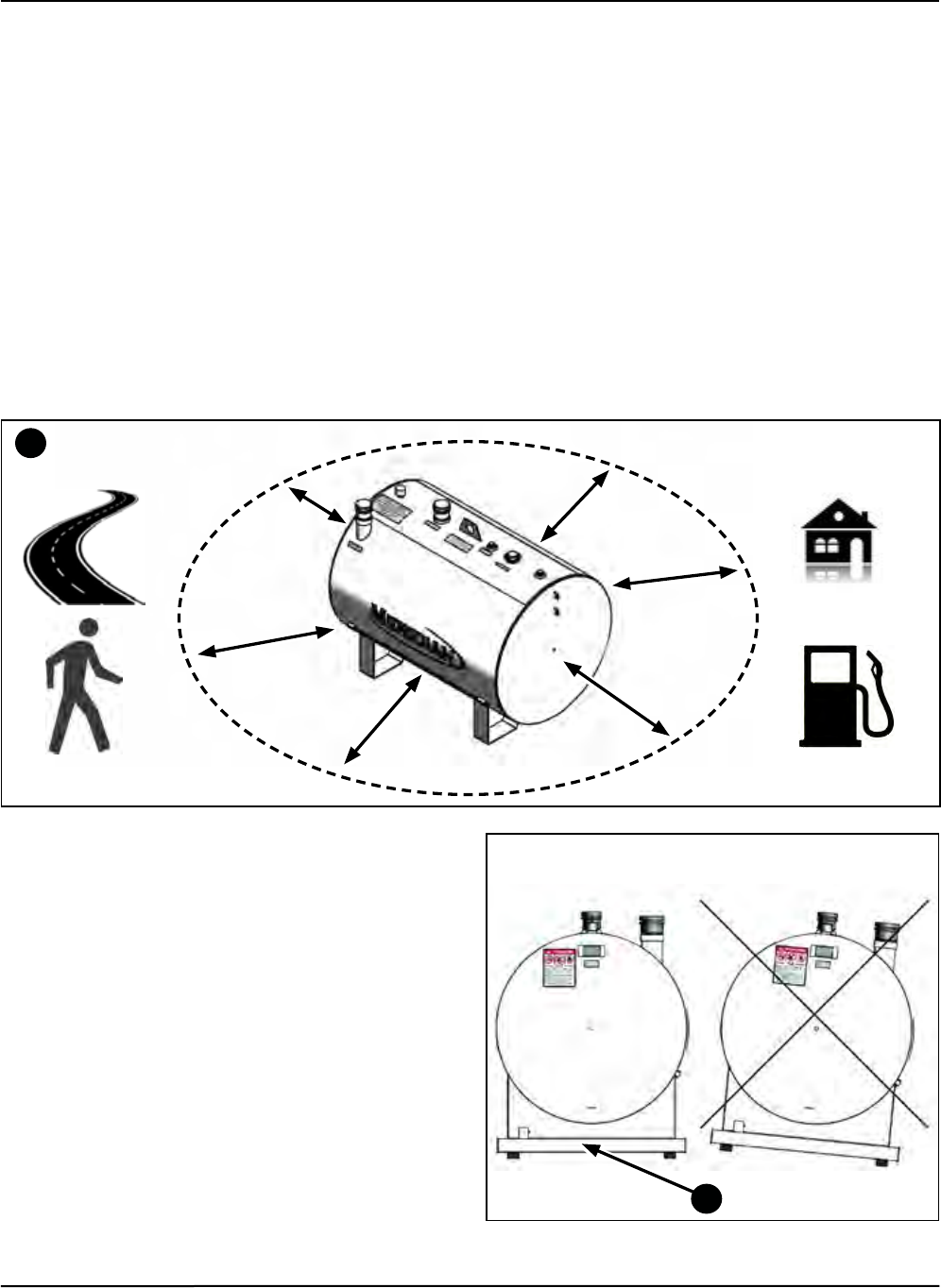

Choosing a Location
The tank shall be placed at a safe distance from buildings, other tanks, roadways, waterways, property lines and
all public paths (1). Refer to local authorities for applicable codes.
Installing the Fuel Tank Base
The tank shall be installed on a level base (2) designed
to support the tank weight plus 100% liquid loading.
The tank skid, saddle or cradle shall be the only part of
the tank in contact with the foundation or base.
1
2
2300L & 4600L Fuel Tanks
Installing the Tank
www.meridianmfg.com Page 11

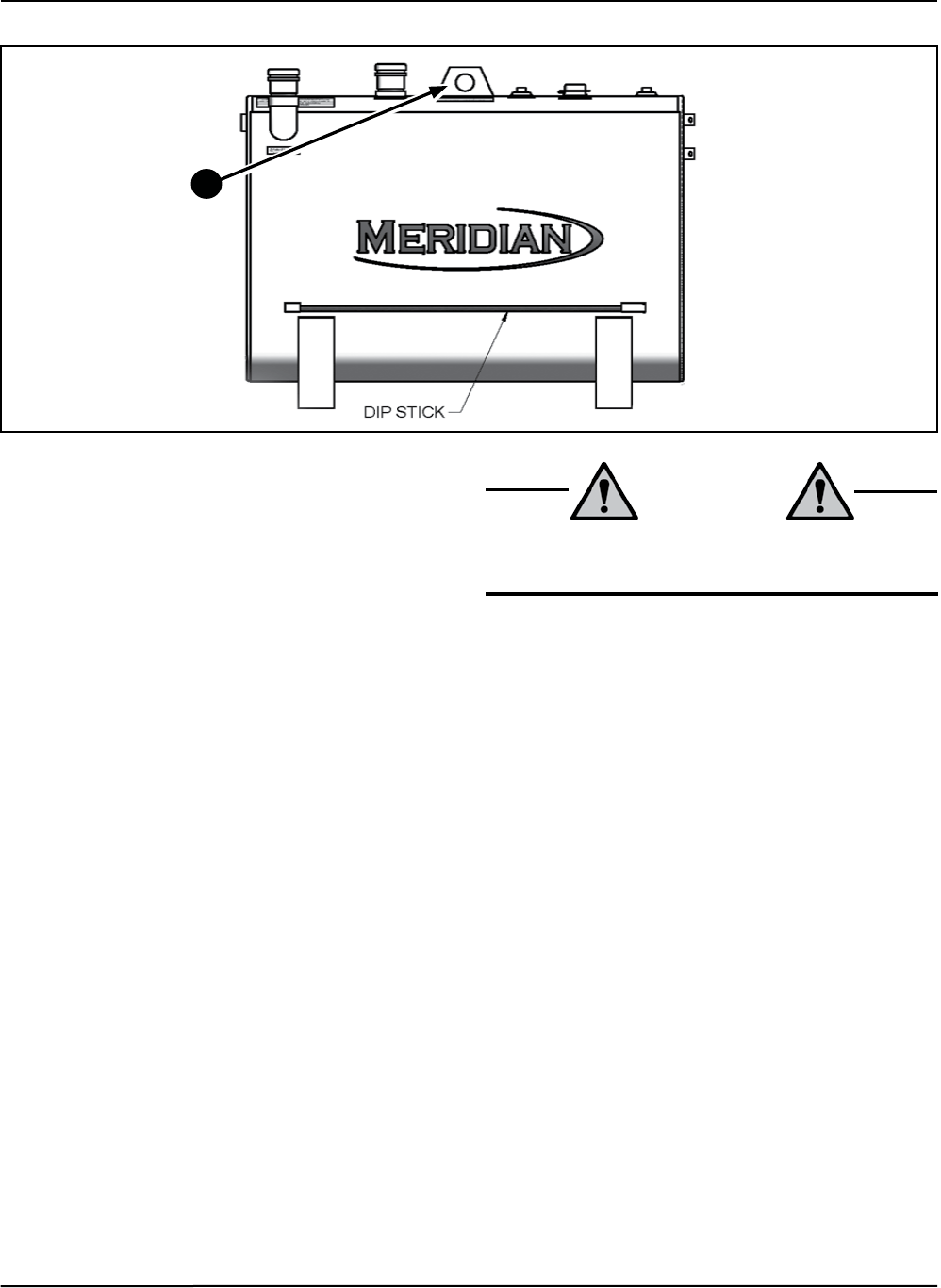

Lifting and Transporting Fuel Tanks
Only the lifting lugs (1) provided with the tank shall
be used for unloading or transporting the empty fuel
tank. Do not lift or transport tanks containing uid at
any time.
Inspecting Fuel Tanks
The tank installer shall ensure that all ttings, have
not loosened during transportation and that they are
sealed and tight.
Check all painted areas of tank for damage due to
shipping and also at nal installation. All scratched or
scuffed areas must be touched up with paint prior to
use. If the damages are deemed to affect the integrity
of the tank, contact your distributor or dealer prior to
putting any product in the tank.
Installation of Tank Venting
All primary and secondary normal and emergency
vents are to be installed before the tank is placed into
service and the design of the normal vent shall not
allow ame impingement onto the surface of the tank
in the event of vapor ignition.
Inspecting the Fuel Tank Containment
System
The containment should be checked on a regular
basis, to conrm that neither product nor water has
accumulated therein. Take immediate remedial action
if product or water is found. The disposal of any
liquid found in the containment shall be disposed of
in accordance with the requirements of the authority
having jurisdiction.
1
DANGER
DO NOT lift or attempt to transport tanks containing
uid at any time.
Environmental Regulations
The fuel tank installer shall ensure that all environmental
requirements are taken and implemented in accordance
with the local authority having jurisdiction.
Protect Fuel Tank Against Vehicle Trafc
The installer is to ensure that the fuel tank is adequately
protected against damage from vehicular trafc in
compliance with all Federal, Provincial and Local
Codes.
Regular Inspection and Maintenance
The fuel tank is to be inspected annually and any
repairs to the exterior coating shall be made at the
time of inspection in accordance with the coating
manufacturer’s instructions.
Page 12
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Installing the Tank
4
3
2
1
2300L Vent & Port Locations
14 in Emergency Vent Primary
22 in Port
32 1/2 in Vented Fill Cap
42 in Port
51 in Drain (SW Models Only)
62 in Containment Insp. Port. (DW
Models Only)
74 in Emergency Vent (DW Models
Only) (CONTAINMENT)
4600L Vent & Port Locations
12 in Port
22 in Emergency Vent (Primary)
32 in Port
42 in Spare Port
52 1/2 in Vented Fill Cap
61 in Drain (SW Models Only)
74 in Emergency Vent (DW Models
Only) (CONTAINMENT)
82 in Containment Inspection Port.
(DW Models Only)
1
2
3
4
5
●
●
5
6
78
67
2300L & 4600L Fuel Tanks
Fuel Transfer
www.meridianmfg.com Page 13
Fuel Transfer Safety
Transfer procedures are to be used when transferring fuel from a delivery vehicle to the tank. Although some
transfer procedures are unique to some facilities the following general safety procedures MUST ALWAYS BE
FOLLOWED:
• Read the Operator Manual before using the fuel tank.
• DO NOT smoke when operating or refueling the fuel tank.
• Keep sparks, ames & hot material away from the fuel tank.
• Turn Vehicle ignition off and remove key from ignition before refueling.
• Keep vehicles at least 1.5 m (5’) away from the fuel tank at all times.
• Never leave the tank unattended while refueling is in process.
• DO NOT overll. 95% capacity is the maximum legal limit.
• Always turn pump off when nished fueling operations.
• Always store pump nozzle in drip pot when not in operation.
DANGER
ALWAYS determine how much fuel your tank can
safely hold. Over lling the tank will cause spills. Check
the fuel level by dip checking the tank prior to any fuel
transfer. Instructions on the correct procedure for dip
checking a tank can be found in this manual.
DANGER
DO NOT OVERFILL. Determine a Safe Gauge Height
(SGH) this is how much fuel a tank can hold allowing
for expansion due to temperature variations. A good
rule of thumb is in summer months the tank should not
be more than 90% full and in winter the tank should not
be more than 95% full.
WARNING
ALWAYS start the fuel transfer at a reduced rate. This
reduces the potential for the build up of static electricity
.
DANGER
ALWAYS maintain good communication with the driver
of the delivery vehicle. Poor communication between
the tank operator and the delivery driver often leads to
spills and accidents.
Page 14
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Fuel Transfer
DO NOT LEAVE THE
FUEL TANK UNATTENDED
DURING FUEL TRANSFER
WARNING
DO NOT dispense fuel during transfer procedures.

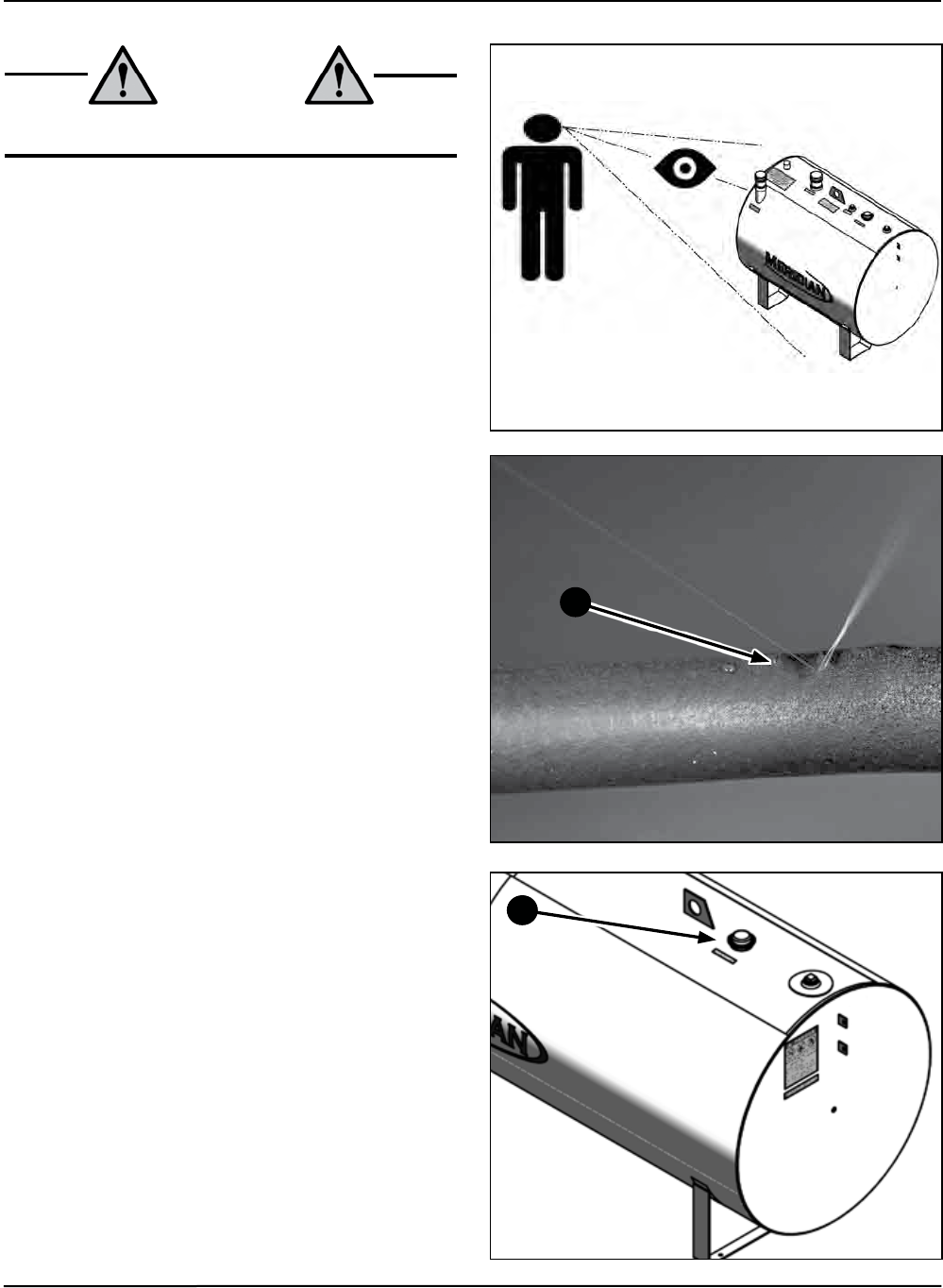

Top Fill Fuel Transfer
1. Have a pre-transfer meeting with the operator of the
delivery vehicle to determine the correct product is
being transferred into the correct tank. Dip tanks to
conrm the amount of fuel to be added.
2. Inspect transfer hose for visible leaks, cracks or
damage in the line (1). If leaks are present or later
appear do not continue with transfer. Repair as
necessary.
3. Wipe area around the vented fuel cap (2)
with a clean cloth or rag to remove risk of fuel
contamination.
4. Open vented ll cap and place cap in a clean
secure location. Insert the delivery nozzle into the
ll port (2).
NOTE: The 2300L, 4600L and 4595L meter
models operate with a ll port. On models over
10,000L this is replaced with a 3 inch male cam
and drop tube.
5. Start delivery vehicle pump, depress delivery
nozzle handle and slowly begin fuel transfer. Only
increase the ow of the product from the delivery
vehicle when you are sure there are no problems.
7. DO NOT WALK AWAY DURING A TRANSFER.
Continuously monitor the transfer of fuel. At all
times keep in open communication between the
delivery vehicle and tank operator.
8. Regularly check fuel tank levels. Reduce fuel
transfer rates when nearing the top of the tank
to avoid overlling the tanks. Notify the delivery
vehicle operator when the transfer procedure is
almost complete.
9. Release the handle on the delivery nozzle.
10. Turn off the delivery vehicle delivery pump.
11. Remove the delivery nozzle from the ll port and
secure hose and nozzle on the delivery vehicle
12. Conduct a post-transfer meeting between the
delivery operator and tank operator.
13. Dip tanks and record amount of fuel delivered.
14. Replace vented ll cap over the ll port.
1
2
2300L & 4600L Fuel Tanks
Measuring Fuel Tank Levels
www.meridianmfg.com Page 15

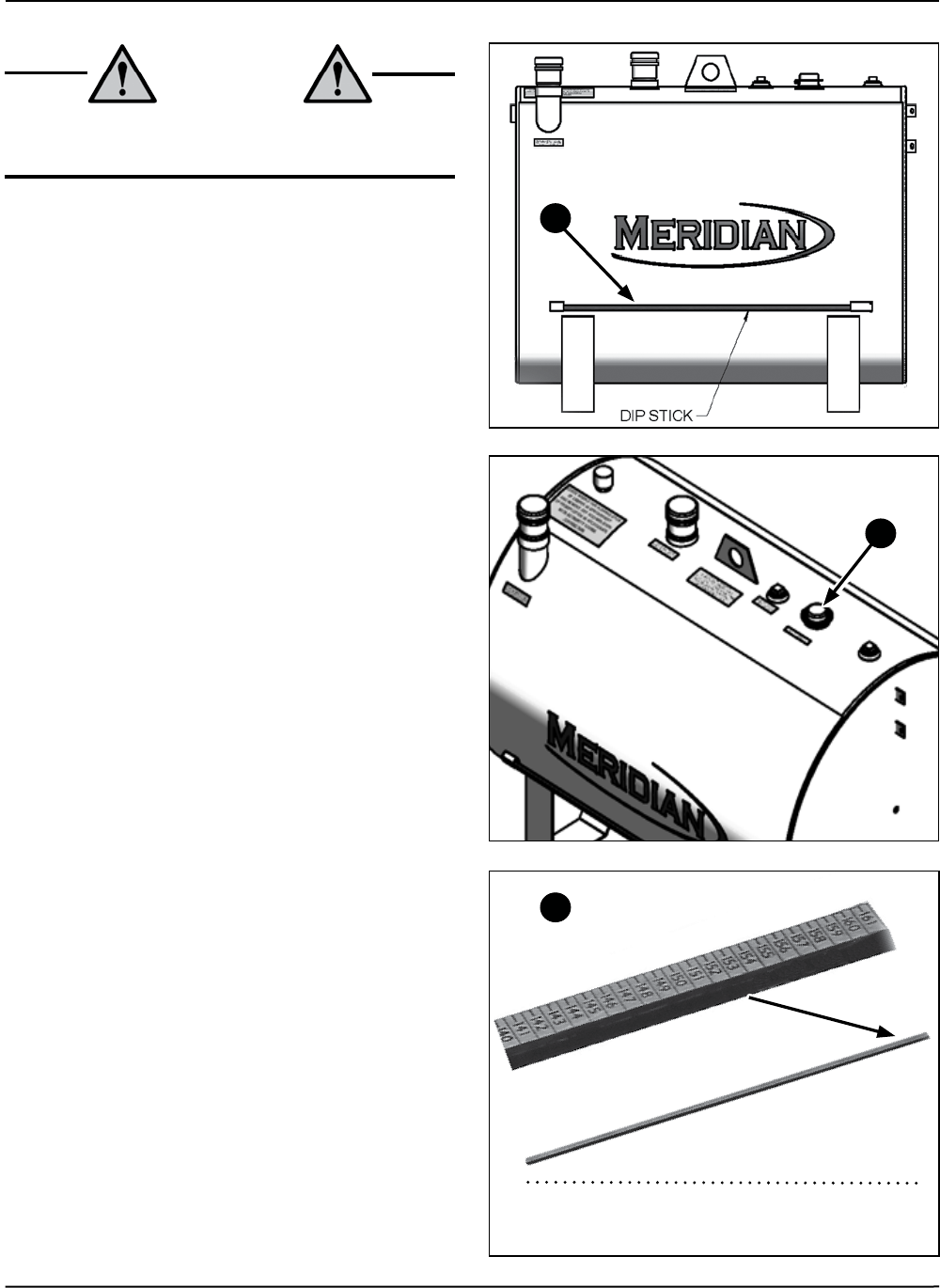

Measuring Fuel Tank Levels
NOTE: For more accurate results wait 30 - 60 mins
after refueling then dip check the tanks. This allows
fuel to settle and will give more accurate readings.
1. Remove the dip stick from its position at the side
of the tank.
0 cm 161 cm
1
2
1
2. Remove the vented ll cap (2) and insert the dip
stick into the tank until it reaches the bottom.
NOTE: Ensure the dip stick is inserted with the
lowest number on the dip stick placed toward the
bottom of the tank.
3. Remove the dip stick (1) and take note of the
amount of fuel in centimeters (cm) that is showing
on the stick.
4. Replace the vented ll cap.
5. Compare the number of centimeters on the
dip stick with the Fuel Tank Depth Chart in this
manual to determine the amount of fuel in the
tank.
DANGER
Never smoke around the fuel tank or expose the tank
to direct ame!
Page 16
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Pump Operations
Pump Operations
The 2300L & 4600L DW Fuel Tanks each come with
three different pump options. Dependent on the pump
option associated with your tank consult the correct
Installation and Operator Manual provided at time of
purchase for detailed pump installation, operation and
maintenance procedures.

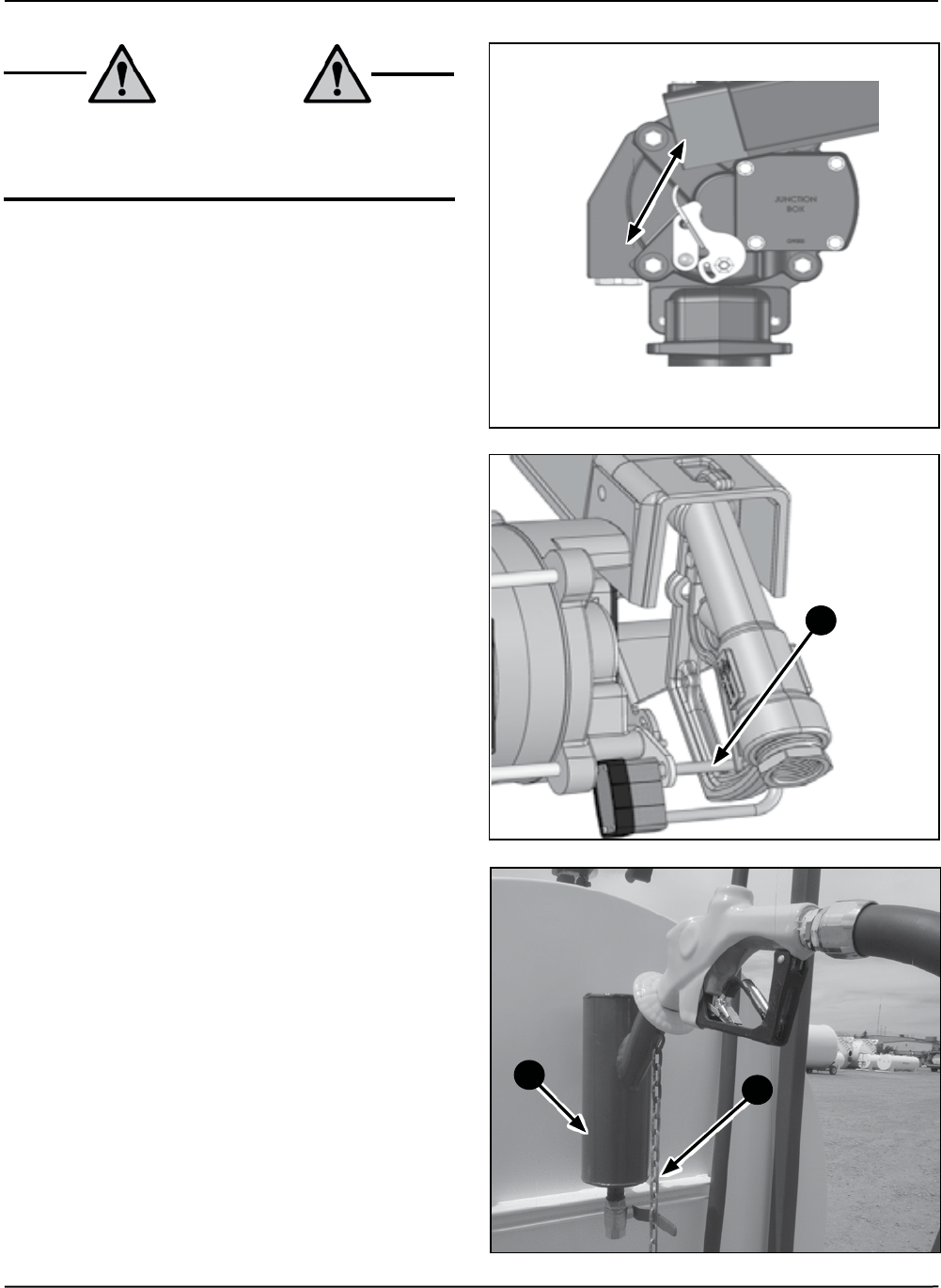

ON
OFF
WARNING
Always keep the nozzle in contact with the container
being lled during the lling process to minimize the
possibility of static electricity build up.
1
3
2
Dispensing Fuel (General)
1. Reset Meter to “0” (if applicable). (Do not reset
meter while dispensing fuel.)
2. Remove dispensing nozzle from the nozzle boot
or drip pot.
3. Move the switch lever to the “ON” position to
power the pump.
4. Insert the dispensing nozzle into the container to
be lled.
5. Operate the nozzle to dispense uid; release
nozzle when the desired amount of uid has been
dispensed.
6. Move switch lever to the “OFF” position to stop
the pump.
7. Remove the dispensing nozzle from the container
and store it in the nozzle boot or drip pot.
Locking The Pump
Dependent on the pump options selected, the pump
nozzle can be pad locked (1) for added security. With
the pump turned off, and the nozzle in the stored
position, a pad lock can be inserted through the locking
link and the nozzle handle opening. This conguration
prevents the nozzle from being removed from the
nozzle cover.
Optional drip pots (2) and chains (3) are also available.
The chain can be wrapped around the nozzle and
secured with a padlock. This secures the nozzle when
not in use or when the tank is left unattended for long
periods of time.
2300L & 4600L Fuel Tanks
Pump Operations
www.meridianmfg.com Page 17
Troubleshooting Guide
Symptom Cause Cure
Pump Won't
Prime
Suction line problem Check for leaks in suction line
Bypass valve open. Remove and inspect valve: Must move freely & be free of
debris
Vanes sticking. Check vanes and slots for nicks, burrs and wear.
Excessive rotor or vane wear. Inspect rotor & vanes for excessive wear or damage;
replace if necessary.
Outlet blocked. Check pump outlet, hose, nozzle & lter for blockage.
Vapor Lock Reduce vertical and horizontal distance from pump to liquid;
remove automatic nozzle
Low Capacity
Excessive dirt in screen. Remove and clean screen.
Suction line problem. Check suction line for leaks or restrictions; it may be too
small, too long or not airtight.
Bypass valve sticking. Remove and inspect valve; must move freely & be free of
debris
Vanes sticking. Check vanes and slots for wear.
Excessive rotor or vane wear. Inspect rotor & vanes for excessive wear or damage;
replace if necessary.
Hose or nozzle damage Replace hose or nozzle.
Plugged lter Replace lter.
Low uid level. Fill tank.
Trouble Shooting
The following Trouble Shooting guide is provided to offer basic diagnostic assistance in the event you encounter
pump problems. For detailed instructions consult the pump installation and operation manuals that were provided
with the pump at the time of sale.
WARNING
DO NOT open or attempt to repair the motor. Opening
the motor will compromise the integrity of the Explosion
Proof Construction and will void any existing warranty
and certication (UL listing).
WARNING
Make Sure all power to the pump is turned off prior to
performing any service or maintenance.
WARNING
In “Skid Tank” applications, make sure the tank is
properly secured so it cannot shift or move when the
tank is empty or full.
NOTE: Consult your local Meridian Dealer for
replacement parts.
Page 18
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Pump Operations
Troubleshooting Guide
Symptom Cause Cure
Pump runs slowly.
Incorrect voltage. Check incoming line voltage while pump is running.
Vanes sticking. Inspect vanes and slots for nicks, burrs and wear.
Wiring problem. Check for loose connections.
Motor problem. Return to place of purchase.
Motor stalls.
Bypass valve sticking. Remove and inspect valve; must move freely & be free of
debris.
Low voltage Check incoming line voltage while pump is running.
Excessive rotor or vane wear. Check rotor & vanes for excessive wear or damage.
Debris in pump cavity. Clean debris from pump cavity.
Motor overheats.
Pumping high viscosity uids. These uids can only be pumped for short periods of time
(less than 30 minutes duty cycle).
Clogged screen. Remove and clean screen.
Restricted suction pipe. Remove and clean pipe.
Motor failure. Return to place of purchase.
Pump rotor lock-up. Clean and check pump rotor and vanes.
Motor Inoperative.
No power Check incoming power.
Switch failure. Return to place of purchase.
Motor failure. Return to place of purchase.
Thermal protector failure. Return to place of purchase.
Incorrect/loose wiring. Check wiring
Fluid Leakage
Bad O-Ring casket Check all o-ring gaskets.
Dirty Shaft Seal Clean seal & seal cavity
bad Shaft Seal Replace seal.
Incompatible Fluid Refer wetted parts list to uid manufacturer.
Loose fasteners Tighten fasteners.
Pump hums but
will not operate
Dirt in Pump cavity Clean out pump cavity.
Motor failure. Return to place of purchase.
Broken Key Remove all debris & replace key.
2300L & 4600L Fuel Tanks
Depth Chart
www.meridianmfg.com Page 19
Depth Volume
cm L
1 5
2 15
3 28
4 43
5 60
6 79
7 100
8 121
9 144
10 169
11 194
12 221
13 248
14 277
15 306
16 336
17 367
18 399
19 432
20 465
21 499
22 534
23 569
24 605
25 641
26 678
27 716
28 754
29 792
30 831
31 871
32 911
33 951
34 992
35 1033
36 1074
4600L Fuel Tank Dip Chart
Depth Volume
cm L
37 1116
38 1158
39 1201
40 1243
41 1286
42 1330
43 1373
44 1417
45 1461
46 1505
47 1550
48 1595
49 1639
50 1685
51 1730
52 1775
53 1821
54 1866
55 1912
56 1958
57 2004
58 2050
59 2096
60 2142
61 2188
62 2234
63 2280
64 2326
65 2373
66 2419
67 2465
68 2511
69 2557
70 2603
71 2649
72 2695
Depth Volume
cm L
73 2740
74 2786
75 2831
76 2877
77 2922
78 2967
79 3012
80 3057
81 3101
82 3145
83 3189
84 3233
85 3277
86 3320
87 3363
88 3406
89 3448
90 3491
91 3532
92 3574
93 3615
94 3656
95 3696
96 3736
97 3775
98 3814
99 3853
100 3891
101 3928
102 3965
103 4002
104 4038
105 4073
106 4108
107 4142
108 4175
Depth Volume
cm L
109 4207
110 4239
111 4270
112 4301
113 4330
114 4358
115 4386
116 4412
117 4438
118 4462
119 4485
120 4507
121 4527
122 4546
123 4563
124 4578
125 4591
126 4601
127 4607
Page 20
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Dip Chart
2300L Fuel Tank Dip Chart
Depth
cm
Volume
Liters
1 3
2 8
3 14
4 22
5 30
6 40
7 50
8 61
9 72
10 85
11 97
12 111
13 124
14 139
15 153
16 169
17 184
18 200
19 216
20 233
21 250
22 268
23 285
24 303
25 322
26 340
27 359
28 378
29 397
30 417
31 437
32 457
Depth
cm
Volume
Liters
33 477
34 497
35 518
36 539
37 560
38 581
39 602
40 623
41 645
42 667
43 689
44 711
45 733
46 755
47 777
48 800
49 822
50 845
51 867
52 890
53 913
54 936
55 959
56 982
57 1005
58 1028
59 1051
60 1074
61 1097
62 1120
63 1143
64 1167
Depth
cm
Volume
Liters
65 1190
66 1213
67 1236
68 1259
69 1282
70 1305
71 1328
72 1351
73 1374
74 1397
75 1420
76 1443
77 1465
78 1488
79 1510
80 1533
81 1555
82 1577
83 1599
84 1621
85 1643
86 1665
87 1687
88 1708
89 1729
90 1750
91 1771
92 1792
93 1813
94 1833
95 1853
96 1873
Depth
cm
Volume
Liters
97 1893
98 1913
99 1932
100 1951
101 1970
102 1988
103 2007
104 2025
105 2042
106 2060
107 2077
108 2094
109 2110
110 2126
111 2141
112 2157
113 2171
114 2186
115 2199
116 2213
117 2225
118 2238
119 2249
120 2260
121 2270
122 2280
123 2288
124 2296
125 2302
126 2307
127 2310
2300L & 4600L Fuel Tanks
Limited Warranty
www.meridianmfg.com Page 21
Limited Warranty
Meridian Manufacturing Inc., (hereinafter referred to as the Manufacturer) hereby warrants the tank(s) sold by it to be free from
any defect in material or workmanship under normal use and service for a period of two (2) years from the date of shipment.
The Manufacturer also warrants the structural integrity of the tanks(s) for a period of ten (10) years from the date of shipment.
The Manufacturer’s obligation under this warranty shall be limited to the repair or replacement only, FOB the original point of
shipment, of any defective parts or portions of the tank or accessories manufactured by Meridian. Any warranty claim must be
reported to the Manufacturer within two (2) years for general and coating claims or ten (10) years for structural claims, from the
date of shipment and in the manner as referred to in paragraph 2 herein.
THIS WARRANTY IS SUBJECT TO THE FOLLOWING LIMITATIONS, PROVISIONS AND CONDITIONS
1. This warranty does not apply to:
a. Any product sold by the Manufacturer where it is used in areas exposed to corrosive or aggressive conditions
including salt water, acids, alkaloid, ash, cement dust, animal waste or other corrosive chemicals.
b. Failures or defects arising out of damage during shipment or during storage on site.
c. Materials replaced or repaired under this warranty except to the extent of the remainder of the applicable warranty.
d. Damage resulting from misuse, negligence, accident or improper site preparation by others.
e. Products that have been altered or modied by others.
f. (in the case of coating failures) failure as the result of damage, lack of proper maintenance or failure to remove
road salt or other contaminants that may have come in contact with the tank surface.
g. Products that have not been installed strictly in accordance with the Manufacturer’s manuals and instructions.
2. The obligation of the Manufacturer under this warranty shall not arise unless the Manufacturer is notied and this warranty
is presented together with a written statement specifying the claim or defect within thirty (30) days after the failure is rst
detected or made known to the owner and within two (2) years for general and coating claims and ten (10) years for
structural claims, from the shipment date. The Manufacturer in its sole discretion shall determine if the claim is valid and
whether correction of the defect or failure shall be made by repair or replacement of the materials.
3. The coating warranty is based on the Manufacturer’s performance specication for polyester powder nishes and does not
include repair of minor blemishes or rusting that is normally part of the general maintenance of the tank.
4. The obligation of the Manufacturer hereunder extends only to the original owner and to the Meridian dealer to whom the
materials may have been initially sold. This warranty shall not be subject to any assignment or transfer without the written
consent of the Manufacturer.
5. The customer shall acknowledge that it has made its own independent decision to approve the use of the supplied
materials and also the specic fabrication and construction procedures utilized to complete the tank, and has satised
itself as to the suitability of these products for this particular application.
6. The foregoing sets forth the only warranties applicable to said materials and said warranties are given expressly and in lieu
of all other warranties, expressed or implied, statutory or otherwise, of merchantability or tness for a particular purpose
and all warranties which exceed or differ from said warranties herein are disclaimed by the Manufacturer.
7. The owners sole and exclusive remedy against the Manufacturer shall be limited to the applicable warranty set forth herein
and the endorsements, if any, issued together with this document and no other remedy (including but not limited to the
recovery of assembly or disassembly costs, shipping costs, direct, incidental, special, indirect or consequential damages
for lost prots, lost sales, injury to person or property or any other loss, whether arising from breach of contract, breach of
warranty, tort, including negligence, strict liability or otherwise) shall be available to the owner or Meridian Dealer or any
other person or entitles whether by direct action or for contribution or indemnity or otherwise.
8. The nancial obligation of the Manufacturer under this warranty shall be limited to the repair or replacement of the product
as originally supplied and in no event shall exceed the original cost of the product supplied.
9. The Manufacturer shall not have any obligation under any warranty herein until all accounts for materials, installation and
erection of the said product thereof and for labor and other work performed by the Manufacturer or its dealers have been
paid in full by the owner.
Warranty Claim Procedure
a. Advise the Dealer or Manufacturer immediately upon discovery of any defects.
b. Complete the Fuel Tank Warranty Order Request found in the back of this manual in its entirety then mail or e-mail
the form to tankwarrantyca@meridianmfg.com
c. When the warranty claim form is received by the Manufacturer you will be contacted by our customer service
department.
d. Claims will be adjudicated at the sole discretion of the Manufacturer and in accordance with the terms and
conditions of the applicable limited warranty.
Page 22
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Limited Warranty
This page intentionally left blank.
2300L & 4600L Fuel Tanks
Fuel Tank Warranty Order Request
www.meridianmfg.com Page 23
Fuel Tank Warranty Order Request
IMPORTANT!
• Advise the dealer or manufacturer immediately upon discovery of any defects.
• Complete the Fuel Tank Warranty Order Request found in the back of this manual in its entirety
and e-mail the form to
tankwarrantyca@meridianmfg.com or mail this form to: Meridian
Manufacturing Fuel Tank Warranty Request, Lethbridge, AB Ofce 3125 24th Ave North.
Lethbridge, AB T1H 5G2 (1-800-661-1436)
• When the warranty claim form is received by the manufacturer you will be contacted by our
customer service department.
• Claims will be adjudicated at the sole discretion of the manufacturer and in accordance with the
terms and conditions of the applicable limited warranty.
Tank Information
Current Tank Location □ MMG Yard □ Dealer Yard □ Customer Yard
Model Number _____________________________ Date Reported to MMG ______________________
Tank Serial Number _________________________ □ Repair On Site □ Repair Off Site
Describe Warranty
Issue in Detail
Customer Name _____________________________
Address __________________________________
Customer Contact __________________________
City ________________ Province ___________
Postal Code _________ Phone ______________ Cell ________________
Directions to Site _________________________________________________________________________
Dealer Name _____________________________
Address __________________________________
Dealer Contact _____________________________
City ________________ Province ___________
Postal Code _________ Phone ______________ Cell ________________
Customer Information
Dealer Information
Company Use Only
Part Numbers Used in Repair _______________________________________________________________
Directions
Net Price to Charge on Invoice ______________________________________
Claim Disposition □ Claim Approved □ Pending Inspection □ Claim Denied
Page 24
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Fuel Tank Warranty Order Request
This page intentionally left blank.
2300L & 4600L Fuel Tanks
Index
www.meridianmfg.com Page 25
2 1/2” Vent Fill Port . . . . . . . . . . . . . . . . 12
CAN/ULC S601-07 Standards . . . . . . . . . . . . . . . . 4, 10
Coating Warranty . . . . . . . . . . . . . . . . 21
Codes . . . . . . . . . . . . . . . . 2
Containment Inspection Port . . . . . . . . . . . . . . . . 12
Containment Inspection Warning. . . . . . . . . . . . . . . . . 8
Containment System . . . . . . . . . . . . . . . . 4, 11
Danger Safety Decal . . . . . . . . . . . . . . . . 9
Decals . . . . . . . . . . . . . . . . 6, 8
Diameter . . . . . . . . . . . . . . . . 4, 5
Dip Chart . . . . . . . . . . . . . . . . 19, 20
Dip Stick . . . . . . . . . . . . . . . . 15
Dispensing Fuel (general) . . . . . . . . . . . . . . . . 16
Emergency Vent (Containment) . . . . . . . . . . . . . . . . 12
Emergency Venting . . . . . . . . . . . . . . . . 11
Emergency Vent Primary . . . . . . . . . . . . . . . . 12
Emergency Vent Warning . . . . . . . . . . . . . . . . 8
Environmental Regulations . . . . . . . . . . . . . . . . 11
Fill Warning . . . . . . . . . . . . . . . . 9
Fuel Tank Base . . . . . . . . . . . . . . . . 10
Fuel Tank Levels . . . . . . . . . . . . . . . . 15
Fuel Tank Venting . . . . . . . . . . . . . . . . 11
Fuel Transfer Safety . . . . . . . . . . . . . . . . 13
General Notes . . . . . . . . . . . . . . . . 3
Guidelines . . . . . . . . . . . . . . . . 2
Hose Retractor . . . . . . . . . . . . . . . . 12
Inspecting Fuel Tanks . . . . . . . . . . . . . . . . 11
Inspection and Maintenance . . . . . . . . . . . . . . . . 11
Installation . . . . . . . . . . . . . . . . 10
Length (without Skid) . . . . . . . . . . . . . . . . 4, 5
Length (with Skid) . . . . . . . . . . . . . . . . 4, 5
Lifting Fuel Tanks . . . . . . . . . . . . . . . . 11
Lifting Lug Warning . . . . . . . . . . . . . . . . 8
Limited Warranty . . . . . . . . . . . . . . . . 21
Locking The Pump . . . . . . . . . . . . . . . . 16
Machine Safety . . . . . . . . . . . . . . . . 3
Measuring Fuel Tank Levels . . . . . . . . . . . . . . . . 15
OWNER’S RESPONSIBILITY . . . . . . . . . . . . . . . . 2
Personal Safety . . . . . . . . . . . . . . . . 3
Pump Options. . . . . . . . . . . . . . . . . 16
Qualied Installer . . . . . . . . . . . . . . . . 10
Regulations . . . . . . . . . . . . . . . . 2
Safety Alert Symbol . . . . . . . . . . . . . . . . 3
SAFETY ALERT SYMBOL . . . . . . . . . . . . . . . . 3
Safety Decals . . . . . . . . . . . . . . . . 6
Serial Number Decal . . . . . . . . . . . . . . . . 8
Site Location . . . . . . . . . . . . . . . . 10
Skid Weight . . . . . . . . . . . . . . . . 4, 5
Spare Port . . . . . . . . . . . . . . . . 12
Structural Integrity . . . . . . . . . . . . . . . . 21
Tanks Specications . . . . . . . . . . . . . . . . 4
Tank Weight (empty) . . . . . . . . . . . . . . . . 4
Transporting Fuel Tanks . . . . . . . . . . . . . . . . 11
Trouble Shooting . . . . . . . . . . . . . . . . 17
ULC Plate . . . . . . . . . . . . . . . . 8
Vehicle Trafc . . . . . . . . . . . . . . . . 11
Vented Fill Cap . . . . . . . . . . . . . . . . 15
Vent Warning. . . . . . . . . . . . . . . . . 9
Volume . . . . . . . . . . . . . . . . 4, 5
Warranty . . . . . . . . . . . . . . . . 21
Warranty Acknowledgement . . . . . . . . . . . . . . . . 3
Warranty Order Request . . . . . . . . . . . . . . . . 21, 23
Warranty Registration Form . . . . . . . . . . . . . . . . 3
Weight (empty) . . . . . . . . . . . . . . . . 5
Index
Page 26
www.meridianmfg.com
2300L & 4600L Fuel Tanks
Index
This page intentionally left blank.
This page intentionally left blank.
MERIDIAN MANUFACTURING INC.
With over 65 years of experience,
Meridian is your storage and handling expert.
© 2014 Meridian Manufacturing, Inc. Registered Trademarks Used Under License. Printed in Canada (4/14)
Storm Lake Office
2902 Expansion Blvd.
Storm Lake, IA 50588
PH: 712.732.1780
TF: 800.437.2334
FX: 712.732.1028
Lethbridge Office
3125 - 24 Ave. N.
Lethbridge, AB T1H 5G2
PH: 403.320.7070
TF: 800.661.1436
FX: 403.320.7579
Winkler Office
Box 760, 275 Hespler Ave.
Winkler, MB R6W 4A8
PH: 204.325.7883
TF: 800.665.7259
FX: 204.325.5556
Regina Office
PO Box 1996
Regina, SK S4P 3E1
PH: 306.545.4044
TF: 800.667.5904
FX: 306.545.4216
Camrose Office
4232 - 38 St.
Camrose, AB T4V 4B2
PH: 780.672.4516
TF: 800.830.2467
FX: 780.672.4759
Cambridge Office
605 Sheldon Drive
Cambridge, ON N1T 2K1
PH: 519.620.6004
TF: 855.346.3712
FX: 519.620.6041
