(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

Sand Filter Pump

Model SF20220R

IMPORTANT

SAFETY RULES

Read, understand, and follow all

instructions carefully before

installing and using this product.

Don’t forget to try these other fine Intex products: pools, pool accessories,

inflatable pools and in-home toys, airbeds and boats available at fine

retailers or visit our website.

For illustrative purposes only.

OOWWNNEERR’’SS MMAANNUUAALL

128**-A0-1108

- Intex Recreation Corp.

Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.

®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous

licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen

Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O

Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European

Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union

durch/Intex Trading B.V., P.O. Box nr. 1075 – 4700 BB Roosendaal – The Netherlands

128

SAVE THESE INSTRUCTIONS Page 2

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

TTAABBLLEE OOFF CCOONNTTEENNTTSS

Warnings.......................................................................... 3

Parts List & References.................................................. 4-8

Setup Instructions ......................................................... 9-17

Product Specifications................................................... 11

Operating Instructions ................................................... 18-20

Intex Pools Operating Time Table.................................. 21-22

Non-Intex Pools Operating Time Table.......................... 23

Maintenance.................................................................... 24-25

Long Term Storage.......................................................... 25

Troubleshooting Guide................................................... 26

Common Pool Problems................................................. 27

General Aquatic Safety................................................... 28

Limited Warranty............................................................. 29

Intex Service Center Locations..................................... 30

128

SAVE THESE INSTRUCTIONS Page 3

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

SSAAFFEETTYY RRUULLEESS

WARNING

IMPORTANT SAFETY RULES

Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.

READ AND FOLLOW ALL INSTRUCTIONS

•

o reduce the risk of injury, do not permit children to use this product. Always

supervise children and those with disabilities.

•

Children must stay away from this product and electrical cord(s).

•

Children should be supervised to ensure that they do not play with the appliance.

•

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge. They must

at all times be supervised by a knowledgeable and experienced adult responsible for their

safety.

•

Assembly and disassembly by adults only.

•

Risk of electric shock. Connect this product only to a grounding type receptacle protected

by a ground-fault circuit interrupter (GFCI) or residual current device (RCD). Contact a

qualified electrician if you cannot verify that the receptacle is protected by a GFCI/RCD.

Use a qualified electrician to install the GFCI/RCD, which has a maximum rate of 30mA.

Do not use a portable residual current device (PRCD).

•

Always unplug this product from the electrical outlet before removing, cleaning, servicing

or making any adjustment to the product.

•

The plug must be accessible after produc t is installed.

•

Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn

mowers, hedge trimmers and other equipment.

•

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a hazard.

•

To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or

converter plugs to connect unit to electric supply; provide a properly located outlet.

•

Do not attempt to plug in or unplug this product while standing in water or when your

hands are wet.

•

Keep this product more than 2m away from the pool.

•

Keep this product more than 3.5m away from the pool (for France only).

•

Keep the plug of this product more than 3.5m away from the pool.

•

Position this product away from the pool, so as to prevent children from climbing on it and

accessing the pool.

•

Do not operate this product when pool is occupied.

•

This product is for use with storable pools only. Do not use with permanently installed

pools. A storable pool is constructed so that it may be readily disassembled for storage

and reassembled to its original configuration.

•

To reduce the risk of entrapment hazard, never enter the pool if suction strainer

component is loose, broken, cracked, damaged or missing. Replace loose, broken,

damaged, cracked or missing suction strainer components immediately.

•

Never play or swim near suction fittings. Your body or hair may be trapped causing

permanent injury or drowning.

•

To prevent equipment damage and risk of injury, always turn pump off before changing

the filter control valve position.

•

Never operate this product above the maximum working pressure stated on the filter tank.

•

Hazardous Pressure. Improper tank valve cover assembly could cause the valve cover to

blow off and cause serious injury, property damage or death.

•

This product is intended to be used only for the purposes described in the manual!

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN

PROPERTY DAMAGE, ELECTRIC SHOCK, ENTANGLEMENT OR

OTHER SERIOUS INJURY OR DEATH.

These product warnings, instructions and safety rules provided with the product represent

some common risks of water recreation devices and do not cover all instances of risk and

danger. Please use common sense and good judgement when enjoying any water activity.

128

SAVE THESE INSTRUCTIONS Page 4

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

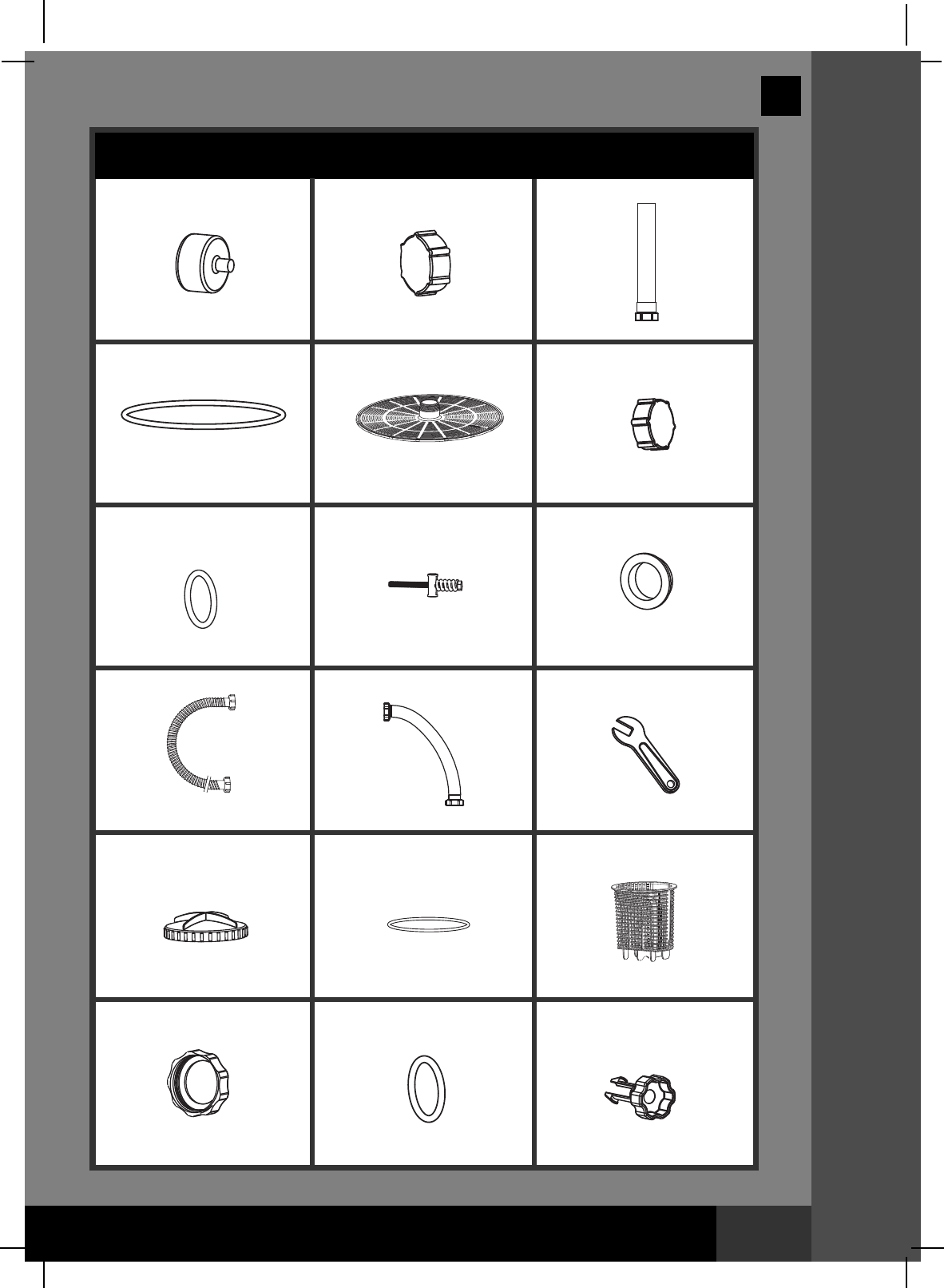

PPAARRTTSS LLIISSTT

PARTS LIST

NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

4 5

10 11 12

13 14 15

16 17 18

128

SAVE THESE INSTRUCTIONS Page 5

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

PARTS LIST (continued)

PPAARRTTSS LLIISSTT

NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

22 24

19 20 21

25 26 27

28 29 30

31 32 33

128

SAVE THESE INSTRUCTIONS Page 6

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

PPAARRTTSS RREEFFEERREENNCCEE

PARTS REFERENCE

Before assembling your product, please take a few minutes to check the contents

and become familiar with all the parts.

NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

33 34

128

SAVE THESE INSTRUCTIONS Page 7

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

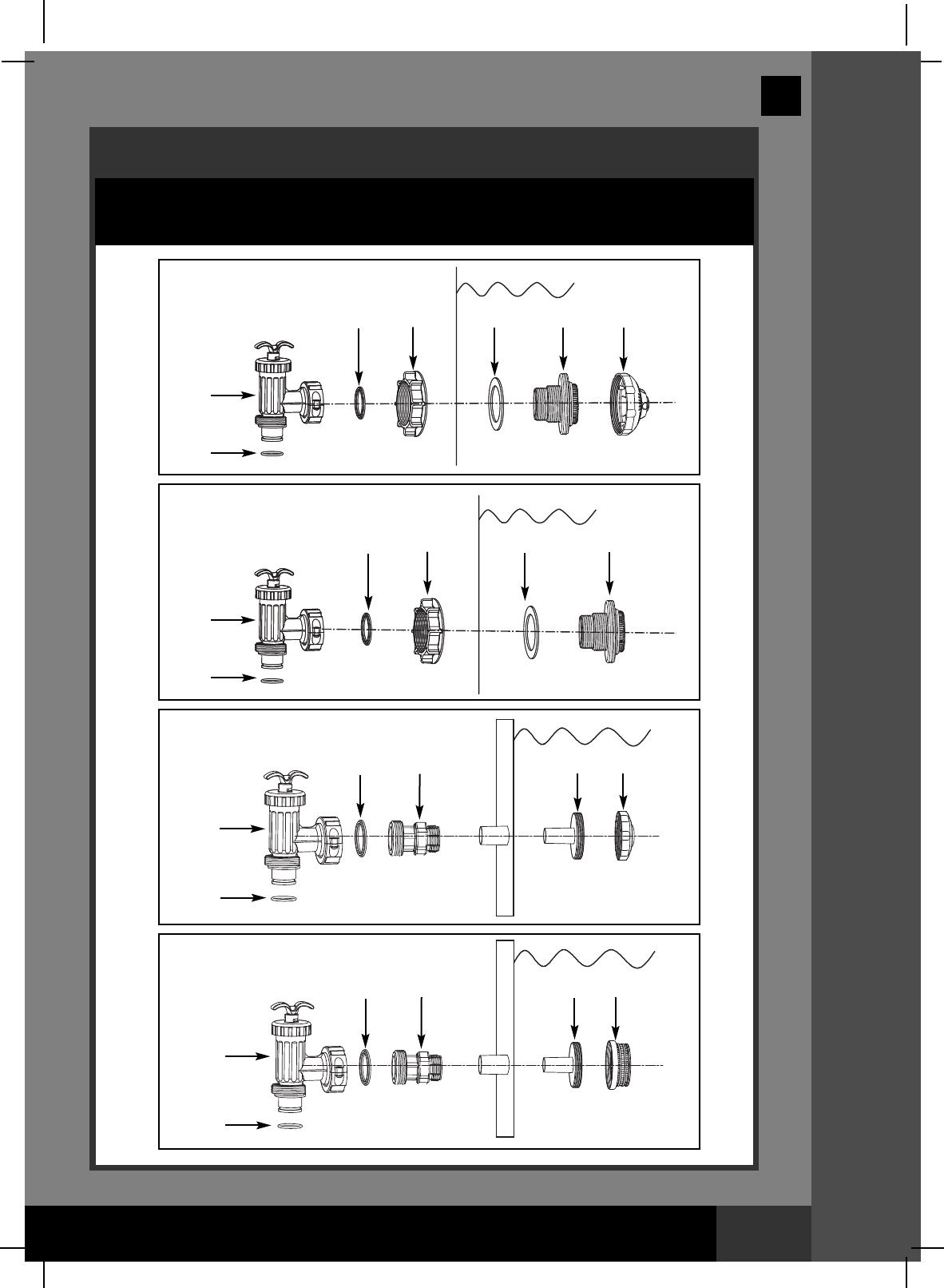

PPAARRTTSS RREEFFEERREENNCCEE

PARTS REFERENCE (continued)

Before assembling your product, please take a few minutes to check the contents

and become familiar with all the parts.

NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

22 23 24 25 26

22 27 28 29

22 23 24 25

22 27 28 30

128

SAVE THESE INSTRUCTIONS Page 8

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

When ordering parts, be sure to quote the model number and part numbers.

PARTS REFERENCE (continued)

Before assembling your product, please take a few minutes to check the contents

and become familiar with all the parts.

PPAARRTTSS RREEFFEERREENNCCEE

REF. NO. DESCRIPTION QTY. SPARE PART NO.

1PRESSURE GAUGE 1 11224

2 DRAIN OUTLET COVER 1 11131

3 CENTER PIPE 1 11268

4TANK O-RING 1 11225

5 FILTER GRID 1 11269

6DRAIN VALVE CAP 111226

7DRAIN VALVE O-RING 1 11227

8 CLAMP BOLT 1 11262

9L-SHAPE O-RING 4 11228

10 HOSE WITH NUTS 2 11010

11 SAND FILTER INTERCONNECTING HOSE 1 11229

12 WRENCH 1 11231

13 LEAF TRAP COVER 1 11259

14 LEAF TRAP O-RING 1 11232

15 BASKET 1 11260

16 FILTER HOUSING NUT 1 11261

17 O-RING A 1 10712

18 SEDIMENT RELEASE VALVE 1 10460

19 VALVE O-RING 1 10264

20 PLUNGER VALVE (HOSE O-RING & STEP

WASHER INCLUDED) 2 10747

21 HOSE O-RING 10262

22 STEP WASHER 10745

23 STRAINER NUT 2 10256

24 FLAT STRAINER RUBBER WASHER 2 10255

THREADED STRAINER CONNECTOR

2 11235

26 ADJUSTABLE POOL INLET NOZZLE 1 11074

27 ADAPTOR B 2 10722

28 STRAINER CONNECTOR 2 11070

29 POOL INLET NOZZLE 1 11071

30 STRAINER GRID 1 11072

31 6-WAY VALVE DIVERTER 1 11324

32 6-WAY VALVE SET 1 11321

33 PUMP MOTOR & CONTROL 1 11322

34 PRE-FILTER ASSEMBLY 1 11371

128

SAVE THESE INSTRUCTIONS Page 9

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS

The strainer grid prevents large objects from jamming and/or damaging the

filter pump. If your pool has an inflatable top ring, install the strainer, nozzle

and plunger valve before inflating the pool liner top ring. The part numbers

here onward refer to the parts depicted in the Parts List section of this

manual. To install, do the following:

1. In a counter-clockwise motion unscrew

plunger valve union from the threaded

strainer connector (25) (see drawing 1).

Be careful not to lose the step rubber

washer (22). Place the plunger valve on

the ground in a safe place.

2. In a counter-clockwise motion unscrew the

strainer nut (23) from the threaded

connector (25). Leave the flat washer (24)

on the connector (25).

3. Install the strainer and plunger valve at the

lower position of pool outlet (marked "+").

From the inside of the pool liner insert the

connector (25) into one of the pre-cut holes

with the washer remaining on the

connector to be placed against the inside

of the liner wall.

4. Before assembly, lubricate the threads with

a petroleum jelly. With the flat side of the

strainer nut (23) facing the outside wall of

the liner in a clockwise motion screw the

strainer nut (23) back onto the threaded

connector (25) (see drawing 2).

5. Finger tighten the strainer nut (23) onto the

threaded connector (25).

6. Grasp the plunger valve assembly. Make

sure the step washer (22) is in place.

7. In a clockwise motion screw the plunger

valve union back onto the threaded

connector (25) (see drawing 3).

8. Examine the plunger valve to see if the

handle is pushed fully down to the "0/1"

position. If not, then grasp the handle at

the top and push down turning the handle

in a clockwise direction until the plastic

protruding notch anchors in the "0/1"

position. This will prevent water from

flowing out during filling (see

drawings 4.1 & 4.2).

POOL OUTLET - STRAINER & PLUNGER VALVE SETUP

4.1

4.2

24 25

INSIDE

LINER WALL

INSIDE

LINER

WALL

128

SAVE THESE INSTRUCTIONS Page 10

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS

POOL INLET - NOZZLE & PLUNGER VALVE SETUP

1. In a counter-clockwise motion unscrew

plunger valve union from the threaded

strainer connector (25) (see drawing 5).

Be careful not to lose the step rubber

washer (22). Place the plunger valve on

the ground in a safe place.

2. In a counter-clockwise motion unscrew the

strainer nut (23) from the threaded

connector (25). Leave the flat washer (24)

on the connector (25).

3. Install the nozzle and plunger valve at the

upper position of pool inlet. From the inside

of the pool liner insert the connector (25)

into one of the pre-cut holes with the

washer remaining on the connector to be

placed against the inside of the liner wall.

4. Before assembly, lubricate the threads with

a petroleum jelly. With the flat side of the

strainer nut (23) facing the outside wall of

the liner in a clockwise motion screw the

strainer nut (23) back onto the threaded

connector (25) (see drawing 6).

5. Finger tighten the adjustable pool inlet

nozzle (26) and the strainer nut (23) onto

the threaded connector (25).

6. Grasp the plunger valve assembly. Make

sure the step washer (22) is in place.

7. In a clockwise motion screw the plunger

valve union back onto the threaded

connector (25) (see drawing 7).

8. Examine the plunger valve to see if the

handle is pushed fully down to the "0/1"

position. If not, then grasp the handle at

the top and push down turning the handle

in a clockwise direction until the plastic

protruding notch anchors in the "0/1"

position. This will prevent water from

flowing out during filling (see

drawings 8.1 & 8.2).

9. Adjust the direction of nozzle head pointing

away from the pool outlet for a better

circulation result (see drawing 9).

10. The pool liner is now ready to fill with

water. Consult the above-ground-pool

owner’s manual for filling instructions.

8.1

8.2

INSIDE

LINER

WALL

POOL

24 25 26

INSIDE

LINER WALL

WATER

FLOW

128

SAVE THESE INSTRUCTIONS Page 11

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

PPRROODDUUCCTT SSPPEECCSS && SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS

PRODUCT SPECIFICATIONS

SETUP INSTRUCTIONS

10 11

Power: 220-240 Volt AC

Wattage: 650 W

Maximum working pressure: 3.5 bar (50 psi)

Effective filtering area: 0.13 m2(1.44 ft2)

Maximum Flow Rate: 10030 liters/hour (2650 gallons/hour)

Recommended filtering media:

Use only No. 20 silica sand. Particle size

range 0.45 to 0.85 mm (0.018 to 0.033

inches). Uniformity Coefficient less than 1.75.

Recommended filtering media quantity: 45 Kg (100 Lbs)

Limited Warranty: 2 Years (see “Limited Warranty”)

The sand filter removes suspended particles and does not sanitize your pool.

Pool chemistry is a specialized area and you should consult your local pool

service specialist for details.

Pump location and mounting:

• The system must be installed on a solid level and vibration-free base.

• Provide a location protected from the weather, moisture, flooding and

freezing temperature.

• Provide adequate access, space and lighting for routine maintenance.

• Pump motor requires free circulation of air for cooling. Do not install

the pump in a damp or non-ventilated location.

A team of 2 or more people is recommended for setting up this product.

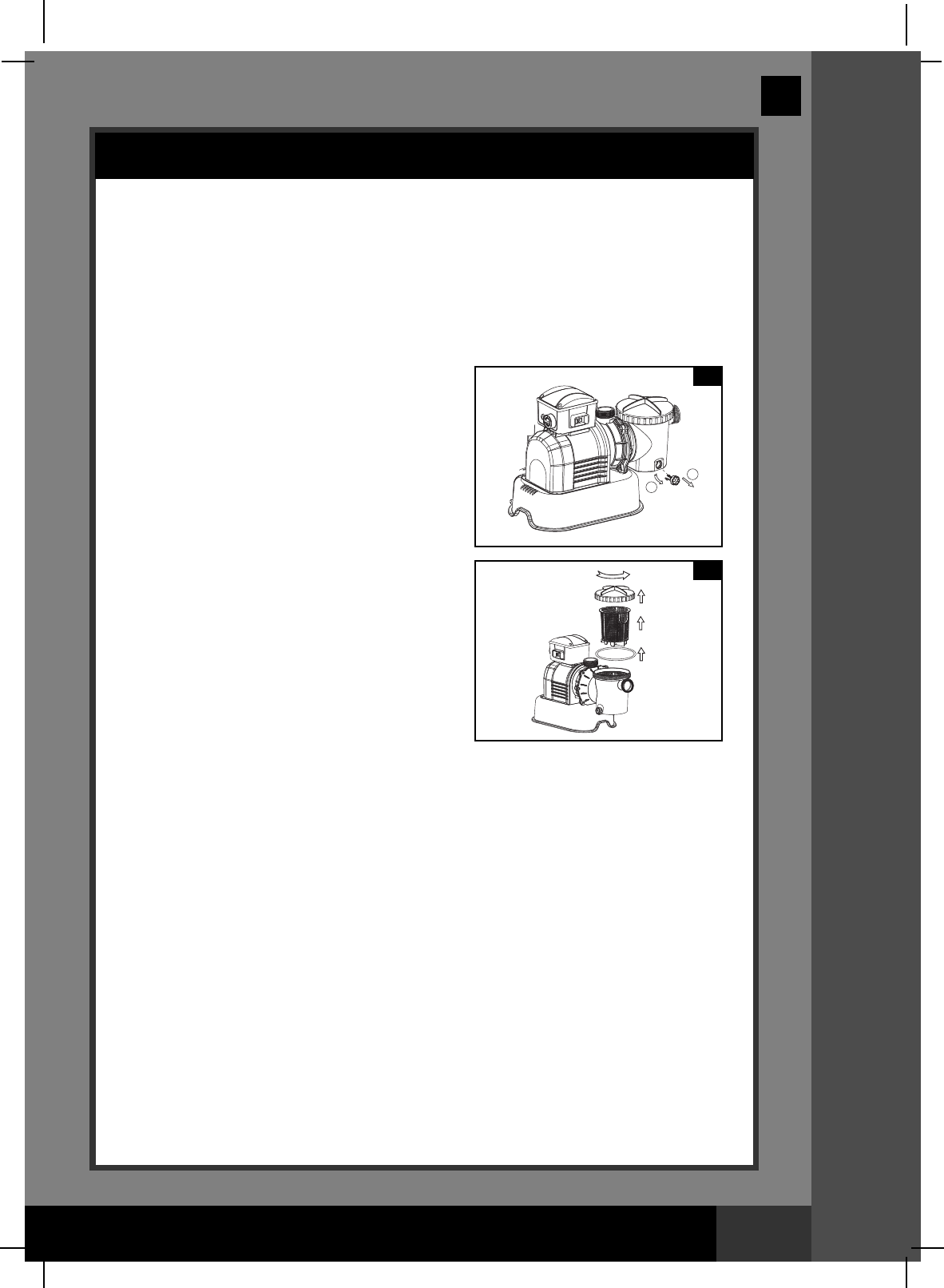

Motor pre-filtering assembly setup:

1. Remove the sand filter and its accessories from the packaging carefully and

inspect for any visible damage. If parts are damaged contact your local

service center listed at the back of this owner’s manual.

2. In a counter-clockwise motion unscrew the leaf trap cover (13) from the

pre-filter housing. Take out the basket (15) and filter housing nut (16) (see

drawing 10).

Connect the pre-filter housing to the motor water inlet. Note: Align the connector

in the pre-filter housing with the water inlet on the motor (see drawing 11).

128

SAVE THESE INSTRUCTIONS Page 12

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

4. In a clockwise motion screw filter housing nut (16) onto the motor water inlet

(See drawings 12.1 & 12.2).

5. Replace the basket (15) and leaf trap cover (13) back to the pre-filter housing

(See drawings 13.1 & 13.2).

12.2

SETUP INSTRUCTIONS (continued)

12.1

13.1 13.2

SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS

Sand tank installation:

1. Place the tank on the selected location.

2. Connect the motor pre-filtering assembly unit to the tank support base (See

drawing 14.1). NOTE: Ensure the pre-filter housing water inlet hose connection

is facing towards the pool.

IMPORTANT: Some countries, especially in the European community,

require the product to be secured to the ground or to a base in a

permanent upright position. Check your local authorities to determine if

there is a regulation in your area regarding above-the-ground swimming

pool filter-pumps. If yes, then the product can be mounted to a platform

using the two holes located in the base. See drawing 14.2.

The product can be mounted on a cement base or onto a wooden

platform to prevent accidental falling over.

• The mounting holes are 6.4 mm in diameter and spaced 117.4 mm

apart.

• Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.

14.1 14.2

117.4 mm

128

SAVE THESE INSTRUCTIONS Page 13

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

17 18

SETUP INSTRUCTIONS (continued)

SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS

Sand loading:

IMPORTANT: Use only No. 20 silica sand with particle size range 0.45 to 0.85

mm (0.018 to 0.033 inches) and a Uniformity Coefficient less than 1.75.

NOTE: Before loading the tank with sand, ensure the sand filter grid and

center pipe assembly is securely in place on the tank bottom, and the

center pipe (3) is vertically centered inside the tank.

1. To prevent sand from falling into the center pipe top opening when pouring the

sand, cover the center pipe top opening with a cup or similar object (see

drawing 17).

2. With one person holding the center pipe to keep it centered, pour the sand into

the tank at a slow rate manually to prevent the filter grid assembly from shifting

(see drawing 18).

3. In a clockwise motion screw the center pipe (3) onto the filter grid (5) securely

by hand (see drawing 15).

4. Vertically insert the filter grid and center pipe assembly into the tank. Ensure

filter grid assembly is securely fitted to the bottom of the tank, and the center

pipe is vertically centered inside the tank (see drawing 16).

128

SAVE THESE INSTRUCTIONS Page 14

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

6-way valve installation:

1. Place the tank o-ring (4) around the top edge of the tank groove (see

drawing 21). NOTE: Ensure the tank o-ring is free of sand or debris.

SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS

SETUP INSTRUCTIONS (continued)

3. Fill the tank approximately half way first to evenly distribute the sand inside the

tank, then fill the tank with some water to provide a cushioning effect when the

remaining sand is poured in. This prevents the filter grid (5) from excessive

shock (see drawing 19).

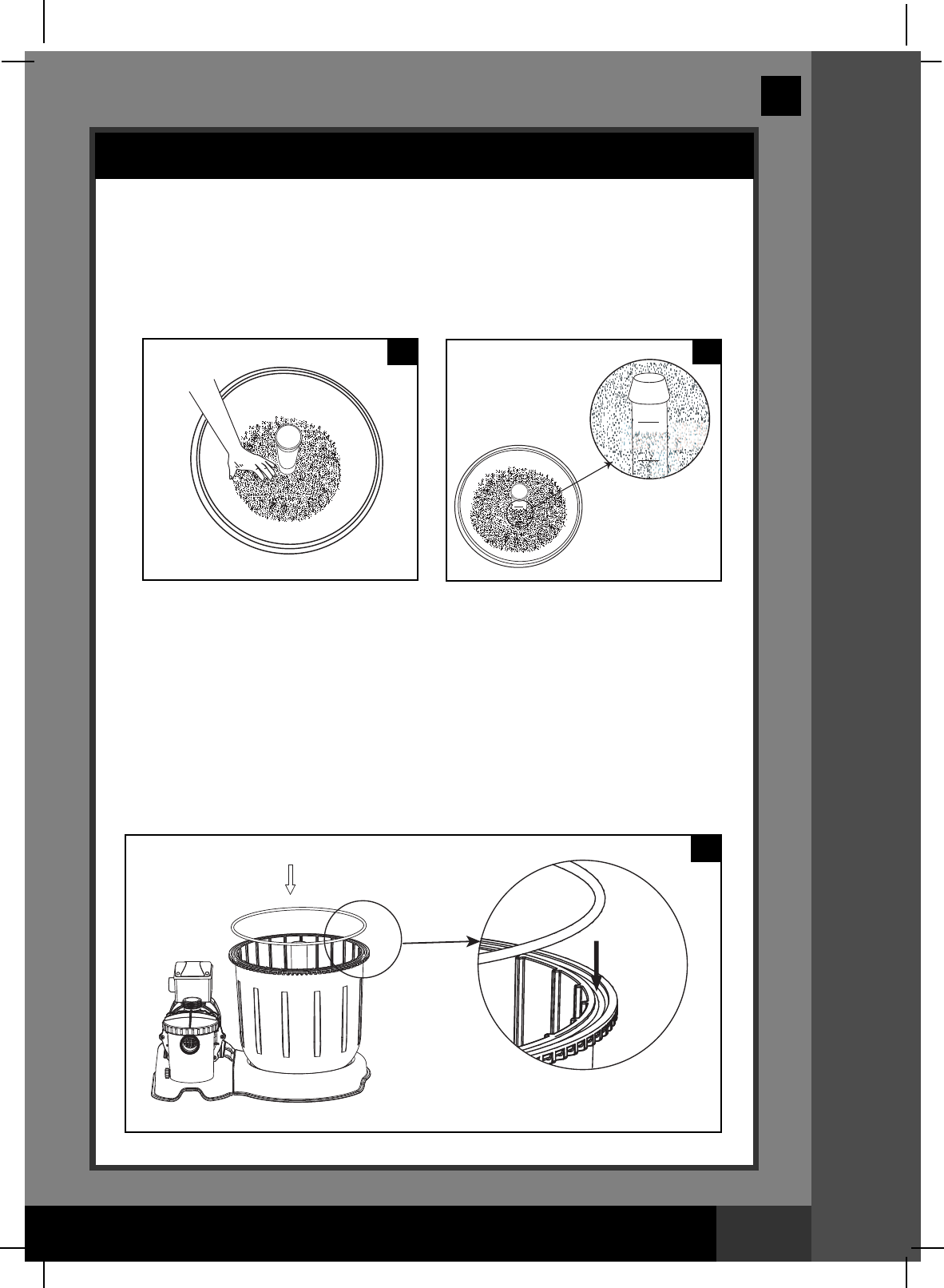

4. Sand shall be filled between the “MAX” and “MIN” marked gauge on the center

pipe. Evenly spread and level out the sand by hand (see drawings 19 & 20).

5. Remove the protective cup from the center pipe top opening.

6. Wash away all sand around the top edge of the tank.

IMPORTANT: Ensure the center pipe (3) remains centered after sand loading

is completed before proceeding to the next step.

MAX

MIN

MAXMAX

MINMIN

19 20

128

SAVE THESE INSTRUCTIONS Page 15

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

SETUP INSTRUCTIONS (continued)

2. Lower the 6-way valve cover over the tank slowly, and ensure the bypass pipe

protruding underneath the 6-way valve cover fits securely into the center

pipe (3) top opening (see drawing 22). Make sure the tank o-ring is securely

fitted between the top edge of the tank groove and the 6-way valve cover

edge.

IMPORTANT: There are three hose connection ports on the 6-way valve,

ensure the outlet connection (from filter to the pool) on the valve is facing

towards the pool, and the inlet connection (from motor to valve) is aligned

with the motor outlet (see drawing 23).

22 23

3. Place an L-shape o-ring (9) on the 6-way valve inlet connection and on the

pump motor outlet. In a clockwise motion connect the sand filter

interconnecting hose (11) between the pump motor outlet and the 6-way valve

inlet connection (see drawing 24).

4. Remove the clamp bolt cover and the clamp bolt (8), and install the flange

clamp around the tank and 6-way valve flanges (see drawing 25).

5. Insert the clamp bolt (8) into the pre-installed nut on the clamp, and securely

tighten it with the wrench (12) supplied. Replace the clamp bolt cover back.

(see drawings 26.1 & 26.2).

SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS

24 25

26.1

WARNING

Improper tank valve and clamp assembly could cause the valve and clamp

to blow off and cause serious injury, property damage or death.

26.2

WATER

INLET

WATER

OUTLET

128

SAVE THESE INSTRUCTIONS Page 16

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS

SAND FILTER PUMP HOSE CONNECTION SETUP

The 6-way valve has three hose connection ports.

1. Connect one hose (10) end to the pre-filter inlet and the other end of the hose

to the lower plunger valve with the strainer. Ensure the hose nuts are securely

tighten.

2. Connect the second hose (10) between the 6-way valve water outlet and the

upper plunger valve with the inlet-nozzle. Ensure the hose nuts are securely

tighten.

3. The third hose connection port (drain/waste outlet) on the 6-way valve shall be

directed to a proper draining receptacle using a hose or pipe (not provided).

Remove the drain cap before attaching the drain/waste hose or pipe.

4. The sand filter pump is now ready to filter the pool.

WARNING

• Keep this product more than 2m away from the pool.

• Keep this product more than 3.5m away from the pool (for France only).

• Keep the plug of this product more than 3.5m away from the pool.

• Position this product away from the pool, so as to prevent children from

climbing on it and accessing the pool.

>3.5M

>2M

6-WAY VALVE

WATER

INLET

WATER OUTLET

MOTOR MOTOR

WATER

OUTLET

PRE-

FILTER

WATER INLET

WATER LEVEL

ADJUSTABLE

POOL INLET

NOZZLE

THREADED

STRAINER

CONNECTOR

OUTSIDE

LINER WALL

PLUNGER VALVE

(ILLUSTRATION NOT TO SCALE)

POWER

CORD

L-SHAPE

O-RING

L-SHAPE

O-RING

DRAIN

128

SAVE THESE INSTRUCTIONS Page 17

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

SAND FILTER PUMP HOSE CONNECTION SETUP (continued)

SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS

For INTEX pool size 16' and below:

1. In a counter-clockwise motion unscrew plunger valve union from the threaded

strainer connector (25). Be careful not to lose the step rubber washer (22).

2. Grasp the plunger valve assembly. Make sure the step washer (22) is in place.

Connect adaptor B (27) to plunger valve union.

3. Remove wall plug and then insert the strainer (28 & 30) into the lower position

of protruding hose connection, and the nozzle (28 & 29) into the upper position

of protruding hose connection. Adaptor B (27) fits over the strainer

connection (28) inserted into the connection. Tighten securely.

4. Remove the drain cap (2)before attaching the drain/waste hose or pipe.

For NON-INTEX pool:

Connect the hose (10) to the pool inlet/outlet connection with a large hose clamp.

Tighten securely. Remove the drain cap (2)before attaching the drain/waste

hose or pipe.

POOL

LARGE HOSE

CLAMP

POOL

>3.5M

>2M

>3.5M

>2M

28 & 29

28 & 30

128

SAVE THESE INSTRUCTIONS Page 18

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

OOPPEERRAATTIINNGG IINNSSTTRRUUCCTTIIOONNSS

OPERATING INSTRUCTIONS

• Risk of electric shock. Connect this product only to a grounding type

receptacle protected by a ground-fault circuit interrupter (GFCI) or

residual current device (RCD). Contact a qualified electrician if you cannot

verify that the receptacle is protected by a GFCI/RCD. Use a qualified

electrician to install the GFCI/RCD, which has a maximum rate of 30mA.

Do not use a portable residual current device (PRCD).

•To reduce the risk of electric shock, do not use extension cords, timers,

plug adaptors or converter plugs to connect unit to electric supply;

provide a properly located outlet.

•Do not attempt to plug in or unplug this product while standing in water

or when your hands are wet.

• Never operate this product above the maximum working pressure stated

on the filter tank.

• Always switch off pump before changing the 6-way valve position.

• Operating this product without water flowing through the system can

cause a build up of hazardous pressure which can result in an explosive

situation, serious injury, property damage or death.

• Never test this pump with compressed air. Never operate the system with

water temperature above 35° C (95° F).

Valve Position Function Water Flow Direction

FILTER

(see drawing 27)

Normal filtration and regular

vacuuming of pool

From pump through filter media

to pool

BACKWASH

(see drawing 28)

Reverses water flow to clean

filter media

From pump through filter media

to valve waste/drain outlet

RINSE

(see drawing 29)

For initial startup cleaning of the sand, and

leveling the sand bed after backwashing

From pump through filter media

to valve waste/drain outlet

WASTE

(see drawing 30)

For vacuuming directly to waste,

lowering pool level or to drain the pool

From pump to valve waste/drain

outlet bypassing the filter media

RECIRCULATE

(see drawing 31)

For circulating water back to pool

without going through the filter media

From pump through valve to

pool bypassing the filter media

CLOSED

(see drawing 32)

Shuts off all flow to filter and pool

“Do not use this setting with pump running”

6-way valve positions and function:

WARNING

128

SAVE THESE INSTRUCTIONS Page 19

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

Initial startup and operation:

Before operating, be sure that:

• All the hoses have been connected and tightened securely, and correct amount

of filter sand have been loaded.

• The entire system is connected to a grounding type receptacle protected by a

ground-fault circuit interrupter (GFCI) or residual current device (RCD).

OOPPEERRAATTIINNGG IINNSSTTRRUUCCTTIIOONNSS

OPERATING INSTRUCTIONS (continued)

CAUTION

The filter control valve has a closed position. The pump should never be

on when the valve is in the closed position. If the pump is operated with

the valve closed, and explosive situation could exist.

1. Grasp a plunger valve handle. Turn the handle counter-clockwise, pull up until it

stops, and then turn it clockwise until the metal protruding notch anchor is in

the "0/1" position. Repeat for the second plunger valve. This opens the valves to

allow water to flow into the sand filter pump.

2. Ensure the drain/waste outlet on the 6-way valve is not covered and directed to

a proper draining receptacle.

3. Ensure the pump is off, depress the 6-way

valve and turn it to the “BACKWASH” position

(see drawings 28 & 33).

IMPORTANT: To prevent damage to the

6-way valve, always depress the valve

handle before turning. Always switch off

pump before changing the 6-way valve

position.

4. Switch on the pump (see drawing 34). Water

is circulating backward through the sand

media and to waste/drain outlet. Backwash

until a clear flow of water is observed in the

waste/drain outlet or through the drain sediment

window.

NOTE: The initial backwash of the filter is

recommended to remove any impurities or fine

sand particles in the sand media.

TIMER

OFF

128

SAVE THESE INSTRUCTIONS Page 20

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

OOPPEERRAATTIINNGG IINNSSTTRRUUCCTTIIOONNSS

OPERATING INSTRUCTIONS (continued)

English

5. Switch off the pump, change the 6-way valve to “RINSE” position (see

drawing 29).

6. Switch on the pump and run the pump for about one minute to level out the

sand bed after backwashing the sand media.

7. Switch off the pump, change the 6-way valve to “FILTER” position (see

drawing 27).

8. Switch on the pump. The system is now operating in the normal filtering mode.

Run the pump until the desired pool water clearance is obtained and no more

than 12 hours per day.

9. Record the initial pressure gauge reading when the filter media is clean.

NOTE: During initial setup of the system, it may be necessary to backwash

frequently due to unusual heavy dirt present in the water and sand. After that,

as the filter removes dirt and impurities from the pool water, the accumulated

dirt in the sand media will cause the pressure to rise and the flow to diminish. If

there is no vacuuming device attached to the system and the pressure gauge

reading is in the yellow zone it is time to backwash the sand media, see

“BACKWASH” under “initial startup and operation” section.

Vacuuming device (i.e. Intex auto pool cleaner) attached to the system may also

cause the flow to diminish and the pressure to rise. Remove any vacuuming

device from the system and check if the pressure gauge reading has dropped

from the yellow zone to the green zone.

Operating the system under “TIMER” mode or manually:

To operate the sand filter pump in “FILTER” mode under “TIMER” control:

A. Set the timer dial to the desired operating hours. See operation time table

(see drawing 35).

B. Turn on the pump by pressing the switch to “ ” position, the sand filter

pump is now filtering the water and will stop after the operating hours are

completed. The built-in timer will now operate for the number of hours

selected at the same time each day.

C. Operating hours can be re-adjusted if necessary. Follow step A – B.

To operate the sand filter pump manually (without the “TIMER” mode):

A. Turn on the pump by pressing the switch to “-” position, the sand filter

pump is now filtering the water.

B. To turn off the pump, press the switch to “O” position.

TIMER

OFF

TIMER DIAL

(HOURS)

128

SAVE THESE INSTRUCTIONS Page 21

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

INTEX POOLS OPERATING TIME TABLE (WITHOUT INTEX SALTWATER SYSTEM)

Pool Size

Water Capacity (Calculated at

90% for Frame Pool and 80% for

Easy Set & Oval Pool)

Sand filter

pump operating

time (For one

cycle)

(Gals) (Liters) (Hours)

INTEX ABOVE GROUND POOLS (AGP’s)

EASY SET®

POOL

ROUND

METAL

FRAME POOL

ULTRA FRAME

POOL

SEQUOIA SPIRIT®

POOL SET

OVAL FRAME

POOL

RECT. ULTRA

FRAME POOL

18' x 42" (549cm x 107cm)

18' x 48" (549cm x 122cm)

18' x 52" (549cm x 132cm)

18' x 48" (549cm x 122cm)

18' x 52" (549cm x 132cm)

24' x 48" (732cm x 122cm)

24' x 52" (732cm x 132cm)

16' x 48" (488cm x 122cm)

18' x 52" (549cm x 132cm)

16'8" x 49" (508cm x 124cm)

18'8" x 53" (569cm x 135cm)

20' x 12' x 48" (610cm x 366cm x 122cm)

24' x 12' x 48" (732cm x 366cm x 122cm)

28' x 12' x 48" (853cm x 366cm x 122cm)

18' x 9' x 52" (549cm x 274cm x 132cm)

24' x 12' x 48" (732cm x 366cm x 122cm)

24' x 12' x 52" (732cm x 366cm x 132cm)

32' x 16' x 52" (975cm x 488cm x 132cm)

4786

5455

5894

6423

6981

11483

12481

5061

6981

5061

6981

4393

5407

6420

4545

7757

8403

14364

18115

20647

22309

24311

26423

43462

47421

19156

26423

19156

26423

16628

20465

24300

17203

29359

31805

54368

This table shows the required operating time for average use of the sand filter pump with above

ground pools.

128

SAVE THESE INSTRUCTIONS Page 22

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

INTEX POOLS OPERATING TIME TABLE (WITH INTEX SALTWATER SYSTEM)

If the system is attached to an “Intex Saltwater System” unit, the filter pump running time

should be longer than the required operating time of the Intex Saltwater System unit.

Pool Size

Water Capacity (Calculated at

90% for Frame Pool and 80%

for Easy Set & Oval Pool)

Saltwater System

operating Time (with

cyanuric acid 30-50ppm) (hours)

Sand Filter

Pump

Operating

Time

(hours)

(Gals) (Liters)

10 - 19°C

(50 - 66°F)

20 - 28 °C

(68 - 82 °F)

29 - 36 °C

(84 - 97 °F)

INTEX ABOVE GROUND POOLS (AGP’s)

EASY SET®

POOL

CIRCULAR

METAL

FRAME POOL

ULTRA FRAME

POOL

SEQUOIA SPIRIT®

POOL SET

OVAL FRAME

POOL

RECT. ULTRA

FRAME POOL

15' x 33" (457cm x 84cm)

15' x 36" (457cm x 91cm)

15' x 42" (457cm x 107cm)

15' x 48" (457cm x 122cm)

16' x 42" (488cm x 107cm)

16' x 48" (488cm x 122cm)

18' x 42" (549cm x 107cm)

18' x 48" (549cm x 122cm)

18' x 52" (549cm x 132cm)

15' x 36" (457cm x 91cm)

15' x 42" (457cm x 107cm)

15' x 48" (457cm x 122cm)

16' x 48" (488cm x 122cm)

18' x 48" (549cm x 122cm)

18' x 52" (549cm x 132cm)

20' x 52" (610cm x 132cm)

24' x 48" (732cm x 122cm)

24' x 52" (732cm x 132cm)

16' x 48" (488cm x 122cm)

18' x 52" (549cm x 132cm)

16'8" x 49" (508cm x 124cm)

18'8" x 53" (

569

cm x 135cm)

18' x 10' x 42" (549cm x 305cm x 107cm)

20' x 12' x 48" (610cm x 366cm x 122cm)

24' x 12' x 48" (732cm x 366cm x 122cm)

28' x 12' x 48" (853cm x 366cm x 122cm)

18' x 9' x 52" (549cm x 274cm x 132cm)

24' x 12' x 52" (732cm x 366cm x 132cm)

32' x 16' x 52" (975cm x 488cm x 132cm)

2587

2822

3284

3736

3754

4273

4786

5455

5894

3282

3 861

4440

5061

6423

6981

8638

11483

12481

5061

6981

5061

6981

2885

4393

5407

6420

4545

8403

14364

9792

10681

12430

14141

14209

16173

18115

20647

22309

12422

14614

16805

19156

24311

26423

32695

43462

47241

19156

26423

19156

26423

10920

16628

20465

24300

17203

31805

54368

NOTE: The “12” hours timer setting position has an additional 20 minutes over the actual

setting.

128

SAVE THESE INSTRUCTIONS Page 23

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

NON-INTEX POOLS OPERATING TIME TABLE

Water Capacity

Sand filter pump operating

time (For one cycle)

(Gals) (Liters) (Hours)

4000

5000

6000

7000

8000

9000

10000

11000

12000

13000

14000

15000

16000

17000

18000

19000

20000

21000

22000

23000

24000

25000

26000

15140

18925

22710

26495

30280

34065

37850

41635

45420

49205

52990

56775

60560

64345

68130

71915

75700

79485

83270

87055

90840

94625

98410

This table shows the required operating time for average use of the sand filter pump with above

ground pools.

128

SAVE THESE INSTRUCTIONS Page 24

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

MMAAIINNTTEENNAANNCCEE

MOTOR PRE-FILTER CLEANING AND MAINTENANCE

1. Make sure the filter pump is switched off, then disconnect the power cord from

the electrical outlet.

2. Grasp a plunger valve handle. Turn the handle counter-clockwise, push down

until it stops and then turn it clockwise until the plastic protruding notch anchors

in the "0/1" position. Repeat for the second plunger valve. This prevents the

water from flowing out of the pool.

3. Release the pressure first by opening the

sediment release valve (18) located

on the lower side of the pre-filter housing

(see drawing 36).

4. In a counter-clockwise motion unscrew the

leaf trap cover (13), then remove the

basket (15) and leaf trap o-ring (14) from the

pre-filter housing (see drawing 37).

5. Empty and flush the basket using a garden hose, may use a plastic brush to

remove deposits from the basket. Do not use metal brush.

6. Clean and rinse the inside of the pre-filter housing and the leaf trap O-ring with

a garden hose.

7. Reinstall the leaf trap O-ring, basket and leaf trap cover to the pre-filter housing.

8. Close the sediment release valve (18) back.

128

SAVE THESE INSTRUCTIONS Page 25

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

MMAAIINNTTEENNAANNCCEE

CAUTION

Concentrated chlorine solutions may damage the pool liner. Always follow the

chemical manufacturer’s directions, and the health and hazard warnings.

1. Before emptying your pool for long term storage, or relocation, be sure the water is

directed towards an acceptable drain water receptacle away from the house. Check local

regulations for specific directions regarding disposal of swimming pool water.

2. Switch off the unit, and disconnect power cord from electrical outlet.

3. When the pool is empty, disconnect all hoses from pump and plunger valves and

remove the strainers/plunger valves from the pool wall.

4. In a counter clockwise motion unscrew the drain valve cap (6) from the drain valve to

thoroughly drain the tank. The drain valve is located at the bottom of the filter tank.

5. Disassemble the pump motor from the tank base.

6. Leave sand filter pump pieces and hoses outside to thoroughly air dry.

7. Coat the following o-rings and washers with petroleum jelly for long term storage:

• L-shape o-ring (9).

• o-ring A (17).

• Pump hose O-rings (21).

• Strainer valve assembly step washers (22).

• Flat strainer rubber washers (24).

8. Depress the 6-way valve handle and rotate so as to set the pointer on the valve top

“N” position. This allows the water to drain from the valve. Leave the 6-way valve in this

inactive position.

It is best to place all dry pieces and pump motor in the original packaging for storage. To

avoid condensation or corrosion problem, do not cover or wrap pump motor with plastic bags.

10. Store the pump motor and accessories in a dry place. The storage's temperature

should be controlled, between 0 degrees Celsius (32 degrees Fahrenheit) and 40

degrees Celsius (104 degrees Fahrenheit).

POOL CARE & CHEMICALS

• All pools require care to keep the water clear and hygienically clean. With proper

chemical control, your filter will help attain this objective. Consult your pool supply dealer

for instructions regarding the proper use of chlorine, algaecide and other chemical

agents required for sparkling clear water.

• Keep pool chemicals away from children.

• Do not replenish chemicals in pool while pool is occupied. Skin or eye irritations could

occur.

• Daily pH checking and chemical treatment of the water is very important and cannot be

overemphasized. Chlorine, algaecide and maintenance of proper pH levels are required

when filling the pool as well as during the season. Consult your local swimming pool

supply store for instructions.

• The season's first filling of the pool may have brackish water requiring extra water

additives and extra filtering time. Do not allow swimming in pool until the pH level is

balanced. Consult your local swimming pool supply store for instructions.

• Chlorinated water may damage lawns, gardens or shrubbery as children play in the pool

and splash water outside the pool. Lawn areas underneath the pool liner will be

destroyed. Note that some types of grass may grow through the liner.

• Filter run time depends on pool size, weather and usage level. Experiment with various

run times so as to produce clean clear water.

LONG TERM STORAGE & WINTERIZATION

CAUTION

Allowing the water to freeze will damage the sand filter and void the warranty.

If anti-freeze solution is needed, use only propylene glycol. Propylene glycol is

non-toxic and will not damage plastic system components; other anti-freezes

are highly toxic and may damage plastic components in the system.

128

SAVE THESE INSTRUCTIONS Page 26

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

TROUBLESHOOTING GUIDE

TTRROOUUBBLLEESSHHOOOOTTIINNGG GGUUIIDDEE

• Line cord must be plugged into a 3

wire outlet that is protected by a Class

A Ground Fault Circuit Interrupter, or

RCD.

• Reset circuit breaker. If circuit breaker

trips repeatedly, your electrical system

may have a defect. Turn off circuit

breaker and call an electrician to

correct the problem.

•

Let the motor cool down and restart again.

• Adjust

the

chlorine and pH level. Consult

your local swimming pool supply stores.

• Load with filter sand, see “sand loading

instructions”.

• Set valve to “ FILTER” position.

• Operate

the

filter for longer periods.

• Clean

the

strainer screen at the inlet.

• Clear any obstructions in the intake

hose by discharging it inside pool wall.

• Tighten hose nuts, check hoses for

damage, check pool water level.

• Clean the pre-filtering basket more often.

• Backwash filter.

• Install the nozzle at the upper position

of the pool inlet, and the strainer at the

lower position of the pool outlet.

• Remove about 1” of sand if necessary.

• Remove any pool vacuuming device

attached to the system line.

• Fill pool to correct water level.

• Clean strainer screens at pool inlet.

• Tighten hose nuts, check hose for

damage.

• Contact Intex service center.

•

Remove 6-way valve cover and ensure the

o-ring is in place.

•

Clean sand tank o-ring with garden hose water.

•

Tighten the clamp with wrench supplied.

•

Contact Intex service center.

• Tighten/reinstall hose nut.

• Ensure o-ring/L-shape o-ring is in place

and not damaged.

• Turn off the pump and restart 5 minutes

later.

• Re-set the timer.

• Contact Intex service center.

• Clear any obstructions in the intake by

unscrewing it from the 6-way valve.

• Contact Intex service center.

• Use only No. 20 silica sand with particle

size range 0.45 to 0.85 mm (0.018

to 0.033 inches) and a Uniformity

Coefficient less than 1.75.

• Change sand.

FILTER MOTOR

FAILS TO START

FILTER DOESN’T

CLEAN POOL

FILTER DOESN’T

PUMP WATER OR

FLOW IS VERY

SLOW

PUMP DOESN’T

WORK

6-WAY

VALVE/COVER

LEAKING

HOSE LEAKING

TIMER IS

INACCURATE OR

TIMER CAN'T BE

SET

PRESSURE GAUGE

DOESN’T WORK

SAND IS FLOWING

BACK INTO THE

POOL

• The motor is not plugged in.

• The fuse box needs checking.

• The GFCI/RCD circuit breaker

is tripped.

• Motor too hot and overload

protection is shut off.

• Improper chlorine or pH

levels.

• No filtering media in tank.

• Wrong 6-way valve setting

position.

• Excessively dirty pool.

• The strainer screen is

restricting the water flow.

• Clogged inlet or discharge.

• An air leak on the intake line.

• Excessively dirty pool.

• Sand media clogged with dirt.

• Nozzle and strainer

connections are reversed.

• Crusting or caking on the

filtering sand surface.

• Pool vacuuming device

attached to the system.

• Low water level.

• Strainer screen clogged up.

• An air leak on the intake hose.

• Faulty motor or the impeller

is jammed.

• Sand tank o-ring missing.

• Sand tank o-ring dirty.

• Flange clamp not tight.

• 6-way valve damage.

• Hose nut not securely tight.

• Hose connection fitting

o-ring/L-shape o-ring missing.

• Possible inner timer

defective.

• Clogged inlet of the pressure

gauge.

• Pressure gauge damage.

• Sand is too small.

• Sand bed is calcified.

TROUBLE CAUSE SOLUTION

English

128

SAVE THESE INSTRUCTIONS Page 27

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

COMMON POOL PROBLEMS

CCOOMMMMOONN PPRROOBBLLEEMMSS

English

PROBLEM DESCRIPTION CAUSE SOLUTION

ALGAE

COLORED

WATER

FLOATING

MATTER IN

WATER

CHRONIC

LOW WATER

LEVEL

SEDIMENT

ON POOL

BOTTOM

SURFACE

DEBRIS

• Chlorine and pH levels

need adjustment.

• Copper, iron or

maganese in water

being oxidized by the

added chlorine.

This is Common.

• "Hard water" caused

by a too high pH level.

• Chlorine content is low.

• Foreign matter in

water.

• Rip or hole in pool

liner or hoses.

• The drain valves are

loose.

• Heavy use, getting in

and out of pool.

• Pool too close to

trees.

• Super chlorinate with shock

treatment. Correct pH to your

pool store's recommended

level.

• Vacuum pool bottom.

• Maintain proper chlorine

level.

• Adjust pH level to the

recommended level.

• Run filter until water is clear.

• Correct the pH level. Check

with your pool dealer for

advice.

• Adjust the chlorine level.

• Repair with a patch kit.

• Finger tighten all caps.

• Use Intex pool vacuum to

clean bottom of pool.

• Use Intex pool skimmer.

• Greenish water.

• Green or black

spots on pool liner.

• Pool liner is

slippery and/or has

a bad odor.

• Water turns blue,

brown, or black

when first treated

with chlorine.

• Water is cloudy or

milky.

• Level is lower than

on previous day.

• Dirt or sand on

pool floor.

• Leaves, insects

etc.

IMPORTANT

If you continue to experience difficulty, please contact our Consumer

Service Department for assistance. See back cover for contact information.

128

SAVE THESE INSTRUCTIONS Page 28

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

SSAAFFEETTYY GGUUIIDDEELLIINNEESS

GENERAL AQUATIC SAFETY

Water recreation is both fun and therapeutic. However, it involves

inherent risks of injury and death. To reduce your risk of injury, read

and follow all product, package and package insert warnings and

instructions. Remember, however, that product warnings, instructions

and safety guidelines cover some common risks of water recreation,

but do not cover all risks and or dangers.

For additional safeguards, also familiarize yourself with the following

general guidelines as well as guidelines provided by nationally

recognized Safety Organizations:

• Demand constant supervision. A competent adult should be appointed as

a “lifeguard” or water watcher, especially when children are in and around

the pool.

• Learn to swim.

• Take the time to learn CPR and first aid.

• Instruct anyone who is supervising pool users about potential pool

hazards and about the use of protective devices such as locked doors,

barriers, etc.

•Instruct all pool users, including children what to do in case of an

emergency.

• Always use common sense and good judgement when enjoying any

water activity.

• Supervise, supervise, supervise.

English

128

SAVE THESE INSTRUCTIONS Page 29

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

LIMITED WARRANTY

Your Sand Filter Pump has been manufactured using the highest quality materials and

workmanship. All Intex products have been inspected and found free of defects prior to

leaving the factory. This Limited Warranty applies only to the Sand Filter Pump.

The following provision is only valid within the European member states countries: The

legal regulation of Directive 1999/44/EC will not be effected by this Intex warranty.

The provisions of this Limited Warranty apply only to the original purchaser and is not

transferable. This Limited Warranty is valid for a period of two (2) years from the date of

the initial retail purchase. Keep your original sales receipt with this manual, as proof of

purchase will be required and must accompany warranty claims or the Limited Warranty

is invalid.

If a manufacturing defect is found within this two (2) years period, please contact the

appropriate Intex Service Center listed in this manual. The Service Center will determine

the validity of the claim.

IMPLIED WARRANTIES ARE LIMITED TO THE TERMS OF THIS WARRANTY AND IN

NO EVENT SHALL INTEX, THEIR AUTHORIZED AGENTS OR EMPLOYEES BE

LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR CONSEQUENTIAL

DAMAGES OR LIABILITIES. Some countries, or jurisdictions do not allow the exclusion

or limitation of incidental or consequential damages, so the above limitation or exclusion

may not apply to you.

This Limited Warranty does not apply if the Sand Filter Pump is subject to negligence,

abnormal use or operation, accident, improper operation, improper voltage or current

contrary to operating instructions, or to damage by circumstances beyond Intex’s control,

including but not limited to, ordinary wear and tear and damage caused by exposure to

fire, flood, freezing, rain, or other external environmental forces. This Limited Warranty

applies only to those parts and components sold by Intex. The Limited Warranty does not

cover unauthorized alterations, repairs or disassembly by anyone other than Intex

Service Center personnel.

The costs associated with the loss of pool water, chemicals or water damage are not

covered by this warranty. Injury or damage to any property or person is not covered by

this warranty.

128

SAVE THESE INSTRUCTIONS Page 30

(128) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/18/2010

English

AREAS LOCATION AREAS LOCATION

For service questions or to order replacement parts, please contact the appropriate

office listed below or visit www.intexdevelopment.com for answers to most

frequently asked questions.

• ARGENTINA JARSE INDUSTRIAL Y COMERCIAL S.A

MANUEL GARCIA Nº124, PARQUE PATRICO,

BUENOS AIRES, ARGENTINA

TEL: 4942-2238 (interno 106);

TEL: 4942-2238( interno 145)

E-mail: Martín Cosoleto: mcosoleto@jarse.com.ar

E-mail: Daniel Centurion: dcenturion@jarse.com.ar

Website: www.jarse.com.ar

• PERU COMEXA S.A.

AVENIDA COMANDANTE ESPINAR 142,

MIRAFLORES, LIMA, PERÚ

TEL: 446-9014

• SAUDI ARABIA SAUDI ARABIAN MARKETING &

AGENCIES CO. LTD.

PRINCE AMIR MAJED STREET,

AL-SAFA DISTRICT. JEDDAH,

KINGDOM OF SAUDI ARABIA

TEL: 966-2-693 8496

FAX: 966-2-271 4084

E-mail: toy@samaco.com.sa

Website: www.samaco.com.sa

• AUSTRIA STEINBACH VERTRIEBSGMBH

AISTINGERSTRAßE 2

4311 SCHWERTBERG

TEL: 0820 - 200 100 200

(0,145€/min aus allen Netzen)

FAX: + 43 (7262) 61439

E-mail: service@intexcorp.at

Website: www.intexcorp.at

• CZECH REPUBLIC / INTEX TRADING S.R.O.

EASTERN EUROPE BENESOVSKA 23,

101 00 PRAHA 10,

CZECH REPUBLIC

TEL: +420-267 313 188

FAX: +420-267 312 552

E-mail: info@intexcorp.cz

• BELGIUM N.V. SIMBA-DICKIE BELGIUM S.A.

MOESKROENSESTEENWEG 383C,

8511 AALBEKE, BELGIUM

TEL: 0800 92088

FAX: 32-56.26.05.38

E-mail: intex@nicotoy.be

E-mail: intexsupport@nicotoy.be

Website: www.nicotoy.be/downloads.htm

• DENMARK K.E. MATHIASEN A/S

SINTRUPVEJ 12, DK-8220

BRABRAND, DENMARK

TEL: +45 89 44 22 00

FAX: +45 86 24 02 39

E-mail: intex@keleg.dk

Website: www.intexnordic.com

• SWEDEN LEKSAM AB

BRANDSVIGSGATAN 6,

S-262 73 ÄNGELHOLM,

SWEDEN

TEL: +46 431 44 41 00

FAX: +46 431 190 35

E-mail: intex@leksam.se

Website: www.intexnordic.com

• NORWAY NORSTAR AS

PINDSLEVEIEN 1,

N-3221 SANDEFJORD,

NORWAY

TEL: +47 33 48 74 10

FAX: +47 33 48 74 11

E-mail: intex@norstar.no

Website: www.intexnordic.com

• FINLAND NORSTAR OY

SUOMALAISTENTIE 7,

FIN-02270 ESPOO,

FINLAND

TEL: +358 9 8190 530

FAX: +358 9 8190 5335

E-mail: info@norstar.fi

Website: www.intexnordic.com

• RUSSIA LLC BAUER

KIEVSKAYA STR., 20,

121165 MOSCOW, RUSSIA

TEL: 099-249-9400/8626/9802

FAX: 095-742-8192

E-mail: intex.russia@gmail.com

Website: www.intex.su

• POLAND KATHAY HASTER

UL. LUTYCKA 3, 60-415 POZNAN

TEL: +48 61 8498 334

FAX: +48 61 8474 487

E-mail: inx@kathay.com.pl

Website: www.intexpoland.pl

• HUNGARY RECONTRA LTD./RICKI LTD.

H-1113 BUDAPEST, DARÓCZI ÚT 1-3,

HUNGARY

TEL: +361 372 5200/113

FAX: +361 209 2634

E-mail: service@recontra.hu

• BRASIL KONESUL MARKETING & SALES LTDA

RUA ANTONIO DAS CHAGAS,

1.528 - CEP. 04714-002,

CHÁCARA SANTO ANTONIO - SÃO

PAULO - SP - BRASIL

TEL: 55 (11) 5181 4646

FAX: 55 (11) 5181 4646

E-mail: sacintexbrasil@uol.com.br

• ISRAEL ALFIT TOYS LTD

MOSHAV NEHALIM,

MESHEK 32, 49950, ISRAEL

TEL: +972-3-9076666

FAX: +972-3-9076660

E-mail: michald@chagim.co.il

• ASIA INTEX DEVELOPMENT CO. LTD.

9TH FLOOR,

DAH SING FINANCIAL CENTRE,

108 GLOUCESTER ROAD,

WANCHAI, HONG KONG

TEL: 852-28270000

FAX: 852-23118200

E-mail: xmservicesupport@intexcorp.com.cn

Website: www.intexdevelopment.com

• EUROPE INTEX TRADING B.V.

POSTBUS 1075, 4700 BB ROOSENDAAL,

THE NETHERLANDS

TEL: 31-(0)165-593939

FAX: 31-(0)165-593969

E-mail: service@intexcorp.nl

Website: www.intexcorp.nl

•FRANCE UNITEX / INTEX SERVICE FRANCE S.A.S

52, ROUTE NATIONALE,

39190 BEAUFORT, FRANCE

TEL: 08 90 71 20 39 (0,15€/min)

FAX: 03 84 25 18 09

Website: www.intex.fr

• GERMANY STEINBACH VERTRIEBSGMBH

C/O WEBOPAC LOGISTICS GMBH

INTER-LOGISTIK-PARK 1-3

87600 KAUFBEUREN

TEL: 0180 5 405 100 200

(0,14€/min aus dem Festnetz, Mobilfunk max. 0,42€/min)

FAX: + 43 (7262) 61439

E-mail: service@intexcorp.de

Website: www.intexcorp.de

• ITALY A & A MARKETING SERVICE

VIA RAFFAELLO SANZIO

20058 VILLASANTA (MI)

TEL: 199 12 19 78

FAX: +39 039 2058204

E-mail: info@intexitalia.com

Website: www.intexitalia.com

• UK TOY BROKERS LTD

MARKETING HOUSE,

BLACKSTONE ROAD,

HUNTINGDON, CAMBS.

PE29 6EF. UK

TEL: 0844 561 7129

FAX: 01480 414761

E-mail: sales@toybrokers.com

Website: www.intexspares.com

•SWITZERLAND GWM AGENCY

GARTEN-U. WOHNMÖBEL,

RÄFFELSTRASSE 25,

POSTFACH,

CH-8045 ZURICH/SWITZERLAND

TEL: 0900 455456 or +41 44 455 50 60

FAX: +41 44 455 50 65

E-mail: gwm@gwm.ch

Website: www.gwm.ch, www.gwmsale.ch

• SPAIN / PORTUGAL Nostrum Iberian Market S.A.

Av. de la Albufera, 321

28031 Madrid, Spain

TEL: +34 902101339

FAX for Spain: +34 9 029 089 76

Email for Spain: sat@intexiberian.com

FAX for Portugal: +351 707 506 090

Email for Portugal: spv-pt@intexiberian.com

Website: www.intexiberian.com

• AUSTRALIA HUNTER PRODUCTS PTY LTD

LEVEL 1, 225 BAY STREET,

BRIGHTON, VICTORIA,

AUSTRALIA

TEL: 61-3-9596-2144 or 1800-224-094

FAX: 61-3-9596-2188

E-mail: enquiries@hunteroverseas.com.au

Website: www.hunterproducts.com.au

• NEW ZEALAND HAKA NEW ZEALAND LIMITED

UNIT 4, 11 ORBIT DIVE, ALBANY,

AUCKLAND 0757, NEW ZEALAND

TEL: 649-4159213 / 0800 634434

FAX: 649-4159212

E-mail: geoff@hakanz.co.nz

Website: www.hakanz.co.nz

• MIDDLE EAST FIRST GROUP INTERNATIONAL

REGION AL MOOSA GROUP BUILDING, 1ST

FLOOR, OFFICE 102 & 103, UMM HURAIR

ROAD, KARAMA, DUBAI, UAE

TEL: 00971-4-800INTEX(46839) / +971-4-3373322

FAX: 00971-4-3375115

E-mail: intex@firstgroupinternational.com.

Website: www.firstgroupinternational.com

• SOUTH AFRICA WOOD & HYDE

15-17 PACKER AVENUE, INDUSTRIA 2,

CAPE TOWN, SOUTH AFRICA 7460

TEL: 27-21-0800-204-692

FAX: 27-21-505-5600

E-mail: ygoldman@melbro.co.za

• CHILE / URUGUAY COMEXA S.A.

EL JUNCAL 100, PARQUE INDUSTRIAL PORTEZUELO,

QUILICURA, SANTIAGO, CHILE.

TEL: 600-822-0700

E-mail: serviciotecnico@silfa.cl

128 A0 11 EN !! SF20220RSandfilterpump

Preview ! SF20220RSandfilterpump Leapfrog Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

Navigation menu

Versions of this User Manual:

Views

Navigation
