Portable Data Logger OM SQ2040 Series

User Manual: OM-SQ2040 Series

Open the PDF directly: View PDF .
Page Count: 4

1

The OM-SQ2040 Series combines a

higher channel count with the same

high performance, comprehensive

features and universal inputs as the

OM-SQ2020 in a neat compact and

portable instrument. Using multiple

24-bit analog to digital convertors, twin

processors and removable memory

options provide great flexibility to

handle a wide range of complex and

demanding multi-channel applications.

The OM-SQ2040 series are the ideal

data loggers for industrial, scientific

research and quality assurance

applications. The OM-SQ2040

provides stand-alone data

acquisition, advanced networked

solutions and data analysis straight

out-of-the-box.

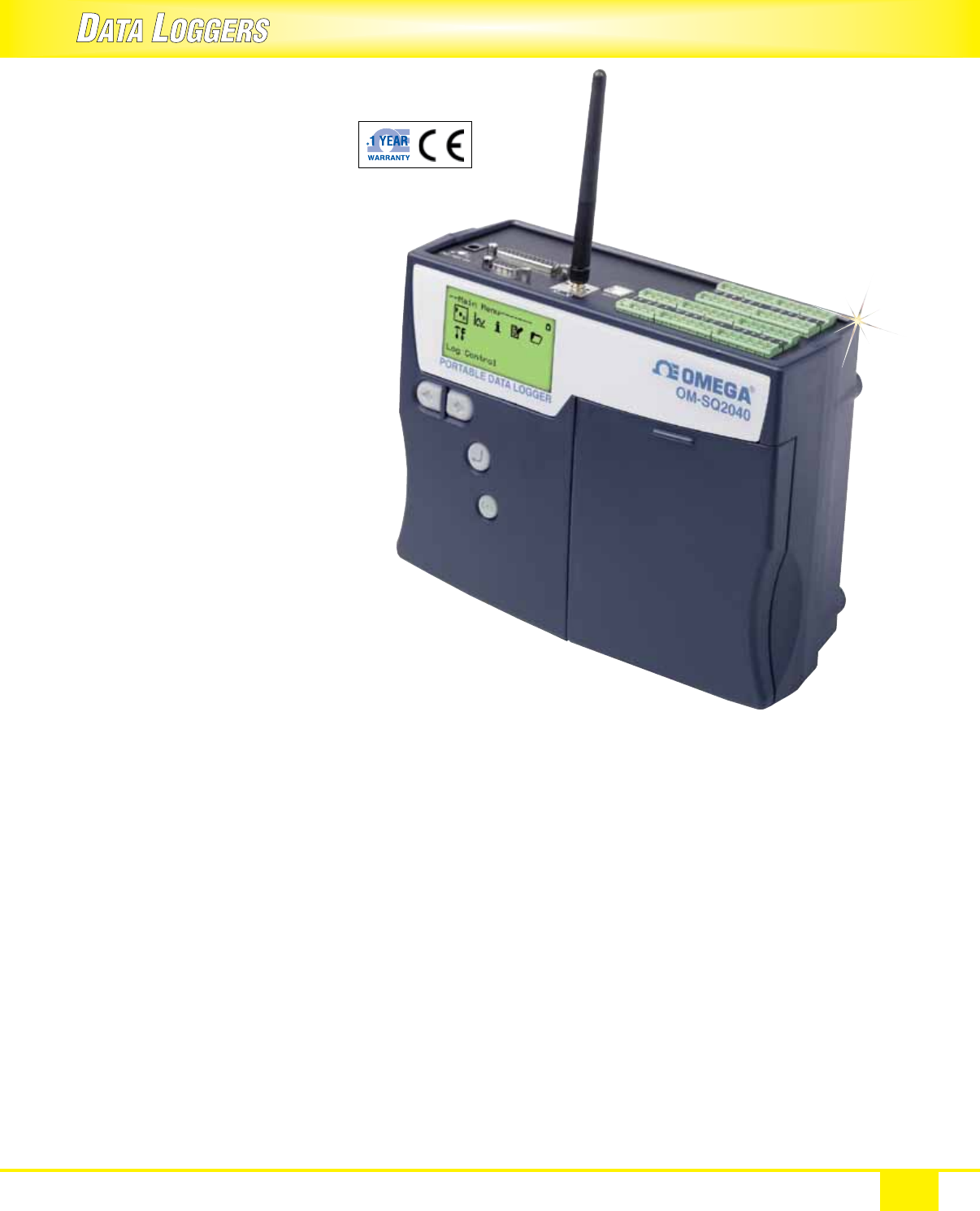

OM-SQ2040

Portable Data Logger

OM-SQ2040-2F16-WIFI

data logger shown smaller

than actual size.

Input Connections

The OM-SQ2040-2F16 data logger

has two analog to digital converters

(A/D’s) which increases logging

flexibility over the OM-2020-1F8

model. The first corresponds to

inputs on blocks A, B, C and D and

the second corresponds to inputs

on blocks G, H, J and K. Each

connection block will accept up

to 2 differential inputs or up to

4 single-ended inputs (it is not

possible to mix single ended and

differential inputs on a block).

The OM-SQ2040-4F16 data logger

has four analog to digital converters

(A/D’s) which increases logging

flexibility over the other OM-SQ2020

and OM-SQ2040 models. The first

corresponds to inputs on blocks A

and B, the second corresponds to

inputs on blocks C and D, the third

corresponds to inputs on blocks G

and H and the fourth corresponds

to inputs on blocks J and K. Each

connection block will accept up to

2 differential inputs or up to 4 single-

ended inputs (it is not possible to

mix single-ended and differential

inputs on a block).

Concurrent Sampling

The OM-SQ2040 series uses multiple

analog to digital converters that

enables true concurrent sampling

and logging. This allows the user to

configure up to 4 channels to log at a

rate of 100 Hz while retaining different

sample speeds on other channels.

This makes the OM-SQ2040 ideal

for measuring dynamic parameters

that change at different rates such as

temperature and pressure.

Communications Ethernet,

Wi-Fi (on the OM-SQ2040-2F16-WIFI

and OM-SQ2040-4F16-WIFI) USB

and RS-232 serial ports are

built-in. This allows quick connection

to either a PC based TCP/IP network,

a wireless to PC connection or to a

modem for remote data downloading.

U 16 True Differential or

32 Single-Ended Universal

Analog Inputs for Voltage,

Current or Resistance

Measurements—Plus 2 High

Voltages, 4 Pulse and 8 Digital

Event/State Inputs

U Analog Inputs Can Be Used with

Thermistors, Thermocouples,

2, 3 or 4-Wire RTD Temperature

Sensors and 4 to 20 mA Signals

U User Selectable Logging

Rates of Up to 100 Hz on

Up to 4 Channels

U Download of Internal Data to

Removable MMC/SD (Multi Media

Card/Secure Digital) Memory

U Large Non-Volatile Internal

Memory—Data Retention

is Virtually Indefinite

U Ethernet, Wi-FI (On the

OM-SQ2040-2F16-WIFI

and OM-SQ2040-4F16-WIFI)

USB and RS-232

Communication Ports

U Sensor Power and FET

Alarm Outputs For Use

With External Devices

U Easy Access to Information

Using the 2 Line, 20 Character

LCD and Push Button Panel

U Calculated Channels Derived

from Real Channels Using

Advanced Mathematical

Functions

This flexibility enables global data access and

retrieval as well as complete system integration of the

OM-SQ2040 series into complex

and critical applications.

Multiple Configurations Stored

in the Logger

Up to six logger configurations (channel type,

names, logging speeds, triggers, etc.), together

with the current configuration, can be held in the

logger’s internal memory. Additional configuration

settings can also be loaded from the external

MMC/SD memory card. This allows the operator

to quickly and easily switch between logger

configurations without the need for a PC.

Comprehensive Software Configuration

The OM-SQ-SOFT software (supplied with the

OM-SQ2040 series data loggers) allows logger

configuration, data download and data export while

giving the user full control over the OM-SQ2040.

The optional OM-SQ-SOFT-PLUS software gives the

user access to many advanced data analysis and data

archiving/transfer features.

The optional OM-SQ-SOFT-PLUS software lets you

quickly and easily analyze the data from your

OM-SQ2040 data logger in a familiar Explorer style

interface. Data can be displayed with 2 different

auto scaling Y-axis. This is particularly useful when

displaying widely varying data from different sensors

on one graph.

You can also zoom in on areas of interest, use a

cursor to pick out exact values, times and dates, get

astatistical summary of your data, set high and low

alarm thresholds and, using the calculation function,

you can create new virtual channels from existing

channels.

The OM-SQ-SOFT-PLUS software also incorporates

a report generation facility, which allows you to create

custom report templates consisting of a title page

with descriptive text, headers and footers, graphs,

tabular list of data, statistics and data logger setup

information. Templates can be setup with any of these

combinations and saves time when preparing similar

presentations of data.

Input Channels

Analog Input Channel Options OM-SQ2040-2F16 OM-SQ2040-4F16

Analog to Digital Converters 2 4

Differential 16 16

Single ended 32 32

3 or 4 wire 0 8

Additional Channels

Pulse (2x fast—64 kHz) and (2 x slow—100 Hz) (2x fast—64 kHz) and (2 x slow—100 Hz)

Event/Digital 8 state inputs of 1 x 8 bit binary 8 state inputs of 1 x 8 bit binary

High Voltage 2 2

Internal Channels 2 temperature 2 temperature

1 sec to 1 day in sec increments 1 sec to 1 day in sec increments

Logging Speeds 2, 5, 10, 20 or 100 Hz 2, 5, 10, 20 or 100 Hz

(20 or 100 HZ only on 2 channels) (20 or 100 HZ only on 4 channels)

* 2-wire only on OM-SQ2040-2F16, 3- or 4-wire on OM-SQ2040-4F16

** or user-defined thermistor (enter Steinhart-Hart coefficients or

RT pairs)

Standard Ranges for Temperature

Channels

Each channel can be individually set to

any of the ranges listed; Pt100 to IEC751 and JIS1604

and Pt1000 to IEC751 Thermocouple

Type Range °C Range °F

-200 to 1372 -328 to 2501

-200 to 400 -328 to 752

-200 to 1200 -328 to 2192

-200 to 1300 -328 to 2372

/ -50 to 1768 -58 to 3214

2

Input Type Range °C Range °F

Y & U: Thermistor ** -50 to 150 -58 to 302

Pt100/P1000* -200 to 850 -328 to 15620

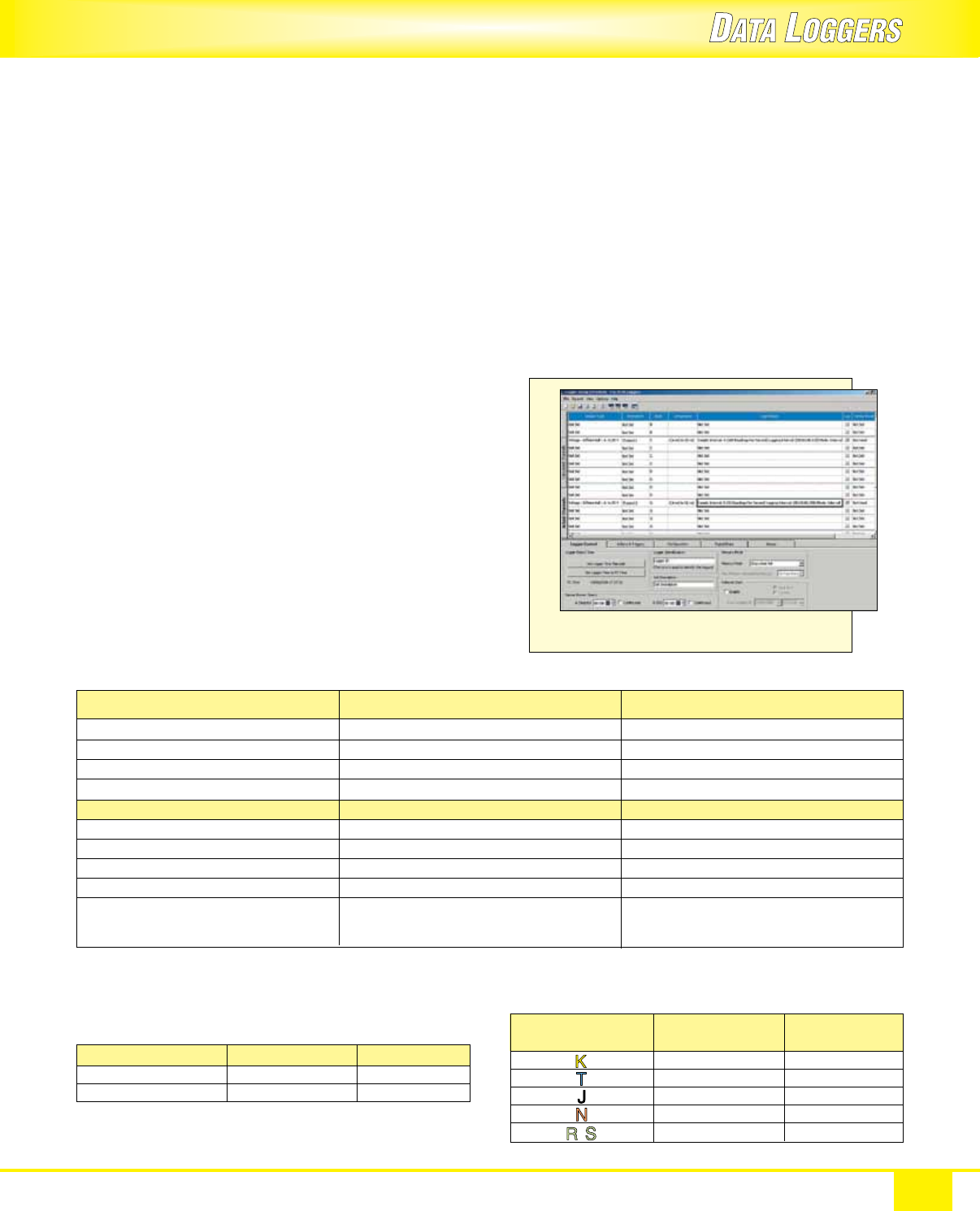

Data logger setup - channel

configuration screen

3

Specifications

ANALOG INPUTS

Accuracy: See table

Common Mode Rejection: 100 dB

Input Impedance: >1MΩ

Linearity: 0.015%

Series Mode Line Rejection:

50/60 Hz 100 dB

* Max of 2 may be selected

Voltage Range Voltage Range High Voltage Input Ranges*

-0.075 to 0.075V -3.0 to 3.0V 4.0 to 20.0V

-0.15 to 015V -6.0 to 6.0V 4.0 to 40.0V

-0.3 to 0.3V -6.0 to 12.0V 4.0 to 60.0V

-0.6 to 0.6V -6.0 to 25.0V

-0.6 to 1.6V

-0.6 to 2.4V

Standard Ranges for dc Voltage

Each voltage channel can be any of the voltage ranges below.

Mixed differential and single ended configurations are permitted.

Standard Ranges for Current

and Resistance Channels

Each current channel can be any of the current ranges below.

Current ranges use differential input channels.

Current Range Resistance Range Resistance Range

(External 10 Ω Shunt) 2 Wire Input Ranges

-30.0 to 30.0 mA 0.0 to 1250.0 Ω 0.0 to 500.0 Ω

4 to 20 mA 0.0 to 5000.0 Ω 0.0 to 4000.0 Ω

0.0 to 20000.0 Ω

0.0 to 300000.0 Ω

Analog Input Connections:

Detachable screw terminal blocks

ANALOG—DIGITAL

CONVERSION

Type: Sigma-Delta

Resolution: 24-bit

Sampling Rate: Up to 10, 20* or

100* readings per second per ADC

* With mains rejection off

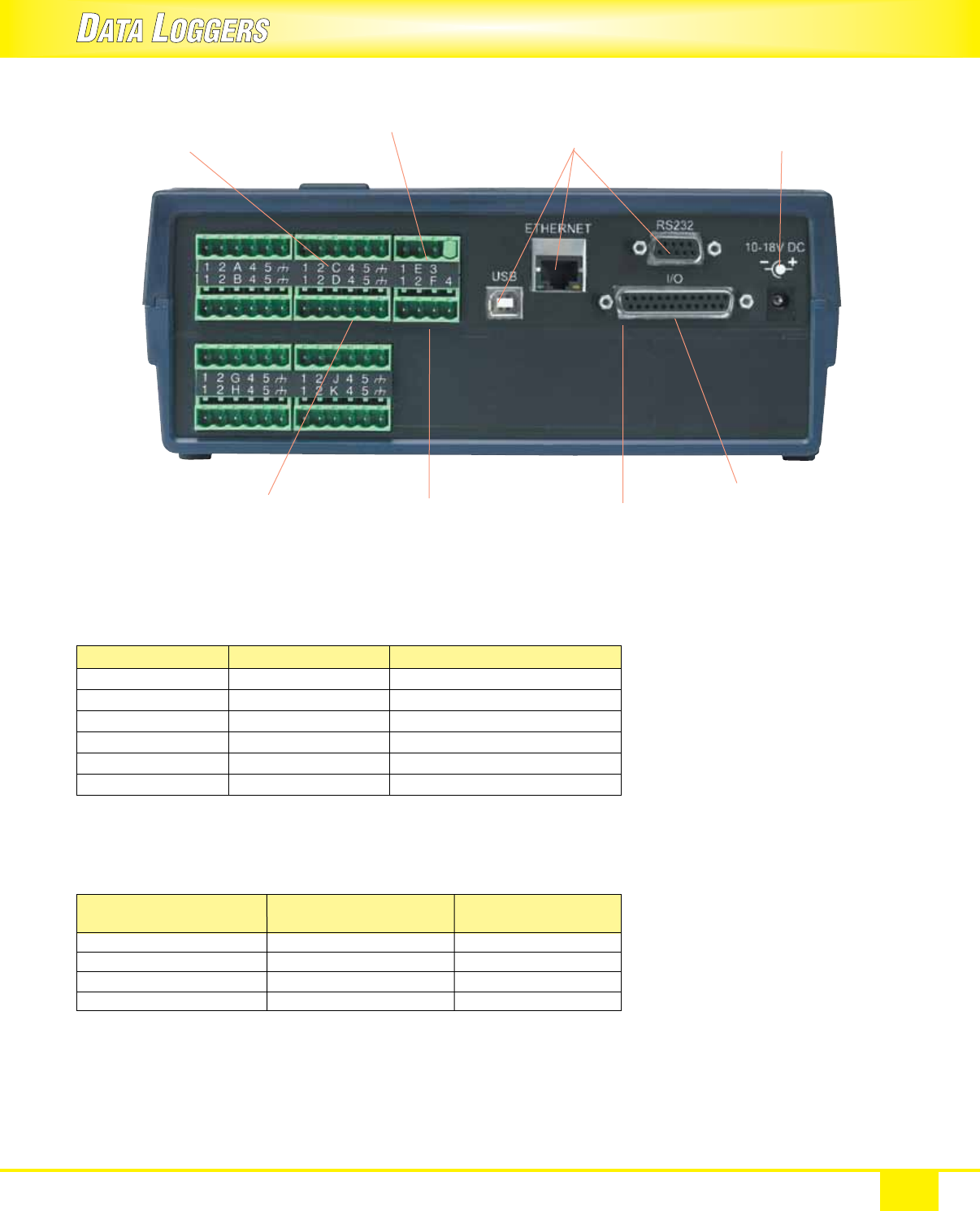

OM-SQ2040 data

logger, rear view,

shown smaller than

actual size.

16 to 32 universal

analog inputs

for recording

temperature,

current, voltage and

resistance

Power supply–

internal alkaline

batteries or

external DC power

supply

4 alarm

outputs for

triggering

external

devices

2 high voltage

channels (20,

40 or 60V) for

automotive

applications

Easy to use,

removable

connector system

Range of trigger

functions via 8

digital inputs;

4 pulse rate/

counter inputs

Power output for

sensor excitation/

external devices

USB, Ethernet and

RS232 connectivity for

quick and easy PC and

remote communication

and networking

Alarm Outputs

4 x open drain FET (18 V 0.1 A)

Digital I/O Connections:

DB25F connector

CALCULATED CHANNELS

Up to 16 virtual channels derived

from physical input channels

RESOLUTION

Up to 6 significant digits

PROGRAMMING/LOGGER SETUP

OM-SQ-SOFT or

OM-SQ-SOFT-PLUS software

Software compatible

with XP/VISTA

(32-bit & 64-bit)/7 (32-bit & 64-bit)

COMMUNICATION

Standard: RS232 (automatic

baud rate selection to 115200

baud) Ethernet 10/100 base TCP/IP

USB 1.1 and 2.0 compatible

Wireless Ethernet:

(Wi-Fi); 802.11b, 2.4GHz,

1 to 14 channels

Security: Open, WEP (64 or 128bi

encryption), WPA or PA2/802.11i

Network: Infrastructure only with

specified SSID (external power pack

required for Wi-Fi connection)

4

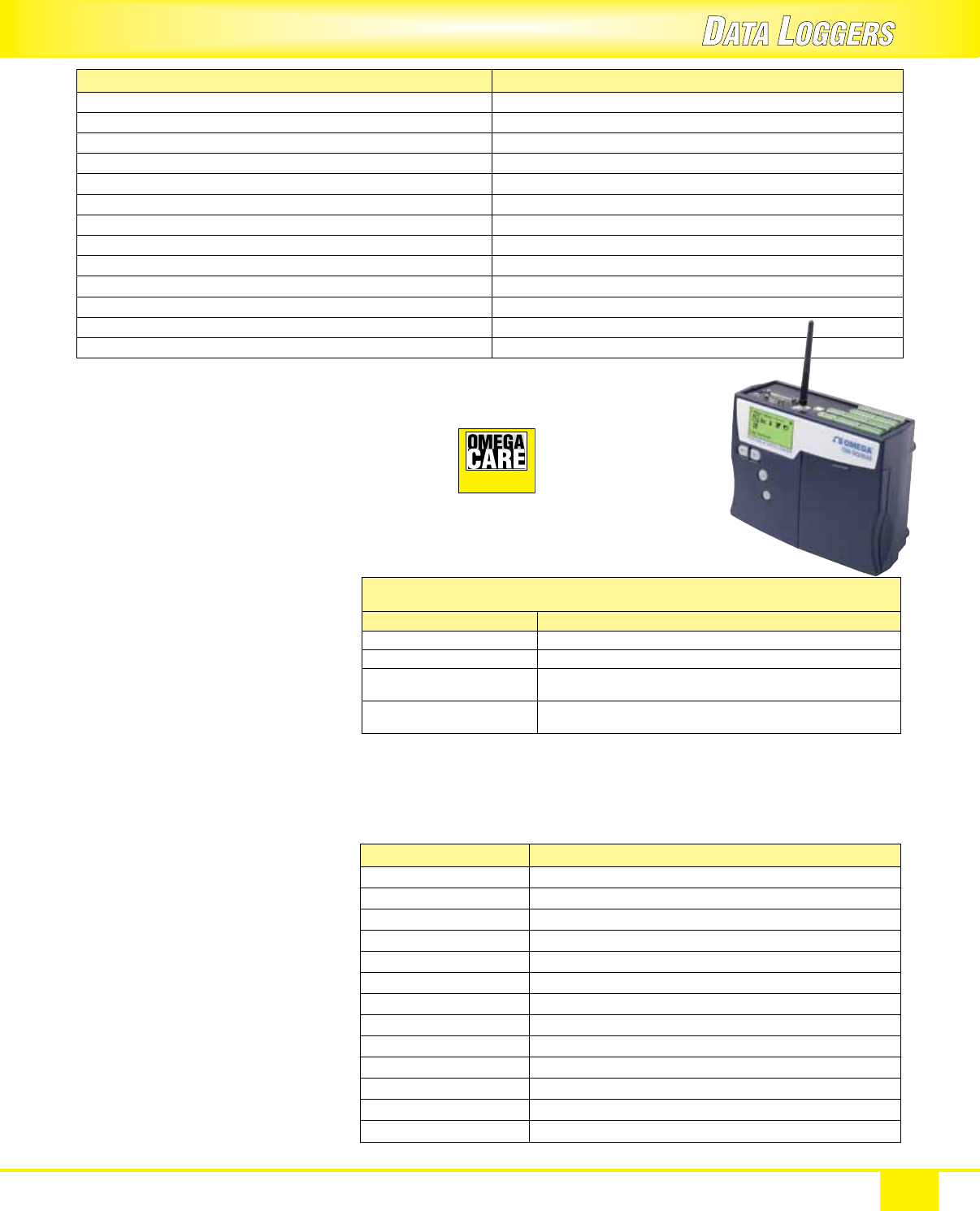

To Order

Model No. Description

OM-SQ2040-2F16 Portable data logger with 2 fast channels

OM-SQ2040-4F16 Portable data logger with 4 fast channels

OM-SQ2040-2F16-WIFI Portable data logger with 2 fast channels

and integrated Wi-Fi networking

OM-SQ2040-4F16-WIFI Portable data logger with 4 fast channels

and integrated Wi-Fi networking

Comes complete with software, USB cable, wall bracket, 6 “AA” batteries, 10 input terminal

blocks, 4 current shunt resistors and operator’s manual.

To order data logger with calibration certificate, add suffix “-CAL” to model number.

Ordering Example: OM-SQ2040-2F16 portable data logger with 2 fast channels,

OM-SQ-SOFT-PLUS software and OCW-1 OMEGACARE 1 year extended warranty for

OM-SQ2040-2F16 adds 1 year to standard 1-year warranty.

Accessories

Model No. Description

OM-SQ-NET-ADAP Serial/ethernet converter kit

OM-SQ-GSM-KIT GSM modem kit

OM-SQ-RF-ADAP Wireless network adaptor

OM-SQ-UNIV-ADAP Universal power pack

OM-SQ-UNIV-ADAP-1 Universal power pack with 1 m (3.2') flying lead

OM-SQ-CS Spare current shunts (package of 4)

OM-SQ-SER-CABLE OM-SQ data logger to PC serial port cable

OM-SQ-USB-CABLE Spare OM-SQ data logger to PC USB port cable

OM-SQ-TB3 Spare 3-way terminal block with cable restraint

OM-SQ-TB4 Spare 4-way terminal block with cable restraint

OM-SQ-TB6 Spare 6-way terminal block with cable restraint

OM-SQ-SOFT-PLUS OM-SQ2040 plus software

OM-SQ-SOFT-PLUS-LIC

OM-SQ2040 plus software multi-user license

Input Channels Accuracy @ 23°C

Differential voltage ±(0.025% of reading + 0.005% of full scale)

Single-ended voltage ±(0.025% of reading + 0.005% of full scale)

High voltage on block F ±(0.075% of reading + 5 mV)

Differential current ±(0.02% of reading + 0.015% of full scale)

2-wire and 3-wire resistance (above 500 Ω) ±0.1% of reading

4-wire resistance ±(0.05% of reading + 0.15 Ω)

2-wire and 3-wire temperature ±(0.1% of reading + 0.1% of full scale)

4-wire temperature ±(0.05% of reading + 0.05% of full scale)

Differential J, K and N thermocouples (above -50°C) * ±0.075% of full scale

Differential R, S and T thermocouples (above -50°C) * ±0.175% of full scale

Single-ended J, K and N thermocouples (above -50°C) * ±0.1% of full scale

Single-ended R, S and T thermocouples (above -50°C) * ±0.225% of full scale

Pulse count and rate ±(0.0011% of reading +1)

* Includes cold junction compensation (CJC) error.

Data logger held at constant temperature.

External Options: GSM, WIFI

and PSTN Modems

POWER SUPPLY

Internal: 6 “AA” alkaline batteries

(included)

External: 10 to 18 Vdc reverse

polarity and over-voltage protected

POWER CONSUMPTION @ 9V

Sleep Mode: 600 µA

Logging: 40 to 130 mA

DISPLAY AND KEYPAD

2 line x 20 character LCD display;

battery state and external power

indicator; keypad lock

Navigate To: Arm/disarm/pause/

continue; meter any channel or alarm;

select from up to 6 x pre-stored

setups; status/diagnostics/memory/

time and date; download to MMC/SD

OPERATING ENVIRONMENT

Temperature: -30 to 65°C

(-22 to 149°F)

Humidity: 90% at 40°C

non-condensing

GENERAL

Power Output

for External Device:

Regulated 5 Vdc at 50 mA or

logger supply voltage at 100 mA

Time and Date:

Built-in clock in 3 formats

Scaling Data: Displays readings

in preferred engineering units

Internal Memory: 16 MB

(Up to 1,800,000 readings)

External Memory:

Up to 1 GB— removable MMC/SD

(for transferring internal memory

and storing setups only)

Dimensions:

175 H x 235 W x 95 mm D

(6.9 x 9.3 x 3.7")

Weight: Approx. 1.2 kg (2.6 lb)

Enclosure Material: ABS

Memory Modes

(Internal Only):

Stop when full or overwrite

OM-SQ2040-2F16-WIFI

data logger shown smaller

than actual size.

Extended Warranty

Program

SM

OMEGACARESM extended warranty program

is available for models shown on this page.

Ask your sales respresentative for full details

when placing an order. OMEGACARESM

covers parts, labor and equivalent loaners.
