INSTRUCTIONS

DESCRIPTION OF CONTROLS

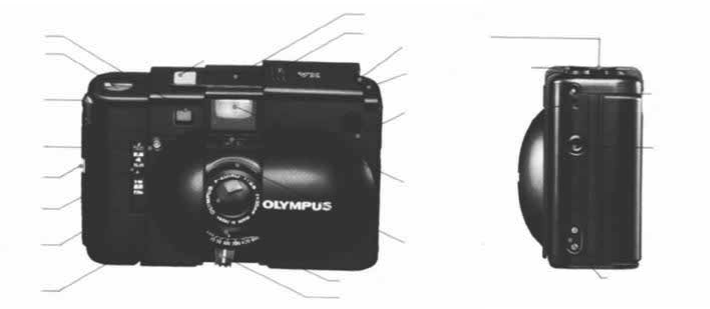

Rangefinder Window

Exposure Counter

Film Winder

Self-Timer/

Battery Check Lamp

Strap Eyelet

Aperture Lever

Distance

Scale Window

Lens

Shutter Release

Self-Timer/Battery Check Beeper

Non-Slip Finger Grip

Rewind Crank

Rewind Knob/

Camera Back Release

Dust

Barrier

Viewfinder

CdS Light Sensor

ASA Film Speed Lever

Focusing Lever

X-Synchro Contacts

Flash Retaining

Socket

Flash

Guide Pin Hole

(Side View)

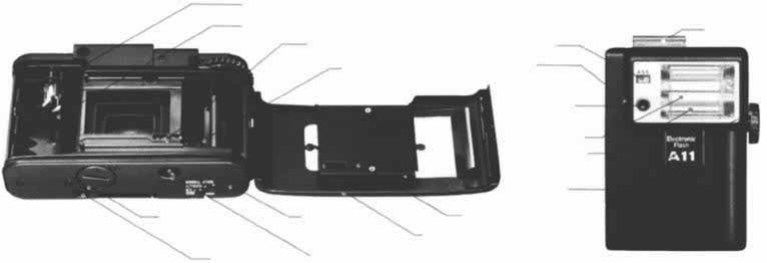

Film Rewind Shaft

Film Chamber

Sprocket

Film Take-Up Spool

ASA Film Speed Window

Film Speed

Adjustment Lever

Auto

Flash Sensor

Battery

Chamber

Tripod Socket

Rewind Release Button

Control

Lever

Camera Back

Flash

Clamping Screw

Film Pressure Plate

Flash

Diffuser Window

Flashtube

Charge Lamp

TABLE OF CONTENTS

The Olympus XA is an aper-

ture priority auto-exposure

rangefinder camera setting new

standards for function and feel,

appearance and performance.

Please read the following pages

carefully and your new camera

will provide maximum per-

formance and satisfaction.

DESCRIPTION

CONTROLS

..............

Page

1•2

PREPARATION

Installing

the

Batteries

.....................

the

Film

.......................

5•6

SIMPLE STEPS FOR TAKING PICTURES

Setting

the

Aperture

......................

Focusing

............................

Releasing

the

Shutter

.....................

Unloading

the

Film

......................

Self-Timer

............................

Automatic

Flash

Photography

..............

11•12

PHOTOGRAPHIC TECHNIQUES

Aperture

and

Depth

Field

...............

13•14

Shutter-Speed

Priority

Photography

...........

15-16

Backlighting

Compensation

..................

Daylight

Synchronization

..................

HELPFUL

HINTS

..........................

CARE

AND

STORAGE

.......................

MAIN

SPECIFICATIONS

..........................

21•22

If the beeper doesn't signal, the

batteries are inserted incorrectly

or are exhausted.

The batteries will last about one

year and must be replaced with

two 1.5V silver oxide batteries

(SR 44, EPX-76 or equivalent).

Do not press the shutter release

during battery check operation,

or the battery will run down

quickly, leaving the shutter open-

ed. Return the lever to the normal

position.

2. Check the batteries.

Set the control lever to "CHECK".

The beeper emits a tone and the

check lamp glows brightly.

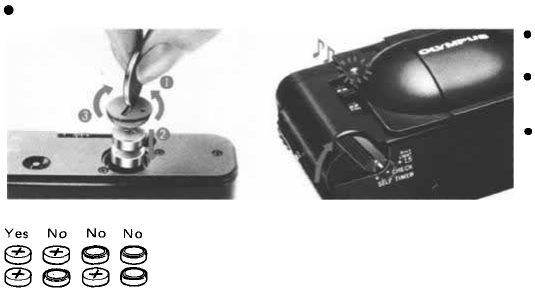

Installing the Batteries

PREPARATION

1. Insert the batteries correctly.

SR 44

(EPX-76,

MS-76 or

equivalent)

Loading the Film

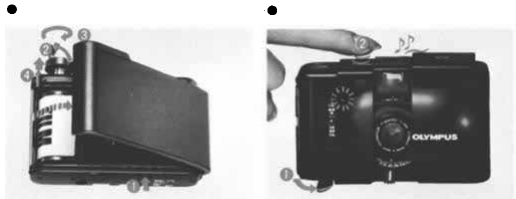

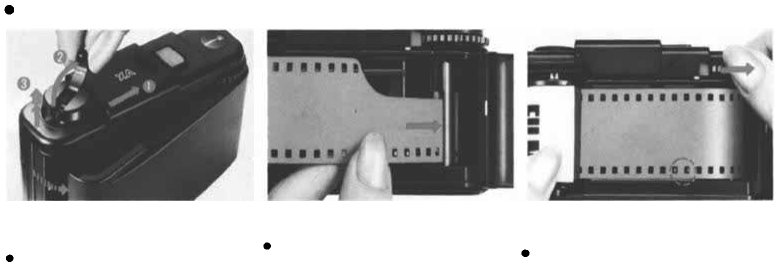

1. Open the camera back and in-

sert the film cartridge. (Dust Bar-

rier is in closed position.)

Never load the film in direct sun-

light.

2. Attach the film end to the

take-up spool.

The film end must not stick out

of the slot excessively.

3. Start winding the film and close

the camera back.

Film perforations must engage

with sprocket teeth and the film

must be drawn flat.

4. Open the Dust Barrier.

If the Dust Barrier is not fully

opened, the shutter cannot be

released.

5. Wind and expose two blank

shots until the exposure counter

shows "1".

The lens should be aimed toward

a bright light when shooting.

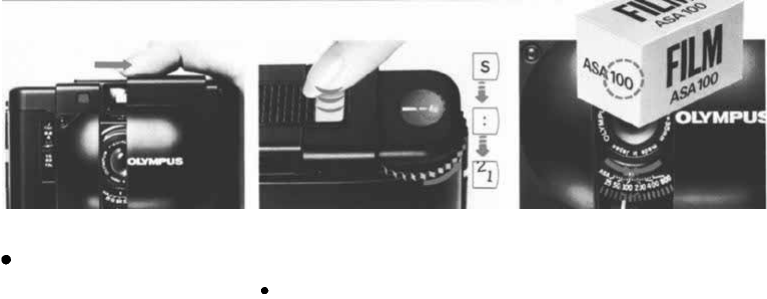

6. Set the ASA film speed.

SIMPLE STEPS FOR TAKING PICTURES

Setting the Aperture

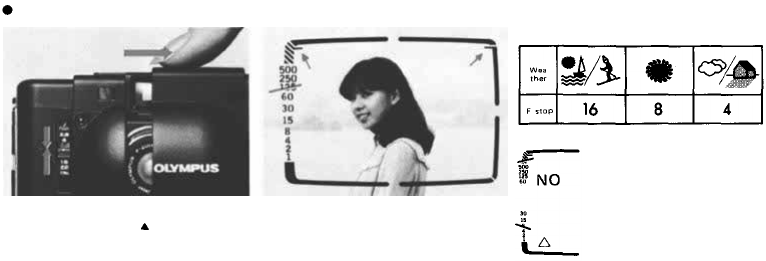

1. Open the Dust Barrier and set

the aperture lever ( mark) to the

F-number required.

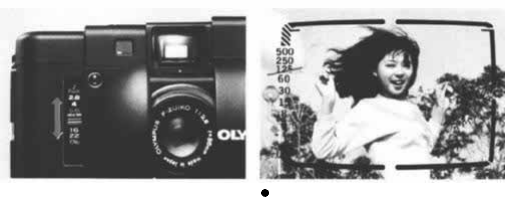

2. Confirm the shutter speed in

the viewfinder, aiming at the sub-

ject.

(The arrows indicate parallax cor-

rection marks.)

If the shutter speed nee-

dle enters the striped, over-

exposure warning zone,

push the aperture lever

downward so that the nee-

dle points to "500" (1/

500 sec) or under.

If the needle points to

"30" (1/30 sec) or under,

be careful not to shake the

camera.

(To make full use of aperture con-

trol, see pages 13 & 14.)

Aperture guideline (ASA 100)

Focusing

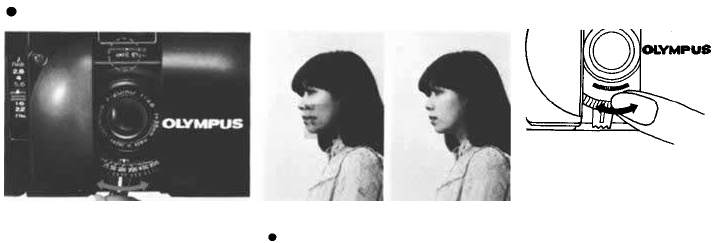

3. Looking through the view-

finder, compose and focus.

If the subject distance is 0.85 ~

1 meter (2.8 ~ 3.3 feet), frame

the subject in the area under the

2 parallax correction marks.

Turn

the

focusing

lever

until

the

double image in the central rec-

tangle fuses into one. Focusing can

also

done

with

the

knurled

mount (e.g. when a tripod is in

use).

Out of focus

In focus

Take care not to block the lens, flash dif-

fuser window or auto flash sensor.

Releasing the Shutter

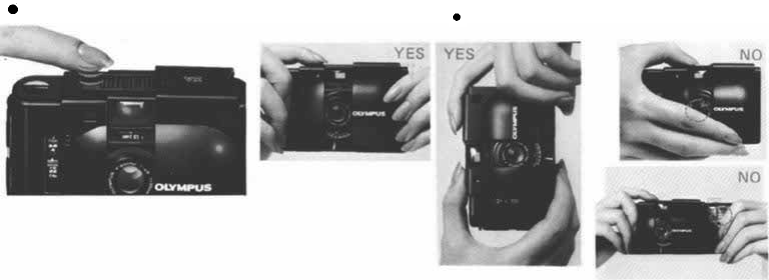

4. Hold the camera steady and

lightly press the shutter release.

The release requires a minimum of

finger pressure, reducing chance of

image blur due to camera shake.

Unloading the Film

Self-Timer

5. When the film ends, rewind and remove it.

Close the Dust Barrier, depress the rewind release button and

rewind the film. When the crank turns freely, open the camera

back and remove the film in the shade.

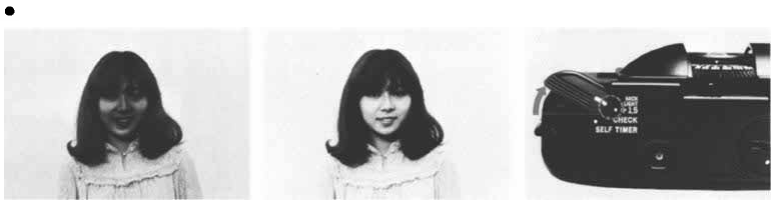

Set the control lever to "SELF

TIMER" and release the shutter.

The beeper emits a tone and the

check lamp glows intermittently.

The

shutter

will

release

after

delay of about 12 sec. The lever

also serves as a camera support.

To stop the timer midway, return

the lever to its normal position.

Automatic Flash Photography (Only the Electronic Flash A11 can be used.)

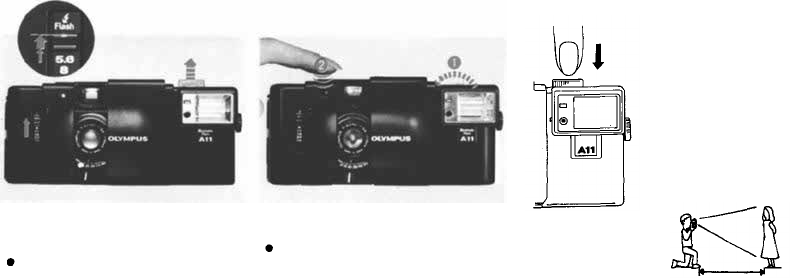

2. Connect the flash unit to the

camera.

Insert the guide pin into the guide

pin hole and turn the clamping

screw clockwise.

After connecting, do not twist

the A11.

1.5V AA battery

(Alkaline preferred)

1. Set the ASA film speed.

If the ASA

speed

of the

film

to be

used

"100"

"400",

use the nearest setting. (ASA 80

or 125

"100").

3. Set the aperture lever to"Flash".

The charge lamp pops up and the

A11 turns on automatically.

The flash setting has been design-

ed to require a stronger pressure

than the aperture setting.

4. When the charge lamp glows,

you are ready to fire.

Do not move the lever once it

has been set for auto flash, or in-

correct flash exposure may result.

5. At the end of flash

photography, fully

depress the charge

lamp to turn the

flash unit off.

Maximum working

distance 2.5m (8.2

ft.)

at ASA

100,

(16.4

ft.)

at ASA

400.

PHOTOGRAPHIC TECHNIQUES

Aperture and Depth of Field

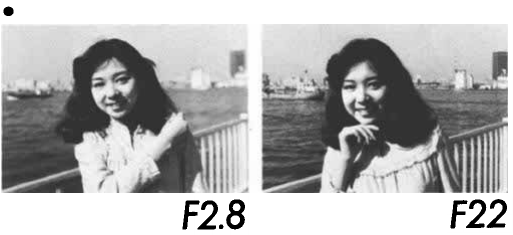

Depth of field is the area of accept-

able sharpness in front of and be-

hind the subject in focus. The larg-

er the F-number used (from F2.8

to F22), the deeper the depth of

field. On the contrary, the smaller

the F-number (from F22 to F2.8),

the shallower this zone of accept-

able sharpness.

The table on the opposite page

shows that when the camera-to-

subject distance is 1m, the depth

of field at F4 ranges from 0.91m

to 1.12m.

Making use of "out of

focus" background or

foreground effects

Deep-focus effects

(Camera-to-subject distances with are indicated on the

camera's distance scale.)

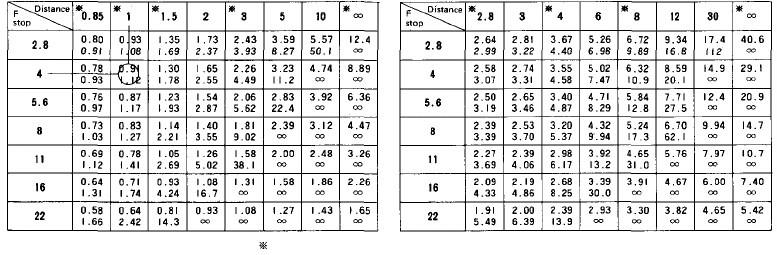

Depth of field table

Circle of least confusion 1/30 mm.

Depth of field table

Circle of least confusion 1/760 in.

(in meters)

(in feet)

To emphasize motion To stop movement

Shutter-Speed Priority Photography

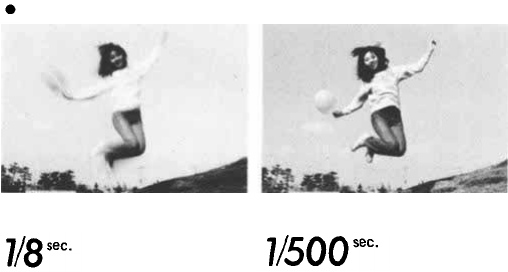

When photographing fast moving

subjects, the impression of move-

ment can be emphasized by inten-

tionally allowing the image to be

blurred using a stow shutter speed.

On the contrary, the movement

can be "frozen" using a fast shut-

ter speed.

Move the aperture lever until the

needle points to the shutter speed

required.

If the shutter speed needle en-

ters the striped zone, push the

aperture lever downward so that

the needle points to "500" or un-

der.

An aperture-priority auto-expo-

sure camera, the XA lets you select

the aperture freely, then automati-

cally sets the right shutter speed

for correct exposure. The shutter

scale is visible in the viewfinder, so

you can pick exactly the speed and

aperture you like.

If the needle points to "30" or

under, hold the camera steady or

support with a tripod; or use a

faster shutter speed by pushing

the lever upward; or use autoflash.

Compensated +1.5EV

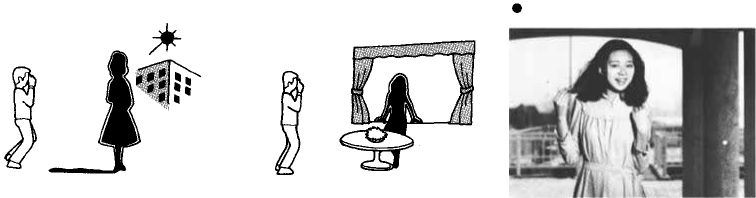

When shooting against the light

(bright sky, beach, snow, or facing

a window), the face tends to ap-

pear dark on the image. In this

case, use the control lever to pro-

perly expose the most important area.

Turn the lever to "BACK LIGHT

+1.5" and release the shutter.

You can get the same effect by

reducing

the ASA

film

speed

set-

ting.

Back Lighting Compensation

Before compensation

In situations like these, compen-

sate for the back lighting by using

the control lever.

Manual flash method is recom-

mended for daylight fill-in. Set

the A11 film speed lever to

"FULL"

and the

aperture

lever

the F-number (after having set to

the flash symbol) obtained from

the guide number formula.

Daylight Synchronization

HELPFUL HINTS

Dust Barrier

Opening the Dust Barrier fully switches the

power ON, and all camera functions are ready

to shoot. Closing the Dust Barrier switches

the power OFF, and all camera functions are

locked.

Foolproof electronic circuit

With the Dust Barrier closed and camera func-

tions locked, the foolproof electronic circuit

nonetheless allows the camera back to be

opened for film loading, unlocking all relat-

ed functions.

Electronic feather-touch shutter release

The release (pressure conductive polymer)

responds to very light pressure. Pressing with

a stroke as you normally do with other cam-

eras is not needed.

Treat the camera with care!

Do not exert stronger pressure on moving

parts than needed (Dust Barrier, levers,

knobs). When attaching a tripod, care should

be taken not to tighten the screw excessively

and not to rotate the camera on the screw.

Filters cannot be used with the XA.

CARE AND STORAGE

At the completion of photography, com-

pletely close the Dust Barrier to prevent bat-

tery drain and dust.

Do not drop or hit the camera. Cameras

that have been submerged in water are gen-

erally irreparable.

Do not touch the lens, viewfinder and range-

finder window. If touched, wipe the surface

lightly with a clean, soft cotton cloth. Fin-

gerprints, if not wiped off immediately, will

eventually be unremovable.

Never leave the camera near radios, TV sets,

or magnets.

Store the camera in a dry, well-ventilated

place.

Never store the camera where temperatures

exceed

50°C

(122°F)

below

-20°C

(-4°

F). When you use the camera in temperatures

under -10°C (14°F), it may sometimes fail

to operate properly. To avoid this, warm the

camera before use.

Have all repairs performed by an authorized

OLYMPUS Service Center. You may send it

directly or through the store where your

camera was purchased.

MAIN SPECIFICATIONS (OLYMPUS XA)

Camera type: 35mm rangefinder electronic lens-shut-

ter camera.

Film format: 35mm standard cassette (24 x 36mm).

Lens: F. Zuiko 35mm F2.8, 6 elements in 5 groups.

Shutter: Electronic between-lens shutter.

Viewfinder: Bright frame finder, 0.55x.

Shutter speed readout and over-exposure warning

zone visible in finder.

Focusing: Double-image coupled rangefinder, 0.85m

(2.8 ft.) ~ infinity.

Exposure control: Aperture-priority automatic ex-

posure. Automatic shutter speed range 10 sec. to

1/500 sec. Backlighting compensation + 1.5EV.

Film speed range: ASA 25 ~ 800.

Aperture range: F2.8 ~ F22.

Film advance: Rear winding thumbwheel.

Exposure counter: Progressive type with automatic

reset.

Film rewind: Crank type with rewind release button.

Shutter release: Electromagnetic feather touch

shutter release.

Self-timer: Electronic self-timer with 12 second delay.

Blinking LED and electronic beeper (Piezoelectric

Ceramic Vibrator) during self-timer operation.

Flash mounting: Exclusive automatic Electronic

Flash A11 attaches to (or detaches from) the cam-

era in seconds.

Setting camera's aperture lever to flash symbol

switches the A11 on, and sets the XA for autoflash.

Lens/finder cover: Sliding Dust Barrier. When opened,

power is switched on and shutter release unlocks.

When closed, power is switched off and shutter

release locks.

Power source: Two 1.5V silver oxide batteries

SR 44 (Eveready EPX-76 or equivalent).

Dimensions: 102 (W) x 64.5 (H) x 40 (D) mm (4" x

2.54" x 1.6").

Weight: 225 grams or 7.9 oz. (less batteries).

MAIN SPECIFICATIONS (ELECTRONIC FLASH A11)

Unit type: Automatic electronic flash unit exclusively

for use with Olympus XA and XA2.

Guide number: 10 (ASA 100, meters) or 33 (ASA

100, feet).

Applicable ASA film speeds: ASA 100 and 400.

Flash modes: Normal auto (XA, XA2) and manual

mode (XA only) with switch lever.

F stop for auto flash: F4

Angle of coverage: Picture area of 35mm focal-length

lens. (XA and XA2 utilize 35mm Zuiko lens.)

Number of flashes: Approx. 150 with AA 'penlight'

alkaline battery.

Recycling time: Approx. 7 sec with AA alkaline bat-

tery.

Max. working distance: 2.5m (8.2 ft.) at ASA 100,

(16.4

ft.)

at ASA

400.

Connection to camera: Fitted onto left-hand edge of

XA (XA2).

Power switch: The flash unit is activated by setting

camera's lever to flash symbol, popping up the

charge lamp and initiating electrical charge. The

flash unit turns off when the charge lamp is

pressed down.

Power source: One 1.5V AA 'penlight' battery (in-

cluding Ni-Cd battery).

Dimensions: 60 (H) x 36 (W)* x 33 (D) mm (2.4" x

1.4" x 1.3").

* Measured from interface.

Weight: 65 grams or 2.3 oz. (less battery).

OLYMPUS OPTICAL CO., LTD

OLYMPUS CAMERA CORPORATION

OLYMPUS OPTICAL CO. (EUROPA) GMBH

OLYMPUS OPTICAL CO. (U.K.) LTD.

San-Ei Building, 22-2, Nishi Shinjuku 1-chome, Shinjuku-ku, Tokyo, Japan. Tel. 03-3340-2211

Crossways Park, Woodbury, New York, 11797, U.S.A. Tel. 516-364-3000

Postfach 104908, Wendenstrasse 14-16, 20097 Hamburg, Germany. Tel. 040-237730

2-8 Honduras Street, London EC1Y OTX, United Kingdom. Tel. 0171-253-2772

OLYMPUS XA Instruction Manual

Olympus XA instruction manual Olympus XA instruction manual

Navigation menu

Versions of this User Manual:

Views

Navigation
