HOME AUTOMATION, INC.
Control & Security System
Includes the SIA CP-01 Control Panel Standard
Features for False Alarm Reduction
Installation Manual
Document Number 20I00-2 Rev. 2.16
December, 2007
Home Automation, Inc.
Installation Manual
Includes the SIA CP-01 Control Panel Standard
Features for False Alarm Reduction
Document Number 20I00-2 Rev. 2.16
December, 2007
Copyright © 2001-2007 Home Automation, Inc.
All Rights Reserved
CONTENTS
INTRODUCTION........................................................................................................................................... 1
PLANNING .......................................................................................................................................................................................1
INSTALLATION............................................................................................................................................ 2
CONTROLLER HOOKUP .............................................................................................................................................................2
ABOUT SECURITY ZONES ..........................................................................................................................................................4
BURGLAR ZONE HOOKUPS ..................................................................................................................................................4
ABOUT FIRE ZONES .....................................................................................................................................................................5
TWO-WIRE SMOKE DETECTORS.........................................................................................................................................6
FOUR-WIRE SMOKE DETECTORS .......................................................................................................................................6
TELEPHONE CONNECTIONS .....................................................................................................................................................9
DIGITAL SUBSCRIBER LINE (DSL) CONNECTIONS.........................................................................................................9
LCD CONSOLE HOOKUP...........................................................................................................................................................11
CONSOLE SETUP .........................................................................................................................................................................12
CONSOLE ADDRESS.............................................................................................................................................................12
SOUNDER................................................................................................................................................................................12
KEY CLICK .............................................................................................................................................................................12
KEY BACKLIGHT ..................................................................................................................................................................12
VIEWING ADJUSTMENT......................................................................................................................................................12
LANGUAGE ............................................................................................................................................................................12
EXIT SETUP MODE ...............................................................................................................................................................12
SOUNDER OUTPUTS ...................................................................................................................................................................14
INTERIOR SOUNDER HOOKUP...........................................................................................................................................14
EXTERIOR SOUNDER HOOKUP .........................................................................................................................................14
CONTROLLER OUTPUTS ..........................................................................................................................................................16
RESET OUTPUTS .........................................................................................................................................................................16
OUTPUT APPLICATIONS...........................................................................................................................................................16
GENERAL PURPOSE SWITCHING APPLICATIONS.........................................................................................................16
SOUNDER TRIGGERING ......................................................................................................................................................16
COMMUNICATOR OUTPUTS ..............................................................................................................................................17
"ARMED" AND "OK TO ARM".............................................................................................................................................17
SWITCHED OUTPUT .............................................................................................................................................................17
HAI COMMUNICATING THERMOSTATS..........................................................................................................................17
REMOTE ARM/DISARM SWITCH............................................................................................................................................17
HAI THERMOSTATS ...................................................................................................................................................................19
PROGRAMMABLE ENERGY SAVER MODULES .................................................................................................................20
TEMPERATURE, OUTDOOR TEMPERATURE, AND HUMIDITY ....................................................................................21
BUILT-IN SERIAL PORTS ..........................................................................................................................................................23
BUILT-IN ETHERNET PORT .....................................................................................................................................................24
CONTROLLER IP ADDRESS, PORT NUMBER, AND ENCRYPTION KEY.....................................................................24
CONTROLLER IP ADDRESS ................................................................................................................................................25
CONTROLLER PORT NUMBER...........................................................................................................................................25
ENCRYPTION KEY................................................................................................................................................................25
OMNIPRO II ETHERNET CONNECTIONS..........................................................................................................................25
CONNECTING TO NETWORK VIA PC ACCESS................................................................................................................26
SYSTEM POWER UP PROCEDURE ....................................................................................................... 28
CONSOLE CHECK OUT..............................................................................................................................................................28
TELEPHONE CHECK OUT ........................................................................................................................................................28
BURGLAR ZONE CHECK OUT.................................................................................................................................................29
FIRE ZONE CHECK OUT ...........................................................................................................................................................29
CUSTOMER CHECKOUT ...........................................................................................................................................................29
IN CASE OF TROUBLE ...............................................................................................................................................................30
CONSOLES..............................................................................................................................................................................30
CONTROLLER ........................................................................................................................................................................30
DIGITAL COMMUNICATOR................................................................................................................... 32
DESCRIPTION OF CONTACT ID.............................................................................................................................................. 32
DESCRIPTION OF 4/2 FORMAT ...............................................................................................................................................33
3/1 FORMAT ..................................................................................................................................................................................33
OPENING AND CLOSING REPORTS.......................................................................................................................................33
INSTALLER SETUP.................................................................................................................................... 34
SETUP CONTROL ........................................................................................................................................................................ 34
X-10 HOUSE CODE ................................................................................................................................................................34
UPB NETWORK ID ................................................................................................................................................................34
X-10 3-PHASE .........................................................................................................................................................................35
OUTPUT TYPES .....................................................................................................................................................................35
Z-WAVE NODE ID .................................................................................................................................................................36
SETUP ZONES............................................................................................................................................................................... 37
ZONE EXPANSION ................................................................................................................................................................37
ZONE RESISTORS..................................................................................................................................................................37
ZONE TYPES .......................................................................................................................................................................... 38
LATCHING ZONE TYPES .....................................................................................................................................................38
DESCRIPTION OF ZONE TYPES..........................................................................................................................................39
SETUP DIGITAL COMMUNICATOR .......................................................................................................................................42
FIRST PHONE NUMBER, FIRST ACCOUNT NUMBER ....................................................................................................42
COMMUNICATOR TYPE ......................................................................................................................................................42
TWO-WAY AUDIO.................................................................................................................................................................42
REPORT OPEN/CLOSE..........................................................................................................................................................43
REPORT BYPASS / RESTORE ..............................................................................................................................................43
AUTOMATIC TEST TIME .....................................................................................................................................................43
ALARM CODES (4/2 and 3/1 Formats) .................................................................................................................................. 43
SETUP AREAS............................................................................................................................................................................... 44
SETUP AREAS: CONTROL ...................................................................................................................................................44
SETUP AREAS: ZONES .........................................................................................................................................................46
SETUP AREAS: BUTTONS....................................................................................................................................................46
SETUP AREAS: CONSOLES .................................................................................................................................................46
SET-UP AREAS: THERMOSTATS........................................................................................................................................47
SETUP AREAS: MESSAGES ................................................................................................................................................47
SETUP TEMPERATURES ...........................................................................................................................................................48
TEMPERATURE DISPLAY....................................................................................................................................................48
THERMOSTAT TYPE.............................................................................................................................................................48
Z-WAVE THERMOSTAT NODE ID......................................................................................................................................48
SETUP MISCELLANEOUS .........................................................................................................................................................49
INSTALLER CODE.................................................................................................................................................................49
ENABLE PC ACCESS.............................................................................................................................................................49
PC ACCESS CODE..................................................................................................................................................................49
CALL BACK PHONE NUMBER............................................................................................................................................49
OUTSIDE SIREN DELAY ......................................................................................................................................................49
DIAL OUT DELAY .................................................................................................................................................................50
ALARM RESET TIME............................................................................................................................................................ 50
ARMING CONFIRMATION...................................................................................................................................................50
FIRE ALARM VERIFICATION .............................................................................................................................................50
SUPERVISE INT SNDR..........................................................................................................................................................51
SUPERVISE EXT SNDR.........................................................................................................................................................51
ENABLE EMERGENCY KEYS .............................................................................................................................................51
TIME DISPLAY.......................................................................................................................................................................51
DATE DISPLAY......................................................................................................................................................................51
AC POWER FREQUENCY.....................................................................................................................................................51
DEAD LINE DETECT.............................................................................................................................................................52
OFF HOOK DETECT ..............................................................................................................................................................52
PICKUP AFTER HANGUP.....................................................................................................................................................52
CLOCK ADJUSTMENT.......................................................................................................................................................... 52
MODEL AND SOFTWARE VERSION..................................................................................................................................52
RESET SYSTEM EEPROM ....................................................................................................................................................52
RESET SYSTEM RAM............................................................................................................................................................53
ETHERNET MAC ADDRESS.................................................................................................................................................53
SETUP EXPANSION .....................................................................................................................................................................53
MODULE 1 TYPE ...................................................................................................................................................................53
MODULE 2 TYPE - MODULE 4 TYPE .................................................................................................................................54
SERIAL 1 RATE ......................................................................................................................................................................54
SERIAL 1 FUNCTION ............................................................................................................................................................54
SERIAL 2 - SERIAL 5 RATE..................................................................................................................................................54
SERIAL 2 FUNCTION ............................................................................................................................................................54
SERIAL 3 FUNCTION ............................................................................................................................................................55
SERIAL 4 - SERIAL 5 FUNCTION ........................................................................................................................................55
SERIAL 6 RATE ......................................................................................................................................................................55
SETUP ZONE OPTIONS ..............................................................................................................................................................56
SWINGER SHUTDOWN NUMBER.......................................................................................................................................56
CROSS ZONE WINDOW........................................................................................................................................................56
ZONE 1 OPTIONS – ZONE 176 OPTIONS............................................................................................................................56
SIA CP-01 COMPLIANCE ......................................................................................................................... 57
Minimum Equipment Requirements for a CP-01 Compliant Installation: ...............................................................................57
OMNIPRO II SPECIFICATIONS.............................................................................................................. 58
UNDERWRITER'S LABORATORIES (UL) INSTALLATION REQUIREMENTS .......................... 59

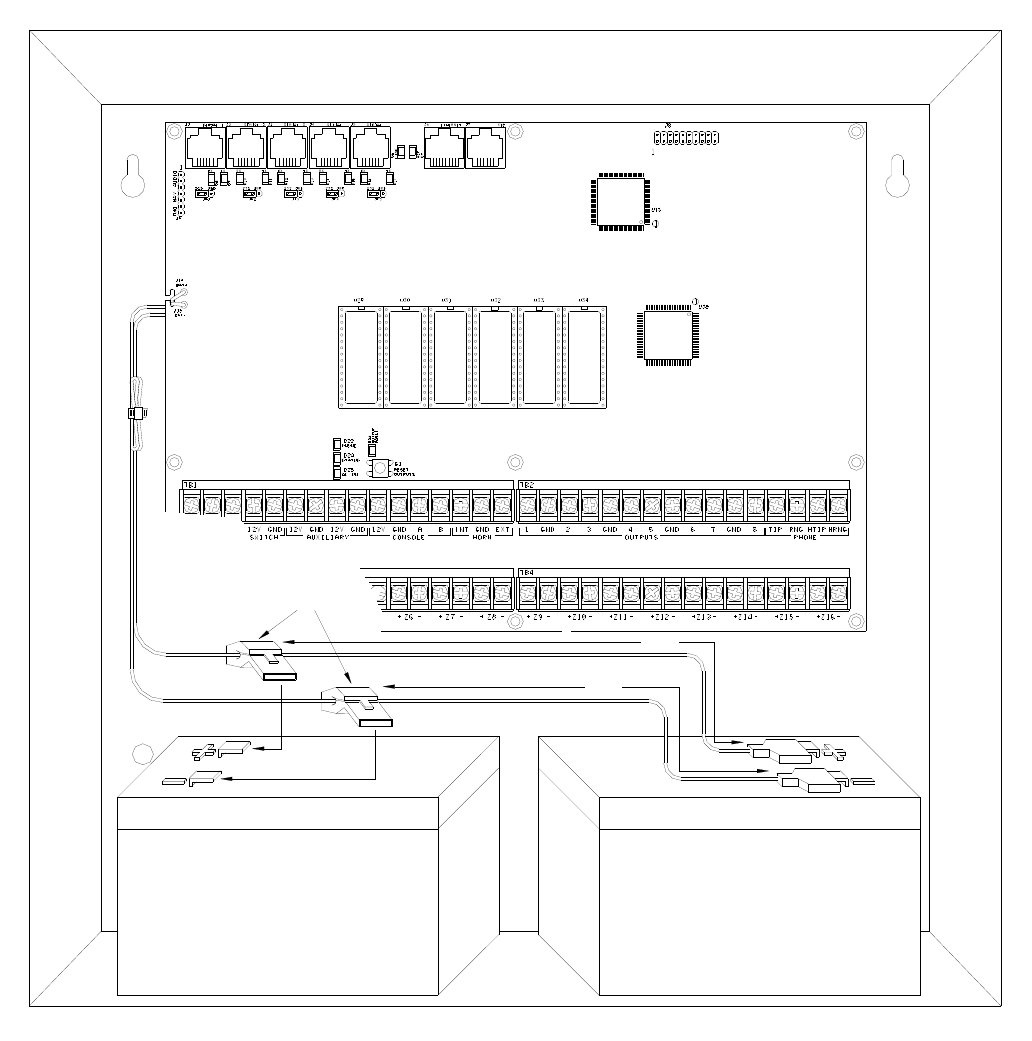

24-HOUR STANDBY BATTERY CAPACITY......................................................................................... 60

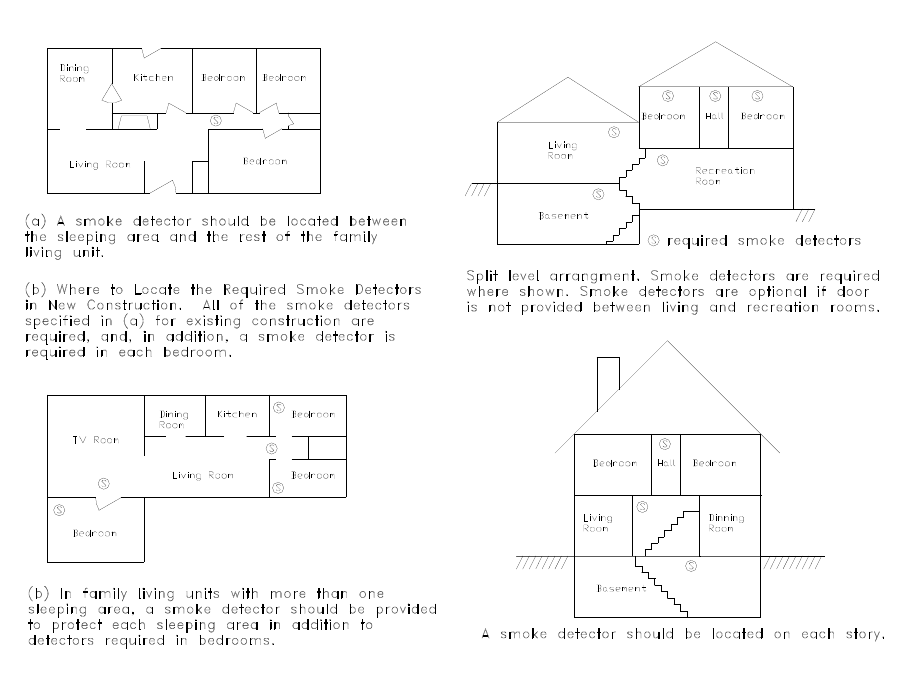

SMOKE DETECTOR INSTALLATION GUIDELINES ........................................................................ 61
APPENDIX A – CONTACT ID REPORTING FORMAT....................................................................... 62
APPENDIX B - DIGITAL COMMUNICATOR CODE SHEET ............................................................ 63
APPENDIX C - ZONE AND UNIT MAPPING ........................................................................................ 68
FIGURES

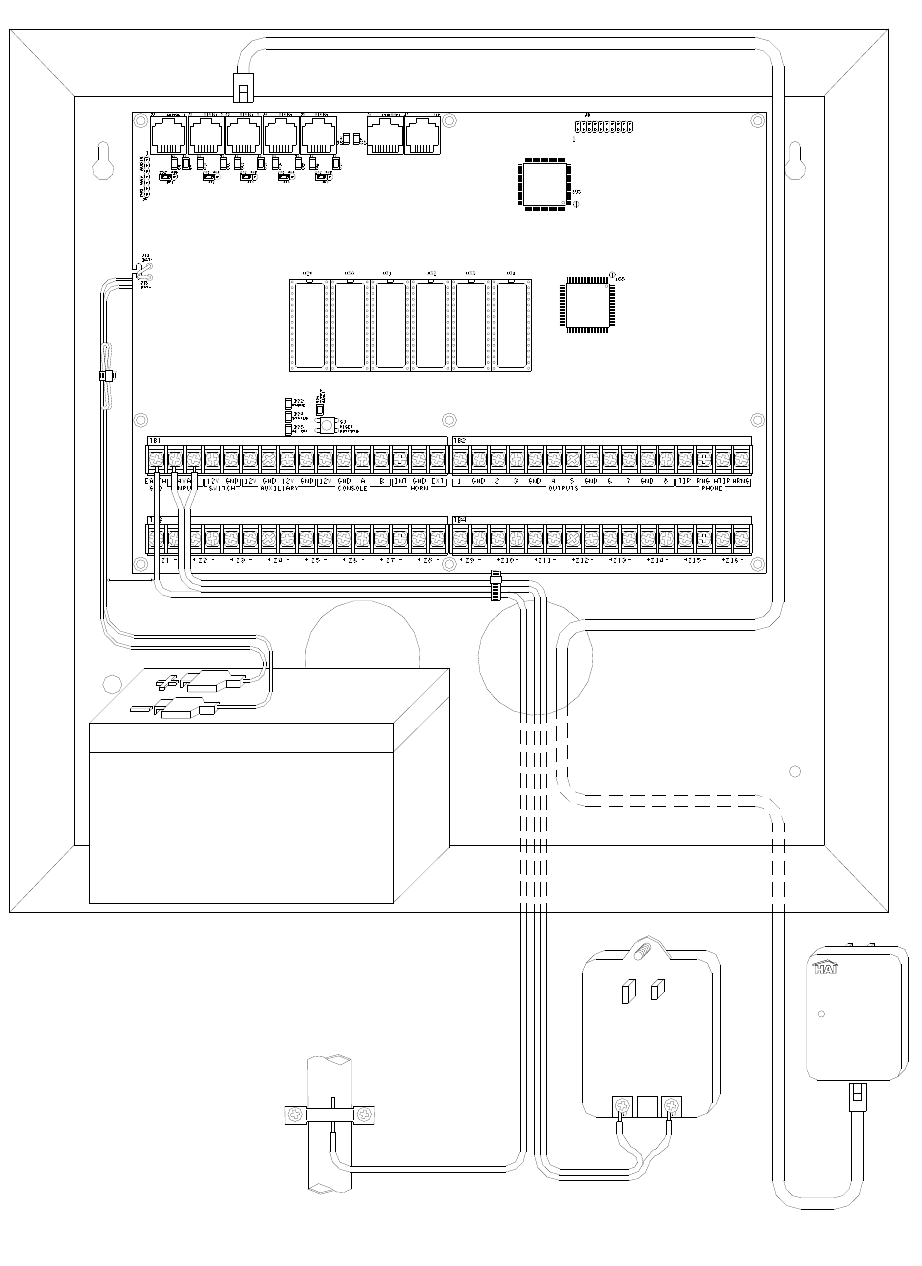

FIGURE 1 - CONTROLLER HOOKUP............................................................................................................................................3
FIGURE 2 - OVERALL CONNECTIONS DIAGRAM ....................................................................................................................5

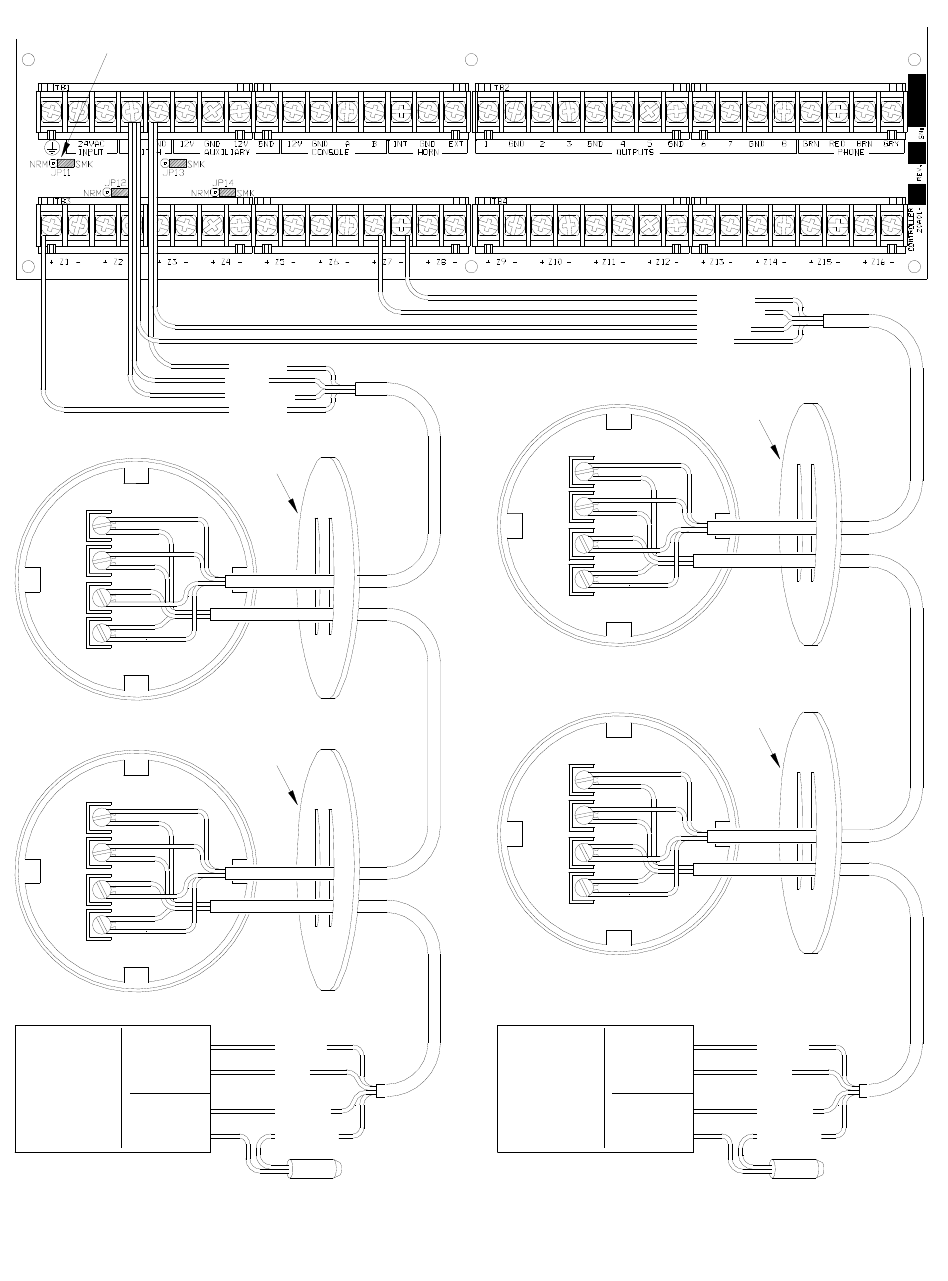

FIGURE 3 - TWO-WIRE FIRE ZONE CONNECTIONS.................................................................................................................7
FIGURE 4 - FOUR-WIRE FIRE ZONE CONNECTIONS ...............................................................................................................8
FIGURE 5 - RJ31X JACK CONNECTIONS...................................................................................................................................10
FIGURE 6 – DSL SPLITTER CONNECTIONS .............................................................................................................................11
FIGURE 7 - CONSOLE CONNECTIONS ......................................................................................................................................13

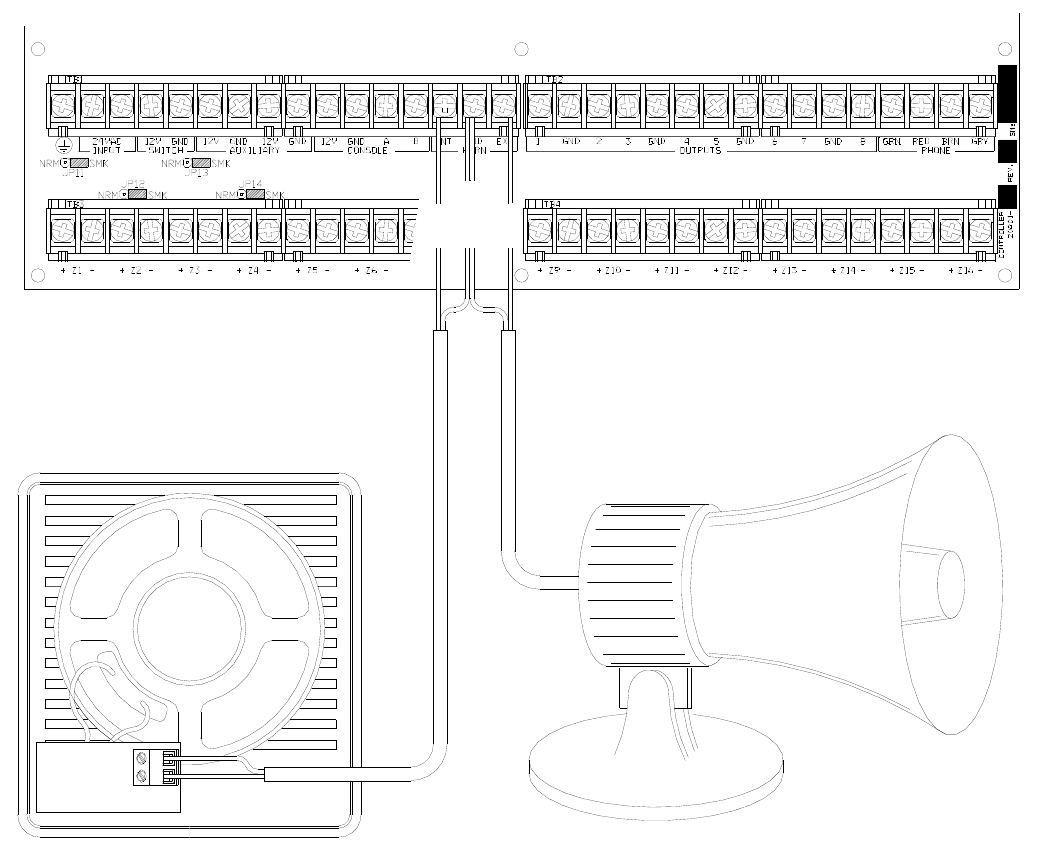

FIGURE 8 - SOUNDER CONNECTIONS......................................................................................................................................15
FIGURE 9 - RESETTING CONTROLLER OUTPUTS..................................................................................................................16
FIGURE 10 - REMOTE KEYSWITCH CONNECTIONS..............................................................................................................18
FIGURE 11 - HAI THERMOSTAT CONNECTIONS....................................................................................................................19
FIGURE 12 - TEMPERATURE / HUMIDITY SENSOR CONNECTIONS ..................................................................................21
FIGURE 13 - PESM CONNECTIONS ............................................................................................................................................22
FIGURE 14 - RS-232 CONNECTIONS...........................................................................................................................................23
FIGURE 15 - RS-485 CONNECTIONS...........................................................................................................................................24
FIGURE 16 - LOCAL NETWORK..................................................................................................................................................26
FIGURE 17 - LOCAL / WIDE AREA NETWORK ........................................................................................................................27
FIGURE 18 - 24-HOUR STANDBY CONNECTIONS ..................................................................................................................60
Page 1
INTRODUCTION
This installation guide is intended as an aid to installing the OmniPro II Control & Security System. The installer should also
have thoroughly reviewed and understood the OmniPro II Owner's Manual, which has important information regarding final setup
of the system. This manual assumes that the installer has a basic understanding of installing a security system.
This guide applies to the 20A00-2, -5, and -22 versions of the OmniPro II series controller. Refer to the Underwriters
Laboratories Installation Requirements section for details in the application of each. Failure to install the OmniPro II and its
accessories in accordance with the UL Requirements in this manual and in the Owner's Manual, is a violation of the Listing Mark.
PLANNING
Before you start, your system should be planned as follows:
1. Zones:
• Decide where each contact or detector will be located
• Decide which zone it will occupy
• Decide zone type for each zone
• Decide which area it will occupy
• With the customer, decide what text and voice descriptors will be used. Consult table of voice descriptors, so that you
can choose similar words for the text to avoid customer confusion.
• See SMOKE DETECTOR INSTALLATION GUIDELINES to plan locations for smoke detectors
2. Consoles:
• Consult the customer on the console location. The console should be easily accessible.
3. Interior Sounder and Outside Siren:
• Locate both where they cannot be tampered with.
4. Lighting and Appliance Switches and Modules.
5. Plan for thermostats, energy saver modules, or other options.
6. Give consideration to where the controller will go. Remember that it needs a duplex receptacle not controlled by a switch,
preferably on its own circuit, within 5 feet of the controller.
Page 2
INSTALLATION
Go over your plan with your customer.
1. Install the entire system. Refer to sections in this manual to see how to install various components.
2. Follow the Power-Up and Checkout procedures.
3. Explain the basics to the customer. Deliver all manuals and documentation.
4. Follow up with your customer to keep them satisfied.
CONTROLLER HOOKUP
1. When choosing a place to mount the controller, consider the following:
a. A duplex outlet, preferably on its own circuit, is required to be within 5 feet of the controller for the power transformer and
the UPB PIM or X-10 Interface Module.
b. The controller should be protected from weather, temperature extremes, and burglars.
2. GROUND THE CONTROLLER "EARTH GND" TERMINAL TO A COLD WATER PIPE OR TO A 4-FOOT GROUND
ROD TO PRESERVE ITS BUILT-IN TRANSIENT PROTECTION. USE 14 GAUGE WIRE. TRANSIENT
PROTECTION WILL NOT WORK IF THE CONTROLLER IS NOT PROPERLY GROUNDED.
3. Connect the 24 VAC power transformer to the 24 VAC INPUT terminals.
4. Connect the BLACK battery wire to the minus (-) terminal on the battery. DO NOT connect the red wire at this time. DO
NOT reverse the connections; the battery fuse will blow. Note that the unit will NOT START on the battery alone.
5. Connect the Powerline Interface Module to the OmniPro II controller:
a) UPB PIM (P/N: 36A00-1): Plug one end of the 6-conductor modular cable into the connector marked “J3” (SERIAL 3)
on the OmniPro II controller and plug the other end into the modular connector on the PIM.
b) X-10 Interface Module (P/N: TW523): Plug one end of the 4-conductor modular cable into the connector marked “J7”
(X-10) on the OmniPro II controller and plug the other end into the modular connector on the X-10 Interface Module.
6. Refer to FIGURE 1 (CONTROLLER HOOKUP) for this configuration.
Page 3
YUASA NP7-12
OR EQUIVALENT
BLACK WIRE TO -
RED WIRE TO +
12V 7AH
BATTERY
ELECTRIC CODE, ANSI/NFPA 70.
ACCORDANCE WITH THE NATIONAL
GOUNDING METHOD MUST BE IN
OR GROUND ROD
COLD WATER PIPE
14 GA. WIRE
OR EQUIVALENT
MODEL RT-2440SL
REVERE
24 VAC 40 VA
POWER TRANSFORMER
WIRING IN THE ENCLOSURE
ALL OTHER POWER LIMITED/CLASS II
MUST BE SEPERATED FROM
LIMITED. THE BATTERY LEADS
THE BATTERY IS NON-POWER
BY AT LEAST 1/4"
SPACING
1/4"
6 CONDUCTOR
Powerline Interface Module
Status
<Program
UPB™
FIGURE 1 - CONTROLLER HOOKUP
Page 4
ABOUT SECURITY ZONES
Each of the 176 security zone inputs on an OmniPro II system may be configured as a burglary zone, a fire zone, a temperature
zone, or an auxiliary input. Zones 1-4, however, are the only inputs that can be used with 2-wire smoke detectors. Zones 9-16
(on the controller) and Zones 49-176 (on expansion enclosures) are the only inputs that can be configured as a PESM.
An external 1000-ohm end-of-line zone resistor is required for all zones unless the Setup item ZONE RESISTERS is set to "No".
If the Setup item ZONE RESISTORS is disabled, all zones other than Supervised Fire and Gas (and all zone inputs on Expansion
Enclosures) will not use an end-of-line resistor. In this configuration, all zone switches (other than Supervised Fire and Gas) must
be normally closed (open for alarm). If any zone requires a normally open (closed for alarm) switch (other than Supervised Fire
and Gas), the Setup item ZONE RESISTORS must be set to "Yes" and all zones will require and external 1000-ohm end-of-line
resistor.
The zone type for each zone is selected through the INSTALLER SETUP menu or by using the PC ACCESS software.
The system supports a maximum zone resistance, excluding the end-of-line resistor, of 150 ohms. The default setting for ZONE
RESISTORS is "Yes". The default settings for all zone inputs on an OmniPro II controller are configured as Auxiliary inputs.
OmniPro II can be expanded to 176 zones by adding two 16 Zone Hardwire Expander Modules and up to eight 16 Zone
Expansion Enclosures or Wireless Receivers.
BURGLAR ZONE HOOKUPS
The OmniPro II system supports both normally open and normally closed switches. Most contacts designed for doors, windows,
motion detectors, glassbreak detectors and other security devices meet this requirement. An external 1000-ohm end-of-line
resistor must be used for all burglary zones if ZONE RESISTORS is set to "Yes".
1. When using a normally open switch, a 1000-ohm end-of-line resistor must be in parallel with the zone being used. Maximum
loop resistance excluding end-of-line resistor should not exceed 150 ohms. ZONE RESISTORS must be set to "Yes".
2. When using a normally closed switch, a 1000-ohm end-of-line resistor must be put in series with the zone being used if
ZONE RESISTORS are set to "Yes". If ZONE RESISTORS are set to "No", the 1000-ohm end-of-line resistor is not used.
Maximum loop resistance excluding end-of-line resistor should not exceed 150 ohms.
Note: The 1000-ohm end-of-line resistor is required on all zone inputs on Expansion Enclosures.
3. Power motion detectors from AUXILIARY 12V.
4. Unused zones may be left open, and should be left at the default setting of AUXILIARY zone types.
5. When Zones 1-4 are configured to anything other than a Supervised Fire or Gas zone, the corresponding Zone Jumpers
(JP11-JP14) must be in the NRM (normal) position.
6. See FIGURE 2 (OVERALL CONNECTIONS DIAGRAM) for configurations of burglary zones.
Page 5
EARTH
GROUND
TRANSFORMER
24 VAC 40 VA
INTERIOR
SOUNDER
SWITCHED
12 VDC
AUXILIARY 12 VDC
CONSOLE(S)
NOTES:
1. SWITCH 12V, AUXILIARY 12V, CONSOLE, AND OUTPUTS 1-8 ARE INCLUDED IN THE TOTAL DEVICE LOAD, WHICH CANNOT EXCEED 1 AMP.
2. SOUNDERS CANNOT EXCEED 1 AMP, SPLIT BETWEEN INTERIOR AND EXTERIOR HORN OUTPUTS. IN UL INSTALLATIONS, SOUNDERS CANNOT EXCEED 350mA.
HAI REMOTE
CONTROL
THERMOSTAT(S)
EXTERIOR
SOUNDER
1A Max.
(See NOTE 1)
1A Max.
(See NOTE 1)
(See NOTE 2)
ZONE (1-4)
IN
4-WIRE FIRE ZONE
ZONE (1-4)
ZN
1K
EOL
SMOKE
2-WIRE
12V
2-WIRE FIRE ZONE
SMK
NRM
COM
OUT
WARNING
SMOKE
4-WIRE
12V
SWITCH 12V
(OUTPUT)
12V
ZN
JP11-14
(OUTPUT)
SWITCH 12V
INPUT
OUTPUT
ZN 1K
EOL
NRM
SMK
TO PREVENT RISK
FROM ELECTRIC SHOCK,
DE-ENERGIZE THIS
UNIT AND DISCONNECT
TELEPHONE LINES
BEFORE SERVICING.
OUTPUT
100 mA Max. (See NOTE 1)
OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT
ALL CIRCUITS EXCEPT FOR THE BATTERY
ARE POWER-LIMITED (CLASS II)
CONNECT CABLE
TO CONTROLLER,
PLUG MODULAR
END INTO
RJ31X JACK
ZONE
INPUT
ZONE
INPUT
ZONE
INPUT
ZONE
INPUT
ZONE
INPUT
ZONE
INPUT
ZONE
INPUT
ZONE
INPUT
ZONES 1-16 ARE CONFIGURABLE FOR BURGLARY, FIRE, TEMPERATURE, OR AUXILIARY.
2-WIRE SOMKE DETECTORS MAY ONLY BE CONNECTED TO ZONES 1-4.
INPUT
ZONE
INPUT
ZONE
INPUT
ZONEZONE
INPUT
ZONE
INPUT
ZONEZONE
INPUT INPUT
ONLY ZONES 9-16 MAY BE CONFIGURED AS ENERGY SAVER ZONES.
ONLY ZONE 16 MAY BE USED FOR HAI REMOTE CONTROL THERMOSTATS.
JP11-14
ZONEZONE ZONE
1K EOL 1K EOL 1K EOL
(NC)
(NO)
(NO)
(NC)
BURGLARY ZONES
IN UL INSTALLATIONS, THE TOTAL DEVICE LOAD CANNOT EXCEED 250mA.
FIGURE 2 - OVERALL CONNECTIONS DIAGRAM
ABOUT FIRE ZONES
The OmniPro II system supports normally open (closed for alarm), two-wire or four-wire smoke detectors. Two-wire smoke
detectors can only be connected to Zones 1-4. Four-wire smoke detectors can be connected to any zone. An external 1000-ohm
end-of-line resistor must be used for all fire (and gas) zones. When Zones 1-4 are configured as a Supervised Fire (two-wire or
four-wire) or Gas zone, the corresponding Zone Jumpers (JP11-JP14) must be in the "SMK" (smoke) position. Zone Jumper
"JP11" corresponds to Zone 1, "JP12" corresponds to Zone 2, "JP13" corresponds to Zone 3, and "JP14" corresponds to Zone 4.
1. Smoke detectors must be powered from SWITCH 12V or an Output configured as a SWITCHED POWER OUTPUT.
2. End of line resistor: 1000 ohms. Maximum loop resistance EXCLUDING end of line resistor is a 150 ohms. Use HAI
Model 1503A0011 End of Line Resistor Assembly in UL Listed Installations.
3. Smoke detectors are reset when the security system is armed.
Page 6
TWO-WIRE SMOKE DETECTORS
OmniPro II supports two-wire smoke detectors connected to Zones 1-4.
1. Use normally open (closed for alarm) two-wire "SYSTEM" type smoke detectors (See - 2-Wire Smoke Detector
Compatibility Chart).
2. Smoke detectors must be connected to Zones 1-4 and configured as a Supervised Fire Zone.
3. An external 1000-ohm end-of-line resistor must be used.
4. Connect to the SWITCH 12V or an Output configured as a SWITCHED POWER OUTPUT.
5. The corresponding Zone Jumpers (JP11-JP14) must be in the SMK (smoke) position.
4. Refer to FIGURE 3 (TWO-WIRE FIRE ZONE CONNECTIONS) for this configuration.
Smoke detector compatibility identifier: A
Detector Models Detector Manufacturer Maximum Detectors/Zone
2W-B
2WT-B System Sensor, Unincorporated Div. of Honeywell International Inc. 10
DS260
DS282
DS282S
DS282TH
DS282THS
DS250
DS250TH
Bosch Security Systems 10
F220-P
F220-PTH
F220-PTHC
DS230
DS230F
Bosch Security Systems 8
429AT
521B (SW 1 “ON”)
521BXT (SW 1 “ON”)
521NB (6V)
521NBXT (6V)
GE Security Inc. 10
2-Wire Smoke Detector Compatibility Chart
FOUR-WIRE SMOKE DETECTORS
OmniPro II supports four-wire smoke detectors connected to any zone (1-176).
1. Use normally open (closed for alarm) four-wire "SYSTEM" type smoke detectors (System Sensor 2112/24TR or equivalent),
rated 8 - 14 VDC.
2. An End of Line Power Supervision Relay Module (System Sensor A77-716B or equivalent) is required for UL installations.
Install 1000-ohm end-of-line resistor as shown.
3. Power the smoke detector from SWITCH 12V or an Output configured as a SWITCHED POWER OUTPUT.
4. When connected to Zones 1-4, the appropriate Zone Jumper (JP11-JP14) must be in the SMK (smoke) position.
NOTE: Smoke detectors connected to Zones 1-4 are wired differently from those connected to Zones 5-176.
Refer to FIGURE 4 (FOUR-WIRE FIRE ZONE CONNECTIONS) for each configuration.
Page 7
ZONE
ZONE
ZONE
ZONE
BOTTOM
PLATE
MODEL 2100TS
SYSTEM SENSOR
PLATE
BOTTOM
MODEL 2100TS
SYSTEM SENSOR
MODEL 1503A0011
1K OHM EOL RESISTOR
WHEN Z1-Z4 IS CONFIGURED AS A
SUPERVISED FIRE OR GAS ZONE, THE
CORRESPONDING ZONE JUMPERS J11-J14
MUST BE IN "SMK" POSISTION
FIGURE 3 - TWO-WIRE FIRE ZONE CONNECTIONS
Page 8
ZONE
ZONE
BOTTOM
PLATE
PLATE
BOTTOM
MODEL 2112/24TR
SYSTEM SENSOR
MODEL 1503A0011
1K OHM EOL RESISTOR
FOUR-WIRE DETECTORS ON ZONES 1-4
+12V
GND
YELLOW
GREEN
RED
BLACK
ZONE
ZONE
+12V
GND
YELLOW
BLACK
RED
GREEN
BLACK
VIOLET
VIOLET
GREEN
YELLOW
BLACK
RED
RED
MODEL A77-716B
SYSTEM SENSOR
RELAY
SUPERVISION
EOL POWER
ZONEPOWER
GREEN
ZONE
VIOLET
RELAY
VIOLET
1K OHM EOL RESISTOR
MODEL 1503A0011
YELLOW
RED
+12V
MODEL A77-716B
SYSTEM SENSOR
SUPERVISION
EOL POWER
GND
BLACK
RED
POWER
BLACK
MODEL 2112/24TR
SYSTEM SENSOR
ZONE
ZONE GREEN
YELLOW
BLACK
RED
PLATE
BOTTOM
SYSTEM SENSOR
MODEL 2112/24TR
ZONE
GND
+12V
ZONE
YELLOW
BLACK
RED
GREEN
PLATE
BOTTOM
BLACK
RED
YELLOW
GREEN
GREEN
RED
BLACK
YELLOW
MODEL 2112/24TR
SYSTEM SENSOR
CORRESPONDING ZONE JUMPERS J11-J14
SUPERVISED FIRE OR GAS ZONE, THE
WHEN Z1-Z4 IS CONFIGURED AS A
MUST BE IN "SMK" POSISTION
FOUR-WIRE DETECTORS ON ZONES 5-16
FIGURE 4 - FOUR-WIRE FIRE ZONE CONNECTIONS
Page 9
TELEPHONE CONNECTIONS
1. If an RJ31X jack has been supplied by the telephone company, it is probably wired correctly and the controller can be
connected by plugging the supplied 8 conductor telephone cable into the RJ31X jack. The other end of the cable is spaded.
The green, red, brown, and gray wires must be connected to the controller at the designated terminals under the section of the
board marked 'PHONE'.
2. If required, install the supplied RJ31X jack as shown in the following diagram. The polarity must be correct for proper
operation of the phone access feature.
3. IT IS IMPERATIVE THAT THE PHONE LINE COMING INTO THE HOUSE BE CONNECTED TO A GROUNDED
SURGE ARRESTOR OUTSIDE THE PREMISES. IT IS THE RESPONSIBILITY OF THE TELEPHONE COMPANY
TO PROVIDE THIS SURGE ARRESTOR.
4. INSPECT THE INCOMING PHONE LINES. THE FIRST THING THAT THEY SHOULD GO TO IS A SMALL BOX
ON THE OUTSIDE OF THE PREMISES. THERE SHOULD BE A HEAVY GROUND WIRE COMING FROM THIS
BOX GOING TO A COLD WATER PIPE OR A SEPARATE GROUNDING ROD.
5. IF THERE IS NO SURGE ARRESTOR OR IF THE GROUND WIRE IS MISSING, HAVE THE CUSTOMER INSIST
THAT THE TELEPHONE COMPANY INSTALL ONE FOR THE SAFETY OF THE CUSTOMER.
6. WHEN WIRING A RJ31X JACK, MAKE SURE THAT THE INCOMING PHONE LINES GO TO THE TELEPHONE
COMPANY SURGE ARRESTOR BEFORE THEY GO TO THE RJ31X JACK.
7. When the RJ31X is installed as shown, locate the green, red, brown, and gray spaded wires from the 8 conductor phone cable
and connect to the section on the OmniPro II controller marked 'PHONE'. Plug the modular end of the cable into the RJ31X
jack. If necessary, bend the tab up on the plug to ensure a tight fit that will not fall out.
8. Verify the following if you have trouble during check out: With the system running, the RJ31X jack properly connected and
all phones on-hook (hung up), the PHONE LED, located in the upper left corner of the controller, should be OFF. If it is on,
reverse the RED and GREEN wires to both the house phones and the telephone company wires at the RJ31X jack. When the
receiver is picked up on any phone, the PHONE LED will come on. When the phone line rings, the PHONE LED will light.
9. If the OmniPro II is accessed on an in house telephone, the OmniPro II will disconnect the phones from the phone company
lines and supply its own talk voltage to the phones. The PHONE LED will be on in this case.
10. Refer to FIGURE 5 (RJ31X JACK CONNECTIONS) for this configuration.
DIGITAL SUBSCRIBER LINE (DSL) CONNECTIONS
When the OmniPro II is connected to a Digital Subscriber Line (DSL), a DSL Splitter must be used to provide separate outputs
for filtered voice (phone) and DSL (data). Splitting the voice and data is necessary because:
1. The higher frequencies of the DSL signal must not pass through the OmniPro II controller. It can cause problems with the
DTMF detection and the digital dialer.
2. Whenever the OmniPro II is accessed on an in house telephone, the OmniPro II will disconnect the phones from the phone
company lines (in this case the DSL line). When that occurs, the DLS connection is temporarily lost.
Refer to FIGURE 6 (DSL SPLITTER CONNECTIONS) for this configuration.
Page 10
OR PBX
TELEPHONES
TO ALL HOUSE
JACK(S)
PHONE
HOUSE
RJ11
GREEN(+)
GREEN(+)
ENSURE TIGHT FIT
NECESSARY TO
BEND TAB UP IF
SURGE ARRESTOR
INTERFACE AT
TO TELCO
RED(-)
SURGE ARRESTOR
ACCESS
CUSTOMER
RED(-)
INTERFACE
TELEPHONE
NETWORK
MUST BE GROUNDED!
SURGE ARRESTOR
GREEN
RED
BROWN
GRAY
FIGURE 5 - RJ31X JACK CONNECTIONS
Page 11
DSL SPLITTER
DATA
VOICE
TO ALL HOUSE
TELEPHONES
JACK(S)
RJ11
HOUSE
PHONE
GREEN(+)
DSL MODEM
RED(-)
GREEN(+) RED(-)
COMPUTER
LINE IN
NETWORK
TELEPHONE
INTERFACE
SURGE ARRESTOR
CUSTOMER
ACCESS
SURGE ARRESTOR
MUST BE GROUNDED!
FIGURE 6 – DSL SPLITTER CONNECTIONS
LCD CONSOLE HOOKUP
1. 16 LCD Consoles (Models 33A00-1, 33A00-4, 11A00-1, 11A00-2, 11A00-9, and 15A00) MAXIMUM per system, subject to
power availability.
2. Use 4-conductor 22-gage wire, 1000 feet maximum length. Consoles can be homerun or daisy chained. This length shall be
divided by the total number of consoles at the end of the run. For example, for 8 consoles, the maximum length reduces to
125 feet. All LCD Consoles are connected to the same 4 wires, +12, GND, A, B.
3. The console should be mounted so that the LCD display is at or slightly above eye level. Consoles should be kept out of the
reach of young children. A good height is approximately 58 inches from the floor to the bottom of the console enclosure.
4. Remove console face from back plate (slots on bottom of console will release back plate, use a screwdriver). Mount the back
plate to the wall. Mounting holes are designed to fit on a single or double gang box, or directly to the wall. Pull the wires
from the wall through the opening in the back plate. Splice the wires to the supplied cable. Connect the cable to the
connector on the console board (J1). Snap the console face on to the back plate. Remove protective film from the LCD lens.
5. Refer to FIGURE 7 (CONSOLE CONNECTIONS) for this configuration.
Page 12
CONSOLE SETUP
The console has different operating options that can be setup from the console to the user's preference. If more than one console
is being used, it is required that you give each console a different address. You can change the address of a console through the
console setup mode.
To enter the console setup mode, simultaneously press and hold the 4 and up arrow (×) for approximately 1 second. The console
will beep 5 times and enter the setup mode. The top line of the display will indicate what you are doing, followed by the current
setting. The bottom line will show a menu of your options. To the lower right corner of the display is the direction arrow(s).
Where possible, the up (↑), down (↓), and two-headed () arrow characters are shown on the console display to indicate which
arrow keys may be pressed at that time. Press the down arrow (Ø) key to advance to the next item. Press the up arrow (×) key to
go back to the previous item.
CONSOLE ADDRESS
If you are installing more than one console, each console must be set to a different address. The default address setting is (1) -
this is adequate if only one console is being used. The choices at the bottom are 1-16. When making your choice, choose an
address between 1-16, then press the # (pound) key.
SOUNDER
If you wish not to hear the beeper in the console for any reason, the sounder option can be turned off. Select (0) for OFF or (1)
for ON, then press the # key.
KEY CLICK
The sounder makes a click every time a key is pressed. This option may also be turned off. Select (0) for OFF or (1) for ON,
then press the # key.
KEY BACKLIGHT
The keys on the console keypad are lit. The keys can be never lit, always lit, or only lit when the LCD display is lit. Select (0)
OFF, (1) for ON, or (2) TIMED, then press the # key.
VIEWING ADJUSTMENT
This option is an adjustment for the viewing angle of the LCD display. This has been set to its best value at the factory, however,
you may wish to tweak it. The display has 20 levels of adjustment. Select (1) for a lower viewing angle, or (2) for a higher
viewing angle.
LANGUAGE
This option is to display the 'console setup' text on the LCD display in English, French, Italian, or Spanish. Select one of the
languages, then press the # key.
EXIT SETUP MODE
To exit Setup Mode, press and hold the 4 and up arrow (×) keys simultaneously for about 1 second. The console will return to
normal operation. You may need to press (*) to restore the display.
Page 13
MENUCANCEL
MESSAGE
TEMP
EVENTS
ALL
SETUP
AUX
STATUS
FIRE
L
SECURITYCONTROL BUTTONS
POL
(MOUNTED TO CONSOLE FACE)
CONSOLE PC BOARD
BOTTOM PLATE
YELLOW
GREEN
RED
BLACK
CONNECT ENDS OF SUPPLIED
CABLE TO CORRESPONDING
ENDS OF 4 - WIRE CABLE
FROM CONTROLLER
SUPPLIED CABLE
(PLUGS INTO J1)
GREEN
YELLOW
BLACK
RED
(SNAPS ON TO BOTTOM PLATE)
CONSOLE FACE
FOR MODEL NUMBERS
SEE NOTE 1 UNDER
"LCD CONSOLE HOOKUP"
FIGURE 7 - CONSOLE CONNECTIONS
Page 14
SOUNDER OUTPUTS
The Horn Output provides 12VDC to power bells, piezo sirens, self-contained sirens, and siren drivers (do not connect speakers
to the Horn Output). Sounders can draw up to 1 amp MAXIMUM, split between the Interior and Exterior Horn Outputs - (See
Specifications for UL Ratings). Use a relay connected to an auxiliary power supply if higher current draw is required.
INTERIOR SOUNDER HOOKUP
1. Locate the interior sounder in a central location. The sounder is very loud. Do not install it in a room where small children
or animals could be trapped if the alarm is activated.
2. The Interior Horn Output monitors the wiring to bells and sirens. When enabled, it will report trouble and make a digital dial
out when an open, short, or other wiring problem is detected in the supervised bell circuit. When violated, the following
trouble is displayed on the console, "FIRE TAMPER TRBL NOW".
3. For UL Listed residential fire alarm applications, the UL Listed Wheelock Model MT-12/24-R Multitone Signal or
equivalent must be used, and the "SUPERVISE INT SNDR" feature must be set to "ON".
4. Refer to FIGURE 8 (SOUNDER CONNECTION) for connections.
EXTERIOR SOUNDER HOOKUP
1. If used, wire tamper switches to a tamper zone with a 1000-ohm end-of-line resistor.
2. The Exterior Horn Output monitors the wiring to bells and sirens. When enabled, it will report trouble and make a digital
dial out when an open, short, or other wiring problem is detected in the supervised bell circuit. When violated, the following
trouble is displayed on the console, "FIRE TAMPER TRBL NOW".
3. To enable supervision of the Exterior Horn Output, the "SUPERVISE EXT SNDR" feature must be set to "ON".
4. Refer to FIGURE 8 (SOUNDER CONNECTION) for connections.
Page 15

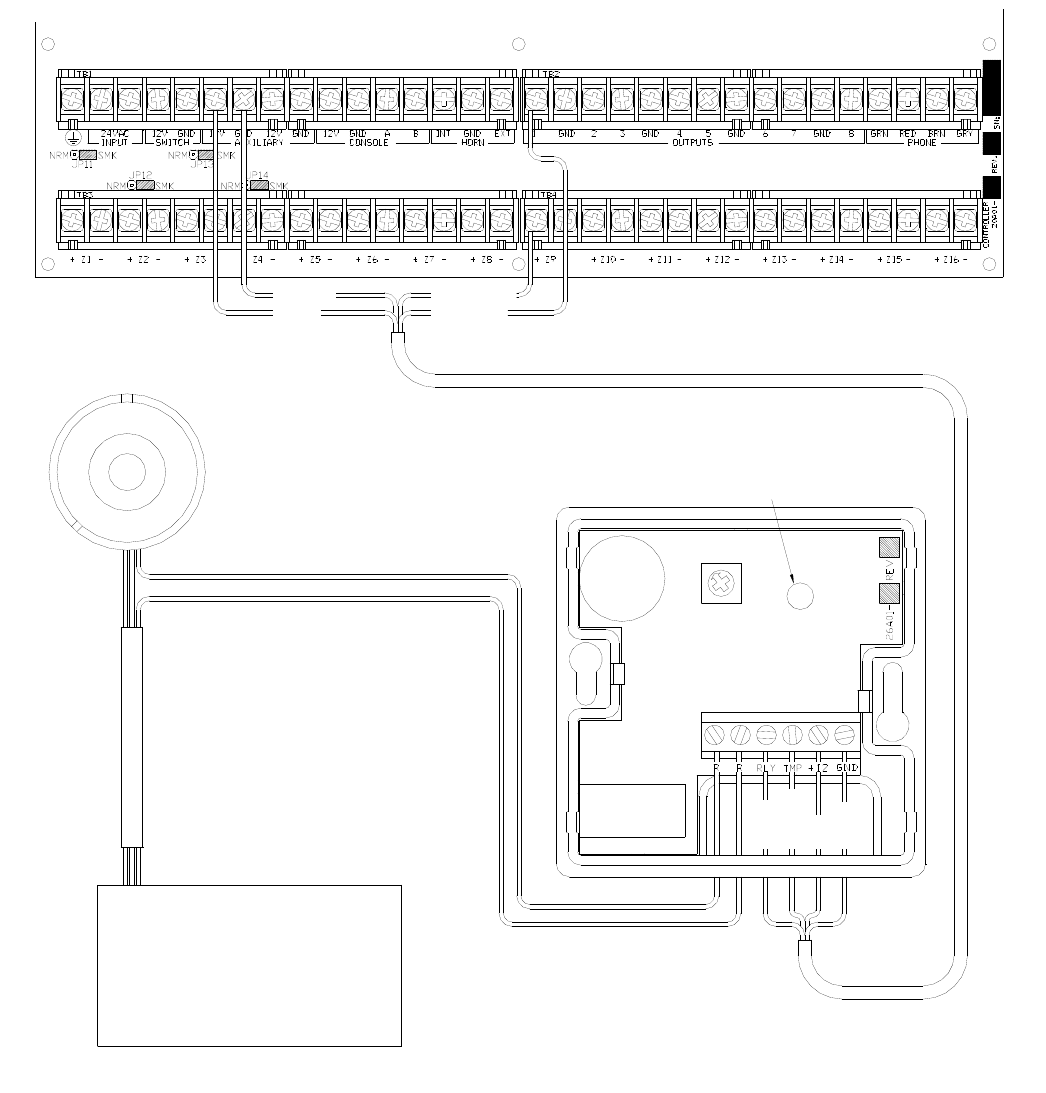

BLACK
RED
RED
FIGURE 8 - SOUNDER CONNECTIONS
Page 16
CONTROLLER OUTPUTS
The OmniPro II provides 8 programmable hardwired voltage outputs and two horn voltage outputs. These outputs are
programmable for the following output types:
• General Purpose low voltage switching applications (12 VDC) - Units 385 - 392
• Sounder triggering (a trigger for siren and voice drivers for BURG and FIRE)
• Communicator outputs (radio, cellular, or any other type of auxiliary communicator)
• 'ARMED' and 'OK TO ARM' outputs
• Switched Output (to power smoke detectors and cycle power to latching devices)
Outputs 1 - 8 can supply a maximum of 100 mA each. These outputs are included in the total DEVICES load, which cannot
exceed 1A. If the Interior or Exterior Sounder is configured to an Output Type, the HORN outputs can supply a maximum of
1A. HORN outputs are included in the total HORNS load, which can not exceed 1A.
RESET OUTPUTS
Outputs 1-8 are protected from an overload condition. If an overload condition occurs on an output, it will shut off (the output
will supply 0V). When this occurs, the "Output Fault" (D26) LED (marked "A" if Figure 9) will illuminate. To reset the output,
remove the device causing the overload condition, then press the "Reset Outputs" (S1) Switch (marked "B" if Figure 9).
A
B
FIGURE 9 - RESETTING CONTROLLER OUTPUTS
OUTPUT APPLICATIONS
GENERAL PURPOSE SWITCHING APPLICATIONS
This output will supply 12 VDC to the output terminal when its corresponding unit is ON. Output 1 is designated Unit 385
through Output 8 which is Unit 392. This can be used to drive relays for many different applications, including switching
sprinkler valves and low-voltage lighting.
SOUNDER TRIGGERING
This output can be used as a trigger for siren and voice drivers. When a driver requires a separate input for burglary and fire, you
can configure this output to give a voltage trigger to the driver. Also, each area can have its own sounder.
Page 17
COMMUNICATOR OUTPUTS
This output can be used for radio communications or any other type of auxiliary communications to augment the built-in digital
and voice dialers. Any communications device can be used with the OmniPro II, provided that it is powered by 12 VDC, has 12
VDC triggered inputs, and has 2 (or more) channels.
The 'Communicator' outputs are activated 3 seconds before the OmniPro II dialer begins to dial either using its built-in digital
dialer or voice dialer.
The following events will activate the BURG output: Burglar alarms (including panic zones), Auxiliary emergencies, Police
emergencies, and Duress alarms. Fire alarms and the fire emergencies will activate the FIRE output.
Note: The Interior and Exterior Fire Sounder generates 12VDC in a 3 pulse temporal pattern.
"ARMED" AND "OK TO ARM"
ARMED: When the system is armed in any of the security modes (AWAY, NIGHT, DAY, or VACATION), this output is active.
It is typically used to activate a red LED to indicate that the system is 'armed'.
OK TO ARM: When all security zones are secure, no zones are bypassed, and the system is in the 'OFF' mode, this output is
active. It is typically used to activate a green LED to indicate that the system is 'ok to arm'.
SWITCHED OUTPUT
This output is used to cycle power to latching devices when the system is armed. This output will reset the smoke detectors when
the system is armed after an alarm.
HAI COMMUNICATING THERMOSTATS
When HAI RC-Series thermostats are used, Output 8 is used to communicate with up to 64 thermostats. There is no need to
configure this output when used with HAI thermostats. It may be left at the default setting of "General Purpose".
REMOTE ARM/DISARM SWITCH
1. If desired, a remote keyswitch, keypad, or hidden arm/disarm toggle switch can be connected to the system. The device
should have a momentary close type switch.
2. Configure one of the zone inputs as a KEYSWITCH INPUT zone. A closure of the switch contacts will toggle the arming
mode between OFF and AWAY (Entry and Exit delays are still active).
3. Configure one of the outputs as an "ARMED" and another output as an "OK TO ARM" output. These outputs are used to
activate a red or a green LED based on the state of the alarm system. The "ARMED" and "OK TO ARM" outputs can supply
a maximum of 100 mA each. These outputs are included in the total DEVICES load, which cannot exceed 1 A.
4. Refer to FIGURE 10 (REMOTE KEYSWITCH CONNECTION) for this configuration.
NOTE: In UL Listed Installations, the Listed Ademco Model 9789 keyswitch shall be used.
Page 18
BLACK
KEYSWITCH
MOMENTARY CONTACT
RED
YELLOW
GREEN
++
-
GREENRED
RED
YELLOW
GREEN
BLACK
1K EOL RESISTOR
FIGURE 10 - REMOTE KEYSWITCH CONNECTIONS
Page 19
HAI THERMOSTATS
OmniPro II supports up to 64 HAI RC-Series Communicating Thermostats. The controller can send commands to the thermostat
to change mode, cool setting, heat setting, status of fan and hold, and other items.
Run a 3 (or 4) conductor wire from OmniPro II to the thermostat location. All thermostats are connected in parallel to Zone 16
and Output 8. Connect the red COMM cable wire with the black COMM cable wire. Make the connections (as shown in Figure
11) using the supplied wire splices.

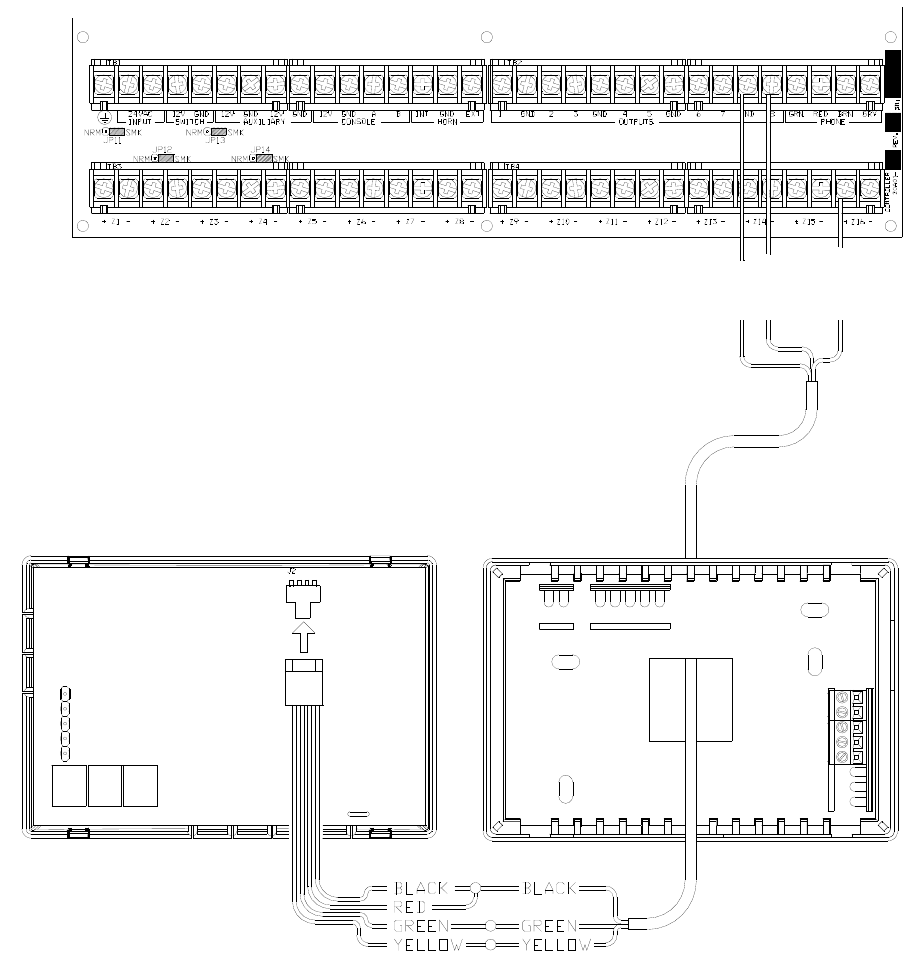

YELLOW
GREEN
BLACK
FIGURE 11 - HAI THERMOSTAT CONNECTIONS
Page 20
PROGRAMMABLE ENERGY SAVER MODULES
Programmable Energy Saver Modules may be connected to:
Controller: Zone 9 and Output 1 through Zone 16 and Output 8, respectively
Expansion Enclosures: Zone 1 and Output 1 through Zone 16 and Output 16, respectively
1. OmniPro II can support up to 136 Programmable Energy Saver Modules (PESM). Each PESM requires one security zone
input and one controller output. The zone input corresponds to the controller output (Zone 9 and Output 1 through Zone 16
and Output 8, respectively). If Zone 9 is used, Output 1 must be used as its pair.
2. When setup as an Energy Saver Zone Type (Type 80), the zone and unit (output) is used as a pair to read in temperature and
control the setback temperature of the house. Only zones 9-16 and 49-176 may be configured as an Energy Saver zone.
3. Run a 4-conductor wire from the OmniPro II controller to each PESM. Connect as shown in FIGURE 13 (PESM
CONNECTIONS).
4. The PESM should be mounted on an interior wall, preferably close to the HVAC thermostat. Run a 2-conductor wire from
the PESM to the thermostat. Connect the PESM between the RED wire going to the thermostat and the RED terminal on the
thermostat.
5. Program the zone type for PESMs as a Type 80, Energy Saver. It may also be programmed as a Temperature (Type 82), or
Temperature Alarm (Type 83) for special applications.
NOTES ON HVAC SYSTEMS
1. Description of the PESM
The PESM is a temperature sensor and control relay in a small enclosure that mounts near a central heating, ventilation, and
air conditioning (HVAC) system thermostat. The PESM allows the automation system to read the temperature of the area
that the HVAC system controls. The relay in the PESM is used to break the 24V RED wire between the thermostat and the
HVAC system. When the automation system is in setback mode and the actual temperature is between the LO and HI
setpoints, the relay energizes to break the 24V red wire; hence, the HVAC system will no longer operate.
In heating season, when the actual temperature falls below the LOW setpoint, the automation system turns the relay in the
PESM off, thus restoring power to the thermostat, allowing the thermostat to heat as it normally would under the control of
the thermostat. The PESM will cycle the thermostat on and off to maintain the LOW setpoint.
In cooling season, when the actual temperature rises above the HI setpoint, the automation system turns the relay in the
PESM off and the thermostat will cool as it normally would under the control of the thermostat. The PESM will cycle the
thermostat on and off to maintain the HI setpoint.
The Red LED on the PESM will illuminate when the PESM is overriding the thermostat. The Red LED will be off when the
thermostat is working normally.
If the PESM is disconnected from the automation system, the relay will not energize and the HVAC system will operate
normally, under the control of the thermostat.
2. Standard Heating and Cooling Systems
The PESM is compatible with all mechanical thermostats.
3. The PESM is also compatible with electronic thermostats that run totally on battery power.
4. Heat Pumps
Programmable Energy Saver Modules are compatible with heat pumps, however, the savings gained by setting the heat pump
back may be erased by the auxiliary heaters when the heat pump tries to recover from the setback. A PESM will work best
with heat pumps that have one or more of the following features:
Page 21
a. An outdoor temperature switch that prevents the auxiliary heat from coming on unless it is very cold outside. This is
sometimes called a "heat balance" switch.
b. A thermostat that uses rate of rise to determine if auxiliary heat is necessary: The Enerstat Model DSL-450. When
recovering from setback, the thermostat runs the heat pump first. It will run the auxiliary heat only if the rate of
temperature rise is less than 6 degrees F. per hour.
c. An alternative auxiliary heat source that is inexpensive (i.e. gas).
These features will avoid the use of auxiliary heat (usually an electric strip heater) which is more expensive than using the
heat pump when recovering from setback. In general, heat pumps take a longer time to recover from setback, so it may be
advantageous to program a setback only for extended periods, such as a vacation.
TEMPERATURE, OUTDOOR TEMPERATURE, AND HUMIDITY
When connected to the controller, the Model 31A00-1 (31A00-7 Extended Range) Indoor/Outdoor Temperature and Model
31A00-2 (31A00-8 Extended Range) Indoor/Outdoor Temperature and Humidity Sensor is used for sensing indoor temperature
and/or reporting the relative humidity from 0 to 100 percent or for sensing the outdoor temperature and/or reporting the outdoor
relative humidity. The outdoor temperature can be displayed on the console, spoken over the telephone, or displayed on an HAI
Communicating Thermostat.
1. Each Temperature Sensor requires one zone input. Each Humidity Sensor requires one zone input.
- Program the zone type as an Outdoor Temperature (Type 81), Temperature (Type 82), Temperature Alarm (Type 83),
for temperatures between 0o F - 120o F
- Humidity (Type 84), for humidity between 0% – 100%
- Extended Range Outdoor Temperature (Type 85), Extended Range Temperature (Type 86), and Extended Range
Temperature Alarm (Type 87), for temperatures between -40o F - 120o F
2. When mounting outdoors, plan to mount under an overhang or to the underside of an eave, otherwise known as the soffet, to
protect it from direct sunlight and rain. Run a 4-conductor wire from the OmniPro II controller to the selected location.

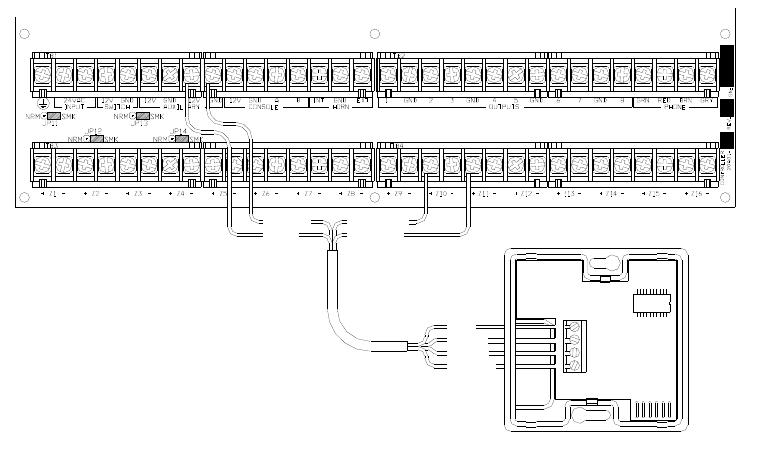

RED
BLACK YELLOW
GREEN
YELLOW
BLACK
RED
GREEN
12V GND H T
INDOOR / OUTDOOR TEMPERATURE
AND HUMIDITY SENSOR
FIGURE 12 - TEMPERATURE / HUMIDITY SENSOR CONNECTIONS
Page 22
WORKING NORMALLY
OFF - THERMOSTAT IS
OVERRIDING THERMOSTAT
ON - ENERGY SAVER IS
RED LED
HEAT / AIR
SYSTEM
YELLOW
BLACK
RED
GREEN
SAVER MODULE
PROGRAMMABLE ENERGY
THERMOSTAT
EXISTING
LOW VOLTAGE
BLACK
RED
YELLOW
GREEN
FIGURE 13 - PESM CONNECTIONS
Page 23
BUILT-IN SERIAL PORTS
OmniPro II has 5 serial ports (J1-J5) built onto the controller (labeled SERIAL 1 - SERIAL 5, respectively). The interface is a
modular connector located in the upper left corner of the controller.
Each serial interface supports both RS-232 and RS-485 connections. RS-232 is the standard for connections to most personal
computers and related systems. RS-485 can support greater wiring distances. The default setting is RS-232. To select RS-485,
move the interface jumper (JP1-JP5) from the 232 to the 485 position. The jumpers (JP1-JP5) are located below the modular
serial port connectors (J1-J5).
To connect a serial port to a PC, use the HAI Model 21A05-2 Serial Cable Kit. Plug one end of the cable into one of the modular
serial port connectors on the controller. Plug the other end into the Model 21A05-1 Communication Cable Adaptor (modular to
DB-9 RS-232), which connects the OmniPro II serial port to the computer's DB-9 RS-232 port.
To make your own serial cable to connect to a PC, follow the diagrams (Figure 14 and Figure 15). When making connections, be
sure to correctly orient the cable as shown (with the tab on the modular cable facing up, make sure that the Yellow wire is at the
top). Connect the Yellow, Green, Red, and Black wires to the DB-9 connector as shown. Also, on the DB-9 connector, connect
Pins 1, 4, and 6 together and Pins 7 and 8 together.
6 DSR
BOTTOM VIEW
DB9-FEMALE
5 GND
2 RX
3 TX
1 DCD
4 DTR
9
8
7
6
8 CTS
7 RTS
2
4
5
3
1YELLOW
GREEN
RED
BLACK
SIDE
TOP
4 POSITION MODULAR
PHONE CABLE
- YELLOW WIRE ON TOP - - TAB UP -
FIGURE 14 - RS-232 CONNECTIONS
Built-In Serial Port Pin Out
1 - N/C
2 - Ground
3 - DCD
4 - TX (transmit)
5 - RX (receive)
6 - 12V +
PIN 6 PIN 1
Page 24
YELLOW
GREEN
A
B
TOP
SIDE
- YELLOW WIRE ON TOP -
4 POSITION MODULAR
PHONE CABLE
- TAB UP -
FIGURE 15 - RS-485 CONNECTIONS
BUILT-IN ETHERNET PORT
OmniPro II has an Ethernet port (J6) built onto the controller (labeled ETHERNET). The Ethernet port allows a device to
connect to the OmniPro II controller via a network (i.e. Ethernet, Internet) using a secure, encrypted communication link. The
Ethernet port transports HAI application-level packets containing Omni-Link serial protocol messages over IP. The controller
supports 3 unique client “sessions” which means 3 devices may actively be connected and communicating with the controller
simultaneously over the Ethernet port.
CONTROLLER IP ADDRESS, PORT NUMBER, AND ENCRYPTION KEY
The controller’s local IP address and port number set the local network parameters for the OmniPro II controller. The encryption
key is used to establish a private, secure connection with the connected device.
The following Setup items can only be assigned and changed from an HAI console. These items can not be assigned or changed
via PC Access; although the IP address and port number may be viewed via PC Access:
Page 25
CONTROLLER IP ADDRESS
The controller’s local network IP address is used to identify the OmniPro II controller on the network. To view and assign the
controller’s local network IP address, from the Set Up menu, press the 6 (MISC) key. Using the down arrow key (↓), scroll to the
following menu item:
IP ADDRESS
192.168.0.101
The format of the IP address is a 32-bit numeric address written as four numbers separated by periods. An IP address has two
components, the network address, and the host address. The first two numbers (e.g. 192.168) represent the Class B network
address and must be the same as the first two numbers of your local network. The second two numbers (e.g. 0.101) identify a
particular host on the local network and may be assigned at random as long as each device on the local network has a unique
address. Each number can be 0 to 255. Enter the 1, 2, or 3 digit number followed by the “#” key to move to the next number.
After the 4th number has been entered, press the “#” key to store the IP address.
CONTROLLER PORT NUMBER
The controller’s local network port number identifies the logical channel to the OmniPro II controller. For example, port 80 is
used for HTTP traffic; the controller’s local network port number is used for Omni-Link traffic. To view and assign the
controller’s local network port number, from the previous Setup item (IP ADDRESS), press the down arrow key (↓).
PORT NUMBER 4369
0-65535
In most installations, the default port number can remain the same. Port numbers range from 0 to 65535. To change the port
number, enter the new port number followed by the “#” key to store the port number. Port numbers 0 to 1024 are reserved for
designated services and should not be used.
ENCRYPTION KEY
Encryption and decryption of data between the OmniPro II controller and the connected device is based on the Advanced
Encryption Standard (AES) using a 128-bit cryptographic key. A unique encryption key is randomly assigned to each OmniPro II
controller at the factory (no records of these keys are kept at the factory). It may be left the same (recommended) or it may be
changed as desired. To view and assign the encryption key, from the previous Setup item (PORT NUMBER), press the down
arrow key (↓).
ENCRYPTION KEY PT 1:
6F-1B-26-A2-FF-D9-E4-12
This key consists of 16 bytes (that is 16 2-digit values from 0-9 and/or the letters A-F). It is entered into the controller in two
parts (PT 1 and PT 2) consisting of 8 bytes each. Enter the 2 digit value. To enter the digits A-F, first press the “OFF” key, then
press the 0-5 key respectively (i.e. A1 = OFF 0 1 and CB = OFF 2 OFF 1). After the last digit (16th digit) has been entered, press
the “#” key to store “PT 1” of the encryption key. Press the down arrow key (↓) to enter “PT 2” of the encryption key.
ENCRYPTION KEY PT 2:
DC-67-48-8F-D1-3A-EF-70↑
After the last digit (16th digit) has been entered, press the “#” key to store “PT 2” of the encryption key.
OMNIPRO II ETHERNET CONNECTIONS
Use a standard network cable to connect the controller to a hub, switch, or router. Use a network crossover cable when
connecting the controller directly to the NIC card on a computer.
When connected to a switch or router, port forwarding must be configured. Port forwarding sets up public services on your
network. The OmniPro II controller listens for all IP/UDP communications addressed to it on the specified UDP port number.
The router will forward all communications on the specified port to the OmniPro II controller.
Page 26
CONNECTING TO NETWORK VIA PC ACCESS
To access the controller over the network via PC Access:
1. Open an OmniPro II account file.
2. Click Configure >> Network.
¾ If you are connecting from the local network, enter the controller’s IP address under “Network IP Address or
Domain Name”.
¾ If you are connecting from the Internet, enter either the public IP address (the way to reach your local network via
the Internet) or domain name (e.g. www.homeauto.com).
3. Enter the port number that is configured for the controller.
4. Select the Encryption tab. Enter the two part encryption key as it is displayed on the console.
5. Select OK.
6. Click Connect >> Network >> Connect. PC Access should change from “Off-Line” to “On-Line”.
The “Modem” item on the main menu has been replaced with the “Connect” item. The submenu under “Connect” then allows
selection of “Modem”, “Serial” or “Network”. When an account file is opened, the connection type will default to “Serial”.
192.168.0.101
192.168.0.50
192.168.0.51
HAI OmniPro II
Controller
Hub or
Router
Computer
Computer
FIGURE 16 - LOCAL NETWORK
To connect to an OmniPro II controller on
a local network using HAI PC Access,
under Configure >> Network enter the
controller’s IP address:
(i.e. 192.168.0.101)
Page 27
FIGURE 17 - LOCAL / WIDE AREA NETWORK
If the controller is connected to the Internet via a dynamic IP address, to locate and communicate with the controller from remote
locations over the Internet using HAI PC Access, you must subscribe to a Dynamic DNS (Domain Name Service). Dynamic
DNS is a service that maps your dynamic (changing) IP address to a static (permanent) hostname, allowing you to access your
OmniPro II controller over the Internet using your static hostname instead of an IP address.
A “client” program (typically provided by the Dynamic DNS provider) runs on a PC on your local network and is used to
automatically update your Dynamic DNS provider with your current IP address. Several router/switch manufacturers have
embedded a Dynamic DNS client into their router firmware. These devices work with several of the Dynamic DNS providers,
including both free and commercial services. These devices are especially beneficial because the router can be powered up all the
time, so the dynamic update is always current and is handled by a single device (the router/switch) in the local network. This
allows you to locate and connect to the OmniPro II controller without having a computer on the local network powered up and
running.
To connect to an OmniPro II controller on
a local network using HAI PC Access,
under Configure >> Network enter the
controller’s IP address:
(i.e. 10.0.0.230)
To connect to an OmniPro II controller
from the Internet using HAI PC Access,
under Configure >> Network enter the
public IP address:
(i.e. 134.42.112.8)
Page 28
SYSTEM POWER UP PROCEDURE
1. Carefully review hookups to the zones, grounds, sounders, and consoles.
2. Disconnect 1 lead of both the interior and exterior sounders.
NOTE: Follow this power up procedure to verify proper operation of the power supply, battery charger, and low voltage cut
out relay.
3. The positive lead to the battery should be disconnected at this time. Make sure that the red battery wire is not touching
anything.
4. Plug in the power transformer.
- The AC ON LED should illuminate.
- Within one minute, the STATUS LED should begin blinking at a rate of 1 blink per second. This indicates that the
OmniPro II processor and software are working.
- The PHONE LED should be OFF (if all telephones are on-hook and the RJ31X jack is properly connected.
5. Unplug the power transformer to kill the system. Connect the red battery wire to the + (positive) battery terminal. The
system should not start.
6. Plug in the power transformer. The system should start.
7. Unplug the power transformer. The system should continue to run on the battery (the STATUS LED will continue to flash).
8. Plug the transformer back in and secure it to the outlet.
CONSOLE CHECK OUT
1. The console(s) should be operating. Press ' * ' to silence the trouble beeper if it is beeping. Press OFF, 1, 1, 1, 1 (or the
current User code) if the alarm is tripped. If the consoles are not operating properly, make sure that no two consoles have the
same address, and check the wiring.
2. With all doors and windows closed and all motion detectors secure, the bottom line of the display should read SYSTEM OK.
If there are any trouble indications that occurred during installation, press ' * ' to acknowledge them and silence the beeper.
3. Set the time and date by pressing the 9 key. Enter the Master Code, then press the 2 key. Enter the time on the keypad, then
the DATE (enter date as 6 characters: January 1, 02 as 010102).
4. The console should now show the time and date on the top line and "SYSTEM OK" on the bottom line.
TELEPHONE CHECK OUT
1. Verify that the Telephone Company surge arrestor is properly grounded.
2. Verify that the incoming telephone lines are run to the surge arrestor first, then from the surge arrestor to the RJ31X jack,
then from the RJ31X jack to the house phones.
3. The PHONE LED, on the controller, should be off when the phones are hung up.
4. Pick up an in-house phone, wait about 1 second, then press the ' # ' key. You should hear the Voice menu on the phone. If
not, check to see that the RJ31X jack is properly wired and connected to the controller. There should be no interference from
the Telephone Company while the menu is being read over the phone.
Page 29
5. Record the owner's NAME and ADDRESS in the ADDRESS speech memory as shown in SETUP ADDRESS in the
OWNER'S MANUAL (Press 8, 9, then 1111 or the current Master code to record the address).
NOTE: DO NOT record any TOUCH TONES in the ADDRESS!!
6. Check that all in-house phones are working.
BURGLAR ZONE CHECK OUT
1. With all doors and windows closed and all motion detectors and security devices secure, the console display should read
"SYSTEM OK".
2. If any zones are abnormal, check your wiring. If the battery indication is low, make sure that the battery is connected
securely. Give the battery a chance to charge.
3. From the top-level display, have a partner go around the house and trip each sensor one at a time. The display should
indicate the correct zone "NOT RDY" when the zone is tripped, then return to "SYSTEM OK" when the zone is secured. Be
sure that the zone type indicated (ENTRY/EXIT, PERIMETER, ETC.) is correct for the zone being tested.
4. If the zone being checked is armed, (i.e. PANIC or TAMPER type, which is always armed) the alarm will be activated. Press
OFF and 1111 or the current User code to silence the alarm, or bypass the PANIC and TAMPER zone(s) before you start.
5. Reconnect the sirens. Be sure that no one is standing near a siren. Activate the alarm, and ensure that both the inside and,
after a delay, outside sirens activate.
FIRE ZONE CHECK OUT
1. Press ' * ' to return the console to the SYSTEM OK indication. Check the fire zone per the sensor manufacturer's
instructions. The fire alarm should be activated (pulsing interior sounder, exterior siren).
2. Press ' * ' to silence the alarm. The display will still indicate that the FIRE ZONE is in alarm.
3. Press DAY or NIGHT or AWAY and the User code to arm the system, then OFF and the User code to disarm. This
arm/disarm cycle will reset the smoke detector. If the cause for alarm (i.e. smoke) has cleared, the display will return to
SYSTEM OK.
NOTE: Be sure that the DIAL OUT DELAY is long enough so that you can cancel the alarm before the system dials out.
CUSTOMER CHECKOUT
After you have completed the system check out and everything works, be sure that the customer knows how to:
1. Disarm/silence the system (OFF, 1111 or current User code). HAVE THE CUSTOMER PRACTICE!
2. Change the codes.
3. Get the menu over the in-house phones.
Page 30
You should also:
4. Demonstrate arming and disarming.
5. Demonstrate home control.
6. Demonstrate setup and programming.
7. Show him/her how to program the dial out numbers.
8. Deliver the Owner's Manual.
9. If the customer has subscribed to a central monitoring service, this should be explained to him/her.
IN CASE OF TROUBLE
CONSOLES
If you experience trouble that seems to be with a console, try disconnecting the console and running the console self test as
described under CONSOLE HOOKUPS in this manual. If the console does not run the self-test properly, it should be returned to
HAI for repair.
"NO CONTROLLER DATA" or erratic operation of the LCD display could be a result of: A and B terminals connected
backwards, poorly, or 2 or more consoles have the same address.
CONSOLE SELF TEST
Use the self test mode to verify the proper operation of the console.
1. Disconnect the console from the controller. Connect +12 and GND terminals to a 12-volt source (or a fresh 9-volt transistor
battery.) The console beeper will beep twice per second, the LCD backlight and the keypad key will be lit, and the LCD will
display "NO CONTROLLER DATA".
2. Simultaneously press and hold the 7 and the down arrow (Ø) keys for approximately 3 seconds. The beeper will beep 5
times, the LCD backlight and keypad backlight will turn off, and the display will clear. The LED at the top right corner of
the console will start to cycle through its different colors (red, green, yellow, then turns off). At the end of each cycle the
beeper will beep once.
3. Press any key. The LCD backlight and the keypad key backlight will turn on.
4. Press the keys in the following order and verify that the appropriate character fills the screen. 0 - 9, *, #, AWAY (A),
NIGHT (B), DAY (C), OFF (D), × (filled blocks), and Ø (blanks).
If this is successful, the console is good. Simultaneously press and hold the 7 and down arrow (Ø) keys to exit the self test mode
or disconnect power.
CONTROLLER
Check the AC ON (bottom) LED. If it is not lit, check for 24 VAC at the transformer connections.
Check the STATUS (top) LED on the controller board. It should be blinking once per second, indicating the proper operation of
the microprocessor and memory. If not, try powering the system down by disconnect the power transformer and battery, then
reconnect both. The status light should begin blinking.
If the AC ON LED is on and the STATUS light is still not blinking, check the AUX +12 V with a DC voltmeter. It should be
13.7 volts. If not, make sure that there isn't too much load on the system. Disconnect all loads. If the STATUS LED still won't
blink, there is a problem with the controller board and it must be returned to HAI for repair.
Page 31
Phone line problems, or problems with the OmniPro II voice are usually the result of the RJ31X jack being improperly wired.
Check RJ31X jack wiring and polarity carefully, as described in TELEPHONE CONNECTIONS.
In the event that the controller is found defective, the controller board can be removed without disconnecting the entire wiring
from their terminals. The terminal strips can be removed from the controller board. Then the controller (or processor board) can
be repaired and reinstalled easily.
Follow this procedure for removing the controller board:
1. If possible, upload the programs and configuration. (This will not be possible if the status LED isn't flashing or if you can't
get the voice to work.)
2. Unplug the power transformer.
3. Disconnect the battery
4. Disconnect the RJ31X modular cable at the jack!! If you only disconnect it at the OmniPro II controller only, the house
phones won't work.
5. Disconnect the X-10 cable. Disconnect the serial cable(s). Disconnect Ethernet cable.
6. Carefully remove the four terminal strips from the controller board. Gently push down on terminal strip retention clips.
These clips are located on either end of the strip and 2 in the middle. Slowly pull strip away from terminal block socket and
secure.
7. Remove 9 screws and washers; 3 on the top edge, 3 on the bottom edge, and 3 in the middle of the controller.
8. Remove the controller board.
9. Wrap the controller board with protective material and pack carefully. HAI will not be responsible for returned items
damaged due to inadequate packaging.
10. Call Home Automation, Inc. with the serial number for a Return Authorization number to help us track your return. Write
the R. A. # on the outside of the package.
11. Return the controller to Home Automation, Inc. Please include your return address, any special shipping instructions and
daytime phone number so that we can reach you if we have any questions. Also include a brief description of the problem
that you are having.
12. INSTALLATION: follow the removal process in reverse. Follow the POWER UP and CHECK OUT procedures in this
manual.
13. NOTE: When a controller is returned from being repaired, all setup and programming is lost. The board is returned with the
factory default setup and programming.
FOR HELP: Call HAI between the hours of 9:00 AM and 5:00 PM Central time, Monday - Friday, at (800) 229-7256.
Page 32
DIGITAL COMMUNICATOR
The OmniPro II digital communicator can use Contact ID, or Standard 4/2 or 3/1, (20 pps, 1800 Hz data, 2300 Hz handshake), or
(10 pps, 1900 Hz data, 1400 Hz handshake), dual round compared format. Any central station with modern equipment can
receive these formats. Compatible receivers are Ademco, Radionics, Osborne-Hoffman, Linear, FBI, and Silent Knight. It is up
to the installer to verify compatibility. At the time of installation, the installer is required to verify compatibility and phone line
seizure of the Digital Communicator.
If the digital dialer does not get a handshake signal from the central station 45 seconds after it begins dialing, it hangs up and tries
again. The dialer will try the FIRST PHONE NUMBER 5 times, then go to the SECOND PHONE NUMBER and try that 5
times. After that, the system will indicate COMMUNICATIONS FAILURE on the console display and the digital communicator
will not try again until another reportable event occurs.
The digital communicator will not dial out until the DIAL OUT DELAY has expired. If the alarm is canceled prior to the
expiration of the DIAL OUT DELAY, no transmission will take place. After the DIAL OUT DELAY has expired, though, all
alarm trips will be transmitted followed by a CANCEL code.
When the digital communicator is used, all voice dial outs will be delayed for five minutes after the expiration of the dial out
delay to allow time for the central station to call the premises after an alarm code has been sent. If the digital communicator is
unable to successfully communicate with the central station, the user will be alerted to the trouble condition. When the system
status is requested using the voice, this condition is reported over the phone as "SECURITY PHONE MESSAGE" trouble.
Digital
Communicator
in Controller
Central
Station
Phone
Line
Single Line Transmission Signal System Configuration
DESCRIPTION OF CONTACT ID
Contact ID reporting allows very specific event codes to be sent to the central station. A complete report takes under three
seconds. Contact ID reporting uses predefined event codes that allow the central station to quickly identify the condition being
reported. The specific security zone or user code is identified as part of the report.
For each event code transmitted, the report also includes an event qualifier that identifies whether the report is for a new event
(such as a security zone trip), or a restoration of an event (such as a security zone no longer tripped). Trouble conditions are
reported, as well as restoration of these trouble conditions. For security armings and disarmings, this event qualifier is also used
to identify whether the report is for an arm or disarm. The reporting format for Contact ID is listed in Appendix A in this manual.
When using Contact ID, the alarm codes and/or reporting format cannot be changed. However, if the DCM code (under the 4/2
and 3/1 Alarm Code Formats) is set to “0” or “00”, then OmniPro II will not make a call to the central station to report that code
when using Contact ID.
Page 33
DESCRIPTION OF 4/2 FORMAT
The 4/2 format consists of a four-digit account code, from 0000 to FFFF and a two-digit alarm code from 00 to FF. When the
digital communicator calls the central station receiver, the latter answers and sends a brief 2300 Hz tone or a 1400 Hz tone called
a "Handshake" tone. The digital communicator then reports digits of the account and alarm codes as bursts of either (1800 Hz) or
(1900 Hz) tone; the digit 8 is represented by eight bursts of tone. A message, or "round" consists of an account code and an alarm
code. Two rounds are sent, and two consecutive rounds must match at the receiver. If they do, the central station receiver sends
another brief 2300 Hz or 1400 Hz tone to acknowledge to the digital dialer that the message has been properly received. If the
rounds don't match, the receiver does not send the second tone and the digital dialer tries again, up to 5 times. If the rounds are
not acknowledged after 5 tries, the digital dialer hangs up and tries the entire call again.
The digital communicator can report alarm zone trips, alarm cancels, low battery, and fire zone trouble. It may also be setup to
generate an automatic test signal at periodic intervals. The communicator may be setup to call second phone number using a
second account number in the event that it is unable to communicate successfully using the first phone number and account.
The digital communicator is setup at the factory to transmit a code when the battery is low or trouble with the fire zone is
detected. If these codes are set to 0 or 00, no code will be sent when the trouble condition is detected.
Although the alarm codes can be changed, we recommend that the alarm codes setup at the factory be used to minimize the risk of
installer error in programming the digital communicator. Simply enter the phone numbers and account codes, then verify the
alarm codes.
3/1 FORMAT
Older central stations may require a 3/1 format. To use 3/1 format, both account numbers must be changed to 3 digit codes and
EVERY alarm code must be changed to a 1-digit code. Do not mix code lengths!
OPENING AND CLOSING REPORTS
The OmniPro II system can send opening and closing reports by user to the central station.
When the system is disarmed by user code 1-16, the communicator can call the central station and report that the system was
disarmed (opened) with the user code that was used.
When the system is armed by user code 1-16, the communicator can call the central station and report that the system was armed
(closed) with the user code that was used.
If any other code or a method disarms the system (i.e. Code 17-99, Keyswitch, or Scheduled Program), the communicator will
send a generic OPEN report to the central station. The code that is sent is defined as OTHER OPEN. If the system is armed by
any other method other than one that requires a code (i.e. Quick Arm, Keyswitch, or Scheduled Program), the communicator will
send a generic CLOSE report to the central station. The code that is sent is defined as OTHER CLOSE.
Page 34
INSTALLER SETUP
This section describes the items that the installer must setup as part of system installation. The Installer Setup mode is used to
configure the general operation of the system, the Outputs, the Areas, the Zone Types, the Digital Communicator, and various
other settings. This information is covered only in this manual. All other SETUP items, including delay times, names and voices,
voice dialer, and codes are covered in the Owner's Manual, Document No. 20R00-2.
SETUP items are stored permanently in the system, even if the battery and AC power are disconnected. The "default" settings are
the ones that have been set at the factory. You can review or change the setup items easily, as shown below.
Note: The default Installer Code is 1111.
To access the SETUP menu, press the 9 key and enter the installer code. To access the INSTALLER SETUP menu, press the #
(INST) key.
INSTALLER SETUP MENU:
1=CTRL 2=ZONE 3=DCM ↓
4=AREA 5=TEMP 6=MISC
7=EXP ↑
SETUP CONTROL
To configure X-10, UPB, voltage outputs, and Vizia RF Z-Wave options, from the Installer Setup menu, select the 1 (CTRL) key.
The output type for both the interior and exterior horns may also be changed.
Press (Ø) to advance to the next item, (×) to go back.
X-10 HOUSE CODE
The base X-10 house code must be specified. The base house code is the house code for units 1-16 and is referenced as house
code 1. The house code for the units 17-32 is the next house code after the base house code, or house code "B" if the base house
code is "A". House codes "C" through "P" follows for Units 33-256, respectively.
X-10 HOUSE CODE: A
1-16=A-P ↓
UPB NETWORK ID
The Network ID is a unique number between 1 and 255 which identifies your UPB Network.
UPB NETWORK ID: 1
1-255
Enter the UPB Network ID (1-255) followed by the ' # ' key.
UPB PASSWORD:
The Network Password is a 4-digit number between 0001-FFFF that is used to protect your UPB network from unauthorized
changes to the internal settings of your UPB devices.
UPB PASSWORD: 1234
0000-FFFF
Enter the UPB Password (0000-FFFF) followed by the ' # ' key.
To enter the digits A-F, first press the “OFF” key, then press the 0-5 key respectively (i.e. “1A2B” = 1 OFF 0 2 OFF 1 #).
Page 35
UPB STATUS TIME (STATUS TRACKING):
When using HLC, “Status Tracking” is used to update the status of each HLC device in a room whenever a scene is executed in
that room. For example, the scene “A” button is pushed on a Room Controller in the Living Room. All of the lighting loads in
the Living Room are changed, but the status for the individual lighting loads isn’t updated in OmniPro II until a status request
message is sent to each unit. When “Status Tracking” is enabled, this is done automatically after a scene is executed.
The value set for the UPB Status Time is the amount of seconds that the OmniPro II controller waits before requesting status after
a scene is executed. By default, the time is set to 5 seconds. This gives lighting loads (with varying fade rates) the necessary time
to “settle down” before the status is requested.
UPB STATUS TIME: 5
0-255 SECONDS
Enter 1-255 for 1 to 255 seconds. Enter 0 to disable “Status Tracking”.
Note: “Status Tracking” must be enabled for OmniPro II to accurately set the LED indicators on Room and House Controllers.
X-10 3-PHASE
This setting is used to select whether the X-10 signal is transmitted only at zero crossing for single phase (120V/240V) electrical
systems or is transmitted at 0, 60, and 120 degrees for three phase electrical systems.
X-10 3-PHASE: 0
0=NO 1=YES
To turn 3-Phase On, press 1 then ' # '. To turn 3-Phase Off, press 0 then ' # '. The burst at 60 and 120 degrees will be eliminated.
The default setting for 3-Phase is No.
OUTPUT TYPES
An output type must be specified for each of the voltage outputs and for the interior and exterior horn outputs.
The first group of outputs is global. This means that the output is valid for any area. The sounder and communicator outputs will
be activated for an alarm in any area. The remaining types are area specific. This means that the output is only valid in the
specified area. Area specific sounder and communicator types will only be activated for alarms in that area.
The following output types are available:
OUTPUT TYPE NUMBER DESCRIPTION
Global A1 A2 A3 A4 A5 A6 A7 A8
GENERAL PURPOSE 0 0 0 0 0 0 0 0 0 General Purpose Output
OK TO ARM 1 17 33 49 65 81 97 113 129 OK To Arm Output
ARMED 2 18 34 50 66 82 98 114 130 Armed Output
PRE-ALM SNDR 3 19 35 51 67 83 99 115 131 Pre-Alarm Sounder
INT SNDR 4 20 36 52 68 84 100 116 132 Interior Sounder
INT BURG SNDR 5 21 37 53 69 85 101 117 133 Interior Burglary Sounder
INT FIRE SNDR 6 22 38 54 70 86 102 118 134 Interior Fire Sounder *
EXT SNDR 7 23 39 55 71 87 103 119 135 Exterior Sounder
EXT BURG SNDR 8 24 40 56 72 88 104 120 136 Exterior Burglary Sounder
EXT FIRE SNDR 9 25 41 57 73 89 105 121 137 Exterior Fire Sounder*
BURG COMM 10 26 42 58 74 90 106 122 138 Burglary Communicator
FIRE COMM 11 27 43 59 75 91 107 123 139 Fire Communicator
AUX COMM 12 28 44 60 76 92 108 124 140 Auxiliary Communicator
SWITCHED POWER 13 29 45 61 77 93 109 125 141 Switched Power Output
*Interior and Exterior Fire Sounders pulsate in a 3 pulse temporal pattern.
Page 36
The Setup Control items are:
OUTPUT 1 TYPE: 0
GENERAL PURPOSE #=CHNG
OUTPUT 2 TYPE: 0
GENERAL PURPOSE #=CHNG
OUTPUT 3 TYPE: 0
GENERAL PURPOSE #=CHNG
OUTPUT 4 TYPE: 0
GENERAL PURPOSE #=CHNG
OUTPUT 5 TYPE: 0
GENERAL PURPOSE #=CHNG
OUTPUT 6 TYPE: 0
GENERAL PURPOSE #=CHNG
OUTPUT 7 TYPE: 0
GENERAL PURPOSE #=CHNG
OUTPUT 8 TYPE: 0
GENERAL PURPOSE #=CHNG
INTERIOR HORN: 4
INT SNDR #=CHNG
EXTERIOR HORN: 7
EXT SNDR #=CHNG ↑
For output types, the current setting is shown on the bottom line. Press the ' # ' key to select a new type from a list of types. The
display shows:
SELECT TYPE: 6
INT SNDR
Use the Up and Down arrow keys to scroll through the list, or select the appropriate output type number. Then press ' # ' to enter
the new type.
If the Interior Horn is configured as a "General Purpose" output, Unit Number 393 is used to control the output. If the Exterior
Horn is configured as a "General Purpose" output, Unit Number 394 is used to control the output. In this configuration, Unit
Numbers 393 and 394 should not be used as "Flags".
Z-WAVE NODE ID
The Node ID is a unique number between 1 and 232 which identifies a Z-Wave device on the Vizia RF Z-Wave Network. Each
Node must be associated (mapped) with a unit number in the OmniPro II controller.
For Vizia RF Z-Wave pushbutton controllers, enter the Node ID for the Z-Wave pushbutton controller associated with that room
(e.g. Unit 1, Unit 9, Unit 17, etc). If desired, more than one pushbutton controller may be assigned to a room by associating the
pushbutton controller on any unit number in that room. If a second pushbutton controller is used, do not assign in a name in the
controller.
UNIT 1 NODE ID: 0
0-232
THROUGH
UNIT 232 NODE ID: 0
0-232 ↑
Enter the Node ID (0-232) for each Z-Wave device followed by the ' # ' key.
Enter 0 if there is no node associated with the specified unit number.
Page 37
SETUP ZONES
To configure zone expansion, zone resistors, and the zone types (definitions) for each security zone, from the Installer Setup
menu, select the 2 (ZONE) key.
Note: There zone options that define the way that each zone functions. To access Zone Options, press the 8 (ZOPT) key.
ZONE EXPANSION
Expansion Enclosures can be used to add additional zones to the OmniPro II system. Each Expansion Enclosure adds 16 zones to
the system. If used, you must specify the number of Expansion Enclosures (1-8) used.
Each Model 17A00 Expansion Enclosure adds 16 hardwired zones to the OmniPro II system.
Wireless Receives can also be used to add additional zones to the OmniPro II system. When connected to an OmniPro II, the
Wireless Receiver is recognized as an Expansion Enclosure. Each Wireless Receiver can handle up to 64 wireless zones, in
groups of 16. Each group of 16 zones is considered 1 Expansion Enclosure. You must specify how many groups of wireless
zones are being used.
Specify the number of 17A00 Expansion Enclosures plus the number of wireless groups:
NUMBER OF EXP ENCL 0
1-8
NOTES:
1. Up to 2 Model 10A06 Hardwire Expanders can be used with OmniPro II. Zones 1-16 on the first Expander are Zones 17-32
on OmniPro II. Zones 1-16 on the second Expander are Zones 33-48 on OmniPro II.
2. When used, the Model 10A06 Hardwire Expander Modules must be configured under Setup | Installer | Expansion.
3. Zones 1-16 on the first Expansion Enclosure are Zones 49-64 on OmniPro II. Zones 1-16 on the 2nd - 8th Expansion
Enclosure are Zones 65 -176, respectively on OmniPro II.
ZONE RESISTORS
This item is used to specify if the 1000-ohm end-of-line zone resistors will be used with zone inputs on the controller and zone
expanders (this does not affect Expansion Enclosures). If this item is set to "Yes", all zones are required to use an end-of-line
resistor.
End-of-line zone resistors are always required on Supervised Fire and Gas zones, and all zone inputs on Expansion Enclosures.
The default setting is "Yes".
ZONE RESISTORS: 1
0=NO 1=YES
Z 1 TYPE THROUGH Z176 TYPE
This item specifies the zone type for each zone. All choices are listed in this manual under DESCRIPTION OF ZONE TYPES.
For zone types, the current setting is shown on the bottom line.
ZONE 1 TYPE: 64
AUXILIARY #=CHNG
THROUGH
ZONE 176 TYPE: 64
AUXILIARY #=CHNG ↑
Page 38
To change a zone type, press the ' # ' key, then use the arrow keys to scroll through the list of zone types. Press the ' # ' key to
select a new type. The display shows:
SELECT TYPE: 1
PERIMETER
ZONE RESPONSE TIME
All zones, in the OmniPro II are set to a 300 millisecond fixed response time.
ZONE TYPES
ZONE TYPE NUMBER DESCRIPTION
ENTRY/EXIT 0 Entry/Exit
PERIMETER 1 Perimeter
NIGHT INT 2 Night Interior
AWAY INT 3 Away Interior
2X ENTRY DELAY 4 Double Entry Delay
4X ENTRY DELAY 5 Quadruple Entry Delay
LATCH PERIM 6 Latching Perimeter
LATCH NIGHT INT 7 Latching Night Interior
LATCH AWAY INT 8 Latching Away Interior
PANIC 16 Panic
POLICE EMERG 17 Police Emergency
SILENT DURESS 18 Duress
TAMPER 19 Tamper
LATCH TAMPER 20 Latching Tamper
FIRE 32 Fire
FIRE EMERG 33 Fire Emergency
GAS 34 Gas Alarm
AUX EMERG 48 Auxiliary Emergency
TROUBLE 49 Trouble
FREEZE 54 Freeze
WATER 55 Water
FIRE TAMPER 56 Fire Tamper
AUXILIARY 64 Auxiliary
KEY SWITCH 65 Keyswitch Input
ENERGY SAVER 80 Programmable Energy Saver Module
OUTDOOR TMP 81 Outdoor Temperature
TEMPERATURE 82 Temperature
TEMP ALARM 83 Temperature Alarm
HUMIDITY 84 Humidity
ER OUTDOOR TMP 85 Extended Range Outdoor Temperature
ER TEMPERATURE 86 Extended Range Temperature
ER TEMP ALARM 87 Extended Range Temperature Alarm
LATCHING ZONE TYPES
When any device (other then FIRE or GAS) is connected to SWITCH 12V or a Switched Power Output, the zone must be
configured as one of the LATCHING ZONE TYPES (latching perimeter, latching night interior, latching away interior, and
latching tamper). LATCHING ZONE TYPES ignore the status of that zone during power cycles.
Used primarily when the FIRE ALARM VERIFICATION feature is being used or if more than one area is being protected. This
type will ignore the status of LATCHING ZONES (i.e. Glassbreak Detectors) when the power is switched to reset devices.
Page 39
DESCRIPTION OF ZONE TYPES
ENTRY/EXIT
ENTRY/EXIT ZONE types are intended for doors. ENTRY/EXIT ZONES are armed in security modes DAY, NIGHT, AWAY,
and VACATION. In DAY and AWAY modes, there is an entry delay (defined by ENTRY DELAY) on ENTRY/EXIT ZONES
to allow you to get into the house and turn off the alarm before it sounds. In NIGHT & DAY INSTANT mode, there is no entry
delay, so that the alarm sounds immediately if someone opens a door.
There are two special types of ENTRY/EXIT ZONES for use with garage doors, or doors that are far away from the control
console. They are called DOUBLE ENTRY DELAY and QUADRUPLE ENTRY DELAY zones. These zones have double or
quadruple the ENTRY DELAY to give you additional time to reach the console to disarm the system upon returning. Only the
ENTRY DELAY is extended on these zone types. The EXIT DELAY is not extended.
If an ENTRY/EXIT ZONE is tripped first, all other zones will are delayed.
PERIMETER and LATCHING PERIMETER
PERIMETER ZONE types are intended for windows and exterior doors not requiring an entry delay. All PERIMETER ZONES
are armed in security modes DAY, NIGHT, AWAY, and VACATION. There is not an entry delay on a perimeter zones. If a
window or door on this zone is opened while the security system is in DAY, NIGHT, AWAY or VACATION mode, the alarm
will sound immediately. LATCHING PERIMETER ZONES ignore the status of that zone during power cycles.
NIGHT INTERIOR and LATCHING NIGHT INTERIOR
NIGHT INTERIOR ZONES are intended for motion detectors in areas where no one should be while you are sleeping in your
home. For example, if you have a two-story home and sleep upstairs, your downstairs motion detector(s) should be on a NIGHT
INTERIOR ZONE.
NIGHT INTERIOR ZONES are armed in security modes NIGHT, VACATION, and AWAY only. There is no delay on a
NIGHT INTERIOR ZONE. Night interior zones are NOT armed in DAY or DAY INSTANT mode, so that you may move about
freely in your home when the security system is in DAY or DAY INSTANT mode, while still having the windows and doors
protected. LATCHING NIGHT INTERIOR ZONES ignore the status of that zone during power cycles.
AWAY INTERIOR and LATCHING AWAY INTERIOR
AWAY INTERIOR ZONES are for areas of your home where no one should be while you are away. In the previous example,
your upstairs motion detector(s) should be on an AWAY INTERIOR ZONE. AWAY INTERIOR ZONES are armed only when
the security mode is AWAY. LATCHING AWAY INTERIOR ZONES ignore the status of that zone during power cycles.
PANIC, TAMPER, and LATCHING TAMPER
PANIC and TAMPER ZONES are for emergency pushbuttons and tamper switches. PANIC and TAMPER ZONES are always
armed, even if the security mode is OFF. There are no delays on PANIC and TAMPER ZONES. An emergency dial out is
activated after the DIAL OUT DELAY.
TAMPER ZONES should be used for items such as gun cabinets and liquor closets.
LATCHING TAMPER ZONES ignore the status of that zone during power cycles.
POLICE EMERGENCY
This zone type activates the burglar alarm and sounder. An emergency dial out is activated after the DIAL OUT DELAY.
Page 40
DURESS EMERGENCY (SILENT DIAL OUT)
If you wish to have a button in your home that activates a SILENT dial out, (no lights flashing and no sounder) it should be
connected to a zone that is configured as a DURESS EMERGENCY. If this zone is accidentally tripped, you will not know that
the OmniPro II is making a silent dial out, and hence won't know to stop it.
To stop a silent dial out once it has started, you must go to the console and press OFF then enter your code.
SUPERVISED FIRE
Any zone can be programmed as a SUPERVISED FIRE ZONE. In UL Listed Installations, all fire detectors must be configured
as a SUPERVISED FIRE ZONE and connected as shown in this manual. When Zones 1-4 are configured as a SUPERVISED
FIRE ZONE, the corresponding Zone Jumpers (JP11-JP14) must be in the "SMK" (smoke) position.
FIRE EMERGENCY
This zone type activates the fire alarm for a normally closed (open for alarm) and open collector (short to ground for alarm)
switches. It is not supervised as required for UL Listed Installations and shall NOT be used in such installations.
GAS
This GAS ZONE will generate an alarm, activate the sounder (on - off - on - long off), and make a dial out. This zone type
requires an external 1000-ohm end-of-line resistor. When Zones 1-4 are configured as a GAS ZONE, the corresponding Zone
Jumpers (JP11-JP14) must be in the "SMK" (smoke) position.
AUXILIARY EMERGENCY
This AUXILIARY EMERGENCY ZONE type will generate an alarm (console beeper - no sirens) and make an emergency dial
out when the zone is violated. An emergency dial out is activated after the DIAL OUT DELAY.
TROUBLE
This zone type can be used to monitor the status of an external device, such as the battery status of a wireless security receiver. It
can also used to record events in the event log (i.e. driveway activation, opening of a gate, etc.) without setting off the alarm.
When the zone is tripped, the zone name will be displayed on the display as "NOT RDY". The alarm is not activated, regardless
of the security mode. The trouble is logged in the event log. The digital communicator (if used) will report the alarm code for the
zone. The voice dialer will not be activated.
FREEZE
This FREEZE ALARM ZONE type will generate an alarm (console beeper, no sirens) and make an emergency dial out.
WATER
This WATER ALARM ZONE type will generate an alarm (console beeper, no sirens) and make an emergency dial out.
FIRE TAMPER
This zone type is used to monitor the wiring to bells and sirens (other than those connected to the Horn Output). The zone will
report trouble if an open, short, or other wiring problem is detected in the supervised bell circuit. This zone will make a digital
dial out when violated. Connect a wire from the Fire Tamper zone (+) to an output configured as a Sounder.
Page 41
AUXILIARY
A zone defined as AUXILIARY is ignored for security. It is used to activate macros or to conditionalize programs. This is the
default setting for all zones. Zones that are not in use should be configured as AUXILIARY.
KEYSWITCH INPUT
This zone is used to arm AWAY and Disarm the OmniPro II security system using a toggle (to ground) keyswitch or keypad.
PROGRAMMABLE ENERGY SAVER MODULE
This zone type is for use with the Programmable Energy Saver Modules (PESM). It converts the Zone and the corresponding
Output to operate the PESM. Only Zones 9-16 can be programmed as a PESM.
OUTDOOR TEMPERATURE AND ER OUTDOOR TEMPERATURE
Use this zone type for Outdoor Temperature Sensors. The outdoor temperature can be displayed on the console, spoken over the
telephone, or displayed on an HAI Communicating Thermostat.
TEMPERATURE AND EXTENDED RANGE TERMPERATURE
The general-purpose TEMPERATURE ZONE type is typically used to monitor indoor temperatures and control devices. It sets
the zone secure/not ready state for program conditionals and event button activation programs.
If FREEZE ALARM is enabled, it reports a potential freeze condition if the temperature falls below 40o.
TEMPERATURE ALARM AND EXTENDED RANGE TEMPERATURE ALARM
The TEMPERATURE ALARM ZONE type will generate an alarm (console beeper, no sirens) and dial out if the temperature
goes above the high setpoint or drops below the low setpoint.
HUMIDITY
The HUMIDITY ZONE type is used to monitor indoor and outdoor humidity levels from 0 to 100 percent using the Model
31A00-2 Indoor/Outdoor Temperature and Humidity Sensor. It sets the zone secure/not ready state for program conditionals and
event button activation programs.
NOTE ON TEMPERATURE AND HUMIDITY ZONE TYPES
Outdoor temperature, temperature, and temperature alarm zone types all have HEAT (LOW) and COOL (HIGH) setpoints. The
zone is "Not Ready" when the temperature is above the high setpoint or below the low setpoint. The zone is "Secure" when the
temperature is between the setpoints. Setting a setpoint to 0 disables the setpoint.
Except for a type 83 and 87, the alarm is not activated. The zone "Not Ready" or "Secure" status is used to activate button
programs and program conditionals.
Page 42
SETUP DIGITAL COMMUNICATOR
To setup the Digital Communicator, from the Installer Setup menu, select the 3 (DCM) key.
FIRST PHONE NUMBER, FIRST ACCOUNT NUMBER
The first item in the DIGITAL COMMUNICATOR category is the FIRST PHONE NUMBER. Enter the FIRST PHONE
NUMBER on the keypad. This enables the Digital Communicator.
You can cause a 2-second pause during dialing by pressing the DAY key.
To prevent a call waiting line from interfering with the dial out, you may use the call waiting cancel sequence at the beginning of
the number. The call waiting sequence is typically ' * 7 0 T ' (T = pause); however this may vary depending on your region.
If you are using the call waiting sequence, only use it on the “FIRST PHONE NUMBER”; do not use it on the “SECOND
PHONE NUMBER”.
FIRST PHONE NUMBER:
- ↓
To disable the digital communicator, enter a single "-" for the FIRST and SECOND PHONE NUMBER by pressing the OFF key,
then ' # '. Phone number may be up to 24 digits long.
Press the down arrow (Ø) to advance to the FIRST ACCT NUMBER:
FIRST ACCT NUMBER: 0000
0-FFFF
Enter the 4 digit account number (3 digits if using 3/1 format) and press ' # '. To enter the digits B-F, first press the OFF key, then
press the 1-5 key respectively (i.e. 1B11 = 1 OFF 1 1 1 #).
NOTE: You must enter 4 digits for the account number if you are using 4/2 format (i.e. 0123), and 3 digits if using 3/1 (i.e. 123).
SECOND PHONE NUMBER, SECOND ACCOUNT NUMBER
Enter these if used.
Note: do not use the call waiting sequence on the “SECOND PHONE NUMBER”.
SECOND PHONE NUMBER:
-
SECOND ACCT NUMBER: 0000
0-9999
COMMUNICATOR TYPE
This item is used to select the transmitting parameters of the digital communicator. The OmniPro II can transmit in FAST 2300
Hz (20 PPS) mode, in SLOW 1400 Hz (10 PPS) 3/1 format, and in Contact ID.
COMMUNICATOR TYPE: 2
0=2300 1=1400 2=ID
The default setting is 2 = ID (Contact ID). If you need to transmit to a 4/2 or 3/1 receiver, select the proper handshaking
frequency (2300 Hz or 1400 Hz) and press ' # '.
TWO-WAY AUDIO
If a Two-Way Audio Module is being used, this item enables hands free audio communication between your customer's premises
and the central station.
Page 43
After the transmission of the alarm to the central station, the operator can talk and listen to people and sounds at the premises.
TWO-WAY AUDIO: 0
0=NO 1=YES
If a Two-Way Audio Module is part of the system, select the 1 (YES) key to enable this feature.
REPORT OPEN/CLOSE
The communicator can be setup to send an opening and a closing report by user code. Whenever the system is disarmed the
communicator will send an opening report to the central station. When the system is armed, the communicator will send a closing
report to the central station.
REPORT OPEN/CLOSE: 0
0=NO 1=YES
To enable the communicator to send opening and closing reports to the central station, select the 1 (YES) key.
REPORT BYPASS / RESTORE
This item is used to enable/disable reporting to the central station when a zone is bypassed or restored when using Contact ID.
The communicator can be configured to send bypass/restore signals to the central station when using Contact ID. Whenever a
zone is bypassed, the communicator will send a zone bypassed report to the central station. When a zone is restored, the
communicator will send a zone restored report to the central station.
REPORT BYPASS/REST: 1
0=NO 1=YES
To disable the communicator from sending bypass and restore reports to the central station, select the 0 (NO) key.
AUTOMATIC TEST TIME
The communicator CAN be setup to automatically send a test code to the central station on a periodic basis. AUTOMATIC
TEST TIME is used to set the time and days of the week of the test, and the TEST CODE specifies the code that will be
transmitted for the test.
AUTOMATIC TEST TIME:
-- NEVER #=CHNG
To disable the automatic test, press the ' # ' key and then 0 for Never, and ' # '.
TEST CODE: 98
0-FF
ALARM CODES (4/2 and 3/1 Formats)
Press the down arrow (Ø) to advance to the next ZONE ALARM CODE. Press the up arrow (×) to go to the previous ZONE
ALARM CODE. To change an alarm code, enter two digits for 4/2 format, or one digit when using 3/1 format, then press the ' # '
key.
Enter the 2 digit alarm code (1 digits if using 3/1 format) and press ' # '. To enter the digits B-F, first press the OFF key, then
press the 1-5 key respectively (i.e. B1 = OFF 1 1 # and CB = OFF 2 OFF 1 #).
The various alarm codes are sent when the indicated alarm zone is tripped. Each alarm code must be two digits long for 4/2
format (01-FF), 1 digit for 3/1 format (1-F).
To disable the digital communicator for a specific zone, set the alarm code to 0 or 00. The digital dialer will not report when this
zone is tripped.
Page 44
ZONE 1 ALARM CODE: 01
0-FF
THROUGH
USER 16 CLOSE CODE: 76
0-FF ↑
SETUP AREAS
To configure the system for multiple areas, from the Installer Setup menu, press the 4 (AREA) key. The number of areas must be
specified. Also, consoles, zones, units, thermostats, and buttons must be assigned to areas. By default, the system is setup for one
area.
The display prompts for the number of areas that will be used:
NUMBER OF AREAS: 1
1-8
If you choose 2-8, the Setup Areas menu is displayed:
SETUP AREAS
1=CTRL 2=ZONES 3=BTTN ↓
4=CONS 5=TEMP 8=MSG
↑
SETUP AREAS: CONTROL
To assign control units to specific areas, from the Setup Areas menu, press the 1 (CTRL) key.
Units can be setup so that they can be activated from specific areas or from all areas.
Units for an entire X-10 House Code (groups of 16 unit numbers) can be assigned to specific areas. Units 257-384 (Expansion
Enclosure voltage outputs) can be assigned to specific areas in groups of eight. Units 385-392 (controller voltage outputs) may be
assigned individually to specified areas. Units 393-511 (flags) can be assigned to specific areas in groups of eight.
X-10 UNITS
UNITS 1-16 AREAS:
1 2 3 4 5 6 7 8 0=CLR ↓
UNITS 17-32 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 33-48 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 49-64 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 65-80 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 81-96 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 97-112 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 113-128 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 129-144 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 145-160 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 161-176 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 177-192 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 193-208 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 209-224 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 225-240 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 241-256 AREAS:
1 2 3 4 5 6 7 8 0=CLR
EXPANSION ENCLOSURE UNITS
UNITS 257-260 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 261-264 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 265-268 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 269-272 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 273-276 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 277-280 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 280-284 AREAS:
1 2 3 4 5 6 7 8 0=CLR
Page 45
UNITS 285-288 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 289-292 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 293-296 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 297-300 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 301-304 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 305-308 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 309-312 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 313-316 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 317-320 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 321-324 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 325-328 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 329-332 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 333-336 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 337-340 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 341-344 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 345-348 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 349-352 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 353-356 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 357-360 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 361-364 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 365-368 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 369-372 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 373-376 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 377-380 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 381-384 AREAS:
1 2 3 4 5 6 7 8 0=CLR
CONTROLLER OUTPUT UNITS
UNITS 385 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 386 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 387 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 388 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 389 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 390 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 391 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 392 AREAS:
1 2 3 4 5 6 7 8 0=CLR
FLAG UNITS
UNITS 393-400 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 401-408 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 409-416 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 417-424 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 425-432 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 433-440 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 441-448 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 449-456 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 457-464 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 465-472 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 473-480 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 481-488 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 489-496 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 497-504 AREAS:
1 2 3 4 5 6 7 8 0=CLR
UNITS 505-511 AREAS:
1 2 3 4 5 6 7 8 0=CLR ↑
Page 46
SETUP AREAS: ZONES
To assign zones to areas, from the Setup Areas menu, press 2 (ZONE). Each zone must be assigned to one and only one area.
ZONE 1 AREA: 1
1-8 ↓
THROUGH
ZONE 176 AREA 1
1-8 ↑
SETUP AREAS: BUTTONS
To assign groups of macro buttons to specific areas, from the Setup Areas menu, press the 3 (BTTN) key.
Buttons can be configured so that they can only be activated from a particular area or from any area. Buttons are assigned to
areas in groups of eight.
BUTTONS 1-8 AREAS:
1 2 0=CLR ↓
BUTTONS 9-16 AREAS:
1 2 0=CLR
BUTTONS 17-24 AREAS:
1 2 0=CLR
BUTTONS 25-32 AREAS:
1 2 0=CLR
BUTTONS 33-40 AREAS:
1 2 0=CLR
BUTTONS 41-48 AREAS:
1 2 0=CLR
BUTTONS 49-56 AREAS:
1 2 0=CLR
BUTTONS 57-64 AREAS:
1 2 0=CLR
BUTTONS 65-72 AREAS:
1 2 0=CLR
BUTTONS 73-80 AREAS:
1 2 0=CLR
BUTTONS 81-88 AREAS:
1 2 0=CLR
BUTTONS 89-96 AREAS:
1 2 0=CLR
BUTTONS 97-104 AREAS:
1 2 0=CLR
BUTTONS 105-112 AREAS:
1 2 0=CLR
BUTTONS 113-120 AREAS:
1 2 0=CLR
BUTTONS 121-128 AREAS:
1 2 0=CLR ↑
SETUP AREAS: CONSOLES
To assign a console to an area, from the Setup Areas menu, press the 4 (CONS) key.
Each console must be assigned to one and only one area. A console may be set to global, which allows it to access areas other
than its assigned area through security arming and the "go to" function.
CONSOLE 1 AREA: 1
1-8 ↓
CONSOLE 1 GLOBAL: 1
0=NO 1=YES
THROUGH
CONSOLE 16 AREA: 1
1-8
CONSOLE 16 GLOBAL: 1
0=NO 1=YES ↑
Page 47
SET-UP AREAS: THERMOSTATS
To assign thermostats to specific areas, from the Set-up Areas menu, press the 5 (TEMP) key.
Thermostats can be set up so that they can only be controlled from a specific area or from all areas. PESMs and Temperature
Sensors can only be controlled from a single area, as specified in SETUP AREAS.
THERMOSTAT 1 AREAS:
1 2 3 4 5 6 7 8 0=CLR ↓
THROUGH
THERMOSTAT 64 AREAS:
1 2 3 4 5 6 7 8 0=CLR ↑
SETUP AREAS: MESSAGES
To assign messages to specific areas, from the Setup Areas menu, press the 8 (MSG) key.
Messages can be setup so that they can be displayed in a specific area or in all areas.
MESSAGES 1-8 AREAS:
1 2 3 4 5 6 7 8 0=CLR ↓
MESSAGES 9-16 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 17-24 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 25-32 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 33-40 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 41-48 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 49-56 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 57-64 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 65-72 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 73-80 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 81-88 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 89-96 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 97-104 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 105-112 ARE
A
S:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 113-120 AREAS:
1 2 3 4 5 6 7 8 0=CLR
MESSAGES 121-128 AREAS:
1 2 3 4 5 6 7 8 0=CLR ↑
Page 48
SETUP TEMPERATURES
From the Installer Setup Menu, press the 5 (Temp) key to configure temperature options, enable and configure thermostats, and to
assign Node IDs for each Z-Wave Thermostat.
TEMPERATURE DISPLAY
This allows you to choose between Fahrenheit and Celsius temperature format.
TEMPERATURE DISPLAY: 1
1=FAHRENHEIT 2=CELSIUS
↓
THERMOSTAT TYPE
If HAI thermostats are part of the system, this item specifies the thermostat type for each thermostat (this enables the thermostat).
If thermostats are used, they must be configured to the applicable thermostat type. When any THERMOSTAT TYPE is changed
from the default setting of "Not Used", Zone 16 and Output 8 is automatically configured for thermostats. There is no need to
change the ZONE TYPE for Zone 16 or OUTPUT TYPE for Output 8.
For thermostat types, the current setting is shown on the bottom line.
THERMOSTAT 1 TYPE: 0
NOT USED #=CHNG
THROUGH
THERMOSTAT 64 TYPE: 0
NOT USED #=CHNG ↑
To enable or change a thermostat type, press the ' # ' key. Use the arrow keys to scroll through the list of thermostat types, then
press ' # ' to select a new type. The display shows:
SELECT TYPE: 1
AUTO HEAT/COOL ↓
TYPE NUMBER DESCRIPTION
AUTO HEAT/COOL 1 Automatic changeover heat and cool thermostat
HEAT/COOL 2 Manual changeover heat and cool thermostat
HEAT ONLY 3 Heating only thermostat
COOL ONLY 4 Cooling only thermostat
SETPOINT ONLY 5 Setpoint only thermostat
Z-WAVE THERMOSTAT NODE ID
If Z-Wave Thermostats are part of the system, the Node ID for the thermostat must be associated (mapped) with the specified
thermostat address in the OmniPro II controller.
TSTAT 1 NODE ID: 0
0-232
THROUGH
TSTAT 64 NODE ID: 0
0-232 ↑
Enter the Node ID (0-232) for each Z-Wave thermostat followed by the ' # ' key.
Enter 0 if there is no node associated to the specified thermostat.
Page 49
SETUP MISCELLANEOUS
To configure the miscellaneous Installer Setup items, from the Installer Setup menu, press the 6 (MISC) key.
INSTALLER CODE
The Installer code allows the installer access to the Installer Setup menu. The Installer code should be changed and not given to
the customer. The Installer code cannot be used for remote phone access.
INSTALLER CODE:
0000-9999 0000=DISABLE↓
The default setting for the Installer code is 1 1 1 1.
NOTE:
Remember this Installer code and do not disable. There is no way to reset or retrieve the code! If the code is forgotten or
disabled, the OmniPro II controller must be sent back to the factory. Call for an RA#.
ENABLE PC ACCESS
This enables or disables the PC ACCESS feature. Factory default is enabled.
ENABLE PC ACCESS: 1
0=NO 1=YES
PC ACCESS CODE
This code allows dealers to put an access code in the system that is separate from the customer's Master code and the Installer
code. Dealers can use the PC Access code to access the system by PC. The PC Access code cannot arm and disarm the system.
The PC Access code is NOT programmed from the factory. To use it, set it to any code other than 0000. To disable the PC
Access code, enter 0000 for the code.
NOTE: This item must be enabled (by entering a code) if PC Access is will be used.
PC ACCESS CODE:
0000-9999 0000=DISABLE
CALL BACK PHONE NUMBER
In response to a request for remote PC ACCESS using the PC ACCESS code, the system will hang up and dial this number back
immediately. To program the CALLBACK PHONE NUMBER, enter the number then press ' # '. To remove the CALLBACK
PHONE NUMBER, press the OFF key to enter a single "-", then press ' # '.
CALL BACK PHONE NUMBER:
-
OUTSIDE SIREN DELAY
If an output is configured as an "Exterior Sounder", when the alarm is "tripped", the interior sounder is turned on first. After the
OUTSIDE SIREN DELAY, the outside sounder is turned on.
This feature helps reduce annoying false alarms by signaling inside the premises first. The outside siren delay is set to 15 seconds
at the factory. You may change it to any value from 0 to 60 seconds. If you want the outside sounder to turn on immediately
when the alarm is activated, set the delay to 0. We recommend a minimum time of 15 seconds.
DIAL OUT DELAY: 15
0-60 SECONDS
Page 50
DIAL OUT DELAY
The DIAL OUT DELAY is the number of seconds that the OmniPro II waits before making an emergency dial out, AFTER the
alarm is "tripped" (activated by burglar or fire) to preclude an accidental activation of the alarm from calling in a false alarm.
This delay is set at the factory to 30 seconds.
Note: The DIAL OUT DELAY may be disabled for each individual zone (See – Zone Options).
DIAL OUT DELAY: 30
15-45 SECONDS
ALARM RESET TIME
The Alarm Reset Time is the time it takes before the alarm system resets itself after the alarm is tripped.
ALARM RESET TIME: 6
6-30 MINUTES
To change the alarm reset time, enter a new time between 6-30 minutes, then press the ' # ' key.
The default setting is 6 minutes.
ARMING CONFIRMATION
The Arming Confirmation is a quick pulse (squawk) given by the outside siren when the alarm system is armed into a security
mode and the EXIT DELAY is expired.
ARMING CONFIRMATION: 0
0=NO 1=YES
To enable the arming confirmation feature, press the 1 (YES) key, then press the ' # ' key.
The default setting is 0 (NO) disabled.
FIRE ALARM VERIFICATION
This unit is equipped with a FIRE ALARM VERIFICATION feature. When enabled, if a zone configured as a FIRE (Type 32)
or a GAS (Type 34) is activated, the system will cycle SWITCH 12V and Switched Power Outputs off for 10 seconds. The
SWITCH 12V power output will then be restored, and 5 seconds later, the zones will be monitored again. If the zone is activated
again within a 2-minute window, the fire alarm will be activated. If not, no fire alarm will be indicated.
VERIFY FIRE ALARMS: 0
0=NO 1=YES
This feature is turned OFF by factory default.
If VERIFY FIRE ALARMS is turned ON:
1) Any device (other than FIRE or GAS) connected to a SWITCH 12V Output (i.e. Glassbreak Detectors), must be
connected to a zone configured as a LATCHING ZONE TYPE.
2) The following notice is required by UL:
Page 51
WARNING
This unit includes an alarm verification feature that will result in a delay of the system fire alarm signal from the initiating
circuit. The total delay (OmniPro II controller plus detector delay) shall not exceed 60 seconds. No other initiating devices
shall be connected to these circuits unless approved by the local authority having jurisdiction.
Zone Control Detector Total Delay
Circuit Unit Delay Model/Delay
________ : 10 seconds + ______________ = __________________
________ : 10 seconds + ______________ = __________________
________ : 10 seconds + ______________ = __________________
________ : 10 seconds + ______________ = __________________
SUPERVISE INT SNDR
This enables or disables supervision of the Interior Horn Output, which monitors the wiring to the connected sirens. Factory
default is disabled.
SUPERVISE INT SNDR: 0
0=NO 1=YES
SUPERVISE EXT SNDR
This enables or disables supervision of the Exterior Horn Output, which monitors the wiring to the connected sirens. Factory
default is disabled.
SUPERVISE EXT SNDR: 0
0=NO 1=YES
ENABLE EMERGENCY KEYS
This enables or disables the functionality of the emergency keys on the console keypad. Factory default is enabled. Select the 1
(YES) key to enable the emergency keys. Select the 2 (NO) key to disable the emergency keys.
ENABLE EMERG KEYS: 1
0=NO 1=YES
TIME DISPLAY
This allows you to choose between AM/PM and 24-HOUR time format.
TIME DISPLAY: 1
1=AM/PM 2=24HR
DATE DISPLAY
This allows you to choose between MONTH/DAY and DAY/MONTH date format.
DATE DISPLAY: 1
1=MMDD 2=DDMM
AC POWER FREQUENCY
Set this to the appropriate AC Powerline Frequency.
AC POWER FREQUENCY: 1
1=60HZ 2=50HZ
Page 52
DEAD LINE DETECT
NOTE: To disable OmniPro II from detecting a dead line, set this item to '0'; otherwise adjust only under direction of HAI.
This item adjusts the threshold that is used to determine when the phone line goes dead.
DEAD LINE DETECT: 8
0-15 0=DISABLE
OFF HOOK DETECT
NOTE: Adjust only under direction of HAI.
This item adjusts the threshold that is used to determine when the phone line is going off hook.
OFF HOOK DETECT: 69
20-250
PICKUP AFTER HANGUP
This item is used to disable OmniPro II from picking up the phone line after the called party hangs up the line.
PICKUP AFTER HANGUP: 1
0=NO 1=YES
Currently, after the called party or the called party's answering machine hangs up the phone line, OmniPro II picks up the line and
make its "Beep". If you wish to turn the Pickup After Hangup OFF, press 0 then ' # '. To turn it back On, press 1 then ' # '.
The default setting for Pickup After Hangup is Yes.
CLOCK ADJUSTMENT
If the clock on an OmniPro II is running faster or slower than the actual time, you can have the OmniPro II automatically
compensate up to 29 seconds per day. The OmniPro II will add or subtract the selected amount of time daily.
CLOCK ADJUSTMENT: 30
1-59=-29 TO +29 SEC/DAY
Enter 1-29 to subtract 1-29 seconds. Enter 31-59 to add 1-29 seconds. Enter 30 for no adjustment to the clock.
The default setting is 30.
MODEL AND SOFTWARE VERSION
Next, the model number and software version for the system is displayed:
HAI OMNIPRO II
S/W VERSION 2.0
RESET SYSTEM EEPROM
Select the 1 (YES) key to reset the EEPROM. All programs, names, and setup items will be reset. All system RAM will also be
initialized and the system will restart. This option, if effect, allows the system to be restored to factory fresh configuration.
RESET SYSTEM EEPROM? 0
0=NO 1=YES
Page 53
RESET SYSTEM RAM
Select the 1 (YES) key to cause all of the system RAM to be reinitialized. The time, date, and event log will be cleared. Other
volatile memory locations will also be reinitialized. The system RAM should only be reset if the system is acting strangely and
memory corruption is suspected. Resetting the system RAM will not reset any setup items stored in EEPROM.
RESET SYSTEM RAM? 0
0=NO 1=YES
ETHERNET MAC ADDRESS
The Ethernet MAC Address, short for Media Access Control address, is the hardware address that uniquely identifies OmniPro II
when connected to a network.
ETHERNET MAC ADDRESS
FF-FF-FF-FF-FF-FF ↑
SETUP EXPANSION
To configure each Expansion Module that is installed on the system, from the Installer Setup menu, press the 7 (EXP) key.
Expansion Modules include Hardwire Zone Expanders, ALC Interface Modules, and Serial Interface Modules.
MODULE 1 TYPE
The Module Type defines the function of each expansion module on the controller. Module 1 is the module with the “ADDR”
jumper set to 1. Set the module type from the list below. Press ' # ' to change the module type, then use the arrow keys to select
the proper module type, then press ' # ' to enter.
MODULE 1 TYPE 1
NOT USED #=CHNG ↓
For example, when configuring the module for a Hardwire Expander and if the jumper on the Hardwire Expander is set to 1, set
“Module 1” Type to “1” (HARDWIRE EXPNDR).
MODULE TYPES NUMBER DESCRIPTION
NOT USED 0 No module is installed
HARDWIRE EXPNDR 1 Model 10A06 Hardwire Expander installed
ALC 2 ALC Interface Module is installed
OMNI-LINK 3 Model 10A17 Serial Interface using the Omni-Link protocol
PRO-LINK 4 Model 10A17 Serial Interface using the Pro-Link protocol
UPB 5 Model 10A17 Serial Interface using the UPB protocol
RADIO RA 6 Model 10A17 Serial Interface using the RadioRA protocol
NUVO CONCERTO 7 Model 10A17 Serial Interface using the NuVo Concerto protocol
CENTRALITE 9 Model 10A17 Serial Interface using the CentraLite protocol
VIZIA RF Z-WAVE 10 Model 10A17 Serial Interface using the Z-Wave protocol
HAI HI-FI 11 Model 10A17 Serial Interface using the HAI Hi-Fi protocol
NUVO ESSENTIA/SIMPLESE 13 Model 10A17 Serial Interface using the NuVo Essentia/Simplese protocol
XANTECH 14 Model 10A17 Serial Interface using the Xantech protocol
Notes:
1. Only 2 Model 10A06 Hardwire Expander Modules can be installed.
2. Only 2 ALC Interface Modules can be installed.
3. Only 1 Serial Interface Module can be installed.
4. The NuVo Grand Concerto, Speakercraft, or Proficient audio system can not be connected to the HAI Model 10A17 Serial
Interface Module. It must be connected to the (J2 Serial - J5 Serial) built-in serial port on the OmniPro II controller.
Page 54
MODULE 2 TYPE - MODULE 4 TYPE
Module 2 is the module with the jumper set to 2, and so on. Set each module type from the list of “Module Types”.
SERIAL 1 RATE
"Serial 1 Rate" selects the baud rate used for the first built-in serial interface (J1 Serial) on the OmniPro II controller. Select the
baud rate for the first built-in serial interface from the list. Use the arrow keys to select the baud rate then press the ' # ' key.
BAUD RATE NUMBER
75 baud 1
150 baud 2
300 baud 3
600 baud 4
1200 baud 5
2400 baud 6
4800 baud 7
9600 baud 8 (default)
SERIAL 1 FUNCTION
The "Serial 1 Function" selects the communication protocol used for the first built-in serial interface (J1 Serial) on the OmniPro II
controller. Select the function for the first built-in serial interface from the list. Use the arrow keys to select the function then
press the ' # ' key.
FUNCTION TYPES NUMBER DESCRIPTION
OMNI-LINK 3 Serial communication using the Omni-Link protocol
PRO-LINK 4 Serial communication using the Pro-Link protocol
UPB 5 Serial communication using the UPB protocol
RADIO RA 6 Serial communication using the RadioRA protocol
NUVO CONCERTO 7 Serial communication using the NuVo Concerto protocol
RUSSOUND 8 Serial communication using the Russound protocol
CENTRALITE 9 Serial communication using the CentraLite protocol
VIZIA RF Z-WAVE 10 Serial communication using the Z-Wave protocol
HAI HI-FI 11 Serial communication using the HAI Hi-Fi protocol
NUVO GRAND CONCERTO 12 Serial communication using the NuVo Grand Concerto protocol
NUVO ESSENTIA/SIMPLESE 13 Serial communication using the NuVo Essentia/Simplese protocol
XANTECH 14 Serial communication using the Xantech protocol
SPEAKERCRAFT 15 Serial communication using the Speakercraft protocol
PROFICIENT 16 Serial communication using the Proficient protocol
Note:
The NuVo Grand Concerto, Speakercraft, or Proficient audio systems can not be connected to the first built-in serial port
(J1 Serial) on the OmniPro II controller. It must be connected to the (J2 Serial - J5 Serial) built-in serial port on the OmniPro II
controller.
SERIAL 2 - SERIAL 5 RATE
"Serial 2 Rate" - “Serial 5 Rate" selects the baud rate used for the second, third, fourth, and fifth built-in serial interface ports (J2
Serial - J5 Serial, respectively) on the OmniPro II controller. Select the baud rate for the built-in serial interface from the list.
SERIAL 2 FUNCTION
The "Serial 2 Function" selects the communication protocol used for the second built-in serial interface ports (J2 Serial) on the
OmniPro II controller. Select the function for the built-in serial interface from the list.
Page 55
SERIAL 3 FUNCTION
The “Serial 3 Function” by default is set to UPB to utilize HLC Lighting. When using HLC, plug the HAI Powerline Interface
Module (PIM) into the third built-in serial interface (J3 Serial) on the OmniPro II controller. To change the “Serial 3 Function”,
select the function for the built-in serial interface from the list.
SERIAL 4 - SERIAL 5 FUNCTION
The "Serial 4 Function" and "Serial 5 Function" selects the communication protocol used for the built-in serial interface ports (J4
Serial and J5 Serial, respectively) on the OmniPro II controller. Select the function for the built-in serial interface from the list.
Notes about audio distribution systems:
1. OmniPro II only supports communications with one audio distribution system: HAI Hi-Fi, NuVo Concerto, NuVo Grand
Concerto, NuVo Essentia/Simplese, Russound, Xantech, Speakercraft, or Proficient. Do not configure more than one
audio protocol.
2. When connecting the Speakercraft audio system to the OmniPro II:
a. The Speakercraft RSA 1.0 MZC Control Interface Module must be used.
b. Use the HAI Model 21A05-2 Serial PC Cable for making the connection.
c. In order for the key presses to perform the correct operation, an MKP keypad must be assigned to address zero
in each zone.
3. When connecting the Proficient audio system to the OmniPro II:
a. Use the HAI Model 21A05-2 Serial PC Cable for making the connection.
b. In order for the key presses to perform the correct operation, a PMK keypad must be assigned to address zero in
each zone.
4. When connecting the NuVo Concerto, NuVo Essentia, NuVo Simplese, Russound CAV or CAM, or Xantech MRC-88
audio system to the OmniPro II, use the HAI Model 36A05-4 Serial Connectivity Cable for making the connection.
5. When connecting the NuVo Grand Concerto audio system to the OmniPro II, an RS-232 Line Booster or Optical Isolator
must be used. See the following Knowledge Base article for additional information and wiring diagram:
http://kb.homeauto.com/default.asp?id=849&SID=&Lang=1.
SERIAL 6 RATE
"Serial 6 Rate" selects the baud rate used when a Serial Interface Module is added to the OmniPro II system. If a Serial Interface
Module is installed, select its baud rate then press the ' # ' key.
Page 56
SETUP ZONE OPTIONS
Zone options are parameters that define the way that a zone functions. There are global zone options that affect all zones and
there are individual zone options that affect how each individual zone functions.
To configure zone options, from the Installer Setup menu, press the 8 (ZOPT) key.
SWINGER SHUTDOWN NUMBER
Swinger Shutdown is a false alarm prevention feature that counts the number of alarms caused by a specific zone. After a certain
number of alarms caused by the same zone within the same arming period, the controller will then shutdown that zone for the
remainder of that arming period.
The "Swinger Shutdown Number" is the number of times that a zone may cause an alarm during the same arming period before it
is shutdown.
SWINGER SHUTDOWN NUM: 1
1-2 ↓
When enabled, if the Swinger Shutdown zone is violated (causes an alarm) 1 or 2 times (according to the “Swinger Shutdown
Number”) within the same arming period, the controller will then shutdown and ignore that zone for the remainder of that arming
period.
The default setting is 1.
CROSS ZONE WINDOW
Cross Zoning is a feature that enforces redundant detection of devices such that two or more zones must trip within a defined
period to cause an alarm. This feature is typically used when multiple devices are used to cover the same general area.
The "Cross Zone Number" is the number of seconds in which a second zone must trip after a zone configured as “Cross Zoning”
has been tripped in order to cause an alarm.
CROSS ZONE NUMBER: 60
15-240 SECONDS
The default setting is 60 seconds.
ZONE 1 OPTIONS – ZONE 176 OPTIONS
Each zone has individual zone options that may be configured for Cross Zoning, Swinger Shutdown, and Dial Out Delay.
ZONE 1 OPTIONS: 4
0-7
THROUGH
ZONE 176 OPTIONS: 4
0-7 ↑
Enter a single value to configure the individual zone options for each zone according to the table below:
Zone Options Table
Zone Options Value 0 1 2 3 4 5 6 7
Cross Zoning No Yes No Yes No Yes No Yes
Swinger Shutdown No No Yes Yes
No No Yes Yes
Dial Out Delay No No No No
Yes Yes Yes Yes
The default value for Zone 1 Options – Zone 176 Options is 4. See the highlighted area of Zone Options Table.
Page 57
SIA CP-01 COMPLIANCE
This control complies with the SIA CP-01 Control Panel Standard - Features for False Alarm Reduction.
CP-01 is a standard sponsored by the Security Industry Association (SIA) designed with features for security systems and
associated arming and disarming devices intended to reduce the incidence of false alarms.
PROGRAMMABLE FEATURES
SHIPPING DEFAULTS AND RECOMMENDED PROGRAMMING
FEATURE CP-01
PAR. #
REQUIREMENT
RANGE SHIPPING
DEFAULT
RECOMMENDED
PROGRAMMING*
Exit Time
(Exit Delay)
4.2.2.1 Required
(programmable)
For full or auto arming: 45-180
seconds
60 seconds 60 seconds
Progress Annunciation - Disable
(Audible Exit Delay)
4.2.2.2 Allowed Individual consoles may be
disabled
Enabled on
all consoles
Enabled on all consoles
Exit Time Restart 4.2.2.3 Required Option For re-entry during exit delay Enabled Enabled
Unvacated Premises 4.2.2.5 Required Option
(except for remote arm)
If no exit after full arm Enabled Enabled
Entry Delay 4.2.3.1 Required
(programmable)
30-60 seconds 30 seconds At least 30 seconds**
Abort Window for Non-Fire Zones
(Dial Out Delay – Zone Option)
4.2.5.1 Required Option May be disabled by zone Enabled Enabled (all zones)
Abort Window Time
(Dial Out Delay)
4.2.5.1 Required Option 15-45 seconds 30 seconds At least 15 seconds**
Abort annunciation
(Alarm Aborted)
4.2.5.1.2 Required Option Display that alarm was aborted Enabled No programming option
Cancel Window
(Alarm Reset Time)
4.2.5.4 Required 6-30 minutes 6 minutes At least 6 minutes
Cancel annunciation
(Alarm Canceled)
4.2.5.4.1 Required Option Display that alarm was canceled Enabled No programming option
Duress Feature
(Duress Code)
4.2.6.1 &
4.2.6.2
Allowed Option No duplicates with other user codes Disabled Disabled
Cross Zoning
(Cross Zoning – Zone Option)
4.3.1 Required Option May be enabled by zone Disabled Enabled and two (or
more) zones programmed
Programmable Cross Zoning Time
(Cross Zone Window)
4.3.1 Allowed 15-120 seconds 15 seconds Time based on walk path
in protected area
Swinger Shutdown
(Swinger Shutdown Number)
4.3.2 Required
(programmable)
For all non-fire zones, shut down at
1 or 2 trips
One trip One trip
Swinger Shutdown Disable
(Swinger Shutdown – Zone Option)
4.3.2 Allowed For non-police response zones Enabled Enabled (all zones)
Fire Alarm Verification 4.3.3 Required Option Depends on Sensors Disabled Enabled unless sensor
can self verify
Call Waiting Cancel 4.5 Required Option Depends on user phone line Disabled Enabled if user has call
waiting
* Programmable at installation may be subordinate to other UL requirements for the intended application.
** Combined Entry Delay and Abort Window (Dial Out Delay) should not exceed 1 minute.
Minimum Equipment Requirements for a CP-01 Compliant Installation:
Quantity Description Applicable Model Numbers
1 OmniPro II Controller Model 20A00-2, 20A00-5, 20A00-8, 20A00-21, 20A00-22
1 - 16 Omni Console Model 33A00-1, 33A00-4
Page 58
OMNIPRO II SPECIFICATIONS
Size: Controller: 13 W x 13 H x 4.5 D
Console: 4.6 W x 4.5 H x 1.2 D
Weight: Controller: approx. 10 lb.
Console: approx. 0.5 lb.
Operating 32 - 122 degrees F (0 - 50 degrees C)
Ranges: 10 - 95 % relative humidity, non-condensing
Power: 120 VAC, 60 Hz, 60 watts
Transformer: 24 VAC, 1.67 amps, 40 VA
Battery: Rechargeable Lead-Acid, 12 volts, 7 amp-hour
Device Fuse: Polyfuse: 1.35 A
Horns Fuse: Polyfuse: 1.35 A
Battery Fuse: Polyfuse: 4.00 A
Polyfuses are permanent fuses that do not need replacement.
Nominal Voltage: 10 - 13.7 VDC, 0.5 V max. peak to peak ripple
Low Voltage Cut Out: approx. 9 VDC
Typical Current Consumption at Nominal Voltage:
Controller: 135 mA
Console: backlight off - 35 mA; backlight on - 100 mA
Controller Maximum Group Current Outputs:
Devices: AUX 12 VDC, SWITCH 12 VDC, CONSOLE, and OUTPUTS 1 - 8: 1 A
Horn: INT HORN and EXT HORN: 1 A
Controller Maximum Individual Current Outputs:
Devices: (Do not exceed 1 A total)
AUX 12 VDC 1 A
SWITCH 12 VDC 1 A
CONSOLE 1 A
OUTPUTS 1 - 8 100 mA
For 24-Hour Battery Standby Time, the following must be observed: (See Figure 18)
Controller Maximum Group Current Outputs (applies to residential and commercial):
Devices: AUX 12 VDC, SWITCH 12 VDC, CONSOLE, and OUTPUTS 1 - 8: 250mA
Horn: INT HORN and EXT HORN: 300mA
Page 59
UNDERWRITER'S LABORATORIES (UL) INSTALLATION REQUIREMENTS
The OmniPro II control units (20A00-2, -5, and -22) are suitable for household burglar and fire applications. Refer to UL1641 for installation
requirements. Model 20A00-5 is also suitable for use in Commercial Burglar Alarm Applications, Central Station, Local and Police Connect.
Refer to UL 681 for Installation Requirements.
1. The line carrier (X-10) operation is considered supplementary. Operation of the line carrier devices was not investigated by UL.
2. For those zones programmed as PANIC, DURESS or POLICE EMERGENCY, the initiating device shall be a UL Listed Hold Up Device switch.
3. Connections to phone circuit must be made via the supplied cable and RJ31X Jack as shown under RJ31X JACK CONNECTIONS in this manual.
4. For connection of smoke detectors to the controller, refer to requirements under FIRE ZONE HOOKUP and FIRE ZONE CONNECTIONS diagrams in this
manual.
5. The controller must be configured for 24 hour Standby Time as shown under 24 HR STANDBY CONNECTIONS diagram in this manual. Maximum
current ratings for 24 hours must be observed.
6. Recognized energy limited cable shall be employed, 22 AWG minimum for all connections.
7. The audible signal appliance shall be the Listed Wheelock Model MT-12/24-R Multitone Signal, rated 10.5 - 15.6 VDC, 95 dB(A) with 2 reflecting planes.
The audible signal shall be mounted indoors in a central location. The audible signal appliance can be connected to either the "INT HORN" or "EXT
HORN" circuits. In the case of the latter, the OUTSIDE SIREN DELAY shall be set to 0 seconds.
8. For Residential Applications, the Model 10A01-1 Enclosure shall be used.
9. For Commercial Applications, the Model 10A02-2 Commercial Enclosure shall be used.
10. For Commercial Applications, Listed Ademco AB12 Bell and housing to be used.
11. If the remote arm/disarm switch is used, it shall be the Listed Ademco Model 9789.
12. Operation of the controls with the Programmable Energy Saver Module was not conducted by UL.
13. Operation of the Model 12A00 Wireless Receiver was not verified by UL.
14. Operation of the Two-Way Audio Module was not verified by UL.
15. RS-232 and RS-485 communications were not verified by UL.
16. Refer to the OmniPro II Owner's Manual (Document No. 20R00-2) for programming requirements in UL Listed Installations.
17. For the monitoring of burglar alarm initiating devices, the zone type shall provide an audible output (i.e., not DURESS).
18. The Omni controller must be connected (when employed) to listed carbon monoxide gas detectors (i.e. Sentrol -Model 240-CO).
19. All connections to energy sensors and modules must be done to listed Class 2 circuits only.
20. The OmniPro II must be used in Residential Applications that are under a single ownership.
When used in UL Listed Installations, the following items apply:
1. The "High Security Mode" must be ON.
2. The "Enable Auto Bypass" feature must be OFF.
3. The "Zone Resistors" must be YES.
4. The "Supervise Int Horn" must be YES.
5. The ENTRY DELAY SHALL NOT EXCEED 45 SECONDS for Residential Applications; 60 seconds for Commercial Applications.
6. The EXIT DELAY shall not exceed 60 seconds.
7. Double Delay and Quad Delay zone types shall not be used.
8. The BEEP ON TROUBLE feature must be ON.
9. For Residential Applications the sounding device may be mounted indoors. If, however, the sounding device is connected to the "EXT HORN" terminals of
the OmniPro II, then the OUTSIDE SIREN DELAY shall be set to 0.
10. The DIAL OUT DELAY shall not exceed 30 seconds.
11. The SWINGER SHUTDOWN feature for each zone must be NO.
12. The CROSS ZONING feature for each zone must be NO.
13. The EXIT TIME RESTART feature must be NO.
Installer: NAME: __________________________________ NUMBER: _______________________________
Page 60
24-HOUR STANDBY BATTERY CAPACITY
Maximum current ratings for 24-hours:
Aux 12 VDC, Switch 12 VDC, Console, and Outputs 1-8: 250 mA
Interior Horn and Exterior Horn: 350 mA
BLACK WIRE TO -
RED WIRE TO +
12V 7AH
BATTERY BATTERY
12V 7AH
BLACK
RED
3M, P/N 952
SNAP CONNECTOR
OVER WIRE
12"
12"
FIGURE 18 - 24-HOUR STANDBY CONNECTIONS
Page 61
SMOKE DETECTOR INSTALLATION GUIDELINES
1. Ceiling mounted smoke detectors should be located in the center of the room or hall, or not less than 4 inches from any wall.
When the detector is mounted on a wall, the top of the detector should be 4 to 12 inches from the ceiling.
2. Do not install smoke detectors where normal ambient temperatures are above 100 deg. F (37.8 deg. C) or below 40 deg. F (4
deg. C). Also, do not locate the detector in front of air conditioners, heating registers, or other locations where normal air
circulation will keep smoke form entering the detector.
3. Additional information on Household Fire Warning is available at nominal cost from: The National Fire Protection
Association, Battery March Park, Quincy, MA. 02269. Request Standard No. NFPA 72. Contact your home Insurance
Company for a possible reduction of your insurance premium.
4. A smoke detector should be located between the sleeping area and the rest of the family living unit.
5. In family living units with more than one sleeping area, a smoke detector should be provided to protect each sleeping area.
6. A smoke detector should be located on each story (Refer to the diagrams below).
7. For complete details on proper location and installation of smoke detectors, refer to the instructions supplied with the smoke
detector.
Page 62
APPENDIX A – CONTACT ID REPORTING FORMAT
ZONE TYPE TRIP TROUBLE DESCRIPTION
Entry/exit (also Double & Quad) 134 370 Entry/exit burglary
Perimeter (also Latching) 131 370 Perimeter burglary
Night Interior (also Latching) 132 370 Interior burglary
Away Interior (also Latching) 132 370 Interior burglary
Panic 120 375 Panic alarm
Police Emergency 120 375 Panic alarm
Silent Duress 122 375 Silent panic
Tamper (also Latching) 137 370 Tamper burglary
Fire 110 373 Fire alarm
Fire Emergency 110 373 Fire alarm
Gas 151 373 Gas alarm
Auxiliary Emergency 150 370 24 hour non-burglary
Trouble 330 330 System peripheral trouble
Freeze 159 370 Low temperature alarm
Water 154 370 Water leakage
Auxiliary none 370 Auxiliary trouble
Fire tamper 321 321 Bell/siren #1 trouble
Temperature Alarm 152 370 Refrigeration alarm
EVENT CODE DESCRIPTION
Zone bypass/restore 570 Zone bypass/restore
Fire zone bypass/restore 571 Fire bypass/restore
Automatic communicator test 602 Periodic test
Cancel 406 Cancel
User disarm/arm 401 Open/close by user
Programmed disarm/arm 403 Automatic open/close
PC Access disarm/arm 407 Remote open/close
Quick arm 408 Closing-quick arm
Keyswitch disarm/arm 409 Keyswitch open/close
Recent closing 459 Recent closing
Exit error 374 Exit error
SYSTEM TROUBLE CODE DESCRIPTION
Battery low 302 Low system battery
Fuse 312 Power supply overcurrent
AC power failure 301 AC power loss
Phone line dead 351 Phone line #1 trouble
Digital communicator 350 Communication failure
Fire tamper 321 Bell/siren #1 trouble
Page 63
APPENDIX B - DIGITAL COMMUNICATOR CODE SHEET
INFORMATION FOR CENTRAL STATION
Date: _________________________
Subscriber Name: ______________________________________________________________________
Address 1: ______________________________________________________________________
Address 2: ______________________________________________________________________
City, State, Zip: ____________________________________________
Home #: _______________________ Work #: _________________
Password: ________________________________________________
Installer Name: ______________________________________________________________________
Address 1: ______________________________________________________________________
Address 2: ______________________________________________________________________
City, State, Zip: ____________________________________________
Phone #: _______________________ Beeper #: ________________
Subscriber's Notification List:
1. Name: __________________________________________________
Phone #: __________________________________________________
Relationship: __________________________________________________
2. Name: __________________________________________________
Phone #: __________________________________________________
Relationship: __________________________________________________
3. Name: __________________________________________________
Phone #: __________________________________________________
Relationship: __________________________________________________
Subscriber Equipment: Home Automation, Inc. - OmniPro II
Notes: __________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
First Phone #: ____________________________________________
First Account #: ____________________________________________
Second (Backup) Phone #: __________________________________
Second (Backup) Account #: __________________________________
Communicator Type (Contact ID, 1400 Hz, or 2300 Hz): ____________________
TWO-WAY AUDIO: _______ YES _______ NO
REPORT OPEN/CLOSE: _______ YES _______ NO
24 HOUR TEST: _______ YES _______ NO TEST TIME: ________________________
Page 64
CODE ZONE DESCRIPTION ACTION TO TAKE
98
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
BB
BC
BD
BE
BF
C0
C1
C2
C3
C4
C5
C6
C7
C8
C9
TEST CODE
ZONE 1:
ZONE 2:
ZONE 3:
ZONE 4:
ZONE 5:
ZONE 6:
ZONE 7:
ZONE 8:
ZONE 9:
ZONE 10:
ZONE 11:
ZONE 12:
ZONE 13:
ZONE 14:
ZONE 15:
ZONE 16:
ZONE 17:
ZONE 18:
ZONE 19:
ZONE 20:
ZONE 21:
ZONE 22:
ZONE 23:
ZONE 24:
ZONE 25:
ZONE 26:
ZONE 27:
ZONE 28:
ZONE 29:
ZONE 30:
ZONE 31:
ZONE 32:
ZONE 33:
ZONE 34:
ZONE 35:
ZONE 36:
ZONE 37:
ZONE 38:
ZONE 39:
ZONE 40:
ZONE 41:
ZONE 42:
ZONE 43:
ZONE 44:
ZONE 45:
ZONE 46:
ZONE 47:
ZONE 48:
ZONE 49:
ZONE 50:
ZONE 51:
ZONE 52:
ZONE 53:
ZONE 54:
ZONE 55:
ZONE 56:
ZONE 57:
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
Page 65
CODE ZONE DESCRIPTION ACTION TO TAKE
CB
CC
CD
CE
CF
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
DB
DC
DD
DE
DF
E0
E1
E2
E3
E4
E5
E6
E7
E8
E9
EB
EC
ED
EE
EF
F0
F1
F2
F3
0B
0C
0D
0E
0F
1B
1C
1D
1E
1F
2B
2C
2D
2E
2F
33
34
ZONE 58:
ZONE 59:
ZONE 60:
ZONE 61:
ZONE 62:
ZONE 63:
ZONE 64:
ZONE 65:
ZONE 66:
ZONE 67:
ZONE 68:
ZONE 69:
ZONE 70:
ZONE 71:
ZONE 72:
ZONE 73:
ZONE 74:
ZONE 75:
ZONE 76:
ZONE 77:
ZONE 78:
ZONE 79:
ZONE 80:
ZONE 81:
ZONE 82:
ZONE 83:
ZONE 84:
ZONE 85:
ZONE 86:
ZONE 87:
ZONE 88:
ZONE 89:
ZONE 90:
ZONE 91:
ZONE 92:
ZONE 93:
ZONE 94:
ZONE 95:
ZONE 96:
ZONE 97:
ZONE 98:
ZONE 99:
ZONE 100:
ZONE 101:
ZONE 102:
ZONE 103:
ZONE 104:
ZONE 105:
ZONE 106:
ZONE 107:
ZONE 108:
ZONE 109:
ZONE 110:
ZONE 111:
ZONE 112:
ZONE 113:
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
Page 66
CODE ZONE DESCRIPTION ACTION TO TAKE
35
36
37
38
39
3B
3C
3D
3E
3F
4B
4C
4D
4E
4F
57
58
58
5B
5C
5D
5E
5F
6B
6C
6D
6E
6F
77
78
79
7B
7C
7D
7E
7F
80
88
89
8B
8C
8D
8E
8F
90
91
92
93
94
95
96
97
9B
9C
9D
9E
9F
F4
ZONE 114:
ZONE 115:
ZONE 116:
ZONE 117:
ZONE 118:
ZONE 119:
ZONE 120:
ZONE 121:
ZONE 122:
ZONE 123:
ZONE 124:
ZONE 125:
ZONE 126:
ZONE 127:
ZONE 128:
ZONE 129:
ZONE 130:
ZONE 131:
ZONE 132:
ZONE 133:
ZONE 134:
ZONE 135:
ZONE 136:
ZONE 137:
ZONE 138:
ZONE 139:
ZONE 140:
ZONE 141:
ZONE 142:
ZONE 143:
ZONE 144:
ZONE 145:
ZONE 146:
ZONE 147:
ZONE 148:
ZONE 149:
ZONE 150:
ZONE 151:
ZONE 152:
ZONE 153:
ZONE 154:
ZONE 155:
ZONE 156:
ZONE 157:
ZONE 158:
ZONE 159:
ZONE 160:
ZONE 161:
ZONE 162:
ZONE 163:
ZONE 164:
ZONE 165:
ZONE 166:
ZONE 167:
ZONE 168:
ZONE 169:
ZONE 170:
ZONE 171:
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
Page 67
CODE ZONE DESCRIPTION ACTION TO TAKE
F5
F6
F7
F8
F9
81
82
83
84
85
86
87
99
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
ZONE 172:
ZONE 173:
ZONE 174:
ZONE 175:
ZONE 176:
FREEZE ALARM
FIRE EMERG
POLICE EMERG
AUX EMERG
DURESS
BATTERY LOW
FIRE TROUBLE
CANCEL CODE
OTHER OPEN
USER 1 OPEN
USER 2 OPEN
USER 3 OPEN
USER 4 OPEN
USER 5 OPEN
USER 6 OPEN
USER 7 OPEN
USER 8 OPEN
USER 9 OPEN
USER 10 OPEN
USER 11 OPEN
USER 12 OPEN
USER 13 OPEN
USER 14 OPEN
USER 15 OPEN
USER 16 OPEN
OTHER CLOSE
USER 1 CLOSE
USER 2 CLOSE
USER 3 CLOSE
USER 5 CLOSE
USER 5 CLOSE
USER 6 CLOSE
USER 7 CLOSE
USER 8 CLOSE
USER 9 CLOSE
USER 10 CLOSE
USER 11 CLOSE
USER 12 CLOSE
USER 13 CLOSE
USER 14 CLOSE
USER 15 CLOSE
USER 16 CLOSE
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
_________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
__________________________________
Page 68
APPENDIX C - ZONE AND UNIT MAPPING
ZONE DEVICE
Zones 1-16 Zones 1-16 on Controller
Zones 17-32 Zones 1-16 on 1st Model 10A06 Hardwire Expander
Zones 33-48 Zones 1-16 on 2nd Model 10A06 Hardwire Expander
Zones 49-64 Zones 1-16 on 1st Model 17A00 Expansion Enclosure
Zones 65-80 Zones 1-16 on 2nd Model 17A00 Expansion Enclosure
Zones 81-96 Zones 1-16 on 3rd Model 17A00 Expansion Enclosure
Zones 97-112 Zones 1-16 on 4th Model 17A00 Expansion Enclosure
Zones 113-128 Zones 1-16 on 5th Model 17A00 Expansion Enclosure
Zones 129-144 Zones 1-16 on 6th Model 17A00 Expansion Enclosure
Zones 145-160 Zones 1-16 on 7th Model 17A00 Expansion Enclosure
Zones 161-176 Zones 1-16 on 8th Model 17A00 Expansion Enclosure
UNITS MODULES / OUTPUTS / FLAGS
Units 1-16 X-10 modules 1 - 16, House Code X
Units 17-32 X-10 modules 1 - 16, House Code X+1
Units (1-31) ALC addresses 1-31, Module 1 - Branch 1
Units 33-48 X-10 modules 1 - 16, House Code X+2
Units 49-64 X-10 modules 1 - 16, House Code X+3
Units (33-63) ALC addresses 1-31, Module 1 - Branch 2
Units 65-95 X-10 modules 1 - 16, House Code X+4
Units 81-96 X-10 modules 1 - 16, House Code X+5
Units (65-95) ALC addresses 1-31, Module 1 - Branch 3
Units 97-112 X-10 modules 1 - 16, House Code X+6
Units 113-128 X-10 modules 1 - 16, House Code X+7
Units (97-127) ALC addresses 1-31, Module 1 - Branch 4
Units 129-144 X-10 modules 1 - 16, House Code X+8
Units 145-160 X-10 modules 1 - 16, House Code X+9
Units (129-159) ALC addresses 1-31, Module 2 - Branch 1
Units 161-176 X-10 modules 1 - 16, House Code X+10
Units 177-192 X-10 modules 1 - 16, House Code X+11
Units (161-191) ALC addresses 1-31, Module 2 - Branch 2
Units 193-208 X-10 modules 1 - 16, House Code X+12
Units 209-224 X-10 modules 1 - 16, House Code X+13
Units (193-223) ALC addresses 1-31, Module 2 - Branch 3
Units 225-240 X-10 modules 1 - 16, House Code X+14
Units 241-256 X-10 modules 1 - 16, House Code X+15
Units (225-255) ALC addresses 1-31, Module 2 - Branch 4
Units 257-272 Outputs 1-16, 1st Model 17A00 Expansion Enclosure
Units 273-288 Outputs 1-16, 2nd Model 17A00 Expansion Enclosure
Units 289-304 Outputs 1-16, 3rd Model 17A00 Expansion Enclosure
Units 305-320 Outputs 1-16, 4th Model 17A00 Expansion Enclosure
Units 321-336 Outputs 1-16, 5th Model 17A00 Expansion Enclosure
Units 337-352 Outputs 1-16, 6th Model 17A00 Expansion Enclosure
Units 353-368 Outputs 1-16, 7th Model 17A00 Expansion Enclosure
Units 369-384 Outputs 1-16, 8th Model 17A00 Expansion Enclosure
Units 385-392 Voltage Outputs (1-8) on Controller
Units 393-511 Flags
