Kuhn Rikon Corp. Automobile Parts 8124 PERKINS ENGINE Identification Serial Number
User Manual: Kuhn Rikon Corp. Automobile Parts 8124
Open the PDF directly: View PDF
.
Page Count: 39
- 100 Series -103-12-13-15 and 104-19-22
- 100 Series
- 400 Series
- 700 Series
- 800 series
- 800 Eagle and Eagle TX
- 6.3544
- 900 Series Model CT
- 1000 series NEW
- 1103 and 1104E
- 1300 Series EDi
- 2000 - Eagle Tx2000
- 2000 Series
- 2300 Series
- 2800 Series
- 3000 Series
- 3012 Gas
- 4000 Series
- 4006 and 4008 In-line Gas
- 4006 TRS Gas and 4008 TRS Gas
- 4012 and 4016 Diesel
- 4012-46A and 4016-61A
- Peregrine EDi, Models WL, WN, WQ and WS

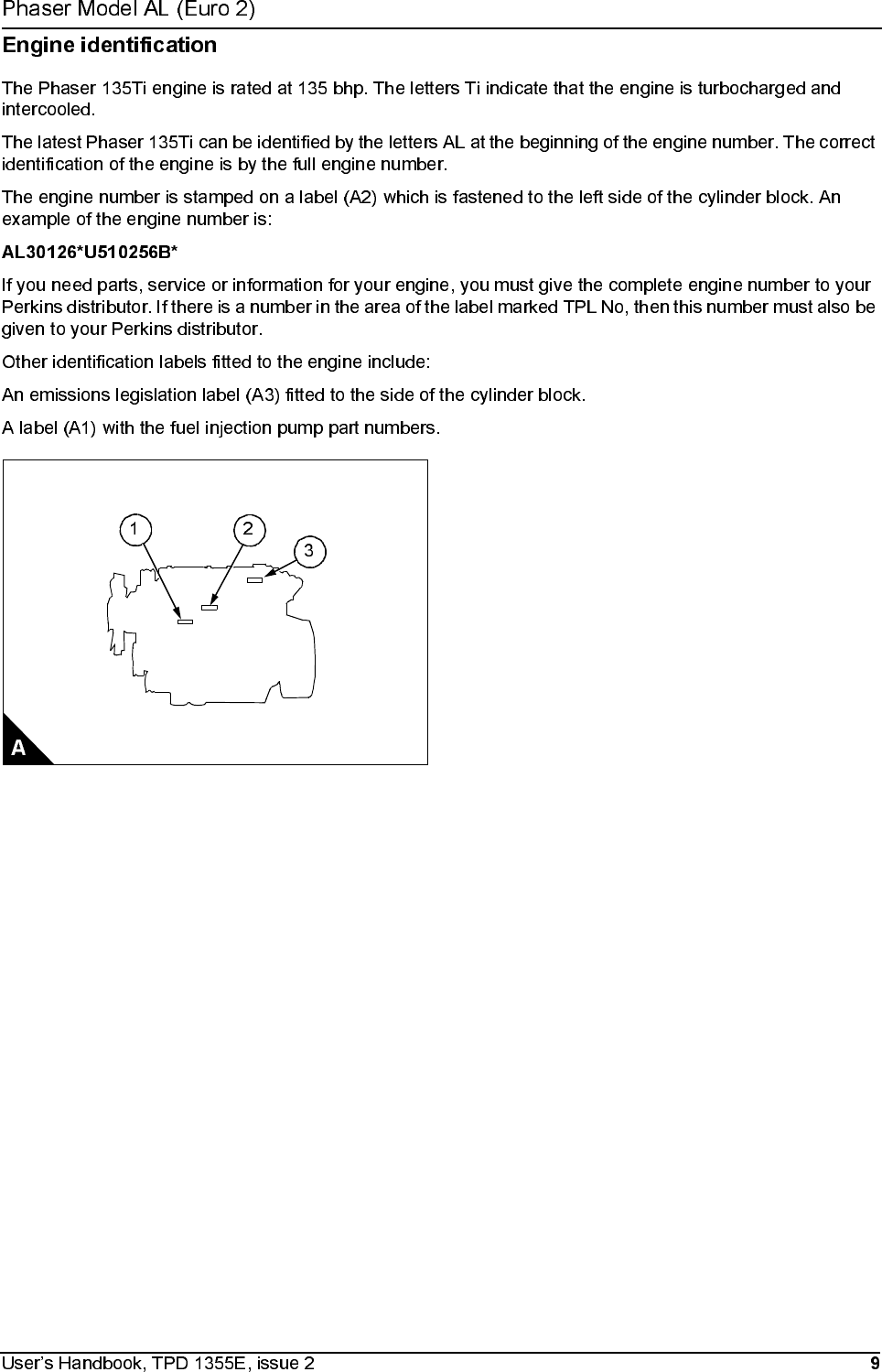

- Phaser Model AL (Euro 2)
- Engine Number Guide
PERKINS
Diesel Engines
Identification
and
Serial Numbers
http://engine.od.ua/Perkins
Use the bookmarks for navigation
http://engine.od.ua/perkins
http://engine.od.ua/perkins
http://engine.od.ua/perkins
1
Workshop Manual, TPD 1377E, issue 4 7
100 Series
Engine I.D. location
The engine identification plate (A1) is located on the front right side of the engine, just above the fuel injection
pump.
It consists of the following:

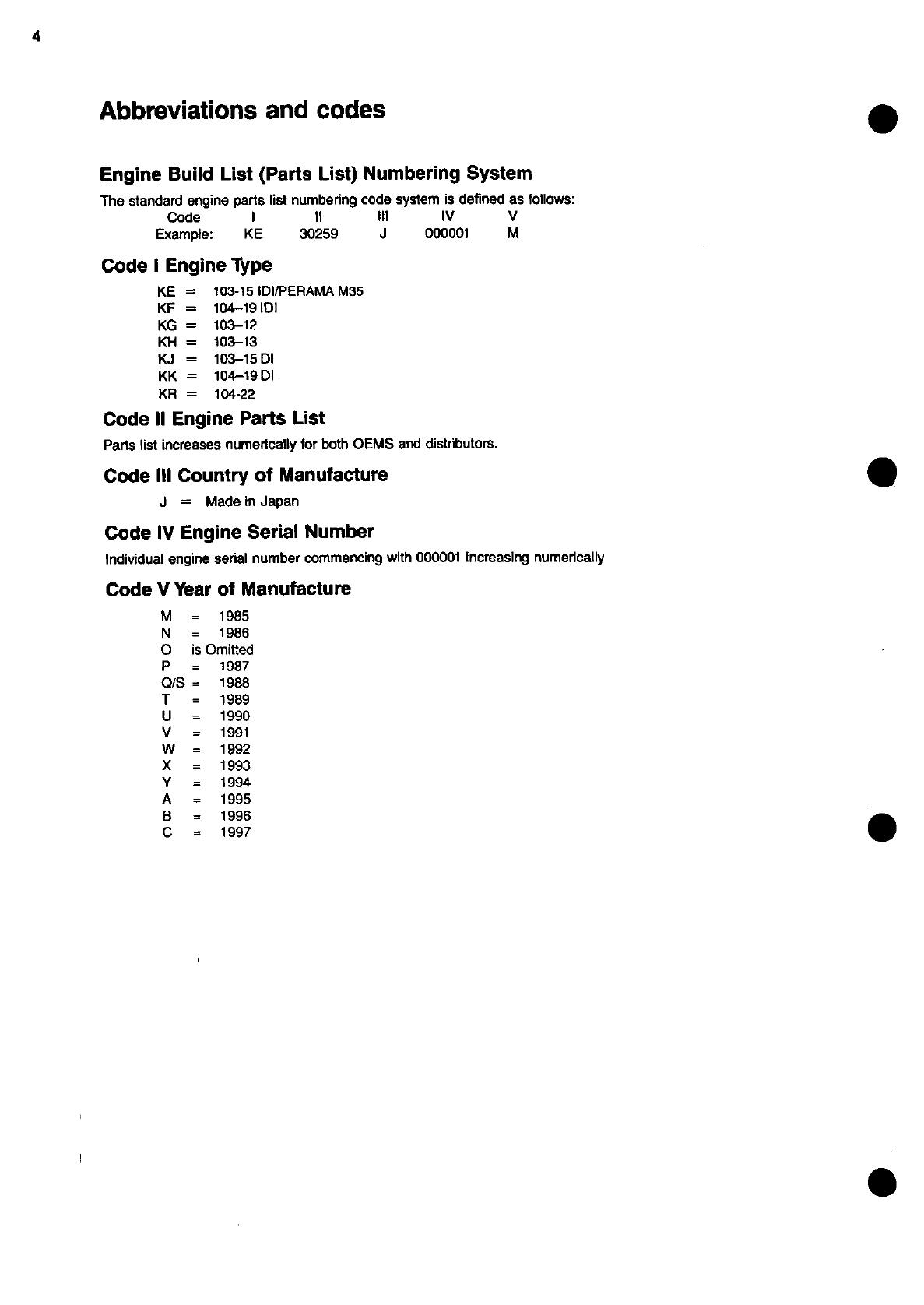

Abbreviations and codes
Engine build list (parts list) numbering system
The standard engine parts list numbering code system is defined as follows:
Code I Engine Build Code
Code II Engine parts list
Parts list increases numerically for both OEMS and distributors.
Code III Country of manufacture
Code IV Engine serial number
Individual engine serial number commencing with 000001 increasing numerically.
Code V Year of Manufacture
Code I II III IV V
Example KE 30260 U 000001 D
Engine Build code Engine Build code
102 - 05 KN 103 - 15 KE
103 - 07 KL 104 - 19 KF
103 - 10 KD 104 - 22 KR
103 - 13 KH
Code Country of manufacture
J Made in Japan
U Made in U.K.
Code Year Code Year Code Year Code Year Code Year
M 1985 T 1989 Y 1994 E 01/01/99
31/03/99 J 2002
N 1986 U 1990 A 1995 F 01/04/99
31/12/99 K 2003
O not used V 1991 B 1996 G 2000 L 2004
P 1987 W 1992 C 1997 H 2001
Q/S 1988 X 1993 D 1998 I not used‘
1
http://engine.od.ua/perkins
20 SEBU7992-01
Product Information Section
Product Identification Information
Product Identification
Information
i02216958
Engine Identification
Perkins engines are identified by a serial number.
This number is shown on a serial number plate that
is mounted above the fuel injection pump on the right
hand side of the engine block.
An example of an engine number is HHU000001J.
HH _________________________________________ Type of engine
U____________________________ Built in the United Kingdom
Engines that are built in Japan will have a (J).
Engines that are built in North America will have a
(N).
000001 ___________________________ Engine Serial Number
J_____________________________________ Year of Manufacture
Perkins dealers or Perkins distributors need all of
these numbers in order to determine the components
that were included with the engine. This permits
accurate identification of replacement part numbers.
i02157258

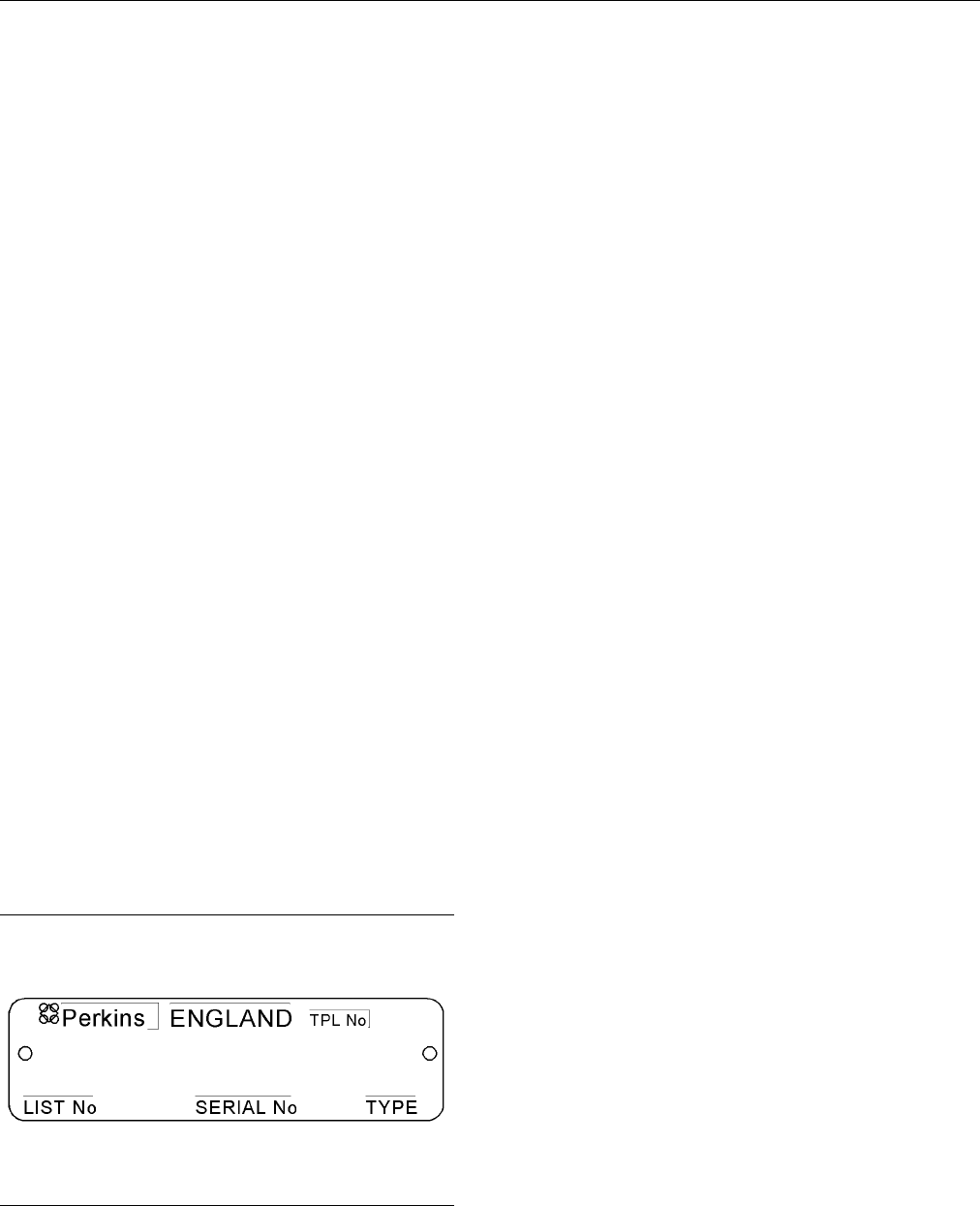

Serial Number Plate
g01094203
Illustration 18
Typical serial number plate
The Serial Number Plate is located above the fuel
injection pump on the right side of the cylinder block.
The following information is stamped on the Serial
Number Plate: Engine serial number, Model, and
Arrangement number.
i02164876
Reference Numbers
Information for the following items may be needed to
order parts. Locate the information for your engine.
Record the information in the appropriate space.
Make a copy of this list for a record. Keep the
information for future reference.
Record for Reference
Engine Model _______________________________________________
Engine Serial number _____________________________________
Engine Low Idle rpm ______________________________________
Engine Full Load rpm _____________________________________
Primary Fuel Filter _________________________________________
Water Separator Element ________________________________
Secondary Fuel Filter Element __________________________
Lubrication Oil Filter Element ___________________________
Auxiliary Oil Filter Element _______________________________
Total Lubrication System Capacity _____________________
Total Cooling System Capacity _________________________
Air Cleaner Element _______________________________________
Fan Drive Belt ______________________________________________
Alternator Belt ______________________________________________
i02166528

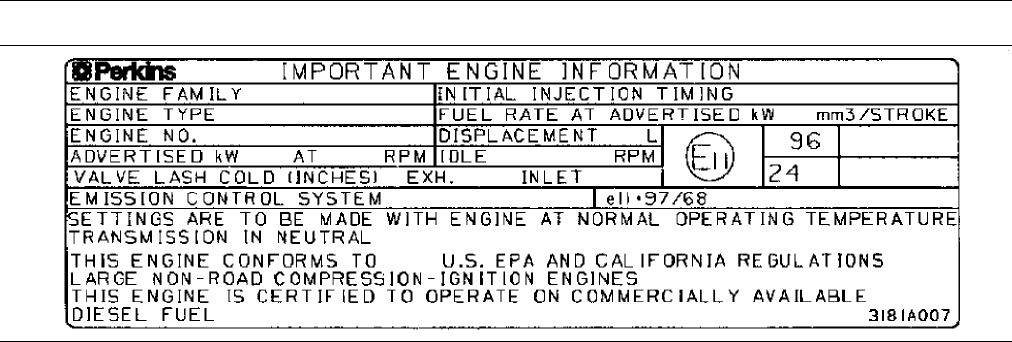

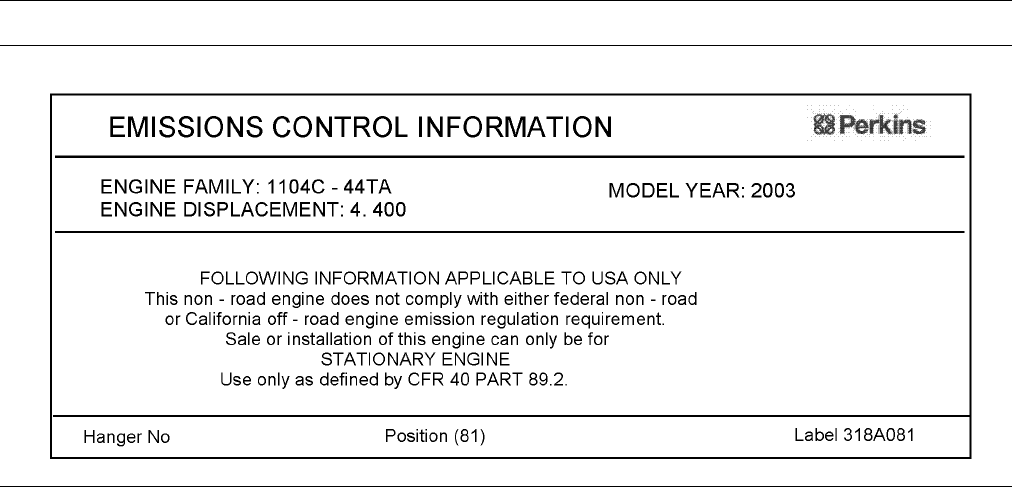

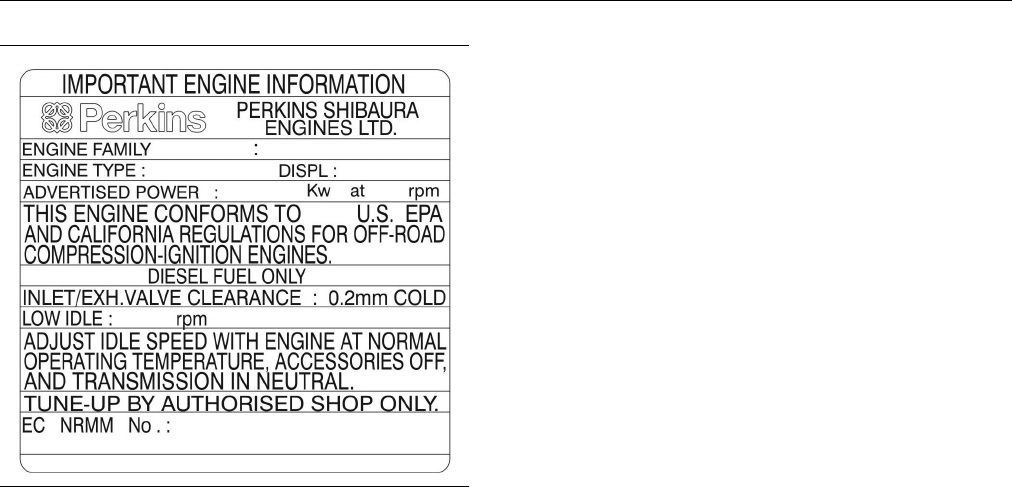

Emissions Certification Film
Atypical example is shown.
http://engine.od.ua/perkins
400 series
SEBU7992-01 21
Product Information Section
Product Identification Information
g01098670
Illustration 19
http://engine.od.ua/perkins
1
Workshop Manual, TPD 1392E, issue 3 5
700 Series
Engine I.D. location
The engine number is stamped on a label (A1) that is located on the right rear side of the engine. It consists
of the following:
Abbreviations and codes
Engine build list numbering system.
The engine parts list numbering system is defined as follows:
Code I Engine type code
Code II Engine build list number
Build list number is dependent upon specification.
Code III Country of manufacture
Code IV Engine serial number
The engine serial number is sequential.
Code V Year of Manufacture
Code I II III IV V
Example UA 80862 U 000001 A
Engine Code
704 - 26 UA
704 - 30 UB
704 - 30T UC
Code Country of manufacture
U Made in U.K.
Code Year Code Year
A 1995 F 1/4/1999 - 31/12/1999
B 1996 G 2000
C 1997 H 2001
D 1998 J 2002
E 1/1/1999 - 31/3/1999
1
http://engine.od.ua/perkins
19
Product Information Section
Product Identification Information
Product Identification
Information
i01933733
Engine Identification
Perkins engines are identified by a serial number.
This number is shown on a serial number plate that
is mounted on the left hand side of the engine block.
An example of an engine number is UEU090001H.
UE __________________________________________ Type of engine
U____________________________ Built in the United Kingdom
0900001 _________________________ Engine Serial Number
H_____________________________________ Year of Manufacture
Perkins dealers need all of these numbers in order
to determine the components that were included with
the engine. This permits accurate identification of
replacement part numbers.
i01933737

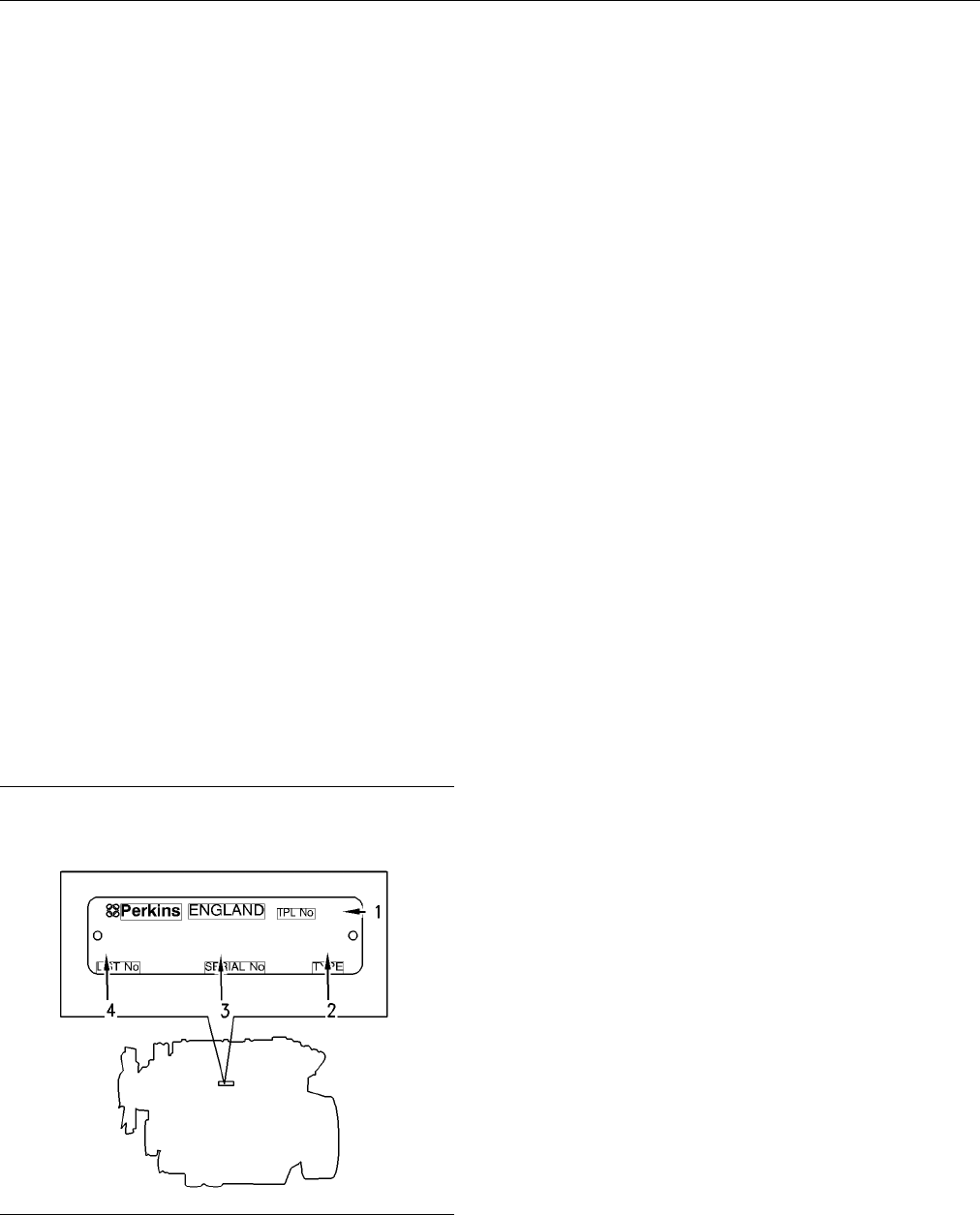

Serial Number Plate
g00994966
Illustration 12
Typical serial number plate
(1) Temporary Parts List number
(2) Type
(3) Serial number
(4) List number
The Serial Number Plate is located on the left side of
the cylinder block.
The following information is stamped on the Serial
Number Plate: Engine serial number, Model, and
Arrangement number.
i01892045
Reference Numbers
Information for the following items may be needed to
order parts. Locate the information for your engine.
Record the information on the appropriate space.
Make a copy of this list for a record. Keep the
information for future reference.
Record for Reference
Engine Model _______________________________________________
Engine Serial No. __________________________________________
Engine Low Idle rpm ______________________________________
Engine Full Load rpm _____________________________________
Primary Fuel Filter No. ____________________________________
Water Separator Element No. ___________________________
Secondary Fuel Filter Element No. ____________________
Lubrication Oil Filter Element No. ______________________
Auxiliary Oil Filter Element No. _________________________
Total Lubrication System Capacity _____________________
Total Cooling System Capacity _________________________
Air Cleaner Element No. _________________________________
Fan Drive Belt No. _________________________________________
Alternator Belt No. _________________________________________
i01933748

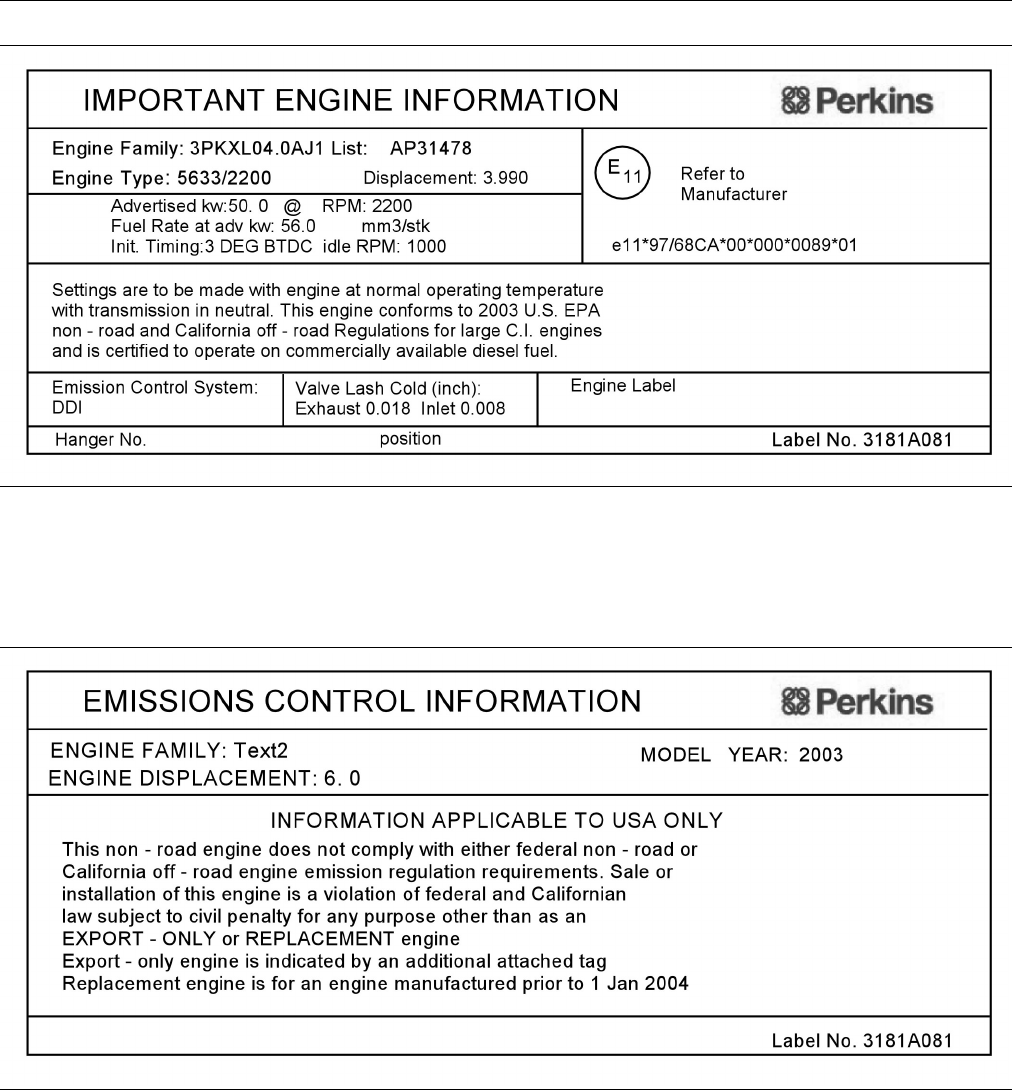

Emissions Certification Film
Atypical example is shown.
http://engine.od.ua/perkins
800 series
20
Product Information Section
Product Identification Information
g01002325
Illustration 13
http://engine.od.ua/perkins
http://engine.od.ua/perkins
Eagle TX and Eagle 800
1
8User’s Handbook, TPD 1289E, Issue 2
6.3544 Series
Engine identification
The 6.3544 Series consists of a range of six cylinder engines. The range has four basic engine types, naturally
aspirated, compensated, turbocharged and turbocharged/intercooled.
In this handbook, the different engine types are indicated by their code letters, which are the first two letters of
the engine number as indicated below:
The engine number is stamped on a label which is fastened to the auxiliary drive housing (A1). Some engines
also have the number stamped on the rear face of the cylinder block (A2). An example of an engine number
is TU30122*U814627T*.
If you need parts, service or information for your engine, you must give the complete engine number to your
Perkins distributor.
Code Engine type letters
TW Naturally aspirated
TU Turbocharged and turbocharged/ intercooled
TX Compensated
http://engine.od.ua/perkins
1
User’s Handbook, TPD 1386E, issue 1 9
900 Series Model CT
Engine identification
Perkins 900 Series spark ignition engines have the code letters CT.

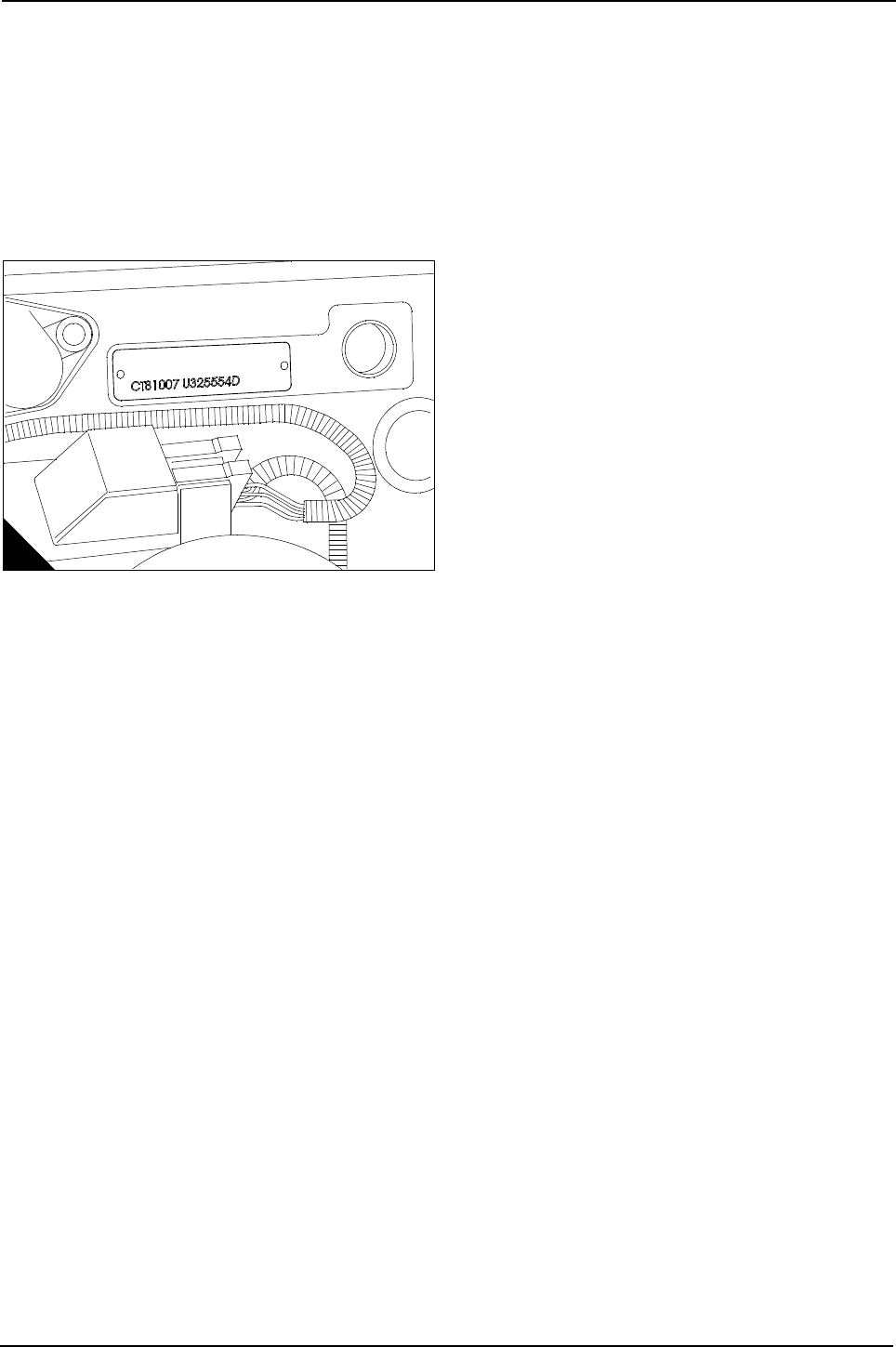

The engine number is stamped on the left side of the cylinder block (A). The engine number is also on two
labels fitted to the engine, one is on the timing case cover and the other is on the front of the cylinder block.
An example of an engine number is: CT81007 U30001D.
If you need parts, service or information for your engine, you must give the complete engine number to your
Perkins distributor. If there is a number in the area of the label, marked TPL No, then this number must also
be given to your Perkins distributor.
A
http://engine.od.ua/perkins
1
8User’s Handbook, TPD 1349E, issue 5
New 1000 Series Models AJ to AS and YG to YK
Engine identification
The New 1000 Series consists of a range of both four and six cylinder engines. Each range has three basic
engine types, naturally aspirated, turbocharged and turbocharged with an intercooler.
There are different model variations within each range. Identification of the various models is by a system of
numbers and letters, for example:
1006-60TW
1006 = 6 cylinder engine
60 = 6 litre engine
T = Turbocharged
TW = Turbocharged, but with an air to water intercooler to cool the induction air between the turbocharger and
the cylinders.
In this handbook, the different engine types are indicated by their code letters, which are the first two letters of
the engine number as indicated below:
Continued
Code Letters Engine type
AJ Four cylinder, naturally aspirated
AK Four cylinder, turbocharged
AM Four cylinder, turbocharged and intercooled
AP Four cylinder, naturally aspirated, belt driven coolant pump
AQ Four cylinder, turbocharged, belt driven coolant pump
AR Four cylinder, naturally aspirated, 103 mm cylinder bores
AS Four cylinder, naturally aspirated, belt driven coolant pump, 103 mm cylinder bores
YG Six cylinder, naturally aspirated
YH Six cylinder, turbocharged
YJ Six cylinder, turbocharged and air-to-air intercooled
YK Six cylinder, turbocharged and air-to-water intercooled
http://engine.od.ua/perkins
18 SEBU7833-01
Product Information Section
Product Identification Information
Product Identification
Information
i01940475
Engine Identification
Perkins engines are identified by a serial number.
This number is shown on a serial number plate that
is mounted on the left hand side of the engine block.
An example of an engine number is REU090001H.
RE __________________________________________ Type of engine
U____________________________ Built in the United Kingdom
0900001 _________________________ Engine Serial Number
H_____________________________________ Year of Manufacture
Perkins dealers need these numbers in order to
determine the components that were included with
the engine. This permits accurate identification of
replacement part numbers.
i01940474
Serial Number Plate
g00994966
Illustration 12
Typical serial number plate
(1) Temporary Parts List number
(2) Type
(3) Serial number
(4) List number
The Serial Number Plate is located on the left side of
the cylinder block behind the high pressure pipes of
the Fuel injection pump.
The following information is stamped on the Serial
Number Plate: Engine serial number, Model, and
Arrangement number.
i02164876
Reference Numbers
Information for the following items may be needed to
order parts. Locate the information for your engine.
Record the information in the appropriate space.
Make a copy of this list for a record. Keep the
information for future reference.
Record for Reference
Engine Model _______________________________________________
Engine Serial number _____________________________________
Engine Low Idle rpm ______________________________________
Engine Full Load rpm _____________________________________
Primary Fuel Filter _________________________________________
Water Separator Element ________________________________
Secondary Fuel Filter Element __________________________
Lubrication Oil Filter Element ___________________________
Auxiliary Oil Filter Element _______________________________
Total Lubrication System Capacity _____________________
Total Cooling System Capacity _________________________
Air Cleaner Element _______________________________________
Fan Drive Belt ______________________________________________
Alternator Belt ______________________________________________
i02197956
Emissions Certification Film
Label for compliant engines
Examples of emissions labels
http://engine.od.ua/perkins
1103 and 1104E engines
SEBU7833-01 19
Product Information Section
Product Identification Information
g01127835
Illustration 13
This label is installed on engines that comply with emissions.
Label for engines that are not
compliant
g01119323
Illustration 14
This label is installed on engines that have a variable speed. These engines do not comply with emissions.
http://engine.od.ua/perkins
20 SEBU7833-01
Product Information Section
Product Identification Information
g01119325
Illustration 15
This label is installed on engines that have a fixed speed. These engines do not comply with emissions.
http://engine.od.ua/perkins
1
8User’s Handbook, TPD 1352E, issue 3
1300 Series EDi Models WK to WS
Engine identification
The 1300 Series EDi engines consist of a range of six cylinder in-line engines which are turbocharged or
turbocharged/intercooled. The engines have an electronic management system.
In this handbook, the different engine types are indicated by their code letters, which are the first two letters of
the engine number as indicated below:
The engine number is stamped on the left side of the cylinder block (A1), behind the high pressure pump.
An example of an engine number is WP1296N123456.
The components of the engine number are as follows:
WP = Type code letters
1296 = Build list number
N = Built in the USA
123456 = Engine serial number
If you need parts, service or information for your engine, you must give the complete engine number to your
Perkins distributor.
Code letters Capacity Aspiration system
Litre in3
WK 7,6 466 Turbocharged
WL 7,6 466 Turbocharged / intercooled
WM 8,6 531 Turbocharged
WN 8,6 531 Turbocharged / intercooled
WP 7,6 466 Turbocharged
WQ 7,6 466 Turbocharged / intercooled
WR 8,6 531 Turbocharged
WS 8,6 531 Turbocharged / intercooled
AW002
http://engine.od.ua/perkins
http://engine.od.ua/perkins
Eagle Tx2000
1
8User’s Handbook, TSD 3215E, Issue 12
2000 Series
Engine identification
The engine number is stamped on the data plate which is fastened to the right side of the crankcase (A1).
For early engines a typical engine number is 8D26113U 71813P, which consists of these codes:
Engines made after August 1994, have a new engine number system. For these engines, a typical number is:
SGH 06 0002 U 0059 C, which consists of these codes:
Units such as the fuel injection pump and turbochargers have their own data plates.
If you need parts, service or information for your engine, you must give the complete engine number to your
Perkins distributor.
8D Engine family
26113 Engine number
UCountry of origin
71813 Build line number
PYear of manufacture
SG Engine application
HEngine type
06 Number of engine cylinders
0002 Engine specification number
UCountry of manufacture
0059 Build line number
CYear of manufacture
A05
1
http://engine.od.ua/perkins
1
User’s Handbook, TSD3454E, Issue 1 5
2300 Series
Engine identification
If you need parts, service or information for your engine, you must give the complete engine number. The
engine number is stamped on a data plate which is fastened to the right side of the engine.
A typical engine number is: FGB060125U 2905J, which consists of these codes:
F Code for engine capacity
G Engine application
B Engine type
06 Number of engine cylinders
0125 Engine specification number
U The country of manufacture
2905 Build line number
J Year of manufacture
http://engine.od.ua/perkins
1
6Workshop Manual, TPD 1517E, Issue 1
2800 Series
Engine identification
If you need parts, service or information for your engine, you must give the complete engine number. The
engine number is stamped on a data plate which is fastened to the right side of the engine.
A typical engine number is: HGA060125U 1103H, which consists of these codes:
Engine lift equipment
The total dry weighs is approximately 2050 kg (4516.4 lb). Ensure that the lift equipment used is suitable. An
adjustable lifting beam should be used and the chains or cables must be parallel to each other during use.
Before the engine is lifted:
Always use lift equipment of the approved type and of the correct capacity to lift the engine. Never use a
single lift bracket to raise an engine.
Check the engine lift brackets for damage and security before the engine is lifted.
Use suitable lift equipment or obtain assistance to lift heavy engine components such as the cylinder block,
cylinder head, damper unit, flywheel housing, crankshaft and flywheel.
Warning! The lifting eyes which are fitted to the engine must be used for lifting only the engine. Do NOT use
them to lift the engine if it is still attached to its driven unit.
GCode for engine capacity
GEngine application
AEngine type
06 Number of engine cylinders
0125 Engine specification number
UThe country of manufacture
1103 Build line number
HYear of manufacture
http://engine.od.ua/perkins
1
6
Engine identification
If you need parts, service or information for your
engine, you must give the complete engine number to
your Perkins distributor.
The engine number is stamped on the data plate
which is fastened to the left side of the crankcase.
For early engines, a typical engine number is:
6A27487U 59426U, which consists of these codes:
6A = Engine family
27487 = Engine number
U = Country of manufacture
59426 = Build line number
U = Year of manufacture
Engines made after August 1994, have a new engine
number system. For these engines, a typical number
is: SGJ 12 0029 U 3254 C, which consists of these
codes:
SG = Engine application
J = Engine type
12 = Number of engine cylinders
0029 = Engine specification number
U = Country of manufacture
3254 = Build line number
C = Year of manufacture
Units such as the fuel injection pump and
turbochargers have their own data plates.
http://engine.od.ua/perkins
Perkins 3000 Series
1
4User’s Handbook, TSD 3411E, Issue 2
3012 Gas
Engine identification
The 3012 Series engine is a Vee 12 normally aspirated unit. It is supplied in various power ratings, depending
on the application and the calorific value of the gas supply.
The engine number is stamped on the data plate which is fastened to the right side of the crankcase.
For early engines, a typical engine number is 6E27883U 59426W, which consists of these codes:
Engines produced after August 1994, have a new engine number system. For these engines, a typical engine
number is SIA120249U93852B which consists of these codes:
If you need parts, service or information for your engine, you must give the complete engine number to the
Perkins Distributor.
6E Engine family
27883 Engine number
UCountry of manufacture
59426 Build line number
WYear of manufacture
SI Engine application
AEngine type
12 Number of engine cylinders
0249 Engine specification number
UCountry of manufacture
93852 Build line number
BYear of manufacture
http://engine.od.ua/perkins
1
User’s Handbook, TPD 1508E, issue 1 9
4000 Series
Engine identification
The 4006-23 engine consists of a range of six cylinder engines. This range has three basic engine types,
TAG1A, TAG2A and TAG3A.
In this User’s Handbook, the different engines are identified by their engine number and their type as shown
below:
A typical example of an engine number: DGB 060081 U0017 B
The position of the plate for the engine number (A1).
Engine number identification
D Made in Stafford
G Application code
B Engine type
06 Number of cylinders
0081 Fixed build number
U United Kingdom
0017 Number of engines built
B Year that the engine was built
Engine type
A 4006-23TAG1A
B 4006-23TAG2A
D 4006-23TAG3A
A
D1104
1
http://engine.od.ua/perkins
1
Workshop Manual, TSL 4078E, April 2002 3
4006/8 In-line Gas
Engine identification
The engine number and its build specification details are given on its data plate (A1) which is fitted to the right
side of the crankcase by the oil filters.
A reference code and engine description is given in the table below.
Reference
Code Description
4006TESI
200 LC
6 cylinder, in-line, 4 stroke, turbocharged, spark ignition gas engine, with water based engine coolant
and oil cooler, raw water pump and separate cooling system for charge air intercooler. With NOx
emission of 200g/GJ or less.
4006TESI
140 LC
6 cylinder, in-line, 4 stroke, turbocharged, spark ignition gas engine, with water based engine coolant
and oil cooler, raw water pump and separate cooling system for charge air intercooler. With NOx
emission of less than 140g/GJ.
4006TESI
140 HC
6 cylinder, in-line, 4 stroke, turbocharged, spark ignition gas engine, with water based engine coolant
and oil cooler, raw water pump and separate cooling system for charge air intercooler. With NOx
emission of less than 140g/GJ, and higher thermal efficiency than the 4006TESI 140 LC.
4006TESI
90 HC
6 cylinder, in-line, 4 stroke, turbocharged, spark ignition gas engine, with water based engine coolant
and oil cooler, raw water pump and separate cooling system for charge air intercooler. With NOx
emission of less than 90g/GJ.
4008TESI
200 LC
8 cylinder, in-line, 4 stroke, turbocharged, spark ignition gas engine, with water based engine coolant
and oil cooler, raw water pump and separate cooling system for charge air intercooler. With NOx
emission of 200g/GJ or less.
4008TESI
140 LC
8 cylinder, in-line, 4 stroke, turbocharged, spark ignition gas engine, with water based engine coolant
and oil cooler, raw water pump and separate cooling system for charge air intercooler. With NOx
emission of less than 140g/GJ.
4008TESI
140 HC
8 cylinder, in-line, 4 stroke, turbocharged, spark ignition gas engine, with water based engine coolant
and oil cooler, raw water pump and separate cooling system for charge air intercooler. With NOx
emission of less than 140g/GJ, and higher thermal efficiency than the 4006TESI 140 LC.
4008TESI
90 HC
8 cylinder, in-line, 4 stroke, turbocharged, spark ignition gas engine, with water based engine coolant
and oil cooler, raw water pump and separate cooling system for charge air intercooler. With NOx
emission of less than 90g/GJ.
http://engine.od.ua/perkins
20 SEBU8190
Product Information Section
Product Identification Information
Product Identification
Information
i02531889
Plate Locations and Film
Locations
Engine Identification
Perkins engines are identified by an engine serial
number.
A typical example of an engine serial number is
DGE F**** U00001M.
D_________________________________________ MadeinStafford
G____________________________________ Application (Table 5)
E________________________________ Type of engine (Table 6)
F_________________________ Number of cylinders (Table 7)
***** __________________________________ Fixed build number
U____________________________ Built in the United Kingdom
00001 ____________________________________ Engine Number
M____________________________________ Year of Manufacture
Table 5
Application
GGenset
IGas
Table 6
Type of engine (Gas)
FTESI Gas Unit
ETESI Combined Heat and Power Unit
G4016-E61 TRS
HTRS Combined Heat and Power Unit
JTRS Gas Unit
Table 7
Number of Cylinders
F6
H8
Perkins dealers and Perkins distributors require all of
these numbers in order to determine the components
that were included in the engine. This permits
accurate identification of replacement part numbers.
Serial Number Plate
g01266904
Illustration 16
Serial number plate
The engine serial number plate contains the following
information:
•Place of manufacture
•Telephone number of manufacturer
•Fax number of manufacturer
•Type of engine
•Engine serial number
•Rated speed
•Power output
•Engine timing
•Rating
http://engine.od.ua/perkins
4006 TRS Gas and 4008 TRS Gas
SEBU8190 21
Product Information Section
Product Identification Information
g01212991
Illustration 17
Location of the serial number plate for in-line engines
The serial number plate (1) on an in-line engine is
located on the right side of the cylinder block. See
Illustration 17.
http://engine.od.ua/perkins
1
10 User’s Handbook, TSL 4186E, Issue 2
4012/16 Diesel
Description of 4012 series engine models
Description of 4016 series engine models
Reference
Code Description
4012TWG 12 cylinder "V" form diesel engine, water cooled, turbocharged (twin turbochargers), jacket water
cooled charge air coolers. Oil coolers in engine cooling circuit. Horizontal air cleaners.
4012TWG2
Uprated version of the 4012TWG. 12 cylinder "V" form diesel engine, water cooled, turbocharged (twin
turbochargers), jacket water cooled charge air coolers. Oil coolers in engine cooling circuit. Horizontal
air cleaners.
4012TAG 12 cylinder "V" form diesel engine, water cooled, turbocharged (twin turbochargers), air cooled charge
air intercooler in radiator. Oil coolers in engine cooling circuit. Horizontal air cleaners.
4012TAG1
Uprated version of the 4012TAG. 12 cylinder "V" form diesel engine, water cooled, turbocharged (twin
turbochargers) air cooled charge air intercooler in radiator. Oil coolers in engine cooling circuit.
Horizontal air cleaners.
4012TAG2
Uprated version of the 4012TAG1. 12 cylinder "V" form diesel engine, water cooled, turbocharged (twin
turbochargers), air cooled charge air intercooler in radiator. Oil coolers in engine cooling circuit.
Horizontal air cleaners.
4012TEG
12 cylinder "V" form diesel engine, water cooled, turbocharged (twin turbochargers), raw water cooled
charge air coolers with separate water pump and cooling circuit. Oil coolers in engine cooling circuit.
Horizontal air cleaners.
4012TEG2
Uprated version of the 4012TEG. 12 cylinder "V" form diesel engine, water cooled, turbocharged (twin
turbochargers), raw water cooled charge air coolers with separate water pump and cooling circuit. Oil
coolers in engine cooling circuit. Horizontal air cleaners.
Reference
Code Description
4016TWG 16 cylinder "V" form diesel engine, water cooled, turbocharged (four turbochargers), jacket water
cooled air charge coolers. Oil coolers in engine cooling circuit. Horizontal air cleaners.
4016TWG2
Uprated version of the 4016TWG. 16 cylinder "V" form diesel engine, water cooled, turbocharged (four
turbochargers), jacket water cooled charge air coolers. Oil coolers in engine cooling circuit. Horizontal
air cleaners.
4016TAG 16 cylinder "V" form diesel engine, water cooled, turbocharged (twin turbochargers), air cooled charge
air intercooler in radiator. Oil coolers in engine cooling circuit. Horizontal air cleaners.
4016TAG1
Uprated version of the 4016TAG. 16 cylinder "V" form diesel engine, water cooled, turbocharged (four
turbochargers) air cooled charge air intercooler in radiator. Oil coolers in engine cooling circuit.
Horizontal air cleaners.
4016TAG2
Uprated version of the 4016TAG1. 16 cylinder "V" form diesel engine, water cooled, turbocharged (four
turbochargers) air cooled charge air intercooler in radiator. Oil coolers in engine cooling circuit.
Horizontal air cleaners.
4016TEG
16 cylinder "V" form diesel engine, water cooled, turbocharged (twin turbochargers), raw water cooled
charge air coolers with separate water pump and cooling circuit. Oil coolers in engine cooling circuit.
Horizontal air cleaners.
4016TEG1
and
4016TEG2
Uprated versions of the 4016TEG. 16 cylinder "V" form diesel engine, water cooled, turbocharged (four
turbochargers), raw water cooled charge air coolers with separate pump and cooling circuit. Oil cooler
in engine cooling circuit. Horizontal air cleaners.
http://engine.od.ua/perkins
1
User’s Handbook, TSL 4186E, Issue 2 11
4012/16 Diesel
Engine identification
The engine number and its build specification details are given on the date plate, fixed to the crankcase above
the flywheel housing on ‘A’ bank (A1).
Notes:
zOn engines built before January 2000, the engine number is stamped on the face of the crankcase ‘A’ bank,
above the flywheel housing (A2).
zOn engines built from February 2000, the engine number is stamped on the face of the crankcase ‘B’ bank,
above the gearcase (A3).
For reference codes and engine description refer to "Description of 4012 series engine models" on page 10
and "Description of 4016 series engine models" on page 10.
ACGL0801
3
1
2
http://engine.od.ua/perkins
SEBU8191 21
Product Information Section
Product Identification Information
Product Identification
Information
i02414720
Plate Locations and Film
Locations
Engine Identification
Perkins engines are identified by an engine serial
number.
A typical example of an engine serial number is
DGB L**** U00001M.
D_________________________________________ Made in Stafford
G____________________________________ Application (Table 3)
B________________________________ Type of engine (Table 4)
L_________________________ Number of cylinders (Table 5)
***** __________________________________ Fixed build number
U____________________________ Built in the United Kingdom
00001 ____________________________________ Engine Number
M____________________________________ Year of Manufacture
Table 3
Application
GGenset
IGas
Table 4
Type of engine (Diesel)
FTG
LTAG
ATAG1
BTAG2
DTAG3
MTWG
KTWG2
NTWG3
PTEG
RTEG2
STEG3
Type of engine (Gas)
FTESI Gas unit
ETESI Combined Heat and Power unit
G4016-E61-TRS
HTRS Combined Heat and Power Unit
JTRS Gas Unit
Table 5
Number of Cylinders
F6
H8
L12
P16
Perkins dealers and Perkins distributors require all of
these numbers in order to determine the components
that were included in the engine. This permits
accurate identification of replacement part numbers.
http://engine.od.ua/perkins
4012-46A and 4016-61A
22 SEBU8191
Product Information Section
Product Identification Information
Serial Number Plate
g01266904
Illustration 17
Serial number plate
The engine serial number plate contains the following
information:
•Place of manufacture
•Telephone number of manufacturer
•Fax number of manufacturer
•Type of engine
•Engine serial number
•Rated speed
•Power output
•Engine timing
•Rating
g01229580
Illustration 18
The location of the serial number plate for vee-form engines
The serial number plate (1) on a vee-form engine is
located on the rear face of the cylinder block (bank
A). See Illustration 18.
http://engine.od.ua/perkins
1
User’s Handbook, TPD 1360E, issue 2 9
Peregrine EDi, Models WL, WN, WQ and WS
Engine identification
The Peregrine EDi engines consist of a range of six cylinder in-line engines that are turbocharged /intercooled.
The engines have an electronic management system.
In this handbook, the different engine types are indicated by their code letters, which are the first two letters of
the engine number as indicated below:
The engine number is stamped on the left side of the cylinder block (A1), behind the high pressure pump.
An example of an engine number is WP1296N123456.
The components of the engine number are as follows:
WP1296N123456
WP = Type code letters
1296 = Build list number
N= Built in the USA
123456 = Engine serial number
Note: If parts, service or information are necessary for your engine, the complete engine number must be
given to a Perkins distributor.
Code letters Capacity Aspiration system
Litre in3
WL 7,6 466 Turbocharged / intercooled
WN 8,6 531 Turbocharged / intercooled
WQ 7,6 466 Turbocharged / intercooled
WS 8,6 531 Turbocharged / intercooled
W002
A
1
http://engine.od.ua/perkins
1
http://engine.od.ua/perkins
Engine Number Guide
Engines < 2 litre/cylinder (produced post 1974)
Year of manufacture code
This code indicates the calendar year of manufacture. The letters I, O, Q, R and Z will not be used.
A 1974
B 1975
C 1976
D 1977
E 1978
F 1979
G 1980
H 1981
J 1982
K 1983
L 1984
M 1985
N 1986
P 1987
S 1988
T 1989
U 1990
V 1991
W 1992
X 1993
Y 1994
A 1995
B 1996
C 1997
D 1998
E 1/1/99-31/3/99
F 1/4/99-31/12/99
G 2000
H 2001
J 2002
K 2003
L 2004
M 2005
N 2006
P 2007
R¹/S 2008
T 2009
U 2010
V 2011
W 2012
X 2013
Y 2014
Notes
¹ A number of engines were built with the letter ‘R’ as the year of manufacture code. In the middle of January 2008, the year of manufacture code was changed to the letter ‘S’.
If your full engine serial number ends with the letter ‘R’, Perkins Engines Company Limited will recognise the full engine serial number.
² Represents current manufacturing facilities.
If the letter ‘R’ appears after the country code this represents a remanufactured engine
(ie UR = UK remanufactured engine).
Country of manufacture code
This code indicates the country in which the basic engine was manufactured.
A Argentina
B Brazil²
C Australia
D Germany
E Spain
F France
G Greece
H Group
HC China²
HM Indonesia
HK Iraq
HU Uruguay
J Japan
K Korea
L Italy
M Mexico
MX Mexico
N USA²
P Poland
R China²
S India
SA South Africa
T Turkey
U UK²
V Pakistan
W Iran
X Peru
Y Yugoslavia
Where to find your engine number
Engine number guide
Example: PJ 12345 U 123456P
Engine family and type code PJ 1106D-E66TA
Parts list number of SOS order reference number 12345
Country of manufacture code U UK
Engine serial number 123456
Year of manufacture code P 2007
Engine type Position Engine type Position Engine type Position
3.152 M
4.108 A
4.154/200 Series B
4.165 B or G
4.203 J or N
4.212/4.248/900 Series C
1106D including PK R
4.236 C or L
4.318 F
4.41 H
6.247 C or F
6.354 D
V8.540 Q
Peregrine/1300 Series I or O
V8.640 P
700/800 Series K
Perama/100/400 Series O
Phaser/1000/1100(A/B/C) Series H or J
1104D S
850 Series D or R
1204E S
1206E R
1300 Series T
1600 Series U
J
(Rear view)
Q
P
(V8 top view)
A B C D E F
G
H
I
(Left side view) S
R(1300 top view)
T
M ON
L
K
(Right side view)
U
All information in this document is substantially correct
at time of printing and may be altered subsequently
Publication No. PP3000/09/13 produced in England
©Perkins Engines Company Limited 2013
Notes
¹ PK Series engines are derived from the 1106D Range platform but are only Stage II EU 2007 generator sets emissions compliant.
² Not available from 2014.
Peterborough products may show a finishing list on the engine plate, eg F1895. It is very important to quote this when spare parts are required.
Engine family and type code - small/medium engines
A Phaser/1004 Series
AA 1004-4
AB 1004-4T
AC 1004-4T
AD 1004e-4TW
AE Fed. CC
AF 1004-40S
AG 1004-4
AH 1004-4T
New 1000 Series
AJ 1004-40
AK 1004-40T
AL 1004-40TA
AM 1004-40T
AP 1004-40
AQ 1004-40T
AR 1004-42
AS 1004-42
AT 1004-40TA
B Prima/500 Series
BA 504-2
BB 504-2T
1206 Range
BK 1206E-E66TA
wall flow
BL 1206E-E70TTA
wall flow
C 3.152 Series
CA P3
CB 3.144
CC P3.144
CD 3.152
CE D3.152
CF G3.152
CG P3.152
CJ 3.1522
CM 3.1524
CN T3.1524
900 Series
CR 903-27
CP 903-27
CS 903-25
CT 903-27S
D 1103C Range
DC 1103C-33
DD 1103C-33T
DE 1103C-33TA
1103B Range
DF 1103B-33
DG 1103B-33T
1103A Range
DJ 1103A-33
DK 1103A-33T
E 4.108 Series
ED 4.108
E 400F Range
EG 402F-05
EH 403F-07
EJ 403F-11
EK 403F-15
EL 403F-15T
EN 404F-22
EP 404F-22T
G 4.154/200 Series
GA 4.154
GB 4.135
GC 4.182
GD 4.25
GE 4.3
400D/A Range
GG 402D-05
GH 403D-07
GJ 403D-11
GK 403D-15
GL 403D-15T
GM 404D-15
GN 404D-22
GP 404D-22T
GR 404D-22TA
GS 403D-17
GT 403A-11
GU 403A-15
GV 404A-22
H 4.165 Series
HA 4.165
400C Range
HB 402C-05
HD 403C-07
HH 403C-11
HL 403C-15
HM 403C-17
HN 404C-15
HP 404C-22
HR 404C-22T
J 4.203 Series
JD 4.203
JE D4.203
JF G4.203
JG 4.2032
850 Series
JR 854E-E34TA
wall flow
JS 854F-E34T
wall flow
JT 854F-E34T
through flow
K Perama/100 Series
KA 102.04
KB 103.06
KC 103.09
KD 103.10
KE 103.15
KF 104.19
KH 103.13
KL 103.07
KN 102.05
KR 104.22
KS 103.11
L 4.236 Series
LA 4.212
LD 4.236
LE G4.236
LF 4.248
LG 4.2482
LH C4.236
LJ T4.236
LM 4.41
1204E Range
MK 1204E-E44TA
wall flow
ML 1204E-E44TA
wall flow
N 4.318 Series
NC 4.318
ND 4.3182
1104D Range
NH2/NP 1104D-E44T
NJ2/NR 1104D-E44TA
NK 1104D-44
NL 1104D-44T
NM 1104-44TA
P 1106D Range
PJ 1106D-E66TA
PK 1106C-E66TA1
1106A Range
PR 1106A-70TA
1106C Range
PT 1106C-70TA
PU 1106D-70TA
PW 1106D-E70TA
R 6.247 Series
RA 6.247
1104C Range
RE 1104C-44
RF 1104C-E44
RG 1104C-44T
RH 1104C-E44T
RJ 1104C-44TA
RK 1104C-E44TA
1104A Range
RR 1104A-44
RS 1104A-44T
RT 1104A-44TA
SD Sabre CC6.68
T 6.354 Series
TC 6.354
TD H6.354
TE T6.354
TF HT6.354
TG 6.3541
TH T6.3541
TJ 6.3542
TK C6.3542
TP T6.3543
TR 6.372
TT TC6.3541
TU T6.3544
TV 6.3724
TW 6.3544
TX C6.3544
TY H6.3544
TZ HT6.3544
U 700 Series
UA 704.30
UB 704.26
UC 704.30
800C Range
UE 804C-33
UF 804C-33T
800D Range
UK 804D-33
UL 804D-33T
UM 804D-33TA
V 1106C Range
VK 1106C-E60TA
X V8.540 Series
XA V8.510
XB TV8.510
XC V8.540
XE TV8.540
1103D Range
XG 1103D-E33
XH 1103D-E33T
XJ 1103D-E33TA
XK 1103D-33
XL 1103D-33T
XM 1103D-33TA
Y Phaser/1006 Series
YA 1006-6
YB 1006-6T
YC 1006-6T
YD 1006e-6T
YE Fed. CC
YF 1006-60S
New 1000 Series
YG 1006-60
YH 1006-60T
YJ 1006-60TA
YK 1006-60TW
Z V8.640 Series
ZA V8.640
ZB TV8.640
A Air to air charge cooling
C Compensated
CC Charged cooled
D Direct Injection
E Electronic
F Federal emissions
FF Federal
G Gasoline/gas
H Horizontal
N Narrow front end
P Timing chain
S Spark ignition
T Turbocharged
U Unit injection
V V form
W Water to air charge cooling
Engine family and type code - large engines
61 Capacity in litres
A Air to air
CHP Combined heat and power
E External water circuit
E Electronic
G Genset
I Intercooled
M Marine
R Remote cooled
S (SI) Spark ignition
T Turbocharged
W Water
4006 Range
DIE 4006TESI
DIF 4006TESI
DIH 4006TRS
DIJ 4006TRS
DGA 4006TAG1
DGB 4006-23TAG2 (A)
DGD 4006-23TAG3 (A)
DGM 4006TWG
DGP 4006TEG
4008 Range
DIE 4008TESI
DIF 4008TESI
DIH 4008TRS
DIJ 4008TRS
DGL 4008TAG
DGA 4008TAG (A)
DGB 4008TAG (A)
DGK 4008TWG2
4012 Range
DIE 4012TESI
DIF 4012TESI
DGA 4012-46TAG1 (A)
DGB 4012-46TAG2 (A)
DGD 4012-46TAG3 (A)
DGL 4012-46TAG0A
DGM 4012TWG
DGK 4012-46TWG2 (A)
DGN 4012-46TWG3 (A)
DGV 4012-46TWG4 (A)
DGP 4012TEG
DGR 4012TEG2
4016 Range
DIE 4016TESI
DIF 4016TESI
DIG 4016E61-TRS
DIH 4016TRS
DIJ 4016TRS
DGL 4016TAG
DGA 4016TAG1 (A)
DGB 4016TAG2 (A)
DGK 4016TWG2
DGR 4016TEG1/2 (A)
DGP 4016-61TRG1 (A)
DGW 4016-61TRG2 (A)
DGX 4016-61TRG3 (A)
2300 Range
FGA 2306TAG1
FGB 2306TAG2
FGD 2306TAG3
2800 Range
HGA 2806TAG1
(16 litre)
HGB 2806TAG2
(16 litre)
JGA 2806TAG1 (A)
(18 litre)
JGB 2806TAG2 (A)
(18 litre)
JGD 2806TAG3
(18 litre)
2500 Range
MGA 2506TAG1
MGB 2506TAG2
MGD 2506TAG3
MGE 2506TAG4
2206 Range
TGB 2206TAG2
TGD 2206TAG3
TGF 2206TAG5
TGH 2206TAG6
W 1300 Series
Peregrine
WB 1306-8T
WC 1306-8TA
WD 1306-7T
pre June 2010
WD 1306-E87T/TA
post June 2010
WE 1306-7TA
WF 1306-8T NGD
WG 1306-8TA NGD
pre Jan 2010
WG 1306C-E87TA
post Jan 2010
WH 1306-9T NGD
WJ 1306-9TA NGD
1300 Series EDi
WK 1306-E76T
WL 1306-E76TA
WM 1306-E87T
WN 1306-E87TA
WP 1306-E76T
WQ 1306-E76TA
WR 1306-E87T
WS 1306-E87TA
EP pre Jan 2010
IOPU pre June
2010
1306A Range
WGD 1306A-E87TAG3
WGE 1306A-E87TAG4
WGH 1306A-E87TAG6
1600 Series
XGA 1606D-E93TAG1
XGB 1606D-E93TAG2
XGD 1606D-E93TAG3
XGE 1606A/D-E93TAG4
XGF 1606A/D-E93TAG5
1300 Series (Stafford)
From January 2010 ElectropaK (EP) and June 2010 Industrial Open Power Unit (IOPU) the engine numbering format for 1300 Series engine range changed to
bring it into line with 2000 and 4000 Series engines.
1600 Series (Stafford)
Engine number guide
Example: X G D F 7147 N 12345 W
1600 Series engine X
Generator set application G
Rating (eg TAG3) D
6 cylinders F
Differentiator for customer specific options 7147
USA country of origin base engine N
Unique serial number 12345
Year of manufacture W
Engine family and type code
Build list ID Product type
1600 Series EP
XGAF 1606D-E93TAG1
XGBF 1606D-E93TAG2
XGDF 1606D-E93TAG3
XGEF 1606A/D-E93TAG4
XGFF 1606A/D-E93TAG5
Engine family and type code
Build list ID pre January 2010 Build list ID from January 2010 Product type Speed
Build list ID pre June 2010 Build list ID from June 2010 Product type Gross rating kWm @ rpm
1300 Series EP
WS5360 WGDF7002 1306C-E87TAG3 1500 rpm
WS5361
WGEF7003 1306C-E87TAG4 1500 rpm
WS5358
WGFF7007 1306C-E87TAG5 1500 rpm
WS5362
WGHF7004 1306C-E87TAG6 1500 rpm
WS5359
WGDF7008 1306C-E87TAG3 1800 rpm
WS5357
WGEF7009 1306C-E87TAG4 1800 rpm
WS5363
WGDF7005 1306C-E87TAG3 1500/1800 rpm
WS5364
WGEF7006 1306C-E87TAG4 1500/1800 rpm
1300 Series IOPU
WR4424 WDMF7100 1306-E87T 153.0 @ 2200
WP4423
WDNF7101 1306-E76T 156.5 @ 2400
WR4425
WDPF7102 1306-E87T 168.0 @ 2200
WS4426
WDQF7103 1306-E87TA 186.5 @ 2000
WS4427
WDRF7104 1306-E87TA 186.5 @ 2200
WS4580
WDSF7105 1306-E87TA 197.5 @ 2100
WS4428
WDTF7106 1306-E87TA 197.5 @ 2100
WS5093
WDUF7107 1306-E87TA 197.5 @ 2200
WS5095 WDVF7108 1306-E87TA 197.5 @ 2200
WS5405 WDWF7109 1306-E87TA 223.5 @ 2200
WS5404 WDXF7110 1306-E87TA 246.0 @ 2000
Engine family and type code
Build list ID Product type
1306A Range
WGDF 1306A-E87TAG3
WGEF 1306A-E87TAG4
WGHF 1306A-E87TAG6
Engine number guide
Example: W G H F 7004 N 12345 U
1300 Series engine W
Generator set application (D for IOPU) G
Rating (eg TAG6) H
6 cylinders F
Differentiator for customer specific options 7004
USA country of origin base engine N
Unique serial number 12345
Year of manufacture U
From the 1 January 2008 the engine numbering format for large engines changed. The two numbers used previously to determine the number of cylinders per
engine, have been replaced by one letter. The following letters will define the number of cylinders:
l 6 cylinder engine F will replace 06 l 12 cylinder engine M will replace 12
l 8 cylinder engine H will replace 08 l 16 cylinder engine R will replace 16
2000 Series Electronic (Stafford)
4000 Series (Stafford)
Engine number guide
Example: DGB F 0081 U 0017 B
4000 Series engine D
Generator set application G
Rating (eg TAG2) B
6 cylinders F
Fixed build number (0000 means configured product) 0081
Country of manufacture U
Build line number 0017
Year of manufacture B
Engine family and type code - Diesel
Build list ID pre
January 2008
Build list ID from
January 2008
Product type
4006 range
DGA06
N/A
4006TAG1
DGB06
DGBF
4006 / 4006-23TAG2 (A)
DGD06
DGDF
4006 / 4006-23TAG3 (A)
DGM06 N/A 4006TWG
DGP06 N/A 4006TEG
4008 range
DGL08 DGLH
4008TAG
DGA08
DGAH
4008TAG1 (A)
DGB08
DGBH
4008TAG2 (A)
DGK08 N/A 4008TWG2
4012 range
DGL12 N/A
4012TAG
DGA12
DGAM
4012 / 4012-46TAG1 (A)
DGB12
DGBM
4012 / 4012-46TAG2 (A)
DGD12 DGDM 4012-46TAG3 (A)
N/A DGLM 4012-46TAG0A
DGM12 N/A 4012 TWG
DGK12 DGKM 4012 / 4012-46TWG2 (A)
DGN12 DGNM 4012-46TWG3 (A)
N/A DGVM 4012-46TWG4 (A)
DGP12 N/A 4012TEG
DGR12 N/A 4012TEG2
4016 range
DGL16 DGLR
4016TAG
DGA16
DGAR
4016TAG1 (A)
DGB16 DGBR 4016TAG2 (A)
DGK16 DGKR 4016TWG2
DGR16 DGRR 4016TEG1/2 (A)
N/A DGPR (Introduced July 2010) 4016-61TRG1 (A)
N/A DGWR
(Introduced July 2010) 4016-61TRG2 (A)
N/A DGXR
(Introduced July 2010) 4016-61TRG3 (A)
Engine family and type code - Gas
Build list ID pre
January 2008
Build list ID from
January 2008
Product type
4006 range
DIE06
DIEF
4006TESI
DIF06 DIFF
4006TESI
DIH06
DIHF
4006TRS
DIJ06 DIJF 4006TRS
4008 range
DIE08
DIEH
4008TESI
DIF08 DIFH
4008TESI
DIH08
DIHH
4008TRS
DIJ08 DIJH 4008TRS
4012 range
DIE12
DIEM
4012TESI
DIF12 DIFM
4012TESI
4016 range
DIE16
DIER
4016TESI
DIF16 DIFR
4016TESI
DIG16 DIGR 4016E61-TRS
N/A DIHR
(Build List ID from Jan 2009) 4016TRS
N/A DIJR
(Build List ID from Jan 2009) 4016TRS
Note
A letter ‘A’ after the engine type equals the first evolution of that product, eg TAG1A
Engine family and type code
Build list ID pre
January 2009
Build list ID from
January 2009
Product type
Build list ID pre
January 2008
Build list ID from
January 2008
Product type
2206 range
N/A TGBF 2206TAG2 (13 litre)
N/A TGDF 2206TAG3 (13 litre)
N/A TGFF 2206TAG4 (13 litre)
N/A
TGHF
2206TAG5 (13 litre)
Engine family and type code
Build list ID pre
January 2008
Build list ID from
January 2008
Product type
2500 range
MGA06 MGAF
2506TAG1 (15 litre)
MGB06
MGBF
2506TAG2 (15 litre)
MGD06
MGDF
2506TAG3 (15 litre)
MGE06
MGEF
2506TAG4 (15 litre)
2800 range
HGA06
N/A
2806TAG1 (16 litre)
HGB06 N/A
2806TAG2 (16 litre)
JGA06
JGAF
2806TAG1 (A) (18 litre)
JGB06 JGBF 2806TAG2 (18 litre)
JGD06 JGDF 2806TAG3 (18 litre)
2300 range
FGA06 FGAF 2306TAG1 (14 litre)
FGB06 FGBF 2306TAG2 (14 litre)
FGD06 FGDF 2306TAG3 (14 litre)
Engine number guide
Example: T G A F 0019 U 0178 P
2000 Series engine T
Generator set application G
Rating (eg TAG1) A
6 cylinders F
Engine specification number 0019
Country of manufacture U
Buiild line number 0178
Year of manufacture P
(Left side view)
T
RS
(Right side view)
W
(Left side view)
X
U
(Right side view)
V
(Right side view)
Shrewsbury Product (produced pre 1994)
Engine number guide
Example: 8C 27655 U 88900 W
Engine family and type code 8C
Engine specification number 27655
Country of manufacture U
Build line number 88900
Year of manufacture W
Engine family and type code
8BT, 8CTA, 8DTW Eagle
8CTA Eagle TX
8BT, 8CTA/TTA, 8DTW, 8ESI, 8GTW-H 2000 Series
4AT, 4BTA, 4ESI 3008/CV8
4CTi Condor Marine
6ATA, 6CTW, 6DT, 6ESI 3012/CV12
Engine type Position
Eagle/2000 Series R
3008 Series T
3012 Series S
2300/2500/2800 Series W
4006/4008 Series U
4012/4016 Series V or X
2000/3000 Series Mechanical (Shrewsbury)
Engine number guide
Example: SG A 06 0010 U 0001 Y
Engine application SG
Engine family and type code A
Number of cylinders 06 = 2000 Series, 08/12 = 3000 Series
Engine specification number 0010
Country of manufacture U
Build line number 0001
Year of manufacture Y
Engine family and type code
Family: SA Automotive
SAA 300TX
SAB 320MX
SAC 335TX
SAE 350E
SAG 375TX
SAJ 340TX2
SAK 380TX2
SAL 410TX2
Family: SB Short Block
SBA TX
SBB 2000 Series
SBC 3008 Series
SBD 3012 Series
Family: SL Long Engine
SLA TX / Euro 2
SLB 2000 Series
SLC 3008 Series
SLD 3012 Series
SLE 3008 Marine
SLG 3008 / 3012SI
Family: SI Gas
SIA SI
SIB SI Gas Unit
SIC TSI CHP
SID TSI Gas Unit
SIE TWSI CHP
SIF TWSI Gas Unit
Family: SM Marine
SMA M600T1
SMB M700T1
SMC M800T1
Family: SF Forklift
SFA T1
SFB T2
SFC TA
SFD TW
Family: SG Generator set
SGA TAG1A
SGB TAG2
SGC TAG2A
SGD TAG3A
SGE TAG4
Family: SG Generator set (cont/d)
SGE TAG4
SGF TG
SGG TG1A
SGH TG2A
SFJ TTAG
SGK TWG2
SGL TAG
SGM TAG5
Family: SH Horizontal
SHA TWH
Family: SP Plant
SPA T
SPB T1
SPC T2
SPD TA
SPE TAP
SPJ TP
SPK TTA
SPL TTAP
SPM TW
SPP TW1
Perkins diesel Parts Catalog and Manuals http://engine.od.ua/perkins
