365-1880
Pool Power Pak® II
Dual Speed Pump
Models 0-1086-220, 0-1087-220 with Strainer
Assembly and 25 Ft. Cord
Models 0-1086-226, 0-1087-226 with Strainer
Assembly and 3 Ft. Cord
Owner's Guide
PICKUP PHOTO FROM
PREVIOUS OWNER'S GUIDE
P/N 365-1867
11/2000
2
PREPARATION
IMPORTANT SAFETY INSTRUCTIONS
FOR ALL MODELS:
When installing and using this electrical equipment,
basic safety precautions should always be fol-
lowed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. WARNING: To reduce the risk of injury, do not
permit children to use this product unless they are
closely supervised at all times.
3. WARNING: Risk of electric shock. Connect only to
a grounding type receptacle protected by a Ground
Fault Interrupter (GFCI).
Contact a qualified electrician if you cannot verify that
the receptacle is protected by a GFCI.
4. Do not bury cord. Locate cord to minimize abuse
from lawn mowers, hedge trimmers, and other
equipment.
5. WARNING: To reduce the risk of electric shock,
replace damaged cord immediately.
6. WARNING: To reduce the risk of electric shock, do
not use an extension cord to connect unit to the
electrical supply; provide a properly located outlet.
FOR MODELS 0-1086-220, 0-1087-220 (25Ft. Cord)
7. CAUTION: This pump is for use with storable pools
only. Do not use with permanently installed pools. A
storable pool is constructed so it may be readily
disassembled for storage and reassembled to its
original integrity. A permanently installed pool is
constructed in or on the ground or in a building such
that it cannot be readily disassembled for storage.
FOR MODELS 0-1086-226, 0-1087-226 (3 Ft. Cord)
8. CAUTION: This pump is for use with permanently
installed pools and may also be used with hot tubs
and spas if so marked. Do not use with storable
pools. A permanently installed pool is constructed in
or on the ground or in a building such that it cannot
be readily disassembled for storage. A storable pool
is constructed so that it may be readily disassembled
for storage and reassembled to its original integrity.
FOR ALL MODELS:
9. SAVE THESE INSTRUCTIONS.
ELECTRICAL SOURCE
FOR MODELS 0-1086-220, 0-1087-220 (25Ft. Cord)
Your pump is supplied with a 25 foot, 3-wire electrical
cord and a 3-pronged plug. The pump is double insu-
lated and grounded. The pump electrical cord must be
connected to a grounded, 3-wire, 115 VAC electrical
receptacle.
The pump should be connected to a receptalce on a
dedicated circuit protected by a 20 AMP circuit breaker.
DO NOT use a grounding adaptor.
The receptacle must be protected by a Ground Fault
Circuit Interrupter (GFCI) in accordance with Article 680-
31 of the National Electrical Code (NEC), (Section 68-
204 of the Canadian Electrical Code (CSA) and local
codes or ordinances. For runs greater than 25 feet,
consult your local licensed electrical contractor.
FOR MODELS 0-1086-226, 0-1087-226 (3 Ft. Cord)
Your pump is suppplied with a 3-foot, 3-wire electrical
cord and a 3-prong flanged, twist-lock plug.
The pump electrical cord must be connected to a single
twist lock, grounding type receptalcle that is located a
minimum of 5 feet from the inside pool wall.
A qualified electrical contractor must install this recep-
tacle in accordance with Article 680-6 of the National
Electrical Code (NEC). A Ground Fault Interrupter
(GFCI) must be used. An ON/OFF Switch must be
installed at the receptacle.
Use a Hubbell No. 2310 Receptacle, 20 AMP 125 Volt
A.C. or an equivalent receptalcle that meets NEMA
Configuration L5-20R.
This pump is double insulated and grounded. Dead
metal parts are not in contact with pool water.
CAUTION
1. DO NOT install the pump on a deck, it could fall into
the water, causing severe electrical shock. Do not
install on any surface at, above, or slightly below the
top rail of the pool.
2. DO NOT allow children or adults to climb, sit, or
stand on the pump unit. They could easily fall.
Position the filter and pump approximately 4 feet
from the pool wall so they may not be used as steps
by children.
3. Always keep the water level in your pool between the
water level markers on the skimmer face plate. If the
pump is run with water level too low, the pump seal
may overheat and cause permanent damage to the
pump.
4. Your Pool Power Pak must sit either in an optional
filter/pump base, on a patio block, or on any firm
surface that slightly elevates the pump off the
ground. This keeps water away from the motor and
prevents the vents of the Power Pak from becoming
blocked, which could cause the motor to overheat.

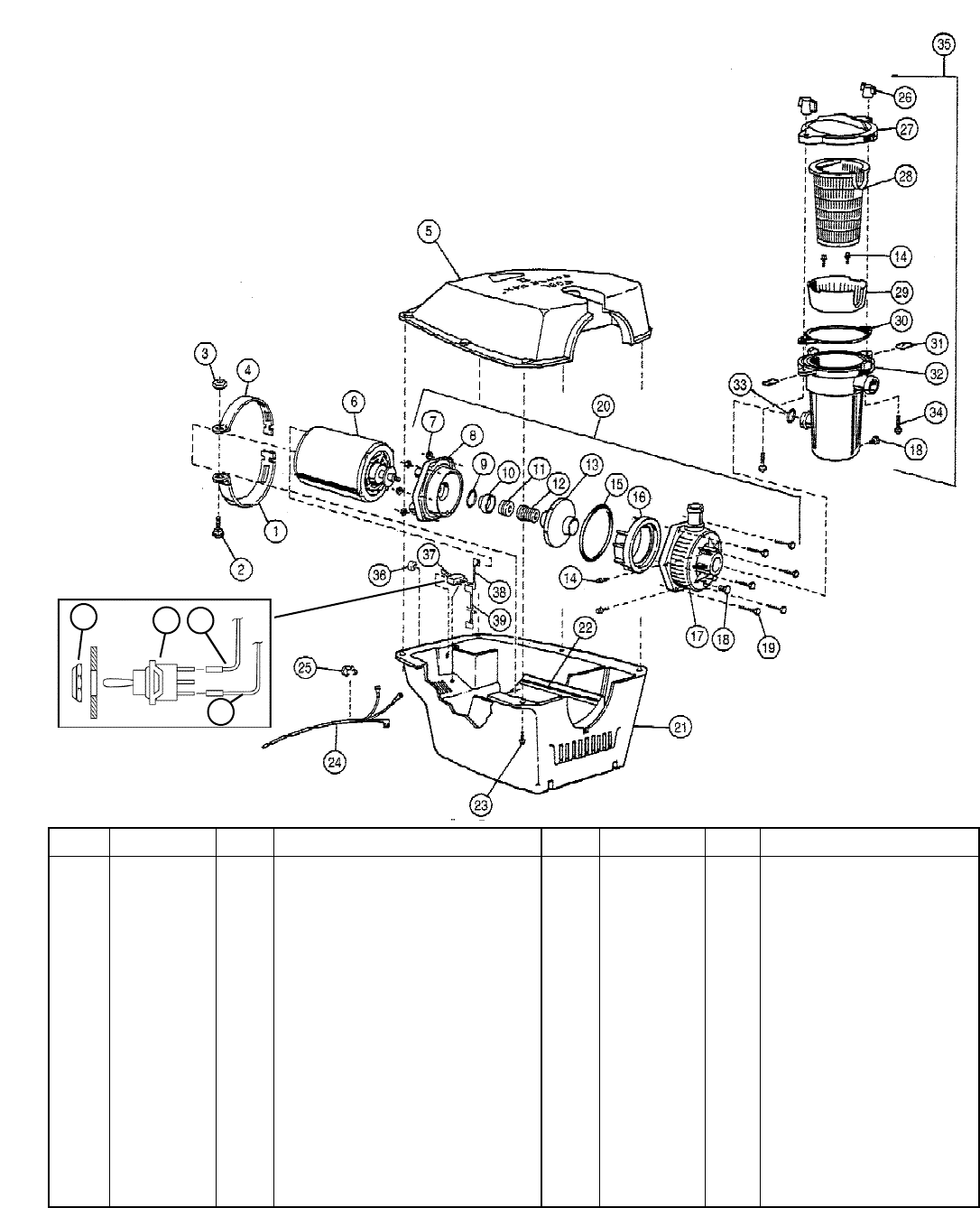

POOL POWER PAK II® DUAL SPEED - EXPLODED VIEW
Models with Strainer Assembly & 25 Ft. Cord:
0-1086-220, 0-1087-220
Models with Strainer Assembly & 3 Ft. Cord:
0-1086-226, 0-1087-226
3
341-1123
324-1018
321-1004
385-1152
1121-1771
300-1150
300-1149
321-1027
1128-1026
308-1040
305-1020
1128-1030
306-1006
1107-1388
1107-1547
330-1027
308-1099
340-1812
340-1813
340-1218
330-1050
1121-1365
1150-1000
1150-1005
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
1
1
2
1
1
1
6
1
1
1
1
1
1
1
4
1
1
1
2
6
1
1
1
ITEM P/N QTY DESCRIPTION ITEM P/N QTY DESCRIPTION
Insulating Sleeve
1/4"-20 x 1" Bolt
1/4"-20 Hex Nut
Motor Clamp
Top Housing/Decal Assembly
Motor-1 HP w/Slinger
Motor-1-1/2 HP w/Slinger
#10-24 Kep Nut
Pump Backplate Assy.
O-Ring, 1.29 x .013 Wall
Insulator, Ceramic Mating Ring
Ceramic Mating Ring & O-Ring Ass'y
Shaft Seal, 5/8" Diameter
Impeller Assembly, 1HP
Impeller Assembly, 1-1/2
#8 x 1/2" Screw
O-Ring, 5.734 x .139 Wall
Pump Volute
Pump Housing
1/4" Pipe Plug
#10-24 x 1 1/4" Screw
1 & 1-1/2 HP Pump Assembly
Bottom Housing (UL/CSA)
Bottom Housing (NEC/UL)
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
348-1026
330-1023
1100-1077
1100-1115
303-1104
303-1120
340-1215
1121-1437
1300-1001
340-1216
308-1167
376-1011
340-1213
308-1046
324-1004
1300-1013
303-1110
303-1350
1100-1691
1100-1078
327-1036
365-1880
—
2
6
1
1
1
1
2
1
1
1
1
2
1
1
2
1
1
1
1
1
1
1
1
Rubber Strip
#8 x 5/8" Screw
Power Cord (UL/CSA)
Power Cord (NEC/UL)
Strain Relief Bushing (UL/CSA)
Strain Relief Bushing (NEC/UL)
Strainer Knob
Strainer Cover w/Decal
Strainer Basket Assy.
Anti-Syphon Rotor
Strainer Gasket
Clip Strainer Body Bolt
Strainer Body
O-Ring, 1.609 x .139 Wall
3/8"-16 x 1 1/2" Bolt
Strainer Assembly
Knurled Ring Nut
Switch
Switch wire Assembly- Blue
Switch Wire Assy
#8 Ext. Tooth Lockwasher (not
shown)
Owner’s Guide
Warranty Card
37 38
39
36
SWITCH ASSEMBLY
STRAINER ASSEMBLY INSTALLATION
Press down on the strainer cover while loosening the
two strainer knobs just enough to rotate the cover
counter-clockwise until it stops. Lift off the cover. Inside
the basket you will find assembly screws and instruc-
tions for assembling the Strainer to the Power Pak II.
Take care to prevent cross threading. Do not over-
tighten. The strainer should be snug and in an upright
position when assembled. To replace cover, press
down and rotate clockwise until slots in cover are
completely under knobs. Tighten knobs until cover is
fully seated.
INITIAL START-UP
1. If you have a Doughboy filtration system, follow the
"Initial Start-Up" instructions in the Doughboy Filter
owner's guide.
2. For best results, be sure to select the HIGH
speed switch setting for initial startup, pump
priming, vacuuming, and backwashing the filter.
Use the LOW speed switch setting for surface
skimming and filtering over a longer period of time,
or when energy savings is desired.
3. If this pump has been purchased as a replacement
(and you are not referring to the Doughboy Filter
instructions), the pump will have to be primed after
all hose connections have been made and pool has
been filled to the proper level. To prime the pump,
loosen the pump strainer pot lid to allow air to
escape. Tighten lid when water begins to flow
between strainer pot body and lid. Do not
overtighten.
MAINTENANCE
Make sure the pump is disconnected from the
electrical source before attempting any maintenance
work.
LUBRICATION
Periodically lubricate the O-Ring under the strainer
DOUGHBOY RECREATIONAL • 10959 Jersey Blvd., • Rancho Cucamonga, CA 91730
Visit our web site at www.doughboy-pools.com
DB1001-017 Made in the United States of America Copyright © 2001
cover with a NON-PETROLEUM lubricant recom-
mended for A.B.S., Noryl and Acrylic plastics. Consult
your pool dealer for lubricant selections.
If you have any questions or require assistance, contact
your Doughboy pool dealer.
SERVICING SAFETY TIPS
1. ALWAYS TURN “OFF” the main power switch and
the Ground Fault Circuit Interrupter (GFCI) breaker
switch so power is completely off before servicing
your unit.
2. ALWAYS BE SURE THE GROUND UNDER YOUR
FEET AND YOUR BODY IS DRY before you touch
electrical equipment. Failure to heed this warning
may cause personal injury due to severe electrical
shock.
3. ALWAYS have a qualified electrician service your
system if electrical problems occur. This system is
UL listed and must be serviced by a qualified electri-
cian to insure that the electrical integrity is main-
tained. Failure to do so may cause personal injury
due to severe electrical shock and may void the UL
listing and warranty.
4. ALWAYS have a qualified electrician install a
Ground Fault Circuit Interrupter (GFCI) breaker at
the electrical service or supply panel. Follow GFCI
manufacturer’s operating instructions for testing.
Failure to do so may cause personal injury due to
severe electrical shock.
CAUTION: To reduce the risk of electrical shock,
connect only to grounding type receptacles. A
Ground Fault Circuit Interrupter (GFCI) must be
provided in accordance with local codes or
ordinances.
CAUTION: To reduce the risk of electrical shock,
use only Original Equipment Manufactured (OEM)
replacement parts when servicing.
Change of Design: Doughboy Recreational expressly reserves the right to change or modify the design and construction of any
product in due course of our manufacturing procedures, without incurring any obligation or liability to furnish or install such changes
or modifications on products previously or subsequently sold.
