Daikin UK Price List

Update: Valid from 1st January 2017

Branch Locations

Birmingham

Unit 1 Alpha Park,

Bevan Way, Smethwick,

West Midlands, B66 1BZ

Tel: 0121 555 1900

Fax: 0121 555 1901

email: birmingham@sbs.co.uk

Leeds

Unit 1 Quantum Business Park,

Pontefract Road, Stourton,

Leeds, LS10 1AX

Tel: 0113 201 4222

Fax: 0113 201 4223

email: leeds@sbs.co.uk

Leicester

99 Commercial Square,

Freemans Common Industrial Estate,

Leicester, LE2 7SR

Tel: 0116 222 7355

Fax: 0116 244 0430

email: leicester@sbs.co.uk

London

Units 3 & 4 Eurocourt,

Oliver Close, West Thurrock,

Essex, RM20 3EE

Tel: 01708 689 900

Fax: 01708 689 901

email: london@sbs.co.uk

Northampton

Unit 3 Reynoldston Close,

Brackmills Industrial Estate,

Northampton, NN4 7BX

Tel: 01604 763 621

Fax: 01604 760 903

email: northampton@sbs.co.uk

Oldham

Unit N Oldham Central Trading Park

Coulton Close

Oldham OL1 4EB

Tel: 0161 621 6288

Fax: 0161 621 6289

email: oldham@sbs.co.uk

Peterborough

Empson Road

Eastern Industry

Peterborough PE1 5UP

Tel: 01733 311 711

Fax: 01733 345 293

email: peterborough@sbs.co.uk

Bristol

Units 9/10 Cala Trading Estate,

Ashton Vale Road,

Bristol, BS3 2HA

Tel: 0117 947 1111

Fax: 0117 947 1122

email: bristol@sbs.co.uk

Registered Office: Batten Street, Aylestone Road, Leicester. LE2 7PB

A Member of the Smith Brothers (Leicester) Limited Group of Companies

Registration No 962846

Southampton

Unit 3 St Georges Industrial Estate

Goodwood Road, Boyatt Wood

Eastleigh SO50 4NT

Tel: 02380 623 070

Fax: 02380 614 320

email: southampton@sbs.co.uk

Smith Brothers Stores Ltd

Suppliers to Building Services

Cardiff

Unit 2 Dominions Way Industrial

Estate, Newport Road,

Cardiff, CF24 1RF

Tel: 02921 671 250

Fax: 02921 671 251

email: cardiff@sbs.co.uk

Heathrow

Unit 2 Pier Road,

Feltham, Greater London,

TW14 0TW

Tel: 0203 8565 620

Fax: 0203 8565 630

email: heathrow@sbs.co.uk

Head Office & Accounts

Unit V2 Winchester Avenue, Blaby, Leicester, LE8 4GZ

Tel: 0116 222 7330 Fax: 0116 222 7331 email: head.office@sbs.co.uk

Daikin UK Price List Update: Valid from 1st January 2017

Residential, Commercial and Industrial

R32

NOW ON EVEN

MORE SPLITS

AND SELECTED

SKY AIR UNITS

TOO

Smith Brothers Stores Ltd

SBS is one of the oldest

and largest independent

merchants operating from

within the U.K. directly

focusing on supplying to the

commercial and industrial

mechanical services sector.

The core business has specialised in the distribution

of pipework, valves and all associated ttings for over

100 years. In recent years we were appointed as a

Daikin partner dealer and we have complemented this

with an extensive air conditioning ancillary range of

products. Currently operating from eleven branches,

along with a separate Head Oce in Leicester,

more are planned for the very near future. SBS should

be the number one choice for the mechanical services

air conditioning contractor who relies on quality of

service combined with competitive pricing.

With 100 years of experience, comes expertise

and credibility.

This digital price book update reects the planned

+4% price increase, as communicated to customers

in our letter dated 1 October 2016. Please note

that, in order to keep our pricing simple, we have

rounded to the nearest pound, therefore the exact

price increase may be fractionally dierent to

+4% on individual items.

Conditions

Capacity Conditions

Unit cooling and heating capacities shown within

this price list are based on the following conditions:

Nominal cooling

Ambient = 35°C

Internal = 27°C db 19°C wb

Nominal heating

Ambient = 7°C db 6°C wb

Internal = 20°C db

UK cooling

Ambient = 30°C

Internal = 22°C db 16°C wb

Seasonal Eciency

Split and Sky Air

Systems of up to 12kW must now show Seasonal

Eciency Ratings instead of Nominal Eciency Ratings.

These ratings (SEER for cooling, SCOP for heating)

represent how eective a system is throughout

the year, and are in accordance with EN14825.

For more information on Seasonal Eciency,

visit www.daikin.co.uk/seasonal-eciency

For Daikin UK, this means all our Split and Sky Air

products up to 12kW display SEER and SCOP data along

with Energy Label information and Annual Energy

Consumption of the system. The AEC is based upon

500 hours use per year.

VRV (ESEER)

ESEER is dened as the European Seasonal Energy

Eciency Ratio and is a measure of the performance of

the outdoor unit only.

Nominal Eciency

This measure of eciency is calculated by dividing the

capacity output of a unit by the power required to deliver it.

For cooling, this is expressed as EER, for heating as COP.

Nominal Eciencies are used for systems above 12kW. It is

not possible to compare Nominal and Seasonal Eciency

ratings due to the dierent calculation methods used.

Heat Source

Unless otherwise indicated, all units within this

price list are air-cooled.

Discount Rating

Please insert your discounts here and then refer to the colour tabs on the edge of each page for reference.

Applied

MY DISCOUNT

Ventilation

MY DISCOUNT

Refrigeration

MY DISCOUNT

VRV

MY DISCOUNT

Heating

MY DISCOUNT

Split, Sky Air Heat Pumps

MY DISCOUNT

New for 2016 2

Split, Sky Air Heat Pumps 5

VRV 55

Ventilation 109

Heating 113

Refrigeration 163

Applied 171

Services & Training 193

Daikin UK Price List Update

Contents

Price List Update: Valid from 1st January 2017 1

WIFI

CONTROL

VIA APP

New for 2016

Residential, Commercial and Industrial2

Page 105

Page 6 - 11

UPDATE

FOR 2016

BOOK TRAINING NOW AT

WWW.DAIKINTRAINING.CO.UK

Daikin extends R32 range even

further to include more Splits and

Sky Air cassette

Our range of split and Sky Air systems using

the next generation of refrigerants oers:

> Lower global warming potential

> Higher eciencies

> Lower refrigerant charge

Total range now available:

> Ururu Sarara

> Emura

> FTXM High Inverter

> Multi units

> Duct for multi applications (FDXM-F)

> Sky Air Smart HiCOP Cassette

Page 49

NEW

FOR 2016

BRC1E53A controller for duty rotation

Duty rotation standby and back-up for IT applications,

works with the new indoor units

> Wall mounted FAQ-C9

> Ceiling suspended FHQ-CB

Remote App control for VRV and Sky Air –

and an upgrade for the Split App

Ideal for customers who want remote control of their air

conditioning system, the VRV and Sky Air Wi-Fi adapter ensures

customers can return to the perfect environment.

Daikin unique Under Ceiling Cassette is

now available for connection to Classic

Allows even more applications to be served by this truly unique

product ideal for solid ceilings

Page 33

FOR EASY ACCESS TO ALL DAIKIN UK CATALOGUES,

DATASHEETS, INSTALLATION AND OPERATION

MANUALS, LOG INTO THE NEW DAIKIN BUSINESS

PORTAL FROM 1 APRIL 2016: MY.DAIKIN.CO.UK

For VRV and Sky Air For Split

Daikin UK oer a customised service where

we can repaint units to any specied RAL

or BS nish

> Customers sometimes require visible units to be less obtrusive,

whether for aesthetic or planning reasons or to meet a specic

colour requirement

> Available for VRV, Split, Sky Air and all other units as required

Page 41 / 69

Page 69

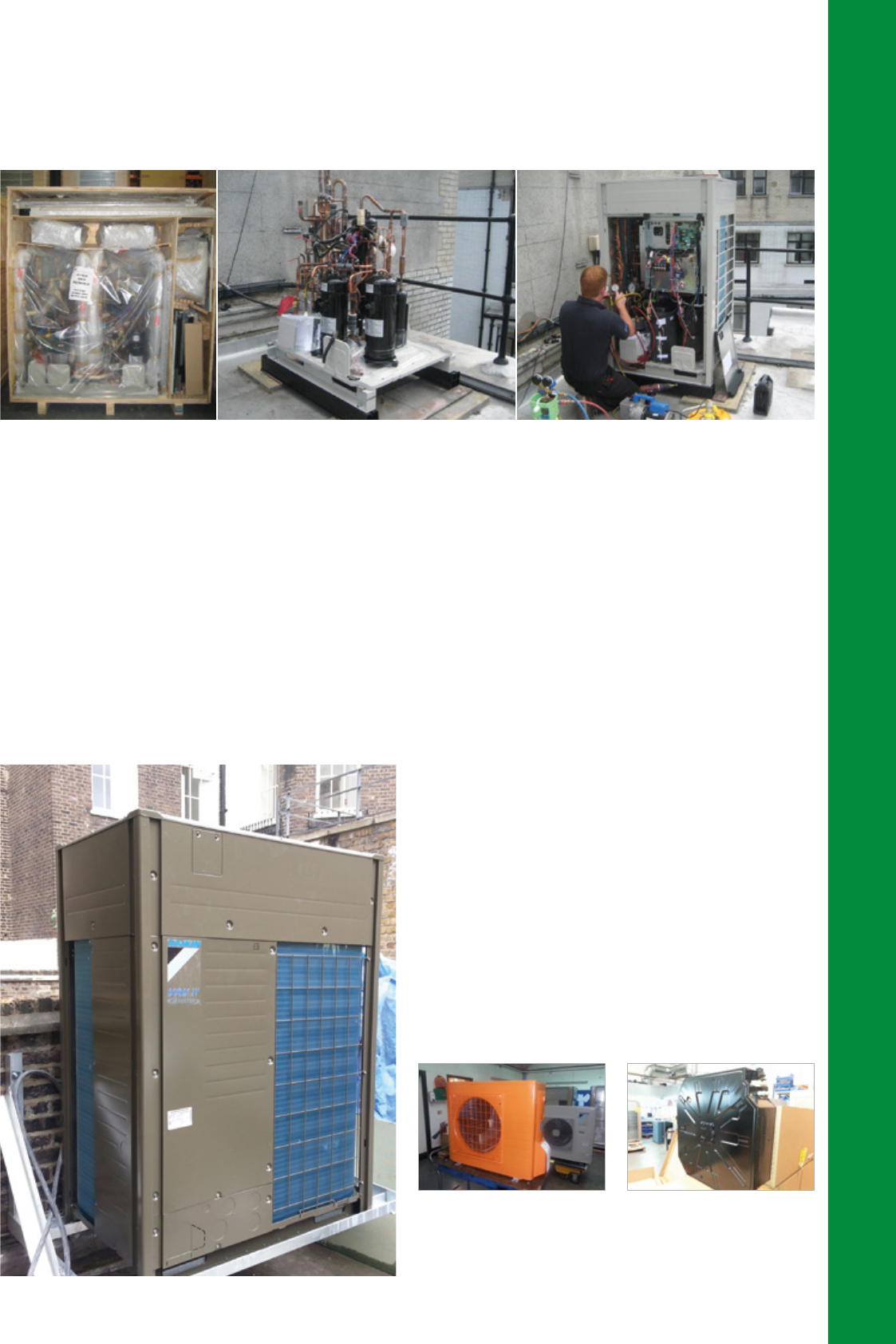

Strip down and rebuild service – ask for your unit to be

dismantled and reassembled for installation in those dicult

to access locations

> Daikin engineers will strip down and package the unit, organise delivery to the kerb-side

> Daikin engineers will then attend site to rebuild, pressure test, and vacuum and charge

the unit ready for connection to the rest of the system

Page 111

Weather proof enclosures for VAM Total Heat Exchangers

If you need to install a VAM unit outside of a building, they need to be weatherproofed

as they are designed for installation internally.

We can oer fully weatherproofed housings for the VAM range which are rated IP46 to

make them suitable for outdoor installation. The VAM units are tted into the enclosure

and delivered to site for fuss free installation.

Intelligent Tablet Controller – ideal for single and multi-

store retail estates or light commercial applications

This cloud based control solution with remote access possibilities enables

access to fault controls, o-site control and energy management:

> Wi-Fi and cloud based control of SkyAir or VRV equipment

> Connects directly to Daikin DIII-Net protocol

> Single or Multi-site web interface

> Web based energy management system

Page 104

Price List Update: Valid from 1st January 2017 3

Tablet

Increased piping

limitations on VRV IV HR

> Indoor to indoor unit maximum

height dierence has been

increased to 30m to give even

more system design exibility

> Please ask you sales person to

undertake a selection

Page 68 Page 97

NEW

FOR 2016

VRV IV Branch selector boxes with pre-tted valves

To further increase the exibility of the BS boxes, we are now able to

oer the full range of multi BS boxes with valves pre tted.

> The benet of having valves pre-installed on the boxes saves

considerable time and eort on site

> indoor units can be added without having to remove refrigerant

from the rest of the system, so you can avoid having to

pump down /

vac out / recharge the whole system

and save hours

when altering systems

NEW

450-1800kW

Launched

Watercooled inverter

screw series

> AC Inverter driven screw compressors

> Market leading full and partload eciency in its class

(best ESEER level)

450-1800kW

Launched

NEW

FOR 2016

Residential, Commercial and Industrial4

Modular AHU with DX

or water packaged solution

> High eciency fan motors (IE4) and heat recovery exchangers

> Full VRV IV or ERQ condenser connection compatibility

> Complete package with integrated controls

> Monitoring and control through Daikin ITM

Page 190 - 192

Aircooled DC inverter screw

series – Gen 2 TZ series

> Introduction of Microchannel coils as standard

> Compressors with DC electrical motor

& Gen 2 Variable Volume Ratio (VVR)

Modular Heat Wheel Modular Plate

1200-1500m3/h 1200-1500m3/h

Launched Dec 16

170-700kW 720-1100kW 1130-1800kW

Launched Launched April 17

NEW

FOR 2016

NEW

FOR 2016

NEW

FOR 2016

BLDC high static ducted FCU

& controller

> Completes BLDC range line-up – Low, Medium & High pressure

> Provides wider operating range per model at reduced noise levels

> FWECSA controller with master/slave networking on RS485

NEW

Page 170

Industrial refrigeration condensing unit with screw compressor

> High eciency inverter controlled compressor, economiser and high performance condenser

> Easy to install , ready to connect evaporator

> Capacity up to 450 kW on MT and 170 kW LT (@+32°C)

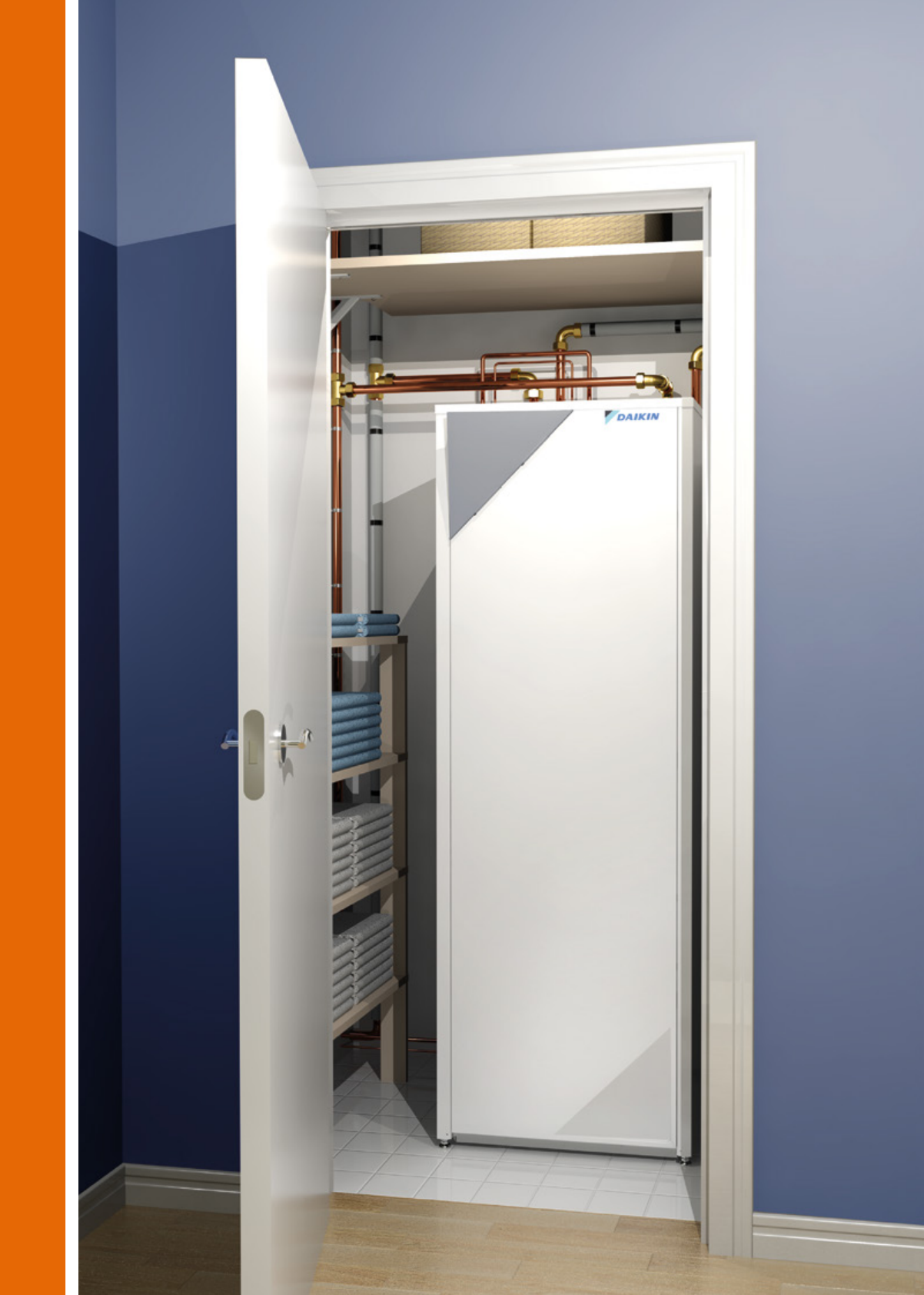

LT Integrated Hydrobox

& DHW (oor standing)

Increases the quality and

consistency of installations

whilst decreasing

the complexity and

installation time thanks to

the compact integration

of all the indoor

components in a

single enclosure.

Page 123

Netatmo

for domestic heating

The smart thermostat, available from January 2016, gives

homeowners with Daikin Altherma air-to-water heat pumps the

option to control their heating temperature via a smartphone app.

Page 138

NEW

FOR 2016

NEW

FOR 2016

SPLIT, SKY AIR HEAT PUMPS

Scottish

Region

0845 641 9330

Northern

Region

0845 641 9340

Midlands

Region

0845 641 9370

Western

Region

0845 641 9320

North

London

0845 641 9360

South

London

0845 641 9355

Daikin UK Price List Update

Split, Sky Air Heat Pumps

Another First From Daikin: R32 6

R32 Wall Mounted Split Systems 7

R32 Multi Systems 10

R32 Sky Air Hi COP Cassette 11

Sky Air Roundow Cassette 12

Enhanced Capital Allowance (ECA) Scheme 12

R410A Pair Applications 13

Wall Mounted Split Systems 13

Floor Standing Split Systems 18

Ceiling Suspended Split Systems 24

Cassette Split Systems 28

Under Ceiling Cassette Split Systems 32

Ducted Split Systems 35

Multi Applications 40

Multi Split Systems 40

Twin, Triple, Double Twin Systems 43

Infrastructure Cooling 48

Sky Air – Duty Rotation 49

Air Curtains 50

Central Ducted 52

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Contact Daikin Training to arrange an

R32 Training Course covering:

> Daikin’s range of R32 equipment

> Installation, equipment & handing of R32

www.daikintraining.co.uk

Another First From Daikin: R32

Reasons for change

There are a number of options for the next generation refrigerant

gas, to meet future legislation and reduce the environmental

impact of air conditioning, heat pumps and refrigeration. The

choices are generally accepted to be R32, R410A, HFO blends, CO2,

and hydrocarbons, including R290 and R600.

Daikin’s work with R32

Because of its superior energy eciency and low GWP, R32 is

Daikin’s preferred next generation refrigerant for air conditioners

and heat pumps. Its rst domestic air conditioners using R32 were

introduced to Japan in 2012 and there have been sales in excess of

4 million systems since then.

R32 in brief

R32 is already used in HVAC equipment, as it makes up 50% of

R410A. It has a global warming potential (GWP) of 675, which is one

third that of R410A (2,088).

It’s more energy ecient, resulting in a lower refrigerant charge

and oering the potential to manufacture smaller units. As a single

component refrigerant, it is also easier to reuse and recycle. Like many

low GWP refrigerants, R32 is mildly ammable, requiring some new

tools and procedures during installation. It is also easier to handle

because it doesn’t fractionate when being charged as a vapour.

Wall mount (FTXM)

Using R32 in a split system delivers:

> Lower GWP

> Higher eciencies

> Smaller refrigerant charge

Refrigerant GWP

R22 1,910

R410A 2,088

R32 675 Based on 3.5kW Wall Mount

Daikin now also oer a multi-system on R32 for up to ve indoor

units. These are connectable to the Emura, FTXM or new slim

Ducted R32 multi-fancoil:

> Ururu Sarara (FTXZ) – see page 7

> Emura (FTXJ) – see page 8

> Wall mount (FTXM) – see page 9

> Roundow Cassette (FCAHG) – see page 11

Installation and equipment

Installation of R32 systems is very similar to R410A systems,

although slightly dierent equipment is required. These include:

> Gauge manifold

> Recovery pump

> Electronic leak tester

These are available from a number of key manufacturers.

Please contact your local stockist.

Daikin products using R32

The 2016 line-up of R32 products has 4 types of split systems.

Three are wall mounts, including a brand new FTXM with SEER

eciencies of up to 8.53. We also include a Roundow cassette:

the FCAHG.

Refrigerant performance

0.4

0.8

1.2

1.6

Refrigerant Charge

Energy Eciency Ratio

2.5 3.0 3.5

R

R-A

R

Tooling R410A R32

Manifold Current tool Dierent scale

Scale Current Current

Vacuum pump Current Current

Leak detector Current Dierent

Recovery unit Current Dierent

Ventilation * Recommended Necessary (fan)

Warnings Blue marks Blue+Red marks (p16)

Recovery bottle 40 bar, right thread 48 bar, left thread

* when installed in a plant room

Ururu Sarara (FTXZ)

Emura (FTXJ) Roundow Cassette (FCAHG)

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

FTXZ-N / RXZ-N

Wall Mounted Ururu Sarara (with R32 refrigerant)

Indoor Units FTXZ25N FTXZ35N FTXZ50N

Capacity UK Total Cooling kW 2.79 3.90 5.58

UK Sensible Cooling kW 2.39 2.88 3.77

Nominal Cooling kW 2.50 3.50 5.00

Nominal Heating kW 3.60 5.00 6.30

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+++ A+++ A+++

Pdesign kW 2.50 3.50 5.00

SEER 9.54 9.00 8.60

Annual Energy Consumption kWh 92 136 203

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+++ A+++ A+++

Pdesign kW 3.50 4.50 5.60

SCOP 5.90 5.73 5.50

Annual Energy Consumption kWh 831 1100 1427

Nominal Eciency EER / COP 6.10 / 5.80 5.30 / 5.00 4.55 / 4.47

Energy Label A / A A / A A / A

Annual Energy Consumption kWh 205 330 550

Air Flow Rate (Cooling) High / Nom / Low / S Low m3/sec 0.180 / 0.125 / 0.090 / 0.067 0.200 / 0.140 / 0.090 / 0.067 0.250 / 0.153 / 0.110 / 0.077

Dimensions Height mm 295

Width mm 798

Depth mm 372

Weight kg 15 15 15

Sound Pressure (Cooling)

High / Nom / Low / S Low dBA 38 / 33 / 26 / 19 42 / 35 / 27 / 19 47 / 38 / 30 / 23

Sound Power dBA 54 57 60

Outdoor Units RXZ25N RXZ35N RXZ50N

Dimensions Height x Width x Depth mm 693 x 795 x 300

Weight kg 50

Electrical Details Power Supply 1ph

Running Current A 1.80 2.80 4.80

Starting Current A 2.8 4.4 6.2

Max Fuse Size A 16 16 16

Interconnection Wiring Core / Cable size 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 3/8 (9.5)

Pipework Maximum Length m 10 10 10

Maximum Vertical Rise m 8 8 8

Precharged to m 10 10 10

Holding Charge kg 1.34 1.34 1.34

Sound Pressure (Cooling)

High dBA 46 48 49

Sound Power dBA 59 61 63

Air Flow Rate High m3/sec 0.516 0.573 0.673

ECA Eligible ●●●

Trade Fan Coil Price £345.00 £405.00 £531.00

Trade Condensing Unit Price £938.00 £1,085.00 £1,142.00

Total System Price £1,283.00 £1,490.00 £1,673.00

Features:

> Complete climate control withe dehumidication, ventilation, air purication and heating & cooling in ONE system

> Very high eciency solution, thanks to Ururu technology & R32 refrigerant

> Self cleaning lters ensure optimum air quality & eciency of operation

> Infrared remote controller with backlit display, or optional Online Control via smartphone or tablet

> 3 area intelligent eye ensures air is directed away from people in the room, and switches unit to energy-ecient mode

if no-one is detected

Accessory Ref Description Trade Price

BRP069A42 Wi- adaptor to connection on on-line controller £52.00

KRP413A1S Adaptor PCB for remote on/o control - constant/pulse contact £78.00

KRP928A2S Adaptor PCB for interface to Daikin centralised control systems £137.00

KLIC-DD KNX interface for Split type systems £171.00

RTD-RA Adaptor PCB for Modbus connection and/or extended system functions £157.00

KPMH974A42 Hose for humidication (8m length) £144.00

KPMH974A402 Humidication hose extension set (2m length) £49.00

KPMJ942A4 Humidication hose extension joints (10 pieces) £37.00

KPMJ983A4L L-shaped joints for humidication hose (10 pieces) £108.00

KPMH950A4L L-shaped cus for humidication hose (10 pieces) £37.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

Accessories: Notes:

i) All fan coils supplied with infrared

remote control ARC477A1

ii) The supplied humidifying hose is 8m

in length

iii) Minimum ambient operating

temperatures:

Cooling Heating

RXZ -10°C -20°C

FTXZ / RXZ systems use R32 refrigerant

WIFI

CONTROL

VIA APP

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

WIFI

CONTROL

VIA APP

Indoor Units Matt Crystal White Brushed Aluminium

FTXJ20MW FTXJ25MW FTXJ35MW FTXJ50MW FTXJ20MS FTXJ25MS FTXJ35MS FTXJ50MS

Capacity UK Total Cooling kW 2.25 2.35 3.42 4.69 2.25 2.35 3.42 4.69

UK Sensible Cooling kW 1.84 1.88 2.51 3.09 1.84 1.88 2.51 3.09

Nominal Cooling kW 2.00 2.50 3.50 5.00 2.00 2.50 3.50 5.00

Nominal Heating kW 2.50 3.40 4.00 5.80 2.50 3.40 4.00 5.80

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+++ A+++ A++ A++ A+++ A+++ A++ A++

Pdesign kW 2.30 2.40 3.50 4.80 2.30 2.40 3.50 4.80

SEER 8.73 8.64 7.19 7.02 8.73 8.64 7.19 7.02

Annual Energy Consumption kWh 92 97 170 239 92 97 170 239

Seasonal Eciency

(EN14825)

HEATING

Energy Label A++ A++ A++ A+ A++ A++ A++ A+

Pdesign kW 2.10 2.70 3.00 4.60 2.10 2.70 3.00 4.60

SCOP 4.60 4.60 4.60 4.28 4.60 4.60 4.60 4.28

Annual Energy Consumption kWh 638 822 913 1505 638 822 913 1505

Nominal Eciency Energy Label A / A A / A A / A A / A A / A A / A A / A A / A

EER / COP 4.64 / 5.00 4.73 / 4.57 4.09 / 4.04 3.35 / 3.65 4.64 / 5.00 4.73 / 4.57 4.09 / 4.04 3.35 / 3.65

Annual Energy Consumption kWh 248 254 428 716 248 254 428 716

Air Flow Rate High / Low / Silent m3/sec

0.148 / 0.073 /

0.043 0.148 / 0.073 /

0.044 0.182 / 0.080 /

0.048 0.182 / 0.113 /

0.060 0.148 / 0.073 /

0.043 0.148 / 0.073 /

0.044 0.182 / 0.080 /

0.048 0.182 / 0.113 /

0.060

Dimensions Height mm 303 303

Width mm 998 998

Depth mm 212 212

Weight kg 12 12 12 12 12 12 12 12

Sound Pressure High / Low / Silent dBA 38 / 25 / 19 38 / 25 / 19 45 / 26 / 20 45 / 35 / 32 38 / 25 / 19 38 / 25 / 19 45 / 26 / 20 45 / 35 / 32

Sound Power Cooling dBA 54 54 59 60 54 54 59 60

Outdoor Units RXJ20M RXJ25M RXJ35M RXJ50M RXJ20M RXJ25M RXJ35M RXJ50M

Dimensions Height x Width x Depth mm 550 x 765 x 285

735 x 825 x 315

550 x 765 x 300

735 x 825 x 315

Weight kg 34 47 34 48

Electrical Details Power Supply 1ph 1ph

Running Current A 2.67 2.82 4.18 6.43 2.67 2.82 4.18 6.43

Starting Current A 2.6 3.6 4.6 6.9 2.6 3.6 4.6 6.9

Max Fuse Size A 10 10 10 15 10 10 10 15

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) /

3/8 (9.5)

1/4 (6.4) /

3/8 (9.5)

1/4 (6.4) /

3/8 (9.5)

1/4 (6.4) /

1/2 (12.7)

1/4 (6.4) /

3/8 (9.5)

1/4 (6.4) /

3/8 (9.5)

1/4 (6.4) /

3/8 (9.5)

1/4 (6.4) /

1/2 (12.7)

Pipework Maximum Length m 20 20 20 30 20 20 20 30

Maximum Vertical Rise m 15 15 15 20 15 15 15 20

Precharged to m 10 10 10 10 10 10 10 10

Additional Charge g/m 20 20

Holding Charge kg 0.72 0.72 0.72 1.3 0.72 0.72 0.72 1.1

Sound Pressure High / Silent dBA 46 / 43 46 / 43 48 / 45 48 / 45 46 / 43 46 / 43 48 / 45 48 / 45

Sound Power dBA 61 61 63 63 61 61 63 63

Air Flow Rate (cooling) High m3/Sec 0.575 0.575 0.616 0.830 0.575 0.575 0.616 0.830

ECA Eligible ●●●●●●●●

Trade Fan Coil Price £273.00 £288.00 £323.00 £426.00 £326.00 £343.00 £384.00 £508.00

Trade Condensing Unit Price £498.00 £525.00 £609.00 £821.00 £498.00 £525.00 £609.00 £821.00

Total System Price £771.00 £813.00 £932.00 £1,247.00 £824.00 £868.00 £993.00 £1,329.00

Features:

Accessory Ref Description Trade Price

BRC073 Optional Wired Remote controller: BRC1E53 style £83.00

BRCW901A03 3m connection cable for BRC073 £17.00

BRCW901A08 8m connection cable for BRC073 £22.00

KRP413A1S Adaptor PCB for remote on/o control - constant/pulse contact £78.00

KRP928A2S Adaptor PCB for interface to Daikin centralised control systems £137.00

KLIC-DD KNX interface for Split type systems £171.00

RTD-RA Adaptor PCB for Modbus connection and/or extended system functions £157.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories: Notes:

FTXJ / RXJ systems use R32, for R410A version see page 13

i) All fan coil units standard with auto restart

after power failure

ii) All fan coils supplied as standard with

infrared remote controller ARC466A1

iii) Wired controller, KLIC-DI and RTD-RA

options cannot be combined

iv) Minimum ambient operating

temperatures:

Cooling Heating

RXJ -10°C -15°C

> Designed in Europe, perfect for UK climates, Daikin Emura creates the optimum comfort zone all year round

> It represents a perfect marriage of style and substance, of form and function, of intelligent heating and ecient cooling

> Stylish, low-prole design

> Wireless remote controller with weekly timer: provides a 7-day schedule timer, enabling daily or weekly programming.

Up to 4 actions per day possible

> Night set mode: prevents sudden changes in room temperature by gently adjusting the temperature before the system stops

Improved titanium apatite photocatalytic air purifying lter: superior purication and deodorisation of the air inside the room

> 2-area intelligent eye: air ow is sent to a zone other than where the occupants are located at that moment

> Presence Sensor switches to energy saving mode if room is unoccupied after 20 mins

> Powerful operation: activates the maximum air volume for 20 minutes before returning to its original setting

> Fan speed: 5 fan speeds can be selected, high to super low

NEW

WIFI ADAPTOR

NOW INCLUDED

AS STANDARD

FTXJ-MW/S / RXJ-M

Wall Mounted – Emura (with R32 refrigerant)

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

WIFI

CONTROL

VIA APP

Indoor Units FTXM20M FTXM25M FTXM35M FTXM42M FTXM50M FTXM60M FTXM71M

Capacity UK Total Cooling kW 1.95 2.44 3.42 4.11 4.56 TBC TBC

UK Sensible Cooling kW 1.65 1.82 2.56 2.85 3.14 TBC TBC

Nominal Cooling kW 2.00 2.50 3.50 4.20 5.00 6.00 7.10

Nominal Heating kW 2.50 3.40 4.00 5.40 5.80 7.00 8.20

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+++ A+++ A+++ A++ A++ A++ A++

Pdesign kW 2.00 2.50 3.40 4.20 5.00 6.00 6.80

SEER 8.53 8.52 8.51 7.50 7.33 6.90 6.11

Annual Energy Consumption kWh 83 103 140 196 239 304 390

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+++ A+++ A+++ A++ A++ A+ A

Pdesign kW 2.30 2.40 2.50 4.00 4.60 4.60 6.20

SCOP 5.10 5.10 5.10 4.60 4.60 4.60 6.20

Annual Energy Consumption kWh 632 659 686 1217 1400 1498 2278

Nominal Eciency Energy Label A / A A / A A / A A / A A / A A / A B / D

EER / COP 4.57 / 5.00 4.50 / 5.00 4.23 / 4.04 3.75 / 4.12 3.68 / 4.00 3.39 / 3.61 3.03 / 3.19

Annual Energy Consumption kWh 219 278 402 560 682 885 1174

Air Flow Rate (Cooling) High / Low / Silent m3/sec 0.185 / 0.100 /

0.073 0.185 / 0.103 /

0.073 0.210 / 0.107 /

0.077 0.210 / 0.118 /

0.077 0.275/ 0.193 /

0.172 0.285 / 0.200 /

0.178 0.285 / 0.200 /

0.178

Dimensions Height mm 272 295

Width mm 811 1040

Depth mm 294 300

Weight kg 10 14.5

Sound Pressure High / Low / Silent dBA 41 / 25 / 19 41 / 25 / 19 45 / 29 / 19 45 / 30 / 21 44 / 36 / 32 46 / 37 / 34 47 / 38 / 35

Sound Power (Cooling) dBA 57 57 60 60 59 60 60

Outdoor Units RXM20M RXM25M RXM35M RXM42M RXM50M RXM60M RXM71M

Dimensions Height x Width x Depth mm 550 x 765 x 285 735 x 825 x 300 735 x 870 x 320

Weight kg 32 32 32 44 44 44 44

Electrical Details Power Supply 1ph 1ph

Running Current A 1.95 2.47 4.23 4.97 6.48 7.72 9.19

Starting Current A 3.7 3.7 4.4 6.8 6.6 6.6 9.5

Max Fuse Size A 10 10 10 20 20 TBC TBC

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 2.5 3+E / 2.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

1/4 (6.4) / 5/8 (15.7)

Pipework Maximum Length m 20 20 20 30 30 30 30

Maximum Vertical Rise m 15 15 15 15 15 15 15

Precharged to m 10 10 10 10 10 10 10

Additional Charge g/m 20 20

Holding Charge kg 0.76 0.76 0.76 1.30 1.40 1.50 1.70

Sound Pressure (Cooling) High / Silent dBA 46 / - 46 / - 49 / - 48 / 44 48 / 44 48 / 44 47 / -

Sound Power (Cooling) dBA 59 59 61 63 63 63 64

Air Flow Rate (Cooling) High m3/sec 0.600 0.600 0.600 0.848 0.840 0.840 1.122

ECA Eligible ●●●●●●●

Trade Fan Coil Price £160.00 £172.00 £197.00 £221.00 £306.00 £312.00 £416.00

Trade Condensing Unit Price £454.00 £496.00 £575.00 £648.00 £722.00 £770.00 £1,054.00

Total System Price £614.00 £668.00 £772.00 £869.00 £1,028.00 £1,082.00 £1,470.00

FTXM-M / RXM-M

Wall Mounted – Standard Inverter (with R32 refrigerant)

Accessories: Notes:

FTXM / RXM systems use R32, for R410A version see page 14

i) All fan coil units standard with auto restart

after power failure

ii) All fan coils supplied as standard with

infrared remote controller

iii) Wired controller, KLIC-DI and RTD-RA

options cannot be combined

iv) Minimum ambient operating

temperatures:

Cooling Heating

RXM -10°C -15°C

Accessory Ref Description Trade Price

BRC073 Optional Wired Remote controller: BRC1E53 style £83.00

BRP069A42 Wi adaptor for connection to on-line controller £52.00

BRCW901A03 3m connection cable for BRC073 £17.00

BRCW901A08 8m connection cable for BRC073 £22.00

KRP928A2S Adaptor PCB for interface to Daikin centralised control systems £137.00

KLIC-DD KNX interface for Split type systems £171.00

RTD-RA Adaptor PCB for Modbus connection and/or extended system functions £157.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Features:

> Wireless remote controller with weekly timer: provides a 7-day schedule timer, enabling daily or weekly programming.

Up to 4 actions per day possible

> Night set mode: prevents sudden changes in room temperature by gently adjusting the temperature before the system stops

> Titanium apatite photocatalytic air purifying lter: superior purication and deodorisation of the air inside the room

> Air purication using Flash Streamer technology to remove odour & bacteria

> 2-area intelligent eye: (35~50 K class) air ow is sent to a zone other than where the occupants are located at that moment

> Presence Sensor switches to energy saving mode if room is unoccupied after 20 mins

> Powerful operation: activates the maximum air volume for 20 minutes before returning to its original setting

> Fan speed: 5 fan speeds can be selected, high to super low

NEW

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Outdoor unit *2MXM40M *2MXM50M *3MXM40N *3MXM52N *3MXM68N *4MXM68N *4MXM80N *5MXM90N

Capacity Nominal Cooling kW 4.0 5.0 4.0 5.2 6.8 6.8 8.0 9.0

Nominal Heating kW 4.4 5.7 4.6 6.8 8.6 8.6 9.6 10.4

Dimensions Unit HeightxWidthxDepth mm 550x765x285 735x 958 x340 735x958 x340 735x958x340

Weight Unit kg 36 41 57 57 62 63 67 68

Electrical Details Power Supply Phase / Frequency / Voltage 1~ / 50 / 220-240

Running Current (cooling) amps Refer to Multi Combination Tables

Starting Current amps 4.6 6.3 4.1 4.6 9.8 8.3 11.2 11.8

Fuse Rating amps 16 16 32 32 32 32 32 32

Refrigerant Circuit Refrigerant Type R32 R32 R32 R32 R32 R32 R32 R32

Refrigerant Charge kg 0.88 1.15 1.80 1.80 1.80 2.00 2.40 2.40

Sound power level Cooling dBA 60 60 59 59 61 61 61 64

Sound pressure level Cooling Nom. dBA 48 46 46 46 48 48 49 52

Heating Nom. dBA 50 48 47 47 48 48 49 52

Piping Limits Maximum Length m 20 20 25 25 25 25 25 25

Maximum Vertical Rise IU-OU m 15 15 15 15 15 15 15 15

Piping Connections Liquid inches (mm) 1/4 (6.4) 1/4 (6.4) 3 x 1/4 (6.4) 3 x 1/4 (6.4) 3 x 1/4 (6.4) 4 x 1/4 (6.4) 4 x 1/4 (6.4) 5 x 1/4 (6.4)

Gas inches (mm) 2 x 3/8 (9.5) 3/8 (9.5)

1/2 (12.7)

1 x 3/8 (9.5)

2 x 1/2 (12.7)

1 x 3/8 (9.5)

2 x 1/2 (12.7)

1 x 3/8 (9.5)

2 x 1/2 (12.7)

2 x 3/8 (9.5)

2 x 1/2 (12.7)

1 x 3/8 (9.5)

1 x 1/2 (12.7)

2 x 5/8 (15.7)

2 x 3/8 (9.5)

1 x 1/2 (12.7)

2 x 5/8 (15.7)

Operation range Cooling Ambient Min.~Max. °CDB -10~46

Heating Ambient Min.~Max. °CWB -15~24

Air Flow Rate (Cooling) Cooling

High / Nom / Super low

m3/sec

0.600 / 0.550

/ 0.500

0.617 / 0.567

/ 0.567

0.700 / 0.700

/ 0.400

0.700 / 0.700

/ 0.400

0.775 / 0.708

/ 0.402

0.775 / 0.708

/ 0.402

0.818 / 0.753

/ 0.402

0.818 / 0.818

/ 0.402

Number of connected indoor units 2 2 3 3 3 4 4 5

Trade Condensing Unit Price £1,038.00 £1,149.00 £1,082.00 £1,203.00 £1,703.00 £1,837.00 £2,069.00 £2,227.00

Multi Series

Daikin’s new Multi Selection Tool is a fast and simple way to select your combinations for MXS Series outdoor units.

The online tool has four simple steps:

> select number of rooms > select capacity per room

> select capacity of outdoor > select type of indoor & input pipe run & level dierence

It has in-built checks to ensure capacity, pipe length and level dierence cannot exceed maximum for selected outdoor

unit and generates a report showing full energy label for specic combination and pictures of all equipment selected.

This can be used by installers to select Multi systems, and also to show end-users the conguration of the system.

Go to www.daikineurope.com/multiselection

WIFI

CONTROL

VIA APP

Slim Ducted – for use with R32 Multi

Indoor unit FDXM *25F *35F *50F *60F

Dimensions Unit HeightxWidthxDepth mm 200x750x620 200x1,150x620

Weight Unit kg 21 30

Air lter Type Removable / washable / mildew proof

Fan - Air ow rate Cooling High/Nom./Low m³/sec 0.145/0.133/0.122 0.200/0.183/0.167 0.267/0.247/0.225

Heating High/Nom./Low m³/sec 0.145/0.133/0.122 0.267/0.247/0.225

Fan - External static pressure Nom Pa 30 40

Sound power level Cooling dBA 53 55 56

Heating dBA 53 55 56

Sound pressure level Cooling High/Nom./Low dBA 35/33/27 38/36/30 38/35/30

Heating High/Nom./Low dBA 35/33/27 38/36/30

Piping connections Liquid inches (mm) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4)

Gas inches (mm) 3/8 (9.5) 3/8 (9.5) 1/2 (12.7) 1/2 (12.7)

Power supply Phase / Frequency / Voltage Hz / V 1~ / 50 / 230 1~ / 50 / 220-240

Control systems Infrared remote control BRC4C65

Wired remote control BRC1E53

* preliminary data

R32 Emura Wall Mounted Fan Coil Units FTXJ20MW FTXJ25MW FTXJ35MW FTXJ50MW FTXJ20MS FTXJ25MS FTXJ35MS FTXJ50MS

Trade Fan Coil Unit Price £273.00 £288.00 £323.00 £426.00 £326.00 £343.00 £384.00 £508.00

R32 Wall Mounted Fan Coil Units FTXM20M FTXM25M FTXM35M FTXM42M FTXM50M FTXM60M FTXM71M

Trade Fan Coil Unit Price £160.00 £172.00 £197.00 £221.00 £306.00 £312.00 £416.00

R32 Slim Ducted Fan Coil Units FDXM25F FDXM35F FDXM50F FDXM60F

Trade Fan Coil Unit Price £331.00 £380.00 £418.00 £466.00

Multi Split Fan Coils

* preliminary data Wall mounted Concealed ceiling

*Daikin Emura FTXJ-MW/S *FTXM-M *FDXM-F

Connectable indoor units 20 25 35 50 20 25 35 42 50 60 71 25 35 50 60

MXMM ●●● ●●● ●●

MXMM ●●●●●●●●● ●●●

MXMN ●●● ●●● ●●

MXMN ●●●●●●●●● ●●●

MXMN ●●●●●●●●●● ●●●●

MXMN ●●●●●●●●●● ●●●●

MXMN ●●●●●●●●●●●●●●●

MXMN ●●●●●●●●●●●●●●●

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Indoor Units Single Phase

FCAHG71F FCAHG100F FCAHG125F FCAHG140F

Capacity UK Total Cooling kW 7.76 10.80 13.60 14.90

UK Sensible Cooling kW 5.32 7.44 9.30 10.25

Nominal Cooling kW 6.80 9.50 12.00 13.40

Nominal Heating kW 7.50 10.80 13.50 15.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A++ -

Pdesign kW 6.80 9.50 12.0 -

SEER 7.35 7.35 6.94 -

Annual Energy Consumption kWh 324 452 605 -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A++ A++ -

Pdesign kW 4.54 4.64 4.63 -

SCOP 4.54 4.80 4.63 -

Annual Energy Consumption kWh 1743 2753 2879 -

Nominal Eciency Energy Label A / A A / A A / A A / A

EER / COP 4.09 / 4.80 4.42 / 4.99 4.00 / 4.00 3.35 / 4.12

Annual Energy Consumption kWh 831 1075 1500 2000

Air Flow Rate High / Low m3/sec 0.353 / 0.270 / 0.203 0.538 / 0.428 / 0.317 0.558 / 0.445 / 0.332 0.558 / 0.455 / 0.352

Dimensions

(with Decoration Panel)

Height mm 288(348) 288 (348) 288 (348) 288 (348)

Width mm 840 (950) 840 (950) 840 (950) 840 (950)

Depth mm 840 (950) 840 (950) 840 (950) 840 (950)

Weight (with Decoration Panel) kg 25 (30.5) 26 (31.4) 26 (31.4) 26 (31.4)

Sound Pressure High / Nom / Low dBA 36 / 33 / 29 44 / 39 / 33 45 / 40 / 35 45 / 41 / 37

Sound Power dBA 53 61 61 61

Outdoor Units RZAG71LV1 RZAG100LV1 RZAG125LV1 RZAG140LV1

Dimensions Height x Width x Depth mm 990 x 940 x 320 1430 x 940 x 320

Weight kg 69 95 95 95

Electrical Details Power Supply 1ph

Running Current A 16.5 26.3 26.4 26.4

Starting Current A 4 4 4 4

Max Fuse Size A 20 32 32 32

Interconnection Wiring Core / Cable size 3+E / 1.5

Piping Connections Liquid / Gas inches 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 55 85 85 85

Maximum Vertical Rise m 30 30 30 30

Precharged to m 30 30 30 30

Additional Charge g/m Refer to Installation Manual

Holding Charge kg 2.6 3.6 3.6 3.6

Sound Pressure (Cooling) Nom / night quite mode dBA 48 / 43 49 / 45 51 / 45 52 / 45

Sound Power (Cooling) Nom dBA 64 64 66 67

Air Flow Rate (Cooling) High m3/sec 0.983 1.167 1.167 1.167

Trade Fan Coil Price £819.00 £926.00 £1,012.00 £1,215.00

Trade Condensing Unit Price £1,239.00 £1,575.00 £1,733.00 £1,978.00

Total System Price £2,058.00 £2,501.00 £2,745.00 £3,193.00

Features:

> The FCAHG model is designed for 2014 ErP regulations and has one of the highest COP values on the market

> The unique 360° radial air pattern ensures uniform air ow and temperature distribution

> Air ow exibility: a wide selection of 23 dierent air ow patterns accessible via remote controller

> Optional Presence Sensors detects if room is unoccupied and allows temperature to drift to set-back levels

> Optional Self Cleaning Filter The BYCQ140DG decoration panel can oer energy savings, reduced maintenance time and cost

> Optional Fresh Air intake (up to 20%) possible

> Re-use of existing R22 and R407C piping possible

> Selectable evaporating & condensing temperature for greater operating eciency (Seasonal Smart)

> DIII net compatibility as standard

Accessory Ref Description Trade Price

BRC7FA532F Wireless remote controller £158.00

BYCQ140DG Roundow cassette decoration panel with self cleaning lter £323.00

BYCQ140DW Roundow cassette decoration panel - white with white louvres £167.00

BRYQ140A Integral PIR Sensor for Roundow decoration panel. Enables Energy Saving functions £103.00

KDBHQ55B140 Sealing member for air discharge outlet £94.00

KDDQ55B140 1&2 Fresh air intake kit for up to 20% fresh air - 2 part kit £243.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2 Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock £245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.CWB140-2 Condensing unit bracket - sizes 100 to 140, max weight 140kg of ODU £47.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGM Condensing Unit Guard size 42-71 £308.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

Accessories: Notes:

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) BRC7FA532F Trade price will be reduced

by £79.00 if ordered in place of the

BRC1E53A

iii) All fan coil units standard with auto

restart after power failure

iv) All fan coils suppled as standard with

BYCQ140D Decoration panel

v) BYCQ140DW / BYCQ140DG Trade prices

will be reduced by £148.00 if ordered in

place of standard decoration panel

vi) Minimum ambient operating

temperatures:

Cooling Heating

RZAG -15°C -20°C

FCAHG-F / RZAG-L

High COP Roundow Cassette – Seasonal Smart (R32)

FCAHG / RZAG systems use R32, for R410A version see page 28

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Enhanced Capital Allowance (ECA) Scheme

The Energy Technology List (ETL) is a denitive

list of all the products that qualify for the ECA,

typically by meeting or exceeding eciency

standards. For DX, the list includes approximately

the top 20% most ecient air conditioning

systems and is updated regularly to ensure that

it includes the most energy ecient products

currently available.

The Enhanced Capital Allowance (ECA)

scheme provides businesses with enhanced

tax relief for investment in energy-saving

equipment that meets specied Government

criteria. It allows 100% of the investment to

be written o against taxable prot in the

year the investment is made.

Daikin now has a website that allows customers to check whether

selected equipment is ecient enough to be eligible to claim

Enhanced Capital Allowances.

Go to www.daikin.co.uk/eca to check:

> Split

> Sky Air

> VRV

The website also allows you to

create a Certicate of Eligibility

for your equipment selection

that can be used to support a

claim for ECA.

Certain types of equipment are listed on the ECA website.

To check eligibility of the following equipment types,

please go to www.etl.decc.gov.uk/etl/site.htm

> Biddle Air Curtains (Split and VRV)

> Ventilation (VAMs)

> Control Options (RTD20)

> Chillers

The ETL website should also be used

to check equipment eligibility for Split,

Sky Air & VRV equipment purchased

before August 2014.

One cassette, 3 options:

Daikin’s Roundow Cassette range

has a solution for all your needs:

> Price

> Performance

> Highest Eciency

> Pair, twin, triple, double twin applications

> 50m pipe run

-15 / -15°C operating range in cooling / heating

> A+/A+ Energy Labels

> R22 replacement technology

> Pair, twin, triple, double twin applications

> 75m pipe run

-15 / -20°C operating range in cooling / heating

> Up to A++/A+ Energy Labels

> All capacities ECA Eligible

> R22 replacement technology

> Pair applications

> 30m pipe run

-5 / -15°C operating range in cooling / heating

> A/A Energy Labels

> R22 replacement technology

FCQG-F Series cassette

BYFQD Roundow decoration panel

BRCE remote control

Sky Air Roundow Cassette

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

FTXG-LW/S / RXG-L

Wall Mounted – Emura

Indoor Units Matt Crystal White Silver

FTXG20LW FTXG25LW FTXG35LW FTXG50LW FTXG20LS FTXG25LS FTXG35LS FTXG50LS

Capacity UK Total Cooling kW 2.25 2.35 3.42 4.69 2.25 2.35 3.42 4.69

UK Sensible Cooling kW 1.84 1.88 2.51 3.09 1.84 1.88 2.51 3.09

Nominal Cooling kW 2.00 2.50 3.50 5.00 2.00 2.50 3.50 5.00

Nominal Heating kW 2.50 3.40 4.00 5.80 2.50 3.40 4.00 5.80

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+++ A+++ A++ A++ A+++ A+++ A++ A++

Pdesign kW 2.30 2.40 3.50 4.80 2.30 2.40 3.50 4.80

SEER 8.52 8.50 7.00 6.70 8.52 8.50 7.00 6.70

Annual Energy Consumption kWh 94 99 175 251 94 99 175 251

Seasonal Eciency

(EN14825)

HEATING

Energy Label A++ A++ A++ A+ A++ A++ A++ A+

Pdesign kW 2.10 2.70 3.00 4.60 2.10 2.70 3.00 4.60

SCOP 4.60 4.60 4.60 4.24 4.60 4.60 4.60 4.24

Annual Energy Consumption kWh 639 821 913 1519 639 821 913 1519

Nominal Eciency EER / COP 4.59 / 5 4.59 / 4.42 3.97 / 4.06 3.53 / 3.65 4.59 / 5 4.59 / 4.42 3.97 / 4.06 3.53 / 3.65

Energy Label A / A A / A A / A A / A A / A A / A A / A A / A

Annual Energy Consumption kWh 250 261 441 680 250 261 441 680

Air Flow Rate (Cooling) High / Low / Silent m3/sec

0.148 / 0.073 /

0.043 0.148 / 0.073 /

0.043 0.182 / 0.080 /

0.048 0.182 / 0.113 /

0.060 0.148 / 0.073 /

0.043 0.148 / 0.073 /

0.043 0.182 / 0.080 /

0.048 0.182 / 0.113 /

0.060

Dimensions Height mm 303 303

Width mm 998 998

Depth mm 212 212

Weight kg 12 12 12 12 12 12 12 12

Sound Pressure (Cooling)

High / Low / Silent dBA 38 / 25 / 19 38 / 25 / 19 45 / 26 / 20 46 / 35 / 32 38 / 25 / 19 38 / 25 / 19 45 / 26 / 20 46 / 35 / 32

Sound Power dBA 54 54 59 60 54 54 59 60

Outdoor Units RXG20L RXG25L RXG35L RXG50L RXG20L RXG25L RXG35L RXG50L

Dimensions Height x Width x Depth mm 550 x 765 x 285

735 x 825 x 300

550 x 765 x 285

735 x 825 x 300

Weight kg 35 48 35 48

Electrical Details Power Supply 1ph 1ph

Running Current A 2.70 2.80 4.80 6.20 2.70 2.80 4.80 6.20

Starting Current A 2.8 4.4 5.5 7.4 2.8 4.4 5.5 7.4

Max Fuse Size A 16 16 16 20 16 16 16 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5)

1/4 (6.4) / 1/2 (12.7)

1/4 (6.4) / 3/8 (9.5)

1/4 (6.4) / 1/2 (12.7)

Pipework Maximum Length m 20 20 20 30 20 20 20 30

Maximum Vertical Rise m 15 15 15 20 15 15 15 20

Precharged to m 10 10 10 10 10 10 10 10

Additional Charge g/m 20 20

Holding Charge kg 1.05 1.05 1.05 1.6 1.05 1.05 1.05 1.6

Sound Pressure (Cooling)

High / Silent Operation dBA 46 / 43 46 / 43 48 / 44 48 / 44 46 / 43 46 / 43 48 / 44 48 / 44

Sound Power (Cooling) dBA 61 61 63 63 61 61 63 63

Air Flow Rate High m3/sec 0.575 0.575 0.616 0.830 0.575 0.575 0.616 0.830

ECA Eligible ●●●●●●●●

Trade Fan Coil Price £273.00 £288.00 £323.00 £426.00 £326.00 £343.00 £384.00 £508.00

Trade Condensing Unit Price £498.00 £525.00 £609.00 £821.00 £498.00 £525.00 £609.00 £821.00

Total System Price £771.00 £813.00 £932.00 £1,247.00 £824.00 £868.00 £993.00 £1,329.00

Features:

> Designed in Europe, perfect for UK climates, Daikin Emura creates the optimum comfort zone all year round

> It represents a perfect marriage of style and substance, of form and function, of intelligent heating and ecient cooling

> Stylish, low-prole design

> Wireless remote controller with weekly timer: provides a 7-day schedule timer, enabling daily or weekly programming.

Up to 4 actions per day possible

> Night set mode: prevents sudden changes in room temperature by gently adjusting the temperature before the system stops

> Titanium apatite photocatalytic air purifying lter: superior purication and deodorisation of the air inside the room

> 2-area intelligent eye: air ow is sent to a zone other than where the occupants are located at that moment

> Presence Sensor switches to energy saving mode if room is unoccupied after 20 mins

> Powerful operation: activates the maximum air volume for 20 minutes before returning to its original setting

> Fan speed: 5 fan speeds can be selected, high to super low

> Suitable for multi model applications

> Re-use of existing R22 and R407C piping possible

Accessory Ref Description Trade Price

BRC073 Optional Wired Remote controller: BRC1E53 style £83.00

BRCW901A03 3m connection cable for BRC073 £17.00

BRCW901A08 8m connection cable for BRC073 £22.00

BRP069A41 Wi adaptor for connection to on-line controller £40.00

KRP413A1S Adaptor PCB for remote on/o control - constant/pulse contact £78.00

KRP928A2S Adaptor PCB for interface to Daikin centralised control systems £137.00

KLIC-DD KNX interface for Split type systems £171.00

RTD-RA Adaptor PCB for Modbus connection and/or extended system functions £157.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories: Notes:

i) All fan coil units standard with auto restart

after power failure

ii) All fan coils supplied as standard with

infrared remote controller ARC466A1

iii) Wired controller, KLIC-DI and RTD-RA

options cannot be combined

iv) Control option is either hard-wired

remote, or Wi-Fi adaptor

v) Minimum ambient operating

temperatures:

Cooling Heating

RXG -10°C -15°C

WIFI

CONTROL

VIA APP

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Indoor Units FTXS20K FTXS25K FTXS35K FTXS42K FTXS50K FTXS60G FTXS71G

Capacity UK Total Cooling kW 1.95 2.44 3.42 4.11 4.56 5.86 6.94

UK Sensible Cooling kW 1.65 1.82 2.56 2.85 3.14 3.87 4.65

Nominal Cooling kW 2.00 2.50 3.50 4.20 5.00 6.00 7.10

Nominal Heating kW 2.50 3.40 4.00 5.40 5.80 7.00 8.20

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A++ A++ A++ A A

Pdesign kW 2.00 2.50 3.50 4.20 5.00 6.00 7.10

SEER 7.40 7.90 7.47 6.80 6.80 5.58 5.23

Annual Energy Consumption kWh 95 111 164 216 257 376 475

Seasonal Eciency

(EN14825)

HEATING

Energy Label A++ A++ A++ A+ A+ A A

Pdesign kW 2.30 2.50 3.50 4.00 4.60 4.80 6.50

SCOP 4.77 4.78 4.85 4.20 4.20 3.89 3.50

Annual Energy Consumption kWh 675 732 1039 1334 1535 1728 2593

Nominal Eciency EER / COP 4.65 / 4.72 4.21 / 4.67 3.89 / 4.76 3.35 / 4.12 3.32 / 4 3.02 / 3.43 3.02 / 3.22

Energy Label A / A A / A A / A A / A A / A B / B B / C

Annual Energy Consumption kWh 228 297 450 627 753 995 1175

Air Flow Rate (Cooling) High / Low / Silent m3/sec 0.147 / 0.078 /

0.065

0.152 / 0.083 /

0.065

0.187 / 0.097 /

0.068

0.187 / 0.117 /

0.068

0.198 / 0.123 /

0.075

0.267 / 0.188 /

0.168

0.287 / 0.192 /

0.175

Dimensions Height mm 289 289 298 298 298 290 290

Width mm 780 780 900 900 900 1050 1050

Depth mm 215 215 215 215 215 250 250

Weight kg 8 8 11 11 11 12 12

Sound Pressure (Cooling)

High / Nom / Low / Silent dBA 40 / 32 / 24 / 19 41 / 33 / 25 / 19 45 / 37 / 29 / 19 45 / 39 / 33 / 21 46 / 40 / 34 / 23 45 / 41 / 36 / 33 46 / 42 / 37 / 34

Sound Power dBA 58 58 59 59 60 60 63

Outdoor Units RXS20L3 RXS25L3 RXS35L3 RXS42L RXS50L RXS60L RXS71F8

Dimensions Height x Width x Depth mm 550 x 765 x 285 550 x 765 x 285 735 x 825 x 300 770 x 900 x 320

Weight kg 34 34 34 39 47 48 71

Electrical Details Power Supply 1ph 1ph

Running Current A 2.30 3.10 4.10 5.70 6.30 8.80 10.49

Starting Current A 2.4 3.3 4.3 6.6 6.8 9.4 11.7

Max Fuse Size A 10 10 10 20 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

1/4 (6.4) / 5/8 (15.9)

Pipework Maximum Length m 20 20 20 20 30 30 30

Maximum Vertical Rise m 15 15 15 15 20 20 20

Precharged to m 10 10 10 10 10 10 10

Additional Charge g/m 20 20

Holding Charge kg 1.0 1.0 1.2 1.3 1.7 1.5 2.3

Sound Pressure (Cooling)

High / Silent Operation dBA 46 / 43 46 / 43 48 / 44 48 / 44 48 / 44 49 / 46 52 / 49

Sound Power dBA 59 59 61 61 62 62 65

Air Flow Rate (Cooling) High m3/sec 0.558 0.558 0.600 0.621 0.848 0.835 0.910

ECA Eligible ●●●●●

Trade Fan Coil Price £160.00 £172.00 £197.00 £221.00 £306.00 £312.00 £416.00

Trade Condensing Unit Price £454.00 £496.00 £575.00 £648.00 £722.00 £770.00 £1,054.00

Total System Price £614.00 £668.00 £772.00 £869.00 £1,028.00 £1,082.00 £1,470.00

Features:

Accessory Ref Description Trade Price

KRP980A1 S21 adaptor for FTXS20K & 25K for ALL control options £52.00

BRC073 Optional Wired Remote controller: BRC1E53 style £83.00

BRP069A42 Wi adaptor for connection to on-line controller £52.00

BRCW901A03 3m connection cable for BRC073 £17.00

BRCW901A08 8m connection cable for BRC073 £22.00

KRP928A2S Adaptor PCB for interface to Daikin centralised control systems £137.00

KLIC-DD KNX interface for Split type systems £171.00

RTD-RA Adaptor PCB for Modbus connection and/or extended system functions £157.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories: Notes:

i) All fan coil units standard with auto restart

after power failure

ii) All fan coils supplied as standard with

infrared remote controller

iii) Wired controller, KLIC-DI and RTD-RA

options cannot be combined

iv) Control option is either hard-wired

remote, or Wi-Fi adaptor

v) FTXS-K and FTXS-G have dierent

style casing

vi) Minimum ambient operating

temperatures:

Cooling Heating

RXS -10°C -15°C

FTXS-G seriesFTXS-K series

FTXS-K/G / RXS-L/F

Wall Mounted – Standard Inverter

WIFI

CONTROL

VIA APP

> Wireless remote controller with weekly timer: provides a 7-day schedule timer, enabling daily or weekly programming.

Up to 4 actions per day possible

> Night set mode: prevents sudden changes in room temperature by gently adjusting the temperature before the system stops

> Titanium apatite photocatalytic air purifying lter: superior purication and deodorisation of the air inside the room

> 2-area intelligent eye: (35~50 K class) air ow is sent to a zone other than where the occupants are located at that moment

> Presence Sensor switches to energy saving mode if room is unoccupied after 20 mins

> Powerful operation: activates the maximum air volume for 20 minutes before returning to its original setting

> Fan speed: 5 fan speeds can be selected, high to super low

> Suitable for multi model applications

> Re-use of existing R22 and R407C piping possible

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Indoor Units FTX20KV FTX25KV FTX35KV FTX50KV FTX60KV FTX71KV

Capacity UK Total Cooling kW 1.95 2.44 3.42 4.89 5.86 6.93

UK Sensible Cooling kW 1.65 1.82 2.56 3.42 4.00 4.73

Nominal Cooling kW 2.00 2.50 3.50 5.00 6.00 7.10

Nominal Heating kW 2.50 3.40 4.00 6.00 7.00 8.20

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A++ A++ A++ A

Pdesign kW 2.00 2.50 3.50 5.00 6.00 7.10

SEER 6.66 6.55 6.44 6.59 6.76 5.25

Annual Energy Consumption kWh 105 134 190 266 311 473

Seasonal Eciency

(EN14825)

HEATING

Energy Label A++ A++ A++ A+ A+ A

Pdesign kW 2.20 2.40 2.80 4.60 4.80 6.20

SCOP 4.65 4.61 4.64 4.10 4.10 3.81

Annual Energy Consumption kWh 662 729 845 1570 1640 2227

Nominal Eciency EER / COP 3.98 / 4.77 3.78 / 4.36 3.43 / 4.02 3.58 / 3.80 3.65 / 3.63 2.61 / 3.19

Energy Label A / A A / A A / A A / A A / A

Annual Energy Consumption kWh 251 331 510 698 822 1360

Air Flow Rate High / Low / S Low m3/min

0.165 / 0.096 / 0.080 0.173 / 0.101 / 0.080 0.196 / 0.105 / 0.081 0.266 / 0.185 / 0.168 0.293 / 0.203 / 0.186 0.293 / 0.203 / 0.186

Dimensions Height mm 286 286 286 295 295 295

Width mm 770 770 770 990 990 990

Depth mm 225 225 225 263 263 263

Weight kg 8 8 8 13.5 13.5 13.5

Sound Pressure High / Nom / Low / S Low dBA 39 / 33 / 25 / 20 40 / 33 / 26 / 20 43 / 34 / 27 / 20 43 / 39 / 34 / 31 45 / 41 / 36 / 33 46 / 42 / 37 / 34

Sound Power dBA 55 55 59 59 60 62

Outdoor Units RX20K RX25K RX35K RX50K RX60K RX71K

Dimensions Height x Width x Depth mm 550 x 658 x 275 735 x 870 x 320

Weight kg 28 44 49 49

Electrical Details Power Supply 1ph 1 ph

Running Current A 2.17 2.87 4.44 6.11 7.21 11.67

Starting Current A 3.0 3.7 5.2 7.0 9.9 9.9

Max Fuse Size A 16 16 16 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

Pipework Maximum Length m 15 15 15 30 30 30

Maximum Vertical Rise m 12 12 12 20 20 20

Precharged to m 10 10 10 10 10 10

Additional Charge g/m 20 20 20 20 20 20

Holding Charge kg 0.74 0.74 1.00 1.13 1.45 1.45

Sound Pressure High dBA 46 46 48 47 49 52

Sound Power dBA 60 60 62 61 63 66

Air Flow Rate (Cooling) High m3/sec 0.486 0.486 0.460 1.063 1.045 TBC

Trade Fan Coil Price £112.00 £124.00 £141.00 £229.00 £233.00 £311.00

Trade Condensing Unit Price £333.00 £356.00 £414.00 £539.00 £575.00 £826.00

Total System Price £445.00 £480.00 £555.00 £768.00 £808.00 £1,137.00

> Wireless remote controller with daily timer

> Night set mode: prevents sudden changes in room temperature by gently adjusting the temperature before the system stops

> Titanium apatite photocatalytic air purifying lter: superior purication and deodorisation of the air inside the room

> Powerful operation: activates the maximum air volume for 20 minutes before returning to its original setting

> Fan speed: 5 fan speeds can be selected, high to super low

> Suitable for multi model applications

> Re-use of existing R22 and R407C piping possible

Features:

Accessory Ref Description Trade Price

BRC073 Optional Wired Remote controller: BRC1E53 style £83.00

BRP069A42 Wi adaptor for connection to on-line controller £52.00

BRCW901A03 3m connection cable for BRC073 £17.00

BRCW901A08 8m connection cable for BRC073 £22.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories: Notes:

i) All fan coils supplied as standard with

infrared remote controller

ii) All fan coil units standard with auto restart

after power failure

iii) Minimum ambient operating

temperatures:

Cooling Heating

RX -10°C -15°C

FTX-KV / RX-K

Wall Mounted – Low Inverter

WIFI

CONTROL

VIA APP

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

> Fan speed: 3 fan speeds available on all capacities

> Automatic airow volume control sets fan speed based on dierence between set and room temperatures

> Dry programme: Daikin’s special dry programme reduces humidity in the rooms without variations in internal temperature

> Comms, computer and server room cooling possible with EDP setting (Seasonal Smart)

> Selectable evaporating & condensing temperature for greater operating eciency and application exibility (Seasonal Smart)

> DIII net compatibility as standard

> Seasonally Ecient Inverter Technology gives up to 25% better eciency than inverter technology

> Re-use of existing R22 and R407C piping possible. (See R22 Replacement leaet)

> Suitable for Twin, Triple and Double Twin applications

FAQ-C9 / RZQG-L

Wall Mounted – Seasonal Smart

Indoor Units Single Phase 3 Phase

FAQ71C9 FAQ100C9 FAQ71C9 FAQ100C9

Capacity UK Total Cooling kW 7.76 10.80 7.76 10.80

UK Sensible Cooling kW 5.32 7.44 5.32 7.44

Nominal Cooling kW 6.80 9.50 6.80 9.50

Nominal Heating kW 7.50 10.80 7.50 10.80

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A++ A++

Pdesign kW 6.80 9.50 6.80 9.50

SEER 6.43 6.11 6.43 6.11

Annual Energy Consumption kWh 371 545 371 545

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A+ A+ A+

Pdesign kW 6.33 10.20 6.33 10.20

SCOP 4.02 4.01 4.02 4.01

Annual Energy Consumption kWh 2205 3562 2205 3562

Nominal Eciency EER / COP 3.4 / 3.7 3.62 / 3.61 3.4 / 3.7 3.62 / 3.61

Energy Label A / A A / A A / A A / A

Annual Energy Consumption kWh 1000 1315 1000 1315

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.300 / 0.267 / 0.233 0.433 / 0.383 / 0.317 0.300 / 0.267 / 0.233 0.433 / 0.383 / 0.317

Dimensions Height mm 290 340 290 340

Width mm 1050 1200 1050 1200

Depth mm 238 240 238 240

Weight kg 13 17 13 17

Sound Pressure (Cooling)

High / Nom / Low dBA 45 / 42 / 40 49 / 45 / 41 45 / 42 / 40 49 / 45 / 41

Sound Power dBA 61 65 61 65

Outdoor Units RZQG71L9V1 RZQG100L9V1 RZQG71L8Y1 RZQG100L8Y1

Dimensions Height x Width x Depth mm 990 x 940 x 320 1430 x 940 x 320 990 x 940 x 320 1430 x 940 x 320

Weight kg 69 95 80 101

Electrical Details Power Supply 1ph 3ph

Running Current A 8.17 10.75 3.07 4.04

Starting Current A 4 4 4 4

Max Fuse Size A 20 32 16 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 75 50 75

Maximum Vertical Rise m 30 30 30 30

Precharged to m 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.9 4.0 2.9 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 48 / 43 50 / 45 48 / 43 50 / 45

Sound Power dBA 64 66 64 66

Air Flow Rate (Cooling) Nominal m3/sec 0.983 1.166 0.983 1.116

ECA Eligible ●●●●

Trade Fan Coil Price £779.00 £841.00 £779.00 £841.00

Trade Condensing Unit Price £1,239.00 £1,575.00 £1,277.00 £1,648.00

Total System Price £2,018.00 £2,416.00 £2,056.00 £2,489.00

Features:

Accessory Ref Description Trade Price

BRC7EB518 Wireless remote controller £158.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2 Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock £245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.CWB140-2 Condensing unit bracket - sizes 100 to 140, max weight 140kg of ODU £47.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGM Condensing Unit Guard size 42-71 £308.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

Accessories: Notes:

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) BRC7EB518 Trade price will be reduced by

£79.00 if ordered instead of the BRC1E53A

iii) All fan coil units standard with auto restart

after power failure

iv) Minimum ambient operating

temperatures:

Cooling Heating

RZQG -15°C -20°C

RZQSG -15°C -15°C

For Comms Rooms & Duty Rotation see page 48 - 49

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Indoor Units Single Phase 3 Phase

FAQ71C9 FAQ100C9 FAQ100C9

Capacity UK Total Cooling kW 7.28 10.80 10.80

UK Sensible Cooling kW 4.99 7.44 7.44

Nominal Cooling kW 6.80 9.50 9.50

Nominal Heating kW 7.50 10.80 10.80

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+ A+ A+

Pdesign kW 6.80 9.50 9.50

SEER 5.81 5.61 5.61

Annual Energy Consumption kWh 410 593 593

Seasonal Eciency

(EN14825)

HEATING

Energy Label A A+ A+

Pdesign kW 6.33 6.81 6.81

SCOP 3.90 4.01 4.01

Annual Energy Consumption kWh 2273 2378 2378

Nominal Eciency EER / COP 3.21 / 3.61 3.01 / 3.41 3.01 / 3.41

Energy Label A / A B / B B / B

Annual Energy Consumption kWh 1060 1580 1580

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.300 / 0.267 / 0.233 0.433 / 0.383 / 0.317 0.433 / 0.383 / 0.317

Dimensions Height mm 290 340 340

Width mm 1050 1200 1200

Depth mm 238 240 240

Weight kg 13 17 17

Sound Pressure (Cooling)

High / Nom / Low dBA 45 / 42 / 40 49 / 45 / 41 49 / 45 / 41

Sound Power

(Cooling)

dBA 61 65 65

Outdoor Units RZQSG71L3V1 RZQSG100L9V1 RZQSG100L8Y1

Dimensions Height x Width x Depth mm 770 x 900 x 320 990 x 940 x 320 990 x 940 x 320

Weight kg 67 72 82

Electrical Details Power Supply 1ph 3ph

Running Current A 8.66 12.91 4.86

Starting Current A 4 4 4

Max Fuse Size A 20 32 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 50 50

Maximum Vertical Rise m 15 30 30

Precharged to m 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.75 2.9 2.9

Sound Pressure (Cooling)

Nom / Night Quiet dBA 49 / 47 53 / 49 53 / 49

Sound Power

(Cooling)

dBA 65 70 70

Air Flow Rate (Cooling) Nominal m3/sec 0.866 1.266 1.266

Trade Fan Coil Price £779.00 £841.00 £841.00

Trade Condensing Unit Price £853.00 £1,181.00 £1,217.00

Total System Price £1,632.00 £2,022.00 £2,058.00

FAQ-C9 / RZQSG-L

Wall Mounted – Seasonal Classic

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

WIFI

CONTROL

VIA APP

Indoor Units FVXG25K FVXG35K FVXG50K

Capacity UK Total Cooling kW 2.44 3.42 4.81

UK Sensible Cooling kW 1.93 2.37 3.17

Nominal Cooling kW 2.50 3.50 5.00

Nominal Heating kW 3.40 4.50 5.80

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A+

Pdesign kW 2.50 3.50 5.00

SEER 6.53 6.48 5.41

Annual Energy Consumption kWh 134 189 324

Seasonal Eciency

(EN14825)

HEATING

Energy Label A++ A+ A+

Pdesign kW 2.80 3.10 4.60

SCOP 4.65 4.00 4.18

Annual Energy Consumption kWh 842 1087 1543

Nominal Eciency EER / COP 4.63 / 4.42 3.72 / 3.75 3.31 / 3.69

Energy Label A / A A / A A / A

Annual Energy Consumption kWh 270 470 755

Air Flow Rate (Cooling) High / Nom / Low / Silent m3/sec 0.148 / 0.148 / 0.088 / 0.075 0.155 / 0.155 / 0.088 / 0.075 0.177 / 0.177 / 0.122 / 0.100

Dimensions Height mm 600 600 600

Width mm 950 950 950

Depth mm 215 215 215

Weight kg 22 22 22

Sound Pressure (Cooling)

High / Nom / Low / Silent dBA 38 / 32 / 26 / 23 39 / 33 / 27 / 24 44 / 40 / 36 / 32

Sound Power dBA 52 52 58

Outdoor Units RXG25L RXG35L RXG50L

Dimensions Height x Width x Depth mm 550 x 765 x 300 735 x 825 x 315

Weight kg 35 35 48

Electrical Details Power Supply 1ph

Running Current A 2.68 4.64 6.04

Starting Current A 4.4 5.5 7.4

Max Fuse Size A 10 10 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

Pipework Maximum Length m 20 20 30

Maximum Vertical Rise m 15 15 20

Precharged to m 10 10 10

Additional Charge g/m 20

Holding Charge kg 1.05 1.05 1.60

Sound Pressure (Cooling)

High / Silent Operation dBA 46 / 43 48 / 44 48 / 44

Sound Power dBA 61 63 63

Air Flow Rate (Cooling) High m3/sec 0.575 0.616 0.830

ECA Eligible ●

Trade Fan Coil Price £657.00 £707.00 £774.00

Trade Condensing Unit Price £525.00 £609.00 £821.00

Total System Price £1,182.00 £1,316.00 £1,595.00

Features:

Accessory Ref Description Trade Price

BRC073 Optional Wired Remote controller: BRC1E53 style £83.00

BRP069A42 Wi adaptor for on-line controller £52.00

BRCW901A03 3m connection cable for BRC073 £17.00

BRCW901A08 8m connection cable for BRC073 £22.00

KRP413A1S Adaptor PCB for remote on/o control - constant/pulse contact £78.00

KRP928A2S Adaptor PCB for interface to Daikin centralised control systems £137.00

KLIC-DD KNX interface for Split type systems £171.00

RTD-RA Adaptor PCB for Modbus connection and/or extended system functions £157.00

BKS028 Leg for oor-standing installation £409.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories: Notes:

i) All fan coils supplied as standard with

infrared remote controller ARC466AZ

ii) All fan coil units standard with auto restart

after power failure

iii) Wired controller, KLIC-DI and RTD-RA

options cannot be combined

iv) Control option is either hard-wired

remote, or Wi-Fi adaptor

v) Minimum ambient operating

temperatures:

Cooling Heating

RXG -10°C -15°C

FVXG-K / RXG-L

Stylish Floor Standing Cased – Nexura

> Radiant Heat panel provides radiator-like warming at the touch of a button

> Energy ecient units: full range A class energy labels

> Wireless remote controller provides a 7-day schedule timer, enabling the user to program the air conditioning daily or weekly, with up to 4 actions per day

> Titanium apatite photocatalytic air purifying lter: superior purication and deodorisation of the air inside the room

> Powerful operation: activates the maximum air volume for 20 minutes before returning to its original setting

> Extremely quiet in operation: down to 19dBA sound pressure level

> Night set mode: prevents any sudden change in room temperature by gently raising/lowering the temperature before

the system stops, so you can sleep more comfortably

> Vertical auto swing system automatically makes the louvers move up and down, creating an even distribution of air

through the room to ensure a harmonized temperature

> Flexible installation: Can be installed against a wall, recessed or standing on the oor (installation leg required, see accessories list).

Ideal for installation beneath a window

> Suitable for multi model applications

> Re-use of existing R22 and R407 piping possible

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Indoor Units FVXS25F FVXS35F FVXS50F

Capacity UK Total Cooling kW 2.44 3.42 4.89

UK Sensible Cooling kW 1.87 2.34 3.21

Nominal Cooling kW 2.50 3.50 5.00

Nominal Heating kW 3.40 4.50 5.80

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+ A+ A+

Pdesign kW 2.50 3.50 5.00

SEER 5.74 5.60 5.89

Annual Energy Consumption kWh 152 219 297

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A A

Pdesign kW 2.60 2.90 4.20

SCOP 4.56 3.93 3.80

Annual Energy Consumption kWh 798 1033 1546

Nominal Eciency EER / COP 4.12 / 4.42 3.30 / 3.78 3.23 / 3.63

Energy Label A / A A / A A / A

Annual Energy Consumption kWh 303 530 775

Air Flow Rate (Cooling) High / Nom / Low / Silent m3/sec 0.137 / 0.137 / 0.080 / 0.068 0.142 / 0.142 / 0.082 / 0.075 0.178 / 0.178 / 0.130 / 0.110

Dimensions Height mm 600 600 600

Width mm 700 700 700

Depth mm 210 210 210

Weight kg 14 14 14

Sound Pressure (Cooling)

High / Nom / Low / Silent dBA 38 / 32 / 26 / 23 39 / 33 / 27 / 24 44 / 40 / 36 / 32

Sound Power High dBA 52 52 60

Outdoor Units RXS25L3 RXS35L3 RXS50L

Dimensions Height x Width x Depth mm 550 x 765 x 285 550 x 765 x 285 735 x 825 x 300

Weight kg 34 34 47

Electrical Details Power Supply 1ph

Running Current A 3.30 4.70 6.80

Starting Current A 3.3 4.3 6.8

Max Fuse Size A 10 10 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

Pipework Maximum Length m 20 20 30

Maximum Vertical Rise m 15 15 20

Precharged to m 10 10 10

Additional Charge g/m 20

Holding Charge kg 1.0 1.2 1.7

Sound Pressure (Cooling)

High / Silent Operation dBA 46 / 43 48 / 44 48 / 44

Sound Power High dBA 59 61 62

Air Flow Rate (Cooling) High m3/sec 0.558 0.600 0.848

Trade Fan Coil Price £544.00 £587.00 £641.00

Trade Condensing Unit Price £496.00 £575.00 £722.00

Total System Price £1,040.00 £1,162.00 £1,363.00

Features:

Accessory Ref Description Trade Price

BRP069A42 Wi adaptor for on-line controller £52.00

KRP413A1S Adaptor PCB for remote on/o control - constant/pulse contact £78.00

KRP928A2S Adaptor PCB for interface to Daikin centralised control systems £137.00

KLIC-DD KNX interface for Split type systems £171.00

RTD-RA Adaptor PCB for Modbus connection and/or extended system functions £157.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories: Notes:

i) All fan coils supplied as standard with

infrared remote controller

ii) All fan coil units standard with auto restart

after power failure

iii) Wired controller, KLIC-DI and RTD-RA

options cannot be combined

iv) Minimum ambient operating

temperatures:

Cooling Heating

RXS -10°C -15°C

FVXS-F / RXS-L

Floor Standing Cased

WIFI

CONTROL

VIA APP

> Extremely quiet, energy ecient and can be installed against the wall or recessed

> Wireless remote controller with weekly timer: provides a 7-day schedule timer, enabling daily or weekly programming. Up to 4 actions per day possible

> Night set mode: prevents any sudden change in room temperature by gently raising/lowering the temperature before the system stops

> Powerful operation: activates the maximum air volume for 20 minutes before returning to its original setting

> Titanium apatite photocatalytic air purifying lter: superior purication and deodorisation of the air inside the room

> Dry programme: Daikin’s special dry programme reduces humidity in the rooms without variations in internal temperature

> Suitable for multi model applications

> Re-use of existing R22 and R407C piping possible

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Indoor Units FLXS25B FLXS35B9 FLXS50B FLXS60B

Capacity UK Total Cooling kW 2.44 3.34 4.82

Only available in multi

module combinations

UK Sensible Cooling kW 1.65 2.14 3.16

Nominal Cooling kW 2.50 3.50 4.90

Nominal Heating kW 3.40 4.00 6.10

Seasonal Eciency

(EN14825)

COOLING

Energy Label A B A

Pdesign kW 2.50 3.50 4.90

SEER 5.19 4.87 5.25

Annual Energy Consumption kWh 169 252 326

Seasonal Eciency

(EN14825)

HEATING

Energy Label A A A

Pdesign kW 2.50 2.90 4.20

SCOP 3.80 3.80 3.80

Annual Energy Consumption kWh 921 1068 1546

Nominal Eciency EER / COP 3.85 / 3.54 2.88 / 3.57 2.85 / 3.35

Energy Label A / B B / B C / C

Annual Energy Consumption kWh 325 608 860

Air Flow Rate (Cooling) High / Nom / Low / Silent m3/sec 0.127 / 0.127 / 0.100 / 0.087 0.143 / 0.127 / 0.110 / 0.093 0.190 / 0.190 / 0.142 / 0.125 0.200 / 0.178 / 0.155 / 0.138

Dimensions Height mm 490 490 490 490

Width mm 1050 1050 1050 1050

Depth mm 200 200 200 200

Weight kg 16 16 17 17

Sound Pressure (Cooling)

High / Nom / Low / Silent dBA 37 / 34 / 31 / 28 38 / 35 / 32 / 29 47 / 43 / 39 / 36 48 / - / 41 / 39

Sound Power dBA 51 53 60 60

Outdoor Units RXS25L3 RXS35L3 RXS50L

Only available in multi

module combinations

Dimensions Height x Width x Depth mm 550 x 765 x 285 550 x 765 x 285 735 x 825 x 300

Weight kg 34 34 47

Electrical Details Power Supply 1ph

Running Current A 3.60 5.10 7.60

Starting Current A 3.3 4.3 6.8

Max Fuse Size A 10 10 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

Pipework Maximum Length m 20 20 30

Maximum Vertical Rise m 15 15 20

Precharged to m 10 10 10

Additional Charge g/m 20

Holding Charge kg 1.0 1.2 1.7

Sound Pressure (Cooling)

High / Silent Operation dBA 46 / 43 48 / 44 48 / 44

Sound Power dBA 59 61 62

Air Flow Rate (Cooling) High / Super low m3/sec 0.558 / 0.502 0.600 / 0.502 0.848 / 0.815

Trade Fan Coil Price £392.00 £440.00 £478.00 £526.00

Trade Condensing Unit Price £496.00 £575.00 £722.00 see multi section

Total System Price £888.00 £1,015.00 £1,200.00 see multi section

Features:

> Can be installed EITHER as ceiling mounted OR wall unit

> Vertical auto swing: aps automatically swing up and down to ensure ecient air and temperature distribution in both oor level and ceiling

suspended installation

> Home Leave setting maintains pre-set temperature during periods of extended absence

> Night set mode: prevents any sudden change in room temperature by gently raising/lowering the temperature before the system stops

> Fan speed: 5 fan speeds can be selected, high to super low

> Suitable for multi model applications

> Re-use of existing R22 and R407C piping possible

Accessory Ref Description Trade Price

KRP413A1S Adaptor PCB for remote on/o control - constant/pulse contact £78.00

KRP928A2S Adaptor PCB for interface to Daikin centralised control systems £137.00

KLIC-DD KNX interface for Split type systems £171.00

RTD-RA Adaptor PCB for Modbus connection and/or extended system functions £157.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories: Notes:

i) All fan coils supplied as standard with

infrared remote controller

ii) Wired controller, KLIC-DI and RTD-RA

options cannot be combined

iii) All fan coil units standard with auto restart

after power failure

iv) Minimum ambient operating

temperatures:

Cooling Heating

RXS -10°C -15°C

FLXS-B / RXS-L

Flexi-Floor or Ceiling Mounted

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

> Requires very little installation space

> Low height makes it ideal for installation beneath window

> Connect to multi for residential solution

> Connect to Sky Air for twin, triple or double applications

> External static pressure of up to 49Pa

Notes:

i) Fan-coils supplied with BRC1E53A hard

wired remote

ii) All fan coil units standard with auto restart

after power failure

iii) Fan-coils supplied as standard with

air lter

iv) FNQ-A supplied with 100mm high legs

for optional mounting

v) Minimum ambient operating

temperature:

Cooling Heating

RXS -10°C -15°C

Indoor Units Vertical Ducted

FNQ25A FNQ35A FNQ50A FNQ60A

Capacity UK Total Cooling kW 2.54 3.32 4.89 5.86

UK Sensible Cooling kW 1.89 2.26 3.66 4.11

Nominal Cooling kW 2.40 3.40 5.00 6.00

Nominal Heating kW 3.20 4.00 5.80 7.00

Seasonal Eciency

(EN14825

COOLING

Energy Label A+ A+ A+ A

Pdesign kW 2.60 3.40 5.00 6.00

SEER 5.63 5.65 5.72 5.51

Annual Energy Consumption kWh 162 211 306 381

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A+ A+ A+

Pdesign kW 2.80 2.90 4.00 4.60

SCOP 4.24 4.05 4.09 4.16

Annual Energy Consumption kWh 925 1002 1369 1548

Nominal Eciency EER / COP 3.77 / 4.00 3.06 / 3.48 3.35 / 3.34 2.68 / 3.11

Energy Label A / A B / B A / C D / D

Annual Energy Consumption kWh 345 556 746 1119

Air Flow Rate

(Cooling)

High / Nom / Low m3/sec 0.145 / 0.133 / 0.122 0.145 / 0.133 / 0.122 0.267 / 0.247 / 0.225 0.225 / 0.247 / 0.025

External Static Pressure High / Nominal Pa 48 / 30 49 / 40

Dimensions Height (with legs) mm 620 (720) 620 (720)

Width mm 750 1150

Depth mm 200 200

Weight kg 23 30

Sound Pressure (Cooling)

High / Nom / Low dBA 33 / 31 / 28 36 / 33 / 30

Sound Power dBA 53 56

Outdoor Units RXS25L3 RXS35L3 RXS50L RXS60L

Dimensions Height x Width x Depth mm 550 x 765 x 285 550 x 765 x 285 735 x 825 x 300 735 x 825 x 300

Weight kg 34 34 47 48

Electrical Details Power Supply 1ph

Running Current A 2.90 4.70 6.30 9.40

Starting Current A 3.3 4.3 6.8 10.2

Max Fuse Size A 10 10 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

Pipework Maximum Length m 20 20 30 30

Maximum Vertical Rise m 15 15 20 20

Precharged to m 10 10 10 10

Additional Charge g/m 20

Holding Charge kg 1.0 1.2 1.7 1.5

Sound Pressure (Cooling)

High / Silent Operation dBA 46 / 43 48 / 44 48 / 44 49 / 46

Sound Power dBA 59 61 61 62

Air Flow Rate

(Cooling)

High m3/sec 0.558 0.600 0.848 0.836

Trade Fan Coil Price £424.00 £524.00 £610.00 £672.00

Trade Condensing Unit Price £496.00 £575.00 £722.00 £770.00

Total System Price £920.00 £1,099.00 £1,332.00 £1,442.00

FNQ-A / RXS-L

Concealed Floor Standing

Accessory Ref Description Trade Price

BRC4C65 Wireless remote controller £158.00

BRC2E53C Wired Simplied remote controller (without auto swing) £83.00

Recessed simplied remote (see page 100 for options) £188.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2

Enhanced function PCB for Sky Air & VRV. Duty rotation, Lead Lag control & heating interlock

£245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories:

Features:

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

> Seasonally Ecient Inverter Technology gives up to 25% better eciency than Inverter Technology

> Vertical air ow pattern can be adjusted manually to match requirements in dierent sized interiors or irregularly shaped rooms

> A wired BRC1E53A remote controller is mounted on the front of the unit (standard)

> Controllable horizontal air-blow patterns, via remote control

> Very ecient for use in rooms with high ceilings

> Fan speed: 2 fan speeds can be selected, high or low

> Re-use of existing R22 and R407C piping possible

> Comms, computer and server room cooling possible with EDP setting (Seasonal Smart)

> Selectable evaporating & condensing temperature for greater operating eciency (Seasonal Smart)

> DIII net compatibility as standard

Indoor Units Single Phase 3 Phase

FVQ71C FVQ100C FVQ125C FVQ140C FVQ71C FVQ100C FVQ125C FVQ140C

Capacity UK Total Cooling kW 7.76 10.80 13.60 14.90 7.76 10.80 13.60 14.90

UK Sensible Cooling kW 5.32 7.44 9.30 10.25 5.32 7.44 9.30 10.25

Nominal Cooling kW 6.80 9.50 12.00 13.40 6.80 9.50 12.00 13.40

Nominal Heating kW 7.50 10.80 13.50 15.50 7.50 10.80 13.50 15.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A+ A+ - A++ A+ A+ -

Pdesign kW 6.80 9.50 12.00 - 6.80 9.50 12.00 -

SEER 6.31 5.61 5.61 - 6.31 5.61 5.61 -

Annual Energy Consumption kWh 378 593 749 - 378 593 749 -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A+ A - A+ A+ A -

Pdesign kW 6.33 11.30 11.30 - 6.33 11.30 11.30 -

SCOP 4.05 4.20 3.87 - 4.05 4.20 3.87 -

Annual Energy Consumption kWh 2189 3767 4088 - 2189 3767 4088 -

Nominal Eciency EER / COP 3.37 / 3.64 3.81 / 4.14 3.21 / 3.7 3.21 / 3.61 3.37 / 3.64 3.81 / 4.14 3.21 / 3.7 3.21 / 3.61

Energy Label A / A A / A A / A A / A A / A A / A A / A A / A

Annual Energy Consumption kWh 1010 1245 1870 2085 1010 1245 1870 2085

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.300 / 0.267 /

0.233

0.467 / 0.417 /

0.367

0.467 / 0.433 /

0.400

0.500 / 0.467 /

0.433

0.300 / 0.267 /

0.233

0.467 / 0.417 /

0.367

0.467 / 0.433 /

0.400

0.500 / 0.467 /

0.433

Dimensions Height mm 1850 1850 1850 1850 1850 1850 1850 1850

Width mm 600 600 600 600 600 600 600 600

Depth mm 270 350 350 350 270 350 350 350

Weight kg 39 47 47 47 39 47 47 47

Sound Pressure (Cooling)

High / Nom / Low dBA 43 / 41 / 38 50 / 47 / 44 51 / 48 / 46 53 / 51 / 48 43 / 41 / 38 50 / 47 / 44 51 / 48 / 46 53 / 51 / 48

Sound Power dBA 55 62 63 65 55 62 63 65

Outdoor Units

RZQG71L9V1 RZQG100L9V1 RZQG125L9V1 RZQG140L9V1 RZQG71L8Y1 RZQG100L8Y1 RZQG125L8Y1 RZQG140LY1

Dimensions Height x Width x Depth mm 990 x 940

x 320

1430 x 940

x 320

1430 x 940

x 320

1430 x 940

x 320

990 x 940

x 320

1430 x 940

x 320

1430 x 940

x 320

1430 x 940

x 320

Weight kg 69 95 95 95 80 101 101 101

Electrical Details Power Supply 1ph 3ph

Running Current A 8.26 10.18 15.29 17.04 3.11 3.83 5.75 6.41

Starting Current A 4 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 16 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 75 75 75 50 75 75 75

Maximum Vertical Rise m 30 30 30 30 30 30 30 30

Precharged to m 30 30 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.9 4.0 4.0 4.0 2.9 4.0 4.0 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 48 / 43 50 / 45 51 / 45 52 / 45 48 / 43 50 / 45 51 / 45 52 / 45

Sound Power dBA 64 66 67 69 64 66 67 69

Air Flow Rate (Cooling) Nominal m3/sec 0.983 1.166 1.166 1.400 0.983 1.166 1.166 1.400

ECA Eligible ● ●

Trade Fan Coil Price £1,039.00 £1,142.00 £1,260.00 £1,355.00 £1,039.00 £1,142.00 £1,260.00 £1,355.00

Trade Condensing Unit Price £1,239.00 £1,575.00 £1,733.00 £1,978.00 £1,277.00 £1,648.00 £1,813.00 £2,083.00

Total System Price £2,278.00 £2,717.00 £2,993.00 £3,333.00 £2,316.00 £2,790.00 £3,073.00 £3,438.00

Features:

Accessory Ref Description Trade Price

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2 Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock £245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.CWB140-2 Condensing unit bracket - sizes 100 to 140, max weight 140kg of ODU £47.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGM Condensing Unit Guard size 42-71 £308.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

Accessories: Notes:

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) All fan coil units standard with auto restart

after power failure

iii) Minimum ambient operating

temperatures:

Cooling Heating

RZQG -15°C -20°C

RZQSG -15°C -15°C

FVQ-C / RZQG-L

Floor Standing – Seasonal Smart

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Indoor Units Single Phase 3 Phase

FVQ71C FVQ100C FVQ125C FVQ140C FVQ100C FVQ125C FVQ140C

Capacity UK Total Cooling kW 7.28 10.80 13.60 14.90 10.80 13.60 14.90

UK Sensible Cooling kW 4.99 7.44 9.30 10.25 7.44 9.30 10.25

Nominal Cooling kW 6.80 9.50 12.00 13.40 9.50 12.00 13.40

Nominal Heating kW 7.50 10.80 13.50 15.50 10.80 13.50 15.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A A A - A A -

Pdesign kW 6.80 9.50 12.00 - 9.50 12.00 -

SEER 5.50 5.50 5.50 - 5.50 5.50 -

Annual Energy Consumption kWh 433 605 764 - 605 764 -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A A+ A - A+ A -

Pdesign kW 6.33 7.60 7.60 - 7.60 7.60 -

SCOP 3.86 4.01 3.85 - 4.01 3.85 -

Annual Energy Consumption kWh 2296 2654 2764 - 2654 2764 -

Nominal Eciency EER / COP 3.21 / 3.61 3.21 / 3.61 2.81 / 3.41 3.01 / 3.41 3.21 / 3.61 2.81 / 3.41 3.01 / 3.41

Energy Label A / A A / A C / B B / B A / A C / B B / B

Annual Energy Consumption kWh 1059 1480 2135 2225 1480 2135 2225

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.300 / 0.267 /

0.233

0.467 / 0.417 /

0.367

0.467 / 0.433 /

0.400

0.500 / 0.467 /

0.433

0.467 / 0.417 /

0.367

0.467 / 0.433 /

0.400

0.500 / 0.467 /

0.433

Dimensions Height mm 1850 1850 1850 1850 1850 1850 1850

Width mm 600 600 600 600 600 600 600

Depth mm 270 350 350 350 350 350 350

Weight kg 39 47 47 47 47 47 47

Sound Pressure (Cooling)

High / Nom / Low dBA 43 / 41 / 38 50 / 47 / 44 51 / 48 / 46 53 / 51 / 48 50 / 47 / 44 51 / 48 / 46 53 / 51 / 48

Sound Power dBA 55 62 60 63 59 60 63

Outdoor Units RZQSG71L3V1 RZQSG100L9V1 RZQSG125L9V1 RZQSG140L9V1 RZQSG100L8Y1 RZQSG125L8Y1 RZQSG140LY1

Dimensions Height x Width x Depth mm 770 x 900 x 320 990 x 940 x 320 1430 x 940 x 320 990 x 940 x 320 1430 x 940 x 320

Weight kg 72 74 104 82 101

Electrical Details Power Supply 1ph 3ph

Running Current A 8.66 12.10 17.45 18.19 4.55 6.56 6.84

Starting Current A 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 50 50 50 50 50 50

Maximum Vertical Rise m 15 30 30 30 30 30 30

Precharged to m 30 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.75 2.9 2.9 4.0 2.9 2.9 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 49 / 49 53 / 49 54 / 49 53 / 49 53 / 49 54 / 49 53 / 49

Sound Power dBA 65 70 70 69 70 70 69

Air Flow Rate (Cooling) High m3/sec 0.833 1.266 1.283 1.383 1.266 1.283 1.383

Trade Fan Coil Price £1,039.00 £1,142.00 £1,260.00 £1,355.00 £1,142.00 £1,260.00 £1,355.00

Trade Condensing Unit Price £853.00 £1,181.00 £1,295.00 £1,442.00 £1,217.00 £1,334.00 £1,486.00

Total System Price £1,892.00 £2,323.00 £2,555.00 £2,797.00 £2,359.00 £2,594.00 £2,841.00

FVQ-C / RZQSG-L

Floor Standing – Seasonal Classic

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

FHQ-CB / RZQG-L

Ceiling Suspended – Seasonal Smart

Indoor Units Single Phase 3 Phase

FHQ71CB FHQ100CB FHQ125CB FHQ140CB FHQ71CB FHQ100CB FHQ125CB FHQ140CB

Capacity UK Total Cooling kW 7.76 10.80 13.60 14.90 7.76 10.80 13.60 14.90

UK Sensible Cooling kW 5.32 7.44 9.30 10.25 5.32 7.44 9.30 10.25

Nominal Cooling kW 6.80 9.50 12.00 13.40 6.80 9.50 12.00 13.40

Nominal Heating kW 7.50 10.80 13.50 15.50 7.50 10.80 13.50 15.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A+ - A++ A++ A+ -

Pdesign kW 6.80 9.50 12.00 - 6.80 9.50 12.00 -

SEER 6.86 6.11 6.01 - 6.95 6.11 6.01 -

Annual Energy Consumption kWh 347 545 699 - 347 545 699 -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A++ A+ - A+ A++ A+ -

Pdesign kW 7.60 11.30 14.13 - 7.60 11.30 14.13 -

SCOP 4.32 4.61 4.23 - 4.32 4.61 4.23 -

Annual Energy Consumption kWh 2463 3431 4677 - 2462 3431 4677 -

Nominal Eciency EER / COP 3.82 / 4.13 3.81 / 4.15 3.52 / 3.89 3.31 / 3.63 3.82 / 4.13 3.81 / 4.15 3.52 / 3.89 3.31 / 3.63

Energy Label A / A A / A A / A A / A A / A A / A A / A A / A

Annual Energy Consumption kWh 890 1245 1790 2025 890 1245 1790 2025

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.342 / 0.283 /

0.233

0.467 / 0.400 /

0.333

0.517 / 0.450 /

0.383

0.567 / 0.483 /

0.400

0.342 / 0.283 /

0.233

0.467 / 0.400 /

0.333

0.517 / 0.450 /

0.383

0.567 / 0.483 /

0.400

Dimensions Height mm 235 235 235 235 235 235 235 235

Width mm 1270 1590 1590 1590 1270 1590 1590 1590

Depth mm 690 690 690 690 690 690 690 690

Weight kg 32 38 38 38 32 38 38 38

Sound Pressure (Cooling)

High / Nom / Low dBA 38 / 36 / 34 42 / 38 / 34 44 / 41 / 37 46 / 42 / 38 38 / 36 / 34 42 / 38 / 34 44 / 41 / 37 46 / 42 / 38

Sound Power

(Cooling)

dBA 55 60 62 64 55 60 62 64

Outdoor Units

RZQG71L9V1 RZQG100L9V1 RZQG125L9V1 RZQG140L9V1 RZQG71L8Y1 RZQG100L8Y1 RZQG125L8Y1 RZQG140LY1

Dimensions Height x Width x Depth mm

990 x 940 x 320

1430 x 940 x 320

990 x 940 x 320

1430 x 940 x 320

Weight kg 69 95 80 101

Electrical Details Power Supply 1ph 3ph

Running Current A 7.27 10.18 14.63 16.55 2.74 3.83 5.50 6.23

Starting Current A 4 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 16 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 75 75 75 50 75 75 75

Maximum Vertical Rise m 30 30 30 30 30 30 30 30

Precharged to m 30 30 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.9 4.0 4.0 4.0 2.9 4.0 4.0 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 48 / 43 50 / 45 51 / 45 52 / 45 48 / 43 50 / 45 51 / 45 52 / 45

Sound Power dBA 64 66 67 69 64 66 67 69

Air Flow Rate (Cooling) Nominal m3/sec 0.983 1.166 1.166 1.400 0.983 1.166 1.166 1.400

ECA Eligible ●●● ●●●

Trade Fan Coil Price £963.00 £1,023.00 £1,279.00 £1,518.00 £963.00 £1,023.00 £1,279.00 £1,518.00

Trade Condensing Unit Price £1,239.00 £1,575.00 £1,733.00 £1,978.00 £1,277.00 £1,648.00 £1,813.00 £2,083.00

Total System Price £2,202.00 £2,598.00 £3,012.00 £3,496.00 £2,240.00 £2,671.00 £3,092.00 £3,601.00

Features:

Accessory Ref Description Trade Price

BRC7G53 Wireless remote controller £158.00

EKRORO4 Remote on/o control interface kit £30.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2 Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock £245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.CWB140-2 Condensing unit bracket - sizes 100 to 140, max weight 140kg of ODU £47.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

KDDQ50A140 Fresh air intake kit for up to 20% fresh air £165.00

KAFP501A80 Long life lter for 71 Class £121.00

KAFP501A160 Long Life lter for 100, 125 & 140 Class £155.00

Accessories: Notes:

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) BRC7GA53 Trade price will be reduced

by £79.00 if ordered in place of the

BRC1E53A

iii) All fan coil units standard with auto restart

after power failure

iv) Minimum ambient operating

temperatures:

Cooling Heating

RZQG -15°C -20°C

RZQSG -15°C -15°C

> Suitable for ceiling heights of up to 3.8m without loss of capacity

> Seasonally Ecient Inverter Technology gives up to 25% better eciency

than inverter technology

> Forced o: The optional forced o enables the unit to switch o

automatically, for example when a window is opened

> Re-use of existing R22 and R407C piping possible

> Suitable for Twin, Triple and Double Twin applications

> Comms, computer and server room cooling

possible with EDP setting (Seasonal Smart)

Selectable evaporating & condensing temperature

for greater operating eciency (Seasonal Smart)

> DIII net compatibility as standard

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Indoor Units Single Phase 3 Phase

FHQ71CB FHQ100CB FHQ125CB FHQ140CB FHQ100CB FHQ125CB FHQ140CB

Capacity UK Total Cooling kW 7.28 10.80 13.60 14.90 10.80 13.60 14.90

UK Sensible Cooling kW 4.99 7.44 9.30 10.25 7.44 9.30 10.25

Nominal Cooling kW 6.80 9.50 12.00 13.40 9.50 12.00 13.40

Nominal Heating kW 7.50 10.80 13.50 15.50 10.80 13.50 15.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+ A+ A+ - A+ A+ -

Pdesign kW 6.80 9.50 12.00 - 9.50 12.00 -

SEER 5.61 5.61 5.61 - 5.61 5.61 -

Annual Energy Consumption kWh 425 593 749 - 593 749 -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A A A+ - A A+ -

Pdesign kW 7.60 7.60 7.60 - 7.60 7.60 -

SCOP 3.90 3.91 4.01 - 3.91 4.01 -

Annual Energy Consumption kWh 2727 2722 2654 - 2722 2654 -

Nominal Eciency EER / COP 3.46 / 4.00 3.21 / 3.61 2.89 / 3.62 3.01 / 3.41 3.21 / 3.61 2.89 / 3.62 3.01 / 3.41

Energy Label A / A A / A C / A B / B A / A C / A B / B

Annual Energy Consumption kWh 983 1480 2075 2225 1480 2075 2225

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.342 / 0.283 /

0.233

0.467 / 0.400 /

0.333

0.517 / 0.450 /

0.383

0.567 / 0.483 /

0.400

0.467 / 0.400 /

0.333

0.517 / 0.450 /

0.383

0.567 / 0.483 /

0.400

Dimensions Height mm 235 235 235 235 235 235 235

Width mm 1270 1590 1590 1590 1590 1590 1590

Depth mm 690 690 690 690 690 690 690

Weight kg 32 38 38 38 38 38 38

Sound Pressure (Cooling)

High / Nom / Low dBA 38 / 36 / 34 42 / 38 / 34 44 / 41 / 37 46 / 42 / 38 42 / 38 / 34 44 / 41 / 37 46 / 42 / 38

Sound Power

(Cooling)

dBA 55 60 62 64 60 62 64

Outdoor Units RZQSG71L3V1 RZQSG100L9V1 RZQSG125L9V1 RZQSG140L9V1 RZQSG100L8Y1 RZQSG125L8Y1 RZQSG140LY1

Dimensions Height x Width x Depth mm 770 x 900 x 320 990 x 940 x 320 1430 x 940 x 320 990 x 940 x 320 1430 x 940 x 320

Weight kg 67 72 74 95 82 101

Electrical Details Power Supply 1ph 3ph

Running Current A 8.05 12.10 16.96 18.19 4.52 6.34 6.80

Starting Current A 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 50 50 50 50 50 50

Maximum Vertical Rise m 15 30 30 30 30 30 30

Precharged to m 30 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.75 2.9 2.9 4.0 2.9 2.9 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 49 / 49 53 / 49 54 / 49 53 / 49 53 / 49 54 / 49 53 / 49

Sound Power dBA 65 70 70 69 70 70 69

Air Flow Rate (Cooling) High m3/sec 0.866 1.266 1.283 1.383 1.266 1.283 1.383

Trade Fan Coil Price £963.00 £1,023.00 £1,279.00 £1,518.00 £1,023.00 £1,279.00 £1,518.00

Trade Condensing Unit Price £853.00 £1,181.00 £1,295.00 £1,442.00 £1,217.00 £1,334.00 £1,486.00

Total System Price £1,816.00 £2,204.00 £2,574.00 £2,960.00 £2,240.00 £2,613.00 £3,004.00

FHQ-CB / RZQSG-L

Ceiling Suspended – Seasonal Classic

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Accessory Ref Description Trade Price

BRC7G53 Wireless remote controller £158.00

EKRORO4 Remote on/o control interface kit £30.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2 Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock. £245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV. £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

KDDQ50A140 Fresh air intake kit for up to 20% fresh air £165.00

KAFP501A80 Long life lter for 71 Class £121.00

KAFP501A160 Long Life lter for 100, 125 & 140 Class £155.00

Indoor Units FHQ35CB FHQ50CB FHQ60CB

Capacity UK Total Cooling kW 3.32 4.92 5.57

UK Sensible Cooling kW 2.58 3.52 3.93

Nominal Cooling kW 3.40 5.00 5.70

Nominal Heating kW 4.00 6.00 7.20

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A+ A+

Pdesign kW 3.40 5.00 5.70

SEER 6.18 5.87 6.02

Annual Energy Consumption kWh 193 298 332

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A A

Pdesign kW 3.10 4.35 4.71

SCOP 4.43 3.86 3.87

Annual Energy Consumption kWh 981 1578 1705

Nominal Eciency EER / COP 3.58 / 4.08 3.18 / 3.35 3.26 / 3.32

Energy Label A / A B / C A / C

Annual Energy Consumption kWh 475 785 875

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.233 / 0.192 / 0.167 0.250 / 0.200 / 0.167 0.325 / 0.250 / 0.250

Dimensions Height mm 235 235 235

Width mm 960 960 1270

Depth mm 690 690 690

Weight kg 24 25 31

Sound Pressure (Cooling)

High / Nom / Low dBA 36 / 34 / 31 37 / 35 / 32 37 / 35 / 33

Sound Power dBA 53 54 54

Outdoor Units RXS35L3 RXS50L RXS60L

Dimensions Height x Width x Depth mm 550 x 765 x 285 735 x 825 x 300 735 x 825 x 300

Weight kg 34 47 48

Electrical Details Power Supply 1ph

Running Current A 4.1 7.3 7.8

Starting Current A 4.3 6.8 10.2

Max Fuse Size A 10 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

Pipework Maximum Length m 20 30 30

Maximum Vertical Rise m 15 20 20

Precharged to m 10 10 10

Additional Charge g/m 20.0

Holding Charge kg 1.2 1.7 1.5

Sound Pressure (Cooling)

High / Silent Operation dBA 48 / 44 48 / 44 49 / 46

Sound Power dBA 61 62 62

Air Flow Rate (Cooling) High m3/sec 0.600 0.848 0.836

ECA Eligible ●

Trade Fan Coil Price £693.00 £751.00 £824.00

Trade Condensing Unit Price £575.00 £722.00 £770.00

Total System Price £1,268.00 £1,473.00 £1,594.00

Features:

> Suitable for ceiling heights of up to 3.8m without loss of capacity

> Vertical auto-swing function of aps ensures ecient air and temperature distribution

> Forced o: The optional forced o feature enables the unit to switch o automatically, for example when a window is opened

> Re-use of existing R22 and R407C piping possible

> Suitable for Twin, Triple and Double Twin applications

Accessories: Notes:

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) BRC7GA53 Trade price will be reduced

by £79.00 if ordered in place of the

BRC1E53A

iii) All fan coil units standard with auto restart

after power failure

iv) Minimum ambient operating

temperatures:

Cooling Heating

RXS -10°C -15°C

FHQ-CB / RXS-L

Ceiling Suspended

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Refrigerant Indoor Model Capacity Order Code Product Codes Included List Price

R32 Wall Mount

Ururu Sarara

2.5kW SB.FTXZ25N/RXZN FTXZ25N x 1 & RXZ25N x 1 £1,335.00

3.5kW SB.FTXZ35N/RXZN FTXZ35N x 1 & RXZ35N x 1 £1,551.00

5.0kW SB.FTXZ50N/RXZN FTXZ50N x 1 & RXZ50N x 1 £1,741.00

Emura (Silver)

2.0kW SB.FTXJ20MS/RXJM RXJ20M & FTXJ20MS £866.00

2.5kW SB.FTXJ25MS/RXJM RXJ25M & FTXJ25MS £912.00

3.5kW SB.FTXJ35MS/RXJM RXJ35M & FTXJ35MS £1,044.00

5.0kW SB.FTXJ50MS/RXJM RXJ50M & FTXJ50MS £1,397.00

Emura (White)

2.0kW SB.FTXJ20MW/RXJM RXJ20M & FTXJ20MW £811.00

2.5kW SB.FTXJ25MW/RXJM RXJ25M & FTXJ25MW £854.00

3.5kW SB.FTXJ35MW/RXJM RXJ35M & FTXJ35MW £980.00

5.0kW SB.FTXJ50MW/RXJM RXJ50M & FTXJ50MW £1,311.00

FTXM (Standard Inverter)

2.0kW SB.FTXM20M/RXMM RXM20M & FTXM20M £646.00

2.5kW SB.FTXM25M/RXMM RXM25M & FTXM25M £700.00

3.5kW SB.FTXM35M/RXMM RXM35M & FTXM35M £811.00

4.2kW SB.FTXM42M/RXMM RXM42M & FTXM42M £914.00

5.0kW SB.FTXM50M/RXMM RXM50M & FTXM50M £1,082.00

6.0kW SB.FTXM60M/RXMM RXM60M & FTXM60M £1,137.00

7.1kW SB.FTXM71M/RXMM RXM71M & FTXM71M £1,544.00

R410A

Wall Mount

Emura (Silver)

2.0kW SB.FTXG20LS_WIFI/R BRP069A41 x 1 & FTXG20LS x 1 & RXG20L x 1 £864.00

2.5kW SB.FTXG25LS_WIFI/R BRP069A41 x 1 & FTXG25LS x 1 & RXG25L x 1 £908.00

3.5kW SB.FTXG35LS_WIFI/R BRP069A41 x 1 & FTXG35LS x 1 & RXG35L x 1 £1,033.00

5.0kW SB.FTXG50LS_WIFI/R BRP069A41 x 1 & FTXG50LS x 1 & RXG50L x 1 £1,369.00

Emura (White)

2.0kW SB.FTXG20LW_WIFI/R BRP069A41 x 1 & FTXG20LW x 1 & RXG20L x 1 £811.00

2.5kW SB.FTXG25LW_WIFI/R BRP069A41 x 1 & FTXG25LW x 1 & RXG25L x 1 £853.00

3.5kW SB.FTXG35LW_WIFI/R BRP069A41 x 1 & FTXG35LW x 1 & RXG35L x 1 £972.00

5.0kW SB.FTXG50LW_WIFI/R BRP069A41 x 1 & FTXG50LW x 1 & RXG50L x 1 £1,287.00

FTXS (Standard Inverter)

2.0kW SB.FTXS20K/RXSL3 FTXS20K x 1 & RXS20L3 x 1 £614.00

2.5kW SB.FTXS25K/RXSL3 FTXS25K x 1 & RXS25L3 x 1 £668.00

3.5kW SB.FTXS35K/RXSL3 FTXS35K x 1 & RXS35L3 x 1 £772.00

4.2kW SB.FTXS42K/RXSL FTXS42K x 1 & RXS42L x 1 £869.00

5.0kW SB.FTXS50K/RXSL FTXS50K x 1 & RXS50L x 1 £1,028.00

6.0kW SB.FTXS560G/RXSL FTXS60G x 1 & RXS60L x 1 £1,082.00

7.1kW SB.FTXS71G/RXSF8 FTXS71G x 1 & RXS71F8 x 1 £1,470.00

FTX (Low Inverter)

2.0kW SB.FTX20KV/RXK RX20K & FTX20KV £445.00

2.5kW SB.FTX25KV/RXK RX25K & FTX25KV £480.00

3.5kW SB.FTX35KV/RXK RX35K & FTX35KV £555.00

5.0kW SB.FTX50KV/RXK RX50K & FTX50KV £768.00

6.0kW SB.FTX60KV/RXK RX60K & FTX60KV £808.00

7.1kW SB.FTX71KV/RXK RX71K & FTX71KV £1,137.00

Smart Single Phase 7.1kW SB.FAQ71C9_F/GLV BRC1E53A x 1 & FAQ71C x 1 & RZQG71L9V1 x 1 £2,018.00

10.0kW SB.FAQ100C9_F/GLV BRC1E53A x 1 & FAQ100C x 1 & RZQG100L9V1 x 1 £2,416.00

Smart Three Phase 7.1kW SB.FAQ71C9_F/GLY BRC1E53A x 1 & FAQ71C x 1 & RZQG71L8Y1 x 1 £2,056.00

10.0kW SB.FAQ100C9_F/GLY BRC1E53A x 1 & FAQ100C x 1 & RZQG100L8Y1 x 1 £2,489.00

Classic Single Phase 7.1kW SB.FAQ71C9_F/SLV BRC1E53A x 1 & FAQ71C x 1 & RZQSG71L3V1 x 1 £1,632.00

10.0kW SB.FAQ100C9_F/SLV BRC1E53A x 1 & FAQ100C x 1 & RZQSG100L9V1 x 1 £2,022.00

Classic Three Phase 10.0kW SB.FAQ100C9_F/SLY BRC1E53A x 1 & FAQ100C x 1 & RZQSG100L8Y1 x 1 £2,058.00

Floor Standing

Nexura (Stylish Floor

Standing Cased)

2.5kW SB.FVXG25K/RXGL FVXG25K x 1 & RXG25L x 1 £1,182.00

3.5kW SB.FVXG35K/RXGL FVXG35K x 1 & RXG35L x 1 £1,316.00

5.0kW SB.FVXG50K/RXGL FVXG50K x 1 & RXG50L x 1 £1,595.00

FVXS (Floor Standing

Cased)

2.5kW SB.FVXS25F/RXSL3 FVXS25F x 1 & RXS25L3 x 1 £1,040.00

3.5kW SB.FVXS35F/RXSL3 FVXS35F x 1 & RXS35L3 x 1 £1,162.00

5.0kW SB.FVXS50F/RXSL FVXS50F x 1 & RXS50L x 1 £1,363.00

Smart Single Phase

7.1kW SB.FVQ71C_F/GLV BRC1E53A x 1 & FVQ71C x 1 & RZQG71L9V1 x 1 £2,278.00

10.0kW SB.FVQ100C_F/GLV BRC1E53A x 1 & FVQ100C x 1 & RZQG100L9V1 x 1 £2,717.00

12.5kW SB.FVQ125C_F/GLV BRC1E53A x 1 & FVQ125C x 1 & RZQG125L9V1 x 1 £2,993.00

14.0kW SB.FVQ140C_F/GLV BRC1E53A x 1 & FVQ140C x 1 & RZQG140L9V1 x 1 £3,333.00

Smart Three Phase

7.1kW SB.FVQ71C_F/GLY BRC1E53A x 1 & FVQ71C x 1 & RZQG71L8Y1 x 1 £2,316.00

10.0kW SB.FVQ100C_F/GLY BRC1E53A x 1 & FVQ100C x 1 & RZQG100L8Y1 x 1 £2,790.00

12.5kW SB.FVQ125C_F/GLY BRC1E53A x 1 & FVQ125C x 1 & RZQG125L8Y1 x 1 £3,073.00

14.0kW SB.FVQ140C_F/GLY BRC1E53A x 1 & FVQ140C x 1 & RZQG140LY1 x 1 £3,438.00

Classic Single Phase

7.1kW SB.FVQ71C_F/SLV BRC1E53A x 1 & FVQ71C x 1 & RZQSG71L3V1 x 1 £1,892.00

10.0kW SB.FVQ100C_F/SLV BRC1E53A x 1 & FVQ100C x 1 & RZQSG100L9V1 x 1 £2,323.00

12.5kW SB.FVQ125C_F/SLV BRC1E53A x 1 & FVQ125C x 1 & RZQSG125L9V1 x 1 £2,555.00

14.0kW SB.FVQ140C_F/SLV BRC1E53A x 1 & FVQ140C x 1 & RZQSG140L9V1 x 1 £2,797.00

Classic Three Phase

10.0kW SB.FVQ100C_F/SLY BRC1E53A x 1 & FVQ100C x 1 & RZQSG100L8Y1 x 1 £2,359.00

12.5kW SB.FVQ125C_F/SLY BRC1E53A x 1 & FVQ125C x 1 & RZQSG125L8Y1 x 1 £2,594.00

14.0kW SB.FVQ140C_F/SLY BRC1E53A x 1 & FVQ140C x 1 & RZQSG140LY1 x 1 £2,841.00

Flexi (FLXS)

2.5kW SB.FLXS25B/RXSL3 FLXS25B x 1 & RXS25L3 x 1 £888.00

3.5kW SB.FLXS35B9/RXSL3 FLXS35B9 x 1 & RXS35L3 x 1 £1,015.00

5.0kW SB.FLXS50B/RXSL FLXS50B x 1 & RXS50L x 1 £1,200.00

Concealed Floor Standing

(FNQ)

2.5kW SB.FNQ25A_F/RXSL3 BRC1E53A x 1 & FNQ25A x 1 & RXS25L3 x 1 £920.00

3.5kW SB.FNQ35A_F/RXSL3 BRC1E53A x 1 & FNQ35A x 1 & RXS35L3 x 1 £1,099.00

5.0kW SB.FNQ5OA_F/RXSL BRC1E53A x 1 & FNQ50A x 1 & RXS50L x 1 £1,332.00

6.0kW SB.FNQ60A_F/RXSL BRC1E53A x 1 & FNQ60A x 1 & RXS60L x 1 £1,442.00

Ceiling Suspended

Smart Single Phase

7.1kW SB.FHQ71CB_F/GLV BRC1E53A x 1 & FHQ71CB x 1 & RZQG71L9V1 x 1 £2,202.00

10.0kW SB.FHQ100CB_F/GLV BRC1E53A x 1 & FHQ100CB x 1 & RZQG100L9V1 x 1 £2,598.00

12.5kW SB.FHQ125CB_F/GLV BRC1E53A x 1 & FHQ125CB x 1 & RZQG125L9V1 x 1 £3,012.00

14.0kW SB.FHQ140CB_F/GLV BRC1E53A x 1 & FHQ140CB x 1 & RZQG140L9V1 x 1 £3,496.00

Smart Three Phase

7.1kW SB.FHQ71CB_F/GLY BRC1E53A x 1 & FHQ71CB x 1 & RZQG71L8Y1 x 1 £2,240.00

10.0kW SB.FHQ100CB_F/GLY BRC1E53A x 1 & FHQ100CB x 1 & RZQG100L8Y1 x 1 £2,671.00

12.5kW SB.FHQ125CB_F/GLY BRC1E53A x 1 & FHQ125CB x 1 & RZQG125L8Y1 x 1 £3,092.00

14.0kW SB.FHQ140CB_F/GLY BRC1E53A x 1 & FHQ140CB x 1 & RZQG140LY1 x 1 £3,601.00

Classic Single Phase

7.1kW SB.FHQ71CB_F/SLV BRC1E53A x 1 & FHQ71CB x 1 & RZQSG71L3V1 x 1 £1,816.00

10.0kW SB.FHQ100CB_F/SLV BRC1E53A x 1 & FHQ100CB x 1 & RZQSG100L9V1 x 1 £2,204.00

12.5kW SB.FHQ125CB_F/SLV BRC1E53A x 1 & FHQ125CB x 1 & RZQSG125L9V1 x 1 £2,574.00

14.0kW SB.FHQ140CB_F/SLV BRC1E53A x 1 & FHQ140CB x 1 & RZQSG140L9V1 x 1 £2,960.00

Classic Three Phase

10.0kW SB.FHQ100CB_F/SLY BRC1E53A x 1 & FHQ100CB x 1 & RZQSG100L8Y1 x 1 £2,240.00

12.5kW SB.FHQ125CB_F/SLY BRC1E53A x 1 & FHQ125CB x 1 & RZQSG125L8Y1 x 1 £2,613.00

14.0kW SB.FHQ140CB_F/SLY BRC1E53A x 1 & FHQ140CB x 1 & RZQSG140LY1 x 1 £3,004.00

RXS

3.5kW SB.FHQ35CB_F/RXSL3 BRC1E53A x 1 & FHQ35CB x 1 & RXS35L3 x 1 £1,268.00

5.0kW SB.FHQ5OCB_F/RXSL BRC1E53A x 1 & FHQ50CB x 1 & RXS50L x 1 £1,473.00

6.0kW SB.FHQ60CB_F/RXSL BRC1E53A x 1 & FHQ60CB x 1 & RXS60L x 1 £1,594.00

To simplify the order process, you may want to use the Order Code from table below.

Each code includes all products for a system (eg remote controllers, indoor units) & means you no longer need to order individual materials.

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Indoor Units Single Phase 3 Phase

FCQHG71F FCQHG100F FCQHG125F FCQHG140F FCQHG71F FCQHG100F FCQHG125F FCQHG140F

Capacity UK Total Cooling kW 7.76 10.80 13.60 14.90 7.76 10.80 13.60 14.90

UK Sensible Cooling kW 5.32 7.44 9.30 10.25 5.32 7.44 9.30 10.25

Nominal Cooling kW 6.80 9.50 12.00 13.40 6.80 9.50 12.00 13.40

Nominal Heating kW 7.50 10.80 13.50 15.50 7.50 10.80 13.50 15.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A++ - A++ A++ A++ -

Pdesign kW 6.80 9.50 12.00 - 6.80 9.50 12.00 -

SEER 7.00 7.00 6.61 - 7.00 7.00 6.61 -

Annual Energy Consumption kWh 340 475 636 - 340 475 636 -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A++ A++ - A+ A++ A++ -

Pdesign kW 7.60 11.30 12.66 - 7.60 11.30 12.66 -

SCOP 4.54 4.80 4.63 - 4.54 4.80 4.63 -

Annual Energy Consumption kWh 2344 3296 3829 - 2344 3296 3829 -

Nominal Eciency EER / COP 4.09 / 4.8 4.42 / 4.99 4 / 4.4 3.35 / 4.12 4.09 / 4.8 4.42 / 4.99 4 / 4.4 3.35 / 4.14

Energy Label A / A A / A A / A A / A A / A A / A A / A A / A

Annual Energy Consumption kWh 830 1075 1500 2000 830 1075 1500 2000

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.353 / 0.270 /

0.203 0.538 / 0.428 /

0.317 0.558 / 0.445 /

0.332 0.558 / 0.455 /

0.352 0.353 / 0.270 /

0.203 0.538 / 0.428 /

0.317 0.558 / 0.445 /

0.332 0.558 / 0.455 /

0.352

Dimensions

(with Decoration Panel)

Height mm 288(348) 288 (348) 288 (348) 288 (348) 288(348) 288 (348) 288 (348) 288 (348)

Width mm 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950)

Depth mm 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950)

Weight (with Decoration Panel) kg 25 (30.4) 26 (31.4) 26 (31.4) 26 (31.4) 25 (30.4) 26 (31.4) 26 (31.4) 26 (31.4)

Sound Pressure (Cooling)

High / Nom / Low dBA 36 / 33 / 29 44 / 39 / 33 45 / 40 / 35 45 / 41 / 37 36 / 33 / 29 44 / 39 / 33 45 / 40 / 35 45 / 41 / 37

Sound Power dBA 53 61 61 61 53 61 61 61

Outdoor Units RZQG71L9V1

RZQG100L9V1 RZQG125L9V1 RZQG140L9V1

RZQG71L8Y1 RZQG100L8Y1 RZQG125L8Y1 RZQG140LY1

Dimensions Height x Width x Depth mm

990 x 940 x 320

1430 x 940 x 320 990 x 940 x 320 1430 x 940 x 320

Weight kg 69 95 80 101

Electrical Details Power Supply 1ph 3ph

Running Current A 6.78 8.79 12.26 16.35 2.55 3.31 4.61 6.15

Starting Current A 4 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 16 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 75 75 75 50 75 75 75

Maximum Vertical Rise m 30 30 30 30 30 30 30 30

Precharged to m 30 30 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.9 4.0 4.0 4.0 2.9 4.0 4.0 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 48 / 43 50 / 45 51 / 45 52 / 45 48 / 43 50 / 45 51 / 45 52 / 45

Sound Power dBA 64 66 67 69 64 66 67 69

Air Flow Rate (Cooling) Nom m3/sec 0.983 1.166 1.166 1.400 0.983 1.166 1.166 1.400

ECA Eligible ●●●●●●●●

Trade Fan Coil Price £819.00 £926.00 £1,012.00 £1,215.00 £819.00 £926.00 £1,012.00 £1,215.00

Trade Condensing Unit Price £1,239.00 £1,575.00 £1,733.00 £1,978.00 £1,277.00 £1,648.00 £1,813.00 £2,083.00

Total System Price £2,058.00 £2,501.00 £2,745.00 £3,193.00 £2,096.00 £2,574.00 £2,825.00 £3,298.00

Features:

> The FCQHG model is designed for 2014 ErP regulations and has one of the highest COP values on the market

> The unique 360° radial air pattern ensures uniform air ow and temperature distribution

> Optional Presence Sensors detects if room is unoccupied and allows temperature to drift to set-back levels

> Optional Self Cleaning Filter The BYCQ140DG decoration panel can oer energy savings, reduced maintenance time and cost

> Optional Fresh Air intake (up to 20%) possible

> Suitable for Twin, Triple and Double Twin applications (Smart & Classic)

> Re-use of existing R22 and R407C piping possible

> Selectable evaporating & condensing temperature for greater operating eciency (Seasonal Smart)

> DIII net compatibility as standard

Accessory Ref Description Trade Price

BRC7FA532F Wireless remote controller £158.00

BYCQ140DG Roundow cassette decoration panel with self cleaning lter £323.00

BYCQ140DW Roundow cassette decoration panel - white with white louvres £167.00

BRYQ140A Integral PIR Sensor for Roundow decoration panel. Enables Energy Saving functions £103.00

KDBHQ55B140 Sealing member for air discharge outlet £94.00

KDDP55C160-1 (suction chamber)

KDDQ55B140-2 (connecting chamber)

Fresh air intake kit for up to 20% fresh air - 2 part kit £243.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2

Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock

£245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.CWB140-2 Condensing unit bracket - sizes 100 to 140, max weight 140kg of ODU £47.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGM Condensing Unit Guard size 42-71 £308.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

Accessories: Notes:

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) BRC7FA532F Trade price will be reduced

by £79.00 if ordered in place of the

BRC1E53A

iii) All fan coil units standard with auto

restart after power failure

iv) All fan coils suppled as standard with

BYCQ140D Decoration panel

v) BYCQ140DW / BYCQ140DG Trade prices

will be reduced by £148.00 if ordered in

place of standard decoration panel

vi) Minimum ambient operating

temperatures:

vii) FCQG-F / FCQHG-F compatible with

RZQG / RZQSG

viii) FCQG-F / FCQHG-F are same price

Cooling Heating

RZQG -15°C -20°C

RZQSG -15°C -15°C

AZQS -5°C -15°C

FCQHG-F / RZQG-L

High COP Roundow Cassette – Seasonal Smart

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Indoor Units Single Phase 3 Phase

FCQG71F FCQG100F FCQG125F FCQG140F FCQG100F FCQG125F FCQG140F

Capacity UK Total Cooling kW 7.28 10.80 13.60 14.90 10.80 13.60 14.90

UK Sensible Cooling kW 4.99 7.44 9.30 10.25 7.44 9.30 10.25

Nominal Cooling kW 6.80 9.50 12.00 13.40 9.50 12.00 13.40

Nominal Heating kW 7.50 10.80 13.50 15.50 10.80 13.50 15.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A - A++ A -

Pdesign kW 6.80 9.50 12.00 - 9.50 12.00 -

SEER 6.10 6.50 5.30 - 6.50 5.30 -

Annual Energy Consumption kWh 390 512 793 - 512 793 -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A+ A+ - A+ A+ -

Pdesign kW 6.33 7.60 8.03 - 7.60 8.03 -

SCOP 4.10 4.10 4.01 - 4.10 4.01 -

Annual Energy Consumption kWh 2162 2596 2804 - 2596 2804 -

Nominal Eciency EER / COP 3.21 / 3.61 3.3 / 3.54 3.21 / 3.41 3.01 / 3.41 3.3 / 3.54 3.21 / 3.41 3.01 / 3.41

Energy Label A / A A / B A / B B / B A / B A / B B / B

Annual Energy Consumption kWh 1060 1440 1870 2225 1440 1870 2225

Air Flow Rate (Cooling) High / Nom / Low m3/sec

0.250 / 0.202 / 0.152 0.380 / 0.293 / 0.207 0.433 / 0.320 / 0.207 0.267 / 0.320 / 0.207 0.380 / 0.293 / 0.207 0.433 / 0.320 / 0.207 0.267 / 0.320 / 0.207

Dimensions

(with Decoration Panel)

Height mm 204 (264) 246 (306) 246 (306) 246 (306) 246 (306) 246 (306) 246 (306)

Width mm 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950)

Depth mm 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950)

Weight (with Decoration Panel) kg 21 (26.4) 24 (29.4) 24 (29.4) 24 (29.4) 24 (29.4) 24 (29.4) 24 (29.4)

Sound Pressure (Cooling)

High / Nom / Low dBA 33 / 31 / 28 37 / 33 / 29 41 / 35 / 29 41 / 35 / 29 37 / 33 / 29 41 / 35 / 29 41 / 35 / 29

Sound Power dBA 51 54 58 58 54 58 58

Outdoor Units RZQSG71L3V1 RZQSG100L9V1 RZQSG125L9V1 RZQSG140L9V1 RZQSG100L8Y1 RZQSG125L8Y1 RZQSG140LY1

Dimensions Height x Width x Depth mm 770 x 900 x 320 990 x 940 x 320 1430 x 940 x 320 990 x 940 x 320 1430 x 940 x 320

Weight kg 72 75 95 82 101

Electrical Details Power Supply 1ph 3ph

Running Current A 8.66 11.77 15.29 18.19 4.40 5.72 6.80

Starting Current A 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 50 50 50 50 50 50

Maximum Vertical Rise m 15 30 30 30 30 30 30

Precharged to m 30 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.75 2.9 2.9 4.0 2.9 2.9 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 49 / 49 53 / 49 54 / 49 53 / 49 53 / 49 54 / 49 53 / 49

Sound Power dBA 65 70 70 69 70 70 69

Air Flow Rate (Cooling) High m3/sec 0.866 1.266 1.283 1.383 1.266 1.283 1.383

ECA Eligible ● ● ●

Trade Fan Coil Price £819.00 £926.00 £1,012.00 £1,215.00 £926.00 £1,012.00 £1,215.00

Trade Condensing Unit Price £853.00 £1,181.00 £1,295.00 £1,442.00 £1,217.00 £1,334.00 £1,486.00

Total System Price £1,672.00 £2,107.00 £2,307.00 £2,657.00 £2,143.00 £2,346.00 £2,701.00

FCQG-F / RZQSG-L

Compact Roundow Cassette – Seasonal Classic

One cassette, 3 options:

Daikin’s Roundow Cassette range

has a solution for all your needs:

> Price

> Performance

> Highest Eciency

> Pair, twin, triple, double twin applications

> 50m pipe run

-15 / -15°C operating range in cooling / heating

> A+/A+ Energy Labels

> R22 replacement technology

> Pair, twin, triple, double twin applications

> 75m pipe run

-15 / -20°C operating range in cooling / heating

> Up to A++/A+ Energy Labels

> All capacities ECA Eligible

> R22 replacement technology

> Pair applications

> 30m pipe run

-5 / -15°C operating range in cooling / heating

> A/A Energy Labels

> R22 replacement technology

FCQG-F Series cassette

BYFQD Roundow decoration panel

BRCE remote control

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Indoor Units Single Phase 3 Phase

FCQG71F FCQG100F FCQG125F FCQG140F FCQG100F FCQG125F FCQG140F

Capacity UK Total Cooling kW 7.28 10.80 13.60 14.90 10.80 13.60 14.90

UK Sensible Cooling kW 4.99 7.44 9.30 10.25 7.44 9.30 10.25

Nominal Cooling kW 6.80 9.50 12.10 13.40 9.50 12.10 13.40

Nominal Heating kW 7.50 10.80 13.50 15.50 10.80 13.50 15.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+ A - - A - -

Pdesign kW 6.80 9.50 - - 9.50 - -

SEER 5.70 5.50 - - 5.50 - -

Annual Energy Consumption kWh 418 605 - - 605 - -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A A - - A - -

Pdesign kW 6.33 7.60 - - 7.60 - -

SCOP 4.00 3.85 - - 3.85 - -

Annual Energy Consumption kWh 2116 2764 - - 2764 - -

Nominal Eciency EER / COP B / A A / B B / B C / B A / B B / B C / B

Energy Label 3.11 / 3.61 3.21 / 3.50 3.10 / 3.41 2.81 / 3.30 3.21 / 3.50 3.10 / 3.41 2.81 / 3.30

Annual Energy Consumption kWh 1093 1480 1952 2313 1480 1952 2313

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.250 / 0.202 /

0.152 0.380 / 0.293 /

0.207 0.433 / 0.320 /

0.207 0.267 / 0.320 /

0.207 0.380 / 0.293 /

0.207 0.433 / 0.320 /

0.207 0.267 / 0.320 /

0.207

Dimensions

(with Decoration Panel)

Height mm 204 (264) 246 (306) 246 (306) 246 (306) 246 (306) 246 (306) 246 (306)

Width mm 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950)

Depth mm 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950) 840 (950)

Weight (with Decoration Panel) kg 21 (26.4) 24 (29.4) 24 (29.4) 24 (29.4) 24 (29.4) 24 (29.4) 24 (29.4)

Sound Pressure (Cooling)

High / Nom / Low dBA 33 / 31 / 28 37 / 33 / 29 41 / 35 / 29 41 / 35 / 29 37 / 33 / 29 41 / 35 / 29 41 / 35 / 29

Sound Power dBA 51 54 58 58 54 58 58

Outdoor Units AZQS71BV1 AZQS100B8V1 AZQS125B8V1 AZQS140B8V1 AZQS100BY1 AZQS125BY1 AZQS140BY1

Dimensions Height x Width x Depth mm 770 x 900 x 320 990 x 940 x 320 1430 x 940 x 320 990 x 940 x 320 1430 x 940 x 320

Weight kg 72 75 95 82 101

Electrical Details Power Supply 1ph 3ph

Running Current A 8.66 11.77 15.29 18.19 4.40 5.72 6.80

Starting Current A 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 30 30 30 30 30 30 30

Maximum Vertical Rise m 15 15 15 15 15 15 15

Precharged to m 30 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.75 2.9 2.9 4.0 2.9 2.9 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 49 / 43 53 / 49 54 / 49 53 / 49 53 / 49 54 / 49 53 / 49

Sound Power dBA 65 70 70 69 70 70 69

Air Flow Rate (Cooling) Nominal m3/sec 0.866 1.266 1.283 1.383 1.266 1.283 1.383

Trade Fan Coil Price £819.00 £926.00 £1,012.00 £1,215.00 £926.00 £1,012.00 £1,215.00

Trade Condensing Unit Price £743.00 £914.00 £1,026.00 £1,149.00 £964.00 £1,080.00 £1,211.00

Total System Price £1,562.00 £1,840.00 £2,038.00 £2,364.00 £1,890.00 £2,092.00 £2,426.00

FCQG-F / AZQS-B

Compact Roundow Cassette – Sea

sonal Inverter

One cassette, 3 options:

Daikin’s Roundow Cassette range

has a solution for all your needs:

> Price

> Performance

> Highest Eciency

> Pair, twin, triple, double twin applications

> 50m pipe run

-15 / -15°C operating range in cooling / heating

> A+/A+ Energy Labels

> R22 replacement technology

> Pair, twin, triple, double twin applications

> 75m pipe run

-15 / -20°C operating range in cooling / heating

> Up to A++/A+ Energy Labels

> All capacities ECA Eligible

> R22 replacement technology

> Pair applications

> 30m pipe run

-5 / -15°C operating range in cooling / heating

> A/A Energy Labels

> R22 replacement technology

FCQG-F Series cassette

BYFQD Roundow decoration panel

BRCE remote control

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

FCQG-F / RXS-L

Compact Roundow Cassette

Indoor Units FCQG35F FCQG50F FCQG60F

Capacity UK Total Cooling kW 3.32 4.89 5.57

UK Sensible Cooling kW 2.29 3.26 3.67

Nominal Cooling kW 3.40 5.00 5.70

Nominal Heating kW 4.20 6.00 7.00

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A++

Pdesign kW 3.50 5.00 5.70

SEER 6.35 6.48 6.22

Annual Energy Consumption kWh 193 270 321

Seasonal Eciency

(EN14825)

HEATING

Energy Label A++ A++ A+

Pdesign kW 3.32 4.36 4.71

SCOP 4.90 4.29 4.00

Annual Energy Consumption kWh 949 1426 1646

Nominal Eciency EER / COP 3.74 / 3.5 3.55 / 3.7 3.48 / 3.52

Energy Label A / B A / A A / B

Annual Energy Consumption kWh 455 705 820

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.208 / 0.177 / 0.145 0.210 / 0.178 / 0.145 0.227 / 0.187 / 0.145

Dimensions

(with Decoration Panel)

Height mm 204 (264) 204 (264) 204 (264)

Width mm 840 (950) 840 (950) 840 (950)

Depth mm 840 (950) 840 (950) 840 (950)

Weight (with Decoration Panel) kg 18 (23.4) 19 (24.4) 19 (24.4)

Sound Pressure (Cooling)

High / Nom / Low dBA 31 / 29 / 27 31 / 29 / 27 33 / 31 / 28

Sound Power dBA 49 49 51

Outdoor Units RXS35L3 RXS50L RXS60L

Dimensions Height x Width x Depth mm 550 x 765 x 285 735 x 825 x 300 735 x 825 x 300

Weight kg 34 47 48

Electrical Details Power Supply 1ph

Running Current A 4.00 6.30 7.40

Starting Current A 4.30 6.80 10.2

Max Fuse Size A 10 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

Pipework Maximum Length m 20 30 30

Maximum Vertical Rise m 15 20 20

Precharged to m 10 10 10

Additional Charge g/m 20 20 20

Holding Charge kg 1.2 1.7 1.5

Sound Pressure (Cooling)

High / Silent Operation dBA 48 / 44 48 / 44 49 / 46

Sound Power dBA 61 62 62

Air Flow Rate (Cooling) High m3/sec 0.600 0.848 0.836

ECA Eligible ● ●

Trade Fan Coil Price £711.00 £728.00 £773.00

Trade Condensing Unit Price £575.00 £722.00 £770.00

Total System Price £1,286.00 £1,450.00 £1,543.00

Features:

> FCQG is a compact cassette designed to suit installation in narrower ceiling voids

> The unique 360° radial air pattern ensures uniform air ow and temperature distribution

> Air ow exibility: a wide selection of 23 dierent air ow patterns accessible via remote controller

> Optional Presence Sensors detects if room is unoccupied and allows temperature to drift to set-back levels

> Optional Self Cleaning Filter: The BYCQ140DG decoration panel can oer energy savings, reduced maintenance time and cost

> Suitable for Twin, Triple and Double Twin applications

> Re-use of existing R22 and R407C piping possible

> DIII net compatibility as standard

Accessories: Notes:

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) BRC7FA532F Trade price will be reduced

by £79.00 if ordered in place of the

BRC1E53A

iii) All fan coil units standard with auto restart

after power failure

iv) All fan coils suppled as standard with

BYCQ140D Decoration panel

v) BYCQ140DW / BYCQ140DG Trade prices

will be reduced by £148.00 if ordered in

place of standard decoration panel

vi) Minimum ambient operating

temperatures:

Cooling Heating

RXS -10°C -15°C

Accessory Ref Description Trade Price

BRC7FA532F Wireless remote controller £158.00

BYCQ140DG Roundow cassette decoration panel with self cleaning lter £323.00

BYCQ140DW Roundow cassette decoration panel - white with white louvres £167.00

BRYQ140A Integral PIR Sensor for Roundow decoration panel. Enables Energy Saving functions £103.00

KDBHQ55B140 Sealing member for air discharge outlet £94.00

KDDP55C160-1 (suction chamber)

KDDQ55B140-2 (connecting chamber)

Fresh air intake kit for up to 20% fresh air - 2 part kit £243.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2

Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock

£245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Indoor Units Single Phase 3 Phase

FUQ71C FUQ100C FUQ125C FUQ71C FUQ100C FUQ125C

Capacity UK Total Cooling kW 7.76 10.80 13.60 7.76 10.80 13.60

UK Sensible Cooling kW 5.32 7.44 9.30 5.32 7.44 9.30

Nominal Cooling kW 6.80 9.50 12.00 6.80 9.50 12.00

Nominal Heating kW 7.50 10.80 13.50 7.50 10.80 13.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A+ A++ A++ A+

Pdesign kW 6.80 9.50 12.00 6.80 9.50 12.00

SEER 6.50 6.11 5.61 6.50 6.11 5.61

Annual Energy Consumption kWh 367 545 749 367 545 749

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A+ A+ A+ A+ A+

Pdesign kW 7.60 11.30 14.13 7.60 11.30 14.13

SCOP 4.20 4.50 4.44 4.20 4.50 4.44

Annual Energy Consumption kWh 2534 3516 4456 2534 3516 4456

Nominal Eciency EER / COP 4.05 / 4.08 3.86 / 3.95 3.39 / 3.42 4.05 / 4.08 3.86 / 3.95 3.39 / 3.42

Energy Label A / A A / A A / A A / A A / A A / A

Annual Energy Consumption kWh 840 1230 1770 840 1230 1770

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.383 / 0.325 /

1.933

0.517 / 0.425 /

0.333

0.542 / 0.442 /

0.342

0.383 / 0.325 /

1.933

0.517 / 0.425 /

0.333

0.542 / 0.442 /

0.342

Dimensions Height mm 198 198 198 198 198 198

Width mm 950 950 950 950 950 950

Depth mm 950 950 950 950 950 950

Weight kg 25 26 26 25 26 26

Sound Pressure (Cooling)

High / Nom / Low dBA 41 / 38 / 35 46 / 42 / 39 47 / 43 / 40 41 / 38 / 35 46 / 42 / 39 47 / 43 / 40

Sound Power dBA 59 64 65 59 64 65

Outdoor Units RZQG71L9V1 RZQG100L9V1 RZQG125L9V1 RZQG71L8Y1 RZQG100L8Y1 RZQG125L8Y1

Dimensions Height x Width x Depth mm 990 x 940 x 320 1430 x 940 x 320 990 x 940 x 320 1430 x 940 x 320

Weight kg 69 95 80 101

Electrical Details Power Supply 1ph 3ph

Running Current A 6.83 9.52 14.06 2.57 3.58 5.29

Starting Current A 4 4 4 4 4 4

Max Fuse Size A 20 32 32 16 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 75 75 50 75 75

Maximum Vertical Rise m 30 30 30 30 30 30

Precharged to m 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.9 4.0 4.0 2.9 4.0 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 48 / 43 50 / 45 51 / 45 48 / 43 50 / 45 51 / 45

Sound Power dBA 64 66 67 64 66 67

Air Flow Rate (Cooling) Nom m3/sec 0.983 1.166 1.166 0.983 1.166 1.166

ECA Eligible ● ● ● ●

Trade Fan Coil Price £892.00 £978.00 £1,079.00 £892.00 £978.00 £1,079.00

Trade Condensing Unit Price £1,239.00 £1,575.00 £1,733.00 £1,277.00 £1,648.00 £1,813.00

Total System Price £2,131.00 £2,553.00 £2,812.00 £2,169.00 £2,626.00 £2,892.00

Features:

> The 4-way blow under ceiling cassettes are the ideal solution for rooms, shops or oces without false ceilings

> Seasonally Ecient Inverter Technology gives up to 25% better eciency than inverter technology

> Air ow exibility: air can be discharged in any of 4 directions. Possibility to shut o 1 or 2 aps enabling the unit

to be installed in a corner or small room

> 3 step fan-speed

> Suitable for Twin, Triple and Double Twin applications

> Re-use of existing R22 and R407C piping possible

> Comms, computer and server room cooling possible with EDP setting

> Selectable evaporating & condensing temperature for greater operating eciency

Accessory Ref Description Trade Price

BRC7C58 Wireless remote controller £158.00

EKRORO5 Remote on/o control interface kit £30.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2 Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock £245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.CWB140-2 Condensing unit bracket - sizes 100 to 140, max weight 140kg of ODU £47.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGM Condensing Unit Guard size 42-71 £308.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

Accessories: Notes:

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) BRC7C58 Trade price will be reduced

by £79.00 if ordered in place of the

BRC1E53A

iii) All fan coil units standard with auto restart

after power failure

iv) Minimum ambient operating

temperatures:

Cooling Heating

RZQG -15°C -20°C

FUQ-C / RZQG-L

Under Ceiling Cassette – Seasonal Smart

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Indoor Units Single Phase 3 Phase

FUQ71C FUQ100C FUQ125C FUQ100C FUQ125C

Capacity UK Total Cooling kW 7.28 10.80 13.60 10.80 13.60

UK Sensible Cooling kW 4.99 7.44 9.30 7.44 9.30

Nominal Cooling kW 6.80 9.50 12.00 9.50 12.00

Nominal Heating kW 7.50 10.80 13.50 10.80 13.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+ A+ A A+ A

Pdesign kW 6.80 9.50 12.0 9.50 12.0

SEER 5.81 5.61 5.30 5.61 5.30

Annual Energy Consumption kWh 410 593 793 593 793

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A+ A A+ A

Pdesign kW 6.33 7.60 7.60 7.60 7.60

SCOP 3.90 4.01 3.85 4.01 3.85

Annual Energy Consumption kWh 2273 2653 2763 2653 2763

Nominal Eciency EER / COP 3.21 / 3.61 3.21 / 3.61 2.65 / 3.41 3.21 / 3.61 2.65 / 3.41

Energy Label A/A A/A D/B A/A D/B

Annual Energy Consumption kWh 1060 1480 2265 1480 2265

Air Flow Rate High / Low m3/min 0.383 / 0.325 / 0.193 0.517 / 0.425 / 0.333 0.542 / 0.442 / 0.342 0.517 / 0.425 / 0.333 0.542 / 0.442 / 0.342

Dimensions Height mm 198 198

Width mm 950 950

Depth mm 950 950

Weight kg 25 26 26

Sound Pressure High / Low dBA 41 / 38 / 35 46 / 42 / 39 47 / 43 / 40 46 / 42 / 39 47 / 43 / 40

Sound Power dBA 59 64 65 64 65

Outdoor Units RZQSG71L3V1 RZQSG100L9V1 RZQSG125L9V1 RZQSG100L8Y1 RZQSG125L8Y1

Dimensions Height x Width x Depth mm 770 x 900 x 320 990 x 940 x 320 990 x 940 x 320

Weight kg 67 72 74 82

Electrical Details Power Supply 1ph 3ph

Running Current A 8.32 11.32 16.46 4.22 5.90

Starting Current A 4 4 4 4 4

Max Fuse Size A 20 32 32 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 50 50 50 50

Maximum Vertical Rise m 15 30 30 30 30

Precharged to m 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.75 2.9 2.9 2.9 2.9

Sound Pressure Nom / Night Quiet dBA 49 / 49 53 / 49 54 / 49 53 / 49 54 / 49

Sound Power dBA 65 70 70 70 70

Air Flow Rate (Cooling) High m3/Sec 0.866 1.266 1.283 1.266 1.283

Trade Fan Coil Price £892.00 £978.00 £1,079.00 £978.00 £1,079.00

Trade Condensing Unit Price £853.00 £1,181.00 £1,295.00 £1,217.00 £1,334.00

Total System Price £1,745.00 £2,159.00 £2,374.00 £2,195.00 £2,413.00

FUQ-C / RZQSG-L

Under Ceiling Cassette – Seasonal Classic

Notes:

i) Minimum ambient operating

temperatures:

Cooling Heating

RZQSG -15°C -15°C

NEW

FOR 2016

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Features:

> Installed into suspended ceiling grids without cutting surrounding tiles

> Home Leave setting maintains pre-set temperature during periods of extended absence

> Dry programme: Daikin’s special dry programme reduces humidity in the rooms without variations in internal temperature

> Vertical auto-swing function: aps automatically swing up and down to ensure ecient air and temperature distribution which also prevents ceiling soiling

> 3 fan speeds can be selected: high, medium and low

> Suitable for Twin, Triple and Double Twin applications. Also suitable for multi model applications

> Re-use of existing R22 and R407C piping possible

Accessory Ref Description Trade Price

BYFQ60CW Fully Flat Cassette Decoration Panel - White £206.00

BYFQ60CS Fully Flat Cassette Decoration Panel - Sliver £206.00

BYFQ60B3

Fully Flat Cassette Decoration Panel - Old Style (FFQ-B9V looks) [compatible with previous model FXZQ-M9]

£177.00

BRYQ60AW Integral PIR Sensor for Fully Flat cassette White decoration panel. Enables Energy Saving functions £103.00

BRYQ60AS Integral PIR Sensor for Fully Flat Cassette Silver decoration panel. Enables Energy Saving functions £103.00

BRC7F530W Wireless remote controller for White Ceiling Decoration Panel £158.00

BRC7F530S Wireless remote controller for Silver Ceiling Decoration Panel £158.00

BRC7EB530W Wireless remote for Fully Flat Cassette Old Style Decoration Panel £158.00

BDBHQ44C60 Sealing member for decoration panel-FFQ, FXZQ £95.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

KRP1B57/UK.FB2 Adaptor PCB for Interlock to fresh air fan £104.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2 Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock £245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories: Notes:

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) Infrared remote Trade price will be

reduced by £79.00 if ordered instead of

BRC1E53A

iii) All fan coil units standard with auto restart

after power failure

iv) All fan coils suppled as standard

with BYFQ60CW White fully at

decoration panel

v) Minimum ambient operating

temperatures:

Cooling Heating

RXS -10°C -15°C

Indoor Units FFQ25C FFQ35C FFQ50C FFQ60C

Capacity UK Total Cooling kW 2.44 3.32 4.62 5.72

UK Sensible Cooling kW 1.81 2.28 3.40 4.20

Nominal Cooling kW 2.50 3.40 4.70 5.80

Nominal Heating kW 3.20 4.00 5.50 7.00

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A+ A+

Pdesign kW 2.50 3.40 5.00 5.70

SEER 6.11 6.32 5.93 5.71

Annual Energy Consumption kWh 143 188 295 349

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A+ A A+

Pdesign kW 2.31 3.10 3.84 3.96

SCOP 4.24 4.10 3.90 4.04

Annual Energy Consumption kWh 763 1059 1378 1373

Nominal Eciency EER / COP 4.53 / 3.90 3.78 / 3.50 3.21 / 3.49 3.02 / 3.41

Energy Label A / A A / B A / B B / B

Annual Energy Consumption kWh 276 460 780 945

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.150 / 0.133 / 0.108 0.167 / 0.142 / 0.108 0.200 / 0.167 / 0.125 0.242 / 0.208 / 0.158

Dimensions

(with Decoration Panel)

Height mm 260 (306) 260 (306) 260 (306) 260 (306)

Width mm 575 (620) 575 (620) 575 (620) 575 (620)

Depth mm 575 (620) 575 (620) 575 (620) 575 (620)

Weight (with Decoration Panel) kg 16 (18.8) 16 (18.8) 17.5 (20.2) 17.5 (20.2)

Sound Pressure (Cooling)

High / Nom / Low dBA 31 / 28.5 / 25 34 / 30.5 / 25 39 / 34 / 27 43 / 40 / 32

Sound Power dBA 48 51 56 60

Outdoor Units RXS25L3 RXS35L3 RXS50L RXS60L

Dimensions Height x Width x Depth mm 550 x 765 x 285 550 x 765 x 285 735 x 825 x 300 735 x 825 x 300

Weight kg 34 34 47 48

Electrical Details Power Supply 1ph

Running Current A 4.00 4.00 6.90 8.30

Starting Current A 3.3 4.3 6.8 10.2

Max Fuse Size A 10 10 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

Pipework Maximum Length m 20 20 30 30

Maximum Vertical Rise m 15 15 20 20

Precharged to m 10 10 10 10

Additional Charge g/m 20

Holding Charge kg 1.0 1.2 1.7 1.5

Sound Pressure (Cooling)

High / Silent Operation dBA 46 / 43 48 / 44 48 / 44 49 / 46

Sound Power dBA 61 61 62 62

Air Flow Rate (Cooling) High m3/sec 0.588 0.600 0.848 0.836

ECA Eligible ● ●

Trade Fan Coil Price £662.00 £724.00 £797.00 £842.00

Trade Condensing Unit Price £496.00 £575.00 £722.00 £770.00

Total System Price £1,158.00 £1,299.00 £1,519.00 £1,612.00

FFQ-C / RXS-L

600x600 Fully Flat Cassette

White Silver

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

FBQ-D & FDXS-F / RXS-L

Built in DC Ducted & Slim Concealed Ceiling Unit

Accessory Ref Description Trade Price

BRC4C65 Wireless remote controller £158.00

BRC2E52C Wired Simplied remote controller £83.00

Recessed simplied remote (see page 100 for options) £188.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2

Enhanced function PCB for Sky Air & VRV. Duty rotation, Lead Lag control & heating interlock

£245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

UK.SF2 Supply air plenum for FBQ35D / FBQ50D (2 x 200mm spigots) £75.00

UK.SF3 Supply air plenum for FBQ60D (2 x 200mm spigots) £82.00

UK.SF3A Supply air plenum for FBQ60D (3 x 200mm spigots) £87.00

UK.SAF5 Supply air plenum for FDXS25/35F (2 x 150mm spigots) £70.00

UK.SAF7 Supply air plenum for FDXS60F & FDXS50F (4 x 150mm spigots) £88.00

UK.RC2 Return air plenum for FBQ35D / FBQ50D (2 x 200mm spigots) £82.00

UK.RC3 Return air plenum for FBQ60D (2 x 200mm spigots) £89.00

UK.RC3A Return air plenum for FBQ60D (3 x 200mm spigots) £97.00

UK.RAC5 Return air plenum for FDXS25/35F (2 x 150mm spigots) £79.00

UK.RAC7 Return air plenum for FDXS60F & FDXS50F (4 x 150mm spigots) £101.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.CGS Condensing Unit Guard size 20-35 £223.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories: Notes:

i) FBQ & FDXS fan coils supplied as standard

with BRC1E53A wired remote controller

with 7-day time clock

ii) BRC4C65 Trade price will be reduced

by £79.00 if ordered in place of the

BRC1E53A

iii) All fan coil units standard with auto restart

after power failure

iv) All fan coils supplied as standard with

air lter

v) Minimum ambient operating

temperatures:

vi) The FBQ35D fan coil requires a separate

1ph power supply. Refer to install manual

for details

Cooling Heating

RXS -10°C -15°C

Indoor Units DC Ducted Slim Ducted

FDBQ25B FBQ35D FBQ50D FBQ60D FDXS25F FDXS35F FDXS50F9 FDXS60F

Capacity UK Total Cooling kW

Multi

combinations

only

3.32 4.89 5.57 2.35 3.32 4.81 5.86

UK Sensible Cooling kW 2.93 3.55 4.09 1.81 2.26 3.08 3.97

Nominal Cooling kW 3.40 5.00 5.70 2.40 3.40 5.00 6.00

Nominal Heating kW 4.00 5.50 7.00 3.20 4.00 5.80 7.00

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A++ A+ A+ A A+ A

Pdesign kW 3.40 5.00 5.70 2.40 3.40 5.00 6.00

SEER 6.17 6.21 5.86 5.63 5.21 5.72 5.51

Annual Energy Consumption kWh 193 282 340 149 228 306 381

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A+ A+ A+ A A A

Pdesign kW 2.90 4.40 4.60 2.60 2.90 4.00 4.60

SCOP 4.07 4.06 4.01 4.24 3.88 3.93 3.80

Annual Energy Consumption kWh 998 1517 1606 858 1047 1425 1693

Nominal Eciency EER / COP 3.99 / 4.02 3.52 / 3.83 3.45 / 3.71 3.74 / 4.00 2.96 / 3.48 3.03 / 3.1 2.91 / 3.21

Energy Label A / A B / A B / A A / A A / B B / D C / C

Annual Energy Consumption kWh 426 710 826 325 574 825 1030

Air Flow Rate

(Cooling)

High / Nom / Low m3/sec

0.108 / - /

0.087

0.250 / 0.208 /

0.175 0.250 / 0.208 /

0.175 0.300 / 0.250 /

0.208 0.145 / 0.145 /

0.122 0.145 / 0.145 /

0.122 0.200 / 0.200 /

0.167 0.267 / 0.000 /

0.225

External Static Pressure High / Nom Pa - 150 / 30 30.0 30.0 40.0 40.0

Dimensions Height mm 230 245 200

Width mm 652 700 1000 750 1150

Depth mm 502 800 620

Weight kg 17 28 35 21 30

Sound Pressure (Cooling)

High / Nom / Low dBA 35 / - / 28 35 / 32 / 29 35 / 32 / 29 30 / 28 / 25 35 / 33 / 27 35 / 33 / 27 38 / 36 / 30 38 / 36 / 30

Sound Power dBA 55 60 60 55 53 53 55 56

Outdoor Units

Multi

combinations

only

RXS35L3 RXS50L RXS60L RXS25L3 RXS35L3 RXS50L RXS60L

Dimensions Height x Width x Depth mm

550 x 765 x 285 735 x 825 x 300 735 x 825 x 300 550 x 765 x 285 550 x 765 x 285 735 x 825 x 300 735 x 825 x 300

Weight kg 34 47 48 34 34 47 48

Electrical Details Power Supply 1ph (refer to databook) 1ph

Running Current A 4.6 7.2 9.2 3.90 4.90 7.10 9.20

Starting Current A 4.3 6.8 10.2 3.3 4.3 6.8 10.2

Max Fuse Size A 10 20 20 10 10 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 1/4 (6.4) /

3/8 (9.5)

1/4 (6.4) / 1/2 (12.7) 1/4 (6.4) / 3/8 (9.5) 1/4 (6.4) / 1/2 (12.7)

Pipework Maximum Length m 20 30 30 20 20 30 30

Maximum Vertical Rise m 15 20 20 15 15 20 20

Precharged to m 10 10 10 10 10 10 10

Additional Charge g/m 20 20

Holding Charge kg 1.2 1.7 1.5 1.0 1.2 1.7 1.5

Sound Pressure (Cooling)

High / Silent Operation dBA 48 / 44 48 / 44 49 / 46 46 / 43 48 / 44 48 / 44 49 / 46

Sound Power dBA 61 61 62 59 61 61 62

Air Flow Rate

(Cooling)

High m3/sec 0.600 0.848 0.836 0.558 0.600 0.484 0.836

ECA Eligible ● ●

Trade Fan Coil Price £536.00 £563.00 £624.00 £410.00 £459.00 £497.00 £545.00

Trade Condensing Unit Price £575.00 £722.00 £770.00 £496.00 £575.00 £722.00 £770.00

Total System Price £1,111.00 £1,285.00 £1,394.00 £906.00 £1,034.00 £1,219.00 £1,315.00

Features:

> Fan speed: 5 fan speeds can be selected, high to super low > Connection to multi outdoor possible > Re-use of existing R22 and R407C piping possible

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Accessory Ref Description Trade Price

BRC4C65 Wireless remote controller £158.00

BRC2E52C Wired Simplied remote controller (without auto swing) £83.00

Recessed simplied remote (see page 100 for options) £188.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £236.00

RTD-10/UK.FB2

Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock.

£198.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV. £262.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

KRCS01-4 Remote room mounted temperature sensor £42.00

K.RSS Wireless room mounted temperature sensor and receiver £93.00

RS-SE Service and Conguration Tool for K.RSS £97.00

UK.SF3 Supply air plenum for FBQ71D (2 x 200 spigots) £82.00

UK.SF3A Supply air plenum for FBQ71D (3 x 200mm spigots) £87.00

UK.SF4 Supply air plenum for FBQ100 - 125D (4 x 200mm spigots) £108.00

UK.RC3 Return air plenum for FBQ71D (2 x 200mm spigots) £89.00

UK.RC3A Return air plenum for FBQ71D (3 x 200mm spigots) £97.00

UK.RC4 Return air plenum for FBQ100 - 125D (4 x 200mm spigots) £121.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.CWB140-2 Condensing unit bracket - sizes 100 to 140, max weight 140kg of ODU £47.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGM Condensing Unit Guard size 42-71 £308.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

FBQ-D / RZQG-L

Built in DC Ducted – Seasonal Smart

Features:

New chassis with height of 245mm makes the FBQ-D one of the slimmest medium static ducted units on the market

Increased external static pressure up to 150 Pa

Flexibility to set the required fan curve manually or to automatically select the correct fan curve, assuring comfort at all times

Top eciency, highest Energy label ranking in the market

Accessories: Notes:

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) BRC4C65 Trade price will be reduced

by £79.00 if ordered in place of the

BRC1E53A

iii) All fan coil units standard with auto restart

after power failure

iv) All fan coils supplied as standard with

air lter

v) Minimum ambient operating

temperatures:

Cooling Heating

RZQG -15°C -20°C

RZQSG -15°C -15°C

Indoor Units Single Phase 3 Phase

FBQ71D FBQ100D FBQ125D FBQ140D FBQ71D FBQ100D FBQ125D FBQ140D

Capacity UK Total Cooling kW 7.76 10.80 13.60 14.90 7.76 10.80 13.60 14.90

UK Sensible Cooling kW 5.32 7.44 9.30 10.25 5.32 7.44 9.30 10.25

Nominal Cooling kW 6.80 9.50 12.00 13.40 6.80 9.50 12.00 13.40

Nominal Heating kW 7.50 10.80 13.50 15.50 7.50 10.80 13.50 15.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A++ A+ A++ - A++ A+ A++ -

Pdesign kW 6.80 9.50 12.00 - 6.80 9.50 12.00 -

SEER 6.16 5.87 6.11 - 6.16 5.87 6.11 -

Annual Energy Consumption kWh 386 566 687 - 386 566 687 -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A++ A+ - A+ A++ A+ -

Pdesign kW 6.00 11.30 12.70 - 6.00 11.30 12.71 -

SCOP 4.31 4.78 4.28 - 4.31 4.78 4.28 -

Annual Energy Consumption kWh 1949 3310 4154 - 1949 3310 4154 -

Nominal Eciency EER / COP 3.60 / 4.01 3.81 / 4.41 3.31 / 3.90 3.35 / 3.60 3.60 / 4.01 3.81 / 4.41 3.31 / 3.90 3.35 / 3.60

Energy Label A / A A / A A / A A / B A / A A / A A / A A / B

Annual Energy Consumption kWh 944 1217 1813 2000 944 1217 1813 2000

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.300 / 0.250 /

0.208 0.483 / 0.433 /

0.383 0.567 / 0.483 /

0.392 0.567 / 0.483 /

0.393 0.300 / 0.250 /

0.208 0.483 / 0.433 /

0.383 0.567 / 0.483 /

0.392 0.567 / 0.483 /

0.393

External Static Pressure High / Nom Pa 150 / 30 150 / 40 150 / 50 150 / 30 150 / 40 150 / 50

Dimensions Height mm 245 245

Width mm 1000 1400 1000 1400

Depth mm 800 800

Weight kg 35 46 35 46

Sound Pressure (Cooling)

High / Nom / Low dBA 30 / 28 / 25 34 / 32 / 30 37 / 35 / 32 30 / 28 / 25 34 / 32 / 30 37 / 35 / 32

Sound Power dBA 56 58 62 62 56 58 62 62

Outdoor Units RZQG71L9V1

RZQG100L9V1 RZQG125L9V1 RZQG140L9V1 RZQG71L8Y1 RZQG100L8Y1 RZQG125L8Y1

RZQG140LY1

Dimensions Height x Width x Depth mm

990 x 940 x 320

1430 x 940 x 320

990 x 940 x 320

1430 x 940 x 320

Weight kg 69 95 95 95 80 101

Electrical Details Power Supply 1ph 3ph

Running Current A 7.93 9.97 12.87 16.43 2.98 3.75 4.84 6.18

Starting Current A 4 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 16 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 ( 9.5) / 5/8 (15.9) 3/8 ( 9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 75 75 75 50 75 75 75

Maximum Vertical Rise m 30 30 30 30 30 30 30 30

Precharged to m 30 30 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.9 4.0 4.0 4.0 2.9 4.0 4.0 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 48 / 43 50 / 45 51 / 45 52 / 45 48 / 43 50 / 45 51 / 45 52 / 45

Sound Power dBA 64 66 67 69 64 66 67 69

Air Flow Rate (Cooling) High m3/sec 0.983 1.166 1.166 1.400 0.983 1.166 1.166 1.400

ECA Eligible ●●●●

Trade Fan Coil Price £895.00 £935.00 £1,106.00 £1,282.00 £895.00 £935.00 £1,106.00 £1,282.00

Trade Condensing Unit Price £1,239.00 £1,575.00 £1,733.00 £1,978.00 £1,277.00 £1,648.00 £1,813.00 £2,083.00

Total System Price £2,134.00 £2,510.00 £2,839.00 £3,260.00 £2,172.00 £2,583.00 £2,919.00 £3,365.00

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

FBQ-D / RZQSG-L

Built in DC Ducted – Seasonal Classic

Indoor Units Single Phase 3 Phase

FBQ71D FBQ100D FBQ125D FBQ140D FBQ100D FBQ125D FBQ140D

Capacity UK Total Cooling kW 7.28 10.80 13.60 14.90 10.80 13.60 14.90

UK Sensible Cooling kW 4.99 7.44 9.30 10.25 7.44 9.30 10.25

Nominal Cooling kW 6.80 9.50 12.00 13.40 9.50 12.00 13.40

Nominal Heating kW 7.50 10.80 13.50 15.50 10.80 13.50 15.50

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+ A+ A - A+ A -

Pdesign kW 6.80 9.50 12.00 - 9.50 12.00 -

SEER 5.84 5.61 5.47 - 5.61 5.47 -

Annual Energy Consumption kWh 408 593 768 - 593.00 768.00 -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A+ A+ - A+ A+ -

Pdesign kW 6.00 7.60 7.60 - 7.60 7.60 -

SCOP 4.01 4.15 4.01 - 4.15 4.01 -

Annual Energy Consumption kWh 2095 2564 2653 - 2564 2653 -

Nominal Eciency EER / COP 3.43 / 3.92 3.35 / 3.67 3.23 / 3.63 3.06 / 3.40 3.35 / 3.67 3.23 / 3.63 3.06 / 3.40

Energy Label A / A A / A A / A B / B A / A A / A B / B

Annual Energy Consumption kWh 991 1418 1858 2190 1418 1858 2190

Air Flow Rate (Cooling) High / Nom / Low m3/sec 0.300 / 0.250 /

0.208

0.483 / 0.433 /

0.383

0.567 / 0.483 /

0.392

0.567 / 0.483 /

0.393

0.483 / 0.433 /

0.383

0.567 / 0.483 /

0.392

0.567 / 0.483 /

0.393

External Static Pressure High / Nom Pa 150 / 30 150 / 40 150 / 50 150 / 40 150 / 50

Dimensions Height mm 245 245

Width mm 1000 1400 1400

Depth mm 800 800

Weight kg 35 46 46

Sound Pressure (Cooling)

High / Nom / Low dBA 30 / 28 / 25 34 / 32 / 30 37 / 35 / 32 34 / 32 / 30 37 / 35 / 32

Sound Power dBA 56 58 62 62 58 62

Outdoor Units RZQSG71L3V1 RZQSG100L9V1 RZQSG125L9V1 RZQSG140L9V1 RZQSG100L8Y1 RZQSG125L8Y1 RZQSG140LY1

Dimensions Height x Width x Depth mm 770 x 900 x 320 990 x 940 x 320 1430 x 940 x 320 990 x 940 x 320 1430 x 940 x 320

Weight kg 72 75 95 82 101

Electrical Details Power Supply 1ph 3ph

Running Current A 8.46 11.73 15.29 18.15 4.39 5.72 6.79

Starting Current A 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 50 50 50 50 50 50

Maximum Vertical Rise m 15 30 30 30 30 30 30

Precharged to m 30 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 2.75 2.9 2.9 4.0 2.9 2.9 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 49 / 49 53 / 49 54 / 49 53 / 49 53 / 49 54 / 49 53 / 49

Sound Power dBA 65 70 70 69 70 70 69

Air Flow Rate (Cooling) High m3/sec 0.866 1.266 1.283 1.383 1.266 1.283 1.383

Trade Fan Coil Price £895.00 £935.00 £1,106.00 £1,282.00 £935.00 £1,106.00 £1,282.00

Trade Condensing Unit Price £853.00 £1,181.00 £1,295.00 £1,442.00 £1,217.00 £1,334.00 £1,486.00

Total System Price £1,748.00 £2,116.00 £2,401.00 £2,724.00 £2,152.00 £2,440.00 £2,768.00

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Indoor Units Single Phase 3 Phase Single Phase 3 Phase Super Inverter (3 phase)

FDQ125C FDQ125C FDQ125C FDQ125C FDQ200B FDQ250B

Capacity UK Total Cooling kW 13.60 13.60 13.60 13.60 19.40 23.50

UK Sensible Cooling kW 9.30 9.30 9.30 9.30 16.30 20.70

Nominal Cooling kW 12.00 12.00 12.00 12.00 20.00 25.00

Nominal Heating kW 13.50 13.50 13.50 13.50 23.00 27.00

Seasonal Eciency

(EN14825)

COOLING

Energy Label A+ A+ A A - -

Pdesign kW 12.00 12.00 12.00 12.00 - -

SEER 5.81 5.81 5.20 5.20 - -

Annual Energy Consumption kWh 723 723 807 807 - -

Seasonal Eciency

(EN14825)

HEATING

Energy Label A+ A+ A A - -

Pdesign kW 12.71 12.71 7.60 7.60 - -

SCOP 4.21 4.21 3.90 3.90 - -

Annual Energy Consumption kWh 4227 4227 2729 2729 - -

Nominal Eciency EER / COP 3.75 / 3.83 3.75 / 3.83 3.21 / 3.51 3.21 / 3.51 3.21 / 3.41 2.81 / 3.21

Energy Label A / A A / A A / B A / B A / B C / C

Annual Energy Consumption kWh 1600 1600 1870 1600 3115 4290

Air Flow Rate High / Nom m3/sec 0.650 / 0.467 0.650 / 0.467 0.650 / 0.467 0.650 / 0.467 1.150 / 1.150 1.483 / 1.483

External Static Pressure High / Nominal Pa 200 / 50 200 / 50 200 / 50 200 / 50 250 / 250 250 / 250

Dimensions Height mm 300 300 300 300 450 450

Width mm 1400 1400 1400 1400 1400 1400

Depth mm 700 700 700 700 900 900

Weight kg 45 45 45 45 89 94

Sound Pressure High / Low dBA 40 / 33 40 / 33 40 / 33 40 / 33 45 / 45 47 / 47

Sound Power dBA 66 66 66 66 81 82

Outdoor Units RZQG125L9V1 RZQG125L8Y1 RZQSG125L9V1 RZQSG125L8Y1 RZQ200C RZQ250C

Dimensions Height x Width x Depth mm 1430 x 940 x 320 1430 x 940 x 320 990 x 940 x 320 990 x 940 x 320 1680 x 930 x 765 1680 x 930 x 765

Weight kg 95 101 75 82 183 184

Electrical Details Power Supply 1ph - see notes 3ph - see notes 1ph - see notes 3ph - see notes 3ph - see notes

Running Current A 14.80 4.89 17.30 5.72 4.61 6.35

Starting Current A 4 4 4 4 4 4

Max Fuse Size A 32 20 32 20 25 25

Interconnection Wiring Core / Cable size 3+E / 1.5 3+E / 1.5

Piping Connections Liquid / Gas inches (mm) 3/8 (9.5) / 5/8 (15.9)

3/8 (9.5) / 7/8 (22.2) 1/2 (12.7) / 7/8 (22.2)

Pipework Maximum Length m 75 75 50 50 100 100

Maximum Vertical Rise m 30 30 30 30 30 30

Precharged to m 30 30 30 30 30 30

Additional Charge g/m Refer to Installation Manual Refer to Installation Manual

Holding Charge kg 4.0 4.0 2.9 2.9 8.3 9.3

Sound Pressure (Cooling)

Nom / Night Quiet dBA 51 / 45 51 / 45 54 / 49 54 / 49 57 / - 57 / -

Sound Power dBA 67 67 70 70 78 78

Air Flow Rate

(Cooling)

High m3/sec 1.166 1.166 1.283 1.283 2.850 2.850

Trade Fan Coil Price £1,210.00 £1,210.00 £1,210.00 £1,210.00 £1,545.00 £1,910.00

Trade Condensing Unit Price £1,733.00 £1,813.00 £1,295.00 £1,334.00 £2,417.00 £2,610.00

Total System Price £2,943.00 £3,023.00 £2,505.00 £2,544.00 £3,962.00 £4,520.00

Features:

Accessory Ref Description Trade Price

BRC4C65 Wireless remote controller £158.00

EKRORO3 Remote on/o control interface kit £30.00

KRP4A53/UK.FB2 Unit/Group adaptor PCB for remote on/o, status indication and temperature setting £96.00

RTD-NET/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-10/UK.FB2 Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock £245.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

KRCS01-1 Remote room mounted temperature sensor £48.00

KLIC-DI KNX Interface for Sky Air and VRV systems £193.00

DTA112B51 Adaptor PCB for interface to Daikin centralised control systems £93.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.CWB140-2 Condensing unit bracket - sizes 100 to 140, max weight 140kg of ODU £47.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

Accessories:

Cooling Heating

RZQG -15°C -20°C

RZQSG -15°C -15°C

RZQ -5°C -15°C

Notes:

FDQ-C / RZQG / RZQSG / RZQ-C

Concealed Ceiling Unit - Ultra High Static –

Seasonal Smart, Classic & Super Inverter

> High static units for longer ducted runs

> Up to 250Pa External Static Pressure

> Auto balancing air ow / ESP on commissioning

> Comms, computer and server room cooling possible (Seasonal Smart only)

> Super inverter technology: reduces power consumption by up to 70%

compared to non inverter units

Selectable evaporating & condensing temperature for greater

operating eciency (Seasonal Smart only)

i) All fan coils supplied as standard with

BRC1E53A wired remote controller with

7-day time clock

ii) BRC4C65 Trade price will be reduced

by £79.00 if ordered in place of the

BRC1E53A

iii) Replacement technology not

applicable to RZQ200 and RZQ250

iv) All fan coil units standard with auto restart

after power failure

v) All fan coils supplied as standard with

air lter

vi) Minimum ambient operating

temperatures:

vii) FDQ Fan Coil unit requires a separate

15 amp power supply

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Indoor Model Capacity Order Code Product Codes Included List Price

Hi-COP Cassette

Smart Single Phase

7.1kW SB.FCQHG71F_FP/GLY BRC1E53A + BYCQ140D + FCQHG71F + RZQG71L9V1 £2,058.00

10.0kW SB.FCQHG100F_FP/GLY BRC1E53A + BYCQ140D + FCQHG100F + RZQG100L9V1 £2,501.00

12.5kW SB.FCQHG125F_FP/GLY BRC1E53A + BYCQ140D + FCQHG125F + RZQG125L9V1 £2,745.00

14.0kW SB.FCQHG140F_FP/GLY BRC1E53A + BYCQ140D + FCQHG140F + RZQG140L9V1 £3,193.00

Smart Three Phase

7.1kW SB.FCQHG71F_FP/GLY BRC1E53A + BYCQ140D + FCQHG71F + RZQG71L8Y1 £2,058.00

10.0kW SB.FCQHG100F_FP/GLY BRC1E53A + BYCQ140D + FCQHG100F + RZQG100L8Y1 £2,501.00

12.5kW SB.FCQHG125F_FP/GLY BRC1E53A + BYCQ140D + FCQHG125F + RZQG125L8Y1 £2,745.00

14.0kW SB.FCQHG140F_FP/GLY BRC1E53A + BYCQ140D + FCQHG140F + RZQG140LY1 £3,193.00

Roundow

Smart Single Phase

7.1kW SB.FCQG71F_FP/GLV BRC1E53A + BYCQ140D + FCQG71F + RZQG71L9V1 £2,058.00

10.0kW SB.FCQG100F_FP/GLV BRC1E53A + BYCQ140D + FCQG100F + RZQG100L9V1 £2,501.00

12.5kW SB.FCQG125F_FP/GLV BRC1E53A + BYCQ140D + FCQG125F + RZQG125L9V1 £2,745.00

14.0kW SB.FCQG140F_FP/GLV BRC1E53A + BYCQ140D + FCQG140F + RZQG140L9V1 £3,193.00

Smart Three Phase

7.1kW SB.FCQG71F_FP/GLY BRC1E53A + BYCQ140D + FCQG71F + RZQG71L8Y1 £2,096.00

10.0kW SB.FCQG100F_FP/GLY BRC1E53A + BYCQ140D + FCQG100F + RZQG100L8Y1 £2,574.00

12.5kW SB.FCQG125F_FP/GLY BRC1E53A + BYCQ140D + FCQG125F + RZQG125L8Y1 £2,825.00

14.0kW SB.FCQG140F_FP/GLY BRC1E53A + BYCQ140D + FCQG140F + RZQG140LY1 £3,298.00

Classic Single Phase

7.1kW SB.FCQG71F_FP/SLV BRC1E53A + BYCQ140D + FCQG71F + RZQSG71L3V1 £1,672.00

10.0kW SB.FCQG100F_FP/SLV BRC1E53A + BYCQ140D + FCQG100F + RZQSG100L9V1 £2,107.00

12.5kW SB.FCQG125F_FP/SLV BRC1E53A + BYCQ140D + FCQG125F + RZQSG125L9V1 £2,307.00

14.0kW SB.FCQG140F_FP/SLV BRC1E53A + BYCQ140D + FCQG140F + RZQSG140L9V1 £2,657.00

Classic Three Phase

10.0kW SB.FCQG100F_FP/SLY BRC1E53A + BYCQ140D + FCQG100F + RZQSG100L8Y1 £2,143.00

12.5kW SB.FCQG125F_FP/SLY BRC1E53A + BYCQ140D + FCQG125F + RZQSG125L8Y1 £2,346.00

14.0kW SB.FCQG140F_FP/SLY BRC1E53A + BYCQ140D + FCQG140F + RZQSG140LY1 £2,701.00

Inverter Single Phase

7.1kW SB.FCQG71F_FP/AZQSV BRC1E53A + BYCQ140D + FCQG71F + AZQS71BV1 £1,562.00

10.0kW SB.FCQG100F_FP/AZQSV BRC1E53A + BYCQ140D + FCQG100F + AZQS100B8V1 £1,840.00

12.5kW SB.FCQG125F_FP/AZQSV BRC1E53A + BYCQ140D + FCQG125F + AZQS125B8V1 £2,038.00

14.0kW SB.FCQG140F_FP/AZQSV BRC1E53A + BYCQ140D + FCQG140F + AZQS140B8V1 £2,364.00

Inverter Three Phase

10.0kW SB.FCQG100F_FP/AZQSY BRC1E53A + BYCQ140D + FCQG100F + AZQS100BY1 £1,890.00

12.5kW SB.FCQG125F_FP/AZQSY BRC1E53A + BYCQ140D + FCQG125F + AZQS125BY1 £2,092.00

14.0kW SB.FCQG140F_FP/AZQSY BRC1E53A + BYCQ140D + FCQG140F + AZQS140BY1 £2,426.00

RXS

3.5kW SB.FCQG35F_FP/RXSL3 BRC1E53A + BYCQ140D + FCQG35F + RXS35L3 £1,286.00

5.0kW SB.FCQG50F_FP/RXSL BRC1E53A + BYCQ140D + FCQG50F + RXS50L £1,450.00

6.0kW SB.FCQG60F_FP/RXSL BRC1E53A + BYCQ140D + FCQG60F + RXS60L £1,543.00

Under Ceiling Cassette (FUQ)

Smart Single Phase

7.1kW SB.FUQ71C_F/GLV BRC1E53A + FUQ71C + RZQG71L9V1 £2,131.00

10.0kW SB.FUQ100C_F/GLV BRC1E53A + FUQ100C + RZQG100L9V1 £2,553.00

12.5kW SB.FUQ125C_F/GLV BRC1E53A + FUQ125C + RZQG125L9V1 £2,812.00

Smart Three Phase

7.1kW SB.FUQ71C_F/GLY BRC1E53A + FUQ71C + RZQG71L8Y1 £2,169.00

10.0kW SB.FUQ100C_F/GLY BRC1E53A + FUQ100C + RZQG100L8Y1 £2,626.00

12.5kW SB.FUQ125C_F/GLY BRC1E53A + FUQ125C + RZQG125L8Y1 £2,892.00

Classic Single Phase

7.1kW SB.FUQ71C_F/SLV BRC1E53A + FUQ71C + RZQSG71L3V1 £1,745.00

10.0kW SB.FUQ100C_F/SLV BRC1E53A + FUQ100C + RZQSG100L9V1 £2,159.00

12.5kW SB.FUQ125C_F/SLV BRC1E53A + FUQ125C + RZQSG125L9V1 £2,374.00

Classic Three Phase 10.0kW SB.FUQ100C_F/SLY BRC1E53A + FUQ100C + RZQSG100L8Y1 £2,195.00

12.5kW SB.FUQ125C_F/SLY BRC1E53A + FUQ125C + RZQSG125L8Y1 £2,413.00

Fully Flat Cassette (FFQ) RXS

2.5kW SB.FFQ25C_F/RXSL3 BRC1E53A + BYFQ60CW + FFQ25C + RXS35L3 £1,237.00

3.5kW SB.FFQ35C_F/RXSL3 BRC1E53A + BYFQ60CW + FFQ35C + RXS35L3 £1,299.00

5.0kW SB.FFQ5OC_F/RXSL BRC1E53A + BYFQ60CW + FFQ50C + RXS50L £1,519.00

6.0kW SB.FFQ60C_F/RXSL BRC1E53A + BYFQ60CW + FFQ60C + RXS60L £1,612.00

Ducted

Smart Single Phase

7.1kW SB.FBQ71D_F/GLV BRC1E53A + FBQ71D + RZQG71L9V1 £2,134.00

10.0kW SB.FBQ100D_F/GLV BRC1E53A + FBQ100D + RZQG100L9V1 £2,510.00

12.5kW SB.FBQ125D_F/GLV BRC1E53A + FBQ125D + RZQG125L9V1 £2,839.00

14.0kW SB.FBQ140D_F/GLV BRC1E53A + FBQ140D + RZQG140L9V1 £3,260.00

Smart Three Phase

7.1kW SB.FBQ71D_F/GLY BRC1E53A + FBQ71D + RZQG71L8Y1 £2,172.00

10.0kW SB.FBQ100D_F/GLY BRC1E53A + FBQ100D + RZQG100L8Y1 £2,583.00

12.5kW SB.FBQ125D_F/GLY BRC1E53A + FBQ125D + RZQG125L8Y1 £2,919.00

14.0kW SB.FBQ140D_F/GLY BRC1E53A + FBQ140D + RZQG140LY1 £3,365.00

Classic Single Phase

7.1kW SB.FBQ71D_F/SLV BRC1E53A + FBQ71D + RZQSG71L3V1 £1,748.00

10.0kW SB.FBQ100D_F/SLV BRC1E53A + FBQ100D + RZQSG100L9V1 £2,116.00

12.5kW SB.FBQ125D_F/SLV BRC1E53A + FBQ125D + RZQSG125L9V1 £2,401.00

14.0kW SB.FBQ140D_F/SLV BRC1E53A + FBQ125D + RZQSG125L9V1 £2,401.00

Classic Three Phase

10.0kW SB.FBQ100D_F/SLY BRC1E53A + FBQ100D + RZQSG100L8Y1 £2,152.00

12.5kW SB.FBQ125D_F/SLY BRC1E53A + FBQ125D + RZQSG125L8Y1 £2,440.00

14.0kW SB.FBQ140D_F/SLY BRC1E53A + FBQ140D + RZQSG140LY1 £2,768.00

RXS

3.5kW SB.FBQ35D_F/RXSL3 BRC1E53A + FBQ35D + RXS35L3 £1,111.00

5.0kW SB.FBQ5OD_F/RXSL BRC1E53A + FBQ50D + RXS50L £1,285.00

6.0kW SB.FBQ60D_F/RXSL BRC1E53A + FBQ60D + RXS60L £1,394.00

Slim Ducted RXS

2.5kW SB.FDXS25F_F/RXSL3 BRC1E53A + FDXS25F + RXS35L3 £985.00

3.5kW SB.FDXS35F_F/RXSL3 BRC1E53A + FDXS35F + RXS35L3 £1,034.00

5.0kW SB.FDXS5OF9_F/RXSL BRC1E53A + FDXS50F9 + RXS50L £1,219.00

6.0kW SB.FDXS60F_F/RXSL BRC1E53A + FDXS60F + RXS60L £1,315.00

High Static Ducted

Smart Single Phase 12.5kW SB.FDQ125C_F/GLV BRC1E53A + FDQ125C + RZQG125L9V1 £2,943.00

Smart Three Phase 12.5kW SB.FDQ125C_F/GLY BRC1E53A + FDQ125C + RZQG125L8Y1 £3,023.00

Classic Single Phase 12.5kW SB.FDQ125C_F/SLV BRC1E53A + FDQ125C + RZQSG125L9V1 £2,505.00

Classic Three Phase 12.5kW SB.FDQ125C_F/SLY BRC1E53A + FDQ125C + RZQSG125L8Y1 £2,544.00

RZQ-C 20kW SB.FDQ200B_F/RZQ BRC1E53A + FDQ200B + RZQ200C £4,041.00

25kW SB.FDQ250B_F/RZQ BRC1E53A + FDQ250D + RZQ250C £4,599.00

To simplify the order process, you may want to use the Order Code from table below.

Each code includes all products for a system (eg remote controllers, indoor units) & means you no longer need to order individual materials.

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Multi Series Inverters oer the ability to connect up to ve fan coils to one

outdoor unit. With the MXS range it is possible to install indoor units throughout

a house or small commercial premises and only use one outdoor unit. Each indoor

unit will have its own controller and will be able to operate in heating or cooling.

Multi Series

Heating & cooling

Connectable

Indoor Units

Wall mounted Floor standing Flexi type

Roundow

cassette

Fully at

cassette

Concealed ceiling

Ceiling

suspended

Concealed

oor standing

FTXG-L

CTXS-K

FTXS-K

FTXS-G

FTX-KV FVXG-K FVXS-F FLXS-B(9) FCQG-F FFQ-C FDXS-F(9)

FDBQ-B/FBQ-D

FHQ-C FNQ-A

20 25 35 50 15 35 20 25 35 42 50 60 71 20 25 35 25 35 50 25 35 50 25 35 50 60 35 50 60 25 35 50 60 25 35 50 60 25 35 50 60 35 50 60 25 35 50 60

2MXS40H ●●● ●●●●● ●●●●●●●● ●● ●● ●●

2MXS50H ●●●●●●●●●●● ●●●●●●●●●●●● ●●● ●●● ●●●

3MXS40K ●●● ●●●●● ●● ●● ●● ● ●● ●● ●● ● ●●

3MXS52E ●●●●●●●●●●● ●●●●●●●●● ●● ●●● ●●● ●●● ●●●●●●

3MXS68G ●●●●●●●●●●●● ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

4MXS68F ●●●●●●●●●●●● ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

4MXS80E ●●●●●●●●●●●●● ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

5MXS90E ●●●●●●●●●●●●● ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Emura Wall Mounted Fan Coil Units FTXG20LW FTXG25LW FTXG35LW FTXG50LW FTXG20LS FTXG25LS FTXG35LS FTXG50LS

Trade Fan Coil Unit Price £273.00 £288.00 £323.00 £426.00 £326.00 £343.00 £384.00 £508.00

Wall Mounted Standard Inverter Fan Coil Units CTXS15K FTXS20K FTXS25K FTXS35K FTXS42K FTXS50K FTXS60G FTXS71G

Trade Fan Coil Unit Price £152.00 £160.00 £172.00 £197.00 £221.00 £306.00 £312.00 £416.00

Wall Mounted Low Inverter Fan Coil Units FTX20KV FTX25KV FTX35KV

Trade Fan Coil Unit Price £112.00 £124.00 £141.00

Flexi Fan Coil Units FLXS25B FLXS35B9 FLXS50B FLXS60B

Trade Fan Coil Unit Price £392.00 £440.00 £478.00 £526.00

Nexura Floor Standing Fan Coil Units FVXG25K FVXG35K FVXG50K

Trade Fan Coil Unit Price £657.00 £707.00 £774.00

Floor Standing Cased Fan Coil Units FVXS25F FVXS35F FVXS50F

Trade Fan Coil Unit Price £544.00 £587.00 £641.00

Compact Roundow Cassette Fan Coil Units FCQG35F FCQG50F FCQG60F

Trade Fan Coil Unit Price £711.00 £728.00 £773.00

600 x 600 Fully Flat Cassette Fan Coil Units FFQ25C FFQ35C FFQ50C FFQ60C

Trade Fan Coil Unit Price £662.00 £724.00 £797.00 £842.00

Ceiling Suspended Fan Coil Units FHQ35CB FHQ50CB FHQ60CB

Trade Fan Coil Unit Price £693.00 £751.00 £824.00

Concealed Ceiling Fan Coil Units FDBQ25B FBQ35D FBQ50D FBQ60D

Trade Fan Coil Unit Price £441.00 £536.00 £563.00 £624.00

Slim Concealed Ceiling Fan Coil Units FDXS25F FDXS35F FDXS50F9 FDXS60F

Trade Fan Coil Unit Price £410.00 £459.00 £497.00 £545.00

Concealed Floor Standing Unit FNQ25A FNQ35A FNQ50A FNQ60A

Trade Fan Coil Unit Price £424.00 £524.00 £610.00 £672.00

Multi Split & Mini VRV Fan Coils

Notes:

i) Accessories for fan coils - refer to pair

system pages

ii) All fan coil units standard with auto restart

after power failure

iii) All fan coil units supplied as standard with

remote controller

iv) FDXS fan coil units supplied as standard

with air lter

v) 2MXS40-50H can only be used with

FTXG, FTXS, FTX, FDXS, FVXG, FVXS, FLXS,

FNQ, FFQ-C fan coil units

vi) One wi adaptor per fan coil for

online control

Daikin’s new Multi Selection Tool is a fast and simple way to select your combinations for MXS Series outdoor units.

The online tool has four simple steps:

> select number of rooms

> select capacity per room

> select capacity of outdoor

> select type of indoor & input pipe run & level dierence

It has in-built checks to ensure capacity, pipe length and level dierence cannot exceed maximum for selected outdoor

unit and generates a report showing full energy label for specic combination and pictures of all equipment selected.

This can be used by installers to select Multi systems, and also to show end-users the conguration of the system.

Go to www.daikineurope.com/multiselection

WIFI

CONTROL

VIA APP

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Outdoor Units 2MXS40H 2MXS50H 3MXS40K 3MXS52E 3MXS68G 4MXS68F 4MXS80E 5MXS90E

Capacity Nominal Cooling kW 4.00 5.00 4.00 5.20 6.80 6.80 8.00 9.00

Nominal Heating kW 4.40 5.70 4.60 6.80 8.60 8.60 9.60 10.40

Dimensions Height mm 550 550 735 735 735 735 770 770

Width mm 765 765 936 936 936 936 900 900

Depth mm 285 285 300 300 300 300 320 320

Weight kg 38 42 49 49 58 58 72 73

Electrical Details Power Supply Phase 1ph

Hz 50

V 230

Running Current amps Refer to Multi Combination Tables

Starting Current amps 4 4 4 4 4 4 4 4

Fuse Rating amps 16 16 16 20 20 20 20 20

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 1.2 1.6 2.0 2.0 2.6 2.6 3.0 3.0

Sound Pressure Nom dBA 47 48 46 46 48 48 48 52

Sound Power 62 63 59 59 61 61 62 66

Piping Limits Maximum Length m 30 30 50 50 60 60 70 75

Maximum Vertical Rise m 15 15 15 15 15 15 15 15

Piping Connections Liquid inches (mm) 2x 1/4 (6.4) 2x 1/4 (6.4) 3x 1/4 (6.4) 3x 1/4 (6.4) 3x 1/4 (6.4) 4x 1/4 (6.4) 4x 1/4 (6.4) 5x 1/4 (6.4)

Gas inches (mm) 2x 3/8 (9.5) 3/8 (9.5)

1/2 (12.7)

2x 3/8 (9.5)

1/2 (12.7)

2x 3/8 (9.5)

1/2 (12.7)

3/8 (9.5)

2x 1/2 (12.7)

2x 3/8 (9.5)

2x 1/2 (12.7)

3/8 (9.5)

1/2 (12.7)

2x 5/8 (15.9)

3/8 (9.5)

1/2 (12.7)

2x 5/8 (15.9)

Number of Connected Indoor Units 2 2 3 3 3 4 4 5

Air Flow Rate (Cooling)

Nom m3/sec 0.55 0.567 0.75 0.75 0.823 0.823 0.908 0.908

Trade Condensing Unit Price £1,038.00 £1,149.00 £1,082.00 £1,203.00 £1,703.00 £1,837.00 £2,069.00 £2,227.00

Notes:

i) Minimum ambient operating temperatures:

Cooling Heating

2MXS40, 50 10°C -15°C

3MXS40, 52, 68 -10°C -15°C

4MXS68, 80 -10°C -15°C

5MXS90 -10°C -15°C

Accessory Ref Description Trade Price

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm £56.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGM Condensing Unit Guard size 42-71 £308.00

Accessories:

MXS-E/F/G/H/K

Multi Series Inverters

Painted Units

Customers sometimes require visible units to be less

obtrusive, whether for aesthetic or planning reasons.

Daikin UK oer a customised service where we can repaint our

units to any specied RAL or BS nish. Our repainting service is

done in house in our purpose built facility and includes removing

base paint to give a uniform, long lasting and professional nish.

We have repainted fan coils, decoration panels, BS boxes and all

types of condensers for a number of clients.

PRICE ON APPLICATION

Lead time: 2-3 weeks

Applicable units: All

Please note:

The stated lead times are a guide, this can be inuenced by the design and

complexity of the requirement.

When asking for a quotation or ordering, please state the unit you

require along with the nish requirements e.g. colour, pattern etc.

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

VRV IV S-Series RXYSCQ-T

VRV IV Condensing Unit – Low Height Compact Mini VRV

Features:

> New low height Mini VRV, making complying with planning

restrictions in towns and cities easier

> Compact – Only 823mm high

> Lightweight – for simple installation

> Variable Refrigerant temperature – Enhanced eciency

> In addition to VRV fan coils, low height Mini VRV is connectable to:

Stylish indoor units – Emura and Nexura – as well as Air Handling

Units and Biddle Air curtains

> Single phase

Less than 1m

823mm high

Roof

Parapet wall

Outdoor Units RXYSCQ4TV1 RXYSCQ5TV1

Capacity Nominal Cooling kW 12.1 14.0

Nominal Heating kW 12.1 14.0

Power Input 50Hz Cooling kW 3.43 4.26

Heating kW 3.18 3.91

EER 3.53 3.29

COP 3.81 3.58

Dimensions Height x Width x Depth mm 823 x 940 x 460

Weight kg 94 94

Refrigerant Circuit Refrigerant Type R410A

Sound Pressure (Nom) Cooling dBA 51 52

Sound Power (Nom) Cooling dBA 68 69

Maximum No of Connectable Units 8 10

Electrical Details Power Supply Phase / Hz / V 1 / 50 / 230

Running Current amps 19.0

Starting Current amps 4

Fuse Rating amps 32

Piping Limits Total Piping length m 300

Maximum Length m 70 (90 equivalent)

Maximum Vertical Rise m 30

Piping Connections Liquid inch (mm) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 5/8 (15.9) 5/8 (15.9)

Capacity Index Limit 50~130 62.5~162.5

Trade Condensing Unit Price £2,561.00 £2,878.00

Notes:

i) Mini-VRV units are subject to VRV

discount level. Split indoor units

bought to connect to mini VRV

are still subject to Split discount

levels. BPMK Boxes are bought at

accessories discount levels.

BPMK

Mini VRV for Residential Applications

> Multi Series Inverters can connect up to ve indoor units from across the split range

> Up to nine indoor units can be connected to a single Mini-VRV outdoor unit. To allow connection of the split indoor units,

the system will need two or three port BPMK boxes

> BPMK boxes open up the full range of split indoor unit style – from the stylish Emura to the radiant heat of the Nexura

> For full details of the expanded range of capacities in the Mini-VRV range, including the new low height S series, refer to page 70

Accessory Ref Description Trade Price

KHRQ22M20T R410A 2 Pipe refnet joint £30.00

Accessories:

Daikin’s range of split indoor units BPMKS967A2 BPMKS967A3

Dimensions Height x Width x Depth mm 180 x 650 x 350

Weight kg 7.5 8.0

Total Indoor Capacity kW 14.2 20.8

Connectable Units 2 3

Electrical Details Power Supply 1~ 220 - 240V, 50 Hz

Power Input kW 0.01 0.01

Piping Limits Maximum Total - outdoor to BPMK box 55 55

Distance from BPMK to indoor 15 15

Piping Connections Indoor Liquid Inches (mm) 2 x 1/4 (6.4) 3 x 1/4 (6.4)

Gas Inches (mm) 2 x 5/8 (15.9) 3 x 5/8 (15.9)

Piping Connections Outdoor Liquid Inches (mm) 1 x 3/8 (9.5) 1 x 3/8 (9.5)

Gas Inches (mm) 1 / 3/4 (19.0) 1 / 3/4 (19.0)

Trade List Price £371.00 £396.00

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

RZQ-C

Super Inverter

Outdoor Units Super Inverter

RZQ200C RZQ250C

Capacity Nominal Cooling kW 20.0 24.1

Nominal Heating kW 23.0 26.4

EER 3.21 2.81

COP 3.41 3.21

Annual energy consumption kWh 3115 4290

Dimensions Height mm 1680 1680

Width mm 930 930

Depth mm 765 765

Weight kg 183 184

Electrical Details Power Supply 3ph

Running Current A data book

Starting Current A 4 4

Max Fuse Size A 25 25

Interconnection Wiring Core / Cable size 3+E / 1.5

Piping Connections Liquid / Gas

inches (mm)

3/8 (9.5) / 7/8 (22.2) 1/2 (12.7) / 7/8 (22.2)

Pipework Maximum Length m 100 100

Maximum Vertical Rise m 30 30

Precharged to m 30 30

Additional Charge g/m Refer to Installation Manual

Holding Charge kg 8.3 9.3

Sound Pressure (Cooling)

Nom / Night Quiet dBA 57 / - 57 / -

Sound Power 78 78

Air Flow Rate (Cooling)

High / Nom* m3/sec 2.85* 2.85*

Trade Condensing Unit Price £2,417.00 £2,610.00

Possible Combinations

Twin, Triple and Double Twin Outdoor Units

Outdoor Indoor Type Material Remote Refnet System Price

20kW Twin RZQ200C Three Phase

Cassette 2 x FCQG100F 1 x BRC1E53A 1 x KHRQ22M20T £4,220.00

Hi-COP Cassette 2 x FCQHG100F 1 x BRC1E53A 1 x KHRQ22M20T £4,220.00

Under Ceiling Cassette 2 x FUQ100C 1 x BRC1E53A 1 x KHRQ22M20T £4,324.00

Wall Mount 2 x FAQ100C9 1 x BRC1E53A 1 x KHRQ22M20T £4,050.00

Ceiling Suspended 2 x FHQ100C 1 x BRC1E53A 1 x KHRQ22M20T £4,414.00

Ducted 2 x FBQ100D 1 x BRC1E53A 1 x KHRQ22M20T £4,238.00

20kW Triple RZQ200C Three Phase

Cassette 3 x FCQG60F 1 x BRC1E53A 1 x KHRQ250H7 £4,662.00

600 x 600 Fully Flat Cassette 3 x FFQ60C 1 x BRC1E53A 1 x KHRQ250H7 £4,869.00

Ceiling Suspended 3 x FHQ60C 1 x BRC1E53A 1 x KHRQ250H7 £4,815.00

Ducted 3 x FBQ60D 1 x BRC1E53A 1 x KHRQ250H7 £4,215.00

Slim Duct 3 x FDXS60F 1 x BRC1E53A 1 x KHRQ250H7 £3,978.00

Concealed Floor Standing 3 x FNQ60A 1 x BRC1E53A 1 x KHRQ250H7 £4,359.00

20kW Triple RZQ200C Three Phase

Cassette 3 x FCQG71F 1 x BRC1E53A 1 x KHRQ250H7 £4,800.00

Hi-COP Cassette 3 x FCQHG71F 1 x BRC1E53A 1 x KHRQ250H7 £4,800.00

Under Ceiling Cassette 3 x FUQ71C 1 x BRC1E53A 1 x KHRQ250H7 £5,019.00

Wall Mount 3 x FAQ71CB 1 x BRC1E53A 1 x KHRQ250H7 £4,680.00

Ceiling Suspended 3 x FHQ71C 1 x BRC1E53A 1 x KHRQ250H7 £5,232.00

Ducted 3 x FBQ71D 1 x BRC1E53A 1 x KHRQ250H7 £5,028.00

20kW Double Twin RZQ200C Three Phase

Cassette 4 x FCQG50F 1 x BRC1E53A 3 x KHRQ22M20T £5,182.00

600 x 600 Fully Flat Cassette 4 x FFQ50C 1 x BRC1E53A 3 x KHRQ22M20T £5,458.00

Ceiling Suspended 4 x FHQ50C 1 x BRC1E53A 3 x KHRQ22M20T £5,274.00

Ducted 4 x FBQ50D 1 x BRC1E53A 3 x KHRQ22M20T £4,522.00

Slim Duct 4 x FDXS50F9 1 x BRC1E53A 3 x KHRQ22M20T £4,258.00

Concealed Floor Standing 4 x FNQ50A 1 x BRC1E53A 3 x KHRQ22M20T £4,710.00

25kW Twin RZQ250C Three Phase

Cassette 2 x FCQG125F 1 x BRC1E53A 1 x KHRQ22M20T £4,585.00

Hi-COP Cassette 2 x FCQHG125F 1 x BRC1E53A 1 x KHRQ22M20T £4,585.00

Under Ceiling Cassette 2 x FUQ125C 1 x BRC1E53A 1 x KHRQ22M20T £4,719.00

Ceiling Suspended 2 x FHQ125C 1 x BRC1E53A 1 x KHRQ22M20T £5,119.00

Ducted 2 x FBQ125D 1 x BRC1E53A 1 x KHRQ22M20T £4,773.00

25kW Double Twin RZQ250C Three Phase

Cassette 4 x FCQG60F 1 x BRC1E53A 3 x KHRQ22M20T £5,555.00

600 x 600 Fully Flat Cassette 4 x FFQ60C 1 x BRC1E53A 3 x KHRQ22M20T £5,831.00

Ceiling Suspended 4 x FHQ60C 1 x BRC1E53A 3 x KHRQ22M20T £5,759.00

Ducted 4 x FBQ60D 1 x BRC1E53A 3 x KHRQ22M20T £4,959.00

Slim Duct 4 x FDXS60F 1 x BRC1E53A 3 x KHRQ22M20T £4,643.00

Concealed Floor Standing 4 x FNQ60A 1 x BRC1E53A 3 x KHRQ22M20T £5,151.00

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Outdoor Units Seasonal Smart Seasonal Smart

Single Phase 3 Phase

RZQG71L9V1 RZQG100L9V1 RZQG125L9V1 RZQG140L9V1 RZQG71L8Y1 RZQG100L8Y1 RZQG125L8Y1 RZQG140LY1

Dimensions Height mm 990 1430 1430 1430 990 1430 1430 1430

Width mm 940 940 940 940 940 940 940 940

Depth mm 320 320 320 320 320 320 320 320

Weight kg 78 102 102 102 80 101 101 101

Electrical Details Power Supply 1ph 3ph

Running Current A data book data book

Starting Current A 4 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 16 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5

Piping Connections Liquid / Gas

inches (mm)

3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 75 75 75 50 75 75 75

Maximum Vertical Rise m 30

Precharged to m 30

Additional Charge g/m Refer to Installation Manual

Holding Charge kg 2.9 4.0 4.0 4.0 2.9 4.0 4.0 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 48 / 43 50 / 45 51 / 45 52 / 45 48 / 43 50 / 45 51 / 45 52 / 45

Sound Power 64 66 67 69 64 66 67 69

Air Flow Rate (Cooling)

High / Nom* m3/sec 0.983 1.167 1.167 1.400 0.983 1.167 1.167 1.400

Trade Condensing Unit Price £1,239.00 £1,575.00 £1,733.00 £1,978.00 £1,277.00 £1,648.00 £1,813.00 £2,083.00

RZQG-L

Seasonal Smart

Outdoor Indoor Type Material Remote Refnet System Price

7.1kW Twin

RZQG71L9V1 Single Phase

Cassette 2 x FCQG35F 1 x BRC1E53A 1 x KHRQ22M20T £2,612.00

600 x 600 Fully Flat Cassette 2 x FFQ35C 1 x BRC1E53A 1 x KHRQ22M20T £2,638.00

Ceiling Suspended 2 x FHQ35CB 1 x BRC1E53A 1 x KHRQ22M20T £2,576.00

Ducted 2 x FBQ35D 1 x BRC1E53A 1 x KHRQ22M20T £2,262.00

Slim Duct 2 x FDXS35F 1 x BRC1E53A 1 x KHRQ22M20T £2,108.00

Concealed Floor Standing 2 x FNQ35A 1 x BRC1E53A 1 x KHRQ22M20T £2,238.00

RZQG71L8Y1 Three Phase

Cassette 2 x FCQG35F 1 x BRC1E53A 1 x KHRQ22M20T £2,650.00

600 x 600 Fully Flat Cassette 2 x FFQ35C 1 x BRC1E53A 1 x KHRQ22M20T £2,676.00

Ceiling Suspended 2 x FHQ35CB 1 x BRC1E53A 1 x KHRQ22M20T £2,614.00

Ducted 2 x FBQ35D 1 x BRC1E53A 1 x KHRQ22M20T £2,300.00

Slim Duct 2 x FDXS35F 1 x BRC1E53A 1 x KHRQ22M20T £2,146.00

Concealed Floor Standing 2 x FNQ35A 1 x BRC1E53A 1 x KHRQ22M20T £2,276.00

10kW Twin

RZQG100L9V1 Single Phase

Cassette 2 x FCQG50F 1 x BRC1E53A 1 x KHRQ22M20T £2,982.00

600 x 600 Fully Flat Cassette 2 x FFQ50C 1 x BRC1E53A 1 x KHRQ22M20T £3,120.00

Ceiling Suspended 2 x FHQ50CB 1 x BRC1E53A 1 x KHRQ22M20T £3,028.00

Ducted 2 x FBQ50D 1 x BRC1E53A 1 x KHRQ22M20T £2,652.00

Slim Duct 2 x FDXS50F9 1 x BRC1E53A 1 x KHRQ22M20T £2,520.00

Concealed Floor Standing 2 x FNQ50A 1 x BRC1E53A 1 x KHRQ22M20T £2,746.00

RZQG100L8Y1 Three Phase

Cassette 2 x FCQG50F 1 x BRC1E53A 1 x KHRQ22M20T £3,055.00

600 x 600 Fully Flat Cassette 2 x FFQ50C 1 x BRC1E53A 1 x KHRQ22M20T £3,193.00

Ceiling Suspended 2 x FHQ50CB 1 x BRC1E53A 1 x KHRQ22M20T £3,101.00

Ducted 2 x FBQ50D 1 x BRC1E53A 1 x KHRQ22M20T £2,725.00

Slim Duct 2 x FDXS50F9 1 x BRC1E53A 1 x KHRQ22M20T £2,593.00

Concealed Floor Standing 2 x FNQ50A 1 x BRC1E53A 1 x KHRQ22M20T £2,819.00

10kW Triple

RZQG100L9V1 Single Phase

Cassette 3 x FCQG35F 1 x BRC1E53A 1 x KHRQ127H £3,615.00

600 x 600 Fully Flat Cassette 3 x FFQ35C 1 x BRC1E53A 1 x KHRQ127H £3,654.00

Ceiling Suspended 3 x FHQ35CB 1 x BRC1E53A 1 x KHRQ127H £3,561.00

Ducted 3 x FBQ35D 1 x BRC1E53A 1 x KHRQ127H £3,090.00

Slim Duct 3 x FDXS35F 1 x BRC1E53A 1 x KHRQ127H £2,859.00

Concealed Floor Standing 3 x FNQ35A 1 x BRC1E53A 1 x KHRQ127H £3,054.00

RZQG100L8Y1 Three Phase

Cassette 3 x FCQG35F 1 x BRC1E53A 1 x KHRQ127H £3,688.00

600 x 600 Fully Flat Cassette 3 x FFQ35C 1 x BRC1E53A 1 x KHRQ127H £3,727.00

Ceiling Suspended 3 x FHQ35CB 1 x BRC1E53A 1 x KHRQ127H £3,634.00

Ducted 3 x FBQ35D 1 x BRC1E53A 1 x KHRQ127H £3,163.00

Slim Duct 3 x FDXS35F 1 x BRC1E53A 1 x KHRQ127H £2,932.00

Concealed Floor Standing 3 x FNQ35A 1 x BRC1E53A 1 x KHRQ127H £3,127.00

12kW Twin

RZQG125L9V1 Single Phase

Cassette 2 x FCQG60F 1 x BRC1E53A 1 x KHRQ22M20T £3,230.00

600 x 600 Fully Flat Cassette 2 x FFQ60C 1 x BRC1E53A 1 x KHRQ22M20T £3,368.00

Ceiling Suspended 2 x FHQ60CB 1 x BRC1E53A 1 x KHRQ22M20T £3,332.00

Ducted 2 x FBQ60D 1 x BRC1E53A 1 x KHRQ22M20T £2,932.00

Slim Duct 2 x FDXS60F 1 x BRC1E53A 1 x KHRQ22M20T £2,774.00

Concealed Floor Standing 2 x FNQ60A 1 x BRC1E53A 1 x KHRQ22M20T £3,028.00

RZQG125L8Y1 Three Phase

Cassette 2 x FCQG60F 1 x BRC1E53A 1 x KHRQ22M20T £3,310.00

600 x 600 Fully Flat Cassette 2 x FFQ60C 1 x BRC1E53A 1 x KHRQ22M20T £3,448.00

Ceiling Suspended 2 x FHQ60CB 1 x BRC1E53A 1 x KHRQ22M20T £3,412.00

Ducted 2 x FBQ60D 1 x BRC1E53A 1 x KHRQ22M20T £3,012.00

Slim Duct 2 x FDXS60F 1 x BRC1E53A 1 x KHRQ22M20T £2,854.00

Concealed Floor Standing 2 x FNQ60A 1 x BRC1E53A 1 x KHRQ22M20T £3,108.00

Possible Combinations

Twin, Triple and Double Twin Outdoor Units

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Outdoor Units Power 71 100 125 140 200 250

RZQG & RZQSG Single Phase 20 amp 32 amp 32 amp 32 amp - -

Three Phase 16 amp 20 amp 20 amp 20 amp - -

RZQ-C Three Phase - - - - 20amp 20amp

Maximum Fuse size for Twin, Triple and Double Twin Outdoor Units

Note:

Max fuse size based on current price list series indoor units. Refer to data-book for more details.

Accessory Ref Description Trade Price

KHRQ22M20T R410A 2 Pipe Refnet Joint £30.00

KHRQ127H Triple Refnet Joint - RZQS71~140,RZQ100~140 £65.00

KHRQ250H7 Triple Refnet Joint - RZQ200~250 £84.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.CWB140-2 Condensing unit bracket - sizes 100 to 140, max weight 140kg of ODU £47.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGM Condensing Unit Guard size 42-71 £308.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

Accessories:

Notes:

i) Accessories for fan coils and condensing

units - refer to pair system pages

Outdoor Indoor Type Material Remote Refnet System Price

12kW Triple

RZQG125L9V1 Single Phase

Cassette 3 x FCQG50F 1 x BRC1E53A 1 x KHRQ127H £3,824.00

600 x 600 Fully Flat Cassette 3 x FFQ50C 1 x BRC1E53A 1 x KHRQ127H £4,031.00

Ceiling Suspended 3 x FHQ50CB 1 x BRC1E53A 1 x KHRQ127H £3,893.00

Ducted 3 x FBQ50D 1 x BRC1E53A 1 x KHRQ127H £3,329.00

Slim Duct 3 x FDXS50F9 1 x BRC1E53A 1 x KHRQ127H £3,131.00

Concealed Floor Standing 3 x FNQ50A 1 x BRC1E53A 1 x KHRQ127H £3,470.00

RZQG125L8Y1 Three Phase

Cassette 3 x FCQG50F 1 x BRC1E53A 1 x KHRQ127H £3,904.00

600 x 600 Fully Flat Cassette 3 x FFQ50C 1 x BRC1E53A 1 x KHRQ127H £4,111.00

Ceiling Suspended 3 x FHQ50CB 1 x BRC1E53A 1 x KHRQ127H £3,973.00

Ducted 3 x FBQ50D 1 x BRC1E53A 1 x KHRQ127H £3,409.00

Slim Duct 3 x FDXS50F9 1 x BRC1E53A 1 x KHRQ127H £3,211.00

Concealed Floor Standing 3 x FNQ50A 1 x BRC1E53A 1 x KHRQ127H £3,550.00

12kW Double Twin

RZQG125L9V1 Single Phase

Cassette 4 x FCQG35F 1 x BRC1E53A 3 x KHRQ22M20T £4,430.00

600 x 600 Fully Flat Cassette 4 x FFQ35C 1 x BRC1E53A 3 x KHRQ22M20T £4,482.00

Ceiling Suspended 4 x FHQ35CB 1 x BRC1E53A 3 x KHRQ22M20T £4,358.00

Ducted 4 x FBQ35D 1 x BRC1E53A 3 x KHRQ22M20T £3,730.00

Slim Duct 4 x FDXS35F 1 x BRC1E53A 3 x KHRQ22M20T £3,422.00

Concealed Floor Standing 4 x FNQ35A 1 x BRC1E53A 3 x KHRQ22M20T £3,682.00

RZQG125L8Y1 Three Phase

Cassette 4 x FCQG35F 1 x BRC1E53A 3 x KHRQ22M20T £4,510.00

600 x 600 Fully Flat Cassette 4 x FFQ35C 1 x BRC1E53A 3 x KHRQ22M20T £4,562.00

Ceiling Suspended 4 x FHQ35CB 1 x BRC1E53A 3 x KHRQ22M20T £4,438.00

Ducted 4 x FBQ35D 1 x BRC1E53A 3 x KHRQ22M20T £3,810.00

Slim Duct 4 x FDXS35F 1 x BRC1E53A 3 x KHRQ22M20T £3,502.00

Concealed Floor Standing 4 x FNQ35A 1 x BRC1E53A 3 x KHRQ22M20T £3,762.00

14kW Twin

RZQG140L9V1 Single Phase

Cassette 2 x FCQG71F 1 x BRC1E53A 1 x KHRQ22M20T £3,567.00

Hi-COP Cassette 2 x FCQHG71F 1 x BRC1E53A 1 x KHRQ22M20T £3,567.00

Under Ceiling Cassette 2 x FUQ71C 1 x BRC1E53A 1 x KHRQ22M20T £3,713.00

Wall Mount 2 x FAQ71C9 1 x BRC1E53A 1 x KHRQ22M20T £3,487.00

Ceiling Suspended 2 x FHQ71CB 1 x BRC1E53A 1 x KHRQ22M20T £3,855.00

Ducted 2 x FBQ71D 1 x BRC1E53A 1 x KHRQ22M20T £3,719.00

RZQG140LY1 Three Phase

Cassette 2 x FCQG71F 1 x BRC1E53A 1 x KHRQ22M20T £3,672.00

Hi-COP Cassette 2 x FCQHG71F 1 x BRC1E53A 1 x KHRQ22M20T £3,672.00

Under Ceiling Cassette 2 x FUQ71C 1 x BRC1E53A 1 x KHRQ22M20T £3,818.00

Wall Mount 2 x FAQ71C9 1 x BRC1E53A 1 x KHRQ22M20T £3,592.00

Ceiling Suspended 2 x FHQ71CB 1 x BRC1E53A 1 x KHRQ22M20T £3,960.00

Ducted 2 x FBQ71D 1 x BRC1E53A 1 x KHRQ22M20T £3,824.00

14kW Triple

RZQG140L9V1 Single Phase

Cassette 3 x FCQG50F 1 x BRC1E53A 1 x KHRQ127H £4,069.00

600 x 600 Fully Flat Cassette 3 x FFQ50C 1 x BRC1E53A 1 x KHRQ127H £4,276.00

Ceiling Suspended 3 x FHQ50CB 1 x BRC1E53A 1 x KHRQ127H £4,138.00

Ducted 3 x FBQ50D 1 x BRC1E53A 1 x KHRQ127H £3,574.00

Slim Duct 3 x FDXS50F9 1 x BRC1E53A 1 x KHRQ127H £3,376.00

Concealed Floor Standing 3 x FNQ50A 1 x BRC1E53A 1 x KHRQ127H £3,715.00

RZQG140LY1 Three Phase

Cassette 3 x FCQG50F 1 x BRC1E53A 1 x KHRQ127H £4,174.00

600 x 600 Fully Flat Cassette 3 x FFQ50C 1 x BRC1E53A 1 x KHRQ127H £4,381.00

Ceiling Suspended 3 x FHQ50CB 1 x BRC1E53A 1 x KHRQ127H £4,243.00

Ducted 3 x FBQ50D 1 x BRC1E53A 1 x KHRQ127H £3,679.00

Slim Duct 3 x FDXS50F 1 x BRC1E53A 1 x KHRQ127H £3,481.00

Concealed Floor Standing 3 x FNQ50A 1 x BRC1E53A 1 x KHRQ127H £3,820.00

14kW Double Twin

RZQG140L9V1 Single Phase

Cassette 4 x FCQG35F 1 x BRC1E53A 3 x KHRQ22M20T £4,675.00

600 x 600 Fully Flat Cassette 4 x FFQ35C 1 x BRC1E53A 3 x KHRQ22M20T £4,727.00

Ceiling Suspended 4 x FHQ35CB 1 x BRC1E53A 3 x KHRQ22M20T £4,603.00

Ducted 4 x FBQ35D 1 x BRC1E53A 3 x KHRQ22M20T £3,975.00

Slim Duct 4 x FDXS35F 1 x BRC1E53A 3 x KHRQ22M20T £3,667.00

Concealed Floor Standing 4 x FNQ35A 1 x BRC1E53A 3 x KHRQ22M20T £3,927.00

RZQG140LY1 Three Phase

Cassette 4 x FCQG35F 1 x BRC1E53A 3 x KHRQ22M20T £4,780.00

600 x 600 Fully Flat Cassette 4 x FFQ35C 1 x BRC1E53A 3 x KHRQ22M20T £4,832.00

Ceiling Suspended 4 x FHQ35CB 1 x BRC1E53A 3 x KHRQ22M20T £4,708.00

Ducted 4 x FBQ35D 1 x BRC1E53A 3 x KHRQ22M20T £4,080.00

Slim Duct 4 x FDXS35F 1 x BRC1E53A 3 x KHRQ22M20T £3,772.00

Concealed Floor Standing 4 x FNQ35A 1 x BRC1E53A 3 x KHRQ22M20T £4,032.00

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Outdoor Units Seasonal Classic Seasonal Classic

Single Phase 3 Phase

RZQSG71L3V1 RZQSG100L9V1 RZQSG125L9V1 RZQSG140L9V1 RZQSG100L8Y1 RZQSG125L8Y1 RZQSG140LY1

Dimensions Height mm 770 990 990 1430 990 990 1430

Width mm 900 940 940 940 940 940 940

Depth mm 320 320 320 320 320 320 320

Weight kg 67 81 81 102 82 82 101

Electrical Details Power Supply 1ph 3ph

Running Current A data book data book

Starting Current A 4 4 4 4 4 4 4

Max Fuse Size A 20 32 32 32 20 20 20

Interconnection Wiring Core / Cable size 3+E / 1.5

Piping Connections Liquid / Gas

inches (mm)

3/8 (9.5) / 5/8 (15.9)

Pipework Maximum Length m 50 50 50 50 50 50 50

Maximum Vertical Rise m 30

Precharged to m 30

Additional Charge g/m Refer to Installation Manual

Holding Charge kg 2.75 2.9 2.9 4.0 2.9 2.9 4.0

Sound Pressure (Cooling)

Nom / Night Quiet dBA 49 / 49 53 / 49 54 / 49 53 / 49 53 / 49 54 / 49 53 / 49

Sound Power 65 69 70 69 69 70 69

Air Flow Rate (Cooling)

High m3/sec 0.870 1.270 1.280 1.380 1.270 1.280 1.380

Trade Condensing Unit Price £853.00 £1,181.00 £1,295.00 £1,442.00 £1,217.00 £1,334.00 £1,486.00

RZQSG-L

Seasonal Classic

Outdoor Indoor Type Material Remote Refnet System Price

7.1kW Twin RZQSG71L3V1 Single Phase

Cassette 2 x FCQG35F 1 x BRC1E53A 1 x KHRQ22M20T £2,226.00

600 x 600 Fully Flat Cassette 2 x FFQ35C 1 x BRC1E53A 1 x KHRQ22M20T £2,252.00

Ceiling Suspended 2 x FHQ35CB 1 x BRC1E53A 1 x KHRQ22M20T £2,190.00

Ducted 2 x FBQ35D 1 x BRC1E53A 1 x KHRQ22M20T £1,876.00

Slim Duct 2 x FDXS35F 1 x BRC1E53A 1 x KHRQ22M20T £1,722.00

Concealed Floor Standing 2 x FNQ35A 1 x BRC1E53A 1 x KHRQ22M20T £1,852.00

10kW Twin

RZQSG100L9V1 Single Phase

Cassette 2 x FCQG50F 1 x BRC1E53A 1 x KHRQ22M20T £2,588.00

600 x 600 Fully Flat Cassette 2 x FFQ50C 1 x BRC1E53A 1 x KHRQ22M20T £2,726.00

Ceiling Suspended 2 x FHQ50CB 1 x BRC1E53A 1 x KHRQ22M20T £2,634.00

Ducted 2 x FBQ50D 1 x BRC1E53A 1 x KHRQ22M20T £2,258.00

Slim Duct 2 x FDXS50F9 1 x BRC1E53A 1 x KHRQ22M20T £2,126.00

Concealed Floor Standing 2 x FNQ50A 1 x BRC1E53A 1 x KHRQ22M20T £2,352.00

RZQSG100L8Y1 Three Phase

Cassette 2 x FCQG50F 1 x BRC1E53A 1 x KHRQ22M20T £2,624.00

600 x 600 Fully Flat Cassette 2 x FFQ50C 1 x BRC1E53A 1 x KHRQ22M20T £2,762.00

Ceiling Suspended 2 x FHQ50CB 1 x BRC1E53A 1 x KHRQ22M20T £2,670.00

Ducted 2 x FBQ50D 1 x BRC1E53A 1 x KHRQ22M20T £2,294.00

Slim Duct 2 x FDXS50F9 1 x BRC1E53A 1 x KHRQ22M20T £2,162.00

Concealed Floor Standing 2 x FNQ50A 1 x BRC1E53A 1 x KHRQ22M20T £2,388.00

10kW Triple

RZQSG100L9V1 Single Phase

Cassette 3 x FCQG35F 1 x BRC1E53A 1 x KHRQ127H £3,221.00

600 x 600 Fully Flat Cassette 3 x FFQ35C 1 x BRC1E53A 1 x KHRQ127H £3,260.00

Ceiling Suspended 3 x FHQ35CB 1 x BRC1E53A 1 x KHRQ127H £3,167.00

Ducted 3 x FBQ35D 1 x BRC1E53A 1 x KHRQ127H £2,696.00

Slim Duct 3 x FDXS35F 1 x BRC1E53A 1 x KHRQ127H £2,465.00

Concealed Floor Standing 3 x FNQ35A 1 x BRC1E53A 1 x KHRQ127H £2,660.00

RZQSG100L8Y1 Three Phase

Cassette 3 x FCQG35F 1 x BRC1E53A 1 x KHRQ127H £3,257.00

600 x 600 Fully Flat Cassette 3 x FFQ35C 1 x BRC1E53A 1 x KHRQ127H £3,296.00

Ceiling Suspended 3 x FHQ35CB 1 x BRC1E53A 1 x KHRQ127H £3,203.00

Ducted 3 x FBQ35D 1 x BRC1E53A 1 x KHRQ127H £2,732.00

Slim Duct 3 x FDXS35F 1 x BRC1E53A 1 x KHRQ127H £2,501.00

Concealed Floor Standing 3 x FNQ35A 1 x BRC1E53A 1 x KHRQ127H £2,696.00

12kW Twin

RZQSG125L9V1 Single Phase

Cassette 2 x FCQG60F 1 x BRC1E53A 1 x KHRQ22M20T £2,792.00

600 x 600 Fully Flat Cassette 2 x FFQ60C 1 x BRC1E53A 1 x KHRQ22M20T £2,930.00

Ceiling Suspended 2 x FHQ60CB 1 x BRC1E53A 1 x KHRQ22M20T £2,894.00

Ducted 2 x FBQ60D 1 x BRC1E53A 1 x KHRQ22M20T £2,494.00

Slim Duct 2 x FDXS60F 1 x BRC1E53A 1 x KHRQ22M20T £2,336.00

Concealed Floor Standing 2 x FNQ60A 1 x BRC1E53A 1 x KHRQ22M20T £2,590.00

RZQSG125L8Y1 Three Phase

Cassette 2 x FCQG60F 1 x BRC1E53A 1 x KHRQ22M20T £2,831.00

600 x 600 Fully Flat Cassette 2 x FFQ60C 1 x BRC1E53A 1 x KHRQ22M20T £2,969.00

Ceiling Suspended 2 x FHQ60CB 1 x BRC1E53A 1 x KHRQ22M20T £2,933.00

Ducted 2 x FBQ60D 1 x BRC1E53A 1 x KHRQ22M20T £2,533.00

Slim Duct 2 x FDXS60F 1 x BRC1E53A 1 x KHRQ22M20T £2,375.00

Concealed Floor Standing 2 x FNQ60A 1 x BRC1E53A 1 x KHRQ22M20T £2,629.00

Possible Combinations

Twin, Triple and Double Twin Outdoor Units

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Accessories:

Accessory Ref Description Trade Price

KHRQ22M20T R410A 2 Pipe Refnet Joint £30.00

KHRQ127H Triple Refnet Joint - RZQS71~140, RZQ100~140 £65.00

KHRQ250H7 Triple Refnet Joint - RZQ200~250 £84.00

K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £37.00

K.CWB140-2 Condensing unit bracket - sizes 100 to 140, max weight 140kg of ODU £47.00

K.DT2 Condensate drip tray for use with Sky Air ODU - tray width 1100mm £61.00

K.CGM Condensing Unit Guard size 42-71 £308.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

Notes:

i) Accessories for fan coils and condensing

units - refer to pair system pages

Outdoor Units Power 71 100 125 140 200 250

RZQG & RZQSG Single Phase 20 amp 32 amp 32 amp 32 amp - -

Three Phase 16 amp 20 amp 20 amp 20 amp - -

RZQ-C Three Phase - - - - 20amp 20amp

Maximum Fuse size for Twin, Triple and Double Twin Outdoor Units

Note:

Max fuse size based on current price list series indoor units. Refer to data-book for more details.

Outdoor Indoor Type Material Remote Refnet System Price

12kW Triple

RZQSG125L9V1 Single Phase

Cassette 3 x FCQG50F 1 x BRC1E53A 1 x KHRQ127H £3,386.00

600 x 600 Fully Flat Cassette 3 x FFQ50C 1 x BRC1E53A 1 x KHRQ127H £3,593.00

Ceiling Suspended 3 x FHQ50CB 1 x BRC1E53A 1 x KHRQ127H £3,455.00

Ducted 3 x FBQ50D 1 x BRC1E53A 1 x KHRQ127H £2,891.00

Slim Duct 3 x FDXS50F9 1 x BRC1E53A 1 x KHRQ127H £2,693.00

Concealed Floor Standing 3 x FNQ50A 1 x BRC1E53A 1 x KHRQ127H £3,032.00

RZQSG125L8Y1 Three Phase

Cassette 3 x FCQG50F 1 x BRC1E53A 1 x KHRQ127H £3,425.00

600 x 600 Fully Flat Cassette 3 x FFQ50C 1 x BRC1E53A 1 x KHRQ127H £3,632.00

Ceiling Suspended 3 x FHQ50CB 1 x BRC1E53A 1 x KHRQ127H £3,494.00

Ducted 3 x FBQ50D 1 x BRC1E53A 1 x KHRQ127H £2,930.00

Slim Duct 3 x FDXS50F 1 x BRC1E53A 1 x KHRQ127H £2,732.00

Concealed Floor Standing 3 x FNQ50A 1 x BRC1E53A 1 x KHRQ127H £3,071.00

12kW Double Twin

RZQSG125L9V1 Single Phase

Cassette 4 x FCQG35F 1 x BRC1E53A 3 x KHRQ22M20T £3,992.00

600 x 600 Fully Flat Cassette 4 x FFQ35C 1 x BRC1E53A 3 x KHRQ22M20T £4,044.00

Ceiling Suspended 4 x FHQ35CB 1 x BRC1E53A 3 x KHRQ22M20T £3,920.00

Ducted 4 x FBQ35D 1 x BRC1E53A 3 x KHRQ22M20T £3,292.00

Slim Duct 4 x FDXS35F 1 x BRC1E53A 3 x KHRQ22M20T £2,984.00

Concealed Floor Standing 4 x FNQ35A 1 x BRC1E53A 3 x KHRQ22M20T £3,244.00

RZQSG125L8Y1 Three Phase

Cassette 4 x FCQG35F 1 x BRC1E53A 3 x KHRQ22M20T £4,031.00

600 x 600 Fully Flat Cassette 4 x FFQ35C 1 x BRC1E53A 3 x KHRQ22M20T £4,083.00

Ceiling Suspended 4 x FHQ35CB 1 x BRC1E53A 3 x KHRQ22M20T £3,959.00

Ducted 4 x FBQ35D 1 x BRC1E53A 3 x KHRQ22M20T £3,331.00

Slim Duct 4 x FDXS35F 1 x BRC1E53A 3 x KHRQ22M20T £3,023.00

Concealed Floor Standing 4 x FNQ35A 1 x BRC1E53A 3 x KHRQ22M20T £3,283.00

14kW Twin

RZQSG140L9V1 Single Phase

Cassette 2 x FCQG71F 1 x BRC1E53A 1 x KHRQ22M20T £3,031.00

Hi-COP Cassette 2 x FCQHG71F 1 x BRC1E53A 1 x KHRQ22M20T £3,031.00

Under Ceiling Cassette 2 x FUQ71C 1 x BRC1E53A 1 x KHRQ22M20T £3,177.00

Wall Mount 2 x FAQ71C9 1 x BRC1E53A 1 x KHRQ22M20T £2,951.00

Ceiling Suspended 2 x FHQ71CB 1 x BRC1E53A 1 x KHRQ22M20T £3,319.00

Ducted 2 x FBQ71D 1 x BRC1E53A 1 x KHRQ22M20T £3,183.00

RZQSG140LY1 Three Phase

Cassette 2 x FCQG71F 1 x BRC1E53A 1 x KHRQ22M20T £3,075.00

Hi-COP Cassette 2 x FCQHG71F 1 x BRC1E53A 1 x KHRQ22M20T £3,075.00

Under Ceiling Cassette 2 x FUQ71C 1 x BRC1E53A 1 x KHRQ22M20T £3,221.00

Wall Mount 2 x FAQ71C9 1 x BRC1E53A 1 x KHRQ22M20T £2,995.00

Ceiling Suspended 2 x FHQ71CB 1 x BRC1E53A 1 x KHRQ22M20T £3,363.00

Ducted 2 x FBQ71D 1 x BRC1E53A 1 x KHRQ22M20T £3,227.00

14kW Triple

RZQSG140L9V1 Single Phase

Cassette 3 x FCQG50F 1 x BRC1E53A 1 x KHRQ127H £3,533.00

600 x 600 Fully Flat Cassette 3 x FFQ50C 1 x BRC1E53A 1 x KHRQ127H £3,740.00

Ceiling Suspended 3 x FHQ50CB 1 x BRC1E53A 1 x KHRQ127H £3,602.00

Ducted 3 x FBQ50D 1 x BRC1E53A 1 x KHRQ127H £3,038.00

Slim Duct 3 x FDXS50F9 1 x BRC1E53A 1 x KHRQ127H £2,840.00

Concealed Floor Standing 3 x FNQ50A 1 x BRC1E53A 1 x KHRQ127H £3,179.00

RZQSG140LY1 Three Phase

Cassette 3 x FCQG50F 1 x BRC1E53A 1 x KHRQ127H £3,577.00

600 x 600 Fully Flat Cassette 3 x FFQ50C 1 x BRC1E53A 1 x KHRQ127H £3,784.00

Ceiling Suspended 3 x FHQ50CB 1 x BRC1E53A 1 x KHRQ127H £3,646.00

Ducted 3 x FBQ50D 1 x BRC1E53A 1 x KHRQ127H £3,082.00

Slim Duct 3 x FDXS50F 1 x BRC1E53A 1 x KHRQ127H £2,884.00

Concealed Floor Standing 3 x FNQ50A 1 x BRC1E53A 1 x KHRQ127H £3,223.00

14kW Double Twin

RZQSG140L9V1 Single Phase

Cassette 4 x FCQG35F 1 x BRC1E53A 3 x KHRQ22M20T £4,139.00

600 x 600 Fully Flat Cassette 4 x FFQ35C 1 x BRC1E53A 3 x KHRQ22M20T £4,191.00

Ceiling Suspended 4 x FHQ35CB 1 x BRC1E53A 3 x KHRQ22M20T £4,067.00

Ducted 4 x FBQ35D 1 x BRC1E53A 3 x KHRQ22M20T £3,439.00

Slim Duct 4 x FDXS35F 1 x BRC1E53A 3 x KHRQ22M20T £3,131.00

Concealed Floor Standing 4 x FNQ35A 1 x BRC1E53A 3 x KHRQ22M20T £3,391.00

RZQSG140LY1 Three Phase

Cassette 4 x FCQG35F 1 x BRC1E53A 3 x KHRQ22M20T £4,183.00

600 x 600 Fully Flat Cassette 4 x FFQ35C 1 x BRC1E53A 3 x KHRQ22M20T £4,235.00

Ceiling Suspended 4 x FHQ35CB 1 x BRC1E53A 3 x KHRQ22M20T £4,111.00

Ducted 4 x FBQ35D 1 x BRC1E53A 3 x KHRQ22M20T £3,483.00

Slim Duct 4 x FDXS35F 1 x BRC1E53A 3 x KHRQ22M20T £3,175.00

Concealed Floor Standing 4 x FNQ35A 1 x BRC1E53A 3 x KHRQ22M20T £3,435.00

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Server rooms & IT applications have some key dierences to comfort cooling applications.

Daikin has developed specic infrastructure cooling equipment to ensure ecient, reliable 24 hour

cooling – now with ErP compliant Energy Labels.

Infrastructure Cooling

Comfort cooling

- Humidity is present

- Balanced sensible and latent capacity

Infrastructure cooling

- No or limited humidity

- Pure sensible capacity

> -% temperature control

> -% humidity control

> -% temperature control

> -% humidity control

How do comfort systems perform in infrastructure cooling applications?

Between

20-40%

sensible capacity

increase

Boosted capacity indoor system combinationSymmetric indoor-outdoor system combination

traditional solution dedicated solution

Te kW RH%



































Time

Evaporating Temperature

Capacity

Te kW



































Time

RH%

Evaporating Temperature

Capacity

improved solution

Boosted capacity indoors increase the heat transfer capacity at

low relative humidity

Allows the system to operate with higher Te, guaranteeing

continuous operation and reducing unwanted dehumidification

Relative Humidity: reduces over time

Capacity: reduced

Evaporating temp: drops to compensate reduced capacity

too low Te can lead to freeze-up

prevention, causing system downtime

Infrastructure cooling systems, with larger capacity indoor units can deliver higher sensible capacities

Daikin’s infrastructure cooling solution can deliver pure sensible capacity in low relative humidity applications.

The solution uses indoor units of larger capacity than outdoor units, all with ErP Energy Labels.

To make selection simple, tables are available showing total & sensible capacity at:

> Ambient range in cooling from -15°C to +40°C

> Dry build temperature range from 16°C to 27°C

> Wet bulb temperature range from 11°C to 16°C

For selection advice & capacity tables, please talk to your local Daikin oce.

Comfort

Cooling

Infrastructure

Cooling

Comfort

Cooling

Infrastructure

Cooling

Comfort

Cooling

Infrastructure

Cooling

Nominal Capacity 6.8kW 6.8kW 9.5kW 9.5kW 13.5kW 12.0kW

Comfort Cooling Pairing 71 / 71 71 / 100 100 / 100 100 / 140 125 / 125 125 / 140

Indoor FAQ71C9 FAQ100C9 FHQ100CB FHQ140CB FHQ125CB FHQ140CB

Outdoor RZQG71L9V1 RZQG71L9V1 RZQG100L9V1 RZQG100L9V1 RZQG125L9V1 RZQG125L9V1

22°C set point / 11C WB (35% RH) <25°C ambient

Total Capacity / Sensible Capacity n/a 6.02 / 6.02 n/a 7.48 / 7.48 n/a 9.34 / 9.34

Sensible Ratio n/a 100% n/a 100% n/a 100%

22°C Set point / 16 WB (54% RH) 30°C ambient

Total Capacity / Sensible Capacity 7.76 / 5.32 7.8 / 5.71 10.8 / 7.44 9.70 / 7.54 13.6 / 9.3 12.12 / 9.00

Sensible Ratio 69% 73% 69% 78% 68% 74%

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

In a infrastructure cooling application, it is normal to have a standby air conditioning unit(s).

The standby unit will automatically operate in the event of a fault with one of the duty units.

It is also normal to rotate the operation of the duty and standby units to ensure equal use of all units.

Sky Air – Duty Rotation

BRC1E53A Remote Controller

Daikins’ latest generation of hard wired remote controller now

supports automatic duty rotation and standby operation on fault.

> One controller for up to 16 systems

> Programmable duty rotation changeover period

> Automatic operation of standby unit on fault

NEW

RTD-10 Interface

A single interface per group to carry out automatic duty rotation

and standby operation on fault or high temperature.

> Programmable duty rotation changeover period

Automatic operation of standby unit on fault and xed high temperature

> Dual level alarm volt free contact output

Automatic Changeover

A single control panel to carry out automatic duty rotation

and standby operation on fault or high temperature.

> 24hr duty rotation changeover period

> Automatic operation of standby unit on fault and adjustable high temperature

> Visual indication of unit status

> Fire alarm & condense pump interlocks

> Volt free contact alarm output

> Built-in remote controllers and interface PCBs

Model Description Related Fan Coil Trade Price

BRC1E53A Premium wired remote controller with duty rotation function FBQ-D, FAQ-C9, FHQ-CB £79.00

Model Description Related Fan Coil Trade Price

RTD-10 Control interface with duty rotation function All units with P1/P2 interface* £219.00

Model Description Related Fan Coil Trade Price

UK.PANEL 2SKYAIR Changeover panel for 2 SkyAir systems All units with P1/P2 interface* £1,801.00

UK.PANEL 3SKYAIR Changeover panel for 3 SkyAir systems All units with P1/P2 interface* £2,084.00

UK.PANEL 4SKYAIR Changeover panel for 4 SkyAir systems All units with P1/P2 interface* £3,354.00

* All SkyAir units, all VRV units and some Split units. For Split units check exact unit specication for compatibility

 o RTD- and

 o BRCEA

required

per group.

Control of up

to  groups

possible

Single remote controller

required for up to  groups

NEW

FOR 2016

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

F = Free hanging model C = Cassette model R = Recessed model

Using a combination of rectier technology, air velocity and temperature

control, Daikin ERQ heat pump air curtains deliver greater comfort to sta

and customers alike, all year round, in all weathers.

BIDDLE AIR CURTAINS & ERQ PAIRS ARE LISTED ON ECA –

For product listing refer to: https://etl.decc.gov.uk/etl/site/etl.html

CYQS/M/L - DK - F/C/R

Air curtains are the ideal solution to combat the issue of

climate separation across retail outlets or oce doorways.

In conjunction with Biddle, Daikin ERQ heat pump air curtain

solution combines the benets of the Biddle air curtain technology

with the benets of Daikin ERQ heat pump inverter technology.

Features and benets:

> Energy savings up to 72% compared with

electric air curtains

> Short payback times – less than 1.5 years

> Wide capacity range for maximum application

potential plus exible control options

> R-410A refrigerant, single and 3 phase

> Wide operation range: -20~15.5°C in heating

> Air curtain rectier technology –

deep penetrating airstream

> Constant air velocity technology –

all year round eciency

> European patent

> 1.0, 1.5, 2.0 and 2.5 metre door widths

> Door heights of up to 3.7 metres

Choice of colour RAL9010:White or RAL9006:Grey

Selection

1) Use the Door Height graph to

determine the Air Curtain size

relevant to your application

2) When you know the size (S/M/L),

refer to specic tables to select the

model for your required door width

3) Select outdoor unit to pair door

curtain, based on eciency and

power source

Biddle Comfort air curtain range

Ideal for doors in a shopping

centre or revolving door entrance

For more exposed doors with

some direct wind, suitable for

ground oor applications

For areas exposed to higher wind

speeds i.e. open stairwell or balcony

door at higher than ground level

SM L

2.7m

3.2m

3.7m

SM L

2.35m

2.8m

3.1m

SM L

2.0m

2.3m 2.5m

Maximum door height (m)

Installation condition

Biddle Standard Air Curtain (Small) – Door height 2m to 2.7m

Maximum Door Width m 1.50 2.00 2.50

Mounting Height *2

Max / Min m 2.7 / 2.0 2.7 / 2.0 2.7 / 2.0

Model Name CYQS150DK80*BN CYQS200DK100*BN CYQS250DK140*BN

Type * = F * = C * = R * = F * = C * = R * = F * = C * = R

Heating Capacity speed 3 kW 9.00 11.60 16.20

Delta T Inlet = room temperature speed 3 °K 15 15 16

Power Input (50Hz) Fan only / Heating kW 0.35 / 0.35 0.46 / 0.46 0.58 / 0.58

Dimensions Height mm 270 270 270 270 270 270 270 270 270

Width mm 1,500 1,500 1,548 2,000 2,000 2,048 2,500 2,500 2,548

Depth mm 590 821 561 590 821 561 590 821 561

Weight kg 66 83 88 83 102 108 107 129 137

Casing Colour white RAL9010 white RAL9010 white RAL9010

Minimum requiring ceiling void mm 420 420 420

Fan - Air Flow Rate Heating speed 3 m3/sec 0.485 0.647 0.808

Sound Pressure Heating speed 3 dBA 49 50 51

Refrigerant Type R-410A R-410A R-410A

Piping Connections Liquid (OD) / Gas inch (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 3/4 (19)

Power Supply

Phase / Hz / V

1 / 50 / 230 1 / 50 / 230 1 / 50 / 230

Trade Unit Price £3,025.00 £3,025.00 £3,188.00 £3,680.00 £3,680.00 £3,990.00 £4,131.00 £4,131.00 £4,471.00

* 2: Mounting Height at base of Door Curtain Air Outlet. F = Free Hanging / C = Cassette / R = Recessed

Condensing Unit Selection for Small Door Curtain

Standard Eciency

ERQ100AV1 ERQ100 AV1 ERQ125AV1 / AW1

Improved Eciency ERQ140AV1

High Eciency ERQ125AV1 / AW1 ERQ200AV1

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

1 o CYQL100DK125FBN £3,346.00

1 o ERQ125AV1 £1,778.00

1 o BRC1E52 £79.00

Total £5,203.00

Biddle Standard Air Curtain (Medium) – Door height 2.3m to 3.2m

Biddle Standard Air Curtain (Large) – Door height 2.5m to 3.7m

Maximum Door Width m 1.00 1.50 2.00 2.5

Mounting Height *2

Max / Min m 3.2 / 2.3 3.2 / 2.3 3.2 / 2.3 3.2 / 2.3

Model Name CYQM100DK80*BN CYQM150DK80*BN CYQM200DK100*BN CYQM250DK140*BN

Type * = F * = C * = R * = F * = C * = R * = F * = C * = R * = F * = C * = R

Heating Capacity speed 3 kW 9.20 11.00 13.40 19.90

Delta T Inlet = room temperature speed 3 °K 17 14 13 15

Power Input (50Hz) Fan only / Heating kW 0.37 / 0.37 0.56 / 0.56 0.75 / 0.75 0.94 / 0.94

Dimensions Height mm 270 270 270 270 270 270 270 270 270 270 270 270

Width mm 1,000 1,000 1,048 1,500 1,500 1,548 2,000 2,000 2,048 2,500 2,500 2,548

Depth mm 590 821 561 590 821 561 590 821 561 590 821 561

Weight kg 57 68 66 73 88 93 94 111 117 108 136 144

Casing Colour white RAL9010 white RAL9010 white RAL9010 white RAL9010

Minimum requiring ceiling void mm 420 420 420 420

Fan - Air Flow Rate Heating speed 3 m3/sec 0.446 0.669 0.892 1.115

Sound Pressure Heating speed 3 dBA 50 51 53 54

Refrigerant Type R-410A R-410A R-410A R-410A

Piping Connections Liquid (OD) / Gas inch (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 3/4 (19)

Power Supply

Phase / Hz / V

1 / 50 / 230 1 / 50 / 230 1 / 50 / 230 1 / 50 / 230

Trade Unit Price

£2,933.00 £2,933.00 £3,027.00 £4,773.00 £4,773.00 £4,927.00 £4,376.00 £4,376.00 £4,685.00 £5,009.00 £5,009.00 £5,343.00

* 2: Mounting Height at base of Door Curtain Air Outlet. F = Free Hanging / C = Cassette / R = Recessed

Maximum Door Width m 1.00 1.50 2.00 2.5

Mounting Height *2

Max / Min m 3.7 / 2.5 3.7 / 2.5 3.7 / 2.5 3.7 / 2.5

Model Name CYQL100DK125*BN CYQL150DK200*BN CYQL200DK250*BN CYQL250DK250*BN

Type * = F * = C * = R * = F * = C * = R * = F * = C * = R * = F * = C * = R

Heating Capacity speed 3 kW 15.60 23.30 29.40 31.10

Delta T Inlet = room temperature speed 3 °K 15 15 14 12

Power Input (50Hz) Fan only / Heating kW 0.75 / 0.75 1.13 / 1.13 1.50 / 1.50 1.88 / 1.88

Dimensions Height mm 370 370 370 370 370 370 370 370 370 370 370 370

Width mm 1,000 1,000 1,048 1,500 1,500 1,548 2,000 2,000 2,048 2,500 2,500 2,548

Depth mm 774 1105 745 774 1105 745 774 1105 745 774 1105 745

Weight kg 76 81 83 100 118 141 126 151 155 157 190 196

Casing Colour white RAL9010 white RAL9010 white RAL9010 white RAL9010

Minimum requiring ceiling void mm 520 520 520 520

Fan - Air Flow Rate Heating speed 3 m3/sec 0.861 1.292 1.722 2.153

Sound Pressure Heating speed 3 dBA 53 54 56 57

Refrigerant Type R-410A R-410A R-410A R-410A

Piping Connections Liquid (OD) / Gas inch (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 3/4 (19) 3/8 (9.5) / 7/8 (22.2) 3/8 (9.5) / 7/8 (22.2)

Power Supply

Phase / Hz / V

1 / 50 / 230 1 / 50 / 230 1 / 50 / 230 1 / 50 / 230

Trade Unit Price

£3,346.00 £3,346.00 £3,356.00 £4,773.00 £4,773.00 £4,927.00 £5,925.00 £5,925.00 £6,233.00 £6,915.00 £6,915.00 £7,297.00

* 2: Mounting Height at base of Door Curtain Air Outlet. F = Free Hanging / C = Cassette / R = Recessed

Condensing Unit Selection form Medium Door Curtain

Standard Eciency

ERQ100AV1 ERQ100AV1 ERQ100AV1 ERQ200AW1

Improved Eciency ERQ125AV1 / AW1 ERQ250AW1

High Eciency ERQ125AV1 / AW1 ERQ140AV1

Condensing Unit Selection for Large Door Curtain

Standard Eciency ERQ125AV1 / AW1 ERQ200AW1

ERQ250AW1 ERQ250AW1Improved Eciency ERQ140AV1 ERQ250AW1

High Eciency ERQ200AW1

Single Phase 3 Phase

ERQ100AV1 ERQ125AV1 ERQ140AV1 ERQ125AW1 ERQ200AW1 ERQ250AW1

Dimensions Height mm 1345 1345 1345 1680 1680 1680

Width mm 900 900 900 635 930 930

Depth mm 320 320 320 765 765 765

Weight kg 120 120 120 159 187 240

Pipe Run m 55 55 55 55 55 55

Airow Direction Side blow Side blow Side blow Top blow Top blow Top blow

Trade Unit Price £1,595.00 £1,778.00 £2,131.00 £1,813.00 £3,130.00 £3,261.00

Accessories for all Door Curtains

Accessory Ref Description Trade Price

BRC1E53A Premium wired remote controller with full text menu, Energy features and 7 Day Time Clock £79.00

KRCS01-1 Remote room mounted temperature sensor £48.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

Notes:

i) To calculate the price for a complete

system, add together the prices for door

curtain, ERQ and remote controller.

ERQ Condensing Units

Residential, Commercial and Industrial

SPLIT, SKY AIR HEAT PUMPS

Air Cooled Heat Pump Inverter

Condensing Unit Kit for DX Coil

P: Pair Combination depending on air handling units coils volume

A range of R410A inverter condensing units for application

with air handling units:

> Inverter controlled heat pump units

> Large capacity range (from 6.3 to 61.6 kW)

> Ventilation and air conditioning in 1 solution

> EKEXV-kit & control boxes are designed for outdoor installation

and can be wall mounted

> Per EKEXV-kit/control box, only 1 air handling unit coil can

be connected

> Outdoor unit operation range: -5°CDB ~ 43°CDB in cooling

> For connectivity to VRV IV systems, please consult with your local

Daikin representative

Flexible control possibilities:

Control w:

Full external control from 3rd party temperature controller with

volt free remote enable contact and linear variable capacity control

output (3rd party DDC Controller required).

Control y:

External control from 3rd party temperature controller with volt

free remote enable contact. Fixed evaporating temperature

selection, range: +3°C to +10°C.

Control z (BRC1D52 required):

Control via Daikin BRC1D52 remote controller and return air or

remote sensor (KRCS01-1 optional). A volt free remote enable

contact is required to conrm fan operation status. For re-circ

applications only.

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

EV kit

Air handling unit

Field supply

Control boxF1,F2 communication

DDC control

(control w)

Even without the benet of individual room control, the system

can provide a exible energy saving answer over traditional

methods through the incorporation of inverter control and heat

pump technology.

The following pages include Packaged Heat Pump Rooftop

systems, with optional economisers, to heat pump condensing

units and connection kits for use with other manufacturers

heating and cooling coils.

Central Ducted Solutions

For central ducted distribution systems

Daikin has the solution for providing cooling

and heating of the air, enabling optimal

comfort and eciency.

Outdoor unit Trade

Unit Price

Control box Expansion Valve Kit

control z

control y, w control y, w

class 63 class 80 class 100 class 125 class 140 class 200 class 250 class 400 class 500

EKEQDCB EKEQFCBA EKEQMCBA EKEXV63 EKEXV80 EKEXV100 EKEXV125 EKEXV140 EKEXV200 EKEXV250 EKEXV400 EKEXV500

1ph ERQ100AV1 £1,595.00 P P

VRV only

P P P P - - -

VRV only VRV only

ERQ125AV1 £1,778.00 PP PPPPP- -

ERQ140AV1 £2,131.00 P P - P P P P - -

3ph ERQ125AW1 £1,813.00 PP PPPPP- -

ERQ200AW1 £3,130.00 PP - -PPPPP

ERQ250AW1 £3,261.00 P P - - - P P P P

Trade Acc. Price £326.00 £376.00 £580.00 £73.00 £75.00 £82.00 £89.00 £103.00 £123.00 £137.00 £152.00 £.

For all AHU application selections with ERQ and VRV systems, please consult with a member of Daikin sta to ensure

correct selection and AHU coil design parameters.

Price List Update: Valid from 1st January 2017

SPLIT, SKY AIR HEAT PUMPS

Features:

Large Condensing Unit (Standard Noise Level)

ERAD120E-SS ERAD140E-SS ERAD170E-SS ERAD200E-SS ERAD220E-SS ERAD250E-SS ERAD310E-SS ERAD370E-SS ERAD440E-SS ERAD490E-SS

Capacity Nominal Cooling kW 121 144 165 196 219 252 306 370 435 488

EER 2.89 2.82 2.87 3.01 2.97 3.29 3.3 3.03 2.96 3.03

Refrigerant R134a

Dimensions Length mm 2170 2170 3070 3070 3070 3070 3070 3070 3070 3070

Height mm 2.27 2.27 2.27 2.27 2.27 2.27 2220 2220 2220 2220

Width mm 1290 1290 1290 1290 1290 1290 2240 2240 2240 2240

Weight kg 1564 1587 1698 1739 1886 1928 2355 2559 2642 2677

Electrical Details Power Supply V 400

Hz 50

ph 3

Trade Unit Price POA POA POA POA POA POA POA POA POA POA

Large Condensing Unit (Low Noise Level)

ERAD120E-SL ERAD140E-SL ERAD160E-SL ERAD190E-SL ERAD210E-SL ERAD240E-SL ERAD300E-SL ERAD350E-SL ERAD410E-SL ERAD460E-SL

Capacity Nominal Cooling kW 116 137 159 187 209 243 295 352 409 462

EER 2.74 2.61 2.76 2.82 2.83 3.11 3.22 2.88 2.72 2.76

Refrigerant R134a

Dimensions Length mm 2170 2170 3070 3070 3070 3070 3070 3070 3070 3070

Height mm 2.27 2.27 2.27 2.27 2.27 2.27 2220 2220 2220 2220

Width mm 1290 1290 1290 1290 1290 1290 2240 2240 2240 2240

Weight kg 1712 1738 1851 1897 2046 2091 2534 2741 2834 2873

Electrical Details Power Supply V 400

Hz 50

ph 3

Trade Unit Price POA POA POA POA POA POA POA POA POA POA

ERAD-E are a range of cooling only R134a condensing units for pair

application with air handling units

> Large capacity range 100 kW to 410 kW

> Superior control logic using the new MicroTech III controller

> Single circuit units

> Screw compressor with capacity control down to 25%

> Available in both standard and low noise congurations

Please contact your sales oce for further information on these products

Notes:

i) Minimum Ambient operating conditions ii) Supplied with remote controller as standard

iii) Economiser option is supplied as a kit for site assembly

iv) Low ambient kit for models UATYPC available on request

v) Please check stock & delivery period for all model sizes

vi) Standard delivery for all units does not include o-loading to kerbside

vii) UATYQ250/350 can be o-loaded by fork-lift if there is one on site

viii) All other units require crane or HIAB. Prices for HIAB available on request

Cooling Heating

UATYQ250~700

0°C -15°C

UATYPC10~12

20°C -15°C

UATYQ250CY1 UATYQ350CY1 UATYQ450CY1 UATYQ550CY1 UATYQ600CY1 UATYQ700CY1 UATYPC10AY1 UATYPC12AY1

Capacity Nominal Cooling kW 27.34 35.58 44.72 55.69 66.82 72.60 101.10 109.60

Nominal Heating kW 24.91 34.79 41.79 53.93 61.69 69.61 102.30 126.30

Dimensions Height mm 1150 1028 1130 1048 1302 1302 1974 1974

Width mm 1638 2209 2209 2209 2209 2209 2252 2252

Depth mm 2063 2113 2113 2670 2670 2670 3180 3180

Weight kg 445 580 610 830 880 1020 1510 1600

Air Flow Rate Indoor m3/sec 1.55 2.03 2.67 3.167 3.417 3.883 5.20 5.90

External Static Indoor Pa 147 147 147 206 206 206 -

Air Flow Rate Outdoor m3/sec00000000

Refrigerant R410A R407C

Sound Power Level Outdoor dBA 82 83 83 87 90 90 80 80

Drain size mm 25.4 (OD)

Electrical Details Power Supply V 400

Hz 50

Phase 3ph

Running Current A 20.5 26.4 33.1 39.4 41.6 46.5 74.2 82.9

Starting Current A 118 93 123 137 144 148 175 , 215 215x2

Max Fuse Size A 32 40 40 50 50 50 125 125

Trade Unit Price £5,229.00 £5,444.00 £8,957.00 £9,856.00 £10,598.00 £11,341.00 £15,142.00 £16,449.00

Economiser ECONO250AY1 ECONO350AY1 ECONO450AY1 ECONO550AY1 ECONO600AY1 ECONO700AY1

Trade Unit Price £922.00 £969.00 £1,016.00 £1,065.00 £1,120.00 £1,175.00

ERAD-E

Large Condensing Units

UATYQ

Rooftop Packaged Unit – Heat Pump

SPLIT, SKY AIR HEAT PUMPS

VRV

Indoor Units 56

VRV Fan Coil Units 56

Hot Water Connection 63

Air Curtains 66

Outdoor Condensing Units 68

VRV Condensing Unit Services 68

VRV Condensing Units – S-series (Mini) 70

VRV Condensing Units – i-series 74

VRV Condensing Units – Heat Pump 76

VRV Condensing Units – Heat Recovery 80

VRV Condensing Units – Replacement VRV-Q 84

DNSS Remote Monitoring 90

VRV-Q Warranty 91

Water Cooled VRV 94

Accessories 96

VRV Heat Recovery Branch Selector Boxes 96

Intelligent Manager Building Management System 98

Controls and Apps 100

Refrigerant Leak Detection 107

VRV Cloud Energy Reporting 108

Daikin UK Price List Update

VRV

Scottish

Region

0845 641 9330

Northern

Region

0845 641 9340

Midlands

Region

0845 641 9370

Western

Region

0845 641 9320

North

London

0845 641 9360

South

London

0845 641 9355

VRV

Residential, Commercial and Industrial

Notes:

i) Cassette prices include standard decoration panel - self cleaning panel available as an accessory item

ii) BYCQ140D = pure white panel with grey louvers , BYCQ140DW = pure white standard panel with white louvers, BYCQ140DG = Pure white auto cleaning panel

The BYCQ140DW has white insulations. Be informed that formations of dirt on white insulation is visibly stronger & that it is

consequently not advised to install the decoration panel in environments exposed to concentrations of dirt

iii) For accessories please refer to pages 96 - 108

Notes:

i) Cassette prices include Fully Flat decoration panel in fresh white.

Other colour panels available on request.

ii) Dimensions include control box

iii) For accessories please refer to pages 96 - 108

FXFQ-A

VRV Fan Coil – Roundow Cassette

FXZQ-A

VRV Fan Coil – 600x600 Fully Flat Cassette

Indoor Units FXFQ20A FXFQ25A FXFQ32A FXFQ40A FXFQ50A FXFQ63A FXFQ80A FXFQ100A FXFQ125A

Capacity UK Total Cooling kW 1.80 2.30 2.90 3.60 4.50 5.70 7.20 9.00 11.30

UK Sensible Cooling kW 1.60 1.90 2.60 3.00 3.60 4.60 5.80 6.90 8.60

Nominal Cooling kW 2.20 2.80 3.60 4.50 5.60 7.10 9.00 11.20 14.00

Nominal Heating kW 2.50 3.20 4.00 5.00 6.30 8.00 10.00 12.50 16.00

Air Flow Rate High m3/sec 0.208 0.208 0.208 0.227 0.250 0.275 0.380 0.442 0.550

Nom m3/sec 0.177 0.177 0.177 0.193 0.213 0.225 0.293 0.325 0.442

Low m3/sec 0.147 0.147 0.147 0.158 0.175 0.175 0.207 0.207 0.332

Dimensions Height x Width x Depth mm 204x840x840 246x840x840 288x840x840

Weight kg 19 19 19 20 21 21 24 24 26

Decoration Panel Model Roundow BYCQ140D (standard panel)

Colour Pure White (RAL 9010)

Dimensions H x W x D mm 50x950x950

Weight kg 5.4

Decoration Panel Model Roundow with white louvres BYCQ140DW

Colour Pure White (RAL 9010)

Dimensions H x W x D mm 50x950x950

Weight kg 5.4

Decoration Panel Model Roundow self cleaning BYCQ140DG

Colour Pure White (RAL 9010)

Dimensions H x W x D mm 130x950x950

Weight kg 10.3

Electrical Details Running Current amps 0.3 0.3 0.3 0.3 0.4 0.4 0.6 0.8 1.3

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5.0

Sound Level Sound Pressure High dBA 31.0 31.0 31.0 33.0 33.0 35.0 38.0 43.0 45.0

Nom dBA 29.0 29.0 29.0 31.0 31.0 33.0 34.0 37.0 41.0

Low dBA 28.0 28.0 28.0 29.0 29.0 30.0 30.0 30.0 36.0

Sound Power dBA 49 49 49 51 51 53 55 60 61

Piping Connections Liquid inch (mm) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9)

Trade Unit Price £790.00 £806.00 £824.00 £890.00 £934.00 £985.00 £1,050.00 £1,140.00 £1,420.00

Indoor Units FXZQ15A FXZQ20A FXZQ25A FXZQ32A FXZQ40A FXZQ50A

Capacity UK Total Cooling kW 1.40 1.80 2.30 2.90 3.60 4.50

UK Sensible Cooling kW 1.30 1.50 1.80 2.10 2.90 3.60

Nominal Cooling kW 1.70 2.20 2.80 3.60 4.50 5.60

Nominal Heating kW 1.90 2.50 3.20 4.00 5.00 6.30

Air Flow Rate High m3/sec 0.142 0.145 0.150 0.167 0.192 0.242

Nom m3/sec 0.117 0.125 0.133 0.142 0.158 0.208

Low m3/sec 0.108 0.108 0.108 0.117 0.133 0.167

Dimensions (with Decoration Panel) HxWxD mm 260 (306) x 575 (620) x 575 (620)

Weight (with Decoration Panel) kg 15.5 (18.3) 15.5 (18.3) 15.5 (18.3) 16.5 (19.3) 16.5 (19.3) 18.5 (21.3)

Decoration Panel Fully Flat in white (N9.5) BYFQ60CW (standard panel)

Dimensions mm 46 x 620 x 620

Weight kg 2.8

Decoration Panel Fully Flat in white (N9.5) with silver BYFQ60CS (standard panel)

Dimensions mm 46 x 620 x 620

Weight kg 2.8

Decoration Panel Old style panel BYFQ60B3 (White RAL9010)

Dimensions mm 55 x 700 x 700

Weight kg 2.7

Electrical Details Running Current amps 0.3 0.3 0.3 0.4 0.4 0.6

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 31.5 32.0 33.0 33.5 37.0 43.0

Nom dBA 28.0 29.5 30.0 30.0 32.0 40.0

Low dBA 25.5 25.5 25.5 26.0 28.0 33.0

Sound Power dBA 49 49 50 51 54 60

Piping Connections Liquid inch (mm) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4)

Gas inch (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7)

Trade Unit Price £750.00 £767.00 £783.00 £800.00 £859.00 £943.00

VRV

Price List Update: Valid from 1st January 2017

Notes:

i) Cassette prices include decoration panel

ii) For accessories please refer to pages 96 - 108

Notes:

i) Cassette prices include decoration panel

ii) For accessories please refer to pages 96 - 108

FXCQ-A

VRV Fan Coil – 2 Way Blow Cassette

FXKQ-MA

VRV Fan Coil – 1 Way Blow Corner Cassette

Indoor Units FXCQ20A FXCQ25A FXCQ32A FXCQ40A FXCQ50A FXCQ63A FXCQ80A FXCQ125A

Capacity UK Total Cooling kW 1.8 2.3 2.9 3.6 4.5 5.7 7.2 11.3

UK Sensible Cooling kW 1.7 2 2.3 2.9 3.5 4.9 5.7 8.7

Nominal Cooling kW 2.2 2.8 3.6 4.5 5.6 7.1 9.0 14.0

Nominal Heating kW 2.5 3.2 4.0 5.0 6.3 8.0 10.0 16.0

Air Flow Rate High m3/sec 0.175 0.192 0.192 0.200 0.250 0.267 0.433 0.533

Nom m3/sec 0.150 0.158 0.158 0.175 0.217 0.233 0.375 0.458

Low m3/sec 0.125 0.133 0.133 0.142 0.175 0.192 0.308 0.375

Dimensions

(with Decoration Panel)

Height mm 305 (360) 305 (360) 305 (360) 305 (360) 305 (360) 305 (360) 305 (360) 305 (360)

Width mm 775 (1070) 775 (1070) 775 (1070) 775 (1070) 990 (1285) 990 (1285) 1445 (1740) 1445 (1740)

Depth mm 620 (700) 620 (700) 620 (700) 620 (700) 620 (700) 620 (700) 620 (700) 620 (700)

Weight (with Decoration Panel) kg 19 (29) 19 (29) 19 (29) 19 (29) 22 (33) 25 (36) 33 (46) 38 (51)

Decoration Panel BYBCQ40H BYBCQ63H BYBCQ125H

Electrical Details Running Current amps 0.3 0.3 0.3 0.3 0.4 0.5 0.6 1.1

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 32.0 34.0 34.0 36.0 37.0 39.0 42.0 46.0

Nom dBA 30.0 31.0 32.0 33.0 35.0 37.0 38.0 42.0

Low dBA 28.0 29.0 30.0 31.0 31.0 32.0 33.0 38.0

Piping Connections Liquid inch (mm) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9)

Trade Unit Price £890.00 £905.00 £914.00 £1,010.00 £1,105.00 £1,147.00 £1,316.00 £1,580.00

Indoor Units FXKQ25MA FXKQ32MA FXKQ40MA FXKQ63MA

Capacity UK Total Cooling kW 2.3 2.9 3.6 5.7

UK Sensible Cooling kW 2.2 2.5 2.8 4.5

Nominal Cooling kW 2.8 3.6 4.5 7.1

Nominal Heating kW 3.2 4.0 5.0 8.0

Air Flow Rate High m3/sec 0.183 0.183 0.217 0.300

Low m3/sec 0.150 0.150 0.167 0.250

Dimensions

(with Decoration Panel)

Height mm 215 (285) 215 (285) 215 (285) 215 (285)

Width mm 1110 (1240) 1110 (1240) 1110 (1240) 1310 (1440)

Depth mm 710 (800) 710 (800) 710 (800) 710 (800)

Weight (with Decoration Panel) kg 31 (39.5) 31 (39.5) 31 (39.5) 34 (43.5)

Decoration Panel BYK45F BYK71F

Electrical Details Running Current amps 0.3 0.3 0.3 0.5

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 38.0 38.0 40.0 42.0

Low dBA 33.0 33.0 34.0 37.0

Piping Connections Liquid inch (mm) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 3/8 (9.5)

Gas inch (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9)

Trade Unit Price £985.00 £996.00 £1,088.00 £1,234.00

VRV

Residential, Commercial and Industrial

FXSQ-A

VRV Fan Coil – Concealed Ceiling Unit (Medium Static)

Indoor Units

FXSQ15A FXSQ20A FXSQ25A FXSQ32A FXSQ40A FXSQ50A FXSQ63A FXSQ80A FXSQ100A FXSQ125A FXSQ140A

Capacity UK Total Cooling kW 1.4 1.8 2.3 2.9 3.6 4.5 5.7 7.2 9.0 11.3 12.9

UK Sensible Cooling kW 1.1 1.4 1.8 2.3 2.9 3.6 4.5 5.7 7.2 8.9 10.2

Nominal Cooling kW 1.7 2.2 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14.0 16.0

Nominal Heating kW 1.9 2.5 3.2 4.0 5.0 6.3 8.0 10.0 12.5 16.0 18.0

Air Flow Rate High m3/sec 0.145 0.150 0.150 0.158 0.250 0.253 0.350 0.383 0.533 0.600 0.650

Nom m3/sec 0.125 0.125 0.125 0.133 0.208 0.208 0.300 0.325 0.450 0.525 0.567

Low m3/sec 0.108 0.108 0.108 0.117 0.183 0.183 0.250 0.267 0.383 0.433 0.467

External Static Pressure High Pa 150 150 150 150 150 150 150 150 150 150 150

Low Pa 30 30 30 30 30 30 30 40 40 50 50

Dimensions Height x Width x Depth mm 245 x 550 x 800 245 x 700 x 800 245 x 1000 x 800 245 x 1400 x 800 245 x 1550

x 800

Weight kg 23.5 23.5 23.5 24.0 28.5 29.0 35.5 36.5 46.0 47.0 51.0

Electrical Details Running Current amps 0.4 0.4 0.4 0.4 0.8 0.8 0.9 1.0 1.5 2.0 1.9

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 29.5 30.0 30.0 31.0 35.0 35.0 33.0 35.0 36.0 39.0 41.5

Nom dBA 28.0 28.0 28.0 29.0 32.0 32.0 30.0 32.0 34.0 36.0 38.0

Low dBA 25.0 25.0 25.0 26.0 29.0 29.0 27.0 29.0 31.0 33.0 34.0

Sound Power dBA 54.0 54.0 54.0 55.0 60.0 60.0 59.0 61.0 61.0 64.0 64.0

Piping Connections Liquid inches (mm) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5)

Gas inches (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9)

Trade Unit Price £604.00 £622.00 £639.00 £647.00 £689.00 £718.00 £741.00 £845.00 £936.00 £1,072.00 £1,179.00

Indoor Units FXMQ50P7 FXMQ63P7 FXMQ80P7 FXMQ100P7 FXMQ125P7

Capacity UK Total Cooling kW 4.5 5.7 7.2 9 11.3

UK Sensible Cooling kW 4.1 4.9 6.1 7.3 9.2

Nominal Cooling kW 5.6 7.1 9.0 11.2 14

Nominal Heating kW 6.3 8.0 10.0 12.5 16

Air Flow Rate High m3/sec 0.300 0.325 0.417 0.533 0.650

Nom m3/sec 0.275 0.297 0.375 0.458 0.558

Low m3/sec 0.250 0.267 0.333 0.383 0.467

External Static pressure High Pa 200 200 200 200 200

Low Pa 100 100 100 100 100

Dimensions Height x Width x Depth mm 300 x 1000 x 700 300 x 1400 x 700

Weight kg 35 35 35 46 46

Electrical Details Running Current amps 1.4 1.4 1.7 2.3 2.9

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 41.0 42.0 43.0 43.0 44.0

Nom dBA 39.0 40.0 41.0 41.0 42.0

Low dBA 37.0 38.0 39.0 39.0 40.0

Sound Power dBA 61.0 64.0 67.0 65.0 70.0

Piping Connections Liquid inch (mm) 1/4 (6.4) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 1/2 (12.7) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9)

Trade Unit Price £1,109.00 £1,162.00 £1,221.00 £1,354.00 £1,549.00

Notes:

i) For accessories please refer to pages 96 - 108

FXMQ-P7

Concealed Ceiling Unit (High Static)

Notes:

i) For accessories please refer to pages 96 - 108

ii) Preliminary Data – May be subject to change

VRV

Price List Update: Valid from 1st January 2017

Notes:

i) For accessories please refer to pages 96 - 108

ii) Fan coils supplied as standard with factory tted lter

FXDQ-M9

Small Concealed Ceiling Unit

Indoor Units FXDQ20M9 FXDQ25M9

Capacity UK Total Cooling kW 1.8 2.3

UK Sensible Cooling kW 1.6 1.9

Nominal Cooling kW 2.2 2.8

Nominal Heating kW 2.5 3.2

Air Flow Rate High m3/sec 0.112 0.123

Low m3/sec 0.087 0.097

Dimensions Height x Width x Depth mm 230 x 652 x 502

Weight kg 17 17

Electrical Details Running Current amps 0.2 0.2

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 37.0 37.0

Nom dBA 32.0 32.0

Sound Power dBA 50 50

Piping Connections Liquid inch (mm) 1/4 (6.4) 1/4 (6.4)

Gas inch (mm) 1/2 (12.7) 1/2 (12.7)

Trade Unit Price £603.00 £621.00

Notes:

i) For accessories please refer to pages 96 - 108

ii) Fan coils supplied as standard with factory tted lter

FXDQ-A

Slim Concealed Ceiling Unit

Indoor Units FXDQ15A FXDQ20A FXDQ25A FXDQ32A FXDQ40A FXDQ50A FXDQ63A

Capacity UK Total Cooling kW 1.4 1.8 2.3 2.9 3.6 4.5 5.7

UK Sensible Cooling kW 1.3 1.6 1.9 2.2 2.8 3.5 4.3

Nominal Cooling kW 1.7 2.2 2.8 3.6 4.5 5.6 7.1

Nominal Heating kW 1.9 2.5 3.2 4.0 5.0 6.3 8.0

Air Flow Rate High m3/sec 0.125 0.133 0.133 0.133 0.175 0.208 0.275

Nom m3/sec 0.117 0.120 0.120 0.120 0.158 0.183 0.242

Low m3/sec 0.107 0.107 0.107 0.107 0.142 0.167 0.217

External Static Pressure High Pa 30 30 30 30 44 44 44

Low Pa 10 10 10 10 15 15 15

Dimensions Height x Width x Depth mm 200 x 750 x 620 200 x 950 x 620 200 x 1150

x 620

Weight kg 22 22 22 22 26 26 29

Electrical Details Running Current amps 0.4 0.4 0.4 0.4 0.5 0.5 0.6

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 32.0 33.0 33.0 33.0 34.0 35.0 36.0

Nom dBA 31.0 31.0 31.0 31.0 32.0 33.0 34.0

Low dBA 27.0 27.0 27.0 27.0 28.0 29.0 30.0

Piping Connections Liquid inch (mm) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 3/8 (9.5)

Gas inch (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9)

Trade Unit Price £585.00 £603.00 £621.00 £630.00 £670.00 £697.00 £719.00

VRV

Residential, Commercial and Industrial

Indoor Units FXMQ200MB FXMQ250MB

Capacity UK Total Cooling kW 18.0 22.5

UK Sensible Cooling kW 14.9 18.5

Nominal Cooling kW 22.4 28.0

Nominal Heating kW 25.0 31.5

Air Flow Rate High m3/sec 0.967 1.200

Nom m3/sec 0.900 1.117

Low m3/sec 0.833 1.033

External Static pressure High Pa 270 270

Nom Pa 160 170

Dimensions Height x Width x Depth mm 470 x 1380 x 1100

Weight kg 132 132

Electrical Details Running Current amps 10.3 10.3

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 13

Sound Level Sound Pressure High dBA 48.0 48.0

Low dBA 45.0 45.0

Piping Connections Liquid inch (mm) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 3/4 (19) 7/8 (22.2)

Trade Unit Price £2,706.00 £2,769.00

Notes:

i) For accessories please refer to pages 96 - 108

FXMQ-MB

VRV Fan Coil – Concealed Ceiling Unit (Ultra High Static)

Notes:

i) For accessories please refer to pages 96 - 108

FXAQ-P

VRV Fan Coil – Wall Mounted

Indoor Units FXAQ15P FXAQ20P FXAQ25P FXAQ32P FXAQ40P FXAQ50P FXAQ63P

Capacity UK Total Cooling kW 1.4 1.8 2.3 2.9 3.6 4.5 5.7

UK Sensible Cooling kW 1.4 1.8 2.0 2.4 3.3 3.7 4.6

Nominal Cooling kW 1.7 2.2 2.8 3.6 4.5 5.6 7.1

Nominal Heating kW 1.9 2.5 3.2 4.0 5.0 6.3 8.0

Air Flow Rate High m3/sec 0.117 0.125 0.133 0.142 0.200 0.250 0.317

Low m3/sec 0.075 0.075 0.083 0.092 0.150 0.200 0.233

Dimensions Height x Width x Depth mm 290 x 795 x 238 290 x 1050 x 238

Weight kg 11 11 11 11 14 14 14

Electrical Details Running Current amps 0.3 0.3 0.4 0.4 0.4 0.5 0.6

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 34.0 35.0 36.0 37.5 39.0 42.0 47.0

Low dBA 29.0 29.0 29.0 29.0 34.0 36.0 39.0

Piping Connections Liquid inch (mm) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 3/8 (9.5)

Gas inch (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9)

Trade Unit Price £457.00 £471.00 £483.00 £488.00 £501.00 £528.00 £582.00

VRV

Price List Update: Valid from 1st January 2017

Notes:

i) For accessories please refer to pages 96 - 108

Notes:

i) For accessories please refer to pages 96 - 108

FXHQ-A

VRV Fan Coil – Ceiling Suspended

FXUQ-A

VRV Fan Coil – Under Ceiling Cassette

Indoor Units FXHQ32A FXHQ63A FXHQ100A

Capacity UK Total Cooling kW 2.9 5.7 9

UK Sensible Cooling kW 2.3 4.4 6.3

Nominal Cooling kW 3.6 7.1 11.2

Nominal Heating kW 4.0 8.0 12.5

Air Flow Rate High m3/sec 0.233 0.333 0.492

Nom m3/sec 0.200 0.283 0.400

Low m3/sec 0.167 0.233 0.317

Dimensions Height x Width x Depth mm 235 x 960 x 690 235 x 1270 x 690 235 x 1590 x 690

Weight kg 24 33 39

Electrical Details Running Current amps 0.8 0.8 1.7

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 36.0 37.0 44.0

Nom dBA 34.0 35.0 37.0

Low dBA 31.0 34.0 34.0

Piping Connections Liquid inch (mm) 1/4 (6.4) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 1/2 (12.7) 5/8 (15.9) 5/8 (15.9)

Trade Unit Price £943.00 £1,045.00 £1,296.00

Indoor Units FXUQ71A FXUQ100A

Capacity UK Total Cooling kW 6.4 9.0

UK Sensible Cooling kW 5.2 7.0

Nominal Cooling kW 8.0 11.2

Nominal Heating kW 9.0 12.5

Air Flow Rate High m3/sec 0.375 0.517

Nom m3/sec 0.325 0.433

Low m3/sec 0.267 0.350

Dimensions Height x Width x Depth mm 198 x 950 x 950

Weight kg 26 27

Electrical Details Running Current amps 0.6 1.4

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 40.0 47.0

Nom dBA 38.0 44.0

Low dBA 36.0 40.0

Piping Connections Liquid inch (mm) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 5/8 (15.9) 5/8 (15.9)

Trade Unit Price £1,305.00 £1,391.00

VRV

Residential, Commercial and Industrial

Notes:

i) For accessories please refer to pages 96 - 108

FXLQ-P

VRV Fan Coil – Floor Mounted Cased

Indoor Units FXLQ20P FXLQ25P FXLQ32P FXLQ40P FXLQ50P FXLQ63P

Capacity UK Total Cooling kW 1.8 2.3 2.9 3.6 4.5 5.7

UK Sensible Cooling kW 1.5 1.8 2.2 2.7 3.4 4.2

Nominal Cooling kW 2.2 2.8 3.6 4.5 5.6 7.1

Nominal Heating kW 2.5 3.2 4.0 5.0 6.3 8.0

Air Flow Rate High m3/sec 0.117 0.117 0.133 0.183 0.233 0.267

Low m3/sec 0.100 0.100 0.100 0.142 0.183 0.200

Dimensions Height x Width x Depth mm 600 x 1000 x 232 600 x 1140 x 232 600 x 1420 x 232

Weight kg 27 27 32 32 38 38

Electrical Details Running Current amps 0.3 0.3 0.6 0.6 0.6 0.6

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 35.0 35.0 35.0 38.0 39.0 40.0

Low dBA 32.0 32.0 32.0 33.0 34.0 35.0

Piping Connections Liquid inch (mm) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 3/8 (9.5)

Gas inch (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9)

Trade Unit Price £723.00 £735.00 £749.00 £776.00 £785.00 £831.00

FXNQ-A

VRV Fan Coil – Concealed Floor Standing Unit

Indoor Units FXNQ20A FXNQ25A FXNQ32A FXNQ40A FXNQ50A FXNQ63A

Capacity UK Total Cooling kW 1.8 2.3 2.9 3.6 4.5 5.7

UK Sensible Cooling kW 1.6 1.9 2.2 2.8 3.5 4.3

Nominal Cooling kW 2.2 2.8 3.6 4.5 5.6 7.1

Nominal Heating kW 2.5 3.2 4.0 5.0 6.3 8

Air Flow Rate High m3/sec 0.133 0.133 0.133 0.175 0.208 0.275

Nom m3/sec 0.120 0.120 0.120 0.158 0.183 0.242

Low m3/sec 0.107 0.107 0.107 0.142 0.167 0.217

External Static Pressure High Pa 41 41 42 52 59 55

Nominal Pa 10 10 10 15 15 15

Dimensions Height x Width x Depth mm 620 x 750 x 200 620 x 950 x 200 620 x 1150 x 200

Weight kg 23.5 23.5 23.5 27.5 27.5 32.0

Electrical Details Running Current amps 0.4 0.4 0.4 0.5 0.5 0.6

Power Supply Phase / Hz / V 1 / 50 / 230

Fuse Rating amps 5

Sound Level Sound Pressure High dBA 30.0 30.0 30.0 32.0 33.0 35.0

Nom dBA 28.5 28.5 28.5 30.0 31.0 33.0

Low dBA 27.0 27.0 27.0 28.0 29.0 32.0

Piping Connections Liquid inch (mm) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 1/4 (6.4) 3/8 (9.5)

Gas inch (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9)

Trade Unit Price £675.00 £686.00 £700.00 £725.00 £733.00 £778.00

Notes:

i) For accessories please refer to pages 96 - 108

ii) Supplied with removable feet

Increased static pressure – up to 59Pa

VRV

Price List Update: Valid from 1st January 2017

Indoor unit HXY080A8 HXY125A8

Cooling capacity Nom. kW 8.0 12.5

Heating capacity Nom. kW 9.0 14.0

Casing Colour White

Material Precoated sheet metal

Dimensions Unit Height x Width x Depth mm 890x480x344

Weight Unit kg 44

Sound pressure level Nom. dBA -

Operation range Heating Ambient Min.~Max. °C -20~24

Water side Min.~Max. °C 25~45

Refrigerant Type R-410A

Refrigerant circuit Liquid inch (mm) 3/8 (9.5)

Gas inch (mm) 5/8 (15.9)

Water circuit Piping connections diameter inch G 1”1/4 (female)

Power supply Phase / Hz / V 1 / 50 / 230

Recommended fuses A 5

Trade Unit Price £1,520.00 £2,132.00

HXY-A8

Features and benets:

> Highly ecient space heating/cooling

> Air to water connection to VRV for applications such as

underoor, AHU, low temperature radiators

> Leaving water temperature range from 5°C to 45°C without

electric heater

> Super wide operating range for cold/hot water production from

-20°C to +43°C ambient outdoor temperature

> Saves time on system design as all water-side components

are fully integrated with direct control over leaving water

temperature

> Saves space with contemporary wall hung design

> Requires no gas connection or oil tank

Producing hot water from a heat pump system provides

extremely low cost heating and cooling of water.

Temperatures between 5°C to 45°C can be achieved

allowing water temperature control for multiple

applications without the need for a separate system.

HXY-A8

Hot Water Generation – VRV Heat Pump Systems

Liquid pipe

Gas pipe

Hot/cold water

VRV IV heat pump

VRV indoor units

Low temp. radiator

Under floor heating

Air handling unit

HXY-A8 Low

temperature

hydrobox

VRV

Residential, Commercial and Industrial

HXHD-A8 (High temperature) HXY-A8 (Low temperature)

Using waste heat to provide hot water means you can provide

an additional service to your building from the heat recovery VRV

system at very low cost.

Features and benets:

For both low temperature and high temperature

> Uses heat pump technology to produce hot water eciently,

providing up to 17% savings compared to a gas boiler

> Saves time on system design as all water-side components

are fully integrated with direct control over leaving water

temperature

> Requires no gas connection or oil tank

For low temperature

> Highly ecient space heating/cooling

> Leaving water temperature range from 5°C to 45°C without

electric heater

> Super wide operating range for cold/hot water production from

-20°C to +43°C ambient outdoor temperature

> Saves space with contemporary wall hung design

For high temperature

> Possibility to connect thermal solar collectors to the domestic

hot water tank

> Leaving water temperature range from 25°C to 80°C without

electric heater

> Various control possibilities with weather dependant set point

or thermostat control

Producing hot water from a heat recovery VRV system

is one of the most energy ecient means of providing

hot water within a building. We can provide high

and low temperature hot water for bathrooms, wash

basins, underoor heating, radiators and even provide

heated water for air handling unit applications.

HXHD-A8 / HXY-A8

Hot Water Generation – VRV Heat Recovery Systems

VRV heat recovery with

connection to heating only

hydrobox (REYQ-T)

BS-Box

Heating only

hydrobox for VRV

Domestic hot water

Low temp. radiator

Under floor heating

VRV indoor units

45°C - 75°C

Liquid pipe

Discharge gas pipe

Gas pipe

Hot/cold water

Air handling unit

BS-Box

HXY-A8 Low

temperature

hydrobox

EKHTSU-AC

EKHWP-(P)B*

25°C - 75°C

45°C - 75°C

25°C - 35°C

*PB for pressurised solar, B with drainback solar.

VRV

Price List Update: Valid from 1st January 2017

HXHD-A8 / HXY-A8

Hot Water Generation – VRV Heat Recovery Systems

Indoor unit HXHD125A8 HXY080A8 HXY125A8

High Temperature Low Temperature

Cooling Capacity Nom. kW - 8.0 12.5

Heating capacity Nom. kW 14.0 9.0 14

Casing Colour Metallic grey White

Material Precoated sheet metal

Dimensions Unit Height x Width x Depth mm 705x600x695 890x480x344

Weight Unit kg 92 44

Sound pressure

level

Nom. dBA 42 (1) / 43 (2) -

Night quiet mode Level 1 dBA 38 (1)

Operation range Heating Ambient Min.~Max. °C -20~20 / 24 (3) -20~24

Water side Min.~Max. °C 25~80 25~45

Domestic hot water Ambient Min.~Max. °CDB -20~43 -

Water side Min.~Max. °C 45~75 -

Refrigerant Type R-134a R-410A

Refrigerant circuit Liquid inch (mm) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 1/2 (12.7) 5/8 (15.9)

Water circuit Piping connections diameter inch G 1” (female) G 1” 1/4(female)

Heating water system Water volume Min.~Max. l 20~200 -

Power supply Phase / Hz / V 1 / 50 / 230 1 / 50 / 230

Current Recommended fuses A 20 5

Trade Unit Price £2,822.00 £1,520.00 £2,132.00

(1) Sound levels are measured at: EW 55°C; LW 65°C (2) Sound levels are measured at: EW 70°C; LW 80°C (3) Field setting

Notes:

i) Hydroboxes are connectable to the following outdoor series only: Air Cooled Heat Recovery REYQ-T (see page 80-83)

ii) Hydroboxes are inclusive of integral expansion vessel, and pump

Domestic Unvented Hot Water Tank UK.EKHTSU200AC UK.EKHTSU260AC

Unvented System (Includes EKUHWHTB unvented Kit as shown below)

Energy Eciency Class B B

Standing Heat Loss W 50 63

Water Volume l 200 260

Max Water Temperature °C 75

Height mm 1335 1610

Width mm 600 600

Depth mm 695 695

Empty Weight kg 70 78

Colour Metallic grey

Material Inside Tank Stainless Steel

Material Outside Casing Precoated sheet metal

Piping Connections

(Diameter)

Water inlet H/E mm 25 (female quick coupling supplied)

Water outlet H/E mm 25 (female quick coupling supplied)

Cold Water in inch 3/4” (female)

Hot water out inch 3/4” (female)

Trade Unit Price £1,158.00 £1,312.00

Accessories For Unvented Systems Trade Unit Price

EKUHWHTB Includes: Combined Pressure Reducing Valve, Non Return Valve, Strainer, Expansion Relief Valve,

Expansion Vessel, Tundish [G3 Safety Kit for compliance to Part G of section 3 of building regulations]

Included with

UK.EKHTSU*AC

EKFMAHTB Option for stand alone tank (ie not mounted on top of hydrobox) £289.00

Notes:

i) Hydroboxes are connectable to the

following outdoor series only: Air Cooled

Heat Recovery REYQ-T (see page 80-83)

ii) Hydroboxes are inclusive of integral

expansion vessel and pump

EKHTSU-AC

HT Water Tank

Accessories:

VRV

Residential, Commercial and Industrial

F = Free hanging model C = Cassette model R = Recessed model

Using a combination of rectier technology, air velocity and

temperature control they deliver greater comfort to sta and

customers alike, all year round, in all weathers.

Easy and fast installation of these systems not only reduces costs

but makes expensive water systems, boilers and gas connections

redundant. Integrating a Biddle air curtain with Daikin VRV also

eliminates the need to install multiple outdoor units thereby

reducing installation time and costs further. This combination

enables Daikin to oer its customers the ultimate environmentally

conscious TOTAL SOLUTION PACKAGE comprising cooling, heating,

outdoor-indoor climate separation and fresh air ventilation.

Some air curtains may be ECA compliant please see

ECA website for details www.daikin.co.uk/ECA

CYVS/M/L - DK - F/C/R

Air curtains are the ideal solution to combat the issue of

climate separation across retail outlets or oce doorways.

In conjunction with Biddle, Daikin VRV IV heat recovery air

curtain solutions combines the benets of the Biddle air curtain

technology with the benets of Daikin VRV IV heat recovery.

Features and benets:

> Provides virtually free air curtain heating via recovered heat from indoor units in cooling mode

> Connection to the high COP heat recovery system enables COP’s of up to 4.36

> Short payback times – less than 3 years

> Air curtain rectier technology – deeply penetrating airstream

> Constant air velocity technology – all year round eciency

> European patent

> 1.0, 1.5, 2.0 and 2.5 metre door widths

> Door heights of up to 3.7 metres

> Choice of colour RAL9010:White or RAL9006:Grey

Selection

1) Use the Door Height graph to

determine the Air Curtain size

relevant to your application

2) When you know the size (S/M/L),

refer to specic tables to select the

model for your required door width

Biddle Comfort air curtain range

SM L

2.7m

3.2m

3.7m

S M L

2.35m

2.8m

3.1m

SM L

2.0m

2.3m 2.5m

Maximum door height (m)

Ideal for doors in a shopping

centre or revolving door entrance

For more exposed doors with

some direct wind, suitable for

ground oor applications

For areas exposed to higher wind

speeds i.e. open stairwell or balcony

door at higher than ground level

Installation condition

VRV

Price List Update: Valid from 1st January 2017

Maximum Door Width m 1.0 1.5 2.0 2.5

Mounting Height *2 Max / Min m 3.2 / 2.3

Model name CYVM100DK80*BC CYVM150DK80*BC CYVM200DK100*BC CYVM250DK140*BC

Type * = F * = C * = R * = F * = C * = R * = F * = C * = R * = F * = C * = R

Heating capacity speed 3 kW 9.20 11.00 13.40 19.90

Delta T

Inlet = room temperature

speed 3 °K 17 14 13 15

Power input (50Hz) Fan only / Heating kW 0.37/0.37 0.56/0.56 0.75/0.75 0.94/0.94

Dimensions Height mm 270 270 270 270 270 270 270 270 270 270 270 270

Width mm 1,000 1,000 1,048 1,500 1,500 1,548 2,000 2,000 2,048 2,500 2,500 2,548

Depth mm 590 821 561 590 821 561 590 821 561 590 821 561

Weight kg 57 68 66 73 88 93 94 111 117 108 136 144

Casing Colour white RAL9010

Minimum requiring ceiling void mm 420 420 420 420

Fan - Air ow rate Heating speed 3 m3/sec 0.446 0.669 0.892 1.115

Sound pressure Heating speed 3 dBA 50 51 53 54

Refrigerant Type R-410A

Piping connections Liquid (OD) / Gas inch (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 3/4 (19)

Power supply

Phase / Hz / V

1 / 50 / 230

Trade Unit Price

£2,958.00 £2,926.00 £3,036.00 £3,790.00 £3,758.00 £3,924.00 £4,695.00 £4,664.00 £4,980.00 £5,343.00 £5,313.00 £5,654.00

Maximum Door Width m 1.0 1.5 2.0 2.5

Mounting Height *2 Max / Min m 3.7 / 2.5

Model name CYVL100DK125*BC CYVL150DK200*BC CYVL200DK250*BC CYVL250DK250*BC

Type * = F * = C * = R * = F * = C * = R * = F * = C * = R * = F * = C * = R

Heating Capacity speed 3 kW 15.6 23.3 29.4 31.1

Delta T

Inlet = room temperature

speed 3 °K 15 15 14 12

Power Input (50Hz) Fan only / Heating kW 0.75 / 0.75 1.13 / 1.13 1.50 / 1.50 1.88 / 1.88

Dimensions Height mm 370 370 370 370 370 370 370 370 370 370 370 370

Width mm 1,000 1,000 1,048 1,500 1,500 1,548 2,000 2,000 2,048 2,500 2,500 2,548

Depth mm 774 1105 745 774 1105 745 774 1105 745 774 1105 745

Weight kg 76 81 83 100 118 141 126 151 155 157 190 196

Casing Colour white RAL9010

Minimum requiring ceiling void mm 520 520 520 520

Fan - Air Flow Rate Heating speed 3 m3/sec 0.861 1.292 1.722 2.153

Sound Pressure Heating speed 3 dBA 53 54 56 57

Refrigerant Type R-410A

Piping Connections Liquid (OD) / Gas inch (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 3/4 (19) 3/8 (9.5) / 7/8 (22.2) 3/8 (9.5) / 7/8 (22.2)

Power Supply

Phase / Hz / V

1 / 50 / 230

Trade Unit Price

£3,768.00 £3,729.00 £3,844.00 £5,013.00 £4,975.00 £5,130.00 £6,173.00 £6,133.00 £6,441.00 £7,168.00 £7,130.00 £7,508.00

Biddle Standard Air Curtain – SMALL – Door Height 2.7m to 2m

Biddle Standard Air Curtain – MEDIUM – Door Height 3.2m to 2.3m

Biddle Standard Air Curtain – LARGE – Door Height 3.7m to 2.5m

CYVS/M/L - DK - F/C/R

Maximum Door Width m 1.0 1.5 2.0 2.5

Mounting Height *2 Max / Min m 2.7 / 2.0

Model name CYVS100DK80*BC CYVS150DK80*BC CYVS200DK100*BC CYVS250DK140*BC

Type * = F * = C * = R * = F * = C * = R * = F * = C * = R * = F * = C * = R

Heating capacity speed 3 kW 7.40 9.00 11.60 16.20

Delta T

Inlet = room temperature

speed 3 °K 15 15 15 16

Power input (50Hz) Fan only / Heating kW 0.23/0.23 0.35/0.35 0.46/0.46 0.58/0.58

Dimensions Height mm 270 270 270 270 270 270 270 270 270 270 270 270

Width mm 1,000 1,000 1,048 1,500 1,500 1,548 2,000 2,000 2,048 2,500 2,500 2,548

Depth mm 590 821 561 590 821 561 590 821 561 590 821 561

Weight kg 56 59 61 66 83 88 83 102 108 107 129 137

Casing Colour white RAL9010

Minimum requiring ceiling void mm 420 420 420 420

Fan - Air ow rate Heating speed 3 m3/sec 0.323 0.485 0.647 0.808

Sound pressure Heating speed 3 dBA 47 49 50 51

Refrigerant Type R-410A

Piping connections Liquid (OD) / Gas inch (mm) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 5/8 (15.9) 3/8 (9.5) / 3/4 (19)

Power supply

Phase / Hz / V

1 / 50 / 230

Trade Unit Price

£2,586.00 £2,555.00 £2,663.00 £3,294.00 £3,262.00 £3,444.00 £3,981.00 £3,950.00 £4,268.00 £4,441.00 £4,410.00 £4,758.00

Accessory Ref Description Trade Price

BRC1E53A Premium wired remote controller with full text menu, Energy features and 7 Day Time Clock £79.00

KRCS01-1 Remote room mounted temperature sensor £48.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

Accessories:

i) Biddle Remote Controller and connection

cable included for Fan Speed Control

ii) If RTD-20 Connected in Air Curtain mode the

Biddle Remote Controller is NOT connected

as Fan speed is managed by RTD-20

iii) Code “BC” is for white nish. Aluminium

nish “SC”available on request

Notes:

*: Mounting Height at base of door curtain air outlet F = Free Hanging / C = Cassette / R = Recessed

VRV

Residential, Commercial and Industrial

The VRV total solution

Air conditioning, refrigeration and cooling IT servers can generate

waste heat that can be reused to heat and ventilate other areas

of the building or to provide hot water for wash rooms, at a much

reduced cost.

By understanding the whole building’s heating and cooling

needs at the outset, an integrated climate control solution can be

delivered that oers much higher energy eciency levels, thus

reducing the carbon impact of a building. This means that all

internal and external conditions must be taken into account in the

design of the climate control system.

The VRV Total Solution

Many buildings today typically operate quite separate systems

for heating, cooling, refrigeration and hot water. As a result,

a huge amount of energy is wasted. To provide a much more

ecient alternative, VRV technology has been developed into a

total solution for heating, cooling, refrigeration and ventilation.

Extended piping range

> Increased eciency and versatility.

> VRV IV Heat Recovery systems have received an upgraded piping capability

which allows fan coils to be spread over 10 oors on the same system.

> Now it is possible to have up to 30m height separation between indoor

units, allowing even more versatility than ever before and allowing heat

recovery between more oors.

NEW

Piping Rules Heat

Recovery

Heat Pump Mini

Compact

Mini

Standard

Mini

Extended

VRVQ VRV-W

8-54 hp 8-54 hp 4, 5 hp 4, 5, 6 hp 8, 10, 12 hp 8-48 hp 8-30 hp

Maximum pipe length from

Condenser to furthest indoor unit 165m 165m 70m 120m 100m 120m 120m

Maximum distance from 1st Refnet

joint to furthest fan coil 90m 90m 40m 40m 40m 40m 90m*

Maximum total pipework length

(VRV Fan coils) 1000m 1000m 300m 300m 300m 300m 300m

Maximum dierence from indoor

unit to its own refnet 40m 40m 40m 40m 40m 40m 40m

Maximum Height dierence

between Outdoor and Indoor 90m 90m 30m 40-50m* 40-50m* 40-50m* 40-50m*

Maximum Height dierence

between indoor units 30m 30m 15m 15m 15m 15m 15m

Note:

* 40m if condenser is below indoors - 50m if condenser above indoors

Not all limitations are shown for every combination of indoor units

Some limitations cannot be used together on the same system

Some limitations require approval

Please contact Daikin UK for more details on pipework design

VRV

Price List Update: Valid from 1st January 2017

VRV Services

Strip Down and Rebuild

Painted Units

Our Strip and Rebuild Service oers you the benet

of time and cost savings, as it means that you can

have VRV outdoor units delivered to site in portable

components, so they can be transported to the roof

without the need for cranes or applying for road

closure permissions.

Customers sometimes require visible units to be less

obtrusive, whether for aesthetic or planning reasons.

Daikin UK oer a customised service where we can repaint our

units to any specied RAL or BS nish. Our repainting service is

done in house in our purpose built facility and includes removing

base paint to give a uniform, long lasting and professional nish.

We have repainted fan coils, decoration panels, BS boxes and all

types of condensers for a number of clients.

How it works:

> Our engineers will strip down and package the components

securely in a purpose built container at our workshop

> We then organise delivery to the kerb-side on site where the

contractor can unload, lift and manoeuvre the units into place

> Our engineers will then attend site to rebuild, pressure test,

and vacuum and charge the unit with refrigerant ready for

connection to the rest of the system

> If the unit is to be kept on site for any period of time, please

ensure the container is kept dry and is not opened.

PRICE ON APPLICATION

Lead time: 3 weeks

Applicable condensers: VRV, CVP, Zeas

PRICE ON APPLICATION

Lead time: 2-3 weeks

Applicable units: All

Please note:

The stated lead times are a guide, this can be inuenced by the design and

complexity of the requirement.

When asking for a quotation or ordering, please state the unit you

require and also that you require the strip and rebuild service.

When asking for a quotation or ordering, please state the unit you

require along with the nish requirements e.g. colour, pattern etc.

VRV

Residential, Commercial and Industrial

1615mm

823mm

10/12 hp 8 hp 4/5/6 hp 4/5 hp

VRV IV S Series –

New Extended Range

Low Height compact 4 & 5 hp

1 Phase

Standard 4, 5 & 6 hp

1 Phase and 3 Phase

Large Capacity 8, 10 & 12 hp

3 Phase

Now with:

> Variable Refrigerant Temperature

> AHU connection

> Air curtain connection

VRV

Price List Update: Valid from 1st January 2017

VRV IV S-series – RXYSCQ-T

VRV IV Condensing Unit – Low Height Compact Mini VRV

Features:

> New low height Mini VRV, making complying with planning

restrictions in towns and cities easier

> Compact – only 823mm high

> Lightweight – for simple installation

> Variable Refrigerant temperature – enhanced eciency

> In addition to VRV fan coils, low height Mini VRV is connectable to:

Stylish indoor units – Emura and Nexura – as well as Air Handling

Units and Biddle Air Curtains

> Single phase

Less than 1m

823mm high

Roof

Parapet wall

Planning issues for small commercial or residential projects in

towns and cities can now be easy to overcome with a Low

height version of the mini VRV range, available in  & hp with

Variable Refrigerant Temperature. Connectable to products

such as Air Curtains, Air Handling Units and the Emura and

Nexura fan coils, the Low height Mini VRV range brings a

whole new level of versatility to the VRV range.

Outdoor Units RXYSCQ4TV1 RXYSCQ5TV1

Capacity Nominal Cooling kW 12.1 14.0

Nominal Heating kW 12.1 14.0

Power Input 50Hz Cooling (Nom) kW 3.43 4.26

Heating (Nom) kW 3.18 3.19

EER (at Nom Capacity) 3.53 3.29

COP (at Nom Capacity) 3.81 3.58

Dimensions Height x Width x Depth mm 823 x 940 x 460

Weight kg 94 94

Refrigerant Circuit Refrigerant Type R410A

Sound Pressure (Nom) Cooling dBA 51 52

Sound Power (Nom) Cooling dBA 68 69

Maximum No of Connectable Units 8 10

Electrical Details Power Supply Phase / Hz / V 1 / 50 / 230

Running Current amps 19.0

Starting Current amps 4

Fuse Rating amps 32

Piping Limits Total Piping length m 300

Maximum Length m 70 (90 equivalent)

Maximum Vertical Rise m 30

Piping Connections Liquid inch (mm) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 5/8 (15.9) 5/8 (15.9)

Capacity Index Limit 50~130 62.5~162.5

Trade Condensing Unit Price £2,561.00 £2,878.00

Daikin VRV IV S-series units can be

installed discreetly on a balcony

thanks to their compact dimensions,

oering you air conditioning while

being almost unnoticeable.

VRV

Residential, Commercial and Industrial

VRV IV S-series – RXYSQ-T

VRV IV Condensing Units – Standard Mini VRV

Technologies

Outdoor Units RXYSQ4TV1 RXYSQ5TV1 RXYSQ6TV1 RXYSQ4TY1 RXYSQ5TY1 RXYSQ6TY1

Capacity Nominal Cooling kW 12.1 14.0 15.5 12.1 14.0 15.5

Nominal Heating kW 12.1 14.0 15.5 12.1 14.0 15.5

EER (Nom Capacity) 4.00 3.75 3.40 4.00 3.75 3.40

COP (Nom Capacity) 4.52 4.28 3.90 4.52 4.28 3.90

Dimensions Height x Width x Depth mm 1345 x 900 x 320

Weight kg 104

Air Flow Rate m3/sec 1.767

Electrical Details Power Supply Phase / Hz / V 1 / 50 / 230 3 / 50 / 380~415

Running Current amps 14.0 17.3 21.2 4.44 5.55 6.84

Starting Current amps 4

Fuse Rating amps 32 16

Refrigerant Circuit Refrigerant Type R410A

Sound Pressure (Nom) dBA 50 51 51 50 51 51

Sound Power (Nom) dBA 68 69 70 68 69 70

Piping Limits Maximum Length m 300

Piping Connections Liquid inch (mm) 3/8 (9.5)

Gas inch (mm) 5/8 (15.9) 5/8 (15.9) 3/4 (19) 5/8 (15.9) 5/8 (15.9) 3/4 (19)

Capacity Index Limit 50 - 130 62.5 - 162.5 70 -182 50 - 130 62.5 - 162.5 70 -182

Maximum Number of Connected Indoor Units 8 10 12 8 10 12

Trade Condensing Unit Price £2,845.00 £3,197.00 £3,569.00 £2,900.00 £3,287.00 £3,651.00

E-Pass heat exchanger

Optimising the heat exchanger’s path layout prevents heat being transferred

from the overheated gas section to the sub-cooled liquid section which is a

more ecient way to use the heat exchanger.

I-demand function

Limit maximum power consumption. The newly introduced current sensor

minimizes the dierence between the actual power consumption and the

predened power consumption.

Super aero grille

The spiral shaped ribs are aligned with

the direction of discharge ow in order to

minimise turbulence and reduce noise.

Compressor

Swing type > no oil separator

Vane & rotor are unied resulting in:

> Reduced noise level

> Longer compressor life

> Higher eciency

Refrigerant-cooled PCB

> Reliable cooling because it is

not inuenced by ambient air

temperature

> Smaller switchbox for

smoother air ow through the

heat exchanger increasing heat

exchange eciency with 5%

Vane xed to rotor

Rotor

Standard heat exchanger

In  °C

 °C

Out  °C

 °C

 °C

 °C

e-Pass heat exchanger

 °C

In  °C

 °C

Out  °C

 °C

 °C

Power consumption

Predened limit

Time

Improved fan blades

Air streams

collide and

generate loss

Air streams

are smoothed around V-cut

and reduces air ow loss

Old New

Collision Separate

Features

VRV

Price List Update: Valid from 1st January 2017

VRV S-series – RXYSQ-T

VRV IV Condensing Unit – High Capacity Mini VRV

Outdoor Units RXYSQ8TY1 RXYSQ10TY1 RXYSQ12TY1

Capacity Nominal Cooling kW 22.4 28.0 33.5

Nominal Heating kW 22.4 28.0 33.5

EER 3.66 3.4 3.3

COP 4.31 4.24 4.09

Dimensions Height x Width x Depth mm 1430x940x320 1615x940x460

Weight kg 144 175 180

Air Flow Rate m3/sec 2.333 3.033

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 9.6 10.7 13.4

Starting Current amps 4

Fuse Rating amps 25 32

Refrigerant Circuit Refrigerant Type R410A

Sound Pressure (Nom) dBA 55 55 57

Sound Power (Nom) dBA 73 74 76

Piping Limits Maximum Length m 300

Piping Connections Liquid inch (mm) 3/8 (9.5) 3/8 (9.5) 1/2 (12.7)

Gas inch (mm) 3/4 (19) 7/8 (22.2) 1 1/8 (28.6)

Capacity Index Limit 100 - 260 125 - 325 150 - 390

Maximum Number of Connected Indoor Units 17 21 26

Trade Condensing Unit Price £4,542.00 £4,963.00 £6,077.00

Features:

> High capacity up to 33.5kW nominal cooling

> Horizontal blow casing

> Variable Refrigerant Temperature

> Connection to stylish split fan coils

> Compact installation – reduction in oor space

> Available in 8, 10 & 12 hp

Planning requirements in built up

areas require increasingly more

innovative products to overcome

restrictions, especially on visibility

of plant.

By having a smaller footprint and weight than its big brother,

the extended high capacity Mini VRV range is easier to hide and

can help to maximise the lettable oor area on a design.

Mini VRV systems deliver VRV performance in a small, convenient

package by oering a compact, horizontal blow, air conditioning

solution for projects with lower capacity requirements or

where discretion is required due to the planning or aesthetic

requirements of the application.

Daikin are pleased to announce that Mini VRV systems have

received a complete redesign, and with this extension to the

range which includes new features to increase performance,

convenience and exibility, Mini VRV from Daikin will become an

even more popular choice for residential and smaller capacity

Air conditioning applications. 10/12 hp 8 hp

VRV

Residential, Commercial and Industrial

A cost eective solution

Even when it is possible to install an outdoor unit, there are

reasons that an indoor installation oers a better solution,

such as in areas where there is a mixture of commercial and

residential use.

With the VRV IV i-series, the units are eectively invisible

because they are installed indoors. Thanks to their low operating

sound, they are highly suited to densely populated areas such

as city centres – and dedicated modes reduce sound further to

comply with inner-city noise regulations, so there is no need for

costly sound insulation.

Nor is there ay need to use a crane for installation on the

roof or back of the property as the unit comes in two parts,

making the VRV IV i-series easier and more cost eective to

install.

The VRV IV i-series oers:

> A unique VRV indoor solution: the ‘outdoor’ air conditioning

unit can now be tted indoors

> Connection with up to 10 indoor units

> Seamless integration into surrounding architecture

> Total exibility for any shop location and building type

> Easy compliance with planning regulations, the best solution

for urban locations

> A total solution when combined with ventilation

units and Biddle air curtains

VRV IV Condensing Unit – For Indoor Installation

The VRV IV i-series is a truly unique solution for installations where you want a completely invisible

solution. The system is installed entirely indoors and only the grilles are visible. So it’s ideal for

urban environments, where space and planning restrictions are especially challenging.

VRV IV i-series – SB.RKXYQ-T

Total Piping length possibilities RKXYQ5

(a) =HM <> CM (b) = CM <> IU (c) = (a) + (b)

5 135 140

10 125 135

15 115 130

20 105 125

25 95 120

30 85 115

HM: Heat Exchanger Module

CM: Compressor Module

RDXYQ-T

RKXYQ-T

VRV

Price List Update: Valid from 1st January 2017

VRV IV Condensing Unit – for indoor installation

VRV IV i-series – SB.RKXYQ-T

Unique split unit for

indoor installation

Compact and easy to hide, the compressor can be installed

at oor level, in a back oce, storage room, technical area

or in a kitchen, while the heat exchanger can be installed in

a false ceiling space. This means that the air conditioning

system is completely invisible and does not take up expensive

commercial oor space.

Installation exibility

> Unrivalled exibility because the unit is split into two elements:

the heat exchanger and the compressor

> Lightweight units reduce installation time and eort, making it

easy for just two people to transport and install

> Shorter pipe runs between the indoor units reduces

installation costs

> Easy serviceability, all components can be easily reached

Superior eciencies

> Variable Refrigerant Temperature for best seasonal

eciency & comfort

> Patented V-shape heat exchanger for the most compact unit

(400 mm high)

> Super-ecient centrifugal fans (85% more ecient than

equivalent sirocco fan)

> Inverter fan can be easily adjusted to the length of ductwork

> Optimised shape for higher air ow and static pressure, resulting

in much higher eciencies when compared to standard outdoor

units installed indoors

Compact compressor unit

> Small footprint maximizing usable oor space (600 x 554 mm)

> Can easily be mounted in a storage room or back oce

> Rotating switchbox for easy maintenance

Outdoor system SB.RKXYQ 5T 8T

Capacity range HP 5 8

Cooling capacity (nom) Nom. kW 14.0 21.4

Heating capacity (nom) / Heating capacity (max) 14.0/16.0 21.4 / 25.0

EER (nom) 3.2 2.8

COP (nom/max) 3.80/3.40 3.60/3.29

Maximum number of connectable indoor units 10 17

Indoor index connection Min. / Nom. / Max. 62.5 / 125 / 162.5 100 / 200 / 260

Operation range - outdoor air temperature Cooling Min.~Max. °CDB -5.0 ~ 46.0

Heating Min.~Max. °CWB -20.0 ~ 15.5

Temperature around casing 5.0 ~ 35.0

Refrigerant Type / GWP kg / TCO2 R-410A / 2087.5

Piping connections between

compressor module (CM)

and heat exchanger module (HM)

Liquid OD inch (mm) 1/2 (12.7) 1/2 (12.7)

Gas OD inch (mm) 3/4 (19.1) 7/8 (22.2)

Maximum length m 30 30

Max height dierence - CM below HM m 10 10

Max height dierence - CM above HM m 10 10

Piping connections between compressor

module (CM) and indoor units (IU)

Liquid 3/8 (9.5) 3/8 (9.5)

Gas 5/8 (15.9) 3/4 (19.1)

Max total piping length (incl. piping to HM) 140 300

Max length to last IU 70 (90 equivalent)

Max height dierence - CM below IU 30 30

Max height dierence - CM above IU 30 30

Max height dierence - IU - IU 15 15

Trading Condensing Unit Price £4,756.00 £6,930.00

Heat exchanger module RDXYQ 5T 8T

Dimensions Height x Width x Depth mm 397 x 1456 x 1044 397 x 1456 x 1044

Weight kg 97 103

Ducting Suction size mm 1200 x 300 1200 x 300

Discharge size mm 1200 x 300 1200 x 300

Max ESP Pa 60 / 150 60 / 150

Nom. air ow m³/sec 0.917 1.667

Sound pressure level (Cooling) Nom / Low sound dBa 47 55 / 48

Sound Power level (Cooling) Nom dBa 76 81

Drain pipe OD mm 32 (VP25) 32 (VP25)

Power supply Phase / Frequence / Voltage 1~ / 50 Hz / 220-240V 1~ / 50 Hz / 220-240V

Current 50 Hz Maximum Fuse Amps (MFA) 10 10

Trading Condensing Unit Price £2,045.00 £2,980.00

Compressor module RKXYQ 5T 8T

Dimensions Height x Width x Depth mm 701 x 600 x 554 701 x 760 x 554

Weight kg 77 105

Refrigerant charge kg 2.0 4.0

Sound pressure level dBa 47 48

Power supply Phase / Frequence / Voltage 60 64

Power supply Phase / Frequence / Voltage 3~ / 50 Hz / 380-415V 3~ / 50 Hz / 380-415V

Current 50 Hz Maximum Fuse Amps (MFA) 16 20

Nominal running current (RLA) 5.8 8.6

Trading Condensing Unit Price £2,711.00 £3,950.00

VRV

Residential, Commercial and Industrial

Outdoor Units RYYQ8T8 RYYQ10T RYYQ12T RYYQ14T RYYQ16T RYYQ18T RYYQ20T

Capacity Nominal Cooling kW 22.40 28.00 33.50 40.00 45.00 50.00 56.00

Nominal Heating kW 25.00 31.50 37.50 45.00 50.00 56.00 63.00

EER 4.30 3.84 3.73 3.64 3.46 3.40 3.03

ESEER 7.53* 7.2* 6.96* 6.83* 6.5* 6.38* 5.67*

COP 4.54 4.27 4.12 4.02 3.91 3.89 3.71

Dimensions Height x Width x Depth mm 1685 x 930

x 765

1685 x 930

x 765

1685 x 930

x 765

1685 x 1240

x 765

1685 x 1240

x 765

1685 x 1240

x 765

1685 x 1240

x 765

Weight kg 261 268 268 364 364 398 398

Air Flow Rate m3/sec 2.700 2.917 3.083 3.717 4.333 4.183 4.350

External Static Pressure High Pa 78 78 78 78 78 78 78

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 8.4 11.5 14.2 17.2 20.6 23.4 29.5

Starting Current amps 4

Fuse Rating amps 20 25 32 32 40 40 50

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 5.9 6.0 6.3 10.3 10.4 11.7 11.8

Additional Charge kg data book

Sound Pressure dBA 58 58 61 61 64 65 66

Sound Power dBA 78 79 81 81 86 86 88

Piping Limits Maximum Length m 165 165 165 165 165 165 165

Maximum Vertical Rise m data book

Piping Connections Liquid inch (mm) 3/8 (9.5) 3/8 (9.5) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9) 5/8 (15.9)

Gas inch (mm) 3/4 (19.1) 7/8 (22.2) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6)

Capacity Index Limit 100~260 125~325 150~390 175~455 200~520 225~585 250~650

Maximum Number of Connected Indoor Units 64 64 64 64 64 64 64

Trade Condensing Unit Price £4,724.00 £5,162.00 £6,321.00 £7,374.00 £8,511.00 £9,481.00 £10,430.00

* The AUTOMATIC ESEER value corresponds with normal VRV IV Heat Pump operation, taking into account advanced energy saving operation functionality (variant refrigerant temperature control operation).

3 revolutionary features:

Variable Refrigerant Temperature

Customise your VRV for best Seasonal Eciency and comfort:

> Revolutionary variable refrigerant temperature control

automatically adapts the system to individual building and

climate requirements for greater eciency and comfort

> Continuously adjusts refrigerant temperature to the actual

temperature and capacity required

> Default mode optimised by Daikin for UK conditions with

maximum eciency and comfort

> Delivers annual cost savings of up to 28%

Continuous heating during defrost

The new standard in heating comfort:

> Unique continuous heating technology makes VRV IV Heat Pump

the best alternative to traditional heating systems

> Delivers uninterrupted heat, even during the defrost cycle

> Maintains comfortable indoor climate at all times

RYYQ-T

Replaces RXYQ-P9 / RXYHQ-P9 / RXYRQ-P9 / RXHQ-P

Heat Pump VRV IV

VRV congurator

Advanced software for simplied commissioning,

servicing, conguration and customisation:

> Simplied commissioning: graphical interface to congure,

commission and upload system settings

> Simplied servicing: additional 7-segment indicator for easy

and quick access to basic functions and error read out

> Manage systems over multiple sites

RYYQ-T (up to 20 hp)

VRV IV Heat Pump with Continuous Heating

VRV

Price List Update: Valid from 1st January 2017

Outdoor Units RYYQ22T RYYQ24T

RYMQ10T RYMQ12T RYMQ8T RYMQ16T

Capacity Nominal Cooling kW 61.50 67.40

Nominal Heating kW 69.00 75.00

EER 3.77 3.70

ESEER 7.07* 6.81*

COP 4.18 4.10

Dimensions Height x Width x Depth mm 1685 x 930 x 765 1685 x 930 x 765 1685 x 930 x 765 1685 x 1240 x 765

Weight kg 195 195 188 309

Air Flow Rate m3/sec 2.917 3.083 2.700 4.333

External Static Pressure High Pa 78 78 78 78

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 11.5 14.2 8.4 20.6

Starting Current amps 4

Fuse Rating amps 25 32 20 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 6.0 6.3 5.9 10.4

Additional Charge kg databook

Sound Pressure dBA 58 61 58 64

Sound Power dBA 79 81 78 86

Piping Limits Maximum Length m 165 165

Maximum Vertical Rise m databook

Piping Connections Liquid inch (mm) 5/8 (15.9) 5/8 (15.9)

Gas inch (mm) 1 1/8 (28.6) 1 3/8 (34.9)

Capacity Index Limit 275~715 300~780

Maximum Number of Connected Indoor Units 64 64

Trade Condensing Unit Price £11,483.00 £13,235.00

* The AUTOMATIC ESEER value corresponds with normal VRV IV Heat Pump operation, taking into account advanced energy saving operation functionality (variant refrigerant temperature control operation).

Outdoor Units RYYQ26T RYYQ28T RYYQ30T RYYQ32T RYYQ34T

RYMQ12T RYMQ14T RYMQ12T RYMQ16T RYMQ12T RYMQ18T RYMQ16T RYMQ16T RYMQ16T RYMQ18T

Capacity Nominal Cooling kW 73.50 78.50 83.50 90.00 95.00

Nominal Heating kW 82.50 87.50 93.50 100.00 106.00

EER 3.68 3.57 3.52 3.46 3.43

ESEER 6.89* 6.69* 6.6* 6.5* 6.44*

COP 4.06 4.00 3.98 3.91 3.90

Dimensions Height mm 1685 1685 1685 1685 1685 1685 1685 1685 1685 1685

Width mm 930 1240 930 1240 930 1240 1240 1240 1240 1240

Depth mm 765 765 765 765 765 765 765 765 765 765

Weight kg 195 309 195 309 195 319 309 309 309 319

Air Flow Rate m3/sec 3.083 3.717 3.083 4.333 3.083 4.183 4.333 4.333 4.333 4.183

External Static Pressure High Pa 78 78 78 78 78 78 78 78 78 78

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 14.2 17.2 14.2 20.6 14.2 23.4 20.6 20.6 20.6 23.4

Starting Current amps 4

Fuse Rating amps 32 32 32 40 32 40 40 40 40 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 6.3 10.3 6.3 10.4 6.3 11.7 10.4 10.4 10.4 11.7

Additional Charge kg data book

Sound Pressure dBA 61 61 61 64 61 65 64 64 64 65

Sound Power dBA 81 81 81 86 81 86 86 86 86 86

Piping Limits Maximum Length m 165

Maximum Vertical Rise m data book

Piping Connections Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Gas inch (mm) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9)

Capacity Index Limit 325~845 350~910 375~975 400~1040 425~1105

Maximum Number of Connected Indoor Units 64 64 64 64 64

Trade Condensing Unit Price £13,695.00 £14,832.00 £15,802.00 £17,022.00 £17,992.00

* The AUTOMATIC ESEER value corresponds with normal VRV IV Heat Pump operation, taking into account advanced energy saving operation functionality (variant refrigerant temperature control operation).

RYYQ-T (26 to 34 hp)

VRV IV Heat Pump with Continuous Heating

RYYQ-T (22 to 24 hp)

VRV IV Heat Pump with Continuous Heating

VRV

Residential, Commercial and Industrial

Outdoor Units RYYQ36T RYYQ38T RYYQ40T RYYQ42T

RYMQ16T RYMQ20T RYMQ8T RYMQ10T RYMQ20T RYMQ10T RYMQ12T RYMQ18T RYMQ10T RYMQ16T RYMQ16T

Capacity Nominal Cooling kW 101.00 106.00 112.00 118.00

Nominal Heating kW 113.00 120.00 125.00 132.00

EER 3.21 3.42 3.61 3.54

ESEER 6.02* 6.36* 6.74* 6.65*

COP 3.79 4.01 4.05 4.00

Dimensions Height mm 1685 1685 1685 1685 1685 1685 1685 1685 1685 1685 1685

Width mm 1240 1240 930 930 1240 930 930 1240 930 1240 1240

Depth mm 765 765 765 765 765 765 765 765 765 765 765

Weight kg 309 319 188 195 319 195 195 319 195 309 309

Air Flow Rate m3/sec 4.333 4.350 2.700 2.917 4.350 2.917 3.083 4.183 2.917 4.333 4.333

External Static Pressure High Pa 78 78 78 78 78 78 78 78 78 78 78

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 20.6 29.5 8.4 11.5 29.5 11.5 14.2 23.4 11.5 20.6 20.6

Starting Current amps 4

Fuse Rating amps 40 50 20 25 50 25 32 40 25 40 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 10.4 11.8 5.9 6.0 11.8 6.0 6.3 11.7 6.0 10.4 10.4

Additional Charge kg data book

Sound Pressure dBA 64 66 58 58 66 58 61 65 58 64 64

Sound Power dBA 86 88 78 79 88 79 81 86 79 86 86

Piping Limits Maximum Length m 165

Maximum Vertical Rise m data book

Piping Connections Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Gas inch (mm) 1 5/8 (41.3) 1 5/8 (41.3) 1 5/8 (41.3) 1 5/8 (41.3)

Capacity Index Limit 450~1170 475~1235 500~1300 525~1365

Maximum Number of Connected Indoor Units 64 64 64 64

Trade Condensing Unit Price £18,941.00 £20,316.00 £20,964.00 £22,184.00

* The AUTOMATIC ESEER value corresponds with normal VRV IV Heat Pump operation, taking into account advanced energy saving operation functionality (variant refrigerant temperature control operation).

Outdoor Units RYYQ44T RYYQ46T RYYQ48T

RYMQ12T RYMQ16T RYMQ16T RYMQ14T RYMQ16T RYMQ16T RYMQ16T RYMQ16T RYMQ16T

Capacity Nominal Cooling kW 124.00 130.00 135.00

Nominal Heating kW 138.00 145.00 150.00

EER 3.54 3.51 3.46

ESEER 6.62* 6.6* 6.5*

COP 3.98 3.94 3.91

Dimensions Height mm 1685 1685 1685 1685 1685 1685 1685 1685 1685

Width mm 930 1240 1240 1240 1240 1240 1240 1240 1240

Depth mm 765 765 765 765 765 765 765 765 765

Weight kg 195 309 309 309 309 309 309 309 309

Air Flow Rate m3/sec 3.083 4.333 4.333 3.717 4.333 4.333 4.333 4.333 4.333

External Static Pressure High Pa 78 78 78 78 78 78 78 78 78

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 14.2 20.6 20.6 17.2 20.6 20.6 20.6 20.6 20.6

Starting Current amps 4

Fuse Rating amps 32 40 40 32 40 40 40 40 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 6.3 10.4 10.4 10.3 10.4 10.4 10.4 10.4 10.4

Additional Charge kg data book

Sound Pressure dBA 61 64 64 61 64 64 64 64 64

Sound Power dBA 81 86 86 81 86 86 86 86 86

Piping Limits Maximum Length m 165

Maximum Vertical Rise m data book

Piping Connections Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Gas inch (mm) 1 5/8 (41.3) 1 5/8 (41.3) 1 5/8 (41.3)

Capacity Index Limit 550~1430 575~1495 600~1560

Maximum Number of Connected Indoor Units 64 64 64

Trade Condensing Unit Price £23,343.00 £24,396.00 £25,533.00

* The AUTOMATIC ESEER value corresponds with normal VRV IV Heat Pump operation, taking into account advanced energy saving operation functionality (variant refrigerant temperature control operation).

RYYQ-T (36 to 42 hp)

VRV IV Heat Pump with Continuous Heating

RYYQ-T (44 to 48 hp)

VRV IV Heat Pump with Continuous Heating

VRV

Outdoor Units RYYQ50T RYYQ52T RYYQ54T

RYMQ16T RYMQ16T RYMQ18T RYMQ16T RYMQ18T RYMQ18T RYMQ18T RYMQ18T RYMQ18T

Capacity Nominal Cooling kW 140.00 145.00 150.00

Nominal Heating kW 156.00 162.00 168.00

EER 3.44 3.42 3.40

ESEER 6.46* 6.42* 6.38*

COP 3.90 3.89 3.89

Dimensions Height mm 1685 1685 1685 1685 1685 1685 1685 1685 1685

Width mm 1240 1240 1240 1240 1240 1240 1240 1240 1240

Depth mm 765 765 765 765 765 765 765 765 765

Weight kg 309 309 319 309 319 319 319 319 319

Air Flow Rate m3/sec 4.333 4.333 4.183 4.333 4.183 4.183 4.183 4.183 4.183

External Static Pressure High Pa 78 78 78 78 78 78 78 78 78

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 20.6 20.6 23.4 20.6 23.4 23.4 23.4 23.4 23.4

Starting Current amps 4

Fuse Rating amps 40 40 40 40 40 40 40 40 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 10.4 10.4 11.7 10.4 11.7 11.7 11.7 11.7 11.7

Additional Charge kg data book

Sound Pressure dBA 64 64 65 64 65 65 65 65 65

Sound Power dBA 86 86 86 86 86 86 86 86 86

Piping Limits Maximum Length m 165

Maximum Vertical Rise m data book

Piping Connections Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Gas inch (mm) 1 5/8 (41.3) 1 5/8 (41.3) 1 5/8 (41.3)

Capacity Index Limit 625~1625 650~1690 675~1755

Maximum Number of Connected Indoor Units 64 64 64

Trade Condensing Unit Price £26,503.00 £27,473.00 £28,443.00

* The AUTOMATIC ESEER value corresponds with normal VRV IV Heat Pump operation, taking into account advanced energy saving operation functionality (variant refrigerant temperature control operation).

RYYQ-T (50 to 54 hp)

VRV IV Heat Pump with Continuous Heating

Price List Update: Valid from 1st January 2017

VRV

Residential, Commercial and Industrial

REYQ-T (13 to 16 hp)

VRV IV Condensing Units – Heat Recovery

Outdoor Units 13 hp Multi 14 hp Single 16 hp Single 16 hp Multi

REYQ8T REMQ5T REYQ14T REYQ16T REYQ8T REYQ8T

Capacity Nominal Cooling kW 36.40 40.00 45.00 45.00

Nominal Heating kW 33.50 40.00 45.00 45.00

Dimensions Height x Width x Depth mm 1685 x 930 x 765 1685 x 930 x 765 1685 x 1240 x 765 1685 x 1240 x 765 1685 x 930 x 765 1685 x 930 x 765

Weight kg 210 210 304 305 210 210

Fan Air Flow Rate m3/sec 2.700 2.700 3.717 4.334 2.700 2.700

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 8.9 5.3 17.4 21.1 8.9 8.9

Starting Current amps 4

Fuse Rating amps 20 20 32 40 20 20

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 9.7 9.7 11.8 11.8 9.7 9.7

Additional Charge kg data book

Sound Pressure dBA 58 58 61 64 58 58

Sound Power dBA 78 78 81 86 78 78

Piping Limits Maximum Total Length m 1000

Maximum Actual Length m 165

Piping Connections -

Systems

Liquid inch (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7)

Discharge inch (mm) 3/4 (19.1) 7/8 (22.2) 7/8 (22.2) 7/8 (22.2)

Gas inch (mm) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6)

Capacity Index Limit 162.5 ~ 422.5 175 ~ 455 200 ~ 520 200 ~ 520

Maximum Number of Connected Indoor Units 64 64 64 64

Trade Condensing Unit Price £8,741.00 £8,141.00 £9,593.00 £10,368.00

Outdoor Units 8 hp Single 10 hp Single 10 hp Multi 12 hp Single

REYQ8T REYQ10T REMQ5T REMQ5T REYQ12T

Capacity Nominal Cooling kW 22.40 28.00 28.00 33.50

Nominal Heating kW 22.40 28.00 28.00 33.50

Dimensions Height x Width x Depth mm 1685 x 930 x 765 1685 x 930 x 765 1685 x 930 x 765 1685 x 930 x 765 1685 x 930 x 765

Weight kg 210 218 198 198 218

Fan Air Flow Rate m3/sec 2.700 2.917 2.700 2.700 3.084

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 8.9 11.8 5.3 5.3 15.3

Starting Current amps 4

Fuse Rating amps 20 25 20 20 25

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 9.7 9.8 9.7 9.7 9.9

Additional Charge kg data book

Sound Pressure dBA 58 58 58 58 61

Sound Power dBA 78 79 78 78 81

Piping Limits Maximum Total Length m 1000

Maximum Actual Length m 165

Piping Connections -

Systems

Liquid inch (mm) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5) 1/2 (12.7)

Discharge inch (mm) 5/8 (15.9) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Gas inch (mm) 3/4 (19.1) 7/8 (22.2) 7/8 (22.2) 1 1/8 (28.6)

Capacity Index Limit 100 ~ 260 125 ~ 325 125 ~ 325 150 ~ 390

Maximum Number of Connected Indoor Units 64 64 64 64

Trade Condensing Unit Price £5,184.00 £5,694.00 £7,114.00 £6,905.00

REYQ-T (8 to 12 hp)

VRV IV Condensing Units – Heat Recovery

VRV

Price List Update: Valid from 1st January 2017

Outdoor Units 22 hp Multi 24 hp Multi 26 hp Multi 28 hp Multi

REYQ10T REYQ12T REYQ8T REYQ16T REYQ12T REYQ14T REYQ12T REYQ16T

Capacity Nominal Cooling kW 61.50 67.40 73.50 78.50

Nominal Heating kW 61.50 67.40 73.50 78.50

Dimensions Height x Width x Depth mm 1685 x 930

x 765

1685 x 930

x 765

1685 x 930

x 765

1685 x 1240

x 765

1685 x 930

x 765

1685 x 1240

x 765

1685 x 930

x 765

1685 x 1240

x 765

Weight kg 218 218 210 305 218 304 218 305

Air Flow Rate m3/sec 2.917 3.084 2.700 4.334 3.084 3.717 3.084 4.334

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 11.8 15.3 8 21.1 15.3 17.4 15.3 21.1

Starting Current amps 4

Fuse Rating amps 25 25 20 40 25 32 25 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 9.8 9.9 9.7 11.8 9.9 11.8 9.9 11.8

Additional Charge kg data book

Sound Pressure dBA 58 61 58 64 61 61 61 64

Sound Power dBA 79 81 78 86 81 81 81 86

Piping Limits Maximum Total Length m 1000

Maximum Actual Length m 165

Piping Connections -

Systems

Liquid inch (mm) 5/8 (15.9) 5/8 (15.9) 3/4 (19) 3/4 (19)

Discharge inch (mm) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6)

Gas inch (mm) 1 1/8 (28.6) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9)

Capacity Index Limit 275 ~ 715 300 ~ 780 325 ~ 845 350 ~ 910

Maximum Number of Connected Indoor Units 64 64 64 64

Trade Condensing Unit Price £12,599.00 £14,777.00 £15,046.00 £16,498.00

REYQ-T (22 to 28 hp)

VRV IV Condensing Units – Heat Recovery

Outdoor Units 18 hp Single 18 hp Multi 20 hp Single 20 hp Multi

REYQ18T REYQ8T REYQ10T REYQ20T REYQ10T REYQ10T

Capacity Nominal Cooling kW 50.40 51.00 56.00 56.00

Nominal Heating kW 50.40 51.00 56.00 56.00

Dimensions Height x Width x Depth mm 1685 x 1240 x 765 1685 x 930 x 765 1685 x 930 x 765 1685 x 1240 x 765 1685 x 930 x 765 1685 x 930 x 765

Weight kg 337 210 218 337 218 218

Fan Air Flow Rate m3/sec 4.184 2.700 2.917 4.350 2.917 2.917

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 24.6 8.9 11.8 31.1 11.8 11.8

Starting Current amps 4

Fuse Rating amps 40 20 25 50 25 25

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 11.8 9.7 9.8 11.8 9.8 9.8

Additional Charge kg data book

Sound Pressure dBA 65 58 58 66 58 58

Sound Power dBA 86 78 79 88 79 79

Piping Limits Maximum Total Length m 1000

Maximum Actual Length m 165

Piping Connections -

Systems

Liquid inch (mm) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9)

Discharge inch (mm) 7/8 (22.2) 7/8 (22.2) 1 1/8 (28.6) 1 1/8 (28.6)

Gas inch (mm) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6)

Capacity Index Limit 225 ~ 585 225 ~ 585 250 ~ 650 250 ~ 650

Maximum Number of Connected Indoor Units 64 64 64 64

Trade Condensing Unit Price £10,665.00 £10,878.00 £11,851.00 £11,388.00

REYQ-T (18 to 20 hp)

VRV IV Condensing Units – Heat Recovery

VRV

Residential, Commercial and Industrial

Outdoor Units 38 hp Multi 40 hp Multi 42 hp Multi

REYQ8T REYQ12T REYQ18T REYQ10T REYQ12T REYQ18T REYQ10T REYQ16T REYQ16T

Capacity Nominal Cooling kW 106.30 111.90 118.00

Nominal Heating kW 106.30 111.90 118.00

Dimensions Height x Width x Depth mm 1685 x 930

x 765

1685 x 930

x 765

1685 x

1240 x

765

1685 x 930

x 765

1685 x 930

x 765

1685 x

1240 x

765

1685 x 930

x 765

1685 x

1240 x

765

1685 x

1240 x

765

Weight kg 210 218 337 218 218 337 218 305 305

Fan Air Flow Rate m3/sec 2.700 3.084 4.184 2.917 3.084 4.184 2.917 4.334 4.334

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 8.9 15.3 24.6 11.8 15.3 24.6 11.8 21.1 21.1

Starting Current amps 4

Fuse Rating amps 20 25 40 25 25 40 25 40 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 9.7 9.9 11.8 9.8 9.9 11.8 9.8 11.8 11.8

Additional Charge kg data book data book data book

Sound Pressure dBA 58 61 65 58 61 65 58 64 64

Sound Power dBA 78 81 86 79 81 86 79 86 86

Piping Limits Maximum Total Length m 1000 1000 1000

Maximum Actual Length m 165 165 165

Piping Connections -

Systems

Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Discharge inch (mm) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9)

Gas inch (mm) 1 5/8 (41.3) 1 5/8 (41.3) 1 5/8 (41.3)

Capacity Index Limit 475 ~ 1235 500 ~ 1300 525 ~ 1365

Maximum Number of Connected Indoor Units 64 64 64

Trade Condensing Unit Price £22,754.00 £23,264.00 £24,880.00

REYQ-T (38 to 42 hp)

VRV IV Condensing Units – Heat Recovery

Outdoor Units 30 hp Multi 32 hp Multi 34 hp Multi 36 hp Multi

REYQ12T REYQ18T REYQ16T REYQ16T REYQ16T REYQ18T REYQ16T REYQ20T

Capacity Nominal Cooling kW 83.90 90.00 95.40 101.00

Nominal Heating kW 83.90 90.00 95.40 101.00

Dimensions Height x Width x Depth mm 1685 x 930

x 765

1685 x 1240

x 765

1685 x 1240

x 765

1685 x 1240

x 765

1685 x 1240

x 765

1685 x 1240

x 765

1685 x 1240

x 765

1685 x 1240

x 765

Weight kg 218 337 305 305 305 337 305 337

Fan Air Flow Rate m3/sec 3.084 4.184 4.334 4.334 4.334 4.184 4.334 4.350

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 15.3 24.6 21.1 21.1 21.1 24.6 21.1 31.1

Starting Current amps 4

Fuse Rating amps 25 40 40 40 40 40 40 50

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 9.9 11.8 11.8 11.8 11.8 11.8 11.8 11.8

Additional Charge kg data book

Sound Pressure dBA 61 65 64 64 64 65 64 66

Sound Power dBA 81 86 86 86 86 86 86 88

Piping Limits Maximum Total Length m 1000

Maximum Actual Length m 165

Piping Connections -

Systems

Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Discharge inch (mm) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6)

Gas inch (mm) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9) 1 5/8 (41.3)

Capacity Index Limit 375 ~ 975 400 ~ 1040 425 ~ 1105 450 ~ 1170

Maximum Number of Connected Indoor Units 64 64 64 64

Trade Condensing Unit Price £17,570.00 £19,186.00 £20,258.00 £21,444.00

REYQ-T (30 to 36 hp)

VRV IV Condensing Units – Heat Recovery

VRV

Price List Update: Valid from 1st January 2017

Outdoor Units 50 hp Multi 52 hp Multi 54 hp Multi

REYQ16T REYQ16T REYQ18T REYQ16T REYQ18T REYQ18T REYQ18T REYQ18T REYQ18T

Capacity Nominal Cooling kW 140.40 145.80 151.20

Nominal Heating kW 140.40 145.80 151.20

Dimensions Height x Width x Depth mm 1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

Weight kg 305 305 337 305 337 337 337 337 337

Fan Air Flow Rate m3/sec 4.334 4.334 4.184 4.334 4.184 4.184 4.184 4.184 4.184

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 21.1 21.1 24.6 21.1 24.6 24.6 24.6 24.6 24.6

Starting Current amps 4

Fuse Rating amps 40 40 40 40 40 40 40 40 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 11.8 11.8 11.8 11.8 11.8 11.8 11.8 11.8 11.8

Additional Charge kg data book data book data book

Sound Pressure dBA 64 64 65 64 65 65 65 65 65

Sound Power dBA 86 86 86 86 86 86 86 86 86

Piping Limits Maximum Total Length m 1000 1000 1000

Maximum Actual Length m 165 165 165

Piping Connections -

Systems

Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Discharge inch (mm) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9)

Gas inch (mm) 1 5/8 (41.3) 1 5/8 (41.3) 1 5/8 (41.3)

Capacity Index Limit 625 ~ 1625 650 ~ 1690 675 ~ 1755

Maximum Number of Connected Indoor Units 64 64 64

Trade Condensing Unit Price £29,851.00 £30,923.00 £31,995.00

REYQ-T (50 to 54 hp)

VRV IV Condensing Units – Heat Recovery

Outdoor Units 44 hp Multi 46 hp Multi 48 hp Multi

REYQ12T REYQ16T REYQ16T REYQ14T REYQ16T REYQ16T REYQ16T REYQ16T REYQ16T

Capacity Nominal Cooling kW 123.50 130.00 135.00

Nominal Heating kW 123.50 130.00 135.00

Dimensions Height x Width x Depth mm 1685 x 930

x 765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

1685 x

1240 x

765

Weight kg 218 305 305 319 305 305 305 305 305

Fan Air Flow Rate m3/sec 3.084 4.334 4.334 3.717 4.334 4.334 4.334 4.334 4.334

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 15.3 21.1 21.1 17.4 21.1 21.1 21.1 21.1 21.1

Starting Current amps 4

Fuse Rating amps 25 40 40 32 40 40 40 40 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 9.9 11.8 11.8 11.8 11.8 11.8 11.8 11.8 11.8

Additional Charge kg data book data book data book

Sound Pressure dBA 61 64 64 61 64 64 64 64 64

Sound Power dBA 81 86 86 81 86 86 86 86 86

Piping Limits Maximum Total Length m 1000 1000 1000

Maximum Actual Length m 165 165 165

Piping Connections -

Systems

Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Discharge inch (mm) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9)

Gas inch (mm) 1 5/8 (41.3) 1 5/8 (41.3) 1 5/8 (41.3)

Capacity Index Limit 550 ~ 1430 575 ~ 1495 600 ~ 1560

Maximum Number of Connected Indoor Units 64 64 64

Trade Condensing Unit Price £26,091.00 £27,327.00 £28,779.00

REYQ-T (44 to 48 hp)

VRV IV Condensing Units – Heat Recovery

VRV

Residential, Commercial and Industrial

Up to % shorter

installation time

Re-use existing piping

and wiring

Compare installation steps

RXYQQ-T / RQEQ-P3

Replacement VRV-Q

Optimise your business

Tackle more projects in less time:

Due to faster installation. VRV-Q is more cost-eective than replacing the

full system with new piping.

Lower installation costs:

Oer customers the overall lowest cost solution and improve your

competitive edge.

Easy as one-two-three:

A simple solution: Daikin VRV-Q enables you to handle more projects for

more customers in less time and oer them the best price! Everybody wins.

New

Now it's possible to connect VRV IV BS

boxes, including the small, light Multi

BS boxes designed to offer the largest &

most flexible range of design & installation

options available.

Customer benets

Always operational

Avoid loss of business

Replacing now prevents unplanned, lengthy disruption of air

conditioning systems. It also avoids loss of business for shops,

complaints from guests in hotels, lower working eciency and loss

of tenants in oces.

Quick and easy installation

No interruption of daily business while replacing the system thanks

to phased-in, fast installation.

Lower long-term costs

Repairing systems with R-22 has been prohibited since 31 December 2014.

Installing a technically advanced Replacement VRV-Q system reduces

energy consumption and maintenance costs from day one.

Comparison of

hp systems:

Cooling mode

Heating mode

R- (RSXY-KA) R-C (RSXYP-L) R-A (RXYQQ-T)

The Daikin low-cost

upgrade solution

4 Reuse drain pipes

Durable PVC pipes can be easily reused. Only ow tests are required.

4 Reuse refrigerant pipes

Pipes used for R- will also work with VRV-Q,

thanks to lower

operating pressures of the system.

4 Reuse refrigerant branch pipes

There are no restrictions when upgrading from a Daikin VRV system.

Other VRF systems require branch pipes to withstand pressure up

to . MPa.

! Replace indoor units and BS boxes

Contact your local dealer to check compatibility in case you need

to keep the indoor units.

4 Reuse remote control wiring

Reuse wiring when upgrading from a Daikin VRV system. In other cases,

this will depend on the cable type.

4 Reuse indoor-outdoor wiring

Restrictions: see remote control wiring.

! Replace outdoor units

Reduced energy consumption

Up to 40% energy saving

 Recover refrigerant  Recover refrigerant

 Remove units  Remove units

 Remove refrigerant pipes

 Install new piping/wiring

 Install new units  Install new units

 Leak test  Leak test

 Vacuum drying  Vacuum drying

 Refrigerant charging

 Automatic refrigerant

charging, cleaning

and testing

 Collect contamination

 Test operation

Conventional solution

VRV-Q

VRV

Price List Update: Valid from 1st January 2017

The Daikin low-cost upgrade solution

4 Reuse drain pipes

Durable PVC pipes can be easily reused. Only ow tests are required.

4 Reuse refrigerant pipes

Pipes used for R- will also work with VRV-Q,

thanks to lower

operating pressures of the system.

4 Reuse refrigerant branch pipes

There are no restrictions when upgrading from a Daikin VRV system.

Other VRF systems require branch pipes to withstand pressure up

to . MPa.

! Replace indoor units and BS boxes

Contact your local dealer to check compatibility in case you need

to keep the indoor units.

4 Reuse remote control wiring

Reuse wiring when upgrading from a Daikin VRV system. In other cases,

this will depend on the cable type.

4 Reuse indoor-outdoor wiring

Restrictions: see remote control wiring.

! Replace outdoor units

Refrigerant branch pipes

Refrigerant branch pipes, including those from other

manufacturers, Y-refnets, T-refnets and headers, can be reused

under the following conditions:

✓ Pipes are corrosion-free

✓ Pipes are insulated

✓ Pipes can withstand a pressure up to .MPa

✓ There are no special components that implement

decompression (e.g. oil trap)

✓ Installed copper pipework is in suitable condition (piping

thickness will generally meet specications, since the unique

Daikin VRV solution operates at lower pressure levels)

Refrigerant oil

Refrigerant piping can be reused if one of the following oils was

used: Barrel Freeze, Ethereal, Ester, Ferreol, HAB, MS, Suniso.

Maximum piping lengths and level distances

VRV-Q can be installed for piping systems with a total length up

to 300m. See data book for further guidelines.

R22 is a hydrochlorouorocarbon (HCFC) which was commonly used in air conditioning systems.

However, both new and recycled sources of R22 are now banned.

Many systems today are still running on R22. But as R22 is no longer available, now’s the time to

replace R22 systems. The good news is that Daikin’s VRV-Q solution delivers signicantly higher energy

eciencies, with the potential of saving up to 50%, compared with installing a completely new system.

Key Guidelines for a Quality Replacement with VRV-Q

VRV

Residential, Commercial and Industrial

Please see note on page 91 regarding VRV-Q warranty, and contact your local sales oce for more information on VRV-Q installation.

Outdoor Units RXYQQ22T RXYQQ24T RXYQQ26T RXYQQ28T

RXYQQ10T RXYQQ12T RXYQQ8T RXYQQ16T RXYQQ12T RXYQQ14T RXYQQ12T RXYQQ16T

Capacity Nominal Cooling kW 61.50 67.40 73.50 78.50

Nominal Heating kW 69.00 75.00 82.50 87.50

EER 3.78 3.70 3.68 3.57

ESEER 7.07* 6.81* 6.89* 6.69*

COP 4.19 4.10 4.06 4.00

Dimensions Height mm 1685 1685 1685 1685 1685 1685 1685 1685

Width mm 930 930 930 1240 930 1240 930 1240

Depth mm 765 765 765 765 765 765 765 765

Weight kg 194 194 187 305 194 306 194 305

Air Flow Rate m3/sec 2.917 3.083 2.100 3.883 3.083 3.717 3.083 3.883

External Static Pressure High Pa 78

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 11.5 14.2 8.4 20.6 14.2 17.2 14.2 20.6

Starting Current amps 4

Fuse Rating amps 25 32 20 40 32 32 32 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 6.0 6.3 5.29 10.4 6.3 10.3 6.3 10.4

Additional Charge kg data book

Sound Pressure Nom dBA 58 61 58 64 61 61 61 64

Sound Power Nom dBA 79 81 78 86 81 81 81 86

Piping Limits Maximum Length m 120

Maximum Vertical Rise m 50

Piping Connections Liquid inch (mm) 5/8 (15.9) 5/8 (15.9) 3/4 (19.1) 3/4 (19.1)

Gas inch (mm) 1 1/8 (28.6) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9)

Capacity Index Limit 275~715 300~780 325~845 350~910

Maximum Number of Connected Indoor Units 64 64 64 64

Trade Condensing Unit Price £12,463.00 £14,293.00 £14,502.00 £15,705.00

*The AUTOMATIC ESEER value corresponds with normal VRV IV Heat Pump operation, taking into account advanced energy saving operation functionality (variant refrigerant temperature control operation).

Please see note on page 91 regarding VRV-Q warranty, and contact your local sales oce for more information on VRV-Q installation.

Outdoor Units RXYQQ8T RXYQQ10T RXYQQ12T RXYQQ14T RXYQQ16T RXYQQ18T RXYQQ20T

Capacity Nominal Cooling kW 22.40 28.00 33.50 40.00 45.00 50.00 56.00

Nominal Heating kW 25.00 31.50 37.50 45.00 50.00 56.00 63.00

EER 4.30 3.84 3.73 3.64 3.46 3.40 3.03

ESEER 7.53* 7.20* 6.96* 6.83* 6.50* 6.38* 5.67*

COP 4.54 4.27 4.12 4.02 3.91 3.89 3.71

Dimensions Height mm 1685 1685 1685 1685 1685 1685 1685

Width mm 930 930 930 1240 1240 1240 1240

Depth mm 765 765 765 765 765 765 765

Weight kg 187 194 194 306 305 314 314

Air Flow Rate m3/sec 2.700 2.917 3.083 3.717 3.883 4.183 4.350

External Static Pressure High Pa 78

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 8.4 11.5 14.2 17.2 20.6 23.4 29.5

Starting Current amps 4

Fuse Rating amps 20 25 32 32 40 40 50

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 5.9 6.0 6.3 10.3 10.4 11.7 11.8

Additional Charge kg data book

Sound Pressure Nom dBA 58 58 61 61 64 65 66

Sound Power Nom dBA 78 79 81 81 86 86 88

Piping Limits Maximum Length m 120

Maximum Vertical Rise m 50

Piping Connections Liquid inch (mm) 3/8 (9.5) 3/8 (9.5) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9) 5/8 (15.9)

Gas inch (mm) 3/4 (19.1) 7/8 (22.2) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6)

Capacity Index Limit 100~260 125~325 150~390 175~455 200~520 225~585 250~650

Maximum Number of Connected Indoor Units 64 64 64 64 64 64 64

Trade Condensing Unit Price £5,281.00 £5,770.00 £6,693.00 £7,809.00 £9,012.00 £10,572.00 £11,608.00

*The AUTOMATIC ESEER value corresponds with normal VRV IV Heat Pump operation, taking into account advanced energy saving operation functionality (variant refrigerant temperature control operation).

RXYQQ-T (up to 20 hp)

VRV IV-Q Condensing Unit – Heat Pump

RXYQQ-T (22 to 28 hp)

VRV IV-Q Condensing Unit – Heat Pump

VRV

Price List Update: Valid from 1st January 2017

Outdoor Units RXYQQ30T RXYQQ32T RXYQQ34T RXYQQ36T

RXYQQ12T RXYQQ18T RXYQQ16T RXYQQ16T RXYQQ16T RXYQQ18T RXYQQ16T RXYQQ20T

Capacity Nominal Cooling kW 83.50 90.00 95.00 101.00

Nominal Heating kW 93.50 100.00 106.00 113.00

EER 3.53 3.50 3.40 3.20

ESEER 6.60* 6.50* 6.44* 6.02*

COP 3.98 3.90 3.90 3.80

Dimensions Height mm 1685 1685 1685 1685 1685 1685 1685 1685

Width mm 930 1240 1240 1240 1240 1240 1240 1240

Depth mm 765 765 765 765 765 765 765 765

Weight kg 194 314 305 305 305 314 305 314

Air Flow Rate m3/sec 3.083 4.183 3.883 3.883 3.883 4.183 3.883 4.350

External Static Pressure High Pa 78

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 14.2 23.4 20.6 20.6 20.6 23.4 20.6 29.5

Starting Current amps 4

Fuse Rating amps 32 40 40 40 40 40 40 50

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 6.3 11.7 10.4 10.4 10.4 11.7 10.4 11.8

Additional Charge kg data book

Sound Pressure Nom dBA 61 65 64 64 64 65 64 66

Sound Power Nom dBA 81 86 86 86 86 86 86 88

Piping Limits Maximum Length m 120

Maximum Vertical Rise m 50

Piping Connections Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Gas inch (mm) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9) 1 5/8 (41.3)

Capacity Index Limit 375~975 400~1040 425~1105 450~1170

Maximum Number of Connected Indoor Units 64 64 64 64

Trade Condensing Unit Price £17,265.00 £18,024.00 £19,584.00 £20,620.00

*The AUTOMATIC ESEER value corresponds with normal VRV IV Heat Pump operation, taking into account advanced energy saving operation functionality (variant refrigerant temperature control operation).

Please see note on page 91 regarding VRV-Q warranty, and contact your local sales oce for more information on VRV-Q installation.

Outdoor Units RXYQQ38T RXYQQ40T RXYQQ42T

RXYQQ8T RXYQQ10T RXYQQ20T RXYQQ10T RXYQQ12T RXYQQ18T RXYQQ10T RXYQQ16T RXYQQ16T

Capacity Nominal Cooling kW 106.40 111.50 118.00

Nominal Heating kW 119.50 125.00 131.50

EER 3.43 3.61 3.54

ESEER 6.36* 6.74* 6.65*

COP 4.00 4.05 3.99

Dimensions Height mm 1685 1685 1685 1685 1685 1685 1685 1685 1685

Width mm 930 930 1240 930 930 1240 930 1240 1240

Depth mm 765 765 765 765 765 765 765 765 765

Weight kg 187 194 314 194 194 314 194 305 305

Air Flow Rate m3/sec 2.100 2.917 4.350 2.917 3.083 4.183 2.917 3.883 3.883

External Static Pressure High Pa 78

Electrical Details Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 8.4 11.5 29.5 11.5 14.2 23.4 11.5 20.6 20.6

Starting Current amps 4

Fuse Rating amps 20 25 50 25 32 40 25 40 40

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 5.9 6.0 11.8 6.0 6.3 11.7 6.0 10.4 10.4

Additional Charge kg data book

Sound Pressure Nom dBA 58 58 66 58 61 65 58 64 64

Sound Power Nom dBA 78 79 88 79 81 86 79 86 86

Piping Limits Maximum Length m 120

Maximum Vertical Rise m 50

Piping Connections Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Gas inch (mm) 1 5/8 (41.3) 1 5/8 (41.3) 1 5/8 (41.3)

Capacity Index Limit 475~1235 500~1300 525~1365

Maximum Number of Connected Indoor Units 64 64 64

Trade Condensing Unit Price £22,659.00 £23,035.00 £23,794.00

*The AUTOMATIC ESEER value corresponds with normal VRV IV Heat Pump operation, taking into account advanced energy saving operation functionality (variant refrigerant temperature control operation).

Please see note on page 91 regarding VRV-Q warranty, and contact your local sales oce for more information on VRV-Q installation.

RXYQQ-T (30 to 36 hp)

VRV IV-Q Condensing Unit – Heat Pump

RXYQQ-T (38 to 42 hp)

VRV IV-Q Condensing Unit – Heat Pump

VRV

Residential, Commercial and Industrial

Outdoor Units RQCEQ280P3 RQCEQ360P3 RQCEQ460P3

RQEQ140P3 RQEQ140P3 RQEQ180P3 RQEQ180P3 RQEQ140P3 RQEQ140P3 RQEQ180P3

Capacity Nominal Cooling kW 28.00 36.00 45.00

Nominal Heating kW 32.00 40.00 52.00

Dimensions Height mm 1680 1680 1680 1680 1680 1680 1680

Width mm 635 635 635 635 635 635 635

Depth mm 765 765 765 765 765 765 765

Weight kg 175 175 175 175 175 175 175

Air Flow Rate m3/sec 1.583 1.583 1.833 1.833 1.583 1.583 1.833

External Static Pressure High Pa 78 78 78

Electrical Details Power Supply Phase 3ph

Hz 50

V 380~415

Running Current amps 5.5 5.5 8.0 8.0 5.5 5.5 8.0

Starting Current amps 4 4 4

Fuse Rating amps 15 15 20 20 15 15 20

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 10.3 10.3 10.6 10.6 10.3 10.3 10.6

Additional Charge kg data book

Sound Pressure Nom dBA 54 54 58 58 54 54 58

Piping Limits Maximum Length m 120 120 120

Maximum Vertical Rise m 50

Piping Connections Liquid inch (mm) 3/8 (9.5) 1/2 (12.7) 1/2 (12.7)

Gas inch (mm) 7/8 (22.2) 1 (25) 1 1/8 (28.6)

Discharge inch (mm) 3/4 (19.1) 3/4 (19.1) 7/8 (22.2)

Capacity Index Limit 140~325 180~422.5 230~520

Maximum Number of Connected Indoor Units 21 28 34

Trade Condensing Unit Price £6,834.00 £8,788.00 £11,228.00

Please see note on page 91 regarding VRV-Q warranty, and contact your local sales oce for more information on VRV-Q installation.

Outdoor Units RQCEQ500P3 RQCEQ540P3 RQCEQ636P3

RQEQ140P3 RQEQ180P3 RQEQ180P3 RQEQ180P3 RQEQ180P3 RQEQ180P3 RQEQ212P3 RQEQ212P3 RQEQ212P3

Capacity Nominal Cooling kW 50.00 54.00 63.60

Nominal Heating kW 56.00 60.00 67.20

Dimensions Height mm 1680 1680 1680 1680 1680 1680 1680 1680 1680

Width mm 635 635 635 635 635 635 635 635 635

Depth mm 765 765 765 765 765 765 765 765 765

Weight kg 175 175 175 175 175 175 179 179 179

Air Flow Rate m3/sec 1.583 1.833 1.833 1.833 1.833 1.833 1.833 1.833 1.833

Electrical Details Power Supply Phase 3ph

Hz 50

V 380~415

Running Current amps 5.5 8.0 8.0 8.0 8.0 8.0 11.5 11.5 11.5

Starting Current amps 4 4 4

Fuse Rating amps 15 20 20 20 20 20 20 20 20

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 10.3 10.6 10.6 10.6 10.6 10.6 11.2 11.2 11.2

Additional Charge kg data book

Sound Pressure Nom dBA 54 58 58 58 58 58 60 60 60

Piping Limits Maximum Length m 120

Maximum Vertical Rise m 50

Piping Connections Liquid inch (mm) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9)

Gas inch (mm) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6)

Discharge inch (mm) 7/8 (22.2) 7/8 (22.2) 1 (25)

Capacity Index Limit 250~585 270~650 318~715

Maximum Number of Connected Indoor Units 39 43 47

Trade Condensing Unit Price £12,205.00 £13,182.00 £15,537.00

Please see note on page 91 regarding VRV-Q warranty, and contact your local sales oce for more information on VRV-Q installation.

RQCEQ-P3 (28.0 to 45.0 kW)

VRV III-Q Condensing Unit – Heat Recovery

RQCEQ-P3 (50.0 to 63.6 kW)

VRV III-Q Condensing Unit – Heat Recovery

VRV

Price List Update: Valid from 1st January 2017

Outdoor Units RQCEQ712P3 RQCEQ744P3

RQEQ140P3 RQEQ180P3 RQEQ180P3 RQEQ212P3 RQEQ140P3 RQEQ180P3 RQEQ212P3 RQEQ212P3

Capacity Nominal Cooling kW 71.20 74.40

Nominal Heating kW 78.40 80.80

Dimensions Height mm 1680 1680 1680 1680 1680 1680 1680 1680

Width mm 635 635 635 635 635 635 635 635

Depth mm 765 765 765 765 765 765 765 765

Weight kg 175 175 175 179 175 175 179 179

Air Flow Rate m3/sec 1.583 1.833 1.833 1.833 1.583 1.833 1.833 1.833

Electrical Details Power Supply Phase 3ph

Hz 50

V 350~415

Running Current amps 5.5 8.0 8.0 11.5 5.5 8.0 11.5 11.5

Starting Current amps 4 4

Fuse Rating amps 15 20 20 20 15 20 20 20

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 10.3 10.6 10.6 11.2 10.3 10.6 11.2 11.2

Additional Charge kg data book

Sound Pressure Nom dBA 54 58 58 60 54 58 60 60

Piping Limits Maximum Length m 120

Maximum Vertical Rise m 50

Piping Connections Liquid inch (mm) 5/8 (15.9) 3/4 (19.1)

Gas inch (mm) 1 1/8 (28.6) 1 3/8 (34.9)

Discharge inch (mm) 1 (25) 1 (25)

Capacity Index Limit 356~780 372~845

Maximum Number of Connected Indoor Units 52 56

Trade Condensing Unit Price £17,384.00 £18,169.00

Please see note on page 91 regarding VRV-Q warranty, and contact your local sales oce for more information on VRV-Q installation.

Outdoor Units RQCEQ816P3 RQCEQ848P3

RQEQ180P3 RQEQ212P3 RQEQ212P3 RQEQ212P3 RQEQ212P3 RQEQ212P3 RQEQ212P3 RQEQ212P3

Capacity Nominal Cooling kW 81.60 84.80

Nominal Heating kW 87.20 89.60

Dimensions Height mm 1680 1680 1680 1680 1680 1680 1680 1680

Width mm 635 635 635 635 635 635 635 635

Depth mm 765 765 765 765 765 765 765 765

Weight kg 175 179 179 179 179 179 179 179

Air Flow Rate m3/sec 1.833 1.833 1.833 1.833 1.833 1.833 1.833 1.833

Electrical Details Power Supply Phase 3ph

Hz 50

V 380~415

Running Current amps 8.0 11.5 11.5 11.5 11.5 11.5 11.5 11.5

Starting Current amps 4 4

Fuse Rating amps 20 20 20 20 20 20 20 20

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 10.6 11.2 11.2 11.2 11.2 11.2 11.2 11.2

Additional Charge kg data book

Sound Pressure Nom dBA 58 60 60 60 60 60 60 60

Piping Limits Maximum Length m 120

Maximum Vertical Rise m 50

Piping Connections Liquid inch (mm) 3/4 (19.1) 3/4 (19.1)

Gas inch (mm) 1 3/8 (34.9) 1 3/8 (34.9)

Discharge inch (mm) 1 1/8 (28.6) 1 1/8 (28.6)

Capacity Index Limit 408~910 424~975

Maximum Number of Connected Indoor Units 60 64

Trade Condensing Unit Price £19,931.00 £20,716.00

Please see note on page 91 regarding VRV-Q warranty, and contact your local sales oce for more information on VRV-Q installation.

RQCEQ-P3 (71.2 to 74.4 kW)

VRV III-Q Condensing Unit – Heat Recovery

RQCEQ-P3 (81.6 to 84.8 kW)

VRV III-Q Condensing Unit – Heat Recovery

VRV

Residential, Commercial and Industrial

ENERGY

SAVINGS UP TO

25%

UNIQUE

INNOVATION BY

DAIKIN

Your installation under continuous monitoring

> 24/7, 365 days a year remote monitoring

> Predictive maintenance

> Improved reliability

> Improved comfort levels

> Helps increase eciency

> Helps reduce maintenance costs

> Extends product lifetime

Extra value at low cost

> A strategy of preventing breakdowns and limiting

unnecessary maintenance visits

> Eciently organising site interventions by diagnosing

the nature and the extent of the problem before

going to site

> Innovative technology that helps to optimise your

equipment’s potential

> Ensures the most comfortable environment in

your premises

Installation requirements:

> DNSS requires an Intelligent Touch Controller or

Intelligent Touch Manager to be installed on site, to act

as the data relay point

> The controller cost is not included in the

Commissioning price, but must be purchased separately

> A Lan connection must be provided local to the

installed controller with the ability to make an outgoing

connection to the internet

> Alternatively a 3G connection can be supplied by Daikin

at an additional cost

Prevent product malfunctions

The DNSS will analyse the data from your equipment every minute

of the day and will alert us before the equipment actually breaks

down. In this way, failures can be prevented and possible down

time reduced to an absolute minimum.

Remote diagnostics

The DNSS continuously checks the cleanliness of the system lters

and heat exchanger. Furthermore, the DNSS manages a wide range

of data (pressures, temperatures, running hours, etc.) in order to let

your equipment run as eciently and trouble free as possible. This

will also prevent your equipment from using too much energy.

Extend product lifetime

The DNSS is designed to make sure that your equipment

is maintained and running as eciently as possible.

This optimisation will extend the lifespan of your equipment.

Malfunction messages

In the unlikely event of a problem occurring, your regional

Daikin UK oce will contact you directly. Our engineers, who are

dedicated to your installation, will inform you regarding the nature

of the problem and will help you towards the next step

of solving the problem.

Daikin Network Service System (DNSS)

Remote Monitoring and Lifecycle Management

DNSS is a remote monitoring system, which will allow you to

continuously optimise the running of your Daikin equipment; control

your energy consumption (so reduce your Carbon Footprint), extend

the life span of your equipment and reduce operational costs.

Model Description Trade Price

DNSS is sold at nett price. No discounts will apply

UK.FS-DNSS/VRV/IND Annual DNSS monitoring of a single

module VRV system

£150.00

UK.FS-DNSS/VRV/2ND Annual DNSS monitoring of a twin

module VRV system

£200.00

UK.FS-DNSS/VRV/3ND Annual DNSS monitoring of a triple

module VRV system

£250.00

Model Description Trade Price

DNSS is sold at nett price. No discounts will apply

UK.FS-DNSS1-3VRV DNSS commissioning of 1 to 3 VRV systems £450.00

UK.FS-DNSS4-6VRV DNSS commissioning of 4 to 6 VRV systems £500.00

UK.FS-DNSS7-9VRV DNSS commissioning of 7 to 9 VRV systems £600.00

UK.FS-DNSS10-12VRV DNSS commissioning of 10 to 12 VRV systems £700.00

UK.FS-DNSS13-15VRV DNSS commissioning of 13 to 15 VRV systems £800.00

UK.FS-DNSS16-18VRV DNSS commissioning of 16 to 18 VRV systems £1,000.00

UK.FS-DNSS19-21VRV DNSS commissioning of 19 to 21 VRV systems £1,200.00

Annual monitoring

Commissioning

VRV

Price List Update: Valid from 1st January 2017

Warranty and site services

The warranty for VRV-Q systems operates under dierent conditions

from our standard warranty. To ensure complete suitability of the

existing site, a choice of optional warranty and special site services

packages are available from Daikin Airconditioning UK Ltd. These

choices will ensure the VRV-Q system is designed and commissioned

to provide the client with complete ‘peace of mind’ operation.

The choices include:

a) Pre-order checks on the existing pipework and fan coils installed

on the clients’ site to ensure suitability for VRV-Q installation

b) Commissioning of the new VRV-Q installation to ensure correct

and ecient operation

Warranty options for 3 or 5 years are available depending on the

qualication criteria and the type of system being installed.

Commissioning Log Books should be available for inspection by

Daikin Airconditioning UK Ltd if required.

The tables below provide an overview of the choices. For full details

please contact your local sales oce.

VRV-Q Warranty

Warranty Package Level For Site with New Fan Coils

non D1/D1+ D1/D1+

Condensing Unit Warranty Period 3 Years 5 Years

Fan Coil Unit Warranty Period 3 Years 5 Years

Site Pre-Order Inspection By trained approved engineer (1) OR by Daikin Airconditioning UK Ltd (additional cost)

Commissioning By approved engineer (1) (subsequent projects) OR by Daikin Airconditioning UK Ltd (additional cost)

Warranty Package Level For Site with Existing Fan Coils

non D1/D1+ D1/D1+

Condensing Unit Warranty Period 3 Years 5 Years

Existing Fan Coil Unit Warranty Period 0 Years 0 Years

Site Pre-Order Inspection By trained approved engineer (1) (2) OR by Daikin Airconditioning UK Ltd (additional cost)

Commissioning By approved engineer (1) (subsequent projects) OR by Daikin Airconditioning UK Ltd (additional cost)

Daikin Support Options Cost Code

Site pre-order inspection per system* £175.00 UK.SFV/N/INSP

Site pre-inspection (existing fan coils) including 2 hour service

checker analysis per system*

£285.00 UK.SFV/E/INSP

Daikin commissioning per system* £400.00 UK.SFV/SYCOMM

Daikin full day commissioning assistance £585.00 UK.SFV/FULLCOMM

*System is dened as a maximum of 3 connected condensers. All prices shown are Net. No further discount can be applied.

VRV-Q Warranty Choices

1. VRV-Q combined with new fan coil units

2. VRV-Q combined with existing fan coil units

Notes:

(1) Approved engineer to sign commissioning report and be able to identify DAUK ocial training programme attended, SE19 VRV-Q required

(2) Trained approved engineer to collect 2 hours of data per system from the service checker for assessment

VRV

Residential, Commercial and Industrial

Approved engineer

An approved engineer is an engineer who:

1. Is suitably registered in accordance with F-gas regulations

2. Has successfully completed a Daikin Airconditioning UK Ltd VRV Air Cooled

installation and commissioning course within the last 3 years

3. Has completed SE19 VRV-Q course in the past 3 years

Net price

Net price, exclusive of VAT and subject to our standard terms and conditions.

No other discounts are applicable.

Prices shown for site pre-order inspection and commissioning are for work

undertaken during normal working hours between 09:00 and 17:30. Any request

for attendance to site out of these hours is subject to additional charges.

Warranty

To activate the warranty, the Daikin Airconditioning UK Ltd VRV Commissioning

Log Book will need to be fully completed and submitted to Daikin Airconditioning

UK Ltd FQS department for checking. Upon receipt and validation that all required

details are provided and satisfactory, Daikin Airconditioning UK Ltd will issue a

conrmation letter that the warranty is activated. Where

Daikin Airconditioning UK

Ltd will complete the commissioning, we will provide a copy of the Commissioning

Log Book to the installation contractor. Except where mentioned above, our

standard warranty conditions will apply. If none of the packaged options are

chosen, then the warranty will be limited to a standard 12 month parts only cover.

Site pre-order inspection

Where required, Daikin Airconditioning UK Ltd will attend the site to check the

suitability of the existing equipment and pipework for connection to VRV-Q. Where

it is not possible to check operation or equipment condition, this will also be

highlighted in the nal report, and appropriate recommendations made.

If an approved engineer carries out the site inspection, then a Daikin

Airconditioning UK Ltd supplied form shall be completed and submitted to our

FQS department for checking and approval prior to any order being accepted.

The pre-order site inspection will include the following items:

• Existing system(s) capacity – necessary to estimate required system load for

the new system

• Record all the model numbers and the serial numbers for the indoor and the

outdoor units and indicate actual installed system combinations

• Check status of the existing indoor units – necessary if the existing units are

to be reused

• Check lter condition

• Check coil condition

• Check fan motor operation – select fan only and check for air movement and

for unusual noise and vibration

• Installed pipework details – necessary to check compliance with the

manufacturer’s specication and assess install quality. This would highlight any

required rectication prior to the installation of the new system

• Provide as installed pipework diagrams. If not available, provide as installed

pipe work schematics from information gathered on site

• Check the distance from the outdoor to the farthest indoor along the pipe

work route

• Check the distance from the rst Refnet tting to the farthest indoor unit

• Check the height dierence between the outdoor and the lowest indoor

when the outdoor is situated above the indoor units or height dierence

between the outdoor and the highest indoor if the outdoor is situated below

the indoor units

• Check the height dierence between the highest and the lowest indoor

connected to the same system

• Provide the lengths of all installed pipe sizes

• Check the installation position and angle of the Refnet Joints

• Check the condition of the pipe insulation

• Check the adequacy of the existing pipe supports

• Installed communication and control wiring – necessary to check

compliance with the manufacturer’s specication, suitability for the new system

and suitability for new controls specication

• Check sizes and type of the interconnecting communication cables between

indoor units, outdoor units and any central control systems

• Check the separation between the power wiring and the installed

controls wiring

• Power wiring to the outdoor units – necessary to check suitability for the

new outdoor units

• Check supply voltage

• Check number of outlets available adjacent to the outdoor units compound

• Check fuse/MCB sizes and types

• Check status of the isolators

VRV-Q Warranty Detail

VRV

Price List Update: Valid from 1st January 2017

• System health checks – it is important to know if the existing systems are

operating to their optimum. If there are issues which may aect the new

installation they need to identied and rectied before installation of the

new system. A comprehensive list of the operating data can be collected

by connecting a VRV Checker to each system and recording a minimum of

one hour operation data for analysis. This data should be sent back to Daikin

Airconditioning UK Ltd FQS department for analysis

• Operate the whole system in cooling for ½ hour and in heating for ½ hour to

collect representative data

• Send data to Daikin Airconditioning UK Ltd FQS department for analysis

• System history check – although the new VRV-Q system is designed to re-use

existing pipework and in some cases existing indoor units it is still necessary to

know the existing systems operational history to judge its integrity for the new

application

• Check for presence of leak protection dye and acid level – use total test kit

• Ensure that no Acid Away chemical has ever been added to the system

refrigerant charge

• Existing system controls – investigate currently installed local controls,

centralised controls and connection to the third party systems. This is

particularly necessary if any existing controls are planned to be re-used

Commissioning

Dependant on the requirement, either an approved engineer or Daikin

Airconditioning UK Ltd will provide system commissioning on the completed

installation. As mentioned in the warranty section above, a completed log book

will need to be submitted to activate the warranty

Commissioning where not provided by Daikin Airconditioning UK Ltd, can only be

completed by an approved engineer.

Where Daikin Airconditioning UK Ltd provides commissioning as part of the

package this shall include:

• Check installation of new units – ensure new piping is installed correct to

Daikin specication

• Check power supplies – local isolators, MCB rating

• Fill in model number data, serial numbers etc. to commissioning log book

• Initialise VRV System and ensure all units communicate

• Set up additional control systems – ITC, Bacnet and provide demonstration

• Charge additional refrigerant

• Perform “Test” operation – including “Automatic” charging function

• Connect service checker and monitor operation – Cool>Heat>Heat Recovery

• Complete Commissioning Log Book

• Provide additional comments and recommendations if necessary

• Leave operation set as required by client

Prior to our site attendance the following shall be completed:

• All communication wiring is complete and terminated correctly

• All electrical work is complete and correct (supply wiring type and size –

Breaker size correct)

• All systems piping has been pressure tested to 33 Bar

• All systems piping has been evacuated to < 5 Torr

• All systems piping has been measured and is available for our information

• Sucient additional refrigerant is available on the day

Any other works other than those detailed above are excluded.

DNSS (Daikin Network Service System)

Where Daikin Airconditioning UK Ltd provide DNSS this shall include the

following items:

• Commissioning of DNSS system (on-site service)

• GPRS router and SIM (this will be property of Daikin Airconditioning UK Ltd)

• Remote energy saving service

• 24/7 monitoring of VRV operating data

• Instant notication of system malfunction (email) 7 days a week

• Malfunction prediction service (during oce hours 09.00 - 17.30)

• Bi-annual energy saving report indicating electricity cost saving and reduction

in CO2 emissions

• Recommendations to improve operating settings

• Issue of a DNSS user pack

All of the above will be provided for the warranty period of the VRV (either 3 or 5

years) depending on the package selected.

Prior to our site attendance the following shall be completed:

• A device compatible with DNSS is installed on site – Daikin Intelligent Manager,

Daikin Intelligent Touch Controller or Daikin LC controller. (Not included in the

price of the monitoring package)

• All electrical work is complete and correct (supply wiring type and size –

breaker size correct) also F1/F2 communications are installed

• A full set of as installed drawings are available – indicating system

congurations, installation locations and room references

• A power source is installed for the GPRS modem near the control device –

this can be powered from a standard socket

• A connection to the internet is available – for areas where there is poor GPRS

coverage a LAN or analogue phone connection must be installed near the

control device. (Installation and rental costs are not included in the price of the

monitoring package)

• Full access must be made available to the VRV equipment and if any access

equipment is required Daikin UK must be informed prior to the site visit

• A list of contacts must be issued to Daikin Airconditioning UK Ltd (these

are the contacts that should be e-mailed or telephoned in the event of a

malfunction or error with the air conditioning system). If these change in

the future, information will be given in the user pack for how to notify Daikin

Airconditioning UK Ltd of the changes

This is an extract from the Daikin publication “Warranty and Site Services Package

for VRV-Q”. Please contact your local sales oce to receive a copy and obtain

further information.

VRV-Q Warranty Detail

VRV

Residential, Commercial and Industrial

The new VRV IV features are available on water cooled

VRV systems including:

> Variable Refrigerant Temperature – delivering far higher

eciency than any other comparable system and ensuring

comfort by raising o coil temperatures, Variable Refrigerant

Temperature control delivers a leap forwards in VRV technology.

> Congurator – Simplied commissioning: graphical interface

to congure, commission and upload system settings. Manage

systems over multiple sites, saves time and reduces errors during

set-up and commissioning.

> The standard model is now capable of accepting geothermal

water temperatures (Down to -10 Deg C with glycol)

> Inverter water pump controller (available on request)

Connect to AHU applications and Heat Reclaim Ventilation devices

> Now it’s even possible to connect VRV IV BS boxes, including the

small, light Multi BS boxes designed to oer the largest & most

exible range of design & installation options available.

Water cooled VRV uses water as its source of heat. This enables not just heat recovery on each system,

but also heat recovery between dierent systems, maximising eciency. Additionally there is no

defrost required on these units meaning heating comfort is maintained even during cold spells.

RWEYQ-T8

Water Cooled VRV

Ideal for large buildings

VRV-W systems are capable of coping with water pressures of 2MPa and provide pipework lengths of up to 120m length from

condenser to fan coils.

Water ow control

Signicantly reduce inverter pump power input by reducing the

ow through the VRV-W condenser when at part load.

By linking the degree of valve opening to the compressor

frequency, the ow rate varies to match the load.

Consequently as the ow rate reduces, the inverter pump will slow

down and save energy.

> Up to 13 steps of ow control available

> Available as an option (factory tted)

> 50l/m minimum ow rate

Variable water

Flow Control Valve

Inverter Pump

Wired connection

Chiller / Boiler

VRV

Price List Update: Valid from 1st January 2017

Outdoor Units

RWEYQ8T8

RWEYQ10T8

RWEYQ16T8 RWEYQ18T8 RWEYQ20T8 RWEYQ24T8

RWEYQ8T8 RWEYQ8T8 RWEYQ8T8

RWEYQ10T8 RWEYQ10T8 RWEYQ10T8

RWEYQ8T8 RWEYQ8T8 RWEYQ8T8

Capacity Nominal Cooling kW 22.40 28.00 44.80 50.40 56.00 67.20

Nominal Heating kW 25.00 31.50 50.00 56.50 63.00 75.00

EER 5.07 4.56 5.07 4.77 4.56 5.07

COP 5.94 5.25 5.94 5.53 5.25 5.94

Dimensions Height mm 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000

Width mm 780 780 780 780 780 780 780 780 780 780 780

Depth mm 550 550 550 550 550 550 550 550 550 550 550

Weight kg 137 137 137 137 137 137 137 137 137 137 137

Electrical

Details

Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 7.2 9.5 14.4 16.7 19.0 21.6

Starting Current amps 4 4 4 4 4 4

Fuse Rating amps 20 20 32 32 32 50

Refrigerant

Circuit

Refrigerant Type R410A

Refrigerant Charge kg 3.5 4.2 3.5 3.5 3.5 4.2 4.2 4.2 3.5 3.5 3.5

Additional Charge kg data book data book data book data book data book data book

Sound Pressure dBA 50 51 53 54 54 55

Piping Limits Maximum Length m 120 120 120 120 120 120

Maximum Vertical Rise m 50 50 50 50 50 50

Piping

Connections

Liquid inch (mm) 3/8 (9.52) 3/8 (9.52) 1/2 (12.7) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9)

Gas (Heat pump) Suction (HR)

inch (mm) 3/4 (19.1) 7/8 (22.2) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 3/8 (34.9)

Gas Discharge (HR only) inch (mm) 5/8 (15.9) 3/4 (19) 7/8 (22.2) 7/8 (22.2) 7/8 (22.2) 1 1/8 (28.6)

Drain Outlet ISO 228 - G1 1/2 B Internal thread - Per module

Water Inlet & Outlet ISO 228 - G1 1/4 B External thread - Per module

Capacity Index Limit 100~260 125~325 200~520 225~585 250~650 300~780

Maximum Number of Connected Indoor Units 36 36 36 36 36 36

Trade Condensing Unit Price

£5,745.00

£7,080.00 £11,490.00 £12,825.00 £14,160.00 £17,235.00

Notes:

Daikin have introduced the new VRV IV Water Cooled condensing unit to complement the rest of the VRV range.

The water cooled system has a number of advantages over an air cooled system:

• suitable for tall multi-storied buildings due to no limitations of water piping length

• wide operation range with inlet water temperatures of -10°C to + 45°C

• suitable for use with open and closed loop ground source systems on request

• the system oers greater eciency in heating mode as there is no defrost cycle required for the water loop

• greater eciencies than air cooled systems

Notes:

The VRV IV Water Cooled system is supplied as a common unit and can be used in either heat pump and heat recovery modes, from size 10 to size 30 all using a three phase power supply.

The 30 hp system can connect to up to 36 indoor units. The system is fully compatible with the full range of existing VRV fan coils and controls packages. It should be installed in a plant room.

Outdoor Units RWEYQ26T8 RWEYQ28T8 RWEYQ30T8

RWEYQ8T8 RWEYQ8T8 RWEYQ10T8 RWEYQ8T8 RWEYQ10T8 RWEYQ10T8 RWEYQ10T8 RWEYQ10T8 RWEYQ10T8

Capacity Nominal Cooling kW 72.80 78.40 84.00

Nominal Heating kW 81.50 88.00 94.50

EER 4.86 4.69 4.56

COP 5.65 5.43 5.25

Dimensions Height mm 1000 1000 1000 1000 1000 1000 1000 1000 1000

Width mm 780 780 780 780 780 780 780 780 780

Depth mm 550 550 550 550 550 550 550 550 550

Weight kg 137 137 137 137 137 137 137 137 137

Electrical

Details

Power Supply Phase / Hz / V 3 / 50 / 380~415

Running Current amps 23.9 26.2 28.5

Starting Current amps 4.0 4.0 4.0

Fuse Rating amps 50 50 50

Refrigerant

Circuit

Refrigerant Type R410A

Refrigerant Charge kg 3.5 3.5 4.2 3.5 4.2 4.2 4.2 4.2 4.2

Additional Charge kg data book

Sound Pressure dBA 55 55 56

Piping Limits Maximum Length m 120 120 120

Maximum Vertical Rise m 50 50 50

Piping

Connections

Liquid inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1)

Gas (Heat pump) Suction (HR)

inch (mm) 1 3/8 (34.9) 1 3/8 (34.9) 1 3/8 (34.9)

Gas Discharge (HR only) inch (mm) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6)

Drain Outlet ISO 228 - G1 1/2 B Internal thread - Per module

Water Inlet & Outlet ISO 228 - G1 1/4 B External thread - Per module

Capacity Index Limit 325~845 350~910 375~975

Maximum Number of Connected Indoor Units 36 36 36

Trade Condensing Unit Price £18,570.00 £19,905.00 £21,240.00

Heat Pump and Heat Recovery RWEYQ-T8 (up to 24 hp)

VRV IV Water Cooled Condensing Units

Heat Pump and Heat Recovery RWEYQ-T8 (26 to 30 hp)

VRV IV Water Cooled Condensing Units

VRV

Residential, Commercial and Industrial

The new VRV IV Heat Recovery series has a new

range of BS boxes, which are designed to oer

unrivalled exibility – enabling you to install

and adapt the systems in as little time, eort

and cost as possible.

Multi Boxes for VRV IV Heat Recovery

(REYQ-T / RWEYQ-T8 / RQEQ-P3)

Multi Boxes

BS4Q14AV1B BS6Q14AV1B BS8Q14AV1B BS10Q14AV1B BS12Q14AV1B BS16Q14AV1B

Dimensions H x W x D mm 298 x 370 x 430 298 x 580 x 430 298 x 820 x 430 298 x 1060 x 430

Weight kg 17 24 26 35 38 50

Branches per box 4 6 8 10 12 16

Capacity index of each branch 140 or less

Number of Fan Coil Units per branch 5 per branch

Total Indoor Capacity Index 400 or less 600 or less 750 or less

Total number of Fan Coil units per box 20 30 40 50 60 64

Electrical Details Power Supply Phase / Hz / V 1 / 50 / 230

Power Input kW 0.043 0.064 0.086 0.107 0.129 0.172

Fuse Rating amps 5 5 5 5 5 5

Piping Limits Level Dierence m Data Book

Maximum Length m

Piping Connections Indoor Liquid inch (mm) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9) 5/8 (15.9)

Piping Connections Outdoor Liquid inch (mm) 3/8 (9.5) 1/2 (12.7) 1/2 (12.7) 5/8 (15.9) 5/8 (15.9) 3/4 (19.1)

Suction inch (mm) 7/8 (22.2) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6) 1 3/8 (34.9)

Discharge inch (mm) 3/4 (19.1) 3/4 (19.1) 3/4 (19.1) 1 1/8 (28.6) 1 1/8 (28.6) 1 1/8 (28.6)

Trade Accessory Price £1,612.00 £2,208.00 £2,904.00 £3,492.00 £4,279.00 £5,209.00

Single Boxes for VRV IV Heat Recovery

(REYQ-T / RWEYQ-T8 / RQEQ-P3)

Single Boxes

BS1Q10A BS1Q16A BS1Q25A

Dimensions H x W x D mm 207 x 388 x 326

Weight kg 12 12 15

Total Indoor Capacity 15 ~ 100 101 ~ 160 161 ~ 250

Number of Fan Coil Units 6 8 8

Electrical Details Power Supply Phase / Hz / V 1 / 50 / 230

Power Input kW 0.005

Fuse Rating amps 5

Piping Limits Level Dierence m data book

Maximum Length m data book

Piping Connections Indoor Liquid inch (mm) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5)

Gas inch (mm) 5/8 (15.9) 5/8 (15.9) 7/8 (22.2)

Piping Connections Outdoor Liquid inch (mm) 3/8 (9.5) 3/8 (9.5) 3/8 (9.5)

Suction inch (mm) 5/8 (15.9) 5/8 (15.9) 7/8 (22.2)

Discharge inch (mm) 1/2 (12.7) 1/2 (12.7) 3/4 (19.1)

Trade Accessory Price £351.00 £387.00 £445.00

BS10,12Q14A BS16Q14A

Main features:

> Unlimited unused ports

> Smaller, lighter and quieter than comparable products

> Fan coils up to 140 class can be attached to a single port

BS4Q14A BS6,8Q14A

BS1Q10,16,25A

All VRV IV Heat Recovery, VRV III-Q replacement and Water Cooled VRV (RWEYQ-T8) now use VRV IV Multi Boxes.

BS-Q-A

VRV Accessories VRV IV Branch Selector Boxes – Heat Recovery

Accessories:

Accessory Ref Description Trade Price

KHRP26A250T Junction pipe kit to link two Multi BS ports to connect 20 and 25kW fan coils £292.00

KHFP26M224 Stop valve kit for multi BS box future expansion without refrigerant recovery £96.00

KHFP26A100C Pipe closing kit for unused ports £47.00

VRV

Price List Update: Valid from 1st January 2017

For Outdoor Units 2-Pipe System Refrigerant Sizing between Refnet Joints and Indoor/Outdoor Units RXYSQ / RYYQ / RWEYQ Trade Price

Total Capacity of

Indoor Units

Liquid

Pipe

Suction

Pipe

Refnet

Selection

RXYQ5P /

RXYSCQ /

RXYSQ4-6T

Below 62.5 1/4 1/2 KHRQ22M20T £30.00

62.5 to 162.5 3/8 5/8 KHRQ22M20T £30.00

RYYQ8-54T /

RWEYQ-T

Below 150 3/8 5/8 KHRQ22M20T £30.00

150 to below 200 3/8 3/4 KHRQ22M20T £30.00

200 to below 290 3/8 7/8 KHRQ22M29T9 £37.00

290 to below 420 1/2 1 1/8 KHRQ22M64T £38.00

420 to 639 5/8 1 1/8 KHRQ22M64T £38.00

640 and above Please contact your local sales oce for selection KHRQ22M75T £50.00

Refnet Header KHRQ22M29H £119.00

Refnet Header KHRQ22M64H £145.00

Refnet Header KHRQ22M75H £190.00

Condensing Unit Branch Kit - 2 Module RYYQ, RWEYQ BHFQ22P1007 £81.00

Condensing Unit Branch Kit - 3 Module RYYQ BHFQ22P1517 £159.00

Condensing Unit Branch Kit - 2 Module RQYQ BHFP22P36C £100.00

Condensing Unit Branch Kit - 3 Module RQYQ BHFP22P54C £199.00

For Outdoor Units 3-Pipe System Refrigerant Sizing between Refnet Joints and Indoor/Outdoor Units REYQ / RWEYQ Trade Price

Total Capacity of

Indoor Units

Liquid

Pipe

Discharge

Pipe

Suction

Pipe

Refnet

Selection

RWEYQ8-30T8 /

REYQ-T

Below 150 3/8 1/2 5/8 KHRQ23M20T £42.00

150 to below 200 3/8 5/8 3/4 KHRQ23M20T £42.00

200 to below 290 3/8 3/4 7/8 KHRQ23M29T9 £57.00

290 to below 420 1/2 3/4 1 1/8 KHRQ23M64T £60.00

420 to 639 5/8 1 1/8 1 1/8 KHRQ23M64T £60.00

640 and above Please contact your local sales oce for selection KHRQ23M75T £75.00

Refnet Header KHRQ23M29H £164.00

Refnet Header KHRQ23M64H £198.00

Refnet Header KHRQ23M75H £278.00

Condensing Unit Branch Kit - 2 Module REYQ, RWEYQ BHFQ23P907 £151.00

Condensing Unit Branch Kit - 3 Module REYQ, RWEYQ BHFQ23P1357 £305.00

Condensing Unit Branch Kit - 2 Module RQEQ BHFP26P36C £171.00

Condensing Unit Branch Kit - 3 Module RQEQ BHFP26P63C £347.00

Condensing Unit Branch Kit - 4 Module RQEQ BHFP26P84C £460.00

RXYSQ, RYYQ, REYQ, RWEYQ

VRV Condensing Unit – Refnet Joints

One of the main benets of the Daikin VRV multi BS

boxes is the exibility they oer when changing the

layout of the system to cater for the changing tenant

needs on a building.

To further increase the exibility of the BS boxes, we now oer

the full range of multi BS boxes with pre-tted valves.

Having valves pre-installed on the boxes can save considerable

time and eort on site.

Pre-installed valves allow:

> Indoor units to be added without altering system pipework

> New units can be added without having to remove refrigerant

from the rest of the system

• So you can avoid having to pump down / vac out /

recharge the whole system

• Saves many man hours when altering systems

Note: Providing index is not increased above the next pipework threshold or the BS box index limit

Model No UK.BS4Q14AV1/FSV UK.BS6Q14AV1/FSV UK.BS8Q14AV1/FSV UK.BS10Q14AV1/FSV UK.BS12Q14AV1/FSV UK.BS16Q14AV1/FSV

No. of Ports 4 6 8 10 12 16

Original Depth mm 430

Original Weight kg 17 24 26 35 38 50

*Weight with Valves kg 22 31 34 45 49 64

BS Box Price £1,612.00 £2,208.00 £2,904.00 £3,492.00 £4,279.00 £5,209.00

Valve Modication Price** £266.00 £372.00 £478.00 £584.00 £690.00 £902.00

* Approx

** Not subject to standard trade discount

VRV Accessories VRV IV Branch Selector Boxes with Pre-tted Valves

VRV

Residential, Commercial and Industrial

225

Control Systems

• Price competitive mini BMS

• Cross-pillar integration of Daikin products

• Integration of third party equipment

Plug & play

Mini Building Management System NEW

User friendliness

›Intuitive user interface

›Visual lay out view and direct access to indoor unit

main funtions

›All functions direct accessible via touch screen

or via web interface

Smart energy management

›Monitoring if energy use is according to plan

›Helps to detect origins of energy waste

›Powerful schedules guarantee correct operation

throughout the year

›Save energy by interlocking A/C operation with other

equiment such as heating

Flexibility

› Cross-pillar integration (heating, air conditioning,

applied systems, refrigeration, air handling units)

› BACnet protocol for rd party products integration

› I/O for integration of equipment such as lights,

pumps… on WAGO modules

› Modular concept for small to large applications

› Control up to  indoor unit groups via one ITM

and combine multiple ITM via the web interface

Easy servicing and commissioning

› Remote refrigerant containment check preventing

on site visit

› Simpli ed troubleshooting

› Save time on commissioning

thanks to the pre-commissioning tool

› Auto registration of indoor units

Functions overview

Languages

› English

› French

› German

› Italian

› Spanish

› Dutch

› Portuguese

Management

› Web access

› Power Proportional

Distribution (option)

› Operational history

(malfunctions, operation hours, …)

› Smart energy management

- monitor if energy use is

according to plan

- detect origins of energy

waste

› Setback function

› Sliding temperature

System layout

› Up to , unit groups can

be controlled

(ITM plus Integrator +  iPU

(incl. iTM adaptor)

› Ethernet TCPIP

Control

› Individual control

(, groups)

› Schedule setting (Weekly

schedule, yearly calender,

seasonal schedule)

› Interlock control

› Setpoint limitation

› Temperature limit

Connectable to

- DX Split, Sky Air, VRV

- Chillers (via POL. controller)

- Daikin AHU

- Fan coils

- Daikin Altherma Flex type

- LT and HT hydroboxes

- Air curtains

- WAGO I/O, AO and PI

- BACnet protocol

WAGO Interface

› Modular integration of rd

party equipment

- WAGO coupler (interface

between WAGO and Modbus)

- Di module

- Do module

- Ai module

- Thermistor module

NEW

Flexibility in size

From 64 up to ∞ number

of groups

Split Fan coils Chillers and AHU Refrigeration

ECPEN15-200.indd 225 12/02/15 11:47

225

Control Systems

• Price competitive mini BMS

• Cross-pillar integration of Daikin products

• Integration of third party equipment

Plug & play

Mini Building Management System NEW

User friendliness

›Intuitive user interface

›Visual lay out view and direct access to indoor unit

main funtions

›All functions direct accessible via touch screen

or via web interface

Smart energy management

›Monitoring if energy use is according to plan

›Helps to detect origins of energy waste

›Powerful schedules guarantee correct operation

throughout the year

›Save energy by interlocking A/C operation with other

equiment such as heating

Flexibility

› Cross-pillar integration (heating, air conditioning,

applied systems, refrigeration, air handling units)

› BACnet protocol for rd party products integration

› I/O for integration of equipment such as lights,

pumps… on WAGO modules

› Modular concept for small to large applications

› Control up to  indoor unit groups via one ITM

and combine multiple ITM via the web interface

Easy servicing and commissioning

› Remote refrigerant containment check preventing

on site visit

› Simpli ed troubleshooting

› Save time on commissioning

thanks to the pre-commissioning tool

› Auto registration of indoor units

Functions overview

Languages

› English

› French

› German

› Italian

› Spanish

› Dutch

› Portuguese

Management

› Web access

› Power Proportional

Distribution (option)

› Operational history

(malfunctions, operation hours, …)

› Smart energy management

- monitor if energy use is

according to plan

- detect origins of energy

waste

› Setback function

› Sliding temperature

System layout

› Up to , unit groups can

be controlled

(ITM plus Integrator +  iPU

(incl. iTM adaptor)

› Ethernet TCPIP

Control

› Individual control

(, groups)

› Schedule setting (Weekly

schedule, yearly calender,

seasonal schedule)

› Interlock control

› Setpoint limitation

› Temperature limit

Connectable to

- DX Split, Sky Air, VRV

- Chillers (via POL. controller)

- Daikin AHU

- Fan coils

- Daikin Altherma Flex type

- LT and HT hydroboxes

- Air curtains

- WAGO I/O, AO and PI

- BACnet protocol

WAGO Interface

› Modular integration of rd

party equipment

- WAGO coupler (interface

between WAGO and Modbus)

- Di module

- Do module

- Ai module

- Thermistor module

NEW

Flexibility in size

From 64 up to ∞ number

of groups

Split Fan coils Chillers and AHU Refrigeration

ECPEN15-200.indd 225 12/02/15 11:47

225

Control Systems

• Price competitive mini BMS

• Cross-pillar integration of Daikin products

• Integration of third party equipment

Plug & play

Mini Building Management System NEW

User friendliness

›Intuitive user interface

›Visual lay out view and direct access to indoor unit

main funtions

›All functions direct accessible via touch screen

or via web interface

Smart energy management

›Monitoring if energy use is according to plan

›Helps to detect origins of energy waste

›Powerful schedules guarantee correct operation

throughout the year

›Save energy by interlocking A/C operation with other

equiment such as heating

Flexibility

› Cross-pillar integration (heating, air conditioning,

applied systems, refrigeration, air handling units)

› BACnet protocol for rd party products integration

› I/O for integration of equipment such as lights,

pumps… on WAGO modules

› Modular concept for small to large applications

› Control up to  indoor unit groups via one ITM

and combine multiple ITM via the web interface

Easy servicing and commissioning

› Remote refrigerant containment check preventing

on site visit

› Simpli ed troubleshooting

› Save time on commissioning

thanks to the pre-commissioning tool

› Auto registration of indoor units

Functions overview

Languages

› English

› French

› German

› Italian

› Spanish

› Dutch

› Portuguese

Management

› Web access

› Power Proportional

Distribution (option)

› Operational history

(malfunctions, operation hours, …)

› Smart energy management

- monitor if energy use is

according to plan

- detect origins of energy

waste

› Setback function

› Sliding temperature

System layout

› Up to , unit groups can

be controlled

(ITM plus Integrator +  iPU

(incl. iTM adaptor)

› Ethernet TCPIP

Control

› Individual control

(, groups)

› Schedule setting (Weekly

schedule, yearly calender,

seasonal schedule)

› Interlock control

› Setpoint limitation

› Temperature limit

Connectable to

- DX Split, Sky Air, VRV

- Chillers (via POL. controller)

- Daikin AHU

- Fan coils

- Daikin Altherma Flex type

- LT and HT hydroboxes

- Air curtains

- WAGO I/O, AO and PI

- BACnet protocol

WAGO Interface

› Modular integration of rd

party equipment

- WAGO coupler (interface

between WAGO and Modbus)

- Di module

- Do module

- Ai module

- Thermistor module

NEW

Flexibility in size

From 64 up to ∞ number

of groups

Split Fan coils Chillers and AHU Refrigeration

ECPEN15-200.indd 225 12/02/15 11:47

225

Control Systems

• Price competitive mini BMS

• Cross-pillar integration of Daikin products

• Integration of third party equipment

Plug & play

Mini Building Management System NEW

User friendliness

›Intuitive user interface

›Visual lay out view and direct access to indoor unit

main funtions

›All functions direct accessible via touch screen

or via web interface

Smart energy management

›Monitoring if energy use is according to plan

›Helps to detect origins of energy waste

›Powerful schedules guarantee correct operation

throughout the year

›Save energy by interlocking A/C operation with other

equiment such as heating

Flexibility

› Cross-pillar integration (heating, air conditioning,

applied systems, refrigeration, air handling units)

› BACnet protocol for rd party products integration

› I/O for integration of equipment such as lights,

pumps… on WAGO modules

› Modular concept for small to large applications

› Control up to  indoor unit groups via one ITM

and combine multiple ITM via the web interface

Easy servicing and commissioning

› Remote refrigerant containment check preventing

on site visit

› Simpli ed troubleshooting

› Save time on commissioning

thanks to the pre-commissioning tool

› Auto registration of indoor units

Functions overview

Languages

› English

› French

› German

› Italian

› Spanish

› Dutch

› Portuguese

Management

› Web access

› Power Proportional

Distribution (option)

› Operational history

(malfunctions, operation hours, …)

› Smart energy management

- monitor if energy use is

according to plan

- detect origins of energy

waste

› Setback function

› Sliding temperature

System layout

› Up to , unit groups can

be controlled

(ITM plus Integrator +  iPU

(incl. iTM adaptor)

› Ethernet TCPIP

Control

› Individual control

(, groups)

› Schedule setting (Weekly

schedule, yearly calender,

seasonal schedule)

› Interlock control

› Setpoint limitation

› Temperature limit

Connectable to

- DX Split, Sky Air, VRV

- Chillers (via POL. controller)

- Daikin AHU

- Fan coils

- Daikin Altherma Flex type

- LT and HT hydroboxes

- Air curtains

- WAGO I/O, AO and PI

- BACnet protocol

WAGO Interface

› Modular integration of rd

party equipment

- WAGO coupler (interface

between WAGO and Modbus)

- Di module

- Do module

- Ai module

- Thermistor module

NEW

Flexibility in size

From 64 up to ∞ number

of groups

Split Fan coils Chillers and AHU Refrigeration

ECPEN15-200.indd 225 12/02/15 11:47

User friendly

> Intuitive user interface

> Visual layout view and direct access to indoor

unit main functions

> All functions direct accessible via touch screen

or via web interface

Smart energy management

> Monitoring if energy use is according to plan

> Helps to detect origins of energy waste

> Powerful schedules guarantee correct operation

throughout the year

> Save energy by interlocking A/C operation

with other equipment such as heating

Flexibility

> Cross-pillar integration (heating, air conditioning,

applied systems, refrigeration, air handling units)

> BACnet protocol for 3rd party products integration

> I/O for integration of equipment such as lights,

pumps etc. on WAGO modules

> Modular concept for small to large applications

> Control up to 512 indoor unit groups via one ITM

and combine multiple ITM via the web interface

Easy servicing and commissioning

> Remote refrigerant containment check

preventing on site visit

> Simplied troubleshooting

> Save time on commissioning thanks to the

pre-commissioning tool

> Auto registration of indoor units

225

Control Systems

• Price competitive mini BMS

• Cross-pillar integration of Daikin products

• Integration of third party equipment

Plug & play

Mini Building Management System NEW

User friendliness

›Intuitive user interface

›Visual lay out view and direct access to indoor unit

main funtions

›All functions direct accessible via touch screen

or via web interface

Smart energy management

›Monitoring if energy use is according to plan

›Helps to detect origins of energy waste

›Powerful schedules guarantee correct operation

throughout the year

›Save energy by interlocking A/C operation with other

equiment such as heating

Flexibility

› Cross-pillar integration (heating, air conditioning,

applied systems, refrigeration, air handling units)

› BACnet protocol for rd party products integration

› I/O for integration of equipment such as lights,

pumps… on WAGO modules

› Modular concept for small to large applications

› Control up to  indoor unit groups via one ITM

and combine multiple ITM via the web interface

Easy servicing and commissioning

› Remote refrigerant containment check preventing

on site visit

› Simpli ed troubleshooting

› Save time on commissioning

thanks to the pre-commissioning tool

› Auto registration of indoor units

Functions overview

Languages

› English

› French

› German

› Italian

› Spanish

› Dutch

› Portuguese

Management

› Web access

› Power Proportional

Distribution (option)

› Operational history

(malfunctions, operation hours, …)

› Smart energy management

- monitor if energy use is

according to plan

- detect origins of energy

waste

› Setback function

› Sliding temperature

System layout

› Up to , unit groups can

be controlled

(ITM plus Integrator +  iPU

(incl. iTM adaptor)

› Ethernet TCPIP

Control

› Individual control

(, groups)

› Schedule setting (Weekly

schedule, yearly calender,

seasonal schedule)

› Interlock control

› Setpoint limitation

› Temperature limit

Connectable to

- DX Split, Sky Air, VRV

- Chillers (via POL. controller)

- Daikin AHU

- Fan coils

- Daikin Altherma Flex type

- LT and HT hydroboxes

- Air curtains

- WAGO I/O, AO and PI

- BACnet protocol

WAGO Interface

› Modular integration of rd

party equipment

- WAGO coupler (interface

between WAGO and Modbus)

- Di module

- Do module

- Ai module

- Thermistor module

NEW

Flexibility in size

From 64 up to ∞ number

of groups

Split Fan coils Chillers and AHU Refrigeration

ECPEN15-200.indd 225 12/02/15 11:47

Functions overview Management

> Web access

> Power Proportional

Distribution (option)

> Operational history

(malfunctions, operation

hours, …)

> Smart energy management

– monitor if energy use is

according to plan

– detect origins of energy

waste

> Setback function

> Sliding temperature

Control

> Individual control

> Schedule setting (weekly

schedule, yearly calender,

seasonal schedule)

> Interlock control

> Setpoint limitation

> Temperature limit

Connectable to

> DX Split, Sky Air, VRV

> Chillers (via POL. controller)

> Daikin AHU

> Fan coils

> Daikin Altherma Flex type

> LT and HT hydroboxes

> Air curtains

> WAGO I/O, AO and PI

> BACnet protocol

> WAGO Interface

VRV Accessories Mini Building Management System

VRV

Price List Update: Valid from 1st January 2017

VRV Accessories System Overview

224

Mini Building Management System

Mini BMS

with full integration

across all product pillars

System overview

NEW

• Price competitive mini BMS

• Cross-pillar integration of Daikin products

• Integration of third party equipment

Direct plug & play connection!

Lighting Fan

Sensor

Pump

Fire alarm

kWh meter

Di/Pi line

Max. 200m

indoor units,

air curtain,

hydrobox,

air handling units

Web Access

Fan coil units

Chillers and AHU

Referigeration

Internet

Extranet

LAN

http interface

Split

I/O moduleI/O module

WAGO

interface

BACnet

protocol

Integration of third

party equiqment

Full control of Daikin

HVAC-R portfolio

DCM601A51

Multi state objects

Alarm

Elevator Air handling unit

ITM plus adaptor line

Max. 7

adapters

DCM601A52

Di/Pi port

DCM601A51

Check on

https://www.youtube.com/

DaikinEurope

ECPEN15-200.indd 224 12/02/15 11:47

224

Mini Building Management System

Mini BMS

with full integration

across all product pillars

System overview

NEW

• Price competitive mini BMS

• Cross-pillar integration of Daikin products

• Integration of third party equipment

Direct plug & play connection!

Lighting Fan

SensorPump

Fire alarm

kWh meter

Di/Pi line

Max. 200m

indoor units,

air curtain,

hydrobox,

air handling units

Web Access

Fan coil units

Chillers and AHU

Referigeration

Internet

Extranet

LAN

http interface

Split

I/O moduleI/O module

WAGO

interface

BACnet

protocol

Integration of third

party equiqment

Full control of Daikin

HVAC-R portfolio

DCM601A51

Multi state objects

Alarm

Elevator Air handling unit

ITM plus adaptor line

Max. 7

adapters

DCM601A52

Di/Pi port

DCM601A51

Check on

https://www.youtube.com/

DaikinEurope

ECPEN15-200.indd 224 12/02/15 11:47

Refrigeration

VRV

Residential, Commercial and Industrial

100

VRV Remote Control Options Model Description Related Fan Coil Trade Price

Hard Wired Controllers

BRC1E53A Premium wired remote controller with full text menu,

Energy features and 7 Day Time Clock All £79.00

BRC2E52C Premium wired controller with simplied outlook All £83.00

UK.BRC2E/CHR/POL Polished chrome simplied controller, recessed in wall All £188.00

UK.BRC2E/CHR/BRU Brushed chrome simplied controller, recessed in wall All £188.00

UK.BRC2E/BRA/POL Polished brass simplied controller, recessed in wall All £188.00

BRC3E52C Simplied remote controller (without heat/cool button) All £83.00

UK.BRC3E/CHR/POL Polished chrome simplied controller, recessed in wall

(without heat/cool button) All £188.00

UK.BRC3E/CHR/BRU Brushed chrome simplied controller, recessed in wall

(without heat/cool button) All £188.00

UK.BRC3E/BRA/POL Polished brass simplied controller, recessed in wall

(without heat/cool button) All £188.00

BRP7A51/UK.FB2 Digital input adaptor for Key card and Window switch

contacts with programmable logic For use with Simplied controllers £88.00

Infra Red controllers

BRC4C61 Wireless remote controller FXKQ-MA £141.00

BRC4C62 Wireless remote controller FXDQ-M9 £141.00

BRC4C65 Wireless remote controller FXMQ-P7, FXLQ-P, FXNQ-A, FXDQ-A,

FXSQ-A, FXMQ-MB £158.00

BRC7C58 Wireless remote controller FXUQ-A £158.00

BRC7C52 Wireless remote controller FXCQ-A £158.00

BRC7E618 Wireless remote controller FXAQ-P £141.00

BRC7F530W Wireless remote controller for White Ceiling Decoration Panel FXZQ-A + BYFQ60CW £158.00

BRC7F530S Wireless remote controller for Silver Ceiling Decoration Panel FXZQ-A + BYFQ60CS £158.00

BRC7EB530W Wireless remote for Fully Flat Cassette Old Style Decoration Panel FXZQ-A + BYFQ60B3 £158.00

BRC7FA532F Wireless remote controller FXFQ-A £158.00

BRC7G53 Wireless remote controller FXHQ-A £158.00

VRV Accessories Remote Controllers (supplied loose)

VRV

Price List Update: Valid from 1st January 2017

101

VRV Accessories Control and BMS Interfaces (supplied separately)

VRV Control and BMS Interfaces

KRP2A52 KRP4A53 RTD-NET RTD-10 RTD-20 RTD-HO KLIC-DI DMS504B51 DMS502A51 EKMBDXA

Interface Method System Unit/Group Unit/Group Unit/Group Unit/Group Unit/Group Unit/Group System System System

Control Protocol Daikin Daikin Modbus Modbus - Modbus Modbus KNX LONWorks BACnet Modbus

0-10 Volt control - - - - 4 4 -----

Resistance control 4 4 - - 4 4 -----

Control Functions

On/O 44444444444

SetPoint 44444444444

Operating Mode - - 444444444

Fan Speed - - 444444444

Louver Setting - - 4 4 4 4 4 4 -4 4

VAM Damper control - - 4 4 4 4 -----

Control Prohibit / Restrict settings - - 4 4 4 4 4 -444

Temperature SetPoint Limits - - 4 4 -444 - - 4

Scene Creation - - - - - - - 4---

Monitoring Functions

On/O 4 4 4 4 -444444

Temperature Set Point - - 4 4 -444444

Operating Mode - - 4 4 -444444

Thermostat On - - 4 4 4 4 4 -444

Fan Operation - - 4 4 -444444

Louvre Position - - 4 4 -444 -4 4

Fault 44444444444

Fault Code - - 4 4 -444444

Remote Controller temperature - - 4 4 -4 4 -444

Remote Controller Mode - - 4 4 -4 4 ----

Number of Units - - 4 4 -4 4 ----

Return Air Temperature (Average/Min/Max) - - 4 4 -4 4 -4 4 -

Coil In/Out temperature - - 4 4 -4 4 ----

Filter Alarm - - 4 4 -444444

Defrost Operation - - 4 4 4 4 4 ---4

Integral Functions (BMS system not req’d)

Temperature Set Back - - - - - 4 4 ----

Temperature Setpoint Limitation - - - 4 4 4 4 ----

Key Card + Window Contact - - - - - 4 4 ----

Heating Interlock - - - 4 4 ------

Run / Standby - - - - 4------

Prices

Interface KRP2A52 KRP4A53 RTD-NET RTD-10 RTD-20 RTD-HO KLIC-DI DMS504B51 DMS502A51 EKMBDXA

Trade Price £184.00 £70.00 £172.00 £219.00 £236.00 £219.00 £193.00 £1,220.00 £3,924.00 £2,060.00

Associated Items

Mounting Box

(FXFQ, FXCQ, FXZQ, FXUQ, FXHQ, FXDQ, FXAQ)

UK.FB2 UK.FB2 UK.FB2 UK.FB2 UK.FB2 UK.FB2 - - - -

Trade Price £26.00 £26.00 £26.00 £26.00 £26.00 £26.00 - - - -

Expansion PCB for additional unit connection - - - - - - - - DAM411B51 -

Trade Price - - - - - - - - £915.00

Pulse input PCB for KWh meter input - - - - - - - - DAM412B51 -

Trade Price - - - - - - - - £487.00 -

VRV

Residential, Commercial and Industrial

102

VRV Accessories Centralised Control Solutions

VRV Accessories RTD-20 Control Panels

Model Description Trade Price

RTD-20 Control Panels are

sold at listed price.

No discounts will apply.

UK.RTD-20/ENCH Enclosure for RTD20 x 1 £318.00

UK.ENC/RTD-20X2 Enclosure for RTD-20 x 2 £797.00

UK.ENC/RTD-20X3 Enclosure for RTD-20 x 3 £1,052.00

UK.ENC/RTD-20X4 Enclosure for RTD-20 x 4 £1,307.00

UK.ENC/RTD-20X5 Enclosure for RTD-20 x 5 £1,640.00

UK.ENC/RTD-20X6 Enclosure for RTD-20 x 6 £1,900.00

UK.ENC/RTD-20X7 Enclosure for RTD-20 x 7 £2,155.00

UK.ENC/RTD-20X8 Enclosure for RTD-20 x 8 £2,410.00

Accessories for RTD-20 Control Panels Description Trade Price

UK.RTD-EXTSEN Air Curtain External Sensor £21.00

UK.RTD-INTSEN Internal Sensor for RTD Device £13.00

UK.RTD-CABLE RS485 Cable for wiring RTD Devices 100m Roll £63.00

UK.RTD-PIR/7.5M PIR Sensor & 7.5M Cable Assy £56.00

UK.RTD-PIR/15.0M 7.5m Extension Cable for UK.RTD-PIR/7.5M £22.00

Control Panels have been developed to allow easy installation of the RTD-20 into end-user premises.

A typical application would require 1 RTD-20 per zone within a building. The control panels are

pre-congured for up-to 8 dierent zones, making installation and wiring much simpler for the installer.

Model Description Trade Price

DCS601C51 Intelligent touch controller for up to 64 fan coil units £1,707.00

KJB411A Recessed Fixing box for I-Touch controller £72.00

DCS302A52 Adaptor PCB for external on/o control of I-Touch controller and I-Touch Manager £108.00

DTA103A51 Adaptor PCB for on/o control of external device from I-Touch controller and I-Touch manager £318.00

UK.IC Cong I-Touch controller - o site conguration charge (please contact your sales oce for info/prices) POA

VRV

Price List Update: Valid from 1st January 2017

103

VRV Accessories Centralised Control Solutions

Model Description Trade Price

DCM601A51 I-Touch manager central touch screen controller, with integral web server

and email function £2,353.00

DCM601A52 I-Touch manager Expansion Module for up to 64 fan coil units and 4 x kWh Meters £736.00

DCM002A51 Proportional Power Distribution add-on for I-Touch manager.

Provides ability for tenant billing £1,832.00

DCM007A51 Open protocol software for BMS Integration £974.00

DCM008A51 Energy Navigator Software for I-Touch manager.

For on screen energy monitoring £2,852.00

DCM009A51 BAC Net protocol for 3rd party products £1,252.00

DCS302A52 Adaptor PCB for external on/o control of I-Touch controller and I-Touch Manager £108.00

DTA103A51 Adaptor PCB for on/o control of external device from I-Touch controller

and I-Touch manager £318.00

WAGO Interface

System

Modular interface system for connection to 3rd Party devices such as lights, pumps,

PIR sensors, access card readers, etc. Enables the iTM to control external devices and

provide customised interlocks for automation and energy saving logic

POA

UK.IMAN/CONFIG1 I-Manager O site conguration per FCU £7.00

UK.IMAN/CONFIG2 I-Manager O site conguration & graphical layout per FCU.

(Allow 4 weeks from order to delivery) £10.00

UK.FS1 On site commissioning for PPD or Energy Navigator Software £585.00

UK.IMAN/SITE TRAIN On Site customer training for I Touch Manager System £585.00

VRV

Residential, Commercial and Industrial

104

NEW

Features and benets:

> Control of up to 32 indoor units (groups)

> Control of VRV, SkyAir, Splits, Air curtains & VAM units

> Intuitive local control via App based interface

> Control of all unit functions plus scheduling and set point

restrictions integral to system

> Optional web based cloud control for o-site access

> Optional web based energy management software to

automatically reduce wasted energy

> Optional multi-site control to facility benchmarking and permit

control to be ‘pushed through’ to multiple sites in one operation

> Modular system – sites can be added to the controls package as

they become available.

Tablet

Control of air conditioning within a retail

environment produces its own set of challenges.

The controls are often ‘hidden’ to prevent

unauthorised access. This can result in equipment

being left continuously operating, heating and

cooling clashing and extremes of set point.

This can lead to user comfort complaints and

excessive energy consumption.

Frequently there is only one user who knows how to

access the controls, and the maintenance company

has no o site access to make adjustments.

The solution to these issues is the Daikin

Intelligent Tablet Controller.

Model Description Trade Price

DCC601A51 Intelligent Tab Controller, with I/O module

and power supply unit

£614.00

Z380C Tablet for optional Wi-Fi based local control £255.00

4G-N12 Optional 3G router for Wi-Fi /

web based control *

£234.00

*Supply of a suitable activated Sim and maintenance of the Sim contract is required by the installer.

Hardware

Description

Trade Price **

Remote monitoring and control software for intelligent Tab Controller.

Provides web access to intelligent Tab Controller.

POA

Energy performance software for intelligent Tab Controller.

Provides energy saving control features.

POA

Multi-site management software for intelligent Tab Controller.

Provides Benchmarking and Trending plus multi-site control.

POA

Business package software for LCC.

Provides all features of Remote monitoring & control software,

Energy performance software & Multi-site management software.

POA

** First year subscription included in price of hardware.

Annual renewal carried out on-line at listed price - not subject to discount.

Service packages (annual fee)

Split, , ,

HRV, ventilation,

air curtains

CPU modulePower supply

Online control from any device

I/O module

intelligent Tablet Controller

wireless network

Local solution

DCC601A51

Alarm

Window

contact

Pulse input

Digital input

Daikin supplied screen

(optional) (for local control)

ZC-AA

Daikin supplied router

(optional) G-N

Via internet

Via G/G connection

Daikin network

Tablet

Owner

Installer/

technical manager

From one to ∞ sites

VRV Accessories Centralised Control Solutions

VRV

Price List Update: Valid from 1st January 2017

105

Wi-Fi adapter

Provide your customers with enhanced control of their air

conditioning systems, with the Daikin Wi-Fi adapter and free

downloadable App for smart phone or tablet.

Benets:

Manually and automatically control the environment using your

smart phone.

From switching between heat and cooling, setting the required

temperature and fan speed, setting minimum comfort levels and

time clocking your air conditioning, the climate will be maintained

to meet your requirements.

> Multiple users – Each user can be given their own account and

allocated unit(s). Users can even share access to the same unit(s).

> Phone not available – Control is also available via a dedicated

web site using a web browser on your tablet or PC.

*Broadband internet connection, Wi-Fi connection or Mobile data connection required.

Features:

Basic Operations

> On/O

> Operation mode

> Set point & room temperature

> Fan speed

> Air ow direction

> Time clocking

A delay o timer to automatically stop the air conditioning after

a xed number of hours run can be set. In addition multiple time

clock schedules can be set. Both of these features can reduce

energy wastage.

Occupied (Setback) and unoccupied (Home Leave) can be

separately enabled to ensure minimum comfort levels are

maintained when the property is empty.

In the event of an operational issue, the error & associated code

will be displayed, to aid in the reinstatement of your system.

Individual control of each room as well as control of the property

as a whole is available via the group control function.

An unlimited number of rooms and multiple properties can be

controlled by a single account.

Indication of the ambient temperature and a weather forecast for

the locale surrounding the property allow the user to adjust the

system settings to meet their requirements.

Model Description Trade Price

DKNWSERVER Wi-Fi adapter to connect to on-line server*

One adapter required per fan coil unless

group control of connected fan coils

required, then one adapter per group

£197.00

*No annual charge is required to access this service.

Wi-Fi adapter

For use with VRV & SkyAir

NEW

VRV Accessories VRV & SkyAir Wi-Fi adapter

VRV

Residential, Commercial and Industrial

106

VRV Accessories Fan Coil Accessories (supplied separately)

Model Description Related Unit Trade Price

BYCQ140DG Roundow cassette decoration panel with self cleaning lter FXFQ-A £323.00

BYCQ140DW Roundow cassette decoration panel - white with white louvres FXFQ-A £167.00

BYFQ60CS Fully Flat Cassette Decoration Panel - Silver FXZQ-A £206.00

BYFQ60B3 Fully Flat Cassette Decoration Panel - Old Style (FXZQ-MA style)

[compatible with previous model FXZQ-M9] FXZQ-A £177.00

KDBHQ55B140 Sealing member for air discharge outlet FXFQ-A £94.00

BDBHQ44C60 Sealing member for air discharge outlet - Fully Flat cassette FXZQ-A £95.00

KDDP55C160-1 (suction chamber)

KDDQ55B140-2 (connecting chamber)

Fresh air intake kit for up to 20% fresh air

(Not compatible with self-cleaning decoration panel) FXFQ-A £243.00

KDDQ50A140

Fresh air intake kit for up to 20% fresh air

FXHQ-A £165.00

UK.RC1 1x200mm Return air spigot FXSQ 15 / 20 / 25 / 32 A £73.00

UK.RC2 2x200mm Return air spigot FXSQ 40 / 50 A £82.00

UK.RC3 2x200mm Return air spigot FXSQ 63 / 80 A £89.00

UK.RC3A 3x200mm Return air spigot FXSQ 63 / 80 A £97.00

UK.RC4 4x200mm Return air spigot FXSQ 100 / 125 A £121.00

UK.SF1 1x200mm Supply air spigot FXSQ 15 / 20 / 25 / 32 A £65.00

UK.SF2 2x200mm Supply air spigot FXSQ 40 / 50 A £75.00

UK.SF3 2x200mm Supply air spigot FXSQ 63 / 80 A £82.00

UK.SF3A 3x200mm Supply air spigot FXSQ 63 / 80 A £87.00

UK.SF4 4x200mm Supply air spigot FXSQ 100 / 125 A £108.00

UK.FF7/P Filter frame and lter FXMQ 100 to 125 £123.00

UK.FF8 Filter frame and lter FXMQ 200 to 250 £152.00

KRCS01-4 Remote room mounted temperature sensor FXFQ-A, FXZQ-A, FXQC-A, FXHQ-A,

FXUQ-A, FXSQ-A, FXMQ-P7, FXDQ-A £42.00

KRCS01-1 Remote room mounted temperature sensor FXKQ-MA, FXDQ-P9, FXMQ-MA,

FXAQ-P, FXLQ-P, FXNQ-P £48.00

K.RSS Wireless room mounted temperature sensor and receiver All £93.00

RS-SE Service and Conguration Tool for K.RSS All £97.00

Model Description Related Unit Trade Price

BRP2A81 Adaptor PCB for Heat Cool selection terminals RYYQ-T £106.00

EBRP2B Adaptor PCB for Heat Cool selection terminals RXYSQ4-6TV1 £54.00

EKCHSC Adaptor Cable for Heat Cool selection terminals RXYSQ4-6TY1 £16.00

KJB111A Fixing box for EBRP2B & EKCHSC RXYSQ4-6T £17.00

KRC19-26 Cool/Heat selector switch for use with BRP2A81, EBRP2B or

EKCHSC RYYQ-T, BS1Q-A & RXYSQ4-6T £33.00

EKPCCAB1 VRV Congurator Software Connection Cable. Software avail-

able from Daikin Extranet RYYQ-T, REYQ-T, RXYSQ-T & RXYSCQ-T £183.00

K.CGL Condensing Unit Guard size 100-140 including RXYSQ £369.00

Strip & Rebuild of Condensing Units

VRV Condensing Units stripped down for delivery to site where

lifting into position is dicult with traditional methods. Units

are rebuilt on site by Daikin UK Engineers and fully retested.

POA

Condensing Unit Accessories (supplied separately)

VRV

Price List Update: Valid from 1st January 2017

107

Refrigerant leak detection systems can be required by the Safety of Building Occupants , BS-EN378.

Daikin has a solution that can help meet requirements for leak detection within enclosed spaces.

Refrigerant Leak Detection Alarm

1) The standard BS-EN378 requires that systems containing R410A refrigerant

gas such as VRV, meet the requirements regarding maximum system refrigerant

volumes that could leak within Hotel Bedroom or other similar Category Class A

spaces. If these limitations are exceeded there must be an alarm system installed

within each room where this limit is not met. The alarm system must alert the

occupier through both audible and visual indication, and must also alert building

sta such as supervisors, night porters etc. There is no specic requirement for the

alarm system to be linked to the refrigerant system to pump down or stop the

operation, although this can be congured if required by the client.

It is recommended that guidance on the selection and installation of these

systems is obtained from your local Daikin UK sales oce.

Cross connection between the two dierent ranges of refrigerant leak detectors is not permissible.

Model Description Related Unit Trade Price

UK.IAM1

Room based refrigerant gas detector with remote room mounted stainless steel facia

plate. Provides local audible and visual alarm notication. Terminals for connection to

alarm network and optional connection to VRV Fan coil to force system shut down

All £291.00

UK.IAM2

Network alarm hub for connection of up to 16 room alarms. Hub can be connected

in a pyramid formation of 16 groups back to a single unit for connection to a central

alarm indicator panel (UK.IAMC)

All £572.00

UK.IAMC Alarm buzzer and lamp panel for mounting in a central building supervisor location All £404.00

Model Description Related Unit Trade Price

UK.RDEM-Wht White single gang room based refrigerant gas detector. C/W power supply unit and

terminals for connection to alarm network or VRV fan coil to force system shut down All £288.00

UK.RDEM-Wht/

Curve

Curved white single gang room based refrigerant gas detector. C/W power supply unit

and terminals for connection to alarm network or VRV fan coil to force system shut down All £308.00

UK.RDEM-St/St Stainless steel single gang room based refrigerant gas detector. C/W power supply unit

and terminals for connection to alarm network or VRV fan coil to force system shut down All £308.00

UK.IMEC-RAD-32

Network alarm hub for connection of up to 32 room alarms c/w web page conguration

screen. Hub can be connected in a pyramid formation for connection to a central alarm

indicator panel (UK.IAMC)

All £1,846.00

UK.IMEC-RAD-64

Network alarm hub for connection of up to 64 room alarms c/w web page conguration

screen. Hub can be connected in a pyramid formation for connection to a central alarm

indicator panel (UK.IAMC)

All £2,548.00

Bed

Not

installed

by door

Not

installed

near

windows

Not

installed

behind

cupboards

Not installed near

bathroom

Not installed near

mirrors

✓ ✓

Refrigerant leak

detector position

mm above

oor level

VRV Accessories VRV Refrigerant Leak Detection System

VRV

Residential, Commercial and Industrial

108

Energy assessment

Individual VRV system or whole site energy consumption can

be accessed and viewed in a graphical form. The data can be

viewed as an hourly, daily, monthly or annual graph. The energy

consumption can be plotted against the outdoor air temperature

or against a target consumption (which can be manually entered or

automatically generated).

Energy optimisation

A target annual energy consumption limit can be set and the

system will reduce operational output to meet the target. The

target can either be manual set or automatically set via a simple

slide bar – calibrated by user comfort level vs energy saving level.

Control

Access to the on-site touch screen controller is possible remotely.

This gives the ability to change operational settings without having

to attend site.

Reporting

Indoor and outdoor unit operational data can be viewed in tabular

form. All data, energy usage and operational, can be extracted as a

CSV le for incorporation within your own reports.

Features and benets:

> Unique Daikin automatic energy optimisation tool

> Graphical reporting of energy usage

> Remote access to site operational settings

> Reduction to energy consumption can be weighed

vs user comfort

> All data available for incorporation into your own reports.

VRV Cloud is Daikin’s unique energy usage assessment, optimisation,

control and reporting tool.

System operational data can also be reported for a complete picture

of system performance.

For more information, please contact your

Daikin sales engineer.

VRV Accessories VRV Cloud

Energy Assessment and Reporting

VENTILATION

VAM-FC 110

VKM-GB(M) 112

Daikin UK Price List Update

Ventilation

Scottish

Region

0845 641 9330

Northern

Region

0845 641 9340

Midlands

Region

0845 641 9370

Western

Region

0845 641 9320

North

London

0845 641 9360

South

London

0845 641 9355

For larger ventilation capacities from 2,000m3/hr to 15,000m3/hr see

the new Daikin modular AHU on pages 190-192 of the Applied section.

VENTILATION

Residential, Commercial and Industrial

110

Achieving high indoor air quality for building

occupants is an essential factor in HVAC design,

especially in light of building regulations and the

high levels of air tightness within modern buildings.

Ventilation

Daikin oers a range of options that enables control of fresh air

into commercial and residential spaces. For ow rates of up to

0.556m3/s, our VAM / VKM range of heat recovery ventilation

products can eciently deliver controlled fresh air to meet your

design priorities. For larger fresh air requirements, please see our

Applied section for our range of packaged air handling units

(See page 190-192 for our Modular AHU range).

Notes:

i) Please contact your local sales oce

for required options when combined

operation with an air conditioning system

is required

ii) Optional silencers and high eciency

lters are available. Prices and details on

request

iii) VKM models must be connected as the

slave indoor unit of a standard VRV indoor

unit and share the same BRC1D52 remote

controller and BS-Q box (If connected to

Heat Recovery)

iv) UK.VH-CK VAM EHBX24 conversion kit

cable included

Accessories:

VAM-FC

Total Heat Exchanger

VAM150FC VAM250FC VAM350FC VAM500FC VAM650FC VAM800FC VAM1000FC VAM1500FC VAM2000FC

Dimensions Height mm 285 301 364 726

Width mm 776 828 1004 1514

Depth mm 525 816 868 1160 868 1156

Weight kg 24 33 51 54 63 128 145

Duct Connection Diameter mm 100 150 150 200 200 250 250 350 350

Air Flow Rate Ultra-High m3/hr 150 250 350 500 650 800 1000 1500 2000

High m3/hr 140 230 320 410 545 725 950 1350 1880

Low m3/hr 105 155 210 310 450 665 820 1230 1500

Ultra-High m3/sec 0.042 0.069 0.097 0.139 0.181 0.222 0.278 0.417 0.556

High m3/sec 0.039 0.064 0.089 0.114 0.151 0.201 0.264 0.375 0.522

Low m3/sec 0.029 0.043 0.058 0.086 0.125 0.185 0.228 0.342 0.417

External Static

Pressure

Ultra-High Pa 90 70 103 83 100 109 147 116 132

High Pa 87 63 93 57 73 94 135 97 118

Low Pa 40 25 51 35 49 78 100 80 77

Sound Pressure

Level (Heat

Exchange Mode)

Ultra-High dBA 27 28.0 32.0 33.0 34.5 36.0 36.0 39.5 40.0

High dBA 26 26.0 31.5 31.5 33.0 34.5 35.0 38.0 38.0

Low dBA 20.5 21.0 23.5 24.5 27.0 31.0 31.0 34.0 35.0

Electrical Details Power Supply V / Hz / Phase 230 / 50 / 1

Running Current A 0.9 0.9 0.9 1.3 1.6 2.5 3.0 5.0 5.0

Max Fuse Size A 15 15 15 15 15 15 15 15 15

Trade Unit Price £448.00 £535.00 £709.00 £907.00 £1,110.00 £1,308.00 £1,499.00 £2,290.00 £2,986.00

* For full details of specications relating to EN308 please see the technical data book. * 2 power supplies required as 2 units bolted together.

Optional Accessory Compatibility VAM150FA VAM250FA VAM350FB VAM500FB VAM650FB VAM800FB VAM1000FB VAM1500FB VAM2000FB

Inlet Heater Battery+ VH1B VH2B VH3B VH4B or VH4/AB VH5B

Air Filter - - EKAFV50F* EKAFV80F* EKAFV100F* 2 x EKAFV100F*

=+ Heater battery does NOT require PCB adaptor to connect to VAM

* available in Medium M6, Fine F7 and Fine F8. Only one lter is required to cover the whole of one side of the heat exchanger, even if the heat exchanger has two sections.

Optional Inlet Heater Battery VH1B VH2B VH3B VH4B VH4/AB VH5B

Capacity kW 1 1 1 1.5 2.5 2.5

Duct Diameter mm 100 150 200 250 250 350

Trade Unit Price £614.00 £620.00 £624.00 £676.00 £670.00 £676.00

Accessory Ref Description Trade Price

BRC1E53A Premium wired remote controller with full text menu, Energy features and 7 Day Time Clock £79.00

KRP2A52/UK.FB2 System adaptor PCB for remote on/o, status indication and temperature setting £211.00

RTD-Net/UK.FB2 Modbus Interface PCB for Sky Air and VRV £198.00

RTD-20/UK.FB2 Energy control PCB for Sky Air and VRV £262.00

BRP4A50 PCB Adaptor for VAM-A series connection to 3rd party heater £98.00

KRP50-2 PCB Adaptor for VAM-A series connection to humidier £111.00

BRP4A50A PCB Adaptor for VAM-B Series connection to 3rd party heater or humidier £123.00

EKAFV50F6 Air lter for VAM350 / 500FB : Medium M6 £53.00

EKAFV50F7 Air lter for VAM350 / 500FB : Fine F7 £59.00

EKAFV50F8 Air lter for VAM350 / 500FB : Fine F8 £64.00

EKAFV80F6 Air lter for VAM650 / 800FB : Medium M6 £59.00

EKAFV80F7 Air lter for VAM650 / 800FB : Fine F8 £64.00

EKAFV80F8 Air lter for VAM650 / 800FB : Fine F7 £71.00

EKAFV100F6 Air lter for VAM1000 / 2000FB : Medium M6 £90.00

EKAFV100F7 Air lter for VAM1000 / 2000FB : Fine F7 £97.00

EKAFV100F8 Air lter for VAM1000 / 2000FB : Fine F8 £102.00

BRYMA65 CO2 Sensor for VAM350 / 500 / 650 £392.00

BRYMA100 CO2 Sensor for VAM800 / 1000 £392.00

BRYMA200 CO2 Sensor for VAM1500 / 2000 £.

CO sensors for VAM-FC range

minimise running costs, delivering

only the ventilation amounts

required to maintain your indoor

air quality

VAM-FC

Total Heat Exchanger

Our popular range of Total Heat Exchangers (VAM) have been

updated and are fully compliant with the new lot 6 Ecodesign

requirements and rated under the EN 308* testing standard.

VAM units recover waste energy from the exhaust airstream

to minimise running costs and reduce the carbon footprint

of the building.

Eliminates up to %

of the additional heating

& cooling loads caused by

introducing fresh air.

VENTILATION

Price List Update: Valid from 1st January 2017

111

If you need to install a VAM unit outside of a building

then they need to be weatherproofed as they are

designed for installation internally.

VAM-FC

Weather Proof Enclosures for VAM Total Heat Exchangers

We can oer fully weatherproofed housings for the VAM range

which are rated IP46 to make them suitable for outdoor installation.

The VAM units are tted into the enclosure and delivered to site for

fuss free installation.

Please note:

> The prices quoted are for the enclosure, tting of the VAM

into the enclosure and standard delivery. The VAM unit cost

is not included.

> Pre heaters cannot be used with the VAM weatherproof

enclosures.

Lead time: 6 weeks

Applicable units: All VAM units (not VKM)

Please speak to your local sales engineer to discuss your requirements.

UK.VAM250/

WPENC

UK.VAM250/

WPENC

UK.VAM250/

WPENC

UK.VAM250/

WPENC

UK.VAM250/

WPENC

UK.VAM250/

WPENC

UK.VAM250/

WPENC

UK.VAM250/

WPENC

*Nett Enclosure Price (excluding VAM unit price) £812.00 £936.00 £1,066.00 £1,144.00

* Not subject to standard trade discount.

VENTILATION

Residential, Commercial and Industrial

112

The Total Heat Exchanger removes additional fresh air loads by heating

and cooling the air to suit the room setpoint. VKM units work with Daikin

VRV indoor units to give a complete air conditioning solution by heating,

cooling, cleansing, humidifying and distributing air within a space.

VKM-GB(M)

Total Heat Exchanger with DX Cooling & Heating

(and Optional Humidier)

Eliminates up to %

of the additional heating

& cooling loads caused by

introducing fresh air

Notes:

i) Options for the VAM FC range are not compatible with the VKM G or VKM GM range ii) The humidier in the VKM GM range operates solely in Heating mode and requires

a third party humidistat to be connected

VKM50GB VKM80GB VKM100GB

Power input -

50Hz

Heat exchange

mode

Nom. Ultra high kW 0.270 0.330 0.410

High kW 0.230 0.280 0.365

Low kW 0.170 0.192 0.230

Fresh air

conditioning load

Cooling kW 4.71 7.46 9.12

Heating kW 5.58 8.79 10.69

Dimensions Height x Width x Depth mm 387 x 1764 x 832 387 x 1764 x 1214

Weight kg 96 109 114

Temperature Exchange Eciency Ultra high / High % 76 78 74

Low % 77.5 79 76.5

Fan Air ow rate -

50Hz

Heat exchange

mode

Ultra high m³/h 500 750 950

High m³/h 500 750 950

Low m³/h 440 640 820

Ultra high m³/s 0.139 0.208 0.264

High m³/s 0.139 0.208 0.264

Low m³/s 0.122 0.178 0.228

External static

pressure - 50Hz

Ultra high Pa 210 150

High Pa 170 160 100

Low Pa 140 110 70

Sound pressure

level 50Hz

Heat exchange

mode

Ultra high dBA 39.0 41.1 41.0

High dBA 37.0 39.0

Low dBA 35.0 37.0 36.5

Duct connection diameter mm 200 250

Piping

connections

Type Flare connection

Liquid OD Inch (mm) 1/4 (6.4)

Gas OD Inch (mm) 1/2 (12.7)

Drain PT3/4 external thread

Trade Unit Price £2,173.00 £2,638.00 £3,137.00

Total Heat Exchanger with DX Coil (No Humidier)

VKM50GBM VKM80GBM VKM100GBM

Power input -

50Hz

Heat exchange

mode

Nom. Ultra high kW 0.270 0.330 0.410

High kW 0.230 0.280 0.365

Low kW 0.170 0.192 0.230

Fresh air

conditioning load

Cooling kW 4.71 7.46 9.12

Heating kW 5.58 8.79 10.69

Humidier System Natural evaporating type

Amount kg/h 2.7 4.0 5.4

Feed water pressure MPa 0.02 ~ 0.49

Elements Quantity 1 2

Dimensions Height x Width x Depth mm 387 x 1764 x 832 387 x 1764 x 1214

Weight kg 102 120 125

Temperature Exchange Eciency Ultra high / High % 76 78 74

Low % 77.5 79 76.5

Fan Air ow rate -

50Hz

Heat exchange

mode

Ultra high m³/h 500 750 950

High m³/h 500 750 950

Low m³/h 440 640 820

Ultra high m³/s 0.139 0.208 0.264

High m³/s 0.139 0.208 0.264

Low m³/s 0.122 0.178 0.228

External static

pressure - 50Hz

Ultra high Pa 200 205 110

High Pa 150 155 70

Low Pa 120 105 60

Sound pressure

level 50Hz

Heat exchange

mode

Ultra high dBA 38.0 40.0 40.0

High dBA 36.0 37.5 38.0

Low dBA 34.0 35.5 35.5

Connection duct diameter mm 200 250

Piping

connections

Type Flare connection

Liquid OD Inch (mm) 1/4 (6.4)

Gas OD Inch (mm) 1/2 (12.7)

Water supply Inch (mm) 1/4 (6.4)

Drain PT3/4 external thread

Trade Unit Price £2,417.00 £3,016.00 £3,375.00

Total Heat Exchanger with DX Coil and Humidication

HEATING

As of the 26th September 2015 certain heating products are subject

to the Energy Labelling Directive. Please go the following website to

download your energy label. www.daikin.co.uk/energylabel

Dedicated Heating Line: 0845 641 9070

Commercial Heating 114

Altherma Flex Product Overview 114

Altherma Flex De-Centralised 115

Altherma Flex Centralised 116

Domestic Heating 118

Air-to-Water Heat Pump 119

Hybrid Heat Pump 133

Netatmo 138

Solar Thermal 139

Underoor Heating 153

Heat Pump Convector 160

Daikin UK Price List Update

Heating

Scottish

Region

0845 641 9330

Northern

Region

0845 641 9340

Midlands

Region

0845 641 9370

Western

Region

0845 641 9320

North

London

0845 641 9360

South

London

0845 641 9355

HEATING

Residential, Commercial and Industrial

114

The product can be congured

either as a de-centralised

or a centralised system:

De-centralised system

The hydroboxes can be located in individual dwellings, such as

apartments or collective housing, to create a de-centralised system.

Each indoor unit can be operated independently, providing each

property with individual control of heating, hot water (cooling

optional on 50 & 80 class units).

The indoor hydrobox units are fully equipped with all the required

hydraulic components, so they can be connected easily to the heat

distribution system. Individual dwellings can also be equipped

with separate domestic hot water tanks, which are designed to

stack on top of the indoor units.

Centralised system

Alternatively, the indoor units can be

located together in one central plant area

to create a centralised system suitable

for a wide range of commercial and large

domestic applications.

The centralised indoor units oer modular

system scalability and capacity to meet the

heating demand of the overall building.

The Daikin Altherma Flex heat pump is ideal

for apartment buildings and community

heating, providing ecient air-to-water heat

pump technology for large residential and

commercial buildings.

The Daikin Altherma Flex Heat Pump Series

HEATING

Price List Update: Valid from 1st January 2017

115

Indoor Units (Hydrobox) EKHVMRD50AB EKHVMRD80AB EKHVMYD50AB EKHVMYD80AB

Function Heating & Hot water Heating, hot water & cooling

Heating Capacity kW 5.6 9 5.6 9

Cooling capacity kW n/a 5 8

Capacity Index 50 80 50 80

Dimensions Height x Width x Depth mm 705 x 600 x 695

Empty Weight kg 92 120

Leaving Water Temperature Range Heating °C 25~80

Leaving Water Temperature Range Cooling °C n/a 5~20

Drain valve Yes

Water Pump Nominal ESP Heating kPa 83.7 58.8

Expansion Vessel 7 litres heating 7 litres heating, 2 litres cooling

Material Precoated sheet metal

Colour Metalic Grey

Electrical Details Power Supply 1-phase / 230V / 50Hz

Starting current amps 4

Nominal running Current* amps 6.5 10.9 6.5 10.9

Maximum running current amps 16.5

Fuse Rating amps 20

Refrigerant Pipe Sizes mm 12.7 Gas, 9.52 Liquid 12.7 Gas, 9.52 Liquid, 15.9 Suction

Water Side Pipe Sizes 1" Female

Sound Pressure Level dBA 40 42 40 42

Refrigerant R134a Cascade

Trade Unit Price Hydro Box £2,579.00 £2,663.00 £3,167.00 £3,261.00

Domestic hot water cylinder UK.EKHTSU200AC UK.EKHTSU260AC

Type Unvented System (Includes EKUHWHT)

Max Water Temperature °C 75

Height mm 1335 1610

Width mm 600

Depth mm 695

Empty Weight kg 70 78

Colour Metallic grey

Material Inside Tank Stainless Steel

Material Outside Casing Precoated sheet metal

Piping Connections All inch 3/4 "

Insulation mm 80

Heat loss / 24 hour t 45°C 1.2 1.5

Energy Eciency Class B B

Standing Heat Loss W 50 63

Storage Volume L 200 260

Trade Unit Price £1,158.00 £1,312.00

Altherma Flex Communal Heat Pump De-Centralised

Daikin Altherma Flex type is the rst heating system for apartments and collective housing that fully

incorporates the use of renewable energy sources, making large residential buildings more environmentally

sustainable by increasing energy eciency – thus delivering lower running costs and CO2 emissions.

Outdoor Units EMRQ8A EMRQ10A EMRQ12A EMRQ14A EMRQ16A

Capacity Nominal Heating kW 22.4 28.0 33.6 39.2 44.8

Dimensions Height x Width x Depth mm 1680 x 1300 x 765

Weight kg 331 339

Air Flow Rate m3/sec 3.167 3.167 3.500 3.917 4.000

External Static Pressure High Pa 78.4 78.4 78.4 78.4 78.4

Electrical Details Power Supply 3-phase / 400V / 50Hz

Starting current amps 4 4 4 4 4

Nominal running Current* amps 7.6 9.9 12.6 14.0 16.9

Maximum running current amps 17.1 22.1 22.3 32.8 33.0

Fuse Rating amps 20 25 25 40 40

Seasonal space

heating eciency**

Space heating

(Average climate) 55°C

Class A+ A+ A+ A+ A+

Eciency 108 104 103 106 103

Domestic hot water

heating**

Average climate Class A A A A A

hwh 93 93 93 84 93

Declared load prole XL XL XL XL XL

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 10.3 10.6 10.8 11.1 11.1

Additional Charge kg Refer to Databook

Sound Pressure dBA 58 58 60 62 63

Piping Limits Maximum Length m 100

Maximum Vertical Rise m 40

Piping Connections Liquid mm 9.52 9.52 12.7 12.7 12.7

Discharge mm 15.9 19.1 19.1 22.2 22.2

Gas mm 19.1 22.2 28.6 28.6 28.6

Capacity Index Limit 100~260 125~325 150~390 175~455 200~520

Maximum Number of Connected Indoor Units 5 6 7 9 10

Trade Condensing Unit Price £4,956.00 £5,200.00 £6,004.00 £7,079.00 £8,342.00

Altherma Flex Outdoor Units EMRQ

Altherma Flex Indoor Units EKHVMRD / EKHVMYD

Hot Water Cylinders EKHTSU

Notes:

i) Refnet joint prices can be found on page 97

ii) Commissioning assistance should be included for each hydrobox

iii) DHW cylinder required for hot water function

iv) Supplied with 3 way valve and G3 safety kit (EKUHWHTB)

Hydrobox & cylinder

shown in combination

* Nominal running

current stated at

-3°C ambient air

temperature &

75°C leaving water

temperature 100%

connection ratio

** With 100%

connection ratio

combination

* Nominal running

current stated at

-3°C ambient air

temperature &

75°C leaving water

temperature 100%

connection ratio

Accessories:

Accessories

for hydrobox

Description Trade price

RTRNETA3AA (1) Netatmo thermostat for smartphone £188.00

EKRP1AHT Optional PCB for demand control £108.00

EKRP1HBA Optional PCB for remote alarm monitoring £108.00

RTD-W MODBUS interface for HT hydrobox £214.00

UK.FB2 Fixing box for RTD-W £26.00

EKCC-W Sequence controller £666.00

EKCLWS Additional thermistor for sequence controller £78.00

EKRUAHTB (2) Remote user interface £164.00

EKBUHA6V3 (3) In line back up heater 6kW, 1-phase, 230V £480.00

EKBUHA6W1 (3) In line back up heater 6kW, 3-phase, 400V £480.00

EKFMAHTB Kit for cylinder standalone installation £289.00

K.FERNOXTF1 Fernox magnetic lter 1” £97.00

K.FERNOXTF1FL Fernox magnetic lter 1” and F1 inhibitor uid (500ml) £113.00

UK.FSHEAT/

COMMS (4)

Commissioning assistance per hydrobox 1 to 10 hydroboxes £240.00

Commissioning assistance per hydrobox 11 to 20 hydroboxes

£216.00

Commissioning assistance per hydrobox >20 hydroboxes £192.00

Daikin full commissioning POA

i) RTRNETA3AA must be ordered alongside EKRP1AHT (1)

ii) EKRUAHTB: 1 included with each hydrobox (2)

iii) EKBUHA6V3(W1): Also requires EKRP1AHT (3)

iv) UK.FSHEAT/COMMS: Commissioning assistance should be included for each hydrobox (4)

HEATING

Residential, Commercial and Industrial

116

Altherma Flex Communal Heat Pump Centralised

Daikin Altherma Flex type is the rst centralised heating system for schools, public buildings ,

hotels, gyms & apartments that fully incorporates the use of renewable energy sources, making

large buildings more environmentally sustainable by increasing energy eciency – thus

delivering lower running costs and CO2 emissions.

Altherma Flex Indoor Units EKHBRD

Pre Selected Combinations

Indoor Unit (Hydrobox) EKHBRD

011ADV1

EKHBRD

014ADV1

EKHBRD

016ADV1

EKHBRD

011ADY1

EKHBRD

014ADY1

EKHBRD

016ADY1

Function Heating & Hot water

Heating Capacity kW 11 14 16 11 14 16

Cooling capacity kW n/a

Capacity Index 100 125 140 100 125 140

Dimensions Height x Width x Depth mm 705 x 600 x 695

Empty Weight kg 145 148

Leaving Water Temperature Range Heating °C 25~80

Drain valve Yes

Water Pump 92 88 85 92 88 85

Expansion Vessel 12 litres

Material Precoated sheet metal

Colour Metalic Grey

Electrical Details Power Supply 1-phase / 230V / 50Hz 3-phase / 400V / 50Hz

Starting current amps 4 4

Nominal running Current* amps 11.6 15.1 18.1 4.3 5.6 6.7

Maximum running current amps 22.5 23.8 23.8 12.5 12.5 12.5

Fuse Rating amps 25 16

Refrigerant Pipe Sizes mm 15.9 Gas, 9.52 Liquid

Water Side Pipe Sizes 1” Female

Sound Pressure Level dBA 43 45 46 43 45 46

Refrigerant R134a Cascade

Trade Unit Price Hydro Box £3,105.00 £3,160.00 £3,256.00 £3,167.00 £3,223.00 £3,320.00

Heating capacity (1) A7W35 kW 28.0 31.4 42.0 47.0

Heating capacity (2) A-3W65 kW 23.9 26.7 34.3 38.7

Outdoor unit 1 x EMRQ8 £4,956.00 1 x EMRQ10 £5,200.00 1 x EMRQ12 £6,004.00 1 x EMRQ14 £7,079.00

Hydroboxes 2 x EKHBRD014ADV1 £6,320.00 2 x EKHBRD016ADV1 £6,512.00 3 x EKHBRD014ADV1 £9,480.00 3 x EKHBRD016ADV1 £9,768.00

Demand PCBs 2 x EKRP1AHT £216.00 2 x EKRP1AHT £216.00 3 x EKRP1AHT £324.00 3 x EKRP1AHT £324.00

Refnets 1 x KHRQ22M29T9 £37.00 1 x KHRQ22M29T9 £37.00 1 x KHRQ22M64H £145.00 1 x KHRQ22M64H £145.00

Trade Price £11,529.00 £11,965.00 £15,953.00 £17,316.00

(1) Heating ambient air temperature 7°C and leaving water temperature 35°C

(2) Heating ambient air temperature -3°C and leaving water temperature 65°C, capacity stated net of 1 defrost cycle per hour

Notes:

i) Refnet joints can be found on page 97

ii) Commissioning assistance should be included per hydrobox

iii) DHW cylinder required for hot water function

iv) See page 115 for accessories

Outdoor Units EMRQ8A EMRQ10A EMRQ12A EMRQ14A EMRQ16A

Capacity Nominal Heating kW 22.4 28.0 33.6 39.2 44.8

Dimensions Height x Width x Depth mm 1680 x 1300 x 765

Weight kg 331 339

Air Flow Rate m3/min 190 190 210 235 240

External Static Pressure High Pa 78.4 78.4 78.4 78.4 78.4

Electrical Details Power Supply 3-phase / 400V / 50Hz

Starting current amps 4 4 4 4 4

Nominal running Current* amps 7.6 9.9 12.6 14.0 16.9

Maximum running current amps 17.1 22.1 22.3 32.8 33.0

Fuse Rating amps 20 25 25 40 40

Seasonal space

heating eciency**

Space heating

(Average climate) 55°C

Class A+ A+ A+ A+ A+

Eciency 108 104 103 106 103

Domestic hot water

heating**

Average climate Class A A A A A

hwh 93 93 93 84 93

Declared load prole XL XL XL XL XL

Refrigerant Circuit Refrigerant Type R410A

Refrigerant Charge kg 10.3 10.6 10.8 11.1 11.1

Additional Charge kg Refer to Databook

Sound Pressure dBA 58 58 60 62 63

Piping Limits Maximum Length m 100

Maximum Vertical Rise m 40

Piping Connections Liquid mm 9.52 9.52 12.7 12.7 12.7

Discharge mm 15.9 19.1 19.1 22.2 22.2

Gas mm 19.1 22.2 28.6 28.6 28.6

Capacity Index Limit 100~260 125~325 150~390 175~455 200~520

Maximum Number of Connected Indoor Units 5 6 7 9 10

Trade Condensing Unit Price £4,956.00 £5,200.00 £6,004.00 £7,079.00 £8,342.00

Altherma Flex Outdoor Units EMRQ

* Nominal running

current stated at

-3°C ambient air

temperature &

75°C leaving water

temperature 100%

connection ratio

** With 100%

connection ratio

combination

* Nominal running

current stated at

-3°C ambient air

temperature &

75°C leaving water

temperature 100%

connection ratio

HEATING

Residential, Commercial and Industrial

118

As a leading heating supplier, Daikin’s product

portfolio comprises a wide range of highly energy

ecient renewable energy systems, providing the right

heating solution for any application and requirement.

Daikin Altherma air-to-water heat pump is a renewable energy

heating and hot water solution, ideally suited for the UK

housing market. Using renewable air as a heat source and heat

pump technology with Daikin’s advanced inverter compressor

technology, Daikin Altherma delivers high seasonal eciencies,

low running costs and reduced carbon emissions compared with

traditional systems. Launched in 2006 with over 250,000 installed

across Europe, Daikin Altherma is the leading air-to-water

heat pump.

Daikin Altherma oers the most comprehensive and exible range

of air-to-water heat pumps in the market today, suitable for houses,

ats and both new build and refurbishment projects. The range

is available in Low Temperature (Split and Monobloc) and High

Temperature. Daikin Altherma High Temperature is an industry

rst system that can deliver water temperatures of up to 80°C,

providing an ideal solution for boiler replacement in harder to

treat properties.

Daikin solar thermal systems can be combined with Daikin

Altherma to provide a fully integrated renewable energy solution.

Daikin Altherma and Daikin solar thermal systems are recognised

renewable energy solutions that can reduce hot water energy costs

by up to 60% compared with traditional fossil fuel systems.

The majority of Daikin Altherma air-to-water heat pumps* are

certied by the Microgeneration Certication Scheme (MCS) and

the Daikin solar thermal collectors have Solar Keymark approval and

therefore are eligible for the domestic RHI. Please check the MCS

website for the latest list of accredited Daikin Altherma air-to-water

heat pumps.

Daikin is at the forefront of the drive for energy ecient heat pump

technology, recognising that heat pumps and the use of renewable

energy from the surrounding air is the answer to meet the future

challenges of energy eciency and carbon reduction targets.

Daikin renewable energy solutions provide a real alternative to

current and future problems associated with conventional heating

systems such as increasing primary energy costs and unacceptably

high environmental impact.

Daikin Heating Systems

MCS HP0006

MCS scheme

011-7S1016 F

Solar Keymark

* Except Daikin Altherma Flex Type

HEATING

Price List Update: Valid from 1st January 2017

119

Air-to-Water Heat Pump

* Except Daikin Altherma Flex Type

Daikin Altherma Low Temperature Split 4-16kW

> Latest inverter technology, high seasonal eciencies and low

running costs

> Guaranteed operation down to -25°C

> Easy to use back lit controller

> Compact wall hung or oor standing integrated indoor unit

with front access for easy maintenance

> Flexible siting with indoor unit and small outdoor unit which

can be sited up to 50m away

Daikin Altherma Low Temperature Monobloc 5-16kW

> All key hydraulics built-in, e.g. expansion vessel and

circulation pump

> Sealed refrigerant circuit with no F-gas needed for installation

Daikin Altherma High Temperature 11-16kW

> Providing ow temperatures up to 80°C

Daikin Altherma Flex Type 22.4-44.8kW

> For commercial heating applications

Daikin Altherma air-to-water heat pump is available in the

following models:

HEATING

Residential, Commercial and Industrial

120

Outdoor Units Single Phase

ERLQ004CV3 ERLQ006CV3 ERLQ008CV3 ERLQ011CV3 ERLQ014CV3 ERLQ016CV3

Description 4kW,

1-phase, 230V

6kW,

1-phase, 230V

8kW,

1-phase, 230V

11kW,

1-phase, 230V

14kW,

1-phase, 230V

16kW,

1-phase, 230V

Trade Unit Price £1,128.00 £1,151.00 £1,541.00 £2,389.00 £2,753.00 £3,010.00

Dimensions Height x Width x Depth mm 735 x 832 x 307 1345 x 900 x 320

Weight kg 54 56 56 113

Nominal capacity Heating (a/b) kW 4.4 / 4.2 6.0 / 5.12 7.4 / 6.13 11.2 / 9.6 14.5 / 10.8 16.0 / 10.9

Cooling kW 4.17 4.84 5.36 11.72 12.55 13.12

Nominal input Heating (a/b) kW 0.87 / 1.85 1.27 / 2.31 1.66 / 2.89 2.43 / 4.57 3.37 / 5.19 3.76 / 5.22

Cooling kW 1.8 2.07 2.34 4.31 5.08 5.73

COP Heating (a/b) 5.04 / 2.27 4.74 / 2.22 4.45 / 2.12 4.60 / 2.1 4.30 / 2.08 4.25 / 2.09

Seasonal space

heating eciency*

Space heating

(Average climate) 35°C

Class A++ A++ A++ A++ A++ A+

Eciency 178 169 171 156 153 149

SCOP 4.52 4.29 4.34 3.98 3.90 3.80

Space heating

(Average climate) 55°C

Class A++ A++ A++ A+ A+ A+

Eciency 125 126 126 120 123 119

SCOP 3.20 3.22 3.22 3.09 3.16 3.06

EER Cooling 2.32 2.34 2.29 2.72 2.47 2.29

Operation range Heating °C -25~25 -25~35

Cooling °C 10~43 10~46

Hot water °C -25~35 -20~35

Sound pressure / power level Heating dBA 48 / 61 48 / 61 49 / 62 51 / 64 51 / 64 52 / 66

Cooling dBA 48 / 63 49 / 63 50 / 63 50 / 64 52 / 66 54 / 69

Refrigerant charge R-410A kg 1.45 1.6 1.6 3.4

Piping connections Liquid inches 1/4 3/8

Gas inches 5/8 5/8

Max piping length OU to IU m 30 50

Power supply 1-phase / 230V / 50Hz

Recommended fuses A 20 40

Single Phase ERLQ-CV3

Low Temperature Split Heat Pump (outdoor)

Features:

> This split system consists of an outdoor unit and an indoor hydrobox that can be connected to all

standard low temperature radiators and underoor heating systems

> All models have extra features to withstand severe winter conditions

Notes:

i) Some units are available on special

request with Blygold treatment to

oer additional protection in coastal

environments. Please contact your local

sales oce for further information

Outdoor Units 3 Phase

ERLQ011CW1 ERLQ014CW1 ERLQ016CW1

Description 11kW, 3-phase, 400V 14kW, 3-phase, 400V 16kW, 3-phase, 400V

Trade Unit Price £2,622.00 £3,023.00 £3,305.00

Dimensions Height x Width x Depth mm 1345 x 900 x 320

Weight kg 113

Nominal capacity Heating (a/b) kW 11.2 / 9.6 14.5 / 10.8 16.0 / 10.9

Cooling kW 11.72 12.55 13.12

Nominal input Heating (a/b) kW 2.43 / 4.57 3.37 / 5.19 3.76 / 5.22

Cooling kW 4.31 5.08 5.73

COP Heating (a/b) 4.60 / 2.1 4.30 / 2.08 4.25 / 2.09

Seasonal space

heating eciency*

Space heating

(Average climate) 35°C

Class A++ A++ A+

Eciency 156 153 149

SCOP 3.98 3.90 3.80

Space heating

(Average climate) 55°C

Class A+ A+ A+

Eciency 120 123 119

SCOP 3.09 3.16 3.06

EER Cooling 2.72 2.47 2.29

Operation range Heating °C -25~35

Cooling °C 10~46

Hot water °C -20~35

Sound pressure /

power level

Heating dBA 51 / 64 51 / 64 52 / 66

Cooling dBA 50 / 64 52 / 66 54 / 69

Refrigerant charge R-410A kg 3.4

Piping connections Liquid inches 3/8

Gas inches 5/8

Max piping length OU to IU m 50

Power supply 3-phase / 400V / 50Hz

Recommended fuses A 20

* When combined with matching indoor unit

Nominal capacity and nominal input tested according to EN 14511 at the following conditions:

Heating a: Ambient air temperature 7°C and leaving water temperature 35°C (A7 W35) Heating b: Ambient air temperature -7°C and leaving water temperature 45°C (A-7 W45)

Cooling: Ambient air temperature 35°C and leaving water temperature 7°C (A35 W7)

Sound pressure level measured at 1m from the unit

Three Phase ERLQ-CW1

Low Temperature Split Heat Pump (outdoor)

HEATING

Price List Update: Valid from 1st January 2017

121

Heating Only EHBH

Low Temperature Split Hydrobox (wall hung)

Features:

> Available in heating only or heating/cooling versions

> A choice of back-up heaters 3, 6 or 9kW

> Heating / cooling hydroboxes must be ordered with drain pan kit

Accessories: Notes:

i) User interface (EKRUCBL2) must be

ordered with every EHBH/X

ii) * Back-up heater can be re-wired as

3kW/1ph, 6kW/1ph, 6kW/3ph or

9kW/3ph

iii) ** 9W models only

iv) Only one optional remote sensor

can be installed. Sensor connects to

indoor hydrobox

Indoor Unit (wall hung) Single Phase Single phase / 3 Phase*

EHBH04CB3V EHBH08CB3V EHBH11CB3V EHBH16CB3V EHBH08CB9W EHBH11CB9W EHBH16CB9W

User interface (must be ordered) EKRUCBL2 EKRUCBL2 EKRUCBL2 EKRUCBL2 EKRUCBL2 EKRUCBL2 EKRUCBL2

Description For ERLQ004CV3 For ERLQ006-

008CV3

For ERLQ011CV3 For ERLQ014-

016CV3

For ERLQ006-

008CV3

For ERLQ011CV3/

For ERLQ014-

016CV3/W1

Combined Trade Unit Price £1,282.00 £1,308.00 £1,781.00 £1,781.00 £1,320.00 £1,901.00 £1,901.00

Function Heating Only Heating Only Heating Only Heating Only Heating Only Heating Only Heating Only

Dimensions H x W x D mm 890 x 480 x 344 / 381

Leaving water

temperature range

Heating °C 15 ~ 55

Cooling °C -

Pump No. of speeds Inverter controlled

Expansion vessel volume litres 10

Water connections Inch 1 1/4” (female)

Back-up heater

fuse rating

3kW 1ph 230V A 16

6kW 1ph 230V A - 32**

6kW 3ph 400V A - 10**

9kW 3ph 400V A - 16**

Indoor Unit (wall hung) Single Phase Single phase / 3 Phase*

EHBX04CB3V EHBX08CB3V EHBX11CB3V EHBX16CB3V EHBX08CB9W EHBX11CB9W EHBX16CB9W

User interface (must be ordered) EKRUCBL2 EKRUCBL2 EKRUCBL2 EKRUCBL2 EKRUCBL2 EKRUCBL2 EKRUCBL2

Drain pan kit (must be ordered) EKHBDPC2 EKHBDPC2 EKHBDPC2 EKHBDPC2 EKHBDPC2 EKHBDPC2 EKHBDPC2

Description For ERLQ004CV3 For ERLQ006-

008CV3

For ERLQ011CV3 For ERLQ014-

016CV3

For ERLQ006-

008CV3

For ERLQ011CV3/

For ERLQ014-

016CV3/W1

Combined Trade Unit Price £1,502.00 £1,533.00 £2,059.00 £2,059.00 £1,550.00 £2,154.00 £2,154.00

Function Reversible Reversible Reversible Reversible Reversible Reversible Reversible

Dimensions mm 890 x 480 x 344 / 381

Leaving water

temperature range

Heating °C 15 ~ 55

Cooling °C 5 ~ 22

Pump No. of speeds Inverter controlled

Expansion vessel volume litres 10

Water connections Inch 1 1/4” (female)

Back-up heater

fuse rating

3kW 1ph 230V A 16

6kW 1ph 230V A - 32**

6kW 3ph 400V A - 10**

9kW 3ph 400V A - 16**

Accessory Ref Description Trade Price

EKRUCBL2 User interface £88.00

EKRUCBS Optional simplied room thermostat £83.00

RTRNETA3AA Netatmo thermostat for smartphone £188.00

EKPCCAB3 PC cable – to upload eld settings from PC to unit or spare controller £188.00

EKRSC1 Optional remote outdoor temperature sensor (cable not supplied) £63.00

KRCS01-1 Optional remote indoor temperature sensor £48.00

EKRP1HBA Optional PCB kit for remote alarm monitoring, run and fault indication,

solar interlock for heat pump and bivalent operation

£108.00

EKFT008CA U-beams to mount the outdoor units for ERLQ 004-008 £86.00

EKDP008C Drainpan and U-beams for outdoor units ERLQ 004-008 £121.00

EKHBDPC2 Drainpan kit for indoor units EHBX 004-016 £117.00

EKDPH008C Heater mat for drainpan (EKDP008C) £183.00

K.FF600ASN Pair of exi feet to mount the outdoor unit £49.00

K.CWB90-2 Wall mounting bracket for outdoor units ERLQ 004-008 (90kg, 500mm long) £37.00

K.CWB140-2 Wall mounting bracket for outdoor units ERLQ 011-016 (140kg, 540mm long) £47.00

K.DT1 Condensate drip tray for use with K.CWB90-2 £56.00

K.DT2 Condensate drip tray for use with K.CWB140-2 £61.00

K.CGM Outdoor unit guard for ERLQ 004-008 £308.00

K.CGL Outdoor unit guard for ERLQ 011-016 £369.00

K.FERNOXTF1 Fernox magnetic lter 1” £97.00

K.FERNOXTF1FL Fernox magnetic lter 1” and F1 inhibitor uid (500ml) £113.00

Heating and Cooling EHBX

HEATING

Price List Update: Valid from 1st January 2017

123

Part Number Description Trade Price

UK.INTEGRA0418 4kW conguration for heating and hot water containing: £3,770.00

ERLQ004CV3 4kW outdoor unit £1,128.00

EHVH04SU18CB6W 4kW indoor unit (heating only) with inbuilt 180L tank £2,357.00

EKVSU180A G3 Kit for 180L oor standing indoor unit £197.00

EKRUCBL2 User Interface £88.00

UK.INTEGRA0618 6kW conguration for heating and hot water containing: £3,943.00

ERLQ006CV3 6kW outdoor unit £1,151.00

EHVH08SU18CB6W 6kW equivalent indoor unit (heating only) with inbuilt 180L tank £2,507.00

EKVSU180A G3 Kit for 180L oor standing indoor unit £197.00

EKRUCBL2 User Interface £88.00

UK.INTEGRA0818 8kW conguration for heating and hot water containing: £4,333.00

ERLQ008CV3 8kW outdoor unit £1,541.00

EHVH08SU18CB6W 8kW indoor unit (heating only) with inbuilt 180L tank £2,507.00

EKVSU180A G3 Kit for 180L oor standing indoor unit £197.00

EKRUCBL2 User Interface £88.00

180L Cylinder

Part Number Description Trade Price

UK.INTEGRA0626 6kW conguration for heating and hot water containing: £4,100.00

ERLQ006CV3 6kW outdoor unit £1,151.00

EHVH08SU26CB6W 6kW equivalent indoor unit (heating only) with inbuilt 260L tank £2,524.00

EKVSU260A G3 Kit for 260L oor standing indoor unit £337.00

EKRUCBL2 User Interface £88.00

UK.INTEGRA0826 8kW conguration for heating and hot water containing: £4,490.00

ERLQ008CV3 8kW outdoor unit £1,541.00

EHVH08SU26CB6W 8kW indoor unit (heating only) with inbuilt 260L tank £2,524.00

EKVSU260A G3 Kit for 260L oor standing indoor unit £337.00

EKRUCBL2 User Interface £88.00

UK.INTEGRA1126 11kW conguration for heating and hot water containing: £5,792.00

ERLQ011CV3 11kW outdoor unit £2,389.00

EHVH11SU26CB6W 11kW indoor unit (heating only) with inbuilt 260L tank £2,978.00

EKVSU260A G3 Kit for 260L oor standing indoor unit £337.00

EKRUCBL2 User Interface £88.00

UK.INTEGRA1426 14kW conguration for heating and hot water containing: £6,156.00

ERLQ014CV3 14kW outdoor unit £2,753.00

EHVH16SU26CB6W 14kW equivalent indoor unit (heating only) with inbuilt 260L tank £2,978.00

EKVSU260A G3 Kit for 260L oor standing indoor unit £337.00

EKRUCBL2 User Interface £88.00

UK.INTEGRA1626 16kW conguration for heating and hot water containing: £6,413.00

ERLQ016CV3 16kW outdoor unit £3,010.00

EHVH16SU26CB6W 16kW indoor unit (heating only) with inbuilt 260L tank £2,978.00

EKVSU260A G3 Kit for 260L oor standing indoor unit £337.00

EKRUCBL2 User Interface £88.00

260L Cylinder

Daikin Altherma low temperature integrated hydrobox increases the quality and consistency

of installations whilst decreasing the complexity and installation time thanks to the compact

integration of all the indoor components in a single enclosure. Ideal for properties requiring

domestic hot water the product is available with 180L or 260L capacities and compatible with

the 4-16kW outdoor units.

LT Integrated Hydrobox

& DHW (oor standing)

NEW

HEATING

Residential, Commercial and Industrial

124

Outdoor Units Single Phase

ERLQ004CV3 ERLQ006CV3 ERLQ008CV3 ERLQ011CV3 ERLQ014CV3 ERLQ016CV3

Description 4kW, 1-phase,

230V For EHVH-

04SU18CB6W

6kW, 1-phase,

230V For EHVH-

08SU18-26CB6W

8kW, 1-phase,

230V For EHVH-

08SU18-26CB6W

11kW, 1-phase,

230V For EHVH-

11SU26CB6W

14kW, 1-phase,

230V For EHVH-

16SU26CB6W

16kW, 1-phase,

230V For EHVH-

16SU26CB6W

Trade Unit Price £1,128.00 £1,151.00 £1,541.00 £2,389.00 £2,753.00 £3,010.00

Dimensions Height x Width x Depth mm 735 x 832 x 307 1345 x 900 x 320

Weight kg 54 56 56 113

Nominal capacity Heating (a/b) kW 4.4 / 4.2 6.0 / 5.12 7.4 / 6.13 11.2 / 9.6 14.5 / 10.8 16.0 / 10.9

Cooling kW 4.17 4.84 5.36 11.72 12.55 13.12

Nominal input Heating (a/b) kW 0.87 / 1.85 1.27 / 2.31 1.66 / 2.89 2.43 / 4.57 3.37 / 5.19 3.76 / 5.22

Cooling kW 1.8 2.07 2.34 4.31 5.08 5.73

COP Heating (a/b) 5.04 / 2.27 4.74 / 2.22 4.45 / 2.12 4.60 / 2.1 4.30 / 2.08 4.25 / 2.09

Seasonal space

heating eciency*

Space heating

(Average climate) 35°C

Class A++ A++ A++ A++ A++ A+

Eciency 178 169 171 156 153 149

SCOP 4.52 4.29 4.34 3.98 3.90 3.80

Space heating

(Average climate) 55°C

Class A++ A++ A++ A+ A+ A+

Eciency 125 126 126 120 123 119

SCOP 3.20 3.22 3.23 3.09 3.16 3.06

EER Cooling 2.32 2.34 2.29 2.72 2.47 2.29

Operation range Heating °C -25~25 -25~35

Cooling °C 10~43 10~46

Hot water °C -25~35 -20~35

Sound pressure / power level Heating dBA 48 / 61 48 / 61 49 / 62 51 / 64 51 / 64 52 / 66

Cooling dBA 48 / 63 49 / 63 50 / 63 50 / 64 52 / 66 54 / 69

Refrigerant charge R-410A kg 1.45 1.6 1.6 3.4

Piping connections Liquid inches 1/4 3/8

Gas inches 5/8 5/8

Max piping length OU to IU m 30 50

Power supply V 1-phase / 230V / 50Hz

Recommended fuses A 20 40

* When combined with matching indoor unit

Nominal capacity and nominal input tested according to EN 14511 at the following conditions:

Heating a: Ambient air temperature 7°C and leaving water temperature 35°C (A7 W35)

Heating b: Ambient air temperature -7°C and leaving water temperature 45°C (A-7 W45)

Sound pressure level measured at 1m from the unit

Single Phase ERLQ-CV3

Low Temperature Split Heat Pump (outdoor)

Single Phase EHVH-CB6W

Low Temperature (indoor)

Indoor Units Single Phase

EHVH04SU18CB6W EHVH08SU18CB6W EHVH08SU26CB6W EHVH11SU26CB6W EHVH16SU26CB6W

User interface (must be ordered) EKRUCBL2 EKRUCBL2 EKRUCBL2 EKRUCBL2 EKRUCBL2

G3 Kit (must be ordered) EKVSU180A EKVSU180A EKVSU260A EKVSU260A EKVSU260A

Description For ERLQ004CV3 For ERLQ006-008CV3 For ERLQ011CV3 For ERLQ014-016CV3

Combined Trade Unit Price £2,642.00 £2,792.00 £2,949.00 £3,403.00 £3,403.00

Function Heating only

Casing Colour White

Material Pre-coated sheet metal

Dimensions Height x Width x Depth mm 1,732 x 600 x 728 1,922 x 600 x 728

Weight kg 116 117 126 126 127

Sound power level Nom. dBA 42 44

Sound pressure level Nom. dBA 28 30

Operating range Space heating °C 15°C-55°C

DHW °C 25°C-55°C

Domestic hot water Material Stainless steel (EN 1.4521)

Water volume l 180 260

Tapping prole according to EN16147 L L L L L

ERP heat losses W 58 80

ERP eciency rating B B C C C

Standing losses @ 60°C kWh/24h 1.4 1.9

Max operating pressure Bar 10

Immersion heater kW 2.5

Hydraulic characteristics Available back up heater kW 6

Water connections DHW inch G 3/4” (female)

Water connections space heating

inch G 1”1/4 (female)

Power supply V 1-phase / 230V / 50Hz

Back-up heater

fuse rating

3kW 1ph 230V A 16

6kW 1ph 230V A 32

NEW

HEATING

Price List Update: Valid from 1st January 2017

125

Accessory Ref Description Trade Price

EKRUCBL2 Daikin Altherma user interface £88.00

EKRUCBS Daikin Altherma simplied room thermostat £83.00

EKPCCAB3 PC cable – to upload eld settings from PC to unit £188.00

RTRNETA3AA Netatmo thermostat for smartphone £188.00

EKVSU180A G3 Kit for 180L oor standing indoor unit £197.00

EKVSU260A G3 kit for 260L oor standing indoor unit £337.00

EKRSC1 Optional remote temperature sensor for outdoor unit* £63.00

KRCS01-1 Optional remote temperature sensor for indoor unit* £48.00

EKRP1HBA Optional PCB kit for remote alarm monitoring, run and fault indication,

solar interlock for heat pump and bivalent operation

£108.00

EKFT008CA U-beams to mount the outdoor units for ERLQ 004-008 £86.00

EKDP008C Drainpan and U-beams for outdoor units ERLQ 004-008 £121.00

EKHBDPC2 Drainpan kit for indoor units EHBX 004-016 £117.00

EKDPH008C Bottom plate heater for ERHQ 011-016 only £183.00

K.FF600ASN Flexi-feet pair narrow £49.00

K.CWB90-2 Wall mounting bracket for outdoor units ERLQ 004-008 £37.00

K.CWB140-2 Wall mounting bracket for outdoor units ERLQ / ERHQ 011-016 £47.00

K.DT1 Condensate drip tray for use with UK.CWB90-2 £56.00

K.DT2 Condensate drip tray for use with UK.CWB140-2 £61.00

K.CGM Outdoor unit guard for ERLQ 004-008 £308.00

K.CGL Outdoor unit guard for ERLQ/ERHQ 011-016 £369.00

K.FERNOXTF1 Fernox magnetic lter 1” £97.00

K.FERNOXTF1FL Fernox magnetic lter 1” and F1 inhibitor uid (500ml) £113.00

Accessories: Notes:

i) * Only one optional remote sensor

can be installed. Sensor connects

to indoor hydrobox

HEATING

Residential, Commercial and Industrial

126

EDLQ Standard Configurations

Low Temperature Monobloc Heat Pump (5-7kW)

Part Number Description Trade Price

UK.MONO5 5kW base conguration for heating and hot water containing: £2,181.00

EDLQ05CV3 5kW outdoor unit (heating only) £1,872.00

EKCB07CV3 Wiring centre £221.00

EKRUCBL2 User interface £88.00

UK.MONO7 7kW base conguration for heating and hot water containing: £2,493.00

EDLQ07CV3 7kW outdoor unit (heating only) £2,184.00

EKCB07CV3 Wiring centre £221.00

EKRUCBL2 User interface £88.00

UK.MONO5GROUND 5kW ground mounted conguration for heating and hot water containing: £2,300.00

EDLQ05CV3 5kW outdoor unit (heating only) £1,872.00

EKCB07CV3 Wiring centre £221.00

EKRUCBL2 User interface £88.00

K.FF600ASN Pair of exi feet £49.00

K.HOSE750 Pair of exible hoses 750mm £70.00

UK.MONO7GROUND 7kW ground mounted conguration for heating and hot water containing: £2,612.00

EDLQ07CV3 7kW outdoor unit (heating only) £2,184.00

EKCB07CV3 Wiring centre £221.00

EKRUCBL2 User interface £88.00

K.FF600ASN Pair of exi feet £49.00

K.HOSE750 Pair of exible hoses 750mm £70.00

NEW

HEATING

Price List Update: Valid from 1st January 2017

127

EDLQ

Low Temperature Monobloc Heat Pump (5-7kW)

Features:

> The small Daikin Altherma Monobloc is ideal for smaller properties

> In this system, water pipes, rather than refrigerant lines, run from the outdoor unit to indoors which means that no special refrigerant handling is necessary

> The optional back-up heater is installed indoors

Accessories:

Outdoor Unit EDLQ05CV3 EDLQ07CV3

User Interface (must be ordered) EKRUCBL2 EKRUCBL2

Description 5kW, 1-phase, 230V 7kW, 1-phase, 230V

Combined Trade Unit Price £1,960.00 £2,272.00

Dimensions Height x Width x Depth mm 735 × 1085 × 350

Weight kg 76 80

Capacity Heating (a/b) kW 4.40 / 4.20 7.00 / 6.25

Input Heating (a/b) kW 0.88 / 1.95 1.55 / 3.09

COP 5.00 / 2.15 4.52 / 2.02

Seasonal space

heating eciency

Space heating

(Average climate) 35°C

Class A++ A++

Eciency 172 163

SCOP 4.39 4.14

Space heating

(Average climate) 55°C

Class A++ A++

Eciency 125 126

SCOP 3.20 3.22

Operation Range Heating °C -25 ~ +25

Hot Water °C -25 ~ +35

Sound pressure/Power level dBA 48 / 61 49 / 62

Refrigerant charge R-410A kg 1.30 1.45

Power supply 1-phase / 230V / 50Hz

Recommended Fuses Amps 16 20

Pump No. of speeds Inverter Controlled

Expansion vessel volume litres 7

Water connections Diameter Inch 1” (male)

Max piping length OU to cylinder mm 10

Nominal capacity and nominal input tested according to EN 14511 at the following conditions

Heating a: Ambient air temperature 7C and leaving water temperature 35C (A7 W35)

Heating b: Ambient air temperature -7C and leaving water temperature 45C (A-7 W45)

Sound pressure level measured at 1m from the unit

WIRING CENTRE EKCB07CV3

Description Wiring centre

Trade Unit Price £221.00

To use with EDLQ05~07CV3

Dimensions Depth mm 97

Width mm 340

Height mm 360

BACK UP HEATER KIT (OPTIONAL) EKMBUHC3V3 EKMBUHC9W1

Description Back up heater kit (3kW) Back up heater kit (3/6kW)

Trade Unit Price £454.00 £505.00

Nominal rating kW 3 3-6

Dimensions Depth mm 210

Width mm 250

Height mm 560

Power supply 1-phase / 230V / 50Hz 1-phase / 230V / 50Hz

Recommended fuses 3 kW 1ph 230V Amps 16

6 kW 1ph 230V Amps - 32

Water connections Diameter inch 1” (male)

Notes:

i) User interface (EKRUCBL2) must be

ordered with every EDLQ05-07

Accessory Ref Description Trade Price

EKRUCBL2 User interface £88.00

EKRUCBS Optional simplied room thermostat £83.00

RTRNETA3AA Netatmo thermostat for smartphone £188.00

EKPCCAB3 PC cable – to upload eld settings from PC to unit or spare controller £188.00

EKRSC1 Optional remote outdoor temperature sensor (see note) £63.00

KRCS01-1 Optional remote indoor temperature sensor (see note) £48.00

EK2CB07CV3 Optional Wiring centre - for remote alarm monitoring, run and fault indication and bivalent operation £221.00

K.FF600ASN Pair of exi feet to mount the outdoor unit £49.00

K.CWBXL Wall mounting brackets for outdoor units (250kg, 660mm long) £71.00

K.DT2 Condensate drip tray for use with K.CWBXL £61.00

K.HOSE750 Pair of exible hoses (Length 750mm, 19mm tough PVC coat insulation, 1" FBSP, 28mm compression) £70.00

K.HOSE750EL Pair of exible hoses with elbow (Length 750mm, 19mm tough PVC coat insulation,

1" FBSP, 28mm compression)

£101.00

K.CG750S Outdoor unit guard £286.00

K.FERNOXTF1 Fernox magnetic lter 1” £97.00

K.FERNOXTF1FL Fernox magnetic lter 1” and F1 inhibitor uid (500ml) £113.00

NEW

Notes:

i) Only one optional remote sensor can

be installed

HEATING

Residential, Commercial and Industrial

128

Accessory Ref Description Trade Price

EKBPHTH16A Bottom plate heater for outdoor units sizes 014-016 (see note) £137.00

EKRP1HBA Optional PCB kit for remote alarm monitoring, run and fault indication,

solar interlock for heat pump and bivalent operation

£108.00

RTRNETA3AA Netatmo thermostat for smartphone £188.00

EKRTWA Optional wired room thermostatic controller £103.00

EKRTR Optional wireless room thermostatic controller £202.00

EKRTETS Floor temperature sensor for use with wireless room thermostat EKRTR £14.00

K.FERNOXTF1 Fernox magnetic lter 1” £97.00

K.FERNOXTF1FL Fernox magnetic lter 1” and F1 inhibitor uid (500ml) £113.00

Heating Only EDHQ

Low Temperature Monobloc Heat Pump (14-16kW)

Features:

> The Daikin Altherma Monobloc contains all components and the back-up heater in the outdoor unit

> In this system, water pipes, rather than refrigerant lines, run from the outdoor unit to indoors which means that

no special refrigerant handling is necessary for installation

Accessories: Notes:

i) It is strongly recommended to install the

bottom plate heater in units that will be

installed in a region that will experience

prolonged periods below 0°C with very

high humidity

ii) Every unit is supplied with a controller

Outdoor Unit Single Phase 3 Phase

EDHQ014BB6V3 EDHQ016BB6V3 EDHQ014BB6W1 EDHQ016BB6W1

Description 14kW, 1-phase, 230V 16kW, 1-phase, 230V 14kW, 3-phase, 400V 16kW, 3-phase, 400V

Trade Unit Price £2,954.00 £3,339.00 £3,120.00 £3,536.00

Function Heating Only Heating Only Heating Only Heating Only

Dimensions Height x Width x Depth mm 1418 x 1435 x 382 1418 x 1435 x 382

Weight kg 180 180

Nominal capacity Heating (a/b) kW 14 / 7.72 16 / 8.7 14 / 7.72 16 / 8.7

Cooling kW - -

Nominal input Heating (a/b) kW 3.29 / 3.76 3.88 / 4.44 3.31 / 3.84 3.81 / 4.39

Cooling kW - -

COP Heating (a/b) 4.25 / 2.05 4.12 / 1.96 4.23 / 2.01 4.2 / 1.98

Seasonal space

heating eciency

Space heating

(Average climate) 35°C

Class A+ A+ A+ A+

Eciency 130 123 130 127

SCOP 3.32 3.15 3.31 3.25

Space heating

(Average climate) 55°C

Class A+ A+ A+ A+

Eciency 105 101 110 111

SCOP 2.71 2.6 2.82 2.85

EER Cooling - -

Operation range Heating °C -15~35 -15~35

Cooling °C - -

Hot water °C -15~35 -15~35

Sound pressure /

power level

Heating dBA 51 / 65 52 / 66 51 / 65 53 / 66

Cooling dBA - -

Refrigerant charge (factory) R-410A kg 2.95 2.95

Back up heater (factory tted) kW 6 6

Power supply 1-phase / 230V / 50Hz 3-phase / 400V / 50Hz

Recommended fuses Outdoor unit A 32 20

6kW BUH A 32 20

Pump No. of speeds 2 2

Expansion vessel volume litres 10 10

Water connections (diameter) inches 1 ¼ (female) 1 ¼ (female)

Max piping length OU to cylinder m 10 10

Nominal capacity and nominal input tested according to EN 14511 at the following conditions:

Heating a: Ambient air temperature 7°C and leaving water temperature 35°C (A7 W35) Heating b: Ambient air temperature -7°C and leaving water temperature 45°C (A-7 W45)

Cooling: Ambient air temperature 35°C and leaving water temperature 7°C (A35 W7)

Sound pressure level measured at 1m from the unit

HEATING

Price List Update: Valid from 1st January 2017

129

Heating and Cooling EBHQ

Low Temperature Monobloc Heat Pump (14-16kW)

Outdoor Unit Single Phase 3 Phase

EBHQ014BB6V3 EBHQ016BB6V3 EBHQ014BB6W1 EBHQ016BB6W1

Description 14kW, 1-phase, 230V 16kW, 1-phase, 230V 14kW, 3-phase, 400V 16kW, 3-phase, 400V

Trade Unit Price £3,068.00 £3,464.00 £3,235.00 £3,656.00

Function Reversible Reversible Reversible Reversible

Dimensions Height x Width x Depth mm 1418 x 1435 x 382 1418 x 1435 x 382

Weight kg 180 180

Nominal capacity Heating (a/b) kW 14 / 7.72 16 / 8.7 14 / 7.72 16 / 8.7

Cooling kW 12.5 13.1 12.5 13.1

Nominal input Heating (a/b) kW 3.29 / 3.76 3.88 / 4.44 3.3 / 3.84 3.81 / 4.39

Cooling kW 5.39 5.93 5.06 5.75

COP Heating (a/b) 4.25 / 2.05 4.12 / 1.96 4.23 / 2.01 4.2 / 1.98

Seasonal space

heating eciency

Space heating

(Average climate) 35°C

Class A+ A+ A+ A+

Eciency 130 123 130 127

SCOP 3.32 3.15 3.31 3.25

Space heating

(Average climate) 55°C

Class A+ A+ A+ A+

Eciency 105 101 110 111

SCOP 2.71 2.6 2.82 2.85

EER Cooling 2.32 2.21 2.47 2.28

Operation range Heating °C -15~35 -15~35

Cooling °C 10~46 10~46

Hot water °C -15~35 -15~35

Sound pressure /

power level

Heating dBA 51 / 65 52 / 66 51 / 65 53 / 66

Cooling dBA 52 / 66 54 / 69 52 / 66 54 / 69

Refrigerant charge (factory) R-410A kg 2.95 2.95

Back up heater (factory tted) kW 6 6

Power supply 1-phase / 230V / 50Hz 3-phase / 400V / 50Hz

Recommended fuses Outdoor unit A 32 20

6kW BUH A 32 20

Pump No. of speeds 2 2

Expansion vessel volume litres 10 10

Water connections (diameter) inches 1 ¼ (female) 1 ¼ (female)

Max piping length OU to cylinder m 10 10

Nominal capacity and nominal input tested according to EN 14511 at the following conditions:

Heating a: Ambient air temperature 7°C and leaving water temperature 35°C (A7 W35) Heating b: Ambient air temperature -7°C and leaving water temperature 45°C (A-7 W45)

Cooling: Ambient air temperature 35°C and leaving water temperature 7°C (A35 W7)

Sound pressure level measured at 1m from the unit

EKHWSU

Hot Water Cylinder for Low Temperature Split and Monobloc

Domestic hot water cylinder UK.EKHWSU150B3V3 UK.EKHWSU200B3V3 UK.EKHWSU300B3V3

Description 150L unvented cylinder

(Including EKUHWBB)

200L unvented cylinder

(Including EKUHWBB)

300L unvented cylinder

(Including EKUHWBB)

Trade Unit Price £1,107.00 £1,125.00 £1,236.00

Suitable for Unvented systems (EKUHWBB kit included)

Energy eciency class C C C

Standing heat loss (ErP) W 65 74 91

Storage volume L 150 200 285

Standing heat loss kWh/24h 1.55 1.77 2.19

Max water temperature °C 85

Booster heater capacity kW 3

Power supply 1-phase / 230V / 50Hz

Recommended fuses A 16

Height mm 1015 1265 1715

Diameter mm 580

Empty weight kg 38 46 60

Material inside cylinder Stainless steel

Piping connections (diameter) Water inlet H/E inch 3/4 (female)

Water outlet H/E inch 3/4 (female)

Cold water in inch 3/4 (female)

Hot water out inch 3/4 (female)

Features:

This stainless steel unvented cylinder is the ideal partner for Daikin Altherma Low Temperature Split and Monobloc heat pumps

> Fitted with 3kW immersion heater as standard

> Supplied with 3-way valve and G3 safety kit (EKUHWBB)

> For vented hot water cylinders, please contact your local sales oce

HEATING

Residential, Commercial and Industrial

130

Features:

> The outdoor unit extracts heat from the ambient air and transfers it to the

indoor unit via refrigerant piping

> Heating only versions

> Order with matching indoor unit

ERSQ

High Temperature Split Heat Pump (outdoor)

Outdoor Unit Single Phase 3 Phase

ERSQ011AV1 ERSQ014AV1 ERSQ016AV1 ERSQ011AY1 ERSQ014AY1 ERSQ016AY1

Description 11kW,

1-phase, 230V

14kW,

1-phase, 230V

16kW,

1-phase, 230V

11kW,

3-phase, 400V

14kW,

3-phase, 400V

16kW,

3-phase, 400V

Trade Unit Price £2,571.00 £2,901.00 £3,134.00 £2,807.00 £2,945.00 £3,479.00

Dimensions Height x Width x Depth mm 1345 x 900 x 320 1345 x 900 x 320

Weight kg 120 120

Nominal capacity Heating (a/b) kW 11 / 11 14 / 14 16 / 16 11 / 11 14 / 14 16 / 16

Nominal input Heating (a/b) kW 3.03 / 3.57 4.07 / 4.66 4.83 / 5.57 3.03 / 3.57 4.07 / 4.66 4.83 / 5.57

COP Heating (a/b) 3.63 / 3.08 3.44 / 3.00 3.31 / 2.88 3.63 / 3.08 3.44 / 3.00 3.31 / 2.88

Seasonal space

heating eciency*

Space heating

(Average climate) 35°C

Class B B B B B B

Eciency 105 110 112 105 110 112

SCOP 2.7 2.68 2.88 2.7 2.68 2.88

Space heating

(Average climate) 55°C

Class A+ A+ A+ A+ A+ A+

Eciency 103 104 102 103 104 102

SCOP 2.65 2.66 2.61 2.65 2.66 2.61

Operation range Heating °C -20 ~ + 24 -20 ~ + 24

Hot water °C -20 ~ + 35 -20 ~ + 35

Sound pressure / power level Heating dBA 52 / 68 53 / 69 55 / 71 52 / 68 53 / 69 55 / 71

Refrigerant charge R-410A kg 4.5 4.5

Piping connections Liquid inches 3/8 3/8

Gas inches 5/8 5/8

Max piping length OU to IU m 50 50

Power supply 1-phase / 230V / 50Hz 3-phase / 400V / 50Hz

Recommended fuses A 25 16

* When combined with matching indoor unit

Nominal capacity and nominal input tested at the following conditions: a. A7 W45 according to EN14511 b. A7 W65 according to Eurovent rating standard 6/C/003-2006

EKHBRD

High Temperature Split Hydrobox (oor standing)

Indoor Unit (oor standing) Single Phase 3 Phase

EKHBRD011ADV1 EKHBRD014ADV1 EKHBRD016ADV1 EKHBRD011ADY1 EKHBRD014ADY1 EKHBRD016ADY1

Description 11kW,

1-phase, 230V

14kW,

1-phase, 230V

16kW,

1-phase, 230V

11kW,

3-phase, 400V

14kW,

3-phase, 400V

16kW,

3-phase, 400V

Trade Unit Price £3,105.00 £3,160.00 £3,256.00 £3,167.00 £3,223.00 £3,320.00

To use with ERSQ011AV1 ERSQ014AV1 ERSQ016AV1 ERSQ011AY1 ERSQ014AY1 ERSQ016AY1

Dimensions Height x Width x Depth mm 705 x 600 x 695 705 x 600 x 695

Weight kg 144.25 147.25

Leaving water temperature range °C 25~80 without electrical heater 25~80 without electrical heater

Refrigerant charge (factory) R134a kg 3.2 3.2

Power supply 1-phase / 230V / 50Hz 3-phase / 400V / 50Hz

Recommended fuses A 25 16

Pump No. of speeds Inverter controlled Inverter controlled

Expansion vessel volume litres 12 12

Water connections (diameter) inch 1 (female) 1 (female)

Features:

The indoor unit receives the heat from the outdoor unit and further increases

the temperature up to 80°C, which is ideal for use with existing radiators

It is designed to only be used with the integrated hot water cylinder EKHTSU

> For RHI, check maximum design ow temperature carefully

Accessory Ref Description Trade Price

RTRNETA3AA Netatmo thermostat for smartphone (also requires EKRP1AHT) £188.00

EKBPHTH16A Bottom plate heater for outdoor unit sizes 011-016 £137.00

EKBUHA6V3 In line back up electric heater 6kW, 1-phase, 230V (also requires EKRP1AHT) – for space heating only £480.00

EKBUHA6W1 In line back up electric heater 6kW, 3-phase, 400V (also requires EKRP1AHT) – for space heating only £480.00

EKRP1AHT Optional PCB for demand control (required for EKRTW, EKRTR, EKRTETS, EKBUH*) £108.00

EKRUAHTB Remote user interface £164.00

EKRP1HBA Optional PCB kit for remote alarm monitoring, run and fault indication and solar interlock for heat pump £108.00

EKRTWA Optional wired room thermostatic controller (also requires EKRP1AHT) £103.00

EKRTR Optional wireless room thermostatic controller (also requires EKRP1AHT) £202.00

EKRTETS Floor temperature sensor for use with EKRTR (also requires EKRP1AHT) £14.00

RTD-W MODBUS interface for HT hydrobox £214.00

K.CWB140-2 Wall mounting bracket for outdoor unit ERSQ 011-016 £47.00

K.DT2 Condensate drip tray for use with K.CWB140-2 £61.00

K.CGL Outdoor unit guard for ERSQ 011-016 £369.00

K.FF600ASN Pair of exi feet to mount the outdoor unit £49.00

K.FERNOXTF1 Fernox magnetic lter 1” £97.00

K.FERNOXTF1FL Fernox magnetic lter 1” and F1 inhibitor uid (500ml) £113.00

Accessories: Notes:

i) Needs to be ordered with EKRP1AHT

HEATING

Price List Update: Valid from 1st January 2017

131

EKHTSU

Hot Water Cylinder for High Temperature Split

Accessory Ref Description Trade Price

EKFMAHTB Kit for standalone installation with oor standing hydrobox £289.00

Features:

> This integrated cylinder is designed for use with Daikin Altherma HT only

> The cylinder features fast heat-up and recovery times, and low heat losses

> The indoor unit and hot water cylinder are designed to be stacked to save space, or can alternatively be

installed next to each other if limited height is available for installation (please order EKFMAHTB)

> Supplied with 3-way valve and G3 safety kit (EKUHWHTB)

Accessories:

Domestic hot water cylinder UK.EKHTSU200AC UK.EKHTSU260AC

Description 200L unvented cylinder 260L unvented cylinder

Trade Unit Price £1,158.00 £1,312.00

Suitable for Unvented systems (including EKUHWHTB)

Energy eciency class B B

Standing heat loss (ErP) W 50 63

Storage volume L 200 260

Max water temperature °C 75

Standing heat loss kWh/24h 1.2 1.5

Dimensions (cylinder only) Height x Width x Depth mm 1335 x 600 x 695 1610 x 600 x 695

Dimensions (cylinder

integrated on hydrobox)

Height x Width x Depth mm 2010 x 600 x 695 2285 x 600 x 695

Empty weight kg 70 78

Material inside cylinder Stainless steel

Piping connections (diameter) Water inlet H/E mm 25 (female quick coupling, supplied, integrated solution)

Water outlet H/E mm 25 (female quick coupling, supplied, integrated solution)

Cold water in inch 3/4 (female)

Hot water out inch 3/4 (female)

HEATING

Residential, Commercial and Industrial

132

UK.EKHTSU200-260AC

(page 131)

EKHWP300-500(P)B

UK.EKHWSU150-300B

(page 129)

EKHWP300-500(P)B

UK.EKHWSU150-300B

(page 129)

EKHWP300-500(P)B

UK.EKHWSU150-300B

(page 129)

EKHWP300-500(P)B

ERSQ011-016

(page 130)

EKHBRD011-016

(page 130)

EDHQ/EBHQ014-016

(page 128 - 129)

EHBH/X04-16

(page 121)

Back-up heater (optional)

EKMBUH

(page 127)

EDLQ05-07

(page 127)

Air-to-Water Heat Pump Combination Table

Daikin have a full range of air-to-water heat pumps to suit many installation requirements and applications.

Use the table below to help select the right combination of equipment.

Outdoor Indoor

LT Monobloc 14-16kW LT Monobloc 5-7kW LT Split 4-16kWHT Split 11-16kW

ERLQ004-008

(page 120)

ERLQ011-016

(page 120)

DHW cylinder Thermal store

Wiring centre EKCB

(page 127)

HEATING

Hybrid Heat Pump

Daikin Altherma Hybrid heat pump

The smart hybrid logic automatically selects the most energy

ecient and cost-eective operation based on the user’s

energy tari, at any given temperature to make it the most

ecient solution on the market.

> Suitable for heating systems requiring ow temperatures

up to 80°C

> Eligible for RHI when tted with required heat and

electric meters

> Single compact indoor unit to minimise space

> No DHW tank needed – hot water delivered by combi boiler

> Suitable for LPG applications for even higher running

cost savings

> Simple easy to use backlit control using energy taris for

automatic control

> All key components built in: A-label pump, expansion vessel,

pressure relief

> Heat pump capacity: 5 and 8kW

> Boiler output CH 27kW (80/60) and DHW 33kW

(13 l/min at T 35K)

> Boiler SEDBUK (2009) rated 89.1% (natural gas) and 90.1% (LPG)

> Dedicated training courses available

The Daikin Altherma Hybrid Heat Pump is unique

technology. It combines a high eciency gas combi

boiler with a renewable energy air-to-water heat

pump, all in one ecient, compact heating system.

133Price List Update: Valid from 1st January 2017

HEATING

Residential, Commercial and Industrial

134

EVLQ / EHYHBH / EHYKOMB

Daikin Altherma Hybrid Heat Pump System

Outdoor Units EVLQ05CV3 EVLQ08CV3

Dimensions Height x Width x Depth mm 735 x 832 x 307

Weight kg 54 56

Nominal capacity Heating kW 4.4 7.4

Nominal input Heating kW 0.87 1.66

COP Heating 5.04 4.45

Seasonal space

heating eciency*

Space heating

(Average climate) 55°C

Class A++ A++

Eciency 128 127

SCOP 3.28 3.24

Domestic

hot water heating*

Average climate Class A A

hwh 95 95

Declared load prole XL XL

Operation range (ambient) Heating °C -25~25

Sound pressure / power level Heating dBA 48 / 61 49 / 62

Refrigerant charge R-410A kg 1.45 1.6

Piping connections Liquid inches 1/4

Gas inches 5/8

Max piping length OU to IU m 20

Power supply 1-phase / 230V / 50Hz

Recommended fuses A 20

* When combined with matching indoor unit

Indoor Unit and boiler wall hung (1 combined unit)

Indoor Unit (heat pump) EHYHBH05AV32 EHYHBH08AV32

Function Heating Only Heating Only

To use with EVLQ05CV3 EVLQ08CV3

Dimensions Height x Width x Depth mm 1075 x 450 x 164

Weight kg 30 31.2

Leaving water

temperature range

Heating °C 25~55

Pump No. of speeds Inverter controlled

Expansion vessel volume litres 10

Indoor Unit (boiler) EHYKOMB33AA2

Function Heating only

To use with EHYHBH05AV32

EHYHBH08AV32

Dimensions Height x Width x Depth mm 710 x 450 x 240

Max dimensions

(boiler and heat pump)

Height x Width x Depth mm 1075 x 450 x 405

Weight kg 36

Capacity (heating) Minimum kW 7.6

Maximum kW 27

Capacity (hot water) Minimum kW 7.6

Maximum kW 32.7

Leaving water

temperature range

Heating °C 15 ~ 80

Hot water °C 40 ~ 65

DHW ow rate T 35K Hot water l/min 13.1

Heating connections Diameter mm 22

DHW connections Diameter mm 15

Gas connection Diameter mm 15

IP rating IP44

Device type C13, C33

Supply pressure Natural gas (G20) mbar 20

LPG (G31) mbar 30-37

Nox class 5

Flue gas connection 60/100

Maximum ue length, 60/100 m 10

Maximum ue length, 80/125 m 29

SEDBUK rating (2009) % 89.1 (NG) / 90.1 (LPG)

Nominal capacity and nominal input tested according to EN 14511 at the following conditions:

Heating: Ambient air temperature 7°C and leaving water temperature 35°C (A7 W35)

Sound pressure level measured at 1m from the unit

HEATING

Price List Update: Valid from 1st January 2017

135

Daikin Altherma Hybrid Heat Pump System

Hybrid Tank Connection Kits

Accessory Ref Description Trade Price

K.HEATMET Heat meter for domestic RHI (for Altherma hybrid only)

Class 3 heat meter delivered with body, digital interface and 2 temperature sensors

£177.00

K.ELECMETV Electric meter for RHI (single phase)

IEC Class 1 electric meter to measure the electricity consumption of the Daikin Altherma heat pump

£113.00

EKHY075787 LPG conversion kit £20.00

EKHY090717 Flue adapter 80/125 £20.00

EKPCCAB3 PC cable – to upload eld settings from PC to unit or spare controller £188.00

EKRP1HBA Optional PCB kit for remote alarm monitoring, run and fault indication and solar interlock £108.00

EKRUCBS Optional simplied room thermostat £83.00

RTRNETA3AA Netatmo thermostat for smartphone £188.00

EKRSC1* Optional remote temperature sensor for outdoor temperature (see note) £63.00

KRCS01-1* Optional remote temperature sensor for indoor temperature (see note) £48.00

EKFT008CA U-beams to mount the outdoor unit EVLQ05CV3 £86.00

EKDP008C Drainpan and U-beams for outdoor unit EVLQ05CV3 £121.00

EKDPH008C Heater mat for drainpan (EKDP008C) £183.00

K.FF600ASN Pair of exi feet to mount the outdoor unit £49.00

K.CWB90-2 Wall mounting bracket for outdoor unit £37.00

K.DT1 Condensate drip tray for K.CWB90-2 £56.00

K.CGM Outdoor unit guard £308.00

K.FERNOXTF1 Fernox magnetic lter 1” £97.00

K.FERNOXTF1FL Fernox magnetic lter 1” and F1 inhibitor uid (500ml) £113.00

Accessories:

Features:

> Revolutionary hybrid heat pump system with higher eciency and higher running cost savings than condensing boiler alone

> Boiler can be converted to run on LPG

> Delivered as a set including outdoor unit, indoor unit, boiler, controller and pipe cover plate

> Flues ordered separately

Part Number Description Trade Price

UK.HYBRID05B33 Hybrid 5kW pack

This pack contains:

£3,533.00

EVLQ05CV3 Outdoor unit: 5kW, 1-phase, 230V £1,128.00

EHYHBH05AV32 Hydrobox: 5kW, 1-phase, 230V £1,220.00

EHYKOMB33AA2 Hybrid combi boiler: 33/27kW £1,030.00

EKRUCBL2 User interface £88.00

EKHY093467 Pipe cover plate £20.00

EKVK3A Hybrid valve pack £47.00

UK.HYBRID08B33 Hybrid 8kW pack

This pack contains:

£4,002.00

EVLQ08CV3 Outdoor unit: 8kW, 1-phase, 230V £1,541.00

EHYHBH08AV32 Hydrobox: 8kW, 1-phase, 230V £1,276.00

EHYKOMB33AA2 Hybrid combi boiler: 33/27kW £1,030.00

EKRUCBL2 User interface £88.00

EKHY093467 Pipe cover plate £20.00

EKVK3A Hybrid valve pack £47.00

Notes:

i) * Only one optional remote sensor

can be installed

EVLQ / EHYHBH / EHYKOMB

Daikin Altherma Hybrid Heat Pump System

Part Number Description Trade Price

EKEPHT3H Daikin thermal store (EKHWP-B)

This pack contains:

£181.00

3 way valve (Honeywell)

Tank sensor (HT + adapter)

2 x isolation valves

T-piece

EKHY3PART Third party tank – dry pocket sensor

This pack contains:

£151.00

3 way valve (ESBE)

Tank sensor (LT)

EKHY3PART2 Third party tank – thermostat only

This pack contains:

£182.00

3 way valve (ESBE)

Wire harness

HEATING

Residential, Commercial and Industrial

136

Daikin Altherma Hybrid Heat Pump System

Flue Accessories (60/100)

Description Quantity per pack Part number Trade Price

Horizontal ue kit 60/100 1 EKFGP1292 £43.00

Horizontal ue kit

with low prole elbow 60/100

1 EKFGP1293 £54.00

Extension 60/100 x 500mm 1 EKFGP4651 £26.00

Extension 60/100 x 1000mm 1 EKFGP4652 £31.00

Elbow 60/100, 30 degrees 1 EKFGP4664 £34.00

Elbow 60/100, 45 degrees 1 EKFGP4661 £22.00

Elbow 60/100, 87 degrees 1 EKFGP4660 £22.00

Tee with inspection panel 60/100 1 EKFGP4667 £85.00

Wall bracket DN.100 1 EKFGP4631 £6.00

Plume Management Kit (PMK) 1 EKFGP1294 £37.00

Flue deector 1 EKFGP1295 £14.00

HEATING

Price List Update: Valid from 1st January 2017

137

Daikin Altherma Hybrid Heat Pump System

Flue Accessories (60/100) (Continued)

Description Quantity per pack Part number Trade Price

PMK elbow, 87 degrees 1 EKFGP1284 £12.00

PMK elbow, 45 degrees 2 EKFGP1285 £20.00

PMK extension,

length 1000mm incl. bracket

1 EKFGP1286 £18.00

Vertical roof terminal 60/100 1 EKFGP6837 £62.00

Weather slate (plastic) 60/100

(25-45 degrees)

1 EKFGP7910 £28.00

Weather slate 60/100 18-22 degrees 1 EKFGS0518 £94.00

23-27 degrees 1 EKFGS0519 £94.00

43-47 degrees 1 EKFGS0523 £94.00

48-52 degrees 1 EKFGS0524 £94.00

53-57 degrees 1 EKFGS0525 £94.00

Weather slate at aluminium 60/100 1 EKFGP6940 £20.00

Weather slate at aluminium 60/100

(0 – 15 degrees)

1 EKFGP1296 £52.00

HEATING

Residential, Commercial and Industrial

138

Take control of your home’s

temperature with the

Thermostat for smartphones,

tablets, and laptops, designed

by Starck.

Netatmo

Netatmo by Starck

Netatmo gives homeowners the option to control their

heating temperature via an easy to use smartphone app.

With all the functionality of a programmable room thermostat,

Netatmo may be xed to a wall or used wirelessly. It is installed

together with a user interface on smartphone, tablet or computer.

> Once installed, Netatmo gives the user precise remote control of

heat output, a weekly schedule reecting the family’s habits and

monthly energy savings reports. This can help you reduce your

energy consumption by up to 25% by only heating when you

need it.

Accessory RTRNETA3AA

Description Netatmo Smart Thermostat

Trade Unit Price £188.00

Dimensions Height 83

Width 83

Depth 22

Product che Class IV

Contribution % 2.0

Temperature (measures) Range °C 0 ~ 50

Accuracy °C ±0.5

Temperature (setpoint) Setpoint range °C 5 ~ 30

Increment measure °C 0.5

Wireless Specications Wi-Fi 802.11b/g/n (2.4GHz)

Security Open/WEP/WPA/WPA2-Personal (TKIP et AES)

Power 3 AAA batteries

Product Series

Daikin Altherma air source heat pump EHBH-CB

EDLQ-C*

EDHQ-BB

EKHBRD-AD**

EHYHBH-A

*Wiring centre EKCB07CV3

**Option PCB type EKRP1AHTA is required

Netatmo combination tables:

EASY TO

CONNECT

TO WIFI

Energy savings Comfort at the

right time with

Auto-Adapt

function

Remote control Unique design

by Starck

HEATING

Price List Update: Valid from 1st January 2017

139

Solar Thermal

Drainback solar system

> The drainback solar system is a low maintenance system which

does not need antifreeze agents

> It consists of an unpressurised thermal store which can be

combined with Daikin Altherma heat pumps or another

auxiliary heat source

> Water in the store is pumped to the solar panels, heated and

returns to stratify in the Daikin thermal store

> When solar energy is not available, the solar collectors empty

and water drains back to the store

Pressurised solar system

> The pressurised solar system transfers heat to the unvented

cylinder via a specially designed heat exchanger kit. This allows

the entire cylinder to be heated by solar energy

> During solar heating, the heat pump is disabled to ensure

maximum eciency

Standalone solar system

> The standalone solar system combines a pressurised solar

system and a twin-coil unvented cylinder and is designed to

be combined with an auxiliary gas boiler

> Ideal for on-gas retrot applications

Daikin solar systems maximise the use of renewable free energy from

the sun through high eciency at plate collectors. The Daikin solar

thermal system is available in drainback and pressurised options and

is designed to work in conjunction with Daikin Altherma air-to-water

heat pumps for maximum eciency. Solar panels are Solar Keymark

approved and eligible for the Domestic RHI.

Solar pressurised Solar drainback

HEATING

Residential, Commercial and Industrial

140

EKSV21P EKSV26P EKSH26P

Type Vertical Vertical Horizontal

Dimensions Height x Width x Depth mm 2000 x 1006 x 85 2000 x 1300 x 85 1300 x 2000 x 85

Weight kg 35 42 42

Max operating pressure Bar 6 6 6

Max standstill temp °C 200 200 200

Information for SAP assessors and for MCS installers

Gross / net aperture area m22.0 / 1.8 2.6 / 2.36 2.6 / 2.36

Zero loss eciency - 0.784 0.784 0.784

Heat loss coecient (a1) W/m2.K 4.25 4.25 4.25

Heat loss coecient (a2) W/m2.K20.0072 0.0072 0.0072

EKSRDS2A EKSRPS4A

System pressurised drainback

Dimensions Height x Width x Depth mm 410 x 240 x 130 230 x 815 x 142

Power supply 230 / 50Hz 230 / 50Hz

Solar pump Grundfos UPM3 Solar 25-75 Grundfos UPS 15-145

Max pump power consumption W 22.5 65

Max operating pressure Bar 6 -

Max pump capacity m3/h 2 -

Temperature range °C 0-120 (160 short term) -

Connections - 1¼” female for Ø 22

clamping ring bolt (x4)

EKHWP300B EKHWP500B EKHWP300PB EKHWP500PB

Storage capacity litres 300 500 300 500

Weight (empty) kgs 59 93 64 98

Weight (lled) kgs 359 593 364 598

Dimensions Height x Width x Depth mm 1640 x 615 x 595 1640 x 790 x 790 595 x 615 x 1646 790 x 790 x 1658

Max storage temp °C 85 85 85 85

Heat loss at 60°C kWh/24h 1.4 1.4 1.3 1.4

Energy eciency class B B B B

Standing heat loss W 64 72 64 72

Storage volume L 294 477 294 477

Coil material Stainless Steel 1.4404

Potable water capacity litres 27.9 29.0 27.9 29.0

Max operating pressure (potable water) Bar 6 6 6 6

DHW coil area m25.8 6.0 2.7 3.8

Solar thermal system Drainback Pressurised

Information for SAP assessors and for MCS installers

Total volume (V) litres 300 500 300 500

Dedicated solar volume (Vs) litres 300 500 300 500

Surface area solar heat exchange coil m2N/A N/A 0.8 1.7

Heating coil capacity litres 13.2 18.5 13.2 18.5

Heating coil area m22.7 3.8 2.7 3.8

Pipe connections

Cold and hot water Inches 1” outer thread 1” male

Heating ow / return Inches 1” female / 1” male 1” female / 1” male

Solar Inches 1” internal thread 3/4” female and 1” male

Thermal output data

Volume of hot water at given draw-o rate;

without reheating

(inlet = 10 °C / outlet = 40 °C / store = 50 °C)

litres 8 l/min = 184

12 l/min = 153

8 l/min = 364 (1)

12 l/min = 318 (1)

8 l/m = 184

12 l/m = 153

8 l/m = 324 (1)

12 l/m = 282 (1)

Reheat time (Wh) at given draw-o volume

(inlet = 10 °C / outlet = 40 °C / store = 50 °C)

mins With 8kW heat pump

90 litres = 30

140 litres = 45

With 16kW heat pump

90 litres = 17

140 litres = 25

With 8kW heat pump

90 litres = 30

140 litres = 45

With 16kW heat pump

90 litres = 17

140 litres = 25

DHW Thermal store combination EKHWP300B EKHWP500B EKHWP300PB EKHWP500PB

Daikin Altherma LT ERLQ004-8 ERLQ011-16 ERLQ004-8 ERLQ011-16

Connection kit (2) EKDVCPLT3HX EKDVCPLT5H EKDVCPLT3HX EKDVCPLT5H

Immersion heater (required) EKBH3S EKBH3S EKBH3S EKBH3S

Daikin Altherma HT ERSQ011-16 ERSQ011-16 ERSQ011-16 ERSQ011-16

Connection kit EKEPHT3H EKEPHT5H EKEPHT3H EKEPHT5H

Immersion heater (optional) 16 51 35 16 51 35 16 51 35 16 51 35

1. with immersion heater 2. connection kits include 3 way valve, sensors and isolation valves

162084 Part of EKSRPS4A

Dimensions Height x Width x Depth mm 60 x 145 x 95 -

Power supply 230 / 50Hz 230 / 50Hz

Max electric consumption W 5 2

Display Plain text Plain text

DHW Thermal Store EKHWP

Solar Controller

Solar Pump Station EKSRD / EKSRP

Solar Panel EKSV / EKSH Solar panel Solar pump station Solar controller DHW Thermal Store

HEATING

Price List Update: Valid from 1st January 2017

141

Daikin Solar Thermal System

Solar Panels, Fixings and Installation Kits (common components)

Description Part number Trade Price

Solar panel (vertical) – standard

(2000 x 1300 x 85mm), aperture area 2.35m2, weight 42kg, water content 1.7 L. Max. 6 bar

Note: Max 5 panels

EKSV26P £421.00

Solar panel (vertical) – small

(2000 x 1006 x 85mm), aperture area 1.79m2, weight 35kg, water content 1.3 L. Max. 6 bar

Note: Max 5 panels

EKSV21P £352.00

Solar panel (horizontal) – standard

(1300 x 2000 x 85mm), aperture area 2.35m2, weight 42kg, water content 2.1 L. Max. 6 bar

Note: For pressurised systems only

EKSH26P £432.00

Kit to couple 2 solar panels

Mounting prole connector, expansion joints and double clamping blocks

162016-RTX £36.00

Mounting rail for vertical panels

Consisting of mounting prole rails and solar panel securing ties

Note: Dierent for standard and small panels

162066

For EKSV21P

(Was 162013)

£25.00

162067

For EKSV26P

(Was EKSFIXMP130)

£31.00

162068

For EKSH26P

(Was EKSFIXMP200)

£42.00

4x Support hooks for high prole tiles

4 double height-adjustable roof ties including xing material for one solar panel

Note: Was EKSFIXADP

162036-RTX £72.00

4x Support hooks for at tiles (slate)

4 roof ties for at roong, e.g. slate, for one solar panel

Note: Was EKSFIXADS

164723 £40.00

4x Support hooks for curved roongs

Including xing material for one solar panel

Note: Was EKSFIXWD

164703-RTX £52.00

HEATING

Residential, Commercial and Industrial

142

Daikin Solar Thermal System

Solar Panels, Fixings and Installation Kits (common components)

Description Part number Trade Price

4x Support hooks for sheet metal roofs

Including xing material for one solar panel

Note: Was EKSFIXBD

164704-RTX £49.00

In-roof installation kit for 2x vertical panels

For two solar panels, covering sheets complete with mounting material.

Minimum roof angle 15°

Note: Dierent for standard and small panels

162019

For EKSV26P

£267.00

162017

For EKSV21P

£444.00

In-roof extension kit for 1 additional vertical panel

For one further solar panel, covering sheets complete with mounting material.

Minimum roof angle 15°

Note: Dierent for standard and small panels

162020

For EKSV26P

£207.00

162018

For EKSV21P

£198.00

Flat roof kit for 2x vertical panels

Preassembled system for quick and easy assembly, with incremental adjustment

of solar panel inclination between 30-60 degrees

Note: For EKSV26P only

162058 £398.00

Flat roof extension kit for 1 additional vertical panel

Preassembled system for quick and easy assembly, with incremental adjustment

of solar panel inclination between 30-60 degrees

Note: For EKSV26P only

162059 £158.00

Flat roof kit for 1 horizontal panel

Preassembled system for quick and easy assembly, with incremental adjustment

of solar panel inclination between 30-60 degrees

Note: For EKSH26P only

162060 £189.00

Flat roof extension kit for 1 additional horizontal panel

Preassembled system for quick and easy assembly, with incremental adjustment

of solar panel inclination between 30-60 degrees

Note: For EKSH26P only

162061 £130.00

Connection cable to disable heat pump

The connection cable is required to connect the solar priority PCB kit to heat pump

Note: Need to order EKRP1HBA with this part

Was EKS164110

164110-RTX £11.00

Solar priority PCB kit

This enables an interlock between the Daikin solar controller and Altherma heat pumps

Note: Need to order 164110-RTX with this part

EKRP1HBA £108.00

HEATING

Price List Update: Valid from 1st January 2017

143

Daikin Solar Thermal System

Solar Pressurised Accessories

Description Part number Trade Price

Solar controller

Solar dierential temperature regulation for the Daikin solar pressurised system.

Regulator with graphic display for representation of hydraulic schematics and yield balances.

Including return ow and storage tank temperature sensor and housing for wall mounting

162084 £199.00

Pump station

Consisting of: Pipe connection (diameter 22mm) including pipe compression ttings

and support sleeves (5x), ow regulator with 2 x KFE valves, integrated air separator,

ball valves with integrated backow preventor, Grundfos UPM3 Solar 25-75 pump,

safety group with pressure gauge, including insulation and mounting accessories

EKSRDS2A £296.00

Hydraulic connection kit (pressurised)

Connection kit for pressurised only, includes connection to solar panel, 2m UV resistant

heat insulation for the external area, solar panel temperature sensor and end caps

EKSRCP £117.00

Connection pipe for solar panel rows

Connection kit for connecting two rows of collectors one above the other.

Consisting of solar panel mounting material, equipotential bonding clamps, end caps,

connecting brackets and 1m thermally insulated piping

Note: Was EKSCONLCP

162045 £78.00

Antifreeze uid (glycol, 20L)

20L of pre-mixed solar uid in a canister, SOL 5F.

Functional range up to -28°C

Note: Was EKSGFL

162052-RTX £73.00

Thermostatic Mixing Valve

Thermal safety device for DHW outlet with a setting range from 35-60°C

UK.SPMIXVALVE £93.00

15m solar pressurised pipe

Pre-insulated stainless steel exible ow to panel (16mm) and return from panel (20mm)

pipe with sensor cable, order with ttings as shown

Note: Order connection pack separately

162073 + 162075 was 162021-RTX

162074 + 162076 was 162026-RTX

UK.SP3PIPEP

Up to 3 panels (DN16)

£285.00

UK.SP5PIPEP

4-5 panels (DN20)

£416.00

Solar pipe connectors

Connectors to t 2 pipes together for extension of solar pipe

Note: 162071 was 162027-RTX

162072 was 162028-RTX

162071

Up to 25m (DN16)

£25.00

162072

Up to 25m (DN20)

£20.00

Solar expansion vessel

Bracket and exi hose included for installation

162050

25 litre

£58.00

162051-RTX

35 litre

£150.00

HEATING

Residential, Commercial and Industrial

144

Daikin Solar Thermal System

Solar Drainback Accessories

Maximum possible length of the connection pipe

Number of solar panels Max. length

2 45m

3 30m

4 17m

5 15m

Description Part number Trade Price

Solar controller and pump station

Unit ready to plug in (230V), with digital dierential temperature control system,

return ow and storage tank temperature sensors and operating pump

EKSRPS4A £433.00

Solar connection pipe

Ready to plug in connection pipe between the solar panel and the pump station,

consisting of thermally insulated ow pipe to panel (15mm) and return pipe from

panel (18mm) with integrated sensor cable.

Available in 15 and 20m lengths

Note: 164732 was EKSCON15

164733 was EKSCON20

164732

15m length

£98.00

164733

20m length

£117.00

Solar connection pipe extension

Ready to plug in, including tting materials and connection ttings.

Available in 2.5, 5 and 10m lengths

Note: 164261-RTX was EKSCONX25

164262-RTX was EKSCONX50

164263 was EKSCONX100

164261-RTX

2.5m

£61.00

164262-RTX

£70.00

164263

10m

£88.00

Solar ow pipe extension (15mm)

UV resistant thermally insulated, length L = 8m, including cable connection tting

for the solar panel sensor line

Note: Was EKSCONXV80

164264 £77.00

Copper pipe connection kit

Connection kit when connecting onto copper pipe (if Daikin drainback pipe is not used).

Consisting of 2m ow and return pipes, push-t coupling onto 15mm and 18mm copper pipe

164232 £56.00

Solar panel row connection kit

Connection kit for connecting two rows of collectors one above the other.

Consisting of solar panel mounting material, equipotential bonding clamps,

end caps, connecting brackets and 1m thermally insulated piping

Note: Was EKSCONRVP

162035-RTX £65.00

Hydraulic connection kit (on-roof)

Connection kit for drainback (on-roof), includes connection to solar panel,

pitched roof ashing, 2m UV resistant insulation, solar panel temperature sensor

and endcaps

Available in Anthracite or Brick red

EKSRCRP

Brick red

£160.00

EKSRCAP

Anthracite

£160.00

Hydraulic connection kit (in-roof)

Connection kit for drainback (in-roof), includes connection to solar panel,

solar panel temperature sensor and endcaps

162037-RTX £104.00

HEATING

Price List Update: Valid from 1st January 2017

145

Daikin Solar Thermal System

Solar Drainback Accessories (Continued)

This is a hot water thermal storage tank and provides instantaneous hot water.

The tank serves as a heat storage medium. It can be heated by both Daikin Altherma heat pumps and solar energy, available for both

drainback and pressurised applications.

Daikin Solar Thermal System

Thermal Store for Daikin Altherma High and Low Temperature

Description Part number Trade Price

Hydraulic connection kit (at roof)

Connection kit for drainback (at roof), includes connection to solar panel,

at roof penetration, 8.5m UV resistant insulation and solar panel temperature sensor

162038-RTX £202.00

Gravity break set

Avoids thermal heat loss from thermal store due to thermo-siphon eect.

Advised when piping from heat exchanger is not making a down ward bend at the tank

165070 £8.00

Solar ow setter

Flow regulating valve with ow indicator (2-16 l/min). For balancing solar ow

in cascade thermal store installations

Note: For use only with EKHWP* only

164102-RTX £55.00

Secondary circulation kit

Connection kit for secondary hot water connections

Note: For use with EKHWP* only

165113 £82.00

Description Part number Trade Price

Drainback Solar Thermal store (EKHWP***B) Combination with Daikin Altherma HT

EKHWP300B with connection kit for ERSQ011-016 UK.THERMAL300DBHT £1,206.00

EKHWP500B with connection kit for ERSQ011-016 UK.THERMAL500DBHT £1,467.00

Drainback Solar Thermal store (EKHWP***B) Combination with Daikin Altherma LT & MB

EKHWP300B with connection kit for ERLQ004-008 & EDLQ05-07 and 3kW immersion heater UK.THERMAL300DBLT £1,369.00

EKHWP500B with connection kit for ERLQ011-016 & E(D/B)HQ014-D16 and 3kW immersion heater UK.THERMAL500DBLT £1,660.00

Pressurised Solar Thermal store (EKHWP***PB) Combination with Daikin Altherma HT

EKHWP300PB with connection kit for ERSQ011-016 UK.THERMAL300PHT £1,297.00

EKHWP500PB with connection kit for ERSQ011-016 UK.THERMAL500PHT £1,652.00

Pressurised Solar Thermal store (EKHWP***PB) Combination with Daikin Altherma LT & MB

EKHWP300PB with connection kit for ERLQ004-008 & EDLQ05-07 and 3kW immersion heater UK.THERMAL300PLT £1,460.00

EKHWP500PB with connection kit for ERLQ011-016 & E(D/B)HQ014-016 and 3kW immersion heater UK.THERMAL500PLT £1,845.00

Connection elbow enables easy lling and draining of the storage tank

Note: It is recommended that 165210 and 165215 are ordered with every thermal store

165210 £21.00

Fill and drain connection

Note: It is recommended that 165210 and 165215 are ordered with every thermal store

165215 £24.00

HEATING

Residential, Commercial and Industrial

146

The standalone pressurised solar system is designed for use with auxiliary gas boiler and twin coil cylinder.

Available in predened on-roof and in-roof packs (see page 152)

Daikin Solar Thermal System

Solar Standalone Accessories

Note: Further standalone solar components are available to complete the standalone system (see pages 141-143)

* Special oer price

Description Part number Trade Price

Solar panel (vertical) – small

(2006 x 1006 x 85mm), aperture area 1.79m2, weight 35kg, water content 1.3 L. Max. 6 bar

EKSV21P £352.00

Mounting rail for small panels

Consisting of mounting prole rails and securing ties

Note: Was 162013

162066 £25.00

4x Support hooks for high prole tiles

4 double height-adjustable roof ties including xing material for one solar panel

Note: Was EKSFIXADP

162036-RTX £72.00

4x Support hooks for at tiles (slate)

4 roof ties for at roong, e.g. slate, for one solar panel

Note: Was EKSFIXADS

164723 £40.00

Pump station

Consisting of: Pipe connection (diameter 22mm) including pipe compression ttings

and support sleeves (5x), ow regulator with 2 x KFE valves, integrated air separator,

ball valves with integrated backow preventor, Grundfos UPM3 Solar 25-75 pump,

safety group with pressure gauge, including insulation and mounting accessories

EKSRDS2A £296.00

Hydraulic connection kit (pressurised)

Connection kit for pressurised only, includes connection to solar panel,

2m UV resistant heat insulation for the external area, solar panel temperature sensor

and endcaps

EKSRCP £117.00

Solar controller for standalone solar

Wall mounted, small and compact. Easy to use solar controller with back-lit

graphical illuminated display. Auxiliary heat source timer and pump speed control

Note: To control auxiliary gas boiler only

UK.SOLCTRBS4 £199.00

Twin coil solar cylinder

Unvented stainless steel cylinder. Designed for gas boiler auxiliary heating and

solar hot water connections. Delivered with full G3 compliance kit including

2-port motorised valve (except expansion vessel - eld supply)

FKU-HWS200TC

200L

£500.00*

FKU-HWS250TC

250L

£525.00*

FKU-HWS300TC

300L

£570.00*

HEATING

Price List Update: Valid from 1st January 2017

147

Selecting the right Solar System

Daikin has a full range of solar thermal solutions including Drainback and Pressurised solutions to suit many installation requirements.

Solar systems are available to work with heat pumps or with boilers and oer enhanced DHW energy savings.

Use the table below to help select the right kind of solar system for your Daikin heat pump or your existing boiler.

Drainback

HT, LT & Hybrid Heat Pump

Thermal Store

(EKHWP-B)

HT, LT & Hybrid

Heat Pump

Thermal Store

(EKHWP-PB)

Twin coil

(FKU)

Boiler

PressurisedSolar system

Auxiliary heat source

Tank

Panel orientation

and size

On-roof

In-roof

Flat roof

Vertical

2.6m2

Vertical

2.0m2

✓

(page 149)

✓

(page 152)

✓

(page 149)

✓

(page 152)

✓

(page 149)

Vertical

2.6m2

Horizontal

2.6m2

Vertical

2.0m2

✓

(page 150)

✓

(page 150)

✓

(page 152)

✓

(page 151)

7✓

(page 152)

✓

(page 151)

✓

(page 151)

HEATING

Residential, Commercial and Industrial

148

System type Orientation Fixing type Tile Roof cowl 1 panel pack 2 panel pack 3 panel pack 4 panel pack 5 panel pack

Drainback Vertical On-roof Proled tile Anthracite UK.SP1VPDBA UK.SP2VPDBA UK.SP3VPDBA UK.SP4VPDBA UK.SP5VPDBA

Slate/at tile Anthracite UK.SP1VSDBA UK.SP2VSDBA UK.SP3VSDBA UK.SP4VSDBA UK.SP5VSDBA

Proled tile Red UK.SP1VPDBR UK.SP2VPDBR UK.SP3VPDBR UK.SP4VPDBR UK.SP5VPDBR

Slate/at tile Red UK.SP1VSDBR UK.SP2VSDBR UK.SP3VSDBR UK.SP4VSDBR UK.SP5VSDBR

In-roof Proled/slate/

at tile

- - UK.SP2VIDBA UK.SP3VIDBA UK.SP4VIDBA UK.SP5VIDBA

Flat-roof - - UK.SP1VADBA UK.SP2VADBA UK.SP3VADBA UK.SP4VADBA UK.SP5VADBA

Pressurised Vertical On-roof Proled tile - UK.SP1VPP UK.SP2VPP UK.SP3VPP - -

Slate/at tile - UK.SP1VSP UK.SP2VSP UK.SP3VSP

In-roof Proled/slate/

at tile

- - UK.SP2VIP UK.SP3VIP

Flat-roof - - UK.SP1VAP UK.SP2VAP UK.SP3VAP

Horizontal On-roof Proled tile - UK.SP1HPP UK.SP2HPP UK.SP3HPP

Slate/at tile - UK.SP1HSP UK.SP2HSP UK.SP3HSP

Flat-roof - - UK.SP1HAP UK.SP2HAP UK.SP3HAP

Pressurised

(Standalone)

Vertical On-roof Proled tile - UK.V21PP1 UK.V21PP2 UK.V21PP3 - -

Slate/at tile - UK.V21SP1 UK.V21SP2 UK.V21SP3

In-roof Proled/slate/

at tile

- - UK.V21IP2 UK.V21IP3

Selecting the right Solar Pack

Daikin oer solar systems in ready to order packs with all the key components include.

After deciding between drainback or pressurised solar, use this table to select the right solar pack for your project.

Daikin Solar Thermal System

Solar Packs – Quick Selection Table

HEATING

Price List Update: Valid from 1st January 2017

149

Important:

When installing an Daikin Altherma heat pump and Daikin drainback solar system, the following accessories need to be ordered separately:

EKHWP-B – Thermal store

EKRP1HBA – Option PCB for use with Hydrobox for alarm monitoring (Solar priority PCB), not applicable for EDLQ-CV3

EKSCON*** – Solar connection pipe

* When installing an integrated ROTEX Gas Compact Unit and Daikin drainback solar system, order 164126 instead of EKSRPS4A

Vertical on-roof proled tile pack Part number 1 panel pack 2 panel pack 3 panel pack 4 panel pack 5 panel pack

Vertical pack order reference UK.SP1VPDBA/R UK.SP2VPDBA/R UK.SP3VPDBA/R UK.SP4VPDBA/R UK.SP5VPDBA/R

This pack contains: Quantity Quantity Quantity Quantity Quantity

Vertical at plate collector EKSV26P 1 2 3 4 5

Roof brackets for concrete / proled x 4 162036-RTX 1 2 3 4 5

Mounting rail for panel 162067 1 2 3 4 5

Hydraulic connection kit (on-roof)

including cowl in either:

Anthracite / Red EKSRCAP / EKSRCRP 1 1 1 1 1

Solar controller & pump station* EKSRPS4A 1 1 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2 3 4

Connection cable to disable heat pump 164110-RTX 1 1 1 1 1

Pack price £968.00 £1,528.00 £2,088.00 £2,648.00 £3,208.00

Vertical on-roof slate tile pack Part number 1 panel pack 2 panel pack 3 panel pack 4 panel pack 5 panel pack

Vertical pack order reference UK.SP1VSDBA/R UK.SP2VSDBA/R UK.SP3VSDBA/R UK.SP4VSDBA/R UK.SP5VSDBA/R

This pack contains: Quantity Quantity Quantity Quantity Quantity

Vertical at plate collector EKSV26P 1 2 3 4 5

Roof brackets for slate / at tiles x 4 164723 1 2 3 4 5

Mounting rail for panel 162067 1 2 3 4 5

Hydraulic connection kit (on-roof)

including cowl in either:

Anthracite / Red EKSRCAP / EKSRCRP 1 1 1 1 1

Solar controller & pump station* EKSRPS4A 1 1 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2 3 4

Connection cable to disable heat pump 164110-RTX 1 1 1 1 1

Pack price £936.00 £1,464.00 £1,992.00 £2,520.00 £3,048.00

Vertical in-roof pack Part number 1 panel pack 2 panel pack 3 panel pack 4 panel pack 5 panel pack

Vertical pack order reference - UK.SP2VIDBA/R UK.SP3VIDBA/R UK.SP4VIDBA/R UK.SP5VIDBA/R

This pack contains: Quantity Quantity Quantity Quantity Quantity

Vertical at plate collector EKSV26P - 2 3 4 5

Mounting rail for panel 162067 - 2 3 4 5

Hydraulic connection kit (in-roof) 162037-RTX - 1 1 1 1

Solar controller & pump station* EKSRPS4A - 1 1 1 1

Coupling kit for multiple panels 162016-RTX - 1 2 3 4

In-roof kit for 2x vertical panels 162019 - 1 1 1 1

In-roof extension kit for 1x panel 162020 - 0 1 2 3

Connection cable to disable heat pump 164110-RTX - 1 1 1 1

Pack price - £1,755.00 £2,450.00 £3,145.00 £3,840.00

Vertical at roof pack Part number 1 panel pack 2 panel pack 3 panel pack 4 panel pack 5 panel pack

Vertical pack order reference UK.SP1VADBA/R UK.SP2VADBA/R UK.SP3VADBA/R UK.SP4VADBA/R UK.SP5VADBA/R

This pack contains: Quantity Quantity Quantity Quantity Quantity

Vertical at plate collector EKSV26P 1 2 3 4 5

Mounting rail for panel 162067 1 2 3 4 5

Hydraulic connection kit (at roof)

including at roof penetration

162038-RTX 1 1 1 1 1

Solar controller & pump station* EKSRPS4A 1 1 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2 3 4

Solar at roof kit for 2xV26P 162058 1 1 1 1 1

Solar at roof kit for additional V26P 162059 0 0 1 2 3

Connection cable to disable heat pump 164110-RTX 1 1 1 1 1

Pack price £1,496.00 £1,984.00 £2,630.00 £3,276.00 £3,922.00

Daikin Solar Thermal System

Solar Packs – Drainback System for Daikin Altherma

HEATING

Residential, Commercial and Industrial

150

Vertical on-roof proled tile pack Part number 1 panel pack 2 panel pack 3 panel pack

Vertical pack order reference UK.SP1VPP UK.SP2VPP UK.SP3VPP

This pack contains: Quantity Quantity Quantity

Vertical at plate collector EKSV26P 1 2 3

Roof brackets for concrete / proled tiles x 4 162036-RTX 1 2 3

Mounting rail for panel 162067 1 2 3

Hydraulic connection kit EKSRCP 1 1 1

Solar controller 162084 1 1 1

Solar pump station EKSRDS2A 1 1 1

Solar uid (20 litres) 162052-RTX 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2

Solar expansion vessel (25 litres) 162050 1 1 1

Connection cable to disable heat pump 164110-RTX 1 1 1

Pack price £1,205.00 £1,765.00 £2,325.00

Vertical on-roof slate / at tile pack Part number 1 panel pack 2 panel pack 3 panel pack

Vertical pack order reference UK.SP1VSP UK.SP2VSP UK.SP3VSP

This pack contains: Quantity Quantity Quantity

Vertical at plate collector EKSV26P 1 2 3

Roof brackets for slate / at tiles x 4 164723 1 2 3

Mounting rail for panel 162067 1 2 3

Hydraulic connection kit EKSRCP 1 1 1

Solar controller 162084 1 1 1

Solar pump station EKSRDS2A 1 1 1

Solar uid (20 litres) 162052-RTX 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2

Solar expansion vessel (25 litres) 162050 1 1 1

Connection cable to disable heat pump 164110-RTX 1 1 1

Pack price £1,173.00 £1,701.00 £2,229.00

Horizontal on-roof proled tile pack Part number 1 panel pack 2 panel pack 3 panel pack

Horizontal pack order reference UK.SP1HPP UK.SP2HPP UK.SP3HPP

This pack contains: Quantity Quantity Quantity

Horizontal at plate collector EKSH26P 1 2 3

Roof brackets for concrete / proled tiles x 4 162036-RTX 1 2 3

Mounting rail for panel 162068 1 2 3

Hydraulic connection kit EKSRCP 1 1 1

Solar controller 162084 1 1 1

Solar pump station EKSRDS2A 1 1 1

Solar uid (20 litres) 162052-RTX 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2

Solar expansion vessel (25 litres) 162050 1 1 1

Connection cable to disable heat pump 164110-RTX 1 1 1

Pack price £1,227.00 £1,809.00 £2,391.00

Horizontal on-roof slate / at tile pack Part number 1 panel pack 2 panel pack 3 panel pack

Horizontal pack order reference UK.SP1HSP UK.SP2HSP UK.SP3HSP

This pack contains: Quantity Quantity Quantity

Horizontal at plate collector EKSH26P 1 2 3

Roof brackets for slate/at tiles x 4 164723 1 2 3

Mounting rail for panel 162068 1 2 3

Hydraulic connection kit EKSRCP 1 1 1

Solar controller 162084 1 1 1

Solar pump station EKSRDS2A 1 1 1

Solar uid (20 litres) 162052-RTX 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2

Solar expansion vessel (25 litres) 162050 1 1 1

Connection cable to disable heat pump 164110-RTX 1 1 1

Pack price £1,195.00 £1,745.00 £2,295.00

Important:

When installing an integrated Daikin Altherma heat pump and pressurised Daikin solar thermal system, the following accessories need to be ordered separately:

EKHWP-PB - Thermal store

1620** – Solar pressurised pipe and connectors

EKRP1HBA – Option PCB for use with Hydrobox for alarm monitoring (Solar priority PCB), not applicable for EDLQ-CV3

Daikin Solar Thermal System

Solar Packs – Pressurised System for Daikin Altherma

HEATING

Price List Update: Valid from 1st January 2017

151

Daikin Solar Thermal System

Solar Packs – Pressurised System for Daikin Altherma (Continued)

Vertical in-roof pack Part number 2 panel pack 3 panel pack

Vertical pack order reference UK.SP2VIP UK.SP3VIP

This pack contains: Quantity Quantity

Vertical at plate collector EKSV26P 2 3

Mounting rail for panel 162067 2 3

Hydraulic connection kit EKSRCP 1 1

Solar controller 162084 1 1

Solar pump station EKSRDS2A 1 1

Solar uid (20 Litres) 162052-RTX 1 1

Coupling kit for multiple panels 162016-RTX 1 2

In roof kit for 2 x V26P 162019 1 1

In roof extension kit for additional V26P 162020 0 1

Solar expansion vessel (25 litres) 162050 1 1

Connection cable to disable heat pump 164110-RTX 1 1

Pack price £1,607.00 £2,106.00

Vertical at roof pack Part number 1 panel pack* 2 panel pack 3 panel pack

Vertical pack order reference UK.SP1VAP UK.SP2VAP UK.SP3VAP

This pack contains: Quantity Quantity Quantity

Vertical at plate collector EKSV26P 1 2 3

Mounting rail for panel 162067 1 2 3

Hydraulic connection kit EKSRCP 1 1 1

Solar controller 162084 1 1 1

Solar pump station EKSRDS2A 1 1 1

Solar uid (20 Litres) 162052-RTX 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2

Solar at roof kit for 2xV26P 162058 1 1 1

Solar at roof kit for additional V26P 162059 0 0 1

Solar expansion vessel (25 litres) 162050 1 1 1

Connection cable to disable heat pump 164110-RTX 1 1 1

Pack price £1,531.00 £2,019.00 £2,665.00

Horizontal at roof pack Part number 1 panel pack 2 panel pack 3 panel pack

Horizontal pack order reference UK.SP1HAP UK.SP2HAP UK.SP3HAP

This pack contains: Quantity Quantity Quantity

Horizontal at plate collector EKSH26P 1 2 3

Mounting rail for panel 162068 1 2 3

Hydraulic connection kit EKSRCP 1 1 1

Solar controller 162084 1 1 1

Solar pump station EKSRDS2A 1 1 1

Solar uid (20 Litres) 162052-RTX 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2

Solar at roof kit for H26P 162060 1 1 1

Solar at roof kit for additional H26P 162061 0 1 2

Solar expansion vessel (25 litres) 162050 1 1 1

Connection cable to disable heat pump 164110-RTX 1 1 1

Pack price £1,344.00 £1,984.00 £2,624.00

* Important:

When ordering the vertical at roof pack, please be aware the solar at roof kit is sucient for two vertical panels,

thus some wastage will occur (the wastage is not enough to be used for another panel).

Important:

When installing an integrated Daikin Altherma heat pump and pressurised Daikin solar thermal system, the following accessories need to be ordered separately:

EKHWP-PB - Thermal store

1620** – Solar pressurised pipe and connectors

EKRP1HBA – Option PCB for use with Hydrobox for alarm monitoring (Solar priority PCB), not applicable for EDLQ-CV3

HEATING

Residential, Commercial and Industrial

152

Vertical on-roof proled tile pack Part number 1 panel pack 2 panel pack 3 panel pack

Vertical pack order reference UK.V21PP1 UK.V21PP2 UK.V21PP3

This pack contains: Quantity Quantity Quantity

Vertical at plate collector (small panel) EKSV21P 1 2 3

Roof brackets for concrete / proled tiles x 4 162036-RTX 1 2 3

Mounting rail for panel 162066 1 2 3

Hydraulic connection kit EKSRCP 1 1 1

Solar controller (for auxiliary gas boiler) UK.SOLCTRBS4 1 1 1

Solar pump station EKSRDS2A 1 1 1

Solar uid (20 litres) 162052-RTX 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2

Solar expansion vessel (25 litres) 162050 1 1 1

Pack price £1,047.00 £1,460.00 £1,873.00

Vertical on-roof slate / at tile pack Part number 1 panel pack 2 panel pack 3 panel pack

Vertical pack order reference UK.V21SP1 UK.V21SP2 UK.V21SP3

This pack contains: Quantity Quantity Quantity

Vertical at plate collector (small panel) EKSV21P 1 2 3

Roof brackets for slate / at tiles x 4 164723 1 2 3

Mounting rail for panel 162066 1 2 3

Hydraulic connection kit EKSRCP 1 1 1

Solar controller (for auxiliary gas boiler) UK.SOLCTRBS4 1 1 1

Solar pump station EKSRDS2A 1 1 1

Solar uid (20 litres) 162052-RTX 1 1 1

Coupling kit for multiple panels 162016-RTX 0 1 2

Solar expansion vessel (25 litres) 162050 1 1 1

Pack price £1,047.00 £1,460.00 £1,873.00

Vertical in-roof pack Part number 2 panel pack 3 panel pack

Vertical pack order reference UK.V21IP2 UK.V21IP3

This pack contains: Quantity Quantity

Vertical at plate collector (small panel) EKSV21P 2 3

Mounting rail for panel 162066 2 3

Hydraulic connection kit EKSRCP 1 1

Solar controller (for auxiliary gas boiler) UK.SOLCTRBS4 1 1

Solar pump station EKSRDS2A 1 1

Solar uid (20 litres) 162052-RTX 1 1

Coupling kit for multiple panels 162016-RTX 1 2

Solar expansion vessel (25 litres) 162050 1 1

In roof kit for 2 x V21P 162017 1 1

In roof extension kit for additional V21P 162018 0 1

Pack price £1,460.00 £1,873.00

Important:

Packs detailed above are not designed to be used with Daikin Altherma heat pumps.

The above packs are designed to be used with an auxiliary gas boiler and twin coil cylinder.

To complete the Daikin standalone pressurised solar system, please order twin coil cylinder (FKU-HWS***TC).

Daikin Solar Thermal System

Solar Packs – Standalone Pressurised System for use with Auxiliary Gas Boiler

HEATING

Price List Update: Valid from 1st January 2017

153

Underoor Heating

> Energy saving and highly versatile, can be used with heat pumps and condensing boilers

> Simple installation with easy to lay components

> Additional energy benets recognised in SAP and MCS

> Rotex Monopex is ideal for low temperature systems such as heat pumps and is

available in a variety of pipe sizes

> Rotex System 70 is ideal for mixed UFH and radiator systems and commercial heating

systems with primary ow temperatures 55 - 70°C

ROTEX underoor heating system is designed to work seamlessly

with the Daikin Altherma range to provide high heat pump eciency

and low surface temperatures for the most comfortable room climate.

When partnered with heat pumps, UFH with low ow temperatures

helps to achieve high heat pump eciencies and even higher

running cost savings.

For information on Daikin’s underoor heating design process go to page 156.

HEATING

Residential, Commercial and Industrial

154

Underfloor Heating System

Heat Emission Plate

Underfloor Heating System

Underoor Heating Pipes

Dual channel aluminium spreader plates for timber suspended or battened oor installations.

For joists at 400mm centres. Plate dimensions 1000x390mm

Description Length Part number Trade Price

Spreader plates

For Ø 17mm pipe

(3.9m2)

171141 £70.00

Monopex heating pipes: Thick-walled, linked basic PE-X pipe with oxygen-tight barrier for Monopex low temperature underoor heating systems.

Description Length Part number Trade Price

Monopex 14 PE-X 14 x 2 OD

For Monopex underoor

heating system

120m 170008 £133.00

240m 170009 £266.00

Monopex 14 ALU thick-walled PE-X 14 x 2 OD

Aluminium coating and PE external layer.

For Monopex underoor heating systems

120m 170604 £189.00

240m 170605 £375.00

Monopex 17 PE-X 17 x 2 OD

For Monopex underoor

heating system

120m 170029 £148.00

240m 170028 £295.00

600m 170062 £734.00

Monopex 20 PE-X 20 x 2 OD

For Monopex underoor

heating system

120m 170030 £170.00

240m 170109 £338.00

400m 170108 £562.00

Protective pipe

Black corrugated pipe made of plastic as additional

insulation in the area of the manifold and expansion joints

25m 170053

Ø 19/25mm

£15.00

25m 170098

Ø 16/21mm

£12.00

75m 170001

Ø 23/28mm

£49.00

DUO heating pipes: Thick-walled linked PE-X basic pipe, with oxygen-tight barrier, and additional highly exible PE ribbed pipe.

For underoor heating systems operated in direct combination with other heating surfaces, e.g. radiators.

DUO 17 PE-X 17/12 x 2 OD

For system 70 underoor heating

& heating radiator connection

Outer pipe Ø 17mm

Inner pipe 12 x 2mm

120m 170068 £207.00

240m 170086 £414.00

DUO 17 ALU PE-X 17/12 x 2 OD

With aluminium coating and PE external layer.

For system 70 radiator connection and underoor heating

Outer pipe Ø 17mm

Inner pipe 12 x 2mm

120m 170601 £239.00

240m 170602 £476.00

DUO 25 PE-X 25/18 x 2 OD

For system 70 industrial underoor heating

200m 170050 £453.00

HEATING

Price List Update: Valid from 1st January 2017

155

RMX manifold: RMX heating circuit manifold, for underoor heating systems and radiators.

Suitable for the smallest tting heights. Buy clamping ring sets separately to suit pipe.

Underfloor Heating System

Manifolds

HKV manifold: HKV heating circuit manifold, suitable for underoor heating and radiators, with fast mounting system.

Description Quantity per pack Part number Trade Price

Manifold HKV 2-port 1 172502 £75.00

Manifold HKV 3-port 1 172503 £90.00

Manifold HKV 4-port 1 172504 £107.00

Manifold HKV 5-port 1 172505 £121.00

Manifold HKV 6-port 1 172506 £143.00

Manifold HKV 7-port 1 172507 £153.00

Manifold HKV 8-port 1 172508 £169.00

Manifold HKV 9-port 1 172509 £183.00

Manifold HKV 10-port 1 172510 £200.00

Manifold HKV 11-port 1 172511 £215.00

Manifold HKV 12-port 1 172512 £232.00

Manifold HKV 13-port 1 172513 £247.00

Manifold HKV 14-port 1 172514 £303.00

HKV actuator (230V)

Actuator for HKV manifold and kombi box

1 175110 £21.00

Clamping ring set on HKV heating circuit manifold for ow and return, per heating circuit

HKV connection set DUO17 2 177012 £7.00

HKV connection set Monopex 14 2 177014 £7.00

HKV connection set Monopex 17 2 177017 £7.00

HKV connection set DUO25 2 177018 £7.00

HKV connection set Monopex 20 2 177020 £8.00

Connection kit for HKV2 to HKV14

Contains 2 x isolating valves (1”),

2 x connection pieces,

2 x lling and draining valves and

2 x temperature gauges

1 175510 £71.00

Description Quantity per pack Part number Trade Price

Manifold RMX 2-port 1 172702 £110.00

Manifold RMX 3-port 1 172703 £129.00

Manifold RMX 4-port 1 172704 £152.00

Manifold RMX 5-port 1 172705 £174.00

Manifold RMX 6-port 1 172706 £197.00

Manifold RMX 7-port 1 172707 £220.00

Manifold RMX 8-port 1 172708 £242.00

Manifold RMX 9-port 1 172709 £265.00

Manifold RMX 10-port 1 172710 £288.00

Manifold RMX 11-port 1 172711 £308.00

Manifold RMX 12-port 1 172712 £332.00

RMX actutator (230V)

Actuator for RMX manifold and kombi box

1 175145 £18.00

Clamping ring set on RMX heating circuit manifold for ow and return per heating circuit

RMX connection set DUO17 2 170312 £8.00

RMX connection set Monopex 14 2 170314 £8.00

RMX connection set Monopex 17 2 170317 £7.00

RMX connection set DUO25 2 170318 £7.00

RMX connection set Monopex 20 2 170320 £7.00

RMX manifold isolating valves 1” 2 175514 £21.00

HEATING

Residential, Commercial and Industrial

156

Underfloor Heating System

Manifold Accessories

Underoor Heating (UFH) System Design Process

If you require an UFH system design, please contact your sales

representative or your local branch for assistance. To enable

us to carry out the UFH design, you will need to submit:

> Autocad drawings – oor plans and elevations

> Completed Daikin UFH design request form

(available from your local branch)

Please allow up to 20 working days from submitting your

drawings to receiving your quotation.

Once you have placed an order for the UFH materials, we will

send you the UFH system design for your approval prior to

shipping the materials.

To prepare an accurate bill of materials

and quotation for your underoor heating

project, we need to carry out a detailed

UFH system design. This will take account of

parameters including room heat losses, water

ow temperature, oor construction, oor

coverings and preferred manifold positions.

Description Quantity per pack Part number Trade Price

Coupling nipple (3/4”) for combination

with 1703** clamping ring sets

2 177227 £8.00

Connection nipple (3/4” PEX x 1/2” male)

for combination with 1703** clamping ring sets

2 177327 £6.00

Manifold cabinet up to 7-port 1 174110 £131.00

Manifold cabinet up to 10-port 1 174115 £145.00

Manifold cabinet up to 14-port 1 174120 £166.00

Kombi box

Subdivision for distribution room-by-room and controller

for max. 2 underoor heating circuits with system 70

for DUO 17 heating pipe and optionally with a radiator

complete in UP case incl. cover plates, without clamping

ring set and actuator

1 172415 £99.00

HEATING

Price List Update: Valid from 1st January 2017

157

Underfloor Heating System

Insulating Strips and Installation Accessories

Description Quantity per pack Part number Trade Price

Tacker gun

Tacker gun for 60mm pipe staples.

The tacker gun can be used to secure pipe directly to

oor insulation

1 171134 £208.00

Pipe staples

60mm pipe staples for use with tacker gun (171134)

and high density insulation with DPM

300 171137 £36.00

Clip rail

1m pieces, pipe centres 50mm

100 171224 £282.00

Clip rail nail KN06 100 171127 £28.00

Edging strip

For cement or anhydrite screed.

PE foam with welded foil, height 150mm, 8mm thick

25m 171101 £16.00

Edging strip

For free-owing screed PE foam

with welded foil, and additional sealing cord.

Height 150mm, 10mm thick

25m 171126 £31.00

Combined pipe cutters and stripping pliers RAZ1 1 171110 £55.00

Pipe decoiler RAW 240 for <240m 1 171006 £546.00

Pipe clips 50 171117

For Ø 17-20mm

£6.00

171125

For Ø 25mm

£9.00

Pipe bend

This is recommended to facilitate the bend of the pipe

up-to the manifold

10 171142

For Ø 14-18mm

£16.00

171143

For Ø 20-22mm

£20.00

HEATING

Residential, Commercial and Industrial

158

Note: Cannot be combined with advanced range (see page 159)

Underfloor Heating System

Underoor Heating Room Controls Basic Range

Note: Cannot be combined with advanced range (see page 159)

Underfloor Heating System

Wiring Centres and Accessories Basic Range

Description Quantity per pack Part number Trade Price

RTR5 control

Electronic room temperature control (230V)

1 175117 £21.00

RTK control

Room temperature control with heating/cooling function

1 175125 £31.00

FRT wireless control

Wireless room temperature control

1 175120 £80.00

Single FRT wireless receiver

Receiver FEM1 for 1x FRT

1 175121 £89.00

Multiple FRT wireless receiver

Receiver FEM4 for 4x FRT

1 175122 £158.00

Description Quantity per pack Part number Trade Price

Wiring box for 14x SAT

Wiring box 6xRTR and max 14xSAT

DIN rail eld supplied

1 175131 £64.00

Wiring box extension for 4x SAT

Wiring box extension for 175131.

Additional 2xRTR and Max 4x SAT

DIN rail eld supplied

1 175132 £27.00

Pump module for wiring box

Provides on/o signal to the heat source

Note: Can only be combined with wiring box 175131.

One required per UFH manifold

DIN rail eld supplied

1 175134 £64.00

HEATING

Price List Update: Valid from 1st January 2017

159

Modern aesthetics, easy to install and greater user comfort

Note: Cannot be combined with basic range (see page 158)

Modern aesthetics, easy to install and greater user comfort

Note: Cannot be combined with basic range (see page 158)

Underfloor Heating System

Underoor Heating Room Controls Advanced Range

Wiring Centres and Accessories Advanced Range

Description Quantity per pack Part number Trade Price

Wiring centre

- 6 channels

- 4 actuators (230 V) per channel

- Automatic heating/cooling switchover

DIN rail eld supplied

1 175140 £126.00

Wiring centre

- 2 channels

- 4 actuators (230 V) per channel

- Automatic heating/cooling switchover

DIN rail eld supplied

1 175141 £62.00

Wiring centre (RF)

- 6 channels

- 4 actuators (230 V) per channel

- Automatic heating/cooling switchover

- Including antenna for wireless communication

DIN rail eld supplied

1 175143 £237.00

Wiring centre (RF)

- 2 channels

- 4 actuators (230 V) per channel

- Automatic heating/cooling switchover

- Including antenna for wireless communication

DIN rail eld supplied

1 175144 £157.00

Wiring centre power module

To supply power to the wiring centres, including:

- Pump input/output for heating and cooling

DIN rail eld supplied

1 175137 £118.00

Wiring centre clock module

- Removable clock module

- 2 setback timers for heating circuits

Note: To be combined with the wiring centre power module

1 175138 £62.00

Description Quantity per pack Part number Trade Price

Room thermostat (wired)

- Electronic room temperature control (5V)

- Adjustment range 5-26°C

- Display of heating and cooling mode (red and blue LED)

1 175139 £28.00

Room thermostat (RF)

- Electronic room temperature control

- Adjustment range 5-26°C

- Solar powered (no batteries required)

- Allow 24 hours to charge before commissioning

1 175142 £133.00

HEATING

Residential, Commercial and Industrial

160

Heat Pump Convectors

> Designed to operate at low ow temperature (35°C) to optimise the

eciency of an air-to-water heat pump

> Quiet operation and no draughts

> Able to heat and cool

> Available in 1.5 and 2kW

Heat pump convectors can provide both heating and cooling if

required and can be used with the Daikin Altherma heat pump to

oer a compact and highly ecient solution:

HEATING

Price List Update: Valid from 1st January 2017

161

FWX / EKV

Daikin Heat Pump Convector

Nominal capacity based on following conditions:

Heating: indoor temp, 20°CDB; entering water temp. 45°C, water temperature drop 5°C.

Cooling: Indoor temp. 27°CDB; entering water temp. 7°C, water temperature rise 5°C.

Features:

> The highly ecient, low noise Daikin heat pump convector is designed to provide the maximum comfort

and high eciency in combination with Daikin Altherma heat pumps

> The heat pump convector improves system eciency compared to a combined under oor heating

and radiator system and to a fan coil heating system

> The Daikin heat pump convector has been designed to work eectively at low temperatures,

while retaining a compact size compared to an equivalent output radiator sized for 45°C

> The heat pump convector can easily replace existing heat emitters

> The unit is very quiet in operation and is ideal for bedroom applications

> The unit has a quiet operation mode which can be selected using the remote controller

> The sound levels are as low as 18dB(A) on 2kW system and 12dB(A) on 1.5kW system on the quiet mode

> Daikin heat pump convectors oer a solution combined with UFH systems to provide heat in areas where

UFH is dicult to integrate

> It is designed to support heating only and heating / cooling applications

> When combined with Daikin Altherma outdoor units, the heat pump convectors can be linked together

for total system control, additional comfort and increased eciency

> Additional third party controls are needed to link simple fan coil systems with Daikin Altherma heat pumps

> Delivered with individual controller and with 2-way valve

> Drain pan is included

Notes:

i) * Please note that EKVKHPC (2 way valve)

needs to be ordered as a separate item,

but price shown includes the value of

this part

Indoor Unit FWXV15A FWXV20A

Description Cased, low wall mount type, 2-pipe* Cased, low wall mount type, 2-pipe*

Must be ordered with: EKVKHPC EKVKHPC

Combined Trade Unit Price £511.00 £550.00

Heating capacity Total capacity Nom. kW 1.5 2.0

Cooling capacity Total capacity Nom. kW 1.2 1.7

Sensible capacity Nom. kW 0.98 1.4

Power input Heating Nom. kW 0.013 0.015

Cooling Nom. kW 0.013 0.015

Dimensions Height x Width x Depth mm 600 x 700 x 210

Weight kg 15

Piping connections Drain/OD/Inlet/Outlet mm/inch 18/G 1/2/G 1/2

Sound pressure level Heating Nom. dBA 19 29

Cooling Nom. dBA 19 29

Power supply Phase/Frequency/Voltage Hz/V 1-phase / 230V / 50Hz

HEATING

REFRIGERATION

Conveni-Pack (CVP) 164

Indoor Units and Biddle Air Curtains 165

Booster Unit 166

ZEAS 167

Multi-ZEAS 168

Accessories for ZEAS and Conveni-Pack 169

Industrial Condensing Units 170

Daikin UK Price List Update

Refrigeration

Scottish

Region

0845 641 9330

Northern

Region

0845 641 9340

Midlands

Region

0845 641 9370

Western

Region

0845 641 9320

North

London

0845 641 9360

South

London

0845 641 9355

REFRIGERATION

Residential, Commercial and Industrial

164

Medium temperature refrigeration & air conditioning LRYEQ16AY1

Cooling capacity Air conditioning Nom. kW 14.0

Refrigeration (1) Nom. kW 21.8

Heating capacity (2) Air conditioning Nom. kW 27.0

Refrigeration (2) Nom. kW 21.8

Dimensions Height x Width x Depth mm 1,680 x 1,240 x 765

Weight kg 370

Heat exchanger Type Cross n coil

Fan Type Propeller fan

Quantity 2

Air ow rate Cooling Nom. m³/sec 3.833

Fan motor Output W 750

Drive Direct drive

Sound pressure Nom. at 10m free eld dBA 42

Compressor N° of compressors 3

Type Hermetically sealed scroll compressor

Piston displacement m³/h 13.34 / 10.53 / 10.53

Speed rpm 6,300 / 2,900 / 2,900

Output W 2,500 / 3,600 / 4,500

Starting method Direct on line (inverter driven)

Frequency ON/OFF Less than 6 times/hour

Operation range Evaporator Cooling Min.~Max. °CDB -20 @ 0~10

Refrigerant Type R-410A

Charge kg 11.5

Control Electronic expansion valve

Refrigerant oil Type Daphne FVC68D

Charged volume l 1.7 (*1) / 2.1 (*2) / 2.1 (*3) / 4.0 (*4)

Piping connections Refrigeration Liquid 50m or less inch (mm) 3/8 (9.5)

50~130m inch (mm) 1/2 (12.70)

Gas 50m or less inch (mm) 1 1/8 (28.60)

50~130m inch (mm) 1 3/8 (34.90)

Power supply Phase / Frequency / Voltage Hz / V 3~ / 50 / 380-415

Voltage range Min. % -10

Max. % 10

Trade Price £14,015.00

-10°C

-35°C

HEAT

RECOVERY

Benets

> Optimum eciency: inverter driven outdoor units match

system output to the actual demand in order to reach optimum

eciency under all conditions

> Connection exibility: supports a wide range of refrigeration

and cooling cases

> Save energy: by recovering the heat extracted from the

connected refrigeration appliances and using sophisticated

controls, energy savings of up to 50% can be reached compared

with conventional 3P systems

> Small footprint: along with reduced piping makes the compact

Conveni-Pack ideal for densely populated urban areas

> Flexible: VRV (Variable Refrigerant Volume) technology

for exible application range. Full range of VRV fan coils

available together with air curtains

> Minimal noise: lowest operating sound level

including night set back function

Conveni-Pack is a compact, low noise system which

integrates high and low temperature refrigeration

along with heating and cooling into one system.

It’s a total solution that helps retailers save energy

and reduce their environmental impact.

LRYEQ-AY1

Conveni-Pack (CVP)

(1) Cooling priority mode: evaporating

temp. -10°C; outdoor temp. 32°CDB;

suction SH 10°C

(2) Heat recovery 100% mode: indoor

temp. 20°CDB; outdoor temp. 7°CDB,

6°CWB; refrigeration load 18kW; piping

length: 7.5m; level dierence: 0m

(*1) Compressor 1

(*2) Compressor 2

(*3) Compressor 3

(*4) Factory charge of unit

REFRIGERATION

Price List Update: Valid from 1st January 2017

165

Capacity class (kW)

Model Product name 50 63 71 80 100 125 140 200 250 See VRV

Section

Cooling capacity (kW)15.6 7.1 9.0 9.0 11.2 14.0 16.0 22.4 28.0

Heating capacity (kW)26.3 8.0 8.0 10.0 12.5 16.0 18.0 25.0 31.5

Roundow cassette FXFQ-A   Page 56

2-way blow

ceiling mounted cassette FXCQ-A     Page 57

1-way blow

corner cassette FXKQ-MA Page 57

Concealed ceiling unit

(medium static) FXSQ-A   Page 58

Concealed ceiling unit

(high static) FXMQ-P7   Page 58

Concealed ceiling unit

(ultra high static) FXMQ-MB   Page 60

Ceiling suspended unit FXHQ-A   Page 61

Under ceiling cassette unit FXUQ-A   Page 61

Floor mounted cased FXLQ-P   Page 62

Concealed

oor standing unit FXNQ-A   Page 62

Model Product Name 80 100 125 140 200 250 See VRV

Section

Heating capacity (kW)27.4 - 11.0 11.6 - 13.4 15.6 16.2 - 19.9 23.3 29.4 - 31.1

Biddle air curtain

free hanging CYVS-DK Pages 66 & 67

Biddle air curtain cassette CYVM-DK Pages 66 & 67

Biddle air curtain recessed CYVL-DK Pages 66 & 67

1 Nominal cooling capacities are based on: indoor temperature: 27°CDB / 19°CWB, outdoor temperature: 35°CDB, piping length: 7.5m, level difference: 0m

2 Nominal heating capacities are based on: indoor temperature: 20°CDB, outdoor temperature: 7°CDB / 6°CWB, piping length: 7.5m, level difference: 0m

3 Optional

Indoor Units and Biddle Air Curtains

for Connection to Conveni-Pack

To respond to all shop requirements for comfort cooling and heating, a wide range of AC indoor units

and Biddle air curtains is available.

Capacity class (kW)

Please see Fan Coils on pages 56 to 62 for full product details and prices.

REFRIGERATION

Residential, Commercial and Industrial

166

Booster with ZEAS:

MEDIUM + LOW TEMPERATURE refrigeration

Booster with Conveni-Pack:

MEDIUM + LOW TEMPERATURE refrigeration + space air conditioning + Biddle air curtain

Booster Booster

°C °C

-°C -°C

Benets

> A booster unit allows the connection of freezer showcases/

rooms to ZEAS and Conveni-Pack outdoor units

> Reduced piping requirements, from 4 to 2 pipes,

compared with a conventional system

> Low sound mode reduces sound emissions signicantly

LCBKQ-AV19

Booster Unit

Low Temperature Refrigeration LCBKQ3AV19

Refrigeration capacity Nom. kW 3.35

Dimensions Unit Height mm 480

Width mm 680

Depth mm 310

Weight Unit kg 47

Compressor Type Hermetically sealed swing compressor

Piston displacement m³/h 10.16

Number of revolutions rpm 6,540

Output W 1,300

Starting method Direct on line (inverter driven)

Frequency ON/OFF Less than 6 times/hour

Fan Type Propeller fan

Air ow rate Cooling Nom. m³/min 1.6

Operation range Evaporator Cooling Min.~Max. °CDB -45~-20

Ambient temperature Min.~Max. °C -15~43

Refrigerant Type R-410A

Control Electronic expansion valve

Refrigerant oil Type Daphne FVC50K + FVC68D

Charged volume l 0.85 / 0.5

Piping connections Piping length System Booster unit - IU 30m or less

Power supply Phase/Frequency/Voltage Hz/V 1~/50/220-240

Trade Price £2,773.00

(1) Evaporating temp. -35°C; outdoor temp. 32°C; suction SH 10K; saturated temp. to discharge pressure of booster unit -10°C

(2) Its functioning relies on uorinated greenhouse gases

°C °C

-°C

Booster

-°C

Booster

REFRIGERATION

Price List Update: Valid from 1st January 2017

167

MT or LT refrigeration condensing unit LREQ5BY1 LREQ6BY1 LREQ8BY1 LREQ10BY1 LREQ12BY1 LREQ15BY1 LREQ20BY1

Refrigeration

capacity

Medium temperature (Te -10°C Tamb +32°C) kW

12.5 15.2 19.8 23.8 . . .

Low temperature (Te -35°C Tamb +32°C) kW

5.51 6.51 8.33 10.0 . . .

Seasonal

eciency MEDIUM

Temperature

Annual Energy Consumption

kWh/a

19,907 24,681 33,483 42,794 46,337 61,683 72,030

Seasonal Energy Performance Ratio

SEPR

3.86 3.79 3.64 3.42 3.51 3.38 3.23

Coecient Performance (Te -10°C Tamb +32°C)

COP

2.45 2.32 2.26 2.25 2.21 2.23 2.23

Seasonal

eciency LOW

Temperature

Annual Energy Consumption

kWh/a

25,547 29,336 36,361 44,054 47,872 64,882 71,162

Seasonal Energy Performance Ratio

SEPR

1.61 1.65 1.71 1.69 1.67 1.60 1.61

Coecient Performance (Te -35°C Tamb +32°C)

COP

1.18 1.11 1.08 1.08 1.08 1.09 1.09

Dimensions Unit

Height x Width x Depth

1,680 x 635 x 765 1,680 x 930 x 765 1,680 x 1,240 x 765

Weight Unit

166 242 331 337

Heat exchanger Type Cross n coil

Fan Type Propeller fan

Quantity 1 2

Air ow rate Cooling Nom.

m³/sec

1.583 1.700 2.850 2.983 3.183 3.933 4.000

Fan motor Output

0.35 0.75 0.35 + 0.35 0.75+0.75

Drive Direct drive

Sound pressure Nom. at 10m free eld

dBA

. . . . . . .

Compressor Type Hermetically sealed scroll compressor

Piston displacement

m³/h

11.18 13.85 19.68 23.36 25.27 32.24 35.8

Speed

rpm

5,280 6,540 4,320+2,900 6,060+2,900 6,960+2,900

5,280+2,900+2,900 6,960+2,900+2,900

Output

2.6 3.2 2.1 + 3.6 3.0 + 3.6 3.4 + 3.6 2.6 + 3.6 + 3.6 3.4 + 3.6 + 3.6

Starting method Direct on line (inverter driven)

Operation range Evaporator Min.~Max.

°CDB

-45~10

Ambient temp. Min.~Max.

°C

-20~43

Refrigerant Type R-410A

Charge

5.2 7.9 11.5

Control Electronic expansion valve

Refrigerant oil Type Daphne FVC68D

Charged volume

1.7 / 2.5 1.7 / 2.5 1.7 / 2.1 / 3.0 1.7 / 2.1 / 3.0 1.7 / 2.1 / 3.0 1.7 / 2.1 / 4.0 1.7 / 2.1 / 4.0

Piping

connections

Liquid 50m or less

inch (mm)

3/8 (9.5) 1/2 (12.70)

50~130m

inch (mm)

3/8 (9.5) 1/2 (12.70)

Gas 50m or less

inch (mm)

7/8 (22.20)

1 1/8 (28.60)

1 3/8 (34.90)

50~130m

inch (mm)

7/8 (22.20)

1 1/8 (28.60)

1 3/8 (34.90)

Power supply Phase/Frequency/Voltage

Hz/V

3~/50/380-415

Voltage range Min.

-10

Max.

Current Nominal running

current (RLA) - 50Hz

Compressor

Cooling A

7.1 9.2 5.3 + 7.5 7.4 + 7.9 9.8 + 8.3 7.0 + 8.2

+ 8.2

9.5 + 8.4

+ 8.4

Current - 50Hz Starting current (MSC)

- 74 75 84

Minimum Ssc value

kVa

- 655 899 1,097 761 945

Minimum circuit amps (MCA)

12.8 13.7 19.3 22.0 24.0 31.4 35.0

Maximum fuse amps (MFA)

15 25 40

Total overcurrent amps (TOCA)

15.6 31.5 48.3

Full load amps (FLA) Fan motor

0.4 0.9 0.4 + 0.4 0.7 + 0.7

Trade Price £5,921.00 £7,360.00 £8,855.00 £10,850.00 £11,570.00 £16,531.00 £18,766.00

*Operation conditions of outdoor unit: Te = -10°C, outdoor temperature +32°C, suction SH10°C

Compact yet powerful and extremely energy ecient, Daikin ZEAS

condensing units oer an industry-leading solution for all kinds of

installation projects.

ZEAS is an adaptable and controllable solution for all kinds of

environments with uctuating loads such as supermarkets, hotels,

restaurants, hospitals and orists, as well as food production

facilities such as cold storage, and blast coolers and freezers.

Delivering all the benets of inverter controlled VRV technology

for commercial refrigeration systems, ZEAS oers a comprehensive

product range suitable for low temperature applications of 5.51 to

15.4 kW at -35/+32°C and medium temperature applications of

12.5 to 37.9 kW at -10°C /+32°C.

Its small footprint and low sound levels oer installation

exibility, so you can gain larger capacities even in small spaces.

What’s more, the ZEAS solution comes fully packaged and

programmed, with minimal pipe work required, so installation

time and cost is reduced.

All in all, it’s a quality solution that delivers maximum refrigeration

capacity with minimal fuss.

ZEAS condensing units oer:

> Highly ecient packaged refrigeration condensing units

> Low noise mode, reducing noise by a further 5 dBA

> Optimum eciency, Inverter driven compressor and

condenser fan motors.

ZEAS Condensing Units

When you select a refrigeration condensing unit, you want

premium performance with simple installation and maintenance.

That’s why you should specify Daikin ZEAS condensing units.

LREQ-BY1

A complete solution for refrigeration applications

REFRIGERATION

Residential, Commercial and Industrial

168

MT or LT refrigeration condensing unit LREQ30BY1 LREQ40BY1

System LREQ15BY1R x 2 LREQ20BY1R x 2

Refrigeration

capacity

Medium temperature Nom. kW 67.8 75.8

Low temperature Nom. kW 27.8 29.6

Dimensions Unit Height x Width x Depth mm (1,680 x 1,240 x 765) x 2 (1,680 x 1,240 x 765) x 2

Weight Unit kg 331 x 2 337 x 2

Heat exchanger Type Cross n coil

Compressor Type Hermetically sealed scroll compressor

Piston displacement m³/h 32.24 x 2 35.80 x 2

Speed rpm (5,280+2,900+2,900) x 2 (6,960+2,900+2,900) x 2

Output W (2.6+3.6+3.6) x 2 -

Starting method Direct online (inverter driven)

Fan Type Propeller fan

Quantity 2 x 2 2 x 2

Air ow rate Cooling Nom. m³/sec 3.833 x 2 4.000 x 2

Fan motor Output W (350 x 2) x 2 (750 x 2) x 2

Drive Direct drive

Sound pressure level Nom. at 10m free eld dBA 45.0 46.0

Operation range Evaporator Cooling Min.~Max. °CDB -45~10

Ambient temperature Min.~Max. °C -20~43

Refrigerant Type R-410A

Charge kg 11.5 x 2

Control Electronic expansion valve

Refrigerant oil Type Daphne FVC68D

Charged volume l (1.7+ 2.1+2.1+ 4.0) x 2

Piping

connections

Liquid 50m or less 3/4 (19.05)

50~130m

Gas 50m or less 1 5/8 (41.28)

50~130m

Power supply Phase/Frequency/Voltage Hz/V 3~/50/380~415

Current Nominal running current (RLA) - 50Hz A (7.0/8.2/8.2) x 2 (9.5/8.4/8.4) x 2

Current - 50Hz Starting current (MSC) A 109 115

Trade Price £32,814.00 £37,284.00

Multi-ZEAS provides a superior solution to the traditional rack

systems typically used for bigger capacities, because the units

can be connected easily – in master and slave combination –

so installation piping is reduced and installation time is much

quicker. The new high capacity Multi-ZEAS consists of two 15hp

units or two 20hp units. This system oers the perfect solution for

multiple refrigeration needs in supermarkets and for applications

with uctuating loads and high energy eciency requirements,

such as blast coolers and freezers, cold storage, food outlets

and restaurants.

ZEAS condensing units are far quieter than traditional units,

because inverter control keeps fan speeds low while still meeting

cooling demand. At night maximum fan speeds can be lowered

to reduce noise, with only a limited loss of refrigeration capacity.

The ‘plug and play’ units come fully equipped and do not need to

be installed in a plant room, so retail space is maximised. All ZEAS

units have optimised controls, which can communicate with a

third party monitoring system or building management system via

Daikin’s powerful Modbus interface. Servicing and maintenance is

also simple.

Multi-ZEAS Condensing Units

The Multi-ZEAS units deliver the higher capacities

required for larger supermarkets, food storage and

processing plants, while reducing energy consumption

by 35%, compared with traditional refrigeration systems.

LREQ-BY1

REFRIGERATION

Price List Update: Valid from 1st January 2017

169

Accessories for ZEAS and Conveni-Pack

The digital measurement display allows you to diagnose a

unit at a glance and it can be used with all ZEAS units and

Conveni-Pack systems.

> Digital measurement display for xed installation or

service applications

> Displays high and low pressure

> Displays error codes in the event of a fault

> Displays up to 32 operating parameters

> Displays error code history (last three)

> Scrolls and stores output values

> Automatically returns to normal operating display mode

BHGP26A1

Digital pressure gauge kit

Discharge pressure display

MPa display

Suction pressure

display

BHGP26A1

Part No Description Trade Price

BHGP26A1 Digital pressure gauge £320.00

The Daikin Modbus Communication Interface lets you fully integrate

Daikin ZEAS and Daikin Conveni-Pack systems with building control

automation networks and other monitoring systems.

The interface allows you to read all the operational parameters and

control important values using the Modbus protocol. This unifying

component transforms ZEAS and Conveni-Pack into a transparent,

customisable refrigeration unit and means that you can create

object-specic and energy-optimised shop concepts, including

remote monitoring application.

Pro-interfaces can be used to connect up to 32 ZEAS units, and are

also suitable for use with Conveni-Pack systems and the Booster.

Control values

> Target evaporation temperature

> Low pressure level for on and o points

> Forced stop

> Error messages can be cancelled remotely

Display values

> Model information and operating status

> Refrigerant operating pressure and temperatures

> Electrical operating data and temperatures for components

> Target values

> Fan stage and compressor frequency, operating hours

> Warning and error messages as well as system safety functions

BRR9A1V1

Modbus communication kit

BRR9A1V1

Part No Description Trade Price

BRR9A1V1 Modbus communication unit £824.00

REFRIGERATION

Residential, Commercial and Industrial

170

Industrial Condensing Units with Screw Compressor

Condensing unit for industrial refrigeration

> High energy eciency: inverter controlled compressor,

economiser, high performance condenser

> Possibility of having a stand-by compressor

> Easy installation, ready to connect evaporators

> Integrated starter and control panel with electronic controller

> Space saving construction due to the compact design of the

condenser coils arranged in a ‘W’ conguration

> Low sound operation

> Approved according to EN 378: 2008

(Safety and environmental requirements)

> Refrigerants: R-404A, R-134a, R-407C, R-507A

Length Width Height Weight

mm mm mm kg

From , , , ,

To , , , ,

Optional

> Variable speed inverter technology

> Variable condenser fan speed

> Economiser (sub cooler)

> Optional standby compressor on single

compressor systems

> Low sound level unit with sound pressure

level 64 dBA at 10 metres. Sound reduction

kits can be supplied with lower sound level

up to 52 dBA at maximum capacity

Applications

> Cold stores

> Blast chillers

> Blast freezers

> Food processing

> Food distribution centres

> Large supermarkets

Part No Description Trade Price

HSH/M/L 31 - HA Industrial condensing unit POA

Performance overview

LT Economised  compressors

LT Economised  compressor

LT Standard  compressors

LT Standard  compressor

MT Economised  compressors

MT Economised  compressor

MT Standard  compressors

MT Standard  compressor

        

Capacity at +°C in kW

LT Evaporating T = -°C MT Evaporating T = -°C

HSH/M/L 31 - HA

APPLIED

Daikin Chillers and Condensing Units 172

Daikin Fan Coil Units 180

Daikin Modular Air Handling Units 190

Daikin UK Price List Update

Applied

Scottish

Region

0845 641 9330

Northern

Region

0845 641 9340

Midlands

Region

0845 641 9370

Western

Region

0845 641 9320

North

London

0845 641 9360

South

London

0845 641 9355

Save energy with Daikin ‘Total Inverter Solutions’

APPLIED

Residential, Commercial and Industrial

172

Daikin’s ranges of air-cooled and water-cooled chillers are designed

to suit every application – large or small – oering the ultimate

in exibility and control. The unique combination of advanced

technology, experience and reliability make Daikin chillers the

ideal choice.

Daikin chillers have nominal cooling capacities of 5kW to 2,000kW

(air-cooled) or 13kW to 2,156kW (water-cooled).

Worldwide experience

A global leader in HVAC solutions, Daikin has the world’s most

advanced facilities for air conditioning research and development,

meaning that we can manufacture all main chiller components

(compressors, fans, condenser coils, software) in-house.

Highest eciency

Using the latest technology, Daikin achieves industry-leading

eciency and energy-saving operation for outstanding cost

saving performance.

> Lowest total cost of ownership

> Fast payback time

> Environment-friendly solutions

Quality, reliability

> Zero defect policy ensures quality of components and

nished products

> All chillers factory run and subjected to quality audit

before shipment

> Eurovent and AHRI certication

Daikin Chillers

Whatever your needs in climate control or process chilling,

there is a system that has proved its value in many situations –

from factories and warehouses to hotels and department stores,

and even district cooling for residential applications.

APPLIED

Price List Update: Valid from 1st January 2017

173

High Eciency Inverter Chiller Ranges

High eciency inverter chiller ranges for

comfort and process cooling / heating.

> Seasonal eciency

> Seasonal quietness

> Low starting currents

> Flexibility for new build or replacement projects

Why break from tradition?

High eciencies both at full load and part load

> Daikin compressor with in-built inverter and Variable Volume

Ratio (VVR) for optimised eciency

> In-house developed software with dynamic condensing pressure

management and innovative economiser control logic

Rapid return on investment

> Payback of three years, compared to a non-inverter unit for

comfort cooling applications

> Less than one year for process cooling applications

Perfect comfort level

> Innitely variable load regulation

> Precise leaving water temperature control thanks to

stepless regulation

Compact design

> More compact heat exchanger with superior eciencies

> Reduced electrical panel dimensions thanks to the inverter

compressor mounted.

Benefits for the installer

> Factory leak-tested and pre-charged

> High serviceability

> User-friendly smart controls which can be integrated

easily with building management systems

Benefits for the consultant

> Multiple options available, e.g. rapid restart, variable

speed water pumps, smart energy meter, EC fans

> Ideal for both new and retrot projects: same

footprints of non-inverter unit with higher

eciencies and performance

Benefits for the end user

> Rapid payback of three years for comfort

cooling applications

> 50% reduction of energy consumption

> Designed for sound-sensitive environments

APPLIED

Residential, Commercial and Industrial

174

Products Overview

Air Cooled Chillers and Condensing Units

Refrigerant type *

Refrigerant circuits

Inverter

Free cooling

Compressor Water heat

exchanger Eciency version Sound version

Swing

Scroll

Screw

Plate **

Single pass shell

and tube

Standard

High

Premium

High ambient

Standard

Low

Reduced

Extra low

Cooling only

EWAQ~ADVP R-A 1  

BPHE  

EWAQ~ACV/ACW R-A 1  

BPHE  

EWAQ~BA* R-A 1  

BPHE  

POA

EWAQ~G- R-A 1

BPHE    

EWAQ~E- R-A 1     

EWAQ~F- R-A 2      

EWAQ~GZ R-A 1-2      

EWAD~E- R-a 1    

EWAD~D- R-a 2 

EWAD~C- R-a 2-3   

EWAD~CZ R-a 2-3       

EWAD~CF R-a 2      

EWAD~TZ B R-a 1-2   

Heat pump

EWYQ~ADVP R-A 1  

BPHE  

EWYQ~ACV/ACW R-A 1  

BPHE  

EWYQ~BA* R-A 1  

BPHE  

SEHVX-AAW

SERHQ-AAW R-A 1  

BPHE  

POA

EWYQ~G- R-A 1

BPHE   

EWYQ~F- R-A 1-2      

EWYD~BZ R-a 2-3      

Condensing unit

ERAD~E- R-a 1   

* (GWP) : R-410A (2087.5), R-134a (1430)

** BPHE: Brazed plate heat exchanger

*** Mandatory commissioning by Daikin Airconditioning UK

NEW

APPLIED

Price List Update: Valid from 1st January 2017

175

.    , ,

*** Mandatory commissioning

.    , ,

*** Mandatory commissioning

.    ,

,

.~.

.~.

.~.

~

~

~

~

~

~,

~,

,~,

~

.~.

~,

.~.

~

~

~

~

.~.

.~.

.~.

.~.

.~.

Cooling capacity (kW)

Heating capacity (kW)

.~.

.~

.~

.~

Please contact your local sales oce for further information on these products and extensive option exibility – download info from daikin.co.uk

Mini chillers

Ideal for residential or light commercial applications, Daikin mini

chillers are equipped with an inverter swing or scroll compressor

allowing a smooth, more reliable and energy-ecient operation

with low noise levels and class-leading ESEERs.

Air cooled scroll chillers

Daikin scroll chillers are designed for small and medium cooling

and heating capacities. Our wide range of models matches every

building’s air conditioning and process cooling needs.

Air cooled screw chillers

Manufactured for large capacities, Daikin screw chillers deliver

unparalleled reliability and eciency, both for comfort and process

cooling. Equipped with an inverter they provide high eciency at

part load.

APPLIED

Residential, Commercial and Industrial

176

Water Cooled and Condenserless Chillers

Products Overview

Refrigerant type *

Refrigerant circuits

Inverter

Compressor Water heat

exchanger Eciency version Sound

version

Scroll

Screw

Centrifugal

Plate **

Single

pass shell

and tube

Standard

High

Premium

Standard

Water cooled chillers (Cooling only & Heating only)

EWWP~KBWN R-C ---   

POA

EWHQ~G- R-A  

EWWQ~G- R-A    

EW WQ~L- R-A    

EWWD~J- R-a -    

EWWD~G- R-a -     

EWWD~I- R-a --     

EWWD~H- R-a 

Flooded  

EWWD~VZ R-a -   

Flooded 

Water cooled chillers (Cooling only)

POA

EWWQ~B- R-A -     

Condenserless chillers

EWLP~KBWN R-C - 

BPHE  

POA

EWLQ~G- R-A    

EWLQ~L- R-A    

EWLD~J- R-a -    

EWLD~G- R-a -    

EWLD~I- R-a --    

Water cooled centrifugal chillers

POA

EWWD~FZ R-a   

Flooded  

* (GWP) : R-410A (2087.5), R-134a (1430), R-407C (1,773.9)

** BPHE: Brazed plate heat exchanger

*** Mandatory commissioning by Daikin Airconditioning UK

NEW

APPLIED

Price List Update: Valid from 1st January 2017

177

Water cooled scroll chillers

These units are among the most ecient, quiet and reliable chillers

available today which can be easily integrated with the HVAC

system of your choice.

Water cooled screw chillers

The Daikin water cooled screw chillers provide the ideal solution

for sound sensitive environments. Applications range from comfort

cooling to ice making.

Water cooled, oil free centrifugal chillers

With a small footprint, quiet compressor and ability to integrate

easily with existing HVAC systems, this chiller is the ideal solution

for large cooling requirements (e.g. district cooling) and oers a

return on investment throughout its lifecycle.

.    ,

,

*** Mandatory commissioning

.    ,

,

.    ,

,

*** Mandatory commissioning

.    ,

,

Cooling capacity (kW)

Heating capacity (kW)

.~

~

~,

~,

~,

~,

.~.

~

.~

~

~

~,

~,

~

~

.~

~,

~

.~

~

.~

~

~

~

Please contact your local sales oce for further information on these products and extensive option exibility – download info from daikin.co.uk

~,

~,

APPLIED

Residential, Commercial and Industrial

178

To Fit Model EWAQ-A & EWYQ-A EWA/YQ-ADVP EWA/YQ-ACV3P EWA/YQ-ACW1P

Option Description 005 006 007 009 010 011 009 011 013

OP10 Evaporator Heater Tape £241 £241 £241 £390 £390 £390 £390 £390 £390

To Fit Model EWAQ-BA & EWYQ-BA

Option Description 016 021 025 032 040 050 064

OP10-D Evaporator Heater Tape £367 £367 £367 £367 £462 £462 £462

OPZL Chilled Water Down to -10 £275 £275 £275 £275 £367 £367 £367

OPSP Low Lift Pump £408 £408 £408 £544 £544 £544 £544

OPHP High Lift Pump £598 £598 £598 £598 £813 £813 £813

Fitted Options:

Air Cooled Heat Pump Water Chillers

Air Cooled Heat Pump Inverter Packaged Swing / Scroll Compressor –

R410A c/w Hydraulic Pump and Expansion Vessel

Model

Nominal

Cooling

Nominal

Heating

Power

Supply

Trade Price

EWYQ~P

Base Unit

EWYQ~P-H-

Base Unit with

OP10

EWYQ005ADVP 5.20 5.65 1-phase £2,209.00 £2,450.00

EWYQ006ADVP 6.00 6.35 1-phase £2,387.00 £2,624.00

EWYQ007ADVP 7.10 7.75 1-phase £2,642.00 £2,879.00

EWYQ009ACV3P 8.60 9.90 1-phase £3,052.00 £3,442.00

EWYQ010ACV3P 9.60 11.40 1-phase £3,213.00 £3,603.00

EWYQ011ACV3P 11.10 12.90 1-phase £3,406.00 £3,796.00

EWYQ009ACW1P 9.10 10.90 3-phase £3,171.00 £3,561.00

EWYQ011ACW1P 11.10 12.40 3-phase £3,442.00 £3,832.00

EWYQ013ACW1P 13.30 13.90 3-phase £3,638.00 £4,028.00

Air Cooled Heat Pump Inverter Packaged Scroll Compressor – R410A

Model

Nominal

Cooling

Nominal

Heating

Power

Supply

Trade Price

EWYQ-BAWN

Base Unit

EWYQ-BAWNBH-

Base Unit with

OP10+OPZL

EWYQ-BAWPBH-

Std Pump Unit with

OP10+OPZL

EWYQ-BAWHBH-

High Pump Unit with

OP10+OPZL

EWYQ016BAW 17.40 16.20 3-phase £5,192.00 £5,834.00 £6,242.00 £6,432.00

EWYQ021BAW 21.70 20.30 3-phase £6,113.00 £6,754.00 £7,162.00 £7,352.00

EWYQ025BAW 25.80 24.60 3-phase £6,895.00 £7,536.00 £7,944.00 £8,134.00

EWYQ032BAW 32.30 30.70 3-phase £7,951.00 £8,593.00 £9,137.00 £9,191.00

EWYQ040BAW***R 43.40 40.60 3-phase £10,515.00 £11,344.00 £11,888.00 £12,157.00

EWYQ050BAW***R 51.80 49.00 3-phase £11,715.00 £12,544.00 £13,088.00 £13,357.00

EWYQ064BAW***R 64.50 61.50 3-phase £13,530.00 £14,359.00 £14,903.00 £15,172.00

Notes:

i) Please contact your local sales oce for further information on

these products – Download information from www.daikin.co.uk

ii) Nominal cooling capacities are based on 35°C ambient,

chilled water @ 12/7°C

iii) Nominal heating capacities are based on 7°C db / 6°C wb ambient,

water @ 40 / 45°C

iv) EWA/YQ-A series only operates in cooling down to ambients of +10°C.

EWA/YQ-B series can operate in cooling down to ambients of -5°C

standard or -15°C with option OPZL

v) The EWA/YQ064BA delivery does not include ooading to kerbside.

Additional costs for delivery with a Hi-ab are available on request

vi) Commissioning by Daikin Airconditioning UK is not mandatory,

however can be arranged through your regional service department

Air Cooled Water Chillers

Model

Nominal

Cooling

Nominal

Heating

Power

Supply

Trade Price

EWAQ~P

Base Unit

EWAQ~P-H-

Base Unit with

OP10

EWAQ005ADVP 5.20 - 1-phase £1,914.00 £2,154.00

EWAQ006ADVP 6.00 - 1-phase £2,097.00 £2,334.00

EWAQ007ADVP 7.10 - 1-phase £2,324.00 £2,564.00

EWAQ009ACV3P 8.60 - 1-phase £2,652.00 £3,042.00

EWAQ010ACV3P 9.60 - 1-phase £2,807.00 £3,197.00

EWAQ011ACV3P 11.10 - 1-phase £3,016.00 £3,406.00

EWAQ009ACW1P 9.10 - 3-phase £2,767.00 £3,155.00

EWAQ011ACW1P 11.10 - 3-phase £3,042.00 £3,432.00

EWAQ013ACW1P 13.30 - 3-phase £3,222.00 £3,612.00

Air Cooled Inverter Packaged Scroll Compressor – R410A

Model

Nominal

Cooling

Nominal

Heating

Power

Supply

Trade Price

EWAQ-BAWN

Base Unit

EWAQ-BAWNBH-

Base Unit with

OP10+OPZL

EWAQ-BAWPBH-

Std Pump Unit with

OP10+OPZL

EWAQ-BAWHBH-

High Pump Unit with

OP10+OPZL

EWAQ016BAW 17.40 - 3-phase £4,516.00 £5,158.00 £5,566.00 £5,756.00

EWAQ021BAW 21.70 - 3-phase £5,316.00 £5,958.00 £6,365.00 £6,556.00

EWAQ025BAW 25.80 - 3-phase £5,995.00 £6,637.00 £7,044.00 £7,235.00

EWAQ032BAW 32.30 - 3-phase £6,915.00 £7,557.00 £8,101.00 £8,155.00

EWAQ040BAW***R 43.40 - 3-phase £9,146.00 £9,975.00 £10,519.00 £10,788.00

EWAQ050BAW***R 51.80 - 3-phase £10,189.00 £11,018.00 £11,562.00 £11,832.00

EWAQ064BAW***R 64.50 - 3-phase £11,766.00 £12,595.00 £13,139.00 £13,408.00

Air Cooled Inverter Packaged Swing / Scroll Compressor –

R410A c/w Hydraulic Pump and Expansion Vessel

APPLIED

Price List Update: Valid from 1st January 2017

179

Water Cooled Chillers

Water Cooled Packaged Scroll Compressor – R407C

EWWP014KBW1N

12.90 - 3-phase £2,507.00

EWWP022KBW1N

21.40 - 3-phase £3,189.00

EWWP028KBW1N

27.80 - 3-phase £3,672.00

EWWP035KBW1N

32.30 - 3-phase £4,111.00

EWWP045KBW1N

42.80 - 3-phase £5,132.00

EWWP055KBW1N

55.70 - 3-phase £6,084.00

EWWP065KBW1N

64.70 - 3-phase £6,746.00

Notes:

i) Please contact your local sales oce for further information on

these products – Download information from www.daikin.co.uk

ii) Nominal cooling capacities are based on chilled water @ 12/7°C,

condenser water @ 30/35°C

iii) Commissioning by Daikin Airconditioning UK is not mandatory,

however can be arranged through your regional service department

To Fit Model EWWP-KAW1N

Option Description 014 022 028 035 045 055 065

OPZH Chilled Water Down to -5 £127 £127 £127 £127 £127 £127 £127

OPZL Chilled Water Down to -10 £127 £127 £127 £127 £127 £127 £127

Fitted Options:

Model

Nominal

Cooling

Nominal

Heating

Power

Supply

Trade

Price

Condenserless Chillers

Condenserless Packaged Scroll Compressor – R407C

EWLP012KBW1N 12.10 - 3-phase £2,131.00

EWLP020KBW1N 20.00 - 3-phase £2,712.00

EWLP026KBW1N 26.80 - 3-phase £3,120.00

EWLP030KBW1N 31.20 - 3-phase £3,494.00

EWLP040KBW1N 40.00 - 3-phase £4,362.00

EWLP055KBW1N 53.70 - 3-phase £5,172.00

EWLP065KBW1N 62.40 - 3-phase £5,734.00

Notes:

i) Please contact your local sales oce for further information on

these products – Download information from www.daikin.co.uk

ii) Nominal cooling capacities are based on chilled water @ 12/7°C,

condensing temperature @ 45°C, liquid temperature @40°C

iii) Commissioning by Daikin Airconditioning UK is not mandatory,

however can be arranged through your regional service department

To Fit Model EWLP-KAW1N

Option Description 012 020 026 030 040 055 065

OPZH Chilled Water Down to -5 £127 £127 £127 £127 £127 £127 £127

OPZL Chilled Water Down to -10 £127 £127 £127 £127 £127 £127 £127

Fitted Options:

Model

Nominal

Cooling

Nominal

Heating

Power

Supply

Trade

Price

Applied Systems Kit Options

Model Description Trade Price

DTA104A62 External control adaptor Low noise & demand limit - EWAQ/EWYQ-BA £230.00

EHMC10A10 HYDRAULIC MODULE -Normal static + anti-freeze protection - EWWP014~022/EWLP012~020 £1,735.00

EHMC10A80 HYDRAULIC MODULE-High static + anti-freeze protection - EWWP014~022/EWLP012~020 £1,846.00

EHMC15A10 HYDRAULIC MODULE-Normal static + anti-freeze protection - EWWP028~035/EWLP026~030 £1,846.00

EHMC15A80 HYDRAULIC MODULE-High static + anti-freeze protection - EWWP028~035/EWLP026~030 £1,922.00

EHMC30A10 HYDRAULIC MODULE-Normal static + anti-freeze protection - EWWP045~065/EWLP040~065 £2,071.00

EHMC30A80 HYDRAULIC MODULE-High static + anti-freeze protection - EWWP045~065/EWLP040~065 £2,071.00

EKAC10C Address card for connection to BMS - EWWP, EWLP (note not available on the modular EWWP) £89.00

EKRUMCA Remote Control - EWWP, EWLP (needs EKAC10C) £170.00

EKBT Buertank 200I £1,141.00

EKLS1 Low noise operation EWLP012~EWWP14 £161.00

EKLS2 Low noise operation EWLP02~030, EWWP22-35 £161.00

EKLS2 X 2 Low noise operation EWLP040~065, EWWP45-65 £322.00

EKRP1HBA Digital I/O PCB - EWAQ / EWYQ - AC £108.00

EKRP1AHT Demand PCB / Inputs - EWAQ/EWYQ-BA (2 x on size 40/50/64) £108.00

EKRUAHTB Remote user interface (in parallel) - EWAQ/EWYQ-BA £164.00

RTD-W MODBUS Interface - EWAQ/EWYQ-BA £214.00

EKCC-W Sequence Controller - EWAQ/EWYQ-BA £666.00

Loose Accessory Options:

Model Description Net Price

UK.FSCC/SMALL Commissioning for small size chiller <70kW (price per chiller) £685.00

UK.FSCC/MEDIUM Commissioning for medium size chiller 70-999kW (price per chiller) £877.50

UK.FSCC/LARGE Commissioning for chiller large >1000kW ~ (price per chiller) £1,170.00

UK.FSCM/SMALL Maintenance contract for small size chiller <70kW (price per maintenance visit) £342.50

UK.FSCM/MED Maintenance contract for medium size chiller 70-999kW (price per maintenance visit) £685.00

UK.FSCM/LARGE Maintenance contract for large size chiller >1000kW ~ (price per maintenance visit) £1,027.50

Daikin Commissioning & Maintenance

Notes:

i) Commissioning is mandatory on all chillers with a

nominal capacity >70kW and as indicated on the

product overview pages 174-177

Please contact your regional service department for further information on these services.

APPLIED

Residential, Commercial and Industrial

180

Fan Coil Units are a highly ecient means

of turning a water chiller, heat pump or

hot water boiler into an ecient, quiet air

conditioning system. These units are an

eective solution to provide a comfortable

environment for both commercial and

residential applications. Daikin oers a wide

range of Fan Coil Units for both concealed

and exposed applications, to suit particular

installation requirements. Many of these

are available with Brushless Direct Current

(BLDC) Fan Motors providing high energy

eciency and comfort levels.

Product Overview

Fan Coil Units

APPLIED

Price List Update: Valid from 1st January 2017

181

High Eciency BLDC Fan Coil Units

High eciency BLDC Fan Coil units for

comfort cooling / heating.

> Higher operational eciency

> Tighter comfort control

> Low sound levels

Brushless DC Motors for:

Higher eciency than AC (Alternative Current) motor

> Up to 70% energy savings

> No heat generation

> No power losses

> Higher eciency than AC motors to reach set point

High comfort level

> Less uctuation of air temperature and relative humidity

> More consistent output level

> Stepless speed change for gradual air output

> More accurate adjustments to reach set point

Low sound levels

> Lower minimum rotation speed

> No start-stop sequence

> Gradual air output

Benefits for the installer

> Reduced amount of sizes: less stock space needed

> Modular designs for multiple congurations

Easy integration in BMS system via modbus protocol*

* except for FWG-AT/AF range

Benefits for the consultant

> Best solution in the market in order to have top

eciency,best comfort and lowest sound levels

Benefits for the end user

> High comfort level

> Up to 70% savings on running costs

> Controller with timer programmed operating mode

APPLIED

Residential, Commercial and Industrial

182

Product Overview

Fan Coil Units

Type Model Product name Fan motor type

Ceiling mounted cassette

Roundow cassette

- Brushless DC fan motor unit for ceiling mounting

- 360° air discharge ensures uniform air ow

- Integrated fresh air intake

- Easy installation in corners

- Standard drain pump with 850 mm lift

FWC-BT/BF BLDC

-way blow ceiling mounted cassette

- AC fan motor unit for ceiling mounting

- Integrated fresh air intake

- Horizontal auto swing

- Easy installation in corners

- Standard drain pump with 750 mm lift

FWF-BT/BF AC

Floor standing unit

- Brushless DC fan motor for vertical mounting

- Continuous air ow regulation and fan speed modulation

- Up to 70% energy savings

- Low sound levels

FWZ-AT/AF BLDC

Floor standing unit

- AC fan motor unit for horizontal or vertical concealed mounting

- Insulated valve packages, no extra drain pan required

- Fast-on connections for electrical options: no tools needed

- Easy maintenance

FWV-DAT/DAF AC

Flexi type unit

- Brushless DC fan motor unit for horizontal or vertical mounting

- Continuous air ow regulation and fan speed modulation

- Up to 70% energy savings

- Low sound levels

FWR-AT/AF BLDC

Flexi type unit

- AC fan motor unit for horizontal or vertical concealed mounting

- Insulated valve packages, no extra drain pan required

- Fast-on connections for electrical options: no tools needed

- Easy maintenance

FWL-DAT/DAF AC

Concealed exi type unit

- Brushless DC fan motor unit for horizontal or vertical concealed mounting

- Continuous air ow regulation and fan speed modulation

- Up to 70% energy savings

- Low sound levels

FWS-AT/AF BLDC

Concealed exi type unit

- AC fan motor unit for horizontal or vertical concealed mounting

- Insulated valve packages, no extra drain pan required

- Fast-on connections for electrical options: no tools needed

- Easy maintenance

FWM-DAT/DAF AC

Wall mounted unit

- AC fan motor unit for wall mounting

- High aesthetic cabinet design

- Optimum air distribution

- Easy installation

- 3-speed fan motor

FWT-CT AC

Concealed ceiling unit

Concealed ceiling unit with medium ESP

- Brushless DC fan motor unit for horizontal concealed mounting

- Instant adjustment to temperature and relative humidity changes

- Available static pressure up to 80 Pa

- Low sound levels

FWP-AT BLDC

Concealed ceiling unit with medium ESP

- AC fan motor unit for horizontal concealed mounting

- Available static pressure up to 80 Pa

- 7-speed electrical motors (thermal protection on windings)

- Easy maintenance

FWB-BT AC

Concealed ceiling unit with high ESP

- Brushless DC fan motor unit for horizontal concealed mounting

- Instant adjustment to temperature and relative humidity changes

- Available static pressure up to 120Pa

- Low sound levels

FWN-AT/AF BLDC

Concealed ceiling unit with high ESP

- AC fan motor unit for horizontal or vertical concealed mounting

- Available static pressure up to 120 Pa

- Easy maintenance

FWD-AT/AF AC

Capacity conditions

EUROVENT conditions

Cooling

27°C db / 19°C wb - Entering water 7°C

- Leaving water 12°C

Heating 4 Pipe

20°C db - Entering water 70°C

- Leaving water 60°C

Heating 2 Pipe

20°C db - Entering water 50°C

- Flow rate as in cooling mode

APPLIED

Price List Update: Valid from 1st January 2017

183

Please contact your local sales oce for further information on these products and extensive option exibility – download info from daikin.co.uk

TYPICAL UK cooling conditions

22°C db / 16.0°C wb - Entering water 7°C - Leaving water 12°C

0 Pa External Static Pressure

0% Glycol

FWP & FWD Ducted FCU - Above capacities are based on 30 Pa

External Static Pressure

FWS Uncased - Based on 20 pa external static

Capacity

1 2 3 4 5 6 7 8 9 10 11 12 ~ 18

Cooling: . - . kW

Heating: . - . kW    

Cooling: . - . kW

Heating: . - . kW    

Cooling: . - . kW

Heating: . - . kW    

Cooling: . - . kW

Heating: . - . kW       

Cooling: . - . kW

Heating: . - . kW    

Cooling: . - . kW

Heating: . - . kW       

Cooling: . - . kW

Heating: . - . kW    

Cooling: . - . kW

Heating: . - . kW       

Cooling: . - . kW

Heating: . - . kW 

Cooling: 2.61 - 6.47 kW

Heating: 5.47 - 12.28 kW 

Cooling: . - . kW

Heating: . - . kW 

Cooling: . - . kW

Heating: . - . kW      

Cooling: . - . kW

Heating: . - . kW 

Capacity class (kW)

APPLIED

Residential, Commercial and Industrial

184

Cased Flexi Type 2-pipe FWR02AT FWR03AT FWR06AT FWR08AT

Capacity UK Total Cooling kW 1.39 2.57 3.23 5.11

Nominal Cooling kW 2.64 4.96 6.32 10.08

Nominal Heating kW 3.47 6.40 7.51 11.18

Dimensions Height x Width x Depth mm 226 x 774 x 564 226 x 987 x 564 226 x 1194 x 564 251 x 1404 x 564

Weight kg 21 27 33 44

Sound Power High/Low dBA 62/28 70/28 64/28 71/28

Sound Pressure High/Low dBA 54/20 62/20 56/20 63/20

Air Flow Rate High m3/min 9.33 15.00 20.00 27.66

Water Connections inch 1/2 1/2 1/2 3/4

Electrical Data Power Supply 1ph

Trade Fan Coil Price - Naked - No Valve FWR02ATN FWR03ATN FWR06ATN FWR08ATN

£277.00 £300.00 £346.00 £441.00

Trade Fan Coil Price - complete with 2-way 230V valve,

Elec Heater & FWECSAP power control factory tted

FWR02ATT6V3ES- FWR03ATT6V3ES- FWR06ATT6V3ES- FWR08ATT6V3ES-

£542.00 £572.00 £627.00 £727.00

Trade Fan Coil Price - Complete with 3-way 230V valve,

Elec Heater & FWECSAP power control factory tted

FWR02ATV6V3ES- FWR03ATV6V3ES- FWR06ATV6V3ES- FWR08ATV6V3ES-

£613.00 £642.00 £701.00 £810.00

Cased Flexi Type 4-pipe FWR02AF FWR03AF FWR06AF FWR08AF

Capacity UK Total Cooling kW 1.39 2.57 3.23 5.11

Nominal Cooling kW 2.64 4.96 6.32 10.08

Nominal Heating kW 2.46 4.19 6.45 10.06

Dimensions Height x Width x Depth mm 226 x 774 x 564 226 x 987 x 564 226 x 1194 x 564 251 x 1404 x 564

Weight kg 22 28 35 46

Sound Power High/Low dBA 62/28 70/28 64/28 71/28

Sound Pressure High/Low dBA 54/20 62/20 56/20 63/20

Air Flow Rate High m3/min 9.33 15.00 20.00 27.66

Water Connections inch 1/2 1/2 1/2 3/4

Electrical Data Power Supply 1ph

Trade Fan Coil Price - Naked - No Valve FWR02AFN FWR03AFN FWR06AFN FWR08AFN

£303.00 £326.00 £383.00 £487.00

Trade Fan Coil Price - Complete with 2-way 230V valve

and FWECSAP power control factory tted

FWR02AFT6V3-S- FWR03AFT6V3-S- FWR06AFT6V3-S- FWR08AFT6V3-S-

£456.00 £479.00 £536.00 £643.00

Trade Fan Coil Price - Complete with 3-way 230V valve

and FWECSAP power control factory tted

FWR02AFV6V3-S- FWR03AFV6V3-S- FWR06AFV6V3-S- FWR08AFV6V3-S-

£574.00 £596.00 £654.00 £768.00

Cased Low Wall Mount Type 2-pipe FWZ02AT FWZ03AT FWZ06AT FWZ08AT

Capacity UK Total Cooling kW 1.39 2.57 3.23 5.11

Nominal Cooling kW 2.64 4.96 6.32 10.08

Nominal Heating kW 3.47 6.40 7.51 11.18

Dimensions Height x Width x Depth mm 226 x 774 x 564 226 x 987 x 564 226 x 1194 x 564 251 x 1404 x 564

Weight kg 20 25 31 41

Sound Power High/Low dBA 62/28 70/28 64/28 71/28

Sound Pressure High/Low dBA 54/20 62/20 56/20 63/20

Air Flow Rate High m3/min 9.33 15.00 20.00 27.66

Water Connections inch 1/2 1/2 1/2 3/4

Electrical Data Power Supply 1ph

Trade Fan Coil Price - Naked - No Valve FWZ02ATN FWZ03ATN FWZ06ATN FWZ08ATN

£265.00 £280.00 £324.00 £405.00

Trade Fan Coil Price - Complete with 2-way 230V valve,

Elec Heater & FWECSAP power control factory tted

FWZ02ATT6V3ES- FWZ03ATT6V3ES- FWZ06ATT6V3ES- FWZ08ATT6V3ES-

£530.00 £553.00 £605.00 £691.00

Trade Fan Coil Price - Complete with 3-way 230V valve,

Elec Heater & FWECSAP power control factory tted

FWZ02ATV6V3ES- FWZ03ATV6V3ES- FWZ06ATV6V3ES- FWZ08ATV6V3ES-

£601.00 £622.00 £680.00 £773.00

Cased Low Wall Mount Type 4-pipe FWZ02AF FWZ03AF FWZ06AF FWZ08AF

Capacity UK Total Cooling kW 1.39 2.57 3.23 5.11

Nominal Cooling kW 2.64 4.96 6.32 10.08

Nominal Heating kW 2.46 4.19 6.45 10.06

Dimensions Height x Width x Depth mm 226 x 774 x 564 226 x 987 x 564 226 x 1194 x 564 251 x 1404 x 564

Weight kg 21 26 33 44

Sound Power High/Low dBA 62/28 70/28 64/28 71/28

Sound Pressure High/Low dBA 54/20 62/20 56/20 63/20

Air Flow Rate High m3/min 9.33 15.00 20.00 27.66

Water Connections inch 1/2 1/2 1/2 3/4

Electrical Data Power Supply 1ph

Trade Fan Coil Price - Naked - No Valve FWZ02AFN FWZ03AFN FWZ06AFN FWZ08AFN

£289.00 £306.00 £363.00 £446.00

Trade Fan Coil Price - Complete with 2-way 230V valve

and FWECSAP power control factory tted

FWZ02AFT6V3-S- FWZ03AFT6V3-S- FWZ06AFT6V3-S- FWZ08AFT6V3-S-

£441.00 £459.00 £516.00 £602.00

Trade Fan Coil Price - Complete with 3-way 230V valve

and FWECSAP power control factory tted

FWZ02AFV6V3-S- FWZ03AFV6V3-S- FWZ06AFV6V3-S- FWZ08AFV6V3-S-

£559.00 £577.00 £634.00 £726.00

New BLDC (Brushless Direct Current)

Inverter Driven Floor Standing Fan Coil Units

New BLDC (Brushless Direct Current)

Inverter Driven Flexi Fan Coil Units

Please note models with factory tted FWECSAP power control, require FWECSAC control panel(s) depending on FCU control network

APPLIED

Price List Update: Valid from 1st January 2017

185

Concealed Flexi Type 2-pipe FWS02AT FWS03AT FWS06AT FWS08AT

Capacity UK Total Cooling kW 1.08 2.02 2.52 3.99

Nominal Cooling kW 2.64 4.96 6.32 10.08

Nominal Heating kW 3.47 6.40 7.51 11.18

Dimensions Height x Width x Depth mm 224 x 584 x 535 224 x 794 x 535 224 x 1004 x 535 249 x 1214 x 535

Weight kg 15 19 23 32

Sound Power High/Low dBA 62/28 70/28 64/28 71/28

Sound Pressure High/Low dBA 54/20 62/20 56/20 63/20

Air Flow Rate High m3/min 9.33 15.00 20.00 27.66

Water Connections inch 1/2 1/2 1/2 3/4

Electrical Data Power Supply 1ph

Trade Fan Coil Price - Naked - No Valve FWS02ATN FWS03ATN FWS06ATN FWS08ATN

£238.00 £253.00 £292.00 £363.00

Trade Fan Coil Price - complete with 2-way 230V valve,

Elec Heater & FWECSAP power control factory tted

FWS02ATT6V3ES- FWS03ATT6V3ES- FWS06ATT6V3ES- FWS08ATT6V3ES-

£503.00 £526.00 £572.00 £649.00

Trade Fan Coil Price - Complete with 3-way 230V valve,

Elec Heater & FWECSAP power control factory tted

FWS02ATV6V3ES- FWS03ATV6V3ES- FWS06ATV6V3ES- FWS08ATV6V3ES-

£574.00 £595.00 £647.00 £732.00

Concealed Flexi Type 4-pipe FWS02AF FWS03AF FWS06AF FWS08AF

Capacity UK Total Cooling kW 1.08 2.02 2.52 3.99

Nominal Cooling kW 2.64 4.96 6.32 10.08

Nominal Heating kW 2.46 4.19 6.45 10.06

Dimensions Height x Width x Depth mm 224 x 584 x 535 224 x 794 x 535 224 x 1004 x 535 249 x 1214 x 535

Weight kg 16 20 25 34

Sound Power High/Low dBA 62/28 70/28 64/28 71/28

Sound Pressure High/Low dBA 54/20 62/20 56/20 63/20

Air Flow Rate High m3/min 9.33 15.00 20.00 27.66

Water Connections inch 1/2 1/2 1/2 3/4

Electrical Data Power Supply 1ph

Trade Fan Coil Price - Naked - No Valve FWS02AFN FWS03AFN FWS06AFN FWS08AFN

£263.00 £284.00 £326.00 £407.00

Trade Fan Coil Price - Complete with 2-way 230V valve

and FWECSAP power control factory tted

FWS02AFT6V3-S- FWS03AFT6V3-S- FWS06AFT6V3-S- FWS08AFT6V3-S-

£415.00 £437.00 £479.00 £563.00

Trade Fan Coil Price - Complete with 3-way 230V valve

and FWECSAP power control factory tted

FWS02AFV6V3-S- FWS03AFV6V3-S- FWS06AFV6V3-S- FWS08AFV6V3-S-

£533.00 £555.00 £596.00 £688.00

FWZ, FWR, FWS 02-03 06 08

2-pipe 3-way 230V on/o valve kits c/w lockshields E2MV03A6 E2MV10A6

£127.00 £134.00

4-pipe 3-way 230V on/o valve kits c/w lockshields E4MV03A6 E4MV10A6

£228.00 £241.00

Vertical drainpan EDPVB6

£5.00

Horizontal drainpan EDPHB6

£5.00

Advanced Plus Electronic Controller FWEC3A

£119.00

Split Electronic Controller

Power control board + Control panel

FWECSA = FWECSAP + FWECSAC

£148.00 or £85.00 + £63.00

On board installation kit

(FWZ & FWR - Low Wall Mounted Only)

FWECKA

£11.00

Return Air Sensor FWTSKA

£8.00

Loose Accessory Options: Notes:

i) Each controller version includes the

water probe

ii) The on board installation kit includes a

remote air probe (if installed the internal

fan coil probe is disabled)

iii) The FWEC3A can operate up to 247

fan coils as master slave control, plus

weekly schedule timer, proportional valve

control and 2 digital outputs (1 per fan

coil required)

iv) The FWECSA can operate up to 256

fan coils as master slave control on

RS485 network

v) The FWECSAP and FWECSAC can be

ordered individually or as a pack

Floor Standing and Flexi Fan Coil Unit Accessories

New BLDC (Brushless Direct Current)

Inverter Driven Low Static Concealed Flexi Fan Coil Units

Please note models with factory tted FWECSAP power control, require FWECSAC control panel(s) depending on FCU control network

APPLIED

Residential, Commercial and Industrial

186

Concealed Ducted Type 2-pipe FWP02AT FWP03AT FWP04AT FWP05AT FWP06AT FWP07AT

Capacity UK Total Cooling kW 1.34 1.67 2.03 2.50 2.77 3.47

Nominal Cooling kW 2.61 3.14 3.49 5.08 5.45 6.47

Nominal Heating kW 5.47 6.01 6.47 10.31 11.39 12.28

Dimensions Height mm 239 239 239 239 239 239

Width mm 1039 1039 1039 1389 1389 1389

Depth mm 609 609 609 609 609 609

Weight kg 24 26 28 33 35 38

Sound Power High/Low dBA 56/40 56/40 56/40 61/39 61/39 61/39

Sound Pressure High/Low dBA 44/24 44/24 44/24 50/27 50/27 50/27

Air Flow Rate High m3/min 6.66 6.66 6.66 13.33 13.33 13.33

Water Connections inch 3/4 3/4 3/4 3/4 3/4 3/4

Electrical Data Power Supply 1ph

Trade Fan Coil Price - Naked - No Valve FWP02ATN FWP03ATN FWP04ATN FWP05ATN FWP06ATN FWP07ATN

£341.00 £355.00 £369.00 £432.00 £437.00 £466.00

Trade Fan Coil Price - Complete with 3-way 230V valve

and FWECSAP power control factory tted

FWP02ATV6V3-S- FWP03ATV6V3-S- FWP04ATV6V3-S- FWP05ATV6V3-S- FWP06ATV6V3-S- FWP07ATV6V3-S-

£491.00 £506.00 £519.00 £584.00 £588.00 £618.00

Please note models with factory tted FWECSAP power control, require FWECSAC control panel(s) depending on FCU control network.

If you require a 4 pipe fan coil please purchase additional heat exchanger as shown below

FWP 02 - 04 05 - 07

Additional Heat exchanger (4 Pipe)

nominal heating cap 3.2kW

EAH04A6 -

£94.00 -

Additional Heat exchanger (4 Pipe)

nominal heating cap 6.1kW

- EAH07A6

- £109.00

2-way 230V on/o valve cooling coil E2MV207A6

£55.00

3-way 230V on/o valve add.h/e E2MV307A6

£97.00

2-way 230V on/o valve add.h/e E2MV207A6

£55.00

Advanced Plus Electronic Controller FWEC3A

£119.00

Split Electronic Controller

Power control board + Control panel

FWECSA = FWECSAP + FWECSAC

£148.00 or £85.00 + £63.00

Return Air Sensor FWTSKA

£8.00

Loose Accessory Options: Notes:

i) Each controller version includes the

water probe

ii) The FWEC3A can operate up to 247

fan coils as master slave control, plus

weekly schedule timer, proportional valve

control and 2 digital outputs (1 per fan

coil required)

iii) The FWECSA can operate up to 256

fan coils as master slave control on

RS485 network

iv) The FWECSAP and FWECSAC can be

ordered individually or as a pack

New BLDC (Brushless Direct Current)

Inverter Driven Medium Static Ducted Fan Coil Units

APPLIED

Price List Update: Valid from 1st January 2017

187

Concealed Ducted Type 2-pipe FWN04AAT FWN05AAT FWN06AAT FWN07AAT FWN08AAT FWN10AAT

Capacity UK Total Cooling kW 2.01 2.25 3.15 2.90 3.96 4.33

Nominal Cooling kW 3.80 4.65 6.02 6.66 7.58 8.50

Nominal Heating kW 4.85 5.79 7.67 8.65 9.46 10.70

Dimensions Height mm 280 280 280 280 280 280

Width mm 754 754 964 964 1174 1174

Depth mm 559 559 559 559 559 559

Weight kg 32.5 33.3 40.6 41.7 47.3 48.7

Sound Power High / Low dBA 66/54 66/54 69/59 69/61 72/62 72/62

Sound Pressure High / Low dBA 52/40 52/40 55/48 55/47 58/48 58/48

Air Flow Rate High m3/min 13.37 13.20 20.68 20.10 26.82 26.40

Water Connections inch 3/4 3/4 3/4 3/4 3/4 3/4

Electrical Data Power Supply 1ph

Trade Fan Coil Price £399.00 £429.00 £715.00 £757.00 £782.00 £819.00

Concealed Ducted Type 4-pipe FWN04AAF FWN05AAF FWN06AAF FWN07AAF FWN08AAF FWN10AAF

Capacity UK Total Cooling kW 2.01 2.25 3.15 2.90 3.96 4.33

Nominal Cooling kW 2.76 3.60 4.54 5.17 5.22 6.12

Nominal Heating kW 4.48 4.45 6.53 6.44 9.13 9.07

Dimensions Height mm 280 280 280 280 280 280

Width mm 754 754 964 964 1174 1174

Depth mm 559 559 559 559 559 559

Weight kg 34.7 35.5 43.2 44.3 50.3 51.7

Sound Power High / Low dBA 66/54 66/54 69/61 69/59 72/62 72/62

Sound Pressure High / Low dBA 52/40 52/40 55/47 55/48 58/48 58/48

Air Flow Rate High m3/min 13.23 13.07 20.17 19.65 26.22 25.83

Water Connections inch 3/4 3/4 3/4 3/4 3/4 3/4

Electrical Data Power Supply 1ph

Trade Fan Coil Price £450.00 £492.00 £777.00 £815.00 £856.00 £903.00

FWN 04-05 06-07 08-10

2-pipe 3-way valve ED2MV04A6 ED2MV10A6

£133.00 £133.00

4-pipe 3-way valve ED4MV04A6 ED4MV10A6

£257.00 £257.00

Vertical Drain pan EDDPV10A6

£11.00

Horizontal Drain Pan EDDPH10A7

£13.00

Advanced Plus Electronic Controller FWEC3A

£119.00

Split Electronic Controller

Power control board + Control panel

FWECSA = FWECSAP + FWECSAC

£148.00 or £85.00 + £63.00

Return Air Sensor FWTSKA

£8.00

Loose Accessory Options: Notes:

i) Each controller version includes the

water probe

ii) The FWEC3A can operate up to 247

fan coils as master slave control, plus

weekly schedule timer, proportional valve

control and 2 digital outputs (1 per fan

coil required)

iii) The FWECSA can operate up to 256

fan coils as master slave control on

RS485 network

iv) The FWECSAP and FWECSAC can be

ordered individually or as a pack

New BLDC (Brushless Direct Current)

High Static Ducted Fan Coil Units

APPLIED

Residential, Commercial and Industrial

188

600sq Cassette Type 2-pipe c/w Decoration Panel BYFQ60B3 FWF02BT FWF03BT FWF04BT FWF05BT

Capacity UK Total Cooling kW 1.20 1.90 2.50 3.10

Nominal Cooling kW 2.00 3.20 4.20 5.20

Nominal Heating kW 2.90 4.00 5.40 6.70

Dimensions Height mm 260 260 260 260

Width mm 575 575 575 575

Depth mm 575 575 575 575

Weight kg 19 19 19 19

Sound Power High / Low dBA 44/36 44/36 50/36 55/42

Sound Pressure High / Low dBA 31/26 31/26 40/26 45/30

Air Flow Rate High m3/min 7.9 7.9 11.2 14.9

Water Connections inch 3/4 “ BSP Female

Electrical Data Power Supply 1 ph

Trade Fan Coil Price £575.00 £602.00 £626.00 £650.00

600sq Cassette Type 4-pipe c/w Decoration Panel BYFQ60B3 FWF02BF FWF03BF FWF04BF FWF05BF

Capacity UK Total Cooling kW 1.10 1.60 2.00 2.50

Nominal Cooling kW 2.00 2.70 3.50 4.50

Nominal Heating kW 3.90 3.80 4.90 6.10

Dimensions Height mm 260 260 260 260

Width mm 575 575 575 575

Depth mm 575 575 575 575

Weight kg 19 20 20 20

Sound Power High / Low dBA 44/36 44/36 50/36 55/42

Sound Pressure High / Low dBA 31/26 31/26 40/26 45/30

Air Flow Rate High m3/min 7.9 7.2 10.4 13.9

Water Connections inch 3/4 “ BSP Female

Electrical Data Power Supply 1 ph

Trade Fan Coil Price £610.00 £640.00 £661.00 £682.00

Cassette Type 2-pipe c/w Decoration Panel BYCQ140C FWC06BT FWC07BT FWC08BT FWC09BT

Capacity UK Total Cooling kW 3.30 4.10 4.30 4.80

Nominal Cooling kW 5.80 6.80 7.70 8.70

Nominal Heating kW 8.00 8.90 10.60 12.10

Dimensions Height mm 288 288 288 288

Width mm 840 840 840 840

Depth mm 840 840 840 840

Weight kg 26 26 26 26

Sound Power High / Low dBA 43/31 47/33 53/36 57/40

Sound Pressure High / Low dBA 29/21 33/22 39/24 43/28

Air Flow Rate High m3/min 17.7 20.6 25.4 30.8

Water Connections inch 3/4 “ BSP Female

Electrical Data Power Supply 1 ph

Trade Fan Coil Price £632.00 £664.00 £692.00 £722.00

Cassette Type 4-pipe c/w Decoration Panel BYCQ140C FWC06BF FWC07BF FWC08BF FWC09BF

Capacity UK Total Cooling kW 3.30 4.00 4.30 4.80

Nominal Cooling kW 5.80 6.60 7.60 8.70

Nominal Heating kW 7.50 8.40 9.70 11.00

Dimensions Height mm 288 288 288 288

Width mm 840 840 840 840

Depth mm 840 840 840 840

Weight kg 29 29 29 29

Sound Power High / Low dBA 43/31 47/33 53/36 57/40

Sound Pressure High / Low dBA 29/21 33/22 39/24 43/28

Air Flow Rate High m3/min 17.1 19.9 24.6 29

Water Connections inch 3/4 “ BSP Female

Electrical Data Power Supply 1 ph

Trade Fan Coil Price £753.00 £794.00 £823.00 £853.00

AC Fan Motor - 3 speed

600 Sq Cassette Fan Coil Units

BLDC Fan Motor - 3 speed

Cassette Fan Coil Units

APPLIED

Price List Update: Valid from 1st January 2017

189

FWF/FWC FWF/FWC

Remote wired controller BRC315D

£66.00

Intelligent touch controller DCS601C51

£1,707.00

Unit/Group adapter pcb KRP4A53

£70.00

Unit/Group adapter pcb complete with

installation box

KRP4A53/UK.FB2

£96.00

System adaptor pcb KRP2A52

£184.00

System adaptor pcb complete with

installation box

KRP2A52/UK.FB2

£211.00

Optional pcb for connection to ModBus

(2 stopbit)

EKFCMBCB

£56.00

2-Way 230V on/o valve kit EKMV2C09B

£60.00

3-Way 230V on/o valve kit EKMV3C09B

£64.00

Valve control PCB EKRP1C11

£104.00

FWC only FWC only

Wireless remote control heat pump BRC7FA532F

£158.00

Wireless remote control cooling only BRC7F533F

£126.00

Remote air sensor KRCS01-4

£42.00

Installation box for an EKRP1C11 valve PCB KRP1H98

£38.00

FWF only FWF only

Wireless remote control heat pump BRC7E530

£126.00

Wireless remote control cooling only BRC7E531

£126.00

Remote air sensor KRCS01-1

£48.00

Remote on/o control interface kit EKRORO

£16.00

Installation box for an EKRP1C11 valve PCB KRP1BA101

£47.00

Notes:

i) FWF and FWC Cassette Fan Coil prices

include decoration panel

ii) It is not possible to use Intelligent Touch

control for combination with both VRV

and water based fan coils

FWF-Valve control requirements

2 pipe unit: 1 x valve kit + 1 x installation

box for PCB KRP1BA101 + 1 x valve control

PCB EKRP1C11

4 pipe unit: 2 x valve kit + 1 x installation

box for PCB KRP1BA101 + 1 x valve control

PCB EKRP1C11

FWC-Valve control requirements

2 pipe unit: 1 x valve kit + 1 x installation

box for PCB KRP1H98 + 1 x valve control

PCB EKRP1C11

4 pipe unit: 2 x valve kit + 1 x installation

box for PCB KRP1H98 + 1 x valve control

PCB EKRP1C11

Cased High Wall Mount Type 2-pipe FWT02CT FWT03CT FWT04CT FWT05CT FWT06CT

Capacity UK Total Cooling kW 1.59 1.67 2.10 2.90 3.41

Nominal Cooling kW 2.43 2.70 3.31 4.54 5.28

Nominal Heating kW 3.22 3.52 4.40 6.01 7.33

Dimensions Height mm 288 288 288 310 310

Width mm 800 800 800 1065 1065

Depth mm 206 206 206 224 224

Weight kg 10 10 10 15 15

Sound Power High / Low dBA 45/36 48/39 55/45 55/47 59/51

Sound Pressure High / Low dBA 34/25 35/25 42/32 42/34 42/39

Air Flow Rate High m3/min 7.36 7.93 10.48 14.43 17.55

Water Connections inch 1/2 1/2 1/2 1/2 1/2

Electrical Data Power Supply 1ph

Trade Fan Coil Price £200.00 £207.00 £238.00 £288.00 £306.00

FWT FWT

Standard wired remote controller MERCA

£77.00

Simplied wired remote controller SRC-HPA

£39.00

Wireless controller for heat pump WRC-HPC

£15.00

Loose Accessory Options: Notes:

i) FWT fan coils are optimised for valveless

control in cooling. We would recommend

that a valve is tted if being used for

heating only and for more precise control

in cooling.

ii) We would recommend the eld supply of

a 240V - 4 port 3 way valve complete with

240V actuator.

Loose Accessory Options:

Cassette Accessories

AC Fan Motor - 3 speed

Wall Mounted Fan Coil Units

APPLIED

Residential, Commercial and Industrial

190

Daikin Air Handling Units

Daikin air handling units, with their plug-and-play design and

inherent exibility, can be congured and combined specically

to meet the exact requirements of any building, no matter what

it is used for, or who is to work there. Our systems are designed

to be the most environmentally friendly and the most energy

ecient on the market, thus reducing their ecological impact,

while, at the same time, keeping costs down through the

minimisation of energy consumption.

When combined with the small physical footprint of the system,

these features make our air handling units ideal for all markets.

APPLIED

Price List Update: Valid from 1st January 2017

191

Air Handling Units

ADT-F/B

Energy eciency and indoor air quality

> Predened sizes

> IE4 premium eciency motor

> High eciency heat wheel (heat recovery)

> Compact design

> Advanced control features

> Easy installation

> Indoor air quality compliant with VDI 6022 hygiene guideline

> Operating limits from -25 °C, -40 °C with electric heaters,

up to +46 °C ambient temperature

> VRV IV and ERQ coupling capability

> Indoor and outdoor versions

> Free cooling capability

> Economy and Night mode operation

> Monitoring and control through Daikin ITM

EC fan

> Air ow or pressure control

(Variable Air Volume – Constant Air Volume)

> Nominal air ow programmed at factory

> Silent operation

Simple, quick installation

The Modular series’ Plug & Play design is more than just a

convenient feature for installers. It oers cost-saving benets as

there is no need for expensive adjustments before the unit is

commissioned. Plug & Play makes everyone’s life simpler, safer and

more economical.

Modular AHU with high eciency heat recovery

Size 12345678910

Main Unit Nominal Performances

(Main Module)

Airow [m3/s] 0.33 0.47 0.75 1.14 1.53 1.69 1.94 2.53 3.19 4.17

Temp eciency winter [%] 81.30 81.10 81.40 81.60 82.60 81.20 82.70 81.40 81.50 83.20

ESP nominal [Pa] 200 200 200 200 200 200 200 200 200 200

Current nominal [A] 2.66 3.90 6.30 2.98 4.00 4.74 4.76 5.54 8.72 10.20

Power input nominal [kW] 0.62 0.89 1.50 1.98 2.68 2.96 3.30 3.76 5.48 7.04

SFPv [kW/m3/s] 1.87 1.89 1.99 1.74 1.75 1.75 1.70 1.49 1.72 1.69

Electrical supply [V-ph-Hz] 230-1-50 230-1-50 230-1-50 400-3+N-50 400-3+N-50 400-3+N-50 400-3+N-50 400-3+N-50 400-3+N-50 400-3+N-50

Lenght [mm] 1700 1700 1800 1920 2080 2280 2400 2450 2280 2400

Depth [mm] 720 820 990 1200 1400 1400 1600 1940 1940 2300

Height overall [mm] 1320 1320 1540 1740 1740 1920 1920 2180 2460 2570

Weight [kg] 325 350 475 575 750 790 950 1330 1410 1750

Sound level - Lp dB(A)* 40 42 42 45 46 44 43 43 45 45

* Sound pressure level radiated from unit at 1 meter and according to ISO 3744 (supply outlet ducted)

Main Unit Size 12345678910

Main Module £7,518.00 £7,787.00 £8,752.00 £9,610.00 £10,469.00 £11,153.00 £12,347.00 £14,389.00 £16,518.00 £18,509.00

* Price includes G4/G7 ltration, Mineral Wool Insulation, Aluzinc internal skin and Aluzinc or Pre-Painted external skin

Coil Module

Size 12345678910

Mode Coil’s Row

Frost Coil (Elec - 2 stage) - £1,354.00 £1,449.00 £1,550.00 £1,627.00 £1,737.00 £1,847.00 £1,995.00 £2,174.00 £2,392.00 £2,654.00

Chilled Water Cooling Coil 6 £1,185.00 £1,302.00 £1,530.00 £1,826.00 £2,059.00 £2,473.00 £2,142.00 £2,792.00 £3,018.00 £3,500.00

Chilled Water Cooling+LPHW Heating Coil

6 + 2 £1,689.00 £1,820.00 £2,084.00 £2,498.00 £2,768.00 £3,222.00 £2,928.00 £3,671.00 £3,620.00 £5,009.00

DX Heat Pump (Cooling/Heating) 4 £1,489.00 £1,540.00 £1,692.00 £2,526.00 £2,641.00 £2,836.00 - - - -

Mixing Box Size 12345678910

Three way mixing box £631.00 £641.00 £688.00 £780.00 £829.00 £853.00 £986.00 £1,123.00 £1,222.00 £1,328.00

Roof Size 12345678910

Outdoor Kit (Roof) £151.00 £166.00 £202.00 £256.00 £329.00 £346.00 £382.00 £465.00 £494.00 £555.00

Filter Stage

Size 12345678910

M6 Filter (to replace G3 or G4) £82.00 £82.00 £139.00 £164.00 £220.00 £220.00 £246.00 £393.00 £393.00 £526.00

Additional Filtration Module F9 front withdrawal £831.00 £855.00 £1,002.00 £1,162.00 £1,281.00 £1,400.00 £1,632.00 £1,927.00 £2,258.00 £2,399.00

Heat Wheel Size 12345678910

Sorption Type (to replace sensible type on main module)

£723.00 £821.00 £1,038.00 £1,372.00 £1,565.00 £1,683.00 £2,014.00 £2,287.00 £2,733.00 £3,743.00

Coms

Module

Size 12345678910

Bacnet Module (for ITM Daikin) £164.00

Acoustic

Module

Size 12345678910

Single Silencer Module £621.00 £682.00 £722.00 £839.00 £914.00 £992.00 £1,093.00 £1,297.00 £1,327.00 £1,455.00

Double Silencer Module £1,179.00 £1,294.00 £1,371.00 £1,593.00 £1,735.00 £1,884.00 £2,077.00 £2,462.00 £2,521.00 £2,764.00

Note: Final pricing will be dependent on actual selection conguration, unit construction and additional modules required. Above pricing will provide a suciently accurate indication for budget purposes

Please contact your local sales oce for further information on selection at dierent working conditions

and matched Daikin ERQ & VRV IV condenser units for DX applications

APPLIED

Residential, Commercial and Industrial

192

VRV IV or ERQ

condensing unit

Electronic interface

(EKEQ)

Expansion valve (EKEXV)

Expansion kit factory tted and

integral to DX HP coil module

Air Handling Units

Daikin fresh air package

The Daikin fresh air package provides a complete solution,

including all unit controls (expansion valve, control box an AHU

controller) and sensors factory mounted and congured.

This unique solution allows for plug and play connection of our

AHU series to Daikin ERQ and VRV condensing units.

High eciency

Daikin heat pumps are renowned for their high energy eciency.

Integrating the AHU with a heat recovery system is even more

eective since an oce system can frequently be in cooling

mode while the outdoor air is too cold to be brought inside in an

unconditioned state. In this case heat from the oces is merely

transferred to heat up the cold incoming fresh air.

High comfort levels

Daikin ERQ and VRV units respond rapidly to uctuations in

supply air temperature, resulting in a steady indoor temperature

and resultant high comfort levels for the end user. The ultimate

is the VRV range which improves comfort even more by oering

continuous heating, also during defrost.

Modular AHU application with Daikin DX condensers

Please refer to pricing of our VRV IV (pages 71 - 73 and pages 76 - 83 and page 95) and

ERQ (Page 52) inverter driven condensing unit ranges which are compatible with the Modular AHU.

SERVICES & TRAINING

Delivery Information 194

Goods Returns Procedure 195

Service Department 196

Daikin Service Tools 199

Training 200

Terms & Conditions 202

Daikin UK Price List Update

Services & Training

Scottish

Region

0845 641 9330

Northern

Region

0845 641 9340

Midlands

Region

0845 641 9370

Western

Region

0845 641 9320

North

London

0845 641 9360

South

London

0845 641 9355

SERVICES & TRAINING

Residential, Commercial and Industrial

194

Delivery Information

Notes:

> Weekday hours: Monday - Friday

08:00 - 17:00

> Out of Hours: before 08:00 or

after 17:00

> 98% of UK mainland postcodes

are covered under the Next Day

delivery service

> Standard delivery will normally

be made by a single driver on

an 18T rigid lorry equipped

with tail lift and pump truck.

Alternative sized vehicles maybe

utilised from time to time. If

you face site restriction at your

nominated delivery address and

a vehicle other than an 18T rigid

lorry is required, notication is

needed two working days prior

to delivery

> Next day delivery is subject to

postcode restrictions, full details

of delivery areas can be obtained

from the business portal on

my.daikin.co.uk (deliveries to

Scotland, O shore UK Islands,

Northern Ireland and the ROI

may be subject to 2 to 5 day

delivery routes)

> Time specic deliveries are +/- 30

minutes from the requested time

> Hiab pricing (vehicle with lifting

arm) is based on kerbside drop.

Deliveries requiring further lifting

capabilities or outside of normal

hours (08:00 - 17:00) may incur

additional charges. Prices can be

requested at time of order

> Two man deliveries can be

requested for heavier items and

deliveries above ground level

> Delivery address, site contact

name and number are required

for every delivery

> Our drivers are not permitted

to make part delivery against a

delivery note. Additional charges

may apply for refused deliveries

Delivery Type Time New Pricing Order processing Deadline

Standard Delivery - Weekday (excluding Spares)

Next Day Delivery 08:00 - 17:00 Free of Charge Order processed by 14.00 the previous working day

Timed Delivery - weekday (excluding Spares)

Before 13:00 08:00 - 13:00 £50.00 Order processed by 14.00 the previous working day

After 12:30 12:30 - 17:00 £45.00 Order processed by 14.00 the previous working day

Time specic normal hours Between 08:00 - 17:00 £220.00 Requires two working days’ notice

Time specic out of hours

Before 08:00 & after 17:00

£390.00 Requires two working days' notice

Sameday (geographical restrictions apply) £220.00 Order processed by 11:00

Weekend Deliveries

Saturday /Sunday time specic £390.00 Requires two working days’ notice

Saturday Delivery <15kg 07:00 - 18:00 £35.00 Requires two working days’ notice

Saturday Delivery >15kg 08:00 - 17:00 £110.00 Requires two working days’ notice

Public Holidays - Variable Requests processed on an individual basis

Spare Parts Delivery Service

Next Day Delivery - Weekday

Online orders 07:00 - 18:00 Free of Charge Orders received by 14:00 previous working day

Next Day Delivery <20Kg 07:00 - 18:00 £7.50 Orders received by 14:00 previous working day

Next Day Delivery >20Kg 07:00 - 18:00 £60.00 Orders received by 14:00 previous working day

Before 13:00 07:00 - 13:00 £90.00 Orders received by 14:00 previous working day

Weekend Deliveries

Saturday Delivery <20kg 07:00 - 18:00 £35.00 Orders received by 14:00 previous working day

Saturday Delivery >20kg 07:00 - 18:00 £60.00 Orders received by 14:00 previous working day

Special Vehicle - Weekday / Weekend

Hiab: kerbside drop - From £390.00 Requires two working days’ notice

FORS (eet operator recognition scheme) From £390.00 Requires two working days’ notice

Flat Bed From £390.00 Requires two working days’ notice

Two man delivery service From £390.00 Requires two working days’ notice

* Information available from your local Daikin Sales Order Support team.

NEW PRICING

SERVICES & TRAINING

Goods Returns Procedure

Daikin UK policy for acceptable returned goods

What happens next

Once the Goods Return Form is received, an email will be

sent to the conrmation email address provided notifying you of

the goods for collection and a date for this to be carried out.

If you have any queries regarding this date please respond to the

email address provided as soon as possible.

Once inspected and conrmation is received that the goods

are in perfect condition, a credit will be raised against the

original invoice.

*Please note returns for chillers and made to order units will not be accepted*

Goods covered by warranty

Once a unit has been installed and commissioned, any faults

or breakdowns that occur should be reported to our warranty

department on:

Telephone: 0845 641 9275 or email: warranty@daikin.co.uk

195

Goods returns timescales

Daikin UK allows returned goods within the following timescales:

Units & accessories: 10 working days from date of invoice

Spare Parts: 1 month from date of invoice

Within these timescales, Daikin may accept unwanted goods

provided they are boxed in the original packaging, in perfect

condition and have not been used.

Arranging goods returns

To arrange the process of returning goods, please complete

a Goods Returns Form available from my.daikin.co.uk and fax

or email:

Units & Accessories:

Fax: 0845 641 9150 or email: returns@daikin.co.uk

Spare Parts:

Fax: 0845 641 9299 or email: spares@daikin.co.uk

Conditions of returned goods

All returned items are subject to a minimum 20% restocking/

administration charge with the following collection charges

applied to the nal credit:

Collected goods up to 15KG: £15

Collected goods over 16KG: £90

All returned goods will be fully inspected by our technical

engineers. If returned goods are in a non-satisfactory condition

then Daikin reserves the right to decline the return or apply an

increase to the restocking charge.

Damaged items

Daikin will only accept claims for damages when the goods

have been signed for as damaged on the delivery note and

you have notied Daikin Returns Team within three working

days of delivery. If you identify damage at point of delivery,

you are entitled to refuse the delivery and contact us

to arrange for a new unit to be sent out.

If after unpacking the units, you identify damage,

claims must be reported within three working days

from the delivery date to Daikin Returns Team along

with photographs of the damage.

Price List Update: Valid from 1st January 2017

SERVICES & TRAINING

Residential, Commercial and Industrial

196

Workshop

In our workshop in Bristol we modify standard Daikin equipment

to current specications in order to meet our clients’ needs. We can

oer bespoke modications to suit your exact requirements – please

speak to your sales engineer to discuss how we can help you.

Typical modications include:

> Creating weather-proof enclosures for

VAM Total Heat Exchangers. See page 111

> Repainting indoor and outdoor units.

For VRV units, see page 69, for Sky units see page 41

> Customisation of controls

> Removing are connections

> Strip and rebuilds. See page 69

> Blygolding. See below.

Strip and rebuild

Strip and rebuild oers the benet of time and cost savings by

having VRV outdoor units delivered to site in portable components,

so they can be transported to the roof without the need for cranes

and road closure applications.

For more information, see page 69.

Blygold treatment for heat exchangers

Daikin UK can oer additional treatment for Heat Exchangers to

protect against corrosion and pollution, ensuring the long term

eciency of the units.

We can apply a Blygold treatment to the coil and ns. This is

recommended for salt laden air (coastal) projects or areas in which

high levels of pollutants can create a barrier between the air and

the heat exchanger.

Lead time: 2-3 weeks

Applicable units: All Condensers

Unit Treatment Price (Excludes Unit Price)

Split Unit £490.00

SkyAir 71-140 Class £540.00

SkyAir 200-250 class £610.00

VRV Outdoor £725.00

The Daikin UK Service Department

The Daikin UK Service department supplies a range of services to support our customers.

Pre-installation, commissioning and project support

Commissioning

Daikin UK oers a full commissioning service, which includes

the charging of additional refrigerant, setting up of all Daikin

control systems, operation testing and validation. A detailed

commissioning report is produced per system to aid you with

handover of the project. If you require dedicated support

throughout your project, we can now oer an extended service

to meet all your project requirements.

Dedicated project support

For larger projects, Daikin UK Service department oers complete

Project Support from the point of order to system handover. Our

service engineers will assist you throughout the project, providing

a dedicated contact for technical queries and support, installation

checks and commissioning.

As part of our Project Support service, we conduct surveys during

the installation to ensure it is installed to our specication and

rules, witness the strength/pressure test on the DX side, evacuate

the systems, charge with any additional refrigerant and congure

any ITM controls prior to commissioning.

Prior to project commencement, our service engineer will

meet with you to:

> Discuss project time scales and schedule Daikin UK

engineer attendances

> Discuss potential installation restrictions/issues

> Identify potential issues and give advice on how to avoid

> Source copies of the site drawings

Our service engineer will liaise with you throughout the project to

agree sign o dates, commissioning dates and schedules. We will

then commission the system, ensuring all systems are operating

correctly according to the site requirements.

Upon completion, a commissioning booklet is

produced including:

> Installation Certication Reports – number of reports depends

on number of checks

> Pressure/Strength Test Certicate

> Evacuation Verication Certicate

> Commissioning Reports

> F-Gas Log

If you would like Daikin UK Project Support, please speak to your

sales engineer who will liaise with service management team to

assign you a dedicated service engineer.

SERVICES & TRAINING

Price List Update: Valid from 1st January 2017

197

Aftersales technical helpdesk

This invaluable service oers technical support and guidance

when you are experiencing on-site problems when commissioning

or diagnosing faults. Final diagnosis is the responsibility of the

site engineer.

Your calls will be answered by Daikin trained engineers. To help

provide a quick and ecient response, please make sure you have

the full model number of the unit. It is important to remind you

that using the D1/D1+ PIN number gives you priority access to

our engineers.

For support with Air Conditioning systems,

please contact:

Tel 0845 641 9200

Mon - Fri 8.30 - 17.30

For support with Heating systems,

please contact:

Tel 0845 641 9277

Mon - Fri 8.30 - 20.00 & Sat 9.00 - 15.00

Email technicalhelp@daikin.co.uk

SMS Fault Code Service 07797 801908

If you need an explanation and remedy on a fault code and

haven’t got your service manual, just send the fault code to our

SMS message service and we will advise you by return.

Maintenance contracts

Commercial customers: if you would like Daikin UK to support

you with commercial maintenance contracts, we can oer a full

service package, including 24 hour support, for account holding

customers.

Domestic heating customers: Daikin UK oers comprehensive

heat pump maintenance as a premium after care service for Daikin

Altherma systems. All parts, labour and call-outs are covered in the

unlikely event of a heating or hot water failure.*

For total comfort and peace of mind, this heat pump maintenance

package also includes an annual maintenance visit, to help keep

your customers’ systems running eciently throughout the year

and minimise the risk of any breakdowns.

Daikin UK also oers a basic heat pump maintenance package,

which entitles you to an annual maintenance visit, during which

our engineer will ensure that your Altherma heat pump is

operating within the optimum conditions to maximise energy

eciency. Any potential issue can be dealt with by a Daikin

engineer. You will also be entitled to a discount on the cost of spare

parts and labour.

*subject to t&c’s

Spare parts

When a component fails, Daikin has over 13,000 spare parts based

in the UK, supported by our European parts centre with 700,000

parts. This helps us to achieve our target of delivering 97% of

critical A parts within two days.

To contact the Spares team directly

Tel 0845 641 9230

Fax 0845 641 9299

Email spares@daikin.co.uk

If you hold a direct account with Daikin UK, you can send and

view your spare parts orders online using our Spare Parts Bank

– available 24 hours a day, 365 days a year. Plus, there are no

delivery charges on orders placed via the Spare Parts Bank,

which is equivalent to almost 5% extra discount.

To register for Spare Parts Bank go to www.daikin.co.uk/spares

Service support on-site

We can provide service engineers to assist you with on-site

commissioning or service support. All work is documented in

a report and sent for your records. So that we can give you the

best service possible, it is important to ensure that you are in

attendance at that time.

To book an engineer, please contact the Regional Service

oce closest to the site where your equipment is installed:

Energy monitoring and auditing

Daikin UK oers an increasing range of energy monitoring and

auditing services, plus remote monitoring and prediction solutions

(DNSS). Please ask your sales engineer if you have a project that you

think may be suitable for including in an energy monitoring and

auditing trial.

Eastern Region Service Centre

Phone number Operating Hours Email address

0845 641 9274 Mon - Fri: 09.00 to 17.00 weybridgeservice@daikin.co.uk

Western Region Service Centre

Phone number Operating Hours Email address

0845 641 9278 Mon - Fri: 09.00 to 17.00 bristolservice@daikin.co.uk

Northern Region Service Centre

Phone number Operating Hours Email address

0845 641 9279 Mon - Fri: 09.00 to 17.00 glasgowservice@daikin.co.uk

Post-installation, spare parts and service support

SERVICES & TRAINING

Residential, Commercial and Industrial

198

Daikin UK warranties

Daikin UK oers a range of warranties and extended warranties

for our Air Conditioning, Applied, Refrigeration and Heating

equipment.

Our warranties have been designed to meet the needs of our

customers and, as such, oer dierent terms for customers

belonging to our D1 partner programme, KEY heating installer

scheme and customers belonging to neither D1 nor KEY.

Our KEY heating installer scheme oers end-user warranties for

our domestic heating customers. Please see key.daikin.co.uk for

more information.

For all other customers - whether D1, D1+ or not yet a D1 partner

– we oer a commercial warranty. From April 2016, commercial

warranties are held between the installing contractor and Daikin

UK only (non transferable).

For detail on our warranties and how to claim, please see

www.daikin.co.uk or visit our business portal my.daikin.co.uk

for more information.

Making a warranty claim

If you have a component failure and it is within the warranty

period then we are here to help. After you have spoken to our

Technical Helpdesk to conrm diagnosis, you can simply contact

the warranty team.

Contact the warranty team on:

Tel 0845 641 9275

Fax 0845 641 9299

Email warranty@daikin.co.uk

SERVICES & TRAINING

Price List Update: Valid from 1st January 2017

199

Daikin Service Tools

It’s available for both android

and iPhone devices.

The application covers various

functions to help eld engineers

to fault-nd Daikin VRV

equipment . Service App

functions include:

Daikin Service App

The Daikin Service Application supports service engineers working

with Daikin VRV Equipment.

Service checker (part no. 999165T)

The service checker type 3 can read and record the operational

data from various Daikin equipment. This data consists of

thermistor readings, pressure sensor values, solenoid valve

operation, expansion valve pulses, operation modes etc.

Software version 1.53 or later is required for connection

to VRV IV systems.

DChecker

The DChecker is a service tool used to capture operational data

from the following equipment, Split-Multisplit, Sky-Air & Altherma

products. This will record and graph all sensor data, PCB inputs &

outputs from indoor and outdoor units. From the operational data

this will help to identify any operational issue.

Please note the DChecker is a USB interface which provides a

direct wired link to the main PCBS and enables real-time data to

be viewed on a laptop running windows. Software included.

Inverter analyser RS UK0917A (part no. 136 8521)

The inverter analyser can be used to check the inverter outputs on

all VRV models (can also be used on various Split & Sky Air units).

Android functions

Fault Codes

VRV Additional Charge Calculation

Replacement PCB Dip Switch Settings

Pressure Transducer and Temperature Thermistor Checks

Outdoor Unit eld settings include:

Fan Coil and BSVQ Box Count Check

Refrigerant Recovery Setting

Outdoor Unit Emergency Modes

VRV III & IV Short Test Run

There is also Daikin Altherma support for:

Fault Codes

Additional Refrigerant Charges

C Series Altherma Field Settings

Dip Switch Settings and much more...

iPhone functions

Fault Codes

VRV Additional Charge Calculation

Replacement PCB Dip Switch Settings

Pressure Transducer and Temperature Thermistor Checks

Outdoor Unit eld settings include:

Fan Coil and BSVQ Box Count Check

Refrigerant Recovery Setting

Outdoor Unit Emergency Modes

VRV III Short Test Run

To download the Apps go to:

Android:

https://play.google.com/store/apps/details?id=com.daikin.

aircon&hl=en

iPhone:

https://itunes.apple.com/us/app/daikin-service/id571282882?mt=8

SERVICES & TRAINING

Residential, Commercial and Industrial

200

During 2016 we will continue to further invest in all our regional

training centres, hands-on training facilities and online resources,

to ensure that the training you receive is relevant to the ever-

changing market. By doing so, we aim to help you provide your

customers with the highest quality Installation, commissioning,

maintenance, service and fault-nding support.

Daikin UK training centres

To nd out when courses are scheduled at regional Daikin UK regional training centres and at PGL Training,

check availability and book a place: please go to the Daikin UK booking web site at www.daikintraining.co.uk

Leading the way in R32 and R410A training

New hands-on training rigs for R410A or R32 Split systems are now

situated in all Daikin UK training centres. Purpose built R410A Sky

Air product training rigs can also be found at both our Woking and

Birmingham centres from March 2016. Attendees on our training

courses will get the opportunity to improve their operational

product knowledge and practice fault nding hands-on.

With the introduction of R32 products into the UK market, and

the popularity of R32 training courses to date, we will be investing

further in our Woking Technology Centre during 2016, so that we can

oer hands-on R32 product installation and commissioning courses.

New Birmingham training centre

Adjacent to our new Birmingham sales oce, the Birmingham

training centre covers an area of over 200m2 and provides hands on

training on the latest Split, VRV, Altherma and control systems.

Woking Technology Centre

The Technology Centre in Woking is Daikin’s largest training facility

in the UK, over two oors, covering an area close to 1000m2.

The facility is able to hold three training events at one time, with

additional equipment demonstration facilities and a dedicated

suite for conducting Web based live training events.

The centre includes VRV Heat Recovery, VRV Heat Pump, Water

Cooled VRV, R22 Replacement VRV-Q, as well as a variety of Split

and Sky Air systems. A specially designed controls section has

been constructed to demonstrate the many dierent conguration

possibilities of individual and central controls together with the

many BMS interface options.

The rst oor is dedicated to Heating products with eight individual

working bays containing a wide selection of systems to allow for

practical hands-on training of commissioning and fault diagnosis.

The award winning Altherma Hybrid system is installed in each of

these eight bays, so every attendee receives the highest quality

product training experience.

Daikin UK’s Customer Training

Bristol

Daikin Airconditioning UK Limited

Maple House, Brotherswood Court,

Great Park Road, Almondsbury,

Bristol BS32 4QW

Woking

Daikin Airconditioning UK Limited

21 Woking Business Park, Albert Drive,

Woking, Surrey GU21 5JY

Birmingham

Daikin Airconditioning UK Limited

2470 Regents Court, The Crescent,

Birmingham Business Park,

Birmingham B37 7YE

Manchester

Daikin Airconditioning UK Limited

17b Cobra Court, Blackmore Road,

Manchester M32 0QY

Glasgow

Daikin Airconditioning UK Limited

Unit 2, Glasgow Airport Business Park,

Marchburn Drive, Paisley PA3 2SJ

PGL Training

Clyst Works, Clyst Road, Topsham,

Exeter EX3 0DB

SERVICES & TRAINING

Price List Update: Valid from 1st January 2017

201

Online short courses

For anyone operating in the HVACR market, the skills and

knowledge required is getting greater every year. Daikin UK

recognises our training needs to keep pace with the demands on

people working in the industry – not least the pressures on your

time. So we are continually looking at new and innovative ways to

deliver the training you need.

During 2016 we are introducing a wider range of courses, together

with new web based short courses available on whichever online

or mobile platform you prefer.

Within our new Woking Technology Centre we have installed a

web based broadcast facility. From here we can provide short

courses across a range of subjects. The majority of these will also

be recorded and made available through our training website.

Our new courses will cover more application and design subjects,

legislation, technical topics and also personal development areas

such as presentation and selling skills.

In response to valued customer feed back, we will also be

introducing short online refresher courses on specic products,

where previous product course attendance pre-requisites have

been fullled.

Users can register as an individual to undertake web based training

and each user has a training account that enables them to review

past training they have undertaken and print o training records

and certicates.

As these courses become available it will be possible to reserve

places at www.daikintraining.co.uk. We will announce more specic

details throughout the year.

SERVICES & TRAINING

Residential, Commercial and Industrial

202

Smith Brothers Stores Ltd

Terms and Conditions of Sale

1. Denitions :-

a) “the Company” means Smith Brothers Stores Ltd

b) “the Purchaser” means the person, rm or company placing an order on the

Company.

c) “Quotation” means any Quotation or terms given by the Company.

2. Orders :-

No orders placed by the Purchaser arising as a result of a Quotation, Terms or

otherwise will be considered as binding on the Company unless that order has been

acknowledged by the Company in writing.

3. Eect of Conditions :-

All orders accepted by the Company will be subject to the Conditions of Sale set out

herein. The Company is not willing to contact otherwise than on these Conditions and

unless otherwise expressly agreed in writing these Conditions shall apply to all contracts

made between the Company and the Purchaser and any documents emanating from

the Purchaser which contain printed or standard Conditions which have been or shall

be sent by the Purchaser and received by the Company on the understanding that they

appear on the Purchasers documents because they are printed thereon will have no

legal eect whatsoever and the Purchaser waives any right which he otherwise might

have to rely on such conditions.

4. Validity of Oer :-

a) Any prices and/or discounts quoted by the Company, whether verbally or written,

will be considered to have a validity of not exceeding 30 days unless otherwise agreed

by the Company in writing.

b) If the Purchaser intends to place an order with the Company subject to the terms

of a nominated or other sub-contract the prices and terms in the tender will not be

binding on the Company unless the Purchaser has fully disclosed to the Company

such items and conditions of the said sub-contract and that the Company has

acknowledged the same in writing.

c) If the Purchaser intends that the price for the goods should be paid to the

Company by a third party (i.e. a Finance Company or similar institution) it must state on

the order that it has received written conrmation from the third party that it will make

payment to the Company in accordance with the terms of Clause 8 hereof and if it fails

to do so, the Purchaser will be bound to make such payments.

5. Prices :-

Unless otherwise agreed in writing the price to be paid will be deemed to have been

stated in the Quotation provided that the Quotation is accepted within 30 days of

issue and delivery is eected within a further 14 days. Otherwise, the Company may, at

its discretion, vary the price by addition upwards to reect market conditions, labour,

material and transportation costs. All prices exclude VAT unless otherwise stated.

6. Specications :-

Whilst all descriptions, specications, drawings and illustrations are supplied in

good faith they are only intended for guidance purposes and the Company will

accept no responsibility whatsoever for any errors, omissions, loss or damage from

the Purchasers reliance on such descriptions, drawings and illustrations. Further, the

Company reserves the right to amend such descriptions, specications, drawings and

illustrations without notice. The Company provides no warranty, and it shall not be

implied, whether through any description or other-wise, that any Goods conform to or

are suitable for any specic purpose, unless written conrmation of such a warranty as

to suitability of the goods for purpose addresses specic goods and the Purchaser. The

Company may recommend to the Purchaser, specic Goods. These recommendations

are based solely upon the information received by the Company from the Purchaser.

Therefore, any recommendations by the Company to the Purchaser in relation to any

Goods shall be provided only as an opinion, and shall not be construed as an express

or implied warranty as to any recommendation given, unless written conrmation of a

warranty to that eect is provided by the Company to the Purchaser and the Purchaser

is referred to the clause immediately preceding this. The suitability of specic goods

for use is ultimately the decision of the Purchaser based solely upon the knowledge

of the Purchaser.

7. Delivery :-

a) Delivery periods are given in good faith and are based from the date of receipt

of order. Whilst we will make every reasonable eort to meet delivery requirements

we will not be liable for any failure to do so, nor for any consequential loss of any kind

arising from late delivery.

b) Deliveries will be made to the destination specied on your order provided this is

clearly indicated.

c) Unless otherwise agreed the cost of carriage will be chargeable to the Purchaser.

Where the Purchaser requests the Company to deliver goods within a timescale

which is shorter than that covered by the Company’s quoted delivery costs then the

Company reserves the right to vary the price by addition upwards to reect additional

costs incurred.

d) Unless otherwise agreed the o loading and safe storage of delivered goods are

the sole responsibility of the Purchaser. Where the Purchaser requests the Company to

provide o-loading facilities then such facilities will be deemed to be chargeable to

reect the additional costs incurred.

e) After delivery the goods are expressly held by the Purchaser at his own risk. The

Purchaser undertakes, following delivery to maintain the goods in the pre-delivery

condition and to insure the goods to their full value and against all risks until such time

as payment and the title passes.

f ) The Company reserves the right to levy additional charges against the Purchaser,

to cover storage, re insurance or other costs incurred by us, in the event that the

goods are held beyond reasonable period of time or should forward instructions to be

withheld.

8. Terms of Payment :-

a) Unless otherwise agreed in writing, and only for approved accounts, all goods

will be invoiced on despatch for payment at the end of month following the date of

invoice.

Where an approved account is not established or where the total order value,

excluding delivery, is less than £50.00 then, at its discretion, the Company may seek

payment prior to delivery.

c) Time for payment shall be of the essence of the contract without prejudice to any

other rights of the Company. If the Purchaser fails to pay the invoice on the due date, the

Purchaser shall pay interest on any overdue amount from the date on which payment

was due to that which payment was made (whether before or after judgement) on

a daily basis of 4% per annum over the base rate quoted from time to time by the

National Westminster Bank plc and reimburse to the Company an administration fee of

£20.00 together with all costs and expenses, including legal costs, in the collection of

any overdue amount.

9. Passing of Property and Risk :-

The risk in the Goods shall pass to the Purchaser on completion of delivery.

Title to the Goods shall not pass to the Purchaser until the Company has received

payment in full (in cash or cleared funds) for:

a) the Goods; and

b) any other Goods that the Company has supplied to the Purchaser in respect of

which payment has become due.

Until title to the Goods has passed to the Purchaser, the Purchaser shall:

a) hold the Goods on a duciary basis as bailee for the Company;

b) store the Goods separately from all other goods held by the purchaser so that they

remain readily identiable as the Company’s property;

c) not remove, deface or obscure any identifying mark or packaging relating to the

Company;

d) maintain the Goods in satisfactory condition and keep them insured against all

risks for their full price from the date of delivery;

e) notify the Company immediately if it becomes subject to the service of a Statutory

Demand or any other action involved in the insolvency of the Purchaser; and

SERVICES & TRAINING

Price List Update: Valid from 1st January 2017

203

f ) give the Company such information relating to the Goods as the Company may

require from time to time.

The Purchaser may resell or use the Goods in the ordinary course of its business.

If before title to the Goods passes to the Purchaser the Purchaser is served with a

Statutory Demand or any other action involved in the insolvency of the Purchaser, or

the Company reasonably believes that any such event is about to happen and noties

the Purchaser accordingly then provided that the Goods haven not been resold and

without limiting any other right or remedy the Company may have, the Company may

at any time require the Purchaser to deliver up the Goods and, if the Purchaser fails to

do so promptly, enter any premises of the Purchaser or of any third party where the

Goods are stored/located in order to recover them.

10. Loss and Damage in Transit :-

a) It is the responsibility of the Purchaser to examine the Goods immediately on

arrival and any shortage or damage be reported to us and to the carriers within 3 days

of receipt.

b) Non delivery of Goods must be reported to us within 10 days of the despatch

dates given on the advice note.

c) The Purchaser will be liable to indemnify the Company for any loss it suers where

it is unable to claim against the carriers by reason of non-fullment of these Conditions.

11. Returned Goods :-

Any Goods returned to the Company for any reason other than faulty condition will

only be accepted with the prior written agreement of the Company.

a) Where such agreement exists then the Purchaser will be responsible for the cost

of safe packing and delivery of Goods including adequate insurance against damage

and loss.

Where such Goods are returned to the Company by agreement and provided

that the Goods are received in a condition which is consistent with the condition

on despatch then a credit will be issued to the value of the returned Goods less any

restocking charge of not less than 15% of the invoice value of the Goods subsequently

returned.

12. Fitness for Purpose :-

The Purchaser is solely responsible for suitability of the Goods for which they are

bought and is reliant upon his own skill and judgement in this respect.

13. Representation :-

Any statements or claims made by the Company, it representatives, distributors and

agents either prior to or during the course of executing a contract between the

Purchaser and the Company are superseded by the Conditions herein and as such they

are not material.

14. Guarantee :-

a) The Company extends to the Purchaser the terms of warranty, guarantee

and conditions that it has, in turn received from the manufacturer. Provided that all

amounts due in accordance with clause 8 hereof have been received by the Company.

b) All guarantees and warranties are subject to the equipment having been stored,

installed, commissioned and maintained in accordance with good practice and the

manufacturer’s recommendations.

c) To facilitate prompt replacement of any item or component we will despatch parts

at the Purchaser’s request on a chargeable basis. When the defective item is returned

to us and provided that the fault has been veried under the terms of the guarantee

then the invoice will be credited or cancelled. Where no such item or component is

subsequently returned within a reasonable period then the Company reserves the

right to seek payment for the goods supplied.

d) The Company explicitly excludes any labour, consequential or other costs

associated with the replacement of Goods, items or components under the terms of

the guarantee.

15. Exclusion of Liability :-

Clause 14 is intended to provide a fair means of resolving disputes about the quality of

Goods supplied, and except as provided therein the Company is not liable for any loss

or damage, whether consequential or otherwise, howsoever arising out of a contract

for the supply of Goods to the Purchaser governed by these Conditions (except for

damages for death or personal injury caused by negligence for which the Company is

responsible) and all conditions or warranties which might be implied by law are hereby

excluded. The Purchaser shall be responsible for ensuring that all Goods subsequently

installed on the Purchaser’s premises or elsewhere do not contravene existing laws and

regulations and are approved by the Purchaser’s insurers.

16. Force Majeure :-

Any delay or failure of performance in executing our obligations shall not be

determined as a fault or give rise to any claim for lock-outs, restriction of supplies,

breakdown of plant or machinery, shortage of labour, war, riots, civil unrest or any other

circumstances reasonably beyond our control.

17. Law and Jurisdiction :-

These Conditions shall be subject to English Law and the exclusive jurisdiction of the

English Courts.

Registered Oce: Batten Street, Aylestone Road, Leicester. LE2 7PB

A Member of the Smith Brothers (Leicester) Limited Group of Companies

Registration No 962846

SERVICES & TRAINING

Residential, Commercial and Industrial

204

Notes

Smith Brothers Stores Ltd

SBS is one of the oldest

and largest independent

merchants operating from

within the U.K. directly

focusing on supplying to the

commercial and industrial

mechanical services sector.

The core business has specialised in the distribution

of pipework, valves and all associated ttings for over

100 years. In recent years we were appointed as a

Daikin partner dealer and we have complemented this

with an extensive air conditioning ancillary range of

products. Currently operating from eleven branches,

along with a separate Head Oce in Leicester,

more are planned for the very near future. SBS should

be the number one choice for the mechanical services

air conditioning contractor who relies on quality of

service combined with competitive pricing.

With 100 years of experience, comes expertise

and credibility.

This digital price book update reects the planned

+4% price increase, as communicated to customers

in our letter dated 1 October 2016. Please note

that, in order to keep our pricing simple, we have

rounded to the nearest pound, therefore the exact

price increase may be fractionally dierent to

+4% on individual items.

Conditions

Capacity Conditions

Unit cooling and heating capacities shown within

this price list are based on the following conditions:

Nominal cooling

Ambient = 35°C

Internal = 27°C db 19°C wb

Nominal heating

Ambient = 7°C db 6°C wb

Internal = 20°C db

UK cooling

Ambient = 30°C

Internal = 22°C db 16°C wb

Seasonal Eciency

Split and Sky Air

Systems of up to 12kW must now show Seasonal

Eciency Ratings instead of Nominal Eciency Ratings.

These ratings (SEER for cooling, SCOP for heating)

represent how eective a system is throughout

the year, and are in accordance with EN14825.

For more information on Seasonal Eciency,

visit www.daikin.co.uk/seasonal-eciency

For Daikin UK, this means all our Split and Sky Air

products up to 12kW display SEER and SCOP data along

with Energy Label information and Annual Energy

Consumption of the system. The AEC is based upon

500 hours use per year.

VRV (ESEER)

ESEER is dened as the European Seasonal Energy

Eciency Ratio and is a measure of the performance of

the outdoor unit only.

Nominal Eciency

This measure of eciency is calculated by dividing the

capacity output of a unit by the power required to deliver it.

For cooling, this is expressed as EER, for heating as COP.

Nominal Eciencies are used for systems above 12kW. It is

not possible to compare Nominal and Seasonal Eciency

ratings due to the dierent calculation methods used.

Heat Source

Unless otherwise indicated, all units within this

price list are air-cooled.

Daikin UK Price List

Update: Valid from 1st January 2017

Branch Locations

Birmingham

Unit 1 Alpha Park,

Bevan Way, Smethwick,

West Midlands, B66 1BZ

Tel: 0121 555 1900

Fax: 0121 555 1901

email: birmingham@sbs.co.uk

Leeds

Unit 1 Quantum Business Park,

Pontefract Road, Stourton,

Leeds, LS10 1AX

Tel: 0113 201 4222

Fax: 0113 201 4223

email: leeds@sbs.co.uk

Leicester

99 Commercial Square,

Freemans Common Industrial Estate,

Leicester, LE2 7SR

Tel: 0116 222 7355

Fax: 0116 244 0430

email: leicester@sbs.co.uk

London

Units 3 & 4 Eurocourt,

Oliver Close, West Thurrock,

Essex, RM20 3EE

Tel: 01708 689 900

Fax: 01708 689 901

email: london@sbs.co.uk

Northampton

Unit 3 Reynoldston Close,

Brackmills Industrial Estate,

Northampton, NN4 7BX

Tel: 01604 763 621

Fax: 01604 760 903

email: northampton@sbs.co.uk

Oldham

Unit N Oldham Central Trading Park

Coulton Close

Oldham OL1 4EB

Tel: 0161 621 6288

Fax: 0161 621 6289

email: oldham@sbs.co.uk

Peterborough

Empson Road

Eastern Industry

Peterborough PE1 5UP

Tel: 01733 311 711

Fax: 01733 345 293

email: peterborough@sbs.co.uk

Bristol

Units 9/10 Cala Trading Estate,

Ashton Vale Road,

Bristol, BS3 2HA

Tel: 0117 947 1111

Fax: 0117 947 1122

email: bristol@sbs.co.uk

Registered Office: Batten Street, Aylestone Road, Leicester. LE2 7PB

A Member of the Smith Brothers (Leicester) Limited Group of Companies

Registration No 962846

Southampton

Unit 3 St Georges Industrial Estate

Goodwood Road, Boyatt Wood

Eastleigh SO50 4NT

Tel: 02380 623 070

Fax: 02380 614 320

email: southampton@sbs.co.uk

Smith Brothers Stores Ltd

Suppliers to Building Services

Cardiff

Unit 2 Dominions Way Industrial

Estate, Newport Road,

Cardiff, CF24 1RF

Tel: 02921 671 250

Fax: 02921 671 251

email: cardiff@sbs.co.uk

Heathrow

Unit 2 Pier Road,

Feltham, Greater London,

TW14 0TW

Tel: 0203 8565 620

Fax: 0203 8565 630

email: heathrow@sbs.co.uk

Head Office & Accounts

Unit V2 Winchester Avenue, Blaby, Leicester, LE8 4GZ

Tel: 0116 222 7330 Fax: 0116 222 7331 email: head.office@sbs.co.uk

Daikin UK Price List Update: Valid from 1st January 2017
