1www.hzgrow.com

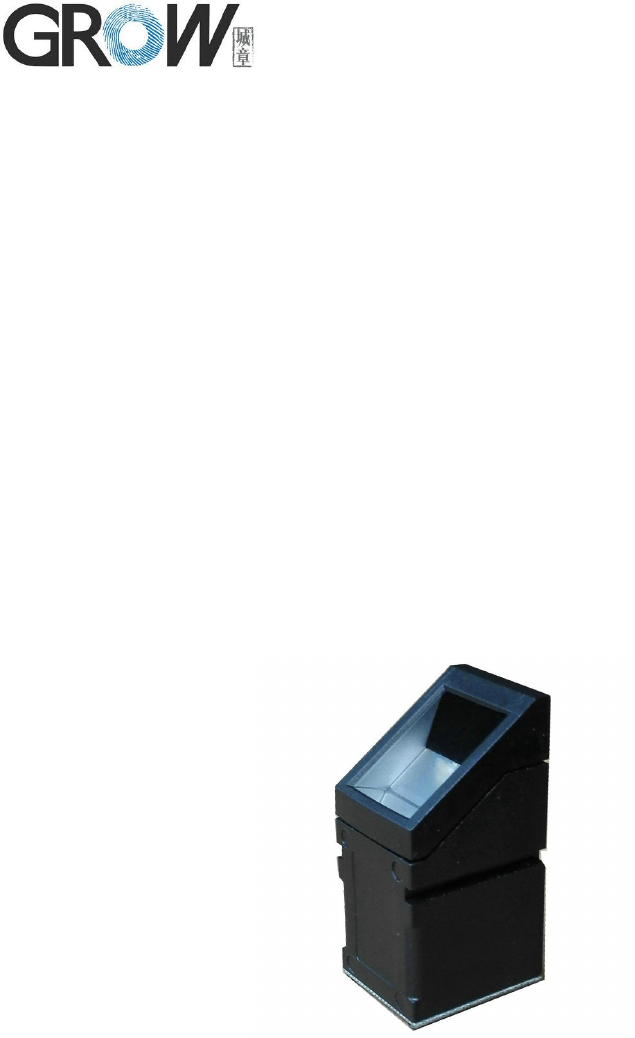

R307 Fingerprint Module
User Manual
Hangzhou Grow Technology Co., Ltd
Feb 2011 Ver: 1.20
Iwww.hzgrow.com
Preface & Declaration
Thank you for you selection of R307 Fingerprint Identification Module (Module) of
GROW.
The Manual is targeted for hardware & software developing engineer, covering
hardware interface, system resource, instruction system, installment information, etc. To
ensure the developing process goes smoothly, it is highly recommended the Manual is
read through carefully.
We will try our best to assure you the correctness of the Manual. However, should you
find any problem or error with it, feel free to contact us or the sales representative of us.
We would be very grateful.
Holding the principle of constantly improving and perfecting products, so both the
module and contents of the Manual might subject to changes. Sorry for separate notice.
You may visit our website or call us for the latest information.
The Manual contains proprietary information of GROW, which shall not be used by or
disclosed to third parties without the permission of GROW, nor for any reproduction and
alteration of information without any associated warranties, conditions, limitations, or
notices.
No responsibility or liability is assumed by GROW for the application or use, nor for
any infringements of patents or other intellectual property rights of third parties that may
result from its use.
All products are sold subject to GROW’s terms and conditions of sale supplied at the
time of order acknowledgment. Testing, tool and other quality control techniques are
used to the extent GROW considers necessary to support the warranty of relevant
performance of its products to the specifications, except as expressly agreed to in writing
by government requirements, testing of all parameters of each product is not necessarily
performed.
www.hzgrow.com
- 1 - www.hzgrow.com
I Introduction
Operation Principle
Fingerprint processing includes two parts: fingerprint enrollment and fingerprint matching (the
matching can be 1:1 or 1:N).
When enrolling, user needs to enter the finger two times. The system will process the two time
finger images, generate a template of the finger based on processing results and store the template.
When matching, user enters the finger through optical sensor and system will generate a template
of the finger and compare it with templates of the finger library. For 1:1 matching, system will
compare the live finger with specific template designated in the Module; for 1:N matching, or
searching, system will search the whole finger library for the matching finger. In both
circumstances, system will return the matching result, success or failure.
Power
DC 4.2V-6V
Interface
UART(TTL logical
level)/ USB 2.0
Working current
Typical: 50mA
Matching Mode
1:1 and 1:N
Baud rate
(9600*N)bps,
N=1～12 (default N=6）
Character file size
256 bytes
Image acquiring time
<0.5s
Template size
512 bytes
Storage capacity
1000
Security level
5 (1, 2, 3, 4,
5(highest))
FAR
<0.001%
FRR
<0.1%
Average searching time
< 1s (1:1000)
Window dimension
19mm*21mm
Working environment
Temp: -10℃- +40℃
Storage environment
Temp: -40℃- +85℃
RH: 20%-85%
RH: <85%
Outline Dimention
Split type
Module: 44.1*20*23.5 mm
- 2 - www.hzgrow.com

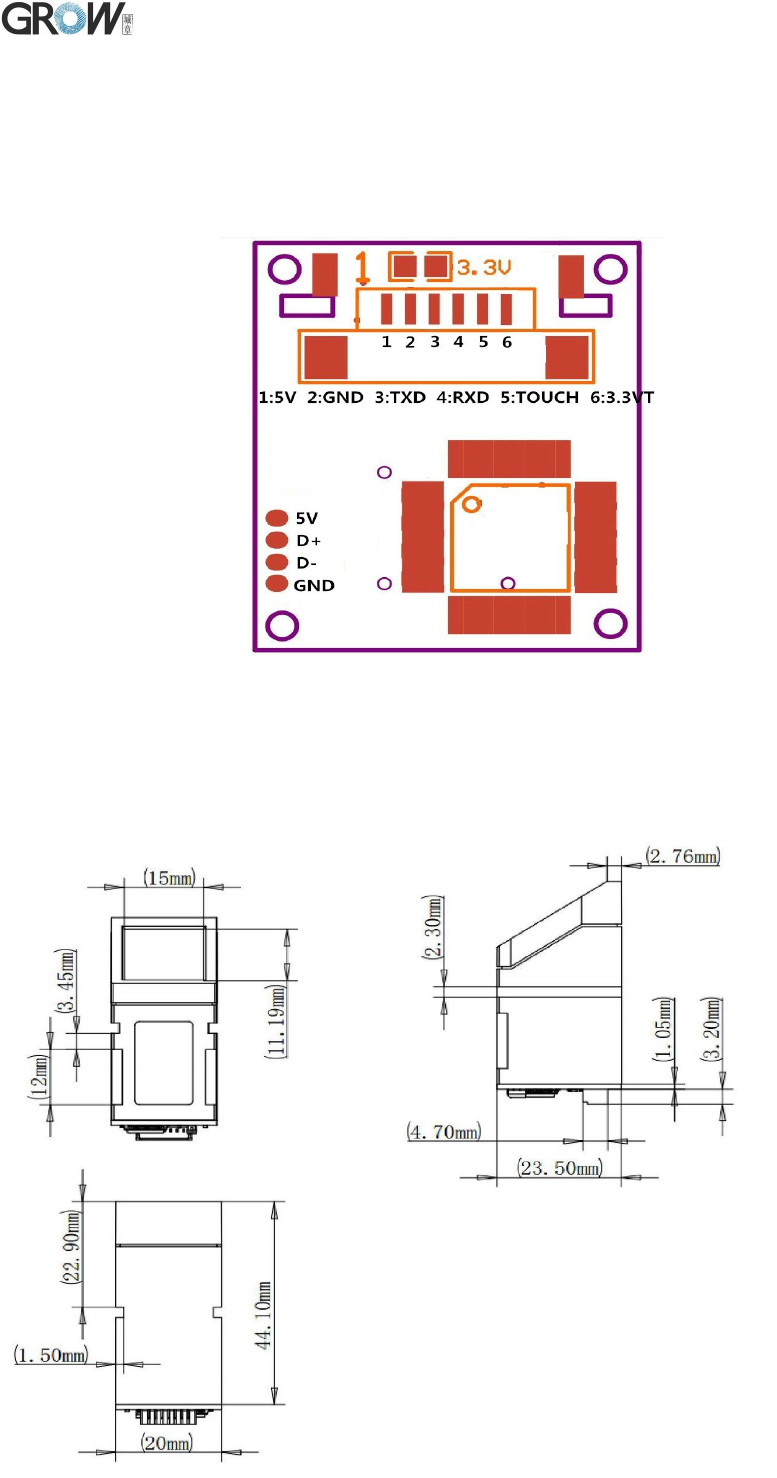

II Hardware Interface
Exterior Interface
Dimension
- 3 - www.hzgrow.com

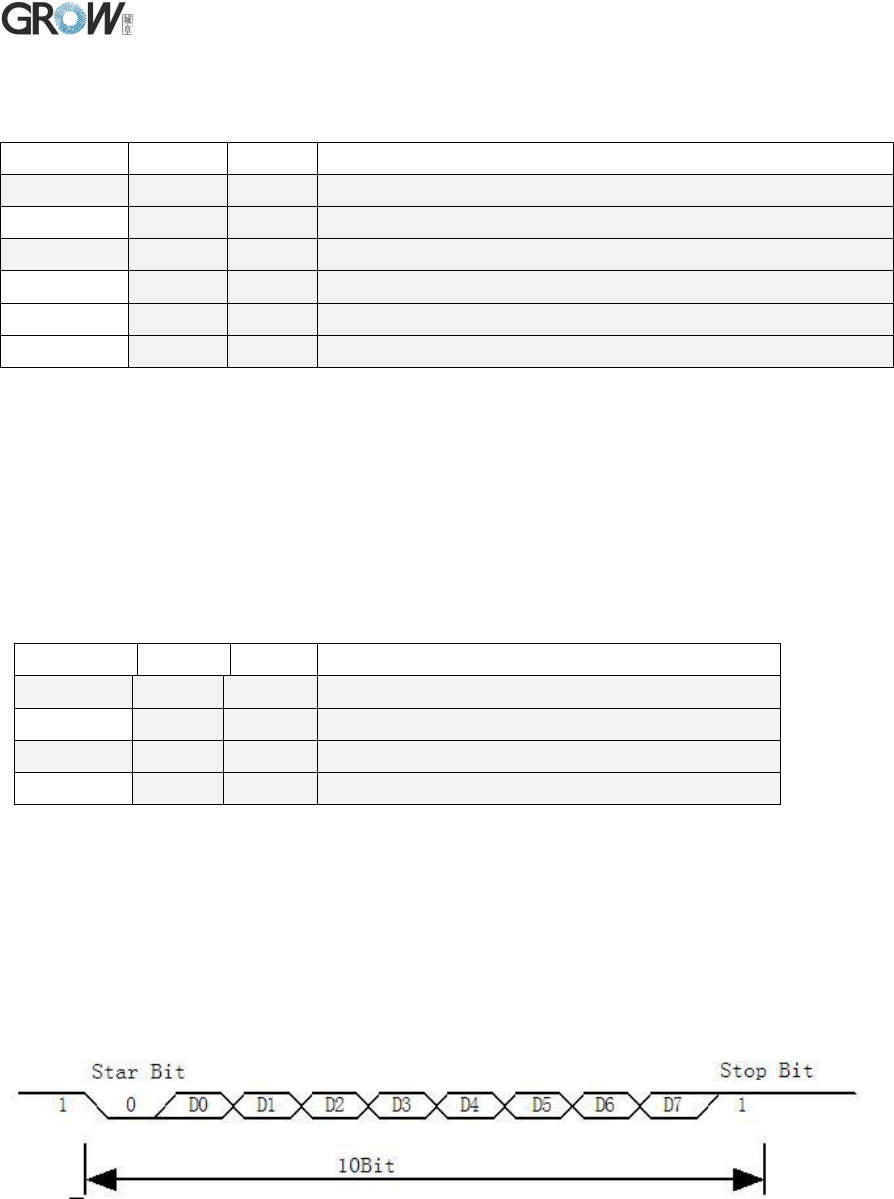

Serial Communication
When the FP module communicates with user device, definition of J1 is as follows:
Pin Nmuber
Name
Type
Function Description
1
5V
in
Power input (DC4.2V - 6V)
2
GND
-
Signal ground. Connected to power ground
3
TXD
out
Data output. TTL logical level
4
RXD
in
Data input. TTL logical leve
5
Touch
out
Finger detection signal（maximum output current: 50mA）
6
3.3V
in
Finger detection power (DC3.3V - 5V、about 5uA)
Hardware connection
Via serial interface, the Module may communicate with MCU of 3.3V or 5V power: TXD (pin 3 of
P1) connects with RXD (receiving pin of MCU), RXD (pin 4 of P1) connects with TXD
(transferring pin of MCU). Should the upper computer (PC) be in RS-232 mode, please add level
converting circuit, like MAX232, between the Module and PC.
USB Communication
Pin Nmuber
Name
Type
Function Description
7
5V
in
Power input
8
D+
out
USB data output.
9
D-
in
USB data input.
10
GND
－
Signal ground.
Serial communication protocol
The mode is semiduplex asychronism serial communication. And the default baud rate is 57600bps.
User may set the baud rate in 9600～115200bps。
Transferring frame format is 10 bit: the low-level starting bit, 8-bit data with the LSB first, and an
ending bit. There is no check bit.
Reset time
At power on, it takes about 200ms for initialization. During this period, the Module can’t accept
commands for upper computer.
- 4 - www.hzgrow.com
III System Resources
To address demands of different customer, Module system provides abundant resources at user’s
use.
Notepad
512-byte memory is set aside in flash for User’s notepad. The notepad is
divided into 16 pages logically, 32 bytes per page. The host can access any page by
instruction GR_WriteNotepad or GR_ReadNotepad.
Note
: when written, the whole page is taken as a whole and its former contents will
be replaced.
Buffer
There are an image buffer and two 512-byte-character-file buffer within the RAM space of the
module. Users can read & write any of the buffers by instructions.
Note: Contents of the above buffers will be lost at power-off.
Image buffer
ImageBuffer serves for image storage and the image format is 256*288 pixels, form is BMP.
When transferring through UART, to quicken speed, only the upper 4 bits of the pixel is transferred
(that is 16 grey degrees). And two adjacent pixels of the same row will form a byte before the
transferring. When uploaded to PC, the 16-grey-degree image will be extended to 256-grey-degree
format. That’s 8-bit BMP format.
When transferring through USB, the image is 8-bit pixel, that’s 256 grey degrees.
Character file buffer
Character file buffer, CharBuffer1, CharBuffer2, can be used to store both character file and
template file.
Fingerprint Library
Synstem sets aside a certain space within Flash for fingerprint template storage, that’s fingerprint
library. Contents of the library remain at power off.
Capacity of the library changes with the capacity of Flash, system will recognize the latter
automatically. Fingerprint template’s storage in Flash is in sequential order. Assume the fingerprint
capacity N, then the serial number of template in library is 0, 1, 2, 3 … N. User can only access
library by template number.
System Confiuration Parameter
To facilitate user’s developing, Module opens part system parameters for use. And the basic
instructions are SetSysPara & ReadSysPara. Both instructions take Parameter Number as
- 5 - www.hzgrow.com
parameter.
When upper computer sends command to modify parameter, Module first responses with original
configurations, then performs the parameter modification and writes configuration record into Flash.
At the next startup, system will run with the new configurations.
Baud rate control (Parameter Number: 4)
The Parameter controls the UART communication speed of the Modul. Its value is an integer N,
N= [1, 12]. Cooresponding baud rate is 9600*N bps。
Security Level (Parameter Number: 5)
The Parameter controls the matching threshold value of fingerprint searching and matching.
Security level is divided into 5 grades, and cooresponding value is 1, 2, 3, 4, 5. At level 1, FAR is
the highest and FRR is the lowest; however at level 5, FAR is the lowest and FRR is the highest.
Data package length (Parameter Number: 6)
The parameter decides the max length of the transferring data package when communicating with
upper computer. Its value is 0, 1, 2, 3, corresponding to 32 bytes, 64 bytes, 128 bytes, 256 bytes
respectively.
System status register
System status register indicates the current operation status of the Module. Its length is 1 word, and
can be read via instruction ReadSysPara. Definition of the register is as follows:
Bit Num
15 4
3
2
1
0
Description
Reserved
ImgBufStat
PWD
Pass
Busy
Note:
Busy：1 bit. 1: system is executing commands; 0: system is free;
Pass：1 bit. 1: find the matching finger; 0: wrong finger;
PWD：1 bit. 1: Verified device’s handshaking password.
ImgBufStat：1 bit. 1: image buffer contains valid image.
Module password
At power-on reset, system first checks whether the handshaking password has been modified. If not,
system deems upper computer has no requirement of verifying password and will enter into normal
operation mode. That’s, when Module password remains the default, verifying process can be
jumped. The password length is 4 bytes, and its default factory value is 0FFH, 0FFH, 0FFH, 0FFH.
Should the password have be modified, refer to instruction SetPwd, then Module (or device)
handshaking password must be verified before the system enter into normal operation mode. Or
else, system will refuse to execute and command.
The new modified password is stored in Flash and remains at power off.
- 6 - www.hzgrow.com
Module address
Each module has an identifying address. When communicating with upper computer, each
instruction/data is transferred in data package form, which contains the address item. Module
system only responds to data package whose address item value is the same with its identifying
address.
The address length is 4 bytes, and its default factory value is 0xFFFFFFFF. User may modify the
address via instruction SetAdder. The new modified address remains at power off.
Random number generator
Module integrates a hardware 32-bit random number generator (RNG) (without seed). Via
instruction GetRandomCode, system will generate a random number and upload it.
IV Communication Protocol
The protocol defines the data exchanging format when R30X series communicates with upper
computer. The protocol and instruction sets apples for both UART and USB communication mode.
For PC, USB interface is strongly recommended to improve the exchanging speed, especially in
fingerprint scanning device.
5.1 Data package format
When communicating, the transferring and receiving of command/data/result are all wrapped in
data package format.
Data package format
Header
Adder
Package
identifier
Package
length
Package content
(instuction/data/Parameter）
Checksum
Definition of Data package
Name
Symbol
Length
Description
Header
Start
2 bytes
Fixed value of 0xEF01; High byte transferred first.
Adder
ADDER
4 bytes
Default value is 0xFFFFFFFF, which can be modified by
command. High byte transferred first and at wrong adder value,
module will reject to transfer.
Package
identifier
PID
1 byte
01H
Command packet;
02H
Data packet; Data packet shall not appear alone in
executing processs, must follow command packet or
acknowledge packet.
07H
Acknowledge packet;
- 7 - www.hzgrow.com
08H
End of Data packet.
Package
length
LENGTH
2 bytes
Refers to the length of package content (command packets and
data packets) plus the length of Checksum( 2 bytes). Unit is
byte. Max length is 256 bytes. And high byte is transferred first.
Package
contents
DATA
－
It can be commands, data, command’s parameters,
acknowledge result, etc. (fingerprint character value, template
are all deemed as data);
Checksum
SUM
2 bytes
The arithmetic sum of package identifier, package length and
all package contens. Overflowing bits are omitted. high byte is
transferred first.
Check and acknowledgement of data package
Note: Commands shall only be sent from upper computer to the Module, and the Module
acknowledges the commands.
Upon receipt of commands, Module will report the commands execution status and results to upper
computer through acknowledge packet. Acknowledge packet has parameters and may also have
following data packet. Upper computer can’t ascertain Module’s package receiving status or
command execution results unless through acknowledge packet sent from Module. Acknowledge
packet includes 1 byte confirmation code and maybe also the returned parameter.
Confirmation code’s definition is :
00h: commad execution complete;
01h: error when receiving data package;
02h: no finger on the sensor;
03h: fail to enroll the finger;
04h: fail to generate character file due to the over-disorderly fingerprint image;
05h: fail to generate character file due to the over-wet fingerprint image;
06h: ail to generate character file due to the over-disorderly fingerprint image;
07h: fail to generate character file due to lackness of character point or over-smallness of
fingerprint image
08h: finger doesn’t match;
09h: fail to find the matching finger;
0Ah: fail to combine the character files;
0Bh: addressing PageID is beyond the finger library;
0Ch: error when reading template from library or the template is invalid;
0Dh: error when uploading template;
0Eh: Module can’t receive the following data packages.
0Fh: error when uploading image;
10h: fail to delete the template;
11h: fail to clear finger library;
13h: wrong password!
15h: fail to generate the image for the lackness of valid primary image;
18h: error when writing flash;
19h: No definition error;
- 8 - www.hzgrow.com
1Ah: invalid register number;
1Bh: incorrect configuration of register;
1Ch: wrong notepad page number;
1Dh: fail to operate the communication port;
others: system reserved;
41h: No finger on sensor when add fingerprint on second time.
42h: fail to enroll the finger for second fingerprint add.
43h: fail to generate character file due to lackness of character point or over-smallness of
fingerprint image for second fingerprint add
44h: fail to generate character file due to the over-disorderly fingerprint image for second
fingerprint add;
45h: Duplicate fingerprint
V Module Instruction System
R30X series provide 23 instructions. Through combination of different instructions, application
program may realize muti finger authentication functions. All commands/data are transferred in
package format. Refer to 5.1 for the detailed information of package.
System-related instructions
Verify passwoard VfyPwd
Description: Verify Module’s handshaking password. (Refer to 4.6 for details)
Input Parameter: PassWord (4 bytes)
Return Parameter: Confirmation code (1 byte)
Instruction code: 13H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
4 byte
2 bytes
Header
Module
address
Package
identifier
Instruction
code
Password
Checksum
0xEF01
xxxx
01H
07H
13H
PassWord
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package
Length
Confirmation
code
Checksum
0xEF01
xxxx
07H
03H
xxH
sum
Note: Confirmation code = 00H: Correct password;
Confirmation code = 01H: error when receiving package;
Confirmation code = 13H: Wrong password;
Set password SetPwd
Description: Set Module’s handshaking password. (Refer to 4.6 for details)
Input Parameter: PassWord (4 bytes)
- 9 - www.hzgrow.com
Return Parameter: Confirmation code (1 byte)
Instruction code: 12H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
4 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Password
Checksum
0xEF01
xxxx
01H
07H
12H
PassWord
sum
Acknowledge package format:
2 bytes
4 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package length
Confirmation
code
Checksum
0xEF01
xxxx
03H
xxH
Sum
Note: Confirmation code=00H: password setting complete;
Confirmation code=01H: error when receiving package;
Set Module address SetAdder
Description: Set Module address. (Refer to 4.7 for adderss information)
Input Parameter: None;
Return Parameter: Confirmation code (1 byte)
Instruction code: 15H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
4 bytes
2 bytes
Header
Original
Module address
Package
identifier
Package
length
Instruction
code
New Module
address
Checksum
0xEF01
xxxx
01H
07H
15H
xxxx
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
New Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
xxxx
07H
07H
xxH
Sum
Note: Confirmation code=00H: address setting complete;
Confirmation code=01H: error when receiving package;
Set module system’s basic parameter SetSysPara
Description: Operation parameter settings. (Refer to 4.4 for more information)
Input Parameter: Parameter number;
Return Parameter: Confirmation code (1 byte)
Instruction code: 0eH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1byte
1byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Parameter
number
Contents
Checksum
0xEF01
Xxxx
01H
05H
0eH
4/5/6
xx
sum
- 10 - www.hzgrow.com
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
Xxxx
07H
03H
xxH
Sum
Note: Confirmation code=00H: parameter setting complete;
Confirmation code=01H: error when receiving package;
Confirmation code=1aH: wrong register number;
Port Control Control
Description:
For UART protocol, it control the “on/off”of USB port;
For USB protocol, it control the “on/off”of UART port;
Input Parameter: control code
Control code ”0” means turns off the port;
Control code ”1” means turns on the port;
Return Parameter: confirmation code;
Instruction code: 17H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1byte
2 bytes
Header
Chip
address
Package
identifier
Package
length
Instruction
code
Control
code
Checksum
0xEF01
xxxx
01H
04H
17H
0/1
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Chip
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
xxxx
07H
03H
xxH
sum
Note: Confirmation code=00H: Port operation complete;
Confirmation code=01H: error when receiving package;
Confirmation code=1dH: fail to operate the communication port;
Read system Parameter ReadSysPara
Description: Read Module’s status register and system basic configuration parameters;（Refer to 4.4
for system configuration parameter and 4.5 for system status register）.
Input Parameter：none
Return Parameter：Confirmation code (1 byte) + basic parameter（16bytes）
Instuction code: 0fH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package length
Instruction
code
Checksum
0xEF01
Xxxx
01H
03H
0fH
sum
Acknowledge package format:
- 11 - www.hzgrow.com
2 bytes
4bytes
1 byte
2 bytes
1 byte
16 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Basic parameter
list
Checksum
0xEF01
xxxx
07H
3+16
xxH
See following
table
sum
Note: Confirmation code=00H: read complete;
Confirmation code=01H: error when receiving package;
Name
Description
Offset (word)
Size (word)
Status register
Contents of system status register
0
1
System identifier code
Fixed value: 0x0009
1
1
Finger library size
Finger library size
2
1
Security level
Security level (1, 2, 3, 4, 5)
3
1
Device address
32-bit device address
4
2
Data packet size
Size code (0, 1, 2, 3)
6
1
Baud settings
N (baud = 9600*N bps)
7
1
Read valid template number TempleteNum
Description: read the current valid template number of the Module
Input Parameter: none
Return Parameter: Confirmation code (1 byte)，template number:N
Instuction code: 1dH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package
length
Instruction
code
Checksum
0xEF01
xxxx
01H
0003H
1dH
0021H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Template
number
Checksum
0xEF01
xxxx
07H
5
xxH
N
sum
Note: Confirmation code=00H: read complete;
Confirmation code=01H: error when receiving package;
Fingerprint verification GR_Auto Search
Description: Match captured fingerprint with fingerprint library ,then return the result. Self-define
time for capture , Search start position code and search quantity.
Input parameter: capture time, start bit number, search quantity
Return parameter: Confirmation code; page; Match score
Instruction code: 32H
Command (or instruction) package format:
2 bytes
4 bytes
1 bytes
2 bytes
1 bytes
1 bytes
2 bytes
2 bytes
2 bytes
Header
Original
Package
Package
Instructi
Time
start bit
search
Checksu
- 12 - www.hzgrow.com
Module
address
identifie
r
length
on code
for
capture
number
quantity
m
0xEF01
xxxx
01H
08H
32H
xxH
xxxxH
xxH
sum
Note:
1. original module address: 0XFFFFFFFF
2. capture time: 0~ffH，0x20≈4.5s，0x25 ≈5.5 秒，0x30 ≈6.5 秒.
3. Start bit: 0~ max fingerprint capacity
4. Search quantity: 0 ~ N-1 max fingerprint capacity
Acknowledge package format:
2 bytes
4 bytes
1 bytes
2 bytes
1 bytes
2 bytes
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirma
tion code
page
score
Checksu
m
0xEF01
xxxx
07H
07H
xxH
PageID
MatchSc
ore
sum
Note:
1. Confirmation code=00H: read complete;
2. Confirmation code=01H: error when receiving package
3. Confirmation code=06H:fail to generate character file due to the over-disorderly
fingerprint image;
4. Confirmation code=07H: fail to generate character file due to lackness of character point
or over-smallness of fingerprint image;
5. Confirmation code=09H: No matching in the library (both the PageID and matching
score are 0);
Automatic Fingerprint verification GR_Identify
Description: Automatic collect fingerprint, match captured fingerprint with fingerprint library and
return result.
Input parameter: None
Return parameter: Confirmation code; page; Match score
Instruction code: 34H
Command (or instruction) package format:
2 bytes
4 bytes
1 byte
2 byte
1 byte
2 byte
Header
Module
address
Package
identifier
Package
length
Instruction
code
Checksum
0xEF01
xxxx
01H
03H
34H
38H
Note: Default module address: 0XFFFFFFFF
Acknowledge package format:
Note:
2 bytes
4 bytes
1 bytes
2 bytes
1 bytes
2 bytes
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirma
tion code
page
score
Checksu
m
0xEF01
xxxx
07H
07H
xxH
PageID
MatchSc
ore
sum
- 13 - www.hzgrow.com
1. Confirmation code=00H: read complete;
2. Confirmation code=01H: error when receiving package
3. Confirmation code=06H:fail to generate character file due to the over-disorderly
fingerprint image;
4. Confirmation code=07H: fail to generate character file due to lackness of character point
or over-smallness of fingerprint image;
5. Confirmation code=09H: No matching in the library (both the PageID and matching
score are 0);
Fingerprint-processing instructions
To collect finger image GenImg
Description: detecting finger and store the detected finger image in ImageBuffer while
returning successfull confirmation code; If there is no finger, returned confirmation code
would be “can’t detect finger”.
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instuction code: 01H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package length
Instruction
code
Checksum
0xEF01
Xxxx
01H
03H
01H
05H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
Xxxx
07H
03H
xxH
Sum
Note: Confirmation code=00H: finger collection successs;
Confirmation code=01H: error when receiving package;
Confirmation code=02H: can’t detect finger;
Confirmation code=03H: fail to collect finger;
Upload image UpImage
Description: to upload the image in Img_Buffer to upper computer. Refer to 1.1.1 for more about
image buffer.
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instuction code: 0aH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package length
Instruction code
Checksum
- 14 - www.hzgrow.com
0xEF01
Xxxx
01H
03H
0aH
000eH
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
Xxxx
07H
03H
xxH
sum
Note 1：Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0fH: fail to transfer the following data packet;
2：Module shall transfer the following data packet after responding to the upper
computer.
Download the image DownImage
Description: to download image from upper computer to Img_Buffer. Refer to 1.1.1 for more about
the image buffer.
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instuction code: 0bH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package
length
Instruction
code
Checksum
0xEF01
Xxxx
01H
03H
0bH
000fH
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
Xxxx
07H
03H
xxH
sum
Note: 1：Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0eH: fail to transfer the following data packet;
2：Module shall transfer the following data packet after responding to the upper computer.
Data package length must be 64, 128, or 256。
To generate character file from image Img2Tz
Description: to generate character file from the original finger image in ImageBuffer and
store the file in CharBuffer1 or CharBuffer2.
Input Parameter: BufferID (character file buffer number)
Return Parameter: Confirmation code (1 byte)
Instuction code: 02H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Buffer
number
Checksum
- 15 - www.hzgrow.com
0xEF01
xxxx
01H
04H
02H
BufferID
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values
(except 1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package length
Confirmation
code
Checksum
0xEF01
xxxx
07H
03H
XxH
sum
Note: Confirmation code=00H: generate character file complete;
Confirmation code=01H: error when receiving package;
Confirmation code=06H: fail to generate character file due to the over-disorderly
fingerprint image;
Confirmation code=07H: fail to generate character file due to lackness of character
point or over-smallness of fingerprint image;
Confirmation code=15H: fail to generate the image for the lackness of valid primary
image;
To generate template RegModel
Description: To combine information of character files from CharBuffer1 and CharBuffer2 and
generate a template which is stroed back in both CharBuffer1 and CharBuffer2.
Input Parameter：none
Return Parameter：Confirmation code (1 byte)
Instuction code: 05H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Checksum
0xEF01
xxxx
01H
03H
05H
09H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
xxxx
07H
03H
xxH
sum
Note: Confirmation code=00H: operation success;
Confirmation code=01H: error when receiving package;
Confirmation code=0aH: fail to combine the character files. That’s, the character files
don’t belong to one finger.
To upload character or template UpChar
Description: to upload the character file or template of CharBuffer1/CharBuffer2 to upper
computer;
Input Parameter: BufferID (Buffer number)
Return Parameter: Confirmation code (1 byte)
- 16 - www.hzgrow.com
Instuction code: 08H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Buffer
number
Checksum
0xEF01
xxxx
01H
04H
08H
BufferID
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values
(except 1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
xxxx
07H
03H
xxH
sum
Note 1: Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0dH: error when uploading template;
2: Module shall transfer following data packet after responding to the upper computer.;
3: The instruction doesn’t affect buffer contents.
To download character file or template DownChar
Description: to download character file or template from upper computer to the specified buffer of
Module;
Input Parameter: BufferID (buffer number)
Return Parameter: Confirmation code (1 byte)
Instuction code: 09H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
buffer
number
Checksum
0xEF01
xxxx
01H
04H
09H
BufferID
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values (except
1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
xxxx
07H
03H
xxH
sum
Note 1: Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0eH: fail to receive the following data packages.
2: Module shall transfer the following data packet after responding to the upper
computer.
- 17 - www.hzgrow.com
To store template Store
Description: to store the template of specified buffer (Buffer1/Buffer2) at the designated location of
Flash library.
Input Parameter: BufferID(buffer number), PageID（Flash location of the template, two bytes with
high byte front and low byte behind）
Return Parameter: Confirmation code (1 byte)
Instuction code: 06H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
buffer
number
Location
number
Checksum
0xEF01
xxxx
01H
06H
06H
BufferID
PageID
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values
(except 1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
Xxxx
07H
03H
xxH
sum
Note: Confirmation code=00H: storage success;
Confirmation code=01H: error when receiving package;
Confirmation code=0bH: addressing PageID is beyond the finger library;
Confirmation code=18H: error when writing Flash.
To read template from Flash library LoadChar
Description: to load template at the specified location (PageID) of Flash library to template buffer
CharBuffer1/CharBuffer2
Input Parameter: BufferID(buffer number), PageID (Flash location of the template, two bytes with
high byte front and low byte behind)。
Return Parameter: Confirmation code (1 byte)
Instuction code: 07H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
buffer
number
Page
number
Checksum
0xEF01
xxxx
01H
06H
07H
BufferID
PageID
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values (except
1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
xxxx
07H
03H
XxH
sum
- 18 - www.hzgrow.com
Note: Confirmation code=00H: load success;
Confirmation code=01H: error when receiving package;
Confirmation code=0cH: error when reading template from library or the readout template is
invalid;
Confirmation code=0BH: addressing PageID is beyond the finger library;
To delete template DeletChar
Description: to delete a segment (N) of templates of Flash library started from the specified
location (or PageID);
Input Parameter: PageID (template number in Flash), N (number of templates to be deleted)
Return Parameter: Confirmation code (1 byte)
Instuction code: 0cH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
2bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Page
number
number of
templates to
be deleted
Checksum
0xEF01
Xxxx
01H
07H
0cH
PageID
N
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package identifier
Package
length
Confirmation
code
Checksum
0xEF01
Xxxx
07H
03H
xxH
sum
Note: Confirmation code=00H: delete success;
Confirmation code=01H: error when receiving package;
Confirmation code=10H: faile to delete templates;
To empty finger library Empty
Description: to delete all the templates in the Flash library
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instuction code: 0dH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Checksum
0xEF01
Xxxx
01H
03H
0dH
0011H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
0xEF01
Xxxx
07H
03H
xxH
sum
Note: Confirmation code=00H: empty success;
Confirmation code=01H: error when receiving package;
- 19 - www.hzgrow.com
Confirmation code=11H: fail to clear finger library;
To carry out precise matching of two finger templates Match
Description: to carry out precise matching of templates from CharBuffer1 and CharBuffer2,
providing matching results.
Input Parameter: none
Return Parameter: Confirmation code (1 byte)，matching score.
Instuction code: 03H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package length
Instruction code
Checksum
0xEF01
Xxxx
01H
03H
03H
07H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Matching
score
Checksum
0xEF01
Xxxx
07H
05H
XxH
XxH
sum
Note 1: Confirmation code=00H: templates of the two buffers are matching!
Confirmation code=01H: error when receiving package;
Confirmation code=08H: templates of the two buffers aren’t matching;
2: The instruction doesn’t affect the contents of the buffers.
To search finger library Search
Description: to search the whole finger library for the template that matches the one in CharBuffer1
or CharBuffer2. When found, PageID will be returned.
Input Parameter: BufferID, StartPage (searching start address), PageNum（searching numbers）
Return Parameter: Confirmation code (1 byte), PageID (matching templates location）
Instuction code: 04H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
2 bytes
2 bytes
Header
Module
address
Package
identifie
r
Package
length
Instructio
n code
buffer
number
Parameter
Parameter
Checks
um
0xEF01
xxxx
01H
08H
04H
BufferID
StartPage
PageNum
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values
(except 1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
页码
得分
Checksum
0xEF01
xxxx
07H
7
xxH
PageID
MatchScore
sum
Note 1: Confirmation code=00H: found the matching finer;
- 20 - www.hzgrow.com
Confirmation code=01H: error when receiving package;
Confirmation code=09H: No matching in the library (both the PageID and
matching score are 0);
2: The instruction doesn’t affect the contents of the buffers.
Other instructions
To generate a random code GetRandomCode
Description: to command the Module to generate a random number and return it to upper
computer;Refer to 4.8 for more about Random Number Generator;
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instuction code: 14H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package length
Instruction
code
Checksum
0xEF01
xxxx
01H
03H
14H
0018H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
4 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Random
number
Checksum
0xEF01
xxxx
07H
07H
xxH
xxxx
sum
Note: Confirmation code=00H: generation success;
Confirmation code=01H: error when receiving package;
To write note pad WriteNotepad
Description: for upper computer to write data to the specified Flash page (refer to 4.1 for more
about Note pad). Also see ReadNotepad;
Input Parameter: NotePageNum, user content (or data content)
Return Parameter: Confirmation code (1 byte)
Instuction code: 18H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1byte
32 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Page
number
Data
content
Checksum
0xEF01
xxxx
01H
36
18H
0~15
content
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package
length
Confirmation code
Checksum
0xEF01
xxxx
07H
03H
xxH
sum
Note: Confirmation code=00H: write success;
- 21 - www.hzgrow.com
Confirmation code=01H: error when receiving package;
To read note pad ReadNotepad
Description: to read the specified page’s data content; Refer to 4.1 for more about user note pad.
Also see WriteNotepad.
Input Parameter: none
Return Parameter: Confirmation code (1 byte) + data content
Instuction code: 19H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Page
number
Checksum
0xEF01
xxxx
01H
04H
19H
0~15
xxH
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
32bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
User content
Checksum
0xEF01
xxxx
07H
3+32
xxH
User content
sum
Note: Confirmation code=00H: read success;
Confirmation code=01H: error when receiving package;
Instruction Table
Classified by functions
type
num
code
description
Type
num
Code
description
System-related
1
13H
To verify password
Finerprint processing
13
08H
to upload template
2
12H
To set password
14
09H
To download template
3
15H
To set device address
15
06H
To store template;
4
0EH
To set system
Parameter
16
07H
to read/load template
5
17H
Port control
17
0CH
to delete tempates
6
0FH
To read system
Parameter
18
0DH
to empty the library
7
1DH
To read finger
template numbers
19
03H
Carry out precise
matching of two
templates;
Finerprint processing
8
01H
Collect finger image
20
04H
Search the finger library
9
0AH
To upload image
10
0BH
To download image
others
21
14H
to get random code
11
02H
To generate character
file from image
22
18H
to write note pad
12
05H
To combine character
files and generate
template
23
19H
To read note pad
- 22 - www.hzgrow.com
Classified by instruction code
code
identifier
Description
Code
Identifier
Description
01H
GenImg
Collect finger image
0DH
Empty
to empty the library
02H
Img2Tz
To generate character
file from image
0EH
SetSysPara
To set system Parameter
03H
Match
Carry out precise
matching of two
templates;
0FH
ReadSysPara
To read system
Parameter
04H
Serach
Search the finger
library
12H
SetPwd
To set password
05H
RegModel
To combine character
files and generate
template
13H
VfyPwd
To verify password
06H
Store
To store template;
14H
GetRandomCode
to get random code
07H
LoadChar
to read/load template
15H
SetAdder
To set device address
08H
UpChar
to upload template
17H
Control
Port control
09H
DownChr
to download template
18H
WriteNotepad
to write note pad
0AH
UpImage
To upload image
19H
ReadNotepad
To read note pad
0BH
DownImage
To download image
1BH
HiSpeedSearch
Search the library fastly
0CH
DeletChar
to delete tempates
1DH
TempleteNum
To read finger template
numbers

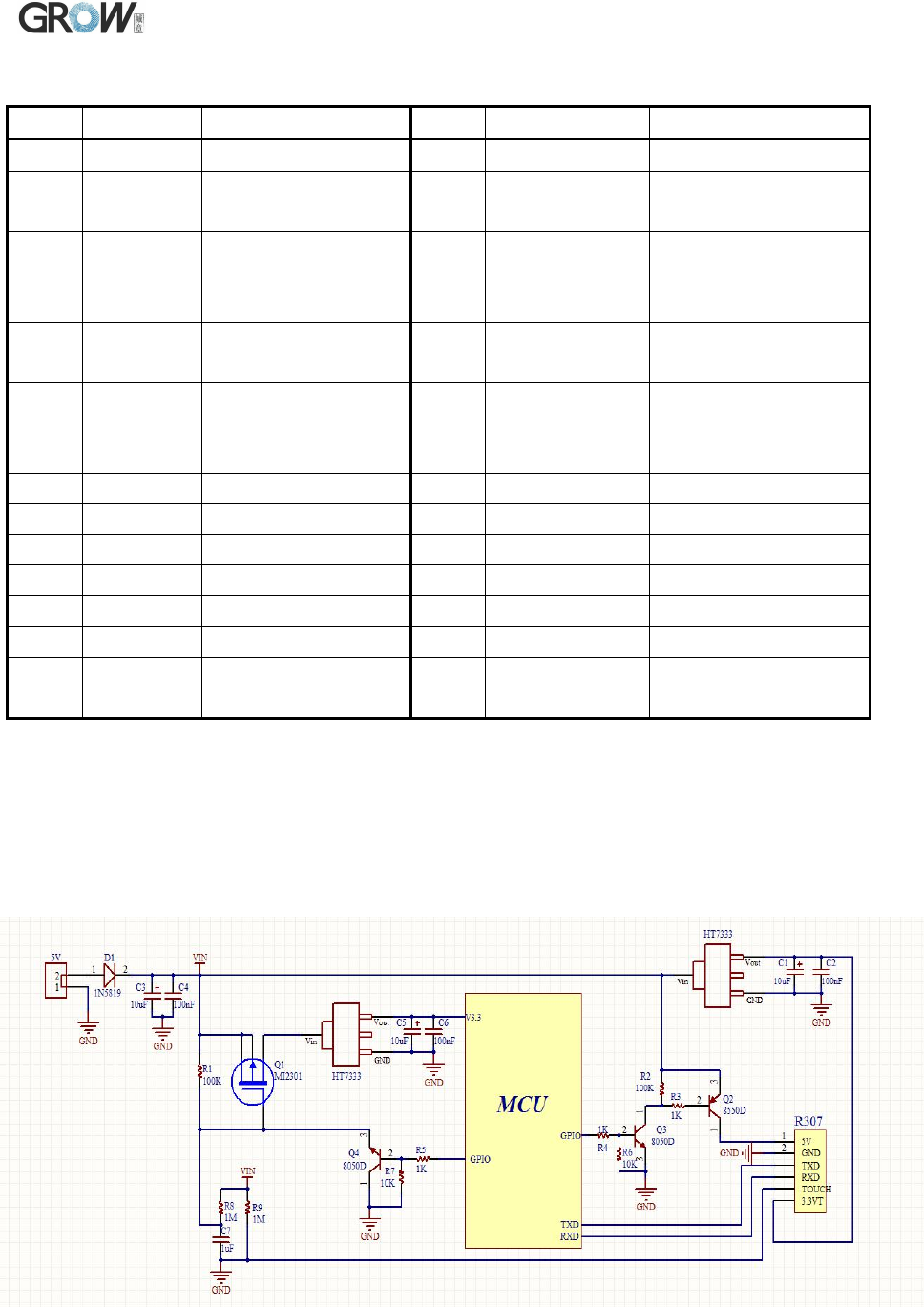

II Reference Circuit

Navigation menu
