Toyota Supports ASE Certification
Page 1 of 23
EG003-02
Title:
READINESS MONITOR DRIVE PATTERNS
Models:
All ’96 – ’02
Technical Service
BULLETIN
March 29, 2002
TSB REVISION NOTICE:
The information updated in this TSB is red and underlined.
The On–Board Diagnostic (OBDII) system is designed to monitor the performance of
emission–related components and report any detected abnormalities in the form of
Diagnostic Trouble Codes (DTCs). Since the various components need to be monitored
during different driving conditions, the OBDII system is designed to run separate
monitoring programs called Readiness Monitors. Many state Inspection and
Maintenance (I/M) programs require that vehicles complete their Readiness Monitors
prior to beginning an emissions test.
The current status of the Readiness Monitors can be seen by using the Toyota Diagnostic
Tester with version 9.0 software (or newer), or a generic OBDII Scantool.
To view the Readiness Monitor status using the Toyota Diagnostic Tester, select “Monitor
Status” from the Enhanced OBDII Menu.
A status of “complete” indicates that the necessary conditions have been met to run the
performance tests for the related Readiness Monitor.
The Readiness Monitor will be reset to “incomplete” if:
SECU has lost power (battery or fuse).
SDTCs have been cleared.
SThe conditions for running the Readiness Monitor have not been met.
In the event that any Readiness Monitor shows “incomplete,” follow the appropriate
Readiness Monitor Drive Pattern to change the readiness status to “complete.”
Refer to the Readiness Monitor Drive Pattern Application Table to determine which
drive pattern should be followed.
SECTION PAGE(S)
Readiness Monitor Drive Pattern Application Tables 3–9
Readiness Monitor Drive Patterns
1EGR Monitor (All Except 1FZ–FE Engine) 10
2EGR Monitor (For 1FZ–FE Engine) 11
3Catalyst Monitor (O2S Type) 12
4Catalyst Monitor (AF Sensor Type) 13
5EVAP Monitor (Internal Pressure Monitor/Non–Intrusive Type) 14–15
6EVAP Monitor (Vacuum Pressure Monitor/Intrusive Type) 16–17
7EVAP Monitor (Without Leak Detection) 18
8EVAP Monitor (For Prius) 19–20
9Oxygen Sensor Monitor (Front and Rear O2S System) 21
10 Oxygen/AF Sensor Monitor (Front AF Sensor and Rear O2S System) 22
11 Oxygen/AF Sensor Heater Monitor 23
SAll 1996 – 2002 model year Toyota vehicles.
OP CODE DESCRIPTION TIME OPN T1 T2
N/A Not Applicable to Warranty – – – –
ENGINE
Introduction
Contents
Applicable
Vehicles
Warranty
Information
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 2 of 23
J1930 TERM J1930 DEFINITION TOYOTA/LEXUS DIAGNOSTIC TESTER PARAMETER
IAT Intake Air Temperature Intake Air
ECT Engine Coolant Temperature Coolant Temp
TOOLS & MATERIAL PART NUMBER QUANTITY
Toyota Diagnostic Tester Kit 01001271 1
12 Megabyte Diagnostic Tester Program Card
with version 9.0a Software (or later) 01002593-005 1
NOTE:
A generic OBDII Scantool can be used in place of the Toyota Diagnostic Tester.
CAUTION:
Strict observance of posted speed limits, traffic laws and road conditions are
required when performing these drive patterns.
NOTE:
SThese drive patterns represent the fastest method to satisfy all necessary
conditions which allow the specific Readiness Monitor to complete.
SIn the event that the drive pattern must be interrupted (possibly due to traffic
conditions or other factors) the drive pattern can be resumed and, in most cases,
the Readiness Monitor will still set to “complete.”
STo ensure rapid completion of Readiness Monitors, avoid sudden changes in
vehicle load and speed (driving up and down hills and/or sudden acceleration).
SAMPLE EMISSION CONTROL INFORMATION LABEL
EGR = Exhaust Gas Recirculation
A/F S = Air Fuel Sensor
O2S = Oxygen Sensor
0.19–0.29 mm [0.007–0.011 in.]
0.28–0.38 mm [0.011–0.015 in.]
INTAKE
EXHAUST
VALVE CLEARANCE
(ENGINE AT COLD)
NO OTHER ADJUSTMENTS NEEDED.
ENGINE TUNE–UP SPECIFICATIONS FOR ALL ALTITUDES
7A650
2 2 V A G J J Y
2AZ–FE USA
SFI, EGR, A/F S, WU–TWC, TWC, HO2S
2.2 LITER
TEST GROUP : 1TYXV02.2JJA
EVAP. FAMILY : 1TYXR0135AK1
TOYOTA MOTOR CORPORATION
VEHICLE EMISSION CONTROL INFORMATION
Terms &
Definitions
Required
Tools &
Material
Underhood
Emission
Control
Information
Label
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 3 of 23
DRIVE PATTERN NUMBER*
O2S/AF
MODEL
DRIVE
EGR CATALYST EVAP SENSOR HTR
MODEL
YEAR MODEL ENGINE
DRIVE
TRAIN CATEGORY 1 2 3 4 5 6 7 8 9 10 11
Tercel 5E–FE X X X X X
Paseo 5E–FE X X X X X
Corolla 7A–FE X X X X X
Celica
7A–FE X X X X X
C
e
li
ca 5S–FE X X X X X
5S FE
MTM X X X X X
Camry
5
S
–
FE
ATM X X X X X
C
amry
1MZ FE
MTM X X X X X
1MZ
–
FE
ATM X X X X X
Avalon 1MZ–FE X X X X X
Su
p
ra
2JZ–GE X X X X X
S
upra 2JZ-GTE X X X X X
RAV4 3S–FE X X X X X
1996 Previa 2TZ–FZE X X X X X
2RZ–FE X X X X X
3RZ–FE X X X X X
Tacoma 2WD X X X X X
5VZ–FE
4WD
w/EGR** X X X X X
4WD
w/oEGR** N/A X X X X
3RZ–FE X X X X X
4Runner
5VZ FE
w/EGR** X X X X X
5
VZ
–
FE
w/oEGR** N/A X X X X
3RZ–FE X X X X X
T100
5VZ FE
2WD
or
w/EGR** X X X X X
5
VZ
–
FE
or
4WD w/oEGR** N/A X X X X
Land
Cruiser 1FZ–FE X X N/A X X
* Readiness Monitor Drive Patterns:
1. EGR (All Except 1FZ–FE Engine)
2. EGR (For 1FZ–FE Engine)
3. Catalyst (O2S Type)
4. Catalyst (AF Sensor Type)
5. EVAP (Internal Pressure Monitor/Non–Intrusive Type)
6. EVAP (Vacuum Pressure Monitor/Intrusive Type)
7. EVAP (Without Leak Detection)
8. EVAP (For Prius)
9. Oxygen Sensor Monitor (Front & Rear O2S System)
10. Oxygen/AF Sensor Monitor (Front AF Sensor &
Rear O2S System)
11. Oxygen/AF Sensor Heater Monitor
** Refer to Underhood Emissions Label on page 2.
Readiness
Monitor
Drive Pattern
Application
Tables
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 4 of 23
DRIVE PATTERN NUMBER*
O2S/AF
MODEL
DRIVE
EGR CATALYST EVAP SENSOR HTR
MODEL
YEAR MODEL ENGINE
DRIVE
TRAIN CATEGORY 1 2 3 4 5 6 7 8 9 10 11
Tercel 5E–FE X X X X X
Paseo 5E–FE X X X X X
Corolla 7A–FE X X X X X
Celica
7A–FE X X X X X
C
e
li
ca 5S–FE X X X X X
MTM X X X X X
5S–FE
ATM
Fed X X X X X
Camry
ATM
CA X X X X X
y
1MZ FE
MTM X X X X X
1MZ
–
FE
ATM X X X X X
Avalon 1MZ–FE X X X X X
Su
p
ra
2JZ–GE X X X X X
S
upra 2JZ-GTE X X X X X
1997
RAV4 3S–FE X X X X X
1997 Previa 2TZ–FZE X X X X X
2RZ–FE X X X X X
3RZ–FE X X X X X
Tacoma
5VZ–FE
2WD
or
4WD
w/EGR** X X X X X
4WD w/oEGR** N/A X X X X
4Runner
3RZ–FE X X X X X
4R
unner 5VZ–FE N/A X X X X
3RZ–FE X X X X X
T100
2WD w/EGR** X X X X X
T100 5VZ–FE 2WD
or
4WD
w/oEGR** N/A X X X X
Land
Cruiser 1FZ–FE X X N/A X X
* Readiness Monitor Drive Patterns:
1. EGR (All Except 1FZ–FE Engine)
2. EGR (For 1FZ–FE Engine)
3. Catalyst (O2S Type)
4. Catalyst (AF Sensor Type)
5. EVAP (Internal Pressure Monitor/Non–Intrusive Type)
6. EVAP (Vacuum Pressure Monitor/Intrusive Type)
7. EVAP (Without Leak Detection)
8. EVAP (For Prius)
9. Oxygen Sensor Monitor (Front & Rear O2S System)
10. Oxygen/AF Sensor Monitor (Front AF Sensor &
Rear O2S System)
11. Oxygen/AF Sensor Heater Monitor
** Refer to Underhood Emissions Label on page 2.
Readiness
Monitor
Drive Pattern
Application
Tables
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 5 of 23
DRIVE PATTERN NUMBER*
O2S/AF
MODEL
DRIVE
EGR CATALYST EVAP SENSOR HTR
MODEL
YEAR MODEL ENGINE
DRIVE
TRAIN CATEGORY 1 2 3 4 5 6 7 8 9 10 11
Tercel 5E–FE X X X X
Paseo 5E–FE N/A X X X X
Corolla 1ZZ–FE X X X X
Celica 5S–FE X X X X X
5S FE
Fed X X X X X
5
S
–
FE
CA X X X X X
Camry MTM X X X X X
y
1MZ–FE
ATM
Fed X X X X X
ATM
CA X X X X X
Avalon
1MZ FE
Fed X X X X X
A
va
l
on
1MZ
–
FE
CA X X X X X
Su
p
ra
2JZ–GE N/A X X X X
S
upra 2JZ-GTE X X X X X
1998
RAV4
3S FE
Fed X X X X X
1998
RAV4
3S
–
FE
CA X X X X X
Sienna 1MZ–FE N/A X X X X
2RZ–FE X X X X X
Tacoma
3RZ–FE X X X X X
T
acoma
5VZ FE
2WD w/EGR** X X X X X
5
VZ
–
FE
4WD w/oEGR** N/A X X X X
4Runner
3RZ–FE X X X X X
4R
unner 5VZ–FE N/A X X X X
3RZ–FE X X X X X
T100
2WD w/EGR** X X X X X
T100 5VZ–FE 2WD
or
4WD
w/oEGR**
N/A
X X X X
Land
Cruiser 2UZ–FE
N/A
X X X X
* Readiness Monitor Drive Patterns:
1. EGR (All Except 1FZ–FE Engine)
2. EGR (For 1FZ–FE Engine)
3. Catalyst (O2S Type)
4. Catalyst (AF Sensor Type)
5. EVAP (Internal Pressure Monitor/Non–Intrusive Type)
6. EVAP (Vacuum Pressure Monitor/Intrusive Type)
7. EVAP (Without Leak Detection)
8. EVAP (For Prius)
9. Oxygen Sensor Monitor (Front & Rear O2S System)
10. Oxygen/AF Sensor Monitor (Front AF Sensor &
Rear O2S System)
11. Oxygen/AF Sensor Heater Monitor
** Refer to Underhood Emissions Label on page 2.
Readiness
Monitor
Drive Pattern
Application
Tables
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 6 of 23
DRIVE PATTERN NUMBER*
O2S/AF
MODEL
DRIVE
EGR CATALYST EVAP SENSOR HTR
MODEL
YEAR MODEL ENGINE
DRIVE
TRAIN CATEGORY 1 2 3 4 5 6 7 8 9 10 11
Tercel 5E–FE X X X X X
Paseo 5E–FE X X X X X
Corolla 1ZZ–FE N/A X X X X
Celica 5S–FE X X X X X
5S FE
Fed X X X X X
5
S
–
FE
CA X X X X X
Camry MTM X X X X X
y
1MZ–FE
ATM
Fed X X X X X
ATM
CA X X X X X
5S FE
Fed X X X X X
5
S
–
FE
CA X X X X X
Solara MTM X X X XX
1MZ–FE
ATM
Fed X X X X X
ATM
CA X X X X X
1999
Avalon
1MZ FE
Fed X X X X X
1999
A
va
l
on
1MZ
–
FE
CA X X X X X
RAV4
3S FE
Fed X X X X X
RAV4
3S
–
FE
CA X X X X X
Sienna
1MZ FE
Fed
N/A
X X X X
Si
enna
1MZ
–
FE
CA
N/A
X X X X
2RZ–FE X X X X X
3RZ–FE X X X X X
Tacoma 2WD w/EGR** X X X X X
Tacoma
5VZ–FE 2WD
or
4WD
w/oEGR** N/A X X X X
3RZ–FE X X X X X
4Runner
5VZ FE
Fed X X X X
5
VZ
–
FE
CA
N/A
X X X X
Land
Cruiser 2UZ–FE
N/A
X X X X
* Readiness Monitor Drive Patterns:
1. EGR (All Except 1FZ–FE Engine)
2. EGR (For 1FZ–FE Engine)
3. Catalyst (O2S Type)
4. Catalyst (AF Sensor Type)
5. EVAP (Internal Pressure Monitor/Non–Intrusive Type)
6. EVAP (Vacuum Pressure Monitor/Intrusive Type)
7. EVAP (Without Leak Detection)
8. EVAP (For Prius)
9. Oxygen Sensor Monitor (Front & Rear O2S System)
10. Oxygen/AF Sensor Monitor (Front AF Sensor &
Rear O2S System)
11. Oxygen/AF Sensor Heater Monitor
** Refer to Underhood Emissions Label on page 2.
Readiness
Monitor
Drive Pattern
Application
Tables
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 7 of 23
DRIVE PATTERN NUMBER*
O2S/AF
MODEL
DRIVE
EGR CATALYST EVAP SENSOR HTR
MODEL
YEAR MODEL ENGINE
DRIVE
TRAIN CATEGORY 1 2 3 4 5 6 7 8 9 10 11
ECHO 1NZ–FE X X X X
Corolla 1ZZ–FE X X X X
Celica
1ZZ–FE N/A X X X X
C
e
li
ca 2ZZ–GE X X X X
MR2 1ZZ–FE X X X X
5S FE
Fed X X X X X
5
S
–
FE
CA X X X X X
Camry MTM X X X X X
y
1MZ–FE
ATM
Fed X X X XX
ATM
CA X X X X X
5S FE
Fed X X X X X
5
S
–
FE
CA X X X X X
Solara MTM X X X X X
1MZ–FE
ATM
Fed X X X X X
ATM
CA X X X X X
Camry
CNG 5S–FNE X N/A N/A X X
Avalon 1MZ–FE N/A X X X X
2000
RAV4
3S FE
Fed X X X X X
RAV4
3S
–
FE
CA X X X X X
Sienna
1MZ FE
Fed
N/A
X X X X
Si
enna
1MZ
–
FE
CA
N/A
X X X X
2RZ–FE X X X X X
3RZ–FE X X X X X
T
2WD w/EGR** X X X X X
Tacoma
5VZ–FE 2WD
or
w/o A/F S,
w/oEGR**
N/A
X X X X
or
4WD w/A/F S,
w/oEGR**
N/A
X X X X
3RZ–FE X X X X X
4Runner
5VZ FE
Fed X X X X
5
VZ
–
FE
CA X X X X
5VZ FE
Fed X X X X
Tundra 5
VZ
–
FE
CA N/A X X X X
2UZ–FE X X X X
Land
Cruiser 2UZ–FE X X X X
* Readiness Monitor Drive Patterns:
1. EGR (All Except 1FZ–FE Engine)
2. EGR (For 1FZ–FE Engine)
3. Catalyst (O2S Type)
4. Catalyst (AF Sensor Type)
5. EVAP (Internal Pressure Monitor/Non–Intrusive Type)
6. EVAP (Vacuum Pressure Monitor/Intrusive Type)
7. EVAP (Without Leak Detection)
8. EVAP (For Prius)
9. Oxygen Sensor Monitor (Front & Rear O2S System)
10. Oxygen/AF Sensor Monitor (Front AF Sensor &
Rear O2S System)
11. Oxygen/AF Sensor Heater Monitor
** Refer to Underhood Emissions Label on page 2.
Readiness
Monitor
Drive Pattern
Application
Tables
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 8 of 23
DRIVE PATTERN NUMBER*
O2S/AF
MODEL
DRIVE
EGR CATALYST EVAP SENSOR HTR
MODEL
YEAR MODEL ENGINE
DRIVE
TRAIN CATEGORY 1 2 3 4 5 6 7 8 9 10 11
ECHO 1NZ–FE X X X X
Corolla 1ZZ–FE X X X X
Celica
1ZZ–FE N/A X X X X
C
e
li
ca 2ZZ–GE X X X X
MR2 1ZZ–FE X X X X
5S–FE X X X X X
Camry
1MZ FE
MTM X X X X X
y
1MZ
–
FE
ATM X X X X X
5S–FE X X X X X
Solara
1MZ FE
MTM X X X X X
1MZ
–
FE
ATM X X X X X
Camry
CNG 5S–FNE X N/A N/A X X
Avalon 1MZ–FE X X X X
2001 Prius 1NZ-FXE X X X X
RAV4 1AZ–FE
N/A
X X X X
High- 2AZ–FE
N/A
X X X X
High
lander 1MZ–FE X X X X
Sienna 1MZ–FE X X X X
2RZ–FE X X X X X
Tacoma
3RZ–FE X X X X X
T
acoma
5VZ FE
2WD X X X X X
5
VZ
–
FE
4WD X X X X
4Runner 5VZ–FE X X X X
Tundra
5VZ–FE X X X X
T
un
d
ra 2UZ–FE N/A X X X X
Land
Cruiser 2UZ–FE X X X X
Sequoia 2UZ–FE X X X X
* Readiness Monitor Drive Patterns:
1. EGR (All Except 1FZ–FE Engine)
2. EGR (For 1FZ–FE Engine)
3. Catalyst (O2S Type)
4. Catalyst (AF Sensor Type)
5. EVAP (Internal Pressure Monitor/Non–Intrusive Type)
6. EVAP (Vacuum Pressure Monitor/Intrusive Type)
7. EVAP (Without Leak Detection)
8. EVAP (For Prius)
9. Oxygen Sensor Monitor (Front & Rear O2S System)
10. Oxygen/AF Sensor Monitor (Front AF Sensor &
Rear O2S System)
11. Oxygen/AF Sensor Heater Monitor
Readiness
Monitor
Drive Pattern
Application
Tables
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 9 of 23
DRIVE PATTERN NUMBER*
O2S/AF
MODEL
DRIVE
EGR CATALYST EVAP SENSOR HTR
MODEL
YEAR MODEL ENGINE
DRIVE
TRAIN CATEGORY 1 2 3 4 5 6 7 8 9 10 11
ECHO 1NZ–FE X X X X
Corolla 1ZZ–FE X X X X
Celica
1ZZ–FE
N/A
X X X X
C
e
li
ca 2ZZ–GE N/A X X X X
MR2 1ZZ–FE X X X X
2AZ–FE X X X X
Camry
1MZ FE
MTM X X X X X
y
1MZ
–
FE
ATM X X X X X
2AZ–FE X X X X X
Solara
1MZ FE
MTM X X X X X
1MZ
–
FE
ATM X X X X X
Camry
CNG 5S–FNE X N/A N/A X X
2002
Avalon 1MZ–FE X X X X
2002 Prius 1NZ-FXE X X X X
RAV4 1AZ–FE
N/A
X X X X
High- 2AZ–FE
N/A
X X X X
High
lander 1MZ–FE X X X X
Sienna 1MZ–FE X X X X
2RZ–FE X X X X X
Tacoma 3RZ–FE X X X X X
5VZ–FE X X X X
4Runner 5VZ–FE X X X X
Tundra
5VZ–FE X X X X
T
un
d
ra 2UZ–FE N/A XX X X
Land
Cruiser 2UZ–FE XX X X
Sequoia 2UZ–FE XX X X
* Readiness Monitor Drive Patterns:
1. EGR (All Except 1FZ–FE Engine)
2. EGR (For 1FZ–FE Engine)
3. Catalyst (O2S Type)
4. Catalyst (AF Sensor Type)
5. EVAP (Internal Pressure Monitor/Non–Intrusive Type)
6. EVAP (Vacuum Pressure Monitor/Intrusive Type)
7. EVAP (Without Leak Detection)
8. EVAP (For Prius)
9. Oxygen Sensor Monitor (Front & Rear O2S System)
10. Oxygen/AF Sensor Monitor (Front AF Sensor &
Rear O2S System)
11. Oxygen/AF Sensor Heater Monitor
Readiness
Monitor
Drive Pattern
Application
Tables
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 10 of 23

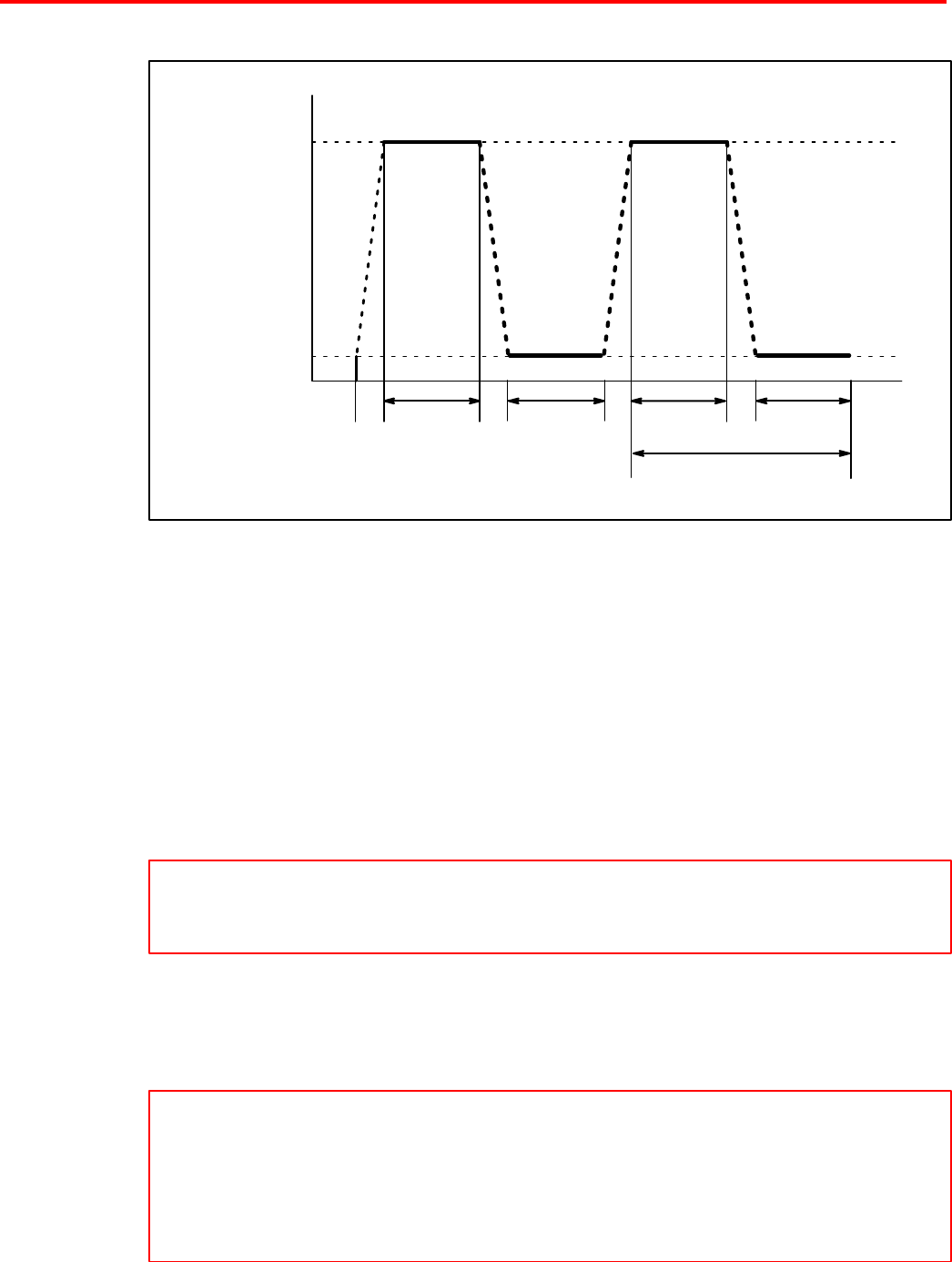

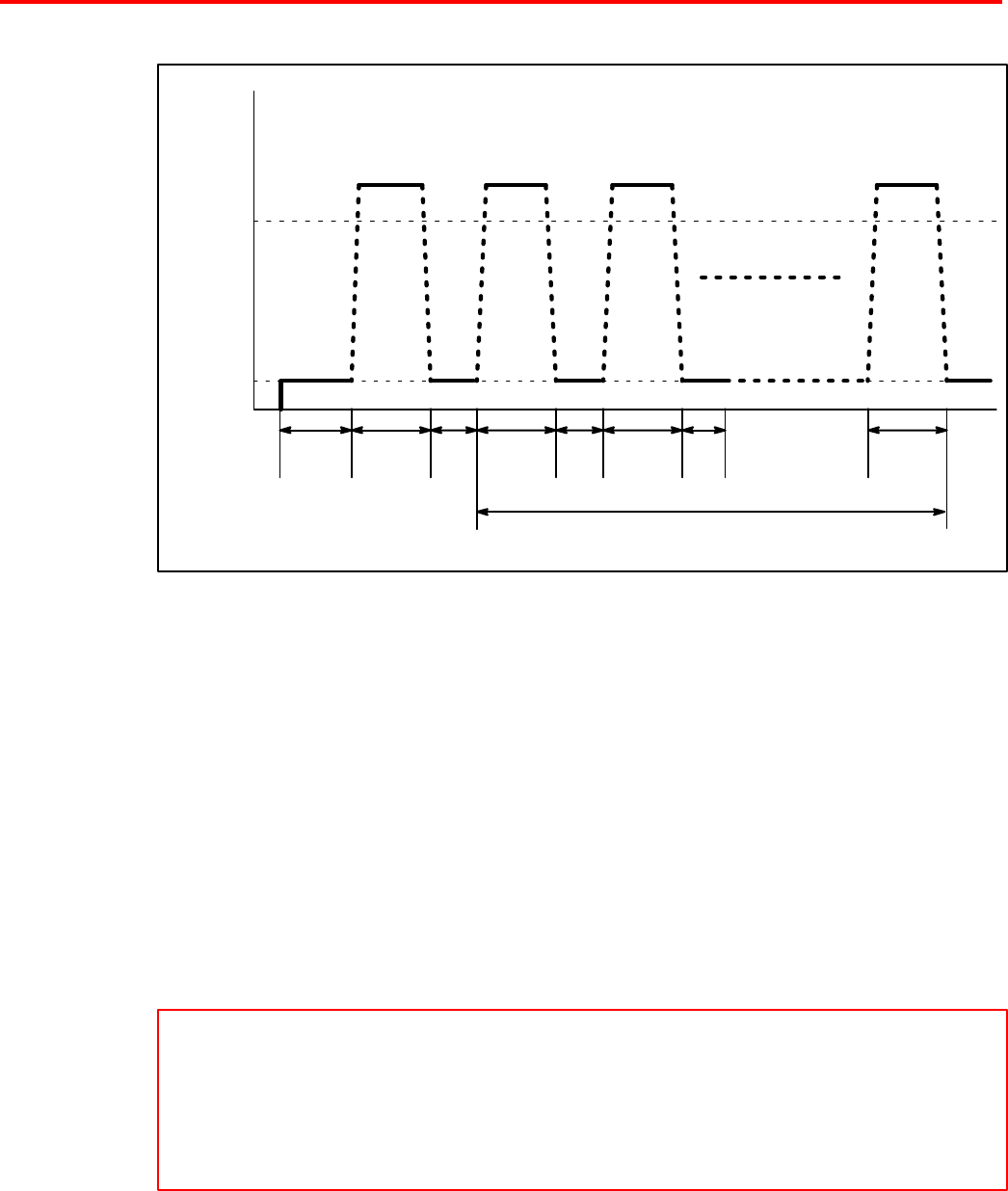

DRIVE PATTERN NO. 1: EGR Monitor (All Except 1FZ–FE Engine)
Warm up
10 min
43 – 56 mph
(70 – 90 km/h)
Idling
IG SW off
3 – 5 min 3 – 5 min3 – 5 min
(b)
3 – 5 min
(c)
(d)
(a)
Preconditions
The monitor will not run unless:
SMIL is OFF.
SAltitude is 7800 feet (2400 m) or less.
SIAT (Intake Air) is 14_F (–10_C) or greater.
Drive Pattern Procedure
Connect the OBDII Scantool to the DLC3 connector to check monitor status and
preconditions.
a. If IAT (Intake Air) is less than 50_F (10_C) when starting the engine, idle the
engine for approximately 10 minutes.
b. Drive the vehicle at 43 – 56 mph (70 – 90 km/h) for a period of 3 – 5 minutes.
NOTE:
SDo not allow the Throttle Position (TP) to exceed 30%.
SDrive with smooth throttle operation and avoid sudden acceleration.
c. Stop the vehicle and let the engine idle for 3 – 5 minutes.
d. Repeat steps “b” and “c” once.
If readiness status does not switch to “complete,” ensure preconditions are met, turn the
ignition OFF, then repeat steps “b” through “d.”
NOTE:
The readiness status may not switch to “complete” after the first drive pattern trip if a
Pending Code has been set (first trip for a two–trip DTC).
SPending Codes are available from the DTC Info Menu in Enhanced OBDII.
SPending Codes indicate a POTENTIAL problem was detected. A second trip is
needed to confirm the DTC prior to diagnosis.
SOnce a second trip is completed, a current DTC will be stored.
Readiness
Monitor
Drive
Patterns:
EGR Monitors
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 11 of 23

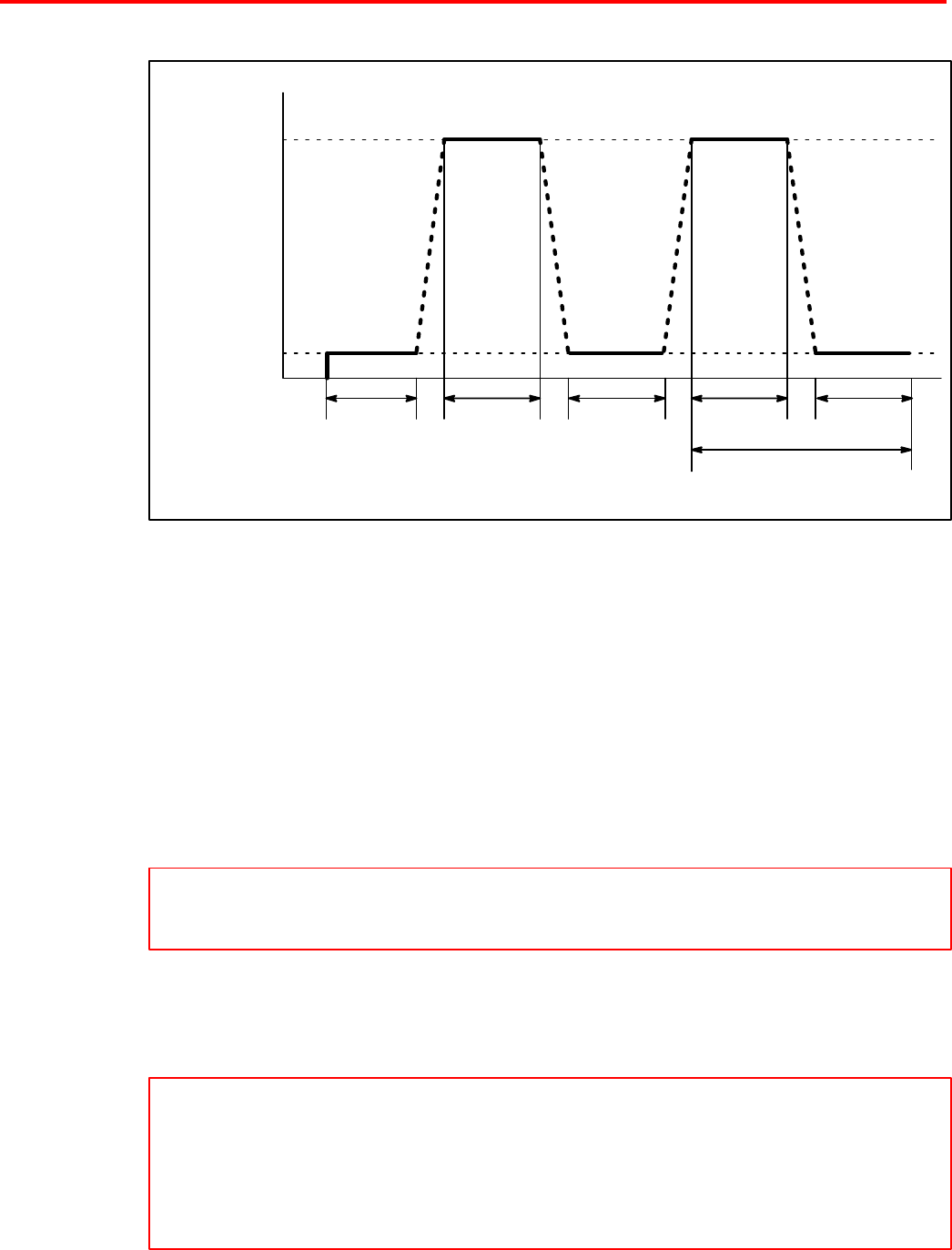

DRIVE PATTERN NO. 2: EGR Monitor (for 1FZ–FE Engine)
43 – 56 mph
(70 – 90 km/h)
Idling
IG SW off
3 – 5 min 3 – 5 min3 – 5 min
(b) 3 – 5 min
(c)
(a)
Preconditions
The monitor will not run unless:
SMIL is OFF.
SAltitude is 7800 feet (2400 m) or less.
SIAT (Intake Air) is 14_F (–10_C) or greater.
SECT (Coolant Temp) is less than 104_F (40_C).
Drive Pattern Procedure
Connect the OBDII Scantool to DLC3 to check monitor status and preconditions.
a. Start the engine and as soon as safely possible begin driving the vehicle at 43 –
56 mph (70 – 90 km/h) for a period of 3 – 5 minutes.
NOTE:
SDo not allow the Throttle Position (TP) to exceed 30%.
SDrive with smooth throttle operation and avoid sudden acceleration.
b. Stop the vehicle and let the engine idle for 3 – 5 minutes.
c. Repeat steps “a” and “b” once.
If readiness status does not switch to “complete,” ensure preconditions are met, turn the
ignition OFF, then repeat steps “a” through “c.”
NOTE:
The readiness status may not switch to “complete” after the first drive pattern trip if a
Pending Code has been set (first trip for a two–trip DTC).
SPending Codes are available from the DTC Info Menu in Enhanced OBDII.
SPending Codes indicate a POTENTIAL problem was detected. A second trip is
needed to confirm the DTC prior to diagnosis.
SOnce a second trip is completed, a current DTC will be stored.
Readiness
Monitor
Drive
Patterns:
EGR Monitors
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 12 of 23

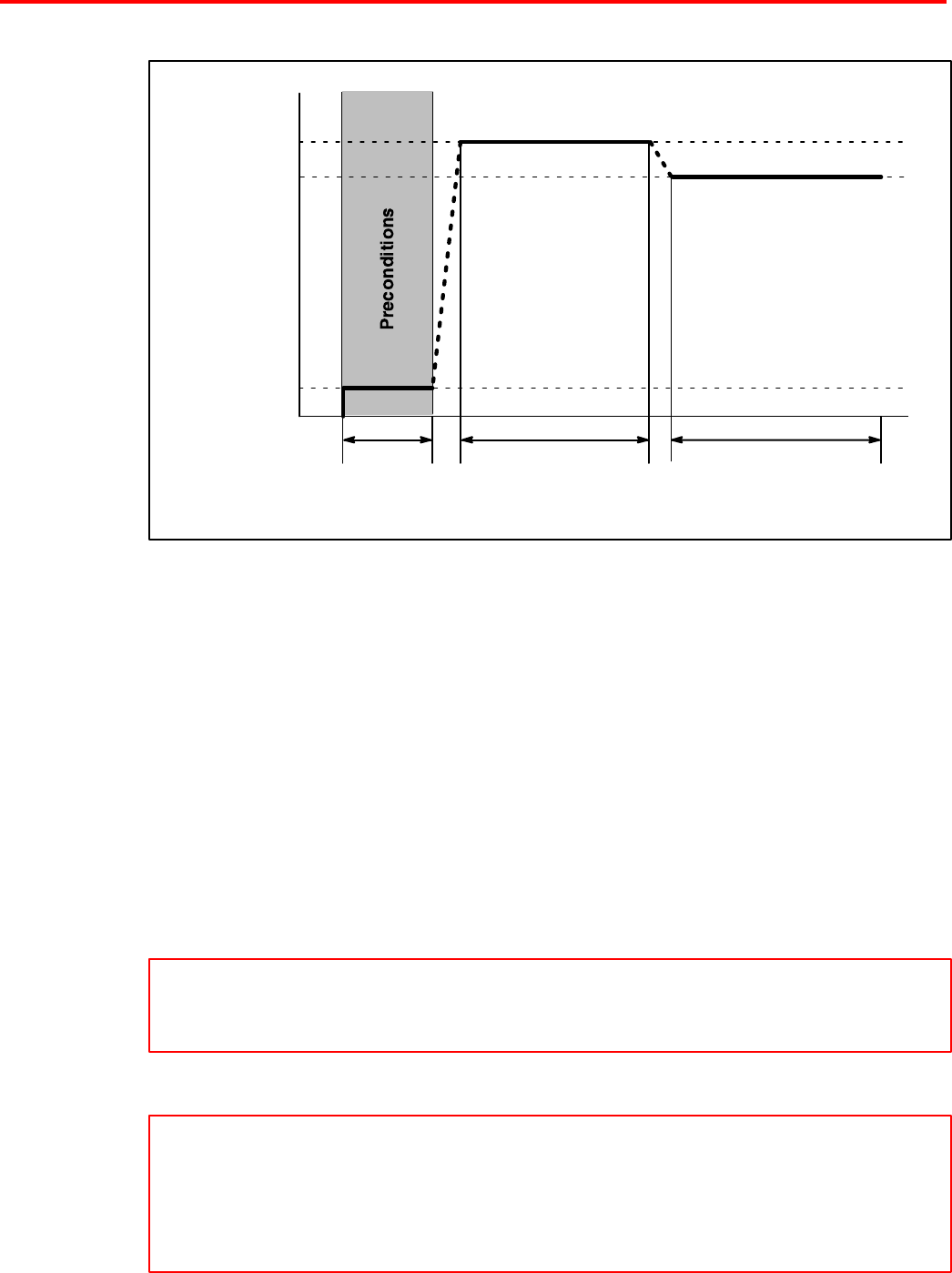

DRIVE PATTERN NO. 3: Catalyst Monitor (O2S Type)
40 – 50 mph
(64 – 88 km/h)
35 – 45 mph
(56 – 72 km/h)
Idling
IG SW off
Warm up
ECT≥176_FIAT < 50_F = 7 min
IAT > 50_F = 3 min
(a)
7 min
(b)
Preconditions
The monitor will not run unless:
SMIL is OFF.
SECT (Coolant Temp) is 176_F (80_C) or greater.
SIAT (Intake Air) is 14_F (–10_C) or greater.*
* For 2002 MY and later vehicles: The readiness test can be completed in cold ambient conditions
(less than 14_F / –10_C), if the drive pattern is repeated a second time after cycling the ignition OFF.
Drive Pattern Procedure
Connect the OBDII Scantool to DLC3 to check monitor status and preconditions.
Note the IAT (Intake Air) value during engine startup. The driving time must be adjusted
during step “a” based upon IAT (Intake Air) value at startup.
a. Drive the vehicle at 40 – 55 mph (64 – 88 km/h) for the time described below:
SIf IAT (Intake Air) was less than 50_F (10_C) when the engine was started,
drive for 7 minutes.
SIf IAT (Intake Air) was greater than 50_F (10_C) when the engine was started,
drive for 3 minutes.
b. Drive the vehicle at 35 – 45 mph (56 – 72 km/h) for approximately 7 minutes.
NOTE:
SDrive with smooth throttle operation.
SAvoid sudden acceleration.
SAvoid sudden deceleration as much as possible with the throttle fully closed.
If readiness status does not switch to “complete,” ensure preconditions are met, turn the
ignition OFF, then repeat steps “a” and “b.”
NOTE:
The readiness status may not switch to “complete” after the first drive pattern trip if a
Pending Code has been set (first trip for a two–trip DTC).
SPending Codes are available from the DTC Info Menu in Enhanced OBDII.
SPending Codes indicate a POTENTIAL problem was detected. A second trip is
needed to confirm the DTC prior to diagnosis.
SOnce a second trip is completed, a current DTC will be stored.
Readiness
Monitor
Drive
Patterns:
Catalyst
Monitors
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 13 of 23

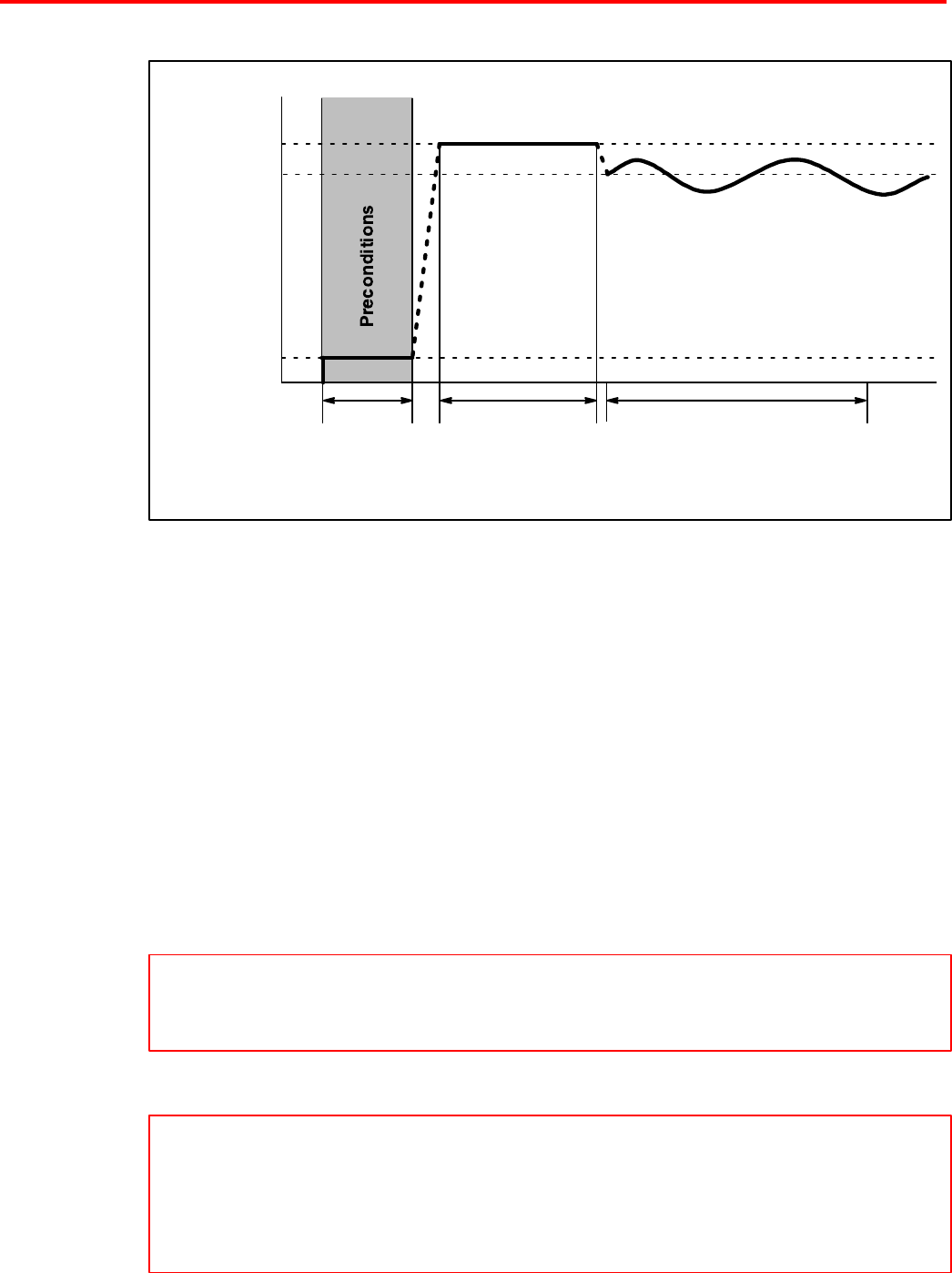

DRIVE PATTERN NO. 4: Catalyst Monitor (AF Sensor Type)
IAT<50_F=7min
IAT>50_F=3min
(a)
40 – 50 mph
(64 – 88 km/h)
Idling
IG SW off
16 min
(b)
35 – 45 mph
(56 – 72 km/h)
Warm up
ECT≥176_F
Preconditions
The monitor will not run unless:
SMIL is OFF.
SECT (Coolant Temp) is 176_F (80_C) or greater.
SIAT (Intake Air) is 14_F (–10_C) or greater.*
* For 2002 MY and later vehicles: The readiness test can be completed in cold ambient conditions
(less than 14_F / –10_C), if the drive pattern is repeated a second time after cycling the ignition OFF.
Drive Pattern Procedure
Connect the OBDII Scantool to DLC3 to check monitor status and preconditions.
Note the IAT (Intake Air) value during engine startup. The driving time must be adjusted
during step “a” based upon IAT (Intake Air) value at startup.
a. Drive the vehicle at 40 – 55 mph (64 – 88 km/h) for the time described below:
SIf IAT (Intake Air) was less than 50_F (10_C) when the engine was started,
drive for 7 minutes.
SIf IAT (Intake Air) was greater than 50_F (10_C) when the engine was started,
drive for 3 minutes.
b. Drive the vehicle allowing speed to fluctuate between 35 – 45 mph (56 – 72 km/h)
for about 16 minutes.
NOTE:
SDrive with smooth throttle operation.
SAvoid sudden acceleration.
SAvoid sudden deceleration as much as possible with the throttle fully closed.
If readiness status does not switch to “complete,” ensure preconditions are met, turn the
ignition OFF, then repeat steps “a” and “b.”
NOTE:
The readiness status may not switch to “complete” after the first drive pattern trip if a
Pending Code has been set (first trip for a two–trip DTC).
SPending Codes are available from the DTC Info Menu in Enhanced OBDII.
SPending Codes indicate a POTENTIAL problem was detected. A second trip is
needed to confirm the DTC prior to diagnosis.
SOnce a second trip is completed, a current DTC will be stored.
Readiness
Monitor
Drive
Patterns:
Catalyst
Monitors
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 14 of 23

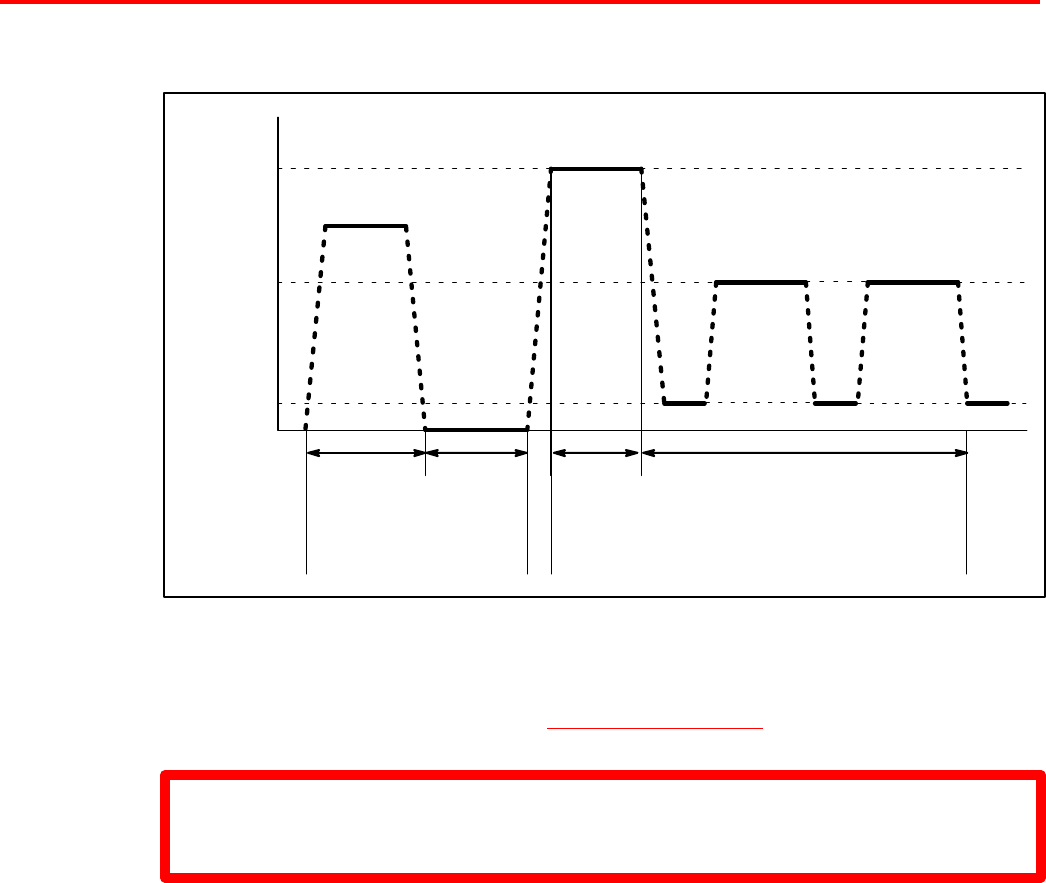

DRIVE PATTERN NO. 5: EVAP Monitor
(Internal Pressure Monitor/Non–Intrusive Type)
45 mph
(72 km/h)
25 mph
(40 km/h)
Idling
IG SW off
Soak
(1b) 5 min
(2a) 15 min
(2b)
Warm up
ECT≥176_F
(1a)
Cold Soak Drive Pattern
Cold Soak Preconditions
The monitor will not run unless:
SMIL is OFF.
SFuel level is between 1/2 to 3/4 full (for faster completion).
SAltitude is 7800 feet (2400 m) or less.
IMPORTANT:
A cold soak must be performed prior to conducting the drive pattern to complete the
Internal Pressure Readiness Monitor.
Cold Soak Procedure
1a. Start the engine and allow ECT (Coolant Temp) to reach 176_F (80_C) or greater.
(This can be done by letting the engine idle or by driving the vehicle.)
1b. Let the vehicle cold soak for 8 hours or until the difference between IAT (Intake
Air) and ECT (Coolant Temp) is less than 13_F (7_C).
HExample 1
SECT (Coolant Temp) = 75_F (24_C).
SIAT (Intake Air) = 60_F (16_C).
SDifference between ECT (Coolant Temp) and IAT (Intake Air) is 15_F (8_C).
⇒The monitor will not run because the difference between ECT (Coolant
Temp) and IAT (Intake Air) is greater than 13_F (7_C).
HExample 2
SECT (Coolant Temp) = 70_F (21_C).
SIAT (Intake Air) = 68_F (20_C).
SDifference between ECT (Coolant Temp) and IAT (Intake Air) is 2_F (1_C).
⇒The monitor will run because the difference between ECT (Coolant Temp)
and IAT (Intake Air) is less than 13_F (7_C).
Readiness
Monitor
Drive
Patterns:
EVAP
Monitors
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 15 of 23
Drive Pattern Preconditions
The monitor will not run unless:
SMIL is OFF.
SFuel level is between 1/2 to 3/4 full (for faster completion).
SAltitude is 7800 feet (2400 m) or less.
SECT (Coolant Temp) is between 40_F and 95_F (4.4_C – 35_C).
SIAT (Intake Air) is between 40_F and 95_F (4.4_C – 35_C).
SCold Soak Procedure has been completed.
NOTE:
Before starting the engine, the difference between ECT (Coolant Temp) and IAT (Intake
Air) must be less than 13_F (7_C). (Refer to Examples 1 and 2 on previous page.)
Drive Pattern Procedure
SConnect the OBDII Scantool to DLC3 to check monitor status and preconditions.
SRelease the pressure in the fuel tank by removing and then reinstalling the fuel tank
cap.
SStart the engine and begin driving as directed.
NOTE:
SDo not turn the ignition off until the drive pattern is complete.
SDrive on smooth roads to reduce excessive fuel sloshing.
2a. Start the engine and as soon as safely possible begin driving at approximately 45
mph (72km/h) for 5 minutes. (See illustration on previous page.)
2b. Drive the vehicle at approximately 25 mph (40 km/h) for 15 minutes and include a
minimum of two stops for approximately 30 seconds. (See illustration on previous
page.)
The monitor should complete within approximately 20 minutes. If it does not, ensure
preconditions are met and repeat the drive pattern process beginning with the Cold Soak
Procedure.
NOTE:
The readiness status may not switch to “complete” after the first drive pattern trip if a
Pending Code has been set (first trip for a two–trip DTC).
SPending Codes are available from the DTC Info Menu in Enhanced OBDII.
SPending Codes indicate a POTENTIAL problem was detected. A second trip is
needed to confirm the DTC prior to diagnosis.
SOnce a second trip is completed, a current DTC will be stored.
Readiness
Monitor
Drive
Patterns:
EVAP
Monitors
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 16 of 23

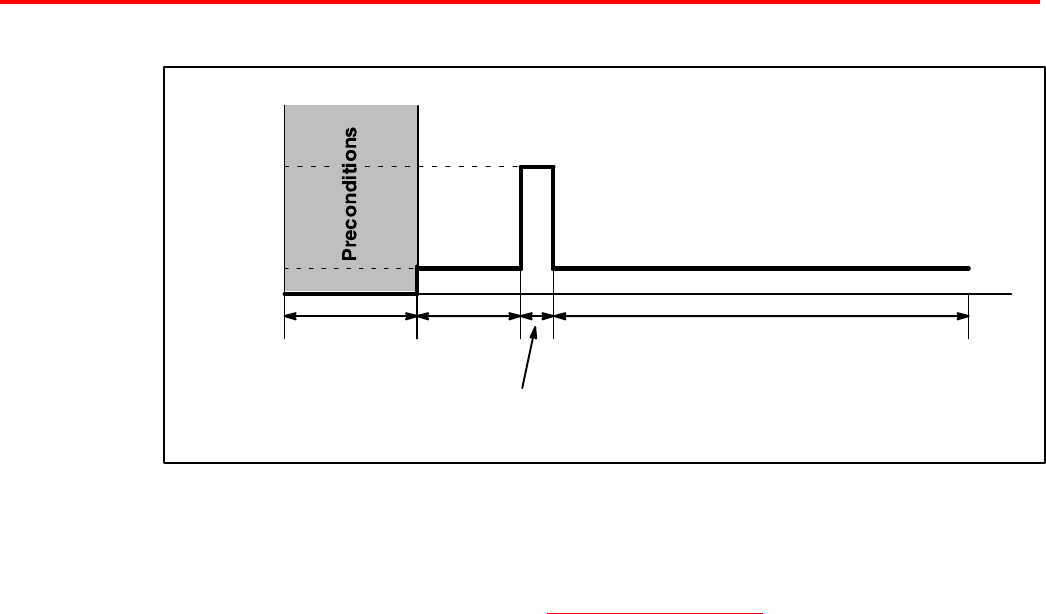

DRIVE PATTERN NO. 6: EVAP Monitor (Vacuum Pressure Monitor/Intrusive Type)
Idling
IG SW off
Warm up
(2a)
Soak
(1a) 15 –50 min
(When the Readiness Monitor or
DTC is set, this test is complete.)
(2c)
10 sec
(2b)
3,000 rpm
Cold Soak Preconditions
The monitor will not run unless:
SMIL is OFF.
SFuel level is between 1/2 to 3/4 full (for faster completion).
SAltitude is 7800 feet (2400 m) or less.
Cold Soak Procedure
1a. Let the vehicle cold soak for 8 hours or until the difference between IAT (Intake
Air) and ECT (Coolant Temp) is less than 13_F (7_C).
HExample 1
SECT (Coolant Temp) = 75_F (24_C).
SIAT (Intake Air) = 60_F (16_C).
SDifference between ECT (Coolant Temp) and IAT (Intake Air) is 15_F (8_C).
⇒The monitor will not run because the difference between ECT (Coolant
Temp) and IAT (Intake Air) is greater than 13_F (7_C).
HExample 2
SECT (Coolant Temp) = 70_F (21_C).
SIAT (Intake Air) = 68_F (20_C).
SDifference between ECT (Coolant Temp) and IAT (Intake Air) is 2_F (1_C).
⇒The monitor will run because the difference between ECT (Coolant Temp)
and IAT (Intake Air) is less than 13_F (7_C).
Readiness
Monitor
Drive
Patterns:
EVAP
Monitors
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 17 of 23
Drive Pattern Preconditions
The monitor will not run unless:
SMIL is OFF.
SFuel level is between 1/2 to 3/4 full (for faster completion).
SAltitude is 7800 feet (2400 m) or less.*
SECT (Coolant Temp) is between 40_F and 95_F (4.4_C – 35_C).
SIAT (Intake Air) is between 40_F and 95_F (4.4_C – 35_C).*
SCold Soak Procedure has been completed.
* For 2002 MY and later vehicles: The readiness test can be completed in cold ambient conditions
(less than 40_F / 4.4_C) and/or at high altitudes (more than 7800 feet / 2400 m) if the complete drive
pattern (including Cold Soak) is repeated a second time after cycling the ignition OFF.
NOTE:
Before starting the engine, the difference between ECT (Coolant Temp) and IAT (Intake
Air) must be less than 13_F (7_C). (Refer to Examples 1 and 2 on previous page.)
Drive Pattern Procedure
SConnect the OBDII Scantool to DLC3 to check monitor status and preconditions.
SRelease the pressure in the fuel tank by removing and then reinstalling the fuel tank
cap.
2a. Start the engine and allow it to idle until ECT (Coolant Temp) is 167_F (75_C) or
greater. (See illustration on previous page.)
2b. Race the engine at 3,000 rpm for approximately 10 seconds. (See illustration on
previous page.)
2c. Allow the engine to idle with the A/C ON (to create a slight load) for 15 – 50
minutes. (See illustration on previous page.)
NOTE:
If the vehicle is not equipped with A/C put a slight load on the engine by doing the
following:
SSecurely set the parking brake.
SBlock the drive wheels with wheel chocks.
SAllow the vehicle to idle in drive for 15 – 50 minutes.
NOTE:
The readiness status may not switch to “complete” after the first drive pattern trip if a
Pending Code has been set (first trip for a two–trip DTC).
SPending Codes are available from the DTC Info Menu in Enhanced OBDII.
SPending Codes indicate a POTENTIAL problem was detected. A second trip is
needed to confirm the DTC prior to diagnosis.
SOnce a second trip is completed, a current DTC will be stored.
Readiness
Monitor
Drive
Patterns:
EVAP
Monitors
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 18 of 23

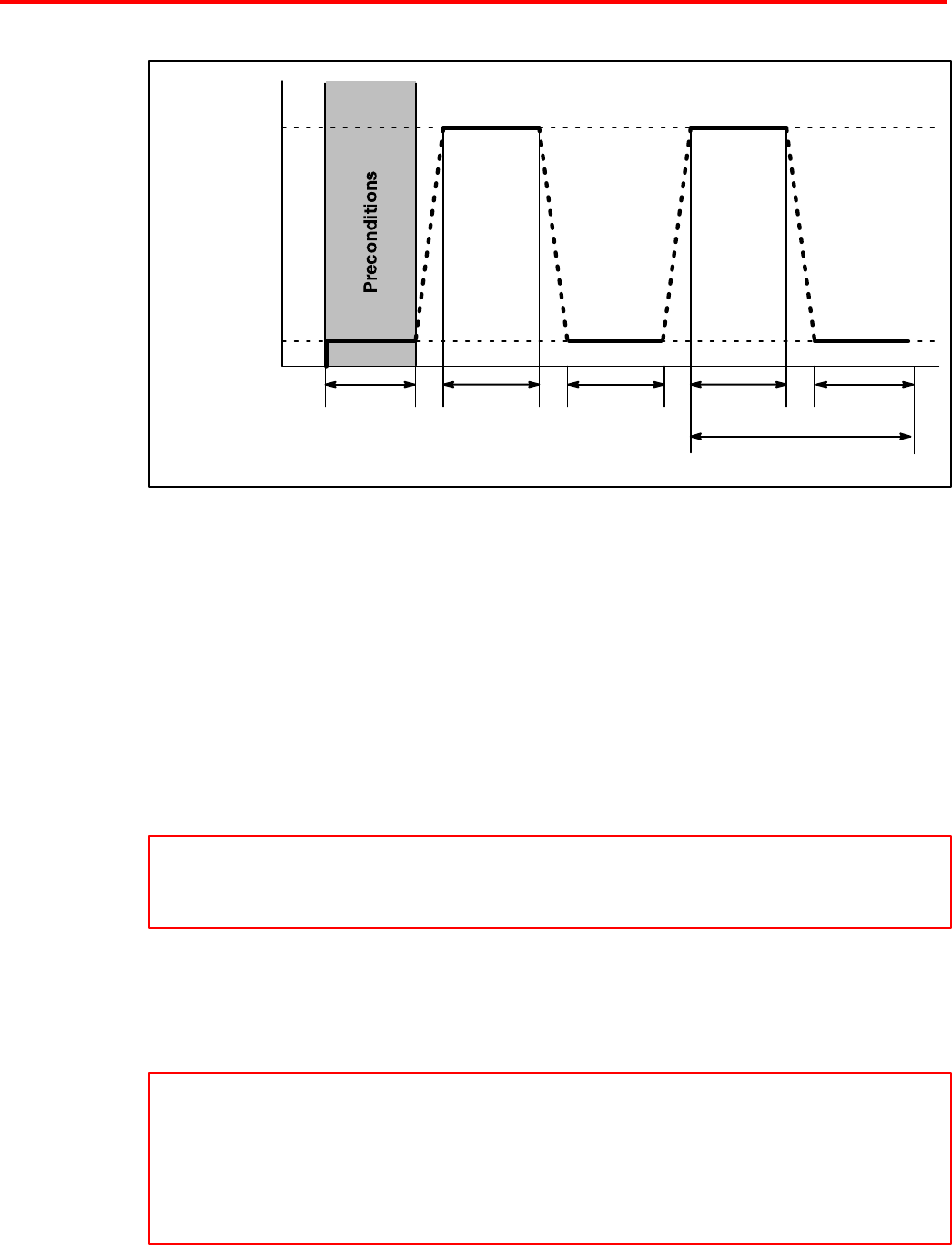

DRIVE PATTERN NO. 7: EVAP Monitor (Without Leak Detection)
43 – 56 mph
(70 – 90 km/h)
Idling
IG SW off
3 – 5 min 3 – 5 min3 – 5 min
(a) (b) 3 – 5 min
(c)
Warm up
ECT≥181_F
Preconditions
The monitor will not run unless:
SMIL is OFF.
SAltitude is 7800 feet (2400 m) or less.
SECT (Coolant Temp) is 181_F (83_C) or greater.
SIAT (Intake Air) is 41_F (5_C) or greater.
Drive Pattern Procedure
Connect the OBDII Scantool to DLC3 to check monitor status and preconditions.
a. Drive the vehicle at 43 – 56 mph (70 – 90 km/h) for a period of 3 – 5 minutes.
NOTE:
SDo not allow the Throttle Position (TP) to exceed 30%.
SDrive with smooth throttle operation and avoid sudden acceleration.
b. Stop the vehicle and let the engine idle for 3 – 5 minutes.
c. Repeat steps “a” and “b” once.
If readiness status does not switch to “complete,” ensure preconditions are met, turn the
ignition OFF, then repeat steps “a” through “c.”
NOTE:
The readiness status may not switch to “complete” after the first drive pattern trip if a
Pending Code has been set (first trip for a two–trip DTC).
SPending Codes are available from the DTC Info Menu in Enhanced OBDII.
SPending Codes indicate a POTENTIAL problem was detected. A second trip is
needed to confirm the DTC prior to diagnosis.
SOnce a second trip is completed, a current DTC will be stored.
Readiness
Monitor
Drive
Patterns:
EVAP
Monitors
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 19 of 23

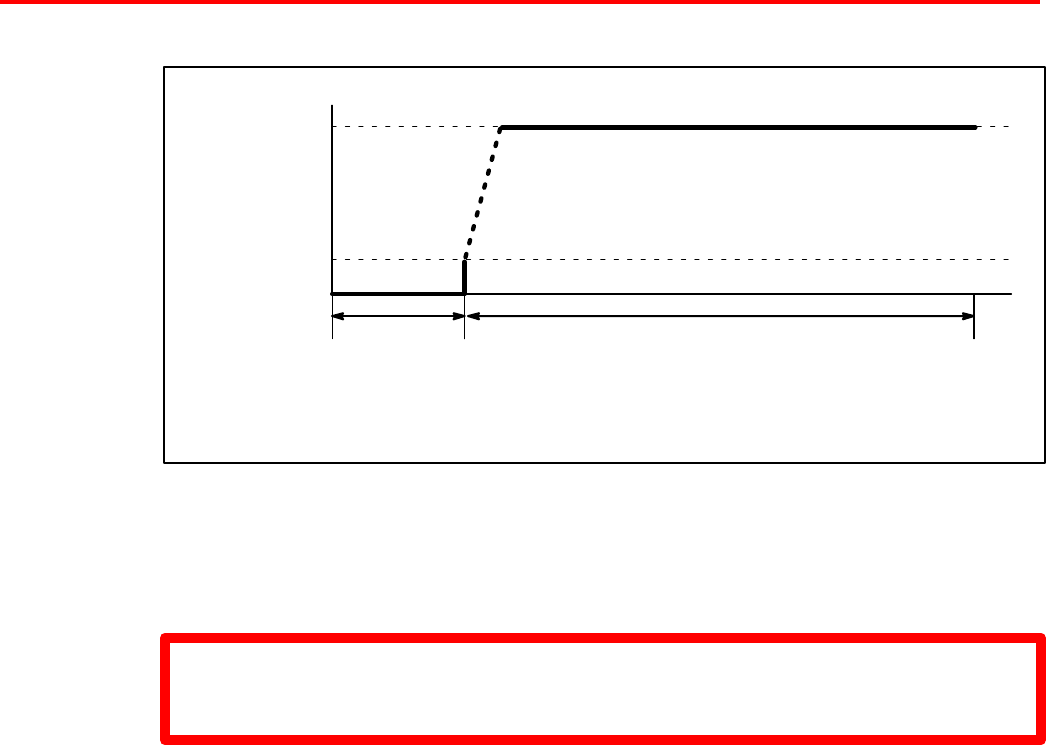

DRIVE PATTERN NO. 8: EVAP Monitor (For Prius)
Idling
IG SW off
Soak
(1a) 15 min
(When the Readiness Monitor or
DTC is set, this test is complete.)
(2a)
50 – 65 mph
(80 – 104 km/h)
Cold Soak Preconditions
The monitor will not run unless:
SMIL is OFF.
SAltitude is 7800 feet (2400 m) or less.
IMPORTANT:
A cold soak must be performed prior to conducting the drive pattern to complete the
Internal Pressure Readiness Monitor.
Cold Soak Procedure
1a. Let the vehicle cold soak for 8 hours or until the difference between IAT (Intake
Air) and ECT (Coolant Temp) is less than 13_F (7_C).
HExample 1
SECT (Coolant Temp) = 75_F (24_C).
SIAT (Intake Air) = 60_F (16_C).
SDifference between ECT (Coolant Temp) and IAT (Intake Air) is 15_F (8_C).
⇒The monitor will not run because the difference between ECT (Coolant
Temp) and IAT (Intake Air) is greater than 13_F (7_C).
HExample 2
SECT (Coolant Temp) = 70_F (21_C).
SIAT (Intake Air) = 68_F (20_C).
SDifference between ECT (Coolant Temp) and IAT (Intake Air) is 2_F (1_C).
⇒The monitor will run because the difference between ECT (Coolant Temp)
and IAT (Intake Air) is less than 13_F (7_C).
Readiness
Monitor
Drive
Patterns:
EVAP
Monitors
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 20 of 23
Drive Pattern Preconditions
The monitor will not run unless:
SMIL is OFF.
SAltitude is 7800 feet (2400 m) or less.
SECT (Coolant Temp) is between 40_F and 95_F (4.4_C – 35_C).
SIAT (Intake Air) is between 40_F and 95_F (4.4_C – 35_C).*
SCold Soak Procedure has been completed.
NOTE:
Before starting the engine, the difference between ECT (Coolant Temp) and IAT (Intake
Air) must be less than 13_F (7_C). (Refer to Examples 1 and 2 on previous page.)
Drive Pattern Procedure
SConnect the OBDII Scantool to DLC3 to check monitor status and preconditions.
SRelease the pressure in the fuel tank by removing and then reinstalling the fuel tank
cap.
SStart the engine and as soon as safely possible begin driving as directed.
2a. Drive the vehicle at 50 – 65 mph (80 – 104 km/h) for about 15 minutes. (See
illustration on previous page.)
NOTE:
SDo not turn the ignition off until the drive pattern is complete.
SDrive on smooth roads to reduce excessive fuel sloshing.
If vehicle speed drops under 45 mph (72 km/h) repeat step “2a.”
Readiness
Monitor
Drive
Patterns:
EVAP
Monitors
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 21 of 23
DRIVE PATTERN NO. 9: Oxygen Sensor Monitor (Front and Rear O2S System)
Once Twice 3 times 10 times
25 mph
(40 km/h)
(over 900
rpm)
Idling
IG SW off
Over
2 min
(a)
Over
50 sec
Over
50 sec
(b)
50 sec 50 secOver
40
sec
(c)
Over
40
sec
40
sec
(d)
Preconditions
The monitor will not run unless:
SMIL is OFF.
Drive Pattern Procedure
Connect the OBDII Scantool to DLC3 to check monitor status and preconditions.
a. Start the engine and allow it to idle for 2 minutes or more.
b. Drive the vehicle at 25 mph (40 km/h) or more for at least 50 seconds.
Be sure engine speed remains above 900 rpm.
c. Stop the vehicle and allow the engine to idle for 40 seconds or more.
d. Perform steps “b” and “c” ten times.
If readiness status does not switch to “complete,” ensure preconditions are met, turn the
ignition OFF, then repeat steps “a” through “d.”
NOTE:
The readiness status may not switch to “complete” after the first drive pattern trip if a
Pending Code has been set (first trip for a two–trip DTC).
SPending Codes are available from the DTC Info Menu in Enhanced OBDII.
SPending Codes indicate a POTENTIAL problem was detected. A second trip is
needed to confirm the DTC prior to diagnosis.
SOnce a second trip is completed, a current DTC will be stored.
Readiness
Monitor
Drive
Patterns:
Oxygen
Monitors
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 22 of 23

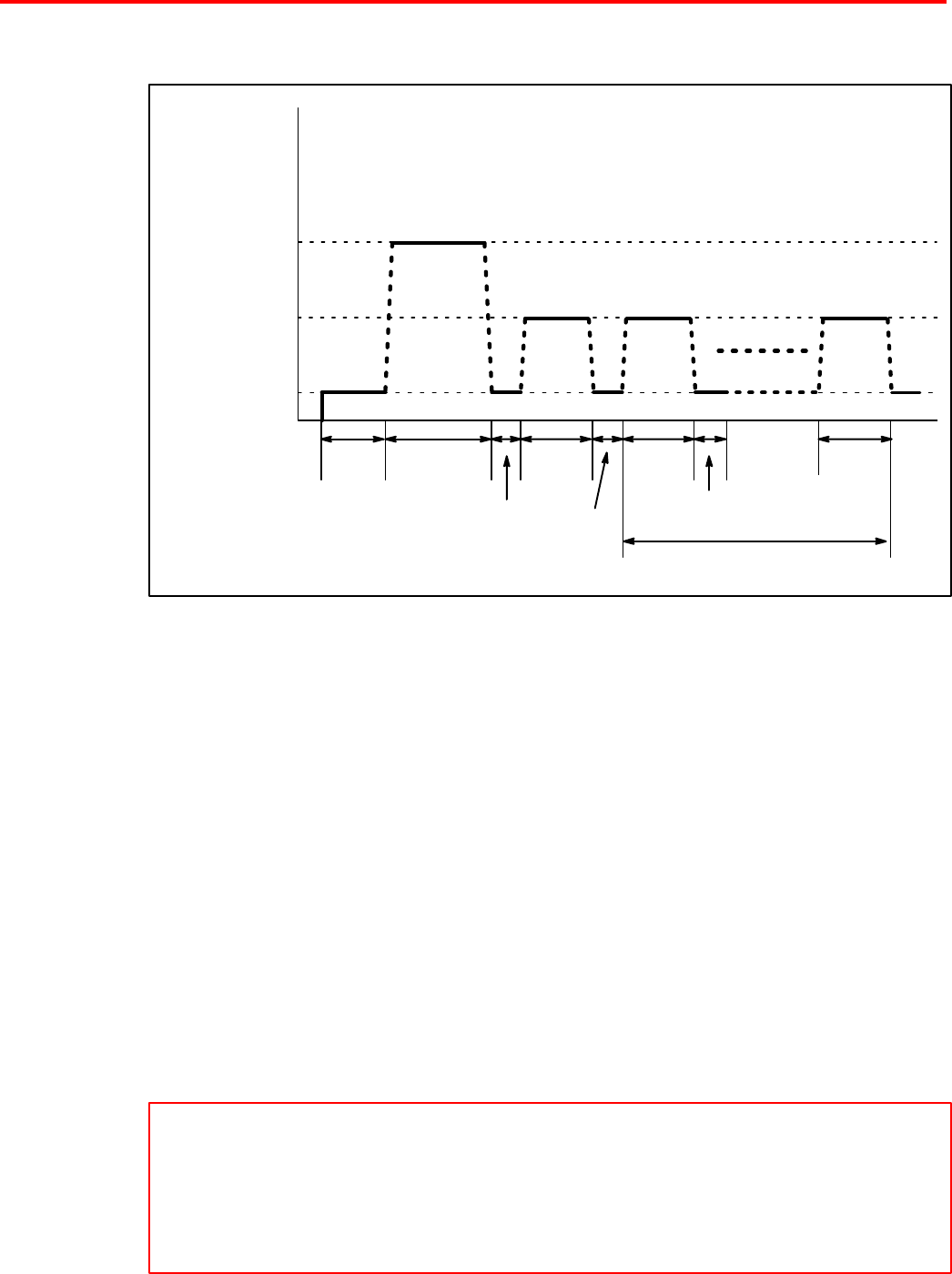

DRIVE PATTERN NO. 10: Oxygen/Air Fuel Ratio Sensor Monitor
(Front AF Sensor and Rear O2S System)
40 – 70 mph
(64 – 112 km/h)
(900 – 3,200 rpm)
Idling
IG SW off
Once Twice 10 times
Over
2 min
(a)
Over
40 sec
(d)
25 mph
(40 km/h)
(over 900 rpm)
Over
3 min
(b) Over
10 sec
(c)
Over
10 sec
(e)
Over
40 sec
Over
10 sec
40 sec
(f)
Preconditions
The monitor will not run unless:
SMIL is OFF.
Drive Pattern Procedure
Connect the OBDII Scantool to DLC3 to check monitor status and preconditions.
a. Start the engine and allow it to idle for 2 minutes or more.
b. Drive the vehicle at 40 – 70 mph (64 – 112 km/h) or more for at least 3 minutes.
Be sure to maintain engine speed between 900 and 3,200 rpm.
c. Stop the vehicle and allow the engine to idle for 10 seconds or more.
d. Drive the vehicle at 25 mph (40 km/h) for at least 40 seconds or more.
Be sure to maintain engine speed above 900 rpm.
e. Stop the vehicle and allow the engine to idle for 10 seconds or more.
f. Perform steps “d” and “e” ten times.
If readiness status does not switch to “complete,” ensure preconditions are met, turn the
ignition switch OFF, then repeat steps “a” through “f.”
NOTE:
The readiness status may not switch to “complete” after the first drive pattern trip if a
Pending Code has been set (first trip for a two–trip DTC).
SPending Codes are available from the DTC Info Menu in Enhanced OBDII.
SPending Codes indicate a POTENTIAL problem was detected. A second trip is
needed to confirm the DTC prior to diagnosis.
SOnce a second trip is completed, a current DTC will be stored.
Readiness
Monitor
Drive
Patterns:
Oxygen
Monitors
(Continued)
READINESS MONITOR DRIVE PATTERNS – EG003-02 Revised March 29, 2002
Page 23 of 23

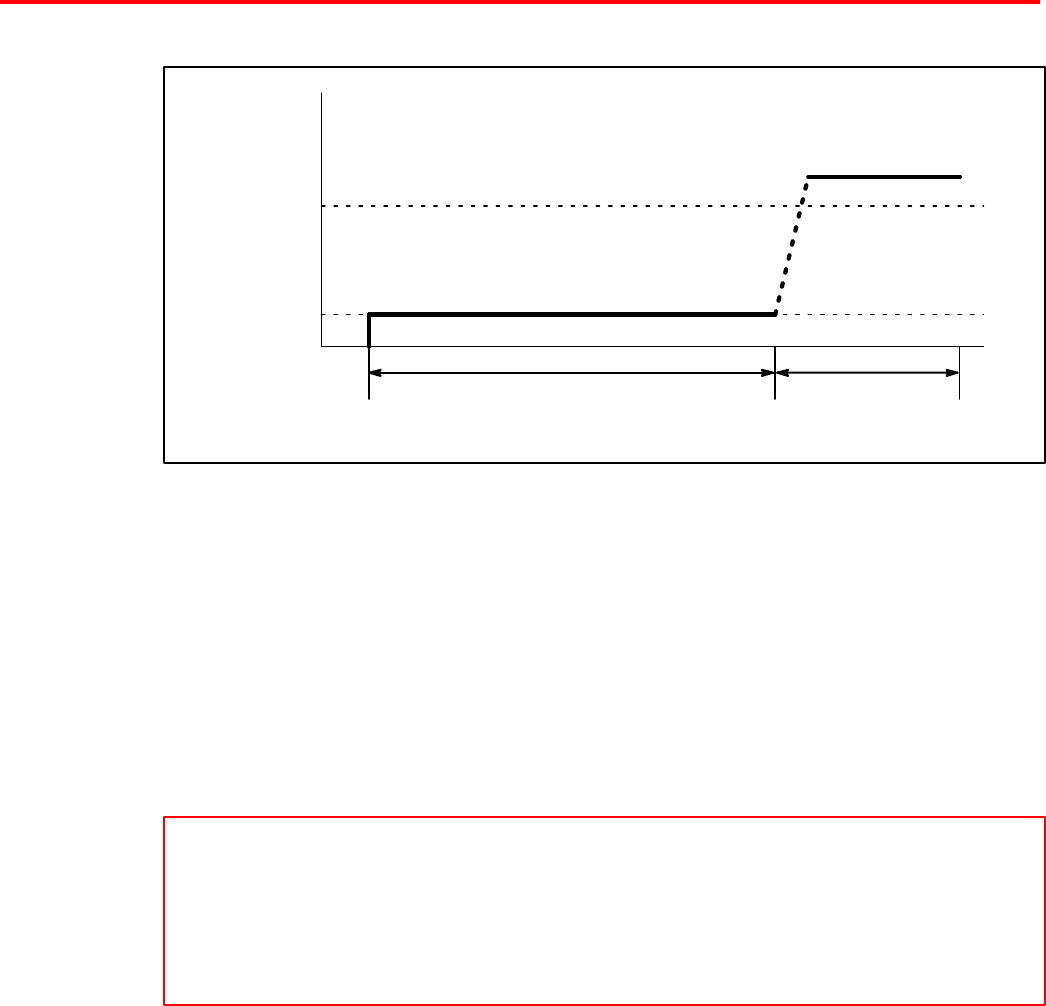

DRIVE PATTERN NO. 11: Oxygen/AF Sensor Heater Monitor
Idling
IG SW off
2 min
(b)
9 min
(a)
25 mph
(40 km/h)
Preconditions
The monitor will not run unless:
SMIL is OFF.
Drive Pattern Procedure
Connect the OBDII Scantool to DLC3 to check monitor status and preconditions.
a. Start the engine and allow it to idle for 9 minutes.
b. Drive the vehicle at 25 mph (40 km/h) or more for at least 2 minutes.
If readiness status does not switch to “complete,” ensure preconditions are met, turn the
ignition OFF, then repeat steps “a” and “b.”
NOTE:
The readiness status may not switch to “complete” after the first drive pattern trip if a
Pending Code has been set (first trip for a two–trip DTC).
SPending Codes are available from the DTC Info Menu in Enhanced OBDII.
SPending Codes indicate a POTENTIAL problem was detected. A second trip is
needed to confirm the DTC prior to diagnosis.
SOnce a second trip is completed, a current DTC will be stored.
Readiness
Monitor
Drive
Patterns:
Oxygen
Monitors
(Continued)

Navigation menu
