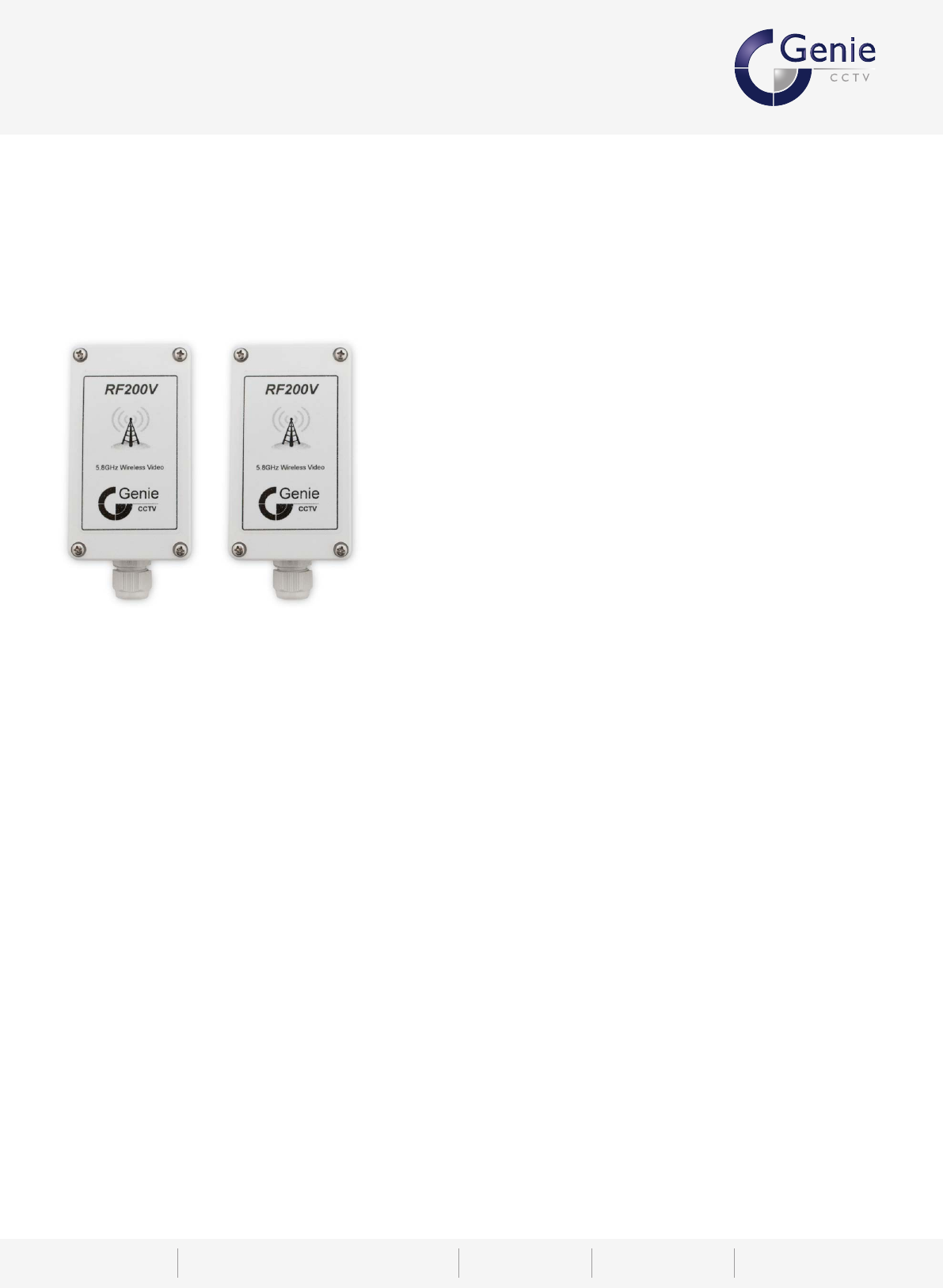

RF200V
5.8GHz Wireless Video Link
REF: GENIE CCTV
DATE: 30/10/12
ISSUE No: 2012/1
TECHNICAL DATA SHEET
KEY FEATURES
• 5.8GHz
• IP65 Rated
• 7x RF Channels
• DC12V Operation
• High Quality Audio & Video
• 250m Range in Ideal Conditions (Requires Line of Sight)
• LED Status to Monitor Transmitter
• 7x LED Signal Strength Meter (RSSI)
• Digital Input for PIR, External Switch etc.
• Volt Free Outputs for both Tamper and Input Channels
• Directional antennas (Reduced Interference)
• Heavy Duty Wall Bracket for X & Y Movement
• Tamper Monitors Case Switches, External
Input & Loss of Transmitter
ORDERING INFORMATION
RF200V 5.8GHz Wireless Video Link
CCTV House, City Park, Watchmead, Welwyn Garden
City, Hertfordshire, AL7 1LT, United Kingdom
Te l +44(0)1707 330541
Fax +44(0)1707 330543
Email info@geniecctv.com www.geniecctv.com
GENIE CCTV LTD.
DESCRIPTION
The RF200V is a high quality seven channel 5.8GHz audio / video wireless interface designed specically for
the CCTV industry. The kit consists of a Transmitter, Receiver and Wall Bracket.
The Transmitter and receiver both use a directional patch antenna to reduce external interference. The
receiver has a built in 7 bar signal strength meter to obtain the best possible reception during an installation;
a very important stage to help guarantee a reliable wireless video link.
Both units are housed in a small IP65 enclosure, so mounting outdoors is possible without the need for
additional external waterproof enclosures. The receiver also comes with a mounting bracket providing X & Y
movement for alignment purposes.
In addition this video link also transmits a digital input and tamper circuit. The digital input can be used for a
PIR sensor or door contact etc. at the transmitter end and drives a volt free relay at the receiver. The output
can be programmed as a momentary output, or a timed output from 1 second to 30 minutes.
The tamper channel monitors an external input at the transmitter, both transmitter and receiver cases for lid
removal and loss of the wireless link. The output is via a normally closed volt free contact.
Conguration of the RF200V is via a simple one button programming method. On the transmitter only the
RF channel needs to be programmed. The receiver has two steps: the rst is to pair the receiver to the
transmitter and the second (if required) is to set the output timer. The whole process takes less than ve
minutes to congure.

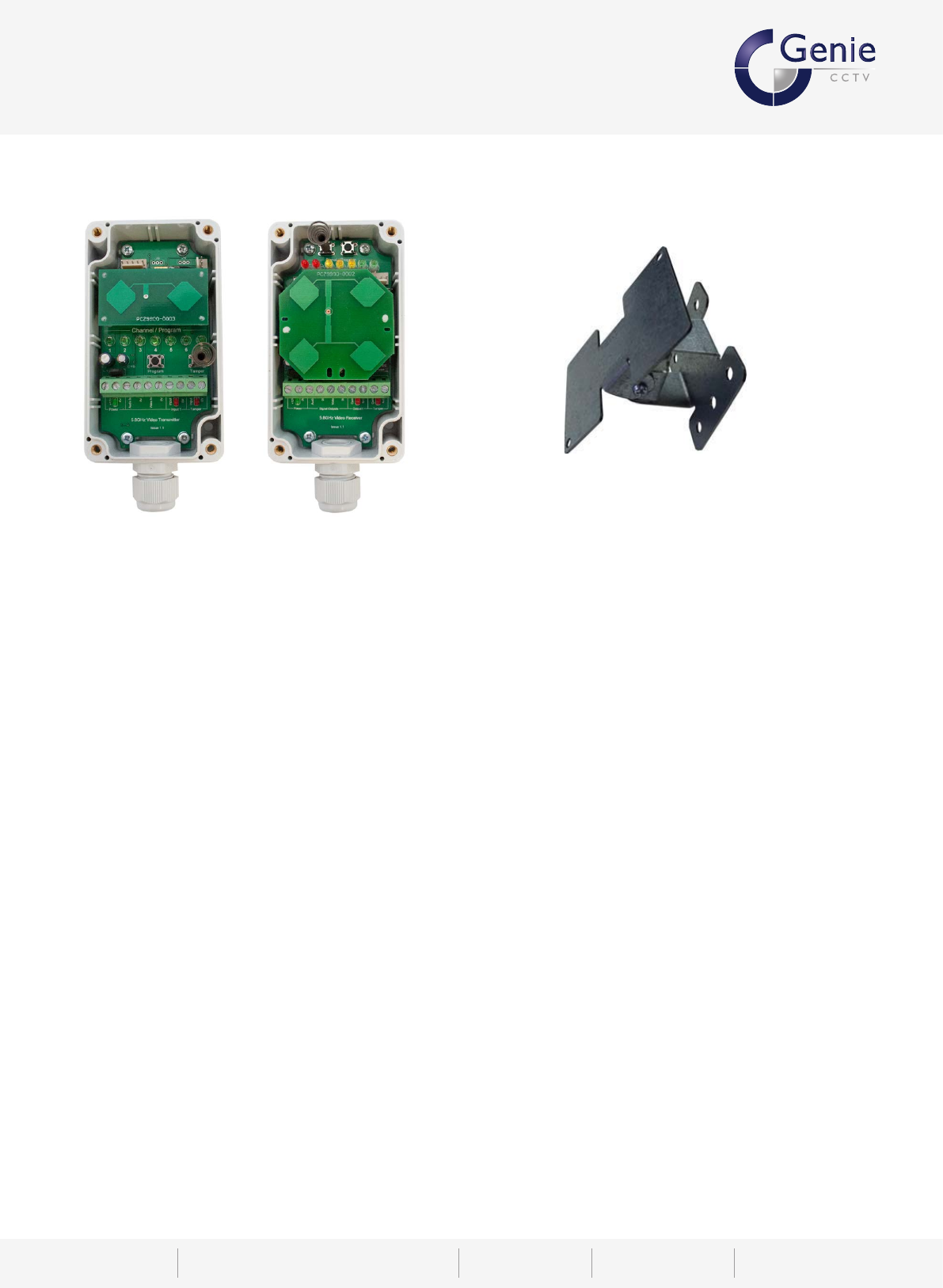

Rx Rx Wall BracketTx
REF: GENIE CCTV
DATE: 30/10/12
ISSUE No: 2012/1
TECHNICAL DATA SHEET
CCTV House, City Park, Watchmead, Welwyn Garden
City, Hertfordshire, AL7 1LT, United Kingdom
Te l +44(0)1707 330541
Fax +44(0)1707 330543 Email info@geniecctv.com www.geniecctv.com
GENIE CCTV LTD.
TECHNICAL SPECIFICATION
Features and specications are subject to change for further improvement without any notice
Model Number RF200V
ELECTRICAL
Operating Voltage 11 - 13V DC
Operating Current (Tx) 150 mA (Max.)
Operating Current (Rx) 200 mA (Max.)
Relay Max. Working Voltage (Volt Free) 30V AC/DC
Relay Max. Working Current 1A
Video Input / Output 1V P-P (+/- 0.2V)
Video Frequency Response +/- 5dB max 50Hz 5.5MHz
Audio Input / Output 1V P-P
Audio Frequency Response 50Hz—20KHz
RADIO
Operating Frequencies 5725 - 5875MHz
Transmit Power <= 25mW (14dBm)
Video - Audio Modulation / Demodulation FM-FM
Video Deviation 4MHz (SSB)
Audio Deviation 75KHz (SSB)
MECHANICAL
Receiver Case Size (With Grommet) 140 x 65 x 40mm
Transmitter Case Size (With Grommet) 140 x 65 x 40mm
Case Rating IP65
ENVIRONMENTAL
Temperature Range -10 to +55 Degrees
Relative Humidity 95% Non-Condensing
