OPERATOR’S MANUAL

Manufactured By

H&S MANUFACTURING CO.,INC.

P.O. BOX 768 (715) 387-3414 FAX (715) 384-5463

MARSHFIELD, WISCONSIN 54449

OPERAOPERA

OPERATT

TOR’S MANUOR’S MANU

OR’S MANUOR’S MANU

OR’S MANUALAL

ALAL

ANDAND

AND

PARAR

ARAR

ARTS LISTTS LIST

TS LISTTS LIST

TS LIST

AR08 - AR10 - AR12

ACTION RAKES

READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THIS

EQUIPMENT.

UNSAFE OPERATION OR MAINTENANCE OF THIS EQUIPMENT CAN

RESULT IN SERIOUS INJURY OR DEATH.

HSMFG0112

Revision #1

AR08 Starting Serial #212016

AR10 Starting Serial #214020

AR12 Starting Serial #216019

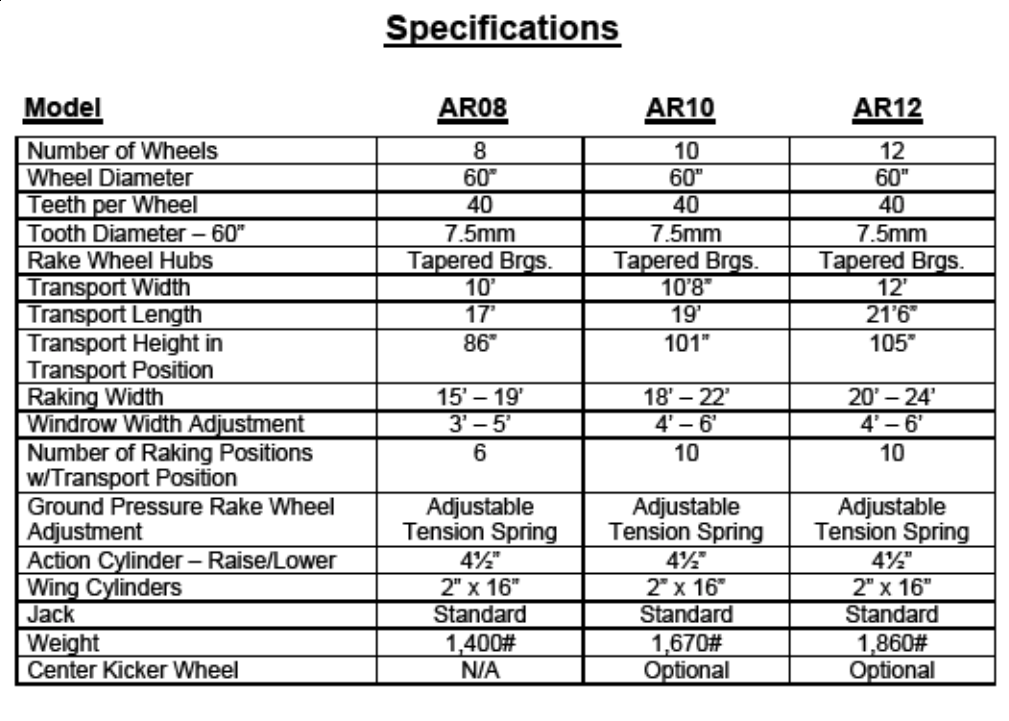

H&S AR8 - AR10 - AR12 Rakes

OPERATOR’S & PARTS MANUAL

CONTENTS

Warranty & Warranty Registration Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Dealer Pre-Delivery & Delivery Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Be Alert Symbol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Explanation of Safety Signs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Danger - Warning Signs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Warning - Owner Must Read and Understand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Bolt Torque Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Set-Up & Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Preparing for Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Transporting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Operation & Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-17

Options & Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Lubrication Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-20

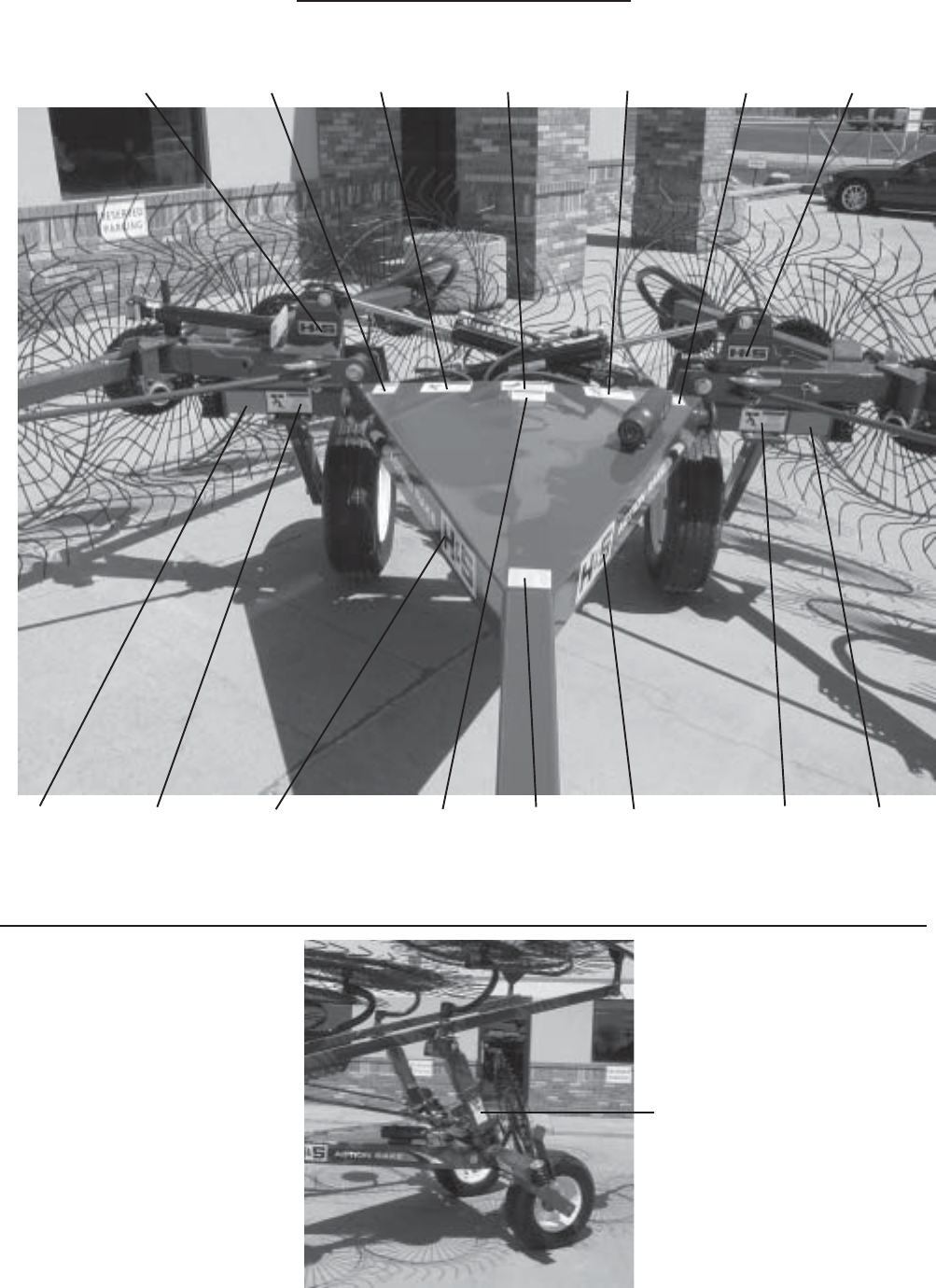

Decal Location & Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-23

Troubleshooting Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Instructions for Ordering Parts - About Improvements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

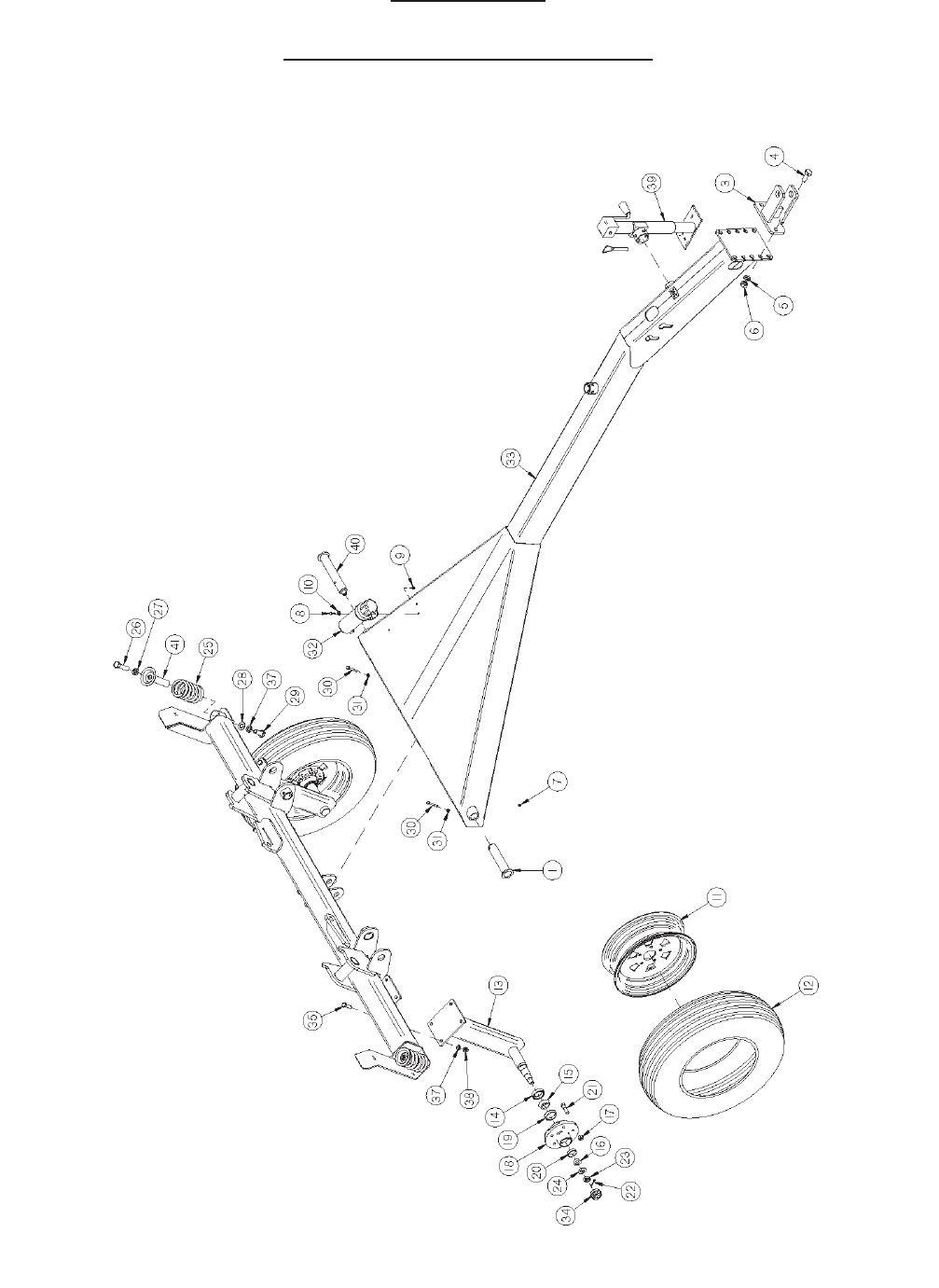

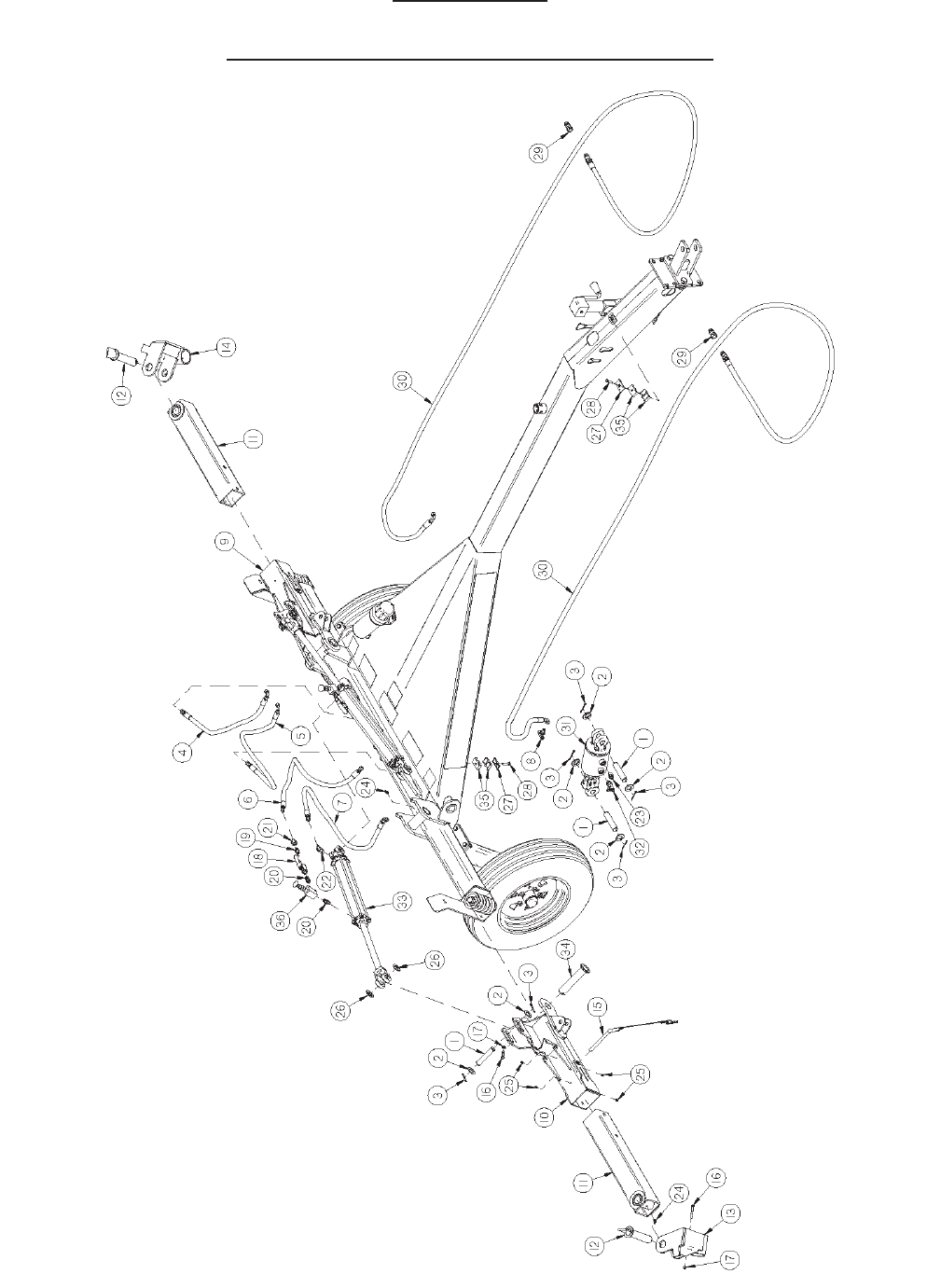

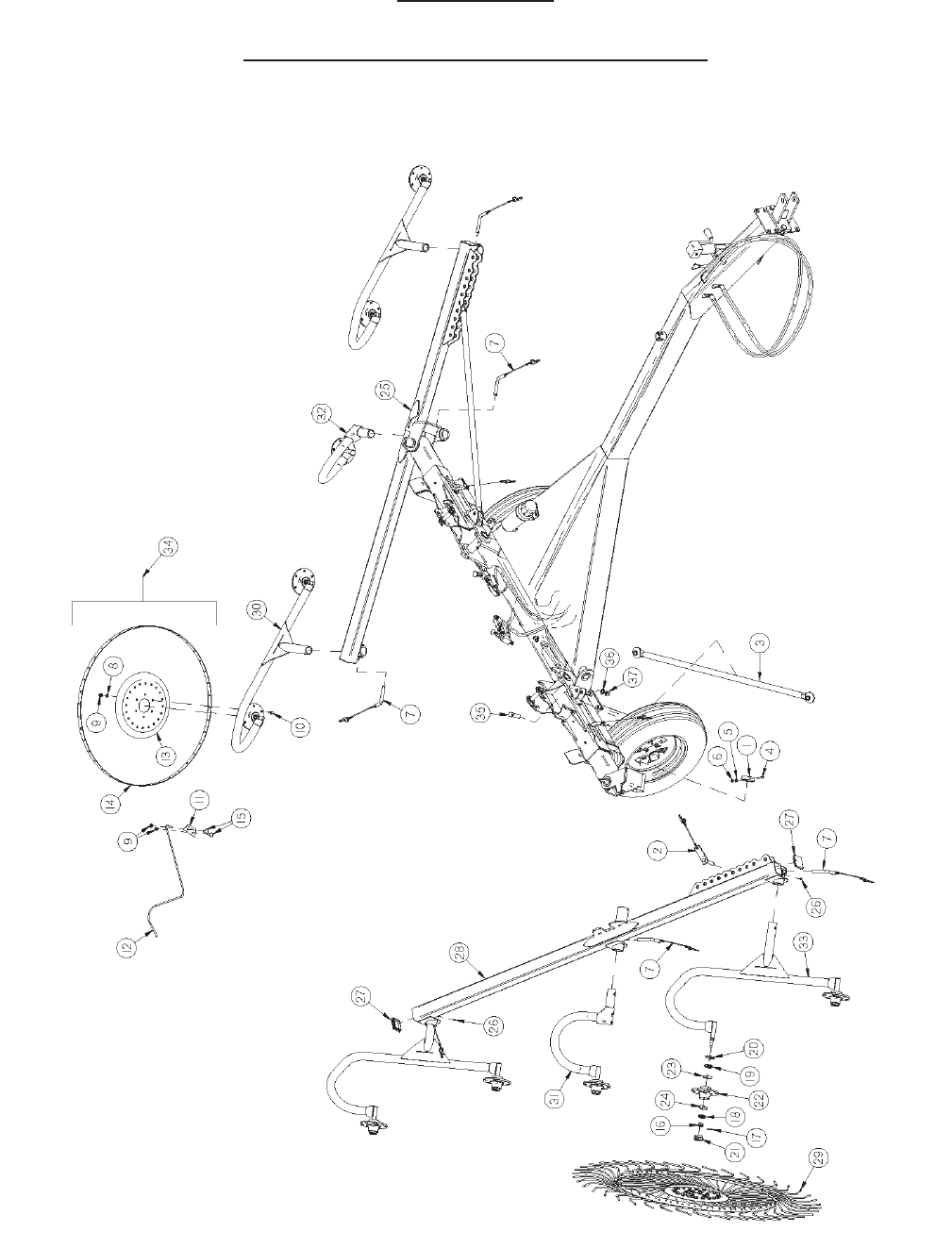

Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-34

Parts Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-36

-1-

H&S WARRANTY

H&S Manufacturing Co., Inc. (“H&S”) warrants this product to be free from defect in material and workmanship. Except as noted

below, this warranty term is twelve (12) months from the date of delivery of the product to the original purchaser by an authorized

H&S dealer. Under this warranty , H&S will repair or replace, at its option, any covered part which is found to be defective in material

or workmanship during the applicable warranty term. In no case will the covered repair cost of a part or parts exceed the

replacement cost of that part. Warranty service must be performed by H&S or a dealer authorized by H&S to sell and/or service the

product involved, which will use only new or remanufactured parts or components furnished by H&S. This warranty includes

approved parts and labor to fix the product but does not include, and the purchaser is responsible for, any service call and/or

transportation of the product to and from the dealer’s place of business, for any premium charged for overtime labor requested by

the purchaser, and for any service work not directly related to any defect covered under this warranty. This warranty includes only

those components of the product manufactured by H&S. Warranty for any component not manufactured by H&S including, but not

limited to, engines, batteries, tires, rims, hydraulic motors, pumps, etc. are covered by the warranty, if any, provided separately by

their respective manufacturers.

This warranty in all its parts, is extended solely to the original purchaser of the product, is terminated upon any subsequent

transfer or sale from or by the original purchaser and extends no third party benefits or rights whatsoever.

The warranty term for any product used in any commercial, custom, for hire or rental application, is limited to six (6) months from

the date of delivery of the product to the original purchaser by an authorized H&S dealer.

Polybonded (polyethylene and plywood) panels utilized in H&S Manure Spreaders are warrantied, to the original purchaser, to not

wear through and the polyethylene overlay to not tear free of the plywood for the functional life of the spreader. This specific

warranty on polybonded panels includes only replacement of any defective panel part without any allowance for labor beyond the

terms of the general warranty (12 or 6 months), and is further limited to manure spreaders used to spread normal agricultural

manure.

This warranty does not include: (1) Any product that has been altered or modified in ways not approved by H&S; (2) Depreciation

or damage caused by normal wear, misuse, improper or insufficient maintenance, improper operation, accident or failure to follow the

product Operator’s Manual recommendations and product decal recommendations; (3) Normal maintenance parts and service; (4)

Repairs made with parts other than those available from H&S or performed by anyone other than H&S or a dealer authorized by H&S

to sell and/or service the product involved.

To secure warranty service the purchaser must report the product defect to a dealer authorized by H&S to sell and/or service the

product involved within the applicable warranty term together with evidence of the warranty start date and make the product

available to that dealer within a reasonable period of time.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY. H&S and the

companies affiliated with it makes no warranties, representations, or promises, express or implied, as to the performance or freedom

from defect of its products other than those set forth above and NO IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS

OR FITNESS FOR A PARTICULAR PURPOSE IS MADE. IN NO EVENT WILL THE DEALER, H&S OR ANY COMPANY AFFILIATED

WITH H&S BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. The ONLY REMEDY the purchaser has in connection

with the breach of performance of any warranty on H&S products are those set forth above.

The selling dealer has no authority to make any representation or promise on behalf of H&S, or to modify the terms or limitations

of this warranty in any way.

WARRANTY

FILL OUT AND MAIL

IMMEDIATELY TO MAKE

WARRANTY EFFECTIVE

2/04

WARRANTY REGISTRATION

Date of Purchase

Purchaser Address

City State Zip

Product Model# Serial#

Dealer Address

City State Zip

Signature of Original Buyer

-2-

IMPORTANT!

Tear on dotted line, provide the information requested on

the card. The H&S Warranty is valid “only” after this card is

received and recorded at H&S Mfg. Co. Mail at

once. No postage is required in the U.S.A.

!Rake was not damaged in shipment. Check for dents and loose or missing parts.

Report damage immediately to H&S Manufacturing Co., Inc.

!Rake has been correctly assembled according to instructions in this manual. Wheel

nuts and all other fasteners are tightly secured.

!All bolts and fasteners are tight.

!All grease fittings have been lubricated. See Lubrication Chapter of this manual for

details.

!Hoses and fittings are properly attached and there are no visible leaks.

!All mechanisms are operating trouble free.

!Rake wheels touch ground in unison when lowered into position. (Rake setting level)

!Wheels are properly mounted.

!Tires are inflated to correct pressure.

!Decals are in place and legible.

After the rake has been completely set-up, check to be certain it is in correct operating order before

delivering to the customer. The following is a list of points to inspect. Check off each item as you

have made the proper adjustments and found the item operating satisfactorily.

Serial Number

Dealer’s Name

Signature of Pre-Delivery Inspector

-3-

(Remove Dealers File Copy At Perforation)

H&S DEALER PRE-DELIVERY CHECK LIST

AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS

Inspection Date

Model Number

-4-

Intentionally Left Blank

This check list that follows is an important reminder of valuable information that should be passed

on to the customer at the time this Rake is delivered.

Check off each item as you explain it to the customer.

This delivery check list, when properly filled out and signed assures the customer that the

Pre-delivery service was satisfactorily performed.

Explain to the customer that the pre-delivery inspection was made.

Explain to the customer all the safety precautions they must excercise when operating

this unit.

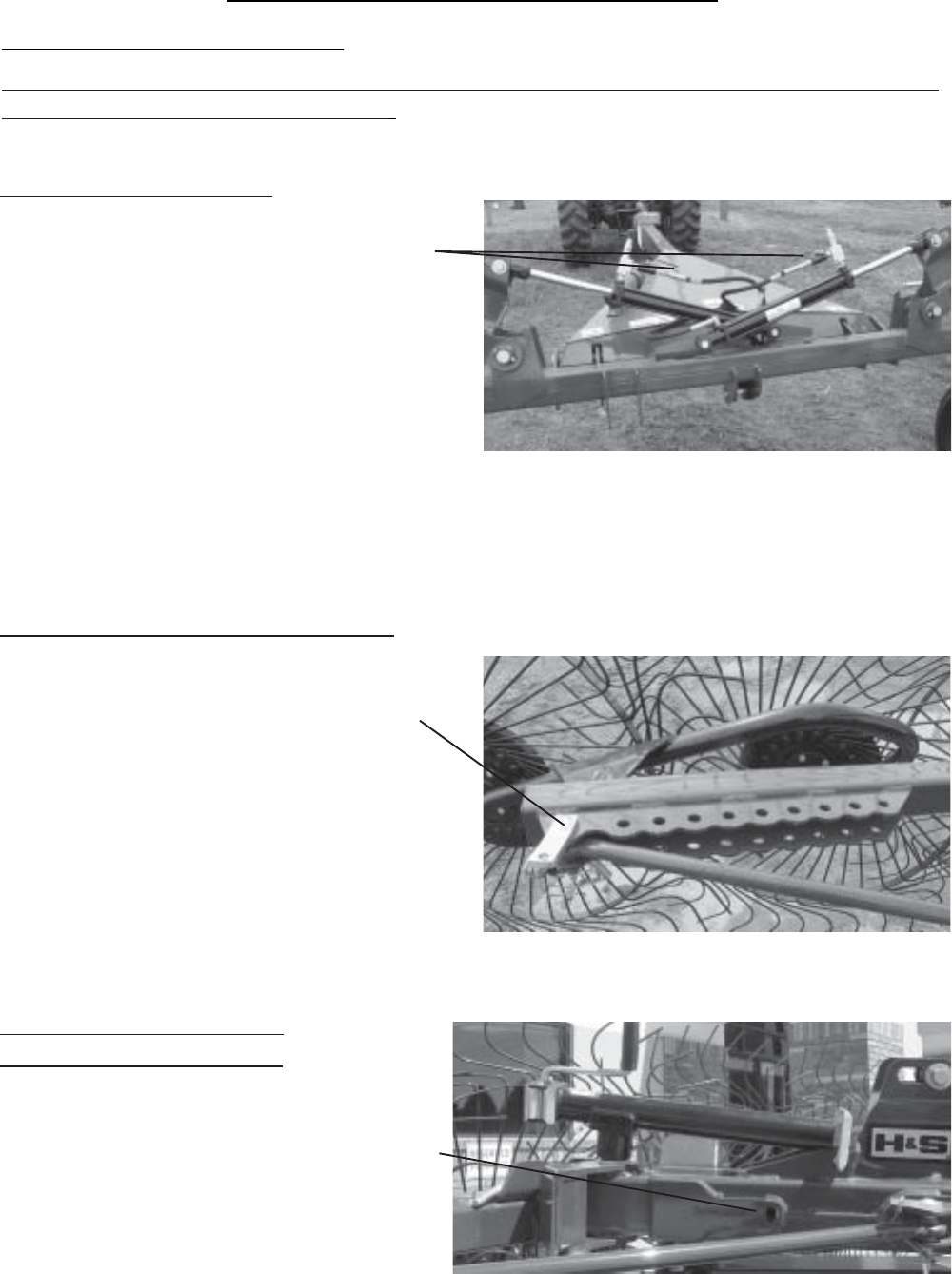

Explain raking and windrow width adjustments.

Explain to customer that regular lubrication is required for proper operation and long life of

machine.

Show customer the lubrication section of Owner’s Manual.

Give the customer Owner’s Manual and make sure they read and understand all operating

and service instructions.

Record Serial Number on page 25 of this Manual.

!Have the customer sign a completed “Warranty Registration”, and mail it.

DEALER DELIVERY CHECK LIST

(Remove Dealer File Copy At Perforation)

AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS

Date Delivered

Dealer’s Name

Signature of Original Buyer

Note: Warranty is not valid until warranty card is completed and returned to H & S Mfg. Co., Inc.

-5-

Intentionally Left Blank

-6-

ALERT! YOUR SAFETY

IS INVOLVED.

THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS

INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST

OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS

MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.

TRACTORS

This operator’s manual uses the term “Tractor” when identifying the power source.

-7-

SAFETY INFORMATION

H & S MANUFACTURING CO., INC.

RECOGNIZE SAFETY INFORMATION

This is the safety-alert symbol. When you see this

symbol on your machine or in this manual, be alert to the

potential for personal injury.

Follow recommended precautions and safe operating

practices.

UNDERSTAND SIGNAL WORDS

A signal word- DANGER, WARNING, or CAUTION - is

used with the safety-alert symbol. DANGER identifies the most

serious hazards.

Safety signs with signal word DANGER or WARNING are

typically near specific hazards.

General precautions are listed on CAUTION safety signs.

FOLLOW SAFETY INSTRUCTIONS

Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all

recommended precautions and safe operating procedures.

Keep signs in good condition. Immediately replace any missing or damaged signs.

-8-

OBSERVE MAXIMUM TRANSPORT SPEED

The maximum transport speed for this implement is 32 km/h (20 m.p.h.).

Some tractors are capable of operating at speeds that exceed the maximum

transport speed of this implement. Regardless of the maximum speed capability

of the tractor being used to tow this implement, do not exceed the implement’s

maximum transport speed.

Exceeding the implements maximum transport speed can result in:

* Loss of control of the tractor/implement combination

* Reduced or no ability to stop during braking

* Implement tire failure

* Damage to the implement structure or its components

Use additional caution and reduce speed when towing under adverse surface

conditions, when turning, and when on inclines.

Do not attempt transport if the fully loaded implement weighs more than 1.5 times

the weight of the tractor.

SAFETY INFORMATION

-9-

SAFETY INFORMATION

TRACTORS

This operators manual uses the term “Tractor” when identifying the power source.

WARNING

TO PREVENT SERIOUS INJURY OR DEATH

Study The Above Safety Rules

ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED

BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE

FOLLOWING INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO

OPERATES OR WORKS WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE,

IS FAMILIAR WITH THESE SAFETY PRECAUTIONS.

H&S Manufacturing always takes the operator and his safety into consideration and guards

exposed moving parts for their protection. However, some areas cannot be guarded or shielded in

order to assure proper operation. In addition, the operators manual and decals on the machine

itself warn you of further danger and should be read and observed closely.

-10-

DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE

MACHINE.

Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before

cleaning, working, or adjusting on machine.

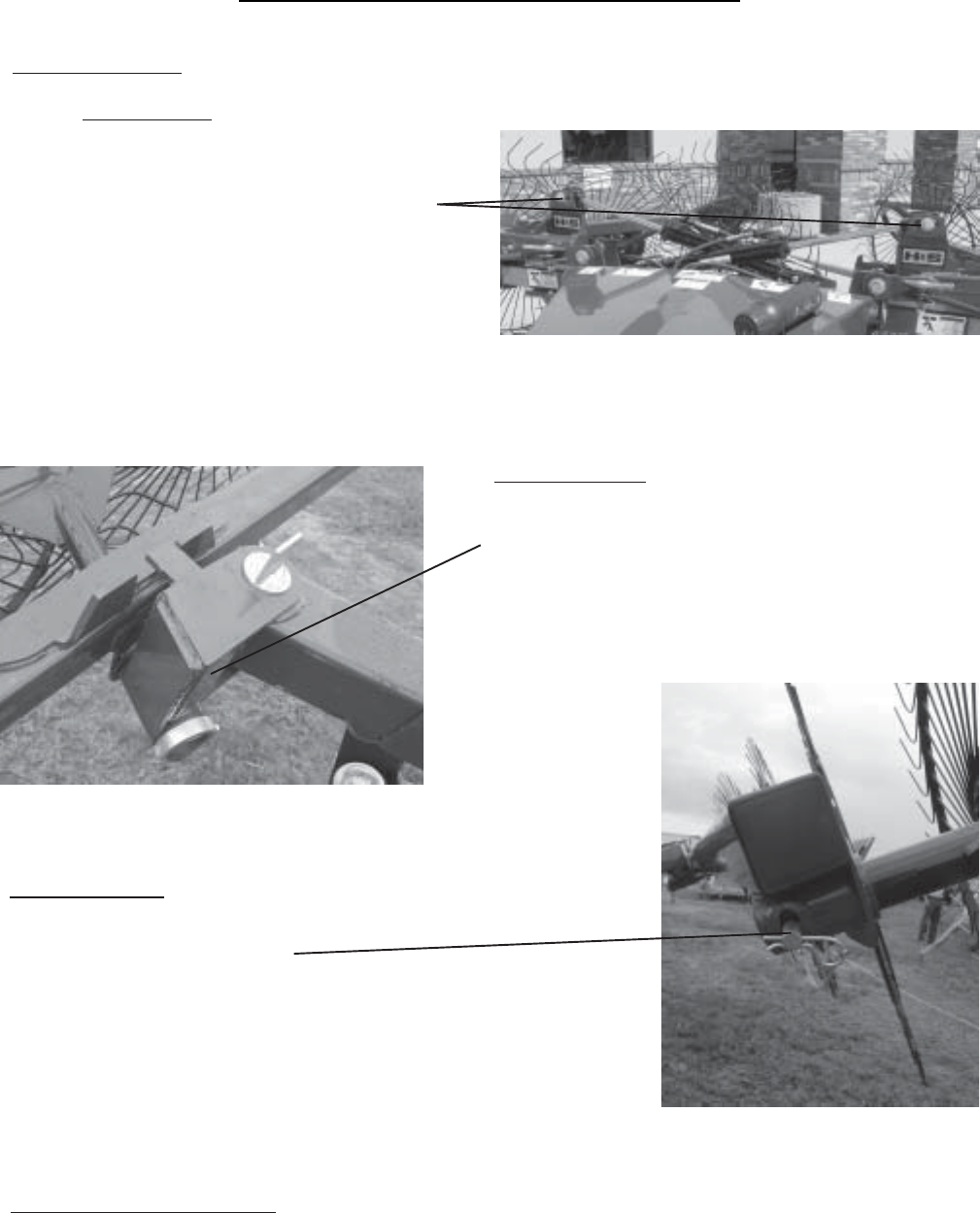

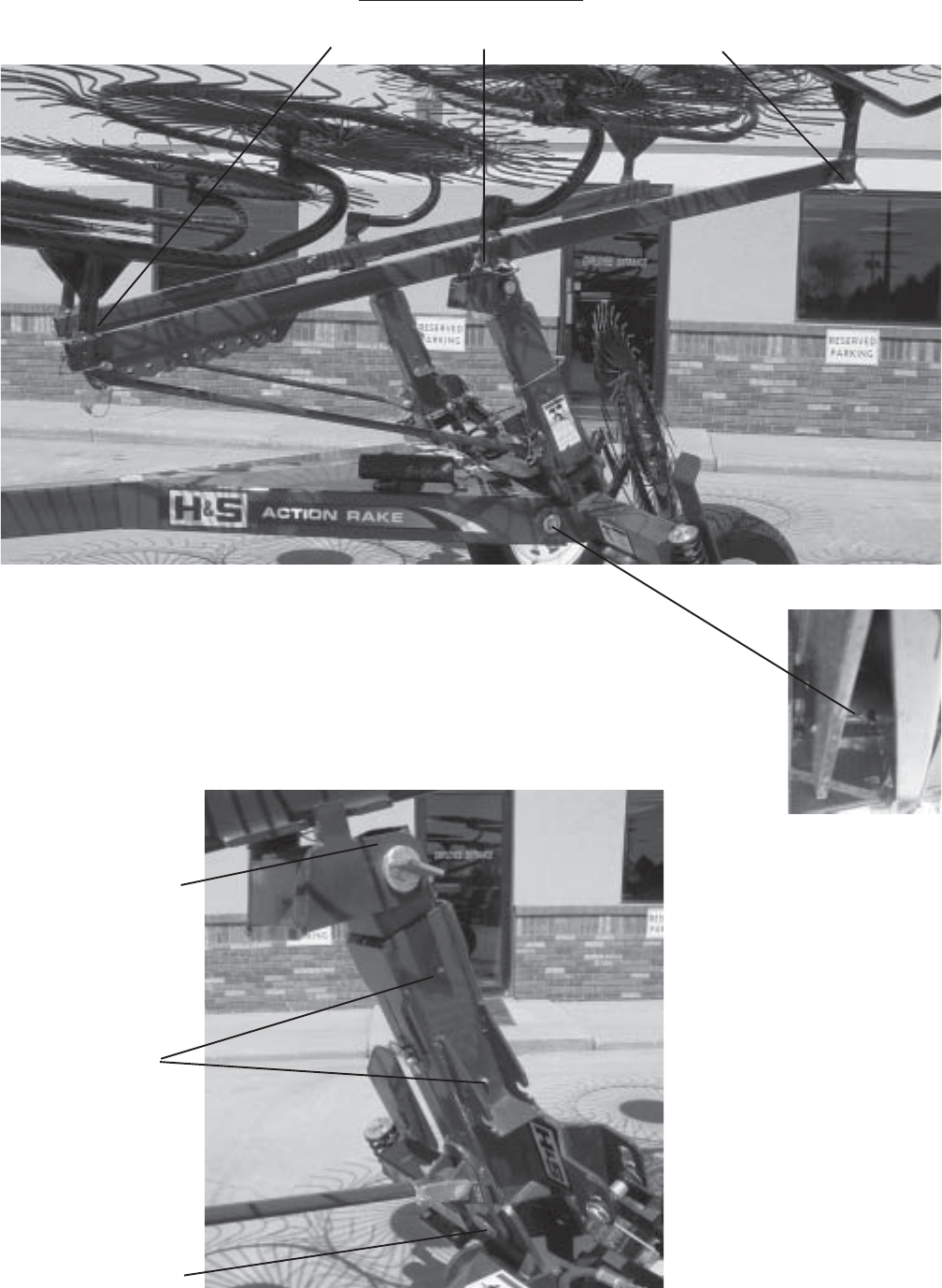

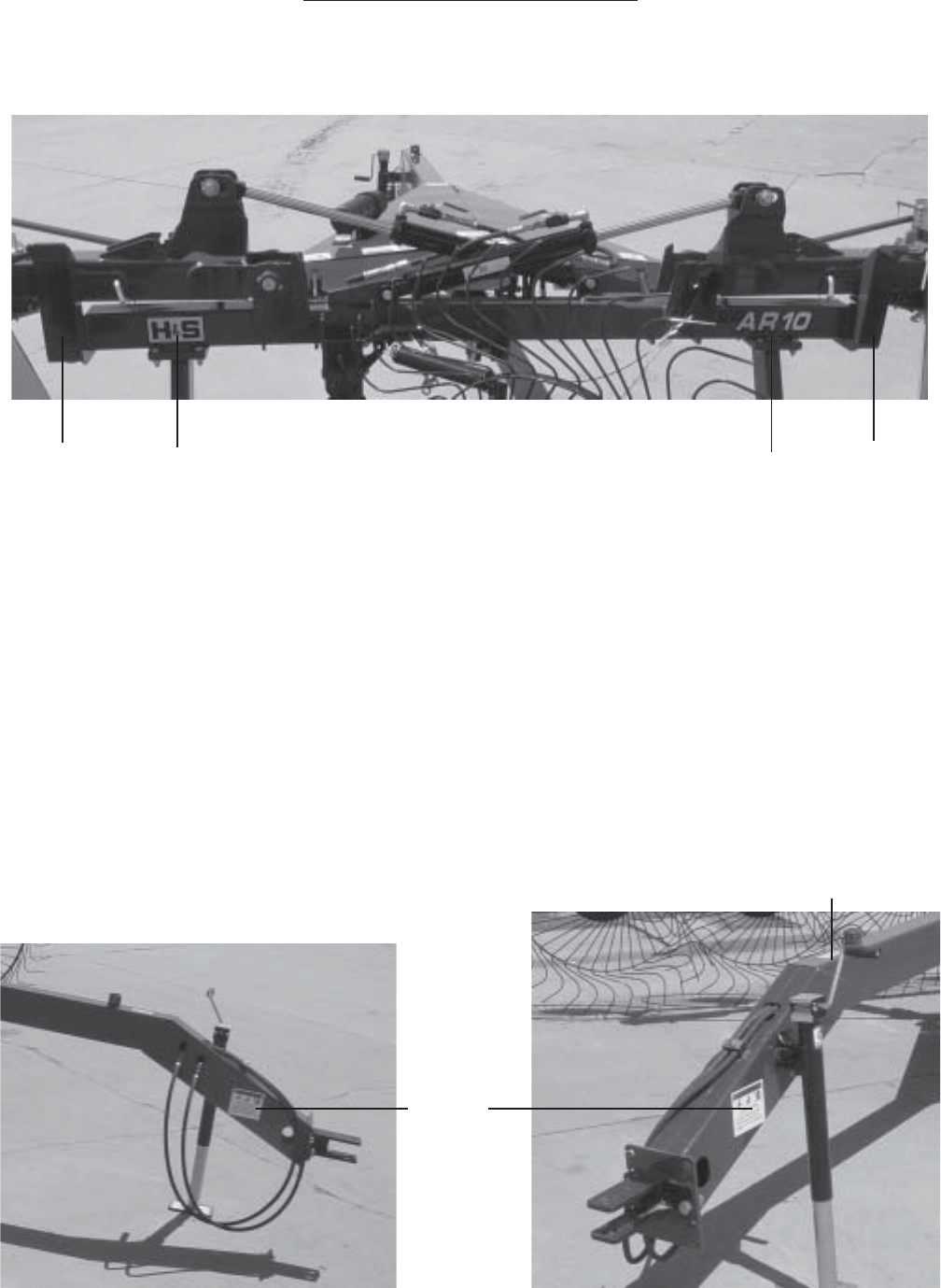

IF RAKE ARMS ARE IN THE RAISED POSITION, MAKE SURE THE HYDRAULIC

TRANSPORT LOCK VALVES TO LOCK THE RAKE ARMS ARE IN THE CLOSED POSITION

BEFORE CLEANING, WORKING ON, OR ADJUSTING MACHINE.

DO NOT attempt to perform maintenance or repair with tractor running.

DO NOT step up on machine at any time.

DO NOT allow minors to operate or be near the machine.

Stay clear of rake when raising or lowering main rake beams.

Stay clear of hydraulic lines, they may be under extreme pressure or heat.

For transport and storage, always make sure that the transport lock valves are in the closed

position.

-11-

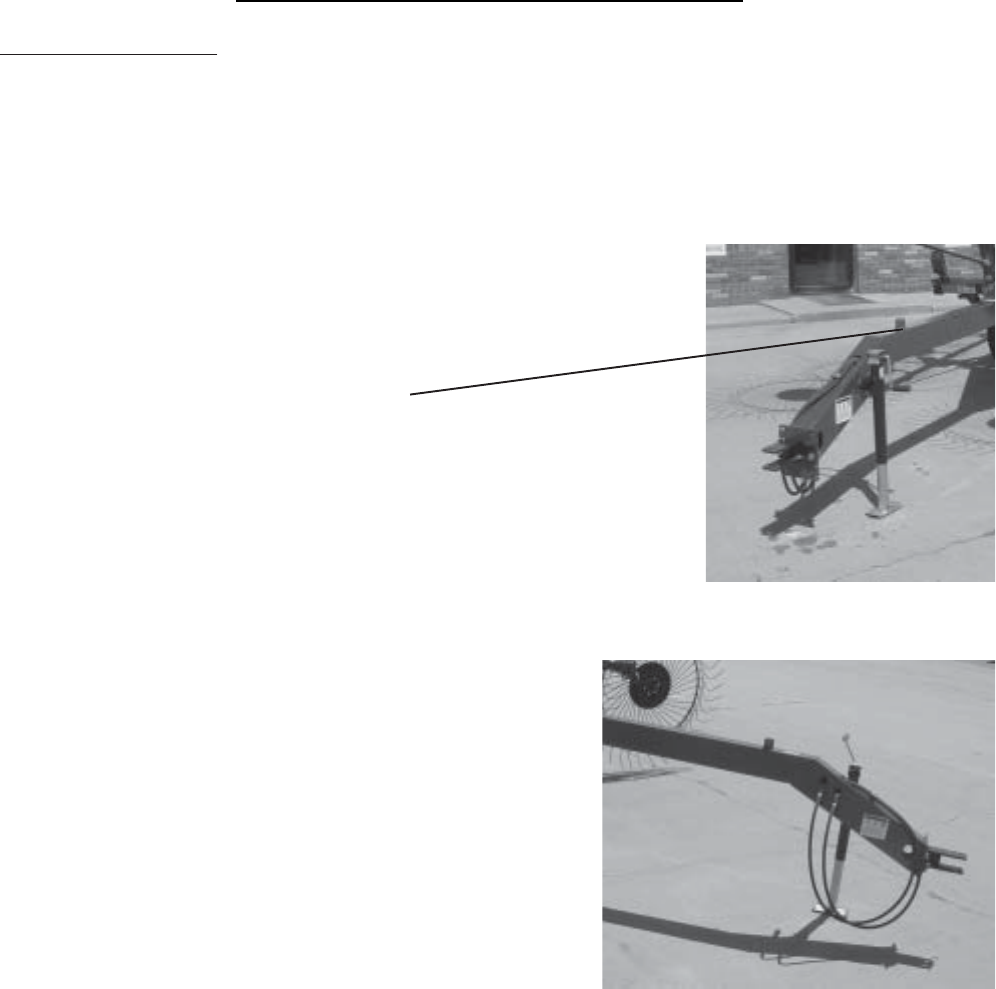

1. Assemble the rake or check the rake for proper assembly and adjustment. Make sure that all

bolts are tightened.

2. Attach the wheels with tires, using the lug nuts furnished and torque the mounting hardware to

95 ft./lbs. of torque. Check wheel bolts periodically thereafter.

3. Check tires and inflate to the recommended pressure. (ST205/75R15 - 50 PSI)

4. Lubricate the rake completely (See Lubrication Chapter in This Manual).

5. Tooth bolts must be torqued to 40 ft./lbs. to help prevent excessive tooth breakage.

Re-torque rake tooth bolts after the first 100 acres. Check periodically thereafter.

NOTE: Determine right or left side of the wheel rake by viewing it from the rear. If instructions or

parts lists call for hardened bolts, refer to bolt torque chart.

-12-

SET-UP & ASSEMBLY

PREPARING FOR OPERATION

1. Adjust the tractor hitch (13 to 17 inches above

ground) and attach rake to tractor with a hitch

pin that has a safety locking device.

2. Remove weight from lift jack.

Place jack in the storage position.

ADJUSTMENTS

There are 5 sets of holes on the adjustable hitch. In addition, the hitch can also be flipped upside down

to obtain 5 more positions, for a total of 10 positions to adjust for levelness. The hitch should be adjusted

so the main rake beams are level, or parallel to the ground when in the raking position.

3. Connect the 2 hydraulic hoses for raising and

lowering rake arms to the tractor. Open the 2

hydraulic transport lock valves and operate the

tractor valve to fill the hydraulic lines and operate

the cylinders. Add hydraulic fluid to the tractor

system, as required. After the rake arms have

returned to the transport position, close the

transport lock valves before transporting.

4. Retighten all bolts on rake after 100 acres as bolts can loosen up on new machinery.

5. Re-torque rake tooth bolts after first 100 acres. Check periodically thereafter.

-13-

TRANSPORTING

TOWING ON HIGHWAY

Follow state and local regulations when towing farm equipment on public highways. Never tow the rake

on a public highway at a speed greater than 20 m.p.h. (32 kph).

REFLECTORS

Front amber & rear red reflective decals on the outer edges of the rake for safety.

TRANSPORT LOCKS

There are two hydraulic transport lock valves

on the rake that must be turned to the closed

position during transport in case of tractor valve

leakage, or hose breakage.

-14-

-15-

OPERATION & ADJUSTMENTS

TRANSPORT LOCKS

Before the rake arms can be hydraulically

lowered for raking, the two hydraulic transport

lock valves on the rake that must be turned to

the open position.

RAKING WIDTH ADJUSTMENT

The AR08 rake has six width adjustments on

each rake beam. The AR10 and AR12 have

ten width adjustments on each rake beam.

Each rake beam angle can be adjusted

independently for multiple raking conditions.

The front hole is typically used as a transport

position.

EMERGENCY SHUTDOWN

Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before

cleaning or working on the machine.

AR10/AR12 WINDROW

WIDTH ADJUSTMENT

Remove the jack from jack storage position.

Position jack mount tube on top of rake beam

pin with jack foot in position as shown. Remove

the pin and clip from the rake arm.

Windrow width can now be adjusted on each

side of the rake. The AR10 and AR12 have two

adjustments. After the desired windrow width has

been reached, re-insert pin in desired hole,

remove jack and return to the storage position.

-16-

OPERATION & ADJUSTMENTS

FLOATATION

Rake Arm

Floatation pressure of the rake arms can be adjusted by adjusting the stop on the top of the spring

located at each end of the main frame. The stop should be adjusted so there is approximately 1/4” of

threads showing above the jam nut. The rake can be adjusted for lighter floatation by “raising” the stop.

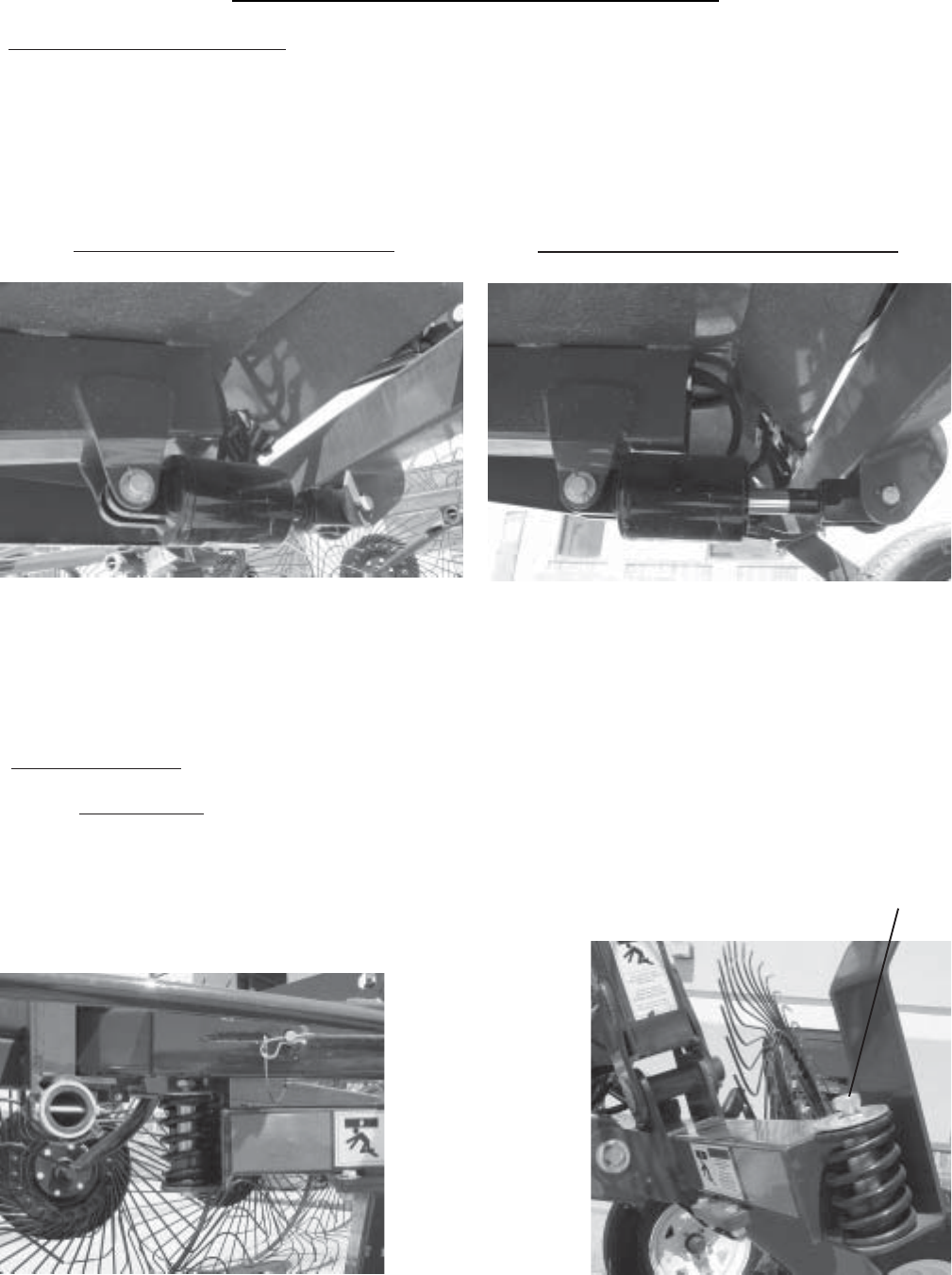

HYDRAULIC SYSTEM

The ACTION Rake utilizes a 2 hose hook-up with a Master/Slave cylinder system. When the rake arms

are lowered, the axles rotate forward, raising the main frame for more clearance. When the rake arms

are raised, the axles rotate rearward, lowering the main frame for transport. This system is incorpo-

rated with the raising and lowering of the rake arms.

Cylinder Transport Position

Cylinder Raking Position

OPERATION & ADJUSTMENTS

-17-

FLEXIBILITY

Rake Arm

The rake has been designed that when the

rake is lower on level ground, the pins of the

cylinder are centered in the bracket of the rake.

This allows the rake beams to flex up and

down without the hydraulic cylinder

restricting it’s motion. The rake arms are also

on a pivot to allow oscillation for additional

floatation.

ONE SIDED RAKING

Raking with one side can be accomplished by closing either of the transport lock valves when the rake

is in the transport position. When the tractor remote hydraulic valve is operated, only the rake arm with

the hydraulic transport lock valve in the open position will lower into the raking position. The rake arm

with the hydraulic transport lock valve in the closed position will stay in the transport position.

Rake Beam

The rake beam is allowed to oscillate through the

main arm pin for added flotation.

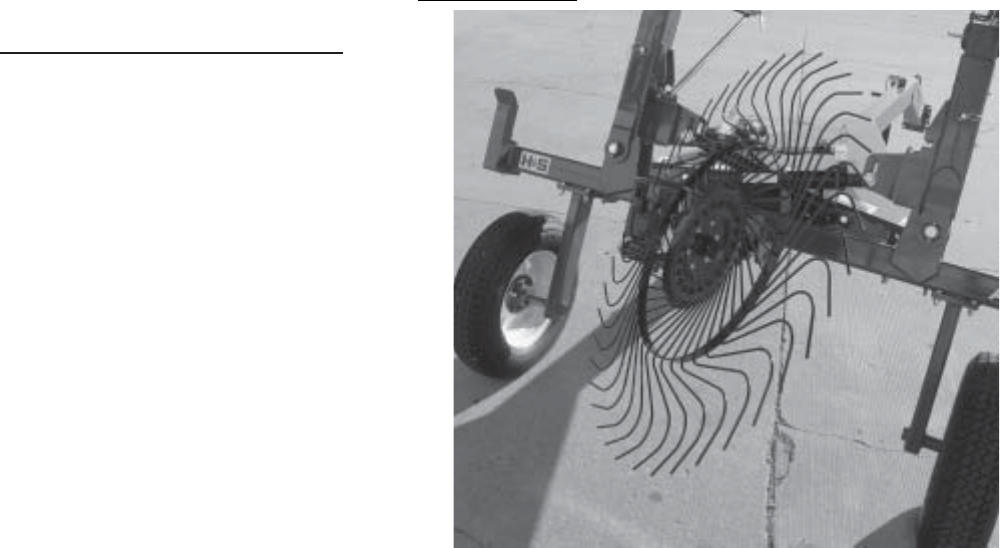

Rake Wheel

Rake wheel oscillation is achieved through the wheel arm mount

pin with the slotted style hole.

-18-

CENTER KICKER WHEEL

An optional center kicker wheel is available

for the AR10 & AR12 rakes. If the hay is

laying out flat, the extra wheel allows you

to raise the hay laying in the center of the

rake out of the stubble for easier pick-up.

The center kicker wheel will raise and lower

when the hydraulics are activated.

OPTIONS

GREASE FITTINGS

There are 16 grease fittings on the AR08, 20 on the AR10/AR12 model rakes, and 1 on the Center

Kicker Wheel. If lubricated properly and often enough, it will prolong the life of your rake. Grease

daily during normal use and before and after storage and after power washing. Use a good grade of

high quality grease. Make sure that grease comes out around the shaft on sleeve type bearings. Wipe

off excessive grease to prevent accumulation of chaff or grit around the bearing. Replace any missing

or plugged grease fittings.

-19-

Become familiar with all lubrication points and establish a routine to ensure complete

lubrication of the rake.

GENERAL INFORMATION

IMPORTANT: Catch and dispose of fluid per local waste disposal regulations whenever service is

performed on hydraulic components, valves, cylinders, hoses, etc.

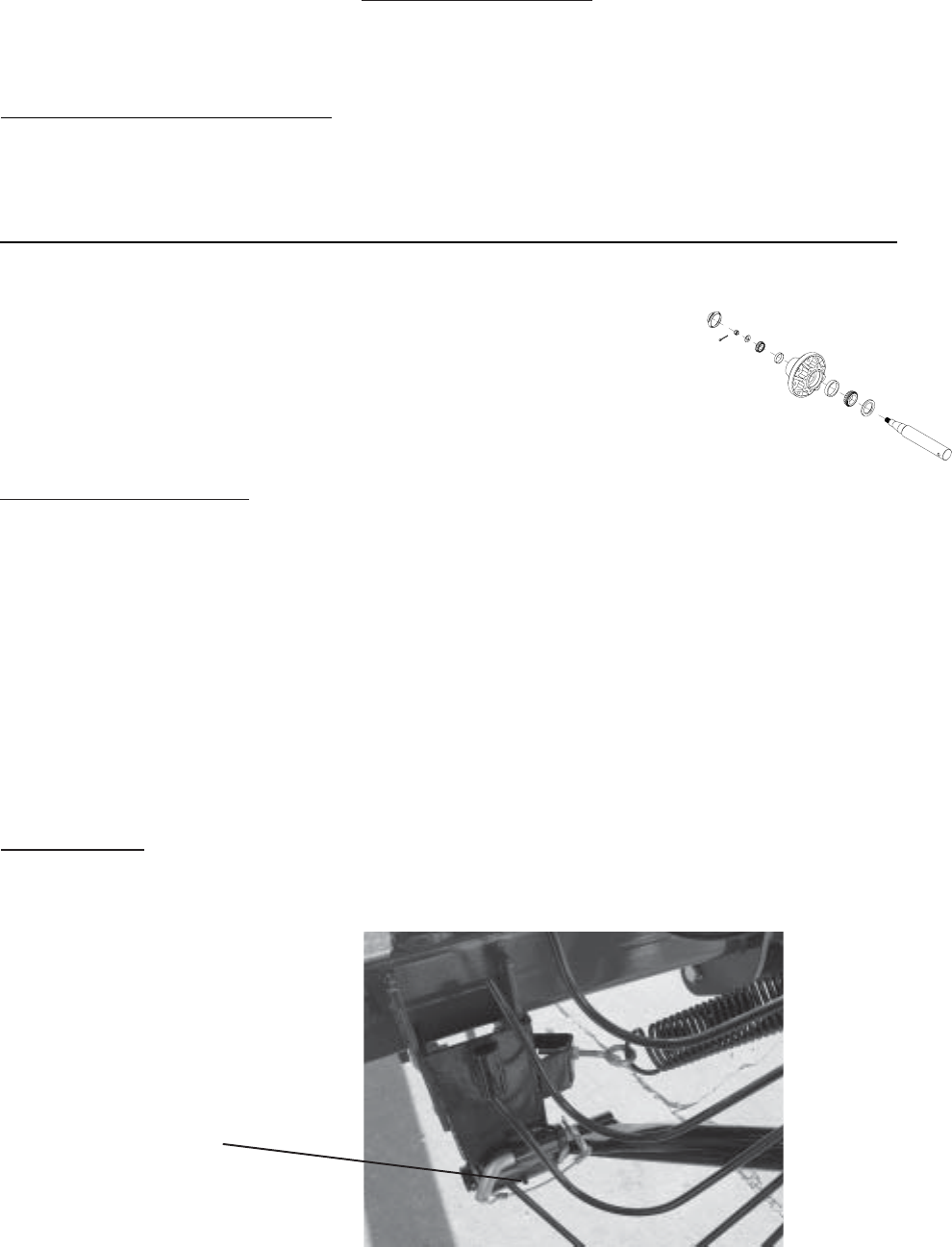

WHEEL BEARING LUBRICATION, CLEAN & RE-PACK INSTRUCTIONS

Grease wheel bearings as needed depending on amount of travel.

Annually disassemble and clean parts in a solvent. Pack bearings

with a high grade grease. Reassemble, and tighten nut until a slight

drag is felt when wheel is turned. Back nut off and insert cotter pin

into first hole that you see as you back the nut off, bend cotter pin

over and re-install cap.

LUBRICATION

LOCATION

Listed and shown are the description of location and number of grease fittings.

Zerk

Center kicker wheel

arm (If Equipped)

LUBRICATION

Rake Beam - One on each pivot & double rake wheel arm

One on each lift

arm pivot point

Four on each

lift arm

(top & bottom)

One on each

vertical pivot point,

rake arm mount

One on each

ACTION pivot

(bottom)

-20-

Your H&S Rake was manufactured with operator safety in mind. Located on the rake are various decals

to aid in operation, and warn of caution areas. Pay close attention to all decals.

DO NOT REMOVE ANY OF THESE DECALS. IF DECALS ARE LOST, DAMAGED,

OR IF CARTED WHEEL RAKE IS REPAINTED, REPLACE DECALS.

REMEMBER: DECALS ARE FOR YOUR PROTECTION AND INFORMATION.

Listed below are the decals on your Rake.

-21-

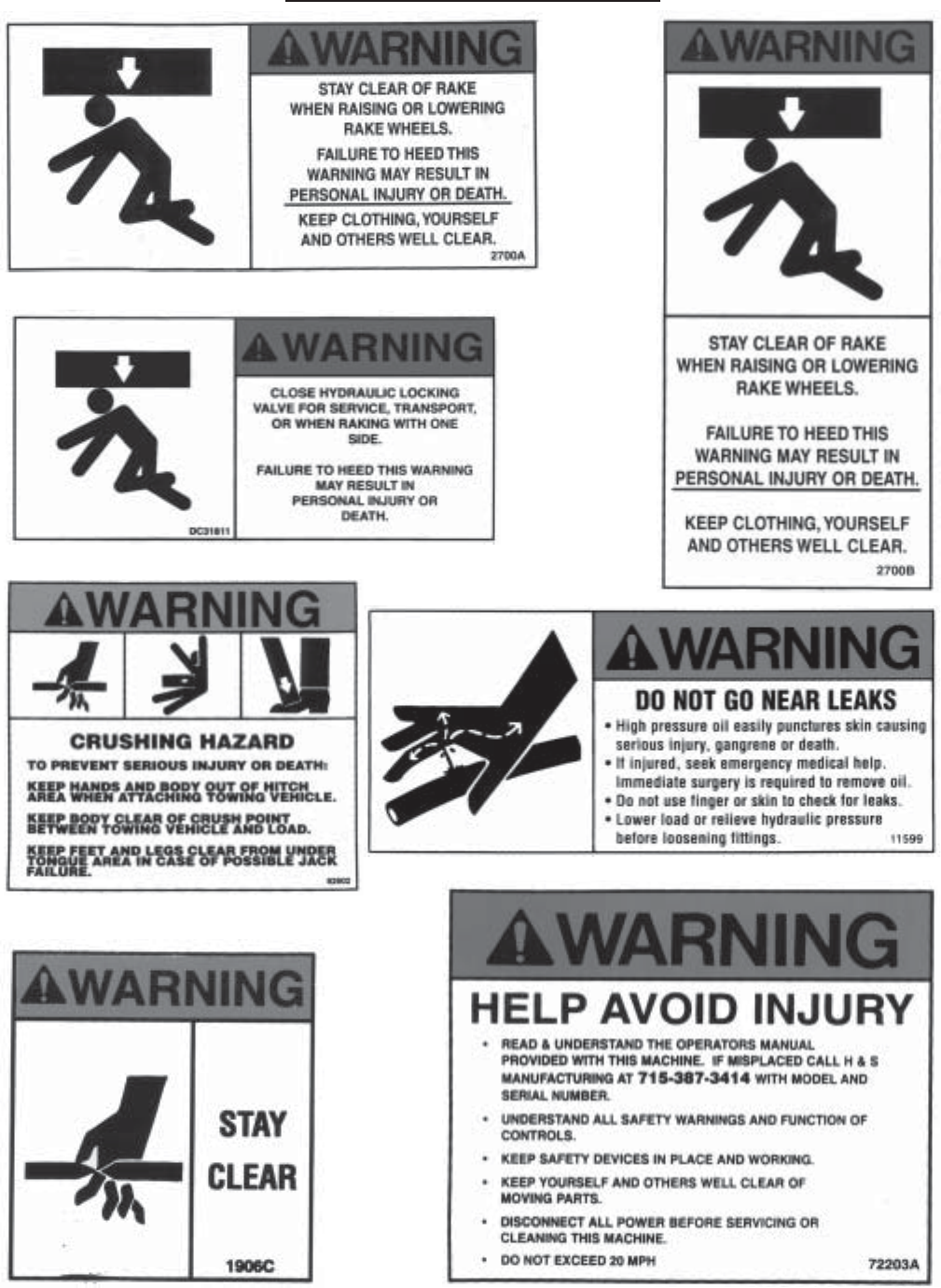

DECAL PLACEMENT

Part # Quantity Description

1906C 2 Stay Clear

2700A 2 Stay Clear of Rake

2700B 2 Stay Clear of Rake

11599 1 Do not go near leaks

72203A 1 Help avoid injury - Read and understand the operators manual

82602 2 Crushing Hazard

71188B 1 Jack Storage Position

DC31811 2 Close Hydraulic Locking Valve

B6DC 2 H&S Decal

8496 1 H&S Decal 3 x 6

8497 1 AR8 Decal

8501 1 AR10 Decal

8505 1 AR12 Decal

8495 1 Action Rake Decal - Right

8494 1 Action Rake Decal - Left

311 1 Patent Decal

DCAMB1 2 Amber Reflector

DCRED 2 Red Reflector

DECAL PLACEMENT

DCAMB1

DC31811

Action

Rake-(left)

8494

72203A 311 DCAMB1

Action

Rake-(right)

8495

DC318111906C 1906C

11599

B6DC B6DC

2700A 2700A

2700B

1 Decal

on the

arm of

each side

-22-

*OLD PICTURES - TIRES ON WRONG SIDE OF SPINDLES*

DECAL PLACEMENT

82602

DCRED DCRED

8496 Model # AR8 -8497

AR10 - 8501

AR12 - 8505

71188B

-23-

WARNING:

MAKE SURE THAT THE TRACTOR IS SHUT OFF AND THE RAKE CAN NOT MOVE

BEFORE SERVICING THE RAKE. MAINTENANCE AND REPAIR SERVICE WORK

TO BE PERFORMED BY A QUALIFIED SERVICE PERSON ONLY.

PROBLEM CAUSE REMEDY

Hydraulic Transport Lock Valve Rotate Transport Lock Valve To

Is In Closed Position Open Position

Hydraulic Coupler Hoses Not Couple Hoses To Tractor

Coupled To Tractor Properly

Hydraulic Coupler Not Coupled Couple Hose To Tractor

To Tractor Properly

Tractor Hydraulics Do Not Tractor Should Have At Least 1500

Have Sufficient Pressure PSI To Operate Rake

Hydraulic Transport Lock Valve Rotate Transport Lock Valve To

Is In Closed Position Open Position

-24-

TROUBLESHOOTING

NOTE:This Troubleshooting Chapter presents problems, causes and suggested remedies beyond the

extent of loose, worn or missing parts and it was developed with the understanding that the machine is

in otherwise good operating condition.

Rake Lifting Arms Will Not

Lower

Rake Lifting Arms Will

Not Raise

-25-

PLEASE RECORD NUMBERS FOR YOUR UNIT FOR QUICK REFERENCE

ABOUT IMPROVEMENTS

H&S IS CONTINUALLY STRIVING TO IMPROVE IT’S PRODUCTS

We must therefore, reserve the right to make improvements or changes whenever it becomes practical to

do so without incurring any obligation to make changes or additions to the equipment previously sold.

All service parts should be ordered through your authorized H&S dealer. They will be able to

give you faster service if you will provide them with the following

1. Model & Serial number is located on the left front of the main frame of your unit.

2. All reference to left or right apply to the machine as viewed from the rear.

3. Parts should not be ordered from illustration only. Please order by complete part number.

4. If your dealer has to order parts - give shipping instructions:

VIA truck - large pieces (please specify local truck lines)

VIA United Parcel Service (include full address)

INSTRUCTIONS FOR ORDERING PARTS

FIGURE 1

-26-

FRAME COMPONENTS

FIGURE 1

-27-

FRAME COMPONENTS

NOTE: “ MEANS SAME AS PREVIOUS MODEL

- MEANS NOT USED ON THIS MODEL

DESCRIPTION

RAKE ARM PIN (TWO OF THESE REQUIRED

ON 8 WHEEL RAKE)

FRAME WELDMENT

10ER CLEVIS

BOLT 3/4"-10 X 2 GR 8 YELLOW ZINC

WASHER, LOCK, 3/4"

HEX NUT 3/4"-10 GR. 8

.250 x 28 STRAIGHT GREASE ZERK

BOLT, 1/4" X 3/4" GR. 5

HEX NUT, REVERSIBLE-SIDE LOCK, 1/2"-20

FLAT WASHER

WHEEL 15X5 ASM

225-75 R15

AXLE WELDMENT 60 IN WHEEL

SEAL

INNER CONE

OUTER CONE

WHEEL NUT 1/2"-20

HUB WITH RACES

INNER BEARING RACE

OUTER BEARING RACE

STUD BOLT 1/2"-20 UNF X 1-7/8" GR 5

COTTER PIN, 5/32" X 1-1/4"

HEX NUT, SLOTTED, 3/4"-16

WASHER, FLAT, 3/4" USS

COMPLETE HUB

RAKE ARM SPRING

3/4"-10 X 2-3/4" GR. 5 FULL THREAD

HEX NUT, JAM, 3/4"-10

FLAT WASHER

BOLT, 3/4"-10 X 1-3/4" GR. 5

5/16"-18 x 2-1/2" GR. 5

NUT, 5/16" TOP LOCK

MANUAL HOLDER

POLE

HUB CAP

BOLT, 1/2" X 1-3/4" GR 5

AXLE WELDMENT LH 60 IN WHEEL

WASHER, LOCK, 1/2"

HEX NUT, 1/2"

JACK 2000# SIDE WIND

PIVOT ARM PIN

SPRING HOLDER

ITEM

8 WHEEL

10WR7

8ERWE01

10ERWE06

YBHH24018

YWLO24005

YNHX24006

G89

YBHH08100

YNRL08005

YWFL08005

CAT18

CAT199

10ERWE07

CAT5

CAT6

CAT10

CAT14

CAT8

CAT7

CAT9

CAT128A

YPCT05015

YNSL24010

YWFL24005

10WR49

10WR47

YBHH24042

YNJM24010

YWFL24005

YBHH24014

YBHH10085

YNTL10005

S522

10ERWE01

CAT46

YBHH16055

10ERWE08

YWLO16005

YNHX16005

BFR753A

10ERWE05

10 WHEEL

“

10ERWE02

“

0240WE05

“

12 WHEEL

“

12ERWE11

“

12WR1

“

12ERWE12

“

FIGURE 2

-28-

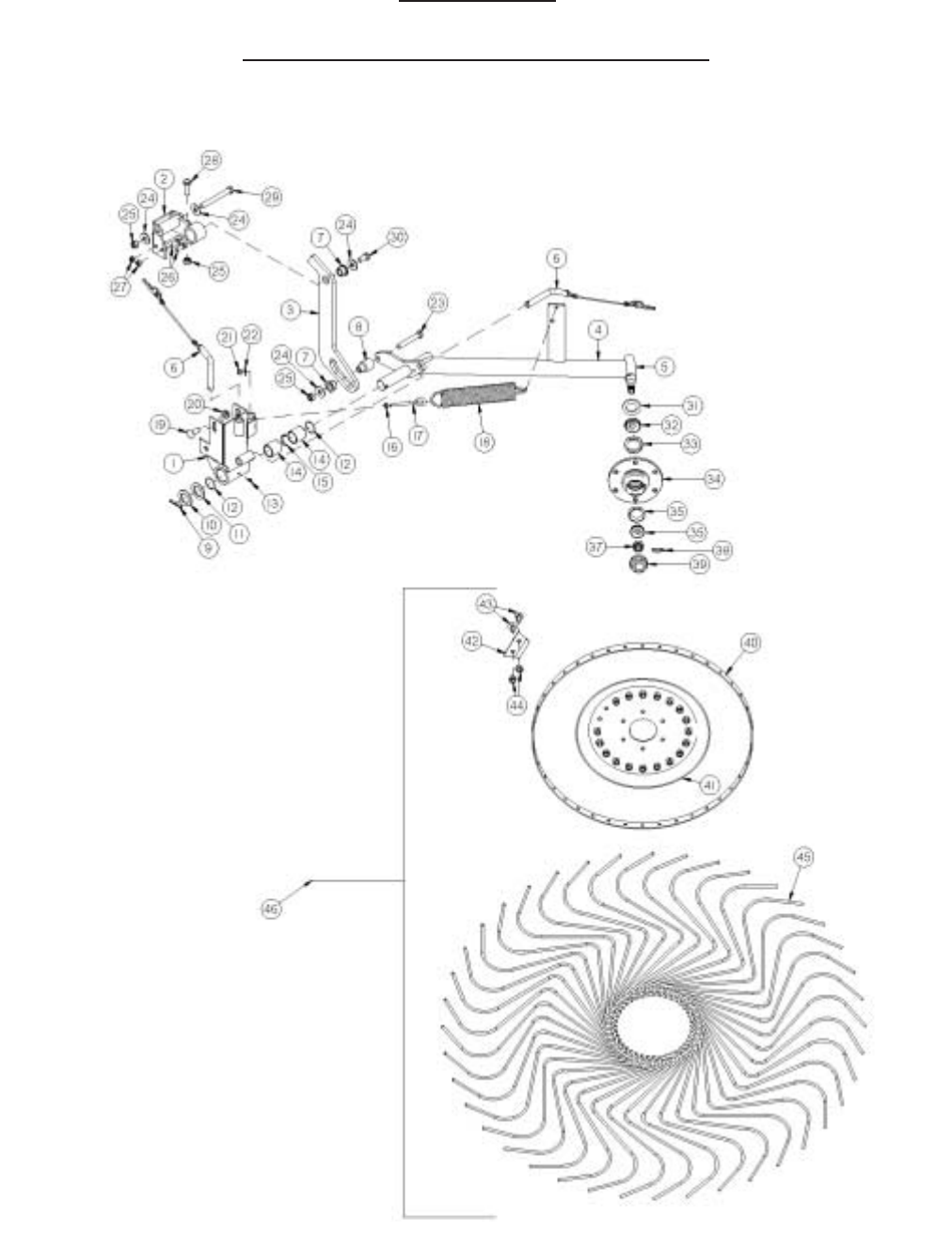

RAKE BEAMS AND WHEELS

FIGURE 2

-29-

ITEM

DESCRIPTION

PIVOT THRUST WASHER

WIDTH LINK PIN ASSEMBLY

BEAM ANGLE LINK

BOLT, 5/16 X 3-1/2 GR 5

WASHER, LOCK, 5/16

HEX NUT

CANE PIN ASSEMBLY

WASHER, LOCK, M10

HEX NUT, M10-1.5

BOLT, M10-1.5 (25MM)

TOOTH CLIP

60 IN WHEEL TOOTH

RAKE WHEEL DISH

60 IN WHEEL BAND

CARR. BOLT, 10MM X 25MM (T168)

1.5 X 18MM CASTLE NUT

RETAINING CLIP (REPLACES T169)

OUTER CONE

INNER CONE

SEALING WASHER

HUB CAP

ITALIAN RAKE WHEEL HUB

INNER RACE

OUTER RACE

LEFT RAKE BEAM

.250 x 28 STRAIGHT GREASE ZERK

TUBING CAP 3 X 3 SQ.

RIGHT RAKE BEAM

60" RAKE WHEEL RH

LEFT CANE WELDMENT

CENTER CANE WELDMENT RH

CENTER CANE WELDMENT LH

RIGHT CANE WELDMENT

60" RAKE WHEEL LH

NOTE: “ MEANS SAME AS PREVIOUS MODEL

- MEANS NOT USED ON THIS MODEL

RAKE BEAMS AND WHEELS

8 WHEEL

10WR8

10ERAS20

8ERWE06

YBHH10110

YWLO10005

YNHX10005

10ERAS08

YWLO76015

YNHX76015

YBHH76015

T178

FR73

T179

FR72

YBCR76005

T172

1088

T170

T164

T163

T173

1086

T165

T171

8ERWE05

G89

1075

8ERWE04

FR70

12ERWE04

12ERWE08

FR69

10 WHEEL

“

10ERWE13

“

10ERWE09

“

10ERWE03

“

10ERWE11

10ERWE12

“

12 WHEEL

“

12ERWE10

“

12ERWE09

“

FIGURE 3

-30-

LIFT ARMS AND HYDRAULICS

FIGURE 3

-31-

LIFT ARMS AND HYDRAULICS

ITEM

8 WHEEL

LW55

16SV136

YPCT06020

10ERMS02

10ERMS07

10ERMS03

10ERMS08

8005

8ERWE08

8ERWE07

10WR6

12ERWE06

12ERWE05

10ERAS01

YBHH10085

YNTL10005

16SV338

CHM202

16SV351

1023

CHM164

CHM207

RG21

G89

BFR33

CHM277

YBHH10010

DWM205

10ERMS04

1059

1076

23N111A

10WR7

CHM278

8735

10 WHEEL

“

10ERWE04

12ERWE07

10WR34

“

12 WHEEL

“

12ERMS01

“

DESCRIPTION

CYLINDER PIN, LONG

SPEED CONTROL WASHER

COTTER PIN 3/16" X 2"

HOSE, 90 DEG ENDS

HOSE, STRT ENDS

HOSE, 90 DEGREE ENDS

06 BULKHEAD TEE FITTING

LEFT SLIDER HOUSING WELDMENT

RIGHT SQUARE SLIDER HOUSING

SLIDE ARM

MAIN BEAM ARM LH

MAIN BEAM ARM RH

RAKE BEAM PIN

12ER RIGHT INTERMEDIATE LINKAGE

12ER LEFT INTERMEDIATE LINKAGE

ARM SLIDER PIN ASSEMBLY

5/16"-18 x 2-1/2" GR. 5

NUT, 5/16" TOP LOCK

3/8" BALL VALVE

3/8" MALE NPT TO 06 MALE 90 ELBOW

3/8" NIPPLE

06-06 M/F ORIFICE, 0.047

MALE ELBOW CTX ~ 6-6 CTX

06 TO 3/4"-16 ORB STRT FITTING

1/4"-28 45° ZERK

1/4" x 28 STRAIGHT GREASE ZERK

WASHER

3/8" COVER PLATE

BOLT, 5/16" X 1" GR. 5

MALE QUICK COUPLER 1/2"

HOSE, TRACTOR

CYLINDER, ACTION REPHASE

TEE, 1/2" ORB TO 3/8" JIC

HYD. CYLINDER, 2" X 16"

RAKE ARM PIN

3/8" DOUBLE HOSE CUSHIONS

SEQUENCE VALVE

NOTE: “ MEANS SAME AS PREVIOUS MODEL

- MEANS NOT USED ON THIS MODEL

* MEANS NOT SHOWN

-32-

FIGURE 4

OPTIONAL KICKER WHEELS

FIGURE 4

OPTIONAL KICKER WHEELS

-33-

ITEM

8 WHEEL

10 WHEEL

0240WE04

0240WE07

0240HF03

0240WE03

BFR36

10ERAS08

8579

0240TU04

YPEX10017

12X1818

BFR221

S99

G89

G16

BFR230

YNHX10005

YBTE10030

BFR110

YBCR16015

YNSF16005

YNNY10005

YWFL10005

YBHH16120

YWFL16005

YNRL16005

YBHH12010

YNRL12005

YBHH16030

YBHH16140

YBHH16010

T163

T164

T165

1086

T171

T170

T172

1088

T173

T177A

T179

T178

YBCR76005

YNHX76015

10WR42

10WR17

12 WHEEL

“

DESCRIPTION

KICKER MOUNT WELD

KICKER STOP WELDMENT

KICKER LEVER LINK FRAME PIVOT

KICKER ARM WELD

RAKE WHEEL SPINDLE

CANE PIN ASSEMBLY

POLY PIVOT BEARING

KICKER PIVOT SPACER LOWER

EXPANSION PIN, 5/16" X 2"

WASHER

POLY WASHER

KICKER O RING

1/4" X 28 GREASE ZERK

BRONZE BUSHING 1-1/2" OD X 1-1/4" ID X 1.5"

BEARING SPACER

HEX NUT, 5/16"

TURNED EYE BOLT, 5/16" X 3"

SPRING

CARR. BOLT, 1/2" X 1-1/4" GR. 5

HEX NUT, SERRATED FLANGE, 1/2-13"

HEX NUT, NYLON LOCKNUT, 5/16"-18

WASHER, FLAT, 5/16" USS

BOLT, 1/2" X 3-1/4" GR. 5

WASHER, FLAT, 1/2" USS

HEX NUT, REVERSIBLE-SIDE LOCK, 1/2"-13

BOLT, 3/8" X 1" GR. 5

HEX NUT, REVERSIBLE-SIDE LOCK, 3/8"-16

BOLT, 1/2" X 1-1/2" GR. 5

BOLT, 1/2" X 4-1/2" GR. 5

BOLT, 1/2" X 1" GR. 5

SEALING WASHER

INNER CONE

INNER RACE

ITALIAN RAKE WHEEL HUB

OUTER RACE

OUTER CONE

1-1/2" X 18MM CASTLE NUT

RETAINING CLIP

HUB CAP

RAKE WHEEL BAND

RAKE WHEEL DISH

TOOTH CLIP

CARR. BOLT, 10MM X 25MM

HEX NUT, M10-1.5

RAKE WHEEL TOOTH

LH RAKE WHEEL COMPLETE

NOTE: “ MEANS SAME AS PREVIOUS MODEL

- MEANS NOT USED ON THIS MODEL

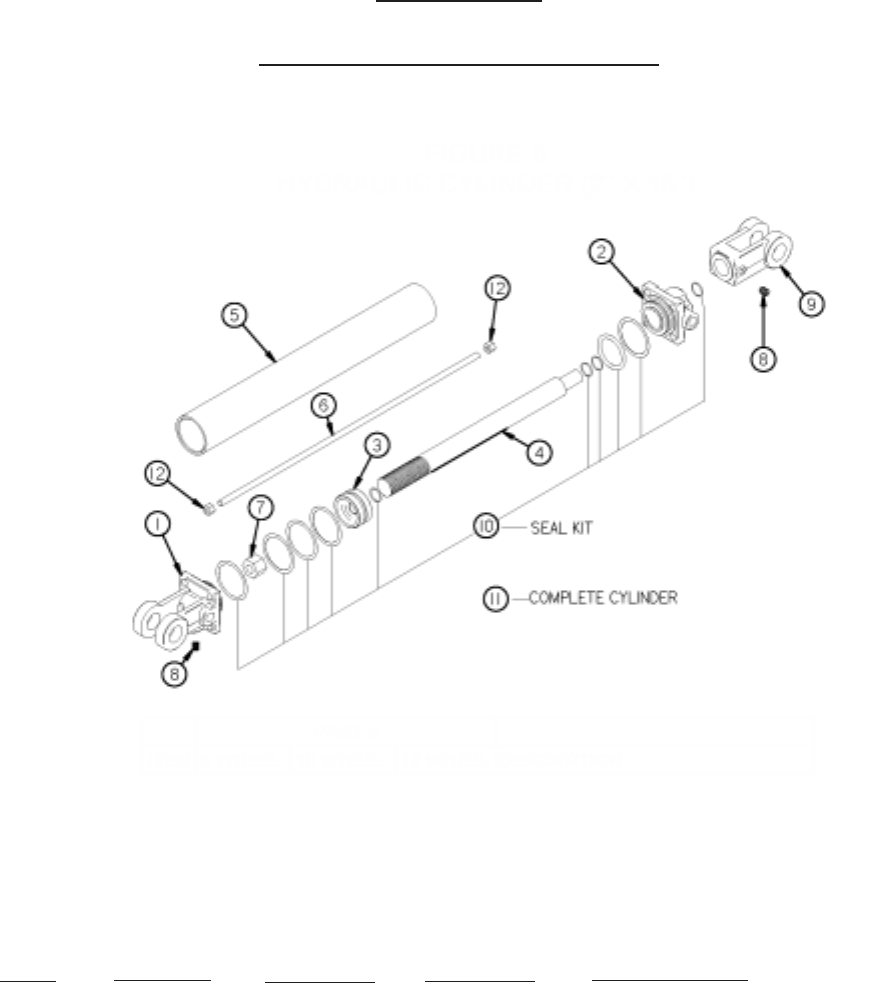

FIGURE 5

ITEM

8 WHEEL

T181A

T182A

T183

23N145A

10WR45

23N147

23N148

23N149

23N150A

T187

10WR11A

10 WHEEL

“

12 WHEEL

“

DESCRIPTION

CLEVIS CAP

ROD CAP

PISTON

ROD

CYLINDER TUBE

TIE ROD

PISTON NUT

PLUG

ROD CLEVIS

SEAL KIT

COMPLETE HYDRAULIC CYLINDER

HYDRAULIC CYLINDER

-34-

-35-

PARTS NOTES

_____________________________________________________________________

_______________________________________

_________________________________________

___________________________________________

__________________________________________

_____________________________________________

__________________________________________

_______________________________________

___________________________________________

_____________________________________________

____________________________________________

__________________________________________

_________________________________________

__________________________________________

____________________________________________

_____________________________________________

___________________________________________

__________________________________________

_____________________________________________

-36-

H&S MFGH&S MFG

H&S MFG..

. CO CO

CO CO

CO..

products approved

for the

FEMAFEMA

FEMA

SEAL OF QSEAL OF Q

SEAL OF QUU

UALITYALITY

ALITYALITY

ALITY

Rake AR8 AR10 AR12 AR12(EMAIL)

Navigation menu

Versions of this User Manual:

Views

Navigation
