SPINCAT SC 212
ROTARY NOZZLE
USER MANUAL
2866-795-1586 • WWW.STONEAGETOOLS.COM
TABLE OF CONTENTS
MANUFACTURER’S INFORMATION ...........................................................3
SPECIFICATIONS..........................................................................3
DESCRIPTION OF EQUIPMENT AND INTENDED USE ....................................3
KEY FEATURES ...........................................................................3
SYSTEM ASSEMBLY - OVERVIEW ............................................................4
PRE-RIH CHECKLIST ..........................................................................5
LUBRICANT REPLACEMENT INSTRUCTIONS ................................................6
HIGH PRESSURE SEAL REPLACEMENT ......................................................7
DISASSEMBLY .................................................................................8
ASSEMBLY .....................................................................................10
TROUBLESHOOTING ..........................................................................13
TOOL STORAGE................................................................................13
REPLACEMENT PART WEAR INFORMATION .................................................14
MAINTENANCE, PARTS, AND OVERHAUL KITS ..............................................15
TERMS AND CONDITIONS AND WARRANTY .................................................16
3
866-795-1586 • WWW.STONEAGETOOLS.COM
MANUFACTURER’S INFORMATION
SPECIFICATIONS
Tool Family: SpinCat
Tool Model: SC-212
Pressure Range: 1-5k psi (70-340 bar)
Flow Range: .8 to 2 bpm (32 to 180 gpm)
Flow Rating: 4.6 Cv
Rotation Speed: 150-200 rpm
Inlet Connection: 1-1/2 AMMT
PSI Loss (@ 1 bpm): 83 psi (6 bar)
Tension (pull): Safe load to 15000 lbs (6804 kg)
Compression (set down): Safe load to 21000 lbs (9525 kg)
Outside Diameter: 2.12 in. 54 mm
Overall Length: 12.3 in. 312 mm
Weight: 8.9 lbs 4 kg
Maximum Temperature: 390° F 200° C
StoneAge Inc.
466 S. Skylane Drive
Durango, CO 81303, USA
Phone: 970-259-2869
Toll Free: 866-795-1586
www.stoneagetools.com
StoneAge Europe
Unit 2, Britannia Business Centre
Britannia Way
Malvern WR14 1GZ
United Kingdom
Phone: +44 (0) 1684 892065
DESCRIPTION OF EQUIPMENT AND
INTENDED USE
Spincat tools provide a durable, controlled
rotation solution for well intervention.
A viscous uid governor controls rotation
speed to maximize jet power delivered to
the tubing walls. By using only a few rotating
jets, each jet is bigger to convey hard-hitting
power. Replaceable jets are efcient and
clean recesses and irregular surfaces without
damaging the well pipe. Over thirty years
of waterjet engineering back the SpinCat
design, setting the standard for rotary nozzle
performance and durability.
KEY FEATURES:
• Straight ow-through design with a leak-
free high pressure seal, so pump power is
not wasted.
• Performs at temperatures up to 200°C, with
up to 30% HCL and Nitrogen injection.
• Rotating Assembly for Complete Coverage
• Easy Field Serviceability
• Durable Fluoro Elastomer Seals
• Computerized Flow Calculations
• Controlled Rotation, Increases Cleaning
Power
• Carbide Nozzles, Deliver the Hardest
Hitting, Longest Lasting Jet Possible
JETTING
The standard nozzle head has ve ports with 1/8 NPT threads — one at 15 degrees forward,
two at 45 degrees forward, and two at 90 degrees to the axis of rotation. Some of the ports
may be plugged in a balanced pattern to concentrate the ow in a particular direction. Fit-
for-purpose head and porting designs are available to accommodate specic ow rates and
applications.
This manual must be used in accordance with all applicable national laws. The manual shall
be regarded as a part of the machine and shall be kept for reference until the nal dismantling
of the machine, as dened by applicable national law(s).
Updated manuals can be downloaded at:
https://www.stoneagetools.com/manuals
4866-795-1586 • WWW.STONEAGETOOLS.COM
OVERVIEW
DESCRIPTION:
The SpinCat™ is a self-rotating nozzle designed for coil tubing well service. The
powerful rotating jets cover a large area for efcient cleaning. Jet reaction force
(throughst) powers rotation of the head. An internal centrifugal speed control maintains
rotation speeds of 150 to 200 rpm. The SpinCat™ uses a high viscosity synthetic gear oil
for lubrication, such as Chevron HiPerSYN® 220, Mobil SHC™ 630 or an equivalent. The
oil is available from StoneAge® as part number SC250 048.
The tool has a straight ow-through design with a leak-free high pressure seal so pump
power is not wasted. It has a 1-1/2 AMMT box inlet thread. The tool can be used at
temperatures up to 200°C (392°F), and can be used with up to 30% HCL and Nitrogen
injection. (Note: if used with HCL, ush tool with clean water after use.)
If the SpinCat™ will be used with high external borehole pressures, make certain that the
body of the tool is completely full of lubricating uid; air pockets are compressible and
this could lead to oil seal failure and loss of lubrication.
The SpinCat™ can be used at operating pressures of 1000 to 5000 psi and ow rates of
0.8 to 2 bpm (32 to 80 gpm) with standard head porting. Custom porting can be ordered
for use up to 5 bpm (200 gpm).
The standard nozzle head has ve ports with 1/8 npt threads; one at 15 degrees
forward, two at 45 degrees forward and two at 90 degrees to the axis of rotation.
Some of the ports may be plugged in a balanced pattern to concentrate the ow in a
particular direction. Alternate head porting patterns may be added to the same head
to accommodate different ow rates. Hi-ow Flushing, Perf Stim, and Forward Cutting
congurations are available. Verify with SpinCat™ Jetting App that porting changes
result in sufcient torque to ensure rotation.
FLOW RANGE
PRESSURE R25
1000-5000 PSI .8 - 2 BPM
DANGER
Operations with this equipment can be potentially hazardous. Caution must be exercised
prior to and during machine and water jet tool use. Please read and follow all of these
instructions, in addition to the guidelines in the WJTA Recommended Practices handbook,
available online at www.wjta.org. Deviating from safety instructions and recommended
practices can lead to severe injury and/or death.
5
866-795-1586 • WWW.STONEAGETOOLS.COM
PRE-RIH CHECKLIST
PRE-RIH CHECKLIST:
• After receipt on location, visually inspect the SpinCat™ to ensure no small debris
has entered the tool. NOTE: The SpinCat™ package includes a briefcase size
Pelican® case. We recommend keeping the SpinCat™ and spare set screws and
other parts inside the case.
• Verify the threaded orice nozzles are clear and installed correctly. DO NOT insert
hard wire or nails or other objects into the orices to verify that they are clear. Use
a ashlight. Newly manufactured orice nozzles now have ow straighteners inside
the orices. These improve the quality of the jet stream. Remember to lter or
screen the uids keeping particles to a size no larger than 1/3 the ID of the orice
nozzle. Example: CNP2 125 orice nozzle: 0.125 ÷ 3 = 0.041 max particle size.
• Verify there is no oil leaking from the set screw or body. If the set screw is missing
and oil has leaked out then use a StoneAge® service kit syringe and rell the oil.
IMPORTANT: Be sure to take time to work the air bubbles out of the oil.
• Turn the SpinCat™ head by hand. It should rotate very smoothly but not spin freely.
There should not be any stoppage or feeling of binding or catching internally.
• Ensure the wiper seal on the inlet nut is in place. The function of this seal is to
prevent debris from plugging the vent holes. The vent hole’s function is to vent
internal pressure build-up should the high pressure (HP) tungsten impregnated seal
fail or leak intermittently while reseating itself. If the wiper seal is lost or missing it
can be replaced with a suitable size Viton® O-Ring as a temporary measure.
• The SpinCat™ is made of hardened stainless steel for long service life with strong
acids, chemicals and solvents. We recommend you do not use pipe wrenches
on the SpinCat™. Customers who have SpinCats™ 2-4 years old and are still in
excellent condition, NEVER use pipe wrenches on their SpinCats™. Over time
teeth cuts accumulate on the inlet nut, the body and head and “chew up” the tool.
Eventually these parts have to be replaced unnecessarily. Some customers do not
feel this is of signicant importance and if replacement parts becomes necessary
we can supply them.
• When function testing, watch for leakage around the orice nozzles. Also watch
for leakage along the body and behind the head. This indicates an improperly
redressed tool. Also watch for leakage from around the wiper seal, the high
pressure seal might leak during initial pressurization but should stop once enough
pressure to achieve rotation has been reached. The only place water should be
exiting the tool is through the nozzles. The head should rotate slowly and smoothly.
• If the head does not rotate during a function test but it rotates easily by hand, it
could be the pump rate and pressure must be increased or the tool is simply “tight”
or “cold,” or there is very heavy oil in the tool and it will loosen up in the hole, or the
SpinCat™ may be jetted improperly. Check the SpinCat™ Jetting App. A simple
but frequent problem in function tests is the test uid does not contain viscosity
reducer but the job requires it due to extremely high friction pressures.
6866-795-1586 • WWW.STONEAGETOOLS.COM
LUBRICANT FILL INSTRUCTIONS
TOPPING OFF LUBRICANT:
The SpinCat™ uses synthetic gear oil for a lubricant. To top off the tool with lubricant,
follow steps below. If the tool is being rebuilt or the seal replaced, the lubricant may
be poured directly into the body around the shaft before the inlet nut is installed. Once
the inlet nut is installed, it is recommended to use the syringe with the port screw ports
to completely remove all air bubbles. High borehole pressures make this a critically
important step when assembling the tool. The procedure requires some patience, time
and effort i.e. rotating the body back and forth to work out all air bubbles, wait, repeat.
If a vice is available in the eld we recommend removing the inlet nut and topping off
through the open top, working the air bubbles out by rotating the body and allowing to
sit.
1. Tilt the tool at a 45 degree angle and secure so that one port screw is at the topmost point
2. Fill the syringe (BC 410) with lubricant.
3. Remove both Port Plugs (SC250 026).
4. Thread the syringe into bottom port screw.
5. Hold the tool at an angle so the port with the syringe is lower.
6. Squeeze uid into the tool until all air bubbles stop coming out.
7. Rotate the body back and forth from the head to work air bubbles out and inject oil.
Repeat
8. Re-install the Port Plugs.
9. Store the Tool with inlet nut facing up.
BC 410
Syringe
SC250 026
Port Plug
7
866-795-1586 • WWW.STONEAGETOOLS.COM

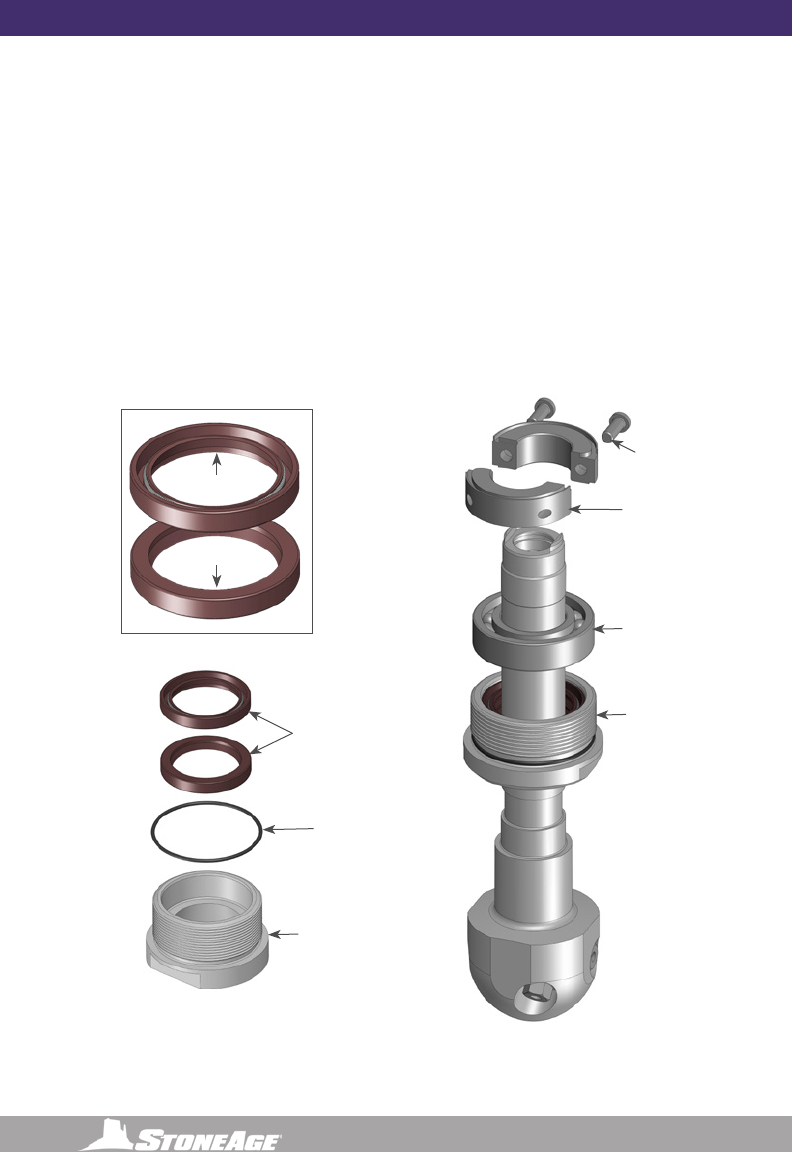

TO REPLACE THE HIGH PRESSURE SEAL:
1. Unscrew the Inlet Nut (SC212 020-AMMT).
2. Remove the old Face Seals (WGR 054) and O-Rings (SC250 016) from the Nut and the
Shaft. Also remove the Compression Spring (WGR 056) from the Shaft bore.
3. Insert new O-Ring (SC250 016) into groove in Nut.
4. Apply grease to smaller OD of new Face Seal and install into Nut, insuring that the at
sides slide down between protruding tangs on Nut.
5. Install a new Compression Spring (WGR 056) into Shaft bore.
6. Insert new O-Ring (SC250 016) into groove in Shaft.
7. Apply grease to smaller OD of new Face Seal and install into Shaft, checking to insure the
at sides slide down between protruding tangs on Shaft.
8. Thread Inlet Nut into Body; tighten to 50 ft-lb.

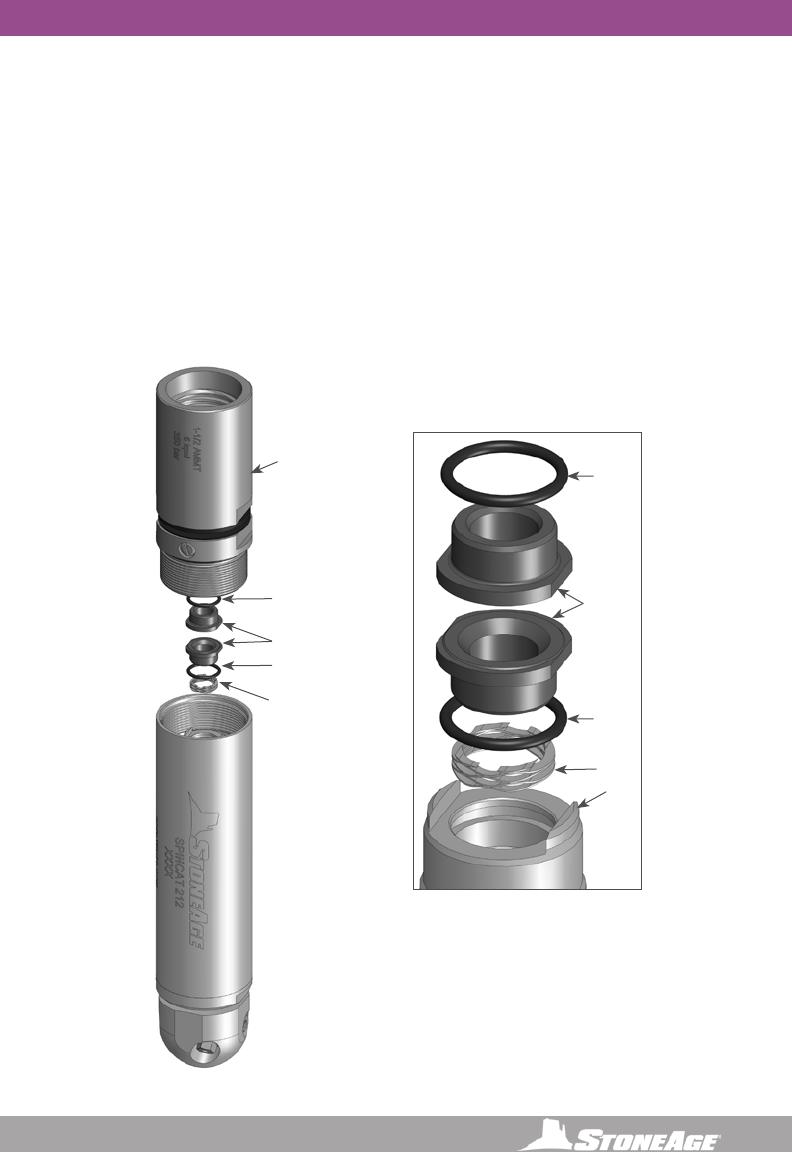

HIGH PRESSURE SEAL REPLACEMENT
SC212 020-AMMT
Inlet Nut
SC250 016
O-Ring
SC250 016
O-Ring
WGR 054
Face Seal
WGR 056
Compression
Spring
DETAIL VIEW OF SEAL
SC250 016
O-Ring
SC250 016
O-Ring
Shaft
WGR 054
Face Seal
WGR 056
Compression
Spring
8866-795-1586 • WWW.STONEAGETOOLS.COM

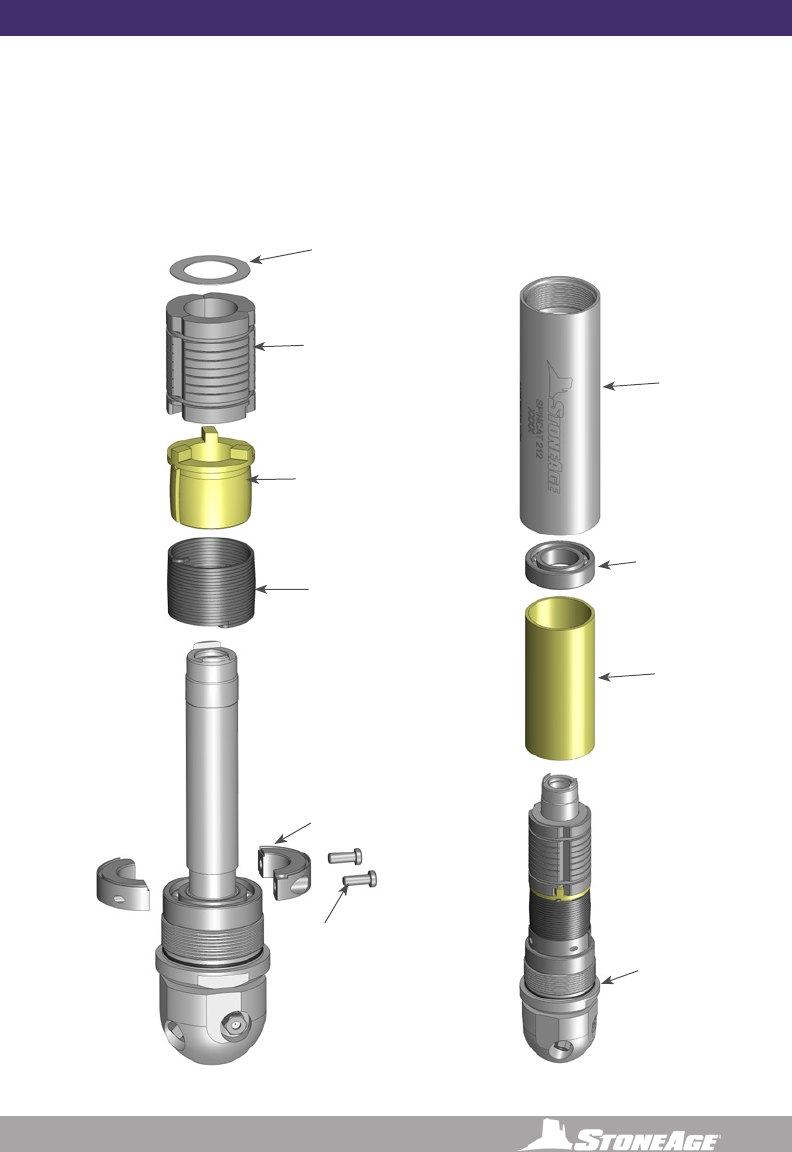

DISASSEMBLY DISASSEMBLY
TO DISASSEMBLE THE SPINCAT SC-212:
1. Unscrew the Inlet Nut (SC212 020-AMMT) from the body.
2. Remove the Face Seals (WGR 054), O-Rings (SC250 016) and Compression Spring (WGR
056) from the Nut and the bore of the Shaft.
3. Remove the Shaft Seal (SC212 011) from the Inlet Nut if it is damaged and needs replacing
4. Unscrew the Body (SC212 003) from the Gland Nut (SC212 020).
5. Pull off Bearing (SC212 007) from Shaft; remove the Sleeve (SC212 030).
SC212 003
Body
SC212 007
Bearing
SC212 030
Sleeve
SC212 020
Gland Nut
SC212 020-AMMT
Inlet Nut
SC250 016
O-Ring
SC250 016
O-Ring
WGR 054
Face Seal
WGR 056
Compression
Spring
9
866-795-1586 • WWW.STONEAGETOOLS.COM
DISASSEMBLY
6. Remove Shim (SC212 008), Weights (SC212 030), Hub (SC212 022) and Spring (SC212
025) from the Shaft.
7. Remove Collar (SC212 017) from Shaft
8. Press off Bearing (SC212 007); remove Gland Nut (SC212 020).
SC212 220
Weights
SC212 008
Shim
SC212 022
Hub, Spring Drive
SC212 025
Spring
SC212 017
Collar
SC212 018
SHCS,
Low Head SS
SC212 007
Bearing
SC212 010
Shaft Seal (2)
SC212 021
O-Ring
SC212 020
Gland Nut
10 866-795-1586 • WWW.STONEAGETOOLS.COM
ASSEMBLY
TO ASSEMBLE THE SPINCAT SC-212:
1. Install Shaft Seals (SC212 010) in Gland Nut (SC212 020) as shown. Lubricate the seals
prior to installing.
2. Install O-Ring (SC212 021) over threads of Gland Nut.
3. Slide Gland Nut onto Shaft.
4. Press Bearings (SC212 007) onto Shaft, down far enough to allow placing of Collar
(SC212 017) in its groove.
5. Install Collar (SC212 017) around Shaft, above bearings. If there is a gap between the
bearings and the collar, the bearings need to be pushed back up against the Collar.
Tighten screws to 15 in-lb.
6. Place Spring (SC212 025) over Shaft; tang on Spring ts into slot between Collar
Halves.
ASSEMBLY
SC212 007
Bearing
SC212 117
Collar
SC212 020
Gland Nut
SC212 020
Gland Nut
SC212 010
Seal (2)
SC212 021
O-Ring
DETAIL VIEW OF SHAFT SEALS
LIP WITH
SPRING UP
LIP WITH
SPRING DOWN
SC212 018
SHCS,
Low Head SS
11
866-795-1586 • WWW.STONEAGETOOLS.COM

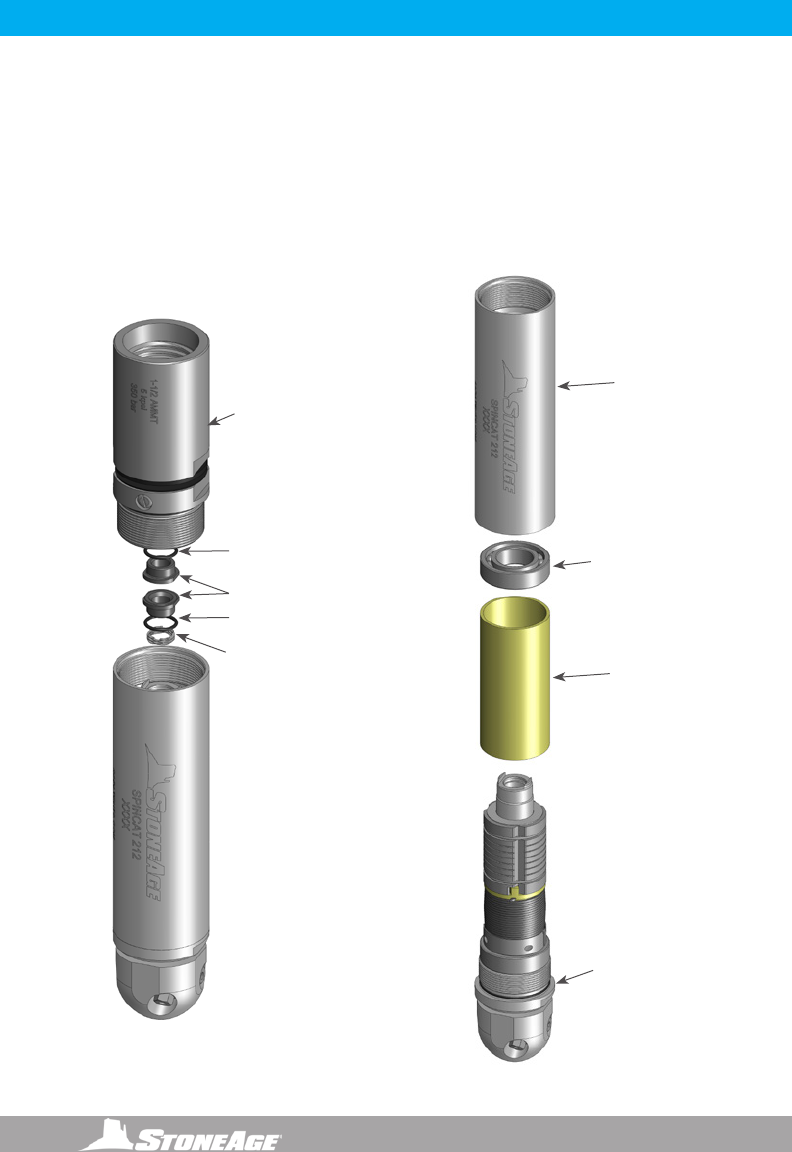

ASSEMBLY
7. Install Hub (SC212 022); tang on Spring should go into one slot on Hub.
8. Install Weights (SC212 220) and Shim (SC212 008).
9. Install Sleeve (SC212 030).
10. Install Bearings (SC212 007) over Shaft, down against Sleeve.
11. Apply anti-seize to threads and thread Body (SC212 003) onto Gland Nut.
12. Install Shaft Seal (SC212 011) in Inlet Nut (SC212 020-AMMT) as shown. Lubricate the
seal prior to installing.
SC212 220
Weights
SC212 008
Shim
SC212 022
Hub, Spring Drive
SC212 025
Spring
SC212 017
Collar
SC212 018
SHCS,
Low Head SS
SC212 003
Body
SC212 007
Bearing
SC212 030
Sleeve
SC212 020
Gland Nut
12 866-795-1586 • WWW.STONEAGETOOLS.COM

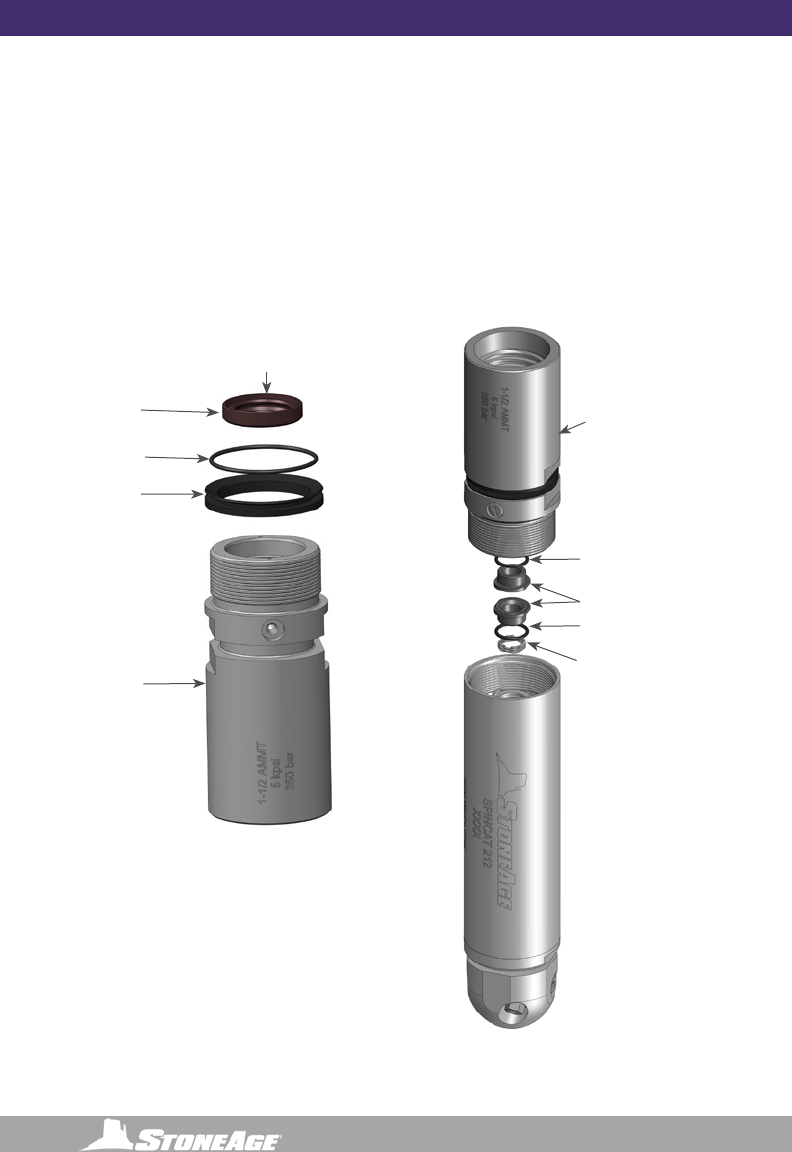

ASSEMBLY
13. Install O-Ring (SC212 021) and Weep Seal (SC250 021).
14. Install Compression Spring (WGR 056), O-Rings (SC250 016) and Face Seals (WGR
054) as shown in the "High Pressure Seal Replacement" page.
15. Pour lubricating uid into Body until completely lled, allow time for air to bubble out.
Refer to the "Lubricant Fill Instructions" page for the importance of eliminating the air
during assembly. Apply anti-seize to threads and install Inlet Nut into Body. Tighten
Inlet Nut to 50 ft-lb.
SC250 021
Weep Seal
SC212 011
Shaft Seal
SC212 021
O-Ring
SC212 020-AMMT
Inlet Nut
LIP WITH
SPRING DOWN
SC212 020-AMMT
Inlet Nut
SC250 016
O-Ring
SC250 016
O-Ring
WGR 054
Face Seal
WGR 056
Compression
Spring
STORAGE
13
866-795-1586 • WWW.STONEAGETOOLS.COM
TROUBLESHOOTING
HIGH-PRESSURE SEAL LEAK:
• The high pressure seal may leak initially at lower pressures, but should pop closed as
pressure is increased. A continuous leak at operating pressure from the weep holes
indicates the need to replace the HP Seal and Seat. HP Seals wearing out too quickly
can be an indication that the HP Seat is installed upside-down, or the tool is rotating
too fast. If the tool is leaking, but not over rotating, the SC212 602 Seal Kit is required.
TOOL WILL NOT ROTATE:
• Check the nozzles for plugging or wear (nozzles have to be removed to check for
obstructions).
• Check that the nozzle sizes are correct for the desired ow and that the desired ow
matches the head ow range.
• Check that the nozzle sizes are installed in a balanced conguration.
• If the tool feels rough when manually rotating the head, this indicates internal
damage and SC212 610 Overhaul Kit will be required.
• Check head by hand to make sure it rotates freely. If it does not rotate freely by hand,
the tool needs to be disassembled and repaired. Research from eld reports show
that exceeding set-down weight may bend the headshaft ever so slightly and prevent
rotation.
LOCK-UP TROUBLESHOOTING TIP:
• Rotate in reverse 1 1/4 to 1 1/2 turns to unlock braking mechanism. If tool rotates
smoothly then redress may not be required.
• If the head rotates freely by hand, check the jet sizes and calculate pressure loss
through the coil tubing and check with your distributor or StoneAge® to make certain
there is enough jet torque to provide rotation.
• Verify using the SpinCat™ Jetting app, contact your factory authorized SpinCat™
dealer or contact StoneAge®, Inc.
TOOL ROTATES TOO FAST:
• If the head rotates too fast, clean out old lubricating uid and replace with fresh
lubricant.
• If tool is showing heavy scufng damage to body, we suggest that the customer
install an available uted body on the SpinCat™.
STORAGE
TOOL STORAGE:
The SpinCat™ should NOT be stored in a used condition with wellbore and pumped uids
possibly migrating into the lubricant chamber. Flush with fresh water and perform a seal
redress after HCL, Xylene or Toluene chemical treatment jobs. Downhole tools, especially
through tubing tools tend to be stored upside down in tool racks with threaded stubs welded
to rack base. Storing the SpinCat™ in this manner allows air to collect at the top of the
lubricant chamber. We recommend the SpinCat™ be stored with inlet nut facing up to avoid
this air pocket. The SpinCat™ may also be stored horizontally.
14 866-795-1586 • WWW.STONEAGETOOLS.COM

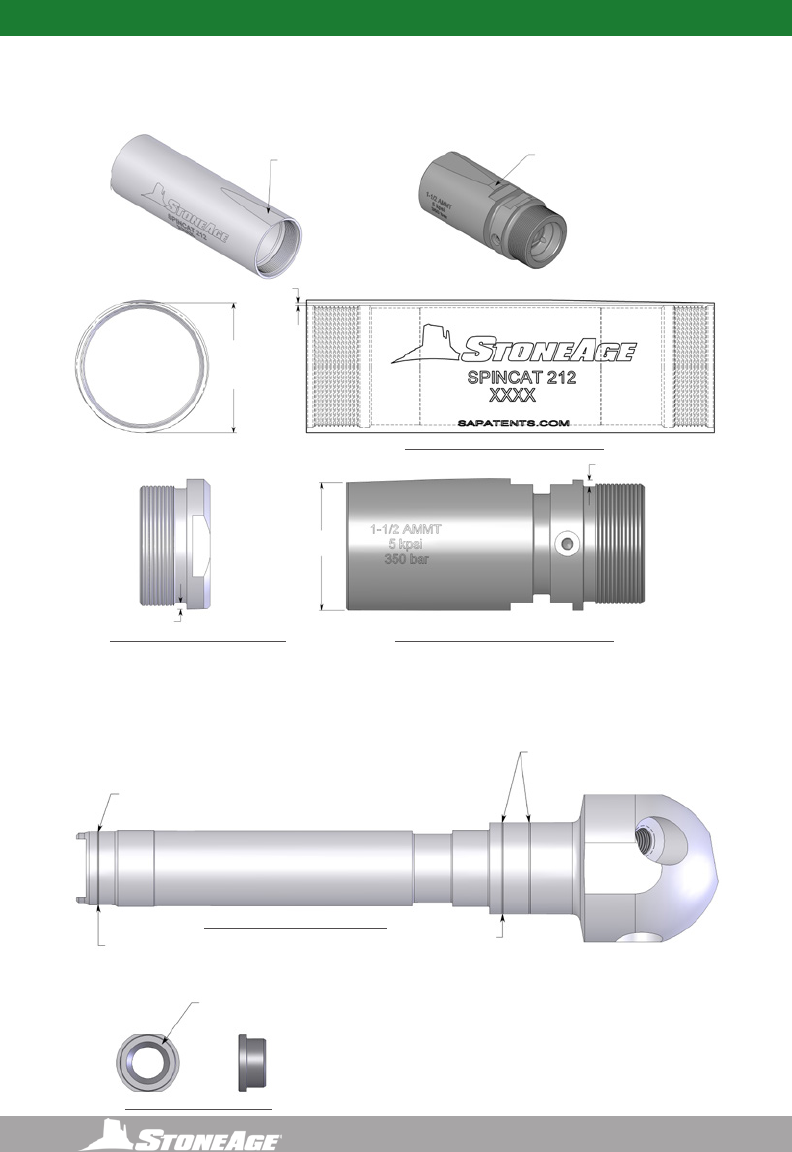

REPLACEMENT PART WEAR INFORMATION
SC212 003 Body Scufng Wear
SC212 020 Gland Assembly
.050 Minimum Wall
Ø 2.08
Minimum
Outside
Diameter
Ø 2.04
Minimum
.10 Minimum Allowable
.10 Minimum
Common scufng
wear pattern on Inlet
Nut
Common scufng
wear pattern on
Body
SC212 002 Inlet Nut Scufng Wear
• SHAFT/HEAD WEAR:
Follow these wear dimension guidelines to determine when to replace parts.
SC212 043 Shaft/Head Wear
Inspect faces for erosion
or chipping replace if
damaged
NOTE: Scufng wear on head does not affect balance
or rotation. Head should be replaced when properly
installed nozzle inserts extend beyond the head or
body diameter to prevent rapid wear and potential
failure of the nozzle inserts.
Inspect nozzle orices for wear out of round. Replace
if visibly worn.WGR 054 FACE SEALS
Ø .936
Minimum
Allowable
Ø 1.176
Minimum
Allowable
Potential wear groove
by shaft seal lips.
Potential wear groove
by shaft seal lip.
MAINTENANCE PARTS & OVERHAUL KITS
• BODY AND INLET NUT WEAR:
Follow these wear dimension guidelines to determine when to replace parts.
15
866-795-1586 • WWW.STONEAGETOOLS.COM
MAINTENANCE PARTS & OVERHAUL KITS
MAINTENANCE & OVERHAUL KIT PARTS
SC212 600 – LUBRICATION KIT
1 BC 410 20CC Syringe Tube Assembly
1 PL 545 SC-212 Manual Insert
2 SC250 026 Port Plug with O-Ring
1 SC250 048 High Temp Visc, Not for SC-H, 6oz
SC212 602 -SEAL REDRESS KIT
2 BJ 062-S Anti-seize, 2g
2 GP 805 Container, Round Hinged Lid Plastic
1 PL 545 SC-212 Manual Insert
2 SC212 010 Seal, Dual Lip
1 SC212 011 Shaft Seal
2 SC212 021 O-Ring, Viton
2 SC250 016 O-Ring, Viton
1 SC250 021 Weep Seal, Viton
2 SC250 026 Port Plug with O-Ring
1 SC250 048 High Temp Visc, Not for SC-H, 6oz
2 WGR 054 Face Seal
1 WGR 056 Compression Spring
SC212 610 - OVERHAUL KIT
1 BJ 062-S Anti-seize, 2g
2 GP 805 Container, Round Hinged Lid Plastic
1 PL 545 SC-212 Manual Insert
2 SC212 007 Bearing
1 SC212 008 Shim, Donut, SS
2 SC212 010 Seal, Dual Lip
1 SC212 011 Shaft Seal
2 SC212 021 O-Ring, Viton
1 SC212 025 Spring
1 SC212 030 Bronze Sleeve
2 SC250 016 O-Ring, Viton
1 SC250 021 Weep Seal, Viton
2 SC250 026 Port Plug with O-Ring
1 SC250 048 High Temp Visc, Not for SC-H, 6oz
2 WGR 054 Face Seal
1 WGR 056 Compression Spring
SC212 106 SEAL TOOL
SC250 026
Port Plug with
O-Ring (2)
SC250 021
Weep Seal
SC212 007
Bearing
SC212 007
Bearing
SC212 022
Hub, Spring Drive
SC212 220
Weights
SC212 025
Spring
SC212 018
SHCS, Low Head SS
SC212 225
Garter Springs
SC212 010
Shaft Seal (2)
SC212 021
O-Ring
SC212 021
O-Ring
SC212 011
Shaft Seal
SC212 030
Sleeve
SC212 008
Shim
SC212 003
Body
CNP2
Nozzles (5)
SC212 043-R25
Head Shaft
Weldment
SC212 020
Gland Nut
SC212 017
Collar w/ Screws
WG 054
Face Seal (2)
SC250 016
O-Ring (2)
WG 056
Compression Spring
SC212 002-AMMT
Inlet Nut

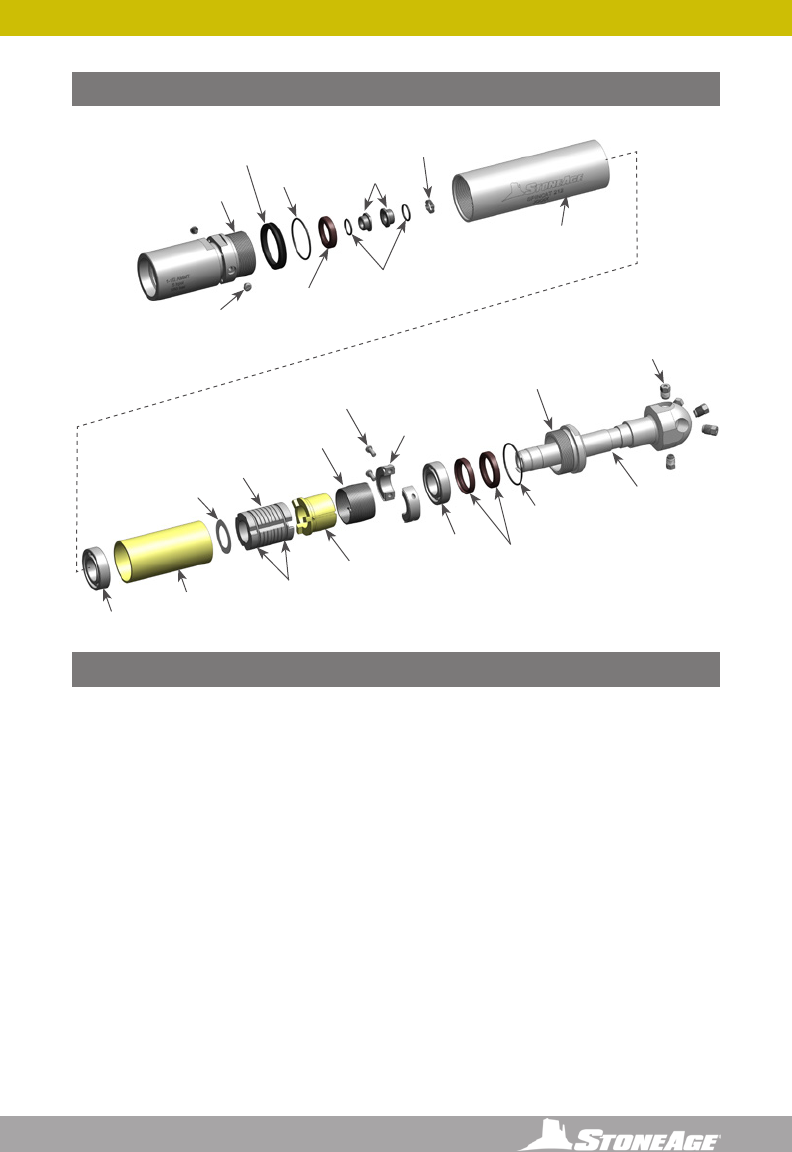

PARTS OVERVIEW
16 866-795-1586 • WWW.STONEAGETOOLS.COM
TERMS AND CONDITIONS AND WARRANTY INFORMATION TERMS AND CONDITIONS AND WARRANTY INFORMATION
1. Acceptance of Terms and Conditions. Receipt
of these Terms and Conditions of Sale (“Terms and
Conditions”) shall operate as the acceptance by
StoneAge, Inc. (“Seller”) of the order submitted by
the purchaser (“Buyer”). Such acceptance is made
expressly conditional on assent by Buyer to these Terms
and Conditions. Such assent shall be deemed to have
been given unless written notice of objection to any of
these Terms and Conditions (including inconsistencies
between Buyer’s purchase order and this acceptance) is
given by Buyer to Seller promptly on receipt hereof.
Seller desires to provide Buyer with prompt and efcient
service. However, to individually negotiate the terms
of each sales contract would substantially impair
Seller’s ability to provide such service. Accordingly, the
product(s) furnished by Seller are sold only according
to the terms and conditions stated herein and with the
terms and conditions stated in any effective StoneAge
Dealer Agreement or StoneAge Reseller Agreement, if
applicable. Notwithstanding any terms and conditions
on Buyer’s order, Seller’s performance of any contract
is expressly made conditional on Buyer’s agreement
to these Terms and Conditions unless otherwise
specically agreed to in writing by Seller. In the absence
of such agreement, commencement of performance,
shipment and/or delivery shall be for Buyer’s
convenience only and shall not be deemed or construed
to be an acceptance of Buyer’s terms and conditions.
2. Payment/Prices. Unless other arrangements have
been made in writing between Seller and Buyer, payment
for the product(s) shall be made upon receipt of invoice.
The prices shown on the face hereof are those currently
in effect. Prices invoiced shall be per pricelist in effect
at the time of shipment. Prices are subject to increase
for inclusion of any and all taxes which are applicable
and which arise from the sale, delivery or use of the
product(s), and the collection of which Seller is or may
be responsible to provide to any governmental authority,
unless acceptable exemption certicates are provided
by Buyer in accordance with applicable law. Buyer
shall pay all charges for transportation and delivery
and all excise, order, occupation, use or similar taxes,
duties, levies, charges or surcharges applicable to the
product(s) being purchased, whether now in effect
or hereafter imposed by any governmental authority,
foreign or domestic.
3. Warranty. SELLER MAKES NO WARRANTIES OR
REPRESENTATIONS AS TO THE PERFORMANCE
OF ANY PRODUCT EXCEPT AS SET FORTH IN THE
STONEAGE LIMITED WARRANTY PROVIDED WITH THE
PRODUCT.
4. Delivery. Seller is not obligated to make delivery by
a specied date, but will always use its best efforts to
make delivery within the time requested. The proposed
shipment date is an estimate. Seller will notify Buyer
promptly of any material delay and will specify the
revised delivery date as soon as practicable. UNDER
NO CIRCUMSTANCES SHALL SELLER HAVE ANY
LIABILITY WHATSOEVER FOR LOSS OF USE OR
FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES
RESULTING FROM DELAY REGARDLESS OF THE
REASON(S).
All product(s) will be shipped F.O.B. point of origin,
unless specically agreed otherwise, and Buyer shall
pay all shipping costs and insurance costs from that
point. Seller, in its sole discretion, will determine and
arrange the means and manner of transportation of the
product(s). Buyer shall bear all risk of loss commencing
with the shipment or distribution of the product(s) from
Seller’s warehouse. Order shortages or errors must be
reported within fteen (15) business days from receipt of
shipment to secure adjustment. No product(s) may be
returned without securing written approval from Seller.
5. Modication. These Terms and Conditions are
intended by Seller and Buyer to constitute a nal,
complete and exclusive expression of agreement
relating to the subject matter hereof and cannot be
supplemented or amended without Seller’s prior written
approval.
6. Omission. Seller’s waiver of any breach or Seller’s
failure to enforce any of these Terms and Conditions
at any time, shall not in any way affect, limit or waive
Seller’s right thereafter to enforce and compel strict
compliance with every term and condition hereof.
7. Severability. If any provision of these Terms and
Conditions is held to be invalid or unenforceable, such
invalidity or unenforceability shall not affect the validity
or enforceability of the other portions hereof.
17
866-795-1586 • WWW.STONEAGETOOLS.COM
TERMS AND CONDITIONS AND WARRANTY INFORMATION
8. Disputes. Seller and Buyer shall attempt in good
faith to promptly resolve any dispute arising under
these Terms and Conditions by negotiations between
representatives who have authority to settle the
controversy. If unsuccessful, Seller and Buyer shall
further attempt in good faith to settle the dispute
by nonbinding third-party mediation, with fees and
expenses of such mediation apportioned equally to
each side. Any dispute not so resolved by negotiation
or mediation may then be submitted to a court of
competent jurisdiction in accordance with the terms
hereof. These procedures are the exclusive procedures
for the resolution of all such disputes between the Seller
and Buyer.
9. Governing Law. All sales, agreements for sale, offers
to sell, proposals, acknowledgments and contracts
of sale, including, but not limited to, purchase orders
accepted by Seller, shall be considered a contract under
the laws of the State of Colorado and the rights and
duties of all persons, and the construction and effect of
all provisions hereof shall be governed by and construed
according to the laws of such state.
10. Jurisdiction and Venue. Seller and Buyer agree
that the state or federal courts located within the City
and County of Denver, Colorado shall have sole and
exclusive jurisdiction over any litigation concerning any
dispute arising under these Terms and Conditions not
otherwise resolved pursuant to Section 9 as well as any
alleged defects of any Products or damages sustained
as a result of such alleged defects. Seller and Buyer
further agree that should any litigation be commenced
in connection with such a dispute, it shall only be
commenced in such courts. Seller and Buyer agree to
the exclusive jurisdiction of such courts and neither will
raise any objection to the jurisdiction and venue of such
courts, including as a result of inconvenience.
11. Attorney’s Fees. If any litigation is commenced
between Seller and Buyer, or their personal
representatives, concerning any provision hereof,
the party prevailing in the litigation shall be entitled,
in addition to such other relief that is granted, to a
reasonable sum as and for their attorneys’ fees and
costs in such litigation or mediation.
STONEAGE TRADEMARK LIST
View the list of StoneAge’s trademarks and service marks and learn how the trademarks should be used. Use of
StoneAge trademarks may be prohibited, unless expressly authorized.
http://www.StoneAgetools.com/trademark-list/
STONEAGE PATENT DATA
View the list of StoneAge’s current U.S. patent numbers and descriptions.
http://www.sapatents.com
STONEAGE TERMS AND WARRANTY
View StoneAge’s Terms and Warranty Conditions online.
http://www.stoneagetools.com/terms
http://www.stoneagetools.com/warranty
18 866-795-1586 • WWW.STONEAGETOOLS.COM
TERMS AND CONDITIONS AND WARRANTY INFORMATION
Warranties set forth herein extend only to End-Users,
meaning customers acquiring, or that have previously
acquired, a product manufactured by StoneAge
(“Product”) for their own use and not for resale, either
directly from StoneAge Inc. (“StoneAge”) or from a
StoneAge Authorized Dealer or Reseller (“Dealer”). No
warranty of any kind or nature is made by StoneAge
beyond those expressly stated herein.
1. LIMITED WARRANTY PERIOD. Subject to
the limitations and conditions hereinafter set forth,
StoneAge warrants its Product to be free from defects
in workmanship and material for a period of one (1) year
from the date of purchase by the End-User, provided that
the end of the limited warranty period shall not be later
than eighteen (18) months from the date of shipment of
the Product to the Dealer or the End-User by StoneAge
(“Limited Warranty Period”). All replacement parts which
are furnished under this Limited Warranty and properly
installed shall be warranted to the same extent as the
original Product under this Limited Warranty if, and only
if, the original parts were found to be defective within the
original Limited Warranty Period covering the original
Product. Replacement parts are warranted for the
remainder of the original Limited Warranty Period. This
Limited Warranty does not cover any component part of
any Product not manufactured by StoneAge. Any such
component part is subject exclusively to the component
manufacturer’s warranty terms and conditions.
2. LIMITED WARRANTY COVERAGE. StoneAge’s
sole obligation under this Limited Warranty shall be, at
StoneAge’s option and upon StoneAge’s inspection, to
repair, replace or issue a credit for any Product which is
determined by StoneAge to be defective in material or
workmanship. StoneAge reserves the right to examine
the alleged defective Product to determine whether this
Limited Warranty is applicable, and nal determination
of limited warranty coverage lies solely with StoneAge.
No statement or recommendation made by a StoneAge
representative, Dealer or agent to End-User shall
constitute a warranty by StoneAge or a waiver or
modication to any of the provisions hereof or create any
liability for StoneAge.
3. WARRANTY SERVICE PROVIDERS. Service
and repair of the Product is to be performed only by
StoneAge authorized service representatives, including
Dealers who are authorized repair centers, with
StoneAge approved parts. Information about StoneAge
authorized service representatives can be obtained
through the StoneAge website at www.stoneagetools.
com/service. Unauthorized service, repair or
modication of the Product or use of parts not approved
by StoneAge will void this Limited Warranty. StoneAge
reserves the right to change or improve the material and
design of the Product at any time without notice to End-
User, and StoneAge is not obligated to make the same
improvements during warranty service to any Product
previously manufactured.
4. WARRANTY EXCLUSIONS. This Limited Warranty
does not cover, and StoneAge shall not be responsible
for the following, or damage caused by the following:
(1) any Product that has been altered or modied in any
way not approved by StoneAge in advance in writing;
(2) any Product that has been operated under more
severe conditions or beyond the rated capacity specied
for that Product; (3) depreciation or damage caused
by normal wear and tear, failure to follow operation or
installation instructions, misuse, negligence or lack
of proper protection during storage; (4) exposure to
re, moisture, water intrusion, electrical stress, insects,
explosions, extraordinary weather and/or environmental
conditions including, but not limited to lightning, natural
disasters, storms, windstorms, hail, earthquakes, acts
of God or any other force majeure event; (5) damage to
any Product caused by any attempt to repair, replace,
or service the Product by persons other than StoneAge
authorized service representatives; (6) costs of normal
maintenance parts and services; (7) damage sustained
during unloading, shipment or transit of the Product;
or (8) failure to perform the recommended periodic
maintenance procedures listed in the Operator’s Manual
accompanying the Product.
5. REQUIRED WARRANTY PROCEDURES. To be
eligible for warranty service, the End-User must: (1)
report the Product defect to the entity where the Product
was purchased (i.e. StoneAge or the Dealer) within
the Limited Warranty Period specied in this Limited
Warranty; (2) submit the original invoice to establish
ownership and date of purchase; and (3) make the
Product available to a StoneAge authorized service
representative for inspection to determine eligibility
for coverage under this Limited Warranty. This Limited
Warranty shall not extend to any person or entity who
fails to provide proof of original purchase from StoneAge
or a Dealer. No Product may be returned for credit
or adjustment without prior written permission from
StoneAge.
WARRANTY:
19
866-795-1586 • WWW.STONEAGETOOLS.COM
TERMS AND CONDITIONS AND WARRANTY INFORMATION
6. DISCLAIMER OF IMPLIED WARRANTIES AND OTHER
REMEDIES. EXCEPT AS EXPRESSLY STATED HEREIN
(AND TO THE FULLEST EXTENT ALLOWED UNDER
APPLICABLE LAW), STONEAGE HEREBY DISCLAIMS
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION ALL IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, AND ANY AND ALL
WARRANTIES, REPRESENTATIONS OR PROMISES
AS TO THE QUALITY, PERFORMANCE OR FREEDOM
FROM DEFECT OF THE PRODUCT COVERED BY
THIS LIMITED WARRANTY. STONEAGE FURTHER
DISCLAIMS ALL IMPLIED INDEMNITIES.
7. LIMITATION OF LIABILITY. End-User specically
acknowledges that the Product may be operated at
high speeds and/or pressures, and that as such it may
be inherently dangerous if not used correctly. End-
User shall familiarize itself with all operation materials
provided by StoneAge and shall at all times use and
require its agents, employees and contractors to use
all necessary and appropriate safety devices, guards
and proper safe operating procedures. In no event shall
StoneAge be responsible for any injuries to persons or
property caused directly or indirectly by the operation
of the Product if End-User or any agent, employee, or
contractor of End-User: (1) fails to use all necessary
and appropriate safety devices, guards and proper
safe operating procedures; (2) fails to maintain in good
working order such safety devices and guards; (3) alters
or modies the Product in any way not approved by
StoneAge in advance in writing; (4) allows the Product to
be operated under more severe conditions or beyond the
rated capacity specied for the Product; or (5) otherwise
negligently operates the Product. End-User shall
indemnify and hold StoneAge harmless from any and all
liability or obligation incurred by or against StoneAge,
including costs and attorneys’ fees, to or by any person
so injured.
TO THE FULL EXTENT ALLOWED BY APPLICABLE
LAW, STONEAGE SHALL NOT BE LIABLE FOR ANY
INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL,
OR PUNITIVE DAMAGES (INCLUDING WITHOUT
LIMITATION, LOSS OF PROFITS, LOSS OF GOODWILL,
DIMINUTION OF VALUE, WORK STOPPAGE,
INTERRUPTION OF BUSINESS, RENTAL OF
SUBSTITUTE PRODUCT, OR OTHER COMMERCIAL
LOSS EVEN TO THE EXTENT SUCH DAMAGES WOULD
CONSTITUTE DIRECT DAMAGES), WITH RESPECT TO
THE COVERED STONEAGE PRODUCT, OR OTHERWISE
IN CONNECTION WITH THIS LIMITED WARRANTY,
REGARDLESS OF WHETHER STONEAGE HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
IT IS UNDERSTOOD THAT STONEAGE’S LIABILITY,
WHETHER IN CONTRACT, IN TORT, UNDER ANY
WARRANTY, IN NEGLIGENCE, OR OTHERWISE SHALL
NOT EXCEED THE AMOUNT OF THE PURCHASE
PRICE PAID BY THE END-USER FOR THE PRODUCT.
STONEAGE’S MAXIMUM LIABILITY SHALL NOT
EXCEED, AND END-USER’S REMEDY IS LIMITED
TO EITHER (1) REPAIR OR REPLACEMENT OF THE
DEFECTIVE WORKMANSHIP OR MATERIAL OR, AT
STONEAGE’S OPTION, (2) REFUND OF THE PURCHASE
PRICE, OR (3) ISSUANCE OF A CREDIT FOR THE
PURCHASE PRICE, AND SUCH REMEDIES SHALL BE
END-USER’S ENTIRE AND EXCLUSIVE REMEDY.
YOU, THE END-USER, UNDERSTAND AND EXPRESSLY
AGREE THAT THE FOREGOING LIMITATIONS ON
LIABILITY ARE PART OF THE CONSIDERATION IN
THE PRICE OF THE STONEAGE PRODUCT YOU
PURCHASED.
Some jurisdictions do not allow the limitation or
exclusion of liability for certain damages, so the above
limitations and exclusions may not apply to you. This
Limited Warranty gives you specic legal rights, and you
may also have other rights which vary from jurisdiction
to jurisdiction. If any provisions of this Limited Warranty
is held to be invalid or unenforceable, such invalidity
or unenforceability shall not affect the validity or
enforceability of the other portions hereof.
1-866-795-1586 • www.STONEAGETOOLS.com
© 2015 StoneAge, Inc. All Rights Reserved
