TECHNICAL MANUAL
FOR
COMPACT VHF RT2047/D
RT2047 DSC - PART I
CONTENTS
1 GENERAL INFORMATION 1-1
1.1 INTRODUCTION 1-1
2 INSTALLATION 2-1
2.1 INSTALLATION HINTS 2-1
2.2 MOUNTING POSSIBILITIES 2-2
2.3 DIMENSIONS AND DRILLING PLAN 2-4
2.4 HANDSET 2-9
2.5 MICROTELEPHONE CONNECTOR 2-9
2.6 POWER SUPPLY 2-9
2.7 POWER AND EXT. LOUDSPEAKER CONNECTOR 2-10
2.8 ANTENNAS 2-10
2.9 SPECIAL OPTIONS 2-10
2.10 REAR VIEW OF VHF RT2047 2-11
2.11 STANDARD FREQUENCY TABLE 2-12
RT2047 DSC - PART II
9546
CONTENTS
1 GENERAL INFORMATION 1-1
1.1 GENERAL DESCRIPTION 1-1
1.2 TECHNICAL DATA 1-2
1.3 CONTROLS 1-3
1.4 PRINCIPLE OF OPERATION 1-5

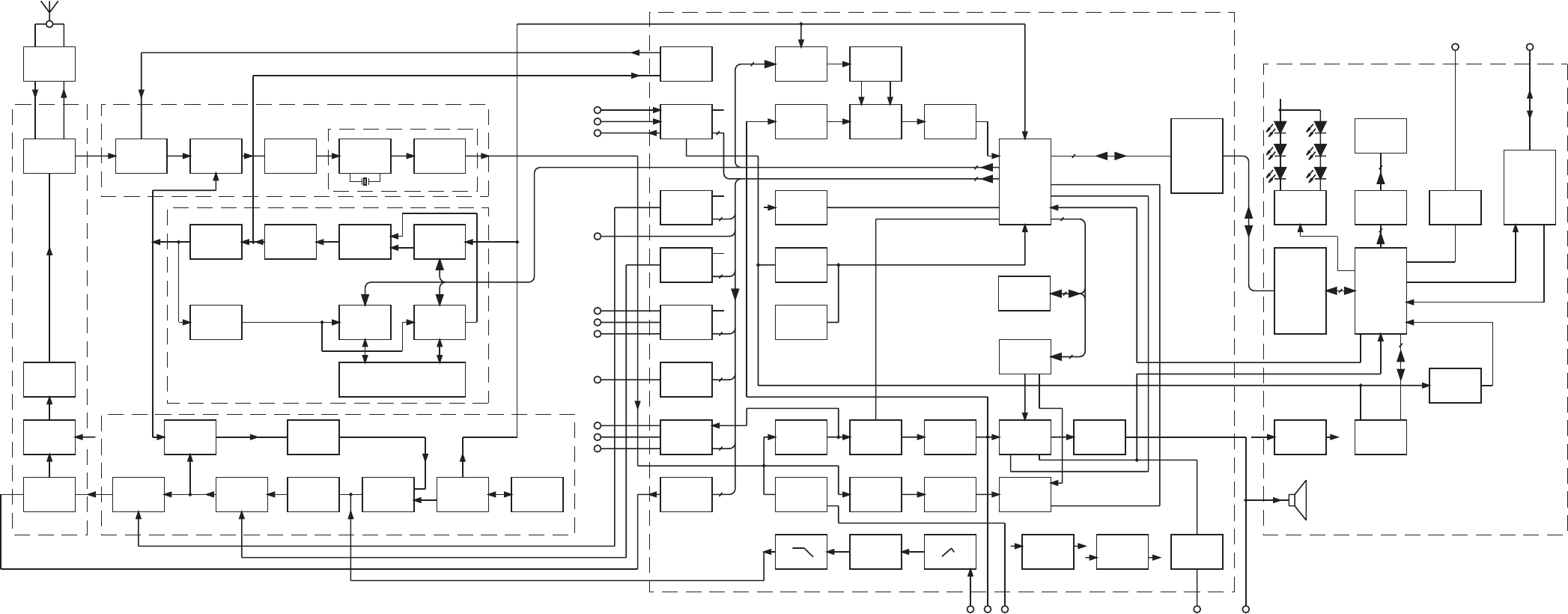

1.5 BLOCKDIAGRAM 1-7
2 CIRCUIT DESCRIPTION 2-1
2.1 RECEIVER UNIT MODULE 100 2-1
2.2 RX-SYNTHESIZER UNIT MODULE 200 2-4
2.3 TX-EXCITER UNIT MODULE 300 2-8
2.4 TX-POWER AMPLIFIER MODULE 400 2-13
2.5 ANTENNA RELAY (500) 2-13
2.6 INTERFACE UNIT MODULE 6/600 2-17
2.7 KEYBOARD UNIT MODULE 7/700 2-24
2.8 DUPLEX FILTER MODULE 800 2-28
2.9 FILTER UNIT MODULE 9/900 2-29
2.10 MAIN DIAGRAM 2-32
2.11 MICROTELEPHONE INSTALLATION 2-34
2.12 SPECIAL INSTALLATION WITH 2 MICROTELEPHONES 2-35
2.13 SPECIAL INSTALLATION WITH 3 MICROTELEPHONES 2-36
2.14 MECHANICAL DIMENSIONS FOR HANDSET 2-37

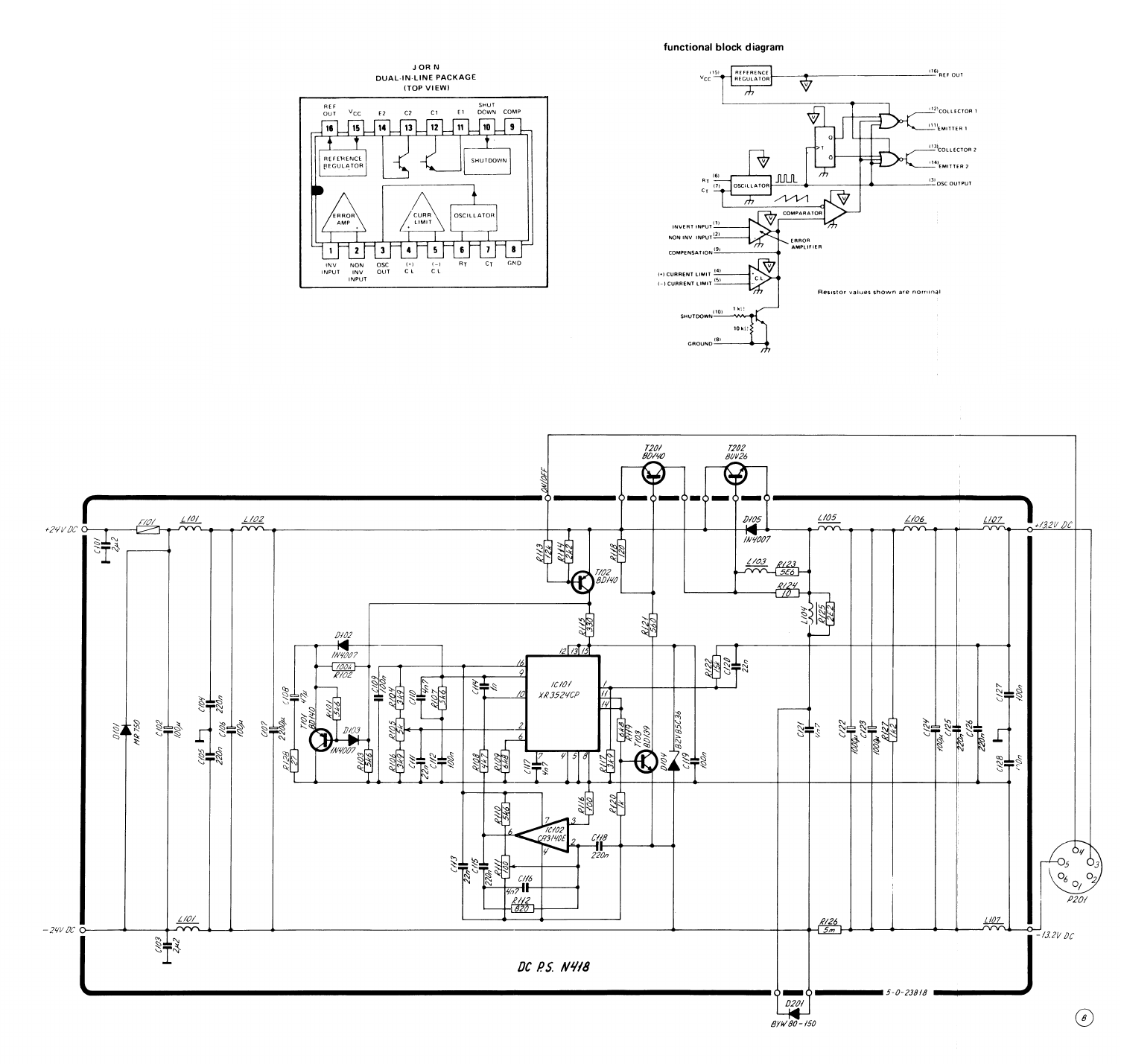

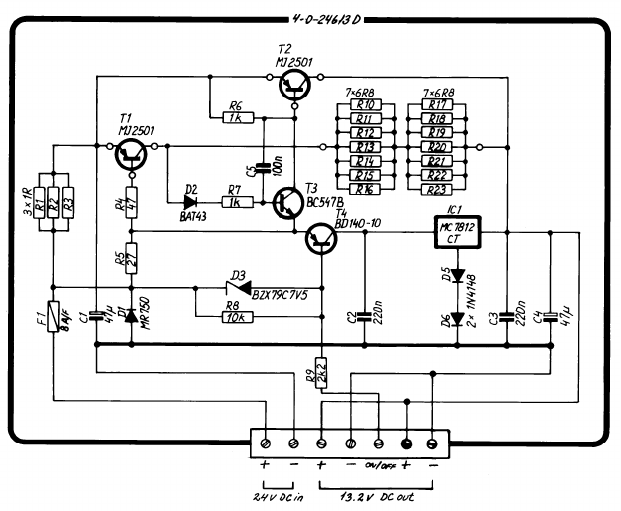

2.15 DC POWER SUPPLY N418 2-39
2.16 N420 24V/12V REGULATOR 2-42
3 MECHANICAL DISASSEMBLING AND MODULE LOCATION 3-1
3.1 MECHANICAL DISASSEMBLING 3-1
3.2 MODULE LOCATION 3-3
4 SERVICE 4-1
4.1 MAINTENANCE 4-1
4.2 ADJUSTMENT INSTRUCTIONS 4-1
4.3 PROPOSAL FOR NECESSARY MEASURING INSTRUMENTS 4-1
4.4 CALIBRATION OF THE TEST PROBE 4-2
4.5 PROCEDURE FOR CALIBRATION 4-2
4.6 ADJUSTMENT PROCEDURE 4-3
4.7 TROUBLE-SHOOTING 4-6
4.8 REPLACEMENT OF COMPONENTS 4-6
4.9 REPLACEMENT OF MODULES 4-6
4.10 NECESSARY ADJUSTMENTS AFTER REPLACEMENT OF
A MODULE 4-7
4.11 PIN CONFIGURATION 4-9
4.12 PIN CONFIGURATIONS, BLOCK & SCHEMATIC

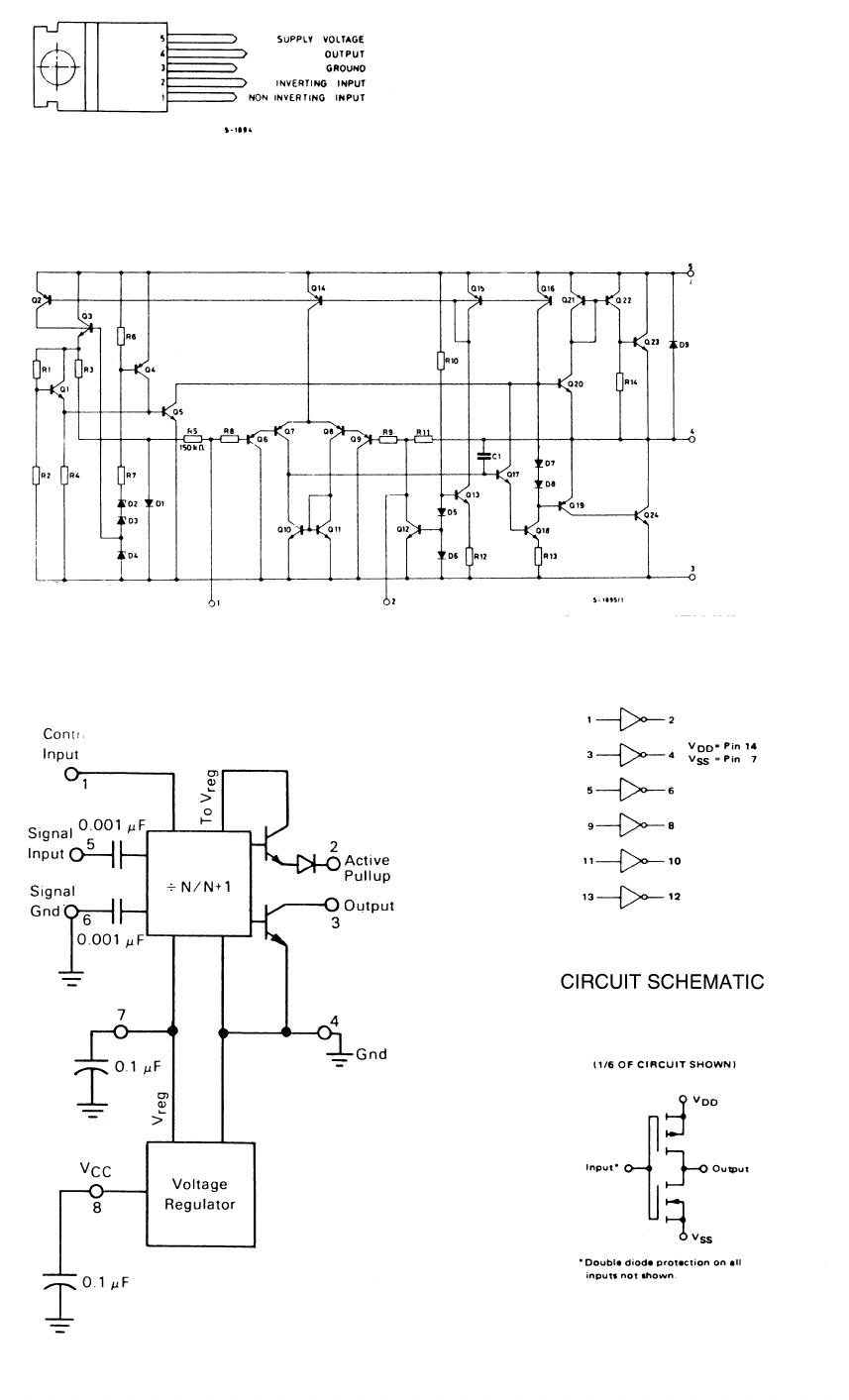

DIAGRAMS FOR IC’S 4-10
5 PARTS LIST 5-1
RT2047 DSC - PART I
CONTENTS
1 GENERAL INFORMATION 1-1
1.1 INTRODUCTION 1-1
PAGE 1-1
1 GENERAL INFORMATION
1.1 INTRODUCTION
The RT2047 VHF Radiotelephone has been designed to be used with the Compact 2000 Module
Programme.
The VHF RT2047 can either be installed and operated as an independent unit or in combination with the
other modules in the Compact 2000 programme. These modules include a complete range of SSB
transmitters and receivers, MF/HF Digital Selective Calling unit and/or radiotelex equipment, a scrambler
that ensures complete communication secrecy and a VHF Digital Selective Call (DSC) unit. The DSC-
unit features direct dialling and reception of ship to shore, shore to ship and ship to ship calls as well as
automatic distress calls etc.
The VHF RT2047 has been constructed to withstand the most extreme conditions experienced in small,
semi-open boats. Its compact, weather proof construction ensures a degree of resistance to sea spray.
The printed circuits, which have made possible a combination of compactness and exceptional
performance, are coated with a special, moisture-repellent lacquer.
In the design of this VHF radiotelephone, S. P. Radio have taken into account all conditions it will be
exposed to in day-to-day operation. However, even a product of this high quality requires regular service
and maintenance, and we recommend the user to observe the maintainence instructions in the instruction
book.
S. P. Radio is Europe’s leading producer of maritime radio communication equipment - a position which
has been maintained by means of constant and extensive product development. We have a world-wide
network of dealers with general agencies in fifty countries. All our dealers are well-trained and will be able
to service all products.
RT2047 DSC - PART I
RT2047 DSC - PART I
CONTENTS
2 INSTALLATION 2-1
2.1 INSTALLATION HINTS 2-1
2.2 MOUNTING POSSIBILITIES 2-2
2.3 DIMENSIONS AND DRILLING PLAN 2-4
2.4 HANDSET 2-9
2.5 MICROTELEPHONE CONNECTOR 2-9
2.6 POWER SUPPLY 2-9
2.7 POWER AND EXT. LOUDSPEAKER CONNECTOR 2-10
2.8 ANTENNAS 2-10
2.9 SPECIAL OPTIONS 2-10
2.10 REAR VIEW OF VHF RT2047 2-11
2.11 STANDARD FREQUENCY TABLE 2-12
PAGE 2-1
RT2047 DSC - PART I
2 INSTALLATION
2.1 INSTALLATION HINTS
Before installation of a VHF RT2047 the following points must be observed:
WHAT FACILITIES WILL HAVE TO BE ENABLED ?
Selcall, private channels, US-mode, dual watch, scanning facilities, etc. The procedure for enabling these
facilities is described in the manual: INSTRUCTIONS FOR IDENTITY AND SERVICE PROGRAMMING
OF VHF RT2047. This manual will only be delivered to dealers and general agents where it will be at the
disposal of trained personal in their service facilities.
IN WHAT WAY TO INSTALL THE VHF RT2047 ?
In section 2.2. MOUNTING POSSIBILITIES there’s installation instructions for the VHF RT2047 as an
independent unit or in combination with other units in the Compact 2000 programme.
HANDSET.
Installation of handset, see section 2.4. HANDSET.
EXTERNAL LOUDSPEAKER.
An external loudspeaker 4-8 ohm (4 W) can be connected to the power connector J802 pin 1 and 6, see
section 2.7. POWER CONNECTOR + EXT. LOUDSPEAKER.
SPECIAL OPTIONS:
The signals ‘remote alarm for selcall’, ‘AF to information decoder’, ‘AUX I’ , ‘AUX II’ etc. are available,
see section 2.9. SPECIAL OPTIONS.
2 INSTALLATION RT2047 DSC - PART I
PAGE 2-2
2.2 MOUNTING POSSIBILITIES

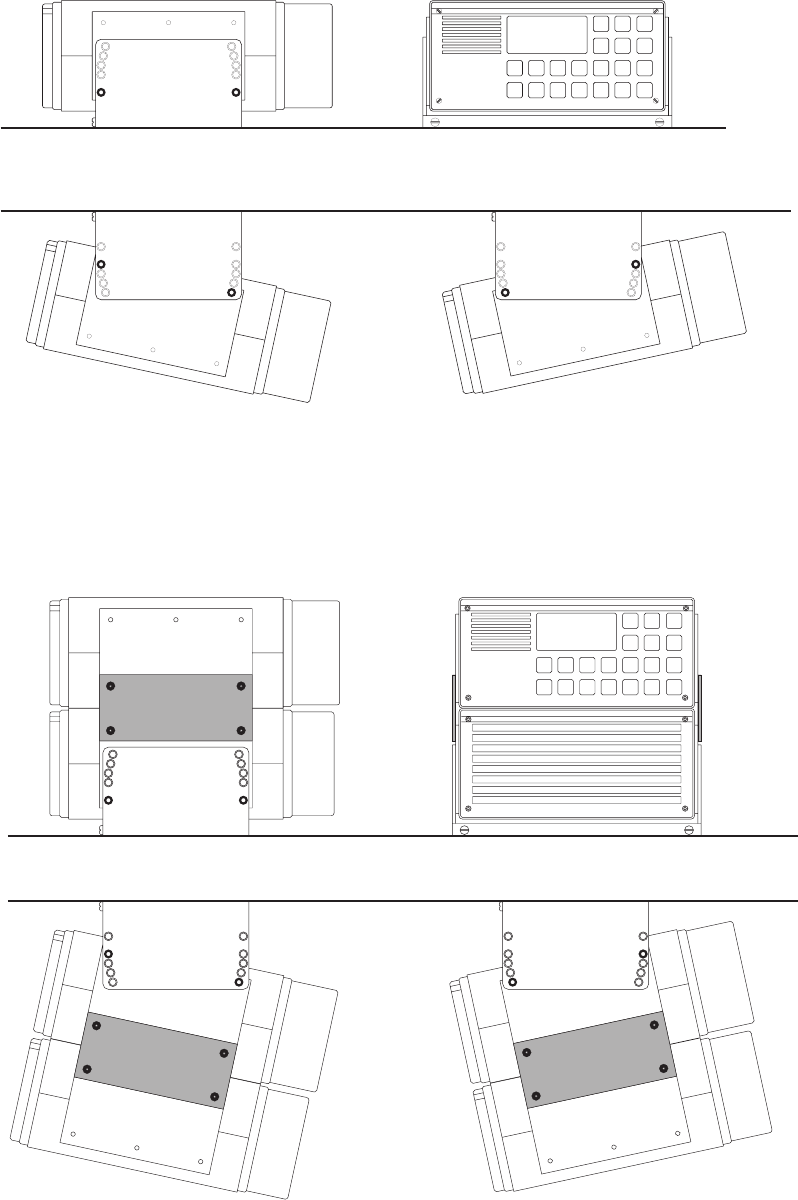

TABLETOP AND DECKHEAD
24889
Mounting bracket H2055
24890
Mounting kit H2068 and H2055
2 INSTALLATION RT2047 DSC - PART I
PAGE 2-3

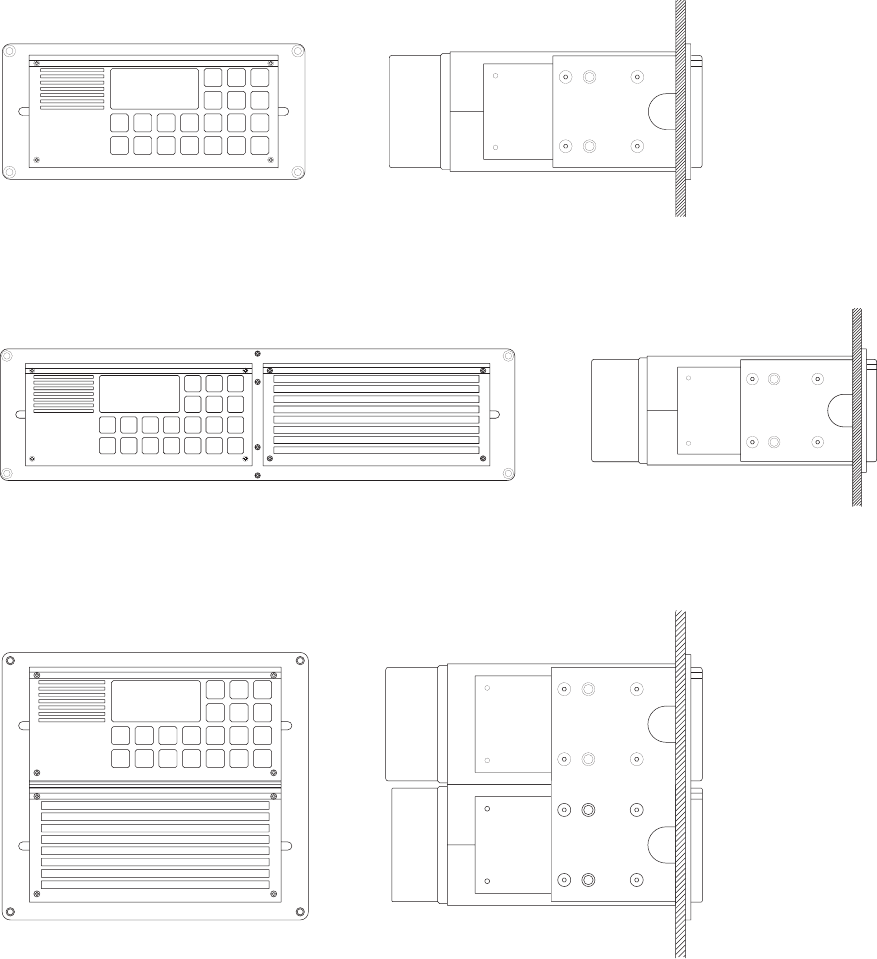

BULKHEAD AND CONSOLE
24892
Mounting kit H2063
24893
Mounting kit H2062
24891
Mounting kit H2064
IN CONJUNCTION WITH OTHER “S.P. RADIO” EQUIPMENT.
Look up the INSTALLATION section for the S.P. RADIO unit in question.
2 INSTALLATION RT2047 DSC - PART I
PAGE 2-4

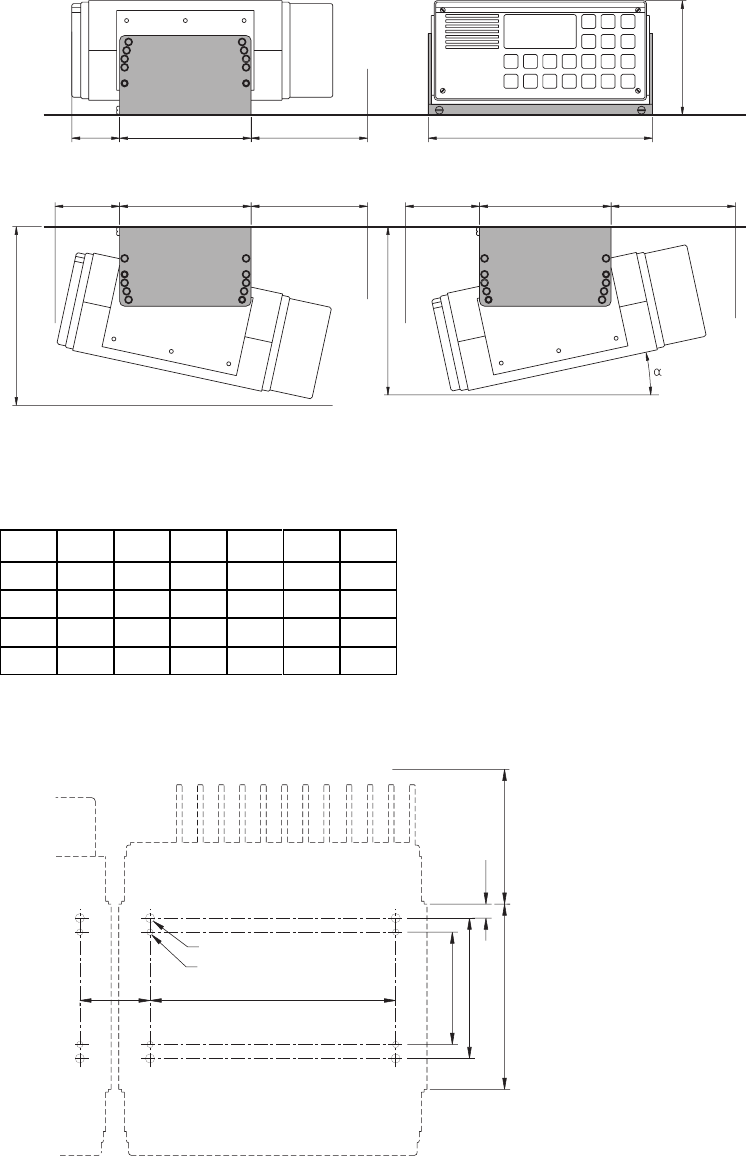

2.3 DIMENSIONS AND DRILLING PLAN

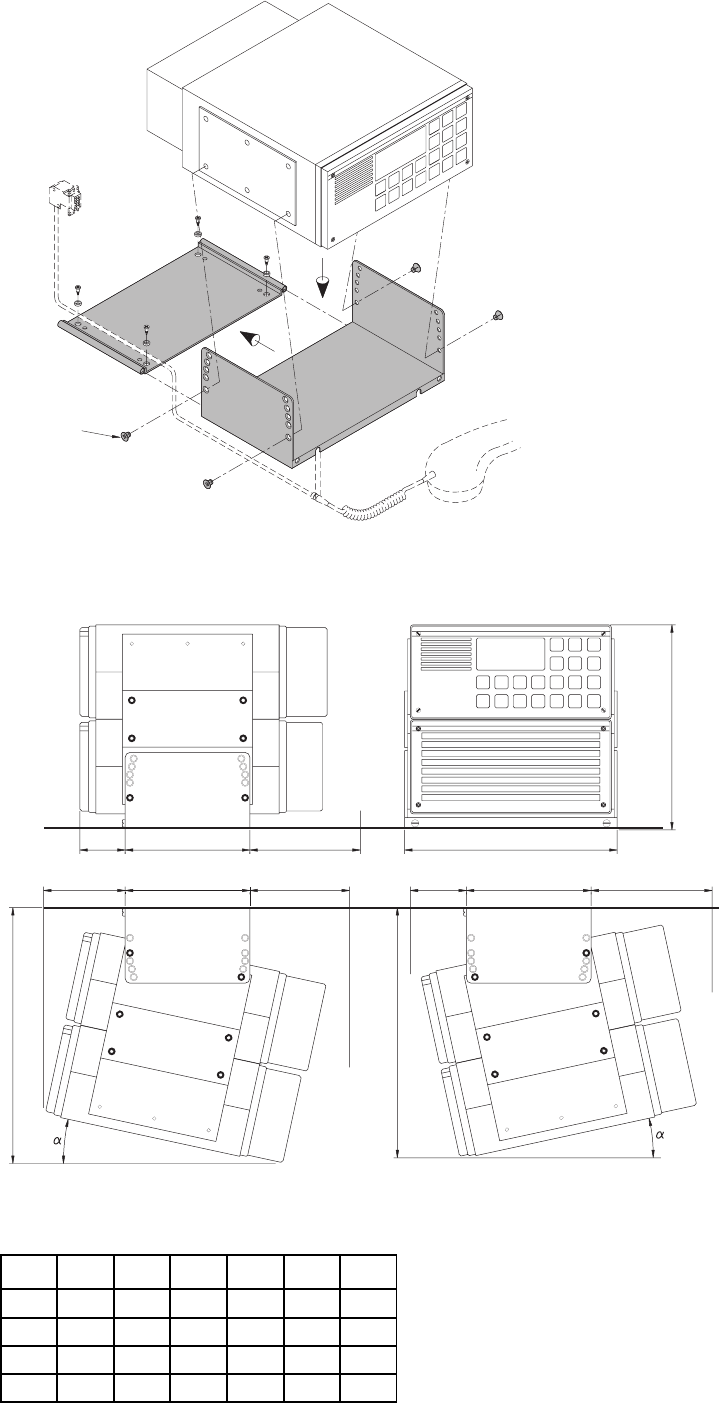

UNIVERSAL MOUNTING BRACKET H2055
Permits a wide variety of installation possibilities, such as table top, bulkhead or deck head installation.
Fur other possibilities such as console installation, installation with 19" rack or assembly of all units in
the Compact programme on the bulkhead, see special information concerning installation of the
Compact programme.
132
132
225
115
132
min. 117
FE
D
B C
48
A
24894A
αA B C D E F
0° 130 48 117 130 48 117
4.8° 142 48 117 146 53 117
9.6° 155 48 118 163 59 116
14.4° 167 45 133 178 65 113
WEIGHT
Mounting kit H2055 : 1.5 kg
H2054 : 5.5 kg
H2074 : 4.0 kg
CRY2001 : 3.2 kg
RT2047 : 5.2 kg
Dimensions in mm.
100 mm
80 mm
175 mm
50 mm
10 mm
4 pcs ø6.5 mm
4 pcs ø4.5 mm
132 mm C/F
24897
2 INSTALLATION RT2047 DSC - PART I
PAGE 2-5
4 pcs M5x8
24896
Mounting kit H2068 and H2055
132 132
48 132 225
215
D
A
B CFE
117
24895
αA B C D E F
0° 230 67 117 230 67 117
4.8° 243 67 129 245 72 117
9.6° 255 65 142 262 78 115
14.4° 265 62 155 270 89 112
WEIGHT
Mounting kit H2068 and H2055 : 1.5 kg
H2054 : 5.5 kg
H2074 : 4.0 kg
CRY2001 : 3.2 kg
RT2047 : 5.2 kg
Dimensions in mm.
2 INSTALLATION RT2047 DSC - PART I
PAGE 2-6

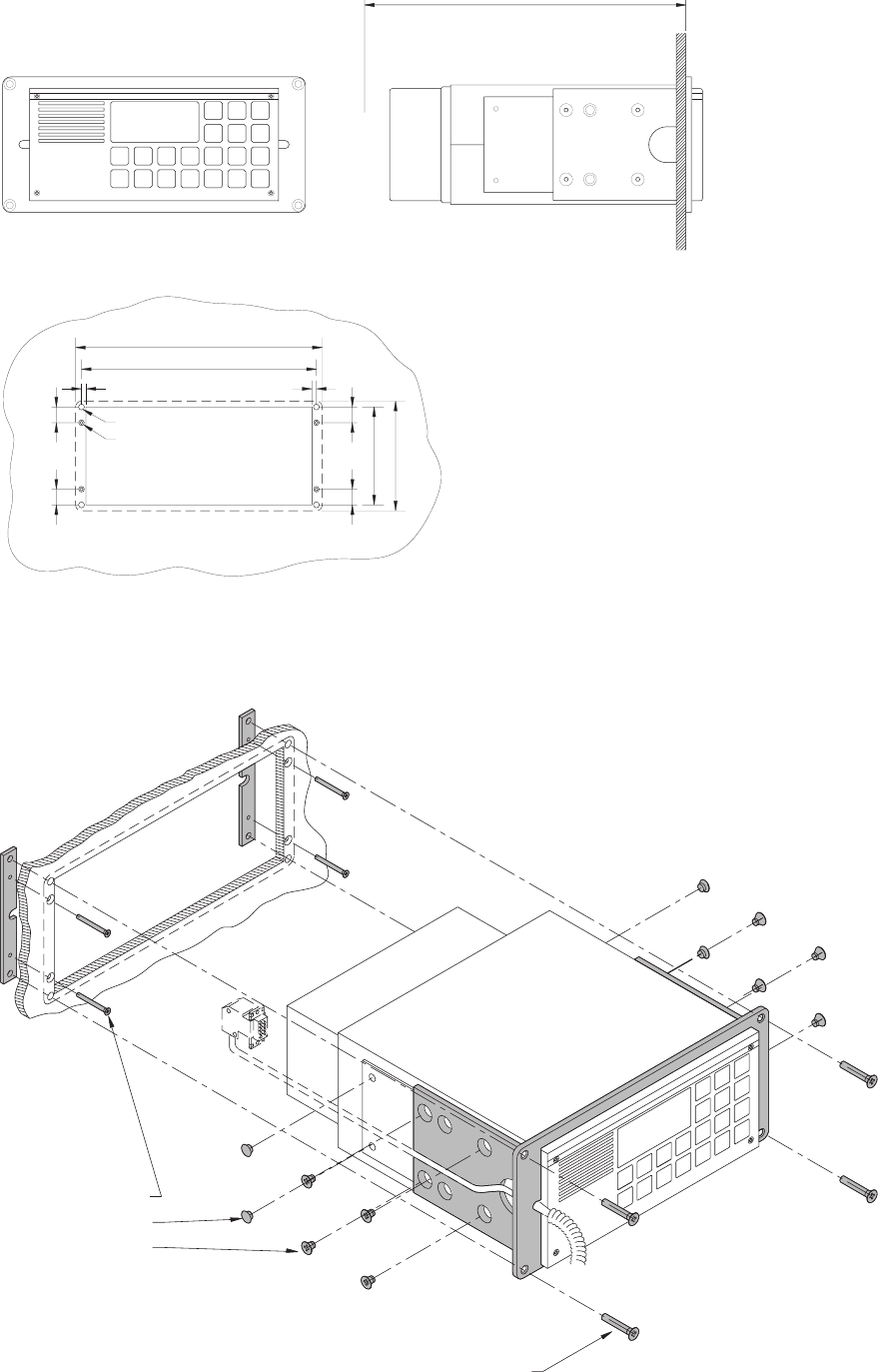

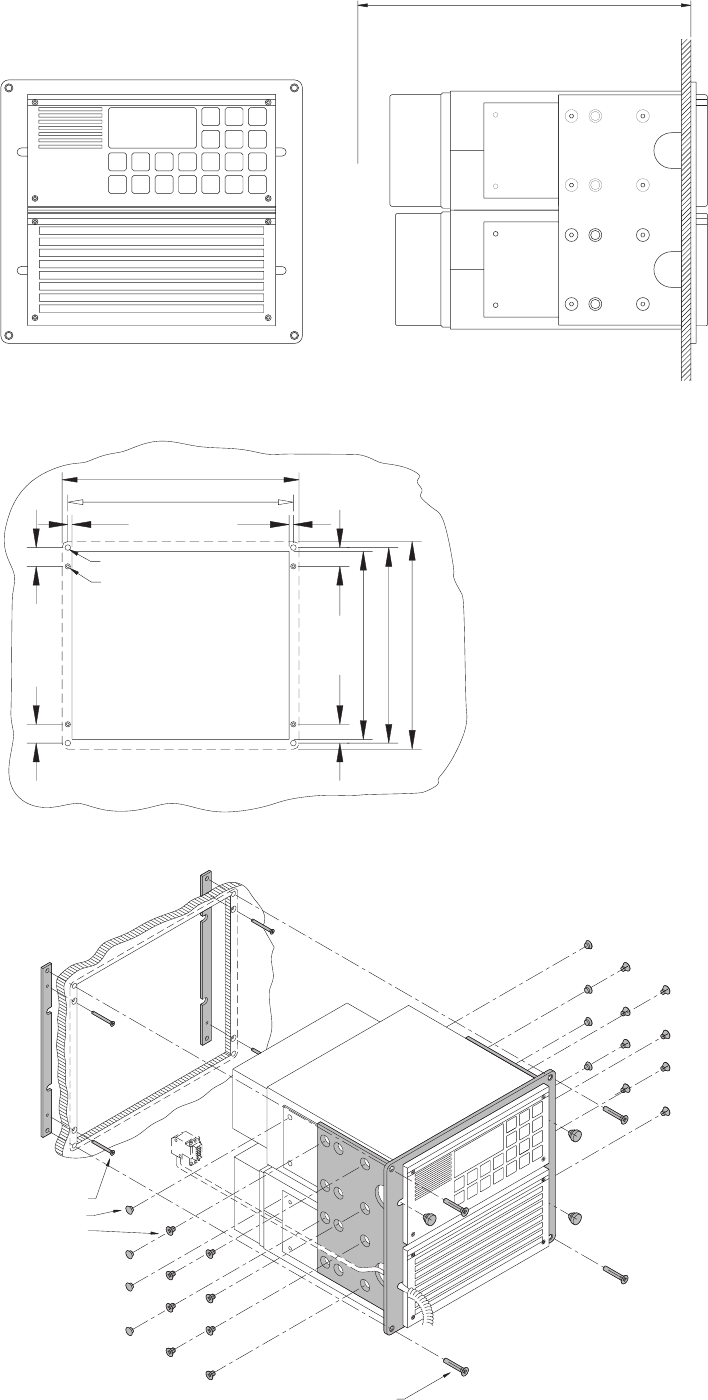

Mounting kit H2063
min.295
24898
4.5mm 4.5mm
16mm16mm
16mm
16mm
4 stk 6mm
4 stk 3.5mm uns for M3 DIN 963
Cutting out 231x100mm
253mm
240mm
100mm
113mm
27444A
Free distance must be kept to
allow free air circulation ambient
temperature max. 40°C.
WEIGHT
Mounting kit H2063 : 1.0 kg
H2054 : 5.5 kg
H2074 : 4.0 kg
CRY2001 : 3.2 kg
RT2047 : 5.2 kg
4 pcs M3x30
4 pcs cover
8 pcs M5x8
4 pcs M5x30
24770
2 INSTALLATION RT2047 DSC - PART I
PAGE 2-7
Mounting kit H2064
min.295
24772
240.00
4 stk ø6mm
4 stk ø3.5mm uns for M3 DIN 963
Cutting out 231x200mm
200mm
208mm
221mm
20mm20mm
4.5mm4.5mm
20mm20mm
253.00
27447A
Free distance must be kept to
allow free air circulation ambient
temperature max. 40°C.
WEIGHT
Mounting kit H2064 : 1.5 kg
H2054 : 5.5 kg
H2074 : 4.0 kg
CRY2001 : 3.2 kg
RT2047 : 5.2 kg
4 pcs M3x30
8 pcs cover
16 pcs M5x8
4 pcs M5x30
24899
2 INSTALLATION RT2047 DSC - PART I
PAGE 2-8
Mounting kit H2062
min 295
28369
4.5mm
20mm20mm
4 stk ø6mm
8 stk ø3.5mm uns for M3 DIN 963
Cutting out 451x100mm
473mm
460mm
6mm6mm
10mm10mm
2 stk ø3mm
20mm 20mm
225.5mm 225.5mm
108mm
121mm
100mm
27450
Free distance must be kept to
allow free air circulation ambient
temperature max. 40°C.
WEIGHT
Mounting kit H2062 : 1.5 kg
H2054 : 5.5 kg
H2074 : 4.0 kg
CRY2001 : 3.2 kg
RT2047 : 5.2 kg
27451
8 pcs M3x30
8 pcs M3x8
12 pcs M5x8
4 pcs M5x30
*
*
2 pcs M3x30
24773
2 INSTALLATION RT2047 DSC - PART I
PAGE 2-9
2.4 HANDSET
The handset can be placed anywhere near the VHF set. The cable is nine cored and connected to the
rear plate through a 9 pin Sub D connector with lock nuts.
Installation of the cable, see the drawings of the mounting brackets, section 2.3 DIMENSIONS AND
DRILLING PLAN. The cable grommet must be placed in the most convenient groove in the mounting
bracket.
If more than one handset is needed, see section 2.12. and 2.13. in part II, SPECIAL INSTALLATION
WITH 2 OR 3 MICRO TELEPHONES.

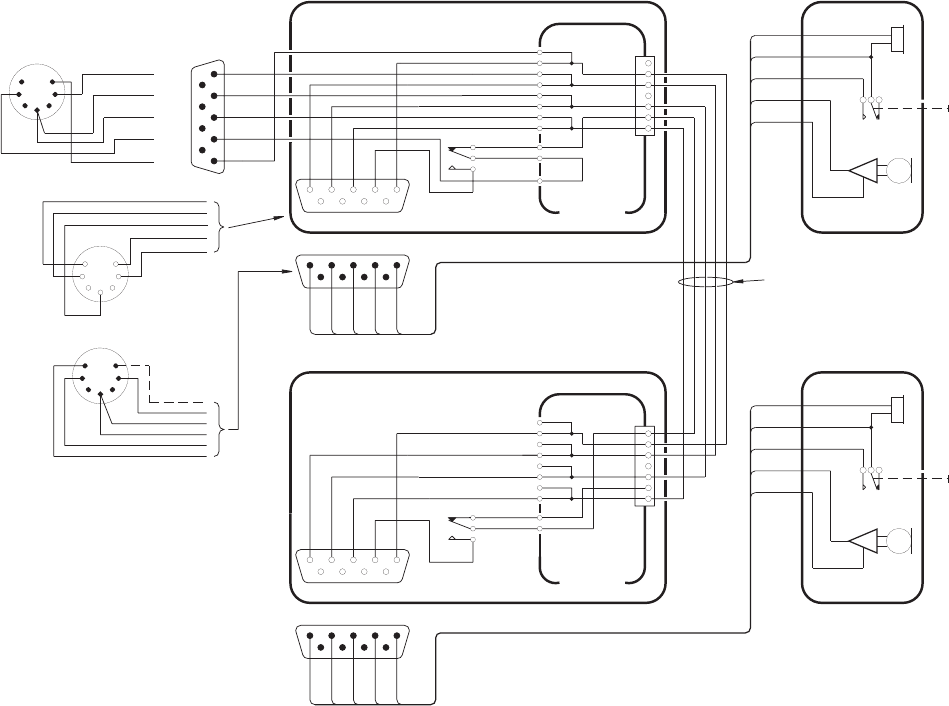

2.5 MICROTELEPHONE CONNECTOR
Wiring of the micro telephone connector.
3,1180%(5 )81&7,21
1 Telephone +
2 Ground
3 Ground
4 Microphone
5 Handset key
6 AF from RX buffer
7 Interrupt/Distress cry *
8 Serial input/output
9 +13V Internal/Phone Patch**
*/ Signal selection on jumper P608 on the Interface-unit.
**/ Signal selection on jumper P934 on the Filter-unit
2.6 POWER SUPPLY
The standard power supply for RT2047 is 12V DC .
For 24V DC supply an external power supply N418 ( switch mode ) or the N420 a 24V DC to 13.2V DC
serial regulator can be used, see part II, section 2.14 . and 2.15 .For 110V AC, 127V AC, 220V AC or 237V
AC an external power supply N163S must be used together with N418 or N420 .
2.7 POWER AND EXT. LOUDSPEAKER CONNECTOR
Wiring of the power and ext. loudspeaker connector.
3,1180%(5 )81&7,21
1 +Ext. loudspeaker*
2 No connection
3 +12V Power Supply
4 ON/OFF for 24V Supply
5 -12V Power Supply
6 -Ext. loudspeaker*
*/ If necessary a 4-8 ohm (4 W) external loudspeaker can be connected to pin 1 and 6 of the power
connector J802. External loudspeakers H2054 and H2074 are available for this option.
2 INSTALLATION RT2047 DSC - PART I
PAGE 2-10
2.8 ANTENNAS
All common 50 ohm antennas, which cover the used frequency range with a reasonable standing wave
ratio, maximum 1.5, are applicable.
The antenna is connected to the set by means of a 50 ohm coaxial cable with low loss, e.g. RG213U. At
the cable end a PL259 plug is mounted.
The antenna must be placed as high and as free of obstructions as possible. The horizontal distance to
metal parts must be at least 1.0 metre.
S. P. Radio has an antenna with the necessary specifications available for purchase. The mentioned
antenna is characterised by small external dimensions. See the special brochure ‘VHF AERIALS’ for
particulars.
2.9 SPECIAL OPTIONS
K-SWITCH.
It is possible to change between standard functions and the German river boat functions by installing an
external switch.
SELCALL RELAY.
When the selcall has accepted a CQ or individual call signal, the selcall relay, RE1-9 on the Filter-unit will
turn on and short-circuit two wires, which can be used for remote alarm. Max. contact load: 100V AC/24V
DC - 2A. This option is available on the filter print.
AF TO INFORM. DECODER.
The circuit giving AF signals to the information decoder is turned on when the set has accepted a CQ or
individual call signal. The circuit is turned “ON” or “OFF” like the relay RE1-9. This option can be found
in connector P4-6 on the interface print.
AUX II.
When an information on certain channels is wanted, i.e. controlling a watch keeping receiver, the AUX
II information can be used. A relay RE2-9 on the Filter-unit is controlled through the buffer/inverted U11/
5-6 from the ìC U19-6. Max. contact load: 100V AC / 24V DC - 2A. The AUX II option is available on the
filter print.
OUTPUT TO RECORDER.
Through the connector P4-6 pin 1 and 2 on the INTERFACE UNIT (6) the AF signal to the telephone output
can be led to a tape recorder. This option is located in connector P4-6.
AUX 1
The option AUX I is for-either internal or external use. It is placed in P3-6 pin 1 on the INTERFACE UNIT.
Max. level on the output of the U11-6 must not be more than the battery level, because a diode is
connected to the supply pin in the IC.
DISTRESS CRY / INTERRUPT
Jumper P8-6 on the interface print leads either ‘Distress Cry’ or ‘Interrupt’ through the filter print to the
handset key connector. The Interrupt signal is required when RT2047 is used with the VHF DSC RM2042
and Distress Cry is used for scramblers CRY2001 and CRY2002.

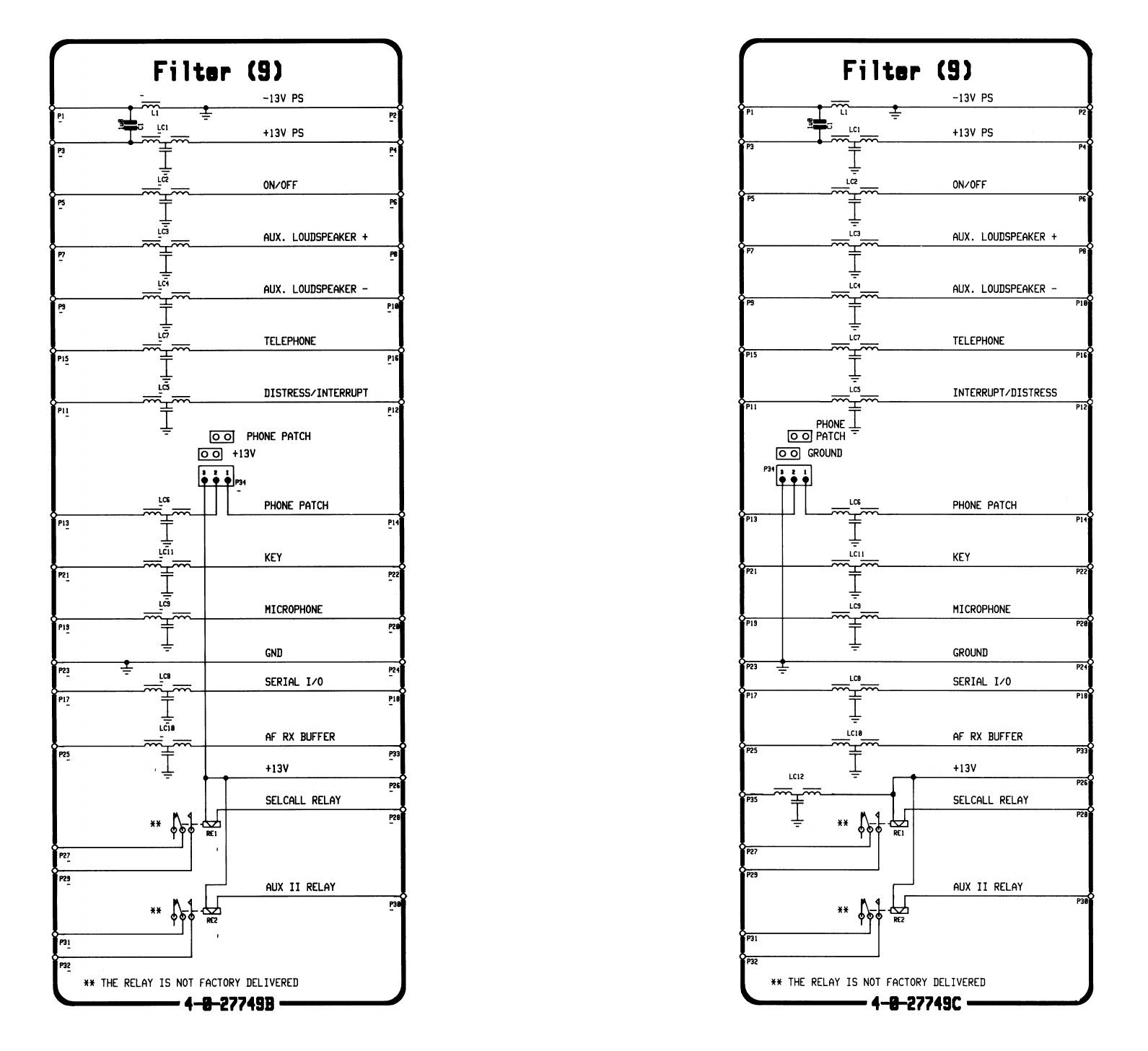

PHONE PATCH / +13V
Jumper P34-9 is used for selecting if The ‘Phone Patch’ signal or if ‘+13V’ should be led to the handset
key connector. +13V is required when RT2047 is used with the VHF DSC RM2042 and Phone Patch is
used for the Phone Patch unit H2047.
2 INSTALLATION RT2047 DSC - PART I
2.10 REAR VIEW OF VHF RT2047

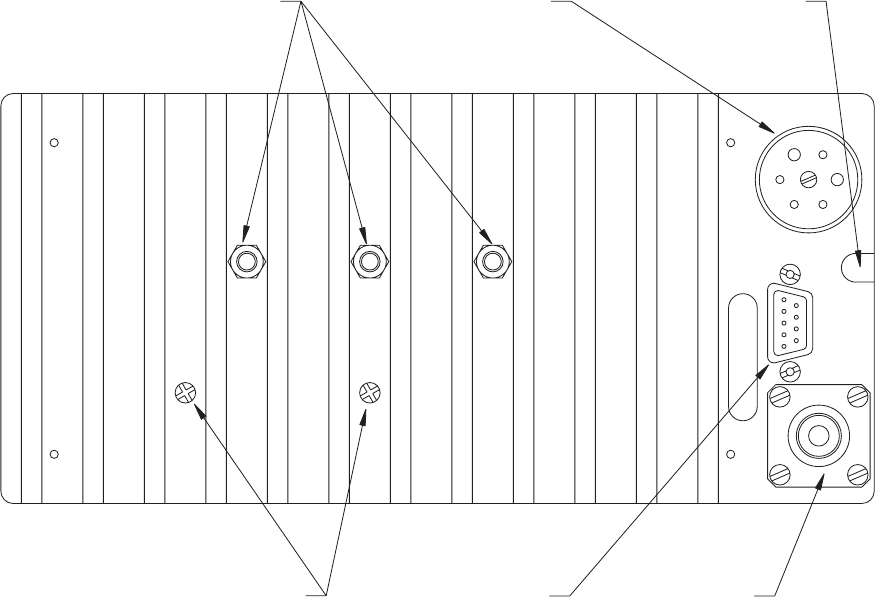

28368
Screws for Tx Power Transistor
T401’s heat sink conductor.
Power Supply
connector P802
Cable groove for
special options
heat sink on Interface unit(6).
Screws for Regulator Transistors
MUST BE REMOVED WHEN INTERFACE
UNIT HAS TO BE REMOVED!
Microtelephone
connector J803
Antenna
connector J801
12V DC
PAGE 2-11
2 INSTALLATION RT2047 DSC - PART I
PAGE 2-12
2.11 STANDARD FREQUENCY TABLE
&+$11(/ 75$160,77,1*
)5(48(1&<0+]
5(&(,9,1*)5(48(1&<0+]
INT’L MODE
(INT-CHANNELS) US MODE
(A-CHANNELS)
01 156.050 160.650 156.050
02 156.100 160.700 160.700
03 156.150 160.750 160.750
04 156.200 160.800 160.800
05 156.250 160.850 156.250
06 156.300 156.300 156.300
07 156.350 160.950 156.350
08 156.400 156.400 156.400
09 156.450 156.450 156.450
10 156.500 156.500 156.500
11 156.550 156.550 156.550
12 156.600 156.600 156.600
13 156.650 156.650 156.650
14 156.700 156.700 156.700
15 156.750 156.750 156.750
16 156.800 156.800 156.800
17 156.850 156.850 156.850
18 156.900 161.500 156.900
19 156.950 161.550 156.950
20 157.000 161.600 161.600
21 157.050 161.650 157.050
22 157.100 161.700 157.100
23 157.150 161.750 157.150
24 157.200 161.800 161.800
25 157.250 161.850 161.850
26 157.300 161.900 161.900
27 157.350 161.950 161.950
28 157.400 162.000 162.000
60 156.025 160.625 160.625
61 156.075 160.675 160.675
62 156.125 160.725 160.725
63 156.175 160.775 156.175
64 156.225 160.825 160.825
65 156.275 160.875 156.275
66 156.325 160.925 156.325
67 156.375 156.375 156.375
68 156.425 156.425 156.425
69 156.475 156.475 156.475
70 156.525 156.525 156.525
71 156.575 156.575 156.575
72 156.625 156.625 156.625
73 156.675 156.675 156.675
74 156.725 156.725 156.725
77 156.875 156.875 156.875
78 156.925 161.525 156.925
79 156.975 161.575 156.975
80 157.025 161.625 157.025
81 157.075 161.675 157.075
82 157.125 161.725 157.125
83 157.175 161.775 157.175
84 157.225 161.825 161.825
85 157.275 161.875 161.875
86 157.325 161.925 161.925
87 157.375 161.975 161.975
88 157.425 162.025 157.425
WX1 Inhibit 162.550 162.550
WX2 Inhibit 162.400 162.400
WX3 Inhibit 162.475 162.475
WX4 Inhibit 161.650 161.650
RT2047 DSC - PART II
CONTENTS
1 GENERAL INFORMATION 1-1
1.1 GENERAL DESCRIPTION 1-1
1.2 TECHNICAL DATA 1-2
1.3 CONTROLS 1-3
1.4 PRINCIPLE OF OPERATION 1-5
1.4.1 FREQUENCY GENERATION 1-5
1.4.2 RECEIVER 1-5
1.4.3 TRANSMITTER 1-5
1.4.4 THE MICROCOMPUTERS 1-5
1.5 BLOCKDIAGRAM 1-7
9546
1 GENERAL INFORMATION

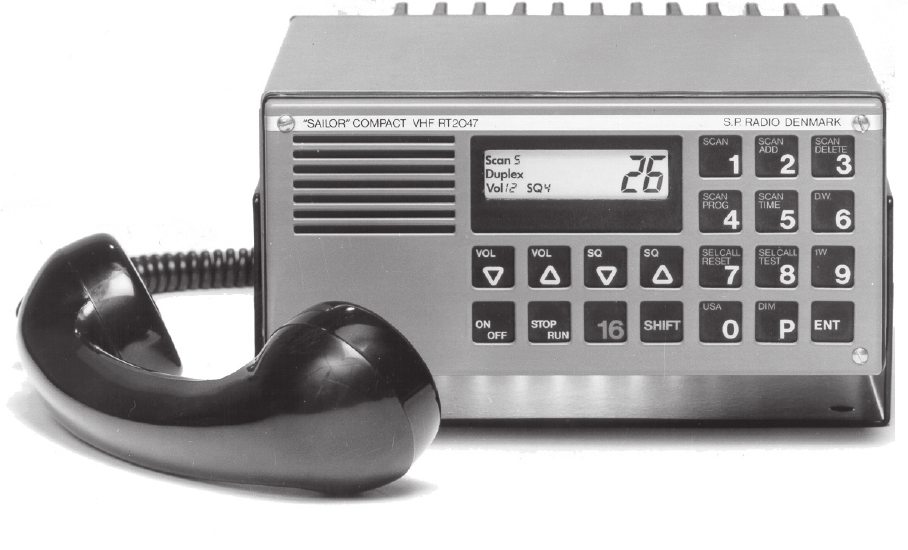

1.1 GENERAL DESCRIPTION
RT2047 can operate in duplex and simplex mode.
RT2047 is provided with built in duplex-filter for duplex communication with one antenna.
RT2047 includes all 55 international and U.S. VHF marine channels, and is prepared for up to 20 private
channels to be selected as simplex or duplex channels. As option up to 67 private channels can be
provided.
RT2047 has six scanning programmes, one standard programme, and 5 individually programmable
scanning programmes.
RT2047 has built in dual watch facility, which enables the operator to listen to two channels simultane-
ously (the selected channel and a preference channel - normally CH16.)
RT2047 is provided with quick selection of channel 16.
RT2047 is provided with selcall decoder. Selective calls (CALL) or all ships calls (CQ) from the coast
station will be decoded.
RT2047 receiver section is a double-conversion superheterodyne system, which makes use of a phase-
locked digital frequency synthesizer for frequency generation based on a single crystal to provide all the
standard channels and the private channels.
RT2047 transmitter section is a phase-locked phase-modulated signal generator with a solid state RF
power amplifier.
RT2047 is provided with two microcomputers, one for controlling the frequency synthesizer, reading from
and to EEPROMS, controlling the squelch and volume functions, and controlling the selcall filter. The
other µC is controlling the display drivers, the dual watch and scanning functions.
RT2047 is for 12 Volt DC supply. Voltage change-over from 24V to 12V is done by the switch-mode power
supply N418.
RT2047 employs the most modern circuit technology, housed in a corrosion resistant aluminium cabinet
with a green nylon finish.
RT2047 is provided with membrane switches for controls, easy to use, reliable and hard-wearing. Cut-
outs in the metal front serve as a safe finger-guide.
RT2047 is fitted with night illumination.
RT2047 has been prepared with a serial communication interface for DSC (Digital Selective Call)
operation together with S.P. RADIO’s VHF DSC RM2042. DSC is the globally adopted general purpose
system for selective calling in the ship-to-ship, ship-to-shore and shore-to-ship directions and can best
be compared to ordinary telephony, giving you direct access to the national telephone network in those
areas where the coast stations have the automatic services. DSC also enables you to make automatic
distress calls containing the ships position etc. complying with the international requirements stated by
IMO in the Global Maritime Distress and Safety System, known as GMDSS.
RT2047 is prepared for scrambled communication in conjunction with Scramblers CRY2001 or
CRY2002, both produced by A/S.
RT2047 DSC - PART II
PAGE 1-1
9543
1 GENERAL INFORMATION RT2047 DSC - PART II
PAGE 1-2
1.2 TECHNICAL DATA
VHF RT2047 fulfils the International CAPT regulations.
GENERAL SPECIFICATIONS
All international maritime VHF channels
Private Channels 20 as option up to 67
Operation Duplex and Simplex
Modulation G3EJN (Phase)
Antenna Impedance 50 ohm
Frequency Stability +/- 10 ppm
Temperature Range -20 C to +55 C
Nominal Power Supply 13.2V DC
Power Supply Variation 12V DC -10% to +30%
(with reduced data according to
international standards)
Power Consumption Standby = 0.5 Amp.
Transmit = 6 Amp.
Dimensions Height: 115 mm
Width: 225 mm
Depth: 262 mm
RECEIVER
Frequency Range Simplex 155.400 - 158.000 MHz
Frequency Range Duplex 160.000 - 162.600 MHz
Sensitivity 0.35 uV pd at 12 dB SINAD
Duplex desensitisation Less than 2 dB
AF Output Power 3 Watt/4 ohm
Telephone Output 0.45V RMS/200 ohm
Distortion Less than 5%
Scanning Facilities 5 scanning programmes with
possibility for all your
channels in each programme
except the private channels
from P20 to P67
Selective Call Decoder According to CCIR
TRANSMITTER
Frequency Range 155.400 - 158.000 MHz
RF Output Power 25 Watt, +0 to -1 dB
Reduced RF Output 0.5 to 1 Watt
Distortion Less than 2%
9543
1 GENERAL INFORMATION RT2047 DSC - PART II
PAGE 1-3
9543

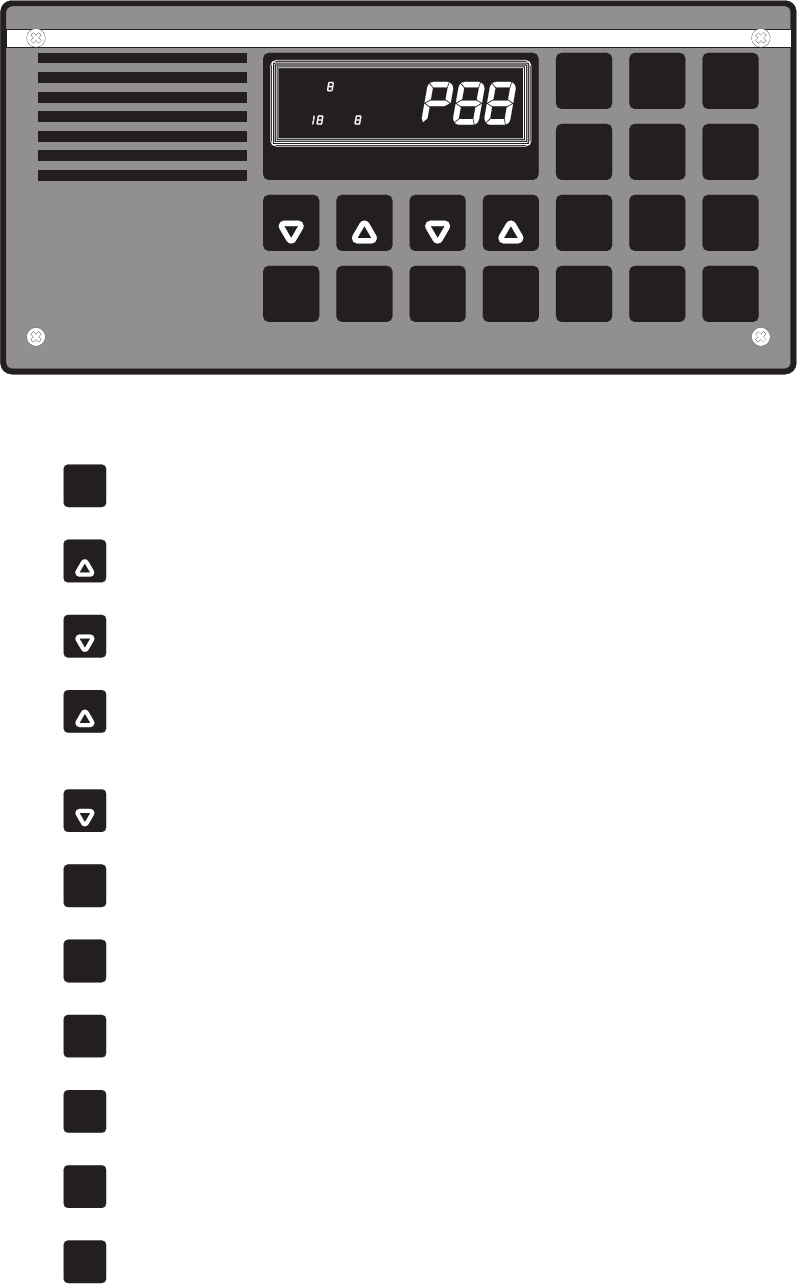

1.3 CONTROLS
23990
123
ENT
456
78 9
0
SCAN
SQ
SHIFT
SQVOL VOL
STOP
RUN
ON
OFF
SCAN
ADD SCAN
P
SCAN
PROG SCAN
TIME
TESTRESET SELCALLSELCALL
USA DIM
16
1W
D.W.
DELETE
Scan DW USA CQ
Duplex Shift Call
Vol SQ Tx1W
Press OFF
ON Turns the set on or off.
Press
VOL
Increases volume progressively in 16 steps.
Press
VOL
Reduces volume progressively in 16 steps.
Press
SQ
Increases squelch sensitivity progressively in 8 steps, a gradual exclusion of weak
signals with atmospherics.
Press
SQ
Reduces squelch sensitivity progressively in 8 steps.
Press
RUN
STOP
Stops and starts scanning sequence. Listen on several predetermined channels.
Press 16 Quick select of the call and distress channel 16.
Press 1Digits from 1 to 0.
Press
P
Selects private channels.
Press
ENT
Terminates the keying in of selected channels, scanning programmes, scan time etc.
Press
SHIFT
Activates the functions marked in orange on the keyboard.
1 GENERAL INFORMATION RT2047 DSC - PART II
PAGE 1-4
SHIFT FUNCTIONS
Press
SCAN
Selects scanning programmes.
Press ADD
SCAN Adds a channel to the scanning table.
Press DELETE
SCAN Deletes a channel from the scanning table.
Press PROG
SCAN Stores the current scanning programme in the memory.
Press
TIME
SCAN
Selects the scan time from 1 to 99 seconds. The time chosen will be used to listen
on one of the secondary channels receiving a signal.
Press
D.W.
Selects the dual watch facility.
Press SELCALL
RESET Resets the selcall decoder after a call.
Press SELCALL
TEST Tests the selcall decoder.
Press 1W Selects 1 W reduced power output.
Press USA Selects the VHF channels used in USA.
Press
DIM
Switches the panel illumination on or off.
Note: See the VHF RT2047 Operating Manual for functional description.
9543
1 GENERAL INFORMATION RT2047 DSC - PART II
1.4 PRINCIPLE OF OPERATION
1.4.1 FREQUENCY GENERATION
The frequencies are generated from a crystal oscillator operating on 21 MHz. The 21 MHz is divided in
the REFERENCE DIVIDER to 2.1 MHz which is the input to the RX-REFERENCE DIVIDER and also the
clock-signal for the microcomputer on the Interface Unit. In the RX-REFERENCE DIVIDER the 2.1 MHz
is divided by 168 to 12.5 KHz which is reference for the PHASE DETECTOR. This makes it possible to
change the frequency from the RX-VCO with 12.5 KHz intervals.
The signal from the RX-VCO is divided in a PRESCALER which divides by 33 until the A-COUNTER has
reached zero and then it divides by 32. The N-COUNTER divides the output from the PRESCALER, and
the output is led to the PHASE-DETECTOR, and here it is compared with the 12.5 KHz. If there is a
difference an error voltage will be generated. This is integrated in the LOOP-FILTER and the output of
this filter controls the RX-VCO. The frequency of the RX-VCO is the receiving frequency minus the
intermediate frequency.
fLO1 = fRX - f1IF = fRX -21.4 MHz
The output from the RX-VCO is mixed with the output from the TX-VCO which is in lock when it is 16.8
MHz above the RX-VCO. This means that the receiver always is 4.6 MHz above the transmitter, namely
21.4 - 16.8 = 4.6; and this difference is equal to the duplex distance. The 16.8 MHz from the MIXER is
divided by 32 to 525 KHz, which is compared with the 21 MHz divided by 40 in the REFERENCE DIVIDER.
The error voltage is integrated in the LOOP-FILTER, and the output of this filter controls the TX-VCO.
1.4.2 RECEIVER
The antenna-signal is led through the duplex-filter and the antenna relay to the RF-AMPLIFIER. The
bandpass filters are tuned by means of capacitor-diodes which are controlled by means of a DC-voltage
which is derived from the control-voltage to the RX-VCO. In the FIRST MIXER the antenna signal is mixed
with the output from the RX-VCO to the intermediate frequency 21.4 MHz. In the integrated IF circuit, the
first IF frequency on 21.4 MHz is mixed with a crystal oscillator signal on 20.945 MHz to reach the second
IF frequency on 455 kHz. This signal is filtered in the ceramic filter, before it is amplified and detected in
the integrated IF-circuit. The audio frequency signal is amplified and led through an active filter providing
the frequency response further to the telephone amplifier and the AF power amplifier.
1.4.3 TRANSMITTER
The microphone signal is led through the MICROPHONE AMPLIFIER where the necessary amplification,
limiting, and filtering takes place. The limiting is done by a clipper. The signal from the MICROPHONE
AMPLIFIER is led to the LOOP-FILTER, where the phase modulation of the transmitter takes place. As
the TX-VCO oscillates directly on the transmitting frequency, the signal only has to be amplified. This is
done in the TX-BUFFER, PA-DRIVER, and the PA-POWER AMPLIFIER. The power supply for the PA-
driver is adjustable, and is used for adjusting the output power. The harmonics of the output is filtered in
HARM-FILTER , before it is led through the ANTENNA-RELAY and the DUPLEX-FILTER to the antenna.
1.4.4 THE MICROCOMPUTERS
The µC on the Interface Unit is taking care of calculating the dividing figure for the synthesizer, reading
from and to the EEPROMs, controlling the squelch and volume functions, and controlling the selcall filter.
The µC on the Keyboard Unit is taking care of the keyboard scanning, the input from the handset key and
the display drivers as well as the Dual Watch and Scanning functions. The keyboard µC is also handling
the serial SP VHF-BUS communication with external devices such as the VHF DSC - RM2042. The
communication between the two µC’s is accomplished by a RS232C -type serial connection.
PAGE 1-5
9543
1 GENERAL INFORMATION RT2047 DSC - PART II
PAGE 1-6 9543
1 GENERAL INFORMATION RT2047 DSC - PART II
PAGE 1-7
1.5 BLOCKDIAGRAM
Phase
Detector
Rx-Reference
Divider
Rx VCO Loop
Filter ÷168
÷33/32
Prescaler 7 bit
A-counter N-counter
10 bit
Control-logic
Mixer
Second 455 kHz IF
and Detector
First
Mixer 21.4 MHz IFRF-AMP
Mixer
16.8 MHz ÷32
Filter
Loop Phase/Freq.
Detector Reference
Divider
Tx-Buffer Tx-VCO X-Tal
Oscilllator
21 MHz
PA-Driver
PA-Power
AMP
Harm
Filter
+13V
fTx
+
-16.8 MHz
525 kHz
2.1 MHz
fLO1
fRx f2IF AF
PA-Reg
+ Distress
SQ-Filter Rectifier Comparator
AF-Mute
EEPROM
Delayed OFF
+10V Sensor
Buffer +
Rx/Tx
+10V Tx
Delay Driver
+10V VCO
ON/OFF
AUX II Relay
Cry
AUX I
Driver
Battery
Sensor
D/A
Converter
6dB/Octave
Filter Telephone
AMP Vol-
Attenuator AF-Power
Amplifier
AF from Rx
Buffer
MIC.-AMP.
Integrator
MIC. + AMP.
Clipper
MIC.-AMP.
Pre-Empaasis
Selcall Relay
+AF to inform.
Decoder
+5V +10V KEY-Buffer
Detector
÷2
able
Counter
AMP/Limiter
Filter
Switched
Bandpass
Capacitor
Programm-
ON/OFF
Rx-Filter
Control-AMPFilter
Duplex
Serial
Interface
Buffers
Display
Driver
nication
Commu-
Serial
Driver
Interrupt
CircuitGenerator
Constant
Current Interface
Display
LCD-
Loudspeaker
uC
Int
Reset
2.1MHz
2.1MHz
+13V
+10V
+10V
+13V
+13V +5V
+10V+13V
MIC. IN
TELEPHONE OUT
AF FROM Rx
HANDSET KEY
SERIAL DATA
INTERRUPT
+13V +5V
Seriel
Interface
Buffers uC
Int.
+13V PS
-13V PS
PATCH
INPUT
+13V +13V
1
1
1
1
1
1
2
8
9
5
4
7
5
48
3
9
Antenna
Relay
Control
Filter
+5V Keyboard
Buffer
24312D
3
3
AUX LS
PHONE
ON/OFF to
24V Supply
20.945 MHz
(MODULE 200)
INTERFACE (MODULE 6)
KEYBOARD (MODULE 7)
Tx-EXCITER (MODULE 300)
RECEIVER (MODULE 100)
PA-AMPLIFIER
Rx-SYNTHESIZER
(MODULE 400 & 500)
9543
RT2047 DSC - PART II
CONTENTS
2 CIRCUIT DESCRIPTION 2-1
2.1 RECEIVER UNIT MODULE 100 2-1
2.2 RX-SYNTHESIZER UNIT MODULE 200 2-4
2.3 TX-EXCITER UNIT MODULE 300 2-8
2.4 TX-POWER AMPLIFIER MODULE 400 2-13
2.5 ANTENNA RELAY (500) 2-13
2.6 INTERFACE UNIT MODULE 6/600 2-17
2.7 KEYBOARD UNIT MODULE 7/700 2-24
2.8 DUPLEX FILTER MODULE 800 2-28
2.9 FILTER UNIT MODULE 9/900 2-29
2.10 MAIN DIAGRAM 2-32
2.11 MICROTELEPHONE INSTALLATION 2-34
2.12 SPECIAL INSTALLATION WITH 2 MICROTELEPHONES 2-35
2.13 SPECIAL INSTALLATION WITH 3 MICROTELEPHONES 2-36
2.14 MECHANICAL DIMENSIONS FOR HANDSET 2-37
2.15 DC POWER SUPPLY N418 2-39
2.16 N420 24V/12V REGULATOR 2-42
9546
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
PAGE 2-1
2 CIRCUIT DESCRIPTION
2.1 RECEIVER UNIT MODULE 100
The receiver unit includes the following circuits:
2.1.1 RF-AMPLIFIER AND FIRST MIXER
The RF-amplifier working in the frequency range 155.4 MHz to 162.4 MHz consists of the transistor Q101
and the two double-tuned filters surrounding it. The signal is led from the aerial through the duplex-filter
to the antenna switch and from there to the receivers input-filter. The input filter and the intermediate filter
are variable capacitance tuned filters, controlled by a DC-voltage derived from the RX-VCO control
voltage. This secures an optimal filter response within the receivers frequency range. The two double-
tuned filters create the necessary attenuation of signals distant from the wanted signal frequency in order
to give the wanted spurious rejection of such unwanted signals. The amplifying transistor Q101 (which
is a large current, low noise transistor in a common-base configuration) secures by its gain the receiver
overall noise figure and a good two-signal performance. The RF-input to the first mixer is taken from the
coil L104 in the intermediate filter. Mixer transistor Q102 is of the JFET-type, where the first LO-signal
is injecting into the source from a 50 ohm generator. The wanted 21.4 MHz IF-output is selected by means
of the tuned drain circuit consisting of L105, C117, C119, and R110 which also creates the necessary
impedance matching the IF-crystal filter.
2.1.2 IF-FILTER AND AMPLIFIER
The receivers adjacent channel selectivity is maintained by means of the crystal filter FL101. The output
from this filter is led to the IF-amplifier with the transistor Q103, L106, C123, and R112 giving the
appropriate impedance matching the filter output. The amplifier gives the needed power gain between
the crystal filter and the second mixer and also secures good large signal performance.
2.1.3 SECOND MIXER, CERAMIC FILTER, DETECTOR AND AF AMPLIFIER
The integrated IF circuit includes the second mixer, the limiting amplifier and the detector with post AF
amplifier.
The second local oscillator signal is generated by means of the integrated oscillator and an external
crystal X101, running on 20.945 MHz. The signal out of the second mixer (455 kHz) is fed through the
ceramic filter FL102 to the limiting amplifier and discriminator in U101.
The quadrature phase discriminator includes the external phase shift network consisting of the tank circuit
with L108, C129 and R120.
The AF output from the detector is amplified by means of an internal operational amplifier and finally
buffered by means of the discreet transistor amplifier with Q104.
2.1.4 IF POWER SUPPLY
The integrated IF circuit and AF buffer amplifier are powered from an integrated 5V series voltage
regulator U102. The input voltage for this circuit is the receiver 10V supply.
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II

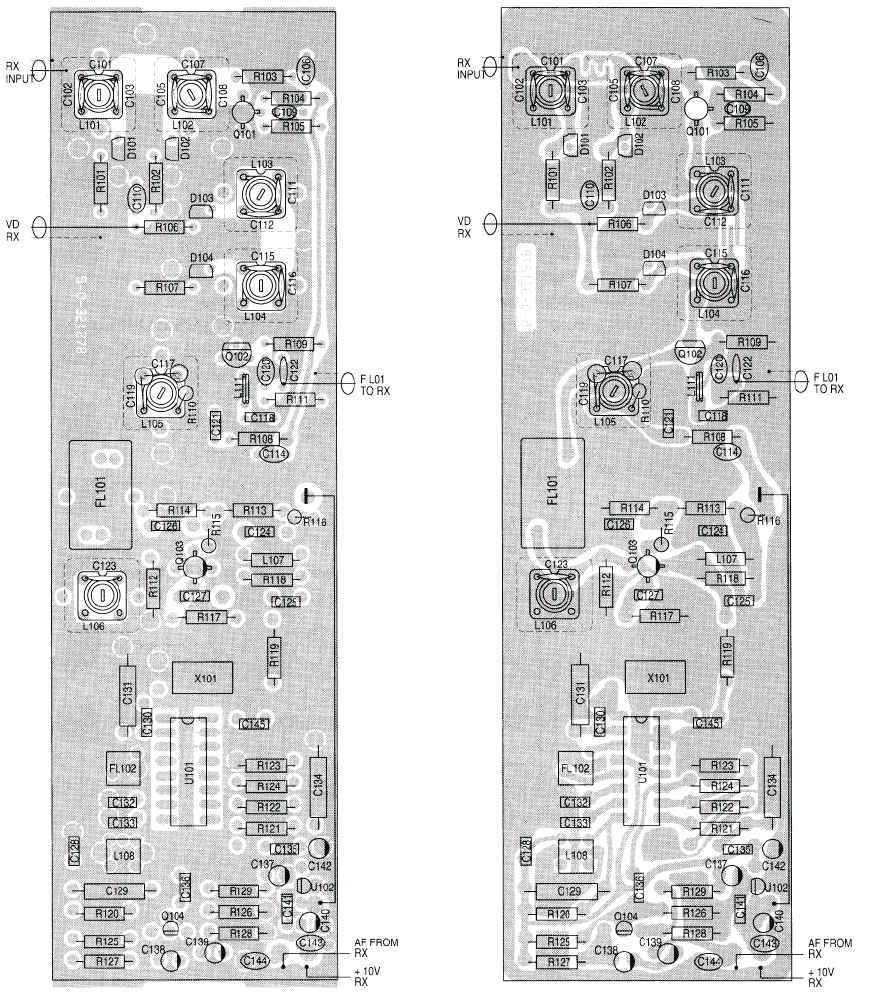

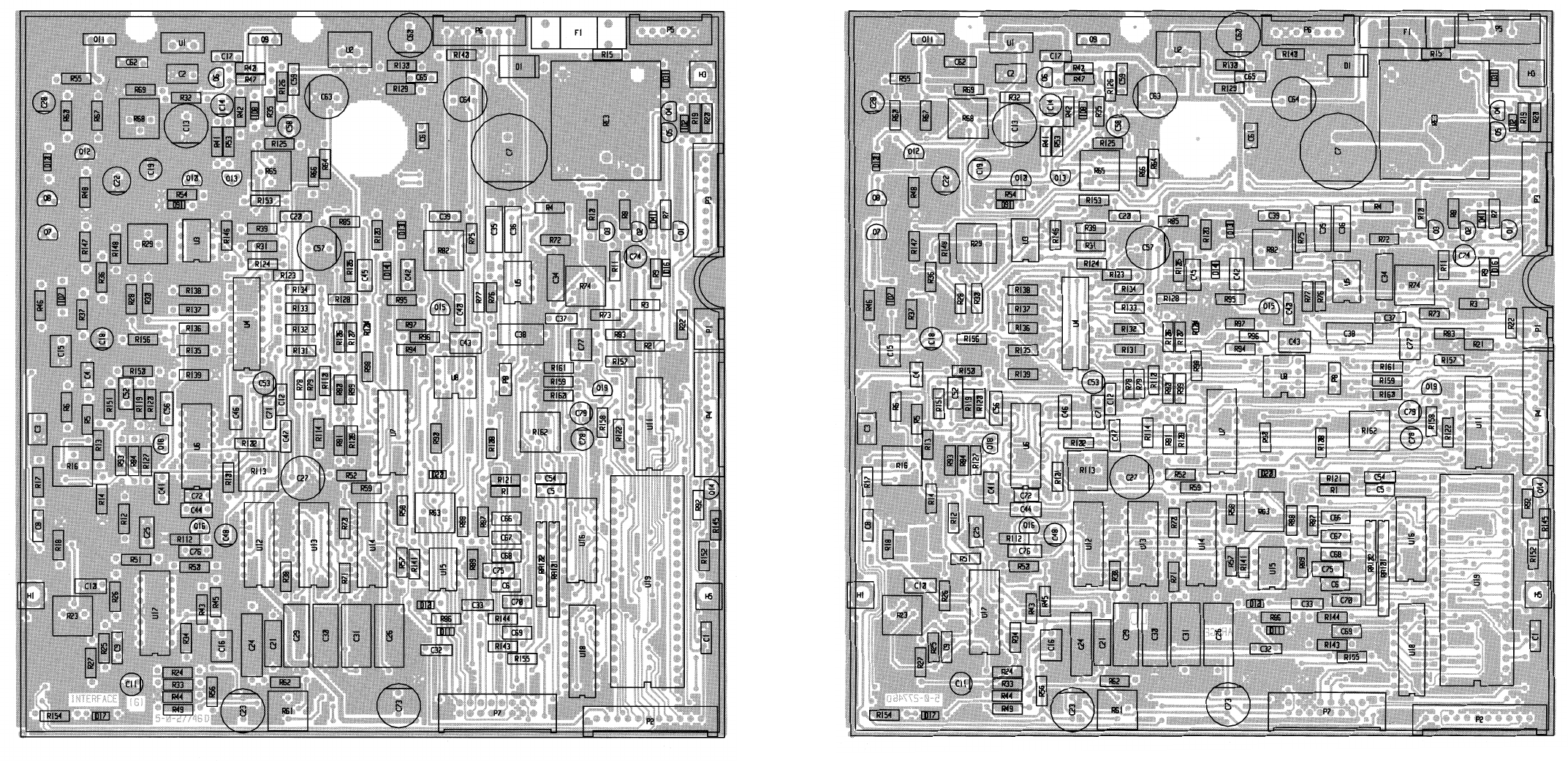

COMPONENT LOCATION RECEIVER UNIT MODULE 100
View from component side View from component side
with upper side tracks. with lower side tracks.
32127B
PAGE 2-2 9641
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
9641 PAGE 2-3

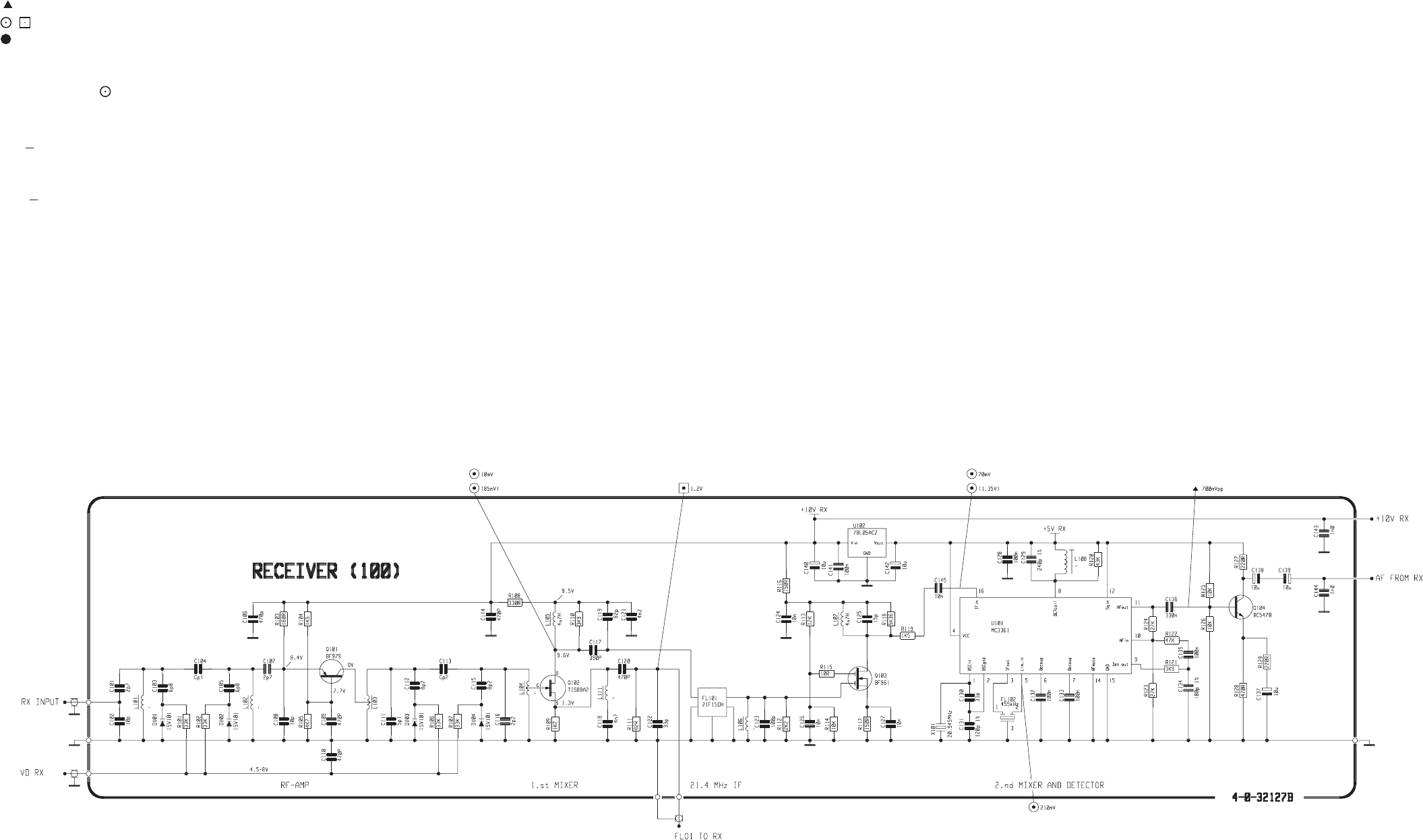

DIAGRAM RECEIVER UNIT MODULE 100
AC voltages outside frame of diagram.
: Measured with oscilloscope or frq. counter.
: Measured with test probe.
: Connections to module.
[ ] : Approx. measurement with test probe.
Test conditions:
Voltages without brackets:
Antenna signal 1 mV pd:
Df= +3 kHz; fm = 1 kHz
Voltages in brackets:
Antenna signal 10 mV pd:
Df = + 3 kHz; fm = 1 kHz
This diagram is valid for PCB rev. 32127B.
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.2 RX-SYNTHESIZER UNIT MODULE 200
The RX-synthesizer unit includes the following circuits:
2.2.1 RX-VCO AND BUFFER AMPLIFIERS
The transistor T203 is producing 8.3 V supply voltage for the RX-VCO and bias for the buffer amplifiers
consisting of the transistors T201 and T204. The RX-VCO comprises a Field Effect Transistor T202 (the
oscillator transistor), two coaxial coils L203, L204, two capacitors C212, C214, and a variable capacitance
diode D201. The frequency is mainly determined by the components L203, L204, C214, and D201. The
RX-VCO is a voltage controlled oscillator where the control voltage from the loop filter determines the
frequency by means of D201. A high control voltage to the variocap. diode D201 means a small
capacitance in the diode which means a high frequency of the VCO. In the opposite way a low control
voltage means a low VCO frequency. The RX-VCO signal is passed to two buffer amplifiers via low pass
filter C209, C206, L201. The L01 buffer transistor T201 is producing 5 mW for the 1st mixer in the receiver.
The 5 mW is taken from the tuned filter L202, R202, C207, and C208. The prescaler buffer transistor T204
is producing 0.25 mW for the 16.8 MHz mixer in the TX-Exciter-Unit. It is also producing signal for 32/33
prescaler. The signal from transistor T204 is led through a low pass filter C217, L206, and C222. The gain
in both buffers can be adjusted by the potentiometer R209.
2.2.2 32/33 PRESCALER
The integrated circuit IC201 is a two modulus prescaler based on the ECL technique. From the control
logic in the programmable divider IC202 pin 14, a high or low level is led to the prescaler IC201 pin 1. A
high level at IC201 pin 1 causes the prescaler to divide by 33 and in turn a low level at pin 1 sets it up for
dividing by 32. The resistor R232 and the diode D204 work as a speed-up circuit.
2.2.3 THE PROGRAMMABLE DIVIDER
The programmable divider IC202 contains two phase detectors, a lock detector, a reference divider, an
A-counter, a N-counter, control logic, and 8 latches. Only phase detector B of the detectors is in use. When
the VHF is switched on the microcomputer will load dividing figures into the reference divider and into the
A and N-counters. The microcomputer loads only one latch at a time.
By setting up a code at the address inputs Al - A2 the microcomputer selects a latch and at the same time
a code for the dividing figure is set up at the data inputs D0 - D3. The microcomputer sends a strobe pulse
to IC202 pin 12 and the selected latch is loaded. The procedure is then repeated until all the latches are
loaded.
When the channel or the function of the VHF is changed it is only the latches for the A and N-counter that
change data. The reference frequency is 2.1 MHz and it is constant. Therefore it is not necessary to
change the dividing figure every time.
In the beginning of a counting period the prescaler IC201 starts dividing by 33 and the A and N-counters
count down. First the A-counter reaches zero and stops counting and the control logic shifts the prescaler
to divide by 32. Then the N-counter reaches zero and sends a pulse to the phase detector B, and the
control logic shifts the prescaler to divide by 33. The control logic also reloads the A and N-counters with
data from their latches and the whole procedure starts from the beginning.
The pulse frequency from the reference divider is 12.5 KHz. If the RX-VCO frequency is correct the pulse
frequency of the N-counter is also 12.5 KHz and in phase with the pulse from the reference divider. The
phase detector B compares the phase of the two pulses. If they are not in phase the detector sends
correction pulses to the phase-detector-pump for correcting the frequency/phase of the RX-VCO.
However, the synthesizer circuit is born with a small phase error, therefore the phase detector is sending
small correction pulses to transistor T210 with a frequency of 12.5 KHz.
PAGE 2-4 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.2.4 PHASE DETECTOR PUMP AND LOOP FILTER
We assume that the RX-VCO frequency has decreased from its nominal frequency, The phase-detector
now sends negative correction pulses from IC202 pin 17 to T210, which goes on. A current will then flow
from C225 through R225 and R229 and into T210. This current will discharge C225 forcing the output
voltage from the transistors T205 and T206 to increase until the VCO reaches the correct frequency. If
the RX-VCO frequency is too high, the negative correction pulses from the detector at pin 16 of IC202
will turn transistor T209 off. The collector voltage of transistor T209 increases and a current will flow
through the diode D202, the resistor R225 and into the capacitor C225 and charge this capacitor. The
output voltage at the collector of the transistors T205 and T206 will decrease until the VCO reaches its
right frequency. If the phase-locked-loop is locked, both outputs of the phase-detector will be 5 V and the
output voltage of the transistors T205 and T206 will have a value between 2 V and 10 V corresponding
to the VC0-frequency. However, the system is working with a constant phase error and the phase detector
sends small correction pulses to transistor T210, even the phase-locked-loop is locked. The four
transistors T205, T206, T207, and T208 are working as an operational amplifier with the inverting input
at base of transistor T208. Non-inverting input is at transistor T207 while the transistors T205 and T206
forms the output stage.
PAGE 2-5
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II

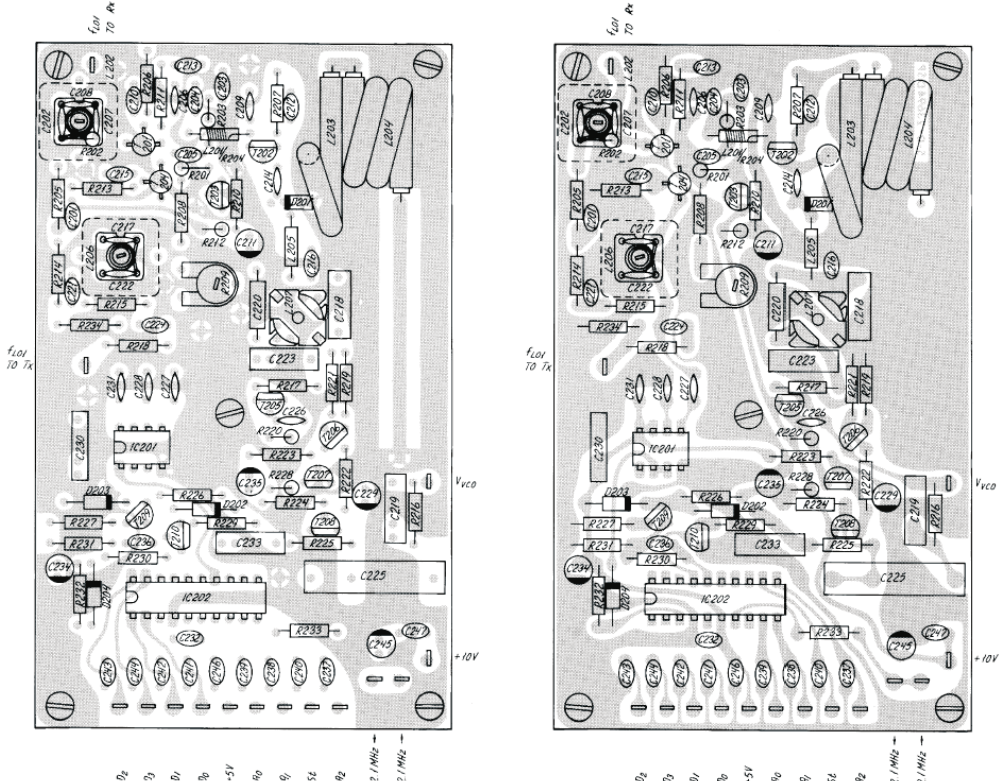

COMPONENT LOCATION RX-SYNTHESIZER UNIT MODULE 200
View from component side View from component side
with upper side tracks. with lower side tracks.
23694D
PAGE 2-6 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
DIAGRAM RX-SYNTHEZISER UNIT MODULE 200
AC voltages outside frame of diagram.
: Measured with oscilloscope or frq. counter.
: Measured with test probe.
: Connections to module.
[ ] : Approx. measurement with test probe.
Test conditions:
Voltages without brackets:
Antenna signal 1 mV pd:
Df= +3 kHz; fm = 1 kHz
Voltages in brackets:
Antenna signal 10 mV pd:
Df = + 3 kHz; fm = 1 kHz
This diagram is valid for PCB rev. 23694D.
9543 PAGE 2-7
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.3 TX-EXCITER UNIT MODULE 300
The TX exciter unit contains the following circuits:
2.3.1 INSULATION BUFFER AND 16.8 MHZ MIXER
From RX-VC0 the signal is led to transistor T301 and from TX-VC0 the signal is led to transistor T302.
The transistors are not coupled with common base and act as buffer amplifiers. The mixed signal over
resistor T305 is led to the mixer amplifier T303 via capacitor C305. The differential signal which is the TX-
VC0 frequency minus the RX-VC0 frequency is led to the amplifier transistor T304 through the low-pass
filter consisting of C310, L301 and C311. In transistor T305 the signal is amplified to TTL level. The diode
D301 works as a base clamp diode.
2.3.2 THE 21 MHZ OSCILLATOR
The oscillator is a Colpitt type and the oscillator transistor T308 is oscillating by means of a 21 MHz crystal
X301.
The trimmer capacitor C331 is for fine adjustment of the oscillator frequency.
RF signal for the reference divider is led to transistor T307 for amplifying. In transistor T306 the signal
is amplified to TTL level.
2.3.3 PHASE/FREQUENCY DETECTOR, 32 COUNTER AND REF. DIVIDER
The crystal frequency is led to IC306 pin 10 which is a decade counter. From output pin 5 of this, the
frequency is divided by 5. This frequency is led to flip-flop IC305a, where the frequency is divided by 2.
From IC305a pin 5, the 2.1 MHz is taken and this is the clock frequency for the microcomputer and the
RX synthesizer. The resistor R322 is for pull-up and the ferrite bead FP301 is blocking for higher
harmonics of the clock frequency.
From IC306 pin 8, the 21 MHz is also divided by 10. The frequency is divided by 2 in flip-flop IC305b and
divided by 2 in IC304a. At IC304b pin 13, the 21 MHz is then divided by 40 and the frequency is therefore
525 KHz at which the phase detector is working.
From the other side the mixed signal of 16.8 MHz is led to the binary divider IC301 pin 10 where it is divided
by 16. In flip-flop IC302b the signal is divided by 2. From IC320b pin 8 the 16.8 MHz is then divided by
32 giving 525 KHz.
The phase/frequency detector consists of IC302a, IC303, and IC304b. From IC304b pin 9 the detector
is connected to the loop filter via the pull-up resistor R321 and the diode D303. The phase corrections
pulse from the detector is active low and when the phase locked loop is in lock the duty cycle of the
correction pulse is about 30 per cent.
THE CORRECTION PULSES:
After the count down of the 21 MHz the IC304b pin 9 goes low. Pin 8 goes high and this is connected to
IC303 pin 2. When the 16.8 MHz is divided by 32 the IC302a pin 6 and IC303 pin 1 go high. When IC303
pin 13 is always high the IC303 pin 8 will go low and preset IC302a and IC304b; the correction pulse will
then go high and so on. The propagation delay in the two inserters IC303 determines the size of the preset
pulse.
PAGE 2-8 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.3.4 TX-VCO
The TX-VCO comprises a Field Effect Transistor T311 (oscillator transistor), two coaxial coils L309 and
L310, the capacitors C343 and C345, and a variocapacitor diode D302.
The frequency is mainly determined by L309, L310, C345, and D302. The TX-VCO is a Voltage Controlled
Oscillator, where the control voltage from the loop filter determines the frequency by means of the
variocapacitor diode D302. A high voltage to D302 means a smaller capacitor in D302 and again a higher
VCO frequency. In the opposite way a small control voltage means a smaller frequency.
From drain of transistor T311 the signal is led to a buffer amplifier T310 via a tuned filter consisting of L308,
R342, and C342. The ferrite bead is blocking for UHF oscillating. In the collector of T310 there is a tuned
filter consisting of L307 and C340. From here the signal for two circuits is taken.
From an output on coil L307 the signal to the TX-buffer is taken through capacitor C338. Here the TX-
VCO signal is amplified in transistor T309. In the drain of T309 there is a tuned filter consisting of L306,
C332, C333, R332, and R333, which gives a 50 ohm generator for the Power Amplifier Unit. The output
power from the TX-buffer is 25 mW and is adjusted by trimmer potentiometer R341.
Stop and start of both TX-buffer and TX-VCO are controlled from the microcomputer by controlling the
supply for the transistor. This secures that the frequency is correct before the transmitter is started. From
the collector of T310 the signal for the 16.8 MHz Mixer is taken via capacitor C341.
2.3.5 LOOP-FILTER
The Loop-filter amplifier is a differential amplifier (OP-Amp.) with the inverted input at the base of
transistor T314, where also the phase detector is connected. The base of transistor T313, which is the
non inverted input, is connected to +5V by means of R349 and R350. Transistor T312 is the output stage,
and the control voltage for TX-VCO is taken over the resistor R346 and is filtered in the ripple-filter
consisting of R345, C348, C347, and R344. At the input R351 and C352 are working as a filter against
the higher harmonics in the phase detector pulse.
We assume that the system is in lock. While the detector pulse is low a current is flowing out of the
capacitor C351 and the output voltage over R346 increases. The TX-VCO frequency is also increasing
until the detector pulse goes high again. Because the diode D303 is blocking, a current flows into C351
through the resistors R354 and R355. The control voltage over R346 decreases and the frequency is also
decreasing. The current which is flowing in and out of C351 is equal when the system is in lock. For
principal understanding accept that C353 and R352 have no influence on the current to C351.
If the TX-VCO frequency is too high, the detector pulse gets smaller and that means that more current
is flowing into C351 than out. That means again that the control voltage and the frequency will decrease
until the frequency is correct again.
The opposite process will happen if the frequency is too low. Even though the system is in lock there is
always a little phase error. The AF modulation signal is led into the Loop-filter via resistor R356. The
control voltage is then modulated which will modulate the phase in the TX-VCO again.
PAGE 2-9
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II

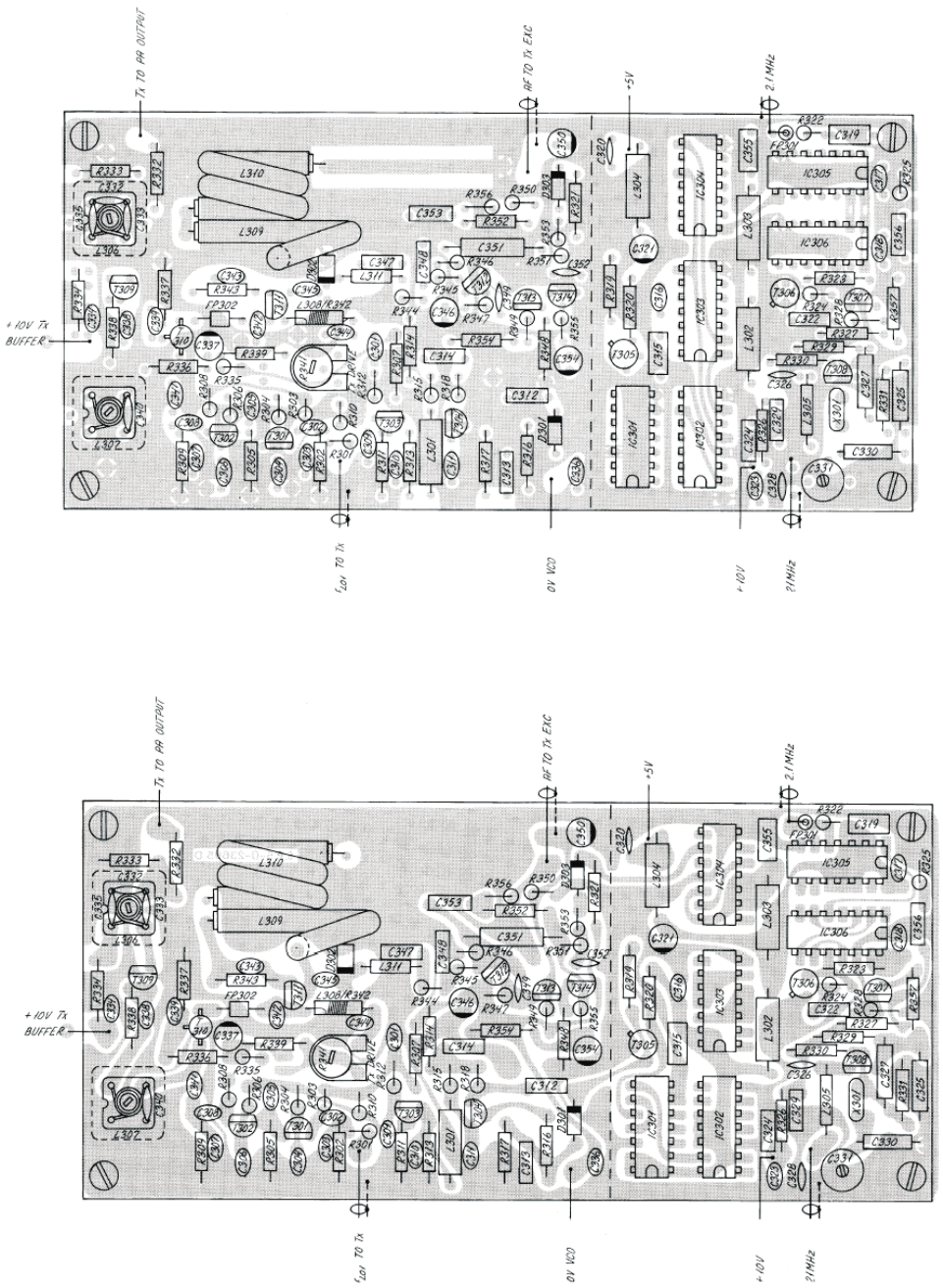

COMPONENT LOCATION TX-EXCITER UNIT MODULE 300
View from component side with upper side tracks.
View from component side with lower side tracks.
23695D
9543
PAGE 2-10
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
PAGE 2-11
9543
DIAGRAM TX-EXCITER UNIT MODULE 300
AC voltages outside frame of diagram.
: Measured with oscilloscope or frq. counter.

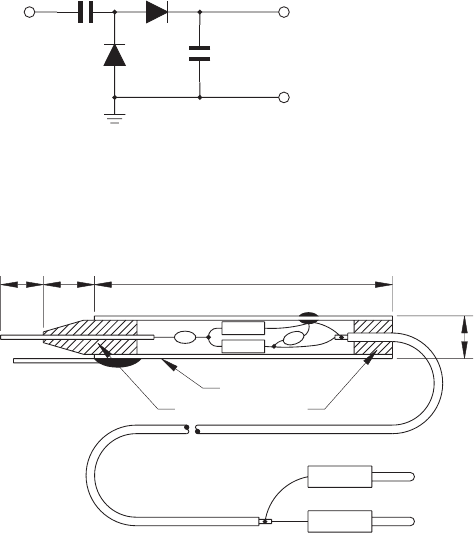

: Measured with test probe.
: Connections to module.
[ ] : Approx. measurement with test probe.
Test conditions:
Voltages without brackets:
Antenna signal 1 mV pd:
Df= +3 kHz; fm = 1 kHz
Voltages in brackets:
Antenna signal 10 mV pd:
Df = + 3 kHz; fm = 1 kHz
This diagram is valid for PCB rev. 23695D.
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
PAGE 2-12 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.4 TX-POWER AMPLIFIER MODULE 400
The TX-power-amplifier includes the amplifier and a harmonic filter.
2.4.1 TX-POWER-AMPLIFIER
The amplifier consists of a single transistor output amplifier and a two transistor power driver. The
transistors are both tuned classic amplifier circuits. The amplifier is made on double sided epoxy board,
using micro strip technique in the tuning circuits. The power driver is fed from a 50 ohm generator with
a power level of 25 mW. The final output power level is controlled by means of the supply voltage level
fed to the power driver. In full power mode, the power driver will deliver about 4.5 - 5 W to the output
transistor T401. The output signal is fed to the harmonic filter through capacitors C405 and C406.
2.4.2 HARMONIC FILTER
The harmonic filter is realised as a seventh-order Chebyschev-filter, which at the same time will provide
the necessary attenuation of the harmonics generated by the power amplifier and a low insertion loss at
the carrier frequency. The output from the harmonic filter is fed to the antenna relay.
2.5 ANTENNA RELAY (500)
The antenna relay, RE501, is placed in the Tx-power amplifier module (400).
The relay is equipped with 2 change-over contacts and is activated when the transmitter is keyed.
In simplex receiving mode the RF signal is led to the receiver (100) through both contacts from the Tx-
section of the duplex filter.
In simplex or duplex transmitting mode the Tx-signal is led from the harmonic filter through a pin to the
Tx-section of the duplex filter.
The other pin is grounded.
PAGE 2-13
9543

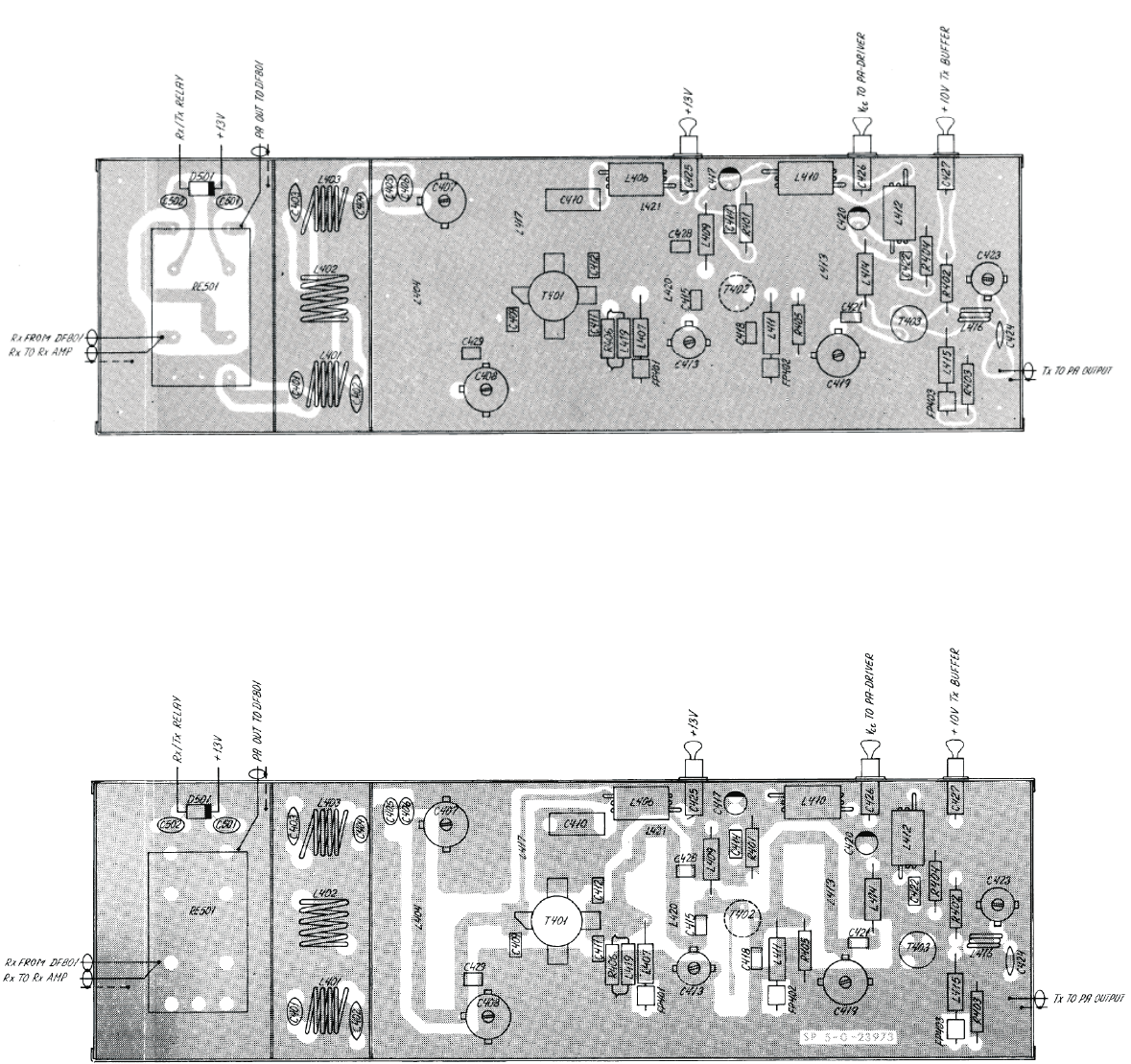

COMPONENT LOCATION TX-POWER AMPLIFIER MODULE 400
AND ANTENNA RELAY (500)
View from component side with upper side tracks.
View from component side with lower side tracks.
PAGE 2-14
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
9619
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II

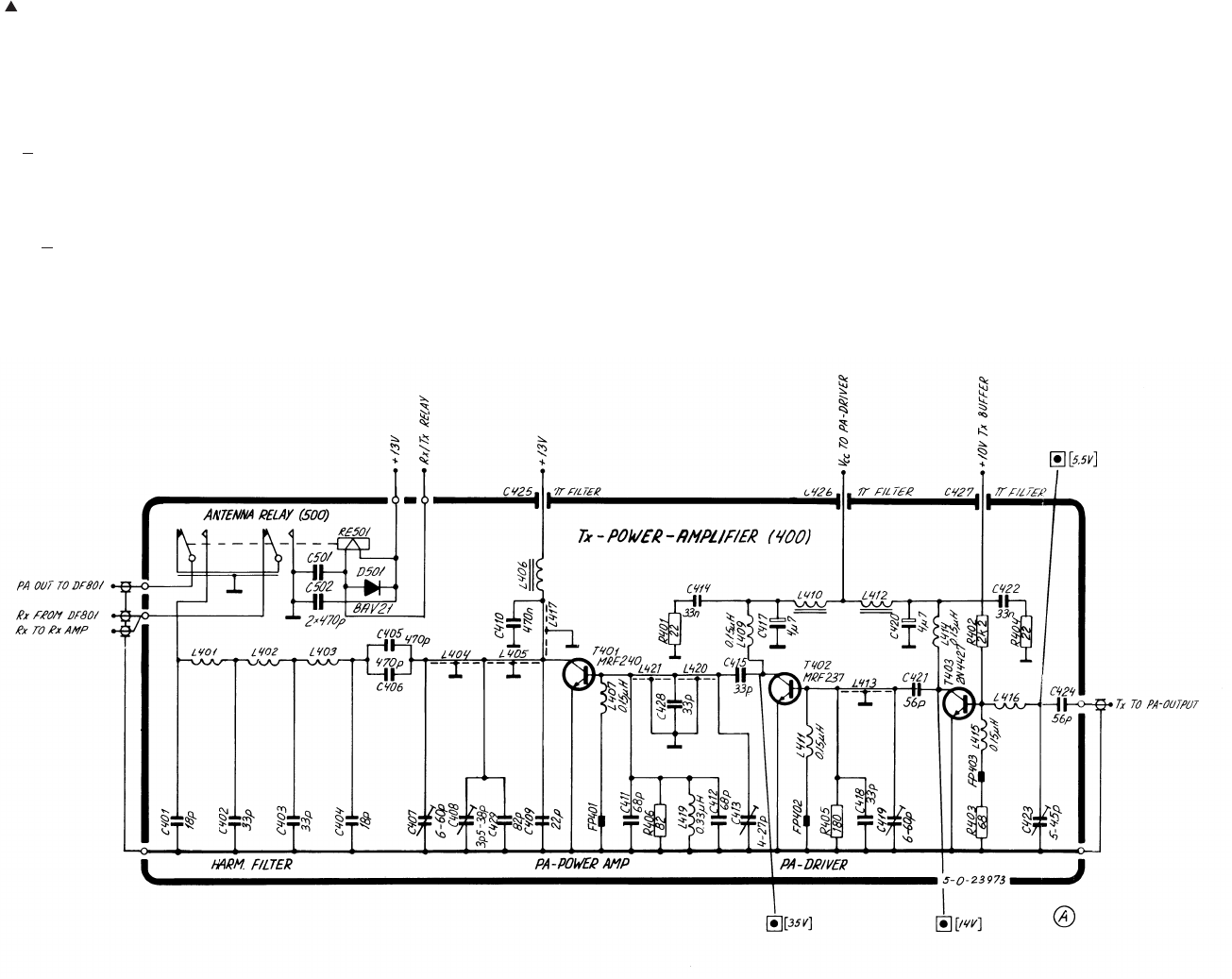

DIAGRAM TX-POWER AMPLIFIER MODULE 400
AND ANTENNA RELAY (500)
AC voltages outside frame of diagram.
: Measured with AF voltmeter.
Test conditions.
Voltages without brackets:
Operating in Rx position.
With antenna signal 1 mV EMF:
f= +3 KHz; fm = 1 KHz
Voltages in brackets:
No antenna signal, squelch max.
closed.
Df = + 3 KHz; fm = 1 KHz
PAGE 2-15
9543
This diagram is valid for PCB rev. 23973B
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
9543
PAGE 2-16
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II

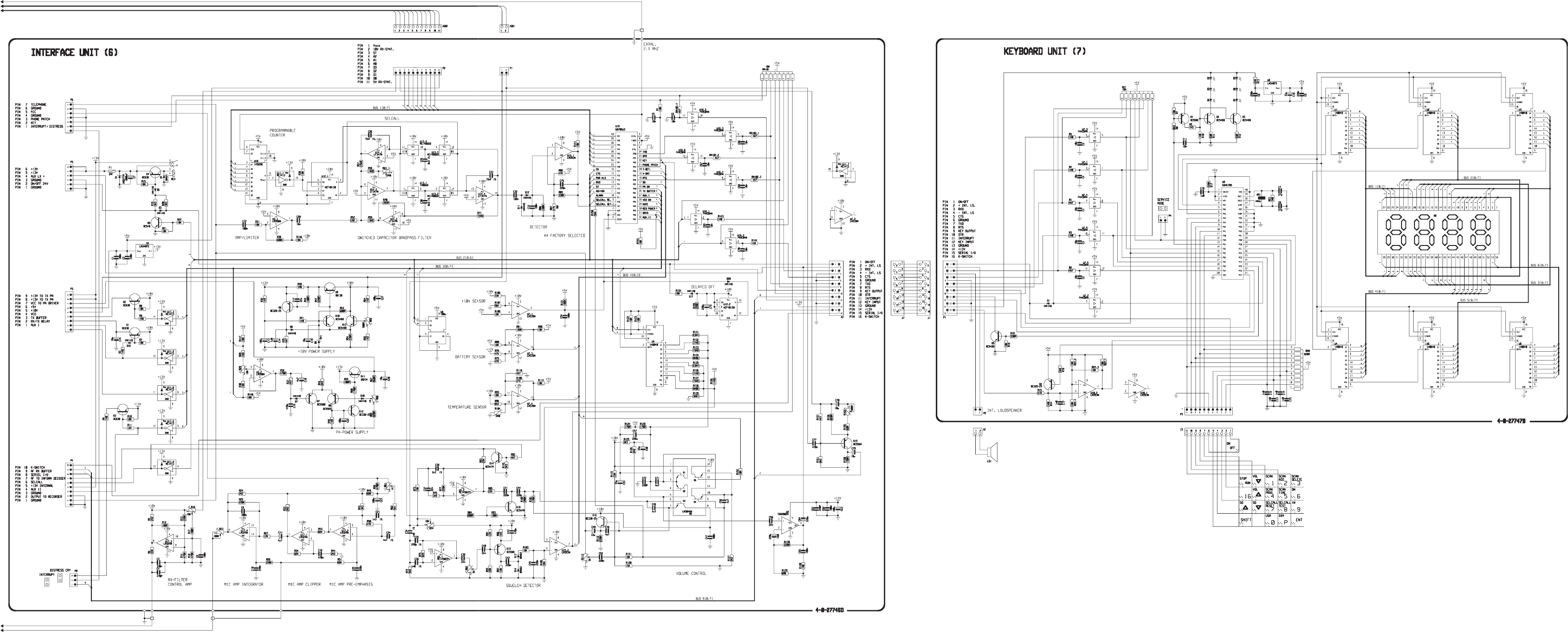

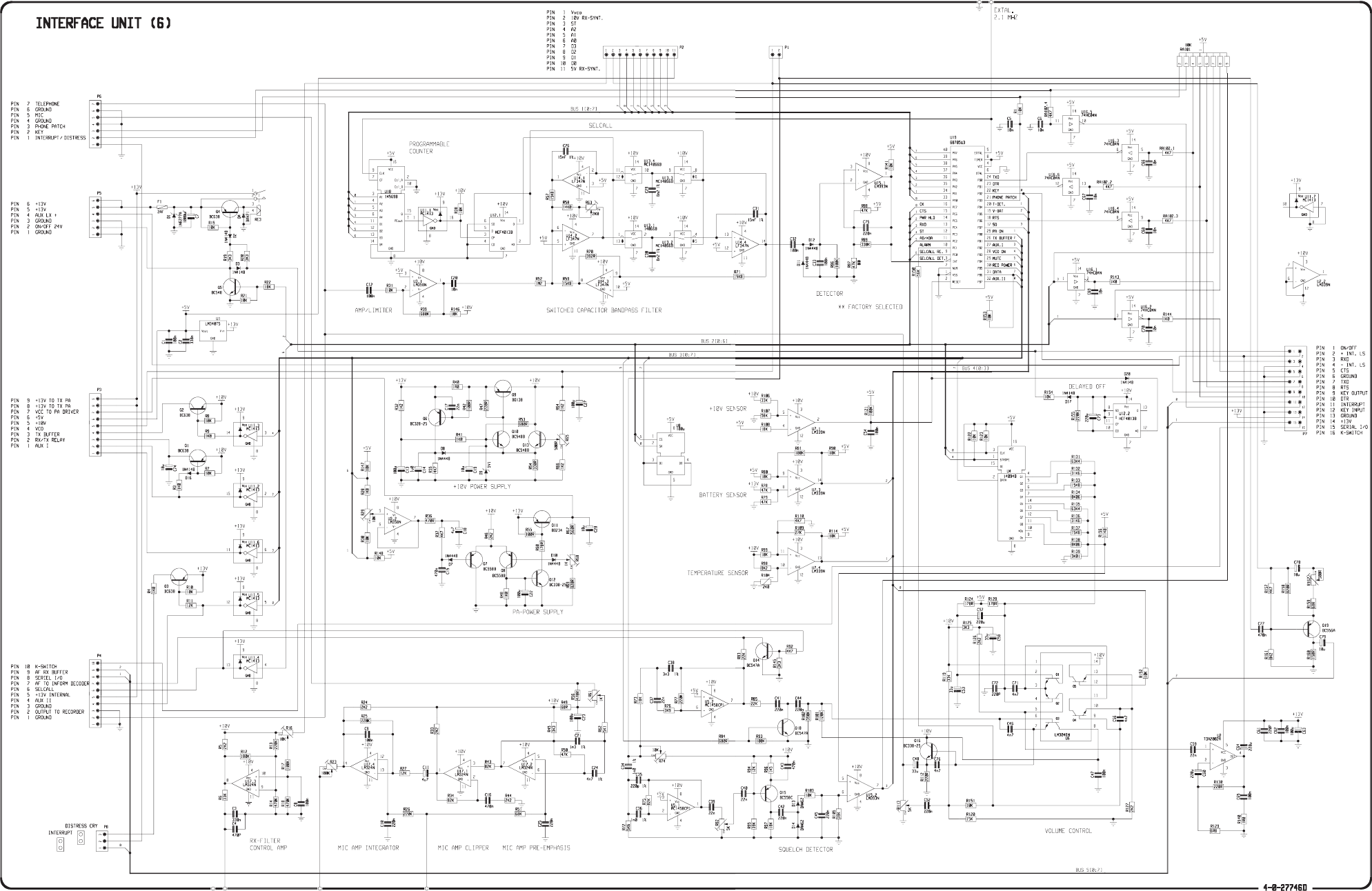

2.6 INTERFACE UNIT MODULE 6/600
2.6.1 ON/OFF FUNCTION
ON
When the ON/OFF push button is activated Q4-6 is turned on and the relay RE3-6 is engaged. When the
µC leaves reset condition PC5 is set to high level and Q5-6 will be conducting, keeping Q4-6 on.
OFF
When the ON/OFF push button is activated again U19-6 receives a message on the serial interface. Then
it stores the actual settings of the channel, volume, squelch, power level, INT/USA mode and scan time.
Afterwards PC5 is turned low, and Q5-6, Q4-6, and RE3-6 will switch off.
2.6.2 BATTERY SENSOR
If the battery voltage drops below approx. 9.5V the output of U7/3-6 goes high, and the µC will switch off
the set.
2.6.3 DELAYED OFF
If the ON/OFF push button is kept activated longer than approx. 3 seconds, pin 12 on U12/2-6 will go low
forcing the µC into reset. This means that as soon as the button is released the set will switch off.
2.6.4 TEMPERATURE SENSOR
Not mounted.
2.6.5 5V SUPPLY
The 5V power supply is an integrated, non adjustable regulator.
2.6.6 10V SUPPLY
The 10V supply is a serial regulator with current limiter. When it is switched on Q10-6 gets base current
through R32-6 and R41-6. Thus Q10-6 draws collector current so that Q9-6 turns on and the output
voltage rises. When Q13-6 begins to conduct the current in Q10-6 is reduced. Thus the base current in
Q9-6 is also reduced and the output voltage stabilises . The current limiting starts when the voltage across
R40-6 is big enough to turn Q6-6 on and makes the current flow through D8-6 to the emitter of Q10-6,
and therefore the current in Q10-6 and also in Q9-6 will decrease which results in a decrease of the output
voltage.
PAGE 2-17
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.6.7 PA REGULATOR
By means of the PA regulator it is possible to adjust the output power of the transmitter. When the output
from U3/2-6 is changed from O to 5V, Q7-6 is turned off. Thus Q8-6 is turned on and then also Q2-6 and
Q1-6 and the output voltage rises. When the voltage at the base of Q8-6 is equal to the voltage on the
base of Q7-6 the current in Q8-6 is reduced and then also in Q2-6 and Q1-6 and the output voltage
stabilises. The output power from the TX POWER AMPLIFIER is adjusted by changing the output voltage
of the PA REGULATOR with R68-6. When reduced output power is chosen (0W mode) the µC turns PB5
to 0 V and the reference voltage to the regulator will be lowered. It can be adjusted at R29-6, and thus
also the reduced output power.
2.6.8 RX FILTER CONTROL AMPLIFIER
The control voltage from the RX VCO is turned into a control voltage to the capacity diodes in the band
pass filters in the receiver.
2.6.9 MICROPHONE AMPLIFIER
The amplifier consists of three stages. In the first stage the signal is preemphasized. In the next stage
the signal is clipped when the input signal is big enough, and in the last stage the signal is deemphasize
before it is led to the modulator in the TX EXCITER. The deemphasizing is necessary because it is a phase
modulator.
2.6.10 SQUELCH CIRCUIT
The signal from the receiver is fed to the active high pass filter U5/1-6. The filter attenuates signals below
10 KHz which means that talk will not be detected. The output of the filter is fed to the clipper Q15-6 and
the detector comprising the capacitor C45-6, the diodes D13-6, D14-6, and the resistors R3/1-6 and R5/
1-6. The rectified noise level is compared with a reference level in the voltage comparator U15/2-6. When
the noise level is higher than the reference level, the output will be low. This output is connected to PD7
on the µC, which will turn off the AF by means of U18-6, except if the squelch setting is 0 ( in the display),
The correspondence between the number in the display and the latch U4-6 can be seen below:
64 :LWKRXWFDUULHU :LWKFDUULHU
%%%% %%%%
0 1 1 1 1 1 1 1 1
1 1 1 1 0 1 1 1 1
2 1 1 0 1 1 1 1 0
3 1 1 0 0 1 1 0 1
4 1 0 1 0 1 1 0 0
5 1 0 0 0 1 0 1 0
6 0 1 1 0 1 0 0 0
7 0 1 0 0 0 1 1 0
8 0 0 1 0 0 1 0 0
PAGE 2-18 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.6.11 AF CIRCUITS
The AF signal from the receiver is fed to the active filter U5/2-6. The filter provides a frequency response
of -6 dB/Oct. in the range 0.3 to 3 KHz and limits the signals outside this range. Further the signal is fed
to the telephone output amplifier U6/2-6 and Q6-6. From the telephone output the signal is fed through
the VOLUME CONTROL circuit U6-6 and the AL POWER AMP. The DC current in the differential amplifier
in the VOLUME CONTROL is controlled by the transistor between pins 9, 10 and 11. The attenuation will
be minimum when the current through the transistor between pins 3, 4 and 5 is maximum, and this is the
condition when the outputs B1-B4 on the latch U4-6 is high (display reading will be 15). In that case the
voltage on pin 4 of the differential amplifier will be the same as on pin 2. The D/A converter R131-6 to R134-
6 is together with the resistor R128-6 functioning as a voltage divider. With all the outputs B1 - B4 at 0V
the voltage between pin 4 and pin 2 will be approx. 200 Ms. This means that the current through the
transistor between pins 3, 4 and 5 will be minimum and the signal will be attenuated about 60 dB. Resistor
R125-6 and capacitor C58-6 prevents cross talk from the supply voltage to the output of the attenuator.
The AF signal from the receiver is also led through the ‘AF from RX Buffer’ to the Handset Key Connector.
The buffer is a common emitter amplifier with emitter resistance securing a low output impedance and
the signal amplitude required for compatibility with other S.P. RADIO products. This circuit consists of
C77-6 - C79-6, Q19-6 and R157-6 - R162-6. The variable resistor R12-6 is used for adjusting gain and
does in conjunction with C78-6 and R159-6 assure a correct cutoff frequency for the amplifier.
2.6.12 SELCALL
The input to the selcall is taken from the telephone output. The signal is first amplified and limited in U3/
1-6. Then it passes the band pass filter and after this it is rectified and compared with a reference level
in the comparator U15/1-6. 2.1 MHz is divided in the programmable counter U18-6. The output of this is
divided by 2 and turned into a square wave in the flip-flop U12/1-6. The outputs of the flip-flops are
connected to the switches U13-6. The frequency at which the switches around the capacitors C29-6 and
C30-6 are working determines the resonance frequency of the filter. Thus by changing the dividing figure
to U18-6 it is possible to change the resonance frequency of the filter. With R63-6 it is possible to adjust
the resonance frequency of the filter (see the adjustment procedure).
)LJXUH IQRPLQDO ,&LQSXW IFORFN IUHVRQDQFH
QXPEHU +]  +] +]
1 1124 1010001 12963 1127
2 1197 1001100 13816 1201
3 1275 1001000 14583 1268
4 1358 1000011 15672 1363
5 1446 0111111 16667 1449
6 1540 0111011 17797 1548
7 1640 0111000 18750 1630
8 1747 0110100 20192 1756
9 1860 0110001 21429 1863
0 1981 0101110 22826 1985
R 2110 0101011 24419 2123
PAGE 2-19
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
When the radio is switched on the dividing figure corresponding to the first figure in the selcall number
is put on port A on the µC which is connected to the input of U18-6. If the correct tone is received the output
of the comparator U15/1-6 goes low. This output is connected to the µC’s INT-pin. When the tone
disappears again the µC will put out the dividing figure corresponding to the next figure in the selcall
number. If all five tones are received correctly then the µC will send a message on the serial interface to
the keyboard unit, turn on the selcall relay RE2-9 (on the filter unit), and send out an alarm tone from PC1
via the volume control and power amp. to the loudspeaker. The alarm tone lasts for 10 seconds after an
individual call and after an all call it lasts until the selcall is reset. If the SELCALL TEST button is activated
the alarm circuits and indicators will be tested.

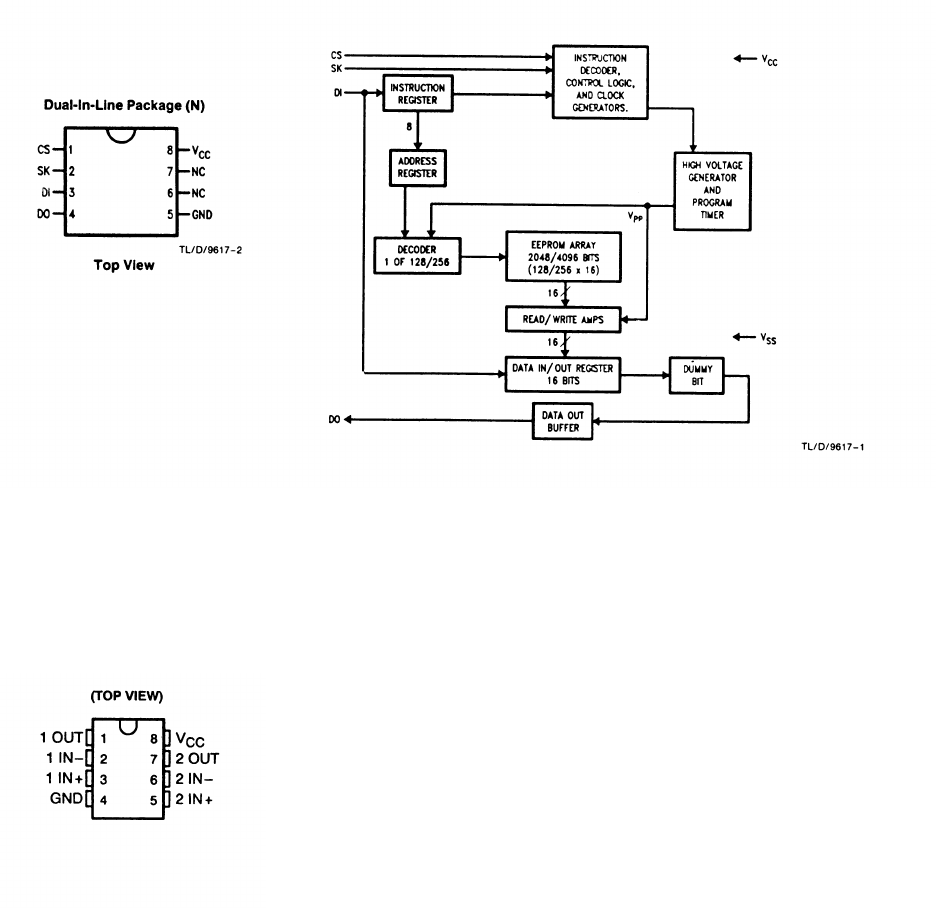

2.6.13 THE EEPROM
The EEPROM contains an address/opcode register, a data I/O register, a memory array, an internal high
voltage generator (Vpp ) and some decoding logic. The Serial Data Clock (CK) is fed from PC7 on the µC
and all communication starts with the µC setting PC5 thus enabling the Chip Select (CS) on the eeprom
(U8-6). Instructions to U8-6 consists of a dummy 1, a 2 bit opcode, an 8 bit address and for some
instructions also a 16 bit data word. When the opcode is 00 the 2 first bits in the address serve as an
extended opcode.
INSTRUCTION SET FOR THE EEPROM (NMC93C56):
,QVWUXFWLRQ 2S $GGUHVV 'DWD &RPPHQW
FRGH
READ 10 A7-A0 Reads data at specified address
EWEN 0 11XXXXXX Write enable, must precede all
programming modes
ERASE 11 A7-A0 Erase register A7-A0
ERAL 0 10XXXXXX Erase all registers
WRITE 1 A7-A0 D15-D0 Writes reg if address unprotected
WRAL 0 01XXXXXX D15-D0 Writes all registers. Valid only when
Protect Reg is cleared
EWDS 0 00XXXXXX Disables all programming instructions
READ:
After a Read instruction is received, the instruction and address are decoded, followed by data transfer
from the selected memory register. A dummy 0 precedes the 16-bit data output string. Output data
changes are initiated by a low to high trasition of the SK clock.
WRITE:
The Write operation is followed by 16 bits of data to be written to the specified address. CS must then be
brought low before the next rising edge of the SK clock to initiate the self-timed programming cycle. D0
indicates the ready state ( 1/0 => ready/busy ) the chip is ready for another instruction.
PAGE 2-20 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.6.14 COMMUNICATION BETWEEN THE TWO MICROCOMPUTERS
The transmission of information between the 2 µC’s takes place on a serial bus similar to a RS232C serial
interface. Each byte consists of 8 bits of information, a start-, a stop-, and a parity bit. Odd parity is being
used and the transmission speed is 2400 Baud but only one byte will be transferred in each period of 10
mS. Transmission can only take place when the DTR (PD1) is high. The µC on the KEYBOARD UNIT
will take this line high once every 10 mS.
Transmission from U19-6 to U9-7 Transmission is allowed on the ROD line (PC4) as soon as DTR is high
independent of the level of RTS. U9-7 will keep DTR high as long as it is receiving a byte.
Transmission from U9-7 to U19-6 U9-7 will set RTS (PD6 on U19-6) to a high level at the same time
as it sets DTR high. If U19-6 has nothing to transmit it will answer by setting CUTS (PC6) to a high level
as soon as it is ready to receive. After U9-7 has received the ready signal it will start transmission on the
TXD line (PD0 on U19-6). The DTR, RTS and CTS will be kept high as long as the transmission takes
place.
2.6.15 THE KEY-FUNCTION
When the transmitter is keyed the input PD2 on the Interface µC is put to a high level by the Keyboard
µC assuming that TX is allowed, TX can be prohibited when the RT2047 is operated as a slave over the
SP VHF Bus ( Described in section 2.7.5 The SP VHF Bus ). If the radio is tuned on a simplex channel!
the AF is muted by setting the output PB4 to a high level. Then the synthesizer is moved 4.6 MHz upwards.
Then the TX-VCO is turned on by setting PB3 high and after approx. 15 mS also the TX-BUFFER on (PB1
high) and after further 60 mS the PA-REGULATOR is turned on by setting PB0 and PB5 high. If reduced
power is selected PB5 will be low. When the key is released the PA-REGULATOR is turned off first. After
approx. 15 mS the TX-BUFFER is turned off, and after further 45 mS the TX-VCO is turned off. If the set
is in a simplex channel the synthesizer is moved 4.6 MHz back again, and the AF is turned on.
2.6.16 THE MICROCOMPUTER
The µC is held in reset by a low voltage on the RESET input pin. As long as the µC is in reset it is inactive
and all ports are configured as input pins. The 10V-SENSOR secures that the capacitor C54-6 cannot
be charged before the 10V supply is higher than approx. 8V. The 5V is checked internally. When the
voltage on the reset pin is above the internal comparator level the µC starts. First all pins on PA, PB, and
PC are configured as outputs. PB4, PB6, PC2, PC4 and PC5 to high level and the rest to low level. Then
the µC reads the address range from 64 to 0F in the EEPROM U8-6. If there is an error in the range from
64 to 77 the µC will transmit an “E0” message to the display and go to test mode. If there is an error in
the address range from 78 to 0F it will always initiate with channel 16, volume level at Pos. 5 and the
squelch level at 4. If the first test is passed the µC will send information to the VOL/SQ latch (U4-6) and
the RX-synthesizer and also initiate the selcall. Then the µC supervises the KEY-input (PD2), the squelsh
detector (PD7), the selcall detector (INT pin), the RTS-input (PD6), and the battery sensor. (See the
appropriate sections).
PAGE 2-21
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
COMPONENT LOCATION INTERFACE UNIT MODULE 6/600
View from component side with upper side tracks. View from component side with lower side tracks.
27746D
PAGE 2-22 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
DIAGRAM INTERFACE UNIT MODULE 6/600
PAGE 2-23
9543
This diagram is valid for PCB rev. 27746D.
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.7 KEYBOARD UNIT MODULE 7/700
2.7.1 DISPLAY
The LCD-display is static driven with an 50 Hz AC signal measured with reference to the back plane input
(BP pin numbers 1, 27, 28, 54). A segment that is off always has the same voltage as the BP. The latches
(U1-7 - U6-7) is loaded serially from the µC. Every 10 mS a strobe pulse is sent to the latches, and the
content of the internal shift register in the latches is loaded into the output latches. Afterwards new
information is shifted into the shift registers so the content is ready when the next 10 msec cycle has
passed.
2.7.2 KEYBOARD
The keyboard is scanned once every 10 mS. First PA4 is turned low, and PAO- PA3 are turned into inputs.
Afterwards PCO-PC3 are read, and if there is a low level on one of these pins a push button is activated.
If they are all high PA3 is turned low and the others to input pins, and PCO-PC3 are read once more and
so on. When finished PAO is left at low level.
2.7.3 PANEL ILLUMINATION
The LEDs are driven with a constant current generator. With PB1 at OV the current generators are on
and with PB1 at 5V they are switched off.
2.7.4 THE MICROCOMPUTER
The µC uses the internal clock-generator and a ceramic resonator. The clock frequency is approx. 4 MHz.
The µC takes care of the dual watch and scanning functions and the keyboard and display. This means
that when scanning, the µC requests a new channel every 100 mS if it has not received a message telling
that there is a carrier. Concerning the serial interface see section 2.6.14 COMMUNICATION BETWEEN
THE TWO µC’S. When the radio is on and the ON/OFF switch is activated and released again the µC will
be interrupted. The µC will then transmit a message to U19-6 to tell it to switch off. C18-7 and R17-7 is
an external pullup of the RESET*-pin and keeps the RESET* set for 0.5 second after the set is turned off
allowing time for transferring the startup table to the Interface µC. The interface µC then stores this
information in the eeprom before the set is finally turned off.
2.7.5 THE SP VHF-BUS
The keyboard µC also handles the communication with external units on the SP VHF Bus. The structure
is a digital Command/Response time division multi-pleasing data bus, with an interrupt extension. The
interrupt signal is located on pin 23 (PC5) on the µC and the serial I/O signals on pin 29/30 (PD0/PD1).
The RT2047 will always behave as a slave in the communication but can initiate a dialogue with the
external unit by setting the interrupt pin. A communication sequence will typically be initiated by the
external unit ( the master ) with an Address Word specifying what slave it wants to contact, a Command
Code or a Transfer Code ordering the slave to execute a command or to transfer information to the master
and finally a number of Data Words. The number of data Words can vary from 0 to 10. The answer from
the slave (RT2047) could consists of a Status Word, specifying what slave the answer came from and
a Response Word confirming that the command has been executed, optionally a Message Code and a
number of Data Words corresponding to the data transfer requested by the master. The answer from the
slave could also consist of a Status Word with its Busy-bit set and a Response Word confirming that the
command was received. In this case the slave will set the interrupt pin when it’s ready and the following
communication will confirm that the command was executed or optionally give the data transfer
requested. There are several other types of communication. For these and for specifics we refer to the
documentation on the SP VHF-BUS.
PAGE 2-24 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
Q5-7, R18-7 and R19-7 is the Interrupt driver circuit and U10/2-7, Q4-7, C17-7, R14-7 - 16-7 and R22/
1-7 - R22/4-7 forms the serial interface circuit. This circuit transforms the µC’s two-wire serial
communication interface (SCI) into the one-wire SCI required for communication with external units. Data
output from the µC can be detected on pin PD1 and data input on pin PD0. The one-wire asynchronized
signal can be measured on R15-7 or P1/15-7.
2.7.6 DUAL WATCH
When the radio is dual-watching the receiver is watching CH16 for 100 mS once every 1.5 sec. If there
is a carrier on CH16 the receiver will stay there until the carrier disappears. When there is no carrier on
CH16 only the number of the primary channel is shown in the display along with the DW-symbol. The µC
on the keyboard is taking care of the timing and is requesting every change of channel.
2.7.7 SCANNING
When the radio is scanning the radio is listening to the channels in the scanning table for 100 mS each.
CH16 is being watched for 100 mS between every change of channel. If there is a carrier the receiver will
start dual watching on this channel as long as the SCAN TIME is set. There is built in hold time of 1.5
second so the receiver will stay there for 1.5 see after the carrier has disappeared.
PAGE 2-25
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II

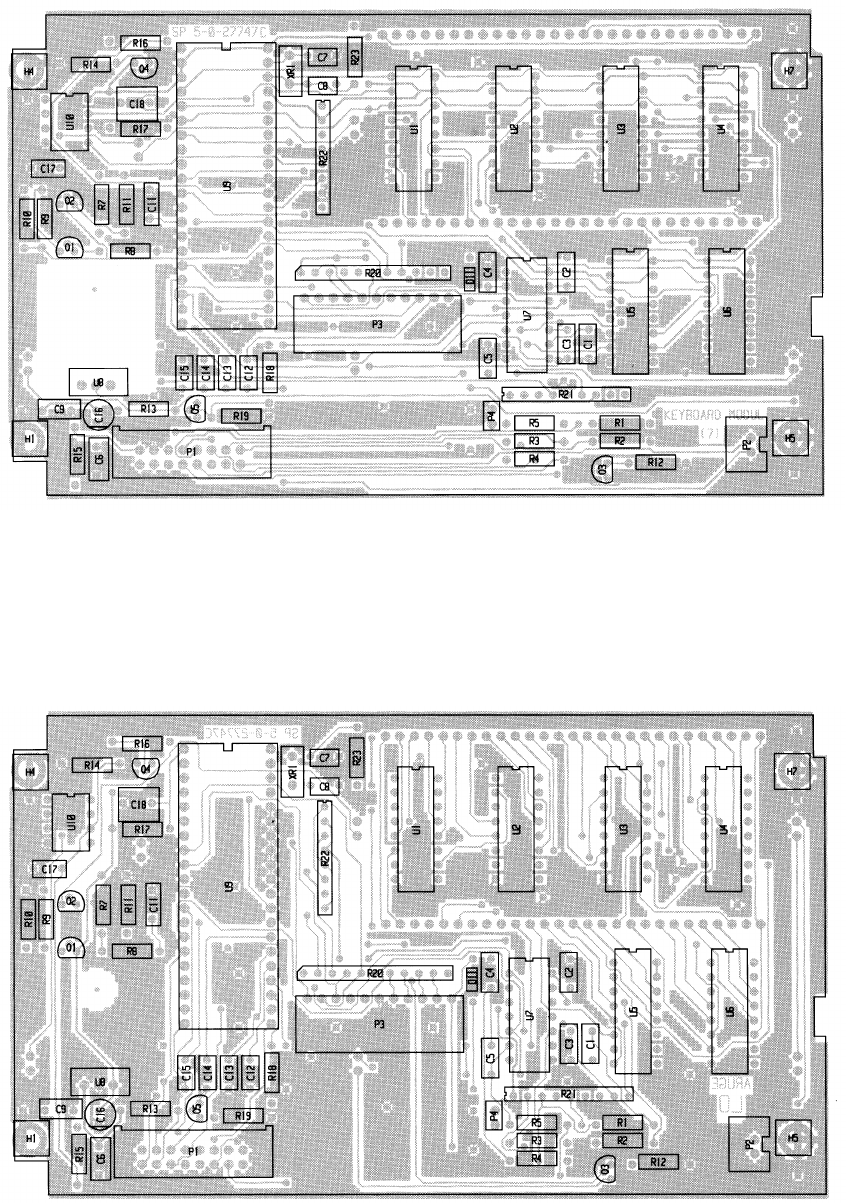

COMPONENT LOCATION KEYBOARD UNIT MODULE 7/700
View from component side with upper side tracks.
View from component side with lower side tracks.
27747C
PAGE 2-26 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
This diagram is valid for PCB rev. 27747C.
9543 PAGE 2-27

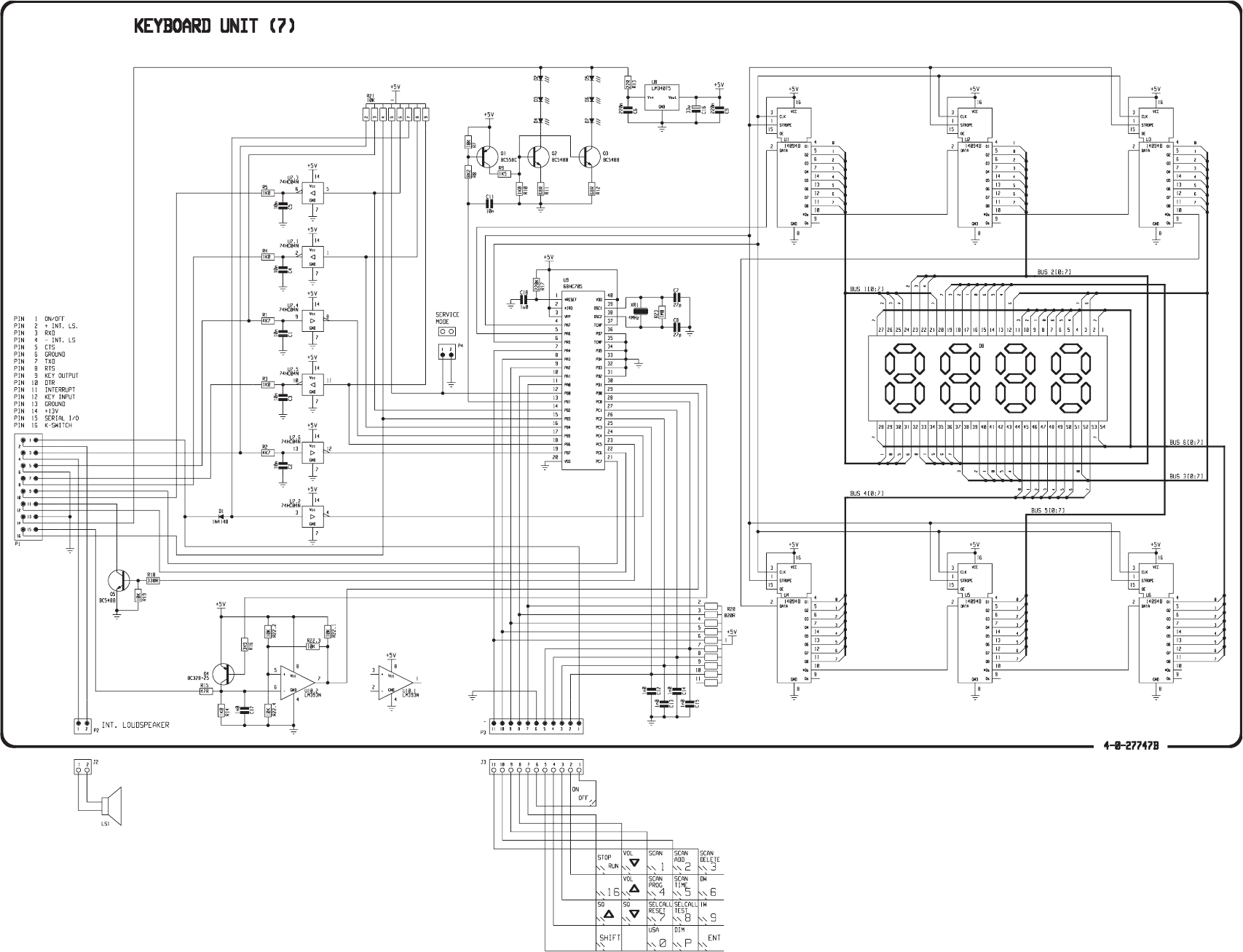

DIAGRAM KEYBOARD UNIT MODULE 7/700
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
PAGE 2-28 9543
2.8 DUPLEX FILTER MODULE 800
With a duplex filter, DF801, placed in the station it is possible to operate in full duplex mode with only one
antenna installed.
The duplex filter consists of 7 cavities, three in the Rx-section and four in the Tx-section.
The cavities in the Tx-section are stagger tuned. Two cavities (D-E) are suppressing the noise in the
receiving band 160.625 MHz - 162.025 MHz with Minimal insertion loss in the transmission band.
The function of the other two cavities (F-G) is to provide a band stop filter within the image frequency band
range of the duplex distance, 4.6 MHz: 151.425 MHz -152.825 MHz.
The cavities (A-B-C) in the Rx-section are stagger tuned. They are suppressing the transmitting
frequencies with Mid. insertion loss in the receiving band.

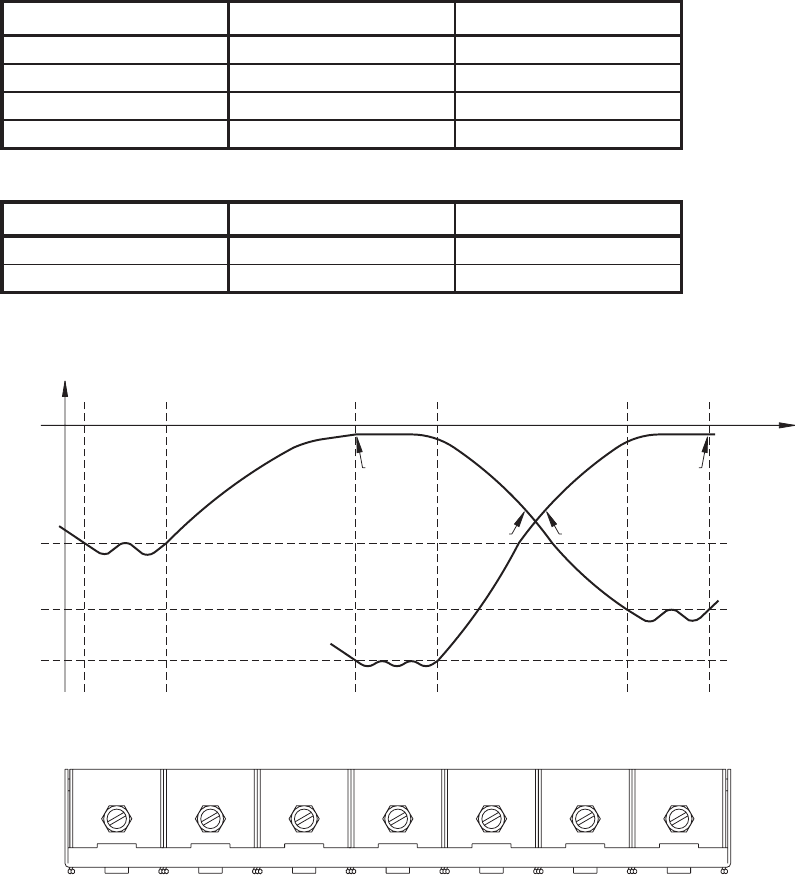

See the plot of duplex filters frequency response below.
NB: The duplex filter is adjusted with special measuring equipment and should be adjusted by S.P. Radio
A/S only.
TECHNICAL DATA FOR DUPLEX FILTER FOR VHF RT146 - RT2047.
75$160,77(5 G% 5$1*(0+]
Band-stop attenuation -30 151.425 - 152.825
Band-stop attenuation -47 156.025 - 157.425
Insertion loss. Max 1.6 -
Return loss. Mid 1.7 -
5(&(,9(5 G% 5$1*(0+]
Band-stop attenuation -60 160.625 - 162.025
Insertion loss. Max 1.5 -
Insert. loss.
max. 1.6dB Insert. loss.
max. 1.5dB
Rx-sectionTx-section
Frequency
(MHz)
dB
-30dB
-47dB
-60dB
24902
A B CD E F G
AB C
ED
FG
151.425 151.825 157.425
156.025 160.625 162.025
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.9 FILTER UNIT MODULE 9/900
The function of the Filter unit is to protect the set against RF interference from equipment installed near
the set. The two options AUX II and SELCALL RELAY requires the relays RE1-9 and RE2-9. These relays
are not a standard feature and can, if needed, be acquired from SP-Radio ( order number 21.300 ).
The function of jumper P34-9 is described in part I, section 2.9 Special Options.
PAGE 2-29
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II

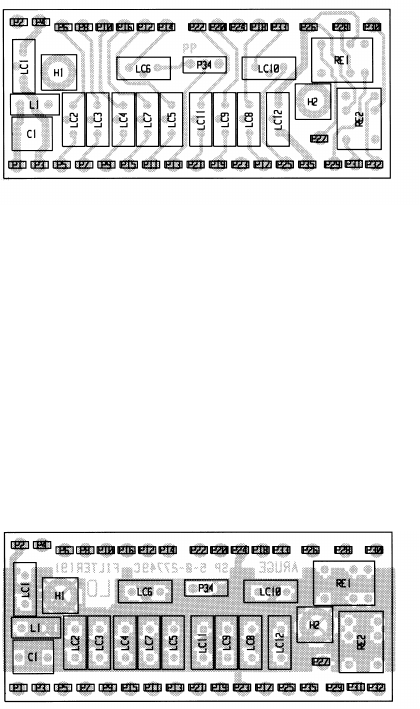

COMPONENT LOCATION FILTER UNIT MODULE 9/900
View from component side with upper side tracks.
View from component side with lower side tracks.
27749C
PAGE 2-30 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
9543 PAGE 2-31
DIAGRAM FILTER UNIT MODULE 9/900
This diagram is valid for PCB rev. 27749C.

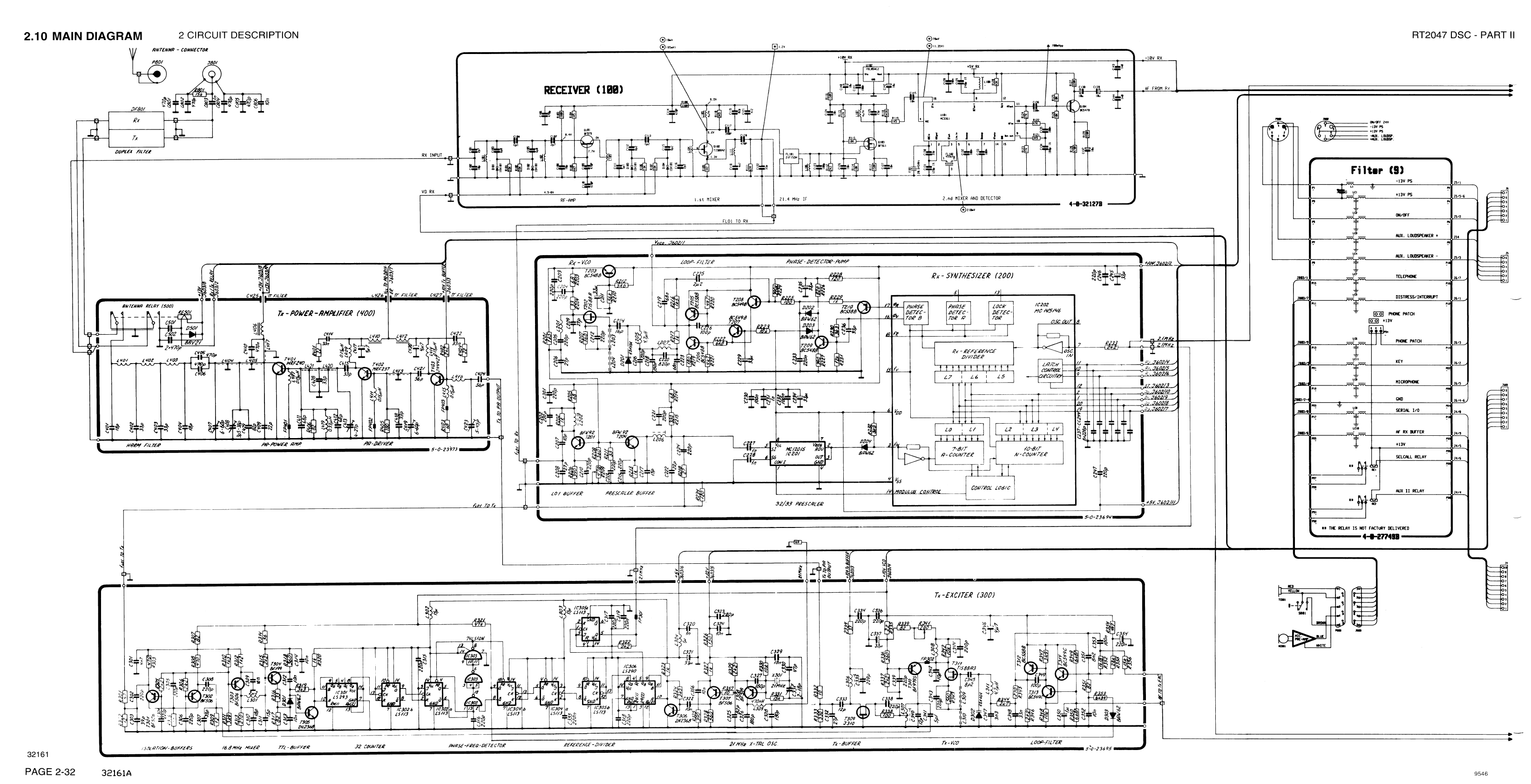

9546
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
9546 PAGE 2-33
32162
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
PAGE 2-34 9543

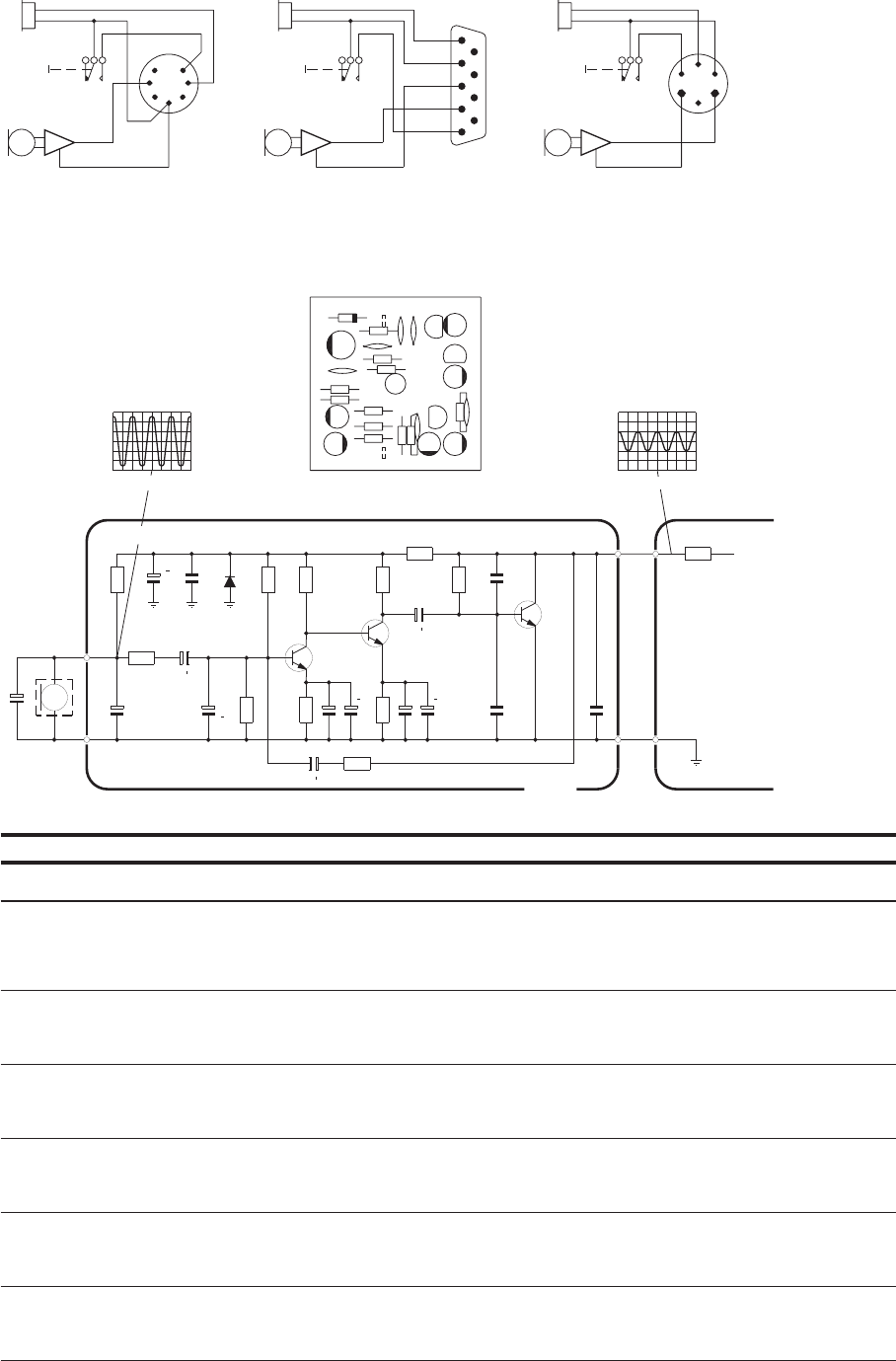

2.11 MICROTELEPHONE INSTALLATION
5
9
1
6
7
3
5
24
1
6
MC801
MIC PRE-AMP
WHITE
P803
DIN
CONNECTOR
BLUE
TC801
RED
YELLOW
BROWN
HAND KEY S801
VHF RT2047 SCRAMBLER CRY2001, RE2100, RT2047 prepared for DSC and RT2048
S1
HAND KEY
YELLOW
RED
TC1
MIC PRE-AMP
MC1
D-CONNECTOR
BLUE
WHITE
BROWN
SHORTWAVE S130X
S1701
HAND KEY
BROWN
WHITE
RED
TC1701
BLUE CONNECTOR
HIRSCHMANN
P1701
YELLOW
MIC PRE-AMP
MC1701
6
1
4
2
53
MC1
R1
1k8
C1
100u
10n
C2
D1
1N4148
8k2
R3
R5
2k7
2k2
R7
R9
2k7
R10
120k
R2
1k8
*
C3
10u
u47
C4
R4
18k
MIC. PRE-AMPLIFIER (100)
33u
C10
39k
R11
4k7
R6
C5 2u2
2u2
C6
R8
6k8
C9
1n
10u
C7
1n
C8
C11
10n
390 +10-18v
For TEST
4-0-24025E
*
In orange marked microtelephone cartridge, R2 is changed from 1k8 to 5k6 ohm.
10mV/DIV
OV
0.5msec/DIV 0.5msec/DIV
OV
10mV/DIV
T3
BC547C
BC547C
T2
BC547C
T1
27777A
C12 27pf
C13 27pf
C14
15pf
C14
15pf
C4 C5C10
C6
C7
T2
T3
T1
C1
C3
R3
R2
R5
R11
R1
R7
R10
R9
D1
C2
C9
R4
R6
R8
C8
C11
C13
C12
MICROTELEPHONE WITH ELECTRET MIC. AMP. ECI A/S 5-0-24025D 60087
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
C1 CAPACITOR ELECTROLYTIC 100uF 20% 10VDC ERO EKI 00 BB 310 C M0E 14.607
C2 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC NKE DT 350 758L F 103 Z 50V 15.170
FLAT PACK
C3 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M0E 14.512
C4 CAPACITOR ELECTROLYTIC 0.47uF 20% 50VDC ERO EKI 00 AA 047 H M0E 14.504
C5 CAPACITOR ELECTROLYTIC 2u2F 20% 50VDC ERO EKI 00 AA 122 H M0E 14.503
C6 CAPACITOR ELECTROLYTIC 2u2F 20% 50VDC ERO EKI 00 AA 122 H M0E 14.503
C7 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M0E 14.512
C8 CAPACITOR CERAMIC 1nF 10% 100V *PHILIPS 2222 630 19102 16.149
C9 CAPACITOR CERAMIC 1nF 10% 100V *PHILIPS 2222 630 19102 16.149
C10 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M0E 14.518
C11 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC NKE DT 350 758L F 103 Z 50V 15.170
FLAT PACK
D1 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
MC1 MICROPHONE ELECTRET ø9.7 x 6.7mm PANASONIC WM-0344BY 46.012
R1 RESISTOR MF 1k8 OHM 5% 0.33W PHILIPS 2322 180 73182 02.478
R2 RESISTOR MF 1k8 OHM 5% 0.33W PHILIPS 2322 180 73182 02.478
R3 RESISTOR MF 8k2 OHM 5% 0.33W PHILIPS 2322 180 73822 02.494
R4 RESISTOR MF 18k OHM 5% 0.33W PHILIPS 2322 180 73183 02.502
R5 RESISTOR MF 2k7 OHM 5% 0.33W PHILIPS 2322 180 73272 02.482
R6 RESISTOR MF 4k7 OHM 5% 0.33W PHILIPS 2322 180 73472 02.488
R7 RESISTOR MF 2k2 OHM 5% 0.33W PHILIPS 2322 180 73222 02.480
R8 RESISTOR MF 6k8 OHM 5% 0.33W PHILIPS 2322 180 73682 02.492
R9 RESISTOR MF 2k7 OHM 5% 0.33W PHILIPS 2322 180 73272 02.482
R10 RESISTOR MF 120k OHM 5% 0.33W PHILIPS 2322 180 73124 02.522
R11 RESISTOR MF 39k OHM 5% 0.33W PHILIPS 2322 180 73393 02.510
S1 MICROSWITCH E62-10H PDT CHERRY E62-10H PDT 44.025
T1 TRANSISTOR AF NPN BC547C TO-92 PHILIPS BC547C 28.068
T2 TRANSISTOR AF NPN BC547C TO-92 PHILIPS BC547C 28.068
T3 TRANSISTOR AF NPN BC547C TO-92 PHILIPS BC547C 28.068
TC1 TELEPHONE CARTRIDGE 200 OHMS S.E.K. (KIRK) T802 0113 2715 46.010
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.12 SPECIAL INSTALLATION WITH 2 MICROTELEPHONES
H2086 for scrambler CRY2001, RT2047 DSC, RT2048 and RE2100.
H2087 for VHF RT2047.
Hook 1
1234567
Connection Board (1)
5-0-24281 B
WHITE
BLUE
YELLOW
RED
BROWN
BLUE
BROWN
WHITE
YELLOW
RED
6
1
2
7
8
3
4
9
5
RED
YELLOW
WHITE
BROWN
BLUE
P1
S1
BLUE/GREEN
BLUE/BLACK
HAND KEY 1
TC
program 2000 (HANDSET)
MIC PRE-AMP MC
NORMAL MICROTELEPHONE
RED
YELLOW
BROWN
BLUE
WHITE
P2
5
9
43
87
21
6
6
1
4
25
3
7
P2 (H2087)
RED
YELLOW
WHITE
BLUE
BROWN
WHITE
P1
6
1
4
2
5
3
7
RED
YELLOW
WHITE
BROWN
BLUE
YELLOW
J2 (H2087)
7
3
5
2
4
1
6
MICROTELEPHONE
H2087
CONNECTOR CONNECTOR
H2086
MICROTELEPHONE
The cable between the Hooks
is not factory delivered (7 x 0.14 mm )
S1. 2. 3 is shown with microtelephone in Hook.
Recommended cable lenght max. 20 meters.
be seperated. Yellow wire on Pin 2, and white wire in P7.
the modulations, the ground wires white and yellow in P3 must
RED
YELLOW
WHITE
BLUE
BROWN
6
1 2
7 8
3 4
9
5
J2
BROWN
RED
WHITE
BLUE
P3
5
9
43
87
21
6
RED
YELLOW
WHITE
BLUE
BROWN
1234567
Connection Board (1)
5-0-24281 B
RED
YELLOW
WHITE
BROWN
BLUE
S2
BLUE/GREEN
BLUE/BLACK
6
1 2
7 8
3 4
9
5
J3
HAND KEY 2
TC
MIC PRE-AMP MC
RED
YELLOW
BROWN
BLUE
WHITE
HOOK 2/3
(HANDSET 2)
MICROTELEPHONE
2
If H2087 is used and if there is "Hum" or noice problems with
27778
PAGE 2-35
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.13 SPECIAL INSTALLATION WITH 3 MICROTELEPHONES
H2088 for scrambler CRY2001, RT2047 DSC, RT2048 and RE2100.
H2089 for VHF RT2047.
Hook 1
1 2 3 4 5 6 7
Connection Board (1)
5-0-24281 B
WHITE
BLUE
YELLOW
RED
BROWN
BLUE
BROWN
WHITE
YELLOW
RED
6
1
2
7
8
3
4
9
5
RED
YELLOW
WHITE
BROWN
BLUE
P1
S1
BLUE/GREEN
BLUE/BLACK
HAND KEY 1
TC
program 2000 (HANDSET)
MIC PRE-AMP MC
NORMAL MICROTELEPHONE
RED
YELLOW
BROWN
BLUE
WHITE
P2
5
9
43
87
21
6
6
1
4
25
3
7
P2 (H2089)
RED
YELLOW
WHITE
BLUE
BROWN
WHITE
P1
6
1
4
2
5
3
7
RED
YELLOW
WHITE
BROWN
BLUE
YELLOW
J2 (H2089)
7
3
5
2
4
1
6
MICROTELEPHONE
H2089
CONNECTOR CONNECTOR
H2088
MICROTELEPHONE
MICROTELEPHONE
(HANDSET 2)
HOOK 2/3
The cable between the Hooks
is not factory delivered (7 x 0.14 mm )
RED
YELLOW
WHITE
BLUE
BROWN
6
1 2
7 8
3 4
9
5
J2
BROWN
RED
WHITE
BLUE
WHITE
BLUE
BROWN
YELLOW
RED
MCMIC PRE-AMP
TC
HAND KEY 2
J3
5
9
43
87
21
6
BLUE/BLACK
BLUE/GREEN
S2
BLUE
BROWN
WHITE
YELLOW
RED
5-0-24281 B
Connection Board (1)
7
654321
BROWN
BLUE
WHITE
YELLOW
RED
6
1 2
7 8
3 4
9
5
P3
P4
5
9
43
87
21
6
RED
YELLOW
WHITE
BLUE
BROWN
1234567
Connection Board (1)
5-0-24281 B
RED
YELLOW
WHITE
BROWN
BLUE
S3
BLUE/GREEN
BLUE/BLACK
6
1 2
7 8
3 4
9
5
J4
HAND KEY 3
TC
MIC PRE-AMP MC
RED
YELLOW
BROWN
BLUE
WHITE
HOOK 2/3
BROWN
RED
YELLOW
BLUE
WHITE
(HANDSET 3)
MICROTELEPHONE
2
If H2089 is used and if there is "Hum" or noice problems with
the modulations, the ground wires white and yellow in P3 must
be seperated. Yellow wire on Pin 2, and white wire in P7.
Recommended cable lenght max. 20 meters.
S1. 2. 3 is shown with microtelephone in Hook.
27779
9543
PAGE 2-36
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II

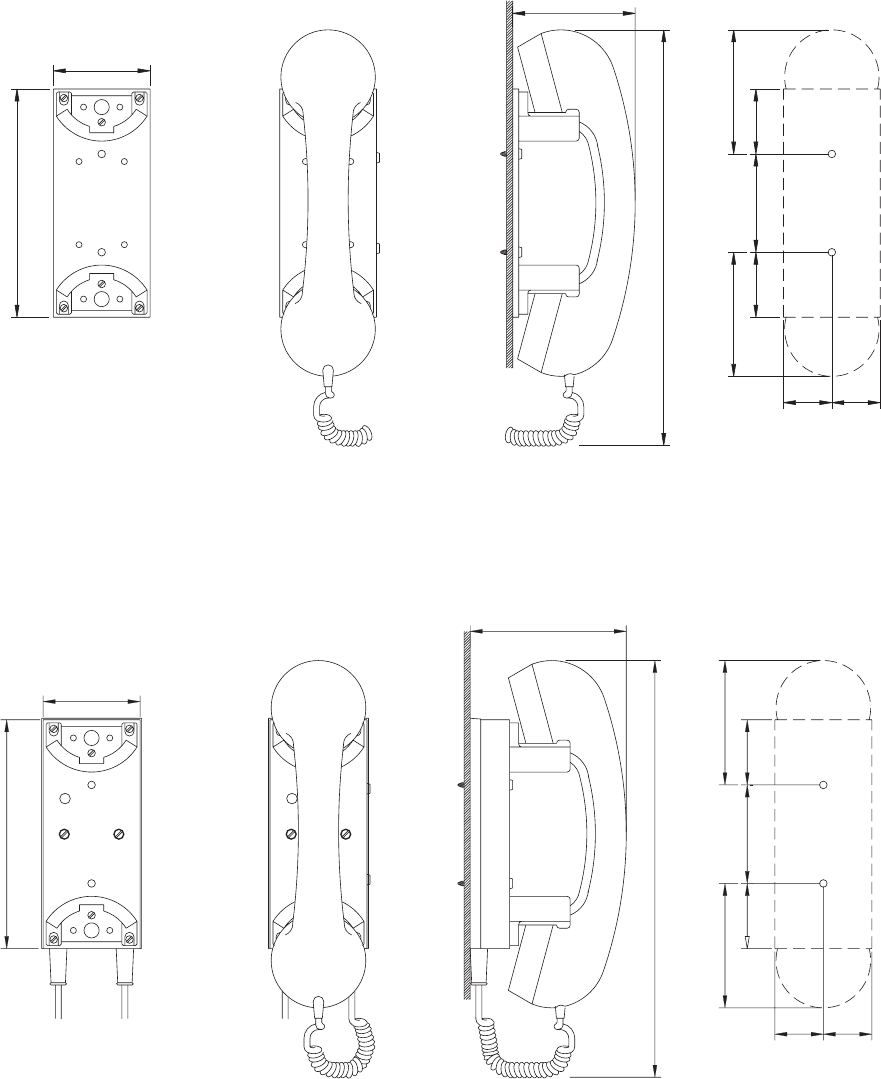

2.14 MECHANICAL DIMENSIONS FOR HANDSET
MECHANICAL DIMENSIONS FOR HANDSET
64
151
275
80
436543
80
32 32
ø4.5
ø4.5
81
27946
MECHANICAL DIMENSIONS FOR HANDSET HOLDER WITH MICROSWITCH
151
64
103
275
80
436543
80
32 32
ø4.5
ø4.5
26999
PAGE 2-37
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II

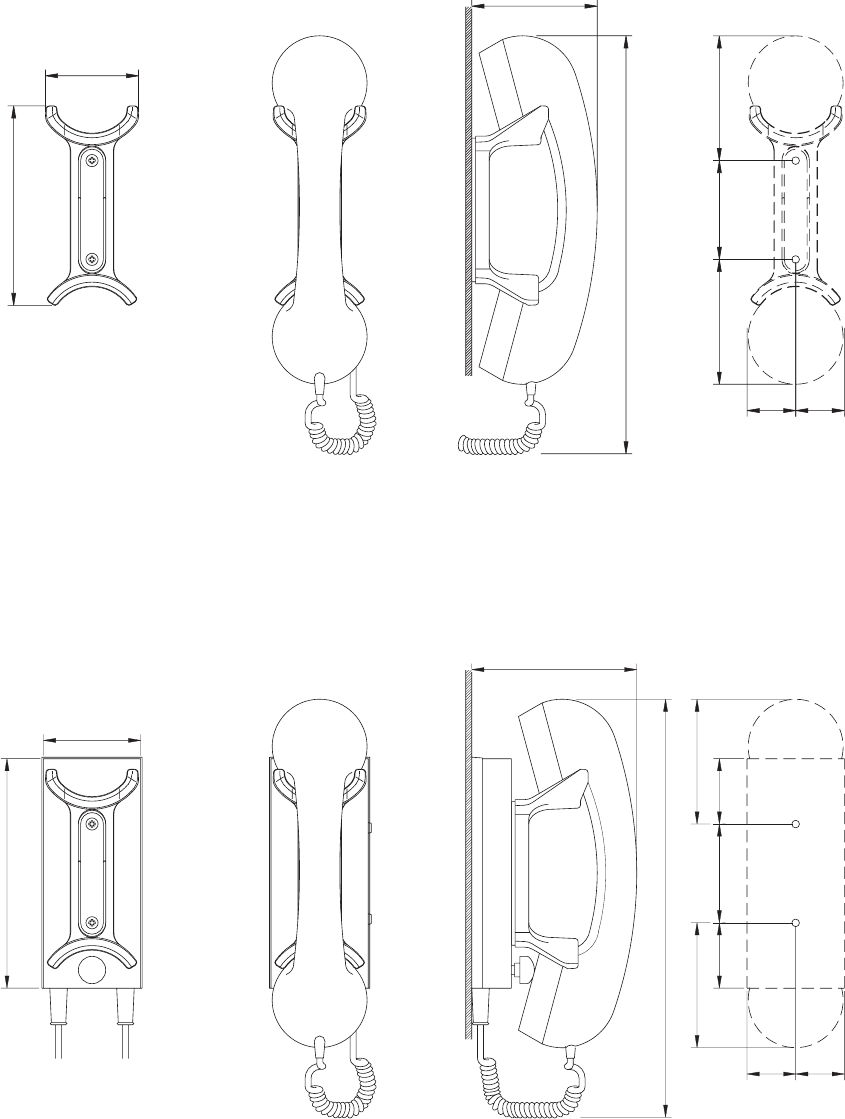

MECHANICAL DIMENSIONS FOR HANDSET
ø4.5
65 8080
32 32
4-0-29938
275
78
132
62
ø4.5
MECHANICAL DIMENSIONS FOR HANDSET HOLDER WITH MICROSWITCH
ø4.5
ø4.5
6543
8080
32 32
43
4-0-29937
275
64
151
103
PAGE 2-38 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II

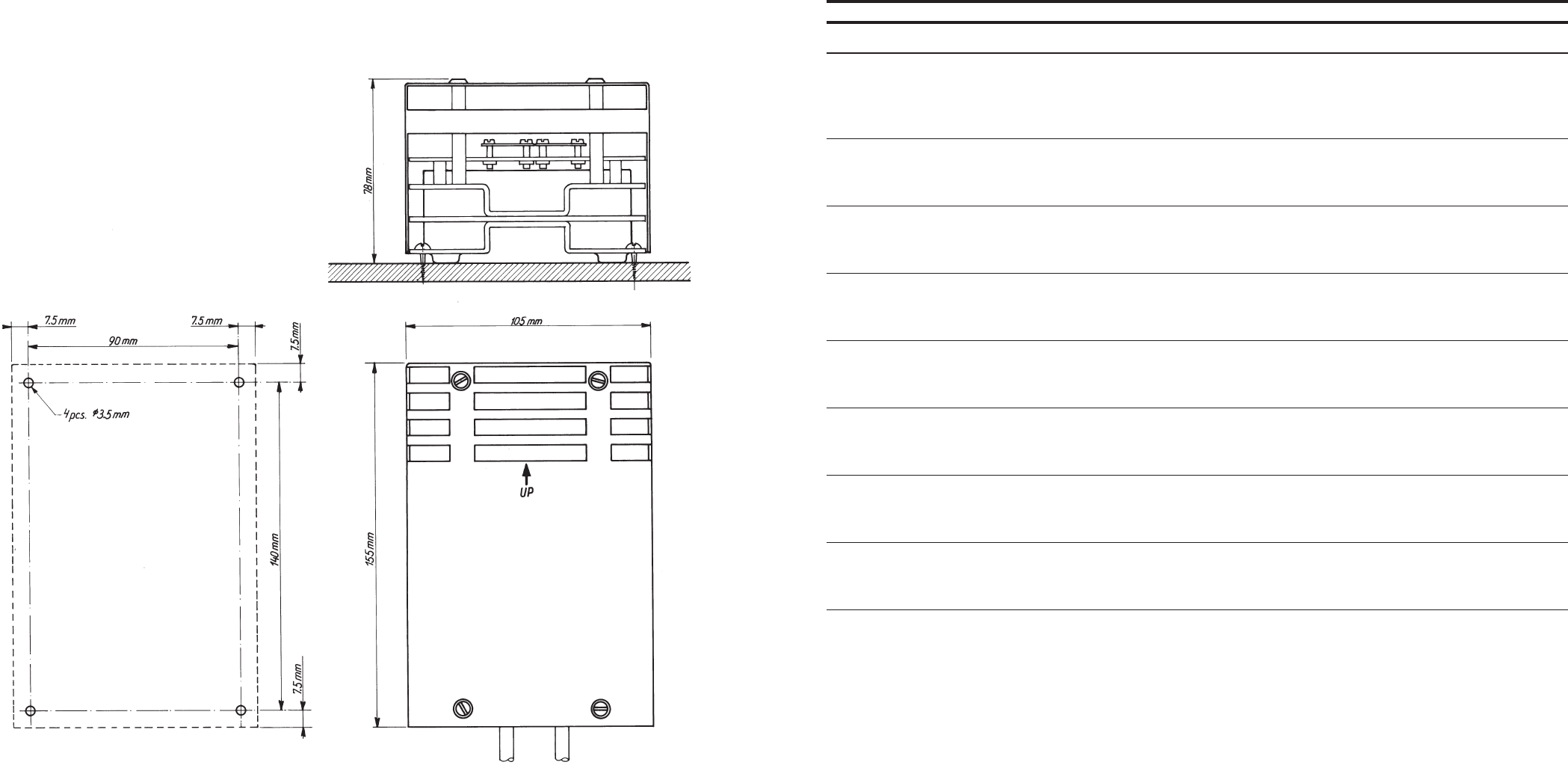

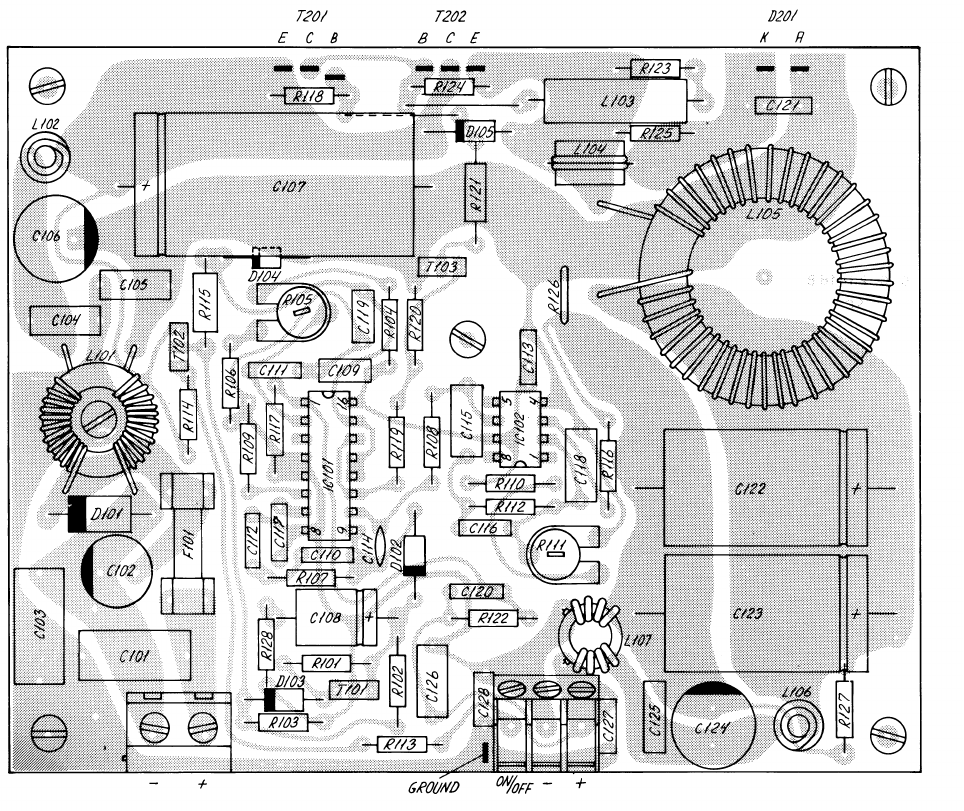

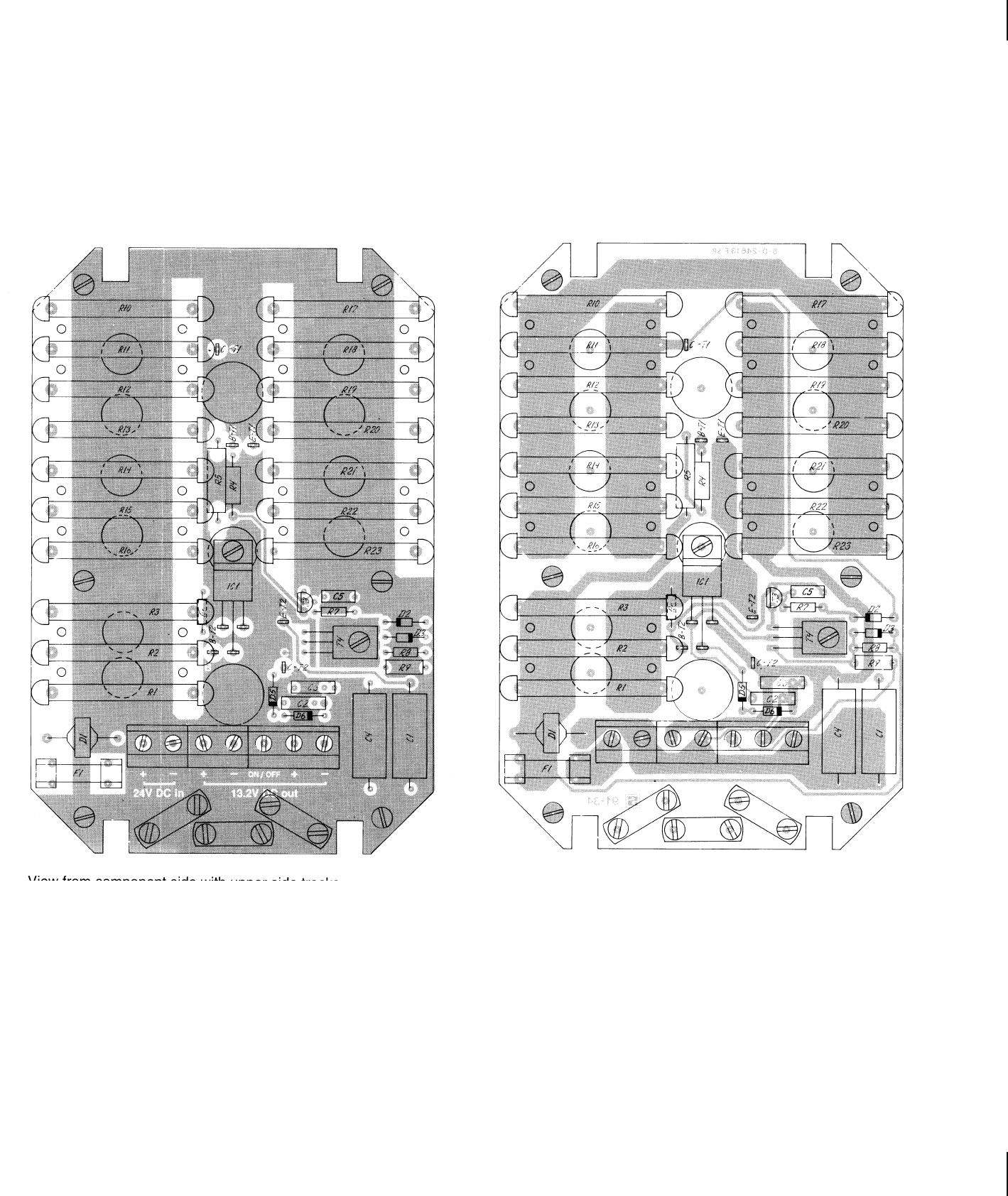

2.15 DC POWER SUPPLY N418
GENERAL DESCRIPTION
The power supply N418 is constructed for supplying a 13.2V VHF from a 24V DC system. In order to obtain
high efficiency regulation is obtained by the switch mode principle.
TECHNICAL DATA:
The power supply N418 is controlled from the connected VHF unit by on/off.
Input voltage 16-32V DC
Output voltage 13.2V DC
Output current Max. 7A DC
Operation temperature range -15 - +55 °C
Switch frequency Approx 40 KHz
2.15.1 PRINCIPLE OF OPERATION
The on/off information from the connected VHF unit is controlling the N418 via pin 4 of P201.
The regulation takes place after the forward principle, which means that during the “on time” of the
switching element T202, the coil L105 is connected directly from the input to the output.
When switching element T202 is turned off the stored energy in L105 maintains the supply current to the
output via diode D201.
Regulation of the output voltage takes place via pulse width regulation, which means that the “on time”
(duty cycle) of the switching element T202 is controlled. The regulation gives long “on time” when the input
voltage is low, a further decrease of input voltage allows the T202 to be on, continuously. If the input
voltage is increased the “on time” is shortened.
In order to limit the rush in current during switching there’s a built in soft start, thus enabling a short “on
time” for T202 immediately after the switching on, and afterwards the “on time” is slowly increased.
Current limitation is established by sensing the voltage over the resistor R126. If the current is too high,
the pulse width is shortened in order to reduce the output current.
2.15.2 CIRCUIT DESCRIPTION
When N418 is switched on R113 is connected to the negative terminal of the supply in the VHF and
transistor T102 is on. IC101 starts functioning. The voltage level on pin 9 of IC101 controls the duty cycle
and the voltage always starts from low level because C108 is discharged via transistor T101 every time
the N418 is switched off.
Pin 16 of IC101 is a 5V reference voltage, which is divided down in R104, R105, and R106 and connected
to pin 2 (the non-inverted input). Pin 1 of IC101 is connected to the output voltage via voltage divider R117
and R122, the two levels are compared and the pulse width is controlled so that the output voltage stays
stable. Pin 11 and 14 are outputs connected in parallel, the signal forms the drive signal for the switching
element T202 via T103 and T201 . The components L103, L104, R123, R124, R125, and C121 control
the on and off switching of T202 and D201. D105 prevents inverse polarity across T202.
The IC102 senses the output current via the voltage over R126. If this voltage is too high - due to an
overload - the pulse width and thus the output voltage is reduced.
The capacitors and coils in input and output suppresses switching noise enabling N418 to fulfill the CISPR
noice regulations.
PAGE 2-39
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
2.15.3 ADJUSTMENT PROCEDURE
ADJUSTMENT OF OUTPUT VOLTAGE.
Measure the output voltage across C126 with a load equal to the consumption of a VHF unit in receive
condition (0.5 - 0.8A). Adjust R105 until the output is 13.2V if necessary.
ADJUSTMENT OF MAX. CURRENT.
Check that the output voltage is still 13.2V with a load of 5.8A (2.3 ohm) across the output.
Change the load to 1,5 ohm by connecting 4.3 ohm in parallel with the 2.3 ohm. The voltage will then be
10.5V and the output 7A. If necessary adjust the output to 10.5V with R111.
COMPONENT LOCATION DC POWER SUPPLY N418
View from component side with lower side tracks.
23818C
PAGE 2-40 9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
9543
PAGE 2-41
DIAGRAM DC POWER SUPPLY N418
This diagram is valid for PCB rev. 23818C.
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
PAGE 2-42 9543
2.16 N420 24V/12V REGULATOR
GENERAL DESCRIPTION
The regulator N420 is a general purpose 24V DC to 13.2V DC regulator, e.g. to be used for supply of VHF
radiotelephones.
The regulator N420 is a serial regulator with excellent noise performance.
2.16.1 TECHNICAL DATA
The regulator N420 is controlled from the connected VHF unit by the on/off button.
,QSXW9ROWDJH 21.6 to 31.2V DC
2XWSXW9ROWDJH 13.4V DC
2XWSXW&XUUHQW Max. 8A DC
2SHUDWLRQ7HPSHUDWXUH5DQJH 15°C to +55°C
)XVH 8 Amp. 5 x 20 mm
&XUUHQWIURPRQRII7HUPLQDO Less than 15 mA DC
2.16.2 PRINCIPLE OF OPERATION
N420 is a linear serial regulator where most of the loss is dissipated in resistors. It is provided with a
terminal for remote shut-down. If the on/off terminal is connected to the -terminal, the regulator is on. If
the on/off terminal is disconnected, the regulator is off.
2.16.3 CIRCUIT DESCRIPTION
The output voltage is regulated by the integrated voltage regulator IC1. The output voltage is 12V DC plus
the forward voltage over diodes D5 and D6: approx. 13.4V DC in total if T4 is conducting. If the output
voltage drops the current through IC1 and R5 increases. An increase in voltage across R5 will result in
an increase in current in T1 and the resistors R10 - R23 resulting in an increase in the output current.
T1 delivers most of the output current and FC1 only a small driver current.
If the input voltage is low and the output current is high, the voltage across R10 -R23 results in T1 going
into saturation. The voltage across R4 increases and when the voltage across R4 and VBE Of T1 is greater
than approx. 1 Volt, T3 starts to conduct base current to T1. This transistor then shunts the remaining
current to the output, bypassing R10 - R23.
When the input voltage and the output current are high, T1 is nearly saturated. When the input voltage
is low and the output current is high, the resistors R1 - R3 will result in saturation of both T1 and T2. The
combination of T1 in saturation and T2 delivering the remaining output current divides the total loss, so
the main loss is in the resistors giving low loss in the semi-conductors and a lower junction temperature,
resulting in a higher reliability for the whole regulator.
T4 is used to switch the regulator ON and OFF. If the ON/OFF input is disconnected T4 is OFF and the
base currents to T1 and T2 are zero and the current through IC1 will also be reduced to zero. The stand-
by current consumption is then less than 10 micro amp. If the ON/OFF input is connected to - input, T4
goes into saturation and the regulator starts.
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
In case of a short-circuit over the output R5 and D3 limits the current through IC1 and T4 to approx. 250
mA and R1 - R3 and D3 limits the current through T1 and T2 to approx. 15 Amp. The temperature of the
cooling surface will increase and activate the thermal protection circuit inside IC1 and lower the output
voltage, even though a short-circuit of the output should be avoided.
The diode D1 protects against reverse input voltage. A fuse will blow in case of reverse input.
PAGE 2-43
9543
PAGE 2-44
COMPONENT LOCATION 24V/12V REGULATOR N420
View from component side with upper side tracks. View from component side with lower side tracks.
24613F
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
9543
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
PAGE 2-45
9543
DIAGRAM 24V/12V REGULATOR N420
This diagram is valid for PCB rev. 24613F.
2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
PAGE 2-46 9543
DIMENSION AND DRILLING PLAN N420
25332
N420 must only be mounted vertically.
Free distance must be kept to allow circulation.
PARTS LISTS N420
VOLTAGE REGULATOR N420 ECI A/S 5-0-24613G 600416
POSITION DESCRIPTION MANUFACTOR TYPE PART No.
C1 CAPACITOR ELECTROLYTIC 47uF -10/+50% 63V ERO EB 00 FL 247 J 14.552
C2 CAPACITOR MKT 0.22uF 10% 63V ERO* MKT1818 11.090
C3 CAPACITOR MKT 0.22uF 10% 63V ERO* MKT1818 11.090
C4 CAPACITOR ELECTROLYTIC 47uF -10/+50% 63V ERO EB 00 FL 247 J 14.552
C5 CAPACITOR MKT 100nF 10% 100VDC PHILIPS 2222 371 28104 11.180
D1 DIODE MR750 MOTOROLA MR750 25.219
D2 DIODE SCHOTTKY BAT 43 THOMSON-CSF BAT43 27.600
D3 DIODE ZENER 7.5V 5% 0.4W BZX79C7V5 PHILIPS BZX79C7V5 26.539
D5 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
D6 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
F1 FUSE 8AF 250V Ø5x20mm ELU 171 100 8AF 45.561
(DIN 41571/1)
IC1 VOLTAGE REGULATOR +12V MOTOROLA* MC7812CT 31.260
R1 RESISTOR POWER 1R0 OHM 10% 6.5W VITROHM 1R0 10% TYPE 296-0 05.725
R2 RESISTOR POWER 1R0 OHM 10% 6.5W VITROHM 1R0 10% TYPE 296-0 05.725
R3 RESISTOR POWER 1R0 OHM 10% 6.5W VITROHM 1R0 10% TYPE 296-0 05.725
R4 RESISTOR 47 OHM 5% 0.6W BEYSCHLAG MBB 0207-00-BX-47R 5% 03.167
R5 RESISTOR PMF 27 OHM 5% 3W PHILIPS 2322 195 13279 04.660
R6 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R7 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R8 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R9 RESISTOR 2.2 KOHM 5% 0.6W DRALORIC SMA 0207 S TK100-2K2 5% 03.208
R10 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R11 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R12 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R13 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R14 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R15 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R16 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R17 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R18 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R19 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R20 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R21 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R22 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R23 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
T1 TRANSISTOR DARLINGTON MJ2501 TEXAS* MJ2501 29.235
T2 TRANSISTOR DARLINGTON MJ2501 TEXAS* MJ2501 29.235
T3 TRANSISTOR AF BC547B NPN TO-92 PHILIPS BC547B 28.067
T4 TRANSISTOR BD140-10 AEG* BD140-10 29.066
RT2047 DSC - PART II
CONTENTS
3 MECHANICAL DISASSEMBLING AND MODULE LOCATION 3-1
3.1 MECHANICAL DISASSEMBLING 3-1
3.2 MODULE LOCATION 3-3
9546
PAGE 3-1
9545
3 MECHANICAL DISASSEMBLING AND MODULE LOCATION

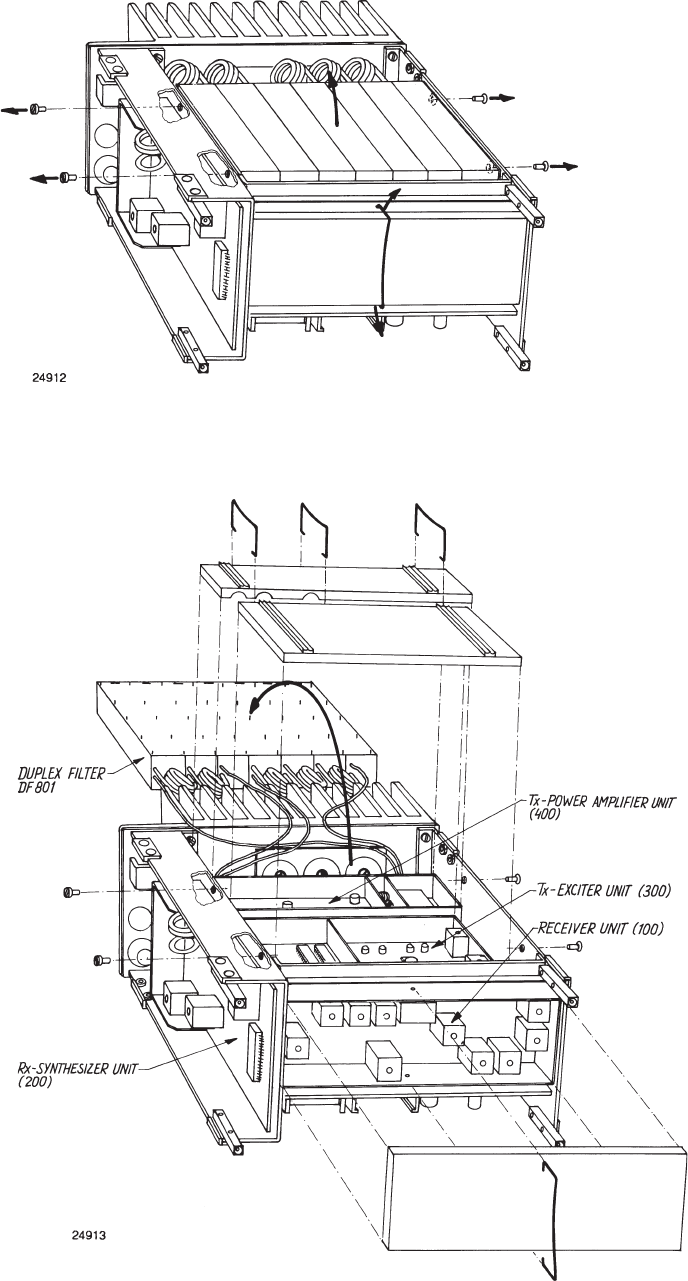

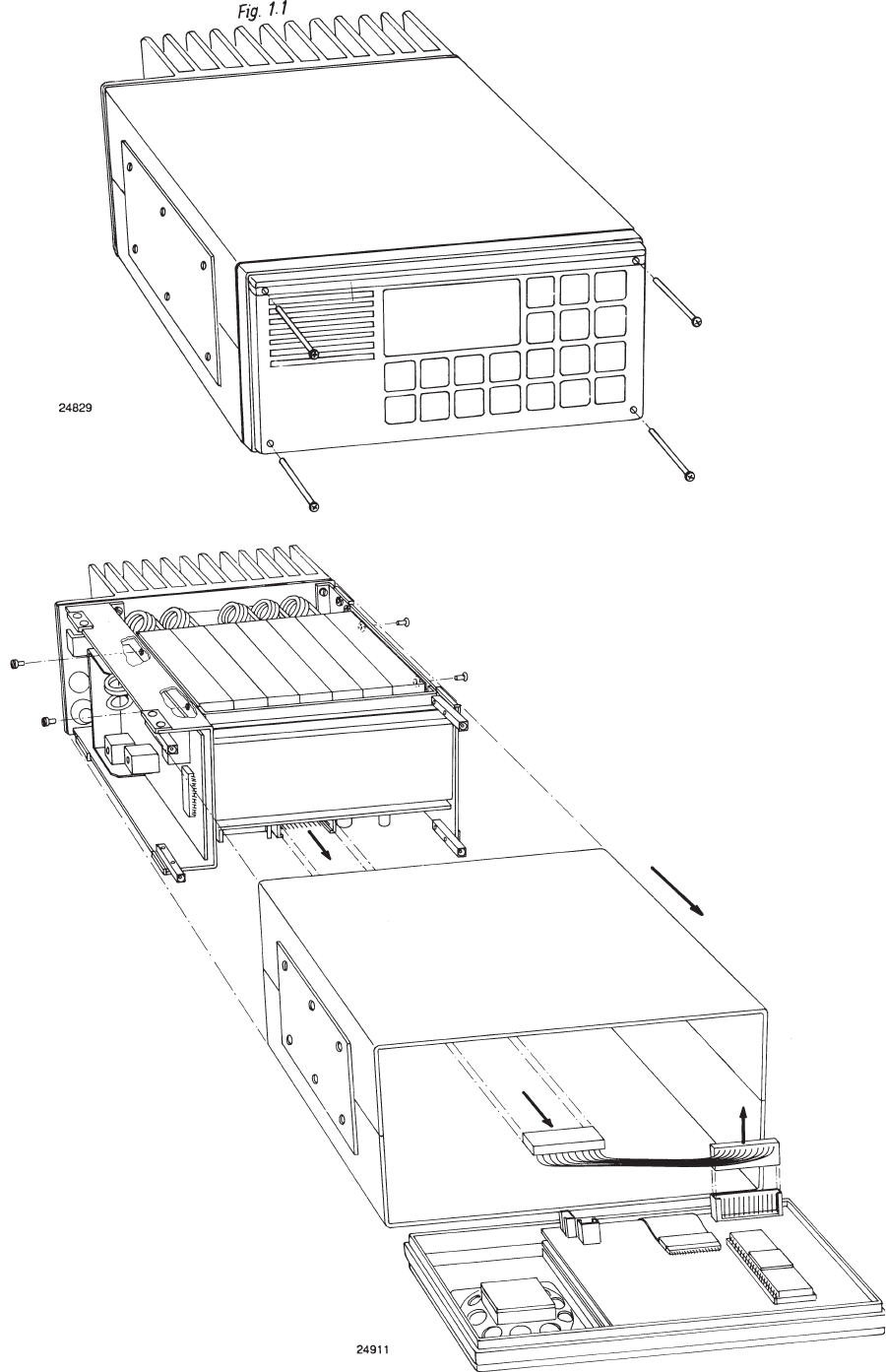

3.1 MECHANICAL DISASSEMBLING
RT2047 DSC - PART II
3 MECHANICAL DISASSEMBLING AND MODULE LOCATION RT2047 DSC - PART II
PAGE 3-2 9545
3 MECHANICAL DISASSEMBLING AND MODULE LOCATION RT2047 DSC - PART II

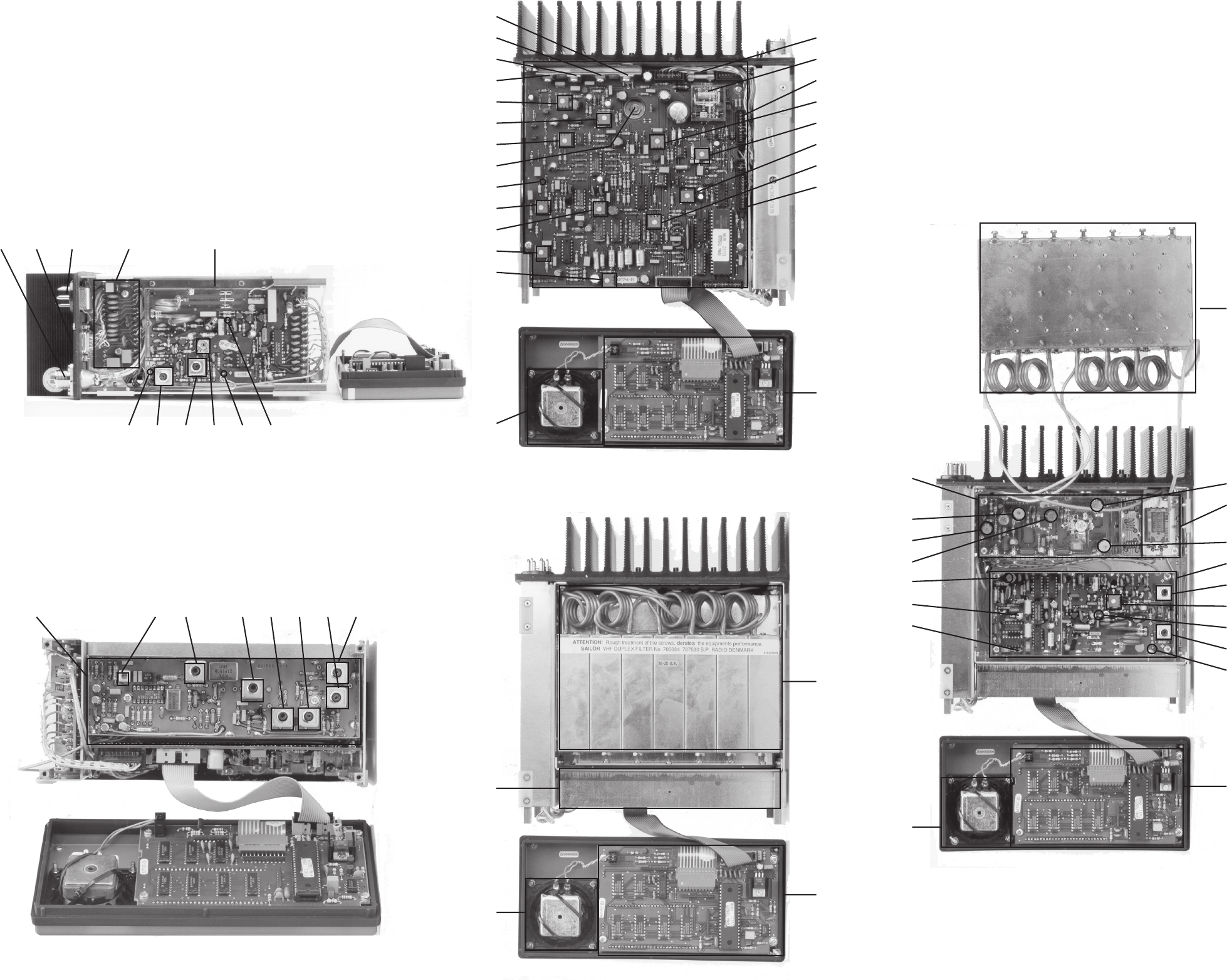

3.2 MODULE LOCATION
L108
L106
L105
L104
L103
L102
L101
RECEIVER UNIT (100)
ANTENNA
CONNECTOR J801
MICROTELEPHONE
CONNECTOR J803
FILTER UNIT (9/900)
RX-SYNTHESIZER (200)
FLO1 TO RX
L202
L206
R209
FLO1 TO TX
VVCO (R217)
R332 TX TO
PA OUTPUT
POWER
CONNECTOR P802
9545 501530
501295
PAGE 3-3
KEYBOARD UNIT
(7/700)
DUPLEX FILTER
DF801
KEYBOARD UNIT
(7/700)
LOUDSPEAKER
LS801
U2
Q9
U1
Q11
R68
R65
R29
Q1
VDRX (R6)
R16
R23
R13
R61
R63
R74
R82
RE3
LOUDSPEAKER
LS801
INTERFACE UNIT
(6/600)
RECEIVER
(100)
F1
P3/PIN9
R162
DUPLEX FILTER
DF801
C407
R341
L307
TX-EXCITER (300)
R344
L306
KEYBOARD UNIT
(7/700)
LOUDSPEAKER
LS801
C419
C413
C423
C331
T306
FP301
TX-POWER AMP
(400) C408
ANTENNA RELAY
(500)
501292
501293
501294
RT2047 DSC - PART II
CONTENTS
4 SERVICE 4-1
4.1 MAINTENANCE 4-1
4.2 ADJUSTMENT INSTRUCTIONS 4-1
4.3 PROPOSAL FOR NECESSARY MEASURING INSTRUMENTS 4-1
4.4 CALIBRATION OF THE TEST PROBE 4-2
4.5 PROCEDURE FOR CALIBRATION 4-2
4.6 ADJUSTMENT PROCEDURE 4-3
4.7 TROUBLE-SHOOTING 4-6
4.8 REPLACEMENT OF COMPONENTS 4-6
4.9 REPLACEMENT OF MODULES 4-6
4.10 NECESSARY ADJUSTMENTS AFTER REPLACEMENT OF
A MODULE 4-7
4.11 PIN CONFIGURATION 4-9
4.12 PIN CONFIGURATIONS, BLOCK & SCHEMATIC
DIAGRAMS FOR IC’S 4-10
9546
4 SERVICE RT2047 DSC - PART II
PAGE 4-1
4 SERVICE
4.1 MAINTENANCE
PREVENTIVE MAINTENANCE
If RT2047 has been installed properly the maintenance can be reduced to an overhaul at each visit of our
service staff. Inspect the set, the antenna, cables and plugs for mechanical damages, salt deposits,
corrosion and any foreign materials. Due to its solid structure the RT2047 has a long lifetime, but due to
the operating conditions it should be carefully controlled at maximum 12 month intervals. The set should
be taken to a certified service point for testing. Along with each set a “Test-sheet” is delivered in which
all the measurements made in the test department of the factory are listed. If the control measurements
made in the service workshop should show other values then those listed in the “Test-sheet”, the set must
be adjusted as specified under Adjustment Procedure.
4.2 ADJUSTMENT INSTRUCTIONS
INTRODUCTIONS
The measuring values indicated in paragraph 2 concerning circuit description and schematic diagrams
are typical values and it will be necessary to use instruments in absolute conformity with the list below:
4.3 PROPOSAL FOR NECESSARY MEASURING INSTRUMENTS
VHF Signal Generator type TF2015 MARCONI
FM Modulation Meter type TF2303 MARCONI
Distortion Analyzer type TF2337A MARCONI
AF Volmeter type VT-121 TRIO
Tone Generator type PM5107 PHILIPS
Electronic Multi meter type PM2505 PHILIPS
RF Directional Watt meter Model 43 BIRD
50W Load with 30 dB Attenuator type 8321 BIRD
FREQUENCY COUNTER:
Frequency range > 175 MHz
Sensitivity < 100 mV
Impedance > 1 MW & 50W
Accuracy < 1×10-6
We also recommend the portable universal VHF test set from Radio Holland,
the Omnitester type RH-4316. This test set is designed especially for fast and accurate service of VHF
transceivers.
9545
4 SERVICE RT2047 DSC - PART II
AA119
AA119
ceramic
1nF
1nF
ceramic To multimeter
RF
Metal tube
Insulating material
10.00 12.00 70.00
ø10
25079
LAYOUT OF THE PROBE
TEST PROBE
4.4 CALIBRATION OF THE TEST PROBE
For some test probe measurements it is necessary to use a test probe calibrated with a specified multi
meter.
NECESSARY EQUIPMENT FOR THIS PROCEDURE:
1. Diagram for the measurements
2. Test probe
3. Multi meter
4. New factory adjusted RT2047
4.5 PROCEDURE FOR CALIBRATION
1. Switch on the set.
2. Select channel 28.
3. Remove coax cable from the soldering point for FL01 to RX on the RX-Synthesizer and replace
it with a 50 resistor.
4. Connect the test probe to the point mentioned above and record the result in the diagram.
5. Remove the resistor and solder back the coax cable.
6. Follow the procedure mentioned above by measuring the levels from FL01 to TX on the RX-
Synthesizer and the TX drive level from the TX-Exciter.
All other test probe measurements are relative and ought to be measured with the same test probe and
recorded in the diagram.
PAGE 4-2 9545
4 SERVICE RT2047 DSC - PART II
4.6 ADJUSTMENT PROCEDURE
4.6.1 ADJUSTMENTS OF INTERFACE UNIT MODULE 6/600
ADJUSTMENT AND CONTROL OF VOLTAGE REGULATORS.
1. Switch on the set.
2. Select channel 28.
3. Check 13.2V with a multi-meter on fuse F1-6 and P3-6 pin 9.
4. Check 5V +0.2V with a multi-meter on U1-6 pin 3.
5. Connect the multi-meter to Q9-6’s collector and adjust the 10V regulator with R65-6 to 10V +0.2V.
6. Connect the multi-meter to Q11-6’s collector and key the transmitter.
7. Adjust the PA-regulator with R68-6 to 8.4V + 0.2V.
8. Connect the multi-meter to R6-6.
9. Adjust RX-control voltage (VDRX) to 8V + 0.2V with R16-6.
ADJUSTMENT OF SELCALL TEST TONE
The procedure is described in the manual, INSTRUCTIONS FOR IDENTITY AND
SERVICE PROGRAMMING OF VHF RT2047, section 3.8: SELCALL TEST TONE
4.6.2 ADJUSTMENTS OF RX-SYNTHESIZER MODULE 200
1. Select channel 28.
2. Check the DC-control voltage on R217 with a multi meter to be 8V + 0.4V. If components have been
changed in the VCO-circuit, it is possible that the jump wire used for adjusting the VCO frequency
range has to be moved until the 8 + 0.4 V is achieved.
3. Control the frequency FL01 to RX with a frequency counter to be 140.600 MHz.
ADJUSTMENT OF FL01 TO TX AND FL01 TO RX.
1. Connect “calibrated” test probe to soldering point for FL01 to TX.
2. Adjust L202 until the core is 0.5 mm over the coil form and potentiometer R209 CCW to 1/3 of the
range.
3. Adjust L206 to Max. deflection on the Tp meter.
4. Select channel 6.
5. Check the deflection on the Tp meter to be nearly the same as ch. 28. Otherwise obtain the level
on ch. 6 and ch. 28 to be nearly the same by adjusting L206.
6. Connect test probe to soldering point for FL01 to RX.
7. Adjust L202 to Max. deflection on the Tp meter and secure that deflection on ch. 6 and ch. 28 are
nearly the same.
The levels measured with power meter (mW) and 50 W impedance must be:
FL01 to TX: 0.25 mW
FL01 to RX: 5 mW +1.5 dB.
4.6.3 ADJUSTMENTS OF TX-EXCITER MODULE 300
1. Select channel 28.
2. Connect frequency counter to the top of T306.
3. Adjust trimming capacitor C331 until the frequency counter shows 21MHz + 20Hz. Note that when
the transmitter is keyed you can measure on R332 and adjust R331 until the frequency counter
show 157400000 Hz + 150 hz.
4. Check the clock frequency on microprocessor to be 2.1 MHz on FP301 .
5. Check the DC-control voltage on R344 to be 8 + 0.4V. If components have been changed in the
VCO-circuit it is possible that the jump wire used for adjusting the VCO frequency range has to be
moved until the 8 + 0.4V is achieved. (With the Transmitter Keyed)
PAGE 4-3
9545
4 SERVICE RT2047 DSC - PART II
ADJUSTMENT OF TX-DRIVE LEVEL.
1. Remove coax cable from TX-PA and solder a 50 W resistor from TX to PA output to ground.
2. Connect test probe to TX to PA output.
3. Adjust coils L306 and L307 to Max deflection on the Tp meter and ensure that the levels on ch. 6
and ch. 28 are nearly the same.
4. Adjust R341 to the correct output: about 3.8V on the Tp meter.
5. Remove the 50 W resistor and solder the coax cable back to the output point.
4.6.4 ADJUSTMENTS OF TX-POWER AMPLIFIER MODULE 400
ADJUSTMENT OF OUTPUT POWER.
1. Select channel 20.
2. Connect RF-power meter and a 50 W/ 25 Watt load resistor to the antenna connector J801.
3. Adjust trimming capacitors C423, C419, C413, C408, C407 to Max. deflection on the power meter.
4. Repeat the adjustment under part 3 several times to get Max. output power.
5. Adjust R68-6 on interface unit until the power meter shows 25 Watt. Max PA regulator Vcc = 10.5V.
6. Set output power to 1W.
7. Adjust R29-6 on the interface unit until the power meter shows 0.8 Watt.
4.6.5 ADJUSTMENT OF MODULATION ON INTERFACE UNIT MODULE 6/600
1. Select channel 28.
2. Disconnect the blue wire on the Filter Unit coming from J3-8 pin 3.
3. Connect tone generator and AF Volmeter between the solder terminal for the disconnected blue
wire and ground (the white wire next to it).
4. Set power output level to 1W.
5. Connect modulation meter loosely to the RF-load resistor.
6. Connect distortion analyzer to the modulation meter.
7. Turn potentiometer R61 to the middle of its adjustment range.
8. Set the tone generator to a frequency of 1000 Hz and the output level to 1 VRMS (nominal level 100
mVRMS + 20 dB). Read the level on the AF-volmeter.
9. Key the transmitter.
10. Adjust R23-6 to Max. deviation: D F = + 5.0 kHz.
11. Set level of tone generator to nominal level: 100 mVRMS.
12. Adjust R61-6 to nominal modulation: D F = + 3.0 kHz.
13. Check that the distortion is less than 5%.
4.6.6 ADJUSTMENT OF RECEIVER UNIT MODULE 100
ADJUSTMENT OF RF AND IF AMPLIFIER
1. Select channel 28.
2. Connect the signal generator to the antenna connector J801.
3. Connect the test probe to pin 16 on U101.
4. Set the signal generator frequency to 162.000 MHz and increase the level until the deflection on
the Tp meter reaches 30% of maximum deflection.
5. Readjust the signal generator level during the adjustment, if necessary to keep the same deflection
on the Tp meter. You must be sure that the signal is not compressed.
6. Adjust coils L101, L102, L103, L104, L105, L106 to maximum deflection on the Tp meter.
7. Select channel 6.
8. Set signal generator to 156.300 MHz.
9. Adjust potentiometer R16-6 (interface unit) to maximum deflection on the Tp meter.
10. Select channel 28.
11. Set the signal generator frequency to 162.000 MHz.
12. Adjust coils L101, L102, L103, L104 to maximum deflection on the Tp meter.
PAGE 4-4 9545
4 SERVICE RT2047 DSC - PART II
ADJUSTMENT OF DETECTOR, TELEPHONE-AMPLIFIER, LF-POWER-AMPLIFIER AND THE AF
FROM RX BUFFER
1. Select channel 6.
2. Connect the signal generator to the antenna connector J801.
3. Connect frequency counter between pin 3 of U101 and frame through a 10 uF capacitor.
4. Set signal generator level to -30 dBm (no modulation)
5. Adjust signal generator frequency until frequency counter shows 455.0 kHz ± 100 Hz.
6. Set modulation on signal generator to nominal modulation, fm = 1kHz and frequency deviation D
f = ± 3 kHz.
7. Connect the AF voltmeter to the telephone output, pin 1 on J803 or the solder terminal on the Filter-
Unit for the red/orange wire. (The telephone output must be loaded with 200 W or a telephone).
8. Adjust coil L108 to maximum deflection on the AF voltmeter.
9. Adjust potentiometer R74-6 to an AF level of 0.45 VRMS.
10. Connect a distortion analyzer between the orange and green wire (ground) on the Filter-Unit.
11. Set volume control to maximum level (Pos. 15).
12. Adjust potentiometer R113-6 to 3.3 VRMS over 4 W.
13. Check that distortion is below 5%.
14. Connect AF voltmeter to the ‘AF from Rx´-signal located in the Handset Key connector (J803), pin
6 or solder pin P25-9 on the Filter Unit. Also connect a 1 KW load.
15. Adjust potentiometer R162-6 until the AF voltmeter reads 0.25 VRMS.
ADJUSTMENT AND CONTROL OF RECEIVER SENSITIVITY:
l. Select channel 6.
2. Connect the signal generator to antenna connector J801.
3. Connect distortion analyzer between the orange and green wire (ground) on Filter-Unit.
4. Set the signal generator to best sensitivity (12 dB SINAD).
5. Adjust potentiometer R16-6 (Interface Unit) to the best sensitivity.
6. Adjust coils L101, L102, and L103 to Max. signal to noise ratio (best sensitivity).
7. Check that the sensitivity is better than 0.8 uV EMF for 12 dB SINAD.
ADJUSTMENT OF SQUELCH:
1. Select channel 28.
2. Connect signal generator to antenna connector J801.
3. Set squelch control to Pos. 0.
4. Adjust signal generator to give -18 dB signal to noise ratio.
5. Set squelch control to Max. position (Pos. 8).
6. Adjust potentiometer R82-6 until the squelch just starts to cut the noise.
PAGE 4-5
9545
4 SERVICE RT2047 DSC - PART II
4.7 TROUBLE-SHOOTING
Trouble-shooting should only be attempted by persons with a sufficient technical background, who have
the necessary measuring instruments at their disposal, and who have carefully studied the operation
principles and structure of RT2047.
Commence by ascertaining whether the fault is somewhere in the antenna circuit, the power source, the
handset or in the transmitter - receiver unit.
For help with trouble-shooting in the RT2047, the section 2 CIRCUIT DESCRIPTION, contains diagrams,
principal descriptions and drawings showing the location of the individual components. In the diagrams
typical values are indicated for the DC and AC voltages, just as the test points are indicated in the
diagrams.
RT2047 has a number of trimming cores and trimmers, which must not be touched, unless adjustments
like specified under section 4.5 ADJUSTMENT PROCEDURE can be made.
When measuring in the units, short-circuits must be avoided as the transistors could be destroyed.
A great help for trouble-shooting is the TEST PROGRAMMES FOR RT2047 mentioned in section 3. of
the manual: INSTRUCTIONS FOR IDENTITY AND SERVICE PROGRAMMING OF VHF RT2047.
Therefore we recommend all service personal to read sections 3,4 and 5 where the fault finding facilities
in the test programmes are located.
4.8 REPLACEMENT OF COMPONENTS
Changing of transistors, diodes, resistors, capacitors and similar components will involve the use of a
small “pencil” soldering iron of 30 to 75 Watt rating. The soldering must be performed rapidly to avoid over
heating, and the use of a tin sucker is recommended, as there is a risk that both the components and the
printed circuit will be damaged otherwise.
4.9 REPLACEMENT OF MODULES
If a fault has been located to certain module time can be saved by replacing it and repairing it on a later
occasion.
PAGE 4-6 9545
4 SERVICE RT2047 DSC - PART II
4.10 NECESSARY ADJUSTMENTS AFTER REPLACEMENT OF A MODULE
4.10.1 REPLACEMENT OF RECEIVER UNIT MODULE 100
1. Adjustment of RF and IF amplifier, point 1 - 12.
2. Alignment of detector, telephone-amplifier, LF-power-amplifier and the AF from Rx buffer, point 1
- 15.
3. Adjustment and control of receiver sensitivity, point 1 - 7.
4. Adjustment of Squelch, point 1 - 6.
4.10.2 REPLACEMENT OF RX-SYNTHESIZER MODULE 200
Normally the module is adjusted from the factory. Just control the frequency on the soldering point for
FL01 to Rx on a simplex channels e.g. oh. 6 to be in Rx-mode: 156.300 MHz - 21.4 MHz = 134.900 MHz
and in Tx-mode: 156.300 MHz - 16.8 MHz = 139.500 Mhz.
4.10.3 REPLACEMENT OF TX-EXCITER MODULE 300
Follow the procedure in section 4.5.3. Adjustment of Tx-exciter:
1. Control of frequencies and DC-control voltage to VCO, point 1 - 5.
2. Adjustment of Tx-drive level, point 1 - 5.
4.10.4 REPLACEMENT OF TX-POWER AMPLIFIER MODULE 400
Follow the procedure in section 4.5.4. Adjustment of Tx-Power Amplifier about adjustment of output
power, point 1 - 7.
4.10.5 REPLACEMENT OF INTERFACE UNIT MODULE 6/600
1. Follow the procedure in section 4.5.1. Adjustment of Interface Unit about adjustment and control
of voltage regulators, point 1 - 9 and adjustment of the SELCALL TEST TONE.
2. Section 4.5.5. Adjustment of Modulation on Interface Unit, point 1-13.
3. Section 4.5.6. Adjustment of Receiver Unit about adjustment of Telephone-amplifier, LF-power-
amplifier and the AF from Rx buffer amplifier, point 1 - 15, leaving out point 3, 5 and 8 and about
adjustment of squelch, point 1 - 6.
4. Section 4.5.4. Adjustment of TX-Power Amplifier, point 5 - 7.
PAGE 4-7
9545
4 SERVICE RT2047 DSC - PART II
PAGE 4-8 9545
4 SERVICE RT2047 DSC - PART II
4.11 PIN CONFIGURATION
9545 PAGE 4-9
4 SERVICE RT2047 DSC - PART II
4.12 PIN CONFIGURATIONS, BLOCK & SCHEMATIC DIAGRAMS FOR IC’S

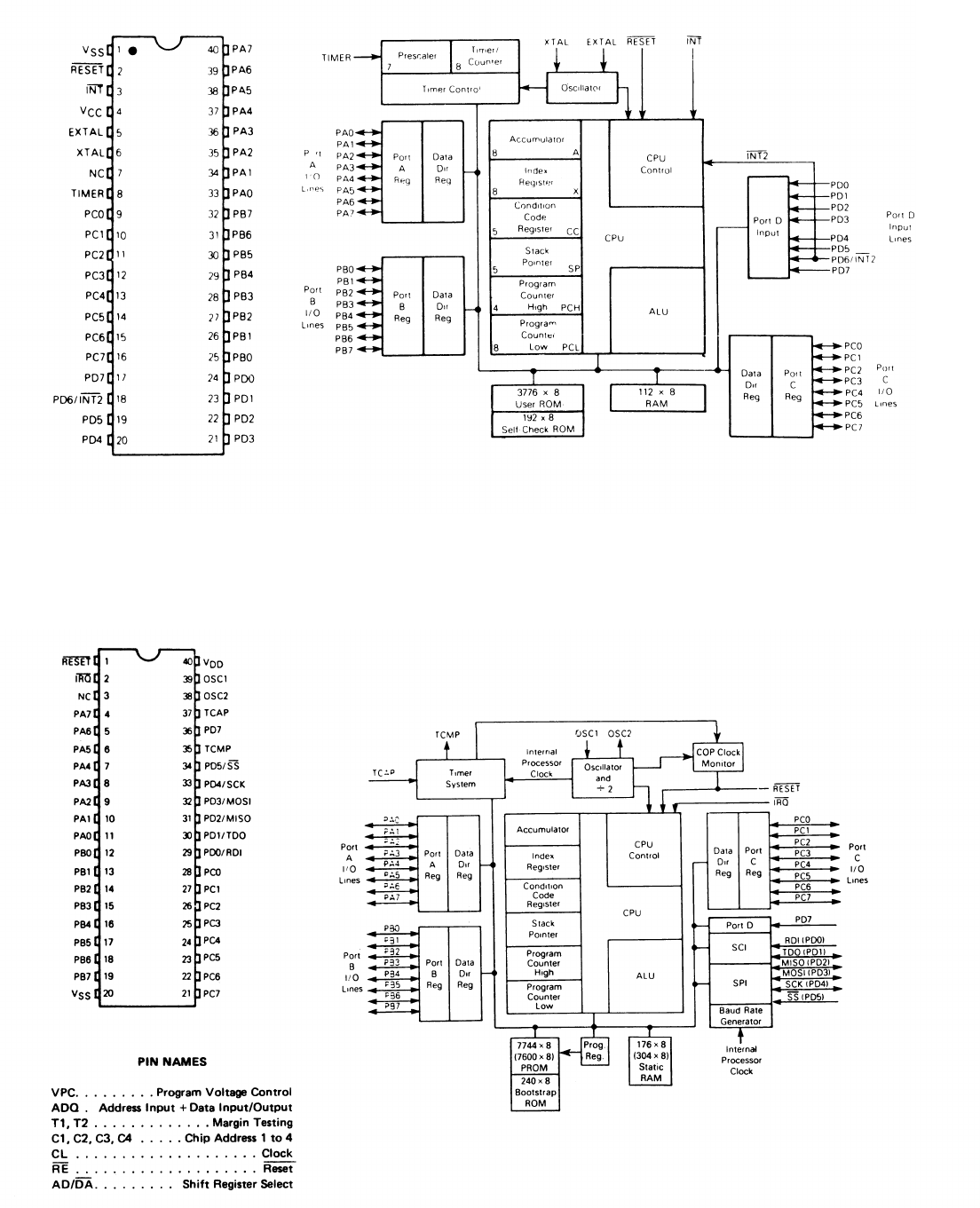

MC6805U3 8-BIT MICROCOMPUTER
PIN ARRANGEMENT BLOCK DIAGRAM
MC68HC705C8 8-BIT MICROCOMPUTER
PIN ARRANGEMENT BLOCK DIAGRAM
PAGE 4-10 9545
4 SERVICE RT2047 DSC - PART II
NMC93C56N
PIN ARRANGEMENT BLOCK DIAGRAM
LM393N
PIN ARRANGEMENT
PAGE 4-11
9545
4 SERVICE RT2047 DSC - PART II

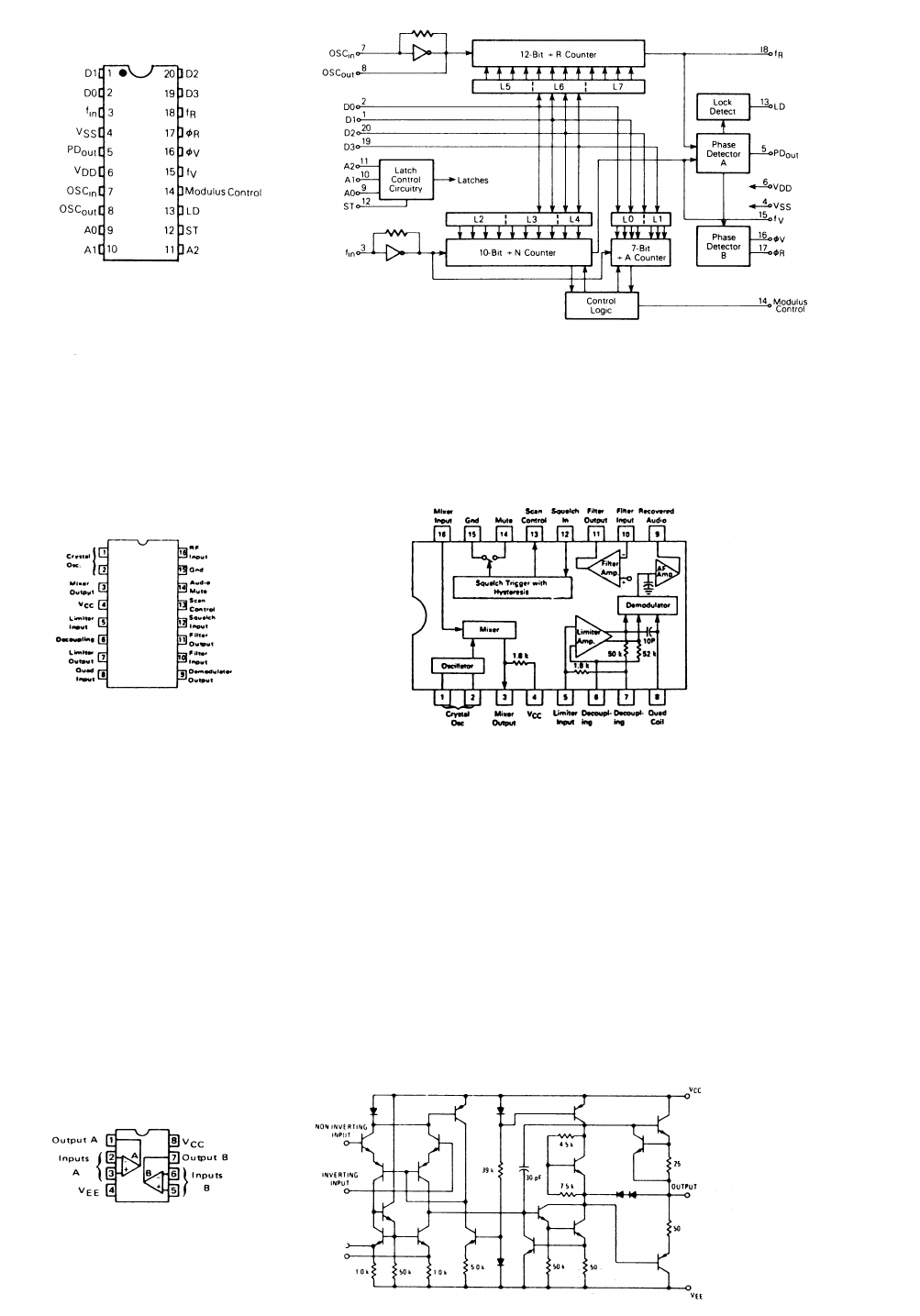

MC145146 4-BIT DATA BUS INPUT PLL FREQUENCY SYNTHESIZER
PIN ARRANGEMENT BLOCK DIAGRAM
MC3361 FM IF AMPLIFIER, LIMITER AND DETECTOR
PIN ARRANGEMENT BLOCK DIAGRAM
MC1458CP DUAL OPERATIONAL AMPLIFIER
CONNECTION DIAGRAM EQUIVALENT CIRCUIT SCHEMATIC
PAGE 4-12 9545
4 SERVICE RT2047 DSC - PART II

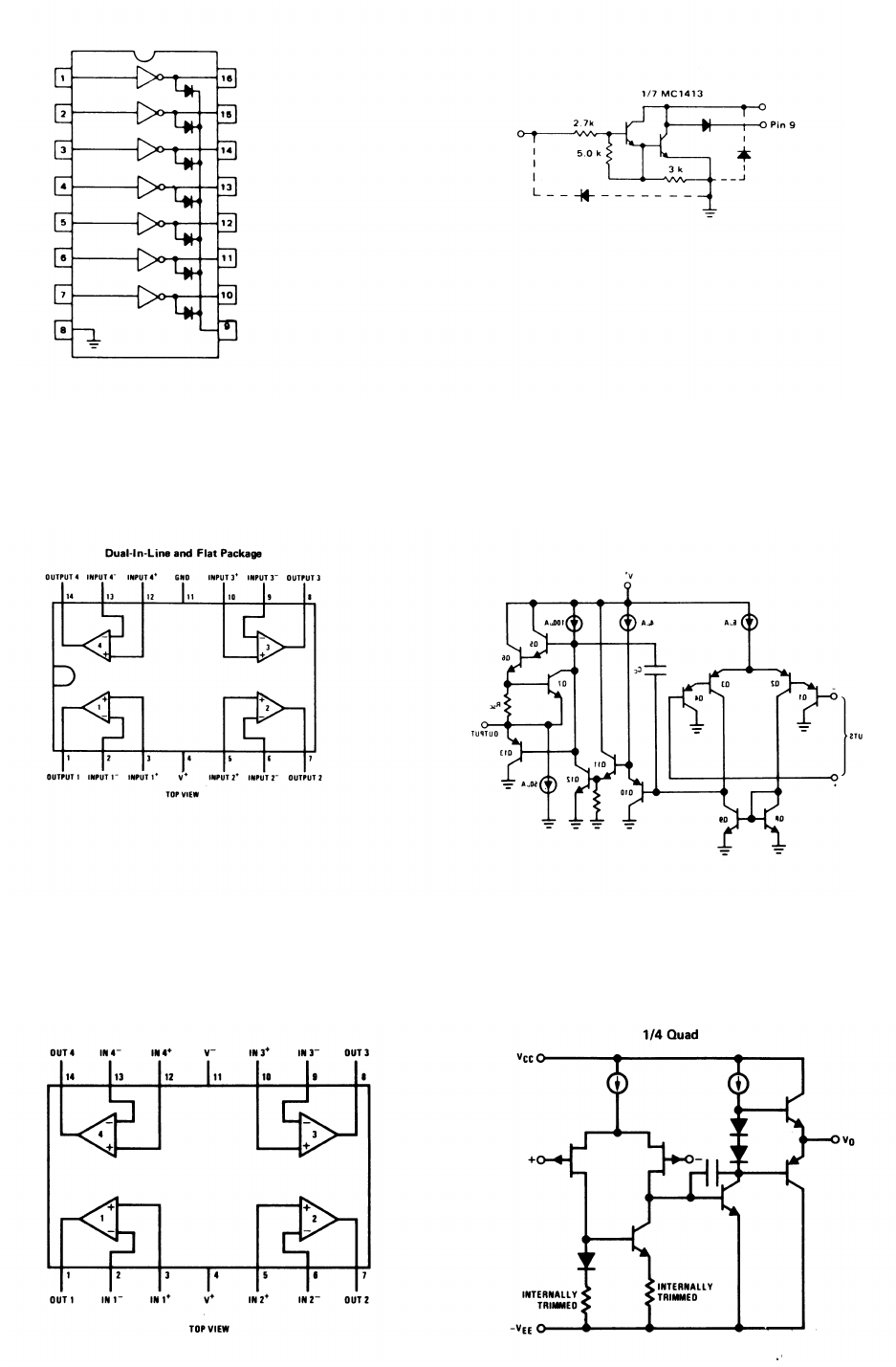

MC1413 HIGH-VOLTAGE, HIGH-CURRENT TRANSISTOR ARRAYS
PIN CONNECTIONS SCHEMATIC DIAGRAM
LM324 LOW POWER QUAD OPERATIONAL AMPLIFIERS
CONNECTION DIAGRAM SCHEMATIC DIAGRAM (EACH AMPLIFIER)
LF347 4 x JFET INPUT OP. AMP.
CONNECTION DIAGRAM SIMPLIFIED SCHEMATIC
PAGE 4-13
9545
4 SERVICE RT2047 DSC - PART II

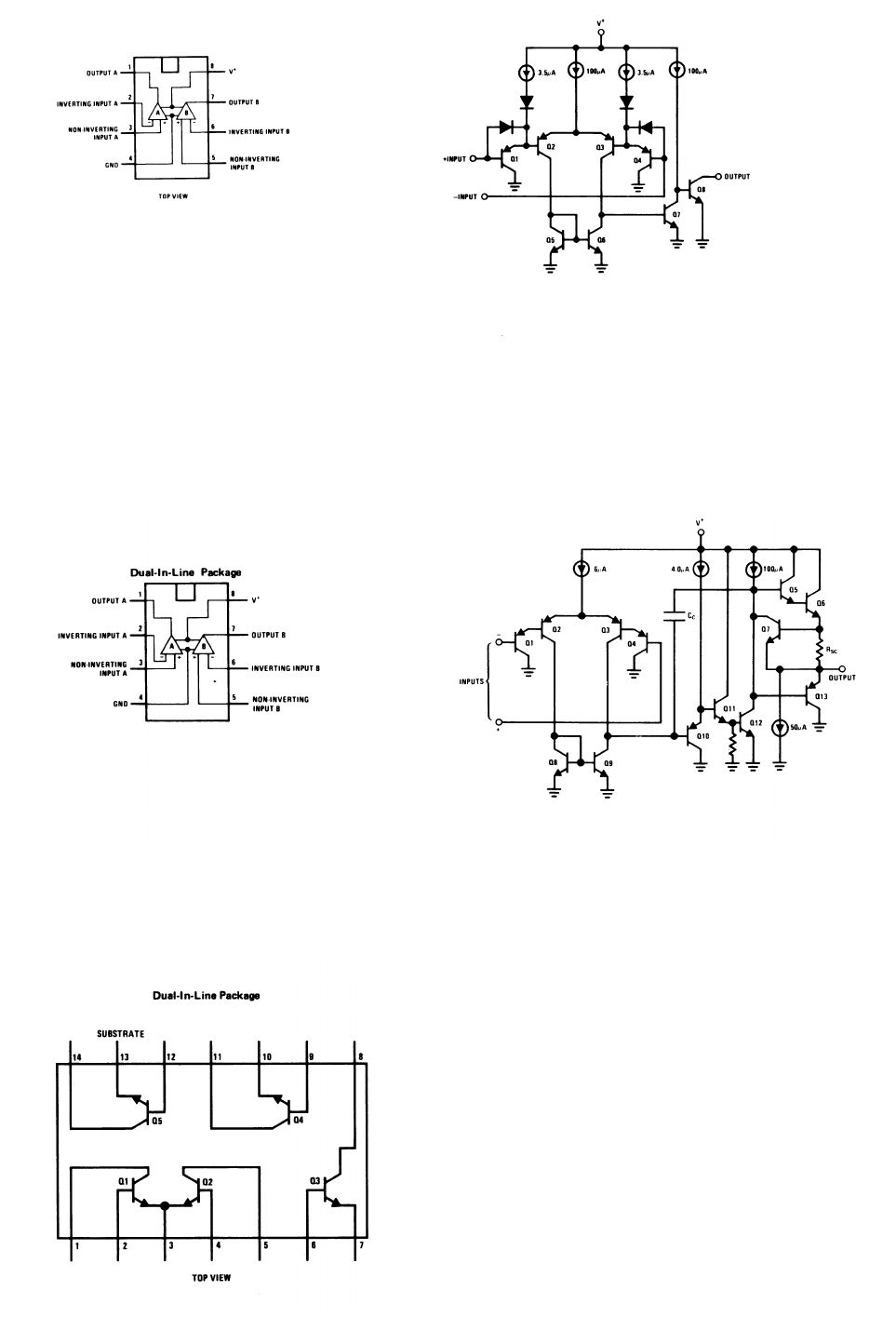

LM393 LOW POWER LOW OFFSET VOLTAGE COMPARATORS
CONNECTION DIAGRAM SCHEMATIC DIAGRAM
LM358 LOW POWER DUAL OPERATIONAL AMPLIFIERS
CONNECTION DIAGRAM (TOP VIEW) SCHEMATIC DIAGRAM (EACH AMPLIFIER)
LM3046 TRANSISTOR ARRAYS
SCHEMATIC AND CONNECTION DIAGRAM
PAGE 4-14 9545
4 SERVICE RT2047 DSC - PART II

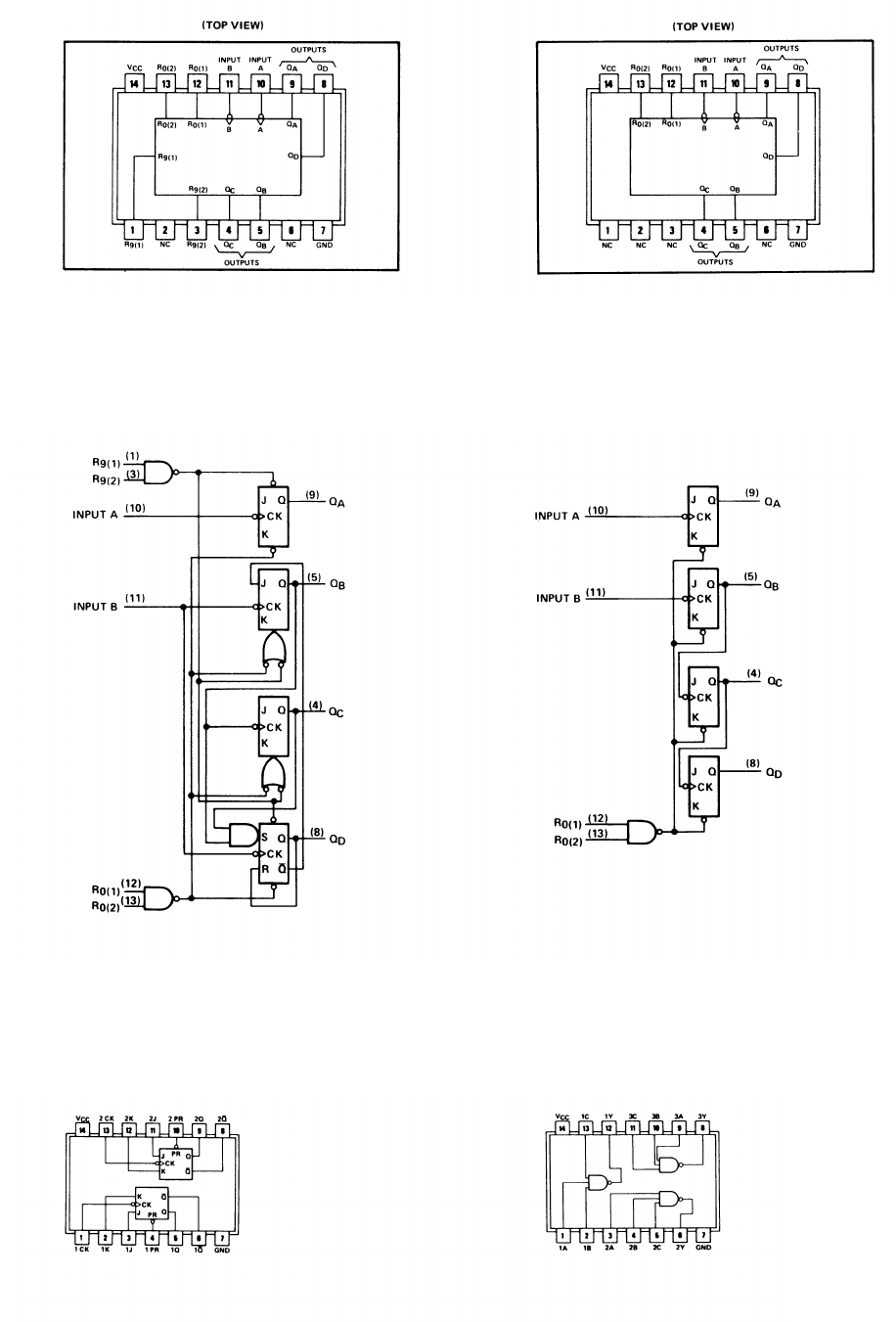

SN74LS290 SN74LS293
DECADE COUNTER BINARY COUNTER
FUNCTIONAL BLOCK DIAGRAM LS290 FUNCTIONAL BLOCK DIAGRAM LS293
SN74LS113AN SN74LS10N
DUAL J-K FLIP-FLOP TRIPLE 3-INPUT NAND GATES
PAGE 4-15
9545
4 SERVICE RT2047 DSC - PART II

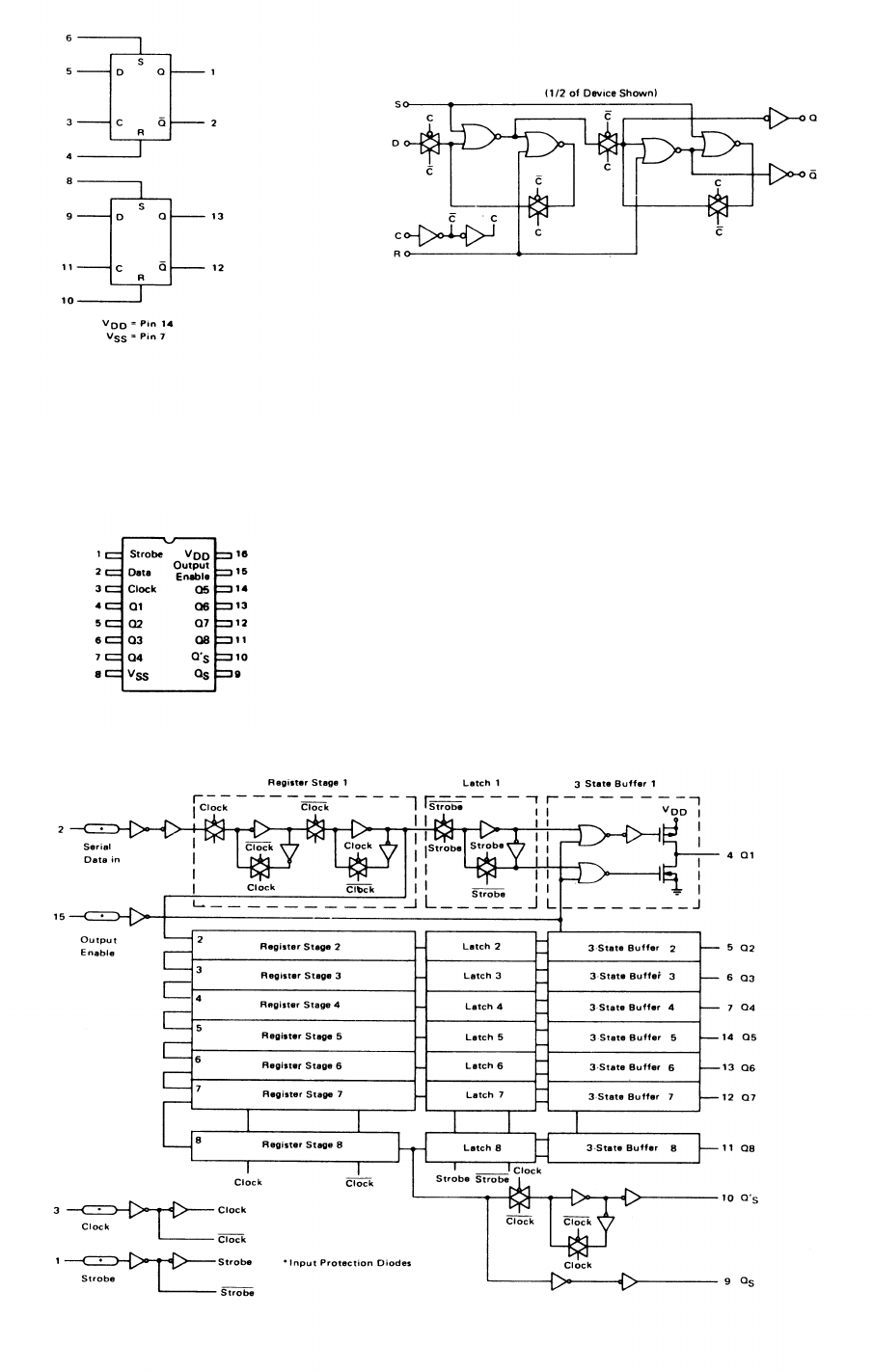

MC14013B DUAL TYPE D FLIP-FLOP
BLOCK DIAGRAM LOGIC DIAGRAM
MC14094B 8-STAGE SHIFT/STORE REGISTER
PIN ARRANGEMENT
BLOCK DIAGRAM
PAGE 4-16 9545
4 SERVICE RT2047 DSC - PART II

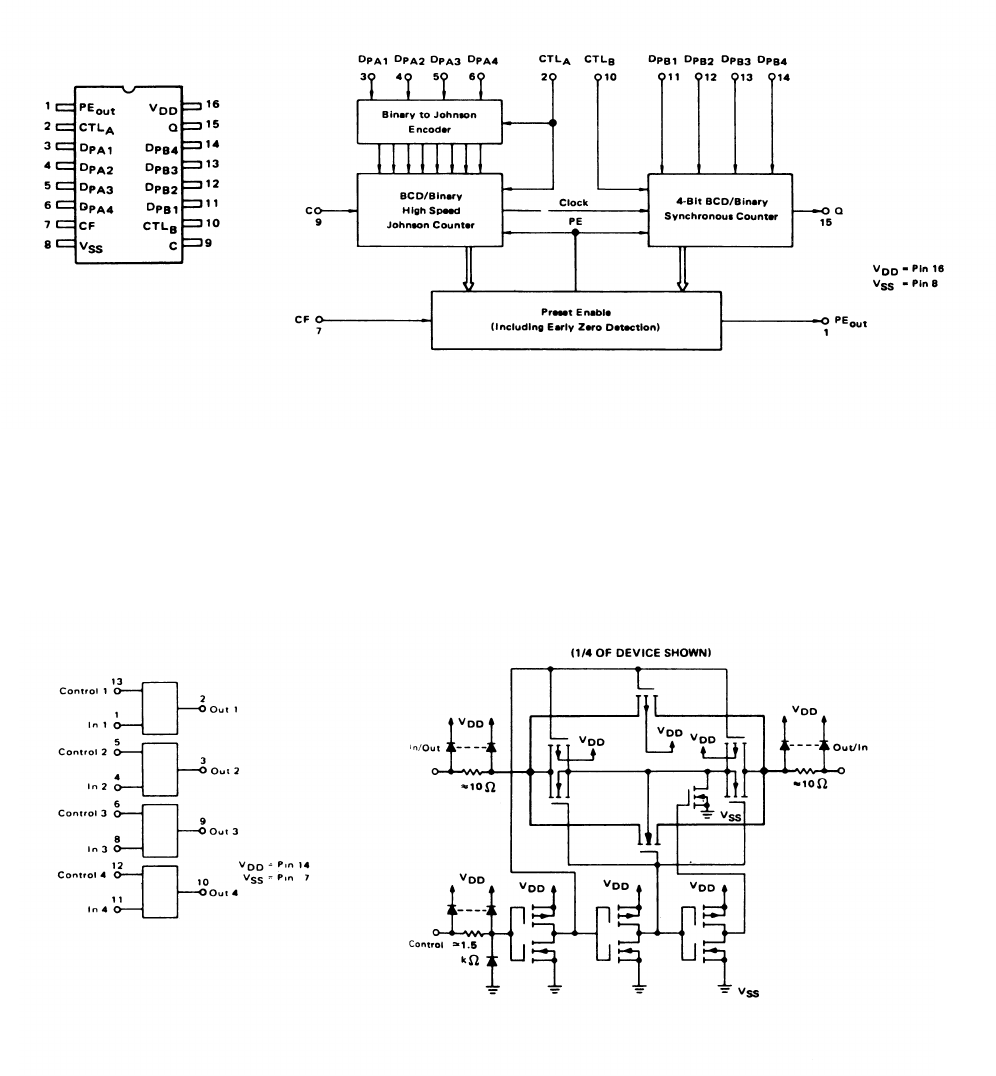

MC14569B HIGH SPEED PROGRAMABLE DIVIDE-BY-N DUAL 4 BIT BCD/BINARY COUNTER
PIN ARRANGEMENT BLOCK DIAGRAM
MC14066B QUAD ANALOG SWITCH QUAD MULTIPLEXER
BLOCK DIAGRAM CIRCUIT SCHEMATIC
PAGE 4-17
9545
4 SERVICE RT2047 DSC - PART II
PAGE 4-18 9545
TDA2002 AF POWER AMP.
CONNECTION DIAGRAM
SCHEMATIC DIAGRAM
MC12015 TWO-MODULUS PRESCALER MC14069UB HEX INVERTER
PRESCALER BLOCK DIAGRAM LOGIC DIAGRAM
CIRCUIT SCHEMATIC
RT2047 DSC - PART II
CONTENTS
5 PARTS LISTS 5-1
9546
PAGE 5-1
5 PARTS LIST
RT2047 DSC - PART II
9810
MAIN CHASSIS RT2047/D MODULE 800 S.P.RADIO A/S VHF RADIOTELEFON DUPLEX 862047
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
-1/100 RECEIVER MODULE 100 ECI A/S 4-6-32127B /4-0-32127B 600009
-2/200 RX-SYNTHESISER MODULE 200 ECI A/S 5-0-23694D 600012
-3/300 TX-EXCITER MODULE 300 ECI A/S 5-0-23695D 600100
-4/400 TX-POWER AMPLIFIER MODULE 400 & 500 ECI A/S 5-0-23973B 600013
-6/600 INTERFACE UNIT MODULE 6/600 ECI A/S 5-0-27746D/4-0-27746D 627746
-7/700 KEYBOARD UNIT MODULE 7/700 ECI A/S 5-0-27747C/4-0-27747B 627747
-9/900 FILTER UNIT MODULE 700 ECI A/S 727749
VARIOUS MICROTELEPHONE FOR CRY2001, RT2048 & RE2100 ECI A/S 700118 MICROTELEPHONE 700118
C801 CAPACITOR CERAMIC 470pF 10% 400VDC KCK HM60 SJ YB 471 K 16.096
C802 CAPACITOR CERAMIC 470pF 10% 400VDC KCK HM60 SJ YB 471 K 16.096
C803 CAPACITOR CERAMIC 1nF -20/+80% 400V FERROPERM 9/0138,9 U/LAK+TR•D 16.152
C804 CAPACITOR CERAMIC 470pF 10% 400VDC KCK HM60 SJ YB 471 K 16.096
C805 CAPACITOR CERAMIC 470pF 10% 400VDC KCK HM60 SJ YB 471 K 16.096
C806 CAPACITOR CERAMIC 4n7F -20/80% 500VDC CL2 KCK HM11 SJ YE 472 Z 16.155
DF801 DUPLEX FILTER DF 801 ECI A/S DF 801 700084
J801 ANTENNA JACK (FEMALE) SO239 KAJ V HANSEN SO239 78.504
J802 SUPPLY JACK (FEMALE) MEK 60 BZ HIRSCHMANN 973025-100 78.309
J803 SOCKET SUB D 9 POLES SOLDER VERSION 4-40 NUT EDA INC. 8SO-009SS-204T 78.172
LS801 LOUDSPEAKER 8 OHM VIFA S06FB-03-08 46.040
P801 AERIAL PLUG PL259 * RODAN PL259/LODDE/TEFLON INDER 78.502
P802 SUPPLY JACK (MALE) MESEI 60 HIRSCHMANN 973020-100 78.320
R801 RESISTOR MF 15k OHM 5% 0.4W PHILIPS 2322 181 53153 01.229
MICROTELEPHONE w. CRADLE CRY2001/RE2100/RT2048 ECI A/S 3-0-25772 725772
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
VARIOUS HANDSET HOLDER KORONA PLAST 0-3-29132A 48.669
VARIOUS MICROTELEPHONE FOR CRY2001, RT2048 & RE2100 ECI A/S 700118 MICROTELEPHONE 700118
VARIOUS LOCKING SCREW f. DCONN. SOURIAU 8630-05 78.755
RECEIVERMODULE 100 ECI A/S 4-6-32127B /4-0-32127B 600009
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
C101 CAPACITOR CERAMIC 2p7F +/-0.1pF NPO 250VDC FERROPERM 2.7pF +/- 0.1pF 9/0112.9- 15.516
C102 CAPACITOR CERAMIC 10pF 5% NPO 500VDC KCK RT-HM60 SK CH 100 J 15.565
C103 CAPACITOR CERAMIC 6p8F +-0.25pF NPO 500VDC KCK RT-HM60 SK CH 6R8 C 15.023
C104 RECEIVER (100) RT2047 5-0-32127B / 1-0-32127A 51.783
C105 CAPACITOR CERAMIC 6p8F +-0.25pF NPO 500VDC KCK RT-HM60 SK CH 6R8 C 15.023
C106 CAPACITOR CERAMIC 470pF 10% 500VDC KCK RT-HM60 SK YB 471 K 16.095
C107 CAPACITOR CERAMIC 2p7F +/-0.1pF NPO 250VDC FERROPERM 2.7pF +/- 0.1pF 9/0112.9- 15.516
C108 CAPACITOR CERAMIC 10pF 5% NPO 500VDC KCK RT-HM60 SK CH 100 J 15.565
C109 CAPACITOR CERAMIC 470pF 10% 500VDC KCK RT-HM60 SK YB 471 K 16.095
C110 CAPACITOR CERAMIC 470pF 10% 500VDC KCK RT-HM60 SK YB 471 K 16.095
C111 CAPACITOR CERAMIC 5p1F +/-0.25pF NPO 500VDC KCK RT-HM60-SK CH 5R1 C 15.539
C112 CAPACITOR CERAMIC 8p2F +-0.25pF NPO 500VDC KCK RT-HM60 SK 8R2 C 15.030
C113 RECEIVER (100) RT2047 5-0-32127B / 1-0-32127A 51.783
C114 CAPACITOR CERAMIC 470pF 10% 500VDC KCK RT-HM60 SK YB 471 K 16.095
C115 CAPACITOR CERAMIC 8p2F +-0.25pF NPO 500VDC KCK RT-HM60 SK 8R2 C 15.030
C116 CAPACITOR CERAMIC 2p2F +/-0.1pF NPO 400VDC FERROPERM 2.2pF +/- 0.1pF 9/0112.9- 15.513
C117 CAPACITOR CERAMIC 390P 25V 5% N150 FERROPERM 9/0216,8 15.800
C118 CAPACITOR MKT 4n7F 10% 63VDC PHILIPS 2222 370 88472 11.374
C119 FERROPERM 9/0216,8 15.778
C120 CAPACITOR CERAMIC 470pF 10% 500VDC KCK RT-HM60 SK YB 471 K 16.095
C121 CAPACITOR MKT 4n7F 10% 63VDC PHILIPS 2222 370 88472 11.374
C122 CAPACITOR CERAMIC 33pF 5% N150 50VDC KCK RT-HE50 SK PH 330 J 15.092
C123 CAPACITOR CERAMIC 100pF 5% N33 25V #FERROPERM 9/0213,8 15.781
C124 CAPACITOR MKT 10nF 10% 400V SIEMENS B32510-D6103-K000 11.381
C125 CAPACITOR CERAMIC 15pF 5% NPO 500VDC KCK RT-HM60 SK CH 150 J 15.590
C126 CAPACITOR MKT 10nF 10% 400V SIEMENS B32510-D6103-K000 11.381
C127 CAPACITOR MKT 10nF 10% 400V SIEMENS B32510-D6103-K000 11.381
C128 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C129 CAPACITOR POLYSTYRENE 240pF 1% 630VDC PHILIPS 2222 431 82401 10.410
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
PAGE 5-2 9810
C130 CAPACITOR CERAMIC 33pF 5% N150 50VDC KCK RT-HE50 SK PH 330 J 15.092
C131 CAPACITOR POLYSTERENE 120pF 1% 630V #PHILIPS 2222 431 81201 10.403
C132 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C133 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C134 CAPACITOR POLYSTYRENE 180pF 1% 630VDC PHILIPS 2222 431 81801 10.407
C135 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C136 CAPACITOR MKT 330nF 5% 63VDC PHILIPS 2222 370 79334 11.184
C137 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M5K 14.512
C138 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M5K 14.512
C139 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M5K 14.512
C140 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M5K 14.512
C141 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C142 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M5K 14.512
C143 CAPACITOR CERAMIC 1nF 10% 50VDC CL2 KCK RT-SK-HE50 SJYB 102 K 16.160
C144 CAPACITOR CERAMIC 1nF 10% 50VDC CL2 KCK RT-SK-HE50 SJYB 102 K 16.160
C145 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
D101 DIODE CAPASITANCE 13pF/9VDC TOSHIBA 1SV101 in matched group 26.135
D102 DIODE CAPASITANCE 13pF/9VDC TOSHIBA 1SV101 in matched group 26.135
D103 DIODE CAPASITANCE 13pF/9VDC TOSHIBA 1SV101 in matched group 26.135
D104 DIODE CAPASITANCE 13pF/9VDC TOSHIBA 1SV101 in matched group 26.135
FL101 CRYSTAL FILTER 21.4 MHz NDK 21F15DH 40.022
FL102 STETT, CFU 455 D2 81004552
U101 NBFM IF SYSTEM MC3361 PHILIPS MC 3361 N 31.325
U102 POS. VOLTAGE REG. FIXED 5V/0.1A 78L05AC MOTOROLA MC78L05ACP RA 31.135
L101 COIL TL355 ECI A/S 6-0-23627 400355
L102 COIL TL356 ECI A/S 6-0-23628 400356
L103 COIL TL357 ECI A/S 6-0-23629 400357
L104 COIL TL358 ECI A/S 6-0-23630 400358
L105 COIL TL360 ECI A/S 6-0-23632A 400360
L106 COIL TL361 ECI A/S 6-0-23633 400361
L107 CHOKE FIXED 4u7H 10% SIEMENS B78108-T1472-K 20.355
L108 COIL RF 568nH ADJUSTABLE SUMIDA ELEC.CO. P-75B / 2175-2239-1025 38.432
L111 COIL TL359 ECI A/S 6-0-23631 400359
R101 RESISTOR MF 33k OHM 5% 0.4W PHILIPS 2322 181 53333 01.237
R102 RESISTOR MF 33k OHM 5% 0.4W PHILIPS 2322 181 53333 01.237
R103 RESISTOR MF 180 OHM 5% 0.4W PHILIPS 2322 181 53181 01.181
R104 RESISTOR MF 1k5 OHM 5% 0.4W PHILIPS 2322 181 53152 01.204
R105 RESISTOR MF 4k7 OHM 5% 0.4W PHILIPS 2322 181 53472 01.216
R106 RESISTOR MF 33k OHM 5% 0.4W PHILIPS 2322 181 53333 01.237
R107 RESISTOR MF 33k OHM 5% 0.4W PHILIPS 2322 181 53333 01.237
R108 RESISTOR MF 330 OHM 5% 0.4W PHILIPS 2322 181 53331 01.187
R109 RESISTOR MF 1k2 OHM 5% 0.4W PHILIPS 2322 181 53122 01.202
R110 RESISTOR MF 3k9 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-3k9 01.714
R111 RESISTOR MF 82 OHM 5% 0.4W PHILIPS 2322 181 53829 01.172
R112 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R113 RESISTOR MF 12k OHM 5% 0.4W PHILIPS 2322 181 53123 01.227
R114 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R115 RESISTOR MF 10 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-10R 01.650
R116 RESISTOR MF 150 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-150R 01.679
R117 RESISTOR MF 150 OHM 5% 0.4W PHILIPS 2322 181 53151 01.179
R118 RESISTOR MF 5k36 OHM 1% 0.6W PHILIPS 2322 156 15362 03.418
R119 RESISTOR MF 1k5 OHM 5% 0.4W PHILIPS 2322 181 53152 01.204
R120 RESISTOR MF 43k OHM 5% 0.4W PHILIPS 2322 181 53433 01.240
R121 RESISTOR MF 3k9 OHM 5% 0.4W PHILIPS 2322 181 53392 01.214
R122 RESISTOR MF 47k OHM 5% 0.4W PHILIPS 2322 181 53473 01.241
R123 RESISTOR MF 27k OHM 5% 0.4W PHILIPS 2322 181 53273 01.235
R124 RESISTOR MF 27k OHM 5% 0.4W PHILIPS 2322 181 53273 01.235
R125 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R126 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R127 RESISTOR MF 220 OHM 5% 0.4W PHILIPS 2322 181 53221 01.183
R128 RESISTOR MF 470 OHM 5% 0.4W PHILIPS 2322 181 53471 01.191
R129 RESISTOR MF 220 OHM 5% 0.4W PHILIPS 2322 181 53221 01.183
Q101 TRANSISTOR RF LOW POWER PNP BF979/BF479 TELEFUNKEN AG BF979 28.250
Q102 TRANSISTOR N-CHAN. JFET TIS88A2 MOTOROLA TM00 044-2 29.736
Q103 TRANSISTOR MOSFET BF961 TFK* BF961 29.755
Q104 TRANSISTOR AF BC547B NPN TO-92 MOT. BC547BZL1 28.067
X101 20,9450MHZ 20PPM HC43/U 38350131
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
PAGE 5-3
9810
RX-SYNTHESISER MODULE 200 ECI A/S 5-0-23694D 600012
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
C201 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C202 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C203 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C204 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C205 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C206 CAPACITOR CERAMIC 27pF 5% N150 50VDC KCK RT-HE50 SK PH 270 J 15.812
C207 CAPACITOR CERAMIC 10pF 5% NPO 500VDC KCK RT-HM60 SK CH 100 J 15.565
C208 CAPACITOR CERAMIC 27pF 5% N150 50VDC KCK RT-HE50 SK PH 270 J 15.812
C209 CAPACITOR CERAMIC 27pF 5% N150 50VDC KCK RT-HE50 SK PH 270 J 15.812
C210 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C211 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C212 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C213 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C214 CAPACITOR CERAMIC 16pF 5% N150 50VDC KCK RT-HE40-SK PH 160 J 15.057
C215 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C216 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C217 CAPACITOR CERAMIC 15pF 5% NPO 500VDC KCK RT-HM60 SK CH 150 J 15.590
C218 CAPACITOR POLYESTER 150nF 10% 100VDC PHILIPS 2222 372 28154 11.074
C219 CAPACITOR POLYESTER 68nF 10% 250V ERO MKT1822 11.102
C220 CAPACITOR POLYSTYRENE 820pF 1% 250VDC PHILIPS 2222 430 88201 10.348
C221 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C222 CAPACITOR CERAMIC 22pF 5% N150 500VDC KCK RT-HM SK PH 220 J 15.062
C223 CAPACITOR POLYESTER 68nF 10% 250V ERO MKT1822 11.102
C224 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C225 CAPACITOR MKT 2u2F 10% 100VDC ERO MKT 1822-522/01 5 R 11.142
C226 CAPACITOR CERAMIC 100pF 5% N150 500V #KCK HM11SJPH101J 15.132
C227 CAPACITOR CERAMIC 1nF 10% 50VDC CL2 KCK RT-SK-HE50 SJYB 102 K 16.160
C228 CAPACITOR CERAMIC 1nF 10% 50VDC CL2 KCK RT-SK-HE50 SJYB 102 K 16.160
C229 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C230 CAPACITOR MKT 100nF 10% 100VDC ERO MKT 1822-410/01 5 11.073
C231 CAPACITOR CERAMIC 1nF 10% 50VDC CL2 KCK RT-SK-HE50 SJYB 102 K 16.160
C232 CAPACITOR CERAMIC 100nF 10% 50V SIEMENS B37987-F5104-K000 16.305
C233 CAPACITOR POLYESTER 0.22uF 10% 100V PHILIPS* 2222 369 28224 11.075
C234 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C235 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C236 CAPACITOR CERAMIC 33pF 5% N150 400V #KCK HM74SJPH330J 15.083
C237 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C238 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C239 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C240 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C241 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C242 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C243 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C244 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C245 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C246 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C247 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
D201 DIODE CAPASITANCE 13pF/9VDC TOSHIBA 1SV101 in matched group 26.135
D202 DIODE BAW62 HIGH SPEED PHILIPS BAW62-143 25.350
D203 DIODE BAW62 HIGH SPEED PHILIPS BAW62-143 25.350
D204 DIODE BAW62 HIGH SPEED PHILIPS BAW62-143 25.350
IC201 INTEGRATED CIRCUIT MC12015P MOTOROLA MC12015P 32.850
IC202 INTEGRATED CIRCUIT 4BIT SER.INP.PLL SYNTHES MOTOROLA SC145146P 33.490
L205 CHOKE 4u7H 10% SIEMENS B78108-T1472-K 20.137
R201 RESISTOR MF 1k5 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-1k5 01.704
R202 RESISTOR MF 1k0 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-1k0 01.700
R203 RESISTOR MF 68 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-68R 01.670
R204 RESISTOR MF 33 OHM 5% 0.4W PHILIPS 2322 181 53339 01.162
R205 RESISTOR MF 68 OHM 5% 0.4W PHILIPS 2322 181 53689 01.170
R206 RESISTOR MF 390 OHM 5% 0.4W PHILIPS 2322 181 53391 01.189
R207 RESISTOR MF 560 OHM 5% 0.4W PHILIPS 2322 181 53561 01.193
R208 RESISTOR MF 560 OHM 5% 0.4W PHILIPS 2322 181 53561 01.193
R209 POTENTIOMETER TRIMMING 470 OHM 10% 0.5W PHILIPS* 2322 484 75471 07.651
R210 RESISTOR MF 56k OHM 5% 0.4W PHILIPS 2322 181 53563 01.243
R211 RESISTOR MF 33 OHM 5% 0.4W PHILIPS 2322 181 53339 01.162
R212 RESISTOR MF 5k6 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-5k6 01.718
R213 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R214 RESISTOR MF 68 OHM 5% 0.4W PHILIPS 2322 181 53689 01.170
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
PAGE 5-4 9810
R215 RESISTOR MF 330 OHM 5% 0.4W PHILIPS 2322 181 53331 01.187
R216 RESISTOR MF 1k5 OHM 5% 0.4W PHILIPS 2322 181 53152 01.204
R217 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R218 RESISTOR MF 27 OHM 5% 0.4W PHILIPS 2322 181 53279 01.160
R219 RESISTOR MF 180 OHM 5% 0.4W PHILIPS 2322 181 53181 01.181
R220 RESISTOR MF 4k7 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-4k7 01.716
R221 RESISTOR MF 4k7 OHM 5% 0.4W PHILIPS 2322 181 53472 01.216
R222 RESISTOR MF 6k8 OHM 5% 0.4W PHILIPS 2322 181 53682 01.220
R223 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R224 RESISTOR MF 390k OHM 5% 0.4W PHILIPS 2322 181 53394 01.264
R225 RESISTOR MF 100 OHM 5% 0.4W PHILIPS 2322 181 53101 01.175
R226 RESISTOR MF 820 OHM 5% 0.4W PHILIPS 2322 181 53821 01.197
R227 RESISTOR MF 390 OHM 5% 0.4W PHILIPS 2322 181 53391 01.189
R228 RESISTOR MF 120 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-120R 01.677
R229 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R230 RESISTOR MF 3k3 OHM 5% 0.4W PHILIPS 2322 181 53332 01.212
R231 RESISTOR MF 12k OHM 5% 0.4W PHILIPS 2322 181 53123 01.227
R232 RESISTOR MF 3k3 OHM 5% 0.4W PHILIPS 2322 181 53332 01.212
R233 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R234 RESISTOR MF 120 OHM 5% 0.4W PHILIPS 2322 181 53121 01.177
T201 TRANSISTOR RF BFW92A TFK BFW92A 29.160
T202 TRANSISTOR JFET TIS88A3 TO-92 MOTORPLA TM 00 044-3 29.737
T203 TRANSISTOR AF BC548B NPN TO-92 PHILIPS BC548B-126 28.076
T204 TRANSISTOR RF BFW92A TFK BFW92A 29.160
T205 TRANSISTOR AF BC558B ITT/MOT BC558B 28.100
T206 TRANSISTOR AF BC548B NPN TO-92 PHILIPS BC548B-126 28.076
T207 TRANSISTOR BC549B PHILIPS* BC549B-126 28.080
T208 TRANSISTOR BC549B PHILIPS* BC549B-126 28.080
T209 TRANSISTOR AF BC548B NPN TO-92 PHILIPS BC548B-126 28.076
T210 TRANSISTOR AF BC558B ITT/MOT BC558B 28.100
L201 COIL TL370 S.P.RADIO 6-0-23686 400370
L202 COIL TL368 ECI A/S 6-0-23592 400368
L203 COIL TL375 ECI A/S 6-0-23696B 400375
L204 COIL TL376 S.P.RADIO 6-0-23697C 400376
L206 COIL TL369 S.P.RADIO 6-0-23662 400369
L207 COIL TL371 ECI A/S 6-0-23687 400371
TX-EXCITER MODULE 300 ECI A/S 5-0-23695D 600100
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
C301 CAPACITOR CERAMIC 4n7F 20% CL2 50VDC KCK RT-HE80-SK YD 472 M 15.165
C302 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C303 CAPACITOR CERAMIC 39pF 5% N150 500V #KCK HM74SJPH390J 15.095
C304 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C305 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C306 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C307 CAPACITOR CERAMIC 33pF 5% N150 400V #KCK HM74SJPH330J 15.083
C308 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C309 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C310 CAPACITOR CERAMIC 18pF 5% NPO 500VDC KCK RT-HM60 SK CH 180 J 15.060
C311 CAPACITOR CERAMIC 15pF 5% NPO 500VDC KCK RT-HM60 SK CH 150 J 15.590
C312 CAPACITOR MKT 10nF 10% 400V SIEMENS B32510-D6103-K000 11.381
C313 CAPACITOR MKT 10nF 10% 400V SIEMENS B32510-D6103-K000 11.381
C314 CAPACITOR MKT 10nF 10% 400V SIEMENS B32510-D6103-K000 11.381
C315 CAPACITOR MKT 220nF 10% 100V SIEMENS B32510-D1224-K000 11.225
C316 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C317 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C318 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C319 CAPACITOR MKT 220nF 10% 100V SIEMENS B32510-D1224-K000 11.225
C320 CAPACITOR CERAMIC 1nF 10% 50VDC CL2 KCK RT-SK-HE50 SJYB 102 K 16.160
C321 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C322 CAPACITOR MKT 10nF 10% 400V SIEMENS B32510-D6103-K000 11.381
C323 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C324 CAPACITOR MKT 10nF 10% 400V SIEMENS B32510-D6103-K000 11.381
C325 CAPACITOR POLYSTYRENE 82pF 1% 630V #PHILIPS 2222 431 88209 10.398
C326 CAPACITOR CERAMIC 180pF 2% N330 100VDC PHILIPS 2222 689 46181 16.168
C327 CAPACITOR POLYSTYRENE 180pF 1% 630VDC PHILIPS 2222 431 81801 10.407
C328 CAPACITOR CERAMIC 180pF 2% N330 100VDC PHILIPS 2222 689 46181 16.168
C329 CAPACITOR MKT 10nF 10% 400V SIEMENS B32510-D6103-K000 11.381
C330 CAPACITOR STYROFLEX 47pF 2,5% 160V SIEMENS B31063-B1470-H000 10.168
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
9810 PAGE 5-5
C331 CAPACITOR TRIMMING 2-18pF PTFE DAU 107.2901.018 17.100
C332 CAPACITOR CERAMIC 27pF 5% N150 50VDC KCK RT-HE50 SK PH 270 J 15.812
C333 CAPACITOR CERAMIC 12pF 5% NPO 500VDC KCK RT-HM60-SK CH 120 J 15.575
C334 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C335 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C336 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C337 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C338 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C339 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C340 CAPACITOR CERAMIC 12pF 5% NPO 500VDC KCK RT-HM60-SK CH 120 J 15.575
C341 CAPACITOR CERAMIC 5p1F +/-0.25pF N150 500V KCK RT-HM60-SK PH 5R1 C 16.107
C342 CAPACITOR CERAMIC 10pF 5% N150 500VDC KCK RT-HM60-SK PH 100 J 16.113
C343 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C344 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C345 CAPACITOR CERAMIC 8p2F +/-0.25pF N150 500V KCK RT-HM60-SK PH 8R2 C 16.112
C346 CAPACITOR ELECTROLYTIC 4.7uF 20% 50VDC ERO EKI 00 AA 147 H M5K 14.510
C347 CAPACITOR MKT 3n3F 5% 400V SIEMENS B32520-B6332-J-289 11.371
C348 CAPACITOR MKT 33nF 5% 250V SIEMENS B32510-D3333-J000 11.497
C349 CAPACITOR CERAMIC 100pF 5% N150 500V #KCK HM11SJPH101J 15.132
C350 CAPACITOR ELECTROLYTIC 1uF 20% 50VDC ERO EKI 00 AA 110 H M5K 14.506
C351 CAPACITOR POLYSTYRENE 8,2nF 1% 160V #PHILIPS 2222 429 88202 10.298
C352 CAPACITOR MKT 10nF 20% 100VDC PHILIPS 2222 370 38103 11.168
C353 CAPACITOR MKT 100nF 10% 100VDC PHILIPS 2222 371 28104 11.219
C354 CAPACITOR ELECTROLYTIC 0.22uF 20% 50VDC ERO EKI 00 AA 022 H M0E 14.502
C355 CAPACITOR MKT 220nF 10% 100V SIEMENS B32510-D1224-K000 11.225
C356 CAPACITOR MKT 10nF 10% 400V SIEMENS B32510-D6103-K000 11.381
D301 DIODE BAW62 HIGH SPEED PHILIPS BAW62-143 25.350
D302 DIODE CAPASITANCE 13pF/9VDC TOSHIBA 1SV101 in matched group 26.135
D303 DIODE BAW62 HIGH SPEED PHILIPS BAW62-143 25.350
FP301 FERRITE BEAD •3,7x•1.2x3.5mm GRADE 3B PHILIPS 4322 020 34400 35.180
FP302 FERRITE BEAD •3.7x•1.2x3.5mm GRADE 4B1 PHILIPS 4322 020 34420 35.181
IC301 INTEGRATED CIRCUIT SN74LS293N FAIRCHILD* 74LS293P 34.260
IC302 INTEGRATED CIRCUIT SN74LS113AN MOTOROLA* SN74LS113AN 33.841
IC303 INTEGRATED CIRCUIT SN74LS10N TEXAS* SN74LS10N 33.534
IC304 INTEGRATED CIRCUIT SN74LS113AN MOTOROLA* SN74LS113AN 33.841
IC305 INTEGRATED CIRCUIT SN74LS113AN MOTOROLA* SN74LS113AN 33.841
IC306 DECADE UP COUNTER SN74LS290N MOTOROLA SN74LS290N 34.251
L301 CHOKE 2.2uH 10% FERROPERM 1582 20.131
L302 CHOKE 15uH 10% FERROPERM 1582 20.152
L303 CHOKE 15uH 10% FERROPERM 1582 20.152
L304 CHOKE 1uH 10% FERROPERM 1582 20.115
L305 CHOKE FIXED 470nH 10% SIEMENS B78108-T3471-K 20.075
L306 COIL TL374 ECI A/S 6-0-23690 400374
L307 COIL TL373 S.P.RADIO 6-0-23689 400373
L308 COIL TL372 ECI A/S 6-0-23688 400372
L309 COIL TL375 ECI A/S 6-0-23696B 400375
L310 COIL TL376 S.P.RADIO 6-0-23697C 400376
L311 CHOKE 4u7H 10% SIEMENS B78108-T1472-K 20.137
R301 RESISTOR MF 47 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-47R 01.666
R302 RESISTOR MF 12 OHM 5% 0.4W PHILIPS 2322 181 53129 01.152
R303 RESISTOR MF 470 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-470R 01.691
R304 RESISTOR MF 2k2 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-2k2 01.708
R305 RESISTOR MF 56 OHM 5% 0.4W PHILIPS 2322 181 53569 01.168
R306 RESISTOR MF 2k2 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-2k2 01.708
R307 RESISTOR MF 82 OHM 5% 0.4W PHILIPS 2322 181 53829 01.172
R308 RESISTOR MF 470 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-470R 01.691
R309 RESISTOR MF 12 OHM 5% 0.4W PHILIPS 2322 181 53129 01.152
R310 RESISTOR MF 1k5 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-1k5 01.704
R311 RESISTOR MF 3k9 OHM 5% 0.4W PHILIPS 2322 181 53392 01.214
R312 RESISTOR MF 1k2 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-1k2 01.702
R313 RESISTOR MF 270 OHM 5% 0.4W PHILIPS 2322 181 53271 01.185
R314 RESISTOR MF 56 OHM 5% 0.4W PHILIPS 2322 181 53569 01.168
R315 RESISTOR MF 2k2 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-2k2 01.708
R316 RESISTOR MF 33 OHM 5% 0.4W PHILIPS 2322 181 53339 01.162
R317 RESISTOR MF 82 OHM 5% 0.4W PHILIPS 2322 181 53829 01.172
R318 RESISTOR MF 560 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-560R 01.693
R319 RESISTOR MF 3k3 OHM 5% 0.4W PHILIPS 2322 181 53332 01.212
R320 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R321 RESISTOR MF 47k OHM 5% 0.4W PHILIPS 2322 181 53473 01.241
R322 RESISTOR MF 2k2 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-2k2 01.708
R323 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R324 RESISTOR MF 3k3 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-3k3 01.712
R325 RESISTOR MF 390 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-390R 01.689
R326 RESISTOR MF 150 OHM 5% 0.4W PHILIPS 2322 181 53151 01.179
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
PAGE 5-6 9810
R327 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R328 RESISTOR MF 560 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-560R 01.693
R329 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R330 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R331 RESISTOR MF 15k OHM 5% 0.4W PHILIPS 2322 181 53153 01.229
R332 RESISTOR MF 10 OHM 5% 0.4W PHILIPS 2322 181 53109 01.150
R333 RESISTOR MF 330 OHM 5% 0.4W PHILIPS 2322 181 53331 01.187
R334 RESISTOR MF 33 OHM 5% 0.4W PHILIPS 2322 181 53339 01.162
R335 RESISTOR MF 22 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-22R 01.658
R336 RESISTOR MF 560 OHM 5% 0.4W PHILIPS 2322 181 53561 01.193
R337 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R338 RESISTOR MF 100 OHM 5% 0.4W PHILIPS 2322 181 53101 01.175
R339 RESISTOR MF 82 OHM 5% 0.4W PHILIPS 2322 181 53829 01.172
R341 PRESET CERMET 200 OHM 10% 0.5W BOURNS 3386P-Y91-201 07.884
R342 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R343 RESISTOR MF 560 OHM 5% 0.4W PHILIPS 2322 181 53561 01.193
R344 RESISTOR MF 2k7 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-2k7 01.710
R345 RESISTOR MF 270 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-270R 01.685
R346 RESISTOR MF 2k2 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-2k2 01.708
R347 RESISTOR MF 3k9 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-3k9 01.714
R348 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R349 RESISTOR MF 6k81 OHM 1% 0.6W PHILIPS 2322 156 16812 03.419
R350 RESISTOR MF 6k81 OHM 1% 0.6W PHILIPS 2322 156 16812 03.419
R351 RESISTOR MF 82 OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-82R 01.672
R352 RESISTOR MF 1k18 OHM 1% 0.6W PHILIPS 2322 156 11182 03.226
R353 RESISTOR MF 6k34 OHM 1% 0.6W PHILIPS 2322 156 16342 03.228
R354 RESISTOR MF 4k7 OHM 5% 0.4W PHILIPS 2322 181 53472 01.216
R355 RESISTOR MF 22k OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-22k 01.733
R356 RESISTOR MF 15k OHM 5% 0.4W S BEYSCHLAG MUB 0207-50-5%-15k 01.729
R357 RESISTOR MF 10 OHM 5% 0.4W PHILIPS 2322 181 53109 01.150
T301 TRANSISTOR BF 506 SIEMENS BF506-E6325 28.202
T302 TRANSISTOR BF 506 SIEMENS BF506-E6325 28.202
T303 TRANSISTOR BF 506 SIEMENS BF506-E6325 28.202
T304 TRANSISTOR RF BF199 MOTOROLA BF199ZL1 28.178
T305 TRANSISTOR RF SWITCH 2N2369A MOTOROLA 2N2369A 28.315
T306 TRANSISTOR RF SWITCH 2N2369A MOTOROLA 2N2369A 28.315
T307 TRANSISTOR BF 506 SIEMENS BF506-E6325 28.202
T308 TRANSISTOR BF 506 SIEMENS BF506-E6325 28.202
T309 TRANSISTOR J310 SILICONIX J310 29.725
T310 TRANSISTOR RF LOW POWER PNP BF979/BF479 TELEFUNKEN AG BF979 28.250
T311 TRANSISTOR JFET TIS88A3 TO-92 MOTORPLA TM 00 044-3 29.737
T312 TRANSISTOR AF BC558B ITT/MOT BC558B 28.100
T313 TRANSISTOR BC549C PHILIPS* BC549C-126 28.082
T314 TRANSISTOR BC549C PHILIPS* BC549C-126 28.082
X3O1 CRYSTAL 21.0 MHz NC-25B DANTRONIC* 21MHz NC25B 39.838
TX-POWER AMPLIFIER MODULE 400 & 500 ECI A/S 5-0-23973B 600013
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
C401 CAPACITOR CERAMIC 18pF 5% NPO 500VDC KCK RT-HM60 SK CH 180 J 15.060
C402 CAPACITOR CERAMIC 33pF 5% NPO 400VDC FERROPERM 33pF +-5% 9/0112.9-400V 15.608
C403 CAPACITOR CERAMIC 33pF 5% NPO 400VDC FERROPERM 33pF +-5% 9/0112.9-400V 15.608
C404 CAPACITOR CERAMIC 18pF 5% NPO 500VDC KCK RT-HM60 SK CH 180 J 15.060
C405 CAPACITOR CERAMIC 470pF 10% 500VDC KCK RT-HM60 SK YB 471 K 16.095
C406 CAPACITOR CERAMIC 470pF 10% 500VDC KCK RT-HM60 SK YB 471 K 16.095
C407 CAPACITOR TRIMMING 5-60pF PTFE •9 DAU 109.4901.060 17.210
C408 CAPACITOR TRIMMING 3.5-38pF PTFE DAU 109.3901.038 17.120
C409 CAPACITOR MULTI LAYER 22pF 10% HQ 100V TEKELEC 101 S41 L 220K T 16.271
C410 CAPACITOR MKT 470nF 10% 100V SIEMENS B32511-D1474-K000 11.388
C411 CAPACITOR MULTI LAYER 68pF 10% HQ 100V TEKELEC 101 S41 L 680K T 16.273
C412 CAPACITOR MULTI LAYER 68pF 10% HQ 100V TEKELEC 101 S41 L 680K T 16.273
C413 CAPACITOR TRIMMING 3.9-27pF PTFE DAU 107.3901.027 17.110
C414 CAPACITOR MKT 33nF 20% 63V SIEMENS B32529-B333-K-289 11.298
C415 CAPACITOR CERAM. SMD 1210 33pF 10% P90 100VDC TEKELEC 101 S41 L 330K T 16.272
C417 CAPACITOR ELECTROLYTIC 4.7uF 20% 50VDC ERO EKI 00 AA 147 H M5K 14.510
C418 CAPACITOR CERAM. SMD 1210 33pF 10% P90 100VDC TEKELEC 101 S41 L 330K T 16.272
C419 CAPACITOR TRIMMING 5-60pF PTFE •9 DAU 109.4901.060 17.210
C420 CAPACITOR ELECTROLYTIC 4.7uF 20% 50VDC ERO EKI 00 AA 147 H M5K 14.510
C421 CAPACITOR CERAM. SMD 1210 56pF 10% P90 100VDC FERROPERM 56pF-10%-HQ-1210-200/400V 16.285
C422 CAPACITOR MKT 33nF 20% 63V SIEMENS B32529-B333-K-289 11.298
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
PAGE 5-7
9810
C423 CAPACITOR TRIMMING 5-45pF PTFE DAU 107.5901.045 17.130
C424 CAPACITOR CERAMIC 56pF 5% NPO #KCK HE60SJCH560J 15.111
C425 PI-FILTER 2x1n5 + 0.5uH 5ADC FERROPERM 138.64001 16.515
C426 PI-FILTER 2x1n5 + 0.5uH 5ADC FERROPERM 138.64001 16.515
C427 PI-FILTER 2x1n5 + 0.5uH 5ADC FERROPERM 138.64001 16.515
C428 CAPACITOR CERAM. SMD 1210 33pF 10% P90 100VDC TEKELEC 101 S41 L 330K T 16.272
C429 CAPACITOR MULTI LAYER 82pF 10% HQ 100V TEKELEC 101 S41 L 820K T 16.274
FP401 FERRITE BEAD •3,7x•1.2x3.5mm GRADE 3B PHILIPS 4322 020 34400 35.180
FP402 FERRITE BEAD •3,7x•1.2x3.5mm GRADE 3B PHILIPS 4322 020 34400 35.180
FP403 FERRITE BEAD •3,7x•1.2x3.5mm GRADE 3B PHILIPS 4322 020 34400 35.180
L401 COIL TL367 ECI A/S 6-0-23639 400367
L402 COIL TL367 ECI A/S 6-0-23639 400367
L403 COIL TL367 ECI A/S 6-0-23639 400367
L404 COIL PRINTED 5-0-23973B 51.784
L405 COIL PRINTED 5-0-23973B 51.784
L406 COIL TL067 ECI A/S 6-0-20854A 400067
L407 CHOKE FIXED 150nH 10% SIEMENS B78108-T3151-K 20.101
L409 CHOKE FIXED 150nH 10% SIEMENS B78108-T3151-K 20.101
L410 COIL TL067 ECI A/S 6-0-20854A 400067
L411 CHOKE FIXED 150nH 10% SIEMENS B78108-T3151-K 20.101
L412 COIL TL067 ECI A/S 6-0-20854A 400067
L413 COIL PRINTED 5-0-23973B 51.784
L414 CHOKE FIXED 150nH 10% SIEMENS B78108-T3151-K 20.101
L415 CHOKE FIXED 150nH 10% SIEMENS B78108-T3151-K 20.101
L416 COIL TL366 ECI A/S 6-0-23638 400366
L417 COIL PRINTED 5-0-23973B 51.784
L419 CHOKE FIXED 330nH 10% SIEMENS B78108-T3331-K 20.107
L420 COIL PRINTED 5-0-23973B 51.784
L421 COIL PRINTED 5-0-23973B 51.784
R401 RESISTOR MF 22 OHM 5% 0.4W PHILIPS 2322 181 53229 01.158
R402 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R403 RESISTOR MF 68 OHM 5% 0.4W PHILIPS 2322 181 53689 01.170
R404 RESISTOR MF 22 OHM 5% 0.4W PHILIPS 2322 181 53229 01.158
R405 RESISTOR MF 180 OHM 5% 0.4W PHILIPS 2322 181 53181 01.181
R406 RESISTOR MF 82 OHM 5% 0.4W PHILIPS 2322 181 53829 01.172
T401 TRANSISTOR MRF240 MOTOROLA MRF 240 29.252
T402 TRANSISTOR MRF237 MOTOROLA MRF237 29.249
T403 TRANSISTOR RF 2N4427 MOTOROLA 2N4427 28.330
C501 CAPACITOR CERAMIC 470pF 10% 500VDC KCK RT-HM60 SK YB 471 K 16.095
C502 CAPACITOR CERAMIC 470pF 10% 500VDC KCK RT-HM60 SK YB 471 K 16.095
D501 DIODE GENERAL PURPOSE BAV21 200V/0.25A PHILIPS BAV21 25.340
RE501 RELAY DPDT 12VDC 2A SDS NF2-EB-12V 21.193
INTERFACE UNIT MODULE 6/600 ECI A/S 5-0-27746D/4-0-27746D 627746
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
C1-6 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C2-6 CAPACITOR MKT 330nF 5% 63VDC PHILIPS 2222 370 79334 11.184
C3-6 CAPACITOR MKT 330nF 5% 63VDC PHILIPS 2222 370 79334 11.184
C4-6 CAPACITOR CERAMIC 470pF 10% 500VDC KCK RT-HM60 SK YB 471 K 16.095
C5-6 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C6-6 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C7-6 CAPACITOR ELECTROLYTIC 1000uF 20% 35VDC SAMHWA ELEC. SV-1000uF-35WV 14.655
C8-6 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C9-6 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C10-6 CAPACITOR MKT 220nF 5% 63VDC PHILIPS 2222 370 79224 11.182
C11-6 CAPACITOR ELECTROLYTIC 4.7uF 20% 50VDC ERO EKI 00 AA 147 H M5K 14.510
C12-6 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C13-6 CAPACITOR ELECTROLYTIC 100uF -10/+50% 25VDC ERO EKM 00 CC 310 E G5 14.610
C14-6 CAPACITOR ELECTROLYTIC 1uF 20% 50VDC ERO EKI 00 AA 110 H M5K 14.506
C15-6 CAPACITOR MKT 470nF 5% 63VDC ERO MKT 1826-447/06 4-G 11.187
C16-6 CAPACITOR MKT 470nF 5% 63VDC ERO MKT 1826-447/06 4-G 11.187
C17-6 CAPACITOR MKT 22nF 5% 100VDC PHILIPS 2222 370 89223 11.169
C18-6 CAPACITOR ELECTROLYTIC 4.7uF 20% 50VDC ERO EKI 00 AA 147 H M5K 14.510
C19-6 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M5K 14.512
C20-6 CAPACITOR MKT 10nF 20% 100VDC PHILIPS 2222 370 38103 11.168
C21-6 CAPACITOR POLYSTYRENE 1.3nF 1% 160V #PHILIPS 2222 429 81302 10.279
C22-6 CAPACITOR ELECTROLYTIC 100uF 20% 10VDC ERO EKI 00 BB 310 C M0E 14.607
C23-6 CAPACITOR ELECTROLYTIC 100uF -10/+50% 25VDC ERO EKM 00 CC 310 E G5 14.610
C24-6 CAPACITOR POLYSTYRENE 4n70F 1% 160VDC PHILIPS 2222 429 84702 10.292
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
PAGE 5-8 9810
C25-6 CAPACITOR MKT 220nF 5% 63VDC PHILIPS 2222 370 79224 11.182
C26-6 CAPACITOR POLYSTYRENE 15nF 1% 160V #PHILIPS 2222 429 81503 10.304
C27-6 CAPACITOR ELECTROLYTIC 100uF -10/+50% 25VDC ERO EKM 00 CC 310 E G5 14.610
C28-6 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M5K 14.512
C29-6 CAPACITOR POLYSTYRENE 8,2nF 1% 160V #PHILIPS 2222 429 88202 10.298
C30-6 CAPACITOR POLYSTYRENE 8,2nF 1% 160V #PHILIPS 2222 429 88202 10.298
C31-6 CAPACITOR POLYSTYRENE 15nF 1% 160V #PHILIPS 2222 429 81503 10.304
C32-6 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C33-6 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C34-6 CAPACITOR POLYSTYRENE 1n00F 1% 250VDC PHILIPS 2222 430 81002 10.350
C35-6 CAPACITOR POLYSTYRENE 220pF 1% 630VDC PHILIPS 2222 431 82201 10.409
C36-6 CAPACITOR POLYSTYRENE 1n00F 1% 250VDC PHILIPS 2222 430 81002 10.350
C37-6 CAPACITOR MKT 22nF 5% 100VDC PHILIPS 2222 370 89223 11.169
C38-6 CAPACITOR POLYSTYRENE 3.3nF 1% 160V #PHILIPS 2222 429 83302 10.288
C39-6 CAPACITOR MKT 22nF 5% 100VDC PHILIPS 2222 370 89223 11.169
C40-6 CAPACITOR MKT 22nF 5% 100VDC PHILIPS 2222 370 89223 11.169
C41-6 CAPACITOR MKT 220nF 5% 63VDC PHILIPS 2222 370 79224 11.182
C42-6 CAPACITOR MKT 220nF 5% 63VDC PHILIPS 2222 370 79224 11.182
C43-6 CAPACITOR MKT 470nF 5% 63VDC ERO MKT 1826-447/06 4-G 11.187
C44-6 CAPACITOR MKT 220nF 5% 63VDC PHILIPS 2222 370 79224 11.182
C45-6 CAPACITOR MKT 220nF 5% 63VDC PHILIPS 2222 370 79224 11.182
C46-6 CAPACITOR CERAMIC 4n7F 20% CL2 50VDC KCK RT-HE80-SK YD 472 M 15.165
C47-6 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C48-6 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C52-6 CAPACITOR MKT 220nF 5% 63VDC PHILIPS 2222 370 79224 11.182
C53-6 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C54-6 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C56-6 CAPACITOR CERAMIC 4n7F 20% CL2 50VDC KCK RT-HE80-SK YD 472 M 15.165
C57-6 CAPACITOR ELECTROLYTIC 220uF -20/+50% 16VDC ERO EKM 00 CC 322 D G5 14.640
C58-6 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C59-6 CAPACITOR MKT 22nF 5% 100VDC PHILIPS 2222 370 89223 11.169
C60-6 CAPACITOR ELECTROLYTIC 220uF -20/+50% 16VDC ERO EKM 00 CC 322 D G5 14.640
C61-6 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C62-6 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C63-6 CAPACITOR ELECTROLYTIC 100uF -10/+50% 25VDC ERO EKM 00 CC 310 E G5 14.610
C64-6 CAPACITOR ELECTROLYTIC 220uF -10/+50% 40VDC ERO EKM 05 DE 322 G 05 14.648
C65-6 CAPACITOR MKT 100nF 10% 63VDC PHILIPS 2222 370 75104 (78104) 11.136
C66-6 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C67-6 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C68-6 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C69-6 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C70-6 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C71-6 CAPACITOR CERAMIC 4n7F 20% CL2 50VDC KCK RT-HE80-SK YD 472 M 15.165
C72-6 CAPACITOR CERAMIC 220pF 10% 500VDC CL2 KCK RT-HM60-SK YB 221 K 16.090
C73-6 CAPACITOR ELECTROLYTIC 220uF -20/+50% 16VDC ERO EKM 00 CC 322 D G5 14.640
C74-6 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M5K 14.512
C75-6 CAPACITOR MKT 220nF 10% 63VDC PHILIPS 2222 370 78224 11.095
C76-6 CAPACITOR CERAMIC 4n7F 20% CL2 50VDC KCK RT-HE80-SK YD 472 M 15.165
C77-6 CAPACITOR MKT 470nF 5% 63VDC ERO MKT 1826-447/06 4-G 11.187
C78-6 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M5K 14.512
C79-6 CAPACITOR ELECTROLYTIC 10uF 20% 35VDC ERO EKI 00 AA 210 F M5K 14.512
D1-6 TRANSIENT SUPPRESSOR 18V 1N6277A, PFZ18A, KE1.5KE1 MOTOROLA 1N6277ARL4 26.765
D2-6 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
D3-6 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
D4-6 DIODE GENERAL PURPOSE BAV21 200V/0.25A PHILIPS BAV21 25.340
D7-6 DIODE HIGH SPEED 1N4448 PHILIPS 1N4448 25.147
D8-6 DIODE HIGH SPEED 1N4448 PHILIPS 1N4448 25.147
D9-6 DIODE ZENER 5.1V 5% 0.4W BZX79C5V1 MOTOROLA BZX79C5V1 26.527
D10-6 DIODE HIGH SPEED 1N4448 PHILIPS 1N4448 25.147
D11-6 DIODE HIGH SPEED 1N4448 PHILIPS 1N4448 25.147
D12-6 DIODE HIGH SPEED 1N4448 PHILIPS 1N4448 25.147
D13-6 DIODE BAW62 HIGH SPEED PHILIPS BAW62-143 25.350
D14-6 DIODE BAW62 HIGH SPEED PHILIPS BAW62-143 25.350
D16-6 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
D17-6 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
D20-6 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
F1-6 FUSE 8AF 250V •5x20mm ELU 171 100 8AF 45.561
P1-6 PLUG MT 2 POLES AMP 0-826375-2 78.102
P2-6 PLUG MT 11 POLES AMP 1-826375-1 78.111
P3-6 PLUG MT 9 POLES AMP 0-826375-9 78.109
P4-6 PLUG MT 10 POLES AMP 1-826375-0 78.110
P5-6 PLUG MT 6 POLES AMP 0-826375-6 78.106
P6-6 PLUG MT 7 POLE AMP 0-826375-7 78.107
P7-6 MULTI PLUG 2x8 POLES PCB VERSION 3M 3599-6002 / 7616-6002 JL 78.249
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
9810 PAGE 5-9
P8-6 SIL SQUARE PINS 3 POLES CC=1/10" AMP 0-826629-3 (0-826647-3) 78.323
Q1-6 TRANSISTOR BC638 MOTOROLA* BC638ZL1 / BC640ZL1 28.117
Q2-6 TRANSISTOR BC638 MOTOROLA* BC638ZL1 / BC640ZL1 28.117
Q3-6 TRANSISTOR BC638 MOTOROLA* BC638ZL1 / BC640ZL1 28.117
Q4-6 TRANSISTOR BC638 MOTOROLA* BC638ZL1 / BC640ZL1 28.117
Q5-6 TRANSISTOR AF BC548 NPN TO-92 PHILIPS BC548 (-A/-B/-C)126 28.070
Q6-6 TRANSISTOR AF BC328-25 PNP TO-92 PHILIPS BC328-25-126 28.052
Q7-6 TRANSISTOR AF BC558B ITT/MOT BC558B 28.100
Q8-6 TRANSISTOR AF BC558B ITT/MOT BC558B 28.100
Q9-6 TRANSISTOR AF POWER PNP BD138 MOTOROLA BD138 29.057
Q10-6 TRANSISTOR AF BC548B NPN TO-92 PHILIPS BC548B-126 28.076
Q11-6 TRANSISTOR AF MED.POWER BD234-BD236-BD238 MOTOROLA BD238 (BD234,BD236) 29.070
Q12-6 TRANSISTOR AF BC338-25 NPN TO-92 PHILIPS BC338-25-126 28.058
Q13-6 TRANSISTOR AF BC548B NPN TO-92 PHILIPS BC548B-126 28.076
Q14-6 TRANSISTOR BC547A MOTOROLA* BC547AZL1 28.065
Q15-6 TRANSISTOR BC558 PNP TO-92 PHILIPS BC558-126 28.097
Q16-6 TRANSISTOR AF BC338-25 NPN TO-92 PHILIPS BC338-25-126 28.058
Q18-6 TRANSISTOR BC547A MOTOROLA* BC547AZL1 28.065
Q19-6 TRANSISTOR BC556A PHILIPS* BC556A-126 28.084
R1-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R3-6 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R4-6 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R5-6 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R6-6 RESISTOR MF 33k OHM 5% 0.4W PHILIPS 2322 181 53333 01.237
R7-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R8-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R9-6 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R10-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R11-6 RESISTOR MF 12k OHM 5% 0.4W PHILIPS 2322 181 53123 01.227
R12-6 RESISTOR MF 180k OHM 5% 0.4W PHILIPS 2322 181 53184 01.256
R13-6 RESISTOR MF 220k OHM 5% 0.4W PHILIPS 2322 181 53224 01.258
R14-6 RESISTOR MF 470k OHM 5% 0.4W PHILIPS 2322 181 53474 01.266
R15-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R16-6 PRESET CERMET 10k OHM 10% 0.5W BOURNS 3386P-Y91-103 07.889
R17-6 RESISTOR MF 100k OHM 5% 0.4W PHILIPS 2322 181 53104 01.250
R18-6 RESISTOR MF 470k OHM 5% 0.4W PHILIPS 2322 181 53474 01.266
R19-6 RESISTOR MF 3k3 OHM 5% 0.4W PHILIPS 2322 181 53332 01.212
R20-6 RESISTOR MF 3k3 OHM 5% 0.4W PHILIPS 2322 181 53332 01.212
R21-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R22-6 RESISTOR MF 18k OHM 5% 0.4W PHILIPS 2322 181 53183 01.231
R23-6 PRESET CERMET 100k OHM 10% 0.5W BOURNS 3386P-Y91-104 07.893
R24-6 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R25-6 RESISTOR MF 220k OHM 5% 0.4W PHILIPS 2322 181 53224 01.258
R26-6 RESISTOR MF 220k OHM 5% 0.4W PHILIPS 2322 181 53224 01.258
R27-6 RESISTOR MF 12k OHM 5% 0.4W PHILIPS 2322 181 53123 01.227
R28-6 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R29-6 PRESET CERMET 10k OHM 10% 0.5W BOURNS 3386P-Y91-103 07.889
R30-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R31-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R32-6 RESISTOR MF 1k2 OHM 5% 0.4W PHILIPS 2322 181 53122 01.202
R33-6 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R34-6 RESISTOR MF 82k OHM 5% 0.4W PHILIPS 2322 181 53823 01.247
R35-6 RESISTOR MF 4k7 OHM 5% 0.4W PHILIPS 2322 181 53472 01.216
R36-6 RESISTOR MF 470 OHM 5% 0.4W PHILIPS 2322 181 53471 01.191
R37-6 RESISTOR MF 4k7 OHM 5% 0.4W PHILIPS 2322 181 53472 01.216
R38-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R39-6 RESISTOR MF 680k OHM 5% 0.4W PHILIPS 2322 181 53684 01.270
R40-6 RESISTOR MF 1R00 OHM 1% 0.6W PHILIPS 2322 156 11008 03.125
R41-6 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R42-6 RESISTOR MF 100 OHM 5% 0.4W PHILIPS 2322 181 53101 01.175
R43-6 RESISTOR MF 82k OHM 5% 0.4W PHILIPS 2322 181 53823 01.247
R44-6 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R45-6 RESISTOR MF 3k3 OHM 5% 0.4W PHILIPS 2322 181 53332 01.212
R46-6 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R47-6 RESISTOR MF 220 OHM 5% 0.4W PHILIPS 2322 181 53221 01.183
R48-6 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R49-6 RESISTOR MF 68 OHM 5% 0.4W PHILIPS 2322 181 53689 01.170
R50-6 RESISTOR MF 47k OHM 5% 0.4W PHILIPS 2322 181 53473 01.241
R51-6 RESISTOR MF 68k OHM 5% 0.4W PHILIPS 2322 181 53683 01.245
R52-6 RESISTOR MF 1M2 OHM 5% 0.4W PHILIPS 2322 181 53125 01.277
R53-6 RESISTOR MF 680 OHM 5% 0.4W PHILIPS 2322 181 53681 01.195
R54-6 RESISTOR MF 330 OHM 5% 0.4W PHILIPS 2322 181 53331 01.187
R55-6 RESISTOR MF 100 OHM 5% 0.4W PHILIPS 2322 181 53101 01.175
R56-6 RESISTOR MF 470 OHM 5% 0.4W PHILIPS 2322 181 53471 01.191
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
PAGE 5-10 9810
R57-6 RESISTOR 15.8 KOHM 1% 0.4W *PHILIPS 2322 156 11583 03.430
R58-6 RESISTOR MF 14k0 OHM 1% 0.6W PHILIPS 2322 156 11403 03.432
R59-6 RESISTOR 15.8 KOHM 1% 0.4W *PHILIPS 2322 156 11583 03.430
R60-6 RESISTOR MF 178 OHM 1% 0.6W PHILIPS 2322 156 11781 03.380
R61-6 PRESET CERMET 1k0 OHM 10% 0.5W BOURNS 3386P-Y91-102 07.886
R62-6 RESISTOR MF 5k1 OHM 5% 0.4W PHILIPS 2322 181 53512 01.217
R63-6 PRESET CERMET 2k0 OHM 5% 0.5W BOURNS 3386P-Y91-202 07.887
R64-6 RESISTOR MF 1k2 OHM 5% 0.4W PHILIPS 2322 181 53122 01.202
R65-6 PRESET CERMET 500 OHM 10% 0.5W BOURNS 3386P-Y91-501 07.885
R66-6 RESISTOR MF 1k2 OHM 5% 0.4W PHILIPS 2322 181 53122 01.202
R67-6 RESISTOR MF 560 OHM 5% 0.4W PHILIPS 2322 181 53561 01.193
R68-6 PRESET CERMET 1k0 OHM 10% 0.5W BOURNS 3386P-Y91-102 07.886
R69-6 RESISTOR MF 820 OHM 5% 0.4W PHILIPS 2322 181 53821 01.197
R70-6 RESISTOR MF 392 OHM 1% 0.6W PHILIPS 2322 156 13921 03.389
R71-6 RESISTOR 15.8 KOHM 1% 0.4W *PHILIPS 2322 156 11583 03.430
R72-6 RESISTOR MF 5k6 OHM 5% 0.4W PHILIPS 2322 181 53562 01.218
R73-6 RESISTOR MF 18k OHM 5% 0.4W PHILIPS 2322 181 53183 01.231
R74-6 PRESET CERMET 10k OHM 10% 0.5W BOURNS 3386P-Y91-103 07.889
R75-6 RESISTOR MF 82k OHM 5% 0.4W PHILIPS 2322 181 53823 01.247
R76-6 RESISTOR MF 3k9 OHM 5% 0.4W PHILIPS 2322 181 53392 01.214
R77-6 RESISTOR MF 220k OHM 5% 0.4W PHILIPS 2322 181 53224 01.258
R78-6 RESISTOR MF 47k OHM 5% 0.4W PHILIPS 2322 181 53473 01.241
R79-6 RESISTOR MF 47k OHM 5% 0.4W PHILIPS 2322 181 53473 01.241
R80-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R81-6 RESISTOR MF 180k OHM 5% 0.4W PHILIPS 2322 181 53184 01.256
R82-6 PRESET CERMET 5k0 OHM 10% 0.5W BOURNS 3386P-Y91-502 07.888
R83-6 RESISTOR MF 22k OHM 5% 0.4W PHILIPS 2322 181 53223 01.233
R84-6 RESISTOR MF 680 OHM 5% 0.4W PHILIPS 2322 181 53681 01.195
R85-6 RESISTOR MF 22k OHM 5% 0.4W PHILIPS 2322 181 53223 01.233
R86-6 RESISTOR MF 100k OHM 5% 0.4W PHILIPS 2322 181 53104 01.250
R87-6 RESISTOR MF 47k OHM 5% 0.4W PHILIPS 2322 181 53473 01.241
R88-6 RESISTOR MF 47k OHM 5% 0.4W PHILIPS 2322 181 53473 01.241
R89-6 RESISTOR MF 330k OHM 5% 0.4W PHILIPS 2322 181 53334 01.262
R90-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R92-6 RESISTOR MF 4k7 OHM 5% 0.4W PHILIPS 2322 181 53472 01.216
R93-6 RESISTOR MF 100k OHM 5% 0.4W PHILIPS 2322 181 53104 01.250
R94-6 RESISTOR MF 12k OHM 5% 0.4W PHILIPS 2322 181 53123 01.227
R95-6 RESISTOR MF 39k OHM 5% 0.4W PHILIPS 2322 181 53393 01.239
R96-6 RESISTOR MF 1k5 OHM 5% 0.4W PHILIPS 2322 181 53152 01.204
R97-6 RESISTOR MF 18k OHM 5% 0.4W PHILIPS 2322 181 53183 01.231
R99-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R101-6 RESISTOR MF 120k OHM 5% 0.4W PHILIPS 2322 181 53124 01.252
R102-6 RESISTOR MF 390k OHM 5% 0.4W PHILIPS 2322 181 53394 01.264
R103-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R104-6 RESISTOR ZERO OHM 2AMPS BEYSCHLAG MRA 0204-0R0 02.395
R105-6 RESISTOR MF 39k OHM 5% 0.4W PHILIPS 2322 181 53393 01.239
R106-6 RESISTOR MF 33k OHM 5% 0.4W PHILIPS 2322 181 53333 01.237
R107-6 RESISTOR MF 56k OHM 5% 0.4W PHILIPS 2322 181 53563 01.243
R108-6 RESISTOR MF 18k OHM 5% 0.4W PHILIPS 2322 181 53183 01.231
R112-6 RESISTOR MF 220 OHM 5% 0.4W PHILIPS 2322 181 53221 01.183
R113-6 PRESET CERMET 5k0 OHM 10% 0.5W BOURNS 3386P-Y91-502 07.888
R114-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R119-6 RESISTOR MF 33k OHM 5% 0.4W PHILIPS 2322 181 53333 01.237
R120-6 RESISTOR MF 15k OHM 5% 0.4W PHILIPS 2322 181 53153 01.229
R121-6 RESISTOR MF 100k OHM 5% 0.4W PHILIPS 2322 181 53104 01.250
R122-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R123-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R124-6 RESISTOR MF 178 OHM 1% 0.6W PHILIPS 2322 156 11781 03.380
R125-6 RESISTOR MF 3k3 OHM 5% 0.4W PHILIPS 2322 181 53332 01.212
R126-6 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R127-6 RESISTOR MF 2k2 OHM 5% 0.4W PHILIPS 2322 181 53222 01.208
R128-6 RESISTOR MF 178 OHM 1% 0.6W PHILIPS 2322 156 11781 03.380
R129-6 RESISTOR MF 6R8 OHM 5% 0.4W PHILIPS 2322 181 53688 01.145
R130-6 RESISTOR MF 220 OHM 5% 0.4W PHILIPS 2322 181 53221 01.183
R131-6 RESISTOR 63.4 KOHM 1% 0.4W *PHILIPS 2322 156 16343 03.444
R132-6 RESISTOR MF 31k6 OHM 1% 0.6W PHILIPS 2322 156 13163 03.436
R133-6 RESISTOR 15.8 KOHM 1% 0.4W *PHILIPS 2322 156 11583 03.430
R134-6 RESISTOR 8.06 KOHM 1% 0.4W *PHILIPS 2322 156 18062 03.422
R135-6 RESISTOR 63.4 KOHM 1% 0.4W *PHILIPS 2322 156 16343 03.444
R136-6 RESISTOR MF 31k6 OHM 1% 0.6W PHILIPS 2322 156 13163 03.436
R137-6 RESISTOR 15.8 KOHM 1% 0.4W *PHILIPS 2322 156 11583 03.430
R138-6 RESISTOR 8.06 KOHM 1% 0.4W *PHILIPS 2322 156 18062 03.422
R139-6 RESISTOR MF 3k01 OHM 1% 0.6W PHILIPS 2322 156 13012 03.411
R140-6 RESISTOR MF 1 OHM 5% 0.4W PHILIPS 2322 181 53108 01.125
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
9810 PAGE 5-11
R141-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R143-6 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R144-6 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R145-6 RESISTOR MF 3k3 OHM 5% 0.4W PHILIPS 2322 181 53332 01.212
R146-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R147-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R148-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R150-6 RESISTOR MF 56k OHM 5% 0.4W PHILIPS 2322 181 53563 01.243
R151-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R152-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R153-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R154-6 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R155-6 RESISTOR MF 220k OHM 5% 0.4W PHILIPS 2322 181 53224 01.258
R156-6 RESISTOR 11 KOHM 1% 0.4W *PHILIPS 2322 156 11103 03.458
R157-6 RESISTOR MF 4k7 OHM 5% 0.4W PHILIPS 2322 181 53472 01.216
R158-6 RESISTOR MF 820 OHM 5% 0.4W PHILIPS 2322 181 53821 01.197
R159-6 RESISTOR MF 68 OHM 5% 0.4W PHILIPS 2322 181 53689 01.170
R160-6 RESISTOR MF 150 OHM 5% 0.4W PHILIPS 2322 181 53151 01.179
R161-6 RESISTOR MF 8k2 OHM 5% 0.4W PHILIPS 2322 181 53822 01.222
R162-6 PRESET CERMET 500 OHM 10% 0.5W BOURNS 3386P-Y91-501 07.885
RA1-6 RESISTOR ARRAY 8x10k OHM 5% 1/8W PANASONIC EXB-F9E-103 J 08.630
RA2-6 RESISTOR ARRAY 4x4k7 OHM 5% 1/8W BOURNS 4608X-102-472 08.625
RE3-6 RELAY E3206H EICHHOFF BV-55-280R 21.026
U1-6 VOLTAGE REGULATOR FIXED 5V/1A, MC7805, LM340T-5.0 MOTOROLA MC7805CT (MC7805BT) 31.250
U2-6 INTEGRATED CIRCUIT TDA2002V SGS* TDA2003 31.480
U3-6 DUAL OP AMP LM358N MOTOTOLA LM 358N 31.100
U4-6 8-STAGE SHIFT/STORE REG. MC14094, CD4094, MOTOROLA MC14094BCP 33.305
U5-6 DUAL OPERATIONAL AMP. MC1458/LM1458 MOTOROLA MC1458CP1 31.215
U6-6 TRANSISTOR ARRAY 3046 NATIONAL LM3046N 31.025
U7-6 QUAD VOLTAGE COMPERATOR LM339 NATIONAL LM339N 31.075
U8-6 EEPROM 2k BIT SERIAL NATIONAL NMC93C56N 32.710
U11-6 POW.DARLINGTON DRIVER x 7 ULN2003/MC1413 MOTOROLA MC1413P 31.077
U12-6 DUAL TYPE D FLIP-FLOP MC14013BCP MOTOROLA* MC14013BCP 33.056
U13-6 INTEGRATED CIRCUIT QUAD ANALOG SWITCH MOTOROLA MC14066BCP 33.233
U14-6 INTEGRATED CIRCUIT LF347N #NATIOPNAL LF347N 31.530
U15-6 DUAL DIFF.COMPARATOR LM393 TEXAS LM393P 31.105
U16-6 HEX INVERTERS 74HC04 TEXAS SN74HC04N 34.520
U17-6 QUAD OP.AMP. 324 NAT/SGS LM324N 31.065
U18-6 INTEGRATED CIRCUIT MC14569BCP * MOTOROLA MC14569BCP 33.449
U19-6 PROG. PROCESSOR U19 FOR 627746,INTERFACE,RT2047/D S.P.RADIO A/S C1112B - 2F60 728228
KEYBOARD UNIT MODULE 7/700 ECI A/S 5-0-27747C/4-0-27747B 627747
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
C1-7 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C2-7 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C3-7 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C4-7 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C5-7 CAPACITOR CERAMIC 10nF -20/+80% CL2 50VDC KCK RT-HE70 SK YF 103 Z 15.170
C6-7 CAPACITOR MKT 220nF 20% 63VDC ERO MKT 1826-422/06 6-G 11.183
C7-7 CAPACITOR CERAMIC 27pF 5% N150 50VDC KCK RT-HE50-SK PH 270 J 15.076
C8-7 CAPACITOR CERAMIC 27pF 5% N150 50VDC KCK RT-HE50-SK PH 270 J 15.076
C9-7 CAPACITOR MKT 220nF 20% 63VDC ERO MKT 1826-422/06 6-G 11.183
C11-7 CAPACITOR CERAMIC 1n0F 10% CL2 500VDC KCK RT-HM60 SK YB 102 K 15.160
C12-7 CAPACITOR CERAMIC 1n0F 10% CL2 500VDC KCK RT-HM60 SK YB 102 K 15.160
C13-7 CAPACITOR CERAMIC 1n0F 10% CL2 500VDC KCK RT-HM60 SK YB 102 K 15.160
C14-7 CAPACITOR CERAMIC 1n0F 10% CL2 500VDC KCK RT-HM60 SK YB 102 K 15.160
C15-7 CAPACITOR CERAMIC 1n0F 10% CL2 500VDC KCK RT-HM60 SK YB 102 K 15.160
C16-7 CAPACITOR ELECTROLYTIC 33uF 20% 16VDC ERO EKI 00 AA 233 D M5K 14.518
C17-7 CAPACITOR CERAMIC 1n0F 10% CL2 500VDC KCK RT-HM60 SK YB 102 K 15.160
C18-7 CAPACITOR MKT 1u0F 10% 63VDC PHILIPS 2222 370 78105 11.137
D1-7 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
D2-7 DIODE LIGHT EMITTING ORANGE 5mm SANKEN SEL 1913K 25.631
D3-7 DIODE LIGHT EMITTING ORANGE 5mm SANKEN SEL 1913K 25.631
D4-7 DIODE LIGHT EMITTING YELLOW 5mm SANKEN SEL1910D 25.630
D5-7 DIODE LIGHT EMITTING YELLOW 5mm SANKEN SEL1910D 25.630
D6-7 DIODE LIGHT EMITTING ORANGE 5mm SANKEN SEL 1913K 25.631
D7-7 DIODE LIGHT EMITTING ORANGE 5mm SANKEN SEL 1913K 25.631
D8-7 LIQUID CRYSTAL DISPLAY COSTUM DESIGNED RT2047 STANDISH(HAMLIN SP TG.0-3-23886A 25.705
P1-7 MULTI PLUG 2x8 POLES PCB VERSION 3M 3599-6002 / 7616-6002 JL 78.249
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
PAGE 5-12 9810
P2-7 PLUG MT 2 POLES AMP 0-826375-2 78.102
P3-7 PLUG RIGHT ANGEL 1/10" SIL SQ.PINS 11POLES EURO DIP PH3-025/057-11-Z 78.352
P4-7 SIL SQUARE PINS 2 POLES CC=1/10" AMP 0-826629-2 78.322
Q1-7 TRANSISTOR BC558 PNP TO-92 PHILIPS BC558-126 28.097
Q2-7 TRANSISTOR AF BC548B NPN TO-92 PHILIPS BC548B-126 28.076
Q3-7 TRANSISTOR AF BC548B NPN TO-92 PHILIPS BC548B-126 28.076
Q4-7 TRANSISTOR AF BC328-25 PNP TO-92 PHILIPS BC328-25-126 28.052
Q5-7 TRANSISTOR AF BC548B NPN TO-92 PHILIPS BC548B-126 28.076
R1-7 RESISTOR MF 4k7 OHM 5% 0.4W PHILIPS 2322 181 53472 01.216
R2-7 RESISTOR MF 4k7 OHM 5% 0.4W PHILIPS 2322 181 53472 01.216
R3-7 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R4-7 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R5-7 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R7-7 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R8-7 RESISTOR MF 8k2 OHM 5% 0.4W PHILIPS 2322 181 53822 01.222
R9-7 RESISTOR MF 1k5 OHM 5% 0.4W PHILIPS 2322 181 53152 01.204
R10-7 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R11-7 RESISTOR MF 68 OHM 5% 0.4W PHILIPS 2322 181 53689 01.170
R12-7 RESISTOR MF 68 OHM 5% 0.4W PHILIPS 2322 181 53689 01.170
R13-7 RESISTOR 22 OHM 5% 0.5W PHILIPS 2322 156 12209 03.159
R14-7 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R15-7 RESISTOR MF 47 OHM 5% 0.4W PHILIPS 2322 181 53479 01.166
R16-7 RESISTOR MF 3k9 OHM 5% 0.4W PHILIPS 2322 181 53392 01.214
R17-7 RESISTOR MF 220k OHM 5% 0.4W PHILIPS 2322 181 53224 01.258
R18-7 RESISTOR MF 330 OHM 5% 0.4W PHILIPS 2322 181 53331 01.187
R19-7 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R20-7 RESISTOR ARRAY 10x10k OHMS 5% 1/8W PANASONIC EXB-F 11 E 103 J 08.618
R21-7 RESISTOR ARRAY 8x10k OHM 5% 1/8W PANASONIC EXB-F9E-103 J 08.630
R22-7 RESISTOR ARRAY 4x10k OHM 5% 1/8W PANASONIC EXBF8V103G (4X10K) 08.615
R23-7 RESISTOR MF 1M0 OHM 5% 0.4W PHILIPS 2322 181 53105 01.275
U1-7 8-STAGE SHIFT/STORE REG. MC14094, CD4094, MOTOROLA MC14094BCP 33.305
U2-7 8-STAGE SHIFT/STORE REG. MC14094, CD4094, MOTOROLA MC14094BCP 33.305
U3-7 8-STAGE SHIFT/STORE REG. MC14094, CD4094, MOTOROLA MC14094BCP 33.305
U4-7 8-STAGE SHIFT/STORE REG. MC14094, CD4094, MOTOROLA MC14094BCP 33.305
U5-7 8-STAGE SHIFT/STORE REG. MC14094, CD4094, MOTOROLA MC14094BCP 33.305
U6-7 8-STAGE SHIFT/STORE REG. MC14094, CD4094, MOTOROLA MC14094BCP 33.305
U7-7 HEX INVERTERS 74HC04 TEXAS SN74HC04N 34.520
U8-7 VOLTAGE REGULATOR FIXED 5V/1A, MC7805, LM340T-5.0 MOTOROLA MC7805CT (MC7805BT) 31.250
U9-7 PROG. PROCESSOR U9 FOR 627747,KEYBOARD,RT2047/D S.P.RADIO A/S C1111A - BBED 728229
U10-7 DUAL DIFF.COMPARATOR LM393 TEXAS LM393P 31.105
XR1-7 CERAMIC RESONATOR 4 MHz MURATA CSA 4.00 MG TF01 41.510
FILTER UNIT MODULE 9/900 ECI A/S 5-0-27749C / 4-0-27749C 627749
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
C1-9 CAPACITOR MKT 1u0F 10% 63VDC PHILIPS 2222 370 78105 11.137
L1-9 FERRITE BEAD INDUCTOR DOUBLE BEAD CORE MURATA BL02RN2-R62T2 35.300
LC1-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC2-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC3-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC4-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC5-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC6-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC7-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC8-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC9-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC10-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC11-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
LC12-9 EMI SUPPRESSION FILTER Fo=70MHz MURATA DST310-92(91)Y5S 222M 100 18.550
P1-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P2-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P3-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P4-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P5-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P6-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P7-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P8-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P9-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P10-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P11-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
6 PARTSLIST RT2047 DSC - PART II
POSITION DESCRIPTION MANUFACTOR TYPE PART NO.
P12-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P13-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P14-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P15-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P16-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P17-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P18-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P19-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P20-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P21-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P22-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P23-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P24-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P25-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P26-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P27-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P28-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P29-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P30-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P31-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P32-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P33-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
P34-9 SIL SQUARE PINS 3 POLES CC=1/10" AMP 0-826629-3 (0-826647-3) 78.323
P35-9 SOLDER LUG PCB VERSION VOGT AG 01015/Bz-Sn 82.005
RE1-9 RELAY 12VDC 1SH. 2A. ORIGINAL ELECTR OUC-SS-112D (-S-/-SH-) 21.300
RE2-9 RELAY 12VDC 1SH. 2A. ORIGINAL ELECTR OUC-SS-112D (-S-/-SH-) 21.300
9810 PAGE 5-13

Navigation menu
