September 2013 DocID025175 Rev 1 1/35
UM1670
User manual
Discovery kit for STM32F429/439 lines
Introduction
The STM32F429 Discovery kit (32F429IDISCOVERY) helps you to discover the high
performance of the STM32F4 series and to develop your applications. It is based on an
STM32F429ZIT6 and includes an ST-LINK/V2 embedded debug tool interface, 2.4" TFT
LCD, SDRAM 64 Mbits, Gyroscope ST MEMS, LEDs, pushbuttons and a USB OTG micro-B
connector.
Figure 1. STM32F429 Discovery board
www.st.com
Contents UM1670
2/35 DocID025175 Rev 1
Contents
1 Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 Development toolchain supporting the STM32F429 Discovery kit . . . . . . . 4
2.4 Order code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Hardware layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.1 STM32F429ZIT6 microcontroller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 Embedded ST-LINK/V2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2.1 Using ST-LINK/V2 to program/debug the STM32F429ZIT6 on board . . 13
4.2.2 Using ST-LINK/V2 to program/debug an external STM32 application . . 14
4.3 Power supply and power selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.4 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.5 Pushbuttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.6 USB OTG supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.7 Gyroscope MEMS (ST MEMS L3GD20) . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.8 TFT LCD (Thin-film-transistor liquid-crystal display) . . . . . . . . . . . . . . . . 16
4.9 64-Mbit SDRAM (1Mbit x 16-bit x 4-bank) . . . . . . . . . . . . . . . . . . . . . . . . 16
4.10 JP3 (Idd) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.11 OSC clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.11.1 OSC clock supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.11.2 OSC 32 KHz clock supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.12 Solder bridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.13 Extension connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5 Mechanical drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6 Electrical schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DocID025175 Rev 1 1/35
UM1670 List of tables
1
List of tables
Table 1. ON/OFF conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Table 2. Features and benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 3. Jumper states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 4. Debug connector CN2 (SWD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Table 5. Solder bridges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 6. MCU pin description versus board function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table 7. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
List of figures UM1670
2/35 DocID025175 Rev 1
List of figures
Figure 1. STM32F429 Discovery board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 1. Hardware block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 2. Top layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 3. Bottom layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 4. STM32F429ZIT6 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

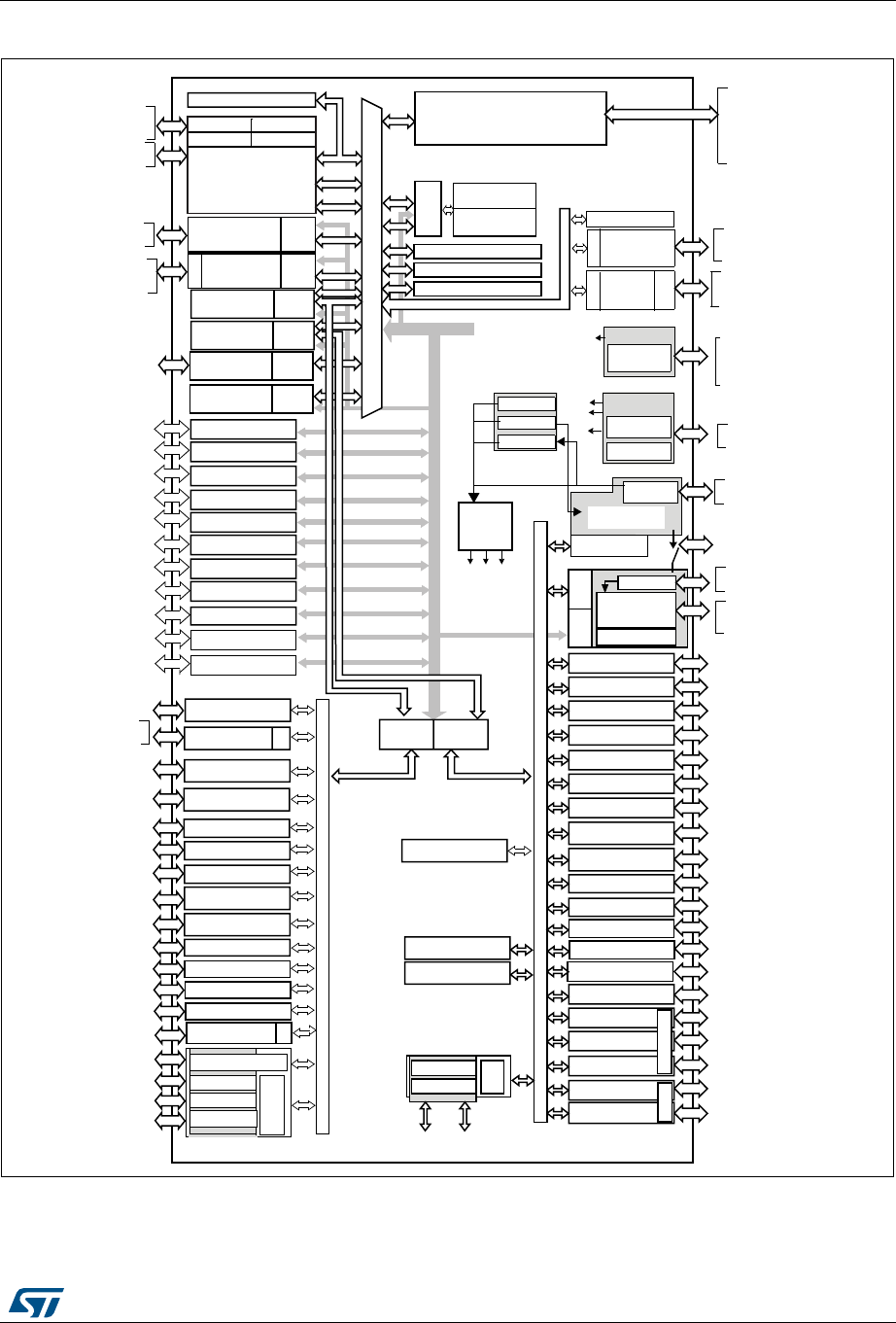

Figure 5. STM32F429ZIT6 block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 6. Typical configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 7. STM32F429 Discovery board connections image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 8. ST-LINK/V2 connections image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 9. STM32F429 Discovery board mechanical drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 10. STM32F429 Discovery board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 11. ST-LINK/V2 (SWD only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 12. USB OTG_FS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

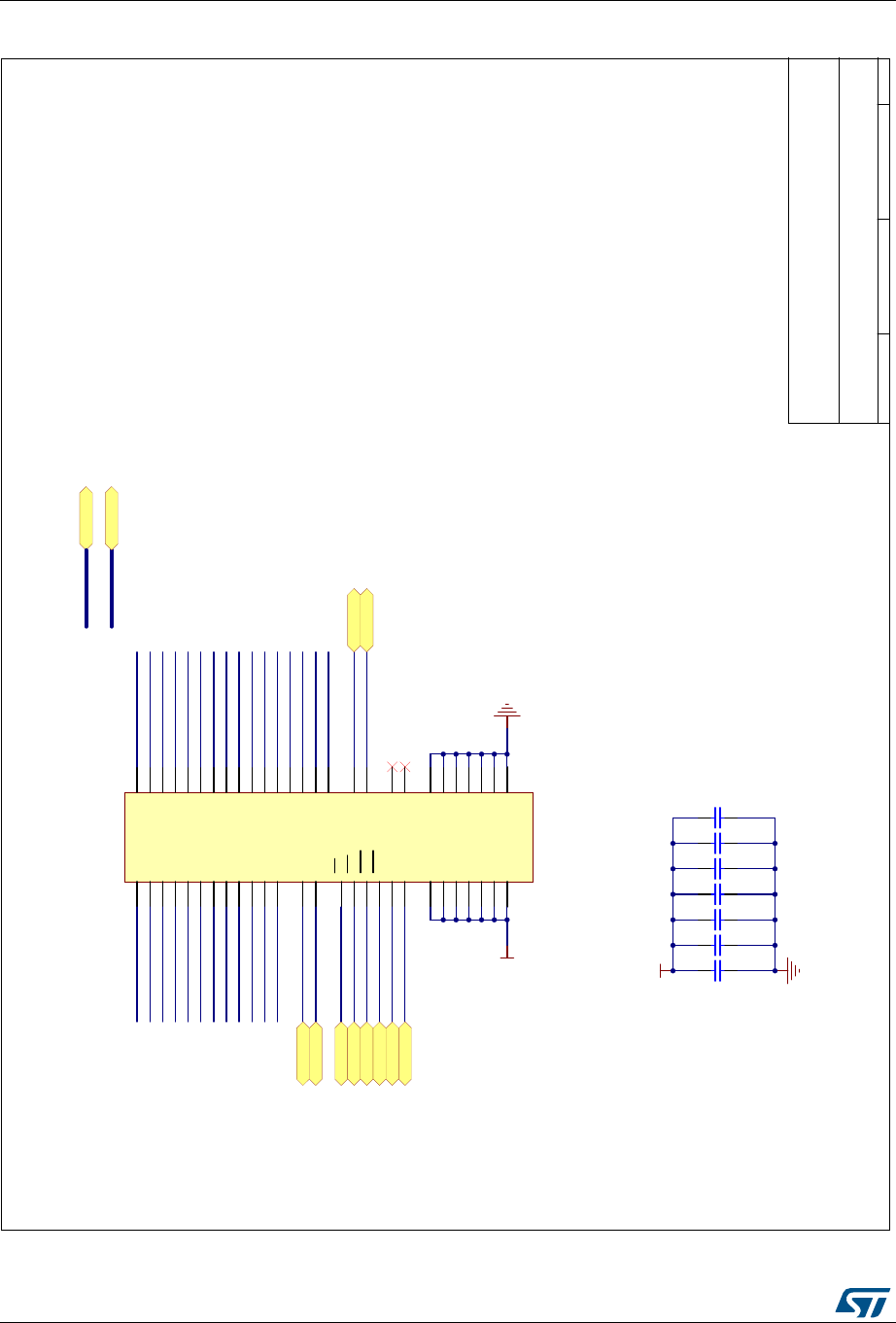

Figure 13. SDRAM 64 Mbits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 14. STM32F429ZIT6 MCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

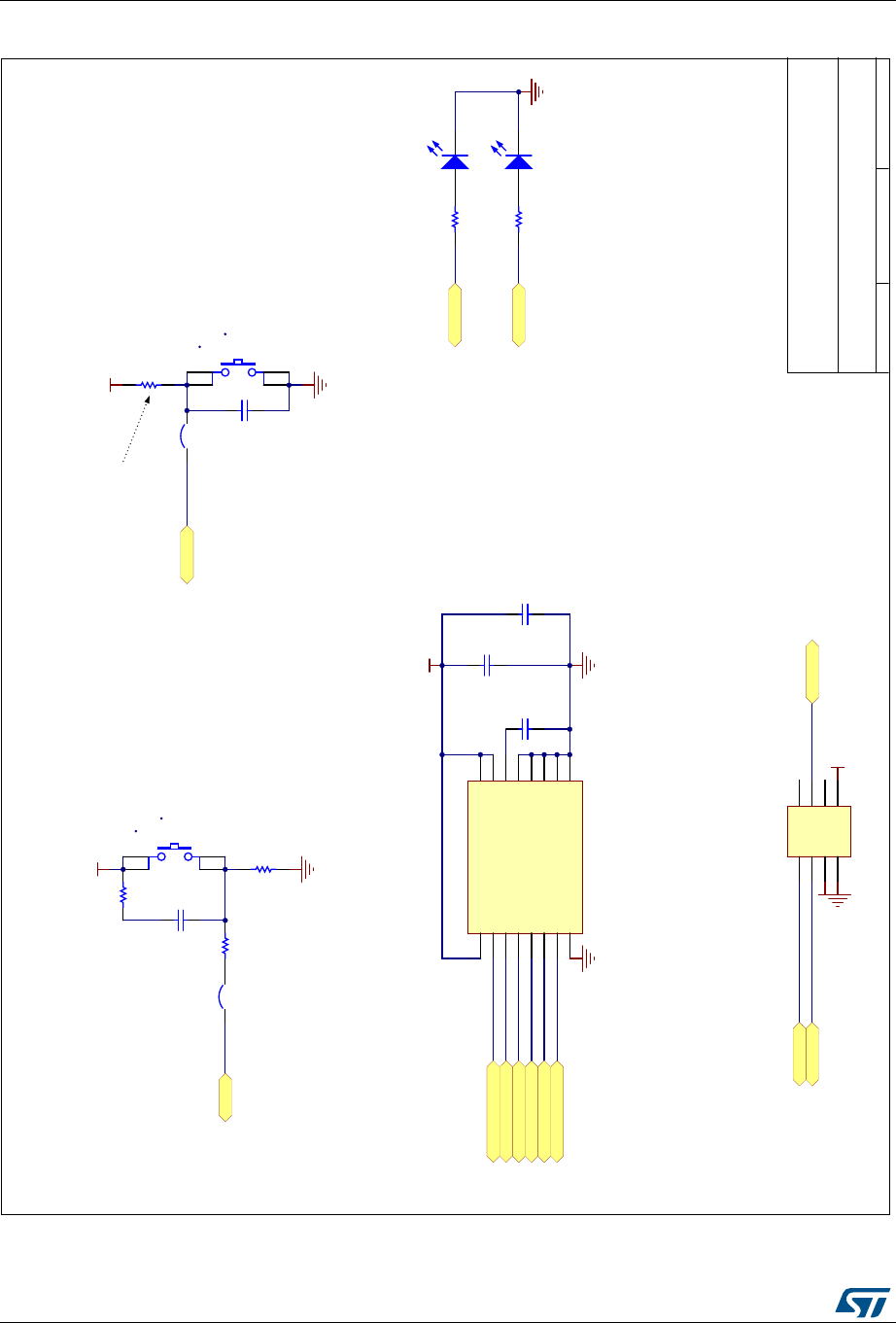

Figure 15. Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 16. LCD 2.4” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
DocID025175 Rev 1 3/35
UM1670 Conventions
34
1 Conventions
Table 1 provides the definition of some conventions used in the present document.
Table 1. ON/OFF conventions
Convention Definition
Jumper JPx ON Jumper fitted
Jumper JPx OFF Jumper not fitted
Solder bridge SBx ON SBx connections closed by solder
Solder bridge SBx OFF SBx connections left open
Quick start UM1670
4/35 DocID025175 Rev 1
2 Quick start
The STM32F429 Discovery is a low-cost and easy-to-use development kit to quickly
evaluate and start a development with an STM32F4 series microcontroller.
Before installing and using the product, please accept the Evaluation Product License
Agreement from www.st.com/stm32f4-discovery.
For more information on the STM32F429 Discovery board and for demonstration software,
visit www.st.com/stm32f4-discovery.
2.1 Getting started
Follow the sequence below to configure the STM32F429 Discovery board and launch the
DISCOVER application:
1. Ensure that the jumpers JP3 and CN4 are set to "on" (Discovery mode).
2. Connect the STM32F429 Discovery board to a PC using a USB cable type A/mini-B
through the USB ST-LINK connector CN1, to power the board. The LEDs LD2 (PWR)
and LD1 (COM).
3. The following applications are available on the screen:
– Clock/Calendar and Game
– Video Player and Image Browser (play videos and view images from the USB
mass storage connected to CN6)
– Performance monitor (watch the CPU load and run a graphical benchmark)
– System Info
4. The demo software, as well as other software examples that allow you to discover the
STM32 F4 series features, are available on www.st.com/stm32f4-discovery.
5. Develop your own applications starting from the examples.
2.2 System requirements
•Windows PC (XP, Vista, 7)
•USB type A to mini-B cable
2.3 Development toolchain supporting the STM32F429
Discovery kit
•Altium: TASKING™ VX-Toolset
•Atollic: TrueSTUDIO
•IAR: EWARM
•Keil™: MDK-ARM
2.4 Order code
To order the STM32F429 Discovery kit, use the STM32F429I-DISCO order code.
DocID025175 Rev 1 5/35
UM1670 Features
34
3 Features
The STM32F429 Discovery board offers the following features:
•STM32F429ZIT6 microcontroller featuring 2 MB of Flash memory, 256 KB of RAM in
an LQFP144 package
•On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-
LINK/V2 (with SWD connector for programming and debugging)
•Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
•L3GD20, ST MEMS motion sensor, 3-axis digital output gyroscope
•TFT LCD (Thin-film-transistor liquid-crystal display) 2.4", 262K colors RGB,
240 x 320 dots
•SDRAM 64 Mbits (1 Mbit x 16-bit x 4-bank) including an AUTO REFRESH MODE, and
a power-saving
•Six LEDs:
– LD1 (red/green) for USB communication
– LD2 (red) for 3.3 V power-on
– Two user LEDs:
LD3 (green), LD4 (red)
– Two USB OTG LEDs:
LD5 (green) VBUS and LD6 (red) OC (over-current)
•Two pushbuttons (user and reset)
•USB OTG with micro-AB connector
•Extension header for LQFP144 I/Os for a quick connection to the prototyping board
and an easy probing
Hardware layout UM1670
6/35 DocID025175 Rev 1
4 Hardware layout
The STM32F429 Discovery board has been designed around the STM32F429ZIT6
microcontroller in a 144-pin LQFP package.
Figure 1 illustrates the connections between the STM32F429ZIT6 and its peripherals (ST-
LINK/V2, pushbutton, LED, USB OTG, Gyroscope ST MEMS, Accelerometer +
Magnetometer ST MEMS, and connectors).
Figure 2 and Figure 3 help you to locate these features on the STM32F429 Discovery
board.
Figure 1. Hardware block diagram
MS32376V1
Embedded
ST-LINK/V2
STM32F429ZIT6
I/O I/O
I/O RESET
LEDs
LD3...LD6
SDRAM
64 Mbits
B2
RESET
B1
USER
L3GD20
Micro-USB
Mini-USB
SWD
Header
Header
2.4" QVGA
TFT LCD
ACP/RF
DocID025175 Rev 1 7/35
UM1670 Hardware layout
34

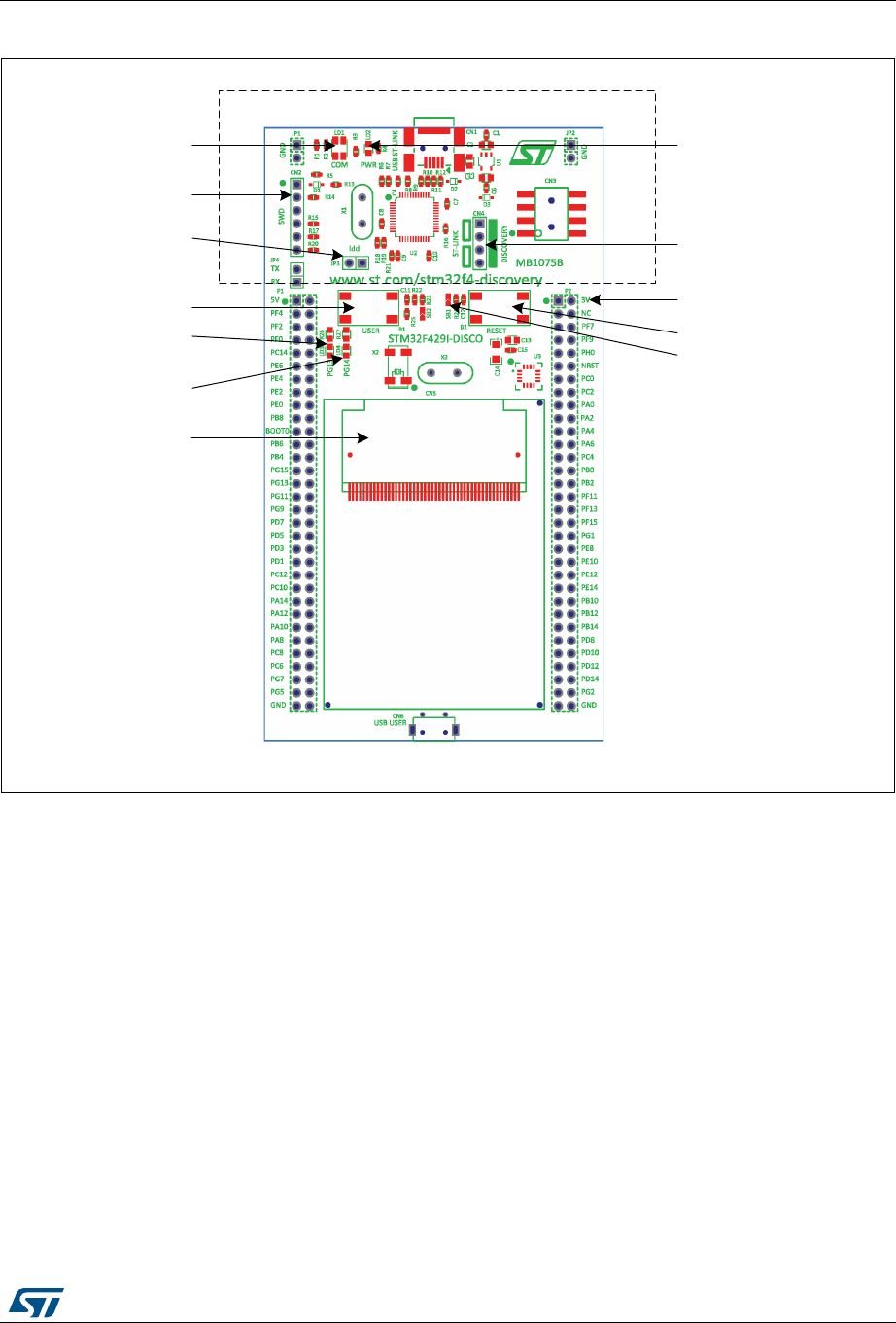

Figure 2. Top layout
.
MS32363V1
ST-LINK/V2
S
T-LINK
/
V2
LD1 (red/green LED)
COM
CN2
SWD connector
LD2 (red LED)
PWR
CN4
ST-LINK/DISCOVERY selector
LD3 (orange LED) B2 reset button
LD4 (green LED)
B1 user button
JP3
IDD measurement
SB1 (B2-RESET)
3 V power supply input/output
2.4" TFT LCD
Hardware layout UM1670
8/35 DocID025175 Rev 1

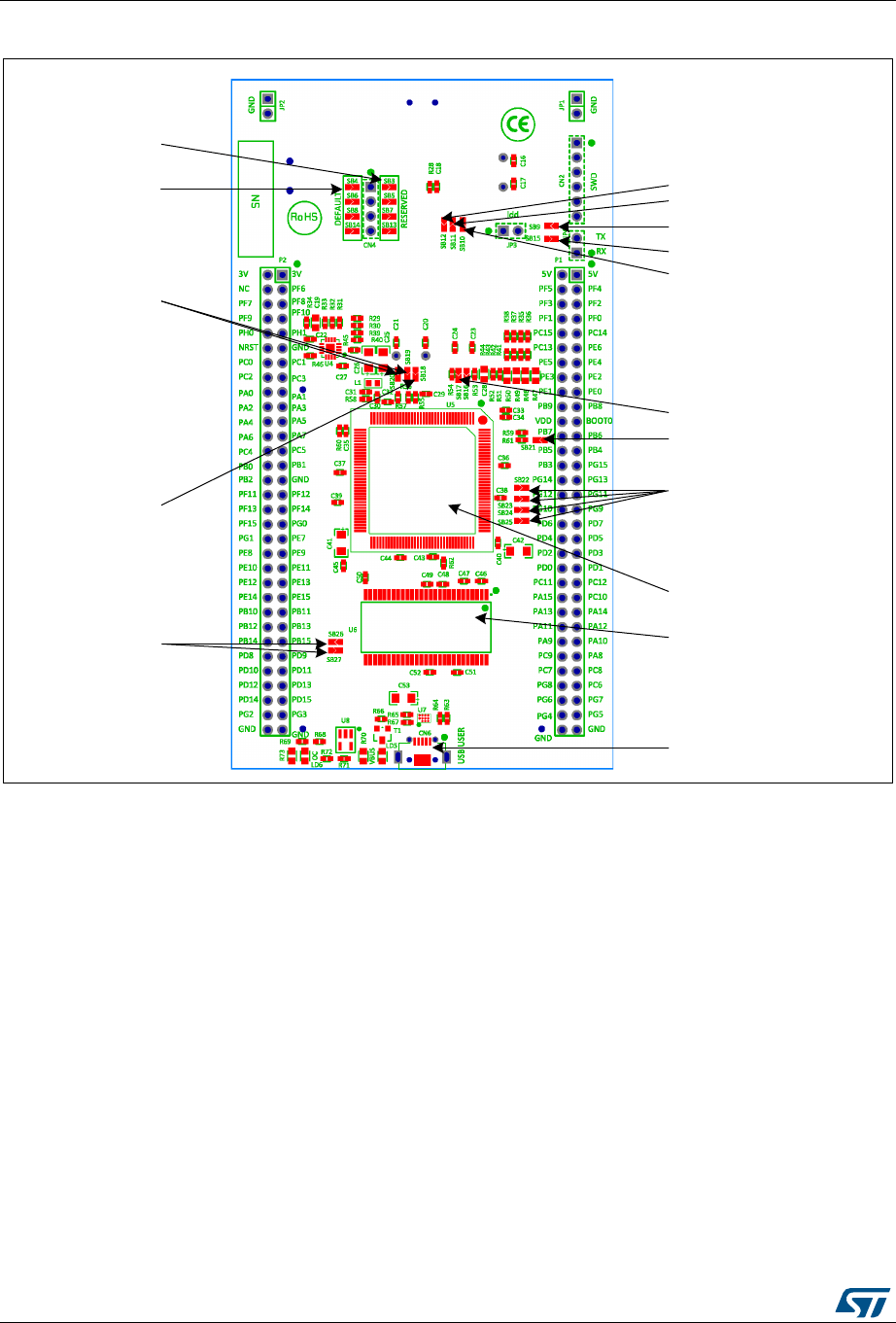

Figure 3. Bottom layout
MS32364V1
SB4, SB6, SB8, SB14
(DEFAULT)
SB10 (STM_RST)
SB3, SB5, SB7, SB13
(RESERVED)
SB18 (MCO)
SB19, 20 (X3 crystal)
SDRAM
SB21 (BOOT1)
SB22, 23, 24, 25
SB26, 27 (USB OTG)
SB11 (RX, TX)
SB12 (NRST)
SB9 (SWO)
SB15 (RX, TX)
SB16, 17 (X2 crystal)
USB OTG micro-AB
STM32F429ZIT6
DocID025175 Rev 1 9/35
UM1670 Hardware layout
34
4.1 STM32F429ZIT6 microcontroller
This ARM Cortex-M4 32-bit MCU with FPU has 225 DMIPS, up to 2 MB Flash/256 +
4 KB RAM, USB OTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 20 comm. interfaces, a camera
and an LCD-TFT, 1.7-3.6 V operation.

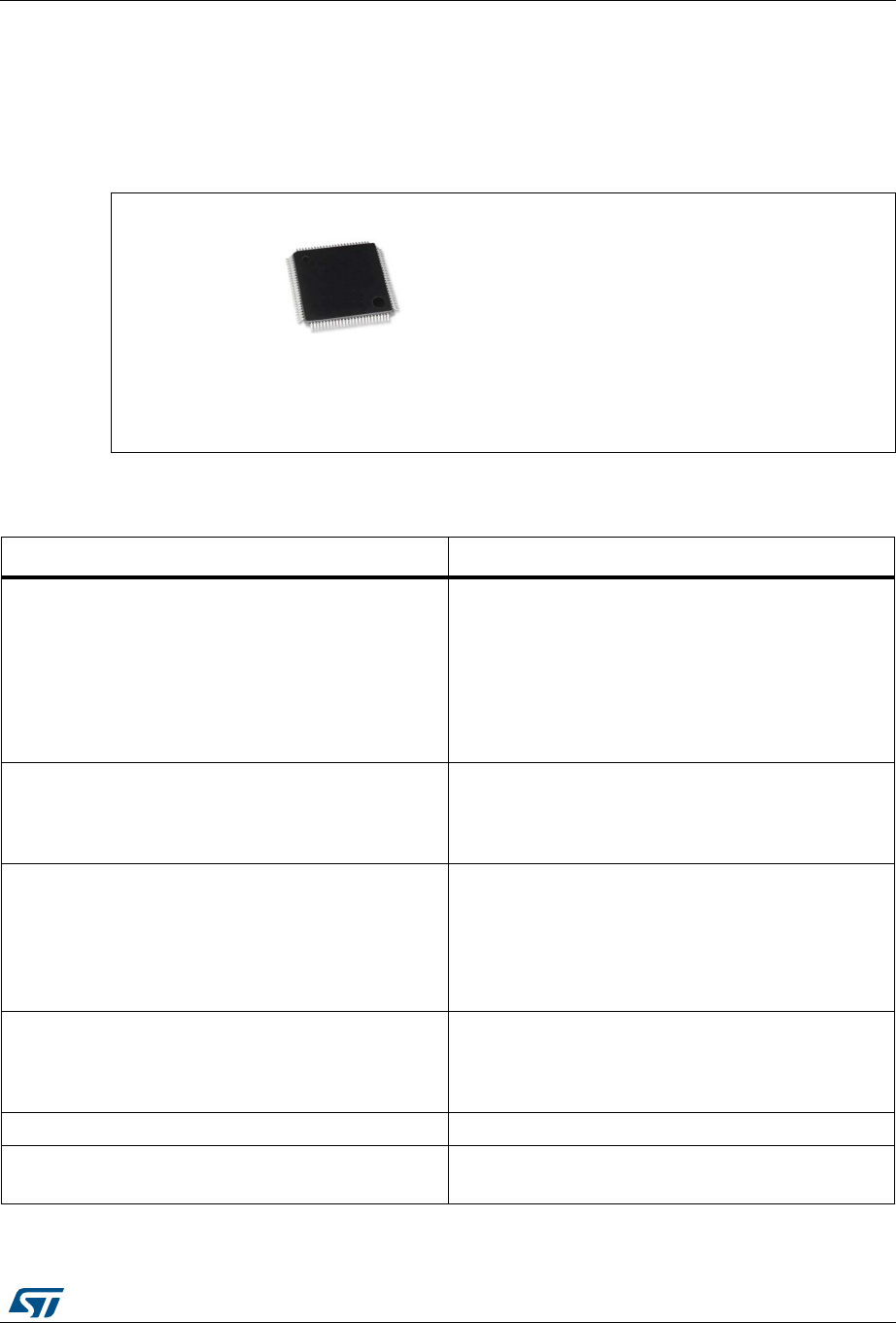

Figure 4. STM32F429ZIT6 package
This device provides the following benefits (see Table 2).
MS32377V1
STM32F429ZIT6
2 Mbytes of Flash memory
256 Kbytes of RAM
LQFP144 20 x 20 mm
Table 2. Features and benefits
Features Benefits
High performance
– Up to 180 MHz/225 DMIPS Cortex-M4 with single
cycle DSP MAC and floating point unit
– CoreMark score: 608 at 180 MHz
– CoreMark/MHz: 3.37
– Boosted execution of control algorithms
– More features for your applications
– Ease of use
– Better code efficiency
– Faster time to market
– Elimination of scaling and saturation
– Easier support for meta-language tools
Maximum integration
– Up to 2 Mbytes of on-chip dual bank Flash memory, up
to 256 Kbytes of SRAM, reset circuit, internal RCs,
PLLs, ultra-small packages (WLCSP)
– Read while write operations support
– More features in space-constrained applications
– Use of high-level languages: Java, .Net
Designed for high performance and ultra-fast data
transfers
– ART Accelerator™: memory accelerator
– Chrom-ART Accelerator™: graphic accelerator
(rectangle filling, rectangle copy with pixel format
conversion and blending)
– Performance equivalent to zero-wait execution from
Flash
– Graphic content is created twice as fast and
independently from the CPU
– 32-bit, 7-layer AHB bus matrix with up to 10 masters
and 8 slaves including 3 blocks of SRAM
– Multi DMA controllers: 2 general-purpose, 1 for USB
HS, one for Ethernet
Concurrent execution and data transfer
– One 4th SRAM block dedicated to the core Simplified resource allocation
– Flexible memory interface with SDRAM support: up to
90 MHz, 32-bit parallel
– High bandwidth for external memories
– Cost-effective external RAM
Hardware layout UM1670
10/35 DocID025175 Rev 1
Outstanding power efficiency
– Ultra-low dynamic power in Run mode: 260 µA/MHz at
180 MHz running CoreMark benchmark from Flash
memory (peripherals off)
– RTC <1 µA typ in VBAT mode
– Down to 100 µA typ in Stop mode
– 3.6 V down to 1.7 V VDD
– 1.2 V voltage regulator with power scaling capability
Extra flexibility to reduce power consumption for
applications requiring both high-processing and low-
power performance when running at low voltage or on a
rechargeable battery
Superior and innovative peripherals and
connectivity
– Connectivity: camera interface, crypto/hash HW
processor with AES GCM and CCM support, and
SHA-256
– Ethernet MAC10/100 with IEEE 1588 v2 support, 2
USB OTG (one with HS support)
– Up to 20 communication interfaces (including
4x USART + 4x UART, 6x SPI, 3x I²C with digital filter,
2x CAN, SDIO)
– USART at 11.25 Mbit/s; SPI at 45 Mbit/s
New possibilities to connect and communicate high-
speed data
Audio:
– dedicated audio PLL, 2x I2S and 1x SAI with TDM(1)
support
High-quality multi-channel audio support
– LCD TFT controller
– Up to SVGA format (800 x 600)
– Up to 24-bit RGB parallel pixel output
– 2-layer support with blending
Support for cost-effective standard displays
Analog:
– 2x 12-bit DACs, 3x 12-bit ADCs reaching 7.2 MSPS in
interleaved mode
– Up to 17 timers: 16 and 32 bits running up to 180 MHz
More precision thanks to high resolution
High integration
– WLCSP143 4.5 x 5.5 mm, 2-Mbyte Flash/256-Kbyte
SRAM)
Smaller board space allowing for smaller applications
Extensive tools and software solutions
– Hardware sector protection with execute only access
– Various IDE, starter kits, libraries, RTOS and stacks,
either open source or provided by ST or 3rd parties,
including the ARM CMSIS DSP library optimized for
Cortex-M4 instructions
– Software IP protection
– A wide choice within the STM32 ecosystem to develop
your applications
1. TDM: time division multiplex
Table 2. Features and benefits (continued)
Features Benefits
DocID025175 Rev 1 11/35
UM1670 Hardware layout
34
Figure 5. STM32F429ZIT6 block diagram
GPIO PORT A
AHB/APB2
EXT IT. WKUP
168 AF
PA[15:0]
TIM1 / PWM
4 compl. chan. (TIM1_CH1[1:4]N),
4 chan. (TIM1_CH1[1:4]ETR,
BKIN as AF
USART1
RX, TX, CK,
CTS, RTS as AF
SPI1
MOSI, MISO,
SCK, NSS as AF
APB2 60MHz
APB1 30MHz
8 analog inputs common
to the 3 ADCs
VDDREF_ADC
UART4
MOSI/SD, MISO/SD_ext, SCK/CK
NSS/WS, MCK as AF
SP3/I2S3
TX, RX
bxCAN2
DAC1_OUT
as AF
ITF
WWDG
4 KB BKPSRAM
RTC_AF1
OSC32_IN
OSC32_OUT
VDDA, VSSA
NRST
smcard
irDA
16b
SDIO / MMC
D[7:0]
CMD, CK as AF
VBAT = 1.65 to 3.6 V
DMA2
SCL, SDA, SMBA as AF
I2C3/SMBUS
JTAG & SW
ARM Cortex-M4
180 MHz
NVIC
ETM
MPU
TRACECLK
TRACED[3:0]
Ethernet MAC
10/100
DMA/
FIFO
MII or RMII as AF
MDIO as AF
USB
OTG HS
DP, DM
ULPI:CK, D[7:0], DIR, STP, NXT
ID, VBUS, SOF
DMA2
8 Streams
FIFO
ART ACCEL/
CACHE
SRAM 112 KB
CLK, NE [3:0], A[23:0],
D[31:0], NOEN, NWEN,
NBL[3:0], SDCLKE[1:0], SDNE[1:0],
SDNWE, NL
NWAIT/NIORD, NREG, CD
INTN
RNG
Camera
interface
HSYNC, VSYNC
PUIXCLK, D[13:0]
PHY
USB
OTG FS
DP
DM
ID, VBUS, SOF
FIFO
AHB1 180 MHz
PHY
FIFO
USART 2MBps
Temperature sensor
ADC1
ADC2
ADC3
IF
IF
@VDDA
@VDDA
POR/PDR
BOR
Supply
supervision
@VDDA
PVD
Int
POR
reset
XTAL 32 kHz
MANAGT
RTC
RC HS
FCLK
RC LS
Standby
interface
IWDG
@VBAT
@VDDA
@VDD
AWU
Reset &
clock
control
PLL1,2,3
PCLKx
VDD = 1.8 to 3.6 V
VSS
VCAP1, VCPA2
Voltage
regulator
3.3 to 1.2 V
VDD Power managmt
@VDD
RTC_AF1
Backup register
AHB bus-matrix 8S7M
APB2 90 MHz
LS
TIM14
TIM9
2 channels as AF
DAC1
DAC2
1MB Flash
External memory controller (FMC)
SRAM, SDRAM, PSRAM,
NOR Flash, PC Card (ATA),
NAND Flash
TIM6
TIM7
TIM2
TIM3
TIM4
TIM5
TIM12
D-BUS
MS30420V2
FIFO
FPU
APB1 45 MHz (max)
SRAM 16 KB
CCM data RAM 64 KB
AHB3
AHB2 180 MHz
NJTRST, JTDI,
JTCK/SWCLK
JTDO/SWD, JTDO
I-BUS
S-BUS
DMA/
FIFO
DMA1
8 Streams
FIFO
PB[15:0]
PC[15:0]
PD[15:0]
PE[15:0]
PF[15:0]
PG[15:0]
PH[15:0]
PI[15:0]
GPIO PORT B
GPIO PORT C
GPIO PORT D
GPIO PORT E
GPIO PORT F
GPIO PORT G
GPIO PORT H
GPIO PORT I
TIM8 / PWM
16b
16b
TIM10
16b
TIM11
16b
smcard
irDA
USART6
4 compl. chan.(TIM8_CH1[1:4]N),
4 chan. (TIM8_CH1[1:4], ETR,
BKIN as AF
1 channel as AF
1 channel as AF
RX, TX, CK,
CTS, RTS as AF
8 analog inputs common
to the ADC1 & 2
8 analog inputs for ADC3
DAC2_OUT
as AF
16b
16b
bxCAN1
I2C2/SMBUS
I2C1/SMBUS
SCL, SDA, SMBA as AF
SCL, SDA, SMBA as AF
SP2/I2S2
MOSI/SD, MISO/SD_ext, SCK/CK
NSS/WS, MCK as AF
TX, RX
RX, TX as AF
RX, TX as AF
RX, TX as AF
CTS, RTS as AF
RX, TX as AF
CTS, RTS as AF
1 channel as AF
UART5
USART3
USART2
smcard
irDA
smcard
irDA
16b
16b
16b
1 channel as AF
TIM13
2 channels as AF
32b
16b
16b
32b
4 channels
4 channels, ETR as AF
4 channels, ETR as AF
4 channels, ETR as AF
DMA1
AHB/APB1
LS
OSC_IN
OSC_OUT
HCLKx
XTAL OSC
4- 16MHz
FIFO
SPI4
SCK, NSS as AF
SPI5
SCK, NSS as AF
MOSI, MISO,
MOSI, MISO,
SPI6
SCK, NSS as AF
MOSI, MISO,
RX, TX as AF
UART7
RX, TX as AF
UART8
SRAM 64 KB
1MB Flash
FIFO
LCD-TFT
FIFO
PJ[15:0]
GPIO PORT J
PK[7:0]
GPIO PORT K
SAI1
SD, SCK, FS, MCLK as AF
FIFO
Digital filter
NRAS, NCAS, NADV
RTC_50HZ
LCD_R[7:0], LCD_G[7:0], LCD_B[7:0],
LCD_HSYNC, LCD_VSYNC, LCD_DE,
LCD_CLK
CHROM-ART
DMA2D
Hardware layout UM1670
12/35 DocID025175 Rev 1
4.2 Embedded ST-LINK/V2
The ST-LINK/V2 programming and debugging tool is integrated on the STM32F429
Discovery board. The embedded ST-LINK/V2 can be used in 2 different ways according to
the jumper states (see Table 3):
•Program/debug the MCU on board,
•Program/debug an MCU in an external application board using a cable connected to
SWD connector CN3.
The embedded ST-LINK/V2 supports only SWD for STM32 devices. For information about
debugging and programming features, refer to user manual UM1075 (ST-LINK/V2 in-circuit
debugger/programmer for STM8 and STM32) which describes in detail all the ST-LINK/V2
features.

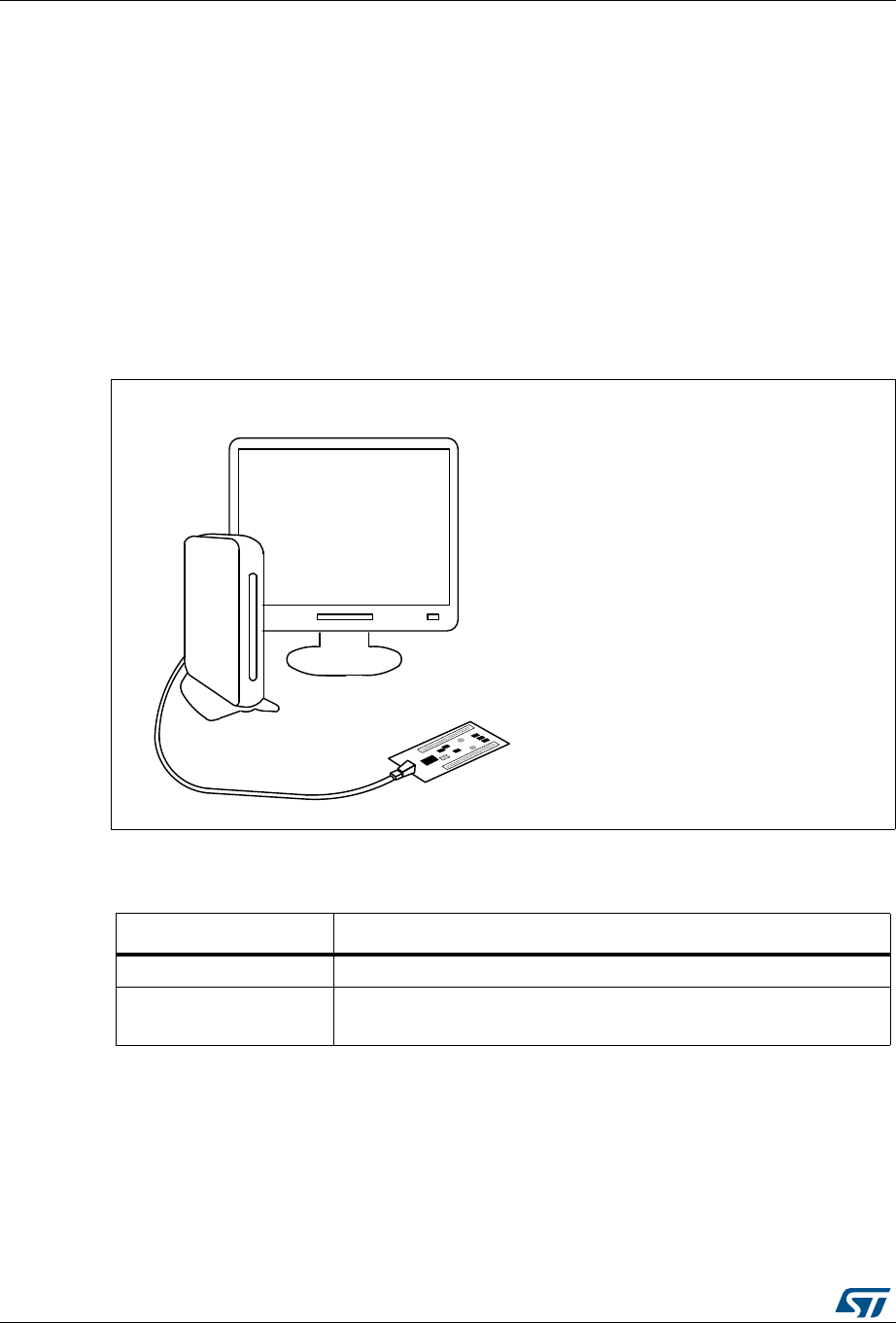

Figure 6. Typical configuration
Table 3. Jumper states
Jumper state Description
Both CN4 jumpers ON ST-LINK/V2 functions enabled for on-board programming (default)
Both CN4 jumpers OFF ST-LINK/V2 functions enabled for application through external
CN3 connector (SWD supported)
MS31115V1
Hardware requirements:
- USB cable type A to mini-B
- Computer with Windows XP, Vista or 7
Development toolchains:
- Altium TASKING VX-Toolset
- Atollic TrueSTUDIO
- IAR EWARM
- Keil MDK-ARM
DocID025175 Rev 1 13/35
UM1670 Hardware layout
34
4.2.1 Using ST-LINK/V2 to program/debug the STM32F429ZIT6 on board
To program the STM32F429ZIT6 on board, simply plug in the two jumpers on CN4, as
shown in Figure 7 in red, but do not use the CN3 connector as that could disturb the
communication with the STM32F429ZIT6 of the STM32F429 Discovery board.
Figure 7. STM32F429 Discovery board connections image
Hardware layout UM1670
14/35 DocID025175 Rev 1
4.2.2 Using ST-LINK/V2 to program/debug an external STM32 application
It is very easy to use the ST-LINK/V2 to program the STM32 on an external application.
Simply remove the two jumpers from CN4 as shown in Figure 8, and connect your
application to the CN3 debug connector according to Table 4.
Note: SB7must be OFF if you use CN2 pin 5 in your external application.
Figure 8. ST-LINK/V2 connections image
Table 4. Debug connector CN2 (SWD)
Pin CN2 Designation
1 VDD_TARGET VDD from application
2 SWCLK SWD clock
3 GND Ground
4 SWDIO SWD data input/output
5 NRST RESET of target MCU
6 SWO Reserved
DocID025175 Rev 1 15/35
UM1670 Hardware layout
34
4.3 Power supply and power selection
The power supply is provided either by the host PC through the USB cable, or by an
external 5 V power supply.
The D1 and D2 diodes protect the 5 V and 3 V pins from external power supplies:
•5 V and 3 V can be used as output power supplies when another application board is
connected to pins P1 and P2.
In this case, the 5 V and 3 V pins deliver a 5 V or 3 V power supply and the power
consumption must be lower than 100 mA.
•5 V and 3 V can also be used as input power supplies, e.g. when the USB connectors
are not connected to the PC.
In this case, the STM32F429 Discovery board must be powered by a power supply unit
or by an auxiliary equipment complying with standard EN-60950-1: 2006+A11/2009,
and must be Safety Extra Low Voltage (SELV) with limited power capability.
Note: The board can also be powered through the USB USER connector and is protected by D4
and D5 diodes when both USBs are connected (in which case, the 5 V power is around
4.4 volts).
4.4 LEDs
•LD1 COM:
LD1 default status is red. LD1 turns to green to indicate that communications are in
progress between the PC and the ST-LINK/V2.
•LD2 PWR:
The red LED indicates that the board is powered.
•User LD3:
The green LED is a user LED connected to the I/O PG13 of the STM32F429ZIT6.
•User LD4:
The red LED is a user LED connected to the I/O PG14 of the STM32F429ZIT6.
•User LD5:
The green LED indicates when VBUS is present on CN6 and is connected to PB13 of
the STM32F429ZIT6.
•User LD6:
The red LED indicates an overcurrent from VBUS of CN6 and is connected to the I/O
PC5 of the STM32F429ZIT6.
4.5 Pushbuttons
•B1 USER:
User and Wake-Up button connected to the I/O PA0 of the STM32F429ZIT6.
•B2 RESET:
The pushbutton connected to NRST is used to RESET the STM32F429ZIT6.
Hardware layout UM1670
16/35 DocID025175 Rev 1
4.6 USB OTG supported
The STM32F429ZIT6 is used to drive only USB OTG full speed on this board. The USB
micro-AB connector (CN6) allows the user to connect a host or device component, such as
a USB key, mouse, and so on.
Two LEDs are dedicated to this module:
•LD5 (green LED) indicates when VBUS is active
•LD6 (red LED) indicates an overcurrent from a connected device.
4.7 Gyroscope MEMS (ST MEMS L3GD20)
The L3GD20 is an ultra-compact, low-power, three-axis angular rate sensor. It includes a
sensing element and an IC interface able to provide the measured angular rate to the
external world through the I2C/SPI serial interface.
The L3GD20 has dynamically user-selectable full scales of ± 250 dps/500 dps/±2000 dps
and is capable of measuring rates.
The STM32F429ZIT6 MCU controls this motion sensor through the SPI interface.
4.8 TFT LCD (Thin-film-transistor liquid-crystal display)
The TFT LCD is a 2.41" display of 262 K colors. Its definition is QVGA (240 x 320 dots) and
is directly driven by the STM32F429ZIT6 using the RGB protocol. It includes the ILI9341
LCD controller and can operate with a 2.8 ±0.3 V voltage.
The STM32F429ZIT6 MCU controls this motion sensor through the SPI interface.
4.9 64-Mbit SDRAM (1Mbit x 16-bit x 4-bank)
The 64-Mbit SDRAM is a high speed CMOS, dynamic random-access memory designed to
operate in 3.3 V memory systems containing 67,108,864 bits. it is internally configured as a
quad-bank DRAM with a synchronous interface. Each 16,777,216-bit bank is organized as
4,096 rows by 256 columns by 16 bits. The 64-Mbit SDRAM includes an AUTO REFRESH
MODE, and a power-saving, power-down mode. All signals are registered on the positive
edge of the clock signal, CLK.
The STM32F429ZIT6 MCU reads and writes data at 80 MHz.
4.10 JP3 (Idd)
Jumper JP3, labeled Idd, allows the consumption of STM32F429ZIT6 to be measured by
removing the jumper and connecting an ammeter.
•Jumper on: STM32F429ZIT6 is powered (default).
•Jumper off: an ammeter must be connected to measure the STM32F429ZIT6 current,
(if there is no ammeter, the STM32F429ZIT6 is not powered).
DocID025175 Rev 1 17/35
UM1670 Hardware layout
34
4.11 OSC clock
4.11.1 OSC clock supply
The following information indicates all configurations for clock supply selection.
•MCO from ST-LINK (from MCO of the STM32F429ZIT6)
This frequency cannot be changed, it is fixed at 8 MHz and connected to PH0-OSC_IN
of the STM32F429ZIT6. The configuration needed is:
– SB18 closed, SB19 open, R56 removed
– SB20, R57, C20, C21, X3 = don't care
•Oscillator onboard (from X3 crystal)
For typical frequencies and its capacitors and resistors, please refer to the
STM32F429ZIT6 Datasheet. The configuration needed is:
– SB18, SB19, SB20 open
– -R56, R57, C20, C21, X3 soldered
•Oscillator from external PH0 (from external oscillator through pin 10 of the P2
connector)
The configuration needed is:
– SB19 closed, SB18 open, R56 removed
– SB20, R57, C20, C21, X3 = don't care
•No external oscillator (from Internal oscillator HSI only).
PH0 and PH1 can be used as GPIO. The configuration needed is:
– SB18 open, SB19 closed, SB20 closed, R56 removed, R57 removed
– C20, C21, X3 = don't care
4.11.2 OSC 32 KHz clock supply
The following information indicates all configurations for the 32 kHz clock supply selection.
•Oscillator on board (from X2 Crystal, not provided).
The configuration needed is:
– SB16 open, SB17 open.
– R53, R54, C23, C24, X2 soldered.
•Oscillator from external PC14 (from external oscillator through pin 9 of P1 connector)
The configuration needed is:
– SB16 closed, R53 removed
– SB17, R54, C23, C24, X2 = don't care
•No external oscillator (PC14 and PC15 can be used as GPI.
The configuration needed is:
– SB16 closed, SB17 closed, R53 removed, R54 removed.
– C23, C24, X2 = don't care.
Hardware layout UM1670
18/35 DocID025175 Rev 1
4.12 Solder bridges
Table 5. Solder bridges
Bridge State (1)
1. Default SBx state is shown in bold.
Description
SB19,20 (X3 crystal)
OFF X3, C20, C21, R56 and R57 provide a clock. PH0, PH1 are disconnected from
P2
ON PH0, PH1 are connected to P2. Remove only R56 and R57
SB4,6,8,14 (default) ON Reserved, do not modify
SB3,5,7,13 (reserved) OFF Reserved, do not modify
SB22,23,24,25 OFF Reserved, do not modify
SB16,17 (X2 crystal)
OFF X2, C23, C24, R53 and R54 deliver a 32 KHz clock.
PC14, PC15 are not connected to P2
ON PC14, PC15 are only connected to P2
Remove only R53 and R54
SB1 (B2-RESET)
ON B2 Push Button is connected to NRST of STM32F429ZIT6
OFF B2 Push Button is not connected to NRST of STM32F429ZIT6
SB2 (B1-USER)
ON B1 Push Button is connected to PA0
OFF B1 Push Button is not connected to PA0
SB11,15 (RX,TX)
OFF Reserved, do not modify
ON Reserved, do not modify
SB12 (NRST)
ON NRST signal of connector CN2 is connected to NRST of STM32F429ZIT6
OFF NRST signal is not connected
SB9 (SWO)
OFF SWO signal is not connected
ON SWO signal of connector CN3 is connected to PB3
SB10 (STM_RST)
OFF No incidence on NRST signal of STM32F429ZIT6
ON NRST signal of STM32F429ZIT6 is connected to GND
SB21 (BOOT0)
ON BOOT0 signal of STM32F429ZIT6 is at level "0" through 510 Ω pull-down
OFF BOOT0 signal of STM32F429ZIT6 is at level "1" through 10 KΩ pull-up (not
provided)
SB26,27 (USB OTG)
OFF PB14 and PB15 are only used for USB OTG and not connected to P2 to avoid
noise
ON PB14 and PB15 are connected to P2.
SB18 (MCO)
OFF MCO signal of STM32F429ZIT6 is not used
ON MCO clock signal from STM32F429ZIT6 is connected to OSC_IN of
STM32F429ZIT6
DocID025175 Rev 1 19/35
UM1670 Hardware layout
34
4.13 Extension connectors
The male headers P1 and P2 can connect the STM32F429 Discovery board to a standard
prototyping/wrapping board. STM32F429ZIT6 GPI/Os are available on these connectors.
P1 and P2 can also be probed by an oscilloscope, a logical analyzer or a voltmeter.
Table 6. MCU pin description versus board function (page 1 of 7)
MCU pin Board function
Main
function
LQFP144
System
SDRAM
LCD-TFT
LCD-RGB
LCD-SPI
L3GD20
USB
LED
Puchbutton
ACP/RF
Touch panel
Free I/O
Power supply
CN2
CN3
CN6
P1
P2
BOOT0 138
BOOT0
21
NRST 25
NRST
RESET
RESET
RESET
B2
512
PA 0 3 4
B1
18
PA 1 3 5
INT1
17
PA 2 3 6
INT2
20
PA 3 3 7
DB3
B5
19
PA 4 4 0
VSYNC
VSYNC
22
PA 5 4 1
21
PA 6 4 2
DB6
G2
24
PA 7 4 3
ACP_RST
4 23
PA 8 1 0 0
SCL
SCL
3 53
PA 9 1 0 1
52
PA 1 0 1 0 2
51
PA 1 1 1 0 3
DB14
R4
50
PA 1 2 1 0 4
DB15
R5
49
PA 1 3 1 0 5
SWDIO
448
Hardware layout UM1670
20/35 DocID025175 Rev 1
PA 1 4 1 0 9
SWCLK
247
PA 1 5 1 1 0
INT
46
PB0 46
DB13
R3
28
PB1 47
DB16
R6
27
PB2 48
BOOT1
30
PB3 133
SWO
628
PB4 134 25
PB5 135
SDCKE1
26
PB6 136
SDNE1
23
PB7 137 24
PB8 139
DB4
B6
19
PB9 140
DB5
B7
20
PB10 69
DB8
G4
48
PB11 70
DB9
G5
47
PB12 73
ID
450
PB13 74
VBUS
Green
149
PB14 75
DM
252
(1)
PB15 76
DP
351
(2)
PC0 26
SDNWE
14
Table 6. MCU pin description versus board function (page 2 of 7)
MCU pin Board function
Main
function
LQFP144
System
SDRAM
LCD-TFT
LCD-RGB
LCD-SPI
L3GD20
USB
LED
Puchbutton
ACP/RF
Touch panel
Free I/O
Power supply
CN2
CN3
CN6
P1
P2
DocID025175 Rev 1 21/35
UM1670 Hardware layout
34
PC1 27
CS
13
PC2 28
CSX
CSX
CSX
16
PC3 29 15
PC4 44
PSO
26
PC5 45
QC
Red
25
PC6 96
HSYNC
HSYNC
57
PC7 97
DB10
G6
56
PC8 98 55
PC9 99
SDA
SDA
154
PC10 111
DB12
R2
45
PC11 112 44
PC12 113
43
PC13 7
12
PC14 8
OSC32_IN
9
PC15 9
OSC32_OUT
10
PD0 114
D2
42
PD1 115
D3
41
PD2 116
40
PD3 117
DB11
G7
39
PD4 118
38
PD5 119
37
Table 6. MCU pin description versus board function (page 3 of 7)
MCU pin Board function
Main
function
LQFP144
System
SDRAM
LCD-TFT
LCD-RGB
LCD-SPI
L3GD20
USB
LED
Puchbutton
ACP/RF
Touch panel
Free I/O
Power supply
CN2
CN3
CN6
P1
P2
Hardware layout UM1670
22/35 DocID025175 Rev 1
PD6 122
DB0
B2
36
PD7 123
35
PD8 77
D13
54
PD9 78
D14
53
PD10 79
D15
56
PD11 80
TE
55
PD12 81
RDX
58
PD13 82
WRX
DCX
57
PD14 85
D0
60
PD15 86
D1
59
PE0 141
NBL0
17
PE1 142
NBL1
18
PE2 1
15
PE3 2
16
PE4 3
13
PE5 4
14
PE6 5
11
PE7 58
D4
37
PE8 59
D5
40
PE9 60
D6
39
PE10 63
D7
42
PE11 64
D8
41
PE12 65
D9
44
PE13 66
D10
43
PE14 67
D11
46
Table 6. MCU pin description versus board function (page 4 of 7)
MCU pin Board function
Main
function
LQFP144
System
SDRAM
LCD-TFT
LCD-RGB
LCD-SPI
L3GD20
USB
LED
Puchbutton
ACP/RF
Touch panel
Free I/O
Power supply
CN2
CN3
CN6
P1
P2
DocID025175 Rev 1 23/35
UM1670 Hardware layout
34
PE15 68
D12
45
PF0 10
A0
7
PF1 11
A1
8
PF2 12
A2
5
PF3 13
A3
6
PF4 14
A4
3
PF5 15
A5
4
PF6 18 3
PF7 19
DCX
SCL
SCK
6
PF8 20
MISO
5
PF9 21
SDA
SDI/SDO
MOSI
8
PF10 22
ENABLE
DE
7
PF11 49
SDNRAS
32
PF12 50
A6
31
PF13 53
A7
34
PF14 54
A8
33
PF15 55
A9
36
PG0 56
A10
35
PG1 57
A11
38
PG2 87 62
PG3 88 61
PG4 89
BA0
62
PG5 90
BA1
61
Table 6. MCU pin description versus board function (page 5 of 7)
MCU pin Board function
Main
function
LQFP144
System
SDRAM
LCD-TFT
LCD-RGB
LCD-SPI
L3GD20
USB
LED
Puchbutton
ACP/RF
Touch panel
Free I/O
Power supply
CN2
CN3
CN6
P1
P2
Hardware layout UM1670
24/35 DocID025175 Rev 1
PG6 91
DB17
R7
60
PG7 92
DOTLCK
CLK
59
PG8 93
SDCLK
58
PG9 124 33
PG10 125
DB7
G3
34
PG11 126
DB1
B3
31
PG12 127
DB2
B4
32
PG13 128
Green
29
PG14 129
Red
30
PG15 132
SDNCAS
27
PH0 23
OSC_IN
10
PH1 24
OSC_OUT
9
VDD
22
3 V
51
3 V
2
5 V
81
5 V
2
GND
3 7 5 63 11
Table 6. MCU pin description versus board function (page 6 of 7)
MCU pin Board function
Main
function
LQFP144
System
SDRAM
LCD-TFT
LCD-RGB
LCD-SPI
L3GD20
USB
LED
Puchbutton
ACP/RF
Touch panel
Free I/O
Power supply
CN2
CN3
CN6
P1
P2
DocID025175 Rev 1 25/35
UM1670 Hardware layout
34
GND
64 29
GND
63
GND
64
1. If SB27 is On.
2. If SB26 is On.
Table 6. MCU pin description versus board function (page 7 of 7)
MCU pin Board function
Main
function
LQFP144
System
SDRAM
LCD-TFT
LCD-RGB
LCD-SPI
L3GD20
USB
LED
Puchbutton
ACP/RF
Touch panel
Free I/O
Power supply
CN2
CN3
CN6
P1
P2
DocID025175 Rev 1 27/35
UM1670 Electrical schematics
34

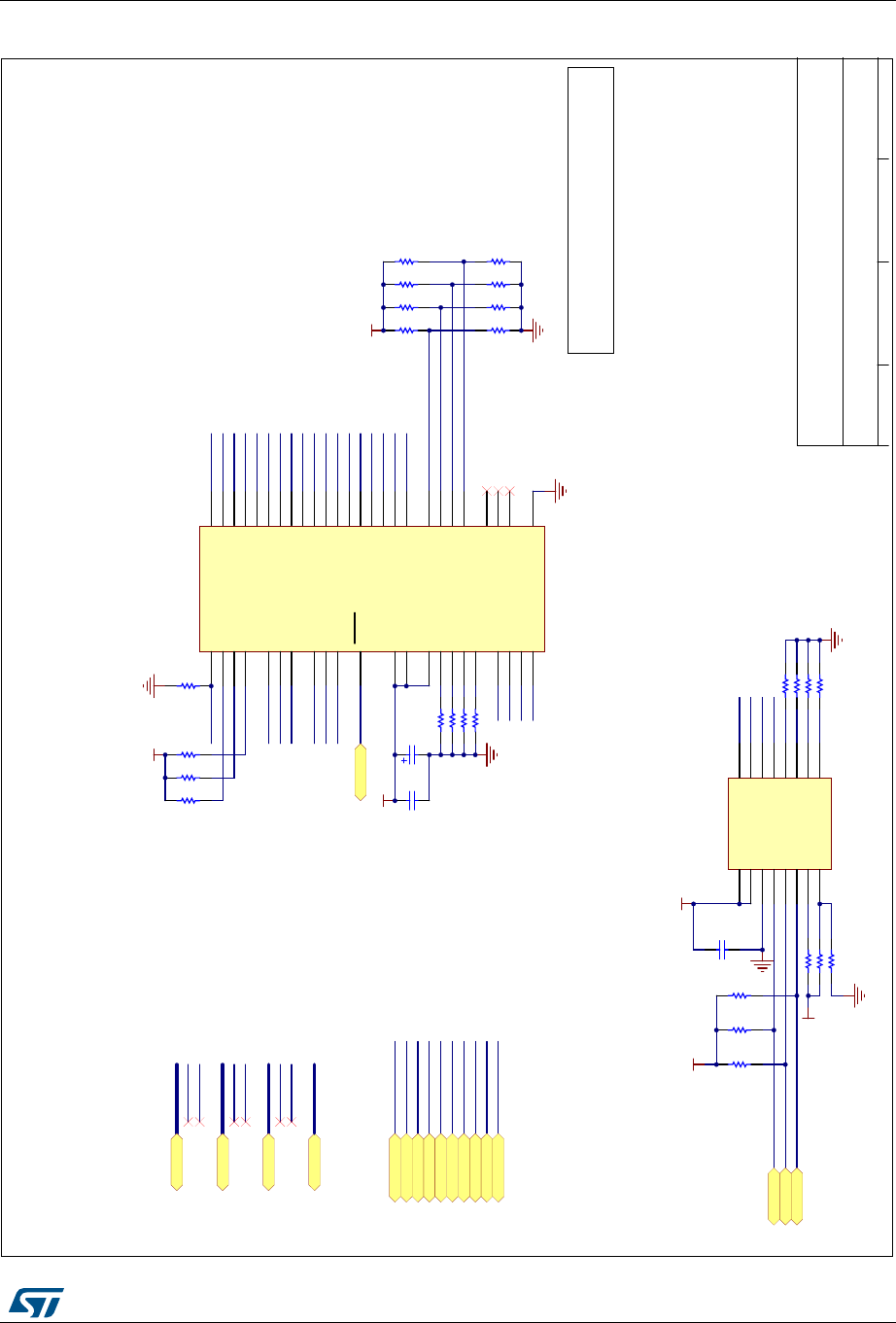

6 Electrical schematics
Figure 10. STM32F429 Discovery board
STMicroelectronics
Title:
Number: Rev: Sheet of
B.1(PCB.SCH) Date:8/13/2013
MB1075 1 7
STM32F429I-DISCO
NRST
A[0..11]
D[0..15]
SDNE1
NBL1
NBL0
SDNWE
SDNRAS
SDNCAS
SDCLK
SDCKE1
BA0
BA1
U_SDRAM
SDRAM.SchDoc
PA0
NRST
MEMS_INT1
NCS_MEMS_SPI
MEMS_INT2
SPI5_SCK
SPI5_MISO
SPI5_MOSI
ACP_RST
I2C3_SCL
I2C3_SDA
PG13 PG14
U_IO Peripherals
IO Peripherals.SchDoc
BOOT0
NRST
MCO
D[0..15]
A[0..11]
SDCKE1
SDNE1
SDNWE
NBL0
SDNRAS
NBL1
SDCLK
SDNCAS
BA0
BA1
PA[0..15]
PB[0..15]
PC[0..15]
PD[0..15]
PE[0..15]
PH[0..2]
PF[0..15]
PG[0..15]
R[0..7]
G[0..7]
B[0..7]
IM[0..3]
TP_INT1
VSYNC
CSX
HSYNC
TE
WRX_DCX
RDX
ENABLE
DCX_SCL
SDA
I2C3_SCL
I2C3_SDA
ACP_RST
MEMS_INT1
NCS_MEMS_SPI
MEMS_INT2
SPI5_SCK
SPI5_MISO
SPI5_MOSI
OTG_FS_ID
OTG_FS_DM
OTG_FS_DP
OTG_FS_PSO
OTG_FS_OC
VBUS_FS
DOTCLK
U_STM32Fx
STM32Fx.SchDoc
OTG_FS_PSO
OTG_FS_OCOTG_FS_DM
OTG_FS_DP
OTG_FS_ID
VBUS_FS
U_USB_OTG_FS
USB_OTG_FS.SchDoc
MCO
BOOT0
NRST
SDNWE
PA0
NRST
PE7
PE8PE9
PE10PE11
PE12PE13
PE14PE15
PA1
PA2PA3
PA4PA5
PA6PA7
PA0
PB1
PB2
PB10PB11
PB12PB13
PB14PB15
PB0
PC1
PC2PC3
PC4PC5
PC0
PD8PD9
PD10PD11
PD12PD13
PD14PD15
PH1 PH0
BOOT1 / PB2
NC
3V 3V 3V 3V
Rev A.0 --> PCB label MB1075 A-00
Rev B.1 --> PCB label MB1075 B-01,
PA8 - I2C3_SCL, PC9 - I2C3_SDA, PG7 - DOTCLK, YU<->YD
PA13
PA14
NRST
PB3
MCO
PA10
PA9
U_ST_LINK
ST_LINK_V2.SCHDOC
PA13
PA14 TCK/SWCLK
TMS/SWDIO
MCO
NRST
T_SWO
T_NRST
STM32F4_USART1_TX
STM32F4_USART1_RX
PA9
PA10
PB3
D[0..15]
A[0..11]
PA[0..15]
PB[0..15]
PC[0..15]
PD[0..15]
PE[0..15]
PH[0..2]
PF[0..15]
PG[0..15]
D[0..15]
A[0..11]
NBL0
NBL1
BA0
BA1
SDNRAS
SDNCAS
SDCLK
SDCKE1
SDNE1
SDNWE
SDNRAS
SDNCAS
SDCLK
SDCKE1
SDNE1
NBL0
NBL1
BA0
BA1
NRST
B[0..7]
G[0..7]
R[0..7]
IM[0..3]
TP_INT1
VSYNC
CSX
HSYNC
TE
WRX_DCX
RDX
ENABLE
DCX_SCL
SDA
I2C3_SCL
I2C3_SDA
DOTCLK
U_LCD-24
LCD-24.SchDoc
VSYNC
CSX
HSYNC
TE
RDX
WRX_DCX
DCX_SCL
SDA
ENABLE
DOTCLK
VSYNC
HSYNC
CSX
TE
RDX
SDA
ENABLE
DOTCLK
DCX_SCL
WRX_DCX
B[0..7]
G[0..7]
R[0..7]
IM[0..3]
TP_INT1
I2C3_SDA
I2C3_SCL
NRST
B[0..7]
G[0..7]
R[0..7]
IM[0..3]
TP_INT1
I2C3_SDA
I2C3_SCL
SPI5_SCK
MEMS_INT1
NCS_MEMS_SPI
SPI5_MISO
SPI5_MOSI
MEMS_INT2
I2C3_SDA
I2C3_SCL
ACP_RST
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
6463
P2
Header 32X2
ACP_RST
SPI5_SCK
MEMS_INT1
NCS_MEMS_SPI
SPI5_MISO
SPI5_MOSI
MEMS_INT2
VBUS_FS
OTG_FS_ID
OTG_FS_DM
OTG_FS_DP OTG_FS_PSO
OTG_FS_OC
PF6
PF7PF8
PF9PF10
PF11PF12
PF13PF14
PF15PG0
PG1
PG2PG3
VBUS_FS
OTG_FS_ID
OTG_FS_DM
OTG_FS_DP
OTG_FS_PSO
OTG_FS_OC
PG13 PG14
SB27SB26
BOOT0
PE1
PE2 PE3
PE4 PE5
PE6
PE0
PA8
PA9
PA13PA14
PA15
PB3
PB4 PB5
PB6 PB7
PB8 PB9
PC6
PC7PC8
PC9
PC10
PC11PC12
PC14 PC15
PD1
PD2PD3
PD4
PD6PD7
PD0
VDD
PA10
PD5
PC13
5V
5V 5V
5V 1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
6463
P1
Header 32X2
PF0 PF1
PF2 PF3
PF4 PF5
PG4PG5
PG6PG7
PG8
PG9 PG10
PG11 PG12
PG13 PG14
PG15
PA11PA12
Electrical schematics UM1670
28/35 DocID025175 Rev 1
Figure 11. ST-LINK/V2 (SWD only)
STMicroelectronics
Title:
Number: Rev: Sheet of
B.1(PCB.SCH)
Date:
8/13/2013
1 2
X1
8MHz
3V
USB_DM
USB_DP
STM_RST
T_JTCK
T_JTCK
T_JTDO
T_JTDI
T_JTMS
STM_JTMS
STM_JTCK
OSC_IN
OSC_OUT
T_NRST
AIN_1
3V
3V
3V
SWIM_IN
SWIM_IN
SWIM_IN
SWIM
SWIM
SWIM_RST_IN
SWIM_RST
MB1075 2 7
STM32F429I-DISCO ST-LINK/V2 (SWD only)
USB ST-LINK
U5V
COM
5VU5V
3V
PWR
5V
JP1
Wired on Solder Side
JP2
3V
Jumpers ON --> DISCOVERY Selected
Jumpers OFF --> ST-LINK Selected
VBAT
1
PA7
17
PC13
2
PA12 33
PC14
3
PB0
18
PC15
4JTMS/SWDIO 34
OSCIN
5
PB1
19
OSCOUT
6
VSS_2 35
NRST
7
PB2/BOOT1
20
VSSA
8
VDD_2 36
VDDA
9
PB10
21
PA0
10
JTCK/SWCLK 37
PA1
11
PB11
22
PA2
12
PA15/JTDI 38
PA3
13
VSS_1
23
PA4
14
PB3/JTDO 39
PA5
15
VDD_1
24
PA6
16
PB4/JNTRST 40
PB12 25
PB5 41
PB13 26
PB6 42
PB14 27
PB7 43
PB15 28
BOOT0 44
PA8 29
PB8 45
PA9 30
PB9 46
PA10 31
VSS_3 47
PA11 32
VDD_3 48
U2
STM32F103C8T6
Board Ident: PC13=0
T_JTCK
T_JTMS
SWD
3V
1
2
3
4
CN4
SB4 SB3
SB6 SB5
SB8 SB7
SB14 SB13
STM_JTMS
STM_JTCK
SWCLK
SWDIO
SWD
RESERVED
DEFAULT
3V
T_SWDIO_IN
LED_STLINK
LED_STLINK 3V
PA13
PA14
TCK/SWCLK
TMS/SWDIO
VDD3V
Not Fitted
MCO
C2
1μF_X5R_0603
C3
10nF_X7R_0603
C5
1μF_X5R_0603
MCO
Not Fitted
T_JRST
1
2
3
4
5
6
CN2
Header 6
AIN_1
T_NRST
T_SWO
NRST
SB12
T_NRST
SB10
RC Must be very close to STM32F103 pin 29
JP3
51
2
GND
3
4
BYPASS
INH
Vin Vout
U1
LD3985M33R
D2
BAT60JFILM
D3
BAT60JFILM
D1
BAT60JFILM
Idd
EXT_5V, Input only
JP4
TX
RX
STLINK_RX
Not Fitted
SB15
SB11
PA10
PA9
STM32F4_USART1_TX
STM32F4_USART1_RX
Close to JP
Not Fitted
STLINK_TX
USB_DM
USB_DP
3VVCC 1
D- 2
D+ 3
ID 4
GND 5
SHELL 6
CN1
USB-MINI-typeB
T_SWO
PB3
SB9
T_SWO
EXT_3V, Input only
Red
_Green
2 1
3 4
LD1
LD_BICOLOR_CMS
R10 1K5
R12 0
R11 0
R9 100K
R4
1K
R2
100
R1
100
R3
0
R13 [NA]
R14 22
R15 22
R17 22
R20 22
R28
100
R16
100
R5
10K
R6 10K
R21
100K
R8
100K
R7 10K
R18 4K7
R19 4K7
C27
100nF
C4
100nF
C46
100nF
C47
100nF
C18
20pF
C16
20pF
C17
20pF
C9
100nF
C1
100nF
C6
100nF
LD2
LED, red
DocID025175 Rev 1 29/35
UM1670 Electrical schematics
34
Figure 12. USB OTG_FS
STMicroelectronics
Title:
Number: Rev: B.1(PCB.SCH) Date:8/13/2013
MB1075
STM32F429I-DISCO USB_OTG_FS
5V
OTG_FS_PSO
OTG_FS_OC
3V
12
LD6
Red
OTG_FS_DM
OTG_FS_DP
OTG_FS_ID
C53
4.7uF
OTG_FS_PowerSwitchOn
OTG_FS_OverCurrent
12
LD5
Green
3V
3V
Dz
A2
ID A3
Pd1 B1
Pup
B2
Vbus
B3
D+in C1
Pd2 C2
D+out
C3
D-in D1
GND D2
D-out
D3
U7
EMIF02-USB03F2
GND
2
IN
5
EN
4OUT 1
FAULT 3
U8
STMPS2141STR
VBUS_FS
OTG_FS_ID
OTG_FS_DM
OTG_FS_DP
OTG_FS_PSO
VBUS_FS
OTG_FS_OC
R66
[N/A]
R69 0
R73
620
R68
47K
R71
10K
R72 0
R64 22
R63 22
R67 0
R65
47K
R70
330
3
1
2
T1
9013-SOT23
VBUS
1
DM
2
DP
3
ID
4
GND
5
Shield
6
USB_Micro-AB receptacle
CN6
USB-MICRO-AB
Electrical schematics UM1670
30/35 DocID025175 Rev 1
Figure 13. SDRAM 64 Mbits
STMicroelectronics
Title:
Number: Rev: Sheet
B.1(PCB.SCH) Date:8/13/2013
MB1075 4
STM32F429I-DISCO SDRAM 64Mbits
WE
16
DQ14 51
GNDQ 6
GNDQ 12
DQ13 50
DQ12 48
DQ8 42
DQ1 4
RAS
18
DQ9 44
GNDQ 52
DQ7 13
DQ4 8
DQ11 47
DQ10 45
DQ3 7
UDQM 39
DQ15 53
VDD
27
DQ0 2
BA1
21
DQ5 10
DQ6 11
CLK
38
CS
19
DQ2 5
GND 28
GND 41
A9
34
VDD
1
VDD
14
CAS
17
A7
32
A11
35
A8
33
BA0
20
A0
23
A1
24
GNDQ 46
A10
22
A6
31
CKE
37
A4
29
A5
30
A2
25
A3
26
GND 54
VDDQ
3VDDQ
9VDDQ
43 VDDQ
49
LDQM 15
NC 36
NC 40
U6
IS42S16400J
A[0..11]
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D[0..15]
3V
Place close SDRAM
SDNWE
SDNRAS
BA0
BA1
SDCLK
SDNCAS
SDCKE1
SDNE1
NBL0
NBL1
3V
SDNE1
SDNWE
SDNRAS
SDNCAS
SDCLK
SDCKE1
NBL0
NBL1
BA0
BA1
D[0..15]
A[0..11]
C50100nF
C7100nF
C8100nF
C51100nF
C10100nF
C15100nF
C22100nF
DocID025175 Rev 1 31/35
UM1670 Electrical schematics
34
Figure 14. STM32F429ZIT6 MCU
STMicroelectronics
Title:
Number: Rev: Sheet of
B.1(PCB.SCH)
Date:
8/13/2013
MB1075 5 7
STM32F429I-DISCO - STM32F429ZIT6 MCU
PB5
PB6
PB7
PA4
PA5
PA6
PA7
VDD
PA11
PA12
PA9
PA10
PB12
PB13
PB14
PB15
PB10
PB11
PB8
PA0
PB9
PA1
PB1
PB2
PA15
PB3
PB0
PA3
PA13
PA14
PB4
PA2
PA8
BOOT0
NRST
BOOT0
SB21
NRST
L1
BEAD
C26
1uF
VDD
C25
1uF
PC0
PE0
PD0
PC14-OSC32_IN
PC15-OSC32_OUT
PE2 1
PE3 2
PE4 3
PE5 4
PE6 5
PH0-OSC_IN
23
PH1-OSC_OUT
24
NRST
25
PA0-WKUP1
34
PA1
35
PA2
36
PA3
37
PA4
40
PA5
41
PA6
42
PA7
43
PB0
46
PB1
47
PB2/BOOT1
48
PE7 58
PE8 59
PE9 60
PE10 63
PE11 64
PE12 65
PE13 66
PE14 67
PE15 68
PB10
69
PB11
70
PB12
73
PB13
74
PB14
75
PB15
76
PD8 77
PD9 78
PD10 79
PD11 80
PD12 81
PD13 82
PD14 85
PD15 86
PA8
100
PA9
101
PA10
102
PA11
103
PA12
104
PA13
105
PA14
109
PA15
110
PD0 114
PD1 115
PD2 116
PD3 117
PD4 118
PD5 119
PD6 122
PD7 123
PB3
133
PB4
134
PB5
135
PB6
136
PB7
137
BOOT0
138
PB8
139
PB9
140
PE0 141
PE1 142
PC13-WKUP2
7
PC14-OSC32_IN
8
PC15-OSC32_OUT
9
PC0
26
PC1
27
PC2
28
PC3
29
PC4
44
PC5
45
PC6
96
PC7
97
PC8
98
PC9
99
PC10
111
PC11
112
PC12
113
PF2 12
PF3 13
PF4 14
PF5 15
PF6 18
PF7 19
PF8 20
PF9 21
PF10 22
PF11 49
PF12 50
PF13 53
PF14 54
PF15 55
PF0 10
PF1 11
PG2 87
PG3 88
PG4 89
PG5 90
PG6 91
PG7 92
PG8 93
PG9 124
PG10 125
PG11 126
PG12 127
PG13 128
PG14 129
PG15 132
PG0 56
PG1 57
U5A
STM32F429ZIT6
VBAT
6
VSS_5 16
VDD_5
17
VSSA 31
VDD_12
30
VREF+
32
VDDA
33
VSS_4 38
VDD_4
39
VCAP1 71
VDD_1
72
VSS_2 107
VDD_2
108
PDR_ON 143
VDD_3
144
VDD_10
121 VDD_9
95
VDD_6
52
VDD_7
62
VDD_8
84
VDD_11
131
VSS_10 120
VSS_9 94
VSS_6 51
VSS_7 61
VSS_8 83
VSS_11 130
VCAP2 106
U5B
STM32F429ZIT6
PD1
PD2
PD3
PD4
PD5
PD6
PD7
PD8
PD9
PD10
PD11
PD12
PD13
PD14
PD15
PE1
PE2
PE3
PE4
PE5
PE6
PE7
PE8
PE9
PE10
PE11
PE12
PE13
PE14
PE15
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PC8
PC9
PC10
PC11
PC12
PC13
PF0
PF1
PF2
PF3
PF4
PF5
PF6
PF7
PF8
PF9
PF10
PF11
PF12
PF13
PF14
PF15
PG0
PG1
PG2
PG3
PG4
PG5
PG6
PG7
PG8
PG9
PG10
PG11
PG12
PG13
PG14
PG15
PH0-OSC_IN
PH1-OSC_OUT
MCO
PH1-OSC_OUT
SB20
SB19
MCO
1 2
X3
8MHz
Not Fitted
PC14-OSC32_IN
PC15-OSC32_OUT
SB17
SB16
SB18
PH0-OSC_IN
C42
2.2uF
C41
2.2uF
PA[0..15]
PA[0..15]
PB[0..15]
PB[0..15]
PC[0..15]
PC[0..15]
PD[0..15]
PD[0..15]
PE[0..15]
PE[0..15]
PH[0..2]
PH[0..2]
PF[0..15]
PF[0..15]
PG[0..15]
PG[0..15]
D[0..15]
A[0..11]
D[0..15]
A[0..11]
VDD
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
SDNWE
SDNRAS
BA0
BA1
SDCLK
SDNCAS
SDCKE1
SDNE1
PF0
PF1
PF2
PF3
PF4
PF5
PF12
PF13
PF14
PF15
PG0
PG1
PC0
PF11
PG8
PG15
PB5
PG4
PG5
PB6
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
NBL0
NBL1
PE0
PD14
PE7
PD8
PE8
PE9
PE10
PE11
PE12
PE13
PE14
PE15
PD9
PD10
PD15
PD0
PD1
PE1
SDCKE1
SDNE1
SDNWE
NBL0
SDNRAS
NBL1
SDCLK
SDNCAS
BA0
BA1
PH0
PH1
PC14
PC15
PA3
PA4
PA6
PA11
PB1
PB8
PB9
PB10
PC6
PC7
PC10
PD2
PA12
PB0
PB11
PC2PD3
PD4
B5
VSYNC
G2
R4
R6
B6
B7
G4
HSYNC
G6
R2
IM0
R5
R3
G5
CSXG7
IM1
PD5
PD6
PD7
PD11
PD12
PD13
PF7
PF9
PF10
PG6
PG7
IM2
B2
IM3
TE
RDX
SDA
ENABLE
R7
DOTCLK
PG10 G3
PG11 B3
PG12 B4
DCX_SCL
WRX_DCX
R[0..7]
R[0..7]
G[0..7]
G[0..7]
B[0..7]
B[0..7]
R0
R1
G0
G1
B0
B1
IM[0..3]
IM[0..3]
VSYNC
CSX
HSYNC
TE
WRX_DCX
RDX
ENABLE
DOTCLK
DCX_SCL
SDA
I2C3_SDA
I2C3_SCL
TP_INT1PA15
PA8
PC9
TP_INT1
I2C3_SCL
I2C3_SDA
ACP_RST
PA7 ACP_RST
MEMS_INT1
SPI5_SCK
MEMS_INT1
NCS_MEMS_SPI NCS_MEMS_SPI
MEMS_INT2
SPI5_SCK
SPI5_MISO
SPI5_MOSI
SPI5_MISO
SPI5_MOSI
MEMS_INT2
PC1
PF7
PF8
PF9
PA1
PA2
SB25
SB24
SB23
SB22
VBUS_FS
OTG_FS_ID
OTG_FS_DM
OTG_FS_DP
PB14
PB12
PB15
PB13
OTG_FS_PSOPC4
PC5 OTG_FS_OC
OTG_FS_ID
OTG_FS_DM
OTG_FS_DP
OTG_FS_PSO
OTG_FS_OC
VBUS_FS
C20
20pF
C21
20pF
C23
6.8pF
C24
6.8pF
R56 0
R57 220
R53 0
R54 0
C34100nF
C35100nF
C36100nF
C37100nF
C38100nF
C39100nF
C40100nF
C29100nF
C32100nF
C43100nF
C44100nF
C45100nF
C33100nF
C28
1uF
R520
C31
100nF
C30
100nF
R58 0
R59 [N/A]
R61 510
41
32
X2
MC306-G-06Q-32.768
Electrical schematics UM1670
32/35 DocID025175 Rev 1
Figure 15. Peripherals
STMicroelectronics
Title:
Number: Rev: B.1(PCB.SCH) Date:8/13/2013
MB1075
STM32F429I-DISCO Peripherals
MEMS
VDD
SB2
PA0
USER & WAKE-UP Button
NRST
NRST
RESET Button
VDD
SB1
Not Fitted
PA0
MEMS_INT1
3V
SPI5_SCK
MEMS_INT1
NCS_MEMS_SPI
NCS_MEMS_SPI
VDD_IO
1
GND 13
C1 14
GND
8GND 9
VDD 16
CS_I2C/SPI
5
INT1
7DRDY/INT2
6
GND 10
GND 11
SA0/SDO
4SDA/SDI/SDO
3SCL/SPC
2VDD 15
GND 12
U3
L3GD20
C13
10uF
C19
10nF/25V
MEMS_INT2
SPI5_SCK
SPI5_MISO
SPI5_MOSI SPI5_MISO
SPI5_MOSI
1 2
3 4
5 6
7 8
CN3
SSM-104-L-DH
3V
ACP/RF E2P Connector
5V
ACP_RST
I2C3_SDA
I2C3_SCL ACP_RSTI2C3_SCL
I2C3_SDA
MEMS_INT2
R24
100K
R22
220K
R23
330
R25
100
1 2
LD4
Red
1 2
LD3
Green
PG13
LEDs
PG13
PG14
PG14
R26
510
R27
680
C12
100nF
C11
100nF
C48
100nF
12
3 4
B2
SW-PUSH-CMS_BLACK
12
3 4
B1
SW-PUSH-CMS_BLUE
DocID025175 Rev 1 33/35
UM1670 Electrical schematics
34
Figure 16. LCD 2.4”
STMicroelectronics
Title:
Number: Rev: Sheet of
B.1(PCB.SCH) Date:8/13/2013
MB1075
77
STM32F429I-DISCO LCD 2.4"
SPI5_MOSI
SPI5_SCK
3V
3V
3V
TP_INT1
XR
YD
YU
XL
Default I2C Address:1000001
Y- 1
INT
2
A0/Data Out
3
SCLK
4
SDAT
5
VCC
6
Data in
7
IN0 8
IN1 9
GND
10
IN2 11
IN3 12
X+ 13
Vio
14
Y+ 15
X- 16
U4
STMPE811QTR
TP_INT1
3V
HSYNC
VSYNC
DOTCLK
3V
C14
4.7uF
VDD
ENABLE
32
DOTCLK
31
HSYNC
33
VSYNC
34
CSX
38
DCX/SCL
37
TE
11
WRX/DCX
36
RDX
35
RESET
39
DB0/B0 29
DB1/B1 28
DB2/B2 27
DB3/B3 26
DB4/B4 25
DB5/B5 24
DB6/G0 23
DB7/G1 22
VDD3_P(nc) 8
BC_CTRL(nc) 9
BC(nc) 10
VDD3
7
IM3 43
IM2 42
IM1 41
IM0 40
SDA
30
VCI
6
LEDA
44
LEDK1
45
LEDK2
46
LEDK3
47
LEDK4
48
YD
3
XL
2
YU
1
XR
4GND 5
DB8/G2 21
DB9/G3 20
DB10/G4 19
DB11/G5 18
DB12/R0 17
DB13/R1 16
DB14/R2 15
DB15/R3 14
DB16/R4 13
DB17/R5 12
CN5
SF-TC240T-9370-T
XR
YD
YU
XL
B2
B3
B4
B5
G2
G3
G4
G5
R2
R3
R4
R5
ENABLE
CSX
RDX
TE
DCX_SCL
WRX_DCX
SDA
NRST
IM0
IM1
IM2
IM3
B[0..7]
G[0..7]
R[0..7]
NRST
B6
B7
G6
G7
R6
R7
B0
B1
G0
R0
G1
R1
IM[0..3] = 0110 --> 4-wire 8-bit serial I, SDA:In/Out
VSYNC
HSYNC
CSX
TE
RDX
SDA
ENABLE
DOTCLK
IM[0..3] IM[0..3]
DCX_SCL
WRX_DCX
R[0..7]
G[0..7]
B[0..7]
VSYNC
CSX
HSYNC
TE
WRX_DCX
RDX
ENABLE
DOTCLK
DCX_SCL
SDA
I2C3_SDA
I2C3_SCL
I2C3_SCL
I2C3_SDA R46 100K
R29
4K7
R30
4K7
R45
4K7
R34 100K
R31 4K7 R33 100K
R39 [N/A] R32 100K
R40 0
R50 0
R51
4K7
R62
4K7
R60
4K7
R55
4K7
R35
[N/A]
R36
4K7
R37
4K7
R38
[N/A]
R42
[N/A]
R43
[N/A]
R41
4K7
R44
4K7
C52
100nF
R49 0
R48 0
R47 0
C49
100nF
DocID025175 Rev 1 35/35
UM1670
35
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
ST PRODUCTS ARE NOT AUTHORIZED FOR USE IN WEAPONS. NOR ARE ST PRODUCTS DESIGNED OR AUTHORIZED FOR USE
IN: (A) SAFETY CRITICAL APPLICATIONS SUCH AS LIFE SUPPORTING, ACTIVE IMPLANTED DEVICES OR SYSTEMS WITH
PRODUCT FUNCTIONAL SAFETY REQUIREMENTS; (B) AERONAUTIC APPLICATIONS; (C) AUTOMOTIVE APPLICATIONS OR
ENVIRONMENTS, AND/OR (D) AEROSPACE APPLICATIONS OR ENVIRONMENTS. WHERE ST PRODUCTS ARE NOT DESIGNED
FOR SUCH USE, THE PURCHASER SHALL USE PRODUCTS AT PURCHASER’S SOLE RISK, EVEN IF ST HAS BEEN INFORMED IN
WRITING OF SUCH USAGE, UNLESS A PRODUCT IS EXPRESSLY DESIGNATED BY ST AS BEING INTENDED FOR “AUTOMOTIVE,
AUTOMOTIVE SAFETY OR MEDICAL” INDUSTRY DOMAINS ACCORDING TO ST PRODUCT DESIGN SPECIFICATIONS.
PRODUCTS FORMALLY ESCC, QML OR JAN QUALIFIED ARE DEEMED SUITABLE FOR USE IN AEROSPACE BY THE
CORRESPONDING GOVERNMENTAL AGENCY.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2013 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
