PLEASE FOLLOW

THESE INSTRUCTIONS

CAREFULLY.

ATTENTION:

SEQUEL

®

OFFICE

CORNER

6019

Sequel Corner 6019

Assembly and Placement Information

BDIUSA.COM

2

desk and return

3

Thanks for purchasing the

Sequel System.

Before you begin setting up the Sequel System Components,

it is imperative that you read the Consumer Considerations

section on the next page.

features

4

Consumer Considerations

Plan your space.

Forethought is essential in determining the placement of each

component. Using a measuring tape, determine how much

fl oor space each unit will require. A cardboard template has

been provided in order to help aid this process.

Get someone to help you.

Help from a second person is required for the majority of the

steps outlined in this instruction manual.

AC power outlet and wire management

Depending on the configuration of your office set up, the Sequel

cabinet may end up resting in front of an AC power outlet. If

so, be sure to plug in the AC power strip, phone/ethernet or

extension cords prior to placing the cabinet in its final position.

Placement

Once the Sequel System is fully assembled, it cannot be moved.

Make all positioning adjustments prior to final assembly.

Leveling

SEQUEL Furniture is designed for indoor use on level floors. If

the floors are uneven, adjust levelers as necessary.

Tempered glass.

Exercise caution while handling the glass, and be sure to

employ the help of another person. Keep edges of glass panels

away from hard surfaces in order to prevent breakage.

5

Consumer Considerations

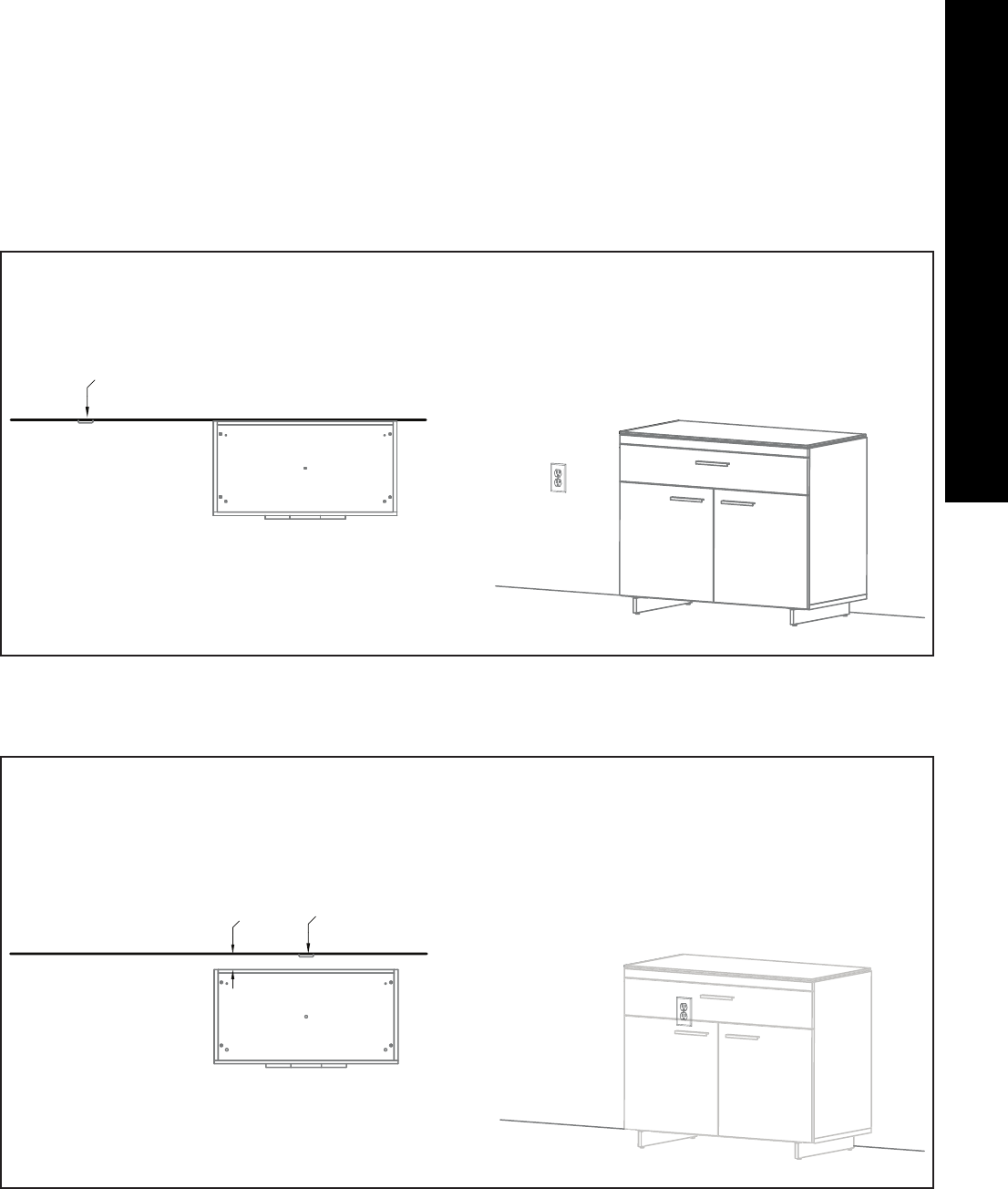

Power & Placement

This page outlines two scenarios:

Scenario 1

If cabinet is NOT blocking an AC power

outlet, it may be positioned close to the wall.

Power

Top View

Scenario 2

If cabinet is going to block an AC power

outlet, position cabinet approximately 3” from

wall. Low profi le extension plugs may be

used to reduce the amount of space required

in this application.

3" Power

Top View

6

.

.

K

H

G

JI

L

EC

F

D

DH

K

F

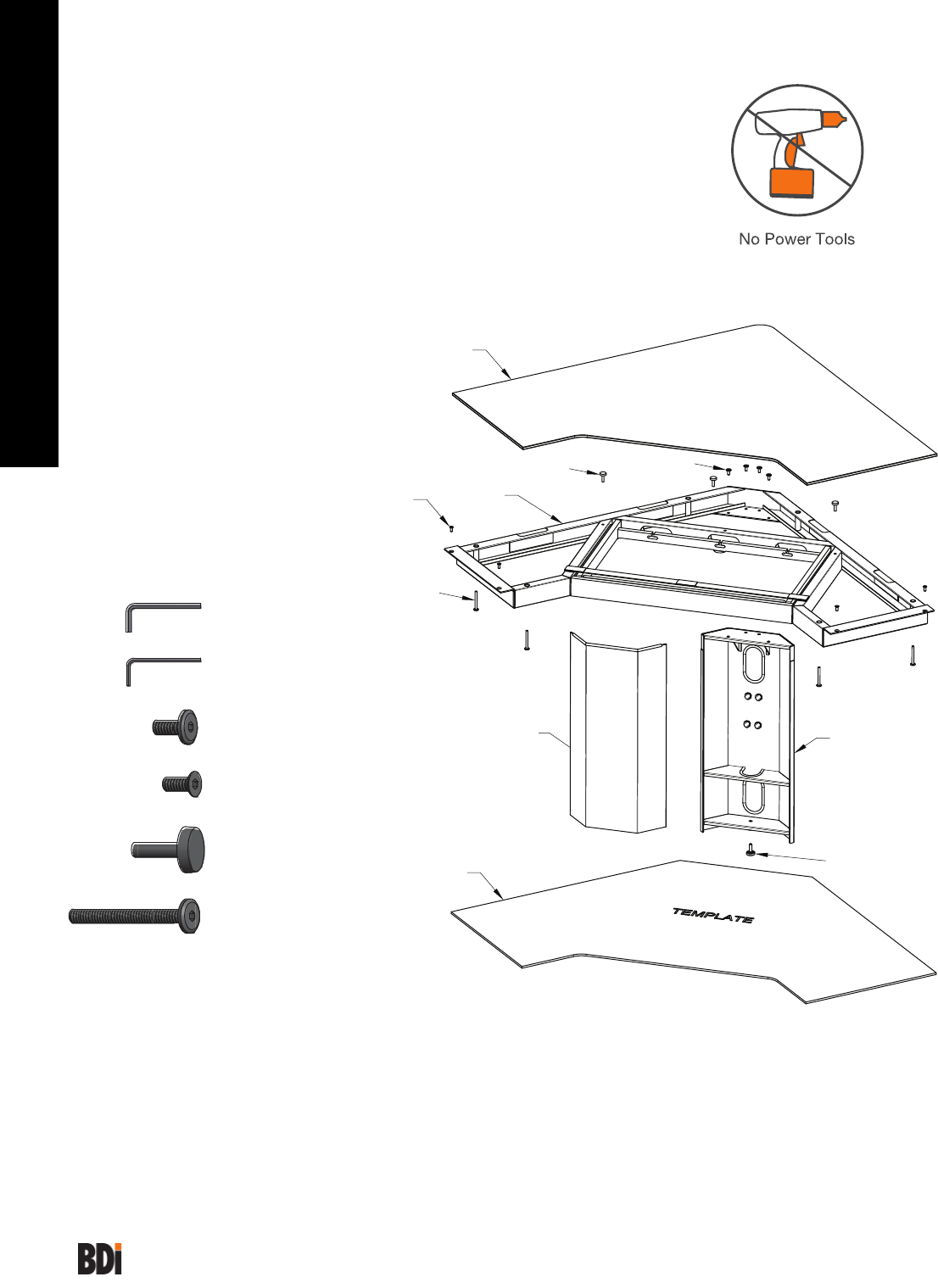

Corner Desk

Model 6019

Your SEQUEL® 6019 Furniture is engineered

for easy assembly.

Carefully follow this procedure to prevent

any damage.

Do not use power tools for assembly of this product.

Placement and

Maintenance

SEQUEL® 6019 Furniture is designed for

indoor use on level floors. Clean glass with

glass cleaner, and steel parts and wood

veneer with a moist cloth.

Unpack and identify the components.

The assembly workspace should be a

non-marring surface such as carpet. For

missing hardware pieces, please contact

BDI Customer Service at customerservice@

bdiusa.com. For all other concerns, please

contact your BDI Retailer.

AHex Wrench 4mm x 1

B

Hex Wrench 3mm

x 1 (for Leveler

adjustment)

C

1/4-20 5/8” Machine

Screws 4mm Socket

Drive x 4

D

1/4-20 1/2” Flat Head

Screws 4mm Socket

Drive x 4

ERubber Stem Bumpers

x 3

F

1/4-20 60mm Machine

Screws 4mm Socket

Drive x 6

GCardboard Template x 1

HDesk Frame Assembly x 1

ICorner Leg x 1

JCorner Leg Cover

KGlass Top x 1

LLeveler x 1

MVelcro Straps x 6

NPlastic Clips x 6

OMagnets x 4

J

C

E

L

I

G

step 1

7

step 2

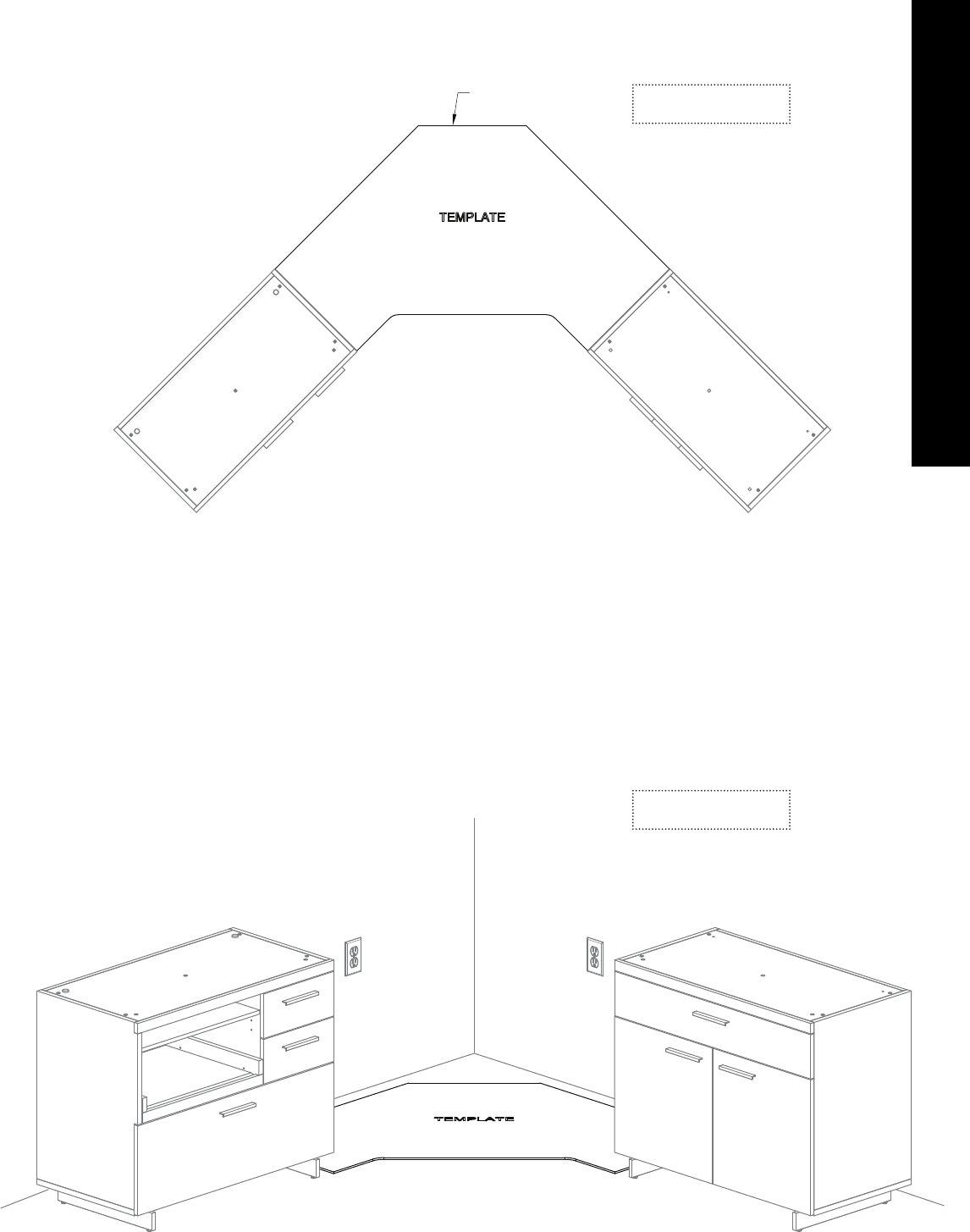

Template

Position the Template (G) in the desired

location where the corner desk will

be positioned, followed by the Sequel

cabinets. Align the side of the cabinet with

the outside edge of the template. NOTE:

Cabinets’ top glass are not installed.

G

GPlan View

Room View

8

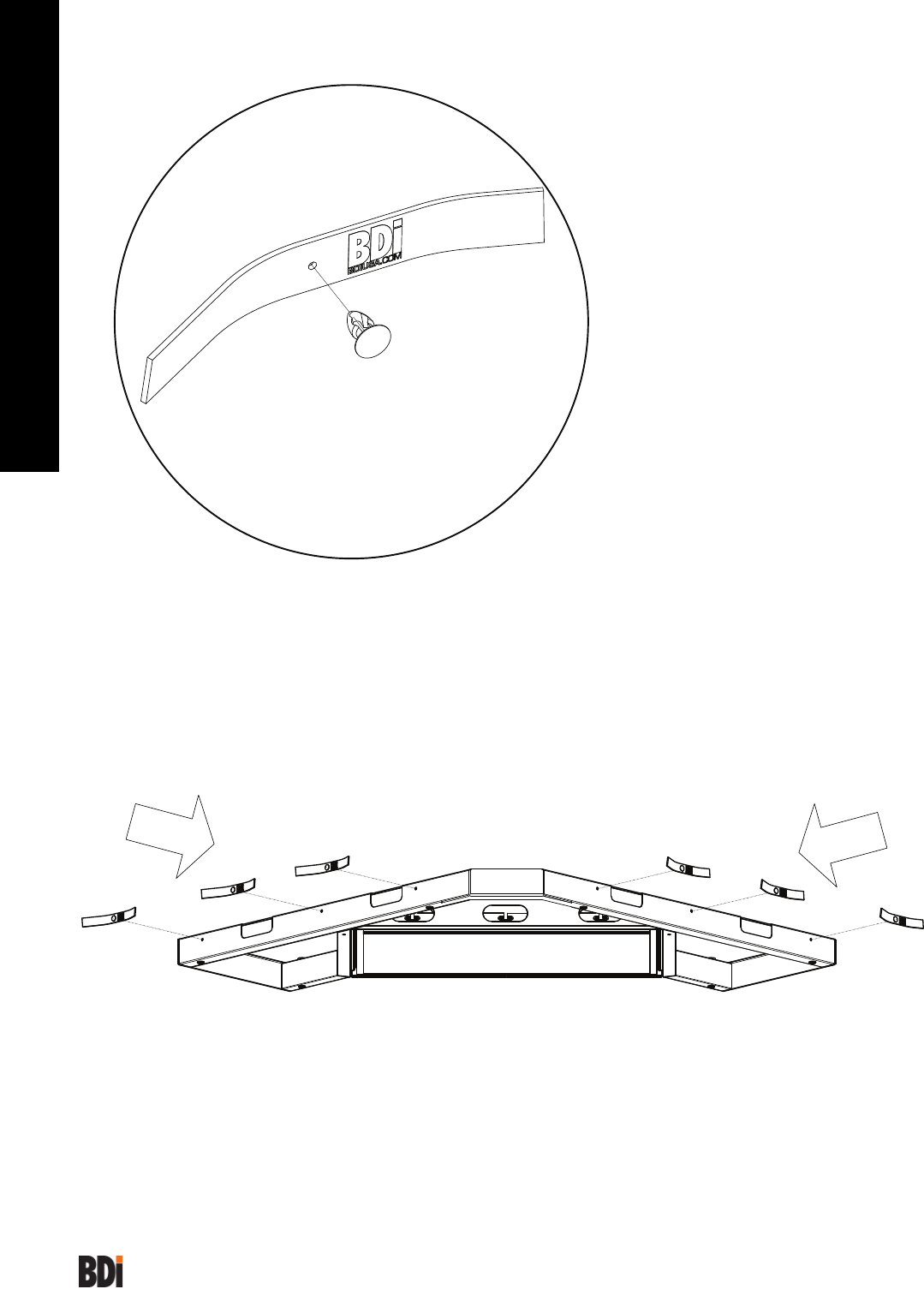

Wire Management

(Optional)

For the purpose of wire management,

use Plastic Clip (N) to install Velcro Straps

(M) to outside perimeter of Desk Frame

Assembly (H).

step 3

M x 6

N x 6

9

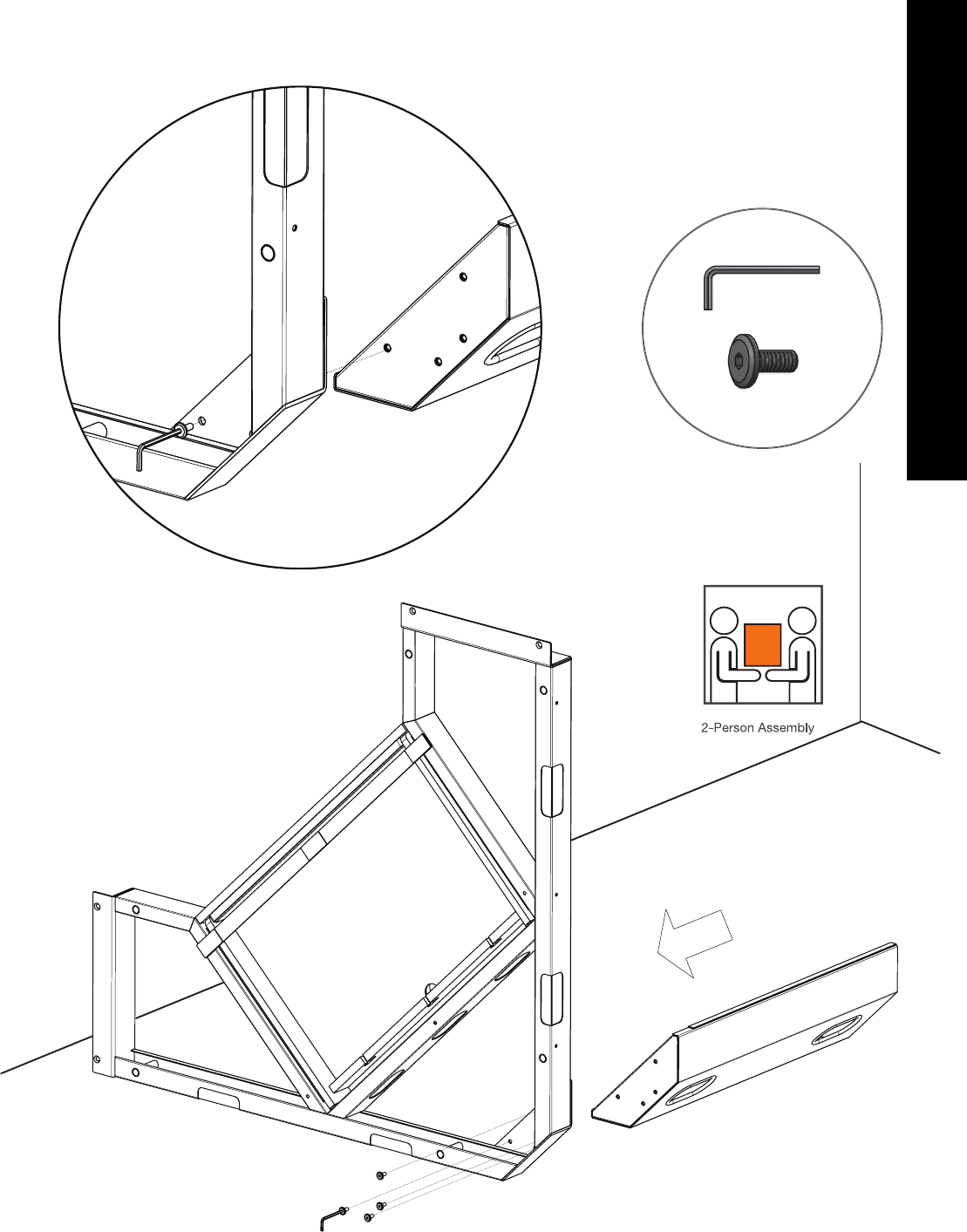

Attach Leg to Desk

Frame

While the second person holds the desk

frame on its side position, attach Corner

Leg (J) to the underside of Desk Frame

Assembly (H) using the Hex Wrench (A)

and Machine Screws (C).

A

C x 4

H

J

step 4

10

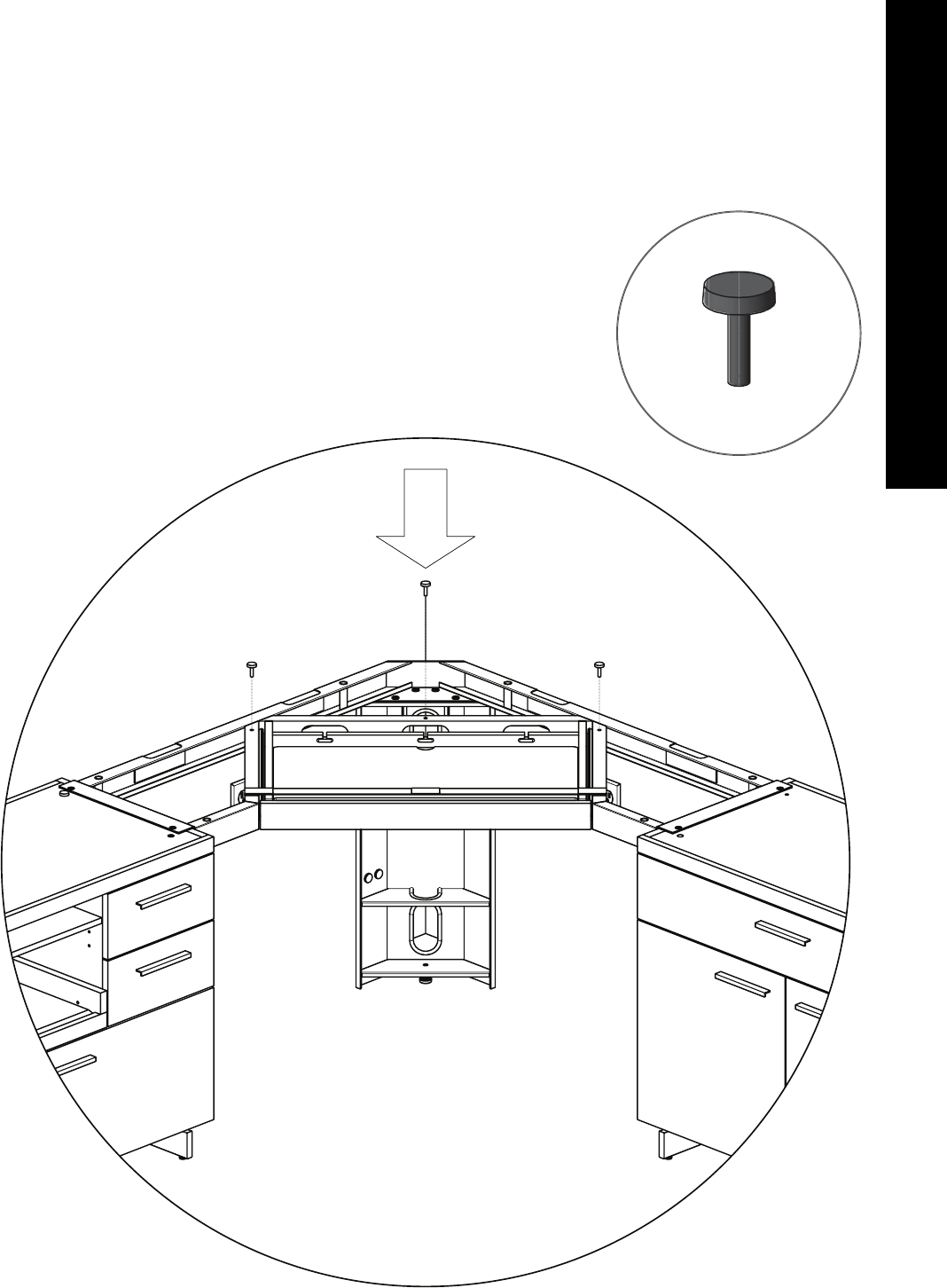

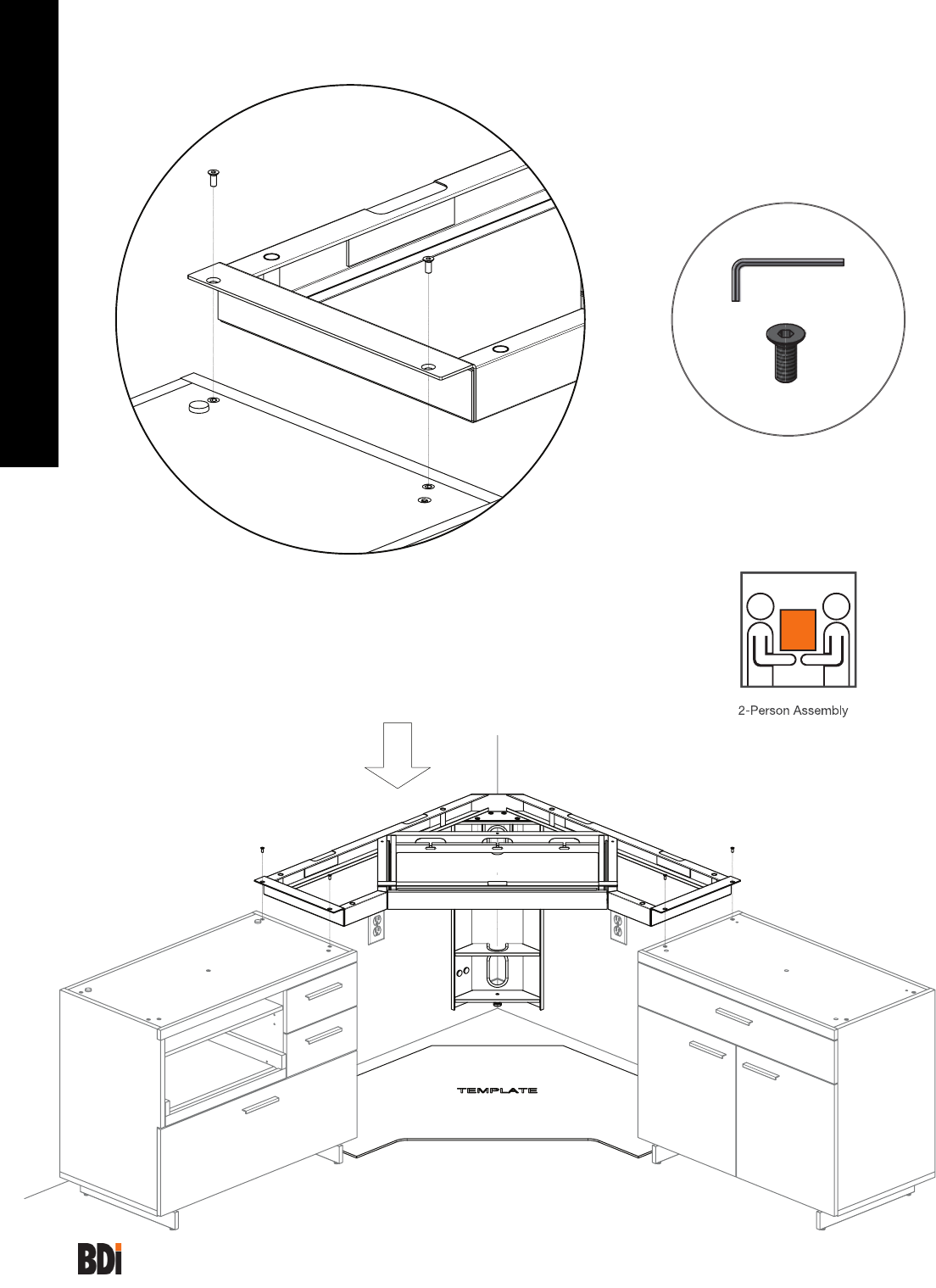

Attach Desk Frame

to Cabinets

With the help of another person, carefully

lower Desk Frame Assembly (H) onto the

adjacent cabinets (Sequel Models 6014,

6015, 6016, or 6017). Adjust frame so that

the holes are aligned with the threaded

inserts on top of the cabinets. Once holes

are aligned, install Flat Head Screws (D)

using Hex Wrench (A).

A

D x 4

step 5

11

Bumpers & Template

Install Rubber Stem Bumpers (E). At this

time, the cardboard template may be

removed.

E x 3

step 6

12

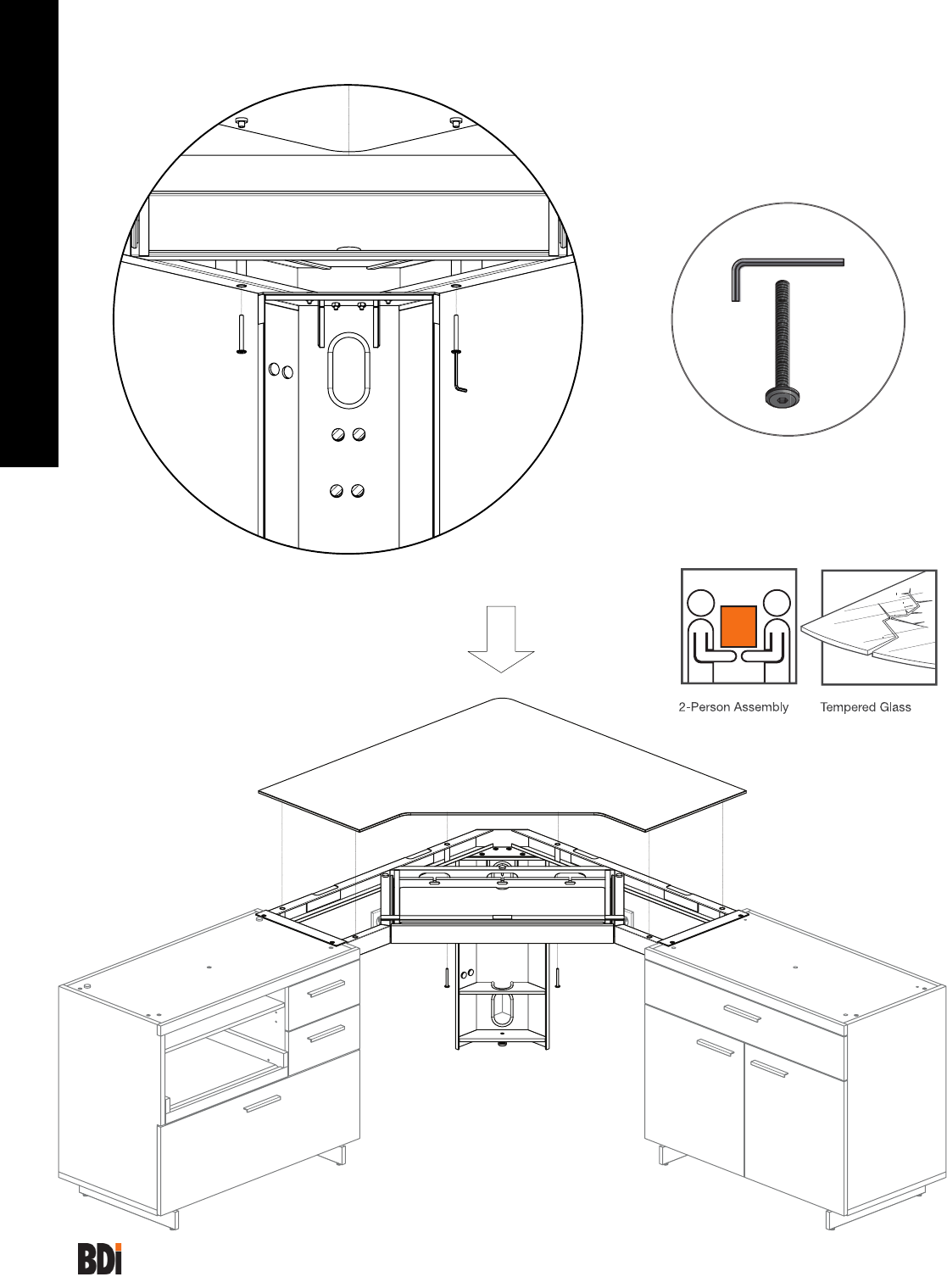

Install Glass

With the help of another person, carefully

lower the Glass Top (K) onto the frame.

Register the steel discs on underside of

glass into the holes on the frame; then

attach the glass using Machine Screws (F)

and Allen Wrench (A).

NOTE: Do not over-tighten screws!

A

F x 6

step 7

13

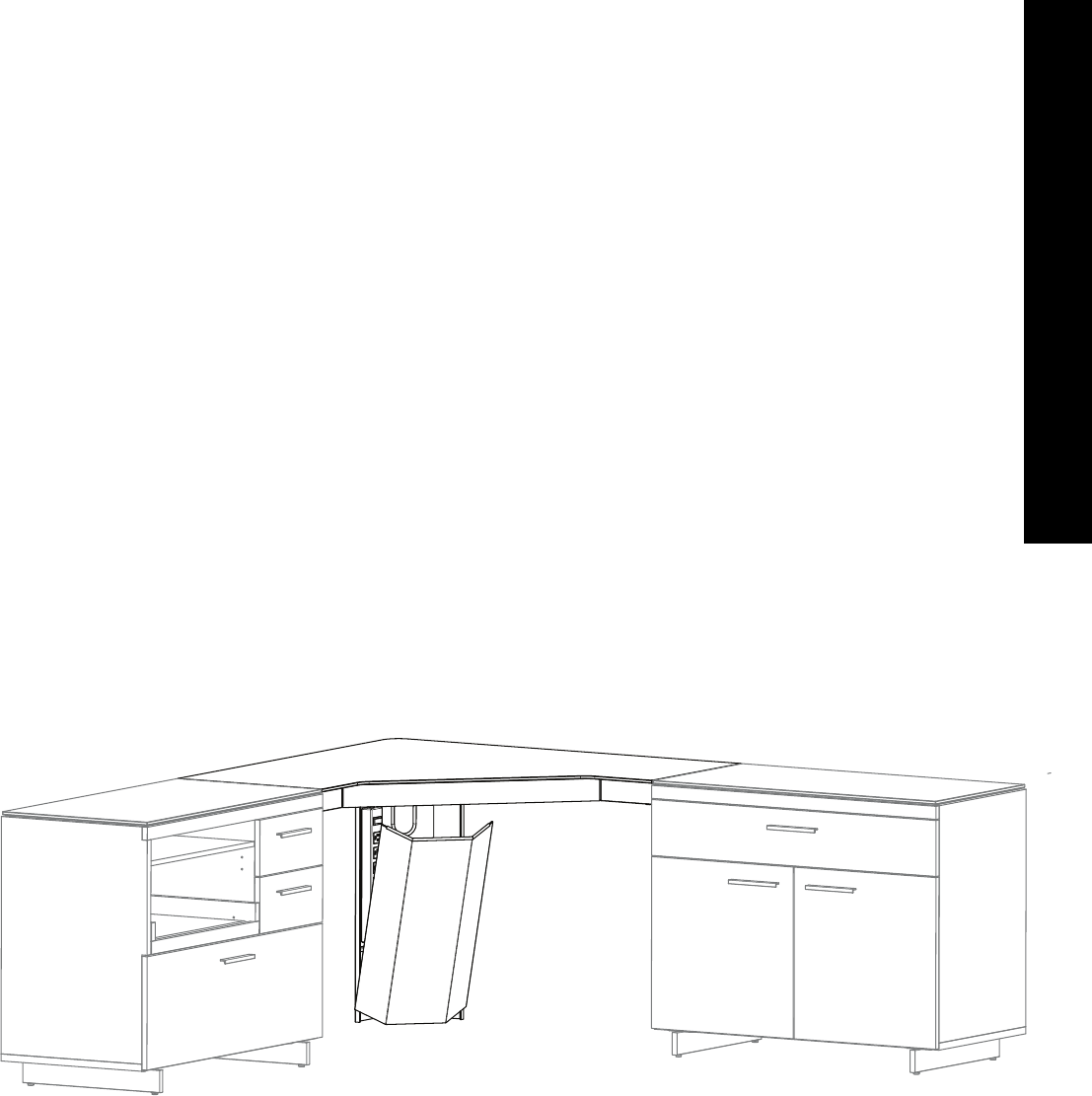

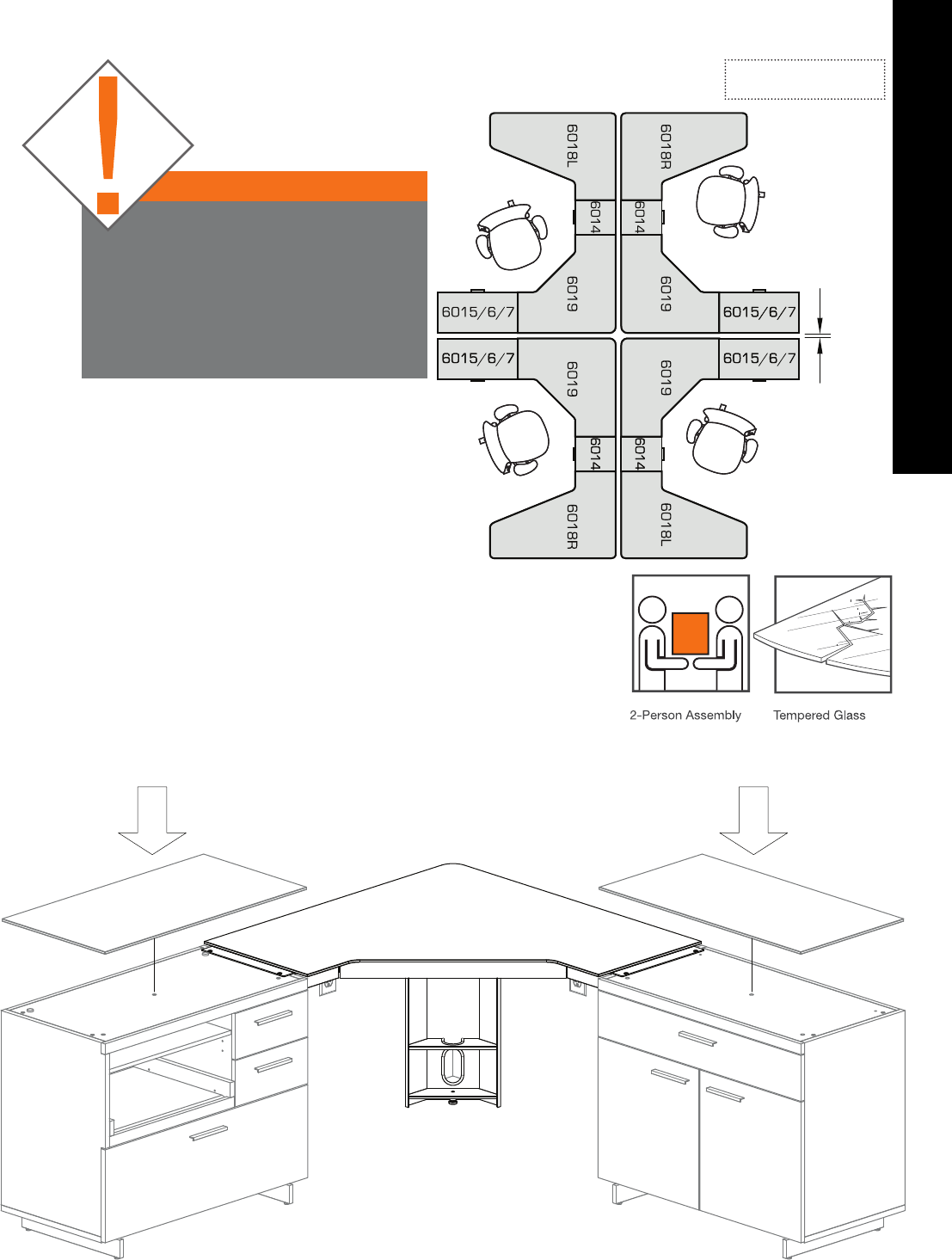

Install Glass

Carefully lower the glass panel onto the

Sequel Cabinet (Refer to individual cabinet

instructions).

step 8

When setting up multiple

workstations, leave at least

1" between each station.

Failure to do so may result in

damage to tempered glass

work surfaces.

CAUTION:

Plan View

1"

14

step 8

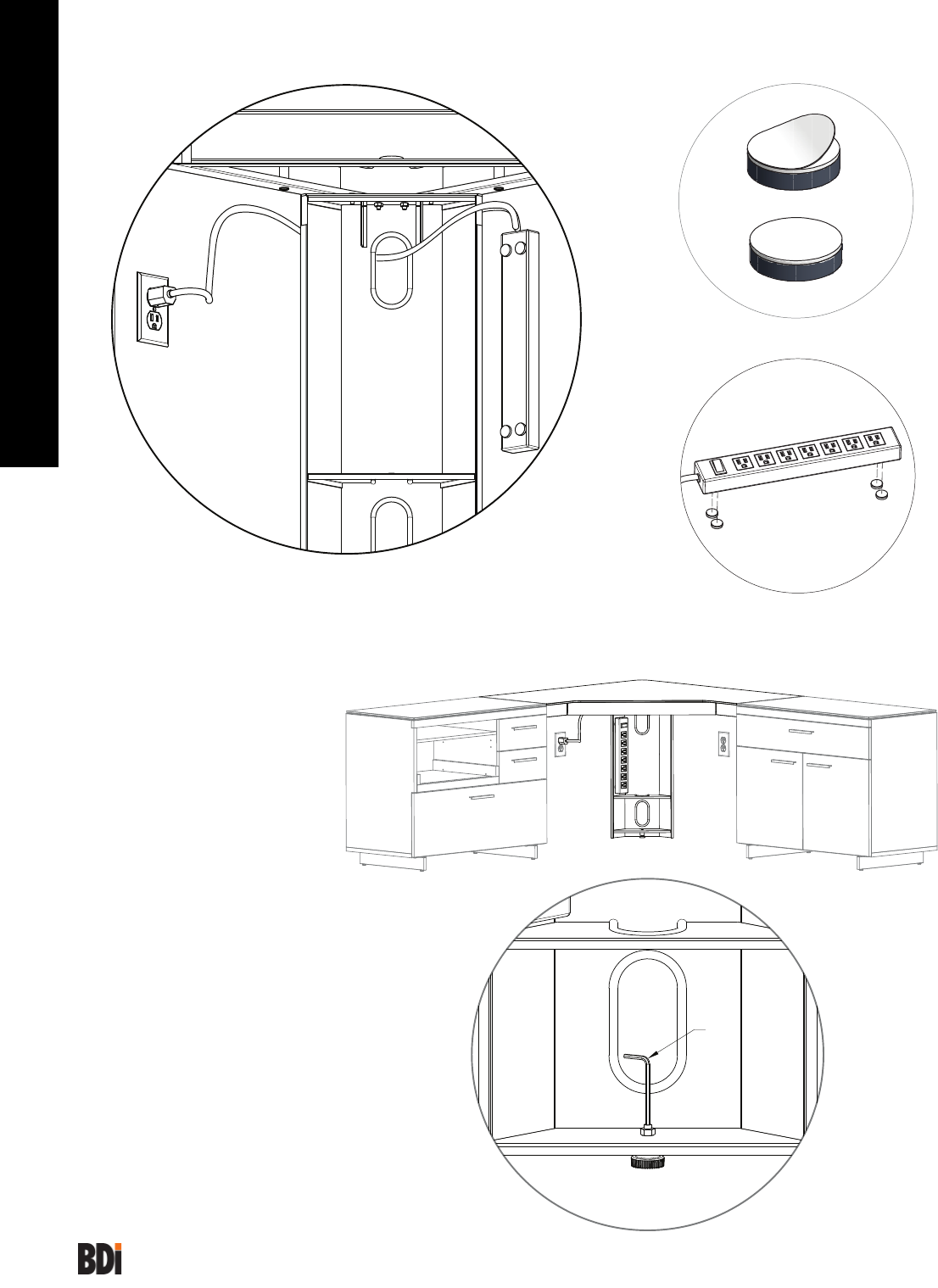

Magnets

Located inside the Corner Leg (I) are 4

Magnets (O) that may be peeled and

adhered to the rear side of a power strip

(not included).

Leveler

If needed, adjust leveler on Corner Leg

using 3mm Hex Wrench (B).

B

B

step 9

15

step 9

Corner Leg Cover

Upon completion of wire management,

magnetically attach the Corner Leg Cover

(J) to the front of the Corner Leg (I).

step 10

16

Designed by Matthew Weatherly.

These distinctive product confi gurations are protected

by US and international patents, trade dress, and/or

copyright laws. “Sequel” and BDI are trademarks of

Becker Designed, Inc. All Rights reserved. ©2011, BDI

Made in Taiwan. 6019REV052611v1
