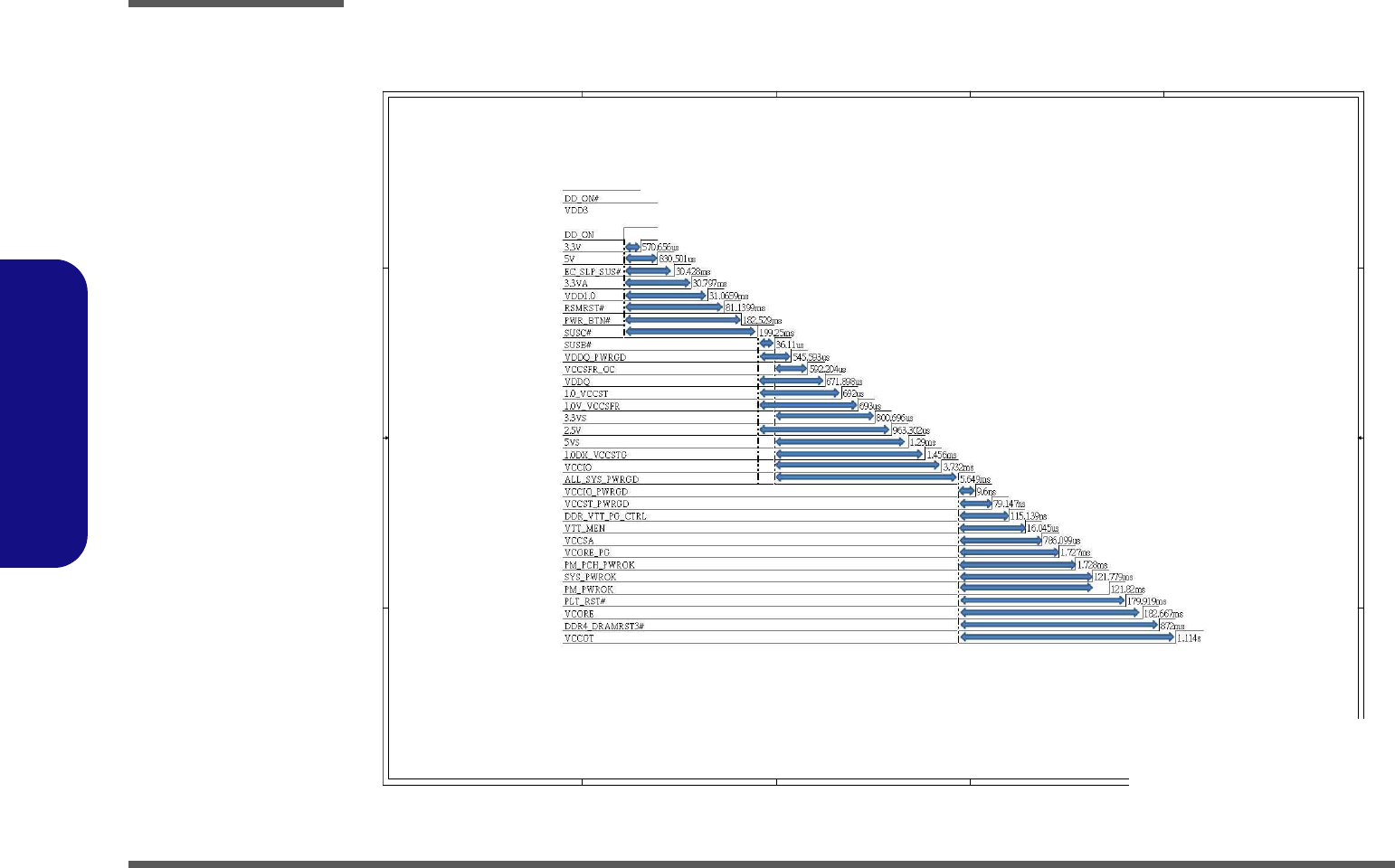

- Power Sequence
- Appendix C: pdating the FLASH ROM BIOS
![](asset-1.png)
PA70HS(-G) / PA71HS
![](asset-3.png)
Preface
I
Preface
Notebook Computer
PA70HS(-G) / PA71HS
Service Manual
![](asset-4.png)
Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
July 2017
Trademarks
Intel and Intel Core are trademarks of Intel Corporation.
Windows® is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and /or registered trademarks of their respective companies.
![](asset-5.png)
Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the PA70HS(-G)
/ PA71HS series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Updating the FLASH ROM BIOS
![](asset-6.png)
Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit as follows:
• AC Input of 100 - 240V, 50 - 60Hz, DC Output of 19.5V, 11.8A (230 Watts) minimum AC/DC Adapter.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
![](asset-7.png)
Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration. Do not place it on an unstable
surface. Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight. Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment. Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself. Perform routine maintenance
on your computer.
![](asset-8.png)
Preface
VI
Preface

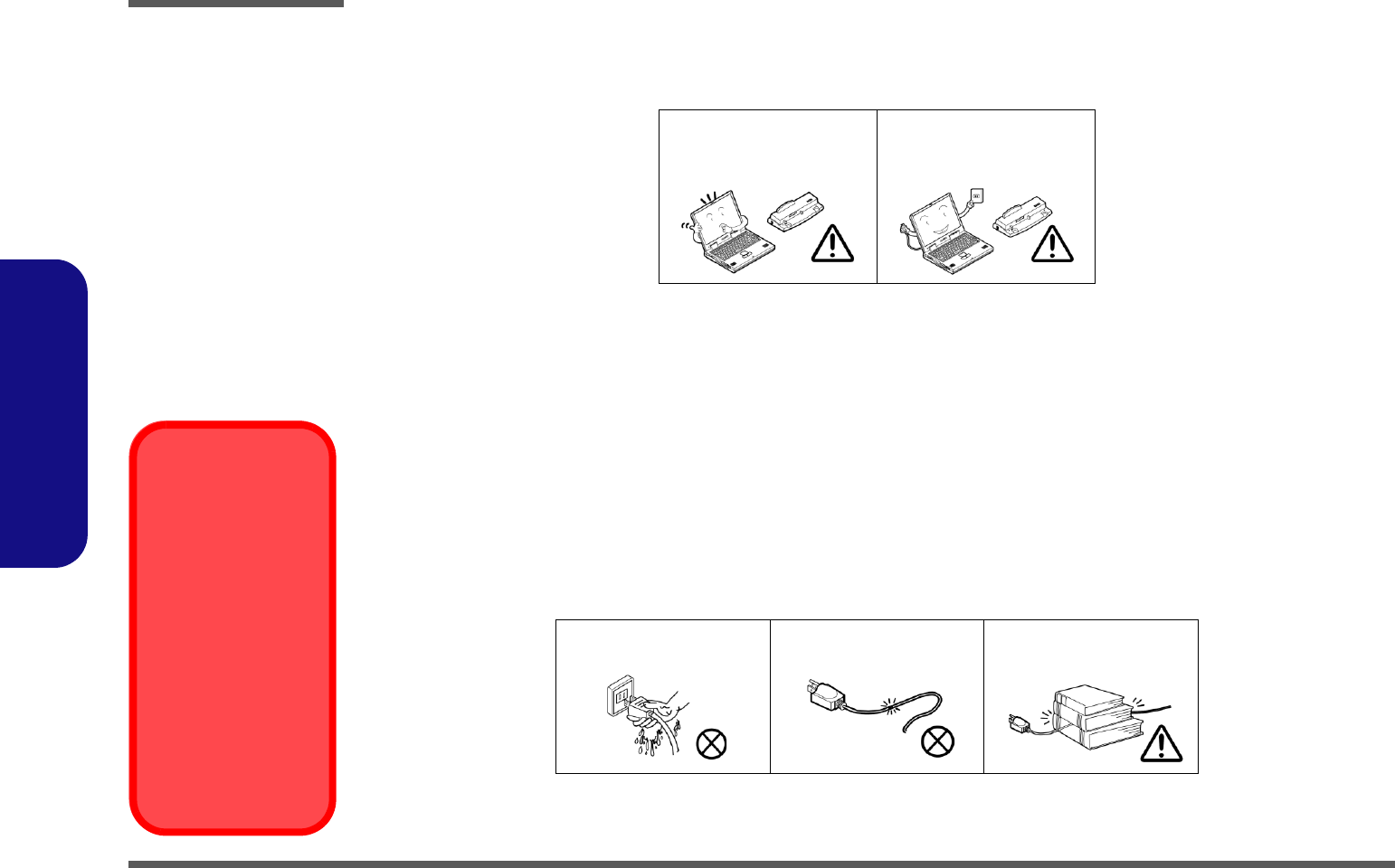

4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals. Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet. Do not use the power cord if
it is broken. Do not place heavy objects
on the power cord.
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord). It is advis-
able to also remove
your battery in order to
prevent accidentally
turning the machine
on.
![](asset-9.png)
Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.
Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.
![](asset-a.png)
Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD/DVD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

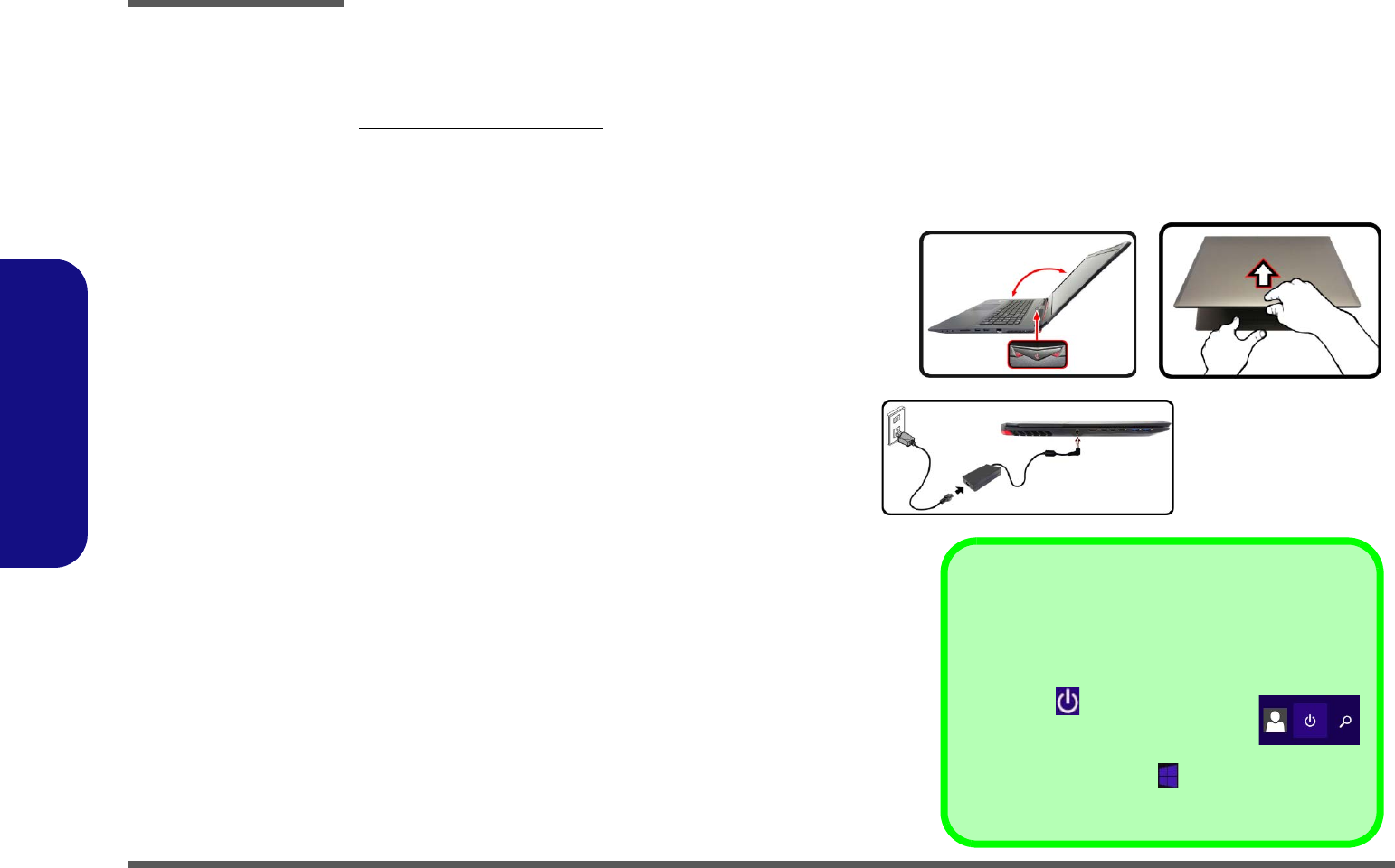

System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the
computer (e.g. keyboard and mouse) to their ports.
4. When first setting up the computer use the following
procedure (as to safeguard the computer during shipping,
the battery will be locked to not power the system until first
connected to the AC/DC adapter and initially set up as
below):
• Attach the AC/DC adapter cord to the DC-In jack on the
left of the computer, then plug the AC power cord into an
outlet, and connect the AC power cord to the AC/DC
adapter and leave it there for 6 seconds or longer.
• Remove the adapter cord from the computer’s DC-In jack,
and then plug it back in again; the battery will now be
unlocked.
5. Use one hand to raise the
lid/LCD to a comfortable viewing
angle
(do not exceed 135 degrees)
;
use the other hand (as
illustrated in Figure 1) to support the base of the computer
(Note: Never lift the computer by the lid/LCD).
6. Press the power button to turn the computer “on”.
Figure 1
Opening the Lid/LCD/
Computer with AC/DC
Adapter Plugged-In
Shut Down
Note that you should always shut your computer down by
choosing the Shut down command in Windows (see be-
low). This will help prevent hard disk or system problems.
Click the icon in the Start Screen and
choose Shut down from the menu.
Or
Right-click the Start button at the bottom of the Start
Screen or the Desktop and choose Shut down or sign out
> Shut down from the context menu.
135°
![](asset-b.png)
Preface
IX
Preface
![](asset-c.png)
Preface
X
Preface
![](asset-d.png)
Preface
XI
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
Specifications ..................................................................................1-2
External Locator - Top View with LCD Panel Open ......................1-4
External Locator - Front & Right Side Views .................................1-5
External Locator - Left Side & Rear View .....................................1-6
External Locator - Bottom View .....................................................1-7
Mainboard Overview - Top (Key Parts) .........................................1-8
Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Connectors) .....................................1-10
Mainboard Overview - Bottom (Connectors) ...............................1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4

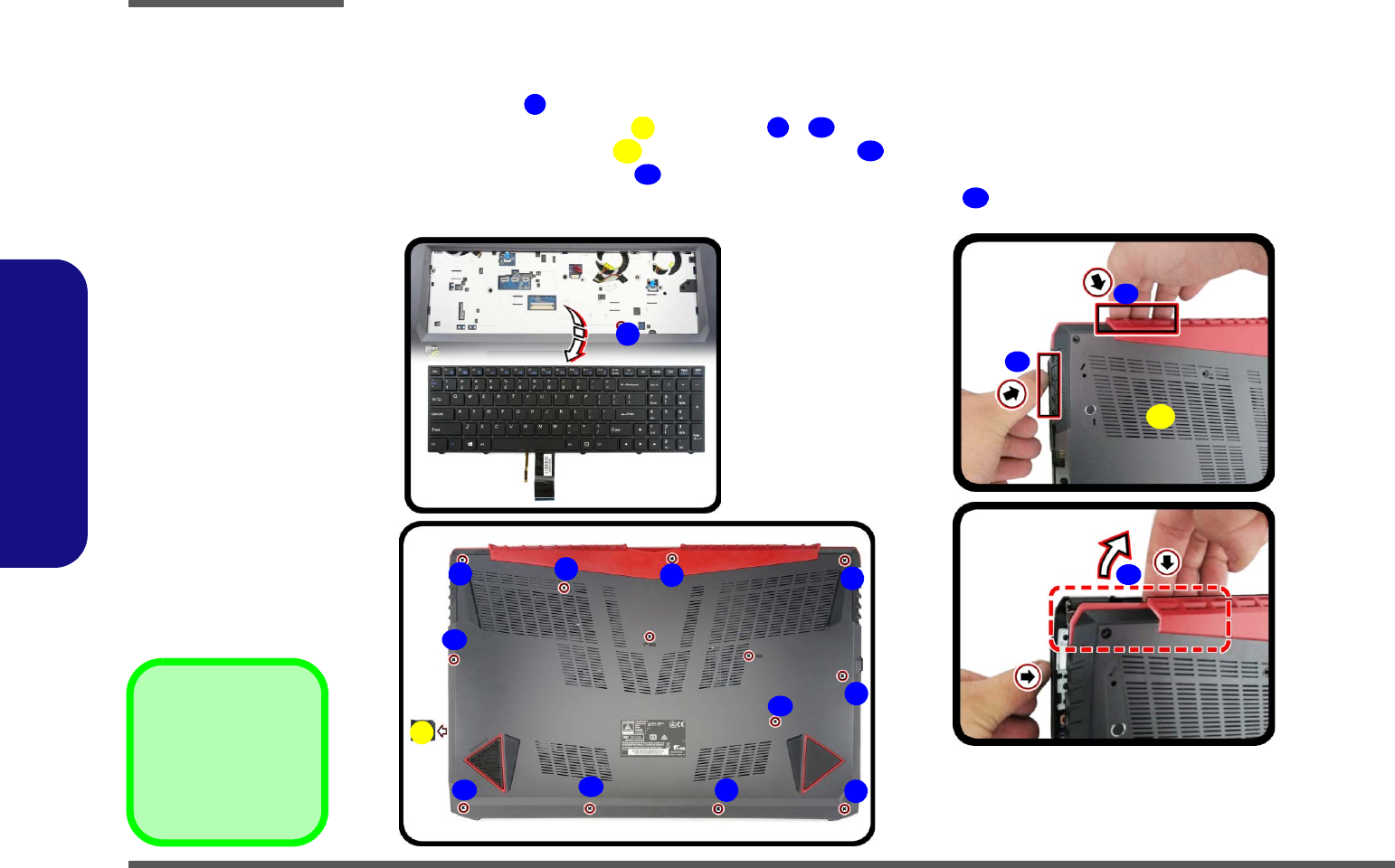

Removing the Keyboard ..................................................................2-5
Removing the Battery ......................................................................2-6
Removing the Hard Disk Drive .......................................................2-8
Removing the System Memory (RAM) ........................................2-10
Removing the M.2 SSD Module ...................................................2-11
Removing the Wireless LAN Module ...........................................2-14
Wireless LAN, Combo Module Cables .........................................2-15
Removing the CCD .......................................................................2-16

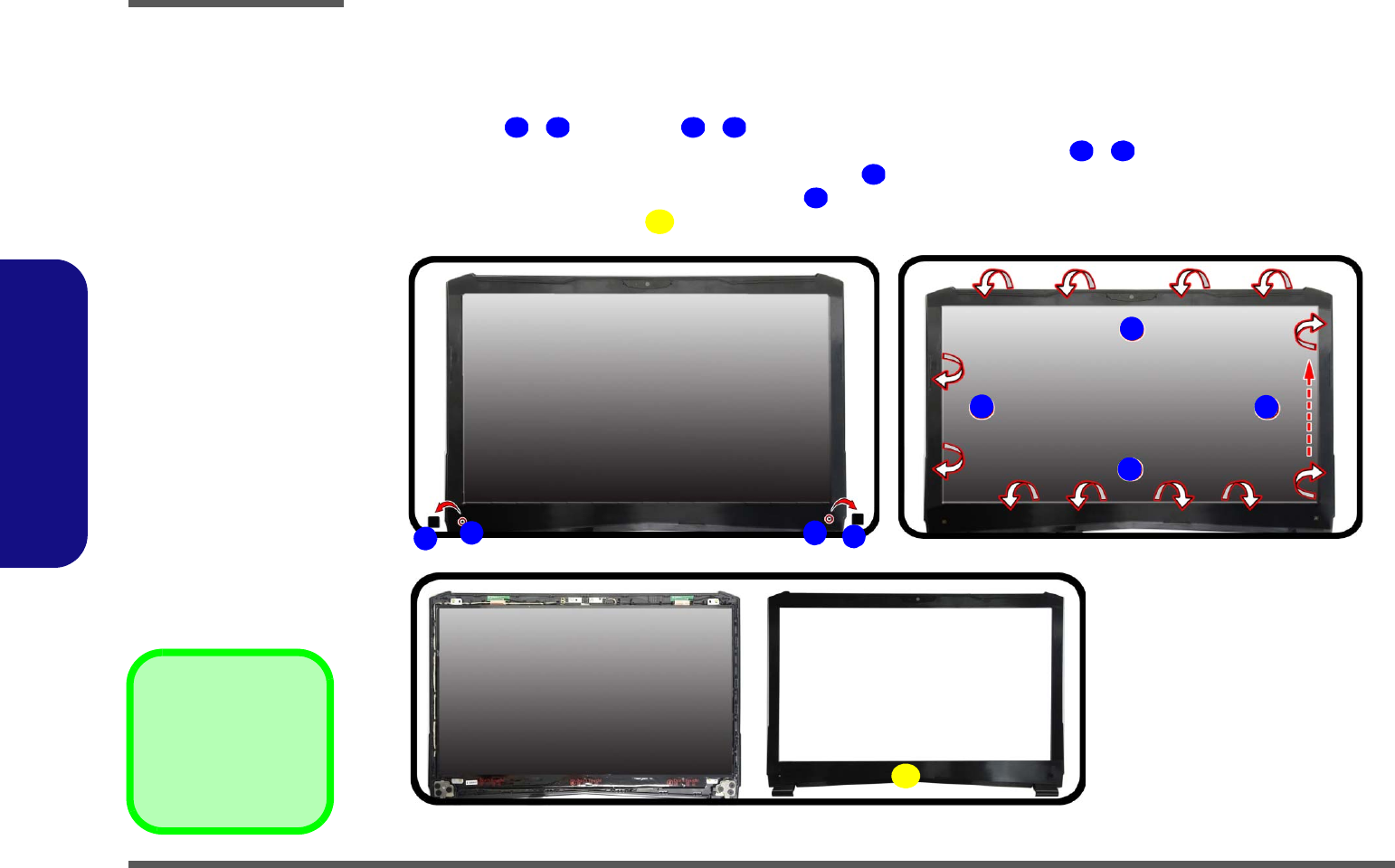

Removing the LCD Module ..........................................................2-18
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top .................................................................................................A-3

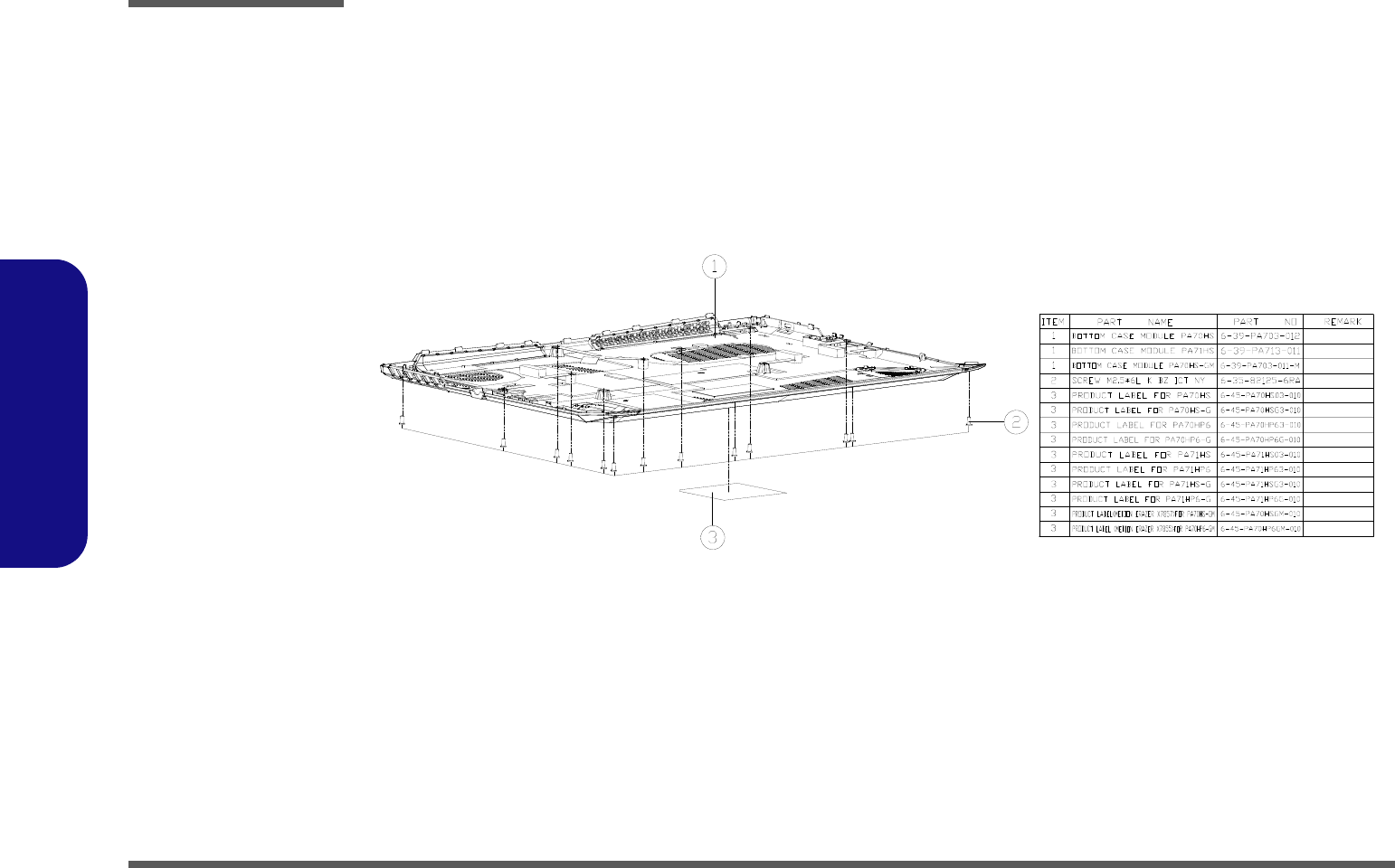

Bottom ........................................................................................... A-4
Main Board ................................................................................... A-5

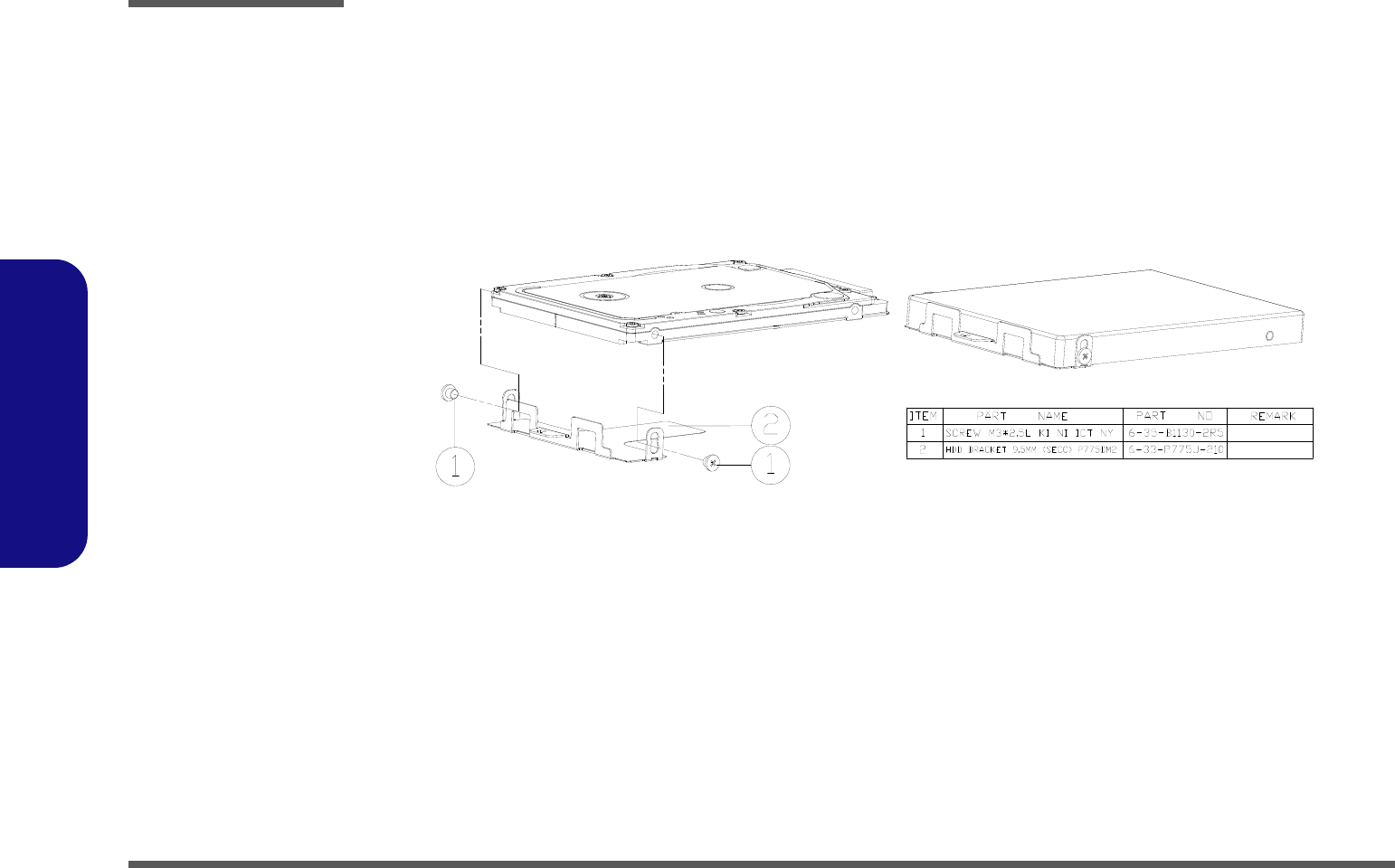

HDD .............................................................................................. A-6
LCD ............................................................................................... A-7
Schematic Diagrams.................................B-1
System Block Diagram ...................................................................B-2
Processor 1/6 ...................................................................................B-3
Processor 2/6 ...................................................................................B-4
Processor 3/6 ...................................................................................B-5
Processor 4/6 ...................................................................................B-6
Processor 5/6 ...................................................................................B-7
Processor 6/6 ...................................................................................B-8

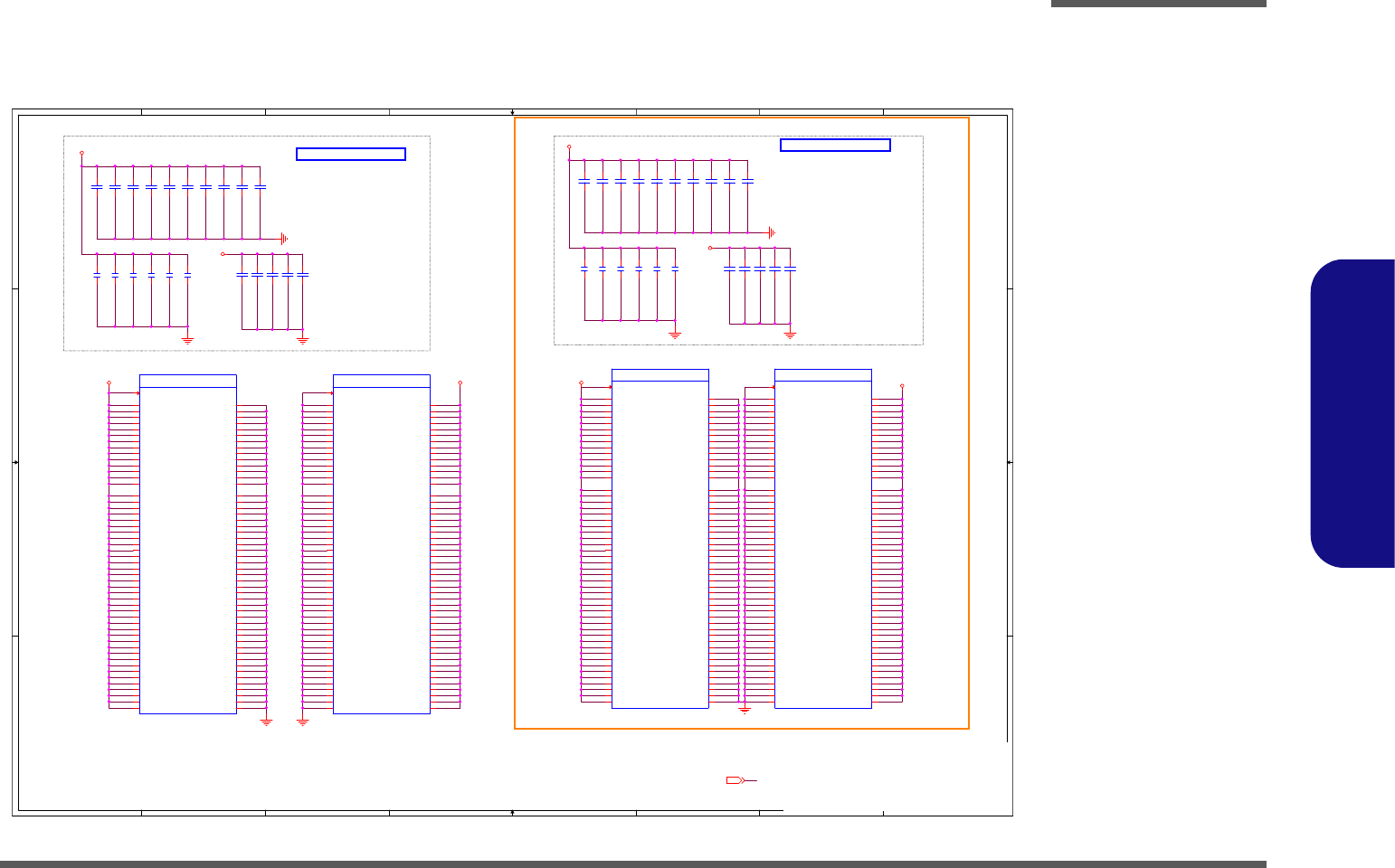

DDR4 CHA SO-DIMM_0 ..............................................................B-9
DDR4 CHB SO-DIMM_0 ............................................................B-10
Panel, Inverter ...............................................................................B-11
Mini DP Port (Back) .....................................................................B-12
Mini DP Port (Front) ....................................................................B-13
HDMI Connector ..........................................................................B-14
VGA PCI Express .........................................................................B-15
GPU Frame Buffer Partition .........................................................B-16
Frame Buffer Partition A ..............................................................B-17
Frame Buffer Partition B ..............................................................B-18
Frame Buffer Partition A_B .........................................................B-19
GPU Frame Buffer Partition .........................................................B-20
Frame Buffer Partition C ..............................................................B-21
Frame Buffer Partition D ..............................................................B-22
Frame Buffer Partition C_D .........................................................B-23
GPU Decoupling ...........................................................................B-24
Straps and XTAL ..........................................................................B-25
IFP I/O Interface ...........................................................................B-26
![](asset-e.png)
Preface
XII
Preface
Misc - GPIO, I2C and ROM ........................................................ B-27
NVIDIA Power Sequence ............................................................ B-28
GPU NVVDD, FBVDDQ ............................................................ B-29
GPU GND .................................................................................... B-30
PCH 1/5 ........................................................................................ B-31
PCH 2/5 ........................................................................................ B-32
PCH 3/5 ........................................................................................ B-33
PCH 4/5 ........................................................................................ B-34
PCH 5/5 ........................................................................................ B-35
KBC IT8587 ................................................................................. B-36
RGB and White KB LED ............................................................. B-37
M.2 PCIE4X SSD ........................................................................B-38
M.2 3G/LTE/WIGIG/WLAN+BT ............................................... B-39
Audio ............................................................................................B-40
Audio Subwoofer ......................................................................... B-41
Audio Port 1 ................................................................................. B-42
AR_TBT ....................................................................................... B-43
AR Power ..................................................................................... B-44
TPS65982ABZQZ ........................................................................B-45
USB 3.0 Type C ...........................................................................B-46
PS8338B ....................................................................................... B-47
TPM, CCD, TP .............................................................................B-48
Connectors .................................................................................... B-49
Fan, LID, SATA HDD .................................................................B-50
5V, 5VS, 3.3V, 3.3VS, 3.3VA ..................................................... B-51
1.0DX_VCCSTG/VCCSFR_OC/2.5V ........................................ B-52
1V8_RUN/AON, NV3V3 ............................................................ B-53
PEX_VDD .................................................................................... B-54
VDD3, VDD5 ............................................................................... B-55
DDR 1.2V / 0.6VS ....................................................................... B-56
Power 1.0V, VCCIO .................................................................... B-57
VCC_Core .................................................................................... B-58
VCore & VCCGT Output .............................................................B-59
VCCSA .........................................................................................B-60
AC_In, Charger .............................................................................B-61
NVVDDS ......................................................................................B-62
NVVDD 1 .....................................................................................B-63
NVVDD 2 .....................................................................................B-64
FBVDDQ ......................................................................................B-65
LED Board ....................................................................................B-66
LID Board .....................................................................................B-67
DC Board ......................................................................................B-68
Power Board .................................................................................B-69
Click Board ...................................................................................B-70
Audio Board ..................................................................................B-71
USB Board ....................................................................................B-72
USB 3.0 Board ..............................................................................B-73
PA7 Card Reader Board 1/4 .........................................................B-74
PA7 Card Reader Board 2/4 .........................................................B-75
PA7 Card Reader Board 3/4 .........................................................B-76
PA7 Card Reader Board 4/4 .........................................................B-77
Power Sequence ............................................................................B-78
pdating the FLASH ROM BIOS............ C-1
Download the BIOS ........................................................................C-1
Unzip the downloaded files to a bootable CD/DVD or
USB Flash drive ..............................................................................C-1
Set the computer to boot from the external drive ...........................C-1
Use the flash tools to update the BIOS ...........................................C-2
Restart the computer (booting from the HDD) ...............................C-2
![](asset-f.png)
Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the PA70HS(-G) / PA71HS series notebook comput-
er. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Infor-
mation about dri-vers (e.g. VGA & audio) is also found in the User’s Manual. The manual is shipped with the computer.
Operating systems (e.g. Windows 10, etc.) have their own manuals as do application softwares (e.g. word processing and
database programs). If you have questions about those programs, you should consult those manuals.
The PA70HS(-G) / PA71HS series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed
description of the upgrade procedures for each specific component. Please take note of the warning and safety informa-
tion indicated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.
![](asset-10.png)
Introduction
1 - 2 Specifications
1.Introduction
Specifications
Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.
CPU Speed & Computer in DC Mode
Note that when the computer is in DC mode
(powered by the battery only) the CPU may not
run at full speed. This is a design feature imple-
mented in order to protect the battery.
Processor Options
i7-7820HK (2.90GHz)
6MB Smart Cache, 14nm, DDR4-2400MHz, TDP 45W
i5-7700HQ (2.80GHz)
6MB Smart Cache, 14nm, DDR4-2400MHz, TDP 45W
Core Logic
Intel® HM175 Express Chipset
LCD Options
17.3" (43.94cm), 16:9, UHD (3840x2160)/*QHD
(2560x1440)/FHD (1920x1080)
*Note: QHD panels are available for systems with NVIDIA®
G-SYNC™Technology only
BIOS
AMI BIOS (64Mb SPI Flash-ROM)
Memory
Two 260 Pin SO-DIMM Sockets Supporting DDR4 2400MHz
Memory
(The real memory operating frequency depends on the FSB
of the processor.)
Memory Expandable from 8GB (minimum) up to 32GB
(maximum)
Compatible with 4GB, 8GB or 16GB Modules
SO-DIMM Memory Types
All SO-DIMM memory modules installed in the sys-
tem should be identical (the same size and brand)
in order to prevent unexpected system behavior.
Do not mix SO-DIMM memory module sizes and
brands otherwise unexpected system problems
may occur.
Security
Security (Kensington® Type) Lock Slot
BIOS Password
Intel PTT for Systems Without TPM Hardware
(Factory Option) TPM 2.0
(Factory Option) Fingerprint Reader Module
Video Adapter Options
Microsoft Hybrid Graphics Mode
Supports up to 4 Active Displays
Supports NVIDIA Surround View via HDMI x 1 and MiniDP x2
Intel Integrated GPU
Intel® HD Graphics 630
Dynamic Frequency
Intel Dynamic Video Memory Technology
Microsoft DirectX®12 Compatible
NVIDIA® Discrete GPU
NVIDIA® GeForce GTX 1070
8GB GDDR5 Video RAM
Microsoft DirectX®12 Compatible
Supports GPU Overclocking
Storage
One changeable 2.5" (6cm) 7.0mm/9.5mm (h) SATA (Serial)
Hard Disk Drive/Solid State Drive (SSD)
(Factory Option) Two SATA M.2 2280 SSDs supporting
RAID level 0/1
Or
(Factory Option) One PCIe Gen3 x4 M.2 2280 SSD and
one PCIe Gen3 x2 M.2 2280 SSD
![](asset-11.png)
Introduction
Specifications 1 - 3
1.Introduction
Pointing Device
(Factory Option) Built-In Secure Pad (with Microsoft PTP
Multi Gesture & Scrolling Functionality)
Or
(Factory Option) Built-in Touchpad ( (with Microsoft PTP
Multi Gesture & Scrolling Functionality)
Keyboard
(Factory Option) Full-size Illuminated White LED Winkey
Keyboard (with numeric keypad)
Or
(Factory Option) Full Color Illuminated Full-size Winkey
Keyboard (with numeric keypad)
Audio
High Definition Audio Compliant Interface
S/PDIF Digital Output
Two Speakers
Sound BlasterX® Pro-Gaming 720°
ANSP™ 3D sound technology on headphone output
Built-In Array Microphone
One Sub-Woofer
Note: External 5.1CH Audio Output Supported by 2-in1
Audio, Microphone-In and Headphone-Out Jacks
Card Reader
Embedded Multi-In-1 Push-Push Card Reader
MMC (MultiMedia Card)/RS MMC
SD (Secure Digital)/Mini SD/SDHC/ SDXC (up to UHS-II)
Communication
Built-In 10/100/1000Mb Base-TX Ethernet LAN
2.0M FHD PC Camera Module
WLAN/ Bluetooth M.2 Modules:
(Factory Option) Intel® Wireless-AC 8265 Wireless LAN
(802.11ac) + Bluetooth
(Factory Option) Intel® Wireless-AC 3168 Wireless LAN
(802.11ac) + Bluetooth
(Factory Option) Qualcomm® Atheros Killer™ Wireless-AC
1535 Wireless LAN (802.11ac) + Bluetooth
(Factory Option) Qualcomm® Wireless LAN (802.11ad) +
Bluetooth
M.2 Slots
Slot WLAN for Combo WLAN and Bluetooth Module
Slot SSD1 for SATA or PCIe Gen3 x4 SSD
Slot SSD2 for SATA or PCIe Gen3 x2 SSD
Intel® Optane™ SSD Module Installation
Service personnel please note that Intel® Op-
tane™ modules must be installed in the SSD1
slot.
Interface
One USB 3.0 (USB 3.1 Gen 1) Type-C Port*
*The maximum amount of current supplied by USB Type-C
ports is 500mA (USB 2.0)/900mA (USB 3.1).
Or
(Factory Option) One USB 3.1 Gen 2/Thunderbolt 3 Combo
Port (Type-C)
Four USB 3.0 (USB 3.1 Gen 1) Ports (Including one AC/DC
Powered USB port)
Two Mini DisplayPorts (1.3)
One HDMI-Out Port
One 2-In-1 Audio Jack (Line-Out & S/PDIF-Out (Optical)
Combo Jack)
One Microphone-In Jack
One Headphone-Out Jack
One RJ-45 LAN
Jack
One DC-In Jack
Environmental Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Power
Embedded 4-Cell Polymer Battery Pack, 66WH
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19.5V, 11.8A (230W)
Dimensions & Weight
418.5mm (w) * 287mm (d) * 24.9mm (h)
3.0kg (Barebone with 66WH Battery)
![](asset-12.png)
Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction
External Locator - Top View with LCD Panel Open

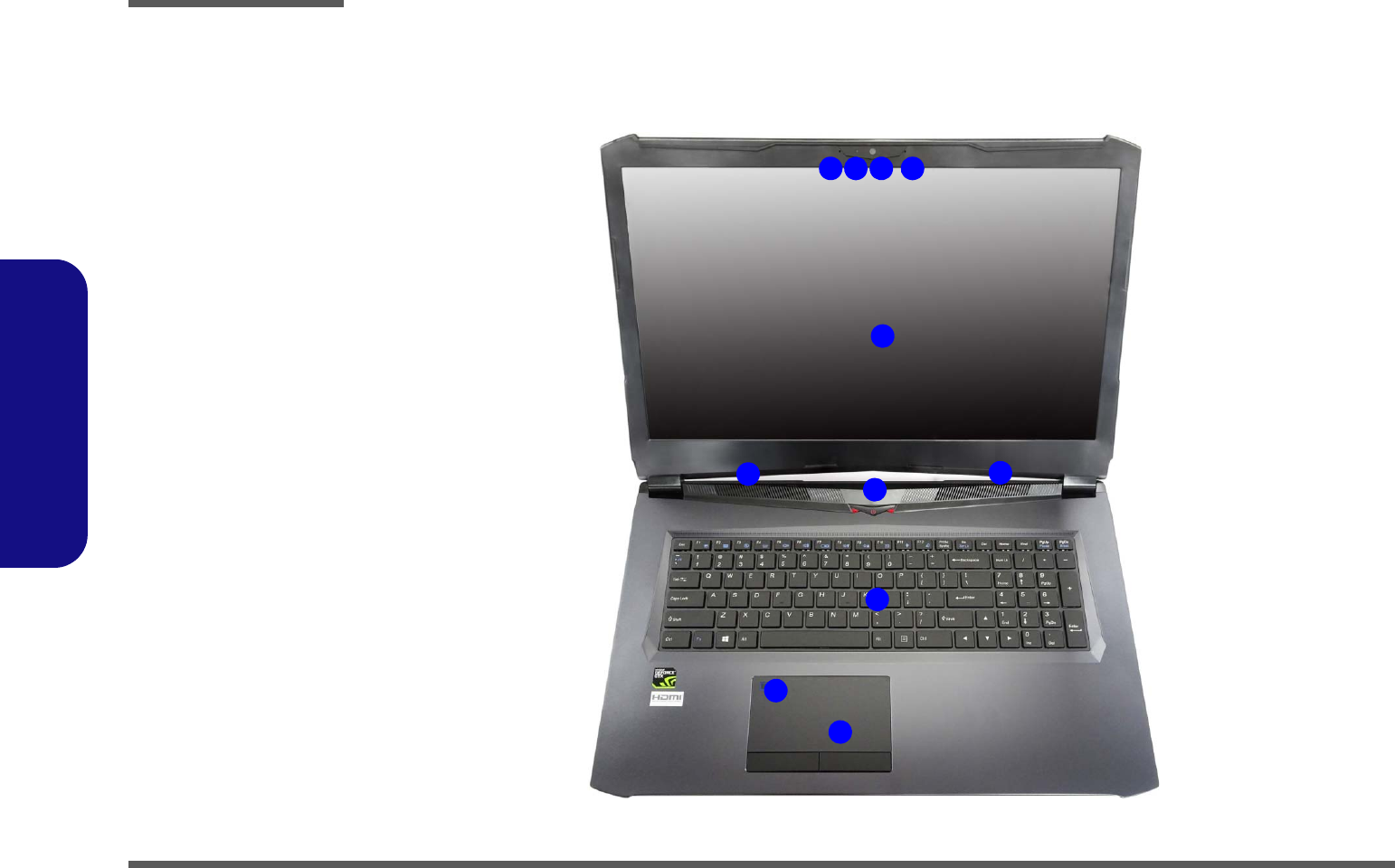

Figure 1
Top View
1. PC Camera
2. *PC Camera LED
*When the PC
camera is in use,
the LED will be
illuminated.
3. Built-In Array
Microphone
4. LCD
5. Speakers
6. Power Button
7. Keyboard
8. Touchpad &
Buttons
9. Fingerprint
Reader (Optional)
2 1
8
7
65
4
5
3
9
3
![](asset-13.png)
Introduction
External Locator - Front & Right Side Views 1 - 5
1.Introduction

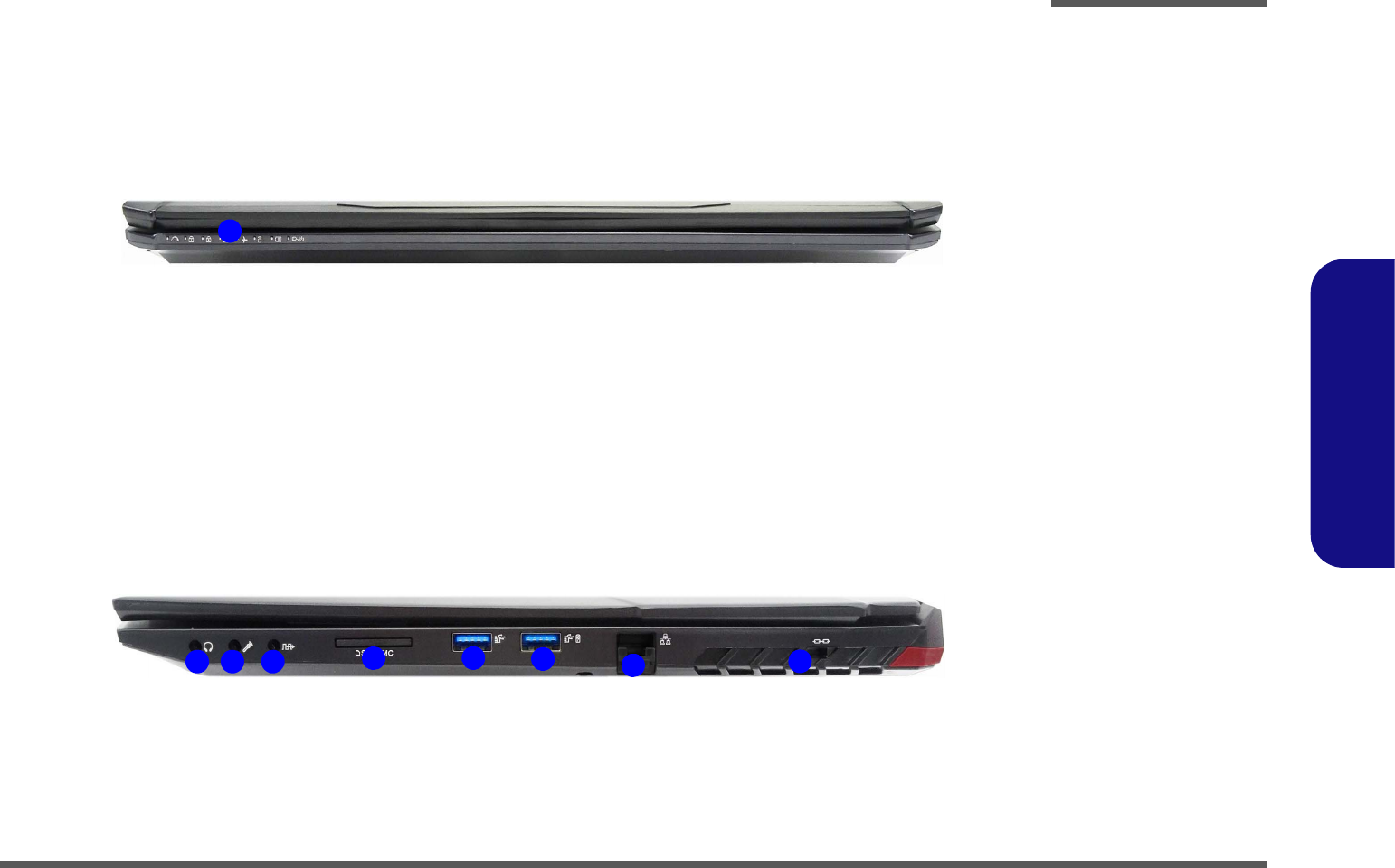

External Locator - Front & Right Side Views
Figure 2
Front View
1. LED Indicator
Figure 3
Right Side View
1. Headphone-Out
Jack
2. Microphone-In
Jack
3. Line & S/PDIF
Combo Jack
4. Multi-in-1 Card
Reader
5. USB 3.0 (USB 3.1
Gen 1) Port
6. *Powered USB
3.0 (USB 3.1 Gen
1) Port
7. RJ-45 LAN Jack
8. Security Lock Slot
FRONT VIEW
1
RIGHT SIDE VIEW
1 2 3 7
56
48
![](asset-14.png)
Introduction

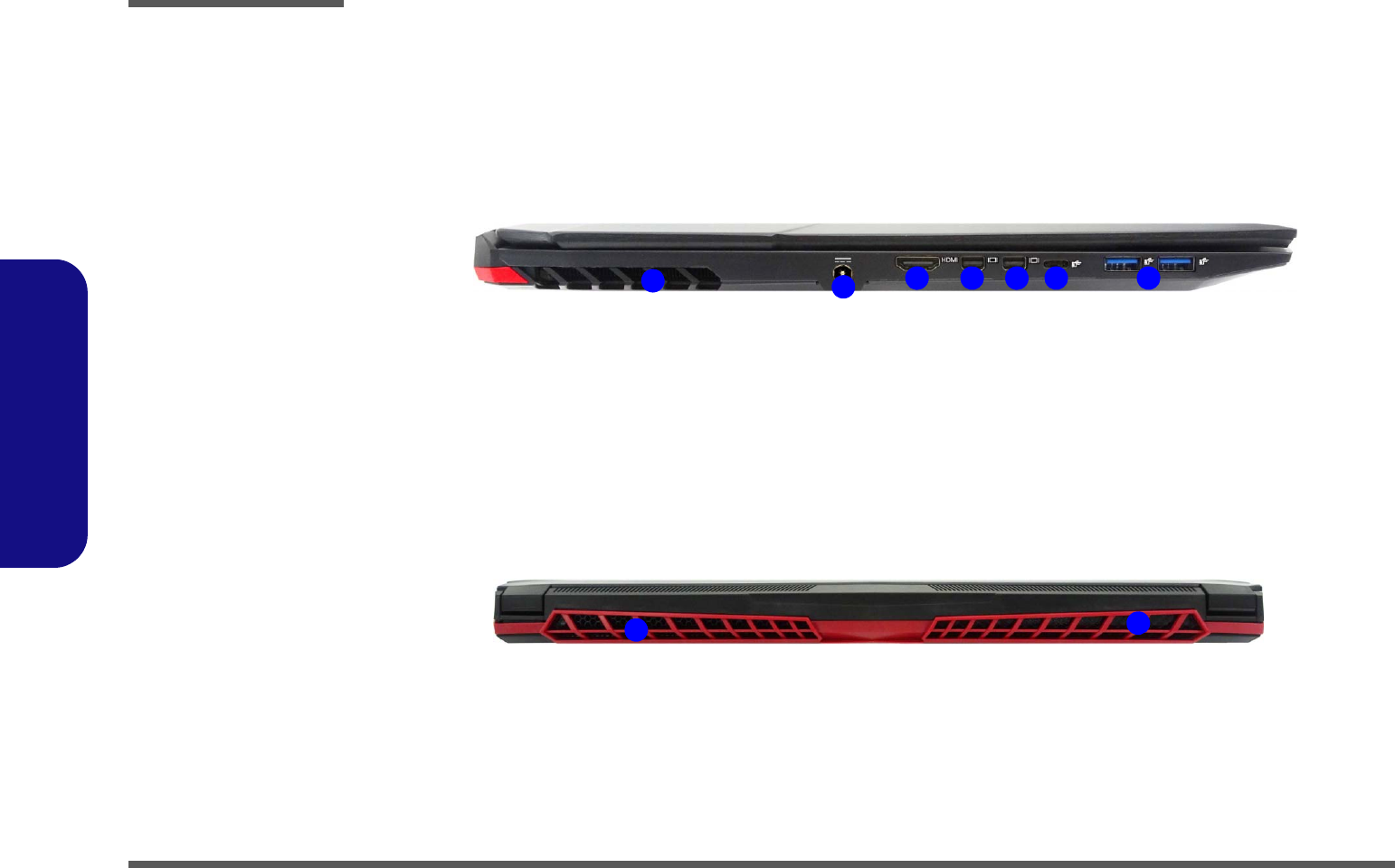

1 - 6 External Locator - Left Side & Rear View
1.Introduction
External Locator - Left Side & Rear View
/
Figure 4
Left Side View
1. Vent
2. DC-In Jack
3. HDMI-Out Port
4. Mini Display Port 1
5. Mini Display Port 2
6. USB 3.1 Gen 2
Type-C Ports
7. USB 3.0 (USB 3.1
Gen 1) Ports
LEFT SIDE VIEW
123 4 5 6 7
Figure 5
Rear View
1. Vent
REAR VIEW
11
![](asset-15.png)
Introduction
External Locator - Bottom View 1 - 7
1.Introduction

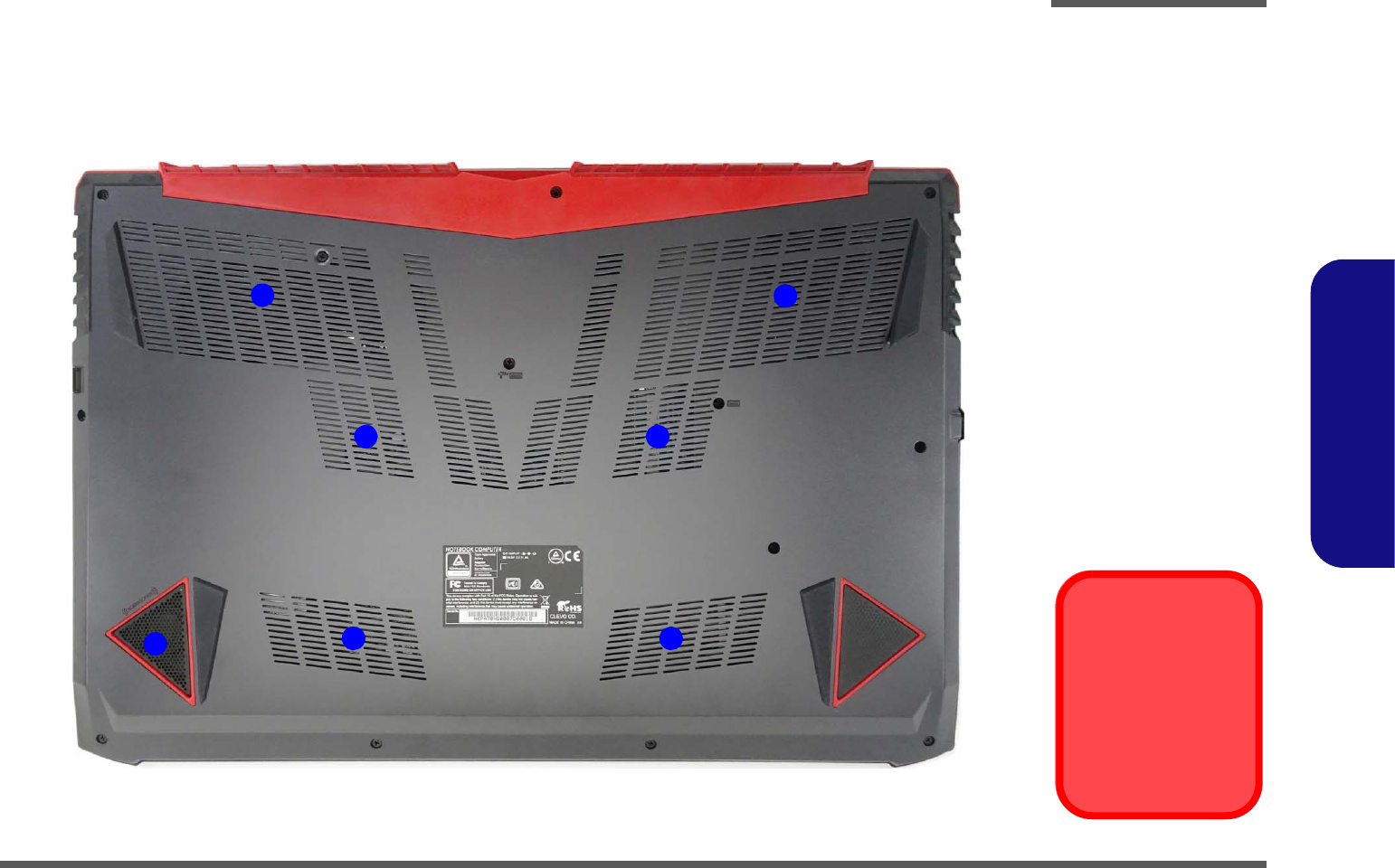

External Locator - Bottom View
Figure 6
Bottom View
1. Vent
2. Sub Woofer
Overheating
To prevent your com-
puter from overhea-
ting, make sure no-
thing blocks any vent
while the computer is
in use.
1
2
1
1
1
1
1
![](asset-16.png)
Introduction
1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction

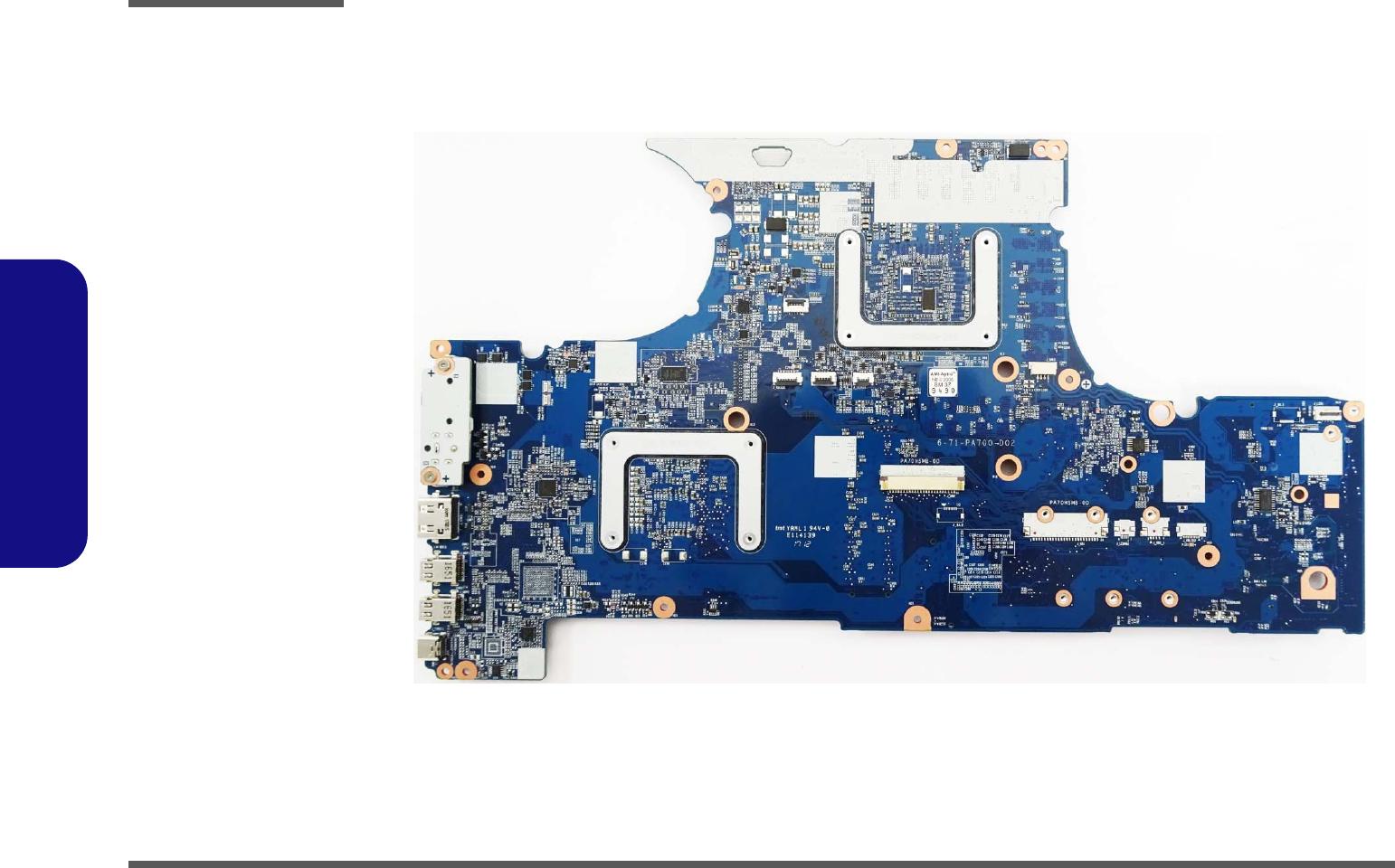

Mainboard Overview - Top (Key Parts)
Figure 7
Mainboard Top
Key Parts
2
3
1
![](asset-17.png)
1
2
3
6
45
78

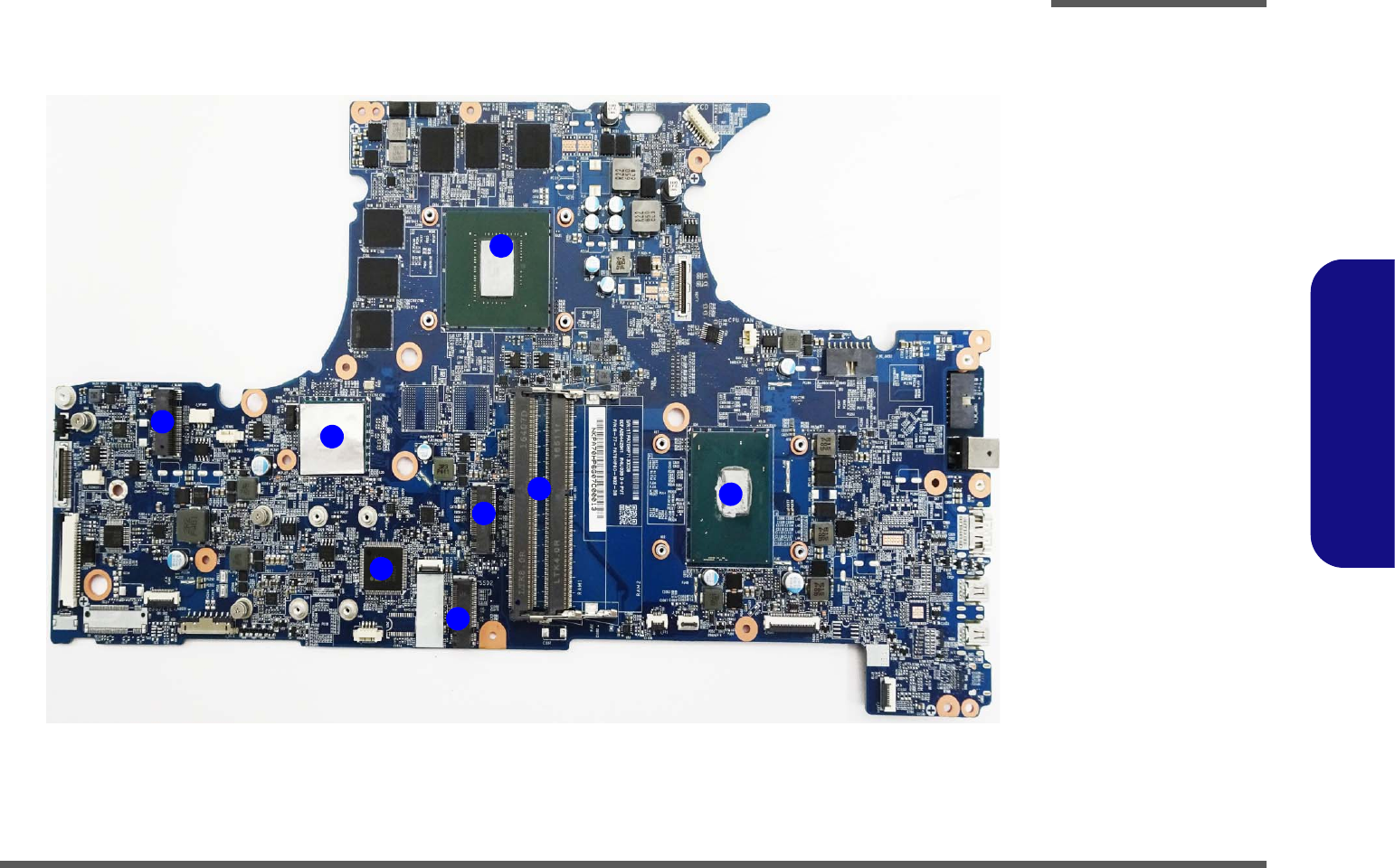

Figure 8
Mainboard Bottom
Key Parts
1. Mini-Card
Connector (M.2
SSD Module)
2. Mini-Card
Connector (M.2
SSD Module)
3. KBC-ITE IT8587
4. Mini-Card
Connector (WLAN
Module)
5. PCH
6. GPU-GTX1070
7. Memory Slots
DDR4 SO-DIMM
8. CPU
Introduction
Mainboard Overview - Bottom (Key Parts) 1 - 9
1.Introduction
Mainboard Overview - Bottom (Key Parts)
![](asset-18.png)
Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction
Mainboard Overview - Top (Connectors)

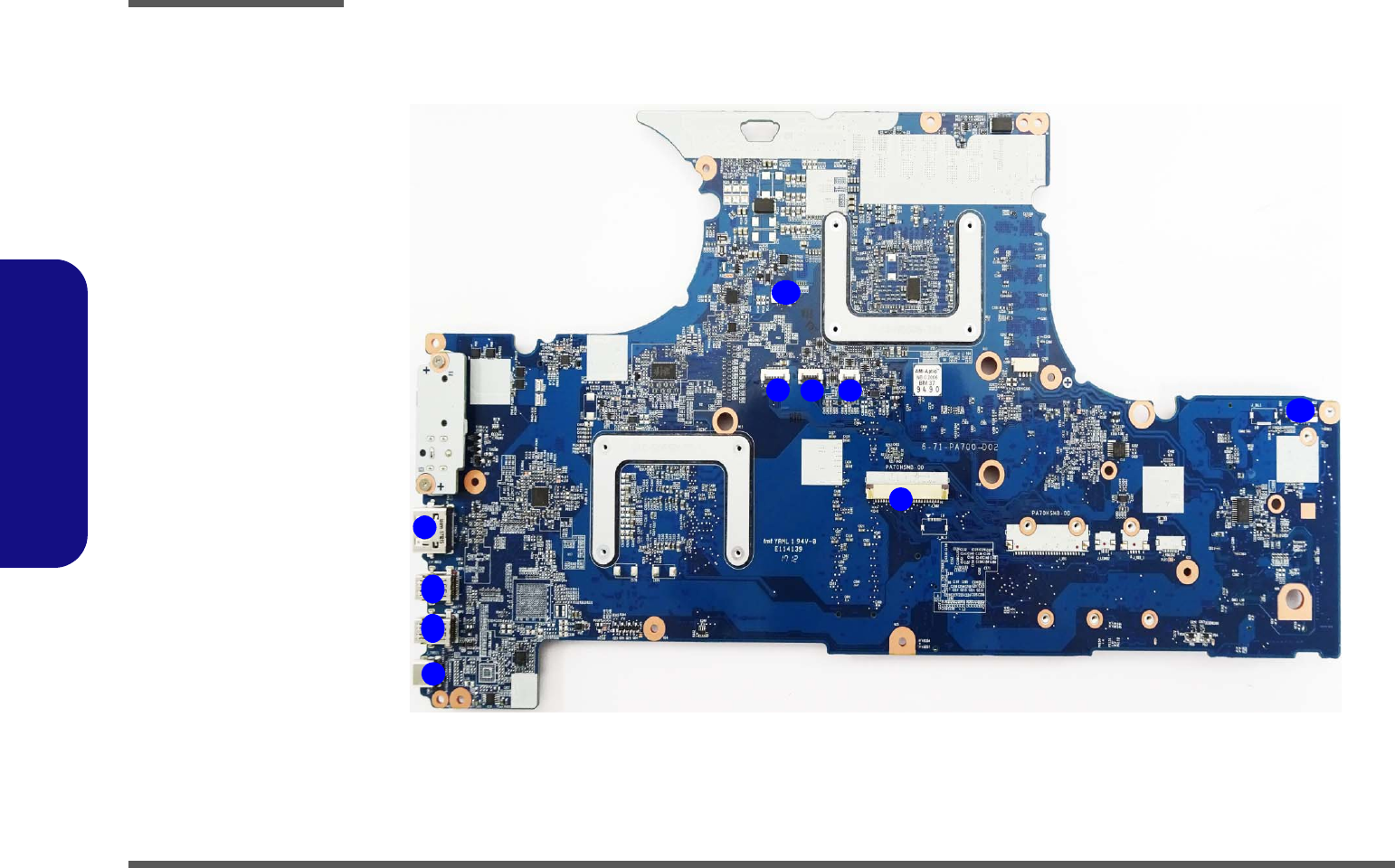

Figure 9
Mainboard Top
Connectors
1. HDMI Port
2. Mini Display Ports
3. USB 3.1 Gen 2
Type-C Port
4. Power Connector
5. RGB LED KB
Connector
6. RGB LED KB
Connector
7. White LED KB
Connector
8. Keyboard Cable
Connector
9. LID Connector
11
9
7
8
6
5
1
3
4
2
2
![](asset-19.png)
Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction
Mainboard Overview - Bottom (Connectors)

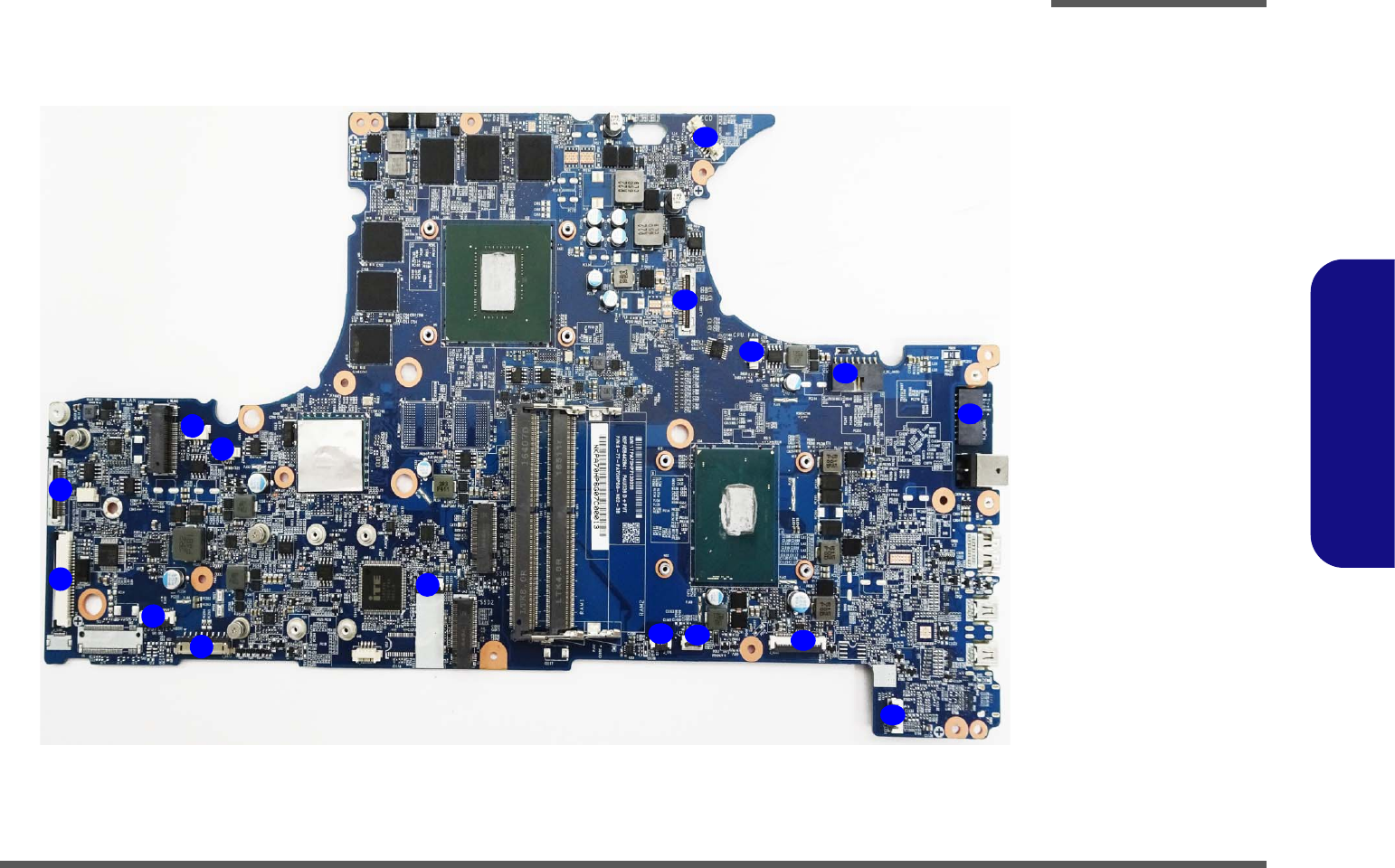

Figure 10
Mainboard Bottom
Connectors
1. Card Reader Board
Connector
2. Audio Board
Connector
3. Battery Connector
4. VGA Fan
Connector
5. HDD Cable
Connector
6. FP Cable
Connector
7. Click Board
Connector
8. USB Board
Connector
9. LED Board
Connector
10. DC Board
Connector
11. CPU Fan
Connector
12. LCD Connector
13. CCD Connector
68
1
2
4
3
5
11
9
10
1
4
7
10
12
13
![](asset-1a.png)
Introduction
1 - 12
1.Introduction
![](asset-1b.png)
Disassembly
Overview 2 - 1
2.Disassembly
Chapter 2: Disassembly
Overview
This chapter provides step-by-step instructions for disassembling the PA70HS(-G) / PA71HS series notebook’s parts and
subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated).
We suggest you completely review any procedure before you take the computer apart.
Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are
repeated here for your convenience.
To make the disassembly process easier each section may have a box in the page margin. Information contained under
the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a
lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis-
assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ-
ous disassembly procedure. The amount of screws you should be left with will be listed here also.
A box with a will also provide any possible helpful information. A box with a contains warnings.
An example of these types of boxes are shown in the sidebar.
Information
Warning
![](asset-1c.png)
Disassembly
2 - 2 Overview
2.Disassembly
NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the
battery is removed too).
Maintenance Tools
The following tools are recommended when working on the notebook PC:
• M3 Philips-head screwdriver
• M2.5 Philips-head screwdriver (magnetized)
• M2 Philips-head screwdriver
• Small flat-head screwdriver
• Pair of needle-nose pliers
• Anti-static wrist-strap
Connections
Connections within the computer are one of four types:
Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to
gently pry the locking collar away from its base. When replac-
ing the connection, make sure the connector is oriented in the
same way. The pin1 side is usually not indicated.
Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently
rock it from side to side as you pull it out. Do not pull on the
wires themselves. When replacing the connection, do not try to
force it. The socket only fits one way.
Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-
ers to gently lift the connector away from its socket. When re-
placing the connection, make sure the connector is oriented in
the same way. The pin1 side is usually not indicated.
Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as
you pull them apart. If the connection is very tight, use a small
flat-head screwdriver - use just enough force to start.
![](asset-1d.png)
Disassembly
Overview 2 - 3
2.Disassembly
Maintenance Precautions
The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-
moval and/or replacement job, take the following precautions:
1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other components
could be damaged.
2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.
3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong magnetic fields.
These can hinder proper performance and damage components and/or data. You should also monitor the position of magnet-
ized tools (i.e. screwdrivers).
4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
5. Be careful with power. Avoid accidental shocks, discharges or explosions.
•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.
•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.
6. Peripherals – Turn off and detach any peripherals.
7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity. Before han-
dling any part in the computer, discharge any static electricity inside the computer. When handling a printed circuit board, do
not use gloves or other materials which allow static electricity buildup. We suggest that you use an anti-static wrist strap
instead.
8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands produce oils
which can attract corrosive elements.
9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted to charged
surfaces, reducing performance.
10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as screws,
loose inside the computer.
Cleaning
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord). It is advis-
able to also remove
your battery in order to
prevent accidentally
turning the machine
on.
Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
(For Computer Models Supplied with Light Blue Cleaning Cloth) Some computer models in this series come sup-
plied with a light blue cleaning cloth. To clean the computer case with this cloth follow the instructions below.
• Power off the computer and peripherals.
• Disconnect the AC/DC adapter from the computer.
• Use a little water to dampen the cloth slightly.
• Clean the computer case with the cloth.
• Dry the computer with a dry cloth, or allow it time to dry before turning on.
• Reconnect the AC/DC adapter and turn the computer on.
![](asset-1e.png)
Disassembly
2 - 4 Disassembly Steps
2.Disassembly
Disassembly Steps
The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM
THE DISASSEMBLY STEPS IN THE ORDER INDICATED.
To remove the Keyboard:
1. Remove the keyboard page 2 - 5
To remove the Battery:
1. Remove the keyboard page 2 - 5
2. Remove the battery page 2 - 6
To remove the HDD:
1. Remove the keyboard page 2 - 5
2. Remove the battery page 2 - 6
3. Remove the HDD page 2 - 8
To remove the System Memory:
1. Remove the keyboard page 2 - 5
2. Remove the battery page 2 - 6
3. Remove the system memory page 2 - 10
To remove and install the M.2 SSD:
1. Remove the keyboard page 2 - 5
2. Remove the battery page 2 - 6
3. Remove the M.2 SSD-1 (Intel) page 2 - 11
4. Remove the M.2 SSD-1 page 2 - 12
5. Remove the M.2 SSD-2 page 2 - 13
To remove the Wireless LAN Module:
1. Remove the keyboard page 2 - 5
2. Remove the battery page 2 - 6
3. Remove the WLAN page 2 - 14
To remove the CCD Module:
1. Remove the keyboard page 2 - 5
2. Remove the battery page 2 - 6
3. Remove the CCD module page 2 - 16
To remove the LCD Module:
1. Remove the keyboard page 2 - 5
2. Remove the battery page 2 - 6
3. Remove the HDD page 2 - 8
4. Remove the system memory page 2 - 10
5. Remove the M.2 SSD page 2 - 11
6. Remove the WLAN page 2 - 14
7. Remove the LCD module page 2 - 18
![](asset-1f.png)
Disassembly

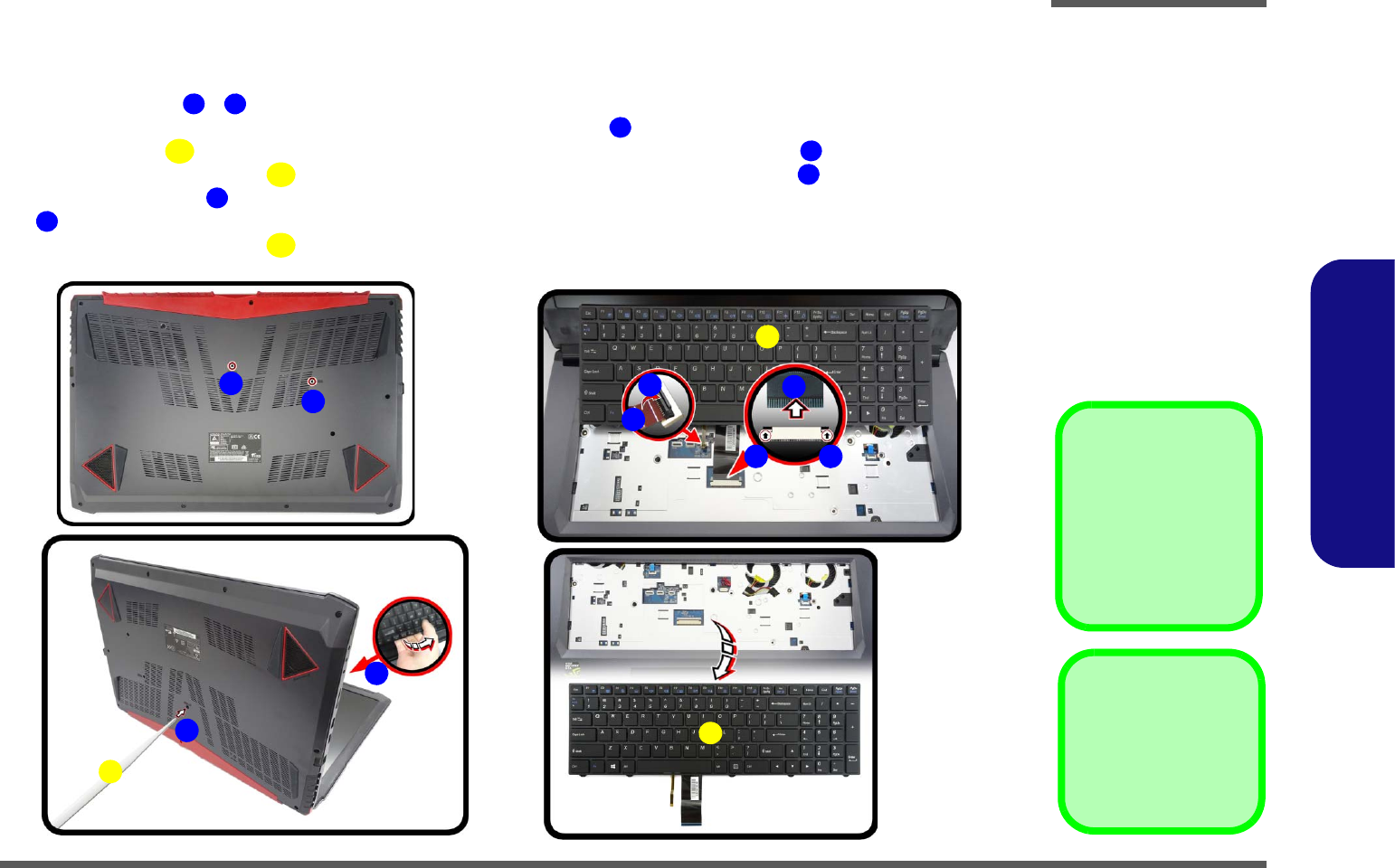

Removing the Keyboard 2 - 5
2.Disassembly
Removing the Keyboard
1. Turn off the computer, turn it over.
2. Remove screws - from the bottom of the computer.
3. Open it up with the LCD on a flat surface before pressing at point to release the keyboard module (use the spe-
cial eject stick to do this) while releasing the keyboard in the direction of the arrow as shown (Figure 1a).
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the key-
board ribbon cable from the locking collar socket by using a flat-head screwdriver to pry the locking collar pins
away from the base (Figure 1b).
5. Carefully lift the keyboard off the computer (Figure 1c).
1
2
3
4
5
6
7
7
8
6
a. b.
1
2
c.
6
7
7
8
6
3
4
8
5
8
4. Eject Stick
6. Keyboard
•2 Screws
Figure 1
Keyboard Removal
a. Remove the screws from
the bottom of the compu-
ter and then eject the
keyboard using a special
eject stick to push the
keyboard out while re-
leasing the keyboard as
shown.
b. Lift the keyboard up and
disconnect the keyboard
ribbon cable from the
locking collar socket.
c. Remove the keyboard.
Re-inserting the Key-
board
When re-inserting the
keyboard firstly, align the
keyboard tabs at the bot-
tom of the keyboard with
the slots in the case.
![](asset-20.png)
Disassembly
2 - 6 Removing the Battery
2.Disassembly
Removing the Battery
1. Turn the computer off, and remove the keyboard (page 2 - 5).
2. Remove screw (Figure 2a).
3. Remove the SD card cover and screws - (Figure 2b).
4. Release the bottom case by using the left thumb to hold down the most prominent area of the back cover
and then use the right hand to lift the rear side vent’s most prominent area (Figure 2c).
5. Carefully remove the bottom case up in the direction of the arrow .
1
6
2
3
13
14
15
16
17
Figure 2
Battery Removal
a. Remove the screws.
b. Remove the SD cover
and screws.
c. Remove the bottom case.
a. c.
2
345
13
6
15
8
9
11
12
10
b.
14
1
7
17
16
2. SD Card Cover
14. Bottom Case
•12 Screws
![](asset-21.png)
Disassembly
Removing the Battery 2 - 7
2.Disassembly
6. The battery will be visible at point on the computer (Figure 3d).
7. Carefully disconnect the cable , then remove screws - (Figure 3e).
8. Lift the battery off the computer (Figure 3f).
9. Reverse the process to install a new battery (do not forget to replace all the screws and bottom cover).
18
19
20
23
24

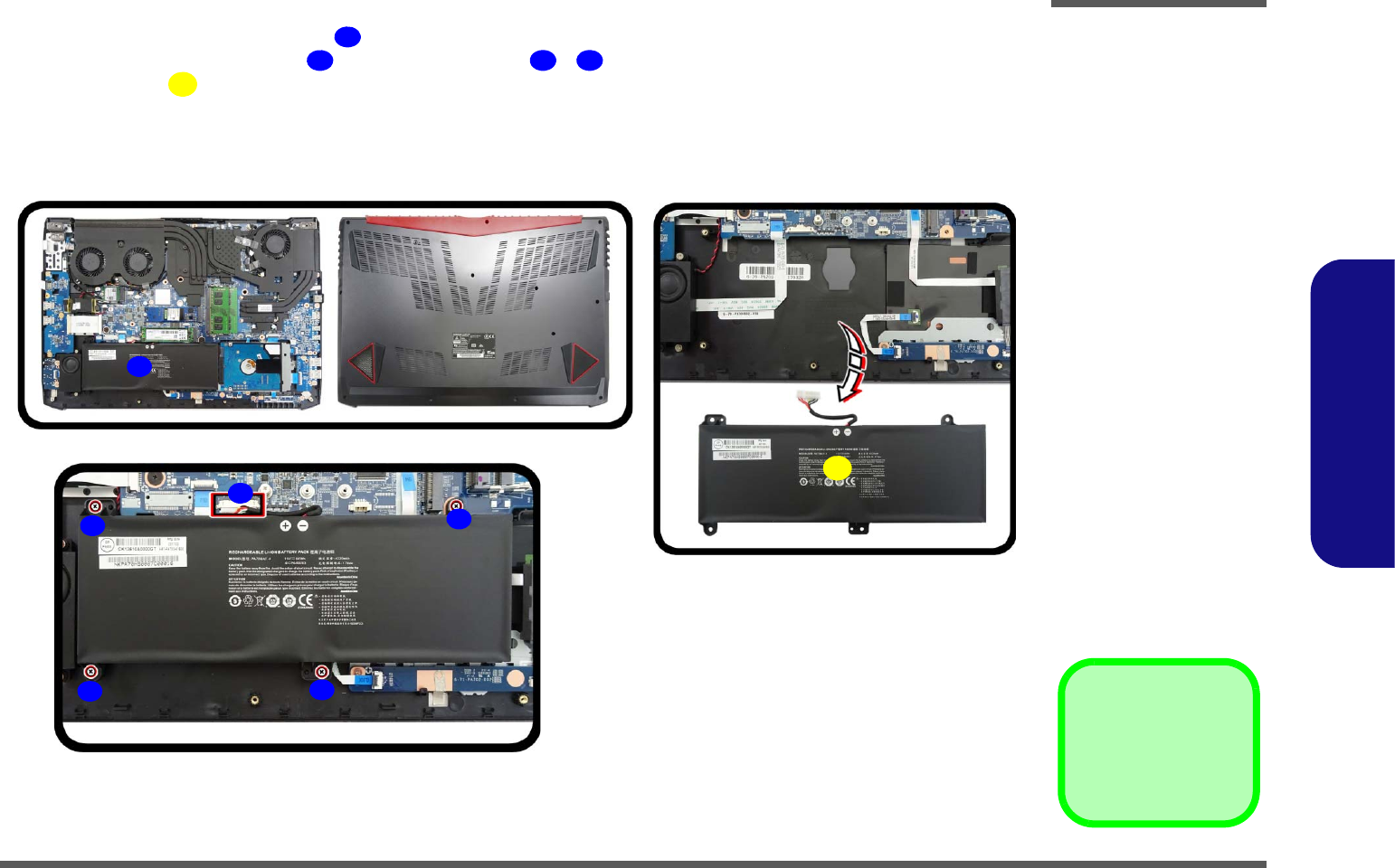

Figure 3
Battery Removal
(cont’d.)
d. Locate the battery.
e. Disconnect the cable and
remove the screws.
f. Lift the battery off the
computer.
e.
f.
19
20
22
24
d.
18
21
23
24. Battery
•4 Screws
![](asset-22.png)
Disassembly
2 - 8 Removing the Hard Disk Drive
2.Disassembly
Removing the Hard Disk Drive
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 7mm
(h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in
Chapter 4 of the User’s Manual) when setting up a new hard disk.
Hard Disk Disassembly Process

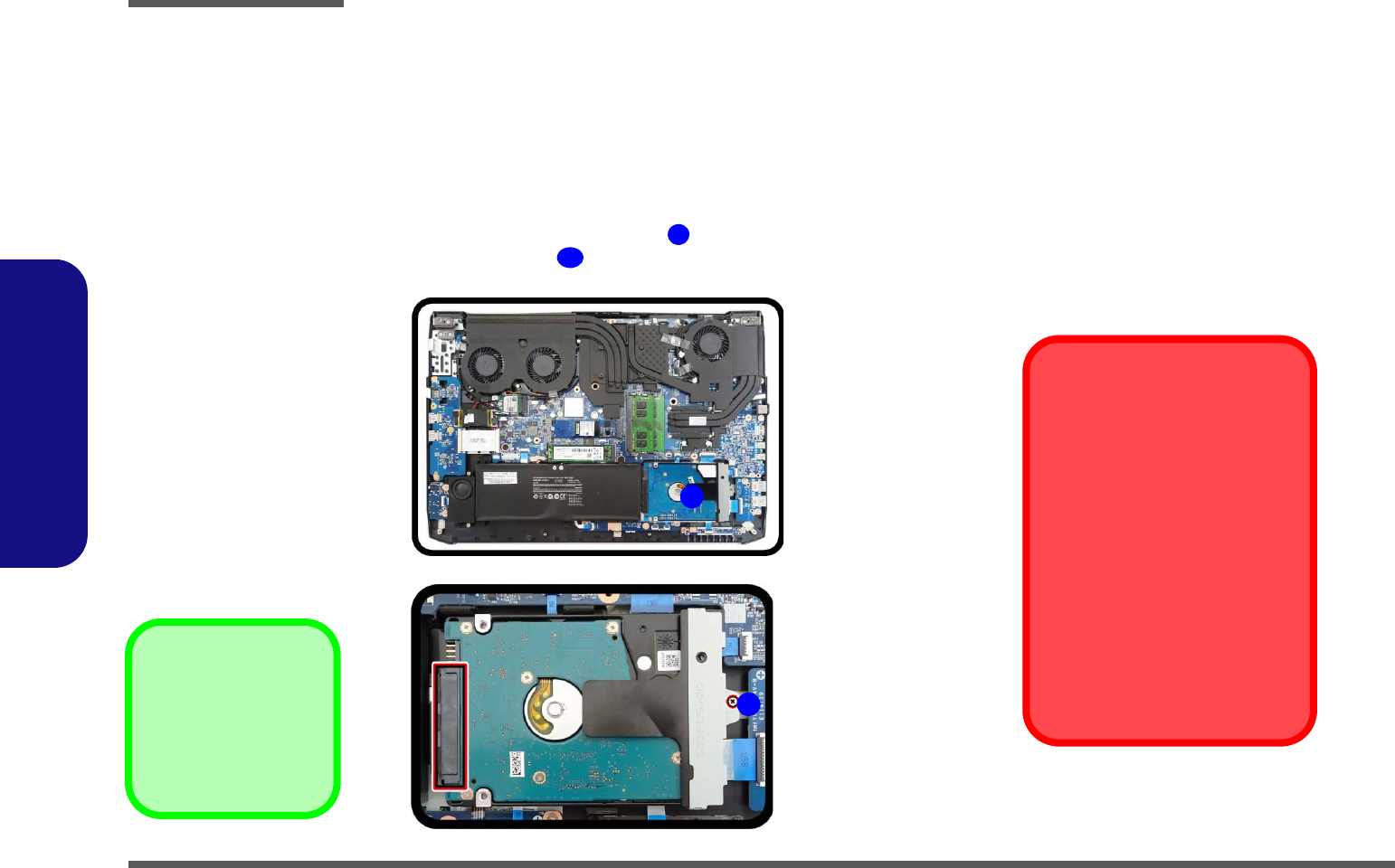

Figure 4
HDD Assembly
Removal
a. Locate the HDD.
b. Remove the screws.
6. Hard Disk
•1 Screw
1. Turn off the computer, and remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. The HDD will be visible at point on the mainboard (Figure 4a).
3. Remove the screw from the HDD assembly (Figure 4b).
1
2
1
a.
2
b.
HDD System Warning
New HDD’s are blank. Before you
begin make sure:
You have backed up any data you
want to keep from your old HDD.
You have all the CD-ROMs and
FDDs required to install your oper-
ating system and programs.
If you have access to the internet,
download the latest application and
hardware driver updates for the op-
erating system you plan to install.
Copy these to a removable medi-
um.
![](asset-23.png)
Disassembly
Removing the Hard Disk Drive 2 - 9
2.Disassembly
4. Slightly slide and pull the hard disk out.
5. Lift the hard disk assembly out of the bay (Figure 5c).
6. Remove screws - and bracket from the hard disk (Figure 5d).
7. Reverse the process to install a new hard disk (do not forget to replace the screws).
3
4
5
6
7
8
c.
3
4
d.
7
6
5
8
3. HDD Assembly
7. HDD Bracket
8. HDD
•2 Screws

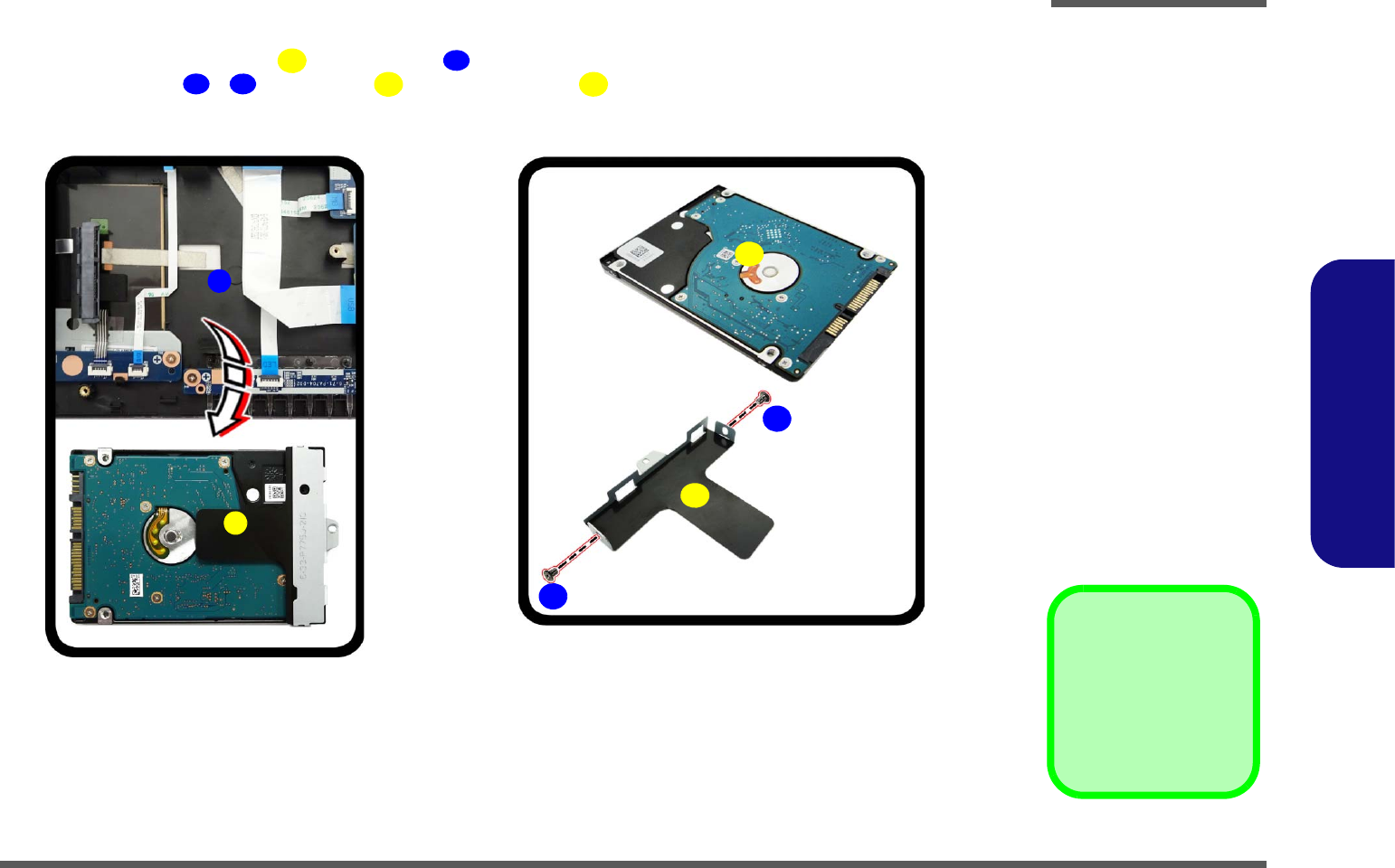

Figure 5
HDD Assembly
Removal (cont’d.)
c. Slide and pull the HDD
assembly out of the bay.
d. Remove the screws and
bracket from the HDD.
![](asset-24.png)
Disassembly
2 - 10 Removing the System Memory (RAM)
2.Disassembly
Removing the System Memory (RAM)
The computer has four memory sockets for 260 pin Small Outline Dual In-line Memory Modules (SO-DIMM) support-
ing DDR4 Up to 2400 MHz. The main memory can be expanded up to 64GB. The total memory size is automatically
detected by the POST routine once you turn on your computer.
Memory Upgrade Process
6. RAM Shielding Plate
•4 Screws
1. Turn off the computer, turn it over, remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. The RAM-2 modules will be visible at point on the mainboard (Figure 6a).
3. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the
arrows (Figure 6b). The RAM module will pop-up (Figure 6c), and you can then remove it.
4. Pull the latches to release the second module if necessary.
5. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
6. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot
as it will go. DO NOT FORCE IT; it should fit without much pressure.
7. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
8. Replace the bottom cover and the screws (see page 2 - 6).
9. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
1
2
3
4
b. c.
33
22
1
a.
4
4. RAM Module

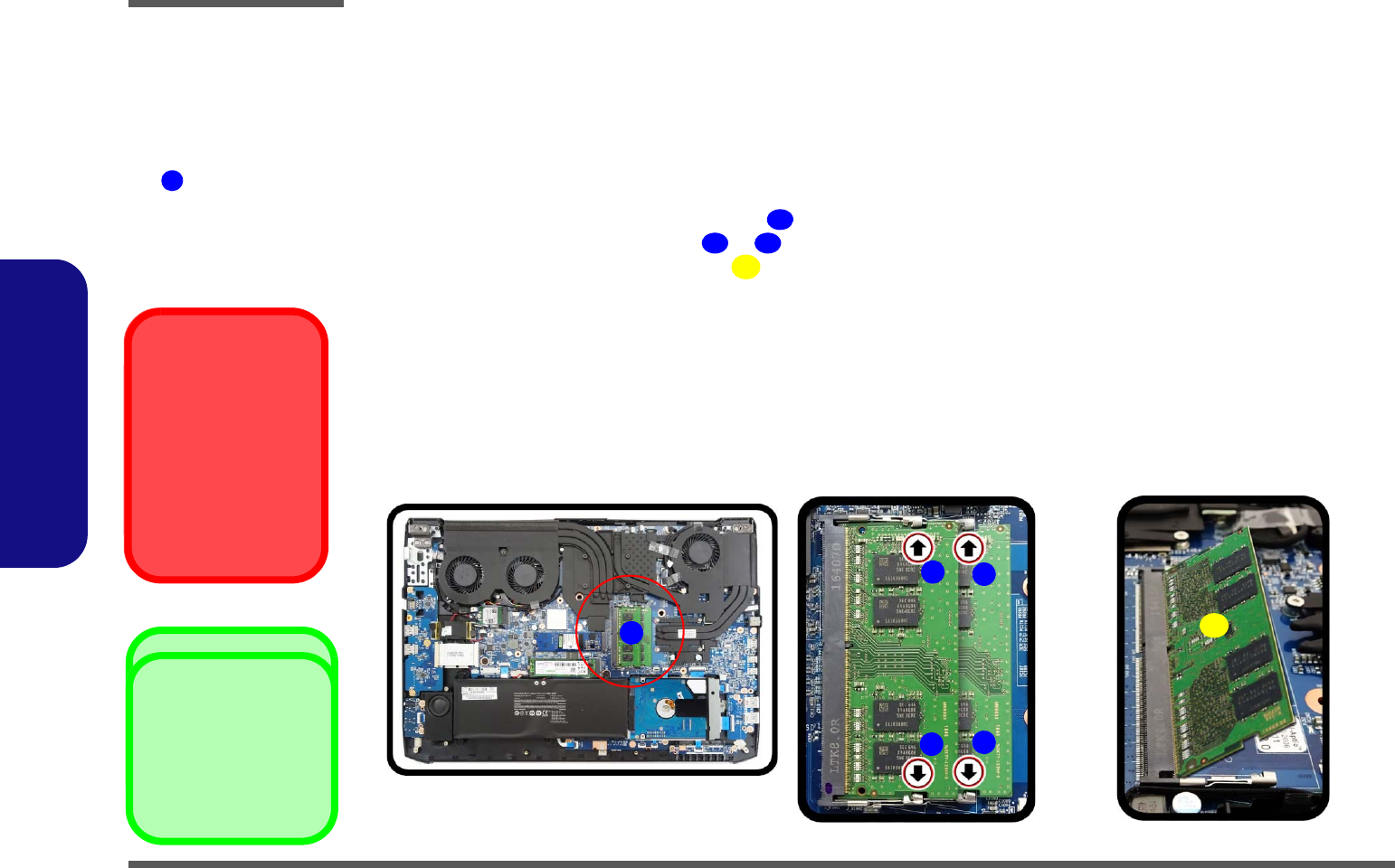

Figure 6
RAM Module
Removal
a. The RAM modules
will be visible at point
on the main-
board.
b. Pull the release lat-
ches.
c. Remove the module.
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module’s performance.
1
![](asset-25.png)
Disassembly
Removing the M.2 SSD Module 2 - 11
2.Disassembly
Removing the M.2 SSD Module
M.2 SSD-1 (Intel Optane) Removal Procedure
1. Turn off the computer, turn it over, remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 7a).
3. Remove the screw (Figure 7b).
4. The M.2 SSD module (Figure 7c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the screws and thermal pad).
1
2
3
b.
c.a.
2
3
1
3
3.M2 SSD Module
•1 Screw

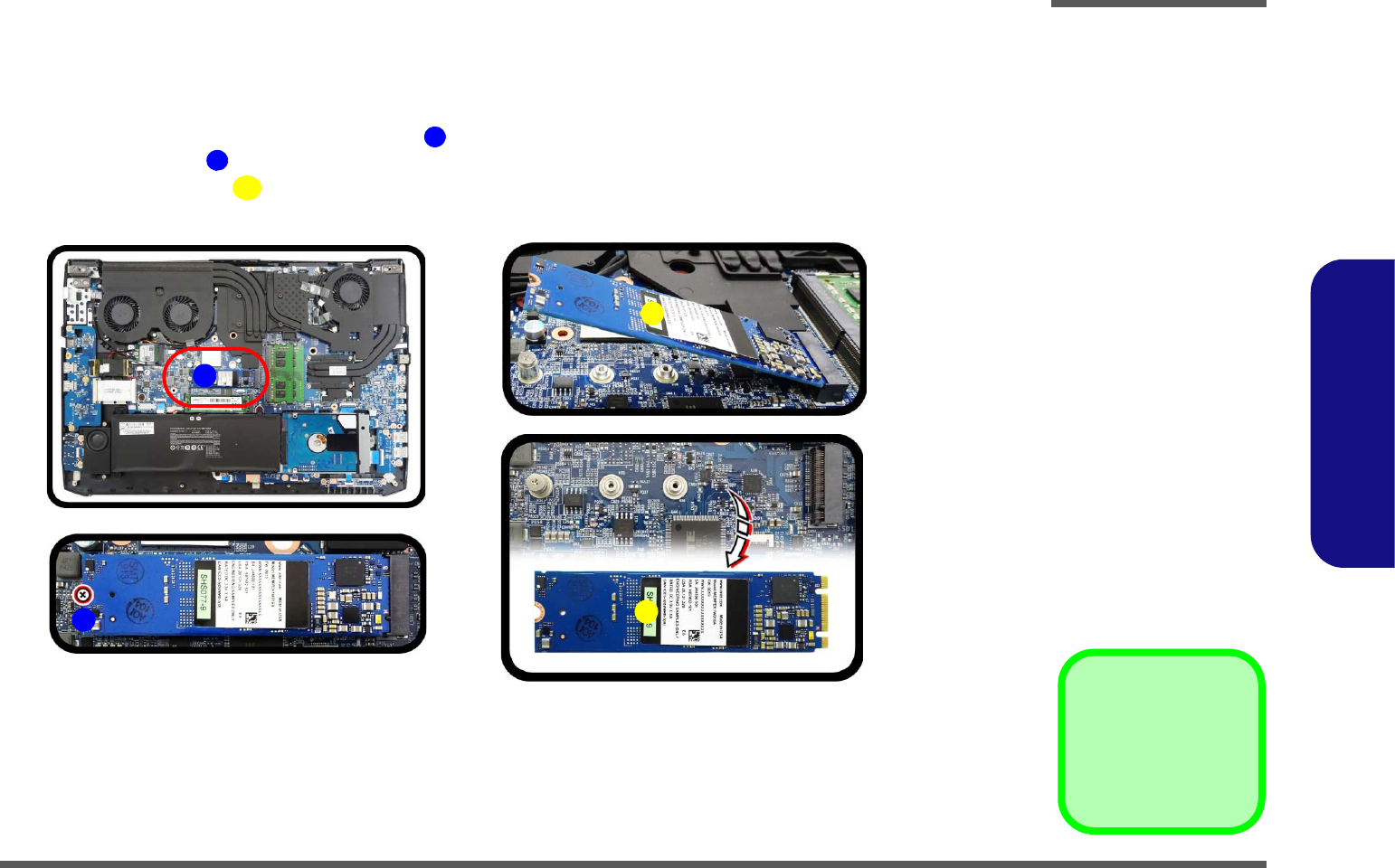

Figure 7
M.2 SSD-1 Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
![](asset-26.png)
Disassembly
2 - 12 Removing the M.2 SSD Module
2.Disassembly
M.2 SSD-1 Removal Procedure
1. Turn off the computer, turn it over, remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 7a).
3. Remove the screw (Figure 7b).
4. The M.2 SSD module (Figure 7c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the screws and thermal pad).
1
2
3
b.
c.a.
2
3
1
3
3.M2 SSD Module
•1 Screw

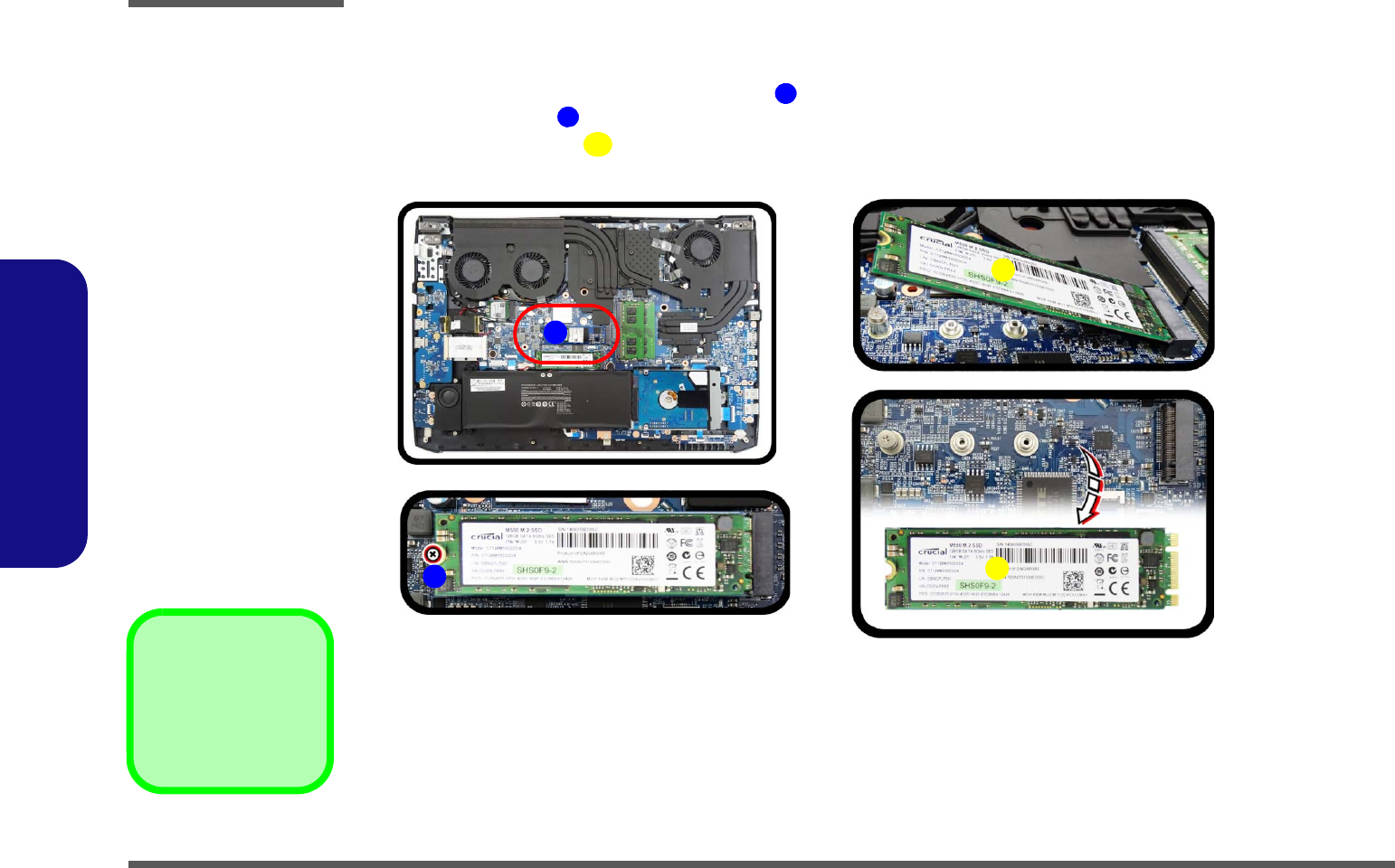

Figure 8
M.2 SSD-1 Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
![](asset-27.png)
Disassembly
Removing the M.2 SSD Module 2 - 13
2.Disassembly
M.2 SSD-2 Removal Procedure
1. Turn off the computer, turn it over, remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 7a).
3. Remove the screw (Figure 7b).
4. The M.2 SSD module (Figure 7c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the screws and thermal pad).
1
2
3
b.
c.a.
2
3
1
3
3.M2 SSD Module
•1 Screw

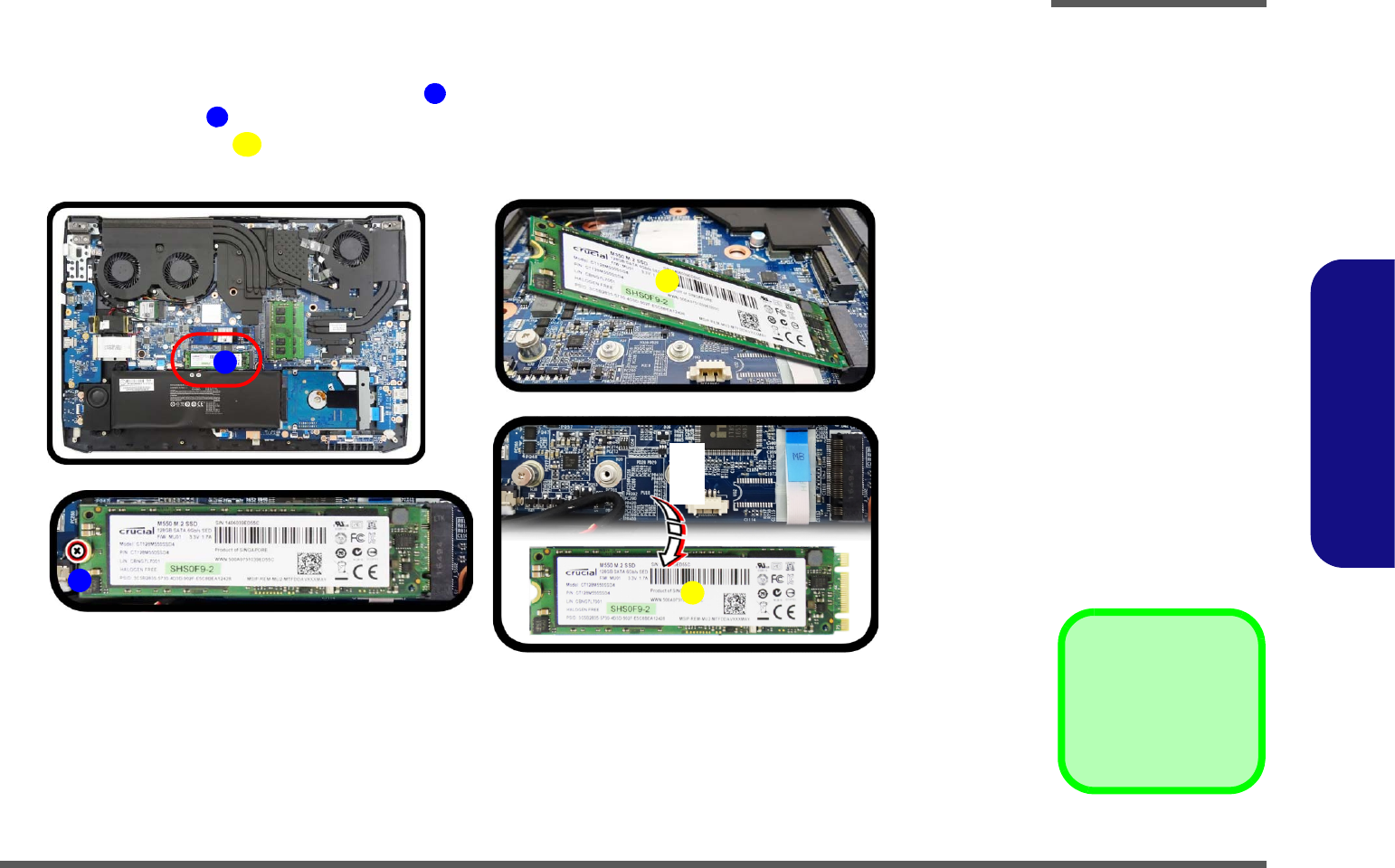

Figure 9
M.2 SSD-2 Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
![](asset-28.png)
Disassembly
2 - 14 Removing the Wireless LAN Module
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, turn it over, remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 10a).
3. Carefully disconnect the cables & , and then remove the screw (Figure 10b)
4. The Wireless LAN module (Figure 10c) will pop-up, and you can remove it from the computer.
1
2
3
4
5
b.
c.
a.
5
1
5
2
3
4
5.Wireless LAN Module
•1 Screw

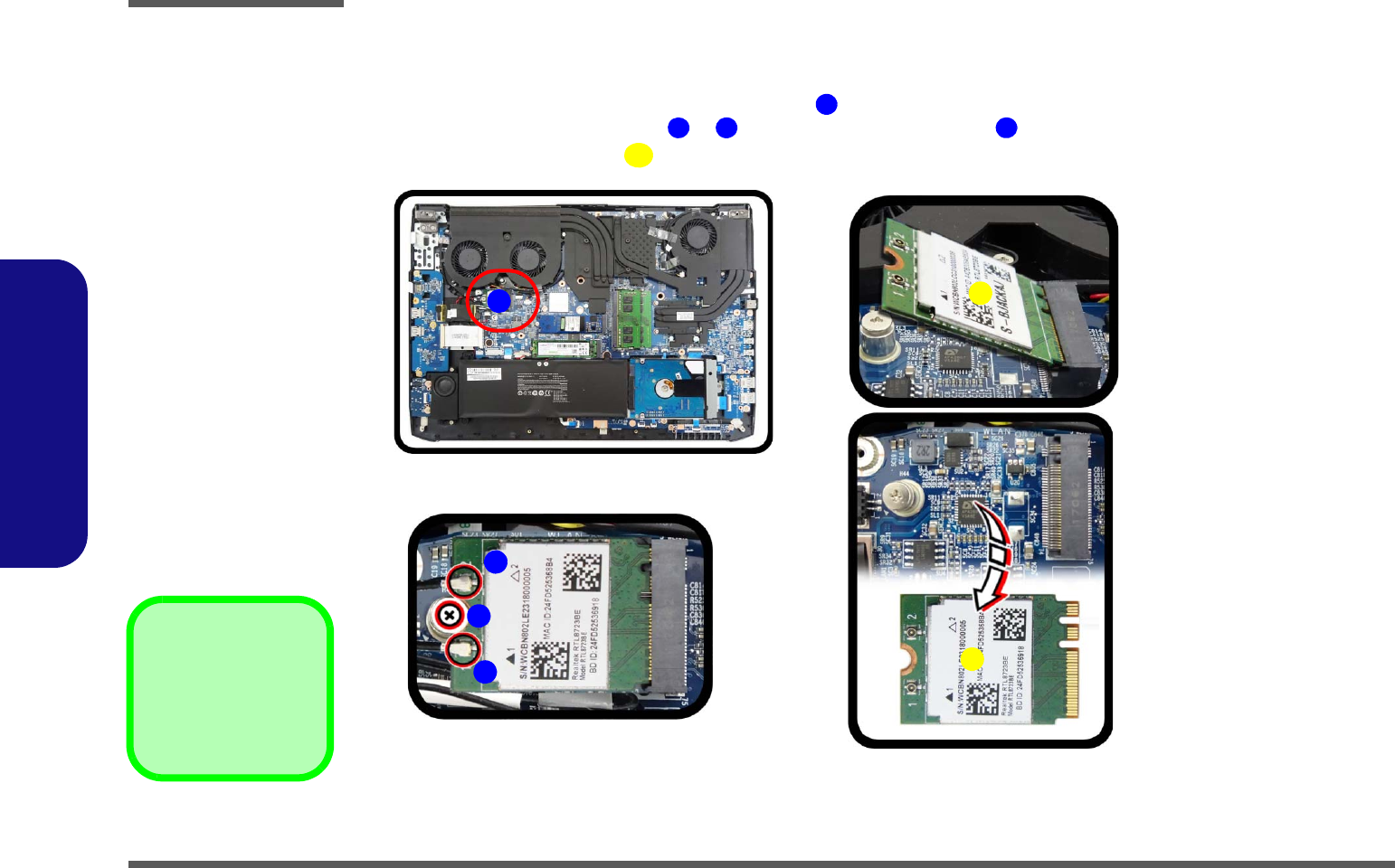

Figure 10
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 10b).
![](asset-29.png)
Disassembly
Wireless LAN, Combo Module Cables 2 - 15
2.Disassembly
Wireless LAN, Combo Module Cables
Note that the cables for connecting to the antennae on WLAN, WLAN & Bluetooth Combo, and LTE modules are not
labelled. The cables/covers (each cable will have either a black or transparent cable cover) are color coded for identifi-
cation as outlined in the table below.
Cable 1 is usually connected to antenna 1 (Main) on the module, and cable 2 to antenna 2 (Aux).
Module Type Antenna
Type Cable Color Cable Cover
Type
WLAN/WLAN & Bluetooth
Combo
WM 1 Black Transparent
WM 2 Black White
![](asset-2a.png)
Disassembly
2 - 16 Removing the CCD
2.Disassembly
Removing the CCD
1. Turn off the computer, turn it over to remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. Lay the computer down on a flat surface with the top case up forming a 120 degree angle. Carefully remove the
mylar covers - and screws - .
3. Run your fingers around the inner frame of the LCD panel to lift it up at points - as indicated by the arrows,
run your fingers again around the inner frame at point to lift from one corner to the other as indicated by the
arrows, and then lift up the outer frame at point as indicated by the arrows (Figure 11e).
4. Remove the LCD front cover (Figure 11b).
1
2
3
4
5
6
7
8
5
b.
a.
9
8
2
1
7
5
6
4
3
9. LCD Front Cover
•2 Screws
Figure 11
CCD Removal
a. Remove rubber and
screws and then careful-
ly release the inner
frame of the LCD panel
at the points indicated by
the arrows.
b. Remove the LCD front
cover.
![](asset-2b.png)
Disassembly
Removing the CCD 2 - 17
2.Disassembly
5. Disconnect the cable (Figure 12c).
6. Remove the CCD module (Figure 12d).
7. Reverse the process to install a new CCD module.
10
11
d.
c.
11
10
11. CCD Module

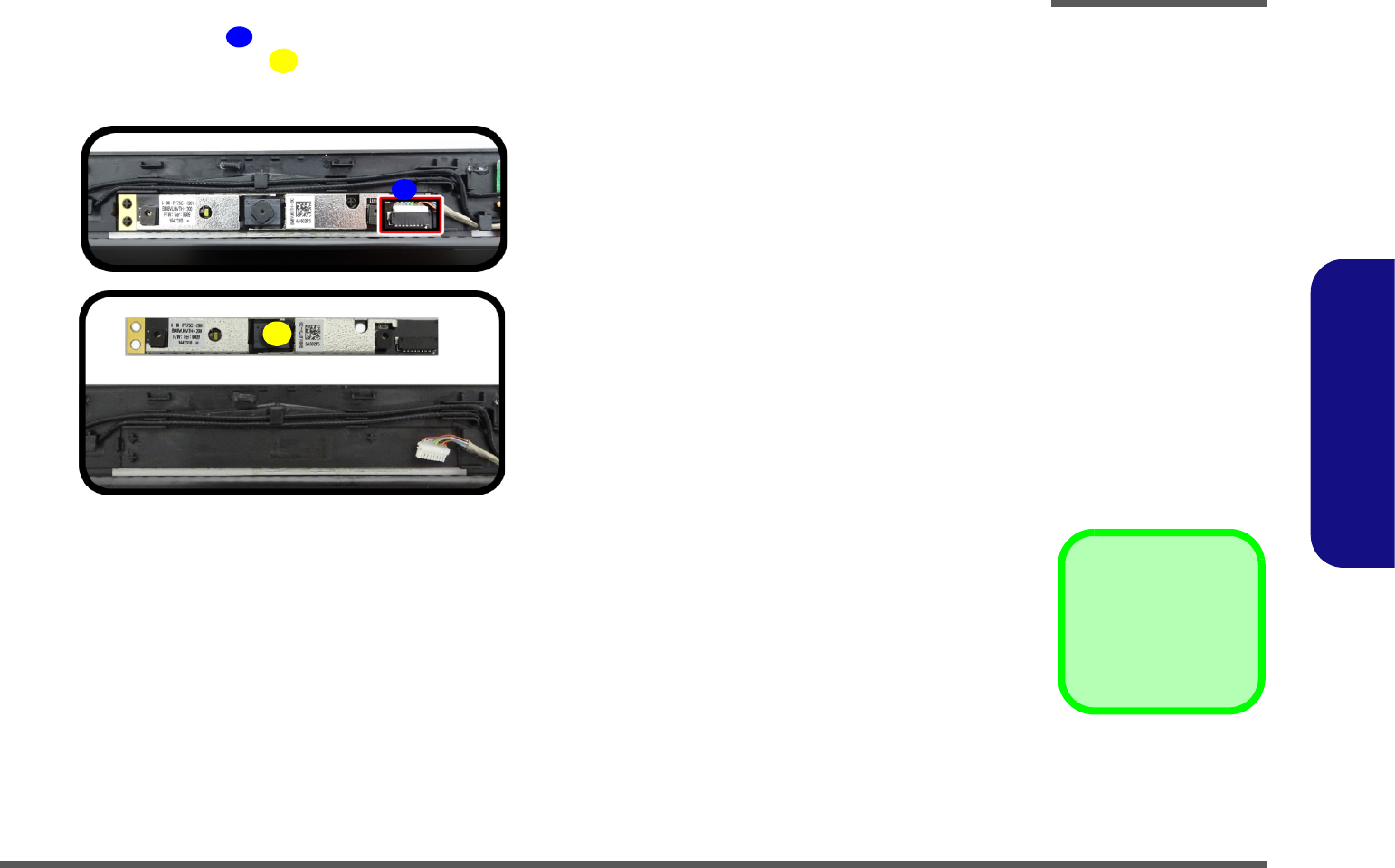

Figure 12
CCD Removal
(cont’d)
c. Disconnect the cable.
d. Remove the CCD mod-
ule.
![](asset-2c.png)
Disassembly
2 - 18 Removing the LCD Module
2.Disassembly
Removing the LCD Module
1. Turn off the computer, turn it over to remove the keyboard (page 2 - 5), battery (page 2 - 6), HDD (page 2 - 8),
RAM (page 2 - 10), SSD module (page 2 - 11) and WLAN (page 2 - 14).
2. Lay the panel down on a flat surface (protection pad) with the top case open forming a 120 degree angle. Carefully
disconnect the cables - and remove the screws - (Figure 13a).
3. Lift and remove the heatsink from the mainboard (Figure 13b).
1
4
5
18
19
b.
a.
19
5
2
1
6
7
84
3
9
11 12
10 15
13 14
16
17
18
19. Heat sink
•14 Screws

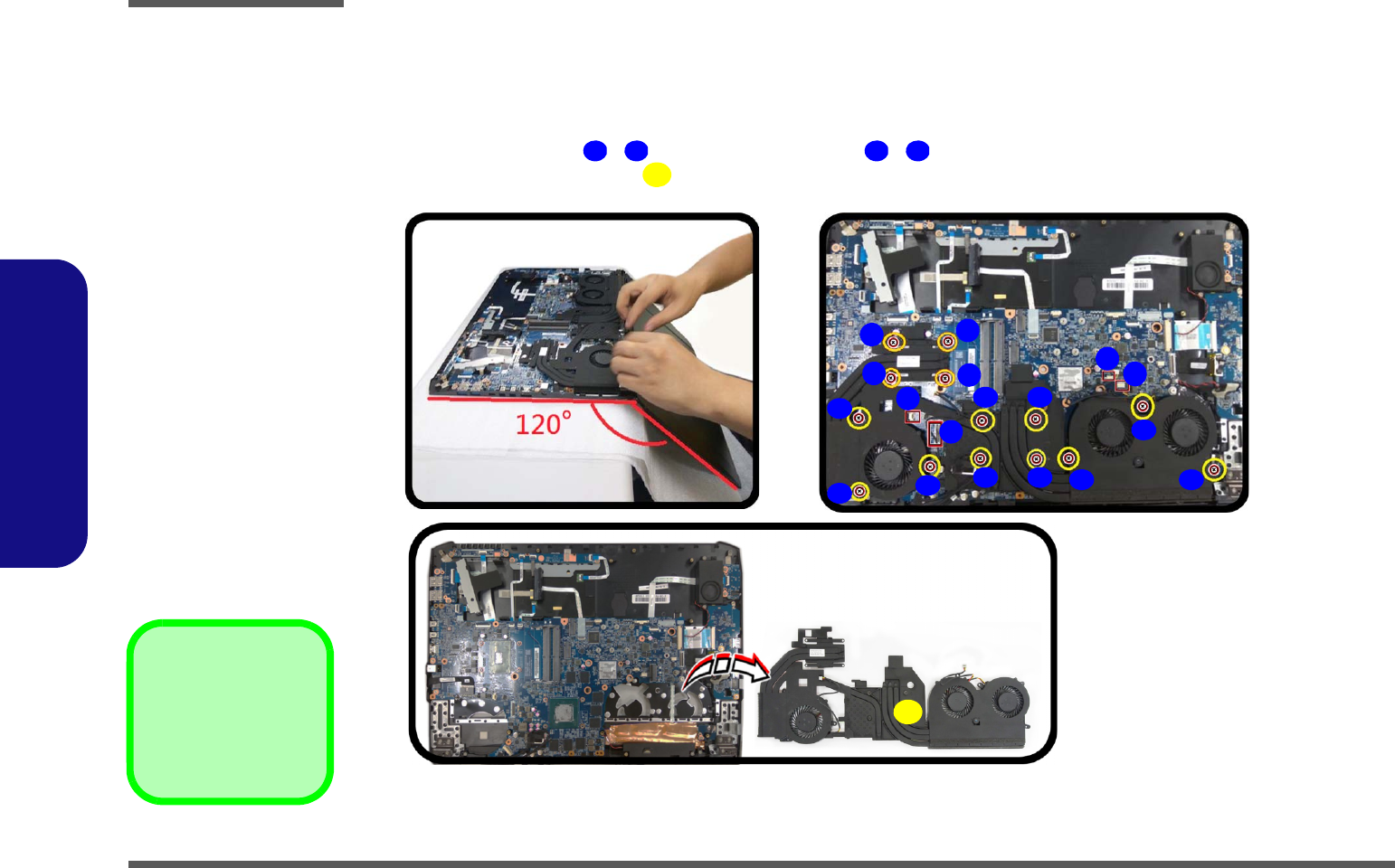

Figure 13
Top Case Removal
a. Remove screws and
heatsink then carefully
release the inner frame
of the LCD panel at the
points indicated by the
arrows.
b. Remove the LCD front
cover.
![](asset-2d.png)
Disassembly
Removing the LCD Module 2 - 19
2.Disassembly
4. Remove the screws - from the hinge cover and the screws - from the hinge (Figure 14c).
5. Remove the LCD module while it is open, still forming a 120 degree angle (Figure 14d).
6. Reverse the process to install a new LCD module.
20
21
22
27
28
d.
c.
28
20 21
22 23 26 27
24 25
28. LCD Module
•8 Screws

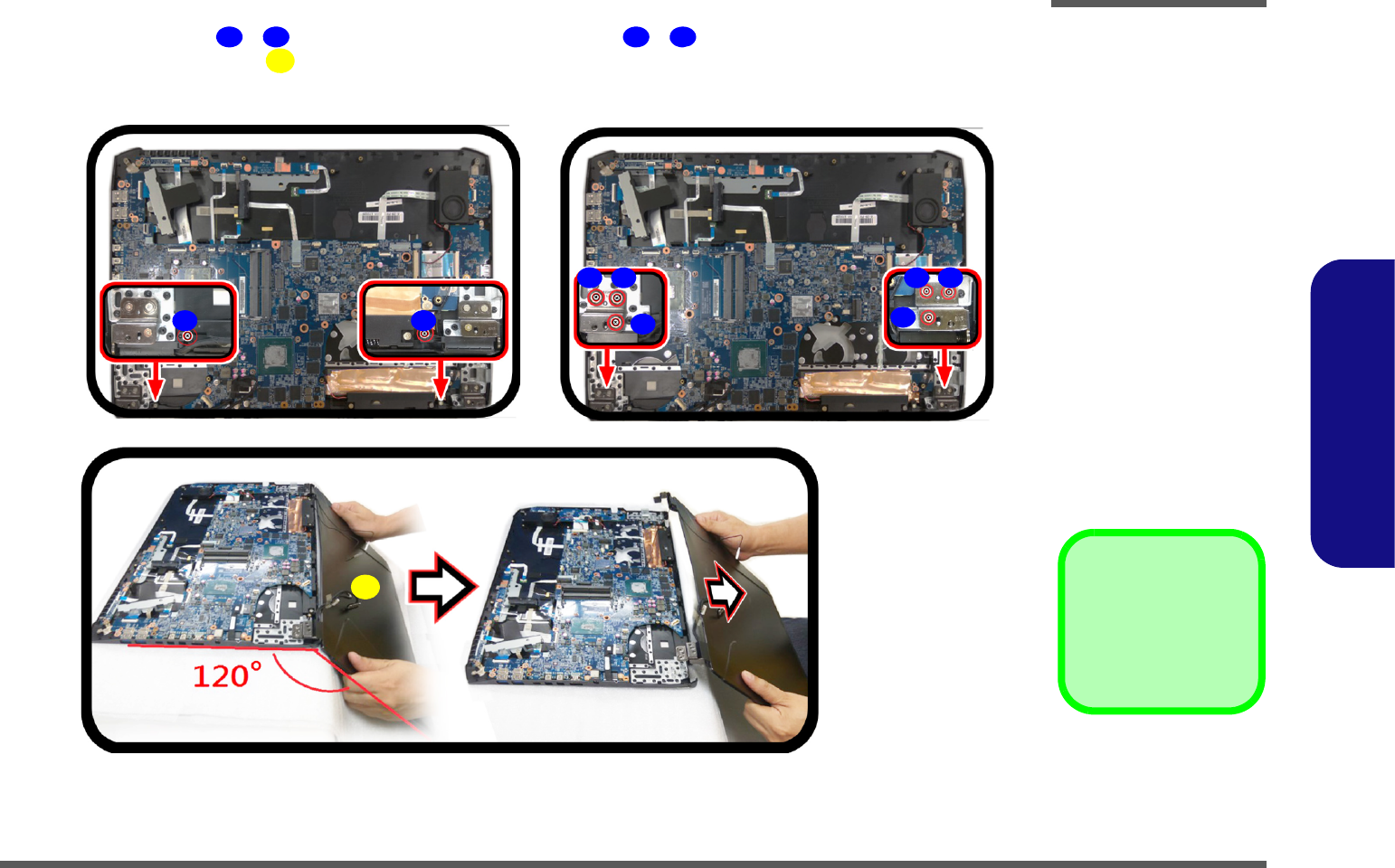

Figure 14
Top Case Removal
(cont’d)
c. Remove the screws.
d. Remove the LCD mod-
ule.
![](asset-2e.png)
Disassembly
2 - 20 Removing the LCD Module
2.Disassembly

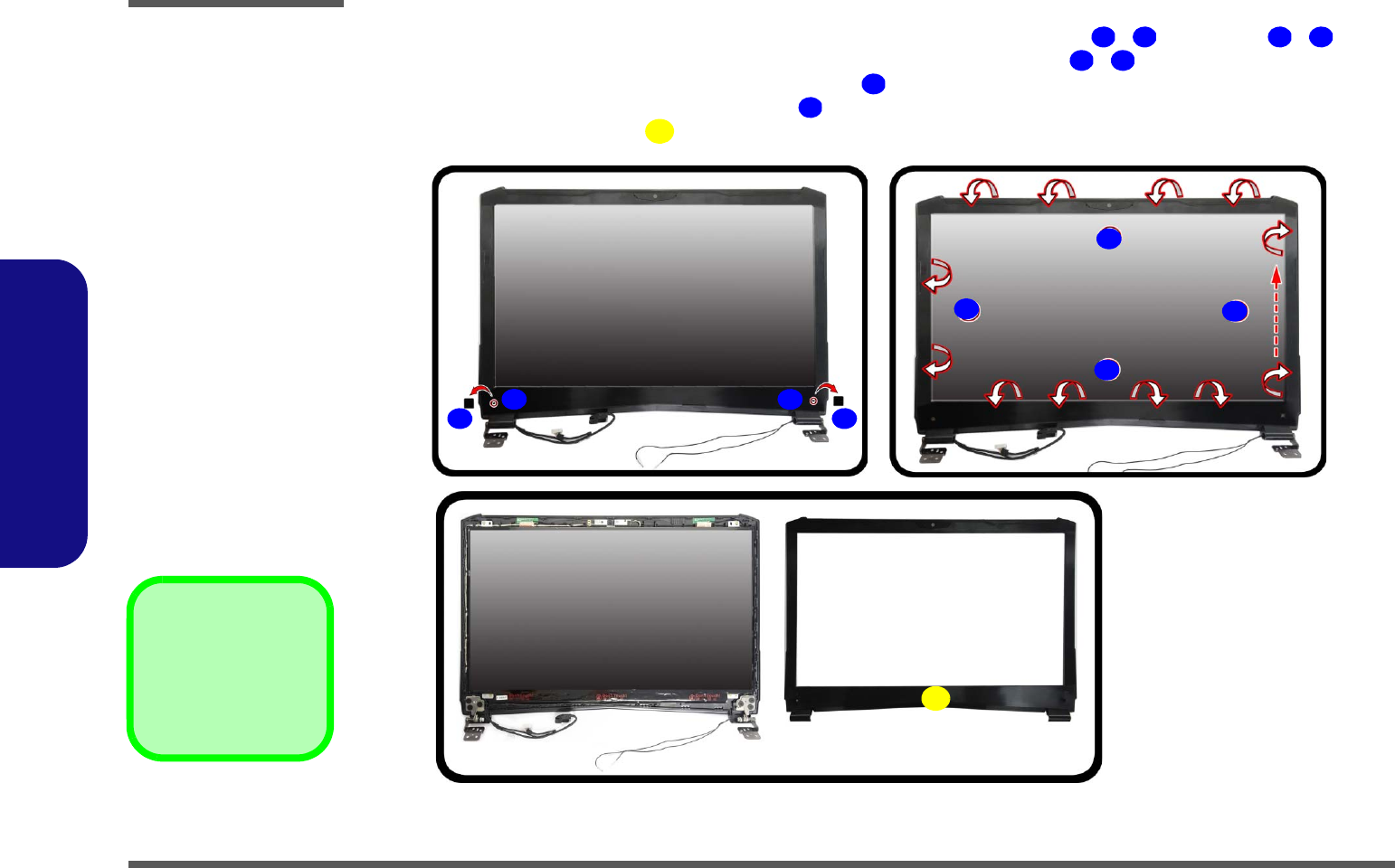

7. Lay the LCD module down on a flat surface. Carefully remove the mylar covers - and screws - .
8. Run your fingers around the inner frame of the LCD panel to lift it up at points - as indicated by the arrows,
run your fingers again around the inner frame at point to lift from one corner to the other as indicated by the
arrows and then lift up the outer frame at point as indicated by the arrows (Figure 15e).
9. Remove the LCD front cover (Figure 15f).
29
30
31
32
33
34
35
36
37
f.
e.
37
32 30
36
33 35
34
29 31
37. LCD Front Cover
•2 Screws
Figure 15
LCD Module
Removal
e. Remove rubber and
screws and then careful-
ly release the inner
frame of the LCD panel
at the points indicated by
the arrows.
f. Remove the LCD front
cover.
![](asset-2f.png)
Disassembly
Removing the LCD Module 2 - 21
2.Disassembly
10. Remove the screws - (Figure 12c).
11. Remove the LCD panel (Figure 16b).
12. Reverse the process to install a new LCD panel.
38
41
42
h.
g.
42
38 39
41 40
42. LCD Panel
•4 Screws

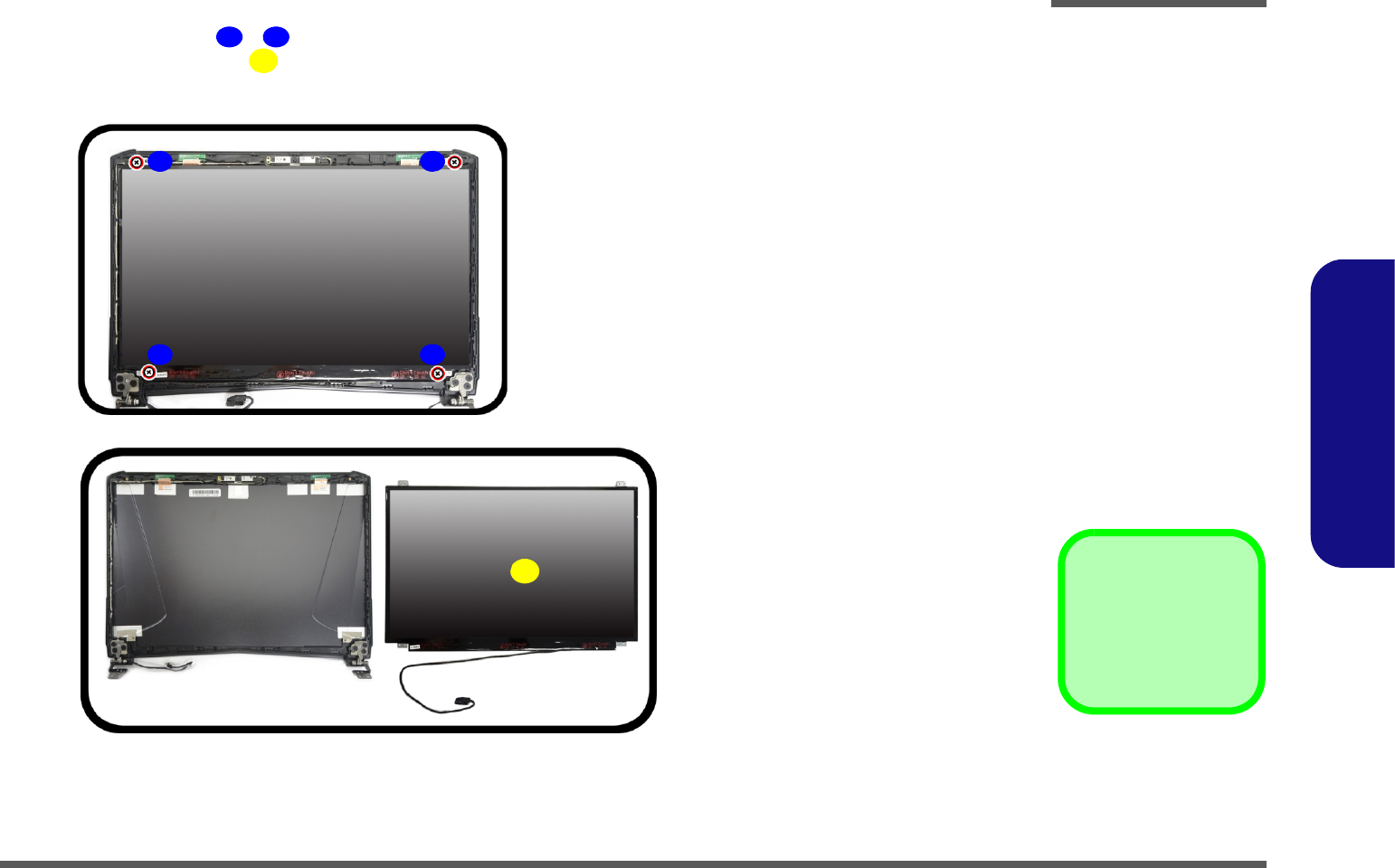

Figure 16
LCD Module
Removal (cont’d)
g. Remove the screws.
h. Remove the LCD panel.
![](asset-30.png)
Disassembly
2 - 22
2.Disassembly
![](asset-31.png)
A - 1
A.Part Lists
Appendix A:Part Lists
This appendix breaks down the PA70HS(-G) / PA71HS series notebook’s construction into a series of illustrations. The
component part numbers are indicated in the tables opposite the drawings.
Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure
to cross-check any relevant documentation.
Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the
total number of duplicated parts used.
Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the
time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.
![](asset-33.png)
Top A - 3
A.Part Lists
Top
Figure A - 1
Top
![](asset-34.png)
A - 4 Bottom
A.Part Lists
Bottom
Figure A - 2
Bottom
![](asset-35.png)
Main Board A - 5
A.Part Lists
Main Board

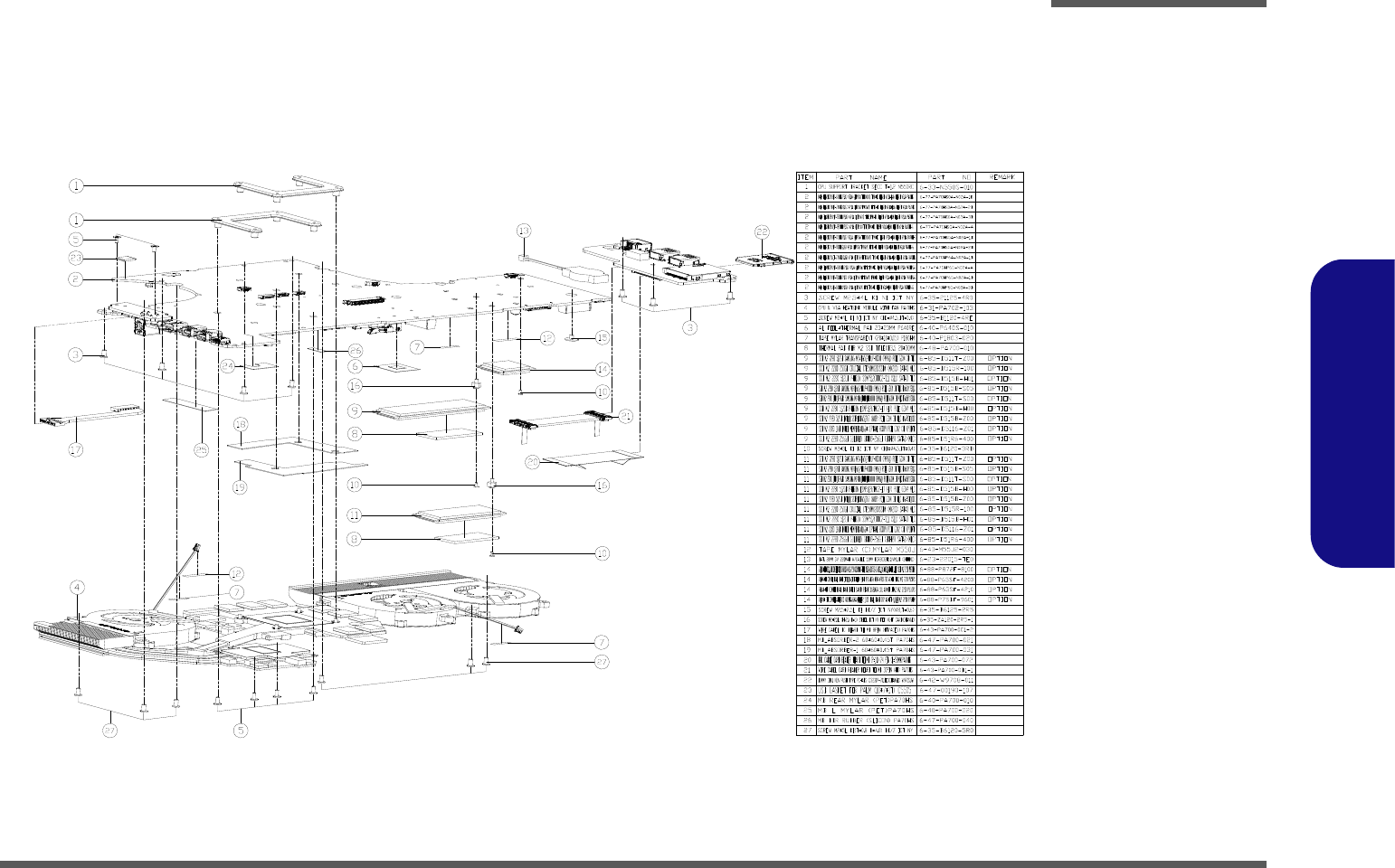

Figure A - 3
Main Board
![](asset-36.png)
A - 6 HDD
A.Part Lists
HDD
Figure A - 4
HDD
![](asset-37.png)

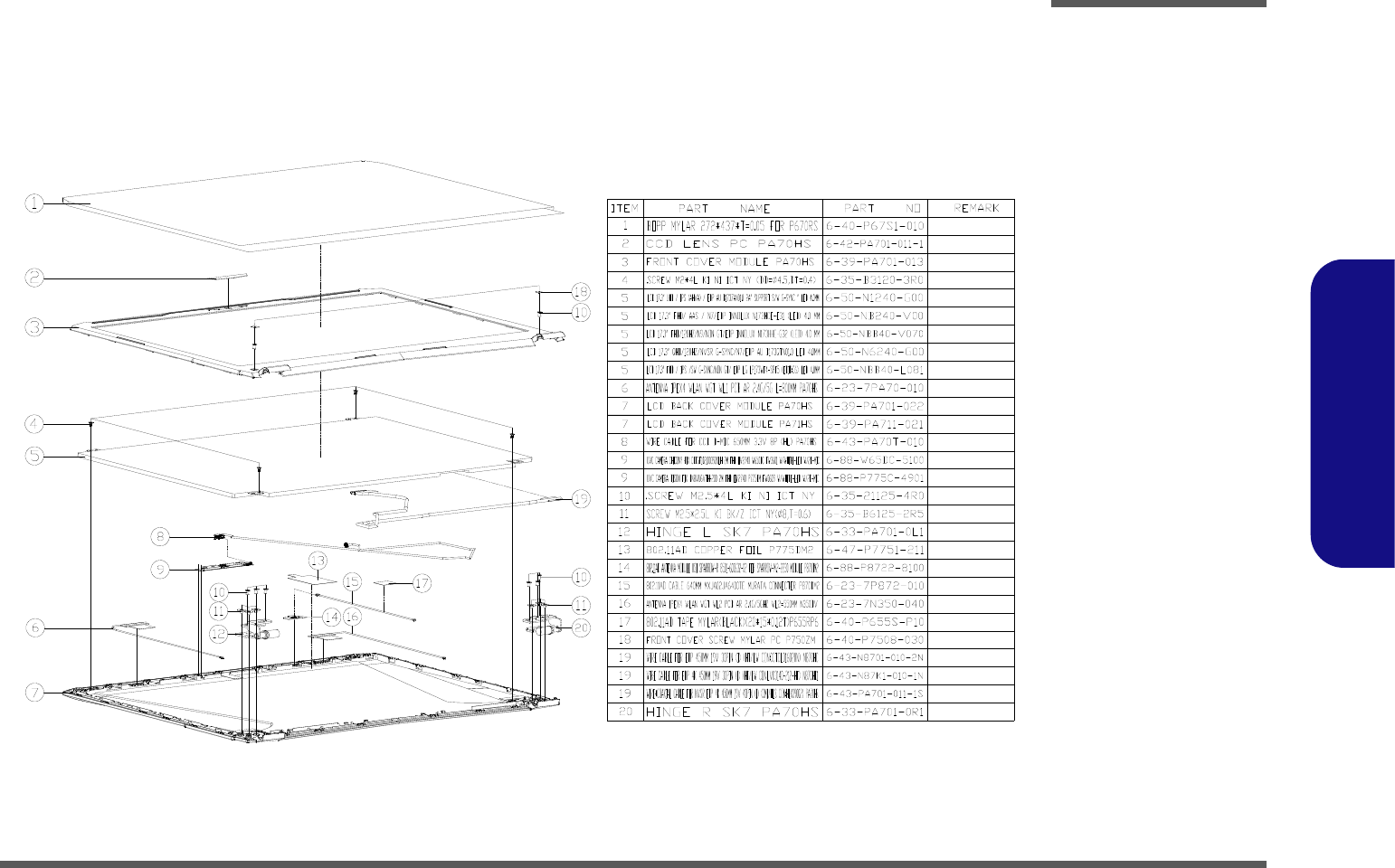

LCD A - 7
A.Part Lists
LCD
Figure A - 5
LCD
![](asset-38.png)
A - 8
A.Part Lists
![](asset-39.png)
Schematic Diagrams
B - 1
B.Schematic Diagrams
Appendix B: Schematic Diagrams
Table B - 1
SCHEMATIC
DIAGRAMS
This appendix has circuit diagrams of the PA70HS(-G) / PA71HS notebook’s PCB’s. The following table indicates
where to find the appropriate schematic diagram.
Diagram - Page Diagram - Page Diagram - Page Diagram - Page
System Block Diagram - Page B - 2 Frame Buffer Partition C_D - Page B - 23 AR Power - Page B - 44 FBVDDQ - Page B - 65
Processor 1/6 - Page B - 3 GPU Decoupling - Page B - 24 TPS65982ABZQZ - Page B - 45 LED Board - Page B - 66
Processor 2/6 - Page B - 4 Straps and XTAL - Page B - 25 USB 3.0 Type C - Page B - 46 LID Board - Page B - 67
Processor 3/6 - Page B - 5 IFP I/O Interface - Page B - 26 PS8338B - Page B - 47 DC Board - Page B - 68
Processor 4/6 - Page B - 6 Misc - GPIO, I2C and ROM - Page B - 27 TPM, CCD, TP - Page B - 48 Power Board - Page B - 69
Processor 5/6 - Page B - 7 NVIDIA Power Sequence - Page B - 28 Connectors - Page B - 49 Click Board - Page B - 70
Processor 6/6 - Page B - 8 GPU NVVDD, FBVDDQ - Page B - 29 Fan, LID, SATA HDD - Page B - 50 Audio Board - Page B - 71
DDR4 CHA SO-DIMM_0 - Page B - 9 GPU GND - Page B - 30 5V, 5VS, 3.3V, 3.3VS, 3.3VA - Page B - 51 USB Board - Page B - 72
DDR4 CHB SO-DIMM_0 - Page B - 10 PCH 1/5 - Page B - 31 1.0DX_VCCSTG/VCCSFR_OC/2.5V - Page B - 52 USB 3.0 Board - Page B - 73
Panel, Inverter - Page B - 11 PCH 2/5 - Page B - 32 1V8_RUN/AON, NV3V3 - Page B - 53 PA7 Card Reader Board 1/4 - Page B - 74
Mini DP Port (Back) - Page B - 12 PCH 3/5 - Page B - 33 PEX_VDD - Page B - 54 PA7 Card Reader Board 2/4 - Page B - 75
Mini DP Port (Front) - Page B - 13 PCH 4/5 - Page B - 34 VDD3, VDD5 - Page B - 55 PA7 Card Reader Board 3/4 - Page B - 76
HDMI Connector - Page B - 14 PCH 5/5 - Page B - 35 DDR 1.2V / 0.6VS - Page B - 56 PA7 Card Reader Board 4/4 - Page B - 77
VGA PCI Express - Page B - 15 KBC IT8587 - Page B - 36 Power 1.0V, VCCIO - Page B - 57 Power Sequence - Page B - 78
GPU Frame Buffer Partition - Page B - 16 RGB and White KB LED - Page B - 37 VCC_Core - Page B - 58
Frame Buffer Partition A - Page B - 17 M.2 PCIE4X SSD - Page B - 38 VCore & VCCGT Output - Page B - 59
Frame Buffer Partition B - Page B - 18 M.2 3G/LTE/WIGIG/WLAN+BT - Page B - 39 VCCSA - Page B - 60
Frame Buffer Partition A_B - Page B - 19 Audio - Page B - 40 AC_In, Charger - Page B - 61
GPU Frame Buffer Partition - Page B - 20 Audio Subwoofer - Page B - 41 NVVDDS - Page B - 62
Frame Buffer Partition C - Page B - 21 Audio Port 1 - Page B - 42 NVVDD 1 - Page B - 63
Frame Buffer Partition D - Page B - 22 AR_TBT - Page B - 43 NVVDD 2 - Page B - 64
Version Note
The schematic dia-
grams in this chapter
are based upon version
6-7P-PA70C-001. If
your mainboard (or oth-
er boards) are a later
version, please check
with the Service Center
for updated diagrams (if
required).
![](asset-3a.png)

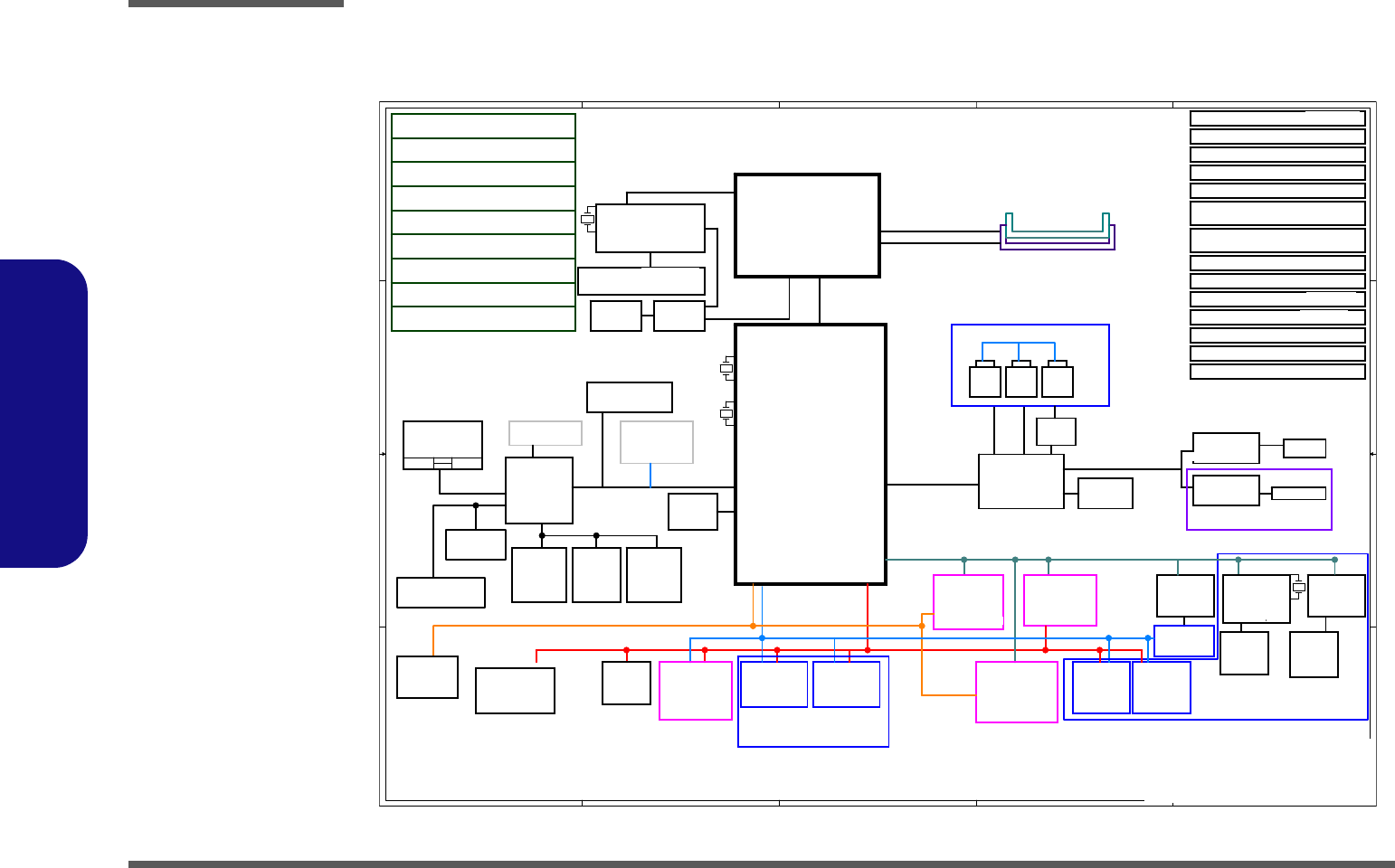

Schematic Diagrams
B - 2 System Block Diagram
B.Schematic Diagrams
System Block Diagram
Sheet 1 of 77
System Block
Diagram
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PA70HS Kabylake System Block Diagram
TOUCH PAD
LPC
SMART
BATTERY
SHEET 60
Front R
<=7"
PCIE
23x23mm FCBGA
480 Mbps
H-processor
24 MHz
SHEET 35
<8"
SO-DIMM*2
AZALIA LINK
LAN
BIOS
SPI 8MB
SHEET 30
EC
APA2607QBI
N17E-G2
SHEET 14~29
RT5
SHEET 30~34
SHEET 2
PROCESSOR
100 MHz
THERMAL
SENSOR
33 MHz
SHEET 35
SMART
FANx3
SHEET 50
(RESERVE)
eDP
SHEET 36
K/B RGB&White
Backlight
SHEET 2,3,4,5,6,7
SPI(Option)
1"~12" 25
MHz
DDR4
SHEET 8,9
SHEET 35
32.768KHz
EC SMBUS
ITE 8587A
(512KB ROM)
H Platform
Controller
Hub (PCH-H)
INT. K/B
USB 2.0
DMI*4
BGA1440
SATA III
DDR4/1.2V/1866, 2133MHz
PCIE*16
USB 3.0
5 Gbps
RTL84111
SOCKET
SD 4.0
RJ-45
<=4.5"
<=6"
<=6"
<=4.5"
<8"
3"~9"
SHEET 11,12
Mini DP*2
TPA2008D2 AMP
SHEET 40
SATA HDD
7mm
Front L
SUBWOOFER
SHEET 10
EDP
PANEL
TPM2.0
SHEET 47
(Option)
AC-IN
LAN BOARD
HDMI2.0
SHEET 13
SHEET 41
SHEET57
SHEET 49
NGFF M KEY
SHEET 37
<8"
(N17E-G2 8GB)
2"~7"
PS8331B
SHEET 3
SHEET 73
(PA7) SHEET 76
(PA7)
27 MHz
24MHz
SSD
PCIe 9~12
SATA 0
SATA 1 (USB4)
USB3.0 P4
SHEET 75
FingerPrint
SHEET 48
(Optional)
(USB7) (USB9)
SHEET 47
CCD
SHEET 38
WiGig
(USB8)
NGFF A KEY
PCIe 7~8
SSD
PCIe 15,16
NGFF M KEY
SHEET 37
SATA 2
6.0Gb/s
SHEET 39
REALTEK
ALC892
Azalia Codec
SHEET 55
1.2V(VDDQ),0.6VS
SHEET 51
SHEET 52
1V8_AON,1V8_RUN
NV3V3
AC_IN,CHARGER
SHEET 60
1.0DX_VCCSTG,VCCSFR_OC
VPP 2.5V
VDD1.0,VCCIO
SHEET 56
5V,3.3V,5VS,3VS
SHEET 50
SHEET 54
VDD3,VDD5
PEX_VDD
SHEET 53
VCC_CORE,VCCSA
SHEET 57
VCORE OUTPUT STAGE
NVVDD
SHEET 62~63
NVVDDS
SHEET 61
FBVDDQ
SHEET 64
INT MIC
SHEET 82
37.5x37.5mm
2152 Ball
HM175
SHEET 67
LID BOARD
K'B RGB
BACKLIGHT
SHEET 36
SHEET 58
VCCGT
SHEET 58
(USB2)
SHEET 38
3G/LTE
USB3.0 P2
NGFF B KEY
SHEET 48
USB3.0 P1
(USB1)
(Charging)
SV3H612
CARD
READER
RTS5250
HP
OUT
MIC
IN
SPDIF
OUT
AUDIO BOARD
5.1 channel
3D AMP
AR_TBT
SHEET 42~44
USB3.1
TYPE C
SHEET 45,46
1MB ROM
(USB6)
USB3.0 P6
SHEET 74
SHEET 48
USB3.0 P5
(USB5)
(Charging)
USB BOARD
SHEET 71
DC BOARD
AUDIO BOARD
POWER SWITCH BOARD
USB3.0 BOARD(W/REDRIVER)
USB3.0 BOARD
PA70 LED BOARD
PA70 CLICK BOARD
6-71-PA70C-D02A
6-71-PA708-D02A
6-71-PA706-D02A
6-71-PA70S-D02A
6-71-PA703-D02A
6-71-PA703-D12A
6-71-PA704-D02A
6-71-PA702-D02A
SHEET 70
SHEET 66
SHEET 68
SHEET 71
SHEET 65
SHEET 72
SHEET 69
PA70 CARD READER BOARD
6-71-PA70Z-D02A
SHEET 73~76
Title
Size Document Number Rev
Date: Sheet of
6-7P-PA70A-001
D02A
[01] BLOCK DIAGRAM
A3
177Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-7P-PA70A-001
D02A
[01] BLOCK DIAGRAM
A3
177Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-7P-PA70A-001
D02A
[01] BLOCK DIAGRAM
A3
177Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
![](asset-3b.png)
Schematic Diagrams
Processor 1/6 B - 3
B.Schematic Diagrams

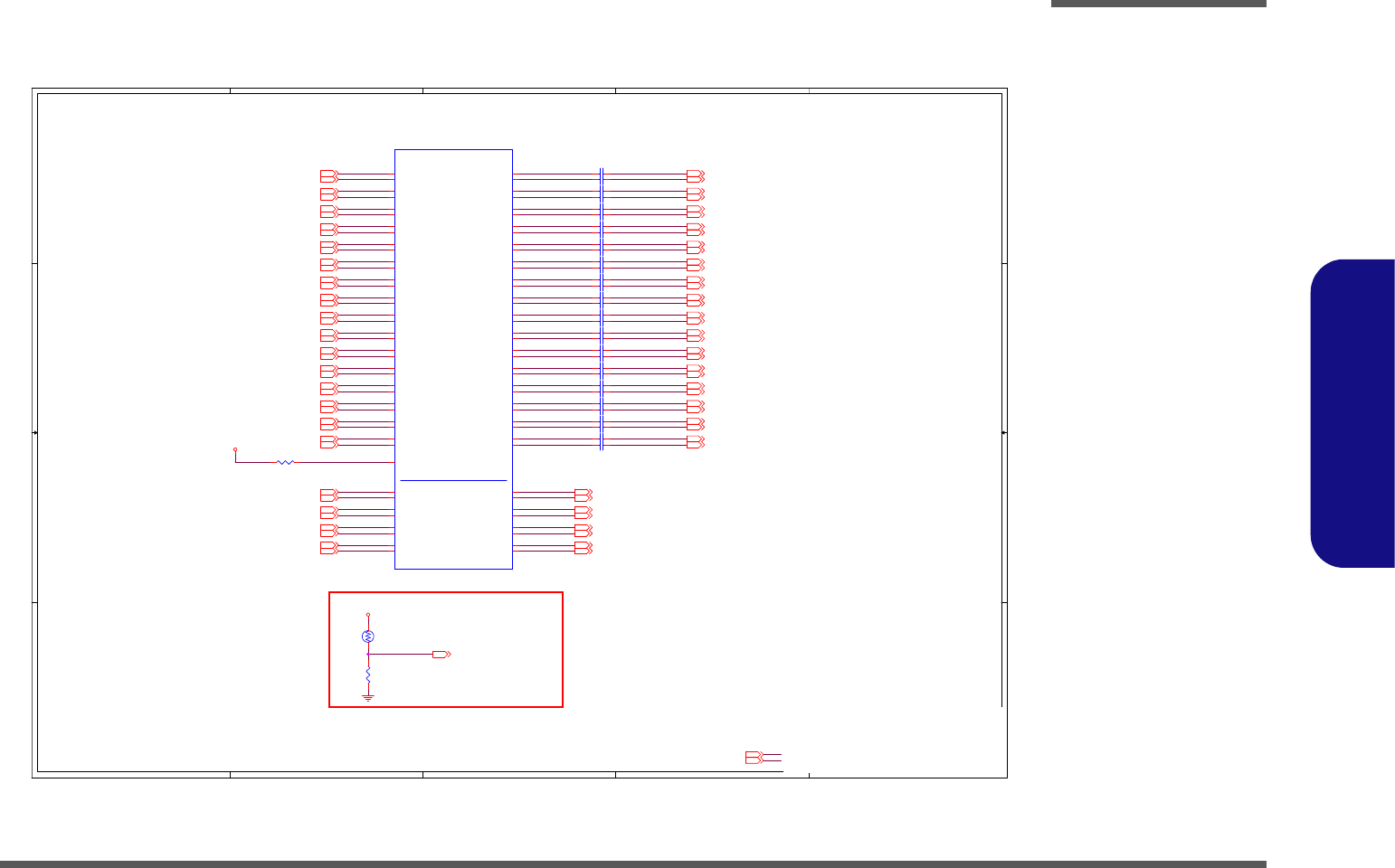

Processor 1/6
Sheet 2 of 77
Processor 1/6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PLACE NEAR CPU
P/N 6-17-10420-734
PEG_COMP
PEG_TX_0
PEG_TX#_0
PEG_TX_1
PEG_TX#_1
PEG_TX_2
PEG_TX#_2
PEG_TX_3
PEG_TX#_3
PEG_TX_4
PEG_TX#_4
PEG_TX_5
PEG_TX#_5
PEG_TX_6
PEG_TX#_6
PEG_TX_7
PEG_TX#_7
PEG_TX_8
PEG_TX#_8
PEG_TX_9
PEG_TX#_9
PEG_TX_10
PEG_TX#_10
PEG_TX_11
PEG_TX#_11
PEG_TX_12
PEG_TX#_12
PEG_TX_13
PEG_TX#_13
PEG_TX_14
PEG_TX#_14
PEG_TX_15
PEG_TX#_15
VCCIO
3.3V
DMI_MT_IR_0_DP [30]
DMI_MT_IR_0_DN [30]
DMI_MT_IR_1_DP [30]
DMI_MT_IR_1_DN [30]
DMI_MT_IR_2_DP [30]
DMI_MT_IR_2_DN [30]
DMI_MT_IR_3_DP [30]
DMI_MT_IR_3_DN [30]
DMI_IT_MR_0_DP[30]
DMI_IT_MR_0_DN[30]
DMI_IT_MR_1_DP[30]
DMI_IT_MR_1_DN[30]
DMI_IT_MR_2_DP[30]
DMI_IT_MR_2_DN[30]
DMI_IT_MR_3_DP[30]
DMI_IT_MR_3_DN[30]
THERM_VOLT [35]
PEG_RX#4[14]
PEG_RX#3[14]
PEG_RX#7[14]
PEG_RX#6[14]
PEG_RX#5[14]
PEG_RX5[14]
PEG_RX7[14]
PEG_RX4[14]
PEG_RX3[14]
PEG_RX2[14]
PEG_RX6[14]
PEG_RX0[14]
PEG_RX1[14]
PEG_RX#12[14]
PEG_RX#10[14]
PEG_RX#9[14]
PEG_RX#11[14]
PEG_RX#15[14]
PEG_RX#14[14]
PEG_RX#8[14]
PEG_RX12[14]
PEG_RX10[14]
PEG_RX9[14]
PEG_RX11[14]
PEG_RX14[14]
PEG_RX8[14]
PEG_RX13[14]
PEG_RX#2[14]
PEG_RX#1[14]
PEG_RX15[14]
PEG_RX#0[14]
PEG_RX#13[14]
PEG_TX#2 [14]
PEG_TX#3 [14]
PEG_TX#5 [14]
PEG_TX#0 [14]
PEG_TX#7 [14]
PEG_TX#6 [14]
PEG_TX#1 [14]
PEG_TX#4 [14]
PEG_TX3 [14]
PEG_TX6 [14]
PEG_TX0 [14]
PEG_TX7 [14]
PEG_TX4 [14]
PEG_TX5 [14]
PEG_TX1 [14]
PEG_TX2 [14]
PEG_TX#10 [14]
PEG_TX#11 [14]
PEG_TX#13 [14]
PEG_TX#8 [14]
PEG_TX#15 [14]
PEG_TX#14 [14]
PEG_TX#9 [14]
PEG_TX#12 [14]
PEG_TX11 [14]
PEG_TX14 [14]
PEG_TX8 [14]
PEG_TX15 [14]
PEG_TX12 [14]
PEG_TX13 [14]
PEG_TX9 [14]
PEG_TX10 [14]
3.3V[10,27,38,43,45,48,50,51,52,55,56]
VCCIO[3,6,56]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[02] Processor 1/6-DMI/PEG
A3
277Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[02] Processor 1/6-DMI/PEG
A3
277Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[02] Processor 1/6-DMI/PEG
A3
277Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C739 0.22u_10V_X5R_04
R654
20K_1%_04
C778 0.22u_10V_X5R_04
C774 0.22u_10V_X5R_04
C738 0.22u_10V_X5R_04
C757 0.22u_10V_X5R_04
C756 0.22u_10V_X5R_04
C764 0.22u_10V_X5R_04
C785 0.22u_10V_X5R_04
R533 24.9_1%_04
C736 0.22u_10V_X5R_04
C783 0.22u_10V_X5R_04
C735 0.22u_10V_X5R_04
C766 0.22u_10V_X5R_04
C763 0.22u_10V_X5R_04
C749 0.22u_10V_X5R_04
C772 0.22u_10V_X5R_04
C751 0.22u_10V_X5R_04
C759 0.22u_10V_X5R_04
C768 0.22u_10V_X5R_04
RT5
EWTF02-104F4F-N
1 2
C730 0.22u_10V_X5R_04
C787 0.22u_10V_X5R_04
C782 0.22u_10V_X5R_04
C760 0.22u_10V_X5R_04
C731 0.22u_10V_X5R_04
C755 0.22u_10V_X5R_04
C744 0.22u_10V_X5R_04
SKYLAKE_HALO
BGA1440
U34C
SKL_H_CPU
PEG_RXN[0]
D25
PEG_RXN[2]
D23 PEG_RXP[2]
E23
PEG_RXN[1]
F24
PEG_RXP[13]
F12
DMI_TXN[3] B4
DMI_TXP[3] D4
DMI_TXN[2] A5
DMI_TXP[2] B5
DMI_TXP[1] C6
DMI_TXN[1] B6
DMI_TXN[0] A8
DMI_TXP[0] B8
DMI_RXP[3]
J8
DMI_RXN[3]
J9
DMI_RXN[2]
E5 DMI_RXP[2]
D5
DMI_RXP[1]
E6
DMI_RXN[1]
F6
DMI_RXP[0]
D8
DMI_RXN[0]
E8
PEG_RCOMP
G2
PEG_RXP[15]
F10
PEG_RXP[14]
D11
PEG_RXN[15]
E10
PEG_RXP[8]
D17
PEG_RXN[7]
F18 PEG_RXP[7]
E18
PEG_RXN[3]
F22
PEG_RXP[1]
E24
PEG_RXP[3]
E22
PEG_RXP[4]
E21
PEG_RXN[4]
D21
PEG_RXP[5]
E20
PEG_RXP[6]
E19
PEG_RXP[10]
D15
PEG_RXN[10]
E15
PEG_RXP[11]
F14
PEG_RXN[11]
E14
PEG_RXP[12]
D13
PEG_RXN[13]
E12
PEG_RXN[14]
E11
PEG_TXP[0] B25
PEG_TXN[0] A25
PEG_TXP[1] B24
PEG_TXN[1] C24
PEG_TXN[2] A23
PEG_TXP[2] B23
PEG_TXN[3] C22
PEG_TXP[3] B22
PEG_TXP[4] B21
PEG_TXN[5] C20
PEG_TXN[4] A21
PEG_TXP[5] B20
PEG_TXN[6] A19
PEG_TXP[6] B19
PEG_TXP[7] B18
PEG_TXP[8] A17
PEG_TXN[10] B15
PEG_TXP[10] A15
PEG_TXN[9] B16
PEG_TXP[11] C14
PEG_TXN[11] B14
PEG_TXN[12] B13
PEG_TXP[12] A13
PEG_TXN[13] B12
PEG_TXP[13] C12
PEG_TXN[14] B11
PEG_TXP[14] A11
PEG_TXP[15] C10
PEG_TXN[15] B10
PEG_RXN[12]
E13
PEG_RXN[9]
E16
PEG_RXN[8]
E17
PEG_TXP[9] C16
PEG_TXN[8] B17
PEG_RXP[9]
F16
PEG_TXN[7] C18
PEG_RXN[5]
F20
PEG_RXN[6]
D19
PEG_RXP[0]
E25
C794 0.22u_10V_X5R_04
C748 0.22u_10V_X5R_04
C753 0.22u_10V_X5R_04
C754 0.22u_10V_X5R_04
C743 0.22u_10V_X5R_04
C777 0.22u_10V_X5R_04
C725 0.22u_10V_X5R_04
![](asset-3c.png)

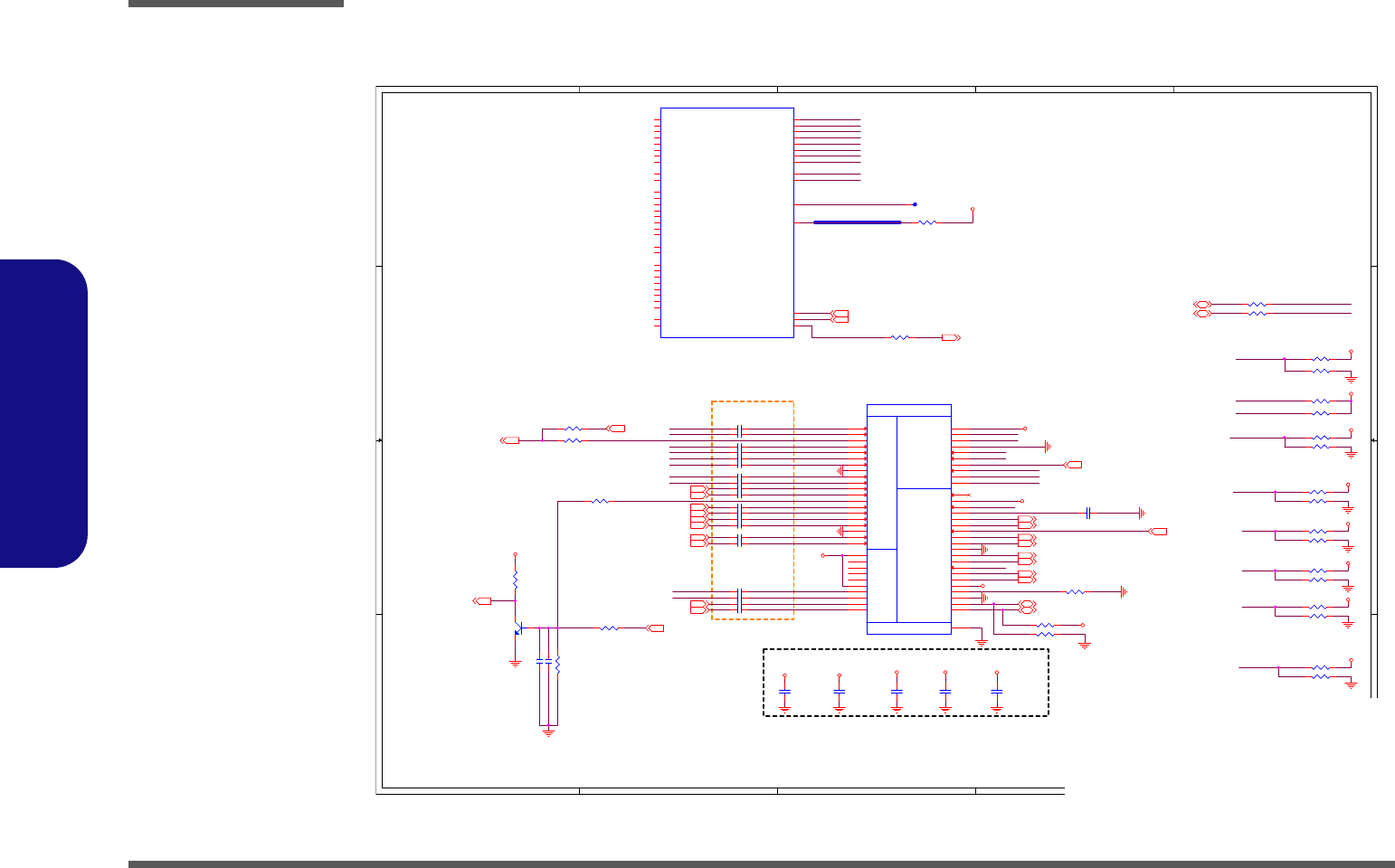

Schematic Diagrams
B - 4 Processor 2/6
B.Schematic Diagrams
Processor 2/6
Sheet 3 of 77
Processor 2/6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
OUTPUT to LCD
INTEL EDP(INPUT)
PIN21 PIN26 PIN35 PIN49 PIN60
NEAR PIN
L :PORT1 (INTEL)
H: PORT2 (NV) (DEFAULT)
NEAR PIN
NEAR PIN
L :PORT1 (INTEL) (DEFAULT)
H: PORT2 (nVidia)
nVidia EDP
CLOSE TO CPU
Width = 5mil
Space = 25mil
lengh = 600mil(max)
CLOSE TO CPU
cap near the
PS8331B(U4)
ADD I2C
䶂嶗妋
PS8331
⼙枧
panel timing issue
ADD I2C
䶂嶗妋
PS8331
⼙枧
panel timing issue
6-03-83316-031
3/31 HPD
㓡䓙
8331
廠↢
iGPU
DGPU
(INPUT)
IEDP_TXP_0_R
IEDP_TXN_0_R
IEDP_TXP_1_R
IEDP_TXN_1_R
IEDP_TXP_2_R
IEDP_TXN_2_R
IEDP_TXP_3_R
IEDP_TXN_3_R
IEDP_AUX#_R
IEDP_AUX_R
IEDP_AUX#
IEDP_AUX
IEDP_TXP_0
IEDP_TXN_0
IEDP_TXP_1
IEDP_TXN_1
IEDP_TXN_2
IEDP_TXP_2
IEDP_TXN_3
IEDP_TXP_3
EDP_HPD
PS8331_IN1_AEQ#
PS8331_IN2_AEQ#
PS8331_PI0
PS8331_PI0
PS8331_PC1
PS8331_PC0 PS8331_PC0
PS8331_PC1
PS8331_SW
PS8331_SW
PS8331_CEXT
PS8331_REXT
PS8331_IN1_PEQ#
PS8331_IN2_PEQ#
PS8331_IN2_PEQ#
PS8331_CA_DET
PS8331_CA_DET
PS8331_CTL_EN
IN2_HPD
IEDP_TXP_0
IEDP_TXN_0
IEDP_TXP_1
IEDP_TXN_1
IEDP_AUX
IEDP_AUX#
IEDP_TXP_2
AUD_AZACPU_SDI_R
EDP_RCOMP
IEDP_TXN_2
IEDP_TXN_3
IEDP_TXP_3
EDP_DISP_UTIL
DEDP_D0_R
DEDP_D#0_R
DEDP_D1_R
DEDP_D#1_R
DEDP_D2_R
DEDP_D#2_R
DEDP_D3_R
DEDP_D#3_R
DEDP_D_AUX_SCL_R
DEDP_D_AUX#_SDA_R
PS8331_IN2_PEQ#
PS8331_IN1_PEQ#
PS8331_IN1_AEQ#
PS8331_IN2_AEQ#
PS8331_IN1_PEQ#
PS8331_CTL_EN
3.3VS
3.3VS
3.3VS
3.3VS 3.3VS
3.3VS
3.3VS 3.3VS 3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
1V8_AON
VCCIO
3.3VS
3.3VS
3.3VS
DP_TXN0 [10]
DP_TXP0 [10]
DP_TXN1 [10]
DP_TXP1 [10]
DP_TXP3 [10]
DP_TXP2 [10]
DP_TXN2 [10]
DP_TXN3 [10]
DP_AUX [10]
DP_AUX# [10]
DEDP_D_AUX#_SDA[25]
DEDP_D_AUX_SCL[25]
DEDP_D0[25]
DEDP_D#0[25]
DEDP_D1[25]
DEDP_D#1[25]
DEDP_D2[25]
DEDP_D#2[25]
DEDP_D3[25]
DEDP_D#3[25]
EDP_HPD [10]
SB_IEDP_HPD[32]
PS8331_SW [10,26,32,48]
GPIO17_IFPD_HPD_R[26]
AUD_AZACPU_SCLK [32]
AUD_AZACPU_SDO_R [32]
AUD_AZACPU_SDI [32]
1V8_AON[23,24,26,27,28,31,52,53,61,62,64]
VCCIO[2,6,56]
3.3VS[8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
SMB_CLK_R[8,9,32,44]
SMB_DATA_R[8,9,32,44]
IEDP_HPD [10]
DEDP_HPD [10]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[03] Processor 2/6-DISPLAY
A3
377Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[03] Processor 2/6-DISPLAY
A3
377Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[03] Processor 2/6-DISPLAY
A3
377Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R477 *0_04
R515 24.9_1%_04
R81 1M_04
R99100K_04
C285
0.1u_10V_X7R_04
C301 0.1u_10V_X7R_04
R98100K_04
C309
0.1u_10V_X7R_04
C298 0.1u_10V_X7R_04
C336 0.1u_10V_X7R_04
R112 *4.7K_04
R79 4.99K_1%_04
R111 *4.7K_04
C320 0.1u_10V_X7R_04
C761
0.1u_10V_X7R_04
R129 *4.7K_04
C343 0.1u_10V_X7R_04
C291 0.1u_10V_X7R_04
R126
10K_04
R113 *4.7K_04
R117 *4.7K_04
R120 *4.7K_04
R100 *0_04
R140 100K_04
C326 0.1u_10V_X7R_04
C286 2.2u_6.3V_X5R_04
R97 *4.7K_04
C292 0.1u_10V_X7R_04
R78 4.7K_04
C342 0.1u_10V_X7R_04
R139 100K_04
C339 0.1u_10V_X7R_04
R174 20_1%_04
C322 0.1u_10V_X7R_04
R137 *4.7K_04
C319 0.1u_10V_X7R_04
R476 0_04
C344 0.1u_10V_X7R_04
C321 0.1u_10V_X7R_04
R102 *4.7K_04
R118 *4.7K_04
SKYLAKE_HALO
BGA1440
U34D
SKL_H_CPU
DDI1_TXN[3]
J38
EDP_TXN[1] E28
EDP_TXN[2] B29
EDP_TXP[2] A29
DDI1_TXN[2]
H36
DDI1_TXP[3]
J37
EDP_TXP[0] D29
EDP_TXN[0] E29
EDP_TXP[1] F28
EDP_TXN[3] B28
EDP_TXP[3] C28
EDP_AUXP C26
EDP_AUXN B26
EDP_DISP_UTIL A33
EDP_RCOMP D37
PROC_AUDIO_CLK G27
PROC_AUDIO_SDI G25
PROC_AUDIO_SDO G29
DDI1_AUXP
D27
DDI2_TXN[2]
F35
DDI2_TXP[3]
E37
DDI2_TXP[2]
F34 DDI2_TXN[1]
G38 DDI2_TXP[1]
F37 DDI2_TXN[0]
H33 DDI2_TXP[0]
H34
DDI1_AUXN
E27
DDI2_TXN[3]
E36
DDI2_AUXN
E26 DDI2_AUXP
F26
DDI3_TXP[0]
C34
DDI3_TXN[0]
D34
DDI3_TXP[1]
B36
DDI3_TXN[1]
B34
DDI3_TXP[2]
F33
DDI3_TXN[2]
E33
DDI3_TXP[3]
C33
DDI3_TXN[3]
B33
DDI3_AUXN
B27 DDI3_AUXP
A27
DDI1_TXP[0]
K36
DDI1_TXN[0]
K37
DDI1_TXP[1]
J35
DDI1_TXN[1]
J34
DDI1_TXP[2]
H37
C323 0.1u_10V_X7R_04
C324 0.1u_10V_X7R_04
C337 0.1u_10V_X7R_04
C287
0.01u_50V_X7R_04
R114 *0_04
C340 0.1u_10V_X7R_04
R101 *4.7K_04
R146 *100K_04
PS8331B
5*9mm
U2
PS8331BQFN60GTR-A2
QFN60-5X9MM
IN1_D0P
1
IN1_D0N
2
IN1_D1P
4
IN1_D1N
5
IN1_D2P
6
IN1_D2N
7
GND
8
IN1_D3P
9
IN1_D3N
10
IN2_D0P
11
IN2_D0N
12
IN2_HPD
13
IN2_D1P
14
IN2_D1N
15
IN2_D2P
16
IN2_D2N
17
GND
18
IN2_D3P
19
IN1_HPD
3
IN2_D3N
20
IN1_SDA
22
IN1_SCL
23
IN2_SDA
24
IN2_SCL
25
VDD3
26
IN1_AUXN
27
IN1_AUXP
28
IN2_AUXN
29
IN2_AUXP
30
VDD3
21
OUT_AUXN_SDA 31
OUT_AUXP_SCL 32
GND 33
REXT 34
VDD3 35
OUT_D3N 36
OUT_D3P 37
PC0 38
OUT_D2N 39
OUT_D2P 40
PD 50
VDD3 49
CA_DET 48
CEXT 47
OUT_D0P 46
OUT_D0N 45
OUT_HPD 44
OUT_D1P 43
OUT_D1N 42
GND 41
VDD3 60
IN1_AEQ# 59
IN2_AEQ# 58
GND 57
PI0 56
PC1 55
SW 54
I2C_CTL_EN 53
IN1_PEQ/SDA_CTL 52
IN2_PEQ/SCL_CTL 51
THERMAL_PAD 61
Q11
BTN3904
M-SOT23-CBE
B
E C
R124 *4.7K_04
R131 *4.7K_04
C332 220p_50V_NPO_04
R107 *0_04
R116 *4.7K_04
C304
0.01u_50V_X7R_04
C317 *220p_50V_NPO_04
C325 0.1u_10V_X7R_04
C341 0.1u_10V_X7R_04
![](asset-3d.png)

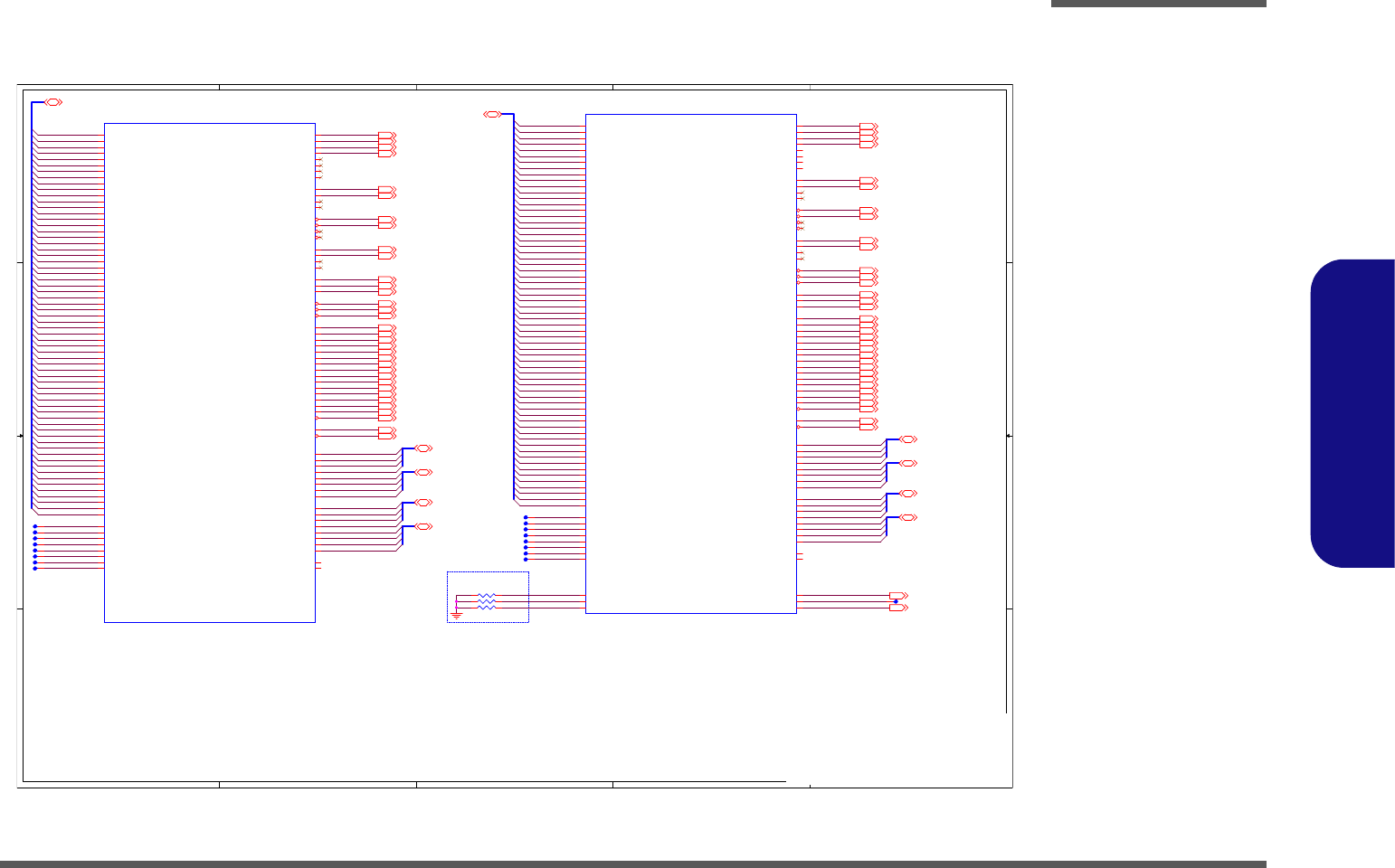

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CLOSE TO CPU
DDR_RCOMP0
DDR_RCOMP1
DDR_RCOMP2
M_A_DQ9
M_A_DQ36
M_A_DQ25
M_A_DQ51
M_A_DQ10
M_A_DQ37
M_A_DQ26
M_A_DQ52
M_A_DQ11
M_A_DQ38
M_A_DQ27
M_A_DQ53
M_A_DQ12
M_A_DQ39
M_A_DQ28
M_A_DQ54
M_A_DQ13
M_A_DQ40
M_A_DQ29
M_A_DQ55
M_A_DQ14
M_A_DQ41
M_A_DQ30
M_A_DQ15
M_A_DQ56
M_A_DQ1
M_A_DQ42
M_A_DQ31
M_A_DQ16
M_A_DQ57
M_A_DQ43
M_A_DQ32
M_A_DQ17
M_A_DQ58
M_A_DQ0
M_A_DQ2
M_A_DQ44
M_A_DQ18
M_A_DQ59
M_A_DQ3
M_A_DQ45
M_A_DQ19
M_A_DQ60
M_A_DQ4
M_A_DQ46
M_A_DQ20
M_A_DQ61
M_A_DQ5
M_A_DQ47
M_A_DQ21
M_A_DQ6
M_A_DQ62
M_A_DQ33
M_A_DQ48
M_A_DQ22
M_A_DQ7
M_A_DQ63
M_A_DQ34
M_A_DQ49
M_A_DQ23
M_A_DQ8
M_A_DQ35
M_A_DQ50
M_A_DQ24
M_B_DQ0
M_B_DQ33
M_B_DQ18
M_B_DQ48
M_B_DQ34
M_B_DQ19
M_B_DQ49
M_B_DQ57
M_B_DQ35
M_B_DQ20
M_B_DQ50
M_B_DQ36
M_B_DQ58
M_B_DQ21
M_B_DQ2
M_B_DQ51
M_B_DQ37
M_B_DQ3
M_B_DQ22
M_B_DQ59
M_B_DQ52
M_B_DQ11
M_B_DQ4
M_B_DQ38
M_B_DQ23
M_B_DQ60
M_B_DQ53
M_B_DQ12
M_B_DQ5
M_B_DQ24
M_B_DQ39
M_B_DQ61
M_B_DQ54
M_B_DQ6
M_B_DQ25
M_B_DQ40
M_B_DQ62
M_B_DQ55
M_B_DQ26
M_B_DQ41
M_B_DQ63
M_B_DQ27
M_B_DQ42
M_B_DQ28
M_B_DQ43
M_B_DQ13
M_B_DQ29
M_B_DQ44
M_B_DQ14
M_B_DQ7
M_B_DQ30
M_B_DQ45
M_B_DQ15
M_B_DQ56
M_B_DQ1
M_B_DQ8
M_B_DQ31
M_B_DQ46
M_B_DQ16
M_B_DQ9
M_B_DQ32
M_B_DQ17
M_B_DQ47
M_B_DQ10
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
DIMM_DQ_CPU_VREF_A
M_B_DQS#3
M_B_DQS#2
M_B_DQS#1
M_B_DQS#0
M_B_DQS3
M_B_DQS2
M_B_DQS1
M_B_DQS0
M_B_CB0
M_B_CB1
M_B_CB2
M_B_CB3
M_B_CB4
M_B_CB5
M_B_CB6
M_B_CB7
M_B_DQS#5
M_B_DQS#6
M_B_DQS#4
M_B_DQS#7
M_B_DQS5
M_B_DQS6
M_B_DQS4
M_B_DQS7
M_A_CB0
M_A_CB1
M_A_CB2
M_A_CB3
M_A_CB4
M_A_CB5
M_A_CB6
M_A_CB7
M_B_DQ[63:0][9]
M_A_CLK_DDR0 [8]
M_A_CLK_DDR#0 [8]
M_A_CLK_DDR#1 [8]
M_A_CLK_DDR1 [8]
M_A_CKE0 [8]
M_A_CKE1 [8]
M_A_CS#0 [8]
M_A_CS#1 [8]
M_A_ODT0 [8]
M_A_ODT1 [8]
M_A_RAS# [8]
M_A_WE# [8]
M_A_CAS# [8]
M_A_DQS#[3:0] [8]
M_A_DQS[7:4] [8]
M_A_DQS[3:0] [8]
M_A_DQS#[7:4] [8]
M_B_CKE0 [9]
M_B_CKE1 [9]
M_B_CS#0 [9]
M_B_CS#1 [9]
M_B_ODT0 [9]
M_B_ODT1 [9]
M_B_RAS# [9]
M_B_WE# [9]
M_B_CAS# [9]
DIMM_CA_CPU_VREF_A [8]
DIMM_DQ_CPU_VREF_B [9]
M_B_CLK_DDR0 [9]
M_B_CLK_DDR#0 [9]
M_B_CLK_DDR#1 [9]
M_B_CLK_DDR1 [9]
M_B_DQS#[3:0] [9]
M_B_DQS[3:0] [9]
M_B_DQS#[7:4] [9]
M_B_DQS[7:4] [9]
M_A_DQ[63:0] [8]
M_A_BA0 [8]
M_A_BA1 [8]
M_A_BG0 [8]
M_A_A0 [8]
M_A_A1 [8]
M_A_A2 [8]
M_A_A3 [8]
M_A_A4 [8]
M_A_A5 [8]
M_A_A6 [8]
M_A_A7 [8]
M_A_A8 [8]
M_A_A9 [8]
M_A_A10 [8]
M_A_A11 [8]
M_A_A12 [8]
M_A_A13 [8]
M_A_BG1 [8]
M_A_ACT# [8]
DDR0_A_PARITY [8]
DDR0_A_ALERT# [8]
M_B_BA0 [9]
M_B_BA1 [9]
M_B_BG0 [9]
M_B_A0 [9]
M_B_A1 [9]
M_B_A2 [9]
M_B_A3 [9]
M_B_A4 [9]
M_B_A5 [9]
M_B_A6 [9]
M_B_A7 [9]
M_B_A8 [9]
M_B_A9 [9]
M_B_A10 [9]
M_B_A11 [9]
M_B_A12 [9]
M_B_A13 [9]
M_B_BG1 [9]
M_B_ACT# [9]
DDR1_B_PARITY [9]
DDR1_B_ALERT# [9]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[04] Processor 3/6-DDR4
A3
477W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[04] Processor 3/6-DDR4
A3
477W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[04] Processor 3/6-DDR4
A3
477W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R544 100_1%_04
DDR CHANNEL A
SKYLAKE_HALO
BGA1440
?
U34A
SKL_H_CPU
DDR0_DQ[36]/DDR1_DQ[4]
AB5 DDR0_DQ[35]/DDR1_DQ[3]
AA5 DDR0_DQ[34]/DDR1_DQ[2]
AA4
DDR0_DQ[32]/DDR1_DQ[0]
AB1 DDR0_DQ[31]/DDR0_DQ[47]
BC2 DDR0_DQ[30]/DDR0_DQ[46]
BC1
DDR0_DQ[45]/DDR1_DQ[13]
V4
DDR0_ECC[6]
AY1
DDR0_DQ[63]/DDR1_DQ[47]
L1
DDR0_DQ[54]/DDR1_DQ[38]
R1
DDR0_DQ[55]/DDR1_DQ[39]
P1
DDR0_DQ[43]/DDR1_DQ[11]
U2
DDR0_DQ[28]/DDR0_DQ[44]
BD5
DDR0_DQ[20]/DDR0_DQ[36]
BG2 DDR0_DQ[19]/DDR0_DQ[35]
BF5
DDR0_DQ[16]/DDR0_DQ[32]
BG4
DDR0_ECC[4]
BA5
DDR0_DQ[60]/DDR1_DQ[44]
M5
DDR0_DQ[4]
BN5
DDR0_DQ[2]
BP3
DDR0_DQ[3]
BR3
DDR0_DQ[5]
BP6
DDR0_DQ[6]
BP2
DDR0_DQ[7]
BN3
DDR0_DQ[8]
BL4
DDR0_DQ[9]
BL5
DDR0_DQ[10]
BL2
DDR0_DQ[11]
BM1
DDR0_DQ[13]
BK5
DDR0_DQ[14]
BK1
DDR0_DQ[18]/DDR0_DQ[34]
BF4
DDR0_DQ[21]/DDR0_DQ[37]
BG1
DDR0_DQ[23]/DDR0_DQ[39]
BF2
DDR0_DQ[25]/DDR0_DQ[41]
BD1
DDR0_DQ[27]/DDR0_DQ[43]
BC5
DDR0_DQ[29]/DDR0_DQ[45]
BD4
DDR0_DQ[12]
BK4
DDR0_DQ[17]/DDR0_DQ[33]
BG5
DDR0_DQ[15]
BK2
DDR0_CKP[0] AG1
DDR0_DQ[42]/DDR1_DQ[10]
U1 DDR0_DQ[41]/DDR1_DQ[9]
V2 DDR0_DQ[40]/DDR1_DQ[8]
V5
DDR0_DQ[37]/DDR1_DQ[5]
AB4
DDR0_DQ[33]/DDR1_DQ[1]
AB2
DDR0_DQ[26]/DDR0_DQ[42]
BC4
DDR0_DQ[22]/DDR0_DQ[38]
BF1
DDR0_ECC[3]
AY5
DDR0_DQ[58]/DDR1_DQ[42]
L4
DDR0_DQ[52]/DDR1_DQ[36]
R5
DDR0_DQ[47]/DDR1_DQ[15]
U4
DDR0_DQ[44]/DDR1_DQ[12]
V1
DDR0_DQ[39]/DDR1_DQ[7]
AA1
DDR0_DQSP[8] AY3
DDR0_DQSN[8] BA3
DDR0_DQSN[7]/DDR1_DQSN[5] L3
DDR0_DQSN[6]/DDR1_DQSN[4] P3
DDR0_DQSN[5]/DDR1_DQSN[1] U3
DDR0_DQSN[4]/DDR1_DQSN[0] AA3
DDR0_DQSP[3]/DDR0_DQSP[5] BC3
DDR0_DQSP[2]/DDR0_DQSP[4] BF3
DDR0_DQSP[1] BK3
DDR0_DQSP[0] BP5
DDR0_DQSP[7]/DDR1_DQSP[5] M3
DDR0_DQSP[5]/DDR1_DQSP[1] V3
DDR0_DQSP[6]/DDR1_DQSP[4] R3
DDR0_DQSN[3]/DDR0_DQSN[5] BD3
DDR0_DQSP[4]/DDR1_DQSP[0] AB3
DDR0_DQSN[1] BL3
DDR0_DQSN[2]/DDR0_DQSN[4] BG3
DDR0_DQSN[0] BR5
DDR0_PAR AG3
DDR0_MA[14]/DDR0_CAA[9]/DDR0_BG[1] AU2
DDR0_MA[15]/DDR0_CAA[8]/DDR0_ACT# AU3
DDR0_MA[13]/DDR0_CAB[0]/DDR0_MA[13] AE3
DDR0_MA[12]/DDR0_CAA[6]/DDR0_MA[12] AU4
DDR0_MA[11]/DDR0_CAA[7]/DDR0_MA[11] AN2
DDR0_MA[8]/DDR0_CAA[3]/DDR0_MA[8] AN3
DDR0_MA[9]/DDR0_CAA[1]/DDR0_MA[9] AT4
DDR0_MA[10]/DDR0_CAB[7]/DDR0_MA[10] AH2
DDR0_MA[6]/DDR0_CAA[2]/DDR0_MA[6] AP3
DDR0_MA[7]/DDR0_CAA[4]/DDR0_MA[7] AN1
DDR0_MA[5]/DDR0_CAA[0]/DDR0_MA[5] AP1
DDR0_MA[4] AP2
DDR0_MA[3] AP5
DDR0_MA[2]/DDR0_CAB[5]/DDR0_MA[2] AN4
DDR0_MA[1]/DDR0_CAB[8]/DDR0_MA[1] AP4
DDR0_MA[0]/DDR0_CAB[9]/DDR0_MA[0] AH3
DDR0_CAS#/DDR0_CAB[1]/DDR0_MA[15] AD1
DDR0_WE#/DDR0_CAB[2]/DDR0_MA[14] AG4
DDR0_RAS#/DDR0_CAB[3]/DDR0_MA[16] AH4
DDR0_BA[2]/DDR0_CAA[5]/DDR0_BG[0] AU1
DDR0_BA[1]/DDR0_CAB[6]/DDR0_BA[1] AH1
DDR0_BA[0]/DDR0_CAB[4]/DDR0_BA[0] AH5
DDR0_ODT[3] AD4
DDR0_ODT[2] AE1
DDR0_ODT[1] AE4
DDR0_CS#[3] AE5
DDR0_ODT[0] AD3
DDR0_CS#[2] AD2
DDR0_CS#[1] AE2
DDR0_CKE[3] AT5
DDR0_CS#[0] AD5
DDR0_CKE[1] AT2
DDR0_CKE[2] AT3
DDR0_CKE[0] AT1
DDR0_CLKN[3] AL1
DDR0_CLKN[2] AK3
DDR0_CLKP[3] AL2
DDR0_CLKP[2] AL3
DDR0_CKP[1] AK2
DDR0_CKN[1] AK1
DDR0_CKN[0] AG2
DDR0_ECC[7]
AY2
DDR0_ECC[5]
BA4
DDR0_ECC[2]
AY4 DDR0_ECC[1]
BA1 DDR0_ECC[0]
BA2
DDR0_DQ[62]/DDR1_DQ[46]
L5 DDR0_DQ[61]/DDR1_DQ[45]
M2
DDR0_DQ[59]/DDR1_DQ[43]
L2
DDR0_DQ[56]/DDR1_DQ[40]
M4
DDR0_DQ[57]/DDR1_DQ[41]
M1
DDR0_DQ[53]/DDR1_DQ[37]
P2
DDR0_DQ[51]/DDR1_DQ[35]
P4 DDR0_DQ[50]/DDR1_DQ[34]
R4 DDR0_DQ[49]/DDR1_DQ[33]
P5 DDR0_DQ[48]/DDR1_DQ[32]
R2
DDR0_DQ[46]/DDR1_DQ[14]
U5
DDR0_DQ[38]/DDR1_DQ[6]
AA2
DDR0_DQ[24]/DDR0_DQ[40]
BD2
DDR0_ALERT# AU5
DDR0_DQ[1]
BT6 DDR0_DQ[0]
BR6
DDR CHANNEL B
BGA1440
SKYLAKE_HALO
?
U34B
SKL_H_CPU
DDR1_DQ[0]/DDR0_DQ[16]
BT11
DDR1_DQ[3]/DDR0_DQ[19]
BR8
DDR1_DQ[4]/DDR0_DQ[20]
BP11
DDR1_DQ[5]/DDR0_DQ[21]
BN11
DDR1_DQ[6]/DDR0_DQ[22]
BP8
DDR1_DQ[7]/DDR0_DQ[23]
BN8
DDR1_DQ[8]/DDR0_DQ[24]
BL12
DDR1_DQ[9]/DDR0_DQ[25]
BL11
DDR1_DQ[11]/DDR0_DQ[27]
BJ8
DDR1_DQ[12]/DDR0_DQ[28]
BJ11
DDR1_DQ[14]/DDR0_DQ[30]
BL7
DDR1_DQ[15]/DDR0_DQ[31]
BJ7
DDR1_DQ[2]/DDR0_DQ[18]
BT8 DDR1_DQ[1]/DDR0_DQ[17]
BR11
DDR1_ECC[3]
AW8
DDR1_ECC[4]
AY10
DDR1_ECC[5]
AW10
DDR1_ECC[6]
AY7
DDR1_ECC[7]
AW7
DDR1_DQ[61]
M10 DDR1_DQ[60]
L10 DDR1_DQ[59]
M8 DDR1_DQ[58]
L7 DDR1_DQ[57]
M11 DDR1_DQ[56]
L11 DDR1_DQ[55]
P8 DDR1_DQ[54]
R7 DDR1_DQ[53]
P10
DDR1_ODT[0] AF7
DDR1_CS#[3] AE10
DDR1_CS#[2] AF10
DDR1_ODT[1] AE8
DDR1_ODT[2] AE9
DDR1_RAS#/DDR1_CAB[3]/DDR1_MA[16] AH10
DDR1_BA[1]/DDR1_CAB[6]/DDR1_BA[1] AH9
DDR1_MA[0]/DDR1_CAB[9]/DDR1_MA[0] AJ9
DDR1_DQSN[6] R9
DDR0_VREF_DQ BP13
DDR_VREF_CA BN13
DDR1_DQSN[5]/DDR1_DQSN[3] W9
DDR1_PAR AJ7
DDR1_MA[15]/DDR1_CAA[8]/DDR1_ACT# AT9
DDR1_MA[14]/DDR1_CAA[9]/DDR1_BG[1] AR7
DDR1_MA[13]/DDR1_CAB[0]/DDR1_MA[13] AF9
DDR1_MA[11]/DDR1_CAA[7]/DDR1_MA[11] AN11
DDR1_MA[12]/DDR1_CAA[6]/DDR1_MA[12] AR10
DDR1_MA[10]/DDR1_CAB[7]/DDR1_MA[10] AH7
DDR1_MA[8]/DDR1_CAA[3]/DDR1_MA[8] AN8
DDR1_MA[9]/DDR1_CAA[1]/DDR1_MA[9] AR11
DDR1_MA[7]/DDR1_CAA[4]/DDR1_MA[7] AN10
DDR1_MA[6]/DDR1_CAA[2]/DDR1_MA[6] AN7
DDR1_MA[3] AL5
DDR1_MA[4] AL6
DDR1_MA[5]/DDR1_CAA[0]/DDR1_MA[5] AM6
DDR1_MA[2]/DDR1_CAB[5]/DDR1_MA[2] AK5
DDR1_MA[1]/DDR1_CAB[8]/DDR1_MA[1] AK6
DDR1_BA[2]/DDR1_CAA[5]/DDR1_BG[0] AR9
DDR1_BA[0]/DDR1_CAB[4]/DDR1_BA[0] AH8
DDR1_WE#/DDR1_CAB[2]/DDR1_MA[14] AH11
DDR1_CAS#/DDR1_CAB[1]/DDR1_MA[15] AF8
DDR1_ODT[3] AE11
DDR1_CS#[1] AE7
DDR1_CKE[3] AT11
DDR1_CS#[0] AF11
DDR1_CKE[2] AT7
DDR1_CKE[1] AT10
DDR1_CKE[0] AT8
DDR1_CLKN[3] AJ11
DDR1_CLKP[3] AJ10
DDR1_CLKN[2] AM10
DDR1_CLKP[2] AM11
DDR1_CKP[1] AM7
DDR1_CKN[1] AM8
DDR1_CKP[0] AM9
DDR1_CKN[0] AN9
DDR1_ECC[2]
AY8 DDR1_ECC[1]
AY11 DDR1_ECC[0]
AW11
DDR1_DQ[63]
L8 DDR1_DQ[62]
M7
DDR1_DQ[51]
R8
DDR1_DQ[52]
R10
DDR1_DQ[50]
P7 DDR1_DQ[49]
P11 DDR1_DQ[48]
R11
DDR1_DQ[46]/DDR1_DQ[30]
V7
DDR1_DQ[47]/DDR1_DQ[31]
V8
DDR1_DQ[45]/DDR1_DQ[29]
W10
DDR1_DQ[43]/DDR1_DQ[27]
V11
DDR1_DQ[44]/DDR1_DQ[28]
W11
DDR1_DQ[40]/DDR1_DQ[24]
W8
DDR1_DQ[42]/DDR1_DQ[26]
V10 DDR1_DQ[41]/DDR1_DQ[25]
W7
DDR1_DQ[39]/DDR1_DQ[23]
AC7 DDR1_DQ[38]/DDR1_DQ[22]
AC8 DDR1_DQ[37]/DDR1_DQ[21]
AA8
DDR1_DQ[29]/DDR0_DQ[61]
BB10
DDR1_DQ[23]/DDR0_DQ[55]
BF7
DDR1_DQ[20]/DDR0_DQ[52]
BF11
DDR1_DQ[21]/DDR0_DQ[53]
BF10
DDR1_DQ[17]/DDR0_DQ[49]
BG10
DDR1_DQ[18]/DDR0_DQ[50]
BG8
DDR1_DQ[16]/DDR0_DQ[48]
BG11
DDR1_DQ[13]/DDR0_DQ[29]
BJ10
DDR1_DQ[10]/DDR0_DQ[26]
BL8
DDR1_DQ[19]/DDR0_DQ[51]
BF8
DDR1_DQ[26]/DDR0_DQ[58]
BB8
DDR1_VREF_DQ BR13
DDR1_DQSN[8] AY9
DDR1_DQSP[8] AW9
DDR1_DQSP[7] L9
DDR1_DQSP[6] P9
DDR1_DQSP[5]/DDR1_DQSP[3] V9
DDR1_DQSP[4]/DDR1_DQSP[2] AA9
DDR1_DQSP[3]/DDR0_DQSP[7] BB9
DDR1_DQSP[2]/DDR0_DQSP[6] BF9
DDR1_DQSP[1]/DDR0_DQSP[3] BJ9
DDR1_DQSP[0]/DDR0_DQSP[2] BR9
DDR1_DQSN[7] M9
DDR1_DQSN[4]/DDR1_DQSN[2] AC9
DDR1_DQSN[3]/DDR0_DQSN[7] BC9
DDR1_DQSN[2]/DDR0_DQSN[6] BG9
DDR1_DQSN[1]/DDR0_DQSN[3] BL9
DDR1_DQSN[0]/DDR0_DQSN[2] BP9
DDR1_ALERT# AR8
DDR1_DQ[36]/DDR1_DQ[20]
AA7 DDR1_DQ[35]/DDR1_DQ[19]
AC10 DDR1_DQ[34]/DDR1_DQ[18]
AC11 DDR1_DQ[33]/DDR1_DQ[17]
AA10 DDR1_DQ[32]/DDR1_DQ[16]
AA11 DDR1_DQ[31]/DDR0_DQ[63]
BB7 DDR1_DQ[30]/DDR0_DQ[62]
BC7
DDR1_DQ[28]/DDR0_DQ[60]
BC10 DDR1_DQ[27]/DDR0_DQ[59]
BC8
DDR1_DQ[25]/DDR0_DQ[57]
BC11 DDR1_DQ[24]/DDR0_DQ[56]
BB11
DDR1_DQ[22]/DDR0_DQ[54]
BG7
DDR_RCOMP[0]
G1
DDR_RCOMP[1]
H1
DDR_RCOMP[2]
J2
R541 75_1%_04
R527 121_1%_04
Sheet 4 of 77
Processor 3/6
Schematic Diagrams
Processor 3/6 B - 5
B.Schematic Diagrams
Processor 3/6
![](asset-3e.png)
Schematic Diagrams

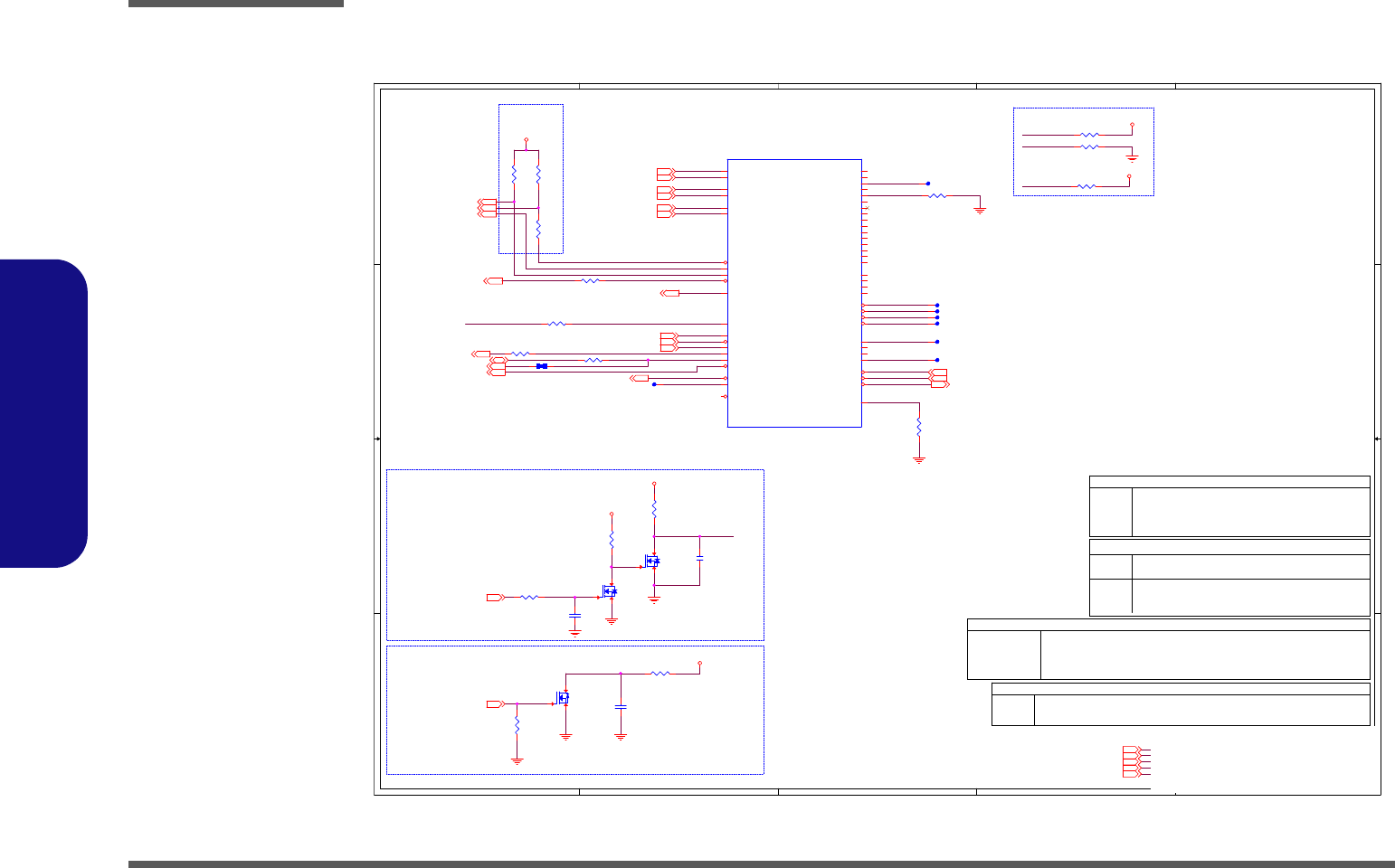

B - 6 Processor 4/6
B.Schematic Diagrams
Processor 4/6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
NEAR CPU
CAD Note: Capacitor need to be placed
close to buffer output pin
CFG7
DEFENSIVE PULL DOWN SITE
1: (Default) PEG Train immediately following xxRESETB de assertion
0: PEG Wait for BIOS for training
CFG4
1: DISABLED;
NO PHYSICAL DISPLAY PORT ATTACHED
TO EMBEDDED DISPLAY PORT
0: ENABLED;
AN EXTERNAL DISPLAY PORT DEVICE
IS CONNECTED TO THE EMBEDDED
DISPLAY PORT
DISPLAY PORT PRESENCE STRAP
CFG2
1: (DEFAULT)NORMAL OPERATION;
LANE# DEFINITION MATCHES
SOCKET PIN MAP DEFINITION
0: LANE REVERSAL
PCI EXPRESS STATIC LANE REVERSAL FOR ALL PEG PORTS
CFG[6:5]
11: (Default) x16 - Device 1 functions 1 and 2 disabled
10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled
01: Reserved - (Device 1 function 1 disabled ; function 2 enabled)
00: x8,x4,x4 - Device 1 functions 1 and 2 enabled
PCIE PORT BIFURCATION STRAPS
TO EC
VCCST_PWRGD
CFG[0]: Stall reset sequence after PCU
Ʉ
ɄɄ
Ʉ
PLL lock until de-asserted:
— 1 = (Default) Normal Operation;
No stall.
— 0 = Stall.
CFG[1]: Reserved configuration lane.
Ʉ
ɄɄ
Ʉ
CFG[2]: PCI Express* Static x16 Lane
Ʉ
ɄɄ
Ʉ
Numbering Reversal.
— 1 = Normal operation
— 0 = Lane numbers reversed.
CFG[3]: Reserved configuration lane.
Ʉ
ɄɄ
Ʉ
CFG[4]: eDP enable:
Ʉ
ɄɄ
Ʉ
— 1 = Disabled.
— 0 = Enabled.
CFG[6:5]: PCI Express* Bifurcation
Ʉ
ɄɄ
Ʉ
— 00 = 1 x8, 2 x4 PCI Express*
— 01 = reserved
— 10 = 2 x8 PCI Express*
— 11 = 1 x16 PCI Express*
CFG[7]: PEG Training:
Ʉ
ɄɄ
Ʉ
— 1 = (default) PEG Train
immediately following RESET# de
assertion.
— 0 = PEG Wait for BIOS for
training.
CFG[19:8]: Reserved configuration
Ʉ
ɄɄ
Ʉ
lanes.
H_PROCHOT_EC
H_PROCHOT#_RH_PROCHOT#
H_PM_DOWN_R
H_SKTOCC_N
PROC_SELECT#
CFG_RCOMP
CPU_VIDALERT_N
SKL_XDP_MBP_0
SKL_XDP_MBP_1
SKL_MBP_2
SKL_MBP_3
H_TDO
H_TCK
H_TRST#
H_PREQ#
H_PRDY#
CFG4
VCCST_PWRGD_CPU
H_PROCHOT#
H_TDO
H_TCK
H_PECI_R
VCCST_PWRGD
VCCST_PWRGD
H_SKTOCC_N
CFG2
1.0V_VCCST
1.0DX_VCCSTG
1.0V_VCCST
1.0V_VCCST
VDD3
3.3VA
H_PROCHOT#[57]
PCH_PECI[31]
PCH_CPU_BCLK_R_DN[31]
PCH_CPU_BCLK_R_DP[31]
PCH_CPU_PCIBCLK_R_DN[31]
PCH_CPU_PCIBCLK_R_DP[31]
CPU_24MHZ_R_DN[31]
CPU_24MHZ_R_DP[31]
H_PWRGD[32]
PLTRST_CPU_N[31]
H_PM_SYNC[31]
H_PM_DOWN[31]
PCH_THERMTRIP#[31]
H_SKTOCC_N[32]
H_CPU_SVIDCLK[57]
H_CPU_SVIDDAT[57]
H_CPU_SVIDALRT#[57]
H_TRST# [34]
H_PREQ# [34]
H_PRDY# [34]
H_PROCHOT_EC[35]
H_PECI[35]
ALL_SYS_PWRGD[10,34,35,57]
DDR_VTT_PG_CTRL[55]
1.0DX_VCCSTG[6,51]
VDD3[26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
VCCIO[2,3,6,56]
1.0V_VCCST[6,31,32,56,57]
3.3VA[30,31,32,33,34,50] Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[05]Processor 4/6-CLK/JTAG/MISC
A3
577Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[05]Processor 4/6-CLK/JTAG/MISC
A3
577Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[05]Processor 4/6-CLK/JTAG/MISC
A3
577Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C392
*0.1u_10V_X7R_04
C389
*0.01u_16V_X7R_04
R650 1K_04
SKYLAKE_HALO
BGA1440
?
U34E
SKL_H_CPU
PROC_SELECT#
BN1
CATERR#
BM30
SKTOCC#
BR33
PM_DOWN
BP31 PM_SYNC
BM34 RESET#
BP35 PROCPWRGD
BT31
VCCST_PWRGD
H13
CFG[17] BN23
CFG[15] BT19
CFG[16] BP23
CFG[11] BT22
CFG[12] BM19
CFG[10] BT23
CFG[9] BR22
CLK24N
D31
CFG[1] BN27
CFG[3] BN28
CFG[18] BN22
PROC_TDI BL32
CFG[0] BN25
CFG[2] BN26
CFG[4] BR20
CFG[6] BT20
CFG[5] BM20
CFG[7] BP20
CFG[8] BR23
CFG[13] BR19
CFG[14] BP19
CFG[19] BP22
PROC_PREQ# BL30
PROC_PRDY# BP27
VIDSCK
BH32
PROC_TDO BT28
CLK24P
E31
PCI_BCLKN
C36 PCI_BCLKP
D35
BCLKN
A32
VIDSOUT
BH29
PROCHOT#
BR30
DDR_VTT_CNTL
BT13
CFG_RCOMP BT25
PROC_TRST# BP30
PROC_TCK BR28
PROC_TMS BP28
VIDALERT#
BH31
THERMTRIP#
J31 PECI
BT34
BCLKP
B31
BPM#[0] BR27
BPM#[1] BT27
BPM#[2] BM31
BPM#[3] BT30
R285
220_04
R649
*100K_04
C970
47p_50V_NPO_04
R184 60.4_1%_04
R660 1K_04
R651
49.9_1%_04
R659 499_1%_04
S
D
G
Q17A
MTDK3S6R
2
61
R295 20_1%_04
R656 100K_04
R296 51_04
S
D
G
Q17B
MTDK3S6R
5
34
Q51
2SK3018S3
G
DS
R283
100_04
R292
56.2_1%_04
R655 51_04
R167
100K_04
R657 *0402_short
R171 0_04
R163
1K_04
R658 *12.1_1%_04
Sheet 5 of 77
Processor 4/6
![](asset-3f.png)
Schematic Diagrams
Processor 5/6 B - 7
B.Schematic Diagrams
Processor 5/6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
AROUND_CPU
PLACE CAP BACKSIDE
PLACE CAP BACKSIDE
PLACE CAP IN BOARD EDGE
CPU_TOP_VCCSA
PLACE CAP IN BACK SIDE
CPU_BACK_VCCSA
NEAR TO CPU PIN
PLACE CAPS AT BOARD EDGE
CPU_TOP_VCCCORE
PLACE CAPS AT BACK
CPU_BACK_VCCCORE
VCCIO_SENSE
VSS_IO_SENSE
VCC_VCORE_SENSE VSS_VCORE_SENSE
VCCSA VDDQ
VCCIO
VCCVDDQ_CLK
VCCSFR_OC
1.0V_VCCST
1.0DX_VCCSTG VCCFUSEPRG
1.0V_VCCSFR
VCCVDDQ_CLK VDDQ
VCCVDDQ_CLK
1.0DX_VCCSTG VCCSFR_OC
1.0V_VCCSFR 1.0V_VCCST
VDDQ
VCCIO
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCIO
VCORE VCORE
VCORE
VCOREVCORE
VCORE
CPU_2_PCH_TRIGGER[34]
PCH_2_CPU_TRIGGER[34]
VCCSA_SENSE [59]
VSS_SA_SENSE [59]
VDDQ[8,9,32,51,55]
VCCSA[59]
VCCIO[2,3,56]
1.0DX_VCCSTG[5,51]
1.0V_VCCSFR[56]
1.0V_VCCST[5,31,32,56,57]
VCCSFR_OC[51]
VCC_VCORE_SENSE [57]
VSS_VCORE_SENSE [57]
VCORE[58]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[06] Processor 5/6-POWER
A3
677Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[06] Processor 5/6-POWER
A3
677Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[06] Processor 5/6-POWER
A3
677Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
BGA1440
SKYLAKE_HALO
?
U34I
SKL_H_CPU
VCCSTG G30
VCCIO
J21
VCCIO
J26
VCCIO
J27
VCCIO
J20
VCCIO
J17
VCCIO
J19
VCCIO
J15
VCCIO
J16
VCCIO
H27 VCCIO
H26 VCCIO
H21
VCCIO
H19
VCCIO
H20
VCCIO
H17 VCCIO
H16 VCCIO
H15
VCCIO
G19
VCCIO
G21
VCCIO
G17 VCCIO
G15 VCCIO
AG12
VCCSA
M34 VCCSA
M33 VCCSA
M32 VCCSA
M31 VCCSA
M30
VCCSA
L38
VCCSA
M29
VCCSA
L37 VCCSA
L36
VCCSA
L32
VCCSA
L35
VCCSA
L31 VCCSA
K35 VCCSA
K34
VCCSA
K29 VCCSA
J30
VCCIO_SENSE H14
VSSIO_SENSE J14
VSSSA_SENSE M37
VCCSA_SENSE M38
VCCPLL J28
VCCPLL H28
VDDQ AJ12
VDDQ AG9
VDDQ AG5
VDDQ AF6
VDDQ AF5
VDDQ AE12
VDDQ AA6
VDDQ AL11
VDDQ AP6
VDDQ AP7
VDDQ AR6
VDDQ AR12
VCCSA
K33 VCCSA
K32 VCCSA
K31 VCCSA
K30
VDDQ AT12
VDDQ AY6
VDDQ AW6
VDDQ J5
VDDQ J6
VDDQ K12
VDDQ K6
VDDQ L12
VDDQ L6
VDDQ R6
VDDQ T6
VDDQ W6
VDDQC Y12
VCCPLL_OC BH13
VCCST H30
VCCSTG H29
VCCPLL_OC G11
VCCSA
M36 VCCSA
M35
C445
*22u_6.3V_X6S_08
C473
10u_4V_X6S_06
C403
*22u_6.3V_X5R_08
R227
*100_04
R516 *0402_short
C558
1u_6.3V_X6S_04
C465
1u_6.3V_X6S_04
C418
10u_6.3V_X5R_06
BGA1440
SKYLAKE_HALO
?
U34K
SKL_H_CPU
RSVD BT17
RSVD BR17
RSVD BJ28
RSVD BK28
RSVD_TP BK16
RSVD_TP BJ16
VSS BJ18
RSVD
BL34 RSVD
BN33
RSVD_TP BJ13
RSVD
AA14 RSVD
AE29
RSVD_TP
BT2
RSVD
BN35
RSVD
J24
RSVD_TP
E3
RSVD_TP
E2
RSVD_TP
BR1
RSVD
A36
NCTF C38
NCTF C1
NCTF BR2
NCTF BP1
NCTF B2
NCTF B38
PROC_TRIGOUT
J23 PROC_TRIGIN
H23
RSVD
A37
RSVD
R14 RSVD
N29
RSVD
H24
RSVD_TP BJ14
RSVD AJ8
RSVD_TP
D1
RSVD_TP
E1 RSVD_TP BM33
RSVD_TP BL33
RSVD_TP BK24
RSVD_TP BJ24
RSVD BK21
RSVD BJ21
VSS BK18
RSVD_TP BJ34
RSVD_TP BJ33
RSVD G13
RSVD BL31
RSVD
F30
RSVD
E30
RSVD
B30
RSVD
C30
RSVD
G3
RSVD
J3
RSVD
BR35
RSVD
BR31
RSVD
BH30
C452
1u_6.3V_X6S_04
BGA1440
SKYLAKE_HALO
U34G
SKL_H_CPU
VCC P14
VCC V31
VCC V13
VCC V14
VCC U36
VCC U32
VCC U31
VCC U33
VCC U34
VCC U35
VCC T37
VCC T36
VCC U30
VCC U29
VCC T29
VCC T35
VCC T32
VCC R38
VCC R35
VCC R36
VCC R34
VCC R37
VCC R33
VCC R31
VCC R13
VCC P36
VCC R32
VCC P31
VCC P30
VCC P29
VCC Y30
VCC Y31
VCC Y29
VCC W36
VCC W35
VCC W32
VCC W38
VCC W29
VCC W31
VCC W30
VCC V35
VCC V36
VCC
P13
VCC
N37
VCC
N38
VCC
N36 VCC
N35 VCC
N32 VCC
N31 VCC
N30 VCC
N14 VCC
N13 VCC
L13
VCC
AF38
VCC
K13
VCC
K14
VCC
AF37 VCC
AF36 VCC
AF35 VCC
AE38 VCC
AE37
VCC
AD32
VSS_SENSE AG38
VCC_SENSE AG37
VCC
AC36
VCC
AD13
VCC
AD14
VCC
AD31
VCC
AD33
VCC
AD34
VCC
AD35
VCC
AD36
VCC
AD37
VCC
AD38
VCC
AE13
VCC
AE14
VCC
AE30
VCC
AE31
VCC
AE32
VCC
AE36 VCC
AE35
VCC T31
VCC T30
VCC L14
VCC Y32
VCC Y33
VCC Y34
VCC Y35
VCC Y36
VCC P32
VCC P33
VCC P34
VCC P35
VCC V34
VCC V32
VCC T38
VCC W37
VCC V33
VCC W14
VCC
AB31
VCC
AB32
VCC
AC30
VCC
AC32
VCC
AC33
VCC
AC34
VCC
AC35
VCC
AB37
VCC
AB38
VCC
AC13
VCC
AC14
VCC
AC29
VCC
AC31
VCC V38
VCC V37
VCC W13
VCC
AB30 VCC
AB29 VCC
AA38 VCC
AA37
VCC
AA35 VCC
AA34 VCC
AA33 VCC
AA32 VCC
AA31 VCC
AA13
VCC
AA36
VCC
AB36 VCC
AB35
C457
*10u_4V_X6S_06
C439
10u_4V_X6S_06
C460
1u_6.3V_X6S_04
C825
10u_6.3V_X5R_06
C440
10u_4V_X6S_06
C437
1u_6.3V_X6S_04
C410
22u_6.3V_X5R_06
R237
*49.9_1%_04
C469
10u_4V_X6S_06
+
C374
*220u_2V_SMD-V
C463
*1u_6.3V_X6S_04
C455
1u_6.3V_X6S_04
C466
*10u_4V_X6S_06
C542
1u_6.3V_X6S_04
C435
1u_6.3V_X6S_04
C485
22u_6.3V_X6S_08
C813
1u_6.3V_X5R_04
C414
22u_6.3V_X5R_06
C438
1u_6.3V_X6S_04
C453
10u_4V_X6S_06
C458
10u_4V_X6S_06
C472
1u_6.3V_X6S_04
C454
1u_6.3V_X6S_04
C461
*22u_6.3V_X6S_08
C443
10u_4V_X6S_06
C501
10u_4V_X6S_06
C474
10u_4V_X6S_06
C819
10u_6.3V_X5R_06
C806
1u_6.3V_X5R_04
C436
1u_6.3V_X6S_04
C459
10u_4V_X6S_06
C420
10u_6.3V_X5R_06
C456
10u_4V_X6S_06
BGA1440
SKYLAKE_HALO
?
U34J
SKL_H_CPU
OPC_RCOMP
BT29
VCCOPC
BK20
VCCOPC
BL16
VCCOPC
BL18 VCCOPC
BL17
VCCOPC
BL19
VCCOPC
BM17 VCCOPC
BL21
RSVD
BJ27
RSVD
BK23
RSVD
BK27
RSVD
BL23
RSVD
BL25
RSVD
BL28 RSVD
BL27
VCCEOPIO
BP15
VCCEOPIO
BT15
RSVD
BT16 RSVD
BR16 RSVD
BP16
RSVD
BP17
VSSEOPIO_SENSE
BM15 VCCEOPIO_SENSE
BN15
VCC_OPC_1P8
BM14
VCC_OPC_1P8
BL14
RSVD
BN16
RSVD
BJ36 RSVD
BJ35
ZVM#
AT13
MSM#
AW13
MSM2#
AY13 ZVM2#
AU13
OPCE_RCOMP
BR25
OPCE_RCOMP2
BP25
RSVD
BM22 RSVD
BL22
VSSOPC_SENSE
BM16
RSVD
BM24
VCCOPC
BJ19 VCCOPC
BJ17
VCCOPC
BJ20
VCCOPC
BK17
VCCOPC
BK19
VCCOPC
BL20
VCCOPC
BN17
RSVD
BJ23
RSVD
BJ26
RSVD
BK26
RSVD
BL24
RSVD
BL26
VCCOPC_SENSE
BL15
VCCEOPIO
BR15
C464
1u_6.3V_X6S_04
C484
*22u_6.3V_X6S_08
C444
10u_4V_X6S_06
C442
1u_6.3V_X6S_04
C462
22u_6.3V_X6S_08
R226
*100_04
R229 *28mil_short-p
C809
1u_6.3V_X5R_04
R173 30.1_1%_04
R223 *28mil_short-p
C441
10u_4V_X6S_06
C471
1u_6.3V_X6S_04
C446
22u_6.3V_X6S_08
Sheet 6 of 77
Processor 5/6
![](asset-40.png)

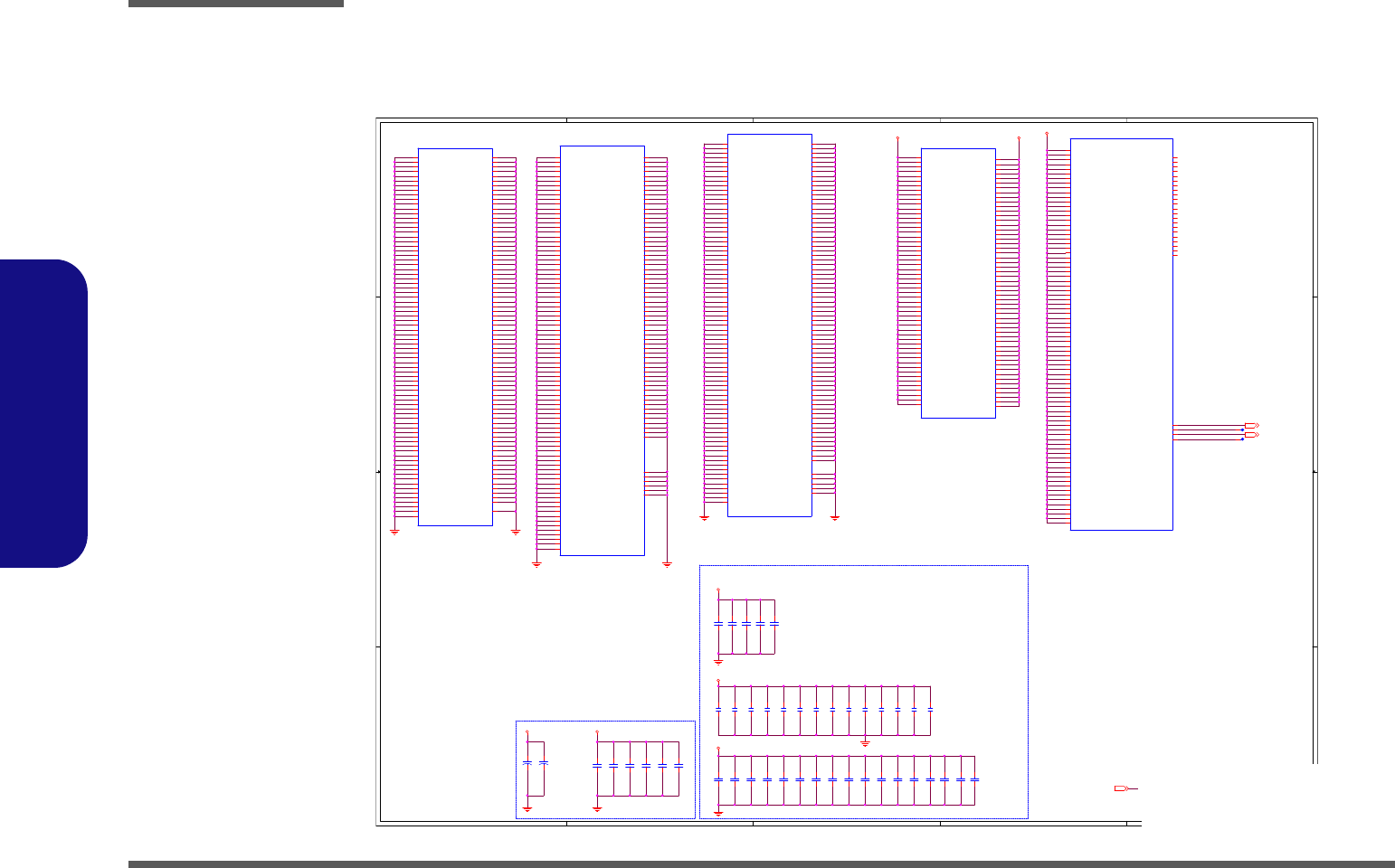

Schematic Diagrams

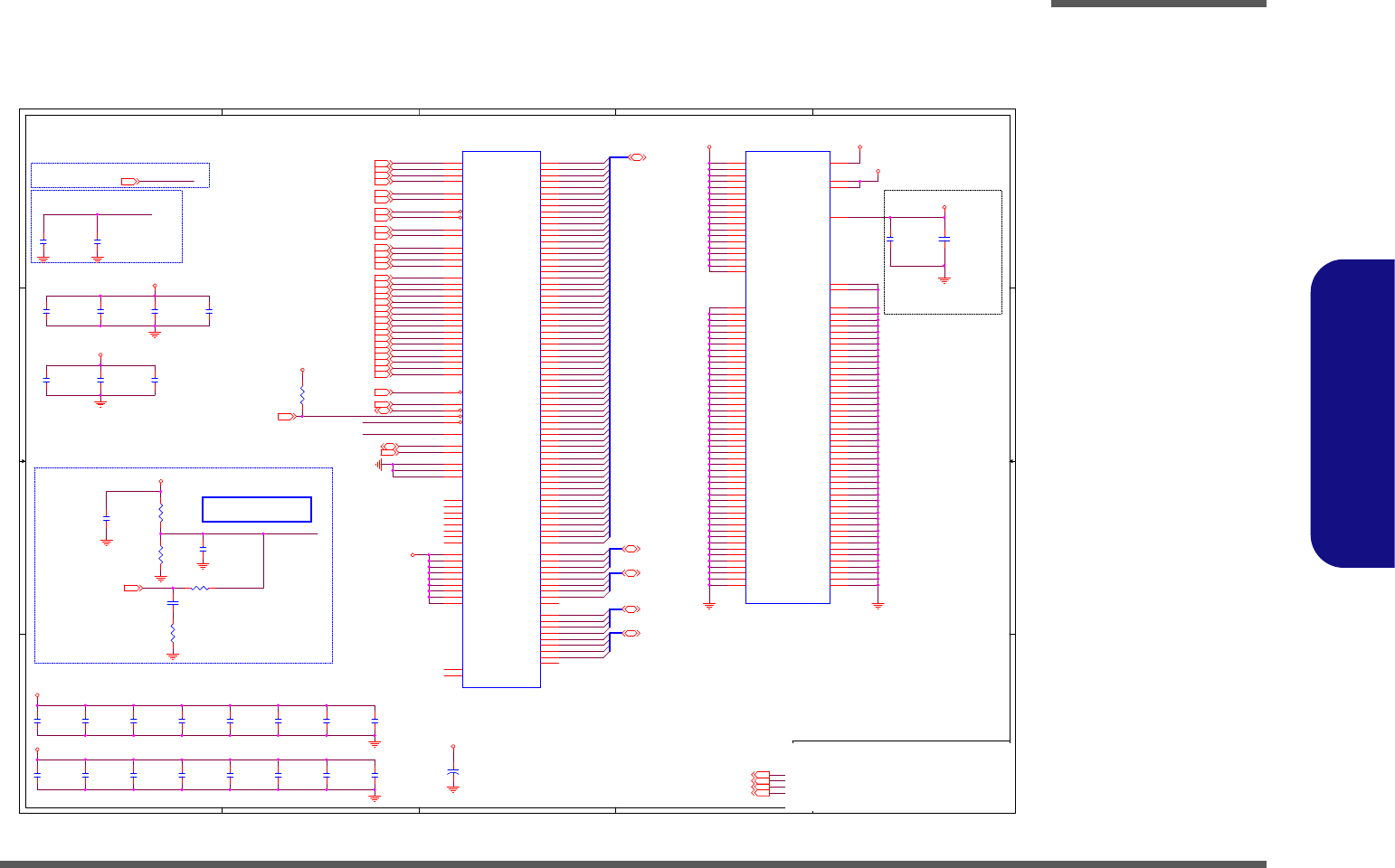

B - 8 Processor 6/6
B.Schematic Diagrams
Processor 6/6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PLACE CAP IN BOARD EDGE
CPU_TOP_VCCGT
PLACE CAP IN BACK SIDE
CPU_BACK_VCCGT
VSSGTX_SENSE
VCCGTX_SENSE
VCCGTVCCGT
VCCGT
VCCGT VCCGT
VCCGT
VCCGT
VCCGT
VSSGT_SENSE [57]
VCCGT_SENSE [57]
VCCGT[58] Title
Size Docum ent Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[07] Processor 6/6-POWER/GND
C
777Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Docum ent Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[07] Processor 6/6-POWER/GND
C
777Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Docum ent Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[07] Processor 6/6-POWER/GND
C
777Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C489
1u_6.3V_X6S_04
C552
10u_4V_X6S_06
C529
*22u_6.3V_X6S_08
C525
1u_6.3V_X6S_04
C499
22u_6.3V_X6S_08
C479
1u_6.3V_X6S_04
C524
1u_6.3V_X6S_04
C487
22u_6.3V_X6S_08
SKYLAKE_HALO
BGA1440
?
U34F
SKL_H_CPU
VSS G9
VSS F36
VSS F23
VSS F11
VSS
Y11
VSS
W34
VSS
V12
VSS
W3
VSS
T34
VSS
T5
VSS
T11
VSS
P12
VSS
R30
VSS
N11
VSS
N1
VSS
N6
VSS
L33
VSS
K10
VSS
K2
VSS J25
VSS J4
VSS H18
VSS G8
VSS F21
VSS F9
VSS F2
VSS D16
VSS E4
VSS D6
VSS C31
VSS D22
VSS D12
VSS E35
VSS F5
VSS F15
VSS J36
VSS
K8
VSS
L29
VSS
M13
VSS
N9
VSS
N4
VSS
N34
VSS
R12
VSS
T3
VSS
T14
VSS
W1
VSS
U38
VSS
W12
VSS
Y37
VSS
Y9
VSS D9
VSS C27
VSS H22
VSS G26
VSS G18
VSS
Y10
VSS
W33
VSS
Y38
VSS
W2
VSS
T4
VSS
T10
VSS
R29
VSS
P6
VSS
N10
VSS
M14
VSS
N5
VSS K1
VSS J22
VSS H35
VSS H12
VSS G23
VSS G14
VSS G6
VSS E38
VSS D33
VSS D14
VSS D3
VSS J7
VSS
L34
VSS
K3
VSS J32
VSS
K11
VSS
N2
VSS
N7
VSS
N12
VSS
T1
VSS
P37
VSS
T7
VSS
U6
VSS
Y7
VSS
W4
VSS
Y13
VSS D20
VSS E34
VSS C29
VSS D10
VSS F4
VSS G4
VSS G10
VSS F13
VSS F25
VSS G20
VSS J10
VSS J33
VSS G28
VSS H25
VSS
K5
VSS
N33
VSS
N8
VSS
M6
VSS
K38
VSS
N3
VSS
U37
VSS
T13
VSS
T2
VSS
P38
VSS
T8
VSS
Y8
VSS
W5
VSS
V30
VSS
Y14
NCTFVSS D38
VSS F17
VSS
K4
VSS
M12
VSS
K7
VSS C37
VSS D24
VSS D26
VSS D30
VSS D28
VSS
V29
VSS
T12
VSS
T33
VSS
V6
VSS F8
VSS F19
VSS F29
VSS
L30
VSS
K9
VSS G24
VSS G16
VSS F31
VSS F27
VSS G5
VSS G12
VSS G22
VSS H11
VSS H32
VSS J18
VSS
T9
VSS F3
VSS E9
VSS D18
C496
1u_6.3V_X6S_04
C536
1u_6.3V_X6S_04
C476
10u_4V_X6S_06
C503
10u_4V_X6S_06
C878
10u_6.3V_X5R_06
C497
*22u_6.3V_X6S_08
C553
10u_4V_X6S_06
C555
10u_4V_X6S_06
C549
*10u_4V_X6S_06
SKYLAKE_HALO
BGA1440
?
U34N
SKL_H_CPU
VCCGT
AU38 VCCGT
AU37 VCCGT
AU36 VCCGT
AU35 VCCGT
AU32 VCCGT
AU31 VCCGT
AU30 VCCGT
AU29 VCCGT
AU14 VCCGT
AT38 VCCGT
AT37 VCCGT
AT36 VCCGT
AT35 VCCGT
AT34 VCCGT
AT33 VCCGT
AT32 VCCGT
AT31 VCCGT
AT14 VCCGT
AR36 VCCGT
AR35 VCCGT
AR34 VCCGT
AR33 VCCGT
AR32 VCCGT
AR31 VCCGT
AR30 VCCGT
AR29 VCCGT
AP38 VCCGT
AP37 VCCGT
AP36 VCCGT
AP35 VCCGT
AP32 VCCGT
AP31 VCCGT
AP30 VCCGT
AP29 VCCGT
AP14 VCCGT
AP13 VCCGT
AN38 VCCGT
AN37 VCCGT
AN36 VCCGT
AN35 VCCGT
AN34 VCCGT
AN33 VCCGT
AN32 VCCGT
AN31 VCCGT
AN14 VCCGT
AN13 VCCGT
AM36 VCCGT
AM35 VCCGT
AM34 VCCGT
AM33 VCCGT
AM32 VCCGT
AM31 VCCGT
AM30 VCCGT
AM29 VCCGT
AM14 VCCGT
AM13 VCCGT
AL38 VCCGT
AL37 VCCGT
AL36 VCCGT
AL35 VCCGT
AL32 VCCGT
AL31 VCCGT
AL30 VCCGT
AL29 VCCGT
AL13 VCCGT
AK38 VCCGT
AK37 VCCGT
AK36 VCCGT
AK35 VCCGT
AK34 VCCGT
AK33 VCCGT
AK32 VCCGT
AK31 VCCGT
AJ36 VCCGT
AJ35 VCCGT
AJ34 VCCGT
AJ33 VCCGT
AJ32 VCCGT
AJ31 VCCGT
AJ30 VCCGT
AJ29
VCCGTX AJ14
VCCGTX AJ13
VCCGT_SENSE AH38
VSSGT_SENSE AH37
VCCGTX_SENSE AH36
VSSGTX_SENSE AH35
VCCGTX AH32
VCCGTX AH31
VCCGTX AH30
VCCGTX AH29
VCCGTX AH14
VCCGTX AH13
VCCGTX AG36
VCCGTX AG35
VCCGTX AG34
VCCGTX AG33
VCCGTX AG32
VCCGTX AG31
VCCGTX AG14
VCCGTX AG13
VCCGTX AF34
VCCGTX AF33
VCCGTX AF32
VCCGTX AF31
VCCGTX AF30
VCCGTX AF29
C550
10u_4V_X6S_06
C535
1u_6.3V_X6S_04
C508
*22u_6.3V_X6S_08
C477
1u_6.3V_X6S_04
C517
1u_6.3V_X6S_04
C478
1u_6.3V_X6S_04
C530
22u_6.3V_X6S_08
C540
1u_6.3V_X6S_04
C481
*1u_6.3V_X6S_04
C482
1u_6.3V_X6S_04
C506
1u_6.3V_X6S_04
C486
10u_4V_X6S_06
C554
22u_6.3V_X6S_08
SKYLAKE_HALO
BGA1440
?
U34L
SKL_H_CPU
VSS C25
VSS C23
VSS C21
VSS C19
VSS
C17
VSS C15
VSS
C13
VSS C11
VSS
C9
VSS C8
VSS C5
NCTFVSS C2
NCTFVSS BT36
NCTFVSS BT35
VSS
BT32
VSS
BT26
VSS
BT24
VSS
BT21
VSS
BT18
VSS
BT14
VSS
BT12
VSS
BT9
VSS
BT5
NCTFVSS BT4
NCTFVSS BT3
NCTFVSS BR38
VSS
BR36
VSS
BR34
VSS
BR29
VSS
BR26
VSS
BR24
VSS
BR21
VSS
BR18
VSS
BR14
VSS
BR12
VSS
BR7
VSS
BP34
VSS
BP33
VSS
BP29
VSS
BP26
VSS
BP24
VSS
BP21
VSS
BP18
VSS
BP14
VSS
BP12
VSS
BP7
VSS
BN34
VSS
BN31
VSS
BN30
VSS
BN29
VSS
BN24
VSS
BN21
VSS
BN20
VSS
BN19
VSS
BN18
VSS
BN14
VSS
BN12
VSS
BN9
VSS
BN7
VSS
BN4
VSS
BN2
VSS
BM38
VSS
BM35
VSS BM29
VSS
BM28
VSS
BM27
VSS
BM26
VSS BM25
VSS
BM23
VSS
BM21
VSS BM18
VSS
BM13
VSS
BM12
VSS BM11
VSS
BM9
VSS BM8
VSS BM7
VSS
BM6
VSS BM5
VSS BM3
VSS
BM2
VSS BL38
VSS BL35
VSS
BL29
VSS BL13
VSS BL6
VSS
BK29
VSS BK25
VSS BK22
VSS
BK15
VSS
BK14
VSS BK13
VSS BK6
VSS
BJ32
VSS
BJ31
VSS BJ30
VSS BJ29
VSS
BJ25
VSS
BJ22
VSS BJ15
VSS BJ12
VSS
BH14
VSS
BH12
VSS BH11
VSS BH10
VSS
BH9
VSS
BH8
VSS BH7
VSS BH6
VSS
BH5
VSS
BH4
VSS BH3
VSS BH2
VSS
BH1
VSS
BG38
VSS BG37
VSS BG14
VSS
BG13
VSS
BG12
VSS BG6
VSS BF34
VSS
BF33
VSS
BF12
VSS BF6
VSS BE30
VSS
BE29
VSS
BE6
VSS BE5
VSS BE4
VSS BE3
VSS BE2
VSS BE1
VSS BD38
VSS BD37
VSS BD12
VSS BD11
VSS BD10
VSS
BD9
VSS BD8
VSS BD7
VSS BD6
VSS
BC34
VSS BC33
VSS BC14
VSS BC13
VSS
BC12
VSS BC6
VSS BB30
VSS BB29
VSS
BB12
VSS BB6
VSS BB5
C475
10u_4V_X6S_06
C551
10u_4V_X6S_06
C509
*22u_6.3V_X6S_08
C528
*22u_6.3V_X6S_08
BGA1440
SKYLAKE_HALO
?
U34H
SKL_H_CPU
VCCGT BB37
VCCGT BB35
VCCGT BB34
VCCGT BB32
VCCGT BA31
VCCGT BA30
VCCGT BA29
VCCGT BA14
VCCGT AV30
VCCGT AV29
VCCGT AV31
VCCGT AV32
VCCGT AV33
VCCGT AV35
VCCGT AV34
VCCGT AV36
VCCGT AW14
VCCGT AW31
VCCGT AW33
VCCGT AW32
VCCGT AW34
VCCGT AW35
VCCGT AW36
VCCGT AW37
VCCGT AW38
VCCGT AY38
VCCGT BA13
VCCGT BA33
VCCGT BA35
VCCGT BA36
VCCGT BB13
VCCGT BB31
VCCGT BB14
VCCGT BB33
VCCGT BB36
VCCGT BC29
VCCGT BB38
VCCGT BC30
VCCGT BC31
VCCGT BC32
VCCGT BC35
VCCGT
BC36
VCCGT
BC37
VCCGT
BC38
VCCGT
BD13
VCCGT
BD29 VCCGT
BD14
VCCGT
BD30
VCCGT
BD31
VCCGT
BD32
VCCGT
BD33
VCCGT
BD34
VCCGT
BD35
VCCGT
BE31 VCCGT
BD36
VCCGT
BE32
VCCGT BE33
VCCGT BE34
VCCGT BE36
VCCGT BE35
VCCGT AY29
VCCGT AY30
VCCGT AY31
VCCGT AY35
VCCGT BA34
VCCGT
BG35 VCCGT
BG34
VCCGT
BG36
VCCGT
BH33
VCCGT
BH34
VCCGT
BH36 VCCGT
BH35
VCCGT
BH38 VCCGT
BH37
VCCGT
BJ37
VCCGT
BL36 VCCGT
BJ38
VCCGT
BM36 VCCGT
BL37
VCCGT
BM37
VCCGT
BN37 VCCGT
BN36
VCCGT
BP37
VCCGT
BT37
VCCGT
BE38
VCCGT
BF14 VCCGT
BF13
VCCGT
BF29
VCCGT
BF30
VCCGT
BF31
VCCGT
BF35 VCCGT
BF32
VCCGT
BF36
VCCGT
BG32 VCCGT
BG31
VCCGT
BG33
VCCGT
BG29
VCCGT
BG30
VCCGT BA32
VCCGT
BN38
VCCGT
BP38
VCCGT
BR37
VCCGT AY32
VCCGT AY36
VCCGT AY37
VCCGT
BF38 VCCGT
BF37
VCCGT
BE37
+
C578
*220u_2V_SMD-V
C483
1u_6.3V_X6S_04
C510
22u_6.3V_X6S_08
C515
1u_6.3V_X6S_04
C480
*1u_6.3V_X6S_04
C498
*22u_6.3V_X6S_08
C547
1u_6.3V_X6S_04
C877
10u_6.3V_X5R_06
SKYLAKE_HALO
BGA1440
?
U34M
SKL_H_CPU
VSS
BB4
VSS
BB3
VSS
BB2
VSS
BB1
VSS
BA38
VSS
BA37
VSS
BA12
VSS
BA11
VSS
BA10
VSS
BA9
VSS
BA8
VSS
BA7
VSS
BA6
NCTFVSS B37
VSS
B9
NCTFVSS B3
VSS
AY34
VSS
AY33
VSS
AY14
VSS
AY12
VSS
AW30
VSS
AW29
VSS
AW12
VSS
AW5
VSS
AW4
VSS
AW3
VSS
AW2
VSS
AW1
VSS
AV38
VSS
AV37
VSS
AU34
VSS
AU33
VSS
AU12
VSS
AU11
VSS
AU10
VSS
AU9
VSS
AU8
VSS
AU7
VSS
AU6
VSS
AT30
VSS
AT29
VSS
AT6
VSS
AR38
VSS
AR37
VSS
AR14
VSS
AR13
VSS
AR5
VSS
AR4
VSS
AR3
VSS
AR2
VSS
AR1
VSS
AP34
VSS
AP33
VSS
AP12
VSS
AP11
VSS
AP10
VSS
AP9
VSS
AP8
VSS
AN30
VSS
AN29
VSS
AN12
VSS
AN6
VSS
AN5
VSS
AM38
VSS
AM37
VSS
AM12
VSS
AM5
VSS
AM4
VSS
AM3
VSS
AM2
VSS
AM1
VSS
AL34
VSS
AL33
VSS
AL14
VSS
AL12
VSS
AL10
VSS
AL9
VSS
AL8
VSS
AL7
VSS
AL4
VSS AK30
VSS AK29
VSS AK4
VSS AJ38
VSS AJ37
VSS AJ6
VSS AJ5
VSS AJ4
VSS AJ3
VSS AJ2
VSS AJ1
VSS AH34
VSS AH33
VSS AH12
VSS AH6
VSS AG30
VSS AG29
VSS AG11
VSS AG10
VSS AG8
VSS AG7
VSS AG6
VSS AF14
VSS AF13
VSS AF12
VSS AF4
VSS AF3
VSS AF2
VSS AF1
VSS AE34
VSS AE33
VSS AE6
VSS AD30
VSS AD29
VSS AD12
VSS AD11
VSS AD10
VSS AD9
VSS AD8
VSS AD7
VSS AD6
VSS AC38
VSS AC37
VSS AC12
VSS AC6
VSS AC5
VSS AC4
VSS AC3
VSS AC2
VSS AC1
VSS AB34
VSS AB33
VSS AB6
VSS AA30
VSS AA29
VSS AA12
NCTFVSS A34
VSS A30
VSS A28
VSS A26
VSS A24
VSS A22
VSS A20
VSS A18
VSS A16
VSS A14
VSS A12
VSS A10
VSS A9
VSS A6
NCTFVSS A4
NCTFVSS A3
+
C579
*220u_2V_SMD-V
C514
1u_6.3V_X6S_04
Sheet 7 of 77
Processor 6/6
![](asset-41.png)
Schematic Diagrams
DDR4 CHA SO-DIMM_0 B - 9
B.Schematic Diagrams
DDR4 CHA SO-DIMM_0
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Channel A SO-DIMM 0[RAM1]
RVS TYPE
CHA_DIMM0=000
CHA_DIMM1=001
CHB_DIMM0=010
CHB_DIMM1=011
PLACE THE CAP WITHIN 200 MILS FROM THE SODIMM
PLACE THE CAP CLOSE TO SODIMM
PLACE NEAR TO PIN
月
月月
月
DIMM
䪗
䪗䪗
䪗㒢
㒢㒢
㒢㓦
㓦㓦
㓦
000
H=8mm
DDR4_DRAMRST#
DDR_VREFCA_CHA_DIMM
DDR4_DRAMRST#
M_A_DQS#3
M_A_DQS#2
M_A_DQS#1
M_A_DQS#0
M_A_DQS#7
M_A_DQS#6
M_A_DQS#4
M_A_DQS#5
M_A_DQS7
M_A_DQS6
M_A_DQS5
M_A_DQS4
M_A_DQS3
M_A_DQS2
M_A_DQS1
M_A_DQS0
M_A_DQ12
M_A_DQ36
M_A_DQ28
M_A_DQ51
M_A_DQ14
M_A_DQ33
M_A_DQ30
M_A_DQ50
M_A_DQ11
M_A_DQ38
M_A_DQ31
M_A_DQ48
M_A_DQ9
M_A_DQ35
M_A_DQ24
M_A_DQ53
M_A_DQ13
M_A_DQ41
M_A_DQ29
M_A_DQ54
M_A_DQ10
M_A_DQ45
M_A_DQ27
M_A_DQ15
M_A_DQ61
M_A_DQ0
M_A_DQ46
M_A_DQ26
M_A_DQ17
M_A_DQ60
M_A_DQ42
M_A_DQ32
M_A_DQ20
M_A_DQ58
M_A_DQ5
M_A_DQ2
M_A_DQ44
M_A_DQ23
M_A_DQ63
M_A_DQ3
M_A_DQ40
M_A_DQ18
M_A_DQ56
M_A_DQ1
M_A_DQ43
M_A_DQ16
M_A_DQ57
M_A_DQ4
M_A_DQ47
M_A_DQ21
M_A_DQ6
M_A_DQ62
M_A_DQ37
M_A_DQ49
M_A_DQ19
M_A_DQ7
M_A_DQ59
M_A_DQ39
M_A_DQ52
M_A_DQ22
M_A_DQ8
M_A_DQ34
M_A_DQ55
M_A_DQ25
DDR_VREFCA_CHA_DIMM
DDR_VREFCA_CHA_DIMM
2.5V
VTT_MEM
VDDQ
VDDQ
VTT_MEM
2.5V
3.3VS
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
M_A_ODT1[4]
M_A_ODT0[4]
3.3VS[3,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
VDDQ[6,9,32,51,55]
VTT_MEM[9,55]
M_A_A1[4]
M_A_A0[4]
M_A_A2[4]
M_A_A3[4]
M_A_A5[4]
M_A_A4[4]
M_A_A6[4]
M_A_A7[4]
M_A_A9[4]
M_A_A8[4]
M_A_A10[4]
M_A_A11[4]
M_A_A13[4]
M_A_A12[4]
M_A_RAS#[4]
M_A_CAS#[4]
M_A_WE#[4]
M_A_CKE0[4]
M_A_CKE1[4]
M_A_BG1[4]
M_A_BG0[4]
M_A_BA0[4]
M_A_BA1[4]
M_A_CLK_DDR1[4]
M_A_CLK_DDR#1[4]
M_A_CLK_DDR0[4]
M_A_CLK_DDR#0[4]
DDR0_A_PARITY[4]
SMB_DATA_R[3,9,32,44]
DDR0_A_ALERT#[4]
M_A_ACT#[4]
SMB_CLK_R[3,9,32,44]
DIMM0_CHA_EVENT#[31]
DDR4_DRAMRST#[9,32]
DIMM_CA_CPU_VREF_A[4]
2.5V[9,51]
M_A_CS#1[4]
M_A_CS#0[4]
M_A_DQS#[3:0] [4]
M_A_DQS#[7:4] [4]
M_A_DQS[7:4] [4]
M_A_DQS[3:0] [4]
M_A_DQ[63:0] [4]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[08] DDR4 CHA SO-DIMM_0
A3
877Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[08] DDR4 CHA SO-DIMM_0
A3
877Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[08] DDR4 CHA SO-DIMM_0
A3
877Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C353
0.1u_10V_X7R_04
C495
*10u_6.3V_X5R_04
+
C1107
*330U_2V_D2_D
C534
10u_6.3V_X5R_06
C356
1u_6.3V_X5R_04
C432
0.022u_16V_X7R_04
C563
10u_6.3V_X5R_06
R213
1K_1%_04
J_DIMM1A
D4AR0-26001-1P40
CK0_T
137
CK0_C
139
CK1_T
138
CK1_C
140
CKE0
109
CKE1
110
S0*
149
S1*
157
ODT0
155
ODT1
161
BG0
115
BG1
113
BA0
150
BA1
145
A0
144
A1
133
A2
132
A3
131
A4
128
A5
126
A6
127
A7
122
A8
125
A9
121
A10_AP
146
A11
120
A12
119
A13
158
A14_WE*
151
A15_CAS*
156
A16_RAS*
152
ACT*
114
PARITY
143
ALERT*
116
EVENT*
134
RESET*
108
VREFCA
164
SDA
254
SCL
253
SA2
166
SA1
260
SA0
256
CB0_NC
92
CB1_NC
91
CB2_NC
101
CB3_NC
105
CB4_NC
88
CB5_NC
87
CB6_NC
100
CB7_NC
104
DM0*/DBI0*
12
DM1*/DBI1*
33
DM2*/DBI2*
54
DM3*/DBI3*
75
DM4*/DBI4*
178
DM5*/DBI5*
199
DM6*/DBI6*
220
DM7*/DBI7*
241
DM8*/DBI8*
96
S2*/C0
162
S3*/C1
165
DQ0 8
DQ1 7
DQ2 20
DQ3 21
DQ4 4
DQ5 3
DQ6 16
DQ7 17
DQ8 28
DQ9 29
DQ10 41
DQ11 42
DQ12 24
DQ13 25
DQ14 38
DQ15 37
DQ16 50
DQ17 49
DQ18 62
DQ19 63
DQ20 46
DQ21 45
DQ22 58
DQ23 59
DQ24 70
DQ25 71
DQ26 83
DQ27 84
DQ28 66
DQ29 67
DQ30 79
DQ31 80
DQ32 174
DQ33 173
DQ34 187
DQ35 186
DQ36 170
DQ37 169
DQ38 183
DQ39 182
DQ40 195
DQ41 194
DQ42 207
DQ43 208
DQ44 191
DQ45 190
DQ46 203
DQ47 204
DQ48 216
DQ49 215
DQ50 228
DQ51 229
DQ52 211
DQ53 212
DQ54 224
DQ55 225
DQ56 237
DQ57 236
DQ58 249
DQ59 250
DQ60 232
DQ61 233
DQ62 245
DQ63 246
DQS0_T 13
DQS1_T 34
DQS2_T 55
DQS3_T 76
DQS4_T 179
DQS5_T 200
DQS6_T 221
DQS7_T 242
DQS8_T 97
DQS0_C 11
DQS1_C 32
DQS2_C 53
DQS3_C 74
DQS4_C 177
DQS5_C 198
DQS6_C 219
DQS7_C 240
DQS8_C 95
C527
10u_6.3V_X5R_04
C601
*10u_6.3V_X5R_04
C363
*10u_6.3V_X5R_06
C431
0.1u_10V_X7R_04
C468
10u_6.3V_X5R_06
C488
10u_6.3V_X5R_06
C609
*10u_6.3V_X5R_04
C504
10u_6.3V_X5R_06
C368
*10u_6.3V_X5R_06
C354
*1u_6.3V_X5R_04
C832
10u_6.3V_X5R_06
C355
1u_6.3V_X5R_04
C576
*10u_6.3V_X5R_04
C448
10u_6.3V_X5R_04
C361
10u_6.3V_X5R_06
R240
*240_1%_04
R217 1.8_1%_04
R212
24.9_1%_04
C394
*10u_6.3V_X5R_04
C429
0.1u_10V_X7R_04
R203
1K_1%_04
C434
10u_6.3V_X5R_06
C357
2.2u_6.3V_X5R_04
C591
*10u_6.3V_X5R_04
C364
10u_6.3V_X5R_06
J_DIMM1B
D4AR0-26001-1P40
VDD19
163
VDD18
160
VDD17
159
VDD16
154
VDD15
153
VDD14
148
VDD13
147
VDD12
142
VDD11
141
VDD10
136
VDD9
135
VDD8
130
VDD7
129
VDD6
124
VDD5
123
VDD4
118
VDD3
117
VDD2
112
VDD1
111
VSS
251
VSS
247
VSS
243
VSS
239
VSS
235
VSS
231
VSS
227
VSS
223
VSS
217
VSS
213
VSS
209
VSS
205
VSS
201
VSS
197
VSS
193
VSS
189
VSS
185
VSS
181
VSS
175
VSS
171
VSS
167
VSS
107
VSS
103
VSS
99
VSS
93
VSS
89
VSS
85
VSS
81
VSS
77
VSS
73
VSS
69
VSS
65
VSS
61
VSS
57
VSS
51
VSS
47
VSS
43
VSS
39
VSS
35
VSS
31
VSS
27
VSS
23
VSS
19
VSS
15
VSS
9
VSS
5
VSS
1
VTT 258
VPP2 259
VPP1 257
VDDSPD 255
MT1 GND1
MT2 GND2
VSS 252
VSS 248
VSS 244
VSS 238
VSS 234
VSS 230
VSS 226
VSS 222
VSS 218
VSS 214
VSS 210
VSS 206
VSS 202
VSS 196
VSS 192
VSS 188
VSS 184
VSS 180
VSS 176
VSS 172
VSS 168
VSS 106
VSS 102
VSS 98
VSS 94
VSS 90
VSS 86
VSS 82
VSS 78
VSS 72
VSS 68
VSS 64
VSS 60
VSS 56
VSS 52
VSS 48
VSS 44
VSS 40
VSS 36
VSS 30
VSS 26
VSS 22
VSS 18
VSS 14
VSS 10
VSS 6
VSS 2
C425
*2.2u_6.3V_X5R_04
C566
10u_6.3V_X5R_06
C580
*10u_6.3V_X5R_06
Sheet 8 of 77
DDR4 CHA SO-
DIMM_0

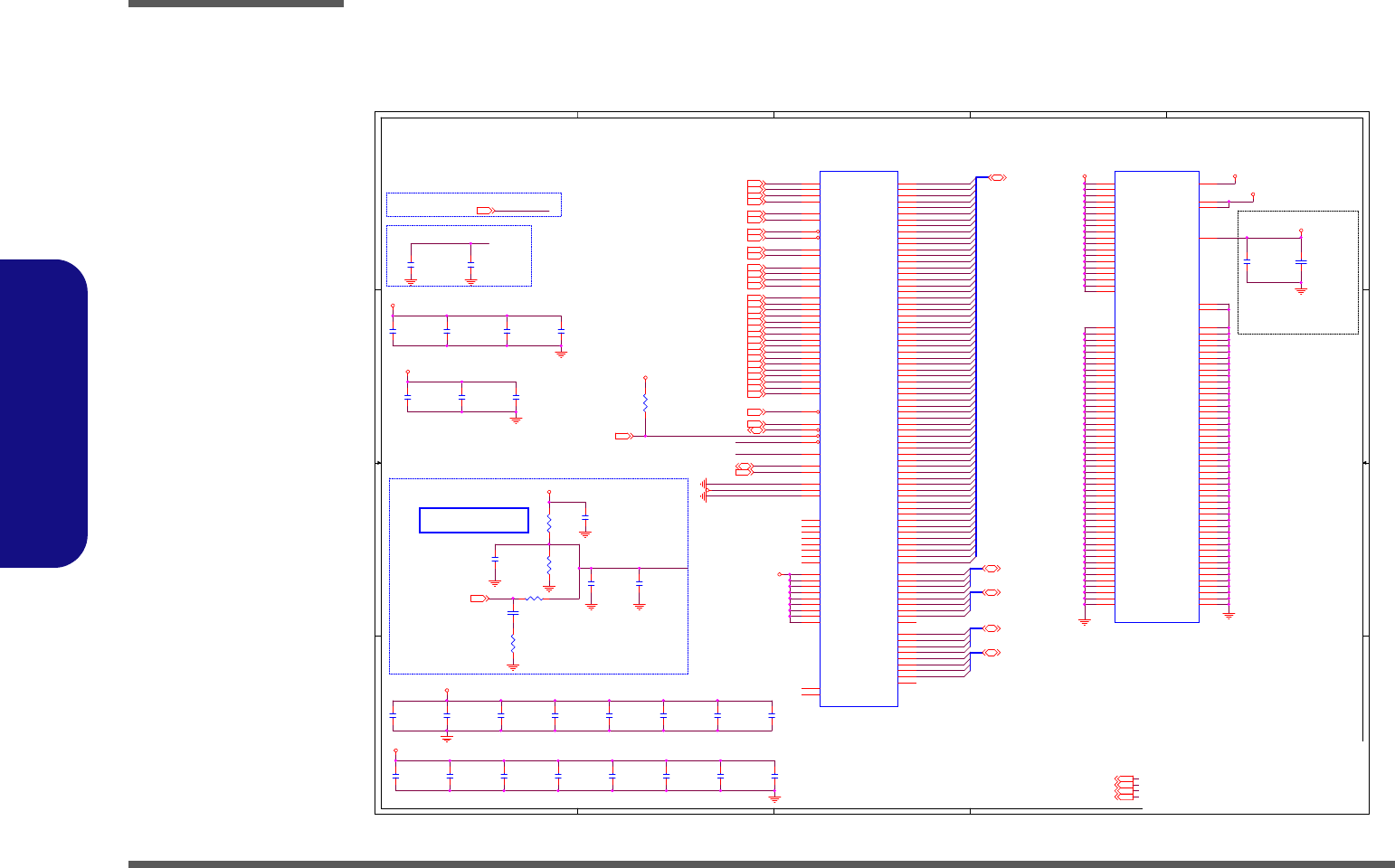

![](asset-42.png)
Schematic Diagrams
B - 10 DDR4 CHB SO-DIMM_0
B.Schematic Diagrams
DDR4 CHB SO-DIMM_0
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Channel B SO-DIMM 0[RAM2]
6-86-24260-000
月
月月
月
DIMM
䪗
䪗䪗
䪗㒢
㒢㒢
㒢㓦
㓦㓦
㓦
RSV TYPE
PLACE THE CAP WITHIN 200 MILS FROM THE SODIMM
PLACE THE CAP CLOSE TO SODIMM
PLACE NEAR TO PIN
010
CHA_DIMM0=000
CHA_DIMM1=001
CHB_DIMM0=010
CHB_DIMM1=011
H=4mm
DIMM0_CHB_EVENT#
DDR_VREFCA_CHB_DIMM
M_B_DQ5
M_B_DQ7
M_B_DQ3
M_B_DQ4
M_B_DQ27
M_B_DQ30
M_B_DQ26
M_B_DQ39
M_B_DQ35
M_B_DQ32
M_B_DQ37
M_B_DQ34
M_B_DQ38
M_B_DQ36
M_B_DQ41
M_B_DQ45
M_B_DQ46
M_B_DQ43
M_B_DQ40
M_B_DQ44
M_B_DQ42
M_B_DQ47
M_B_DQ33
M_B_DQ48
M_B_DQ49
M_B_DQ28
M_B_DQ51
M_B_DQ52
M_B_DQ54
M_B_DQ53
M_B_DQ50
M_B_DQ55
M_B_DQ2
M_B_DQ1
M_B_DQ61
M_B_DQ62
M_B_DQ60
M_B_DQ59
M_B_DQ57
M_B_DQ56
M_B_DQ63
M_B_DQ58
M_B_DQ6
M_B_DQ9
M_B_DQ14
M_B_DQ15
M_B_DQ8
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ16
M_B_DQ18
M_B_DQ21
M_B_DQ19
M_B_DQ13
M_B_DQ22
M_B_DQ23
M_B_DQ0
M_B_DQ20
M_B_DQ25
M_B_DQ31
M_B_DQ24
M_B_DQ29
M_B_DQ17
DDR4_DRAMRST#
DDR4_DRAMRST#
DDR_VREFCA_CHB_DIMM
M_B_DQS#3
M_B_DQS#2
M_B_DQS#1
M_B_DQS#0
M_B_DQS#7
M_B_DQS#6
M_B_DQS#4
M_B_DQS#5
M_B_DQS7
M_B_DQS6
M_B_DQS5
M_B_DQS4
M_B_DQS3
M_B_DQS2
M_B_DQS1
M_B_DQS0
DDR_VREFCA_CHB_DIMM
VTT_MEM
VDDQ
VDDQ
VDDQ
VDDQ VTT_MEM
2.5V
3.3VS
3.3VS
2.5V
VDDQ
VDDQ
DIMM_DQ_CPU_VREF_B[4]
M_B_ODT0[4]
M_B_ODT1[4]
M_B_CS#0[4]
M_B_CS#1[4]
M_B_CKE0[4]
M_B_CKE1[4]
M_B_CLK_DDR1[4]
M_B_CLK_DDR#1[4]
M_B_CLK_DDR0[4]
M_B_CLK_DDR#0[4]
M_B_RAS#[4]
M_B_CAS#[4]
M_B_WE#[4]
M_B_BG1[4]
M_B_BG0[4]
M_B_BA0[4]
M_B_BA1[4]
M_B_A1[4]
M_B_A0[4]
M_B_A2[4]
M_B_A3[4]
M_B_A5[4]
M_B_A4[4]
M_B_A6[4]
M_B_A7[4]
M_B_A9[4]
M_B_A8[4]
M_B_A10[4]
M_B_A11[4]
M_B_A13[4]
M_B_A12[4]
DDR1_B_PARITY[4]
M_B_ACT#[4]
DDR1_B_ALERT#[4]
DIMM0_CHB_EVENT#[31]
DDR4_DRAMRST#[8,32]
SMB_DATA_R[3,8,32,44]
SMB_CLK_R[3,8,32,44]
M_B_DQ[63:0] [4]
M_B_DQS#[3:0] [4]
M_B_DQS#[7:4] [4]
M_B_DQS[7:4] [4]
M_B_DQS[3:0] [4]
3.3VS[3,8,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
VDDQ[6,8,32,51,55]
VTT_MEM[8,55]
2.5V[8,51]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[09] DDR4 CHB SO-DIMM_0
A3
977Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[09] DDR4 CHB SO-DIMM_0
A3
977Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[09] DDR4 CHB SO-DIMM_0
A3
977Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C370
*1u_6.3V_X5R_04
C366
*10u_6.3V_X5R_06
C360
1u_6.3V_X5R_04
J_DIMM2A
D4AR0-26001-1P80
PCB Footprint = ddr4_260p_rvs_h40_d4arx
CK0_T
137
CK0_C
139
CK1_T
138
CK1_C
140
CKE0
109
CKE1
110
S0*
149
S1*
157
ODT0
155
ODT1
161
BG0
115
BG1
113
BA0
150
BA1
145
A0
144
A1
133
A2
132
A3
131
A4
128
A5
126
A6
127
A7
122
A8
125
A9
121
A10_AP
146
A11
120
A12
119
A13
158
A14_WE*
151
A15_CAS*
156
A16_RAS*
152
ACT*
114
PARITY
143
ALERT*
116
EVENT*
134
RESET*
108
VREFCA
164
SDA
254
SCL
253
SA2
166
SA1
260
SA0
256
CB0_NC
92
CB1_NC
91
CB2_NC
101
CB3_NC
105
CB4_NC
88
CB5_NC
87
CB6_NC
100
CB7_NC
104
DM0*/DBI0*
12
DM1*/DBI1*
33
DM2*/DBI2*
54
DM3*/DBI3*
75
DM4*/DBI4*
178
DM5*/DBI5*
199
DM6*/DBI6*
220
DM7*/DBI7*
241
DM8*/DBI8*
96
S2*/C0
162
S3*/C1
165
DQ0 8
DQ1 7
DQ2 20
DQ3 21
DQ4 4
DQ5 3
DQ6 16
DQ7 17
DQ8 28
DQ9 29
DQ10 41
DQ11 42
DQ12 24
DQ13 25
DQ14 38
DQ15 37
DQ16 50
DQ17 49
DQ18 62
DQ19 63
DQ20 46
DQ21 45
DQ22 58
DQ23 59
DQ24 70
DQ25 71
DQ26 83
DQ27 84
DQ28 66
DQ29 67
DQ30 79
DQ31 80
DQ32 174
DQ33 173
DQ34 187
DQ35 186
DQ36 170
DQ37 169
DQ38 183
DQ39 182
DQ40 195
DQ41 194
DQ42 207
DQ43 208
DQ44 191
DQ45 190
DQ46 203
DQ47 204
DQ48 216
DQ49 215
DQ50 228
DQ51 229
DQ52 211
DQ53 212
DQ54 224
DQ55 225
DQ56 237
DQ57 236
DQ58 249
DQ59 250
DQ60 232
DQ61 233
DQ62 245
DQ63 246
DQS0_T 13
DQS1_T 34
DQS2_T 55
DQS3_T 76
DQS4_T 179
DQS5_T 200
DQS6_T 221
DQS7_T 242
DQS8_T 97
DQS0_C 11
DQS1_C 32
DQS2_C 53
DQS3_C 74
DQS4_C 177
DQS5_C 198
DQS6_C 219
DQS7_C 240
DQS8_C 95
C852
1u_6.3V_X5R_04
C417
10u_6.3V_X5R_06
C556
1u_6.3V_X5R_04
C539
10u_6.3V_X5R_06
R551 1.8_1%_04
C843
0.1u_10V_X7R_04
C371
1u_6.3V_X5R_04
C956
*10u_6.3V_X5R_06
C860
1u_6.3V_X5R_04
C359
2.2u_6.3V_X5R_04
C590
1u_6.3V_X5R_04
J_DIMM2B
D4AR0-26001-1P80
PCB Footprint = ddr4_260p_rvs_h40_d4arx
VDD19
163
VDD18
160
VDD17
159
VDD16
154
VDD15
153
VDD14
148
VDD13
147
VDD12
142
VDD11
141
VDD10
136
VDD9
135
VDD8
130
VDD7
129
VDD6
124
VDD5
123
VDD4
118
VDD3
117
VDD2
112
VDD1
111
VSS
251
VSS
247
VSS
243
VSS
239
VSS
235
VSS
231
VSS
227
VSS
223
VSS
217
VSS
213
VSS
209
VSS
205
VSS
201
VSS
197
VSS
193
VSS
189
VSS
185
VSS
181
VSS
175
VSS
171
VSS
167
VSS
107
VSS
103
VSS
99
VSS
93
VSS
89
VSS
85
VSS
81
VSS
77
VSS
73
VSS
69
VSS
65
VSS
61
VSS
57
VSS
51
VSS
47
VSS
43
VSS
39
VSS
35
VSS
31
VSS
27
VSS
23
VSS
19
VSS
15
VSS
9
VSS
5
VSS
1
VTT 258
VPP2 259
VPP1 257
VDDSPD 255
MT1 GND1
MT2 GND2
VSS 252
VSS 248
VSS 244
VSS 238
VSS 234
VSS 230
VSS 226
VSS 222
VSS 218
VSS 214
VSS 210
VSS 206
VSS 202
VSS 196
VSS 192
VSS 188
VSS 184
VSS 180
VSS 176
VSS 172
VSS 168
VSS 106
VSS 102
VSS 98
VSS 94
VSS 90
VSS 86
VSS 82
VSS 78
VSS 72
VSS 68
VSS 64
VSS 60
VSS 56
VSS 52
VSS 48
VSS 44
VSS 40
VSS 36
VSS 30
VSS 26
VSS 22
VSS 18
VSS 14
VSS 10
VSS 6
VSS 2
C562
1u_6.3V_X5R_04
C839
0.1u_10V_X7R_04
C837
0.1u_10V_X7R_04
C365
10u_6.3V_X5R_06
C834
0.1u_10V_X7R_04
C910
1u_6.3V_X5R_04
R550
24.9_1%_04
R241
*240_1%_04
C851
10u_6.3V_X5R_06
C430
1u_6.3V_X5R_04
C830
10u_6.3V_X5R_06
C971
1u_6.3V_X5R_04
C847
0.022u_16V_X7R_04
C826
10u_6.3V_X5R_06
C521
10u_6.3V_X5R_06
R536
1K_1%_04
C419
10u_6.3V_X5R_06
C362
10u_6.3V_X5R_06
C369
*10u_6.3V_X5R_06
C358
0.1u_10V_X7R_04
R549
1K_1%_04
C842
*2.2u_6.3V_X5R_04
C911
10u_6.3V_X5R_06
Sheet 9 of 77
DDR4 CHB SO-
DIMM_0
![](asset-43.png)

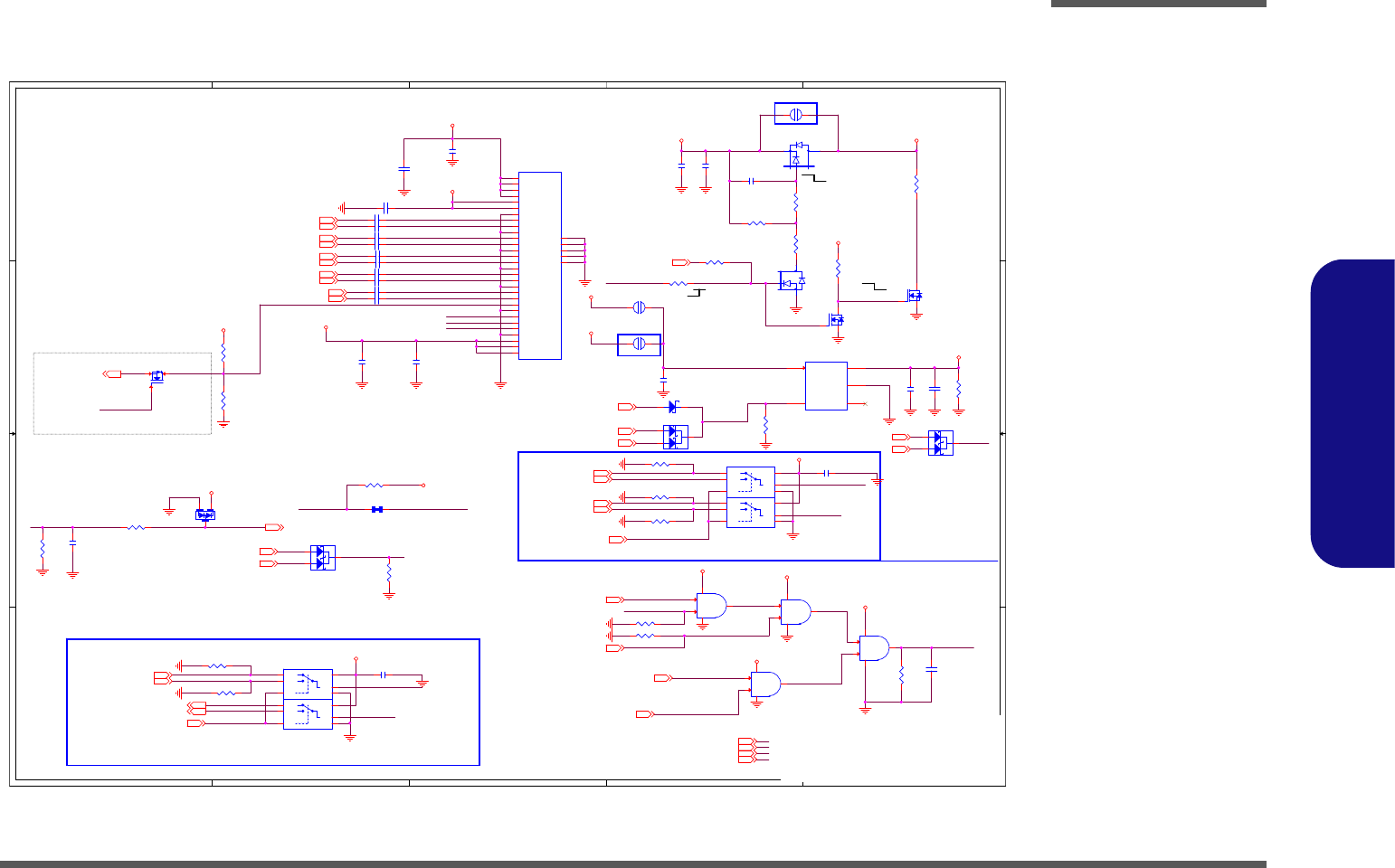

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
>80 mil
2A
PANEL POWER
PANEL CONNECTOR (For coaxial cable) PANEL POWER
DEFAULT SHORT
DEFAULT SHORT
DEL LVDS SIGNAL
L :PORT1 (INTEL) (DEFAULT)
H: PORT2 (NV)
śɥ
śɨ
ἧ䓐
eDP
㗪
,BRIGHTNESS
䚜㍍
㍍⇘
EDP CONNECTOR
śɥ
śɨ
L :PORT1 (INTEL) (DEFAULT)
H: PORT2 (nVidia)
枸䔁
枸䔁
1A
2A
2A
1/28 NV CHECK , connect to J_LCD1_Pin1
NV recommend
NV recommend
暨䡢娵
GS
䁢
3.3V
㬌悐↮䚖⇵㗗⃰㍸ὃ
PANEL
䴎
NV
G sync,
㓭䚖⇵䠔橼䶂嶗㗗ᶵ䓐
D02_03010_
ℙ䓐䶂嶗
NVSR
䘬
PANEL
⮶ℍ 暨婳
BIOS
䘤
ECN
⡆≈
NVSR
䘬
ID
EDP_HPD
PANEL_VCC_EN_R
LVDD_EN#
PANEL_VCC_EN
PANEL_PWMBRIGHTNESS_R
SB_BLON
LID_SW#1
HPD_L
BLON1
BLON2
INV_BLON
BLON_R
PANEL_VCC_EN
BLON_R
PANEL_PWM
PANEL_PWM
EDP_HPD
PANEL_VCC_EN
BLON_R
GPIO11_PPEN
DRX0#
DRX0
DRX1
DRX1#
DRX2#
DRX2
DRX3#
DRX3
BRIGHTNESS_R
INV_BLON
HPD_L
DAUX
DAUX#
GPIO11_PPEN
FRAME_LOCK#_R
PLVDD
3.3VS
5VS
3.3VS
PLVDD
3.3V
VIN VLED
3.3V
3.3V
3.3V
3.3V
3.3VS
3.3VS
3.3VS
VLED
PLVDD
PLVDD
3.3V[2,27,38,43,45,48,50,51,52,55,56]
5VS[11,12,13,36,39,40,41,47,48,49,50,61,62,63,64]
VIN[35,39,50,53,54,55,56,57,58,59,60]
3.3VS[3,8,9,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
EDP_HPD [3]
ALL_SYS_PWRGD[5,34,35,57]
SB_BLON[34]
LID_SW#[35,49]
BKL_EN[35]
SUSB#[32,34,35,41,42,50,56]
NB_ENAVDD[10,31]
GPIO11_PPEN[10,26]
BLON[10,31]
VGA_BKLTEN[10,26]
EDP_BRIGHTNESS[10,31]
VGA_BKLPWM[10,26]
GC6_FB_EN_PCH[27,32,35]
IEDP_ HP D[3]
PS8331_SW[3,10,26,32,48]
DEDP_HPD[3]
VGA_BKLPWM[10,26]
EDP_BRIGHTNESS[10,31]
NB_ENAVDD[10,31]
GPIO11_PPEN[10,26]
PS8331_SW[3,10,26,32,48]
BLON[10,31]
VGA_BKLTEN[10,26]
DP_TXP2[3]
DP_TXN2[3]
DP_TXN3[3]
DP_TXP3[3]
DP_TXP0[3]
DP_TXN0[3]
DP_TXP1[3]
DP_TXN1[3]
GPIO5_FRAME_LOCK#[26]
DP_AUX#[3]
DP_AUX[3]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[10] PANEL,INVERTER
A3
10 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[10] PANEL,INVERTER
A3
10 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[10] PANEL,INVERTER
A3
10 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
S
D
G
Q4A
*MTDK3S6R
2
61
R76
*10K_04
R132 *100K_04
C
A
A
D2
BAT54CWH
1
2
3
U5
*PI5A3158BZAE
P/N = 6-03-53158-0J1
0B0
2
1B0
11
S0
10
0B1
5
1B1
8
S1
7
VCC 12
A0 1
GND 3
VCC 9
GND 6
A1 4
U23C
74LVC08APW
9
10
8
147
R57
*4.7K_06
C711
0.1u_10V_X7R_04
C220
*0.1u_50V_Y5V_06
C717 0.1u_10V_X7R_04
C
A
A
D3
BAT54CWH
1
2
3
U1
SY6288E1AAC
PCB Footprint = M-SOT23-5
VOUT 1
VIN
5
GND 2
EN
4OC# 3
C720 0.1u_10V_X7R_04
C718 0.1u_10V_X7R_04
C162
1u_6.3V_X5R_04
R460
*100K_04
R74 *0_04
R134 *100K_04
C161
1u_6.3V_X5R_04
C142
1u_6.3V_X5R_04
R61
*150K_1%_04
R63
*100K_04
C705
22u_6.3V_X5R_08
Q2A
*MTS3572G6
S2
4D2 3
G2
5
PJ1 *3mm
1 2
R37
*100K_04
R436 100K_04
R35
10K_04
R433 *100K_04
R143 *100K_04
D5
*BAV99 RECTIFIER
A
C
AC
R142 *100K_04
Q2B
*MTS3572G6
S1
2D1 6
G1
1
U23D
74LVC08APW
12
13
11
147
PJ2 *3mm
1 2
C1142 0.1u_10V_X7R_04
R56
*100K_04
Q1
2SK3018S3
G
DS
U23A
74LVC08APW
1
2
3
147
C315 *0.1u_10V_X7R_04
R33
100K_04
C230
*0.1u_50V_Y5V_06
C723 0.1u_10V_X7R_04
R36 *10K_04
R32
*100K_04
R432
100K_04
U4
*PI5A3158BZAE
P/N = 6-03-53158-0J1
0B0
2
1B0
11
S0
10
0B1
5
1B1
8
S1
7
VCC 12
A0 1
GND 3
VCC 9
GND 6
A1 4
C719 0.1u_10V_X7R_04
R38 *0402_short
C712 0.1u_10V_X7R_04
C1143 0.1u_10V_X7R_04
J_LCD1
LVDFH-03008-TP00+
PCB Footprint = lvdfh-030xx-tx00
current = 0.3A
30
30 29
29 28
28 27
27 26
26 25
25 24
24 23
23 22
22 21
21 20
20 19
19 18
18 17
17 16
16 15
15 14
14 13
13 12
12 11
11 10
10 9
98
87
76
65
54
43
32
21
1
GND1 GND1
GND2 GND2
GND3 GND3
GND4 GND4
GND5 GND5
S
D
G
Q4B
*MTDK3S6R
5
34
D1 *RB751S-40H
A C
C710 0.1u_10V_X7R_04
C724
0.01u_50V_X7R_04
C752
*220p_50V_NPO_04
C333 *0.1u_10V_X7R_04
PJ3 *2mm
12
R144 *100K_04
C722 0.1u_10V_X7R_04 R73 *0_04
C265
0.1u_50V_Y5V_06
U23B
74LVC08APW
4
5
6
147
R459 1K_04
C163
*10u_6.3V_X5R_06
C1141 0.1u_10V_X7R_04
R28
100K_04
C264
*0.22u_50V_Y5V_06
C
A
A
D21
BAT54CWH
1
2
3

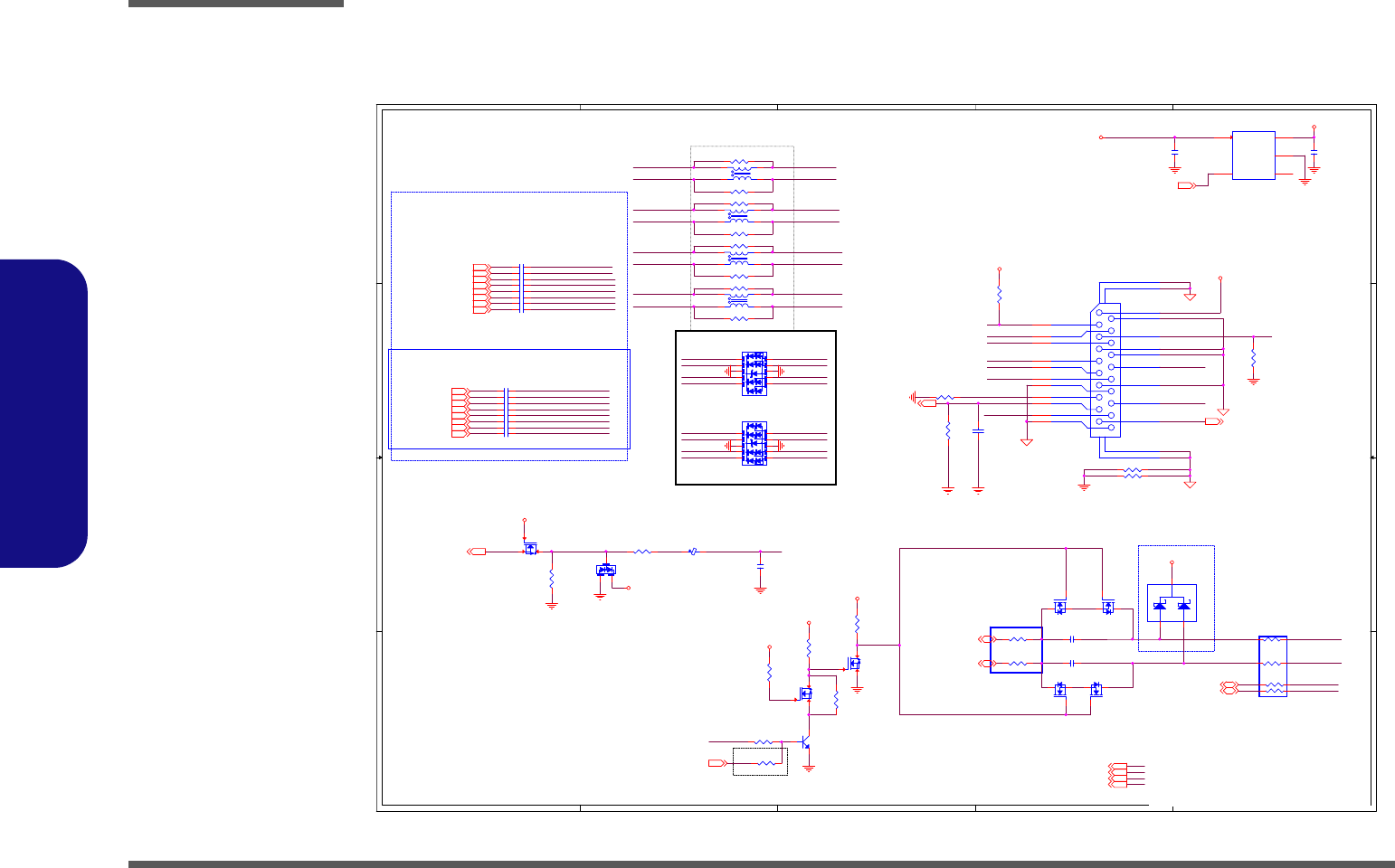

Sheet 10 of 77
Panel, Inverter
Schematic Diagrams
Panel, Inverter B - 11
B.Schematic Diagrams
Panel, Inverter
![](asset-44.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Close to Display PORT
mini-Display Port E (back)
ᶵ⎗ⷞ
SY6288DAAC
㚫㺷暣
DP ESD W/O LEVELSHIFT
暨ᶲ
, NET
⎗
SWAP
3/18
㍉岤⺢嬘ἧ䓐
20KV ESD
PLEASE CLOSE TO CONNECTOR
Close to Display PORT
inductor for EMI
CO-LAY NV TO CONN
ᶲẞ
⛐
dGPU
㗪
DDC /
AUX
㗗
Multiplax
PIN
TO DP_E
Close to Display PORT
CO-LAY
frome PS8338B
frome NV
TO PS8330B
D02_0307_WEY
CO-LAY
TO PS8338
冯
R830
嶇
R831 CO-LAY
D_MDP_E1
D_MDP_E#1
D_MDP_E0
D_MDP_E#0
D_MDP_E2
D_MDP_E#2
D_MDP_E3
D_MDP_E#3
D_MDP_E2J
D_MDP_E#2J
D_MDP_E3J
D_MDP_E#3J
D_MDP_E1J
OUT1_HPD
D_MDP_E#0J
MDP_AUX#_SDA
MDP_AUX_SCL
D_MDP_E#1J
D_MDP_E0J
OUT1_CA_DET
D_MDP_E#0J
D_MDP_E0J
D_MDP_E#0_L
D_MDP_E0_L
D_MDP_E#3J
D_MDP_E3J
D_MDP_E2J
D_MDP_E#2J
D_MDP_E2_L
D_MDP_E#2_L
D_MDP_E3_L
D_MDP_E#3_L
D_MDP_E#1J
D_MDP_E1J
D_MDP_E#1_L
D_MDP_E1_L
G_MDPE_CEC
D_MDP_E#0 D_MDP_E#0_L
D_MDP_E0_L
D_MDP_E2
D_MDP_E#3
D_MDP_E#2
D_MDP_E#1
D_MDP_E3
D_MDP_E0
D_MDP_E1
D_MDP_E3_L
D_MDP_E#3_L
D_MDP_E2_L
D_MDP_E1_L
D_MDP_E#2_L
D_MDP_E#1_L
G_DP_MODE_R
MDP_E_AUX#_SDA_R
MDP_E_AUX_SCL_R
OUT1_HPD
D_MDP_E1
D_MDP_E#1
D_MDP_E0
D_MDP_E#0
D_MDP_E2
D_MDP_E#2
D_MDP_E3
D_MDP_E#3
OUT1_CA_DET
MDP_AUX#_SDA
MDP_AUX_SCL
MDP_AUX#_SDA
MDP_AUX_SCL
IN_CA_DET
MDP_PWR
MDP_PWR
3.3VS
5VS
5VS
MDP_PWR
MDP_PWR
NV3V3
EMI_GND
EMI_GND
EMI_GND
EMI_GND
5VS
MDP_PWR
SUSB[12,13,49,50,55]
5VS[10,12,13,36,39,40,41,47,48,49,50,61,62,63,64]
3.3VS[3,8,9,10,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
NV3V3[12,13,14,26,46,52,53,61,62]
OUT1_CA_DET[46]
OUT1_HPD [46]
OUT1_D0n[46]
OUT1_D0p[46]
OUT1_D1n[46]
OUT1_D1p[46]
OUT1_D2n[46]
OUT1_D2p[46]
OUT1_D3n[46]
OUT1_D3p[46]
VCC3V3_S0_SYS[42,43]
MDP_E#0_R[46]
MDP_E0_R[46]
MDP_E#1_R[46]
MDP_E1_R[46]
MDP_E#2_R[46]
MDP_E2_R[46]
MDP_E#3_R[46]
MDP_E3_R[46]
MDP_E_HPD[26,32,46]
OUT1_AUXn_SDA[46]
OUT1_AUXp_SCL[46]
MDP_E_AUX#_SDA[25,46]
MDP_E_AUX_SCL[25,46]
IN_CA_DET[46] Title
Size Document Number Rev
Date: Sheet of
D02A
[11] MINI DP PORT(BACK)_E
A3
11 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
6-71-PA700-D02A
Title
Size Document Number Rev
Date: Sheet of
D02A
[11] MINI DP PORT(BACK)_E
A3
11 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
6-71-PA700-D02A
Title
Size Document Number Rev
Date: Sheet of
D02A
[11] MINI DP PORT(BACK)_E
A3
11 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
6-71-PA700-D02A
R683 *0_04
C968 0.1u_10V_X7R_04
R627
100K_1%_04
C613
0.01u_50V_X7R_04
C1003 0.1u_10V_X7R_04
U41
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1
VIN
5
GND 2
EN#
4OC# 3
R641 *0_04
C977 0.1u_10V_X7R_04
C942
10u_6.3V_X5R_06
R335 5.1M_04
D31
BAV99 RECTIFIER
W/O TBT
A
C
AC
C969 0.1u_10V_X7R_04
R685 *0_04
R674 *0_04
R643 0_04
W/O TBT
C1009 0.1u_10V_X7R_04
R829 0_04
W/O TBT
C976 0.1u_10V_X7R_04
R828 0_04
W/O TBT
L29 FCM1005KF-121T03
W/O TBT
Q48
2SK3018S3
W/O TBT
G
DS
R633
10K_04W/O TBT
L32
*DVI2012F2SF-900T05_08-SHORT
1
4
2
3
L33
*DVI2012F2SF-900T05_08-SHORT
1
4
2
3
R625
*0_04
C959
10u_6.3V_X5R_06
C958
220p_50V_NPO_04
W/O TBT
12
20
13
15
10
8
4
3
16
2
6
14
18
1
5
7
9
11
19
17
COMMON
C17722-120A9-L
J_MDP1
PCB Footprint = C17722-120XX-L
P/N = 6-21-14Q00-020
1
GND HPD
2
3
LANE_0P
4
CONFIG1 LANE_0N
5
6
CONFIG2
7
GND GND
8
9
LANE_1P
10
LANE_3P LANE_1N
11
12
LANE_3N
GND
13
GND
14
15
LANE_2P
AUX_CHP
16
17
LANE_2N
18
AUX_CHN
GND
19
PWR
20
SHIELD6
GND4
SHIELD5
GND3
GND2
SHIELD2
GND1
SHIELD1
Q47
2SK3018S3
W/O TBT
G
DS
R653 *0_04
Q49
BTN3904
M-SOT23-CBE
W/O TBT
B
E C
R359 *10K_04
TBT
D33
TVUDF1004AD0
W/O TBT
5
1
2
3
4
10
9
8
7
6
R611
10K_04
W/O TBT
C960 0.1u_10V_X7R_04
R824
0_04
W/O TBT
S
D
G
Q22A
MTDK3S6R
W/O TBT
2
6 1
L27
*DVI2012F2SF-900T05_08-SHORT
1
4
2
3
C988 0.1u_10V_X7R_04
R825
0_04
W/O TBT
R336
1M_04
R638
10K_04
W/O TBT
Q64
2SK3018S3
W/O TBT
G
DS
C926 0.1u_10V_X7R_04
W/O TBT
S
D
G
Q22B
MTDK3S6R
W/O TBT
5
34
R663 *0_04
C953 0.1u_10V_X7R_04
R815
100K_04
W/O TBT
R358
10K_04
W/O TBT
C961 0.1u_10V_X7R_04
EMR8 0_04
L34
*DVI2012F2SF-900T05_08-SHORT
1
4
2
3
C922 0.1u_10V_X7R_04
W/O TBT
C982 0.1u_10V_X7R_04
S
D
G
Q21A
MTDK3S6RW/O TBT
2
6 1
R826 0_04
TBT
C989 0.1u_10V_X7R_04
R645 *0_04
R668 *0_04
EMR5 0_04
C1002 0.1u_10V_X7R_04
R628
100K_1%_04
A
A
C
D30
BAT54CWH
W/O TBT
1
2
3
D35
TVUDF1004AD0
W/O TBT
5
1
2
3
4
10
9
8
7
6
C954 0.1u_10V_X7R_04
R827 0_04
TBT
S
D
G
Q21B
MTDK3S6R
W/O TBT
5
34
C1008 0.1u_10V_X7R_04
C983 0.1u_10V_X7R_04
Sheet 11 of 77
Mini DP Port (Back)
Schematic Diagrams
B - 12 Mini DP Port (Back)
B.Schematic Diagrams
Mini DP Port (Back)
![](asset-45.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
close to P8830B
CONN TO MINI DP CONN
DP ESD W/O LEVELSHIFT
暨ᶲ
, NET
⎗
SWAP
mini-Display Port F (FRONT)
EMI
㒢
㒢㒢
㒢㓦
㓦㓦
㓦
ᶵ⎗ⷞ
SY6288DAAC
㚫㺷暣
CLOSE TO J_MDP2 CONN
PLEASE CLOSE TO CONNECTOR
Close to Display PORT
inductor for EMI
TO PS8330B
PS8330B Repeter 枸
枸枸
枸䔁
䔁䔁
䔁
close to P8830B
From NV DP_F
To PCH/ PS8338B(NV)
From NV DP_F
⛐
dGPU
㗪
DDC /
AUX
㗗
Multiplax
PIN
CO-LAY
wey_12/30
MDP_F0_RE
MDP_F1#_RE
MDP_F1_RE
MDP_F0#_RE
MDP_F3_RE
MDP_F2#_RE
MDP_F2_RE
MDP_F3#_RE
D_MDP_F#0J
D_MDP_F0J
D_MDP_F#0
D_MDP_F0
D_MDP_F#3J
D_MDP_F3JD_MDP_F3
D_MDP_F#3
D_MDP_F#1J
D_MDP_F1J
D_MDP_F#1
D_MDP_F1
G_MDPF_MODE
G_MDPF_CEC
D_MDP_F2J
D_MDP_F#2J
D_MDP_F3J
D_MDP_F#3J
D_MDP_F#0J
D_MDP_F0J
D_MDP_F#1J
D_MDP_F1J
DP_TDB_AUX#_F
DP_TDB_AUX_F
MDP_F_HPD_R
MDP_F0#_RE D_MDP_F#0
D_MDP_F0
MDP_F2_RE
D_MDP_F1
D_MDP_F#1
MDP_F3#_RE
D_MDP_F2
D_MDP_F#2
D_MDP_F3
D_MDP_F#3
MDP_F2#_RE
MDP_F1#_RE
MDP_F3_RE
MDP_F0_RE
MDP_F1_RE
MDP_F_HPD_R
DP_TDB_AUX#_F
IN1N_F
IN0P_F
IN0N_F
IN2N_F
IN2P_F
IN1P_F
IN3P_F
IN3N_F
MDP_F0_RE_C
MDP_F1#_RE_C
MDP_F1_RE_C
MDP_F0#_RE_C
MDP_F3_RE_C
MDP_F2#_RE_C
MDP_F2_RE_C
PS8330B_CFG1_F
MDP_F3#_RE_C
DP_TDB_AUX_F
MDP_F_HPD_R
PS8330B_CFG0_F
PS8330B_CFG1_F
PEQ_F
G_MDPF_MODE
D_MDP_F#2J
D_MDP_F2J
D_MDP_F#2
D_MDP_F2
DP_TDB_AUX_F
DP_TDB_AUX#_F
MDP_F0#_RE_C
MDP_F2_RE_C
MDP_F3#_RE_C
MDP_F2#_RE_C
MDP_F1#_RE_C
MDP_F3_RE_C
MDP_F0_RE_C
MDP_F1_RE_C
G_MDPF_MODE
MDP_F_HPD
EMI_GND
EMI_GND
MDP_F_PWR
MDP_F_PWR
MDP_F_PWR
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
MDP_F_PWR
MDP_F_PWR
5VS
5VS
NV3V3
5VS
MDP_F1[12,25]
MDP_F#1[12,25]
MDP_F2[12,25]
MDP_F3[12,25]
MDP_F#2[12,25]
MDP_F#0[12,25]
MDP_F#3[12,25]
MDP_F0[12,25]
NV3V3[11,13,14,26,46,52,53,61,62]
3.3VS[3,8,9,10,11,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
SUSB[11,13,49,50,55]
MDP_F2[12,25]
MDP_F#1[12,25]
MDP_F1[12,25]
MDP_F#2[12,25]
MDP_F3[12,25]
MDP_F0[12,25]
MDP_F#3[12,25]
MDP_F#0[12,25]
MDP_F_HPD[26,32]
MDP_F_AUX_SCL[25]
MDP_F_AUX#_SDA[25]
5VS[10,11,13,36,39,40,41,47,48,49,50,61,62,63,64]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[12] MINI DP(FRONT)_F+PS8330B
A3
12 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[12] MINI DP(FRONT)_F+PS8330B
A3
12 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[12] MINI DP(FRONT)_F+PS8330B
A3
12 77Wednesday, July 05, 2017
C1087
220p_50V_NPO_04
C1120 0.1u_10V_X7R_04
C1111 *0.1u_10V_X7R_04
S
D
G
Q29B
MTDK3S6R
5
34
R754 *0_04
R350
100K_1%_04
PERICOM(TI)(PARADA)
U49
*PS8330B
OUT3N 13
OUT3P 14
DNC 15
OUT2N 16
OUT2P 17
OUT1N 19
OUT1P 20
DNC 21
OUT0P 23
GND 24
V3P3 25
ENABLE(ENABLE)(PD#) 26
AUX_SNKN 27
AUX_SNKP 28
AUX_SRCN 29
AUX_SRCP 30
GND 31
V3P3 32
SCL_DDC 33
SDA_DDC 34
AUTO-EQ(RSTN)(RST#) 35
V3P3 36
IN2N
45
IN3N
48
EQ(DNC)(CFG1)
40
IN1P
41
IN1N
42
IN2P
44
OC_0(DNC)(NC)
46
V3P3
1
HGND
49
DNC(VDDD_DREG)(CEXT)
2
OC_1(ADDR_EQ)(I2C_ADDR)
3
OP_0(SCL_CTL)(SCL_CTL/PEQ)
4
OP_1(SDA_CTL)(SDA_CTL/CFG0)
5
V3P3
6
CNTRL(DNC)(REXT)
7
CAD_SRC
8
HPD_SRC
9
CAD_SNK
10
HPD_SNK
11
V3P3
12
GND 18
OUT0N 22
IN3P
47
DNC
43
IN0N
39 IN0P
38 DNC
37
D39
BAV99 RECTIFIER
A
C
AC
L43
*DVI2012F2SF-900T05_08-SHORT
1
4
2
3
R744 *0_04
Q60
2SK3018S3
G
DS
R314 0_04
Q59
BTN3904
M-SOT23-CBE
B
E C
C1123 0.1u_10V_X7R_04
C1081
*10u_6.3V_X5R_06
C1095 *0.1u_10V_X7R_04
A
A
C
D15
BAT54CWH
1
2
3
R759 *0_04
EMR7 0_04
C1020 *0.1u_10V_X7R_04
R313 0_04
R731 *4.99K_1%_04
C1100 0.1u_10V_X7R_04
C1122 *0.1u_10V_X7R_04
C1021 *0.1u_10V_X7R_04
R329 *10K_04
R351
10K_04
R343 0_04
R718*4.7K_04
R316 0_04
L42
*DVI2012F2SF-900T05_08-SHORT
1
4
2
3
C1110 0.1u_10V_X7R_04
C1047*2.2u_6.3V_X5R_04
C1119 *0.1u_10V_X7R_04
R753 *0_04
R369
10K_04
C1061
10u_6.3V_X5R_06
C1018 *0.1u_10V_X7R_04
R315 0_04
R739 *1M_04
C1022 *0.1u_10V_X7R_04
C1099 *0.1u_10V_X7R_04
C1016 *0.1u_10V_X7R_04
R360
10K_04
R748 *0_04
R318 0_04
C1104 *0.1u_10V_X7R_04
EMR3 0_04
L44
*DVI2012F2SF-900T05_08-SHORT
1
4
2
3
R353 5.1M_04
R317 0_04
C642
0.01u_50V_X7R_04
R727*4.7K_04
R366
1M_04
C604
*2.2u_6.3V_X5R_04
R729 *4.7K_04
R319 0_04
R722 *4.7K_04
Q58
2SK3018S3
G
DS
R349
100K_1%_04
L41
*DVI2012F2SF-900T05_08-SHORT
1
4
2
3
R320 0_04
R756 *0_04
D43
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
S
D
G
Q28A
MTDK3S6R
2
6 1
R763 *0_04
C1112 0.1u_10V_X7R_04
R760
*0_04
R324*4.7K_04R323 *4.7K_04
U50
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1
VIN
5
GND 2
EN#
4OC# 3
D38
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
C1105 0.1u_10V_X7R_04
C1124 0.1u_10V_X7R_04
Q63
2SK3018S3
G
DS
12
20
13
15
10
8
4
3
16
2
6
14
18
1
5
7
9
11
19
17
COMMON
C17722-120A9-L
J_MDP2
PCB Footprint = C17722-120XX-L
P/N = 6-21-14Q00-020
1
GND HPD
2
3
LANE_0P
4
CONFIG1 LANE_0N
5
6
CONFIG2
7
GND GND
8
9
LANE_1P
10
LANE_3P LANE_1N
11
12
LANE_3N
GND
13
GND
14
15
LANE_2P
AUX_CHP
16
17
LANE_2N
18
AUX_CHN
GND
19
PWR
20
SHIELD6
GND4
SHIELD5
GND3
GND2
SHIELD2
GND1
SHIELD1
C1017 *0.1u_10V_X7R_04
S
D
G
Q28B
MTDK3S6R
5
34
C1118 0.1u_10V_X7R_04
L11 FCM1005KF-121T03
C1117 *0.1u_10V_X7R_04
C1023 *0.1u_10V_X7R_04
R755 *0_04
C1121 0.1u_10V_X7R_04
C1019 *0.1u_10V_X7R_04
C1038
*0.01u_50V_X7R_04
C1096 0.1u_10V_X7R_04
S
D
G
Q29A
MTDK3S6R
2
6 1
R813
100K_04
C1109 *0.1u_10V_X7R_04
C608
*0.1u_10V_X7R_04
R365
10K_04
Sheet 12 of 77
Mini DP Port (Front)
Schematic Diagrams
Mini DP Port (Front) B - 13
B.Schematic Diagrams
Mini DP Port (Front)
![](asset-46.png)

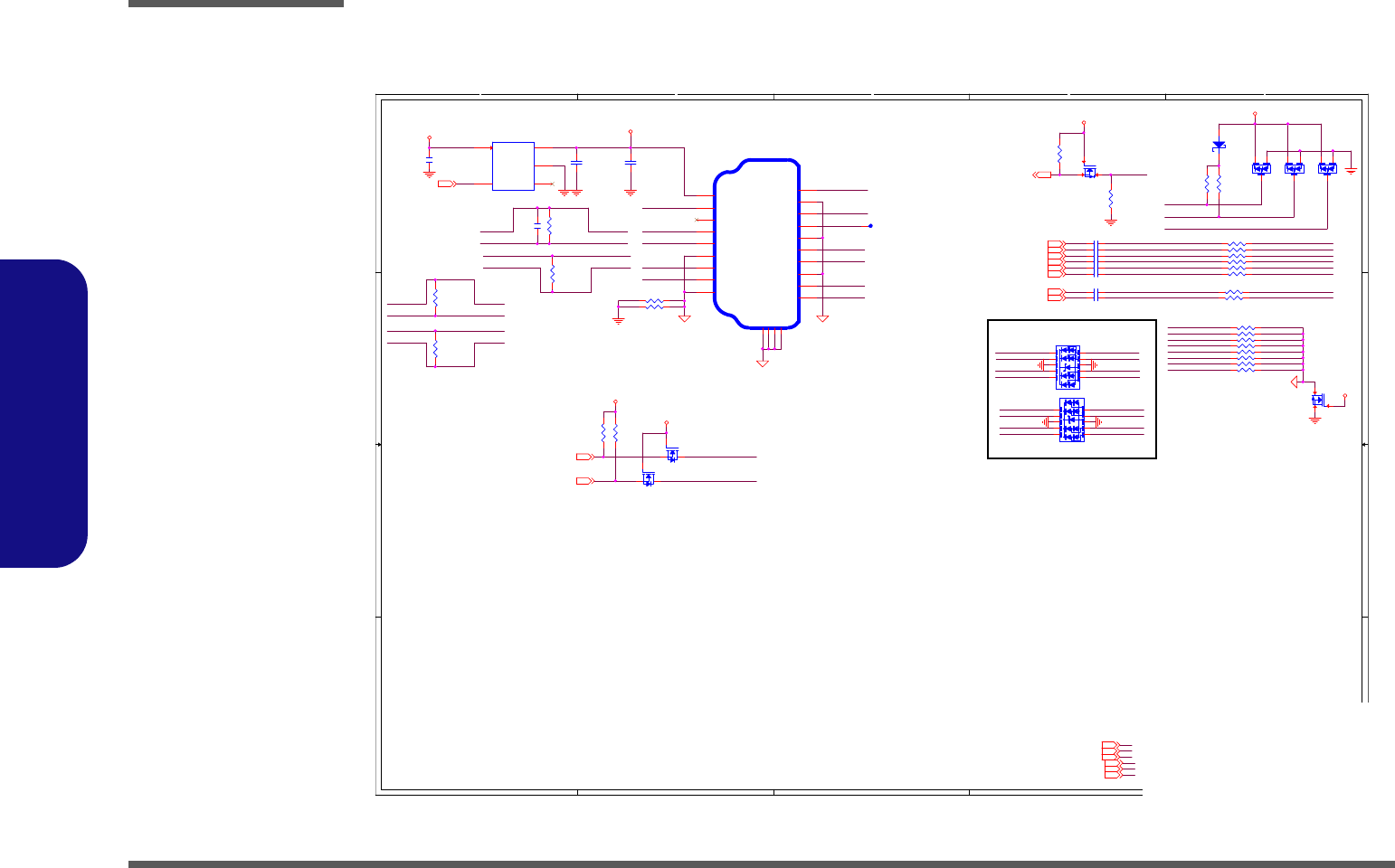

Sheet 13 of 77
HDMI Connector
Schematic Diagrams
B - 14 HDMI Connector
B.Schematic Diagrams
HDMI Connector
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
HDMI ESD W/O LEVELSHIFT
暨ᶲ
, NET
⎗
SWAP
ᶵ⎗ⷞ
SY6288DAAC
㚫㺷暣
HDMI CONNECTOR
3/18
㍉岤⺢嬘ἧ䓐
20KV ESD
6-21-14230-019
PIN GND1~4=GND
kai_11/18
For ESD
CO-LAY
WEY_12/13
wey_1215
Jalen_swap12/30
Jalen_swap12/30
HDMI_SCL-C
HDMI_SDA-C
TMDS_DATA1
TMDS_DATA1#
TMDS_DATA0#
TMDS_DATA0
TMDS_DATA2#
TMDS_DATA2
HDMI_CEC
HDMI_SDA-C
HDMI_SCL-C
HDMI_HPD-C
TMDS_DATA0J
TMDS_DATA2#J
TMDS_CLOCK#
TMDS_DATA2J
TMDS_DATA0#J
TMDS_CLOCK
TMDS_DATA1J
TMDS_DATA1#J
TMDS_CLOCKJ
TMDS_CLOCK#J
HDMI_HPD-C
TMDS_CLOCK#_R
TMDS_DATA1#_R
TMDS_CLOCK_R
TMDS_DATA1_R
TMDS_DATA0#_R
TMDS_DATA0_R
TMDS_DATA2_R
TMDS_DATA2#_R
HDMI_HPD-C
HDMI_SDA-C
HDMI_SCL-C
TMDS_DATA0
TMDS_DATA0#
TMDS_CLOCK#
TMDS_CLOCK
TMDS_DATA2#
TMDS_DATA2
TMDS_DATA1#
TMDS_DATA1
TMDS_CLOCK#_R
TMDS_DATA1#_R
TMDS_CLOCK_R
TMDS_DATA1_R
TMDS_DATA0#_R
TMDS_DATA0_R
TMDS_DATA2_R
TMDS_DATA2#_R
TMDS_DATA2#J
TMDS_DATA2J
TMDS_DATA2#
TMDS_DATA2
TMDS_DATA0#
TMDS_DATA0 TMDS_DATA0J
TMDS_DATA0#J
TMDS_CLOCK#J
TMDS_CLOCKJ
TMDS_CLOCK#
TMDS_CLOCK
TMDS_DATA1JTMDS_DATA1
TMDS_DATA1#JTMDS_DATA1#
NV3V3
NV3V3
5VS
HDMI_5VS
3.3VS
5VS
GND_HDMI
HDMI_5VS
EMI_GND EMI_GND
EMI_GND
1V8_AON[3,23,24,26,27,28,31,52,53,61,62,64]
3.3VS[3,8,9,10,11,12,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
5VS[10,11,12,36,39,40,41,47,48,49,50,61,62,63,64]
HDMI_CTRLDATA[25]
HDMI_CTRLCLK[25]
SUSB
1,12,49,50,55]
VREG5[51,54,56]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
HDMI_HPD[26,32]
HDMI_DATA1N[25]
HDMI_DATA1P[25]
HDMI_CLOCKN[25]
HDMI_CLOCKP[25]
HDMI_DATA0N[25]
HDMI_DATA0P[25]
HDMI_DATA2N[25]
HDMI_DATA2P[25]
NV3V3[11,12,14,26,46,52,53,61,62]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[13] HDMI 2.0
A3
13 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[13] HDMI 2.0
A3
13 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[13] HDMI 2.0
A3
13 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C516
1.5P_50V_04
J_HDMI1
16-A1970-1A03-0
PCB Footprint = c-16-a197x
SHIELD2
2
TMDS DATA1+
4
TMDS DATA1-
6
SHIELD0
8
TMDS CLOCK+
10
TMDS CLOCK-
12
RESERVED
14
SDA
16
+5V
18
TMDS DATA2+ 1
TMDS DATA2- 3
SHIELD1 5
TMDS DATA0+ 7
TMDS DATA0- 9
CLK SHIELD 11
CEC 13
SCL 15
DDC/CEC GND 17
HOT PLUG DETECT 19
GND
GND1
GND
GND2
GND
GND3
GND
GND4
R242 499_1%_04
R190
2K_04
R178
10K_04
R247 0_04
D10
BAV99 RECTIFIER
A
C
AC
S
D
G
Q18B
MTDK3S6R
5
34
R195
10K_04
R263 0_04
U33
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1
VIN
5
GND 2
EN#
4OC# 3
R248 499_1%_04
C507 0.1u_10V_X7R_04
D9
BAV99 RECTIFIER
A
C
AC
R252 0_04
D14
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
C502 0.1u_10V_X7R_04
Q20
2SK3018S3
G
DS
D7
BAV99 RECTIFIER
A
C
AC
C531 0.1u_10V_X7R_04
C859
22u_6.3V_X5R_08
R279 499_1%_04
R275
*180_1%_04
C541 0.1u_10V_X7R_04
C526 0.1u_10V_X7R_04
R269
*180_1%_04
R273 499_1%_04
D12
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
C513 0.1u_10V_X7R_04
R249 499_1%_04
R244
*180_1%_04
Q19
2SK3018S3
G
DS
D8
0_06
AC
R274 0_04
R264 499_1%_04
C519 0.1u_10V_X7R_04
R219
20K_04
S
D
G
Q18A
MTDK3S6R
2
61
R262
*180_1%_04
R278 0_04
R271 499_1%_04
C864
22u_6.3V_X5R_08
R270 0_04
EMR6 0_04
C546 0.1u_10V_X7R_04
R265 499_1%_04
R208
1M_04
R243 0_04
R186
2K_04
C850
*10u_6.3V_X5R_06
EMR4 0_04
R268 0_04

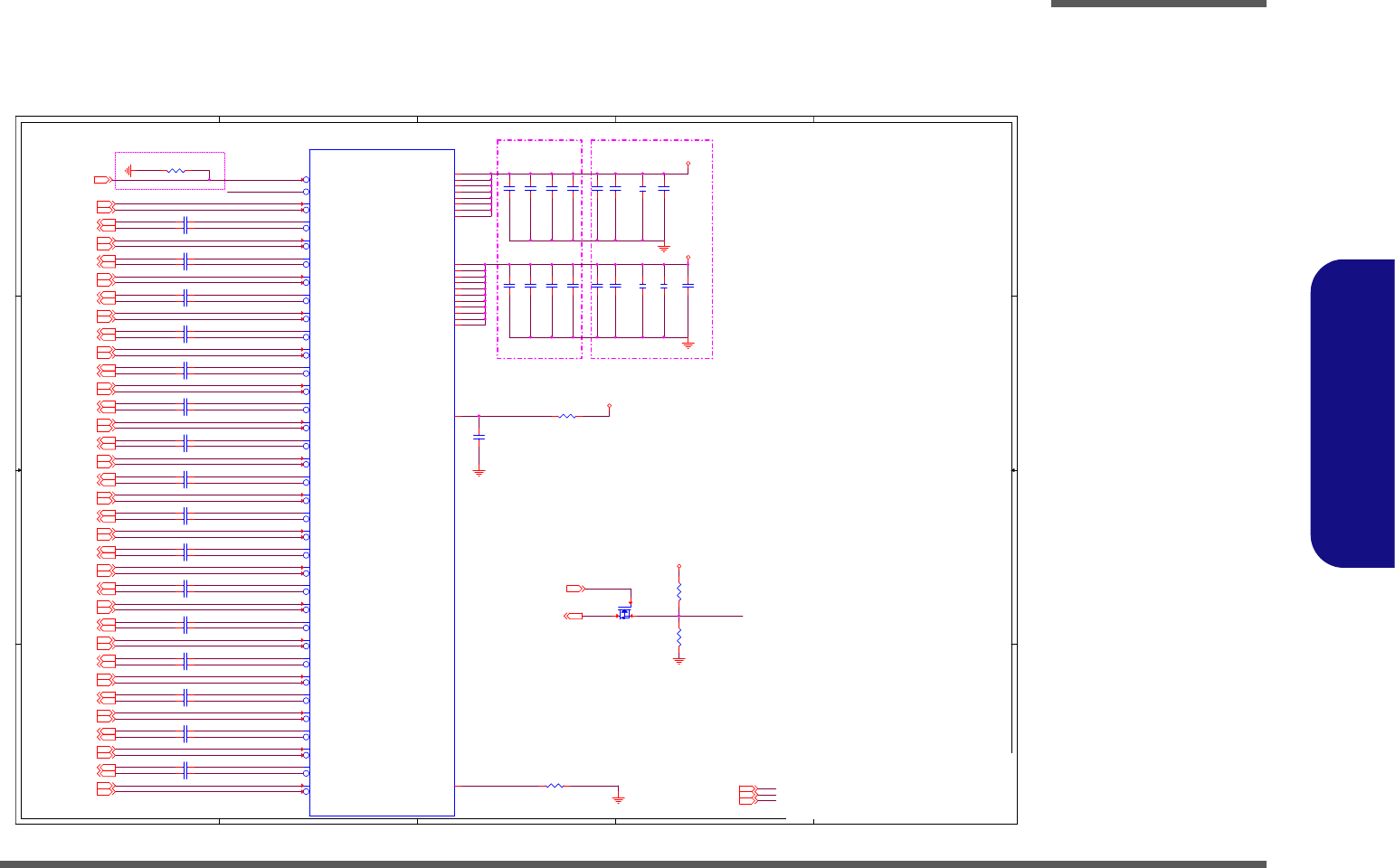

![](asset-47.png)
Schematic Diagrams
VGA PCI Express B - 15
B.Schematic Diagrams
VGA PCI Express
Sheet 14 of 77
VGA PCI Express
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
Midway btw GPU&VRunder GPU
NV PCI EXPRESS
DG P.91 recommend voltage
DG P.91 recommend voltage
1/28 Cap follow reference board design , x6s
DG P.252 recommend CLKREQ , is OD pin ,
must have a 10k pull up to 1V8_AON
under GPU
VGA_PEXCLK
VGA_PEXCLK#
PEX_PLL_HVDD_SVDD
PEX_RX3#
PEX_RX2#PEX_RX2#
PEX_RX6#
PEX_RX4#
PEX_RX1#
PEX_RX5#
PEX_RX0#
PEX_RX4
PEX_RX3
PEX_RX7
PEX_RX6
PEX_RX7#
PEX_RX5
PEX_RX1
PEX_RX2
PEX_RX0
PEX_TERMP
PEX_CLKREQ#
PEX_RX11#
PEX_RX10#
PEX_RX14#
PEX_RX12#
PEX_RX9#
PEX_RX13#
PEX_RX8#
PEX_RX12
PEX_RX11
PEX_RX15
PEX_RX14
PEX_RX15#
PEX_RX13
PEX_RX9
PEX_RX10
PEX_RX8
PEX_CLKREQ#
1V8_RUN
GND
GND
GND
GND
1V8_RUN
PEX_VDD
NV3V3
GND
PEG_TX1[2]
PEG_TX2[2]
PEG_TX#7[2]
PEG_RX2[2]
PEG_TX#0[2]
PEG_TX3[2]
PEG_TX#2[2]
PEG_RX1[2]
PEG_RX7[2]
PEG_RX4[2]
PEG_TX#1[2]
PEG_TX#5[2]
PEG_TX#4[2]
PEG_RX#6[2]
PEG_RX#0[2]
PEG_RX6[2]
PEG_RX3[2]
PEG_RX#5[2]
PEG_RX#1[2]
PEG_TX6[2]
PEG_RX#7[2]
PEG_RX5[2]
PEG_RX0[2]
PEG_TX4[2]
PEG_TX7[2]
PEG_RX#2[2]
PEG_RX#3[2]
PEG_TX5[2]
PEG_RX#4[2]
PEG_TX0[2]
PEG_TX#3[2]
PEG_TX#6[2]
PEG_TX9[2]
PEG_TX10[2]
PEG_TX#15[2]
PEG_RX10[2]
PEG_TX#8[2]
PEG_TX11[2]
PEG_TX#10[2]
PEG_RX9[2]
PEG_RX15[2]
PEG_RX12[2]
PEG_TX#9[2]
PEG_TX#13[2]
PEG_TX#12[2]
PEG_RX#14[2]
PEG_RX#8[2]
PEG_RX14[2]
PEG_RX11[2]
PEG_RX#13[2]
PEG_RX#9[2]
PEG_TX14[2]
PEG_RX#15[2]
PEG_RX13[2]
PEG_RX8[2]
PEG_TX12[2]
PEG_TX15[2]
PEG_RX#10[2]
PEG_RX#11[2]
PEG_TX13[2]
PEG_RX#12[2]
PEG_TX8[2]
PEG_TX#11[2]
PEG_TX#14[2]
VGA_PEXCLK[31]
VGA_PEXCLK#[31]
GPU_PEX_RST#[27]
1V8_RUN[15,23,24,28,52]
PEX_VDD[25,53]
NV3V3[11,12,13,26,46,52,53,61,62]
NVVDD_PWRGD[27,62]
PEG_CLKREQ#[31]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[14] VGA PCI Express
A3
14 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[14] VGA PCI Express
A3
14 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[14] VGA PCI Express
A3
14 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C290 0.22u_10V_X5R_04
C294 0.22u_10V_X5R_04
C312 0.22u_10V_X5R_04
C295 0.22u_10V_X5R_04
C303 0.22u_10V_X5R_04
C133
1u_6.3V_X6S_04
C313 0.22u_10V_X5R_04
C328 0.22u_10V_X5R_04
C155
0.1u_10V_X7R_04
C327 0.22u_10V_X5R_04
R123
*10K_04
C165
4.7u_6.3V_X6S_06
1/23 PCI_EXPRESS
INS16508609
U22A
BK42
PEX_RX15
BL42
PEX_RX15
BG41
PEX_TX15
BH41
PEX_TX15
BM42
PEX_RX14
BM41
PEX_RX14
BG39
PEX_TX14
BF39
PEX_TX14
BL41
PEX_RX13
BK41
PEX_RX13
BE38
PEX_TX13
BF38
PEX_TX13
BK39
PEX_RX12
BL39
PEX_RX12
BH38
PEX_TX12
BG38
PEX_TX12
BM39
PEX_RX11
BM38
PEX_RX11
BG36
PEX_TX11
BF36
PEX_TX11
BL38
PEX_RX10
BK38
PEX_RX10
BE35
PEX_TX10
BF35
PEX_TX10
BK36
PEX_RX9
BL36
PEX_RX9
BH35
PEX_TX9
BG35
PEX_TX9
BM36
PEX_RX8
BM35
PEX_RX8
BG33
PEX_TX8
BF33
PEX_TX8
BL35
PEX_RX7
BK35
PEX_RX7
BE32
PEX_TX7
BF32
PEX_TX7
BK33
PEX_RX6
BL33
PEX_RX6
BH32
PEX_TX6
BG32
PEX_TX6
BM33
PEX_RX5
BM32
PEX_RX5
BG30
PEX_TX5
BF30
PEX_TX5
BL32
PEX_RX4
BK32
PEX_RX4
BE29
PEX_TX4
BF29
PEX_TX4
BK30
PEX_RX3
BL30
PEX_RX3
BH29
PEX_TX3
BG29
PEX_TX3
BM30
PEX_RX2
BM29
PEX_RX2
BG27
PEX_TX2
BF27
PEX_TX2
BL29
PEX_RX1
BK29
PEX_RX1
BE26
PEX_TX1
BF26
PEX_TX1
BK27
PEX_RX0
BL27
PEX_RX0
BH26
PEX_TX0
BG26
PEX_TX0
BM27
PEX_REFCLK
BM26
PEX_REFCLK
BL26
PEX_CLKREQ
BK26
PEX_RST
BL44
PEX_TERMP
BB30
PEX_PLL_HVDD
BD30
PEX_HVDD
BD27
PEX_HVDD
BC32
PEX_HVDD
BC30
PEX_HVDD
BC29
PEX_HVDD
BC27
PEX_HVDD
BC26
PEX_HVDD
BB32
PEX_HVDD
BB29
PEX_HVDD
BB27
PEX_HVDD
BB26
PEX_HVDD
BD36
PEX_DVDD
BD33
PEX_DVDD
BC36
PEX_DVDD
BC35
PEX_DVDD
BC33
PEX_DVDD
BB36
PEX_DVDD
BB35
PEX_DVDD
BB33
PEX_DVDD
C345 0.22u_10V_X5R_04
C314 0.22u_10V_X5R_04
C271 0.22u_10V_X5R_04
C728
*10u_6.3V_X5R_06
R34 0_04
C267 0.22u_10V_X5R_04
C347 0.22u_10V_X5R_04
C349 0.22u_10V_X5R_04
C284 0.22u_10V_X5R_04
R421 2.49K_1%_04
R122
10K_04
C176
1u_6.3V_X6S_04
C94
*10u_4V_X6S_06
C307 0.22u_10V_X5R_04
C288 0.22u_10V_X5R_04
C119
*1u_6.3V_X6S_04
C300 0.22u_10V_X5R_04
C275 0.22u_10V_X5R_04
C352 0.22u_10V_X5R_04
C179
4.7u_6.3V_X6S_06
Q14
2SK3018S3
G
D S
C121
4.7u_6.3V_X6S_06
C727
10u_6.3V_X5R_06
C297 0.22u_10V_X5R_04
R803 *10K_04
C272 0.22u_10V_X5R_04
C144
1u_6.3V_X6S_04
C335 0.22u_10V_X5R_04
C334 0.22u_10V_X5R_04
C274 0.22u_10V_X5R_04
C302 0.22u_10V_X5R_04
C305 0.22u_10V_X5R_04
C306 0.22u_10V_X5R_04
C167
1u_6.3V_X6S_04
C308 0.22u_10V_X5R_04
C282 0.22u_10V_X5R_04
C277
22u_6.3V_X6S_08
C129
1u_6.3V_X6S_04
C346 0.22u_10V_X5R_04
C136
1u_6.3V_X6S_04
C82
22u_6.3V_X6S_08
C111
4.7u_6.3V_X6S_06
C172
1u_6.3V_X6S_04
C316 0.22u_10V_X5R_04

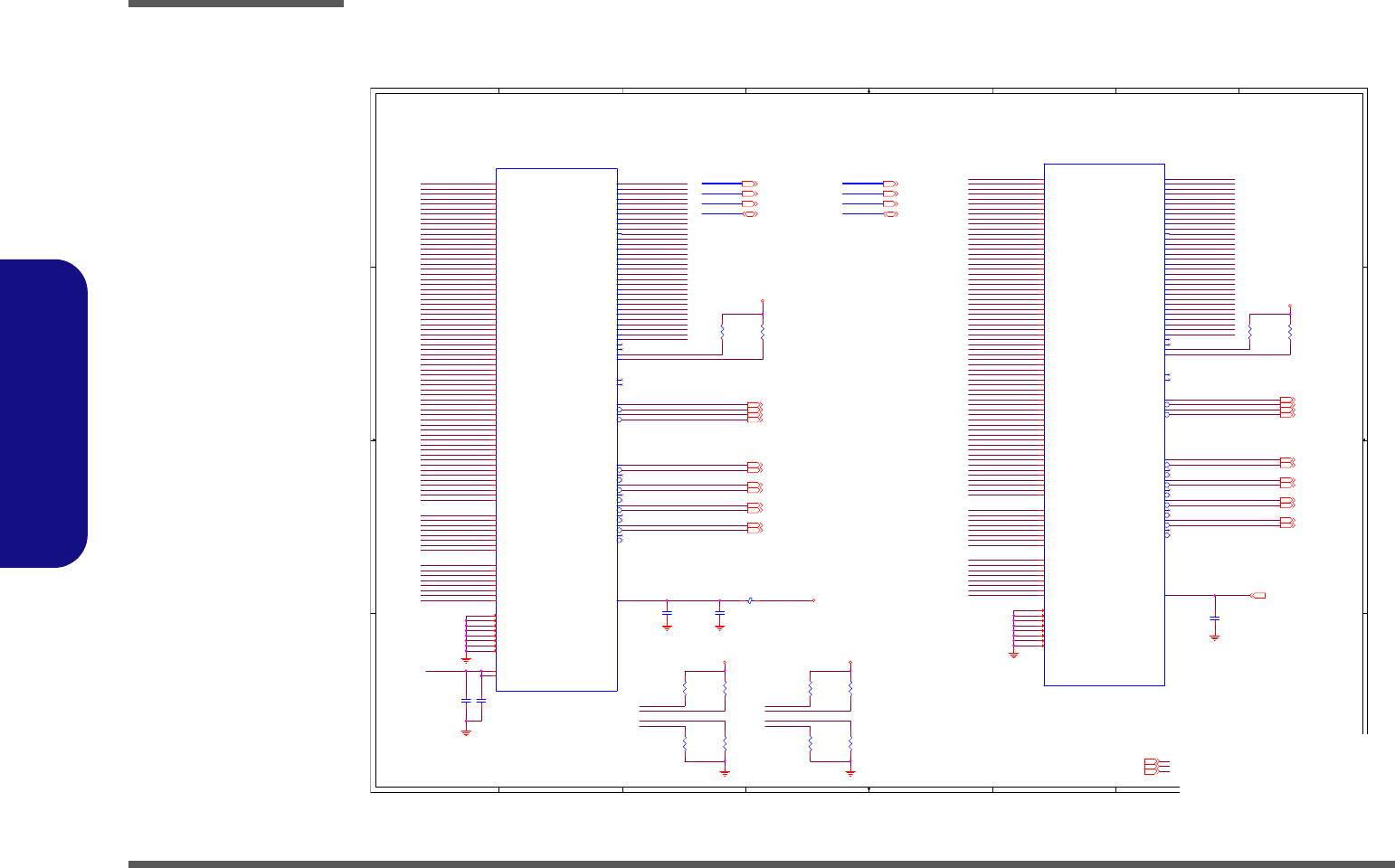

![](asset-48.png)

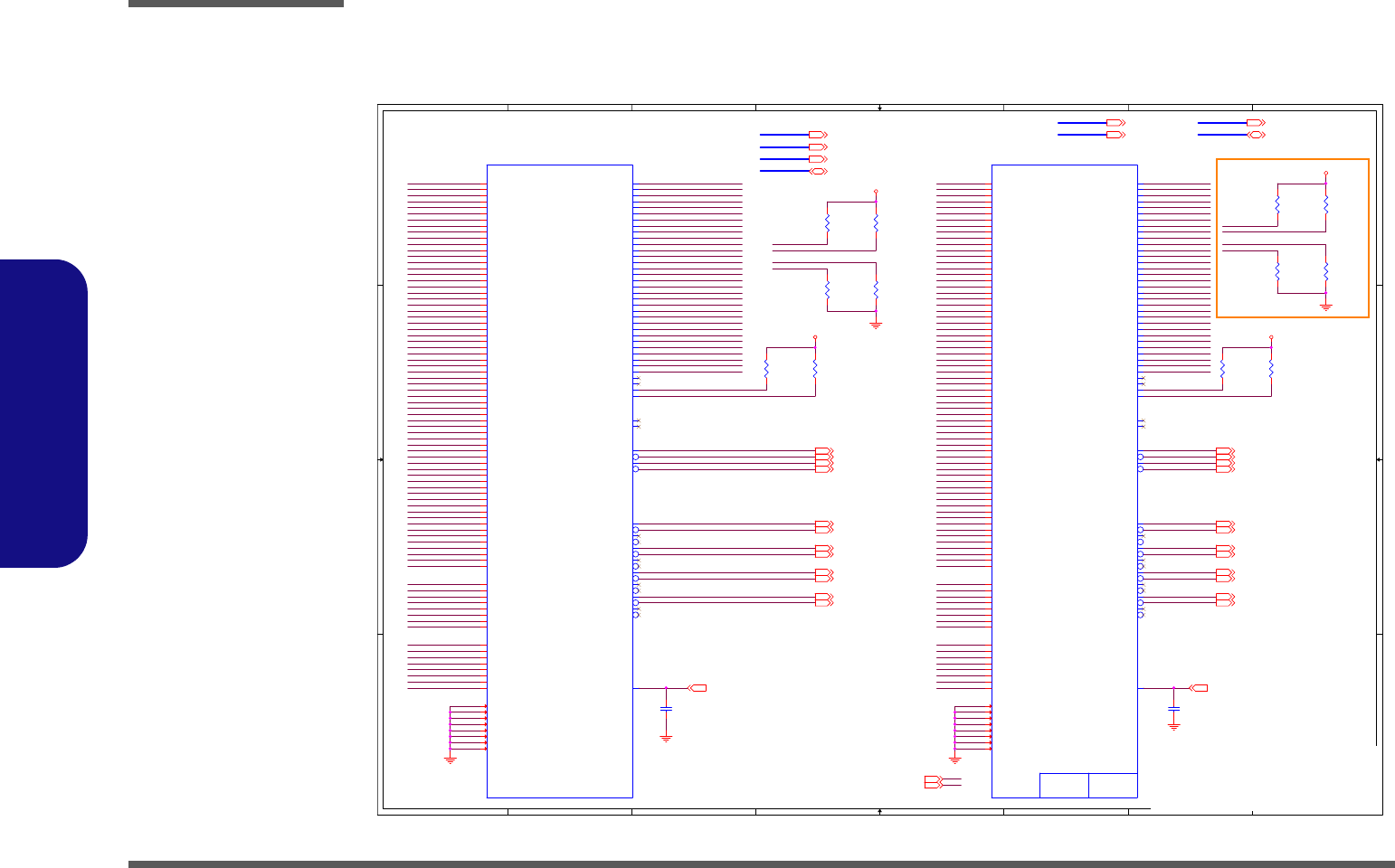

Sheet 15 of 77
GPU Frame Buffer
Partition
Schematic Diagrams
B - 16 GPU Frame Buffer Partition
B.Schematic Diagrams
GPU Frame Buffer Partition
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
PAGE3: GPU FRAME BUFFER PARTITION A/B
CMD3 RAS*
A5_BA1
WE*
CMD9
CAS*
CKE*
RST*
A1_A9
A0_A10
A12_RFU
ABI*
A6_A11
A7_A8
A5_BA1
A4_BA2
A2_BA0
A3_BA3
CS*
CMD26
CMD27
CMD28
CMD30
CMD31
ch1 32..63ch0 0..31
CMD0
CMD7
CAS*
A12_RFU
RST*
RAS*
A1_A9
A0_A10
WE*
A7_A8
CMD11
CMD12
CMD13
CMD14
CMD15
CMD16
CMD20
CMD21
CMD24
CMD1
CMD2
CMD4
CMD5
CMD6
CMD8
CMD10
CMD22
CMD25
CMD29
CMD17
CMD18
ABI*
A6_A11
CMD23
CS*
CMD19
A4_BA2
A3_BA3
A2_BA0
CKE*
PLACE AT BALLS
GB3B-256
GDDR5 Mode F Mapping
PLACE AT BALLS
1.35V 1.35V
FBA_CLK0
DP_FBA_CLK0 FB_CLK
FBA_CLK0*
DP_FBA_CLK0 FB_CLK
FBA_CLK1
DP_FBA_CLK1 FB_CLK
FBA_CLK1*
DP_FBA_CLK1 FB_CLK
FBA_CMD0
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_CMD16
FBA_CMD17
FBA_CMD18
FBA_CMD19
FBA_CMD1
FBA_CMD20
FBA_CMD21
FBA_CMD22
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26
FBA_CMD27
FBA_CMD28
FBA_CMD29
FBA_CMD2
FBA_CMD30
FBA_CMD[31..0]
FBA_CMD31
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8
FBA_CMD9
FBA_D0
FBA_D10
FBA_D11
FBA_D12
FBA_D13
FBA_D14
FBA_D15
FBA_D16
FBA_D17
FBA_D18
FBA_D19
FBA_D1
FBA_D20
FBA_D21
FBA_D22
FBA_D23
FBA_D24
FBA_D25
FBA_D26
FBA_D27
FBA_D28
FBA_D29
FBA_D2
FBA_D30
FBA_D31
FBA_D32
FBA_D33
FBA_D34
FBA_D35
FBA_D36
FBA_D37
FBA_D38
FBA_D39
FBA_D3
FBA_D40
FBA_D41
FBA_D42
FBA_D43
FBA_D44
FBA_D45
FBA_D46
FBA_D47
FBA_D48
FBA_D49
FBA_D4
FBA_D50
FBA_D51
FBA_D52
FBA_D53
FBA_D54
FBA_D55
FBA_D56
FBA_D57
FBA_D58
FBA_D59
FBA_D5
FBA_D60
FBA_D61
FBA_D62
FBA_D63
FBA_D6
FBA_D7
FBA_D8
FBA_D9
FBA_DBI0
FBA_DBI1
FBA_DBI2
FBA_DBI3
FBA_DBI4
FBA_DBI5
FBA_DBI6
FBA_DBI7
FBA_EDC0
FBA_EDC1
FBA_EDC2
FBA_EDC3
FBA_EDC4
FBA_EDC5
FBA_EDC6
FBA_EDC7
FBA_WCK01
FB_WCK
FBA_WCK01
FBA_WCK01*
FB_WCK
FBA_WCK01
FBA_WCK23
FBA_WCK23 FB_WCK
FBA_WCK23*
FB_WCK
FBA_WCK23
FBA_WCK45
FBA_WCK45 FB_WCK
FBA_WCK45*
FBA_WCK45 FB_WCK
FBA_WCK67
FBA_WCK67 FB_WCK
FBA_WCK67*
FBA_WCK67 FB_WCK
FBB_CLK0
DP_FBB_CLK0 FB_CLK
FBB_CLK0*
DP_FBB_CLK0 FB_CLK
FBB_CLK1
DP_FBB_CLK1 FB_CLK
FBB_CLK1*
DP_FBB_CLK1 FB_CLK
FBB_CMD0
FBB_CMD10
FBB_CMD11
FBB_CMD12
FBB_CMD13
FBB_CMD14
FBB_CMD15
FBB_CMD16
FBB_CMD17
FBB_CMD18
FBB_CMD19
FBB_CMD1
FBB_CMD20
FBB_CMD21
FBB_CMD22
FBB_CMD23
FBB_CMD24
FBB_CMD25
FBB_CMD26
FBB_CMD27
FBB_CMD28
FBB_CMD29
FBB_CMD2
FBB_CMD30
FBB_CMD31
FBB_CMD3
FBB_CMD4
FBB_CMD5
FBB_CMD6
FBB_CMD7
FBB_CMD8
FBB_CMD9
FBB_D0
FBB_D10
FBB_D11
FBB_D12
FBB_D13
FBB_D14
FBB_D15
FBB_D16
FBB_D17
FBB_D18
FBB_D19
FBB_D1
FBB_D20
FBB_D21
FBB_D22
FBB_D23
FBB_D24
FBB_D25
FBB_D26
FBB_D27
FBB_D28
FBB_D29
FBB_D2
FBB_D30
FBB_D31
FBB_D32
FBB_D33
FBB_D34
FBB_D35
FBB_D36
FBB_D37
FBB_D38
FBB_D39
FBB_D3
FBB_D40
FBB_D41
FBB_D42
FBB_D43
FBB_D44
FBB_D45
FBB_D46
FBB_D47
FBB_D48
FBB_D49
FBB_D4
FBB_D50
FBB_D51
FBB_D52
FBB_D53
FBB_D54
FBB_D55
FBB_D56
FBB_D57
FBB_D58
FBB_D59
FBB_D5
FBB_D60
FBB_D61
FBB_D62
FBB_D63
FBB_D6
FBB_D7
FBB_D8
FBB_D9
FBB_DBI0
FBB_DBI1
FBB_DBI2
FBB_DBI3
FBB_DBI4
FBB_DBI5
FBB_DBI6
FBB_DBI7
FBB_EDC0
FBB_EDC1
FBB_EDC2
FBB_EDC3
FBB_EDC4
FBB_EDC5
FBB_EDC6
FBB_EDC7
FBB_WCK01
FBB_WCK01 FB_WCK
FBB_WCK01*
FBB_WCK01 FB_WCK
FBB_WCK23
FBB_WCK23 FB_WCK
FBB_WCK23*
FBB_WCK23 FB_WCK
FBB_WCK45
FBB_WCK45 FB_WCK
FBB_WCK45*
FBB_WCK45 FB_WCK
FBB_WCK67
FBB_WCK67 FB_WCK
FBB_WCK67*
FBB_WCK67 FB_WCK
FB_PLL_AVDD
FB_PLL_AVDD
FBA_EDC[7..0]
FBA_DBI[7..0]
FBA_D[63..0]
FBB_EDC[7..0]
FBB_DBI[7..0]
FBB_D[63..0]
FBB_CMD[31..0]
FBA_DEBUG0
FBA_DEBUG1
FBB_DEBUG0
FBB_DEBUG1
FBB_CMD17
FBB_CMD18
FBB_CMD1
FBB_CMD2
FBA_CMD17
FBA_CMD18
FBA_CMD1
FBA_CMD2
FB_PLL_AVDD
GND
GND
GND
FBVDDQ
FBVDDQ
GND
GND
1V8_RUN
GND
FBVDDQ
GND
FBVDDQ
GND
FBA_CMD[31..0] [16]
FBA_EDC[7..0] [16]
FBA_DBI[7..0] [16]
FBA_D[63..0] [16]
FBA_CLK0 [16]
FBA_WCK01 [16]
FBA_WCK01* [16]
FBA_WCK23 [16]
FBA_WCK23* [16]
FBA_WCK45 [16]
FBA_WCK45* [16]
FBA_WCK67 [16]
FBA_WCK67* [16]
FBA_CLK0* [16]
FBA_CLK1 [16]
FBA_CLK1* [16]
FBB_EDC[7..0] [17]
FBB_CMD[31..0] [17]
FBB_DBI[7..0] [17]
FBB_D[63..0] [17]
FBB_WCK23* [17]
FBB_WCK01* [17]
FBB_CLK1* [17]
FBB_CLK0* [17]
FBB_WCK67 [17]
FBB_WCK45 [17]
FBB_WCK23 [17]
FBB_CLK0 [17]
FBB_WCK01 [17]
FBB_CLK1 [17]
FBB_WCK67* [17]
FBB_WCK45* [17]
FB_PLL_AVDD [15,19]
FBVDDQ[16,17,18,19,20,21,22,23,28,64]
1V8_RUN[14,23,24,28,52]
FB_PLL_AVDD[15,19]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[15] GPU Frame Buffer Partition
Custom
15 77Wednesday, Jul y 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[15] GPU Frame Buffer Partition
Custom
15 77Wednesday, Jul y 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[15] GPU Frame Buffer Partition
Custom
15 77Wednesday, Jul y 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R13
10K_04
R19
*60.4_1%_04
R26
10K_04
C107
0.1u_10V_X7R_04
R9
10K_04
R12
10K_04
3/23 FBB
INS16511324
U22C
Y24
GND
Y23
GND
Y22
GND
Y21
GND
Y20
GND
Y19
GND
Y18
GND
Y17
GND
F51
FBB_DQS_W P7
D51
FBB_DQS_W P6
J48
FBB_DQS_W P5
P50
FBB_DQS_W P4
H38
FBB_DQS_W P3
G44
FBB_DQS_W P2
E35
FBB_DQS_W P1
B33
FBB_DQS_W P0
H50
FBB_DQM7
D50
FBB_DQM6
L48
FBB_DQM5
P49
FBB_DQM4
G39
FBB_DQM3
E44
FBB_DQM2
E33
FBB_DQM1
C32
FBB_DQM0
H52
FBB_D63
H49
FBB_D62
J51
FBB_D61
H51
FBB_D60
H48
FBB_D59
J50
FBB_D58
D52
FBB_D57
F50
FBB_D56
F48
FBB_D55
F49
FBB_D54
E50
FBB_D53
E49
FBB_D52
C49
FBB_D51
C48
FBB_D50
C50
FBB_D49
D48
FBB_D48
M47
FBB_D47
M48
FBB_D46
L47
FBB_D45
M46
FBB_D44
L49
FBB_D43
L52
FBB_D42
L51
FBB_D41
L50
FBB_D40
P46
FBB_D39
R46
FBB_D38
P52
FBB_D37
P47
FBB_D36
M49
FBB_D35
M51
FBB_D34
P48
FBB_D33
M50
FBB_D32
E36
FBB_D31
D36
FBB_D30
E38
FBB_D29
F38
FBB_D28
D39
FBB_D27
E39
FBB_D26
F39
FBB_D25
E41
FBB_D24
H41
FBB_D23
F42
FBB_D22
E42
FBB_D21
D42
FBB_D20
G45
FBB_D19
F45
FBB_D18
D45
FBB_D17
E45
FBB_D16
G33
FBB_D15
J32
FBB_D14
D33
FBB_D13
F33
FBB_D12
F36
FBB_D11
J36
FBB_D10
G36
FBB_D9
H36
FBB_D8
F32
FBB_D7
J30
FBB_D6
G32
FBB_D5
E32
FBB_D4
B32
FBB_D3
A33
FBB_D2
D32
FBB_D1
H32
FBB_D0
L38
FBB_PLL_AVDD
J46
FBB_WC KB67
J47
FBB_WC KB67
H46
FBB_WC K67
H47
FBB_WC K67
M45
FBB_WC KB45
M44
FBB_WC KB45
L45
FBB_WC K45
L46
FBB_WC K45
G41
FBB_WC KB23
F41
FBB_WC KB23
H39
FBB_WC K23
J39
FBB_WC K23
H35
FBB_WC KB01
G35
FBB_WC KB01
H33
FBB_WC K01
J33
FBB_WC K01
E47
FBB_CLK1
F47
FBB_CLK1
G42
FBB_CLK0
H42
FBB_CLK0
J41
FBB_DBG_RFU2
J35
FBB_DBG_RFU1
B50
FBB_CMD35
C35
FBB_CMD34
D41
FBB_CMD33
A42
FBB_CMD32
B42
FBB_CMD31
C42
FBB_CMD30
C44
FBB_CMD29
B44
FBB_CMD28
A44
FBB_CMD27
D44
FBB_CMD26
A45
FBB_CMD25
B45
FBB_CMD24
C45
FBB_CMD23
C47
FBB_CMD22
B47
FBB_CMD21
A47
FBB_CMD20
D47
FBB_CMD19
A48
FBB_CMD18
A49
FBB_CMD17
B49
FBB_CMD16
A41
FBB_CMD15
B41
FBB_CMD14
C41
FBB_CMD13
C39
FBB_CMD12
B39
FBB_CMD11
A39
FBB_CMD10
D38
FBB_CMD9
A38
FBB_CMD8
B38
FBB_CMD7
C38
FBB_CMD6
C36
FBB_CMD5
B36
FBB_CMD4
A36
FBB_CMD3
D35
FBB_CMD2
A35
FBB_CMD1
B35
FBB_CMD0
.
L2 HCB1608KF-300T60
R11
10K_04
R14
*60.4_1%_04
C92
22u_4V_X6S_06
2/23 FBA
INS16512652
U22B
L29
FB_REFPLL_AVDD1
AF42
FB_REFPLL_AVDD0
Y16
GND
Y15
GND
Y14
GND
W8
GND
W6
GND
W51
GND
W49
GND
W47
GND
AR51
FBA_DQS_W P7
AK48
FBA_DQS_W P6
AT50
FBA_DQS_W P5
BB52
FBA_DQS_W P4
AA48
FBA_DQS_W P3
AF44
FBA_DQS_W P2
V48
FBA_DQS_W P1
R48
FBA_DQS_W P0
AR49
FBA_DQM7
AM48
FBA_DQM6
AV50
FBA_DQM5
BB51
FBA_DQM4
AC48
FBA_DQM3
AG47
FBA_DQM2
Y48
FBA_DQM1
U47
FBA_DQM0
AR46
FBA_D63
AR47
FBA_D62
AN47
FBA_D61
AR48
FBA_D60
AN46
FBA_D59
AN45
FBA_D58
AM45
FBA_D57
AM44
FBA_D56
AN49
FBA_D55
AN48
FBA_D54
AM46
FBA_D53
AM47
FBA_D52
AK49
FBA_D51
AJ47
FBA_D50
AJ46
FBA_D49
AJ48
FBA_D48
AV49
FBA_D47
AV52
FBA_D46
AV51
FBA_D45
AT46
FBA_D44
AT48
FBA_D43
AT47
FBA_D42
AT49
FBA_D41
AV48
FBA_D40
AW49
FBA_D39
BA49
FBA_D38
BB50
FBA_D37
BA50
FBA_D36
BA51
FBA_D35
AW50
FBA_D34
BA52
FBA_D33
AW51
FBA_D32
Y44
FBA_D31
AA45
FBA_D30
AA46
FBA_D29
AA47
FBA_D28
AC47
FBA_D27
AC46
FBA_D26
AD48
FBA_D25
AD49
FBA_D24
AD47
FBA_D23
AF48
FBA_D22
AF47
FBA_D21
AF46
FBA_D20
AG49
FBA_D19
AJ45
FBA_D18
AG48
FBA_D17
AJ44
FBA_D16
V51
FBA_D15
U52
FBA_D14
V47
FBA_D13
V50
FBA_D12
Y46
FBA_D11
Y47
FBA_D10
Y45
FBA_D9
V46
FBA_D8
U46
FBA_D7
R47
FBA_D6
R50
FBA_D5
R51
FBA_D4
U49
FBA_D3
U50
FBA_D2
U48
FBA_D1
U51
FBA_D0
AN42
FBA_PLL_AVDD
AT44
FBA_WC KB67
AT45
FBA_WC KB67
AR44
FBA_WC K67
AR45
FBA_WC K67
AW47
FBA_WC KB45
AW48
FBA_WC KB45
AV46
FBA_WC K45
AV47
FBA_WC K45
AD45
FBA_WC KB23
AD46
FBA_WC KB23
AC44
FBA_WC K23
AC45
FBA_WC K23
V44
FBA_WC KB01
V45
FBA_WC KB01
U44
FBA_WC K01
U45
FBA_WC K01
AK45
FBA_CLK1
AK46
FBA_CLK1
AG46
FBA_CLK0
AG45
FBA_CLK0
AN44
FBA_DBG_RFU2
AA44
FBA_DBG_RFU1
AR50
FBA_CMD35
Y50
FBA_CMD34
AF49
FBA_CMD33
AG52
FBA_CMD32
AG51
FBA_CMD31
AG50
FBA_CMD30
AJ50
FBA_CMD29
AJ51
FBA_CMD28
AJ52
FBA_CMD27
AJ49
FBA_CMD26
AK52
FBA_CMD25
AK51
FBA_CMD24
AK50
FBA_CMD23
AM50
FBA_CMD22
AM51
FBA_CMD21
AM52
FBA_CMD20
AM49
FBA_CMD19
AN52
FBA_CMD18
AN51
FBA_CMD17
AN50
FBA_CMD16
AF52
FBA_CMD15
AF51
FBA_CMD14
AF50
FBA_CMD13
AD50
FBA_CMD12
AD51
FBA_CMD11
AD52
FBA_CMD10
AC49
FBA_CMD9
AC52
FBA_CMD8
AC51
FBA_CMD7
AC50
FBA_CMD6
AA50
FBA_CMD5
AA51
FBA_CMD4
AA52
FBA_CMD3
Y49
FBA_CMD2
Y52
FBA_CMD1
Y51
FBA_CMD0
R2
10K_04
R27
10K_04
R29
*60.4_1%_04
C106
0.1u_10V_X7R_04
C168
0.1u_10V_X7R_04
R10
10K_04
C122
0.1u_10V_X7R_04
R18
*60.4_1%_04
![](asset-49.png)

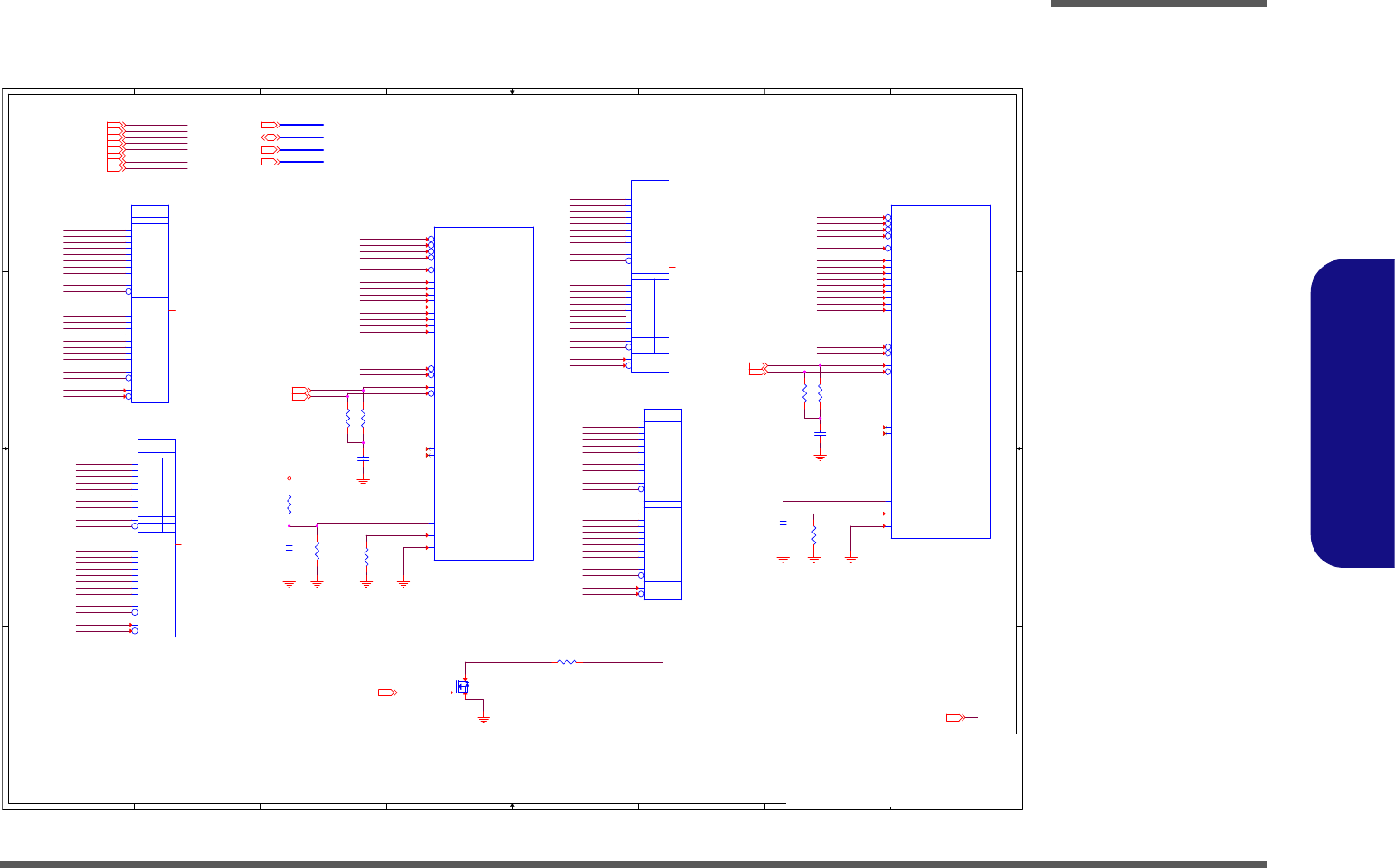

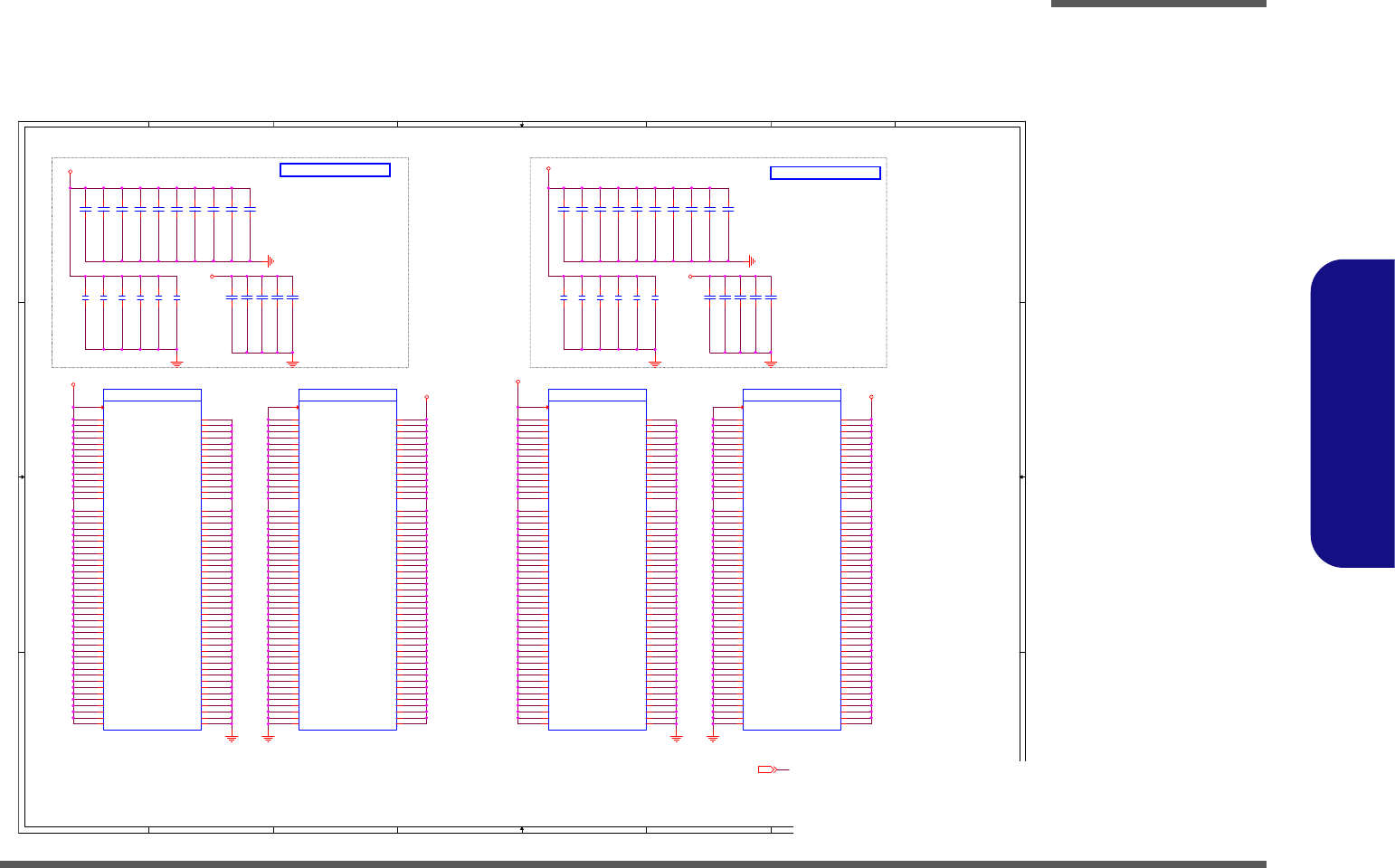

Sheet 16 of 77
Frame Buffer
Partition A
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
FRAME BUFFER PARTITION A
VRAM=K4G80325FB-HC03, HC28
FBA_CMD[31..0]
FBA_D10
FBA_D11
FBA_D12
FBA_D13
FBA_D14
FBA_D15
FBA_D24
FBA_D25
FBA_D26
FBA_D27
FBA_D28
FBA_D29
FBA_D30
FBA_D31
FBA_D32
FBA_D33
FBA_D34
FBA_D35
FBA_D36
FBA_D37
FBA_D38
FBA_D39
FBA_D48
FBA_D49
FBA_D50
FBA_D51
FBA_D52
FBA_D53
FBA_D54
FBA_D55
FBA_D[63..0]
FBA_D8
FBA_D9
FBA_DBI1
FBA_DBI3
FBA_DBI4
FBA_DBI6
FBA_EDC1
FBA_EDC3
FBA_EDC4
FBA_EDC6
ŇŃłŠŗœņŇń
FBA_VREFC
0.300
FBA_VREFC
FBA_VREFC
0.300
FBA_VREF_L
0.300
FBA_WCK01
FBA_WCK01*
FBA_WCK23
FBA_WCK23*
FBA_ZQ0
FBA_ZQ2
FBA_CMD16
FBA_CMD17
FBA_CMD18
FBA_CMD19
FBA_CMD20
FBA_CMD21
FBA_CMD22
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26
FBA_CMD27
FBA_CMD28
FBA_CMD29
FBA_CMD30
FBA_CMD31
FBA_CMD0
FBA_CMD1
FBA_CMD2
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8
FBA_CMD9
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_DBI[7..0]
FBA_EDC[7..0]
FBA_W CK01
FBA_W CK01*
FBA_W CK23
FBA_W CK23*
FBA_W CK45
FBA_W CK45*
FBA_W CK67
FBA_W CK67*
FBA_DBI0
FBA_EDC0
FBA_D0
FBA_D1
FBA_D2
FBA_D3
FBA_D4
FBA_D5
FBA_D6
FBA_D7
FBA_DBI2
FBA_EDC2
FBA_D16
FBA_D17
FBA_D18
FBA_D19
FBA_D20
FBA_D21
FBA_D22
FBA_D23
FBA_DBI5
FBA_EDC5
FBA_WCK45
FBA_WCK45*
FBA_D40
FBA_D41
FBA_D42
FBA_D43
FBA_D44
FBA_D45
FBA_D46
FBA_D47
FBA_DBI7
FBA_EDC7
FBA_WCK67
FBA_WCK67*
FBA_D56
FBA_D57
FBA_D58
FBA_D59
FBA_D60
FBA_D61
FBA_D62
FBA_D63
FBVDDQ
GND GND
GND
GND GND GND
GND
GND
GND
GND
FBA_CMD[31..0][15]
FBA_D[63..0][15]
FBA_DBI[7..0][15]
FBA_EDC[7..0][15]
FBA_WCK01[15]
FBA_WCK01*[15]
FBA_WCK23[15]
FBA_WCK23*[15]
FBA_WCK45[15]
FBA_WCK45*[15]
FBA_WCK67[15]
FBA_WCK67*[15]
GPIO10_ALT_MEM_VREF[17,20,21,26]
FBVDDQ[15,17,18,19,20,21,22,23,28,64]
FBA_CLK0[15]
FBA_CLK0*[15]
FBA_CLK1[15]
FBA_CLK1*[15]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[16] Frame Buffer Partition A
A3
16 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[16] Frame Buffer Partition A
A3
16 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[16] Frame Buffer Partition A
A3
16 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R5
40.2_1%_04
INS16516538
M2B
K4G80325FB-HC25
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU_V5
A5
NC_RFU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
K4
A7_A8
K5
A6_A11
K10
A5_BA1
K11
A4_BA2
H10
A3_BA3
H11
A2_BA0
H5
A1_A9
H4
A0_A10
J4
ABI
G12
CS
L12
WE
L3
CAS
G3
RAS
INS16516336
M3B
K4G80325FB-HC25
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU_V5
A5
NC_RFU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
H4
A7_A8
H5
A6_A11
H10
A5_BA1
H11
A4_BA2
K10
A3_BA3
K11
A2_BA0
K5
A1_A9
K4
A0_A10
J4
ABI
L12
CS
G12
WE
G3
CAS
L3
RAS
NC
NC
NC
NC
NC
NC
NC
NC
NC
x16x32
MIRRORED
NC
INS16516134
M3D
K4G80325FB-HC25
P5
WCK01
P4
WCK01
P13
DBI1
R13
EDC1
M13
DQ15
M11
DQ14
N13
DQ13
N11
DQ12
T13
DQ11
T11
DQ10
V13
DQ9
V11
DQ8
P2
DBI0
R2
EDC0
M2
DQ7
M4
DQ6
N2
DQ5
N4
DQ4
T2
DQ3
T4
DQ2
V2
DQ1
V4
DQ0
V10
VREFD
R414
121_1%_04
C2
0.01u_50V_X7R_04
R4
40.2_1%_04
R6
40.2_1%_04
C679
820p_50V_X7R_04
C678
820p_50V_X7R_04
NC
NC
NC
NC
NC
NC
NC
NC
GND
x32 x16
MIRRORED
NC
INS16516780
M3A
K4G80325FB-HC25
D5
WCK23
D4
WCK23
D2
DBI3
C2
EDC3
F2
DQ31
F4
DQ30
E2
DQ29
E4
DQ28
B2
DQ27
B4
DQ26
A2
DQ25
A4
DQ24
D13
DBI2
C13
EDC2
F13
DQ23
F11
DQ22
E13
DQ21
E11
DQ20
B13
DQ19
B11
DQ18
A13
DQ17
A11
DQ16
A10
VREFD
R413
121_1%_04
R408 931_1%_04
C3
0.01u_50V_X7R_04
NC
x16
NORMAL
NC
NC
NC
NC
NC
NC
NC
x32
NC
GND
INS16517002
M2D
K4G80325FB-HC25
D5
WCK01
D4
WCK01
D13
DBI1
C13
EDC1
F13
DQ15
F11
DQ14
E13
DQ13
E11
DQ12
B13
DQ11
B11
DQ10
A13
DQ9
A11
DQ8
D2
DBI0
C2
EDC0
F2
DQ7
F4
DQ6
E2
DQ5
E4
DQ4
B2
DQ3
B4
DQ2
A2
DQ1
A4
DQ0
A10
VREFD
R410
549_1%_04
R409
1.33K_1%_04
R3
40.2_1%_04
NORMAL
x16
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
x32
INS16517224
M2A
K4G80325FB-HC25
P5
WCK23
P4
WCK23
P2
DBI3
R2
EDC3
M2
DQ31
M4
DQ30
N2
DQ29
N4
DQ28
T2
DQ27
T4
DQ26
V2
DQ25
V4
DQ24
P13
DBI2
R13
EDC2
M13
DQ23
M11
DQ22
N13
DQ21
N11
DQ20
T13
DQ19
T11
DQ18
V13
DQ17
V11
DQ16
V10
VREFD
Q30
MTN2002ZS3
G
DS
Schematic Diagrams
Frame Buffer Partition A B - 17
B.Schematic Diagrams
Frame Buffer Partition A
![](asset-4a.png)

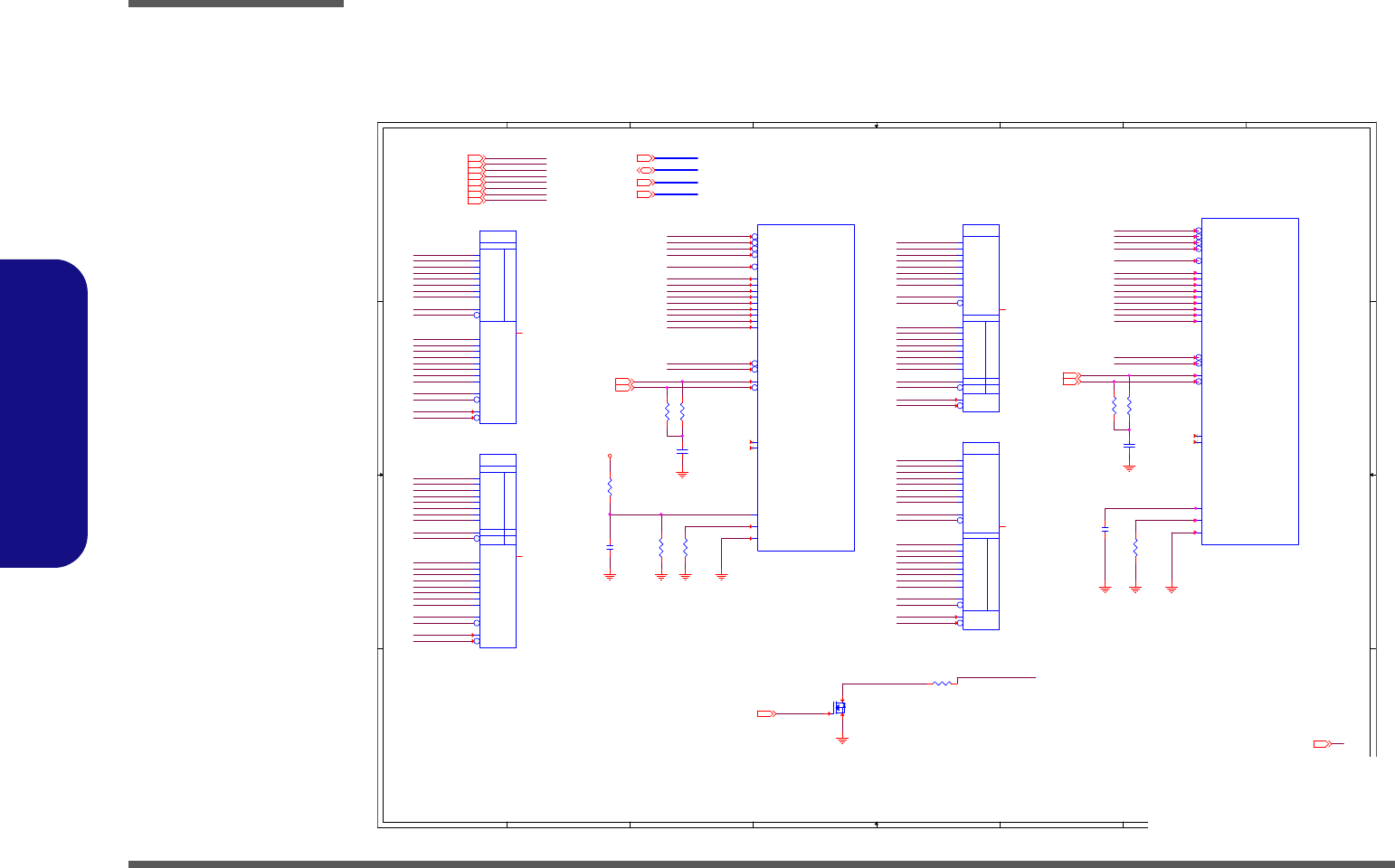

Schematic Diagrams
B - 18 Frame Buffer Partition B
B.Schematic Diagrams
Frame Buffer Partition B
Sheet 17 of 77
Frame Buffer
Partition B
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
FRAME BUFFER PARTITION B
㎃
MT20022zs3
㕁
6-15-20023-7b0
VRAM=K4G80325FB-HC03, HC28
FBB_D10
FBB_D11
FBB_D12
FBB_D13
FBB_D14
FBB_D15
FBB_D32
FBB_D33
FBB_D34
FBB_D35
FBB_D36
FBB_D37
FBB_D38
FBB_D39
FBB_D48
FBB_D49
FBB_D50
FBB_D51
FBB_D52
FBB_D53
FBB_D54
FBB_D55
FBB_D8
FBB_D9
FBB_DBI1
FBB_DBI4
FBB_DBI6
FBB_EDC1
FBB_EDC4
FBB_EDC6FBB_VREFC
0.300
FBB_VREFC
0.300
FBB_VREF_H
0.300
FBB_WCK01
FBB_WCK01*
FBB_WCK67
FBB_WCK67*
FBB_ZQ0
FBB_ZQ2
FBB_CMD2
FBB_CMD1
FBB_CMD0
FBB_CMD7
FBB_CMD6
FBB_CMD5
FBB_CMD4
FBB_CMD3
FBB_CMD12
FBB_CMD11
FBB_CMD10
FBB_CMD9
FBB_CMD8
FBB_CMD15
FBB_CMD14
FBB_CMD13
FBB_CMD16
FBB_CMD17
FBB_CMD18
FBB_CMD19
FBB_CMD20
FBB_CMD21
FBB_CMD22
FBB_CMD23
FBB_CMD24
FBB_CMD25
FBB_CMD26
FBB_CMD27
FBB_CMD28
FBB_CMD29
FBB_CMD30
FBB_CMD31
FBB_D0
FBB_D1
FBB_D2
FBB_D3
FBB_D4
FBB_D5
FBB_D6
FBB_D7
FBB_DBI0
FBB_EDC0
FBB_D40
FBB_D41
FBB_D42
FBB_D43
FBB_D44
FBB_D45
FBB_D46
FBB_D47
FBB_DBI5
FBB_EDC5
FBB_WCK45
FBB_WCK45*
FBB_D56
FBB_D57
FBB_D58
FBB_D59
FBB_D60
FBB_D61
FBB_D62
FBB_D63
FBB_DBI7
FBB_EDC7
FBB_W CK01
FBB_W CK01*
FBB_W CK23
FBB_W CK23*
FBB_W CK45
FBB_W CK45*
FBB_W CK67
FBB_W CK67*
FBB_DBI[7..0]
FBB_EDC[7..0]
FBB_CMD[31..0]
FBB_D[63..0]
FBB_D24
FBB_D25
FBB_D26
FBB_D27
FBB_D28
FBB_D29
FBB_D30
FBB_D31
FBB_DBI3
FBB_EDC3
FBB_WCK23
FBB_WCK23*
FBB_D16
FBB_D17
FBB_D18
FBB_D19
FBB_D20
FBB_D21
FBB_D22
FBB_D23
FBB_DBI2
FBB_EDC2
FBB_VREFC
GND
FBVDDQ
GND GND
GND
GND GND
GND
GND
GND
GND
GPIO10_ALT_MEM_VREF[16,20,21,26]
FBB_WCK01[15]
FBB_WCK01*[15]
FBB_WCK23[15]
FBB_WCK23*[15]
FBB_WCK45[15]
FBB_WCK45*[15]
FBB_WCK67[15]
FBB_WCK67*[15]
FBB_CMD[31..0][15]
FBB_DBI[7..0][15]
FBB_EDC[7..0][15]
FBB_D[63..0][15]
FBVDDQ[15,16,18,19,20,21,22,23,28,64]
FBB_CLK0[15]
FBB_CLK0*[15]
FBB_CLK1[15]
FBB_CLK1*[15]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[17] Frame Buffer Partition B
A3
17 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[17] Frame Buffer Partition B
A3
17 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[17] Frame Buffer Partition B
A3
17 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
NC
x16
NORMAL
NC
NC
NC
NC
NC
NC
NC
x32
NC
GND
INS16519158
M4D
K4G80325FB-HC25
D5
WCK01
D4
WCK01
D13
DBI1
C13
EDC1
F13
DQ15
F11
DQ14
E13
DQ13
E11
DQ12
B13
DQ11
B11
DQ10
A13
DQ9
A11
DQ8
D2
DBI0
C2
EDC0
F2
DQ7
F4
DQ6
E2
DQ5
E4
DQ4
B2
DQ3
B4
DQ2
A2
DQ1
A4
DQ0
A10
VREFD
C680
820p_50V_X7R_04
INS16519868
M5B
K4G80325FB-HC25
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU_V5
A5
NC_RFU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
H4
A7_A8
H5
A6_A11
H10
A5_BA1
H11
A4_BA2
K10
A3_BA3
K11
A2_BA0
K5
A1_A9
K4
A0_A10
J4
ABI
L12
CS
G12
WE
G3
CAS
L3
RAS
R412
549_1%_04
R418
1.33K_1%_04
NC
NC
NC
NC
NC
NC
NC
NC
NC
x16x32
MIRRORED
NC
INS16519380
M5D
K4G80325FB-HC25
P5
WCK01
P4
WCK01
P13
DBI1
R13
EDC1
M13
DQ15
M11
DQ14
N13
DQ13
N11
DQ12
T13
DQ11
T11
DQ10
V13
DQ9
V11
DQ8
P2
DBI0
R2
EDC0
M2
DQ7
M4
DQ6
N2
DQ5
N4
DQ4
T2
DQ3
T4
DQ2
V2
DQ1
V4
DQ0
V10
VREFD
C1
0.01u_50V_X7R_04
INS16520090
M4B
K4G80325FB-HC25
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU_V5
A5
NC_RFU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
K4
A7_A8
K5
A6_A11
K10
A5_BA1
K11
A4_BA2
H10
A3_BA3
H11
A2_BA0
H5
A1_A9
H4
A0_A10
J4
ABI
G12
CS
L12
WE
L3
CAS
G3
RAS
C43
0.01u_50V_X7R_04
R411 931_1%_04
R419
121_1%_04
C697
820p_50V_X7R_04
NC
NC
NC
NC
NC
NC
NC
NC
GND
x32 x16
MIRRORED
NC
INS16518908
M5A
K4G80325FB-HC25
D5
WCK23
D4
WCK23
D2
DBI3
C2
EDC3
F2
DQ31
F4
DQ30
E2
DQ29
E4
DQ28
B2
DQ27
B4
DQ26
A2
DQ25
A4
DQ24
D13
DBI2
C13
EDC2
F13
DQ23
F11
DQ22
E13
DQ21
E11
DQ20
B13
DQ19
B11
DQ18
A13
DQ17
A11
DQ16
A10
VREFD
R7
40.2_1%_04
NORMAL
x16
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
x32
INS16519622
M4A
K4G80325FB-HC25
P5
WCK23
P4
WCK23
P2
DBI3
R2
EDC3
M2
DQ31
M4
DQ30
N2
DQ29
N4
DQ28
T2
DQ27
T4
DQ26
V2
DQ25
V4
DQ24
P13
DBI2
R13
EDC2
M13
DQ23
M11
DQ22
N13
DQ21
N11
DQ20
T13
DQ19
T11
DQ18
V13
DQ17
V11
DQ16
V10
VREFD
R16
40.2_1%_04
R415
121_1%_04
Q31
MTN2002ZS3
G
DS
R17
40.2_1%_04
R8
40.2_1%_04
![](asset-4b.png)
Schematic Diagrams
Frame Buffer Partition A_B B - 19
B.Schematic Diagrams
Frame Buffer Partition A_B
Sheet 18 of 77
Frame Buffer
Partition A_B
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
FRAME BUFFER PARTITION A/B DECOUPLING
DECOUPLING AROUND FBA MEMORIES (DQ0-DQ31)
PLACE Under MEM
DECOUPLING AROUND FBA MEMORIES (DQ32-DQ63)
PLACE Under MEM
SPARE
1u x 10
10u x 6
22u x 5
SPARE
1u x 10
10u x 6
22u x 5
FBVDDQ
FBVDDQ
FBVDDQ
GND
FBVDDQ
GND
GND
FBVDDQ
GND
FBVDDQ
GND
GND
FBVDDQ
FBVDDQ
GND GND GND GND
FBVDDQ[15,16,17,19,20,21,22,23,28,64]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[18] Frame Buffer Partition A_B
A3
18 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[18] Frame Buffer Partition A_B
A3
18 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[18] Frame Buffer Partition A_B
A3
18 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C683
22u_6.3V_X5R_06
C664
22u_6.3V_X5R_06
C7
10u_6.3V_X5R_06
C695
22u_6.3V_X5R_06
C97
*1u_6.3V_X5R_04
C682
*10u_6.3V_X5R_06
C131
10u_6.3V_X5R_06
C6
1u_6.3V_X5R_04
C166
1u_6.3V_X5R_04
add 1k to VSS
Normal
INS16523208
M2C
K4G80325FB-HC25
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
J1
MF_VSS/SOE*
T3
VDDQ
T14
VDDQ
T12
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
C5
1u_6.3V_X5R_04
C672
1u_6.3V_X5R_04
C667
10u_6.3V_X5R_06
C686
1u_6.3V_X5R_04
C665
22u_6.3V_X5R_06
C685
10u_6.3V_X5R_06
C702
10u_6.3V_X5R_06
C671
*1u_6.3V_X5R_04
add 1k to VDD
Mirrored
INS16524034
M5C
K4G80325FB-HC25
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
T3
VDDQ
T14
VDDQ
T12
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
J1
SOE*/MF_VDD
C4
22u_6.3V_X5R_06
C666
22u_6.3V_X5R_06
C687
*1u_6.3V_X5R_04
C681
22u_6.3V_X5R_06
add 1k to VSS
Normal
INS16526066
M4C
K4G80325FB-HC25
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
J1
MF_VSS/SOE*
T3
VDDQ
T14
VDDQ
T12
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
C150
1u_6.3V_X5R_04
C674
10u_6.3V_X5R_06
add 1k to VDD
Mirrored
INS16524960
M3C
K4G80325FB-HC25
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
T3
VDDQ
T14
VDDQ
T12
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
J1
SOE*/MF_VDD
C128
*1u_6.3V_X5R_04
C85
1u_6.3V_X5R_04
C123
1u_6.3V_X5R_04
C676
10u_6.3V_X5R_06
C668
10u_6.3V_X5R_06
C130
*10u_6.3V_X5R_06
C690
22u_6.3V_X5R_06
C78
1u_6.3V_X5R_04
C696
10u_6.3V_X5R_06
C99
1u_6.3V_X5R_04
C669
1u_6.3V_X5R_04
C675
10u_6.3V_X5R_06
C703
22u_6.3V_X5R_06
C48
1u_6.3V_X5R_04
C694
22u_6.3V_X5R_06
C670
*1u_6.3V_X5R_04
C688
*1u_6.3V_X5R_04
C47
1u_6.3V_X5R_04
C689
1u_6.3V_X5R_04
![](asset-4c.png)
Schematic Diagrams
B - 20 GPU Frame Buffer Partition
B.Schematic Diagrams
GPU Frame Buffer Partition
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
GPU FRAME BUFFER PARTITION C/D
Ɉ
ɈɈ
ɈɈ
ɈɈ
ɈONLY G1 ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
FBC_CLK0
DP_FBC_CLK0 FB_CLK
FBC_CLK0*
DP_FBC_CLK0 FB_CLK
FBC_CLK1
DP_FBC_CLK1 FB_CLK
FBC_CLK1*
DP_FBC_CLK1 FB_CLK
FBC_CMD0
FBC_CMD10
FBC_CMD11
FBC_CMD12
FBC_CMD13
FBC_CMD14
FBC_CMD15
FBC_CMD16
FBC_CMD17
FBC_CMD17
FBC_CMD18
FBC_CMD18
FBC_CMD19
FBC_CMD1
FBC_CMD1
FBC_CMD20
FBC_CMD21
FBC_CMD22
FBC_CMD23
FBC_CMD24
FBC_CMD25
FBC_CMD26
FBC_CMD27
FBC_CMD28
FBC_CMD29
FBC_CMD2
FBC_CMD2
FBC_CMD30
FBC_CMD31
FBC_CMD3
FBC_CMD4
FBC_CMD5
FBC_CMD6
FBC_CMD7
FBC_CMD8
FBC_CMD9
FBC_D0
FBC_D10
FBC_D11
FBC_D12
FBC_D13
FBC_D14
FBC_D15
FBC_D16
FBC_D17
FBC_D18
FBC_D19
FBC_D1
FBC_D20
FBC_D21
FBC_D22
FBC_D23
FBC_D24
FBC_D25
FBC_D26
FBC_D27
FBC_D28
FBC_D29
FBC_D2
FBC_D30
FBC_D31
FBC_D32
FBC_D33
FBC_D34
FBC_D35
FBC_D36
FBC_D37
FBC_D38
FBC_D39
FBC_D3
FBC_D40
FBC_D41
FBC_D42
FBC_D43
FBC_D44
FBC_D45
FBC_D46
FBC_D47
FBC_D48
FBC_D49
FBC_D4
FBC_D50
FBC_D51
FBC_D52
FBC_D53
FBC_D54
FBC_D55
FBC_D56
FBC_D57
FBC_D58
FBC_D59
FBC_D5
FBC_D60
FBC_D61
FBC_D62
FBC_D63
FBC_D6
FBC_D7
FBC_D8
FBC_D9
FBC_DBI0
FBC_DBI1
FBC_DBI2
FBC_DBI3
FBC_DBI4
FBC_DBI5
FBC_DBI6
FBC_DBI7
FBC_EDC0
FBC_EDC1
FBC_EDC2
FBC_EDC3
FBC_EDC4
FBC_EDC5
FBC_EDC6
FBC_EDC7
FBC_WCK01
FB_W CKFBC_W CK01
FBC_WCK01*
FB_W CKFBC_W CK01
FBC_WCK23
FB_W CKFBC_W CK23
FBC_WCK23*
FB_W CKFBC_W CK23
FBC_WCK45
FB_W CKFBC_W CK45
FBC_WCK45*
FB_W CKFBC_W CK45
FBC_WCK67
FB_W CKFBC_W CK67
FBC_WCK67*
FB_W CKFBC_W CK67
FBC_EDC[7..0]
FBC_DBI[7..0]
FBC_D[63..0]
FBC_CMD[31..0]
FBD_D0
FBD_D1
FBD_D2
FBD_D3
FBD_D4
FBD_D5
FBD_D6
FBD_D7
FBD_D8
FBD_D9
FBD_D10
FBD_D11
FBD_D12
FBD_D13
FBD_D14
FBD_D15
FBD_D16
FBD_D17
FBD_D18
FBD_D19
FBD_D20
FBD_D21
FBD_D22
FBD_D23
FBD_D24
FBD_D25
FBD_D26
FBD_D27
FBD_D28
FBD_D29
FBD_D30
FBD_D31
FBD_D32
FBD_D33
FBD_D34
FBD_D35
FBD_D36
FBD_D37
FBD_D38
FBD_D39
FBD_D40
FBD_D41
FBD_D42
FBD_D43
FBD_D44
FBD_D45
FBD_D46
FBD_D47
FBD_D48
FBD_D49
FBD_D50
FBD_D51
FBD_D52
FBD_D53
FBD_D54
FBD_D55
FBD_D56
FBD_D57
FBD_D58
FBD_D59
FBD_D60
FBD_D61
FBD_D62
FBD_D63
FBD_DBI0
FBD_DBI1
FBD_DBI2
FBD_DBI3
FBD_DBI4
FBD_DBI5
FBD_DBI6
FBD_DBI7
FBD_EDC0
FBD_EDC1
FBD_EDC2
FBD_EDC3
FBD_EDC4
FBD_EDC5
FBD_EDC6
FBD_EDC7
FBD_CMD0
FBD_CMD1
FBD_CMD2
FBD_CMD3
FBD_CMD4
FBD_CMD5
FBD_CMD6
FBD_CMD7
FBD_CMD8
FBD_CMD9
FBD_CMD10
FBD_CMD11
FBD_CMD12
FBD_CMD13
FBD_CMD14
FBD_CMD15
FBD_CMD16
FBD_CMD17
FBD_CMD18
FBD_CMD19
FBD_CMD20
FBD_CMD21
FBD_CMD22
FBD_CMD23
FBD_CMD24
FBD_CMD25
FBD_CMD26
FBD_CMD27
FBD_CMD28
FBD_CMD29
FBD_CMD30
FBD_CMD31
FBD_EDC[7..0]
FBD_DBI[7..0]
FBD_D[63..0]
FBD_CMD[31..0]
FBD_CMD17
FBD_CMD18
FBD_CMD1
FBD_CMD2
FBC_DEBUG1
FBC_DEBUG0
FBD_DEBUG1
FBD_DEBUG0
GND
FBVDDQ
GND
FBVDDQ
GND
FBVDDQ FBVDDQ
GND
GND GND
FBC_EDC[7..0] [20]
FBC_CMD[31..0] [20]
FBC_DBI[7..0] [20]
FBC_D[63..0] [20]
FBC_WCK23* [20]
FBC_WCK01* [20]
FBC_CLK1* [20]
FBC_CLK0* [20]
FBC_WCK67 [20]
FBC_WCK45 [20]
FBC_WCK23 [20]
FBC_CLK0 [20]
FBC_WCK01 [20]
FBC_CLK1 [20]
FBC_WCK67* [20]
FBC_WCK45* [20]
FB_PLL_AVDD[15,19]
FBD_WCK23* [21]
FBD_WCK01* [21]
FBD_CLK1* [21]
FBD_CLK0* [21]
FBD_WCK67 [21]
FBD_WCK45 [21]
FBD_WCK23 [21]
FBD_CLK0 [21]
FBD_WCK01 [21]
FBD_CLK1 [21]
FBD_WCK67* [21]
FBD_WCK45* [21]
FBD_EDC[7..0] [21]
FBD_CMD[31..0] [21]FBD_DBI[7..0] [21]
FBD_D[63..0] [21]
FB_PLL_AVDD [15,19] FB_PLL_AVDD [15,19]
FBVDDQ[15,16,17,18,20,21,22,23,28,64]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[19] GPU Frame Buffer Partition
A3
19 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[19] GPU Frame Buffer Partition
A3
19 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[19] GPU Frame Buffer Partition
A3
19 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R39
*60.4_1%_04
R60
10K_04
R512
10K_04
GP106
UNUSED
GP104
FBD
5/23 FBD
INS16530501
U22E
Y9
GND
Y39
GND
Y38
GND
Y37
GND
Y36
GND
Y35
GND
Y34
GND
Y33
GND
M5
FBD_DQS_WP7
U6
FBD_DQS_WP6
H2
FBD_DQS_WP5
E3
FBD_DQS_WP4
AF4
FBD_DQS_WP3
AA9
FBD_DQS_WP2
AG2
FBD_DQS_WP1
AJ3
FBD_DQS_WP0
M9
FBD_DQM7
U5
FBD_DQM6
H3
FBD_DQM5
D3
FBD_DQM4
AD5
FBD_DQM3
AA7
FBD_DQM2
AG1
FBD_DQM1
AJ1
FBD_DQM0
L5
FBD_D63
L4
FBD_D62
L6
FBD_D61
L7
FBD_D60
P5
FBD_D59
P4
FBD_D58
R9
FBD_D57
P6
FBD_D56
U8
FBD_D55
R6
FBD_D54
R5
FBD_D53
U4
FBD_D52
V9
FBD_D51
V6
FBD_D50
V8
FBD_D49
V7
FBD_D48
H5
FBD_D47
H4
FBD_D46
F2
FBD_D45
F1
FBD_D44
J2
FBD_D43
L8
FBD_D42
J4
FBD_D41
J5
FBD_D40
C2
FBD_D39
C3
FBD_D38
D1
FBD_D37
D2
FBD_D36
F5
FBD_D35
F3
FBD_D34
E1
FBD_D33
F4
FBD_D32
AF3
FBD_D31
AF2
FBD_D30
AF8
FBD_D29
AF7
FBD_D28
AD6
FBD_D27
AF6
FBD_D26
AC6
FBD_D25
AD7
FBD_D24
AC4
FBD_D23
AC5
FBD_D22
AA5
FBD_D21
AA6
FBD_D20
Y4
FBD_D19
V5
FBD_D18
Y5
FBD_D17
Y6
FBD_D16
AG5
FBD_D15
AJ6
FBD_D14
AJ5
FBD_D13
AJ4
FBD_D12
AG7
FBD_D11
AG6
FBD_D10
AF9
FBD_D9
AG4
FBD_D8
AK7
FBD_D7
AK9
FBD_D6
AK6
FBD_D5
AK5
FBD_D4
AK3
FBD_D3
AK2
FBD_D2
AK4
FBD_D1
AK8
FBD_D0
V11
FBD_PLL_AVDD
M8
FBD_WCKB67
M7
FBD_WCKB67
P7
FBD_WCK67
P8
FBD_WCK67
H6
FBD_WCKB45
H7
FBD_WCKB45
J7
FBD_WCK45
J6
FBD_WCK45
AC8
FBD_WCKB23
AC7
FBD_WCKB23
AD9
FBD_WCK23
AD8
FBD_WCK23
AG9
FBD_WCKB01
AG8
FBD_WCKB01
AJ7
FBD_WCK01
AJ8
FBD_WCK01
R7
FBD_CLK1
R8
FBD_CLK1
Y7
FBD_CLK0
Y8
FBD_CLK0
P9
FBD_DBG_RFU2
AC9
FBD_DBG_RFU1
J3
FBD_CMD35
AD3
FBD_CMD34
V4
FBD_CMD33
U1
FBD_CMD32
U2
FBD_CMD31
U3
FBD_CMD30
R3
FBD_CMD29
R2
FBD_CMD28
R1
FBD_CMD27
R4
FBD_CMD26
P1
FBD_CMD25
P2
FBD_CMD24
P3
FBD_CMD23
M3
FBD_CMD22
M2
FBD_CMD21
M1
FBD_CMD20
M4
FBD_CMD19
L1
FBD_CMD18
L2
FBD_CMD17
L3
FBD_CMD16
V1
FBD_CMD15
V2
FBD_CMD14
V3
FBD_CMD13
Y3
FBD_CMD12
Y2
FBD_CMD11
Y1
FBD_CMD10
AA4
FBD_CMD9
AA1
FBD_CMD8
AA2
FBD_CMD7
AA3
FBD_CMD6
AC3
FBD_CMD5
AC2
FBD_CMD4
AC1
FBD_CMD3
AD4
FBD_CMD2
AD1
FBD_CMD1
AD2
FBD_CMD0
R30
10K_04
C229
0.1u_10V_X7R_04
R72
*60.4_1%_04
R31
10K_04
C242
0.1u_10V_X7R_04
4/23 FBC
INS16529121
U22D
Y32
GND
Y31
GND
Y30
GND
Y29
GND
Y28
GND
Y27
GND
Y26
GND
Y25
GND
E24
FBC_DQS_WP7
G21
FBC_DQS_WP6
B29
FBC_DQS_WP5
E30
FBC_DQS_WP4
E12
FBC_DQS_WP3
E17
FBC_DQS_WP2
D8
FBC_DQS_WP1
D5
FBC_DQS_WP0
E26
FBC_DQM7
F20
FBC_DQM6
E27
FBC_DQM5
D29
FBC_DQM4
F12
FBC_DQM3
J18
FBC_DQM2
C8
FBC_DQM1
A5
FBC_DQM0
C26
FBC_D63
B26
FBC_D62
D26
FBC_D61
F26
FBC_D60
G26
FBC_D59
F24
FBC_D58
H26
FBC_D57
G24
FBC_D56
E23
FBC_D55
D21
FBC_D54
E21
FBC_D53
F23
FBC_D52
E20
FBC_D51
G20
FBC_D50
D18
FBC_D49
H20
FBC_D48
G29
FBC_D47
A27
FBC_D46
B27
FBC_D45
C27
FBC_D44
G27
FBC_D43
F27
FBC_D42
J26
FBC_D41
D27
FBC_D40
C30
FBC_D39
H30
FBC_D38
A30
FBC_D37
B30
FBC_D36
G30
FBC_D35
H29
FBC_D34
F30
FBC_D33
J29
FBC_D32
E11
FBC_D31
F11
FBC_D30
G11
FBC_D29
H11
FBC_D28
F14
FBC_D27
E14
FBC_D26
H15
FBC_D25
J15
FBC_D24
H17
FBC_D23
G17
FBC_D22
E15
FBC_D21
D15
FBC_D20
H18
FBC_D19
E18
FBC_D18
G18
FBC_D17
F18
FBC_D16
E6
FBC_D15
F6
FBC_D14
A8
FBC_D13
B8
FBC_D12
B9
FBC_D11
E9
FBC_D10
C9
FBC_D9
D9
FBC_D8
C4
FBC_D7
B3
FBC_D6
A4
FBC_D5
B4
FBC_D4
B6
FBC_D3
A6
FBC_D2
D6
FBC_D1
C6
FBC_D0
L17
FBC_PLL_AVDD
J24
FBC_WCKB67
H24
FBC_WCKB67
H23
FBC_WCK67
G23
FBC_WCK67
F29
FBC_WCKB45
E29
FBC_WCKB45
H27
FBC_WCK45
J27
FBC_WCK45
H14
FBC_WCKB23
G14
FBC_WCKB23
G12
FBC_WCK23
H12
FBC_WCK23
F9
FBC_WCKB01
G9
FBC_WCKB01
G8
FBC_WCK01
F8
FBC_WCK01
J21
FBC_CLK1
H21
FBC_CLK1
F15
FBC_CLK0
G15
FBC_CLK0
J23
FBC_DBG_RFU2
J14
FBC_DBG_RFU1
C24
FBC_CMD35
A9
FBC_CMD34
A17
FBC_CMD33
D17
FBC_CMD32
A18
FBC_CMD31
B18
FBC_CMD30
C18
FBC_CMD29
C20
FBC_CMD28
B20
FBC_CMD27
A20
FBC_CMD26
D20
FBC_CMD25
A21
FBC_CMD24
B21
FBC_CMD23
C21
FBC_CMD22
C23
FBC_CMD21
B23
FBC_CMD20
A23
FBC_CMD19
D23
FBC_CMD18
A24
FBC_CMD17
B24
FBC_CMD16
B17
FBC_CMD15
C17
FBC_CMD14
C15
FBC_CMD13
B15
FBC_CMD12
A15
FBC_CMD11
D14
FBC_CMD10
A14
FBC_CMD9
B14
FBC_CMD8
C14
FBC_CMD7
C12
FBC_CMD6
B12
FBC_CMD5
A12
FBC_CMD4
D11
FBC_CMD3
A11
FBC_CMD2
B11
FBC_CMD1
C11
FBC_CMD0
R53
*60.4_1%_04
R64
*60.4_1%_04
R165
10K_04
R168
10K_04
R58
10K_04
R501
10K_04
Sheet 19 of 77
GPU Frame Buffer
Partition
![](asset-4d.png)
Schematic Diagrams
Frame Buffer Partition C B - 21
B.Schematic Diagrams
Frame Buffer Partition C
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
FRAME BUFFER PARTITION C
VRAM=K4G80325FB-HC03, HC28
FBC_D10
FBC_D11
FBC_D12
FBC_D13
FBC_D14
FBC_D15
FBC_D32
FBC_D33
FBC_D34
FBC_D35
FBC_D36
FBC_D37
FBC_D38
FBC_D39
FBC_D8
FBC_D9
FBC_DBI1
FBC_DBI4
FBC_EDC1
FBC_EDC4
FBC_VREFC
FBC_VREFC
0.300
FBC_VREF_L
0.300
FBC_WCK01
FBC_WCK01*
FBC_ZQ0
FBC_ZQ2
FBC_VREFC
0.300
FBC_CMD2
FBC_CMD1
FBC_CMD0
FBC_CMD7
FBC_CMD6
FBC_CMD5
FBC_CMD4
FBC_CMD3
FBC_CMD12
FBC_CMD11
FBC_CMD10
FBC_CMD9
FBC_CMD8
FBC_CMD15
FBC_CMD14
FBC_CMD13
FBC_CMD16
FBC_CMD17
FBC_CMD18
FBC_CMD19
FBC_CMD20
FBC_CMD21
FBC_CMD22
FBC_CMD23
FBC_CMD24
FBC_CMD25
FBC_CMD26
FBC_CMD27
FBC_CMD28
FBC_CMD29
FBC_CMD30
FBC_CMD31
FBC_DBI[7..0]
FBC_EDC[7..0]
FBC_CMD[31..0]
FBC_D[63..0]
FBC_WCK01
FBC_WCK01*
FBC_WCK23
FBC_WCK23*
FBC_WCK45
FBC_WCK45*
FBC_WCK67
FBC_WCK67*
FBC_D5
FBC_D0
FBC_D1
FBC_D2
FBC_D3
FBC_D4
FBC_D6
FBC_D7
FBC_DBI0
FBC_EDC0
FBC_D16
FBC_D17
FBC_D18
FBC_D19
FBC_D20
FBC_D21
FBC_D22
FBC_D23
FBC_DBI2
FBC_EDC2
FBC_D24
FBC_D25
FBC_D26
FBC_D27
FBC_D28
FBC_D29
FBC_D30
FBC_D31
FBC_DBI3
FBC_EDC3
FBC_WCK23
FBC_WCK23*
FBC_D40
FBC_D41
FBC_D42
FBC_D43
FBC_D44
FBC_D45
FBC_D46
FBC_D47
FBC_DBI5
FBC_EDC5
FBC_WCK45
FBC_WCK45*
FBC_D48
FBC_D49
FBC_D50
FBC_D51
FBC_D52
FBC_D53
FBC_D54
FBC_D55
FBC_DBI6
FBC_EDC6
FBC_WCK67
FBC_WCK67*
FBC_D56
FBC_D57
FBC_D58
FBC_D59
FBC_D60
FBC_D61
FBC_D62
FBC_D63
FBC_EDC7
FBC_DBI7
GND
GND
GND GND
GND
FBVDDQ
GND
GND
GND
GND
GND
GPIO10_ALT_MEM_VREF[16,17,21,26]
FBC_WCK01[19]
FBC_WCK01*[19]
FBC_WCK23[19]
FBC_WCK23*[19]
FBC_WCK45[19]
FBC_WCK45*[19]
FBC_WCK67[19]
FBC_WCK67*[19]
FBC_CMD[31..0][19]
FBC_DBI[7..0][19]
FBC_EDC[7..0][19]
FBC_D[63..0][19]
FBVDDQ[15,16,17,18,19,21,22,23,28,64]
FBC_CLK0[19]
FBC_CLK0*[19]
FBC_CLK1[19]
FBC_CLK1*[19]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[20] Frame Buffer Partition C
A3
20 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[20] Frame Buffer Partition C
A3
20 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[20] Frame Buffer Partition C
A3
20 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
NORMAL
x16
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
x32
INS16534713
M6A
K4G80325FB-HC25
P5
WCK23
P4
WCK23
P2
DBI3
R2
EDC3
M2
DQ31
M4
DQ30
N2
DQ29
N4
DQ28
T2
DQ27
T4
DQ26
V2
DQ25
V4
DQ24
P13
DBI2
R13
EDC2
M13
DQ23
M11
DQ22
N13
DQ21
N11
DQ20
T13
DQ19
T11
DQ18
V13
DQ17
V11
DQ16
V10
VREFD
R431
1.33K_1%_04
R51
40.2_1%_04
R47
40.2_1%_04
C706
820p_50V_X7R_04
R429 931_1%_04
R427
549_1%_04
C709
820p_50V_X7R_04
R55
121_1%_04
NC
NC
NC
NC
NC
NC
NC
NC
NC
x16x32
MIRRORED
NC
INS16534063
M15D
K4G80325FB-HC25
P5
WCK01
P4
WCK01
P13
DBI1
R13
EDC1
M13
DQ15
M11
DQ14
N13
DQ13
N11
DQ12
T13
DQ11
T11
DQ10
V13
DQ9
V11
DQ8
P2
DBI0
R2
EDC0
M2
DQ7
M4
DQ6
N2
DQ5
N4
DQ4
T2
DQ3
T4
DQ2
V2
DQ1
V4
DQ0
V10
VREFD
NC
x16
NORMAL
NC
NC
NC
NC
NC
NC
NC
x32
NC
GND
INS16534265
M6D
K4G80325FB-HC25
D5
WCK01
D4
WCK01
D13
DBI1
C13
EDC1
F13
DQ15
F11
DQ14
E13
DQ13
E11
DQ12
B13
DQ11
B11
DQ10
A13
DQ9
A11
DQ8
D2
DBI0
C2
EDC0
F2
DQ7
F4
DQ6
E2
DQ5
E4
DQ4
B2
DQ3
B4
DQ2
A2
DQ1
A4
DQ0
A10
VREFD
INS16534979
M15B
K4G80325FB-HC25
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU_V5
A5
NC_RFU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
H4
A7_A8
H5
A6_A11
H10
A5_BA1
H11
A4_BA2
K10
A3_BA3
K11
A2_BA0
K5
A1_A9
K4
A0_A10
J4
ABI
L12
CS
G12
WE
G3
CAS
L3
RAS
R49
40.2_1%_04
R52
40.2_1%_04
C260
0.01u_50V_X7R_04
INS16533781
M6B
K4G80325FB-HC25
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU_V5
A5
NC_RFU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
K4
A7_A8
K5
A6_A11
K10
A5_BA1
K11
A4_BA2
H10
A3_BA3
H11
A2_BA0
H5
A1_A9
H4
A0_A10
J4
ABI
G12
CS
L12
WE
L3
CAS
G3
RAS
NC
NC
NC
NC
NC
NC
NC
NC
GND
x32 x16
MIRRORED
NC
INS16534491
M15A
K4G80325FB-HC25
D5
WCK23
D4
WCK23
D2
DBI3
C2
EDC3
F2
DQ31
F4
DQ30
E2
DQ29
E4
DQ28
B2
DQ27
B4
DQ26
A2
DQ25
A4
DQ24
D13
DBI2
C13
EDC2
F13
DQ23
F11
DQ22
E13
DQ21
E11
DQ20
B13
DQ19
B11
DQ18
A13
DQ17
A11
DQ16
A10
VREFD
C253
0.01u_50V_X7R_04
R45
121_1%_04
Q32
MTN2002ZS3
G
DS
Sheet 20 of 77
Frame Buffer
Partition C
![](asset-4e.png)
Schematic Diagrams
B - 22 Frame Buffer Partition D
B.Schematic Diagrams
Frame Buffer Partition D
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
FRAME BUFFER PARTITION D
VRAM=K4G80325FB-HC03, HC28
Ɉ
ɈɈ
ɈONLY G1 ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ (㔜
㔜㔜
㔜枩
枩枩
枩ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ)
FBD_CMD16
FBD_CMD17
FBD_CMD18
FBD_CMD19
FBD_CMD20
FBD_CMD21
FBD_CMD22
FBD_CMD23
FBD_CMD24
FBD_CMD25
FBD_CMD26
FBD_CMD27
FBD_CMD28
FBD_CMD29
FBD_CMD30
FBD_CMD31
FBD_DBI[7..0]
FBDEDC[7..0]
FBD_CMD[31..0]
FBD_D[63..0]
FBD_WCK01
FBD_WCK01*
FBD_WCK23
FBD_WCK23*
FBD_WCK45
FBD_WCK45*
FBD_WCK67
FBD_WCK67*
FBD_D32
FBD_D8
FBD_DBI1
FBD_DBI4
FBD_EDC1
FBD_EDC4
FBD_VREFC
0.300
FBD_WCK01
FBD_WCK01*
FBD_ZQ2
FBD_D9
FBD_D10
FBD_D11
FBD_D12
FBD_D13
FBD_D14
FBD_D15
FBD_D33
FBD_D34
FBD_D35
FBD_D36
FBD_D37
FBD_D38
FBD_D39
FBD_D1
FBD_D2
FBD_D3
FBD_D4
FBD_D5
FBD_D6
FBD_D7
FBD_D0
FBD_DBI0
FBD_EDC0
FBD_DBI3
FBD_EDC3
FBD_WCK23
FBD_WCK23*
FBD_D17
FBD_D18
FBD_D19
FBD_D20
FBD_D21
FBD_D22
FBD_D23
FBD_D16
FBD_DBI2
FBD_EDC2
FBD_D24
FBD_D25
FBD_D26
FBD_D27
FBD_D28
FBD_D29
FBD_D30
FBD_D31
FBD_CMD2
FBD_CMD1
FBD_CMD6
FBD_CMD5
FBD_CMD0
FBD_CMD7
FBD_CMD4
FBD_CMD12
FBD_CMD11
FBD_CMD9
FBD_CMD3
FBD_CMD10
FBD_CMD8
FBD_CMD14
FBD_CMD13
FBD_CMD15
FBD_VREFC
0.300
FBD_ZQ0
FBD_D40
FBD_D41
FBD_D42
FBD_D43
FBD_D44
FBD_D45
FBD_D46
FBD_D47
FBD_DBI5
FBD_EDC5
FBD_WCK45
FBD_WCK45*
FBD_DBI7
FBD_EDC7
FBD_WCK67
FBD_WCK67*
FBD_D56
FBD_D57
FBD_D58
FBD_D59
FBD_D60
FBD_D61
FBD_D62
FBD_D63
FBD_D49
FBD_D50
FBD_D51
FBD_D52
FBD_D53
FBD_D54
FBD_D55
FBD_D48
FBD_DBI6
FBD_EDC6
FBD_VREFCFBD_VREF_L
0.300
GND GND
GNDGND
FBVDDQ
GND
GND
GND
GND
GND
GND
FBD_WCK01[19]
FBD_WCK01*[19]
FBD_WCK23[19]
FBD_WCK23*[19]
FBD_WCK45[19]
FBD_WCK45*[19]
FBD_WCK67[19]
FBD_WCK67*[19]
FBD_CMD[31..0][19]
FBD_DBI[7..0][19]
FBD_EDC[7..0][19]
FBD_D[63..0][19]
GPIO10_ALT_MEM_VREF[16,17,20,26]
FBVDDQ[15,16,17,18,19,20,22,23,28,64]
FBD_CLK0[19]
FBD_CLK0*[19]
FBD_CLK1[19]
FBD_CLK1*[19]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[21] Frame Buffer Partition D
A3
21 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[21] Frame Buffer Partition D
A3
21 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[21] Frame Buffer Partition D
A3
21 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R160
40.2_1%_04
G2
C801
820p_50V_X7R_04
G2
R151
40.2_1%_04
G2
INS16536547
M7B
K4G80325FB-HC25
G2
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU_V5
A5
NC_RFU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
H4
A7_A8
H5
A6_A11
H10
A5_BA1
H11
A4_BA2
K10
A3_BA3
K11
A2_BA0
K5
A1_A9
K4
A0_A10
J4
ABI
L12
CS
G12
WE
G3
CAS
L3
RAS
C387
0.01u_50V_X7R_04
G2
C804
820p_50V_X7R_04
G2
NC
NC
NC
NC
NC
NC
NC
NC
NC
x16x32
MIRRORED
NC
INS16537773
M7D
K4G80325FB-HC25
G2
P5
WCK01
P4
WCK01
P13
DBI1
R13
EDC1
M13
DQ15
M11
DQ14
N13
DQ13
N11
DQ12
T13
DQ11
T11
DQ10
V13
DQ9
V11
DQ8
P2
DBI0
R2
EDC0
M2
DQ7
M4
DQ6
N2
DQ5
N4
DQ4
T2
DQ3
T4
DQ2
V2
DQ1
V4
DQ0
V10
VREFD
Q37
MTN2002ZS3
G2
G
DS
R507
121_1%_04
G2
INS16537483
M8B
K4G80325FB-HC25
G2
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU_V5
A5
NC_RFU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
K4
A7_A8
K5
A6_A11
K10
A5_BA1
K11
A4_BA2
H10
A3_BA3
H11
A2_BA0
H5
A1_A9
H4
A0_A10
J4
ABI
G12
CS
L12
WE
L3
CAS
G3
RAS
R511
1.33K_1%_04
G2
R510
549_1%_04
G2
R509 931_1%_04
G2
R158
40.2_1%_04
G2
R150
40.2_1%_04
G2
C385
0.01u_50V_X7R_04
G2
R508
121_1%_04
G2
NC
x16
NORMAL
NC
NC
NC
NC
NC
NC
NC
x32
NC
GND
INS16537233
M8D
K4G80325FB-HC25
G2
D5
WCK01
D4
WCK01
D13
DBI1
C13
EDC1
F13
DQ15
F11
DQ14
E13
DQ13
E11
DQ12
B13
DQ11
B11
DQ10
A13
DQ9
A11
DQ8
D2
DBI0
C2
EDC0
F2
DQ7
F4
DQ6
E2
DQ5
E4
DQ4
B2
DQ3
B4
DQ2
A2
DQ1
A4
DQ0
A10
VREFD
NORMAL
x16
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
x32
INS16537031
M8A
K4G80325FB-HC25
G2
P5
WCK23
P4
WCK23
P2
DBI3
R2
EDC3
M2
DQ31
M4
DQ30
N2
DQ29
N4
DQ28
T2
DQ27
T4
DQ26
V2
DQ25
V4
DQ24
P13
DBI2
R13
EDC2
M13
DQ23
M11
DQ22
N13
DQ21
N11
DQ20
T13
DQ19
T11
DQ18
V13
DQ17
V11
DQ16
V10
VREFD
NC
NC
NC
NC
NC
NC
NC
NC
GND
x32 x16
MIRRORED
NC
INS16536829
M7A
K4G80325FB-HC25
G2
D5
WCK23
D4
WCK23
D2
DBI3
C2
EDC3
F2
DQ31
F4
DQ30
E2
DQ29
E4
DQ28
B2
DQ27
B4
DQ26
A2
DQ25
A4
DQ24
D13
DBI2
C13
EDC2
F13
DQ23
F11
DQ22
E13
DQ21
E11
DQ20
B13
DQ19
B11
DQ18
A13
DQ17
A11
DQ16
A10
VREFD
Sheet 21 of 77
Frame Buffer
Partition D
![](asset-4f.png)
Schematic Diagrams
Frame Buffer Partition C_D B - 23
B.Schematic Diagrams
Frame Buffer Partition C_D
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
DECOUPLING AROUND FBC MEMORIES (DQ32-DQ63)
FRAME BUFFER PARTITION C/D DECOUPLING
DECOUPLING AROUND FBC MEMORIES (DQ0-DQ31)
PLACE Under MEM PLACE Under MEM
Ɉ
ɈɈ
ɈONLY G1 ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
1u x 10
10u x 6
22u x 5
1u x 10
10u x 6
22u x 5
FBVDDQ FBVDDQ
GND
FBVDDQ
GND
GND
FBVDDQ
FBVDDQ
GND
FBVDDQ
GND
GND
GND GND
FBVDDQ
GND
FBVDDQ
FBVDDQ[15,16,17,18,19,20,21,23,28,64]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[22] Frame Buffer Partition C_D
A3
22 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[22] Frame Buffer Partition C_D
A3
22 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[22] Frame Buffer Partition C_D
A3
22 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C251
*10u_4V_X6S_06
C262
10u_4V_X6S_06
C811 22u_6.3V_X5R_06
G2
C807 22u_6.3V_X5R_06
G2
C351
10u_4V_X6S_06
G2
C784
10u_4V_X6S_06
G2
C408
1u_6.3V_X6S_04
G2
C404
*10u_4V_X6S_06
<FUNCTION>
C293
1u_6.3V_X6S_04
add 1k to VSS
Normal
INS16542800
M8C
K4G80325FB-HC25
G2
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
J1
MF_VSS/SOE*
T3
VDDQ
T14
VDDQ
T12
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
C255
1u_6.3V_X6S_04
C715
10u_4V_X6S_06
C261
1u_6.3V_X6S_04
C808 22u_6.3V_X5R_06
G2
C823 22u_6.3V_X5R_06
G2
C269
1u_6.3V_X6S_04
C263
1u_6.3V_X6S_04
C747
22u_6.3V_X5R_06
C713
22u_6.3V_X5R_06
C708
22u_6.3V_X5R_06
C350
1u_6.3V_X6S_04
G2
C372
1u_6.3V_X6S_04
G2
C707
1u_6.3V_X6S_04
add 1k to VDD
Mirrored
INS16544046
M7C
K4G80325FB-HC25
G2
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
T3
VDDQ
T14
VDDQ
T12
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
J1
SOE*/MF_VDD
C393
1u_6.3V_X6S_04
G2
C376
1u_6.3V_X6S_04
G2
C266
10u_4V_X6S_06
C289
1u_6.3V_X6S_04
add 1k to VSS
Normal
INS16541934
M6C
K4G80325FB-HC25
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
J1
MF_VSS/SOE*
T3
VDDQ
T14
VDDQ
T12
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
C212
1u_6.3V_X6S_04
C181
10u_4V_X6S_06
C396
1u_6.3V_X6S_04
G2
C716
1u_6.3V_X6S_04
C380
10u_4V_X6S_06
G2
C409
*10u_4V_X6S_06
<FUNCTION>
C405
1u_6.3V_X6S_04
G2
C413
1u_6.3V_X6S_04
G2
C411
1u_6.3V_X6S_04
G2
add 1k to VDD
Mirrored
INS16541048
M15C
K4G80325FB-HC25
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
T3
VDDQ
T14
VDDQ
T12
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
J1
SOE*/MF_VDD
C175
1u_6.3V_X6S_04
C776
10u_4V_X6S_06
G2
C395
1u_6.3V_X6S_04
G2
C797 22u_6.3V_X5R_06
G2
C714
22u_6.3V_X5R_06
C746
22u_6.3V_X5R_06
C209
10u_4V_X6S_06
Sheet 22 of 77
Frame Buffer
Partition C_D
![](asset-50.png)
Schematic Diagrams
B - 24 GPU Decoupling
B.Schematic Diagrams
GPU Decoupling
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
PLACE Under GPU
x4 22uF X5R 0805
x2 47uF X5R 0805 x11 10uF X6S 0603
x49 1uF X6S 0402
NVVDD
Near GPU
x1 330uF
x1 47uF X5R 0805
x2 4.7UF 0603 X6S
NVVDDS
PLACE Near GPU
PLACE Under GPU
NVVDDS
x16 1uF X6S 0402
x4 10uF X6S 0603
NVVDD
x12 10uF 0603 X6S
x9 4.7uF 0603 X6S
FBVDDQ
Partition A x2 10uF, x6 1uF
Partition B x2 10uF, x6 1uF
Partition C x2 10uF, x6 1uF
Partition D x2 10uF, x6 1uF
Total :
x24 1uF
x8 10uF
PLACE Under GPU
GPU DECOUPLING
x4 10uF x9 22uF X6S 0805
MID-FREQ CERAMICS
PLACE Near GPU
GND
NVVDD
GND
NVVDD NVVDD
GND
GND
NVVDDS
GND
GND
GND
GND
NVVDDS
NVVDD
GND
GND
FBVDDQ
GND
GND
GND
GND
GND
1V8_RUN
1V8_AON
GND
GND
FBVDDQ
GND
FBVDDQ
NVVDD[28,62,63]
NVVDDS[28,61]
FBVDDQ[15,16,17,18,19,20,21,22,28,64]
1V8_AON[3,24,26,27,28,31,52,53,61,62,64]
1V8_RUN[14,15,24,28,52]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[23] GPU Decoupling
A3
23 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[23] GPU Decoupling
A3
23 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[23] GPU Decoupling
A3
23 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C9
*22u_6.3V_X6S_08
+
C79
*330U_2V_D2_D
C256
10u_4V_X6S_06
C207
1u_6.3V_X6S_04
C222
22u_6.3V_X6S_08
C53
1u_6.3V_X6S_04
C32
10u_4V_X6S_06
C115
10u_4V_X6S_06
C188
1u_6.3V_X6S_04
C57
10u_4V_X6S_06
C137
1u_6.3V_X6S_04
C254
10u_4V_X6S_06
C224
1u_6.3V_X6S_04
C18
10u_4V_X6S_06
C246
1u_6.3V_X6S_04
C118
4.7u_6.3V_X6S_06
C112
1u_6.3V_X6S_04
C109
10u_4V_X6S_06
C113
10u_4V_X6S_06
C110
22u_6.3V_X6S_08
C26
10u_4V_X6S_06
C151
10u_4V_X6S_06
C187
1u_6.3V_X6S_04
C31
10u_4V_X6S_06
C127
1u_6.3V_X6S_04
C61
10u_4V_X6S_06
C281
4.7u_6.3V_X6S_06
C149
10u_4V_X6S_06
C191
1u_6.3V_X6S_04
C252
10u_4V_X6S_06
C63
10u_4V_X6S_06
C60
22u_6.3V_X6S_08
C180
1u_6.3V_X6S_04
C105
1u_6.3V_X6S_04
C120
1u_6.3V_X6S_04
C177
1u_6.3V_X6S_04
C73
*1u_6.3V_X6S_04
C233
1u_6.3V_X6S_04
C95
10u_4V_X6S_06
C159
1u_6.3V_X6S_04
C204
1u_6.3V_X6S_04
C164
1u_6.3V_X6S_04
C208
1u_6.3V_X6S_04
C205
10u_4V_X6S_06
C77
1u_6.3V_X6S_04
C178
1u_6.3V_X6S_04
C101
1u_6.3V_X6S_04
C190
1u_6.3V_X6S_04
C215
1u_6.3V_X6S_04
C72
1u_6.3V_X6S_04
C42
10u_4V_X6S_06
C15
10u_4V_X6S_06
C98
10u_4V_X6S_06
C236
1u_6.3V_X6S_04
C259
0.1u_10V_X7R_04
C185
1u_6.3V_X6S_04
C96
1u_6.3V_X6S_04
C154
1u_6.3V_X6S_04
C147
1u_6.3V_X6S_04
C25
22u_6.3V_X6S_08
C46
*10u_4V_X6S_06
C158
1u_6.3V_X6S_04
C216
1u_6.3V_X6S_04
C214
1u_6.3V_X6S_04
C238
0.1u_10V_X7R_04
C160
1u_6.3V_X6S_04
C249
1u_6.3V_X6S_04
C169
10u_4V_X6S_06
C28
10u_4V_X6S_06
C186
1u_6.3V_X6S_04
C117
10u_4V_X6S_06
C240
1u_6.3V_X6S_04
C173
1u_6.3V_X6S_04
C225
1u_6.3V_X6S_04
C103
1u_6.3V_X6S_04
C141
1u_6.3V_X6S_04
C143
1u_6.3V_X6S_04
C49
1u_6.3V_X6S_04
C51
1u_6.3V_X6S_04
C733
4.7u_6.3V_X6S_06
C84
10u_4V_X6S_06
C58
10u_4V_X6S_06
C189
1u_6.3V_X6S_04
C54
1u_6.3V_X6S_04
C30
47u_2.5V_X6S_08
C19
10u_4V_X6S_06
C194
1u_6.3V_X6S_04
C684
10u_4V_X6S_06
C223
1u_6.3V_X6S_04
C93
1u_6.3V_X6S_04
C116
4.7u_6.3V_X6S_06
C241
1u_6.3V_X6S_04
C145
1u_6.3V_X6S_04
C247
1u_6.3V_X6S_04
C80
22u_6.3V_X6S_08
C171
1u_6.3V_X6S_04
C134
1u_6.3V_X6S_04
C27
*10u_4V_X6S_06
C50
*1u_6.3V_X6S_04
C36
22u_6.3V_X6S_08
C40
10u_4V_X6S_06
C87
1u_6.3V_X6S_04
C124
1u_6.3V_X6S_04
C76
1u_6.3V_X6S_04
C139
1u_6.3V_X6S_04
C174
1u_6.3V_X6S_04
C135
10u_4V_X6S_06
C232
0.1u_10V_X7R_04
C199
22u_6.3V_X6S_08
C33
*10u_4V_X6S_06
C221
1u_6.3V_X6S_04
C146
1u_6.3V_X6S_04
C201
10u_4V_X6S_06
C83
10u_4V_X6S_06
C14
10u_4V_X6S_06
C153
1u_6.3V_X6S_04
C213
10u_4V_X6S_06
C197
1u_6.3V_X6S_04
C248
0.1u_10V_X7R_04
C13
10u_4V_X6S_06
C64
*10u_4V_X6S_06
C231
1u_6.3V_X6S_04
C157
1u_6.3V_X6S_04
C29
*22u_6.3V_X6S_08
C125
1u_6.3V_X6S_04
C235
10u_4V_X6S_06
C210
10u_4V_X6S_06
C55
1u_6.3V_X6S_04
C228
1u_6.3V_X6S_04
C100
1u_6.3V_X6S_04
C280
4.7u_6.3V_X6S_06
C75
*1u_6.3V_X6S_04
C74
1u_6.3V_X6S_04
C132
1u_6.3V_X6S_04
C195
1u_6.3V_X6S_04
C234
4.7u_6.3V_X6S_06
C44
22u_6.3V_X6S_08
C200
10u_4V_X6S_06
C227
1u_6.3V_X6S_04
C86
47u_2.5V_X6S_08
C170
1u_6.3V_X6S_04
C102
1u_6.3V_X6S_04
C65
1u_6.3V_X6S_04
C239
1u_6.3V_X6S_04
C12
10u_4V_X6S_06
C16
10u_4V_X6S_06
C34
22u_6.3V_X6S_08
C62
22u_4V_X6S_06
C196
1u_6.3V_X6S_04
C41
*10u_4V_X6S_06
C114
10u_4V_X6S_06
C56
1u_6.3V_X6S_04
C126
1u_6.3V_X6S_04
C156
1u_6.3V_X6S_04
C243
1u_6.3V_X6S_04
C245
0.1u_10V_X7R_04
C81
1u_6.3V_X6S_04
C45
*10u_4V_X6S_06
C17
10u_4V_X6S_06
C59
22u_6.3V_X6S_08
C148
1u_6.3V_X6S_04
C108
1u_6.3V_X6S_04
C184
1u_6.3V_X6S_04
C8
47u_2.5V_X6S_08
C140
1u_6.3V_X6S_04
C250
1u_6.3V_X6S_04
C138
1u_6.3V_X6S_04
C52
*1u_6.3V_X6S_04
C192
10u_4V_X6S_06
C244
0.1u_10V_X7R_04
Sheet 23 of 77
GPU Decoupling
![](asset-51.png)
Schematic Diagrams
Straps and XTAL B - 25
B.Schematic Diagrams
Straps and XTAL
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
MULTI-LEVEL STRAPS
Setting RAM type
Strap
Samsung K4G80325FB-HC25 B-die 0 X 0 4000MHz 256Mx32
Micron MT51J256M32HF-80:A A-die 0 X 1 4000MHz 256Mx32
Hynix H5GQ8H24MJR-R4C M-die 0 X 2 4000MHz 256Mx32
STRAP[0:2]
Setting RAM type
Strap 5 Strap 4 Strap 3 SMB_ALT_ADDR
000 0
001 0
010 0
011 0
100 0
101 0
110 0
111 0
111 0
00M 1
0M0 1
0M1 1
01M 1
M00 1
M01 1
M10 1
DEVID_SEL PCIE_CFG
0
VGA_DEVICE
0
00
0
1
01
10
0
0
1
10
1
0
0
11
11
00
00
01
01
10
10
11
1
0
1
0
1
0
1
0
1
0
1
0
1 = HIGH : Tied to 1.8V
0 = Low : Tied to 0V
M = Middle : Tied to 0.9V
1:Enable 0:Disable
SOR 0/1/2/3 ENABLE
1= SMB_ALT_ADDR Enable
0= SMB_ALT_ADDR Disable
1= DEVID_SEL Rebrand
0= DEVID_SEL Orignal
1= PCIE_CFG Low Power
0= PCIE_CFG High Power
1= VGA_DEVICE Enable
0= VGA_DEVICE Disable
M11 1 1 11
Strap 2 Strap 1 Strap 0 RAMCFG[4:0]
0 0 0 00000
0 1 0 00010
0 1 1 00011
1 1 0 00110
1 1 1 00111
ROM_SO ROM_SI ROM_SCLK SOR_EXPOSED[3:0]
0 0 0 1111
0 0 1 1110
0 1 0 1101
0 1 1 1100
1 0 0 1011
1 0 1 1010
1 1 1 1000
1 1 M 0000
M 0 M 21 (0x0015)
M M 0 22 (0x0016)
M M 1 23 (0x0017)
M 1 M 24 (0x0018)
1 M M 25 (0x0019)
1 0 M 16 (0x0010)
1 M 0 17 (0x0011)
1 M 1 18 (0x0012)
1 1 M 19 (0x0013)
0 M M 20 (0x0014)
0 1 M 11 (0x000B)
M 0 0 12 (0x000C)
M 0 1 13 (0x000D)
M 1 0 14 (0x000E)
M 1 1 15 (0x000F)
1 1 0 6 (0x0006)
1 1 1 7 (0x0007)
0 0 M 8 (0x0008)
0 M 0 9 (0x0009)
0 M 1 10 (0x000A)
0 0 1 1 (0x0001)
0 1 0 2 (0x0002)
0 1 1 3 (0x0003)
1 0 0 4 (0x0004)
1 0 1 5 (0x0005)
Strap 2 Strap 1 Strap 0 RAMCFG[4:0]
0 0 0 0 (0x0000)
M M M 26 (0x001A)
XTAL
40mil
40mil
XTAL
6-22-27R00-1BG
6-22-27R00-1BH
Near to GPU
30ohm ESR 10mohm bead
DG P.65 recommend strap resistor 5%
or better , voltage use 1V8_AON
DG P.73 recommend Pull down resistor 100k
DG P.114 Note: PLL power rails
trace rounting to GPU BGA ball
must be 12~16 mil wide.
20mil
GPU nearGPU under
GPU under
default
Default
1/26 NV CHECK
2016/7/15 Update
eDP ID
1/26 NV CHECK
GSYNC ID
L
Strap5
non-Gsync = L
Gsync = H
aduio playback
strapping
嶇
P950COST_12/27
GPU_PLLVDD
XTALIN
XTALOUT
XTALOUTBUFFXTALSSIN
GND
1V8_AON
GND
1V8_AON
GND
GND GND
GND
GND
GND
1V8_RUN
GND
GND
GND
1V8_AON
VGA_ROM_SCLK[26]
VGA_ROM_SO[26]
VGA_ROM_SI[26]
STRAP0[26]
STRAP1[26]
STRAP2[26]
STRAP3[26]
STRAP4[26]
STRAP5[26,34]
NV3V3[11,12,13,14,26,46,52,53,61,62]
1V8_RUN[14,15,23,28,52]
1V8_AON[3,23,26,27,28,31,52,53,61,62,64]
GPU_PLLVDD[25]
GCLK_27M_NV[31]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[24] STRAPS and XTAL
A3
24 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[24] STRAPS and XTAL
A3
24 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[24] STRAPS and XTAL
A3
24 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
.
L17 HCB1608KF-300T60
C237 0.1u_10V_X7R_04
C193 0.1u_10V_X7R_04
R442
100K_04
R446
100K_04
R437 0_04
C276
22u_6.3V_X6S_08
R66
10K_04
R452
*100K_04
C279 0.1u_10V_X7R_04
C283
10u_6.3V_X5R_06
C734
4.7u_6.3V_X6S_06
R84
*100K_04
C258
0.1u_10V_X7R_04
R71 0_06
14/23 XTAL/PLL
INS16552674
U22S
BL6
XTALIN
BJ6
XTALSSIN
BB24
XS_PLLVDD
AF11
GPCPLL_AVDD1
U42
GPCPLL_AVDD0
BC12
VID_PLLVDD
BD12
SP_PLLVDD
BM6
XTALOUT
BK6
XTALOUT BUFF
C104
0.1u_10V_X7R_04
X3
*U83-076_27MHZ
fsx3m
21
34
R67
*100K_1%_04
C737
*12p_50V_NPO_04
C273 0.1u_10V_X7R_04
R69
100K_1%_04
R86
100K_1%_04
R453
*100K_04
R68
100K_1%_04
R65
10K_04
R445
100K_04
R449
100K_04
R88
*100K_1%_04
C726
*10p_50V_NPO_04
R87
*100K_1%_04
R444
100K_04
C729
22u_4V_X6S_06
R454
100K_04
C278 0.1u_10V_X7R_04
R443
100K_04
C257 0.1u_10V_X7R_04
R447
*100K_04
R451
*100K_04
R450
*100K_04
Sheet 24 of 77
Straps and XTAL
![](asset-52.png)
Schematic Diagrams
B - 26 IFP I/O Interface
B.Schematic Diagrams
IFP I/O Interface
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
IFP I/O INTERFACE
HDMI
PLACE Near GPUPLACE Under GPU
PLACE AT BALLS
ŦŅőŠŅ
ŦŅőŠŅŦŅőŠŅ
ŦŅőŠŅ
ʼnŅŎŊ
ʼnŅŎŊʼnŅŎŊ
ʼnŅŎŊ
20 mil
40 mil
eDP
DP
DP+TYPE C
PLACE Under GPU
ŮŪůŪġġŅőŠŇ
ŮŪůŪġġŅőŠŇŮŪůŪġġŅőŠŇ
ŮŪůŪġġŅőŠŇ
PLACE AT BALLS
ŮŪůŪġġŅőŠņ
ŮŪůŪġġŅőŠņŮŪůŪġġŅőŠņ
ŮŪůŪġġŅőŠņ
PLACE Near GPU
PLACE Under GPU
DG P.245 requires IFPx_RSET
Pull down 1K_1% resistor
DG P.245 requires IFPx_RSET
Pull down 1K_1% resistor
20 mil
20 mil
20 mil
KAI_12/1
IF_PLLVDD
IF_IOVDD
IF_IOVDD
IF_PLLVDD
IF_IOVDD
MDP_E_AUX#_SDA
MDP_E_AUX_SCL
MDP_E#3
MDP_E3
MDP_E#2
MDP_E2
MDP_E#1
MDP_E1
MDP_E#0
MDP_E0
IF_IOVDD
GND
PEX_VDD
GND
GND GND
GND
GND
GNDGND
GND
GNDGND
GND
GND
IF_IOVDD
IF_IOVDD
HDMI_DATA2P [13]
HDMI_DATA2N [13]
HDMI_DATA0N [13]
HDMI_DATA0P [13]
HDMI_DATA1N [13]
HDMI_DATA1P [13]
HDMI_CLOCKN [13]
HDMI_CLOCKP [13]
HDMI_CTRLCLK [13]
HDMI_CTRLDATA [13]GPU_PLLVDD[24]
PEX_VDD[14,53]
MDP_F_AUX#_SDA [12]
MDP_F_AUX_SCL [12]
MDP_F#3 [12]
MDP_F#2 [12]
MDP_F3 [12]
MDP_F2 [12]
MDP_F#1 [12]
MDP_F#0 [12]
MDP_F1 [12]
MDP_F0 [12]
MDP_E#0 [46]
MDP_E0 [46]
MDP_E1 [46]
MDP_E#1 [46]
MDP_E#2 [46]
MDP_E2 [46]
MDP_E#3 [46]
MDP_E3 [46]
MDP_E_AUX_SCL [11,46]
MDP_E_AUX#_SDA [11,46]
DEDP_D#0 [3]
DEDP_D0 [3]
DEDP_D1 [3]
DEDP_D#1 [3]
DEDP_D#2 [3]
DEDP_D2 [3]
DEDP_D#3 [3]
DEDP_D3 [3]
DEDP_D_AUX_SCL [3]
DEDP_D_AUX#_SDA [3]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[25] IFP I/O Interface
Custom
25 77Wednesday, Jul y 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[25] IFP I/O Interface
Custom
25 77Wednesday, Jul y 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[25] IFP I/O Interface
Custom
25 77Wednesday, Jul y 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C226
4.7u_6.3V_X6S_06
R434
100K_04
.
L1
HCB1608KF-300T60
C219
0.1u_10V_X7R_04
C198
0.1u_10V_X7R_04
DPDVI/HDMI
SDA
TXD2
TXD1
TXD1
TXD0
TXD0
SCL
TXC
TXC
TXD2
TXD0
TXD0
TXD1
TXD1
TXD2
TXD2
SDA
SCL
TXC
TXC
TXD2
TXD4
SDA
SCL
TXC
TXC
TXD0
TXD0
TXD1
TXD5
TXD5
TXD4
TXD3
TXD2
DL-DVI
TXD3
IFPAB
TXD1
7/23 IFPAB
INS16554934
U22N
BB20
IFP_IOVDD
BB18
IFP_IOVDD
BB15
IFP_IOVDD
BB17
IFP_IOVDD
BD21
IFPAB_PLLVDD
BD23
IFPAB_RSET
BK21
IFPB_L0
BL21
IFPB_L0
BM21
IFPB_L1
BM20
IFPB_L1
BL20
IFPB_L2
BK20
IFPB_L2
BK18
IFPB_L3
BL18
IFPB_L3
BH12
IFPB_AUX
BG12
IFPB_AUX
BG24
IFPA_L0
BF24
IFPA_L0
BE23
IFPA_L1
BF23
IFPA_L1
BH23
IFPA_L2
BG23
IFPA_L2
BG21
IFPA_L3
BF21
IFPA_L3
BG11
IFPA_AUX
BH11
IFPA_AUX
11/23 MIOA
INS16555158
U22V
AM7
MIOA_VREF
AM6
MIOACAL_PU_GND
AM5
MIOACAL_PD_VDDQ
AM3
MIOA_CLKIN
AN2
MIOA_CLKOUT
AN1
MIOA_DE
AR7
MIOA_VSYNC
AM1
MIOA_HSYNC
AT7
MIOA_CTL3
AR2
MIOAD11
AR3
MIOAD10
AR8
MIOAD9
AN3
MIOAD8
AM8
MIOAD7
AR5
MIOAD6
AR6
MIOAD5
AR1
MIOAD4
AN6
MIOAD3
AN7
MIOAD2
AM2
MIOAD1
AN9
MIOAD0
C182
1u_6.3V_X6S_04
C211
0.1u_10V_X7R_04
R40 1K_1%_04
R43 1K_1%_04
R430
100K_04
R48
100K_04
SCL
TXC
TXD2
TXD2
TXD1
TXD1
TXD0
TXD0
8/23 IFPC
IFPC
DVI/HDMI
SDA
TXC
DP
INS16554806
U22R
BB23
IFP_IOVDD
BB21
IFP_IOVDD
BD18
IFPCD_PLLVDD
BD20
IFPCD_RSET
BE20
IFPC_L0
BF20
IFPC_L0
BH20
IFPC_L1
BG20
IFPC_L1
BG18
IFPC_L2
BF18
IFPC_L2
BE17
IFPC_L3
BF17
IFPC_L3
BK9
IFPC_AUX
BL9
IFPC_AUX
DP
SDA
TXC
TXC
SCL
DVI/HDMI
TXD1
TXD1
TXD0
TXD0
TXD2
TXD2
6/23 IFPF
IFPF
INS16554010
U22O
BC23
IFP_IOVDD
BC21
IFP_IOVDD
BL14
IFPF_L0
BK14
IFPF_L0
BK12
IFPF_L1
BL12
IFPF_L1
BM12
IFPF_L2
BM11
IFPF_L2
BL11
IFPF_L3
BK11
IFPF_L3
BM8
IFPF_AUX
BM9
IFPF_AUX
C203
0.1u_10V_X7R_04
C183
1u_6.3V_X6S_04
C217
4.7u_6.3V_X6S_06
C218
0.1u_10V_X7R_04
R428
100K_04
DP
SDA
SCL
DVI/HDMI
TXC
TXD1
TXD1
TXD2
TXD2
TXD0
TXD0
TXC
9/23 IFPD
IFPD
INS16554634
U22Q
BC17
IFP_IOVDD
BC15
IFP_IOVDD
BM18
IFPD_L0
BM17
IFPD_L0
BL17
IFPD_L1
BK17
IFPD_L1
BK15
IFPD_L2
BL15
IFPD_L2
BM15
IFPD_L3
BM14
IFPD_L3
BE11
IFPD_AUX
BF11
IFPD_AUX
DP
TXD1
DVI/HDMI
SDA
SCL
TXD1
TXD0
TXD0
TXC
TXC
TXD2
TXD2
10/23 IFPE
IFPE
INS16554122
U22P
BC20
IFP_IOVDD
BC18
IFP_IOVDD
BD15
IFPEF_PLLVDD
BD17
IFPEF_RSET
BH17
IFPE_L0
BG17
IFPE_L0
BG15
IFPE_L1
BF15
IFPE_L1
BE14
IFPE_L2
BF14
IFPE_L2
BH14
IFPE_L3
BG14
IFPE_L3
BK8
IFPE_AUX
BL8
IFPE_AUX
R50
100K_04
C206
0.1u_10V_X7R_04
R44 0_06
R435
100K_04
GP106GP104
UNUSEDMIOB
12/23 MIOB
INS16554410
U22U
AW9
MIOB_VREF
AV8
MIOBCAL_PU_GND
AV7
MIOBCAL_PD_VDDQ
AT6
MIOB_CLKIN
AW1
MIOB_CLKOUT
AW2
MIOB_DE
BA7
MIOB_VSYNC
AV5
MIOB_HSYNC
BB7
MIOB_CTL3
BB8
MIOBD11
AW7
MIOBD10
BA8
MIOBD9
AW3
MIOBD8
AV3
MIOBD7
AV1
MIOBD6
AV2
MIOBD5
AW6
MIOBD4
AT1
MIOBD3
AT2
MIOBD2
AV6
MIOBD1
AT3
MIOBD0
R46 0_06
Sheet 25 of 77
IFP I/O Interface
![](asset-53.png)
Schematic Diagrams
Misc - GPIO, I2C and ROM B - 27
B.Schematic Diagrams
Misc - GPIO, I2C and ROM
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
MISC: GPIO, I2C, and ROM
VBIOS ROM 8M
(DGPU)
VBIOS ROM 4M
(OPTIMUS)
DG P.261 use 2.2k pull-up
on both I2C_SDA/SCL
GPIO12
ℵ䡢娵㗗
pull hi 10K or 100K ,
DG is 100K
M WIN:6-04-02580-A71
S MX:6-04-25803-A70
M WIN:6-04-02540-A71
S GD:6-04-02540-491
ɰɭ
CHECK EC PIN76
VGA_BKLPWM
VGA_BKLTEN
GPIO27_IFPC_HPD_R
FROM HDMI CONN
HDMI
DG P.290 recommend
GPIO18_IFPE_HPD_R
DP_E
FROM 8330B_RE
GPIO24_IFPF_HPD_R
FROM 8330B_RE
DP_F
GPIO12_AC_DETECT_R
IVGA_DVGA ROM SWITCH
wey_11/22 WEY_11/24
wey_12/1
kai_12/6
L :PORT1 (INTEL)
H: PORT2 (NV)
śɥ
śɨ
枸䔁
VGA_ROM_CS#
GPU_BUFRST*
GPIO2_GPU_EVENT#
GPIO16_SYS_PEX_RST_MON#
GPIO23_GPU_PEX_RST_HOLD#
SMD_VGA_THERM1
SMC_VGA_THERM1
JTAG_TRST*
GPIO21_RASTER_SYNC0
GPIO27_IFPC_HPD_R
GPIO24_IFPF_HPD_R
TS_VREF
DVGA_ROM_SI
DVGA_ROM_CS#_R
DVGA_ROM_SCLK
DVGA_ROM_CS#
VGA_ROM_SI
VGA_ROM_SCLK
VGA_ROM_SO DVGA_ROM_SO_R
IVGA_ROM_SI
IVGA_ROM_CS#_R
IVGA_ROM_SCLK
IVGA_ROM_CS#
VGA_ROM_SI
VGA_ROM_SCLK
VGA_ROM_SO IVGA_ROM_SO_R
OVERT#
GPIO5_FRAME_LOCK#
GPIO4_1V8_MAIN_EN
GPIO9_THERM_ALERT#
I2CC_SCL
I2CC_SDA
GPIO10_ALT_MEM_VREF
GPIO11_PPEN
GPIO21_RASTER_SYNC0
SMD_VGA_THERM
SMC_VGA_THERM
GPIO7_BL_PWM_GPU
GPIO8_MEM_VDD_CTL
NVJTAG_SEL
GPIO27_IFPC_HPD_R
GPIO18_IFPE_HPD_R
GPIO24_IFPF_HPD_R
GPIO13_BLEN
IVGA_ROM_CS#
DVGA_ROM_CS#
VGA_ROM_CS#
GPIO7_BL_PWM_GPU
GPIO13_BLEN
GPIO12_AC_DETECT_R
GPIO12_AC_DETECT_R
GPIO13_BLEN
GPIO9_THERM_ALERT#
GPIO7_BL_PWM_GPU
GPIO18_IFPE_HPD_R
IVGA_ROM_CS#
DVGA_ROM_CS#
VGA_ROM_CS#
IVGA_ROM_SO_R
DVGA_ROM_SO_R
VGA_ROM_SO
GPIO16_SYS_PEX_RST_MON#
GPIO23_GPU_PEX_RST_HOLD#
AC/BATL#
NV3V3
1V8_AON
NV3V3
GND
GND
1V8_AON
1V8_AON 1V8_AON
1V8_AON
1V8_AON
NV3V3
VDD3
GND
1V8_AON
1V8_AON
1V8_AON
1V8_AON
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
1V8_AON
1V8_AON
VDD3
STRAP0[24]
STRAP1[24]
STRAP2[24]
STRAP3[24]
STRAP4[24]
STRAP5[24,34]
VGA_ROM_SO [24]
VGA_ROM_SCLK [24]
VGA_ROM_SI [24]
GPIO8_MEM_VDD_CTL [64]
GPIO20_NVVDDS_PSI [61]
GPIO28_OC_WARN# [53]
GPIO5_FRAME_LOCK# [10]
GPIO0_NVVDD_PWM_VID [62]
GPIO10_ALT_MEM_VREF [16,17,20,21]
GC6_FB_EN [27]
GPU_EVENT# [32]
GPIO6_NVVDD_PSI# [61,62]
GPIO17_IFPD_HPD_R [3]
SMC_VGA_THERM [35,36,44]
SMD_VGA_THERM [35,36,44]
I2CC_SDA [53]
I2CC_SCL [53]
GPIO4_1V8_MAIN_EN [27]
GPIO3_PS_NVVDDS_VID [61]
OVERT#[27,35]
VDD3[5,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
NV3V3[11,12,13,14,46,52,53,61,62]
1V8_RUN[14,15,23,24,28,52]
1V8_AON[3,23,24,27,28,31,52,53,61,62,64]
GPIO11_PPEN [10]
GPIO29_NVVDD_PH1 [62]
HDMI_HPD [13,32]
MDP_E_HPD [11,32,46]
MDP_F_HPD [12,32]
3.3VS[3,8,9,10,11,12,13,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
PS8331_SW[3,10,26,32,48]
VGA_BKLPWM [10]VGA_BKLTEN [10]
VBATT_BOOST#[35]
PS8331_SW [3,10,26,32,48]
AC/BATL#[60]
AC_IN#[35,60]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[26] Misc-GPIO_I2C_ROM
A3
26 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[26] Misc-GPIO_I2C_ROM
A3
26 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[26] Misc-GPIO_I2C_ROM
A3
26 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C775 *220p_50V_NPO_04
C270 470p_50V_X7R_04
C765 *220p_50V_NPO_04
Q34
BTN3904
M-SOT23-CBE
B
E C
T8
R438 100K_04
R85 10K_04
R463 0_04
S
D
G
Q6A
MTDK3S6R
2
61
R89 10K_04
R471
10K_04
R95 2K_04
R469
10K_04
PR425
100K_04
R455
10K_04
R62
100K_04
R82 2.2K_04
R473 100K_04
R475 100K_04
D51
RB751S-40H
AC
R440
10K_04
R59
10K_04
S
D
G
Q61B
*MTDK3S6R
5
34
R468 100K_04
C770 220p_50V_NPO_04
R464 33_04
R441 100K_04
R467 33_04
R108 2.2K_04
R42
10K_04
R801 *10K_04
S
D
G
Q3B
MTDK3S6R
5
34
R482 100K_04
R458 33_04
C767 220p_50V_NPO_04
C741
0.1u_10V_X7R_04
R77 100K_04
R439 100K_04
S
D
G
Q10B
MTDK3S6R
5
34
C299 0.1u_10V_X7R_04
S
D
G
Q3A
MTDK3S6R
2
61
R456
10K_04
R802 *10K_04
U25
W25Q40EW 1.8V
PCB Footprint = M-SO8
1
CS
2
SO
3
WP
4
GND
5
SI
6
SCK
7
HOLD
8
VCC
U3
*PI5A3158BZAE
P/N = 6-03-53158-0J1
0B0 2
1B0 11
S0 10
0B1 5
1B1 8
S1 7
VCC
12
A0
1
GND
3
VCC
9
GND
6A1
4
S
D
G
Q10A
MTDK3S6R
2
61
T57
D20
RB751S-40H
A C
R466 33_04
R70 10K_04
C742*0.1u_16V_Y5V_04
R75 100K_04
R461 33_04
13/23 MISC 1
INS16557386
U22W
BK23
NVJTAG_SEL
BL24
JTAG_TRST
BM24
JTAG_TDO
BM23
JTAG_TDI
BL23
JTAG_TMS
BK24
JTAG_TCK
BJ2
THERMDP
BJ1
THERMDN
BF12
TS_VREF
BG5
OVERT
BA1
GPIO32_RFU
BA2
GPIO31_RFU
BB3
GPIO30
BA3
GPIO29
BB4
GPIO28
BA4
GPIO27
BE7
GPIO26
BB2
GPIO25
BD5
GPIO24
BG3
GPIO23
BB6
GPIO22
BA5
GPIO21
BE5
GPIO20
BD4
GPIO19
BE3
GPIO18
BH1
GPIO17
BE2
GPIO16
BG1
GPIO15
BG4
GPIO14
BB1
GPIO13
BE6
GPIO12
BH3
GPIO11
BD3
GPIO10
BJ3
GPIO9
BH4
GPIO8
BD7
GPIO7
BD2
GPIO6
BG2
GPIO5
BE1
GPIO4
BE4
GPIO3
BD1
GPIO2
BB5
GPIO1
BD6
GPIO0
BF8
I2CB_SDA
BG8
I2CB_SCL
BH9
I2CC_SDA
BG9
I2CC_SCL
BH8
I2CS_SDA
BJ8
I2CS_SCL
R94 2.2K_04
R448 10K_04
U26
W25Q80EW SNIG
PCB Footprint = M-SO8
1
CS
2
SO
3
WP
4
GND
5
SI
6
SCK
7
HOLD
8
VCC
R93 4.7K_04
R121 *0_04
R470
10K_04
T117
R104
10K_04
R109 4.7K_04
S
D
G
Q7B
MTDK3S6R
5
34
R80 2.2K_04
C740
0.1u_10V_X7R_04
R127
*12K_04
Q9
2SK3018S3
G
DS
R480 100K_04
T118
S
D
G
Q8B
MTDK3S6R
5
34
T58
R96 2K_04
R90 10K_04
T119
C773 *220p_50V_NPO_04
S
D
G
Q7A
MTDK3S6R
2
61
R110
100K_04
S
D
G
Q8A
MTDK3S6R
2
61
R106
100K_04
T120
C769 220p_50V_NPO_04
R465 33_04
R457
10K_04
C268 470p_50V_X7R_04
R105
10K_04
R115 10K_04
Q35
BTN3904
M-SOT23-CBE
B
E C
Q33
BTN3904
M-SOT23-CBE
B
E C
R41
10K_04
R472 100K_04
R462 0_04
15/23 MISC 2
INS16557882
U22T
BJ5
STRAP5
BK5
STRAP4
BM5
STRAP3
BM4
STRAP2
BL4
STRAP1
BL3
STRAP0
BF9
BUFRST
BK3
ROM_SCLK
BK4
ROM_SO
BK2
ROM_SI
BJ4
ROM_CS
S
D
G
Q6B
MTDK3S6R
5
34
Sheet 26 of 77
Misc - GPIO, I2C
and ROM
![](asset-54.png)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
DGPU_RST#_PCH
GC6_FB_EN_PCH
DGPU_PWR_EN
GPU_PEX_RST#
NVVDDS_PWRGD
NVVDDS_PWRGD
GC6_FB_EN_PCH
GPU_PEX_RST#
DGPU_RST#_PCH
DGPU_PWR_EN
1V8_AON
3.3V
GPU_PEX_RST#[14]
NVVDD_PWRGD[14,62]
NV_EN_DOWN[35]
NVVDDS_PWRGD[61]
NV_NVVDD_EN [62,63]
NV_NVVDDS_EN [61]
NV_PEXVDD_EN [53]
NV_FBVDDQ_EN [64]
GC6_FB_EN[26]
OVERT#[26,35]
1V8_AON_PG[52]
GPIO4_1V8_MAIN_EN [26]
DGPU_PWR_EN [32,35]
PLT_RST#[30,34]
DGPU_RST#_PCH[32]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
NV_3V3_EN [52]
NV_1V8RUN_EN [52]
NV_1V8AON_EN [52]
1V8_AON[3,23,24,26,28,31,52,53,61,62,64]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
GC6_FB_EN_PCH[10,32,35]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[27] NVIDIA POWER SEQUENCE
A3
27 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[27] NVIDIA POWER SEQUENCE
A3
27 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[27] NVIDIA POWER SEQUENCE
A3
27 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
U6
SLG4U41681
VDD
1
VIN_DOW N
2
OVERT#
3
1V8_AON_PG
4
NVVDDS_PWRGD
5
GC6_FB_EN
6
GC6_FB_EN_PCH
7
PLT_RST#
8
dGPU_RST#_PCH
9
GPU_PEX_RST#
10
FBVDDQ_EN 20
PEX_VDD_EN 19
NVVDDS_EN 18
NVVDD_EN 17
3V3_SYS_EN 16
1V8_MAIN_EN 15
1V8_AON_EN 14
GPIO4_1V8_MAIN_EN 13
dGPU_PWR_EN 12
GND 11
R490 *10K_04
R141 10K_04
R145 10K_04
D4
RB751S-40H
AC
R138 *10K_04
Sheet 27 of 77
NVIDIA Power
Sequence
Schematic Diagrams
B - 28 NVIDIA Power Sequence
B.Schematic Diagrams
NVIDIA Power Sequence
![](asset-55.png)
Schematic Diagrams
GPU NVVDD, FBVDDQ B - 29
B.Schematic Diagrams
GPU NVVDD, FBVDDQ
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
GPU NVVDD, FBVDDQ
PLACE NEAR U1 PIN E52
PLACE WEST EDGE OF FBD
㓦军
NV
側朊
G2
ㇵ
ㇵㇵ
ㇵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
6-11-2271C-VB1
FB_CAL_PD_VDDQ
FB_CAL_PU_GND
FB_CAL_TERM_GND
FB_VREF_PROBE
FBVDDQ_SENSEFBVDDQ_SENSE_R49
FBVDDQ_SENSE_RTN
1V8_AON
1V8_RUN
NVVDDS NVVDDS
FBVDDQ FBVDDQ
GND
FBVDDQ
GND
FBVDDQ
NVVDDNVVDDNVVDD
NVVDD
NVVDD
GND
GPU_VDDS_SENSE [61]
GPU_GNDS_SENSE [61]
FBVDDQ_SENSE [53,64]
FBVDDQ_SENSE_RTN [53,64]
FBVDDQ[15,16,17,18,19,20,21,22,23,64]
1V8_RUN[14,15,23,24,52]
1V8_AON[3,23,24,26,27,31,52,53,61,62,64]
GPU_NVVDD_SENSE [53,62]
GPU_GND_SENSE [53,62]
NVVDD[23,62,63]
NVVDDS[23,61]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[28] GPU NVVDD, FBVDDQ
A3
28 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[28] GPU NVVDD, FBVDDQ
A3
28 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[28] GPU NVVDD, FBVDDQ
A3
28 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
+
C152
220u_2V_SMD-V
R417 *2.2_04
R25 40.2_1%_04
+
C202
220u_2V_SMD-V
21/23 NC/1V8
INS16563942
U22I
BK44
NC
BJ9
NC
BJ11
NC
BH6
NC
BG6
NC
BE12
NC
BD14
NC
BA9
NC
BA6
NC
AT9
NC
AW11
VDD18
AW10
VDD18
AV11
VDD18
AV10
VDD18
AT11
VDD18
AT10
VDD18
AR11
VDD18
AR10
VDD18
AN11
VDD18
AN10
VDD18
AM11
VDD18
AM10
VDD18
BC14
1V8_AON
BB14
1V8_AON
BA10
1V8_AON
R15 *2.2_04
19/23 VDD_2/2
INS16564158
U22G
BB39
VDD
BB38
VDD
BA47
VDD
BA46
VDD
BA45
VDD
BA44
VDD
BA43
VDD
AY45
VDD
AY43
VDD
AY39
VDD
AY35
VDD
AY31
VDD
AY27
VDD
AY26
VDD
AY22
VDD
AY18
VDD
AY14
VDD
AW45
VDD
AW44
VDD
AW43
VDD
AW42
VDD
AW40
VDD
AW13
VDD
AV44
VDD
AV43
VDD
AV42
VDD
AV34
VDD
AV33
VDD
AV32
VDD
AV31
VDD
AV30
VDD
AV23
VDD
AV22
VDD
AV21
VDD
AV20
VDD
AV19
VDD
AU43
VDD
AT42
VDD
AT39
VDD
AT38
VDD
AT37
VDD
AT36
VDD
AT35
VDD
AT34
VDD
AT33
VDD
AT32
VDD
AT31
VDD
AT30
VDD
AT29
VDD
AT28
VDD
AT27
VDD
AT26
VDD
AT25
VDD
AT24
VDD
AT23
VDD
AT22
VDD
AT21
VDD
AT20
VDD
AT19
VDD
AT18
VDD
AT17
VDD
AT16
VDD
AT15
VDD
AT14
VDD
AR40
VDD
AR13
VDD
AP34
VDD
AP33
VDD
AP32
VDD
AP31
VDD
AP30
VDD
AP23
VDD
AP22
VDD
AP21
VDD
BL45
GND_SENSE
BK45
NVVDD_SENSE
W34
VDD
W33
VDD
W32
VDD
W31
VDD
W30
VDD
W23
VDD
W22
VDD
W21
VDD
W20
VDD
W19
VDD
V40
VDD
V13
VDD
U39
VDD
U38
VDD
U37
VDD
U36
VDD
U35
VDD
U34
VDD
U33
VDD
U32
VDD
U31
VDD
U30
VDD
U29
VDD
U28
VDD
U27
VDD
U26
VDD
U25
VDD
U24
VDD
U23
VDD
U22
VDD
U21
VDD
U20
VDD
U19
VDD
U18
VDD
U17
VDD
U16
VDD
BG44
VDD
BG43
VDD
BF51
VDD
BF49
VDD
BF47
VDD
BF45
VDD
BF44
VDD
BF42
VDD
BE52
VDD
BE51
VDD
BE50
VDD
BE49
VDD
BE48
VDD
BE47
VDD
BE46
VDD
BE43
VDD
BE42
VDD
BE41
VDD
BD51
VDD
BD50
VDD
BD49
VDD
BD48
VDD
BD47
VDD
BD46
VDD
BD41
VDD
BD39
VDD
BC49
VDD
BC47
VDD
BC45
VDD
BC41
VDD
BC40
VDD
BC39
VDD
BC38
VDD
BB48
VDD
BB47
VDD
BB46
VDD
BB45
VDD
R20 60.4_1%_04
23/23 VDDS
INS16567134
U22J
W39
VDDS
W38
VDDS
W37
VDDS
W36
VDDS
W35
VDDS
W29
VDDS
W28
VDDS
W27
VDDS
W26
VDDS
W25
VDDS
W24
VDDS
W18
VDDS
W17
VDDS
W16
VDDS
W15
VDDS
W14
VDDS
R39
VDDS
R38
VDDS
R37
VDDS
R36
VDDS
R35
VDDS
R29
VDDS
R28
VDDS
R27
VDDS
R26
VDDS
R25
VDDS
R24
VDDS
R18
VDDS
R17
VDDS
R16
VDDS
R15
VDDS
R14
VDDS
AV39
VDDS
AV38
VDDS
AV37
VDDS
AV36
VDDS
AV35
VDDS
AV29
VDDS
AV28
VDDS
AV27
VDDS
AV26
VDDS
AV25
VDDS
AV24
VDDS
AV18
VDDS
AV17
VDDS
AV16
VDDS
AV15
VDDS
AV14
VDDS
AP39
VDDS
AP38
VDDS
AP37
VDDS
AP36
VDDS
AP35
VDDS
AP29
VDDS
AP28
VDDS
AP27
VDDS
BM44
GNDS_SENSE
BM45
VDDS_SENSE
AP26
VDDS
AP25
VDDS
AP24
VDDS
AP18
VDDS
AP17
VDDS
AP16
VDDS
AP15
VDDS
AP14
VDDS
AK39
VDDS
AK38
VDDS
AK37
VDDS
AK36
VDDS
AK35
VDDS
AK29
VDDS
AK28
VDDS
AK27
VDDS
AK26
VDDS
AK25
VDDS
AK24
VDDS
AK18
VDDS
AK17
VDDS
AK16
VDDS
AK15
VDDS
AK14
VDDS
AG39
VDDS
AG38
VDDS
AG37
VDDS
AG36
VDDS
AG35
VDDS
AG29
VDDS
AG28
VDDS
AG27
VDDS
AF26
VDDS
AF25
VDDS
AF24
VDDS
AF18
VDDS
AF17
VDDS
AF16
VDDS
AF15
VDDS
AF14
VDDS
AC39
VDDS
AC38
VDDS
AC37
VDDS
AC36
VDDS
AC35
VDDS
AC29
VDDS
AC28
VDDS
AC27
VDDS
AC26
VDDS
AC25
VDDS
AC24
VDDS
AC18
VDDS
AC17
VDDS
AC16
VDDS
AC15
VDDS
AC14
VDDS
20/23 FBVDDQ
INS16563190
U22H
Y43
FBVDDQ
Y42
FBVDDQ
Y11
FBVDDQ
Y10
FBVDDQ
V43
FBVDDQ
V42
FBVDDQ
V10
FBVDDQ
U43
FBVDDQ
U11
FBVDDQ
U10
FBVDDQ
R43
FBVDDQ
R42
FBVDDQ
AR43
FBVDDQ
AR42
FBVDDQ
AN43
FBVDDQ
AM43
FBVDDQ
AM42
FBVDDQ
AK43
FBVDDQ
AK42
FBVDDQ
AK11
FBVDDQ
AK10
FBVDDQ
AJ43
FBVDDQ
AJ42
FBVDDQ
AJ11
FBVDDQ
AJ10
FBVDDQ
AG43
FBVDDQ
AG42
FBVDDQ
AG11
FBVDDQ
AG10
FBVDDQ
AF43
FBVDDQ
AF10
FBVDDQ
AD43
FBVDDQ
AD42
FBVDDQ
AD11
FBVDDQ
AD10
FBVDDQ
AC43
FBVDDQ
AC42
FBVDDQ
AC11
FBVDDQ
AC10
FBVDDQ
AA43
FBVDDQ
AA42
FBVDDQ
AA11
FBVDDQ
AA10
FBVDDQ
R45
FB_CALTERM_GND
P44
FB_CAL_PU_GND
R44
FB_CAL_PD_VDDQ
P45
FB_VREF
E52
FBVDDQ_SENSE
R11
FBVDDQ
R10
FBVDDQ
P43
FBVDDQ
P42
FBVDDQ
P11
FBVDDQ
P10
FBVDDQ
M43
FBVDDQ
M10
FBVDDQ
L39
FBVDDQ
L36
FBVDDQ
L35
FBVDDQ
L33
FBVDDQ
L32
FBVDDQ
L30
FBVDDQ
L27
FBVDDQ
L26
FBVDDQ
L24
FBVDDQ
L23
FBVDDQ
L21
FBVDDQ
L20
FBVDDQ
L18
FBVDDQ
L15
FBVDDQ
L14
FBVDDQ
K41
FBVDDQ
K39
FBVDDQ
K38
FBVDDQ
K36
FBVDDQ
K35
FBVDDQ
K33
FBVDDQ
K32
FBVDDQ
K30
FBVDDQ
K29
FBVDDQ
K27
FBVDDQ
K26
FBVDDQ
K24
FBVDDQ
K23
FBVDDQ
K21
FBVDDQ
K20
FBVDDQ
K18
FBVDDQ
K17
FBVDDQ
K15
FBVDDQ
K14
FBVDDQ
K12
FBVDDQ
AT43
FBVDDQ
R21 40.2_1%_04
R416 2.2_04
18/21 VDD_1/2
U22F
INS16565366
BK51
VDD
BK50
VDD
BK49
VDD
BK48
VDD
BK47
VDD
BJ52
VDD
BJ51
VDD
BJ50
VDD
BJ49
VDD
BJ48
VDD
BJ47
VDD
BJ46
VDD
BJ45
VDD
BJ44
VDD
BH52
VDD
BH51
VDD
BH50
VDD
BH49
VDD
BH48
VDD
BH47
VDD
BH45
VDD
BH44
VDD
BG52
VDD
BG51
VDD
BG50
VDD
BG49
VDD
BG48
VDD
BG47
VDD
BG46
VDD
BG45
VDD
AG21
VDD
AG20
VDD
AG19
VDD
AG13
VDD
AF40
VDD
AF34
VDD
AF33
VDD
AF32
VDD
AF31
VDD
AF30
VDD
AF13
VDD
AE39
VDD
AE38
VDD
AE37
VDD
AE36
VDD
AE35
VDD
AE34
VDD
AE33
VDD
AE32
VDD
AE31
VDD
AE30
VDD
AE29
VDD
AE28
VDD
AE27
VDD
AE26
VDD
AE25
VDD
AE24
VDD
AE23
VDD
AE22
VDD
AE21
VDD
AE20
VDD
AE19
VDD
AE18
VDD
AE17
VDD
AE16
VDD
AE15
VDD
AE14
VDD
AC34
VDD
AC33
VDD
AC32
VDD
AC31
VDD
AC30
VDD
AC23
VDD
AC22
VDD
AC21
VDD
AC20
VDD
AC19
VDD
AB40
VDD
AB13
VDD
AA39
VDD
AA38
VDD
AA37
VDD
AA36
VDD
AA35
VDD
AA34
VDD
AA33
VDD
AA32
VDD
AA31
VDD
AA30
VDD
AA29
VDD
AA28
VDD
AA27
VDD
AA26
VDD
AA25
VDD
AA24
VDD
AA23
VDD
AA22
VDD
AA21
VDD
AA20
VDD
AA19
VDD
AA18
VDD
AA17
VDD
AA16
VDD
AA15
VDD
AA14
VDD
U15
VDD
U14
VDD
R34
VDD
R33
VDD
R32
VDD
R31
VDD
R30
VDD
R23
VDD
R22
VDD
R21
VDD
R20
VDD
R19
VDD
P40
VDD
P13
VDD
N39
VDD
N35
VDD
N31
VDD
N27
VDD
N26
VDD
N22
VDD
N18
VDD
N14
VDD
BM51
VDD
BM50
VDD
BM49
VDD
BM48
VDD
BM47
VDD
BL52
VDD
BL51
VDD
BL50
VDD
BL49
VDD
BL48
VDD
BL47
VDD
BL46
VDD
BK52
VDD
AP20
VDD
AP19
VDD
AM39
VDD
AM38
VDD
AM37
VDD
AM36
VDD
AM35
VDD
AM34
VDD
AM33
VDD
AM32
VDD
AM31
VDD
AM30
VDD
AM29
VDD
AM28
VDD
AM27
VDD
AM26
VDD
AM25
VDD
AM24
VDD
AM23
VDD
AM22
VDD
AM21
VDD
AM20
VDD
AM19
VDD
AM18
VDD
AM17
VDD
AM16
VDD
AM15
VDD
AM14
VDD
AL40
VDD
AL13
VDD
AK34
VDD
AK33
VDD
AK32
VDD
AK31
VDD
AK30
VDD
AK23
VDD
AK22
VDD
AK21
VDD
AK20
VDD
AK19
VDD
AH39
VDD
AH38
VDD
AH37
VDD
AH36
VDD
AH35
VDD
AH34
VDD
AH33
VDD
AH32
VDD
AH31
VDD
AH30
VDD
AH29
VDD
AH28
VDD
AH27
VDD
AH26
VDD
AH25
VDD
AH24
VDD
AH23
VDD
AH22
VDD
AH21
VDD
AH20
VDD
AH19
VDD
AH18
VDD
AH17
VDD
AH16
VDD
AH15
VDD
AH14
VDD
AG40
VDD
AG23
VDD
AG22
VDD
Sheet 28 of 77
GPU NVVDD,
FBVDDQ
![](asset-56.png)
Sheet 29 of 77
GPU GND
Schematic Diagrams
B - 30 GPU GND
B.Schematic Diagrams
GPU GND
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
GPU GND
GND GND GNDGND
GND
GND
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[29] GPU GND
Custom
29 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[29] GPU GND
Custom
29 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[29] GPU GND
Custom
29 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
22/23 GND_3/3
INS16574250
U22M
BL40
GND
N51
GND
N49
GND
N47
GND
N45
GND
N43
GND
N4
GND
N2
GND
N10
GND
M6
GND
M52
GND
K8
GND
K6
GND
K51
GND
K49
GND
K47
GND
K45
GND
K40
GND
K4
GND
K37
GND
K34
GND
K31
GND
K28
GND
K25
GND
K22
GND
K2
GND
K19
GND
K16
GND
K13
GND
J52
GND
J49
GND
J38
GND
J20
GND
J17
GND
J12
GND
J1
GND
H43
GND
H40
GND
H37
GND
H34
GND
H31
GND
H28
GND
H25
GND
H22
GND
H19
GND
H16
GND
H13
GND
H10
GND
H1
GND
G6
GND
G51
GND
G49
GND
G47
GND
G4
GND
G38
GND
G2
GND
F7
GND
F52
GND
F46
GND
F44
GND
F43
GND
F40
GND
F37
GND
F35
GND
F34
GND
F31
GND
F28
GND
F25
GND
F22
GND
F21
GND
F19
GND
F17
GND
F16
GND
F13
GND
F10
GND
E8
GND
E51
GND
E5
GND
E48
GND
E4
GND
E2
GND
D7
GND
D49
GND
D46
GND
D43
GND
D40
GND
D4
GND
D37
GND
D34
GND
D31
GND
D30
GND
D28
GND
D25
GND
D24
GND
D22
GND
D19
GND
D16
GND
D13
GND
D12
GND
D10
GND
C52
GND
C51
GND
C5
GND
C33
GND
C29
GND
C1
GND
BM3
GND
BM2
GND
BL7
GND
BL5
GND
BL43
GND
W45
GND
W43
GND
W4
GND
W2
GND
W10
GND
V52
GND
V49
GND
V39
GND
V38
GND
V37
GND
V36
GND
V35
GND
V34
GND
V33
GND
V32
GND
V31
GND
V30
GND
V29
GND
V28
GND
V27
GND
V26
GND
V25
GND
V24
GND
V23
GND
V22
GND
V21
GND
V20
GND
V19
GND
V18
GND
V17
GND
V16
GND
V15
GND
V14
GND
U9
GND
U7
GND
T8
GND
T6
GND
T51
GND
T49
GND
T47
GND
T45
GND
T43
GND
T4
GND
T39
GND
T38
GND
T37
GND
T36
GND
T35
GND
T34
GND
T33
GND
T32
GND
T31
GND
T30
GND
T29
GND
T28
GND
T27
GND
T26
GND
T25
GND
T24
GND
T23
GND
T22
GND
T21
GND
T20
GND
T2
GND
T19
GND
T18
GND
T17
GND
T16
GND
T15
GND
T14
GND
T10
GND
R52
GND
R49
GND
P51
GND
P39
GND
P38
GND
P37
GND
P36
GND
P35
GND
P34
GND
P33
GND
P32
GND
P31
GND
P30
GND
P29
GND
P28
GND
P27
GND
P26
GND
P25
GND
P24
GND
P23
GND
P22
GND
P21
GND
P20
GND
P19
GND
P18
GND
P17
GND
P16
GND
P15
GND
P14
GND
N8
GND
N6
GND
17/23 GND_2/3
INS16575970
U22L
B48
GND
B46
GND
B43
GND
B40
GND
B37
GND
B34
GND
B31
GND
B28
GND
B25
GND
B22
GND
B2
GND
B19
GND
B16
GND
B13
GND
B10
GND
B1
GND
AY8
GND
AY6
GND
AY51
GND
AY49
GND
AY47
GND
AY4
GND
AY2
GND
AY10
GND
AW8
GND
AW52
GND
AW5
GND
AW46
GND
AW4
GND
AW39
GND
AW38
GND
AW37
GND
AW36
GND
AW35
GND
AW34
GND
AW33
GND
AW32
GND
AW31
GND
AW30
GND
AW29
GND
AW28
GND
AW27
GND
AW26
GND
AW25
GND
AW24
GND
AW23
GND
AW22
GND
AW21
GND
AW20
GND
AW19
GND
AW18
GND
AW17
GND
AW16
GND
AW15
GND
AW14
GND
AV9
GND
AV45
GND
AV4
GND
AU8
GND
AU6
GND
AU51
GND
AU49
GND
AU47
GND
AU45
GND
AU4
GND
AU39
GND
AU38
GND
AU37
GND
AU36
GND
AU35
GND
AU34
GND
AU33
GND
AU32
GND
AU31
GND
AU30
GND
AU29
GND
AU28
GND
AU27
GND
AU26
GND
AU25
GND
AU24
GND
AU23
GND
AU22
GND
AU21
GND
AU20
GND
AU2
GND
AU19
GND
AU18
GND
AU17
GND
AU16
GND
AU15
GND
AU14
GND
AU10
GND
AT8
GND
AT52
GND
AT51
GND
AT5
GND
AT4
GND
AR9
GND
AR52
GND
AR4
GND
AR39
GND
AR38
GND
AR37
GND
AR36
GND
AR35
GND
AR34
GND
AR33
GND
AR32
GND
AR31
GND
AR30
GND
AR29
GND
AR28
GND
AR27
GND
AR26
GND
AR25
GND
AR24
GND
AR23
GND
AR22
GND
AR21
GND
AR20
GND
B51
GND
B5
GND
BL34
GND
BL31
GND
BL28
GND
BL25
GND
BL22
GND
BL2
GND
BL19
GND
BL16
GND
BL13
GND
BL10
GND
BL1
GND
BK1
GND
BJ7
GND
BJ43
GND
BJ42
GND
BJ41
GND
BJ40
GND
BJ39
GND
BJ38
GND
BJ37
GND
BJ36
GND
BJ35
GND
BJ34
GND
BJ33
GND
BJ32
GND
BJ31
GND
BJ30
GND
BJ29
GND
BJ28
GND
BJ27
GND
BJ26
GND
BJ25
GND
BJ24
GND
BJ23
GND
BJ22
GND
BJ21
GND
BJ20
GND
BJ19
GND
BJ18
GND
BJ17
GND
BJ16
GND
BJ15
GND
BJ14
GND
BJ13
GND
BJ12
GND
BJ10
GND
BH5
GND
BH42
GND
BH39
GND
BH36
GND
BH33
GND
BH30
GND
BH27
GND
BH24
GND
BH21
GND
BH2
GND
BH18
GND
BH15
GND
BG7
GND
BG42
GND
BG40
GND
BG37
GND
BG34
GND
BG31
GND
BG28
GND
BG25
GND
BG22
GND
BG19
GND
BG16
GND
BG13
GND
BG10
GND
BF6
GND
BF41
GND
BF4
GND
BF2
GND
BE40
GND
BE39
GND
BE37
GND
BE36
GND
BE34
GND
BE33
GND
BE31
GND
BE30
GND
BE28
GND
BE27
GND
BE25
GND
BE24
GND
BE22
GND
BE21
GND
BE19
GND
BE18
GND
BE16
GND
BE15
GND
BE13
GND
BE10
GND
BD52
GND
BD38
GND
BD35
GND
BD32
GND
BD29
GND
BD26
GND
BC8
GND
BC6
GND
BC51
GND
BC4
GND
BC37
GND
BC34
GND
BC31
GND
BC28
GND
BC25
GND
BC22
GND
BC2
GND
BC19
GND
BC16
GND
BC13
GND
BB49
GND
BA48
GND
B7
GND
B52
GND
16/23 GND_1/3
INS16572314
U22K
AH51
GND
AH49
GND
AH47
GND
AH45
GND
AH43
GND
AH4
GND
AH2
GND
AH10
GND
AG44
GND
AG34
GND
AG33
GND
AG32
GND
AG31
GND
AG30
GND
AG3
GND
AG26
GND
AG25
GND
AG24
GND
AG18
GND
AG17
GND
AG16
GND
AG15
GND
AG14
GND
AF5
GND
AF45
GND
AF39
GND
AF38
GND
AF37
GND
AF36
GND
AF35
GND
AF29
GND
AF28
GND
AF27
GND
AF23
GND
AF22
GND
AF21
GND
AF20
GND
AF19
GND
AF1
GND
AE8
GND
AE6
GND
AE51
GND
AE49
GND
AE47
GND
AE45
GND
AE43
GND
AE4
GND
AE2
GND
AE10
GND
AD44
GND
AD39
GND
AD38
GND
AD37
GND
AD36
GND
AD35
GND
AD34
GND
AD33
GND
AD32
GND
AD31
GND
AD30
GND
AD29
GND
AD28
GND
AD27
GND
AD26
GND
AD25
GND
AD24
GND
AD23
GND
AD22
GND
AD21
GND
AD20
GND
AD19
GND
AD18
GND
AD17
GND
AD16
GND
AD15
GND
AD14
GND
AB8
GND
AB6
GND
AB51
GND
AB49
GND
AB47
GND
AB45
GND
AB43
GND
AB4
GND
AB39
GND
AB38
GND
AB37
GND
AB36
GND
AB35
GND
AB34
GND
AB33
GND
AB32
GND
AB31
GND
AB30
GND
AB29
GND
AB28
GND
AB27
GND
AB26
GND
AB25
GND
AB24
GND
AB23
GND
AB22
GND
AB21
GND
AB20
GND
AB2
GND
AB19
GND
AB18
GND
AB17
GND
AB16
GND
AB15
GND
AB14
GND
AB10
GND
AA8
GND
AA49
GND
A51
GND
A50
GND
A32
GND
A3
GND
A29
GND
A26
GND
A2
GND
BC24
GND
BD24
GND
BL37
GND
AR19
GND
AR18
GND
AR17
GND
AR16
GND
AR15
GND
AR14
GND
AP8
GND
AP6
GND
AP51
GND
AP49
GND
AP47
GND
AP45
GND
AP43
GND
AP4
GND
AP2
GND
AP10
GND
AN8
GND
AN5
GND
AN4
GND
AN39
GND
AN38
GND
AN37
GND
AN36
GND
AN35
GND
AN34
GND
AN33
GND
AN32
GND
AN31
GND
AN30
GND
AN29
GND
AN28
GND
AN27
GND
AN26
GND
AN25
GND
AN24
GND
AN23
GND
AN22
GND
AN21
GND
AN20
GND
AN19
GND
AN18
GND
AN17
GND
AN16
GND
AN15
GND
AN14
GND
AM9
GND
AM4
GND
AL8
GND
AL6
GND
AL51
GND
AL49
GND
AL47
GND
AL45
GND
AL43
GND
AL4
GND
AL39
GND
AL38
GND
AL37
GND
AL36
GND
AL35
GND
AL34
GND
AL33
GND
AL32
GND
AL31
GND
AL30
GND
AL29
GND
AL28
GND
AL27
GND
AL26
GND
AL25
GND
AL24
GND
AL23
GND
AL22
GND
AL21
GND
AL20
GND
AL2
GND
AL19
GND
AL18
GND
AL17
GND
AL16
GND
AL15
GND
AL14
GND
AL10
GND
AK47
GND
AK44
GND
AK1
GND
AJ9
GND
AJ39
GND
AJ38
GND
AJ37
GND
AJ36
GND
AJ35
GND
AJ34
GND
AJ33
GND
AJ32
GND
AJ31
GND
AJ30
GND
AJ29
GND
AJ28
GND
AJ27
GND
AJ26
GND
AJ25
GND
AJ24
GND
AJ23
GND
AJ22
GND
AJ21
GND
AJ20
GND
AJ2
GND
AJ19
GND
AJ18
GND
AJ17
GND
AJ16
GND
AJ15
GND
AJ14
GND
AH8
GND
AH6
GND
![](asset-57.png)
Sheet 30 of 77
PCH 1/5
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
RTC Wake UP
For ITE IT8587B Test
BIOS + ME ROM 8MB
BOOT HALT
ENABLE:LOW
(INTERNAL WEAK PD)
CONSENT STRAP
ENABLE:LOW
(INTERNAL WEAK PU)
JTAG ODT
DISABLE:LOW
(INTERNAL WEAK PU)
PESONALITY STRAP
ENABLE:LOW
(INTERNAL WEAK PU)
ESPI FLASH SHARING MODE
MASTER ATTACHED FLASH SHARING:LOW
SLAVE ATTACEHD FLASH SHARING:HIGH
(INTERNAL WEAK PD)
GPP_G_14_GSXDIN:
DMI AC COUPLING FULL VOLTAGE MODE
WHEN SAMPLED LOW
SPI_* = 1"~6.5"
64M
GD:6-04-02564-A75
MXIC:6-04-25647-490
WINBOND: 6-04-02564-470
3G
WiGig
SD4.0
TBT
USB2 COMP RES: PLACE WITHIN 1 INCH
DESIGN NOTE:
GLAN
WLAN
FINGER
NGFF WIGIG/WLAN +BT
CCD
USB3 PORT4 to LAN board
USB3 PORT1 to USB board
USB3 PORT5 to USB board
TYPE C (W/O TBT)
USB3 PORT6 to LAN board
SPI_SI_M
SPI_SO_M
SPI_SCLK_M
SPI_SI_R
SPI_SO_R
SPI_SCLK_R
SPI_CS_0#
SPI_SI_R
SPI_SCLK_R
SPI_SO_R
SPI_CS_0#
SPI_WP# SPI_CS0#
SPI_HOLD#
SPI_SI_R
SPI_SO_R
SPI_CS_0#
SPI_SCLK_R
SPI_CS2#
SPI_IO2
SPI_IO3
SPI_WP#
SPI_HOLD#
SPI_SI_R
SPI_IO2
SPI_SO_R
SPI_IO3
GPP_H_12
GPP_H_12
SML4ALERT#
SML4DATA
SML4CLK
SML3ALERT#
SML3DATA
SML3CLK
SML2DATA
SML2CLK
GPP_G_14_GSXDIN
EXTTS_SNI_DRV0_PCH
EXTTS_SNI_DRV1_PCH
TCH_PNL_INTR_N
BT_RF_KILL_R_N
TBTA_MRESET
TBT_FRC_PWR
TBCIO_PLUG_EVENT
TBTA_ACE_GPIO2
TBTA_ACE_GPIO0
TBTA_ACE_GPIO3
TBTA_ACE_GPIO7
PCIETXP2
PCIETXN2
PCIETXN1
PCIETXP1
VISACH2_D3
USB_OC0#
USB_OC1#
USB_OC2#
USB2_COMP
USB2_VBUSSENSE
USB2_ID
PCIETXP6
PCIETXN6
USB_OC4#
USB_OC5#
USB_OC6#
USB_OC7#
PCIETXN3
PCIETXP3
PCIETXP5
PCIETXN5
PCIECOMP_N
PCIECOMP_P
PCIETXN4
PCIETXP4
VCC_RTC
VDD3
3.3VA
VDD3
3.3VS
SPI_CS_0#[35]
SPI_SI_R[35]
SPI_SO_R[35]
SPI_SCLK_R[35]
PLT_RST# [27,34]
VDD3[5,26,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
3.3VS[3,8,9,10,11,12,13,26,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
VCC_RTC[31,32,33]
LAN_WAKEUP#[32,35,38,42,48]
3.3VA[5,31,32,33,34,50]
DMI_MT_IR_0_DN[2]
DMI_MT_IR_0_DP[2]
DMI_MT_IR_1_DN[2]
DMI_MT_IR_1_DP[2]
DMI_MT_IR_2_DN[2]
DMI_MT_IR_2_DP[2]
DMI_MT_IR_3_DN[2]
DMI_MT_IR_3_DP[2]
DMI_IT_MR_0_DN[2]
DMI_IT_MR_0_DP[2]
DMI_IT_MR_1_DN[2]
DMI_IT_MR_1_DP[2]
DMI_IT_MR_2_DN[2]
DMI_IT_MR_2_DP[2]
DMI_IT_MR_3_DN[2]
DMI_IT_MR_3_DP[2]
USB_PP1 [48]
USB_PN1 [48]
USB_PN7 [48]
USB_PP7 [48]
USB_PN8 [38]
USB_PP8 [38]
USB_PN9 [47]
USB_PP9 [47]
USB_PN6 [48]
USB_PP6 [48]
PCIE_TXP5_GLAN[48]
PCIE_TXN5_GLAN[48]
PCIE_RXP5_GLAN[48]
PCIE_RXN5_GLAN[48]
PCIE_TXP7_WLAN[38]
PCIE_TXN7_WLAN[38]
PCIE_RXP7_WLAN[38]
PCIE_RXN7_WLAN[38]
PC IE_T XP 8_W IG IG[38]
PC IE_T XN 8_W IG IG[38]
PC IE_R XP 8_W IG IG[38]
PC IE_R XN 8_W IG IG[38]
PCIE_TXP6_SD40[48]
PCIE_TXN6_SD40[48]
PCIE_RXP6_SD40[48]
PCIE_RXN6_SD40[48]
USB_PN4 [48]
USB_PP4 [48]
USB_PN5 [48]
USB_PP5 [48]
PCIE_RXP1_TBT[42]
PCIE_RXN1_TBT[42]
PCIE_RXP2_TBT[42]
PCIE_RXN2_TBT[42]
PCIE_TXP1_TBT[42]
PCIE_TXN1_TBT[42]
PCIE_TXP2_TBT[42]
PCIE_TXN2_TBT[42]
PCIE_RXP3_TBT[42]
PCIE_RXN3_TBT[42]
PCIE_RXN4_TBT[42]
PCIE_RXP4_TBT[42]
PCIE_TXN3_TBT[42]
PCIE_TXP3_TBT[42]
PCIE_TXN4_TBT[42]
PCIE_TXP4_TBT[42]
TBCIO_PLUG_EVENT [42]
TBT_FRC_PWR [42]
TBTA_ACE_GPIO0[44]
TBTA_ACE_GPIO2[44]
TBTA_ACE_GPIO3[44]
TBTA_ACE_GPIO7[44]
USB_PP2 [45]
USB_PN2 [45]
USB_PP3 [38]
USB_PN3 [38]
TBTA_MRESET[44]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[30] PCH 1/5-SPI/DMI/PCIE/USB2
A3
30 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[30] PCH 1/5-SPI/DMI/PCIE/USB2
A3
30 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[30] PCH 1/5-SPI/DMI/PCIE/USB2
A3
30 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R532 3.3K_1%_04
C833 0.22u_10V_X5R_04
R231 *2.2K_04
R559 *10K_04
C824 0.22u_10V_X5R_04
U31
GD25B64CSIGR
CE# 1
SO 2
WP#
3
VSS 4
SI 5
SCK 6
HOLD#
7
VDD
8
R552
*4.7K_04
C827 0.22u_10V_X5R_04
R235 *8.2K_04
C835 0.1u_10V_X7R_04
C829
0.1u_10V_X7R_04
R542
*4.7K_04
C841 0.1u_10V_X7R_04
C838 0.1u_10V_X7R_04
R539 33_04
R191 100_1%_04
DMI
USB 2.0
SPT-H_PCH
PCIe/USB 3
U30B
HM175
USB2N_1 AF5
USB2P_1 AG7
USB2N_2 AD5
USB2P_2 AD7
USB2N_3 AG8
USB2P_3 AG10
USB2N_4 AE1
USB2P_4 AE2
USB2N_5 AC2
USB2P_5 AC3
USB2N_6 AF2
USB2P_6 AF3
USB2N_7 AB3
USB2P_7 AB2
USB2N_8 AL8
USB2P_8 AL7
USB2N_9 AA1
USB2P_9 AA2
USB2N_10 AJ8
USB2P_10 AJ7
USB2N_11 W2
USB2P_11 W3
USB2N_12 AD3
USB2P_12 AD2
USB2N_13 V2
USB2P_13 V1
USB2N_14 AJ11
USB2P_14 AJ13
GPP_E9/USB2_OC0# AD43
GPP_E10/USB2_OC1# AD42
GPP_E11/USB2_OC2# AD39
GPP_E12/USB2_OC3# AC44
GPP_F15/USB2_OCB_4 Y43
GPP_F16/USB2_OCB_5 Y41
GPP_F17/USB2_OCB_6 W44
GPP_F18/USB2_OCB_7 W43
USB2_COMP AG3
USB2_VBUSSENSE AD10
RSVD_AB13 AB13
USB2_ID AG2
GPD7/RSVD BD14
DMI_RXN0
L27
DMI_RXP0
N27
DMI_TXN0
C27
DMI_TXP0
B27
DMI_RXN1
E24
DMI_RXP1
G24
DMI_TXN1
B28
DMI_TXP1
A28
DMI_RXN2
G27
DMI_RXP2
E26
DMI_TXN2
B29
DMI_TXP2
C29
DMI_RXN3
L29
DMI_RXP3
K29
DMI_TXN3
B30
DMI_TXP3
A30
PCIE_RCOMPN
B18
PCIE_RCOMPP
C17
PCIE1_RXN/USB3_7_RXN
H15
PCIE1_RXP/USB3_7_RXP
G15
PCIE1_TXN/USB3_7_TXN
A16
PCIE1_TXP/USB3_7_TXP
B16
PCIE2_TXN/USB3_8_TXN
B19
PCIE2_TXP/USB3_8_TXP
C19
PCIE2_RXN/USB3_8_RXN
E17
PCIE2_RXP/USB3_8_RXP
G17
PCIE3_RXN/USB3_9_RXN
L17
PCIE3_RXP/USB3_9_RXP
K17
PCIE3_TXN/USB3_9_TXN
B20
PCIE3_TXP/USB3_9_TXP
C20
PCIE4_RXN/USB3_10_RXN
E20
PCIE4_RXP/USB3_10_RXP
G19
PCIE4_TXN/USB3_10_TXN
B21
PCIE4_TXP/USB3_10_TXP
A21
PCIE5_RXN
K19
PCIE5_RXP
L19
PCIE5_TXN
D22
PCIE5_TXP
C22
PCIE6_RXN
G22
PCIE6_RXP
E22
PCIE6_TXN
B22
PCIE6_TXP
A23
PCIE7_RXN
L22
PCIE7_RXP
K22
PCIE7_TXN
C23
PCIE7_TXP
B23
PCIE8_RXN
K24
PCIE8_RXP
L24
PCIE8_TXN
C24
PCIE8_TXP
B24
C817 0.22u_10V_X5R_04
R528 *0_04
SPT-H_PCH
U30A
HM175
INTRUDER# BE11
GPP_H10/SML2CLK BD34
GPP_H11/SML2DATA AW 35
GPP_H12/SML2ALERT# BD35
GPP_H13/SML3CLK BC35
GPP_H14/SML3DATA BA35
GPP_H15/SML3ALERT# BB36
GPP_H16/SML4CLK BD39
GPP_H17/SML4DATA BE34
GPP_H18/SML4ALERT# BC36
GPP_B4/CPU_GP3 BD24
GPP_B3/CPU_GP2 BC23
GPP_E7/CPU_GP1 AE44
GPP_E3/CPU_GP0 AF41
GPP_G14/GSXDIN R42
GPP_G13/GSXSLOAD R36
GPP_G12/GSXDOUT R39
GPP_G16/GSXCLK P43
GPP_B13/PLTRST# BB27
GPP_D21/SPI1_IO2
AG44 GPP_D22/SPI1_IO3
AH43 GPP_D2/SPI1_MISO
AN38 GPP_D3/SPI1_MOSI
AN41 GPP_D0/SPI1_CS#
AL39 GPP_D1/SPI1_CLK
AN36
SPI0_CS2#
AT31 SPI0_IO3
BD30 SPI0_IO2
BC29
SPI0_CS1#
AW31 SPI0_CLK
BC31 SPI0_CS0#
BD31 SPI0_MISO
BE30 SPI0_MOSI
BB29
TP1
AN17 TP2
AR19
RSVD
AE17 RSVD
AF17 RSVD
AG14 RSVD
AG15
GPP_A11/PME#
BD17
GPP_G15/GSXSRESET# R41
C845 0.1u_10V_X7R_04
R526 0_04
R545
*4.7K_04
R538 3.3K_1%_04
R215
*1K_04
R548 33_04
R175 1K_04
R148 113_1%_04
R206
*4.7K_04
C822 0.22u_10V_X5R_04
R157 330K_04
R529 *8.2K_04
C810 0.22u_10V_X5R_04
R531 33_04
R543 33_04
R161 1K_04
R535 33_04
C812 0.22u_10V_X5R_04
C831 0.22u_10V_X5R_04
Schematic Diagrams
PCH 1/5 B - 31
B.Schematic Diagrams
PCH 1/5
![](asset-58.png)
Schematic Diagrams
B - 32 PCH 2/5
B.Schematic Diagrams
PCH 2/5
Sheet 31 of 77
PCH 2/5
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
BIOS RECOVERY
ENABLE :LOW
GFX SELECT TABLE
NORMAL GFX:LOW
CUSTOMER GFX:HIGH
PCH_RSVD
SSD_1
SSD_1
SSD_1
BIOS SET GPIO pin
NV power on/off timing
SSD_1
PLACE CLOSE TO PCH
SATAGP 0,2
L: SATA
H: PCIe
MFG_MODE
SSD_2
main HDD
SSD_2
暞
暞暞
暞ẞ
ẞẞ
ẞ㔠
㔠㔠
㔠
:8 pcs
6-02-33454-EQ0
RESERVED FOR EMI
XTAL 24MHz 20ppm CL<=12pF
6-22-24R00-1BA
CLOCK GENERATOR
6-22-24R00-1B9
32.768Khz
暨
SOC or PCH
⎴ᶨ朊ᶵ⎗ㇻ
VIA
, XTAL
ᶳ㕡ᶵ⎗㚱
POWER or
ᾉ嘇
2015/10/08
32.768KHZ
6-22-32R76-0B2
6-22-32R76-0BJ
RTC (10 MOHM RES): DO NOT CHANGE TO 0402
32.768 KHz 24 MHz
24MHZ
6-22-24R00-1B9
6-22-24R00-1BA
6-86-2B002-005
20mils
20mils
20mils
SKL
䘬
VCCRTC
天㯪⮷㕤
3.2V
ẍᶳ
(Skarkbay
⎗
3.3V)
ẍ
PDG
⺢嬘㍉䓐ẍᶳ暣嶗
(1.5K,45.3K)
℞ῤ⎗婧㔜
3/17
㓡ᶵᶲẞ
(
妋
TBT
䔞㨇⓷柴
)
5 GLAN
6 WLAN
8 PEG(NV)
9 SSD (X 4 LANE)
14 SSD (X 2 LANE)
PCI-E CLK Usage
䘮暨ᶲẞ
H_PM_SYNC_R
PCH_PECI
PCH_THERMTRIP#_R
BIOS_REC
BIOS_REC
GP39_GFX_CRB_DETECT
GP39_GFX_CRB_DETECT MFG_MODE
PCH_RSVD
PCH_RSVD
CL_CLK1
CL_DATA1
CL_RST#1
PCH_SATAHDD_LED#
SATAGP0
SATAGP2
SATAGP3
SATAGP4
SATAGP1
SCI#
PCH_SATAHDD_LED#
SATAGP1
SATAGP3
SWI#
MFG_MODE
SATA1B_RXP_R
SATA1B_RXN_R
SATA1B_TXP_R
SATA1B_TXN_R
XTAL24_OUT
XTAL24_IN
XCLK_RBIAS
PCH_XDP_CLK_DN
PCH_XDP_CLK_DP
WIGIG_CLKREQ#
SSD2_CLKREQ#
SD40_CLKREQ#
RTC_X1
RTC_X2
SSD_CLKREQ#
LAN_CLKREQ#
WLAN_CLKREQ#
TBT_CLKREQ#
PEG_CLKREQ#
RTC_VBAT
VRTC
RTC_X1
RTC_X2
XTAL24_IN
XTAL24_OUT
SD40_CLKREQ#
WIGIG_CLKREQ#
SSD2_CLKREQ#
SSD_CLKREQ#
LAN_CLKREQ#
RTC_VBAT
RTC_VBAT_1
PCH_THERMTRIP#
TBT_CLKREQ#
TBT_CLKREQ#_N
PEG_CLKREQ#
SATAGP4
1.0V_VCCST
3.3VS
3.3VS
3.3VS
3.3VS
3.3VA
3.3VS
VDD1.0
VCC_RTC
VDD3
1V8_AON
VDD1.0
VDD3
3.3VS
VCC_RTC
VDD3
PLTRST_CPU_N [5]
H_PM_DOWN [5]
PCH_PECI [5]
H_PM_SYNC [5]
PCH_THERMTRIP# [5]
EDP_BRIGHTNESS [10]
BLON [10]
NB_ENAVDD [10]
PCH_SATAHDD_LED# [48]
3.3VS[3,8,9,10,11,12,13,26,30,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
1.0V_VCCST[5,6,32,56,57]
5VS[10,11,12,13,36,39,40,41,47,48,49,50,61,62,63,64]
PCIE_TXP9_SATA0A_TXP_SSD [37]
PCIE_RXP9_SATA0A_RXP_SSD [37]
PCIE_RXN9_SATA0A_RXN_SSD [37]
PCIE_TXN9_SATA0A_TXN_SSD [37]
PCIE_RXP11_SSD[37]
PCIE_RXN11_SSD[37]
PCIE_TXP11_SSD[37]
PCIE_TXN11_SSD[37]
PCIE_TXP12_SSD[37]
PCIE_TXN12_SSD[37]
PCIE_RXN12_SSD[37]
PCIE_RXP12_SSD[37]
3.3VA[5,30,32,33,34,50]
SATAGP0 [37]
PCIE_TXN10_SSD [37]
PCIE_RXN10_SSD [37]
PCIE_RXP10_SSD [37]
PCIE_TXP10_SSD [37]
DIMM0_CHA_EVENT# [8]
DIMM0_CHB_EVENT# [9]
5V[39,44,45,48,49,50,51,52,53,54,55,56,57,58,59,63]
PCIE_RXP16_SSD2 [37]
PCIE_RXN16_SSD2 [37]
PCIE_TXP16_SSD2 [37]
PCIE_TXN16_SSD2 [37]
PCIE_RXP15_SATA2_RXP_SSD2 [37]
PCIE_RXN15_SATA2_RXN_SSD2 [37]
PCIE_TXP15_SATA2_TXP_SSD2 [37]
PCIE_TXN15_SATA2_TXN_SSD2 [37]
PCH_CPU_PCIBCLK_R_DP [5]
PCH_CPU_PCIBCLK_R_DN [5]
PCH_CPU_BCLK_R_DP[5]
PCH_CPU_BCLK_R_DN[5]
CPU_24MHZ_R_DP[5]
CPU_24MHZ_R_DN[5]
VGA_PEXCLK# [14]
VGA_PEXCLK [14]
PEG_CLKREQ#[14]
SSD_CLKREQ#[37]
LAN_CLKREQ#[48]
CLK_PCIE_GLAN# [48]
CLK_PCIE_GLAN [48]
CLK_PCIE_WLAN [38]
CLK_PCIE_WLAN# [38]
WLAN_CLKREQ#[38]
CLK_PCIE_SSD# [37]
CLK_PCIE_SSD [37]
SSD2_CLKREQ#[37]
CLK_PCIE_SSD2# [37]
CLK_PCIE_SSD2 [37]
CLK_PCIE_SD40# [48]
CLK_PCIE_SD40 [48]
TBT_REFCLK_100_P [42]
TBT_REFCLK_100_N [42]
TBT_CLKREQ#_N[42]
SD40_CLKREQ#[48]
CL K_P CIE _W IGIG # [38 ]
CL K_P CIE _W IGIG [ 38]
WIGIG_CLKREQ#[38]
GCLK_24M_PCH[31]
GCLK_32K[31]
GCLK_27M_NV [24]
GCLK_24M_PCH [31]
GCLK_25M_GLAN [48]
GCLK_32K [31]
VDD3[5,26,30,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
VDD1.0[33,51,56]
VCC_RTC[30,32,33]
SATA1B_TXN_R[49]
SATA1B_TXP_R[49]
SATA1B_RXN_R[49]
SATA1B_RXP_R[49]
1V8_AON[3,23,24,26,27,28,52,53,61,62,64]
PS8338B_SW[46]
CL_CLK1[38]
CL_DATA1[38]
CL_RST#1[38]
SATAGP2 [37]
SCI#[35]
SWI#[35]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[31] PCH 2/5-PCIE/SATA/HOST/CLK
A3
31 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[31] PCH 2/5-PCIE/SATA/HOST/CLK
A3
31 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[31] PCH 2/5-PCIE/SATA/HOST/CLK
A3
31 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
SPT-H_PCH
U30G
HM175
GPP_A16/CLKOUT_48
AR17
CLKOUT_CPUNSSC_P
G1
CLKOUT_CPUNSSC
F1
CLKOUT_CPUBCLK_P
G2
CLKOUT_CPUBCLK
H2
XTAL24_OUT
A5
XTAL24_IN
A6
XCLK_BIASREF
E1
RTCX1
BC9
RTCX2
BD10
GPP_B5/SRCCLKREQ0#
BC24
GPP_B6/SRCCLKREQ1#
AW24
GPP_B7/SRCCLKREQ2#
AT24
GPP_B8/SRCCLKREQ3#
BD25
GPP_B9/SRCCLKREQ4#
BB24
GPP_B10/SRCCLKREQ5#
BE25
GPP_H0/SRCCLKREQ6#
AT33
GPP_H1/SRCCLKREQ7#
AR31
GPP_H2/SRCCLKREQ8#
BD32
GPP_H3/SRCCLKREQ9#
BC32
GPP_H4/SRCCLKREQ10#
BB31
GPP_H5/SRCCLKREQ11#
BC33
GPP_H6/SRCCLKREQ12#
BA33
GPP_H7/SRCCLKREQ13#
AW33
GPP_H8/SRCCLKREQ14#
BB33
GPP_H9/SRCCLKREQ15#
BD33
CLKOUT_PCIE_N15
R13
CLKOUT_PCIE_P15
R11
CLKOUT_PCIE_N14
P1
CLKOUT_PCIE_P14
R2
CLKOUT_PCIE_N13
W7
CLKOUT_PCIE_P13
Y5
CLKOUT_PCIE_N12
U2
CLKOUT_PCIE_P12
U3
CLKOUT_ITPXDP L1
CLKOUT_ITPXDP_P L2
CLKOUT_CPUPCIBCLK J1
CLKOUT_CPUPCIBCLK_P J2
CLKOUT_PCIE_N0 N7
CLKOUT_PCIE_P0 N8
CLKOUT_PCIE_N1 L7
CLKOUT_PCIE_P1 L5
CLKOUT_PCIE_N2 D3
CLKOUT_PCIE_P2 F2
CLKOUT_PCIE_N3 E5
CLKOUT_PCIE_P3 G4
CLKOUT_PCIE_N4 D5
CLKOUT_PCIE_P4 E6
CLKOUT_PCIE_N5 D8
CLKOUT_PCIE_P5 D7
CLKOUT_PCIE_N6 R8
CLKOUT_PCIE_P6 R7
CLKOUT_PCIE_N7 U5
CLKOUT_PCIE_P7 U7
CLKOUT_PCIE_N8 W10
CLKOUT_PCIE_P8 W11
CLKOUT_PCIE_N9 N3
CLKOUT_PCIE_P9 N2
CLKOUT_PCIE_N10 P3
CLKOUT_PCIE_P10 P2
CLKOUT_PCIE_N11 R3
CLKOUT_PCIE_P11 R4
C318 0.1u_10V_X7R_04
R502
*1M_04
R153 0_04
C791
*12p_50V_NPO_04
C798
*15p_50V_NPO_04
C379 2.2u_6.3V_X5R_04
R560 10K_04
R136 0_04
A
A
C
D6
*BAT54CWH
1
2
3
R483 0_04
C390 *10p_50V_NPO_04
CLINK
FAN
PCIe/SATA
HOST
SPT-H_PCH
U30C
HM175
CL_CLK
AV2
CL_DATA
AV3
CL_RST#
AW2
GPP_G8/FAN_PWM_0
R44
GPP_G9/FAN_PWM_1
R43
GPP_G10/FAN_PWM_2
U39
GPP_G11/FAN_PWM_3
N42
GPP_G0/FAN_TACH_0
U43
GPP_G1/FAN_TACH_1
U42
GPP_G2/FAN_TACH_2
U41
GPP_G3/FAN_TACH_3
M44
GPP_G4/FAN_TACH_4
U36
GPP_G5/FAN_TACH_5
P44
GPP_G6/FAN_TACH_6
T45
GPP_G7/FAN_TACH_7
T44
PCIE11_TXP
B33
PCIE11_TXN
C33
PCIE11_RXP
K31
PCIE11_RXN
L31
GPP_F10/SCLOCK
AB33
GPP_F11/SLOAD
AB35
GPP_F13/SDATAOUT0
AA44
GPP_F12/SDATAOUT1
AA45
PCIE14_TXN/SATA1B_TXN
B38
PCIE14_TXP/SATA1B_TXP
C38
PCIE14_RXN/SATA1B_RXN
D39
PCIE14_RXP/SATA1B_RXP
E37
PCIE13_TXN/SATA0B_TXN
C36
PCIE13_TXP/SATA0B_TXP
B36
PCIE13_RXN/SATA0B_RXN
G35
PCIE13_RXP/SATA0B_RXP
E35
PCIE12_TXP
A35
PCIE12_TXN
B35
PCIE12_RXP
H33
PCIE12_RXN
G33
PCIE20_TXP/SATA7_TXP
J45
PCIE20_TXN/SATA7_TXN
K44
PCIE20_RXP/SATA7_RXP
N38
PCIE20_RXN/SATA7_RXN
N39
PCIE19_TXP/SATA6_TXP
H44
PCIE19_TXN/SATA6_TXN
H43
PCIE19_RXP/SATA6_RXP
L39
PCIE19_RXN/SATA6_RXN
L37
PCIE9_RXN/SATA0A_RXN G31
PCIE9_RXP/SATA0A_RXP H31
PCIE9_TXN/SATA0A_TXN C31
PCIE9_TXP/SATA0A_TXP B31
PCIE10_RXN/SATA1A_RXN G29
PCIE10_RXP/SATA1A_RXP E29
PCIE10_TXN/SATA1A_TXN C32
PCIE10_TXP/SATA1A_TXP B32
PCIE15_RXN/SATA2_RXN F41
PCIE15_RXP/SATA2_RXP E41
PCIE15_TXN/SATA2_TXN B39
PCIE15_TXP/SATA2_TXP A39
PCIE16_RXN/SATA3_RXN D43
PCIE16_RXP/SATA3_RXP E42
PCIE16_TXN/SATA3_TXN A41
PCIE16_TXP/SATA3_TXP A40
PCIE17_RXN/SATA4_RXN H42
PCIE17_RXP/SATA4_RXP H40
PCIE17_TXN/SATA4_TXN E45
PCIE17_TXP/SATA4_TXP F45
PCIE18_RXN/SATA5_RXN K37
PCIE18_RXP/SATA5_RXP G37
PCIE18_TXN/SATA5_TXN G45
PCIE18_TXP/SATA5_TXP G44
GPP_E8/SATALED# AD44
GPP_E0/SATAXPCIE0/SATAGP0 AG36
GPP_E1/SATAXPCIE1/SATAGP1 AG35
GPP_E2/SATAXPCIE2/SATAGP2 AG39
GPP_F0/SATAXPCIE3/SATAGP3 AD35
GPP_F1/SATAXPCIE4/SATAGP4 AD31
GPP_F2/SATAXPCIE5/SATAGP5 AD38
GPP_F3/SATAXPCIE6/SATAGP6 AC43
GPP_F4/SATAXPCIE7/SATAGP7 AB44
GPP_F21/EDP_BKLTCTL W36
GPP_F20/EDP_BKLTEN W35
GPP_F19/EDP_VDDEN W42
THERMTRIP# AJ3
PECI AL3
PM_SYNC AJ4
PLTRST_PROC# AK2
PM_DOWN AH2
R580 10K_04
R499 2.7K_1%_04
R155 22_04
R154 330_04
R220 43K_04
R234
10K_04
R179 *45.3K_1%_04
R194 10K_04
R575
10K_04
R478 *1K_04
U7
SLG3NB3470VTR
PCB Footprint = TQFN16-2X3MM
XTAL_IN
1
VDD 2
VDDIO_24M
3
GND
4
24M 5
25M 6
GND
7
VDDIO_25M
8
32.768K 9
VRTC 10
VDDIO_27M
11 27M 12
GND
13
VOUT
14
V3.3A 15
XTAL_OUT
16
PAD
17
X4
*W76-147_24MHZ
fsx3m
2 1
3 4
R305 10K_04
R135 *33_04
R562
*10K_04
R218 10K_04
R207 *100K_04
C381 22u_6.3V_X5R_06
R513 0_04
C330 15p_50V_NPO_04
C310 *10p_50V_NPO_04
RN1
10K_8P4R_04
1
2
3
4 5
6
7
8
R166 0_04
C377 0.1u_10V_X7R_04
R224
10K_04
R228 43K_04
R485 *1K_04
R183 *1.5K_1%_04
C329 12p_50V_NPO_04
C799
*15p_50V_NPO_04
C311 *10p_50V_NPO_04
R488 604_1%_04
D53 RB751S-40H
AC
R487 *10K_04
X1
W76-147_24MHZ
fsx3m
2 1
3 4
D52 RB751S-40H
AC
X5
*1TJS125DJ4A420P_32.768KHz
CM200S
14
3 2
R832 43K_04
R182 *1K_04
C348 0.1u_10V_X7R_04
R506
*10M_04
C792
*12p_50V_NPO_04
J_CBAT1
50271-0020N-001
PCB Footprint = 85204-02R
P/N = 6-20-43130-102
2
1
R557 10K_04
R563
*10K_04
R497 30.1_1%_04
R484 1K_04
R204 0_04
C423
*1u_6.3V_X5R_04
![](asset-59.png)
Schematic Diagrams
PCH 3/5 B - 33
B.Schematic Diagrams
PCH 3/5
Sheet 32 of 77
PCH 3/5
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CLOSE TO PCH
ESPI/LPC SELECT STARP
LPC : LOW (DEFAULT)
eSPI: HIGH
(INTERNAL WEAK PD)
TOP SWAP OVERRIDE STRAP
SWAP ENABLE: HIGH
SWAP DISABLE(DEFAULT): LOW
(INTERNAL WEAK PD)
EXI BOOT STALL BYPASS
ENABLE:HIGH
(INTERNAL WEAK PD)
Flash Descriptor Security Overide
Low = Disabled-(Default)
High = Enabled
TLS CONFIDENTITALITY
ENABLE: HIGH
(INTERNAL WEAK PD)
KW>>sZE>/^>t,E^DW>>Kt
DRAM_RST#
DESIGN NOTE:
'0' 1.35V
'1' 1.2V
忂䞍
BIOS
姕⭂
PIN
㓡冯
P870DM
ᶨ㧋䓐
GPP_B0
check EC
FROM DP
FROM DP REDRIVER
L :PORT1 (INTEL) (DEFAULT)
H: PORT2 (NV)
24 Mhz
4G LTE
USB3 PORT4 to LAN board
USB3 PORT1 to USB board
USB3 PORT5 to USB board
USB3 PORT6 to LAN board
TYPE C (W/O TBT)
AUD_AZACPU_SDO
AUD_AZACPU_SCLK_R
DDR4_DRAMRST#
SRTC_RST#
RTC_RST#
HDA_SDOUT
ITP_PMODE
PCH_JTAGX
PCH_JTAG_TMS
PCH_JTAG_TDO
PCH_JTAG_TDI
PCH_JTAG_TCK
GPP_C5
GPP_C5
PCH_SPKR
SKIN_THRM_SNSR_ALERT_N
PCH_HOT_GNSS_DISABLE
PCH_HOT_GNSS_DISABLE
RSMRST#
SUS_CLK
PCH_DPWROK
LAN_WAKEUP#
ISH_GP_6_R
PM_BATLOW#
LAN_WAKE#
SLP_SUS#_R
SYS_RESET#
SUS_CLK
SUS_PWR_ACK#
SMB_CLK
SMB_DATA
SLP_A#
SMD_CPU_THERM
SMC_CPU_THERM_R
SML0_CLK
SML0_DATA
SML0_DATA
SML0_CLK
DDR4_DRAMRST#
SMB_CLK
SMB_DATA SUSWARN#
SUS_PWR_ACK#
RSMRST#
SKIN_THRM_SNSR_ALERT_N
SMB_DATA
SMB_CLK
SMD_CPU_THERM
SMC_CPU_THERM_R
RSMRST#
SYS_RESET#
AC_PRESENT
PM_BATLOW#
SUSWARN#
DGPU_PWRGD_R
DGPU_PRSNT#
DGPU_SELECT#
DGPU_PRSNT#
DGPU_SELECT#
SERIRQ
CLK_PCI_KBC_R
SB_KBCRST#
CLK_PCI_TPM_R SB_KBCRST#
SERIRQ
PM_SLP_LAN#
LPC_PIRQA#
VCC_RTC
1.0V_VCCST
3.3VA
3.3VS
3.3VA
VDDQ
3.3VS
VDD3
3.3VA
3.3VA
3.3VS
3.3VS
3.3VS
H_PWRGD [5]
AUD_AZACPU_SCLK[3]
AUD_AZACPU_SDO_R[3]
AUD_AZACPU_SDI[3]
HDA_BITCLK[39]
HDA_SDOUT[32,39]
HDA_SYNC[39]
HDA_RST#[39]
HDA_SDOUT [32,39]
ME_WE [35]
HDA_SDIN0[39]
SYS_PWROK [34]
PM_PCH_PWROK[34]
RSMRST#[35] AC_PRESENT [35]
PWR_BTN# [35]
LAN_WAKEUP# [30,35,38,42,48]
SUSC# [35,51,55,56]
SUSB# [10,34,35,41,42,50,56]
SMB_CLK[39,47,55]
SMB_DATA[39,47,55]
SMC_CPU_THERM[35]
VDD3[5,26,30,31,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
3.3VS[3,8,9,10,11,12,13,26,30,31,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
VDDQ[6,8,9,51,55]
DDR4_DRAMRST# [8,9]
VCC_RTC[30,31,33]
1.0V_VCCST[5,6,31,56,57]
PCH_SPKR [39]
SUS_PWR_ACK#_EC [35]
SMB_CLK_R[3,8,9,44]
SMB_DATA_R[3,8,9,44]
3.3VA[5,30,31,33,34,50]
EC_SLP_SUS# [35,50,56]
DDR_VOL_SEL [55]
SUS_CLK [38]
H_SKTOCC_N [5]
SB_IEDP_HPD[3]
DGPU_PWR_EN [27,35]
GPU_EVENT# [26]
MDP_F_HPD[12,26]
MDP_E_HPD[11,26,46]
HDMI_HPD[13,26]
DGPU_PWRGD [64]
GC6_FB_EN_PCH [10,27,35]
DGPU_RST#_PCH [27]
LPC_AD0 [35,47]
LPC_AD1 [35,47]
LPC_AD2 [35,47]
LPC_AD3 [35,47]
LPC_FRAME# [35,47]
SERIRQ [35,47]
PCLK_KBC [35]
PCLK_TPM [47]
USB3_RXP1[48]
USB3_RXN1[48]
USB3_TXP1[48]
USB3_TXN1[48]
PCH_MUTE# [41]
PS8331_SW [3,10,26,48]
SB_KBCRST# [35]
USB3_TXN4[48]
USB3_TXP4[48]
USB3_RXN4[48]
USB3_RXP4[48]
USB3_TXP2[38]
USB3_TXN2[38]
USB3_RXP2[38]
USB3_RXN2[38]
USB3_TXN5[48]
USB3_TXP5[48]
USB3_RXN5[48]
USB3_RXP5[48]
1V8_RUN[14,15,23,24,28,52]
5VS[10,11,12,13,36,39,40,41,47,48,49,50,61,62,63,64]
1V8_AON[3,23,24,26,27,28,31,52,53,61,62,64]
USB3_TXN3[45]
USB3_TXP3[45]
USB3_RXN3[45]
USB3_RXP3[45]
USB3_TXN6[48]
USB3_TXP6[48]
USB3_RXN6[48]
USB3_RXP6[48]
KBLED_DET [36]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[32] PCH 3/5-HDA/SMBUS/RTC//ESP
A3
32 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[32] PCH 3/5-HDA/SMBUS/RTC//ESP
A3
32 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[32] PCH 3/5-HDA/SMBUS/RTC//ESP
A3
32 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R519 10K_04
R570 *0_04
R523 1K_04
R489 51_04
R561 *10K_04
R498 51_04
R565
1K_04
R197 1K_04
R553 *10K_04
JOPEN1
*OPEN_10mil-1MM
12
R518 22_04
R589
1K_04
R577 *0_04
R199 *0_04
R180
20K_1%_04
R196 22_04
R493 10K_04
C820
*0.1u_10V_X7R_04
R486 30.1_1%_04
RN3
1K_8P4R_04
1
2
3
4 5
6
7
8
R500 1K_04
S
D
G
Q41AMTDK3S6R
2
61
C400
1u_6.3V_X6S_04
R193 10K_04
R805 1K_04
R181 *0402_short
R236 499_1%_04
R192 10K_04
R554 499_1%_04
R189 *1.5K_04
SPT-H_PCH
U30E
HM175
GPP_I0/DDPB_HPD0
AW4
GPP_I1/DDPC_HPD1
AY2
GPP_I2/DDPD_HPD2
AV4
GPP_I3/DDPE_HPD3
BA4
GPP_I4/EDP_HPD
BD7
GPP_I7/DDPC_CTRLCLK BB3
GPP_I8/DDPC_CTRLDATA BD6
GPP_I5/DDPB_CTRLCLK BA5
GPP_I6/DDPB_CTRLDATA BC4
GPP_I9/DDPD_CTRLCLK BE5
GPP_I10/DDPD_CTRLDATA BE6
GPP_F14 Y44
GPP_F23 V44
GPP_F22 W39
GPP_G23 L43
GPP_G22 L44
GPP_G21 U35
GPP_G20 R35
GPP_H23 BD36
R210
*4.7K_04
R162 8.2K_04
R524 0_04
R494 30.1_1%_04
JTAG
SMBUS
AUDIO
SPT-H_PCH
U30D
HM175
HDA_BCLK
BA9
HDA_RST#
BD8
HDA_SDI0
BE7
HDA_SDI1
BC8
HDA_SDO
BB7
HDA_SYNC
BD9
RSVD_BD1
BD1
RSVD_BE2
BE2
DISPA_SDO
AM1
DISPA_SDI
AN2
DISPA_BCLK
AM2
GPP_D8/I2S0_SCLK
AL42
GPP_D7/I2S0_RXD
AN42
GPP_D6/I2S0_TXD
AM43
GPP_D5/I2S0_SFRM
AJ33
GPP_D20/DMIC_DATA0
AH44
GPP_D19/DMIC_CLK0
AJ35
GPP_D18/DMIC_DATA1
AJ38
GPP_D17/DMIC_CLK1
AJ42
RTCRST#
BC10
SRTCRST#
BB10
PCH_PWROK
AW11
RSMRST#
BA11
DSW_PW ROK
AV11
GPP_C2/SMBALERT#
BB41
GPP_C0/SMBCLK
AW44
GPP_C1/SMBDATA
BB43
GPP_C5/SML0ALERT#
BA40
GPP_C3/SML0CLK
AY44
GPP_C4/SML0DATA
BB39
GPP_B23/SML1ALERT#/PCHHOT#
AT27
GPP_C6/SML1CLK
AW42
GPP_C7/SML1DATA
AW45
GPP_A12/BMBUSY#/ISH_GP6/SX_EXIT_HOLDOFF# BB17
GPP_A8/CLKRUN# AW 22
GPD11/LANPHYPC AR15
GPD9/SLP_WLAN# AV13
DRAM_RESET# BC14
GPP_B2/VRALERT# BD23
GPP_B1 AL27
GPP_B0 AR27
GPP_G17/ADR_COMPLETE N44
GPP_B11 AN24
SYS_PWROK AY1
WAKE# BC13
GPD6/SLP_A# BC15
SLP_LAN# AV15
GPP_B12/SLP_S0# BC26
GPD4/SLP_S3# AW15
GPD5/SLP_S4# BD15
GPD10/SLP_S5# BA13
GPD8/SUSCLK AN15
GPD0/BATLOW# BD13
GPP_A15/SUSACK# BB19
GPP_A13/SUSW ARN#/SUSPWRDNACK BD19
GPD2/LAN_W AKE# BD11
GPD1/ACPRESENT BB15
SLP_SUS# BB13
GPD3/PW RBTN# AT13
SYS_RESET# AW1
GPP_B14/SPKR BD26
PROCPWRGD AM3
ITP_PMODE AT2
JTAGX AR3
JTAG_TMS AR2
JTAG_TDO AP1
JTAG_TDI AP2
JTAG_TCK AN3
R534
150K_1%_04
R164
20K_1%_04
R521
470_04
R187 *0_04
R230 *4.7K_04
C391
1u_6.3V_X6S_04
D24
RB751S-40H
A C
USB
SATA
LPC/eSPI
SPT-H_PCH
U30F
HM175
USB3_1_TXN
C11
USB3_1_TXP
B11
USB3_1_RXN
B7
USB3_1_RXP
A7
USB3_2_TXN/SSIC_1_TXN
B12
USB3_2_TXP/SSIC_1_TXP
A12
USB3_2_RXN/SSIC_1_RXN
C8
USB3_2_RXP/SSIC_1_RXP
B8
USB3_6_TXN
B15
USB3_6_TXP
C15
USB3_6_RXN
K15
USB3_6_RXP
K13
USB3_5_TXN
B14
USB3_5_TXP
C14
USB3_5_RXN
G13
USB3_5_RXP
H13
USB3_3_TXP/SSIC_2_TXP
D13
USB3_3_TXN/SSIC_2_TXN
C13
USB3_3_RXP/SSIC_2_RXP
A9
USB3_3_RXN/SSIC_2_RXN
B10
USB3_4_TXP
B13
USB3_4_TXN
A14
USB3_4_RXP
G11
USB3_4_RXN
E11
GPP_A1/LAD0/ESPI_IO0 AT22
GPP_A2/LAD1/ESPI_IO1 AV22
GPP_A3/LAD2/ESPI_IO2 AT19
GPP_A4/LAD3/ESPI_IO3 BD16
GPP_A5/LFRAME#/ESPI_CS0# BE16
GPP_A6/SERIRQ/ESPI_CS1# BA17
GPP_A7/PIRQA#/ESPI_ALERT0# AW17
GPP_A0/RCIN#/ESPI_ALERT1# AT17
GPP_A14/SUS_STAT#/ESPI_RESET# BC18
GPP_A9/CLKOUT_LPC0/ESPI_CLK BC17
GPP_A10/CLKOUT_LPC1 AV19
GPP_G19/SMI# M45
GPP_G18/NMI# N43
GPP_E6/DEVSLP2 AE45
GPP_E5/DEVSLP1 AG43
GPP_E4/DEVSLP0 AG42
GPP_F9/DEVSLP7 AB39
GPP_F8/DEVSLP6 AB36
GPP_F7/DEVSLP5 AB43
GPP_F6/DEVSLP4 AB42
GPP_F5/DEVSLP3 AB41
R232
*4.7K_04
R169
*100K_04
R177 10K_04
S
D
G
Q41BMTDK3S6R
5
34
![](asset-5a.png)
Schematic Diagrams
B - 34 PCH 4/5
B.Schematic Diagrams
PCH 4/5
Sheet 33 of 77
PCH 4/5
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CLOSE TO PCH
(3-5 mm)
2.899A
0.0454A
0.021A
0.024A
0.137A
0.006A
CLOSE TO PCH
0.533A
0.0908A
0.0061A
0.0002A
0.2875A
0.0811A
0.403A
0.007A
0.114A
0.229A
0.065A
0.0002A
0.082A
0.075A
0.078A
0.029A
3.53A
0.030A
0.11A
eSPI:1.8V
LPC:3.3V
0.05A
CLOSE TO PCH
(1-3 mm)
CLOSE TO PCH
(3-5 mm)
CLOSE TO PCH
(3-5 mm)
CLOSE TO PCH
(3-5 mm)
CLOSE TO PCH
(3-5 mm)
CLOSE TO PCH
(1-3 mm)
CLOSE TO PCH
(1-3 mm) CLOSE TO PCH
(1-3 mm)
CLOSE TO PCH
(3-5 mm)
CLOSE TO PCH
(1-3 mm)
CLOSE TO PCH
(3-5 mm)
0.012A
0.033A
CLOSE TO PCH
(3-5 mm)
㺷暣
DEFAULE
ᶲ
cost down_1216
+VCC_RTCEXT_CAP
+VCCMPHY_1P0
+VCCAMPHYPLL_1P0
+VCCF24_1P0_L
+V3.3A_V1.8A_VCCPGPPD
+VCCDSW_1P0
VDD1.0
+VCCAAZPLL_1P0
VDD1.0
VDD1.0
VDD1.0
VDD1.0
VDD3
VDD1.0
VDD3
3.3VA
3.3VA
3.3VA
3.3VA
3.3VA
VDD1.0
3.3VS
3.3VA
VDD1.0
3.3VA
3.3VA
3.3VA
VCC_RTC
VDD3
VDD1.0[31,51,56]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
VDD3[5,26,30,31,32,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
VCC_RTC[30,31,32]
3.3VA[5,30,31,32,34,50]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[33] PCH 4/5-POWER/VSS
A3
33 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[33] PCH 4/5-POWER/VSS
A3
33 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[33] PCH 4/5-POWER/VSS
A3
33 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C862
0.1u_10V_X7R_04
C388
0.1u_10V_X7R_04
C856
*22u_6.3V_X5R_06
C373
*22u_6.3V_X5R_06
PJ41 *1mm
12
.
L20 HCB1608KF-121T30
.
L3 HCB1608KF-121T30
C427
1u_6.3V_X5R_04
C412
1u_6.3V_X5R_04
C793
0.1u_10V_X7R_04
R201 *0_04
C416
1u_6.3V_X5R_04
C382
22u_6.3V_X5R_06
C855
*22u_6.3V_X5R_06
VCCGPIO
CORE MPHY USB
SPT-H_PCH
U30H
HM175
VCCPCIE3PLL_1P0
C44
VCCPRIM_3P3 BE4
VCCPRIM_3P3 BE3
VCCPGPPD BB45
VCCPGPPD BC45
VCCSPI BE42
VCCSPI BE43
VCCPGPPD BA45
VCCPRIM_1P0 AJ23
VCCRTC BA22
VCCRTCPRIM_3P3 BA20
VCCATS AD13
VCCPRIM_1P0 AD15
VCCPRIM_3P3 AN5
VCCPGPPG AD41
VCCPGPPEF AL41
VCCPGPPEF AJ41
VCCPGPPD BC44
VCCPGPPBCH BD40
VCCPGPPBCH BC42
VCCPGPPA BA31
VCCDSW_3P3 BA24
VCCPRIM_1P0 AL22
VCCPRIM_3P3 BD3
VCCSPI BE41
VCCHDAPLL_1P0
AN19
VCCHDA
BA15
VCCDSW_3P3
W15
VCCUSB2PLL_1P0
AL5 VCCUSB2PLL_1P0
AJ5 VCCPRIM_1P0
AC17 VCCAPLLEBB_1P0
V28
VCCMPHYPLL_1P0
B43
VCCPCIE3PLL_1P0
C45
VCCMPHYPLL_1P0
A43 VCCMPHY_1P0
V26 VCCMPHY_1P0
U26 VCCMPHY_1P0
U25 VCCMPHY_1P0
U23 VCCMPHY_1P0
U21
VCCCLK5
K3
VCCCLK2
R17 VCCCLK2
V17 VCCCLK4
U20 VCCCLK3
R19
VCCCLK5
K2
DCPDSW_1P0
BA29
VCCPRIM_1P0
AA28 VCCPRIM_1P0
AA26 VCCPRIM_1P0
AA23
VCCPRIM_1P0 AJ25
VCCPRIM_1P0 AJ21
VCCPRIM_1P0 AJ20
VCCPRIM_1P0
AC23
VCCPRIM_1P0
AC26
VCCPRIM_1P0
AC28
VCCPRIM_1P0
AE23
VCCPRIM_1P0
AE26
VCCPRIM_1P0
Y23
VCCPRIM_1P0
Y25
DCPRTC BA26
VCCCLK1
N17
C384
1u_6.3V_X5R_04
C795
0.1u_10V_X7R_04
C415
0.1u_10V_X7R_04
C422
0.1u_10V_X7R_04
C424
1u_6.3V_X5R_04
.
L4 HCB1608KF-121T30
SPT-H_PCH
U30I
HM175
VSS AE29
VSS AE4
VSS AE42
VSS AF18
VSS AF20
VSS AF21
VSS AF23
VSS AF25
VSS AF26
VSS AF28
VSS AF29
VSS AG11
VSS AG13
VSS AG31
VSS AG32
VSS AG33
VSS AG38
VSS AG4
VSS AH1
VSS AH17
VSS AH18
VSS AH20
VSS AH21
VSS AH23
VSS AH25
VSS AH26
VSS AH28
VSS AH29
VSS AH45
VSS AJ10
VSS AJ14
VSS AJ15
VSS AJ17
VSS AJ18
VSS AJ26
VSS AJ28
VSS AJ29
VSS AJ31
VSS AJ32
VSS AJ36
VSS AK4
VSS AK42
VSS AU7
VSS AV17
VSS AV24
VSS AV27
VSS AV31
VSS AV33
VSS AV6
VSS AW13
VSS AW19
VSS AW29
VSS AW37
VSS AW9
VSS AY38
VSS AY45
VSS B25
VSS B3
VSS B37
VSS B40
VSS B6
VSS BA1
VSS BB11
VSS BB16
VSS BB21
VSS BB25
VSS BB30
VSS BB34
VSS BC2
VSS BD43
VSS
BE14
VSS
BE18
VSS
BE23
VSS
BE28
VSS
BE32
VSS
BE37
VSS
BE40
VSS
BE9
VSS
C10
VSS
C2
VSS
C28
VSS
C37
VSS
J7
VSS
K10
VSS
K27
VSS
K33
VSS
K36
VSS
K4
VSS
K42
VSS
K43
VSS
L12
VSS
L13
VSS
L15
VSS
L4
VSS
L41
VSS
L8
VSS
M35
VSS
M42
VSS
N10
VSS
N15
VSS
N19
VSS
N22
VSS
N24
VSS
N35
VSS
N36
VSS
N4
VSS
N41
VSS
N5
VSS
P17
VSS
P19
VSS
P22
VSS
P45
VSS
R10
VSS
R14
VSS
R22
VSS
R29
VSS
R33
VSS
R38
VSS
R5
VSS
T1
VSS
T2
VSS
T4
VSS
Y18
VSS
Y20
VSS
Y21
VSS
Y26
VSS
Y28
VSS
Y29
VSS
A18
VSS
A25
VSS
A32
VSS
A37
VSS
AA17
VSS
AA18
VSS
AA20
VSS
AA21
VSS
AA25
VSS
AA29
VSS
AA4
VSS
AA42
VSS
AB10
VSS
AC18
VSS
AN10 VSS
AN4 VSS AR5
VSS AR7
VSS U15
VSS AL4
C863
0.1u_10V_X7R_04
C854
1u_6.3V_X5R_04
C421
1u_6.3V_X5R_04
C383
1u_6.3V_X5R_04
C786
1u_6.3V_X5R_04
C426
1u_6.3V_X5R_04
C858
0.1u_10V_X7R_04
SPT-H_PCH
U30L
HM175
VSS AB11
VSS AB7
VSS AB14
VSS AB31
VSS AB32
VSS AB38
VSS AB4
VSS AB5
VSS AC1
VSS AC20
VSS AC21
VSS AC25
VSS AC29
VSS AC45
VSS AB8
VSS AD11
VSS AD14
VSS AB15
VSS AD32
VSS AD33
VSS AD36
VSS AD4
VSS AD8
VSS AE18
VSS AE20
VSS AE21
VSS AE25
VSS AE28
VSS AL10
VSS AL11
VSS AL13
VSS AL17
VSS AL19
VSS AL24
VSS AL29
VSS AL32
VSS AL33
VSS AL38
VSS AM15
VSS AM17
VSS AM19
VSS AM22
VSS AM24
VSS AM27
VSS AM29
VSS AM45
VSS AN11
VSS AN22
VSS AN27
VSS AN31
VSS AN39
VSS AN7
VSS AN8
VSS AP11
VSS AP4
VSS AR33
VSS AR34
VSS AR42
VSS AR9
VSS AT10
VSS AT15
VSS AT36
VSS AT9
VSS AU1
VSS AU35
VSS AU36
VSS AU39
VSS AU45
VSS C4
VSS
C42
VSS
D10
VSS
D12
VSS
D15
VSS
D16
VSS
D17
VSS
D19
VSS
D21
VSS
D24
VSS
D25
VSS
D27
VSS
D29
VSS
D30
VSS
D31
VSS
D33
VSS
D35
VSS
D36
VSS
E13
VSS
E15
VSS
E31
VSS
E33
VSS
F44
VSS
F8
VSS
G42
VSS
G9
VSS
H17
VSS
H19
VSS
H22
VSS
H24
VSS
H27
VSS
H29
VSS
H3
VSS
H35
VSS
J10
VSS
J11
VSS
J3
VSS
J39
VSS
J5
VSS
T42
VSS
U10
VSS
U11
VSS
U14
VSS
U17
VSS
U18
VSS
U28
VSS
U29
VSS
U31
VSS
U32
VSS
U33
VSS
U38
VSS
U4
VSS
U8
VSS
V18
VSS
V20
VSS
V21
VSS
V23
VSS
V25
VSS
V29
VSS
V3
VSS
V45
VSS
W14
VSS
W31
VSS
W32
VSS
W33
VSS
W38
VSS
W4
VSS
W8
VSS
Y17
![](asset-5b.png)
Schematic Diagrams
PCH 5/5 B - 35
B.Schematic Diagrams
PCH 5/5
Sheet 34 of 77
PCH 5/5
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
NO REBOOT STARP
ENABLE: HIGH
(INTERNAL WEAK PD)
BOOT STARP
ENABLE:LPC IS SELECT
(INTERNAL WEAK PD)
ON
TO VR_ON & EC
EC DELAY ALL_SYS_PWRGD 200ms
=PM_PWROK
BOARD_ID[2:1]
PA50Rx:00
PA70Rx:10
PA70Rx
暨
暨暨
暨ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
EDP: H
GSYNC: L
H
L
R586
R582
R585
R583
NC NC
10K_04 10K_04
PA5x: 00
H
L
R586
R582
R585
R583
NC
NC10K_04
10K_04
PA7x: 10
PA50Rx
暨
暨暨
暨ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
ID2 ID1 ID2 ID1
SMI#
䓙
GPP_G19
䦣军
GPP_B20 , BIOS
天㯪
2/1 NV recommend add GSYNC_ID
G sync
⇌
⇌⇌
⇌㕟
㕟㕟
㕟
GSYNC_DET GSYNC_ID
EDP
GSYNC
NVSR-GSYNC
H
LH
LL
H
BIOS setting
KAI_12/1
KAI_12/02
BUF_PLT_RST#
wey_12/21
D02_0218
D02_0222_kai
D02_0308_KAI
BOARD_ID4 TBT:
W/ TBT R571 STUFF R564 NOT STUFF
W/O TBT R564 STUFF R571 NOT STUFF
D02A_0522_KAI
RSVD22
PCH_2_CPU_TRIGGER_R
PCH_XDP_PREQ#_R
PCH_XDP_PRDY#_R
H_TRST#_R
LPSS_GSPI0_MOSI
LPSS_GSPI0_MOSI
LPSS_GSPI1_MOSI
LPSS_GSPI1_MOSI
SB_BLON
SB_BLON
BOARD_ID1
BOARD_ID2
GSYNC_DET
GPP_B16
GPP_B15
SYS_PWROK_R
ALL_SYS_PWRGD
ALL_SYS_PWRGD
VCORE_PG
BOARD_ID3
BOARD_ID4
BOARD_ID3
BOARD_ID4
SMI#
UART2_TXD
UART2_RXD
UART2_RTS#
UART2_CTS#
SATA_PWR_EN FROM PCH
SATA_PWR_EN FROM PCH
BOTZONE_DET
PCH_SCL_ESS
PCH_SDA_ESS
3.3VS
3.3VA
VDD3
3.3VS
VDD3
VDD3
VDD3
3.3VS 3.3VS
3.3VS
3.3VS 3.3VS
3.3VS
VDD3
3.3VS
CPU_2_PCH_TRIGGER [6]
PCH_2_CPU_TRIGGER [6]
H_TRST# [5]
H_PRDY# [5]
H_PREQ# [5]
SB_BLON [10]
TPM_DET [47]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
VDD3[5,26,30,31,32,33,35,37,38,48,49,50,51,52,53,54,56,59,60]
3.3VA[5,30,31,32,33,50]
VCCIO_PWRGD[56,59]
ALL_SYS_PWRGD [5,10,35,57]
SUSB#[10,32,35,41,42,50,56]
PM_PCH_PWROK [32]
PM_PWROK[35]
SYS_PWROK [32]
SMI#[35]
VCORE_PG[57]
PLT_RST#[27,30]
BUF_PLT_RST# [35,37,38,42,47,48]
SATA_PWR_EN FROM PCH [49]
BOTZONE_DET [36]
PS8338B_PCH [46]
STRAP5 [24,26]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[34] PCH 5/5-UART/I2C/GPIO
A3
34 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[34] PCH 5/5-UART/I2C/GPIO
A3
34 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[34] PCH 5/5-UART/I2C/GPIO
A3
34 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C428
*0.1u_10V_X7R_04
R491 *0_04
R584
*10K_04
SPT-H_PCH
U30K
HM175
GPP_B22/GSPI1_MOSI
AT29
GPP_B21/GSPI1_MISO
AR29
GPP_B20/GSPI1_CLK
AV29
GPP_B19/GSPI1_CS#
BC27
GPP_B18/GSPI0_MOSI
BD28
GPP_B17/GSPI0_MISO
BD27
GPP_B16/GSPI0_CLK
AW27
GPP_B15/GSPI0_CS#
AR24
GPP_C9/UART0_TXD
AV44
GPP_C8/UART0_RXD
BA41
GPP_C11/UART0_CTS#
AU44
GPP_C10/UART0_RTS#
AV43
GPP_C15/UART1_CTS#/ISH_UART1_CTS#
AU41
GPP_C14/UART1_RTS#/ISH_UART1_RTS#
AT44
GPP_C13/UART1_TXD/ISH_UART1_TXD
AT43
GPP_C12/UART1_RXD/ISH_UART1_RXD
AU43
GPP_C23/UART2_CTS#
AN43
GPP_C22/UART2_RTS#
AN44
GPP_C21/UART2_TXD
AR39
GPP_C20/UART2_RXD
AR45
GPP_C19/I2C1_SCL
AR41
GPP_C18/I2C1_SDA
AR44
GPP_C17/I2C0_SCL
AR38
GPP_C16/I2C0_SDA
AT42
GPP_D4/ISH_I2C2_SDA/ISH_I2C3_SDA
AM44
GPP_D23/ISH_I2C2_SCL/ISH_I2C3_SCL
AJ44
GPP_D9 AL44
GPP_D10 AL36
GPP_D11 AL35
GPP_D12 AJ39
GPP_D16/ISH_UART0_CTS# AJ43
GPP_D15/ISH_UART0_RTS# AL43
GPP_D14/ISH_UART0_TXD/SML0BCLK/I2C2_SCL AK44
GPP_D13/ISH_UART0_RXD/SML0BDATA/I2C2_SDA AK45
GPP_H20/ISH_I2C0_SCL BC38
GPP_H19/ISH_I2C0_SDA BB38
GPP_H22/ISH_I2C1_SCL BD38
GPP_H21/ISH_I2C1_SDA BE39
GPP_A23/ISH_GP5 BC22
GPP_A22/ISH_GP4 BD18
GPP_A21/ISH_GP3 BE21
GPP_A20/ISH_GP2 BD22
GPP_A19/ISH_GP1 BD21
GPP_A18/ISH_GP0 BB22
GPP_A17/ISH_GP7 BC19
R537
*10K_04
R586
10K_04
U11A
74LVC08APW
1
2
3
147
R188 10K_04
R546
*100K_04
R185 *0_04
U11D
74LVC08APW
12
13
11
147
R581
100K_04
W/O GSYNC
U11B
74LVC08APW
4
5
6
147
R566 *49.9K_1%_06
R576 10K_04
U11C
74LVC08APW
9
10
8
147
R514 *10K_04
SPT-H_PCH
U30J
HM175
VSS
A44 VSS
BC1 VSS
BB1 VSS
B1 VSS
A2 VSS
B2 VSS
A3 VSS
A4 VSS
B44 VSS
B45 VSS
A42 VSS
D45 VSS
BE44 VSS
BD44 VSS
BD45 VSS
BD2
PCH_TRIGIN AK1
PCH_TRIGOUT AL2
CPU_TRST# AY5
PRDY# AT4
PREQ# AT3
RSVD P24
RSVD R24
RSVD AN29
RSVD P29
RSVD N29
RSVD R27
RSVD P31
RSVD U13
RSVD W13
RSVD AR22
RSVD
C1
RSVD
D1
RSVD P27
RSVD N31
R585
*10K_04
R495 *0_04
R583
10K_04
R209 *10K_04
R172
*10K_04
R216
*4.7K_04
R540
*4.7K_04
R564
10K_04
W/O TBT
R496 30.1_1%_04
R571
10K_04TBT
R572
100K_04
GSYNC
R574
10K_04
R582
10K_04
R202 1K_04
R567 *49.9K_1%_06
![](asset-5c.png)
Schematic Diagrams
B - 36 KBC IT8587
B.Schematic Diagrams
KBC IT8587
Sheet 35 of 77
KBC IT8587
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
RSMRST# PCH & EC
⎒
⎒⎒
⎒暨
暨暨
暨
PULL DOWN
ᶨ
ᶨᶨ
ᶨ怲
怲怲
怲
,
㑯
㑯㑯
㑯
1
IT8587(Follow IT8991 PIN Define)
DEBUG PORT
J_KB1
124 OPTION (
⎗ẍ嬲≽ὅ
EC
㍸ὃ䘬
EXECL
堐
)
㛒⛐
EXECL
堐ᷕ䘬≇傥⎗ẍ冒埴␥⎵
DEFAULT
㓡
㓡㓡
㓡ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
, (
⤪
⤪⤪
⤪㰺
㰺㰺
㰺㚱
㚱㚱
㚱ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
, RTC
便
便便
便暣
暣暣
暣忶
忶忶
忶⣏
⣏⣏
⣏
)
EMI Solution
PA50
PA70
AUTO_LOAD_MODE
DSx
N17E-G1
N17E-G2 10K
VGA Chipset RB (PL)
10K X
RA (PH)
RA
RB 10K
10K
x
N17E-G3
R636 R637
4/1 del
枸䔁
pull hi
暣旣
R648 W/O USB CHARGE
R652 USB CHARGE
MEDION
VGA Chipset RB (PL)
R636 RA (PH)
R637
N17E-G1
N17E-G2
10K
10K 6.8K
56K
CPU_FAN
PMOSFET_CONTROL#
LOT6_CHG
EC_RSMRST#
80CLK
3IN1
EC_PECI
BAT_DET
MODEL_ID
SMC_BAT
BAT_DET
SMD_BAT
BAT_VOLT
ALSPI_SCLK
ALSPI_MSO
ALSPI_MSI
ALSPI_CE#
KBC_WRESET#
KB-SI3
KB-SI2
KB-SO5
KB-SI1
KB-SO3
KB-SO4
KB-SO11
KB-SI6
KB-SI4
KB-SO8
KB-SO7
KB-SO6
KB-SO14
KB-SO2
KB-SO15
KB-SI0
KB-SI5
KB-SO12
KB-SO1
KB-SO10
KB-SO0
KB-SI7
KB-SO9
KB-SO13
CHG_JAP
KB-SI3
KB-SI2
KB-SO5
KB-SI1
KB-SO3
KB-SO4
KB-SO11
KB-SI6
KB-SI4
KB-SO8
KB-SO7
KB-SO6
KB-SO14
KB-SO2
KB-SO15
KB-SI0
KB-SI5
KB-SO12
KB-SO1
KB-SO10
KB-SO0
KB-SI7
KB-SO9
KB-SO13
SMC_BAT_EC
SMD_BAT_EC
80CLK
3IN1
VBATT_BOOST#
VBATT_BOOST#
EC_RSMRST#
MODEL_ID
KB-DET
EC_SLP_SUS#_R
VGASEN_SEL
KBC_AGND
VDD3
KBC_AGND
KBC_AVDD
VDD3
VDD3
VDD3
3.3VS
VDD3
VDD3
VDD3
VIN
VDD3
VDD3
VDD3
VDD3
VDD3
CCD_EN [47]
PWR_SW #[50]
LID_SW#[10,49]
TP_CLK[47]
TP_DATA[47]
KBC_BEEP[39]
LED_PWR[48]
LED_BAT_CHG[48]
SMC_CPU_THERM[32]
H_PECI[5]
SMC_BAT[35,60]
SMD_BAT[35,60]
THERM_VOLT[2]
TOTAL_CUR[60]
LED_SCROLL#[48]
LED_CAP#[48]
LED_NUM#[48]
GC6_FB_EN_PCH[10,27,32]
BKL_EN [10]
H_PROCHOT_EC[5]
AIRPLAN_LED# [48]
SPI_CS_0# [30]
BUF_PLT_RST#[34,37,38,42,47,48]
LPC_FRAME#[32,47]
SERIRQ[32,47]
PCLK_KBC[32]
LPC_AD3[32,47]
LPC_AD2[32,47]
LPC_AD1[32,47]
LPC_AD0[32,47]
AC_PRESENT[32]
LED_ACIN[48]
AC_IN#[26,60]
SMI#[34]
KBC_MUTE#[41]
CPU_FAN[49]
VGA_FAN1[49]
SWI# [31]
LAN_WAKEUP# [30,32,38,42,48]
CPU_FANSEN [49]
SB_KBCRST# [32]
SMC_VGA_THERM[26,36,44]
SMD_VGA_THERM[26,36,44]
SMC_BAT[35,60]
SMD_BAT[35,60]
PWR_BTN#[32]
BAT_DET[60]
SPI_SI_R [30]
VDD3[5,26,30,31,32,33,34,37,38,48,49,50,51,52,53,54,56,59,60]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,36,37,38,39,41,43,46,47,48,49,50,57,64]
SPI_SO_R [30]
SPI_SCLK_R [30]
SCI#[31]
PM_PWROK [34]
WIGIG_PWR_EN [38]
ALL_SYS_PWRGD [5,10,34,57]
VGA_FAN2[49]
LED_BAT_FULL[48]
DGPU_PWR_EN [27,32]
VBATT_BOOST#[26]
USB_CHARGE_EN[50,54]
BT_EN[38]
3G_EN [38]
DD_ON[45,48,50,54]
SUSB# [10,32,34,41,42,50,56]
SUSC# [32,51,55,56]
VGASEN_SEL[49]
ME_WE[32]
KBLIGHT_ADJ[36]
3G_PWR_EN [38]
EC_SSD_LED#[48]
RSMRST# [32]
VIN[10,39,50,53,54,55,56,57,58,59,60]
BAT_VOLT[60]
NV_EN_DOWN[27]
WLAN_EN [38]
EC_CTRL_EN#[36]
KB-SO16 [36]
KB-SO17 [36]
KB-DET [36]
EC_SLP_SUS# [32,50,56]
OVERT# [26,27]
SUS_PWR_ACK#_EC[32]
TBTA_HRESET[44]
VGA_FANSEN [49]
80CLK [37]
3IN1 [37]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[35] KBC 8587
A3
35 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[35] KBC 8587
A3
35 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[35] KBC 8587
A3
35 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R712 47_04
Q46
BTN3904
M-SOT23-CBE
B
E C
C1056
0.1u_10V_X7R_04
R661 *100K_04
D42
BAV99 RECTIFIER
A
C
AC
R636 10K_04
Q45
2SK3018S3
G
DS
C920 1u_6.3V_X5R_04
R626 20K_1%_04
J_KB1
85208-24051
PA50
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
R644 *0_04
R711 47_04
C914
0.1u_10V_X7R_04
R648 *10K_04
C955
10u_6.3V_X5R_06
C975 *0.1u_10V_X7R_04
J_KB2
85208-24051
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
R637 10K_04
LPC
DAC
SMBUS
PWM
PS/2
WAKE UP
GP INTERRUPT
UART
K/B MATRIX
IT8587
ADC
U44A
IT8587E/FX
GPB6/KBRST#
4
GPM6/SERIRQ
5GPM5/LFRAME#
6
GPM3/LAD3
7GPM2/LAD2
8GPM1/LAD1
9GPM0/LAD0
10
GPM4/LPCCLK
13
WRST#
14
GPD4/ECSMI#
15
GPC7/PWUREQ#/BBO/SMCLK2ALT
16
GPD0/RI1#
18
GPE7/L80LLAT/5VT
20
GPD1/RI2#/5VT
21
GPD2/LPCRST#/5VT
22
GPD3/ECSCI#/5VT
23
GPA1/PWM1/5VT
25
GPA5/PWM5/5VT
31
GPA6/PWM6/SSCK/5VT
32
GPD5/GINT/CTS0#/5VT
33
GPA7/PWM7/RIG1#/5VT
34
GPJ1
77
GPJ3/DAC3/TACH1B
79
GPF0/PS2CLK0/TMB0/CEC/5VT
85
GPF2/PS2CLK1/DTR0#/5VT
87
GPF4/PS2CLK2/5VT
89
GPF5/PS2DAT2/5VT
90
GPB0/RXD/SIN0/5VT
108
GPB1/TXD/SOUT0/5VT
109
GPB3/SMCLK0/5VT
110
GPB4/SMDAT0/5VT
111
GPF6/SMCLK2/PECI
117
GPB5/GA20
126
5VT/LPCPD#/GPE6 17
5VT/L80HLAT/BAO/GPE0 19
5VT/RTS1#/GPE5 35
KSO0/PD0 36
KSO1/PD1 37
KSO2/PD2 38
KSO3/PD3 39
KSO4/PD4 40
KSO5/PD5 41
KSO6/PD6 42
KSO7/PD7 43
KSO8/ACK# 44
KSO9/BUSY 45
KSO10/PE 46
TACH0A/GPD6 47
KSO11/ERR# 51
KSO12/SLCT 52
KSO13 53
KSO14 54
KSO15 55
KSI0/STB# 58
KSI1/AFD# 59
KSI2/INIT# 60
KSI3/SLIN# 61
KSI4 62
KSI5 63
KSI6 64
KSI7 65
5VT/SSCE1#/VCEN/TM/GPG0 106
5VT/( PD )DTR1#/SBUSY/ID7/GPG1 107
5VT/RING#/PWRFAIL#/CK32KOUT/LPCRST#/GPB7 112
TMRI0/GPC4 120
CTX0/TMA0/GPB2 123
TMRI1/GPC6 124
VBAT 3
VCC 11
VSTBY1 26
VSTBY2 50
AVCC 74
VSTBY3 92
VSTBY4 114
VSTBY5 121
VSTBY6 127
VSS1
1
VCORE
12
VSS3
27
VSS4
49
AVSS
75
VSS5
91
VSS6
113
VSS7
122
GPF1/PS2DAT0/TMB1/5VT
86
GPF3/PS2DAT1/RTS0#/5VT
88
GPI0/ADC0
66
GPI1/ADC1
67
GPI3/ADC3
69
GPI4/ADC4
70
GPI7/ADC7/CTS1#
73
5VT/CTX1/SOUT1/DAT3/ID2/GPH2 95
5VT/FSCE#/GPG3 101
5VT/FMOSI/GPG4 102
5VT/FMISO/GPG5 103
5VT/FSCK/GPG7 105
5VT/DSR0#/GPG6 104
C913
*0.1u_10V_X7R_04
R707 0_04
R338 1.5K_04
D41
BAV99 RECTIFIER
A
C
AC
R704 0_04
R714 43_1%_04
R634 10K_04
IT8587
U44B
IT8587E/FX
GPA0/PWM0/5VT
24
GPA2/PWM2/5VT
28
GPA3/PWM3/5VT
29
GPA4/PWM4/5VT
30
GPI2/ADC2
68
GPI5/ADC5/DCD1#
71
GPI6/ADC6/DSR1#
72
GPJ0/TACH2
76
GPJ4/DAC4/DCD0#
80
GPJ5/DAC5/RIG0#
81
GPC1/SMCLK1/5VT
115
GPC2/SMDAT1/5VT
116
GPE4/PWRSW
125
CK32KE/GPJ7 2
TACH1/TMA1/GPD7 48
5VT/EGAD/GPE1 82
5VT/EGCS#/GPE2 83
5VT/EGCLK/GPE3 84
5VT/CLKRUN#/ID0/GPH0 93
5VT/ID3/GPH3 96
5VT/ID4/GPH4 97
5VT/ID5/GPH5 98
5VT/ID6/GPH6 99
5VT/SSCE0#/GPG2 100
5VT/CRX0/GPC0 119
CK32K/GPJ6 128
5VT/CRX1/SIN1/SMCLK3/ID1/GPH1 94
GPJ2/DAC2//TACH0B
78
GPF7/SMDAT2/PECIRQT#
118
KSO16/SMOSI/GPC3 56
KSO17/SMISO/GPC5 57
R615 90.9K_1%_04
R713 *0_04
.
L47
HCB1005KF-121T20
.
L35 HCB1005KF-121T20
R614
20K_1%_04
C999
0.1u_10V_X7R_04
R618 10K_04
U38
74AHC1G08GW
1
2
5
4
3
R619
47K_04
C987
0.1u_10V_X7R_04
R806 1K_04
R652 10K_04
R703 10K_04
D29
ZD5231BS2
AC
C980 0.1u_10V_X7R_04
R706 0_04
R642
*20mil_Short-p
R632 10K_04
R662 100K_04
.
L26
HCB1005KF-121T20
C1013
0.1u_10V_X7R_04
D40
BAV99 RECTIFIER
A
C
AC
R665 100K_04
R622
47K_04
R339 1.5K_04
C944
0.1u_10V_X7R_04
C1063 *5p_50V_NPO_04
J_80DEBUG1
85204-04001
PCB Footprint = 85205-0400M
1
2
3
4
R705 0_04
R715 10K_04
![](asset-5d.png)
Schematic Diagrams
RGB and White KB LED B - 37
B.Schematic Diagrams
RGB and White KB LED
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
6-20-94A30-004
HIGH: White
RBG FOR PA5
RGB FOR PA7
M:6-20-94K50-012
S:6-20-94K60-012
M:6-20-94K50-012
S:6-20-94K60-012
2A
2A
ᶵἧ䓐⢾悐
RESET,
TLC59116F RESET# pin
天
pull high.
婳冒埴䡢娵暣㳩
(
冒埴婧㔜
),
㭷ᶨ忂忻ᶵ天
OVER 100mA
LOW :RGB
6-20-94K30-106
KEYBOARD WHITE LED
GPIO
H: W /O KB_LED
L: W/KB_LED
6-20-94K30-106
JACK_12/23
KEYBOARD RGB LED
WHITE FOR PA5 WHITE FOR PA7
BOTTOM LIGHTBOTTOM LIGHT 1
PA5
枸
枸枸
枸䔁
䔁䔁
䔁
KBZONE1_G
KBZONE2_B
KBZONE3_B
KBZONE3_R
KBZONE3_G
KBZONE2_R
KBZONE1_B
KBZONE2_G
KBZONE1_R
KBZONE1_G
KBZONE2_B
KBZONE3_B
KBZONE3_R
KBZONE3_G
KBZONE2_R
KBZONE1_B
KBZONE2_G
KBZONE1_R
KB-SO16
KB-SO17
KB-SO16
KB-SO17
KB-DET
KB-DET
KBZONE1_B
KBZONE1_R
KBZONE1_G
KBZONE2_B
KBZONE2_R
KBZONE2_G
KBZONE3_B
KBZONE3_R
KBZONE3_G
FON-KB
KBLED_DET KBLED_DET
BOTZONE_R
BOTTOM_G
BOTTOM_B
BOTZONE1_R
BOTZONE1_G
BOTZONE1_B
BOTZONE_R
BOTTOM_G
BOTTOM_B
5VS
5VS
3.3VS
KB_WHLED_PW RKB_WHLED_PW R
3.3VS 5VS KB_WHLED_PW R
5VS
KB_WHLED_PW R
5VS
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
VIN[10,35,39,50,53,54,55,56,57,58,59,60]
5VS[10,11,12,13,39,40,41,47,48,49,50,61,62,63,64]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,37,38,39,41,43,46,47,48,49,50,57,64]
KB-SO17[35]
KB-SO16[35]
KB-DET[35]
EC_CTRL_EN#[35]
SMC_VGA_THERM[26,35,44]
SMD_VGA_THERM[26,35,44]
KBLED_DET [32]
KBLIGHT_ADJ [35]
BOTZONE_DET [34]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[36] RGB AND WHITE KB LED
36 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
A3
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[36] RGB AND WHITE KB LED
36 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
A3
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[36] RGB AND WHITE KB LED
36 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
A3
J_KBLED2
FP225H-012S10M
PA50
1
2
3
9
NC1
NC2
4
5
6
7
8
10
11
12
J_KB1_1
FP215H-004S1BM
PCB Footprint = 85201-0405R
PA50
1
2
3
4
NC1
NC2
R609
10K_04
<FUNCTION>
R610 *0_04
<FUNCTION>
C906
1000p_50V_X7R_04
<FUNCTION>
J_BL2
FP225H-010S10M
FP225H-010-xxxM
1
2
3
4
5
6
7
8
9
10
R233
10K_04
C884
0.1u_10V_X7R_04
<FUNCTION>
J_LEDKB1
FP225H-006S10M
1
2
3
4
5
6
J_KBLED1
FP225H-012S10M
<FUNCTION>
1
2
3
9
NC1
NC2
4
5
6
7
8
10
11
12
C940
10u_6.3V_X5R_06
TLC59116FIRHBR
U36
TLC59116FIRHBR
<FUNCTION>
OUT12 19
OUT11 17
OUT13 20
A1
32
A2
1
A3
2
NC
12
OUT0 3
NC4
30
OUT1 4
OUT2 5
OUT3 6
OUT4 8
OUT5 9
GND
7
OUT6 10
OUT7 11
OUT8 14
OUT10 16
GND2
23
A0
31
OUT9 15
NC3
29
GND1
18 OUT14 21
NC1
13
NC2
28
SCL
25
SDA
26
VCC
27
RESET#
24
OUT15 22
33
E_PAD
J_KB2_1
FPC1004-4AW-S
PCB Footprint = fp226h-004xxxm_l
1
2
3
4
NC1
NC2
J_LEDKB2
50501-0060N-001
PA50
1
2
3
4
5
6
U37
NCT3940S-A
VOUT
3
GND 5
VIN
2FON
1
VSET
4GND 6
GND 8
GND 7
C296
4.7u_25V_X5R_08
.
L25 *HCB1608KF-121T30
C924
0.1u_10V_X7R_04
C908
4.7u_25V_X5R_08
Sheet 36 of 77
RGB and White KB
LED
![](asset-5e.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
NGFF_M (M2) SSD_2 (PCIE 2X)
>120 mil
>120 mil
PCB Footprint
婳
婳婳
婳䡢
䡢䡢
䡢娵
娵娵
娵㨇
㨇㨇
㨇㥳
㥳㥳
㥳ἧ
ἧἧ
ἧ䓐
䓐䓐
䓐䘬
䘬䘬
䘬
Connector
80 mils
SATAGP_SSD2
L: SATA
H: PCIE
SATAGP0
H: PCIe
L: SATA
>120 mil
>120 mil
PCB Footprint
婳
婳婳
婳䡢
䡢䡢
䡢娵
娵娵
娵㨇
㨇㨇
㨇㥳
㥳㥳
㥳ἧ
ἧἧ
ἧ䓐
䓐䓐
䓐䘬
䘬䘬
䘬
Connector
80 mils
NGFF_M (M2) SSD_1 (PCIE 4X)
close to J_SSD2 conn
close to J_SSD2 conn
close to J_SSD2 conn
PCH= HM170,cap Stuff
Default
FOR OPTANE SUPPORT
FOR OPTANE SUPPORT
PCIE_TXN9_SATA0A_TXN_SSD_R
PCIE_TXP9_SATA0A_TXP_SSD_R
PCIE_TXN12_SSD_R
PCIE_TXP12_SSD_R
PCIE_TXP11_SSD_R
PCIE_TXN11_SSD_R
PCIE_TXN10_SSD_R
PCIE_TXP10_SSD_R
PCIE_TXN15_SATA2_TXN_SSD2_R
PCIE_TXP15_SATA2_TXP_SSD2_R
PCIE_TXN16_SSD2_R
PCIE_TXP16_SSD2_R
SATAGP_SSD2
3IN1
80CLK
3IN1
80CLK
3.3VS
3.3VS
3.3VS
GND GNDGND
GND
GND GND
GND
GND
3.3VS
3.3VS
3.3VS
GND GNDGND
GND
GND GND
GND
GND
3.3VS
3.3VS
VDD3
VDD3
BUF_PLT_RST# [34,35,37,38,42,47,48]
SSD2_CLKREQ# [31]
CLK_PCIE_SSD2#[31]
CLK_PCIE_SSD2[31]
PCIE_RXP16_SSD2[31]
PCIE_RXN16_SSD2[31]
PCIE_TXP16_SSD2[31]
PCIE_TXN16_SSD2[31]
PCIE_RXP9_SATA0A_RXP_SSD[31]
PCIE_RXN9_SATA0A_RXN_SSD[31]
PCIE_RXP10_SSD[31]
PCIE_RXN10_SSD[31]
PCIE_RXP11_SSD[31]
PCIE_RXN11_SSD[31]
PCIE_RXN12_SSD[31]
PCIE_RXP12_SSD[31]
BUF_PLT_RST# [34,35,37,38,42,47,48]
SSD_CLKREQ# [31]
CLK_PCIE_SSD#[31]
CLK_PCIE_SSD[31]
PCIE_TXP10_SSD[31]
PCIE_TXN10_SSD[31]
PCIE_TXN11_SSD[31]
PCIE_TXP11_SSD[31]
PCIE_TXP12_SSD[31]
PCIE_TXN12_SSD[31]
PCIE_TXN9_SATA0A_TXN_SSD[31]
PCIE_TXP9_SATA0A_TXP_SSD[31]
PCIE_TXN15_SATA2_TXN_SSD2[31]
PCIE_TXP15_SATA2_TXP_SSD2[31]
PCIE_RXN15_SATA2_RXN_SSD2[31]
PCIE_RXP15_SATA2_RXP_SSD2[31]
M2M_SSD_LED#R [48]
M2M_SSD_LED#R2 [48]
SATAGP2[31]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
SATAGP0[31]
80CLK [35,37]
3IN1 [35,37]
80CLK [35,37]
3IN1 [35,37]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[37] M.2 PCIE4X SSD_1/ 2X SSD_2
A3
37 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[37] M.2 PCIE4X SSD_1/ 2X SSD_2
A3
37 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[37] M.2 PCIE4X SSD_1/ 2X SSD_2
A3
37 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C873
0.1u_10V_X7R_04
C918
0.1u_10V_X7R_04
C1028
0.1u_10V_X7R_04
R809 0_04
C1012
0.1u_10V_X7R_04
R804 1K_04
M KEY
J_SSD1
NFSM0-S6701-TP64
PCB Footprint = NXSM0-S67XX-XX40
SUSCLK(32Khz)(O) 68
CLKREQ#(IO) 52
GND11
71
REFCLKP
55
REFCLKN
53 PEWake#(IO) 54
PEDET(NC-PCIe/GND-SATA)
69
GND10
57
DAS/DSS#(I)(OD) 10
GND12
73
3.3V2 12
NC18
67
NC1 8
NC0 6
DEVSLP(O) 38
PERST#(O) 50
GND9
51
3.3V0 2
GND0
13.3V1 4
GND1
3
GND2
9
PERp0/SATA-B-
43
PETp0/SATA-A+
49
PETn0/SATA-A-
47
PERn0/SATA-B+
41
GND7
39
GND8
45
GND13
75
3.3V3 14
3.3V4 16
PERn3
5PERp3
7
3.3V5 18
GND3
15
PETn3
11 PETp3
13
GND5
27
PETn2
23
GND4
21
PERn2
17 PERp2
19
PETp2
25
NC3 22
NC2 20
NC5 26
NC4 24
NC7 30
NC9 34
NC6 28
NC8 32
NC10 36
NC12 42
NC13 44
NC15 48
NC14 46
NC11 40
PETp1
37
PETn1
35
PERp1
31
PERn1
29
GND6
33
NC16 56
NC17 58
3.3V6 70
3.3V7 72
3.3V8 74
C887 0.22u_10V_X5R_04
C916
22u_6.3V_X5R_08
R225 43K_04
C1036
0.1u_10V_X7R_04
C1103
0.1u_10V_X7R_04
M KEY
J_SSD2
NFSM0-S6701-TP64
PCB Footprint = NXSM0-S67XX-XX40
SUSCLK(32Khz)(O) 68
CLKREQ#(IO) 52
GND11
71
REFCLKP
55
REFCLKN
53 PEWake#(IO) 54
PEDET(NC-PCIe/GND-SATA)
69
GND10
57
DAS/DSS#(I)(OD) 10
GND12
73
3.3V2 12
NC18
67
NC1 8
NC0 6
DEVSLP(O) 38
PERST#(O) 50
GND9
51
3.3V0 2
GND0
13.3V1 4
GND1
3
GND2
9
PERp0/SATA-B-
43
PETp0/SATA-A+
49
PETn0/SATA-A-
47
PERn0/SATA-B+
41
GND7
39
GND8
45
GND13
75
3.3V3 14
3.3V4 16
PERn3
5PERp3
7
3.3V5 18
GND3
15
PETn3
11 PETp3
13
GND5
27
PETn2
23
GND4
21
PERn2
17 PERp2
19
PETp2
25
NC3 22
NC2 20
NC5 26
NC4 24
NC7 30
NC9 34
NC6 28
NC8 32
NC10 36
NC12 42
NC13 44
NC15 48
NC14 46
NC11 40
PETp1
37
PETn1
35
PERp1
31
PERn1
29
GND6
33
NC16 56
NC17 58
3.3V6 70
3.3V7 72
3.3V8 74
C875
22u_6.3V_X5R_08
C1092 0.22u_10V_X5R_04
C870 0.22u_10V_X5R_04
C1084 0.22u_10V_X5R_04
R354
43K_04
C866 0.22u_10V_X5R_04
C1101
10u_6.3V_X5R_06
C1075 0.22u_10V_X5R_04
R810 0_04
R811 0_04
C861
0.1u_10V_X7R_04
C902 0.22u_10V_X5R_04
R812 0_04
C1113
0.1u_10V_X7R_04
C879 0.22u_10V_X5R_04
R357 1K_04
C869
0.1u_10V_X7R_04
R807 0_04
C1069 0.22u_10V_X5R_04
C874 0.22u_10V_X5R_04
C923
0.1u_10V_X7R_04
C891 0.22u_10V_X5R_04
C1046
10u_6.3V_X5R_06
C905 0.22u_10V_X5R_04
R808 0_04
Schematic Diagrams
B - 38 M.2 PCIE4X SSD
B.Schematic Diagrams
M.2 PCIE4X SSD
Sheet 37 of 77
M.2 PCIE4X SSD
![](asset-5f.png)
Schematic Diagrams
M.2 3G/LTE/WIGIG/WLAN+BT B - 39
B.Schematic Diagrams
M.2 3G/LTE/WIGIG/WLAN+BT
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
4/29 follow common design
close the M2 connect
CAP CLOSE TO M.2 CONN
CAP CLOSE TO M.2 CONN
WLAN+BT/WIGIG
PCB Footprint
婳
婳婳
婳䡢
䡢䡢
䡢娵
娵娵
娵㨇
㨇㨇
㨇㥳
㥳㥳
㥳ἧ
ἧἧ
ἧ䓐
䓐䓐
䓐䘬
䘬䘬
䘬
Connector
40 mil
40 mil
WLAN
WiGig
Wi-Fi: PCIe v2.1 Gen1
Ʉ
ɄɄ
Ʉ
BT: USB 2.0
Ʉ
ɄɄ
Ʉ
WiGig IO: PCIe v2.1 Gen2
Ʉ
ɄɄ
Ʉ
>120 mil>120 mil
㍍⇘
EC ,
枰冯
EC
䡢娵
M: NCT3522U -- 6-02-03522-9C0
S: G5243A ---- 6-02-05243-9C0
AP2821KTR-G1 6-02-02821-9C0
4/29 follow common, change net
普ᷕ㷔溆
BOT
M.2 3G/4G-LTE module SIM Detect
Pin 66
炻ℏ悐䁢
1.8V with
Pull-up
暣旣
普ᷕ㷔溆
BOT
4/8 RF
⺢嬘枸䔁
BODYSAR
⎒䓐㕤⸛㜧
3G_WAKE#
枸䔁ᶵᶲ
,
Ữ⚈䁢
EC
㰺
Pin
ẍ㓡䁢ᶵ㍍
4/8 follow common del
4/8 follow common del
Close to J_3G1
4G LTE
PCB Footprint
婳
婳婳
婳䡢
䡢䡢
䡢娵
娵娵
娵㨇
㨇㨇
㨇㥳
㥳㥳
㥳ἧ
ἧἧ
ἧ䓐
䓐䓐
䓐䘬
䘬䘬
䘬
Connector
3G /LTE CARD USB3.0
>120 mil>120 mil
3G POWER
Windows 8 3G_POWEREN
Always hi.
80 mils
80 mils
HUAWEI MU736
⎗㍍⍿
3.3V
CURRENT2A
㗪
,DON'T DROP BELOW 3.135V
Default ᶵᶲẞ
PA5
枸
枸枸
枸䔁
䔁䔁
䔁
D02A_0317_
ℙ䓐䶂嶗
PETN1
PETP1
PETN0
PETP0
WLAN_CLKREQ#
WLAN_CLKREQ# WLAN_EN
BT_EN
WIGIG_PWR_EN
WIGIG_3.3V
CL_CLK1
CL_DATA1
CL_RST#1
USB3_TXP2_R
USB3_TXN2_R
USB3_RXP2_R
USB3_RXN2_R
3G_EN
GPS_DISABLE#
3G_PWR_EN
3G_3.3V
M2B_3GSSD_LED#R
3G_PWR_EN
UIM_DATA
UIM_PWR
UIM_RST
UIM_CLK
PWR_ON_OFF
3G_WAKE#
GPS_DISABLE#
BODYSAR_N
PWR_ON_OFF
3G_PWR_EN
WIGIG_3.3V
3.3VS
WIGIG_3.3V
WIGIG_3.3V
WIGIG_3.3V
VDD3
WIGIG_3.3V
WIGIG_3.3V
3.3V
3.3V
3G_3.3V
GND
3G_3.3V
GND
3G_3.3V
GND
GND
GND
GND
GND
GND
3.3V
5VS[10,11,12,13,36,39,40,41,47,48,49,50,61,62,63,64]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,39,41,43,46,47,48,49,50,57,64]
5V[39,44,45,48,49,50,51,52,53,54,55,56,57,58,59,63]
3.3V[2,10,27,43,45,48,50,51,52,55,56]
CL K_P CIE _W IGIG[31]
CL K_P CIE _W IGIG #[31]
LAN_WAKEUP# [30,32,35,38,42,48]
WIGIG_CLKREQ# [31]
USB_PP8[30]
USB_PN8[30]
BT_EN [35]
WLAN_EN [35]
CLK_PCIE_WLAN[31]
CLK_PCIE_WLAN#[31]
WLAN_CLKREQ#[31]
LAN_WAKEUP#[30,32,35,38,42,48]
BUF_PLT_RST# [34,35,37,42,47,48]
WIGIG_PWR_EN[35]
SUS_CLK [32]
VDD3[5,26,30,31,32,33,34,35,37,48,49,50,51,52,53,54,56,59,60]
CL_CLK1 [31]
CL_DATA1 [31]
CL_RST#1 [31]
3G_PWR_EN[35]
3G_EN [35]
UIM_DATA [48]
UIM_CLK [48]
UIM_RST [48]
UIM_PWR [48]
SIM_DET [48]
USB_PP3[30]
USB_PN3[30]
USB3_TXP2[32]
USB3_TXN2[32]
USB3_RXP2[32]
USB3_RXN2[32]
PCIE_RXN7_WLAN[30]
PCIE_RXP7_WLAN[30]
PCIE_TXP7_WLAN[30]
PCIE_TXN7_WLAN[30]
PC IE_T XP 8_W IG IG[30]
PC IE_T XN 8_W IG IG[30]
PC IE_R XN 8_W IG IG[30]
PC IE_R XP 8_W IG IG[30]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[38] M.2 3G/LTE/ WIGIG/WLAN+BT
A3
38 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[38] M.2 3G/LTE/ WIGIG/WLAN+BT
A3
38 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[38] M.2 3G/LTE/ WIGIG/WLAN+BT
A3
38 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
GR8 10K_04
3G
GC14 47u_6.3V_X5R_08
GL2
*WCM2012F2S-SHORT
1
4
2
3
R795 0_04
GQ1
2SK3018S3
3G
G
DS
R214 *0_04
GC13 0.1u_10V_X7R_04
3G
GQ2A
MTS3572G6
3G
S2
4D2 3
G2
5
C836 0.1u_10V_X7R_04
C818 0.1u_10V_X7R_04
GL3
*WCM2012F2S-SHORT
1
4
2
3
R796 0_04
GR7 0_04
3G
GC6
0.1u_10V_X7R_04
3G
C848
22u_6.3V_X5R_08
GR3 330K_04
3G
GL1
*WCM2012F2S-SHORT
1
4
2
3
GR5
10_06
3G
C814 0.1u_10V_X7R_04
R211 *10K_04
R797 0_04
GR6 *10K_04
GQ2B
MTS3572G6
3G
S1
2D1 6
G1
1
A KEY
J_WLAN1
NFSA0-S6701-AP64
PCB Footprint = NXSA0-S67XX-XX40
SUSCLK(32Khz)(I)(0/3.3V) 50
CLKREQ0#(IO)
53
GND13
69
REFCLKP0
47 REFCLKN0
49
PEWake0#(IO)
55
Reserved/PERp1
65 Reserved/PERn1
67
Reserved/PETp1
59 Reserved/PETn1
61 GND12
63
GND7
33
GND14
75
3.3V2 72
DP_ML0p 34
I2C CLK(I)(0/3.3V) 60
DP_ML0n 32
USB_D-
5
USB_D+
3
I2C DATA(IO)(0/3.3V) 58
COEX1(I/O)1.8V 48
PERST0#(I)(0/3.3V) 52
COEX3(I/O)1.8V 44
GND11
57
LED#2(I)(OD) 16
3.3V0 2
VENDOR DEFINED0 38
GND0
1
LED#1(O)(OD) 6
DP_MLDIR GND (In)/3.3V (Out)/NC
17
W_DISABLE#1(I)(0/3.3V) 56
3.3V1 4
GND1
7
GND2 18
VENDOR DEFINED1 40
GND8
39
PETp0
35
PERp0
41 PERn0
43
PETn0
37
GND9
45
GND10
51
ALERT#(O)(0/3.3V) 62
COEX2(I/O)1.8V 46
3.3V3 74
DP_ML3n
19 DP_ML3p
21 GND3
23
DP_AUXn 20
DP_AUXp 22
GND6 36
VENDOR DEFINED2 42
Reserved/W_DISABLE#2(I)(0/3.3V) 54
Reserved1 64
PERST1#(IO)(0/3.3V) 66
CLKREQ1#(IO)(0/3.3V) 68
PEWake1#(IO)(0/3.3V) 70
Reserved/REFCLKP1
71 Reserved/REFCLKN1
73
DP_ML2n
25 DP_ML2p
27 GND5
29 DP_HPD(IO)(0/3.3V)
31 GND6 30
DP_ML1p 28
DP_ML1n 26
GND4 24
R205 10K_04
B KEY
GJ_3G1
NFSB0-S6701-TP64
PCB Footprint = NXSB0-S67XX-XX40
3G
SUSCLK(32Khz)(O) 68
CLKREQ#(IO) 52
GND9
71
REFCLKP
55
REFCLKN
53 PEWake#(IO) 54
CONFIG_1
69
PETp1/USB3.0-Tx+/SSIC-TxP
37
PETn1/USB3.0-Tx-/SSIC-TxN
35
ANTCTL0(I)1.8V
59
PERp1/USB3.0-Rx+/SSIC-RxP
31
PERn1/USB3.0-Rx-/SSIC-RxN
29
GND8
57
GND3
27
GPIO_9/DAS/DSS#(I)(OD) 10
GND10
73
GPIO_8(IO)1.8V 28
UIM_RESET(I) 30
3.3V2 70
UIM_CLK(I) 32
UIM_DATA(IO) 34
UIM_PWR(I) 36
Reset#(O)1.8V
67 SIM Detect(O) 66
NC1 58
GPIO_0(IO)1.8V 40
NC0 56
USB_D-
9
USB_D+
7
DEVSLP(O) 38
COEX1(I/O)1.8V 64
PERST#(O) 50
COEX3(I/O)1.8V 60
GND7
51
W_DISABLE#1(O) 8
GPIO_5(IO)1.8V 20
3.3V0 2
GPIO_11(IO)1.8V
23
CONFIG_3
1
Full_Card_Power_Off#(O)1.8V 6
GND0
3
CONFIG_0
21
3.3V1 4
GND1
5
GND2
11
GPIO_6(IO)1.8V 22
GPIO_7(IO)1.8V 24
GPIO_10(IO)1.8V 26
GPIO_12(IO)1.8V
25
GND4
33
PERp0/SATA-B-
43
PETp0/SATA-A+
49
PETn0/SATA-A-
47
PERn0/SATA-B+
41
GND5
39
GND6
45
ANTCTL1(I)1.8V
61 ANTCTL2(I)1.8V
63 ANTCTL3(I)1.8V
65
CONFIG_2
75
GPIO_1(IO)1.8V 42
GPIO_2(IO)1.8V 44
GPIO_3(IO)1.8V 46
GPIO_4(IO)1.8V 48
COEX2(I/O)1.8V 62
3.3V3 72
3.3V4 74
GC12 0.1u_10V_X7R_04
3G
R198 10K_04
C802
1u_6.3V_X5R_04
GC3 0.1u_10V_X7R_04
3G
GC7 0.1u_10V_X7R_04
3G
R525 10K_04
GC15 47u_6.3V_X5R_08
C805
0.1u_10V_X7R_04
GC10
0.1u_10V_X7R_04
3G
+
GC8
EEFCX0J221YR
3G
GR2
*12K_06
U28
UP7553PMA5-25
EN
3
VIN
5
VIN/SS
4
VOUT 1
GND 2
R522 *10K_04
GC9
0.1u_10V_X7R_04
3G
GC16 47u_6.3V_X5R_08
GC4
10u_6.3V_X5R_06
3G
GR1
*100_06
GR4
100K_04
3G
R530 *0_04
C840 0.1u_10V_X7R_04
GC2
1u_6.3V_X5R_04
3G
GC11
470p_50V_X7R_04
3G
GC5 0.1u_10V_X7R_04
3G
C433
0.1u_10V_X7R_04
C849
22u_6.3V_X5R_08
Sheet 38 of 77
M.2 3G/LTE/WIGIG/
WLAN+BT
![](asset-60.png)
Schematic Diagrams
B - 40 Audio
B.Schematic Diagrams
Audio
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
* ALC892:Pin2->GPIO0/DMIC_CLK/SPDIFO_2;Pin3->REGREF;Pin4->GPIO1/DMIC_DATA;Pin29->LDOVDD
* ALC898:Pin2->GPIO0/DMIC_CLK/SPDIFO_2;Pin3->REGREF;Pin4->GPIO1/DMIC_DATA;Pin29->LDOVDD
898:
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
892:
ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
reltek check
ALC889
ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ.
FCM1005KF-601T03
40mil 40mil
Max: 0.5inch
SRUW$
SRUW%
SRUW'
SRUW)
SRUW(
SRUW+
SRUW*
SRUW&
Connect standby power(for
pop noise)
PC BEEP
U43 pin 1 ~ pin 11 and pin 47 and pin 48
are Digital signals.
The others are Analog signals.
Layout Note:
Layout Note:
␐
␐␐
␐⚵
⚵⚵
⚵⽭
⽭⽭
⽭枰
枰枰
枰⊭
⊭⊭
⊭央
央央
央
AUDG,
ᶼ
ᶼᶼ
ᶼ⃀
⃀⃀
⃀慷
慷慷
慷性
性性
性
嶐
嶐嶐
嶐崲
崲崲
崲
+5VS & +VIN plane.
(1)MIC1-L (U13.21) (2)MIC1-R (U13.22)
(3)LINE-L (U13.23) (4)LINE-R (U13.24)
898:
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
0R
892:
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
HCB1005KF-121T20
reltek check
898:
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
892:
ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
realtek check
⤪㚱
3D AMP
㯋枛
C957
ᶵᶲẞ炻
C573
ᶲẞ
INTERNAL PU 50K
898:
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
0R
892:
ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
reltek check
3D AMP
䶂
䶂䶂
䶂嶗
嶗嶗
嶗ᷕ
ᷕᷕ
ᷕ⤪
⤪⤪
⤪
䴻
䴻䴻
䴻㚱
㚱㚱
㚱
⎗
⎗⎗
⎗䚩
䚩䚩
䚩䔍
䔍䔍
䔍
JDETECT
㚫
㚫㚫
㚫㓡
㓡㓡
㓡䁢
䁢䁢
䁢
MUTE#
≇
≇≇
≇傥
傥傥
傥
(LOW MUTE)
SV3H612 PIN14
⤪
⤪⤪
⤪㚱
㚱㚱
㚱ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲ
AMP
暨
暨暨
暨㯪
㯪㯪
㯪
,
⎗
⎗⎗
⎗⡆
⡆⡆
⡆≈
≈≈
≈ᶳ
ᶳᶳ
ᶳ↿
↿↿
↿暣
暣暣
暣旣
旣旣
旣枸
枸枸
枸䔁
䔁䔁
䔁
婧㔜
IC Pin2
忋㍍ᷳ
Refrence
暣⭡军
2.2uF
ẍᶲ
,
⛐塓≽俛㨇倥ᶵ⇘㉱拲倚
Noise
⺈⓮㚨㕘⮵䫾
VREF
㓡⚆
1u_6,3V_X5R_04, REXT
暣旣ᶵᶲẞ
6-07-1052D-3GD
6-07-1052D-3GD
暞
暞暞
暞ẞ
ẞẞ
ẞ㔠
㔠㔠
㔠
:31 pcs
6-02-03612-1Q0
QA
QB
RB
RC
0616
0701
0701
D02_0313_KAI
MIC2-VREFO
INT_MIC_OUT
HDA_SYNC_R
HDA_RST#_R
INT_MIC_OUT
MIC_CLK
MIC_DATA
MIC1_R_M_R
HDA_SDIN0_R
MIC1_L_M_R
SIDE-L_R
MIC1-VREFO-L
SIDE-R_R
EAPD_MODE
LDO_IN
MIC2-VREFO
MIC1-VREFO-R
MIC1_L_M
MIC1_R_M
BEEP
JDREF
MIC2_L
MIC2_RINT_MIC_R
HEADPHONE_R
HEADPHONE_L
MIC1-VREFO-R
MIC1_R_M
MIC1_L_M
MIC1-VREFO-L
HDA_SDOUT_R
HDPHONE_LHEADPHONE_L C2_3DL
HP_PGND
C1_3DR
HP_VREF
HEADPHONE_R HDPHONE_R
HP_SCL
C1_3DL
HP_JSGND
C2_3DR
HP_SDA
HEADPHONE_L_C
HEADPHONE_R_C
HEADPHONE_L
HEADPHONE_R
HEADPHONE-L
HEADPHONE-R
HP_JSGND
HP_JSGND_EN
HP_JSGND
3.3VS
AUDG
3.3VS_AUD
AUDG
AUDG
AUDG
AUDG
5VS_AUD
5VS
AUDG
5V
AUDGAUDG
AUDG
AUDG
AUDG
AUDG
5VS_AUD
AUDG
AUDG
AUDG
5V
AUDG AUDG
AUDG
VIN
AUDG
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,41,43,46,47,48,49,50,57,64]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
5V[44,45,48,49,50,51,52,53,54,55,56,57,58,59,63]
5VS[10,11,12,13,36,40,41,47,48,49,50,61,62,63,64]
VIN[10,35,50,53,54,55,56,57,58,59,60]
HDA_RST#[32]
HDA_BITCLK[32]
HDA_SDOUT[32]
HDA_SYNC[32]
MIC1_R_M[48]
MIC1_L_M[48]
HDA_SDIN0[32]
KBC_BEEP[35]
PCH_SPKR[32]
EAPD_MODE[41]
SIDE_L [48]
SIDE_R [48]
JD_SENSEB[48]
JD_SENSEA[48]
FRONT_R [40,41]
FRONT_L [40,41]
MIC_DATA[47]
MIC_CLK[47]
SPDIFO[48]
HEADPHONE-R [48]
HEADPHONE-L [48]
SMB_CLK [32,47,55]
SMB_DATA [32,47,55]
HP_JSGND [48]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[39] audio 892
A3
39 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[39] audio 892
A3
39 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[39] audio 892
A3
39 77Wednesday, July 05, 2017
C1051
2200p_50V_X7R_04
+
C964
EEFCX0J221YR
L23HCB1005KF-121T20
1 2
C992 0.01u_50V_X7R_04
C917 *4.7u_6.3V_X5R_06
C1052
1u_16V_X7R_06
R630 20K_1%_04
T138
R289 75_04
C596
2.2u_6.3V_X5R_04
Q55
UK3018
G
DS
R342 0_04
C915 10u_6.3V_X5R_06
C569 *0.1u_10V_X7R_04
T93
R281 75_04
C883 *0.1u_10V_X5R_04
C573 *10u_6.3V_X5R_06
U46
SV3H612V
VREF
2
INR
4REXT
3
INL
1
OUTR
5
SDA
6
SCL
7
C2_3DR
8
C2_3DL 12
C1_3DL 11
PGND 10
C1_3DR 9
OUTL 16
VDD 15
JDETECT 14
SGND 13
TH PAD 17
R340 0_04
C1049
2200p_50V_X7R_04
C993 *0.1u_10V_X7R_04
R286
2.2K_04
Q56
UK3018
G
DS
C543
*680p_50V_X7R_04
R689 22_1%_04
C885 10u_6.3V_X5R_06
R287
*2.2K_04
C1050
1u_6.3V_X5R_04
C545
*680p_50V_X7R_04
C912 *4.7u_6.3V_X5R_06
R695 *0_04
R277 *1K_04
C965
22u_6.3V_X5R_08
C927 4.7u_6.3V_X5R_06
C593
0.1u_10V_X7R_04
L22 HCB1005KF-121T20
C919 4.7u_6.3V_X5R_06
R251 22_04
L21 FCM1005MF-300T03
R699 *0_04
C889 1u_6.3V_X5R_04
C880 47p_50V_NPO_04 C1144 *22p_50V_NPO_04
C957 1u_6.3V_X5R_04
C928 *100p_50V_NPO_04
C886
0.1u_10V_X7R_04
R612 75_1%_04
C1032 10p_50V_NPO_04
C963
10u_6.3V_X5R_06
C1062 0.1u_10V_X7R_04
R743
1M_04
C881 47p_50V_NPO_04
C512
0.1u_10V_X7R_04
R629 *0_04
R631 *5.1K_1%_04
C1010 10p_50V_NPO_04
L28 *HCB1005KF-121T20
C1045
1u_16V_X7R_06
C572 *10u_6.3V_X5R_06
T94
C901
10u_6.3V_X5R_06
R617 75_1%_04
R595 22_04
L30
HCB1005KF-121T20
R701 470_04
R288
2.2K_04
C1006
22u_6.3V_X5R_08
C
A
A
D28
BAT54CS3
1
2
3
C611 0.1u_10V_X7R_04
C616 0.1u_10V_X7R_04
C571
1u_6.3V_X5R_04
C991 0.01u_50V_X7R_04
DIGITAL
ANALOG
U40
ALC892
<Function>
DVDD1 1
GPIO0/DMIC-CLK/SPDIFO_2*
2
REGREF
3GPIO1/DMIC_DAT
4
SDATA-OUT
5
BIT-CLK
6
DVSS 7
SDATA-IN
8
DVDD-IO 9
SYNC
10
RESET#
11
PCBEEP
12
Sense A
13
LINE2-L 14
LINE2-R 15
MIC2-L
16
MIC2-R
17
CD-L
18
CD-GND
19
CD-R
20
MIC1-L
21
MIC1-R
22
LINE1-L 23
LINE1-R 24
AVSS1
26
VREF 27
MIC1-VREFO-L 28
LDO-IN
29
VREFO-F 30
VREFO-E 31
VREFO-B(2) 32
GPIO2 33
Sense B
34
FRONT-OUT-L 35
FRONT-OUT-R 36
VRP
37
SURR-L 39
JDREF 40
SURR-R 41
AVSS2
42
CENTER 43
LFE 44
SIDE-L 45
SIDE-R 46
SPDIFI/EAPD
47
SPDIF-OUT
48
LDO_OUT2 38
LDO_OUT1 25
C903
0.1u_10V_X7R_04
R700 470_04
D34
*ZD5231BS2
A C
R742
1M_04
R594 22_04
R597 47K_04
R596 22_04
R250 22_04
C1004 0.01u_50V_X7R_04
R690
15_1%_04
R693 22_1%_04
C544
*330p_50V_X7R_04
L24HCB1005KF-121T20
1 2
C592 *HCB1005KF-121T20
C909 10u_6.3V_X5R_06
R593 4.7K_04
T137
C990 0.01u_50V_X7R_04
Sheet 39 of 77
Audio
![](asset-61.png)
Schematic Diagrams
Audio Subwoofer B - 41
B.Schematic Diagrams
Audio Subwoofer
Sheet 40 of 77
Audio Subwoofer
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
FILTER
SUB Woofer out
FC: 300Hz
40 mil
40 mil
婧㔜
GAIN
ῤ
Speaker:
ℙ
ℙℙ
ℙ䓐
䓐䓐
䓐6-23-5P15E-0W3
4ȍ,
typ=2.5W
max=4W
6-20-63120-102
cost down 12/16
6-20-43130-104
6-20-63120-102
SAMP_PWR
SUB_L
2CH_SUBWOOFER_RC
SINPUT2+
SAMPPWR_SW
SINPUT2-
SOUTPUT1
SUB_R
SUBWOOFER+
SGAIN0_R
SDRC0_R
SGAIN1_R
SPFLAG
SDRC1_R
SAMPPWR_EN
2CH_SUBWOOFER_RC
SAMPPWR_FREQ
SDRC1_R
SGAIN1_R
SPMAX
SDRC0_R
SGAIN0_R
SPFLAG
SUBWOOFER-
SOSCIN
SAMP_3V3LDO
SAMP_3V3LDO
5VS
SAMP_PWR
GND
SAMP_PWR
SAMP_PWR
AUDG_2
AUDG_2
SAMP_PWR
SAMP_PWR
SAMP_PWR
SAMP_PWR SAMP_PW R
SAMP_PWR
SAMP_PWR
GND
GND
GND
GND
GND
GND
GND
GND
AUDG_2
AUDG_2AUDG_2
AUDG_2
AUDG_2
AUDG_2 AUDG_2 AUDG_2 AUDG_2 AUDG_2
AUDG_2
AUDG_2
AUDG_2
AUDG_2 AUDG_2
AUDG_2
AUDG_2
AUDG_2
AUDG_2
AUDG_2 AUDG_2 AUDG_2
AUDG_2 AUDG_2 AUDG_2
AUDG_2
AUDG_2 AUDG_2
AUDG_2
AUDG_2
AUDG_2
AUDG_2
5VS[10,11,12,13,36,39,41,47,48,49,50,61,62,63,64]
AMP_EN[41]
FRONT_R[39,41]
FRONT_L[39,41]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[40] audio 892 SUBWOOFER
A3
40 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[40] audio 892 SUBWOOFER
A3
40 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[40] audio 892 SUBWOOFER
A3
40 77Wednesday, July 05, 2017
SR15
*10K_04
<Function>
SC17
0.1u_10V_X7R_04
<Function>
SR1 *0402_short
<Function>
SR17
*120K_04
<Function>
SU1
APA2607QBI
<Function>
VLDO 1
3V3LDO
2
LINP
3
LINN
4
VREF
5
RINN
6
RINP
7
AGND
8
PMAX
9
RVDDP 10
ROUTP1 11
ROUTP2 12
RGND 13
ROUTN1 14
ROUTN2 15
RVDDN 16
SD
17
PFLAG
18
MUTE
19 OSOC 20
OSCIN 21
DRC0
22 DRC1
23 GAIN0
24 GAIN1
25
LVDDN 26
LOUTN1 27
LOUTN2 28
LGND 29
LOUTP1 30
LOUTP2 31
LVPPD 32
Case_GND
33
SC22
10p_50V_NPO_04
<Function>
SC2 0.1u_10V_X7R_04
<Function>
SL1 HCB1005KF-121T20
<Function>
SR3 30K_1%_04
<Function>
SC28 0.01u_50V_X7R_04
<Function>
SC14 0.1u_10V_X7R_04 <Function>
SJ_SUBWOOF1
88266-02001
2
1
SC5 1000p_50V_X7R_04
<Function>
SC9
0.1u_10V_X7R_04
<Function>
SC18
10u_6.3V_X5R_06
<Function>
SD1
FMS3004-AS-H
<Function>
A C
SR30
*100K_04
<Function>
SC12 0.1u_10V_X7R_04 <Function>
SC27 0.1u_10V_X7R_04
<Function>
SR33
4.32K_1%_04
<Function>
SR35
*10K_04
<Function>
SC19
10u_6.3V_X5R_06
<Function>
SC30
*0.1u_10V_X5R_04
<Function>
SR38 *10K_04
<Function>
SR22
18K_1%_06
<Function>
SU2
G5110
<Function>
IN
8
FB 2
SHDN
3
LX1 6
GND
5
COMP 1
GND
4
LX2 7
FREQ
9
SS
10
GND_Thermal
11
SR6
3.32K_1%_04
<Function>
SR7
3.32K_1%_04
<Function>
+
SC34
*220u_25V_V_B
<Function>
SC31
0.01u_50V_X7R_04
<Function>
SU3B
LM358G
<Function>
+
5
-
6
V+ 8
V-
4
OUT 7
SEMC2
*1000p_50V_X7R_04
<Function>
SR24 100K_04
<Function>
SC23 2200p_50V_X7R_04
<Function>
SC26
0.1u_10V_X7R_04
<Function>
SR40 0_04
<Function>
SR8
*4.3K_1%_04
<Function>
.
SL3 2.2uH_4*4*2.0
<Function>
SR37
10K_04
<Function>
SR28
4.32K_1%_04
<Function>
SR26 130K_1%_06
<Function>
SC8
0.1u_10V_X7R_04
<Function>
SC10
0.1u_10V_X7R_04
<Function>
SR10 *0402_short
<Function>
SR25 100K_04
<Function>
SR13
10K_04
<Function>
SR19
10K_04
<Function>
SR18 18K_1%_04
<Function>
SR27 2.2_04
<Function>
SC11 0.1u_10V_X7R_04 <Function>
SR34 *100K_04
<Function>
SC4
0.1u_10V_X7R_04
<Function>
SR12
10K_04
<Function>
SR16
10K_04
<Function>
SR4 30K_1%_04
<Function>
SU4B
LM358G
<Function>
+
5
-
6
V+ 8
V-
4
OUT 7
SR14
*10K_04
<Function>
SC1 1000p_50V_X7R_04
<Function>
SL2 HCB1005KF-121T20
<Function>
SC35 0.1u_10V_X7R_04
<Function>
SR36
10K_04
<Function>
SR11
*10K_04
<Function>
SC6
0.1u_10V_X7R_04
<Function>
SR31
0_04
<Function>
SR9
*4.3K_1%_04
<Function>
SC3 1000p_50V_X7R_04
<Function>
SR32
0_04
<Function>
SR23
100K_04
<Function>
SR2 10_04
<Function>
SC24
0.1u_10V_X7R_04
<Function>
SU3A
LM358G
<Function>
+
3
-
2
V+ 8
V-
4
OUT 1
SR21
100K_04
<Function>
SC15 0.1u_10V_X7R_04 <Function>
SU4A
LM358G
<Function>
+
3
-
2
V+ 8
V-
4
OUT 1
SC32
4.7u_25V_X5R_08
<Function>
SC7
*0.1u_10V_X7R_04
<Function>
SC13
0.1u_10V_X7R_04
<Function>
SC20
15000p_50V_X7R_06
<Function>
SC16
0.1u_10V_X7R_04
<Function>
SC29
0.01u_50V_X7R_04
<Function>
SEMC1
*1000p_50V_X7R_04
<Function>
SR29
4.32K_1%_04
<Function>
SC33
4.7u_25V_X5R_08
<Function>
SC25 0.01u_50V_X7R_04
<Function>
SR20
100K_04
<Function>
SC21
330p_50V_X7R_04
<Function>
SR39
120K_04
<Function>
![](asset-62.png)
Schematic Diagrams
B - 42 Audio Port 1
B.Schematic Diagrams
Audio Port 1
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
for
枛慷婧㔜䓐
EMI AUDG/DGND
⋨↮
Speaker wire length less than 8000mils , It don't need LC Filter.
SPKOUTR+,R-,L+,L- Trace width
Speaker 4 ohm------> 30mils, Via hole----->C40D20.
2/16 add
TPA2008D2
P2P BA20550
(TSSOP24)
20 Mil
20 Mil
20 Mil
20 Mil20 Mil
20 Mil
On
The volume control.the gain range is from
-80db(Vvolume=5V) to +20db(Vvolume=0V) with
64 steps precise control.
3/31
枸䔁
(
⚈
898
㚫㉱
low)
AUDIO AMP Enable
LOUT-
LOUT+
ROUT-
ROUT+
ROUT-
ROUT+
AMP_EN
LOUT+
FRONT_R
FRONT_L
ROUTN
ROUTP
LOUTP
LOUT-LOUTN
AMP_EN
AMP_5VS
5VS
5VS
AUDGAUDG
AUDG
AUDG
AUDGAUDG
AUDG
AUDG
AUDG
AUDG
AUDG
3.3VS
AUDG
AUDG
AUDG
FRONT_L[39,40]
FRONT_R[39,40]
EAPD_MODE[39]
SUSB#[10,32,34,35,42,50,56]
PCH_MUTE#[32]
AMP_EN [40]
KBC_MUTE#[35] 3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,43,46,47,48,49,50,57,64]
5VS[10,11,12,13,36,39,40,47,48,49,50,61,62,63,64]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[41] audio 892 PORT1
A3
41 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[41] audio 892 PORT1
A3
41 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[41] audio 892 PORT1
A3
41 77Wednesday, July 05, 2017
C951
22u_6.3V_X5R_08
R266
100K_04
R267 0_04
C945
0.1u_10V_X7R_04
R304
120K_04
C581
220p_50V_NPO_04
J_SPK1
88266-04001
PCB Footprint = 88266-04_L
1
2
3
4
C565 1000p_50V_X7R_04
D13 RB751S-40H
AC
C564 1000p_50V_X7R_04
C557
0.1u_10V_X7R_04
C518
*0.1u_10V_X7R_04
U13
74AHC1G08GW
1
2
5
4
3
.
L9 FCM1005KF-121T03
U15
TPA2008D2
LINN
1
LINP
2
SHUTDOWN
3
PVDDL2 4
LOUTP 5
PGNDL1
6
PGNDL2
7
LOUTN 8
PVDDL1 9
COSC
10
ROSC
11 AGND 12
VDD 13
VOLUME
14
NC
15
PVDDR2 16
ROUTN 17
PGNDR1 18
PGNDR2 19
ROUTP 20
PVDDR1 21
BYPASS
22
RINP
23
RINN
24
Thermal_Pad
25
.
L6 FCM1005KF-121T03
.
L8 FCM1005KF-121T03
R301 10K_1%_04
C938 0.1u_10V_X7R_04
R834 *100K_1%_04
C561
0.1u_10V_X7R_04
C523
*0.1u_10V_X5R_04
C575 1000p_50V_X7R_04
C574 1000p_50V_X7R_04
C533
1000p_50V_X7R_04
R282 4.7K_1%_04
D11 *RB751S-40H
AC
C937 0.1u_10V_X7R_04
C967
0.1u_10V_X7R_04
R300 6.98K_1%_04
R833 *100K_1%_04
C941 2.2u_6.3V_X5R_04
C548
0.1u_10V_X7R_04
.
L7 FCM1005KF-121T03
R290 0_04
L5
HCB1608KF-121T30
Sheet 41 of 77
Audio Port 1
![](asset-63.png)
Schematic Diagrams
AR_TBT B - 43
B.Schematic Diagrams
AR_TBT
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TBT USB TYPE C
NOTE:
SNK0_DDC_data/clk ?connect to 2k PU only if SRC0 is connected and support HDMI (a.i HDMI or DP++ connector). Otherwise can be 100k PD.
SNK1_DDC_data ?connect to 100k PD. If SRC0 support HDMI, connect as SNK0_CFG1 to GPU and/or appropriate AUX/DDC demux control
SNK1_DDC_clk ?connect to 100k PD.
DDI(MUX)
TBT USB TYPE C
CPU /
Policy
Manager
NOTE:
ASSEMBLE R1305, R1368 if DPSRC
NOT IN USE
XTAL
+/-0.5%
AR/PPS COMMON FLASH
CPU PCIE RX
CPU PCIE TX
IF SOME OF GPIOs ARE NOT IN USE FOLLOW TABLE BELOW:
GPIO | TERMINATION | Power Rail
----------------------------------------------------
GPIO_0 | 10K PU | VCC3V3_LC
GPIO_1 | 10K PU | VCC3V3_LC
GPIO_2 | 100K PD |
GPIO_3 | 100k PD |
GPIO_4 | 10K PU | VCC3V3_LC
GPIO_5 | 10K PU | VCC3V3_LC
GPIO_6 | 100K PD |
GPIO_7 | 100K PD |
GPIO_8 | 100K PD |
POC_GPIO_0 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_1 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_2 | 100K PD |
POC_GPIO_3 | 100K PD |
POC_GPIO_4 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_5 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_6 | 100K PD |
DEBUG PINs:
PIN | TERMINATION
-------------------------------
MONDC_SVR | GND
MONDC_DPSNK_0 | GND
MONDC_DPSNK_1 | GND
MONDC_DPSRC | GND
MONDC_CIO_0 | GND
MONDC_CIO_1 | GND
TEST_EDM | GND
FUSE_VQPS_64 | GND
FUSE_VQPS_128 | GND
ATEST_P/N | FLOATING
USB2_ATEST | FLOATING
PCIE_ATEST | FLOATING
D02A_0321_
ℙ䓐
PCIe_RBIAS
PET0_P
PET0_N
TBT_BATLOW_N
TBT_FORCE_PWR
RTD3_USB_PWR_EN
RTD3_CIO_PWR_EN
TBT_SLP_S3_N
TBTA_I2C_INT
PET1_N
PET1_P
TBTB_I2C_INT
PET2_P
PET2_N
PET3_N
PET3_P
TBT_SNK0_DDC_DATA
TBT_SNK0_DDC_CLK
RTD3_CIO_PWR_EN
RTD3_USB_PWR_EN
TBT_SNK1_DDC_CLK
TBT_HOLD_N
PA_USB2_RBIAS
TBT_TCK
DPSNK1_ML0_P
DPSNK1_ML0_N
DPSNK1_ML1_N
DPSNK1_ML1_P
DPSNK1_ML2_N
DPSNK1_ML2_P
DPSNK1_ML3_N
DPSNK1_ML3_P
DPSNK1_AUX_N
DPSNK1_AUX_P
TBT_BATLOW_N
TBT_SLP_S3_N
TBT_CIO_PLUG_EVENT_N
TBTB_I2C_INT
TBTA_AUX_N
TBTA_AUX_P
TBTA_TX1_P
TBTA_TX1_N
TBTA_TX0_P
TBTA_LSTX
TBTA_LSRX
TBT_XTAL_25_OUT
TBTA_HPD
TBTA_TX0_N
DPSNK1_HPD
TBT_XTAL_25_IN
DPSNK1_HPD
TBT_SNK0_DDC_DATA
TBT_SNK0_DDC_CLK
TBT_HDMI_DDC_DATA
TBT_HDMI_DDC_CLK
TBT_SRC_CFG1
TBTB_LSTX
TBTB_LSRX
TBTB_HPD
DPSNK_RBIAS
DPSRC_RBIAS
RTD3_CIO_PWR_EN
TBT_EE_DI
TBT_EE_DO
TBT_EE_CS_N
TBT_EE_CLK
SINK0_CFG1
BUF_PLT_RST#_AR
TBT_HDMI_DDC_CLK
TBT_SRC_HPD
TBT_HDMI_DDC_DATA
OUT2_HPD
TBT_SRC_HPD
TBT_FORCE_PWR
TBT_SLP_S3_N
TBT_TMU_CLK_OUT
TBTA_I2C_INT
TBT_EE_WP_N
TBT_I2C_SDA
TBT_I2C_SCL
TBT_EE_WP_N
TBT_TMU_CLK_OUT
TBT_PCIe_WAKE_N
TBT_CIO_PLUG_EVENT_N
TBT_CLKREQ#_N
BUF_PLT_RST#_AR
TBT_PCIe_WAKE_N
TBT_SRC_CFG1
TBT_RSENSE
TBT_RBIAS
TBTA_LSTX
PB_USB2_RBIAS
TBTA_LSRX
TBT_TDI
TBT_TDO
TBT_TMS
TBT_TEST_PWG
TBT_TEST_EN
TBT_XTAL_25_OUT
TBT_XTAL_25_IN
TBTA_HPD
TBT_TDI
TBT_TMS
TBT_TCK
TBT_TDO
TBT_I2C_SCL
SINK0_CFG1
TBT_SNK1_DDC_CLK
TBT_I2C_SDA
TBTB_LSTX
TBTB_LSRX
TBTB_HPD
TBT_PCIe_WAKE_N
VCC3V3_FLASH
VCC3V3_S0_SYS
VCC3V3_SX_SYS
VCC3V3_LC
VCC3V3_SX_SYS
VCC3V3_SX_SYS
VCC3V3_SX_SYS
OUT2_D0p[46]
OUT2_AUXn_SDA[46]
OUT2_AUXp_SCL[46]
OUT2_HPD[46]
OUT2_D2p[46]
OUT2_D1n[46]
OUT2_D1p[46]
OUT2_D0n[46]
OUT2_D3n[46]
OUT2_D3p[46]
OUT2_D2n[46]
VCC3V3_LC[43]
TBTA_LSRX[44]
TBTA_HPD[44]
TBTA_LSTX[44]
TBTA_CA2HD_0_P[45]
TBTA_CA2HD_1_N[45]
TBTA_CA2HD_0_N[45]
TBTA_CA2HD_1_P[45]
TBTA_DPSRC_AUX_P[44]
TBTA_USB2_D_N[44]
TBTA_USB2_D_P[44]
TBTA_DPSRC_AUX_N[44]
TBTA_HD2CA_1_P[45]
TBTA_HD2CA_1_N[45]
TBTA_HD2CA_0_N[45]
TBTA_HD2CA_0_P[45]
TBCIO_PLUG_EVENT [30]
SUSB# [10,32,34,35,41,42,50,56]
VCC3V3_FLASH[44]
TBT_I2C_SDA [44]
TBT_I2C_SCL [44]
TBTA_I2C_INT [44]
BUF_PLT_RST# [34,35,37,38,47,48]
SUSB# [10,32,34,35,41,42,50,56]
TBT_REFCLK_100_P[31]
TBT_REFCLK_100_N[31]
PCIE_TXN1_TBT[30]
PCIE_TXP1_TBT[30]
PCIE_TXN2_TBT[30]
PCIE_TXP2_TBT[30]
TBT_EE_DI [44]
TBT_EE_DO [44]
TBT_EE_CS_N [44]
TBT_EE_CLK [44]
PCIE_RXN1_TBT [30]
PCIE_RXP1_TBT [30]
PCIE_RXN2_TBT [30]
PCIE_RXP2_TBT [30]
PCIE_RXN3_TBT [30]
PCIE_RXP3_TBT [30]
PCIE_RXN4_TBT [30]
PCIE_RXP4_TBT [30]
PCIE_TXN4_TBT[30]
PCIE_TXP4_TBT[30]
PCIE_TXN3_TBT[30]
PCIE_TXP3_TBT[30]
TBT_RESET_N [44]
VCC3V3_S0_SYS[43]
VCC3V3_SX_SYS[43,44]
TBT_FRC_PWR [30]
TBT_CLKREQ#_N[31]
LAN_WAKEUP# [30,32,35,38,48]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[42] AR_TBT
A3
42 77W ednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[42] AR_TBT
A3
42 77W ednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[42] AR_TBT
A3
42 77W ednesday, July 05, 2017
R311 2.2K_1%_04
C585 0.1u_6.3V_X5R_02
R332 100_04
C614 0.22u_10V_X5R_02
Q52
*2SK3018S3
G
DS
R328 10K_04
R308 10K_04
R733
3.3K_1%_04
C584 0.1u_6.3V_X5R_02
R299 *2.2K_04
C597 0.22u_10V_X5R_02
R312 2.2K_1%_04
C615 0.22u_10V_X5R_02
R694 *2.2K_04
R669 100K_04
C1005 0.1u_10V_X7R_04
C594 0.22u_10V_X5R_02
R672 100K_04
C583 0.1u_6.3V_X5R_02
R698 100K_04
R728 100K_04
R325 *10K_04
R717 14K_1%_04
C582 0.1u_6.3V_X5R_02
C568 *0.1u_10V_X7R_04
R734
3.3K_1%_04
R735
3.3K_1%_04
C1076
0.1u_10V_X7R_04
R745 10K_04
C1094 *0.1u_10V_X7R_04
R730 499_1%_04
C599 0.22u_10V_X5R_02
C628 0.22u_10V_X5R_02
R736
3.3K_1%_04
C624
6p_50V_NPO_04
R680 *10K_04
R348 1M_04
R326 10K_04
C629 0.22u_10V_X5R_02
R321 1M_04
R725 499_1%_04
C602 0.22u_10V_X5R_02
C978 0.1u_6.3V_X5R_02
PCIe GEN3
Port A
PORT B
SINK PORT 0
Misc
TBT PORTS
SOURCE PORT 0
SINK PORT 1
LC GPIOPOC GPIO
DEBUG
MISC
POC
POC
U16A
JHL6340
Y
PA_TX0_P
A19
PA_TX0_N
B19
PA_TX1_P
A17
PA_TX1_N
B17
PCIE_RX1_P
T23
PCIE_RX1_N
T22
PCIE_RX0_P
Y23
PCIE_RX0_N
Y22
PCIE_TX1_P P23
PCIE_TX1_N P22
PCIE_TX0_P V23
PCIE_TX0_N V22
PCIE_REFCLK_100_IN_P
V19
PCIE_REFCLK_100_IN_N
T19
PA_RX1_N
B15 PA_RX1_P
A15
PA_RX0_P
B21
PA_RX0_N
A21
PCIE_CLKREQ_N
AC5
DPSNK0_ML0_P
AB7
DPSNK0_ML0_N
AC7
DPSNK0_ML1_P
AB9
DPSNK0_ML1_N
AC9
DPSNK0_ML2_P
AB11
DPSNK0_ML2_N
AC11
DPSNK0_ML3_P
AB13
DPSNK0_ML3_N
AC13
DPSNK0_AUX_P
Y11
DPSNK0_AUX_N
W11
DPSNK0_HPD
AA2
PERST_N L4
DPSNK1_ML0_P
AB15
DPSNK1_ML0_N
AC15
DPSNK1_ML1_P
AB17
DPSNK1_ML1_N
AC17
DPSNK1_ML2_P
AB19
DPSNK1_ML2_N
AC19
DPSNK1_ML3_P
AB21
DPSNK1_ML3_N
AC21
DPSNK1_AUX_P
Y12
DPSNK1_AUX_N
W12
DPSNK1_HPD
Y6
DPSNK0_DDC_CLK
Y5
DPSNK0_DDC_DATA
R4
DPSNK1_DDC_CLK
Y8
DPSNK1_DDC_DATA
N4
PCIE_TX2_P K23
PCIE_TX2_N K22
PCIE_TX3_P F23
PCIE_TX3_N F22
PCIE_RX2_P
M23
PCIE_RX2_N
M22
PCIE_RX3_P
H23
PCIE_RX3_N
H22
DPSRC_ML0_P R2
DPSRC_ML0_N R1
DPSRC_ML1_P N2
DPSRC_ML1_N N1
DPSRC_ML2_P L2
DPSRC_ML2_N L1
DPSRC_ML3_P J2
DPSRC_ML3_N J1
DPSRC_AUX_P W19
DPSRC_AUX_N Y19
DPSRC_HPD G1
PB_TX1_P A9
PB_TX1_N B9
PB_RX1_P B7
PB_RX1_N A7
PB_TX0_P A11
PB_TX0_N B11
PB_RX0_P A13
PB_RX0_N B13
POC_GPIO_1 E2
POC_GPIO_0 J4
PA_LSTX
A5
PA_DPSRC_HPD
M4
PA_USB2_D_P
E20
PA_USB2_D_N
D20
PB_LSRX B5
PB_LSTX B4
PB_DPSRC_HPD G2
GPIO_0 U1
GPIO_1 U2
GPIO_2 V1
GPIO_3 V2
GPIO_4 W1
GPIO_5 W2
GPIO_6 Y1
GPIO_7 Y2
GPIO_8 AA1
XTAL_25_IN D22
XTAL_25_OUT D23
PCIE_RBIAS N16
EE_DI AB3
EE_DO AC4
EE_CS_N AC3
EE_CLK AB4
TDI
Y4
TMS
V4
TCK
T4
TDO
W4
TEST_EN E1
TEST_PWR_GOOD AB5
RESET_N F4
PA_LSRX
A4
RBIAS
H6
RSENSE
J6
DPSRC_RBIAS N6
POC_GPIO_2 D4
POC_GPIO_3 H4
POC_GPIO_4 F2
POC_GPIO_5 D2
POC_GPIO_6 F1
PB_USB2_D_P E19
PB_USB2_D_N D19
PB_USB2_RBIAS F19
PA_USB2_RBIAS
H19
DPSNK_RBIAS
Y18
PA_DPSRC_AUX_P
Y15
PA_DPSRC_AUX_N
W15 PB_DPSRC_AUX_P Y16
PB_DPSRC_AUX_N W16
THERMDA
AC23
THERMDA
AB23
PCIE_ATEST
V18
TEST_EDM
AC1
FUSE_VQPS_64
L15
FUSE_VQPS_128
N15
MONDC_CIO_0
C23
MONDC_CIO_1
C22
MONDC_SVR D6
ATEST_P A23
ATEST_N B23
USB2_ATEST E18
MONDC_DPSNK_0 W13
MONDC_DPSNK_1 W18
MONDC_DPSRC AB2
U51
W25Q80DV
CE# 1
SO 2
WP#
3
VSS 4
SI 5
SCK 6
HOLD#
7
VDD
8
R347 1M_04
R688 *10K_04
R333 *0_04
R687 14K_1%_04
X2
FSX3L 25MHZ
12
3 4
U14
*U74AHC1G08G-AL5-R
1
2
5
4
3
R741 1M_04
R721 4.75K_0.5%_04
R303 0_04R302 *2.2K_04
R740 1M_04
C589 0.1u_6.3V_X5R_02
C1097 0.22u_10V_X5R_02
R664 *2.2K_04
C610 0.22u_10V_X5R_02
R322 100K_04
C1098 0.22u_10V_X5R_02
R686 100K_04
R294 0_04
C588 0.1u_6.3V_X5R_02
R691 3.01K_1%_04
R327 100K_04
C607 0.22u_10V_X5R_02
R307 100K_04
R298 100_04
C625
6p_50V_NPO_04
C586 0.1u_6.3V_X5R_02
U54
U74AHC1G08G-AL5-R
1
2
5
4
3
R684 *10K_04
R331 10K_04
R738 100K_04
R310 100K_04
R667 100K_04
R720 0_04
C979 0.1u_6.3V_X5R_02
R670 *10K_04
C998 0.1u_10V_X7R_04
C587 0.1u_6.3V_X5R_02
R306 1M_04
R692 100K_04
R309 10K_04
Sheet 42 of 77
AR_TBT
![](asset-64.png)
Schematic Diagrams
B - 44 AR Power
B.Schematic Diagrams
AR Power
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
>120 mil
>120 mil
>120 mil
PA70HS NOT SUPPORT TBT WAKE UP
FOR MEDION
R749 and R750 NOT STUFF.
R293 and R291 STUFF.
FOR
ᷕ⿏
Q52 NOT STUFF.
VCC3V3_ANA_PCIE
VCC3V3_ANA_USB2
3.3VS
3.3V
VCC3V3_S0
VCC3V3_S0_SYS
TBT_SVR_IND
VCC0V9_SVR
VCC3V3_S0_SYS
VCC3V3_SX_SYSVCC3V3_LC
VCC0V9_DP
VCC0V9_PCIE
VCC0V9_CIO
VCC0V9_USB
VCC0V9_LVR_OUT
SVR_VSS_GND
SVR_VSS_GND
VCC3V3_SX_SYS
VCC3V3_S0
3.3V[2,10,27,38,45,48,50,51,52,55,56]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,46,47,48,49,50,57,64]
VCC3V3_SX_SYS[42,44]
VCC3V3_S0_SYS[42]
VCC3V3_LC[42]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[43] AR POWER
A3
43 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[43] AR POWER
A3
43 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[43] AR POWER
A3
43 77Wednesday, July 05, 2017
C985
1u_6.3V_X5R_04
GND VCC
U16B
JHL6340
Y
VCC3P3_SX F8
VCC3P3_SVR A3
VCC3P3_SVR B3
SVR_IND C2
SVR_IND D1
SVR_VSS A1
SVR_VSS B1
VCC3P3_SVR A2
SVR_IND C1
SVR_VSS B2
VCC0P9_ANA_DPSNK
V13 VCC0P9_ANA_DPSNK
V12 VCC0P9_ANA_DPSNK
V11
VCC0P9_SVR_ANA F11
VCC0P9_SVR_ANA F12
VCC0P9_ANA_PCIE_2
L18
VCC0P9_DP
L11
VCC0P9_CIO
R9
VCC0P9_CIO
R11
VCC0P9_ANA_PCIE_2
M18
VCC0P9_PCIE
M16
VCC0P9_PCIE
M13
VCC0P9_USB
R15
VCC3P3_LC R6
VCC0P9_ANA_DPSRC
L6
VCC0P9_ANA_DPSRC
M6 VCC0P9_SVR M9
VCC0P9_PCIE
M15
VCC0P9_SVR L9
VCC3P3_S0 R13
VCC3P3_ANA_PCIE
L16
VCC0P9_LVR_SENSE H11
VCC0P9_LVR J11
VCC0P9_LVR H18
VCC0P9_USB
R16
VCC0P9_LVR F18
VCC3P3_ANA_USB2
J16
VCC0P9_DP
L12
VCC0P9_DP
L8
VCC0P9_DP
T11
VCC0P9_ANA_PCIE_2
N18
VCC0P9_CIO
R12
VCC0P9_ANA_PCIE_1
L19
VCC0P9_ANA_PCIE_1
N19
VCC0P9_DP
T12
VCC0P9_DP
M8
VCC0P9_CIO
R8
VCC3P3A H9
VCC0P9_SVR_SENSE J9
VCC0P9_SVR_ANA F13
VCC0P9_SVR_ANA F15
VCC0P9_SVR_ANA E12
VCC0P9_SVR_ANA E13
VSS_ANA
A6
VSS_ANA
A8
VSS_ANA
A10
VSS_ANA
A12
VSS_ANA
A14
VSS_ANA
A16
VSS_ANA
A18
VSS_ANA
A20
VSS_ANA
A22
VSS_ANA
B6
VSS_ANA
B8
VSS_ANA
B10
VSS_ANA
B12
VSS_ANA
B14
VSS_ANA
B16
VSS_ANA
B18
VSS_ANA
B20
VSS_ANA
B22
VSS_ANA
E22
VSS_ANA
E23
VSS_ANA
F9
VSS_ANA
F20 VSS_ANA
F16
VSS_ANA
J5
VSS_ANA
J19
VSS_ANA
J20
VSS_ANA
L5
VSS_ANA
J18
VSS_ANA
J22
VSS_ANA
J23
VSS_ANA
K1
VSS_ANA
K2
VSS_ANA
L20
VSS_ANA
L22
VSS_ANA
L23
VSS_ANA
M1
VSS_ANA
M2
VSS_ANA
M5
VSS_ANA
M19
VSS_ANA
M20
VSS_ANA
N5
VSS_ANA
N20
VSS_ANA
N22
VSS_ANA
N23
VSS_ANA AA22
VSS_ANA AA23
VSS_ANA AB6
VSS_ANA AB8
VSS_ANA AB10
VSS_ANA AB12
VSS_ANA AB14
VSS_ANA AB16
VSS_ANA AB18
VSS_ANA AB20
VSS_ANA AB22
VSS_ANA AC6
VSS_ANA AC8
VSS_ANA AC10
VSS_ANA AC12
VSS_ANA AC14
VSS_ANA AC16
VSS_ANA AC18
VSS_ANA AC20
VSS_ANA AC22
VSS D5
VSS E4
VSS E5
VSS E6
VSS F5
VSS F6
VSS H5
VSS H8
VSS J8
VSS J12
VSS J13
VSS J15
VSS L13
VSS M12
VSS N9
VSS N8
VSS N11
VSS N12
VSS N13
VSS T6
VSS T8
VSS T9
VSS T13
VSS T15
VSS T16
VSS T18
VSS AB1
VSS AC2
VSS_ANA
D8
VSS_ANA
D9
VSS_ANA
D11
VSS_ANA
D12
VSS_ANA
D13
VSS_ANA
D15
VSS_ANA
D16
VSS_ANA
D18
VSS_ANA
E8
VSS_ANA
E9
VSS_ANA
E11
VSS_ANA
E15
VSS_ANA
E16
VSS_ANA
H1
VSS_ANA
H2
VSS_ANA
H12
VSS_ANA
H13
VSS_ANA
H15
VSS_ANA
H16
VSS_ANA
H20
VSS_ANA
G22
VSS_ANA
G23
VSS_ANA
P1
VSS_ANA
P2
VSS_ANA
R5
VSS_ANA
R18
VSS_ANA
R19
VSS_ANA W5
VSS_ANA W6
VSS_ANA W8
VSS_ANA W9
VSS_ANA W20
VSS_ANA W22
VSS_ANA W23
VSS_ANA Y9
VSS_ANA Y13
VSS_ANA Y20
VSS M11
VSS_ANA V5
VSS_ANA V6
VSS_ANA V8
VSS_ANA V9
VSS_ANA V15
VSS_ANA V16
VSS_ANA V20
VSS_ANA
R20
VSS_ANA
R22
VSS_ANA
R23
VSS_ANA
T1
VSS_ANA
T2
VSS_ANA
T5
VSS_ANA
T20
VSS_ANA
U23 VSS_ANA
U22
C1064
1u_6.3V_X5R_04
C1085
10u_6.3V_X5R_04
C639
47u_6.3V_X5R_08
C1044
1u_6.3V_X5R_04
C632
10u_6.3V_X5R_04
C1070
1u_6.3V_X5R_04
C1039
1u_6.3V_X5R_04
C631
47u_6.3V_X5R_08
C1083
1u_6.3V_X5R_04
C1079
1u_6.3V_X5R_04
C1025
1u_6.3V_X5R_04
C1035
1u_6.3V_X5R_04
C1086
10u_6.3V_X5R_04
C1026
1u_6.3V_X5R_04
C1054
1u_6.3V_X5R_04
C1042
1u_6.3V_X5R_04
L10
XFL4012-601MEC
PCB Footprint = XFL4012-2
C1090
1u_6.3V_X5R_04
R297
0_06
C1037
1u_6.3V_X5R_04
C1060
1u_6.3V_X5R_04
C637
10u_6.3V_X5R_04
C986
1u_6.3V_X5R_04
.
L12
CPI160809UF-1R0M
C1033
1u_6.3V_X5R_04
R750 0_06
C626
47u_6.3V_X5R_08
C1029
1u_6.3V_X5R_04
C636
10u_6.3V_X5R_04
C1055
1u_6.3V_X5R_04
R293 *0_06
C634
1u_6.3V_X5R_04
C1091
1u_6.3V_X5R_04
C1088
1u_6.3V_X5R_04
C1066
1u_6.3V_X5R_04
C638
47u_6.3V_X5R_08
C1014
1u_6.3V_X5R_04
R291 *0_06
C633
10u_6.3V_X5R_04
C635
47u_6.3V_X5R_08
C1058
1u_6.3V_X5R_04
C1078
1u_6.3V_X5R_04
C1041
1u_6.3V_X5R_04
C1040
1u_6.3V_X5R_04
C1071
1u_6.3V_X5R_04
C1030
1u_6.3V_X5R_04
C567
*1u_6.3V_X5R_04
R749 0_06
C1034
1u_6.3V_X5R_04
Sheet 43 of 77
AR Power
![](asset-65.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
80Ohm, 0.01Ohm DCR, 8A Idc
TO AP SPI ROM
close to pin,1/14
NOTE:
PAY ATTENTION SYMBOL
OF TPS65982 BASED ON DS R0.92
AND MIGHT BE FUTURE CHANGES.
WHEN CONNECT BUSPOWERZ TO GND,
CONNECT ALSO RPD_Gn to C_CCn
0.1%
Primary
嶇
bios
ec
天
pin
3A
TBTA_GPIO7
ACE_I2C_SDA2
ACE_I2C_SCL2
TBTA_I2C_IRQ2Z
TBTA_I2C_IRQ2Z
TBTA_ACE_GPIO6
TBTA_GPIO0
TBTA_GPIO7
TBTA_SS
VCC1V8A_TBTA_LDO
VCC1V8D_TBTA_LDO
TBTA_LDO_BMC
TBTA_SBU2
TBTA_SBU1
TBTA_CC1
TBTA_CC2
TBTA_USB2_P_B
TBTA_USB2_N_B
TBTA_DIG_AUD_P
TBTA_USB2_P_T
TBTA_USB2_N_T
TBTA_DIG_AUD_N
TBTA_DEBUG1
TBTA_DEBUG2
VCC_HV_SYS
TBTA_ROSC
TBTA_DBG_CTL1
TBTA_DBG_CTL2
TBTA_ACE_GPIO6
TBTA_GPIO0
ACE_I2C_SCL2
ACE_I2C_SDA2
VCC3V3_SX_SYS
VCC3V3_SX_SYS
VCC3V3_SX_SYS
VCC3V3_FLASH
5V VCC5V0_SYS
VCC3V3_FLASH
VCC5V0_SYS
TBTA_VBUS
VCC3V3_SX_SYS
VCC3V3_FLASH
EMI_GND
EMI_GND
EMI_GND EMI_GND
EMI_GND
TBT_RESET_N [42]
TBTA_ACE_GPIO0[30]
TBTA_ACE_GPIO2[30]
TBTA_ACE_GPIO3[30]
TBTA_ACE_GPIO7[30]
VCC3V3_FLASH[42]
TBTA_HRESET[35]
TBTA_HPD[42]
TBTA_LSTX[42]
TBTA_LSRX[42]
TBTA_DPSRC_AUX_N[42]
TBT_I2C_SDA[42]
TBT_I2C_SCL[42]
TBTA_I2C_INT[42]
TBT_EE_DI[42]
TBT_EE_DO[42]
TBT_EE_CS_N[42]
TBT_EE_CLK[42]
TBTA_USB2_D_P[42]
TBTA_USB2_D_N[42]
TBTA_DPSRC_AUX_P[42]
VCC3V3_SX_SYS[42,43]
5V[39,45,48,49,50,51,52,53,54,55,56,57,58,59,63]
TBTA_MRESET[30]
TBTA_USB2_P_T [45]
TBTA_USB2_N_T [45]
TBTA_USB2_P_B [45]
TBTA_USB2_N_B [45]
TBTA_SBU1 [45]
TBTA_SBU2 [45]
TBTA_CC1 [45]
TBTA_CC2 [45]
TBTA_CA2HD_1_P_R[45]
TBTA_CA2HD_1_N_R[45]
TBTA_USB2_TN_J[45]
TBTA_USB2_TP_J[45]
TBTA_HD2CA_0_P_R[45]
TBTA_HD2CA_0_N_R[45]
TBTA_CA2HD_0_P_R [45]
TBTA_CA2HD_0_N_R [45]
TBTA_USB2_BN_J [45]
TBTA_USB2_BP_J [45]
TBTA_HD2CA_1_N_R [45]
TBTA_HD2CA_1_P_R [45]
TBTA_CC1_J[45]
TBTA_CC2_J [45]
TBTA_SBU1_J[45]
TBTA_SBU2_J [45]
TBTA_VBUS[45]
SMC_VGA_THERM[26,35,36]
SMD_VGA_THERM[26,35,36]
SMB_DATA_R[3,8,9,32]
SMB_CLK_R[3,8,9,32]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[44] TPS65982ABZQZ TYPEC
A3
44 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[44] TPS65982ABZQZ TYPEC
A3
44 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[44] TPS65982ABZQZ TYPEC
A3
44 77Wednesday, July 05, 2017
R396 0_04
TBT
C1137
22u_6.3V_X5R_06
TBT
R773 10K_04
TBT
C648
2.2u_6.3V_X5R_04
TBT
C657
22u_6.3V_X5R_06
TBT
R791 *3.3K_04
<FUNCTION>
R392 0_04
TBT
R779 *0_04
<FUNCTION>
EMR1 0_04
R371 0_04
TBT
R769 1M_04
TBT
R819 *0_04
<FUNCTION>
R780 100K_04
TBT
R782 *0_04
<FUNCTION>
C658
1u_25V_X5R_06
TBT
L13 HCB2012KF-800T80
TBT
<FUNCTION>
R767 100K_04
TBT
R385 100K_04
TBT
C649
2.2u_6.3V_X5R_04
TBT
R783 10K_04
TBT
EMR2 0_04
R820 *0_04
<FUNCTION>
<FUNCTION>
C1134
10u_6.3V_X5R_04
TBT
C644
1u_6.3V_X5R_04
TBT
R401 10K_04
TBT
R376 100K_04
TBT
R766 100K_04
TBT
R816 0_04
TBT
C1138 22u_6.3V_X5R_08
R790 *0_04
<FUNCTION>
C1127
10u_6.3V_X5R_04
TBT
J_TYPEC1
DX07S024JJ2
PCB Footprint = DX07S024JJ2
P/N = 6-21-B4K20-024
GND
A1
TX0_P
A2
TX0_N
A3
VBUS
A4
CC1
A5
USB2_P_T
A6
USB2_N_T
A7
SBU1
A8
VBUS
A9
RX1_N
A10
RX1_P
A11
GND
A12
GND B12
RX0_P B11
RX0_N B10
VBUS B9
SBU2 B8
USB2_N_B B7
USB2_P_B B6
CC2 B5
VBUS B4
TX1_N B3
TX1_P B2
GND B1
CGND
GND1
CGND
GND2
CGND
GND3
CGND
GND4
R384 *3.3K_1%_04
<FUNCTION>
C650
2.2u_6.3V_X5R_04
TBT C656
0.1u_10V_X7R_04
TBT
3A 3A
U18
TPS65982ABZQZ
Y
TBT
PP_5V0 A11
PP_5V0 B11
PP_5V0 C11
PP_HV A6
PP_HV A7
PP_HV A8
VBUS H11
VBUS J10
VBUS J11
VIN_3V3 H1
LDO_3V3 G1
LDO_1V8A K1
LDO_1V8D A2
LDO_BMC E1
VOUT_3V3 H2
C_CC1 L9
C_CC2 L10
M_RESET
E11
RESETZ F11
R_OSC
G2
SENSEP B10
SENSEN A10
HV_GATE1 B9
GPIO_0
B2
GPIO_1
C2
GPIO_2
D10
GPIO_3
G11
GPIO_4
C10
GPIO_5
E10
GPIO_6
G10
BUSPOWERZ
F10
I2C_SDA1
D1
I2C_SCL1
D2
I2C_IRQ1Z
C1
I2C_SDA2
A5
I2C_SCL2
B5
I2C_IRQ2Z
B6
I2C_ADDR
F1
SPI_CLK
A3
SPI_MOSI
B4
SPI_MISO
A4
SPI_SS_Z
B3
SWD_DAT
F4
SWD_CLK
G4
UART_RX
F2 UART_TX
E2
USB_RP_P
L5
USB_RP_N
K5
LSX_P2R
K4 LSX_R2P
L4
DEBUG3
L3
DEBUG4
K3
DEBUG_CTL1 E4
DEBUG_CTL2 D5
DEBUG1
L2
DEBUG2
K2
AUX_P
J1
AUX_N
J2
C_USB_TP K6
C_USB_TN L6
C_USB_BP K7
C_USB_BN L7
C_SBU1 K8
C_SBU2 L8
GND
A1
PP_CABLE H10
PP_5V0 D11
PP_HV B7
VBUS K11
HV_GATE2 A9
RPD_G1 K9
RPD_G2 K10
GND
B8
HRESET
D6
GND
D8
GND
E5
GND
E6
GND
E7
GND
E8
GND
F5
GND
F6
GND
F7
GND
F8
GND
G5
GND
G6
GND
G7
GND
G8
GND
H4
GND
H5
SS H7
GND
H8
GPIO_7
D7
GPIO_8
H6
GND
L1
VDDIO B1
R771 *0_04
<FUNCTION>
C661 22u_6.3V_X5R_08
C653
10u_6.3V_X5R_04
TBT
R379 *3.3K_1%_04
<FUNCTION>
R817 0_04
TBT
R380 100K_04
TBT
R789 *0_04
<FUNCTION>
D45
CSOD140SH
TBT
A C
R389 *10K_04
<FUNCTION> C1128 1u_10V_X5R_02
<FUNCTION>
R390 100K_04
TBT
R403 *0_04
<FUNCTION>
C1136
22u_6.3V_X5R_06
TBT
R775
15K_0.1%_04
TBT
C1130 1u_10V_X5R_02
C1135
22u_6.3V_X5R_06
TBT
C1129 1u_10V_X5R_02
R404 100K_04
TBT
C654
220p_50V_NPO_04
TBT
R786 *10K_04
<FUNCTION>
C645
1u_6.3V_X5R_04
TBT
C1131 1u_10V_X5R_02
C655
220p_50V_NPO_04
TBT
R774 *10K_04
<FUNCTION>
<FUNCTION>
<FUNCTION>
C1132
0.22u_10V_X5R_04
TBT
R402 0_04
TBT
R784 100K_04
TBT
Schematic Diagrams
TPS65982ABZQZ B - 45
B.Schematic Diagrams
TPS65982ABZQZ
Sheet 44 of 77
TPS65982ABZQZ
![](asset-66.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
To TYPE-C CON
Thermal and GND via hole
pin33
pin1
USB3.0
From PCH
Near to IC
To TYPE-C CON
close to connector
100 MIL
3.3A
pin#12 pin#12
pin#29pin#5
OPTION USB3.1
㗪
㗪㗪
㗪ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
PORT1
CHECK
⊭
⊭⊭
⊭墅
墅墅
墅
CHECK
⊭
⊭⊭
⊭墅
墅墅
墅
6-24-40001-010
ESD DIODE 15KV/0.2PF CPDZC5V0SPC-HF SMD0201
From TBT
RX1
TX0
RX0
TX1
RX0
RX1
TX0
TX1
D12
Colay
Near J_TYPEC1
From ASM 1543
USB3.0
USB3.1
USB2.0
From PCH
From ASM1543
CC
USB2.0
From TBT
Colay
Near J_TYPEC1
Colay
Near J_TYPEC1
CC
USB2.0
From TBT
USB2.0
kai_0103
ASM1543_MODE_SEL
ASM1543_PWR_EN
ASM1543_VCONN_EN
USB3_RXN3
USB3_RXP3
A_URXN_SW1
A_URXP_SW1
A_URXP_SW2
A_URXN_SW2
A_UTXP_SW1
A_UTXN_SW1
A_UTXP_SW2
A_UTXN_SW2
HC_RDY#
MC_RDY#
CC_RDY#
ASM1543_REXT
ASM1543_I_SEL1
ASM1543_I_SEL0
ASM1543_I_SEL1
ASM1543_I_SEL0
ASM1543_ROLE_SEL
ASM1543_ROLE_SEL
ASM1543_MODE_SEL
ASM1543_VCONN_EN
ASM1543_MODE_SEL
ASM1543_VCONN_EN
USB3_TXP3
USB3_TXN3
USB3_RXP3
USB3_RXN3
ASM1543_I_SEL1
ASM1543_I_SEL0
ASM1543_REXT ASM1543_ROLE_SEL
ASM1543_PWR_EN
TBTA_HD2CA_1_N_R
TBTA_HD2CA_1_P_R
TBTA_CA2HD_1_P_R
TBTA_CA2HD_1_N_R
TBTA_HD2CA_0_P_R
TBTA_HD2CA_0_N_R
TBTA_CA2HD_0_P_R
TBTA_CA2HD_0_N_R
TBTA_CA2HD_0_N_R
TBTA_CA2HD_0_P_R
TBTA_HD2CA_0_N_R
TBTA_HD2CA_0_P_R
TBTA_CA2HD_1_N_R
TBTA_CA2HD_1_P_R
TBTA_HD2CA_1_N_R
TBTA_HD2CA_1_P_R
TBTA_USB2_TN_R
TBTA_USB2_TP_R
TBTA_SBU2_R
TBTA_SBU1_R
TBTA_USB2_BP_R
TBTA_USB2_BN_R
TBTA_CC1_R
TBTA_CC2_R
TBTA_SBU2_R
TBTA_SBU1_R
TBTA_CC2_R
TBTA_CC1_R
TBTA_CC2_R
TBTA_CC1_R
TBTA_USB2_TN_R
TBTA_USB2_TP_R
TBTA_USB2_TN_R
TBTA_USB2_TP_R
TBTA_USB2_BN_R
TBTA_USB2_BP_R
TBTA_USB2_BN_R
TBTA_USB2_BP_R
3.3V_MUX
5V_MUX
3.3V_MUX
3.3V_MUX
3.3V3.3V_MUX
5V5V_MUX
TBTA_VBUS
5V
3.3V_MUX
5V_MUX
3.3V_MUX
USB3_RXN3[32]
USB3_RXP3[32]
USB3_TXN3[32]
USB3_TXP3[32]
A_URXN_SW1 [45]
A_URXP_SW1 [45]
A_URXN_SW2 [45]
A_URXP_SW2 [45]
A_UTXN_SW1 [45]
A_UTXP_SW1 [45]
A_UTXN_SW2 [45]
A_UTXP_SW2 [45]
ASM1543_CC1 [45]
ASM1543_CC2 [45]
DD_ON[35,48,50,54]
TBTA_HD2CA_0_N[42]
TBTA_HD2CA_0_P[42]
TBTA_CA2HD_1_P[42]
TBTA_CA2HD_1_N[42]
TBTA_HD2CA_1_N[42]
TBTA_HD2CA_1_P[42]
TBTA_CA2HD_0_P[42]
TBTA_CA2HD_0_N[42]
A_URXN_SW1[45]
A_URXP_SW1[45]
A_UTXN_SW1[45]
A_UTXP_SW1[45]
A_URXN_SW2[45]
A_URXP_SW2[45]
A_UTXN_SW2[45]
A_UTXP_SW2[45]
USB_PN2[30]
USB_PP2[30]
ASM1543_CC2[45]
ASM1543_CC1[45]
TBTA_CC2[44]
TBTA_CC1[44]
TBTA_SBU2[44]
TBTA_SBU1[44]
TBTA_USB2_N_T[44]
TBTA_USB2_P_T[44]
TBTA_USB2_N_B[44]
TBTA_USB2_P_B[44]
TBTA_CA2HD_1_P_R [44]
TBTA_CA2HD_1_N_R [44]
TBTA_HD2CA_0_N_R [44]
TBTA_HD2CA_0_P_R [44]
TBTA_CA2HD_0_P_R [44]
TBTA_CA2HD_0_N_R [44]
TBTA_HD2CA_1_N_R [44]
TBTA_HD2CA_1_P_R [44]
TBTA_SBU2_J [44]
TBTA_SBU1_J [44]
TBTA_CC2_J [44]
TBTA_CC1_J [44]
TBTA_USB2_BP_J [44]
TBTA_USB2_BN_J [44]
TBTA_USB2_TN_J [44]
TBTA_USB2_TP_J [44]
3.3V[2,10,27,38,43,48,50,51,52,55,56]
5V[39,44,48,49,50,51,52,53,54,55,56,57,58,59,63]
TBTA_VBUS[44]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[45] USB3.0 co-lay TYPE C
A3
45 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[45] USB3.0 co-lay TYPE C
A3
45 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[45] USB3.0 co-lay TYPE C
A3
45 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
R382 2.2K_04 W/O TBT
C652
0.1u_10V_X7R_04
R393 0_1%_02 TBT
L45
*WCM2012F2S-161T03-short
1
4
2
3
D50
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
D16
CPDZC5V0SPC-HF
12
L46
*WCM2012F2S-161T03-short
1
4
2
3
R374 *1M_04 <Function>
R383 0_04 TBT
D48
CPDZC5V0SPC-HF
12
C651
1u_6.3V_X5R_04
R373 0_1%_02 TBT
D17
CPDZC5V0SPC-HF
12
R368 *1M_04 <Function>
D47
CPDZC5V0SPC-HF
12
C659
0.1u_10V_X7R_04
D18
CPDZC5V0SPC-HF
12
R762 0_1%_02 W/O TBT
R377 *1M_04 <Function>
R370 0_1%_02 TBT
R356 0_06
R765 0_1%_02 W/O TBT
D49
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
C660
10u_6.3V_X5R_06
D19
CPDZC5V0SPC-HF
12
R367 *2.2K_04 <Function>
D44
CPDZC5V0SPC-HF
12
R794 *0_04
<Function>
R395 0_1%_02 W/O TBT
R768 0_1%_02 TBT
R372 *1M_04 <Function>
R386 *10K_04 <Function>
R394 0_04 TBT
R405 0_06
R761 0_1%_02 TBT
U17
ASM1543
W/O TBT
I_SEL0/MUX_EN#
1
DA_a
2
DA_b
3
GNDA1
4
VCC1
5
DB_a
6
DB_b
7
I_SEL1/MUX_SEL
8
REXT
9
DFP_CC2
10
CC2
11
VCONN
12
CC1
13
DFP_CC1
14
ROLE_SEL
15
GNDA2
16
DB_b2 17
DB_a2 18
DA_b2 19
DA_a2 20
DB_b1 21
DB_a1 22
DA_b1 23
DA_a1 24
GNDA3 25
HC_RDY# 26
MC_RDY# 27
CC_RDY# 28
VCC2 29
VCONN_EN 30
PWR_EN 31
MODE_SEL 32
GND 33
R772 0_04 W/O TBT
R398 0_1%_02 W/O TBT
R770 0_1%_02 TBT
R363 2.2K_04 W/O TBT
R391 0_04 TBT
U19
uP7549PRA8-25
W/O TBT
OC# 5
VIN1
2
EN
4
VOUT1 6
GND 1
VIN2
3VOUT2 7
VOUT3 8
C646 0.1u_6.3V_X5R_02 W/O TBT
C640
10u_6.3V_X5R_06
R387 2.2K_04 W/O TBT
R788 0_04 W/O TBT
R764 0_1%_02 TBT
R362 *10K_04 <Function>
R776 0_04 W/O TBT
R793 4.7K_04
W/O TBT
R399 0_04 TBT
C643 0.1u_6.3V_X5R_02 W/O TBT
R787 0_04 W/O TBT
R375 0_04 TBT
R777 *2.2K_04 <Function>
R778 *2.2K_04 <Function>
R785 0_04 W/O TBT
C1125 0.1u_6.3V_X5R_02 W/O TBT
D46
CPDZC5V0SPC-HF
12
R381 10K_04 W/O TBT
C641
1u_6.3V_X5R_04
R388 0_04 TBT
R400 0_04 TBT
R397 0_1%_02 TBT
C647
0.1u_10V_X7R_04
R364 10K_04 W/O TBT
C1126 0.1u_6.3V_X5R_02 W/O TBT
R781 0_04 W/O TBT
R378 0_04 TBT
R361 12.1K_1%_04 W/O TBT
Sheet 45 of 77
USB 3.0 Typce C
Schematic Diagrams
B - 46 USB 3.0 Type C
B.Schematic Diagrams
USB 3.0 Type C
![](asset-67.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PD PIN:
L:Normal operation(default)
H:Chip power dow
DESIGN NOTE:CFG0
Configuration pin for automatic EQ and
Aux interception; Internal pull down at
150Kohm,3.3V I/O
L: default, automatic EQ enable and Aux interception enable
H: automatic EQ disable and AUX interception enable
M: automatic EQ disable and AUX interception
disable,no pre-emphasis, 600mVpp swing
DESIGN NOTE:CFG1
Configuration pin for auto test and input offset
cancellation,3.3V IO, internal pull up at 150K
H: default, auto test disable and input offset cancellation
enable
L: auto test enable and input offset cancellation enable
M: auto test disable and input offset cancellation disable
DESIGN NOTE:PEQ
Programmalbe input equalization levels;internal pull
down at 150k ,3.3v I/O
L: default, LEQ, compensate channel loss up to 12dB at
HBR2
H: HEQ, compensate channel loss up to 15dB at HBR2
M:LLEQ, compensate channel loss up to 5dB at HBR2
Auto test enable; Internal pull down at ~150K ohm, 3.3V I/O.
L: Auto test disable & input offset cancellation enable (default)
H: Auto test enable & input offset cancellation enable
M: Auto test disable & input offset cancellation disable
Automatic EQ disable; Internal pull down at ~150K ohm, 3.3V IO
L: Automatic EQ enable (default)
H: Automatic EQ disable
Programmable input equalization levels; Internal pull down at
~150K
㫉
, 3.3V I/O.
L: default, LEQ, compensate channel loss up to 11.5dB @ HBR2
H: HEQ, compensate channel loss up to 14.5dB @ HBR2
M: LLEQ, compensate channel loss up to 8.5dB @ HBR2
Port switching control or priority configuration;
Internal pull down at ~150K ohm, 3.3V I/O.
L: Port1 is selected or with higher priority (default)
H: Port2 is selected or with higher priority
Chip operational mode configuration;
Internal pull down at ~150K ohm, 3.3V I/O.
L: Control switching mode (default)
H: Automatic switching mode
3 Levels Input:
L: Low
H: High
M: VDD33/2, connect both
pull-up and pull-down resistors
AUX interception disable for Port y (y = 1, 2). Internal pull down at ~150K
㫉
, 9,2
L: AUX interception enable, driver configuration is set by link training (default)
H: AUX interception disable, driver output with fixed 800mV and 0dB
M: AUX interception disable, driver output with fixed 400mV and 0dB
Output swing adjustment for Port y (y = 1, 2). Internal pull down at ~150K
㫉
, 9,2
L: default
H: +20%
M: -16.7%
CO-LAY
TO DP
TO TBT
CO-LAY NV TO DP
ㇵᶲẞ
DEFAULT:LOW
Hybrid DDC/AUX
冯
R828
嶇
R839 CO-LAY
W/ TBT
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
wey_0411
PC11
8338PD
PS8338B_PCH
8338PD
IN_D2p
PI1
PI0
PSCFG0
PC11
PC20
PC21
PC10
PSPEQ
3.3VS
IN_D1p
PSPEQ
3.3VS
IN_CA_DET
PI0
PS8338B_SW
IN_D2n
IN_D3p
IN_D3n
PI1
PSCFG0
PS8338B_SW
MUX_AUXP
MUX_AUXN
IN_AUXp
IN_AUXn
PC10
PC21
PC20
IN_D0p
IN_D0n
IN_D1n
MDP_E#3
MDP_E3
MDP_E#2
MDP_E2
MDP_E#1
MDP_E1
MDP_E#0
MDP_E0
IN_AU Xn
GND
IN_CA_DET
IN_AU Xp
MUX_AUXN
MUX_AUXP
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
NV3V3 NV3V3NV3V3
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,47,48,49,50,57,64]
NV3V3[11,12,13,14,26,52,53,61,62]
OUT1_AUXp_SCL [11]
OUT1_AUXn_SDA [11]
OUT1_D0p [11]
OUT1_D0n [11]
OUT1_D1p [11]
OUT1_D1n [11]
OUT1_D2p [11]
OUT1_D2n [11]
OUT1_D3p [11]
OUT1_CA_DET [11]
OUT1_HPD [11]
OUT2_D0p [42]
OUT2_D0n [42]
OUT2_D1p [42]
OUT2_D1n [42]
OUT2_D2p [42]
OUT2_D2n [42]
OUT2_D3p [42]
OUT2_D3n [42]
OUT2_HPD [42]
OUT1_D3n [11]
OUT2_AUXp_SCL [42]
OUT2_AUXn_SDA [42]
MDP_E_HPD[11,26,32]
MDP_E#0[25]
MDP_E0[25]
MDP_E#1[25]
MDP_E1[25]
MDP_E#2[25]
MDP_E2[25]
MDP_E#3[25]
MDP_E3[25]
MDP_E#0_R [11]
MDP_E0_R [11]
MDP_E1_R [11]
MDP_E#1_R [11]
MDP_E#2_R [11]
MDP_E2_R [11]
MDP_E#3_R [11]
MDP_E3_R [11]
PS8338B_PCH[34]
PS8338B_SW[31]
MDP_E_AUX_SCL[11,25]
MDP_E_AUX#_SDA[11,25]
IN_CA_DET[11]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[46] TBT_DP(PS8338B)
A3
46 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[46] TBT_DP(PS8338B)
A3
46 77Wednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[46] TBT_DP(PS8338B)
A3
46 77Wednesday, July 05, 2017
R616 *4.7K_04
R260 0_04
R600 *4.7K_04
C893 0.1u_10V_X7R_04
R276 *4.7K_04
R818 *4.7K_04
R261 0_04
R621 *4.7K_04
R608 *4.7K_04
U39
PS8338B
PI1/SCL_CTL
1
I2C_CTL_EN
2
IN_HPD
3
IN_CA_DET
4
VDD33
5
IN_D0p
6
IN_D0n
7
PEQ
8
IN_D1p
9
IN_D1n
10
GND
11
IN_D2p
12
IN_D2n
13
PD
14
IN_D3p
15
IN_D3n
16
CEXT
17
SW
18
GND
19
REXT
20
VDD33
21
IN_DDC_SCL
22
IN_DDC_SDA
23
IN_AUXp
24
IN_AUXn
25
OUT1_AUXp_SCL
26
OUT1_AUXn_SDA
27
OUT2_AUXp_SCL
28
OUT2_AUXn_SDA
29
VDD33
30
OUT2_D3n 31
OUT2_D3p 32
OUT2_CA_DET 33
OUT2_D2n 34
OUT2_D2p 35
OUT2_D1n 36
OUT2_D1p 37
OUT2_HPD 38
OUT2_D0n 39
OUT2_D0p 40
OUT1_D3n 41
OUT1_D3p 42
OUT1_CA_DET 43
OUT1_D2n 44
OUT1_D2p 45
OUT1_D1n 46
OUT1_D1p 47
OUT1_HPD 48
OUT1_D0n 49
OUT1_D0p 50
VDD33 51
GND 52
PC21 53
PC20 54
PC11 55
PC10 56
VDD33 57
CFG1 58
CFG0 59
PI0/SDA_CTL 60
EPAD 61
Q65
AO3415
G
D S
C894 0.1u_10V_X7R_04
R258 0_04
C907
0.01u_50V_X7R_04
C500 0.1u_10V_X7R_04
Q66
2SK3018S3
G
DS
R259 0_04
R284 *4.7K_04
R280 *4.7K_04
C522 0.1u_10V_X7R_04
R256 0_04
C895 0.1u_10V_X7R_04
R620
100K_04
R821
4.7K_04
R257 0_04
R607
4.99K_1%_04
C898 0.1u_10V_X7R_04
R822
4.7K_04
R255 0_04
R613 *4.7K_04
C925
0.1u_10V_X7R_04
R830 0_04
TBT
Q44
AO3415
G
D S
R254 0_04
C892
2.2u_6.3V_X5R_04
R623
100K_04
C900 0.1u_10V_X7R_04
R246 *4.7K_04
R831 0_04
TBT
R823
4.7K_04
C899 0.1u_10V_X7R_04
R253 *4.7K_04
C897 0.1u_10V_X7R_04
C538 0.1u_10V_X7R_04
C896 0.1u_10V_X7R_04
C921
0.01u_50V_X7R_04
R603 *4.7K_04
R604 *4.7K_04
R245 *4.7K_04
C520
0.1u_10V_X7R_04
R272 *4.7K_04
R599 *0_04
R624 *4.7K_04
Sheet 46 of 77
PS8338B
Schematic Diagrams
PS8338B B - 47
B.Schematic Diagrams
PS8338B
![](asset-68.png)
Schematic Diagrams
B - 48
B.Schematic Diagrams
TPM, CCD, TP
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SLB9665TT(SLB9660
䚠
䚠䚠
䚠⎴
⎴⎴
⎴
)& NPCT650 COLAY
LPC_SIRQ & PM_CLKRUN#
䡢
䡢䡢
䡢娵
娵娵
娵
PCH
䪗
䪗䪗
䪗暨
暨暨
暨
PULL HIGH
PIN10 PIN19 PIN24
PIN5
Port 9
From KBC default HI
48 mil
CCD
1A1A
FOR TP
㲐シ
PCLK_TPM
⤪㚱ᷚ暣旣㚱ᶲ
TPM
㗪暨⺢
BOM
GPIO
H: W / TPM (ᶲ R222 )
L: W/O TPM (ᶲ R221)
SMBUS address: 0x2C
MAIN: 6-20-44A00-108
2ND: 6-21-C3A00-108
BEAD & CAP FOR EMI
6-20-94K30-106
⬠溆
5/23
ᾖ㓡
TPM FW
䇰㛔炻冲㕁嘇
DISABLE
6-03-09655-0H1
kai_1214
LRESET#
TPM_GPIO
BUF_PLT_RST#
TPM_PP
LRESET#
BUF_PLT_RST#
CCD_EN
MIC_CLK_L
MIC_DATA_L
TP_CLK
TP_DATA
TP_SMB_CLK
TP_SMB_DAT
TP_DATA
TP_CLK
TP_SMB_DAT
TP_SMB_CLK
3.3VS
3.3VS
CCD_PWR
3.3VS
TP_VCC
3.3VS
5VS
TP_VCC
3.3VS
3.3VS
3.3VS
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,48,49,50,57,64]
LPC_FRAME#[32,35]
LPC_AD1[32,35]
LPC_AD3[32,35]
LPC_AD2[32,35]
PCLK_TPM[32]
LPC_AD0[32,35]
SERIRQ[32,35]
BUF_PLT_RST#[34,35,37,38,42,48]
5V[39,44,45,48,49,50,51,52,53,54,55,56,57,58,59,63]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
CCD_EN[35]
5VS[10,11,12,13,36,39,40,41,48,49,50,61,62,63,64]
TPM_DET [34]
SMB_CLK [32,39,55]
SMB_DATA [32,39,55]
TP_DATA [35]
TP_CLK [35]
USB_PN9[30]
USB_PP9[30]
MIC_DATA[39]
MIC_CLK[39]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[47] TPM, CCD, TP
A3
47 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[47] TPM, CCD, TP
A3
47 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[47] TPM, CCD, TP
A3
47 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
H30
*H6_0D2_8
R710 *0_04
H15
*H9_5D6_0
C677 47p_50V_NPO_04
H20
*H8_0D3_7
H6
*H6_3D4_4
H18
*H9_5D6_0
C1139 47p_50V_NPO_04
C1114
0.1u_10V_X7R_04
R221
100K_04
W/O TPM
H11
*H9_5D6_0
H12
*H8_0D2_8
R708
10K_04
C663
1u_6.3V_X5R_04
H33
*H8_0D2_8
R758 *0_04
S
D
G
Q27B
MTDK3S6R
5
34
C1140 47p_50V_NPO_04
H29
*C111D111N
M13
*M-MARK
R352
2.2K_04
H23
*H8_0D2_8
H31
*H7_0B6_0D3_2
C662
2.2u_6.3V_X5R_04
H19
*H8_0D2_8
S
D
G
Q27A
MTDK3S6R
2
61
C1053
*10u_6.3V_X5R_06
H43
*H7_0B6_0D3_7
C1065 1u_6.3V_X5R_04
H35
*H7_0B6_0D3_7
C673 47p_50V_NPO_04
J_TP1
FPC0502-6AW-S-HF
fp225h-006xxxm_R
1
2
3
4
5
6
H5
*H8_0D2_8
H25
*H9_8D2_8
L14
*WCM2012F2S-SHORT
1
4
2
3
M14
*M-MARK
H1
*C111D111N
H10
*H8_0D3_7
R724 0_04
M9
*M-MARK
L15
HCB1005KF-121T20
1 2
H44
*H7_0B6_0D3_7
H4
*H8_0D2_8
M11
*M-MARK
C1068
47p_50V_NPO_04
H3
*H8_0D2_8
H36
*H7_0B6_0D3_7
H38
*H7_0B6_0D3_7
J_CCD1
85204-08001
1
2
3
4
5
6
7
8
H26
*u12_0x10_2b10_0d6_7
M1
*M-MARK
C1115
0.1u_10V_X7R_04
R757 4.7K_04
H8
*H6_3D4_4
M16
*M-MARK
C1074
0.1u_10V_X7R_04
C1059 0.1u_10V_X7R_04
H7
*H6_3D4_4
H34
*H7_0B6_0D3_7
H42
*H6_0D2_8
U20
UP7553PMA5-25
M-SOT23-5
VIN
4
VIN
5
EN
3
VOUT 1
GND 2
H17
*H6_3D4_4
H40
*H7_0B6_0D3_7
H22
*H6_3D4_4
C1073
0.1u_10V_X7R_04
R346
2.2K_04
M10
*M-MARK
H21
*H6_3D4_4
R709
10K_04
L16
HCB1005KF-121T20
1 2
H16
*H6_3D4_4
H39
*H7_0B6_0D3_7
M12
*M-MARK
H14
*H9_5D6_0
R222
100K_04
TPM
H13
*H8_0D3_7
H24
*H8_0D2_8
C1067
47p_50V_NPO_04
H9
*H6_3D4_4
H2
*C111D111N
TPM
U52
SLB9665TT_5.51
LAD3
17
LAD0
26
LAD1
23
LAD2
20 VDD2 10
NC_6
13
VDD4 24
VDD3 19
LFRAME#
22
LCLK
21
LRESET#_1
16
SERIRQ
27
NC_8
15
GND_1 4
GND_2 11
GND_3 18
GND_4 25
GPIO 6
NC_2
2
NC_7
14
NC_4
8
LRESET#_2
9
PP
7
NC_1
1
NC_3
3
NC_5
12
NC_9
28
VDD1 5
H28
*C111D111N
H27
*H8_0D2_8
Sheet 47 of 77
TPM, CCD, TP
![](asset-69.png)
Schematic Diagrams
Connectors B - 49
B.Schematic Diagrams
Connectors
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
FP
MAIN: 6-20-94K50-012
2ND: 6-20-94K60-012
LED BOARD
婳
EC PIN24
復↢ầ
SSD
LED
≽ἄ䘬㊯䣢炻德忶
AP
忂䞍
BIOS
⛐⏲䞍
EC
↢≽ἄ
alway
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
,close to J_AUDIO2
LAN BOARD
(⏓
⏓⏓
⏓USB3.0x2, PHONE JACK)
1
J_BTN1
4
MAIN: 6-20-94A40-004
2ND: 6-20-94A60-004
POWER BTN BOARD
CONN
USB BOARD CONN
AUDIO BOARD CONN
30mil 30mil
SIM BOARD CONN
月役
conn
㒢㓦
LED_HDD#
LED_HDD#
USB3_TXN5
USB3_TXP5
USB_PP1
USB_PN1
DD_ON#
USB3_RXN1
USB3_RXP1
USB3_TXP1
USB3_TXN1
USB_PP5
USB_PN5
USB3_RXN5
USB3_RXP5
UIM_RST
UIM_DATA
UIM_CLK
SIM_DET
3.3VS
3.3VS
GND
3.3VS
GND
VDD3
3.3VS
5V
5VS
AUDG
3.3VS
3.3V
GND
3.3VS
VDD5
VDD3
3.3VS
VDD3[5,26,30,31,32,33,34,35,37,38,49,50,51,52,53,54,56,59,60]
5VS[10,11,12,13,36,39,40,41,47,49,50,61,62,63,64]
5V[39,44,45,49,50,51,52,53,54,55,56,57,58,59,63]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,49,50,57,64]
3.3V[2,10,27,38,43,45,50,51,52,55,56]
VIN[10,35,39,50,53,54,55,56,57,58,59,60]
LED_BAT_FULL [35]
LED_NUM# [35]
LED_CAP# [35]
LED_SCROLL# [35]
AIRPLAN_LED# [35]
LED_ACIN [35]
LED_PWR [35]
LED_BAT_CHG [35]
PS8331_SW [3,10,26,32]
EC_SSD_LED# [35]
PCH_SATAHDD_LED# [31]
HEADPHONE-R [39]
M_BTN#[50]
M2M_SSD_LED#R [37]
M2M_SSD_LED#R2 [37]
USB3_TXN5 [32]
USB3_TXP5 [32]
VDD5[39,44,45,49,50,51,52,53,54,55,56,57,58,59,63]
NV3V3[11,12,13,14,26,46,52,53,61,62]
USB_PN7 [30]
USB_PP7 [30]
USB3_RXP6[32]
USB3_TXN6[32]
USB3_RXN6[32]
USB3_TXP6[32]
GCLK_25M_GLAN[31]
USB3_TXN4[32]
USB3_TXP4[32]
USB3_RXN4[32]
USB3_RXP4[32]
CLK_PCIE_GLAN#[31]
CLK_PCIE_GLAN[31]
PCIE_TXP5_GLAN[30]
PCIE_TXN5_GLAN[30]
PCIE_RXN5_GLAN[30]
PCIE_RXP5_GLAN[30]
CLK_PCIE_SD40#[31]
CLK_PCIE_SD40[31]
PCIE_TXP6_SD40[30]
PCIE_TXN6_SD40[30]
PCIE_RXN6_SD40[30]
PCIE_RXP6_SD40[30]
SD40_CLKREQ#[31]
LAN_CLKREQ#[31]
BUF_PLT_RST#[34,35,37,38,42,47]
DD_ON#[50,55]
LAN_WAKEUP#[30,32,35,38,42]
HEADPHONE-L [39]
HP_JSGND [39]
SIDE_R [39]
SIDE_L [39]
JD_SENSEA [39]
JD_SENSEB [39]
MIC1_R_M [39]
MIC1_L_M [39]
USB_PN6[30]
USB_PP6[30]
USB_PN4[30]
USB_PP4[30]
DD_ON[35,45,50,54]
USB_PP1 [30]
USB_PN1 [30]
USB3_RXP1 [32]
USB3_RXN1 [32]
USB3_TXN1 [32]
USB3_TXP1 [32]
USB_PN5 [30]
USB_PP5 [30]
USB3_RXN5 [32]
USB3_RXP5 [32]
UIM_RST [38]
UIM_PWR [38]
UIM_DATA [38]
UIM_CLK [38]
SIM_DET [38]
SPDIFO [39]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[48] CONNECTOR
A3
48 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[48] CONNECTOR
A3
48 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[48] CONNECTOR
A3
48 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
A
C
C
D36
BAT54AN3
1
2
3
C505
0.1u_10V_X7R_04
J_AUDIO1
FPC0502-16AW-S-HF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
J_USB1
FP225H-030S10M
PCB Footprint = fp225h-030gxxm
11
22
33
44
55
66
77
88
99
10 10
13 13
19 19
12 12
16 16
14 14
18 18
15 15
11 11
17 17
20 20
21 21
24 24
22 22
23 23
25 25
26 26
27 27
28 28
29 29
30 30
C1133
*0.01u_16V_X7R_04
J_BTN1
FPC1004-4AW-S
PCB Footprint = FP226H-004XXXM_L
1
2
3
4
NC1
NC2
C537
0.1u_10V_X7R_04
.
L48
FCM1005KF-121T03
J_LAN2
FP238BH- 024S10M
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
25
26
U47
74AHC1G08GW
1
2
5
4
3
J_LED1
FP225H-012S10M
1
2
3
9
NC1
NC2
4
5
6
7
8
10
11
12
J_LAN1
LVDFH-03008-TP00+
PCB Footprint = lvdfh-030xx-tx00
current = 0.3A
30
30 29
29 28
28 27
27 26
26 25
25 24
24 23
23 22
22 21
21 20
20 19
19 18
18 17
17 16
16 15
15 14
14 13
13 12
12 11
11 10
10 9
98
87
76
65
54
43
32
21
1
GND1 GND1
GND2 GND2
GND3 GND3
GND4 GND4
GND5 GND5
J_FP1
FPC0502-6AW-S-HF
fp225h-006xxxm_R
1
2
3
4
5
6
EMC1
100p_50V_NPO_04
.
L40
FCM1005KF-121T03
J_SIM1
FP225H-008S11M
fp225h-008gxxxm_r
1
2
3
4
5
6
7
8
Sheet 48 of 77
Connectors
![](asset-6a.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
J_FAN1
CPU FAN CONTROL
1
3
CPU_FAN
J_FAN1
3
1
VGA FAN1 CONTROL
VGA_FAN1
J_FAN1
3
1
VGA FAN2 CONTROL
VGA_FAN2
VGA FAN CONTROL-Selector
6-20-23120-003
LID BOARD CONN
BY
ἧ䓐䘬廠↢暣⡻ 婧㔜
,
ὅ≇䌯
(
旣ῤ
&
⊭墅⣏⮷
)
㓦暣徜嶗 枸䔁ᶵᶲ
SATA_5VS
C4
ON
FOR SUPPORT OPTANE
㨇
㨇㨇
㨇䧖
䧖䧖
䧖
,SATA HDD
≈
≈≈
≈
POWER GATEING
暣
暣暣
暣嶗
嶗嶗
嶗
2.5A2.5A
main HDD
WEY_11/22
㈦
㈦㈦
㈦
bios
天
天天
天
pin
śɥ
śɨ
R647&D32 OR C974
㑯ᶨᶲẞ
枸
枸枸
枸䔁
䔁䔁
䔁
FON1#
VFAN1ON#
VGA_FAN1SEN
VFAN2ON#
VGA_FAN2SEN
LID_SW#
SUSB
SATA1B_TXP_R
SATA1B_RXN_R
SATA1B_RXP_R
SATA1B_TXN_R
SATA1B_TXP
SATA1B_RXN
SATA1B_RXP
SATA1B_TXN
VGA_FAN1SEN
VGA_FAN2SEN
VGA_FAN2SEN
VGA_FAN1SEN
5VS_CPU_FAN
3.3VS
5VS
3.3VS
5VS_VGA_FAN1
5VS
3.3VS
5VS_VGA_FAN2
5VS
GND
VDD3
5VS SATA_5VS
5V
SATA_5VS
SATA_5VS
5VS
3.3V [2,10,27,38,43,45,48,50,51,52,55,56]
CPU_FANSEN[35]
CPU_FAN [35]
VGA_FAN1 [35]
3.3VS [3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,50,57,64]
5VS [10,11,12,13,36,39,40,41,47,48,50,61,62,63,64]
VIN [10,35,39,50,53,54,55,56,57,58,59,60]
VGA_FAN2 [35]
VDD3 [5,26,30,31,32,33,34,35,37,38,48,50,51,52,53,54,56,59,60]
5V [39,44,45,48,50,51,52,53,54,55,56,57,58,59,63]
SATA_PWR_EN FROM PCH[34]
SUSB[11,12,13,50,55]
SATA1B_TXN_R [31]
SATA1B_TXP_R [31]
SATA1B_RXP_R [31]
SATA1B_RXN_R [31]
LID_SW#[10,35]
VGA_FANSEN[35,49]
VGASEN_SEL [35,49]
VGA_FANSEN [35,49]
VGASEN_SEL[35,49]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[49] FAN, LID, SATA HDD
A3
49 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[49] FAN, LID, SATA HDD
A3
49 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[49] FAN, LID, SATA HDD
A3
49 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C750
1u_6.3V_X5R_04
C931
0.1u_10V_X7R_04
C952
1u_6.3V_X5R_04
Q50
*2SK3018S3
G
DS
C745
*4.7u_6.3V_X5R_06
J1 *OPEN-3mm
1 2
C721
10u_6.3V_X5R_06
J_VFAN1
85204-03001
1
2
3
C936 0.01u_50V_X7R_04
C815
*4.7u_6.3V_X5R_06
R646
*220_06
C402 *0.1u_10V_X7R_04
U24
NCT3940S-A
VOUT
3
GND 5
VIN
2FON
1
VSET
4GND 6
GND 8
GND 7
C935 0.01u_50V_X7R_04
PJ48
*OPEN_4mil
1 2
C
A
A
D26
BAT54CWH
1
2
3
C828
10u_6.3V_X5R_06
J_LID1
FPC1004-4AW-S
PCB Footprint = fp226h-004xxxm_l
1
2
3
4
NC1
NC2
C933 0.01u_50V_X7R_04
C943
10u_6.3V_X5R_06
U10
*PI5A3158BZAE
0B0
2
1B0
11
S0
10
0B1
5
1B1
8
S1
7
VCC 12
A0 1
GND 3
VCC 9
GND 6
A1 4
C821
10u_6.3V_X5R_06
D25
RB751S-40H
A C
C934 0.01u_50V_X7R_04
C973
10u_6.3V_X5R_06
C939
10u_6.3V_X5R_06
C972
10u_6.3V_X5R_06
C846
*4.7u_6.3V_X5R_06
U32
NCT3940S-A
VOUT
3
GND 5
VIN
2FON
1
VSET
4GND 6
GND 8
GND 7
Q39
2SK3018S3
G
DS
R647
*10K_04
J_VFAN2
88266-03001
1
2
3
C929
22u_6.3V_X5R_08
J_FAN1
85204-03001
1
2
3
R170 4.7K_04
U29
NCT3940S-A
VOUT
3
GND 5
VIN
2FON
1
VSET
4GND 6
GND 8
GND 7
U42
M5938BRD1U
EN
2
GATE
1
VIN
9VOUT 8
VBIAS 4
GND 3
VOUT 7
VOUT 6
VOUT 5
C930
22u_6.3V_X5R_08
C816
1u_6.3V_X5R_04
R520 4.7K_04
C974
*100p_50V_NPO_04
J_HDD1
FP225H-010S10M
1
2
3
4
5
6
7
8
9
10
C844
1u_6.3V_X5R_04
D32
*RB0540S2
AC
C932
1u_6.3V_X5R_04
R92 4.7K_04
Sheet 49 of 77
Fan, LID, SATA
HDD
Schematic Diagrams
B - 50 Fan, LID, SATA HDD
B.Schematic Diagrams
Fan, LID, SATA HDD
![](asset-6b.png)
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
EMIEMI
DEFAULT SHORT
6A
3.3V
6A
3.3VS
Clost to P2808B0
6A
5VS
ON
3A
3.3VA
6A
DEFAULT SHORT
SUSB
DD_ON_EN SUSB#_EN3.3VS_ON
SUSB#
VDD3_R
SUSB#_EN
USB_CHARGE_EN
DD_ON
SUSB
DD_ON#
3.3VA_ON 3.3VA_ON
DD_ON
VIN1
VDD3
5VS
VDD3
3.3V
VDD3
3.3VS
VDD3
VAVIN VIN1 VA
VIN
VIN
VIN VINVIN
VDD3
VDD3
VDD5
VDD3
VDD3
3.3VA
VDD3
VDD3
VDD5 5V
VDD3
VDD3
VA[60]
VIN[10,35,39,53,54,55,56,57,58,59,60]
3.3V[2,10,27,38,43,45,48,51,52,55,56]
5VS[10,11,12,13,36,39,40,41,47,48,49,61,62,63,64]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,57,64]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,51,52,53,54,56,59,60]
5V[39,44,45,48,49,51,52,53,54,55,56,57,58,59,63]
3.3VA[5,30,31,32,33,34]
SUSB#_EN [51]
USB_CHARGE_EN [35,54]
VIN1[54]
M_BTN#[48]
PWR_SW # [35]
DD_ON# [48,55] SUSB [11,12,13,49,55]
DD_ON[35,45,48,54] SUSB#[10,32,34,35,41,42,56]
VDD5[39,44,45,48,49,51,52,53,54,55,56,57,58,59,63]
EC_SLP_SUS#[32,35,56]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[50] 5V,5VS,3.3V,3.3VS,3.3VA
A3
50 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[50] 5V,5VS,3.3V,3.3VS,3.3VA
A3
50 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[50] 5V,5VS,3.3V,3.3VS,3.3VA
A3
50 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R800
10K_04
S
D
G
Q54B
MTDK3S6R
5
34
PR337
100K_04
PR358
10K_04
C701
0.1u_50V_Y5V_06
R22 10K_04
PC215
*0.1u_10V_X7R_04
PJ37 *1mm
12
S
D
G
Q54A
MTDK3S6R
2
61
PR352
100K_04
C450
1u_6.3V_X5R_04
C470
0.1u_10V_X7R_04
G5016U12
CT2 10
OUT2 8
EN2
5
VBIAS
4
IN2 6
GND
11
EN1
3
CT1
12
OUT1
13
IN1
1
IN1
2
OUT1
14
IN2 7
OUT2 9
GND
15
C89
0.01u_50V_X7R_04
U21
P2808B0
VA
1
VIN
2
M_BTN#
3
INSTANT-ON
4GND 5
PWR_SW # 6
DD_ON_LATCH 7
VIN1 8
R23 1K_1%_04
PJ53*CV-40mil
12
C947
*0.1u_10V_X7R_04
C449
*0.1u_10V_X7R_04
C88
0.01u_50V_X7R_04
R420 *100K_04
C91
1000p_50V_X7R_04
G5016U43
CT2 10
OUT2 8
EN2
5
VBIAS
4
IN2 6
GND
11
EN1
3
CT1
12
OUT1
13
IN1
1
IN1
2
OUT1
14
IN2 7
OUT2 9
GND
15
R24 100K_04
R569 10K_04
R639
100K_04
C490
0.1u_10V_X7R_04
C949
*0.1u_10V_X7R_04
C492
220p_50V_NPO_04
R556
10K_04
R678
10K_04
PQ37
2SK3018S3
G
DS
R426 1_1%_06
C90
1000p_50V_X7R_04
R635
10K_04
PQ39
2SK3018S3
G
DS
PR346
10K_04
C996
220p_50V_NPO_04
C493
0.1u_10V_X7R_04
PJ45*CV-40mil
12
R422 10K_04
C994
0.1u_10V_X7R_04
C997
0.1u_10V_X7R_04
C491
330p_50V_NPO_04
C467
0.1u_10V_X7R_04
R425 *100K_04
C950
0.1u_10V_X7R_04
C451
*0.1u_10V_X7R_04
C946
0.1u_10V_X7R_04
Q53
2SK3018S3
G
DS
R679 *10K_04
R676
100_04
C995
470p_50V_X7R_04
C948
1u_6.3V_X5R_04
C698
0.1u_50V_Y5V_06
R640
10K_04
R677
100_04
C704
0.1u_50V_Y5V_06
R423 1K_1%_04
PJ44 *1mm
12
PC228
*0.1u_10V_X7R_04
R424 10K_04
Sheet 50 of 77
5V, 5VS, 3.3V,
3.3VS, 3.3VA
Schematic Diagrams
5V, 5VS, 3.3V, 3.3VS, 3.3VA B - 51
B.Schematic Diagrams
5V, 5VS, 3.3V, 3.3VS, 3.3VA
![](asset-6c.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
1A
*1 VOUT rising time can be speed up if adding
R1 & D1 network between EN and GATE
*2 VOUT rising time can be slow down if adding
C1 between GATE and GND
R1
D1
C1
R1
D1
C1
*1 VOUT rising time can be speed up if adding
R1 & D1 network between EN and GATE
*2 VOUT rising time can be slow down if adding
C1 between GATE and GND
1A
NB671_SIGNAL_GND2
DEFAULT
3A
Ra
Rb
3A
3A
2.5V_LDO
天䦣月役
PIN6
儛
Vout = 0.8V ( 1 + Ra / Rb )
For CV test
1A 1A
VCCSFR_OC
DEFAULT SHORT DEFAULT SHORT
1.0DX_VCCSTG
2.5V/3A
NOTE:
1.0DX_VCCSTG TURN-ON need <65us
M5938 TURN-ON TIME=60us
6-15-59381-7B06-15-59381-7B0
SUSB#_EN VCCSFROC_ENVCCSTG_EN
2.5V_PG
V2.5_LDO
VDDQ VCCSFR_OC
VREG5
VDD1.0 1.0DX_VCCSTG
VDD3
3.3V
5V 5V
2.5V
VDD1.0[31,33,56]
1.0DX_VCCSTG[5,6]
5V[39,44,45,48,49,50,52,53,54,55,56,57,58,59,63]
VCCSFR_OC[6]
VDDQ[6,8,9,32,55]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,52,53,54,56,59,60]
VIN[10,35,39,50,53,54,55,56,57,58,59,60]
2.5V[8,9]
3.3V[2,10,27,38,43,45,48,50,52,55,56]
SUSC#[32,35,55,56]
SUSB#_EN[50]
VCCIO_EN[56,59]
VREG5[54,56]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[51] 1.0DX_VCCSTG/VCCSFR_OC/2.5
A3
51 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[51] 1.0DX_VCCSTG/VCCSFR_OC/2.5
A3
51 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[51] 1.0DX_VCCSTG/VCCSFR_OC/2.5
A3
51 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
PC181
10u_6.3V_X5R_06
PC180
0.1u_10V_X7R_04
PR289
*47K_04
PJ43 *1mm
1 2
C888
10u_6.3V_X5R_06
PU13
G9661-25ADJF11U
GND
8
VCNTL 4
NC 5
VIN
3
VOUT 6
VFB 7
POK
1
EN
2
GND
9
D37
*RB0540S2
AC
C867
10u_6.3V_X5R_06
R592
10K_04
C1102
10u_6.3V_X5R_06
C1089
10u_6.3V_X5R_06
C872
1u_6.3V_X5R_04
C871
10u_6.3V_X5R_06
R590 *4.7K_04
D27
RB0540S2
AC
R746
*10K_04
C882
*0.01u_16V_X7R_04
PC178
22u_6.3V_X5R_08
PJ52 *1mm
1 2
C1108
*0.01u_16V_X7R_04
C1080
10u_6.3V_X5R_06
PR291
10K_1%_04
PC182
1u_6.3V_X5R_04
PR292
21.5K_1%_04
PR290
100K_04
PJ30
*CV-40mil
1 2
PC176
82p_50V_NPO_04
C1093
1u_6.3V_X5R_04
C876
0.1u_10V_X7R_04
U35
M5938BRD1U
EN
2
GATE
1
VIN
9VOUT 8
VBIAS 4
GND 3
VOUT 7
VOUT 6
VOUT 5
U53
M5938BRD1U
EN
2
GATE
1
VIN
9VOUT 8
VBIAS 4
GND 3
VOUT 7
VOUT 6
VOUT 5
PJ31
*OPEN_4mil
1 2
R751 0_04
PC179
*10u_6.3V_X5R_06
PC177
*0.1u_10V_X7R_04
R591 10K_04
PR294
0_04
Sheet 51 of 77
1.0DX_VCCSTG/
VCCSFR_OC/2.5V
Schematic Diagrams
B - 52 1.0DX_VCCSTG/VCCSFR_OC/2.5V
B.Schematic Diagrams
1.0DX_VCCSTG/VCCSFR_OC/2.5V
![](asset-6d.png)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
Rb
Rt
1.8V= 0.6 * (1+(20K/10K))
Open VREG Type 0
Vout= Vref * (1+(Rt/Rb))
3A
C1
1V8_AON
2.6Amps @ 1.8V
1A
R1
D1
1A
6-15-59381-7B0
NV3V3
1V8_AON
R1
D1
C1
3A
M:6-02-05841-CD0
S:6-02-08071-CD0
4/20
㍉岤天㯪⮶ℍ
2ND
3A
1V8_RUN
6-15-59381-7B0
4A
NV_1V8AON_EN_R
NV_3V3_EN_R
NV_1V8RUN_EN_R
NV_1V8RUN_EN_R
NV_3V3_EN_R
5V
GND
GND
GND
1V8_AON
1V8_AON
3.3V
VDD3
5V
VDD3
5V
1V8_RUN
NV3V3
1V8_AON
NV_1V8AON_EN[27]
NV_1V8RUN_EN[27]
PEX_VDD[14,25,53]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,53,54,56,59,60]
NV3V3[11,12,13,14,26,46,53,61,62]
1V8_RUN[14,15,23,24,28]
1V8_AON[3,23,24,26,27,28,31,53,61,62,64]
3.3V[2,10,27,38,43,45,48,50,51,55,56]
5V[39,44,45,48,49,50,51,53,54,55,56,57,58,59,63]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
NV_3V3_EN[27]
1V8_AON_PG[27]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[52] 1V8_RUN, 1V8_AON , NV3V3
A3
52 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[52] 1V8_RUN, 1V8_AON , NV3V3
A3
52 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[52] 1V8_RUN, 1V8_AON , NV3V3
A3
52 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C779
100p_50V_NPO_04
R481 0_04
PC169
1u_6.3V_X5R_04
PR277
10K_1%_04
D23
*RB0540S2
AC
C771
10u_6.3V_X5R_06
PR284 10K_1%_04
PR281 0_04
R125
10_06
PC172
*0.22u_10V_X5R_04
PR276
10_06
S
D
G
Q13A
MTDK3S6R
2
61
C331
10u_6.3V_X5R_06
C781
1u_6.3V_X5R_04
PC171
22u_6.3V_X5R_08
PC167
22u_6.3V_X5R_08
C758
10u_6.3V_X5R_06
OpenVReg
PU11
EM5841BVT
1
FB
2
VCC
3
VIN
4
GND
5
GND
6
SW
7
SW
8
BOOT/NC
9
PGOOD
10
EN/FS
11
THERM
S
D
G
Q13B
MTDK3S6R
5
34
PL12
2.2uH_4*4*2.0
1 2
PR279
10K_04
PC166
22u_6.3V_X5R_08
C790
1u_6.3V_X5R_04
R128
10_06
PC170
0.1u_10V_X7R_04
PC168 *0.01u_16V_X7R_04
C338
10u_6.3V_X5R_06
R504 0_04
PU10
M5938BRD1U
EN
2
GATE
1
VIN
9VOUT 8
VBIAS 4
GND 3
VOUT 7
VOUT 6
VOUT 5
PR280 0_04
R474
*10K_04
PR282 20K_1%_04
S
D
G
Q12B
MTDK3S6R
5
34
PC165
0.1u_10V_X7R_04
C788*0.01u_16V_X7R_04
C780
*0.1u_10V_X7R_04
R130
100K_04
C762
10u_6.3V_X5R_06
R119
100K_04
C789
*0.1u_10V_X7R_04
U27
M5938BRD1U
EN
2
GATE
1
VIN
9VOUT 8
VBIAS 4
GND 3
VOUT 7
VOUT 6
VOUT 5
PC173 3300p_50V_X7R_04
PR283 0_04
S
D
G
Q12A
MTDK3S6R
2
61
PR278 *160K_04
R503
*10K_04
D22
*RB0540S2
AC
Sheet 52 of 77
1V8_RUN/AON,
NV3V3
Schematic Diagrams
1V8_RUN/AON, NV3V3 B - 53
B.Schematic Diagrams
1V8_RUN/AON, NV3V3
![](asset-6e.png)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
Cold boot/Optimus: 1V8_AONĺ1V8_RUNĺNVVDDĺNVVDDS ĺPEX_VDDĺFBVDDQ
GC6 2.1 Exit: 1V8_RUNĺNVVDD_LĺNVVDD_SĺPEX_VDD or 1V8_RUNĺNVVDD_LĺNVVDD_S & PEX_VDD
POWER RAIL State in GC6
1V8_AON
1V8_MAIN
PEX&1.05V
NVVDD
ON
OFF
OFF
OFF
close to ICP lace resistors
GC6 2.1 Control Signals
1.1V8_MAIN_EN
2.GC6_FB_EN
3.GPU_EVENT#
4.GPU_PEX_RST_HOLD#
5.SYS_PEX_RST_MON#
GPU
1V8_MAIN_EN
GC6_FB_EN
VR Complex
1V8_AON
1V8_MAIN
NVVDD
PEX&1.05V
NVVDDS
EC/PCH
GPU_PWR_EN
GPU_EVENT#
GPU_RST#
PLATFORM_RST#
SYS_PEX_RST_MON#
GPU_PEX_RST_HOLD#
GPU_PEX_RST#
FBVDD/Q
NVVDDS
NVVDD
GC6 2.1 - VR Complex
1. GPU_PWR_EN
2. 1V8_MAIN_EN
3. GC6_FB_EN
GPU
GPU_PWR_EN
(SYSTEM) 1V8_AON
1V8_AON
1V8_MAIN_EN 1V8_MAIN
PEX&1.05V
NVVDD
FBVDD/Q
EN
EN
EN
EN
EN
PGOOD
PGOOD PGOOD
PGOOD
GC6_FB_EN
PGOOD
DG P.93 note: t1(from 1V8_RUN_EN to PEX_VDD/NVVDD_PG) must NOT exceed 4ms.
N17E
FBVDDQ
POWER ON SEQUENCE POWER OFF SEQUENCE
GPPG0_PCH_PEXVDD_EN (GPP_G0) (PEX_VDD)
GPPG11_PCH_NVVDDS_EN (GPP_G11) (NVVDDS)
GPPG10_PCH_NVVDD_EN (GPP_G10) (NVVDD)
GPPG9_PCH_NV3V3_EN (GPP_G9) (NV3V3)
GPPG8_PCH_1V8RUN_EN (GPP_G8) (1V8_MAIN)
DGPU_PWR_EN (GPP_F23) (1V8_AON)
net PCH_GPIO Voltage
FBVDD/Q ON
NVVDDS OFF
Rt
2.6Amps @ 1.0V
Open VREG Type 0
PEX_VDD
Vout= Vref * (1+(Rt/Rb))
Rb
1.050V= 0.6 * (1+(7.5K/10K))
FBVDDQ_SENSE
FBVDDQ_SENSE_RTN
I2CC_SCL
I2CC_SDA
GPU_NVVDD_SENSE
GPU_GND_SENSE
PWR_SRC_VALID
SNN_TC
SNN_VPU
I2CC_SCL
I2CC_SDA
PWR_SRC_IMON_A0
PEX_VDD_R
PWR_SRC_WARN*
PWR_SRC_CRTCAL*
PS2_FBVDDQ_FB
10A 10A
0.400
PWR_SRC_VINNPWR_SRC_VINN_R
PWR_SRC_VINP_R
VIN2N
VIN2P
PWR_SRC_VINP
SNN_VIN3P
SNN_VIN3N
2.4A
PEX_VDD_R
1.1V
PS6_FB_MARGIN_PEXVDD
PS6_FB_RR_PEXVDD
0.400
4A
0.200
PEXVDD_EN
PEXVDD_EN
GND
5V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
VIN
PWR_SRC_NV_FB
NV3V3
NV3V3
1V8_AON
VDD3
PEX_VDD
FBVDDQ_SENSE_RTN[28,64]
FBVDDQ_SENSE[28,64]
GPU_NVVDD_SENSE[28,62]
GPU_GND_SENSE[28,62]
NV_PEXVDD_EN [27]
PS2_FBVDDQ_FB[64]
I2CC_SCL [26,53]
VIN[10,35,39,50,54,55,56,57,58,59,60]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,54,56,59,60]
PEX_VDD[14,25]
NV3V3[11,12,13,14,26,46,52,61,62]
5V[39,44,45,48,49,50,51,52,54,55,56,57,58,59,63]
1V8_RUN[14,15,23,24,28,52]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
PWR_SRC_NV_FB[61,62,64]
PWR_SRC_NV[62,63]
1V8_AON[3,23,24,26,27,28,31,52,61,62,64]
I2CC_SCL[26,53]
PWR_SRC_NVS_VINNP_R[61]
PWR_SRC_NVS_VINN_R[61]
PWR_SRC_NV_VINP_R[62]
PWR_SRC_NV_VINN_R[62]
GPIO28_OC_WARN# [26]
I2CC_SDA[26,53]
I2CC_SDA [26,53]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[53] PEX_VDD
Custom
53 77Wednesday, Jul y 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[53] PEX_VDD
Custom
53 77Wednesday, Jul y 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[53] PEX_VDD
Custom
53 77Wednesday, Jul y 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
PR40 665K_1%_04
PR33 665K_1%_04
PR76 *160K_04
PC160
22u_6.3V_X5R_08
PR35 10_1%_04
PC42
0.01u_50V_X7R_04
PR30 10K_04
PC155
22u_6.3V_X5R_08
PC154
0.1u_10V_X7R_04
PR29 10_1%_04
PJ28
*3mm
1 2
PR75
10K_1%_04
S
D
G
Q5A
MTDK5S6R
2
61
PR271 0_04
PC43
10u_6.3V_X5R_06
PR41 10_1%_04
PC156
22u_6.3V_X5R_08
PR275 *10_1%_04
PC37
10u_6.3V_X5R_06
PR270 0_04
OpenVReg
PU9
EM5841BVT
1
FB
2
VCC
3
VIN
4
GND
5
GND
6
SW
7
SW
8
BOOT/NC
9
PGOOD
10
EN/FS
11
THERM
PR269
10_06
PC158 3300p_50V_X7R_04
S
D
G
Q5B
MTDK5S6R
5
34
PC57
0.1u_10V_X7R_04
INS16638818
PU1
INA3221AIRGV
1
VIN3N
2
VIN3P
3
GND
4
VS
5
A0
6
SCL
7
SDA
8
WARN
9
CRIT
10
PV
11
VIN1N
12
VIN1P
13
TC
14
VIN2N
15
VIN2P
16
VPU
17
PAD
PR42 10_1%_04
PR37 10K_04
PR38 665K_1%_04
R83
100K_04
PR273 10K_1%_04
R103
10_06
PC36
10u_6.3V_X5R_06
PRS2
RL1632T4F-B-R005-FNH
1
23
4
PL11
2.2uH_4*4*2.0
1 2
PR274 6.8K_1%_04
PR31 10_1%_04
PR28 0_04
PR32 10K_04
PC159
*0.1u_10V_X7R_04
PR34 0_04
PC157 *0.01u_16V_X7R_04
PR36 10_1%_04
PC161
0.1u_10V_X7R_04
PR39
*10K_04
PR272 0_04
Sheet 53 of 77
PEX_VDD
Schematic Diagrams
B - 54 PEX_VDD
B.Schematic Diagrams
PEX_VDD
![](asset-6f.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
8A
12A
R1
=2.01*(1+13.7K/18.7K)
=3.482
Vout=2.01*(1+R1/R2)
R2
R1
R2
Vout=2.01*(1+R1/R2)
=2.01*(1+30.1K/19.1K)
=5.178
EE
VDD3
6-02-51125-CQ1
VDD5
DEFAULT SHORT DEFAULT SHORT
for EMI
for EMI
Qpxfs!po!WEE40WEE6
Qpxfs!po!WEE40WEE6Qpxfs!po!WEE40WEE6
Qpxfs!po!WEE40WEE6
QXN
QXNQXN
QXN
D02_0313_KAI
MEDION
R2
PR348 R1
PR355
18.7K 13K
EN_3V EN_5V
DD_ON_EN_VDD
EN_ALL
EN_5V
VIN
VIN
VREF
VREG3
VREG5
VREF
VREG5
VDD3 SYS3V
VIN
VIN1
SYS5V
SYS5V
VREG5
VDD5
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,56,59,60]
VIN1[50]
VIN[10,35,39,50,53,55,56,57,58,59,60]
VREG5[51,56]
VDD5[39,44,45,48,49,50,51,52,53,55,56,57,58,59,63]
USB_CHARGE_EN[35,50]
DD_ON[35,45,48,50]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[54] VDD3,VDD5(Power)
A3
54 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[54] VDD3,VDD5(Power)
A3
54 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[54] VDD3,VDD5(Power)
A3
54 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
PC196
4.7u_25V_X5R_08
+
PC194 *EEEFZ1E101P
12
PC209
4.7u_25V_X5R_08
PJ33
*5mm
12
PC225
*1000p_50V_X7R_04
+
PC192
220u_6.3V_6.3*4.4
PR339 0_04
R606
*5.1_06
PQ35
MDU1516
ULTRASO-8
G
DS
PR356 *0_04
PR338 *0_04
PC222
0.1u_10V_X7R_04
PQ33
QM3006M3
4
52
5
53
1
5
PC207
0.1u_50V_Y5V_06
PR343
*0_04
PR355
13.7K_1%_04
PC211
1u_10V_X7R_06
PR362
100K_04
PC213 0.1u_10V_X7R_04
PR351
19.1K_1%_06
PC221
1u_10V_Y5V_06
PC223 *100p_50V_NPO_04
PC216
1000p_50V_X7R_04
PR349
60.4K_1%_04
PQ40
2SK3018S3
G
DS
PD2
RB751S-40H
AC
PR348
18.7K_1%_04
PR342
0_04
PR354
30.1K_1%_06
PR340 *0_04
PR345 *10K_04
PC79
0.1u_10V_X7R_04
PR335 2.2_06
PC218
1000p_50V_X7R_04
S
D
G
PQ41A
MTDK3S6R
2
6
1
PQ36
QM3004M3
4
52
5
53
1
5
+
PC282 *EEEFZ1E101P
12
PC206
4.7u_25V_X5R_08
PR137
130K_1%_04
PJ46
*5mm
1 2
PL15
BCIHP0730-4R7M
12
R555
*5.1_06
PC205
4.7u_25V_X5R_08
PR361
10K_04
PC203
0.1u_50V_Y5V_06
PC202
4.7u_25V_X5R_08
+
PC234
220u_6.3V_6.3*4.4
PC187
0.1u_10V_X7R_04
PR341
*680K_1%_04
PC214
1u_10V_X7R_06
C853
*1000p_50V_X7R_04
S
D
G
PQ41B
MTDK3S6R
5
3
4
PJ23
*CV-40mil
12
PD17
CSOD140SH
A C
PQ34
MDU1531
ULTRASO-8
G
DS
C890
*1000p_50V_X7R_04
PR359 0_04
PD18CSOD140SH
A C
PL16
BCIH1040-2R2M
PU16
TPS51125ARGER
VREF 3
EN1 1
VFB1 2
TONSEL 4
LDO5
17
LGATE1 19
PHASE1 20
VFB2 5
UGATE2
10
VCLK
18
BOOT2
9
EN2 6
VO2
7
LDO3
8
PHASE2
11
LGATE2
12
EN0
13
SKIPSEL
14
GND
15
VIN
16
UGATE1 21
BOOT1 22
POK 23
VO1 24
GND PAD
25
Sheet 54 of 77
VDD3, VDD5
Schematic Diagrams
VDD3, VDD5 B - 55
B.Schematic Diagrams
VDD3, VDD5
![](asset-70.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
R1
R2
ON
CV Test
CV Test
DDR4
1.2V/0.6VS
⮔⹎≈⣏䁢
8mil
DEFAULT SHORT
2A
1.2V
VTT_MEM(0.675V)
2A
11/17
DEFAULT SHORT
13A
HIGH 1.35V
GPIO DDR Vout
暣⡻ὅ
TABLE
LOW 1.2V
1.
↯㎃䶂嶗ㇵ暨⮶ℍ
,
╖ᶨ暣㸸䓐⍇㛔
IC PG
VDDQSET
VDDQ_DRVH
VTTEN
VTT_TON
VTT_SNS
VDDQ_VBST
VTT_REF
VDDQSET
VDDQ_S5VDDQ_SNS
VTT_MEM_R
VDDQ_L
VDDQ_DRVL
VDDQ_VCC5
VDDQ_CS
VDDQ_PWRGD
VTTEN_R
VDDQSET_R VDDQSET
3.3V
5V
5V
VDDQ_R
5V
VIN
3.3V
3.3V
VIN
VDDQ_R
VTT_MEM
5V
5V
VDDQ
VDDQ_R
3.3V
5V
VTT_MEM[8,9]
VDDQ_PWRGD [56]
SMB_CLK [32,39,47]
SMB_DATA[32,39,47]
DDR_VOL_SEL[32]
DD_ON#[48,50]
SUSC#[32,35,51,56]
VDDQ[6,8,9,32,51]
VIN[10,35,39,50,53,54,56,57,58,59,60]
3.3V[2,10,27,38,43,45,48,50,51,52,56]
5V[39,44,45,48,49,50,51,52,53,54,56,57,58,59,63]
SUSB[11,12,13,49,50]
DDR_VTT_PG_CTRL[5]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[55] DDR 1.2V/0.6VS(Power)
A3
55 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[55] DDR 1.2V/0.6VS(Power)
A3
55 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[55] DDR 1.2V/0.6VS(Power)
A3
55 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
R702
10K_04
PC247
4.7u_25V_X5R_08
R682
0_04
PJ25
*CV-40mil
12
PR398 10K_04
PC240
0.1u_10V_X7R_04
R344 100K_04
PR146 *0_04
PL20
BCIHP0730-1R0M
PCB Footprint = BCIHP0735A
1 2
PR370
*47K_04
PJ49
*8mm
1 2
PR147
*10K_04
PQ50
2SK3018S3
G
DS
Q24
2SK3018S3
G
DS
PR379
*15mil_short
PR402 *0_04
+
PC242 330uF_2V_5*5*4.2
PJ51
*CV-40mil
12
R723
*0_04
PQ46
MDU1516
ULTRASO-8
G
DS
PR364
100K_04
R719
0_04
C981
*0.22u_10V_X5R_04
C1048
1u_6.3V_X5R_04
R666 10K_04
PC267
0.1u_50V_Y5V_06
R675 0_04
PR391
0_04
PD24
*RB0540S2
A C
PQ52
BTN3904
M-SOT23-CBE
B
E C
PR369 *0_04
PR403
100_04
PJ50 *2mm
12
PQ43
MDU1531
ULTRASO-8
G
DS
PU17
G5616BRZ1U
VTTGND
1
VLDOIN
19
VTT
20
VTTSNS
2
GND
3
TON
9
VTTREF
4VCC5 11
PGOOD 10
S5 8
S3 7
VDDQSET
6
VDDQSNS
5
CS 13
PGND 14
DRVL 15
LL 16
DRVH 17
VBST 18
PVCC5 12
GND
21
PC252
1u_6.3V_X5R_04
PR397 4.75K_1%_04
PR372 8.06K_1%_04
PC255 0.1u_10V_X7R_04
PC268 10u_6.3V_X5R_06
R732
*2.2_1%_06
PC260
22u_6.3V_X5R_08
PR374 *0_04
C1072
*2200p_50V_X7R_04
C984
*1u_6.3V_X5R_04
PR405 1K_04
C1106
0.01u_50V_X7R_04
R345 68K_1%_04
PR406
100K_04
Q26
2SK3018S3
G
DS
R697
10_04
PC248
4.7u_25V_X5R_08
PR365 2_06
C1000
*0.1u_10V_X7R_04
PC278
*100p_50V_NPO_04
PC261
*10u_6.3V_X5R_06
PQ10
*2SK3018S3
G
DS
U48
UP1804AMA8
VCC
1
BUS_SEL
2
GND
3
SDA
4SCL 5
NC 6
NC 7
OUT 8
Q25
2SK3018S3
G
DS
PC249 0.1u_10V_X7R_04
PD25 CSOD140SH
A C
PQ51
BTN3904
M-SOT23-CBE
B
E C
PR373
4.12K_1%_06
R696
0_04
PR388
*15mil_short
PC250
1u_6.3V_X5R_04
PJ24
*CV-40mil
12
Q23
*2SK3018S3
G
DS
PR149
*22K_1%_04
PR371 560K_1%_04
PR148
*100K_04
Sheet 55 of 77
DDR 1.2V / 0.6VS
Schematic Diagrams
B - 56 DDR 1.2V / 0.6VS
B.Schematic Diagrams
DDR 1.2V / 0.6VS
![](asset-71.png)
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
VTT_SELECT VTT VR Output Voltages
low 1.1 V
high (V1.1S_VTT) 1.05 V
DEFAULT SHORT
EE
0.75*(1+36K/100K)=1.02
10A
For CV test
1.0V
6A
VCCIO
1A
20mil
20mil
DEFAULT SHORT
20mil
20mil
DEFAULT SHORT
DEFAULT SHORT
ON
DEFAULT SHORT
for EMI
VDD1.0
NOTE:
1.0V_VCCST Ton need <10ms
G5016 TURN-ON TIME=1.21ms
For CV test
OCP 12A
VDD1.0_EN
VCCIO_EN
SUSC#
VCCIO_PWRGD
SUSC#
VCCIO_EN
VDD1.0_PWRGD
VDD1.0_PWRGD
VIN
G5602_5V
G5602_5V
G5602_5VVREG5
V1.0A VDD1.0
VDD3
VDD3
VDD1.0 VDD1.0
VCCIO
VDD3
1.0V_VCCSFR
1.0V_VCCST
VDD3
3.3V
VCCIO
3.3V
VDD3
VDD3
VDD5
VCCIO_EN [51,59]
VCCIO_PWRGD [34,59]
EC_SLP_SUS#[32,35,50]
SUSB# [10,32,34,35,41,42,50]
VDDQ_PWRGD [55]
SUSC#[32,35,51,55]
VCCIO[2,3,6]
VDD5[39,44,45,48,49,50,51,52,53,54,55,57,58,59,63]
VIN[10,35,39,50,53,54,55,57,58,59,60]
VDD1.0[31,33,51]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,59,60]
5V[39,44,45,48,49,50,51,52,53,54,55,57,58,59,63]
1.0V_VCCST[5,6,31,32,57]
1.0V_VCCSFR[6]
3.3V[2,10,27,38,43,45,48,50,51,52,55]
VREG5[51,54]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[56] POWER 1.0V,VCCIO(Power)
A3
56 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[56] POWER 1.0V,VCCIO(Power)
A3
56 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[56] POWER 1.0V,VCCIO(Power)
A3
56 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C803
0.1u_10V_X7R_04
PC191 *15p_50V_NPO_04
PC201
*0.01u_16V_X7R_04
PJ38 *CV-40mil
1 2
R568
*5.1_06
PJ12*1mm
12
PQ32
QM3004M3
4
52
5
53
1
5
C868
*0.01u_16V_X7R_04
PJ14
*3mm
1 2
PR307 6.19K_1%_04
PJ42
*CV-40mil
12
PJ40 *6mm
1 2
PR316 820K_1%_06
C375
0.1u_10V_X7R_04
R149
*100_04
G5016 U9
CT2
10
OUT2
8
EN2
5
VBIAS
4
IN2
6
GND
11
EN1
3
CT1 12
OUT1 13
IN1 1
IN1 2
OUT1 14
IN2
7
OUT2
9
GND
15
U8
74AHC1G08GW
1
2
5
4
3
C406
220p_50V_NPO_04
PR303 10K_04
PR324 100K_04
C401
0.1u_10V_X7R_04
S
D
G
Q15A
*MTDK5S6R
2
61
PC200
0.1u_10V_X7R_04
R159
*100K_04
PC197
4.7u_25V_X5R_08
C407
220p_50V_NPO_04
R588
10K_04
R587
10K_04
PQ31
QM3006M3
4
52
5
53
1
5
PJ39 *1mm
1 2
C397
*22u_6.3V_X5R_08
R505
10K_1%_04
R152
100K_04
PU14
G5602R41U
VOUT
1
EN_PSV
15
TON
16
VCC
2
VFB
3
PGOOD
4
AGND
6
BST 13
DH 12
LX 11
ILIM 10
VDD 9
DL 8
PGND 7
PGND 17
NC
5
NC
14
C3860.1u_10V_X7R_04
PJ11 *CV-40mil
1 2
PR317
2.2_04
C367
1u_6.3V_X5R_04
PL14
BCIHP0730-3R3M
12
PC198
4.7u_25V_X5R_08
C398
*22u_6.3V_X5R_08
C865
0.022u_16V_X7R_04
PR310
100K_1%_04
PJ34 *1mm
12
S
D
G
Q15B
*MTDK5S6R
5
34
R578
100K_04
PR321
0_06
S
D
G
Q16A
*MTDK5S6R
2
61
C800
0.1u_10V_X7R_04
R147
*100K_04
PJ10 *1mm
1 2
PJ13
*1mm
12
+
PC183 330uF_2V_5*5*4.2
S
D
G
Q16B
*MTDK5S6R
5
34
PR305 36K_1%_04
PC193
1u_6.3V_X5R_04
R176
*100_04
Q43
BTN3904
M-SOT23-CBE
B
E C
PC190
1u_6.3V_X5R_04
PC199
0.1u_50V_Y5V_06
Q42
2SK3018S3
G
DS
C399
0.1u_10V_X7R_04
PD16
CSOD140SH
M-SOD123
A C
PJ35 *1mm
12
C857
*1000p_50V_X7R_04
C796
0.1u_10V_X7R_04
Sheet 56 of 77
Power 1.0V, VCCIO
Schematic Diagrams
Power 1.0V, VCCIO B - 57
B.Schematic Diagrams
Power 1.0V, VCCIO
![](asset-72.png)
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VBOOT=0.8V
FOR CV
H-line 42
unused floating.
CORE Max Switching Frequency=421Khz
,QWHO6.</$.(,09332:(5&.73+$6(
unused floating.
The unused ISENAxP pins are recommended to be connected to VCC
PSYS&OFSA
GT Max Switching Frequency=425Khz
10k ntc
VCORE IMON GT IMON
NO Load Offset
PSYS DISABLE
GT
CORE
Short
Short
TONSET
SET2
SET1
SET3
SETA1
SETA2
IMON
IMONA
OFSA/PSYS
OFSM
VR_ENABLE
TONSETA
5V
5V
VIN
3.3VS
1.0V_VCCST
1.0V_VCCST
5V
VIN
5V
5V
5V
VCCGT_R
3.3VS
VIN
VCORE_R
VREF_VCORE
VREF_VCORE
VREF_VCORE
VREF_VCORE
PWM21 [58]
PWM11 [58]
CSN21 [58]
CSN11 [58]
DRVON1[58]
CSP21 [58]
CSP11 [58]
H_CPU_SVIDCLK [5]
H_CPU_SVIDALRT# [5]
H_CPU_SVIDDAT [5]
VCC_VCORE_SENSE[6]
VSS_VCORE_SENSE[6]
VCORE_PG [34]
ALL_SYS_PWRGD [5,10,34,35]
VCCGT_SENSE[7]
VSSGT_SENSE[7]
H_PROCHOT# [5]
PWM12 [58]
CSN12 [58]
CSP12 [58]
PSYS [60]
VIN[10,35,39,50,53,54,55,56,58,59,60]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,64]
VCCSA[6,59]
5V[39,44,45,48,49,50,51,52,53,54,55,56,58,59,63]
VCORE[6,58]
VCCGT[7,58]
1.0V_VCCST[5,6,31,32,56]
VCCGT_R[58]
VCORE_R[58]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[57] VCC_CORE(Power)
A3
57 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[57] VCC_CORE(Power)
A3
57 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[57] VCC_CORE(Power)
A3
57 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
PR129 0_04
PR325
0_04
PC71
*1000p_50V_X7R_04
PR315
0_04
PC69 120pF_50V_NPO_04
PR327 43.2K_1%_04
PJ18 *CV-40mil
12
PR100
80.6K_1%_04
PR330
8.45K_1%_04
PR300
17.8K_1%_04
PR126 18K_1%_04
PR123
100_04
PR134 1_1%_06
PR309
36.5K_1%_04
PJ17 *1mm
1 2
PR104
0_04
PR103
*0_04
PR106 10_04
PC68
*1000p_50V_X7R_04
PR322
806_1%_04
PC73
*1000p_50V_X7R_04
PR318
1K_1%_04
PR118
100_04
PR109
1_04
PR320
5.9K_1%_04
PR124 680_1%_04
GND
57%(
PU4
RT3606BEGQW
ISEN3N 3
PS4
43
VCLK 23
IMONA 19
VSEN
10
ISEN2N 7
ISEN3P 2
ISEN1N 4
NC
40
SET2
13
COMPA
31
FBA
32
RGNDA
29
SETA2
16
VSENA
30
OFSA/PSYS 26
IBIAS 28
ISENA1P
35
SET1
12
PGOOD
47
SETA1
15
PWMA1 42
EN 24
ISEN2P 6
ALERT# 21
ISEN1P 5
IMON 17
COMP
9
ISENA2P
34
ISENA2N
33
FB
8
RGND
11
VCC
27
TSEN 1
VDIO 22
GND
49
DVD 39
ISENA1N
36
PWMA2 41
PWM3 46
PWM1 45
PWM2 44
SET3
14
OFSM
25
TONSET
48
TONSETA
38
TSENA 37
V06 18
VRHOT 20
PC65
4.7u_6.3V_X5R_04
PC63
1u_6.3V_X5R_04
PJ21 *1mm
1 2
PC78
0.22u_50V_Y5V_06
PR302
0_04
PR127 10K_06
PR105 49.9_1%_04
PR130 560K_1%_06
PR120
100_04
PR301
2.37K_1%_04
PR115
*0_04
PJ22 *1mm
1 2
PJ20 *1mm
1 2
RT1
100k_1%_04_NTC
1 2
PR296
33.2K_1%_04
PR93
42.2K_1%_04
PC74 220p_50V_NPO_04
PR136 1_1%_06
PR131
10K_06
PR114
*0_04
PR308
11K_1%_04
PR122 680_1%_04
C447
*0.1u_10V_X7R_04
PR94 10K_04
PR314
0_04
PR332
0_04
PR125 10K_1%_04
PR102
0_04
PR113
2.2_06
PR135 330K_1%_06
PR117
31.6K_1%_04
PR116
20K_04
PR323 0_04
PR288
10K_1%_04
PR128 680_1%_04
PR98
*1K_1%_04
PC70 220p_50V_NPO_04
PR313
0_04
PR119
0_04
RT4
100k_1%_04_NTC
1 2
PR286
0_04
PR112
0_04
PR299
0_04
PR304
0_04
PR329 10K_06
PR108
*100_04
PR110
0_04
PR333
432K_1%_06
PR319
21.5K_1%_04
PJ15 *CV-40mil
12
PR285
432K_1%_06
PC64
0.47u_16V_X7R_06
PR97 *45.3_1%_04
PR92
2K_1%_04
PC77
0.22u_50V_Y5V_06
PR96 100_04
PC75 82p_50V_NPO_04
PR306
56K_1%_04
PC76 0.1u_16V_X7R_04
PC66
*1000p_50V_X7R_04
RT3
EWTF02-103F3I-N
1 2
PC72
*1000p_50V_X7R_04
PR132 499K_1%_06
PR328 10K_1%_04
PR331
100_04
PJ16 *OPEN_4mil
1 2
PR101
22.1K_1%_04
PR95 45.3_1%_04
PC67
*1000p_50V_X7R_04
PR107 0_04
RT2
100k_1%_04_NTC
1 2
PR326
4.87K_1%_04
PR311
0_04
PR111
0_04
PR121
100K_1%_04
PR312
0_04
PR133 100K_1%_04
PR99
200K_1%_04
PR297
0_04
PJ19 *1mm
1 2
Sheet 57 of 77
VCC_Core
Schematic Diagrams
B - 58 VCC_Core
B.Schematic Diagrams
VCC_Core
![](asset-73.png)
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Loadline=1.8mr
VCORE & VCCGT OUTPUT STAGE
CHOKE CMME063T R15
Ḧ
✌
DCR=0.90mR
PPM=4453
CHOKE CMME063T R15
Ḧ
✌
DCR=0.90mR
hi side RDSON=6.8mR
lowi side RDSON=2.8mR
hi side RDSON=6.8mR
lowi side RDSON=2.8mR
㕘㕁
H-line 42
Loadline=2.65mr
H-line 42
VCORE 2Phase
VCCGT1Phase
2A
4A
Default SHORT
Default SHORT
66A
10A
0V~1.5V
0V~1.52V
8/18
8/18
100u_25V_6.3*6.3*5.8
100u_25V_6.3*6.3*5.8
33A
33A
100u_25V_6.3*6.3*5.8
D02A_0417_REX
VCORE_R
VCCGT_R
5V
VCORE
VIN
5V
5V
VCCGT
VIN
VIN
PWM11[57]
DRVON1[57,58]
PWM21[57]
CSP21[57]
CSN21[57]
CSP11[57]
CSN11[57]
DRVON1[57,58]
PWM12[57]
DRVON1[57,58]
CSP12[57]
VCCGT_R [57]
VCORE_R [57]
CSN12[57]
VCORE[6]
VCCSA[6,59]
VIN[10,35,39,50,53,54,55,56,57,59,60]
5V[39,44,45,48,49,50,51,52,53,54,55,56,57,59,63]
VCCGT[7]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[58] VCORE&VCCGT OUTPUT(Power)
A3
58 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[58] VCORE&VCCGT OUTPUT(Power)
A3
58 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[58] VCORE&VCCGT OUTPUT(Power)
A3
58 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
PC184
1u_25V_X7R_06
PR363 1_1%_06
PR353
374_1%_04
+
PC236
*EEEFZ1E101P
PC212
1u_16V_X7R_06
PC189
2200p_50V_X7R_04
PC220
4.7u_25V_X7R_08
PR89
374_1%_04
PC230
4.7u_25V_X7R_08
PR383
*20mil_04
PR350
*20mil_04
PC210
0.1u_25V_X7R_06
PQ42
SM7320ESQG
1
2
8
3
4
9
5
6
7
PL13
CMME063T-R15MS0R907
12
PR384
2.2_1%_06
INS16653671
PQ30
CSD87350Q5D
1
D1
2
3
G1
4
S1
5
G2
6
D2
7
8
9
S2
PR90
*20mil_04
PC226
4.7u_25V_X7R_08
PC217
1u_25V_X7R_06
+
PC243 390uF_2.5V_10m_6.3*6
PR336 1_1%_06
PC227 0.47u_16V_X7R_06
+
PC208 330U_2V_D2_D
PR298
2.2_1%_06
PJ47 *6mm
1 2
PR91
*20mil_04
RT9610BZQW
PU15
BOOT
4
PWM
5
EN
1
VCC
8
UGATE 3
PHASE 2
PGND 6
LGATE 7
GND
9
PC266
2200p_50V_X7R_04
PC224
4.7u_25V_X7R_08
PC80
0.1u_25V_X7R_06
PR366 1_1%_06
PR334
2.2_06
PR295 1_1%_06
PC239
1u_25V_X7R_06
+
PC195 330U_2V_D2_D
+
PC233
*EEEFZ1E101P
RT9610BZQW
PU5
BOOT
4
PWM
5
EN
1
VCC
8
UGATE 3
PHASE 2
PGND 6
LGATE 7
GND
9
PR347
2.2_1%_06
+
PC164
*EEEFZ1E101P
PR142
2.2_06
PR357
*20mil_04
PJ36
*OPEN-10mm
1 2
PC186
4.7u_25V_X7R_08
PC81
1u_16V_X7R_06
PC175
0.1u_25V_X7R_06
PR287 1_1%_06
PR293
2.2_06
PC62 0.47u_16V_X7R_06
RT9610BZQW
PU12
BOOT
4
PWM
5
EN
1
VCC
8
UGATE 3
PHASE 2
PGND 6
LGATE 7
GND
9
INS16653829
PQ38
CSD87350Q5D
1
D1
2
3
G1
4
S1
5
G2
6
D2
7
8
9
S2
PR387
374_1%_04
PC219
2200p_50V_X7R_04
PL19
CMME063T-R15MS0R907
12
PR386
*20mil_04
+
PC283
*EEEFZ1E101P
+
PC188 330U_2V_D2_D
PC174
1u_16V_X7R_06
+
PC204 *330U_2V_D2_D
PL17
CMME063T-R15MS0R907
12
PR344 1_1%_06
PC185
4.7u_25V_X7R_08
PC270 0.47u_16V_X7R_06
Sheet 58 of 77
VCore & VCCGT
Output
Schematic Diagrams
VCore & VCCGT Output B - 59
B.Schematic Diagrams
VCore & VCCGT Output
![](asset-74.png)
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DEFAULT
10A
For CV test
VCCSA
(40.2K/100K+1)*0.75=1.05V
DEFAULT SHORT
DEFAULT
DEFAULT
VIN
5V
5V
VCCSA
VDD3
VCCSA_SENSE [6]
VSS_SA_SENSE [6]
VCCIO_EN[51,56]
VCCIO_PWRGD[34,56]
5V[39,44,45,48,49,50,51,52,53,54,55,56,57,58,63]
VIN[10,35,39,50,53,54,55,56,57,58,60]
1.0V_VCCST[5,6,31,32,56,57]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
VCCGT[7,58]
VCCSA[6]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,60]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[59] VCCSA(Power)
A3
59 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[59] VCCSA(Power)
A3
59 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[59] VCCSA(Power)
A3
59 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
PC56
*0.01u_16V_X7R_04
PJ29
*8mm
1 2
PR83
100_04
PC54
0.1u_10V_X7R_04
PR86 100_04
+
PC163 330uF_2V_5*5*4.2
PJ9 *1mm
1 2
PR77 820K_1%_06
PR74 0_06
PC55
0.1u_50V_Y5V_06
PQ26
QM3006M3
4
52
5
53
1
5
PU3
G5602R41U
VOUT
1
EN_PSV
15
TON
16
VCC
2
VFB
3
PGOOD
4
AGND
6
BST 13
DH 12
LX 11
ILIM 10
VDD 9
DL 8
PGND 7
PGND 17
NC
5
NC
14
R91 0_06
PJ8 *1mm
1 2
PC60
1u_6.3V_X5R_04
PC162 22u_6.3V_X5R_08
PR78
2.2_04
PC58
1u_6.3V_X5R_04
PC150
4.7u_25V_X5R_08
PC59 *15p_50V_NPO_04
PR85 40.2K_1%_04
PL10
BCIHP0730-1R0M
PCB Footprint = BCIHP0735A
1 2
PQ29
QM3004M3
4
52
5
53
1
5
PJ7 *1mm
1 2
PC151
4.7u_25V_X5R_08
PR84
100K_1%_04
PJ6
*CV-40mil
1 2
PR80 6.19K_1%_04
PD15CSOD140SH
A C
PR73 *10K_04 PJ5 *1mm
1 2
PR72 100K_04
Sheet 59 of 77
VCCSA
Schematic Diagrams
B - 60 VCCSA
B.Schematic Diagrams
VCCSA
![](asset-75.png)
Schematic Diagrams
AC_In, Charger B - 61
B.Schematic Diagrams
AC_In, Charger
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
D02A modify
SMART CHARGER TI24780S
Option close to EC
VA1
BTST
SMD_BAT
ACN
SMD_BAT
SMC_BAT
AC_IN
ACPRES
ACDRV
V_BAT
REGN
TB_STAT
SMC_BAT
IDCHG
ACDET
ILIM
Phase
CMSRC
ACP
BATDRV
SRP
SRN
LODRV
HIDRV
BATVLT
BATGS
V_BAT
IOU T
PSYS[57]
VDD3
VA
VDD3
VDD3
VIN
VDD3
VDD3
VA
VDD3
VIN[10,35,39,50,53,54,55,56,57,58,59]
VA[50]
1.0DX_VCC STG[5,6,51]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59]
AC_IN# [26,35]
SMD_BAT [35]
SMC_BAT [35]
TOTAL_CU R [35]
BAT_DET[35]
BAT_VOLT [35]
AC/BATL#[26,60]
AC/BATL# [26,60]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[60] AC_IN,CHARGER(Power)
A2
60 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[60] AC_IN,CHARGER(Power)
A2
60 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[60] AC_IN,CHARGER(Power)
A2
60 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
J_BAT1
2
3
4
6
5
7
8
1
PD20
*MESMAJ20A-G
A C
L18
HCB2012KF- 800T80
PC246
0.1u_25V_X7R_06
PR422
4.7_04
PR392 *0_04
PR424
4.7_06
PR382 0_04
PD4
SS1040WG
A C
PR418
4.02K_1%_04
PR411
4.02K_1%_04
PC149
0.1u_50V_Y5V_06
PC251
2.2u_16V_X5R_06
PD5
SS1040WG
A C
PC275
100p_50V_NPO_04
PR426
*0402_short
PR412 0_06
PC256
0.1u_50V_Y5V_06
PR415
*10K_1%_04
C732
10u_25V_X5R_08
PC290
0.1u_50V_Y5V_06
PL2
HCB1005KF- 121T20
C621 30p_50V_NPO_04
PD6
*MMSZ5232BS
A C
PR393 *0_04
PC238
4.7u_25V_X7R_08
PD29
MDL914S2
AC
PC257
1500p_50V_04
PD27
*RB0540S2
A C
PR427
*0402_short
PR385 0_04
PU18
BQ24780SRUYR
ACN
1
ACP
2
CMSRC
3
ACDRV
4
ACOK
5
ACDET
6
IADP
7
IDCHG
8
PMON
9
PROCHOT#
10
SDA
11
SCL
12
CMPIN
13
CMPOUT
14
BATPRES# 15
TB_STAT# 16
BATSRC 17
BATDRV 18
SRN 19
SRP 20
ILIM 21
GND_1 22
LODRV 23
REGN 24
BTST 25
HIDRV 26
PHASE 27
VCC 28
GND_2 29
PC287
1000p_50V_X7R_04
PR381
10_1%_06
PR145
10K_04
PC253
1u_25V_X5R_06
PC293
2.2u_25V_X5R_08
PRS4
0.01_1%_32
PC280
*1u_25V_X5R_06
J_DC_JACK1
50299-00801-004
1
2
3
4
5
6
7
8
PD3
*MMSZ5232BS
A C
PC259
0.1u_50V_Y5V_06
PR408
300K_1%_04
PR41310_04
PD28
MDL914S2
AC
PQ7
QM3004M3
4
52
5
53
1
5
PC281
0.1u_16V_Y5V_04
PRS6
0.01_1%_32
PC241
4.7u_25V_X7R_08
PC292
100p_50V_NPO_04
PC245
4.7u_25V_X7R_08
PR360
2.2_06
PD26
ZD5245BS2
AC
S
D
G
Q61A
*MTDK3S6R
2
61
PC274
0.1u_50V_Y5V_06
L19
HCB2012KF- 800T80
PC288
0.01u_25V_X7R_04
PQ47
QM3006M3
4
52
5
53
1
5
PQ5
QM3004M3
4
5 2
5
5 3
1
5
PR419
470K_04
PR416
10K_1%_04 PQ54
MTE1K0P15KN3
G
DS
PC291
100p_50V_NPO_04
PC26210u_25V_X5R_08
PR410
45.3K_1%_04
PC284
1000p_50V_X7R_04
PR144 10K_04
PR400
*24K_1%_04
PL1 HCB1005KF -121T20
PR420
75K_1%_04
PR409
287K_1%_04
PR37510_04
PC286
0.1u_50V_Y5V_06
PC26310u_25V_X5R_08
PC229
4700p_50V_X7R_04
PR421
4.7_04
PR150
100K_04
PR152
*10K_04
PR399 0_04
PQ53
BTN3904
M-SOT23-C BE
B
E C
PC264*10u_25V_X5R_08
PR414
10K_1%_04
PR390
*20K_04
PQ8
QM3004M3
4
52
5
53
1
5
PQ55
2SK3018S3
G
DS
PQ58
QM3006M3
4
52
5
53
1
5
PC235
4.7u_25V_X7R_08
PR401
10K_1%_04
PRS3
0.01_1%_32
PC285
0.047u_16V_X7R_06
PL18
BCIHP0730-4R7M
12
PC265*10u_25V_X5R_08
PC152
0.1u_50V_Y5V_06
PC273
0.1u_50V_Y5V_06
PQ48
QM3006M3
4
52
5
53
1
5
PRS7
0.01_1%_32
PC277
0.1u_25V_X7R_06
PR423
4.7_06
C622 30p_50V_NPO_04
PC153
0.1u_50V_Y5V_06
PQ6
QM3004M3
4
5 2
5
5 3
1
5
PR417
4.02K_1%_04
PR407
60.4K_1%_04
PQ57
QM3004M3
4
52
5
53
1
5
PR151
47K_04
PR37610_04
PC289
0.1u_50V_Y5V_06
C630 30p_50V_NPO_04
Sheet 60 of 77
AC_In, Charger
![](asset-76.png)
Schematic Diagrams
B - 62 NVVDDS
B.Schematic Diagrams
NVVDDS
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
P650RS/P670RS = G2 Phase
P670RP6 = G1 Phase
G1
ㇵ
ㇵㇵ
ㇵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
0.6V~1.2V
NVVDDS FOR N17_VGA
NVVDDS PHASE
EMI
30A
5/4 NV recommend design
⺢嬘
,
㓡崘
GPIO6
15R
⎒㚱
06
㰺㚱
08size
2A
G1
ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
/G2
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
G1
ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
/G2
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
EMI
G2 Phase
㬌
㬌㬌
㬌⋨
⋨⋨
⋨➇
➇➇
➇䶂
䶂䶂
䶂嶗
嶗嶗
嶗ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
WEY_12/8
WEY_12/12
PVCC_UPI_1666
NVVDDS_VREF
NVVDDS_VREF
UP1666_FBDRTN
LX1_UPI_1666
1666_DGPU_ON
UP1666_REFADJ
UGATE1_UPI_1666
UP1666_REFADJ
NVVDDS
NVVDDS_VREF
10A
0.400
UGATE2_UPI_1666
PWR_SRC_NVVDDS
1V8_AON
5VS
1V8_AON
PWR_SRC_NVVDDS
PWR_SRC_NVVDDS
NVVDDS
NV3V3
PWR_SRC_NV_FB
5VS
PWR_SRC_NVVDDS
GPU_VDDS_SENSE[28]
GPU_GNDS_SENSE[28]
GPIO3_PS_NVVDDS_VID[26]
GPIO20_NVVDDS_PSI [26]
PWR_SRC_NVS_VINN_R[53] PWR_SRC_NVS_VINNP_R [53]
GPIO6_NVVDD_PSI# [26,62]
NVVDDS_PWRGD[27]
NV_NVVDDS_EN[27,61]
NV_NVVDDS_EN [27,61]
PWR_SRC_NV_FB[53,62,64]
NV3V3[11,12,13,14,26,46,52,53,62]
NVVDDS[23,28]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
PWR_SRC_NV[62,63]
1V8_AON[3,23,24,26,27,28,31,52,53,62,64]
5VS[10,11,12,13,36,39,40,41,47,48,49,50,62,63,64]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[61] NVVDDS(Power)
A3
61 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[61] NVVDDS(Power)
A3
61 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[61] NVVDDS(Power)
A3
61 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
PC52
1500p_50V_04
PR46
0_04
PD13
CSOD140SH
G2
A C
PC50
*4700p_50V_X7R_04
PC45
1u_6.3V_X5R_04
PR261
*0_04
PR260
*0_04
PR68
45.3K_1%_04
PC39 4.7u_25V_X7R_08
G2
+
PC134 *330uF_2V_5*5*4.2
PR250
100K_04
G2
PD1
CSOD140SH
A C
PR65 0_04
+
PC140 330uF_2V_5*5*4.2
PR264
309_1%_04
PR263 16.5K_1%_04
PL8
CMME063T-R24MS1R197
1 2
PQ2
QM3006M3
4
52
5
53
1
5
PC145
2200p_50V_X7R_04
G2
PC142 4.7u_25V_X7R_08
G2
PR255
*62K_1%_04
PQ25
SM7320ESQG
1
2
8
3
4
9
5
6
7
PC48
1000p_50V_X7R_04
PJ27 *CV-40mil
1 2
PR63 0_04
PR53 10K_04
PC40 4.7u_25V_X7R_08
G2
PQ24
SM7320ESQG
1
2
8
3
4
9
5
6
7
PC46
0.1u_25V_X7R_06
G2
PC51
*33p_50V_NPO_04
PR252 100_04
PR25
15_1%_06
PC33 1u_25V_X7R_06
PC147
*0.01u_50V_X7R_04
PC148
1u_6.3V_X5R_04
PC143 4.7u_25V_X7R_08
G2
PR58
*0_04
PC49
*47p_50V_NPO_04
PC41 0.1u_25V_X7R_06
G2
PR249
2.2_1%_06
PC31 4.7u_25V_X7R_08
PR257
*0_04
+
PC141 *TEPSLB21E156M8R
<Function>
PR256
51K_1%_04
PR50 2_1%_04
+
PC138 330uF_2V_5*5*4.2
PC146
4700p_50V_X7R_04
PC44
0.1u_25V_X7R_06
PC139
2200p_50V_X7R_04
PR66
*10K_04
PR259
*51K_1%_04
PR258
1K_1%_04
PC53 *0.01u_50V_X7R_04
PR52 0_04
PC47 *0.1u_10V_X7R_04
PR48
0_04
G2
PC38 4.7u_25V_X7R_08
PR51
0_04
PR22
15_1%_06
PR44 0_04
PR59 *499K_1%_1/16W_04
PR248
100K_04
PR27 0_04
PR61
4.32K_1%_04
PR253
0_04
PC32 4.7u_25V_X7R_08
PR26
15_1%_06
PR64 100_04
PC144 0.1u_10V_X7R_04
PR60
6.19K_1%_04
PQ3
2SK3018S3
G
DS
PR55
*15.8K_1%_04
PR49 2_1%_04
PR67 75K_1%_04
PL9
CMME063T-R24MS1R197
G2
PR43 2.2_04
PR262 0_04
PR56 10K_04
PC34 4.7u_25V_X7R_08
PR251
2.2_1%_06
G2
PR23
2K_04
+
PC137 *25TQC15MYFB
PC35
*10u_6.3V_X5R_06
PR24
15_1%_06
PRS5
RL1632T4F-B-R005-FNH
1
2 3
4
PU2
up1666QQKF
qfn20-3x3mm-rt8816
REFIN 7
VREF
8
FS/OC
9
FB
11
COMP
12
EN 3
VID 5
PVCC 18
PSI 4
LGATE2 17
PHASE1 20
GND
21
FBDRTN
10
LGATE1 19
REFADJ
6
BOOST1 1
UGATE1 2
PGOOD
13
UGATE2
14
BOOT2
15
PHASE2 16
PR47
0_04 G2
+
PC135 330U_2V_D2_D
PR45
0_04
PR62
20.5K_1%_04
PR57 0_04
PR54 *0_04
PR254
62K_1%_04
PC136 1u_25V_X7R_06
Sheet 61 of 77
NVVDDS
![](asset-77.png)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
DCR 0.6m ohm
place at MOSFET side
30A
layout 1pcs B2
慵䔲
2PCS 0805 size
place at MOSFET side
30A
layout 1pcs B2
慵䔲
2PCS 0805 size
0.6V~1.2V
”NP-A”
㗗
NO PASTEMASK
4/26 power
妋
restart
⓷柴
,PC63
ᶵᶲẞ
4/26 power
妋
restart
⓷柴
,PR75 51K change to 15K
NV reserve
G1
ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
/G 2
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
G1
ᶵᶲ
G1
ᶵᶲ
䓐㕤婧㗪⸷
CO-LAY
CO-LAY
NV_VDD_L
10A
0.400
PH1_UPI_9509
UGATE2_UPI_9509
UP9509_VREF
UP9509_VREF
UP9509_FBDRTN
UP9509_REFADJ
NVVDD
UP9509_VREF
UP9509_REFADJ
UP9509_FBDRTN
PH2_UPI_9509
PH1_UPI_9509
5VCC
PH1_UPI_9509
PH2_UPI_9509
UGATE2_UPI_9509
UP9509_FBDRTN
NVVDD
PWR_SRC_NV
NVVDD
PWR_SRC_NV
PWR_SRC_NV
PWR_SRC_NV
1V8_AON
5VCC 5VS
1V8_AON
1V8_AON
5VS
NV3V3
PWR_SRC_NV_FB
PWR_SRC_NV_VINN_R[53] PWR_SRC_NV_VINP_R [53]
NV_NVVDD_EN [27,63]
NV3V3[11,12,13,14,26,46,52,53,61]
1V8_AON[3,23,24,26,27,28,31,52,53,61,64]
PWR_SRC_NV_FB[53,61,64]
PWR_SRC_NV[63]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
5V[39,44,45,48,49,50,51,52,53,54,55,56,57,58,59,63]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
5VS[10,11,12,13,36,39,40,41,47,48,49,50,61,63,64]
NVVDD[23,28,63]
GPU_NVVDD_SENSE[28,53]
GPU_GND_SENSE[28,53]
GPIO0_NVVDD_PWM_VID[26]
GPIO6_NVVDD_PSI#[26,61]
PWM3_1 [63]
GPIO29_NVVDD_PH1 [26]
PH3_UPI_9509[63]
NVVDD_PWRGD[14,27]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[62] NVVDD PHASE 1~2
A3
62 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[62] NVVDD PHASE 1~2
A3
62 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[62] NVVDD PHASE 1~2
A3
62 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
PL6
CMME104T-R22MS
1 2
PR15
*20K_1%_04
PC26
1u_25V_X7R_06
PR191 *100K_1%_04
PR17 499_1%_04
PR187 *0_04
PR194 10K_04
PR189 499_1%_04
PR174
*0_04
PC98
1u_25V_X7R_06
PR195 2_1%_04
PR178
4.32K_1%_04
PR171
*0_04
PR173
15K_1%_04
PR11
309_1%_04
PC112
0.1u_25V_X7R_06
PR21
15K_1%_04
PR181
1K_04
PC4
*0.01u_50V_X7R_04
PC116 0.1u_25V_X7R_06
+
PC21 *25TQC15MYFB
PRS1
RL1632T4F-B-R005-FNH
1
2 3
4
PR190 10K_04
PR10 *51K_1%_04
PR202
*10K_04
PQ21
*MTN2002ZS3
G
DS
PL7
CMME104T-R22MS
1 2
PC30
4.7u_25V_X7R_08
PC24
4.7u_25V_X7R_08
PR180 0_04
PR176 *82K_1%_04
+
PC22 *25TQC15MYFB
PC103 *0.1u_16V_X7R_04
+
PC88
EEEFZ1E101P
PR172 300K_1%_04
PR19 0_04
PR199
100K_1%_04
PR209
*10K_1%_04
INS16664900
PQ18
CSD87350Q5D
1
D1
2
3
G1
4
S1
5
G2
6
D2
7
8
9
S2
PD10
CSOD140SH
A C
PR212
0_04
PR193 0_04
PR177 16.5K_1%_04
+
PC20 *25TQC15MYFB
PR204
*10K_04
PC86 4.7u_25V_X7R_08
PC101
*33p_50V_NPO_04
PR186 *0_04
PU7
up9509PQAG
REFIN 7
VREF
8
TON
9
FB
11
COMP
12
EN 3
VID 5
PVCC 21
PSI 4
LGATE2 20
PHASE1 24
GND
25
FBDRTN
10
LGATE1 23
REFADJ
6
BOOST1 1
UGATE1 2
PGOOD
16
UGATE2
17
BOOT2
18
PHASE2 19
ISEN3
13
ISEN2
14
ISEN1
15
PWM3 22
PC93 4.7u_25V_X7R_08
INS16665418
PQ23
CSD87350Q5D
1
D1
2
3
G1
4
S1
5
G2
6
D2
7
8
9
S2
PR188
2.2_1%_06
PC25
4.7u_25V_X7R_08
PR20
2.2_06
PR197
2_1%_04
PC131
2200p_50V_X7R_04
PC100
2200p_50V_X7R_04
PC28
1u_25V_X7R_06
PC115
1u_16V_X7R_06
PC29
4.7u_25V_X7R_08
PR200
0_04
PC11 4.7u_25V_X7R_08
PR175
*0_04
INS16666644
PQ19
CSD87350Q5D
1
D1
2
3
G1
4
S1
5
G2
6
D2
7
8
9
S2
PD12
CSOD140SH
A C
INS16665736
PQ22
CSD87350Q5D
1
D1
2
3
G1
4
S1
5
G2
6
D2
7
8
9
S2
PR14 *0_04
PC102
1000p_50V_X7R_04
PR169
0_04
PC5
*4700p_50V_X7R_04
PC12 4.7u_25V_X7R_08
PR18 *10K_1%_04
PC6
4700p_50V_X7R_04
PR211
*0_04
+
PC123
EEEFZ1E101P
PR247
2.2_1%_06
PR170 100_04
PR13
20.5K_1%_04
PR198
100K_1%_04
PR201
0_04
PR12 0_04
PR179
6.19K_1%_04
PR203
*30.1K_1%_04
PR185 0_04
PR210
0_04
PC7
4700p_50V_X7R_04
PC99
1u_25V_X7R_06
PR183
499_1%_04
PR16 100_04
PC17 *0.1u_10V_X7R_04
PC10
0.1u_10V_X7R_04
Sheet 62 of 77
NVVDD 1
Schematic Diagrams
NVVDD 1 B - 63
B.Schematic Diagrams
NVVDD 1
![](asset-78.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
”NP-A”
㗗
NO PASTEMASK
3/7 co-lay
ᶵᶲẞ
,
ẍᾖ㬋
footprint
䁢
PASTEMASK
P650RS/P670RS = G2 Phase
P670RP6 = G1 Phase
85A
GPU DECOUPLING
22u_6.3V_X6S_08 x 28 pcs
390u_2.5V_0S-CON x 10 pcs
NVVDD NVVDDS
G1 => 2 + 1
G2 => 3 + 2 (default)
G1
ㇵ
ㇵㇵ
ㇵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
G1
ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
/G2
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
0.6V~1.2V
DCR 0.6m ohm
place at MOSFET side
30A
layout 1pcs B2
慵䔲
2PCS 0805 size
G 1
ᶵ
ᶵᶵ
ᶵᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
/G 2
ᶲ
ᶲᶲ
ᶲẞ
ẞẞ
ẞ
㓦
㓦㓦
㓦暣
暣暣
暣䶂
䶂䶂
䶂嶗
嶗嶗
嶗
G1
ᶲ
4
柮
G2
ᶲ
6
柮
G2
PH3_UPI_9509
NVVDD
PWR_SRC_NV
NVVDD
NVVDD
NVVDD
5V
5VS
PWR_SRC_NV[62]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57,64]
5V[39,44,45,48,49,50,51,52,53,54,55,56,57,58,59]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
NVVDD[23,28,62]
5VS[10,11,12,13,36,39,40,41,47,48,49,50,61,62,64]
PH3_UPI_9509 [62]
NV_NVVDD_EN[27,62]
PWM3_1[62]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[63] NVVDD PHASE 3~4
A3
63 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[63] NVVDD PHASE 3~4
A3
63 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[63] NVVDD PHASE 3~4
A3
63 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
C70
22u_6.3V_X5R_08
C66
22u_6.3V_X5R_08
PU6
UP1909PDN8
G2
BST 2
PWM
3
EN
7
VCC
6
DRVH 1
SW 8
PGND
4DRVL 5
GND
9
PC14 4.7u_25V_X7R_08
INS16668508
PQ16
CSD87350Q5D
1
D1
2
3
G1
4
S1
5
G2
6
D2
7
8
9
S2
PR156
0_04
C37
*22u_6.3V_X5R_08
PR160
*15_1%_06
C693
*22u_6.3V_X5R_08
PR165 2_1%_04
PR166
0_04
PC294
1000p_50V_X7R_04
+
PC27
*220u_2V_SMD-V
C23
22u_6.3V_X5R_08
+
PC133
330uF_2V_5*5*4.2
PC113
2200p_50V_X7R_04
PC15 4.7u_25V_X7R_08
PR163
*15_1%_06
+
PC129
330uF_2V_5*5*4.2
PC296
1000p_50V_X7R_04
INS16669230
PQ17
CSD87350Q5D
1
D1
2
3
G1
4
S1
5
G2
6
D2
7
8
9
S2
PC297
1000p_50V_X7R_04
PR168
100K_1%_04
PC83
2.2u_16V_X5R_06
C39
*22u_6.3V_X5R_08
+
PC89
EEEFZ1E101P
C68
22u_6.3V_X5R_08
+
PC110
330uF_2V_5*5*4.2
+
PC122
330uF_2V_5*5*4.2
PL5
CMME104T-R22MS
1 2
PR155
*0_04
+
PC18
*220u_2V_SMD-V
C691
*22u_6.3V_X5R_08
C38
22u_6.3V_X5R_08
PC298
1000p_50V_X7R_04
PC8
1u_25V_X7R_06
C699
22u_6.3V_X5R_08
+
PC23
330U_2V_D2_D
PC13 4.7u_25V_X7R_08
C700
*22u_6.3V_X5R_08
C22
*22u_6.3V_X5R_08
C67
*22u_6.3V_X5R_08
C71
*22u_6.3V_X5R_08
PC299
1000p_50V_X7R_04
PR153
*15_1%_06
PD7
MDL914S2
A C
PC295
1000p_50V_X7R_04
+
PC130
330uF_2V_5*5*4.2
PC87
*10u_6.3V_X5R_06
PQ12
*QM3006M3
4
52
5
53
1
5
C692
*22u_6.3V_X5R_08
C20
22u_6.3V_X6S_08
C69
*22u_6.3V_X5R_08
PQ13
*2SK3018S3
G
DS
+
PC132
330uF_2V_5*5*4.2
PR158
*15_1%_06
C24
*22u_6.3V_X5R_08
PR161
1K_1%_04
PR154
2.2_06
C10
22u_6.3V_X6S_08
C11
22u_6.3V_X6S_08
C21
22u_6.3V_X5R_08
PD9
CSOD140SH
A C
PC16 4.7u_25V_X7R_08
C35
*22u_6.3V_X5R_08
+
PC19
*220u_2V_SMD-V
PC92 0.1u_25V_X7R_06
PC9
1u_25V_X7R_06
PR157
*2K_04
PR196
2.2_1%_06
Sheet 63 of 77
NVVDD 2
Schematic Diagrams
B - 64 NVVDD 2
B.Schematic Diagrams
NVVDD 2
![](asset-79.png)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
2A
1.1mm H, 7/26
2A
Vout = Vref * (1 + Rtop / Rbot)
1.55V = 0.704V * (1 + (24.3K/20K))
1.35V = 0.6096V * (1 + 24.3k/20K)
from NV
7/29
4/7 power change
ᶵᶲẞ
3/14 ADD follow NV
℔⚾
3/28 power modify
H = 1.55V
L = 1.35V
3/14 40.2k change to 78.8k (power change)
3/14 19.6k change to 4.99k (power change)
3/18 2 phase
ᶵᶲẞ
(power check)
13A
FBVDDQ FOR N17_VGA
1.35V
EMI
EMI
13A
26A
9/6
REX_0106
UP1666_VREF
UP1666_VREF
FBDRTN
LX1
FB_ON
FBVDDQ_REFIN
UGATE2
UGATE1
PVCC
FBVDDQ
FBVDDQ_REFIN
UP1666_VREFADJ
UP1666_VREFADJ
UP1666_VREF
NV_FBVDDQ_EN
1V8_AON
PWR_SRC_NV_FB
FBVDDQ
1V8_AON
1V8_AON
PWR_SRC_NV_FB
1V8_AON
5VS
PWR_SRC_NV_FB
3.3VS
5VS
PS2_FBVDDQ_FB [53]
FBVDDQ_SENSE[28,53]
DGPU_PWRGD [32]
NV_FBVDDQ_EN [27]
FBVDDQ_SENSE_RTN[28,53]
1V8_AON[3,23,24,26,27,28,31,52,53,61,62]
VDD3[5,26,30,31,32,33,34,35,37,38,48,49,50,51,52,53,54,56,59,60]
1V8_RUN[14,15,23,24,28,52]
5V[39,44,45,48,49,50,51,52,53,54,55,56,57,58,59,63]
PWR_SRC_NV_FB[53,61,62]
FBVDDQ[15,16,17,18,19,20,21,22,23,28]
VIN[10,35,39,50,53,54,55,56,57,58,59,60]
3.3V[2,10,27,38,43,45,48,50,51,52,55,56]
5VS[10,11,12,13,36,39,40,41,47,48,49,50,61,62,63]
GPIO8_MEM_VDD_CTL[26]
3.3VS[3,8,9,10,11,12,13,26,30,31,32,33,34,35,36,37,38,39,41,43,46,47,48,49,50,57]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[64] FBVDDQ(Power)
A3
64 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[64] FBVDDQ(Power)
A3
64 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A
D02A
[64] FBVDDQ(Power)
A3
64 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
PR220
51K_1%_04
PR219
*75K_1%_04
PC121
*0.1u_10V_X7R_04
PC104 4.7u_25V_X7R_08
PR206 2.2_04
PR7
78.7K_1%_04
PR227 1K_04
PR207
*0_04
PC94 0.1u_10V_X7R_04
PR239 100_04
PR214
0_04
PR232 *0_04
PR241
*10K_04
PR229
0_04
PR235
4.99K_1%_04
PC1
*0.01u_50V_X7R_04
PC106 0.1u_50V_Y5V_06
PR192
5.1_06
PR240 0_04
PR218
0_04
PR221
100K_04
PQ15
SM7320ESQG
1
2
8
3
4
9
5
6
7
PQ20
SM7320ESQG
1
2
8
3
4
9
5
6
7
PR230
*0_04
PR9
15_1%_06
PC82
*10u_6.3V_X5R_06
PR6 0_04
PR233 100_04
PR237 45.3K_1%_04
PC114
0.1u_25V_X7R_06
PR245 88.7K_1%_04
PC105 4.7u_25V_X7R_08
PR184
100K_04
PR244 40.2K_1%_04
PC111
1u_6.3V_X5R_04
PC124
*4700p_50V_X7R_04
PR225 0_04
PR3
10K_04
PC128 *0.01u_50V_X7R_04
PR243 0_04
PC118
*4700p_50V_X7R_04
PC107 0.1u_50V_Y5V_06
PC126
2200p_50V_X7R_04
PC97 4.7u_25V_X7R_08
PR234
10K_04
PQ14
QM3006M3
4
52
5
53
1
5
PR228
*0_04
+
PC85 330U_2V_D2_D
PC3
*0.01u_50V_X7R_04
PR217
*15.8K_1%_04
PR231
*0_04
S
D
G
PQ1B
MTDK3S6R
5
3
4
PC95 4.7u_25V_X7R_08
PL3
PCMB062D-R22MS
1 2
PU8
up1666QQKF
qfn20-3x3mm-rt8816
REFIN 7
VREF
8
FS/OC
9
FB
11
COMP
12
EN 3
VID 5
PVCC 18
PSI 4
LGATE2 17
PHASE1 20
GND
21
FBDRTN
10
LGATE1 19
REFADJ
6
BOOST1 1
UGATE1 2
PGOOD
13
UGATE2
14
BOOT2
15
PHASE2 16
PR159
2K_04
PC119
1000p_50V_X7R_04
PR164
15_1%_06
PR167
5.1_06
+
PC2 330U_2V_D2_D
PR226
1K_1%_04
PR223
*0_04
PR224
*0_04
PC109
220p_50V_NPO_04
PR216
*10K_04
PR162
15_1%_06
PR4 0_04 PR1
*10K_1%_04
PR236 0_04
PR182
2_1%_04
+
PC84 330U_2V_D2_D
PC120
*33p_50V_NPO_04
PC127
1u_6.3V_X5R_04
PR238 *499K_1%_1/16W_04
S
D
G
PQ1A
MTDK3S6R
2
6
1
PR208
0_04
PR215 0_04
PC108 4.7u_25V_X7R_08
PR8
15_1%_06
PR242
*3.92K_1%_04
PJ26 *CV-40mil
1 2
PR205
*0_04
PR2
*0_04
PC117
0.1u_25V_X7R_06
PR213
0_04
PL4
PCMB062D-R22MS
1 2
PQ11
2SK3018S3
G
DS
PR5
*1K_1%_04
PR222 2_1%_04
PR246
12.1K_1%_04
PC96 4.7u_25V_X7R_08
PC125
*0.01u_50V_X7R_04
PC90
220p_50V_NPO_04
Sheet 64 of 77
FBVDDQ
Schematic Diagrams
FBVDDQ B - 65
B.Schematic Diagrams
FBVDDQ
![](asset-7a.png)
Schematic Diagrams
B - 66 LED Board
B.Schematic Diagrams
LED Board
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
NUM LOCK
LED
CAPS LOCK
LED
SCROLL
LOCK
LED
HDD LED
BAT CHARGE/FULL LED
AC IN/POWER ON LED
Green
Oragne
Oragne
Green
AIRPLANE LEDdGPU LED
M:6-20-94K50-012
S:6-20-94K60-012
㬋䄏
㬋䄏
㬋䄏
月
月月
月
LED
䪗
䪗䪗
䪗㒢
㒢㒢
㒢㓦
㓦㓦
㓦
MLED_NUM#MLED_CAP#MLED_SCROLL# M_WLAN_AIRPLANE# MSATA_LED#
M_dGPU_LED
MSATA_LED#
MLED_SCROLL#
MLED_NUM#
MLED_CAP#
M_WLAN_AIRPLANE#
MLED_PWR
MLED_ACIN
MLED_BAT_FULL
MLED_BAT_CHG
MLED_PWR_R
MLED_BAT_CHG_R
M_dGPU_LED
MLED_ACIN_R
MLED_BAT_FULL_R
MLED_ACIN
MLED_PWR
MLED_BAT_CHG
MLED_BAT_FULL
MLED_GND
MLED_GND
MLED_GND
MLED_GND
M_3.3VS
M_3.3VS
MLED_GNDMLED_GND
MLED_GND MLED_GND MLED_GND
Title
Size Document Number Rev
Date: Sheet of
6-71-PA704-D02A
D02A
[65] PA7 LED BOARD_M
A3
65 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA704-D02A
D02A
[65] PA7 LED BOARD_M
A3
65 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA704-D02A
D02A
[65] PA7 LED BOARD_M
A3
65 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
MR5
220_04
MR4 680_04
5MR1 *0_04
MR2 680_04
MD8
RY-SP190YG34-5M
AC
4MR1 *0_04
MJ_LED1
FP225H-012S10M
1
2
3
9
NC1
NC2
4
5
6
7
8
10
11
12
UYG
UHY
MD3
RY-SP195UHYUYG4
1
3
2
4
MD6
RY-SP190YG34-5M
AC
MR9
220_04
MH2
*H4_0D2_2
MD4
RY-SP190YG34-5M
AC
MD7
RY-SP190YG34-5M
AC
MR8
220_04
MR6 *0_04
MD9
RY-SP190YG34-5M
AC
6MR1 *0_04
1
MH4
*MTH7_0D2_3
2
3
4
5
MR3 330_04
1MR1 *0_04
MQ1
DTC114EUA
CE
B
MR1 330_04
1
MH3
*MTH7_0D2_3
2
3
4
5
MD1
*TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
MH1
*H4_0D2_2
MR11
220_04
UYG
UHY
MD2
RY-SP195UHYUYG4
1
3
2
4
MD5
RY-SP190YG34-5M
AC
3MR1 *0_04
MR10
220_04
MR7
220_04
2MR1 *0_04
Sheet 65 of 77
LED Board
![](asset-7b.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
1
3
2
PSU1, PSU2
6-02-09249-LC0
LID SWITCH IC
V_LID_SW#
V_LID_SW#
VGND
VVDD3
VVDD3
VGND VGND VGND VGND
VGND VGND VGND
Title
Size Document Number Rev
Date: Sheet of
6-71-PA706-D02A
D02A
[66] LID BOARD_V
A3
66 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet of
6-71-PA706-D02A
D02A
[66] LID BOARD_V
A3
66 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet of
6-71-PA706-D02A
D02A
[66] LID BOARD_V
A3
66 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
3VR1 *0_04 6VR1 *0_04
VH3
*H4_0D2_2
VR1 100K_04
4VR1 *0_04
VD1
*V15AVLC0402
12
VJ_LID1
FPC1004-4AW-S
PCB Footprint = FP226H-004XXXM_R
1
2
3
4
NC1
NC2
2VR1 *0_04
VU1
AH9249NTR-G1
VCC
1OUT 2
GND
3
1VR1 *0_04
VC1
*100p_50V_NPO_04
5VR1 *0_04
1
VH2
*MTH7_0D2_3
2
3
4
5
VC2
0.1u_10V_X7R_04
1
VH4
*MTH7_0D2_3
2
3
4
5
VH1
*H4_0D2_2
Sheet 66 of 77
LID Board
Schematic Diagrams
LID Board B - 67
B.Schematic Diagrams
LID Board
![](asset-7c.png)
Schematic Diagrams
B - 68 DC Board
B.Schematic Diagrams
DC Board
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
DGND
DGND DGND
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70C-D02A
D02A
[67] DC BOARD_D
A3
67 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70C-D02A
D02A
[67] DC BOARD_D
A3
67 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70C-D02A
D02A
[67] DC BOARD_D
A3
67 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
6DR1 *0_04
DH2
*H7_0D2_3
DJ_DC_JACK2
207B07BHB0A
PCB Footprint = 2DC-G213-B48
1
2
GND1
GND2
GND4
GND3
5DR1 *0_04
3DR1 *0_04
2DR1 *0_04
DJ_DC_JACK1
50299-00801-004
1
2
3
4
5
6
7
8
1DR1 *0_04 4DR1 *0_04
DH1
*H7_0D2_3
Sheet 67 of 77
DC Board
![](asset-7d.png)
Schematic Diagrams
Power Board B - 69
B.Schematic Diagrams
Power Board
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
POWER BUTTON
20mil
20mil
20mil
P2808A1, 㛔
㛔㛔
㛔幓
幓幓
幓㚫
㚫㚫
㚫䅺
䅺䅺
䅺㭨
㭨㭨
㭨,
P2808A1
⮵
⮵⮵
⮵䫾
䫾䫾
䫾 D26 mounted VARISTOR.
VARISTOR
6-24-30003-006
6-53-3050B-B41 100g
B_SW1
4
5
2
3
1
6
21
43
5
6
D02
㓡
㓡㓡
㓡䘥
䘥䘥
䘥
BM_BTN#
BM_BTN#
BGND
BGND
BGND
BGND
BGND
BGND BGND
BGND
B3.3VS
B3.3VS
BGND
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70S-D02A
D02A
[68] POWER BOARD_B
A3
68 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70S-D02A
D02A
[68] POWER BOARD_B
A3
68 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70S-D02A
D02A
[68] POWER BOARD_B
A3
68 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
BH4
*H4_0D2_2
BJ_BTN1
FPC1004-4AW-S
fp226h-004xxxm_l
1
2
3
4
NC1
NC2
BH1
*H4_0D2_2
3BR1 *0_04
BD2
RY-SP190DBW71-5A
AC
BD3
RY-SP190DBW71-5A
AC
4BR1 *0_04
BR1
220_04
BD1
*V15AVLC0402
12
1
BH2
*MTH7_0D2_3
2
3
4
5
1
BH3
*MTH7_0D2_3
2
3
4
5
BC1
0.1u_50V_Y5V_06
5BR1 *0_04
B_SW1
TJE-532-Q-T/R
PCB Footprint = tje-53x-q
3 1
4 2
5
6
6BR1 *0_04
2BR1 *0_04
1BR1 *0_04
BC2
*0.1u_10V_X7R_04
Sheet 68 of 77
Power Board
![](asset-7e.png)
Schematic Diagrams
B - 70 Click Board
B.Schematic Diagrams
Click Board
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
W/O FP㗪
㗪㗪
㗪⎒
⎒⎒
⎒ᶲ
ᶲᶲ
ᶲ 㬌
㬌㬌
㬌⋨
⋨⋨
⋨暞
暞暞
暞ẞ
ẞẞ
ẞ
TO M/B 6-20-94K30-108
TO T/P
8 PIN
M:6-20-94K10-006
S:6-20-94K00-006
M:6-20-94A40-004
S:6-20-94A60-004
CLICK B'D
TO M/B
jack_12/13
T_TP_DATA_J
T_TP_CLK_JT_TP_BTN_L
T_TP_BTN_R
T_TP_SMB_DAT
T_TP_SMB_CLK
T_TP_CLK
T_TP_DATA
T_TP_BTN_L
T_TP_BTN_R
T_TP_SMB_CLK_J
T_TP_SMB_DAT_J
T_TP_SMB_DAT
T_TP_SMB_CLK
T_TP_DATA
T_TP_CLK
T_TP_SMB_DAT_J
T_TP_SMB_CLK_J
T_TP_DATA_J
T_TP_CLK_J
TGND
TGND
TGND
TGND TGND
T_TP_VCC
T_TP_VCC
TGNDTGND
Title
Size Document Number Rev
Date: Sheet of
6-71-PA702-D02A
D02A
[69] PA7 CLICK BOARD_T
A3
69 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA702-D02A
D02A
[69] PA7 CLICK BOARD_T
A3
69 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA702-D02A
D02A
[69] PA7 CLICK BOARD_T
A3
69 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
TH1
*H7_0D2_3
4TR1 *0_04
TJ_CLICK1
FP226H-004S10M
JXT_FP226H-004XXAM
1
2
3
4
NC1
NC2
3TR1 *0_04
TD1
*TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
1TR1 *0_04
TH2
*H7_0D2_3
TJ_MB1
FPC0502-6AW-S-HF
fp225h-006xxxm
1
2
3
4
5
6
6TR1 *0_04
TJ_TP1
FP225H-008S11M
fp225h-008gxxxm_R
1
2
3
4
5
6
7
8
5TR1 *0_04
TC1
0.1u_10V_X7R_04
2TR1 *0_04
Sheet 69 of 77
Click Board
![](asset-7f.png)
Schematic Diagrams
Audio Board B - 71
B.Schematic Diagrams
Audio Board
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
D01A_0214
Resistor 68_04
meet WLK Test
D02A_0329_WEY
D02A_0418_WEY
EHEADPHONE-R
ESIDE_SENSE
ESIDE_L
EJD_SENSEA
EJD_SENSEB
EMIC_SENSE
EHP_SENSE
ESIDE_SENSE
ESPDIFO
EHEADPHONE-L
EHP_AUDG
ESIDE_R
EJD_SENSEB
EJD_SENSEA
EMIC1_L
EMIC1_R
ESPDIFO
ESIDE_L
ESIDE_R
EHP_AUDG
EHEADPHONE-L
EHEADPHONE-R
EPHONE_L
EPHONE_R
EHP_SENSE
EMIC1_R
EMIC1_L
EMIC_SENSE
EGND EGND EGNDEGNDEGND
E_AUDG
E_AUDG
E_5VS
E_AUDG
E_AUDG
E_5VS
EGND EGND
EGND
E_AUDGE_AUDGE_AUDG
E_AUDG E_AUDG
E_AUDG
E_AUDG E_AUDG
E_AUDG
Title
Size Document Number Rev
Date: Sheet of
6-71-PA708-D02A
D02A
[70] AUDIO BOARD_E
A3
70 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA708-D02A
D02A
[70] AUDIO BOARD_E
A3
70 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA708-D02A
D02A
[70] AUDIO BOARD_E
A3
70 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
EH3
*H4_2D2_2
EC8
*100p_50V_NPO_04
ER12 39.2K_1%_04
5ER1 *0_04
EJ_MIC1
2SJ3006-008311F
4
3
2
5
1
ER5
22K_04
6ER1 *0_04
EH2
*H4_2D2_2
ER13 5.1K_1%_04
EJ_HP1
2SJ3006-008311F
4
3
2
5
1
ER6
22K_04
EL4 FCM1005KF-121T03
EL2 FCM1005KF-121T03
ED54RB751S-40H
A C
EC11 0.1u_10V_X7R_04
EC6 0.1u_10V_X7R_04
EC7
*100p_50V_NPO_04
EC5 0.1u_10V_X7R_04
2ER1 *0_04
EQ1
2SK3018S3
G
DS
ER7 68_04
1ER1 *0_04
EC1
100p_50V_NPO_04
EH1
*H8_0D2_8
EL6 FCM1005KF-121T03
EC4
100p_50V_NPO_04
EL1 FCM1005KF-121T03
4ER1 *0_04
EC9
100p_50V_NPO_04
ER9 0_04
ER14
*0_04
ER8 68_04
3ER1 *0_04
EL3 FCM1005KF-121T03
EC3
*0.1u_10V_X7R_04
DRIVE
IC
TX
EJ_SPDIF1
2SJ3011-003111F
7
4
1
5
6
A
B
C
EC2
*100p_50V_NPO_04
EC12 0.1u_10V_X7R_04
EC10
100p_50V_NPO_04
EJ_AUDIO1
FPC0502-16AW-S-HF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
ER10 47K_04
ER11 20K_1%_04
EL5 FCM1005KF-121T03
EH4
*H8_0D2_8
Sheet 70 of 77
Audio Board
![](asset-80.png)
Schematic Diagrams
B - 72 USB Board
B.Schematic Diagrams
USB Board
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
USB3.0 PORT1
USB3.0 Max Trace length
Follow Design Guide
3/18
㍉岤⺢嬘ἧ䓐
20KV ESD
3/22 lay swap 3/15 USB3.0 connect
㓡䓐
UBS3.1 connect
䓐㕁
(ME change)
⍾
⍾⍾
⍾㴰
㴰㴰
㴰co-lay, ⚈
⚈⚈
⚈䃉
䃉䃉
䃉layout䨢
䨢䨢
䨢攻
攻攻
攻
CLOSE TO CONNECTOR
100 MIL
2A/90mohm
USB3.0 PORT5
⚈
⚈⚈
⚈⍾
⍾⍾
⍾㴰
㴰㴰
㴰co-lay, ⎴
⎴⎴
⎴㬍
㬍㬍
㬍⍾
⍾⍾
⍾㴰
㴰㴰
㴰暣
暣暣
暣⭡
⭡⭡
⭡
USB3.0 Max Trace length
Follow Design Guide
KAI_12/07
WUSB_PP1_J
WRXN1_J
WTXN1_J
WRXP1_J
WTXP1_J
WUSB_PN1_J
WTXP1_J
WTXN1_J
WRXN1_J
WRXP1_J
WUSB3_RXN1
WUSB3_RXP1
WDD_ON#
WRXN5_J
WRXP5_J
WTXP5_J
WTXN5_J
WUSB3_RXN5
WUSB3_RXP5
WTXN5_J
WRXN5_J
WTXP5_J
WDD_ON#
WRXP5_J
WUSB_PN5_J
WUSB_PP5_J
WUSB_PN1_J
WUSB_PP1_J
WUSB_PN1_CON
WUSB_PP1_CON
WUSB_PN1
WUSB_PP1
WUSB3_TXP5
WUSB3_TXN5
WUSB3_TXP1
WUSB3_TXN1
WUSB_PP5_J
WUSB_PN5_J
WUSB_PP5_CON
WUSB_PN5_CON
WUSB_PP5
WUSB_PN5
WUSB_PP1
WUSB_PN1
WDD_ON#
WUSB3_RXN1
WUSB3_RXP1
WUSB3_TXN1
WUSB3_TXP1
WUSB_PN5
WUSB_PP5
WUSB3_RXN5
WUSB3_RXP5
WUSB3_TXP5
WUSB3_TXN5
WUSBVCC_CHW5V
WGND
WGND WGND
WGND
WGND
WGND
WGNDWGND
WGND
WGND
WGND
WGND
WGND
WGND
WGNDWGND
WGND
WUSBVCC3.0_6
W5V
WUSBVCC3.0_6
WGNDWGND
WGND WGND WGND WGND
W5V
WGND
Title
Size Document Number Rev
Date: Sheet of
6-71-PA703-D12A
D02A
[71] USB3.0 BOARD_W
A3
71 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet of
6-71-PA703-D12A
D02A
[71] USB3.0 BOARD_W
A3
71 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet of
6-71-PA703-D12A
D02A
[71] USB3.0 BOARD_W
A3
71 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
WC7 22u_6.3V_X5R_08
WC10
0.1u_10V_X7R_04
3WR1 *0_04
WD2
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
WC6
22u_6.3V_X5R_08
WC5 22u_6.3V_X5R_08
WU1
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1
VIN
5
GND 2
EN#
4OC# 3
WH1
*H8_0D2_8
2WR1 *0_04
WH4
*H8_0D2_8
5WR1 *0_04
Standard-A
WJ_USB3_2
377AH09FZT S4NVCB
PCB Footprint = 317AH09FZTS4T4CX
VBUS
1
D-
2
D+
3
GND_D
7
SSRX-
5
SSRX+
6
GND
4
SSTX-
8
SSTX+
9SHIELD GND1
SHIELD GND2
SHIELD GND3
SHIELD GND4
WR1 *0402_short
+
WC3
*EEFCX0J221YR
WU2
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1
VIN
5
GND 2
EN#
4OC# 3
+
WC2
*EEFCX0J221YR
WJ_USB1
FP225H-030S10M
PCB Footprint = FP225H-030GXXM
11
22
33
44
55
66
77
88
99
10 10
13 13
19 19
12 12
16 16
14 14
18 18
15 15
11 11
17 17
20 20
21 21
24 24
22 22
23 23
25 25
26 26
27 27
28 28
29 29
30 30
WC8
22u_6.3V_X5R_08
WC1
10u_6.3V_X5R_06
WC120.1u_10V_X7R_04
WH3
*H5_0D2_2
WL1
*WCM2012F2S-161T03-short
1
4
2
3
WC110.1u_10V_X7R_04
WD1
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
6WR1 *0_04
WH2
*H5_0D2_2
WC4
10u_6.3V_X5R_06
WD4
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
WC9
0.1u_10V_X7R_04
Standard-A
WJ_USB3_1
377AH09FZT S4NVCB
PCB Footprint = 317AH09FZTS4T4CX
VBUS
1
D-
2
D+
3
GND_D
7
SSRX-
5
SSRX+
6
GND
4
SSTX-
8
SSTX+
9SHIELD GND1
SHIELD GND2
SHIELD GND3
SHIELD GND4
WC140.1u_10V_X7R_04
WL2
*WCM2012F2S-161T03-short
1
4
2
3
4WR1 *0_04
WD3
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
1WR1 *0_04
WC130.1u_10V_X7R_04
Sheet 71 of 77
USB Board
![](asset-81.png)
Schematic Diagrams
USB 3.0 Board B - 73
B.Schematic Diagrams
USB 3.0 Board
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
USB3.0 PORT1
To Conn.
USB3.0 Max Trace length
Follow Design Guide
3/18
㍉岤⺢嬘ἧ䓐
20KV ESD
3/15 USB3.0 connect
㓡䓐
UBS3.1 connect
䓐㕁
(ME change)
To Conn.
⍾
⍾⍾
⍾㴰
㴰㴰
㴰co-lay, ⚈
⚈⚈
⚈䃉
䃉䃉
䃉layout䨢
䨢䨢
䨢攻
攻攻
攻
From PCH
CLOSE TO CONNECTOR
100 MIL
2A/90mohm
USB3.0 PORT5
⚈
⚈⚈
⚈⍾
⍾⍾
⍾㴰
㴰㴰
㴰co-lay, ⎴
⎴⎴
⎴㬍
㬍㬍
㬍⍾
⍾⍾
⍾㴰
㴰㴰
㴰暣
暣暣
暣⭡
⭡⭡
⭡
USB3.0 Max Trace length
Follow Design Guide
3/18
㍉岤⺢嬘ἧ䓐
20KV ESD
㷔
㷔㷔
㷔娎
娎娎
娎䓐
䓐䓐
䓐
,MP
ᶵ
ᶵᶵ
ᶵ⮶
⮶⮶
⮶ℍ
ℍℍ
ℍ
.
ZUSB_PP1_J
ZRXN1_J
ZTXN1_J
ZRXP1_J
ZTXP1_J
ZUSB_PN1_J
ZI2C_SCK_P1ZI2C_SDA_P1
ZUSB3_RXP1
ZUSB3_RXN1
ZUSB3_TXN1
ZUSB3_TXP1
ZTXN1
ZTXP1
ZRXP1
ZRXN1
ZTXP1
ZTXN1
ZTXP1_J
ZTXN1_J
ZRXN1_J
ZRXP1_J
ZRXN1
ZRXP1
ZDD_ON#
ZSCK_P4ZSDA_P4
ZUSB3_RXP5
ZUSB3_RXN5
ZUSB3_TXN5
ZUSB3_TXP5
ZTXN5
ZTXP5
ZRXP5
ZRXN5
ZUSB_PP5_J
ZUSB_PN5_J
ZUSB_PP5_CONZUSB_PP5
ZUSB_PN5_CON
ZUSB_PN5
ZRXN5_J
ZRXP5_J
ZTXP5_J
ZTXN5_J
ZRXN5
ZRXP5
ZTXP5
ZTXN5
ZRXN5_J
ZTXP5_J
ZDD_ON#
ZRXP5_J
ZUSB_PN5_J
ZUSB_PP5_J
ZUSB_PN1_J
ZUSB_PP1_J
ZUSB_PN1_CON
ZUSB_PP1_CON
ZUSB_PN1
ZUSB_PP1
ZUSB_PP1
ZUSB_PN1
ZDD_ON#
ZUSB3_RXN1
ZUSB3_RXP1
ZUSB3_TXN1
ZUSB3_TXP1
ZUSB_PN5
ZUSB_PP5
ZUSB3_RXN5
ZUSB3_RXP5
ZUSB3_TXP5
ZUSB3_TXN5
ZUSBVCC_CHZ5V
Z3.3V
Z3.3V
ZGND
ZGND
ZGND
ZGND ZGND
ZGND
ZGND
ZGND
ZGND
ZGNDZGND
ZGND
ZGND
ZGND
ZGND
ZGND
ZGND
ZGND
ZGND
ZGNDZGNDZGND ZGND
ZGND
ZGND
ZGND
ZGND
ZGND
ZGND
ZGND
Z3.3V
Z3.3V
ZUSBVCC3.0_6
Z5V
Z3.3V
ZUSBVCC3.0_6
ZGNDZGND
Z3.3V
ZGND
ZGND
Z3.3V
Z5V
ZGND ZGND ZGND ZGND
Title
Size Document Number Rev
Date: Sheet of
6-71-PA703-D02A
D02A
[72] USB3.0 BOARD(W/REDRIVER)_Z
A3
72 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet of
6-71-PA703-D02A
D02A
[72] USB3.0 BOARD(W/REDRIVER)_Z
A3
72 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet of
6-71-PA703-D02A
D02A
[72] USB3.0 BOARD(W/REDRIVER)_Z
A3
72 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
ZC11
0.1u_10V_X7R_04
ZC26 0.1u_10V_X7R_04
4ZR1 *0_04
ZR12 *0402_short
ZC33 *4.7K_04
ZC5
0.1u_10V_X7R_04
6ZR1 *0_04
ZC3
22u_6.3V_X5R_08
ZC36 *0_04
ZC31 *4.7K_04
ZU1
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1
VIN
5
GND 2
EN#
4OC# 3
ZC7
0.1u_10V_X7R_04
ZR10 *4.7K_04
1ZR1 *0_04
ZR5 *0_04
ZC41 *4.7K_04
ZC25 0.1u_10V_X7R_04
ZC4
22u_6.3V_X5R_08
ZH3
*H5_0D2_2
ZH1
*H8_0D2_8
ZR2 *4.7K_04
ZH2
*H5_0D2_2
ZC28 *4.7K_04
ZC210.1u_10V_X7R_04
ZD1
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
ZC1
10u_6.3V_X5R_06
ZR3 *4.7K_04
ZC29 *0_04
ZR9 *4.7K_04
ZC15 0.1u_10V_X7R_04
ZJ_USB1
FP225H-030S10M
PCB Footprint = FP225H-030GXXM
11
22
33
44
55
66
77
88
99
10 10
13 13
19 19
12 12
16 16
14 14
18 18
15 15
11 11
17 17
20 20
21 21
24 24
22 22
23 23
25 25
26 26
27 27
28 28
29 29
30 30
ZC34 *4.7K_04
ZC9 22u_6.3V_X5R_08
ZC40
1u_6.3V_X5R_04
ZH4
*H8_0D2_8
5ZR1 *0_04
ZC22
0.1u_10V_X7R_04
ZR1 *0_04
ZC16 0.1u_10V_X7R_04
ZR7 *4.7K_04
ZR8 *0_04
ZC23 0.1u_10V_X7R_04
Standard-A
ZJ_USB3_2
377AH09FZT S4NVCB
PCB Footprint = 317AH09FZTS4T4CX
VBUS
1
D-
2
D+
3
GND_D
7
SSRX-
5
SSRX+
6
GND
4
SSTX-
8
SSTX+
9SHIELD GND1
SHIELD GND2
SHIELD GND3
SHIELD GND4
ZC14 0.1u_10V_X7R_04
ZC13 0.1u_10V_X7R_04
ZD2
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
3ZR1 *0_04
ZR11 2K_1%_04
ZR6 *4.7K_04
ZC180.1u_10V_X7R_04
+
ZC2
*EEFCX0J221YR
ZC8 22u_6.3V_X5R_08
ZC420.1u_10V_X7R_04
ZC190.1u_10V_X7R_04
ZU4
ASM1464
PCB Footprint = QFN24-4X4MM
VCC 1
EQ_A 2
DE_A 3
SW_A 4
EN_RXD 5
GND 6
SMB_SCK 7
RX1- 8
RX+ 9
CHIP_EN# 10
TX2- 11
TX2+ 12
VCC
13
Reserverd
14
SW_B
15
DE_B
16
EQ_B
17
GND
18
RX2+
19
RX2-
20
TYPE_IND#
21
TX1+
22
TX1-
23
SMB_DATA
24 GND
25
ZC30 2K_1%_04
ZC27 *4.7K_04
ZC12
0.01u_50V_X7R_04
ZL1
*WCM2012F2S-161T03-short
1
4
2
3
ZD4
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
ZC370.1u_10V_X7R_04
ZC390.1u_10V_X7R_04
ZR4 *4.7K_04
Standard-A
ZJ_USB3_1
377AH09FZT S4NVCB
PCB Footprint = 317AH09FZTS4T4CX
VBUS
1
D-
2
D+
3
GND_D
7
SSRX-
5
SSRX+
6
GND
4
SSTX-
8
SSTX+
9SHIELD GND1
SHIELD GND2
SHIELD GND3
SHIELD GND4
+
ZC10
*EEFCX0J221YR
ZC17
1u_6.3V_X5R_04
ZC38
0.01u_50V_X7R_04
ZC24 0.1u_10V_X7R_04
ZL2
*WCM2012F2S-161T03-short
1
4
2
3
ZC35 *0_04
ZC32 *4.7K_04
ZU2
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1
VIN
5
GND 2
EN#
4OC# 3
2ZR1 *0_04
ZU3
ASM1464
PCB Footprint = QFN24-4X4MM
VCC 1
EQ_A 2
DE_A 3
SW_A 4
EN_RXD 5
GND 6
SMB_SCK 7
RX1- 8
RX+ 9
CHIP_EN# 10
TX2- 11
TX2+ 12
VCC
13
Reserverd
14
SW_B
15
DE_B
16
EQ_B
17
GND
18
RX2+
19
RX2-
20
TYPE_IND#
21
TX1+
22
TX1-
23
SMB_DATA
24 GND
25
ZD3
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
ZC200.1u_10V_X7R_04
ZC6
10u_6.3V_X5R_06
ZC430.1u_10V_X7R_04
Sheet 72 of 77
USB 3.0 Board
![](asset-82.png)
Schematic Diagrams
B - 74
B.Schematic Diagrams
PA7 Card Reader Board 1/4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
LAN (RTL8111G)
PIN11
LAN Board
3.3VS:50mA
GIGA LAN
capacitors must be close to pin side.
40 mil
GIGA LAN
Cc
Ra
(>60mil)
(W>60mil
L<200mil)
PIN32
LDO Mode
60 mil
PIN22
PIN30
W>40mil
PIN22
PIN8PIN3Pin#32
meet realtek Freq tolerance 50ppm
VDD3:700mA
+3V_LAN_IO Rising time (10%~90%)
天
>0.5mS and <100mS.
Lawrence_0105
NRTL8411B_HSOP NPCIE_RXP5_GLAN
NLAN_MDIN1
NNMCT_R
NREGOUT
NLAN_WAKEUP#
NRTL8411B_HSON
NLAN_MDIP1
NLAN_MDIN2
NLAN_MDIP2
NLED1/GPO
NLAN_MDIN3
NLAN_MDIP3
NRSET
NLED0
NCLK_PCIE_GLAN
NCLK_PCIE_GLAN#
NPERSTB
NLAN_MDIP0
NPCIE_TXN5_GLAN
NPCIE_TXP5_GLAN
NBUF_PLT_RST#
NPCIE_RXN5_GLAN
NLAN_MDIN0
NLAN_MDIP0
NLAN_MDIP3
NLAN_MDIN1 NLMX2-
NLMX3-
NLMX1+
NLMX1-
NLAN_MDIN3
NLAN_MDIN0
NLMX3+
NLAN_MDIP2
NLMX4+
NDLMX2+
NDLMX3-
NDLMX3+
NDLMX4+
NDLMX1+
NDLMX4-
NDLMX1-
NDLMX2-
NLAN_MDIN2
NLAN_MDIP1
NDLMX4-
NDLMX4+
NNMCT_3
NNMCT_2
NDLMX1+
NDLMX2-
NISOLATEB
NDLMX3+
NDLMX1-
NDLMX2+
NDLMX3-
NNMCT_4
NLAN_WAKEUP#
NLMX4-
NNMCT_1
NLMX2+
NXTAL1
NLED2
NREGOUT
NXTAL2
NLAN_CLKREQ#
NXTAL1
NXTAL2
NGND NGND
NGND
NGND
NGNDNGNDNGND
NGND NGND
NGND NGND
NGND
NGND
NGND
NGND
NGND
NGND
NGND
NGND
NGND
NVDD10
NAVDD33
NAVDD33
NVDD10
NVDDREG/VDD33
NREGOUT
NVDD10
NAVDD33
NVDD10
N3.3VS
NVDD10
NVDD10NVDD10
NVDD10
NVDD10
NVDD10
N3.3VS
NVDDREG/VDD33
NVDD3
NAVDD33
NGND NGND
NCLK_PCIE_GLAN# [76]
NCLK_PCIE_GLAN [76]
NPCIE_TXN5_GLAN [76]
NPCIE_TXP5_GLAN [76]
NBUF_PLT_RST# [76]
NLAN_CLKREQ# [76]
NPCIE_RXP5_GLAN [76]
NPCIE_RXN5_GLAN [76]
NLAN_WAKEUP# [76]
N3.3VS [76]
NVDD3 [76]
NGCLK_25M_GLAN [76]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D02A
D02A
[73] PA7 LAN BOARD_N 1/4
A3
73 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D02A
D02A
[73] PA7 LAN BOARD_N 1/4
A3
73 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D02A
D02A
[73] PA7 LAN BOARD_N 1/4
A3
73 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
NC7
0.1u_10V_X7R_04
NR5 *15mil_short
NEML4
*WCM2012F2S-SHORT
1
4
2
3
NC11 *0.1u_10V_X7R_04
NR8 1K_04
NR4 *1K_04
NL3
NS892402
TCT1
1
TD1+
2TD1-
3
TCT2
4
TD2+
5TD2-
6
TCT3
7
TD3+
8TD3-
9
TCT4
10
TD4+
11 TD4-
12 MX4- 13
MX4+ 14
MCT4 15
MX3- 16
MX3+ 17
MCT3 18
MX2- 19
MX2+ 20
MCT2 21
MX1- 22
MX1+ 23
MCT1 24
NC52
*4.7u_6.3V_X5R_04
NC14
0.1u_10V_X7R_04
NEML1
*WCM2012F2S-SHORT
1
4
2
3
NR9 *0402_short
NC49
0.01u_16V_X7R_04
NR11 *15mil_short
NC2
10p_50V_NPO_04
NR14 75_1%_04
NC1
0.1u_10V_X7R_04
NC3
10p_50V_NPO_04
NX1
FSX3L 25MHZ
1 2
34
NR6
*15mil_short
NC9
0.1u_10V_X7R_04
QFN32
NU1
RTL8111G
RTL8111G-CG
MDIP0
1
MDIN0
2
MDIP1
4
MDIN1
5
MDIP2
6
MDIN2
7
AVDD10
8
MDIP3
9
MDIN3
10
AVDD33
11
CLKREQB
12
REG_OUT 24
VDDREG 23
DVDD10 22
ISOLATEB 20
PERSTB 19
AVDD10 30
HSON 18
HSOP 17
AVDD33 32
RSET 31
CKXTAL2 29
CKXTAL1 28
LED0 27
LANWAKEB 21
LED1/GPO 26
LED2 25
HSIP
13
HSIN
14
REFCLK_P
15
REFCLK_N
16
E_PAD
33
AVDD10
3
C10202-10839-L
NJ_RJ1
DD-
8DD+
7
DB-
6
DC-
5DC+
4
DB+
3DA-
2DA+
1shield GND1
shield GND2
NR7 15K_1%_04
NC13 0.1u_10V_X7R_04
NEML2
*WCM2012F2S-SHORT
1
4
2
3
NC4
0.1u_10V_X7R_04
NC51
*4.7u_6.3V_X5R_04
NEML3
*WCM2012F2S-SHORT
1
4
2
3
NC8
*1u_6.3V_X5R_04
NR3 1M_04
NC6
0.1u_10V_X7R_04
NC10
0.1u_10V_X7R_04
NC12 0.1u_10V_X7R_04
NC5
*4.7u_6.3V_X5R_06
NR40 *0_04
NR10 *10K_04
NR12 75_1%_04
NR13 75_1%_04
NR2 2.49K_1%_04
NC15
100PF 2KV 1206
NR1 *0_04
NR15 75_1%_04
Sheet 73 of 77
PA7 Card Reader
Board 1/4
![](asset-83.png)
Schematic Diagrams
PA7 Card Reader Board 2/4 B - 75
B.Schematic Diagrams
PA7 Card Reader Board 2/4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SLG55593VTR USB Charging PORT
CLOSE TO CONNECTOR
100 MIL
2A/90mohm
USB3.0 PORT6
⚈
⚈⚈
⚈⍾
⍾⍾
⍾㴰
㴰㴰
㴰co-lay, ⎴
⎴⎴
⎴㬍
㬍㬍
㬍⍾
⍾⍾
⍾㴰
㴰㴰
㴰暣
暣暣
暣⭡
⭡⭡
⭡
USB3.0 Max Trace length
Follow Design Guide
(MB⎛
⎛⎛
⎛ᶳ
ᶳᶳ
ᶳ)
3/18
㍉岤⺢嬘ἧ䓐
20KV ESD
NTXN6_J
NRXN6_J
NTXP6_J
NDD_ON#
NRXP6_J
NUSB_PN6_J
NUSB_PP6_J
NUSB_PN6_J
NUSB_PP6_J
NUSB_PN6_CON
NUSB_PP6_CON
NUSB_PN6
NUSB_PP6
NRXN6_J
NRXP6_J
NTXP6_J
NTXN6_J
NUSB3_RXN6
NUSB3_RXP6
NUSBVCC3.0_6
NGND
NGND
NGND
NGND
NGND
NGND
NGND
NGNDNGND
NUSBVCC3.0_6
NVDD5
NVDD5NVDD5
NGND NGND
NUSB_PP6[76]
NUSB_PN6[76]
NDD_ON#[75,76]
NVDD5[75,76]
NUSB3_RXP6[76]
NUSB3_RXN6[76]
NUSB3_TXN6[76]
NUSB3_TXP6[76]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D021A
D02A
[74] PA7 USB3.0 N 2/4
A3
74 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D021A
D02A
[74] PA7 USB3.0 N 2/4
A3
74 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D021A
D02A
[74] PA7 USB3.0 N 2/4
A3
74 77Wednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
ND2
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
Standard-A
NJ_USB3_2
C19009-90905-L
VBUS
1
D-
2
D+
3
GND_D
7
SSRX-
5
SSRX+
6
GND
4
SSTX-
8
SSTX+
9SHIELD GND1
SHIELD GND2
SHIELD GND3
SHIELD GND4
NC56 0.1u_10V_X7R_04
NC26 22u_6.3V_X5R_08
ND4
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
NEMC3
*100p_50V_NPO_04
NL2
*WCM2012F2S-161T03-short
1
4
2
3
NC23
0.1u_10V_X7R_04
NC25 22u_6.3V_X5R_08
NU4
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1
VIN
5
GND 2
EN#
4OC# 3
NC24
10u_6.3V_X5R_06
NEMC4
*0.1u_10V_X7R_04
NC55 0.1u_10V_X7R_04
NR22 *0402_short
Sheet 74 of 77
PA7 Card Reader
Board 2/4
![](asset-84.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CLOSE TO CONNECTOR
100 MIL
2A/90mohm
USB3.0 PORT4
⚈
⚈⚈
⚈⍾
⍾⍾
⍾㴰
㴰㴰
㴰co-lay, ⎴
⎴⎴
⎴㬍
㬍㬍
㬍⍾
⍾⍾
⍾㴰
㴰㴰
㴰暣
暣暣
暣⭡
⭡⭡
⭡
USB3.0 Max Trace length
Follow Design Guide
(MB⎛
⎛⎛
⎛ᶳ
ᶳᶳ
ᶳ)
3/18
㍉岤⺢嬘ἧ䓐
20KV ESD
Default Low
䚖
䚖䚖
䚖⇵
⇵⇵
⇵ἧ
ἧἧ
ἧ䓐
䓐䓐
䓐㬌
㬌㬌
㬌㕁
㕁㕁
㕁SLG55593VTR
:6-02-55593-9D0
W/ USB CHARGER
SLG55593VTR USB Charging PORT
D02A_0329_CF
NTXN4_J
NRXN4_J
NTXP4_J
NUSB_DD_ON#
NRXP4_J
NUSB_PN4_J
NUSB_PP4_J
NUSB_PN4_J
NUSB_PP4_J
NUSB_PN4_CON
NUSB_PP4_CON
NUSB_PN4_R
NUSB_PP4_R
NRXN4_J
NRXP4_J
NTXP4_J
NTXN4_J
NUSB3_RXN4
NUSB3_RXP4
NUSB_PP4_R
NUSB_PN4 NUSB_PN4_R
NUSB_PP4
NUSB_PP4
NUSB_PN4 NUSB_PN4_R
NUSB_PP4_R
NDD_ON# NUSB_DD_ON#
NUSB_DD_ON#
NUSBVCC3.0_4
NGND
NGND
NGND
NGND
NGND
NGND
NGND
NGNDNGND
NUSBVCC3.0_4
NVDD5
NVDD5
NVDD5
NGND
NGND
NGND
NVDD5NVDD5
NGND NGND
NUSB_PP4[76]
NUSB_PN4[76]
NDD_ON#[74,76]
NVDD5 [74,76]
NUSB3_RXP4[76]
NUSB3_RXN4[76]
NDD_ON[76]
NUSB3_TXN4[76]
NUSB3_TXP4[76]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D02A
D02A
[75] PA7 USB3.0/SIM BOARD_N 3/4
A3
75 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D02A
D02A
[75] PA7 USB3.0/SIM BOARD_N 3/4
A3
75 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D02A
D02A
[75] PA7 USB3.0/SIM BOARD_N 3/4
A3
75 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
NC17
0.1u_10V_X7R_04
NEMC1
*0.1u_10V_X7R_04
NL1
*WCM2012F2S-161T03-short
1
4
2
3
ND1
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
NR16
100K_04
NR20 *0402_short
NC21 22u_6.3V_X5R_08
NR19
10K_04
NU2
SLG55593VTR
PCB Footprint = TDFN8-2X2MM
PRE# 1
DM 2
DP 3
CDP 4
VCC
5
TDP
6
TDM
7
CB
8
GND
9
NC18
10u_6.3V_X5R_06
NC20 22u_6.3V_X5R_08
NC19
0.1u_10V_X7R_04
NR39 *0_04
NC53 0.1u_10V_X7R_04
NEMC2
*100p_50V_NPO_04
NC54 0.1u_10V_X7R_04
ND3
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
NU3
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1
VIN
5
GND 2
EN#
4OC# 3
Standard-A
NJ_USB3_1
C19009-90905-L
VBUS
1
D-
2
D+
3
GND_D
7
SSRX-
5
SSRX+
6
GND
4
SSTX-
8
SSTX+
9SHIELD GND1
SHIELD GND2
SHIELD GND3
SHIELD GND4
NR38 *0_04
NR21 *0_04
Sheet 75 of 77
PA7 Card Reader
Board 3/4
Schematic Diagrams
B - 76 PA7 Card Reader Board 3/4
B.Schematic Diagrams
PA7 Card Reader Board 3/4
![](asset-85.png)
Schematic Diagrams
PA7 Card Reader Board 4/4 B - 77
B.Schematic Diagrams
PA7 Card Reader Board 4/4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
Place Near Conn
Near Cardreader CONN
LENGTH <2INCH
| CLK - DATA | <= 100mils
| DATA.x - DATA.y | <= 100mils
CLK NEED DOUBLE SPACE THEN OTHER
50ohm +/- 15%
PCH
䪗ᶲẞ
RTS5250
5/21 update PCB Footprint
1.2A
CARD READER
SD_CARD SUPPORT UHS-II
20 mil
12 mil
L<200mils
NEAR PIN11
60 mil 40 mil
SD Card Remove Fall time less than 1 ms
when SD card remove.
40 mil
Near Cardreader CONN
40 mil
20 mil
MDIO0~5
攟
攟攟
攟䞕
䞕䞕
䞕ⶖ
ⶖⶖ
ⶖ
<200 mil
20 mil
40 mil
20 mil
0618 VALUE UPDATE
100ohm +/- 15%
100ohm +/- 15%
100ohm +/- 15%
3.3VS:1575mA
6-21-A4710-120
LAN BOARD
(I/O RJ-45,USB3.0x1,USB3.1X2,CARD READER,SIM )
VIC_0104
KAI_1/9
NPCIE_TXN6_SD40
NPCIE_TXP6_SD40
NCLK_PCIE_SD40
NCLK_PCIE_SD40#
NPCIE_RXP6_SD40
NPCIE_RXN6_SD40
N_RTS5249_HSOP
N_RTS5249_HSON
NBUF_PLT_RST#
NSD40_CLKREQ#
NRREF
NSD_WP/MS_BS
NSD_D1/SD_RCLK_M
NSD_D0/SD_RCLK_P
NSD_LN1_P
NSD_LN1_M
NSD_LN0_P
NSD_LN0_M
NSD_CLK/MS_D0
N_CARD_3V3
NSD_CD#
NSD_CMD/MS_D2
NSD_D3/MS_D3
NSD_D2/MS_CLK
NSP1
NDV33_18
NSP4
NSP2
NSP6
NSP5
NSD_D0/SD_RCLK_P
NSD_D3/MS_D3
NSD_D2/MS_CLK
NSD_CMD/MS_D2
NSD_D1/SD_RCLK_M
NMS_INS#
NSD_CD#
NSD_WP/MS_BS NCR1_LEDN
NSD_LN0_P
NSD_LN0_M
NSD_LN1_M
NSD_LN1_P
NSDREG2
NSD_CLK/MS_D0
NSP3
NLAN_WAKEUP#
NCLK_PCIE_SD40#
NCLK_PCIE_SD40
NPCIE_TXN6_SD40
NPCIE_TXP6_SD40
NPCIE_RXN6_SD40
NPCIE_RXP6_SD40
NSD40_CLKREQ#
NGND NGND
NGND
NGND NGND
NGND NGND
NGND NGND
NGND
NGND
NGND
NGND
NGND
NGND NGND
NGND
NGND
NGND
NGND NGNDNGND
NGND
NGND
N3V3AUX
N_AV12
N3V3AUX
N3.3VS
N3V3AUX
NSD_VDD2
NVCC_CARD
NVCC_CARD
NCARD_3V3
NSD_VDD2
NDV12_S
NDV12_S
NVCC_CARD
NVDD3
N3.3VS NGND
NGND
NGND
NGND
NGND
NGND
NGND
NVDD5
NVDD3
N3.3VS
N3.3VS [73]
NVDD5 [74,75]
NVDD3 [73]
NPCIE_TXP5_GLAN[73]
NPCIE_TXN5_GLAN[73]
NPCIE_RXN5_GLAN[73]
NPCIE_RXP5_GLAN[73]
NUSB3_RXP6[74]
NUSB3_TXN6[74]
NUSB3_RXN6[74]
NUSB3_TXP6[74]
NGCLK_25M_GLAN[73]
NUSB3_TXN4[75]
NUSB3_TXP4[75]
NUSB3_RXN4[75]
NUSB3_RXP4[75]
NCLK_PCIE_GLAN#[73]
NCLK_PCIE_GLAN[73]
NLAN_CLKREQ#[73]
NBUF_PLT_RST#[73]
NDD_ON#[74,75]
NLAN_WAKEUP#[73]
NUSB_PN6[74]
NUSB_PP6[74]
NUSB_PN4[75]
NUSB_PP4[75]
NDD_ON[75]
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D02A
D02A
[76] PA7 CARD R/CON BOARD_N 4/4
A3
76 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D02A
D02A
[76] PA7 CARD R/CON BOARD_N 4/4
A3
76 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Title
Size Document Number Rev
Date: Sheet of
6-71-PA70Z-D02A
D02A
[76] PA7 CARD R/CON BOARD_N 4/4
A3
76 77W ednesday, July 05, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
1NR1 *0_04
NR32 10K_04
3NR1 *0_04
NC34
0.1u_10V_X7R_04
NC48
4.7u_6.3V_X5R_06
NJ_LAN2
FP238BH- 024S10M
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
25
26
NR37
*150_06
NC35
0.1u_10V_X7R_04
NC50
0.1u_10V_X7R_04
NC33
0.1u_10V_X7R_04
2NR1 *0_04
NR25 0_04 NC38
0.1u_10V_X7R_04
NC44
*5p_50V_NPO_04
NC39
4.7u_6.3V_X5R_06
NR27 *10K_04
NC22
0.1u_10V_X7R_04
NC47
0.1u_10V_X7R_04
NR26 6.2K_1%_04
NC32
0.1u_10V_X7R_04
NC37
0.1u_10V_X7R_04
NR28
10K_04
NC45 1u_6.3V_X5R_04
NR36 0_04
NQ1
*2SK3018S3
G
D S
4NR1 *0_04
NH2
*c87d87n
NH3
*H8_0D2_8
RTS5250
QFN32
NU5
RTS5250-GR
HSIP
3
HSIN
4
REFCLKP
5
REFCLKN
6
HSOP
7
HSON
8
AV12
10 RREF
9
3V3_IN
11
CARD_3V3
12
DV12_S
14
SP1/SD_RCLK_M
15
SD_LN1_P 22
DV33_18 18
SP4 19
SP5 20
SP6 21
GPIO 28
SP7 29
SD_CD# 30
MS_INS# 31
WAKE# 32
SP3 17
GND
33
PERST#
1
CLKREQ#
2
SD_VDD2
13
SP2/SD_RCLK_P
16
SD_LN1_M 23
SDREG2 24
SD_LN0_M 25
SD_LN0_P 26
3V3aux 27
NH5
*H8_0D2_8
NC28
4.7u_6.3V_X5R_06
NH8
*c87d87n
NH7
*H8_0D2_8
NR24 0_04
NC36
0.1u_10V_X7R_04
NC31
10u_6.3V_X5R_06
NC29 0.1u_10V_X7R_04
NJ_LAN1
LVDFH-03008-TP00+
PCB Footprint = lvdfh-030xx-tx00
current = 0.3A
30
30 29
29 28
28 27
27 26
26 25
25 24
24 23
23 22
22 21
21 20
20 19
19 18
18 17
17 16
16 15
15 14
14 13
13 12
12 11
11 10
10 9
98
87
76
65
54
43
32
21
1
GND1 GND1
GND2 GND2
GND3 GND3
GND4 GND4
GND5 GND5
NR30 0_04
NR34 0_04
NC30 0.1u_10V_X7R_04
NR35 0_04
NR31 0.2R_5%_06
NC40
4.7u_6.3V_X5R_06
NJ_CARD1
PSDCT1-20GLBS1NN4H0
CD/DAT3
16
VSS1
11
VSS2
5
DAT2
18 D0+
17
CMD
14
VDD1
9
CLK
7
DAT0/RCLK+
3DAT1/RCLK-
2
VSS3
19
D0-
15
VSS4
13
GND
20
VDD2
10
D1-
8
D1+
6
VSS5
4
CD
12
WP
1
GND3 23
GND2 22
GND1 21
GND4 24
5NR1 *0_04
NC46 1u_6.3V_X5R_04
NR29 0_04
NC42
4.7u_6.3V_X5R_06
NH1
*H8_0D2_8
6NR1 *0_04
Sheet 76 of 77
PA7 Card Reader
Board 4/4
![](asset-86.png)
Schematic Diagrams
B - 78 Power Sequence
B.Schematic Diagrams
Power Sequence
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[77] SEQUENCE
A3
77 77W ednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[77] SEQUENCE
A3
77 77W ednesday, July 05, 2017
Title
Size Document Number Rev
Date: Sheet of
6-71-PA700-D02A D02A
[77] SEQUENCE
A3
77 77W ednesday, July 05, 2017
Sheet 77 of 77
Power Sequence
![](asset-87.png)
BIOS Update
C - 1
C:BIOS Update
Appendix C:pdating the FLASH ROM BIOS
BIOS Version
Make sure you down-
load the latest correct
version of the BIOS ap-
propriate for the com-
puter model you are
working on.
You should only
download BIOS ver-
sions that are
V1.0X.XX or higher as
appropriate for your
computer model.
Note that BIOS versions
are not backward com-
patible and therefore
you may not down-
grade your BIOS to an
older version after up-
grading to a later ver-
sion (e.g if you upgrade
a BIOS to ver 1.0X.05,
you MAY NOT then go
back and flash the BIOS
to ver 1.0X.04).
To update the FLASH ROM BIOS, you must:
• Download the BIOS update from the web site.
• Unzip the files onto a bootable CD/DVD/USB Flash Drive.
• Reboot your computer from an external CD/DVD/USB Flash Drive.
• Use the flash tools to update the flash BIOS using the commands indicated below.
• Restart the computer booting from the HDD and press F2 at startup enter the BIOS.
• Load setup defaults from the BIOS and save the default settings and exit the BIOS to restart the computer.
• After rebooting the computer you may restart the computer again and make any required changes to the default BIOS
settings.
Download the BIOS
1. Go to www.clevo.com.tw and point to E-Services and click E-Channel.
2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files
(the BIOS file will be contained in a batch file that may be run directly once unzipped) for your computer model
(see sidebar for important information on BIOS versions).
Unzip the downloaded files to a bootable CD/DVD or USB Flash drive
1. Insert a bootable CD/DVD/USB flash drive into the CD/DVD drive/USB port of the computer containing the
downloaded files.
2. Use a tool such as Winzip or Winrar to unzip all the BIOS files and refresh tools to your bootable CD/DVD/USB
flash drive (you may need to create a bootable CD/DVD with the files using a 3rd party software).
Set the computer to boot from the external drive
1. With the bootable CD/DVD/USB flash drive containing the BIOS files in your CD/DVD drive/USB port, restart the
computer and press F2 (in most cases) to enter the BIOS.
2. Use the arrow keys to highlight the Boot menu.
3. Use the “+” and “-” keys to move boot devices up and down the priority order.
4. Make sure that the CD/DVD drive/USB flash drive is set first in the boot priority of the BIOS.
5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.
![](asset-88.png)
BIOS Update
C - 2
C:BIOS Update
Use the flash tools to update the BIOS
1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you
see the message “EFI Shell”. You will then be prompted to give “Y” or “N” responses to the programs being
loaded by EFI Shell. Choose “N” for any memory management programs.
2. You should now see DISK fsX:\> (X is the designated drive number for the CD/DVD drive/USB flash drive).
3. Type the following command:
fsX:\> Flash.nsh
4. The utility will then proceed to flash the BIOS.
5. You should then be prompted to press any key to restart the system or turn the power off, and then on again but
make sure you remove the CD/DVD/USB flash drive from the CD/DVD drive/USB port before the computer
restarts.
Restart the computer (booting from the HDD)
1. With the CD/DVD/USB flash drive removed from the CD/DVD drive/USB port the computer should restart from
the HDD.
2. Press F2 as the computer restarts to enter the BIOS.
3. Use the arrow keys to highlight the Exit menu.
4. Select Load Setup Defaults (or press F3) and select “Yes” to confirm the selection.
5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.
Your computer is now running normally with the updated BIOS
You may now enter the BIOS and make any changes you require to the default settings.
