Product Catalog

2009-2010

Choosing the Proper Gun

for Your Application

Conventional Air Spray

Conventional air spray technology is easy to use, delivers a Class A

automotive ﬁnish quality, but has the lowest transfer efﬁciency

(<25%) of all technologies.

High Volume Low Pressure (HVLP)

HVLP was developed to improve transfer efﬁciency over traditional

conventional air spray technology. HVLP transfer efﬁciency is

a minimum of 65% as long as the pressure at the aircap does not

exceed 10 psi (0.7 MPa, 0.7 bar). Finish quality is similar to air

spray, however the spray rates are lower than conventional air

spray. In some areas, HVLP technology is required to comply with

environmental standards.

Low Volume Low Pressure (LVLP)

LVLP technology is a variation on HVLP technology. LVLP uses a low

volume of air to atomize the coating compared to the high volume

of air for HVLP. At 16 psi (0.1 MPa, 1.1 bar), LVLP offers the same

transfer efﬁciency as HVLP. Due to the low CFM requirements, LVLP

is an excellent option when shop air is limited.

Compliant

Compliant technology delivers transfers efﬁciency equal to or better

than HVLP as long as the inlet pressure to the gun does not exceed

35 psi (0.24 MPa, 2.4 bar). The ﬁnish quality is comparable to air

spray, air consumption is lower than HVLP, and the production rates

are higher than HVLP. This technology is also capable of atomizing

higher viscosity materials.

Welcome to Sharpe Manufacturing.

Sharpe, a Graco company, manufactures and sells paint spraying equipment and accessories for the professional automotive reﬁnisher.

In 2003, Sharpe joined forces with Graco Inc, a world leader in ﬂuid handling systems and components. Graco’s investment in Sharpe

Manufacturing has meant the introduction of products that offer uncompromising performance, quality, reliability and a competitive edge.

The talented and dedicated engineers in Minneapolis, MN, as well as the highly skilled manufacturing team in Sioux Falls, SD, stand proud

behind each of the products they design and produce.

Sharpe continues to seek out innovative solutions for the

diverse global automotive reﬁnish market, and its combined

distribution network ensures you’ll get the equipment you

need when you need it.

If you have any questions please contact our customer service

via phone, fax line, e-mail or web site at www.sharpe1.com.

We will respond as quickly as possible.

Thank you for this opportunity to do business with you.

Respectfully,

Sharpe Manufacturing

visit www.sharpe1.com for updated information

Customer Service

Inquiries or Orders

Either can be accomplished by phone or fax

Phone: 1-800-742-7731

A Sharpe Representative can assist you with:

• OrderEntry

• Productapplicationassistance

• Troubleshooting

• Repairadvice

• Partnumbers

• Availabilityofproduct–stockstatus

–pricinginquiries

• Recommendationsforsubstituteproductwhen

ordered product is not in stock

• Productinformation

• Deliverydatesand/ordeliverydatechanges

• Productreturnauthorizations

• Creditmemoquestions

• Shippingandtrafcquestions

Note: Please provide your Sharpe account number when

requested. Customer service representatives are available

from 8:00 a.m. to 5:00 p.m. CT, Monday-Friday.

Fax: 1-800-831-1919

Note:OrderscanbeplacedbyfaxingyourPurchaseOrder

to the above fax number. Please include your

Sharpe Account Number on all orders.

Contents

Choosing the Proper Gun for Your Application

... ii

RAZOR® Guns

HVLP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

HVLP Waterborne . . . . . . . . . . . . . . . . . . . 3

HVLP for Metallic . . . . . . . . . . . . . . . . . . . 4

LVLP ............................. 5

Compliant ......................... 6

Compliant Waterborne . . . . . . . . . . . . . . . 7

Conventional ....................... 8

HVLP for Primer . . . . . . . . . . . . . . . . . . . . 9

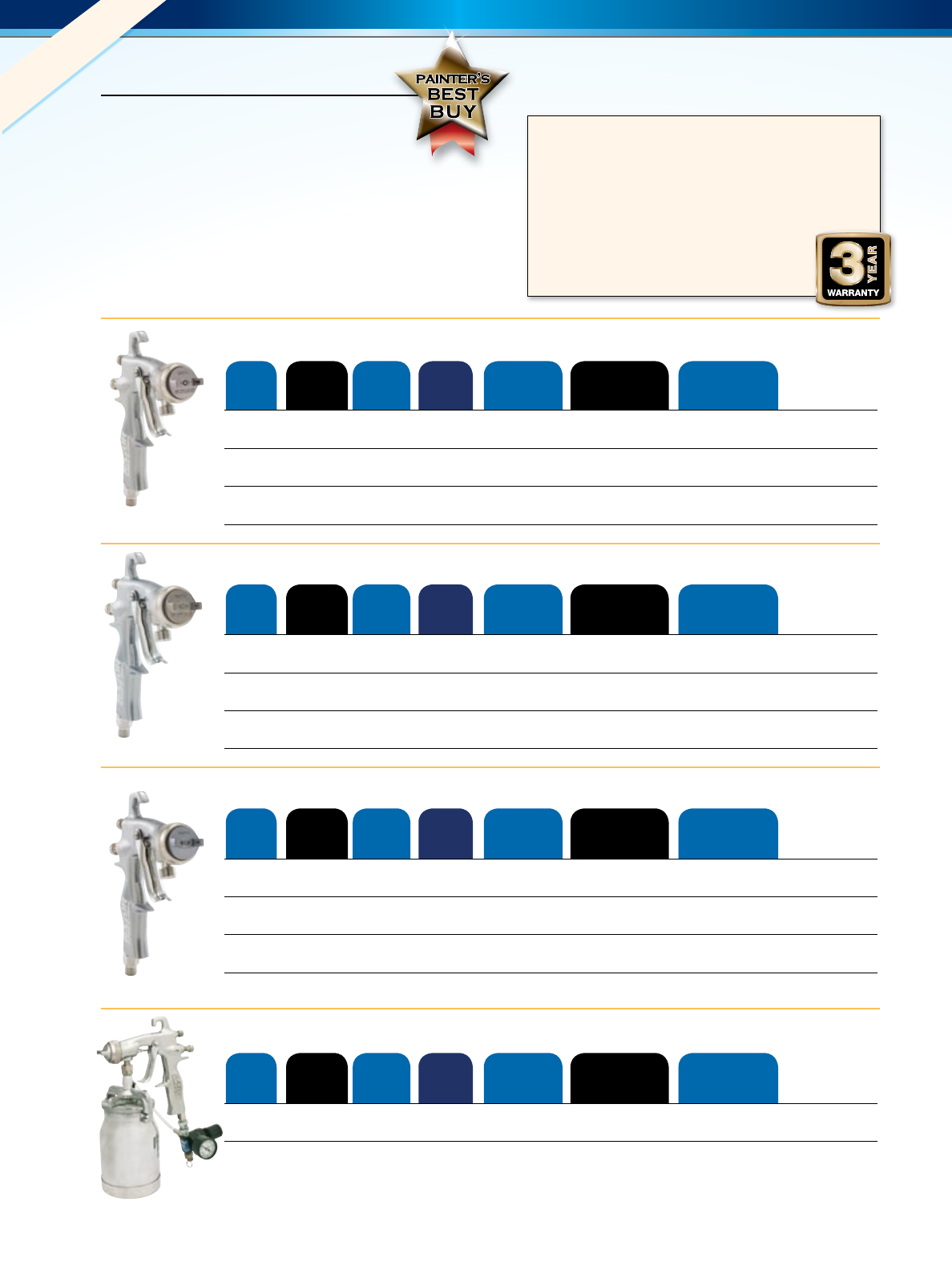

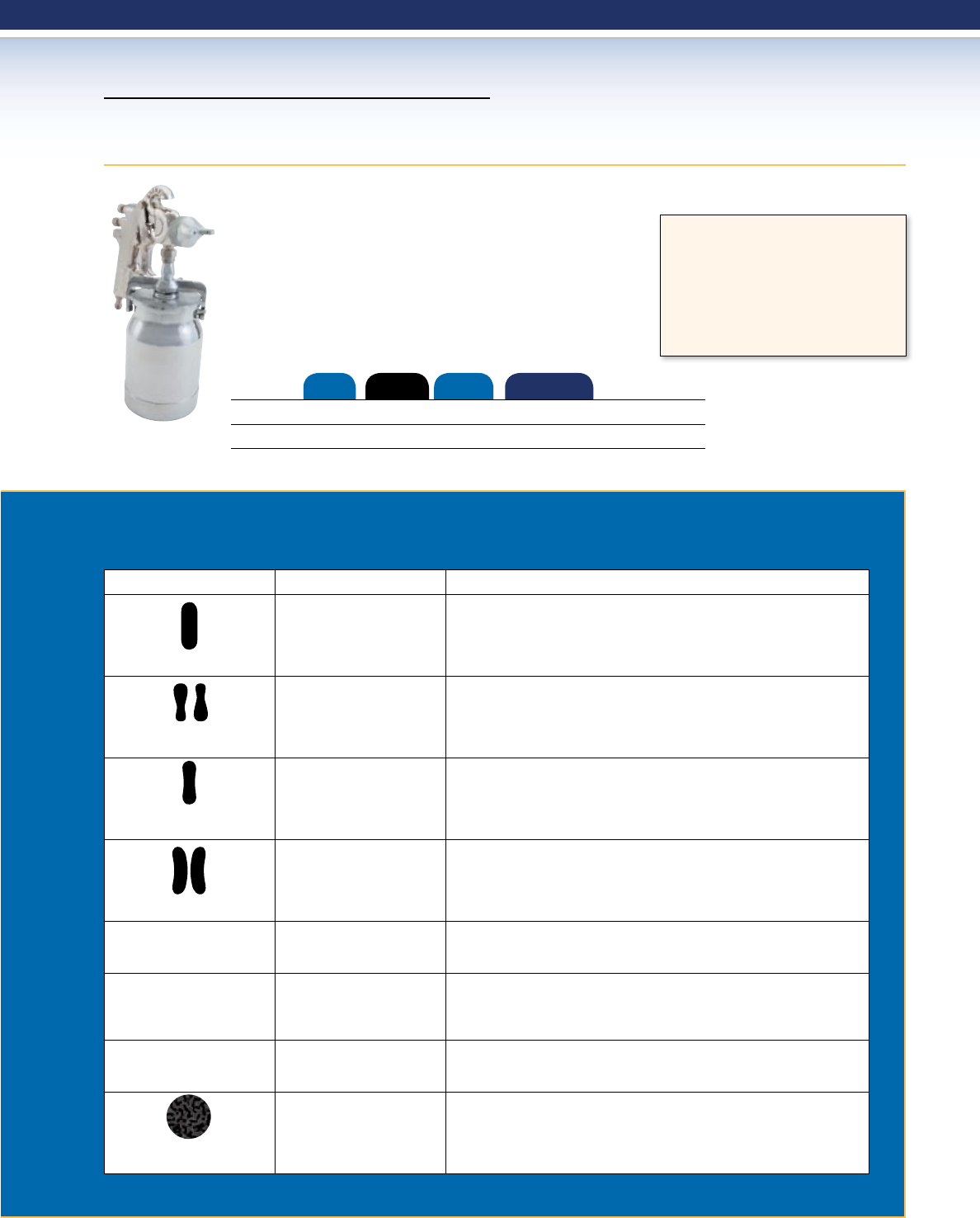

Siphon Feed ...................... 10

Pressure Feed ..................... 11

Finex™ Guns

Gravity Feed HVLP and Mini-HVLP ...... 12

Gravity Feed Conventional ............ 13

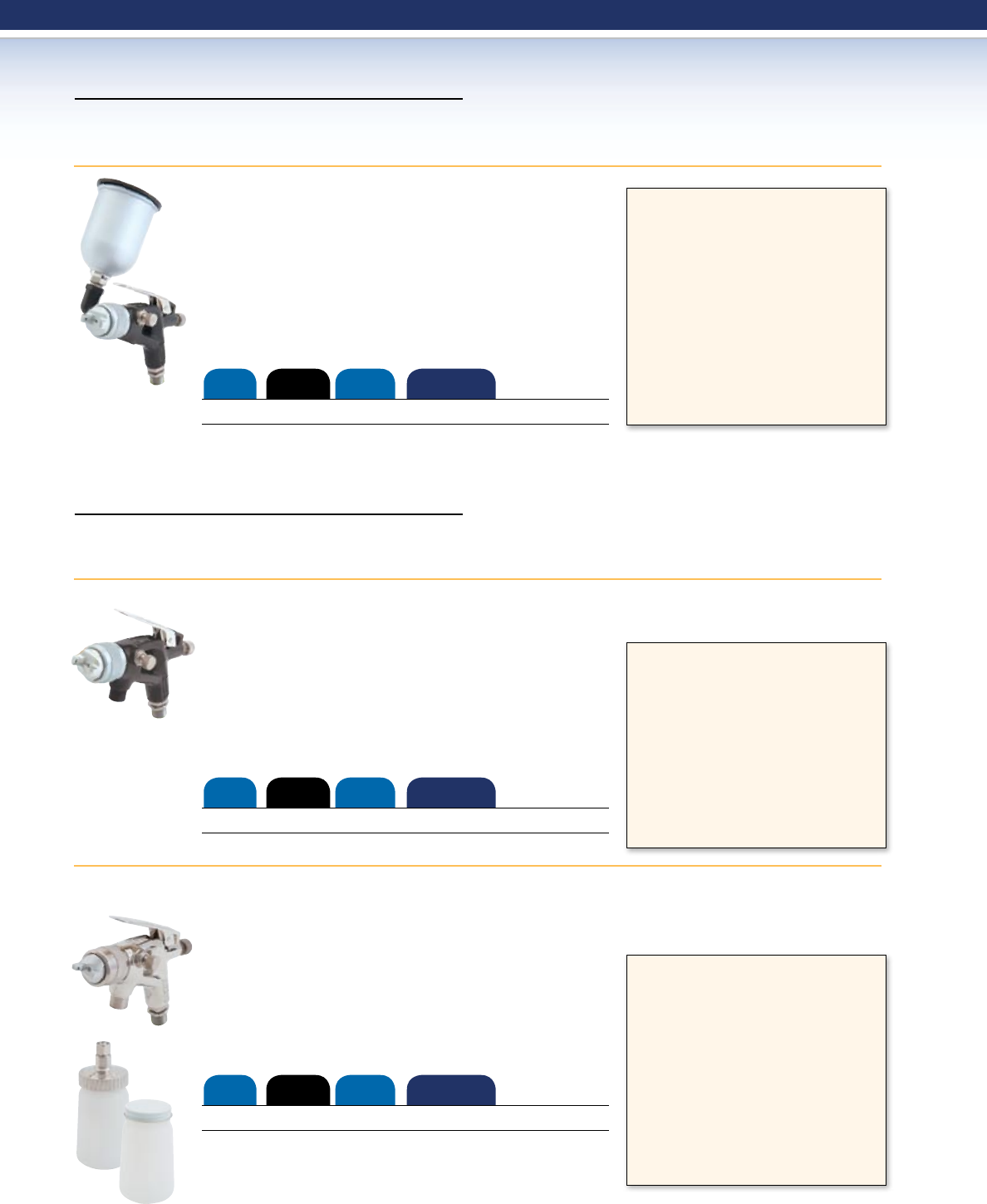

Mini Spray Guns

Gravity Feed System ................ 14

Pressure Feed System . . . . . . . . . . . . . . 14

D-5-55 Detail Spray Guns ............ 14

775 Non-HVLP Spray Guns ........... 15

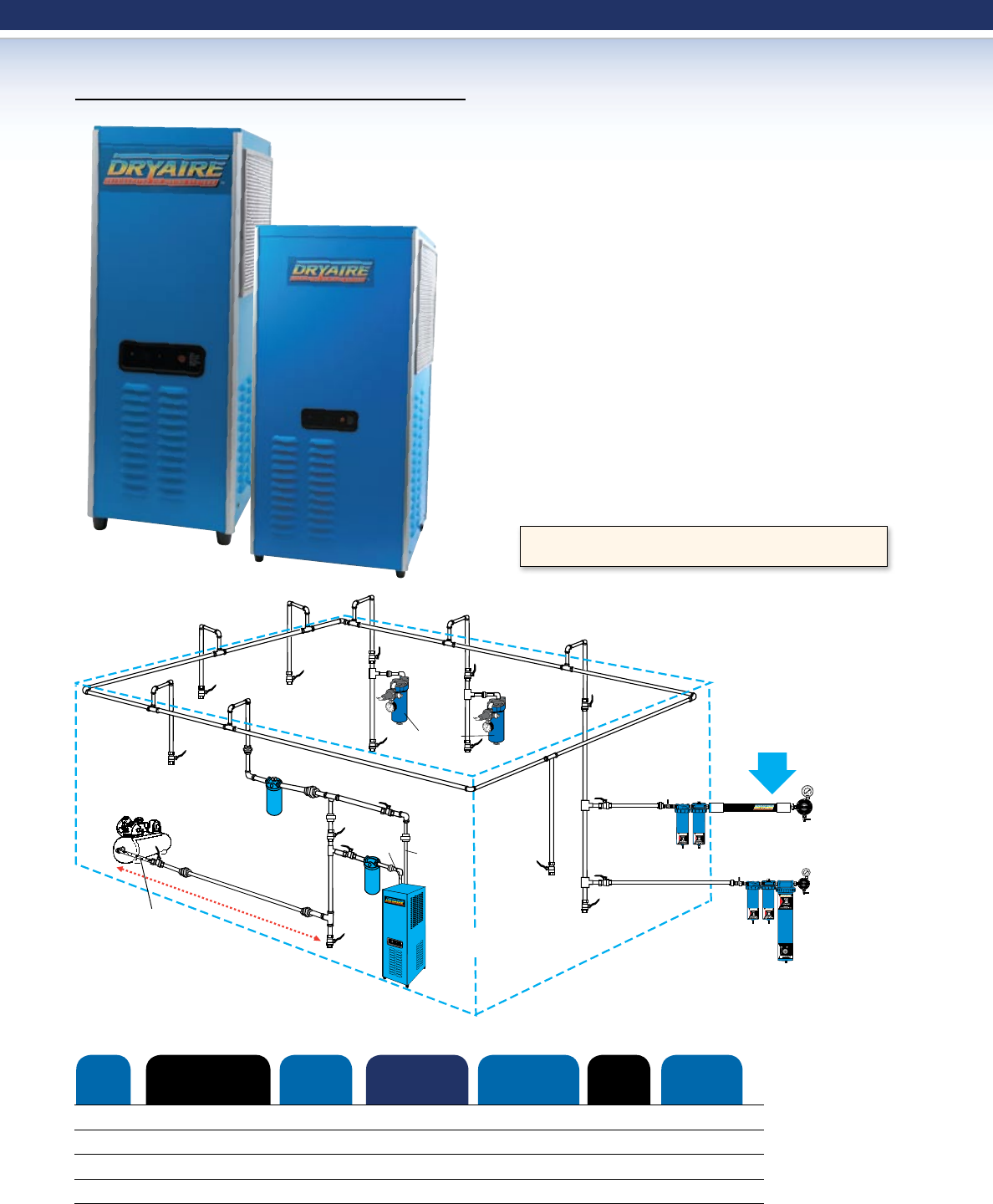

Refrigerated Air Dryers ................. 16

Dryaire Membrane System .............. 17

Dryaire Desiccant System ............... 18

Paint Booth & Paint Prep

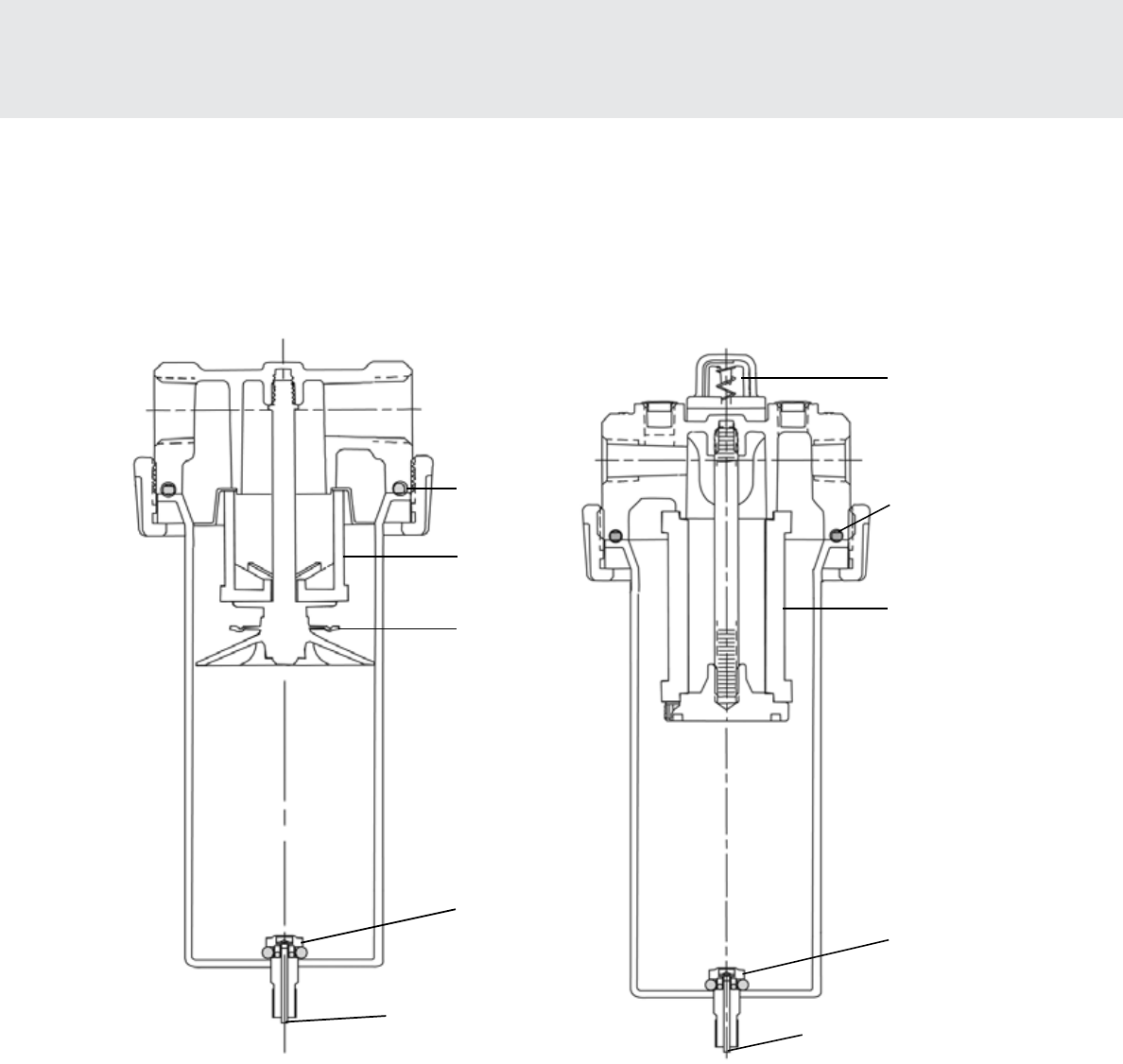

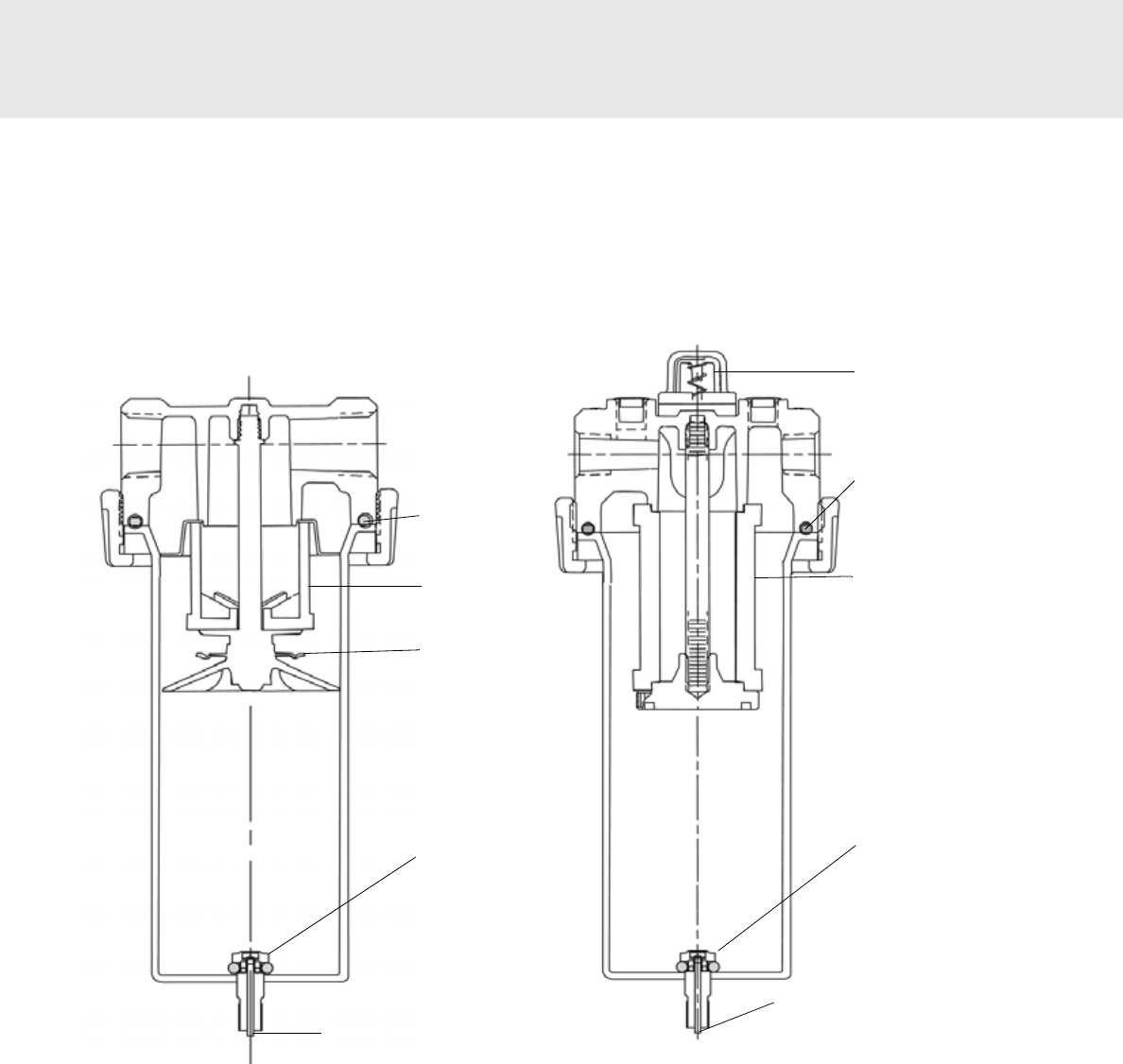

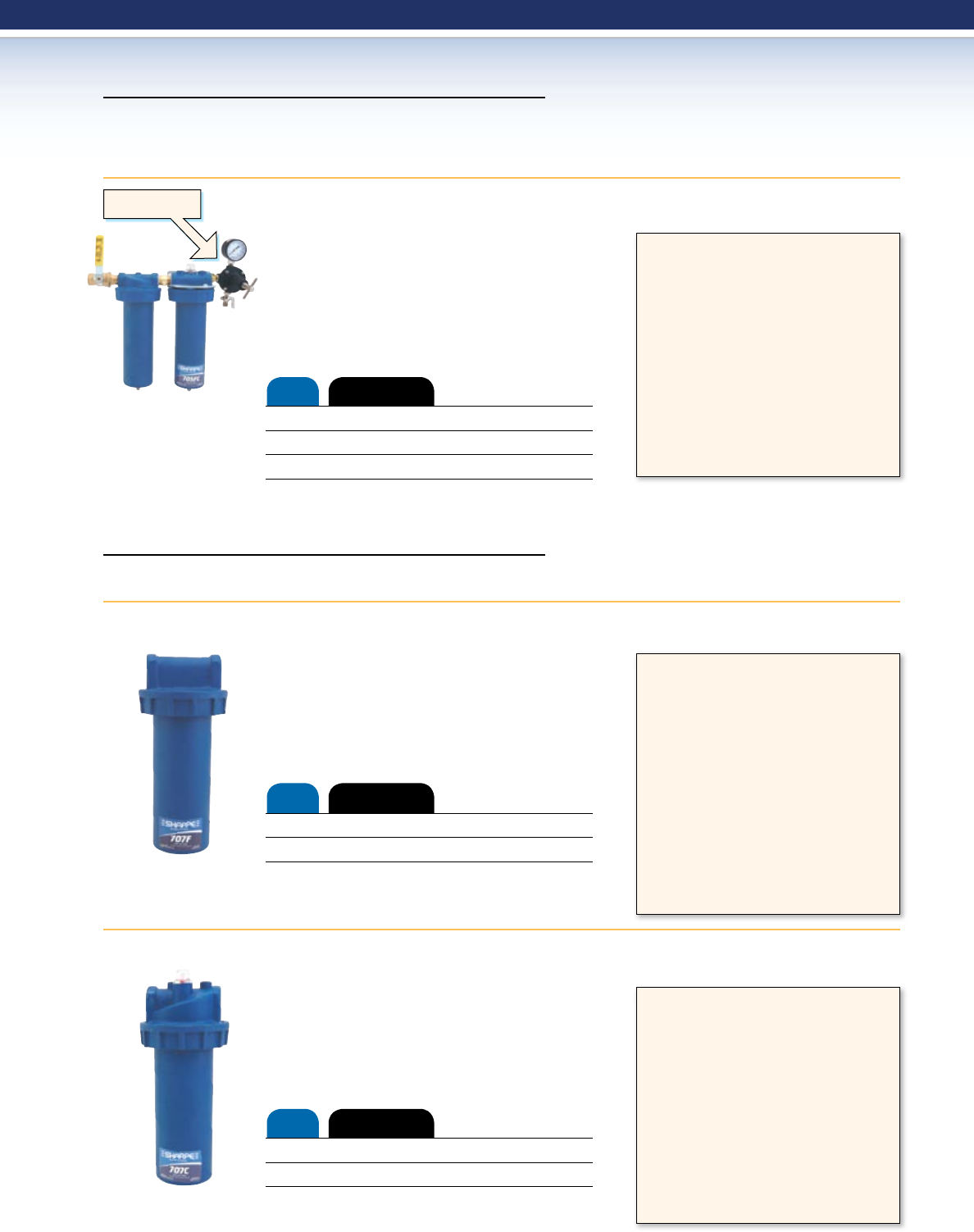

In-Line Filters & Coalescers . . . . . . . . . . 19

Air Filters ........................ 20

Air Control Units . . . . . . . . . . . . . . . . . . . 21

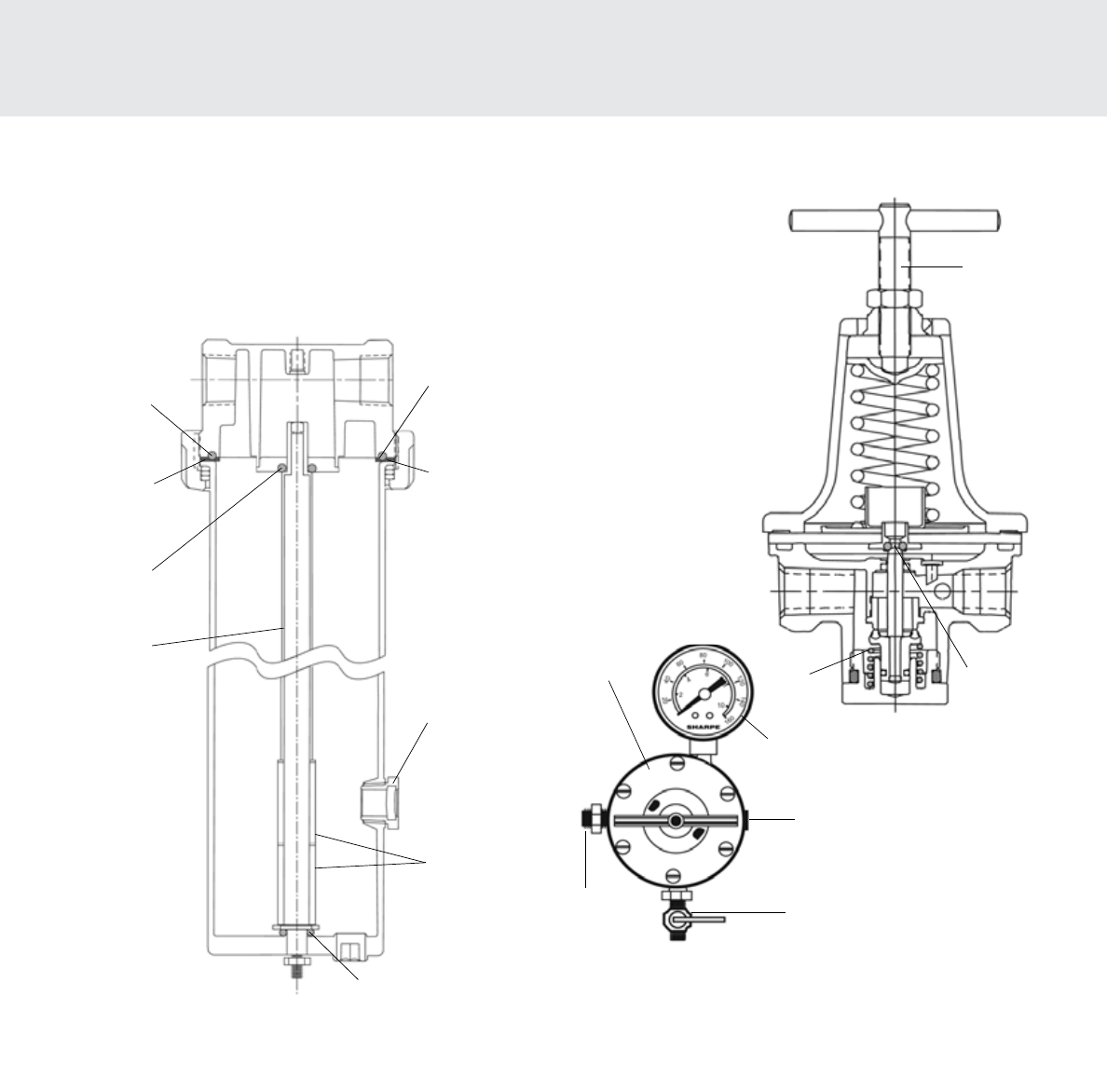

Regulators ....................... 22

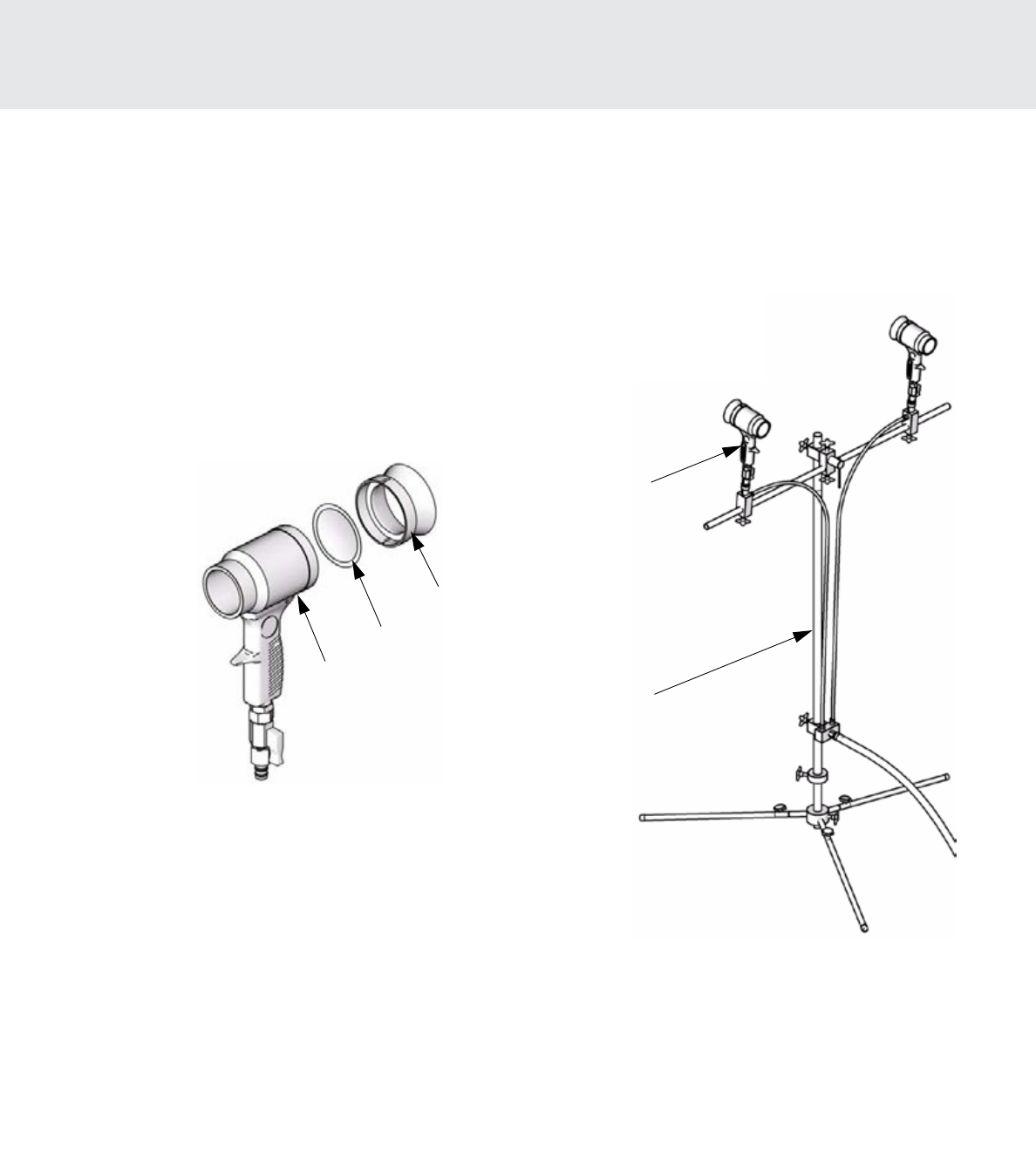

Zephyr Air Drying Products ........... 23

Accessories

 RAZORCupAssemblies. . . . . . . . . . . . . . 24

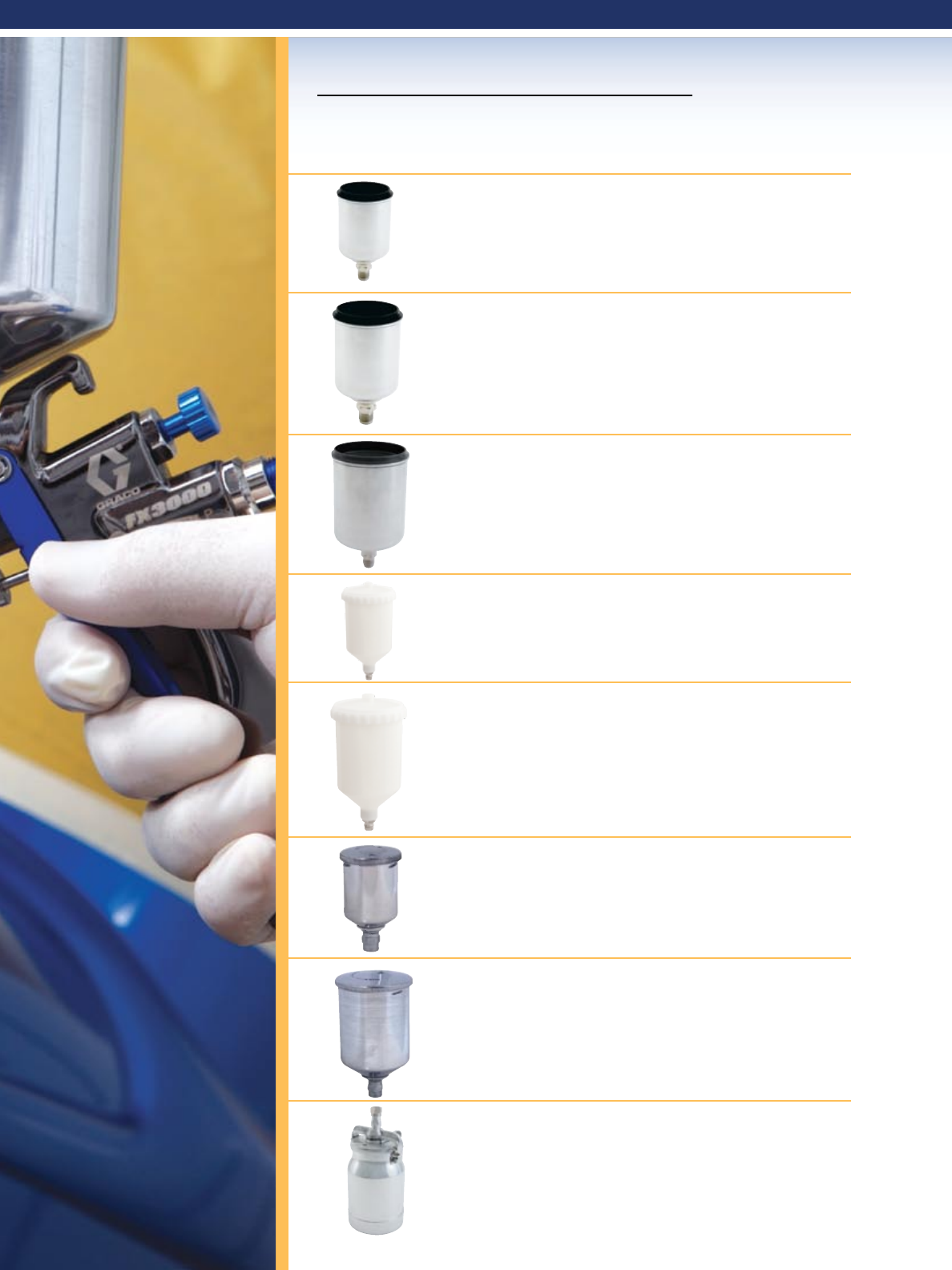

Cup Assemblies . . . . . . . . . . . . . . . . .25-26

PPS Adapters ..................... 26

Air Adjusting Valves ................. 27

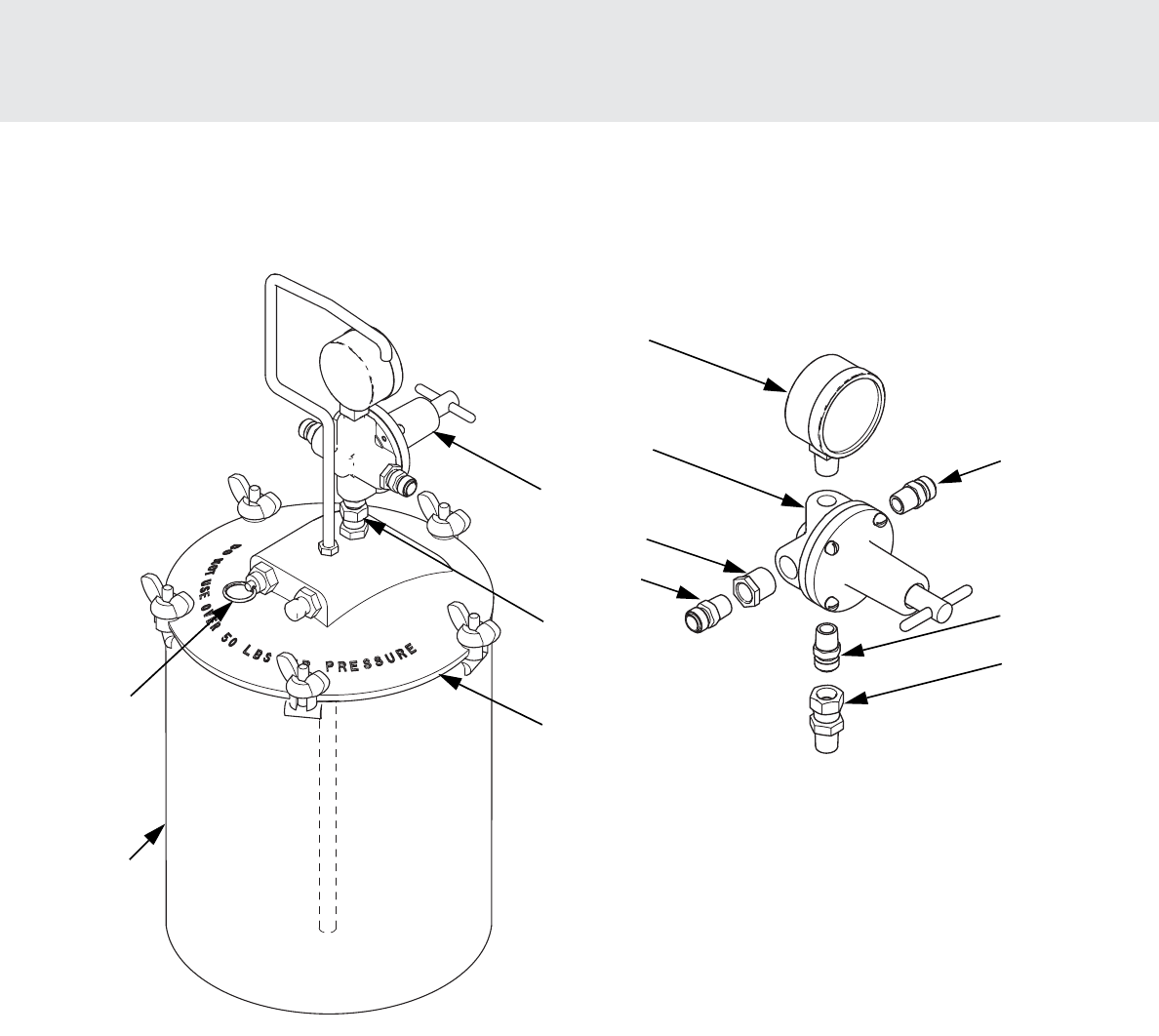

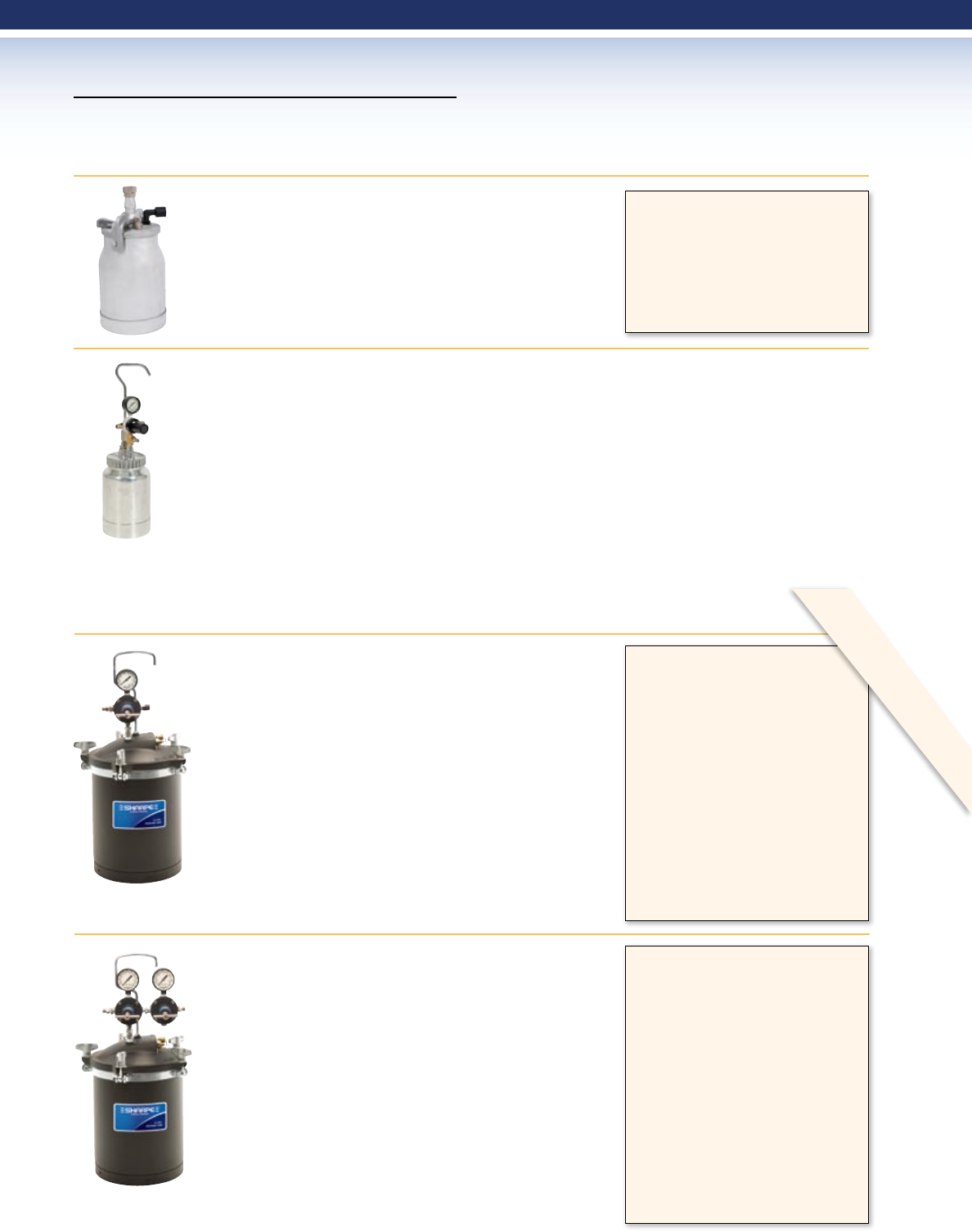

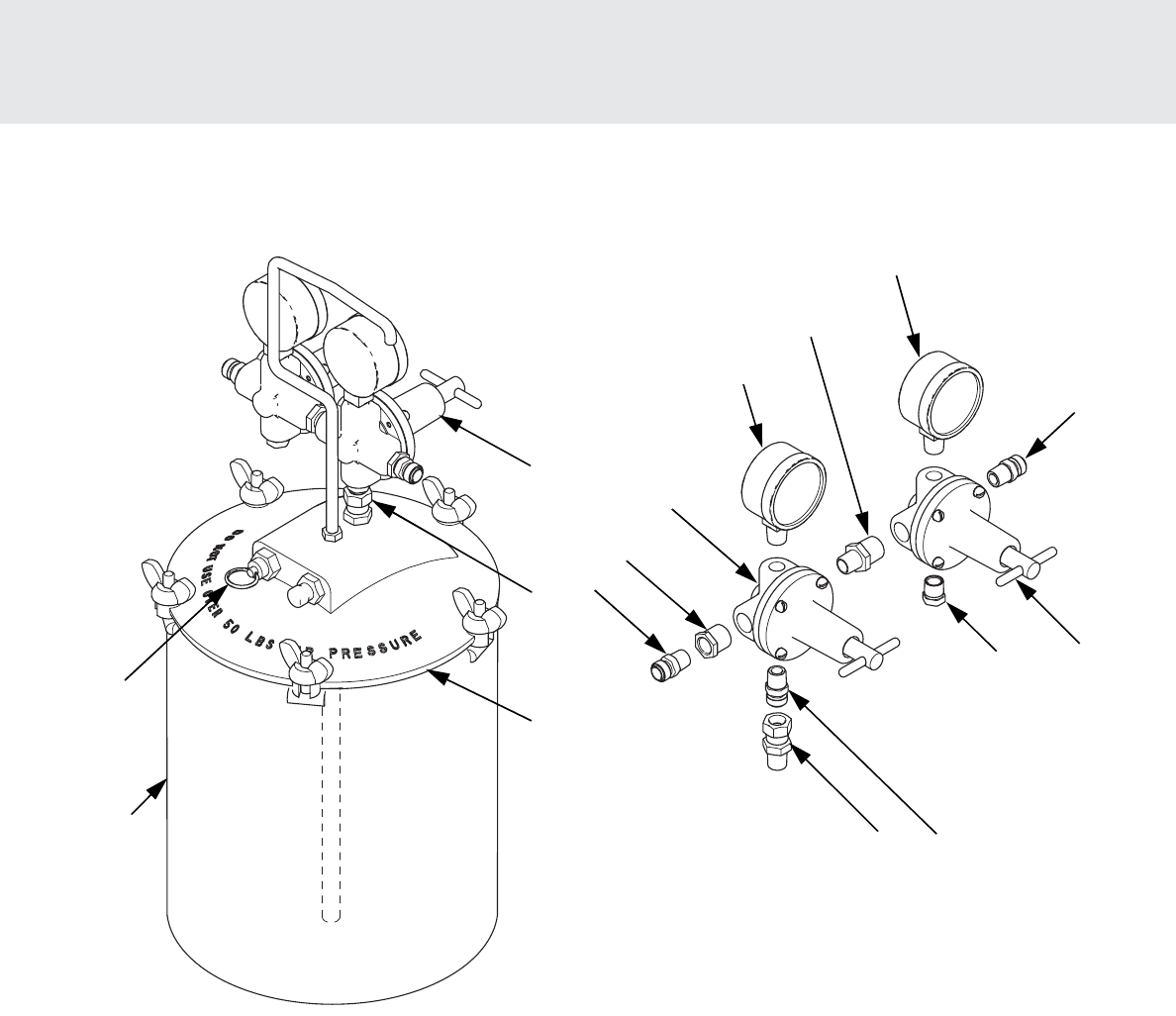

Pressure Accessories . . . . . . . . . . . . . . . 28

 OtherAccessories ................29-30

How to Use Dr. Gun .................... 29

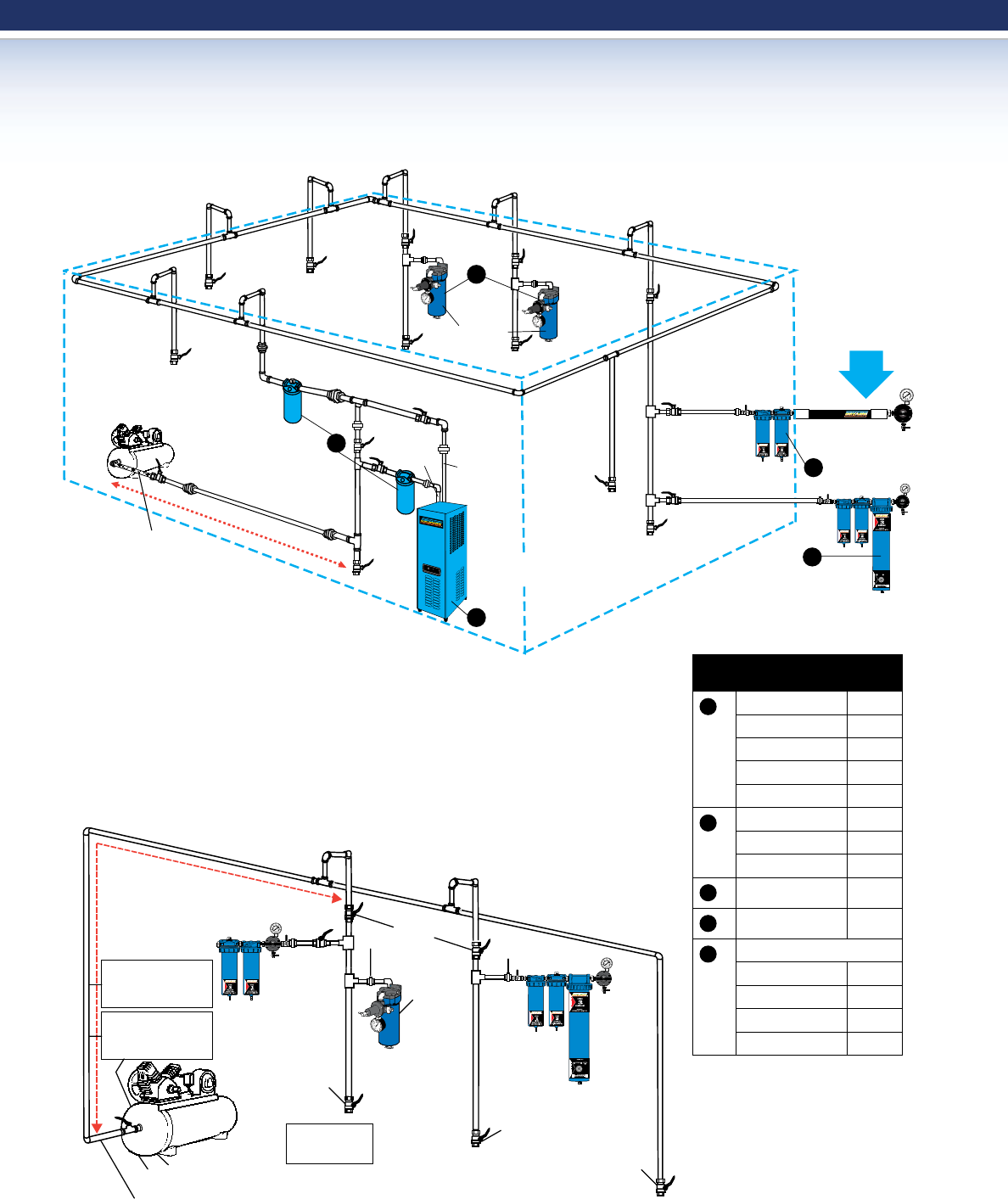

HowtoBuildanEntireSharpeSystem . . . . . 31

Reference Pages

Conversion Chart List . . . . . . . . . . . . .33-34

Spray Gun Reference Guide . . . . . . . .35-37

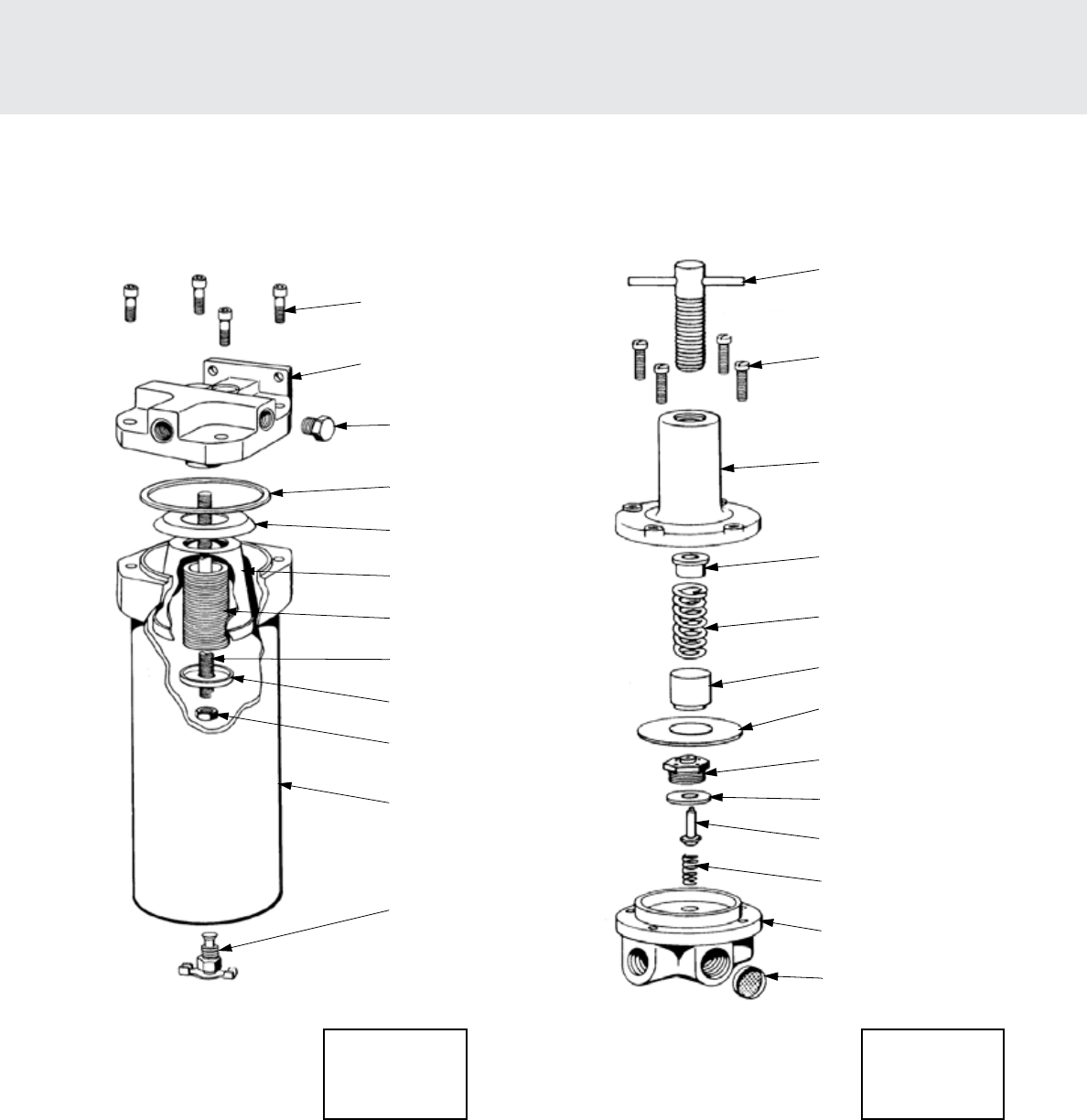

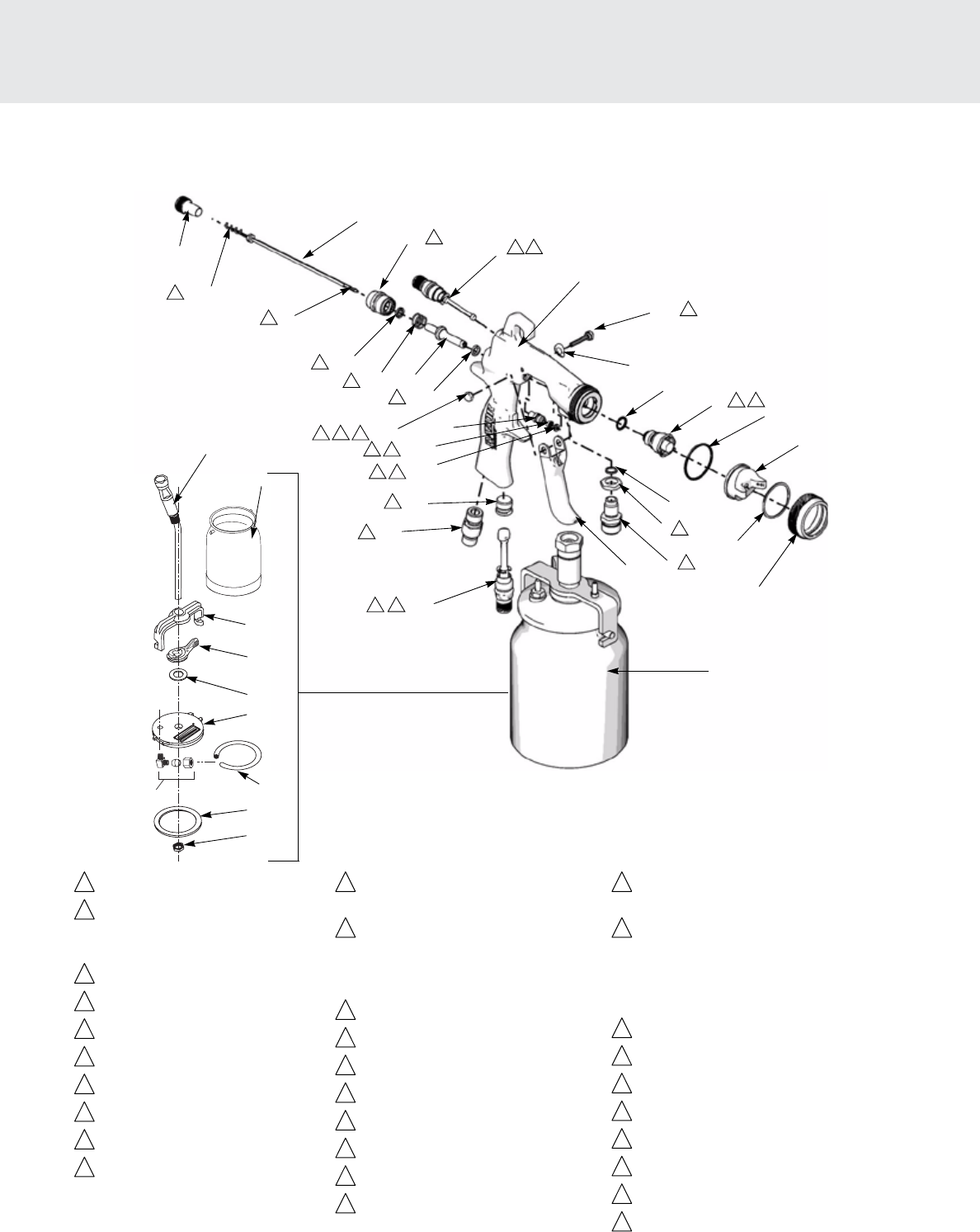

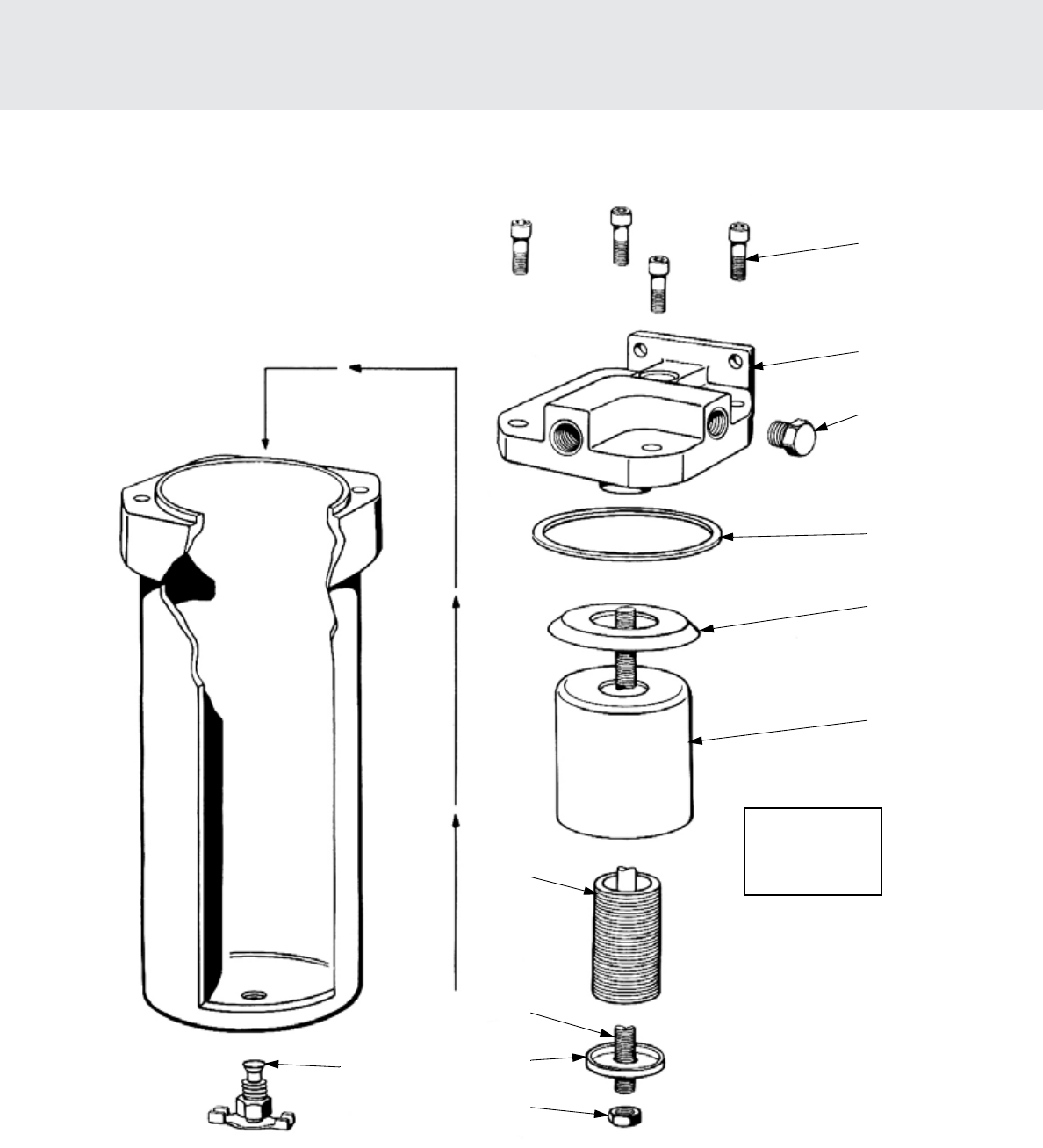

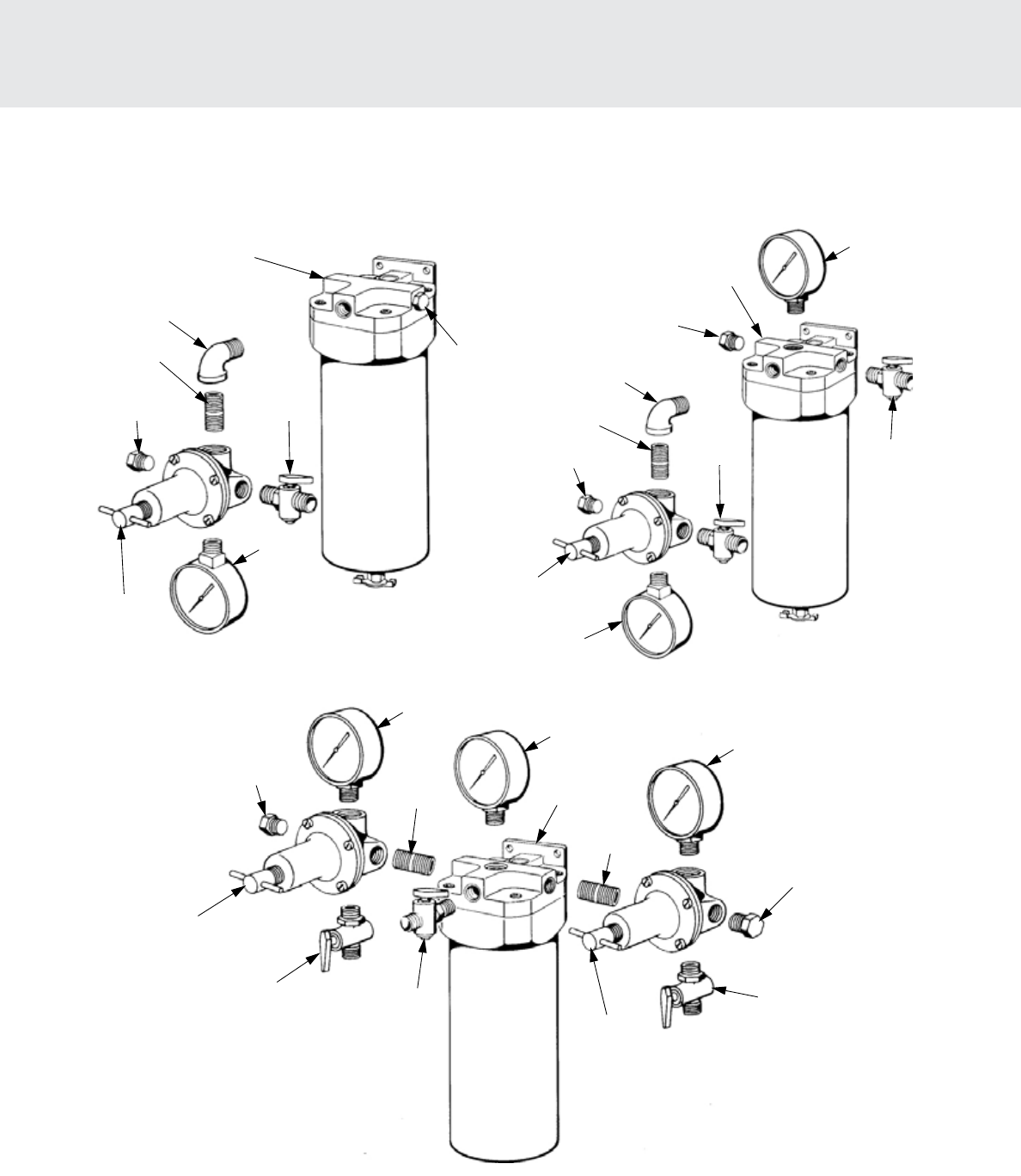

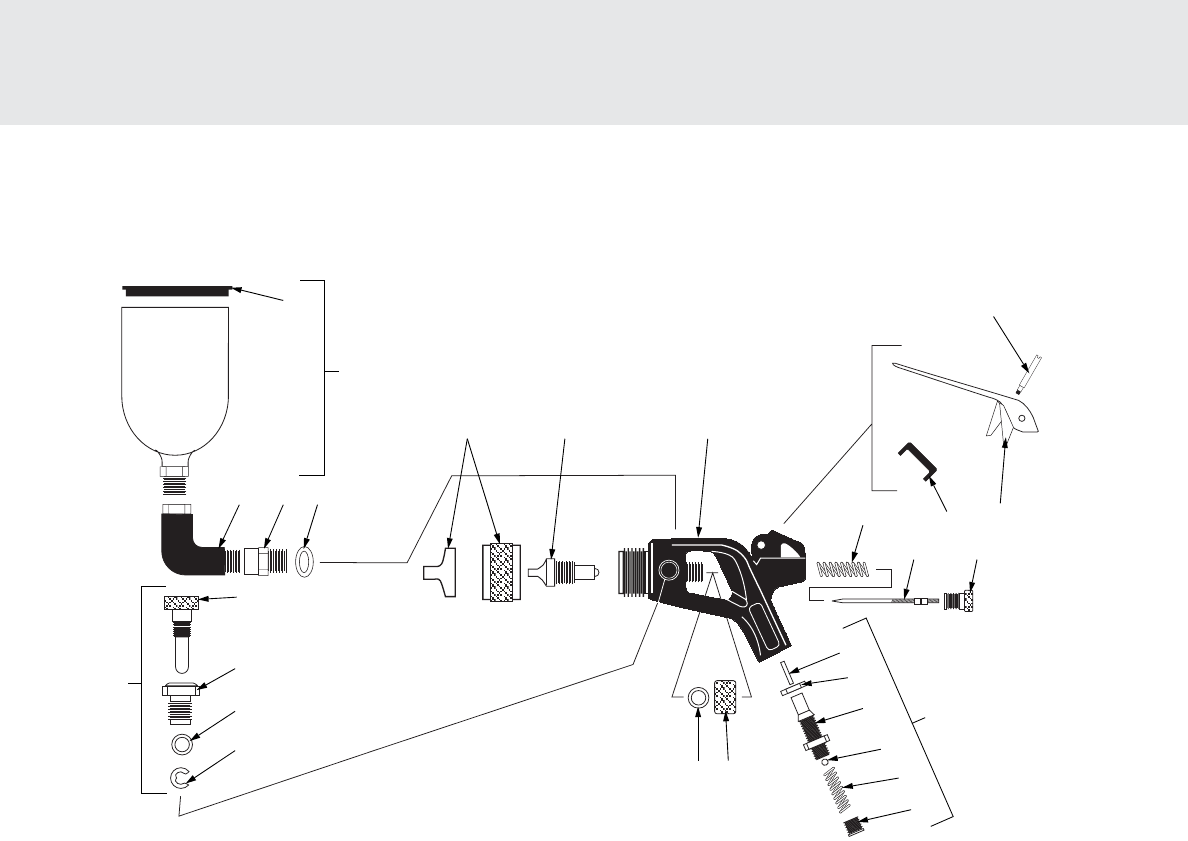

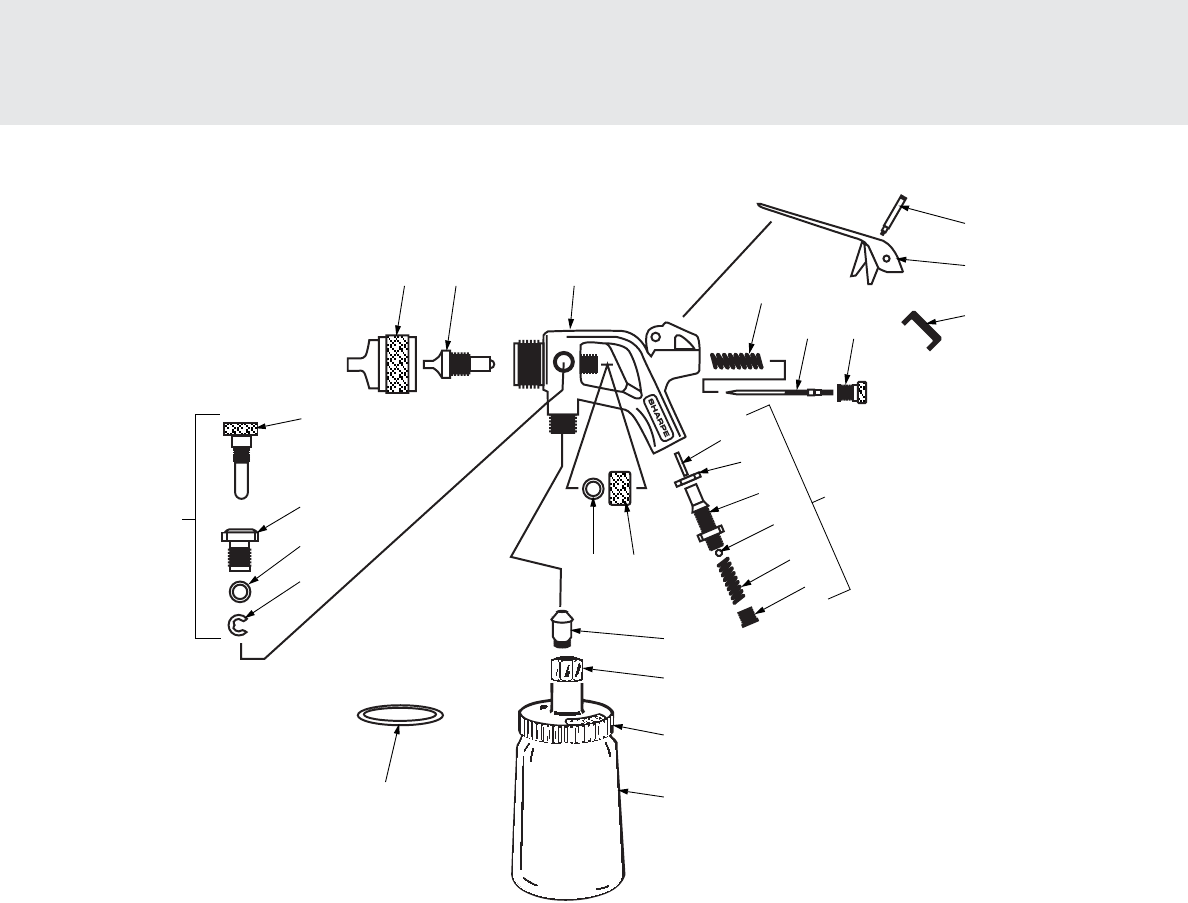

Replacement Parts Drawings Index ...38-61

Terms & Conditions of Sale ........... 62

Index ............................63-64

Warranty Information . . . . . . . inside back cover

www.sharpe1.com • 1-800-742-7731

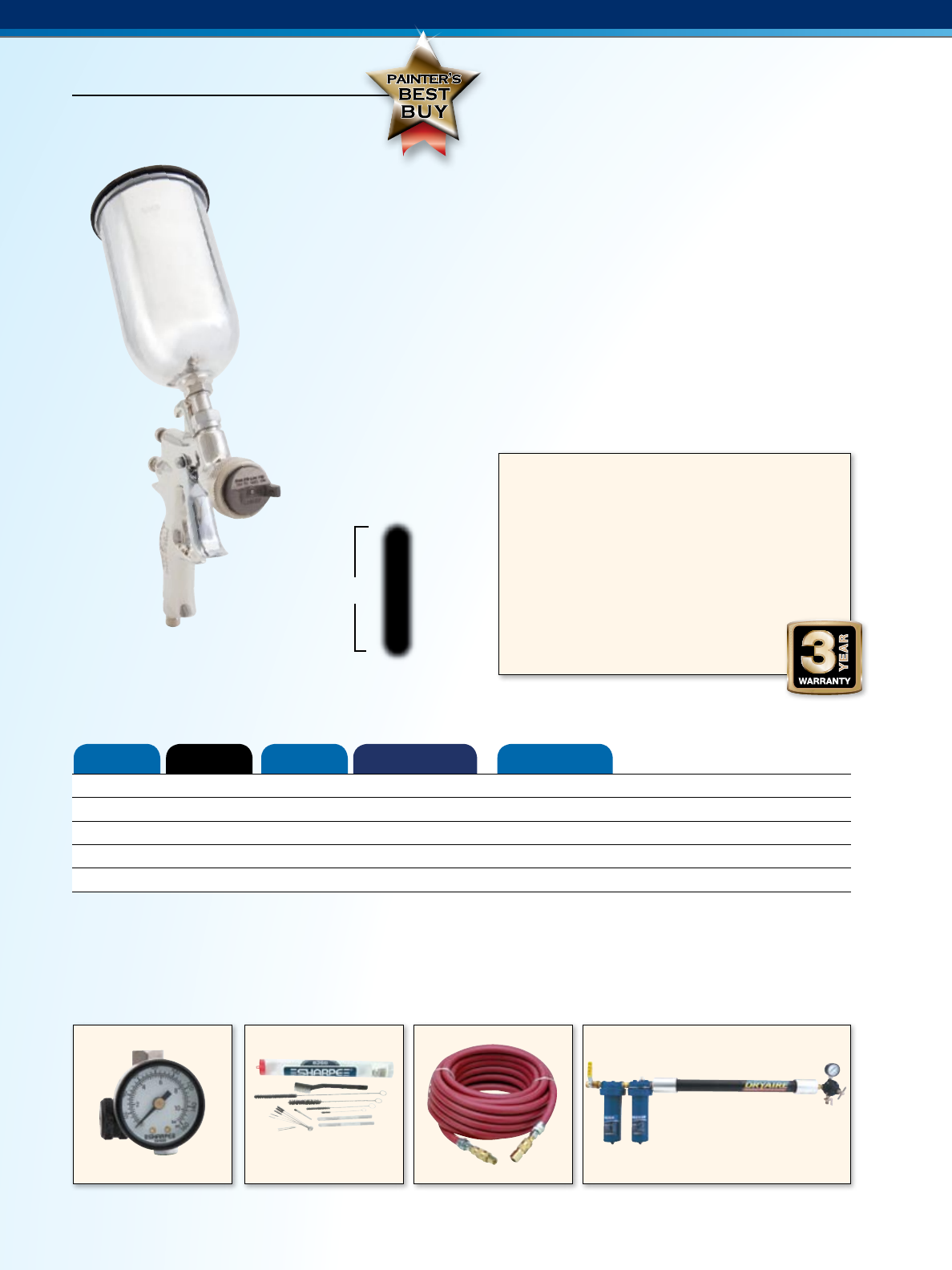

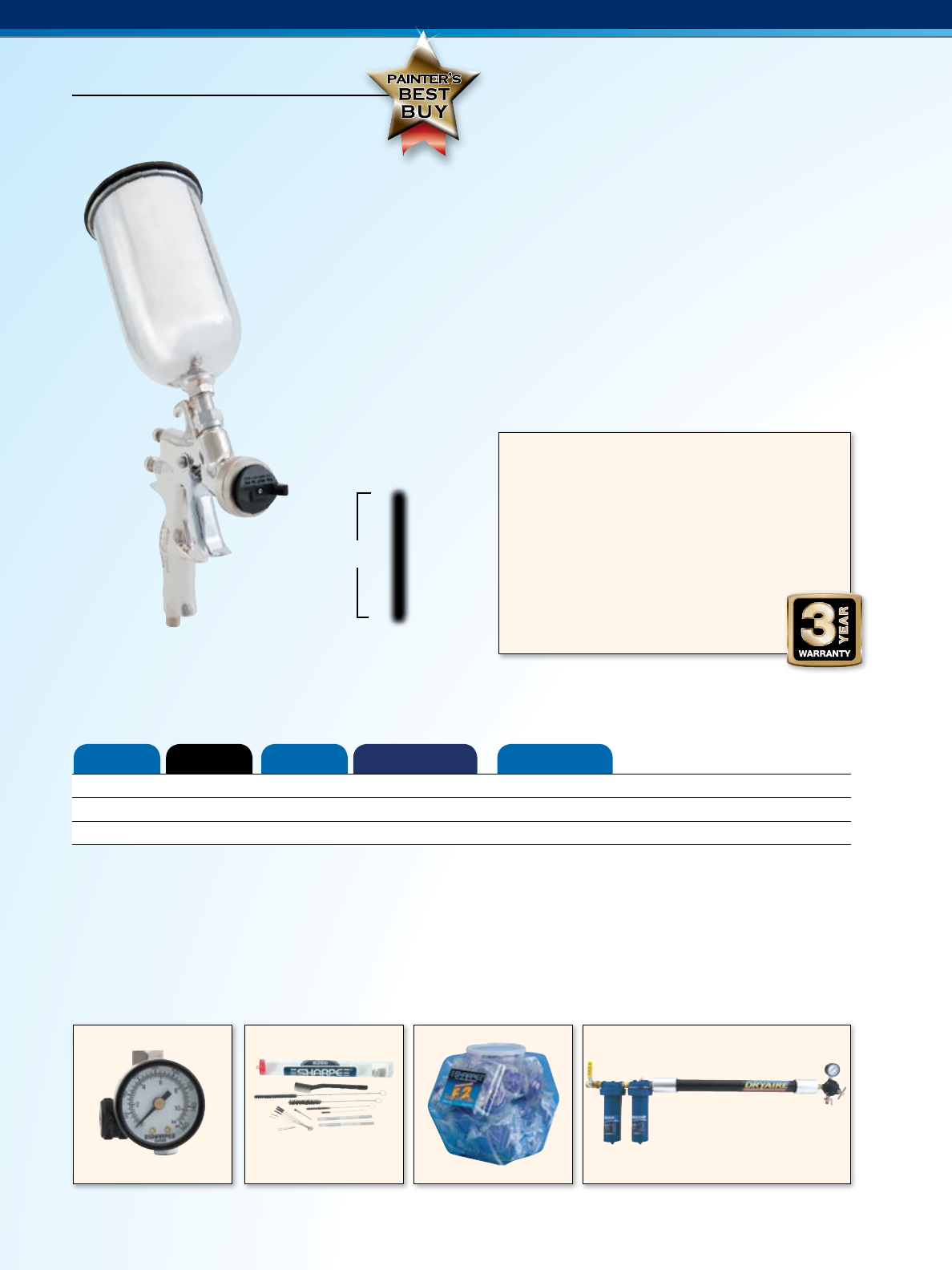

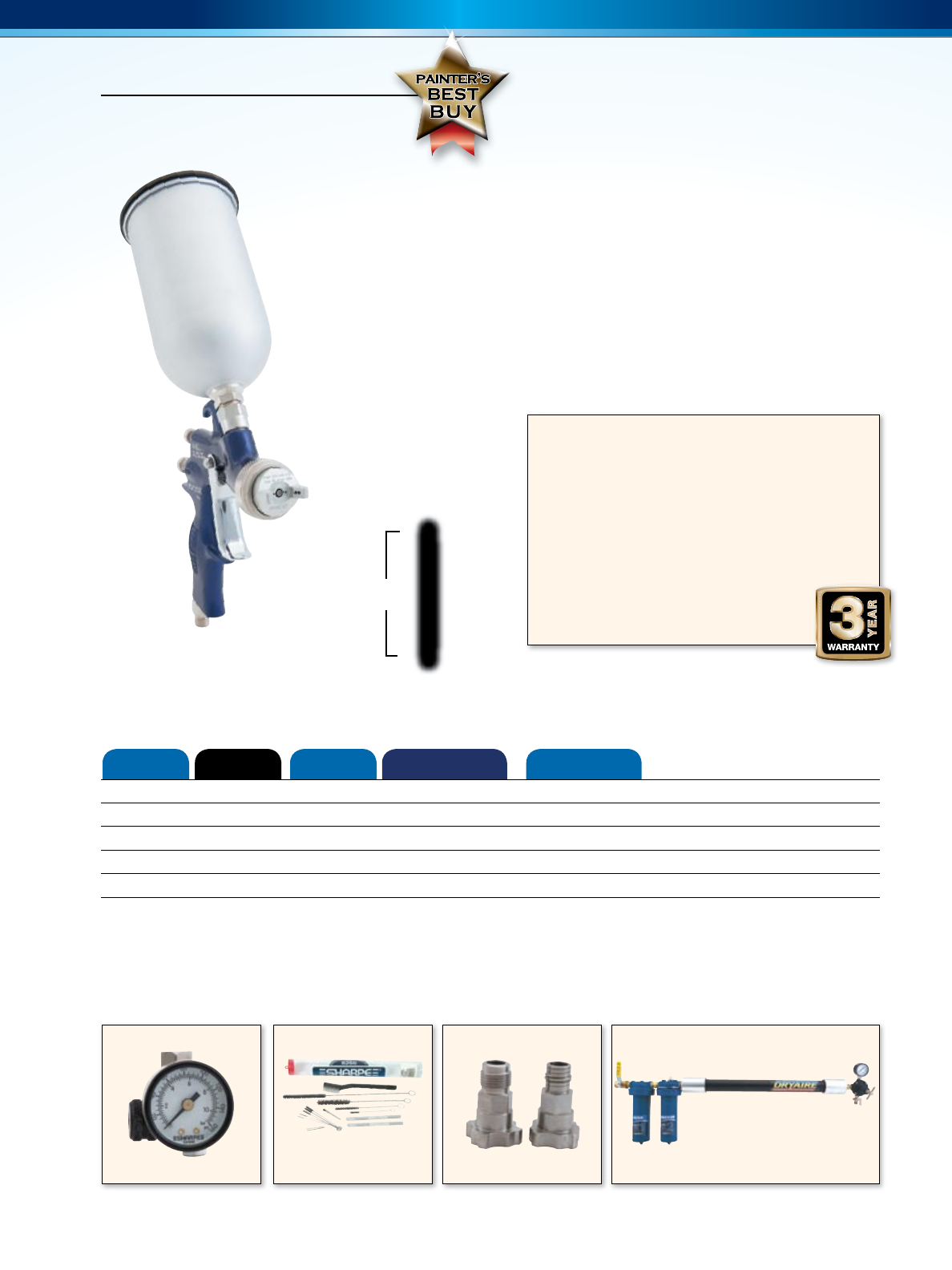

RAZOR®

HVLP Spray Gun

Premium Performance & Quality

• Extremelysmoothspraypatternforsuperiornishes

• Capableofatomizingabroadrangeofcoatingsfrom

primer, base, to clear

• Ergonomicgunhandle,lightweight,andlowtrigger

pull for ultimate painter comfort

• MadeintheUSAandbackedbya3-yearwarranty

The best American made gun for spraying base coat and

clear coat when HVLP technology is required.

TheRAZORhas100%stainlesssteeluidpassagesand

stainlesssteelneedleandnozzle.TheRAZORofferslong-

term affordability with ultra long life needle packings and

low cost of ownership due to cost effective repair parts.

Nickel-plated ﬁnish allows for easy cleaning.

3M™ PPS™ Adapter and 23 ounce polished aluminum

gravity cup included.

• AirInletSize:1/4innpsm(R1/4-19)

•

Max. Air Inlet Pressure: 29 psi (0.2 MPa, 2.0 bar)

• AirConsumption:

14.4 CFM at 29 psi (0.2 MPa, 2.0 bar)

• CupSize:23oz(0.68l)

• Weightwithcup:1.3lb(0.6kg)

• Finish:Nickel

• InstructionManual:PN311684

• Referencep.38

Size Gun PN Nozzle PN Needle Assembly Applications

1.2 mm 253432 253793 253771 Base coat, high solid clear coat, waterborne base coat, single stage

1.3 mm 253433 253794 253771 Base and clear coats, waterborne base coat, high solid, single stage

1.4 mm 253434 253795 253772 Base and clear coats, single stage, sealers, low solid clear

1.5 mm 253435 253796 253772 Base and clear coats, sealers, enamels, medium to high viscosity

Aircap Pattern

RAZOR HVLP

l i

1 4mm nozzle

14 in

Aluminum Gravity Feed

Cup 34 oz (1 l)

PN 253978 (p. 24)

Dryaire

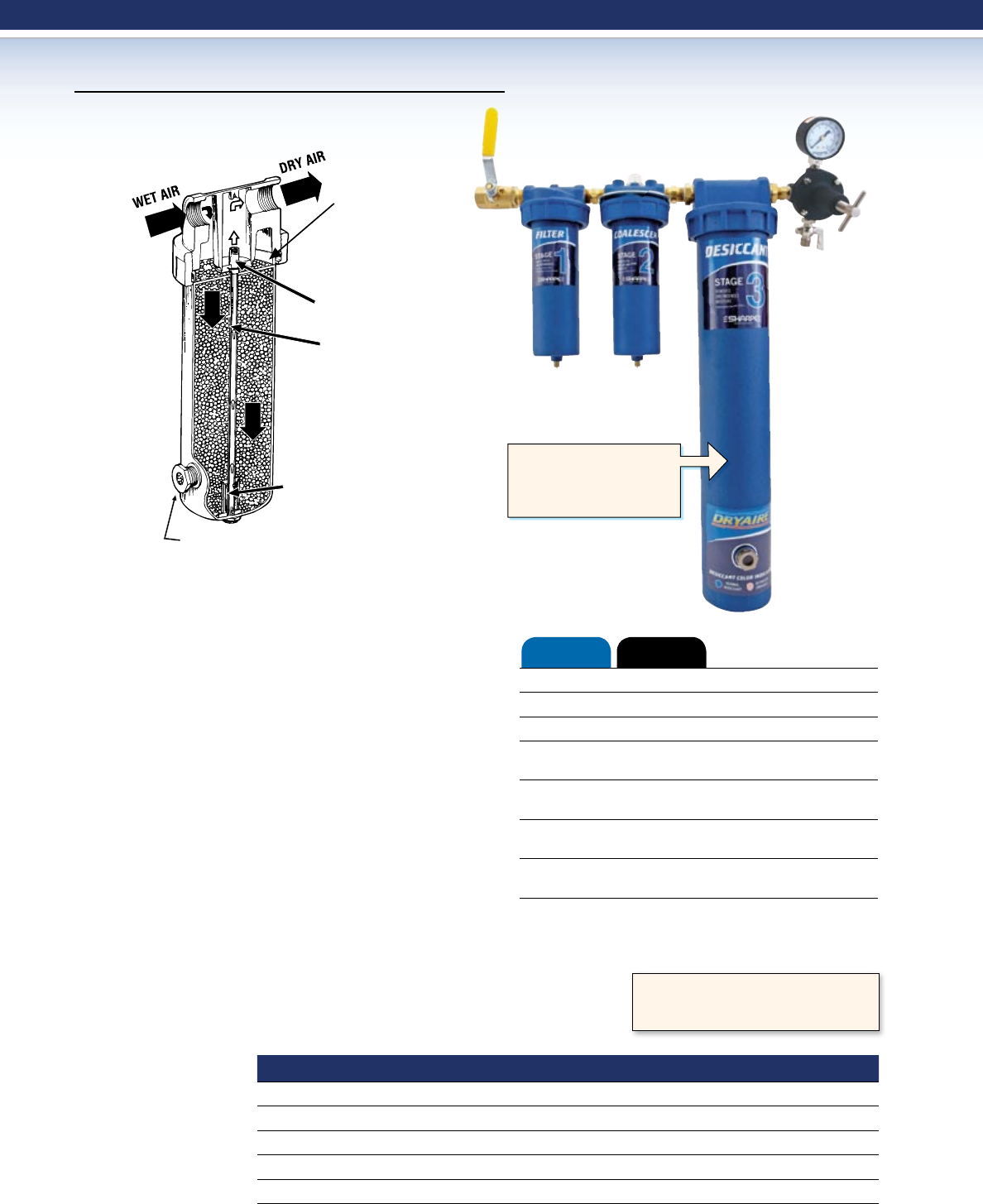

Desiccant System

PN 6760 (p. 18)

RAZOR

Primer

PN 253438 (p. 9)

Air Adjusting Valve

with Gauge

PN U04410 (p. 27)

www.sharpe1.com • 1-800-742-7731

Aircap Pattern

14 in

RAZOR®

HVLP Spray Gun

Premium Performance & Quality

• HVLPtechnologyaircaptechnologyoptimizedfor

waterborne or water base paint

• Superioratomizationformaterialdistribution

• Ergonomicgunhandle,lightweightandlowtrigger

pull for ultimate painter comfort

• MadeintheUSAandbackedbya3-yearwarranty

The HVLP Waterborne gun has been optimized for

waterborne or water base paint.

TheRAZORiswaterbornecompatiblewith100%stainless

steel ﬂuid passages and stainless steel needle and nozzle.

TheRAZORofferslong-termaffordabilitywithultralong

life needle packings and low cost of ownership due to

cost effective repair parts. Nickel-plated ﬁnish allows for

easy cleaning.

3M™ PPS™ Adapter and 23 ounce plastic gravity

cup included.

• AirInletSize:1/4innpsm(R1/4-19)

•

Max. Air Inlet Pressure: 29 psi (0.2 MPa, 2.0 bar)

• AirConsumption:

14.4 CFM at 29 psi (0.2 MPa, 2.0 bar)

• CupSize:23oz(0.68l)

• Weightwithcup:1.3lb(0.6kg)

• Finish:Nickel

• InstructionManual:PN311684

• Referencep.38

Size Gun PN Nozzle PN Needle Assembly Applications

1.2 mm 289388 289380 253771 Waterborne base coats

1.3 mm 289389 289381 253771 Waterborne base coats

1.4 mm 289571 289561 253771 Waterborne base coats

Zephyr

Air Drying Gun

PN 289956 (p. 23)

Filter

& Coalescer

PN 6910 (p. 19)

Dryaire

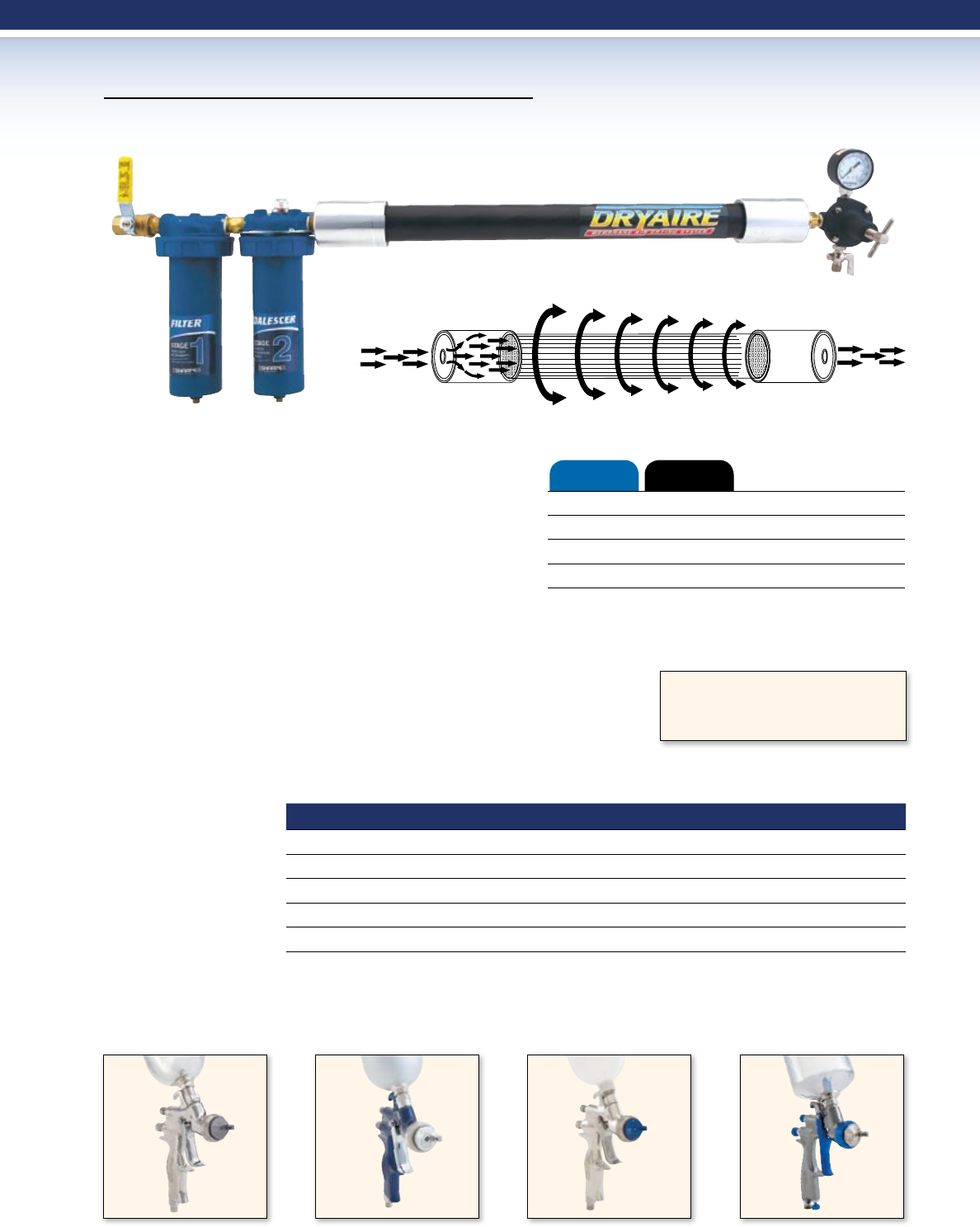

Membrane System

RAZOR

Compliant Waterborne

PN 6770 (p. 17)PN 289390 (p. 7)

4www.sharpe1.com • 1-800-742-7731

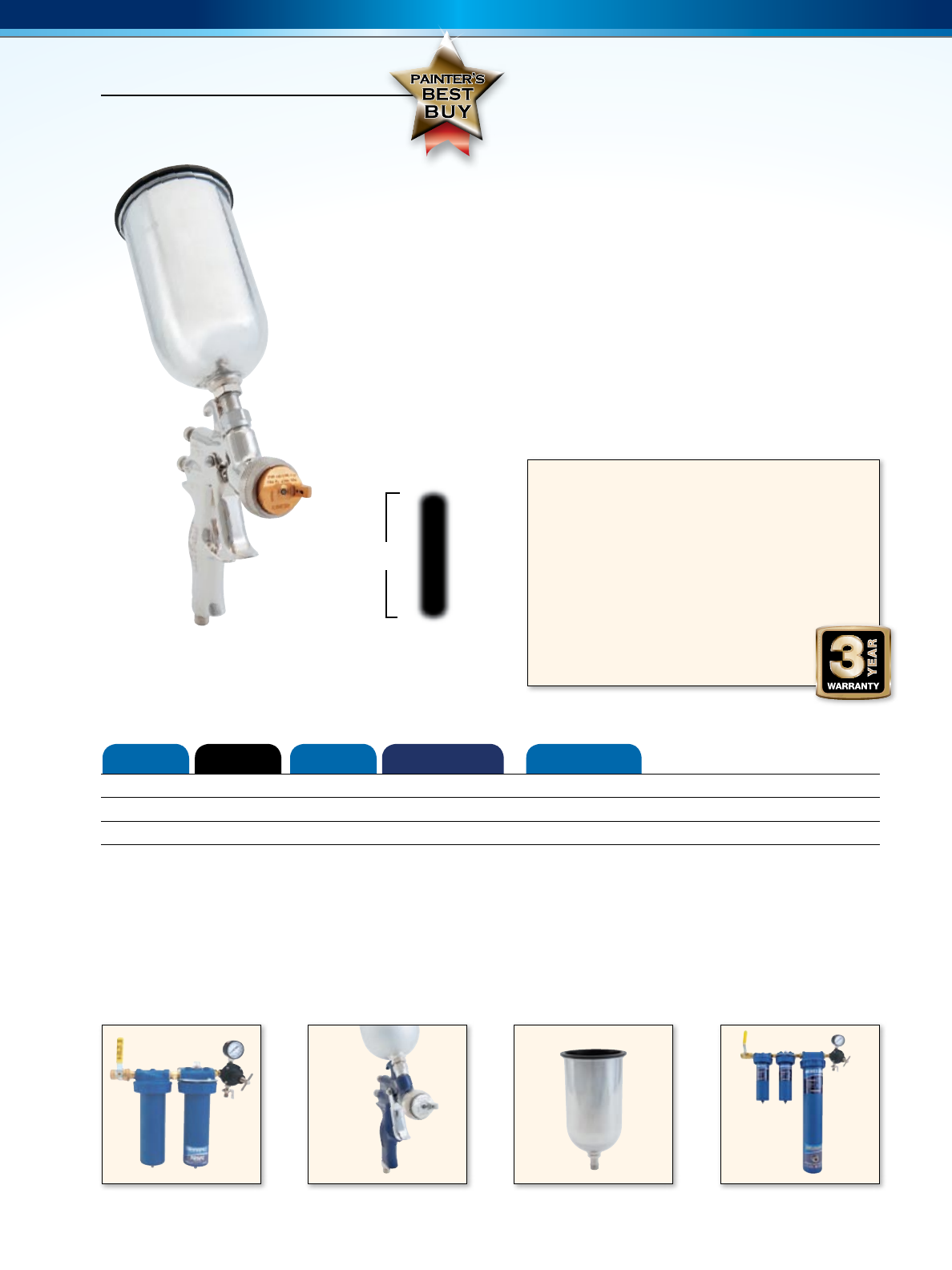

RAZOR®

HVLP for Metallic Spray Gun

Aircap Pattern

14 in

Premium Performance & Quality

• Well-denedspraypatternforsuperior

material distribution

• Excellentnishesformetallicaswellasbasecoat

• Ergonomicgunhandle,lightweight,andlowtrigger

pull for ultimate painter comfort

• MadeintheUSAandbackedbya3-yearwarranty

TheRAZORhas100%stainlesssteeluidpassagesand

stainlesssteelneedleandnozzle.TheRAZORofferslong-

term affordability with ultra long life needle packings and

low cost of ownership due to cost effective repair parts.

Nickel-plated ﬁnish allows for easy cleaning.

3M™ PPS™ Adapter and 23 ounce polished aluminum

gravity cup included.

• AirInletSize:1/4innpsm(R1/4-19)

•

Max. Air Inlet Pressure: 29 psi (0.2 MPa, 2.0 bar)

• AirConsumption:

14.4 CFM at 29 psi (2.0 bar)

• CupSize:23oz(0.68l)

• Weightwithcup:1.3lb(0.6kg)

• Finish:Nickel

• InstructionManual:PN311684

• Referencep.38

Spray Gun

Brush Kit

PN 8260 (p. 30)

Dryaire

Membrane System

PN 6770 (p. 17)

F2 Disposable

In-Line Filter (Jar of 25)

PN 8125 (p. 30)

Size Gun PN Nozzle PN Needle Assembly Applications

1.3 mm 289214 253794 253771 Metallic paint & ﬁne metallic paint

1.4 mm 289215 253795 253772 Metallic paint & ﬁne metallic paint

1.5 mm 289216 253796 253772 Metallic paint & ﬁne metallic paint

Air Adjusting Valve

with Gauge

PN U04410 (p. 27)

www.sharpe1.com • 1-800-742-7731

RAZOR®

LVLP Spray Gun

Premium Performance & Quality

• Capableofsprayingbasecoatandclearcoat,the

LVLPRAZORhasbeenoptimizedtodeliverthenest

ﬁnish quality for clear coats

• TheLVLPisanexcellentchoiceforshopswhereair

supply is limited

• Ergonomicgunhandle,lightweightandlowtrigger

pull for ultimate painter comfort

• MadeintheUSAandbackedbya3-yearwarranty

TheRAZORhas100%stainlesssteeluidpassagesand

stainlesssteelneedleandnozzle.TheRAZORofferslong-

term affordability with ultra long life needle packings and

low cost of ownership due to cost effective repair parts.

Nickel-plated ﬁnish allows for easy cleaning.

3M™ PPS™ Adapter and 23 ounce polished aluminum

gravity cup included.

• AirInletSize:1/4innpsm(R1/4-19)

• Max.AirInletPressure:16psi(0.1MPa,1.1bar)

• AirConsumption:

8.8 CFM at 16 psi (1.1 bar)

• CupSize:23oz(0.68l)

• Weightwithcup:1.3lb(0.6kg)

• Finish:Nickel

• InstructionManual:PN311684

• Referencep.38

Size Gun PN Nozzle PN Needle Assembly Applications

1.3 mm 253427 253803 253771 Base and clear coats, high solid, single stage

1.4 mm 253428 253804 253772 Base and clear coats, single stage, sealers, low solid clear coat

1.5 mm 253429 253805 253772 Base and clear coats, enamels, medium to high viscosity

Aircap Pattern

RAZ R

AZOR VL Cli t

4mm n zzle

13 in

Aluminum Gravity Feed

Cup 34 oz (1 l)

PN 253978 (p. 24)

Dryaire

Desiccant System

PN 6760 (p. 18)

RAZOR

Primer

PN 253438 (p. 9)

Model 705FC

In-LineCoalescerw/Drain

PN 6910 (p. 19)

6www.sharpe1.com • 1-800-742-7731

RAZOR®

Compliant Spray Gun

Aircap Pattern

14 in

Premium Performance & Quality

• First-rateatomization,withtransferefciencyequalto

or better than HVLP

• Complianttechnologyiscapableofatomizinghigher

viscosity materials and offers higher production rates

when compared to HVLP

• Ergonomicgunhandle,lightweightandlowtrigger

pull for ultimate painter comfort

• MadeintheUSAandbackedbya3-yearwarranty

TheRAZORhas100%stainlesssteeluidpassagesand

stainlesssteelneedleandnozzle.TheRAZORofferslong-

term affordability with ultra long life needle packings and

low cost of ownership due to cost effective repair parts.

Nickel-plated ﬁnish allows for easy cleaning.

3M™ PPS™ Adapter and 23 ounce polished aluminum

gravity cup included.

• AirInletSize:1/4innpsm(R1/4-19)

•

Max. Air Inlet Pressure: 35 psi (0.24 MPa, 2.4 bar)

• AirConsumption:

11.2 CFM at 35 psi (2.4 bar)

• CupSize:23oz(0.68l)

• Weightwithcup:1.3lb(0.6kg)

• Finish:Nickel

• InstructionManual:PN311684

• Referencep.38

Size Gun PN Nozzle PN Needle Assembly Applications

1.2 mm 253441 253817 253771 Base and clear coats, high solid, single stage

1.3 mm 253442 253818 253771 Base and clear coats, high solid, single stage

1.4 mm 253443 253819 253771 Base and clear coats, single stage, sealers, low solid clear

1.5 mm 288654 288653 253772 Primer, high viscosity

1.6 mm 253444 253820 253772 Primer, high viscosity

Spray Gun

Brush Kit

PN 8260 (p. 30)

Dryaire

Membrane System

PN 6770 (p. 17)

6 ft

Air Hose

PN 7110 (p. 29)

Air Adjusting Valve

with Gauge

PN U04410 (p. 27)

www.sharpe1.com • 1-800-742-7731

Aircap Pattern

14 in

RAZOR®

Compliant Spray Gun

Premium Performance & Quality

• Aircaptechnologyoptimizedforwaterborneorwater

base paint

• Superioratomizationformaterialdistribution

• Ergonomicgunhandle,lightweightandlowtrigger

pull for ultimate painter comfort

• MadeintheUSAandbackedbya3-yearwarranty

The Compliant Waterborne gun offers higher production

rates when compared to HVLP.

TheRAZORiswaterbornecompatiblewith100%stainless

steel ﬂuid passages and stainless steel needle and nozzle.

TheRAZORofferslong-termaffordabilitywithultralong

life needle packings and low cost of ownership due to

cost effective repair parts. Nickel-plated ﬁnish allows for

easy cleaning.

3M™ PPS™ Adapter and 23 ounce plastic gravity

cup included.

• AirInletSize:1/4innpsm(R1/4-19)

•

Max. Air Inlet Pressure: 35 psi (0.24 MPa, 2.4 bar)

• AirConsumption:

11.2 CFM at 35 psi (2.4 bar)

• CupSize:23oz(0.68l)

• Weightwithcup:1.3lb(0.6kg)

• Finish:Nickel

• InstructionManual:PN311684

• Referencep.38

Size Gun PN Nozzle PN Needle Assembly Applications

1.2 mm 289390 289382 253771 Waterborne base coats

1.3 mm 289391 289383 253771 Waterborne base coats

1.4 mm 289572 289562 253771 Waterborne base coats

Zephyr

Air Drying Gun

PN 289956 (p. 23)

Filter

& Coalescer

PN 6910 (p. 19)

Dryaire

Membrane System

RAZOR

HVLP Waterborne

PN 6770 (p. 17)PN 289388 (p. 3)

www.sharpe1.com • 1-800-742-7731

RAZOR®

Conventional Spray Gun

Aircap Pattern

13 in

Premium Performance & Quality

• Finestnishqualitywiththelowesttransferefciency

when compared to HVLP, LVLP, and Compliant technology

• Widevarietyofnozzlesizesandfastproductionrates

to meet your needs

• Ergonomicgunhandle,lightweightandlowtrigger

pull for ultimate painter comfort

• MadeintheUSAandbackedbya3-yearwarranty

TheConventionalRAZORhas100%stainlesssteeluid

passagesandstainlesssteelneedleandnozzle.RAZOR

offers long-term affordability with ultra long life needle

packings and low cost of ownership due to cost effective

repair parts. Nickel-plated ﬁnish allows for easy cleaning.

3M™ PPS™ Adapter and 23 ounce polished aluminum

gravity cup included.

• AirInletSize:1/4innpsm(R1/4-19)

• AirConsumption:

13.3 CFM at 43 psi (3.0 bar)

• CupSize:23oz(0.68l)

• Weightwithcup:1.3lb(0.6kg)

• Finish:Nickel

• InstructionManual:PN311684

• Referencep.38

Size Gun PN Nozzle PN Needle Assembly Applications

1.4 mm 288281 288297 253771 Base and clear coats, low solid clear, single stage, sealers

Aluminum Gravity Feed

Cup 34 oz (1 l)

PN 253978 (p. 24)

Dryaire

Desiccant System

PN 6760 (p. 18)

RAZOR

Primer

PN 253438 (p. 9)

Air Adjusting Valve

with Gauge

PN U04410 (p. 27)

www.sharpe1.com • 1-800-742-7731

RAZOR®

HVLP for Primer Spray Gun

Aircap Pattern

14 in

High Performance Primer

• Deliverstopqualityatomization

• Minimizesoverspraytoreducemaskingandsanding

• Ergonomicblueanodizedgunhandle,lightweightand

low trigger pull for ultimate painter comfort

• MadeintheUSAandbackedbya3-yearwarranty

TheRAZORprimerhasastainlesssteelneedleand

nozzle.TheRAZORofferslong-termaffordabilitywithultra

long life needle packing and low cost of ownership due to

cost effective repair parts.

23 ounce brushed aluminum cup included.

3M™ PPS™ Adapter is not included, it is an accessory

and can be purchased separately.

• AirInletSize:1/4innpsm(R1/4-19)

•

Max. Air Inlet Pressure: 29 psi (0.2 MPa, 2.0 bar)

• AirConsumption:

14.4 CFM at 29 psi (2.0 bar)

• CupSize:23oz(0.68l)

• Weightwithcup:1.3lb(0.6kg)

• Finish:BlueAnodized

• InstructionManual:PN311684

• Referencep.38

Size Gun PN Nozzle PN Needle Assembly Applications

1.3 mm 289839 289841 253771 Primer, high viscosity

1.5 mm 253437 253789 253772 Primer, high viscosity

1.8 mm 253438 253790 253772 Primer, high viscosity

2.3 mm 253439 253791 253774 Primer, high viscosity, metal ﬂake

2.5 mm 24B233 24B235 253775 Sprayable polyester

Spray Gun

Brush Kit

PN 8260 (p. 30)

Dryaire

Membrane System

PN 6770 (p. 17)

Air Adjusting Valve

with Gauge

PN U04410 (p. 27)

PPS Adapter

PN 253969 (p. 26)

www.sharpe1.com • 1-800-742-7731

RAZOR®

Siphon Spray Guns

Premium Performance & Quality

HVLP Siphon

Compliant Siphon

Conventional Siphon

• Extremelysmoothspraypatternforsuperiornishes

• Capableofatomizingabroadrangeofcoatings

• Ergonomicgunhandle,lightweightandlowtriggerpull

• Long-termaffordabilitywithultralonglifeneedlepacking

• MadeintheUSAandbackedbya3-yearwarranty

• Includesspraygunand1qt(0.95l)cupassembly

• AirInletSize:1/4npsm(R1/4-19)

• FluidInlet:3/8npsm(R3/8-19)

• Max.AirPressureHVLP:30psi(0.21MPa,2.1bar)

• Max.AirPressureCompliant:35psi(0.24MPa,2.4bar)

• CupSize:1qt(0.95l)

• Weightwithcup:2.1lb(1.0kg)

• Finish:Nickel

• InstructionManual:PN311685

• Referencep.40

Size

Gun PN

Aircap

Nozzle

Needle

Assembly

Air

Consumption

Applications

2.2 mm 287961 253827 253778 253777 11.2 CFM at

30 psi (2.1 bar) Primer, high viscosity

2.2 mm 289231

(Gun only) 253827 253778 253777 11.2 CFM at

30 psi (2.1 bar) Primer, high viscosity

Size

Gun PN

Aircap

Nozzle

Needle

Assembly

Air

Consumption

Applications

1.2 mm 288286 288454 288302 288641 10.4 CFM at

35 psi (2.4 bar)

Base and clear coats, high solid,

single stage

1.3 mm 288287 288454 288303 288641 10.4 CFM at

35 psi (2.4 bar)

Base and clear coats, single stage,

sealers, low solid clear

1.4 mm 288288 288454 288304 288642 10.4 CFM at

35 psi (2.4 bar)

Base and clear coats, single stage,

sealers, low solid clear

1.8 mm 288290 288454 288306 288643 10.4 CFM at

35 psi (2.4 bar) Primer, high viscosity

Size

Gun PN

Aircap

Nozzle

Needle

Assembly

Air

Consumption

Applications

1.5 mm 288291 288455 288307 288642 12.2 CFM at

43 psi (3.0 bar)

Base and clear coats, single stage,

sealers, low solid clear

1.8 mm 288292 288455 288308 288642 12.2 CFM at

43 psi (3.0 bar)

Base and clear coats, single stage,

sealers, low solid clear

2.5 mm 288294 288457 288310 253777 12.2 CFM at

43 psi (3.0 bar) Primer, high viscosity

www.sharpe1.com • 1-800-742-7731

RAZOR®

Pressure Feed Spray Guns

Premium Performance & Quality

HVLP Pressure

Compliant Pressure

Conventional Pressure

HVLP Low Pressure

• Superioratomizationwithautomotive

and industrial coatings

• Forusewithlighteetorindustrialprojects

• MadeintheUSAandbackedbya3-yearwarranty

• AirInletSize:1/4npsm(R1/4-19)

• FluidInlet:3/8npsm(R3/8-19)

• Max.FluidInletPressure:300psi(2.1MPa,21bar)

• Max.AirInletPressure100psi(0.7MPa,7bar)

• Finish:Grayanodized

• InstructionManual:PN312412

• Referencep.40&42

Size

Gun PN

Aircap

Nozzle

Needle

Assembly

Air

Consumption

Applications

1.0 mm 24A525 253824 253792 253769 14.4 CFM at

29 psi (2.0 bar) Clear and base coats

1.2 mm 24A526 253824 253793 253771 14.4 CFM at

29 psi (2.0 bar) Clear and base coats

1.4 mm 24A527 253824 253795 253772 14.4 CFM at

29 psi (2.0 bar) Clear and base coats

Size

Gun PN

Aircap

Nozzle

Needle

Assembly

Air

Consumption

Applications

1.0 mm 24A528 253825 253816 253769 11.2 cfm at

35 psi (2.4 bar) Clear, base and primer

1.2 mm 24A529 253825 253817 253771 11.2 cfm at

35 psi (2.4 bar) Clear, base and primer

1.4 mm 24A530 253825 253819 253771 11.2 cfm at

35 psi (2.4 bar) Clear, base and primer

Size

Gun PN

Aircap

Nozzle

Needle

Assembly

Air

Consumption

Applications

1.2 mm 24A531 288451 288295 253772 13.3 cfm at

43 psi (3.0 bar) Clear and base coats

1.4 mm 24A532 288451 288297 253771 13.3 cfm at

43 psi (3.0 bar) Clear and base coats

1.8 mm 24A533 288452 288299 253772 13.3 cfm at

43 psi (3.0 bar) Primer

Size

Gun PN

Aircap

Nozzle

Needle

Assembly

Air

Consumption

Applications

1.2 mm 289233* 253824 253793 288641 14.4 CFM at

29 psi (2.0 bar) Clear and base coats

*Includes Model 6680 cup assembly and Model 1400 cup pressure regulator

NEW

12 www.sharpe1.com • 1-800-742-7731

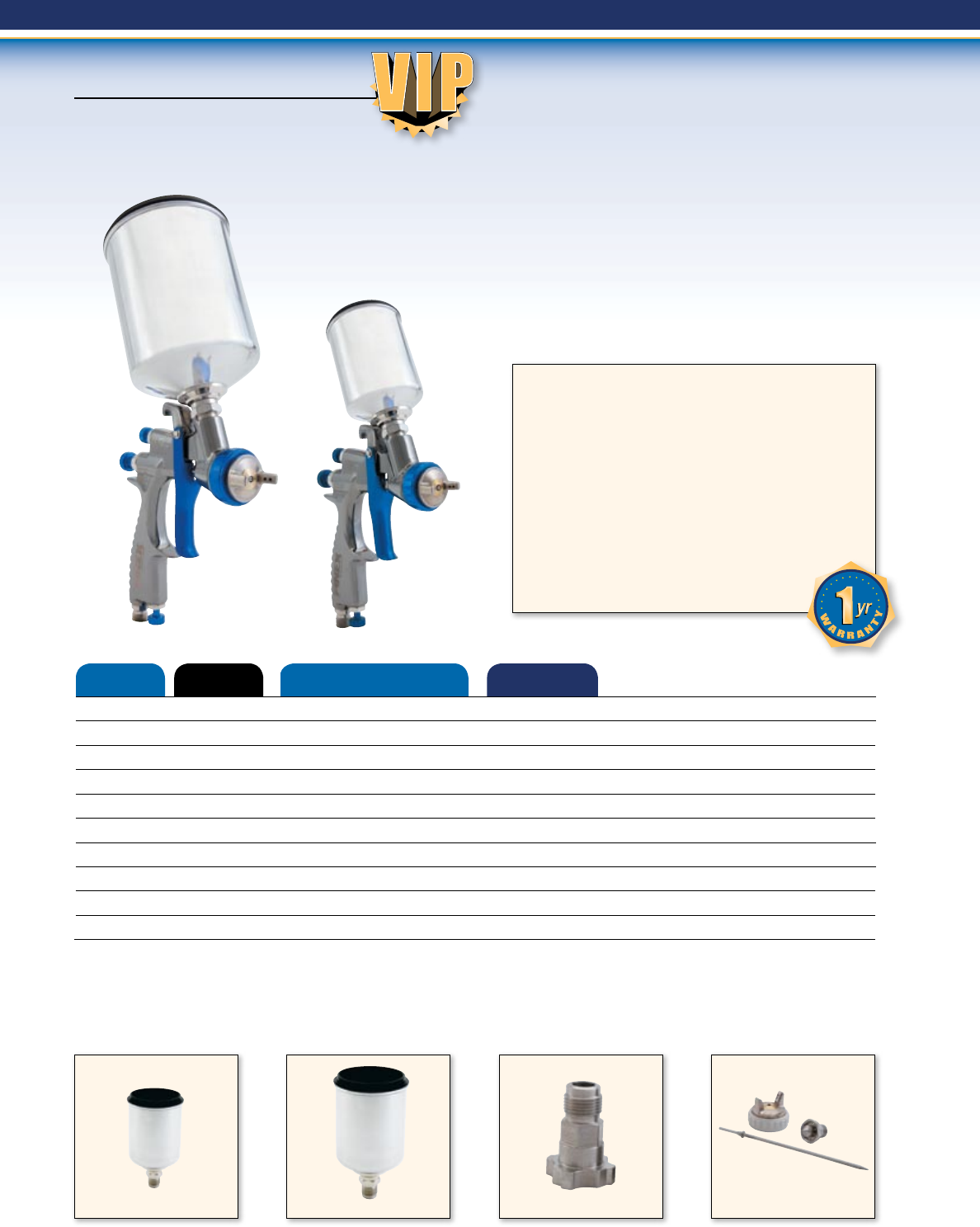

Finex™

Gravity Feed HVLP

and Mini-HVLP

Value, Innovation & Performance!

• Value–Qualitygunsataffordableprices

• Innovation–Aclassleaderwith29%fewerparts,

readily available repair kits, optional 3M™ PPS™

adapters, optional interchangeable cups and lowest

trigger pull among guns in its class

• Performance–Unmatchedspraypatternsizeandquality

The FX3000 is a full-size HVLP gun with a large fan pattern,

and the FX1000 mini-HVLP has two-ﬁnger control for anti-

fatigue painting in conﬁned access areas like doorjambs or

for detailed touch-up work.

• AirInletSize:1/4innpsm(R1/4-19)

•

Max. Air Inlet Pressure: 29 psi (0.2 MPa, 2.0 bar)

• PatternSize:FX3000 12.5 in, FX1000 9 in

• AirConsumptionat29psi(0.2MPa.2.0bar):

FX3000 9.5 SCFM, FX1000 7.0 SCFM

• CupSize:FX3000 20 oz (600 cc), FX1000 4 oz (125 cc)

• WeightwithCup:

FX3000 1.1 lb (0.5 kg), FX1000 0.9 lb (0.4 kg)

• Finish:BlackNickel

• InstructionManual:PN312372

• Referencep.45

Size Gun PN Needle, Nozzle, Aircap Kits Applications

HVLP FX3000

1.0 mm 288878 289296 Base and clear coats, light industrial, hobby, spot repair

1.3 mm 288879 289297 Base and clear coats, high solid, single stage

1.4 mm 288880 289298 Base and clear coats, single stage, sealers, low solid clear, clear coat

1.5 mm 288881 289299 Base and clear coats, sealers, enamels, medium to high viscosity

1.8 mm 288882 289300 Primer, high viscosity

Mini-HVLP FX1000

1.0 mm 289200 289288 Base and clear coats, light industrial, hobby, spot repair

1.2 mm 289221 289289 Base and clear coats, high solid, single stage

1.4 mm 289222 289290 Base and clear coats, single stage, sealers, low solid clear, general purpose

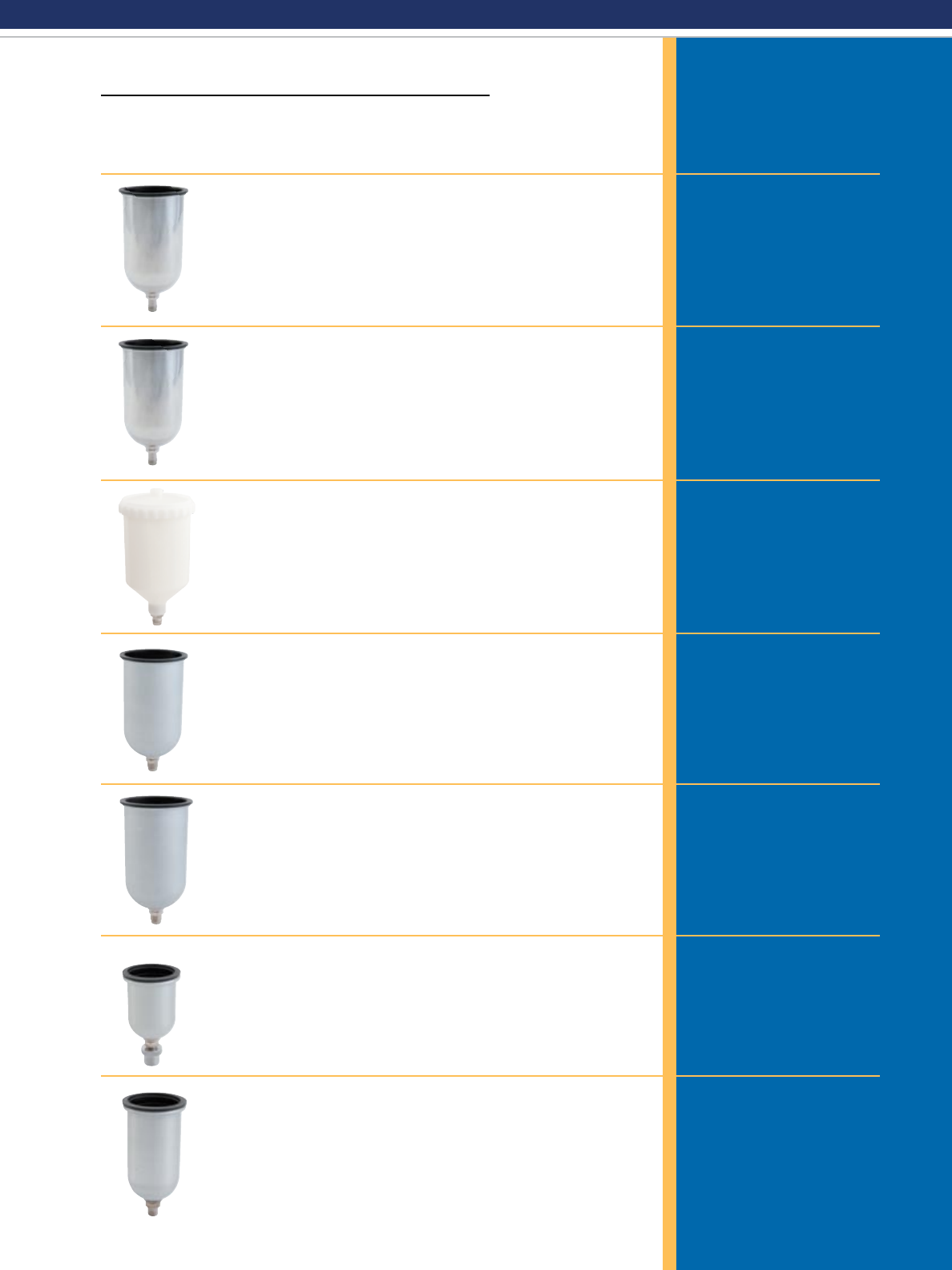

Ultra Mini Aluminum Cup

125 cc

PN 289517 (p. 25)

Mini Aluminum Cup

250 cc

PN 289321 (p. 25)

3M™ PPS™

Adapter

PN 289520 (p. 26)

FX1000, 1.0 needle,

nozzle repair, aircap kit

PN 289288

FX3000 FX1000

www.sharpe1.com • 1-800-742-7731

Finex™

Gravity Feed Conventional

Value, Innovation & Performance!

• Value–Qualitygunsataffordableprices

• Innovation–Aclassleaderwith29%fewerparts,

readily available repair kits, optional 3M™ PPS™

adapters, optional interchangeable cups and lowest

trigger pull among guns in its class

• Performance–Unmatchedspraypatternsizeandquality

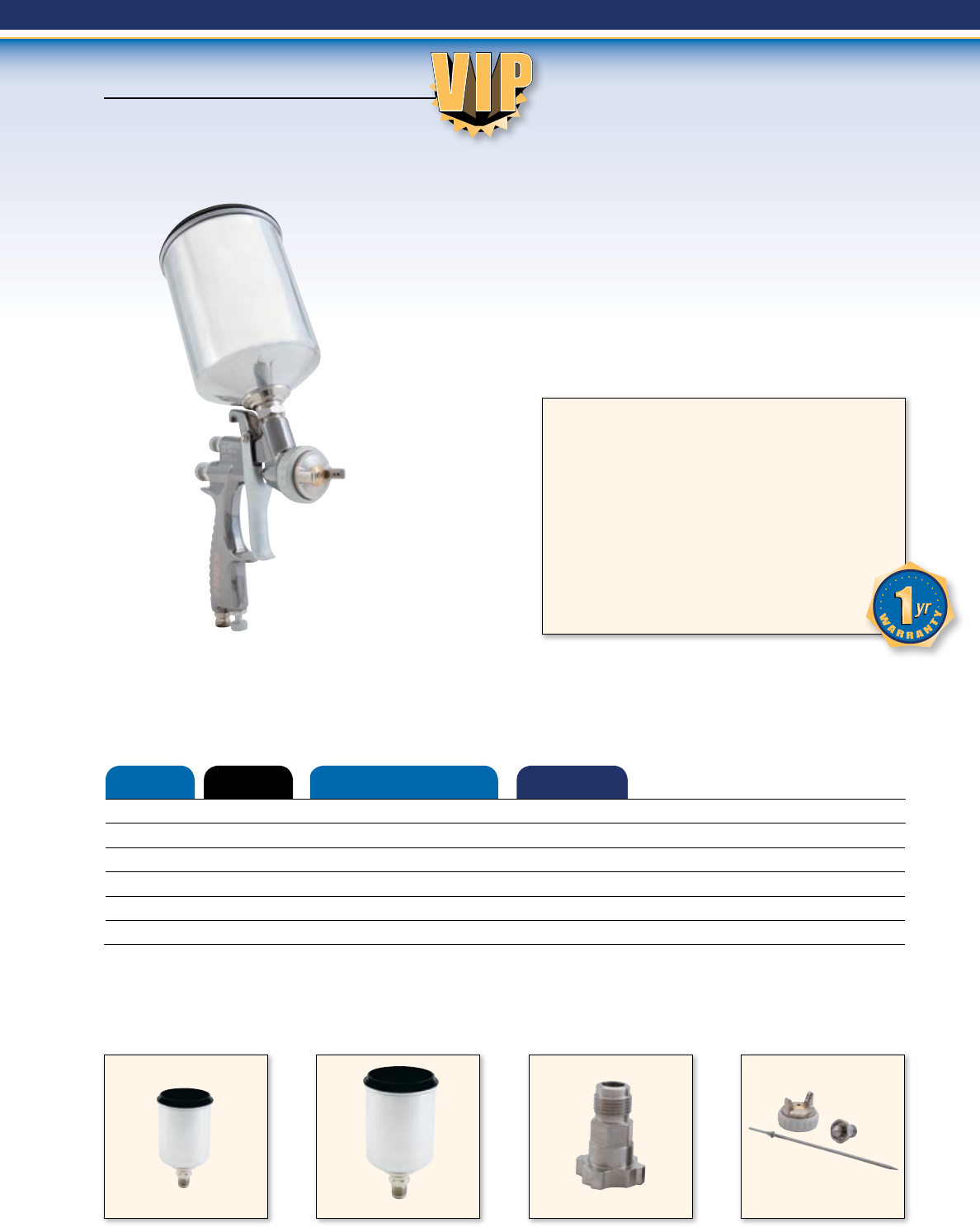

The FX2000 conventional air spray gun delivers an

excellent automotive ﬁnish when HVLP is not required.

This conventional gun has multiple nozzle options and

a large spray pattern up to 12 inches. Includes 600 cc

aluminum cup, wrench and cleaning brush.

• AirInletSize:1/4innpsm(R1/4-19)

•

Max. Air Inlet Pressure: 29 psi (0.2 MPa, 2.0 bar)

• PatternSize:12in

• AirConsumption:

9.5 CFM at 43 psi (0.3 MPa. 3.0 bar)

• CupSize:20oz(600cc)

• Weightwithcup:1.1lb(0.5kg)

• Finish:BlackNickel

• InstructionManual:PN312372

• Referencep.45

FX2000

Size Gun PN Needle, Nozzle, Aircap Kits Applications

Conventional FX2000

1.0 mm 288883 289291 Base and clear coats, light industrial, hobby, spot repair

1.3 mm 288884 289292 Base and clear coats, high solid, single stage

1.4 mm 288885 289293 Base and clear coats, single stage, sealers, low solid clear

1.5 mm 288886 289294 Base and clear coats, sealers, enamels, medium to high viscosity

1.8 mm 288887 289295 Primer, high viscosity

Ultra Mini Aluminum Cup

125 cc

PN 289517 (p. 25)

Mini Aluminum Cup

250 cc

PN 289321 (p. 25)

3M™ PPS™

Adapter

PN 289520 (p. 26)

FX2000, 1.4 needle,

nozzle repair, aircap kit

PN 289293

14 www.sharpe1.com • 1-800-742-7731

Size

Gun PN

Aircap

Applications

1.4 mm 7040 34806 All automotive colors & clears

Size

Gun PN

Aircap

Applications

1.1 mm 7045 34808 All automotive colors & clears

Size

Gun PN

Aircap

Applications

1.4 mm 7030 29006 All automotive colors & clears

Mini Spray Guns

Details & Touch-Ups – Gravity

Mini Spray Guns

Details & Touch-Ups – Pressure

MGF HVLP Mini Gravity Feed System

MPF HVLP Mini Pressure Feed System

D-5-55 Detail Spray Gun

• AirInletSize:1/4innpsm(m)

• AirConsumption:2.9CFM

• Max.InletPressure:40psi(2.7bar)

• AircapPressure:10psi(0.6bar)

• Weight:9oz(0.25kg)

• RepairKit:PN34835

• InstructionManual:PN309989

• Referencep.46

• AirInletSize:1/4innpsm(m)

• AirConsumption:3.5CFM

• Max.InletPressure:40psi(2.7bar)

• AircapPressure:10psi(0.6bar)

• RepairKitPN:34835

• InstructionManual:PN309990

• Referencep.47

• AirInletSize:1/4innpsm(R1/4-19)

• AirConsumption:4.1CFM

• OrderwithModelD-500

cup assembly

• GunWeight:8oz(0.22kg)

• RepairKitPN:29086

• InstructionManual:PN309991

• Referencep.48

• CupAssembly(6oz):PNU07510, Model D-500

• ExtraCupwithCover:PNU07530, Model D-500-72

The MGF HVLP Mini Gravity Feed system is ideal

for all types of touch-up and detail work and

sprays all automotive coatings. It is designed for

left or right hand use and features an inﬁnitely

variable (round to ﬂat) fan control. Includes

UO7505(4oz)aluminumgravityfeedcup.

The MPF HVLP Mini Pressure Feed system

is excellent for high speed production. It

is designed for left or right hand use and

features an inﬁnitely variable (round to ﬂat)

fan control.

With atomization equal to a production gun, our

D-5-55 Detail Spray Gun is easy to service and easy

to use. This gun is ideal for painting small areas.

The trigger is designed for right or left hand use.

Excellentforalltypesofpaintmaterial.

U07510

U07530

www.sharpe1.com • 1-800-742-7731

Size PN Aircap Applications

Gun & Cup 1.8 mm 9500 16111 Medium solids, colors, clears, enamels

GunOnly 1.8 mm 6835 16111 Medium solids, colors, clears, enamels

Non-HVLP Spray Gun

Classic Heavy-Duty Production

Model 775

9500 - Combo Gun and Cup

• AirInletSize:1/4npsm(m)

• AirConsumption:

11.0 CFM at 50 psi

• InstructionManual:PN310587

• Referencep.52

The 775 Non-HVLP Spray Gun features self-aligning aircap

foraperfectpattern.Our“classic”heavy-dutyproduction

spray gun provides outstanding performance and

reliability. This value-priced combo package includes spray

gun (PN 6835) and special cup assembly (PN 6610).

Problem Cause Solution

RIGHT

Normal pattern. No action necessary.

WRONG

Heavy top or bottom pattern

Dirty or damaged aircap or ﬂuid

nozzle.

Rotate aircap 180º. If pattern follows aircap, problem is in aircap. Clean and

inspect. If pattern is not corrected, replace aircap.

If pattern does not follow the aircap, the problem is with the ﬂuid nozzle. Clean and

inspect the nozzle. If the pattern in not corrected, replace nozzle.

WRONG

Split pattern

Pressure too high for viscosity

of material being sprayed

Reduce air pressure and increase material viscosity.

Correct pattern by narrowing fan size with spray width adjustment knob.

WRONG

Dirty or distorted air horn holes. Clean and inspect aircap. If pattern is not corrected, replace aircap.

Gun spitting

Air getting into paint stream. Check if cup is empty and ﬁll if needed. Tighten ﬂuid nozzle. Check and tighten

needle packing nut. Check ﬂuid nozzle for damage.

Will not spray

1) Cup is empty.

2) Fluid adjustment knob turned

too far clockwise

1) Fill cup.

2) Adjust knob counterclockwise.

Excessiveairblowingback

1) Loose ﬂuid nozzle.

2) Damaged ﬂuid nozzle seal.

1) Tighten ﬂuid nozzle.

2) Replace seal.

WRONG

Heavy pattern or orange peel

1) Air pressure too low.

2) Gun held too close to

surface.

1) Increase air pressure.

2) Hold gun about 6-8 inches (15-200 mm) from surface.

Troubleshooting

16 www.sharpe1.com • 1-800-742-7731

Dryaire Membrane

or Desiccant Air

Drying system at

Paint Booth

15 ft to 20 ft

Compressor

Main Air Line 1 in.

Pipe Minimum

Dryaire Membrane

Dryaire Desiccant

Refrigerated

Air Dryer

Ball

Valve

Drain

Leg

Air

Out

Air

Filter

Oil

Coalescer

Union

Air Control Unit

or Air Filter

Flexible Hose between

Compressor

and Main Air Line

Refrigerated Air Dryers

Cool, Dry and Clean

• Idealforbodyshopsandindustrialfacilities

• Noseparatecomponentstopipetogether

• Singleon/offswitch,faultlight

• Compactandhighlyefcientheatexchangers

This compact, easy-to-use package prevents surface

blemishes and poor paint adhesion caused by

compressed air humidity.

Ideal for shops and facilities with 5-15 horsepower

compressors, the Dryaire system is easy to install, easy to

maintain and environmentally safe. It offers compact, high

efcientheatexchangers,two-stageseparator/lter,anda

reliable air operated condensate drain.

• InstructionManual:PN310884

Model

Use with Air

Compressor Size

Flow

Capacity

Power

Requirements

Dimensions

H" x W" x D"

Weight

Service

Kit PN

6880 5.0 - 7.5 HP 25 CFM 115/1/60 28 x 10 x 13 80 lb 39995

6885 10 HP 35 CFM 115/1/60 28 x 10 x 13 81 lb 39995

6890 15 HP 50 CFM 115/1/60 37 x 17 x 17 150 lb 39997

6895 20 HP 75 CFM 115/1/60 37 x 17 x 17 150 lb 39996

www.sharpe1.com • 1-800-742-7731

Dryaire Membrane System

Model 6770

Advanced air drying technology for shop use. Lightweight,

easy-to-install, and simple-to-operate, the Dryaire

Membrane System maintains -40°F dew point while

achieving 0% compressed air humidity. It removes oil

and sub-micron particles down to .01 micron.

• Stage1lterprovidesremovalofwaterand

contaminants down to 5 microns

• Stage2coalescerprovidesremovalofoiland

sub-microns particles down to .01 microns

• Stage3membranedryerismaintenancefree,

no regeneration required

PN Description

6770 Membrane System

22645 Stage1ReplacementFilterElement

U23075 Stage2ReplacementCoalescerElement

1-6770-3 Stage 3 Replacement Membrane

PN 253434 (p. 2)

RAZOR

HVLP 1.4 mm

PN 253438 (p. 9)

RAZOR

Primer

PN 289388 (p. 3)

RAZOR

HVLP Waterborne

PN 288880 (p. 12)

Finex

FX3000 1.4 mm

• InstructionManual:PN310596

• Referencep.53

Stage 1 Stage 2 Stage 3

Air Inlet, NPT 1/2in 1/2in 1/2in

AirOutlet,NPT 1/2in 1/2in 1/2in

Air Flow Capacity 115 CFM (3.2 m3/min) 70 CFM (2.0 m3/min) 30 CFM (0.85 m3/min)

Max.OperatingPressure 175 psi (1.2 MPa, 12 bar) 175 psi (1.2 MPa, 12 bar) 175 psi (1.2 MPa, 12 bar)

Max. Temperature 150ºF (65ºC) 150ºF (65ºC) 175ºF (79ºC)

NOTE: For the overnight drain to operate, turn off the air pressure

Shut off ball valve when not in use•

Recommended installation outside spray booth•

18 www.sharpe1.com • 1-800-742-7731

Quick

remove

ﬂange

Built-in screen

prevents

desiccant from

going down tube

on reﬁll

Blue Silica Gel

Desiccant beads

turn pink when

saturated

Sintered Bronze Element

prevents any Desiccant

dust from traveling

downstream

Built in sightglass allows

easy monitoring of desiccant

color change

Dryaire Desiccant System

Model 6760

Remove dirt, water, oil and uncondensed moisture from

compressed air lines. The Dryaire Desiccant System’s 100%

indicating silica gel provides maximum moisture absorption.

It features easy desiccant change out, regenerate, or

replacement (6765-1). This system maintains -40°F dew

point while achieving 0% compressed air humidity.

• Stage1Airlterincludesautodrain(overnight)

and 5-micron ﬁlter

• Stage2Coalescerwithautodrain(overnight)

removes oil particles down to .01 micron

• Stage3DesiccantHousing,30cfmcapacity

• Self-relievingairregulator,mountingbracket,

and shut-off valve included

* Premium beads are orange and turn clear when saturated.

PN Description

6760 Desiccant systems includes desiccants

22645 Stage1ReplacementFilterElement

22655 Stage2ReplacementCoalescerElement

6765-1 Stage 3, Replacement desiccant beads, 100%

Silica Gel Desiccant (Single 5 lb can)

6765-4 Stage 3, 5 lb. Replacement desiccant beads,

100% Silica Gel Desiccant (Four 5 lb cans)

289533 Stage 3, Replacement desiccant beads, premium

cobalt-chloride free silica gel (Single 5 lb can)

289534 Stage 3, Replacement desiccant beads, premium

cobalt-chloride free silica gel (Four 5 lb cans)

• InstructionManual:PN310595

• Referencep.54

Stage 1 Stage 2 Stage 3

Air Inlet, FPT 1/2in 1/2in 3/4in(reducedto1/2in)

AirOutlet,FPT 1/2in 1/2in 3/4in(reducedto3/8in)

Air Flow Capacity 108 CFM (3 m3/min) 35 CFM (1 m3/min) 30 CFM (0.85 m3/min)

Max.OperatingPressure 175 psi (1.2 MPa, 12 bar) 175 psi (1.2 MPa, 12 bar) 175 psi (1.2 MPa, 12 bar)

Max. Temperature 150ºF (65ºC) 150ºF (65ºC) 150ºF (65ºC)

NOTE: For the overnight drain to operate, turn off the air pressure

Shut off ball valve when not in use•

Recommended installation outside spray booth•

2 Times larger than

most competitors -

for longer bead life!

www.sharpe1.com • 1-800-742-7731

• .01micronltration

• Air

Flow Capacity: 115 cfm (3.2 m3/min)

• AirInlet:1/2inNPT

• AirOutlet:1/2inNPT

• MaxTemperature:150ºF(65ºC)

• Max.OperatingPressure:

175 psi (1.2 MPa, 12 bar)

• InstructionManual:PN310611

• Referencep.56

Paint Booth & Paint Prep

Stage 1 & Stage 2

In-Line Filters & Coalescers

Filter and Drain

705FC ½ in In-Line Filter & Coalescer with Overnight Drains

Prevents ﬁsh-eyes by removing water, oil &

contamination without the use of desiccant.

Designedforuseinprepstationsandair/nishingareas.

Stage 1 provides removal of water and contaminants

down to 5 microns. Stage 2 provides removal of oil and

sub-micronic particles down to .01 microns.

Description

6910 In-Line ﬁlter and coalescer

22645 Stage1ReplacementFilterElement

U23075 Stage2ReplacementCoalescerElement

• .01micronltration

• AirFlowCapacity:115cfm(3m3/min)

• AirInlet:3/4inNPT

• AirOutlet:3/4inNPT

• MaxTemperature:150ºF(65ºC)

• Max.OperatingPressure:

175 psi (1.2 MPa, 12 bar)

• InstructionManual:PN310609

• Referencep.56

707C ¾ in In-Line Coalescer with Overnight Drain

The 707C effectively traps ﬁne oil mists and microscopic

particles to .01 microns. Recommended for use down

stream of a refrigerated air dryer. Contains spin-off bowl

for quick ﬁlter changes without tools. Includes pressure

drop indicator.

Description

6930 In-Line coalescer with auto drain

U23085 ReplacementCoalescerElement

• 5micronltration

• AirFlowCapacity:

300 cfm (8.4 m3/min)

• AirInlet:3/4inNPT

• AirOutlet:3/4inNPT

• MaxTemperature:150ºF(65ºC)

• Max.OperatingPressure:

175 psi (1.2 MPa, 12 bar)

• InstructionManual:PN310611

• Referencep.56

707F ¾ in In-Line Filter with Overnight Drain

The 707F removes oil and water contamination.

Disassemble and clean the ﬁlter without tools.

Features a large reusable ﬁlter element.

Description

6920 In-Line ﬁlter with auto drains

U23080 ReplacementFilterElement

NEW FEATURE

20 www.sharpe1.com • 1-800-742-7731

Air Filters

Contamination Elimination

Model F88 Air Filter

Model F88M Mechanic’s Air Filter

Model 606 Air Filter

• 5micronltration

• AirInletSize:1/2inNPT

• AirOutletSize:3/8inNPTand

1/4inNPTplugged

• Max.OperatingPressure:

160 psi (11.0 bar)

• FilterCapacity:75cfm

• InstructionManual:PN310603

• Referencep.57

• 5micronltration

• AirInletSize:1/4inNPT

• AirOutletSize:1/4inNPTand

1/4inNPTplugged

• Max.OperatingPressure:

160 psi (11.0 bar)

• FilterCapacity:75cfm

• InstructionManual:PN310603

• Referencep.57

• 5micronltration

• AirInletSize:1/4inNPT

• AirOutletSize:1/4inNPTand

1/4inNPTplugged

• Max.OperatingPressure:

160 psi (11.0 bar)

• FilterCapacity:120cfm

• InstructionManual:PN310601

• Referencep.59

Model F88 Air Filter is highly effective at

removing water, oil & contamination. It

protects air cylinders and air tools and

features a reusable edge-type ﬁlter element.

Model F88M Mechanic’s Air Filter is designed

for the mechanic who wants to protect their

investment in air tools. This unit is portable

and easily mounts anywhere. It is designed

for use with quick couplers.

The Model 606 Air Filter is most effective

at removing water, oil & contamination. Its

features include a large, reusable, edge-type

ﬁlter element.

Description

8130 Air ﬁlter, 75 cfm

U32719 Replacement ﬁlter element

Description

8135 Air ﬁlter with quick connect, 75 cfm

U32719 Replacement ﬁlter element

Description

UO6710 Air ﬁlter, 120 cfm

19930 Replacement ﬁlter element

www.sharpe1.com • 1-800-742-7731

Air Control Units

Protection for Air Cylinders & Air Tools

880A Air Control Unit

606B Air Control Unit

606C Air Control Unit

606A Air Control Unit

• 5micronltration

• AirInletSize:1/2inNPT(f)

• AirOutletSize:3/8inNPT(f)and

1/4inNPT(f)plugged

• Max.OperatingPressure:200psi(13.6bar)

• FilterCapacity:75cfm

• RegulatorCapacity:50cfm

• InstructionManual:PN310603

• Referencep.58

• 5micronltration

• AirInletSize:1/2inNPT

• AirOutletSize:1/4inNPT

• Max.OperatingPressure:200psi(13.6bar)

• FilterCapacity:120cfm

• RegulatorCapacity:50cfm

• InstructionManual:PN310601

• Referencep.60

• 5micronltration

• AirInletSize:1/2inNPT

• AirOutletSize:1/4inNPT

• Max.OperatingPressure:160psi(13.6bar)

• FilterCapacity:120cfm

• RegulatorCapacity:50cfm

• InstructionManual:PN310601

• Referencep.60

• 5micronltration

• AirInletSize:1/2inNPT

• AirOutletSize:1/4inNPT

• Max.OperatingPressure:200psi(13.6bar)

• FilterCapacity:120cfm

• RegulatorCapacity:50cfm

• InstructionManual:PN310601

• Referencep.60

Highly effective at removing water, oil and

contamination to protect air cylinders and air tools.

Contains 18C-3R Regulator with a 160 lb inverted

gauge and air cock. Regulated outlet and ﬁltered main

line outlet included.

Effectiveatremovingwater,oilandcontaminationto

protect air cylinders and air tools. Contains 18C-3R

Regulator with a 160 lb inverted gauge and air cock.

Regulated outlet and ﬁltered main line outlet with

200 lb gauge included.

Effectiveatremovingwater,oilandcontamination

to protect air cylinders and air tools. Contains two

18C-3R Regulators with a 160 lb inverted gauge

and air cock. Two regulated outlets and a ﬁltered

main line outlet with 200 lb gauge included.

Effectiveatremovingwater,oilandcontaminationto

protect air cylinders and air tools. Contains 18C-3R

Regulator with a 160 lb inverted gauge and air cock.

Regulated outlet and ﬁltered main line outlet included.

Description

6950 Air Control Unit, 75 cfm

U32719 Replacement ﬁlter element

Description

6730 Air Control Unit, 120 cfm

19930 Replacement ﬁlter element

Description

6740 Model 606C Air Control Unit

19930 ReplacementFilterElement

Description

UO6720 Air Control Unit, 120 cfm

19930 Replacement ﬁlter element

22 www.sharpe1.com • 1-800-742-7731

Description

1610 18B-2R Two regulated outlets, one main line outlet (bypass)

1630 18C-3R Three regulated outlets, one main line outlet (bypass)

Description

1620 18B-500 Two regulated outlets, one main line outlet (bypass)

1640 18C-500 Three regulated outlets, one main line outlet (bypass)

Regulators

Pressure Regulation

16C-MR Mini Spray Gun Regulator

18B-500 and 18C-500 Air Regulator Assembly

18B-2R and 18C-3R Air Regulators

• AirInlet:1/4innpsm(f)

• AirOutlets(swivelnut):

1/4innpsm(f)

• AirFlowCapacity:22cfm

• InstructionManual:PN310605

• AirInlet:3/8innpsm(f)

• AirOutlets(2):1/4innpsm(f)

• AirFlowCapacity:50cfm

• InstructionManual:PN310605

• Referencep.58

• AirInlet:3/8innpsm(f)

• AirOutlets(3):1/4innpsm(f)

• AirFlowCapacity:50cfm

• InstructionManual:PN310605

• Referencep.58&59

This small, lightweight unit attaches to any

spray gun, including HVLP, for accurate air

pressure regulation. It is a true diaphragm

regulator with push-pull lock pressure

setting and easy-to-read 0-160 psi gauge.

50 CFM air regulator with an air gauge and

air cock.

50 CFM air regulator.

Description

1410 Mini Regulator

www.sharpe1.com • 1-800-742-7731

360º

Zephyr™

Air Drying Products

Zephyr Gun

• WorkingPressure:10-60psi

(0.7-4 bar, 0.07-0.4 MPa)

• MaximumPressure-Gun:

175 psi (12 bar, 1.2 MPa)

• MaximumPressure-Stand:

125 psi (9 bar, 0.9 MPa)

• AirConsumption@60psi

(4 bar, 0.4 MPa): 17.5 scfm

• Weight:485g(17.1oz)

• InstructionManual:PN313005

• Referencep.61

• Footshelfcanbeadjustedfrom

side to side and top to bottom

• Maximumadjustableheight:

82.7 in (210 cm)

• Minimumadjustableheight:

7.9 in (20 cm)

• Polelength:35in(89cm)

• FootShelfdiameter:

37.8 in (96 cm)

• FootShelfweight:

9.92 lbs (4.5 kg)

• InstructionManual:PN313005

• Referencep.61

This easy to use gun is designed to decrease the drying

time of waterborne paint using compressed air. Can be

used freehand or attach to the Zephyr Gun Stand. Intake

ﬁlter will prevent contamination of vehicle surface.

1 Year Warranty.

Description

289956 Zephyr Air Drying Gun

289987 Replacement diffuser

289986 Replacement ﬁlter (5-pack)

360º Zephyr Gun Stand

The 360° Zephyr Gun Stand can hold up to 2 guns.

The stand is portable and offers variable positioning

with quick disconnect couplers. 1 Year Warranty.

Description

289957 Zephyr Gun Stand, includes 2 piece quick

disconnect, 2 piece PU hose, 3 piece airway

289958 Zephyr Guns & Gun Stand Kit

NEW

12AAV Air Adjusting Valve

PN 1010

• Precisiontaperedvalve

• Startfromclosedtofullyopen

in approximately 4 turns

• Innitelyadjustable

• Large,easy-to-handleknob

• AirInlet¼innpsm

• AirOutlet(swivelnut)

¼innpsm

24AAV Air Adjusting Valve with Gauge

PN 2210

• Precisiontaperedairadjusting

valve with heavy-duty pressure

gauge reading up to 160 psi

• Startfromclosedtofullyopenin

approximately 4 turns

• Innitelyadjustable

• Large,easy-to-handleknob

• UseonHVLPsprayguns

• AirInlet¼innpsm

• AirOutlet(swivelnut)

¼innpsm

Compressed Air Test Valve

PN 3310

• 36AAV-HV High Volume Air Adjusting Valve

• 4ElementTest

Static air pressure at the gun

Dynamic air pressure at the gun

Air pressure drop from the compressed air source

to the point of use

Adequate or inadequate compressed air supply

• AirInlet¼innpsm

• AirOutlet(swivelnut)¼innpsm

Digi-tell

™

PN UO5510

• Pressurerangeupto100psisupportsavarietyof

air consumption needs

• Solventresistantforgunwash,basedonnormalusage

• PSIorbarsetcapability

• Long4-yearbatterylifebasedonnormalusagewithmotionsensing

display to conserve battery

• Universal¼innpsmttingtsmostsprayguns

• InstructionManual:PN311537

H.O.V. High Output Precision Air Valve

PN UO4410

• Small,lightweightprecisionmeteringvalvethatattachestoany

HVLP spray gun for precision pressure setting for that gun

• Easy-to-readfrom0-160psigauge

• Fitsallleadingsprayguns

Accessories

Air Adjusting Valves

Recommended for

use with:

Polished Aluminum Gravity Feed Cup

PN 253977

• 23ozcapacity(650cc)

• Rapidthreadsize5/8-11UNC2A

• ReplacementLid:PN22002

RAZORGravityFeedGuns

LVLP•

HVLP •

Compliant•

Conventional•

Metallic•

Polished Aluminum Gravity Feed Cup

PN 253978

• 34ozcapacity(1l)

• Threadsize3/8innpsm(m)

• ReplacementLid:PN27405

RAZORGravityFeedGuns

LVLP•

HVLP •

Compliant•

Conventional•

Metallic•

Aluminum Gravity Feed Cup

PN 6685

• RAZORPrimergun&Legacyguns

• 23ozcapacity(650cc)

• Threadsize3/8innpsm(m)

• ReplacementLid:PN22002

RAZORGuns

• 289839 ..............1.3 mm

• 253437 ..............1.5 mm

• 253438 ..............1.8 mm

• 253439 ..............2.3 mm

24B233• ..............2.5 mm

Aluminum Gravity Feed Cup

PN 6690

• RAZORPrimergun&Legacyguns

• 34ozcapacity(1l)

• Threadsize3/8innpsm(m)

• ReplacementLid:PN27405

RAZORGuns

• 289839 ..............1.3 mm

253437• ..............1.5 mm

• 253438 ..............1.8 mm

• 253439 ..............2.3 mm

24B233• ..............2.5 mm

Accessories

RazorGravityFeedCupAssemblies

M6C190 Aluminum Mini Gravity Cup

PN 7506

• 6ozcapacity(190cc)

• Includesadaptertotlarger

gun models (PN 37065)

• MGF HVLP

PN 7040 ............1.4 mm

• Threadsize1/8innpsm(m)

• Lidassembly(PN34800)

• InstructionManual:PN310588

PN UO7505

• 4ozcapacity(125cc)

• Threadsize1/8innpsm(m)

• Lidassembly(PN34800)

• MGF HVLP

PN 7040 ............1.4 mm

M6C125 Aluminum Mini Gravity Cup

• Adapter(PN37065)

Adapter for mini cup used on

larger gun models

• InstructionManual:PN310588

Plastic Gravity Feed Cup

PN 288661

• 23ozcapacity(650cc)

• Threadsize3/8innpsm(m)

• ReplacementLid:PN15X427

RAZORGuns

HVLP Waterborne•

Compliant Waterborne•

Finex Ultra Mini Aluminum Gravity Cup

PN 289517

• 4ozcapacity(125cc)

• FitsallFinex1000/2000/3000SeriesGuns

• ReplacementPlasticLid:PN289816

Finex Mini Aluminum Gravity Cup

PN 289321

• 8ozcapacity(250cc)

• FitsallFinex1000/2000/3000SeriesGuns

• ReplacementPlasticLid:PN289817

Finex Aluminum Gravity Feed Cup

PN 289320

• 20ozcapacity(600cc)

• FitsallFinex1000/2000/3000SeriesGuns

• ReplacementPlasticLid:PN289818

Finex Mini Plastic Gravity Feed Cup

PN 289323

• 4ozcapacity(125cc)

• FitsallFinex1000/2000/3000SeriesGuns

Siphon Cup Assembly

PN 6610

• UsewithSiphonFeedGun

• 1quartcapacity

• Willnotdripwhensprayinginanyposition

• Threadsize3/8innpsm(f)swivelnut

• Noaccidentalspillsordamagedworkareas

FX100 Mini Aluminum Gravity Feed Cup

PN 15E422

• 5ozcapacity(150cc)

• GasketKitPN253418 (qty 5)

• ReplacementLid:PN15F402

Finex Plastic Gravity Feed Cup

PN 289322

• 20ozcapacity(600cc)

• FitsallFinex1000/2000/3000SeriesGuns

FX200/FX300AluminumGravityFeedCup

PN 15E449

• 20ozcapacity(600cc)

• GasketKitPN253417 (qty 5)

• ReplacementLid:PN15F403

Accessories

Cup Assemblies

   

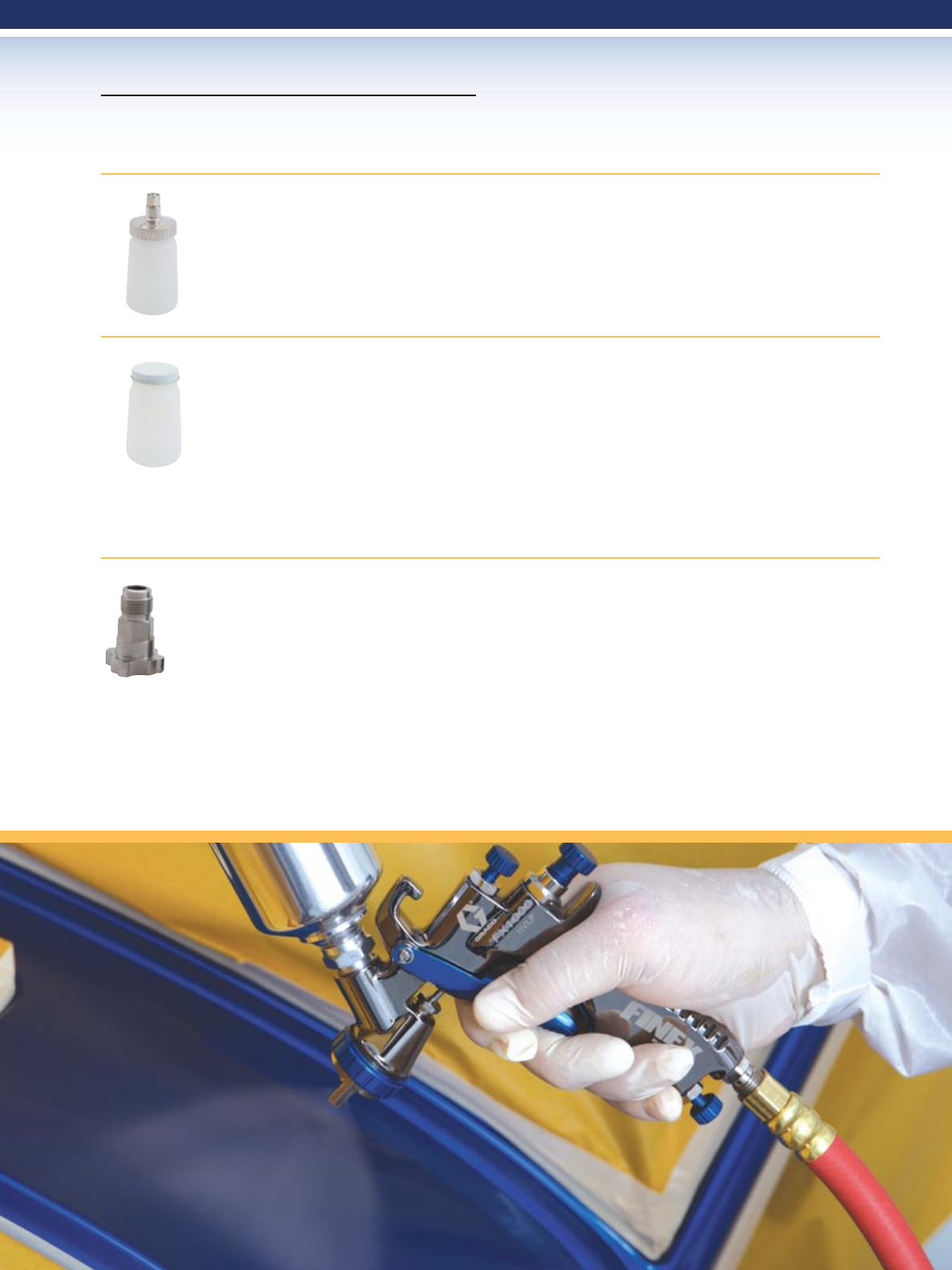

Accessories

Cup Assemblies

Model D-500 Cup Assembly

PN UO7510

• UsewithD-5-55 Detail Spray Gun

• 6ozcapacity(190cc)

• Threadsize1/4-18npsm(m)femaleswivel

• Madeofhighdensitypolyethyleneconstruction

Model D-500-72 Extra Translucent Cup with Cover

PN UO7530

• UsewithD-5-55 Detail Spray Gun

• 6ozcapacity(190cc)

• Translucentcup

• Includeslidforpaintstorage

™

PPS

™

Adapters

PN 253975

• PPSAdapterformostRAZORguns

PN 253969

• PPSAdapterforRAZORPrimer&Legacyguns

PN 289520

• PPSAdapterforFinexgunsFX1000/2000/3000Series

PPS Adapters

28 www.sharpe1.com • 1-800-742-7731

Accessories

Pressure Cups

Low Pressure Cup Assembly

PN 6680

• DesignedforusewithSharpepressurefeed

• 1quartcapacity

• Clamptypeassembly

• Orderwith6fthose(PN7130)

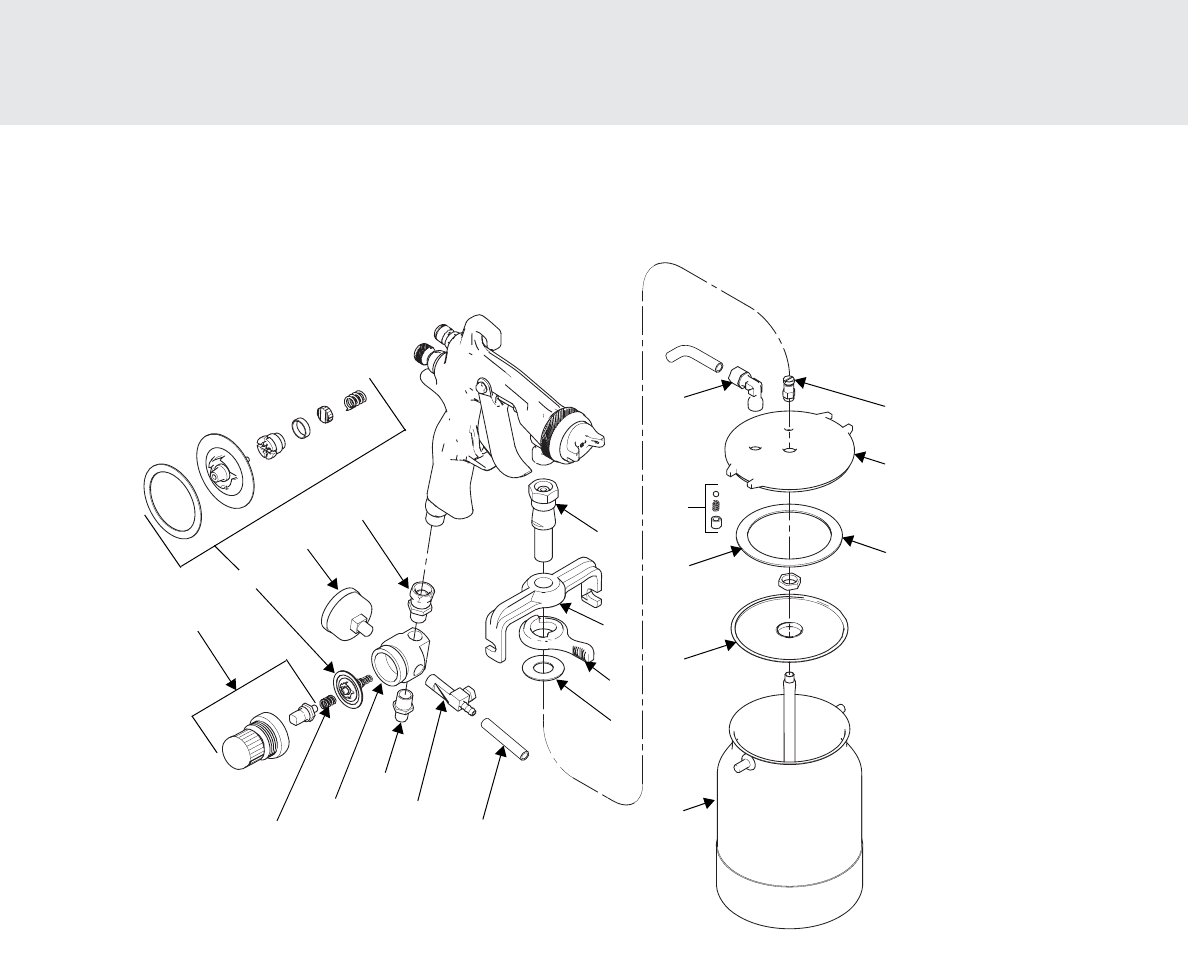

Model 7004 2-Quart Pressure Cup

2.5 Gallon Pressure Pot

Single Regulator

2.5 Gallon Pressure Pot

Dual Regulators

PN 7004

• Forusewithanypressurefeedspraygunwhen

more than one quart of material is required

• Replacementgasket(PNU42002)

• Widemouthforeasycleanup

• Cuppressureregulatorallowsforuidadjustment

from 0-50 psi

PN 24A555

• 1610Airregulatorusedtoregulateuidpressure

• Tankcapacity:2.5gal(9.5l)

• Accessoryhosetouse7210or7220

• Includesone(1)tankliner

• Replacementtankliner:112077(5-pack)

112078(25-pack)

PN 24A557

• 1610Airregulatorusedtoregulateuidpressure

• 1630Airregulatorusedtoregulateuidpressure

• Tankcapacity:2.5gal(9.5l)

• Accessoryhosetouse7210or7220

• Includesone(1)tankliner

• Replacementtankliner:112077(5-pack)

112078(25-pack)

Pressure Pots

• Maxworkingpressure:

50 psi (350 kPa, 3.5 bar)

• Pressurerelievevalvesetting:

50 psi (350 kPa, 3.5 bar)

• Airinletsize:1/4npt(m)

• Fluidoutletsize:3/8npsm(m)

• Airoutletsize:1/4npt(m)

• Height:21in(533mm)

• Weight:11lb(5kg)

• InstructionManual:PN313291

• Referencep.50

• Maxworkingpressure:

50 psi (350 kPa, 3.5 bar)

• Pressurerelievevalvesetting:

50 psi (350 kPa, 3.5 bar)

• Airinletsize:1/4npt(m)

• Fluidoutletsize:3/8npsm(m)

• Airoutletsize:1/4npt(m)

• Height:21in(533mm)

• Weight:11lb(5kg)

• InstructionManual:PN313291

• Referencep.51

• Inlet3/8innpsm(f)swivelnut

• MaxPressure:10psi

• CupAssembly(PN6610)

• ReplacementGasket(PN20994)

• Air1/4inNPS(m)

NEW

www.sharpe1.com • 1-800-742-7731

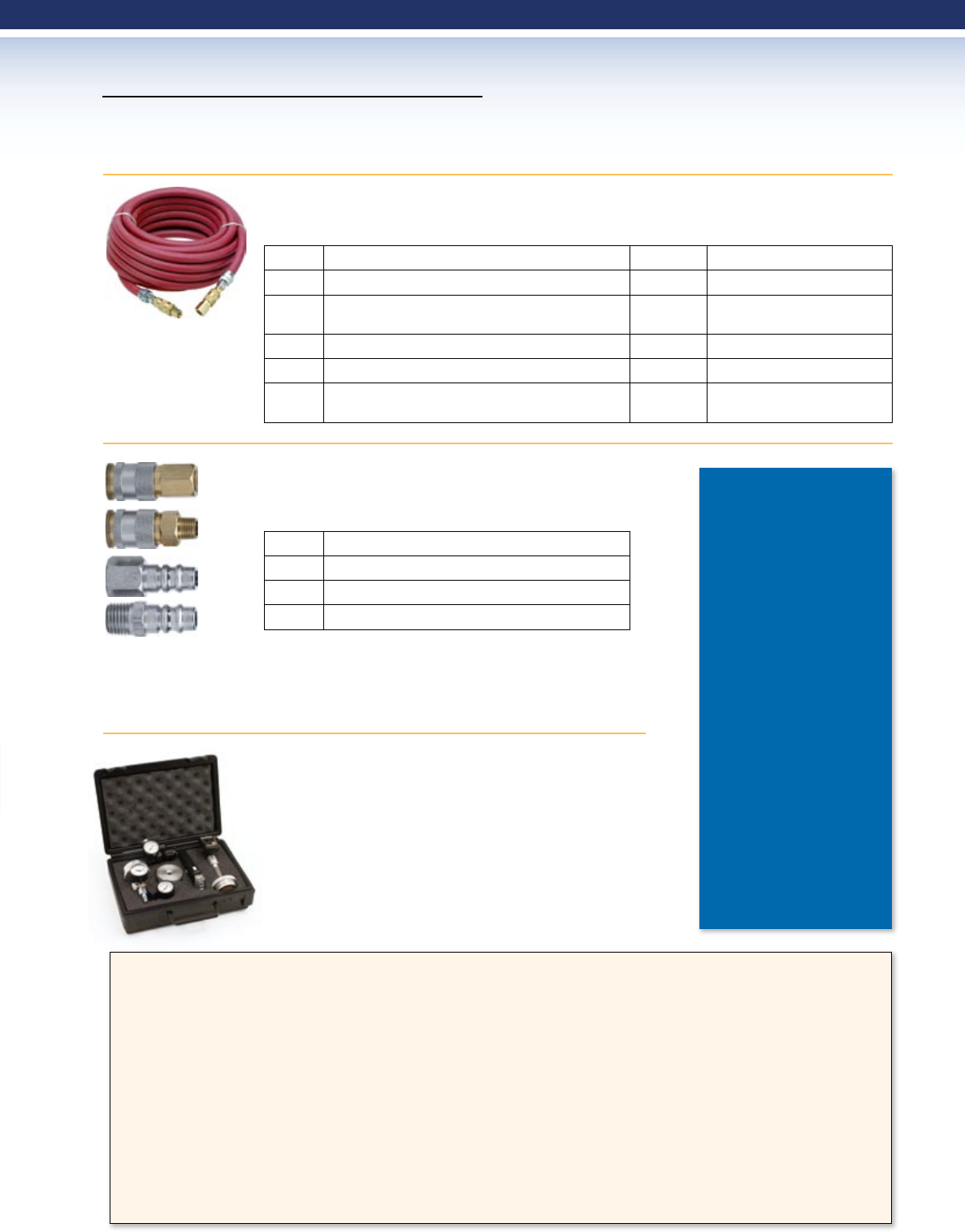

Accessories

Hose Accessories

Hose Assemblies with Reusable Connectors

PN Description ID Connectors - npsm (f)

7110 6 ft Air hose 5/16in 1/4in

7120 6 ft Fluid hose 1/4in 3/8in

7130 6 ft Hose kit for 2-qt Pressure Cup

(includes one each 7110 & 7120 hoses)

7210 25 ft Air hose (gun or pressure pot) 3/8in 1/4in

7220 25 ft Fluid hose (pressure pot) 3/8in 3/8in

7230 35 in Air hose with high-volume quick couplers

and connectors 3/8in 1/4in

High Volume Hose Connectors

PN Description

8310 Highvolume1/4infemalequickcoupler

8320 Highvolume1/4inmalequickcoupler

8330 Quickconnect1/4infemale

8340 Quickconnect1/4inmale

8310

8320

8330

8340

If you haven’t tried

Sharpe Spray Guns or

other Sharpe products

today, we hope you

will. Please take some

time and review our

entire product line

and then, if you have

any questions, just

pick up the phone and

call 1-800-SHARPE1

or send us a note via

AskDoctorGun.

HowtoUseAskDr.Gun

The Ask Doctor Gun knowledge database gives you

the ability to search for answers to some commonly

asked questions. If you don’t ﬁnd what you’re looking

for,simply“AskaQuestion”andyourrequestwillbe

answered the following business day or sooner. The

optional“MyStuff”areatracksyourquestions,and

allows you to search for previously asked questions

in the database, as well as request notiﬁcations on

speciﬁc answers when they are updated.

* Find Answers: All resolved problems are in the

solution database.

* Search by product, category, keywords, or phrases.

* AskaQuestion:Submitaquestiontoourtechnical

support staff who will reply to you by email.

* My Stuff: Login to check the status of your

questions, modify your answer, update notiﬁcations

and update your personal proﬁle.

6760HT

AirQualityTestKit

Testcompressedairsupplytoidentifycausesofrenishproblems.

Notforuseinhazardouslocations.Testfor:

• Inadequatecompressedairsupply

• Compressedairhumidity(CAH)level

• Compressedaircontaminants

AirQualityTestKit

Accessories

Additional Accessories

Gravity Feed Spray Gun Holder

PN 9894

• Designedtoholduptofour(4)guns

• Mountsonwallortable

Gravity Feed Filling Station

PN 9893

• Designedtoholduptothreegunsinplacewhilelling

• Adjustablestrainerholder

F2 Disposable In-Line Filters

• Installseasilyandreducespaintdefects

• Disposablelterremovescontaminantssuchasmoistureandoil

thatcondensesintheairhosebetweenthewallmountlterand

spray gun

PN 8100-DisposableFilterBlisterPack(2perpack)

PN 8125 - Disposable Filter Dispenser (Jar of 25)

Spray Gun Lube

PN 8255-SprayGunLube(0.25oz,Packof6)

• Keepyourspraygunoperatingsmoothly

• Compatiblewithallpaintmaterials

• Convenient,easytousespraygunlube

• Siliconfree

SprayGunBrushKit

PN 8260

• Professionalbrushkiteffectivelycleansallmodelspray

gun including HVLP

• Includesonespraygunlube

How to Build an Entire Sharpe System

In order to set up an effective paint system, you need to ensure

that you choose the proper compressor, correctly install the

proper line size, and remove moisture and contaminates from

your atomizing air.

Choosing the right compressor

1. Make a list of all of your air tools, (i.e., guns, grinders, etc.)

2. Determine the total CFM and psi requirements for all of

your equipment.

3. Add 25% for leakage and possible future equipment to

determine ﬁnal CFM and psi requirements.

Properlinesizingselectionandinstallation

4. Install 5 feet of ﬂexible hose from your compressor to your

main air line stand line.

5. Main air line stand pipe should not be smaller than the

compressor outlet size.

6. We suggest using ¾ inches to 1 ¼ inches copper or

galvanized pipe for your main air line.

7. To avoid moisture contamination, you will need 25 feet

of main air line before your ﬁrst outlet to allow for proper

cooling of the compressed air — 50 feet is optimal.

8. Main line air pipe should be mounted to allow for 4 inches

of drop per 50 feet to assure proper drainage.

9. Onelastsuggestionistorouteyourdroplinetothegunup

then down (layout on p. 32).

10. Close ball valve at each drop and drain the drops daily or

weekly depending on the air conditions.

Remove moisture and contaminants

Compressed Air Humidity (CAW) can cause your ﬁnish to have

poor gloss, adhesion, durability and cloudiness in the ﬁnish,

which leads to costly rework.

11. CAW can be measured using Sharpe’s 6760HT

humidity tester.

12. To remove moisture and contaminants (i.e., dirt, oil, etc.),

use the Sharpe 6910 with an air regulator. The 6910 is a

simple two-stage system. The ﬁrst stage is a 5 micron air

ﬁlter and the second stage is a .01 micron coalescer. The

air regulator assures proper air pressure to your gun at all

times.

13. If moisture is still a problem, use one of our three stage

systems, Sharpe’s 6760 Dryaire Desiccant system or the

6770 Dryaire Membrane system. These systems are

similar to the 6910, but add a third stage that will maintain

0% humidity at -40°F.

14. Shut the main line air off at the end of the day to ensure

the auto drains work properly.

15. It is a good practice to drain your compressor daily.

Setting Up Your Garage to Spray

CompressedAirPipelinePressureDropTable-InitialPressure7kg/cm2(100psi)

Pressure drops in 100 m (330 ft) compressed air lines are indicated in the tables below:

Volume Flow FAD

LineSize

1/2in 3/4in 1 in 11/4in 11/2in

15.788 20.93 26.645 35.052 40.894

(m3/min) (cfm) (kg/cm2) (psi) (kg/cm2) (psi) (kg/cm2) (psi) (kg/cm2) (psi) (kg/cm2) (psi)

0.1 5 0.02 0.22

0.2 7 0.06 0.8 0.01 0.2

0.3 11 0.12 1.69 0.03 0.41 0.01 0.12

0.4 14 0.2 2.88 0.05 0.71 0.01 0.21

0.5 18 0.3 4.35 0.07 1.07 0.02 0.32 0.01 0.08

0.6 21 0.43 6.09 0.1 1.49 0.03 0.45 0.01 0.11

0.7 25 0.57 8.1 0.14 1.99 0.04 0.69 0.01 0.15

0.8 28 0.73 10.38 0.18 2.54 0.05 0.76 0.01 0.19 0.01 0.09

0.9 32 0.9 12.9 0.22 3.16 0.07 0.95 0.02 0.24 0.01 0.11

1 35 1.1 15.68 0.27 3.64 0.08 1.15 0.02 0.29 0.01 0.13

1.2 42 0.38 5.39 0.11 1.61 0.03 0.41 0.01 0.19

1.4 49 0.5 7.16 0.15 2.14 0.04 0.54 0.02 0.25

1.6 55 0.64 9.16 0.19 2.74 0.05 0.7 0.02 0.32

1.8 64 0.8 11.4 0.24 3.41 0.08 0.87 0.03 0.4

2 71 0.97 13.85 0.29 4.14 0.07 1.05 0.03 0.49

2.2 78 1.16 16.52 0.35 4.94 0.09 1.25 0.04 0.58

2.4 85 1.36 19.4 0.41 5.8 0.1 1.47 0.05 0.69

2.6 92 0.47 6.73 0.12 1.71 0.06 0.79

2.8 99 0.54 7.72 0.14 1.96 0.06 0.91

3 105 0.61 8.77 0.16 2.23 0.07 1.03

3.5 124 0.82 11.66 0.21 2.96 0.1 1.37

4 141 1.05 14.93 0.27 3.79 0.12 1.75

4.5 159 1.3 18.57 0.33 4.71 0.15 2.18

5 177 0.4 5.73 0.19 2.65

5.5 194 0.48 6.63 0.22 3.16

6 212 0.56 8.02 0.26 3.71

6.5 229 0.65 9.3 0.3 4.3

7 247 0.75 10.67 0.35 4.94

7.5 265 0.85 12.12 0.39 5.61

8 282 0.96 13.66 0.44 6.32

8.5 300 1.07 15.28 0.5 7.07

9 318 1.19 16.99 0.55 7.86

9.5 335 1.32 18.77 0.61 8.69

10 353 1.45 20.64 0.67 9.56

15 530 1.42 20.22

32 www.sharpe1.com • 1-800-742-7731

Dryaire Membrane

or Desiccant Air

Drying system at

Paint Booth

15 ft to 20 ft

Compressor

Main Air Line 1 in.

Pipe Minimum

Dryaire Membrane

Dryaire Desiccant

Refrigerated

Air Dryer

Ball

Valve

Drain

Leg

Air

Out

Air

Filter

Oil

Coalescer

Union

Air Control Unit

or Air Filter

Flexible Hose between

Compressor

and Main Air Line

Shop Air Piping Layout

Refrigerated Air Dryer & Dryaire System Layout

Dryaire Desiccant System

S OP A

UNION

FLEXIBLE HOSE BETWEEN COMPRESSOR & STAND PIPE

UNION

DRAIN LEG

DRYAIRE DESICCANT

SYSTEM

606A

BALL VALV E

AIR HOSE SIZE

5/16 MINIMUM

3/8 OPTIMUM

AIR CONTROL UNIT

OR AIR FILTER

DRAIN DAILY

BALL VALV E

DRAIN DAILY

DRAIN AIR

COMPRESSOR

DAILY IN THE A.M.

MAIN LINE PIPE SIZE

3/4 IN. MINIMUM

1-1/4 IN. OPTIMUM

FOR PREP AREA

707FC FILTER &

COALESCER

WITH AUTO DRAINS

SLOPES DOWN AND AWAY

RECOMMENDED 4 INCH DROP IN 50 FEET

(Copper or galvanized pipe is recommended )

A MINIMUM OF 25 FT.

TO FIRST OUTLET IS

REQUIRED TO COOL AIR

(50 FT. OPTIMUM)

THE MAIN AIR LINE STAND

PIPE SHOULD NOT BE

SMALLER THAN THE

COMPRESSOR OUTLET SIZE

Ref.

Letter

Description

Model

No.

ASharpe 606 U06710

Sharpe 606A U06720

Sharpe 606B 6730

Sharpe 880A 6950

Sharpe F88 8130

B707C 6930

707F 6920

707FC 6910

CDryaire Membrane 6770

DDryaire Desiccant 6760

ERefrigerated Air Dryer

25CFM 6880

35CFM 6885

50CFM 6890

75CFM 6895

REFERENCE

www.sharpe1.com • 1-800-742-7731

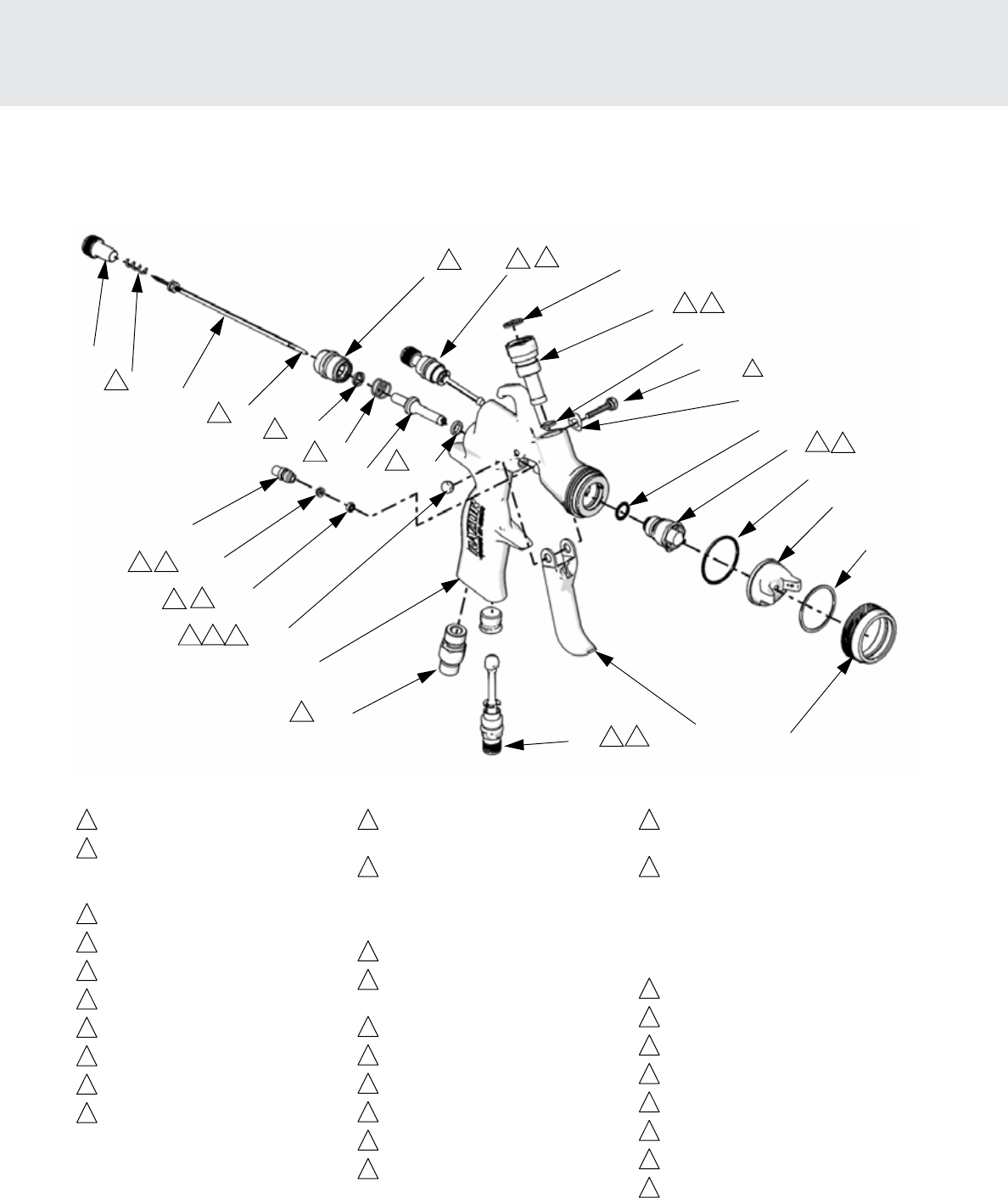

RAZORREPLACEMENTPARTSQUICKREFERENCE

Part

Number

Spray Type MaxHVLP/Comp

Pressure psi

(MPa, bar)

Nozzle

(mm)

Aircap Nozzle Needle

Assy

Needle

Tip

Aircap

with

Retaining Ring

253432 HVLP 29 (0.2, 2.0) 1.2 253824 253793 253771 288752 289501

253433 HVLP 29 (0.2, 2.0) 1.3 253824 253794 253771 288752 289501

253434 HVLP 29 (0.2, 2.0) 1.4 253824 253795 253772 253917 289501

253435 HVLP 29 (0.2, 2.0) 1.5 253824 253796 253772 253917 289501

289388 HVLP, Waterborne 26 (0.18, 1.8) 1.2 289374 289380 253771 288752 289599

289389 HVLP, Waterborne 26 (0.18, 1.8) 1.3 289375 289381 253771 288752 289600

289571 HVLP, Waterborne 26 (0.18, 1.8) 1.4 289375 289561 253771 288752 289600

289214 HVLP, Metallic 29 (0.2, 2.0) 1.3 289212 253794 253771 288752 289514

289215 HVLP, Metallic 29 (0.2, 2.0) 1.4 289212 253795 253772 253917 289514

289216 HVLP, Metallic 29 (0.2, 2.0) 1.5 289212 253796 253772 253917 289514

253427 LVLP 16 (0.1, 1.1) 1.3 253823 253803 253771 288752 289500

253428 LVLP 16 (0.1, 1.1) 1.4 253823 253804 253772 253917 289500

253429 LVLP 16 (0.1, 1.1) 1.5 253823 253805 253772 253917 289500

253441 Compliant 35 (0.24, 2.4) 1.2 253825 253817 253771 288752 289502

253442 Compliant 35 (0.24, 2.4) 1.3 253825 253818 253771 288752 289502

253443 Compliant 35 (0.24, 2.4) 1.4 253825 253819 253771 288752 289502

288654 Compliant 35 (0.24, 2.4) 1.5 253825 288653 253772 253917 289502

253444 Compliant 35 (0.24, 2.4) 1.6 253825 253820 253772 253917 289502

289390 Compliant, Waterborne 35 (0.24, 2.4) 1.2 289376 289382 253771 288752 289601

289391 Compliant, Waterborne 35 (0.24, 2.4) 1.3 289377 289383 253771 288752 289602

289572 Compliant, Waterborne 35 (0.24, 2.4) 1.4 289377 289562 253771 288752 289602

288281 Conventional N/A 1.4 288451 288297 253771 288752 289507

289839 HVLP, Primer 29 (0.2, 2.0) 1.3 253828 289841 253771 288752 289505

253437 HVLP, Primer 29 (0.2, 2.0) 1.5 253828 253789 253772 253917 289505

253438 HVLP, Primer 29 (0.2, 2.0) 1.8 253828 253790 253772 253917 289505

253439 HVLP, Primer 29 (0.2, 2.0) 2.3 253829 253791 253774 234779 289506

24B233 HVLP, Primer 29 (0.2, 2.0) 2.5 253829 24B235 253775 234780 289506

RAZOR Gravity Feed Guns

Part

Number

Spray Type MaxHVLP/Comp

Pressure psi

(MPa, bar)

Nozzle

(mm)

Aircap Nozzle Needle

Assy

Needle

Tip

Aircap

with

Retaining Ring

287961 HVLP 30 (0.21, 2.1) 2.2 253827 253778 253777 234779 289504

289231 HVLP 30 (0.21, 2.1) 2.2 253827 253778 253777 234779 289504

288286 Compliant 35 (0.24, 2.4) 1.2 288454 288302 288641 234778 289510

288287 Compliant 35 (0.24, 2.4) 1.3 288454 288303 288641 234778 289510

288288 Compliant 35 (0.24, 2.4) 1.4 288454 288304 288642 288752 289510

288290 Compliant 35 (0.24, 2.4) 1.8 288454 288306 288643 253917 289510

288291 Conventional 1.5 288455 288307 288642 288752 289511

288292 Conventional 1.8 288455 288308 288642 288752 289511

288293 Conventional 2 288456 288309 253777 234779 289512

288294 Conventional 2.5 288457 288310 253777 234779 289513

RAZOR Siphon Feed Guns

REFERENCE

Titanium

Part Numbers

RAZOR

Part Numbers

RAZOR

NozzleSize(mm)

RAZOR

Spray Type

Feed

System

4012 253432 1.2 HVLP Gravity

4013 253433 1.3 HVLP Gravity

4014 253434 1.4 HVLP Gravity

4015 253435 1.5 HVLP Gravity

4016* 253435 or 253436 1.5/1.7 HVLP Gravity

4017 253436 1.7 HVLP Gravity

4212 253441 1.2 Compliant Gravity

4213 253442 1.3 Compliant Gravity

4214 253443 1.4 Compliant Gravity

4215 288654 1.5 Compliant Gravity

4216 253444 1.6 Compliant Gravity

4217** 253444 1.6 Compliant Gravity

5485 287961 2.2 HVLP Siphon

Cross Reference

Need to replace your

Titanium or Cobalt guns?

Simply determine the gun

family, select the appropriate

part number and then ﬁnd the

RAZORpartnumberreference.

ThisisasuggestedRAZOR

alternative and is not an implied

guarantee of the acceptability

of the gun in all applications.

RAZOR Replacement for Titanium

* RAZOR HVLP not offered in a 1.6 mm. We offer a 1.5 mm (253435) or a 1.7 mm (253436)

** RAZOR Compliant not offered in a 1.7 mm. We offer a 1.6 mm.

RAZOR Replacement for Cobalt

* RAZOR Conventional not offered in a 1.4 mm but 1.5 mm is offered.

** RAZOR Conventional not offered in a 2.3 mm but 2.5 mm is offered.

*** RAZOR HVLP not offered in a 1.6 mm but 1.5 mm (253435) or a 1.7 mm (253436) is offered.

Cobalt

Part Numbers

RAZOR

Part Numbers

RAZOR

NozzleSize(mm)

RAZOR

Spray Type

Feed

System

5222* 288291 1.5 Conventional Siphon

5224* 288291 1.5 Conventional Siphon

5235 288292 1.8 Conventional Siphon

5250** 288294 2.5 Conventional Siphon

5712 253441 1.2 Compliant Gravity

5714 253443 1.4 Compliant Gravity

5716 253444 1.6 Compliant Gravity

5812 253432 1.2 HVLP Gravity

5814 253434 1.4 HVLP Gravity

5815 253437 1.5 HVLP Primer Gravity

5816*** 253435 or 253436 1.5/1.7 HVLP Gravity

5818 253438 1.8 HVLP Primer Gravity

5823 253439 2.3 HVLP Primer Gravity

5866 287961 2.2 HVLP Siphon

RAZORREPLACEMENTPARTSQUICKREFERENCE

Part

Number

Spray Type MaxHVLP/

Comp

Pressure psi

(MPa, bar)

Max Fluid

Working

Pressure psi

(MPa, bar)

Nozzle

(mm)

Aircap Nozzle Needle

Assy

Needle

Tip

Aircap

with

Retaining

Ring

24A525 HVLP 29 (0.2, 2.0) 300 (2.1, 21) 1 253824 253792 253769 288751 289501

24A526 HVLP 29 (0.2, 2.0) 300 (2.1, 21) 1.2 253824 253793 253771 288752 289501

24A527 HVLP 29 (0.2, 2.0) 300 (2.1, 21) 1.4 253824 253795 253772 253917 289501

24A528 Compliant 35 (0.24, 2.4) 300(2.1, 21) 1 253825 253816 253769 288751 289502

24A529 Compliant 35 (0.24, 2.4) 300 (2.1, 21) 1.2 253825 253817 253771 288752 289502

24A530 Compliant 35 (0.24, 2.4) 300 (2.1, 21) 1.4 253825 253819 253771 288752 289502

24A531 Conventional N/A 300 (2.1, 21) 1.2 288451 288295 253772 253917 289507

24A532 Conventional N/A 300 (2.1, 21) 1.4 288451 288297 253771 288752 289507

24A533 Conventional N/A 300 (2.1, 21) 1.8 288452 288299 253772 253917 289508

289232 HVLP 29 (0.2, 2.0) 300 (2.1, 21) 1.2 253824 253793 288641 234778 289501

RAZOR Pressure Feed Guns Replacement

REFERENCE

www.sharpe1.com • 1-800-742-7731

RAZOR

HVLP

RAZOR

Compliant

RAZOR

HVLP-Siphon

RAZOR

Compliant-

Siphon

RAZOR

LVLP

RAZOR

HVLP

Waterborne

RAZOR

Compliant

Waterborne

Primers & Sealers

Nozzle Size mm 1.5 1.4 2.2 1.6-1.8 1.3-1.4

Gun PN 253437 (1.5 mm) 253443 (1.4 mm) 287961 (2.2 mm) 288289 (1.6 mm)

288290 (1.8 mm)

253427 (1.3 mm)

253428 (1.4 mm)

Nozzle PN 253789 (1.5 mm) 253819 (1.4 mm) 253778 (2.2 mm) 288305 (1.6 mm)

288306 (1.8 mm)

253803 (1.3 mm)

253804 (1.4 mm)

Aircap PN 253828 253825 253827 288454 253823

Primer Surface

Nozzle Size mm 1.5 - 1.8 1.4-1.6 2.2 1.6-1.8 1.3-1.4

Gun PN 253437 (1.5 mm)

253438 (1.8 mm)

253443 (1.4 mm)

288654 (1.5 mm)

253444 (1.6 mm)

287961 (2.2 mm) 288289 (1.6 mm)

288290 (1.8 mm)

253427 (1.3 mm)

253428 (1.4 mm)

Nozzle PN 253789 (1.5 mm)

253790 (1.8 mm)

253819 (1.4 mm)

288653 (1.5 mm)

253820 (1.6 mm)

253778 (2.2 mm) 288305 (1.6 mm)

288306 (1.8 mm)

253803 (1.3 mm)

253804 (1.4 mm)

Aircap PN 253828 253825 253827 288454 253823

Single Stage Urethane and Polyurethanes

Nozzle Size mm 1.2-1.5 1.3-1.5 2.2 1.6-1.8 1.4-1.5

Gun PN 253432 (1.2 mm)

253433 (1.3 mm)

253434 (1.4 mm)

253435 (1.5 mm)

253442 (1.3 mm)

253443 (1.4 mm)

288654 (1.5 mm)

287961 (2.2 mm) 288289 (1.6 mm)

288290 (1.8 mm)

253428 (1.4 mm)

253429 (1.5 mm)

Nozzle PN 253793 (1.2 mm)

253794 (1.3 mm)

253795 (1.4 mm)

253796 (1.5 mm)

253818 (1.3 mm)

253819 (1.4 mm)

288653 (1.5 mm)

253778 (2.2 mm) 288305 (1.6 mm)

288306 (1.8 mm)

253804 (1.4 mm)

253805 (1.5 mm)

Aircap PN 253824 253825 253827 288454 253823

Base Coat

Nozzle Size mm 1.2-1.5 1.2-1.4 2.2 1.4-1.8 1.3-1.5 1.2-1.3 1.2-1.3

Gun PN 253432 (1.2 mm)

253433 (1.3 mm)

253434 (1.4 mm)

253435 (1.5 mm)

253441 (1.2 mm)

253442 (1.3 mm)

253443 (1.4 mm)

287961 (2.2 mm) 288288 (1.4 mm)

288289 (1.6 mm)

288290 (1.8 mm)

253427 (1.3 mm)

253428 (1.4 mm)

253429 (1.5 mm)

289388 (1.2 mm)

289389 (1.3 mm)

289390 (1.2 mm)

289391 (1.3 mm)

Nozzle PN 253793 (1.2 mm)

253794 (1.3 mm)

253795 (1.4 mm)

253796 (1.5 mm)

253817 (1.2 mm)

253818 (1.3 mm)

253819 (1.4 mm)

253778 (2.2 mm) 288304 (1.4 mm)

288305 (1.6 mm)

288306 (1.8 mm)

253803 (1.3 mm)

253804 (1.4 mm)

253805 (1.5 mm)

289390 (1.2 mm)

289381 (1.3 mm)

289382 (1.2 mm)

289383 (1.3 mm)

Aircap PN 253824 253825 253827 288454 253823 289374 (1.2 mm)

289375 (1.3 mm)

289376 (1.2 mm)

289377 (1.3 mm)

Clear Coat

Nozzle Size mm 1.2-1.5 1.2-1.4 2.2 1.6-1.8 1.3-1.5

Gun PN 253432 (1.2 mm)

253433 (1.3 mm)

253434 (1.4 mm)

253435 (1.5 mm)

253441 (1.2 mm)

253442 (1.3 mm)

253443 (1.4 mm)

287961 (2.2 mm) 288289 (1.6 mm)

288290 (1.8 mm)

253427 (1.3 mm)

253428 (1.4 mm)

253429 (1.5 mm)

Nozzle PN 253793 (1.2 mm)

253794 (1.3 mm)

253795 (1.4 mm)

253796 (1.5 mm)

253817 (1.2 mm)

253818 (1.3 mm)

253819 (1.4 mm)

253778 (2.2 mm) 288305 (1.6 mm)

288306 (1.8 mm)

253803 (1.3 mm)

253804 (1.4 mm)

253805 (1.5 mm)

Aircap PN 253824 253825 253827 288454 253823

SPRAY GUN REFERENCE GUIDE

REFERENCE

36 www.sharpe1.com • 1-800-742-7731

D-5-55 FINEX

FX1000

FINEX

FX2000

FINEX

FX3000

MGF HVLP MPF

HVLP

Primers & Sealers

Nozzle Size mm 1.4 1.4 1.4 1.5 1.4 1.1

Gun PN 7030 (1.4 mm) 289222 (1.4 mm) 288885 (1.4 mm) 288881 (1.5 mm) 7040

(1.4 mm)

7045

(1.1 mm)

Nozzle PN 29021 (1.4 mm) 289290 (1.4 mm) 289293 (1.4 mm) 289299 (1.5 mm) 29021

(1.4 mm)

34811

(1.1 mm)

Aircap PN 29006 Kit Kit Kit 34806 34808

Primer Surface

Nozzle Size mm 1.4 1.8 1.5-1.8

Gun PN 289222 (1.4 mm) 288887 (1.8 mm) 288881 (1.5 mm)

288882 (1.8

mm)

Nozzle PN 289290 (1.4 mm) 289295 (1.8 mm) 289299 (1.5 mm)

289300 (1.8

mm)

Aircap PN Kit Kit Kit

Single Stage Urethane and Polyurethanes

Nozzle Size mm 1.2-1.4 1.4 1.3-1.5 1.1

Gun PN 289221 (1.2 mm)

289222 (1.4 mm)

288885 (1.4 mm) 288879 (1.3 mm)

288880 (1.4

mm) 288881

(1.5 mm)

7045

(1.1 mm)

Nozzle PN 289289 (1.2 mm)

289290 (1.4 mm)

289293 (1.4 mm) 289297 (1.3 mm)

289298 (1.5 mm)

289299 (1.8

mm)

34811

(1.1 mm)

Aircap PN Kit Kit Kit 34808

Base Coat

Nozzle Size mm 1.4 1.2-1.4 1.4 1.3-1.5 1.4 1.1

Gun PN 7030 (1.4 mm) 289221 (1.2 mm)

289222 (1.4 mm)

288885 (1.4 mm) 288879 (1.3 mm)

288880 (1.4

mm) 288881

(1.5 mm)

7040

(1.4 mm)

7045

(1.1 mm)

Nozzle PN 29021 (1.4 mm) 289289 (1.2 mm)

289290 (1.4 mm)

289293 (1.4 mm) 289297 (1.3 mm)

289298 (1.5 mm)

289299 (1.8

mm)

29021

(1.4 mm)

34811

(1.1 mm)

Aircap PN 29006 Kit Kit Kit 34806 34808

Clear Coat

Nozzle Size mm 1.4 1.2-1.4 1.4 1.3-1.5 1.4 1.1

Gun PN 7030 (1.4 mm) 289221 (1.2 mm)

289222 (1.4 mm)

288885 (1.4 mm) 288879 (1.3 mm)

288880 (1.4

mm) 288881

(1.5 mm)

7040

(1.4 mm)

7045

(1.1 mm)

Nozzle PN 29021 (1.4 mm) 289289 (1.2 mm)

289290 (1.4 mm)

289293 (1.4 mm) 289297 (1.3 mm)

289298 (1.5 mm)

289299 (1.8

mm)

29021

(1.4 mm)

34811

(1.1 mm)

Aircap PN 29006 Kit Kit Kit 34806 34808

SPRAY GUN REFERENCE GUIDE

REFERENCE

www.sharpe1.com • 1-800-742-7731

FINEX 100 FINEX 200 FINEX 300 Titanium Titanium CG Titanium

Siphon

Titanium

Pressure

Cobalt

Primers & Sealers

Nozzle Size mm 1.4 1.5 1.4-1.5 1.4-1.6 1.2 1.5-1.8

Gun PN 248753 (1.4 mm) 248757 (1.5 mm) 4014 (1.4 mm)

4015 (1.5 mm)

4214 (1.4 mm)

4216 (1.6 mm)

5462 (1.2 mm) 5815L (1.5 mm)

5818L (1.8 mm)

Nozzle PN 15E424(1.4mm) 15E452(1.5mm) 41114 (1.4 mm)

41115 (1.5 mm)

41114 (1.4 mm)

41116 (1.6 mm)

41112 (1.2 mm) 28115 (1.5 mm)

28188 (1.8 mm)

Aircap PN 15E423 15E450 41014 (1.4 mm)

41015 (1.5 mm)

41012 41020 28015

Primer Surface

Nozzle Size mm 1.8 1.5-1.8 1.6 1.2 1.8-2.3

Gun PN 248754 (1.8 mm) 248757 (1.5 mm)

248758 (1.8 mm)

4216 (1.6 mm) 5462 (1.2 mm) 28188 (1.8 mm)

28123 (2.3 mm)

Nozzle PN 15E425(1.8mm) 15E452(1.5mm)

15E425(1.8mm)

41116 (1.6 mm) 41112 (1.2 mm) 28015

Aircap PN 15E423 15E450 41012 41020

Single Stage Urethane and Polyurethanes

Nozzle Size mm 1.4 1.3-1.5 1.5 1.6 0.8-1.2 1.6

Gun PN 248753 (1.4 mm) 248755 (1.3 mm)

248756 (1.4 mm)

248757 (1.5 mm)

4015 (1.5 mm) 4216 (1.6 mm) 5460 (0.8 mm)

5462 (1.2 mm)

5816L (1.6 mm)

Nozzle PN 15E424(1.4mm) 15E451(1.3mm)

15E424(1.4mm)

15E452(1.5mm)

41115 (1.5 mm) 41116 (1.6 mm) 41108 (0.8 mm)

41112 (1.2 mm)

28116 (1.6 mm)

Aircap PN 15E423 15E450 41015 (1.5 mm) 41012 41020 28012

Base Coat

Nozzle Size mm 1.0 1.4 1.3-1.5 1.3-1.4 1.4-1.6 2.2 0.8-1.2 1.4-1.6

Gun PN 248752 (1.0 mm) 248753 (1.4 mm) 248755 (1.3 mm)

248756 (1.4 mm)

248757 (1.5 mm)

4013 (1.3 mm)

4014 (1.4 mm)

4214 (1.4 mm)

4216 (1.6 mm)

5485 (2.2 mm) 5460 (0.8 mm)

5490 (1.2 mm)

5418L (1.4 mm)

5816L (1.6 mm)

Nozzle PN 15E393(1.0mm) 15E424(1.4mm) 15E451(1.3mm)

15E424(1.4mm)

15E452(1.5mm)

41113 (1.3 mm)

41114 (1.4 mm)

41116 (1.6 mm)

41119 (2.2 mm) 41108 (0.8 mm)

41112 (1.2 mm)

28114 (1.4 mm)

28116 (1.6 mm)

Aircap PN 15E392 15E423 15E450 41013 (1.3 mm)

41014 (1.4 mm)

41012 41022 41020 28012

Clear Coat

Nozzle Size mm 1.0 1.4 1.3-1.5 1.3-1.4 1.4-1.6 0.8 1.4-1.6

Gun PN 248752 (1.0 mm) 248753 (1.4 mm) 248755 (1.3 mm)

248756 (1.4 mm)

248757 (1.5 mm)

4013 (1.3 mm)

4014 (1.4 mm)

4214 (1.4 mm)

4216 (1.6 mm)

5460 (0.8 mm) 5418L (1.4 mm)

5816L (1.6 mm)

Nozzle PN 15E393(1.0mm) 15E424(1.4mm) 15E451(1.3mm)

15E424(1.4mm)

15E452(1.5mm)

41113 (1.3 mm)

41114 (1.4 mm)

41116 (1.6 mm)

41108 (0.8 mm) 28114 (1.4 mm)

28116 (1.6 mm)

Aircap PN 15E392 15E423 15E450 41013 (1.3 mm)

41014 (1.4 mm)

41012 41020 28012

OBSOLETE OBSOLETE OBSOLETE OBSOLETE OBSOLETE OBSOLETE OBSOLETE OBSOLETE

SPRAY GUN REFERENCE GUIDE

REFERENCE

38 www.sharpe1.com • 1-800-742-7731

TI8205

8‡

‡29 99a

7‡ 5

*‡22

‡31

*‡6 *‡22

28*✿

3*✠

23**

18**

21*

20*

◆

✓

13✓

19*◆✓

14✓

10**

^25

**24

*†16

*†15

1 Pull trigger before installing nozzle (11).

2 Insert spreader (15) with tapered end

facing rear of gun. Insert u-cup (16) with

open end facing front of gun.

3 Apply lubricant.

4 Apply low strength thread retainer.

5 Apply thread sealant.

6 Torque to 85-90 in-lb.

7 Torque to 15-20 in-lb.

8 Torque to 175-185 in-lb.

9 Torque to 155-165 in-lb.

10 Install with valve assembly turned fully

CCW to outermost position.

1 Tirer sur la gâchette avant d’installer

la buse (11).

2 Insérer l’écarteur (15) avec l’extrémité

conique face vers l’arrière du pistolet.

Insérer le joint calotte (16) avec la face

ouverte face vers l’avant du pistolet.

3Enduiredelubriant.

4 Appliquer un ﬁxateur pour

ﬁletages léger.

5 Appliquer un produit d’étanchéité.

6Serrerà85-90in–lb.

7Serrerà15-20in–lb.

8Serrerà175-185in–lb.

9Serrerà155-165in–lb.

10 A monter avec l’ensemble de vanne

tournée à fond dans le sens antihoraire.

1 Dispare el gatillo antes de instalar la

boquilla (11).

2 Introduzca el esparcidor (15) con la parte

biselada orientada hacia la

parte trasera de la pistola. Introduzca

la copela en U (16) con el extremo abierto

orientado hacia la parte delantera de la

pistola.

3 Aplique lubricante.

4 Aplique retén de roscas de poca fuerza.

5 Aplicar producto sellador para roscas.

6 Apriete a un par de 85-90 in-lb.

7 Apriete a un par de 15-20 in-lb.

8 Apriete a un par de 175-185 in-lb.

9 Apriete a un par de 155-165 in-lb.

10 Instalar con el conjunto de la válvula

completamente girada en sentido

antihorario, en la posición más extrema.

REPLACEMENT PARTS DRAWINGS INDEX

RAZOR Gravity Feed

REFERENCE

www.sharpe1.com • 1-800-742-7731

Parts/Pièces/Piezas

Ref.

No. Part No. Description Qty.

1  BODY,gun 1

3*  GASKET,uidinlet 1

4 253971 FITTING, ﬂuid inlet 1

253973 FITTING, ﬂuid inlet

(253437-39 only) 1

5 253976 VALVE,aircontrol,assy 1

6*‡  VALVE,air,assy 1

7‡ NUT 1

8‡  KNOB,uidadjust 1

9  NEEDLE(includes9a) 1

9a TIP, needle 1

10**  TRIGGER 1

11  NOZZLE(includes21) 1

13 Aircap 1

14 253970 RING, retaining 1

15*†  SPREADER,needlepacking 1

16*† U-CUP, needle packing 1

17 253972 NUT, needle packing 1

18**  WASHER,wave 1

19*u  O-RING,PTFE 1

20*u  WASHER,UHMWPE 1

21*  O-RING,PTFE 1

22*‡ PACKING, u-cup 2

23** PIN, trigger 1

24** NUT, trigger 1

25^ FITTING, air inlet 1

28*_  WASHER,UHMWPE

(not included on 253437-39) 1

29‡ SPRING, ﬂuid 1

30^ PLUG, air inlet 1

30a 253979 VALVE,airinletadjustment

\(sold separately) 1

31‡ SPRING, air valve 1

32 253974 TOOL,gun(notshown) 1

36*‡  TOOL,sealinstallation

(not shown) 1

37 253977 CUP, gravity, 650cc (not shown) 1

6685 CUP, gravity, 650cc (not shown,

253437-39 only)

37a 21719 FILTER,cup(notshown)

* Included in Gun Repair Kit 253783 (purchase separately).

** Included in Trigger Repair Kit 253785 (purchase separately).

† Included in Needle Packing Repair Kit 253748 (purchase

separately).

‡ Included in Air Valve Repair Kit 253934 (purchase separately).

u Included in Aircap Seal Kit 253784 (purchase separately).

^ Included in Air Inlet Fitting Repair Kit 253933 (purchase

separately).

_ Included in Gasket Kit 289213 (purchase separately).

* Compris dans le kit de réparation (253783) du pistolet (à acheter

séparément).

** Compris dans le kit de réparation (253785) de la gâchette (à

acheter séparément).

† Compris dans le kit de réparation (253748) de la garniture du

pointeau (à acheter séparément).

‡ Compris dans le kit de réparation (253934) de la vanne d’air (à

acheter séparément).

u Compris dans le kit (253784) de joint du chapeau d’air (à acheter

séparément).

^ Compris dans le kit de réparation (253933) du raccord d’entrée

d’air (à acheter séparément).

_ Compris dans le kit de joint 289213 (à acheter séparément).

* Incluido en el kit de reparación de la pistola 253783 (se adquieren

por separado).

** Incluido en el Kit de reparación del gatillo 253785 (se adquiere

por separado).

† Incluido en el Kit de reparación de las empaquetaduras de la

aguja 253748 (se adquiere por separado).

‡ Incluido en el Kit de reparación de la válvula neumática 253934

(se adquiere por separado).

u Incluido en el Kit del sello del cabezal de aire 253784 (se adquiere

por separado).

^ Incluido en el Kit de reparación del racor de entrada de aire

253933 (se adquiere por separado).

_ Incluído en el kit de juntas 289213 (se adquiere por separado).

REPLACEMENT PARTS DRAWINGS INDEX

REFERENCE

40 www.sharpe1.com • 1-800-742-7731

1 Pull trigger before installing nozzle (11).

2 Insert spreader (15) with tapered end

facing rear of gun. Insert u-cup (16)

with open end facing front of gun.

3 Apply lubricant.

4 Apply low strength thread retainer.

5 Apply thread sealant.

6 Torque to 85-90 in-lb.

7 Torque to 15-20 in-lb

8 Torque to 175-185 in-lb.

9 Torque to 155-165 in-lb.

10 Install with valve assembly turned fully

CCW to outermost position.

1 Tirer sur la gâchette avant d’installer la

buse (11).

2 Insérer l écarteur (15) avec l’extrémité

conique face vers l’arrière du pistolet.

Insérer le joint calotte (16) avec la face

ouverte face vers l’avant du pistolet.

3Enduiredelubriant.

4 Appliquer un ﬁxateur pour ﬁletages léger.

5 Appliquer un produit d’étanchéité.

6Serrerà85-90in–lb.

7Serrerà15-20in–lb.

8Serrerà175-185in–lb.

9Serrerà155-165in–lb.

10 A monter avec l’ensemble de vanne

tournée à fond dans le sens antihoraire.

1 Dispare el gatillo antes de instalar la

boquilla (11).

2 Introduzca el esparcidor (15) con la parte

biselada orientada hacia la parte trasera

de la pistola. Introduzca la copela en U (16)

con el extremo abierto orientado hacia la

parte delantera de la pistola.

3 Aplique lubricante.

4 Aplique retén de roscas de poca fuerza.

5 Aplicar producto sellador para roscas.

6 Apriete a un par de 85-90 in-lb.

7 Apriete a un par de 15-20 in-lb.

8 Apriete a un par de 175-185 in-lb.

9 Apriete a un par de 155-165 in-lb.

10 Instalar con el conjunto de la válvula

completamente girada en sentido

antihorario, en la posición más extrema.

REPLACEMENT PARTS DRAWINGS INDEX

RAZOR Siphon Feed

Par / Pièc s /

Pull trigger before insta ling nozz e (1 ).

e er ( ) w h d

a in r ar o gun Inse u cup ( 6)

i h open end f cing f on o g n.

Apply ubr cant

Torqu to 85 90 l s

Torque to 15-20 in

q o 1 5 5

Ins al wit va v ass

‡8

‡29

7‡ 5

*‡22

‡31 *‡6

*‡22

**24

23**

18**

21*

19*◆✓

13✓

*◆✓20

14✓

30a

^25

10**

^30

*†16

*†15

437

(sold separately)

110

101

102

103

105

104

106

109

107

TI8223a

er su la âc ette avan d’installer

b )

ce vers arrière du p stol t ns rer le joint

lo te (1 ) v c l fa ou ert face v rs

vant du p stole

nduire d lubrifiant

pli u r un fixa u our file ag s léger

ppli uer un produ t d éta

errer à 175 185 in –lbs

errer à 55-1 5 in –l s

fond dans le sens antiho

s re el gati o antes de instalar

q (

s da orientad hacia la parte rase a de

o Introduzca la copel en U 1

extremo ab erto orientado hac a la

a a

u ri ant .

ue retén de roscas de poca fuerz

r e a un pa de 15-20 in-lbs.

r e a un ar de 175- 85 n-l s

e s n i o an o

os ción más extrema

108

REFERENCE

www.sharpe1.com • 1-800-742-7731

Ref.

No. Part No. Description Qty.

1  BODY,gun 1

2 27076 LOCKNUT,uidinlet 1

3*  GASKET,uidinlet 1

4 27075 FITTING, ﬂuid inlet 1

5 253976 VALVE,aircontrol,assy 1

6*‡  VALVE,air,assy 1

7‡ NUT 1

8‡  KNOB,uidadjust 1

9  NEEDLE(includes9a) 1

9a TIP, needle 1

10**  TRIGGER 1

11  NOZZLE(includes21) 1

133 Aircap 1

143 253970 RING, retaining 1

15*†  SPREADER,needlepacking 1

16*† U-CUP, needle packing 1

17 253972 NUT, needle packing 1

18**  WASHER,wave 1

19*u3 O-RING,PTFE 1

20*u3 WASHER,UHMWPE 1

21*  O-RING,PTFE 1

22*‡ PACKING, u-cup 2

23** PIN, trigger 1

24** NUT, trigger 1

25^ FITTING, air inlet 1

28*  WASHER,UHMWPE(notshown) 1

29‡ SPRING, ﬂuid 1

30^ PLUG, air inlet 1

30a 253979 VALVE,airinletadjustment

(sold separately) 1

31‡ SPRING, air valve 1

32 253974 TOOL,gun(notshown) 1

36*‡  TOOL,sealinstallation(notshown)1

37 6610 CUP,“NoDrip”,siphon,assy 1

101 6630 CANISTER 1

102 20989 BRIDGE 1

103 20990 LEVER 1

104 21497 LID 1

105 20996 WASHER;1.25dia. 1

106 20994 GASKET,3.5dia. 1

107 20995 NUT, locking 1

108 20485 NO-DRIPCUPTUBE 1

109 20487 NO-DRIPELBOW 1

110 20988 FLUIDTUBE,assy 1

* Included in Gun Repair Kit 253783 (purchase separately).

** Included in Trigger Repair Kit 253785 (purchase separately).

† Included in Needle Packing Repair Kit 253748 (purchase

separately).

‡ Included in Air Valve Repair Kit 253934 (purchase separately).

u Included in Aircap Seal Kit 253784 (purchase separately).

^ Included in Air Inlet Fitting Repair Kit 253933 (purchase

separately).

3 Included in Aircap with Retaining Ring Kit (purchase

separately).

* Compris dans le kit de réparation (253783) du pistolet (à

acheter séparément).

** Compris dans le kit de réparation (253785) de la gâchette (à

acheter séparément).

† Compris dans le kit de réparation (253748) de la garniture du

pointeau (à acheter séparément).

‡ Compris dans le kit de réparation (253934) de la vanne d’air

(à acheter séparément).

u Compris dans le kit (253784) de joint du chapeau d’air (à

acheter séparément).

^ Compris dans le kit de réparation (253933) du raccord

d’entrée d’air (à acheter séparément).

3 Compris dans le kit de le chapeau d’air équipée de la bague

de retenue (à acheter séparément).

* Incluido en el kit de reparación de la pistola 253783 (se

adquieren por separado).

** Incluido en el Kit de reparación del gatillo 253785 (se

adquiere por separado).

† Incluido en el Kit de reparación de las empaquetaduras de la

aguja 253748 (se adquiere por separado).

‡ Incluido en el Kit de reparación de la válvula neumática

253934 (se adquiere por separado).

u Incluido en el Kit del sello del cabezal de aire 253784 (se

adquiere por separado).

^ Incluido en el Kit de reparación del racor de entrada de aire

253933 (se adquiere por separado).

3 Incluído en el kit del cabezal de aire con el anillo de retención

(se adquiere por separado).

Parts/Pièces/Piezas

REPLACEMENT PARTS DRAWINGS INDEX

REFERENCE

42 www.sharpe1.com • 1-800-742-7731

1 Pull trigger before installing nozzle (11).

2 Insert spreader (15) with tapered end

facing rear of gun. Insert u-cup (16)

with open end facing front of gun.

3 Apply lubricant.

4 Apply low strength thread retainer.

5 Apply thread sealant.

6 Torque to 85-90 in-lb.

7 Torque to 15-20 in-lb.

8 Torque to 175-185 in-lb.

9 Torque to 155-165 in-lb.

10 Install with valve assembly turned fully

CCW to outermost position.

1 Tirer sur la gâchette avant d’installer la

buse (11).

2 Insérer l’écarteur (15) avec l’extrémité

conique face vers l’arrière du pistolet.

Insérer le joint calotte (16) avec la face

ouverte face vers l’avant du pistolet.

3Enduiredelubriant.

4 Appliquer un ﬁxateur pour ﬁletages léger.

5 Appliquer un produit d’étanchéité.

6Serrerà85-90in–lb.

7Serrerà15 20in–lb.

8Serrerà175-185in–lb.

9Serrerà155-165in–lb.

10 A monter avec l’ensemble de vanne

tournée à fond dans le sens antihoraire.

1 Dispare el gatillo antes de instalar la

boquilla (11).

2 Introduzca el esparcidor (15) con la parte

biselada orientada hacia la parte trasera

de la pistola. Introduzca la copela en U (16)

con el extremo abierto orientado hacia la

parte delantera de la pistola.

3 Aplique lubricante.

4 Aplique retén de roscas de poca fuerza.

5 Aplicar producto sellador para roscas.

6 Apriete a un par de 85-90 in-lb

7 Apriete a un par de 15-20 in-lb.

8 Apriete a un par de 175-185 in-lb.

9 Apriete a un par de 155-165 in-lb

10 Instalar con el conjunto de la válvula

completamente girada en sentido

antihorario, en la posición más extrema.

REPLACEMENT PARTS DRAWINGS INDEX

RAZOR Pressure Feed

Parts / Pièces / P

Pul rigger befo e nsta ling nozzle (

I er de 5) e e

fac ng rear o gun Inse t u-cup

App y lo strengt hread reta ne

App y thread sealan

orque t 8 -90 in-l

1 2

I l h

o t

‡29

*‡22

‡31*‡6

*‡22

**24

18**

21* 11

19*◆

◆*20

30a

^25

10**

30^

*†16

*†15

10 8

437

(sold separately) /

TI10627b

la bus 11).

Insérer l écarteur (15) avec l extrémité

fa e v rs arrière u pisto t Insé er l

l (16) l f o

l’avant u pi tolet

Enduire de ubr fiant

l q t p l t g g

1 0 l

Se re à 175 185 in

Serrer à 155 165 n.– b

A mont av c l e s m

la boquil a 1 )

Introduzca el esparcidor 15) con la pa

b selada o ientada hacia la parte tra e a

l i l l p l U )

con el e tre o ab er or entado hac a

parte delante a de a pis o

i t 85 9

Apriete a un par de 15- 0 n-

Apriete a un par de 175 185

pri t a n p r e 1 -

n jun de l v

com leta en e ad en entid

(vendu séparément) /

(se vende por separado)

23** 3

REFERENCE

www.sharpe1.com • 1-800-742-7731

Ref.

No. Part No. Description Qty.

1  BODY,gun 1

5 253976 VALVE,aircontrol,assy 1

6*‡  VALVE,air,assy 1

7‡ NUT 1

8‡  VALVE,uidcontrol 1

9  NEEDLE(includes9a) 1

9a TIP, needle 1

10**  TRIGGER 1

11  NOZZLE(includes21) 1

13 AIRCAP 1

14 253970 RING, retaining 1

15*†  SPREADER,needlepacking 1

16*† U-CUP, needle packing 1

17 253972 NUT, needle packing 1

18**  WASHER,wave 1

19*u  O-RING,PTFE 1

20*u  WASHER,UHMWPE 1

21*  O-RING,PTFE 1

22*‡ PACKING, u-cup 2

23** PIN, trigger 1

24** NUT, trigger 1

25^ FITTING, air inlet 1

28*  WASHER,UHMWPE(notshown) 1

29‡ SPRING, ﬂuid 1

30^ PLUG, air inlet 1

30a  VALVE,airinletadjustment 1

253979 For 289xxx models

289142 For 24Axxx models

31‡ SPRING, air valve 1

32 253974 TOOL,gun(notshown) 1

36*‡  TOOL,sealinstallation(notshown) 1

* Included in Gun Repair Kit 253783 or 289399

(purchase separately)..

** Trigger repair kits vary by model.

† Included in Needle Packing Repair Kit 253748

(purchase separately).

‡ Included in Air Valve Repair Kit 253934 or 289407

(purchase separately).

u Included in Aircap Seal Kit 253784 (purchase separately).

^ Included in Air Inlet Fitting Repair Kit 253933

(purchase separately).

* Compris dans le kit de réparation (253783) du pistolet (à

acheter séparément).

** Kits de réparation de la gâchette varient selon le modèle.

† Compris dans le kit de réparation (253748) de la garniture du

pointeau (à acheter séparément).

‡ Compris dans le kit de réparation (253934) de la vanne d’air

(à acheter séparément).

u Compris dans le kit (253784) de joint du chapeau d’air (à

acheter séparément).

^ Compris dans le kit de réparation (253933) du raccord

d’entrée d’air (à acheter séparément).

* Incluido en el kit de reparación de la pistola 253783

(se adquieren por separado).

** Kits de reparación del gatillo varían según el modelo.

† Incluido en el Kit de reparación de las empaquetaduras de la

aguja 253748 (se adquiere por separado).

‡ Incluido en el Kit de reparación de la válvula neumática

253934 (se adquiere por separado).

u Incluido en el Kit del sello del cabezal de aire 253784

(se adquiere por separado).

^ Incluido en el Kit de reparación del racor de entrada de aire

253933 (se adquiere por separado).

Parts/Pièces/Piezas

REPLACEMENT PARTS DRAWINGS INDEX

REFERENCE

44 www.sharpe1.com • 1-800-742-7731

RAZOR Pressure Feed - Low Pressure

Parts - Model 289233/Pièces-Modéle289233/Piezas-Modelo289233

Model 6680LowPressureCup/

Modèle6680Réservoirbassepression/

Modelo 6680Tazadebajapresión

Model 1400Self-RelievingAirPressureRegulator/

Modèle1400Régulateurdelapressiond’airà

autodétente/Modelo1400Reguladordepresión

con alivio automático

r s - Model 2892 3 / Pièces

eza - Modelo 2892 3

e 6680 Lo Pr s r p

è 6680 Ré s

/ M 66

od l 400 S lf R l g A

essure egulat r / Mo è e 14 0

égulateur de la

101

102

103

105

111

113

112

104

106

107

108

109

201a

201b

201c

204

202

205

203

110

201d

TI10668A

Ref.

No. Part No. Description Qty.

101 20985 TUBE,uid,assembly 1

102 20989 BRIDGE 1

103 20990 LEVER 1

104 21855 LID 1

105 20996 WASHER;1.25dia. 1

106 20994 GASKET,3.5dia. 1

107 20995 NUT, locking 1

108 21860 SHIELD,nodrip 1

109 6630 CANISTER 1

110 9997 TUBE,pressure 1

111 21867 FITTING, elbow, pressure inlet 1

112 21876 VALVE,relief 1

113 21859 VALVE,check,assembly 1

Ref.

No. Part No. Description Qty.

201 119077 REGULATOR,air

Includes items 201a-201d 1

201a 9975 •BonnetAssembly 1

201b 9978 •TopSpring 1

201c 9980 •ServiceKit 1

201d  •Body 1

202 9995 FITTING, swivel 1

203 9990 VALVE,safety 1

204 8205 GAUGE,pressure

205 9993 FITTING, inlet, air regulator 1

REFERENCE

www.sharpe1.com • 1-800-742-7731

Finex1000/2000/3000Series

Parts/Pièces/Piezas

Ref.

No. Description Qty.

1 CAP, air 1

2 NOZZLE uid 1

3-1* PACKING, ﬂuid needle 1

3-2* PACK NG ﬂuid needle 1

4* NUT, packing 1

5* KNOB,patternadjustment 1

6* O-RING 1

7* GUIDE,uidneedle 1

8-1* GUIDE,uidadjusting 1

8-2* KNOB,uidadjusting 1

9* SPRING, ﬂuid needle 1

10 NEEDLE,uid 1

11* O-RING 1

12-1 BODY,gun 1

12-2* DISTRIBUTOR,air 1

13* FITTING, air inlet 1

14* VALVE,airadjustment 1

15* RING, retaining 2

16* PIN trigger 1

17* TRIGGER 1

18* SPRING, air valve 1

19* VALVE,air 1

20* SEAT,airvalve 1

24* FILTER,uid 1

 (PN24A230-10/pk)

26 CUP, gravity, aluminum 1

27 TOOL,gun(notshown) 1

Parts

8-29

8-1

3-2

12-1

12-2

script

1 AP air 1

2 OZZLE, fl id 1

- ACKING, l

CKI , l

* UT pac ing 1

5* NOB

djustmen

* UIDE fl id ne dle 1

1 UIDE flu d ad us 1

8- NOB u d adjust 1

RING u

ED E

RING 1

2 1 ODY gun 1

2 2 IS RIBU O

TTI G i l

4* AL E ir adj 1

5* ING, etaining 2

6 N, t gger

8* RI G 1

ALV a 1

0 EA , a va ve 1

4 IL E ,

6 P

27 OO gun (n 1

3-1

Accessories

Model Needle/

Nozzle

Size

Needle,Nozzle,

AircapKit

(Parts 1, 2, and 10)

NeedlePacking

Kit(parts3-1,3-2,

and 4)

GunBodyKit

(part 12-1)

GunRebuildKit

(includes parts

marked*)

Gravity Cup

(aluminum)

PPS

Adapter

FX1000

Mini-HVLP

0.6 289286 288890 289314 288895 289517

(125 cc)

Standard

289321

(250 cc)

289520

0.8 289287

1.0 289288

1.2 289289

1.4 289290

FX2000

Conventional

1.0 289291 288891 289315 288896 289320

(600 cc)

289520

1.3 289292

1.4 289293

1.5 289294

1.8 289295

FX3000

HVLP

1.0 289296 288891 289315 288896 289320

(600 cc)

289520

1.3 289297

1.4 289298

1.5 289299

1.8 289300

REPLACEMENT PARTS DRAWINGS INDEX

REFERENCE

46 www.sharpe1.com • 1-800-742-7731

3( ! 2 0 %

11a

17a

11b

11c*

11d*

4*4* 3

2b*

2d*

2e*

2f*

12a 1

12b 7

Ref.

No. Part No. Description Qty.

1 34801 Gun Body 1

2 34825 Air Valve Assembly

Includes items 2a-2f 1

2a 34819 •Housing 1

2b* 29049 •AirValveStem 1

2c 29053 •LockNut 1

2d* 29050 •Ball

2e* 29036 •NeedleSpring 1

2f* 34823 •Retainer 1

3 29033 Needle Packing Nut 1

4* 26022 Needle Packing 1

5* 29047 Plunger 1

6 29036 Needle Spring 1

7 29046 Fluid Control Knob 1

8* 29056 Trigger Screw 1

9 29055 Trigger 1

11 29030 Width Control Assembly

Includes items 11a-11d 1

11a 118749 •Knob 1

11b 118741 •PackingNut 1

11c* 29028 •Packing 1

11d* 29029 •RetainingRing 1

Ref.

No. Part No. Description Qty.

12 119288 Fluid Needle Assembly

Includes items 12a-12b 1

12a 29021 •FluidNozzle 1

12b 29041 •FluidNeedle 1

13 34806 Aircap 1

14 34831 Fluid Gasket 1

15 34830 Fluid Inlet Fitting 1

16 34832 90°StreetElbow 1

17 U07505 GravityCup;Includesitem17a 1

17a 34800 •CupLid 1

* Parts included in Repair Kit 34835.

REPLACEMENT PARTS DRAWINGS INDEX

MGFHVLP Gravity Feed System

Parts/Pièces/Piezas

REFERENCE

www.sharpe1.com • 1-800-742-7731

11a

11b

11c*

11d*

12b 7

4*4* 3

2b*

2d*

2e*

2f*

12a

Ref.

No. Part No. Description Qty.

1 34802 Gun Body 1

2 34825 Air Valve Assembly

Includes items 2a-2f 1

2a 34819 •Housing 1

2b* 29049 •AirValveStem 1

2c 29053 •LockNut 1

2d* 29050 •Ball

2e* 29036 •NeedleSpring 1

2f* 34823 •Retainer 1

3 29033 Needle Packing Nut 1

4* 26022 Needle Packing 1

5* 29047 Plunger 1

6 29036 Needle Spring 1

7 29046 Fluid Control Knob 1

8* 29056 Trigger Screw 1

9 29055 Trigger 1

11 29030 Width Control Assembly

Includes items 11a-11d 1

11a 118749 •Knob 1

11b 118741 •PackingNut 1

11c* 29028 •Packing 1

11d* 29029 •RetainingRing 1

Ref.

No. Part No. Description Qty.

12 118956 Fluid Needle Assembly

Includes items 12a-12b 1

12a 34811 •FluidNozzle 1

12b 29040 •FluidNeedle 1

13 34808 Aircap 1

* Parts included in Repair Kit 34835.

REPLACEMENT PARTS DRAWINGS INDEX

MPFHVLP Spray Gun

Parts/Pièces/Piezas

REFERENCE

48 www.sharpe1.com • 1-800-742-7731

10a

10b

10c*

10d*

12 1

11 7

4*4* 3

2b*

2d*

2e*

2f*

105

104

103

101

102

R f

Part No. 7030, D-5-55 Detail Spray Gun

Ref.

No. Part No. Description Qty.

1 29001 Gun Body 1

2 29054 Air Valve Assembly

Includes items 2a-2f 1

2a 34819 •Housing 1

2b* 29049 •AirValveStem 1

2c 29053 •LockNut 1

2d* 29050 •Ball

2e* 29036 •NeedleSpring 1

2f* 29052 •Retainer 1

3 29033 Needle Packing Nut 1

4* 26022 Needle Packing 1

5* 29047 Plunger 1

6* 29036 Needle Spring 1

7 29046 Fluid Control Knob 1

8* 29056 Trigger Screw 1

9 29055 Trigger 1

10 29030 Width Control Assembly

Includes items 10a-10d 1

Ref.

No. Part No. Description Qty.

10a 118749 •Knob 1

10b 118741 •PackingNut 1

10c* 29028 •Packing 1

10d* 29029 •RetainingRing 1

11 29041 Fluid Needle 1

12 29021 Fluid Nozzle, 0.55 1

13 29006 Aircap 1

* Parts included in Repair Kit 29086.

Part No. U07510, D-500 Cup Assembly

Ref.

No. Part No. Description Qty.

101 U07530 Cup with air-tight cover 1

102 29063 Gasket, pack of 5 1

103 29062 Lid with Fluid Tube 1

104 29057 Coupling Nut 1

105 29058 Nipple Fitting 1

D-5-55 Detail Spray Gun

Parts/Pièces/Piezas

REPLACEMENT PARTS DRAWINGS INDEX

REFERENCE

www.sharpe1.com • 1-800-742-7731

6630

20988

MODEL 575

LOW PRESSURE CUP

21855

21859

21876

9997

20988

20994

20996

20990

20989

21860

21867

PART NO. 6680

Part

No. Description

9997 Pressure Tube

20988 Fluid Assembly (Includes Nut Stem And Tube)

20989 Bridge

20990 Lever

20994 Gasket

20995 Lock Nut

20996 Thrust Washer

6630 Canister

21855 Lid

21859 Check Valve Assembly

21860 “NoDrip”Shield

21867 Pressure Inlet Fitting

21876 Relief Valve Assembly

Model 575 Low Pressure Cup

Parts/Pièces/Piezas

REPLACEMENT PARTS DRAWINGS INDEX

REFERENCE

50 www.sharpe1.com • 1-800-742-7731

ti12986a

not visible

ti12990a

Ref.

No. Part No. Description Qty.

1 ----- BAREPRESSURETANK,

includes items 1a-1c 1

1a  TANKLINER,lowdensity

polyethylene (not shown)

112077 5 pack of tank liners 1

112078 25 pack of tank liners 1

1b 103996 VALVE,pressurerelief;50psi

(350 kPa, 3.5 bar) 1

1c 244953 GASKET,cover,polyethylene

(package of 3) 1

2 156823 UNION,swivel 1

Ref.

No. Part No. Description Qty.

9 U10004 REGULATORASSEMBLY,

includes items 9a-9d) 1

9a 8220 GAUGE,airpressure,0–100psi

  (0to700kPa,0–7bar) 1

9b 1610 AIRREGULATOR,seemanual

310605 for parts 1

9c 9993 FITTING, air inlet,

  1/4nptx1/4nptstraight 3

9d 119030 FITTING, reducer,

  3/8npt(m)x1/4npt(f) 1

Model 24A555

Parts/Pièces/Piezas

REFERENCE

www.sharpe1.com • 1-800-742-7731

ti12988a

ti12992a

not visible

Ref.

No. Part No. Description Qty.

1 ----- BAREPRESSURETANK,includes

items 1a-1c 1

1a  TANKLINER,lowdensity

polyethylene (not shown)

112077 5 pack of tank liners 1

112078 25 pack of tank liners 1

1b 103996 VALVE,pressurerelief;50psi

(350 kPa, 3.5 bar) 1

1c 244953 GASKET,cover,polyethylene

(package of 3) 1

2 156823 UNION,swivel 1

9 U10004 REGULATORASSEMBLY,includes

items 9a-9h) 1

9a 8220 GAUGE,airpressure,0–100psi

  (0-700kPa,0–7bar) 1

Ref.

No. Part No. Description Qty.

9b 1610 AIRREGULATOR,seemanual

310605 for parts 1

9c 9993 FITTING, air inlet,

  1/4nptx1/4nptstraight 3

9d 119030 FITTING, reducer,

 3/8npt(m)x1/4npt(f) 1

9e 157350 ADAPTER,3/8nptx1/4npt 1

9f 1630 AIRREGULATOR,seemanual

310605 for parts 1

9g 8230 PRESSUREGAUGE 1

9h 10028 PLUG, regulator 1

----- Part is not sold separately.

Note: For single regulator use, replace ﬁtting 9e with ﬁtting

9c from regulator 9f.

Model 24A557

Parts/Pièces/Piezas

REFERENCE

52 www.sharpe1.com • 1-800-742-7731

25092

25032

25076

25074

16169

25036 SEE NOZZLE CHART

24997

25094

25096

16139

16175

10332

10333

25048

24995

16167

25066

16151

16162

16147

16163

16147

34940

16153

34941

25042

10326

16100

SEE NOZZLE CHART

16163

SERVICE KIT

25196

Part

No. Description

10326 Head Attachment Gasket Fluid Needle Assy

10332 Trigger Shaft

24995 Air Valve Assembly

10333 Trigger Screw

24997 Spray Width Adjuster Assy.

16100 Tip Gasket

25032 Fluid Needle Spring Aircap

25036 Gun Handle

25042 Gun Head

16139 Spray Width Control Packing

25048 Trigger

16147 Packing Nut

25066 Air Valve

16151 Air Valve Cage

25074 Air Inlet Nipple

16153 Head Attachment Screw

25076 Material Control Bushing

16162 Air Valve Packing

25092 Material Control Knob

16163 Air Valve Cage Gasket

Part

No. Description

25094 Spray Width Control Knob & Valve

16163 Mat. Control Bushing Gasket

25096 Spray Width Control Body

16167 Air Valve Spring

34940 Packing

16169 Plug

34941 Packing Seal

16175 SprayWidthControl“E”Clip

Model 775 Spray Gun

Parts/Pièces/Piezas

REPLACEMENT PARTS DRAWINGS INDEX

REFERENCE

www.sharpe1.com • 1-800-742-7731

Part No. Description

22631 OvernightDrain

22632 Mounting Bracket

22638 O-Ring

22640 Bafﬂe Kit

22645 FilterElement

Part No. Description

22631 OvernightDrain

22632 Mounting Bracket

22647 O-Ring

22650 Pop-up Indicator Repair Kit

U23075 CoalescerElement

Baffle

Fil e t

22638

22645

22640

22631

push to

manually drain

(open)

22650

22647

U23075

22631

push to

manually drain

(open)

REPLACEMENT PARTS DRAWINGS INDEX

Model 6770 Dryaire Membrane Air Drying System

Air Filter with Overnight Drain

Stage 1 - Part No. 22601

Coalescer with Overnight Drain

Stage 2 - Part No. 22605

REFERENCE

54 www.sharpe1.com • 1-800-742-7731

Part No. Description

22631 OvernightDrain

22632 Mounting Bracket

22638 O-Ring

22640 Bafﬂe Kit

22645 FilterElement

Part No. Description

22631 OvernightDrain

22632 Mounting Bracket

22647 O-Ring

22650 Pop-up Indicator Repair Kit

22655 CoalescerElement

22638

22645

22640

22631

push to manually

drain (open)

22650

22647

22655

22631

push to manually

drain (open)

REPLACEMENT PARTS DRAWINGS INDEX

Model 6760 Dryaire Desiccant System

Air Filter with Overnight Drain

Stage 1 - Part No. 22601

Coalescer with Overnight Drain

Stage 2 - Part No. 22602

REFERENCE

www.sharpe1.com • 1-800-742-7731

AIR REGULATOR

(22604)

AIR PRESSURE

GAUGE (8230)

NIPPLE

(22687)

PLUG

(10028)

OUTLET

VALVE

(34700)

Part No. Description Color

6765-1 5 lb Desiccant Blue when fresh

Pink when saturated

22661 Flow Tube Assy

22663 O-Ring

22664 Gasket

22665 O-Ring

22667 FilterElement(2)

22670 O-Ring

22679 Sight Glass

Part No. Description

8320 Air Pressure Gauge

10028 Plug

22680 Diaphragm/ValveRepairKit

22682 T-Handle Adjusting Screw

22685 Bottom Spring

22687 3/8inx3/8inNipple

34700 OutletValve

Specications

AirInlet3/8inF.P.T.

AirOutlet1/4inF.P.T.(3EA.)

AirFlowCapacity100cfm(2.8m3/min)

Max.OperatingPressure160psi(1.1MPa,11bar)

Max. Temperature 150°F (65°C)

s c ng c r (

(

S lic

Cl ar

sc i n

em um Silic Ge c balt c or de e

u ca o l h e (

ow T e Assy

asket

Ring

ght Gla

22665

22664

22679

22667

22665

22664

22663

22661

22670

Flow Tube

Assembly

(Includes: flow

tube, nut, O-ring,

filter elements

and retainers)

REPLACEMENT PARTS DRAWINGS INDEX

Model 6760 Dryaire Desiccant System

Desiccant Housing

Stage 3 - Part No. 22603

Self-Relieving

Air Regulator

Part No. 22604

22682

22680

22685

PT.

FPT (3

26 2

22687 3/8 in

3 7 Outlet l e

REFERENCE

56 www.sharpe1.com • 1-800-742-7731

REPLACEMENT PARTS DRAWINGS INDEX

O-Ring

Filter Element

Overnight

Drain

(22638)

(22645)

(22631)

Baffle Kit

(22640)

O-Ring

Coalesce

Overnigh

Drain

(22647)

(22631)

Element

(U23075)

Pop-up

Indicator

(22650)

Model 705FC

Air Filter with Overnight Drain

Stage 1 - Part No. 22601

Coalescer with Overnight Drain

Stage 2 - Part No. 22605

Part No. Description

22631 OvernightDrain

22638 O-Ring

22640 Bafﬂe Kit

22645 FilterElement

Part No. Description

22631 OvernightDrain

22632 Mounting Bracket

22647 O-Ring

22650 Pop-up Indicator Repair Kit

U23075 CoalescerElement

REFERENCE

www.sharpe1.com • 1-800-742-7731

Part No. Description

10028 Plug

22026 Cap Screw

22033 Assembly Rod

22035 Nut

U32701 Filter Bottle

U32702 Filter Top

U32708 Gasket

32709 Filter Washer

U32718 Shield

U32719 FilterElement

32721 Retainer

34449 Drain Cock

1 Bottl

2 Top

8 t

Was

9 le n

22026

U32702

10028

U32708

32709

32701

34449

U32718

32719

22033

32721

22035

F88 Air Filter

Part No. 8130

REPLACEMENT PARTS DRAWINGS INDEX

Maximum Working

Pressure: 160 psi

(1.1 MPa, 11 bar)

REFERENCE

58 www.sharpe1.com • 1-800-742-7731

10022

10023

10003

10018

10016

10019

10015

U10008

U10005

10010

U10006

10001

10013

REPLACEMENT PARTS DRAWINGS INDEX

Air Regulator

Part No. 1610

2RegulatedOutlets

1MainLineOutlet(bypass)

32135

32134

0028

1630

33145

34700

F88

8130

880A Air Control Unit

Part No. 6950

Part No. Description

1630 Air Regulator

8130 Air Filter

1002 8 Plug

32134 Nipple

32135 Elbow

33145 Gauge

34700 Air Cock

Maximum Working

Pressure: 160 psi

(1.1 MPa, 11 bar)

REFERENCE

Part No. Description

10022 Adjusting Screw

10023 Screw

10003 Bonnet

10018 Washer Spring

10016 Pressure Spring

10019 Vibration Dampener

10015 Diaphragm

10008 Valve Body

10005 Valve Seat

10010 Valve

10006 Valve Spring

10002 Body

10013 Brass Screen

22026

22013

22037

22019

19920

19929

19930

22033

22032

22035

34449

22012

10022

10023

10003

10018

10016

10019

10015

U10008

U10005

10010

U10006

U10002

10013

REPLACEMENT PARTS DRAWINGS INDEX

Model 606 Air Filter

Part No. UO6710

18C-3R Air Regulator

Part No. 1630

Part No. Description

22026 Screw

22013 Bottle Lid

22037 Plug

22019 Gasket

19920 Washer

19929 Shield

19930 FilterElement

22033 Rod Assembly

22032 Retainer

22035 Nut

22012 Mach Filter Bottle

34449 Air Cock Regulator Valve

Maximum Working

Pressure: 160 psi

(1.1 MPa, 11 bar)

Maximum Working

Pressure: 160 psi

(1.1 MPa, 11 bar)

REFERENCE

60 www.sharpe1.com • 1-800-742-7731

REPLACEMENT PARTS DRAWINGS INDEX

Air Control Units

Model 606A

Part No. U06720

22037

Model 606B

Part No. 6730

22013

32135

32134

10028

1630

see other side

34700

33145

U06710

see other side U06710

see other side

U34606

8240

22014

22037

32135

32134

1630

see other side

34700

33145

Model 606C

Part No. 6740

U06710

see other side

8240

8230

10028

1630

see other side

32134

34700 34606

22014

32134

1630

see other side

34700

10028

A R CONTRO

REFERENCE

www.sharpe1.com • 1-800-742-7731

REPLACEMENT PARTS DRAWINGS INDEX

Zephy Drying Gun

Model 289956

ti12162a

ti12164a

Zephyr

Ref. Part No. Description

1 289956 GUN, drying

1a 289987 DIFFUSER

1b* ----- FILTER

2 289957 STAND, drying gun

--- Not sold individually.

*OrderKit289986forreplacementlters,

ﬁve (5) per pack.

Kit289958

(Includes two guns and one stand)

For use with waterborne paints only.

Not for use in explosive atmospheres.

175psi(1.2MPa,12bar)MaximumWorkingPressure-Gun

125psi(0.9MPa,9bar)MaximumWorkingPressure-Stand(Includes two guns and one stand)

REFERENCE

62 www.sharpe1.com • 1-800-742-7731

Additional Terms and Conditions of Sale

1. Entire Agreement

 Exceptassetforthbelow,thesaleofproducts

in this shipment shall be governed solely

and exclusively by the terms and conditions

set forth or referenced on this page. Any

objection to these terms and conditions must

be communicated by sending a letter or other

speciﬁc written communication to the attention

of Sharpe’s Contract Administrator at the

address set forth on this page. Accepting or

paying for any part of this shipment, or failing

to object within 10 days of receipt of any part

of this shipment shall constitute conclusive

evidence of acceptance.

 Exceptassetforthbelow,thetermssetforthon

this page hereby cancel and supersede any prior

or contemporaneous negotiation or agreements,

and any additional or different terms set forth on

any purchase order, acknowledgment form, or

other written or oral communication conveyed to

Sharpe by Buyer are hereby expressly rejected.

Notwithstanding the above, in the event that

Buyer is operating under a formal Sharpe

Distributor,EDI,orsystemsagreement,Sharpe

quotation or Sharpe Policy, any conﬂicting or

supplemental terms and conditions set forth

in such formal agreement, quotation or policy

shall prevail.

2. Objection to Purchasers Terms

Any term or condition of purchaser’s order

or other document which is different from, in

addition to, or inconsistent with any term or

condition of this document is hereby objected

to by Sharpe and cannot be binding or effective

against Sharpe unless accepted in writing by an

ofﬁcer thereof.

3. Warranty and Disclaimer

Sharpe warrants all equipment manufactured

by Sharpe and bearing its name to be free from

defects in material and workmanship on the

date of sale by an authorized Sharpe Channel

Member to the original purchaser for use. With

the exception of any special, extended, or limited

warranty published by Sharpe, Sharpe will, for

a period represented in the Product Warranty

Matrix on the inside back cover, issue credit,

repair or replace any part of the equipment

determined by Sharpe to be defective. This

warranty applies only when the equipment is

installed, operated and maintained in accordance

with Sharpe’s written recommendations.

This warranty does not cover, and Sharpe

shall not be liable for general wear and tear,

or any malfunction, damage or wear caused

by faulty installation, misapplication, abrasion,

corrosion, inadequate or improper maintenance,

negligence, accident, tampering, or substitution

of non-Sharpe component parts. Nor shall

Sharpe be liable for malfunction, damage or

wear caused by the incompatibility of Sharpe

equipment with structures, accessories,

equipment or materials not supplied by

Sharpe, or the improper design, manufacture,

installation, operation or maintenance of

structures, accessories, equipment or materials

not supplied by Sharpe.

This warranty is conditioned upon the prepaid

return of the equipment claimed to be defective

to an authorized Sharpe Channel Member for

veriﬁcation of the claimed defect. If the claimed

defect is veriﬁed, Sharpe will issue credit, repair

or replace free of charge any defective parts.

The equipment will be returned to the original

purchaser transportation prepaid. If inspection

of the equipment does not disclose any defect in

material or workmanship, repairs will be made at

a reasonable charge, which charges may include

the costs of parts, labor, and transportation.

 THISWARRANTYISEXCLUSIVE,ANDISINLIEU

OFANYOTHERWARRANTIES,EXPRESSEDOR

IMPLIED,INCLUDINGBUTNOTLIMITEDTO

WARRANTYOFMERCHANTABILITYORWARRANTY

OFFITNESSFORAPARTICULARPURPOSE.

Sharpe’s sole obligation and buyer’s sole

remedy for any breach of warranty shall be as

set forth above. The buyer agrees that no other

remedy (including, but not limited to, incidental

or consequential damages for lost proﬁts,

lost sales, injury to person or property, or any

other incidental or consequential loss) shall be

available. Any action for breach of warranty

must be brought within one year beyond the

warranty expiration of the particular product.

 Exceptasexpresslysetoutinthiswarranty,

Sharpe makes no representations, warranties

or conditions, express or implied or collateral,

concerninganygoodsorservicesandSHARPE

SHALLNOTBELIABLEINANYMANNERFORany

other representation or warranty or condition

of any kind, whether express or implied or

collateral, or whether arising by operation of

law or otherwise, including, but not limited to,

WARRANTIESOFMERCHANTABLEQUALITYOR

FITNESSFORAPARTICULARPURPOSE.

In no event will Sharpe be liable for indirect,

incidental, special or consequential damages

resulting from Sharpe supplying equipment

hereunder, or the furnishing, performance, or

use of any products or other goods sold hereto,

whether due to a breach of contract, breach of

warranty, the negligence of Sharpe, or otherwise.

4. Delivery

Sharpe shall not be liable for any delay in the

production or delivery of any of the products

referred to herein if such delay is due to ﬁre,

ﬂood, accident, delay in transportation, inability

to obtain material, war, embargo, demand or

requirement of the Government, labor dispute,

and/oranyothercausewhatsoeverbeyondthe

reasonable control of Sharpe.

5. Terms of Payment and Prices

Subject to approval and continuation of approval

of credit by Sharpe, the terms of payment are

30 days net from date of invoice. In the event

Sharpe does not approve credit to the purchaser,

or if at any time after approval of credit and

before delivery, Sharpe in its sole judgment,

decides that the extension of further credit is

unjustiﬁed, terms of payment shall be those

speciﬁed by Sharpe, including but not limited to

C.O.D.orcashinadvance.Allpaymentsshallbe

in the legal currency as stated on the invoice.

All prices are subject to exception or change

without notice. Pricing errors may be corrected

at any time.

Sharpe reserves the right to select those

qualiﬁed distributors to whom it will sell its

products for resale. Channel Member minimum

billing is set forth in Sharpe price list, exclusive

of all non-product charges.

6. Patent Infringement

Sharpe agrees to defend purchaser or its

customers in any suit brought against them so

far as it is based on a claim that any product or

part thereof sold by Sharpe under this document

infringes a United States patent, but only on

the condition that Sharpe is notiﬁed promptly in

writing of such claim, is given full authority to

conduct such defense including the compromise

or settlement of any claim, and provided further

that purchaser has not prejudiced such defense

by any admissions, statements or conduct.

Purchaser further agrees to give Sharpe at

Sharpe’s expense whatever information,

cooperation, assistance and authority Sharpe

may reasonably require for such defense. Sharpe

will not assume the defense of purchaser or

its customers if the infringement is alleged to

consist either of the use of the product or part

incombinationwithotherdevices,and/orof

the modiﬁcation or alteration of the product

or part, unless Sharpe shall have speciﬁcally

recommended such use or modiﬁcation in its

instruction manuals. Purchaser agrees to hold

Sharpe harmless against any claim which arises

out of Sharpe’s compliance with purchaser’s

speciﬁcations. In no event will Sharpe be liable

for any special, incidental or consequential

damages, loss of proﬁts, or loss of revenue

resulting from any infringement or alleged

infringement. The foregoing states the entire

liability of Sharpe for patent infringement.

For Sharpe Canadian and Hispanic Customers

The parties acknowledge that they have required

that the present document, as well as all

documents, notices and legal proceedings entered

into, given or instituted pursuant hereto or relating

directlyorindirectlyhereto,bedrawnupinEnglish.

Les parties reconnaissent avoir

convenu que la rédaction du présente document

sera en Anglais, ainsi que tous documents, avis et

procédures judiciaires exécutés, donné intentés

à la suite de ou en rapport, directement ou

indirectement, avec les procedures concernées.

Los participantes conﬁrman que han solicitado

que el presente documento, así como todos los

documentos, avisos y procesos legales solicitados

en, concedidos o instituidos conforme a esto, o

relacionados directa o indirectamente a esto, sean

redactados en Inglés.

www.sharpe1.com • 1-800-742-7731

INDEX

1-6770-3 ............................... 17

12AAV ................................... 27

15E422.................................. 25

15E449.................................. 25

15F402 .................................. 25

15F403 .................................. 25

15X427 ................................. 24

16C-MR ................................. 22

18B-2R .................................. 22

18B-500 ................................ 22

18C-2R .................................. 22

18C-3R ............................ 21, 57

18C-500 ................................ 22

24A525 ................................. 11

24A526 ................................. 11

24A527 ................................. 11

24A528 ................................. 11

24A529 ................................. 11

24A530 ................................. 11

24A531 ................................. 11

24A532 ................................. 11

24A533 ................................. 11

24A555 ........................... 28, 49

24A557 ........................... 28, 50

24AAV ................................... 27

36AAV-HV .............................. 27

606.............................20, 32, 57

606A ............................... 21, 32

606B ............................... 21, 32

606C ..................................... 21

705FC ..........................5, 19, 59

707C ............................... 19, 32

707F ................................ 19, 32

775.................................. 15, 51

880A ..........................21, 32, 56

1002...................................... 56

1010...................................... 27

1400...................................... 43

1410...................................... 22

1610...............22, 28, 49, 50, 56

1620...................................... 22

1630...............22, 28, 50, 56, 57

1640...................................... 22

2210................... 2, 4, 6, 8, 9, 27

3310...................................... 27

4012...................................... 33

4013...................................... 33

4014...................................... 33

4015...................................... 33

4016...................................... 33

4017...................................... 33

4212...................................... 33

4213...................................... 33

4214...................................... 33

4215...................................... 33

4216...................................... 33

4217...................................... 33

5222...................................... 33

5224...................................... 33

5235...................................... 33

5250...................................... 33

5485...................................... 33

5712...................................... 33

5714...................................... 33

5716...................................... 33

5812...................................... 33

5814...................................... 33

5815...................................... 33

5816...................................... 33

5818...................................... 33

5823...................................... 33

5866...................................... 33

6610.....................15, 25, 28, 40

6630...........................40, 43, 48

6680................................ 28, 43

6685................................ 24, 38

6690...................................... 24

6730...................................... 21

6740...................................... 21

6760... 2, 5, 8, 18, 31, 32, 53, 54

6765-1 ............................ 18, 54

6770..3, 4, 6, 7, 9, 17, 31, 32, 52

6835...................................... 15

6880...................................... 16

6885...................................... 16

6890...................................... 16

6895...................................... 16

6910............... 3, 5, 7, 19, 31, 32

6920...................................... 19

6930...................................... 19

6950................................ 21, 56

7004...................................... 28

7030................................ 14, 47

7040................................ 14, 24

7045...................................... 14

7110.................................. 6, 29

7120...................................... 29

7130................................ 28, 29

7210...................................... 29

7220...................................... 29

7230...................................... 29

7506...................................... 24

7530...................................... 14

8100...................................... 30

8125...................................... 30

8130...........................20, 55, 56

8135...................................... 20

8205...................................... 43

8220................................ 49, 50

8230...................................... 50

8255...................................... 30

8260...........................4, 6, 9, 30

8310...................................... 29

8320................................ 29, 54

8330...................................... 29

8340...................................... 29

9500...................................... 15

9893...................................... 30

9894...................................... 30

9975...................................... 43

9978...................................... 43

9980...................................... 43

9990...................................... 43

9993...........................43, 49, 50

9995...................................... 43

9997................................ 43, 48

10002.................................... 57

10003.................................... 57

10005.................................... 57

10006.................................... 57

10008.................................... 57

10010.................................... 57

10013.................................... 57

10015.................................... 57

10016.................................... 57

10018.................................... 57

10019.................................... 57

10022.................................... 57

10023.................................... 57

10028.........................50, 54, 55

10326.................................... 51

10332.................................... 51

10333.................................... 51

16100.................................... 51

16111.................................... 15

16139.................................... 51

16147.................................... 51

16151.................................... 51

16153.................................... 51

16162.................................... 51

16163.................................... 51

16167.................................... 51

16169.................................... 51

16175.................................... 51

19920.................................... 57

19929.................................... 57

19930.........................20, 21, 57

20485.................................... 40

20487.................................... 40

20985.................................... 43

20988.............................. 40, 48

20989.........................40, 43, 48

20990.........................40, 43, 48

20994...................28, 40, 43, 48

20995.........................40, 43, 48

20996.........................40, 43, 48

21497.................................... 40

21719.................................... 38

21855.............................. 43, 48

21859.............................. 43, 48

21860.............................. 43, 48

21867.............................. 43, 48

21876.............................. 43, 48

22002.................................... 24

22012.................................... 57

22013.................................... 57

22019.................................... 57

22026.............................. 55, 57

22032.................................... 57

22033.............................. 55, 57

22035.............................. 55, 57

22037.................................... 57

22601.........................52, 53, 59

22602.................................... 53

22603.................................... 54

22604.................................... 54

22605.............................. 52, 59

22631.........................52, 53, 59

22632.........................52, 53, 59

22638.........................52, 53, 59

22640.........................52, 53, 59

22645....... 17, 18, 19, 52, 53, 59

22647.........................52, 53, 59

22650.........................52, 53, 59

22655...................18, 19, 53, 59

22661.................................... 54

22663.................................... 54

22664.................................... 54

22665.................................... 54

22667.................................... 54

22670.................................... 54

22679.................................... 54

22680.................................... 54

22682.................................... 54

22685.................................... 54

22687.................................... 54

24995.................................... 51

24997.................................... 51

25032.................................... 51

25036.................................... 51

25042.................................... 51

25048.................................... 51

25066.................................... 51

25074.................................... 51

25076.................................... 51

25092.................................... 51

25094.................................... 51

25096.................................... 51

26022.........................45, 46, 47

27075.................................... 40

27076.................................... 40

27405.................................... 24

29001.................................... 47

29006.............................. 14, 47

29021.........................35, 45, 47

29028.........................45, 46, 47

29029.........................45, 46, 47

29030.........................45, 46, 47

29033.........................45, 46, 47

29036.........................45, 46, 47

29040.................................... 46

29041.............................. 45, 47

29046.........................45, 46, 47

29047.........................45, 46, 47

29049.........................45, 46, 47

29050.........................45, 46, 47

29052.................................... 47

29053.........................45, 46, 47

29054.................................... 47

29055.........................45, 46, 47

29056.........................45, 46, 47

29057.................................... 47

29058.................................... 47

29062.................................... 47

29063.................................... 47

29086.............................. 14, 47

32134.................................... 56

32135.................................... 56

32709.................................... 55

32721.................................... 55

33145.................................... 56

34449.............................. 55, 57

34700.............................. 54, 56

34800.............................. 24, 45

34801.................................... 45

34802.................................... 46

34806.............................. 14, 45

34808.............................. 14, 46

34811.............................. 35, 46

34819.........................45, 46, 47

34823.............................. 45, 46

34825.............................. 45, 46

34830.................................... 45

34831.................................... 45

34832.................................... 45

34835.........................14, 45, 46

34940.................................... 51

34941.................................... 51

37065.................................... 24

39995.................................... 16

39996.................................... 16

39997.................................... 16

PART NO. PAGE(S) PART NO. PAGE(S) PART NO. PAGE(S) PART NO. PAGE(S)

64 www.sharpe1.com • 1-800-742-7731

INDEX

PART NO. PAGE(S) PART NO. PAGE(S) PART NO. PAGE(S) PART NO. PAGE(S)

103996............................ 49, 50

112077............................ 49, 50

112078............................ 49, 50

118741.......................45, 46, 47

118749.......................45, 46, 47

118956.................................. 46

119030............................ 49, 50

119077.................................. 43

119288.................................. 45

156823............................ 49, 50

157350.................................. 50

234791.................................... 9

244953............................ 49, 50

253417.................................. 25

253418.................................. 25

253427.................................... 5

253428.................................... 5

253429.................................... 5

253432.............................. 2, 33

253433.............................. 2, 33

253434.........................2, 17, 33

253435.............................. 2, 33

253436.................................. 33

253437...................9, 24, 33, 38

253438....... 2, 5, 8, 9, 17, 24, 33

253439.........................9, 24, 33

253441.............................. 6, 33

253442.............................. 6, 33

253443.............................. 6, 33

253444.............................. 6, 33

253748.......................38, 40, 42

253769...........................2, 6, 11

253771....2, 3, 4, 5, 6, 7, 8, 9, 11

253772............... 2, 4, 5, 6, 9, 11

253774.................................... 9

253777.................................. 10

253778.................................. 10

253783.......................38, 40, 42

253784.......................38, 40, 42

253785............................ 38, 40

253789.................................... 9

253790.................................... 9

253792.................................. 11

253793.........................2, 11, 34

253794................................ 2, 4

253795.....................2, 4, 11, 34

253796................................ 2, 4

253803.................................... 5

253804.................................... 5

253805.................................... 5

253816.................................. 11

253817.........................6, 11, 34

253818.................................... 6

253819.........................6, 11, 34

253820.................................... 6

253824............................ 11, 34

253825............................ 11, 34

253827.................................. 10

253933.......................38, 40, 42

253934.......................38, 40, 42

253969.................................. 26

253970.......................38, 40, 42

253971.................................. 38

253972.......................38, 40, 42

253973.................................. 38

253974.......................38, 40, 42

253975.............................. 9, 26

253976.......................38, 40, 42

253977............................ 24, 38

253978.......................2, 5, 8, 24

253979.......................38, 40, 42

287961............................ 10, 33

288281.................................... 8

288286.................................. 10

288287.................................. 10

288288.................................. 10

288290.................................. 10

288291............................ 10, 33

288292............................ 10, 33

288294............................ 10, 33

288295.................................. 11

288297.............................. 8, 11

288299.................................. 11

288302.................................. 10

288303.................................. 10

288304.................................. 10

288306.................................. 10

288307.................................. 10

288308.................................. 10

288310.................................. 10

288451.................................. 11

288452.................................. 11

288454.................................. 10

288455.................................. 10

288457.................................. 10

288641............................ 10, 11

288642.................................. 10

288643.................................. 10

288654.............................. 6, 33

288661.................................. 24

288878.................................. 12

288879.................................. 12

288880.................................. 12

288881.................................. 12

288882.................................. 12

288883.................................. 13

288884.................................. 13

288885.................................. 13

288886.................................. 13

288887.................................. 13

288890.................................. 44

288891.................................. 44

288895.................................. 44

288896.................................. 44

289142.................................. 42

289200............................ 12, 17

289213.................................. 38

289214.................................... 4

289215.................................... 4

289216.................................... 4

289221.................................. 12

289222.................................. 12

289231.................................. 10

289233............................ 11, 43

289286.................................. 44

289287.................................. 44

289288.......................12, 13, 44

289289............................ 12, 44

289290............................ 12, 44

289291............................ 13, 44

289292............................ 13, 44

289293............................ 13, 44

289294............................ 13, 44

289295............................ 13, 44

289296............................ 12, 44

289297............................ 12, 44

289298............................ 12, 44

289299............................ 12, 44

289300............................ 12, 44

289314.................................. 44

289315.................................. 44

289320............................ 25, 44

289321.................12, 13, 25, 44

289380.................................... 3

289381.................................... 3

289382.................................... 7

289383.................................... 7

289388...........................3, 7, 17

289389.................................... 3

289390................................ 3, 7

289391.................................... 7

289399.................................. 42

289407.................................. 42

289517.................12, 13, 25, 44

289520.................12, 13, 26, 44

289534.................................. 18

289561.................................... 3

289562.................................... 7

289571.................................... 3

289572.................................... 7

289816.................................. 25

289817.................................. 25

289818.................................. 25

289839.............................. 9, 24

289841.................................... 9

289956...........................3, 7, 23

289957.................................. 23

289958.................................. 23

309989.................................. 14

309990.................................. 14

309991.................................. 14

310587.................................. 15

310588.................................. 24

310595.................................. 18

310596.................................. 17

310601............................ 20, 21

310603............................ 20, 21

310605.................................. 22

310609.................................. 19

310611.................................. 19

310884.................................. 16

311684......... 2, 3, 4, 5, 6, 7, 8, 9

311685.................................. 10

312372............................ 12, 13

312412.................................. 11

D-5-55 .................14, 26, 35, 47

D-500 .........................14, 26, 47

D-500-72 ........................ 14, 26

F2 .......................................... 30

F88 .............................20, 32, 55

F88M ..................................... 20

FX1000...........12, 13, 26, 35, 44

FX2000.......................13, 35, 44

FX3000.................12, 17, 35, 44

H.O.V. .................................... 27

M6C125 ................................ 24

M6C190 ................................ 24

MGF HVLP ..................14, 24, 35

MPF HVLP ............................. 14

U04410 ....................2, 4, 6, 8, 9

U07505 ................................. 45

U07510 ........................... 14, 47

U07530 ........................... 14, 47

U10004 ........................... 49, 50

U23075 ........................... 17, 52

U23080 ................................. 19

U23085 ................................. 19

U32701 ................................. 55

U32702 ................................. 55

U32708 ................................. 55

U32718 ................................. 55

U32719 ......................20, 21, 55

U42002 ................................. 28

UO4410 ................................. 27

UO5510 ................................. 27

UO6710 ........................... 20, 57

UO6720 ................................. 21

UO7505 ........................... 14, 24

UO7510 ........................... 14, 26

UO7530 ................................. 26

Standard Sharpe Warranty

Sharpe warrants all equipment manufactured by Sharpe

and bearing its name to be free from defects in material and

workmanship on the date of sale by an authorized Sharpe

Channel Member to the original purchaser for use. With the

exception of any special, extended, or limited warranty published

by Sharpe, Sharpe will, for a period of time speciﬁed in the

following Product Warranty Matrix, issue credit, repair or replace

any part of the equipment determined by Sharpe to be defective.

This warranty applies only when the equipment is operated

and/orinstalledandmaintainedinaccordancewithSharpe’s

written recommendations. This warranty does not cover, and

Sharpe shall not be liable for general wear and tear, or any

malfunction, damage or wear caused by faulty installation,

misapplication, abrasion, corrosion, inadequate or improper

maintenance, negligence, accident, tampering or substitution

of non-Sharpe component parts. Nor shall Sharpe be liable for

malfunction, damage or wear caused by the incompatibility

of Sharpe equipment with structures, accessories, equipment

or materials not supplied by Sharpe, or the improper design,

manufacture, installation, operation or maintenance of

structures, accessories, equipment or materials not supplied

by Sharpe.

This warranty is conditioned upon the prepaid return of the

equipment claimed to be defective to Sharpe for veriﬁcation

of the claimed defect. If the claimed defect is veriﬁed, Sharpe

will repair or replace free of charge any defective parts.

The equipment will be returned to the original purchaser

transportation prepaid. If inspection of the equipment does not

disclose any defect in material or workmanship, repairs will be

made at a reasonable charge, which charges may include the

costs of parts, labor, and transportation.

THISWARRANTYISEXCLUSIVE,ANDISINLIEUOFANYOTHER

WARRANTIES,EXPRESSEDORIMPLIED,INCLUDINGBUTNOT

LIMITEDTOWARRANTYOFMERCHANTABILITYORWARRANTY

OFFITNESSFORAPARTICULARPURPOSE.

Sharpe’s sole obligation and buyer’s sole remedy for any breach

of warranty shall be as set forth above. The buyer agrees that

no other remedy (including, but not limited to, incidental or

consequential damages for lost proﬁts, lost sales, injury to

person or property, or any other incidental or consequential

loss) shall be available. Any action for breach of warranty must

be brought within one year beyond warranty expiration.

Sharpe makes no warranty, and disclaims all implied

warranties of merchantability and ﬁtness for a particular

purpose in connection with accessories, equipment, materials

or components sold but not manufactured by Sharpe. These

items sold, but not manufactured by Sharpe (such as heat

lamps, refrigerated dryers, hoses, etc.), are subject to the

warranty, if any, of their manufacturer. Sharpe will provide

purchaser with reasonable assistance in making any claim for

breach of these warranties.

In no event will Sharpe be liable for indirect, incidental, special

or consequential damages resulting from Sharpe supplying

equipment hereunder, or the furnishing, performance, or use

of any products or other goods sold hereto, whether due to a

breach of contract, breach of warranty, the negligence of Sharpe,

or otherwise.

For Sharpe Canadian Customers

The parties acknowledge that they have required that the

present document, as well as all documents, notices and legal

proceedings entered into, given or instituted pursuant hereto

orrelatingdirectlyorindirectlyhereto,bedrawnupinEnglish.

Les parties reconnaissent avoir convenu que la rédaction du

présente document sera en Anglais, ainsi que tous documents,

avis et procédures judiciaires exécutés, donnés ou intentés à la

suite de ou en rapport, directement ou indirectement, avec les

procedures concernées.

PRODUCT WARRANTY MATRIX

PRODUCT

WARRANTY PERIOD

(from date of sale from Sharpe

Channel Member to original purchaser

RAZOR®3 years

Cobalt 2 years

Finex™ by Sharpe 1 year

General Sharpe Product

(guns,pots,cups,lters) 1 year

Dryaire Membrane and

Desiccant Systems 1 year

Dryaire Refrigerated Air Dryers varies by component

Sharpe Manufacturing coMpany

MinneapoliS, Mn 55413

800-SHARPE1 (800-742-7731)

www.sharpe1.com

253427 Sharpe Catalog2009

Navigation menu

Versions of this User Manual:

Views

Navigation
