silvan.com.au
Spraying
Components Catalogue
Incorporating
Precision Farming
GENUINE
ACCESSORIES
GENUINE
ACCESSORIES
e-Commerce @ Silvan
Silvan’s e-Commerce tool is available for
immediate registration by clicking on the dealer
login on the main page at www.silvan.com.au
This e-Commerce tool allows you to:
• Order online
• Enquire on your order status online
- open orders, back orders, dispatched orders
• Follow freight for your goods online
- direct access to Freight con notes
• Enquire on your invoices and credit
notes online
• Access the Silvan on-line spare parts system
For more details, phone Customer Service on
1300 SILVAN (1300 745 826).
Silvan Customer Service
We are ready to take your call.
Your phone call to 1300 SILVAN (1300 745 826)
will direct you to our highly experienced Silvan
Customer Service staff that will assist you with:
• Price and availability • Order entry
• Product enquiries • Credit processing
• Back order advices
If your enquiry is of a technical nature, our
Customer Service team will transfer you to our
National Spare Parts team for parts interpretation
and parts sourcing, or our Technical Services
team for after sales service issues.
Call: 1300 SILVAN (1300 745 826)
Fax: 1800 SILVAN (1800 745 826)
e-Commerce
2AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Introduction
SPRAYING COMPONENTS
This catalogue provides a comprehensive range of sprayer components to
service Silvan spraying products. As an independent manufacturer, we have
forged strong links with our suppliers and have the ability to offer choices of
components for your sprayer. We ship components and spare parts daily by
courier and express post. This catalogue will give you an overview of products
available however if you do not see what you need please feel free to enquire.
Silvan was founded in 1962 and is devoted to those connected to the land. The Silvan
brand has always pioneered superior technology, durability and dedicated support with
Silvan’s “Big Red Tanks” becoming a constant in the Australian agricultural landscape.
SILVAN SPRAYERS
A leader in the design of high and low volume horticultural sprayers, Silvan has evolved
into the largest Australasian manufacturer of world-class crop protection sprayers
and related machinery. Specialised equipment has been developed for crops including
vegetables, grapes, apples, pears, citrus, bananas, olives, sugar cane and turf.
FARM MACHINERY
Silvan Australia’s farm machinery range comprises a broad selection from the world’s
most prominent manufacturers including; Nobili mulchers, Breviglieri tillage equipment
and Sitrex hayrakes. Silvan also manufactures high quality agricultural implements
including rotary slashers, carryalls & post hole diggers.
3
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
Introduction Introduction
CONTENTS
4AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
GPS Guidance 6
Rate Controllers and Autosteer 7-10
Ultrasonic Sensors and Monitors 11-12

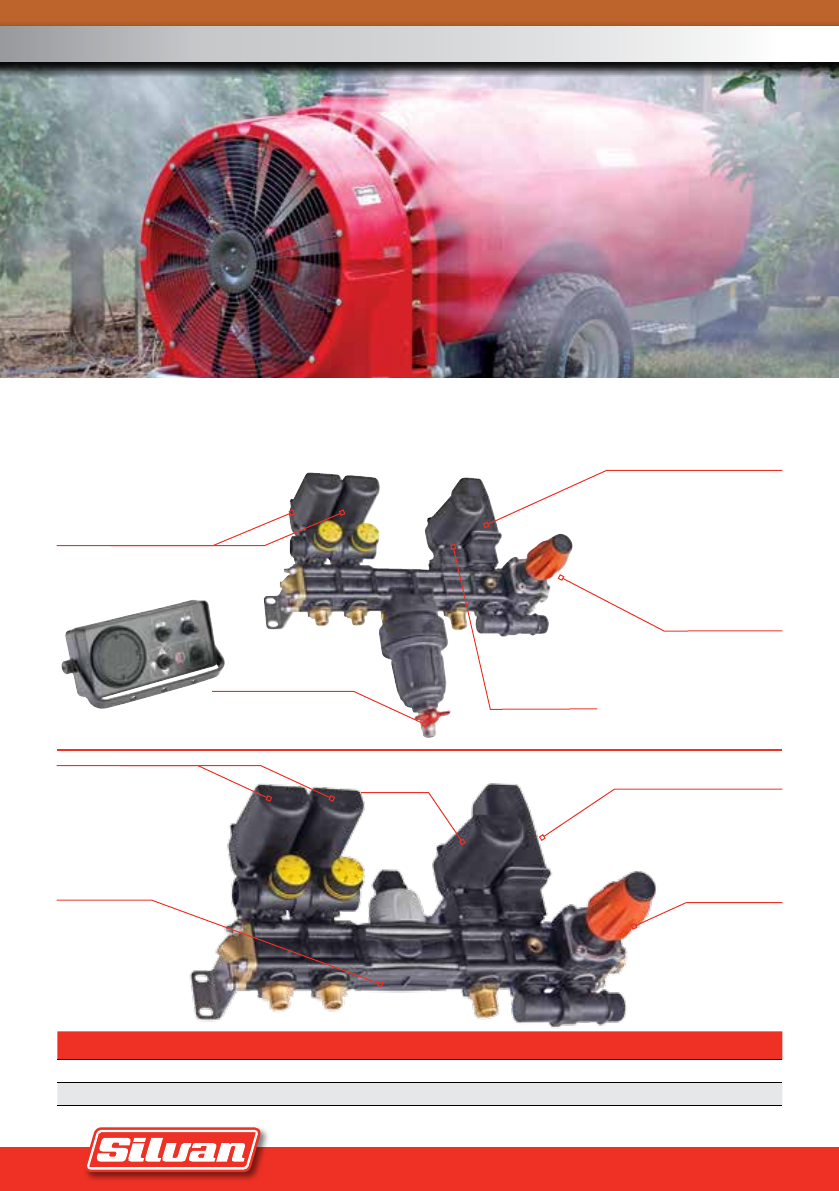

Low and High Pressure Valve Banks 13-15
Flowmeters and Foam Markers 16-18

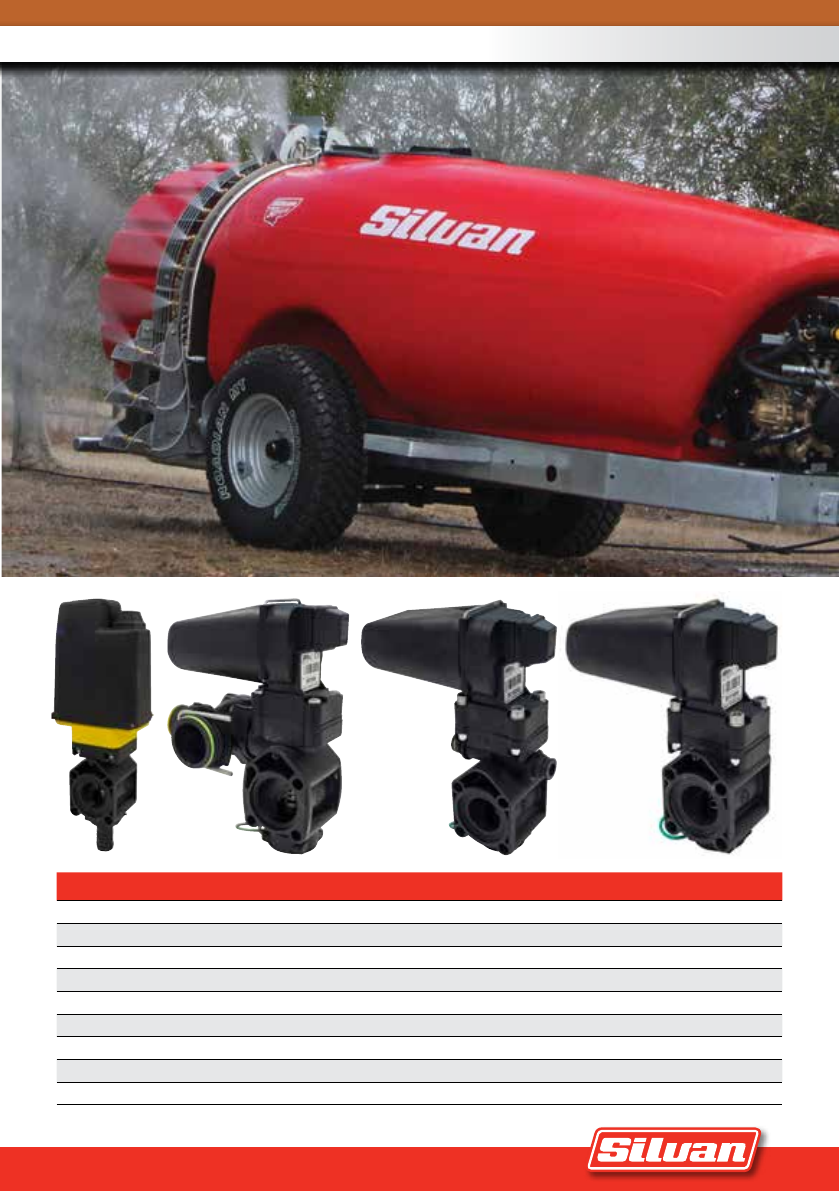

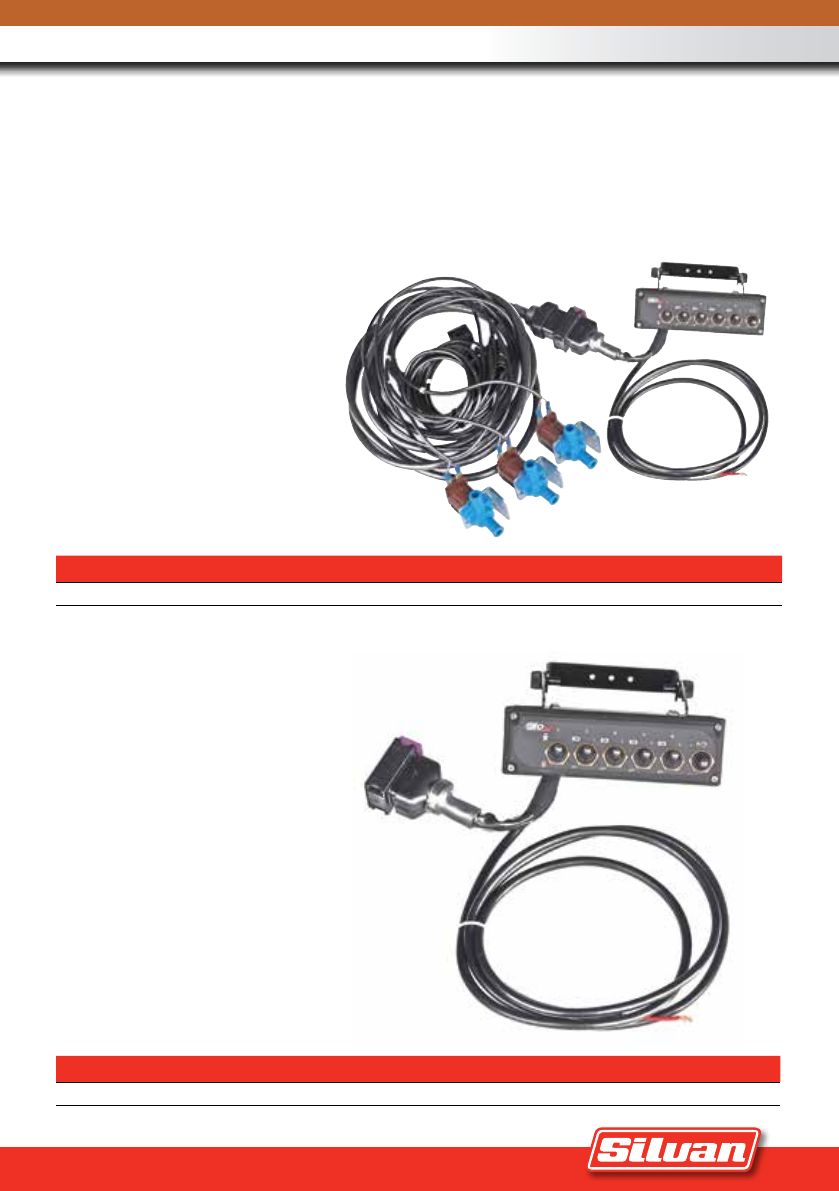

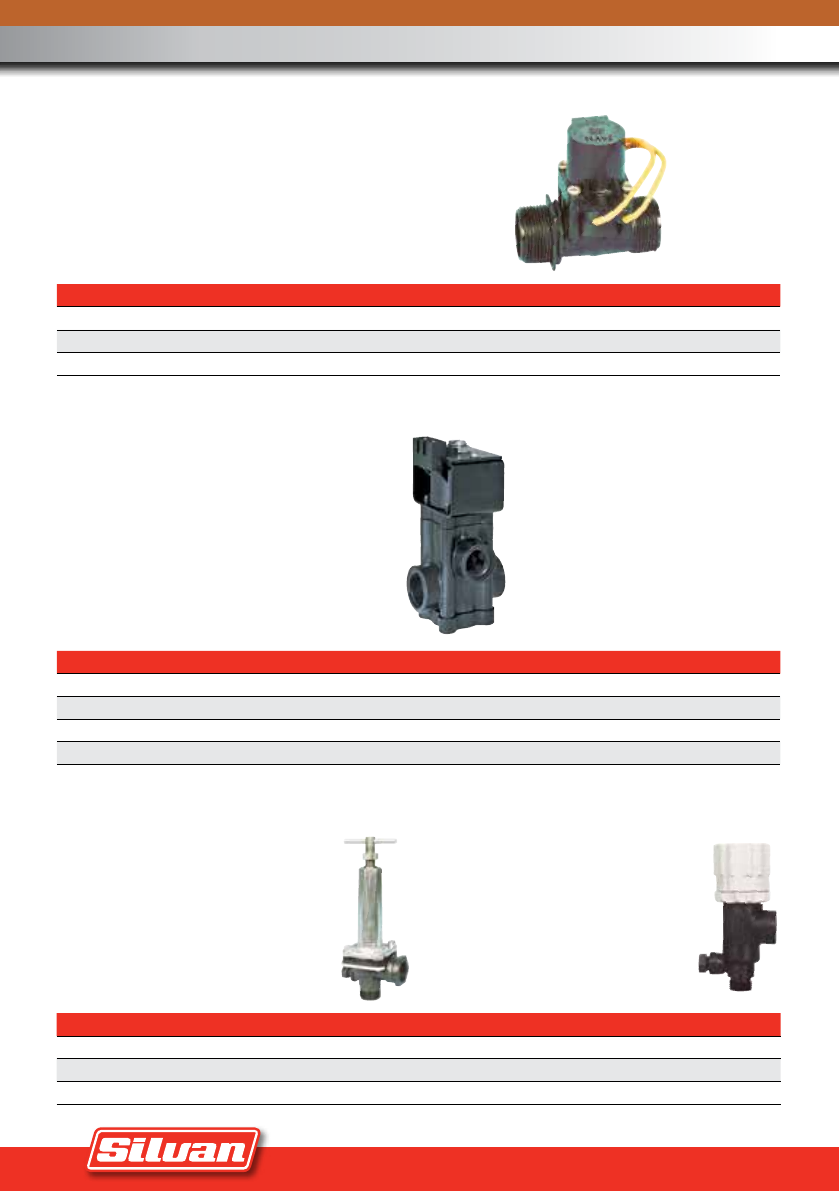

Electric Solenoid Controls 19
High Pressure Solenoids & Electric Motor Valve Controls 20
Goyen Solenoids 21
Pressure Relief Valves and Foam Marker Solenoids 22
Teejet Control Valves and Chemical Transfer 23
Motorised Diaphragm Pumps 25
PTO Diaphragm Pumps 26-27
Diaphragm Pump Controls 28

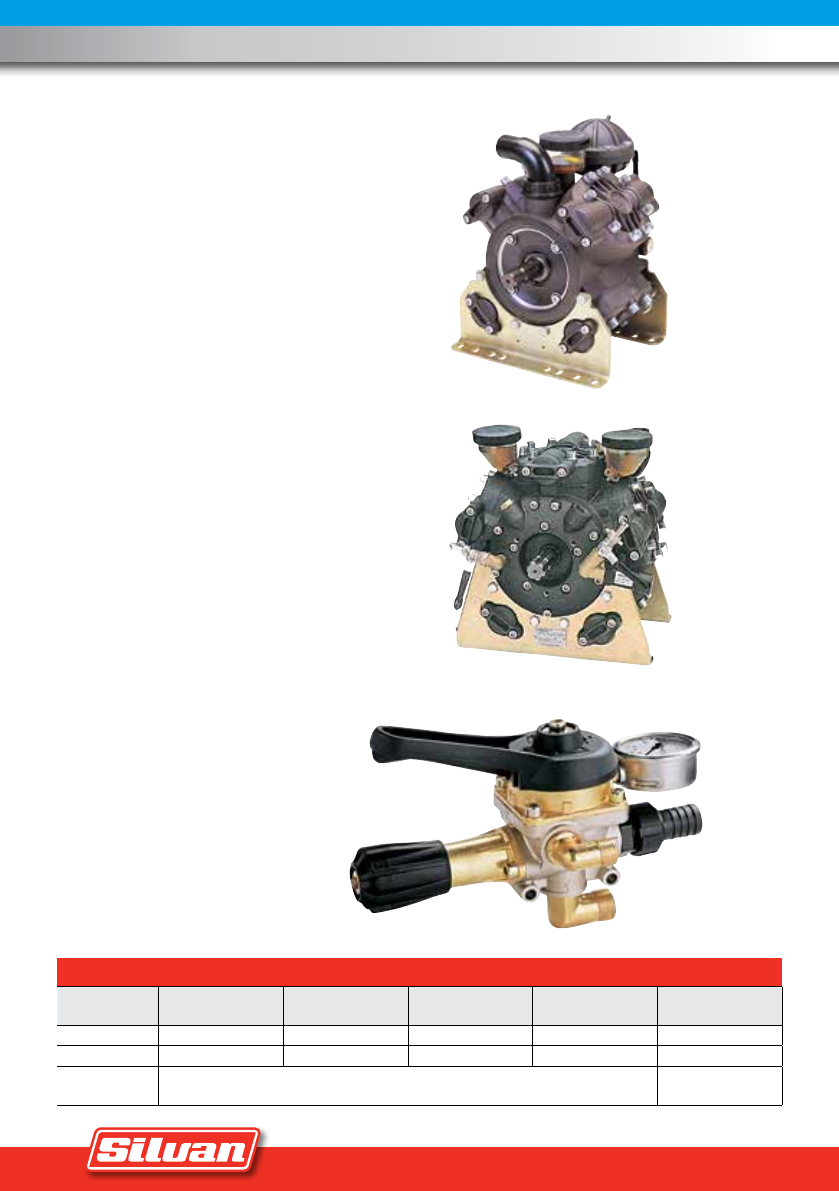

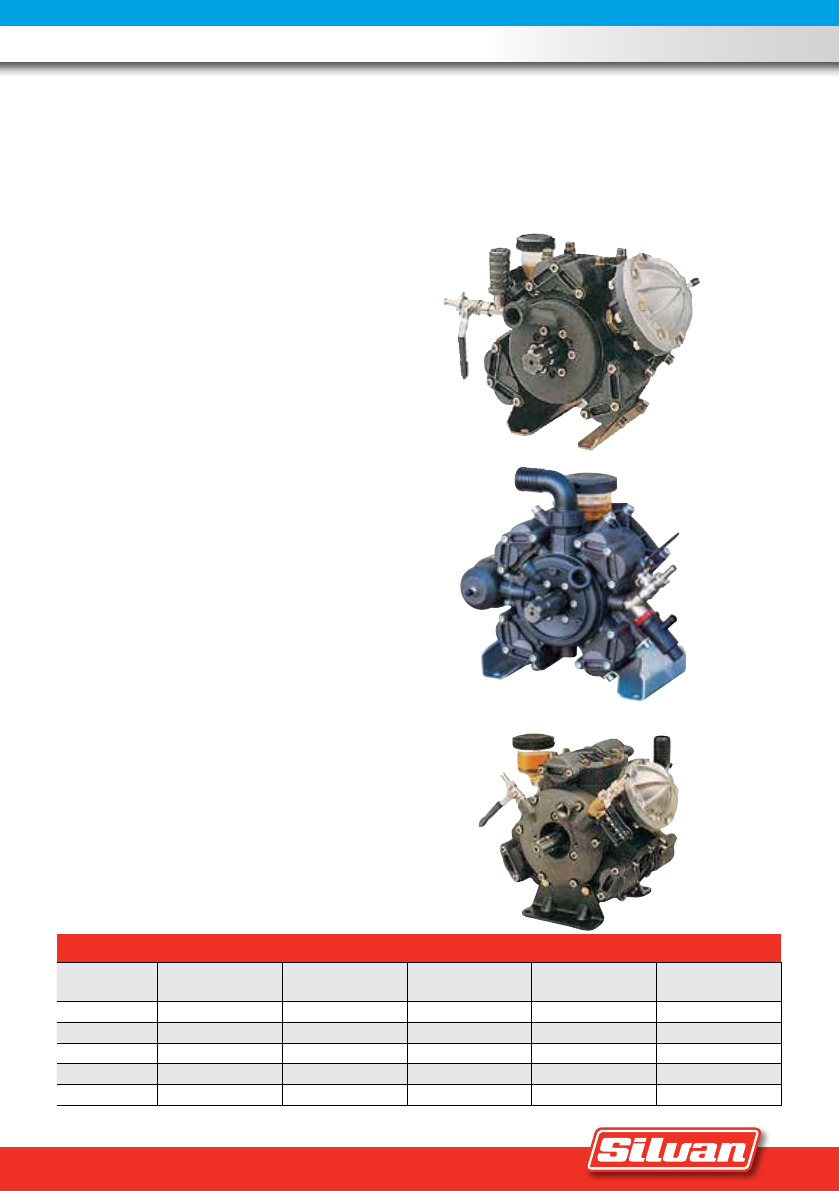

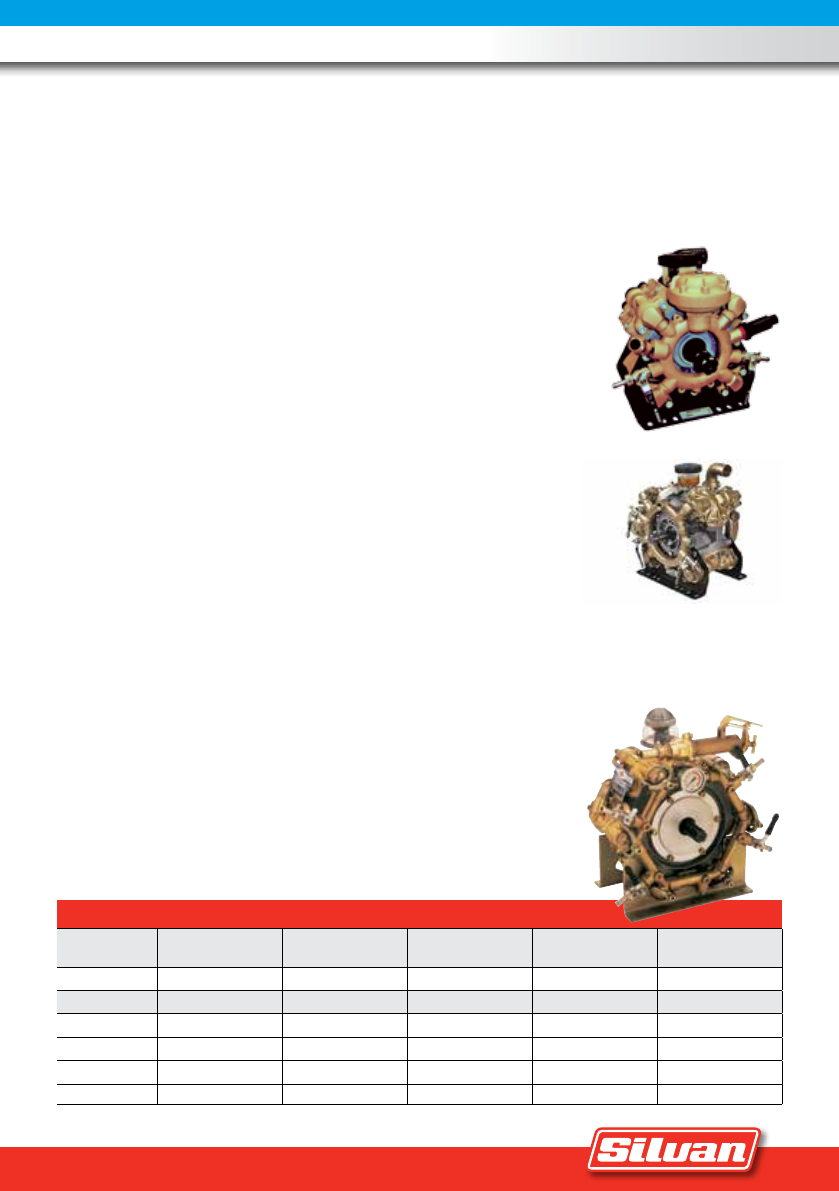

High Pressure Diaphragm Pumps 29-31
Diaphragm Pump Service Kits 32

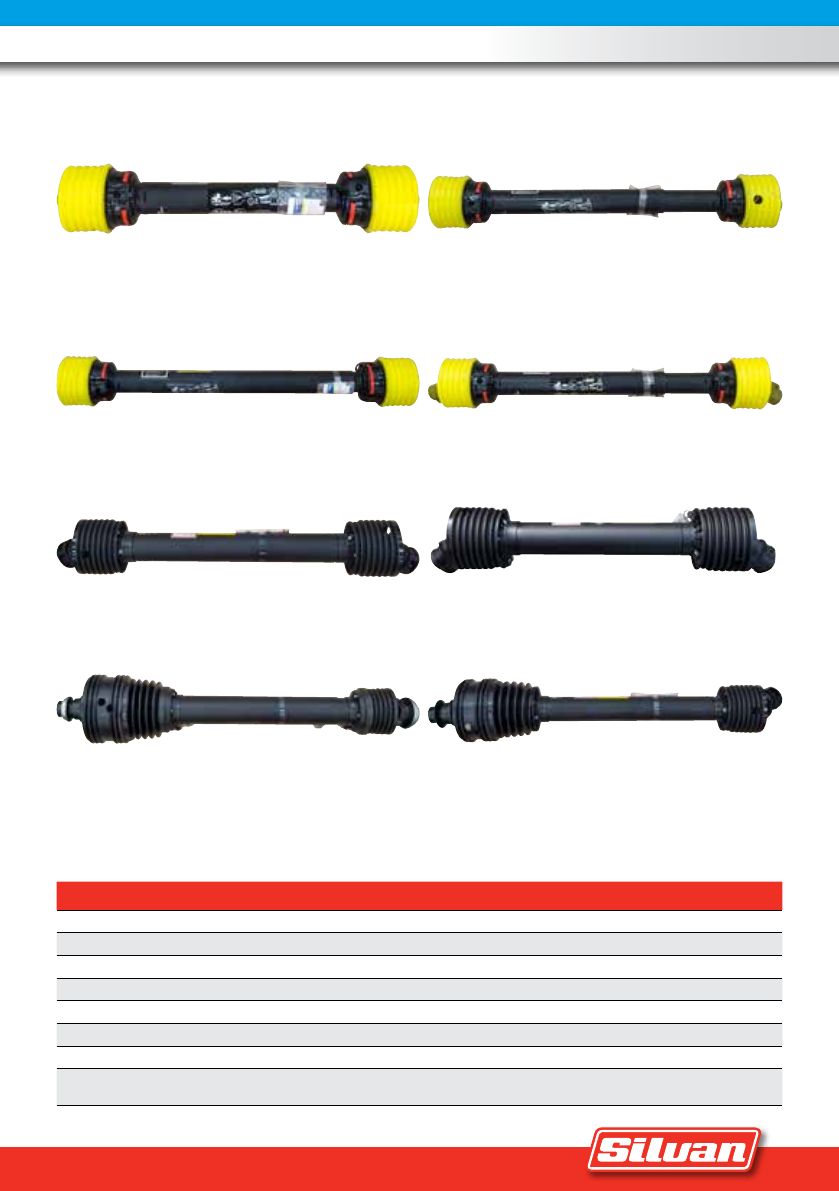

PTO Shafts 33

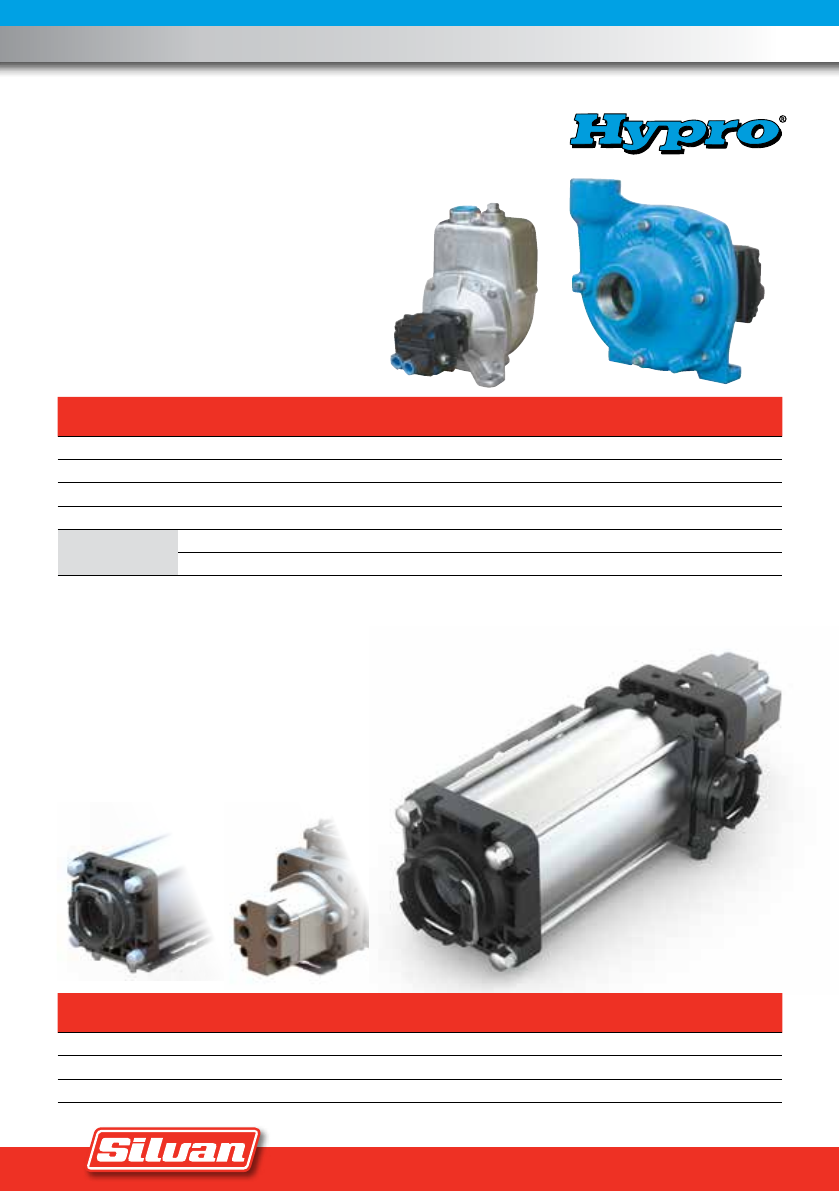

Hydraulic Drive Centrifugal Pumps 34

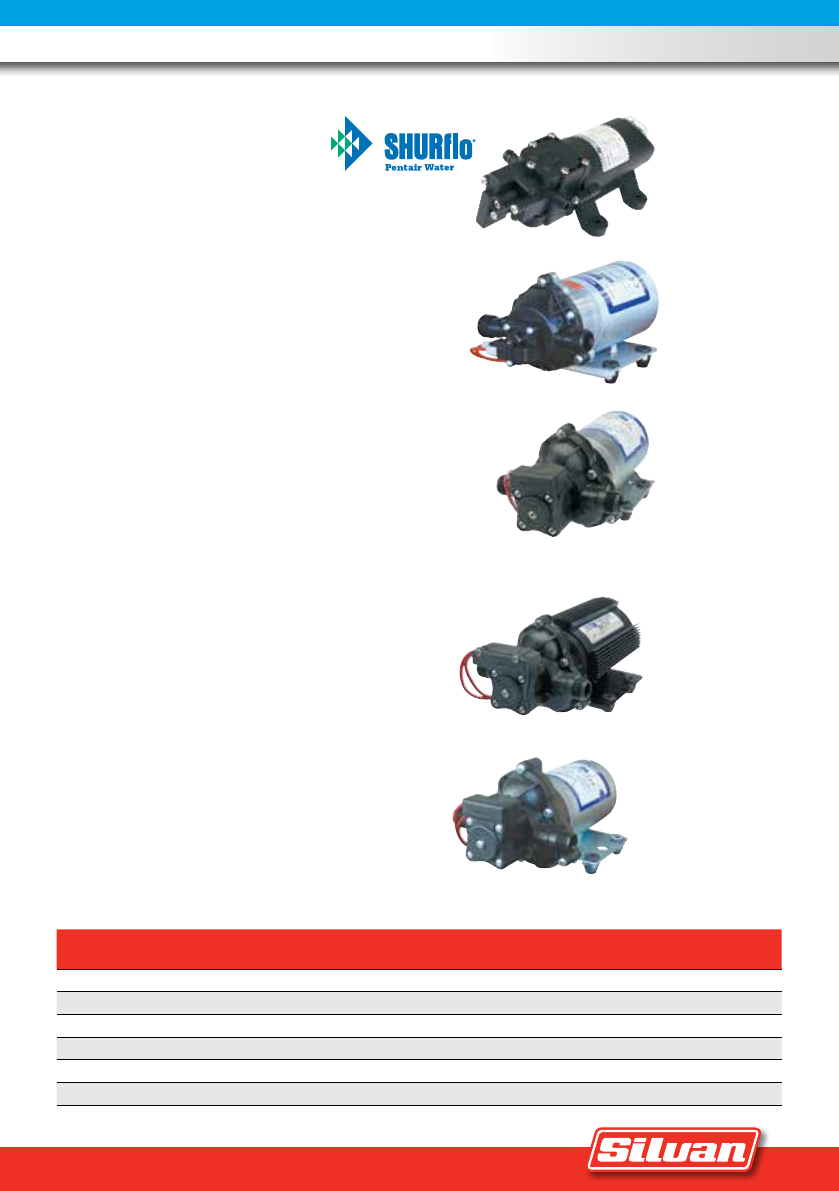

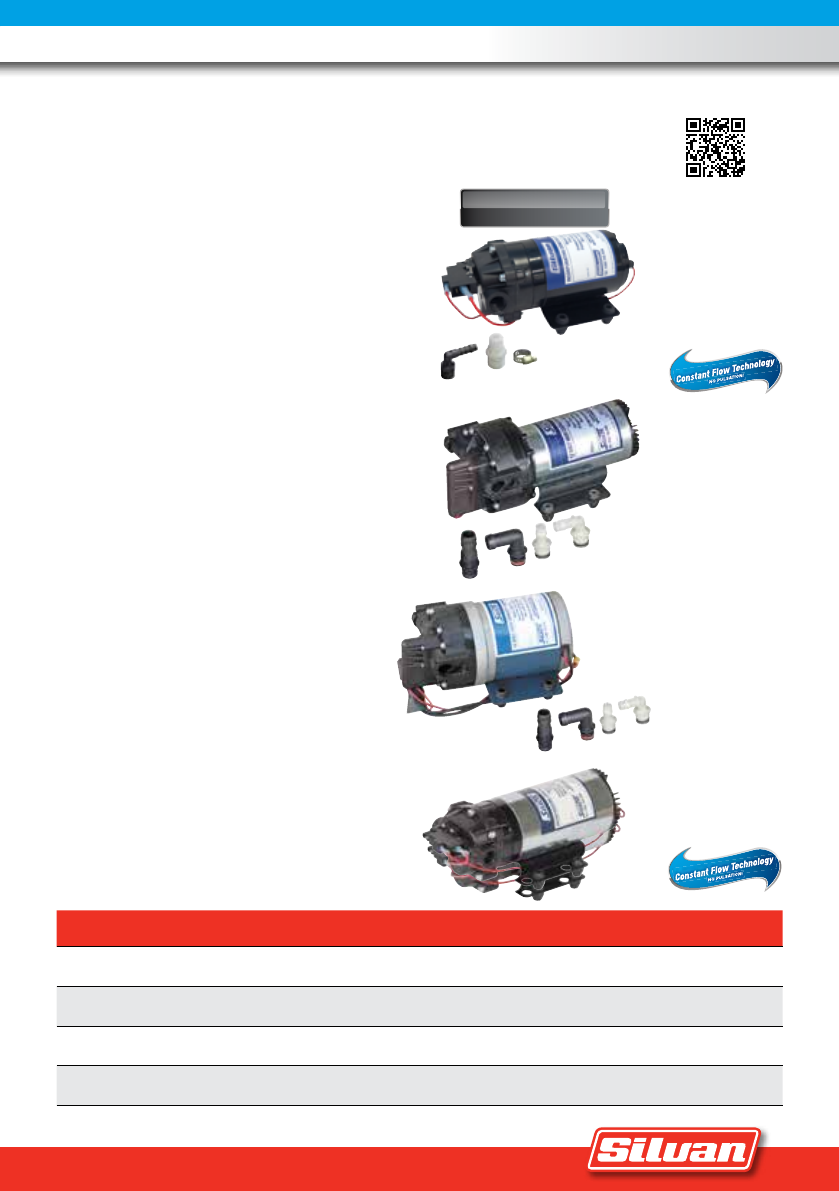

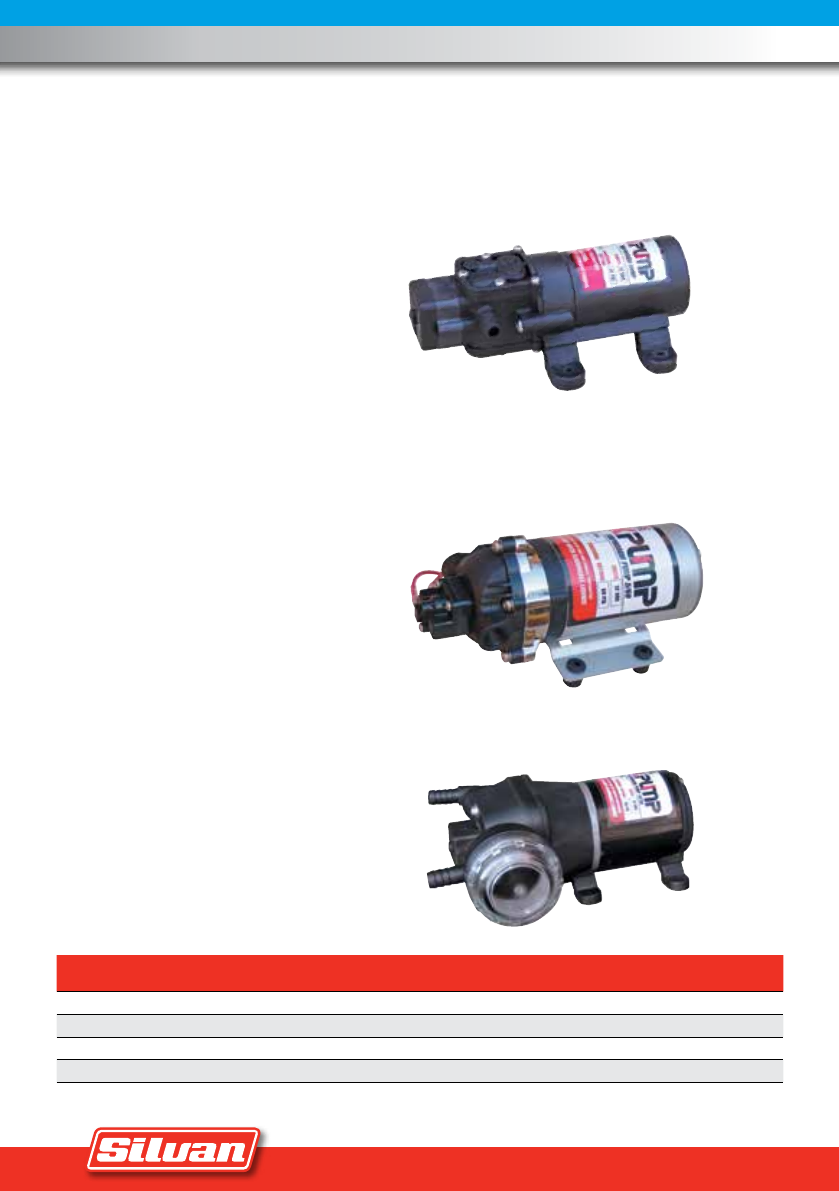

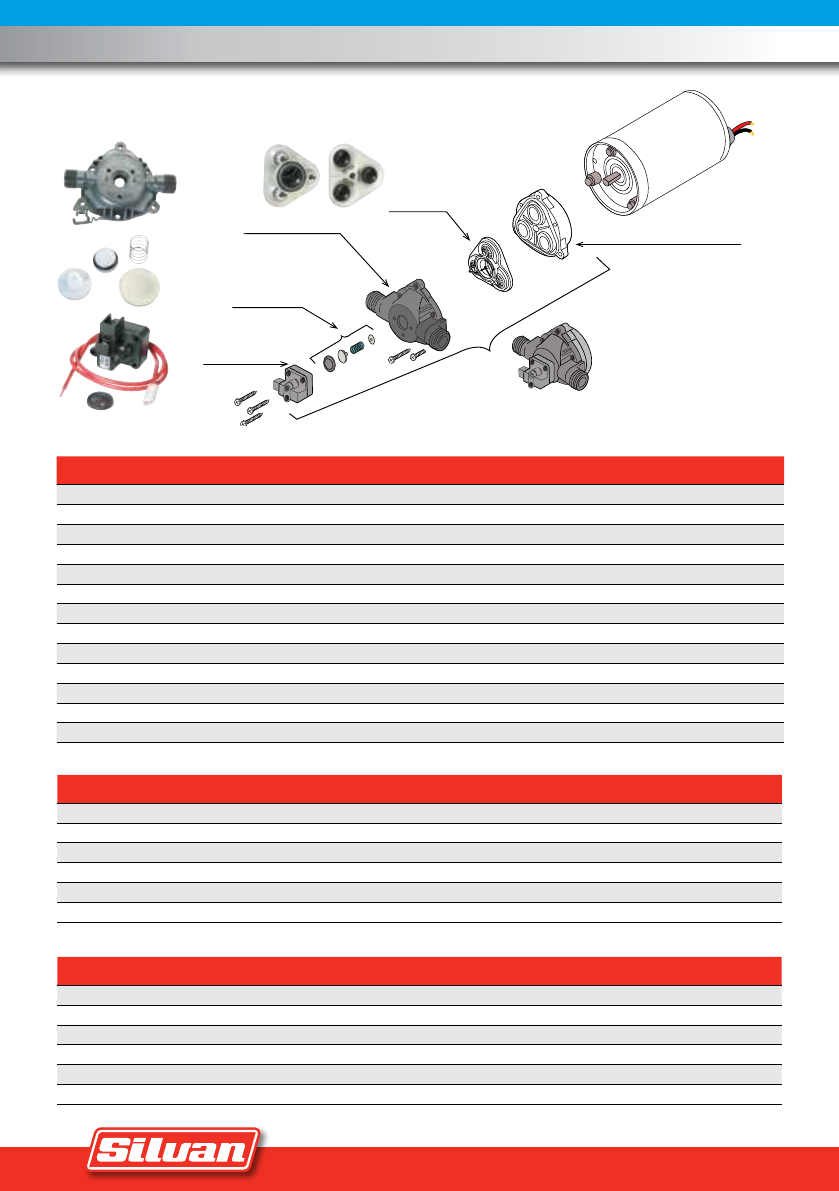

12 Volt Pumps and 12 Volt Pump Service Kits 35-39

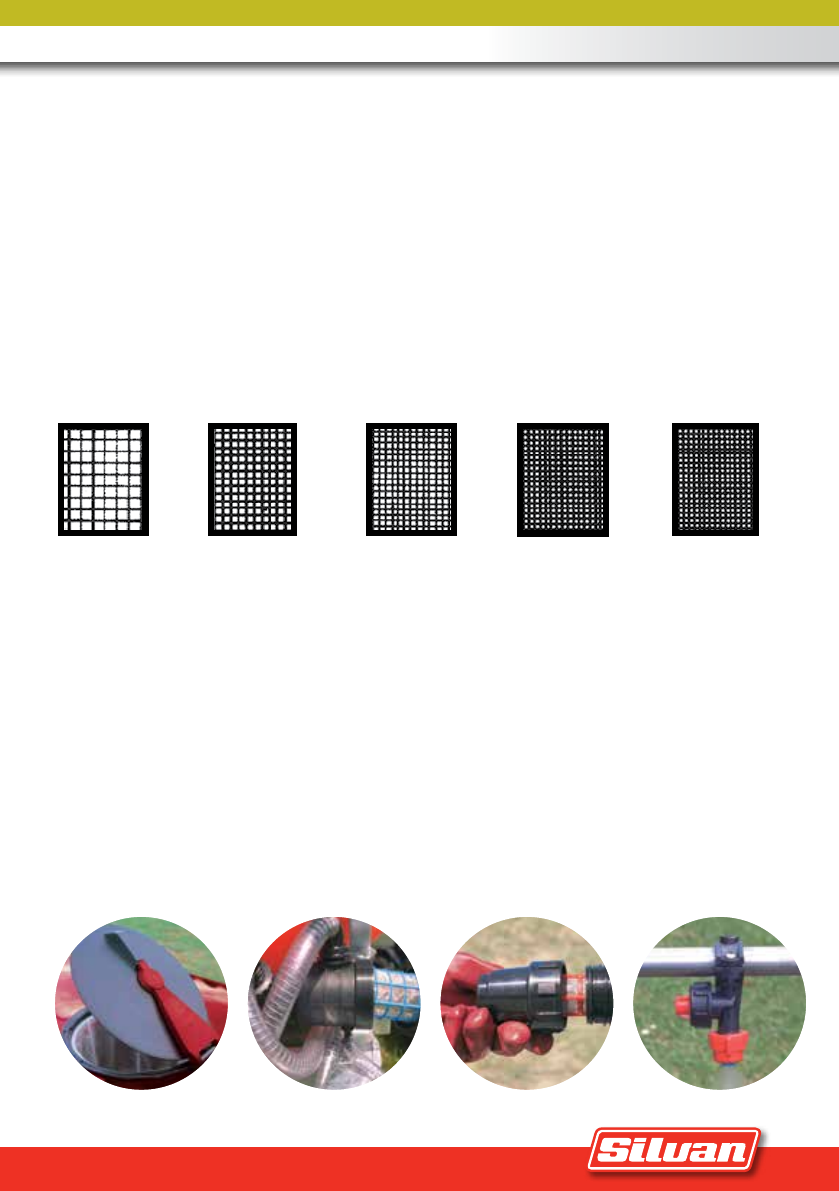

Filtration 41

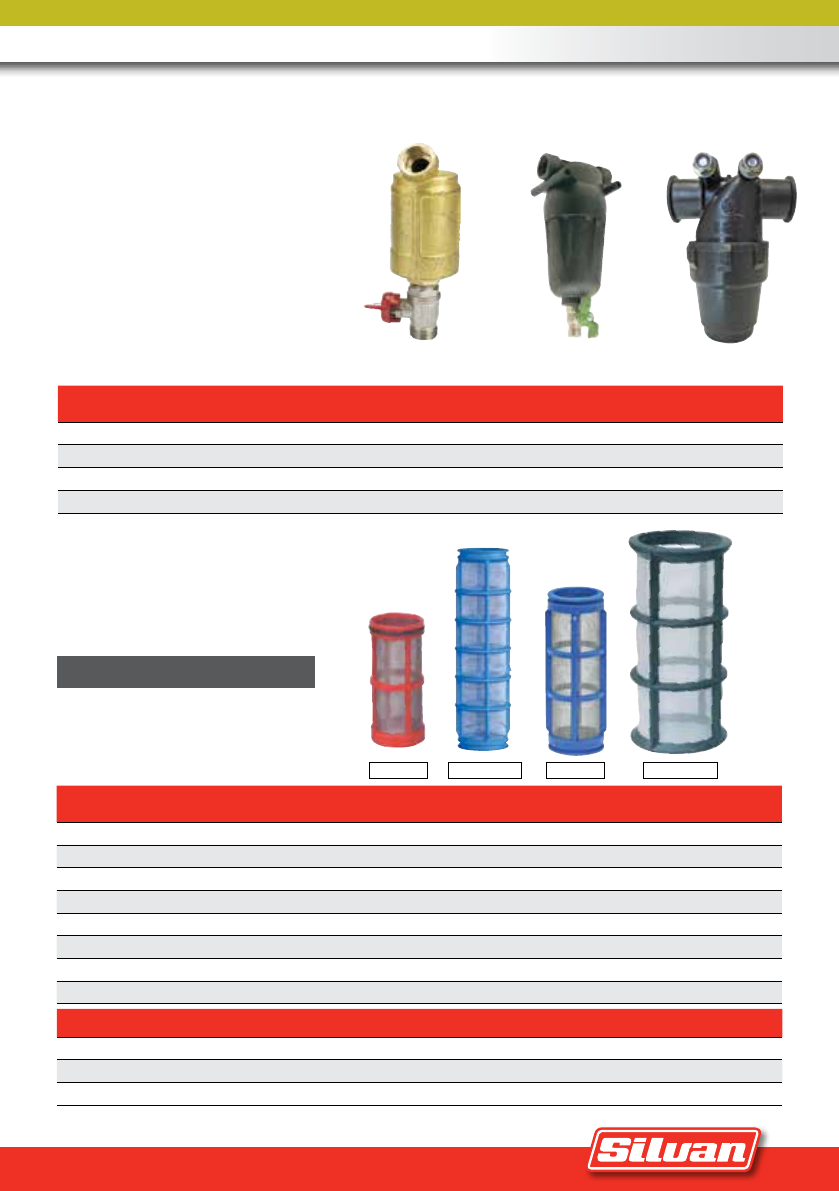

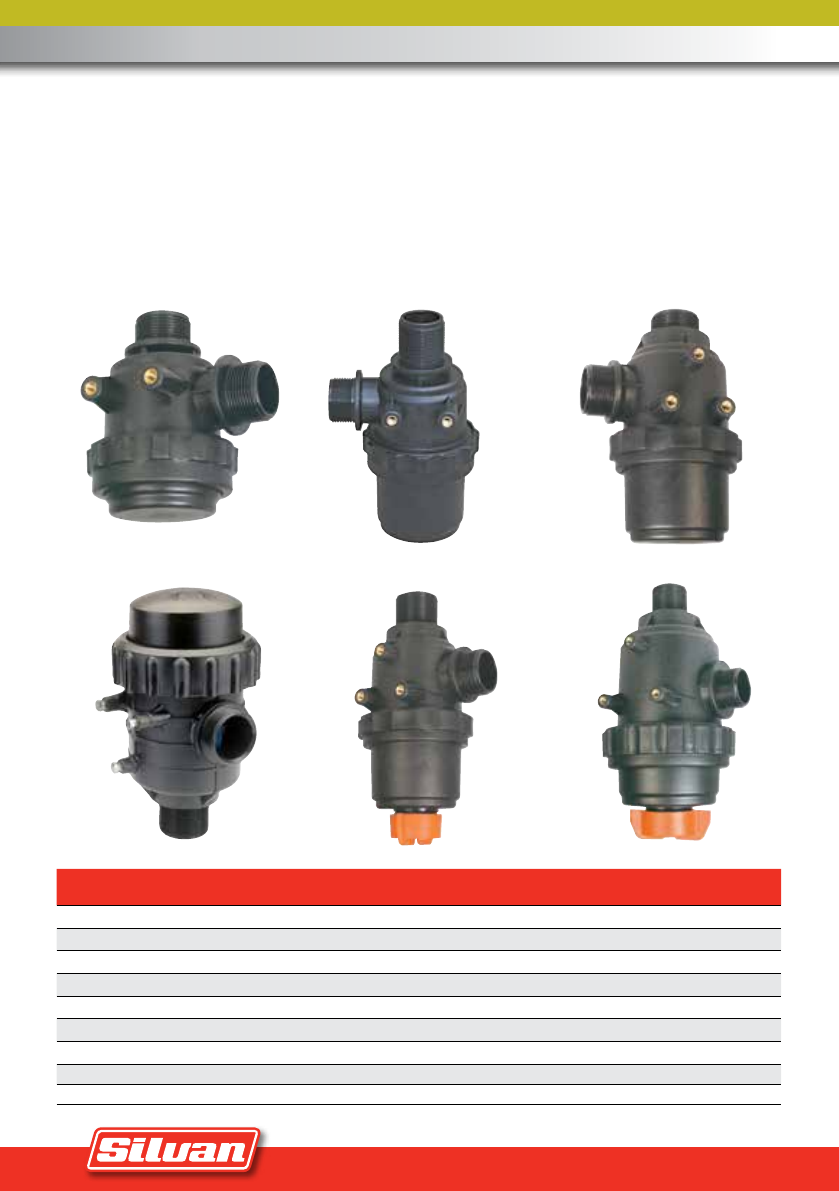

Suction Filters 42-43

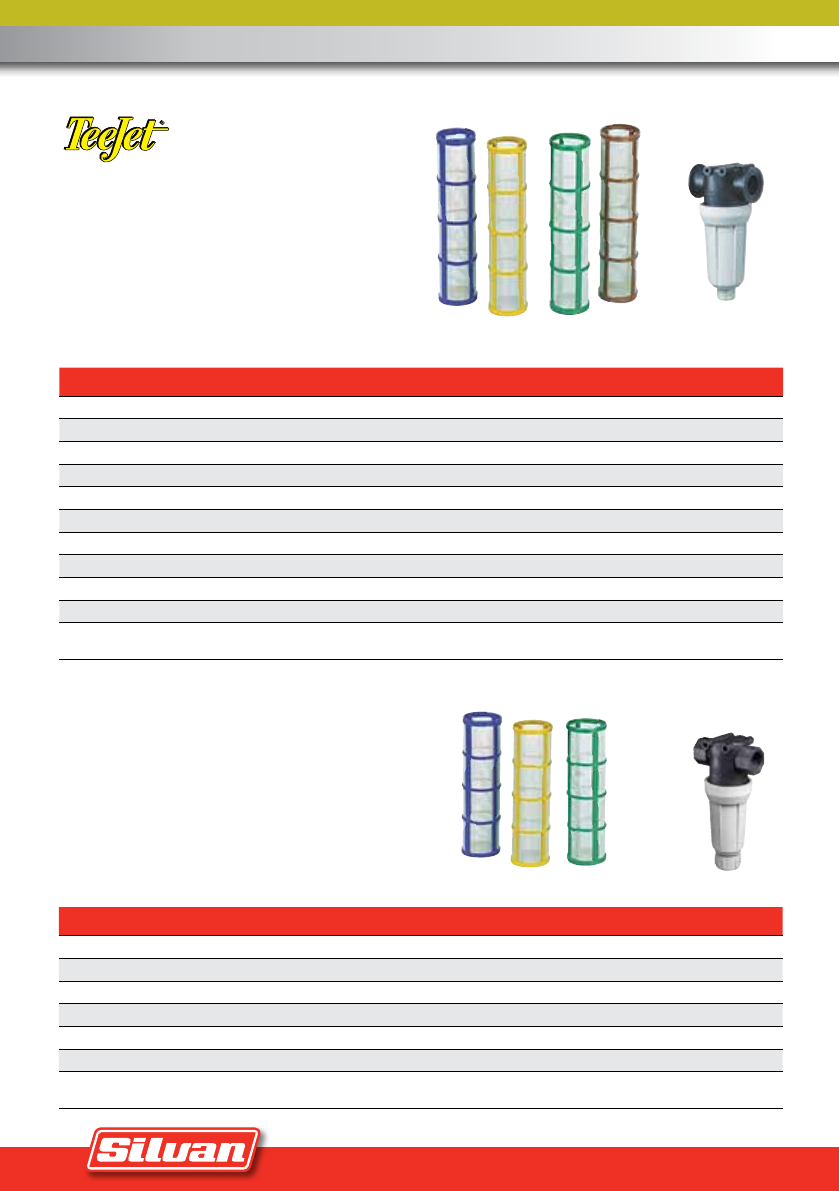

Pressure Filters 43-45

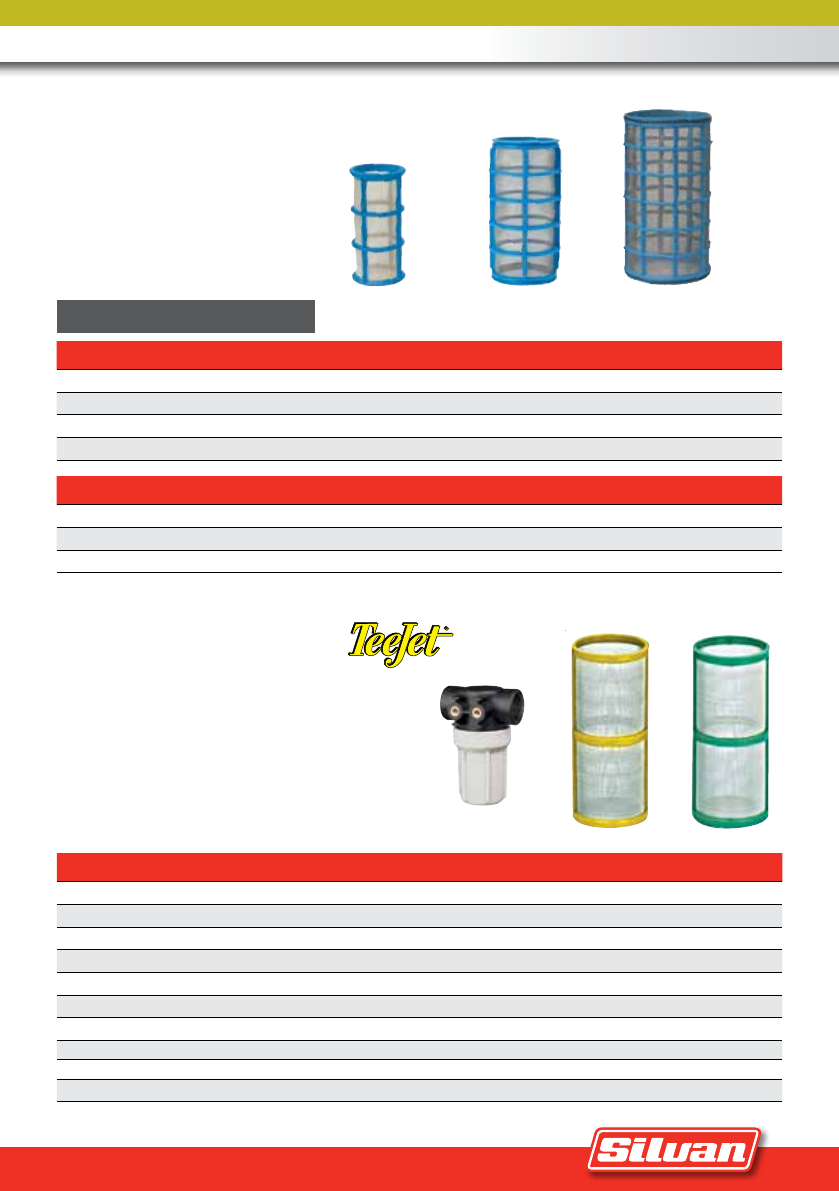

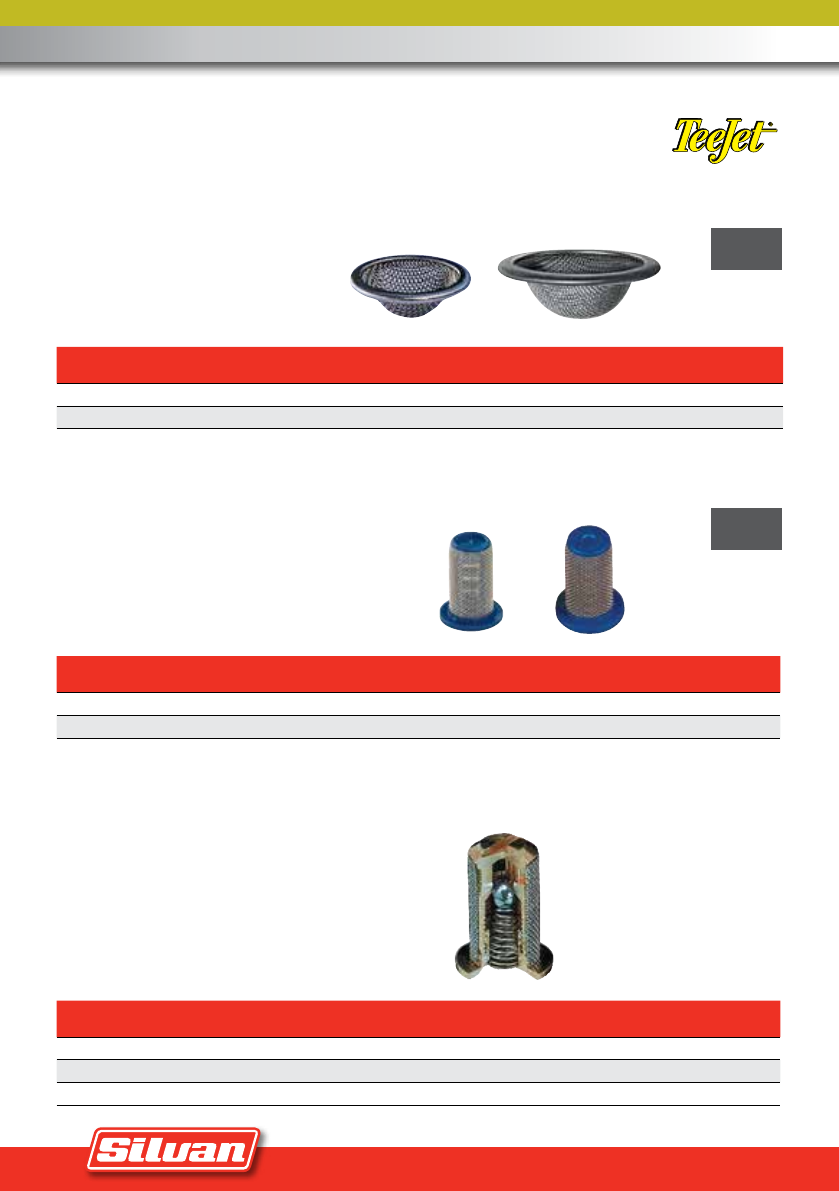

Nozzle Strainers 46

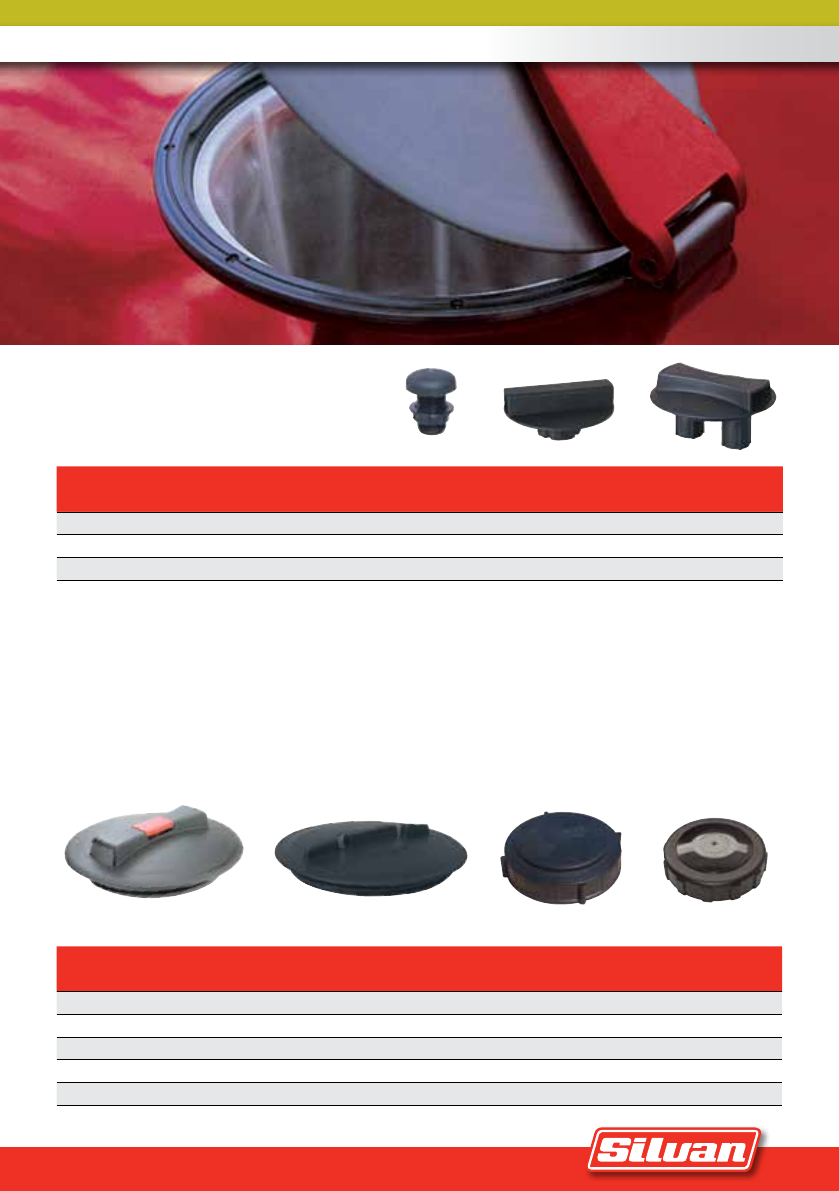

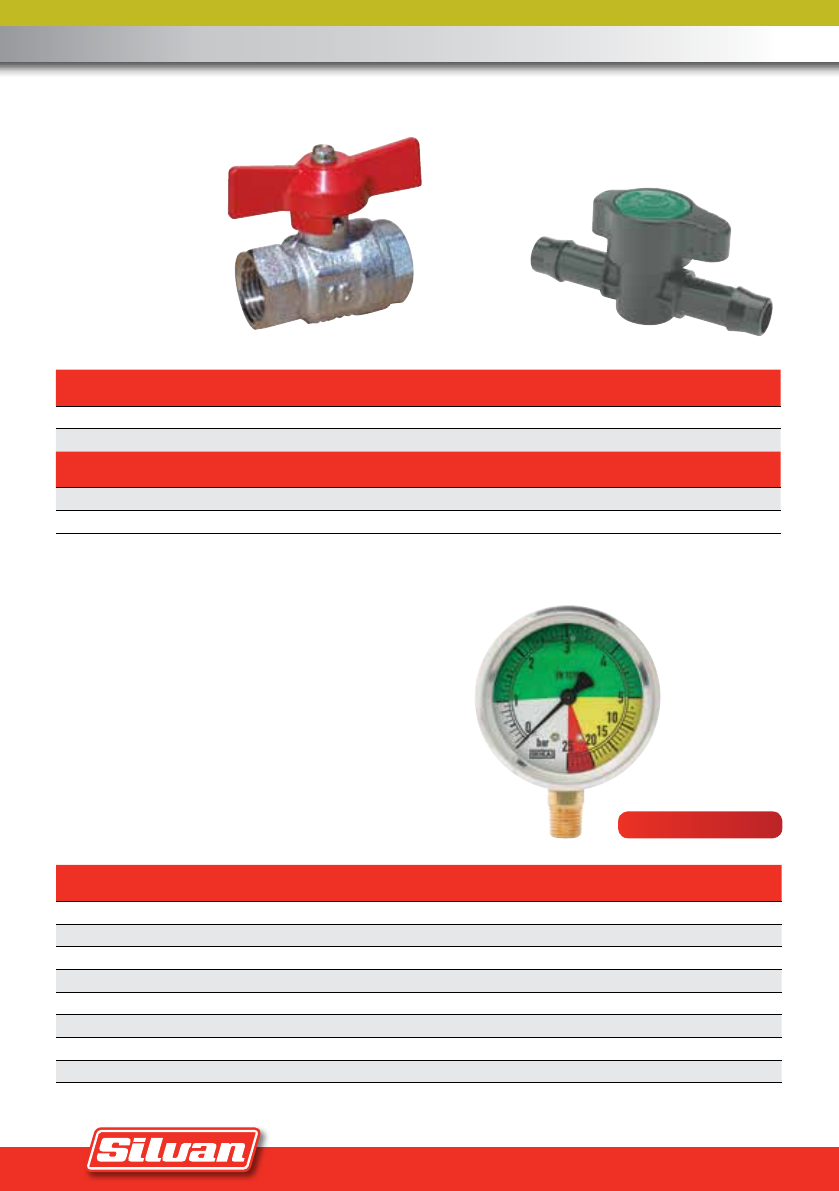

Tank Lids and Ball Valves 47-50
Pressure Gauges 50
Tank Rinsing and Sight Gauges 51

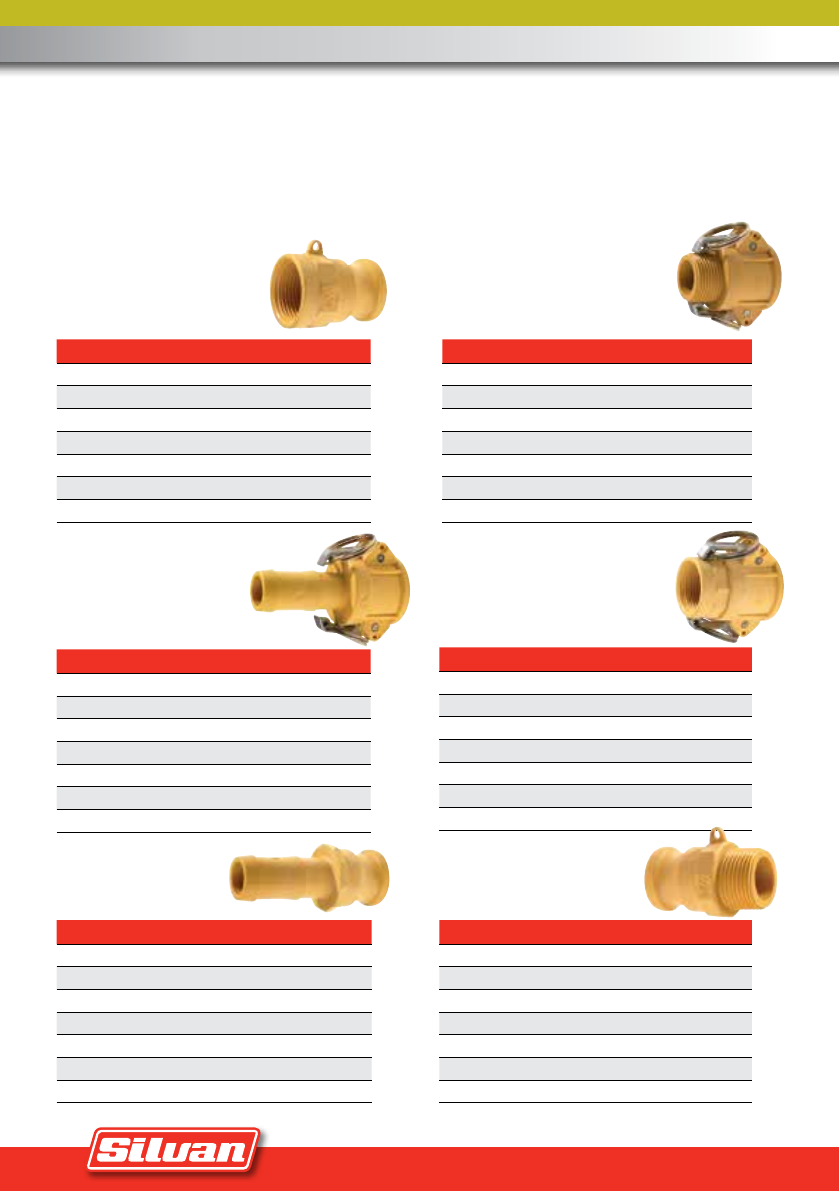

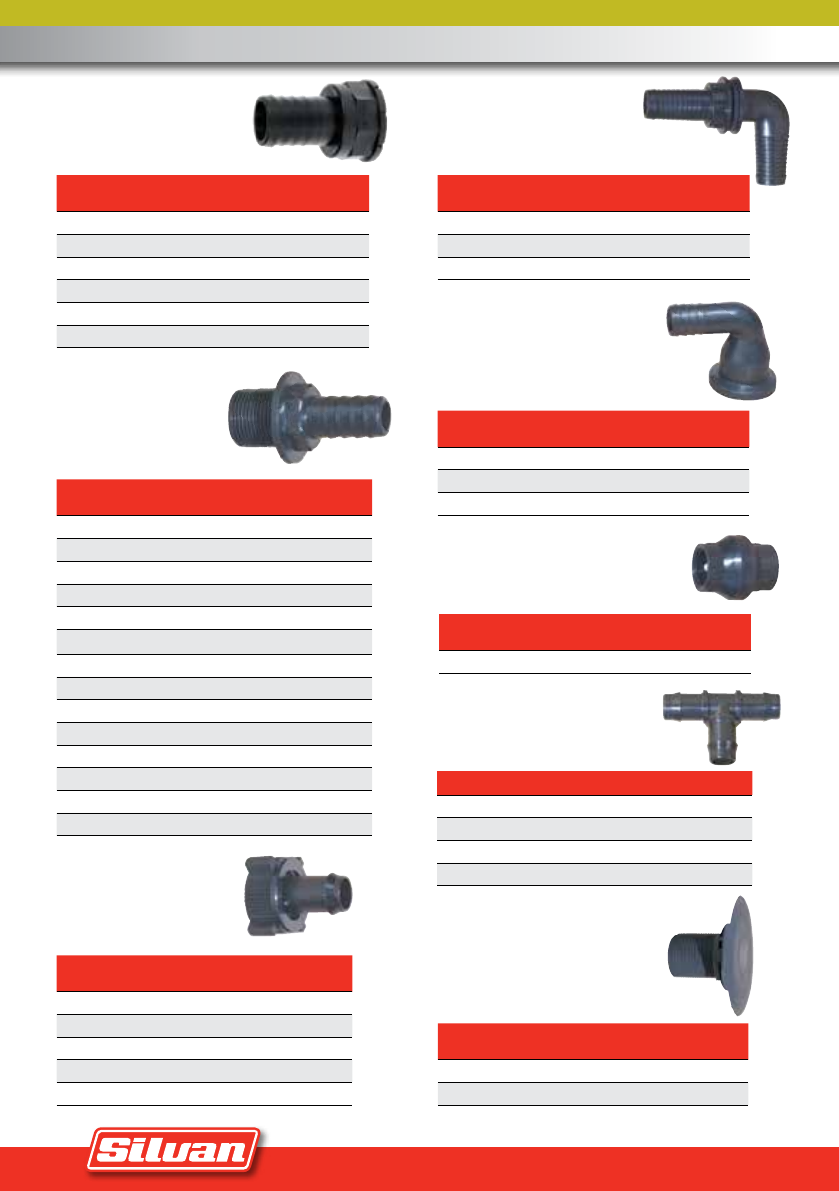

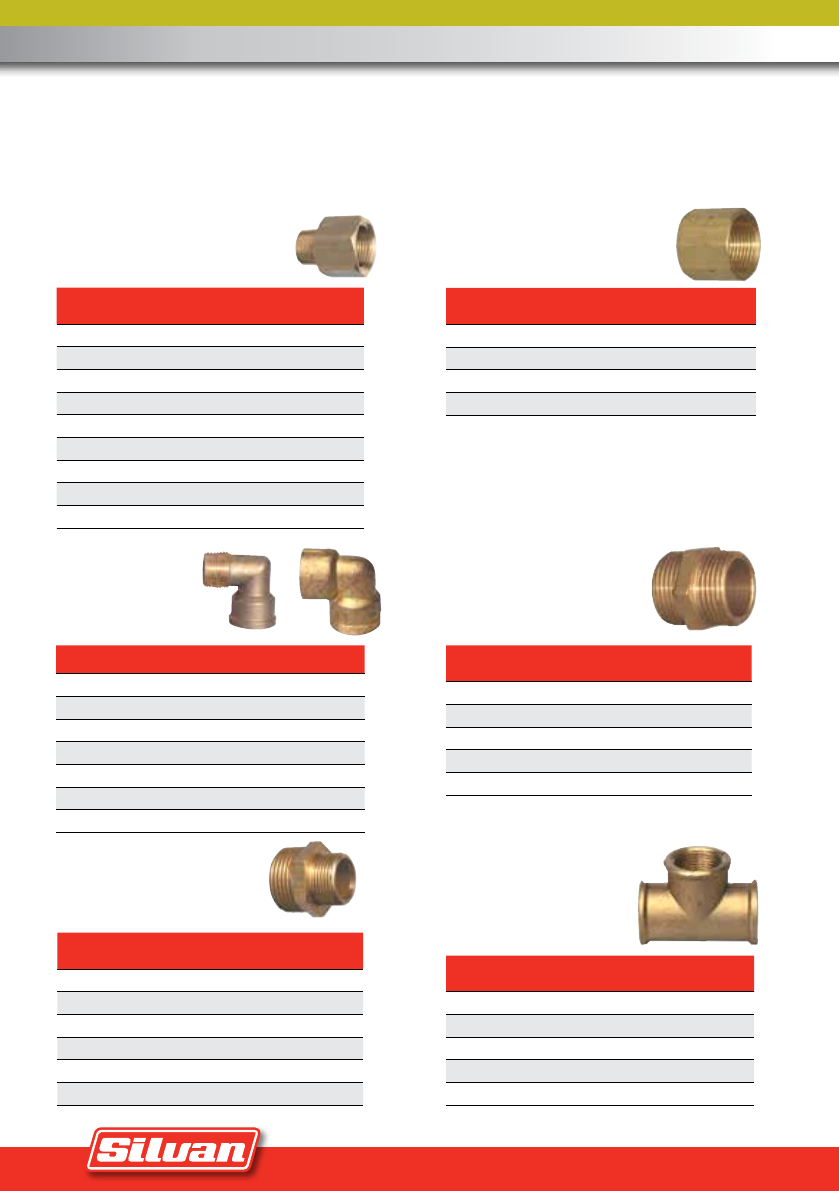

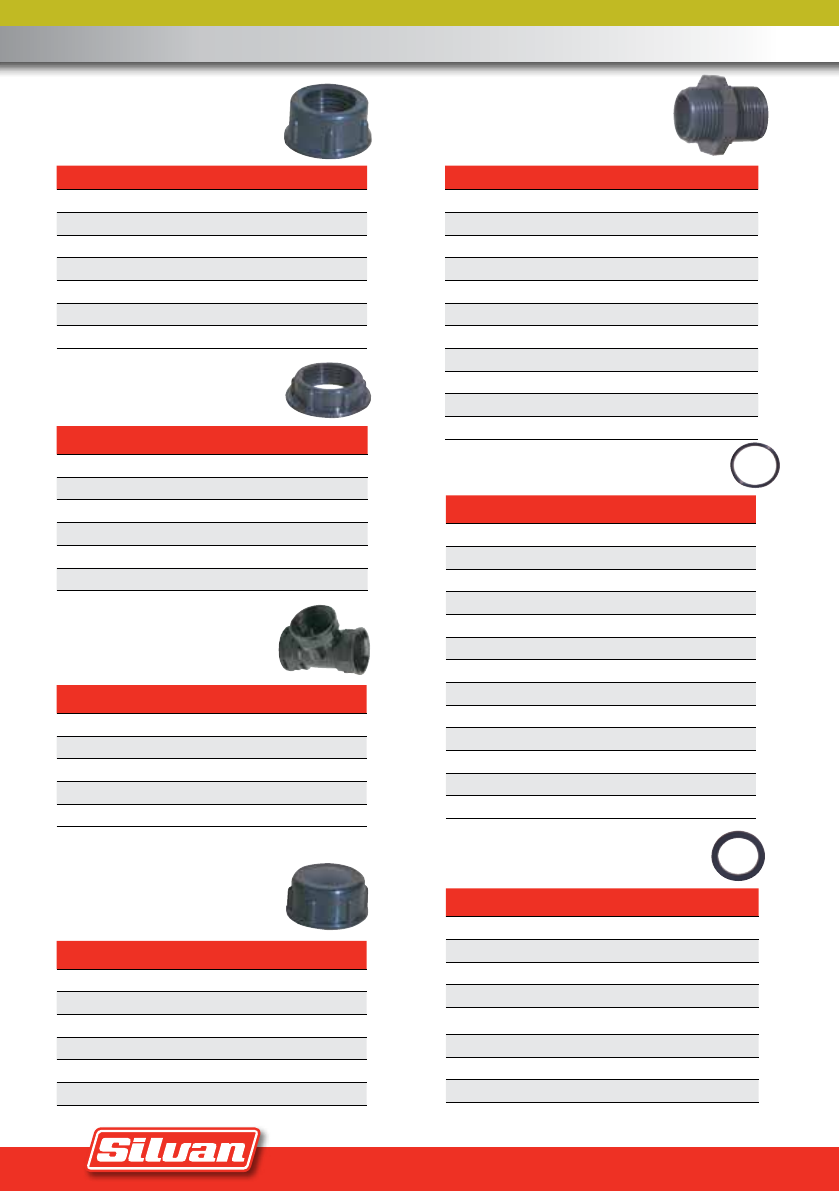

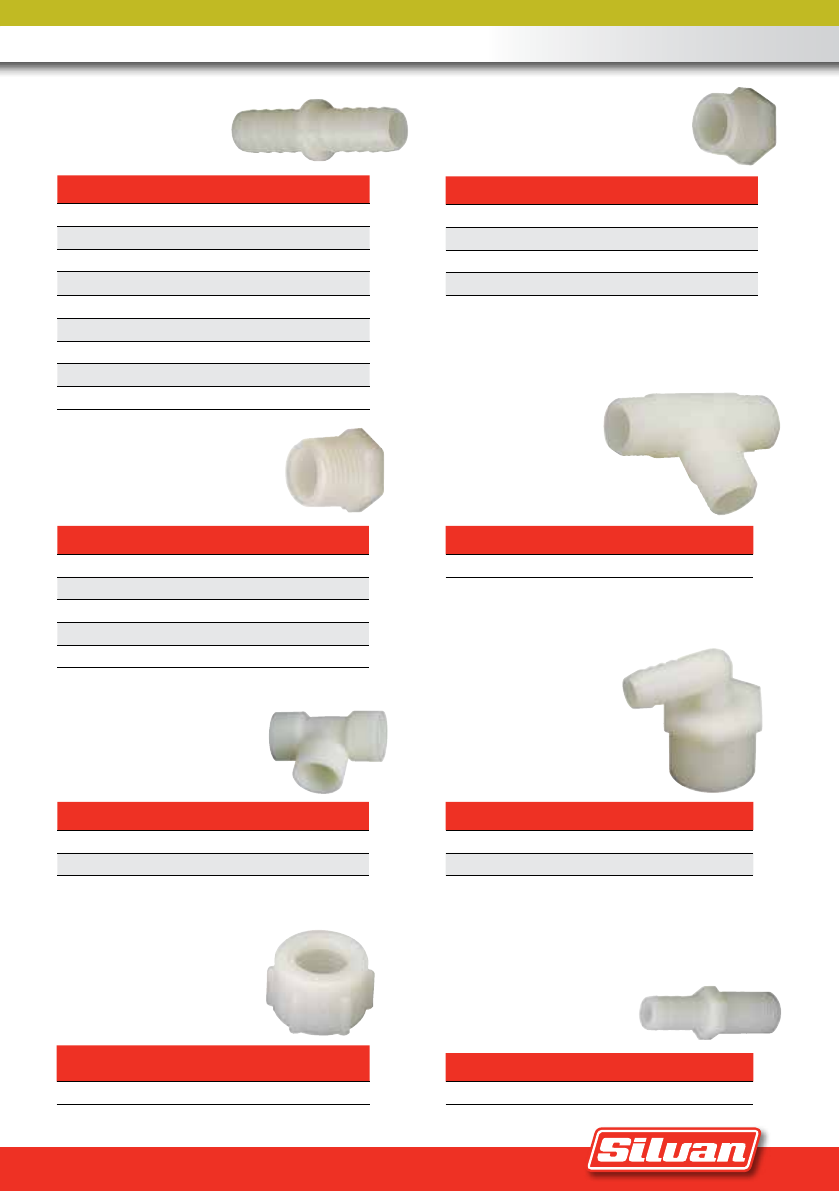

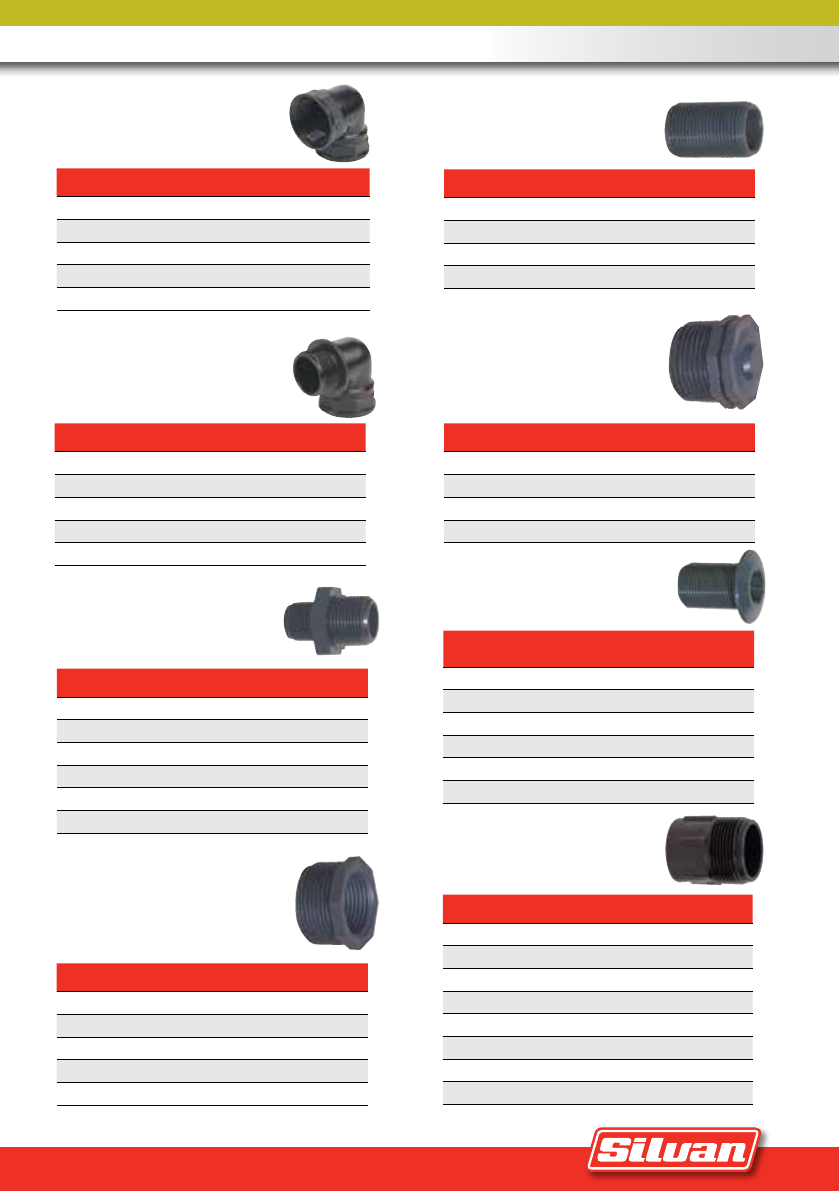

Camlever Couplings and Plumbing Accessories 52-62
Hose and Agitators 63-65

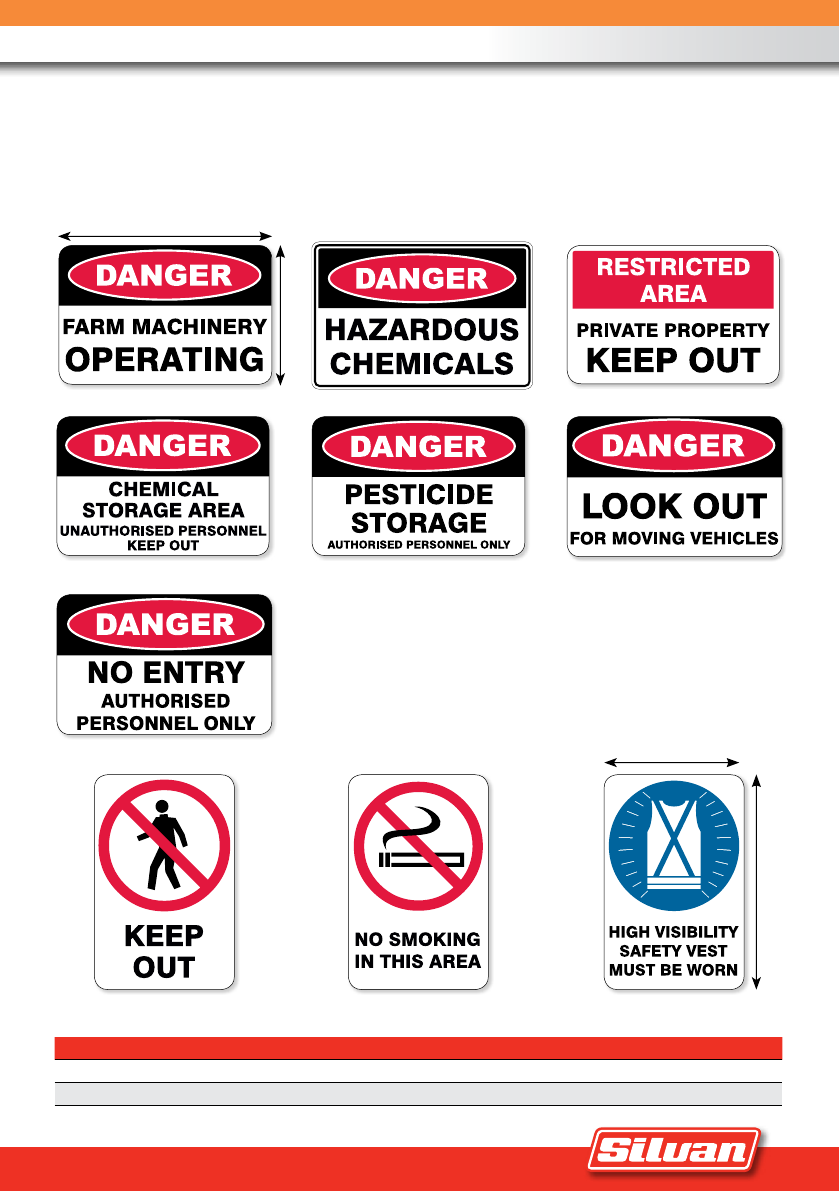

Safety Warning Signs 101

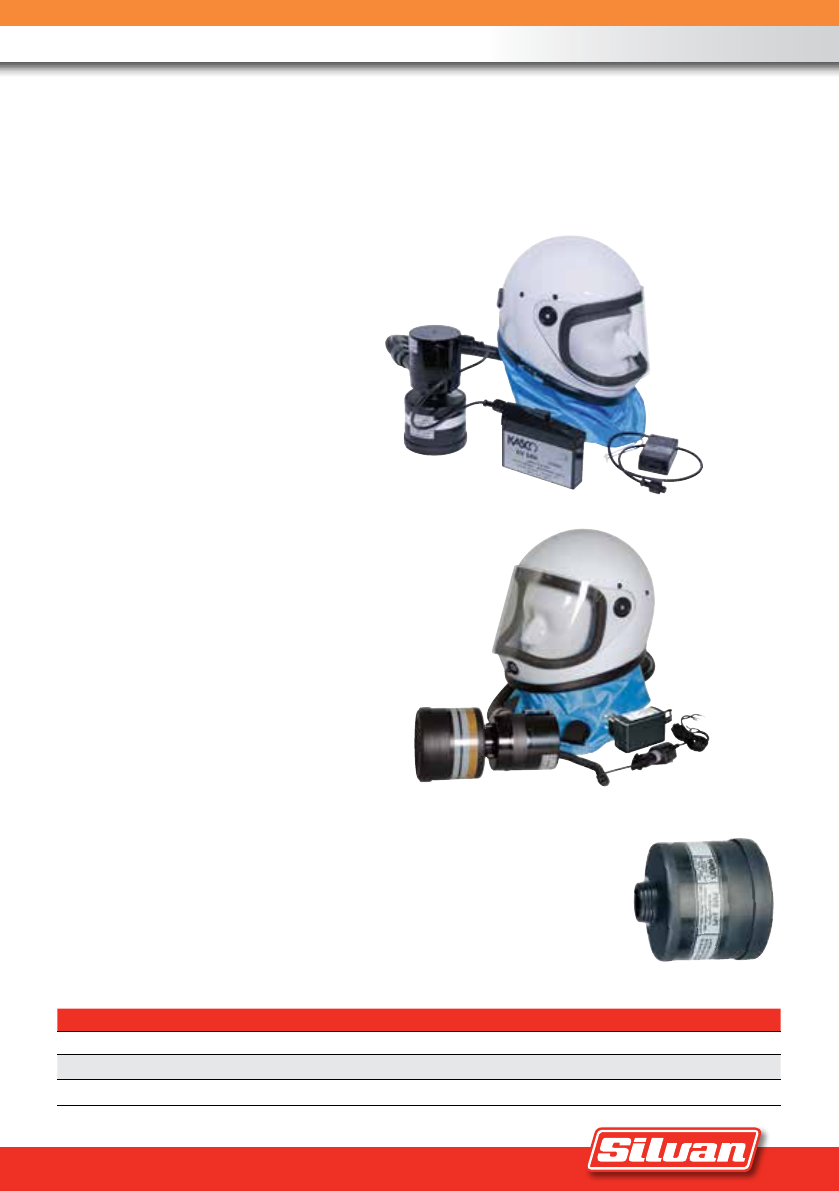

Safety Gear 102-103

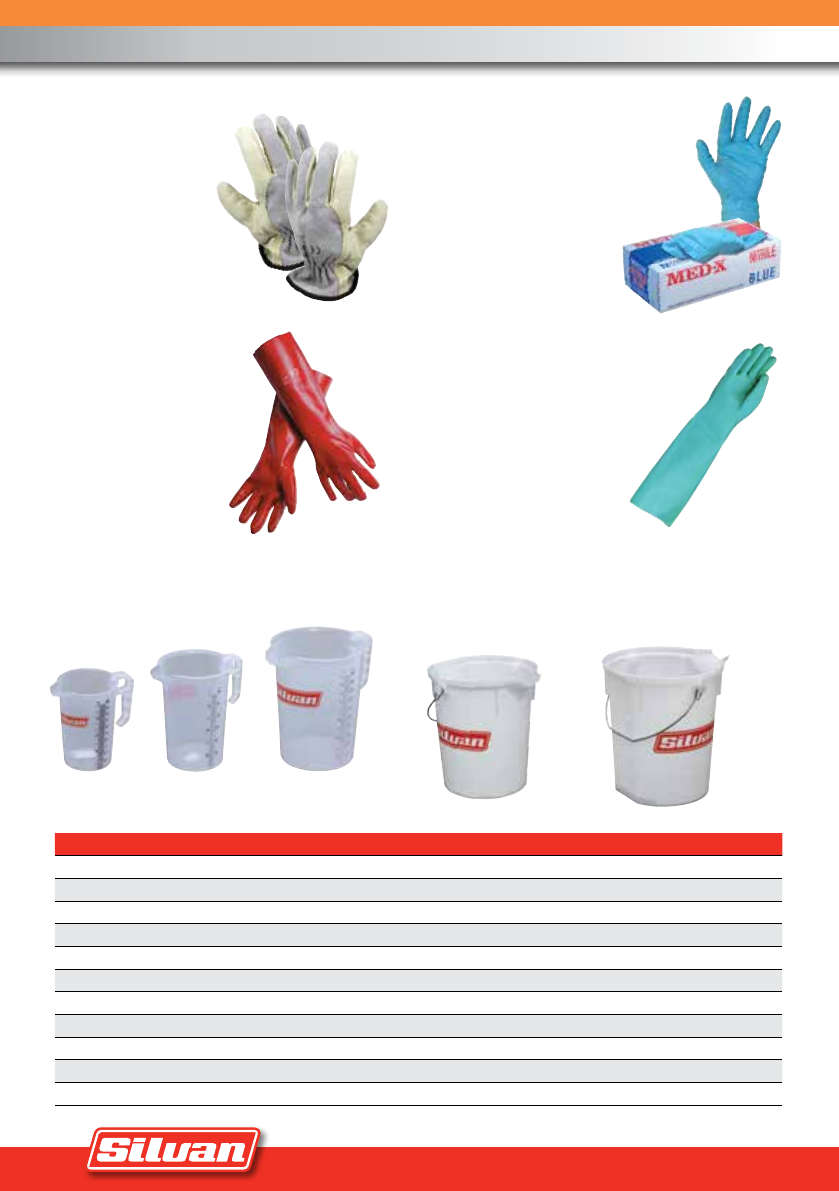

Gloves and Measuring Jugs 104

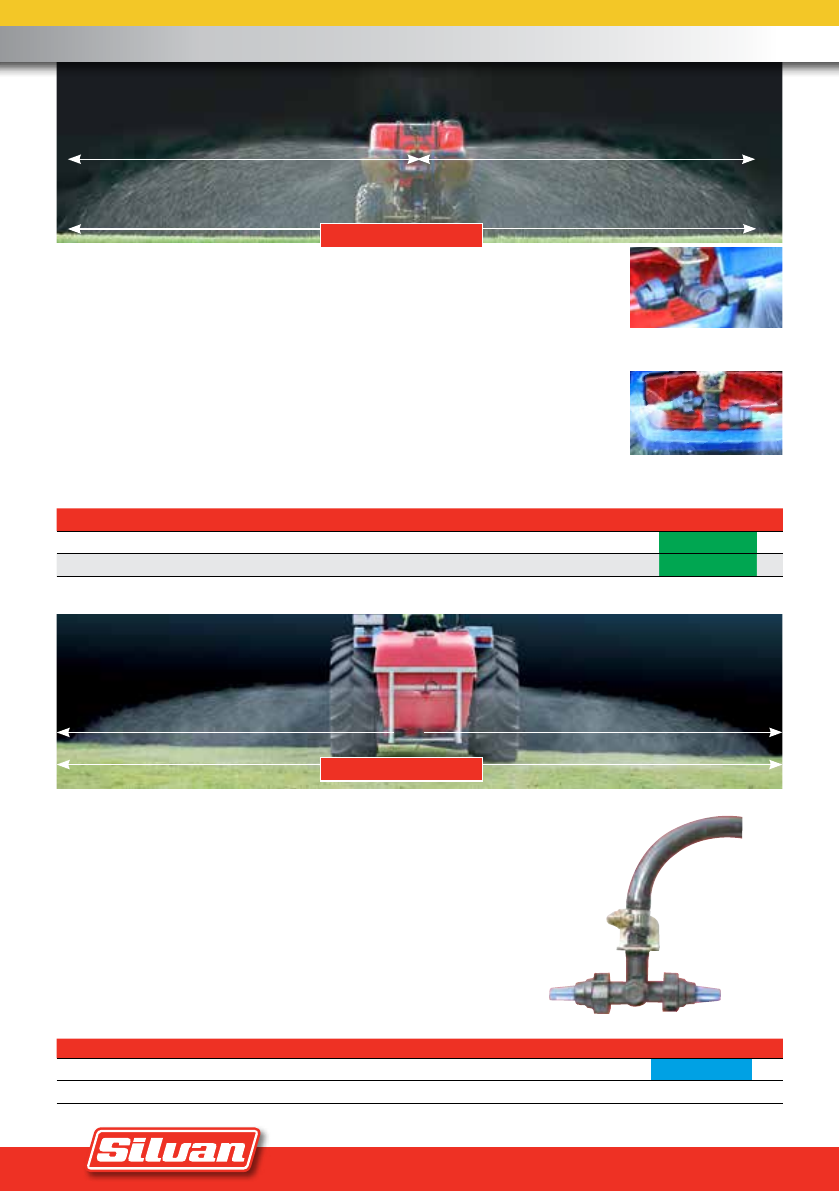

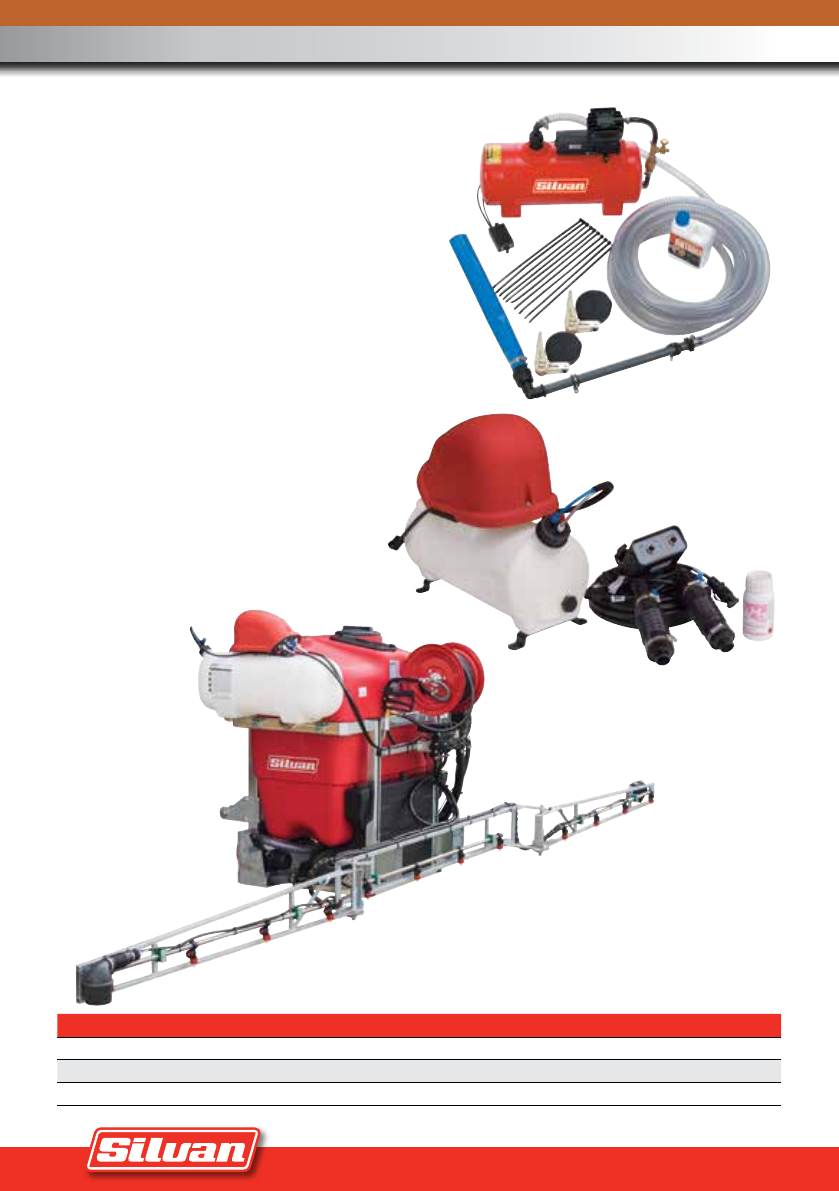

Tank Cleaner and Foam Marker Accessories 105
Index, Terms and Conditions 106-111

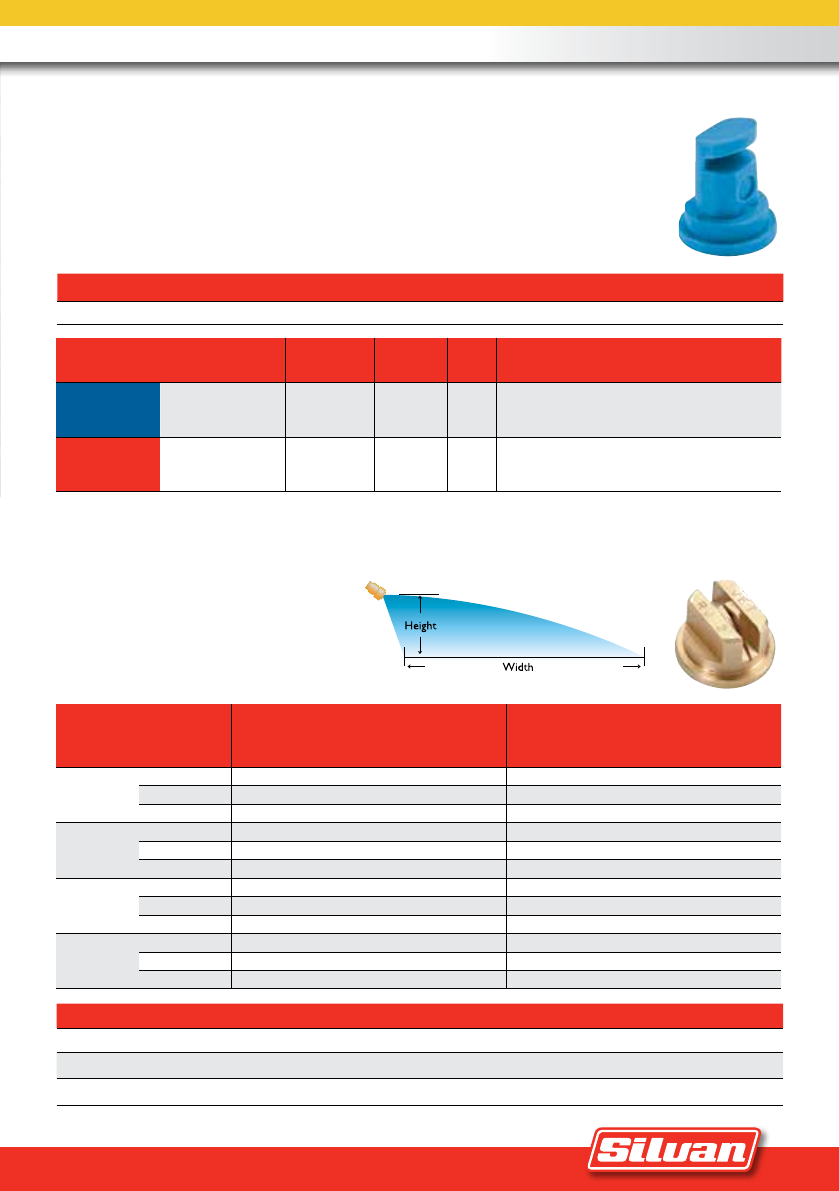

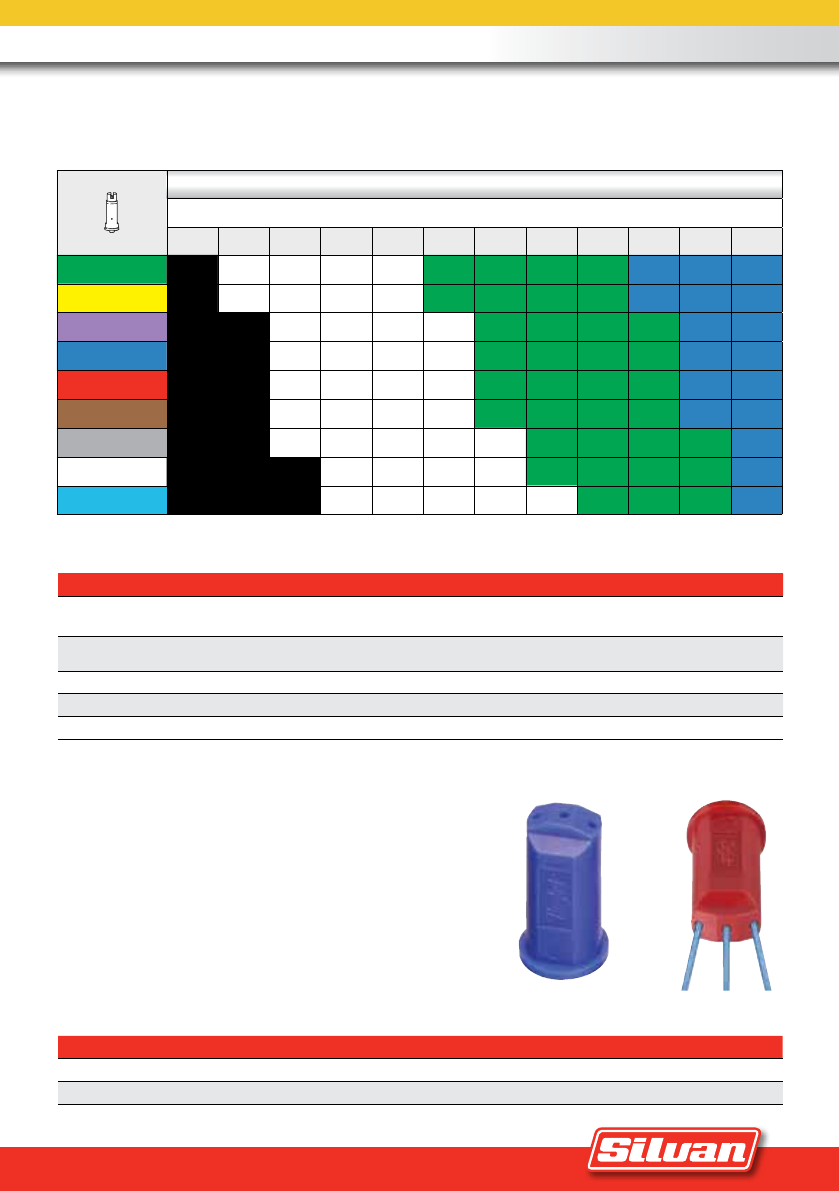

Nozzles 67-81

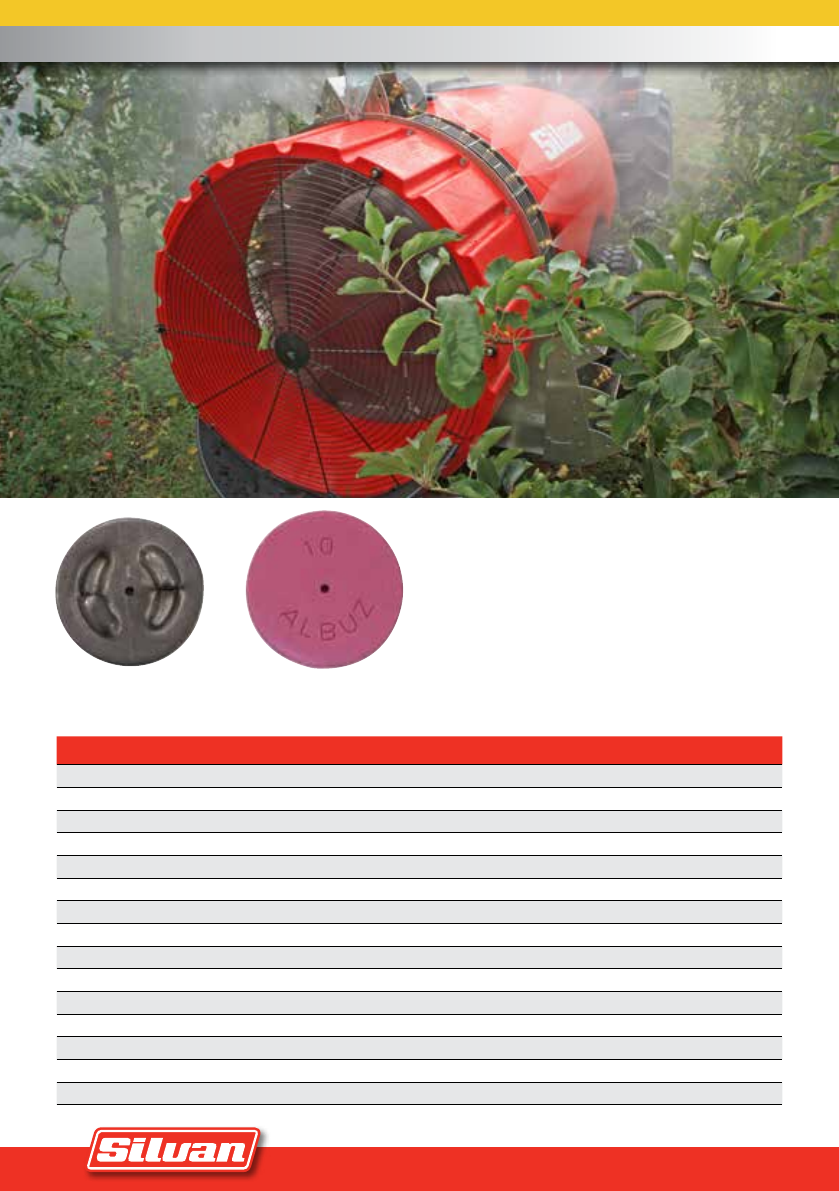

Horticulture Nozzles 82-84
Specialty Nozzles 85

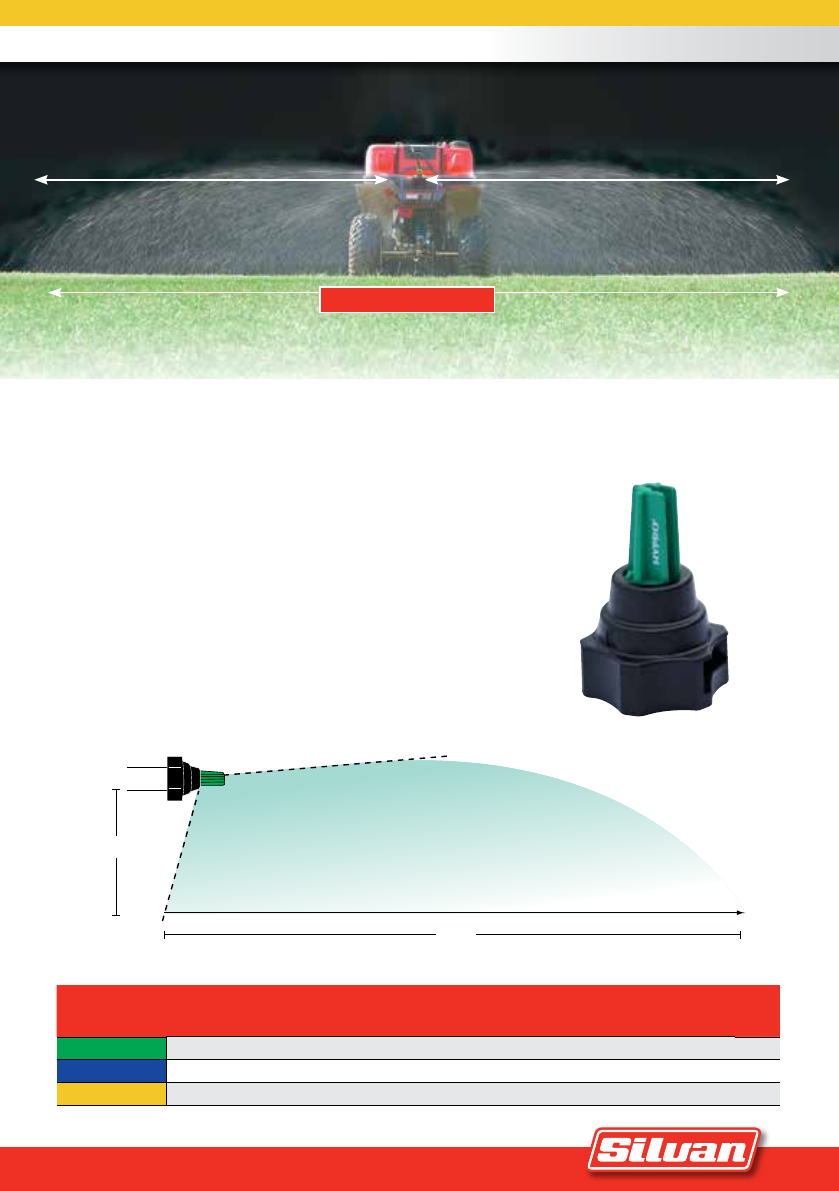

Boomless Nozzles 86-89

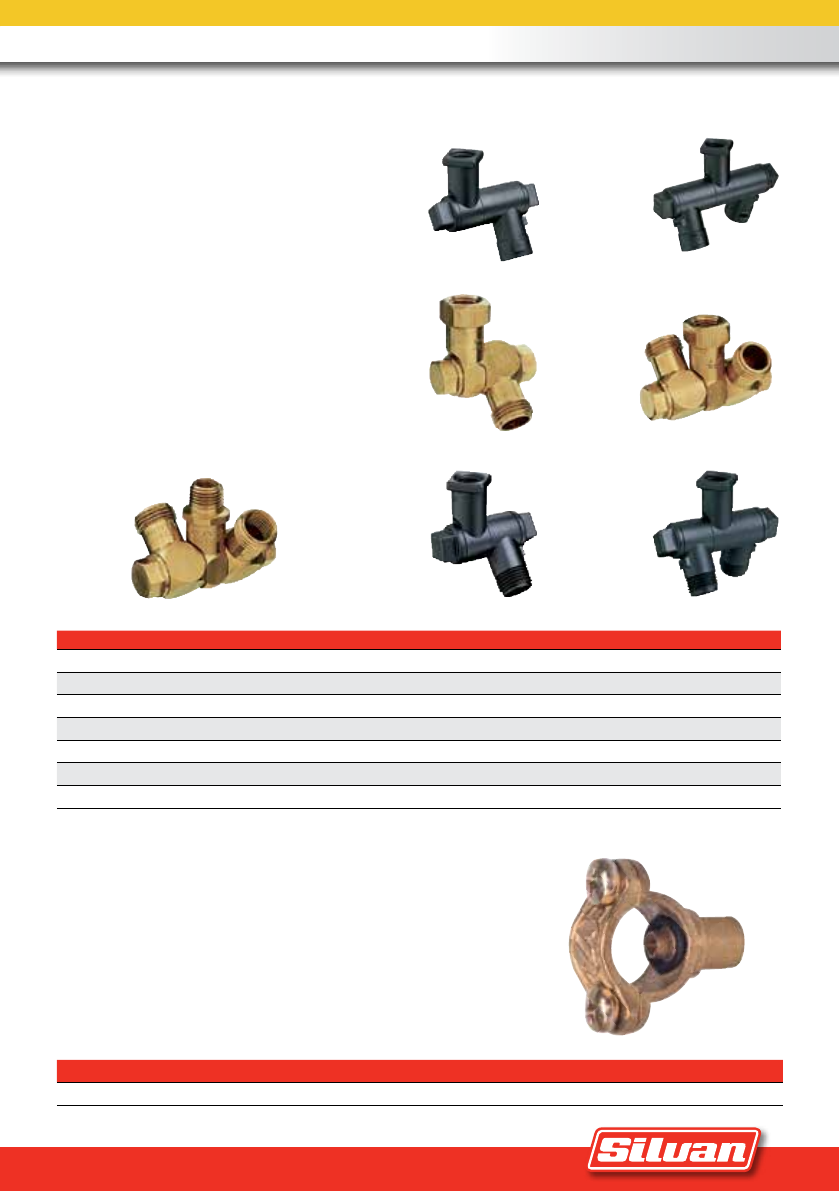

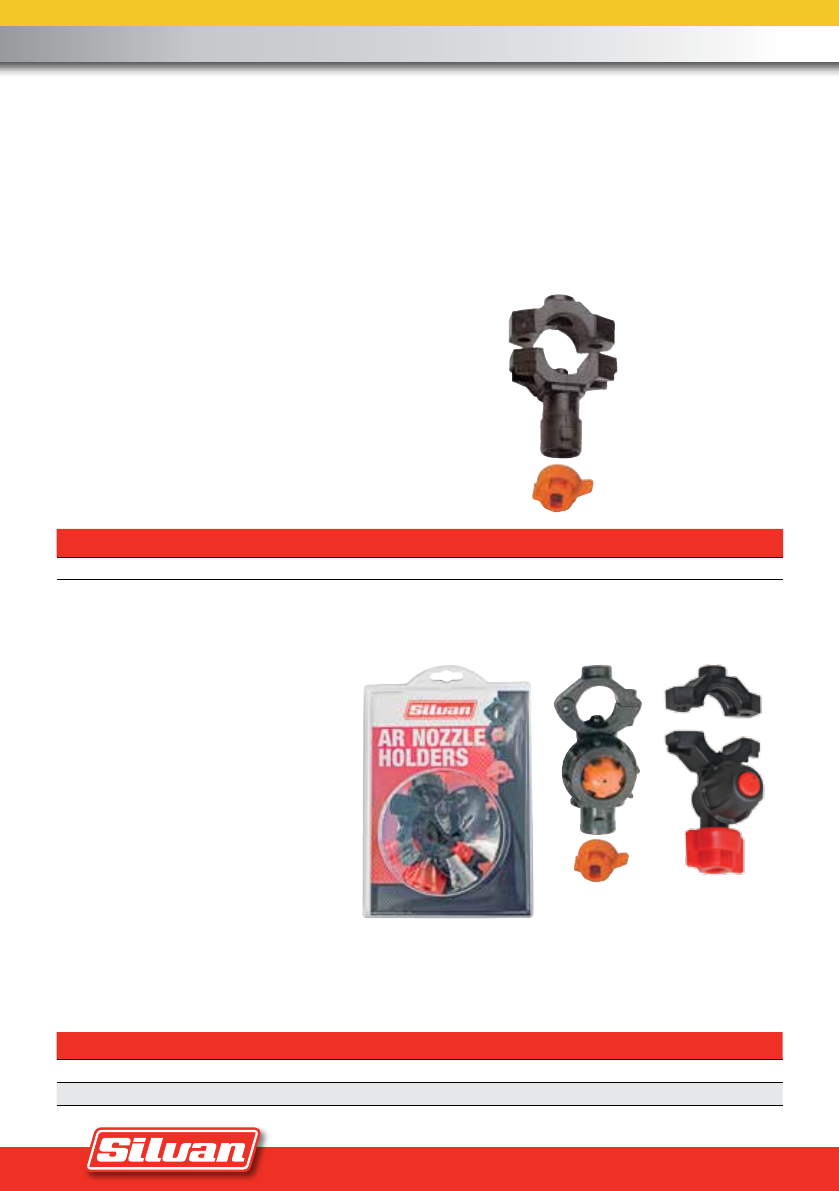

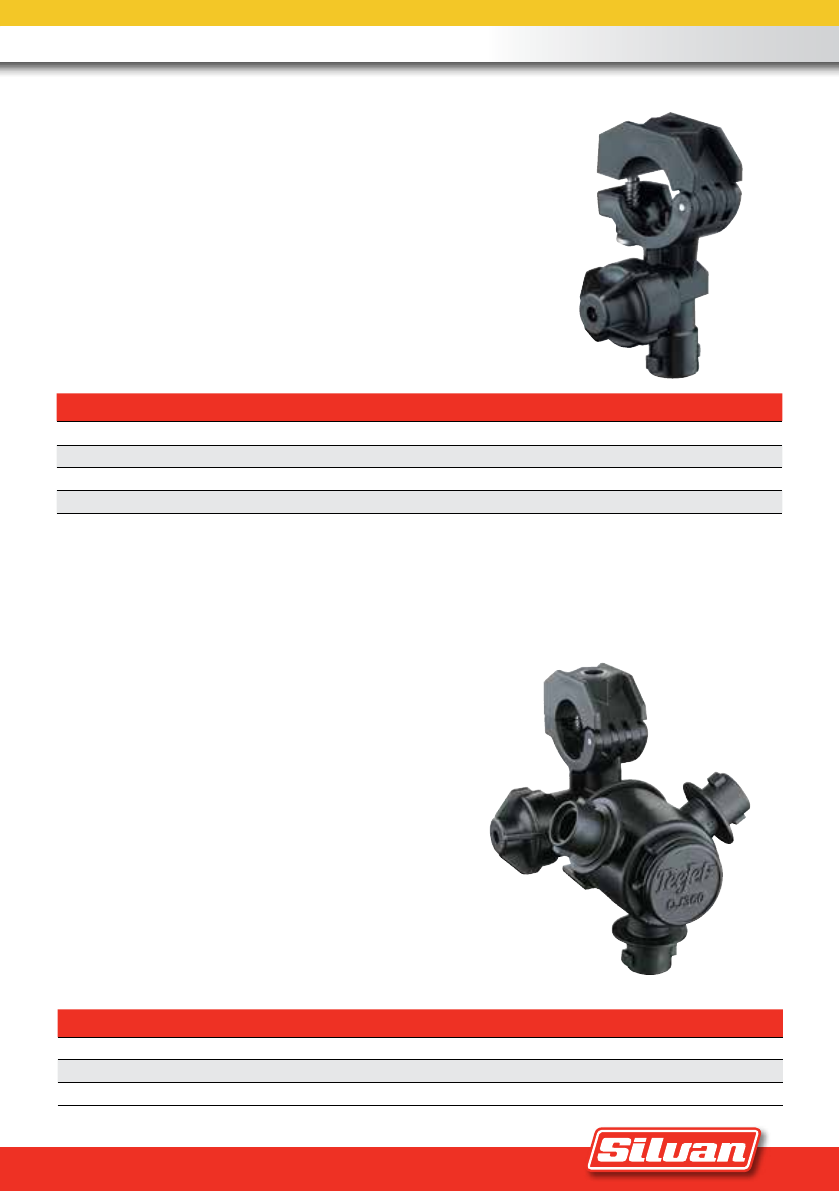

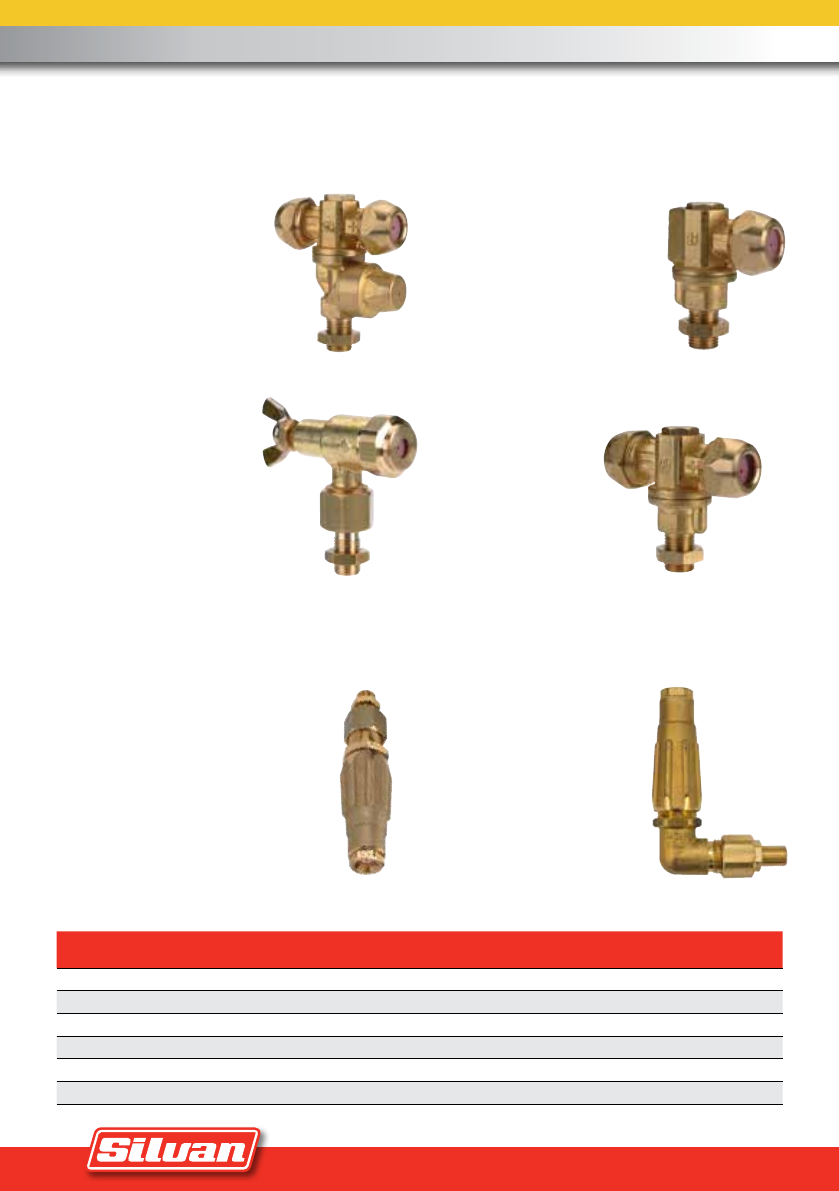

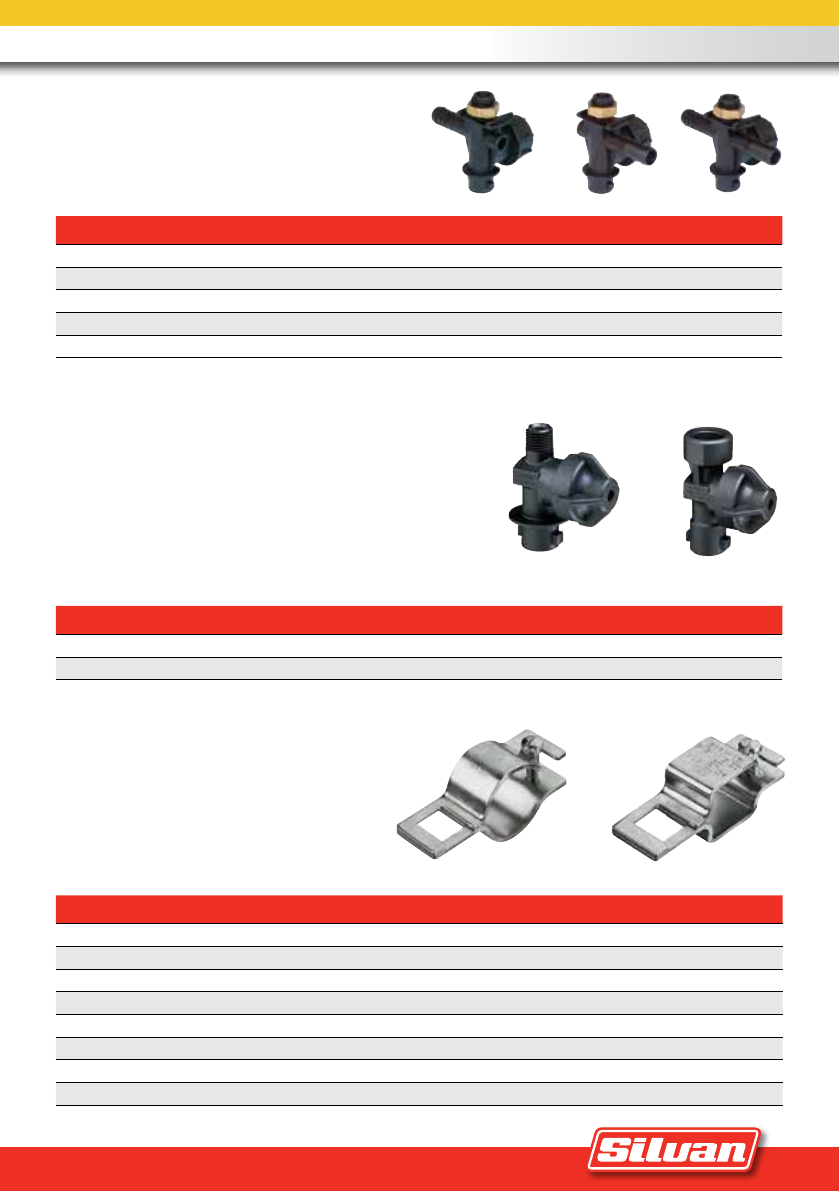

Nozzle Holders 90-96
Nozzle Caps 97-99

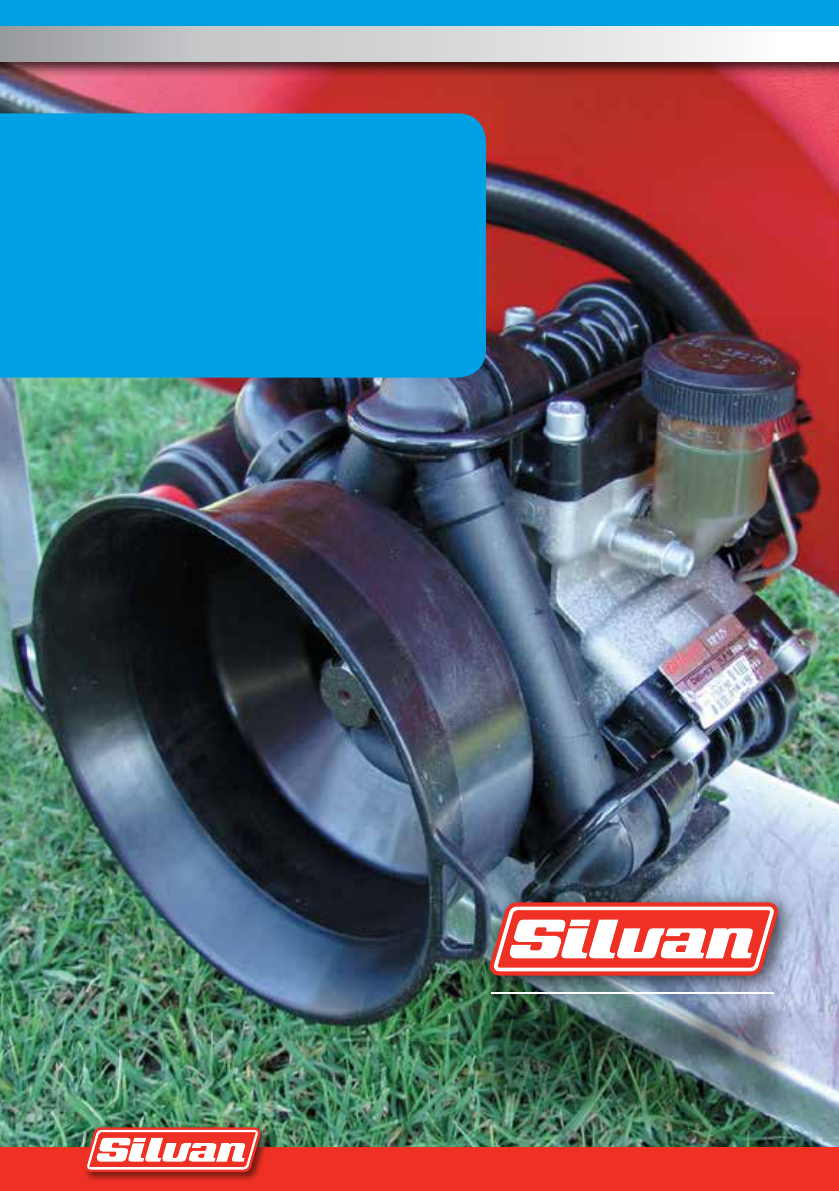

PUMPS, CONTROLS AND SERVICE KITS
PRECISION FARMING
PLUMBING, FILTRATION & TANK ACCESSORIES
NOZZLES & ACCESSORIES
SAFETY EQUIPMENT PAGE 101
PAGE 66
PAGE 40
PAGE 24
PAGE 5
CONTENTS
CONTENTS
CONTENTS
Index
CONTENTS
GENUINE
ACCESSORIES
GENUINE
ACCESSORIES
Precision Farming
5
Precision Farming Products
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information

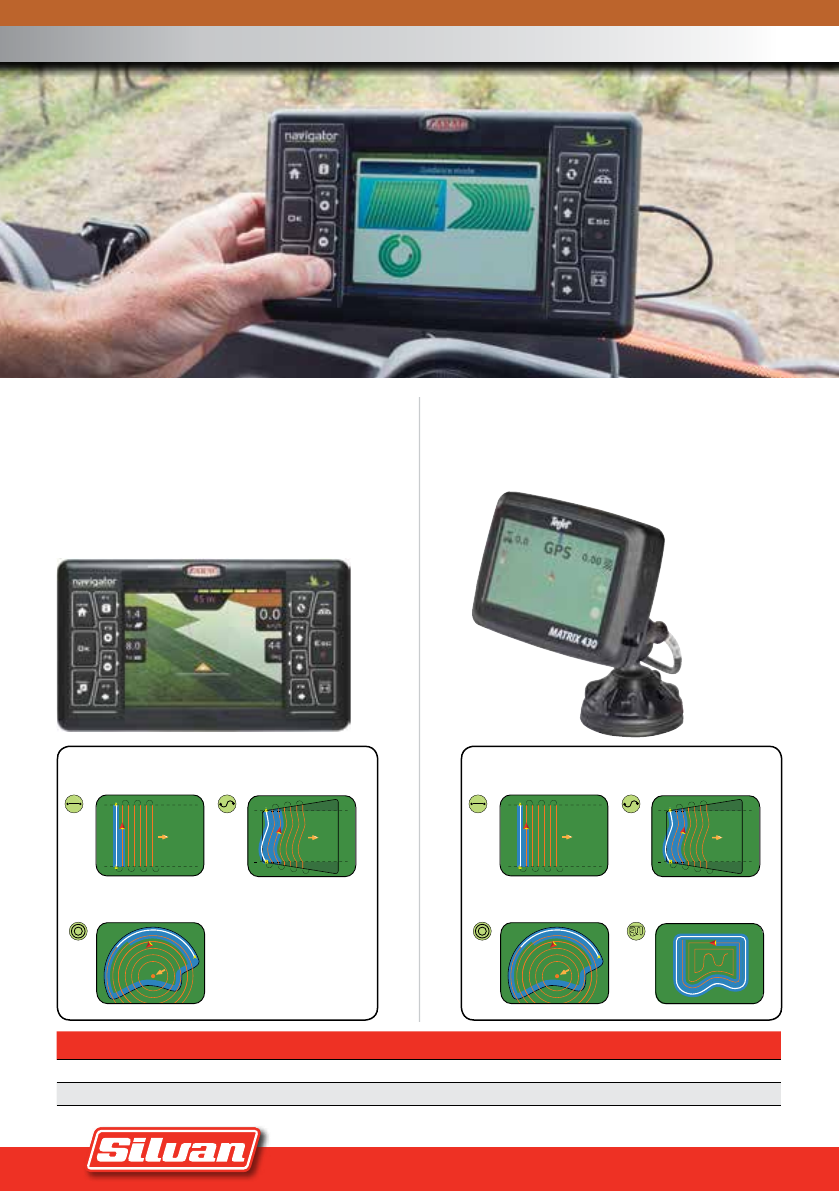

NAVIGATOR LT
The Navigator LT is a complete GPS system with 5.7”
display that provides enhanced visual guidance with a
light bar and on screen guidance. The SD card port can
be used to download reports on where you have sprayed,
area covered and time spent.

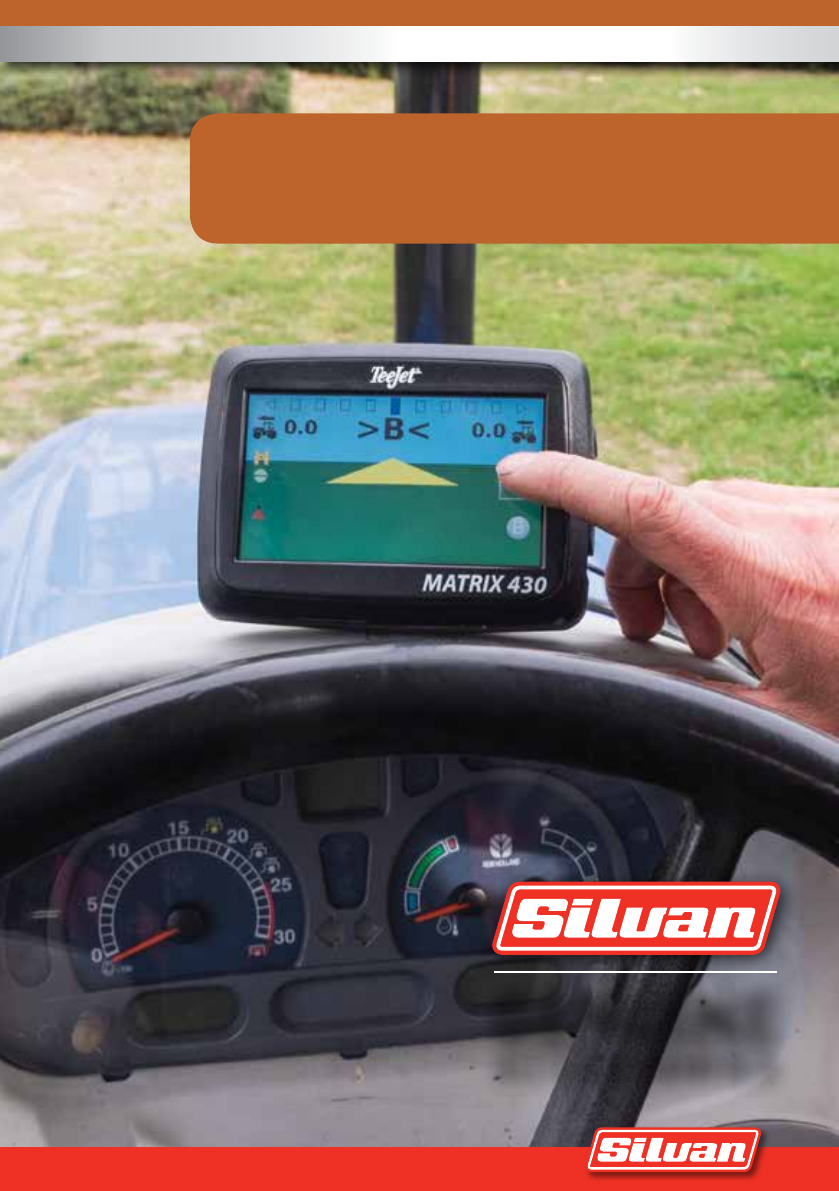

MATRIX 430
The Matrix 430 utilises GPS technology to guide tractors
and machinery during boom spraying or fertiliser spreading
to maximise application accuracy.
4674A1000
Circle Pivot Guidance Last Pass Guidance
Curved A-B GuidanceStraight A-B Guidance
MATRIX GUIDANCE FUNCTIONS
Circle Pivot Guidance
Curved A-B GuidanceStraight A-B Guidance
MATRIX GUIDANCE FUNCTIONS
GD430-GLO-P-L
CODE DESCRIPTION FEATURES CAT
4674A1000 NAVIGATOR LT GPS 5.7” display, SD card port, external antenna, integrated GPS receiver
GD430-GLO-P-L MATRIX 430 4.3” colour display, integrated USB port, external patch antenna A
6AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose Reels
6AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose Reels
GPS Guidance

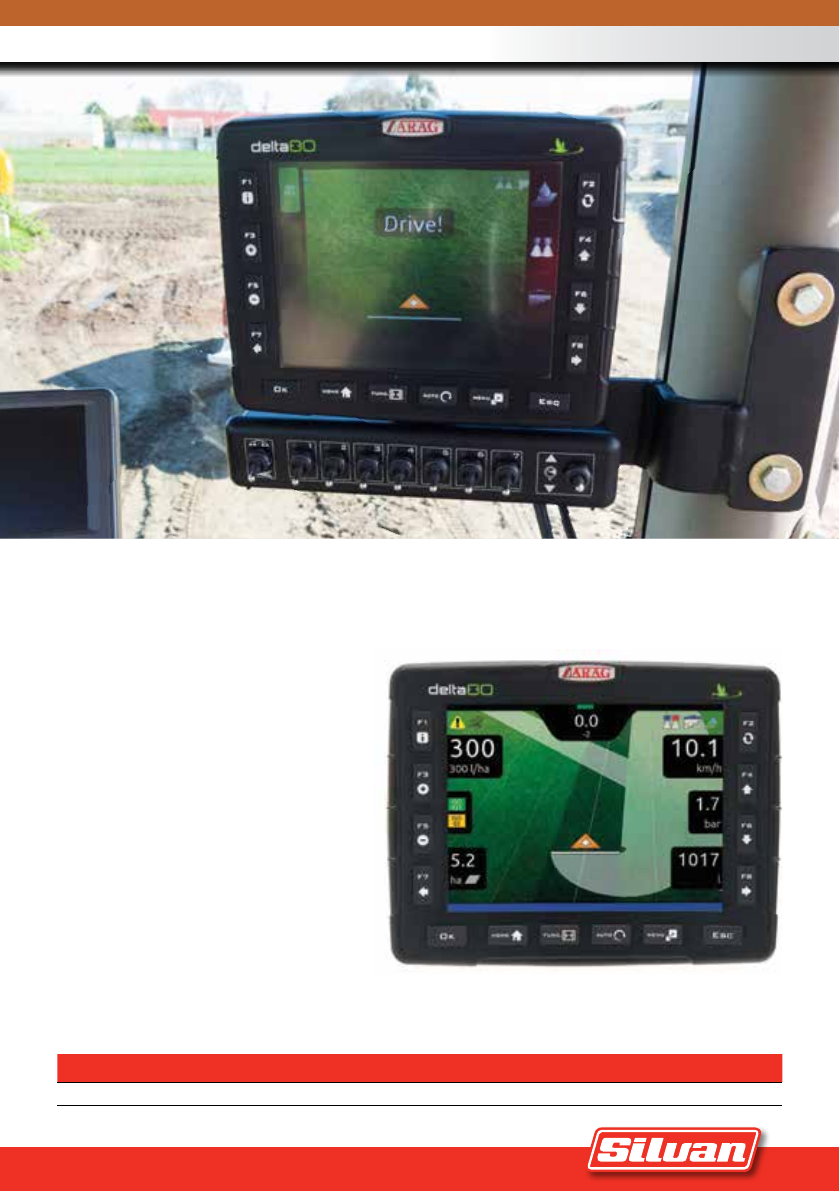

DELTA 80 SPRAYER CONTROL
A highly flexible combination of GPS guidance, automatic section control and accurate rate control
allows unmatched efficiency. Multiple GPS antenna options available for required accuracy.
DISTRIBUTION CONTROL
Automatic adjustment of spray application rate by
measuring flow and speed.
SECTIONS
Controls up to 7 spray sections
and 7 hydraulic functions.
KIT CONTENTS
Control box, tractor loom,
sprayer loom and GPS antenna.
MEMORY
USB port to store working reports;
path and treatment data for each area.
DELTA 80
CODE DESCRIPTION DISPLAY
4675000 ARAG Delta 80 High Resolution 8.4” Display
NOTE: Extra components including electric valves and flow meter may be needed.
Rate Controllers
7
Booms & Hose Reels
GPS Guidance Rate Controllers
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
NOTE: Extra components may be needed.
Driving speed
Application
rate
Boom width
Adjustable
job data
Range Selection
valve status
Main valve
status
Adjustable
job data
Graphic indicator of the
residual quantity of fluid
Target rate
Pressure
Operation
notifications
IBX100 ISOBUS SPRAYER CONTROL
An ISOBUS compatible controller designed to integrate
with tractor terminals such as John Deere® and
Topcon®. It utilises the existing ISOBUS compatible
tractor terminal for spray rate control and automatic
section control.
CONTROL
• Up to 13 spray sections
• 9 hydraulic functions
IBX100
CODE DESCRIPTION CONTROL
4679004 IBX100 Control Unit Controls up to 13 Spray Sections, 9 Hydraulic Controls
8AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose Reels
8AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose Reels
Rate Controllers
9
Booms & Hose Reels
Rate Controllers Auto-Steer

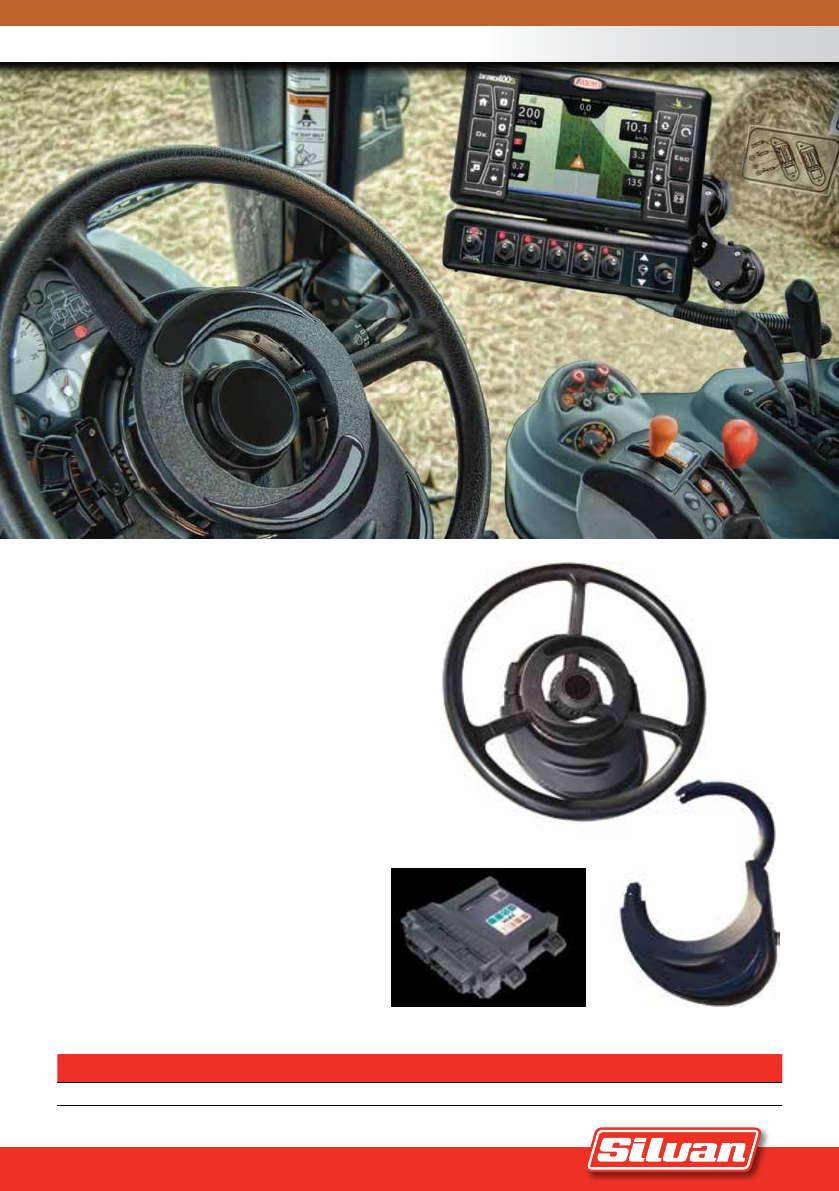

AUTO-STEER
A high quality, flexible, retrofit auto steer system. Auotsteer
provides a logical upgrade to the Delta 80 auto rate controller
and improves the operational accuracy of GPS guidance systems.
Saves time, fuel and material being applied.
• Reduces the chance of skipped or overlapped areas
• Easy to install and calibrate
• Reduces operator effort in repetitive operations
• High torque, gear driven transmission eliminates slipping
and drives any style of steering
• Manual over-ride allows operator to manually control
vehicle when required
• No obstruction to manual steering function
• Auto steer function disabled for on-road use
CODE DESCRIPTION
46701701 Automatic Steering System
NOTE: Must be used in conjuction with Delta 80 Guidance System. Extra components may be needed.
46701701
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
10 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose ReelsGuidance & Monitors
AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Rate Controllers

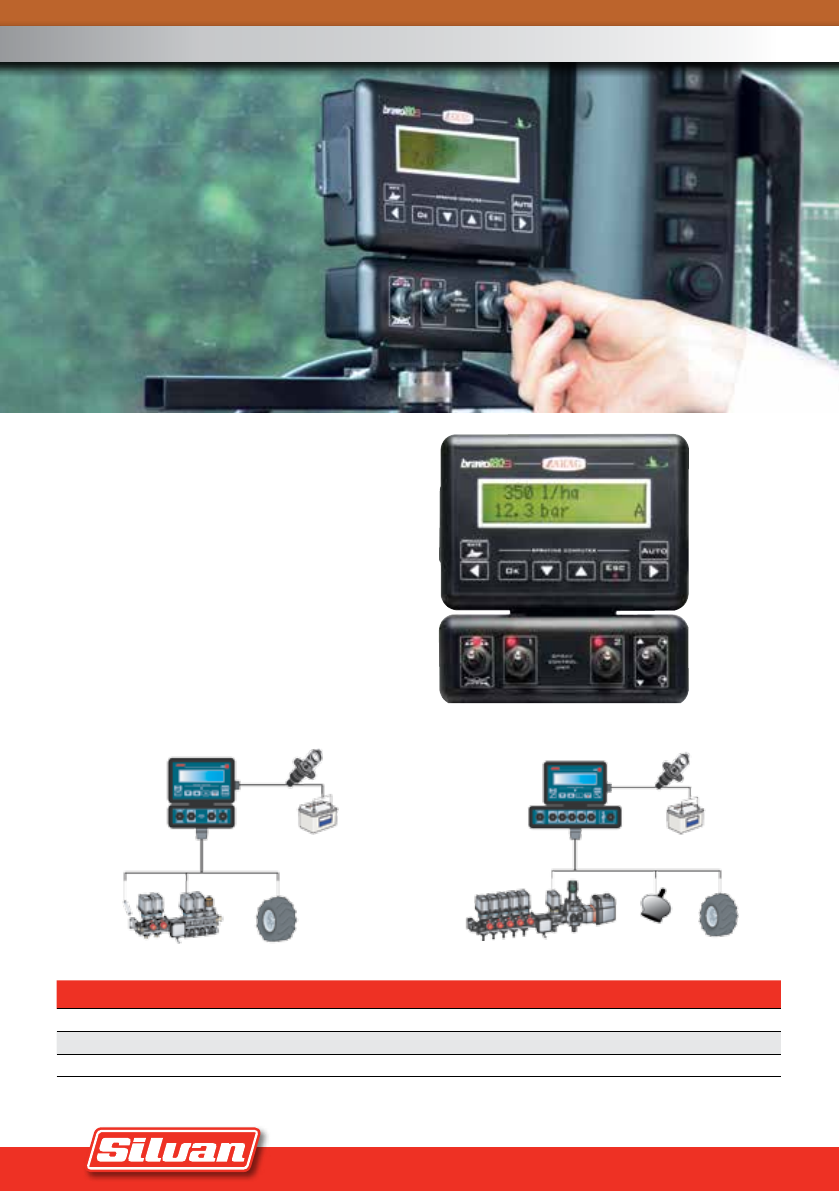

BRAVO 180S RATE CONTROLLERS
The BRAVO 180S comes as a single or multi-row horticulture
or broadacre spray rate controller. They are compact and
easy to use, and ensure precise product delivery.
• Automatic adjustment of spray application rate by
measuring flow and speed
• Display of application rate (l/ha), speed, area, spray
volume, tank level, flow rate (l/min), field number,
operating time and covered distance
• Horticultural model controls up to 4 sections
• Broadacre model controls up to 5 sections
• Kit includes control box, tractor loom, sprayer loom
and speed sensor
• Optional valves and flow meter
Pictured: Bravo 180 horticulture model connectivity Pictured: Bravo 180 broadacre model connectivity
BRAVO
180SHKIT
CODE DESCRIPTION
BRAVO180SHKIT ARAG Bravo 180S - 2 Sections (For horticultural applications)
BRAVO180HKIT ARAG Bravo 180S - 4 Sections (For multi-row applications)
BRAVO180BAKIT ARAG Bravo 180S - 5 Sections (For broadacre applications)
NOTE: Extra components including electric valves and flow meter may be needed.

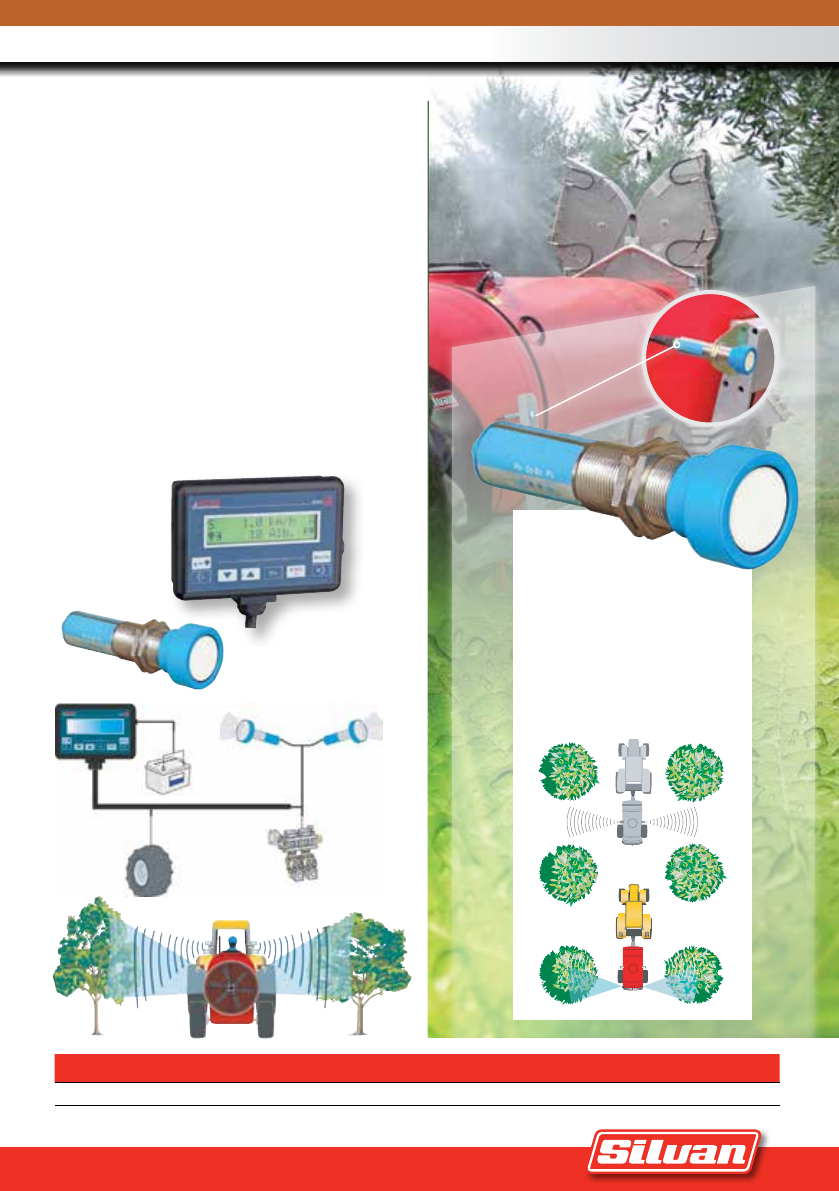

BRAVO 140 KIT SPECIFICATIONS
The Bravo 140 tree sensor detects tree canopies, trunks or
stakes via ultrasonic sensors mounted at the front of the
sprayer. The sprayer then only sprays the tree, not the spaces
in between. You not only use significantly less chemical,
your tank refills are reduced saving you time and money.
DISPLAY
Speed, sprayed tree, number of trees, sensor status
KIT CONTENTS
Kit includes control box, tractor loom, sprayer loom,
ultrasonic sensors, speed sensor and solenoids
NOTE: Extra components may be needed.
D99-165
BRAVO 140
CONNECTIVITY
ULTRASONICS
Used with Bravo 130 and 140
controllers are the ultrasonic
sensors mounted at the front of
your sprayer.
These sensors detect the tree
canopies, trunks or stakes which
enables your sprayer to only
spray the target and not the
spaces in between.
CODE DESCRIPTION CONTROL
D99-165 ARAG Bravo 140 Up to 2 Ultrasonic Sensors and 2 Sections
Guidance & Monitors
11
Booms & Hose Reels
Rate Controllers Ultrasonic Sensors
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information

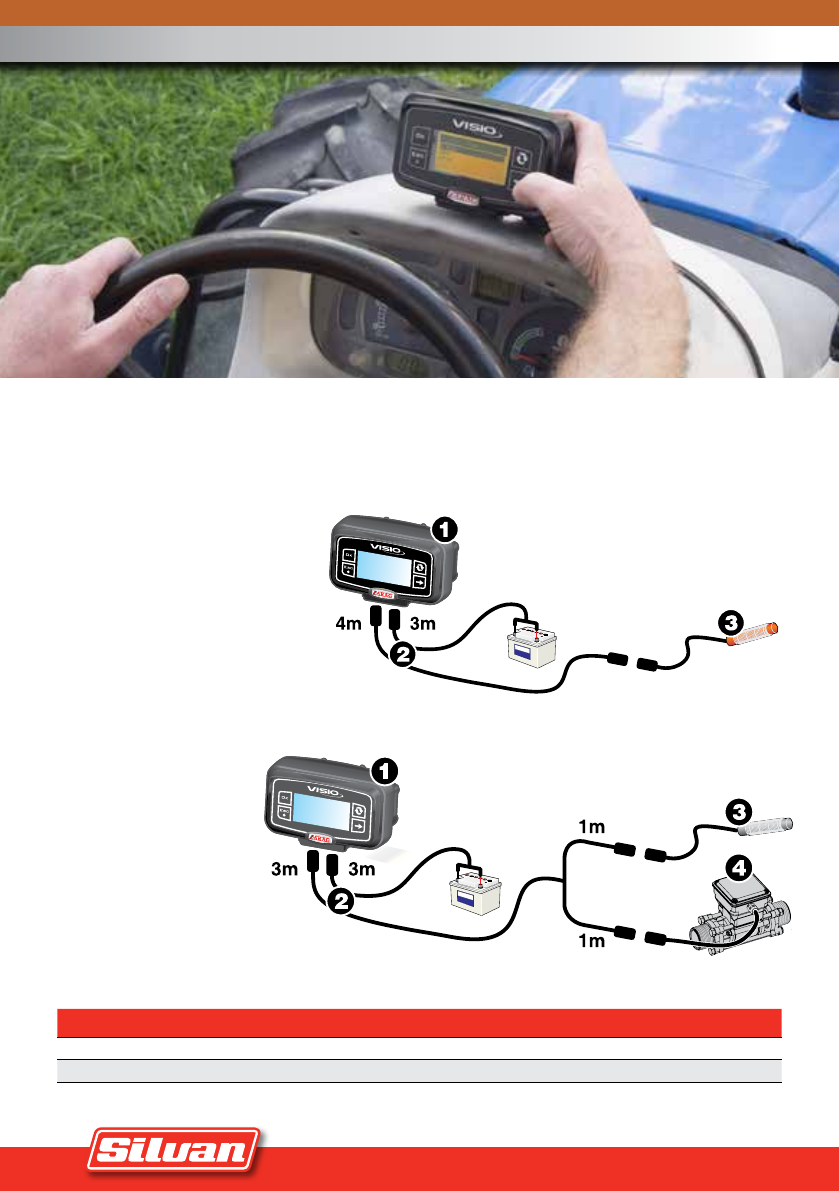

Visio is an innovative multi-function display featuring compact dimensions and accuracy
at an affordable price. It can be connected to several sensors, to view a wide range
of data from agricultural spraying applications.
VISIO HECTARE METER
Simultaneous display of area and ground
speed using an inductive speed sensor.
1. Visio display unit
2. Cable kit for one sensor
3. Inductive speed sensor
VISIO RATE MONITOR
Display of ground speed,
area, flow rate, application rate
and volume using a 10-200 L/min
(40 Bar) flow sensor.
1. Visio Display unit
2. Cable kit for two sensors
3. Inductive speed sensor
4. 10 - 200 L/min Wolf flowmeter
Note: Extra components may be needed.
VISHA
VISHAF10200
Flow meter supplied does not match image
CODE DESCRIPTION DISPLAY KIT CONTENTS
VISHA VISIO Hectare Meter Backlit LCD Screen Display, Cable Kits, Speed Sensor
VISHAF10200 VISIO Rate Monitor Backlit LCD Screen Display, Cable Kits, Speed/Flow Sensors
Monitor
*Extra components such as hoses and mounting brackets may be required.
12 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose Reels
Guidance & Monitors
Monitor
20 BAR ELECTRIC VALVE KIT
Features an in-cab control box with proportional pressure compensating valves designed to maintain constant pressure
and output even after one or more boom sections are closed.
20 BAR SPRAY
CONTROLLER
VALVE KIT
G8370010
Pressure Regulator
Assembly 20 Bar
G8388001
Section
Valves
G8388000
Section Valves
G8384037
Manual Pressure
Regulator
G8386006
Dump Valve
G8388000
Electric Proportional Valve
46263A0
Wolf Flow Meter
5-100 L/min
VALVE
ASSEMBLY
NUMBER
G8376038
G8386004
Proportional
Valve 28 Second
CONTROL BOX
G8406007
CODE DESCRIPTION
461530A Silvamatic Electric Spray Control Kit
D99-82 Valve Bank to Suit BRAVO180BAKIT
*Extra components such as hoses and mounting brackets may be required.
Guidance & Monitors
13
Low Pressure Valve Banks
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
40 BAR SPRAY CONTROLLER VALVE KIT
40 BAR ELECTRIC SPRAY CONTROL
Supplied complete with 2 on/off electric valves for left or right side spraying and 1 bypass electric valve, electric
pressure regulator, manual pressure regulator and pressure filter.
G8388005
Section Valves 3 Wire G8370028
Main/Dump
Valve 40 Bar
3 Wire
G8386023
Electric Proportional
Valve 14 Second
(7 Second Valve G8386017)
G8386023
Electric Proportional
Valve 14 Second
(7 Second Valve G8386017)
G8384039
Manual Pressure
Regulator 40 Bar
G8384039
Manual Pressure
Regulator 40 Bar
46264A0
Wolf Flow Meter
10-200 L/min
CONTROL BOX
G8406006
G8388005
Section Valves 3 Wire
345200350
In-Line Pressure Filter
G8370028
Main/Dump Valve
40 Bar 3 Wire
TO SUIT
BRAVO 180SHKIT
VALVE
ASSEMBLY
NUMBER
G8378C0044
14 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose ReelsGuidance & Monitors
High Pressure Valve Banks
CODE DESCRIPTION
D99-80 High Pressure Electric Valve Kit
D99-81 Valve Bank to Suit BRAVO180SHKIT
G8386004 G8388004 G8388001
15
Booms & Hose Reels
Guidance & Monitors Guidance & Monitors
Geoline Valve
PART NUMBER FUNCTION DETAILS
G8386004 Regulating Valve 12V, 28seconds, 19mm Outlet, 40 bar, 100l/min
G8386010 Regulating Valve 12V, 7seconds, 19mm Outlet, 40 bar, 100l/min
G8386017 Regulating Valve 12V, 7seconds, 19mm Outlet, 40 bar, 200l/min
G8388000 Section Valve 12V, 0.2seconds, no Outlet, 20 bar, 45l/min, 2 wire
G8388002 Section Valve 12V, 0.2seconds, no Outlet, 20 bar, 45l/min, 3 wire
G8388001 Section Valve 12V, 0.2seconds, no Outlet, 20 bar, 45l/min, 2 wire, internal bypass facility
G8388005 Section Valve 12V, 0.2seconds, no Outlet, 20 bar, 45l/min, 3 wire, internal bypass facility
G8388004 Section Valve 12V, 0.2seconds, no Outlet, 20 bar, 120l/min, 2 wire, internal bypass facility
G8388015 Section Valve 12V, 0.2seconds, no Outlet, 20 bar, 120l/min, 3 wire, internal bypass facility
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
G8388000
16 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose Reels
ORION ELECTRO MAGNETIC FLOW METER
• No moving parts for low maintenance
• High precision – not affected by turbulence
• Accuracy not affected by fluid density or viscosity change
WOLF FLOW METER
• High precision at a reasonable price
• Tool free “Twist” system for paddle wheel cleaning or replacement
• LED to show operating status
• Fully sealed and watertight electronic sensor
CODE WOLF FLOWMETER TO SUIT 463 SERIES VALVES FLOW CALIBRATION (PULSES/L) CAT
46262A0 2.5-50 L/min 1015 B
46263A0 5-100 L/min 625 B
46264A0 10-200 L/min 250 B
4626000-500 Replacement Paddle to Suit WOLF Flowmeter B
CODE ORION FLOWMETER TO SUIT 463 SERIES VALVES FLOW CALIBRATION (PULSES/L) CAT
4621AA10000 1-20 L/min 3000 B
4621AA30000 5-100 L/min 600 B
4621AA40000 10-200 L/min 300 B
Spray Controller Looms and Flowmeters
ELECTRIC KITS AND LOOMS
CONTROLLER POWER LOOM SPRAYER LOOM SPRAYER EXT LOOM HYD FUNCTION
EXT LOOM
G8406006 Control
Box (2 section)
466550-080 (included
with G8406006)
GC00900008 (3mtr 3 sect Sprayer Loom)
or GC00900009 (5mtr 3 sect Sprayer Loom)
GC00900013
(3mtr 3 sect ext loom)
G8406003 Control
Box (3 section)
466550-080 (included
with G8406003)
GC00900008 (3mtr 3 sect Sprayer Loom)
or GC00900009 (5mtr 3 sect Sprayer Loom)
GC00900013
(3mtr 3 sect ext loom)
G8406011 Control
Box (5 section)
466550-080 (included
with G8406011)
GC00900010 (3mtr 5 sect Sprayer Loom)
or GC00900011 (5mtr 5 sect Sprayer Loom)
GC00900014
(3mtr 5 sect ext loom)
467183203 Bravo
180S (2 sect)
467305-080 (included
with 467183203) 467185403-100 (4mtr 4 sect Sprayer Loom) 467305-110 (3mtr 2,3, 4
& 5 sect ext loom)
467183403 Bravo
180S (4 sect)
467305-080 (included
with 467183403) 467185403-100 (4mtr 4 sect Sprayer Loom) 467305-110 (3mtr 2,3, 4
& 5 sect ext loom)
467180501 Bravo
180S (5 sect)
467305-080 (included
with 467180501) 467125-100 (6mtr 5 sect Sprayer Loom) 467305-110 (3mtr 2,3, 4
& 5 sect ext loom)
467180553 Bravo
180S HYD (5sect
with HYD funct)
467305-080 (included
with 467180553) 467125-100 (6mtr 5 sect Sprayer Loom) 467305-110 (3mtr 2,3, 4
& 5 sect ext loom)
466700-090
(3mtr hyd ext)
17
Booms & Hose ReelsGuidance & Monitors

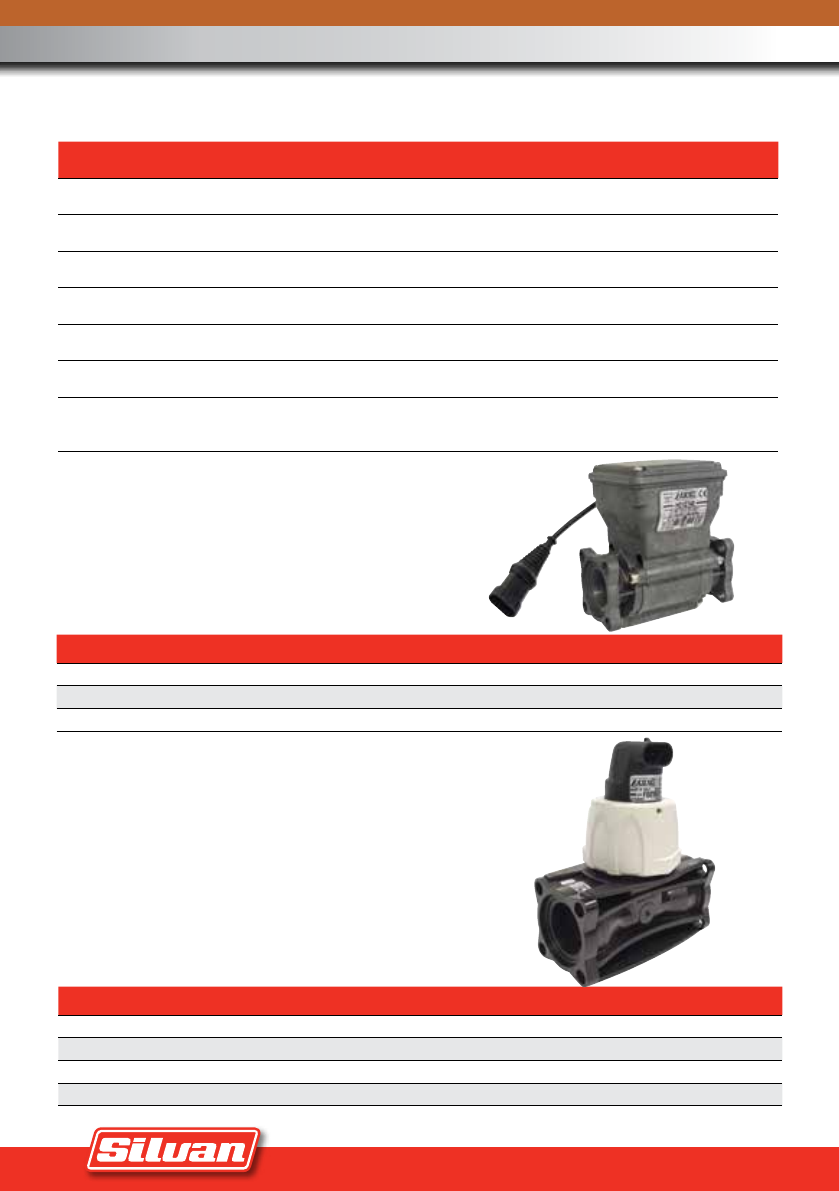

Spray Controller Looms and Flowmeters Flowmeters
CODE DESCRIPTION CAT

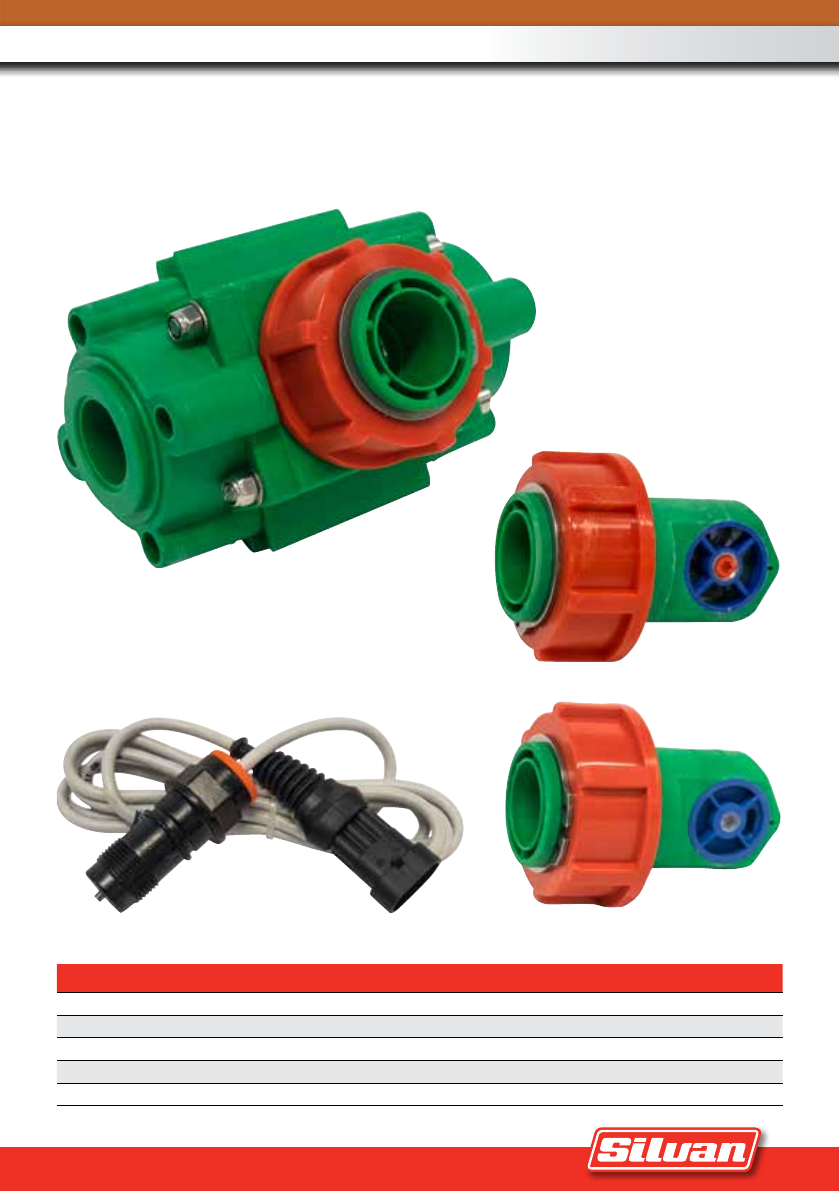

4623862 10-200 L/min Flow Meter Body & Turbine Assembly (Excludes Sensor) B
413-164-99 3-20 L/min Flow Meter Body & Turbine Assembly (Excludes Body and Sensor) B
413-163-99 10-200 L/min Flow Meter Body & Turbine Assembly (Excludes Body and Sensor) B
118-4422 Flow Sensor to Suit BRAVO Controller B
118-4421 Flow Sensor to Suit FARMSCAN Controller B
118-4422
413-163-99
413-164-99
4623862
POLMAC FLOW METER
• High precision flow meter
• Removeable turbine assembly for cleaning or replacement
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
18 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose Reels
Foam Markers
CODE DESCRIPTION L W H WT CAT
042M 14L Foam Marker 570mm 195mm 340mm 12 kg A
042D-16S 16L Foam Marker 570mm 210mm 460mm 14.5 kg A
042D-57 57L Paddock Foam Marker 850mm 300mm 570mm 21 kg A
FOAM MARKERS
Designed for the spray operator that can have a visual
reference of the areas sprayed with a boom, eliminating
expensive under or over lapping of chemicals.
• UV stabilised poly tanks
• 12 volt fully sealed, dust free diaphragm
compressor with breather
• In cab remote mounted control box with wiring loom
• Valve for foam output adjustment
• 1L foam marker concentrate supplied with each unit
14L MODEL - 042M
• 10m reinforced delivery hose and single foam dropper
16L MODEL - 042D-16S
• 16m delivery hose and double foam droppers
• In cab remote with On/Off & Left/Right control
57L MODEL - 042D-57
• 36m delivery hose and Double foam droppers
• In cab remote with On/Off & Left/Right control
042M
042D-16S
042D-57
SHOWN WITH 600L
LINKAGE SPRAYER
19
Booms & Hose Reels
Foam Markers Solenoid Control Kits
CODE DESCRIPTION CAT
M99-14 3 Section Electric Solenoid Kit A
CODE DESCRIPTION CAT
G8406076 4 Section Control Box And Mounting Bracket B
3 SECTION ELECTRIC SOLENOID KIT – MEDIUM PRESSURE
Suitable for most brands of 12 volt sprayers, motorised skid sprayers and linkage units with booms.
Silvan medium pressure control kits are an effective way of controlling individual sections of
your spray boom from the cab of a vehicle.
• Supplied with a multi section control box, mounting bracket and 5 metre electric wiring loom
• Master on/off switch to shut the entire boom off or switch individual sections off
• 3 x Goyen Solenoids, maximum operating
pressure 10 bar/ 150psi
• Maximum open flow 65L/min per solenoid
• Extra components may be needed.
Pressure regulator and hoses not included
HIGH PRESSURE ELECTRIC
SOLENOID SYSTEM – CONTROLS
UP TO FOUR SOLENOIDS
Simply order the control box, wiring harness and
up to 4 high pressure solenoids to develop your own
cab controlled independent spray boom system.
CONTROL BOX:
• With a 4 section switches, mounting bracket
and 5 metre electric wiring loom
• Master on/off switch to shut the entire boom
or switch individual sections on/off
Note: Can connect up to 4 solenoids, sold separately.
M99-14
G8406076
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
20 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose Reels

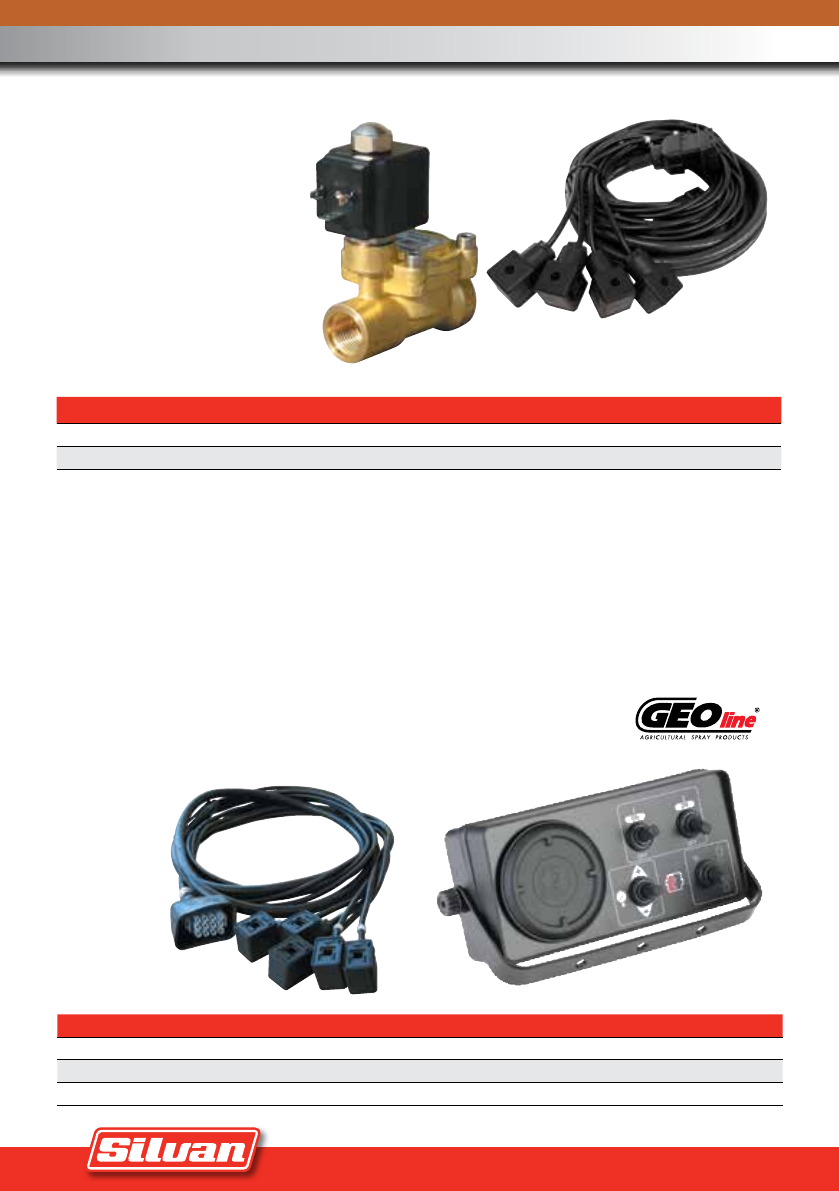

High Pressure Solenoids and Controllers
CODE DESCRIPTION CAT
GC00902021 4 Section Wiring Harness B
G8388012 High Pressure Brass 40 Bar Solenoid B
HIGH PRESSURE
12V SOLENOIDS
• Geoline high pressure
Brass Solenoid ½” F BSP ports
• Maximum open flow
80L/Min. per Solenoid
• Maximum pressure 40Bar/580psi
Extra components may be needed.
Pressure regulator and hoses not included. GC00902021
G8388012
CODE DESCRIPTION CAT
G8406006 Control Box With Tractor Loom B
GC00900008 3m Sprayer Loom B
GC00900009 5m Sprayer Loom B
SPRAYER CONTROL BOXES AND VALVES
2 SECTION AND PRESSURE
• Control box
• 2 on/off section and master on/off
• Pressure adjustment
• No gauge
• Suitable for motor valves not solenoids
• Supplied with Power Loom and Tractor Loom
G8406006
21
Booms & Hose Reels
SolenoidsHigh Pressure Solenoids and Controllers
042-1-ST2-6R

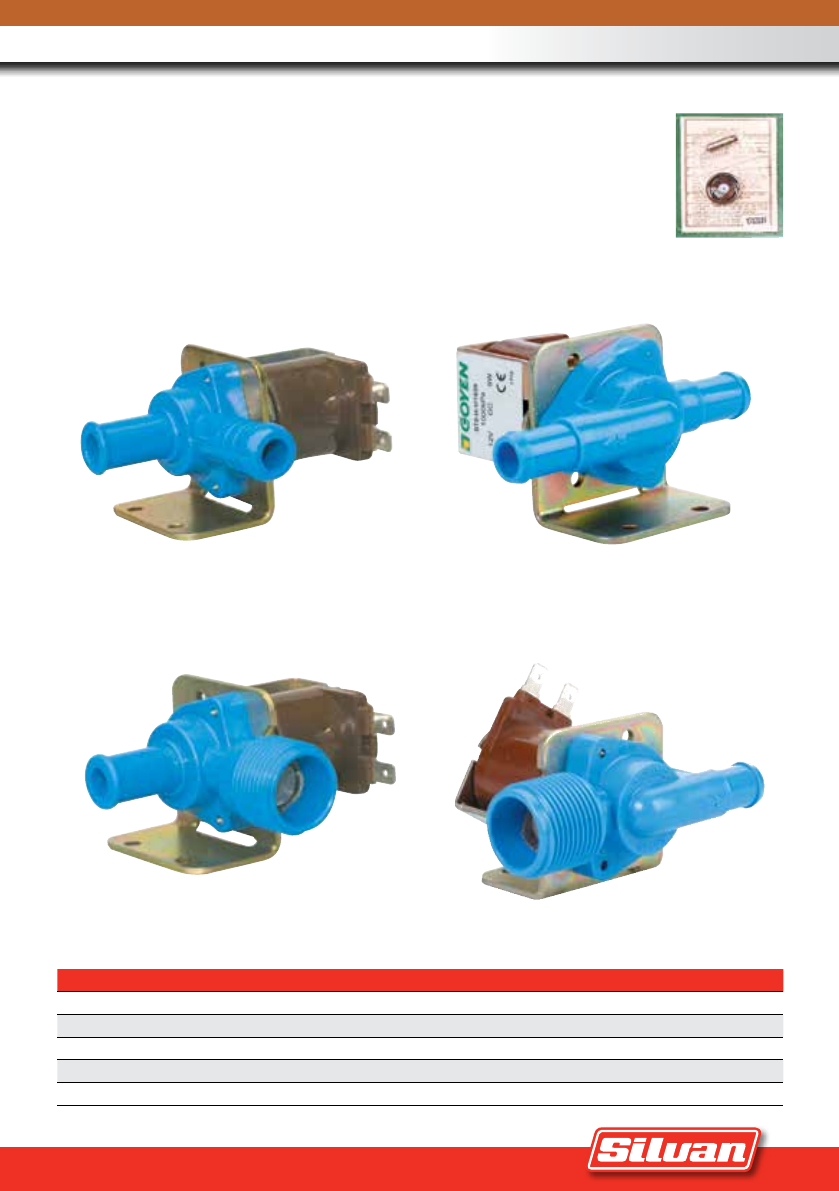

GOYEN SOLENOID
REPAIR KIT
042-1-047K
GOYEN ELECTRIC SOLENOID VALVE
Comprises a nylon body with either 1/2” x 1/2” barb, or 1/2”
barb x 3/4” BSP thread, and is a servo-assisted solenoid.
• Ideal for fitting to single spray bars and features Viton diaphragms
• Requires 12V power and has pressure loss of 5psi accross valve
• Max pressure 1000/145 kPa/psi
CODE FLOW SIZE BSP LENGTH WIDTH HEIGHT WT CAT
042-1-ST2-HR 65 L/min 1/2” X 1/2” Barbs 90mm 70mm 50mm 200 g B
042-1-ST2-6R 65 L/min 1/2” Barb X 3/4” BSP 90mm 70mm 50mm 200 g B
042-1-ST-HV 65 L/min 1/2” X 1/2” Barbs 90mm 70mm 50mm 200 g B
042-1-ST2-6 65 L/min 1/2” Barb X 3/4” BSP 90mm 70mm 50mm 200 g B
042-1-047K Goyen Solenoid Repair Kit B
042-1-ST2-HR 042-1-ST-HV
042-1-ST2-6
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
22 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Booms & Hose Reels
Control Valves and Pressure Regulators
8460 SERIES HIGH FLOW
REGULATOR
• Made from nylon and aluminium,
• Gauge port 1/4”
• Excellent chemical resistance
• Chatter free, responsive pressure control
• Available with 3/4” connections
• Sturdy high flow regulator
23120 SERIES REGULATOR
• Nylon body
• Stainless steel spring
• Gauge port 1/4”
• Excellent chemical resistance
• Positive lock nut to hold adjuster
at your desired setting
• Available with 1/2” or 3/4” connections
CODE DESCRIPTION MAX FLOW MAX PRESSURE CAT
8460-3/4 Pressure Regulator, 3/4” 265L/min 2000 kPa/290 PSI B
23120-1/2-PP Pressure Regulator, 1/2” 35L/min 700 kPa/102 PSI B
23120-3/4-PP Pressure Regulator, 3/4” 55L/min 700 kPa/102 PSI B
CODE DESCRIPTION MAX PRESSURE FLOW CAT
JA-1502003 Solenoid Ideal For Foam Markers 800 kPa/116 PSI 37L/min B
JA-1502030 Replacement Viton Diaphragm B
JA-1502031 Solenoid Viton 116 PSI 37L/min B
JA-1502003
FOAM MARKER/SPRAYER SOLENOID VALVE
Offers the advantages of low energy requirements, instant response
and the ability to remain in an energised (open) state indefinitely
without overheating or failing.
• Suits 12-volt and 24-volt. 3/4” threaded inlet and outlet
DIRECTOVALVE CONTROL VALVES
• Direct acting, large internal flow chamber
without pilot hole reduces chance of clogging
• Corrosive resistant Stainless steel wetted parts
• Operation on 12V DC system
• Encapsulated solenoid coil can be changed
without removing valve from system
• EPDM diaphragms and seat washer, Viton optional
• Continuous flow through bypass connection, with flow
to spray line controlled by valve “on-off” action
AA144A-1
CODE INLET SIZE OUTLET SIZE FLOW RATE MAX PRESSURE CURR. DRAW CAT
AA144A-1 3/4” 1/2” 37.9 L/min 700 kPa/102 PSI 2.5 Amp B
AA144A-1-VI* 3/4” 1/2” 37.9 L/min 700 kPa/102 PSI 2.5 Amp B
PK-AB144A-1-KIT Standard Service Kit to Suit Directovalve Control Valve B
PK-AB144A-1-VI-KIT Viton Service Kit to Suit Directovalve Control Valve B
* Viton option
DIRECTOVALVE
CONTROL VALVE
• 37.9 L/min flow with 0.35 bar
pressure drop
• Can join with other 144A
Directovalve control valves
• 2.5 Amp current draw
• Polypropylene body for
chemical resistance
• Fabric reinforced diaphragms
23
Booms & Hose Reels
Control Valves and Pressure Regulators Chemical Transfer
CODE DESCRITION CAT
042J-06ST Free Standing Silmix A
361-SF
1105-PTS Ag Runner Chemical Transfer Pump Kit A
361-SF1105-PTS

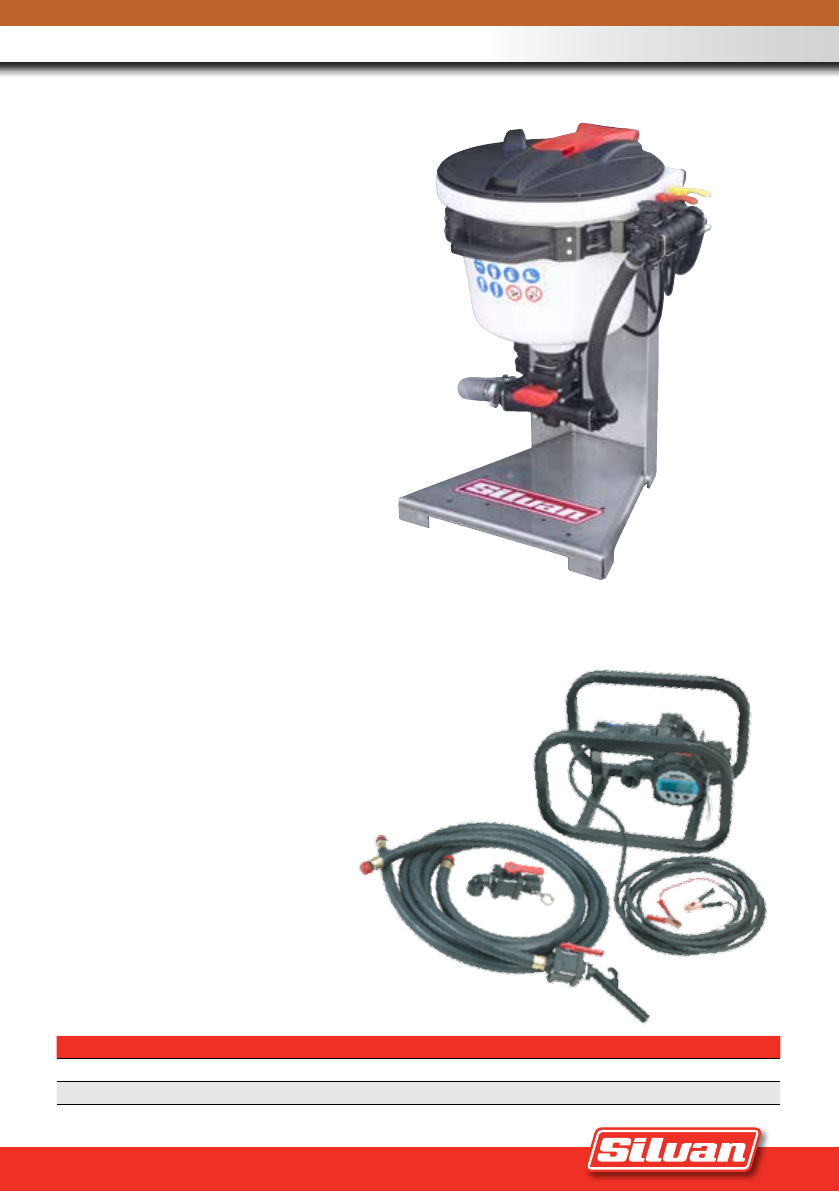

AG RUNNER CHEMICAL TRANSFER PUMP
The Shurflo Ag Runner allows you to pump and measure chemical from
the chemical container directly into the sprayer tank without the need
for manually measuring or any other handling of the chemicals.
• Max Output: 40 L /min open flow,
variable depending on viscosity
• Viton equipped pump
• Max. Pressure: 15psi
• 12V operation with 6m lead & alligator clips
• 1” x 3.6m suction / 1” x 3.6m delivery hoses
• Electrical meter
FREE STANDING SILMIX
Uses external water supply to activate venturi inductor at
the base of the unit to transfer chemicals from hopper to
sprayer tank. The same water supply operates the wash
bar and drum rinse nozzle in the hopper. Transfer system
requires minimum 2 Bar water pressure to operate.
• 30L polyethylene tank with 455mm hinged lid
• 3 on/off taps to control
• Powder washer bar inside hopper
• Drum rinse nozzle
• Chemical transfer venturi. Also has valve at base of unit
to isolate the tank from the induction venturi
042J-06ST
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
GENUINE
ACCESSORIES
GENUINE
ACCESSORIES
Pumps,
Controls and
Service Kits
24 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Pumps, Controls and Service Kits Motorised Diaphragm Pumps
Silvan motorised pumping units provide a go-anywhere pressure pumping unit in a wide range of sizes and capacities.
Each unit consists of a matched engine and pump, control valve, base plate, hose connections and in most cases pressure
gauge as standard equipment.
CODE MAX. PRESSURE MAXIMUM OUTPUT OUTLETS LENGTH WIDTH HEIGHT WT CAT
LBA-34C 2000/290 KPA/PSI 18.5 L/min 1 540mm 340mm 360mm 12 kg A
LBA-38C 2000/290 KPA/PSI 58 L/min 3 720mm 425mm 470mm 24 kg A
LBA-42C 4000/580 KPA/PSI 38 L/min 2 550mm 430mm 410mm 29 kg A
MC20/20 4 STROKE
• Pressure accumulator with pressure gauge
• Honda engine GX120
• Oil backed diaphragm pump
• Direct coupled to motor
• Adjustable pressure regulator
• Inlet size: 19mm; Outlet size: 10mm
• 1 metre maximum suction lift
BP60/20 4 STROKE
• Pressure accumulator with pressure gauge
• Honda engine GX160
• Oil backed diaphragm pump
• Direct coupled to motor
• Adjustable pressure regulator
• 1 metre maximum suction lift
• Inlet size: 25mm; Outlet size: 12mm
APS41 4 STROKE
• Pressure accumulator with pressure gauge
• Honda engine GX160
• Oil backed diaphragm pump
• Direct coupled to motor
• Adjustable pressure regulator
• 1 metre maximum suction lift
• Inlet size: 25mm; Outlet size: 12mm
• Replacement pump code: CAPS41
LBA-34C
LBA-38C
LBA-42C
25
Pumps, Controllers, Valves, Tanks and Hoses
Motorised Diaphragm Pumps
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
BP SERIES
All Silvan diaphragm pumps are built for 540 RPM operation, are Self-priming and designed so no special tools are required
for service. Tough and reliable they will run dry without risk of damage. All pumps are supplied with appropriate hose
connections, mounting base plates and 1 3/8” six splined shaft. Some models are available with keyed shaft.
All pumps are supplied ready to use with 40/20 motor oil in the Crankcase.
BP20/15
Diaphragms: 2
Output @ 540 RPM: 19 L/min
Max. pressures (kPa/psi): 1500/218
HP required at max. pressure: 0.83HP
L x W x H (mm): 155 x 260 x 185
Weight (kg): 7.3
CONTROL VALVE TO SUIT
Attached (2 outlet)
Code: C1204-528
CBP02015
CODE PUMP CAT
CBP02015 BP20/15 A
CBP06020 BP60/20 A
CBP07515 BP75/20 A
BP60/20
Diaphragms: 2
Output @ 540 RPM: 58 L/min
Max. pressures (kPa/psi): 2000/290
HP required at max. pressure: 3.3HP
L x W x H (mm): 186 x 276 x 268
Weight (kg): 10.0
BP75/20
Diaphragms: 3
Output @ 540 RPM: 67 L/min
Max. pressures (kPa/psi): 2000/290
HP required at max. pressure: 3.5HP
L x W x H (mm): 278 x 277 x 271
Weight (kg): 10.0
CONTROL VALVE TO SUIT
Attached (2 outlet)
Code: C1204-528
Remote mount (3 outlet)
Code: C1204-034R
Remote mount (4 outlet)
Code: C1204-332
CONTROL VALVE TO SUIT
Attached (2 outlet)
Code: C1204-528
Remote mount (3 outlet)
Code: C1204-034R
Remote mount (4 outlet)
Code: C1204-332
CBP06020
BP75/20
26 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information

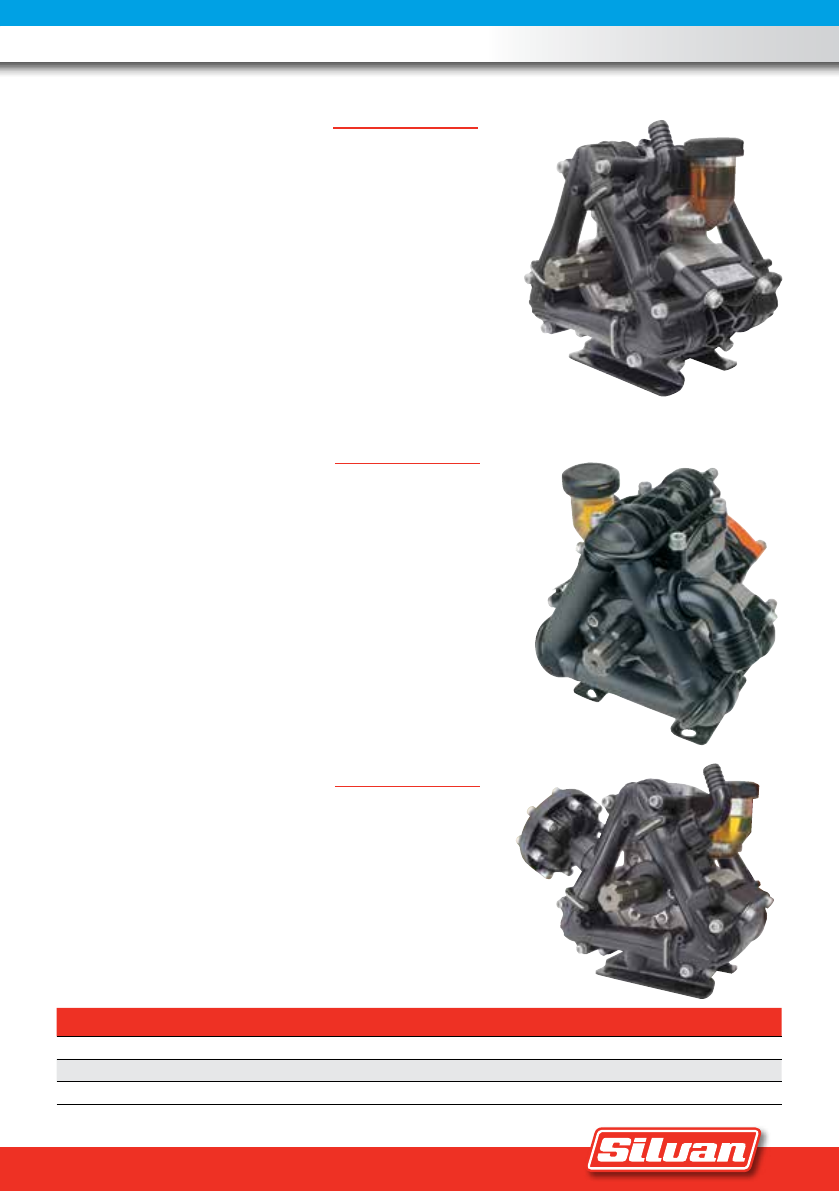

PTO Diaphragm Pumps
BP135/20
Diaphragms: 3
Output @ 540 RPM: 124 L/min
Max. pressures (kPa/psi): 2000/290
HP required at max. pressure: 7.1HP
L x W x H (mm): 280 x 310 x 275
Weight (kg): 14.3
BP125/20
Diaphragms: 3
Output @ 540 RPM: 121 L/min
Max. pressures (kPa/psi): 2000/290
HP required at max. pressure: 6.8HP
L x W x H (mm): 278 x 256 x 273
Weight (kg): 12.3
BP110/20
Diaphragms: 3
Output @ 540 RPM: 110 L/min
Max. pressures (kPa/psi): 2000/290
HP required at max. pressure: 6.0HP
L x W x H (mm): 242 x 284 x 275
Weight (kg): 13
CBP13520
CBP12520
CBP11020
CONTROL VALVE TO SUIT
Attached (3 outlet)
Code: C1204-191
Remote mount (4 outlet)
Code: C1204-332
CONTROL VALVE TO SUIT
Attached (3 outlet)
Code: C1204-191
Remote mount (4 outlet)
Code: C1204-332
CONTROL VALVE TO SUIT
Attached (3 outlet)
Code: C1204-191
Remote mount (4 outlet)
Code: C1204-332
CODE PUMP CAT
CBP11020 BP110/20 A
CBP12520 BP125/20 A
CBP13520 BP135/20 A
27
PTO Diaphragm Pumps
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
CODE
(ATTACHED)
CONTROL
VALVE PUMP APP HOSE INLET SIZE OUTLET BYPASS HOSE MAX. PRESS. MAX. FLOW CAT
C1204-528 2 Outlet BP20/15 19mm 13mm 13mm 1500/218 40L/min B
C1204-457 2 Outlet APS41 19mm 10mm 13mm 4000/580 40L/min B
C1204-191 3 Outlet BP60/20,
BP125/20 19mm 10mm 23mm 2000/290 100L/min B
CODE
(REMOTE)
CONTROL
VALVE PUMP APP HOSE INLET SIZE OUTLET BYPASS HOSE MAX. PRESS. MAX. FLOW CAT
C1204-034R 3 Outlet BP60/20 19mm 13mm 23mm 2000/290 60L/min B
C1204-332 4 Outlet BP60/20,
BP125/20 19mm 13mm 23mm 2000/290 150L/min B
SERVICE KITS
C5004-05 Remote Control Mounting Kit B
CSN5 Service Kit to Suit 2 Outlet Control Valve ( C1204-528 ) B
CSN2 Service Kit to Suit 3 Outlet Control Valve ( C1204-191, C1204-195 ) B
CSN3 Service Kit to Suit 3 Outlet Control Valve ( C1204-034R ) B
CSN1 Service Kit to Suit 4 Outlet Control Valve ( C1204-332 ) B

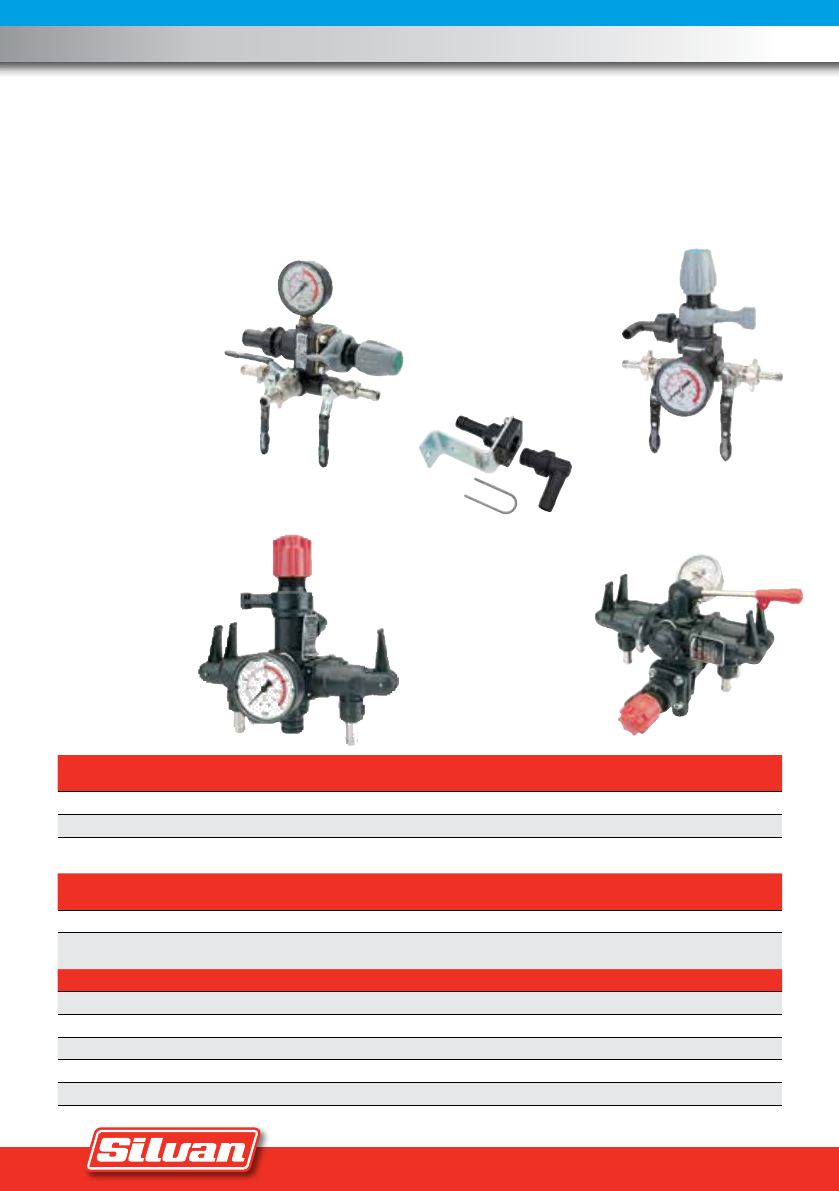

Silvan control valves regulate spray pressure, direct the
flow of spray liquid from the pump to the spray nozzles
and bypass excess liquid back to the tank, in most cases
through an agitator.
C1204-528
3 OUTLET ON/OFF
CONTROL VALVE
3 outlet control, pressure
regulator, bypass valve, gauge.
Features quick action on/off
ball valves
2 OUTLET ON/OFF
CONTROL VALVE
2 outlet control, pressure
regulator, bypass valve, gauge
REMOTE CONTROL
MOUNTING KIT
C1204-332
C5004-05
4 OUTLET
One lever 4 outlet control
shuts all boom sections
off by simply flicking main
lever to one side, standard
with dual stage gauge.
Supplied with remote
bracket kit (C5004-05)
C1204-034R
3 OUTLET
3 outlet control, pressure
regulator, bypass valve,
gauge. Manufactured from
Rilsan Plastic. Controls
include remote mount kit
(C5004-05)
C1204-191
All feature adjustable pressure regulator, glycerine filled
gauge, hose connections, mounting kits where applicable,
on/off directional valves and bypass lock position.
28 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Diaphragm Pump Controls High Pressure Diaphragm Pumps
MODEL SPECIFICATIONS
PUMP L/MIN @50 BAR MAX
PRESSURE kPA KG SHAFT CODE
APS71 71 4000 16.5 Male - Female CAPS071
APS71 71 4000 16.5 Male - Male CAPS071S
APS96 95 4000 21.5 Male - Female CAPS096MF
APS96 95 4000 21.5 Male - Male CAPS096
APS121 115 5000 36.0 Male - Male CAPS121

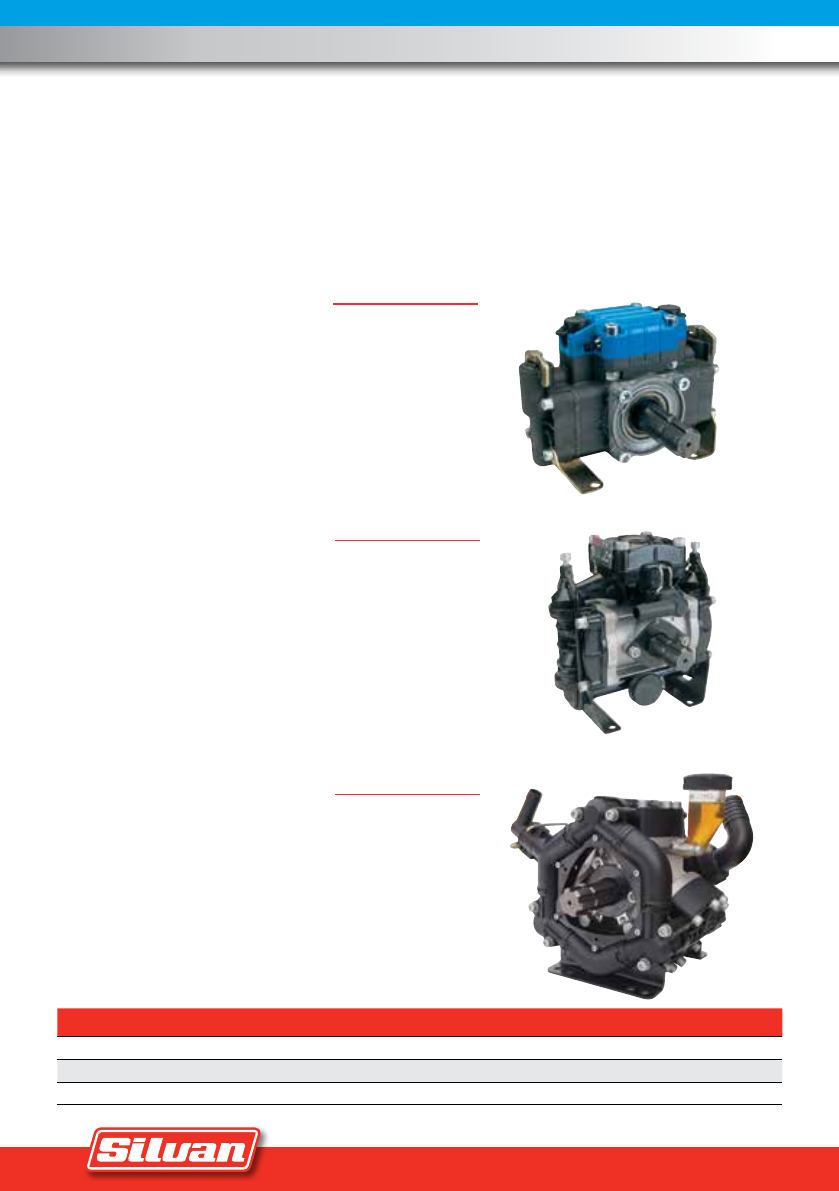

APS SERIES
All Silvan APS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming and feature
a corrosion resistant cast anodised aluminium body. Tough and reliable they will run dry without risk of damage.
All pumps are supplied with appropriate hose connections, mounting base plates and 1 3/8” six splined shaft.
APS71
• Diaphragms: 3
• Output @ 540 RPM: 67 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Female or Male – Male
• HP required at max. pressure: 9.1
• L x W x H (mm): 238 x 343 x 289
• Weight (kg): 18.4
APS121
• Diaphragms: 3
• Output @ 540 RPM: 115 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Male
• HP required at max. pressure: 14.5
• L x W x H (mm): 329 x 387 x 356
• Weight (kg): 38
APS96
• Diaphragms: 4
• Output @ 540 RPM: 88 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Female or Male – Male
• HP required at max. pressure: 11.7
• L x W x H (mm): 236 x 345 x 340
• Weight (kg): 22.5
29
High Pressure Diaphragm Pumps
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
MODEL SPECIFICATIONS
PUMP L/MIN @50 BAR MAX
PRESSURE kPA KG SHAFT CODE
APS145 145 5000 51.0 Male - Male CAPS145
APS166 163 5000 51.0 Male - Male CAPS166
BRASS MANUAL
CONTROL VALVE Suitable for APS series, IDS1701 pumps BRA-17020623
BRASS MANUAL CONTROL VALVE
BRA-17020623
APS166
• Diaphragms: 5
• Output @ 540 RPM: 163 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Male
• HP required at max. pressure: 20.5
• L x W x H (mm): 370 x 389 x 420
• Weight (kg): 56
APS145
• Diaphragms: 4
• Output @ 540 RPM: 142 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Male
• HP required at max. pressure: 18
• L x W x H (mm): 342 x 380 x 420
• Weight (kg): 46
30 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
High Pressure Diaphragm Pumps High Pressure Diaphragm Pumps
31
High Pressure Diaphragm Pumps
MODEL SPECIFICATIONS
PUMP L/MIN @50 BAR MAX
PRESSURE kPA KG SHAFT CODE
IDS960 93 5000 30.3 Male - Male CDS960
IDS1401 135 5000 45 Male - Male CDS1401
IDS1701 161 5000 76.0 Male - Male CDS1701
IDS2001 182 5000 76.0 Male - Male CDS2001
IDS2200 208 5000 60.0 Male - Male CDS2200-1
IDS2600 249 5000 60.0 Male - Male CDS2600-1
IDS1701 / IDS2001
IDS960 / IDS1401
IDS SERIES
All Silvan IDS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming & feature a corrosion
resistant cast anodised aluminium body with brass heads and manifold. Tough and reliable they will run dry without risk
of damage. All pumps are supplied with appropriate hose connections, mounting base plates and 1 3/8” six splined shaft.
IDS1701
• Diaphragms: 4
• Output @ 540 RPM: 161 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Male
• HP required at max. pressure: 19.9
• L x W x H (mm): 298 x 499 x 396
• Weight (kg): 60
IDS2001
• Diaphragms: 4
• Output @ 540 RPM: 182 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Male
• HP required at max. pressure: 22.4
• L x W x H (mm): 298 x 499 x 369
• Weight (kg): 60
IDS960
• Diaphragms: 4
• Output @ 540 RPM: 93 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Male
• HP required at max. pressure: 11.5
• L x W x H (mm): 268 x 350 x 334
• Weight (kg): 30.3
IDS1401
• Diaphragms: 3
• Output @ 540 RPM: 135 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Male
• HP required at max. pressure: 16.6
• L x W x H (mm): 298 x 404 x 396
• Weight (kg): 45
IDS2200 / IDS2600
IDS2200
• Diaphragms: 6
• Output @ 540 RPM: 208 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Male
• HP required at max. pressure: 26.2
• L x W x H (mm): 357 x 463 x 500
• Weight (kg): 76
IDS2600
• Diaphragms: 6
• Output @ 540 RPM: 249 L/min
• Max. pressures (kPa/psi): 5000/725
• Shaft: Male – Male
• HP required at max. pressure: 32.1
• L x W x H (mm): 357 x 463 x 500
• Weight (kg): 76
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
PUMP SERVICE KITS
Our service kits have everything you
need to service your pump or control
valve in one convenient package,
making regular maintenance or
running repairs much more simple.
Silvan all-in-one service kits are the
most economical way to purchase
the individual parts required.
They will also prove invaluable for
those emergency on the spot repairs.
CODE TO SUIT PUMP MATERIAL SHAFT CAT
CSK2015 BP20/15 NBR SPLINED B
C5026-245 APS41 NBR SPLINED B
CSK48 P38 / P48 NBR SPLINED B
CSK6020S BP60/20 NBR SPLINED B
CSK6020K BP60/20 NBR KEYED B
C5026-197 BP60/20 (D) DESMOPAN SPLINED B
C5026-198 BP60/20 (V) VITON SPLINED B
C5026-314 BP75/20 NBR SPLINED B
C5026-374** BP110/20 NBR SPLINED B
CSK10520S BP105/20,BP125/20S NBR SPLINED B
C5026-199 BP105/20,BP125/20K NBR KEYED B
C5026-375** BP135/20 NBR SPLINED B
C5026-205 BP151/20 NBR SPLINED/30mm KEYED B
CSKAPS71 APS71 NBR SPLINED B
C5026-228 APS96 NBR SPLINED B
CSKAPS121 APS121 NBR SPLINED B
C5026-222 APS145 NBR SPLINED B
CSKAPS166 APS166 APS141 NBR SPLINED B
C5026-346* IDS960 NBR SPLINED B
C5026-278* IDS140 NBR SPLINED B
C5026-279* IDS1701, IDS2001 NBR SPLINED
C5026-208 IDS2200/2600 NBR SPLINED B
C5026-207 MC19/20** 20/20 NBR KEYED B
CSKMP40 CMP40 NBR SPLINED B
D = Desmopan diaphragms (long lasting); S = Splined model pump; K = Keyed model pump;
V = Viton diaphragms (longest lasting); NBR = Nitrile / Buna rubber
*Service kits include valve assemblies, accumulator diaphragm, piston diaphragms only.
**Service kits include valve assembies, piston disphragm, viewer gasket, manifold O’rings and outlet tail only.
32 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Diaphragm Pump Service Kits
CODE DESCRIPTION SPRAYER (AS STANDARD)
101051BA Series 1 TPL (200 - 600L)
101071BA Series 1 TPL (800 - 1100L)
103-AB1090 Series 1 TPL (1600 - 1900L)
103-AB4075 Series 4 Suntuff, Compact Supaflo, Oktopus, Cannon Jet, Casotti, Trailed Pasture Sprayer
105081QR Series 5 TPL Turbomiser (P42, P45, P50)
106066QR Series 6 TurboSCRAM, TPL Turbomiser (P55)
1K6081CV Series 6 Constant Velocity Turbomiser (single row), Supaflo (std), Stiletto (std)
CS8081CV Series 8 Constant Velocity G2 Supaflo, G2E Supaflo, TGS, Supaflo (Powerhead, Radak),
Stiletto (Powerhead, Radak), Turbomiser (multi-row)
101051BA
33
Pumps, Controllers, Valves, Tanks and Hoses
PTO Shafts
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
101071BA
103-AB4075103-AB1090
105081QR 106066QR
CS8081CV 1K6081CV
CODE PUMP MAX MAX.
HYD. FLOW
MAX. PRESS.
KPA/PSI
MAX.
RPM
WEIGHT
(KG) CAT
9303C-HM4C 350L/min 26.5 L/min 655/95 6000 19.5 kg A
9303S-HM4C-SP 350L/min 26.5 L/min 655/95 6000 19.5 kg A
9303C-HM5C 350L/min 60 L/min 655/95 6000 19.5 kg A
9303S-HM5C-SP 350L/min 60 L/min 655/95 6000 19.5 kg A
SERVICE KIT CODES 3430-0332 Service kit to suit 9303C B
3430-0589 Service kit to suit 9303S B
CODE PUMP MAX MAX.
HYD. FLOW
MAX. PRESS.
KPA/PSI
MAX.
RPM
WEIGHT
(KG) CAT
97005021 517 L/min 26.5 L/min 750/109 4200 kg A
97005001 560 L/min 49.2 L/min 1060/154 4200 kg A
97005031 567 L/min 64.3 L/min 1100/160 4200 kg A
HYDRAULIC MOTOR DRIVEN PUMP
• Hydraulic motor drive (for open centre, closed centre and load-sensing systems)
• Viton centrifugal shaft seals and double lip Teflon hydraulic motor seal standard
• 1 1/2” NPT inlet, 1 1/4” NPT outlet
• Max. fluid temperature 60º
• C = Cast iron housing and glass filled nylon impeller
• S = Stainless steel housing
• SP + Self-priming
• Internal gear gerotor motor
• 1/2” NPT hydraulic ports
Note: hydraulic hoses and
fittings are not included
SELF-PRIMING
CHAMBER
9303S-HM5C-SP
MP400
9303C-HM4C
MULTISTAGE CENTRIFUGAL PUMP
• High efficiency (low oil flow)
• Compact (480 x 147 x 188mm)
• Flow rate 400 L/min @ 8 bar (4200 RPM)
• Excellent chemical compatibility
34 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Hydraulic Drive Centrifugal Pumps
35
12V Pumps
AQUATEC SMOOTHFLO 12V PUMP
• Smooth flow and even pressure
• 7 L/min or 120 psi max.
• Pump adapts to changes in output volume
to maintain higher flows under increasing pressure
• Fitted with on/off demand pressure sensing switch
DDP-552A
(9 AMPS)
AQUATEC HIGH CAPACITY 12V PUMP
Used where higher volume is required such as boomless nozzle
spraying and larger boom spraying.
• 20 L/min open flow 60 psi (413 kPa)
• Supplied with 5D connections: 2 x ½” and 2 x ¾”
• Rated for continuous duty for pressures up to 40 psi,
above 40 psi it has a intermittent duty rating
• Fitted with ON/OFF demand pressure sensing switch
DDP-550
(18 AMPS MAX.)
AQUATEC 26.5 L/MIN 12V PUMP
• 26.5 L/Min capacity (open flow)
• 60 psi/413 kPa max pressure
• Viton valves and a Santoprene diaphragm
• Supplied with 5D connections: 2 x ½” and 2 x ¾”
DDP-551
(22.4 AMPS MAX.)
CODE OPEN
FLOW
PRESSURE
KPA/PSI
VALVES
MAT.
DIAPHRAGM
MATERIAL
DUTY
RATING
PORT
SIZE/TYPE CAT
DDP-552A 7 L/min 690/120 Viton Santo - 3/8” BSP Female A
DDP-550 20 L/min 413/60 Viton Santo Continuous
to 40PSI
5D Quick
Connection A
DDP-551 26.5 L/min 413/60 EPDM Santo Continuous
to 10PSI
5D Quick
Connection A
DDP-554 5 L/min 1378/200 EPDM Santo - 3/8” BSP Female A
Aquatec pumps are of the highest quality and are exclusive to Silvan.
Aquatec are a leading American manufacturer of pumps which are of proven
durability with minimal maintenance. Constant Flow Technology provides
consistent spraying without pulsation. Scan here to see the
Smoothflo in action!
DDP-554
(16 AMPS)
AQUATEC HIGH PRESSURE 12V PUMP
• Smooth flow and even pressure
• 5 L/Min capacity (open flow)
• 200 psi/1378 kPa max pressure
• Viton valves and a Santoprene diaphragm
RETROFITS TO MOST
BRANDS OF SPRAYERS
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
CODE PRESSURE
KPA/PSI
VALVES
MAT.
DIAPHRAGM
MATERIAL
PRESS.
SWITCH
DUTY
RATING
PORT
SIZE/TYPE CAT
381-38 413/60 Viton TPU Yes Intermittent 8mm tail A
381-2000 413/60 Viton Santo Yes Continuous 3/8” BSP F A
381-125* 240/35 Viton TPU Yes Intermittent 12.5mm tail A
381-125-05 Replacement quick connect filter to suit 381-125 Pak Pump (shown attached) B
* Supplied standard with filter (as pictured)
381-38
(1.7 AMPS)
381-2000
(7.3 AMPS)
381-125*
(7.0 AMPS)
Selecta 12V Pak Pumps are high quality positive displacement diaphragm pumps that can run dry without damage.
All pumps feature an on/off demand pressure switch with standard BSP thread connections or hose barbs.
12V SELECTA PAK PUMP (381-38)
The 381-38 is ideal for spot spraying applications
where a single nozzle is used.
• 2.4 L/min open flow 60 psi/413 kPa max.
• 1.7 Amps
12V SELECTA PAK PUMP (381-2000)
The 381-2000 is the ideal mid-range pump for spot spraying
applications or small boom spraying.
• 5.3 L/min open flow 60 psi/413 kPa max.
• 7.3 Amps
12V SELECTA PAK PUMP (381-125)
This larger flow rate pump is ideal for boom spraying
or fluid transfer applications.
• 12.5 L/min
• Supplied with filter as pictured
• 7.0 Amps
36 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
12V Pumps
CODE OPEN
FLOW
PRESS.
KPA/PSI
VALVES
MAT
DIAPH
MAT
DUTY
RATING PORT SIZES CAT
361-SLV10-AA40 3.8 L/min 275/40 Viton Santo Intermittent 3/8” Hose Barbs A
361-8000 6.8 L/min 413/60 Viton Santo Continuous 1/2” BSP Male A
361-8000-342-136 4.5 L/min 413/60 Viton Viton Continuous 1/2” BSP Male A
361-2088 11.3 L/min 310/45 Viton Santo Intermittent 1/2” BSP Male A
3
61-2088-313-145 13.6 L/min 310/45 Viton Santo Continuous 1/2” BSP Male A
3
61-2088-474-144 11.3 L/min 310/45 Santo Santo Intermittent 1/2”BSP Male A
SLV SERIES 12V DC PUMP
• 3.8 L/min open flow
8000 SERIES 12V DC PUMP
There are two 8000 series Shurflo pumps available, ranging
from 4.5L/min to 6.8L/min open flow and to max. 60psi.
A versatile pump ideal for agricultural and industrial applications.
Full Viton equipped pump available (361-8000-342-136).
2088 SERIES 12V DC PUMP
The 2088 series diaphragm pump is an ideal choice for higher
flow applications such as boom spraying and fluid transfer.
FIN COOLED 12V DC PUMP
Ideal for larger duty cycle application, aluminium heat sink
crankcase design dissipates heat build up from electric motor.
Capacity 13.6L/min open flow, max. pressure 310 kPa (45 psi).
On/off demand pressure switch, 1/2” Male ports, Viton valves,
Santoprene diaphragm.
24V DC PUMP
Available in 11.3L/min, 310kPa (45psi) open flow with on/off
demand pressure switch. Compact size 1/2” BSP male ports.
Suited to machines fitted with 24V DC system eg. bulldozers,
trucks and road sweepers.
361-2088-474-144;
(2.5 AMPS @ 24V DC)
361-2088-313-145;
(10.1 AMPS)
361-2088;
(8.0 AMPS)
361-8000;
(7.3 AMPS)
361-SLV10-AA40;
(1.9 AMPS)
37
12V Pumps
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
Check valve kit
Pressure switch
Upper housing
Valve kits
Drive assembly kits
Electric motor
Complete pump assembly kit
UPPER HOUSINGS
CODE SUITS CAT
361-94-378-00 8000 Series Pumps With 1/2" Male Ports B
361-94-231-30 2088 Series Pumps With 1/2" Male Ports B
361-94-231-05 2088 Series Pumps With 1/2” Male Ports And Viton Pressure Switch B
5503-UHA DDP-550 With 5D Quick Connectors (Inc Pressure Switch) B
5504-UHA DDP-551 With 5D Quick Connectors (Inc Pressure Switch) B
5880-UHA DDP-552A Series Pump With 3/8" Female BSP Ports B
PRESSURE SWITCHES
CODE SUITS PUMPS MAX.PRESSURE CAT
361-94-375-05 8000 Series With Viton Dphm (361-8000-342-136) 60PSI B
361-94-375-06 8000 Series With Santo Dphm* (361-8000) 60PSI B
361-94-375-18 8002 Series With Santo Dphm 100PSI B
361-94-229-03 8090 Series With Viton Dphm 60PSI B
361-94-229-05 8090 Series With Viton Dphm 100PSI B
361-94-230-35 2088 Series With Santo Dphm* (361-2088) 45PSI B
361-94-230-36 2088 Series With Viton Dphm 45PSI B
361-94-230-55 2088 Series Fin Cooled (361-2088-313-145) 45PSI B
381-2000-03 381-2000 (Excludes Check Valve Kit) 60PSI B
381-125-04 381-125 35PSI B
5503-PSW DDP-550 60PSI B
5504-PSW DDP-551 60PSI B
5880-PSW DDP-552A 120PSI B
12V DIAPHRAGM PUMP SPARE PARTS
VALVE KITS
CODE SUITS CAT
361-94-390-05 8000 Series Pumps Viton Valve Kit (Blk) B
361-94-232-05 2088 Series Pumps Viton Valve Kit B
361-94-232-00 2088 Series Pumps Santo Valve Kit For 24V Model B
5503-VHA DDP-550 Viton Valve Kit B
5504-VHA DDP-551 EPDM Valve Kit B
5880-VHA DDP-552 Viton Valve Kit B
38 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information

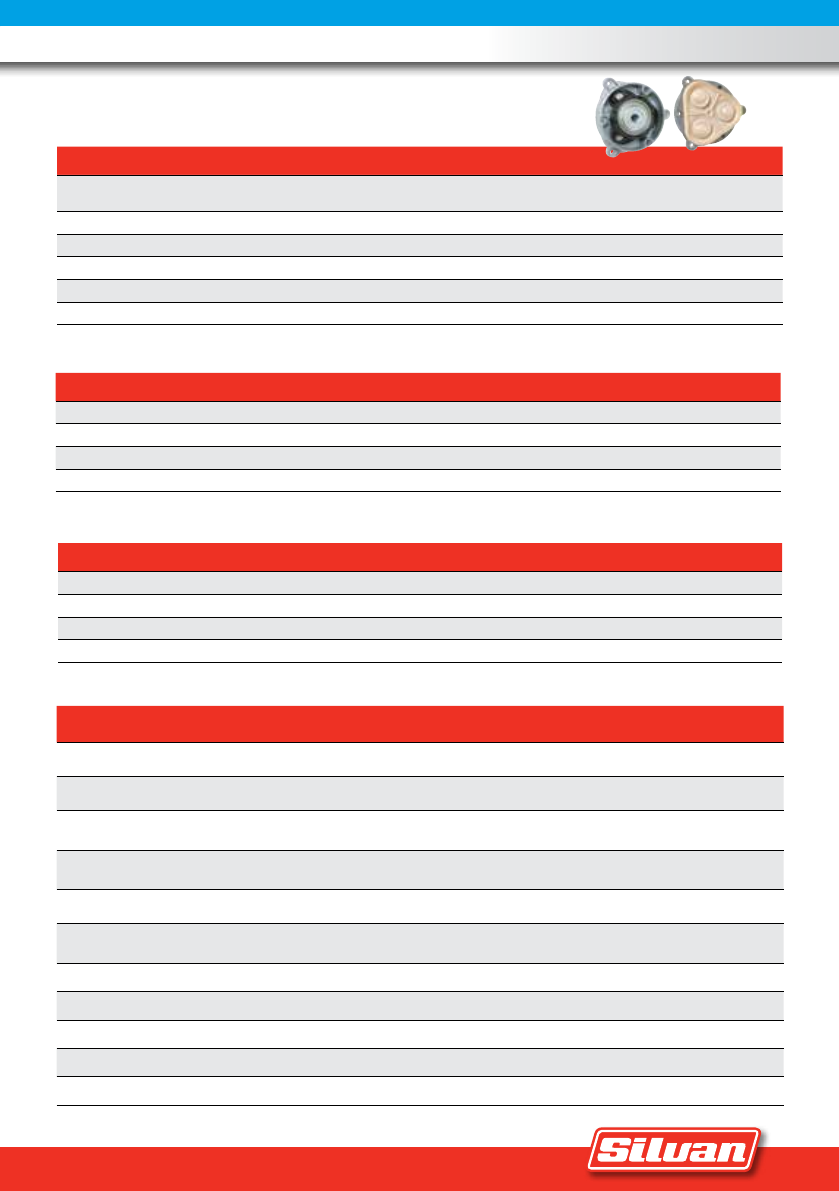

12V Pump Service Kits
CHECK VALVE KIT
CODE SUITS CAT
361-94-374-16 8000 Series Pumps with EPMD Valve Kits B
361-94-374-05 8000 Series Pumps with Viton Valve Kits B
361-94-237-00 2088 Series Pumps with Santo Valve Kits B
361-94-237-05 2088 Series Pumps with Viton Valve Kits B
DRIVE ASSEMBLY KITS
CODE SUITS CAT
361-94-385-32 8000 Series Pumps With Santo Diaphragm
361-8000 (Pumps Made After March 1999) B
361-94-238-04 2088 Series Pumps With Santo Diaphragm B
361-94-238-03 2088 DHP with Santo Diaphragm B
5503-LHA DDP-550 with Santo Diaphragm B
5504-LHA DDP-551 with Santo Diaphragm B
5880-LHA DDP-552 with Santo Diaphragm B
DIAPHRAGM KITS (BARE DIAPHRAGM TO SUIT CERTAIN MODELS)
CODE SUITS CAT
361-94-395-05 361-800-342-136 Viton-Viton Pump B
361-94-395-06 361-8000 (made pre March 99) B
361-94-238-04 2088 Series Pumps with Santo Diaphragm B
361-94-238-03 Obsolete DHP Model With Santo Diaphragm B
12V PUMP SUCTION / DELIVERY FITTINGS
PUMP STRAIGHT
8MM BARB
ELBOW
8MM BARB
STRAIGHT
3/8” BARB
ELBOW
3/8” BARB
STRAIGHT
1/2” BARB
ELBOW
1/2” BARB
STRAIGHT
3/4” BARB
ELBOW
3/4” BARB
DDP-550 NA NA NA NA QBS-554 QBE-554 QBS-556 QBE-556
DDP-551 NA NA NA NA QBS-554 QBE-554 QBS-556 QBE-556
DDP-552 HB3814 320-60806 361-8-145-01 &
361-234-2916
361-8-145-01 &
361-234-3916
361-8-145-01 &
361-234-2926
361-8-145-01 &
361-234-3926 NA NA
DDP-554 HB3814 320-60806 361-8-145-01 &
361-234-2916
361-8-145-01 &
361-234-3916
361-8-145-01 &
361-234-2926
361-8-145-01 &
361-234-3926 NA NA
DDP-555 NA NA NA NA QBS-554 QBE-554 QBS-556 QBE-556
381-2000 HB3814 320-60806 361-8-145-01 &
361-234-2916
361-8-145-01 &
361-234-3916
361-8-145-01 &
361-234-2926
361-8-145-01 &
361-234-3926 NA NA
381-125 NA NA NA NA 381-125-02 381-125-03 NA NA
361-8000 NA NA 361-234-2916 361-234-3916 361-234-2926 361-234-3926 NA NA
361-2088 NA NA 361-234-2916 361-234-3916 361-234-2926 361-234-3926 NA NA
361-2088-313-145 NA NA 361-234-2916 361-234-3916 361-234-2926 361-234-3926 NA NA
361-2088-474-144 NA NA 361-234-2916 361-234-3916 361-234-2926 361-234-3926 NA NA
39
12V Pump Service Kits
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
Plumbing, Filtration
& Tank Accessories
GENUINE
ACCESSORIES
GENUINE
ACCESSORIES
40 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Plumbing, Filtration & Tank Accessories
Plumbing, Filtration & Tank Accessories
FILTRATION
Efficient filtration is an important component of every sprayer and prevents blocked nozzles, reduce or inhibit pump
wear and reduce down time and expense due to repairs. Silvan offers a choice of foot, suction, pressure line, nozzle and
high volume ir ri ga tion filters to suit most applications.
GRADUATED OR PROGRESSIVE FILTRATION?
Filtration is ideally applied in stages, starting with a coarse mesh progressing to finer mesh sizes as liquid moves towards
the spray tip. Filter mesh is described in terms of the number of wires per linear inch, which relates to the size of the
apertures through which liquid passes. The larger the mesh number the smaller the aperture and the finer the filtration.
STAGES OF FILTRATION
STAGE A – INTO THE TANK
COARSE FILTRATION: Liquid passing into the tank is
filtered by the foot filter or the lid basket strainer.
STAGE B – FROM TANK TO PUMP
COARSE/MEDIUM FILTRATION: Suction filters provide
protection for the pump and screen out larger particles.
A B C D
STAGE C – FROM PUMP TO SPRAYLINES
MEDIUM/FINE FILTRATION: Pressure line filters are
used to remove finer particles before nozzle holders.
• Large pressure line/flushing filter is ideally fitted
between pump and pressure regulator.
• Small pressure line filters are usually fitted in
each boom section spray line.
STAGE D – SPRAY TIP FILTERS
FINE FILTRATION: Last stage of filtration before
the spray tip, usually 50 mesh or finer.
COARSE FILTRATION MEDIUM FILTRATION FINE FILTRATION
20 Mesh/inch
0.6mm Aperture
30 Mesh/inch
0.4mm Aperture
50 Mesh/inch
0.3mm Aperture
80 Mesh/inch
0.18mm Aperture
100 Mesh/inch
0.14mm Aperture
Plumbing, Filtration & Tank Accessories
41
FiltrationPlumbing, Filtration & Tank Accessories
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
CODE FILTER TYPE MESH SIZE FLOW
L/MIN
PORT
SIZE BSP
MOUNT
INSERTS WIDTH HEIGHT CAT
LSA-310058 SAR0 32 UP TO 60 1 1/4” 2 107mm 163mm B
LSA-312158 SAR1 32 UP TO 100 1 1/4” 2 107mm 213mm B
LSA-314163 SAR2 50 UP TO 160 1 1/2” 3 122mm 233mm B
LSA-316063 SAR3 50 UP TO 180 1 1/2” 3 170mm 292mm B
LSA-316173 SAR3 50 UP TO 220 2” 3 170mm 292mm B
LSA-314463* SAR2/V 50 UP TO 150 1 1/2” 3 140mm 260mm B
LSA-314563* SAR2/V 50 UP TO 150 1 1/2” 3 122mm 278mm B
LSA-316573* SAR3/V 50 UP TO 220 2” 3 170mm 329mm B
*Include a shut off valve
SUCTION LINE FILTERS
Suction line filters provide filtration to remove larger particles of grit and are ideally mounted between the tank and pump.
Featuring 8mm thread ed brass inserts and mounting bolts for easy adaptation to frames and chassis etc. Screw off bowl
for easy cleaning.
SAR2/V and SAR3/V models feature auto shut-off action valve which closes off the supply line while removing element for
cleaning. Supplied with mesh elements and replacement elements are available.
LSA-310058
LSA-316063
LSA-312158
LSA-314463
LSA-314163
LSA-316573
42 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Suction Filters
GC00100021 GC00100012 GC00100008
CODE FILTER TYPE MESH SIZE NEW COLOUR OLD COLOUR WIDTH HEIGHT CAT
GC00100021 SAR1 50 BLUE BLUE 70mm 150mm B
GC00100012 SAR2/SAR2/V 50 BLUE BLUE 80mm 165mm B
GC00100008 SAR3/SAR3/V 32 RED WHITE 107mm 200mm B
GC00100009 SAR3/SAR3/V 50 BLUE BLUE 107mm 200mm B
‘O’ RINGS CODE DESCRIPTION CAT
C1210-150 To Suit GC00100021 B
GG00001040 To Suit GC00100012 B
GC00001042 To Suit GC00100008, GC00100009 B
MESH ELEMENTS –
SUCTION LINE FILTERS
Efficient filtration is an important component
of every sprayer. Effective filtration through
the use of the correct suction filter/element
will screen out any larger particles and
provide protection for the pump.
“O” RINGS NOT INCLUDED - SEE BELOW
CODE DESCRIPTION MESH SIZE MESH COLOUR FLOW L/MIN THREAD CAT
AAB122ML-1/2-PP-50 Filter Assembly 50 BLUE 45 1/2” B
AAB122ML-3/4-PP-50 Filter Assembly 50 BLUE 60 3/4” B
AAB122ML-1/2-PP-80 Filter Assembly 80 YELLOW 45 1/2” B
AAB122ML-3/4-PP-80 Filter Assembly 80 YELLOW 60 3/4” B
AAB122ML-1/2-PP-100 Filter Assembly 100 GREEN 45 1/2” B
AAB122ML-3/4-PP-100 Filter Assembly 100 GREEN 60 3/4” B
CP45102-3-SSPP Screen 50 BLUE B
CP45102-4-SSPP Screen 80 YELLOW B
CP45102-5-SSPP Screen 100 GREEN B
CP23173-VI Housing O-ring (viton) - - - B
AAB122ML
IN-LINE TEEJET PRESSURE
FILTER 122 SERIES
Mountable design, 1/2” or 3/4” female BSPT nylon
construction with stainless steel screen. Ideal for spot
sprayers or small booms. Maximum pressure 10 BAR.
This filter assembly is fully mountable with female brass
threads moulded into its housing.
100#
80#
43
Suction Filters Filters
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
CODE DESCRIPTION MESH SIZE MESH COLOUR FLOW L/MIN THREAD CAT
AAB126ML-3 Housing Only - - 87 3/4” B
CP16903-1-SSPP Screen 16 BROWN RED - - B
CP16903-3-SSPP Screen 30 RED - - B
CP16903-4-SSPP Screen 50 BLUE - - B
CP16903-5-SSPP Screen 80 YELLOW - - B
CP16903-6-SSPP Screen 100 GREEN - - B
CP50494-EPR Housing O-ring
(EPDM) ----B
IN-LINE TEEJET PRESSURE
FILTER 126ML SERIES
• 3/4” BSPT nylon construction, 87 L/min max flow
• Maximum pressure ratings 10 BAR/145psi
• Available with 16, 30, 50, 80 or 100 stainless steel
mesh filters.
CODE DESCRIPTION MESH SIZE MESH COLOUR FLOW L/MIN THREAD CAT
AAB126ML-6-30 Filter Assembly 30 RED 291 1 1/2” B
AAB126ML-6-50 Filter Assembly 50 BLUE 291 1 1/2” B
AAB126ML-6-80 Filter Assembly 80 YELLOW 291 1 1/2” B
AAB126ML-6-100 Filter Assembly 100 GREEN 291 1 1/2” B
CP15941-1-SSPP Filter Cartridge 16 BROWN RED - - B
CP15941-2-SSPP Filter Cartridge 30 RED - - B
CP15941-3-SSPP Filter Cartridge 50 BLUE - - B
CP15941-4-SSPP Filter Cartridge 80 YELLOW - - B
CP15941-5-SSPP Filter Cartridge 100 GREEN - - B
CP15941-6-SSPP Filter Cartridge 120 BROWN - - B
CP48656-EPDM Housing O-ring
(EPDM) ----B
IN-LINE TEEJET PRESSURE
FILTER 126ML SERIES
14 BAR/203psi pressure rating at 38ºC 1 1/2”
BSPT female inlet/outlets, polypropylene construction,
high strength 1” bypass line on bowl.
Available with 30, 50, 80 or 100 stainless steel mesh.
AAB126ML-6-**
100# 120#80#50#
AAB126ML-3
80#50# 100#
44 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Pressure Filters
CODE MAX PRESS
KPA/PSI
FLOW
MAX
PORT
SIZE BSP
MOUNT.
INSERTS WIDTH HEIGHT MAT CAT
BRA-M147 5000/725 70 L/min 1/2” F - 90mm 155mm BRASS B
G8135002 5000/725 150 L/min 3/4” F 2 100mm 240mm POLY B
PLF-324024A 1000/145 100 L/min 1/2” F 2 97mm 134mm POLY B
PLF-324034A 1000/145 100 L/min 3/4” F 2 97mm 134mm POLY B
CODE REF FILTER
TYPE
MESH
SIZE
NEW
COLOUR
OLD
COLOUR WIDTH HEIGHT CAT
GC00100001 2 324 50 BLUE BLUE 40mm 90mm B
GC00100003 2 324 100 GREEN RED 40mm 90mm B
GC00100033 3 326 50 BLUE BLUE 58mm 210mm B
GC00100035 3 326 100 GREEN RED 58mm 210mm B
GC00100005 4 3244 50 BLUE BLUE 38mm 125mm B
GC00100007 4 3244 100 GREEN RED 38mm 125mm B
GC00100015 5 G8135 50 BLUE BLUE 50mm 150mm B
GC00100016 5 G8135 80 YELLOW GREY 50mm 150mm B
PRESSURE LINE STRAINERS
Pressure line strainers are ideal for placing
in hose lines between pump and spray lines
for finer filtration. They remove fine particles
preventing spray tip blockage or excessive
wear. Polypropylene or brass construction,
mesh element standard, twist-off bowl for easy
cleaning. Some models feature a clean flushing
tap. Pressures range from 1000 kPa (145 psi)
to 5000 kPa (725 psi) maximum, flow from
70 to 150 L/min.
BRA-M147 PLF-324024AG8135002
REF: 2
MESH ELEMENTS –
PRESSURE LINE STRAINERS
ISO COMPLIANT
REF: 5REF: 3 REF: 4
‘O’ RINGS CODE DESCRIPTION CAT
C1210-145 To Suit GC00100001, GC00100003, GC00100005, GC00100007 B
GG00001046 To Suit GC0010033, GC0010035 B
460000-210 To Suit GC00100015, GC00100016 B
“O” RINGS NOT INCLUDED - SEE BELOW
45
Pressure Filters Pressure Filters
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
Nozzle or tip filters provide the final stage of filtration before the liquid is sprayed.
They are available as standard or small cup type filters and fit most nozzle holders.
Also available in anti-drip versions.
CODE MESH
SIZE
MESH SCREEN
MATERIAL TYPE STRAINER BODY
& CAP MATERIAL CAT
4193A-10-50SS 50 Stainless Steel Standard With Check Valve Brass B
4193A-PP-10-100SS 100 Stainless Steel Standard With Check Valve Polypropylene B
4193A-PP-10-50SS 50 Stainless Steel Standard With Check Valve Polypropylene B
NOTE: CUT-AWAY PICTURE
SHOWN FOR ILLUSTRATIVE
PURPOSES ONLY
TIP STRAINER WITH CHECK VALVE
Ideal for knapsacks and 12V sprayers by eliminating
any excess drips. Fits all Silvan nozzle bodies.
• Ball check opens at 5psi (0.34 bar)
• Recommended for flow rates up to 3 L/min
• Available in 50 and 100 mesh screens
Note: Use of these ball check valves results
in a pressure drop of 5psi (0.34 bar).
4193A SERIES
CUP STRAINERS
• Stainless steel construction
• Choice of 50 and 100 mesh screens 4067 SERIES
10 PACK
10 PACK
CODE MESH
SIZE
MESH SCREEN
MATERIAL TYPE STRAINER BODY
& CAP MATERIAL CAT
PKT-4067-SS-50 50 Stainless Steel CUP Stainless Steel B
PKT-4067-SS-100 100 Stainless Steel CUP Stainless Steel B
CODE MESH
SIZE
MESH SCREEN
MATERIAL TYPE STRAINER BODY
& CAP MATERIAL CAT
PKT-8079-PP-50 50 Stainless Steel Standard Polypropylene B
PKT-8079-PP-100 100 Stainless Steel Standard Polypropylene B
POLY TIP STRAINERS
Tip strainers protect the spray tip orifice from
clogging and damage. Stainless steel screens available
in 50 and 100 mesh individually 8079 SERIES
46 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzle Strainers
TANK LIDS
Silvan “Smooth-Line” lid assemblies are used extensively
through out Australia. A wide range of sizes is available
to suit many applications, eg. filling points, inspection
hatches and man-holes used in agricultural water and
chemical tanks.
Manufactured from high quality chemical resistant UV
stabilised polypropylene for durability. Two start threads
are convenient and larger screw type lids feature twist on/
off centre cap, incorporating a double breather valve
(single on smaller lids) for fast tank filling and quick emptying.
G8158002G8146002
CODE REF TYPE DIAMETER HEIGHT CAT
INSIDE OUTSIDE
G8208000 1 Single 35mm 55mm 80mm B
3522000 2 Single 110mm 140mm 80mm B
G8140002 3 Dual 120mm 140mm 75mm B
1
A. Male thread with breather B. Male thread with breather D. Female thread
no breather
C. Female thread
with breather
BREATHER VALVES
1. Single breather valve with locking nut.
2. Single labyrinth valve to suit Arag lids
3. Double one way spring valve to suit Geoline lids
2 3
CODE SIZE DIAMETER HEIGHT CAT
INSIDE OUTSIDE
A G8146002 255mm 210mm 250mm 31mm B
B G8152002 355mm 313mm 355mm 29mm B
B G8158002 455mm 408mm 450mm 23mm B
C G8178001 170mm 150mm 170mm 56mm B
D 354130 122mm 106mm 122mm 32mm B
354130G8178001
47
Plumbing, Filtration & Tank Accessories
Nozzle Strainers Tank Lids
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information

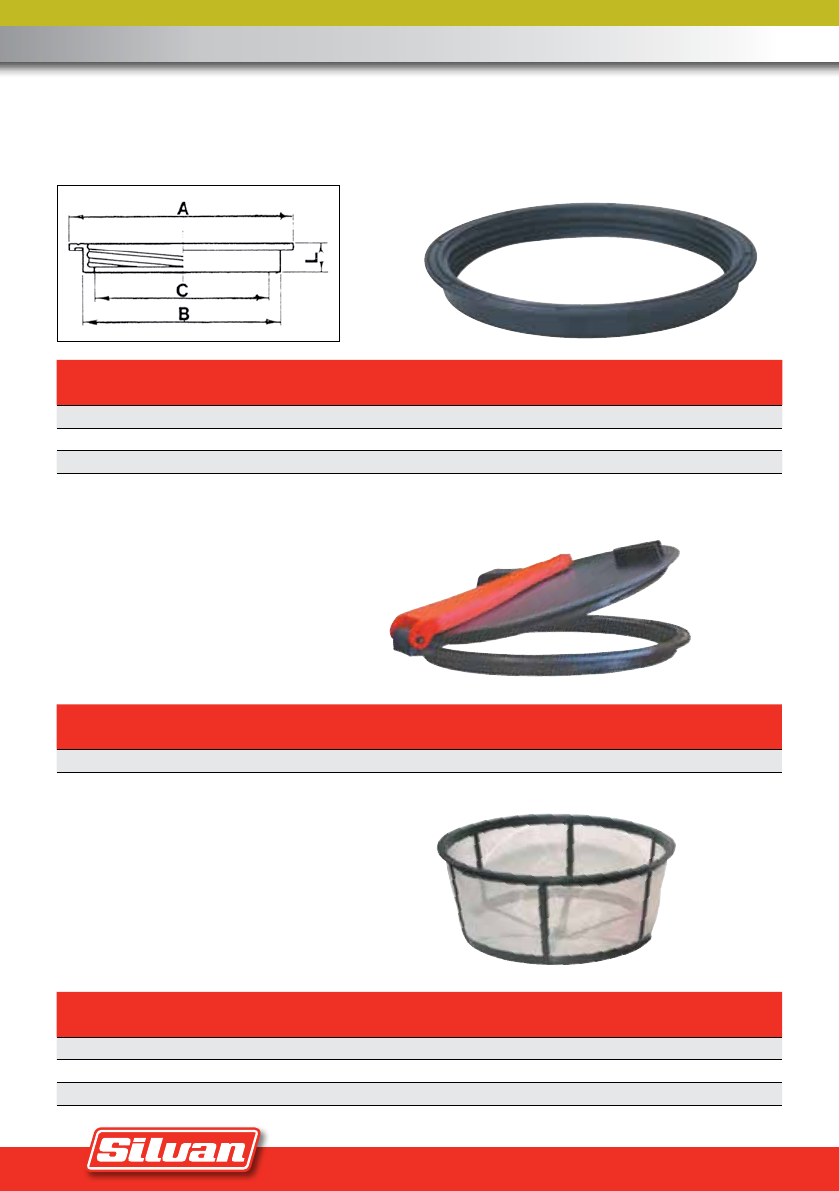

LID RINGS
Two start threads for secure, positive fastening and sealing. Suits male threaded lids.
CODE SIZE DIAMETER HEIGHT CAT
A B C
G8148000 255mm 218mm 192mm 38mm B
G8154000 355mm 320mm 290mm 38mm B
G8160000 455mm 415mm 382mm 35mm B
CODE SIZE MESH SIZE DIAMETER HEIGHT CAT
INSIDE OUTSIDE
G8147002 255mm 20mm 188mm 200mm 240mm B
G8153001 355mm 20mm 286mm 300mm 254mm B
G8159000 455mm 20mm 378mm 398mm 160mm B
LID STRAINERS
For prevention of large particles or debris entering tank
CODE SIZE DIAMETER HEIGHT CAT
INSIDE OUTSIDE
G8170015 455mm 415mm 457mm 22.5mm B
HINGE TYPE LID
Twin threaded lid with sealing gasket,
breather valve and threaded ring
G8170015
48 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Tank Lids
VALVES
Silvan offer a wide range of valves manufactured
to high specifications with excellent re sist ance to
agricultural chemicals with minimum flow restriction
or pressure loss.
They feature BSP connections and quick turn on/off
and are ideal for controlling boom lines, change of
liquid directional flow, stop cocks or tank outlets.
CODE SIZE FEM BSPT TYPE PRESSURE
KPA/PSI LENGTH WIDTH HEIGHT CAT
472-22A 1/4” 2 WAY 5000/725 105mm 30mm 55mm B
472-23A 3/8” 2 WAY 5000/725 105mm 30mm 55mm B
472-28A 1/2” 2 WAY 5000/725 105mm 33mm 60mm B
472-25A 3/4” 2 WAY 5000/725 120mm 40mm 65mm B
CODE SIZE FEM BSPT TYPE PRESSURE
KPA/PSI LENGTH WIDTH HEIGHT CAT
G8215253 1” 2 WAY 1650/239 100mm 67mm 66mm B
G8215303 1 1/4” 2 WAY 1030/149 111mm 80mm 71mm B
G8215353 1 1/2” 2 WAY 1030/149 130mm 95mm 80mm B
G8215403 2” 2 WAY 1030/149 150mm 110mm 108mm B
4542233 3/4” 3 WAY 1650/239 86mm 58mm 85mm B
45521114-OBS 1” 3 WAY 1650/239 100mm 67mm 90mm B
45521115-OBS 1 1/4” 3 WAY 1030/149 111mm 80mm 95mm B
45521116-OBS 1 1/2” 3 WAY 1030/149 130mm 95mm 105mm B
45521117-OBS 2” 3 WAY 1030/149 150mm 110mm 140mm B
BALL VALVE -
LOW PRESSURE
Glass reinforced polypropylene,
teflon ball seal, EPDM gasket,
90º on/off with 8mm mounting
threads. (Some models only)
BALL VALVE
3 WAY - LOW
PRESSURE
Three way ball valve
with 180º three way
on/off and 8mm mounting
threads. (Some models only)
HIGH PRESSURE
BALL VALVE
Teflon seals, durable chrome
coating, 90 degree on/off with
female BSP connections.
2 WAY
2 WAY
3 WAY
49
Plumbing, Filtration & Tank Accessories
Tank Lids Ball Valves
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
CODE SIZE FEM BSPT PRESSURE
KPA/PSI LENGTH WIDTH HEIGHT CAT
472-22B 1/4” 5000/725 52mm 25mm 55mm B
472-28B 1/2” 5000/725 52mm 32mm 60mm B
CODE SUIT I.D.
HOSETAIL
PRESSURE
KPA/PSI LENGTH WIDTH HEIGHT CAT
320-TAP1 1/2” 689/100 74mm 28mm 49mm B
320-TAP2 3/8” 689/100 82mm 27mm 39mm B
CODE ENTRY TYPE PRESSURE
LIMITS OPTIMUM OPERATING PRESSURE CAT
C99-247* Back 0-60 BAR 60 BAR B
C99-248-PK†Bottom 0/5/25 BAR 1-5 BAR B
C99-249-PK†Back 0/5/25 BAR 1-5 BAR B
C99-205/30B Bottom 0-60 BAR 30 BAR B
C99-204 Back 0-60 BAR 30 BAR B
G8302058 Bottom 0-80 BAR 40 BAR B
C99-207 Back 0-80 BAR 40 BAR B
C99-210/50B Bottom 0-100 BAR 50 BAR B
* 100mm face gauge model with 1/2 BSP connection, † Dual Stage gauge model, PK = Packaged
1 BAR = 14.5 PSI
BUTTERFLY
VALVE – HIGH
PRESSURE
Teflon seals, durable
chrome coating, 90˚
on/off with female
BSP connections
IN LINE TAP
Designed for low
pressure applications
PRESSURE GAUGE
Ideal where exact measurements are required. Both standard and
dual pressure gauges for high and low pressure readings.
Feature a nominal size 63mm guage, clear lens, glycerine filled,
1/4” BSP male thread in either bottom or back entry models.
472-28B
320-TAP1
50 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Ball Valves and Pressure Gauges
A B
CODE L SIZE
(MM) HOLE SIZE (MM) I.D. CAT
BR
A-1688041 1130 19 B

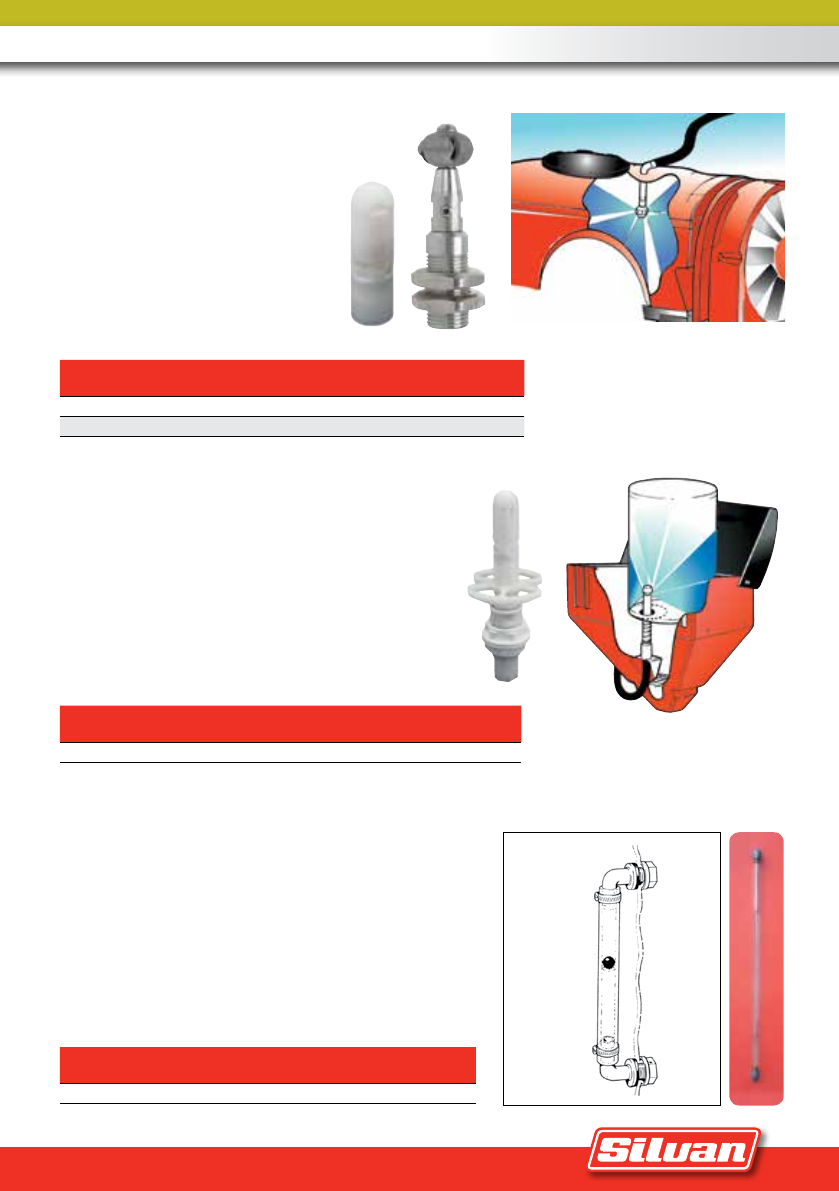

TANK SIGHT GAUGE KIT
Ideal for fitting to all types of tanks including poly, fibreglass or
steel. Supplied in kit form and includes fittings which insert into tank
wall, fluorescent sight ball and EPDM transparent PVC hose which
makes gauging tank volume easy.
Sight level
Tank Wall
CODE INLET CONNECT MAX PRESS
KPA/PSI LENGTH CAT
510100A 1/2” BSPT (F) 3000/435 90 B
CONTAINER RINSING NOZZLE
Ideal for cleaning chemical containers before disposal.
A container fits over the 360° rotational spray head and onto a
safety valve. The valve opens when the container is pushed down
and releases clean water through the rotational spray head.
TANK RINSING NOZZLE
Washes the internal surface of the tank using
a 360° fluid driven rotational spray head.
Features a series of nozzles which spray
clean liquid onto the tanks internal surface.
Corrosion resistant.
CODE REF INLET CONNECT MAX PRESS
KPA/PSI LENGTH CAT
510110 A 1/2” BSPT (F) 3000/435 120mm B
G8185000 B 3/8” BSPT (M) 5000/725 55mm B
51
Plumbing, Filtration & Tank Accessories
Ball Valves and Pressure Gauges Tank Rinsing and Sight Gauges
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
CAMLEVER COUPLINGS
These top quality quick release Camlever Couplers
are manufactured with glass reinforced polypropylene.
They are ideal for use with most agricultural chemicals,
liquid fertilisers and many other liquids.
Fitted with stainless steel camlever handles and grooved
retaining pins. Working pressures of: 1/2” to 1” - 9
bar/900kPa & 1 1/4” to 2” - 7 bar/700kPa
ADAPTOR -
FEMALE THREAD
COUPLER -
MALE THREAD
COUPLER -
HOSE SHANK
COUPLER -
FEMALE THREAD
ADAPTER -
HOSE SHANK
ADAPTER -
MALE THREAD
CODE SIZE CAT
CAM15A 1/2” B
CAM20A 3/4” B
CAM25A 1” B
CAM32A 1 1/4” B
CAM40A 1 1/2” B
CAM50A 2” B
CAM80A 3” B
CODE SIZE CAT
CAM15B 1/2” B
CAM20B 3/4” B
CAM25B 1” B
CAM32B 1 1/4” B
CAM40B 1 1/2” B
CAM50B 2” B
CAM80B 3” B
CODE SIZE CAT
CAM15C 1/2” B
CAM20C 3/4” B
CAM25C 1” B
CAM32C 1 1/4” B
CAM40C 1 1/2” B
CAM50C 2” B
CAM80C 3” B
CODE SIZE CAT
CAM15D 1/2” B
CAM20D 3/4” B
CAM25D 1” B
CAM32D 1 1/4” B
CAM40D 1 1/2” B
CAM50D 2” B
CAM80D 3” B
CODE SIZE CAT
CAM15E 1/2” B
CAM20E 3/4” B
CAM25E 1” B
CAM32E 1 1/4” B
CAM40E 1 1/2” B
CAM50E 2” B
CAM80E 3” B
CODE SIZE CAT
CAM15F 1/2” B
CAM20F 3/4” B
CAM25F 1” B
CAM32F 1 1/4” B
CAM40F 1 1/2” B
CAM50F 2” B
CAM80F 3” B
52 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Camlever Couplings Camlever Couplings

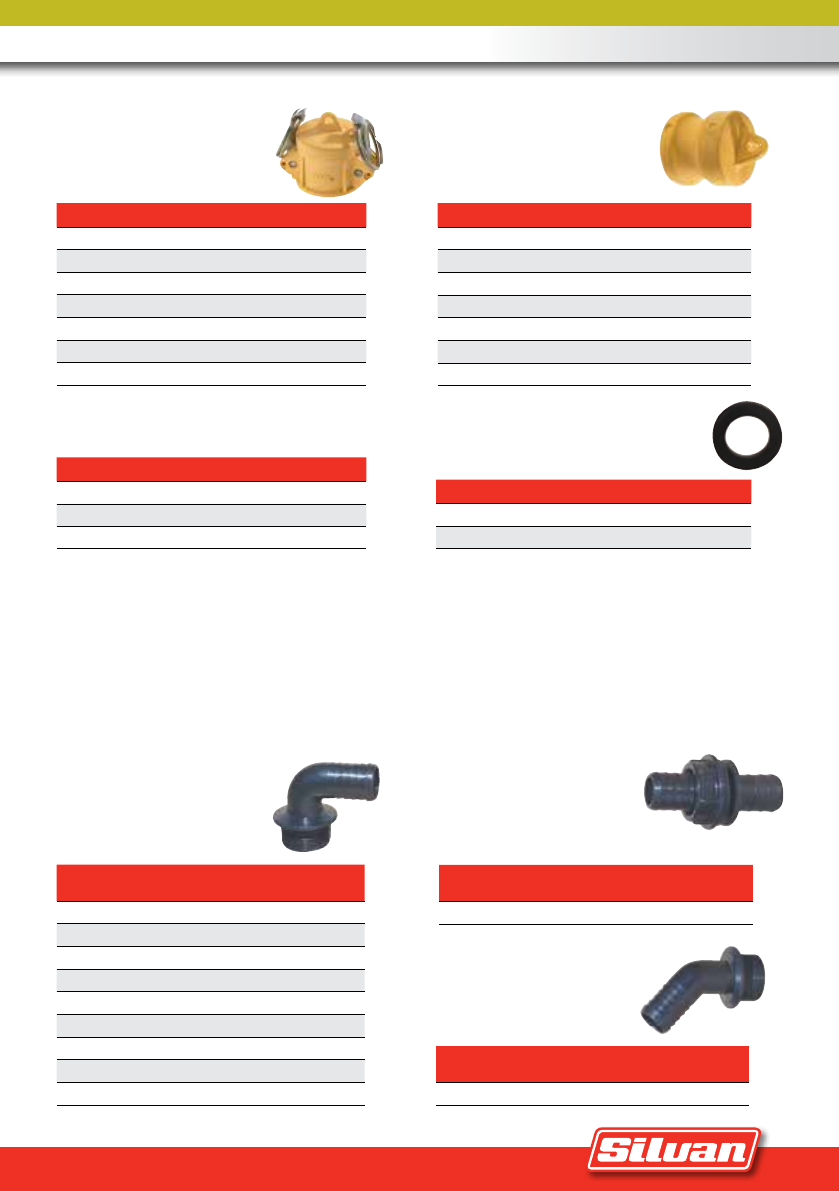

GASKETS
DUST PLUGDUST CAP
CODE SIZE CAT
CAM1520DC 1/2” B
CAM1520DC 3/4” B
CAM25DC 1” B
CAM3240DC 1 1/4” B
CAM3240DC 1 1/2” B
CAM50DC 2” B
CAM80DC 3” B
CODE SIZE CAT
CAM59 1/2”/ 3/4” B
CAM60 1” B
CAM61 1 1/4”/ 1 1/2” B
CODE SIZE CAT
CAM62 2” B
CAM63 3” B
CODE SIZE CAT
CAM1520DP 1/2” B
CAM1520DP 3/4” B
CAM25DP 1” B
CAM3240DP 1 1/4” B
CAM3240DP 1 1/2” B
CAM50DP 2” B
CAM80DP 3” B
HOSETAIL ELBOW 90º
MALE THREAD
HOSETAIL ELBOW
45º MALE THREAD
CODE THREAD
(BSP) SUIT ID HOSE CAT
G8011101 3/8” 13mm B
G8011151 1/2” 13mm B
G8011152 1/2” 15mm B
G8011153 1/2” 20mm B
1132320 3/4” 19mm B
G8011203 3/4” 25mm B
G8011252 1” 30mm B
G8011302 1 1/4” 30mm B
G8011355 1 1/2” 40mm B
CODE THREAD
(BSP) SUIT ID HOSE CAT
114640 1 1/2” 40mm B
POLYPROPYLENE FITTINGS
Maintaining a leak free and smooth liquid flow by using quality components and fittings is essential for maximum
per form ance from all installations. Silvan’s range of fittings are manufactured from high quality polypropylene and
are compatible with fungicides, herbicides, chemical fertilisers etc, and will withstand temperatures of up to 100ºC.
Standard BSP male and female threads can be used in conjunction with each other to construct assorted types and sizes
of inlets, outlets, suction fittings and hose unions or they can be used with standard brass, galvanised and other fittings.
SINGLE PIECE PIPE
FITTING WITH BACK NUT
CODE THREAD
SIZE (BSP)
THREAD
(BSP) CAT
108425 1” 25mm B
53
Camlever Couplings Camlever Couplings
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
HOSETAIL
FEMALE THREAD
HOSETAIL
MALE THREAD
SINGLE PIECE 90°
ELBOW WITH BACK NUT
NUT & TAIL
WITH GASKET
FOOT VALVE
CODE THREAD
(BSP) SUIT ID HOSE CAT
100519 1 1/4” 19mm B
G8000302 1 1/4” 21mm B
G8000303 1 1/4” 25mm B
G8000306 1 1/4” 35mm B
100640 1 1/2” 40mm B
G8000402 2” 50mm B
CODE THREAD
(BSP) SUIT ID HOSE CAT
103011 1/4” 11mm B
1032013 1/4” 13mm B
G8001151 1/2” 13mm B
103215 1/2” 15mm B
G8001153 1/2” 19mm B
G8001154 1/2” 21mm B
G8001201 3/4” 13mm B
G8001203 3/4” 19mm B
G8001205 3/4” 25mm B
G8001251 1” 19mm B
G8001252 1” 25mm B
G8001303 1 1/4” 33mm B
G8001351 1 1/2” 40mm B
G8001401 2” 50mm B
CODE THREAD
(BSP) SUIT ID HOSE CAT
G8039151 1/2” 15mm B
G8039201 3/4” 19mm B
G8039251 1” 25mm B
CODE THREAD
SIZE (BSP)
THREAD
(BSP) CAT
320-N3412 3/4” 13mm B
320-N3434 3/4” 19mm B
320-N1012 1” 13mm B
320-N1034 1” 19mm B
320-N1010 1” 25mm B
CODE SUIT I.D. HOSETAIL CAT
320-T14 1/4” B
320-T38 3/8” B
320-T12 1/2” B
320-T34 3/4” B
CODE THREAD
SIZE (BSP) SUIT ID HOSETAIL CAT
504029 2” Male 2” Female B
BARBED TEE PIECES
HOSETAIL ELBOW 90°
FEMALE THREAD
CODE THREAD
(BSP) SUIT ID HOSE CAT
G8010201 3/4” 19mm B
G8010203 3/4” 25mm B
1102430 1” 30mm B
ANTI SWIRL INTAKE
CODE THREAD
(BSP) OVERALL LENGTH CAT
G8209005 1 1/4” 50mm B
G8209006 1 1/2” 50mm B
54 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Plumbing Accessories
55
Plumbing Accessories Plumbing Accessories
ELBOW 90º FEMALE
THREAD
ELBOW 90º FEMALE/
MALE THREAD
REDUCING NIPPLE
MALE/MALE
REDUCING NIPPLE
MALE/FEMALE
THREADED
BARREL NIPPLE
MALE PLUG
TANK OUTLET
CODE THREAD (BSP) THREAD (BSP) CAT
G8019151 1/2” 1/2” B
G8019201 3/4” 3/4” B
G8019251 1” 1” B
G8019301 1 1/4” 1 1/4” B
G8019351 1 1/2” 1 1/2” B
CODE THREAD (BSP) THREAD (BSP) CAT
G8021151 1/2” 1/2” B
G8021201 3/4” 3/4” B
G8021251 1” 1” B
G8021301 1 1/4” 1 1/4” B
G8021351 1 1/2” 1 1/2” B
CODE THREAD (BSP) THREAD (BSP) CAT
2402020 1/4” 1/2” B
G8058151 1/2” 3/4” B
G8058201 3/4” 1” B
G8058251 1" 1 1/4” B
2402065 1 1/4” 1 1/2” B
G8058351 1 1/2” 2" B
CODE THREAD (BSP) THREAD (BSP) CAT
245032 3/4” 1/2” B
G8059203 3/4” 1” B
G8059204 3/4” 1 1/4” B
G8059253 1” 1 1/4” B
G8059301 1 1/4” 1” B
G8059351 1 1/2” 1 1/4” B
2452067 1 1/2” 2” B
G8059401 2” 1 1/2” B
CODE THREAD (BSP) SUIT I.D. HOSE CAT
G8052201 3/4” 46mm B
G8052251 1” 51mm B
G8052351 1 1/2” 47mm B
230570 2” 70mm B
CODE THREAD (BSP) SUIT I.D. HOSE CAT
G8046151 1/2” 15mm B
G8046201 3/4” 17mm B
G8046251 1” 33mm B
G8046301 1 1/4” 37mm B
CODE THREAD
(BSP) LENGTH CAT
G8050151 1/2” 43mm B
G8050201 3/4” 43mm B
G8050251 1” 50mm B
G8050302 1 1/4” 48mm B
G8050351 1 1/2” 48mm B
G8050401 2” 73mm B
REDUCING BUSHES
MALE/FEMALE
CODE THREAD (BSP) THREAD (BSP) CAT
320-24 3/4” 1/2” B
320-25 1” 3/4” B
320-26 1 1/4” 1” B
320-27 2” 1 1/4” B
320-28 2” 1 1/2” B
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
56 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Plumbing Accessories
FLY NUT
GASKET (O’RING)
BACK NUT FEMALE
CODE THREAD (BSP) SUIT I.D. HOSE CAT
G8040102 3/8” 28mm B
G8040151 1/2” 29mm B
G8040202 3/4” 37mm B
G8040251 1” 44mm B
G8040301 1 1/4” 55mm B
G8040351 1 1/2” 60mm B
G8040401 2” 74mm B
CODE THREAD (BSP) SUIT I.D. HOSE CAT
GG00001002 1/2” B
GG00001012 3/4” B
GG00001018 1” B
GG00001022 1 1/4” B
C1210-173 1 1/2” B
G10032 3/4” 26mm B
G00001018 1” 20.2mm B
G00001022 1 1/4” 26.6mm B
C1210-030 1 1/4” 39.6mm B
G10061 1 1/2” 29mm B
G10062 1 1/2” 47mm B
G10071V 2” 39.3mm B
G10072 2” 58mm B
CODE THREAD (BSP) SUIT I.D. HOSE CAT
G8042151 1/2” 13mm B
G8042201 3/4” 13mm B
G8042251 1” 13mm B
G8042301 1 1/4” 15mm B
G8042351 1 1/2” 15mm B
G8042401 2” 17mm B
BLANKING CAPS
FEMALE THREAD
TEE PIECE FEMALE
CODE THREAD (BSP) THREAD (BSP) CAT
G8044151 1/2” 15mm B
2102030 3/4” 13mm B
G8044251 1” 21mm B
G8044301 1 1/4” 18mm B
G8044351 1 1/2” 19mm B
G8044401 2” 74mm B
CODE THREAD (BSP) CAT
G8026151 1/2” B
G8026201 3/4” B
G8026251 1” B
G8026301 1 1/4” B
1302060 1 1/2” B
NIPPLES
FLAT GASKET
CODE I.D. O.D. CAT
GG00002004 3/8” 3/4” B
GG00002012 1” 1 1/2” B
GG00002010 3/4” 1 1/4” B
GG00002006 1” B
GG00002014 1 1/4” 2” B
GG00002016 1 1/2” B
GG00002018 2” B
GG00001014 1/2” B
CODE SIZE (BSP) OVERALL LENGTH CAT
G8056151 1/2” 54mm B
G8056152 1/2” 75mm B
G8056201 3/4” 60mm B
G8056251 1” 64mm B
G8056252 1” 70mm B
G8056301 1 1/4” 68mm B
G8056302 1 1/4” 94mm B
G8056351 1 1/2” 68mm B
G8056352 1 1/2” 94mm B
G8056401 2” 74mm B
G8056402 2” 97mm B
57
Plumbing, Filtration & Tank Accessories
Plumbing Accessories Plumbing Accessories

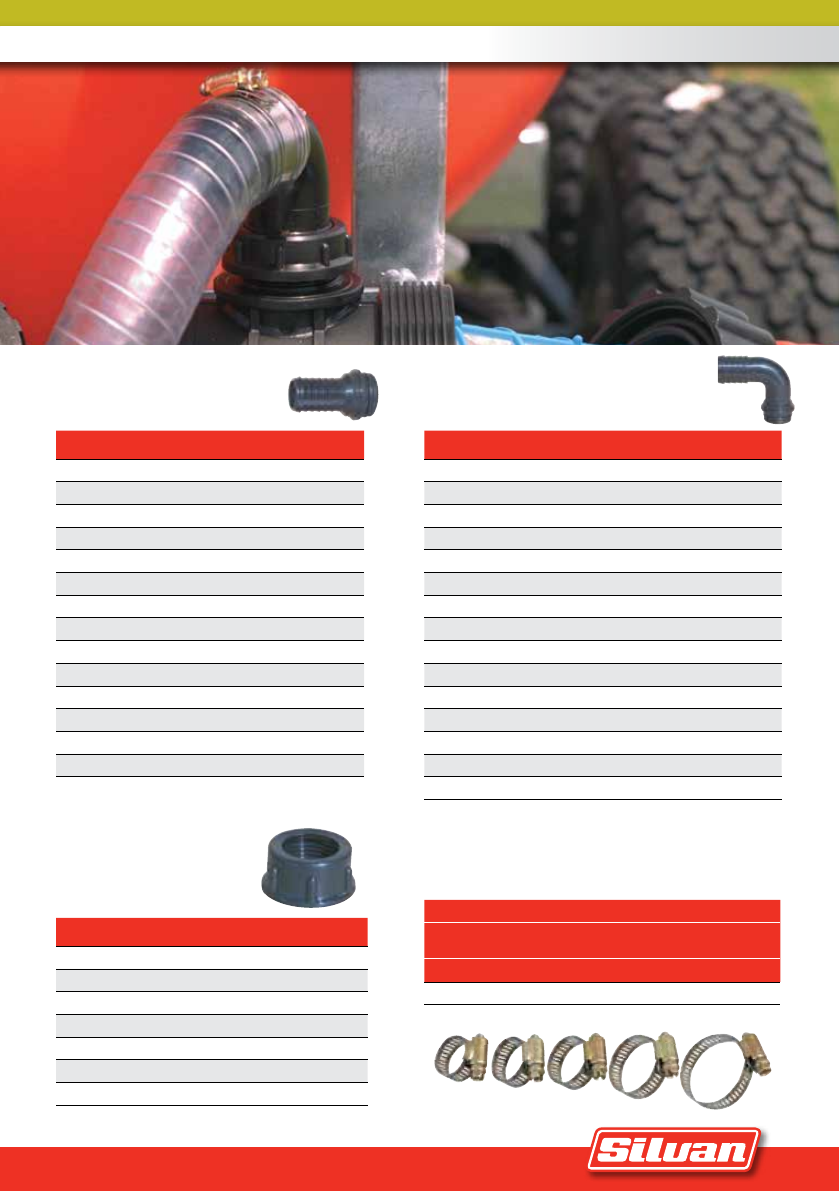

HOSETAILS
CODE THREAD (BSP) SUIT I.D. HOSE CAT
G8002151 1/2” 13mm B
G8002200 3/4” 13mm B
G8002202 3/4” 19mm B
G8002250 1” 13mm B
G8002252 1” 19mm B
G8002254 1” 25mm B
G8002301 1 1/4” 25mm B
G8002302 1 1/4” 30mm B
G8002352 1 1/2” 32mm B
G8002353 1 1/2” 35mm B
G8002350 1 1/2” 25mm B
G8002355 1 1/2” 40mm B
G8002400 2” 40mm B
G8002402 2” 50mm B
ELBOWS
CODE THREAD (BSP) SUIT ID HOSE CAT
116317 3/4” 17mm B
116530 1 1/4” 30mm B
116533 1 1/4” 32mm B
116630 1 1/2” 30mm B
116210 1/2” 10mm B
G8012200 3/4” 13mm B
G8012203 3/4” 19mm B
G8012251 1” 19mm B
G8012252 1” 25mm B
G8012301 1 1/4” 25mm B
G8012350 1 1/2” 25mm B
G8012353 1 1/2” 35mm B
G8012355 1 1/2” 40mm B
G8012400 2” 40mm B
G8012402 2” 50mm B
FLY NUT
CODE THREAD SIZE (BSP) (F) CAT
G8040151 1/2” B
G8040152 1/2” B
G8040202 3/4” B
G8040251 1” B
G8040301 1 1/4” B
G8040351 1 1/2” B
G8040401 2” B
HOSE CLAMPS
Feature continuous rolled thread with
hex head for screwdriver or spanner tightening.
TO FIT HOSE I.D.SIZE
HOSE
CLAMP 8MM 10MM 12MM 20MM
CODE 187-MH04 187-MH05 187-HS06 187-HS12
CAT B B B B
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
58 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Plumbing Accessories

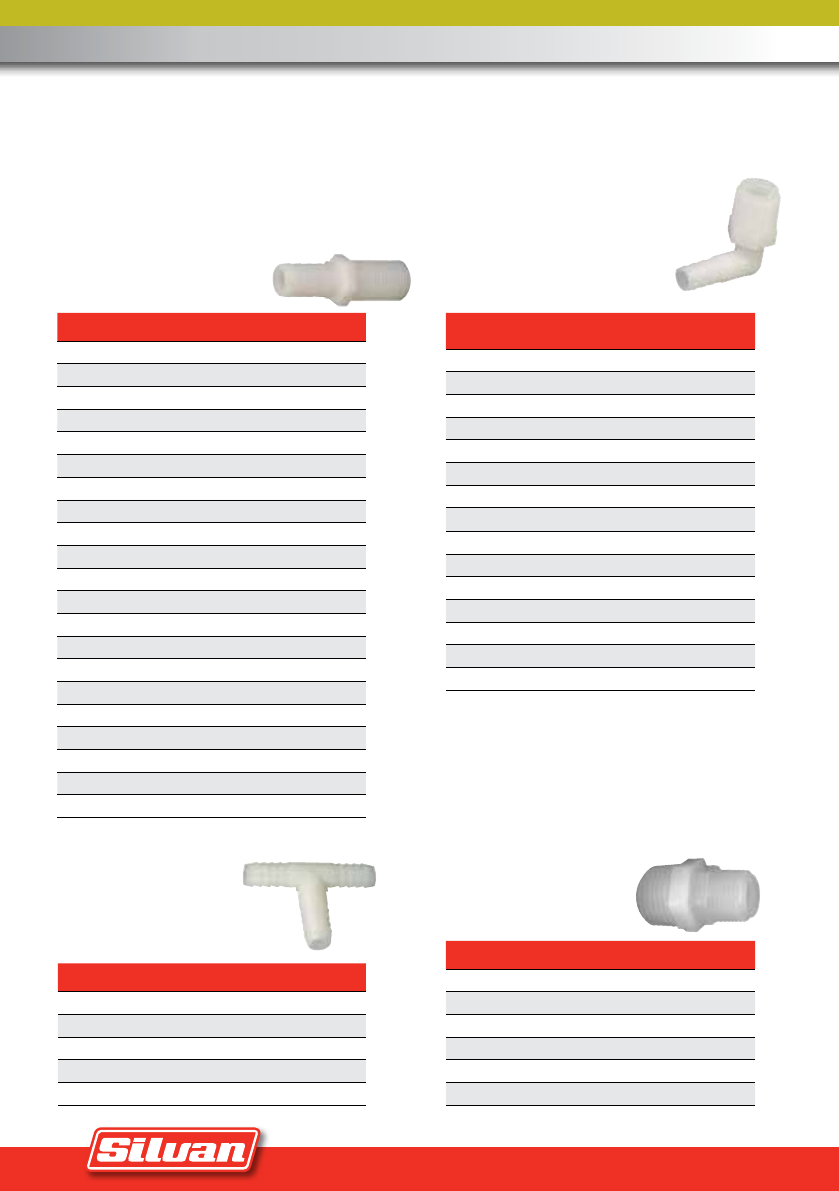

PIPE - MALE TAPER X
HOSE BARB
ELBOW - MALE TAPER
X HOSE BARB
BARBED TEE
CODE THREAD (BSP) BARB SIZE CAT
HB1414 1/4” 1/4” B
HB1438 1/4” 3/8” B
HB1412 1/4” 1/2” B
HB3814 3/8” 1/4” B
HB3838 3/8” 3/8” B
HB3812 3/8” 1/2” B
HB1214 1/2” 1/4” B
HB1238 1/2” 3/8” B
HB1212 1/2” 1/2” B
HB1234 1/2” 3/4” B
HB3438 3/4” 3/8” B
HB3412 3/4” 1/2” B
HB3434 3/4” 3/4” B
HB34100 3/4” 1” B
HB10034 1” 3/4” B
HB100 1” 1” B
HB114100 1 1/4” 1” B
HB114 1 1/4” 1 1/4” B
HB114-112 1 1/4” 1 1/2” B
HB112 1 1/2” 1 1/2” B
HB200 2” 2” B
CODE THREAD (BSP) BARB SIZE CAT
EL1438 1/4” 3/8” B
EL1412 1/4” 1/2” B
EL3838 3/8” 3/8” B
EL3812 3/8” 1/2” B
EL1212 1/2” 1/2” B
EL1234 1/2” 3/4” B
EL1238 1/2” 3/8” B
EL3412 3/4” 1/2” B
EL3434 3/4” 3/4” B
EL34100 3/4” 1” B
EL10012 1” 1/2” B
EL10034 1” 3/4” B
EL100 1” 1” B
EL114 1 1/4” 1 1/4” B
EL112 1 1/2” 1 1/2” B
CODE BARB SIZE CAT
T38 3/8” x 3/8” x 3/8” B
T12A 1/2” x 1/2” x 1/2” B
T58A 5/8” x 5/8” x 5/8” B
T34 3/4” x 3/4” x 3/4” B
T100 1” x 1” x 1” B
NYLON FITTINGS
Nylon fittings are manufactured from high quality nylon and is compatible with fungicides, herbicides, chemical
fertilisers etc. Standard “tapered” BSP male and female threads can be used in conjunction with each other to
construct assorted types and sizes of inlets, outlets, suction fittings, hose unions etc.
NIPPLE - MALE X
MALE PIPE
CODE THREAD (BSP) BARB SIZE CAT
N14 1/4” 1/4” B
N12 1/2” 1/2” B
N34 3/4” 3/4” B
N100 1” 1” B
N114 1 1/4” 1 1/4” B
N112 1 1/2” 1 1/2” B
59
Plumbing Accessories Plumbing Accessories
HOSE JOINER -
BARB X BARB
REDUCING BUSH
HEX HEAD PIPE PLUG
TEE - FEMALE
THREAD
NOZZLE BODY
CAP NUT
MALE THREADED TEE
ELBOW - FEMALE
PIPE
STRAIGHT NOZZLE
BODY X BARB
CODE THREAD (BSP) BARB SIZE CAT
HM14 1/4” 1/4” B
HM38 3/8” 3/8” B
HM1238 1/2” 3/8” B
HM12 1/2” 1/2” B
HM1258 1/2” 5/8” B
HM58 5/8” 5/8” B
HM34 3/4” 3/4” B
HM100 1” 1” B
HM112 1 1/2” 1 1/2” B
CODE THREAD SIZE THREAD SIZE CAT
RB38-14 3/8”M 1/4”F B
RB12-38 1/2”M 3/8”F B
RB34-12 3/4”M 1/2”F B
RB10034 1”M 3/4”F B
CODE THREAD (BSP) BARB SIZE CAT
EL3412F 3/4” 1/2” B
EL34F 3/4” 3/4” B
CODE THREAD (BSP) BARB SIZE CAT
38D 11/16” 3/8” B
CODE THREAD (BSP) CAT
R12 1/2” x 1/2” x 1/2” B
CODE THREAD SIZE CAT
PP18 1/8” B
PP14 1/4” B
PP38 3/8” B
PP12 1/2” B
PP34 3/4” B
CODE THREAD SIZE CAT
TT12 1/2” x 1/2” x 1/2” B
TT34 3/4” x 3/4” x 3/4” B
CODE THREAD SIZE CAT
8027 11/16” B
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
60 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Plumbing Accessories
ADAPTORS
TEE
SOCKET HEX
NIPPLE HEXELBOWS
REDUCING NIPPLES
CODE THREAD
(BSP MALE)
THREAD
(BSP FEM) CAT
474-050L 1/4” 1/4” B
474-052 1/4” 3/8” B
474-054 1/4” 1/2” B
474-055 3/8” 3/8” B
474-058 3/8” 1/2” B
474-060 1/2” 1/2” B
474-065 1/2” 3/4” B
474-066 3/4” 3/4” B
474-068 3/4” 1” B
CODE THREAD
(BSP MALE)
THREAD
(BSP FEM) CAT
474-282 3/8” 1/4” B
474-284 1/2” 1/4” B
474-286 1/2” 3/8” B
474-288 3/4” 3/8” B
474-290 3/4” 1/2” B
474-292 1” 3/4” B
CODE THREAD (BSP) THREAD (BSP) CAT
474-130 1/4” M 1/4”Fem B
474-144 3/8” M 3/8”Fem B
474-149 1/2” M 1/2”Fem B
474-158 3/4” M 3/4”Fem B
474-124 1/8” F 1/8”Fem B
474-150 1/2” F 1/2”Fem B
474-156 3/4” F 3/4”Fem B
CODE THREAD SIZE CAT
474-370 1/4” B
474-376 3/8” B
474-380 1/2” B
474-388 3/4” B
474-390 1” B
CODE THREAD SIZE CAT
474-350 1/4” B
474-354 1/2” B
474-355 3/4” B
474-358 1” B
CODE THREAD SIZE CAT
474-260 1/4” B
474-262 3/8” B
474-264 1/2” B
474-266 3/4” B
474-268 1” B
BRASS FITTINGS
Manufactured from high quality brass to ensure exceptional durability and long life. Non-corrosive and chemical
resistant, these brass fittings can be utilised in many applications where durability under high pressure and stress
is essential. Can be used in conjunction with all BSP fittings.
61
Plumbing Accessories Plumbing Accessories

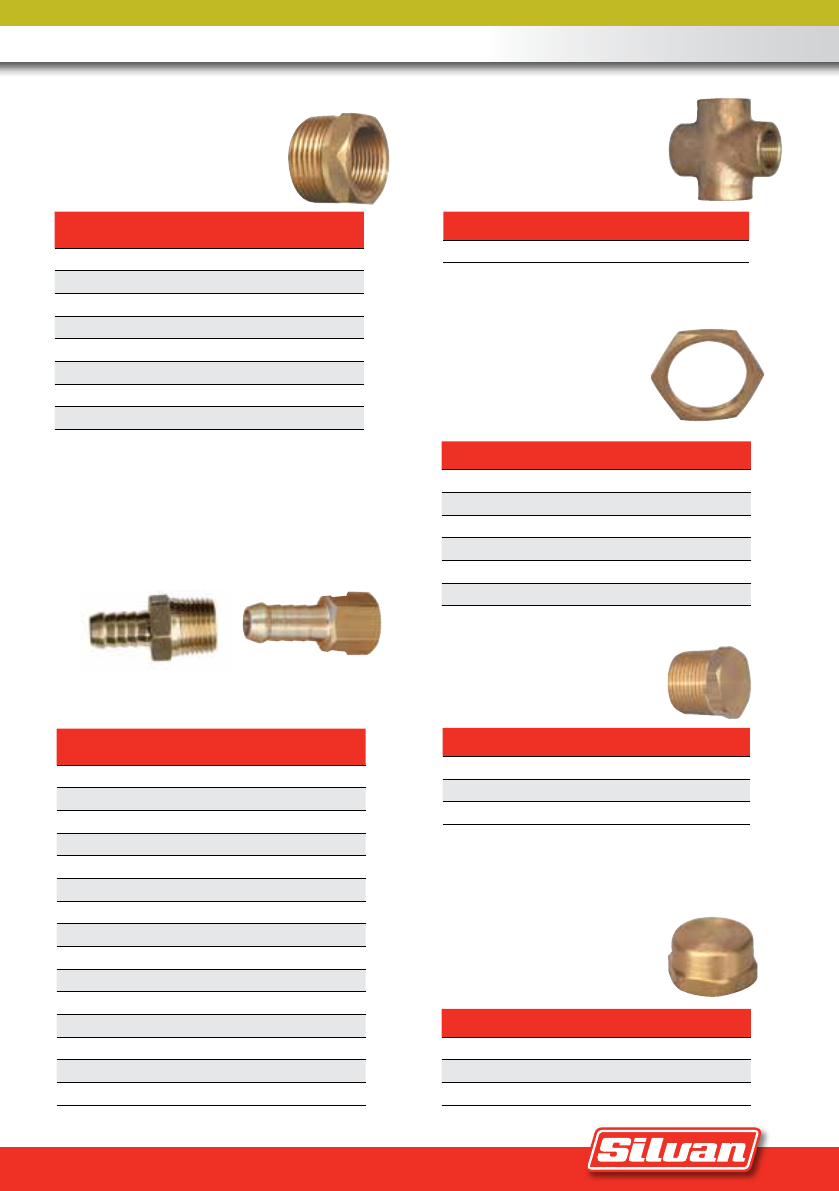

BUSH REDUCING
HOSETAIL
CODE THREAD
(BSP MALE)
THREAD
(BSP FEM) CAT
474-080 1/4” 1/8” B
474-082 3/8” 1/8” B
474-084 3/8” 1/4” B
474-088 1/2” 1/4” B
474-090 1/2” 3/8” B
474-098 3/4” 1/4” B
474-100 3/4” 1/2” B
474-103 1” 3/4” B
CODE THREAD HOSE CAT
474-182 1/8” M 1/8” B
474-186 1/4” M 3/16” B
474-190 1/4” F 1/4” B
474-191 1/4” M 3/8” B
474-192 1/4” M 1/4” B
474-196 1/4” F 3/8” B
474-198 3/8” F 3/8” B
474-199 1/4” F 1/2” B
474-200 1/4” M 1/2” B
474-201 3/8” F 1/2” B
474-202 3/4” 3/4” B
474-207 1/2” M 1/2” B
474-209 1/2” M 3/8” B
474-210 3/4” M 3/4” B
474-211 1/2” F 1/2” B
LOCKNUT
PLUG MALE
CAP
CODE THREAD SIZE CAT
474-236 1/4” B
474-238 3/8” B
474-240 1/2” B
474-242 3/4” B
474-244 1” B
474-250 2” B
CODE THREAD SIZE CAT
474-341 1/4” B
474-344 1/2” B
474-345 3/4” B
CODE THREAD SIZE CAT
474-113 1/4” B
033-110 1/2” B
474-338 3/4” B
FEMALE CROSS
CODE THREAD SIZE CAT
474-118 3/4” B
FEMALE
MALE
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
62 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Plumbing Accessories

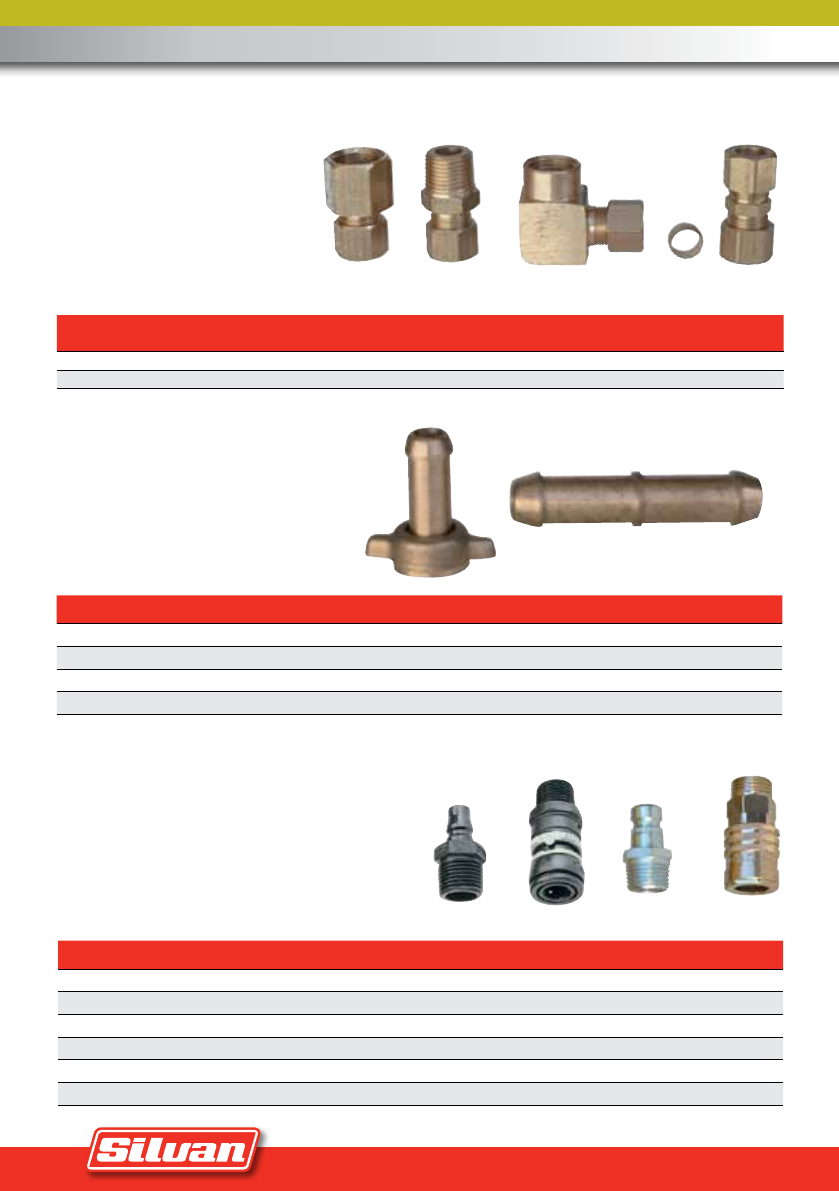

FITTINGS
Manufactured from high quality brass and may be
used in conjunction with any BSP fittings.
DESCRIPTION CODE REF HOSE SIZE ID CAT
NUT & TAIL (2 Pack) G8304004-PK A 10mm B
NUT & TAIL (2 Pack) G8304005-PK A 12.5mm B
HOSE JOINER 474-167 B 10mm B
HOSE JOINER 474-168 B 12.5mm B
SMOOTHLINE
TUBING FITTINGS
Olive compression fittings help ensure
that the hose will withstand high pressure
operation without leaks from hose
connections.
Max pressure 3500kpa (508psi).
TYPE 1/2” BSPT (F)
STRAIGHT A
1/2” BSPT (M)
STRAIGHT B
1/2” BSPT (F)
ELBOW C 1/2” OLIVE -D 1/2” JOINER - E
CODE 187-34-0344-36 187-34-0346-36 187-34-0328-36 187-34-0278-07 187-34-0007-07
CAT B B B B B
CODE REF COUPLING TYPE MAT CONNECT. SIZE CAT
406-03-PK 1, 2 Complete Set Poly 1/2”BSPT (M) B
406-02-PK 3,4 Complete Set Brass 1/2”BSPT (M) B
406-031 1 Male Poly 1/2”BSPT (M) B
406-032 2 Female Poly 1/2”BSPT (M) B
406-02M 3 Male Brass 1/2”BSPT (M) B
406-02F 4 Female Brass 1/2”BSPT (M) B
HOSE SNAP COUPLINGS
Ideal for quick disconnection of spray guns
from hosereels featuring liquid shut-off.
Manufactured from corrosion resistant materials.
POLY - Maximum pressure 1450kPa (210psi).
BRASS - Maximum pressure 3000kPa (435psi).
1 32 4
A B C D E
63

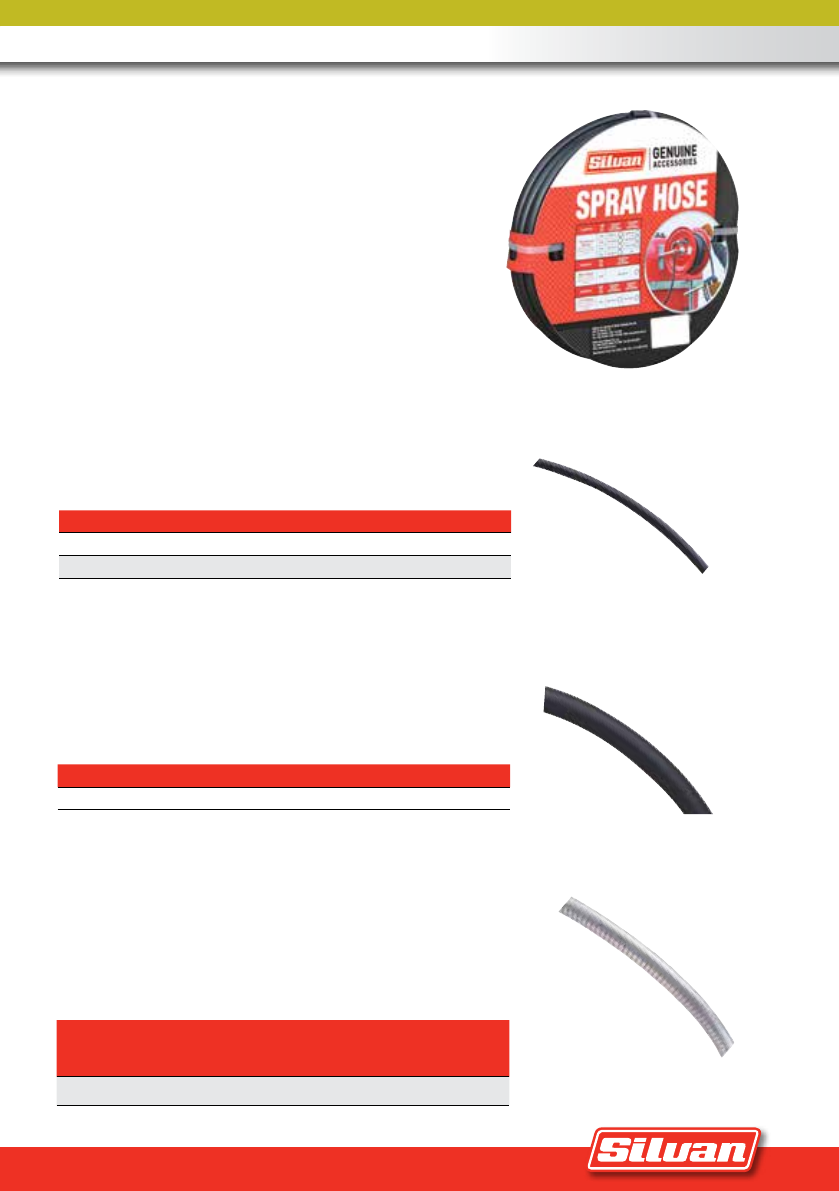

Plumbing Accessories Hose
CODE HOSE I.D. CAT
186-12B-100 1/2” O.D. B
100 Metre Coil Length Only
CODE HOSE I.D. CAT
186-25E 25mm B
Silvan hose is manufactured from the highest quality materials
and has been rigorously tested to ensure reliable performance
and durability.
Ideal for most agricultural applications. The Silvan range
includes delivery hose, suction hose, bypass hose. Available in
sizes from 8mm I.D to 50mm I.D with pressures ranging up to
4000KPa (560psi). A wide range of hose connectors, hose clamps
and fittings to suit are readily available off the shelf. All hose
dimensions are inside diameter (I.D.).
SMOOTHLINE DELIVERY TUBING
Lightweight rigid tubing hose for use in inaccessible terrain where risk
of snagging hose is high. Maximum working pressure 1724 kPa (250psi).
Requires special hose connectors.
BYPASS HOSE
Low pressure flexible PVC hose ideally suited for the use on Bypass return
lines of pumps. Maximum pressure 1379 kPa (200psi). (Available per metre).
HOSE I.D. 12MM 19MM 25MM 32MM 38MM 50MM
CODE 186-12F 186-19F 186-25A 186-32A 186-38S 186-50S
CAT BBBBBB
SUCTION HOSE
Ideal for fitting on the inlet suction side of pumps. Wire reinforced
construction helps guard against the hose collapsing. (Available per metre).
186-25E
25MM
186-25A
25MM
186-12B-100
12MM
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
186-10D-20
10MM
64 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Hose
CODE HOSE I.D. CAT
186-19E-30 19mm B
Available In 30 Metre Coil Lengths Only
100 METRE COIL LENGTHS
HOSE I.D. 10MM 12MM
CODE 186-10D-100 186-12C-100
CAT B B
CODE HOSE I.D. CAT
186-10M 10mm B
186-12M 12mm B
186-19M 19mm B
186-25M 25mm B
SILVAN AG DELIVERY HOSE
Flexible PVC reinforced spray hose. Maximum working pressure 690 kPa
(100psi) for 186-8D and 2067 kPa (300psi) for all others.
PROFESSIONAL DELIVERY HOSE
Flexible PVC reinforced spray hose ideally suited for high pressure
applications. Maximum working pressure 4000kPa (568 psi).
FIRE FIGHTING HOSE
Designed to suit stationary or mobile reels on fire control units.
Also popular in agricultural applications, manufactured to AS 1221.
Lightweight PVC, resistant to U.V. light and the material has self
extinguishing properties. Maximum pressure 900 kPa (131psi).
20 METRE COIL LENGTHS
HOSE I.D. 8MM 10MM 12MM
CODE 186-8D-20 186-10D-20 186-12C-20
CAT B B B
19MM
186-19E-30
10MM
186-10M
A
C
B
65

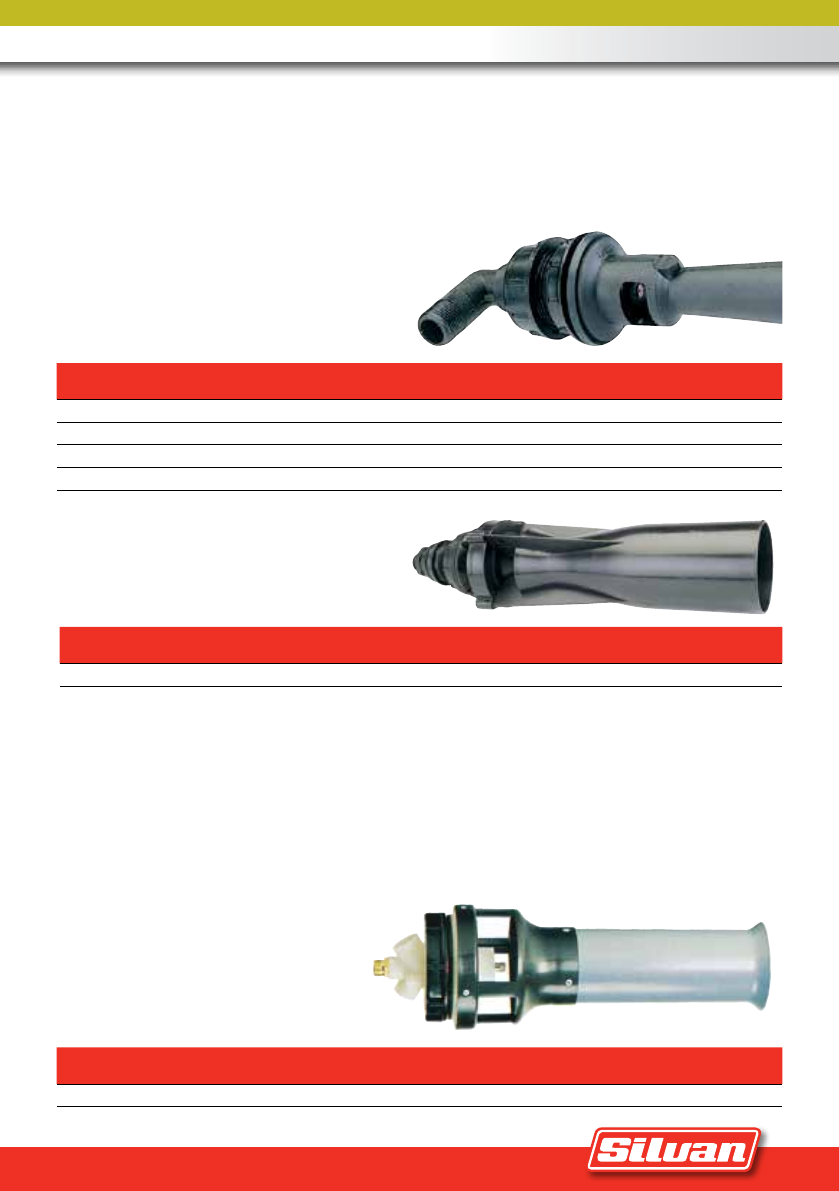

Hose Agitators
AGITATORS
Silvan agitators are fitted to spray equipment tanks to help ensure chemicals remain agitated (in suspension).
Mechanical type agitators provide agitation by means of a paddle type propeller driven by V belt from a pump or PTO
shaft. The pressure jet agitators, when installed to a pressure feed or bypass hose, helps ensure constant stirring of
tank contents to prevent powder deposit build up.
PRESSURE JET AGITATOR
Inserts through tank wall with sealing gasket and locknut,
operates off pump pressure line. 1/2” BSP male connection.
Available elbow or straight.
PRESSURE JET AGITATOR - SWIVEL
Inserts through tank wall with sealing gasket and locknut,
5mm stainless steel jet operates off pump pressure line.
1/2” BSP male connection. 10º orientation movement.
CODE INLET TYPE MAX PRESS
KPA/PSI JET HEIGHT WIDTH HEIGHT CAT
502010 Elbow 2000/290 S/steel 145mm 40mm 40mm B
502020 Straight 2000/290 S/steel 150mm 40mm 65mm B
G8201004 Elbow 2000/290 Ceramic 230mm 55mm 80mm B
G8201000 Straight 2000/290 Ceramic 225mm 55mm 55mm B
CODE INLET TYPE MAX PRESS
KPA/PSI LENGTH WIDTH HEIGHT CAT
502062 Straight 2000/290 382mm 100mm 100mm B
SUPERMIXAGITATOR
Provides the maximum possible agitation for a hydraulic type agitator. Depending on pump size the Supermix is
capable of re-circulating up to 1300L per minute. The Supermix incorporates three inlets:
Inlet A: Pressure 1/2” BSP. It uses a pressure line directly off the pump, providing high pressure agitation.
Inlet B: Bypass. It uses the low pressure line from the bypass return of the pump and is ideally used when
tank is being filled and chemicals mixed.
Inlet C: Additional pressure or chemical mixing.
An optional additional pressure line agitator
or can be used for induction of chemicals
from a container into the spray tank.
CODE MAX PRESS
KPA/PSI LENGTH WIDTH HEIGHT CAT
502053 1931/280 460mm 190mm 140mm B
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
Nozzles &
Accessories
GENUINE
ACCESSORIES
GENUINE
ACCESSORIES
66 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information

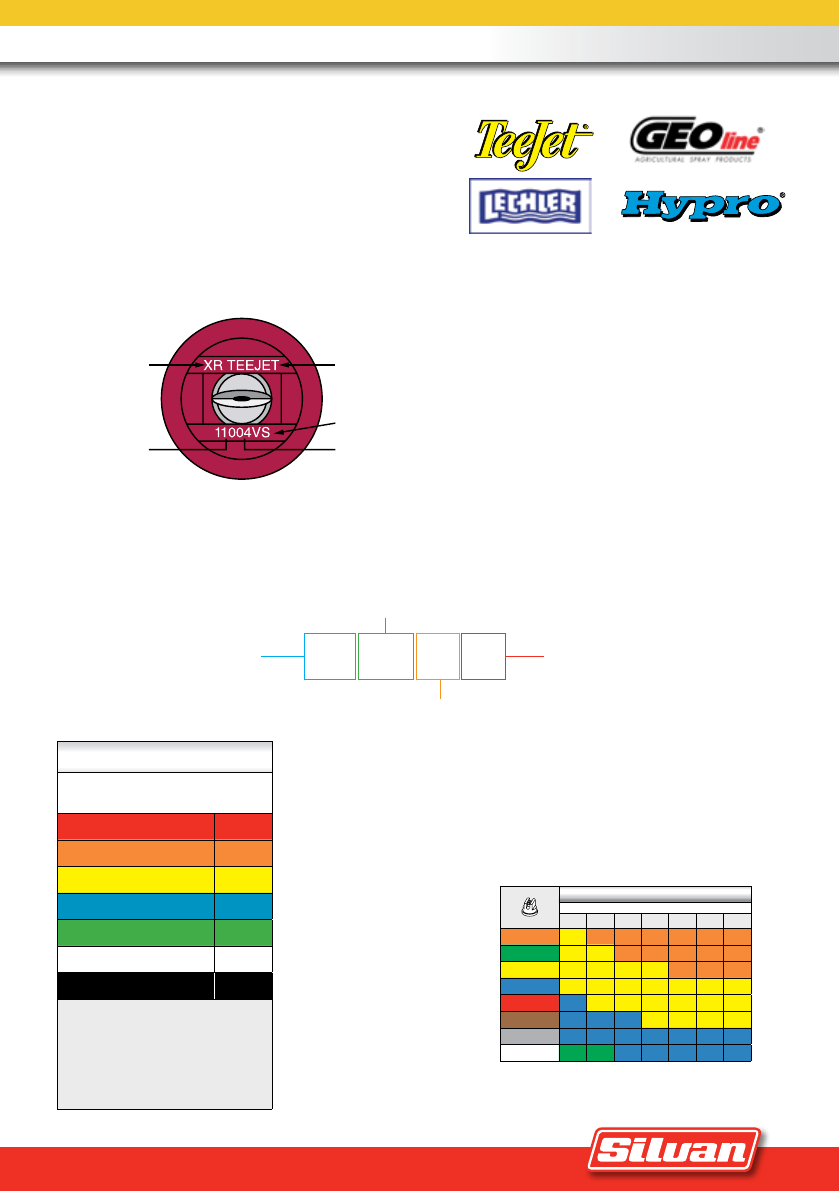

Nozzles and AccessoriesNozzles and Accessories
Nozzle selection and maintenance are two of the most
important aspects of accurate and efficient spray
application. Silvan offers the largest range of nozzles from
leading brands to suit your needs.
KEY
DROPLET SIZE
COLOUR REFERENCE
VERY FINE VF
FINE F
MEDIUM M
COARSE C
VERY COARSE VC
EXTRA COARSE XC
ULTRA COARSE UC
Droplet size classifications are
based on BCPC specifications and
in accordance with ASAE Standard
S-572 at the date of printing.
Classifications subject to change.
110º Spray Angle
Nozzle Type Brand Name
Material
1.5 L/min (0.4 GPM)
nozzle capacity rated
at 2.8 bar (40psi)
HOW TO READ AND IDENTIFY A NOZZLE
Each nozzle has a code embossed on its surface allowing
the following information to be identified.
Droplet sizes are defined by
ISO standards ranging from
Very Fine to Ultra course.
Droplet size follow two trends:
• As pressure increases
droplet sizes decreases
• Larger size nozzles
provide larger droplets
and increased flow
NOZZLE DROPLET SIZE
When selecting a suitable nozzle the droplet size is critical to ensure chemical is
applied to target instead of being miss-applied as drift. Finer droplet sizes ensure
improved coverage however they are also more prone to drift and conversely larger
droplets are less prone to drift.
Low Pressure High Pressure
Small
Nozzle
Large
Nozzle
NOZZLE MATERIAL
A variety of materials are available which differ
by resistance to wear summarised below.
Strongest: VK (Ceramic), VS, SS (Stainless Steel)
Moderate: VP (Polymer)
Soft: VB (Brass)
Nozzles wear is increased when using abrasive
chemicals, higher pressures or through heavy use.
NOZZLE CODE EXPLANATION
Example of XR Nozzle 110° spray angle, 04 size made Stainless steel (VS).
XR 110 04 VS
Nozzle Type: XR
Angle: 110º
Nozzle Size: 04
Material: Stainless Steel
XR TeeJet and XRC TeeJet
BAR
1 1
.
522
.
533
.
5 4
XR8001
M
FFFFFF
XR80015
M M
FFFFF
XR8002
MMMM
FFF
XR8003
MMMMMMM
XR8004
C
MMMMMM
XR8005
CCC
MMMM
XR8006
CCCCCCC
XR8008
VC VC
CCCCC
67
Nozzles and Accessories NozzlesNozzles and Accessories
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
MESH
SIZE CODE LIQ
PRES
BAR
CAP.
L/MIN
APPLICATION RATE: LITRES PER HECTARE AT KM/H
4
KM/H 5
KM/H 6
KM/H 7
KM/H 8
KM/H 10
KM/H 12
KM/H 16
KM/H 18
KM/H 20
KM/H 25
KM/H 30
KM/H 35
KM/H
1 0 0
Mesh* 01
1.0 0.23 69.0 55.2 46.0 39.4 34.5 27.6 23.0 17.3 15.3 13.8 11.0 9.2 7.9
1.5 0.28 84.0 67.2 56.0 48.0 42.0 33.6 28.0 21.0 18.7 16.8 13.4 11.2 9.6
2.0 0.32 96.0 76.8 64.0 54.9 48.0 38.4 32.0 24.0 21.3 19.2 15.4 12.8 11.0
2.5 0.36 108 86.4 72.0 61.7 54.0 43.2 36.0 27.0 24.0 21.6 17.3 14.4 12.3
3.0 0.39 117 93.6 78.0 66.9 58.5 46.8 39.0 29.3 26.0 23.4 18.7 15.6 13.4
3.5 0.42 126 101 84.0 72.0 63.0 50.4 42.0 31.5 28.0 25.2 20.2 16.8 14.4
4.0 0.45 135 108 90.0 77.1 67.5 54.0 45.0 33.8 30.0 27.0 21.6 18.0 15.4
5.0 0.50 150 120 100 85.7 75.0 60.0 50.0 37.5 33.3 30.0 24.0 20.0 17.1
6.0 0.55 165 132 110 94.3 82.5 66.0 55.0 41.3 36.7 33.0 26.4 22.0 18.9
100
M e s h * 015
1.0 0.34 102 81.6 68.0 58.3 51.0 40.8 34.0 25.5 22.7 20.4 16.3 13.6 11.7
1.5 0.42 126 101 84.0 72.0 63.0 50.4 42.0 31.5 28.0 25.2 20.2 16.8 14.4
2.0 0.48 144 115 96.0 82.3 72.0 57.6 48.0 36.0 32.0 28.8 23.0 19.2 16.5
2.5 0.54 162 130 108 92.6 81.0 64.8 54.0 40.5 36.0 32.4 25.9 21.6 18.5
3.0 0.59 177 142 118 101 88.5 70.8 59.0 44.3 39.3 35.4 28.3 23.6 20.2
3.5 0.64 192 154 128 110 96.0 76.8 64.0 48.0 42.7 38.4 30.7 25.6 21.9
4.0 0.68 204 163 136 117 102 81.6 68.0 51.0 45.3 40.8 32.6 27.2 23.3
4.5 0.72 216 173 144 123 108 86.4 72.0 54.0 48.0 43.2 34.6 28.8 24.7
5.0 0.76 228 182 152 130 114 91.2 76.0 57.0 50.7 45.6 36.5 30.4 26.1
5.5 0.80 240 192 160 137 120 96.0 80.0 60.0 53.3 48.0 38.4 32.0 27.4
6.0 0.83 249 199 166 142 125 100 83.0 62.3 55.3 49.8 39.8 33.2 28.5
6.5 0.87 261 209 174 149 131 104 87.0 65.3 58.0 52.2 41.8 34.8 29.8
7.0 0.90 270 216 180 154 135 108 90.0 67.5 60.0 54.0 43.2 36.0 60.9
8.0 0.96 288 230 192 165 144 115 96.0 72.0 64.0 57.6 46.1 38.4 32.9
50
Mesh* 02
1.0 0.46 138 110 92.0 78.9 69.0 55.2 46.0 34.5 30.7 27.6 22.1 18.4 15.8
1.5 0.56 168 134 112 96.0 84.0 67.2 56.0 42.0 37.3 33.6 26.9 22.4 19.2
2.0 0.65 195 156 130 111 97.5 78.0 65.0 48.8 43.3 39.0 31.2 26.0 22.3
2.5 0.72 216 173 144 123 108 86.4 72.0 54.0 48.0 43.2 34.6 28.8 24.7
3.0 0.79 237 190 158 135 119 94.8 79.0 59.3 52.7 47.4 37.9 31.6 27.1
3.5 0.85 255 204 170 146 128 102 85.0 63.8 56.7 51.0 40.8 34.0 29.1
4.0 0.91 273 218 182 156 137 109 91.0 68.3 60.7 54.6 43.7 36.4 31.2
4.5 0.97 291 233 194 166 146 116 97.0 72.8 64.7 58.2 46.6 38.8 33.3
5.0 1.02 306 245 204 175 153 122 102 76.5 68.0 61.2 49.0 40.8 35.0
5.5 1.07 321 257 214 183 161 128 107 80.3 71.3 64.2 51.4 42.8 36.7
6.0 1.12 336 269 224 192 168 134 112 84.0 74.7 67.2 53.8 44.8 38.4
6.5 1.16 348 278 232 199 174 139 116 87.0 77.3 69.6 55.7 46.4 39.8
7.0 1.21 363 290 242 207 182 145 121 90.8 80.7 72.6 58.1 48.4 41.5
8.0 1.29 387 310 258 221 194 155 129 96.8 86.0 77.4 61.9 51.6 44.2
50
Mesh* 025
3.0 0.99 297 238 198 170 149 119 99.0 74.3 66.0 59.4 47.5 39.6 33.9
3.5 1.07 321 257 214 183 161 128 107 80.3 71.3 64.2 51.4 42.8 36.7
4.0 1.14 342 274 228 195 171 137 114 85.5 76.0 68.4 54.7 45.6 39.1
4.5 1.21 363 290 242 207 182 145 121 90.8 80.7 72.6 58.1 48.4 41.5
5.0 1.28 384 307 256 219 192 154 128 96.0 85.3 76.8 61.4 51.2 43.9
5.5 1.34 402 322 268 230 201 161 134 101 89.3 80.4 64.3 53.6 45.9
6.0 1.40 420 336 280 240 210 168 140 105 93.3 84.0 67.2 56.0 48.0
6.5 1.46 438 350 292 250 219 175 146 110 97.3 87.6 70.1 58.4 50.1
7.0 1.51 453 362 302 259 227 181 151 113 101 90.6 72.5 60.4 51.8
8.0 1.62 486 389 324 278 243 194 162 122 108 97.2 77.8 64.8 55.5
50
Mesh* 03
1.0 0.68 204 163 136 117 102 81.6 68.0 51.0 45.3 40.8 32.6 27.2 23.3
1.5 0.83 249 199 166 142 125 100 83.0 62.3 55.3 49.8 39.8 33.2 28.5
2.0 0.96 288 230 192 165 144 115 96.0 72.0 64.0 57.6 46.1 38.4 32.9
2.5 1.08 324 259 216 185 162 130 108 81.0 72.0 64.8 51.8 43.2 37.0
3.0 1.18 354 283 236 202 177 142 118 88.5 78.7 70.8 56.6 47.2 40.5
3.5 1.27 381 305 254 218 191 152 127 95.3 84.7 76.2 61.0 50.8 43.5
4.0 1.36 408 326 272 233 204 163 136 102 90.7 81.6 65.3 54.4 46.6
4.5 1.45 435 348 290 249 218 174 145 109 96.7 87.0 69.6 58.0 49.7
5.0 1.52 456 365 304 261 228 182 152 114 101 91.2 73.0 60.8 52.1
5.5 1.60 480 384 320 274 240 192 160 120 107 96.0 76.8 64.0 54.9
6.0 1.67 501 401 334 286 251 200 167 125 111 100 80.2 66.8 57.3
6.5 1.74 522 418 348 298 261 209 174 131 116 104 83.5 69.6 59.7
7.0 1.80 540 432 360 309 270 216 180 135 120 108 86.4 72.0 61.7
8.0 1.93 579 463 386 331 290 232 193 145 129 116 92.6 77.2 66.2
* Recommended nozzle filter mesh size.
TYPICAL APPLICATION RATES FOR NOZZLES SPACED 50CM APART
68 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzles
* Recommended nozzle filter mesh size.
TYPICAL APPLICATION RATES FOR NOZZLES SPACED 50CM APART
MESH
SIZE CODE LIQ
PRES
BAR
CAP.
L/MIN
APPLICATION RATE: LITRES PER HECTARE AT KM/H
4
KM/H 5
KM/H 6
KM/H 7
KM/H 8
KM/H 10
KM/H 12
KM/H 16
KM/H 18
KM/H 20
KM/H 25
KM/H 30
KM/H 35
KM/H
50
Mesh*
04
1.0 0.91 273 218 182 156 137 109 91 68.3 60.7 54.6 43.7 36.4 31.2
1.5 1.12 336 269 224 192 168 134 112 84.0 74.7 67.2 53.8 44.8 38.4
2.0 1.29 387 310 258 221 194 155 129 96.8 86.0 77.4 61.9 51.6 44.2
2.5 1.44 432 346 288 247 216 173 144 108 96.0 86.4 69.1 57.6 49.4
3.0 1.58 474 379 316 271 237 190 158 119 105 94.8 75.8 63.2 54.2
3.5 1.71 513 410 342 293 257 205 171 128 114 103 82.1 68.4 58.6
4.0 1.82 546 437 364 312 273 218 182 137 121 109 87.4 72.8 62.4
4.5 1.94 582 466 388 333 291 233 194 146 129 115 93.1 77.6 66.5
5.0 2.04 612 490 408 350 306 245 204 153 136 122 97.9 81.6 69.9
5.5 2.14 642 514 428 367 321 257 214 161 143 128 103 85.6 73.4
6.0 2.23 669 535 446 382 335 268 223 167 149 134 107 89.2 76.5
6.5 2.33 699 559 466 399 350 280 233 175 155 140 112 93.2 79.9
7.0 2.41 725 578 482 413 362 289 241 181 161 145 116 96.4 82.6
8.0 2.58 774 619 516 442 387 310 258 194 172 155 124 103 88.5
50
Mesh*
05
1.00 1.14 342 274 228 195 171 137 114 85.5 76.0 68.4 54.7 45.6 39.1
1.5 1.39 417 334 278 238 209 167 139 104 92.7 83.4 66.7 55.6 47.7
2.0 1.61 483 386 322 276 242 193 161 121 107 96.6 77.3 64.4 55.2
2.5 1.80 540 432 360 309 270 216 180 135 120 108 86.4 72.0 61.7
3.0 1.97 591 473 394 338 296 236 197 148 131 118 94.6 78.38 67.5
3.5 2.13 639 511 426 365 320 256 213 160 142 128 102 85.2 73.0
4.0 2.27 681 545 454 389 341 272 227 170 151 136 109 90.8 77.8
4.5 2.41 723 578 482 413 362 289 241 181 161 145 116 96.4 82.6
5.0 2.54 762 610 508 435 381 305 254 191 169 152 122 102 87.1
5.5 2.67 801 641 534 458 401 320 267 200 178 160 128 107 91.5
6.0 2.79 837 670 558 478 416 335 279 209 186 167 134 112 95.7
6.6 2.90 870 696 580 497 435 348 290 218 193 174 139 116 99.4
7.0 3.01 903 722 602 516 452 361 301 226 201 181 144 120 103
8.0 3.22 966 773 644 552 483 386 322 242 215 193 155 129 110
50
Mesh*
06
1.0 1.37 411 329 274 235 206 164 137 103 91.3 82.2 65.8 54.8 47.0
1.5 1.68 504 403 336 288 252 202 168 126 112 101 80.6 67.2 57.6
2.0 1.94 582 466 388 333 291 233 194 146 129 116 93.1 77.6 66.5
2.5 2.16 648 518 432 370 324 259 216 162 144 130 104 86.4 74.1
3.0 2.37 711 569 474 406 356 284 237 178 158 142 114 94.8 81.3
3.5 2.56 768 614 512 439 384 307 256 192 171 154 123 102 87.8
4.0 2.74 822 658 548 470 411 329 274 206 183 164 132 110 93.9
50
Mesh*
08
1.0 1.82 546 437 364 312 273 218 182 137 121 109 87.4 72.8 62.4
1.5 2.23 669 535 446 382 335 268 223 167 149 134 107 89.2 76.5
2.0 2.58 774 619 516 442 387 310 258 194 172 155 124 103 88.5
2.5 2.88 864 691 576 494 432 346 288 216 192 173 138 115 98.7
3.0 3.16 948 758 632 542 474 379 316 237 211 190 152 126 108
3.5 3.41 1023 818 682 585 512 409 341 256 227 205 164 136 117
4.0 3.65 1095 876 730 626 548 438 365 274 243 219 175 146 125
50
Mesh*
10
1.0 2.28 684 547 456 391 342 274 228 171 152 137 109 91.2 78.2
1.5 2.79 837 670 558 478 419 335 279 209 186 167 134 112 95.7
2.0 3.23 969 775 646 554 485 388 323 242 215 194 155 129 111
3.0 3.95 1185 948 790 677 593 474 395 296 263 237 190 158 135
4.0 4.56 1368 1094 912 782 684 547 456 342 304 274 219 182 156
50
Mesh*
15
1.0 3.42 1026 821 684 586 513 410 342 257 228 205 164 137 117
1.5 4.19 1257 1006 838 718 629 503 419 314 279 251 201 168 144
2.0 4.83 1449 1159 966 828 725 580 483 362 322 290 232 193 166
3.0 5.92 1776 1421 118 4 1015 888 710 592 444 395 355 284 237 203
4.0 6.84 2052 1642 1368 1173 1026 821 684 513 456 410 328 274 235
69
Nozzles Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
NOZZLE APPLICATION RATES
The previous two pages display the ISO std application
rates which apply to most nozzles.
Nozzles are colour coded according to L/min output
size at 2.8 bar.
For example: All Yellow 02 nozzles at 2.8 bar (40psi)
have a flow rate of 0.2 US Gallons (0.75L/min).
Note: Each nozzle type has a different droplet size profile.
SELECTING THE RIGHT SIZE NOZZLE
Application rates can be adjusted by pressure,
vehicle speed and nozzle size.
Pressure can change droplet size and increase nozzles
wear. Vehicle speed is an inaccurate method of adjusting
output; higher speeds leads to increased bumps and
vibration which is hard on equipment that can lead to
critical failures. High speeds can also cause boom yaw,
effectively changing boom height, leading to uneven
spray application.
Nozzle size is the ideal and easiest way to select a suitable
nozzle as you can change the output rate
without significant changes to the machinery.
TO SELECT A NOZZLE
1. You need to know your preferred safe vehicle speed.
2. Define your required droplet size & application rate eg.
Medium droplet at 70L/h
Check the Droplet chart and you can see that a yellow 02
nozzle will provide a medium droplet at 2 and 2.5 bar.
3. Confirm against the Application Rates table the nozzle
can put out the required 70 L/ha at 2 or 2.5 bar.
In the example above, a yellow 02 nozzle will be
suited for use at 2.5.
WHAT DROPLET SIZE DO I REQUIRE?
The manufacturer of your chemical recommends suitable
droplet sizes on the Chemical label ranging from Very Fine
to Ultra Course. Alternatively refer to your agronomist.
Nozzles that produce fine droplets are recommended for
post-emergence applications, which require excellent
coverage on the intended target area. The most common
nozzles used in agriculture are those that produce medium
sized droplets. Nozzles producing medium and coarse-sized
droplets can be used for contact and systemic herbicides,
pre emergence surface-applied herbicides, insecticides
and fungicides.
Remember, as droplet size is reduced the drift potential is
increased. Where possible, choose nozzles with a slightly
coarser droplet size to reduce the risk potential. Review
the nozzle Droplet size charts for the appropriate nozzles
capable of the required droplet size.
UNIVERSAL APPLICATION RATE
CHART FOR 50 CM TIP SPACING
XR TeeJet and XRC TeeJet
BAR
1 1
.
522
.
533
.
5 4
XR8001
M
FFFFFF
XR80015
M M
FFFFF
XR8002
MMMM
F F F
XR8003
MMMMMMM
XR8004
C
MMMMMM
XR8005
CCC
MMMM
XR8006
CCCCCCC
XR8008
VC VC
CCCCC
TIP
CAPACITY
LIQUID
PRESSURE
IN BAR
CAPACITY
1 NOZZLE
IN L/MIN
L/HA – 50CM NOZZLE SPACING
4 KM/H 6 KM/H 8 KM/H 10 KM/H 12 KM/H
01
1.0 0.23 69.0 46.0 34.5 27.6 23.0
1.5 0.28 84.0 56.0 42.0 33.6 28.0
2.0 0.32 96.0 64.0 48.0 38.4 32.0
3.0 0.39 117 78.0 58.5 46.8 39.0
4.0 0.45 135 90.0 67.5 54.0 45.0
5.0 0.50 150 100 75.0 60.0 50.0
6.0 0.55 165 110 82.5 66.0 55.0
7.0 0.60 180 120 90.0 72.0 60.0
015
1.0 0.34 102 68.0 51.0 40.8 34.0
1.5 0.42 126 84.0 63.0 50.4 42.0
2.0 0.48 144 96.0 72.0 57.6 48.0
3.0 0.59 177 118 88.5 70.8 59.0
4.0 0.68 204 136 102 81.6 68.0
5.0 0.76 228 152 114 91.2 76.0
6.0 0.83 249 166 125 99.6 83.0
7.0 0.90 270 180 135 108 90.0
02
1.0 0.46 138 92.0 69.0 55.2 46.0
1.5 0.56 168 112 84.0 67.2 56.0
2.0 0.65 195 130 97.5 78.0 65.0
3.0 0.79 237 158 119 94.8 79.0
4.0 0.91 273 182 137 109 91.0
5.0 1.02 306 204 153 122 102
6.0 1.12 336 224 168 134 112
7.0 1.21 363 242 182 145 121
NOTE: Always double check your application rates.
Tabulations are based on spraying water at 70°F (21°C).
Speed
Rate
Droplet Size
70 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzles

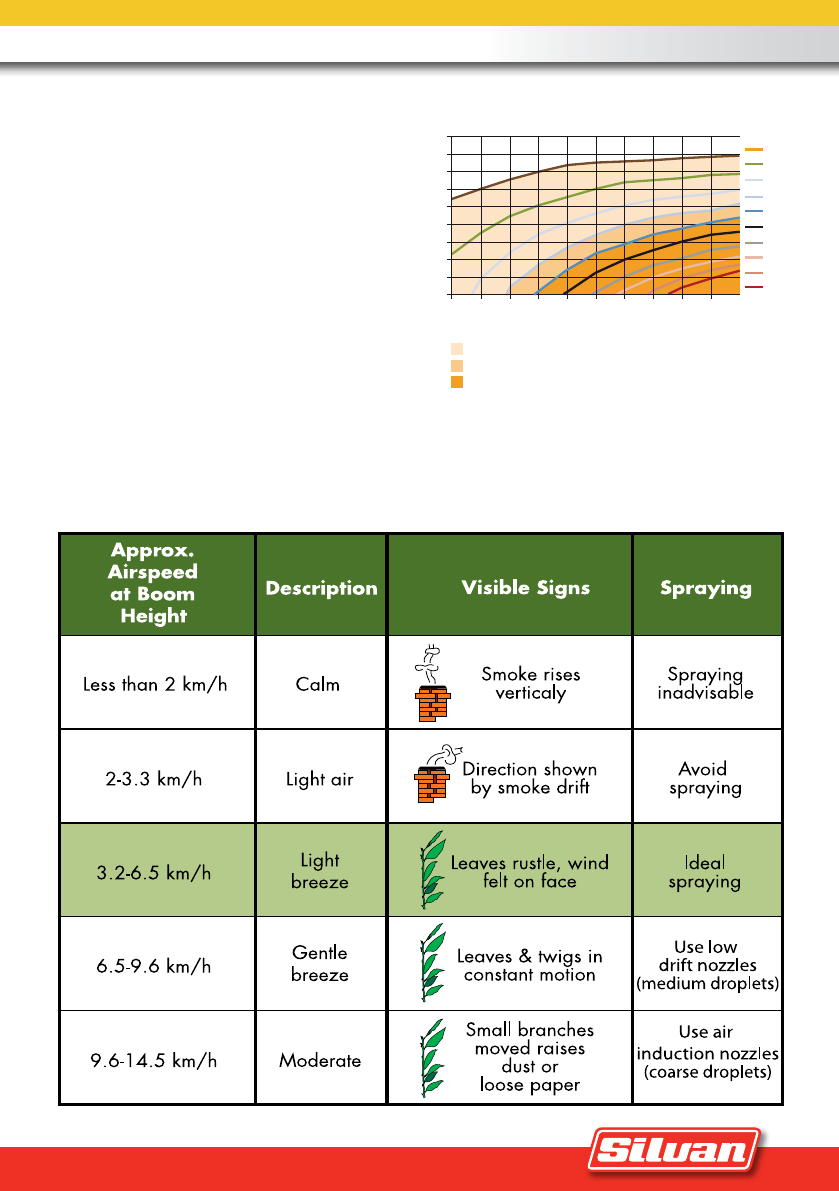

WHEN IS IT RIGHT TO SPRAY?
The weather has major impact on spraying conditions.
The effects of Wind on spraying can be very clear and
easy to see but temperature and humidity also have
critical effects that can be measured by a Delta T.
Delta T is a relative measure of Humidity vs Temperature
summarised in the table (right) that indicates suitability
of spray conditions. Preferably spraying should occur
when Delta T is between 2 and 8; a higher Delta T has an
increased chance for drift caused by evaporation when
water based spraying. Preferred Delta T conditions for spraying
Delta T conditions marginal
Delta T conditions unsuitable for spraying
Dry temperature °C
0 5 10 15 20 25 30 35 40 45 50
Delta T value (°C)
2
4
6
8
10
12
14
16
18
20
Relative humidity (%)
100
90
80
70
60
50
40
30
20
0
WIND SPEED AND SPRAYING
Wind speeds are critical when spraying. If conditions are too windy, chemicals may not be applied correctly to the
target crop leading to poor results, increased drift and possible off target damage. The table below offers a simple
method of assessing wind speeds, otherwise can be more accurately measured using a Wind Meter.
71
Nozzles Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
CALCULATE CHEMICAL TO ADD TO TANK
Tank capacity (L) X chemical rate (L/ha)
Output (L/ha)
(L) x (L/ha)
Output (L/ha)
= Chemical required per tank
Amount of chemical
to add per tank
=
BOOM SPRAY CALIBRATION INFORMATION
CALCULATE SPEED IN
KILOMETRES PER HOUR
3.6 x metres = km/h 3.6 x metres = km/h
Seconds seconds
Equipment information
Date Tractor RPM
Gear Spray plant Pressure
Size, number & spacing of nozzles
600 x litres per minute
Boom width (m) x speed (km/h)
600 x L
m x km/h = Litres per hectare
= Litres per hectare
FACTORS AFFECTING
CALIBRATION
OF BOOM SPRAYS
1. Application rate in Litres per hectare.
2. Travel Speed of Tractor.
The tractor travel speed is the most important
variable in sprayer performance. A 10%
change in tractor speed gives a 10% change in
application rate. This can lead to over or under
application of chemicals. Determine the speed
by measuring 100 metres then time in seconds
how long it takes to cover the 100 metres.
If spraying in hilly terrain time distance both
up hill and down hill and average the results.
THE FORMULA FOR SPEED IS:
km/h = 360
Time in seconds for 100 metres
3. Nozzle Spacing on boom
(Std nozzle spacing is 50 cm).
4. Calculate required output per nozzle:
L/min/
nozzle =
L/ha x km/h x nozzle spacing (cm)
60,000
e.g. 100 x 10 x 50
= 0.83 L/min/
nozzle
60,000
Where application rate is: 100 L/Ha, speed is
10 km/h and nozzle spacing is 50 cm.
Use the nozzle output charts to select the
correct nozzle tip for your application.
5. Check the calibration procedure
Use a measuring jug and stopwatch to check
the output of several nozzles across the boom
at the recommended pressure. If the outputs
vary slightly from the chart then adjust the
pressure in the system to achieve the correct
volume. If nozzle flow rates are greater than
5% above or below the manufacturer’s charts
then the whole sprayer system needs to be
checked for leaks, blockages etc,cleaned out
and the calibration process repeated until
accuracy is attained. The nozzle charts also
allow application rates to be determined if
the tractor speed, the nozzle and the spraying
pressure are known.
=
(L)
72 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzles

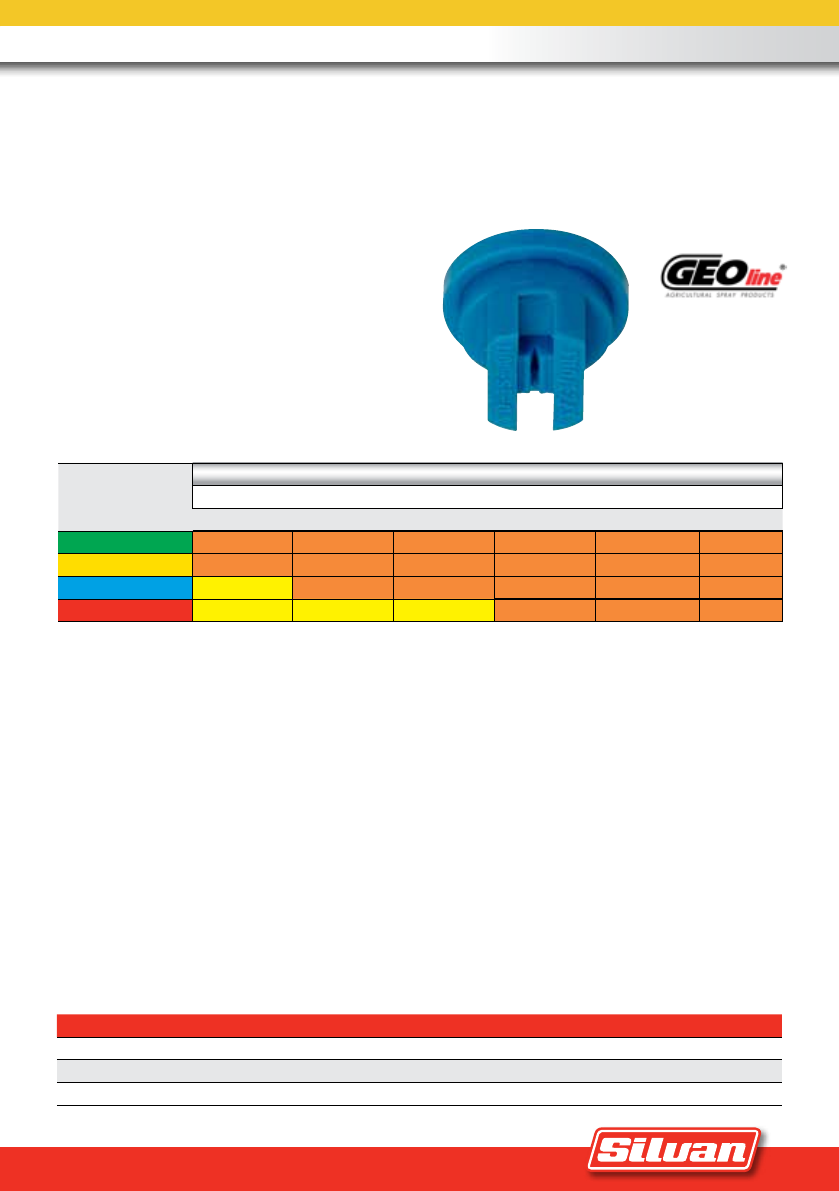

RS FLAT FAN POLY NOZZLE
• Air-induction flat-spray tip
• Spray angle: 110°
• Spray height = 50 cm
• Pressure recommended ranges from 1.5 to 4 bar
• Low Drift at low pressure. Increased coverage
and drift potential at higher pressure
FLAT FAN POLY NOZZLE RS SERIES
BAR
1.5 2 2.5 3 3.5 4
RS110015
F F F F F F
RS11002
F F F F F F
RS11003
M
FFF F F
RS11004
M M M
F F F
CODE ANGLE NOZZLE PACKETS SIZES AVAILABLE CAT
RS110*** 110º RS-FlatFan-Poly 24Pk 015,02,03,04 B
*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***
Note: Automatic spray alignment order cap G8253000 and gasket 402200-040
Geoline, manufacturers of world class agricultural
spraying accessories and components have released a
range of ISO standard spray nozzles exclusive to Silvan.
Ideal for many applications where spray coverage
and drift management is important, the Geoline
nozzles offer excellent results.
73
Nozzles Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
TP FLAT FAN STANDARD
• Single piece nozzle with even coverage
• Pressure Range: 2-4 Bar
• Poly material available
XRC EXTENDED RANGE
• Same droplet size as XR Nozzle with added convenience
of a moulded Quick TeeJet cap for easy fitment and
automatic alignment
• Single piece nozzle with even coverage
• Pressure Range: 1-4 Bar
• Poly material
• Low Drift at low pressure. Increased coverage
and drift potential at higher pressure
XR EXTENDED RANGE
• Single piece nozzle with even coverage
• Pressure Range: 1-4 Bar
• Poly and Ceramic material available
• Low Drift at low pressure. Increased coverage
and drift potential at higher pressure
TP11002VP
Spray pattern
80º
110º
2 bar 4 bar
XR110015-VP
80º
110º
1 bar 4 bar
Spray pattern
Spray pattern
XRC110015-VK
1 bar 4 bar
Spray pattern
110º
REFER TO PAGES 97-99 FOR AUTOMATIC ALIGNMENT CAP & GASKET
74 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information

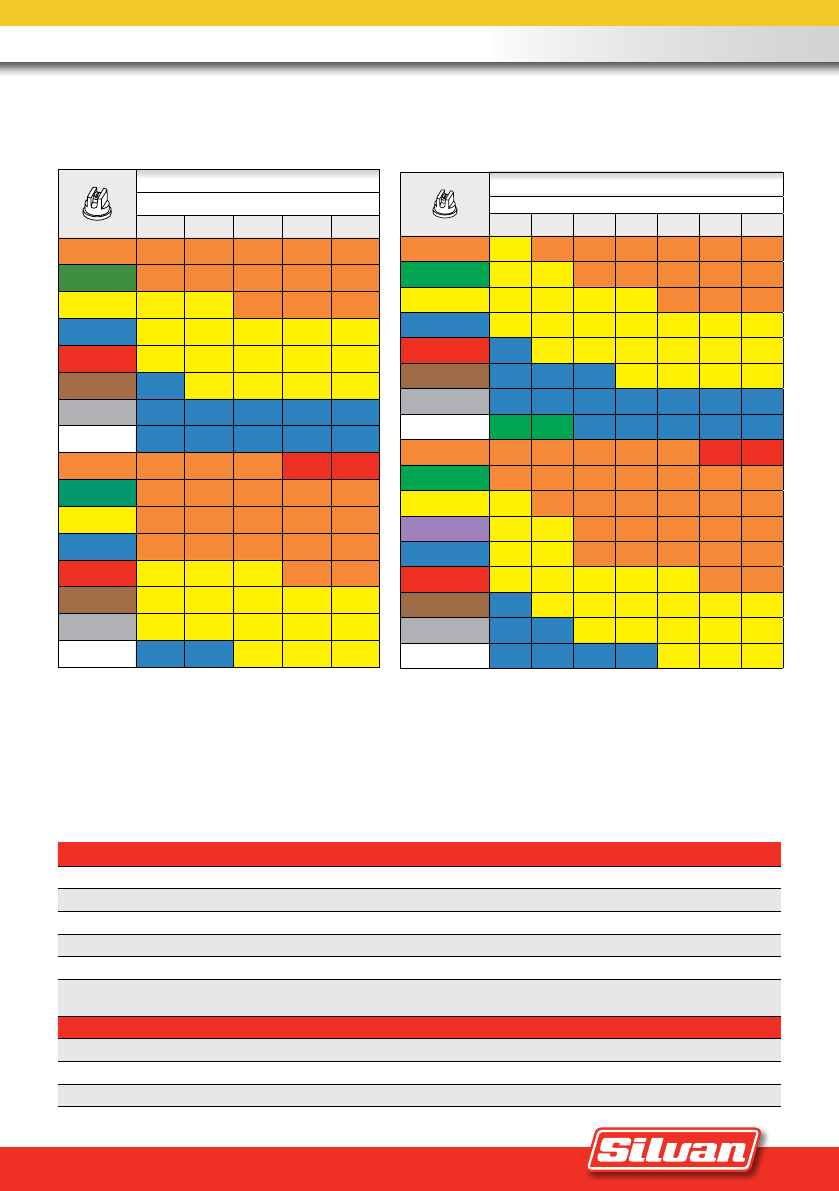

Nozzles
CODE ANGLE DESCRIPTION SIZES AVAILABLE CAT
TP110***-VP 110º TP - Flat Fan - Poly 015,02,03,04,05,06,08 B
TP80***-VP 80º TP - Flat Fan - Poly 015,02,03,04,05,06,08 B
XR110***-VP 110º XR - Flat Fan - Poly 015,02,03,04,05,06,08 B
XR110***-VK 110º XR - Flat Fan - Ceramic 02,025,03,04,05,06,08 B
XR80***-VK 80º XR - Flat Fan - Ceramic 03,04,05,06,08 B
XRC110***-VK 110º XRC - Flat Fan - Ceramic with
Moulded Cap 025,03,04,05,06,08 B
10 PACK NOZZLES:
PKT-TP110***-VP 110º VisiFlo - Flat Fan - Poly 10 Pk 015,02,03,04,05,06,08 B
PKT-XR110***-VP 110º XR - Flat Fan - Poly 10 Pk 015,02,03,04,05,06,08 B
*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***. EG TP11004VP
TP TeeJet
B
A
R
2 2
.
533
.
5 4
TP8001
FFFFF
TP80015
FFFFF
TP8002
M M
FFF
TP8003
MMMMM
TP8004
MMMMM
TP8005
C
MMMM
TP8006
CCCCC
TP8008
CCCCC
TP11001
FFF
VF VF
TP110015
FFFFF
TP11002
FFFFF
TP11003
FFFFF
TP11004
MMM
F F
TP11005
MMMMM
TP11006
MMMMM
TP11008
C C
MMM
XR TeeJet and XRC TeeJet
BAR
1 1
.
522
.
533
.
5 4
XR8001
M
FFFFFF
XR80015
M M
FFFFF
XR8002
MMMM
FFF
XR8003
MMMMMMM
XR8004
C
MMMMMM
XR8005
CCC
MMMM
XR8006
CCCCCCC
XR8008
VC VC
CCCCC
XR11001
FFFFF
VF VF
XR110015
FFFFFFF
XR11002
M
FFFFFF
XR110025
M M
FFFFF
XR11003
M M
FFFFF
XR11004
MMMMM
F F
XR11005
C
MMMMMM
XR11006
C C
MMMMM
XR11008
CCCC
MMM
For ISO application rates see pages 96 - 97. XRC produce same droplet as XR.
ISO DROPLET SIZE INFORMATION
75
Nozzles Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
DRIFT GUARD SPRAY TIPS
• Pre-orifice design produces larger droplets and reduces the small
drift prone droplets, minimising off-target spray contamination
• Tapered edge flat spray pattern provides uniform coverage when
adjacent nozzle patterns are overlapped in broadcast spraying
• The colour-coded pre-orifice is removable for any necessary
cleaning operations
• Poly & Stainless steel material available
110º
TURBO TEEJET FLAT SPRAY TIPS
• Tapered edge wide angle pattern for uniform coverage
in broadcast spraying
• Large, rounded internal passage to minimise clogging
• Larger droplets for less drift 15-90 psi (1-6 bar)
• Poly material
110º
TT11004-VP
TURBO TWINJET SPRAY TIPS
• All the features of the TT Turbo TeeJet, but with a
double outlet nozzle that helps reduce spray drift
• Excellent canopy coverage and penetration while
delivering excellent drift resistance
• Spraying pressure 20-90 psi (1.5-6 bar), ideal for use
with automatic sprayrate controllers
• Best suited to applications where superior leaf
coverage and canopy penetration is important
• Poly material
60º
110º
110º
TTJ60-11003VP
REFER TO PAGES 97-99 FOR AUTOMATIC ALIGNMENT CAP & GASKET
DG11004-VS
76 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzles
CODE ANGLE DESCRIPTION SIZES AVAILABLE CAT
DG110***-VP 110º Polymer - Drift Guard Even Flat Fan 015,02,03,04,05 B
DG110***-VS 110º Stainless Steel - Drift Guard Even Flat Fan 015,02,03,04,05 B
TT110***-VP 110º Poly - Turbo Wide Angle Flat Fan
01,015,02,025,03,04,05,06,08
B
TTJ60-110***VP Poly - Turbo Twinjet Wide Angle Flat Fan 02,025,03,04,05,06 B
*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***
DG TeeJet
BAR
2 2
.
533
.
5 4
DG110015
M
FFFF
DG11002
MMMMM
DG11003
C
MMMM
DG11004
C C
MMM
DG11005
CCC
M M
Turbo TeeJet
BAR
1 1
.
522
.
533
.
544
.
555
.
5 6
TT11001
C
MMM
FFFFFFF
TT110015
C C
MMMMM
FFFF
TT11002
CCC
MMMMMMM
F
TT110025
VC
C C
MMMMMMMM
TT11003 VC
CCCC
MMMMMM
TT11004 XC VC
CCCCCC
MMM
TT11005 XC VC VC VC
CCCCC
M M
TT11006 XC VC VC VC
CCCCCC
M
TT11008 XC XC VC VC
CCCCCC
M
Turbo Twinjet (TTJ60)
BAR
1
.
522
.
533
.
544
.
555
.
5 6
TT
J60-11002
CCCC
MMMMMM
TT
J60-110025
VC
CCCCCC
MMM
TT
J60-11003
VC
CCCCCCC
M M
TT
J60-11004
VC
CCCCCCCC
M
TT
J60-11005
VC
CCCCCCCCC
TT
J60-11006
XC VC
CCCCCCCC
ISO DROPLET SIZE INFORMATION
77
Nozzles Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
TURBO TEEJET INDUCTION
FLAT SPRAY TIPS
• Compact size to prevent tip damage and removable
pre-orifice for easy cleaning
• Large droplets are produced through a venturi
air aspirator resulting in less drift
• Wide operating pressure 15-105 psi (1-7bar)
producing extra coarse droplets
• Ideal for use with automatic rate controllers
• Poly material
TTI11004-VP
AIXR AIR INDUCTION SPRAY TIPS
• Pressure range 15-90 psi (1-6 bar)
• Made of a two-piece polymer construction.
Excellent chemical resistance, including acids,
as well as exceptional wear life
• A lower pressure air inducted nozzle offers better drift
management and suitable for the broadacre market
• Compact size to prevent tip damage and
removable pre-orifice
• Depending on the chemical, produces large
air-filled drops through a Venturi air aspirator
AIXR11002-VP
IDK AIR INJECTED NOZZLE
• Air-aspirating flat-spray tip
• Pressure Range:
– Spray angle 120º all Poly nozzle
– IDK-01 to 03, 20-90 psi (1.5 - 6 bar)
– IDK-04, 15-90 psi (1 - 6 bar)
• More suitable for lower pressures
• Hard-wearing and non-clogging thanks to
lateral air-aspirating channels of ample size
IDK12004P
110º
Injector
Nozzle Body
Air
Liquid
110º
120º
REFER TO PAGES 97-99 FOR AUTOMATIC ALIGNMENT CAP & GASKET
78 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzles
AIXR TeeJet
BAR
1 1
.
522
.
533
.
544
.
555
.
5 6
AIXR110015 XC VC VC
CCCC
MMMM
AIXR11002 XC XC VC VC
CCCCC
M M
AIXR110025 XC XC XC VC VC
CCCCCC
AIXR11003 XC XC XC VC VC
CCCCCC
AIXR11004 UC XC XC XC VC VC VC
CCCC
AIXR11005 UC XC XC XC XC VC VC VC
CCC
AIXR11006 UC XC XC XC XC VC VC VC
CCC
IDK Lechler
BAR
1
.
522
.
53456
IDK12001
CCC
M M M F
IDK120015
CCCC
M M F
IDK12002
CCCC
M M F
IDK120025 VC VC
CCC
M M
IDK12003 VC VC VC
C C
M M
IDK12004 VC VC VC VC
C C
M
Turbo TeeJet Induction (TTI)
B
A
R
1 1
.
522
.
533
.
544
.
555
.
5 6 7
TTI110015 UC UC UC UC UC UC XC XC XC XC XC XC
TTI11002 UC UC UC UC UC UC UC UC XC XC XC XC
TTI110025 UC UC UC UC UC UC UC UC XC XC XC XC
TTI11003 UC UC UC UC UC UC UC UC XC XC XC XC
TTI11004 UC UC UC UC UC UC UC UC XC XC XC XC
TTI11005 UC UC UC UC UC UC UC UC XC XC XC XC
TTI11006 UC UC UC UC UC UC UC UC XC XC XC XC
CODE ANG DESCRIPTION SIZES AVAILABLE CAT
AIXR110***-VP 110º Poly - Air Induction Spray Tip 015,02,025,03,04,05,06 B
IDK120***P 120º Poly - Air Injected Spray Tip 01,015,02,025,03,04 B
IDK120***C 120º Ceramic - Air Injected Spray Tip 015,02,025,03,04 B
TTI110***-VP 110º Poly - Turbo Induction Spray Tip 015,02,025,03,04,05,06 B
10 PACK NOZZLES:
PKT-AIXR110***-VP 110º 10 Pk Poly - Turbo Wide Angle Flat Spray Tip 015,02,03,04 B
*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***
ISO DROPLET SIZE INFORMATION
79
Nozzles Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
AI AIR INDUCTION SPRAY TIPS
• Stainless steel insert produces tapered edge flat spray 110º
pattern for uniform coverage in broadcast spraying
• Polymer insert holder and pre-orifice with VisiFlo colour-coding
• Larger droplets for less drift
• Depending on the chemical, produces large air-filled drops
through the use of a venturi air aspirator
• Pressure ranges from 2 – 8 bar
AI11004-VS
110º
AIC AIR INDUCTION SPRAY TIPS
• Same droplet size as AI nozzles with added convenience
of a moulded nozzle cap
• Available in stainless steel and ceramic inserts,
produces tapered edge flat spray pattern for
uniform coverage in broadcast spraying
• Polymer insert holder and pre-orifice with VisiFlo colour-coding
• Larger droplets for less drift
• Depending on the chemical, produces large air-filled drops
through the use of a Venturi air aspirator
• AI TeeJet nozzle molded into Quick TeeJet cap provides
automatic spray alignment
• Includes tightly fitting washer that assures a good seal
AITTJ60 AIR INDUCTION TURBO TWINJET
• Air induction with dual 110° flat fan patterns
• 60° between leading and trailing spray patterns
• Good coverage with increased canopy penetration
and best drift control
• Best suited for postemergence applications
• Excellent drift control with coarse to very coarse droplets
• Available in VisiFlo color coded capacities (02 through 06)
• Pressure ranges from 1.5 – 6 bar (20 – 90 PSI)
AITTJ60-11004VP
110º
110º
110º
AIC11004-VS
REFER TO PAGES 97-99 FOR AUTOMATIC ALIGNMENT CAP & GASKET
60º
80 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzles
CODE ANG DESCRIPTION SIZES AVAILABLE CAT
AI110***-VS 110º Air Induction Flat Spray Tip - Stainless Steel 015,02,03,04,05,06,08 B
AIC110***-VS 110º Air Induction Spray Tip With Cap & Gasket - S/Steel
015,02,025,04,06,08,10,15
B
AIC110***-VK 110º Air Induction Spray Tip With Cap & Gasket - Ceramic 025,03,04,05 B
AITTJ60-110**VP 110º Air Induction Turbo Twinjet - Poly 02,025,03,04,05,06 B
*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***
AI TeeJet and AIC TeeJet
BAR
2 2
.
533
.
544
.
555
.
566
.
5 7 8
AI110015
UC XC XC XC XC VC VC VC VC
CCC
AI11002
UC XC XC XC XC VC VC VC VC
CCC
AI110025
UC UC XC XC XC XC VC VC VC VC
C C
AI11003
UC UC XC XC XC XC VC VC VC VC
C C
AI11004
UC UC XC XC XC XC VC VC VC VC
C C
AI11005
UC UC XC XC XC XC VC VC VC VC
C C
AI11006
UC UC XC XC XC XC XC VC VC VC VC
C
AI11008
UC UC UC XC XC XC XC VC VC VC VC
C
AI11010*
UC UC UC XC XC XC XC XC VC VC VC
C
FERTILISER NOZZLES
STREAMJET SJ-3 FERTILISER (3 STREAM)
• Removable metering orifice for easy cleaning
• Equally spaced distribution at 20” (50 cm) h
• Use with Quick TeeJet cap 25598-*-NYR
• All acetal construction for excellent chemical resistance
• Recommended operating pressure: 1.5–4 bar (20–60 psi) SJ3
CODE DESCRIPTION SIZES AVAILABLE CAT
SJ3-***-VP Poly - 3 Stream Streamjet Fertilizer Nozzles 015,02,03,04,05,06,08,10,15,20 B
*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***
ISO DROPLET SIZE INFORMATION
81
Nozzles Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information

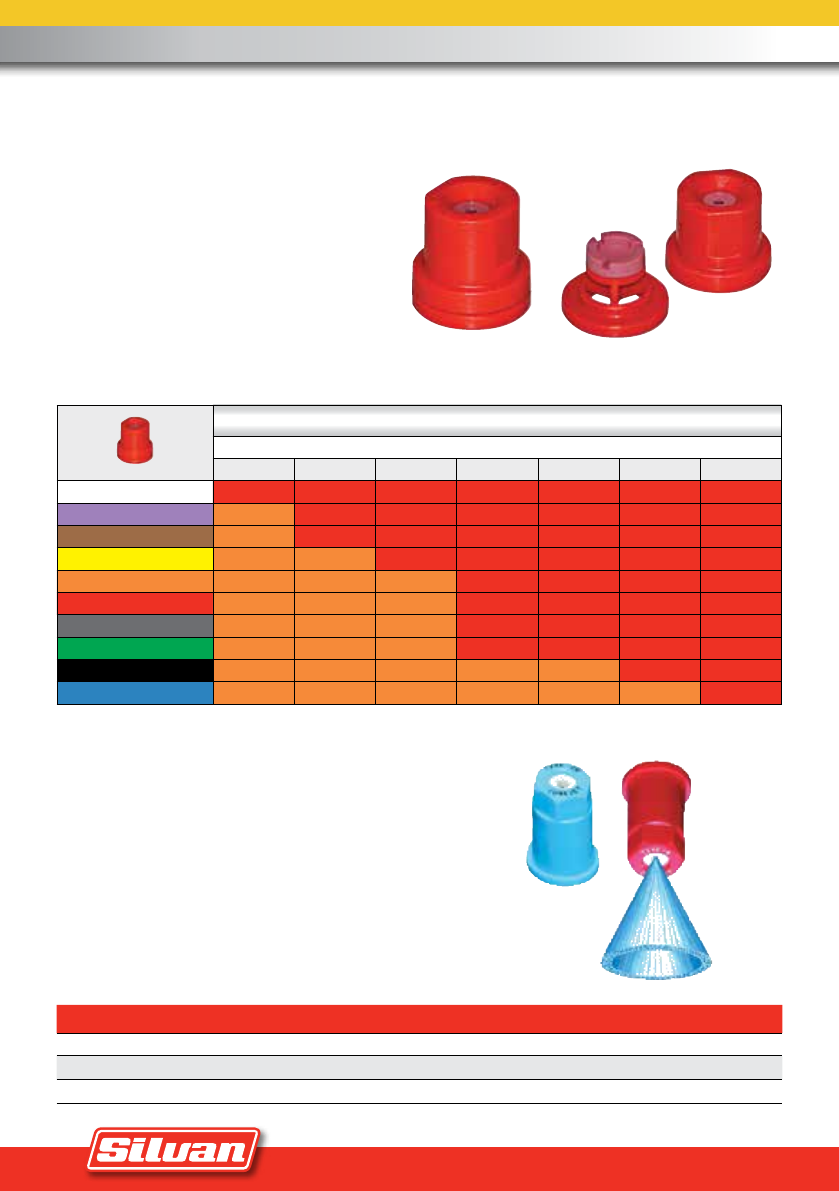

HOLLOW CONE NOZZLES (HCC)
The ceramic hollow cone nozzles are designed for
creating small droplets ideal for foliar application of
insecticides and fungicides and are constructed with a
moulded outer over a ceramic insert that is mated to a
turbulence chamber and counter-swirling device easily
separated for cleaning. The ceramic nozzle allows for
long lasting life and the vortexing action in the nozzle
provides a 80° spray angle between 3-5 bar, but works
well at both high and low operation pressures. The
ceramic hollow cone nozzles are the offered alternative
to the Albuz ATR Hollow cone nozzles.
HOLLOW CONE NOZZLES (TX)
VisiFlo colour-coded version consists of ceramic orifice in polypropylene
body. Maximum operating pressure 20 bar. Spray angle is 80º at 7 bar.
Finely atomised spray pattern provides thorough coverage.
Excellent: Post – Emergence contact herbicides, fungicides and
insecticides ensures finely atomised spray droplets reach target areas.
Good: With defoliants & foliar fertilisers at 3 bar pressure and above.
TX
HCC Spray-Jet
BAR
3456810 15
HCC005 VF VF VF VF VF VF VF
HCC0075 FVF VF VF VF VF VF
HCC01 FVF VF VF VF VF VF
HCC015 F F VF VF VF VF VF
HCC02 F F F VF VF VF VF
HCC025 FFFVF VF VF VF
HCC03 FFFVF VF VF VF
HCC035 FFFVF VF VF VF
HCC04 FFFFFVF VF
HCC05 FFFFFFVF
CODE ANG DESCRIPTION SIZES AVAILABLE CAT
HCC*** 80º Ceramic-Hollow Cone Nozzle 005,0075,01,015,02,025,03,035,04,05 B
TX-VK** 80º Ceramic-Conejet Hollow Cone Nozzle 3,4,6,8,10,12,18,26 B
*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***
HCC
82 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Horticulture Nozzles
HCC NOZZLES APPLICATION RATES TX NOZZLES APPLICATION RATES
BAR L/MIN
HCC025
3 1
41.15
61.41
81.63
10 1.83
12 2
15 2.24
20 2.58
HCC03
31.2
41.39
61.7
81.96
10 2.19
12 2.4
15 2.68
20 3.10
HCC035
31.4
41.62
61.98
82.29
10 2.56
12 2.8
15 3.13
20 3.61
HCC04
31.6
41.85
62.26
82.61
10 2.92
12 3.2
15 3.58
20 4.13
HCC05
3 3
43.31
62.83
83.27
10 3.64
12 4
15 4.47
20 5.16
BAR L/MIN
HCC005
30.19
40.22
60.27
80.31
10 0.35
12 0.38
15 0.42
20 0.49
HCC0075
30.3
40.35
60.42
80.49
10 0.55
12 0.6
15 0.67
20 0.77
HCC01
30.4
40.46
60.57
80.65
10 0.73
12 0.8
15 0.89
20 1.03
HCC015
30.6
40.69
60.85
80.98
10 1.1
12 1.2
15 1.34
20 1.55
HCC02
30.8
40.92
61.13
81.31
10 1.46
12 1.6
15 1.79
20 2.07
BAR L/MIN
“TX-VK3
(100 MESH)”
50.25
70.28
10 0.33
15 0.39
20 0.45
“TX-VK4
(50 MESH)”
50.33
70.39
10 0.45
15 0.55
20 0.62
“TX-VK6
(50 MESH)”
50.5
70.58
10 0.68
15 0.82
20 0.93
“TX-VK8
(50 MESH)”
50.67
70.79
10 0.93
15 1.1
20 1.3
“TX-VK10
(50 MESH)”
50.84
70.98
10 1.2
15 1.4
20 1.6
“TX-VK12
(50 MESH)”
5 1
71.2
10 1.4
15 1.7
20 2
“TX-VK18
(50 MESH)”
51.5
71.8
10 2.2
15 2.6
20 3
“TX-VK26
(50 MESH)”
52.2
72.6
10 3.1
15 3.8
20 4.4
83
Horticulture Nozzles Horticulture Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
84 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Horticulture Nozzles
OUTPUT - IN LITRES PER MINUTE - CERAMIC DISC AND SWIRL PLATES
NOZZLE (SIZE) SWIRL PLATE (CENTRE SIZE) 10 BAR 15 BAR 20 BAR 25 BAR 30 BAR 40 BAR 50 BAR
MA1-08 (0.8) MA2-00 (Closed Centre) 0.9 1.0 1.2 1.3 1.4 1.6 1.9
MA1-10 (1.0) MA2-00 (Closed Centre) 1.3 1.5 1.7 1.9 2.1 2.4 2.7
MA1-12 (1.2) MA2-00 (Closed Centre) 1.7 2.0 2.3 2.6 2.8 3.2 3.5
MA1-15 (1.5) MA2-00 (Closed Centre) 2.3 2.7 3.1 3.3 3.6 4.0 4.3
MA1-18 (1.8) MA2-00 (Closed Centre) 2.7 3.2 3.6 4.1 4.5 5.0 5.5
MA1-20 (2.0) MA2-00 (Closed Centre) 3.4 3.8 4.3 4.7 5.1 5.7 6.3
MA1-22 (2.2) MA2-00 (Closed Centre) 3.8 4.1 4.6 5.1 5.6 6.6 7.4
MA1-25 (2.5) MA2-00 (Closed Centre) 3.9 4.7 5.4 6.0 6.6 7.7 8.5
MA1-10 (1.0) MA2-10 (1.0) 1.6 1.9 2.2 2.4 2.6 3.0 3.4
MA1-12 (1.2) MA2-10 (1.0) 2.5 3.0 3.4 3.8 4.1 4.7 5.4
MA1-15 (1.5) MA2-12 (1.2) 3.6 4.2 4.8 5.3 5.8 6.9 7.7
MA1-18 (1.8) MA2-15 (1.5) 5.0 5.9 6.7 7.4 8.0 9.5 10.6
MA1-20 (2.0) MA2-18 (1.8) 6.2 7.8 8.7 9.6 10.4 11.8 13.2
MA1-22 (2.2) MA2-20 (2.0) 7.4 8.7 9.9 11.2 12.5 14.3 16.4
MA1-25 (2.5) MA2-22 (2.2) 8.8 10.5 12.1 13.5 14.7 16.2 17.5
MA2-10 MA1-10
85
Horticulture Nozzles
CODE DESCRIPTION SIZES AVAILABLE CAT
G8259*** Brass - Geoline Off Centre Nozzle 02,03,04,06,08,16 B
OC-** Brass - TeeJet Off Centre Nozzle 01,02,03,04,06,08,12,16 B
*** DENOTES SIZE REQUIRED. TO ORDER ADD THE SIZE IN PLACE OF ***
BRASS OFF-CENTRE –
SMALL CAPACITY
These spray tips are commonly installed in
double and single swivel nozzle bodies.
A wide spray swath is easily obtained from the
bodies’ easily adjustable angular position.
G8259139
CODE BAR L/MIN
H = 45CM H = 60CM
L/HA L/HA
W (CM) 4 KM/H 6 KM 8 KM 10 KM W(CM) 4 KM/H 6 KM 8 KM 10 KM
G8259139
OC-02
2.0 0.65 172 56.7 37.8 28.3 22.7 190 51.3 34.2 25.7 20.5
3.0 0.79 177 66.9 44.6 33.5 26.8 195 60.8 40.5 30.4 24.3
4.0 0.91 182 75.0 50.0 37.5 30.0 198 68.9 46.0 34.5 27.6
G8259140
OC-03
2.0 0.96 195 73.8 49.2 36.9 29.5 203 70.9 47.3 35.5 28.4
3.0 1.18 203 87.2 58.1 43.6 34.9 210 84.3 56.2 42.1 33.7
4.0 1.36 208 98.1 65.4 49.0 39.2 215 94.9 63.3 47.4 38.0
G8259141
OC-04
2.0 1.29 231 83.8 55.8 41.9 33.5 236 82.0 54.7 41.0 32.8
3.0 1.58 236 100 66.9 50.2 40.2 238 99.6 66.4 49.8 39.8
4.0 1.82 238 115 76.5 57.4 45.9 241 113 75.5 56.6 45.3
G8259142
OC-06
2.0 1.94 251 116 77.3 58.0 46.4 274 106 70.8 53.1 42.5
3.0 2.37 256 139 92.6 69.4 55.5 279 127 84.9 63.7 51.0
4.0 2.74 259 159 106 79.3 63.5 281 146 97.5 73.1 58.5
PART NUMBER
(REC FILTER MESH)
SPRAY
ANGLE
SPRAY WIDTH*
(50CM HEIGHT) PRESS. BAR FLOW
L/MIN
SINGLE NOZZLE APPLICATION RATES L/HA AT KM/H
2KPH 3KPH 4KPH 5KPH
BLUE LC-15 (100#) 105° 1.30m
1.0
2.0
3.0
0.68
0.97
1.18
157
223
273
105
148
182
79
111
136
63
89
109
RED LC-20 (50#) 105° 1.30m
1.0
2.0
3.0
0.91
1.29
1.58
210
298
365
140
198
243
105
149
182
84
119
146
Note: Spray angle and widths given are at 3 Bar.
LC-15
LURMARK DEFLECTIP 80º–145º
The Lurmark Deflectip produces a wide angled even spray (from 80 to 145 degrees
depending on pump pressure) making it ideal for banding pre and post emergent herbicides.
• Large orifice produces coarser droplets which are less prone to drift and blocking
• Fits in most nozzle caps
• Precision moulded in tough and durable polyacetal, with a spray angle tolerance of +/- 5%
CODE ANGLE DESCRIPTION SIZES AVAILABLE CAT
LC-** 80º -145º Poly - Lurmark Deflectip Spray Nozzle 15,20 B
Specialty Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
CODE NOZZLE
A
NOZZLE
B
NOZZLE
CBAR L/MIN
I/HA
CAT
WIDTH 6
KM/H
8
KM/H
12
KM/H
16
KM/H
24
KM/H
5880-3/4-2TOC06
6733-OC06
H1/4VV- 1506
H1/4VVL-9502
with 50 mesh
strainer
1.5 7.26 10.2M 71.2 53.4 35.6 26.7 17.8
B2.0 8.38 10.3M 81.4 61.0 40.7 30.5 20.3
2.5 9.37 10.5M 89.2 66.9 44.6 33.5 22.3
5880-3/4-2TOC10 OC-10
H1/4U-0508HE
H1/4VVL-11004
with 50 mesh
strainer
1.5 11.16 12.0M 93.0 69.8 46.5 34.9 23.3
B2.0 12.89 12.1M 107.0 79.9 53.3 39.9 26.3
2.5 14.41 12.3M 117.0 87.9 58.6 43.9 29.3
5880-3/4-2TOC20 OC-20
H1/4U-0520HE
H1/4VVL-9506
with 50 mesh
strainer
1.5 24.00 14.3M 168.0 126.0 83.9 62.9 42.0
B2.0 27.72 15.2M 182.0 137.0 91.2 68.4 45.6
2.5 30.99 15.8M 196.0 147.0 98.1 73.6 49.0
5880-3/4-2TOC40 OC-40
H1/4U-0540HE
H1/4U-9510
1.5 47.44 17.1M 277.0 208.0 139.0 104.0 69.4
B2.0 54.78 18.2M 300.01 226.0 150.0 113.0 75.2
2.5 61.25 19.2M 319.0 239.0 160.0 120.0 79.8

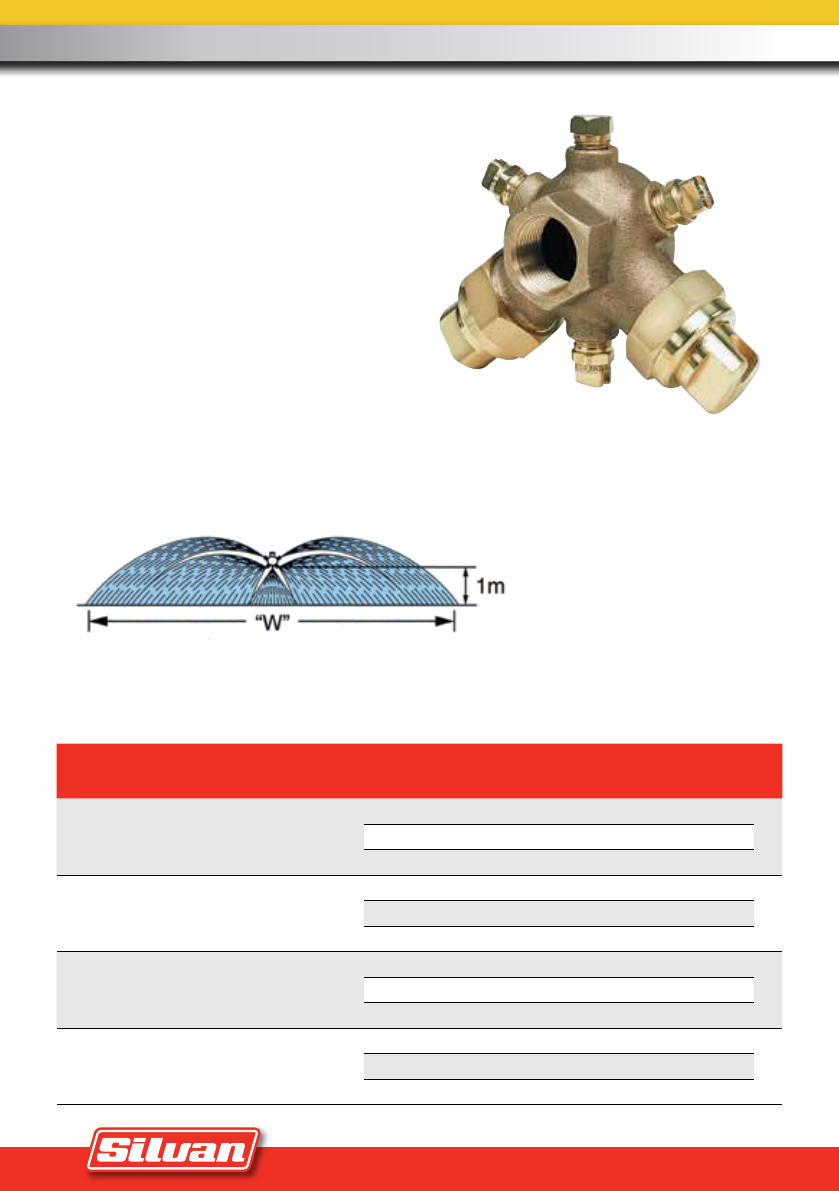

XP BOOMJET BOOMLESS
FLAT SPRAY
Type 5880 Boomjet Nozzle is used for spraying areas
not easily accessed with a boom sprayer. It combines
two off-centre tips and three VeeJet nozzles to produce
an overall wide swath flat spray. The nozzle assembly
provides good distribution considering the wide pattern
coverage obtained: however the uniformity is not as good
as with a properly operated boom sprayer. Uniformity
can be optimised by double overlapping spray swaths on
successive sprayer passes. Remember this also doubles
the application volume.
Supplied with one additional 1/4” NPT pipe plug and
one blank tip for setting BoomJet to one side only.
Also has a 1/4” NPT pressure gauge port.
W = Maximum effective coverage
with nozzle mounted at 1m height
A
B
A
B
C
86 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzles and Accessories
Boomless Nozzles

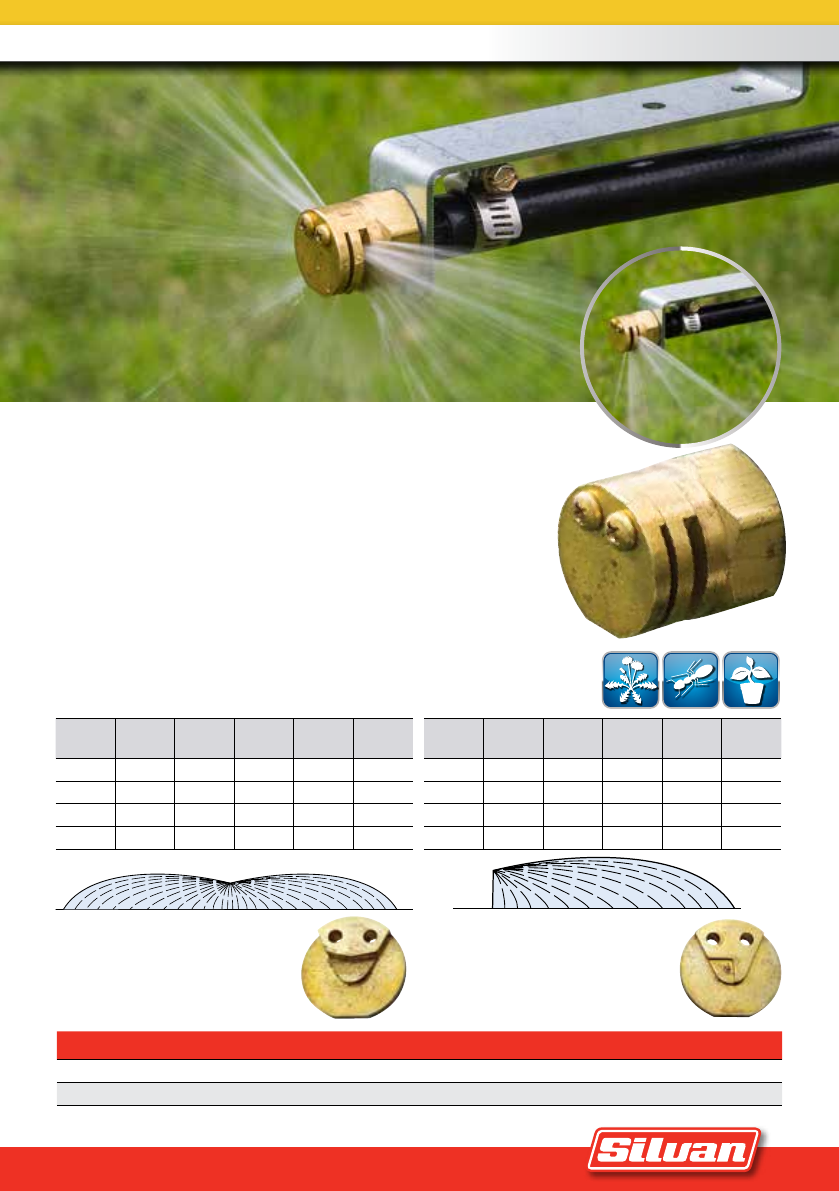

BRASS BOOMLESS NOZZLE
Compact broad spread brass nozzle suited for use with 12V pumps for spraying
areas unsuitable for a boom. Ideal for general application of herbicides or fertiliser.
• Ideal for applications where a conventional boom cannot be used due
to obstacles, such as power poles, fences, trees, etc.
• Common uses include orchard, vineyard, forestry, pasture,
turf and golf course spraying, as well as maintaining fence lines
• Designed for herbicide or fertiliser application
• Compact brass body with ¼” threaded inlet
• Includes both nozzles for double sided and single sided application
• Maintains a consistent & adjustable spray swath over a pressure range of 30-60 PSI
• Spray swath 6.7 – 7.6m with double sided nozzle or 1.6 –2.27m
with single side nozzle in place
CODE DESCRIPTION PRESSURE L/MIN (UP TO) SWATH WIDTH CAT
6560-01 02 Size Brass Boomless Nozzle (only) 207KPa/30PSI 18.2 10.4 B
M99-65 Boomless Nozzle Kit with Single or Double Sided Swath B
PSI L/min Swath (m) 4.8
km/hr
8
km/hr
16
km/hr
30 3.21 6.7 30 18 9
40 3.78 7 34 20.3 10.3
50 4.16 7.3 39 21 10.8
60 4.54 7.6 37 22.6 11
PSI L/min Swath (m) 4.8
km/hr
8
km/hr
16
km/hr
30 1.6 3.35 30 18 9
40 1.89 3.5 34 20.3 10.3
50 2.08 3.65 39 21 10.8
60 2.27 3.8 37 22.6 11
*M99-65: Kit pic shown for display only
Single Sided output (90° Swath nozzle)Double Sided output (180° Swath nozzle)
180° SPRAY
(7M)
90° SPRAY
(3.5M)
6560-01
87
Nozzles and Accessories Nozzles and Accessories
Boomless Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
3.7 metres3.7 metres
7.4 metres full spray reach
ATV BOOMLESS NOZZLE KIT
Ideal for applications where a conventional boom cannot be used due to
obstacles, such as power poles, guardrails, fences, trees, etc.
• Attaches to ATV rack and runs off your 12V pump/RakPak
• Fitted with 30cm of hose with clamp to attach to Quad Bike carry frame
• Durable nozzle produce large droplet size for herbicide or fertiliser application
• M99-74: Single sided output suits pumps 5 - 10L/min (60psi)
• M99-75: Double sided output suits pump 10 - 20L/min (60psi)
• Nozzle reorder code: For green Hypro Boomless Nozzle (See Page 81)
CODE DESCRIPTION PRESSURE L/MIN SWATH WIDTH NOZZLE COLOUR CAT
M99-76 Boomless Nozzle Kit 2 Jet 207KPa/30PSI 12.8 10.4 B
K99-10 Mounting Bracket (Suit Super Series TPL)
CODE DESCRIPTION PRESSURE L/MIN SWATH WIDTH NOZZLE COLOUR CAT
M99-74 Boomless Nozzle Kit 1 Jet 2 bar/30PSI 3.2 3.7 B
M99-75 Boomless Nozzle Kit 2 Jet 2 bar/30PSI 7.6 7.4 B
For application rates per nozzle see page 81
4.8 metres 4.8 metres
TPL BOOMLESS NOZZLE
Specifically designed for a 3 point linkage unit running between 30 and 60 psi spraying
pressure. It can spray up to 9.6 metres wide and is available with an optional mounting
bracket that fits between the upright bars on Silvan linkage equipment.
• Sprays 4.8 metres one side or 9.6 metres both sides together
• Can spray one or both sides with blanking cap included
• Fitted with 2.5 metres of Ag hose
• Nozzle reorder code: For blue FC-XT020 Hypro Boomless Nozzle (See Page 89)
9.6 metres full spray reach
Image for illustrative purposes only.
Spray tank not included.
M99-74 (1 jet)
3.7m full spray reach
M99-75 (2 jet)
7.4m full spray reach
M99-76
88 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Boomless Nozzles
CODE PRESSURE L/MIN SWATH
WIDTH
L/HA
CAT
6 KM/H 8 KM/H 12 KM/H 16 KM/H
FC-XT010 2 Bar/30psi 3.2 3.7 83 62 41 31 B
FC-XT020 2 Bar/30psi 6.4 4.8 134 101 67 50 B
FC-XT024 2 Bar/30psi 7.7 4.9 158 118 79 59 B
HYPRO BOOMLESS NOZZLES
Eliminate the need for a spraying boom with the durable boomless
nozzle that provides efficient spray.
• Ideal for applications where a conventional boom cannot be
used due to obstacles, such as power poles, fences, trees, etc.
• Common uses include orchard, vineyard, forestry, pasture, turf
and golf course spraying, as well as maintaining fence lines
• Designed for herbicide or fertiliser application
• Coarse droplet size, excellent low drift option while extending
spray reach
• Maintains a consistent and adjustable spray swath over
a pressure range of 30-60 psi
• Includes quick connect cap and gasket for easy handling
• Excellent durability and low maintenance
• Also available as a spray kit (see page 80)
PICTURED
FC-XT010
1.2m
3.7m
3.7 metres
3.7 metres
7.4 metres full spray reach
89
Boomless Nozzles Boomless Nozzles
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
CODE INLET SIZE TUBE SIZE MAX. PRESSURE CAT
AR-100 (4 pack) 7mm 1/2” 1000kPa/145PSI B
CODE INLET SIZE TUBE SIZE MAX. PRESSURE CAT
AR-200 (4 pack) 7mm 1/2” 3000kPa/435PSI B
AR-210 (4 pack) 10mm 3/4” 2000kPa/290PSI B
Silvan nozzle holders are the easiest and fastest means
of mounting spray nozzles to booms. Simply drill an
appropriate size hole and clamp nozzle holder in place.
The range available includes non-drip valves, swivel
nozzle holders, low pressure and high pressure holders
and wet and dry boom nozzle holders.
All are UV light resistant, house most standard size nozzle
tips and feature self aligning quick fit caps for ease of
nozzle cleaning. Applications include boom spraying,
poultry shed lines, car washes, livestock races and
production line cooling. All nozzle holders are supplied
less tip. Merchandise packs of 4 where stated.
NON-DRIP NOZZLE HOLDERS
Single clamping screw on the 1/2” model.
Non-drip shut-off valve. Opens above 0.5 Bar.
Includes nozzle body & cap, gasket & screw.
• 1/2” model maximum pressure of 30 Bar
• 3/4” model maximum pressure of 20 Bar
WET BOOM NOZZLE HOLDERS
Designed for clamping around 1/2” spray tubes.
Feature a self-aligning nozzle cap and a mounting
recess in the top clamp for attachment to flat surfaces.
Polypropylene construction. Includes nozzle cap,
gasket and screw.
AR-200
AR-100
AR-210
90 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzle Holders
CODE INLET SIZE TUBE SIZE MAX. PRESSURE CAT
QJ17560A-1/2x7-NYB 7mm 1/2” 2068kPa/300PSI B
QJ17
560A-1/2-NYB 9.5mm 1/2” 2068kPa/300PSI B
QJ17560A-3/4-NYB 9.5mm 3/4” 2068kPa/300PSI B
QJ17560A-1-NYB 9.5mm 1” 2068kPa/300PSI B
CODE INLET SIZE TUBE SIZE MAX. PRESSURE CAT
QJ363C-1/2-NYB 9.5mm 1/2” 2068kPa/300PSI B
QJ363C-3/4-NYB 9.5mm 3/4” 2068kPa/300PSI B
QJ363C-1-NYB 9.5mm 1” 2068kPa/300PSI B
TEEJET NOZZLE HOLDERS
Features ChemSaver drip-free shut-off.
Requires 10 PSI (0.7 bar) at the nozzle to open check valve.
Excludes nozzle cap and gasket. (Refer to pages 98-99).
TEEJET MULTIPLE NOZZLE HOLDERS
This 3 position nozzle holder features a positive shut-off between
each position and includes ChemSaver® diaphragm check valve for
drip-free shut-off.
Excludes nozzle cap and gasket. (Refer to pages 98-99).
91
Nozzle Holders Nozzle Holders
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information

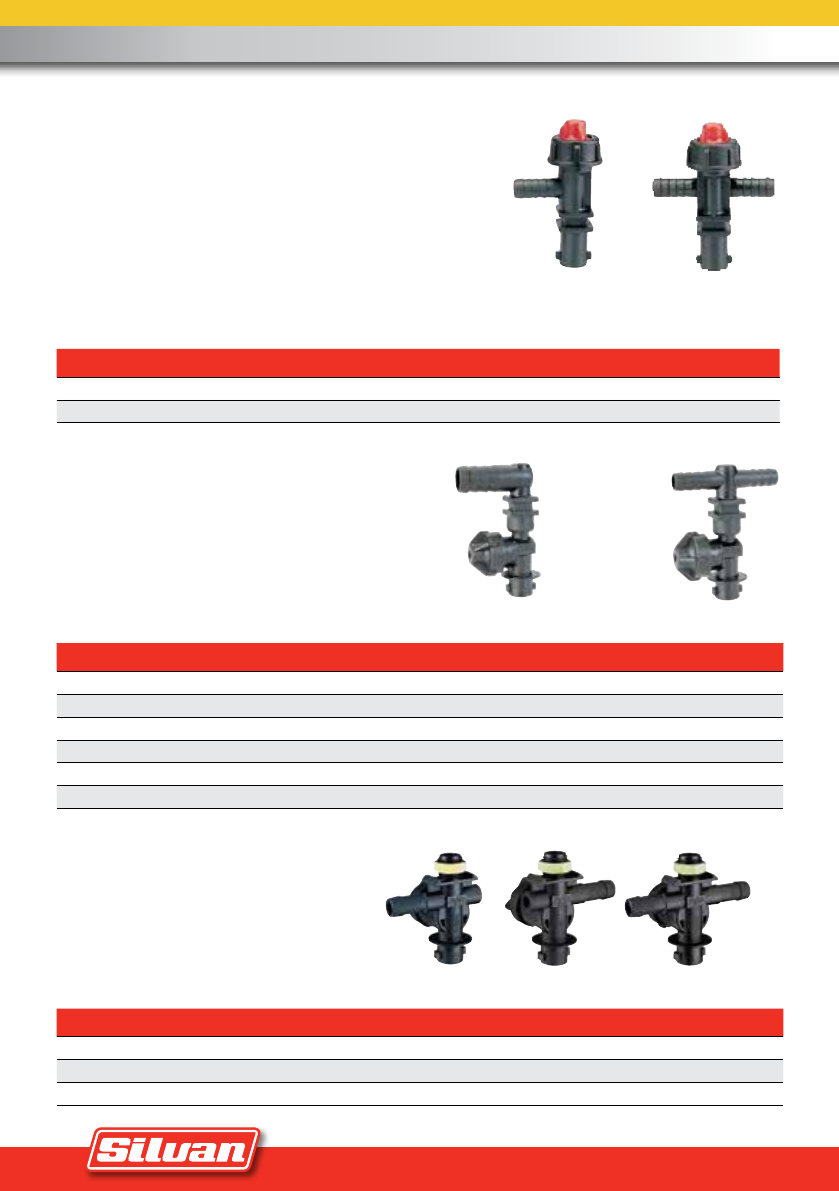

QJ39685 SERIES
• TeeJet ChemSaver® drip-free shut-off
• Made of corrosion-resistant materials 2 31
CODE REF NOZZLE HOLDER TYPE INLET HOSE TAIL SIZE I.D. MAX PRESS CAT
QJ39685-1L-500-NYB 1 SINGLE LEFT 1/2” 2000kPa/290PSI B
QJ39685-1R-500-NYB 2 SINGLE RIGHT 1/2” 2000kPa/290PSI B
QJ39685-2-500-NYB 3 DOUBLE 1/2” 2000kPa/290PSI B
193 SERIES
• Drip free shut-off with ChemSaver®
• Opening pressure - 10 psi (0.7 bar)
• Available in single or double hose shanks
• Hose barb sizes for 3/8”, 1/2” or 3/4” I.D. hose
• Use with Vari Spacing clamps (Refer Page 93) A
19349
B
19350
CODE REF NOZZLE HOLDER TYPE INLET HOSE TAIL SIZE I.D. MAX PRESS CAT
19349-211-406-NYB A SINGLE 3/8” 862kPa/125PSI B
19349-211-540-NYB A SINGLE 1/2” 862kPa/125PSI B
19349-211-785-NYB A SINGLE 3/4” 862kPa/125PSI B
19350-212-406-NYB B DOUBLE 3/8” 862kPa/125PSI B
19350-212-540-NYB B DOUBLE 1/2” 862kPa/125PSI B
19350-212-785-NYB B DOUBLE 3/4” 862kPa/125PSI B
Dry boom nozzle holders are designed for mounting directly to boom
frame for variable nozzle spacings when used with hose and clamps.
Fits round or square tubing or pipe and is connected by hose and clamps.
Polypropylene construction with max pressure of 2000kPa (290psi).
G8235027
G8235021
8235 SERIES
Self aligning nozzle cap. Available in single or double hose-tails.
Non-drip shut-off valve standard (opens 0.5 Bar).
CODE NOZZLE HOLDER TYPE INLET HOSE TAIL SIZE I.D. MAX PRESS CAT
G8235021 SINGLE 1/2” 2000kPa/290PSI B
G8235027 DOUBLE 1/2” 2000kPa/290PSI B
92 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzle Holders
CODE REF NOZZLE HOLDER TYPE INLET HOSE TAIL SIZE I.D. MAX PRESS CAT
QJ39685-1L-500-NYB 1 SINGLE LEFT 1/2” 2000kPa/290PSI B
QJ39685-1R-500-NYB 2 SINGLE RIGHT 1/2” 2000kPa/290PSI B
QJ39685-2-500-NYB 3 DOUBLE 1/2” 2000kPa/290PSI B
CODE REF TO FIT CAT
QJ111-1/2 1 1/2” Pipe (13/16” & 7/8” O.D. Tubing) B
QJ111-3/4 1 3/4” Pipe (1” & 11/16” O.D. Tubing) B
QJ111-1 1 1” Pipe (11/8”, 11/4” & 13/8” O.D. Tubing) B
QJ111-1-1/4 1 1-1/4” Pipe (19/16” & 111/16” O.D. Tubing) B
QJ111SQ-3/4 2 3/4” Square Tubing B
QJ111SQ-1 2 1” Square Tubing B
QJ111SQ-1-1/4 2 1-1/4” Square Tubing B
QJ111SQ-1-1/2 2 1-1/2” Square Tubing B
CODE THREAD SIZE ANTI DRIP VALVE MAX PRESURE CAT
QJ8360-NYB 1/4” NPT (M) YES 2000kPa/290PSI B
QJT8360-NYB 11/16” TeeJet THREAD (F) YES 2000kPa/290PSI B
QJ8360-NYB
NOZZLE ADAPTORS
• Features ChemSaver® non-drip shutoff
• Requires 10 PSI (0.7 bar) at the nozzle to open check valve
• QJ8360-NYB allows use of Quick TeeJet system from 1/4”
NPT female connections
• QJT8360-NYB permits use of Quick TeeJet system with
standard 11/16” TeeJet thread
QJ111-1/2
VARI SPACING CLAMPS
These clamps are for use on all dry boom nozzle bodies.
Simply order the round or square clamps for the required
O.D. tubing.
Example: QJ111-1/2 (Round 1/2” tubing).
2
QJT8360-NYB
QJ111SQ-3/4
1
G8235 SERIES
• Geoline compact non-drip elbow
• Made of corrosion-resistant materials 64 5
CODE REF NOZZLE HOLDER TYPE INLET HOSE TAIL SIZE I.D. MAX PRESS CAT
G8235035 4 SINGLE LEFT 1/2” 2000kPa/290PSI B
G8235031 5 SINGLE RIGHT 1/2” 2000kPa/290PSI B
G8235033 6 DOUBLE 1/2” 2000kPa/290PSI B
CP21953-EPR Replacement Standard Diaphragm B
CP21953-VI Replacement Viton B
93
Nozzle Holders Nozzle Holders
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information

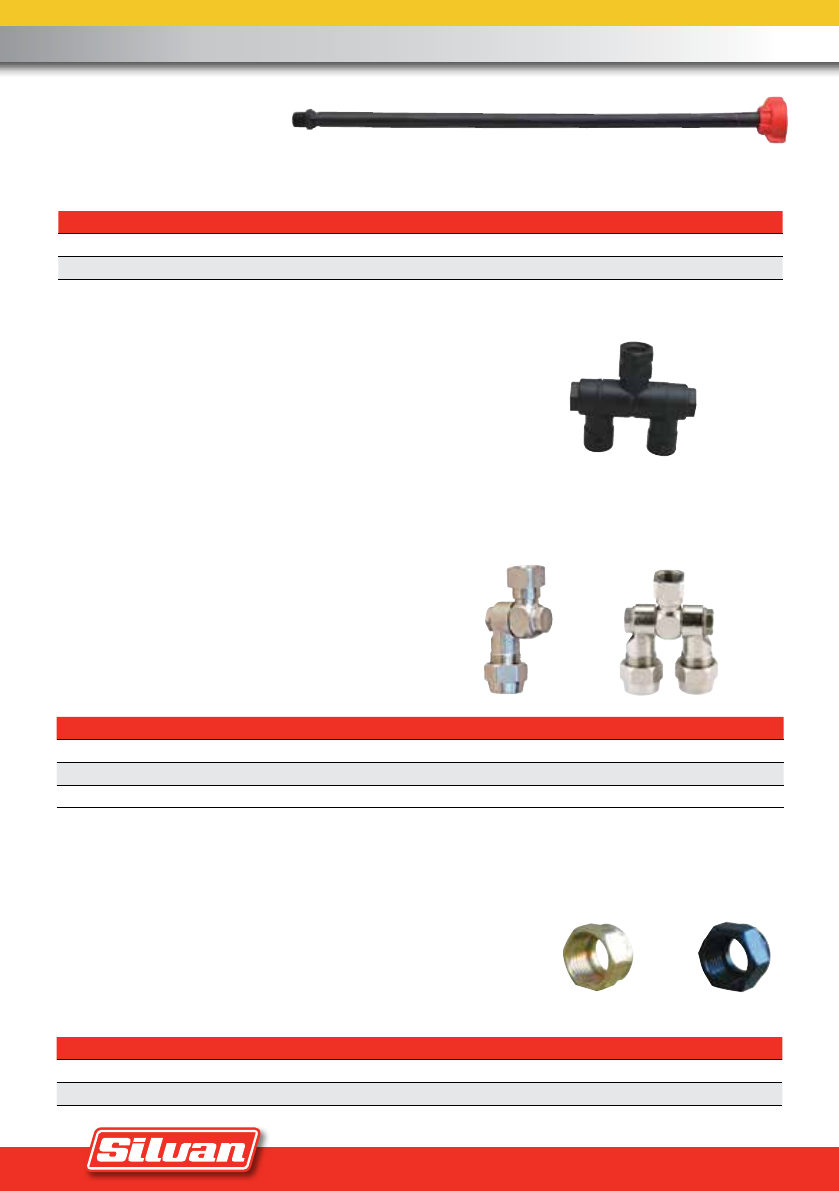

CODE MATERIAL CAT
CP1325 Brass B
CP8027-NYB Nylon B
TEEJET NOZZLE CAPS
Secure interchangeable TeeJet tips to the
various nozzle bodies.
CP8027-NYBCP1325
G8247004
CODE NOZZLE HOLDER TYPE INLET SIZE (BSP) MAX PRESSURE L (MM) CAT
G8247014 Double Poly 1/4” F 1000kPa/145PSI 70 B
G8247004 Single Brass 1/4” F 2068kPa/300PSI 70 B
G8247008 Double Brass 1/4” F 2068kPa/300PSI 70 B
G8247014
G8247008
CODE (2 PK) HOSE DROPPER LENGTH INLET OUTLET SIZE MAX PRESSURE CAT
AR-600 Hose Dropper 380mm CAP 1/4” NPT 1000kPa/145PSI B
AR-610 Hose Dropper 610mm CAP 1/4” NPT 1000kPa/145PSI B
AR-600;
AR-610
HOSE DROPPERS
Self aligning cap, fits all Silvan nozzle holders. Available in 380 and
610mm lengths. Ideal for fitting swivel nozzles in row crop application.
POLY - SWIVEL NOZZLE HOLDERS
Features an adjustable spray angle with lock nut to hold
body in place. Self-aligning nozzle cap. Ideal for use in row
crop application or fenceline spraying.
Excludes nozzle cap and gasket. (Refer to pages 97-99).
BRASS – SWIVEL NOZZLE HOLDERS
Plated brass adjustable angle swivel bodies.
Threaded nozzle caps for high pressure application
and row crop spraying. Single or twin outlets.
94 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzle Holders
CODE INLET SIZE TUBE SIZE OUTLET SIZE (BSP) MAX PRESSURE CAT
004215 7mm 1/2” 1/4” Female 5000kPa/725PSI B
HIGH PRESSURE WET BOOM NOZZLE HOLDERS
High pressure nozzle holders are ideal for orchard, vineyard, market garden
and poultry shed applications. They can be retro-fitted to existing equipment
or for specialised manufacturing uses, eg. special spray booms.
Brass construction with BSP connections.
• Suits 1/2” tube with 7mm outlet hole
• Inlet 1/4” female
CODE INLET SIZE BSP) MATERIAL SWIVEL ARC RANGE MAX PRESSURE CAT
QJ8600-1/4-NYB 1/4” NPT (F) Nylon 280° 862kPa/125PSI B
QJ8600-2-1/4-NYB 1/4” NPT (F) Nylon 280° 862kPa/125PSI B
5000-1/4T 1/4” NPT (F) Brass 280° 862kPa/125PSI B
4202-2-1/4T 1/4” NPT (F) Brass 280° 862kPa/125PSI B
6240-1/4TT 1/4” NPT (M) Brass 280° 862kPa/125PSI B
8600-1/4T-NYB 1/4” NPT (F) Nylon 280° 862kPa/125PSI B
8600-2-1/4T-NYB 1/4” NPT (F) Nylon 280° 862kPa/125PSI B
4202-2-1/4T
8600-1/4T-NYB 8600-2-1/4T-NYB
6240-1/4TT
5000-1/4T
QJ8600-2-1/4-NYB
TEEJET SWIVEL
NOZZLE HOLDERS
TeeJet swivel nozzle bodies are primarily for
use with tips employed in row crop spraying.
A locknut holds swivel bodies firmly in
position at a selected spray projection
angle so they are not affected by jarring
and vibration. For use at pressures up to
125 PSI (8.6 bar). These are also available in
the QJ8600 swivel Quick TeeJet nozzle body
assemblies which provide the same spray tip
adjustability of a standard TeeJet threaded
swivel plus the quick change and self-aligning
features of the Quick TeeJet System.
QJ8600-1/4-NYB
004215
95
Nozzle Holders Nozzle Holders
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
96 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzle Holders
HIGH PRESSURE NOZZLE HOLDERS
STANDARD
DOUBLE SIDE
SERIES
Double sided version of
Standard Single Series.
STANDARD
SINGLE SERIES
Flip over nozzle fitted with 1/4”
BSP thread, all brass construction,
ceramic tip, stainless steel swirl
plate, 90º shut off.
MA3-66
VINE SERIES
Features adjustable spray pattern
simply by twisting rear adjusting nut.
Supplied with 1/4” BSP swivel which
allows the nozzle to be locked in
almost any spray angle/position. Brass
construction with ceramic nozzle tip.
MA7 SERIES
Ideal for use in high volume pressure
applications in heavy foliage. Features
adjustable spray pattern, tungsten
carbide nozzle supplied standard with
1.5mm jet and brass construction.
Supplied with 1/4” BSP swivel.
ADJUSTABLE
NOZZLE
Adjustable brass nozzle holder
designed for heavy foliage in
poultry sheds. Features an
adjustable spray pattern, 1.5mm
jet and brass construction.
Supplied with 90° 1/4” BSP
swivel.
CODE INLET SIZE NOZZLE SIZE ANTI DRIP
VALVE MAX PRESS LENGTH WIDTH HEIGHT CAT
G8264000A 1/4” Male 1.2 NO 5000kPa/725PSI 50mm 30mm 60mm B
MA3-68 1/4” Male 1.2/1.5 NO 5000kPa/725PSI 70mm 30mm 60mm B
MA3-66 1/4” Male 1.2/1.5 YES 5000kPa/725PSI 80mm 30mm 40mm B
P50 1/4” Male 1.2 NO 5000kPa/725PSI 100mm 25mm 70mm B
G8275016 1/4” Male 1.5 NO 5000kPa/725PSI 130mm 30mm 30mm B
G8275012 1/4” Male 1.5 NO 5000kPa/725PSI 100mm 36mm 30mm B
NON DRIP
MA3 SERIES
Brass flip over nozzle fitted with
anti-drip valve with viton diaphragm.
Anti-drip valve opens at 1 Bar
pressure. 1/4” BSP thread, all brass
construction, ceramic tips, stainless
steel swirl plates, 90º shut off.
P50
G8264000A
MA3-68
G8275016 G8275012
97
Nozzle Holders Nozzle Caps
QUICK
TEEJET CAPS CAP ONLY CAT FOR USE WITH FLAT SPRAY TIPS
150PSI (10 BAR) MAXIMUM PRESSURE
CP21399-6-CE B
CP23307-4-CE B
CP23307-6-CE B
CAPS FOR HARDI NOZZLE BODIES
TJ TwinJet
®
AI TeeJet
®
& AIUBTeeJet
®
SJ-3 StreamJet
®
DGTwinJet
®
Turbo TeeJet
®
Induction
TJ TwinJet® SJ-3 StreamJet®AI TeeJet® & AIUBTeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK FloodJet®FLFullJet®TXConeJet®TGFull Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WITH FLAT SPRAYTIPS
300 PSIBA MAXIMUM PRESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-DiscCore
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
T
P
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo FloodJet®
VisiFlo® Spray Tip
TK-VSFloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-EPR
(EPDMstandard)
CP18999-VI
(Viton® optional)
TJ TwinJet® SJ-3 StreamJet®AI TeeJet® & AIUBTeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK FloodJet®FLFullJet®TXConeJet®TGFull Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WITH FLAT SPRAYTIPS
300 PSIBA MAXIMUM PRESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-DiscCore
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo FloodJet®
VisiFlo® Spray Tip
TK-VSFloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-EPR
(EPDMstandard)
CP18999-VI
(Viton® optional)
UNI CAP
• Universal nozzle cap suitable for use with the
majority of nozzles used in agriculture today
• Lower stock costs and easier managing
• Supplied with gasket
Suitable for the following nozzles:
• ARAG® Kematal
• Lurmark® Flat Fan Tips
• Lechler Series 652, IDK, Air Mix,
• Lechler series ID, LU
• TeeJet® Flat Fan Tips Std.-
• TeeJet® FL Fulljet,
• TeeJet® TG Fullcone
FOR USE WITH SPRAY TIPS
(REFERENCE GUIDE ONLY)
COLOUR
CAPS
CAP
CODE CAT GASKET
ONLY CODE CAT
TeeJet® Flat Spray Tips
Lurmark Flat Fan Tips Albuz
Flat Fan Tips (Fits Sizes 01
To 08) Lechler IDK
G8253000 B 402200-040 B
Albuz AVI-OC; Albuz AVI;
Albuz APE-EXA; Albuz ESI G8253004 B 402200-040 B
Albuz APM;TK Floodjet
TG Full Cone; FL Full Jet G8253012 B 402200-040 B
Albuz APT-ATR-AMPT,
HCC hollow cones G8253020 B 402200-040 B
PROVIDES BLANKING
SHUT-OFF OF NOZZLE
G8253040
gasket not inc. B 402200-040 B
CODE DESCRIPTION COLOUR QUANTITY CAT
40299003 Uni Cap Red 1 PACK B
Silvan self-aligning nozzle caps are designed to fit all popular brands of spray tips including fan, cone,
anvil and other specialised nozzles. Cap sealing gaskets are manufactured from chemical resistant EPDM material.
Maximum operating pressure 30 Bar (435 PSI).
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
FOR USE WITH SPRAY TIPS) REFERENCE GUIDE ONLY) COLOUR CAPS TEEJET CAP CODE CAT TEEJET GASKET
& CAP KIT CODE CAT
CP25611-3-NY
B
25612-3-NYR
B
CP25611-4-NY 25612-4-NYR
CP25611-5-NY 25612-5-NYR
CP25611-6-NY 25612-6-NYR
CP25611-7-NY 25612-7-NYR
CP25611-8-NY
CP25609
-4-NY
B25610-1-NYR B
CP25609
-6-NY
CP25597
-3-NY
B
25598
-3
-NYR
B
CP25597
-4-NY
25598
-4
-NYR
CP25597
-5-NY
25598
-5
-NYR
CP25597-6-NY 25598-6
-NYR
CP25597-7-NY 25598-1-NYR
CP25599
-3-NY
B 25600-6-NYR B
CP25599-6-NY
CP25607
-3-NY
B
25608-1-NYR
B
CP25607
-4-NY
25608
-3-NYR
CP25607
-5-NY
25608
-4-NYR
CP25607
-6-NY
CP26277-1-NY B26278-1-NYR B
Provides shut-off at nozzle for quick spacing change or change in spray swath N/A B 19843-NYR B
CP19438-EPR (EPDM standard) Gasket only B
CP19438-VI (Viton optional) Gasket only B
TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WIT H FLAT SPRAY TIPS
300 PSI BA MAXIMUM P RESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-Disc Core
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo Flood Jet®
VisiFlo® Spray Tip
TK-VS FloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-E PR
(EPDM standard)
CP18999- VI
(Viton® optional)
TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WIT H FLAT SPRAY TIPS
300 PSI BA MAXIMUM P RESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-Disc Core
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo FloodJet®
VisiFlo® Spray Tip
TK-VS FloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-E PR
(EPDM standard)
CP18999- VI
(Viton® optional)
TJ TwinJet® SJ-3 StreamJet®AI TeeJet® & AIUBTeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK FloodJet®FLFullJet®TXConeJet®TGFull Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WITH FLAT SPRAYTIPS
300 PSIBA MAXIMUM PRESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions —
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-DiscCore
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo FloodJet®
VisiFlo® Spray Tip
TK-VSFloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-EPR
(EPDMstandard)
CP18999-VI
(Viton® optional)
TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet®
DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WIT H FLAT SPRAY TIPS
300 PSI BA MAXIMUM P RESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-Disc Core
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo FloodJet®
VisiFlo® Spray Tip
TK-VS FloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-E PR
(EPDM standard)
CP18999- VI
(Viton® optional)
TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet®
DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WIT H FLAT SPRAY TIPS
300 PSI BA MAXIMUM P RESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-Disc Core
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo FloodJet®
VisiFlo® Spray Tip
TK-VS FloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-E PR
(EPDM standard)
CP18999- VI
(Viton® optional)
TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WIT H FLAT SPRAY TIPS
300 PSI BA MAXIMUM P RESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-Disc Core
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo Flood Jet®
VisiFlo® Spray Tip
TK-VS FloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-E PR
(EPDM standard)
CP18999- VI
(Viton® optional)
TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK Flood Jet® FL FullJet® TX ConeJet®
TG Full Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WITH FLAT SPRAY TIPS
300 PSI BA MAXIMUM P RESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-Disc Core
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo Flood Jet®
VisiFlo® Spray Tip
TK-VS FloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-E PR
(EPDM standard)
CP18999- VI
(Viton® optional)
TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK Flood Jet® FL FullJet® TX ConeJet®
TG Full Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WITH FLAT SPRAY TIPS
300 PSI BA MAXIMUM P RESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-Disc Core
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo Flood Jet®
VisiFlo® Spray Tip
TK-VS FloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-E PR
(EPDM standard)
CP18999- VI
(Viton® optional)
TJ TwinJet® SJ-3 StreamJet®AI TeeJet® & AIUBTeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK FloodJet®FLFullJet®TXConeJet®TGFull Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WITH FLAT SPRAYTIPS
300 PSIBA MAXIMUM PRESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-DiscCore
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo FloodJet®
VisiFlo® Spray Tip
TK-VSFloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-EPR
(EPDMstandard)
CP18999-VI
(Viton® optional)
AITTJ60 Turbo TwinJet®
TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WIT H FLAT SPRAY TIPS
300 PSI BA MAXIMUM P RESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-Disc Core
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo FloodJet®
VisiFlo® Spray Tip
TK-VS FloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-E PR
(EPDM standard)
CP18999- VI
(Viton® optional)
TJ T winJet® SJ-3 Stream Jet®AI TeeJet® & AIUB TeeJet® DG TwinJet® Turbo TeeJet Induction®
TTDG TeeJet®
TK Flood Jet® FL FullJet® TX ConeJet® TG Full Cone Hose Shank
AIXR TeeJet®Turbo TwinJet®
FOR USE WITH FLAT SPRAY TIPS
300 PSI BA MAXIMUM P RESSURE
TeeJet Flat Spray Tips (Smaller Capacities)
TeeJet Flat Spray Tips (Larger Capacities)
TeeJet Flat Spray Tips (Smaller Capacities)
Tips can be positioned in choice of two spray plane directions—
parallel or perpendicular to wings of Quick TeeJet cap.
Ceramic Disc-Core
D-Disc Core
OC TeeJet®
–01 Thru –08
XR
–01 Thru –08
TP
Standard
–0067 Thru –08
TP Standard
–10 Thru
–20
XR
–10 Thru
–15
Turbo Flood Jet®
VisiFlo® Spray Tip
TK-VS FloodJet®
VisiFlo Spray Tip
Locating
Nib
Used with DC-Core Inserts and
CP4916 Flow Regulators (Insert
Core into Seal)
D-Disc Core
Core
Seal
CP18999-E PR
(EPDM standard)
CP18999- VI
(Viton® optional)
98 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Nozzle Caps

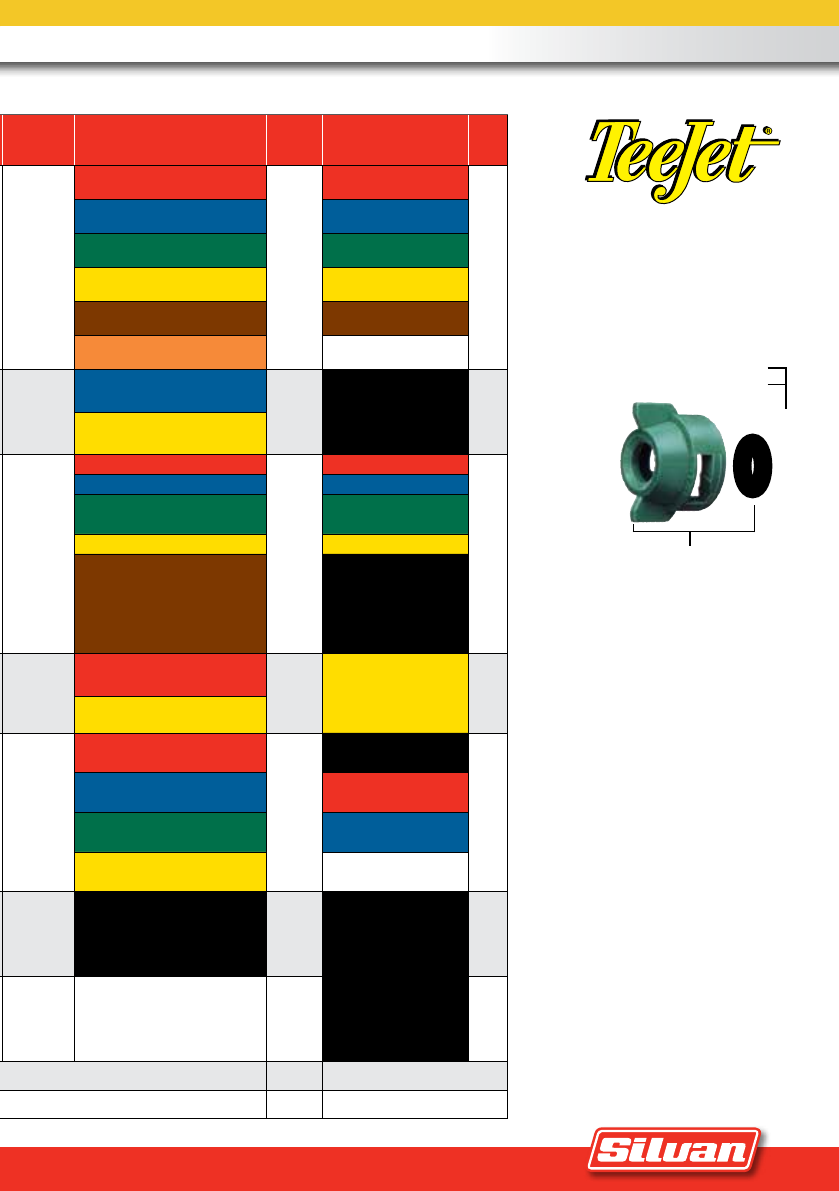

FOR USE WITH SPRAY TIPS) REFERENCE GUIDE ONLY) COLOUR CAPS TEEJET CAP CODE CAT TEEJET GASKET
& CAP KIT CODE CAT
CP25611-3-NY
B
25612-3-NYR
B
CP25611-4-NY 25612-4-NYR
CP25611-5-NY 25612-5-NYR
CP25611-6-NY 25612-6-NYR
CP25611-7-NY 25612-7-NYR
CP25611-8-NY
CP25609
-4-NY
B25610-1-NYR B
CP25609
-6-NY
CP25597
-3-NY
B
25598
-3
-NYR
B
CP25597
-4-NY
25598
-4
-NYR
CP25597
-5-NY
25598
-5
-NYR
CP25597-6-NY 25598-6
-NYR
CP25597-7-NY 25598-1-NYR
CP25599
-3-NY
B 25600-6-NYR B
CP25599-6-NY
CP25607
-3-NY
B
25608-1-NYR
B
CP25607
-4-NY
25608
-3-NYR
CP25607
-5-NY
25608
-4-NYR
CP25607
-6-NY
CP26277-1-NY B26278-1-NYR B
Provides shut-off at nozzle for quick spacing change or change in spray swath N/A B 19843-NYR B
CP19438-EPR (EPDM standard) Gasket only B
CP19438-VI (Viton optional) Gasket only B
Quick
TeeJet
Cap
Seat Gasket
CP19438-EPR (EPDM standard)
CP19438-VI (Viton optional)
Quick TeeJet Cap & Std Seat Gasket Kit
TEEJET NOZZLE CAPS
The Quick TeeJet® caps are designed
with grooves that fit locating lugs
on the nozzle body. Caps are made of
nylon and are available for use with all
TeeJet spray tips. Maximum operating
pressure of 20 bar/290 psi.
*Specify colour code (see chart), e.g:
CP25611-3-NY will supply red cap.
99
Nozzle Caps Nozzle Caps
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
Safety Equipment
100 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
AS-P0005AS-P0004 AS-M0006
101
SAFETY SIGNS
Range of safety signs for the rural property.
200mm x 300mm rigid signs and self-adhesive.
All signs suitable for install with nail or screw.
• Printed using UV resistant inks
• PVC material resists yellowing & brittleness
• Compliant to Australian Standards
• Portrait or landscape as displayed
AS-D0006AS-D0015
AS-D0017
AS-D0013
300mm
200mm
CODE DESCRIPTION CAT
AS-***** Rigid Self Adhering Sign 200mm x 300mm (Standard Size) B
***** Note to order signs use code quoted with image eg AS-D0006 for “LOOK OUT” sign
300mm
200mm
300mm
AS-D0018 AS-D0003 AS-N0001
Safety Warning Signs
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
SAFETY GOGGLES
• Wide Viewing area & can be worn
with most prescription glasses
• Soft frame for comfort
• Stops 99.99% of UV light
PROFESSIONAL
FACE SHIELD
• Ratchet adjustable
headband
• 200mm x 394mm visor
SCP6015SCP2065
DISPOSABLE
COVERALLS
• One size fits all
• Zipper front
• Long sleeves
• Attached hood
• Elastic cuff & ankle
EAR MUFFS
• 18db reduction rating
• Adjustable fit
SCP8010
SCP5015
CODE DESCRIPTION CAT
SCP2065 Safety Goggles (Meets AS/NZS 1337) B
SCP6015 Face Shield B
SCP5015 Ear Muffs B
SCP8010 Disposable Coveralls B
SCP1085 Half Mask Respirator Kit with P2 Filters (Meets AS/NZS 1715-16) B
SCP1065 P2 Filter Cartridge PK of 2 for Mask SCP1065 (not pictured) B
SCP1075 A1 Filter Cartridge PK of 2 for Mask SCP1085 (not pictured) B
JA-2101031 Sundstrom Respirator Kit B
JA-2101029 Replacement Gas Filter For Sundstrom Respirator Kit B
SUNDSTROM
RESPIRATOR KIT
Top quality breathing apparatus
comes complete with a gas filter
suitable to most farm spraying
operations and a pack of five
pre-filters, all in a convenient
carry and storage case.
JA-2101031 SCP1085
HALF MASK
RESPIRATOR KIT
• Soft Silicone face seal
• Downward outflow
prevent eyewear fogging
• Supplied with P2
Particulate filter.
• Optional A1 Filter for organic
vapors (meet AS/NZS 1715-16).
• A1 & P2 Filters can be
combined for A1P2 protection
102 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Safety Gear
K80S-T5 ASSEMBLY
Powered by a 6V battery ideal for full independence
from a vehicle power source.
The battery pack and motor/fan pack are carried
separately on a belt (supplied) to permit freedom
of movement for up to 6 hours.
The battery pack is recharged from 240 Volt mains
via a supplied recharging unit supplied.
K80S-T9R ASSEMBLY
Powered by Vehicle 12V system and battery for vehicle
mounted or independent use with a backup NiCd
rechargeable battery for up to 4 hours of use.
This permits the wearer to safely leave the tractor
or vehicle seat to make machine adjustments, check
spray performance, add chemicals to the tank, etc.
Uses vehicle dashboard plug to power and charge.
KASCO A1P3 FILTER
The A1P3 filter is particularly formulated to suit
insecticides, fungicides, weed killers, organic vapours
and dust, fumes and mist. The unique filtering system
uses filter paper as a particulate filter medium and
activated carbon as the vapour filter medium. A plastic
cap seals the filter when not in use, adding durability.
SAFETY SPRAY HELMETS
These helmets supply fan forced and filtered air (up to 120l/m) to the user
in place of a face fitted respirator allowing easy breathing and communication.
K80S-T5
178-0601-19
CODE DESCRIPTION CAT
K80S-T5 Kasco 6V Independent Use Filter Helmet A
K80S-T9R Kasco 12V Vehicle And Independent Use Filter Helmet A
178-0601-19 Kasco A1P3 Single Filter B
K80S-T9R
103
Safety Gear
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
JA-2102033:
3L JUG
JA-2102032:
1L JUG
JA-2102035:
5L JUG
15 & 25L CHEMICAL BUCKET
A heavy duty chemical bucket with graduated
handgrip, made from quality U.V. stabilised
polyethylene. Will stand the test of time.
MEASURING JUG
Measure chemicals accurately and pour them
safely with these quality measuring jugs.
• Available in 1, 3 and 5L
CJ25
25 LITRE
CJ15
15 LITRE
CODE DESCRIPTION CAT
SCP4030 Rodeo Gloves (Meets AS/NZS 2161) B
JA-2101010 Nitrile Gloves (box of 100) - Large Size B
JA-2101011 Nitrile Gloves (box of 100) - X Large Size B
SCP4000 Chemical Gloves (Meets AS/NZS 2161) B
JA-2101040 Nitrile Gauntlets, Pair - Size 10 B
JA-2101045 Nitrile Gauntlets, Pair - Size 11 B
JA-2102032 1L Measuring Jug B
JA-2102033 3L Measuring Jug B
JA-2102034 5L Measuring Jug B
CJ15 15L Chemical Measuring Bucket B
CJ25 25L Chemical Measuring Bucket B
RODEO GLOVES
• Hard wearing
• Soft leather
• Retains natural feel
CHEMICAL GLOVES
• Long 450mm length
• Resistant to oil,
grease and chemicals
NITRILE GAUNTLETS
Chemically toughened for protection
against most agricultural chemicals.
Available in sizes 10 and 11.
NITRILE GENERAL
PURPOSE GLOVES
• Tough and durable with excellent
chemical and oil resistance
• Made from 100% Nitrile rubber
with textured non-slip grip
• Available in Large & X-Large
SCP4030
JA-2101010
JA-2101040
SCP4000
104 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Gloves & Measuring Jugs
5L FOAM CONCENTRATE
Makes 500L of high density foam. Provides
excellent visibility and long life on the ground.
071-4D
CODE DESCRIPTION LENGTH WIDTH HEIGHT CAT
071-1LAC 1L All Clear Tank Cleaner B
071-4D 5L Foam Concentrate B
042C-6 Compressor 37L/min 12V 200mm 110mm 140mm B
042D-45201 Compressor 38L/min 12V Heavy Duty 200mm 140mm 170mm A
042D-45201
12V HEAVY DUTY COMPRESSOR
As used on Silvan foam markers. Ideal for high
volume, low pressure foam making application.
• 1/4” BSP outlet
• 38L/min@32kPa/4.6psi
• 96W
042C-6
071-1LAC
ALL CLEAR TANK CLEANER
Remove pesticide deposits and other debris,
including oily substance from tanks, hoses,
booms, transfer and mixing systems, filters,
screens and nozzles
• 1L of All Clear makes up to
400L of cleaning solution
12V COMPRESSOR
As used on Silvan foam markers. Ideal for high volume,
low pressure foam making application.
• 1/8” BSP outlet
• 37L/min@32kPa/4.6psi
• 60W
105
Tank Cleaner and Foam Marker Accessories
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
A
Agitators ..............................................................65
Ag Runner Pump.................................................23
All Clear Tank Cleaner ......................................105
Aquatec 12V Pumps ............................................35
ATV Boomless Nozzle .........................................88
Autosteer ...............................................................9
B
Boomless Nozzles......................................... 86-89
Brass Connectors & Fittings ........................ 60-62
Bravo 140 Controller ...........................................11
Bravo 180S Spray Controllers ............................10
Breathing Protection .........................................103
Ball Valve ....................................................... 49-50
C
Camlever Couplings ...................................... 52-53
Centrifugal Pumps ..............................................34
Chemical Handling Equipment ................... 23, 104
Chemical Jugs & Buckets.................................104
Chemical Transfer Pump ....................................23
Clamps - Hose ....................................................57
Cleaner – Tank Wash Detergent .......................105
Compressors - Foam Marker ..........................105
Control Boxes ................................................ 19-20
Control Valves - Electric ............................... 13-15
Controllers Suit Diaphragm Pumps .............28, 30
Couplings - Snap.................................................62
Coveralls ...........................................................102
Cup Strainers ......................................................46
D
Detergent – Tank Cleaner ................................105
Delivery Hose ................................................ 63-64
Diaphragm Pumps ............................ 26, 27, 29, 31
Diaphragm Pump Controls ...........................28, 30
Diaphragm Pump Service Kits ...........................32
Delta 80 Spray Controller .....................................7
Disposable Gloves .............................................104
Droplet Size Information .....................................67
E
Electric Solenoids ................................... 19, 20, 21
Electric Valve Kits ......................................... 13-15
Engine Driven Pumps .........................................25
Eye Protection ...................................................102
F
Face Shield ........................................................102
Filter - Elements .......................................... 43-45
Filter - Inline Suction ..........................................42
Filtration ....................................................... 41-46
Filtration Information .........................................41
Flow Meters .................................................. 16-17
Foam Marker ......................................................18
Foam Marker Accessories ................................105
Foam Marker Solenoids ......................................22
G
Gauges, Pressure ................................................50
Geoline Nozzles ..................................................73
Gloves ................................................................104
Goggles .............................................................102
Goyen Solenoids & Repair Kit .............................21
GPS Guidance Systems .........................................6
H
Hardi Nozzle Caps ...............................................97
Helmets - Kasco ...............................................103
High Pressure Diaphragm Pumps ................ 29-31
Hose ..............................................................63, 64
Hose Clamps .......................................................57
Hose Fittings - Brass .................................... 60-62
Hose Fittings - Nylon .................................... 58-59
Hose Fittings - Plastic .................................. 53-57
Hose Snap Couplings ..........................................62
Hydraulic Drive Centrifugal Pumps ....................34
Hypro Boomless Nozzle Kit .......................... 88, 89
I
In-Line Filters ......................................... 43, 44, 45
ISOBUS Spray Controller ......................................8
K
Kasco Helmets & Filter ....................................103
L
Lid Strainers .......................................................48
Lids - Tank .................................................... 47-48
M
Matrix Guidance System .......................................6
Measuring Jugs ................................................104
Mesh Elements ............................................. 43-45
Motorised Pumps ................................................25
106 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Index
N
Navigator LT Guidance System .............................6
Nitrile Gloves & Gauntlets ................................104
Nozzle Application Rate ................................ 68-69
Nozzle Accessories & Caps .......................... 90-99
Nozzle Boomless .......................................... 86-89
Nozzle Strainers .................................................46
Nozzles - Brass Off Centre Oc ............................85
Nozzles - Geoline Flat Fan Poly Rs ....................73
Nozzle Holders - Swivel ................................ 94-95
Nozzles Holders High Pressure Brass ......... 95-96
Nozzles - Lurmark Lc Deflectip .........................85
Nozzles - Teejet AIC Air Induction ......................80
Nozzles - Teejet AIXR Air Induction ..................78
Nozzles - Teejet Drift Guard ...............................76
Nozzles - Teejet Hollow Cone .............................82
Nozzles - Teejet Turbo ........................................76
Nozzles - Teejet TTI Turbo Induction ..................80
Nozzles - Teejet AITTJ60 Turbo Twinjet ..............80
Nozzles - Teejet TP .............................................74
Nozzles - Teejet XR Extended .............................74
Nozzles - Teejet XRC Extended...........................74
O
Ontrack Foam Concentrate ..............................105
Orion Flow Meters ..............................................16
P
Pak Pumps ..........................................................36
Polmac Flow Meters ...........................................17
Poly Fittings .................................................. 53-57
Pressure Gauges .................................................50
Pressure Line Filters .................................... 43-45
Pressure Relief Valves ........................................22
Pumps - Service Kits & Acc .................... 32, 38, 39
Pumps - 12V Aquatec, Smoothflo ......................35
Pumps - 12, 24 & 240-Volt Shurflo .....................37
Pumps - 12V Pak Pumps ....................................36
Pumps - Centrifugal ...........................................34
Pumps - Hydraulic ..............................................34
Pumps - High Pressure ................................ 29-31
Pumps - Motorised .............................................25
Pumps - PTO Diaphragm .................. 26, 27, 29, 31
PTO Shafts ..........................................................33
R
Respirator Filters & Kits...................................103
S
Safety Clothing .......................................... 102-104
Safety Signs.......................................................101
Section Valves .....................................................15
Selecta Pakpump ................................................36
Service Kits - Diaphragm Pumps ......................32
Shurflo Service Parts .................................... 38-39
Shurflo 12, 24 & 240V Pumps .............................37
Smoothflo 12V Pump ..........................................35
Solenoids ....................................................... 19-22
Spray Helmet Kasco .........................................103
Strainers - Lid .....................................................48
Strainers - Nozzle ...............................................46
Strainers – Pressure / Suction ..................... 43-45
Suction Filters .....................................................42
Suction Hose .......................................................63
T
Tank & Hose Fittings..................................... 51-59
Tank Kit Sight Gauge ..........................................51
Tank Lids + Components .............................. 47-48
Taps - In Line ................................................ 49-50
Teejet Nozzle Caps ........................................ 97-99
Teejet Nozzle Holders ................................... 92-93
Teejet Nozzles ............................................... 74-80
Teejet Pressure Filters ................................. 43-44
Tip Strainers .......................................................46
TPL Boomless Nozzle .........................................88
U
Ultrasonic Sensor Kit ..........................................11
Uni Cap Nozzle Caps ...........................................97
V
Valves - Electric ..................................................15
Valves - Solenoid ........................................... 19-22
Vari Spacing Clamps ...........................................93
Visio Monitors .....................................................12
W
Wind Speed Information .....................................71
Wolf Flow Meters ................................................16
107
Index Index
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
108 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Notes
EFFECTIVE: 25/05/2012
109
Notes Notes
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
110 AUSTRALIA: 1300 745 826 or visit silvan.com.au for more information
Notes
111
AVAILABILITY
Products in the Silvan Price List are available through
authorised Silvan dealers. Products in the Selecta Price
List are available through both Silvan & Selecta dealers.
TERMS
The Silvan terms and conditions are set out in your
individual trading terms and at www.silvan.com.au/terms
PRICES
All prices are suggested list prices in Aus dollars. Prices
are subject to change without prior notice. For stocking
incentive programmes refer to your individual trading
terms, or contact customer services staff on 1300 745 826.
GST
All prices are inclusive of GST unless otherwise stated. If
GST is payable by you, GST is payed in addition to invoiced
amount or price unless the invoice or price is stated to be
GST inclusive.
FREIGHT CHARGES
Prices are ex Silvan Distribution Centres in Melbourne,
Brisbane, Perth, Sydney & Adelaide (Sydney & Adelaide
have limited stock lines). Check with Silvan Customer
Service for freight charges into your area. Freight and
handling charges will be added to the invoice amount.
TITLE AND RISK
Silvan retains title to all goods until paid for in full in clear
funds. Risk in respect of goods passes to you as soon as
the goods leave the Silvan Distribution Centre.
PPSA
Silvan may register a security interest over the goods as
security for any payment. You will need to provide Silvan
with all information, documents and consents as Silvan
requires to register and maintain this security interest.
URGENT ORDERS
Urgent/breakdown orders attract a $22 inc GST priority fee.
WARRANTY
The only warranty provided by Silvan is set out on the
forms accompanying the goods (for a copy please contact
the Silvan Customer Service Centre). No other warranty
or representation is made by Silvan. The terms of Silvan’s
warranties are subject to the operation of any law including
the Australian Consumer Law.
CANCELLATIONS
1.Cancellations made on the day the order was placed:
a. If stock isn’t dispatched, no handling fee applies
b. If stock has been dispatched a restocking fee applies
2. Cancellations made after the day the order was placed,
a restocking fee will apply.
RETURNS POLICY
1. Before returning any product to Silvan, a Return
Authorisation (RA) Number and approval form must be
obtained from Silvan Customer Service. Goods WILL NOT
be accepted without an RA number and form.
2. All returns must be requested within 14 days of the
invoice date.
3. Goods will only be accepted for credit if they are
returned undamaged and in saleable condition.
4. Return freight will be paid by the Customer if the
goods are returned at the Customer’s volition, unless
authorised by the Company in writing prior to return of
the goods.
5. Written claims must reference Silvan invoice numbers,
and must be dated and state the reason for the claim.
6. A restocking fee will be applied if the goods have been
dispatched according to the order.
7. Return of products valued under $50 nett inc GST won’t
be accepted if dispatched according to the order.
CLAIMS
Pricing & Freight Claims need to be made within 14 days
of the invoice date. Any claims after this for pricing
discrepancies will not be accepted. Claims for Freight
Damage need to be made within 14 days of the invoice date
by notifying Silvan Customer Service. Claims received after
this will not be accepted.
DISCOUNT CODES
Refer to individual Trading Terms for specific discounts.
Terms & Conditions
NEW ZEALAND: 0508 745 826 or visit silvannz.co.nz for more information
Reference No: 070-SIL-SC-PF-17
The company reserves the right to change recommended prices and specifications without notice. All items in this Price List have been
included in good faith on the basis that the goods described were available at the time this book was published. Failure of suppliers to
deliver in accordance with samples, descriptions, or at all, or other unintentional causes may result in some lines being unavailable.
Space may prevent some dealers from stocking all items. All brand names and product names used in this publication
are trade names, registered trade marks, or pending trade marks of their respective owners.
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144
Freecall: 1300 745 826
Fax: 1800 745 826
Email: info@silvanaust.com
Web: silvan.com.au
Head Office: 244-264 Greens Road,
Dandenong South, VIC, Australia 3175
QLD. Office: Warehouse 2, 30 Gow Street,
Moorooka, QLD 4105
W.A. Office: 12 Cressall Road, Balcatta, WA 6021
SILVAN NEW ZEALAND PTY. LTD.
P.O. Box 10088 Te Rapa, Hamilton, 3241
Phone: 0508 745 826
Fax: 07 849 6070
Web: silvannz.co.nz
COPYRIGHT © SILVAN AUSTRALIA PTY. LTD. 2017
Spraying
Components Catalogue
