SD7K
Digital Drum Kit
User Manual
www.simmonsdrums.net
FCC Statements
1. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
2. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonadifferentcircuit.
•Consultanexperiencedradio/TVtechnicianforhelp.
SD7K
www.simmonsdrums.net 1
… on your purchase of the Simmons SD7K Electronic Drum Kit. To get the most
enjoyment from it, we recommend that you skim through this manual at least
once, then refer back to it often to learn more about specific functions.
Taking Care of Your Digital Drum Set
Location
• To avoid deformation, discoloration, or more serious damage, do not expose the unit to direct sunlight,
high temperature sources, or excessive humidity.
Power Supply
• Turn the power switch OFF when the SD7K is not in use.
• The AC adapter should be unplugged from the AC outlet if the SD7K is not to be used
for an extended period of time.
• Avoid plugging the AC adapter into an AC outlet that is also powering high-consumption appliances
such as electric heaters or televisions. Also avoid using multi plug adapters since these can reduce
sound quality, cause operation errors and result in possible damage.
• To avoid damage, turn OFF the SD7K’s power switch and all related devices prior to connecting
or disconnecting cables.
Handling and Transport
• Never apply excessive force to controls, connectors, and other parts.
• Unplug cables by gripping the plug rmly. Do not pull on the cable.
• Disconnect all cables before moving the module.
• Physical shocks caused by dropping, bumping, or placing heavy objects on the module can result
in scratches and more serious damage.
Cleaning
• Clean the module with a dry, soft cloth.
• A slightly damp cloth may be used to remove stubborn grime and dirt.
• Never use cleaners such as alcohol or thinner.
• To avoid discoloration, do not place vinyl objects on top of module.
Electrical Interference
• The module contains digital circuitry and may cause interference if placed too close to radio or
television receivers. If this occurs, move the SD7K further away from the affected equipment.
Service and Modication
• There are no user serviceable parts in the drum module.
• Do not attempt to open the drum module or make any change in the circuits
or parts of the unit. This would void the warranty.
Congratulations!
SD7K User’s Manual
digital drum kit
2

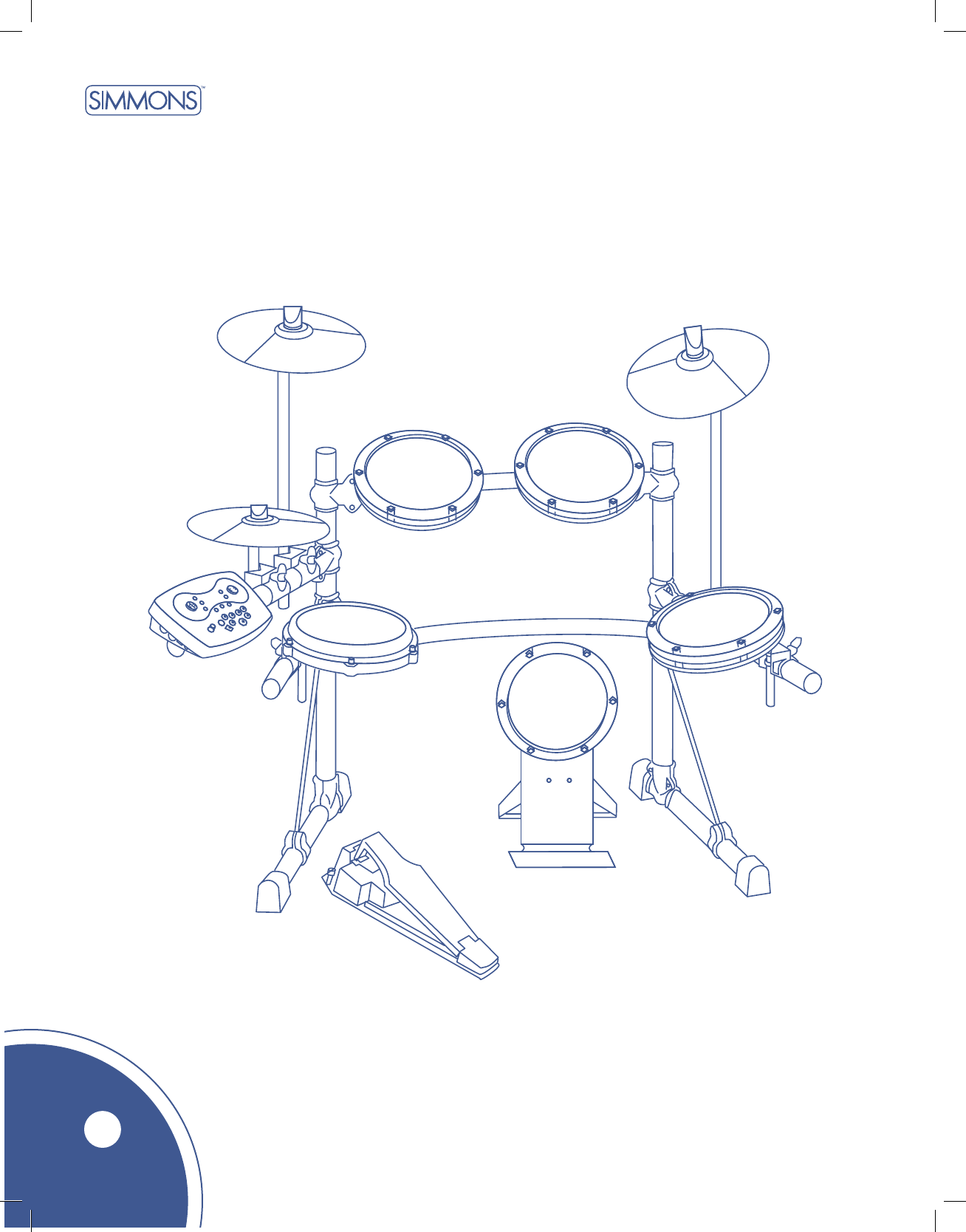

SD7K Setup
Setup your SD7K kit following the included assembly instruction sheet.
SD7K
www.simmonsdrums.net
Panels 4
Top Panel 4
Rear Panel 5
Side Panel 5
Connections 6
Pads and Pedals 6
Audio Equipment 7
Headphones 7
MP3/CD Player 7
Power Supply 7
Power Switch 7
Using the SD7K Pads 8
Playing the Pads 8
Metronome 8
Kit Mode 9
Selecting a Drum Kit 9
Global reverb 9
Voice Mode 10
Selecting the Drum Voice 10
Adjusting Pad Level 11
Adjusting Pad Pan 11
Adjusting Pad Tuning 11
Saving User Kits 11
Utility Menu 12
Pad Sensitivity (Gain) 12
Rim Sensitivity 12
Crosstalk 12
Curve 13
Splash Sensitivity 13
Local Mode 13
Saving Trigger Settings 13
Restoring the Factory Preset 13
Song Mode 14
Selecting a Song 14
Listening to a Song 14
Muting the Drum Part 14
Accompaniment Volume 15
Drum Volume 15
Song Source 15
Song Tempo 15
MIDI and USB 16
MIDI Connection 16
USB Connection 16
Local Mode 16
MIDI Channels 16-17
Voice List 18
Drum Kit List 20
Song List 20
General MIDI Voice List 21
Percussion Set List 22
MIDI Implementation Chart 24
Table of Contents
3
SD7K User’s Manual
digital drum kit
Panels
Master volume knob
Controls the volume of phone and line outputs.
1
12 [+] button, [-] button
Changes values (kit number, voice number,
song number, etc.) when editing.
3[TEMPO+] button, [TEMPO-] button
Changes current tempo.
2Pad select buttons and indicators
In Kit mode, the buttons can play the pad voices.
In Voice Mode, they select the pad to be edited
and the indicators show the current selected pad.
In Song Mode, the indicators will display which pads
are being played by the drum track.
4[CLICK] button and indicator
Turns the metronome on or off and selects the metronome
sound (click or voice).
5[DRUM OFF] button and indicator
Mutes the drum part of the Song.
6[START/STOP] button
Starts and stops the selected song.
[SONG] button
Enters or switches Song menu pages.
7
9[VOICE] button
Enters or switches Voice menu pages.
10 [KIT] button
Enters or switches Kit menu pages.
83-digit LED
This LED is the main display device of the SD7K,
which will show the parameters of the current menu.
11 [UTILITY] button
Enters or switches Utility menu pages.
13 [SAVE] button
This button is used to save the current kit
settings in a user kit and saves the trigger
settings under the Utility menu pages.
Top Panel
1
2
3
4
567910
811
12
13
4
SD7K
www.simmonsdrums.net 5
Rear panel
side panel
DC input
Connection for the DC 9V
power adapter
17
14 Pad input jacks
Input connections for kick,
snare, tom, cymbal pads
and hi-hat control pedal.
15 Line output jacks
Stereo output connection to an
audio system or drum amplier
such as the Simmons DA50 or
DA200S.
16 AUX input jack
This stereo input jack is for an
external sound source such as
an MP3 or CD player.
21 Phone jack
This stereo jack is used to
connect headphones.
19 MIDI IN and OUT
These ports allow communication with
other products equipped with a MIDI
interface. Please see the MIDI section
of this manual for details.
18 Power switch
This switch turns power on and off.
20 USB port
This port is used to connect to a
computer. (MIDI In/Out via USB)
14 15 16 17
18 19 20 21
SD7K User’s Manual
digital drum kit
6
connections
Pads and Pedals
CAUTION!
To avoid damage, turn OFF the SD7K’s power switch and all related devices
prior to connecting or disconnecting cables.
Pads and Pedal:
Using the provided cables, connect each pad to its corresponding trigger input jack, following the marking on the cables.
Secure all the cables to the stand using the provided velcro strips.
SD7K
www.simmonsdrums.net 7
audio equipment
When using an amplier such as the Simmons DA50 or DA200S,
connect the Output L/MONO and R jacks on the rear panel to the
input of the amplier. (For mono playback, use the L/MONO jack;
for stereo playback, connect both L/MONO and R jacks.)
headphones
An optional set of stereo headphones can be connected to the
PHONES jack located on the side of the drum module.
MP3/cd player
1. Connect the audio output of an MP3/CD player or other audio
source to the stereo AUX IN TRS jack on the rear panel.
2. The input signal is mixed with the drum signal,
allowing you to play along.
power supply
Make sure the power is switched OFF.
Connect the power adapter to the DC IN jack on the rear panel.
Note:
Make sure the power is switched OFF when connecting the
drum module with external devices.
Power Switch
After conrming that all connections have been completed,
rotate the volume knob to the left (minimum volume level)
before switching the power on.
Set the power switch to the “ON” position. The kit indicator
will light up and the display will show kit number 001.
SD7K User’s Manual
digital drum kit
8
• All the drum pads and cymbal pads use a single trigger sensor for the whole pad, except the dual-zone snare pad that
uses one trigger for the head and another trigger for the rim.
• All the pads are velocity sensitive. Some voices can change sounds depending on the velocity level (striking force).
• The trigger area of the cymbal pads (ride, crash or hi-hat) is near the edge of the pad.
• Similar to an acoustic drum kit, the Hi-Hat sound varies depending on the position of the pedal (Hi-Hat Control):
• Open Hi-Hat: Strike the hi-hat pad without pressing the pedal
• Half Open Hi-Hat: Strike the hi-hat pad with the pedal pressed half-way
• Closed Hi-Hat: Strike the hi-hat pad with the pedal pressed all the way down
• Foot Close: Press the pedal all the way down
• Splash: Step fully on the pedal and release it immediately
metronome
The SD7K includes a Metronome feature with two types of sounds: Click (Bell sound
on the rst beat, and click sound on the other beats) or Vocal Counting (“one”, “two”,
“three”, “four”, …).
Press the [CLICK] button to start the metronome with Click sound.
Press the [CLICK] button a second time to change the metronome to Vocal Counting.
Press the [CLICK] button again to stop the metronome.
While the metronome is playing, the Beat indicator ashes at the current tempo.
While the metronome is playing, the LED shows the current time signature.
The time signature of the metronome can be changed using the [+] and [-] buttons.
There are ve available options: 2/4, 3/4, 4/4, 5/4 and 6/8.
The SD7K returns to the previous display when the metronome is stopped.
Press the [Tempo +] or [Tempo -] buttons to change the tempo (30 ~ 280). The LED
shows the current tempo and returns to the previous display after about 2 seconds if
there is no operation of the Tempo [+] and [-] buttons.
The volume of the metronome can be adjusted by holding down the [CLICK] button
and pressing the [+] or [-] buttons. The LED shows “Cxx” (xx = metronome volume:
0 ~ 16), and returns to the previous display about 2 seconds after releasing the
[CLICK] button. The metronome volume resets to its default value when turning
off the SD7K.
using the SD7k pads
Playing the pads
SD7K
www.simmonsdrums.net
Selecting a drum kit
kit mode
In the Kit Number page, the 3-digit LED shows the current kit number.
Use the [+] and [-] buttons to select any kit (1 ~ 50, looped) as the
current kit.
The SD7K includes 20 factory preset kits (1 ~ 20) and 30 User kits
(21 ~ 50). (See Kit List on page 20.)
Note: In KIT mode, you can use the Pad Select buttons to play the
voices associated with the pads of the currently selected kit.
9
If the SD7K is not yet in KIT Mode, Press the [KIT] button to enter the Kit Mode.
The Kit indicator will light up.
In the KIT Mode, you can select the Drum or Percussion Kit to play.
You can also turn on or off the Reverb effect.
Global reverb
When the SD7K is in the Kit Number page, press the [KIT] button
again to access the Global Reverb page.
In the Global Reverb page, the LED shows the current Reverb status
(“roN” for Reverb On or “roF” for Reverb Off).
It can be turned On or Off using the [+] or [-] buttons.
Press the [KIT] button again to return to the Kit Number page.
SD7K User’s Manual
digital drum kit
If the SD7K is not yet in VOICE Mode, press the [VOICE] button to
enter the Voice Menu. The Voice indicator lights up. Now the [VOICE]
button will page through the Voice Menu.
In the VOICE Mode, you can select the voice for each pad and adjust
the level, pan and tuning of the pad.
10
selecting the drum voice
In the Voice Number page, the 3-digit LED shows the current voice number for the select-
ed pad. Use the [+] and [-] buttons to select any voice (1 ~ 300, looped) for the current
pad. The SD7K includes 300 voices sorted by category (Kick, Snare, Tom, Cymbal, Hi-
Hat, Percussions). Each category includes a variety of acoustic, electric and effects voices.
(See Voice List on pages 18-19.)
Note: The voices for the snare head and rim are set independently. When the snare pad
is selected, press the Rim button to select the snare rim (or strike the rim of the snare pad).
The voices for the hi-hat (Open, Half, Closed, Foot and Splash) are selected together as a
single voice number (voices # 237 ~ 252) which will contain all the variations.
voice mode
The current pad to be edited can be selected either by pressing
its Pad Select button, or by striking the pad itself. The Pad Select
indicator lights up to show which pad is currently selected.
Note: While editing voice number, level, pan and tuning, you
can also preview the result of the current settings
by pressing the Pad Select button to play the edited voice.
SD7K
www.simmonsdrums.net 11
Press the [VOICE] button until the LED display shows “Pxx”. (xx = Pan value: -8 ~ +8)
Use the [+] and [-] buttons to adjust the Pan of the current pad.
adjusting pad level
Press the [VOICE] button until the LED display shows “Lxx”. (xx = Level value: 0 ~ 32)
Use the [+] and [-] buttons to adjust the level of the current pad.
adjusting pad pan
adjusting pad tuning
Press the [VOICE] button until the LED display shows “txx”. xx = Tuning value: -8 ~ +8)
Use the [+] and [-] buttons to adjust the tuning of the current pad.
saving user kits
Make sure you save your customized kit; otherwise, your changes will be
lost when you select another kit or turn off the SD7K.
Kits 001 ~ 020 are factory presets. Customized kits can be saved in
User kits 021 ~ 050.
User kits store all the voice settings (voice number, level, pan and tuning)
for all the pads.
To save your customized kit to one of the User kits:
1. Press the [SAVE] button. The kit number ashes on the LED.
2. Use the [+] or [-] buttons to set the User kit number (021 ~ 050).
The kit number will still be ashing.
3. Press the [SAVE] button again. The kit number stops ashing
and the SD7K returns to Kit Mode.
Note: To cancel the save operation while the LED is ashing, press the
[KIT] or [VOICE] button.
SD7K User’s Manual
digital drum kit
12
Press the [UTILITY] button to enter the Utility Mode. Now the [UTILITY] button
will page through the Utility menu.
In the UTILITY Mode, you can adjust the trigger parameters (gain, crosstalk, curve) for each pad,
as well as the rim sensitivity of the snare pad and the splash sensitivity of the hi-hat control pedal.
Those parameters are common to all kits.
In the Trigger Gain page, the rst digit of LED will display letter ‘E’, which is followed
by the gain value (1~16, not looped). Greater gain will allow you to trigger a signal
even if you strike a pad lightly.
In the Rim Sensitivity page, rim sensitivity of the dual trigger snare pad can
be adjusted to balance the head-rim velocities. The lowest digit will show the
rim sensitivity level (1~8) of current pad with letters ‘rE’ displayed on the rst
two digits of the LED. A bar will be shown instead of the sensitivity level if
rim triggering is not supported by the currently selected pad (any other pad
than the snare).
In the Trigger Crosstalk page, the last 2 digits will show the crosstalk value (1~16) of the
current pad with a letter ‘o’ displayed on the rst digit of the LED. Hitting one pad may
trigger the sound from another pad unintentionally. This effect can be eliminated by
setting this parameter to a higher value on the pad that is mistriggering.
Pad sensitivity (gain)
rim sensitivity
crosstalk
Utility menu
The current pad to be adjusted can be selected either
by pressing its Pad Select button, or by striking the pad
itself. The Pad Select indicator lights up to show which
pad is currently selected.
SD7K
www.simmonsdrums.net 13
In the Splash Sensitivity page, this setting controls the sensitivity of the foot splash.
The data is from -4 to 4 with ‘F’ displayed on the rst digit of LED.
splash sensitivity
local mode
saving trigger settings
After adjusting the trigger settings (gain, snare rim sensitivity, crosstalk, curve, splash sensitivity), you can save
them into memory. While in the Utility mode, press the [SAVE] button to store all trigger settings.
Note:
1. If you turn off the power without saving, you will lose the trigger setting changes you have just made.
2. These parameters affect all kits.
restoring the factory preset
Restoring the factory preset can be implemented by the following operation: Hold down both TEMPO+ and TEMPO-
when the SD7K is powered up. This function will replace the current settings of the following parameters by their
default preset values:
• All user kits (including volume, voice, pan, reverb, and tuning setting)
• Utility parameters (including gain, crosstalk, curve and splash sensitivity)
In the Velocity Curve page, the curve setting allows you to control the relationship between the velocity (striking force) and
loudness (the dynamic curve). The last digit will show the curve number (1~6) of the current pad with letters ‘CU’ displayed
on the rst two digits of the LED.
curve
In local control page, the LED shows the local control mode.
Local ON is the default function mode (‘LoN’). The internal link
between pad triggers and sound generator will be broken when
selecting Local OFF (‘LoF’). For more details regarding the Local
Mode, please see the MIDI /USB section of this manual.
Note: Local control mode always returns to Off when
powering up the SD7K.
SD7K User’s Manual
digital drum kit
Song mode
14
Selecting a song
If the SD7K is not yet in SONG Mode, press the [SONG] button to enter the
Song Menu. Now the [SONG] button will page through the Song Menu. The
Song indicator lights up.
In the SONG Mode, you can select the song number, and adjust the volume of the
song’s accompaniment and drum part. In addition, you can select whether to use
the internal songs or to control an external sequencer.
In Song Number page, the 3-digit LED shows the current song number.
Use the [+] and [-] buttons to select any song (1 ~ 50, looped) as the current Song.
The SD7K includes 50 factory preset songs. (See Song List on page 20.)
Press the [START/STOP] button to start song playback. The beat indicator will ash at the song tempo.
After count-in, the song will start playback from the beginning. The song will stop when it reaches the end.
You can also stop the song during playback by pressing the [START/STOP] button again.
If the song number is switched while playing, the new song won’t start until the end of the current bar.
During song playback in song menu, the Pad indicators will show which pads the drum track is triggering.
This function can be disabled or enabled by pressing the [KICK] button while in song mode.
Press [DRUM OFF] to enable or disable the drum mute function.
When drum off is enabled, the DRUM OFF indicator will light up, and the drum track
from the current playing song will be muted. In Song mode, the Pad indicators
will still show the pads played by the drum track. This allows you to practice
playing the drum part with the rest of the accompaniment.
To help you play together with the song, you can also enable the metronome
function by pressing the [CLICK] button. (See Metronome function for details.)
listening to a song
Muting the drum part
SD7K
www.simmonsdrums.net 15
In song source selection page, the LED will show the current selected song source.
There are two choices: “LoC” for local machine (50 internal songs, default setting) or “EtN”
for controlling an external sequencer connected to the MIDI Out of the SD7K using MIDI Clock.
See the MIDI section of the manual for details.
Use the [+] and [-] to select the song source. Song playing will stop immediately when switching
song source.
When External is selected, press [START/STOP] to start or stop the external
sequencer with corresponding MIDI real-time messages. The internal song will not playback.
NOTE: If external sequencer is selected as current song source, the menu pages of
song number, accompaniment volume and drum volume will be not selectable.
Press the [TEMPO+] or [TEMPO-] buttons to display the current tempo.
Use [TEMPO+] and [TEMPO-] buttons to adjust the tempo.
Press both [TEMPO+] and [TEMPO-] buttons at the same time to reset
the current tempo to its default value for the current song. (This function is
not available when external song is selected.)
If there’s no operation, SD7K will return to the previous menu page
automatically after 2 seconds.
song source
song tempo
Accompaniment volume
drum volume
Press the [SONG] button until the LED display shows “Axx” (xx = accompaniment
volume, 0 ~ 32).
Use the [+] and [-] buttons to adjust the song’s accompaniment volume (all instruments
except the drum part). It will be restored to default value on the next power on.
Press the [SONG] button until the LED display shows “dxx”
(xx = drums part volume, 0 ~ 32).
Use the [+] and [-] buttons to adjust the song’s drum volume.
It will be restored to default value on the next power on.
SD7K User’s Manual
digital drum kit
MIDI stands for Musical Instrument Digital Interface. This is a world-wide standard communication interface that enables electronic
musical instruments and computers (of all brands) to communicate with each other so that instructions and other data can pass
between them. This exchange of information makes it possible to create a system of MIDI instruments and devices that offer far
greater versatility and control than is available with isolated instruments. Whether you interface with computers, sequencers,
expanders or other controllers, your musical horizons will be greatly enhanced.
MIDI IN: This terminal receives MIDI data from an external MIDI device.
MIDI OUT: This terminal transmits data from this instrument to other MIDI devices.
The USB connector allows you to connect the SD7K directly to your computer. It can be connected without driver installation under
the Windows XP & MAC OSX environment. The SD7K will be recognized as “USB Audio device” to receive and transmit MIDI
messages through a single USB cable. USB is used only for MIDI messages (MIDI via USB).
NOTE: When the USB is connected to a computer, all MIDI messages will be received and transmitted via USB.
From a MIDI point of view, the SD7K is composed of two “devices”:
• A controller transmitting data: the pads and hi-hat control pedal (via an internal trigger to MIDI converter)
• A sound generator receiving MIDI data (the sound module).
In normal operation (Local ON, default mode), those two devices are connected together internally, allowing the pads to play
the voices from the sound module without any external connection. When setting Local mode to Local OFF mode in the Utility
menu, this internal link is disconnected. The sound module receives MIDI messages via MIDI input only, not from the pads anymore.
However, the pad trigger data is still sent to the MIDI Output, therefore looping externally the MIDI Out of the SD7K back to its
MIDI In will enable the pads to play the voices from the sound module. Local OFF mode is intended to be used when both the MIDI
input and output (or the USB port) of the SD7K are connected to a MIDI sequencer with Soft Thru function (which loops the MIDI
data received from the MIDI output back to the MIDI input). This prevents doubling or anging effect when playing the pads
(caused by the sound generator receiving the same MIDI data both directly from the pads and back through the sequencer).
The SD7K transmission channel is xed to Channel 10 (Drums and Percussion channel). The SD7K will output MIDI codes generated
by the triggers when hitting the pads or stepping on the Hi-hat control pedal (Program Change, Note On/Off, and Foot Control
messages). Song playback data and metronome notes are not transmitted.
The MIDI system in the SD7K has 16 reception channels numbered from 1-16. Each of the channels is responsible for a voice. When
the instrument receives MIDI information from an external device, the active channel is determined by the control message. Channel
10 is reserved for the Drums. Channels 9 and 16 can be used for additional Percussion sounds. (See Percussion Set list pages 22-23.)
All other channels (1-8, 11-15) can be used to access the 128 General MIDI instruments and sounds included in the sound module
(GM standard). These are the same instruments that are used to create the accompaniment for the internal Song player.
16
MIDI and USB
MIDI connection
usb connection
local mode
MIDI channels
SD7K
www.simmonsdrums.net 17
Using the SD7K as a General MIDI sound module
Connecting an external keyboard or sequencer to the MIDI Input allows you to use the SD7K as a multi-timbral sound module to play
various instrument parts in addition to your drums (for instance, Piano on Channel 1, Bass on Channel 2, Strings on Channel 3, etc).
The voices on each MIDI channel are selected using MIDI Program Change messages. (See the General MIDI Voice list page 21.)
NOTE: For more information on received MIDI messages, see the MIDI implementation chart.
Using the SD7K to control a sequencer
In Song mode, the song source can be set to External, allowing the SD7K to control the playback of an external sequencer.
MIDI clock (0xF8) is sent out automatically at the current tempo, and Start and Stop Real-Time Commands (0xFA, 0xFC)
will be sent when pressing the Start/Stop button.
1. Connect the MIDI Out of the SD7K to the MIDI In of your sequencer. If you are using a software sequencer on a computer, you can
simply connect the USB port of the SD7K to a USB port of your computer using a single USB A-B cable.
2. Setup your sequencer to respond to MIDI Clock Sync.
3. Press the Start/Stop button to start the sequence from the top.
4. Press the Start/Stop button again to stop the sequence
Note: You can adjust the tempo of your sequencer using the Tempo buttons on the SD7K.
Using a sequencer to record your SD7K drum performance
Using the MIDI IN/OUT or USB connections with a MIDI sequencer allows you to record your performance on the SD7K
pads and play it back with the same voices.
1. Connect the MIDI Out of the SD7K to the MIDI In of your sequencer, and the MIDI Out of your sequencer to the MIDI In of
the SD7K. If you are using a software sequencer on a computer, you can simply connect the USB port of the SD7K to a USB
port of your computer using a single USB A-B cable.
2.Setup the active track of your sequencer on Channel 10.
3. Activate RECORD on your sequencer.
4. Play the pads of your SD7K.
5. Stop recording.
6. Locate your sequencer to the start of the recording.
7. Playback the recorded sequence.
8. The SD7K will play the same voices that were used during recording.
Notes:
1. To maintain the same voice parameters (level, pan, tuning), you should select the same Kit for playback
as the Kit that was active when recording.
2. To capture and correctly reproduce the timing of your performance, make sure that the Quantize function of
your sequencer is turned off.
3. If your sequencer has a Soft-Thru feature, you should set the SD7K to “Local Off” mode in the Utility menu.
If your sequencer does not have a Soft-Thru feature, you should leave the SD7K in its “Local On” default mode.
SD7K User’s Manual
digital drum kit
18
Voice List
# Name # Name # Name # Name
Acoustic Bass Drum
1 Standard Acoustic Kick 1
2 Standard Acoustic Kick 2
3 Rock Acoustic Kick 1
4 Rock Acoustic Kick 2
5 Jazz Acoustic Kick 1
6 Jazz Acoustic Kick 2
7 26” Large Acoustic Kick
8 20” Funk Acoustic Kick
9 20” Hip Hop Acoustic Kick
10 20” Tight Acoustic Kick
11 24” Loose Acoustic Kick
12 20” Small Acoustic Kick
13 22” 1971Kick
14 20” Deep Kick
15 ‘90’s Kick
16 Metal Kick
17 Orchestra Bass Drum
18 Bass Drum Roll
Electronic Bass Drum
19 House Kick 1
20 House Kick 2
21 House Kick 3
22 TR808 Kick
23 TR909 Kick
24 Space Kick
25 Filter Kick
26 Reverse Kick
27 Techno Kick
28 Voice Kick
29 Low Fi Kick
30 Junkyard Kick
31 Disco Kick
32 Industrial Kick
33 Cartoon Kick
34 Simmons Kick 1
35 Simmons Kick 2
36 Simmons Kick 3
37 Simmons Kick 4
Acoustic Snare Drum
38 Snare Edge w/Rim
39 Standard Snare
40 Snare Cross Stick
41 12” Snare
42 Rock Snare 1
43 Rock Snare 1 Edge
44 Rock Snare 2
45 Small Room Snare
46 Large Room Snare
47 Jazz Snare 1
48 Jazz Snare Brush Edge
49 Jazz Snare Brush
50 Jazz Snare 2
51 Jazz Piccolo Snare
52 Big Band Snare
53 Deep Fusion Snare
54 Effect Snare 1
55 Effect Snare 2
56 Hip Hop Snare
57 ‘60’s Snare Edge
58 ‘60’s Snare
59 506 Snare
60 506 Snare 2
61 506 Low Snare
62 506 Low Snare 2
63 ‘69 Snare
64 Pong Snare
65 Filter Snare
66 Wood Snare 1
67 Wood Snare 2
68 Deep Maple Snare
69 Studio Snare
70 Distant Power Snare
71 Crackless Snare
72 Gunshot Snare 1
73 Gunshot Snare 2
74 Metal Snare
75 Brush Swirl Snare
76 Brush Strike Snare
77 Brush Edge Snare
78 Light Brush Snare
79 Light Long Brush Snare
Electronic Snare Drum
80 House Snare
81 House Clap
82 House Effect Snare
83 Techno Snare
84 Dance Beat snare
85 Staccato Snare
86 TR808 Snare
87 TR909 Snare
88 Electric Snare
89 Reverse Snare
90 Junkyard Snare
91 Junkyard EFX
92 Noise Snare
93 Jing Snare
94 Guak Snare
95 Voice 1
96 Voice 2
97 Cartoon Punch
98 Simmons Snare 1
99 Simmons Snare 2
100 Simmons Snare 3
101 Simmons Snare 4
102 Simmons Clap
Acoustic Tom
103 Open Tom 1
104 Open Tom 2
105 Open Tom 3
106 Open Tom 4
107 Open Tom 5
108 Rock Tom 1
109 Rock Tom 2
110 Rock Tom 3
111 Rock Tom 4
112 Big Tom 1
113 Big Tom 2
114 Big Tom 3
115 Big Tom 4
116 Big Tom 5
117 Power Tom 1
118 Power Tom 2
119 Power Tom 3
120 Power Tom 4
121 Funk Tom 1
122 Funk Tom 2
123 Funk Tom 3
124 Fusion Tom 1
125 Fusion Tom 2
126 Fusion Tom 3
127 ‘69 Tom 1
128 ‘69 Tom 2
129 ‘69 Tom 3
130 ‘71 Tom 1
131 ‘71 Tom 2
132 ‘71 Tom 3
133 Vintage Tom 1
134 Vintage Tom 2
135 Vintage Tom 3
136 Hip Hop Tom 1
137 Hip Hop Tom 2
138 Hip Hop Tom 3
139 Hip Hop Tom 4
140 Hip Hop Tom 5
141 Hip Hop Tom 6
142 Brush Tom 1
143 Brush Tom 2
144 Brush Tom 3
145 Brush Tom 4
SD7K
www.simmonsdrums.net 19
Voice List cont...
Percussion
253 Metronome Bell
254 Metronome Click
255 Scratch
256 Scratch Push
257 DJ EFX
258 HiQ Zap
259 Ding Bell
260 Finger Snaps
261 Standard Clap
262 Tambourine
263 Vibraslap
264 Agogo Low
265 Agogo High
266 Bell Tree
267 Bongo High
268 Bongo Low
269 Shaker
270 Conga Slap Low
271 Conga Slap High
272 Elect Conga Low
273 Open Conga
274 Conga Slap
275 Cowbell
276 Timbale Hi
277 Timbale Low
278 Timpani High
279 Timpani Low
280 Open Tabla High
281 Open Tabla Low
282 Slap Tabla
283 Mute Tabla slap
284 Cabasa
285 Maracas
286 Short Whistle
287 Guiro Short
288 Guiro Long
289 Claves
290 Woodblock
291 Cuica Muted
292 Cuica Open
293 Triangle Muted
294 Triangle Open
295 Sleigh Bells
296 Wind Chimes
297 Castanets
298 Surdo Muted
299 Surdo Open
300 Lotus Drum
Electric Tom
146 TR808 Tom 1
147 TR808 Tom 2
148 TR808 Tom 3
149 TR808 Tom 4
150 TR808 Tom 5
151 TR808 Tom 6
152 Electric 1 Tom 1
153 Electric 1 Tom 2
154 Electric 1 Tom 3
155 Electric 1 Tom 4
156 Electric 2 Tom 1
157 Electric 2 Tom 2
158 Electric 2 Tom 3
159 Electric 2 Tom 4
160 Electric 3 Tom 1
161 Electric 3 Tom 2
162 Electric 3 Tom 3
163 TR909 Tom 1
164 TR909 Tom 2
165 TR909 Tom 3
166 Spike Jr
167 Spike
168 Look At Da Birdie
169 Junkyard 1
170 Junkyard 2
171 Junkyard 3
172 Noise Tom 1
173 Noise Tom 2
174 Noise Tom 3
175 Voice Tom 1
176 Voice Tom 2
177 Voice Tom 3
178 Submarine Tom 1
179 Submarine Tom 2
180 Submarine Tom 3
181 Simmons V1 Tom 1
182 Simmons V1 Tom 2
183 Simmons V1 Tom 3
184 Simmons V2 Tom 1
185 Simmons V2 Tom 2
186 Simmons V2 Tom 3
187 Simmons V3 Tom 1
188 Simmons V3 Tom 2
189 Simmons V3 Tom 3
190 Simmons V4 Tom 1
191 Simmons V4 Tom 2
192 Simmons V4 Tom 3
193 Simmons Bend Tom
Cymbal
194 Standard 20” Ride
195 Standard 22” Ride
196 Standard Ride Bell
197 Rock Ride
198 Ride Edge
199 Rock Bell
200 Dry Ride
201 Dry Ride Bell
202 Rivet Ride
203 Vintage Ride
204 ‘60’s Ride
205 Clean Pop Ride
206 Pop Ride Edge
207 Light Flat Ride
208 Flat Ride
209 Junkyard Break
210 Junkyard Metal
211 Junkyard Spring
212 Industrial Short
213 Industrial Long
214 Glass China
215 Standard Crash
216 China 1
217 Splash
218 Crystal Crash
219 China 2
220 China Low
221 Orchestra Hit
222 Orchestra Cymbals
223 Gong 1
224 Gong 2
225 Water Gong
226 Reverse Cymbal
227 TR808 Cymbal 1
228 TR808 Cymbal 2
229 TR808 Cymbal 3
230 TR909 Cymbal 1
231 Junkyard Cymbal 1
232 Junkyard Cymbal 2
233 Cymbal Effect 1
234 Cymbal Effect 2
235 Laser Ray
236 Drive By
Hi-Hat
237 Standard Hats 1
238 Standard Hats 2
239 Quick Hats
240 Rock Hats
241 Pop Hats
242 Brush Hats
243 ‘60’s Hats
244 Mini Hats
245 House Hats
246 TR808 Hats
247 TR909 Hats
248 Cartoon Hats
249 Voice Hats
250 Junkyard Hats
251 Noise Hats
252 Bass Hats
# Name # Name # Name # Name
SD7K User’s Manual
digital drum kit
20
Song List
# Name
1 Funk 1
2 Fusion 1
3 Latin Jazz
4 Dance
5 Big Band
6 Slow Fusion
7 Samba
8 Modern Jazz
9 Country
10 Reggae
11 Salsa
12 Bluegrass
13 Mambo
14 Beguine
Drum Kit list
Factory Preset Kits
1 Rock
2 Standard 1
3 Room
4 Standard 2
5 Hip-hop
6 Electronic
7 808
8 House
9 Fusion
10 Brush
# Preset Kit # Preset Kit
User Programmable Kits
21 User 1 - ‘70’s
22 User 2 - Latin Percussion
23 User 3 - Tablas
24 User 4 - DJ EFX
25 User 5 - 909
26 User 6 - Industry
27 User 7 - Cartoon
28 User 8 - Voice
29 User 9 - Simmons 3
30 User 10 - Simmons 4
Factory Preset Kits
11 ‘60’s
12 Simmons 1
13 Simmons 2
14 Funk
15 Jazz Latin
16 Percussions
17 Metal
18 Orchestral
19 Studio
20 Junkyard
User Programmable Kits
31 (User 11 - Rock)
32 (User 12 - Standard 1)
33 (User 13 - Room)
34 (User 14 - Standard 2)
35 (User 15 - Hip-Hop)
36 (User 16 - Electronic)
37 (User 17 - 808)
38 (User 18 - House)
39 (User 19 - Fusion)
40 (User 20 - Brush)
41 (User 21 - 60’s)
42 (User 22 - Simmons 1)
43 (User 23 - Simmons 2)
44 (User 24 - Funk)
45 (User 25 - Jazz Latin)
46 (User 26 - Percussions)
47 (User 27 - Metal)
48 (User 28 - Orchestral)
49 (User 29 - Studio)
50 (User 30 - Junkyard)
# Preset Kit # Preset Kit
# Name # Name
# Name
15 Drum ‘n Bass
16 Jazz
17 Bossa
18 Pop
19 Rock ‘n Roll 1
20 House
21 Hip Hop
22 6/8 Ballad
23 Ballad 1
24 Boogie
25 Punk
26 Rock ‘n Roll 2
27 Metal
28 16 Beat
29 Rhumba
30 Shufe
31 Swing
32 Blues 1
33 Blues 2
34 Fusion2
35 Funk 2
36 Acid Fusion
37 Folk Pop
38 Latin
39 Ballad 2
40 Disco
41 8 Beat
42 Funk 3
43 Slow Rock
44 R&B 1
45 R&B 2
46 6/8 R&B
47 Pop Rock
48 Hard Rock
49 Pop Ballad
50 New Age
# Name
SD7K
www.simmonsdrums.net 21
General MIDI voice list
PIANO
001 Acoustic Grand Piano
002 Bright Acoustic Piano
003 Electric Grand Piano
004 Honky-Tonk Piano
005 Electric Piano 1
006 Electric Piano 2
007 Harpsichord
008 Clavichord
CHROMATIC PERCUSSION
009 Celesta
010 Glockenspiel
011 Music box
012 Vibraphone
013 Marimba
014 Xylophone
015 Tubular Bells
016 Dulcimer
ORGAN
017 Drawbar Organ
018 Percussive Organ
019 Rock Organ
020 Church Organ
021 Reed Organ
022 Accordion
023 Harmonica
024 Tango Accordion
GUITAR
025 Acoustic Nylon Guitar
026 Acoustic Steel Guitar
027 Electric Jazz Guitar
028 Electric Clean Guitar
029 Electic Muted Guitar
030 Overdriven Guitar
031 Distortion Guitar
032 Guitar Harmonics
BASS
033 Acoustic Bass
034 Electric Bass (nger)
035 Electric Bass (pick)
036 Fretless Bass
037 Slap Bass 1
038 Slap Bass 2
039 Synth Bass 1
040 Synth Bass 2
STRINGS
041 Violin
042 Viola
043 Cello
044 Contrabass
045 Tremolo Strings
046 Pizzicato Strings
047 Orchestral Harp
048 Timpani
ENSEMBLE
049 String Ensemble 1
050 String Ensemble 2
051 Synth Strings 1
052 Synth Strings 2
053 Choir “Aahs”
054 Voice “Oohs”
055 Synth Voice
056 Orchestra Hit
BRASS
057 Trumpet
058 Trombone
059 Tuba
060 Muted Trumpet
061 French Horn
062 Brass Section
063 Synth Brass 1
064 Synth Brass 2
REED
065 Soprano Sax
066 Alto Sax
067 Tenor Sax
068 Baritone Sax
069 Oboe
070 English Horn
071 Bassoon
072 Clarinet
PIPE
073 Piccolo
074 Flute
075 Recorder
076 Pan Flute
077 Bottle Blow
078 Shakuhachi
079 Whistle
080 Ocarina
SYNTH LEAD
081 Lead 1 (square)
082 Lead 2 (sawtooth)
083 Lead 3 (caliope lead)
084 Lead 4 (chiff lead)
085 Lead 5 (charang)
086 Lead 6 (voice)
087 Lead 7 (fths)
088 Lead 8 (bass + lead)
SYNTH PAD
089 Pad 1 (new age)
090 Pad 2 (warm)
091 Pad 3 (polysynth)
092 Pad 4 (choir)
093 Pad 5 (bowed)
094 Pad 6 (metallic)
095 Pad 7 (halo)
096 Pad 8 (sweep)
SYNTH EFFECT
097 FX 1 (rain)
098 FX 2 (soundtrack)
099 FX 3 (crystal)
100 FX 4 (atmosphere)
101 FX 5 (brightness)
102 FX 6 (goblins)
103 FX 7 (echoes)
104 FX 8 (sci-)
ETHNIC
105 Sitar
106 Banjo
107 Shamisen
108 Koto
109 Kalimba
110 Bagpipe
111 Fiddle
112 Shanai
PERCUSSIVE
113 Tinkle Bell
114 Agogo
115 Steel Drums
116 Woodblock
117 Taiko Drum
118 Melodic Tom
119 Synth Drum
120 Reverse Cymbal
SOUND EFFECT
121 Guitar Fret Noise
122 Breath Noise
123 Seashore
124 Bird Tweet
125 Telephone Ring
126 Helicopter
127 Applause
128 Gunshot
SD7K User’s Manual
digital drum kit
22
Percussion Set list
Ch 10 PC 1 2 3 4
Ch 9,16 PC 1,5 9 17,18 25
27 D#1 High Q D D D
28 E 1 Slap D D D
29 F 1 Scratch Push D D D
30 F#1 Scratch Pull D D D
31 G 1 Sticks D D D
32 G#1 Square Click D D D
33 A 1 Metronome Click D D D
34 A#1 Metronome Bell D D D
35 B 1 Acoustic Bass Drum Bass Drum 2 Acoustic Bass Drum 2 Acoustic Bass Drum
36 C 2 Bass Drum 1 Rock Kick Drum Rock Kick Drum El Kick Drum
37 C#2 Side Stick D D D
38 D 2 Acoustic Snare Snare Drum 2 Acoustic Snare 2 Hard Snare Drum
39 D#2 Hand Clap D D D
40 E 2 Hard Snare Drum Hard Snare Drum Acoustic Snare 3 Electric Snare
41 F 2 Low Floor Tom Room Low Tom 2 Rock Low Tom 2 El Low Tom 2
42 F#2 Closed Hi-Hat Closed Hi-Hat 2 Closed Hi-Hat 2 Closed Hi-Hat 3
43 G 2 High Floor Tom Room Low Tom 1 Rock Low Tom 1 El Low Tom 1
44 G#2 Pedal Hi-Hat Pedal Hi-Hat 2 Pedal Hi-Hat 2 Pedal Hi-Hat 3
45 A 2 Low Tom Room Mid Tom 2 Rock Mid Tom 2 El Mid Tom 2
46 A#2 Open Hi-Hat Open Hi-Hat 2 Open Hi-Hat 2 Open Hi-Hat 3
47 B 2 Low-Mid Tom Room Mid Tom 1 Rock Mid Tom 1 El Mid Tom 1
48 C 3 Hi-Mid Tom Room Hi Tom 2 Rock Hi Tom 2 El Hi Tom 2
49 C#3 Crash Cymbal 1 D D D
50 D 3 High Tom Room Hi Tom 1 Rock Hi Tom 1 El Hi Tom 1
51 D#3 Ride Cymbal 1 Ride Cymbal 2 Ride Cymbal 2 D
52 E 3 Chinese Cymbal Chinese Cymbal 2 Chinese Cymbal 2 D
53 F 3 Ride Bell Ride Bell 2 Ride Bell 2 D
54 F#3 Tambourine D D D
55 G 3 Splash Cymbal Splash Cymbal 2 Splash Cymbal 2 D
56 G#3 Cowbell Cowbell 2 Cowbell 2 D
57 A 3 Crash Cymbal 2 D D D
58 A#3 Vibraslap D D D
59 B 3 Ride Cymbal 2 D D D
60 C 4 Hi Bongo D D D
61 C#4 Low Bongo D D D
62 D 4 Mute Hi Conga D D D
63 D#4 Open Hi Conga D D D
64 E 4 Low Conga D D D
65 F 4 High Timbale D D D
66 F#4 Low Timbale D D D
67 G 4 High Agogo D D D
68 G#4 Low Agogo D D D
69 A 4 Cabasa D D D
70 A#4 Maracas D D D
71 B 4 Short Whistle D D D
72 C 5 Long Whistle D D D
73 C#5 Short Guiro D D D
74 D 5 Long Guiro D D D
75 D#5 Claves D D D
76 E 5 Hi Wood Block D D D
77 F 5 Low Wood Block D D D
78 F#5 Mute Cuica D D D
79 G 5 Open Cuica D D D
80 G#5 Mute Triangle D D D
81 A 5 Open Triangle D D D
82 A#5 Shaker D D D
83 B 5 Jingle Bell D D D
84 C 6 Belltree D D D
85 C#6 Castanets D D D
86 D 6 Mute Surdo D D D
87 D#6 Open Surdo D D D
# Key Standard Room Rock Electronic
SD7K
www.simmonsdrums.net 23
Percussion Set list cont...
Ch 10 PC 5 6 7 8 N/A
Ch 9,16 PC 26 33 41 49 57
27 D#1
D D D Closed Hi-Hat 2 Buzz
28 E 1 D D D Pedal Hi-Hat Gong
29 F 1 D D D Open Hi-Hat 2 Scratch FX1
30 F#1
D D D Ride Cymbal 1 Scratch FX2
31 G 1 D D D D Scratch FX3
32 G#1
D D D D Scratch FX4
33 A 1 D D D D Gtr.Cut Noise
34 A#1
D D D D Gtr.Cut Noise 2 (up)
35 B 1 Acoustic Bass Drum 2 Jazz Kick 2 Jazz Kick 2 Concert BD 2 Muted Dist.Gtr. 1
36 C 2 808 Kick Drum Jazz Kick 1 Jazz Kick 1 Concert BD 1 Muted Dist.Gtr. 2
37 C#2
D D D D Dist.Gtr. Slide 1
38 D 2 808 Snare Drum Jazz Snare Drum Jazz Snare Drum Concert SD Dist.Gtr. Slide 2
39 D#2
D D Hand Clap Castanets High Q
40 E 2 Hard Snare Drum Hard Snare Drum Brush Slap Concert SD Slap
41 F 2 808 Low Tom 2 Jazz Low Tom 2 Brush Low Tom 2 Timpani F Scratch Push
42 F#2 808 Closed Hi-Hat Closed Hi-Hat 2 D Timpani F# Scratch Pull
43 G 2 808 Low Tom 1 Jazz Low Tom 1 Brush Low Tom 1 Timpani G Sticks
44 G#2 808 Pedal Hi-Hat Pedal Hi-Hat 2 D Timpani G# Square Click
45 A 2 808 Mid Tom 2 Jazz Mid Tom 2 Brush Mid Tom 2 Timpani A Metronome Click
46 A#2 808 Open Hi-Hat Open Hi-Hat 2 D Timpani A# Metronome Bell
47 B 2 808 Mid Tom 1 Jazz Mid Tom 1 Brush Mid Tom 1 Timpani B Guitar Slide
48 C 3 808 Hi Tom 2 Jazz Hi Tom 2 Brush Hi Tom 2 Timpani C Gtr.Cut Noise1(down)
49 C#3 808 Cymbal D D Timpani C# Gtr.Cut Noise 2 (up)
50 D 3 808 Hi Tom 1 Jazz Tom 1 Brush Hi Tom 1 Timpani D Gtr.Cut Noise 3
51 D#3
D D D Timpani D# Key Click
52 E 3 D D D Timpani E Laugh
53 F 3 D D Rivet Ride Timpani F Scream
54 F#3
D D D D Punch
55 G 3 D Splash Cymbal 3 Splash Cymbal 3 D Heart Beat
56 G#3
D D D D Footstep1
57 A 3 D D D Concert Cymbal 2 Footstep2
58 A#3
D D D D Applause
59 B 3 D D D Concert Cymbal 1 Door Creak
60 C 4 D D D D Door Slam
61 C#4
D D D D Scratch
62 D 4 808 Mute Hi Conga D D D Wind Chine
63 D#4 808 Open Hi Conga D D D Car Engine start
64 E 4 808 Low Conga D D D Car Break
65 F 4 D D D D Car Pass By
66 F#4
D D D D Gun Shot
67 G 4 D D D D Crickets
68 G#4
D D D D Train
69 A 4 D D D D Noise
70 A#4 808 Maracas D D D Helicopter
71 B 4 D D D D Industrial Noise
72 C 5 D D D D Gun Shot
73 C#5
D D D D Machine Gun
74 D 5 D D D D Laser Gun
75 D#5 808 Claves D D D Explosion
76 E 5 D D D D Dog Bark
77 F 5 D D D D Horse Gallop
78 F#5
D D D D Birds Chirping
79 G 5 D D D D Rain
80 G#5
D D D D Thunder
81 A 5 D D D D Wind
82 A#5
D D D D Sea Shore
83 B 5 D D D D Stream
84 C 6 D D D D Bubbles
85 C#6
D D D D Cat
86 D 6 D D D D Bird
87 D#6
D D D D Dog
# Key 808 Jazz Brush Orchestra Effects
SD7K User’s Manual
digital drum kit
midi implementation chart
Function Transmitted Recognized Remarks
0: YES
X: NO
Basic Default 10 ch 1–16
Channel Changed X X
Default X X
Mode Messages X X
Altered ************** **************
Note 0–127 0–127
Number: True voice ************** 0–127
Velocity Note on 0 (99H, V=1–127) 0 (9nH,V=1-127)
Note off 0 (99H,V=0) 0 (8nH or 9nH,V=0)
After Key’s X X
Touch Channel’s X X
Pitch Bend X 0
Control 0 X 0 Bank Select
Change 1 X 0 Modulation
4 0 0 Foot Controller
5 X 0 Portamento Time
6 X 0 Data Entry
7 X 0 Volume
10 X 0 Pan
11 X 0 Expression
64 X 0 Sustain Pedal
65 X 0 Portamento ON/OFF
66 X 0 Sostenuto Pedal
67 X 0 Soft Pedal
80 X 0 Reverb Program
81 X 0 Chorus Program
91 X 0 Reverb Level
93 X 0 Chorus Level
100, 101 X 0 RPN LSB, MSB*
120 X 0 All Sound OFF
121 X 0 Reset All Controller
123 X 0 All Notes OFF
Program Change 0 0
System Exclusive X 0
System : Song Position X X
Common : Song Select X X
: Tune X X
System : Clock 0 X
Real Time : Commands 0 X START and STOP only
Aux : Local ON/OFF X X
: All Notes OFF X X
Messages : Active Sense 0 X
: Reset X X
24
* Valid RPN # 0,1,2
Two (2) Year Limited Warranty
Subject to the limitations set forth below, Simmons® hereby represents and warrants that the components of this product shall be free from defects
in workmanship and materials, including implied warranties of merchantability or fitness for a particular purpose, subject to normal use and service,
for two (2) year to the original owner from the date of purchase.
Retailer and manufacturer shall not be liable for damages based upon inconvenience, loss of use of product, loss of time, interrupted operation
or commercial loss or any other incidental or consequential damages including but not limited to lost profits, downtime, goodwill, damage to or
replacement of equipment and property, and any costs of recovering, reprogramming, or reproducing any program or data stored in equipment
that is used with Simmons® products. This guarantee gives you specific legal rights. You may have other legal rights which vary from state
to state. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Simmons
P.O. Box 5111
Thousand Oaks, CA 91359-5111
All trademarks and registered trademarks mentioned herein are recognized as the property of their respective holders.
Made in China. 0704-7910
www.simmonsdrums.net
