Glydea™ Installation & Programming Instructions 1/2011
GLYDEA™ INSTALLATION AND
PROGRAMMING INSTRUCTIONS
Glydea™ Installation & Programming Instructions 1/2011
Glydea™
Installation Guide 1/4
MANDATORY SAFETY INSTRUCTIONS
For Glydea™ actuators intended for fabric curtain tracks installed horizontally, and for indoor use only
Any use outside the scope of application specified by SOMFY is non-compliant. SOMFY cannot be held liable for any such use or failure
to observe these instructions, which will also result in warranty being voided. Should any doubt arise during installation of the motor or
in order to obtain additional information, please visit the www.Somfy.com website or refer to your SOMFY contact (see branch details
printed on this document).
IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION
WARNING: improper installation may result in serious injury. Follow the installation instructions in full, as well as those shown in the
enclosed user leaflet.
To be handed to the user.
The motor must be installed by an installer who is qualified in motorized systems and domestic automation.
The installer must inform the user of the need to arrange maintenance for the motorized unit and its associated accessories. He must
specify items that require maintenance, replacement or checking. The torque, operating time and speed of the SOMFY actuator must be
compatible with the specifications of the motorized unit: your SOMFY contact will provide a method of selecting motors for each
application.
-Use only accessories (Curtain track, brackets, etc.) listed by SOMFY to fit to a unit. Part numbers for accessories are available from
your SOMFY contact.
-Please refer to the SOMFY literature to ascertain the control points) compatible with the actuator selected.
-In areas subject to frequent power cuts it will be necessary to install an emergency facility or backup power supply.
-Fit control devices in visible positions.
-A multi-pole switching device must be provided further up the power supply, i.e. a device which electrically isolates each active
conductor simultaneously (minimum contact opening gap: 3.5 mm).
-Protect cables routed through a wall with an insulated cable bushing.
-If the cable or the power supply connector is damaged, return the actuator to the service department to avoid any risk.
-Secure the cables to prevent any contact with moving parts.
-Leave the power supply cable to the actuator accessible: it must be easily replaceable.
-To reduce the risk of electric shock, this equipment must have a proper grounding. Some Motors versions are supplied with a
grounding type plug, that has a third (grounding) pin. This plug will only fit into a grounding type outlet. If the plug does not fit into the
outlet, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
- A Motorized curtain track installation, equipped with two Glydea 60e motors, will be deemed safe if at least one of the following
conditions is met (EN 13659 and EN 60 335-2-97)
-The motorized curtain track is controlled by a control point without locking, installed within sight of the closing but away from moving
parts and at a height of at least 1.50 m.
-The crush zone is located at a height in excess of 2.50 m from the ground or any permanent access level.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: it is important for everyone’s safety to follow these instructions in full.
Keep these instructions for future reference.
-Your installer should inform you of any maintenance required.
-SOMFY recommends the presence of at least one control point close to the motorized unit or group of motorized units.
-Do not allow children to play with fixed control devices. Keep remote controls out of the reach of children.
-Do not use the emergency facility unless there is a mains power cut.
-Keep a watch on the motorized unit while it is moving and ensure that people stay clear until the motorized unit is fully closed.
-Disconnect the actuator from the power supply while maintenance work (e.g. window cleaning) is in progress in the vicinity.
-Check the system frequently in order to detect any out-of-balance condition or signs of wear. Do not use the motorized unit if it needs
repair or adjustment.
-This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
-Children should be supervised to ensure that they do not play with the appliance.
Glydea™ Installation & Programming Instructions 1/2011
Glydea™
Installation Guide 2/4
[1] Mark the position of the bracket
[2] Pierce the ceiling or the wall at the
right places
[3] Attach the brackets on it
[4] Attach the rail on the bracket
[ 1 ]

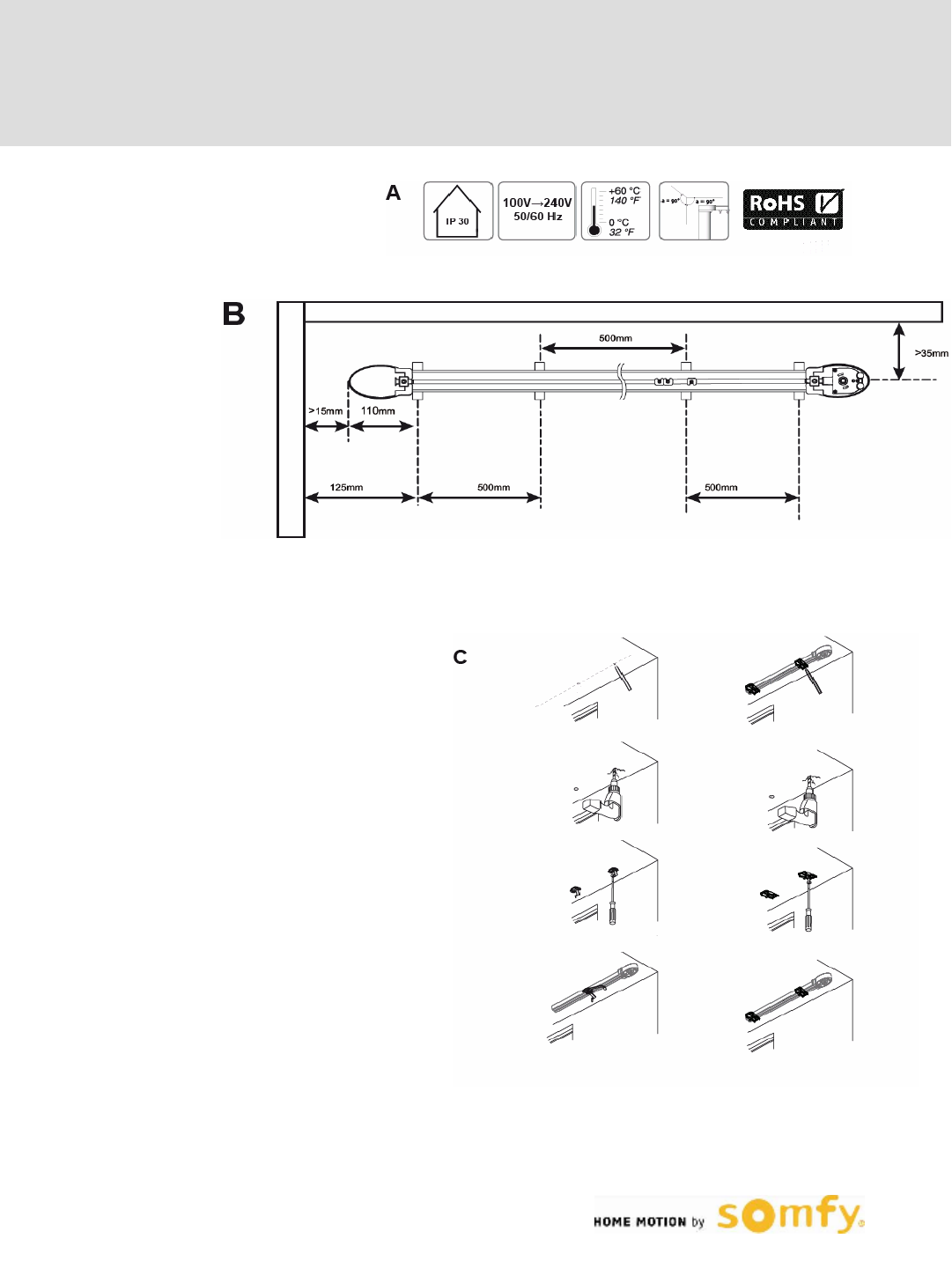

A) Characteristics
B) Measured
C) Installation of the rail
[ 2 ]
[ 3 ]
[ 4 ]
[ 1 ]
[ 2 ]
[ 3 ]
[ 4 ]
.59” 4.33”
4.92” 19.68”
19.68”
19.68”
1.37”
Glydea™ Installation & Programming Instructions 1/2011
Glydea™
Installation Guide 3/4
Cable output option:
a) By the bottom of the motor through
the notch of the wire cover
b) By the top of the motor through the
notch of the wire cover
c) Through the pulley

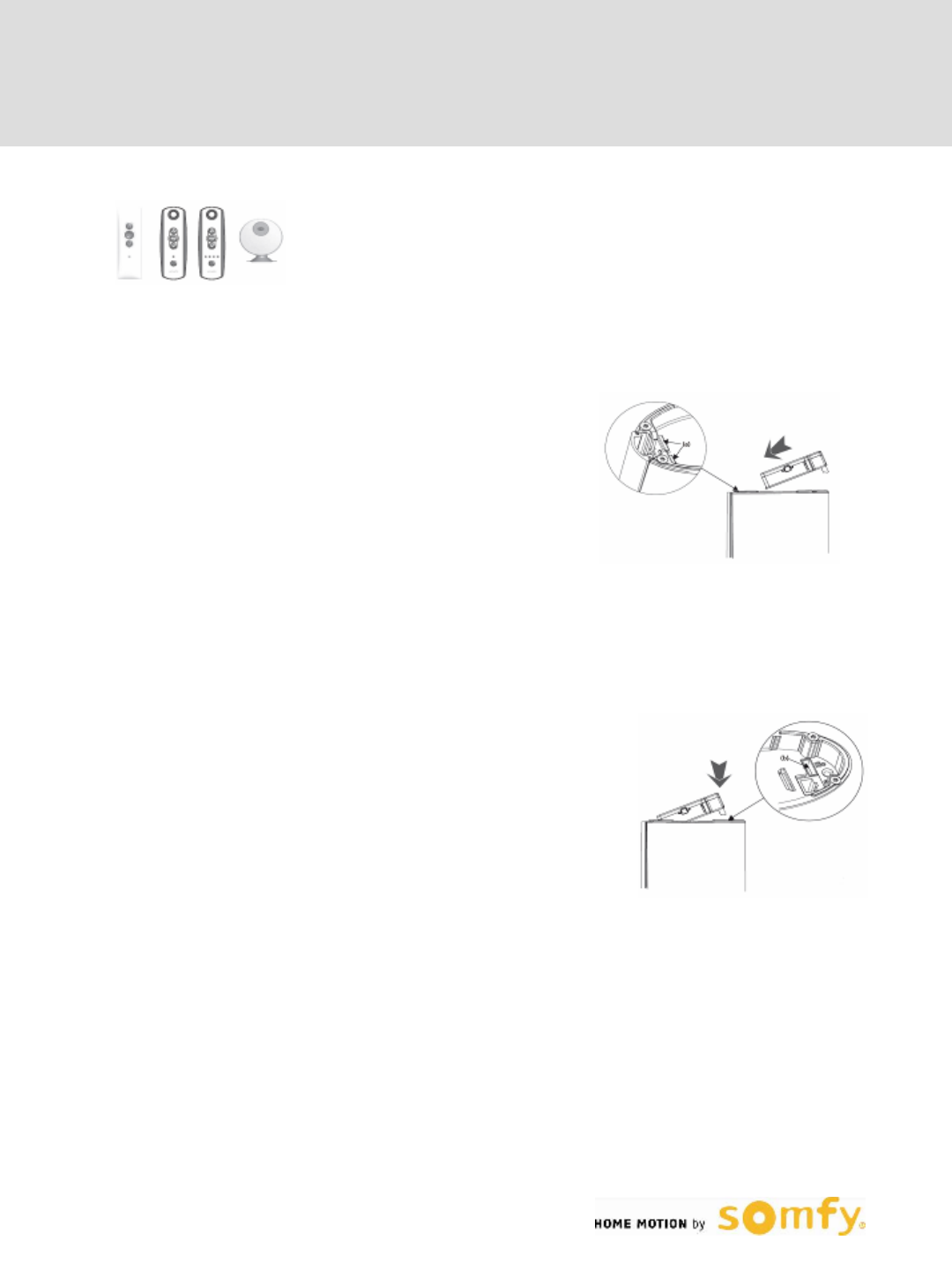

[1] Unlock the motor
[2] Insert the motor shaft in
the drive pulley hole
[3] Lock the motor
E) Installation of the motor
D) Power supply
Glydea™ Installation & Programming Instructions 1/2011
Glydea™
Installation Guide 4/4

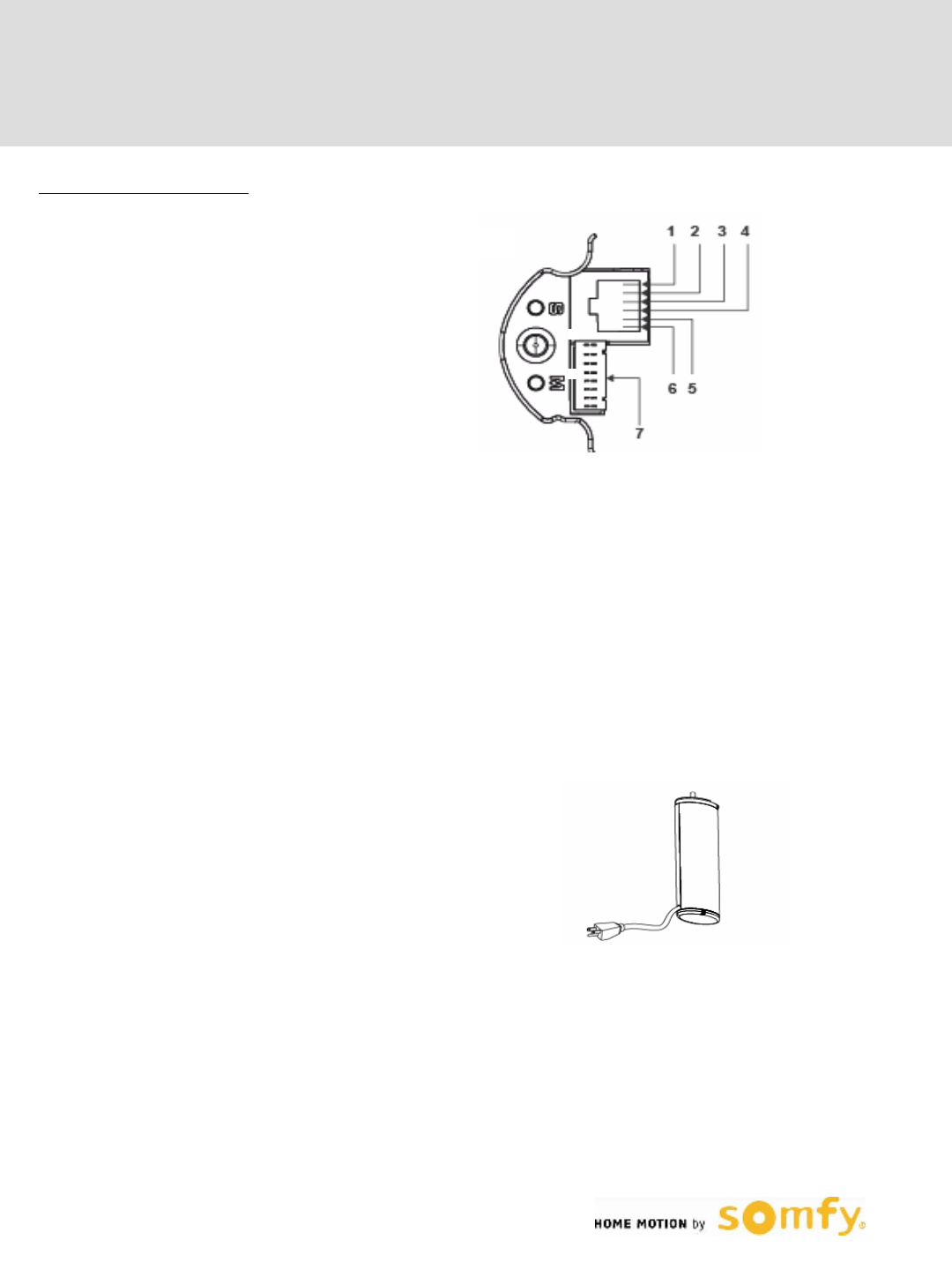

F) Wiring of the motor
[1]
DCT & RTS motors
Power wiring
2 or 3 NO dry Contact & IR:
1: CCW (Open) NO Dry contact
2: IR OUT
3: Ground Common
4: +5V
5: Stop - NO Dry contact
6: CW (Close) NO Dry contact
7: Optional module socket
[2]
[1]
[2]
Motors equipped with a US power plug
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ 35 DCT
Programming Instructions 1/2

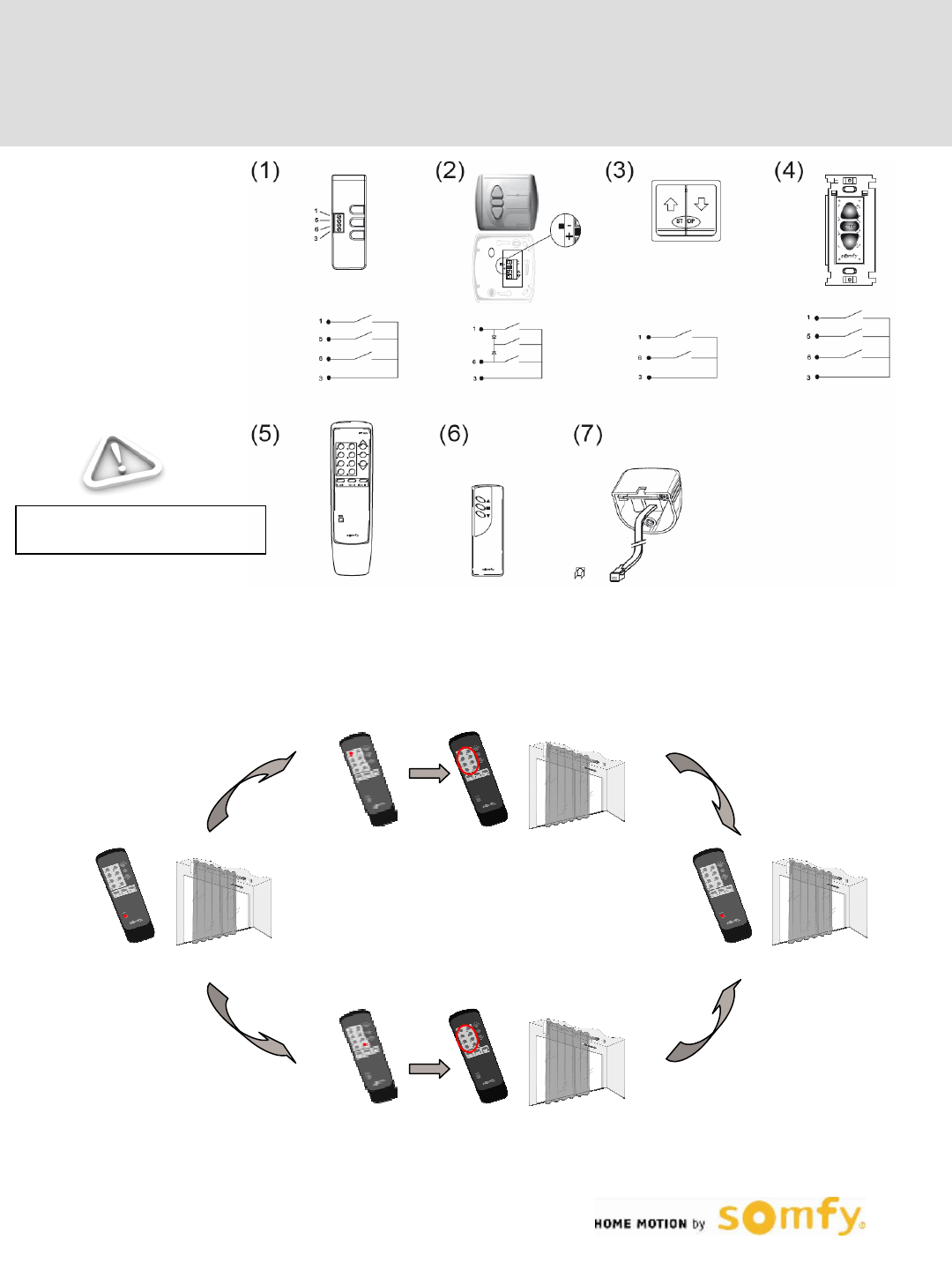

A) Compatible controls
And control wiring
1) DCT setting tool
2) Centralis IB
3) 2 NO (Normally Open)
Dry contact switch
4) Somfy CS1
5) IR8
6) IR1
7) IR3 & RJ9/RJ12 adapter

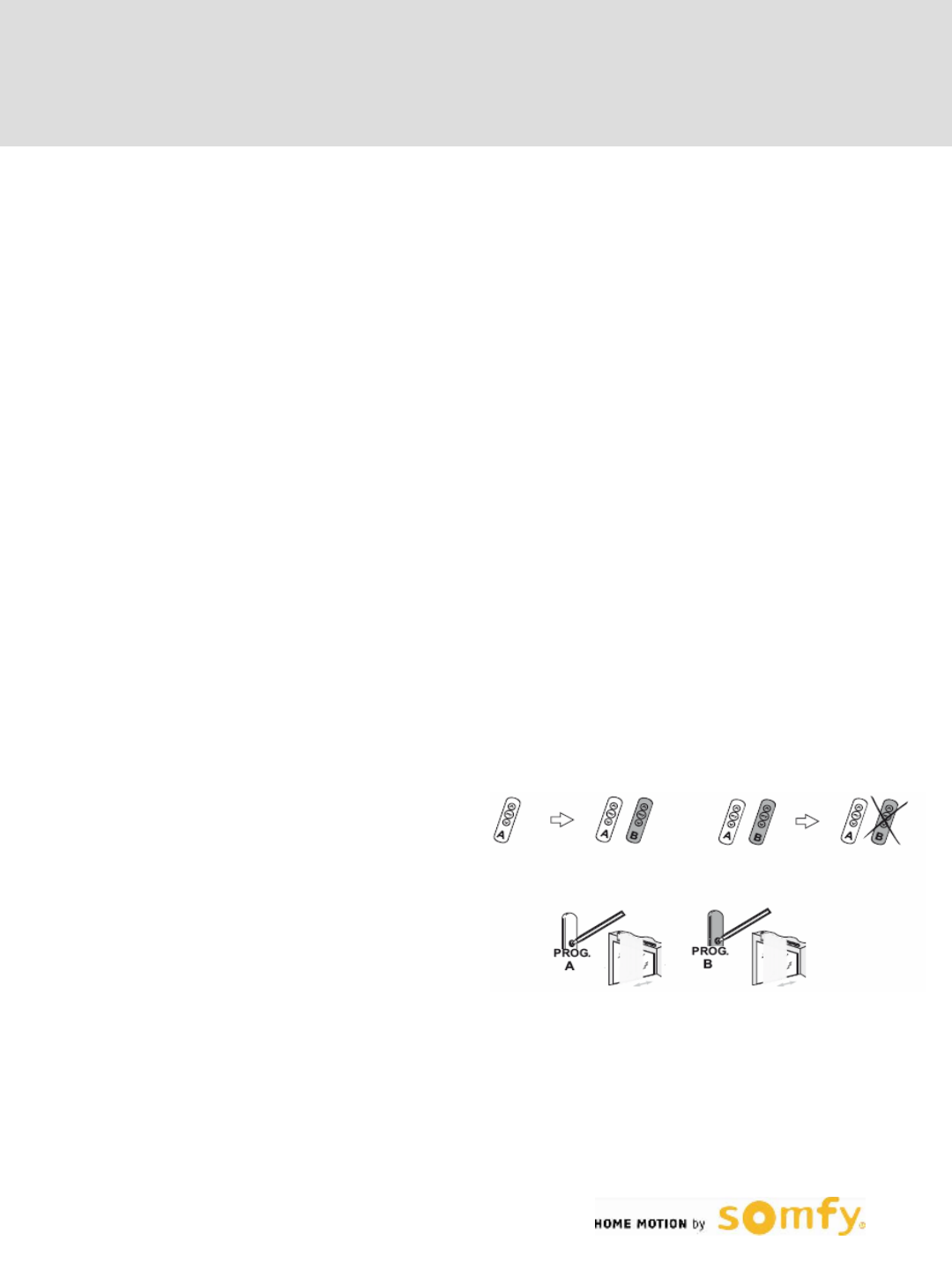

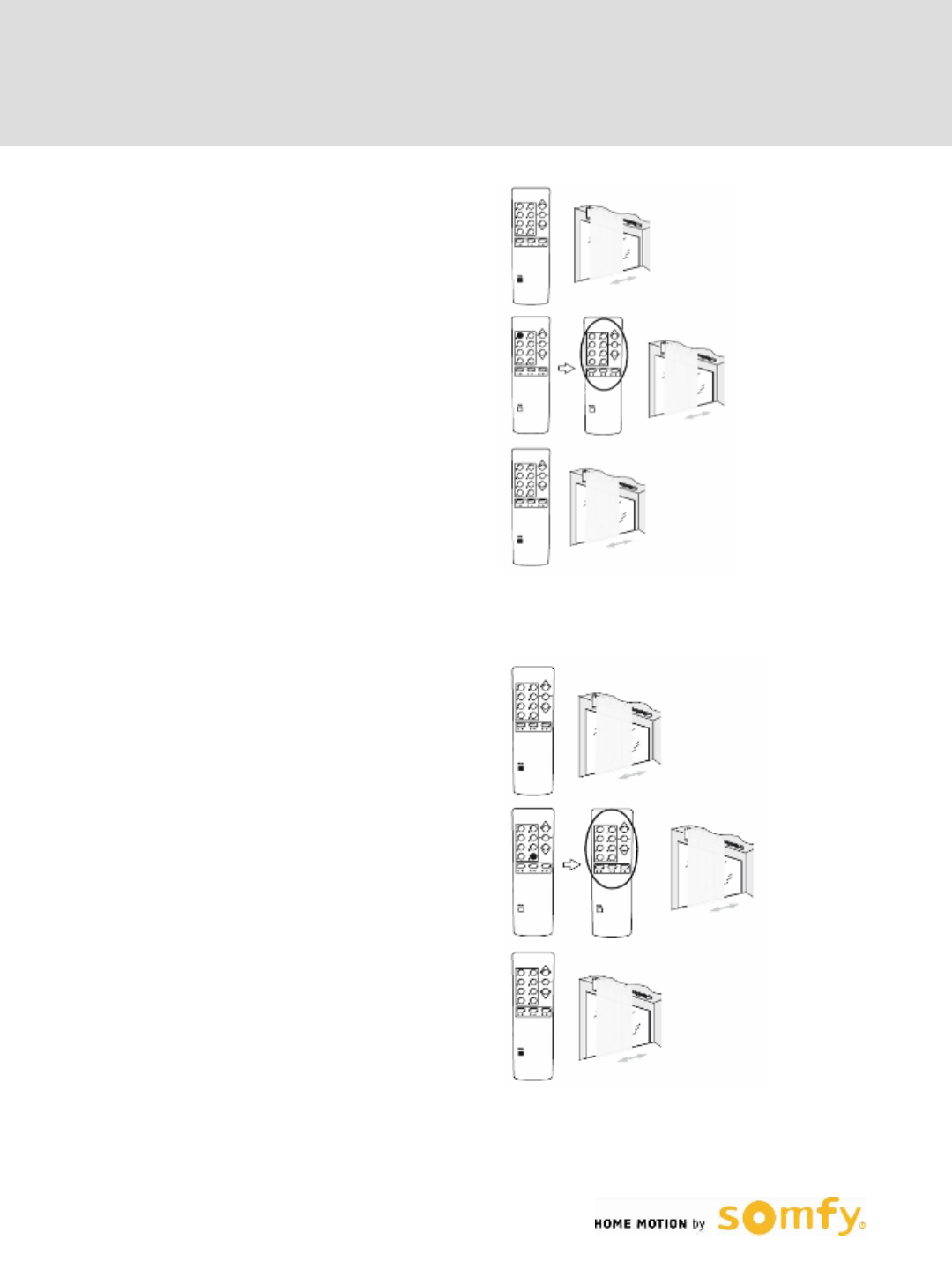

B) Assign / Deleting a channel for IR8 transmitter
Note: by factory default, the motor is paired to ALL channels on the transmitter. To designate one channel to a particular blind, the user
must first delete unwanted channels.
-To enter in programming mode: Press on the transmitter prog. Button until the curtain jogs.
-To program one channel: Press on key 1 and next on the key of the channel to program ( 1 to 8 ) or channel group until the curtain jogs.
-To exit programming mode: Press on the transmitter prog. Button until the curtain jogs.
Enter prog. mode Exit prog. mode
Delete a channel
Program a channel
No parallel wiring of Glydea 35 DCT
without DCT splitter
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ 35 DCT
Programming Instructions 2/2

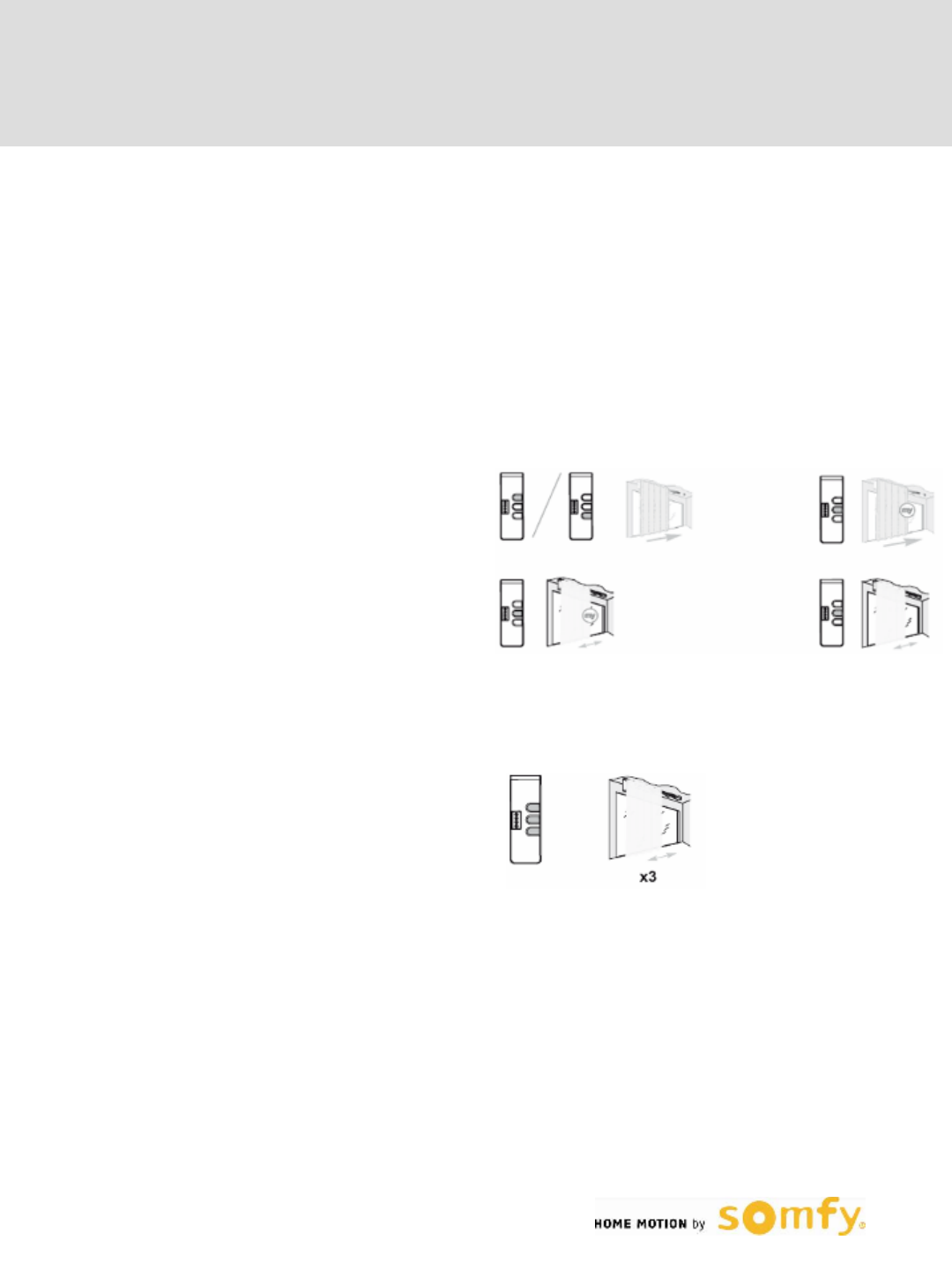

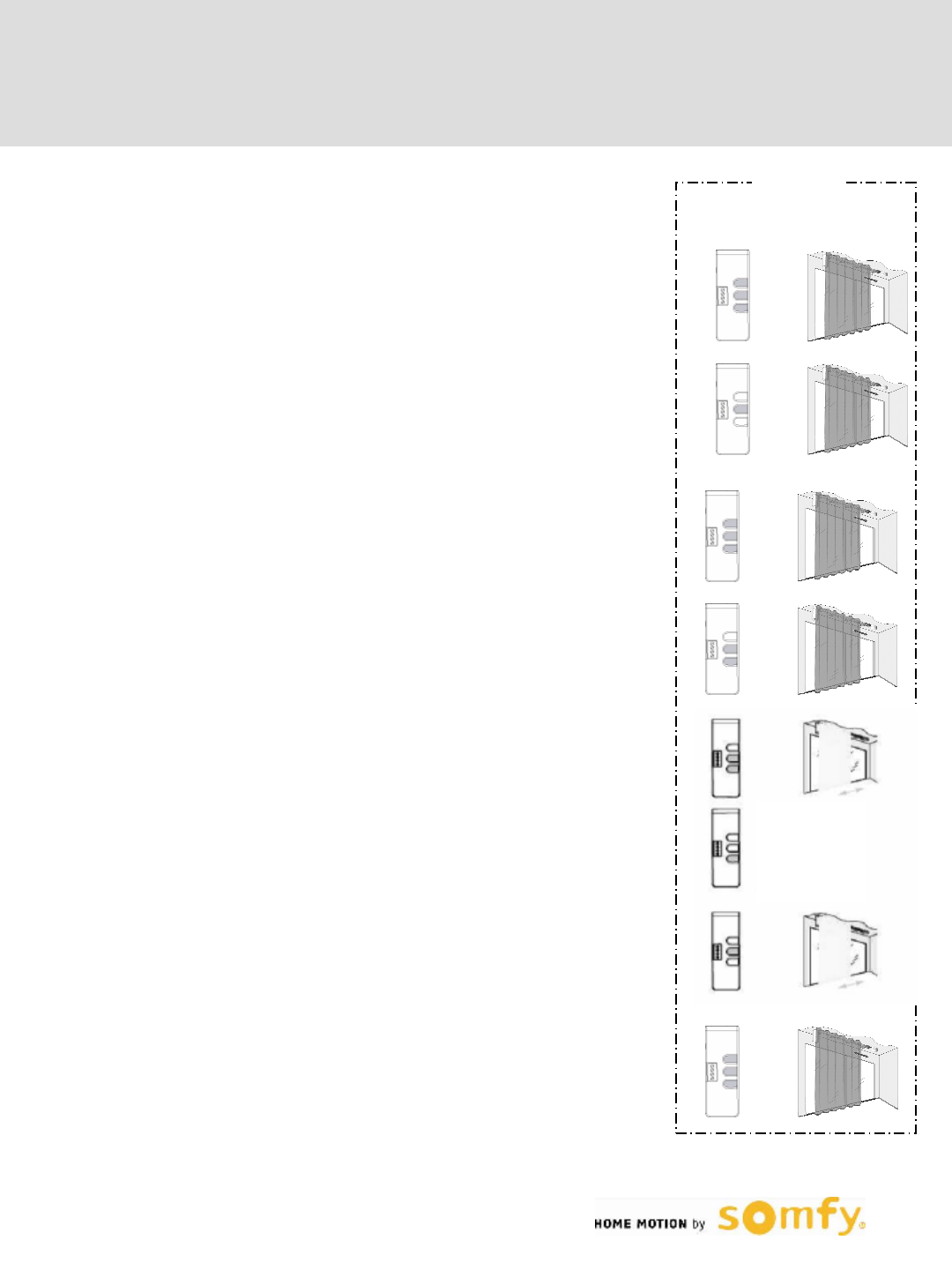

C) Setting with 3 Normally open dry contact switches or IR control
point Switch on the power supply.
C1. Modifying the motor rotation direction
Move the curtain away from the end limit.
1)Press the OPEN ( UP ), STOP and CLOSE ( DOWN ) buttons simultaneously
until the curtain jogs.
2)Press the STOP button, until the curtain jogs to reverse the rotation
direction.
C2. Dry contact ergonomics setting: Standard or 2 buttons
sequencing
1) Press and hold the OPEN (UP), STOP and CLOSE (DOWN) buttons
simultaneously until the curtain jogs.
2) Press the STOP and CLOSE (DOWN) buttons simultaneously until the curtain
jogs to change the ergonomics.
C3. Back release setting
Move the curtain to the OPEN (UP) end limit
1)Press the STOP and CLOSE (DOWN) buttons simultaneously until the curtain
jogs
2)Press and hold the CLOSE (DOWN) button to readjust the back release
position
3)To confirm the new back release position, press and hold the STOP button
until the curtain jogs
For accuracy the positioning must be done in one movement. If the position is
not satisfactory, go through the all procedure again
To erase the back release position, set it on the hard stop limit
Note: Do set a back release position on thick curtain to warranty the drive
shaft release to allow manual operation at open position.
C4. Erasing the memory of the motor.
Press and hold the OPEN (UP), STOP and CLOSE (DOWN) buttons
simultaneously until the curtain jogs 3 times.
All the settings are erased.
C
C1
C2
C4
C3
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ 60e DCT
Programming Instructions 1/5
B) Setting with 3 NO (Normally Open) dry contact
switches or IR control point
Switch on the power supply.
After the first OPEN or CLOSE command, the curtain will
run at reduced speed to one end, then the other to set
the End Stops..
B1. Modifying the motor rotation direction
Move the curtain away from the end limits.
1) Press the OPEN (UP), STOP and CLOSE (DOWN) buttons
simultaneously until the curtain jogs.
2) Press the STOP button until the curtain jogs to reverse
the rotation direction.
A) Compatible controls
And control wiring
1) DCT setting tool
2) Centralis IB
3) 2 NO (Normally Open)
Dry contact switch
4) Somfy CS1
5) IR8
6) IR1
7) IR3 & RJ9/RJ12 adapter
No parallel wiring of Glydea 35
DCT without DCT splitter
Glydea™ Installation & Programming Instructions 1/2011

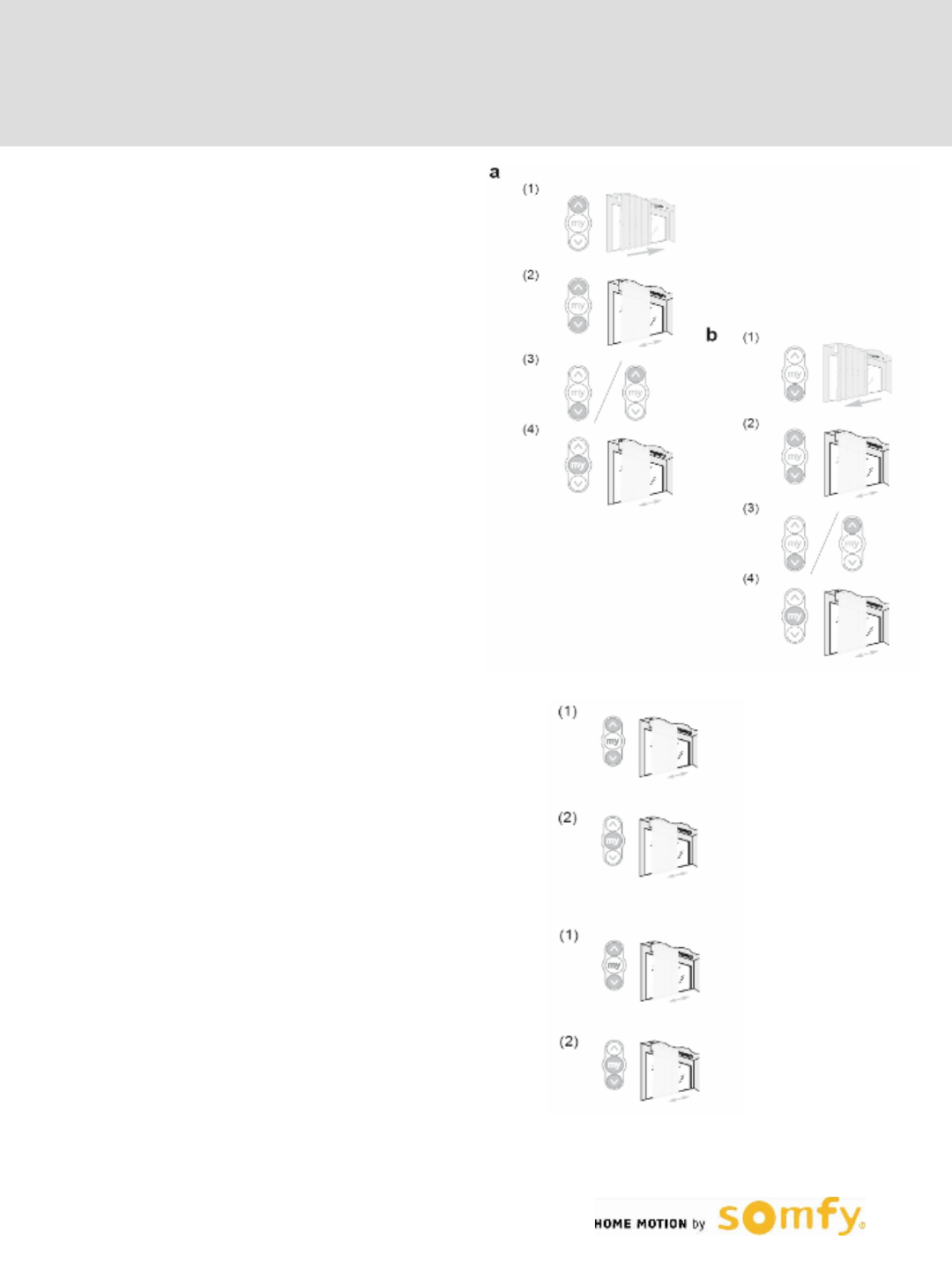

B2. End limit re-adjustment
a) OPEN LIMIT
1) Press the OPEN (UP) button, to move the curtain
to the open limit.
2) Press and hold the OPEN (UP), STOP and CLOSE
(DOWN) buttons
simultaneously until the curtain jogs.
3) Press and hold the OPEN (UP) or CLOSE
(DOWN) button to move the
curtain to the new desired position.
4) To confirm the new limit press and hold the
STOP button until the curtain
jogs.
b) CLOSE LIMIT
1) Press the CLOSE (DOWN) button to move the
curtain to the close limit.
2) Press and hold the OPEN (UP), STOP and CLOSE
(DOWN) buttons
simultaneously until the curtain jogs.
3) Press and hold the OPEN (UP) or CLOSE
(DOWN) button to move the
curtain to the new desired position.
4) To confirm the new limit press and hold the
STOP button until the curtain
jogs.
Note: Do set an open limit position on thick
curtain to warranty the drive shaft release to
allow manual operation at open position.
B3. Touch motion sensitivity
1) Press and hold the OPEN (UP), STOP and CLOSE
(DOWN) buttons simultaneously until the curtain
jogs.
2) Press the OPEN (UP), and CLOSE (DOWN)
buttons simultaneously to switch from no touch
motion to low sensitivity to high sensitivity and
back to no touch motion.
3) Press the STOP button until the curtain jogs to
confirm the setting.
B4. Dry contact ergonomics setting: Standard
or 2 buttons sequencing
1) Press and hold the OPEN (UP), STOP and CLOSE
(DOWN) buttons
simultaneously until the curtain jogs.
2) Press the STOP and CLOSE (DOWN) buttons
simultaneously until the
curtain jogs to change the ergonomics.
Glydea™ 60e DCT
Programming Instructions 2/5
a) b)
B4
B2
B3
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ 60e DCT
Programming Instructions 3/5
B5. Speed setting
1) Press and hold the OPEN (UP) and STOP buttons
simultaneously until the curtain starts to open and close
2) Press OPEN (UP) to increase the speed, CLOSE
(DOWN) to decrease the speed
3) Press the STOP button until the curtain jogs to
confirm the setting.

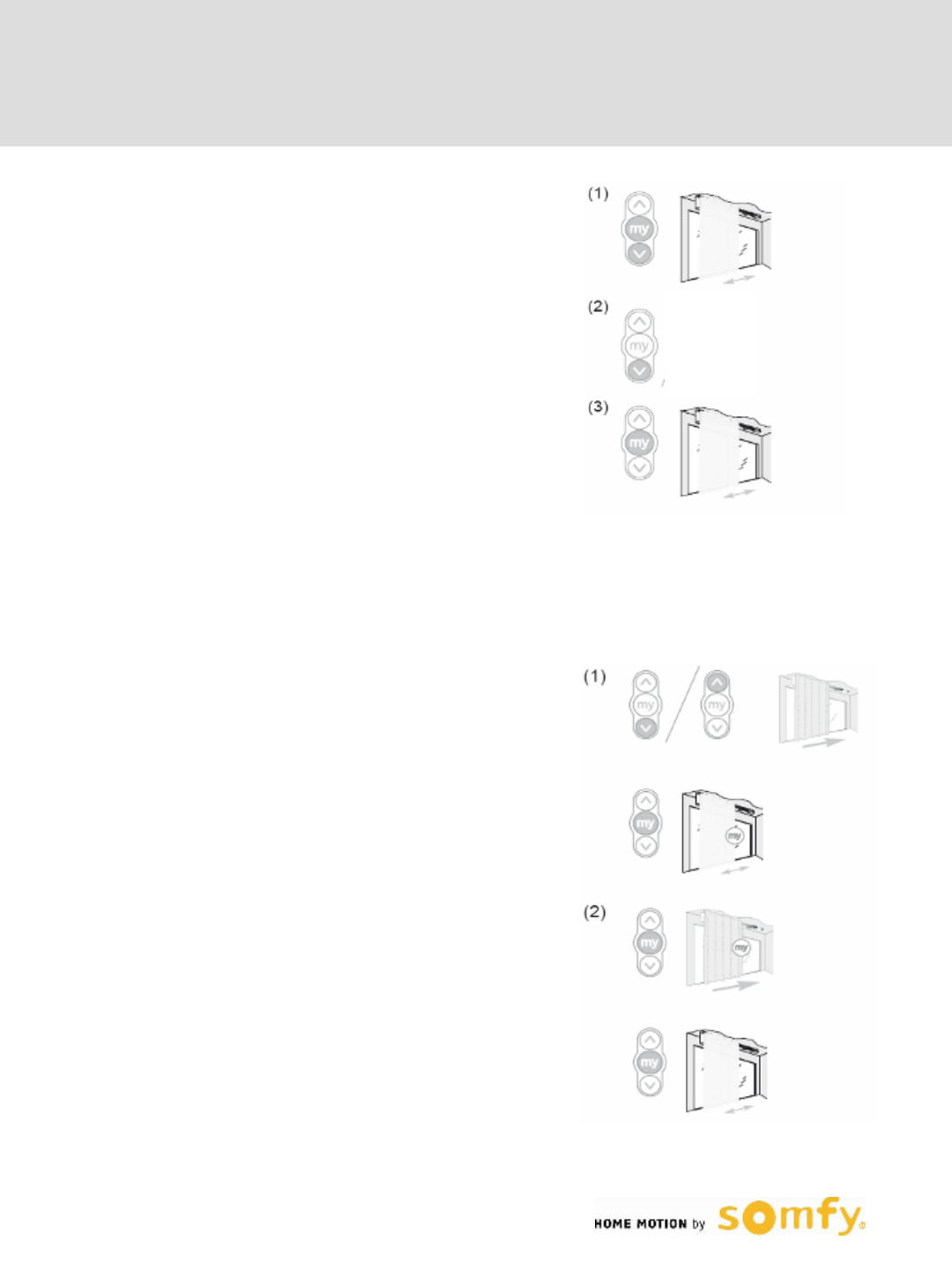

B6. MY position
1) Recording MY position.
To set the MY position, move the curtain to the
desired position with the OPEN (UP) and
CLOSE (DOWN) buttons then press the STOP
button until the curtain jogs.
2) Delete the MY position
To delete the MY position, move to this position and
press the STOP button until the curtain jogs.
B7. Erasing the memory of the motor.
Press and hold the OPEN (UP), STOP and CLOSE
(DOWN) buttons
simultaneously until the curtain jogs 3 times.
All the settings are erased.
B7
B6
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ 60e DCT
Programming Instructions 4/5

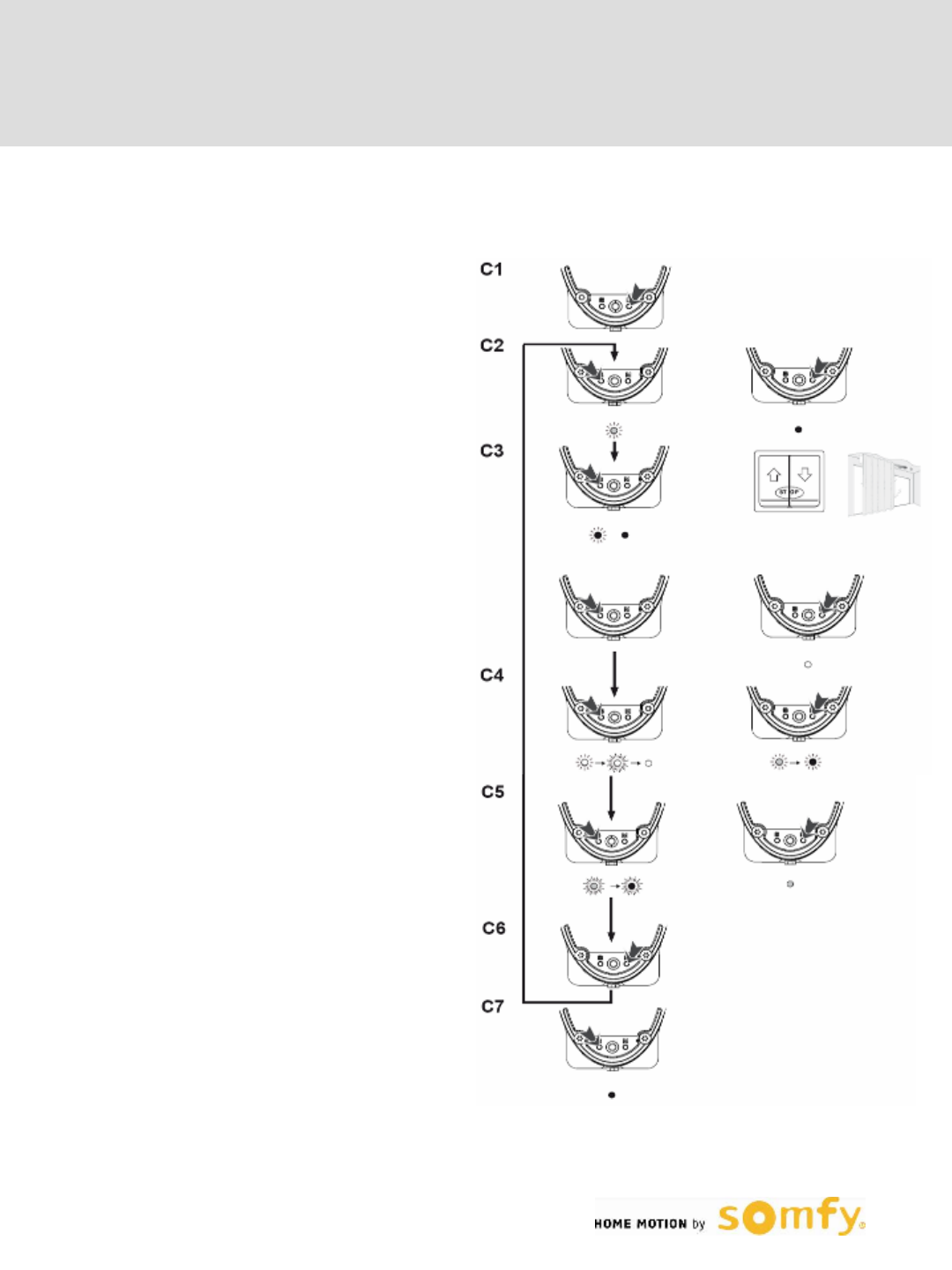

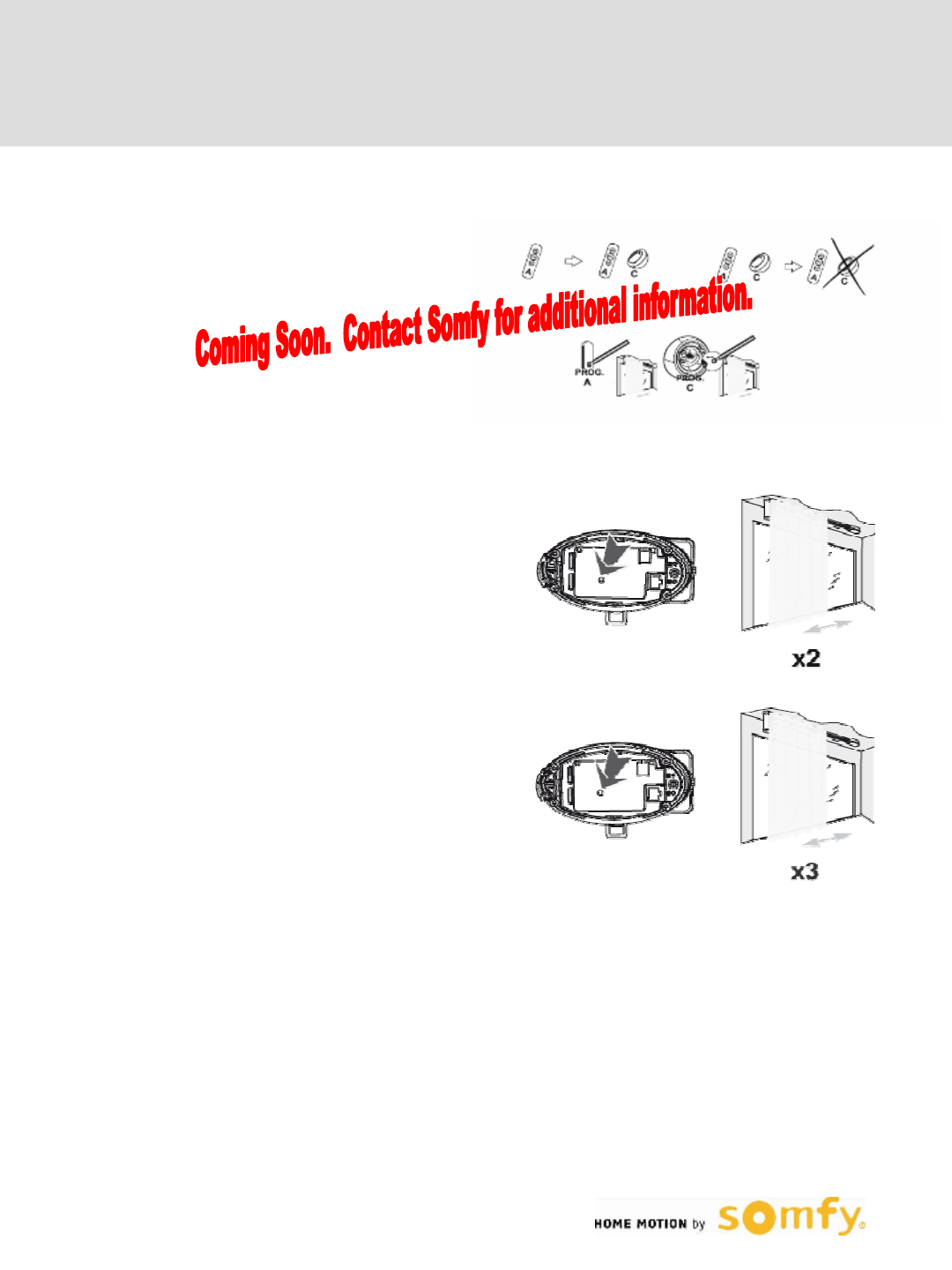

C) Setting using the Mode and Set motor buttons and a
two button NO (Normally Open) dry contact switch.
A Small paper clip is needed to press the Mode and Set
buttons.
After the first OPEN or CLOSE command, the curtain will
run at reduced speed to one end, then the other to set the
End Stops.
C1. Press the M button until the green led switches on to
enter in setting mode.
You can exit from the setting mode at any time, by
pressing the M button until the LED switches off.
C2. Modifying the motor rotation direction
1) Press the S button to reverse the rotation direction.
Green LED ON = Open/CCW, Green LED blinking = Open/CW
2) Press the M button to confirm the change and go to the next
step. The red light is on.
C3. Open End limit re-adjustment
1) Press and hold the OPEN (UP) or CLOSE (DOWN) button to
move the curtain to the new desired position.
2) Press the S button to memorize the open limit, the curtain
moves to the close limit. It can be stopped by pressing the stop
(MY) button.
3) Press the M button to confirm the change and go to the next
step. The red light flashes.
Note: Do set an open limit position on thick curtain to
warranty the drive shaft release to allow manual operation at
open position.
C4. Close End limits re-adjustment
1) Press and hold the OPEN (UP) or CLOSE (DOWN) button to
move the curtain to the new desired position.
2) Press the S button to memorize the close limit, the curtain
moves to the open limit. It can be stopped by pressing the stop
(MY) button.
3) Press the M button to confirm the change and go to the next
step. The Yellow LED is on or blinking.
C5. Touch motion sensitivity
1) Press the S button to switch from no touch motion (yellow LED
is on) to low sensitivity (Yellow LED blinks) to high sensitivity
(Yellow LED blinks quicker).
2) Press the M button to confirm and go to the next step. The led
flashes alternatively from green to red and the curtain starts to
open and close.
C6. Speed setting
1) Press the S button to switch the speed from 15 cm/s to 17.5
cm/s, to 20 cm/s, to 12.5 cm/s, and back to 15 cm/S
2) Press the M button to confirm and go back to direction setting.
The green LED is on or blinking.
C7. Erasing the memory of the motor
Push the SET Button until the motor jogs 3 times and the Red
LED turns on (12 seconds).
It will light for 4 seconds, then the motor will reset.
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ 60e DCT
Programming Instructions 5/5
D Assign/Deleting a channel for IR 8
transmitter
Note : to use a IR transmitter, you need to
plug a IR sensor on the RJ 12 motor plug.
D1 Assign a channel
Note : By factory default, the motor is paired
to ALL channels on the transmitter.
To designate one channel to a particular
blind, the user must first delete unwanted
channels (see step DELETE A CHANNEL).
To enter in programming mode: Press on the
transmitter prog button until the curtain
jogs.
To program one channel : press on key 1
and next on the key of the channel to
program (1 to 8) or channel group until the
curtain jogs.
To exit programming mode: press on the
transmitter prog button until the curtain
jogs.
D2 Delete a channel
To enter in programming mode: Press on the
transmitter prog button until the curtain
jogs.
To erase one channel: press on key 8 and
next on the key of the channel to remove (1
to 8) or channel group until the curtain jogs.
To erase all channels: press on key 8 and
next on key 1_8 until the motor curtain jogs.
To exit programming mode : press on the
transmitter prog button until the curtain
jogs.
D1
D2
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ RTS Receiver
Programming Instructions 1/6
Compatible controls
OPTIONAL
1) Slide the RTS receiver into the notch (a)
2) Clip the RTS receiver into the plug (b)
Glydea™ Installation & Programming Instructions 1/2011

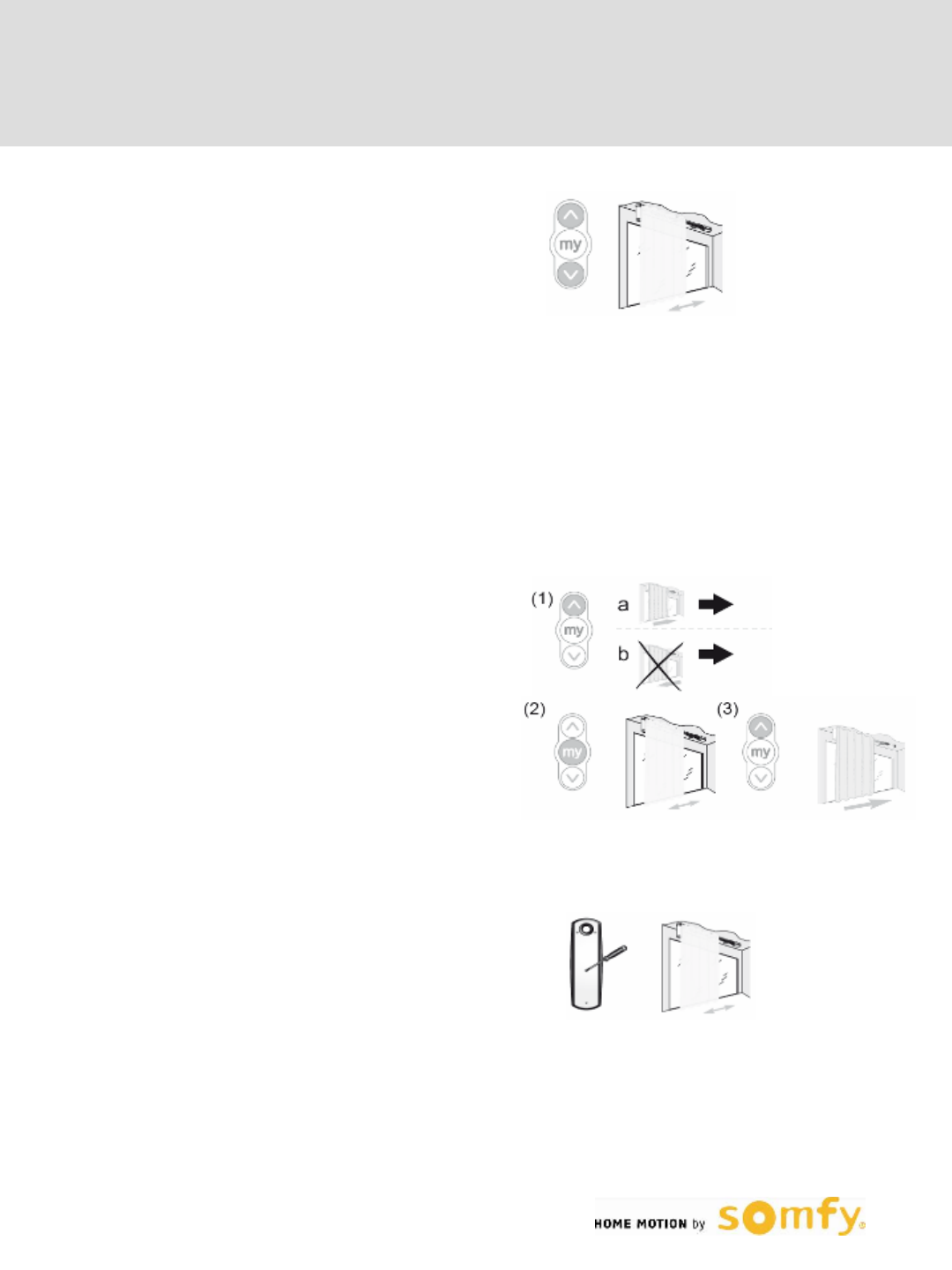

Glydea™ RTS Receiver
Programming Instructions 2/6
Programming the RTS control point
Switch on the power supply.
Press the OPEN (UP) and CLOSE (DOWN)
buttons simultaneously on the RTS control
point: the curtain jogs.
and the control point is preprogrammed in the
motor.
GLYDEA™ 60e RTS only
The curtain makes a first run to record the
hard stop positions at first command.
Checking the direction of rotation
1) Press the RTS control point OPEN (UP)
button:
a) If the curtain opens, the direction of
rotation is correct
b) If the curtain closes, the direction of
rotation is incorrect: move to the next step.
2) Press the RTS control point MY button until
the curtain jogs: the direction of rotation has
been modified.
3) Press the RTS control point OPEN (UP)
button to check the direction of rotation.
Recording the RTS control point
Press the programming button on the back of
the RTS control point until the motor jogs.
The RTS control point address is permanently
recorded.
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ RTS Receiver
Programming Instructions 3/6
Back release setting
GLYDEA™ 35 RTS only
Move the curtain to the OPEN end limit.
1) Press the MY and CLOSE (DOWN) buttons
simultaneously until the curtain jogs.
2) Press the CLOSE (DOWN) button to readjust
the back release position.
3) To confirm the new back release position,
press and hold the MY button until the curtain
jogs.
For accuracy the positioning must be done in
one movement.
If the position is not satisfactory, go through the
all procedure again.
4)To erase the back release position, set it on
the hard stop limit.
Note: Do set a back release position on thick
curtain to warranty the drive shaft release to
allow manual operation at open position.
MY position
GLYDEA™ 60e RTS only
1) Recording MY position.
To set the MY position, move the curtain to the
desired position with the UP and DOWN buttons
then press the MY button until the curtain jogs.
2) Delete the MY position
To delete the MY position, move to this position
and press the MY button until the curtain jogs.
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ RTS Receiver
Programming Instructions 4/6
End limit re-adjustment
GLYDEA™ 60e RTS only
a) OPEN (UP) LIMIT
1) Press the OPEN (UP) button, to move the curtain
to the limit to be readjusted.
2) Press and hold the OPEN (UP) and CLOSE
(DOWN) buttons simultaneously until the curtain
jogs.
3) Press and hold the OPEN (UP) or CLOSE
(DOWN) button to move the curtain to the new
desired position.
4) To confirm the new limit press and hold the MY
button until the curtain jogs.
b) CLOSE LIMIT
1) Press the CLOSE (DOWN) button to move the
curtain to the limit to be readjusted.
2) Press and hold the OPEN (UP) and CLOSE
(DOWN) buttons simultaneously until the curtain
jogs.
3) Press and hold the OPEN (UP) or CLOSE
(DOWN) button to move the curtain to the new
desired position.
4) To confirm the new limit press and hold the MY
button until the curtain jogs.
Note: Do set an open limit position on thick
curtain to warranty the drive shaft release to
allow manual operation at open position.
Modifying the motor rotation direction
Glydea™ 35 RTS and Glydea™ 60e RTS
Move the curtain away from the end limits.
1) Press the OPEN (UP) and CLOSE (DOWN)
buttons simultaneously until the curtain jogs.
2) Press the MY button until the curtain jogs to
reverse the rotation direction.
Dry contact ergonomics setting
Glydea™ 35 RTS and Glydea™ 60e RTS
1) Press the OPEN (UP) and CLOSE (DOWN)
buttons simultaneously until the curtain jogs.
2) Press the MY and CLOSE (DOWN) buttons
simultaneously until the curtain jogs to change the
ergonomics.
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ RTS Receiver
Programming Instructions 5/6
Touch motion sensitivity
GLYDEA™ 60e RTS only
1) Press and hold the OPEN (UP) and CLOSE
(DOWN) buttons simultaneously until the curtains
jogs.
2) Press the OPEN (UP) and CLOSE (DOWN)
buttons simultaneously until the curtain jogs to
switch from no touch motion to low sensitivity; to
high sensitivity and back to no touch motion.
3) Press the STOP button until the curtain jogs to
confirm the setting.
Speed setting
GLYDEA™ 60e RTS ONLY
1) Press and hold the OPEN (UP) and STOP buttons
simultaneously until the curtain starts to open and
close
2) Press OPEN (UP) to increase the speed, CLOSE
(DOWN) to decrease the speed
3) Press the STOP button until the curtain jogs to
confirm the setting.
Adding/Deleting RTS control points
Glydea™ 35 RTS and Glydea™ 60e RTS
Find an RTS control point programmed in the
motor.
Press and hold the RTS programmed control point
(A) PROG button or the receiver PROG button until
the curtain jogs: the motor is in programming
mode.
Quickly press the RTS control point (B) PROG
button to add or delete: the curtain jogs and the
RTS control point is programmed or deleted from
the motor.
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ RTS Receiver
Programming Instructions 6/6
Adding/Deleting RTS sensors
Find an RTS control point programmed in the
motor.
Press and hold the RTS programmed control point
(A) PROG button or the receiver PROG button
until the curtain jogs: the motor is in
programming mode.
Quickly press the RTS sensor (C) PROG button to
add or delete: the curtain jogs and the RTS
sensor is programmed or deleted from the motor.
Erasing the transmitters of the motor
To delete all the transmitters programmed, press
and hold the receiver prog button until the curtain
jogs twice.
All the transmitters are deleted.
Erasing the memory of the motor
To reset the motor, press the receiver prog button
until the curtain jogs 3 times.
All the settings are erased.
Glydea™ Installation & Programming Instructions 1/2011
Glydea™ Dry Contact & Glydea RTS
Setting Sum Up
Enter Set Confirm and Exit Enter Set Confirm and Exit
In Temporary mode 0pen and Close
operationnal
Stop 2s to change
direction
Not at end limits
Open+Close 4s
1 jog
Stop 2s to change
& exit
1 jog
Not at end limits for Glydea 60e
because conflict with Limit setting.
Back release No Back release set
at open limit
Stop+Close 4s
1 jog
Open or close to
position curtain
Stop 2s
1 jog
at open limit
Stop+Close 4s Open or close to
position curtain
Stop 2s
1 jog
Back release is erased if setting is
done at hard Stop
Open Limit setting No end limits set
at open limits
Open+Stop+Close 4s
1 jog
Open or close to
position curtain
Stop 2s
1 jog
at open limits
Open+Close 4s
1 jog
Open or close to
position curtain
Stop 2s
1 jog
Limit management mode is erased
if setting is done at hard Stop
Close limit setting No end limits set
at close limits
Open+Stop+Close 4s
1 jog
Open or close to
position curtain
Stop 2s
1 jog
at close limits
Open+Close 4s
1 jog
Open or close to
position curtain
Stop 2s
1 jog
Limit mahagement mode is erased
if setting is done at hard Stop
Dry contact
ergonomics Standard Open+Stop+Close 4s
1 jog
Stop+Close 2s to
change and exit
1 jog
Open+Close 4s
1 jog
Stop+Close 2s to
change and exit
1 jog
Speed setting 15 cm/s (fo a 6 m
trach 35 KG)
Open+stop 4s
1 jog
Open to increase
speed, Close to
decrease speed
Stop 2s
1 jog
Open+stop 4s
1 jog
Open to increase
speed, Close to
decrease speed
Stop 2s
1 jog
Touch motion function should be
active in setting mode to test
Touch Motion No touch Motion
active
Open+Stop+Close 4s
1 jog
Open+Close 2s to
switch to different
sensitivity (loop)
Stop 2s
1 jog
Open+Close 4s
1 jog
Open+Close 2s to
switch to different
sensitivity
(loop)
1 jog
Stop 2s
1 jog
Exit setting mode
any time
Fractory reset Open+Stop+Close 12s
3 jogs
Receiver prog. buton 12s
3 jogs
Comments
Direction change
Not at end limits
Open+Stop+Close 4s
1 jog
Stop 2s to change
& exit
1 jog
Default Values
Open CCW
Dry contacts setting
Open+Stop+Close less than 2s
RTS setting
Open+Stop+Close less than 2s
Glydea™ Databook 1/2011
www.somfysystems.com
© Copyright Somfy Systems Inc. 2/2011
Somfy Systems, Inc.
North America Headquarters
121 Herrod Blvd.
Dayton, NJ 08810
(P) 800 22 SOMFY
(P) 609 395 1300
(F) 609 395 1776
Florida
6100 Broken Sound Pkwy
Northwest Suite 14
Boca Raton, FL 33487
(P) 877 227 6639
(P) 561 995 8376
(F) 561 995 7502
California
15291 Barranca Pkwy
Irvine, CA 92618
(P) 877 727 6639
(F) 949 727 3775
Somfy ULC
Somfy Canada
6315 Shawson Drive Unit 1
Mississauga, Ontario L5T1J2
(P) 800 667 6639
(P) 905 564 6446
(F) 905 564 2679
