Parts Catalogue
Publication Part No: 9196 Revision: 1
3
Micron Sprayers Ltd. Spraymiser
Edition Notice
Prepared and printed by or on behalf of:
This publication covers the following products:
Spraymiser CDA All Models and accessories
Spraymiser HiFlo All Models and accessories
This document is prepared for Micron Sprayers Ltd. their agents and clients. The
document should be taken in its entirety. No responsibility can be accepted, nor can
consent be assumed for the part reproduction, editing, extract or quotation taken out
of context of this document.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior permission of Micron
Sprayers Ltd.
Copyright © Micron Sprayers Ltd. December 2015
Whilst every effort has been made to ensure the accuracy of this document, any
errors or inaccuracies should be reported to Micron Sprayers Ltd. or their agents.
Bromyard Industrial Estate
Bromyard
Herefordshire
HR7 4HS
U.K.
T +44 (0)1885 482397
F +44 (0)1885 483043
E enquiries@micron.co.uk
www.micron.co.uk
Micron Group is a trading name of Micron Sprayers Ltd. Company Registration No. 00529633 England & Wales
4
Micron Sprayers Ltd. Spraymiser
Table of Contents
1 Spraymiser Sub-Assemblies............................................................................................ 6
2 Subframes Covers and Fixings ....................................................................................... 8
2.1 Subframes, Hinges and Fixings....................................................................................... 8
2.2 Cover Components ......................................................................................................... 10
3 Spray-Heads Nozzles and Ancillaries ........................................................................... 12
3.1 CDA Spray-Head Assembly and Ancillaries ................................................................. 12
3.2 HiFlo Nozzle-Bodies and Ancillaries ............................................................................. 14
4 Controllers And Backplates ........................................................................................... 15
4.1 Controllers, Lamp Type, 2 and 3-Way ........................................................................... 16
4.2 Backplate Assemblies, 2, 4 and 6-Way ......................................................................... 18
4.3 Hose and Cable Assemblies 2 and 3-Way .................................................................... 20
4.4 Power Wire Assembly ..................................................................................................... 21
5 Mounting Components ................................................................................................... 22
5
Micron Sprayers Ltd. Spraymiser
Only use spare parts recommended by Micron Group, their agents and/or
distributors.
The use of parts not specifically recommended by micron group, their agents and/or
distributors may void any warrantee agreements.
Spare parts should only be fitted by suitably qualified and/or experienced persons.
When ordering spare parts, please specify the following information:
Serial number of system/unit.
Approximate date of manufacture.
Description of part.
Part number as shown in this section.
Quantity required.
For spare parts and accessories contact:
Bromyard Industrial Estate
Bromyard
Herefordshire
HR7 4HS
U.K.
T +44 (0)1885 482397
F +44 (0)1885 483043
E enquiries@micron.co.uk
www.micron.co.uk
Or your authorised agent:
Agent / Distributor details:
6
Micron Sprayers Ltd. Spraymiser
1 SPRAYMISER SUB-ASSEMBLIES

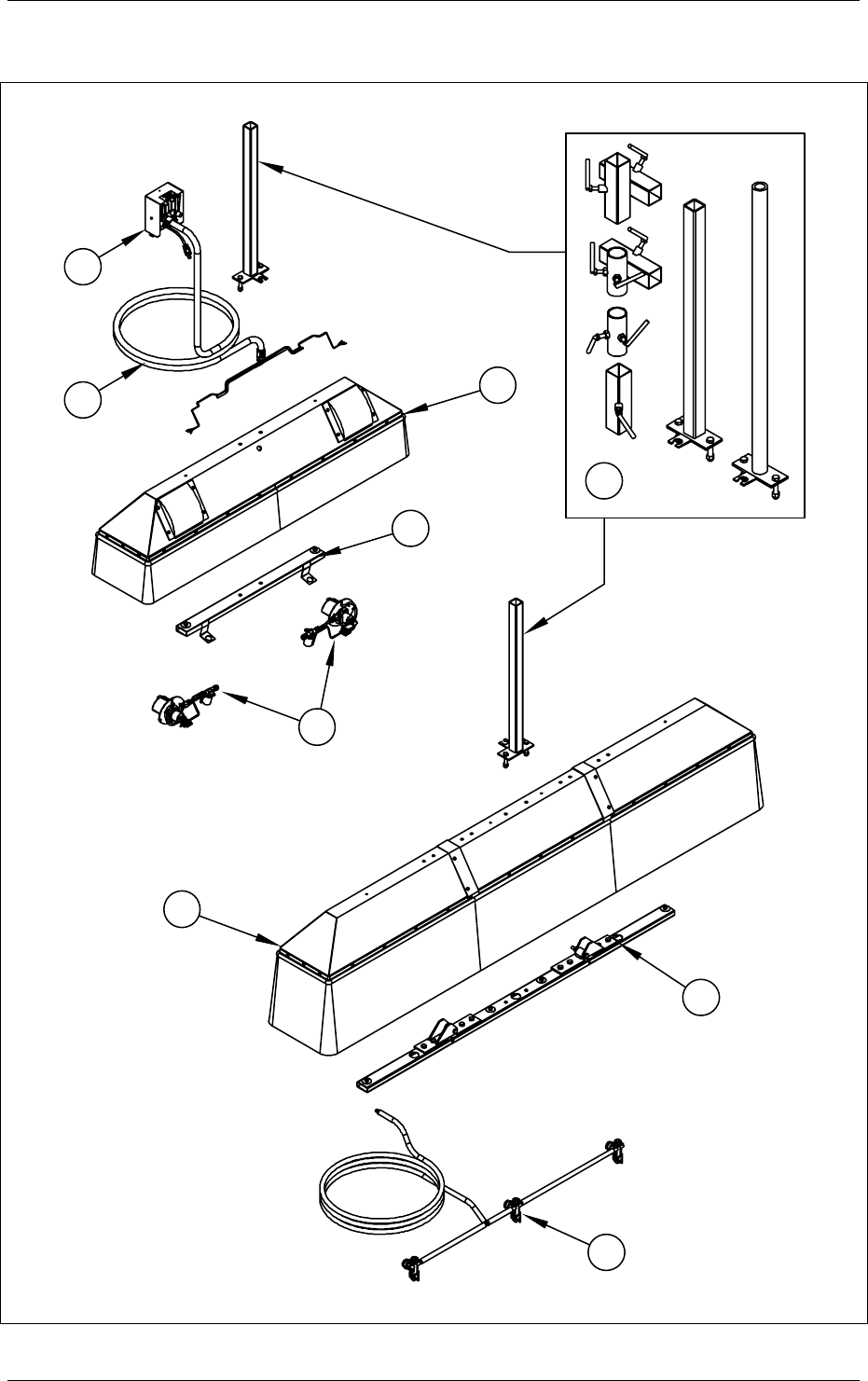

Figure 1 – Spraymiser Sub-Assemblies
3
7
8
1
4
5
2
6
9
7
Micron Sprayers Ltd. Spraymiser
Spraymiser Sub-Assemblies
ITEM DESCRIPTION Refer to
1 CDA SUBFRAME COMPONENTS Section 2.1
2 HIFLO SUBFRAME COMPONENTS Section 2.1
3 CDA COVER COMPONENTS Section 2.2
4 HIFLO COVER COMPONENTS Section 2.2
5 CDA SPRAY-HEADS AND ANCILLARIES Section 3.1
6 HIFLO NOZZLE BODIES AND ANCILLARIES Section 3.2
7 CONTROLLERS AND BACKPLATES Section 4
8 CDA HOSE AND CABLE ASSEMBLIES Section 4.3
9 MOUNTING COMPONENTS Section 5
8
Micron Sprayers Ltd. Spraymiser
2 SUBFRAMES COVERS AND FIXINGS
2.1 Subframes, Hinges and Fixings

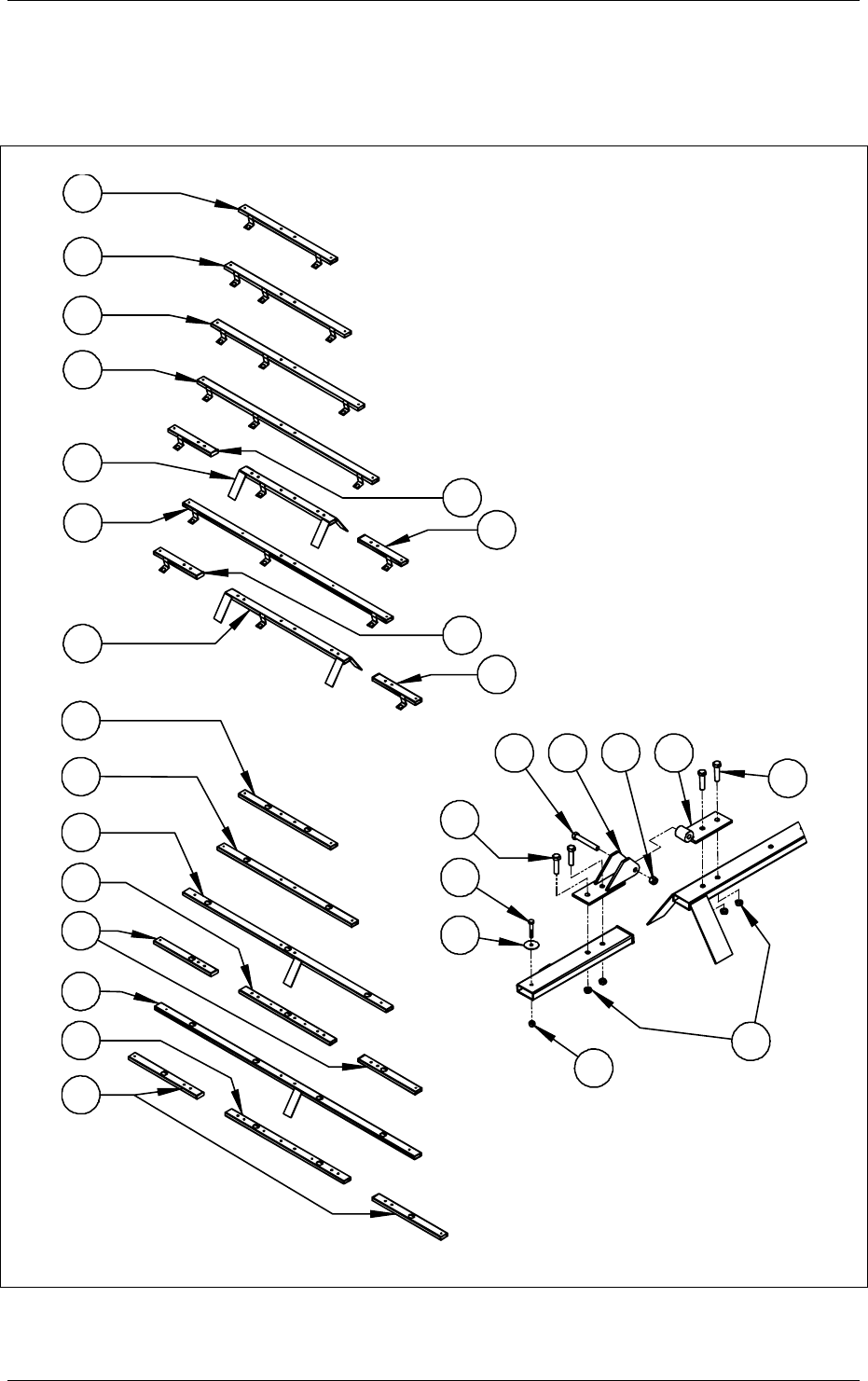

Figure 2 – Subframes, Hinges and Fixings
1
2
3
4
5
6
7
8
9
8
9
10
11
12
13
16
15
17
14
25
20
19
26
18
22 24
23
21
18
9
Micron Sprayers Ltd. Spraymiser
Subframes, Hinges and Fixings - Parts List
ITEM PART NO. DESCRIPTION
1 ZS023 SUBFRAME, SPRAYMISER 1200 CDA, FIXED
2 ZS056 SUBFRAME, SPRAYMISER 1400 CDA, FIXED
3 ZS059 SUBFRAME, SPRAYMISER 1600 CDA, FIXED
4 ZS032 SUBFRAME, SPRAYMISER 1800 CDA, FIXED
5 ZS042 SUBFRAME, SPRAYMISER 1800 CDA, FOLDING
6 ZS049 SUBFRAME, SPRAYMISER 2000 CDA, FIXED
7 ZS052 SUBFRAME, SPRAYMISER 2000 CDA, FOLDING
8 ZS040 SUBFRAME, SPRAYMISER CDA FOLDING WING, RHS
9 ZS041 SUBFRAME, SPRAYMISER CDA FOLDING WING, LHS
10 ZS063 SUBFRAME, SPRAYMISER 1200 HIFLO, FIXED
11 ZS071 SUBFRAME, SPRAYMISER 1500 HIFLO, FIXED
12 ZS098 SUBFRAME, SPRAYMISER 2000 HIFLO, FIXED
13 ZS074 SUBFRAME, SPRAYMISER 2000 HIFLO, FOLDING
14 ZS100 SUBFRAME, SPRAYMISER 2000 HIFLO WING
15 ZS084 SUBFRAME, SPRAYMISER 2400 HIFLO, FIXED
16 ZS087 SUBFRAME, SPRAYMISER 2400 HIFLO, FOLDING
17 ZS088 SUBFRAME, SPRAYMISER 2400 HIFLO WING
18 UF020 BOLT, 3/8 X 1 1/2 BSW, HEX, BZP
19 UF017 BOLT, 1/4" BSW x 1 1/2", BZP
20 UF053 1-4x1-1-4x16G ZP FLAT WASHER
21 UF022 BOLT, 3/8" X 2 1/2" HEX
22 ZS039 HINGE, WING
23 UF029 NUT, 3/8 BSW, NYLOC, BZP
24 ZS038 HINGE, CENTRE
25 UF028 NUT, 1/4" BSW, NYLOC, BZP
26 UF090 3/8 UNC NYLOC THIN NUT, BZP
10
Micron Sprayers Ltd. Spraymiser

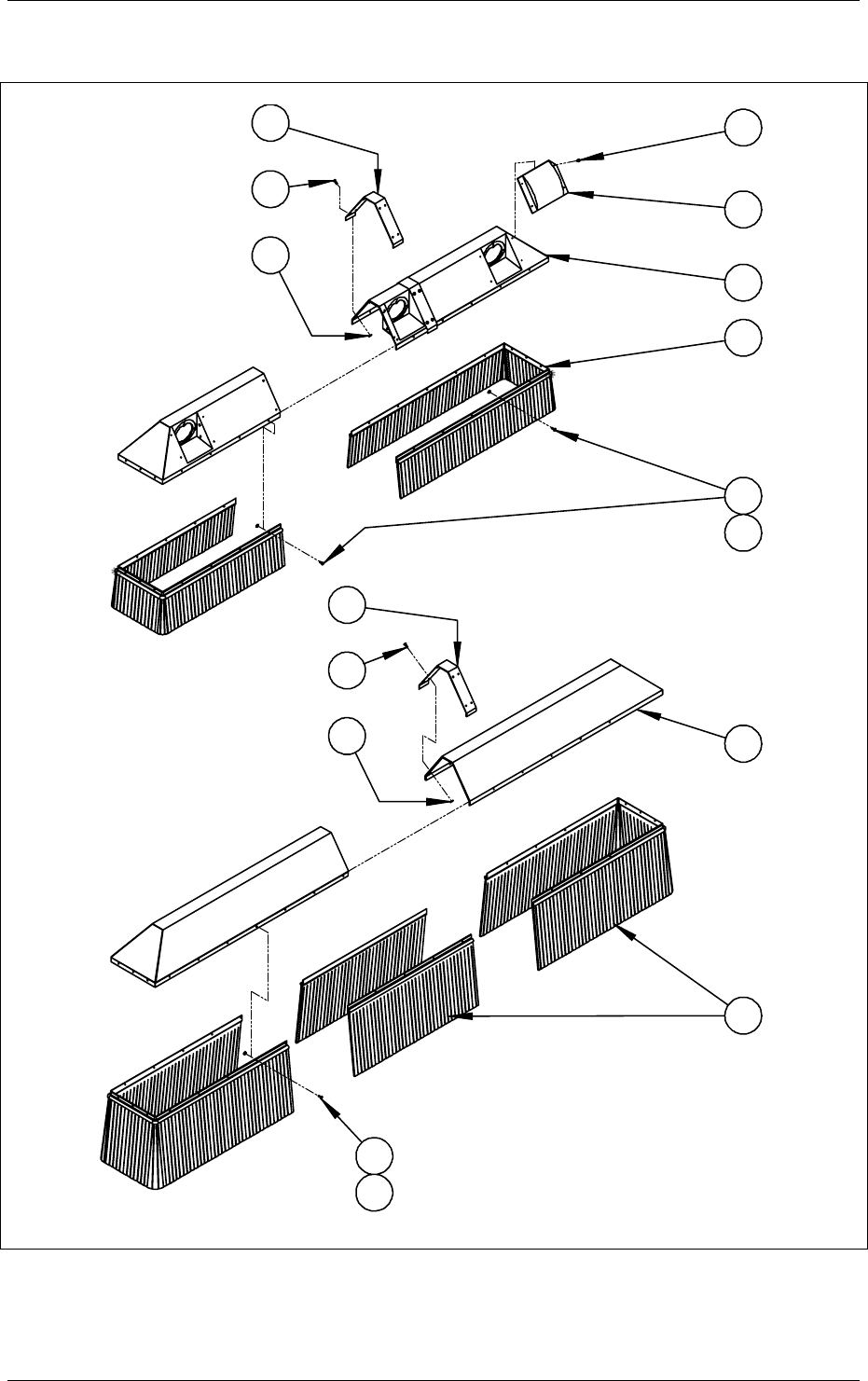

2.2 Cover Components
Figure 3 Cover Components
2
14
5
6
7
2
3
3
2
3
1
8
9
2
3
11
Micron Sprayers Ltd. Spraymiser
Cover Components - Parts List
ITEM PART NO. DESCRIPTION
1 RH002 JOINT COVER, ALUMINIUM FLAT 50 X 2
2 UF035 POP-RIVET6-8
3 UF002 WASHER, FLAT, 3/16" X 1/2" X 20 G, BZP
4 UF054 SCREW, SELF-TAP, 10 AB x 1/2"
5 ZS066 SPRAYMISER CDA RECESS COVER
6 - CDA POLY COVER COMPONENTS1
7 - CDA BRUSH AND ALUMINIUM COMPONENTS1
8 - HIFLO POLY COVER COMPONENTS1
9 - HIFLO BRUSH AND ALUMINIUM COMPONENTS1
1 Various options are available for replacement parts or repair materials. Please contact Micron Group
to discuss your requirements.
12
Micron Sprayers Ltd. Spraymiser
3 SPRAY-HEADS NOZZLES AND ANCILLARIES
3.1 CDA Spray-Head Assembly and Ancillaries

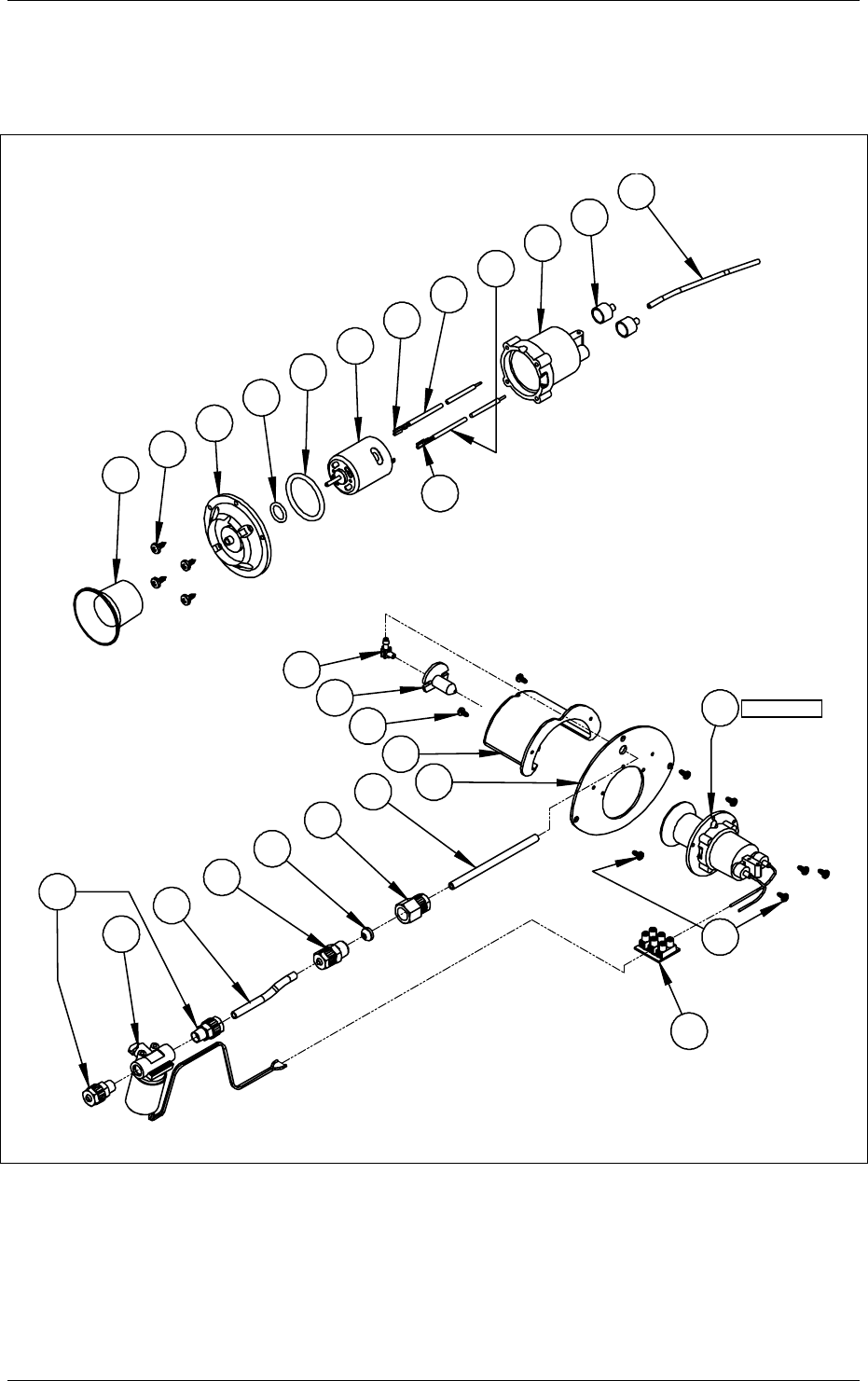

Figure 4 – CDA Spray-Head Assembly and Ancillaries
24
25 23
22
21
20
19
14
15
16
17
18
16
26
ZD004A
13
ZD004A
1
2
3
4
5
6
7
10
11
12
8
7
9
13
Micron Sprayers Ltd. Spraymiser
CDA Spray-Head Assembly and Ancillaries - Parts List
ITEM PART NO. DESCRIPTION QTY.
1 ZU082 ATOMISER DRUM 1
2 5399 SCREW, PAN HEAD, NO.6 X 3/8" SS 4
3 MI046A MOTOR FRONT PLATE, GREEN 1
4 5398 O-RING (ULVA+ MOTOR SHAFT) 1
5 5403 O-RING (ULVA+ MOTOR BODY) 1
6 MI009 MOTOR (ULVA+) 1
7 FE015 TERMINAL, PUSH-ON, FEMALE 2
8 4368 WIRE, 1.0 mm, RED 0.24 m
9 4134 WIRE, 1.0 mm, BLACK 0.24 m
10 MI045 MOTOR HOUSING, GREEN 1
11 6717 BOOT, RUBBER 2
12 3512-20 BREATHER TUBE 1
13 ZD004A ATOMISER HEAD ASSEMBLY (DRUM TYPE) 1
14 ZU023 ELBOW EB4 (MODIFIED) 1
15 ZU089 FEED NOZZLE, BLUE (MODIFIED FOR ZD004A) 1
16 UF048 SCREW, 6-20 X 3/8" SELF TAP 8
17 ZU083 COVER, RECIRCULATING 1
18 ZS030 BRACKET, SPRAYMISER CDA HEAD 1
19 BI040 HOSE, 6 MM, SAMPAC, MICRO FLEXIBLE 0.24 m
20 BI027 ADAPTER 1/4" X 6 MM 1
21 HN024 RESTRICTOR, NO. 4 1
22 BI028 ADAPTER 1
23 BI040 HOSE, 6 MM, SAMPAC, MICRO FLEXIBLE 0.11 m
24 BI044 SOLENOID 1
25 AL014 ADAPTER, 1/8 BSP X 6 MM 2
26 ZE008 CONNECTOR, 3 WAY 1
14
Micron Sprayers Ltd. Spraymiser
3.2 HiFlo Nozzle-Bodies and Ancillaries
Figure 5 – HiFlo Nozzle-Bodies and Ancillaries
ITEM PART NO. DESCRIPTION
1 AL034 HOSE CONNECTOR, 12 mm, PLUG
2 CL064 PRESSURE HOSE, 1/2" *
3 BI038 TEE, (T12) 1/2"
4 CL049 NOZZLE BODY, SINGLE, RIGHT HAND
5 CL055 NOZZLE BODY, DOUBLE
6 CL048 NOZZLE BODY, SINGLE, LEFT HAND
7 CL046 NOZZLE CAP AND GASKET SET, YELLOW
8 XR11002-VK Nozzle TIP, CERAMIC, 02
8 XR11003-VK Nozzle TIP, CERAMIC, 03
8 XR11004-VK Nozzle TIP, CERAMIC, 04
*State length required when ordering.
15
Micron Sprayers Ltd. Spraymiser

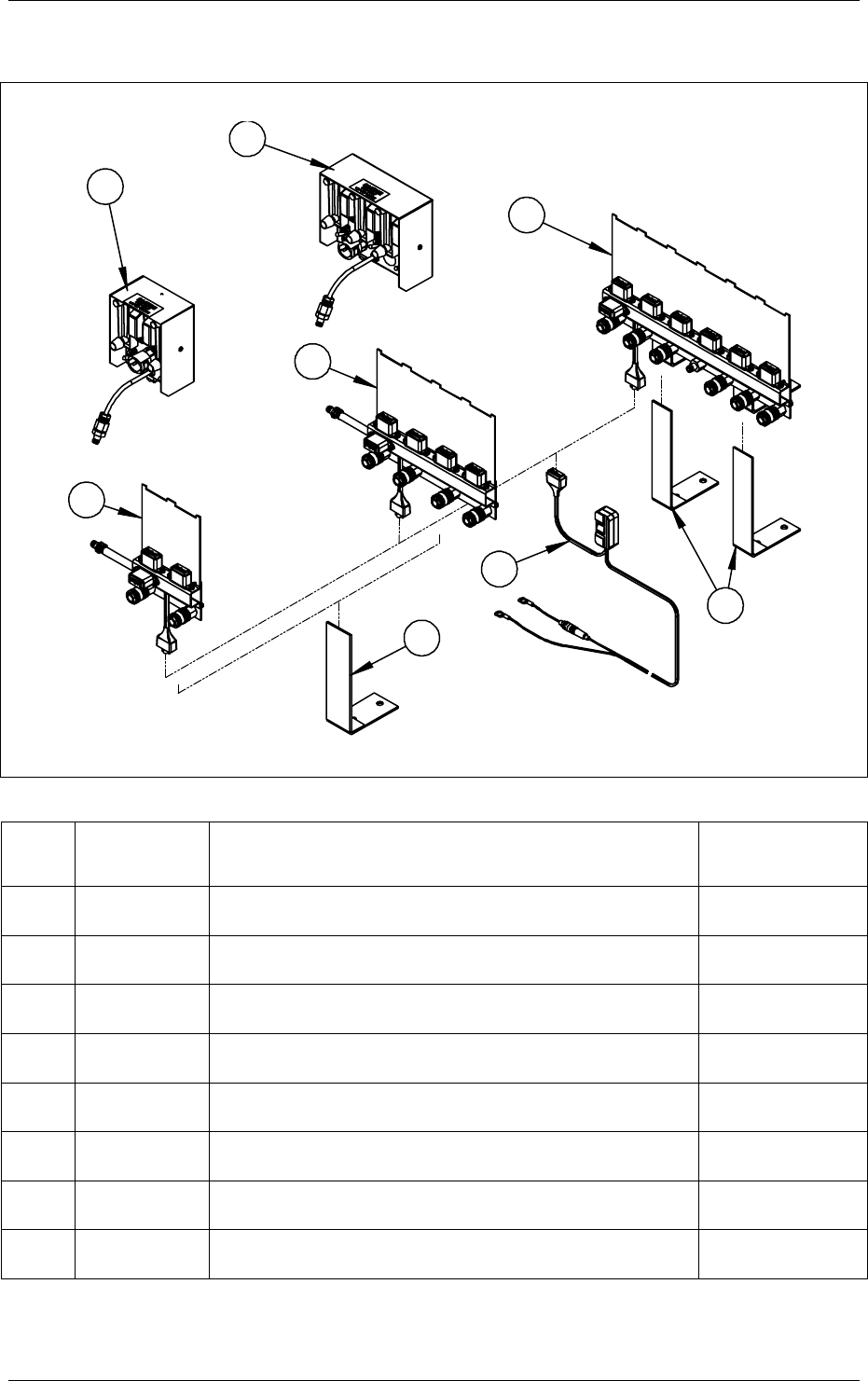

4 CONTROLLERS AND BACKPLATES
Figure 6 – Controllers and Backplates
ITEM PART NO. DESCRIPTION REFER TO
1 AA247 CONTROLLER, LAMP TYPE, 2 WAY Section 4.1
2 AA398 CONTROLLER, LAMP TYPE, 3 WAY Section 4.1
3 AA240 BACKPLATE ASSEMBLY, 2 WAY Section 4.2
4 AA243 BACKPLATE ASSEMBLY, 4 WAY Section 4.2
5 AA242 BACKPLATE ASSEMBLY, 6 WAY Section 4.2
6 ZC009 MOUNTING BRACKET 2 AND 4 WAY
7 ZC020 POWER WIRE ASSEMBLY, BACKPLATE Section 4.3
8 ZC009A BACKPLATE MOUNTING BRACKET - 6 WAY
1
2
5
4
3
6
7
8
16
Micron Sprayers Ltd. Spraymiser
4.1 Controllers, Lamp Type, 2 and 3-Way
Figure 7 – Controllers, Lamp Type, 2 and 3-Way
5
4
3
12
4
14
4
13
17
16
19
18
15
20
4
7
9
10
11
23
21
22
1
2
6
8
17
Micron Sprayers Ltd. Spraymiser
Controllers, Lamp Type, 2 and 3-Way - Parts List
ITEM PART NO. DESCRIPTION
1 DI002 FLOWMETER, 30 LITRES PER HOUR
2 DI004 FLOAT, FLOWMETER
3 ZU039 TRIMMER FOR FLOWMETER DI002
4 UF048 SCREW, 6-20 X 3/8" BZP 25PCRTC SELF TAP
5 ST003 GLOBE, 12V 5W
6 ST004 LAMP ASSEMBLY
7 GE034 FITTING, 20 mm, STRAIGHT
8 MO006 GROMMET, 15.9 mm
9 ZC011 FEED TUBE (CONTROL BOX)
10 BI027 ADAPTER 1/4" X 6 mm
11 AL002 PLUG, 1/4" BSPT M (EXTERNAL THREAD)
12 RO004 ENCLOSURE, 2 WAY CONTROL BOX
13 BI017 ELBOW, EB4
14 CB006 LABEL, CAUTION 12V 5W
15 ST005 SWITCH, TOGGLE
16 ZE006 CONNECTOR BLOCK, 5 WAY
17 ZC010A DIODE ASSEMBLY
18 BI040/50 HOSE 6 mm x 50 mm (2 WAY CONTROL BOX)
19 BI020 TEE, BARBED, 4 mm
20 ST030 PLUG, 3 PIN, S/M, COMPLETE
21 ZE013 CONNECTOR BLOCK, 7 WAY
22 RO018 ENCLOSURE, 3 WAY CONTROL BOX
23 FE008 GROMMET
24 ZC010 WIRING LOOM, 2 WAY CONTROL BOX
25 ZC042 WIRING LOOM, 3 WAY CONTROL BOX
18
Micron Sprayers Ltd. Spraymiser

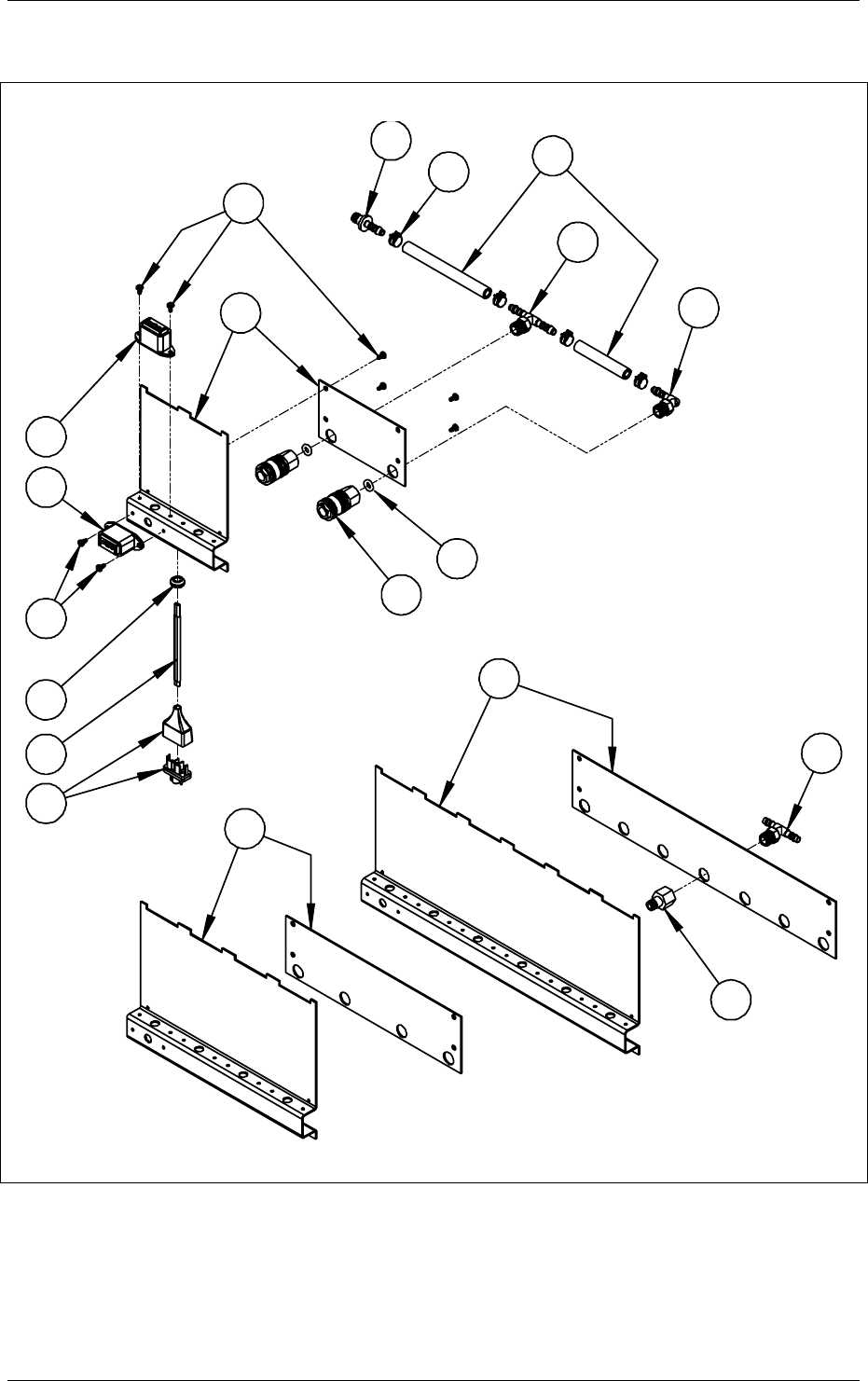

4.2 Backplate Assemblies, 2, 4 and 6-Way
Figure 8 – Backplate Assemblies, 2, 4and 6-Way
9
11
10
9
4
5
7
8
6
12
13
14
15
16
1
18
17
2
3
19
Micron Sprayers Ltd. Spraymiser
Backplate Assemblies, 2, 4 and 6-Way- Parts List
ITEM PART NO. DESCRIPTION
1 RO001 SUB-FRAME, 2 WAY
2 ZC024 SUB-FRAME, 4 WAY
3 RO022 BACKPLATE SUB-FRAME, 6 WAY
4 AL012 HOSE CONNECTOR, PLUG
5 NH004 COBRA CLIP
6 MT001 HOSE 6 MM X 115 MM
7 AL008 BRANCH TEE, 6 mm, MALE
8 AL009 ELBOW, 6 mm, MALE
9 UF048 SCREW, 6-20 X 3/8" BZP 25PCRTC SELF TAP
10 ST031 SOCKET, 3 PIN, S/M, COMPLETE
11 ST013 SOCKET, 2 PIN, S/M, COMPLETE
12 ST007 GROMMET
13 ZC022 BACKPLATE FEED WIRE
14 ST008 PLUG, 2 PIN (MALE), INLINE
15 AL001 SOCKET, 1/4" BSPT F, Q/R
16 GB007 O-RING, 6 X 3
17 RO002 BRANCH TEE 6 mm (MODIFIED FROM AL008)
18 AL003 PLUG, 1/4" BSPT F, INTERNAL THREAD
20
Micron Sprayers Ltd. Spraymiser

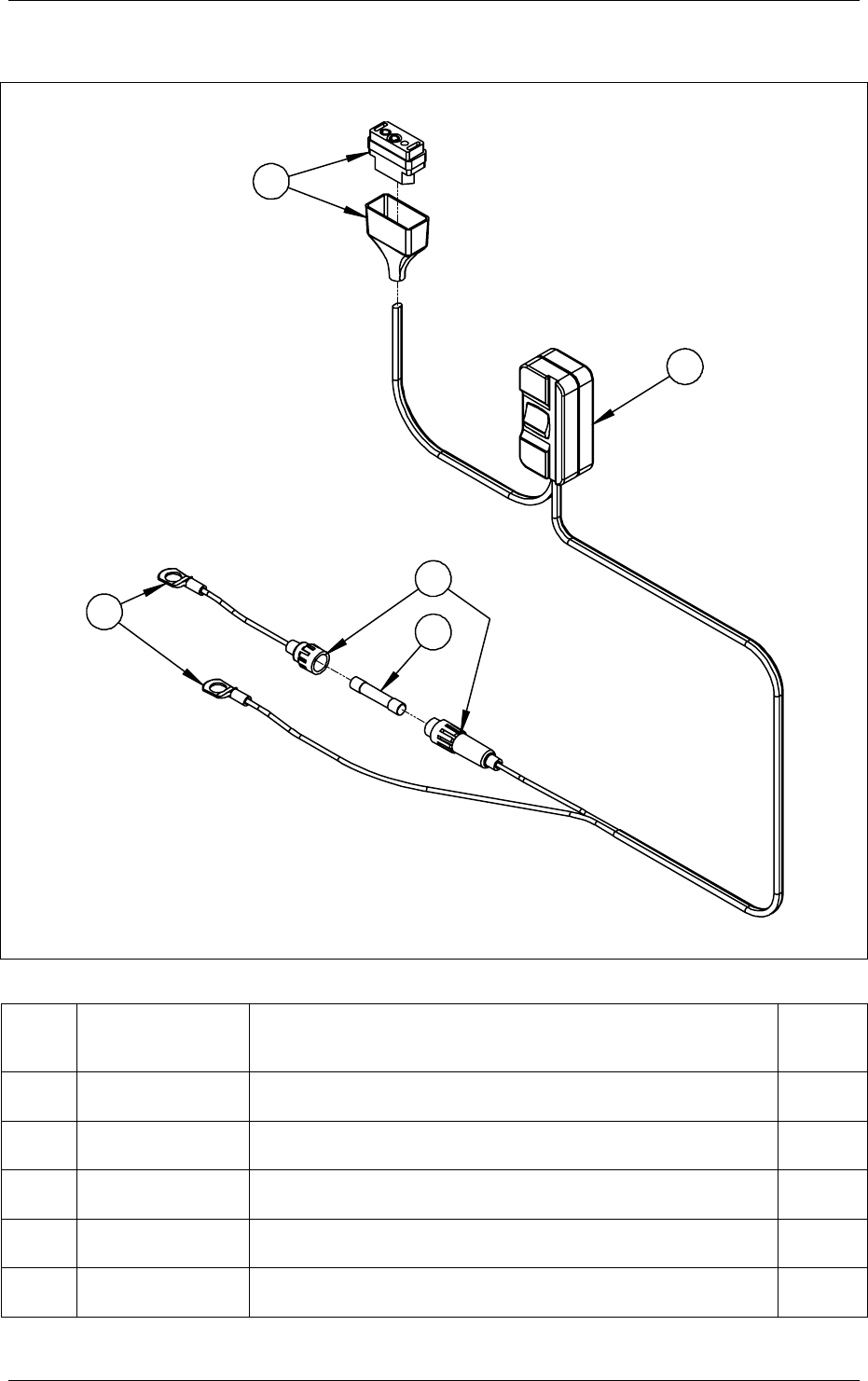

4.3 Hose and Cable Assemblies 2 and 3-Way

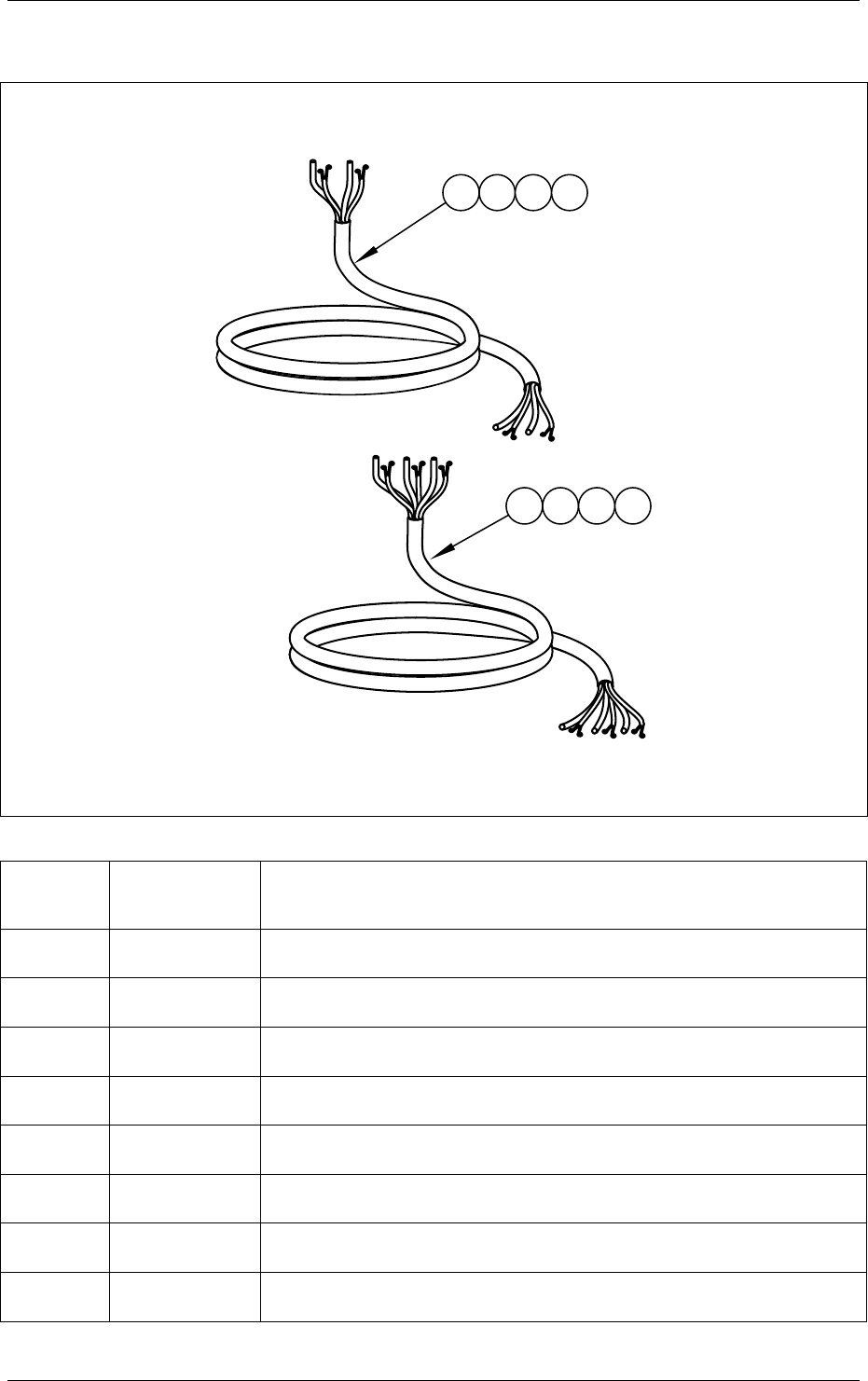

Figure 9 – Hose and Cable Assemblies 2 and 3-Way
ITEM PART NO. DESCRIPTION
1 ZS025 4.0 m Hose & Cable Assembly SM1200
2 ZS025/15 4.5 m Hose & Cable Assembly SM1200
3 ZS025/18 5.4 m Hose & Cable Assembly SM1200
4 ZS025/22 6.7 m Hose & Cable Assembly SM1200
5 ZS102/13 4.0 m 3-Head Spraymiser Hose & Cable assembly
6 ZS102/15 4.5 m 3-Head Spraymiser Hose & Cable assembly
7 ZS102/18 5.4 m 3-Head Spraymiser Hose & Cable assembly
8 ZS102/22 6.7 m 3-Head Spraymiser Hose & Cable assembly
1 2 34
567 8
21
Micron Sprayers Ltd. Spraymiser
4.4 Power Wire Assembly
Figure 10 – Power Wire Assembly
ITEM PART NO. DESCRIPTION QTY.
1 ST009 SOCKET, 2 PIN, INLINE 1
2 GE035 SWITCH, INLINE 1
3 GE021 LUG 2
4 ST001 FUSE HOLDER 1
5 ST002 FUSE, 10A 1
35
2
1
4
22
Micron Sprayers Ltd. Spraymiser
5 MOUNTING COMPONENTS

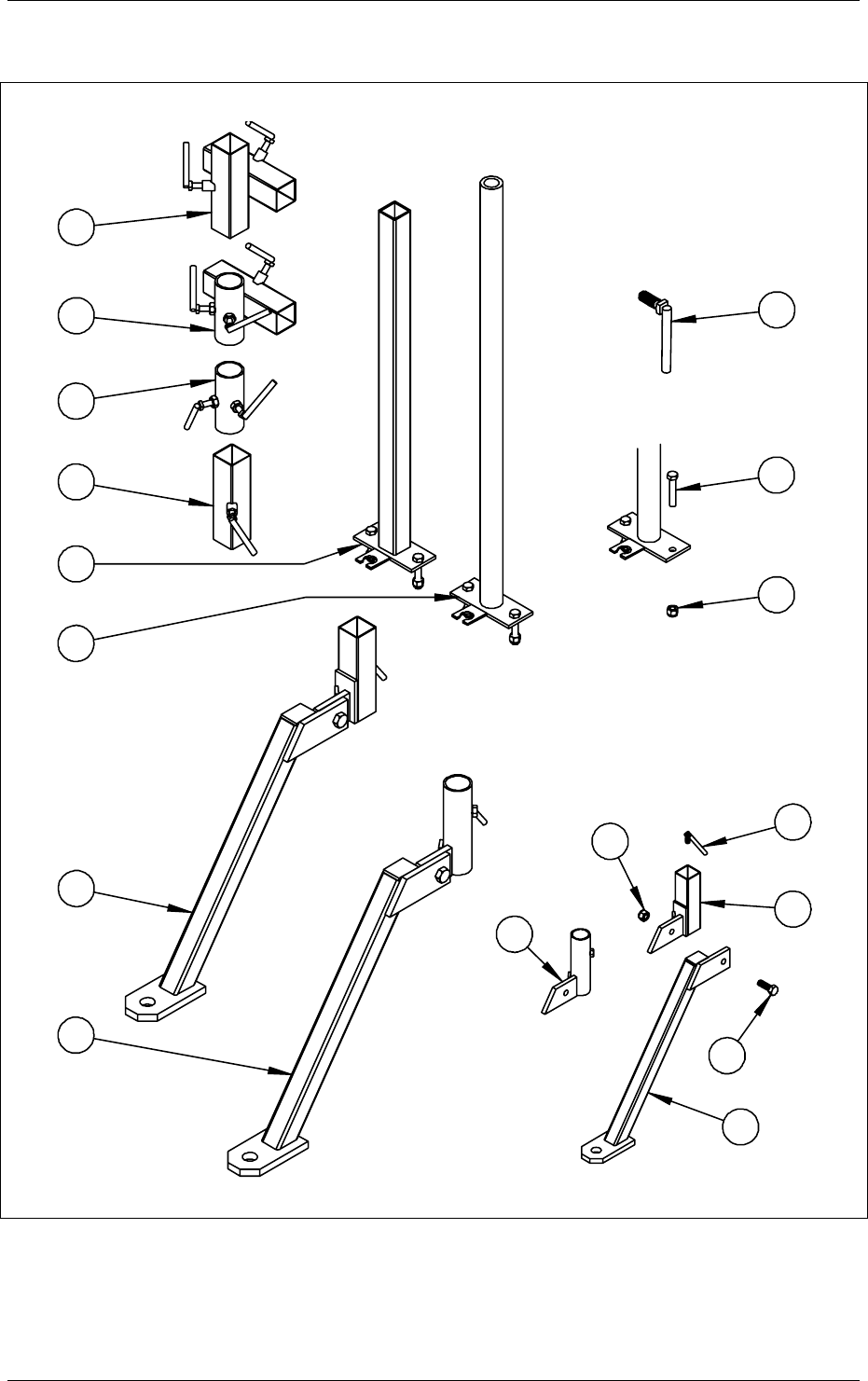

Figure 11 – Mounting Components
7
8
1
2
3
4
5
6
9
9
15
12
13
14
16
10
11
23
Micron Sprayers Ltd. Spraymiser
Mounting Components - Parts List
ITEM PART NO. DESCRIPTION QTY.
1 ZS082 MOUNTING ADAPTER SQUARE TO SQUARE 1
2 ZV004 MOUNTING ADAPTER SQUARE TO ROUND 1
3 ZV018 MOUNTING ADAPTER ROUND 1
4 ZS055 MOUNTING ADAPTER SQUARE 1
5 ZS077 VERTICAL MOUNTING TUBE, SQUARE 1
6 ZS024 VERTICAL MOUNTING TUBE, ROUND 1
7 ZS026 ATV TOW BALL MOUNTING ASSEMBLY 1
8 ZS026A ATV TOW BALL MOUNTING ASSEMBLY 1
9 ZU015 CLAMP BOLT 2
10 UF021 BOLT, 3/8" X 2" 4
11 UF029 NUT, 3/8 BSW, NYLOC BZP 4
12 UF030 1/2 NYLOC NUT 1
13 ZS093 ATV TOW BALL BRACKET - SQUARE TUBE 1
14 ZS094 ATV TOW BALL BRACKET - ROUND TUBE 1
15 UF037 BOLT BSW 1/2" X 1/2" 1
16 ZS092 ATV TOW BALL MOUNT ARM 1
NOTES
Micron Sprayers Ltd. Spraymiser
Copyright © Micron Sprayers Ltd. 2015
General Enquiries:
Micron Group
Bromyard Industrial Estate,
Bromyard, Herefordshire,
HR7 4HS, U.K.
T +44 (0)1885 482397
F +44 (0)1885 483043
E enquiries@micron.co.uk
Australian Enquiries:
Micron Group
P.O. Box 1246, Berri 5343,
South Australia
T +61 (0)8 8582 4077
E enquiries@enviromist.com.au

Navigation menu
