Spring Loaded
Cultivator/ Tiller
You have invested in one of the best implements of its type in the market today.
The care you give your “FIELDKING” implement will greatly determine your
satisfaction with its performance and its service life. A careful study of this manual
will give you a thorough understanding of your new implement before operating.
If your manual is lost or destroyed, “FIELDKING” will be glad to provide you a new
copy. Visit to nearest dealership & get a copy. Most of our manuals can also be
downloaded from our website at www.fieldking.com.
As an authorized “FIELDKING” dealer, we stock genuine “FIELDKING” parts which
are manufactured with the same precision and skill as our original equipment. Our
trained service persons are well informed on methods required to service
“FIELDKING” equipments and are ready to help you.
Should you require additional information or assistance, please contact us.
CONGRATULATIONS!
YOUR AUTHORIZED
FIELDKING DEALER
BECAUSE “FIELDKING” MAINTAINS AN ONGOING PROGRAMME
OF PRODUCT IMPROVEMENT, WE RESERVE THE RIGHT TO MAKE
IMPROVEMENTS IN DESIGN OR CHANGES IN SPECIFICATION
WITHOUT INCURRING ANY OBLIGATION TO INSTALL THEM ON
UNITS PREVIOUSLY SOLD. BECAUSE OF THE POSSIBILITY THAT
SOME PHOTOGRAPHS IN THIS MANUAL WERE TAKEN OF
PROTOTYPE MODELS, PRODUCTION MODELS MAY VARY IN
SOME DETAIL. IN ADDITION, SOME PHOTOGRAPHS MAY SHOW
SHIELDS REMOVED FOR THE PURPOSE OF CLARITY. NEVER
OPERATE THIS IMPLEMENT WITHOUT ALL SHIELDS IN PLACE.
1. Read and understand the information contained in this manual.
2. Operate, lubricate, assemble and maintain the equipment in accordance with all
instructions and safety procedures in this manual.
3. Inspect the equipment and replace or repair any parts that are damaged or worn
out which under continued operation would cause damage, wear to other parts,
or cause a safety hazard.
4. Return the equipment or parts to the authorized “FIELDKING” dealer, from where
it was purchased, for service or replacement of defective parts that are covered
by warranty. (The “FIELDKING” Factory may inspect equipment or parts before
warranty claims are honored.)
5. All costs incurred by the dealer for traveling to or transporting the equipment for
warranty inspection and claims will be borne by the customer.
This manual contains valuable information about your new “FIELDKING” spring
loaded cultivator/tiller. It has been carefully prepared to give you helpful suggestions
for operating, adjusting, servicing and ordering spare parts.
Keep this manual in a convenient place for quick and easy reference. Study it
carefully. You have purchased a dependable and sturdy spring loaded
cultivator/tiller but only by proper care and operation can expect to receive the
service and long life designed and built into it.
Sometime in the future your spring loaded cultivator/tiller may need new parts to
replace which are worn out or broken. If so, go to your dealer and provide him
equipment’s detail like model and part number.
you
Name ______________________________________________
Purchased From ______________________________________
Date of Purchase _____________________________________
Model No. ___________________________________________
Serial No. ___________________________________________
TO THE PURCHASER
PURCHASER / OPERATOR’S RESPONSIBILITY
CUSTOMER INFORMATION
1. TECHNICAL DATA
1.1 Introduction
1.2 Warranty
1.3 When the warranty becomes void
1.4 Warning
2. USAGE INSTRUCTIONS
2.1 Before use & adjustments
2.2 Attaching cultivator/tiller to the tractor
2.3 Safety
3. MAINTENANCE
3.1 Operation, care & maintenance of cultivator/tiller
3.2 Storage of machine after work
4. PARTS CATALOGUE
INDEX
21
1. TECHNICAL DATA
1.1 INTRODUCTION
Spring loaded cultivators/tiller are eminently suitable for use in stone and root
obstructed soil. When one tyne strikes a hidden object, too firmly fixed to be
moved, the others continue to work at the correct depth. Spring loaded
cultivators/tiller may be used for loosening and aerating soil to a depth of nine
inches preparing seed beds quickly and economically.
“FIELDKING” extra heavy duty spring loaded cultivator/tiller is designed for
tougher operations. It is suitable for varying soil conditions. Spring loaded tyne
assemblies derive their strength from heavy duty angles, which once fixed to
the immensely strong main frame, cannot move or strain out of position.

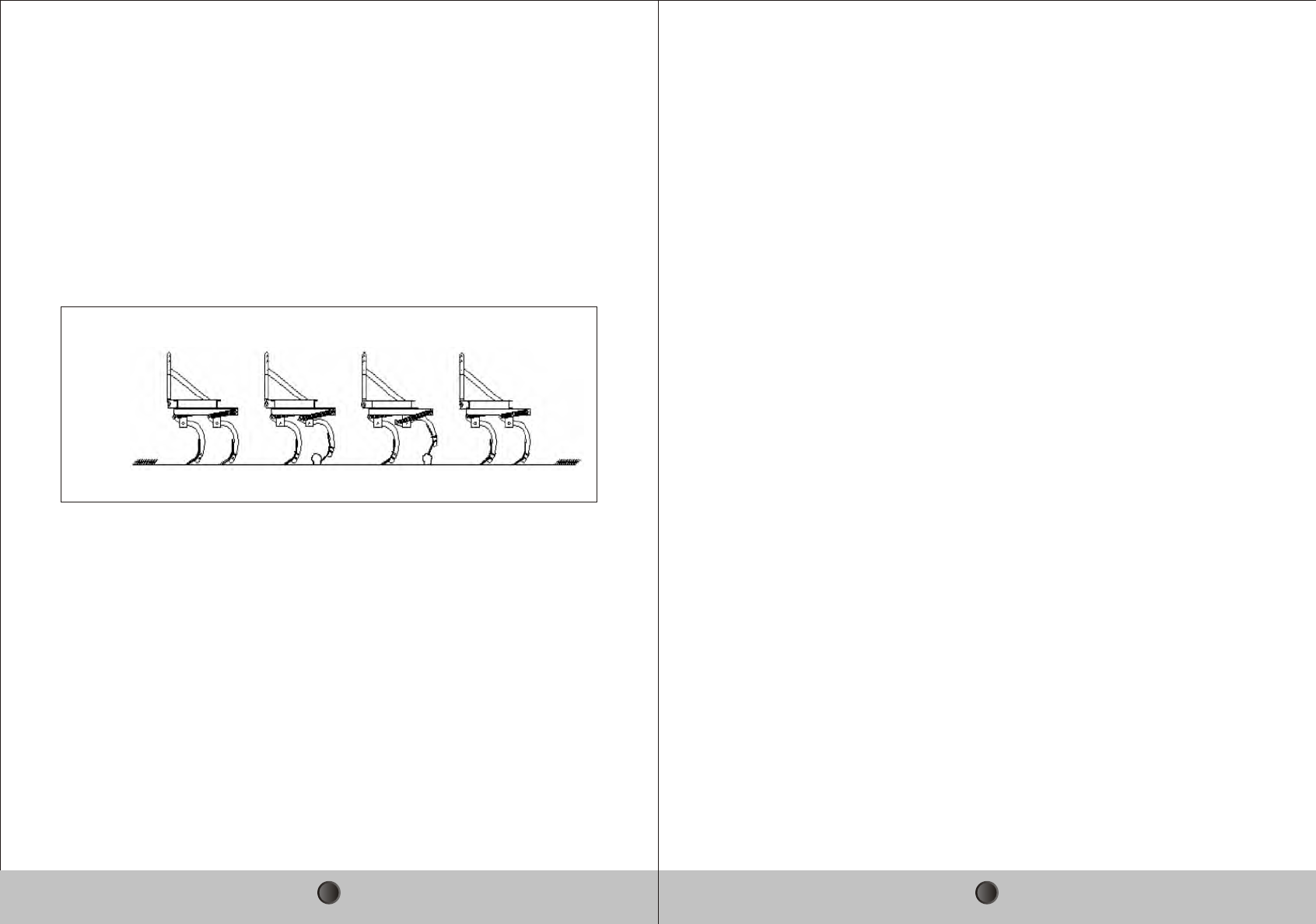

PRINCIPLE OF OPERATION OF SPRING TYNE CULTIVATORS/TILLERS
FIRST STAGE OBSTACLE ENCOUNTERED ORIGINAL STAGE
GROUND
1.2 WARRANTY POLICY FOR FILEKIDNG TILLER/CULTIVATOR
1. Beri Udyog Pvt. Ltd.(“ the company”) warrants to the retail purchase of the
“FIELDKING” tiller/ cultivator that subject to the limitation specified here in
below, the company’s authorised dealer will repair or replace any part there
of found. In its opinion, to be defective in materials of workmanship. The
warranty shall be for a period 1 year from the date of purchase of new
“FIELDKING” agriculture tiller/cultivator by the original purchaser (“retail
purchaser”).
2. This warranty is limited to the delivery to the retail purchaser, free at the
authorized dealer’s workshop or company’s works of the part or parts
whether repaired or replaced in exchange for those acknowledge by the
company to be defective.
3. The purchaser of “FIELDKING” agriculture tiller/cultivator are advised
strictly to follow the instructions given in the operator manual, provided by
the company along with the “FIELDKING” tiller/cultivator at the time of
delivery, changes if any in the “FIELDKING” tiller/cultivator, resulting in
improper usage will not be covered in the warranty, This warrant will
automatically get terminated on the expiry of warrant period even in the
“FIELDKING” tiller/cultivator, may not in use for any time during the warranty
period for any reason whatsoever including any technical reasons, any time for
such repairs/replacements of parts and in transit, whether under this warranty
or otherwise shall not be excluded from the warranty period.
4. Warranty shall apply to following:
• Manufacturing defects: Breaking of any structure & fabrication covered
under warranty.
5. Warranty shall not apply to the following:
• Accidental cases are not covered under warranty.
NOTE: If any kind of breakage and damage is found due to poor handling of
customer that also is not covered under warranty policy.
6. The retail purchaser shall be required to make a thorough examination of
the products prior to the purchase. The authorized dealer are in no way the
legal agent of the company and have no right or authority to give any
warranty or assume any obligation on behalf of the company or bind the
company in any manner whatsoever.
7. For the purpose of this warranty, the term ‘’product” means and includes
only new “FIELDKING” tiller/cultivator, manufactured by or for the company
design and drawing and sold and installed by the authorized dealer.
8. The company’s responsibility is limited to the terms of this warranty and it
shall not be liable for personal injuries or consequential or resulting liability,
damage or loss arising from any defect.
9. The company’s liability under this warranty is depended upon the strict
observance by the retail purchase, of the following provisions.
• The retail purchaser at the time of delivery shall sign complete and return
the authorized warranty and dealer’s delivery report.
• All the parameters should be thoroughly checked as per the scheduled
maintenance in the operator’s manual. The customers are also bound to
use the genuine spares for “FIELDKING” tiller/cultivator, purchased from
authorized “FIELDKING’ dealers.
43
This warranty shall not be apply to defect/damages caused by the normal
wear and tear, accident, transportation, misuser or neglect usage in non
agric applications, defect in the products which have been altered outside
the company’s work or which have been let out in hire or the identification
marks in which have been altered or removed. Company’s decisions in this
respect will be final and binding on all.
11. The above warranty is in lieu of all other warranties express or implied, and
no person, agent or representative of the Company is authorized to give
any other warranties on the company’s behalf or the assume for it any other
liability in connection, with the product.
12. The court at Karnal shall have exclusive jurisdiction to try, entertain and
dispose of all proceeding relating to any dispute arising between the
company and the retail purchaser on the liability of the company under
this warranty.
1.3 WHEN THE WARRANTY BECOMES VOID
1. Besides the caused specified in the supply agreement, the warranty shall in
any case become void.
2. Should there have been a maneuver error.
3. When following repairs made by the customer without authorization from
the manufacture or owing to the installation of spurious spare parts, the
machine is subject to variations and the damage can be ascribed to these
variations.
4. When the user failed to comply with the instructions in the operator’s
handbook.
5. When the implement has been used beyond the specified power limit like
(tractor horse power).
6. No warranty will be given if the service is not done on time.
1.4 WARNING
Thoroughly read the instruction manual before proceeding with the various
operations.
Maintain the harrow as per the instructions of this handbook to be entitled for
warranty.
• Repairs and replacements will be performed by the facility of the authorized
dealers/its branch dealers.
• This warranty shall not apply if the product or any part there of repaired or
altered not in accordance with our standard repair procedure or by any
person other than an Authorized Dealers/its branch dealers/its authorized
service centre.
• The decision of the company or the concerned authorized dealers in regard
to the warranty shall be final and conclusive and the retail purchaser hereby
agrees to unconditionally accept their decision on all.
• This warranty does not cover any applicable taxes payable on any parts
which the company may supply or repairs free of cost of during the warranty
period. This warranty also does not cover the cost of packaging to and fro
freight and transportation charges etc. on the defective “FIELDKING”
tiller/cultivator or other part of the “FIELDKING” tiller/cultivator sent to
“FIELDKING” dealers locations.
• Claims arising from this warranty will be considered only if they are notified
in writing to the concerned authorized dealers after the defect has been
ascertained.
• The company reserves the right to make changes in design or introduce
any improvement or add any parts on the products any time without
incurring any obligation to install the same on products previously sold.
10. This contract will be ineffective and incorporative if:
• The dully warranty card is not presented during the repairs.
• The “FIELDKING” agriculture tiller/cultivator or any parts thereof is
subjected to neglect, fire, floods or other acts of god or in the company’s
opinion any damage has caused to be “FIELDKING” agriculture
tiller/cultivator during transportation.
• The original numbers are removed, obliterated or altered from the unit.
• Any attempt is made to have the repairs executed by a person, other than
the company’s or its authorized representatives.
• Any defect if not informed immediately to the company or its authorized
representative, any alterations in the warranty card is made.
• The use of replacement parts not manufactured or supplied by the
company will automatically invalidate this warranty.
65
2.3 SAFETY
REMEMBER SAFETY FIRST
Operator must read the instruction manual before operating the cultivator. Do
not allow anyone to operate this equipment who has not fully read and
comprehended this manual and who has not been properly trained in the safe
operation of the equipment.
SAFETY INSTRUCTIONS:
1. All equipment is potentially hazardous. There is no substitute for a safety
conscious operator who recognizes potential hazards and follows reasonable
safety practices.
2. Personal protection equipment including safety glasses, safety shoes, and
gloves are recommended during assembly, installation, operation, adjustment,
maintaining, repairing, removal or moving the implement.
3. Never place yourself between the tractor and implement while implement is in
operation.
4. Do not work under a raised implement unless it is securely blocked or held in
position. Do not depend on the tractor hydraulic system to hold the implement in
place.
5. A heavy load can cause instability of the tractor. Use extreme care during travel.
Slow down on turns and watch out for bumps. The tractor may need front counter-
weights to counter-balance the weight of the implement.
6. Do not allow others to ride on the tractor with an operator. Riders are subject to
injury such as being struck by foreign objects or being thrown off. Riders obstruct
the operator’s view resulting in unsafe operation. Never allow anyone to ride on
the implement!
7. Do not allow anyone who is not familiar with the safety rules and operation
instructions to use this implement.
8. Keep alert and watch the front as well as the rear when working with equipment.
9. Always be sure the implement is in the fully raised position when in transport.
10. When removing or adjusting equipment, be sure that your feet are never under the
implement.
11. Avoid excessive speed during operation.
12. Before you operate the field cultivator, check over all pins, bolts and connections
to be sure that all are securely in place. Replace any damaged or worn parts
immediately.
13. Make implement adjustments only when the implement is attached to the tractor.
14. Watch for and avoid hidden obstructions, i.e. buried pipes, rocks, uneven
concrete slabs, stumps etc., when operating equipment.

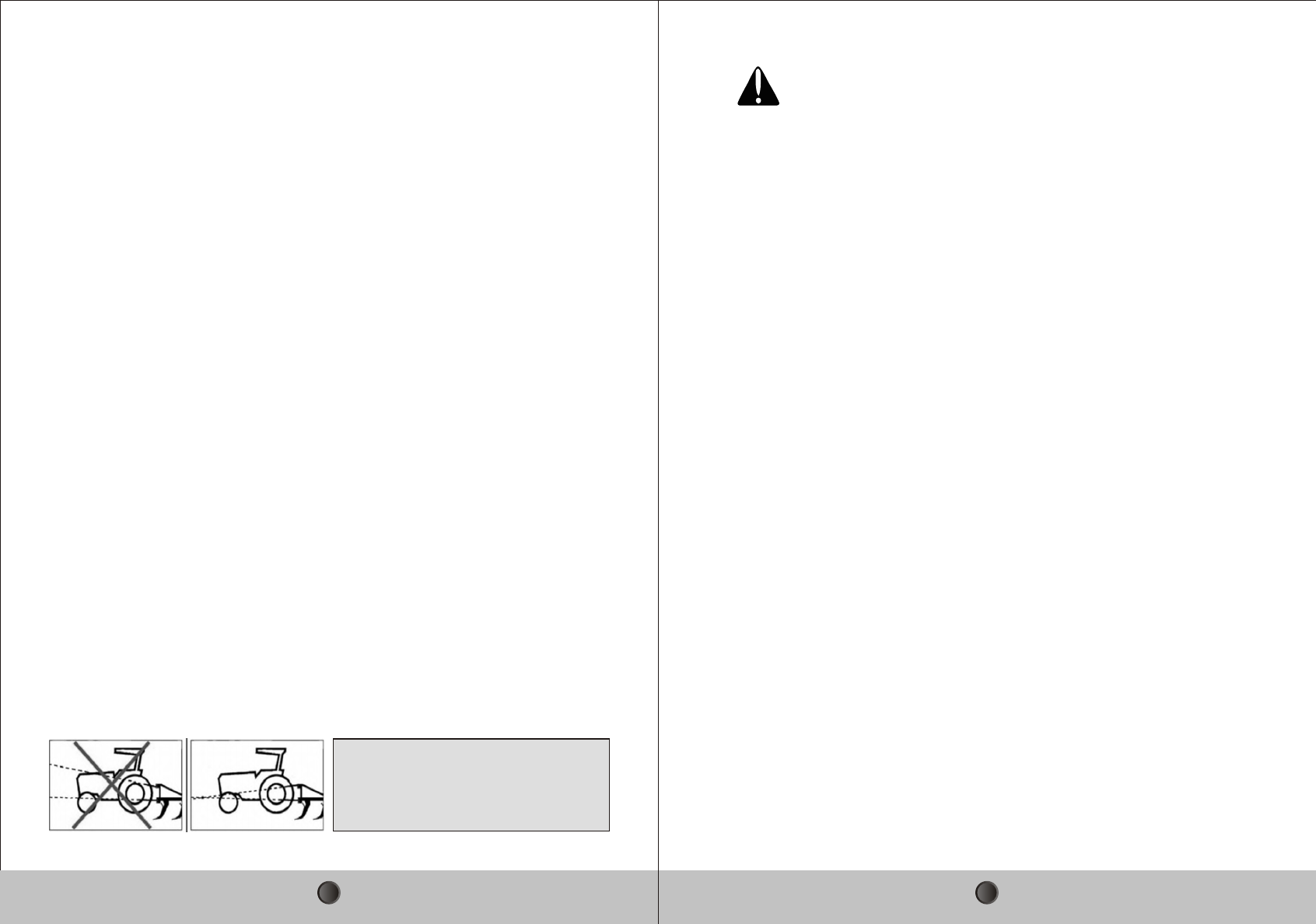

Danger:
In operating position the top link must
be higher on the machine side than on
the tractor side!
2. USAGE INSTRUCTIONS
2.1 BEFORE USE & ADJUSTMENTS
Before mounting of cultivator make sure that all nuts & bolts are properly secured.
Also determine soil and trash conditions of the field and make the preliminary
adjustments. e.g.
Tyne leveling
To eliminate uneven working and side draft, leveling is done by means of top link.
Depth control
The depth at which the implement is required to work is controlled hydraulically by
raising or lowering the control lever on the tractor.
2.2 ATTACHING THE CULTIVATOR/TILLER TO THE TRACTOR
1. Place the cultivator duly leveled on the flat piece of land.
2. Reverse the tractor to the cultivator ( Do not drag the cultivator/tiller up the
tractor)
3. Attach the left arm of the tractor to the cultivator/tiller first.
4. Attach the central arm to the cultivator/tiller. To attach, turn the screws on both
sides to an equal length. If the arm is too short or too long, turn the screw to
adjust both at the same time until aligned with the hole on the central arm.
5. Attach the lower right arm, turn the screw until the mounting pin is at the same
level as the hole on the tractor arm. If the gap between the hole and mounting
pin is too close or too distant, turn the control arm in or pull it away to an
appropriate distance. You may have to adjust both height and distance at the
same time. When the hole at tractor arm and mounting pin are even, insert the
pin in the hole and lock it with the lynch pin.
6. After attaching the cultivator/tiller, lift it and adjust the control arm parallel to
the ground. When you look from both rear or sideways, all shovel should be
touching the ground uniformly.
87
Non-observance of the above rules shall be considered negligence.
It will rule out any liability of the manufacturer for all possible
damage and / or consequences.
The user is solely responsible for any risk!
ATTENTION
3. MAINTENANCE
3.1 OPERATION, CARE & MAINTENANCE OF CULTIVATOR/ TILLER
1. All the shovels of the tynes should be set at equal depth. To do this, place the
cultivator on level ground and see that all the shovel touch the ground.
2. Before commencing work with a cultivator, check it for loose bolts and nuts and
fasten them properly. After having taken all these precautions, run the cultivator
for one hour and then inspect it once more for any loose parts.
3. Never turn or reverse your tractor while cultivator is ploughed deep in field. This
will twist the assemblies out of alignment and damage them extensively.
4. Reverse or replace the shovel point when worn out. Delay may result in wearing
out of the tynes which will result into expensive repairing/replacements. Avoid use
of extra wide shovels as they do not improve tillage quality but only put extra load
on the tractor and also result into extra fuel consumption.
3.2.STORAGE OF CULTIVATOR/TILLER AFTER WORK
1. Wash the cultivator after work.
2. Replace the worn out nuts & bolts.
3. If cultivator has to remain unused for long time then clean it & apply a layer of
used oil for rust prevention.
4. These steps will enhance the life of your cultivator.

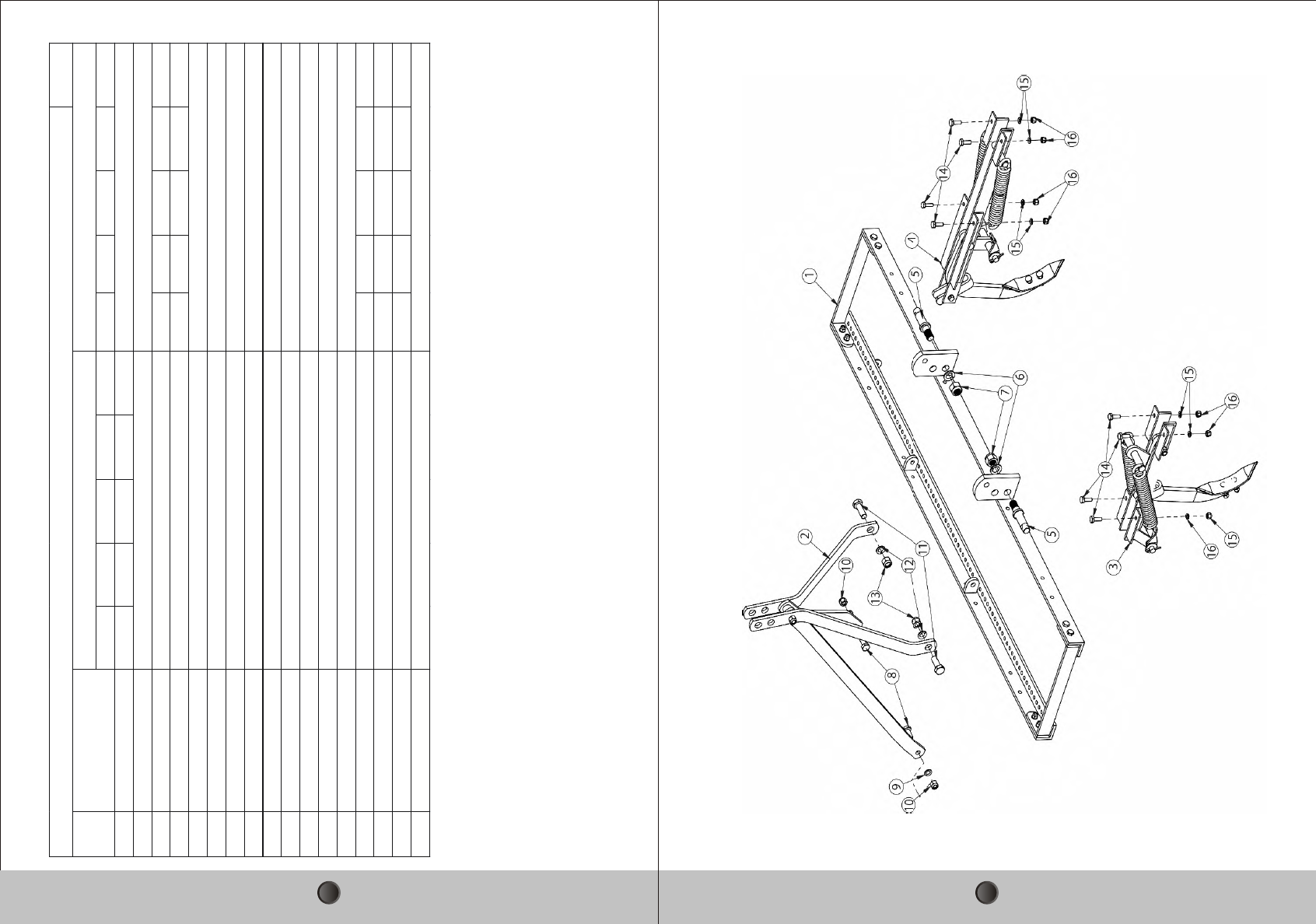

4. PARTS CATALOGUE
1. Extra Heavy Duty Spring Loaded
Tiller / Cultivator
2. Medium Duty Spring Loaded
Tiller / Cultivator (USA)
3. Beri Spring loaded
Tiller / Cultivator
4. Massey Spring loaded
Tiller / Cultivator
5. Heavy Duty Spring loaded
Tiller / Cultivator (Escort)
6. Heavy Duty Spring loaded
Tiller / Cultivator (Ford)
15. Never operate tractor and implement under trees with low hanging limbs.
Operators can be knocked off the tractor and then run over by the implement.
16. Operating spring loaded cultivator shanks may suddenly fling rocks and clods.
Keep all bystanders 10 meter away and operator must wear safety glasses.
17. Reduce speed when transporting mounted implements to avoid bouncing and
momentary loss of steering control.
18. It may be necessary to raise implement slightly and then lower to desired working
depth when tractor is moving.
19. Use extra care when working on slopes.
20. Never use alcoholic beverages or drugs which can hinder alertness or
coordination while operating this equipment. Consult your doctor about operating
this machine while taking prescription medications.
109

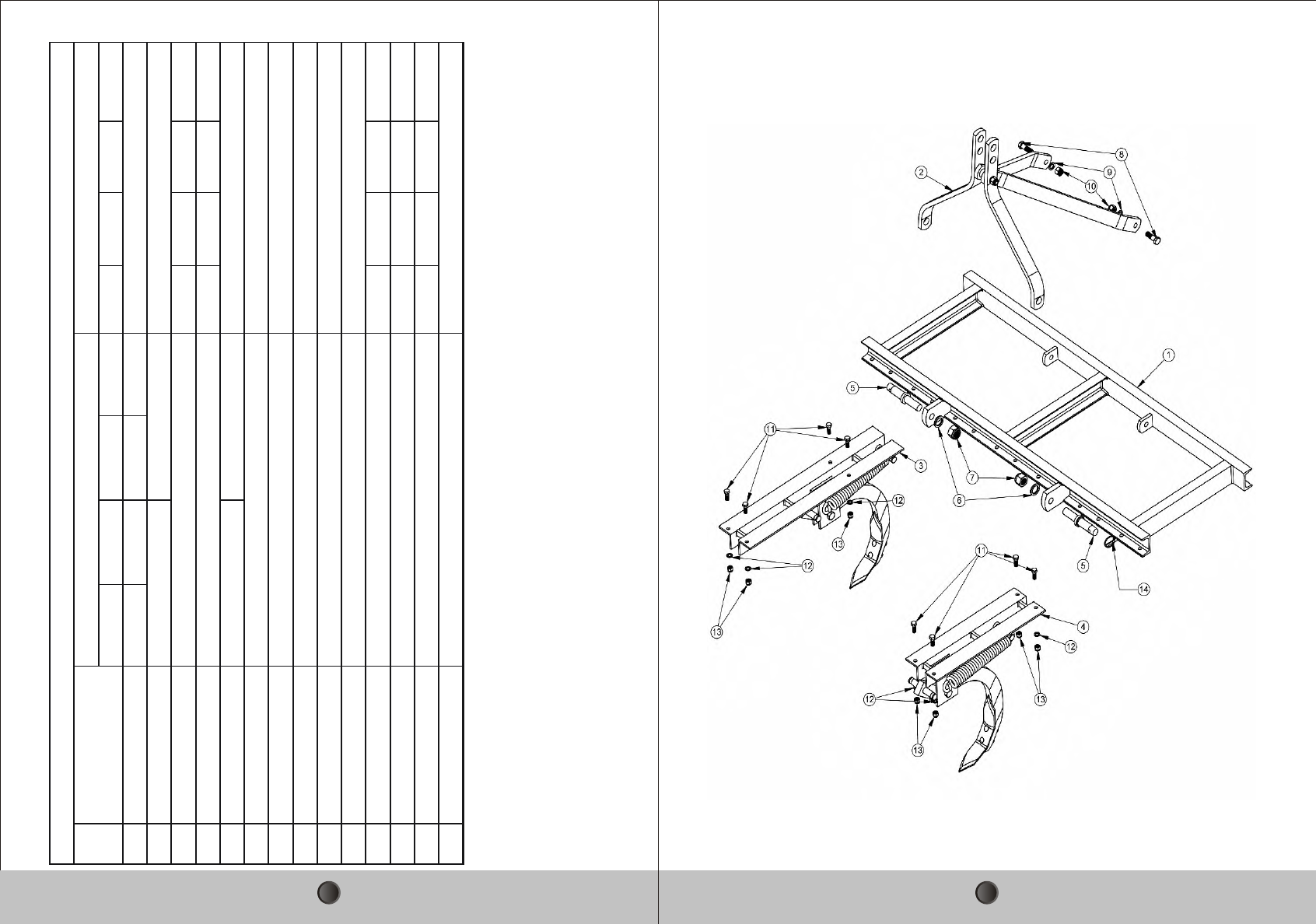

FKSLOEHD-9 FKSLOEHD-11 FKSLOEHD-13 FKSLOEHD-15 FKSLOEHD-9 FKSLOEHD-11 FKSLOEHD-13 FKSLOEHD-15
1 FRAME ASSEMBLY FKSLOEHD-502 FKSLOEHD-504 FKSLOEHD-506 FKSLOEHD-508
2 3 POINT LINKAGE ASSEMBLY
3 BIG PAIR TYNE ASSEMBLY 5 6 7 8
4 SMALL PAIR TYNE ASSEMBLY 4 5 6 7
5 HITCH PIN
6 SPRING WASHER M25
7 NYLOCK NUT 25MM
8 HEX. BOLT (M16X50X2P)
9 SPRING WASHER (M16)
10 NYLOCK NUT (M16X2P)
11 HEX. BOLT (M12X32X1.75P) 36 44 52 60
12 NYLOCK NUT (M12X1.75P) 36 44 52 60
13 SPRING WASHER (M12) 36 44 52 60
14 LINCH PIN
FKSLOEHD-516
FKSLOEHD-512
SR.NO. PARTS DESCRIPTION PART CODE
FKSLOEHD-520 FKSLOEHD-521

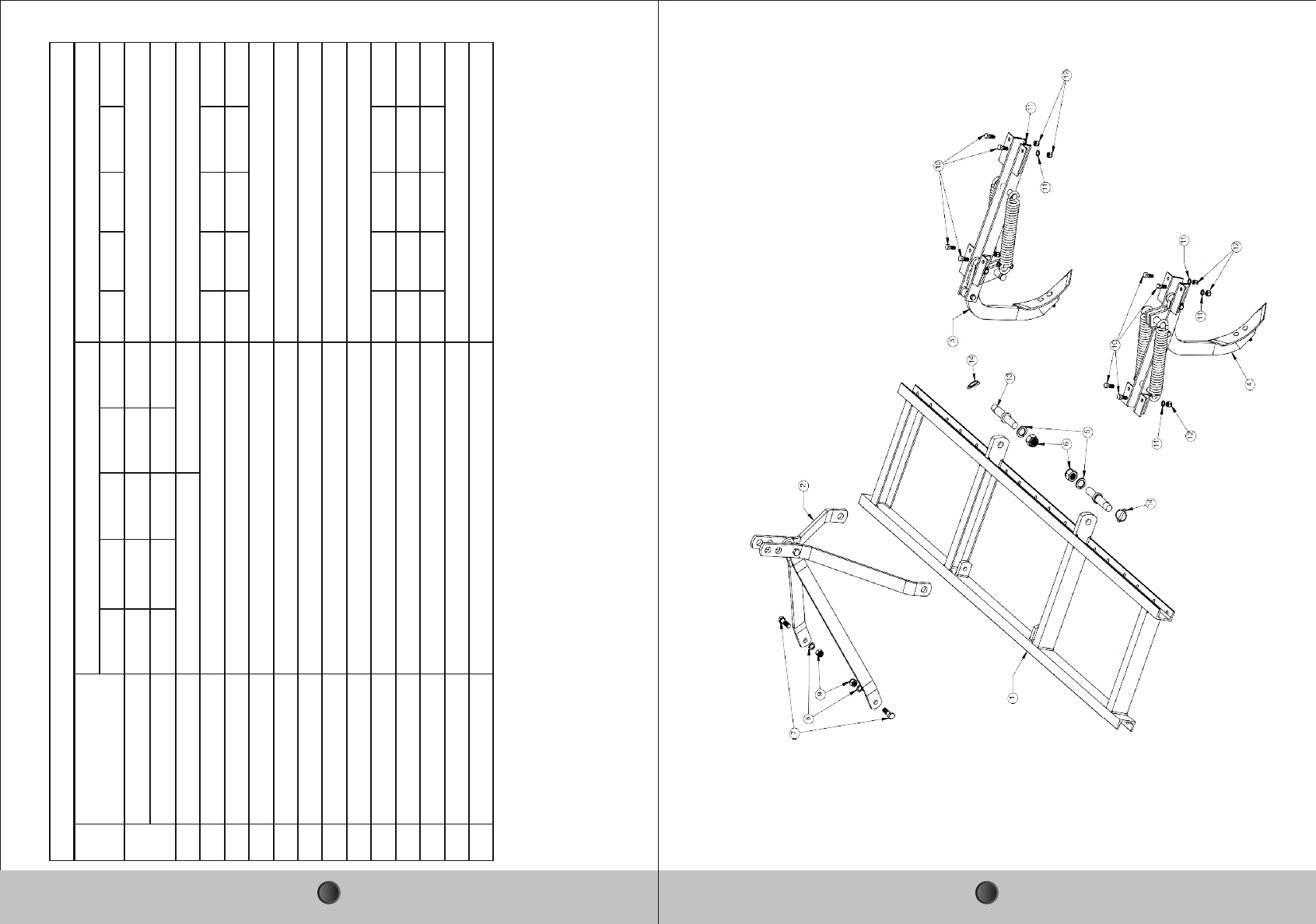

EXTRA HEAVY DUTY SPRING LOADED CULTIVATOR
10260060
10270003
10280025
10020024 10020019
10270007
10280008
2
210020022
2
2
2
2
2
QTY
1
1
10260016
10270005
10280005
EXTRA HEAVY DUTY SPRING LOADED CULTIVATOR
11
EXTRA HEAVY DUTY SPRING LOADED CULTIVATOR

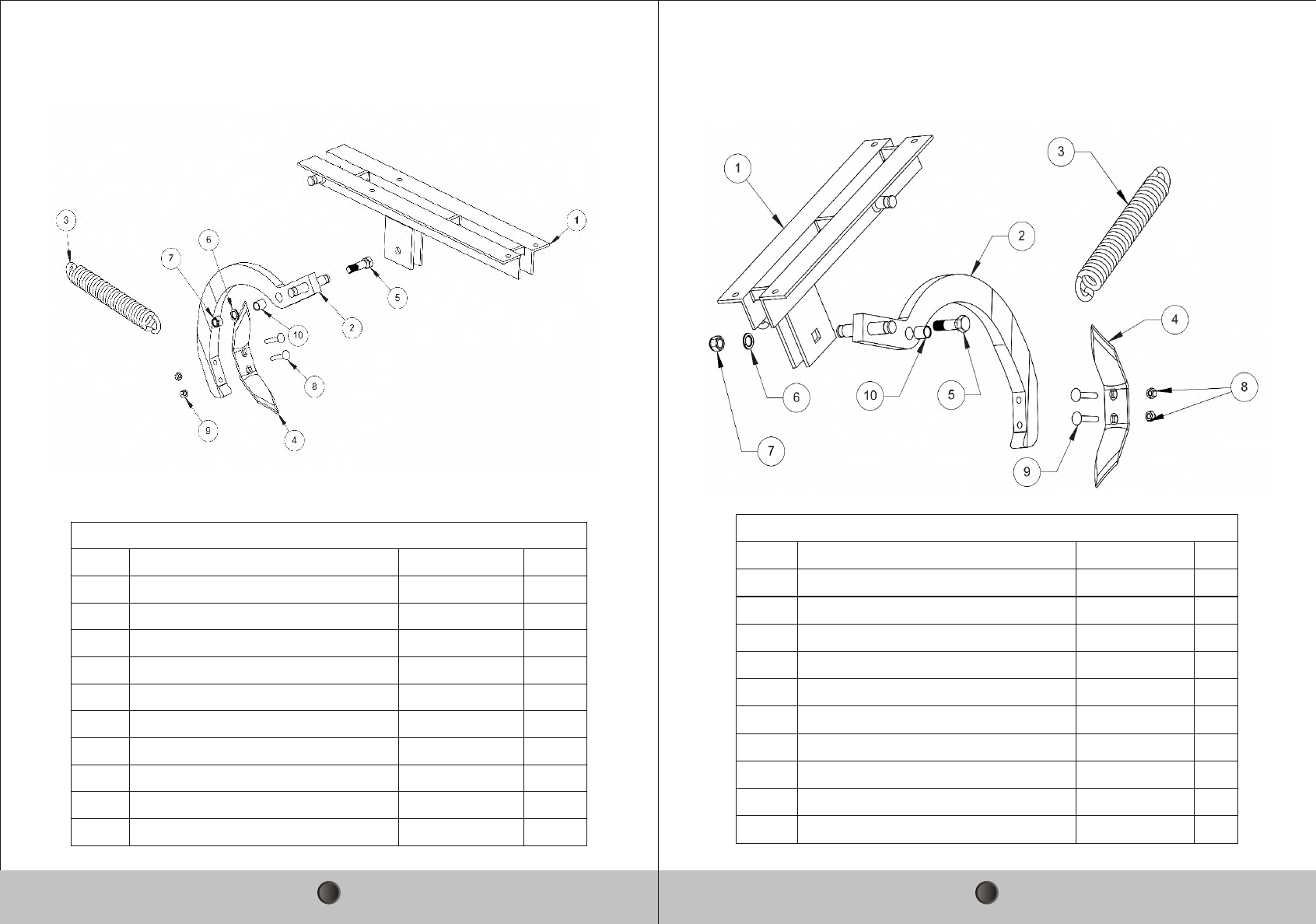

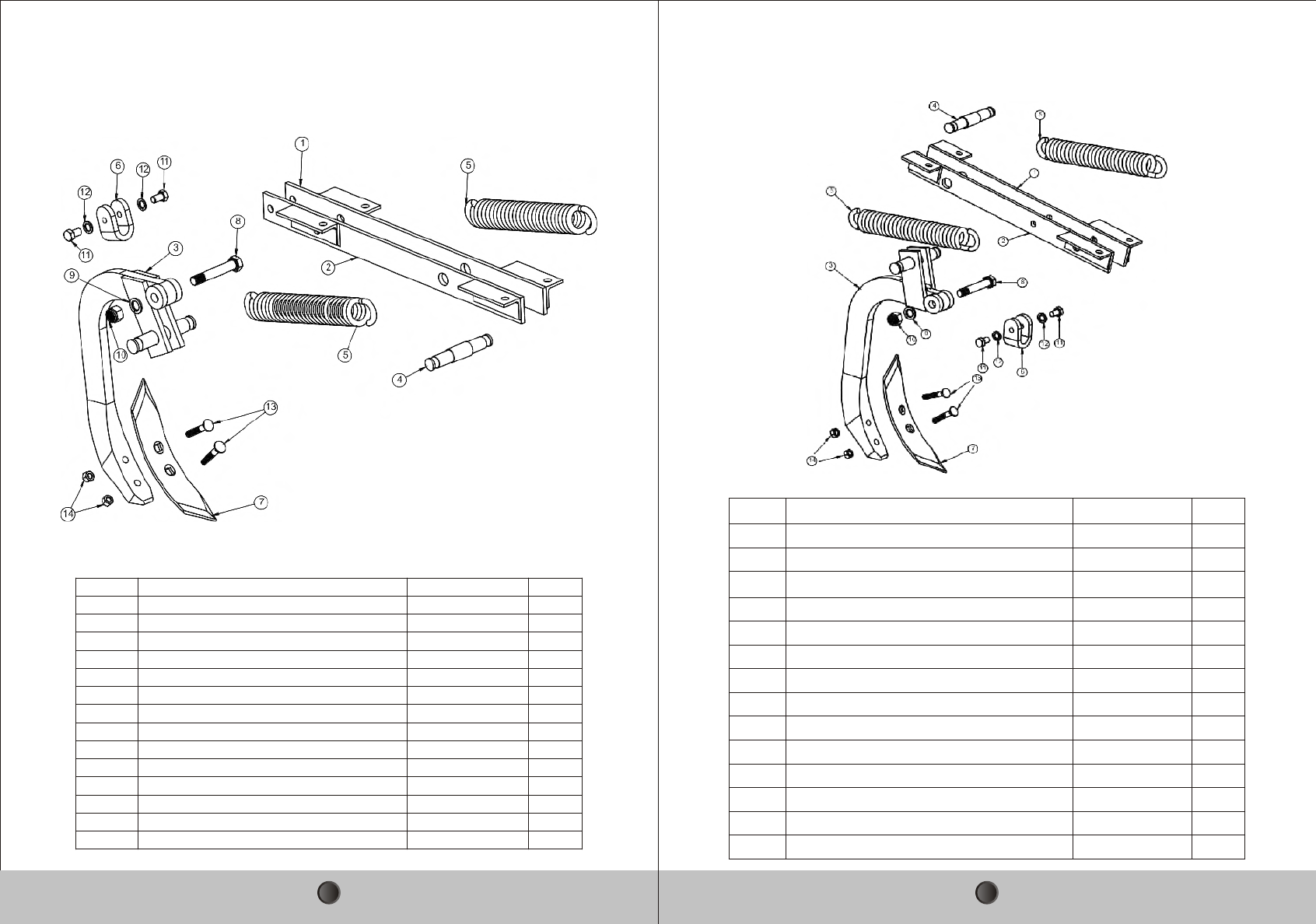

BIG PAIR TYNE ASSEMBLY
EXTRA HEAVY DUTY SPRING LOADED CULTIVATOR
SMALL PAIR TYNE ASSEMBLY
SMALL PAIR TYNE ASSEMBLY
SR.
NO. PART NAME PART NUMBER QTY.
1 SMALL PAIR (25mm) FKSLOEHD-517 1
2 TYNE ASSEMBLY (25mm) FKSLOEHD-519 1
3 SPRING (28.5 COIL) FKSLOEHD-029 2
4 SHOVEL FKSLOEHD-030 1
5 HEX. BOLT (M18X65X1.5P) 10260083 1
6 SPRING WASHER (M18) 10270006 1
7 NYLOCK NUT (M18X1.5P) 10280006 1
8 HEX. PLAIN NUT (7/16 BSW) 10280033 2
9 SHOVEL BOLT 7/16X2.5"BSW 10260137 2
10 TYNE BUSH 10070006 1

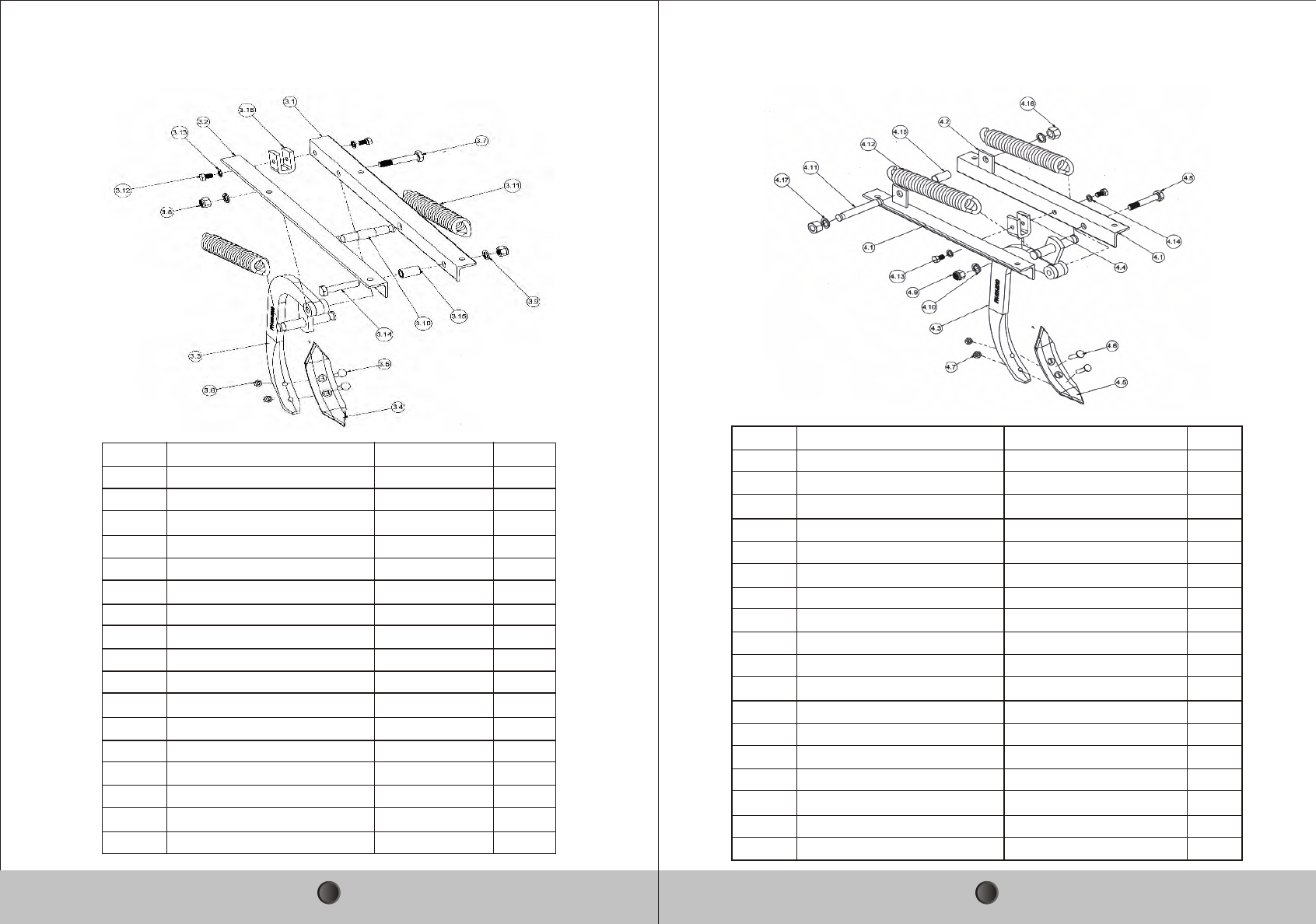

BIG PAIR TYNE ASSEMBLY
SR. NO. PART NAME PART NUMBER QTY.
1 BIG PAIR (25mm) FKSLOEHD-513 1
2 TYNE ASSEMBLY (25mm) FKSLOEHD-519 1
3 SPRING (28.5 COIL) FKSLOEHD-029 2
4 SHOVEL FKSLOEHD-030 1
5 HEX. BOLT (M18X65X1.5P) 10260083 1
6 SPRING WASHER (M18) 10270006 1
7 NYLOCK NUT (M18X1.5P) 10280006 1
8 SHOVEL BOLT 7/16X2.5""BSW 10260137 2
9 HEX. PLAIN NUT (7/16 BSW) 10280033 2
10 TYNE BUSH 10070006 1
12
13 14
7 TYNE 9 TYNE 11 TYNE 13 TYNE 7 TYNE 9 TYNE 11 TYNE 13 TYNE
1 FRAME ASSEMBLY FKSLOUSA-507 FKSLOUSA-501 FKSLOUSA-508 FKSLOUSA-509 1
2 BIG PAIR TYNE ASSEMBLY 4 5 6 7
3 SMALL PAIR TYNE ASSEMBLY 3 4 5 6
4 SPRING WASHER M12 28 36 44 52
5 HEX HEAD BOLT M12X35 28 36 44 52
6 NYLOCK NUT M12 28 36 44 52
7 HEX HEAD BOLT M16X50
8 SPRING WASHER M 16
9 NYLOCK NUT M 16
10 HEX HEAD BOLT M18X75
11 HEX NUT M 18X2.5
12 SPRING WASHER M18
13 3 POINT LINKAGE ASSEMBLY
14 HITCH PIN 10020019
15 LINCH PIN 10020022
10270003
10260006
10280025
10260078
SR.NO. PARTS DESCRIPTION
PART CODE

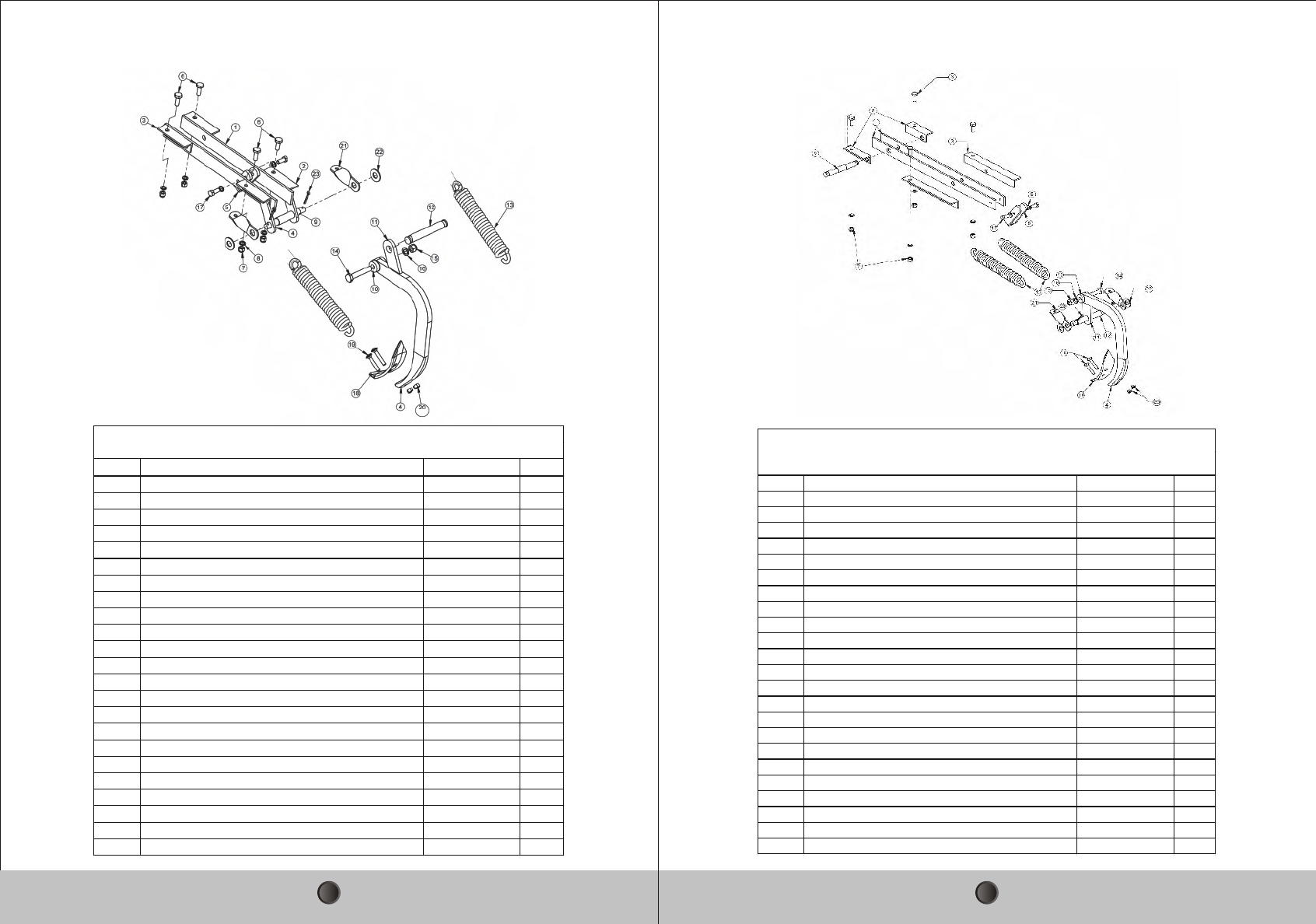

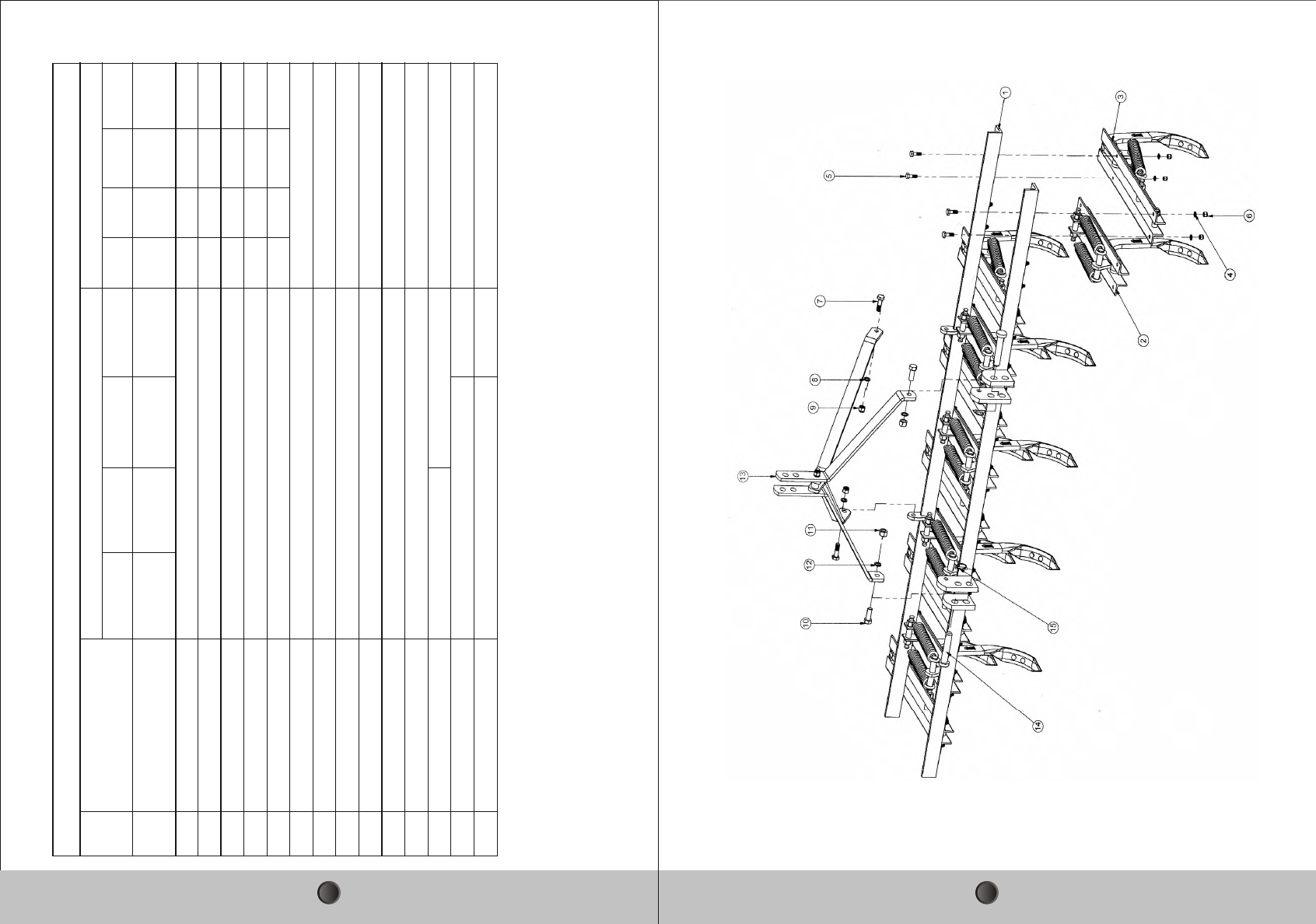

MEDIUM DUTY SPRING LOADED TILLER / CULTIVATOR (USA)
QTY.
1
10020088
10020022
10270005
10280005
10260036
10280037
10270006
FKSLOUSA-502 FKSLOUSA- 515
FKSLOUSA-503
FKSLOUSA-504
2
2
2
2
2
2
2
2
MEDIUM DUTY SPRING LOADED TILLER / CULTIVATOR (USA)
15
Sr. No.
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.10
3.11
3.12
3.13
3.14
3.15
3.16
PART NAME
BIG PAIR TYNE ASSEMBLY
BIG PAIR ANGLE(LHS)
BIG PAIR ANGLE(RHS)
TYNE ASSEMBLY
SHOVEL
SHOVEL BOLT(7/16x2.5” BSW)
HEX PLAIN NUT
HEX HEAD BOLT M16X95
NYLOCK NUT M16
SPRING WASHER
ANCHOR PIN
SPRING
BOLT M12x20
SPRING WASHER M12
HEX HEAD BOLT M 12x80
BUSH ( BIG PAIR)
U CLAMP
PART NUMBER
FKSLOUSA-503
FKSLOUSA-006
FKSLOUSA-007
FKSLOUSA-505
FKSLOB-016
10260137
10280033
10260126
10280005
10270005
FKSLOB-031
FKSLOB-032
10260058
10270003
10260080
FKSLOUSA-011
FKSLOUSA-010
QTY
1
1
1
1
1
2
2
1
1
1
1
2
2
2
1
1
1

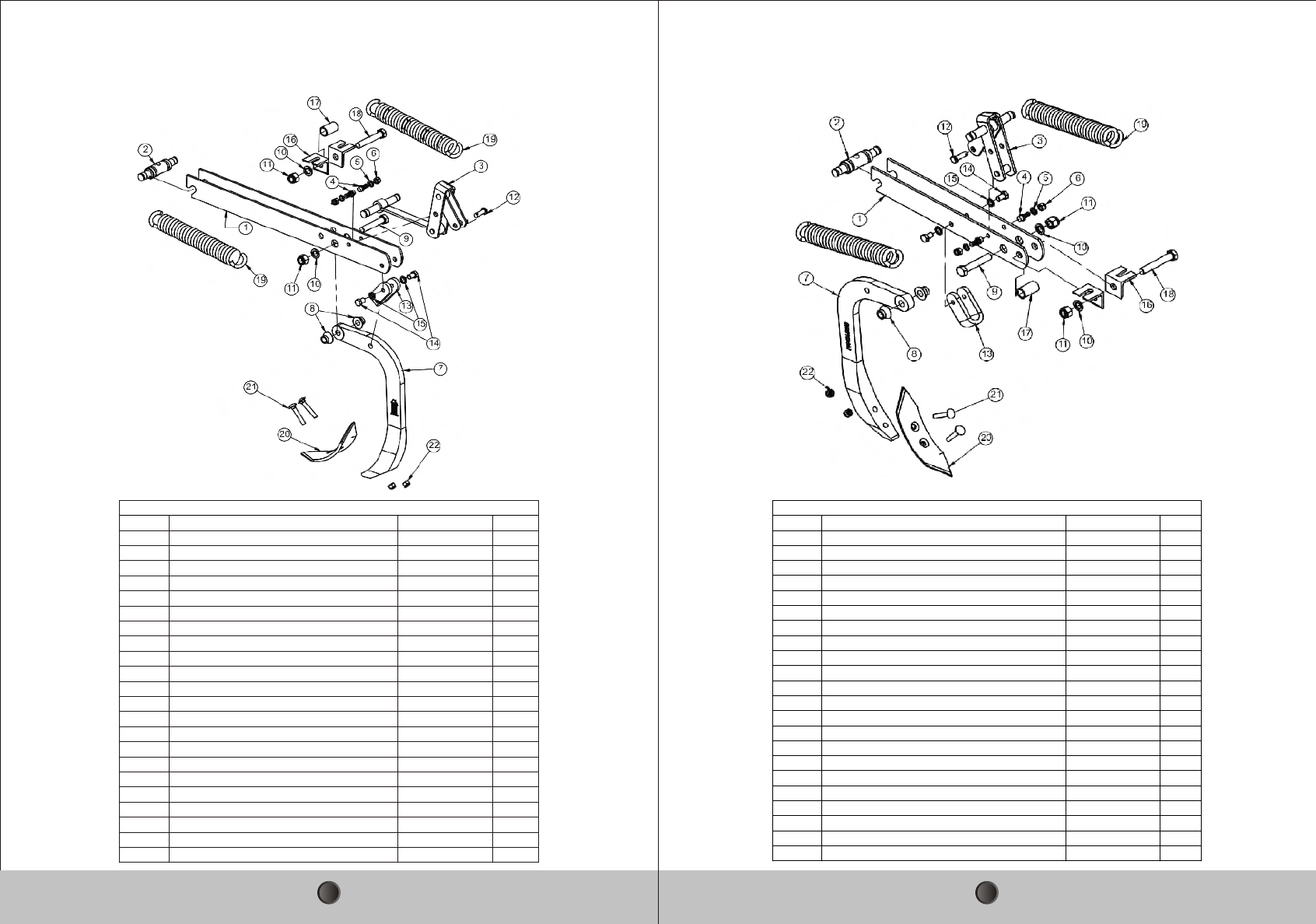

MEDIUM DUTY SPRING LOADED TILLER / CULTIVATOR (USA)
BIG PAIR TYNE ASSEMBLY
Sr. No.
4
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
4.10
4.11
4.12
4.13
4.14
4.15
4.16
4.17
PART NAME
SMALL PAIR TYNE ASSEMBLY
SMALL PAIR(LHS & RHS)
SUPPORT FLAT
TYNE ASSEMBLY
U CLAMP
SHOVEL (BERI TYPE)
SHOVEL BOLT(7/16X2.5”LBSW)
HEX PLAIN NUT(7/16 BSW
HEX HEAD BOLT M16X95
NYLOCK NUT M16
SPRING WASHER
ANCHOR PIN
SPRING(10MM)
BOLT M 12X20
SPRING WASHER M12
BUSH(ANCHOR PIN)
HEX NUT M 18
SPRING WASHER
PART NUMBER
FKSLOUSA-504
FKSLOUSA-013,FKSLOUSA-0014
FKSLOUSA-015
FKSLOUSA-506
FKSLOUSA-010
FKSLOB-016
10260137
10280033
10260126
10280005
10270005
FKSLOUSA-009
FKSLOB-032
10260058
10270003
FKSLOUSA-012
10280037
10270006
QTY
1
1
1
1
1
1
2
2
1
1
1
1
2
2
2
1
2
2
16
MEDIUM DUTY SPRING LOADED TILLER / CULTIVATOR (USA)
SMALL PAIR TYNE ASSEMBLY
1817
FKSLOB-7 FKSLOB-9 FKSLOB-11 FKSLOB-13 FKSLOB-15 FKSLOB-7 FKSLOB-9 FKSLOB-11 FKSLOB-13 FKSLOB-15
FRAME ASSEMBLY(CHANNEL) FKSLOB-501 FKSLOB-502 FKSLOB-503 FKSLOB-505 FKSLOB-507
FRAME ASSEMBLY(BOX) FKSLOB-523 FKSLOB-524 FKSLOB-525 FKSLOB-526 FKSLOB-527
2 3 POINT LINKAGE ASSEMBLY
3 BIG PAIR TYNE ASSEMBLY 4 5 6 7 8
4 SMALL PAIR TYNE ASSEMBLY 3 4 5 6 7
5 SPRING WASHER M25
6 NYLOCK NUT 25MM
7 HEX. BOLT (M16X50X2P)
8 SPRING WASHER (M16)
9 NYLOCK NUT (M16X2P)
10 HEX. BOLT (M12X32X1.75P) 28 36 44 52 60
11 SPRING WASHER (M12) 28 36 44 52 60
12 NYLOCK NUT (M12X1.75P) 28 36 44 52 60
13 HITCH PIN
14 LINCH PIN
10260016
10280008
10270007
10020023
10270003
10020022
10280025
10260060
10280005
10270005
1
PART CODE
FKSLOB-517
FKSLOB-511
FKSLOB-515
2
2
BERI SPRING LOADED TILLER / CULTIVATOR
2
2
2
2
2
QTY
1
1
1
SR.NO. PARTS DESCRIPTION
FKSLOB-522
BERI SPRING LOADED TILLER / CULTIVATOR
19
BERI SPRING LOADED TILLER / CULTIVATOR

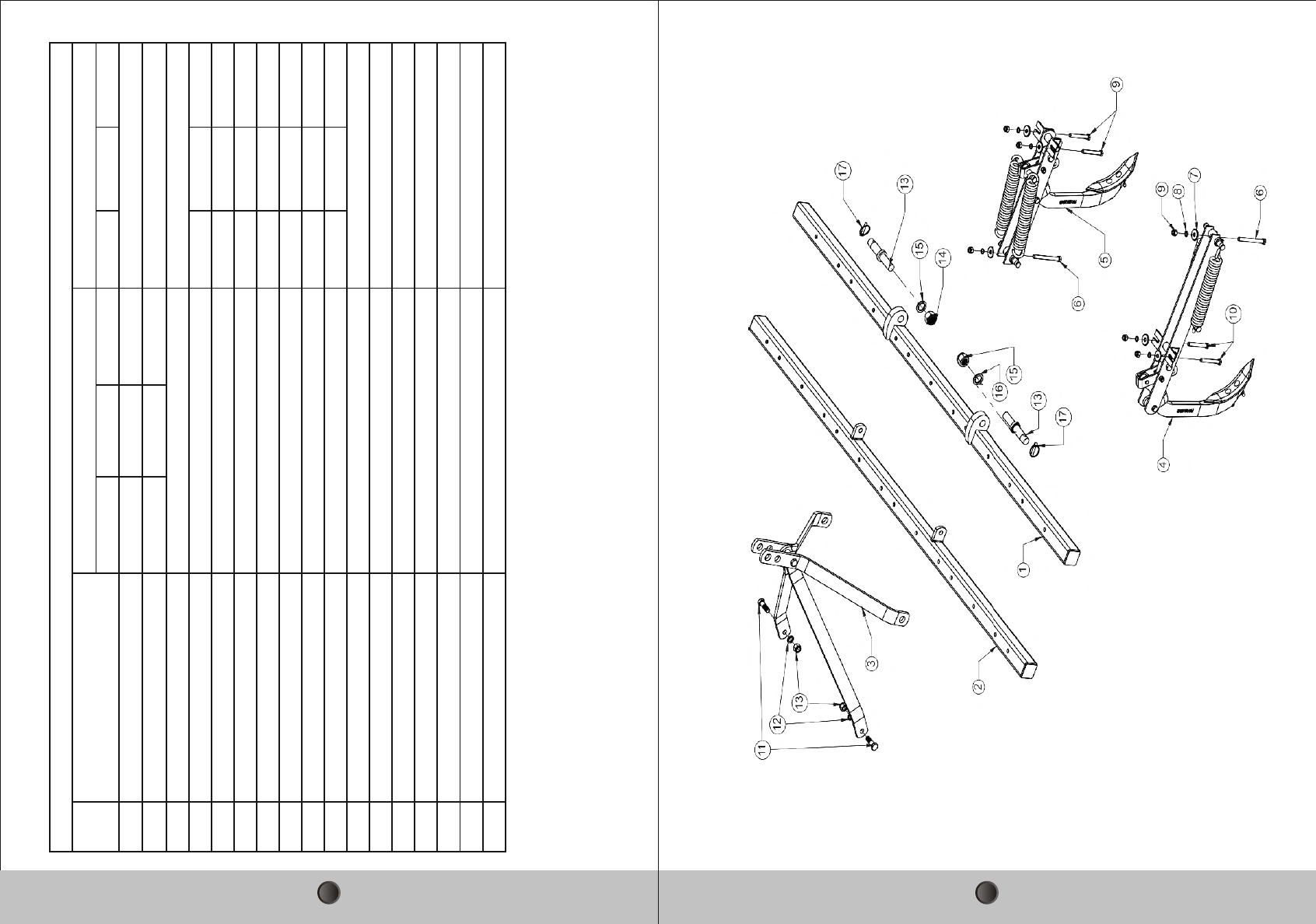

BIG PAIR TYNE ASSEMBLY
BERI SPRING LOADED TILLER / CULTIVATOR
SMALL PAIR TYNE ASSEMBLY
SR. NO. PART NAME PART NUMBER QTY.
1SMALL PAIR (L.H.S) FKSLOB-520 1
2SMALL PAIR (R.H.S) FKSLOB-521 1
3KHADI TYNE ASSEMBLY OF SMALL PAIR FKSLOB-516 1
4ANCHOR PIN FOR PAIR'S FKSLOB-031 1
5SPRING (10MM) FKSLOB-032 2
6U-CLAMP FKSLOB-033 1
7SHOVEL FKSLOB-016 1
8HEX. BOLT (M16X95X2P) 10260081 1
9SPRING WASHER (M16) 10270005 1
10 NYLOCK NUT (M16X2P) 10280005 1
11 HEX. BOLT (M12x20X1.75P) 10260058 2
12 SPRING WASHER (M12) 10270003 2
13 ROUND HEAD BOLT (7/16X1.75" BSW) 10260136 2
14 HEX. PLAIN NUT (7/16 BSW) 10280033 2
SR. NO. PART NAME PART NUMBER QTY.
1BIG PAIR (L.H.S) FKSLOB-518 1
2BIG PAIR (R.H.S) FKSLOB-519 1
3KHADI TYNE ASSEMBLY OF BIG PAIR FKSLOB-512 1
4ANCHOR PIN FOR PAIR'S FKSLOB-031 1
5SPRING (10MM) FKSLOB-032 2
6U-CLAMP FKSLOB-033 1
7SHOVEL FKSLOB-016 1
8HEX. BOLT (M16X95X2P) 10260081 1
9SPRING WASHER (M16) 10270005 1
10 NYLOCK NUT (M16X2P) 10280005 1
11 HEX. BOLT (M12x20X1.75P) 10260058 2
12 SPRING WASHER (M12) 10270003 2
13 ROUND HEAD BOLT (7/16X1.75" BSW) 10260136 2
14 HEX. PLAIN NUT (7/16 BSW) 10280033 2
20
2221
FKSLOM-7 FKSLOM-9 FKSLOM-11 FKSLOM-7 FKSLOM-9 FKSLOM-11
1 FRONT PIPE FRAME ASSEMBLY FKSLOM-508 FKSLOM-501 FKSLOM-510
2 REAR PIPE FRAME ASSEMBLY FKSLOM-509 FKSLOM-502 FKSLOM-511
3 3 POINT LINKAGE ASSEMBLY
4 BIG PAIR TYNE ASSEMBLY 4 5 6
5 SMALL PAIR TYNE ASSEMBLY 3 4 5
6 HEX HEAD BOLT M12X125X1.75MM 7 9 11
7 PLAIN WASHER 12MM 21 27 33
8 SPRING WASHER (M12) 21 27 33
9 NYLOCK NUT (M12X1.75P) 21 27 33
10 HEX HEAD BOLT M12X85X1.75MM 14 18 22
11 HEX. BOLT (M16X50X2P)
12 SPRING WASHER (M16)
13 NYLOCK NUT (M16X2P)
14 HITCH PIN
15 NYLOCK NUT 25MM
16 SPRING WASHER M25
17 LINCH PIN
10260381
10270010
10260016
10280025
10260212
10270005
2
10270007
2
2
210020022
10280008
10020024
10280005
MASSEY SPRING LOADED TILLER / CULTIVATOR
2
2
2
QTY
1
1
1
SR.NO. PARTS DESCRIPTION
10280025
PART CODE
FKSLOM-503
FKSLOM-504
FKSLOM-505
MASSEY SPRING LOADED TILLER / CULTIVATOR
23
MASSEY SPRING LOADED TILLER / CULTIVATOR
BIG PAIR TYNE ASSEMBLY
MASSEY SPRING LOADED TILLER / CULTIVATOR
SMALL PAIR TYNE ASSEMBLY
BOM Table
SR. NO. PART NAME PART NUMBER QTY.
1SMALL PAIR FLAT FKSLOM-022 2
2ANCHOR PIN SLOTED FKSLOM-008 1
3U-CLAMP ASSEMBLY FOR SMALL PAIR FKSLOM-507 1
4TINA SCREW 10260144 2
5SPRING WASHER M10 10270002 2
6PLAIN NUT M10 10280036 2
7SAVY TYNE FKSLOBS-001 1
8TAPERED SPACER FKSLOM-010 2
9HEX. BOLT (M16X2PX85L) 10260384 1
10 SPRING WASHER 10270005 2
11 PLAIN NUT 16X2 10280022 2
12 RIVIT FKSLOM-011 1
13 U-CLAMP FKSLOM-012 1
14 HEX. NUT (M12X1.5PX20L) 10260128 2
15 SPRING WASHER (M12) 10270003 2
16 SUPPORT ANGLE FKSLOM-013 2
17 BUSH (27X45L) FKSLOM-014 1
18 HEX. BOLT (M16X2PX85L) 10260383 1
19 SPRING (10mm) FKSLOB-032 2
20 SHOVEL FKSLOB-016 1
21 ROUND HEAD BOLT 7/17X1.75 INCH 10260136 2
22 SHOVAL NUT 10280022 2
BOM Table
SR. NO. PART NAME PART NUMBER QTY.
1BIG PAIR FLAT FKSLOM-007 2
2ANCHOR PIN SLOTED FKSLOM-008 1
3U-CLAMP ASSEMBLY FOR BIG PAIR FKSLOM-506 1
4TINA SCREW 10260144 2
5SPRING WASHER M10 10270002 2
6PLAIN NUT M10 10280036 2
7SAVY TYNE FKSLOBS-001 1
8TAPERED SPACER FKSLOM-010 2
9HEX. BOLT (M16X2PX85L) 10260384 1
10 SPRING WASHER 10270005 2
11 PLAIN NUT 16X2 10280022 2
12 RIVIT FKSLOM-011 1
13 U-CLAMP FKSLOM-012 1
14 HEX. NUT (M12X1.5PX20L) 10260128 2
15 SPRING WASHER (M12) 10270003 2
16 SUPPORT ANGLE FKSLOM-013 2
17 BUSH (27X45L) FKSLOM-014 1
18 HEX. BOLT (M16X2PX85L) 10260383 1
19 SPRING (10mm) FKSLOB-032 2
20 SHOVEL FKSLOB-016 1
21 ROUND HEAD BOLT 7/16X1.75 INCH 10260136 2
22 SHOVAL NUT 10280022 2
24
25 26
FKSLODE-7 FKSLODE-9 FKSLODE-11 FKSLODE-13 FKSLODE-15 FKSLODE-7 FKSLODE-9 FKSLODE-11 FKSLODE-13 FKSLODE-15
1 MAIN FRAME ASSEMBLY FKSLOD-501 FKSLOD-502 FKSLOD-503 FKSLOD-504 FKSLOD-505
2 3-POINT LINKAGE ASSEMBLY
3 BIG PAIR ASSEMBLY 4 5 6 7 8
4 SMALL PAIR ASSEMBLY 3 4 5 6 7
5 HITCH PIN
6 SPRING WASHER M 25
7 NYLOCK NUT M25
8 HEX BOLT(M16X50X2P)
9 SPRING WASHER (M 16)
10 NYLOCK NUT M16X2P
11 HEX BOLT(M18X65X1.5P)
12 SPRING WASHER (M 18)
13 NYLOCK NUT M18X1.5P
14 HEX HEAD BOLT M12X35X1.5 28 36 44 52 60
15 NYLOCK NUT M12X1.5 28 36 44 52 60
16 SPRING WASHER (M12) 28 36 44 52 60
17 LINCH PIN
FKSLODE03
FKSLODE04
10260016
HEAVY DUTY SPRING LOADED TILLER / CULTIVATOR (ESCORT)
SR.NO PART DESCRIPTION PART CODE QTY.
1
2
2
2
10270005
10280005
2
2
2
10260061
10260083
10270006
10280006
1
FKSLODE02
10020022 2
10020023
10270007
10280008
2
2
2
10280003
10270003
HEAVY DUTY SPRING LOADED TILLER / CULTIVATOR (ESCORT)
27 28
FKSLODF-7 FKSLODF-9 FKSLODF-11 FKSLODF-13 FKSLODF-15 FKSLODF-7 FKSLODF-9 FKSLODF-11 FKSLODF-13 FKSLODF-15
1 FRAME FKSLOD-514 FKSLOD-507 FKSLOD-508 FKSLOD-512 FKSLOD-513
2 3-POINT LINKAGE ASSEMBLY
3 BIG PAIR TYNE ASSEMBLY 4 5 6 7 8
4 SMALL PAIR TYNE ASSEMBLY 3 4 5 6 7
5 REAR LINKAGE PLATE
6 FRONT LINKAGE PLATE
7 PIPE C CLASS SEAMLESS FKSLODF01A-7 FKSLODF01A-9-11 FKSLODF01A-9-11 FKSLODF01A-13 FKSLODF01A-15
8 PIPE SUPPORT
9 PIPE JOINTER
10 HEX HEAD BOLT M12X35 28 36 44 52 60
11 HEX HEAD BOLT M12X40
12 NYLOCK NUT M12X1.5 52 60 68 76 84
13 SPRING WASHER M12 52 60 68 76 76
14 HEX HEAD BOLT M18X65X1.5P
15 HEX HEAD BOLT M16X50X2P
16 NYLOCK NUT M18X1.5P
17 SPRING WASHER M18
18 NYLOCK NUT M16X2P
19 SPRING WASHER M16
20 HITCH PIN
21 NYLOCK NUT 25MM
22 SPRING WASHER M25
23 LINCH PIN
2
2
2
8
8
24
10280006
10270006
10280005
10270005
2
2
1
2
2
2
10260061
10260062
10280003
10270003
10260083
10260016
1
FKSLODE02 1
FKSLODE03
FKSLODE04
FKSLODF01D
FKSLODE-01D
FKSLODF01B
FKSLODF01C
HEAVY DUTY SPRING LOADED TILLER / CULTIVATOR (FORD)
SR.NO PART DESCRIPTION PART CODE QTY.
10020023 2
10280008 2
10270007 2
10020022 2
HEAVY DUTY SPRING LOADED TILLER / CULTIVATOR (FORD)
29 30
BIG PAIR TYNE ASSEMBLY SMALL PAIR TYNE ASSEMBLY
SR NO PART DESCRIPTION PART CODE QTY
1 BIG PAIR FLAT 50X8X800MM(l) FKSLODE03A 2
2 ANGLE SUPPORT OF 40X40X5X127 FKSLODE03C 2
3 ANGLE SUPPORT OF 40X40X5X320 FKSLODE03E 2
4 TYNE FORGING 50X19,430MML FKSLODE03J-1 1
5 TYNE U FLAT 37X10X330MM L FKSLODE03H 1
6 HEX HEAD BOLT M12X35 10260061 4
7 NYLOCK NUT M12 10280003 4
8 SPRING WASHER M12 10270003 6
9 ANCHOR PIN 25X178MM(GROOVE& TURNING) 10020018 1
10 TYNE TIKKI ROUND 12MM T FKSLODE03G 2
11 TYNE PATTI 50X10X108MM L FKSLODE03F 1
12 ANCHOR PIN 25X178MM(SINGLE TURNING) 10020017 1
13 SPRING 10MM WD,49MM OD,26 COILS FKSLOB-032 2
14 HEX HEAD BOLT M16X95X2MM 10260081 1
15 NYLOCK NUT M16X2MM 10280005 1
16 SPRING WASHER M16 10270005 1
17 HEX HEAD BOLT 12X20X1.75MM 10260275 2
18 SHOVEL 250MM L,8MM(T),57MM WD FKSLOB-016 1
19 ROUND HEAD BOLT 7/16 X2.5 INCH 10260137 2
20 MS NUT 7/16 BSW 10280033 2
21 AINTH PATTI FKSLODEO3D 2
22 PLAIN WASHER 20MM 10270012 2
23 SPLIT PIN 4 MMX40MM(l) 10020078 2
BIG PAIR TYNE ASSEMBLY
SR NO PART DESCRIPTION PART CODE QTY
1 BIG PAIR FLAT 50X8X533MM(l) FKSLODE04A 2
2 SUPPORT OF 40X40X5X130 WITH 1 HOLE FKSLODE03M 2
3 SUPPORT OF 40X40X5X130 WITH 20HOLE FKSLODE03N 2
4 TYNE FORGING 50X19,430MML FKSLODE03J-1 1
5 TYNE U SMALL 37X10X254MM L FKSLODE03I 1
6 HEX HEAD BOLT M12X35 10260061 4
7 NYLOCK NUT M12 10280003 4
8 SPRING WASHER M12 10270003 6
9 ANCHOR PIN 25X178MM(DOUBLE TURNING) 10020016 1
10 TYNE TIKKI ROUND 12MM T FKSLODE03G 2
11 TYNE PATTI 50X10X108MM L FKSLODE03F 1
12 ANCHOR PIN 25X178MM(GROOVE) 10020051 1
13 SPRING 10MM WD,49MM OD,26 COILS FKSLOB-032 2
14 HEX HEAD BOLT M16X95X2MM 10260081 1
15 NYLOCK NUT M16X2MM 10280005 1
16 SPRING WASHER M16 10270005 1
17 HEX HEAD BOLT 12X20X1.75MM 10260275 2
18 SHOVEL 250MM L,8MM(T),57MM WD FKSLOB-016 1
19 ROUND HEAD BOLT 7/16 X2.5 INCH 10260137 2
20 MS NUT 7/16 BSW 10280033 2
21 AINTH PATTI FKSLODEO3D 2
22 PLAIN WASHER 20MM 10270012 2
23 SPLIT PIN 4 MMX40MM(l) 10020078 2
SMALL PAIR TYNE ASSEMBLY
31 32
DELIVERY CHECKLIST
Dealer Pre-Delivery (Please Tick)
1. Dealer Pre-Delivery Checklist
1. The customer or person responsible
been given the operator’s manual.
2. The customer undertakes to read the
co mpl et e oper at or ’s ma nu al and
understands all aspects of the manual
before operation of the machine.
3. All safety, operational and maintenance
information have been explained and
demonstrated.
4. All greasing and oil points, stickers,
guarding and ID plate have been identified
and physically pointed out.
5. The customer agrees that it is his
responsibility to read and carry out the
safety, maintenance and operation as per
this operator’s manual.
has
Customer Delivery (Please Tick)
Please Complete all Dealer information Below
Dealer Information
Dealer’s Name..............................................................................
Address........................................................................................
.......................................................................................................
State........................................... Postcode.................................
Phone.......................................... Fax..........................................
Email.............................................................................................
Service Person..............................................................................
I confirm that the pre-delivery service was performed on this machine.
Signature.......................................................................................
Date..............................................................................................
Comments.....................................................................................
.......................................................................................................
.......................................................................................................
Please Complete all Customer Information Below
Customer Information
Customer’s Name.........................................................................
Address........................................................................................
.......................................................................................................
State........................................... Postcode.................................
Phone.......................................... Fax..........................................
Email.............................................................................................
Delivery Person.............................................................................
I confirm that all of the delivery checks were explained and performed.
Signature.......................................................................................
Delivery Date................................................................................
Comments.....................................................................................
.......................................................................................................
.......................................................................................................
2. Customer Delivery Checklist
1. The customer or person responsible has
been given the operator’s manual.
2. The customer undertakes to read the
co mpl et e oper at or ’s ma nu al and
understands all aspects of the manual
before operation of the machine.
3. All safety, operational and maintenance
information have been explained and
demonstrated.
4. All greasing and oil points, stickers,
guarding and ID plate have been identified
and physically pointed out.
5. The customer agrees that it is his
responsibility to read and carry out the
safety, maintenance and operation as per
this operator’s manual.
3433
WARRANTY CARD
Customer Copy
Customer`s Signature Dealer`s Signature
CUSTOMER NAME Mr./ Mrs :
ADDRESS :
MOBILE NO. :
Email :
NAME OF IMPLEMENT :
MODEL NO. :
YEAR OF Mfg. :
SERIAL NO. :
REGISTRATION NO. :
DATE OF PURCHASING :
NAME OF DEALER :
Corporate Office:
Plot No. 235 to 240, Sec-3, HSIIDC, Karnal- 132001 (Haryana), India
+91 184 2221571/ 72/ 73
info@fieldking.com, www.fieldking.com
BERI UDYOG PVT LTD
3635
WARRANTY CARD
Company Copy
Customer`s Signature Dealer`s Signature
CUSTOMER NAME Mr./ Mrs :
ADDRESS :
MOBILE NO. :
Email :
NAME OF IMPLEMENT :
MODEL NO. :
YEAR OF Mfg. :
SERIAL NO. :
REGISTRATION NO. :
DATE OF PURCHASING :
NAME OF DEALER :
Corporate Office:
Plot No. 235 to 240, Sec-3, HSIIDC, Karnal- 132001 (Haryana), India
+91 184 2221571/ 72/ 73
info@fieldking.com, www.fieldking.com
BERI UDYOG PVT LTD
3837
WARRANTY CARD
Dealer Copy
Customer`s Signature Dealer`s Signature
CUSTOMER NAME Mr./ Mrs :
ADDRESS :
MOBILE NO. :
Email :
NAME OF IMPLEMENT :
MODEL NO. :
YEAR OF Mfg. :
SERIAL NO. :
REGISTRATION NO. :
DATE OF PURCHASING :
NAME OF DEALER :
Corporate Office:
Plot No. 235 to 240, Sec-3, HSIIDC, Karnal- 132001 (Haryana), India
+91 184 2221571/ 72/ 73
info@fieldking.com, www.fieldking.com
BERI UDYOG PVT LTD

Navigation menu
