The ADTRAN DDST IV is a high-performance auto-rate adaptive digital
network interface unit for DDS and Switch 56 transmission over a 4-wire
loop with up to 45dB of loss. The DDST IV adds intelligence and compre-
hensive DS0 Performance Monitoring to digital circuits by monitoring both
the network and the equipment sides for error performance and signal
quality. Utilizing advancements in VLSI and custom integrated circuit tech-
nology, this low cost unit provides all rate capability and real-time error
reporting. Automatic adaptive equalization is employed, permitting reliable
reception of low loop signals, eliminating the need for loop repeaters in
many installations.
The DDST IV reports “far-end” DS0 loop performance information to the
ADTRAN SD4 OCU DP/PM, an intelligent OCU dataport, non-intrusively,
using an “ESF-like” communication link between the two units. The
communication link provides for analysis of unit provisioning, inventory
information, and comprehensive loop performance information. This
information can be accessed when the OCU DP/PM is deployed in the
ADTRAN ACT 2300/1900 channel banks or standard WECO D4 using the
ADTRAN intelligent LIU-3/PM. These intelligent platforms provide a user
interface to access the OCU DP/PM and DDST IV through a menu driven
interface called EasyMenu™. EasyMenu allows C.O. personnel to view
performance data for historical trending, provision the DDST IV remotely,
and access alarm information for trouble analysis.
The DDST IV is a part of the ADTRAN product line of intelligent network
products used to provide performance monitoring, local and remote provi-
sioning, and enhanced trouble analysis capabilities to new and existing
special services networks. A list of complementary products is found on the
reverse side of this brochure.
●Intelligent,auto-rate adaptive
digital Network Interface Unit
●Provides for a loopback point
at the TELCO/customer’s demar-
cation point
●Type 400 circuit plugs into a
standard NCTE mounting
assembly
●All-rate capability from 2.4 to
64 kbps,including Switched 56
●Provides comprehensive DSO
performance information
●Monitors the network and
equipment side of the circuit
●Communicates non-intrusively
with the SD4 OCU DP/PM
●Regeneration feature provides
for extended range operation on
loops with loss to -45dB
●Industry-leading 10 year warranty
DDST IV
Digital Data Station Termination Unit
FEATURES
CORPORATE OFFICE
901 Explorer Boulevard
P.O. Box 140000
Huntsville, Alabama 35814-4000
800 9ADTRAN
Local: 205 963-8000
Fax: 205 963-7916
Fax Back: 205 963-8200
http://www.adtran.com
email: info@adtran.com
Telco Technical
Support
800 726-8663
REGIONAL OFFICES
Irvine,CA
800 788-5408
Denver,CO
800 471-8651
Atlanta,GA
800 332-6945
Kansas City,KS
800 471-8649
Dallas,TX
800 471-8648
Canada
800 232-6811
ADTRAN is an ISO 9001
registered company.
Printed in U.S.A. on recycled paper
61212.050L1-8A May 1997
©ADTRAN, Inc. 1997
Complementary Products
■OCU DP PM 1109.005L10
■ACT 2300 4150.ACT2300L4
■LIU-3/PM 1151.001L2
■Site Manager 4150.075L1

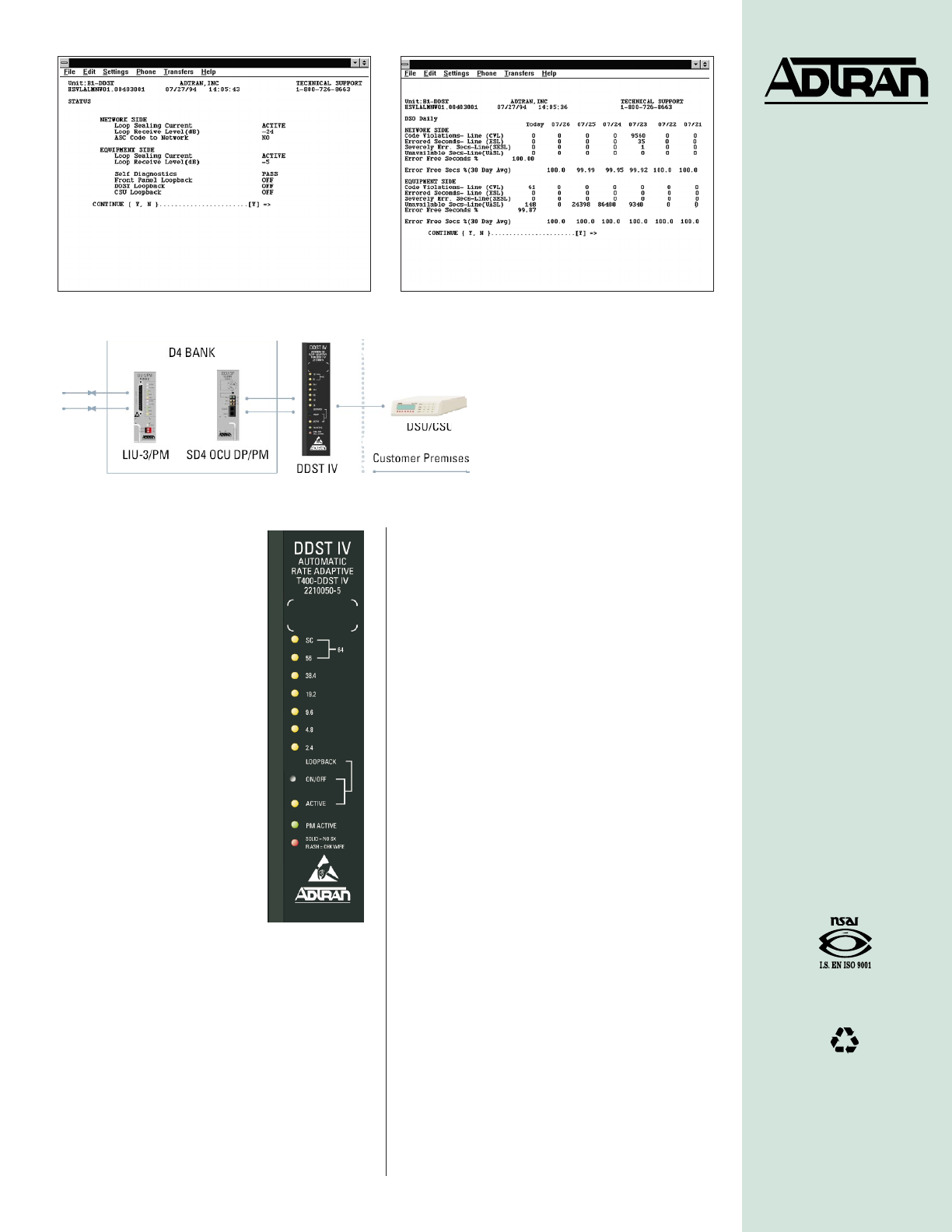

Faceplate Features
SC
■Indicates Secondary Channel Service is
selected by the OCU dataport
Rates
■Indicates the rate selected by the OCU
dataport
Loopback Active
■Indicates the unit is in a loopback
PM Active
■Indicates unit is communicating loop
performance data to SD4 OCU DP/PM
No SX/Check Wire
■Indicates loss of sealing current or wire
pair reversal
Provisionable Options
Loopback
■Manually selects a latched loopback
Loopback Enable
■Enables or disables TELCO initiated
loopbacks
Line Build-out
■Attenuates the regenerated signal to 0dB
or -10dB
Ordering Information
EQUIPMENT PART #
■DDST IV 1212050L1
Specifications subject to change without notice.
NMA is a registered trademark of Bellcore. OpenView is a registered trademark
of Hewlett Packard Company. SunNet Manager is a registered trademark of
Sun Microsystems,Inc.
Product Status
Non-Intrusive DS0 Performance Monitoring
