Tube Axial Roof Upblast
Models TAUD & TAUB-CA with Cast Aluminum Propeller
Direct & Belt Drive • Clean Air or Fume Exhaust • Spark Resistant Constructions
Tube Axial Roof Upblast Fans
Greenheck’s tube axial upblast roof exhausters, both direct and belt drive, are designed to efficiently remove
and disperse contaminated air. The upblast configuration is ideal for exhausting contaminants away from a
building to prevent roof damage and re-entrainment of exhaust air.
Greenheck’s versatile tube axial design can be used in most commercial and industrial applications. Typical
applications include:
• General exhaust
• Industrial space ventilation
• Fume hood exhaust
• Paint booth exhaust
TAUD Features:
• Direct drive construction
• Propeller diameters from 18 to 48 inch (457-1912 mm)
• Volume Range: 2,800 to 46,000 cfm (4,760-78,100 m3/hr)
• Static Pressure: Up to 1.0 inch wg (250 Pa)
• Temperatures: Up to 110ºF (43ºC)
TAUB-CA Features:
• Spark resistant construction
• Belt drive with motor and drives out of airstream
• Propeller diameters from 18 to 60 inch (457-1524 mm)
• Volume Range: 2,800 to 74,000 cfm (4,760-125,700 m3/hr)
• Static Pressure: Up to 1.25 inches wg (310 Pa)
• Temperatures: Up to 180ºF (82ºC)
Cast Aluminum Propellers
The TAUD and TAUB-CA use heavy-duty, cast aluminum airfoil propellers that are
designed to meet a large range capacity and pressure requirements.
All TAUD and TAUB-CA propellers are dynamically balanced to assure vibration-
free operation. All propellers are tightly secured to the fan or motor shaft with
taper lock bushings.
2
Features ®
Enjoy Greenheck’s extraordinary service, before, during and after the sale.
Greenheck offers added value to our wide selection of top performing, energy-efficient products by
providing several unique Greenheck service programs.
• Our Quick Delivery Program ensures shipment of our in-stock products within 24 hours of placing
your order. Our Quick Build made-to-order products can be produced in 1-3-5-10-15- or 25-day
production cycles, depending upon their complexity.
• Greenheck’s free Computer Aided Product Selection program (CAPS), rated by many as the best
in the industry, helps you conveniently and efficiently select the right products for the challenge at
hand.
• Greenheck has been Green for a long time! Our energy-saving products and ongoing corporate
commitment to sustainability can help you qualify for LEED credits.
• Our 3D service allows you to download, at no charge, easy-to-use AutoDesk™ Revit™ 3D
drawings for many of our ventilation products.
Find out more about these special Greenheck services at greenheck.com
Quality Design
Construction includes heavy-gauge material used in the housing, windband, and curb cap. Rolled edges on the
windband and damper blades are used for additional strength. Greenheck’s curb cap includes integral venturi
and prepunched mounting holes.

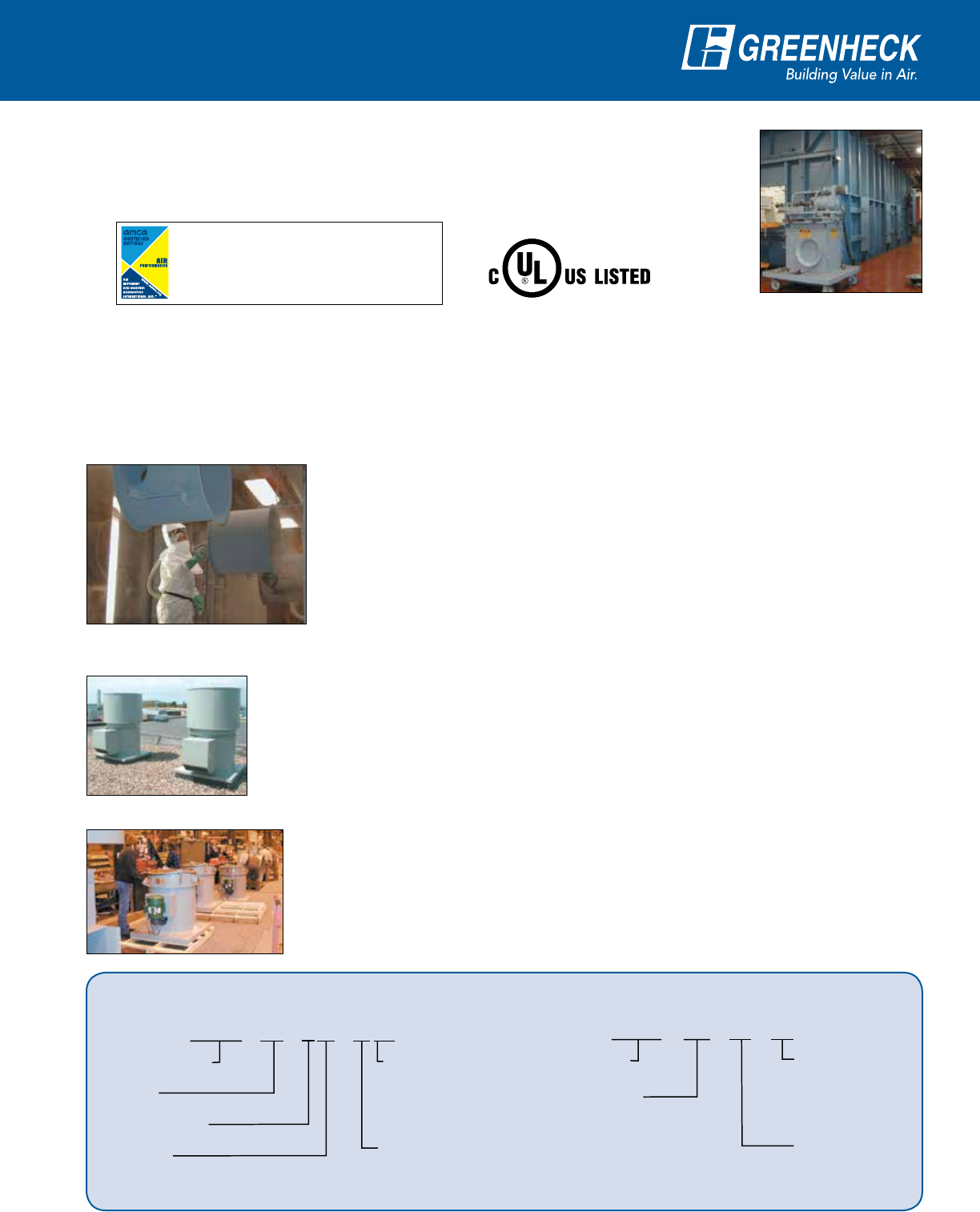

AMCA Licensed Air Data and UL/cUL Listing
All sizes and configurations of the TAUD and TAUB-CA have AMCA licensed air data. In
addition, UL/cUL 705 Listing is available for both TAUD and TAUB-CA models. Motors
may be either 50 or 60 Hz.
Greenheck Fan Corporation certifies that the models
TAUD and TAUB-CA tube axial fans shown herein are
licensed to bear the AMCA seal. The ratings shown are
based on tests and procedures performed in accordance
with AMCA Publication 211 and comply with the
requirements of the AMCA Certified Ratings Program.
TAUD and TAUB-CA are listed
for Electrical UL/cUL 705
File no. 40001
Electrostatic Powder Paint
Powder coatings offer a uniform, durable, and high quality finish. Powder
coating is a one-coat process applied over a phosphatized surface that
generally meets or exceeds the corrosion resistance of a comparable wet paint.
Greenheck offers a number of in-house coatings applied via electrostatic
powder. The standard coating, Permatector™, is excellent for indoor or outdoor
applications and is resistant to many common chemicals. For information on
our complete offering of coatings, visit geenheck.com and navigate to Library/
Application Articles. Search for Performance Coatings for Ventilation Products
for a comprehensive listing of coatings and a relative resistance chart.
Maintenance / Serviceability
The TAUB incorporates the following value added features that allow for quick and
easy field service.
• Bearing lubrication is performed through extended grease fittings located on the
outside of the fan housing.
• An adjustable motor base is provided for tightening the fan belts.
• Propellers are easily removed with the use of taper lock bushings.
Complete Assembly and Testing
The TAUD and TAUB-CA are completely assembled and tested before shipment.
Our inspectors check that the fan operates with minimal vibration and is
electrically safe for field operation.
3
Value Added Features ®
Model Number Code
TAUD – 24 – 609 – A
20
Tube Axial Upblast
D - Direct Drive
Fan Size
18, 20, 24, 30, 36, 42, 48
Fan RPM
A = 1770 J = 1425
B = 1170 K = 950
C = 870 M = 3500
F = 690 R = 2900
Motor Horsepower
4 = 1/4 30 = 3
3 = 1/3 50 = 5
5 = 1/2 75 = 7½
7 = 3/4 100 = 10
10 = 1 150 = 15
15 = 1½ 200 = 20
20 = 2
4 = 1/4 30 = 3
3 = 1/3 50 = 5
5 = 1/2 75 = 7½
7 = 3/4 100 = 10
10 = 1 150 = 15
15 = 1½ 200 = 20
20 = 2
Number of Blades
3, 4, 6
Blade Pitch
TAUB – CA –
24 – 20
Tube Axial Upblast
B - Belt Drive
Fan Size
18, 20, 24, 30, 36, 42,
48, 54, 60
Motor Horsepower
Cast Aluminum Prop
Outlet Screen - Outlet screens constructed of steel
mesh shield dampers and fan discharge from debris.
Fusible Link Damper Lifter - Automatically opens
butterfly dampers when the air temperature below the
damper blades exceeds 165ºF (74ºC). Damper blades
held open to provide smoke and heat relief with no
electric power required.
Magnetic Latches - Magnetic damper latches
minimize damper flutter (due to pressure changes
within the building) when the fan is not in operation.
Inspection Door - A bolted or hinged inspection door
provides access through the fan tube for cleaning or
inspection of the propeller, bearings, and drives.
Inlet Guard - Inlet guards provide protection for
personnel and equipment in ducted or non-ducted
installations. Inlet guards meet OSHA standards.
Extended Wiring (Direct Drive) - Motor wiring is
extended to the exterior of the fan casing for easy
installation of the unit in the field.
Tie Down Points - A set of 4 tie down points are used
to secure the fan to the roof deck when wind loading
is a concern.
Shaft Seal - Shaft seals with aluminum rub rings are
available to prohibit leakage of air into the bearing
compartment of the fan.
Roof Curbs - A complete line of prefabricated
roof curbs are available for mounting Model TAUD
and TAUB fans. See the Greenheck Roof Curbs,
Extensions & Equipment Supports catalog.
Special Coatings - Special coatings are available
for protective purposes. Coatings are applied before
assembly so each manufactured component is coated
inside and out. Painting the exterior a specified color
for appearance is also an option. For information on
our complete offering of coatings, visit geenheck.com
and navigate to Library/Application Articles. Search
for Performance Coatings for Ventilation Products
for a comprehensive listing of coatings and a relative
resistance chart.
Disconnect Switches - Toggle and heavy-duty
disconnect switches are available for positive
electrical shut-off and safety in servicing fans. The
following switches are available to meet individual
electrical requirements and can be factory-mounted or
shipped loose for field mounting.
• NEMA-3R — Rainproof (outdoor)
• NEMA-4 — Watertight (outdoor)
• NEMA-7 & 9 — Class 1 and 2 hazardous locations.
Greenheck will not factory-mount NEMA-7 & 9 disconnect switches.
Motor Starters - The fundamental function of a
motor starter is to protect the motor from damage
that can occur from overheating. With a Greenheck
motor starter you will be provided with the best motor
protection available.
Specific model components may include SmartStart™
technology, physical interface, overload protection,
disconnect, magnetic contactor, NEMA-1 or NEMA-3R
steel enclosures and pre-engineered easy system
integration. For complete information on specific
Greenheck Motor Starter models, visit our motor
starter web page on geenheck.com.
Housing - Housings are continuously welded to
prevent air leakage. The fan tube, curb cap, windband
and motor cover are constructed of heavy-gauge steel
with Permatector™ coating.
Butterfly Dampers - Butterfly style dampers feature
rolled edges for strength and weather protection.
Damper stops maintain proper blade position
when fan is operating. Gaskets line the edge of fan
discharge for quiet damper closure. For sizes 18-30
aluminum material is standard and steel is standard for
sizes 36-60. Aluminum blades optional on larger sizes.
Bearings (Belt Drive) - Bearings are air handling
quality, grease lubricated, pillow block type. Bearings
are selected with a basic rating fatigue life L10 in
excess of 40,000 hours (L50 at 200,000 hours) at each
fan’s maximum operating speed.
Extended Lube Lines (Belt Drive) - Extended lube
lines with grease fittings allow bearing lubrication from
the fan exterior.
Belt and Bearing Tube (Belt Drive) - Belts, bearings,
and drives are protected from the airstream by a
heavy-gauge steel belt tube and bearing cover.
Adjustable Motor Bases (Belt Drive) - Rigid structural
steel motor bases are welded to the fan housing
and include heavy-duty adjustment screws for belt
tensioning.
Drives (Belt Drive) - Greenheck offers either constant
or adjustable speed drives for fan speed adjustments.
Belts are static free and oil resistant.
Motors - NEMA base-mounted motors are standard.
Motors are available in open drip proof, totally
enclosed, or explosion proof.
Motor Cover (Belt Drive) - A weatherproof motor
cover shields the motor and drive components from
dust, dirt, and moisture. Motor cover meets OSHA
standards.
Standard Construction
Accessories
4
Standard Construction
& Accessories ®

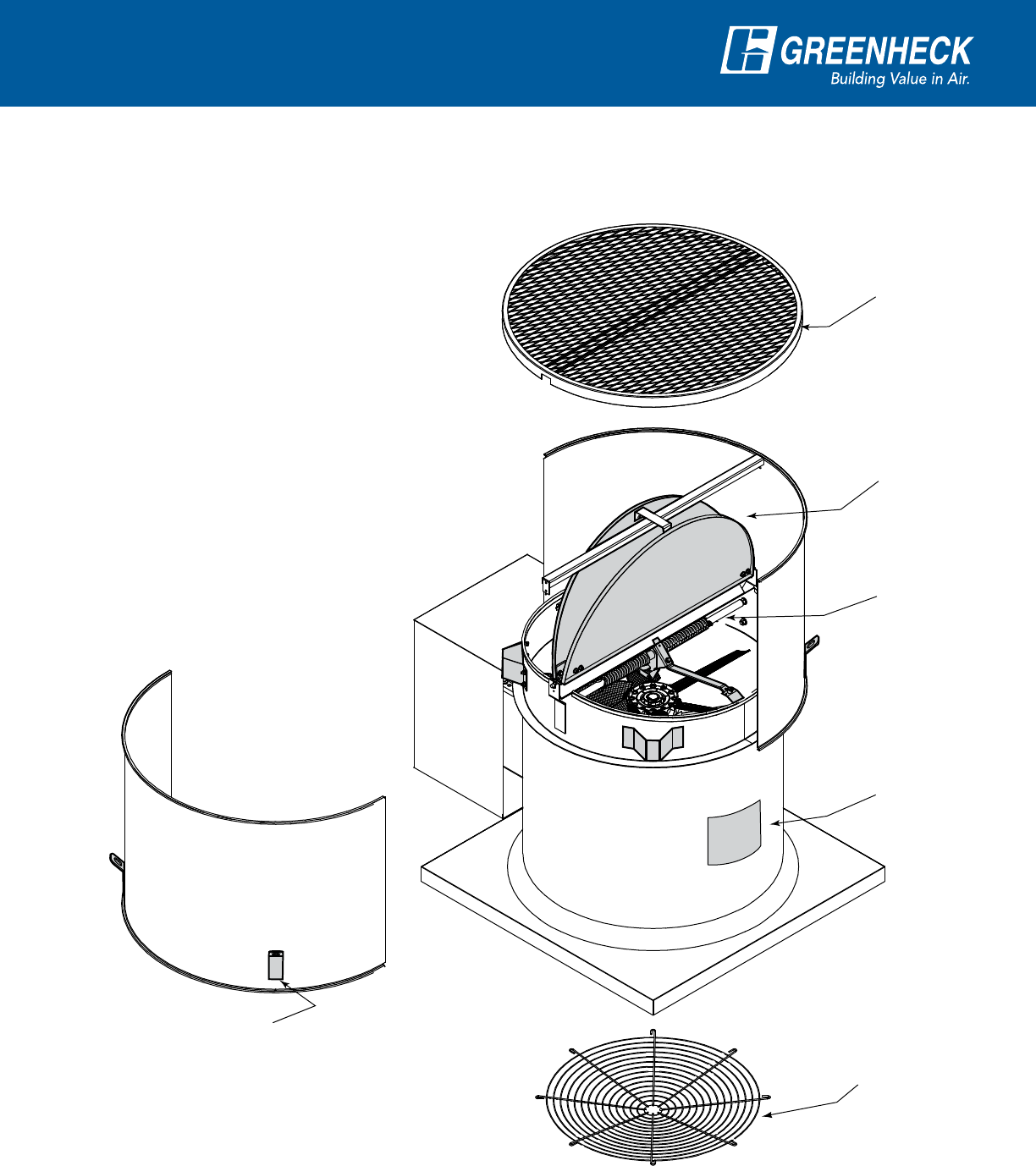

Tie Down Points
Inlet Guard
Outlet Screen
Aluminum
Damper Blades
Inspection Door
Fusible Link
Damper Lifter
5
Accessories ®

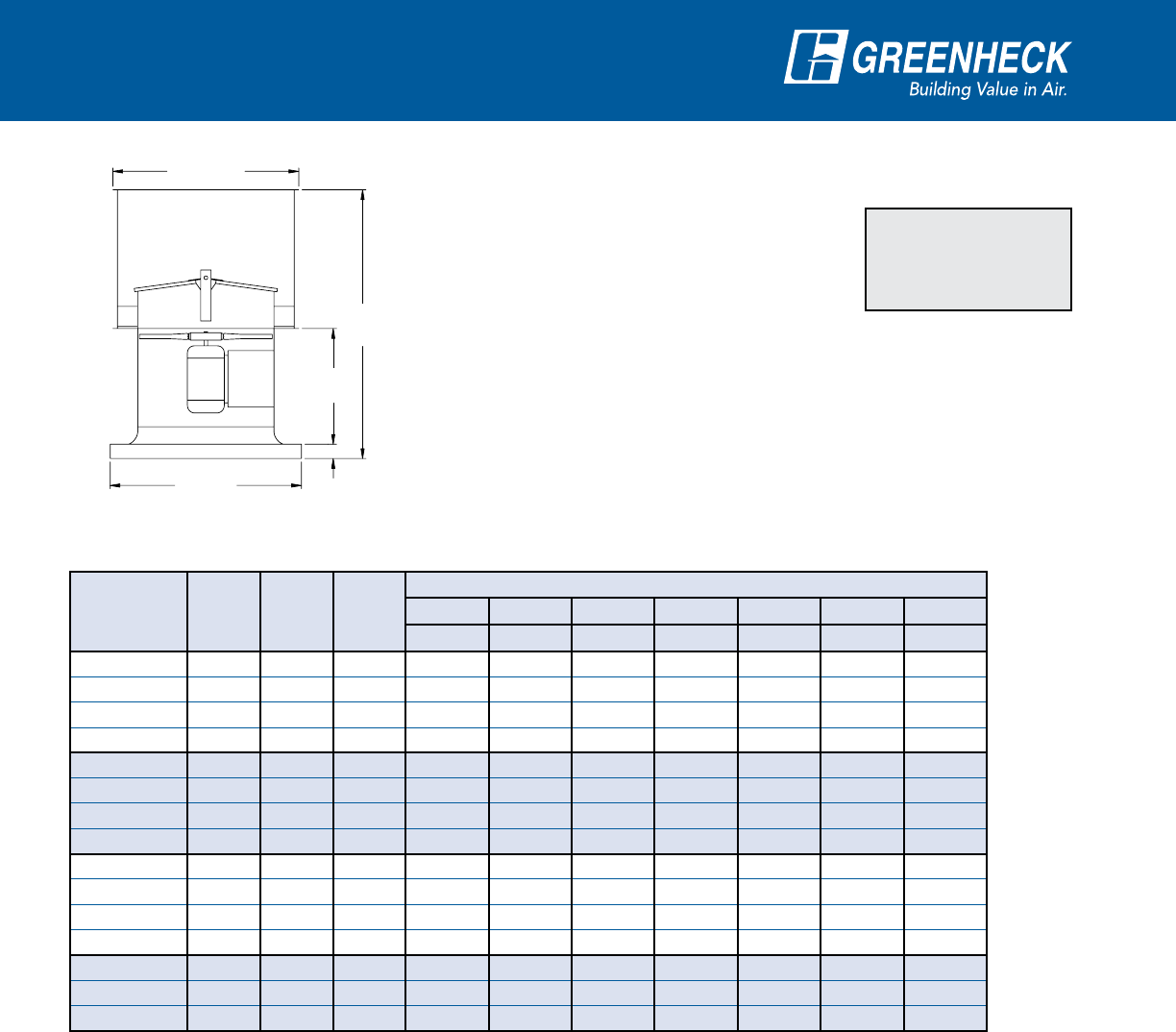

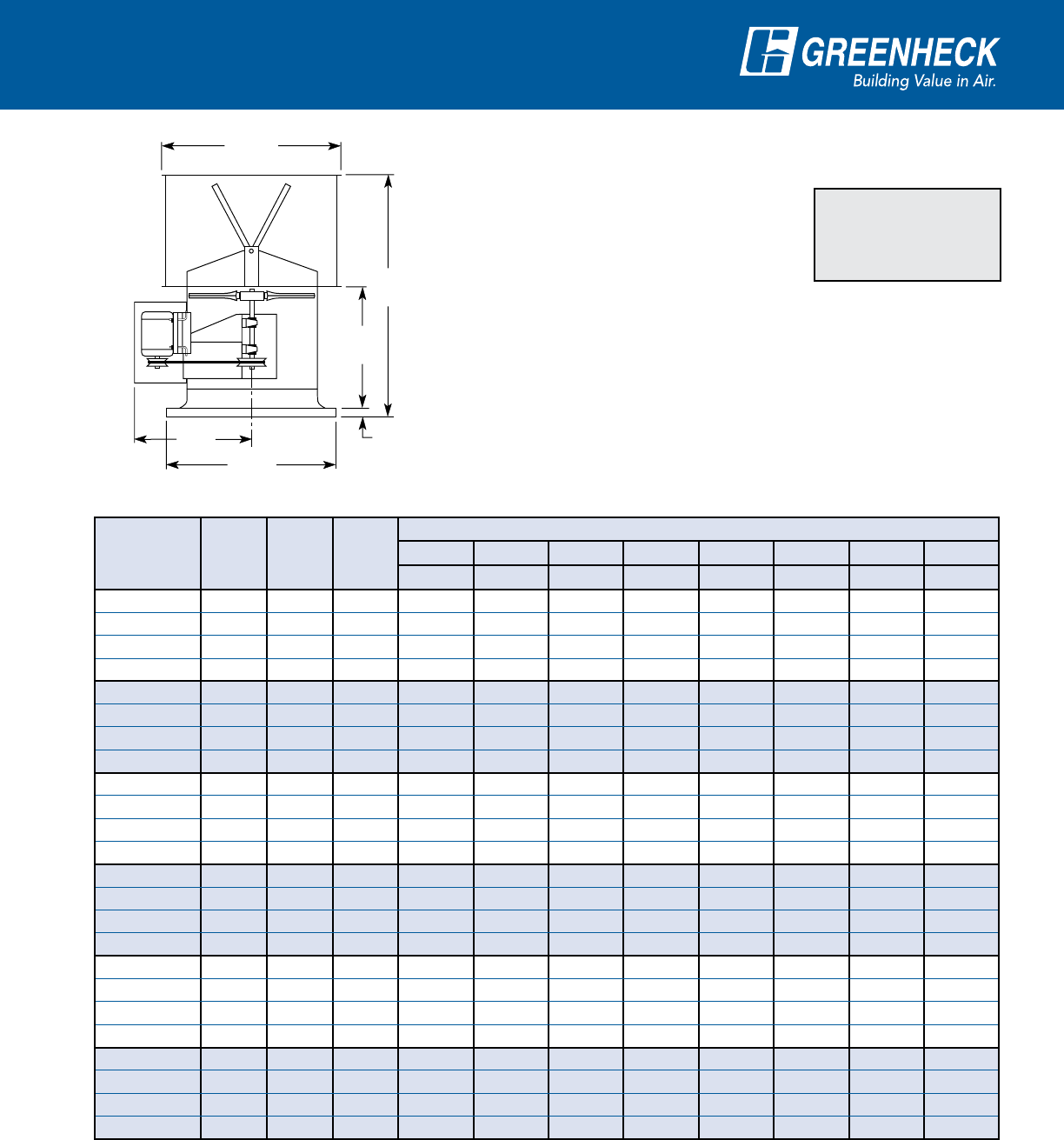

Specifications
Max frpm = 1725
Outlet Velocity (fpm) = cfm / 3.41 ft2
Tip Speed = frpm x 4.71
Max Motor Frame Size = 145T
Fan Tube Gauge = 12 ga.
Windband Gauge = 20 ga.
Curb Cap = 12 ga.
Approx. Weight (LM) = 145 lbs. (66 kg.)
Recommended Roof Opening = 201/2 x 201/2 in. (521 x 521 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 2752
Steel Dampers: 3526
25.00
(635)
44.00
(1118)
21.25
(540)
26.00
(660) 2.50 (64)
TAUD-18
Direct Drive ®
6
TAUD-18
Direct Drive ®
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.050 0.100 0.125 0.250 0.375 0.500
CFM CFM CFM CFM CFM CFM CFM
18-438 1/4 1140 0.28 2854 2688 2491 2402
18-631 1/4 1140 0.27 2914 2780 1631 2556
18-638 1/3 1140 0.36 3121 2975 2823 2739
18-413 1/4 1725 0.27 2795 2712 2625 2574
18-316 1/4 1725 0.28 2913 2812 2708 2652 2343 1978
18-615 1/3 1725 0.36 2953 2891 2830 2799 2605
18-418 1/3 1725 0.38 3201 3118 3035 2991 2731
18-324 1/2 1725 0.43 3428 3303 3180 3119 2818 2457
18-423 1/2 1725 0.54 3590 3498 3406 3357 3090 2785 2369
18-330 1/2 1725 0.59 3741 3632 3502 3433 3097 2734
18-622 3/4 1725 0.61 3661 3591 3521 3486 3283 3052 2763
18-338 3/4 1725 0.78 3971 3834 3708 3650 3337
18-435 3/4 1725 0.89 4207 4103 3998 3945 3646 3340
18-628 11725 0.81 4163 4081 3999 3958 3725 3480 3196
18-634 11725 1.08 4584 4490 4395 4348 4108 3842 3536
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.

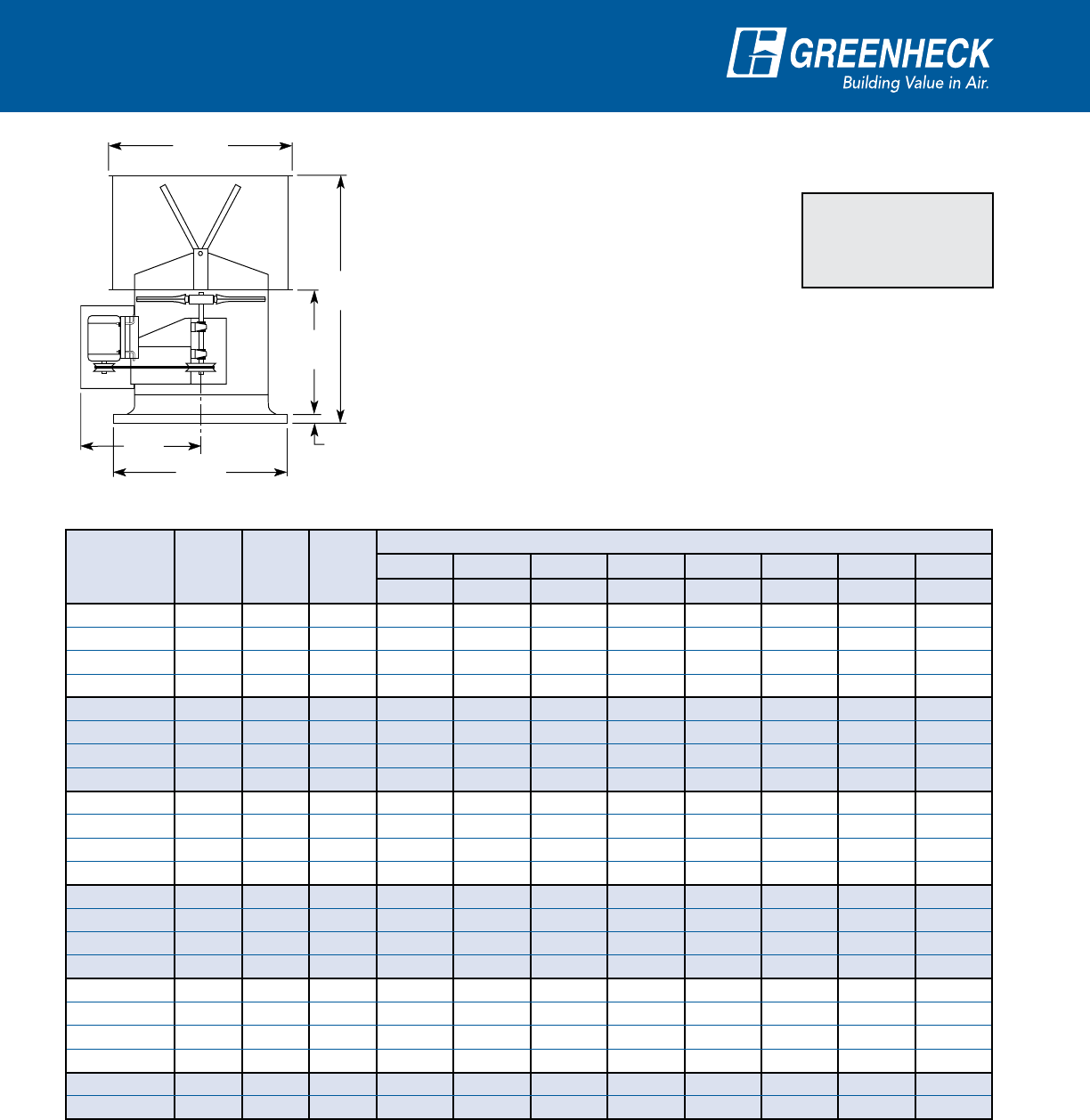

TAUD Performance Data
Specifications
Max frpm = 1725
Outlet Velocity (fpm) = cfm / 4.05 ft2
Tip Speed = frpm x 5.23
Max Motor Frame Size = 145T
Fan Tube Gauge = 12 ga.
Windband Gauge = 20 ga.
Curb Cap = 12 ga.
Approx. Weight (LM) = 160 lbs. (73 kg.)
Recommended Roof Opening = 201/2 x 201/2 in. (521 x 521 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 3169
Steel Dampers: 4087
27.25
(692)
46.13
(1172)
22.38
(568)
30.00
(762) 2.50 (64)
7

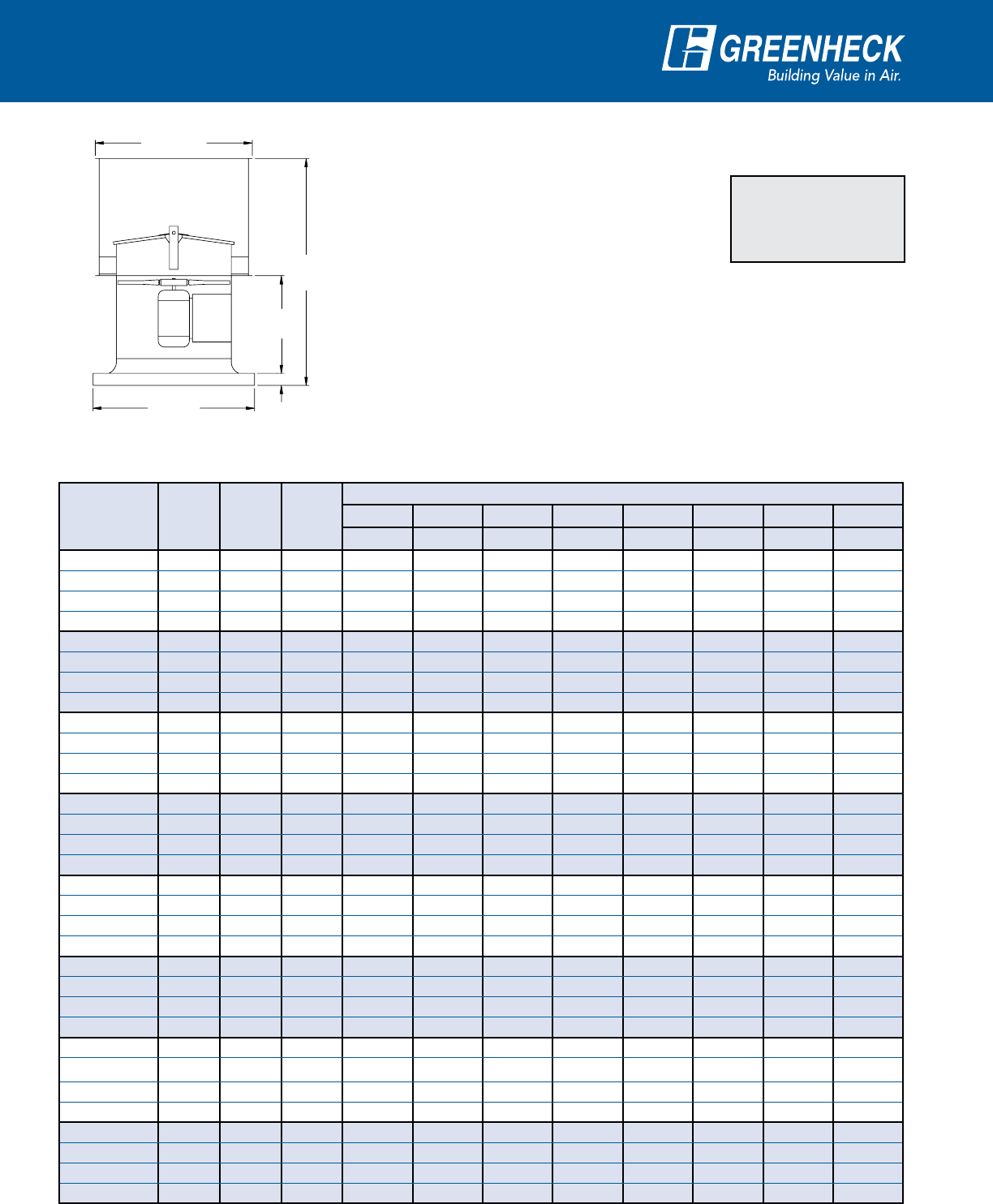

TAUD-20
Direct Drive ®
7
TAUD-20
Direct Drive ®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
TAUD Performance Data
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.050 0.100 0.125 0.250 0.375 0.500
CFM CFM CFM CFM CFM CFM CFM
20-331 1/4 1140 0.28 3513 3270 3042 2921
20-621 1/4 1140 0.28 3423 3283 3140 3067
20-428 1/4 1140 0.30 3626 3436 3237 3126
20-433 1/3 1140 0.37 3837 3627 3428 3319
20-626 1/3 1140 0.38 3870 3686 3511 3426 2961
20-637 1/2 1140 0.59 4448 4273 4087 3989
20-311 1/4 1725 0.26 3318 3183 3053 2990
20-410 1/3 1725 0.30 3375 3268 3162 3110
20 -314 1/3 1725 0.37 3775 3653 3533 3473 3105
20-613 1/2 1725 0.58 3928 3857 3788 3754 3526 3292 2992
20 -417 1/2 1725 0.59 4353 4242 4131 4076 3781 3453 3070
20-321 3/4 1725 0.62 4573 4450 4321 4248 3874 3474 3033
20-619 11725 0.89 4864 4779 4693 4650 4419 4168 3860
20-329 11725 0.89 5197 5039 4882 4804 4410 4000 3552
20-424 3/4 1725 1.86 5102 4992 4883 4828 4482 4164 3798
20-335 11725 1.11 5475 5337 5196 5107 4660 4215
20-623 11725 1.12 5438 5339 5240 5191 4926 4656 4376
20-430 11725 1.13 5568 5447 4327 5267 4926 4573 4187
Specifications
Max frpm = 1725
Outlet Velocity (fpm) = cfm / 5.28 ft2
Tip Speed = frpm x 6.28
Max Motor Frame Size = 184T
Fan Tube Gauge = 12 ga.
Windband Gauge = 20 ga.
Curb Cap = 12 ga.
Approx. Weight (LM) = 225 lbs. (102 kg.)
Recommended Roof Opening = 261/2 x 261/2 in. (673 x 673 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 3947
Steel Dampers: 5220
31.13
(791)
48.50
(1232)
22.13
(562)
34.00
(864)
TAUD-
Direct Drive ®
8

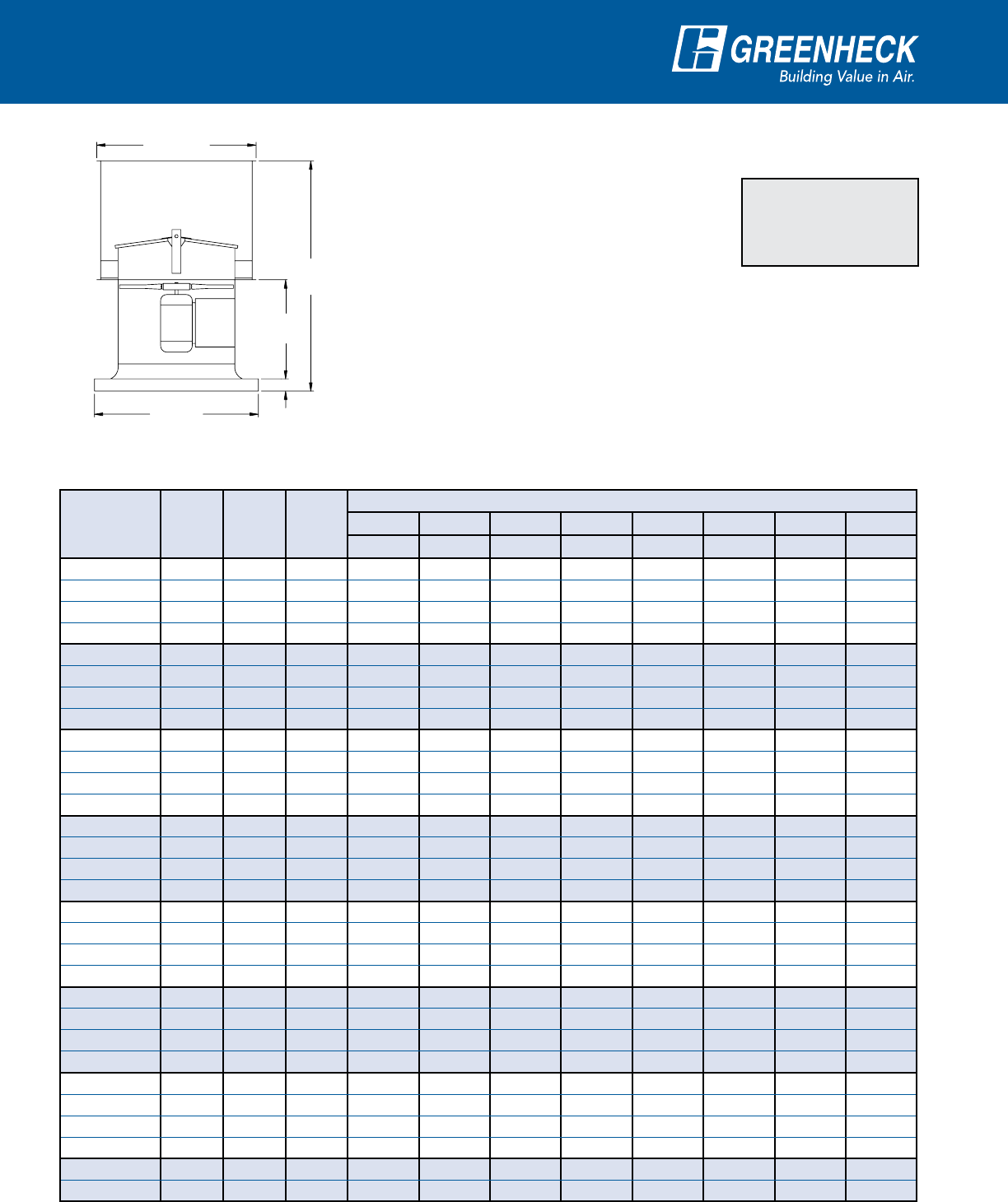

TAUD-24
Direct Drive ®
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
24-431 1/4 860 0.29 4793 3756
24-624 1/4 860 0.29 4762 3995 3123
24-438 1/3 860 0.37 5090 4038
24-414 1/4 1140 0.25 4491 3883
24-318 1/4 1140 0.27 4738 4005 3075
24-613 1/3 1140 0.35 4639 4179 3659
24-323 1/3 1140 0.36 5255 4461 3528
24-419 1/3 1140 0.36 5247 4562 3843
24-621 1/2 1140 0.57 5907 5352 4760 4114
24-427 1/2 1140 0.56 6038 5345 4540
24-335 3/4 1140 0.60 6020 5151
24-438 3/4 1140 0.87 6747 5977 5029
24-630 3/4 1140 0.87 6886 6269 5625 4920
24-635 11140 1.14 7383 6740 6072 5300
24-409 1/2 1725 0.58 5565 5177 4767 4339 3832
24 - 311 1/2 1725 0.58 5741 5320 4823 4257 3565
24-605 1/2 175 0.57 4602 4313 4031 3703
24-610 3/4 1725 0.90 5935 5673 5379 5065 4725 4347 3919
24-414 11725 0.90 6795 6422 5996 5580 5087 4501 3803
24-318 11725 0.95 7170 6750 6510 5653 5030 4380
24-613 1-1/2 1725 1.23 7020 6723 6415 6100 5760 5357 4950
24-419 1-1/2 1725 1.26 7940 7508 7039 6583 6103 5580 5013
24-323 1-1/2 1725 1.25 7952 748 4 6917 6340 5707 5076
24-618 1-1/2 1725 1.70 8328 7968 7617 7272 6914 6516 6099 5657
24-424 1-1/2 1725 1.68 8757 8293 7853 7376 6862 6319 5750
24-330 1-1/2 1725 1.76 8739 8179 7586 6999 6401 5724
24-624 31725 2.35 9552 9206 8835 8426 8022 7620 7183 6740
24-338 21725 2.31 9277 8702 8106 7508
24-432 21725 2.33 9614 9121 8648 8108 7546 6989 6404
24-632 31725 3.33 10695 10288 9901 9527 9073 8594 8095 7603
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
TAUD Performance Data
2.50 (64)
Specifications
Max frpm = 1725
Outlet Velocity (fpm) = cfm / 7.62 ft2
Tip Speed = frpm x 7.85
Max Motor Frame Size = 184T
Fan Tube Gauge = 12 ga.
Windband Gauge = 20 ga.
Curb Cap = 12 ga.
Approx. Weight (LM) = 280 lbs. (280 kg.)
Recommended Roof Opening = 321/2 x 321/2 in. (826 x 826 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 6043
Steel Dampers: 7129
37.38
(949)
53.75
(1365)
24.50
(622)
40.00
(1016)
TAUD-
Direct Drive ®
9
TAUD-30
Direct Drive ®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
TAUD Performance Data
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
30 -414 1/4 860 0.29 6820 5519
30-613 1/3 860 0.39 7328 6271 4979
30-420 1/3 860 0.40 7779 6426 4523
30-426 1/2 860 0.58 8775 7272 5464
30-619 1/2 860 0.59 8742 7626 6313
30-335 3/4 860 0.61 8677 6995
30-627 3/4 860 0.88 10082 8907 7486
30-634 1860 1.15 10898 9636 8215
30- 411 1/2 1140 0.52 8291 7382 6288 4823
30-608 1/2 1140 0.57 7662 6945 6159 5194
30-317 3/4 1140 0.61 9037 7818 6554 4588
30-322 3/4 1140 0.83 9935 8750 7376 5731
30-613 11140 0.93 9714 8944 8109 7212 5962
30-616 1114 0 1.11 10461 9676 8878 7962 6740
30-423 1 1140 1.15 11033 10010 8876 7438
30-431 1-1/2 1140 1.67 12386 11119 9997 8663
30-624 21140 1.78 12699 1183 4 11022 10031 8782
30-630 21140 2.27 13691 12762 11812 10837 9695
30-309 11725 1.10 10633 9892 9084 8311 7275 6144
30-406 11725 1.13 9765 9240 8559 7832 7119 6200 5208
30-603 1-1/2 1725 1.20 8202 7776 7257 6699 6171 5619
30-606 1-1/2 1725 1.66 10515 10085 9620 9094 8543 7989 7376 5795
30-608 21725 1.99 11593 11160 10667 10155 9636 9088 8436 7055
30- 411 21725 1.85 12545 1193 6 11342 10628 9916 1942 8211
30-317 21725 2.12 13675 12850 12053 113 0 6 10485 9487 8294
30 -414 21725 2.33 13679 13075 12437 11770 11086 10319 9476 7129
30-613 31725 3.20 14698 14202 13693 13143 12591 12038 11446 10026
30-420 3 1725 3.26 15604 15050 14433 13700 12908 12167 11333 9147
30-327 51725 5.34 17835 16866 16063 15136 14101 12726
30-622 51725 5.44 18249 17750 17231 16674 16115 15555 14890 13585
30-429 5 1725 5.37 18144 17485 16789 16045 15137 14287 13450 11405
2.50 (64)
Specifications
Max frpm = 1725
Outlet Velocity (fpm) = cfm / 10.32 ft2
Tip Speed = frpm x 9.42
Max Motor Frame Size = 215T
Fan Tube Gauge = 12 ga.
Windband Gauge = 20 ga.
Curb Cap = 12 ga.
Approx. Weight (LM) = 410 lbs. (186 kg.)
Recommended Roof Opening = 381/2 x 381/2 in. (978 x 978 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 7618
Steel Dampers: 10981
43.50
(1105)
56.38
(1432)
24.63
(626)
46.00
(1168)
10

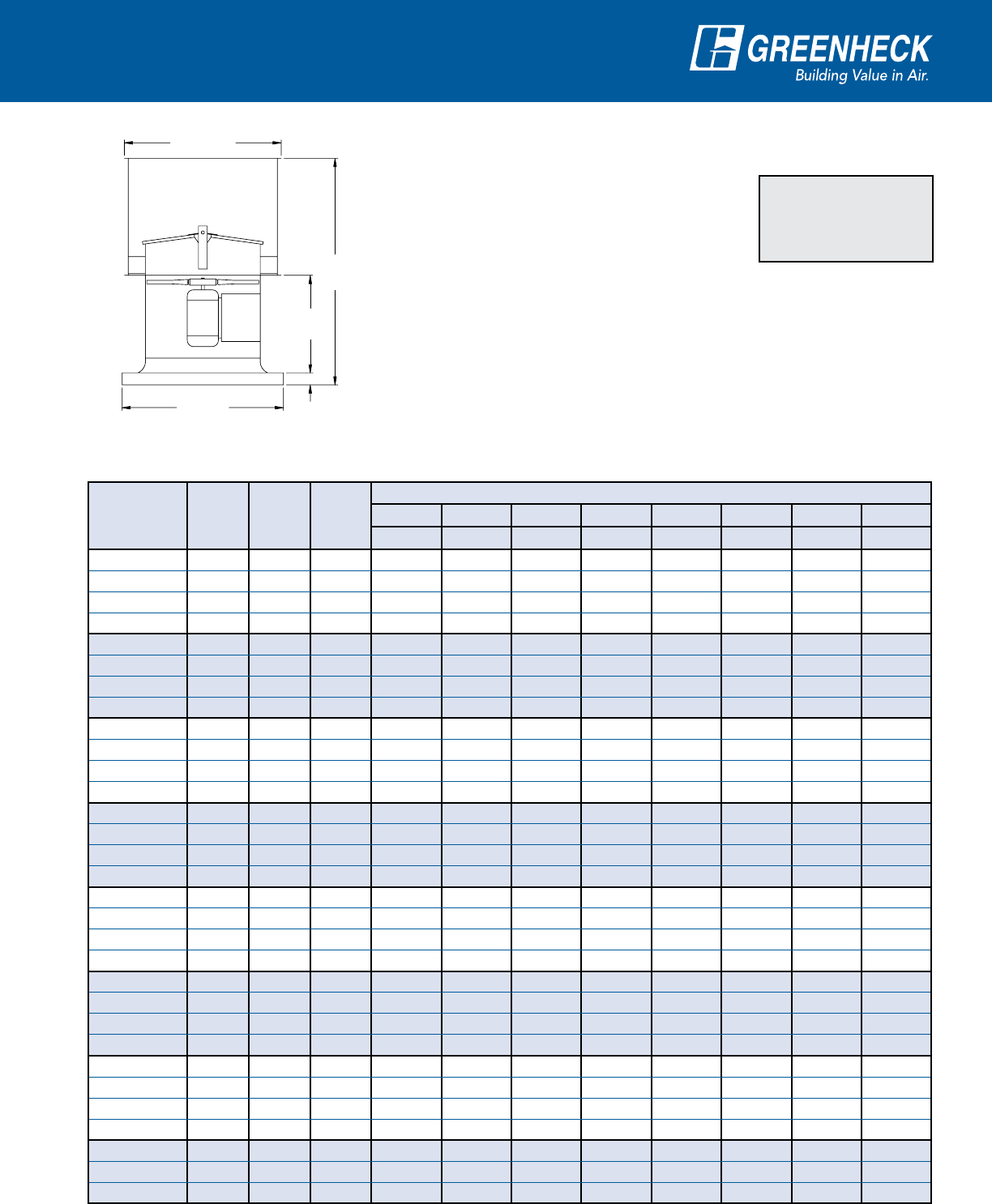

TAUD-36
Direct Drive ®
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
36-412 1/2 860 0.55 10477 8942 7034
36-608 1/2 860 0.59 9546 8527 7194
36-612 3/4 860 0.83 11480 10382 9016 7342
36-322 3/4 860 0.83 12665 10690 8268
36-329 1860 1.13 13918 11826 9379
36-617 1860 1.13 13310 12109 10709 9005
36-432 1-1/2 860 1.71 15642 13908 11893
36-625 1-1/2 860 1.76 15837 14544 13004 11218
36-631 2 860 2.34 17286 15871 14201 12363
36-640 3860 3.29 19008 17401 15604
36-305 1/2 1140 0.56 10247 8853 7224
36-403 3/4 1140 0.61 9055 7828 6485
36-407 3/4 1140 0.86 115 4 3 10434 9142 7706 5960
36-604 11140 0.94 9714 8809 7868 6873
36-410 11140 1.09 13019 11955 10724 9296 7531
36-610 1-1/2 114 0 1.63 14096 13235 12375 11391 10292 8971 7352
36-320 1-1/2 1140 1.63 15975 14533 13015 11221 8897
36-615 21140 2.30 16408 15638 14714 13738 12637 113 87 9766
36-325 21140 2.31 17779 16284 14703 12863 10835
36-612 31140 3.26 19184 18359 17402 16358 15203 13855 12293
36-440 51140 5.39 22090 20654 18751 16760
36-631 5 1140 5.44 22914 21960 20736 19492 18177 16785 14977
36-305 21725 1.96 15506 14562 13668 12686 1160 8 10396 9099
36-403 21725 2.13 13702 12906 12084 11182 10301 9409 8433
36-407 31725 2.97 17466 166988 15992 15208 14349 13458 12558 10444
36-604 31725 3.27 14699 14096 13499 12912 12279 1163 3 10985 9507
36-610 51725 5.66 21330 20758 20187 19635 19083 18456 17816 16461
36-302 51725 5.64 24172 23316 22331 21181 20264 19228 18105 15416
36-615 7-1/2 1725 7.9 0 24828 24319 23811 23254 22628 22001 21353 20 011
36-325 7-1/2 1725 8.10 26903 25900 24919 23955 22879 21735 20502 18116
36-612 10 1725 11.31 29028 28483 27938 27376 26715 26054 25376 23939
36-427 10 1725 11.16 29680 28872 28042 27119 26197 25195 24193 22056
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
TAUD Performance Data
2.50 (64)
Specifications
Max frpm = 1140
Outlet Velocity (fpm) = cfm / 13.57 ft2
Tip Speed = frpm x 10.99
Max Motor Frame Size = 256T
Fan Tube Gauge = 10 ga.
Windband Gauge = 20 ga.
Curb Cap = 10 ga.
Approx. Weight (LM) = 620 lbs. (281 kg.)
Recommended Roof Opening = 441/2 x 441/2 in. (1130 x 1130 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 11045
Steel Dampers: 13551
49.88
(1267)
66.88
(1699)
30.25
(768)
52.00
(1321)
11

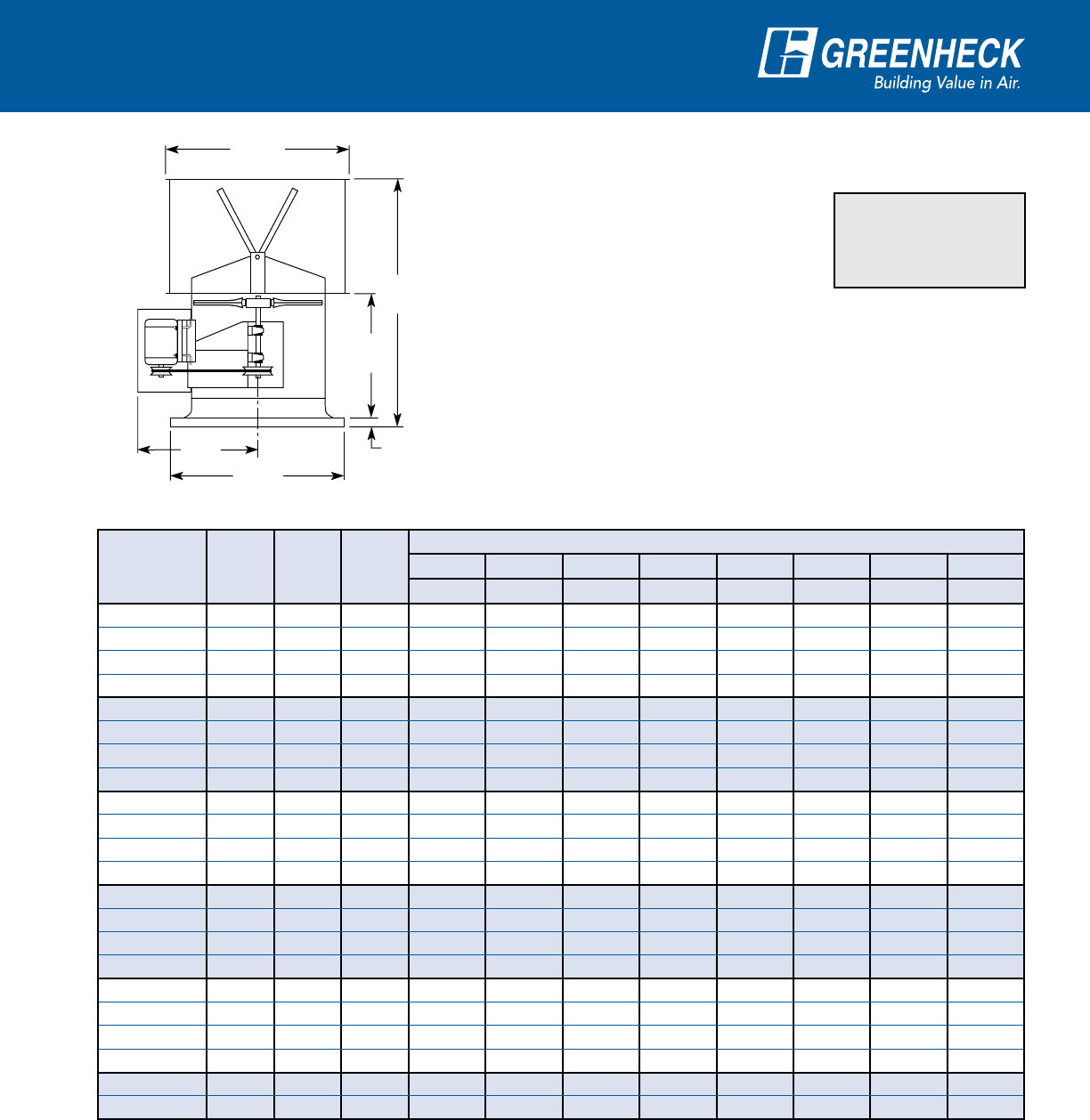

TAUD-42
Direct Drive ®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
TAUD Performance Data
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
42-322 3/4 680 0.83 15944 12042
42-418 3/4 680 0.84 16104 13125
42-617 1680 1.09 16983 14705 11747
42-423 1 680 1.15 17791 14433
42-623 1-1/2 680 1.73 20045 17454 14434
42-632 2680 2.33 21959 19186 15981
42-607 1860 1.16 16247 14586 12640 10369
42-412 1860 1.14 17521 15124 12711 8912
42-614 2860 1.82 20023 18144 16358 14164 11012
42-322 1-1/2 860 1.68 20165 17207 13881
42-418 1-1/2 860 1.73 20367 18071 15341
42-617 2860 2.23 21479 19746 17790 15407 12217
42-329 2860 2.28 21728 18967 15056
42-423 2 860 2.33 22500 19844 17114 13568
42-432 3860 3.36 24735 22160 19148
42-623 3860 3.26 25086 23084 20771 18306 14921
42-403 1-1/2 1140 1.22 15798 14104 12253 10216
42-305 11140 1.10 16620 14498 12345 19661
42-603 21140 1.83 17255 15865 14508 13034 11528 9830
42-309 1-1/2 1140 1.62 19647 17566 15433 12758 9315
42-606 21140 2.29 19883 18576 17201 15602 14185 12307 10430
42-408 1-1/2 1140 1.74 20501 18861 17113 15068 12948 10037
42- 411 31140 2.41 22278 20646 18858 16985 14843 11917
42-314 2 1140 2.28 22553 20365 17888 15585 12418
42-610 31140 3.29 23607 22368 21017 19645 18022 16409 14474
42-414 31140 3.09 24559 22920 21014 18944 16776 13969
42-318 3 1140 3.12 24639 22727 20307 17555 14635 10192
42-617 51140 5.17 28472 27178 25852 24362 22857 21004 18936
42-329 51140 5.31 28803 26775 24566 21752
42-423 5 1140 5.43 29826 27993 25834 23791 21574 18851
42-623 7-1/2 1140 8.14 33605 32342 30599 28963 27341 25606 23319
42-632 10 1140 10.98 36814 35197 33468 31879 30373 28412 25503
2.50 (64)
Specifications
Max frpm = 1140
Outlet Velocity (fpm) = cfm / 17.10 ft2
Tip Speed = frpm x 12.56
Max Motor Frame Size = 256T
Fan Tube Gauge = 10 ga.
Windband Gauge = 20 ga.
Curb Cap = 10 ga.
Approx. Weight (LM) = 800 lbs. (363 kg.)
Recommended Roof Opening = 501/2 x 501/2 in. (1283 x 1283 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 12817
Steel Dampers: 16421
56.00
(1422)
69.13
(1756)
32.50
(826)
58.00
(1473)
12
TAUD-48
Direct Drive ®
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
48-606 3/4 680 0.80 17281 14480
48- 411 3/4 680 0.84 19416 15634
48-610 1680 1.13 20608 17538 14279
48-415 1680 1.11 21591 17609
48-421 1-1/2 680 1.65 24856 20085 14657
48-616 1-1/2 680 1.73 24960 21814 18362 12957
48-428 2 680 2.32 27137 22361
48-620 2680 2.26 27710 24264 20373 14484
48-627 3680 3.37 30936 27426 23440
48-406 1860 1.13 20865 17861 14501 10000
48-309 1860 1.17 22190 18909 14710
48-603 1-1/2 860 1.23 18685 16305 13892 11219
48-606 1-1/2 860 1.63 21855 19759 17272 1459 6 11310
48-315 2860 1.78 25688 22087 17714
48-610 2860 2.30 26063 23652 21248 18687 15353
48-415 2860 2.22 27306 24307 20872 16462
48-320 3860 2.38 28319 24040 19643 12735
48-615 3860 3.32 30561 28356 25795 22913 19656 14452
48-421 3 860 3.33 31435 27781 23768 19430
48-432 5860 5.38 34762 30921 26916 18798
48-622 5860 5.33 36360 33983 31147 27936 24197
48-404 21140 2.16 24531 22523 20517 17712 14906 11689
48-306 21140 1.98 25047 22972 20115 16703
48-604 31140 3.15 25989 24488 22745 21044 19159 16975 14628
48-407 31140 3.03 29135 26745 24444 22036 19168 15790
48-610 51140 5.36 34549 32774 30884 29069 27269 25372 23036 17275
48-415 51140 5.22 36197 33860 31629 29022 26322 22965 18261
48-320 51140 5.53 37539 34093 31180 27899 24175 18793
48-421 7-1/2 1140 7.77 41670 39064 36104 33094 29956 26675 22607
48-616 7-1/2 1140 8.25 41845 39800 38022 36171 34129 32211 29822 23459
48-428 10 114 0 10.95 45494 42436 39795 36965 33917
48-620 10 114 0 10.58 46455 44268 42243 40371 38672 36005 32978 26099
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
TAUD Performance Data
2.50 (64)
Specifications
Max frpm = 2235
Outlet Velocity (fpm) = cfm / 3.41 ft2
Tip Speed = frpm x 4.71
Max Motor Frame Size = 145T
Fan Tube Gauge = 12 ga.
Windband Gauge = 20 ga.
Curb Cap = 12 ga.
Approx. Weight (LM) = 180 lbs. (82 kg.)
Recommended Roof Opening = 201/2 x 201/2 in. (521 x 521 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 2752
Steel Dampers: 3526
25.00
(635)
48.25
(1226)
25.50
(648)
21.75
(552) 26.00
(660)
13
TAUB-CA-18
Belt Drive ®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
TAUB-CA Performance Data
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
18-5 1/2 1400 0.40 2980 2745
18-5 1/2 1435 0.44 3055 2826
18-5 1/2 1470 0.47 3129 2907
18-5 1/2 1505 0.50 3204 2987 2737
18-5 1/2 1545 0.54 3289 3079 2837
18-7 3/4 1575 0.58 3353 3148 2911 2658
18-7 3/4 1615 0.62 3438 3239 3010 2764
18-7 3/4 1655 0.67 3523 3330 3108 2870
18-7 3/4 1695 0.72 3608 3421 3206 2975 2723
18-7 3/4 1735 0.77 3693 3510 3303 3079 2840
18-7 3/4 1775 0.83 3778 3600 3399 3180 2951 2687
18-10 11815 0.88 3864 3689 3495 3281 3059 2808
18-10 11850 0.93 3938 3766 3578 3369 3152 2912
18-10 11885 0.99 4013 3844 3660 3457 3245 3015 2739
18-10 11920 1.05 4087 3922 3742 3543 3337 3118 2870
18-10 11955 1.10 4162 3999 3824 3630 3429 3219 2976
18-15 1-1/2 2010 1.19 4279 4121 3951 3765 3572 3368 3140
18-15 1-1/2 2055 1.28 4374 4220 4055 3875 3686 3489 3274 2678
18-15 1-1/2 2100 1.37 4470 4319 4159 3984 3800 3608 3406 2860
18-15 1-1/2 2145 1.46 4566 4418 4263 4093 3912 3727 3536 3039
18-15 1-1/2 2190 1.55 4662 4517 4366 4202 4025 3845 3658 3215
18-15 1-1/2 2235 1.65 4758 4616 4469 4310 4136 3962 3779 3368
2.50 (64)
Specifications
Max frpm = 2190
Outlet Velocity (fpm) = cfm / 4.05 ft2
Tip Speed = frpm x 5.23
Max Motor Frame Size = 182T
Fan Tube Gauge = 12 ga.
Windband Gauge = 20 ga.
Curb Cap = 12 ga.
Approx. Weight (LM) = 205 lbs. (93 kg.)
Recommended Roof Opening = 221/2 x 221/2 in. (572 x 572 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 3169
Steel Dampers: 4087
14
®
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
20-5 1/2 1265 0.4 3679 3358 2980 2333
20-5 1/2 1310 0.45 3810 3502 3143 2630
20-5 1/2 1355 0.49 3941 3645 3305 2858
20-5 1/2 1400 0.55 4072 3788 3464 3069
20-7 3/4 1445 0.6 4203 3930 3617 3264 2591
20-7 3/4 1500 0.67 4363 4102 3802 3468 2954
20-7 3/4 1550 0.74 4508 4259 3969 3652 3231
20-7 3/4 1600 0.82 4653 4414 4134 3834 3466 2798
20-10 11635 0.87 4755 4523 4250 3960 3629 3024
20-10 11680 0.95 4886 4662 4396 4121 3811 3322
20-10 11725 1.02 5017 4801 4542 4277 3979 3574
20-10 11770 1.11 5148 4940 4687 4430 4145 3787 3174
20-15 1-1/2 1800 1.16 5235 5031 4784 4531 4254 3927 3373
20-15 1-1/2 1845 1.25 5366 5167 4928 4683 4418 4136 3670
20-15 1-1/2 1890 1.35 5497 5303 5072 4833 4580 4305 3917
20-15 1-1/2 1935 1.44 5628 5438 5215 4982 4741 4472 4130
20-15 1-1/2 1980 1.55 5759 5573 5357 5131 4899 4638 4340
20-15 1-1/2 2025 1.65 5890 5708 5499 5278 5052 4802 4546 3546
20-20 22055 1.73 5977 5798 5594 5376 5153 4911 4658 3737
20-20 22100 1.85 6108 5933 5735 5522 5305 5073 4826 4038
20-20 22145 1.96 6239 6068 5876 5667 5456 5235 4992 4333
20-20 22190 2.09 6369 6202 6016 5812 5606 5395 5158 4559
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
TAUB-CA Performance Data
TAUB-CA-20
Belt Drive
27.25
(692)
51.50
(1308)
27.75
(705)
23.25
(591) 30.00
(762)
2.50 (64)
Specifications
Max frpm = 1975
Outlet Velocity (fpm) = cfm / 5.28 ft2
Tip Speed = frpm x 6.28
Max Motor Frame Size = 184T
Fan Tube Gauge = 12 ga.
Windband Gauge = 20 ga.
Curb Cap = 12 ga.
Approx. Weight (LM) = 280 lbs. (127 kg.)
Recommended Roof Opening = 261/2 x 261/2 in. (673 x 673 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 3947
Steel Dampers: 5220
15
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
24-5 1/2 1015 0.43 5242 4696 4059
24-5 1/2 1060 0.48 5474 4956 4360 3598
24-5 1/2 1105 0.55 5706 5213 4648 3964
24-7 3/4 116 0 0.64 5990 5526 4994 4399 3532
24-7 3/4 1215 0.73 6274 5836 5336 4780 4076
24-7 3/4 1270 0.83 6558 6144 5669 5153 4529
24-10 11295 0.88 6687 6284 5818 5320 4730
24-10 11345 0.99 6946 6561 6113 5640 5118
24-10 11395 1.1 7204 6838 6406 5956 5465 3991
24-15 1-1/2 1440 1.21 7436 7086 6667 6237 5772 4519
24-15 1-1/2 1480 1.32 7643 7306 6898 6485 6041 4914
24-15 1-1/2 1520 1.42 7849 7525 7128 6731 6301 5260
24-15 1-1/2 1560 1.53 8056 7744 7357 6971 6556 5584
24-20 21600 1.66 8262 7962 7585 7208 6809 5904
24-20 21645 1.81 8495 8207 7840 7474 7091 6253 5040
24-20 21685 1.95 8701 8424 8066 7708 7340 6531 5438
24-20 21725 2.09 8908 8641 8291 7942 7587 6806 5827
24-30 31775 2.27 9166 8911 8571 8232 7892 7146 6235
24-30 31825 2.47 9424 9181 8851 8520 8190 7482 6638 5492
24-30 31875 2.68 9683 9450 9129 8807 8486 7803 7034 5992
24-30 31925 2.91 9941 9715 9406 9093 8780 8121 7398 6483
24-30 31975 3.13 10199 9979 9683 9377 9072 8437 7743 6894
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
TAUB-CA Performance Data
TAUB-CA-24
Belt Drive
31.13
(791)
52.75
(1340)
26.38
(670)
26.00
(660) 34.00
(864)
2.50 (64)
Specifications
Max frpm = 1810
Outlet Velocity (fpm) = cfm / 7.62 ft2
Tip Speed = frpm x 7.85
Max Motor Frame Size = 213T
Fan Tube Gauge = 12 ga.
Windband Gauge = 20 ga.
Curb Cap = 12 ga.
Approx. Weight (LM) = 370 lbs. (168 kg.)
Recommended Roof Opening = 321/2 x 321/2 in. (826 x 826 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 6043
Steel Dampers: 7129
16
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
30-5 1/2 820 0.49 7864 6807 5588
30-5 1/2 860 0.56 8247 7242 6112
30-7 3/4 900 0.64 8631 7673 6626
30-7 3/4 940 0.73 9015 8100 7130 5854
30-10 1980 0.83 9398 8523 7600 6480
30-10 11015 0.92 9734 8892 8003 6985
30-10 11045 1.01 10022 9205 8346 7379 6041
30-10 11075 1.09 10309 9518 8686 7767 6595
30-15 1-1/2 1125 1.25 10789 10033 9246 8403 7380
30-15 1-1/2 1180 1.44 11316 10597 9849 9072 8171
30-15 1-1/2 1235 1.66 11844 11158 10445 9709 8887 6396
30-20 21265 1.78 12131 11462 10768 10053 9272 7069
30-20 21300 1.94 12467 11817 11142 10450 9715 7811
30-20 21335 2.06 12803 12170 11515 10845 10153 8368
30-30 31400 2.41 13426 12824 12202 11568 10 911 9380 6790
30-30 31465 2.77 14049 13475 12884 12278 11657 10267 8259
30-30 31530 3.16 14673 14124 13561 12980 12393 11108 9481
30-50 51575 3.44 15104 14572 14025 13463 12898 116 82 10188 7815
30-50 51635 3.85 15680 15168 14641 14103 13559 12434 11109 9169
30-50 51695 4.29 16255 15763 15254 14738 14213 13135 11899 10352
30-50 51755 4.76 16830 16357 15865 15369 14863 13828 12677 1129 9
30-50 51810 5.23 17358 16899 16423 15944 15453 14456 13379 12150
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
TAUB-CA Performance Data
TAUB-CA-30
Belt Drive
37.38
(949)
56.75
(1441)
27.50
(699)
31.25
(794) 40.00
(1016)
2.50 (64)
Specifications
Max frpm = 1700
Outlet Velocity (fpm) = cfm / 10.32 ft2
Tip Speed = frpm x 9.42
Max Motor Frame Size = 215T
Fan Tube Gauge = 12 ga.
Windband Gauge = 20 ga.
Curb Cap = 12 ga.
Approx. Weight (LM) = 500 lbs. (227 kg.)
Recommended Roof Opening = 381/2 x 381/2 in. (978 x 978 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 7618
Steel Dampers: 10981
17
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
36-7 3/4 745 0.65 11255 9741 7659
36-7 3/4 800 0.82 12086 10685 8925
36-10 1820 0.88 12388 11024 9359 6752
36-10 1850 0.98 12841 11531 9966 7671
36-10 1880 1.09 13294 12033 10564 8537
36-15 1-1/2 930 1.28 14050 12862 11533 9824 7220
36-15 1-1/2 970 1.45 14654 13519 12274 10716 8521
36-15 1-1/2 1010 1.65 15258 14172 13006 11579 9683
36-20 21040 1.8 15712 14659 13541 12185 10482
36-20 21065 1.93 16089 15064 13973 12685 11122
36-20 21095 2.09 16542 15548 14489 13278 11817
36-30 31145 2.4 17298 16352 15342 14237 12921 9048
36-30 31200 2.76 18129 17231 16272 15253 14052 10788
36-30 31255 3.15 18960 18106 17193 16255 15147 12352
36-50 51305 3.54 19715 18894 18021 17125 16120 13638 9857
36-50 51365 4.05 20621 19836 19007 18155 17233 15004 11850
36-50 51425 4.63 21528 20776 19987 19175 18332 16307 13597
36-50 51485 5.23 22434 21713 20962 20186 19396 17518 15189 11915
36-75 7-1/2 1535 5.77 23190 22492 21770 21023 20258 18511 16409 13511
36-75 7-1/2 1590 6.41 24021 23347 22655 21934 21200 19588 17631 15110
36-75 7-1/2 1645 7.12 24851 24200 23537 22840 22134 20612 18821 16589
36-75 7-1/2 1700 7. 8 5 25682 25052 24415 23741 23061 21625 19932 17982
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
TAUB-CA Performance Data
TAUB-CA-36
Belt Drive
43.50
(1105)
64.38
(1635)
32.63
(829)
33.75
(857)
46.00
(1168)
2.50 (64)
Specifications
Max frpm = 1580
Outlet Velocity (fpm) = CFM / 13.57 ft2
Tip Speed = frpm x 10.99
Max Motor Frame Size = 215T
Fan Tube Gauge = 10 ga.
Windband Gauge = 20 ga.
Curb Cap = 10 ga.
Approx. Weight (LM) = 670 lbs. (304 kg.)
Recommended Roof Opening = 441/2 x 441/2 in. (1130 x 1130 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 11045
Steel Dampers: 13551
18
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
42-10 1595 0.94 14015 12285
42-10 1615 1.05 14486 12823 10734
42-15 1-1/2 645 1.21 15192 13620 11735
42-15 1-1/2 695 1.51 16370 14932 13299 10766
42-20 2725 1.71 17077 15711 14166 12028
42-20 2745 1.86 17548 16227 14727 12823
42-20 2765 2.03 18019 16741 15283 13574
42-30 3790 2.23 18608 17381 15972 14374 11787
42-30 3830 2.58 19550 18399 170 64 15632 13600
42-30 3870 2.97 20492 19412 18142 16844 15191
42-50 5920 3.52 21670 20650 19468 18247 16844 11758
42-50 5980 4.24 23083 22126 21042 19903 18719 15078
42-50 51040 5.04 24496 23594 22598 21533 20447 17596 12149
42-50 51070 5.54 25203 24326 23371 22338 21284 18780 14063
42-75 7-1/2 1105 6.1 26027 25178 24268 23268 22252 19938 16035
42-75 7-1/2 1145 6.78 26969 26150 25289 24324 23348 21205 18064 12465
42-75 7-1/2 1185 7.5 27912 27120 26305 25373 24435 22455 19684 15008
42-75 7-1/2 1220 8.17 28736 27967 27190 26285 25379 23527 21075 17119
42-100 10 1250 8.84 29443 28692 27941 27063 26179 24375 22191 18684
42-100 10 1280 9.48 30149 29416 28683 27838 26975 25217 23152 20191
42-100 10 1305 10.04 30738 30019 29300 28482 27636 25915 23946 21208
42-100 10 1345 11 31680 30983 30285 29509 28687 27023 25203 22811
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
TAUB-CA Performance Data
TAUB-CA-42
Belt Drive
49.88
(1267)
71.00
(1803)
34.25
(870)
37.25
(946) 52.00
(1321)
2.50 (64)
Specifications
Max frpm = 1550
Outlet Velocity (fpm) = cfm / 17.10 ft2
Tip Speed = frpm x 12.56
Max Motor Frame Size = 254T
Fan Tube Gauge = 10 ga.
Windband Gauge = 20 ga.
Curb Cap = 10 ga.
Approx. Weight (LM) = 865 lbs. (392 kg.)
Recommended Roof Opening = 501/2 x 501/2 in. (1283 x 1283 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 12591
Steel Dampers: 16241
19
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
48-15 1-1/2 495 1.16 17450 15218 12027
48-15 1-1/2 545 1.55 19213 17228 14765 10438
48-20 2595 2.02 20975 19194 17098 14060
48-20 2611 2.19 21539 19816 17798 15011
48-30 3625 2.34 22033 20359 18393 15832 116 61
48-30 3650 2.63 22914 21324 19447 17248 13774
48-30 3680 3.02 23972 22474 20696 18676 15785
48-30 3700 3.29 24677 23237 21520 19613 17007
48-50 5740 3.89 26087 24746 23139 21442 19340 12097
48-50 5770 4.37 27145 25856 24334 22719 20845 14694
48-50 5800 4.91 28202 26962 25519 23981 22260 17135
48-50 5825 5.39 29083 27881 26501 25023 23422 18814 12005
48-75 7-1/2 840 5.69 29612 28431 27087 25643 24113 19797 13010
48-75 7-1/2 880 6.53 31022 29895 28642 27283 25848 22163 16137
48-75 7-1/2 920 7.47 32432 31354 30186 28886 27534 24429 19531 13261
48-75 7-1/2 950 8.19 33490 32445 31337 30078 28784 25860 21549 15265
48-100 10 970 8.66 34195 33172 32101 30869 29612 26803 22862 16766
48-100 10 990 9.26 34900 33898 32864 31656 30436 27739 24055 18601
48-100 10 1010 9.89 35605 34623 33624 32441 31255 28667 25233 20406
48-100 10 1030 10.49 36310 35347 34383 33222 32061 29588 26398 21932
48-150 15 1065 11.6 37544 36612 35680 34584 33461 31114 28336 24284
48-150 15 1100 12.8 38778 37876 36974 35938 34851 32597 30004 26487
48-150 15 1135 14 40012 39137 38263 37286 36233 34066 31650 28549
48-150 15 1170 15.4 41246 40397 39549 38628 37606 35523 33275 30576
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
TAUB-CA Performance Data
TAUB-CA-48
Belt Drive
56.00
(1422)
76.75
(1949)
40.00
(1016)
42.75
(1086) 58.00
(1473)
2.50 (64)
Specifications
Max frpm = 1270
Outlet Velocity (fpm) = cfm / 21.39 ft2
Tip Speed = frpm x 14.13
Max Motor Frame Size = 256T
Fan Tube Gauge = 10 ga.
Windband Gauge = 18 ga.
Curb Cap = 10 ga.
Approx. Weight (LM) = 1170 lbs. (531 kg.)
Recommended Roof Opening = 561/2 x 561/2 in. (1422 x 1422 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 16005
Steel Dampers: 21425
20
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
54-20 2 475 2.24 28091 24924 20807
54-30 3500 2.61 29569 26596 22883
54-30 3525 3.03 31047 28251 24913
54-30 3535 3.19 31639 28908 25714 20534
54-50 5575 3.99 34004 31519 28577 24812
54-50 5600 4.53 35483 33136 30328 27005 21238
54-50 5625 5.12 36961 34744 32059 29057 24702
54-75 7-1/2 645 5.62 38144 36012 33431 30673 26747
54-75 7-1/2 660 6.03 39031 36948 34453 31851 28256
54-75 7-1/2 685 6.74 40510 38502 36136 33638 30533
54-75 7-1/2 710 7.50 41988 40051 37804 35405 32598 21874
54-75 7-1/2 735 8.32 43466 41596 39460 37154 34631 26033
54-100 10 750 8.84 44354 42520 40449 38196 35837 28127
54-100 10 765 9.39 45241 43443 41434 39232 36987 30191
54-100 10 780 9.95 46128 44365 42415 40263 38061 31746
54-100 10 805 10.9 47606 45898 44044 41970 39837 34273 22559
54-150 15 835 12.2 49380 47734 45989 43993 41946 37066 27973
54-150 15 865 13.6 51154 49565 47923 45997 44034 39550 32336
54-150 15 895 15.0 52929 51392 49847 47986 46102 41995 36078 24515
54-150 15 925 16.5 54703 53216 51730 49963 48154 44406 39121 29748
54-200 20 945 17.7 55885 54430 52975 51274 49 511 45879 41118 33062
54-200 20 965 18.8 57068 55643 54218 52581 50854 47306 42869 35861
54-200 20 985 20.0 58251 56855 55459 53883 52192 48725 44530 38619
54-200 20 1000 21.0 59138 57763 56388 54857 53191 49783 45765 40271
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
TAUB-CA Performance Data
TAUB-CA-54
Belt Drive
62.63
(1591)
86.75
(2203)
44.00
(1118)
47.25
(1200) 64.00
(1626)
2.50 (64)
Specifications
Max frpm = 950
Outlet Velocity (fpm) = cfm / 25.78 ft2
Tip Speed = frpm x 15.70
Max Motor Frame Size = 284T
Fan Tube Gauge = 10 ga.
Windband Gauge = 18 ga.
Curb Cap = 10 ga.
Approx. Weight (LM) = 1440 lbs. (653 kg.)
Recommended Roof Opening = 621/2 x 621/2 in. (1588 x 1588 mm)
Dimensions are shown in inches (millimeters).
Minimum CFM required to
open butterfly dampers:
Aluminum Dampers: 18051
Steel Dampers: 24820
21
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
Model
Number
Motor
HP
Fan
RPM
Max
BHP
CFM / Static Pressure in Inches WG
0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000
CFM CFM CFM CFM CFM CFM CFM CFM
60-20 2415 2.15 32356 27799 22312
60-30 3440 2.59 34306 30030 25227
60-30 3470 3.15 36645 32678 28356 22255
60-50 5500 3.78 38984 35305 31273 26298
60-50 5530 4.51 41323 37903 34129 29872 23864
60-50 5555 5.21 43272 40049 36426 32686 27375
60-75 7-1/2 590 6.23 46001 43028 39593 36136 31920
60-75 7-1/2 615 7.0 6 47950 45118 41826 38554 34841
60-75 7-1/2 635 7. 8 0 49509 46767 43596 40463 37134 26358
60-100 10 660 8.74 51458 48820 45800 42804 39641 30828
60-100 10 680 9.54 53018 50457 47560 44637 41602 33563
60-100 10 700 10.39 54577 52089 49310 46454 43542 36248
60-150 15 725 11.5 56526 54124 51483 48706 45940 39378
60-150 15 750 12.8 58476 56153 53643 50939 48309 42299 33844
60-150 15 775 14.2 60425 58178 55791 53155 50610 45170 37369
60-150 15 805 15.9 62764 60600 58354 55799 53343 48221 41418
60-200 20 835 17.7 65103 63017 60903 58440 56048 51164 45215 37127
60-200 20 860 19.3 67052 65027 63002 60625 58283 53586 48143 40892
60-200 20 885 21.1 69001 67033 65065 62799 60504 55984 51028 44293
60-250 25 910 23.0 70950 69037 67123 64962 62709 58359 53743 47633
60-250 25 930 24.5 72510 70637 68764 66684 64473 60223 55727 50131
60-250 25 950 26.0 74069 72236 70403 68400 66236 62060 57694 52484
®
Performance shown is for installation type A: free inlet, free outlet. Performance ratings do not include the effects of appurtenances in the airstream.
Power rating (bhp) does not include drive losses.
TAUB-CA Performance Data
TAUB-CA-60
Belt Drive
68.75
(1746)
93.75
(2381)
48.13
(1223)
50.75
(1289) 70.00
(1778)
2.50 (64)
Automotive Duty - Upblast Roof Ventilator
Standard Features:
• Heavy-gauge steel housing, windband, dampers and curb cap
• AMCA licensed air performance
• “Air Handling Quality” bearings with L10 40,000 hour (L50 at
200,000 hours) bearing life
• Electrostatically applied, industrial grade powder paint
• External lube lines
• Drives sized for a minimum of 150% of the motor horsepower
• Cast aluminum hub and airfoil blades balanced to grade G6.3
• Adjustable motor pivot base for belt tensioning
Greenheck’s TAUB-CA Automotive Duty fan takes upblast roof ventilators to a new level. Increased material
gauges combined with high standards in construction and component parts creates a quality, heavy-duty
product capable of meeting the toughest demands.
Standard Construction:
The housing, bearing support and motor base are constructed
of structural members to prevent vibration and rigidly support
the shaft, bearings and motor. Curb caps are welded to the
fan housing to provide a leak resistant seal. Also incorporated
into the curb cap design is an integral venturi inlet with a
prepunched mounting flange. Windbands have reinforced
edges for rigidity.
Optional Accessories:
• Aluminum and spark resistant construction
• NEMA 3R heavy-duty disconnect switches with optional pigtail
• Complete line of corrosion resistant coatings
• UL/cUL 705
• OSHA inlet and outlet guards
• Felt shaft seal
• Access door - bolted or hinged
• Welded roof curbs
• Fusible link damper lifters
22
Axial Family &
Applications ®
TBI-FS
Level 4
TBI-FS
Level 5
High Temperature or Emergency Smoke Control - Steel Propeller
Model TBI-FS inline fans are the ideal choice for installations for
high temperature applications, continuous duty or emergency
use. Designed for commercial and industrial applications for
air volumes up to 77,000 cfm (130,000 m3/hr) and moderate
pressures to 4 inches wg (996 Pa). TBI-FS models have a
continuously welded housing and are belt driven with motors
and drives out of the airstream. All propellers are constructed
with airfoil blades that are continuously welded to heavy-duty
hubs to ensure long life in the harshest applications.
Typical applications include:
• General exhaust, supply or return air
• Industrial space and warehouse ventilation
• UL/cUL Listed for emergency heat and smoke removal
• High temperature process ventilation
TBI-CA and TDI axial fans are a practical choice for inline applications involving clean air or air containing
volatile compounds. These fans can be used in either ducted or unducted applications. Cast aluminum hub and
airfoil blades provide spark resistant construction and are suited for 1 to 3 inches wg (249 - 747 Pa) of static
pressure. Three levels of construction provide efficient and economical selections for reliable performance in
commercial and industrial applications.
Typical applications include:
• General exhaust, supply or return air • Paint booth exhaust
• Industrial or commercial space ventilation • Emergency smoke exhaust
• Fume hood exhaust
Spark Resistant - Inline Cast Aluminum Propeller
TBI-FS
Level 3
TAUB-L/H
Lower Pressures Higher Pressures
TBI-CA TDI
Level 4
TBI-CA TDI
Level 5
TAUB-CA TAUD
TDI TBI-CA
Level 3
Lower Pressures Higher Pressures
Operating
Temperature
Time
Duration
°F °C Hours
Continuous Duty
Standard Construction 180 82 Continuous
Inline 400 204 Continuous
Roof Upblast 500 260 Continuous
Emergency Smoke Control
HT-II 500 260 4
572 300 1
HT-III 752 400 2
1000 538 1
HT-UL
• UL/cUL Listed
300 149 5
750 399 4
1000 538 0.25
Levels four and five available in roof upblast style.
®
23
®
P.O. Box 410 • Schofield, WI 54476-0410 • Phone (715) 359-6171 • greenheck.com
TAUD TAUB-CA Rev 2 September 2002 SP
Copyright © 2014 Greenheck Fan Corp.
Specifications
General Tube Axial Roof Mount
Roof mount fans shall be of the tube axial type
with cast aluminum airfoil propellers.
Fan tube, wind band, and curb cap shall be
constructed of heavy-gauge steel with
prepunched mounting flange and an integral
venturi inlet. Curb cap shall have prepunched
mounting holes.
Steel housings and structural components to
be coated with Permatector™, an
electrostatically applied thermosetting
polyester urethane. Minimum coating
thickness to be 2 mils.
Fan performance shall be based on tests
conducted in accordance with AMCA
Standard 210. All fans shall be licensed to bear
the AMCA Certified Ratings Seal for Air
Performance.
Model TAUD Tube Axial Roof Mount,
Direct Drive
Propellers shall be cast aluminum airfoil
design. A tapered bushing shall lock the
propeller to the motor shaft. Propellers to be
dynamically balanced. Hubs shall be two piece
aluminum castings that securely lock the
blades in place.
Fans shall be model TAUD as manufactured by
Greenheck of Schofield, Wisconsin, USA.
Model TAUB-CA Tube Axial Roof
Mount, Belt Drive
Propellers shall be cast aluminum airfoil
design. A tapered bushing shall lock the
propeller to the fan shaft. Propellers to
be dynamically balanced. Hubs shall be
two piece aluminum castings that
securely lock the blades in place.
Bearings shall be cast iron pillow block,
grease lubricated, and self-aligning.
Bearings shall be Air Handling Quality
and tested for reduced swivel torque,
bore size, noise, and vibration. Bearings
shall be selected for an L10 life, per
ABMA standards, in excess of 40,000
hours at maximum operating speed.
Turned, precision ground and polished
steel shafts shall be sized so the first critical
speed is at least 25% over the maximum
operating speed for each level of construction.
Fans shall be model TAUB-CA as
manufactured by Greenheck of Schofield,
Wisconsin, USA.
Building Value in Air
Greenheck delivers value
to mechanical engineers by
helping them solve virtually
any air quality challenges
their clients face with a
comprehensive selection of
top quality, innovative air-
related equipment. We offer
extra value to contractors
by providing easy-to-install,
competitively priced, reliable
products that arrive on time.
And building owners and
occupants value the energy
efficiency, low maintenance
and quiet dependable operation
they experience long after the
construction project ends.
Prepared to Support
Green Building Efforts
As a result of our commitment to continuous improvement, Greenheck reserves the right to change
specifications without notice.
Specific Greenheck product warranties are located on greenheck.com within the product
area tabs and in the Library under Warranties.
Our Commitment
