REVIEW OF EMISSION STANDARD EFFECTIVE DATES

CARB: August 1, 1995

All Lawn and Garden/Utility Engines less than 25 HP produced for sale into California after August 1,

1995 (D.O.M. of 5213) must be CARB certified and labeled to indicate compliance. There are several

applications which utilize engines typically thought to be in this category that are exempt from California

regulations because they are considered Farm and/or Construction equipment.

U.S. EPA: (Phase 1) September 1, 1997

All Lawn and Garden/Utility Engines less than 19kw (25 HP) produced after September 1, 1997 (D.O.M.

7244) must be EPA certified and labeled to indicate compliance. All engines used on equipment considered

Farm and/or Construction exempt in California must meet EPA requirements.

Our complete snow engine product line will be certified for both CARB and EPA beginning with the 1997

model year.

CALIFORNIA & US EPA EMISSION CONTROL WARRANTY STATEMENT

The U. S. Environmental Protection Agency (“EPA”), the California Air Resources Board (“CARB”) and

Tecumseh Products Co. are pleased to explain the Federal and California Emission Control Systems

Warranty on your new utility or lawn and garden equipment engine. In California, new 1995 and later

utility and lawn and garden equipment engines must be designed, built and equipped to meet the State’s

stringent anti-smog standards. In other states, new 1997 and later model year engines must be

designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small non-road

engines. Tecumseh Products Co. will warrant the emission control system on your utility or lawn and

garden equipment engine for the periods of time listed below, provided there has been no abuse,

neglect, unapproved modification, or improper maintenance of your utility or lawn and garden equipment

engine.

Your emission control system may include parts such as the carburetor, ignition system and exhaust

system. Also included may be the compression release system and other emission-related

assemblies.

Where a warrantable condition exists, Tecumseh Products Co. will repair your utility or lawn and garden

equipment engine at no cost to you for diagnosis, parts and labor.

MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE

Emission control systems on 1995 and later model year California utility and lawn and garden

equipment engines are warranted for two years as hereinafter noted. In other states, 1997 and later

model year engines are also warranted for two years. If, during such warranty period, any emission-

related part on your engine is defective in materials or workmanship, the part will be repaired or replaced

by Tecumseh Products Co.

OWNER’S WARRANTY RESPONSIBILITIES

As the utility or lawn and garden equipment engine owner, you are responsible for the performance of

the required maintenance listed in your Owner’s Manual, but Tecumseh Products Co. will not deny

warranty solely due to the lack of receipts or for your failure to provide written evidence of the

performance of all scheduled maintenance.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

As the utility or lawn and garden equipment engine owner, you should, however, be aware that

Tecumseh Products Co. may deny you warranty coverage if your utility or lawn and garden equipment

or a part thereof has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your utility or lawn and garden equipment engine to a Tecumseh

Authorized Service Outlet (any Tecumseh Registered Service Dealer, Tecumseh Authorized Service

Distributor or Tecumseh Central Warehouse Distributor) as soon as a problem exists. The warranty

repairs should be completed in a reasonable amount of time, not to exceed 30 days.

Warranty service can be arranged by contacting either a Tecumseh Authorized Service Outlet or by

contacting Tecumseh Products Co., c/o Service Manager, Engine and Transmission Group Service

Division, 900 North Street, Grafton, WI 53024-1499. Telephone 1-414-377-2700, or see your local

telephone yellow pages under “Engines, Gasoline” for the name, address and telephone number of a

Tecumseh Authorized Service Outlet near you.

IMPORTANT NOTE

This warranty statement explains your rights and obligations under the Emission Control System

Warranty (“ECS Warranty”) which is provided to you by Tecumseh Products Co. pursuant to California

law. Tecumseh Products Co. also provides to original purchasers of new Tecumseh Products Co.

engines. The Tecumseh Products Co. Limited Warranties for New Tecumseh Engine and Electronic

Ignition Modules (“Tecumseh Products Co. Warranty”) which is enclosed with all new Tecumseh

Products Co. engines on a separate sheet. The ECS Warranty applies only to the emission control

system of your new engine. To the extent that there is any conflict in terms between the ECS Warranty

and the Tecumseh Products Co. Warranty, the ECS Warranty shall apply except in any circumstances

in which the Tecumseh Products Co. Warranty may provide a longer warranty period. Both the ECS

Warranty and the Tecumseh Products Co. Warranty describe important rights and obligations with

respect to your new engine.

Warranty service can only be performed by a Tecumseh Products Co. Authorized Service Outlet, or by

Tecumseh Products Co. at its factory in Grafton, WI. At the time of requesting warranty service,

evidence must be presented of the date of sale to the original purchaser. The purchaser shall pay any

charges for making service calls and/or for transporting the products to and from the place where the

inspection and/or warranty work is performed. The purchaser shall be responsible for any damage or

loss incurred in connection with the transportation of any engine or any part(s) thereof submitted for

inspection and/or warranty work.

If you have any questions regarding your warranty rights and responsibilities, you should contact

Tecumseh Products Co. at 1-414-377-2700.

EMISSION CONTROL SYSTEM WARRANTY

Emission Control System Warranty (“ECS Warranty”) for 1995 and later model year California utility

and lawn and garden equipment engines (for other states, 1997 and later model year engines):

A. APPLICABILITY: This warranty shall apply to 1995 and later model year California utility and lawn

and garden equipment engines (for other states, 1997 and later model year engines). The ECS

Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-

use purchaser, and shall continue for 24 consecutive months thereafter.

B. GENERAL EMISSIONS WARRANTY COVERAGE: Tecumseh Products Co. warrants to the

original, end-use purchaser of the new engine or equipment and to each subsequent purchaser that

each of its utility and lawn and garden equipment engines is:

1. Designed, built and equipped so as to conform with all applicable regulations adopted by the Air

Resources Board pursuant to its authority in Chapters 1 and 2, Part 5, Division 26 of the Health

and Safety Code, and

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

2. Free from defects in materials and workmanship which, at any time during the ECS Warranty

Period, will cause a warranted emissions-related part to fail to be identical in all material

respects to the part as described in the engine manufacturer’s application for certification.

C. The ECS Warranty only pertains to emissions-related parts on your engine, as follows:

1. Any warranted, emissions-related parts which are not scheduled for replacement as required

maintenance in the Owner’s Manual shall be warranted for the ECS Warranty Period. If any

such part fails during the ECS Warranty Period, it shall be repaired or replaced by Tecumseh

Products Co. according to Subsection 4 below. Any such part repaired or replaced under the

ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.

2. Any warranted, emissions-related part which is scheduled only for regular inspection as

specified in the Owner’s Manual shall be warranted for the ECS Warranty Period. A statement in

such written instructions to the effect of “repair or replace as necessary”, shall not reduce the

ECS Warranty Period. Any such part repaired or replaced under the ECS Warranty shall be

warranted for the remainder of the ECS Warranty Period.

3. Any warranted, emissions-related part which is scheduled for replacement as required

maintenance in the Owner’s Manual, shall be warranted for the period of time prior to the first

scheduled replacement point for that part. If the part fails prior to the first scheduled

replacement, the part shall be repaired or replaced by Tecumseh Products Co. according to

Subsection 4 below. Any such emissions-related part repaired or replaced under the ECS

Warranty, shall be warranted for the remainder of the ECS Warranty Period prior to the first

scheduled replacement point for such emissions-related part.

4. Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall

be performed at no charge to the owner at a Tecumseh Authorized Service Outlet.

5. The owner shall not be charged for diagnostic labor which leads to the determination that a part

covered by the ECS Warranty is in fact defective, provided that such diagnostic work is

performed at a Tecumseh Authorized Service Outlet.

6. Tecumseh Products Co. shall be liable for damages to other original engine components or

approved modifications proximately caused by a failure under warranty of an emission-related

part covered by the ECS Warranty.

7. Throughout the ECS Warranty Period, Tecumseh Products Co. shall maintain a supply of

warranted emission-related parts sufficient to meet the expected demand for such emission-

related parts.

8. Any Tecumseh Products Co. authorized and approved emission-related replacement part may

be used in the performance of any ECS Warranty maintenance or repair and will be provided

without charge to the owner. Such use shall not reduce Tecumseh Products Co. ECS Warranty

obligations.

9. Unapproved add-on or modified parts may not be used to modify or repair a Tecumseh Products

Co. engine. Such use voids this ECS Warranty and shall be sufficient grounds for disallowing

an ECS Warranty claim. Tecumseh Products Co. shall not be liable hereunder for failures of

any warranted parts of a Tecumseh Products Co. engine caused by the use of such an

unapproved add-on or modified part.

EMISSION-RELATED PARTS INCLUDE THE FOLLOWING:

1. Carburetor Assembly and its Internal Components 4. Catalytic Muffler (if so equipped)

a) Fuel filter a) Muffler gasket (if so equipped)

b) Carburetor gaskets b) Exhaust manifold (if so equipped)

c) Intake pipe 5. Crankcase Breather Assembly and its

Components

2. Air Cleaner Assembly a) Breather connection tube

a) Air filter element

3. Ignition System, including:

a) Spark plug

b) Ignition module

c) Flywheel assembly

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

4 Cycle Product News

VENT TUBE EXTENSION

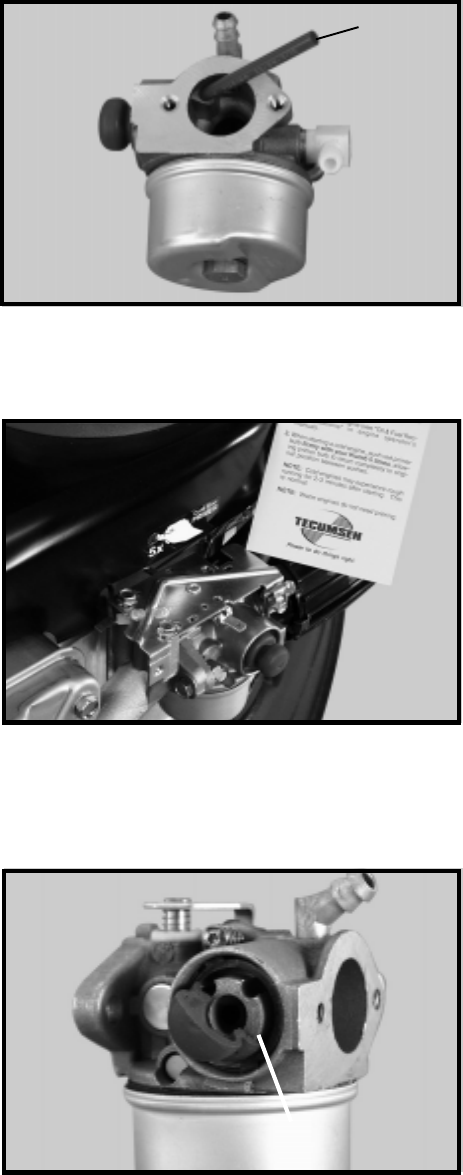

The Series “8” carburetor used on many LEV and OVRM

series engines has a new extension tube added to the

atmospheric vent passage. This tube part number 632766

was added to stabilize the atmospheric pressure in the

bowl, improving the run quality. This was done in

combination with carburetor calibration changes. This

tube is serviceable and must be installed to a precise

depth using tool part number 670343 to maintain emission

standards and prevent blockage of the atmospheric vent

passage. Do not use this tube on applications that it

was not originally on. Always verify that the engine

requires this tube by checking the parts list.

COLD START HANG TAG

Tecumseh has gone through extensive efforts to educate

the customer in the proper procedures used to prime

today’s emissions engine. If a customer comments about

an engine that is hard to start, it may be helpful to ask

them to demonstrate the method they use when priming.

In most cases there is not any engine problem and we

have found improper priming is the cause. Most recently

we have created a hang tag with instructions on the

“Thumbs Up” five prime technique. This cold start

procedure is outlined in the owners manuals and is

illustrated by the use of a decal on the blower housing

or fuel tank on some engines. It requires that the thumb

be used to prime because the thumbs larger surface

area covers the primer bulb better. Remember always

to wait two seconds between primes.

HOW THE NEW EMISSIONS PRIMER WORKS

The primer used on emission grade carburetors has

been designed to provide the precise amount of fuel

being delivered with each compression. This style of

primer must squarely make contact with the inside casting

surface of the carburetor before any prime occurs. This

will prevent air from being forced back into the air filter

and send the prime charge into the carburetor. A brief

delay of two seconds between each prime will assure

that the primer has recovered ample air to provide an

adequate prime charge.

NEW

TUBE

PRIMER CONTACT

AREA

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

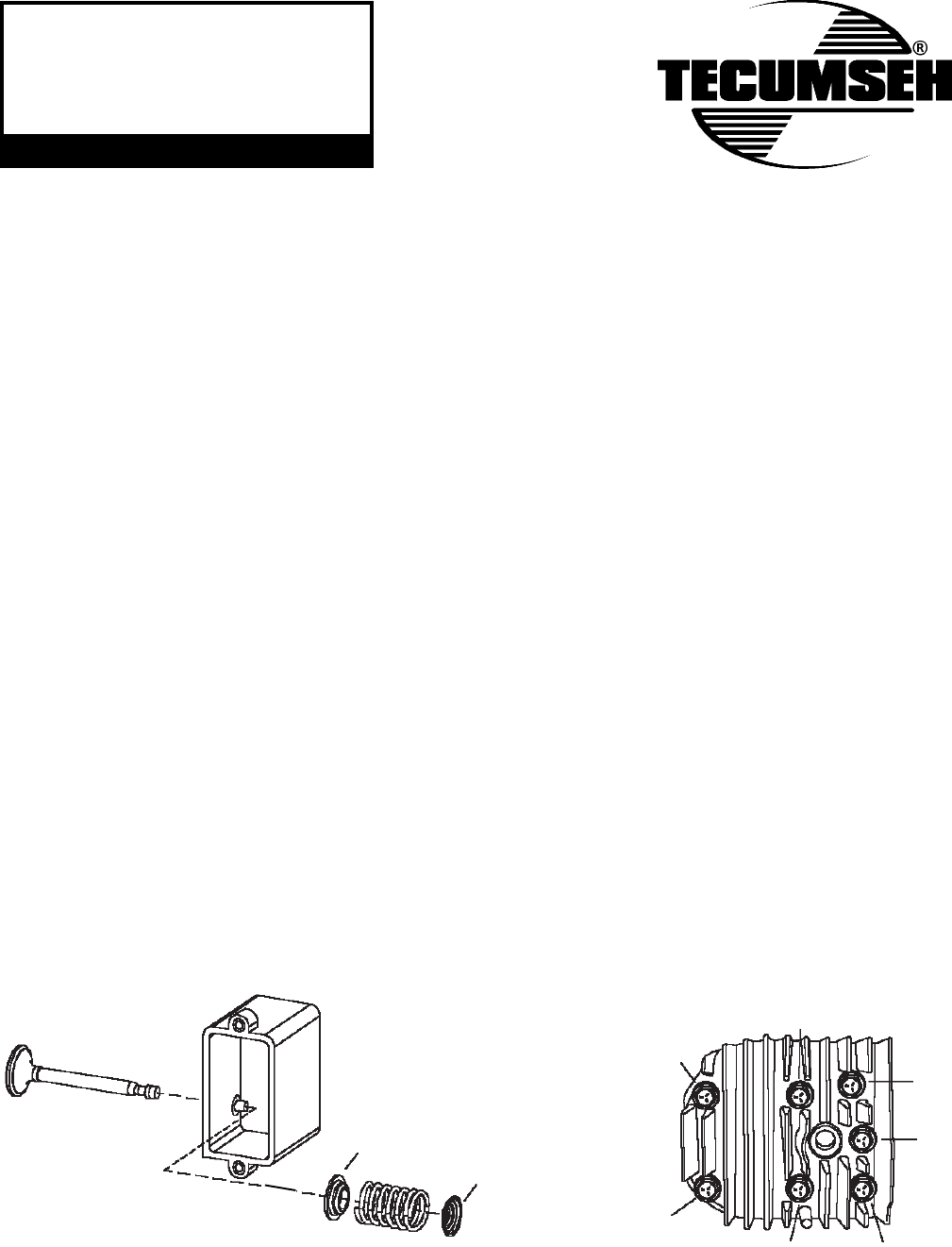

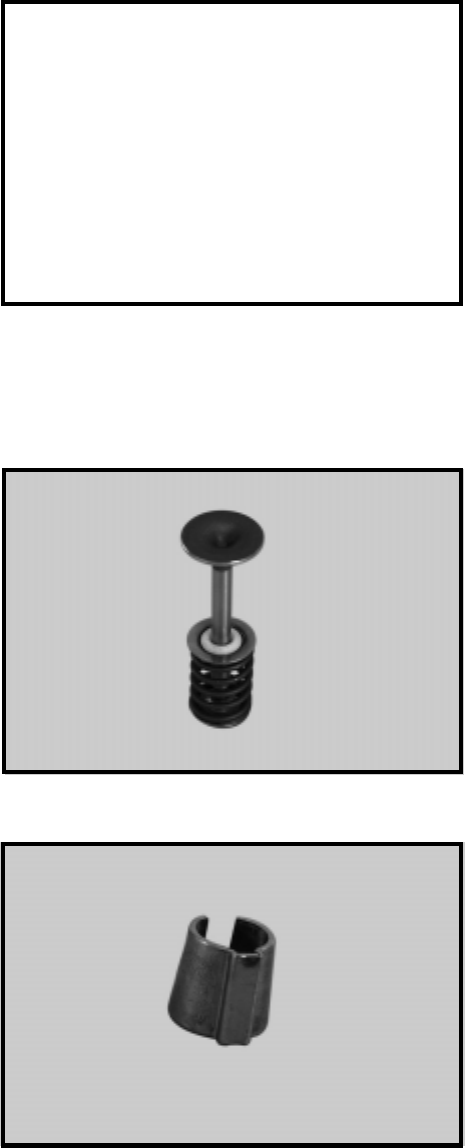

LEV/VLV VALVE STEM SEAL CHANGE

A design change has been made to the intake valve

stem seal used on LEV and VLV engines. The seal

area which makes contact with the casting surface in

the valve box has been enlarged to improve sealing. A

better seal on the valve stem will allow the elimination

of an o-ring that had been used on engines prior to

this. We have also reissued Service Bulletin “406” which

references kit number 730617 to include the new seal.

Removal of the intake valve may cause damage to the

seal, always install a new seal when this type of repair

work is done.

VLV AIR BAFFLE CHANGE

The fiber baffle/gasket used between the carburetor

and cylinder block on the VLV engine has been changed

to a metal baffle. A gasket is used on each side of the

metal baffle which replaces the fiber gasket (an

instruction sheet is included for installation). This baffle

allows for cooler running carburetor bowl temperatures

eliminating the occasional carburetor popping during

high ambient temperature operation. We also created

a bendable high speed adjustment tab as part of the

baffle for fixed speed applications. Speed adjustments

if necessary are done by bending the tab to the right to

increase speed and to the left to decrease speed.

SERIES 11 CARBURETOR

This is possibly the most innovative and exciting primer

type carburetor to be introduced since emissions

standards were established. The series “11” carburetor

is being released in limited quantities this year. Its design

helps to eliminate the cold blooded nature of emissions

engines by drawing fuel from a reservoir during the

first minute of operation giving it smoother start up and

warm up characteristics. This will give the engines using

this carburetor the personality of one built prior to the

emissions standards. The external physical package

is identical to that of a series "8" carburetor. Removing

the bowl will expose the welch plug used to cover the

extended prime fuel chamber. There is also an additional

passage way along side the center leg which feeds

the fuel into this chamber when the carburetor is primed.

During start up operation, the fuel is drawn from this

chamber into the venturi until the chamber is empty, at

which time normal operation is resumed. When cleaning

an emissions carburetor remember the passages are

extremely small. The best method for cleaning this

carburetor is to remove all welch plugs and use

carburetor cleaner and compressed air to clean the

passages. It is not recommended to soak the carburetor

in carburetor cleaner.

FIXED SPEED TAB

OLD

NEW

RAISED SEAL

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

VLV NO BOTTOM DRAIN FLANGE

The VLV engine now has an option available to OEM’s

with no oil drain on the bottom of the mounting flange.

This will be available for applications such as generators,

pumps and pressure washers. In place of the bottom

drain there is an optional side drain. If an OEM would

choose to use this flange on a rotary lawnmower

application, removing the oil may be accomplished by

draining the oil out of the fill tube. This flange has been

available since July 1998.

HM CLIMATE GUARD™ KIT

Climate Guard™ for HM engines is available on original

equipment and will be used exclusively on Generac

product for 1999. However, there is now a kit available

for existing engines. If you have emissions or non-

emissions engines that are used during both summer

and winter seasons, you can now convert it to the Climate

Guard™ system by using part number 730630. Typical

applications that could use this system are log splitters

and generators.

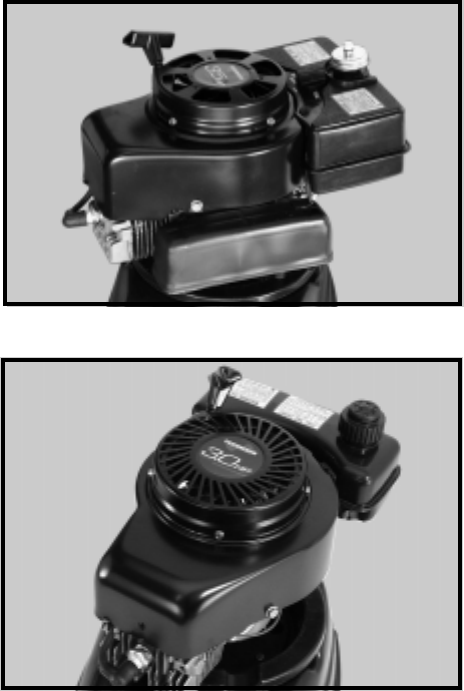

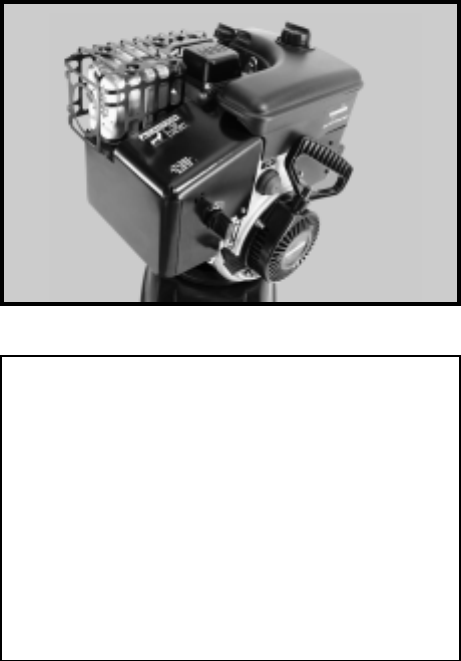

LEV 80 NEW OFFERING

The LEV 80 is a new 3.5 hp engine being offered this

year. It has been designed using the technology

developed in the LEV engine with the straight valve

train used in the TVS engines. This engine has the

same cylinder fin design and flow through valve cooling

system that allows the LEV to run at reduced cylinder

block temperatures. It is being used on opening price

point units and puts an offering in the market place

that has the quality, and durability of the higher price

units.

TORO FUEL TANK BAFFLE

The OHSK 120 used on Toro snow throwers has a foam

baffle added to the fuel tank. This will prevent splashing

and inconsistent fuel flow when there is less then an

inch of fuel inside the tank. The foam baffle stabilizes

the fuel supply to prevent the occasional fuel starvation

situation. The material is similar to that used in race

car fuel cells and is impervious to all of today’s fuels

within our standard fuel guidelines. The part number

for the complete tank assembly is 37290.

NON MACHINED

OIL DRAIN

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

OHH 7 AMP D.C. CHARGING SYSTEM

This series of engines has quickly become one of the

most popular engines in the industry. It is now poised

to expand into markets that require a higher output

charging system. A 7 Amp D.C. charging system is

now available on OHH/OHSK 50-70 model engines.

This reliable compact power plant can now be applied

to those applications that require higher battery starting

capabilities. The alternator part number is 611233.

Upgrading existing equipment will require that the

flywheel be changed to accommodate the alternator

which uses internal magnets.

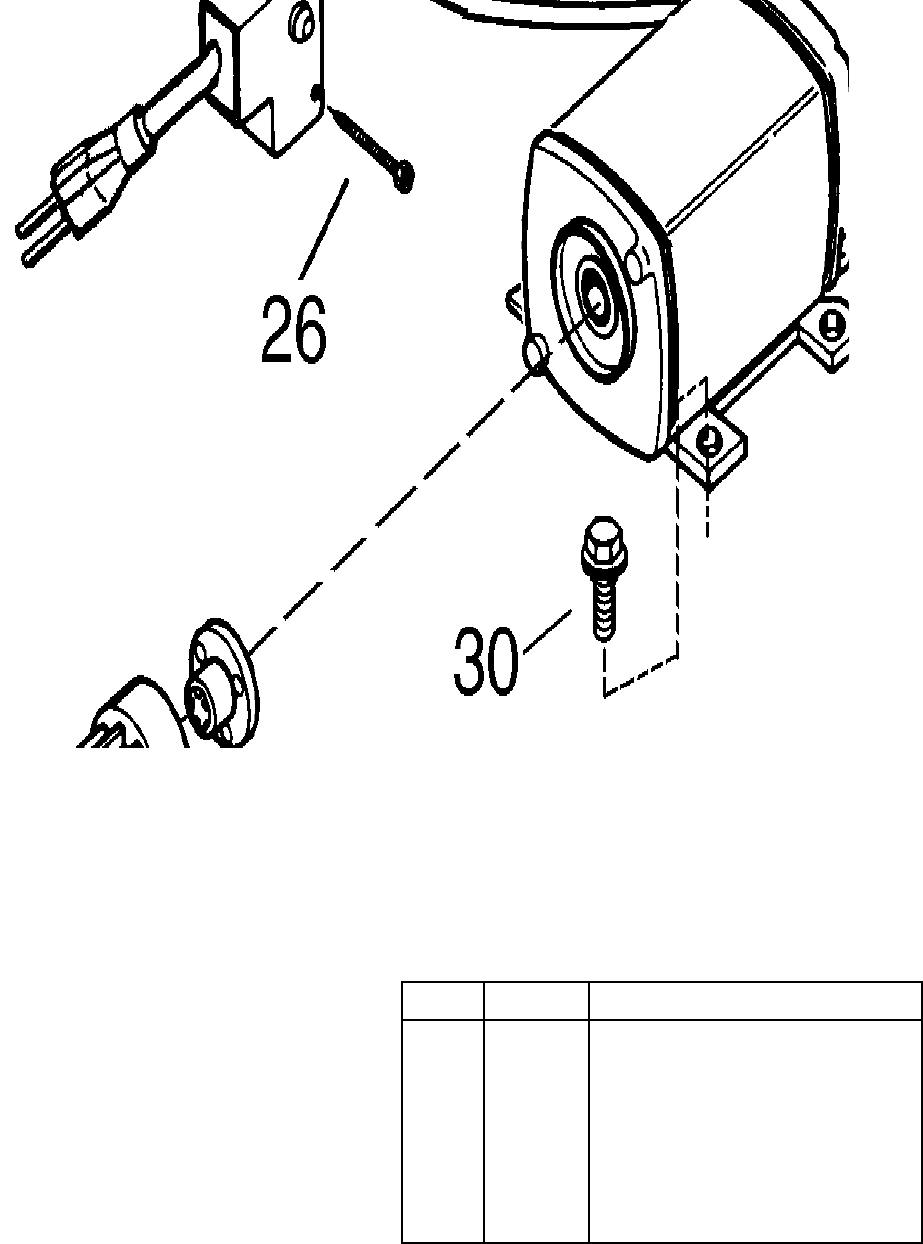

220 VOLT STARTERS

There is now a 220 volt 50 hertz starter available for

countries outside the US and Canada. These starters,

part number 37102 (H30-35, HS40-50, HSK34, HSSK40-

50, OHSK50-70) and 37217 (HM70-100, HMSK70-100,

OHSK80-120) have only a limited number of parts that

are serviceable due to European Community regulation.

None of the internal parts can be serviced. Only the

parts from the engagement nut to the cap are serviceable

externally. The starter does not include a power cord

because of the multiple options used in different

countries.

DIPSTICK COUNTER BORE OHH

On many applications the OHH engine uses a dipstick

gauge that threads directly into the cylinder cover.

Checking the oil has been a challenge at times because

of difficulty reinstalling the oil gauge without cross

threading. This situation has been corrected by

machining a counter bore in the oil gauge hole and

adding a 45° chamfer to the lead in thread making

reinstallation easier. Remember to instruct the

customer to clean the area around the dipstick prior

to removal.

ONE CONNECTING ROD FOR ALL

In our continuing effort to reduce the inventory required

to service our engines, a change has occurred to the

small frame connecting rod. When you order connecting

rod part number 32875A, you will receive an instruction

sheet explaining which oil dipper, if any, is used. An

example is the H30-HS50 which uses dipper number

32654. The same connecting rod is used on small

frame overhead valve engines but uses the longer 36611

dipper. Please follow the instruction sheet carefully.

Remember always assemble the rod and cap with the

match marks facing out.

COUNTER

BORE

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

OHSK NEW HORSEPOWER

We are very pleased to expand our overhead valve

engine line with three new models based on the HM

series engine. There are three horsepower offerings

being used in this seasons snow product. They are

OHSK 80, 90 and 110.

NEW RE-POWER PACKAGES

With the change to emission product, several models

of engine have been obsoleted. We have worked with

our applications group to develop replacement for several

application. The following kits are available from your

engines source:

Troy Bilt Pony - Part Number 205128 OHH 50, with

features including 3/4” crankshaft, extended cam,

mounting instructions and reverse belt.

Troy Bilt Pony - Part Number 205130 OHH 50, with

features including 3/4” crankshaft, extended cam,

mounting instructions, reverse belt and electric start

and harness.

Troy Bilt Horse - Part Number 208106 HM 80, with features

including 3/4” crankshaft and special rear tine tiller dipstick.

Ariens Rocket Tiller - Part Number 208120 HM 80,

with features 1” crankshaft, extended cam, special rear

tine tiller dipstick and mounting template.

REPOWER PACKAGES

205128 - OHH50

205130 - OHH50

208106 - HM80

208120 - HM80

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Two Cycle Products

FLYMO REPLACEMENTS AVAILABLE

There are now Service Replacement Engines available

for the Flymo hover mower application. They are available

in all states with the exception of California. These engines

are able to meet the E.P.A. emissions standards for

hand-held equipment through use of a fixed jet carburetor

and cylinder port timing changes. The engines will be

available in early 1999, under service part number’s 800175

and 800176. Please consult your parts lookup system

or the service engine specification book to locate the

correct one.

EMISSIONIZED AV520/600

The AV series engines used on post hole diggers and

ice augers has been changed in several areas to meet

the E.P.A. emissions regulations for hand-held product.

These improvements include changes to cylinder port

timing and the carburetor being made customer tamper-

proof. The carburetor changes involve fixed jets in both

the idle and high speed circuits. The idle restrictor jet

can be removed for service but the idle restrictor cap

(640053) must be re-installed to maintain compliance.

All fixed jets that screw in seal against the taper, it is

critical that you do not over tighten the jet when re-installing

or damage to the metering hole will occur. Tighten to

5-8 inch lbs. (.5-1.0 NM)

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Peerless® Products News

MST LEAKING AXLE SEALS

Last year we advised you of the running change made

to the axle seals used on all MST Series transaxles to

improve sealing. We still hear about the occasional

seal leakage on some MST’s. Our evaluations have

found that when the unit was serviced and then re-

assembled the old seals were re-used with sealant

placed around the perimeter of the seal. This sealant

will get into the seal spring, harden and cause it to not

function properly and leak. Always replace the seals if

the transmission is serviced and DO NOT use sealant

in the seal pockets. When re-assembly is complete we

recommend a low pressure leak down testing of the

unit. The test pressure must not exceed 15 PSI (1 Bar)

or seal damage will occur. We have developed a test

kit part number 670345 as an add on for an existing

leak down tester or our complete kit 670340. Both

are available from your normal supplier.

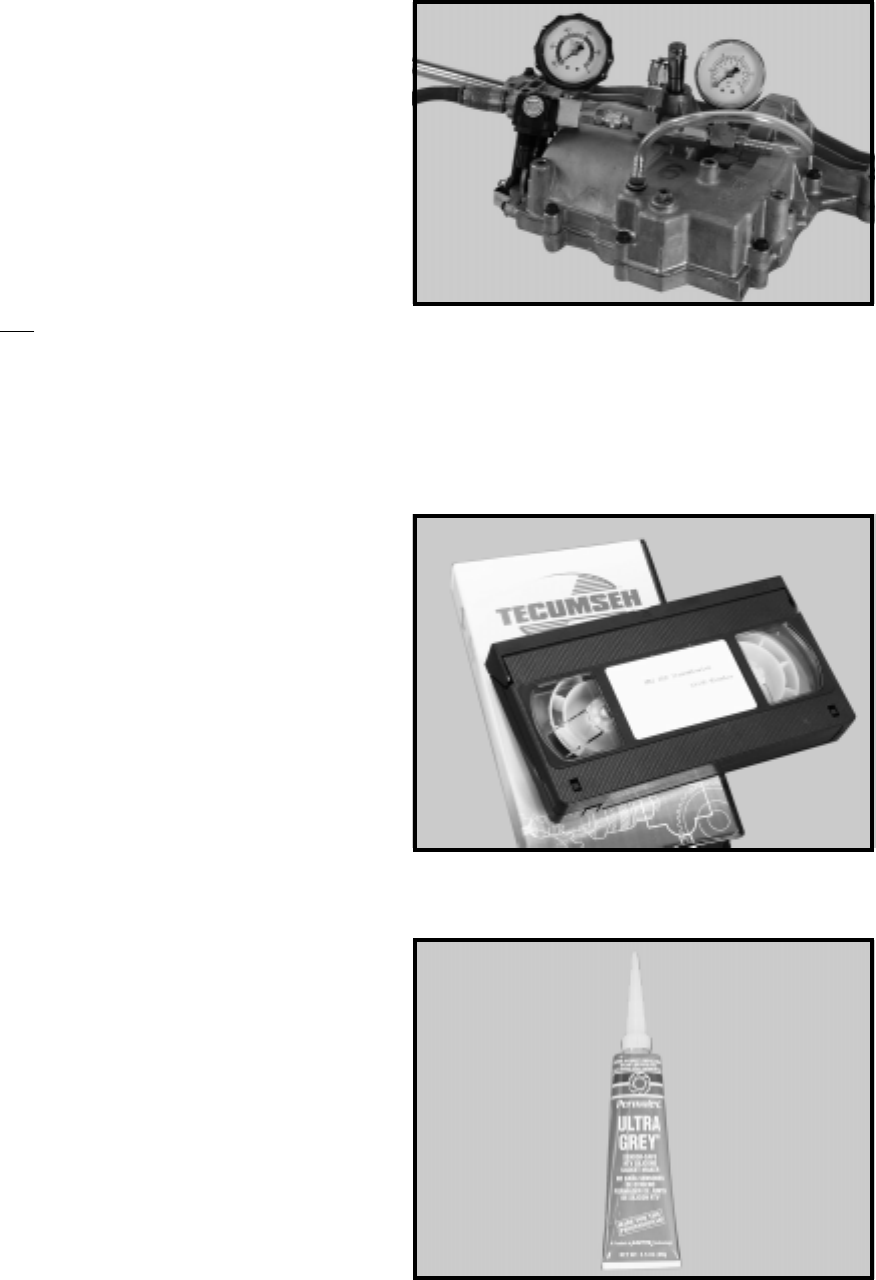

NEW MST SERVICE VIDEO 696250

We have released the latest video in our series to help

technicians understand the new MST transaxles. This

video covers complete disassembly and re-assembly

with tips such as not blocking the oil galley to the axles

and proper assembly of both “A” and “B” inputs. This

video and others available at $15.00 each (US price)

are a great way to increase your knowledge or help a

new technician you may have recently hired. Other

videos available are:

Ignition Systems - 695059

800 Series-Transaxle - 695285

Carburetor Troubleshooting - 695015

900 Series-Transaxle - 695148

Electrical Systems - 695185

820 SERIES SEALANT

The 820 series transaxle has been changed from Loctite

515 Gasket Eliminator to Loctite Ultra Gray RTV Silicone,

Tecumseh Part Number 788093A. This change improves

the perimeter seal reducing the chance of water entering

the case during cleaning by the operator. When service

is needed on older models, please re-seal the case

using the Loctite Ultra Gray RTV which is resistant to

oil and grease.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

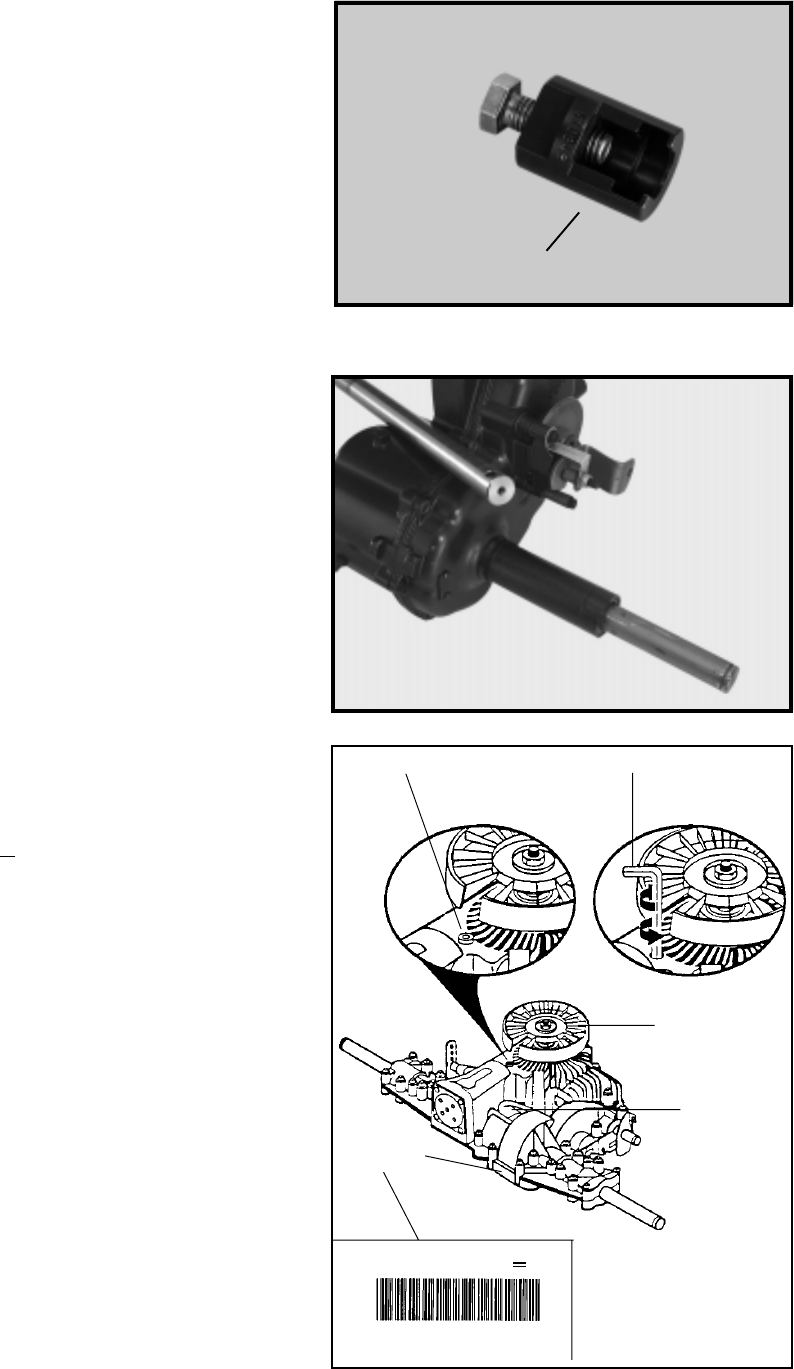

NEW VST SERIES PULLER

The directional control arm on the VST205 hydrostatic

series transaxle is attached using a tapered shaft or

taper and key combination and then secured with a

nut and lock washer. Should this arm need to be

removed, a puller is required. Removal without using

a puller can severely damage the internal parts of the

transaxle, which is not repairable, causing replacement

of the entire assembly. We have developed a special

puller, Tecumseh Part Number 670342 to remove this

arm. When the control arm is re-installed on the unit,

it must be tightened in the neutral position, the nut is

torqued to 25 to 30 ft. lbs. (33.9 - 40.7 Nm). Should

you still have questions consult the 691218 Motion Drives

Technician's Handbook.

1310 SERIES AXLES 1 1/8

At the request of the Toro Company, we have increased

the axle diameter of their 1310 series unit to 1-1/8 inches.

This diameter change increases the durability of this

model for their application. Service replacements for

this model have been upgraded to this new axle diameter

as well.

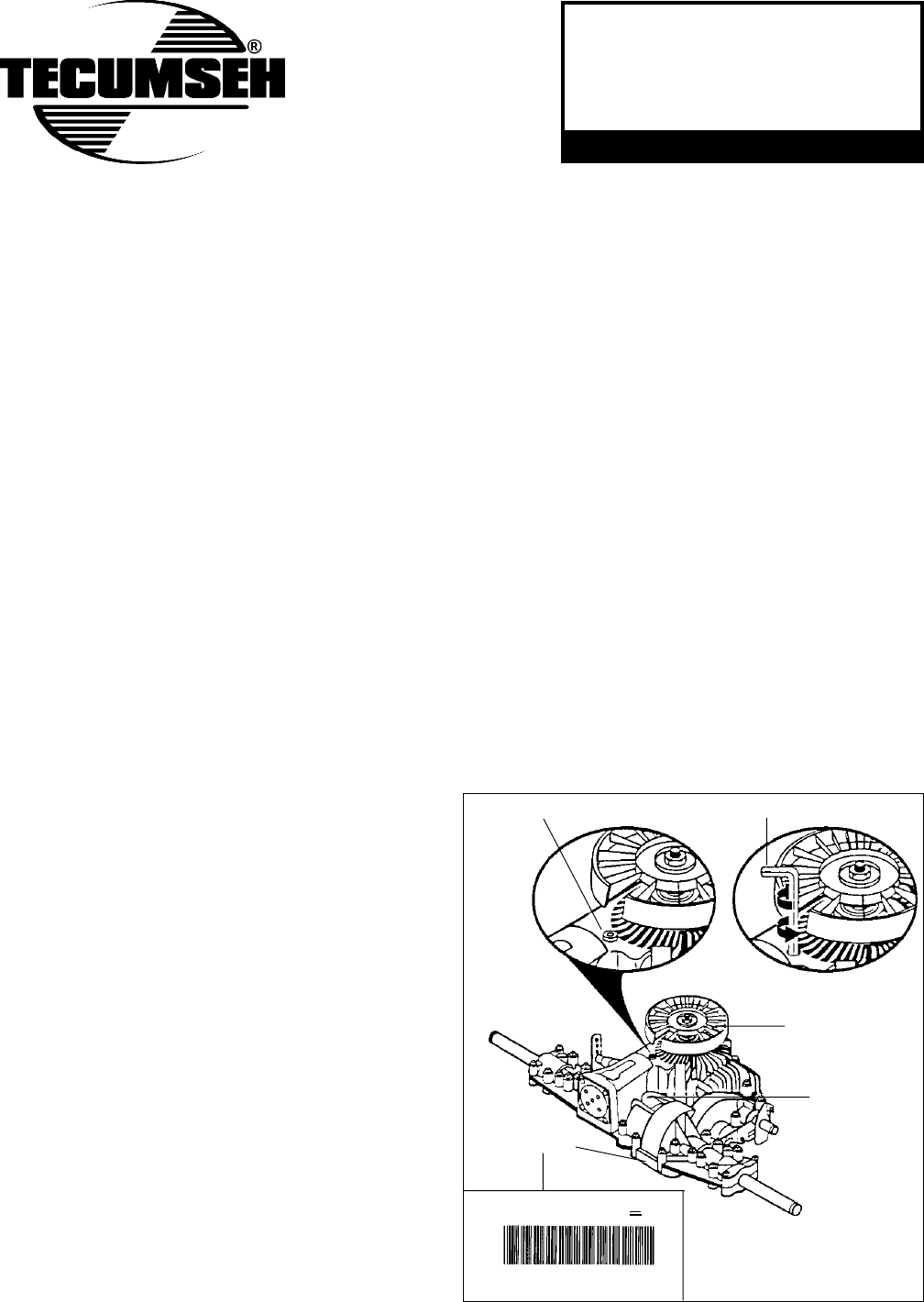

NEW EXTERNAL SNUBBER FORCE

ADJUSTMENT BULLETIN 308

We have issued Service Bulletin 308 to review a change

made to the “C” versions of the VST series transaxle

(example VST205-024C) This bulletin outlines the

adjustment of the shift force required to move the control

lever. Never automatically assume the hydro is the

problem, our evaluations of several units returned found

no defect at all. In these situations we found a slipping

belt (extremely glazed) from low tension to be the

problem.

The bulletin outlines first cleaning the unit then the

procedure for removing an access plug and adjusting

the snubber screw which controls the shifting forces.

You should NEVER need to turn the screw more than

one turn. If you turn beyond this limit, the screw could

come out of the case, this screw cannot be re-installed

in the field and will require complete unit replacement.

Please use extreme caution if performing this procedure

and follow the bulletin exactly.

TECUMSEH

7070A - 0005

MODEL SPEC

D.O.M.

VST - 205 - 003C

PEERLESS

REMOVE ACCESS PLUG WRENCH

COOLING FAN

HOUSING

POCKET

ID TAG

670342

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Service Tips

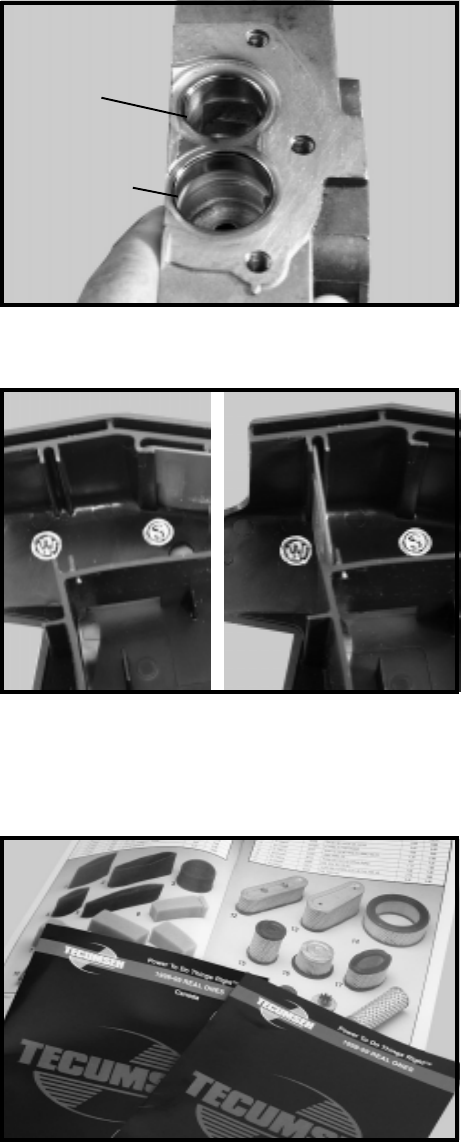

LEV WIDER VALVE SEATS

The valve seats on LEV engines (except the LEV 80)

are being widened to help increase valve and seat durability.

The width is being nearly doubled from .040 (1 mm) to

.078 (2 mm). This can be done on the LEV engine because

of the unique design of the valve seats and cylinder block.

This design helps remove heat from the valve seat area

by distributing it into the cylinder block and then dissipating

it in its flow through design. This is also being done in

conjunction with the use of heavier valve springs. The

combination of the two may also help eliminate the light

to no load popping that sometimes occurs when engines

are running at low speeds.

CLIMATE GUARD™ OHH

Although it was introduced last year, it now has a title,

“Climate Guard™”. The official name for the air filter

system used on emissions engines that are run in both

warm and cold weather environments. This system has

a baffle, that when placed in the winter position blocks

cold air from the blower housing. Warmer air is then

drawn through the air filter backing plate, this warmer

air prevents the possible icing of the breather tube inlet

to the carburetor. The icing is caused by crankcase

vapor/condensation from the breather system required

on emissions engines. When placed in the summer

position it allows the cooling air from the blower housing

to function normally, maximizing air filter life through

our Kleen Aire® system.

EMISSIONS INTEGRITY

Just a reminder to you and your customer that it is

required to maintain EPA and CARB compliance to use

“as built” factory original or approved parts. This means

parts used in, fuel metering systems, air induction

systems, ignition systems, exhaust systems and

crankcase breather systems must be Genuine Original

Tecumseh factory parts or their equivalent. Ask your

distributor about the Real Ones Parts program to prevent

any possibility of violating compliance regulations by

using less than OEM quality after market parts.

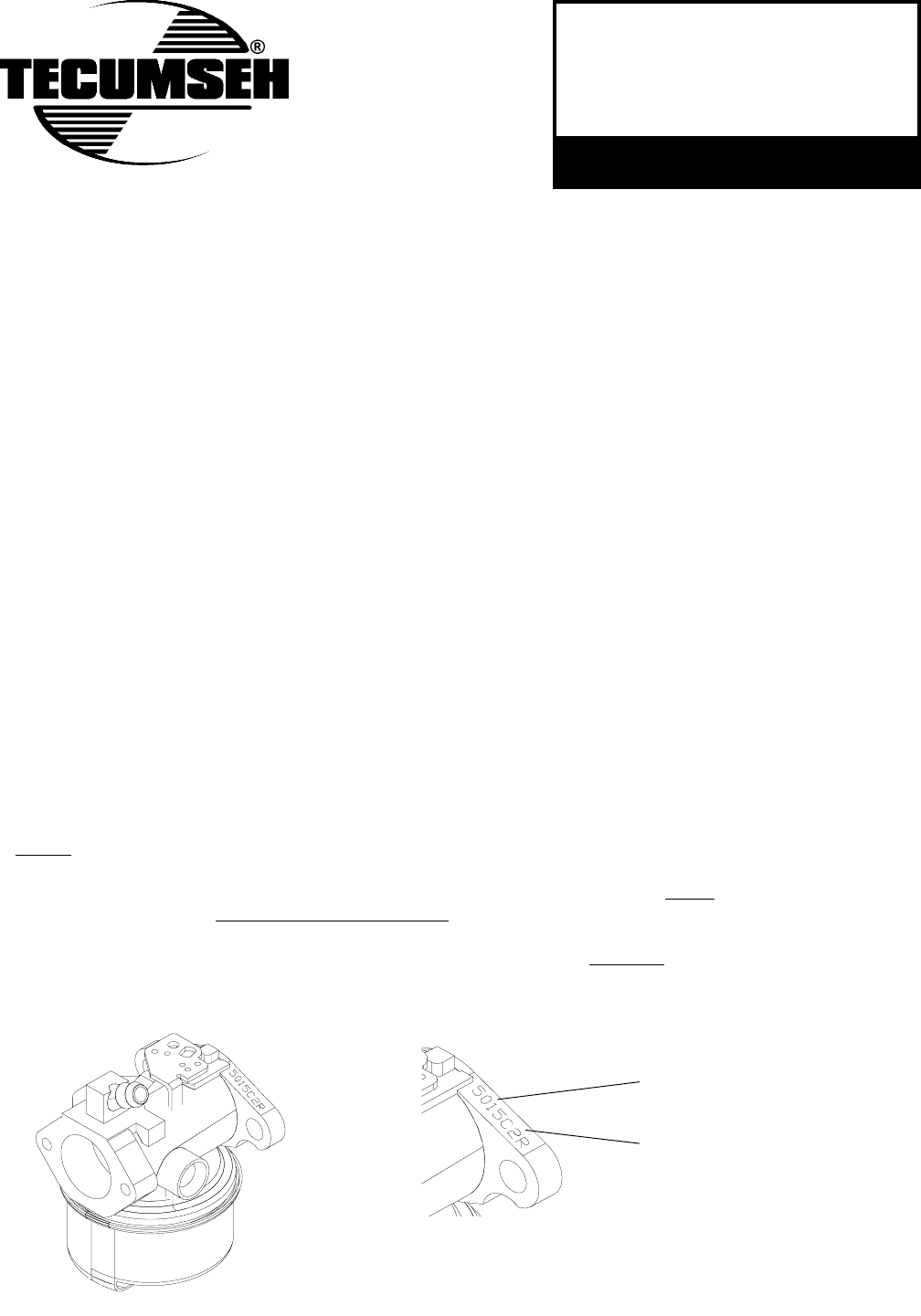

OLD

NEW WIDER

(.078 SEAT)

(2 mm)

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

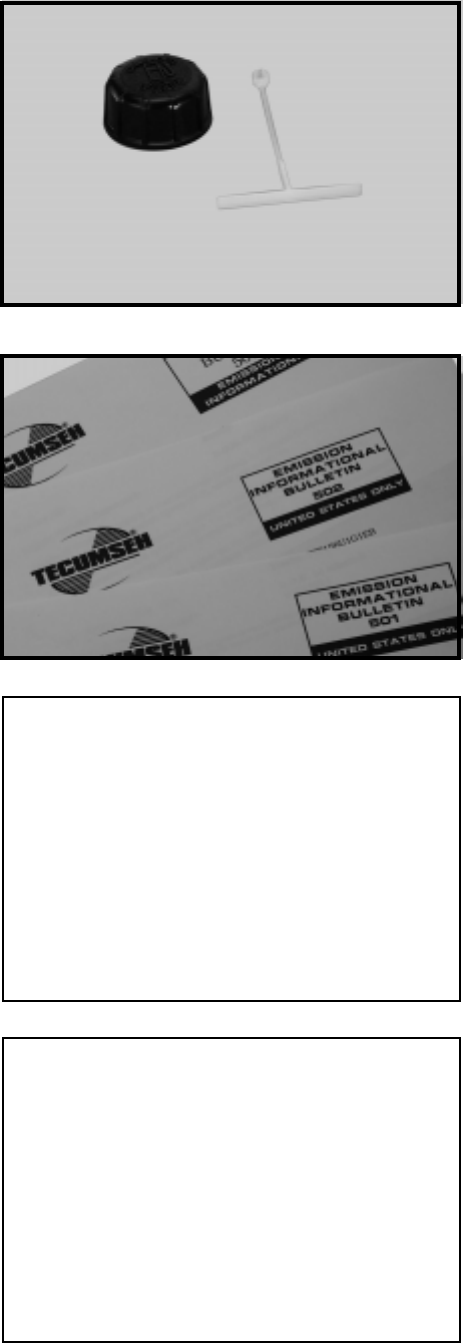

FUEL CAP TETHER

The fuel cap tether has made a come back in recent

years especially on recreational vehicles. This cap tether

may come in handy for the customer that has lost their

fuel cap while mowing or forgot to put it on. The part

number is 35480 and can be retrofitted to most newer

style fuel caps with the standard 1.750 (44.45 mm)

opening.

EMISSIONS SERVICE BULLETINS

A new series of bulletins have been earmarked to deal

specifically with emissions related concerns. These

bulletins will be designated by the “500” series

classification. The headings listed on these bulletins

will include, Date Issued; Engine Model Concerned,

Family; and D.O.M. (Date Of Manufacture) affected.

The body of the bulletin will contain information

concerning; Potential Emission Control System Problem;

Affected Specifications Numbers; and Warranty

Inspection and Repair Procedure.

BULLETIN 501

Some LEV 115 engines built between date codes 8091

through 8166 have the incorrect bowl nut in the

carburetor. The suspect units will have the bowl nut on

the carburetor stamped with the number 174. This jet

should be replaced with part number 640087 which

will have the number 169 stamped on it. There are 30

different specifications involved. Check the bulletin to

determine if any units you may work on qualify.

BULLETIN 502

The following three model and spec numbers H35-

45690Z, H35-45726Z, and H40-55701A with D.O.M s

of 8079 through 8201 have been built with the incorrect

carburetor. You will need to locate and identify the

manufacturing number on the carburetor mounting

flange. If the number on the flange is stamped with the

number 5161 the unit has already been changed and

no repair is necessary. If the number is 5015 you need

to replace it by ordering part number 640172. This

carburetor will have the manufacturing number 5161

stamped on the flange.

BULLETIN

501

BULLETIN

502

35480

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

HEAD GASKETS ARE BACK WITH SHORT

BLOCKS

Back in 1994 we removed the head gaskets from short

blocks. This was done because of thickness differences

between the gaskets used on older engines versus newer

product. The decision has been made to standardize

on the thicker gaskets on most short blocks. This will

have very little effect on engine power and will make

the short block procedure much simpler. The exceptions

will be the medium frame (HM and TVM) 8 and 10 hp

engines which will include both gaskets and allow you

to select dependent on its original gasket. This will be

a running change as inventories are upgraded.

MODEL NUMBER STANDARDIZATION

An effort is being made to standardize on the model

number designations used on lightweight vertical shaft

engines. In the past this designation has bounced back

and forth from horse power to cubic inch displacement.

Three more models have been brought into the cubic

inch displacement group. The VLV and OVRM series

engines are adding a VLV 126 (12.6 C.I./206.5cc) an

OVRM 105 (10.5 C.I./172cc) and a OVRM120 (12 C.I./

196.7cc). Previous designations used in these Models

will not be affected.

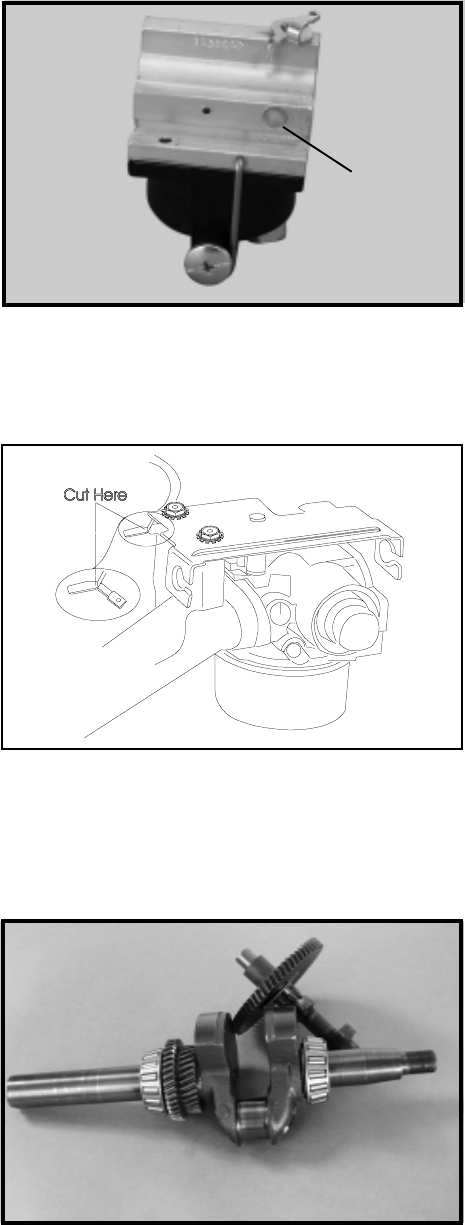

TC SERIES CARBURETOR SPACER BLOCK

We repeatedly receive calls from technicians regarding

TC series engines not starting after servicing of the

carburetor. During these evaluations we usually find

one of two things have occurred. The first is an incorrectly

installed insulator block causing the vacuum passage

to not be aligned with the carburetor. The correct position

is to have the impulse hole located in the spacer block

facing toward the spark plug end. The transfer passage

in the spacer block has to face toward the cylinder.

The second is sealant or adhesive blocking the passage

from previous improper service. Always check that these

passages are open and use new gaskets during service,

no sealant or adhesive is needed.

VLV 126 (12.6 C.I./206.5cc)

OVRM 105 (10.5 C.I./172cc)

OVRM120 (12 C.I./196.7cc)

TOWARD PLUG

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

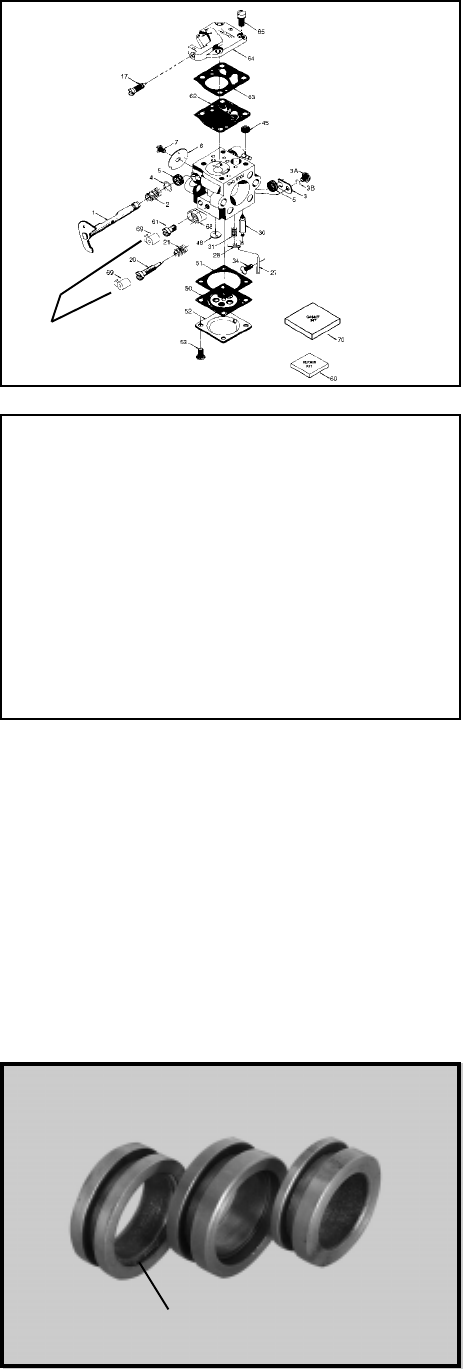

TC EMISSION CARBURETORS

The TC series carburetor has been changed to meet

emission standards for E.P.A. hand-held equipment. This

upgrade has been made to all service inventory for

previously built product as well. When you order a new

carburetor, you will receive instructions explaining how

to optimize the carburetor settings and install tamper-

proof caps.

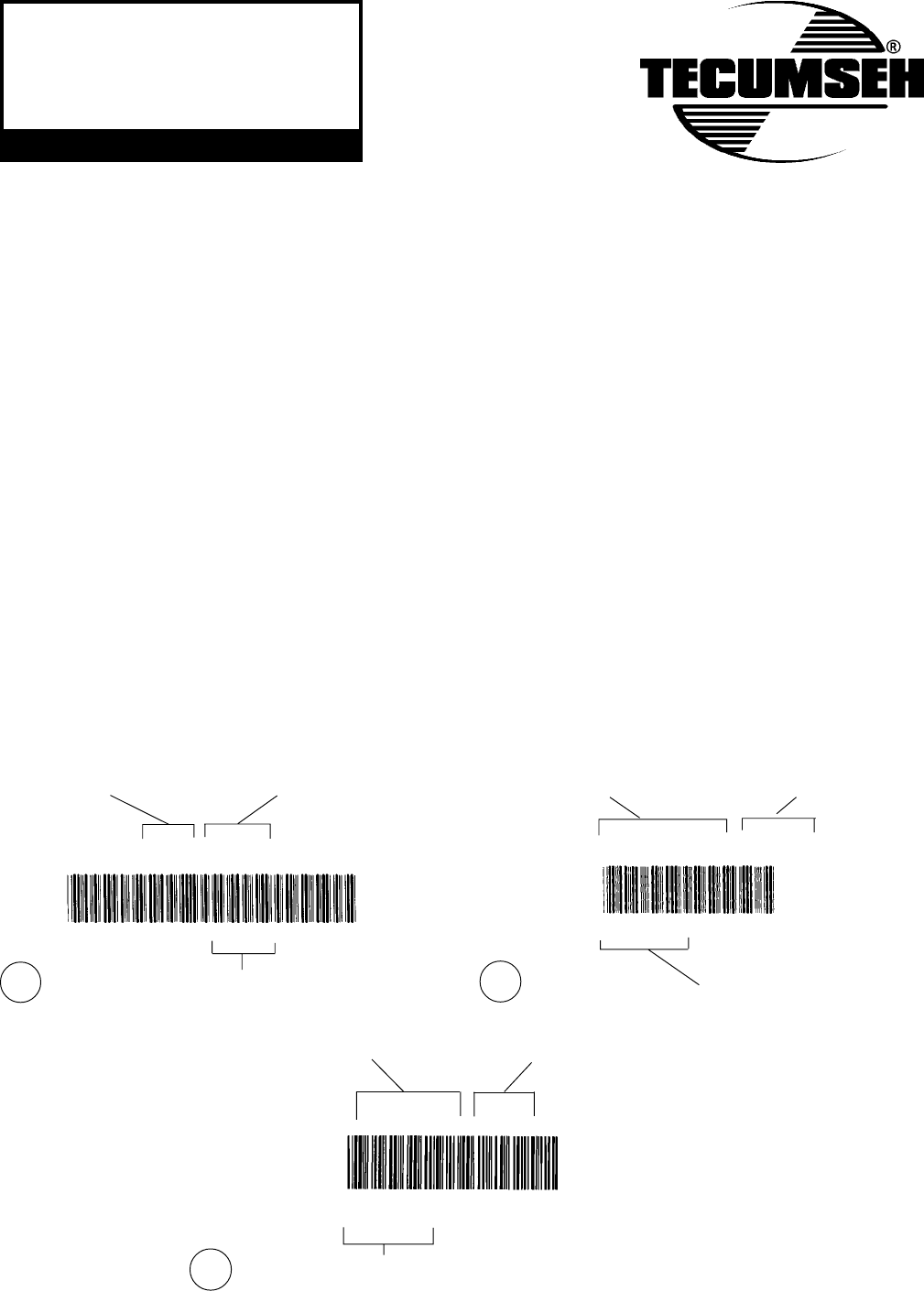

PROPER TRANSAXLE WARRANTY

INFORMATION BULLETIN 124

We have been evaluating transaxle warranty claims

which we have returned to service dealers for lack of

proper information. This evaluation has shown some

improvements could be made to our identification tag.

We have published and sent all manual holders Bulletin

124 explaining how to locate and read this information.

This information reviews both older models and the

improvements made to newer I.D. Tags. Tecumseh

wants to reimburse our dealers promptly, however, we

cannot without proper filing of the ESA-157R Claim form.

Please supply the needed information when sending

in claims.

Beginning this March of 1999 Tecumseh is implementing

a pilot warranty return program through selected CWD’s.

This new procedure will return warranty claims not

containing the needed information through your

distributor rather than directly to you. Your distributor

will work with you to obtain the needed information and

answer any questions, then re-submit the claim signed

by the distributor representative for prompt payment.

PROPER SHIFT COLLAR INSTALLATION

We regularly receive calls from technicians regarding

proper installation of the shifting key collar on transaxles.

The following tips should help you during servicing:

Shift collars will generally have one of several variations.

If the collar has an offset on one side, the thicker side

must face in toward the tips of the shift keys. If the

collar has no offset, check to see if there is a recess

on the inside diameter. If there is, the recess must

face toward the inside. A combination of offset and

recess always has both facing in.

BULLETIN

124

IMPROVED GEAR

PRODUCT IDENTIFICATION

INSIDE RECESS

TAMPER

CAPS

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

VST DIAGNOSTIC PROCEDURE

The information on the following pages has been provided to help understand the internal operation of the

VST. Do not use this information to attempt any internal repairs. Tecumseh's current policy on hydrostatic

transaxles that have internal failures is to replace the complete unit. This has not changed. However, Tecumseh

would like to provide a failure checklist to assist in making an accurate evaluation of the complete tractor to

eliminate any unnecessary replacements. Here is a list of items to check and corrective actions to take.

To properly test the unit for power loss.

1. Allow the unit to cool before trying the following steps.

2. Put the shift lever in a position that is 1/2 of the travel distance from neutral to forward.

3. Place the tractor on a 17 degree grade.

4. Drive the tractor up the grade (without the mower deck engaged). The loss of power experienced

should be approximately 20%. This is considered normal. If the loss of power is approximately 50%,

this would be considered excessive.

5. Bring the unit to neutral, shift into forward and note the response. Care should be taken to move the

lever slowly to avoid an abrupt wheel lift.

To determine if the problem is with the hydro unit, all external problem possibilities must be eliminated. Here

are some potential problem areas.

1. Overheating: Heat can cause a breakdown in the viscosity of the oil which reduces the pressure

used to move the motor. Remove any grass, debris, or dirt buildup on the transaxle cover and / or

between the cooling fins and fan. Buildup of material will reduce the cooling efficiency.

2. Belt slippage: A belt that is worn, stretched, or the wrong belt (too large or wide) can cause belt

slippage. This condition may have the same loss of power symptom as overheating. Typically, the

unit which has a slipping belt will exhibit a pulsating type motion of the mower. This can be verified

visually by watching the belt and pulley relationship. If the belt is slipping, the belt will chatter or jump

on the pulley. If the belt is good, a smooth rotation will be seen. Replace the belt and inspect the

pulley for damage.

3. Leakage: The VST and 1800 Series have two oil reservoirs which can be checked for diagnostic

purposes. The first is the pump and motor expansion bellows, With a small diameter blunt or round

nose probe, check the bellows depth through the center vent hole. Proper depth from the edge of

that hole is 3-1/4 - 3-1/2 inches (8.25 - 8.9 cm).

The second chamber is for the output gears including the differential. FIRST make sure the tractor is

level, then remove the drain/fill plug. NOTE: Some units that do not have differential disconnect will

have two plugs. We recommend using only the primary plug. With a small pocket rule insert until you

touch bottom of case. You can then remove it and check for 1/4 - 3/8 inches (6.5 - 9.5 mm) contact

this is full at its 8 oz. capacity.

4. Low ground speed: If the linkage is not synchronized to absolute neutral, or the shift lever is not

properly fastened to the tapered control shaft, full forward travel may not be achieved. This may

cause a false reading and be misdiagnosed as a low power condition. This also could be caused by

the brake not releasing.

To determine absolute neutral, the hole in the tapered control shaft must face straight up and down,

at this point make sure the OEM linkage is in neutral. To properly fasten the control lever to the shaft,

torque the nut to 25-35 ft. lbs. (34 - 48.3 NM) of torque with the shaft and the lever in neutral.

When attaching the shifter arm to the shaft you must prevent any rotation during torquing. This can

be done by placing a long 5/16 bolt in the hole as shown in Illustration. Hold the bolt until the tapers

are locked and the nut torque is correct.

To make sure that the brake is not binding, drive the unit up a slight grade. Position the speed control

lever into neutral. The unit should coast backwards. If the unit does not coast back slowly, the brake

is not released from the brake disk. Adjust the brake linkage to release the brake completely when

the foot pedal is released.

5. Hard to shift: Typically hard to shift symptoms are not caused by the hydrostatic unit. The shift arm

should move with relative ease. Approximately 40-50 inch lbs. (4.48 - 5.6 NM) at the transaxle for

foot pedal units or 150-200 inch lbs. (16.8 - 22.4 NM) for hand operated units. This varies depending

on the type of linkage. Binding may occur in the linkage connections due to rust or moisture. Lubricating

these connections and checking for bent or damaged parts should resolve hard shifting.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

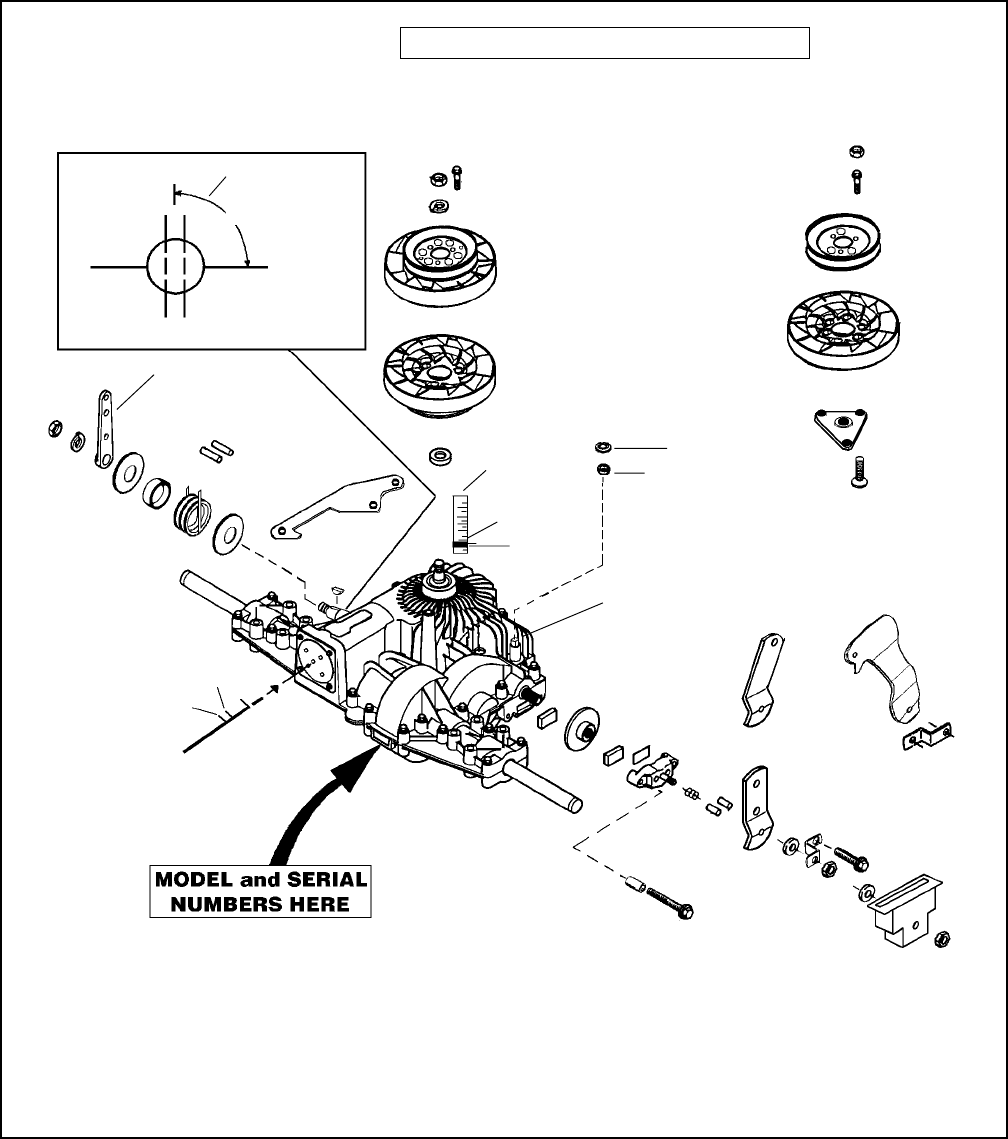

NOTE: The above illustration is of a foot control unit with differential disconnect. Consult your parts list by model

and specification number to get correct parts for your unit. ALL PARTS SHOWN MAY NOT BE ON YOUR UNIT.

PRODUCT CONTAINS PATENTED FEATURES

DIRECTION CONTROL LEVER

DIRECTION CONTROL SHAFT

Parting

Line

90o from case/cover

parting line is

neutral

90o

PUSH NUT

SQUARE CUT "O" RING

DIFFERENTIAL

DISCONNECT HOOKUP

1/4

3/8

POCKET RULE

FOR OIL CHECK

3¼"

3½"

8.2

EXPANSION BELLOW'S

CHECK COLD FOR CORRECT DEPTH

90o

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

VLV WELCH PLUGS

We have received comments from technicians regarding

VLV series engines hunting/surging, running erratic or

popping at low speed. The evaluation of these units has

revealed some poor sealing idle mixing chamber welch

plugs. After first checking the fuel condition, air filter

and spark plug, the engine still exhibits one of these

conditions. We suggest that while the engine is running

you spray the welch plug area with spray carburetor

cleaner. If the run quality changes it would indicate a

leak around the welch plug requiring repair. Completely

clean the welch plug area, then re-seal the plug using

fingernail polish which should eliminate the problem. If

the run condition does not change when you spray the

welch plug area, further inspection will be needed.

LEV ENGINES MIS-FIRING FIXED LINE

TRIMMERS

We have been evaluating field comments regarding

LEV engines popping or mis-firing out of the muffler.

These particular models of LEV are used on the new

fixed line trimmer applications equipped with a remote

throttle stop in the control. We have found some production

models where the ignition ground tab on the throttle

control plate was positioned very close to the blower

housing causing intermittent grounding. Should you

encounter this condition remove the extra blade from

the wire terminal as shown. This is done using a side

cutter to trim the extra blade away. This procedure

may require the removing of the blower housing to access

the speed control.

HH AND OH CAST IRON CRANKSHAFT AND

CAM GEARS

In an effort to keep parts available for the OH and HH

cast iron series engines, we have decided to obsolete

the straight cut gears and will make available only

crankshafts with helical cut gears. When using this

crankshaft to repair older cast-iron units equipped with

straight cut crankshaft, camshafts and governor gears,

it will be necessary to order new helical cut camshaft

and governor gears to match tha crankshaft. When

repairing the OH Cast Iron series engine you will need

a 34751 helical governor gear and 34752 helical

camshaft gear. If you are repairing a HH Series engine,

order 34691 helical governor gear and 34692 helical

camshaft gear.

WELCH PLUG

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

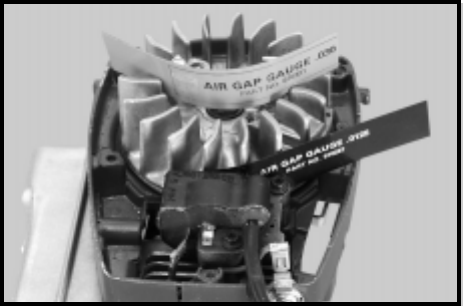

TC AIR GAP REMINDER

We occasionally hear complaints of poor or hard starting

TC engines used on post hole diggers, ice augers and

cultivator tillers. In addition to the normal checks for

fresh fuel, good spark plug and a clean filter, check the

CDI ignition module air gap. The TC series uses two

different settings dependent on application and model

which effect proper ignition timing. All TC200 and 300

rotary mowers applications use a .0125 gap (.317 mm),

gap tool 670297. All other TC300 models use a gap of

.030 (.762 mm), gap tool 670321.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Miscellaneous Product News

SNOW PRODUCTS STARTS

There are times when dealers are confronted with

customers who purchase snow equipment when the

ambient temperature is above 50° F (10°C) The starting

procedures at these temperatures should not require

priming the engine. Therefore we have included the

number of primes needed to start the engine at different

temperature ranges in the operators manual. This will

possibly prevent the over priming and flooding of engines

at warmer temperatures, and eliminate this situation.

The guidelines are as follows. With the choke on and

temperatures below 15° F (-9°C) three primes, 15° F

(-9°C) to 50° F (10°C) one prime, and above 50° F

(10°C) zero primes choke only.

NEW SMART START PACKAGING

This product has been extremely popular in its inaugural

year and has established itself firmly in the market place.

This was done primarily through the counter display

part number 730255. This fuel stabilizer is now available

in a three packet bubble pack display part number

740063. This product has made fuel stabilization so

easy that many consumers and shop owners use it

year round, not just for off season storage. Just one

packet stabilizes up to 21/2 gallons (10 Litres) of fresh

fuel. This dry type stabilizer dissolves rapidly and does

not create a mess or stain like many liquid varieties and

requires no complicated mixing formulas.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

VST REPLACEMENT PROGRAM

BULLETIN 307

We have again reviewed the issue of possible field

service of the VST series transaxle. We have decided

that Bulletin 307 must stay in effect for an indefinite

period of time in the United States only. We would like

to review some of the key issues that are driving this

decision. The VST series transaxles used in this program

are manufactured using the following stringent program:

1. Initial review of your warranty claim filed with the

unit describing the condition.

2. Complete disassembly, cleaning and inspection of

all components.

3. Replacement of any parts not meeting original

manufacturing specifications.

4. Reassembly in a clean room environment (dust and

dirt free) to original new specifications. Re-filling the

pump and motor side with a special synthetic oil used

in the aviation industry. All air is the removed through

a bleeding off process.

5. After re-assembly the unit is pressure tested insuring

unit integrity.

6. We then load test the unit checking axle output torque

and speed on a special test machine to assure the

customer of trouble-free operation. This test bench

alone would cost a service center $20,000 US dollars

to duplicate, adding to the complexity of field service.

MICROFICHE UPDATES

During the past several months we have increased the

number of Microfiche cards per mailing in an effort to

keep your data as current as possible. During 1998

you should have received the following card numbers

1, 3A, 3B, 8A, 8F, 9B, 10C, 12A-1, 12B, 16B, 16C, 18B,

18B-1,18B-2, 24, 24A, 27A, 30, 31, 33, 35, 35A and

35b. We have also sent out an up to date paper version

of the index card dated 8/98 with the mechanic’s mailing

which began in December of 1998. Please use this

card to verify that your microfiche is current, should

you have any damaged or missing cards please send

us a written request only for the needed replacements.

If your registration is current we will send you up to two

free cards. Should your deck need more than two we

suggest you order a new set from your distributor.

BULLETIN

307

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

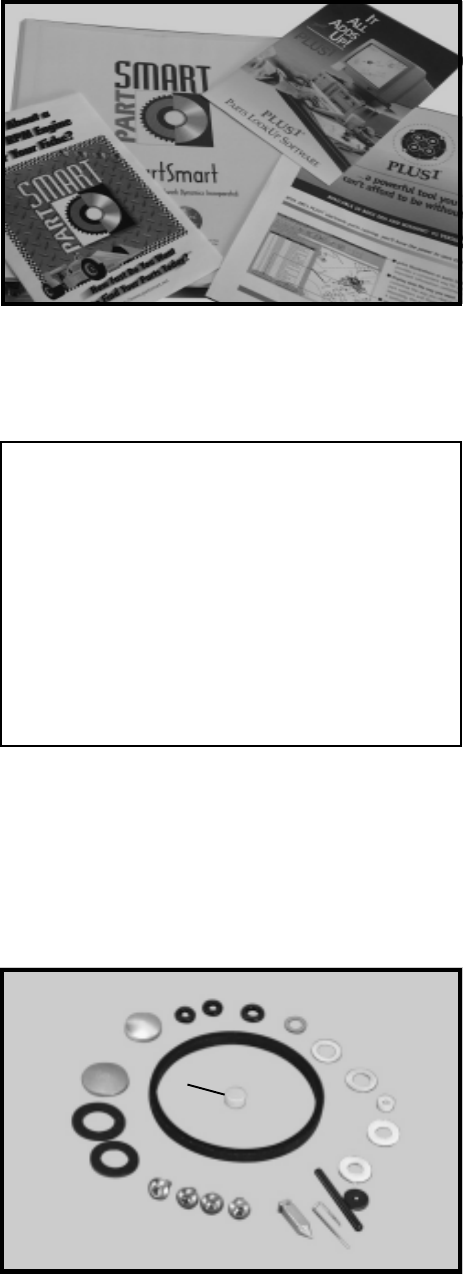

ELECTRONIC PARTS LOOK-UP

Many of you have probably heard that ARI Network

Services, owners of Plus One Parts Look-up has

purchased Power Com. The acquisition of this company

should make available additional data that you may

need. Tecumseh Products Company, believes very

strongly in healthy competition in all aspects of our

industry which helps you keep operating costs down.

This acquisition will eliminate our previous concern

regarding our competition owning a company we supply

our data to. We will continue to supply data to both

Parts Smart and Plus One. We suggest you contact

both companies to determine which one fits your needs.

The phone numbers are:

Parts Smart 1-800-296-8771

Plus One: 1-800-755-6040

ENGINE I.D. BULLETIN 123

With the implementation of emissionized engines, we

were required to change the engine identification system

we used. This new system has caused many warranty

claims to be rejected for a lack of proper information.

We have published Bulletin 123 to help you understand

the needed information. Please make sure you supply

the information so we can reimburse you promptly.

Beginning this March of 1999 Tecumseh is implementing

a pilot warranty return program through selected CWD’s.

This new procedure will return warranty claims not

containing the needed information through your

distributor rather than directly to you. Your distributor

will work with you to obtain the needed information and

answer any questions, then re-submit the claim signed

by the distributor representative for prompt payment.

QUICK FIX CARB KIT

This kit was released late this year and we want to

remind you of its availability. The part number is 632760

and can be ordered from your normal supplier. This

one kit now replaces several previous kits and has been

upgraded to include the idle restrictor cap. Please

remember this kit does not service the series “7” or

the Vector (VLV) non metallic bowl carburetors. When

you service a carburetor, please order this kit and always

remove and clean all Welch plug cavities before replacing

them.

BULLETIN

123

ACCURATE WARRANTY

CLAIM INFORMATION

TAMPER CAP

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

NO METHANOL

We have added a caution to our Owner’s Manual

regarding a zero tolerance level for any methanol

blended fuel or additives. We have reviewed some

carburetors returned from service and found the damage

to have occurred from methanol based fuel and or fuel

dryers. Should the customer feel they need a fuel dryer

in their snow product use only isopropyl based dryers

at the correct ratio to prevent freeze up. Remember if a

little is good a lot is NOT better.

STARTER CLIP BULLETIN 122

In Spring of 1998 we issued this Bulletin 122 regarding

starters not engaging principally on rotary mower product.

We recently re-sent this to all manual holders. Should

you encounter one of these situations, please order

part number 590760. This kit includes a replacement

disc to prevent water migration into the starter. Then

file an ESA-157R claims with us if warranty applies.

BULLETIN

122

RECOIL STARTER WILL

NOT ENGAGE WHEN

PULLED

BULLETIN 108

FUEL ADDITIVES

Only fuel additives such as Tecumseh's fuel

stabilizer Smart Start™ part number 730245

or liquid varieties can be used when mixed

properly. For winter applications, Isopropyl

alcohol fuel dryers may be used in the fuel

system but must be mixed at the proper ratio

recommended by the manufacturer.

NEVER USE METHANOL BASED DRYERS.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Europa News

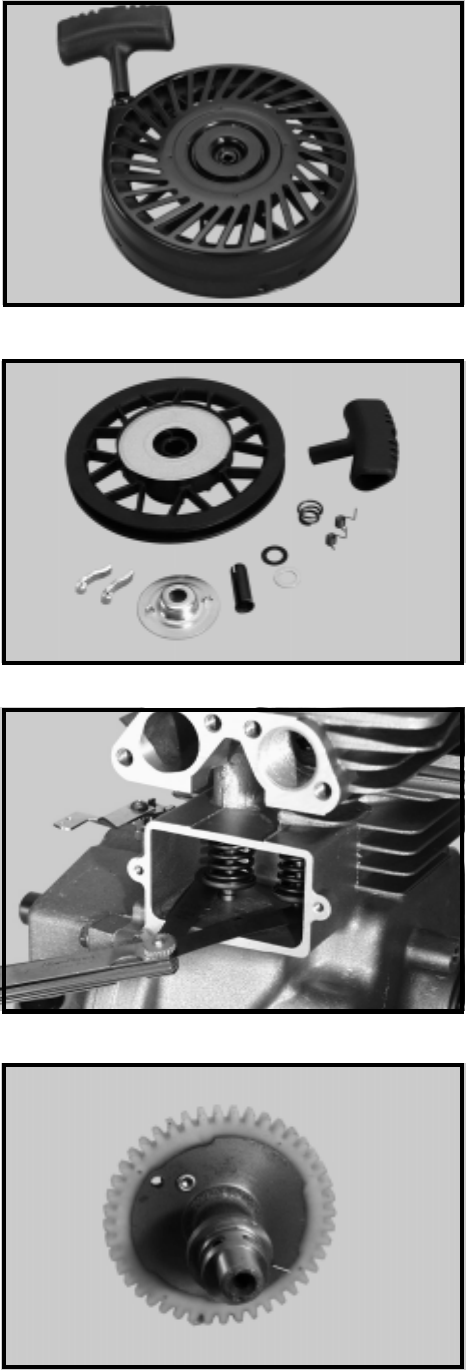

REVISED SOFT PULL STARTER

From production starting September 1998, a revised

soft pull starter will be used. Although the design is

very similar to existing product, improvements have

been made to the housing, the pulley material, design,

and the pawls. These improvements have been aimed

at improving the durability of the unit, and to improve

the way in which the rope is held on the pulley. Individual

spare parts for this starter will be made available, and

the repair procedures are identical to the existing product

which uses the roll pin to secure the pulley to the housing.

STARTER REPAIR KIT

Utilizing the parts used in the new soft pull starter, a

repair kit will be made available to service existing soft

pull starters. This kit, which is available under part

number 16630041, will consist of pulley, recoil spring

and retainer, pawls, pawl springs and retainer, together

with new roll pin assembly.

VALVE CLEARANCE CHECK

Since July 1998 the valve clearance on Europa

manufactured engines has been revised to the following:

4-cycle vertical shaft side valve (L’head)

0.15-0.25 mm (.006 - .010)

4-cycle horizontal shaft side valve (L’head)

0.10-0.20mm (.004 - .008)

4-cycle OHV engines(vertical & horizontal crankshaft)

0.050-0.15mm (.002 - .006)

Valve clearances are now as shown above irrespective

of the decompression system used.

REVISE CAMSHAFT

Over the past 12 months some engines have been

equipped with a camshaft manufactured with plastic

lobes as well as the plastic timing gear. These camshafts

are interchangeable with the standard camshaft. Valve

clearances should be set as listed above.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

ELECTRIC START ENGINES

Electric start engines are now equipped with a flywheel

that features a plastic ring gear in place of the aluminum

ring gear that was cast as part of the flywheel. This is

more robust than the original but also provides much

quieter operation. It is however essential that the

clearance between the flywheel ring gear and the starter

pinion is set correctly. There should be a clearance of

1/16” (1.6 mm) between the tip of one tooth and the

root of another. This can easily be checked using a

sized piece of wire. It is essential to check this clearance

when replacing a flywheel that has broken teeth, as it

is possible that when the failure occurred, the starter

mounting has become distorted, increasing the

clearance. Failure to check this clearance will result

in premature ring gear failure.

INLET VALVE OIL SEAL

Most premium engines are now equipped with an inlet

valve oil seal which acts as a top valve spring retainer.

This seal, which is part number 19610001, should be

replaced whenever it has been removed from the valve

stem. The correct installation is shown on the adjacent

drawing.

FLYWHEEL ATTACHMENT MV100S ENGINES

Some MV100S engines utilize an adapter collar to locate

them to the crankshaft as opposed to the standard

flywheel key. The engine specification number will

identify which system is used. When reinstalling the

flywheel that utilizes this collar, it is necessary to press

the collar into the flywheel taper flush to the inside hub

before installing the flywheel to the crankshaft. The pressed

ridge in the collar will align with the flywheel keyway.

1/16" (1.6 mm)

Between Flywheel

and Starter

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

3 AMP CHARGING SYSTEM

Some Futura 60 engines are now equipped with a 3 amp

DC charging system to enable the use of an electric

clutch. Should the charging be in doubt, it should be

checked in the following way.

1. Start the engine and let it run at high speed.

2. Disconnect the engine from the machine’s wiring

loom by disconnecting the black multi connector.

3. Set the engine speed to 3000 rpm.

4. Check the DC voltage output by connecting a

voltmeter between the red wire on the 4-way

connector to earth. Minimum reading should be 9.5

volt DC. At this minimum reading the system is

working correctly.

5: If this minimum reading is not achieved check the

AC voltage output by pulling back the sheathing

covering the diode and connecting the voltmeter (set

on AC scale) between ground and output wire prior

to the diode. The reading should be 22 volts AC at

3000 rpm. If this minimum reading is achieved the

diode at fault must be replace.

6. If this minimum reading is not achieved than the

alternator coils are at fault and require replacement.

7. Do not forget to reconnect the connector to the

machine wiring harnes when repair has been

completed. (If the machine still exhibits electrical

problems and the charging system checks out OK,

then the machine should be checked for a poor battery,

poor connections, failed relays etc).

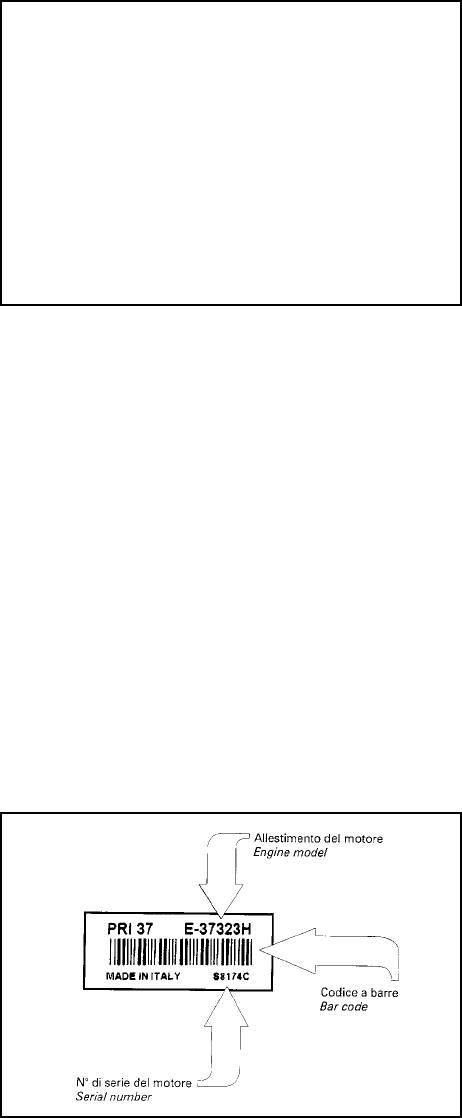

ENGINE IDENTIFICATION

Starting September 1997 all Tecumseh Europa engines

were identified by an adhesive label affixed to the blower

housing. The actual positioning of this label varies

according to engine model. On vertical shaft engines

it can usually be found on the oil filler side towards the

spark plug. On horizontal shaft engines it can usually

be found adjacent to the spark plug. A sample of this

label is shown opposite. These labels are in addition to

the existing information stamped on the crankcase.

3 Amp D.C.

Charging System

Futura 60

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

CATALYTIC CONVERTERS

Many of our engines can now be specified with catalytic

converter which takes the form of a tablet or wire mesh

which is installed within the muffler. These mufflers

can be identified by the word “KAT” pressed into them.

As with automotive catalytic converters, it is necessary

to follow certain ruler if the catalytic converter is to remain

effective for a reasonable period. Obviously the customer

must be advised only to use unleaded fuel. In addition

they should be made aware that the engine should not

be over-filled with oil, or tipped in a way to allow oil to

flood into the combustion chamber (spark plug down).

Catalytic equipped engines are only supplied with primer

carburetors, but the customer should also be made aware

of the danger of unnecessary over-priming of the engine.

With a little care the catalytic converters will be effective

for many seasons.

CONNECTING ROD

The connecting rod used in our European manufactured

engines ranging from 3.7 - 5.5 HP has been modified

in the following areas.

1. Added oil feed channel to the beam of the connecting

rod.

2. Added chamfer to the connecting rod/cap parting

line.

3. Added oil groove to connecting rod cap.

This is a running change to service part numbers

16110010 and 16110011 and will occur as inventories

change.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

ISSUED: May 1971

REVISED: October 1998

SUBJECT: Gasoline and Engine Oil Recommendations for 2 and 4-Cycle Engines

GASOLINE

Tecumseh Products Company strongly recommends the use of fresh, clean, unleaded regular

gasoline in all Tecumseh engines. Unleaded gasoline burns cleaner, extends engine life, and

promotes good starting by reducing the build-up of combustion chamber deposits. Leaded gasoline,

gasohol containing no more than 10% ethanol, premium gasoline, or unleaded gasoline containing

no more than 15% MTBE (Methyl Tertiary Butyl Ether), 15% ETBE (Ethyl Tertiary Butyl Ether) or

10% ethanol, can be used if unleaded regular gasoline is not available.

Reformulated gasoline that is now required in several areas of the United States is also acceptable.

NEVER USE gasoline, fuel conditioners, additives or stabilzers containing methanol, gasohol containing

more than 10% ethanol, unleaded regular gasoline containing more than 15% MTBE (Methyl

Tertiary Butyl Ether), 15% ETBE (Ethyl Tertiary Butyl Ether) or 10% ethanol, gasoline additives,

or white gas because engine/fuel system damage could result.

See STORAGE instructions in Technicians Manual, Operators Manual, or Bulletin 111.

For year round fuel stability in and out of season, use "Smart Start" part number 730245.

FUEL ADDITIVES

Only fuel additives such as Tecumseh's fuel stabilizer Smart Start part number 730245 or

liquid varieties can be used when mixed properly. For winter applications, Isopropyl alcohol

fuel dryers may be used in the fuel system but must be mixed at the proper ratio recommended by

the manufacturer. NEVER USE METHANOL BASED DRYERS.

OILS

2-CYCLE

Tecumseh two cycle engines require the use of a NMMA TC-W3 or TC-WII certified oil.

TECUMSEH RECOMMENDS USING TWO CYCLE OIL PART #730227, which is a premium blend

that ensures cylinder wall lubrication, mixes easy, does not separate and is specially formulated

for use in air or water cooled two cycle engines.

The proper fuel mixture ratio of oil to gasoline for specific engines will be found in the owners

operating instructions and on the decal attached to the blower housing or fuel tank of the engine.

FOR NEW ENGINES: USE TWICE THE NORMAL OIL QUANTITY FOR THE FIRST GALLON OF

FUEL ACCEPT ON TC SERIES WHERE THE STANDARD MIX RATIO IS SUFFICIENT.

4-CYCLE

TECUMSEH FOUR CYCLE ENGINES REQUIRE THE USE OF A CLEAN, HIGH QUALITY DETERGENT

OIL. Be sure original container is marked: A.P.I. service SF thru "SJ" or CD.

TECUMSEH RECOMMENDS USING ONE OF THE FOLLOWING FOUR CYCLE OILS THAT ARE

SPECIALLY FORMULATED TO TECUMSEH SPECIFICATIONS.

DO NOT USE SAE10W40 OIL.

FOR SUMMER (Above 320F) USE SAE30 OIL. PART #730225

(SAE10W30 is an acceptable substitute.)

Use SAE30 oil in high temperature, high load applications. Using multigrade oil may increase oil

consumption.

FOR WINTER (Below 320F) USE SAE5W30 OIL. PART #730226

(SAE10W is an acceptable substitute.)

(BELOW 00F ONLY): SAE0W30 is an acceptable substitute.

NOTE: For severe, prolonged winter operation of HH120 model, SAE10W oil is recommended.

SERVICE

BULLETIN

108

INFORMATIONAL

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

ISSUED: May 1985

REVISED: July 1997

SUBJECT: High Altitude Carburetor Kits for Fixed Main Carburetors

Engines built to O.E.M. specifications may experience starting and operating problems when used in

areas of the country where the altitude is four thousand feet above sea level or higher. A leaner fuel/

air mixture is more desirable at higher elevations to sustain good engine startability and operating

characteristics. Engines built with adjustable idle and main circuit carburetors can be adjusted (or

fine tuned by adjusting).

The following will assist you in selecting the correct high altitude/leaner jetted bowl nut for engines

equipped with fixed main or dual system carburetors. Order your requirements from your source of

supply.

4 CYCLE

STANDARD BOWL/NUT

ENGINE STAMPED Over 4,000 Ft.

LEV115 Jet *

TVS90-120/ECV90,100/TNT100 64, 65, 75, 79, 103,-

108, 126, 127, 137 632455

TVS90-120 / OHH50 / 55 158, 161, 164, 165, 166, 171, 172, 177 632737

TVS90 -120, OVRM40-60 124, 125,133, 135, 136 631026

OVM & OVXL120, OHV11-13 (Formula) 120, 141 632239

Dellorto 69 633017

VLV40, 50, 55, 60, 65, 66 Jet 632648

VLV40, 50, 55, 60, 65, 66 Nozzle 632638

TVM170-195 83, 132 632239

TVM220 109, 131 631973

OHV15 - Walbro LMK26 Jet 632688

OHV11 - 17 (Enduro) Jet *

2 CYCLE

AH/AV520 & 600, HSK600 101 632368

TVS/TVXL840 L118, L119 632463

HSK840, 845, 850/HXL840 124, 125 631026

TC200/TC300 Tillotson carburetor only. Jet 632940

TC200/TC300 Tillotson HU112 and HU114 Jet N/A

Do Not install leaner jetted bowl nuts on engines used below four thousand feet as starting and

operating problems will occur. WARRANTY DOES NOT APPLY.

NOTE: Engines which are identified as compliant with CARB (California Air Resources Board)

or EPA (US Environmental Protection Agency) regulations can NOT be changed from the factory

unless specifically authorized.

* Altitude compensation not required due to use of emissions type carburetors.

SERVICE

BULLETIN

110

INFORMATIONAL

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Issued: June 1998

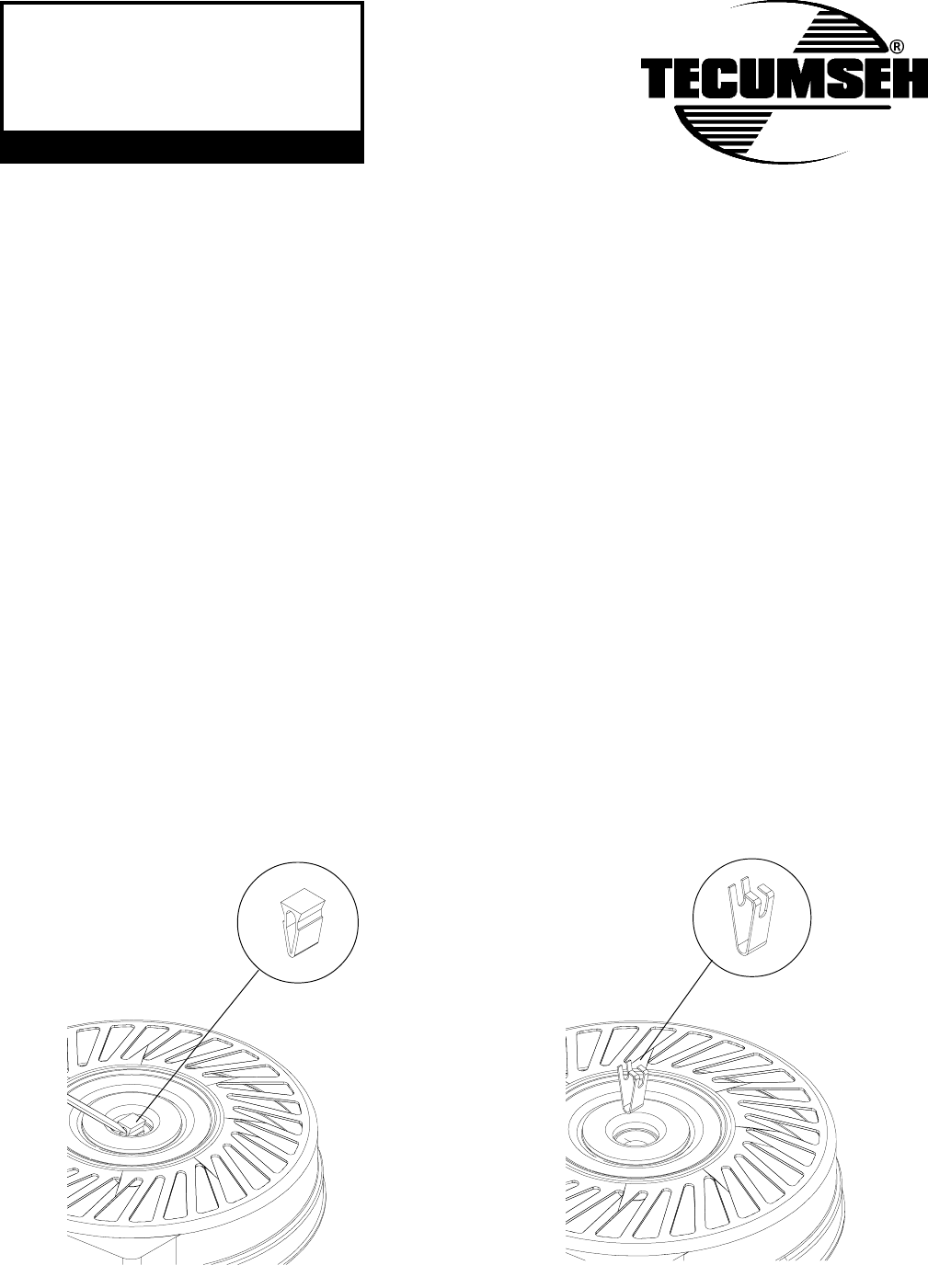

Subject: RECOIL STARTER WILL NOT ENGAGE WHEN PULLED

Models Effected:Small Frame (3 thru 6 HP) Horizontal and

Vertical Engines with DOM 7335 thru 8150

If you have experienced an occasion where the recoil starter will not engage when the rope is pulled,

a simple repair may solve the problem. This repair will only affect starters that have the white plastic

locking tab located in the top/center of the starter. The locking tab may be covered by a round

protective decal or could be located in the recoil under a decorative cover. The decorative cover will

have to be removed to allow for repair. However, it is not necessary to remove the recoil starter from

the engine to make the repair.

To make the repair you need to remove the protective decal to expose the white plastic locking tab.

Use a small flatblade screwdriver or needlenose pliers to pry up on the tab and remove it from the

starter. Discard the old tab and replace it with a new metal locking tab part #590760, which also

includes a new protective decal. Press the new metal locking tab down into the retainer until it snaps

into place. Place the new protective decal over the tab hole to prevent any water or debris from

entering the starter.

This procedure and paperwork should take approximately 15 minutes to complete. An ESA 157R

warranty claim form should be filed through normal channels.

SERVICE

BULLETIN

122

INFORMATIONAL

OLD NEW

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

SERVICE

BULLETIN

123

INFORMATIONAL

ISSUED: SEPTEMBER 1998

SUBJECT: ACCURATE WARRANTY CLAIM INFORMATION

Models Effected:All Models

In a recent audit of claims submitted from January through July of this year we have learned that

almost 20% of the total claims have been returned to dealers due to lack of accurate information.

Further research has identified that the majority of these returns are due to lack of or incorrect

information being submitted in Box 5, D.O.M. or Serial No. Most often, the incorrect information

furnished is the engine Family number sequence. The correct information to submit is the D.O.M. or

date of manufacture or Engine serial number from the Engine I.D. label. See Example

All claim information is extremely important for record keeping purposes. In fact, any missing or

incorrect information results in the claim being returned. We ask that you help us by furnishing

accurate and correct information in Box 5 and all the other Boxes on the claim form.

Failure to help in this effort results in added expense and work for you and Tecumseh. It also results

in delayed payments to you and that affects your receivables. Lastly, unless we can eliminate claims

submitted with lack of accurate information we may consider having your Tecumseh source of supply

receive your claims for editing prior to submitting claims to Tecumseh.

Example of Box 5 ESA157R Claim Form

Model Specification Serial (DOM)

ENGINE:TVM195 150288G 8150C

5) ENGINE/TRANSMISSION SPEC NO. D.O.M (SERIAL NO)

TVM195 150288G 8150C

Typical Engine I.D. Label TVM195 150288G (E)

STP318U1G2EA

318 8150 C

THIS ENGINE MEETS 1995-1998 CALIF/US EPA

PH1 APPLICABLE EMISSION REGULATIONS FOR

ULGE ENGINES FUEL REGULAR UNLEADED OIL

SAE 30

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

205 - 027C8194A0048

ISSUED: September 1998

SUBJECT: Improved Gear Product Identification

MODELS OR TYPES AFFECTED: All Models

The recent warranty audit referenced in bulletin number 123 suggested we review the way

our new Tecumseh/Peerless® models are identified. That review found improvements where

needed in the identification system to make them standard with the new emission regulations

requirements covering engine product and the New ESA 157R Claim Form.

As a result of this review, we have changed the product ID tag to make it easier to read.

Should this data be needed for service or warranty situations these improvements will make

locating the needed model and specification information easier.

Example Numbers 1 and 2 below, show the present bar code labels currently being used. We

have identified the important fields of information that is required for warranty claims.

In addition, a new easier to read bar code label (No. 3 below) is being introduced on all units

provided after October 1, 1998. Again we have highlighted the information you are required

to supply.

This information is critical for prompt warranty reimbursement to your shop, please pay

close attention to this number.

SERVICE

BULLETIN

124

INFORMATIONAL

SPECIFICATION NUMBER

REQUIRED FOR WARRANTY

SPECIFICATION NUMBER

REQUIRED FOR WARRANTY

SPECIFICATION NUMBER

REQUIRED FOR WARRANTY

MODEL NUMBER REQUIRED

FOR WARRANTY

MODEL NUMBER REQUIRED

FOR WARRANTY

MODEL NUMBER REQUIRED

FOR WARRANTY

D.O.M. (DATE OF MANUFACTURE)

ORIGINALLY SERIAL NUMBER

D.O.M. (DATE OF MANUFACTURE)

ORIGINALLY SERIAL NUMBER

D.O.M. (DATE OF MANUFACTURE)

ORIGINALLY SERIAL NUMBER

"NEW TYPE"

1 2

PEERLESS

TECUMSEH

205 - 027C

MODEL DATE SERIAL MST - 206 - 502A

DATE MFG. SERIAL NO.

6304A00013

PEERLESS

TECUMSEH

7070A - 0005

MODEL SPEC

D.O.M.

VST - 205 - 020C

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

ISSUED: October 1997

SUBJECT: Peerless® Model VST 205 WARRANTY Replacement Program

The Service and Engineering groups of Tecumseh have reviewed extensively the servicing of the VST

205 Hydrostatic Transaxle. After review of the complex issues of servicing this unit, we have decided

on a unique approach for Tecumseh to handle IN WARRANTY servicing by complete replacement, if

needed, with factory furnished units. These units may be Tecumseh re-manufactured units or new

units at our discretion.

Effective November 15, 1997, the following procedure is to be followed by all Authorized Tecumseh

Service Centers if an Internal Failure occurs WITHIN THE WARRANTY PERIOD. We are enclosing the

revised Warranty Policy reflecting this change.

1. Be sure you have reviewed the trouble shooting section of the Peerless® Technicians Handbook,

No. 691218, to insure the problem is internal and not a linkage problem. All external components

serviceable previously such as pulley, brakes, and levers are still serviceable as before.

2. If you have identified the trouble as internal, contact your distributor for replacement authorization

under the normal warranty authorization procedure.

3. You will then need to look up the replacement transaxle using the attached list of replacements or

the parts look up system you have chosen (i.e., microfiche, computer or paper). NOTE: Place an

"R" on the end of the service replacement part number when ordering from your normal source.

The unit will be shipped N/C with freight prepaid direct to your dealership. Example: Part #794667

(R). If your replacement model had an "A" suffix, change it to an "R" as referenced.

4. Ordering is done through your normal source of supply. DO NOT attempt to combine any "R"

number with a regular order. Only the "R" will be shipped N/C Prepaid. Any added orders will be

kicked out (not shipped).

5. You then file your DISTRIBUTOR AUTHORIZED, COMPLETELY FILLED OUT ESA157 warranty

claim with us for the R&R of the transaxle. Upon receipt of the warranty claim in Grafton, Wisconsin,

Tecumseh will issue a recall tag through UPS to pick up the unit for return to us.

6. When your claim is matched up with your returned transaxle, we will process it for prompt payment.

7. Before returning the defective transaxle, place a COPY of the ESA157 warranty claim in the original

box, which should be used for return shipment of the transaxle.

8. This program will be in effect for the United States only.

We appreciate your assistance in this warranty replacement procedure.

SERVICE

BULLETIN

307

PEERLESS

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

TECUMSEH

7070A - 0005

MODEL SPEC

D.O.M.

VST - 205 - 003C

PEERLESS

ISSUED: December 1998

SUBJECT: Hydrostatic Transaxle Shift Force

MODELS AFFECTED: VST205

SERVICE

BULLETIN

308

PEERLESS

We have made a change to the VST series transaxle cover. This allows for external adjustment if necessary,

of the shift force required to move the control lever. This adjustment can be accomplished on all C series

and later model units. To determine if this adjustment can be made on the unit in for repair, locate the

ID tag as shown in the illustration below.

When a C or newer unit is found, use the adjustment procedure as outlined below. Remember to

disconnect and check the equipment linkage first, before performing this adjustment or replacing

the transaxle on early production units.

TO ADJUST MOTION CONTROL LEVER (See Insert)

The motion control lever has been preset at the factory and adjustment should not be necessary.

If for any reason the motion control lever will not hold its position while at a selected speed or is difficult

to move, it may be adjusted as follows:

 Park tractor on a level surface. Stop tractor by turning key to the OFF position and engage parking

brake.

NOTE: The transmission should not be warm when making this adjustment. Allow it to cool to room

temperature before making this adjustment.

REMOVE ACCESS PLUG WRENCH

COOLING FAN

HOUSING

POCKET

(continued on next page)

The plug may be accessible through the battery box

area, however, each manufacturer may be different.

If access can be gained through the battery area, it

will be necessary to remove the battery and the

battery box from the tractor.

The most extreme case may require transaxle

removal from the frame.

 Raise the seat and open battery box door.

Disconnect BLACK battery cable first, then the

RED cable.

 Remove battery and battery box from tractor.

ID TAG

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

SERVICE

BULLETIN

308 (Cont.)

PEERLESS

NOTE: When reinstalling battery box, ensure that battery acid drain tube is routed toward the rear and

is clear of the cooling fan.

 Locate the access plug under the cooling fan. This plug and surrounding area must be cleaned to

prevent contamination of internal parts during this procedure. Before removing the plug, pack a cloth

in the housing pocket to absorb excess oil.

 Clean the bellows cover plate.

 Place a piece of masking tape over the hole located in the center of cover plate. This will prevent air from

entering the bellows area when access plug is removed, and prevent oil from coming out access hole

when plug is removed.

 Using a needle nose pliers, remove the access plug described above. When the plug is removed, a small,

quantity of oil will flow out of the transaxle. This is normal and will not effect its function.

 Insert a #30 torx or 5/32 allen wrench into the access hole and locate the adjustment screw. Adjust

the screw clockwise 1/4 turn at a time to increase motion control effort.

NOTE: If for any reason the effort to move the motion control lever becomes too excessive, reverse the above

procedure by turning the adjustment screw counterclockwise 1/4 turn.

 Clean the access plug and insert it into position using the torx or allen wrench.

 Clean spilled oil from transaxle and reinstall battery box and battery into tractor. When connecting

battery be sure to connect the RED battery cable first.

 An effort of 150-200 in-lbs. of torque to move the transaxle motion control lever is required for hand

control units and an effort of 40-50 in-lbs. of torque to move the transaxle motion control lever on foot

control units.

 An effort of 15 - 18 lbs. at the motion control lever knob is normal.

Road test tractor after adjustment and repeat procedure if necessary.

NOTE: The neutral spring must be removed to check the force on foot pedal control

units.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

ISSUED: October 1998

SUBJECT: Smoking Out of Muffler on Initial Start Up

MODELS AFFECTED: VLV 50 through 66

SERIAL NO'S AFFECTED: 7002 through 7128

We have received comments from the service system regarding instances of NEW VLV model

engines exhibiting smoke from the muffler during initial engine operation. These instances of

smoke from the muffler in a new engine may be caused by storage or shipment with the

spark plug pointing down.

BEFORE performing the procedure below please make sure the engine has been run for at

least 30 minutes to burn out any oil residue inside the muffler. If the smoking continues

after this time period proceed below.

After investigation we have determined the cause of the smoking. This is the result of an

irregular casting surface in the valve spring box, which does not allow proper seating of the

seal allowing oil to pass.

PROCEDURE:

1. Remove the muffler, cylinder head and valve box cover.

2. Remove the Intake valve spring, valve and seal.

3. Install the NEW valve stem seal part no. 40016A as shown (see illustration).

4. Replace the cylinder head gasket part no. 36061 and valve box cover gasket part no.

27234A.

5. Re-torque the cylinder head to 180-220 inch Lbs following the sequence below.

6. A kit containing all the above parts can be ordered under part no. 730617.

Retainer

Valve Stem Seal

Torque in Numeric Order

to 180 - 220 inch lbs.

The time to perform this repair procedure is typically 45 minutes. We thank you in advance

for correcting this problem and request you submit a claim to us for reimbursement.

SERVICE

BULLETIN

406

4 CYCLE

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

EMISSION

INFORMATIONAL

BULLETIN

501

Date Issued: June, 1998 Family: STP185U1G1RA

Engine Model(s) Concerned: LEV115 D.O.M. (s) Affected: 8091-8166

Tecumseh Products Company, in cooperation with California Air Resource Board (CARB)

and the US Environmental Protection Agency (EPA), needs your assistance.

Potential Emission Control System Problem:

The testing of engines manufactured in compliance with these regulations has identified a

potential emission control system problem. The potential area of concern (outlined below)

should be inspected when equipment is received for normal servicing.

Should the inspection reveal the engine has the concern outlined, repair the unit as instructed.

After completion of the repair, file for warranty reimbursement, using the ESA 157R

claim form.

Affected specifications numbers are:

350007A,B,C, 350010B, 350013B, 350041B,C, 350042C, 350063C,

350064C, 350075C, 350083C, 350086C, 350087C, 350089C,

350098C, 350099C, 350110C, 350112C, 355001A, 355003A,B,C,

355004B, 355010C, 355011C, 360002A, 360003A, 360004A,

360006A, 360009A,B, 360010B, 360011B, 360017B, 360018B

Warranty Inspection and Repair Procedure:

Inspect models in stock or that come in for service to determine high speed bowl nut number

(stamped on bottom).

If stamped with #174, replace high speed bowl nut with #169 (part number 640087).

If stamped with #169, no change is required.

UNITED STATES ONLY

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

EMISSION

INFORMATIONAL

BULLETIN

502

Date Issued: August, 1998 Family: TTP156U1G1EB

Engine Model(s) Concerned: D.O.M. (s) Affected:

Compact H35 & H40 8079-8201

Tecumseh Products Company, in cooperation with California Air Resource Board (CARB) and the US

Environmental Protection Agency (EPA), needs your assistance.

Potential Emission Control System Problem:

The testing of engines manufactured in compliance with these regulations has identified a potential

emission control system problem. The area of concern (outlined below) should be inspected when

equipment is received for normal servicing or if the customer complains of poor engine performance.

Should the inspection reveal the engine has the concern outlined, repair the unit as instructed. After

completion of the repair, file for warranty reimbursement, using the ESA 157R claim form.

Affected specifications numbers are:

H35-45690Z, H35-45726Z, H40-55701A

Warranty Inspection and Repair Procedure:

Should you have one of the above mentioned units please check for previous repair. This is accomplished

by locating the carburetor model number as shown (see illustration.) If the carburetor model number

is 5015 it will be necessary to replace the carburetor.

If the engine has already been repaired the carburetor model number 5161 will be present in the

same location, and this bulletin does not apply.

To complete the repair order replacement carburetor number 640172 from your usual source of

supply. The usual time for this repair is 30-45 minutes which includes completely filling out the ESA

157R warranty claim.

MANUFACTURING NUMBER

(5015)

CARBURETOR DATE CODE

UNITED STATES ONLY

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Engine Service Association, Inc.

WARRANTY CLAIM NO. SAMPLE

4WARRANTY PERFORMED BY l CD l SD l DEALER

76 UNIT ORIGINALLY SOLD BYHOURS USED

Firm Name

Address

City

Signed

Phone

Purchased Date Failure Date Repair Date

Day Yr. Mo. Day Yr. Mo. Day Yr.

Mo.

l Warranty Repair l New Defective Service Parts

l Policy Adjustment l Questionable/Disputed

1TYPE OF CLAIM (CHECK ONLY ONE)

PLEASE TYPE OR PRINT CLEARLY

FOR

lKohler

lTecumseh

lUS Motor Power

3OWNER'S LAST NAME COMMERCIAL USER

ADDRESS

FIRST MI

CITY STATE

PHONE ZIP

Customer Signature

l YES l NO

l Mounted l Detached

Engine/Transmission

Short/Block/Model No. Spec. No. D.O.M. or Serial No.

Equipment Manufacturer Type of Equipment Engine Received

PARTS HAVE BEEN

l Returned to Factory l Returned to Central l Retained & Tagged

DEFECTIVE PART NUMBER 10 FAILURE SUFFIX

FAILURE SUFFIXES

AW- Assembled Wrong FM- Foreign Material SD- Shipping Damage

BC- Broken/Cracked IF- Improper Fit SG- Scored/Galled

BL- Blown LK- Leaked SS- Stuck/Seized

BT- Bent/Twisted MI- Missing ST- Stripped

CD- Porous/Casting ML- Magnet Loose UO- Unknown/Other

Deficiency NA- Not Seating VC- Valve/Clearance

CL- Came Loose/Off NY- Noisy WN- Worn

CP- Corroded/Pitted OA- Out of Adjustment WP- Wraped

EF- Electric Failure PM- Part Made/

Machined Incorrectly

Condition Found/Probable Cause of Failure (Word "Defective" Not Sufficient)

Freight/Postage

Allowance

Attach Freight Bill

Miscellaneous Dollars Cents

Labor HRS. MINS./TENTHS JOB #

Repair 1

Repair 2

Repair 3

Misc. Labor

R & R

TOTAL

15 FACTORY USE ONLY

OEM Code

Defect Code #

End Use Code #

Division

16 Part Number Qty. Description

Engine/Short Block/Transmission (Authorized Signature

Authorized By:

Firm Name:

WARRANTY CODE NO.

State

Zip Code

Job Number/Work Performed. If Necessary to Remove & Replace (R&R) Engine from Equipment, then Show R&R Separately.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

ENGINE I.D. BULLETIN 123

With the implementation of emissionized engines, we were required to change the engine identification

system we used. This new system has caused many warranty claims to be rejected for a lack of proper

information. We have published Bulletin 123 to help you understand the needed information. Please

make sure you supply the information so we can reimburse you promptly.

Beginning this March of 1999 Tecumseh is implementing a pilot warranty return program through selected

CWD’s. This new procedure will return warranty claims not containing the needed information through

your distributor rather than directly to you. Your distributor will work with you to obtain the needed

information and answer any questions, then re-submit the claim signed by the distributor representative

for prompt payment.

BOX 5 ENGINE/TRANSMISSION INFORMATION:

Enter the entire model, specification, serial (DOM) number of the engine/transmission being

repaired. When a repair is performed to a short block, enter the short block model and serial

number. Check the appropriate box to indicate if the equipment was received mounted or

detached from the OEM's equipment.

EXAMPLES:

MODEL SPECIFICATION SERIAL (DOM)

ENGINE: TVS115 61601 3240J

TRANSMISSION: 930 011 3071-7308

SHORT BLOCK: SBV 2308 1198F

TVS115 61601 3240J

l Mounted l Detached

Engine/Transmission

Short/Block/Model No. Spec. No. D.O.M. or Serial No.

Equipment Manufacturer Type of Equipment Engine Received

Rotary L.M.

MTD

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Starter No. 37102

Note: Engines built with the 37000 electric

starter motor are identified by the service

part number located on the motor's label.

Refer to Division 5, Section D, for service

part information.

Ref. Part No. Description

1 33451 Dust Cover

2 33842 Retainer Ring

3 33430 Spring Retainer

4 33431 Anti-drift Spring

5A 37050 Gear & Nut (Incl. 2)

26 650819 Screw, 6-32 x 2-1/2"

30 30063 Screw, Torx T-30, 1/4-20 x 1/2"

31 650820 Screw, 1/4-20 x 1/2"

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

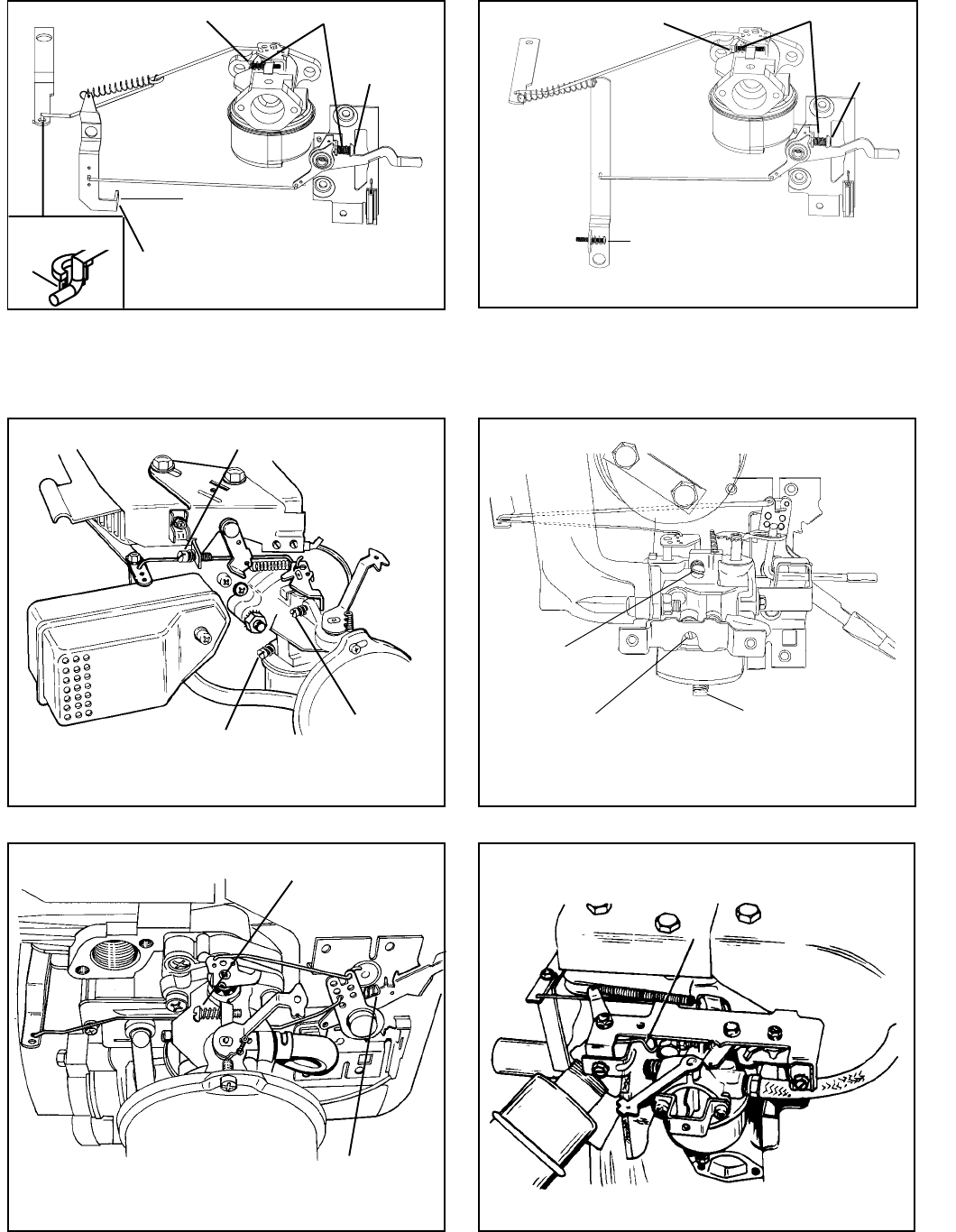

OH / OHSK CONTROL

GOVERNED

HIGH SPEED

ADJUST

BEND

GOVERNED IDLE TAB

INCREASE DECREASE

T-10

THROTTLE CRACK SCREW

CORRECT BUSHING

INSTALLATION DEEP

SIDE

HERE

OHSK / OHM CONTROL

GOVERNED

HIGH SPEED

ADJUST

GOVERNED IDLE SCREW

T-10THROTTLE CRACK SCREW

MAIN MIXTURE

SCREW

IDLE MIXTURE

SCREW

IDLE SPEED

SCREW

HMSK80-100

OHH GOVERNED IDLE SYSTEMS

COMMON HORIZONTAL SHAFT

MEDIUM FRAME ENGINES

HORIZONTAL MEDIUM FRAME

IDLE SPEED

CRACK SCREW

HIGH SPEED RPM

ADJUSTMENT SCREW

IDLE MIXTURE

SCREW

MEDIUM FRAME

IDLE SPEED

CRACK SCREW

HIGH SPEED RPM

ADUSTMENT SCREW

SNOW KING ENGINES

TO INCREASE SPEED - CLOSE LOOP

TO DECREASE SPEED - SPREAD LOOP

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

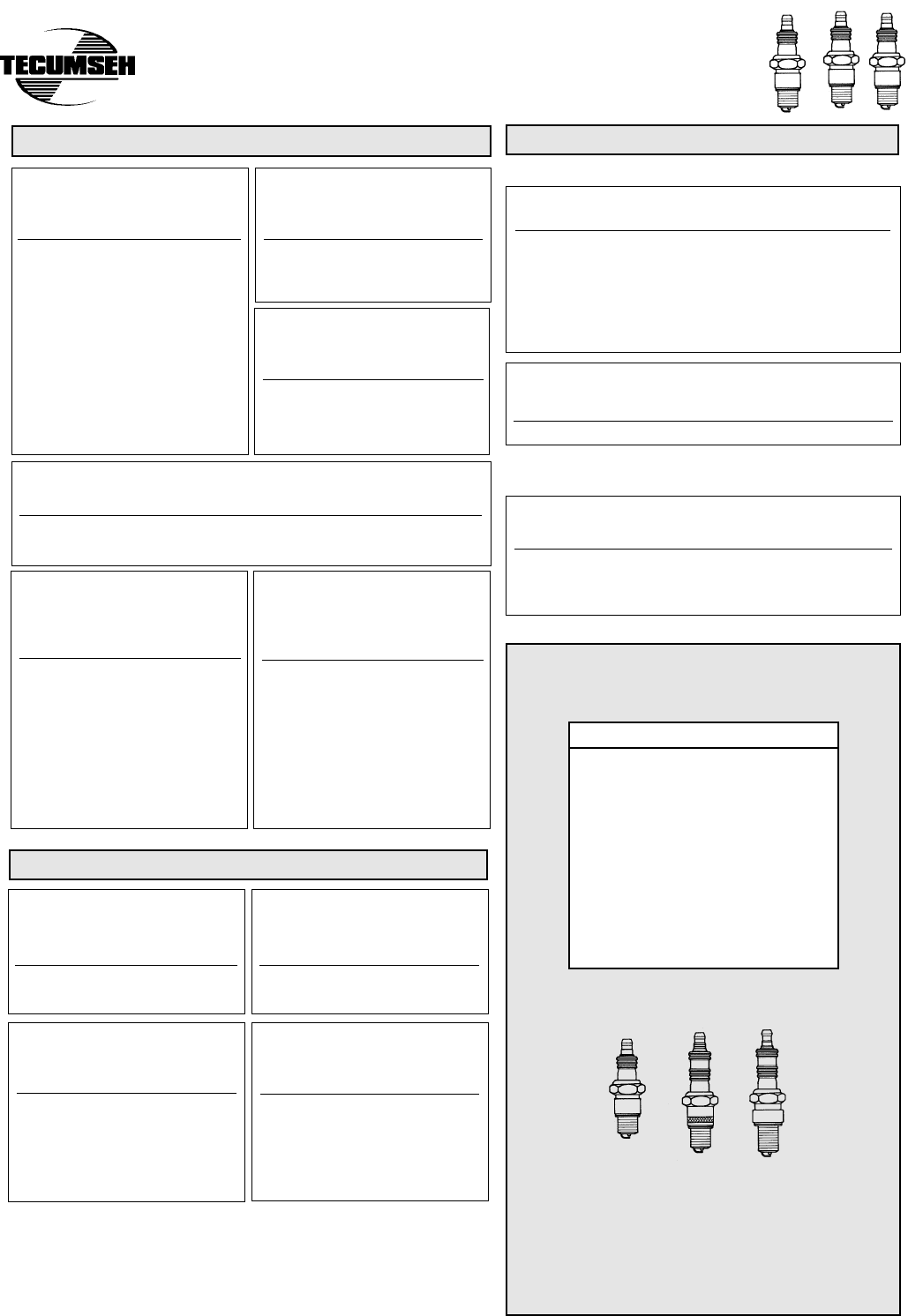

J17LM

AV85/125

AV520/600

MV100

Service Number

34046

RL86C

 OHM120

 OHSK110-130

OVM120

Note:

*OVXL models with specification nos.

202700, 203000 and up, use RN4C.

OHM 120 models with specification nos.

224000 and up, use RN4C.

OHSK 110, 120, 130 models with

specification nos. 223000 and up, use

RN4C.

SPARK PLUG

REPLACEMENT

4-CYCLE SPARK PLUG

Service Number

611100

RCJ6Y

TC300

TCH300

2-CYCLE SPARK PLUG

Service Number

611049

RCJ8Y

AH520

AH600

HSK600

HSK840

HSK845

Service Number

35395

RJ19LM

TVS840

TVXL840

Service Number

33636

RJ17LM

AV520

AV600

TVS600

EUROPA MODELS

4-CYCLE SPARK PLUG

Service Number 29010008

J17LM

All Horizontal Models

BVL

BVS

Futura

HTL

Service Number 29010023

N4C

Premier 45/55

2-CYCLE SPARK PLUG

Service Number 29010008

* OVXL120,

* OVXL/C120

* OVXL125

Service Number

33636

RJ17LM

H30-80

HM70-100

HS40-50

Service Number

35552

RL82C

HH140-160

OH120-160

HSK850

HXL840

TC200

TCH200

Type 1500

LAV

Premier 153/173

Prisma

Spectra

Synergy

Vantage

Champion Autolite

35395 - RJ-19LM 458

33657 - RL-82C

35552 - L-82C * 2654

34046 - RL-86C 425

34645 - RN-4C 403

33636 - J-17LM 245

34277 - RJ-8C 304

611100 - RCJ-6Y

*NON CANADIAN APPLICATION

NOTE: THE SERVICE NUMBERS LISTED BELOW

WILL GIVE CORRESPONDING CHAMPION

AND AUTOLITE SUBSTITUTIONS.

NOTE:

Not all spark plugs have the same heat range or

reach. Using an incorrect spark plug can cause

severe engine damage or poor performance.

Tecumseh uses all three of the reaches shown.

SPARK PLUG AIR GAP ON ALL MODELS IS

.030 (.762 mm)

1/2"

12.700 mm

3/4"

19.050 mm

3/8"

9.525 mm

Service Number 34645

RN4C

OH180 OHH/OHSK50-100 OHV110-17 OVRM40-all

RJ8C

H22

H25

HH40-120

HHM80

HMXL70

HT30

HT35

Service Number

34277

HXL35

LAV25-50

TVM125-220

TVXL170-220

V40-80

VH40-100

VM70-100

Service Number

35395

RJ19LM

ECV100-120

HMSK70-100

HSK30-70

HSSK40-50

LEV80-120

TNT100

TNT120

TVS75-120

TVXL105

TVXL115

VLV-all

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

EUROPA MODELS *

VERTICALS VERTICALS (CONT.)

oz. ml oz. ml

Vantage 21 630 Centura 21 630

Prisma 21 630 HTL 21 630

Synergy 21 630 BVS 21 630

Synergy "55" 27 810 HORIZONTALS

Spectra 21 630 BH Series 21 630

Futura 21 630 Geo Tech 21 630

Series 35 - 50

TECUMSEH

4-CYCLE ENGINE OIL

NOTE: Vertical shaft engines with auxiliary PTO:

26 oz. / 720 ml

RECOMMENDATIONS

SUMMER (Above 320 F 0oC) SAE 30 PART #730225

Using multigrade oil may increase oil consumption.

WINTER (Below 320 F 0oC) SAE 5W30 PART #730226

(SAE 10W is an acceptable substitute)

(Below 00 F -18oC) Only - SAE 0W30 oil is an

acceptable substitute

CLASSIFICATIONS: SF, SG, "SH", "SJ".

DO NOT USE 10W40

CAPACITIES: U.S.

Engine Model ............................................ ml Oz.

All LAV, TVS, LEV, OVRM ....................... 630 21

ECV, TNT ................................................. 630 21

V & VH50-70 ............................................ 810 27

TVM 125, 140 ........................................... 810 27

TVM 170-220............................................ 960 32

VM70-100, HHM80 .................................. 960 32

VH100 ...................................................... 1500 50

All VLV ...................................................... 810 27

OVM120, OVXL120, 125 ......................... 960 32

Formula OHV11-13 without filter .............. 960 32

Enduro OHV11-13 with filter .................... 1170 39

Enduro OHV13.5 - 17 with filter .............. 1800 61

Enduro OHV13.5 - 17 without filter ......... 1650 55

H, HSK30-35 ............................................ 630 21

HS, HSSK40-50 ....................................... 630 21

H, HH, HSK50-70 ..................................... 570 19

OHH/OHSK50 - 70 ................................... 630 21

HMSK, HM70-100 .................................... 720 26

OHSK80-100 ............................................ 720 26

OHM120, OHSK110*-130 ........................ 840 28

HH100,120, OH120-180 .......................... 1560 52

*NOTE: Model OHSK110 with a spec. of 221000 and up, have a

capacity of 26 oz. (720 ml.)

TECUMSEH 4-CYCLE LUBRICATION REQUIREMENTS

We often receive questions from both customers and dealers regarding the type and brand of oil we

recommend.

Tecumseh recommends the use of a high quality, brand name petroleum based oil in our engines.

Very few air cooled engines have any type of oil filtration system, making regular oil changes critical

to remove impurities from the engine and maximize engine life. Consult the operators or repair

manual for the oil change interval and viscosity based on equipment operating temperature.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

TECUMSEH 2-CYCLE ENGINE OIL PART NO. 730227

2-CYCLE

ENGINE OIL

PART NO. 730227

TECUMSEH 2-CYCLE ENGINE

OIL may be used in a variety of

2 cycle engines including:

outboards, lawnmowers, snow-

throwers, string trimmers, and

edgers at any fuel/oil mixing ratio

up to 50:1.

(acceptable substitute, a high quality SAE30 or

SAE40 two cycle oil, outboard type if applicable)

MIXES EASY

DOES NOT SEPARATE

PREMIUM BLEND FOR BOTH AIR AND WATER

COOLED ENGINES ENSURES CYLINDER

WALL LUBRICATION

We also receive calls regarding what type or brand of two cycle oil to use in mini tillers and snow products.

The proper type and ratio of two cycle oil is critical to long life and low maintenance of the engine. Tecumseh

tests engines using NMMA (National Marine Manufacturers Association) certified oil such as Tecumseh part

number 730227, but any NMMA certified two cycle oil will provide adequate lubrication for long life. The use

of non certified oils and improper mix ratios can cause severe engine problems and possibly void warranty

consideration if the damage was the result of poor lubrication.

Our position regarding two cycle lubrication is simple, use only NMMA certified oil or Tecumseh two cycle oil

mixed at our recommended ratio and your engine will be properly lubricated. Please do not recommend using

anything else to your customer, this will avoid getting you caught in the middle, should problems occur.

TECUMSEH 2-CYCLE ENGINES REQUIRE THE USE OF BIA, NMMA, TC-WII OR TC-W3 CERTIFIED

OIL, NON-BIODEGRADABLE.

NOTE: DOUBLE THE OIL QUANTITY FOR FIRST GALLON OF FUEL/OIL MIXTURE TO ASSIST BREAK-

IN.

NOTE: FOR TC AND CRAFTSMAN ENGINES, DOUBLING OF THE MIX IS NOT REQUIRED.

SEARS CRAFTSMAN TWO CYCLE OIL HAS BEEN TESTED AND APPROVED. ALL MODELS USE A 40:1

MIX RATIO ON ALL 2-CYCLE ENGINES EXCEPT TC'S WHICH USE A 24:1

ENGINE FUEL MIX

U.S. U.S. METRIC METRIC

Amount of Oil Amount of Oil

Gasoline To Be Added Petrol To Be Added

24:1 1 Gallon 5.3 oz. 4 Liters 167 ml

2 Gallons 10.7 oz. 8 Liters 333 ml

32:1 1 Gallon 4 oz. 4 Liters 125 ml

2 Gallons 8 oz. 8 Liters 250 ml

50:1 1 Gallon 2.5 oz. 4 Liters 80 ml

2 Gallons 5.0 oz. 8 Liters 160 ml

TWO-CYCLE FUEL/OIL

MIX RATIOS

24:1

AV520 Types 670 & 653

AV600 Type 600-10 & Up

TC-TCH 200/300

MV100S

32:1

TVS600 All Types

AH600

50:1

TVS / TVXL

HSK840 - 850

HSK600

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Tecumseh's Education Department welcomes the challenges facing our industry from emission controls to market

changes. We believe that education is a vital part of meeting these challenges. This season, we will again be

using the Parts Smart and Plus One computer parts look up system's as an interactive part of the class.

Friday mornings at the Douglas facility or Friday afternoons at the Grafton facility, will be reserved for the Master

Technician Testing at no additional charge.

THE TESTING WILL BE AVAILABLE ONLY IF PRE REGISTERED

ON THIS APPLICATION. NOTE: YOU MUST HAVE PASSED THE ESA / OPE TECHNICIAN 4 CYCLE TEST

AS A PREREQUISITE. You can only be scheduled for the test by submitting proof of holding this

certification.

Both Course I and Advance Course utilize engine and transmission product for teardown and re-assembly

extensively. The following are highlights and available school dates for your consideration.

We look forward to seeing you in Grafton, Wisconsin or our Douglas, Georgia school.

If you have any further questions, please call us.

COURSE I

Updating you on Tecumseh engines is

complemented with a current mixture of our

transmissions and transaxles.

Education is an ongoing process to ensure you

and your customers of the best possible service

repair.

Course I is not a “basic” course. It is designed to

assist new technicians and those crafty veterans

with current repair procedures.

Advance Course is available only after you have

completed a Course I School.

COURSE I OVERVIEW Computer Parts Look-up

Micrometers

Dial Calipers

Electrical Testers -

Electrical Systems

Diagnosis

Carburetion Systems

Valve Train

New Product Update

Troubleshooting and Failure

Analysis of

• 2-Cycle Engines

• 4-Cycle L-Head and

OHV Engines

• Tecumseh/Peerless

Transmissions and

Transaxles

Computer Parts Look-up

Technician’s Manual

Master Parts Manual

Warranty

Ignition Timing

Electrical Systems

Carburetion System

New Product Update

Failure Analysis

2-Cycle Engine Teardown

4-Cycle Engine Teardown

Overhead Valve Engine

Teardown

Tecumseh/Peerless

Transmission/Transaxle

Teardown

Service Bulletins

Running and Adjustment of a

Reassembled Engine

Servicing Emission Product

ADVANCE COURSE

After having completed Course I you are eligible

for Advance Course.

Advance Course attendance does not assure you

of a diploma. Tests, homework and performance

during the class earn you a diploma and a

technical position above your competition.

More time is spent on the practices of

troubleshooting and failure analysis. This “Hands

On” approach allows you to sharpen skills and

procedures.

ADVANCE COURSE OVERVIEW

COURSE SCHEDULE

November 15-20, 1998 WI Course I

December 6-11, 1998 GA Course I

January 10-15, 1998 WI Course I

February 1-6, 1999 GA Course I

February 21-26, 1999 WI Course I

March 7-12, 1999 WI Course I

March 21-25, 1999 GA Course I

February 7-11, 1999 GA Advance Course

March 14-19, 1999 WI Advance Course

June 13-18, 1999 GA Teachers School

August 8-13, 1999 WI Teachers School

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

TUITION COST AND

HOTEL RESERVATIONS

All checks and money orders must be in U.S. Funds.

Make checks payable to Tecumseh Products Company and must be submitted with your application.

Master Charge, Visa or Discover Card is now being accepted. Please fill in the information required listed

below.

SEE OTHER SIDE FOR FACTORY TRAINING APPLICATION.

Program Program and Program and

Only Double Occupancy Single Occupancy

Hotel Hotel

Course I $200.00 $325.00 $450.00

Advance Course $200.00 $325.00 $450.00

Teachers School $200.00 $325.00 $450.00

The tuition costs covers the following items:

Hotel fee (as indicated above) from Sunday

night through Thursday night.

Noon lunches Monday through Thursday.

All class materials.

Thursday night banquet.

Daily bus service to and from class.

Includes breakfast at the hotel (Monday thru

Friday).

Classes in Grafton will run until 12 noon Fridays.

Douglas classes are completed after the

Thursday night banquet.

Tuition fee applies for all students. Cancellation

must be received in writing at Tecumseh 10

days prior to week scheduled to obtain refund.

Please check

all

that apply.

Single accommodations $450.00 Smoker Non-smoker No Room Needed

NOTE: INDIVIDUALS UNDER THE AGE OF 18

MUST BE ACCOMPANIED BY AN ADULT.

Mail this application along with the tuition fee to:

Tecumseh Products Company

900 North Street • Grafton, Wisconsin 53024-1499

ATTN: School Reservation

To check for availability call 1-414-377-2700

To make payment using a credit card,

please fill out the following information:

(Check One)

Master Charge Visa Discover

Print Name (as it appears on card)

Account Number:

Signature of Card Holder

Exp. Date Phone Number:

Student’s Signature

Employer’s Signature

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

TECUMSEH FACTORY TRAINING

APPLICATION

Please Print

Student Name

Address City

State Zip Phone Number / -

Dealership Name

Address City

State Zip No. Phone Number / -

COURSE I Application to attend

ADVANCE COURSE Application to attend - please fill out ALL information on application

Master Technician Testing will only be offered for pre-registered applicants with proof

of holding OPE 4-Cycle certification.

Master Technician Test I would like to take the Master Technician Test given on Friday

School Dates: 1st choice 2nd choice

Applicants for Advance Course must fill out this part of application, or the application will be

returned to you.

You MUST have attended a Course I school before being accepted into

a Advance Course session.

Course I was completed at Factory Central Warehouse Distributor

Other, please list

The dates of the school were to 19 .

The instructor was .

For registration information call: 414-377-2700.

The Central Warehouse Distributors in your area may hold in-house Dealer Schools. Please contact them for

further information.

Form No. 694565 9/98 Litho in U.S.A.

Code

OPTIONAL

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

SEND US YOUR TIPS

Many of the bits of information that we pass along in our schools come from our

dealer network. We want to give you the opportunity to contribute to next year's

Technicians Seminar Booklet. Please write down your tip(s) and send it to:

Tecumseh Products Company Name:

900 North Street Company:

Grafton, WI 53024-1499 Address:

City, State, Zip Code

Attn: Education Department

The Top 5 responses will receive a prize from Tecumseh.

Thank you in advance for your input.

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Dear Technician

Thank you for choosing the "NEW" technician video update seminar format for the 1999 service

information. By completing this test and receiving a passing grade you have completed the

agreement your dealership made with your distributor(s) and Tecumseh Products Company to

regularly attend factory training schools. You or your dealership will be entitled to a credit or

rebate based on the program that applies from your distributor dependent on territory or country.

The amount will be approximately 50% of the purchase price per set of video's purchased,

contact them for prices.

You must return a copy of the test and receive a passing grade of at least 75% from their education

director to receive your attendance certificate and any rebate to be issued. DO NOT return the

test to Tecumseh. All tests must be returned to your central warehouse distributor by May 15,

1999 to qualify as having attended and be eligible to receive a rebate. If a passing test is not

received by date, your refund is forfeited.

This test can be used for self-testing of technicians not taking the package. Dealers and or technicians

not purchasing the complete package as outlined or attending a group update are not eligible for

any rebate. Dealers and or technicians outside the United States, should contact your distributor

regarding program availability.

DO NOT REMOVE THIS TEST FROM THE BOOK, SUBMIT ONLY A COPY TO YOUR

DISTRIBUTOR. KEEP THE ORIGINAL FOR YOUR RECORDS AND REFERENCE.

Please Print

Technician Name Dealership Name Date

Dealership Location, Street Address City

State, Country or Province Phone Number

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Update Seminar Technician

Video Test

1. With the exception of the LEV80, what is the new

valve seat width recommendation for all other LEV's?

A. .078" C. .040

B. .027" D. .012

2. What is the air gap setting on TC300 non-rotary mower

applications?

A. .015" C. .030"

B. .0125" D. .025"

3. Correct priming is very critical to the start-up of an

engine. How long of a delay should there be between

each prime?

A. 1 second

B. 2 seconds

C. 3 seconds

D. Doesn't matter, rapid fire

4. What is one new method used to emissionize the

two-cycle engine?

A. Fuel / oil mixture improvement

B. Cylinder port timing change

C. Fuel injection

D. Unrestricted air filter

5. What short blocks will come with two head gaskets?

A. LEV/TVS

B. OVRM/VLV

C. HM/TVM

D. OH/OHV

6. What series carburetor can not be serviced with kit

number 632760?

A. Series 3

B. Dual System

C. Series 7

D. Series 11

7. What is stamped on catalytic mufflers to identify

them?

A. "CAT"

B. "EMISSION"

C. "TECUMSEH"

D. "KAT"

8. When completing an ESA157R, which section can

be left blank?

A. Purchased date

B. Failure Date

C. Repair Date

D. None of the above

9. How is the speed adjusted on a VLV with a fixed

speed application?

A. Bendable tab

B. Assorted length spring kit

C. Screw

D. Non-adjustable

10. What is the diameter of the axle on 1300 series

transaxle?

A. 1-1/8"

B. 1"

C. 15/16"

D. 1-1/4"

11. How many primes are recommended for snow engines

below 150F (-90C)

A. 1 prime

B. 2 primes

C. 3 primes

D. Choke only, no primes

12. What year did the US EPA Phase 1 go into effect?

A. 1995

B. 1996

C. 1997

D. 1998

13. What special feature is incorporated on the Series

11 carburetor?

A. Leaner main jet

B. Larger venturi

C. Power valve

D. Fuel reservoir

14. What is the maximum psi for doing a leak down

test on the MST?

A. 15 psi

B. 10 psi

C. 20 psi

D. 5 psi

15. What is the proper installation/orientation of the pulse

hole on TC carburetor spacer block?

A. Towards the PTO

B. Towards the spark plug

C. Towards the flywheel

D. Doesn't matter

16. What is the part number for the soft-pull starter kit?

A. 590760

B. 730245

C. 16630041

D. 670297

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

17. Who can sign the authorization in box #17 of the

ESA157R?

A. Dealer

B. Customer

C. Leave blank, for factory use only

D. Central Warehouse Distributor

18. How long can a Series 11 carburetor be soaked in

carburetor cleaner?

A. 30 minutes

B. 15 minutes

C. 5 minutes

D. Not recommended

19. The fuel cap tether can be retrofitted to most standard

1.750" (44.45mm) caps.

A. True

B. False

20. What is the part number for a three pack of Smart

StartTM?

A. 730255

B. 740063

C. 730525

D. 740036

21. What does ECS stand for?

A. Emission Compliance Standards

B. Environmental Control Standards

C. Emission Control System

D. Effective Consumer Safety

22. VLV's will only be made without drain plugs.

A. True

B. False

23. What is the part number for the helical governor gear

on OH cast iron series engine?

A. 34751

B. 34691

C. 34692

D. 34752

24. What is the clearance between the starter pinion

gear and the flywheel ring gear?

A. 3/32" (.09 mm)

B. 5/64" (1.98 mm)

C. 1/16" (1.6 mm)

D. 1/32" (.79 mm)

25. Never use gasoline containing more than _ %

ethanol.

A. 5

B. 10

C. 12

D. 15

26. What model year did Tecumseh's complete snow

engine product line become certified for both CARB

and EPA?

A. 1995

B. 1996

C. 1997

D. 1998

27. The HM Climate GuardTM kit can only be used on

non-emission engines.

A. True

B. False

28. What is the correct fuel bowl nut number for LEV

115's with a DOM between 8091 and 8166

A. 174

B. 166

C. 169

D. 172

29. Up to 10% methanol can be used in a fuel dryer.

A. True

B. False

30. Which Service Bulletin was re-issued to cover valve

stem seals?

A. 501

B. 123

C. 110

D. 406

31. What is the part number for the new 7 amp charging

system on OHH model engines?

A. 611210

B. 622311

C. 611233

D. 621011

32. What is the new VST puller used for?

A. Pintle shaft

B. Pump retaining ring

C. Input shaft

D. Directional control arm

33. How much fuel will one packet of Tecumseh's fuel

stabilizer treat?

A. 1 gallon

B. 1-1/2 gallons

C. 2 gallons

D. 2-1/2 gallons

34. What is the AC output voltage for the 3 amp charging

system?

A. 21 volts

B. 22 volts

C. 13 volts

D. 14 volts

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

35. What weight oil is an acceptable substitute for below

00F?

A. SAE 10W30

B. SAE 5

C. SAE 0W30

D. SAE 5W20

36. Emission control systems are warranted for ___

under Phase 1.

A. 1 year

B. 2 years

C. 3 years

D. life of the engine

37. Existing OHH model engines can be upgraded to a

7 amp DC charging system.

A. True

B. False

38. What engine model is designated by 126 (12.6 C.I.)?

A. LEV

B. TVS

C. OVRM

D. VLV

39. Some Europa engines utilize an adaptor collar to

locate the flywheel to the crankshaft.

A. True

B. False

40. The fuel tank baffle is made from a material similar

to what is used in a race car fuel cell.

A. True

B. False

41. What series number is used on Emission Service

Bulletins?

A. 400 Series

B. 500 Series

C. 900 Series

D. 1000 Series

42. What tool is used to adjust the shift force on the

VST?

A. #25 torx

B. #28 torx

C. 5/32" allen wrench

D. 1/4" allen wrench

43. Can the vent tube extension be installed into any

existing carburetor?

A. True

B. False

44. What is the part number for the oil dipper on H30-

HS50 model engines?

A. 32875A

B. 32654

C. 36611

D. 32645

45. What corrective action should be taken on fixed line

trimmers that exhibit a mis-fire?

A. Replace ignition coil

B. Replace flywheel key

C. Replace carburetor

D. Cut off extra ignition ground tab

46. What fuel bowl nut can be used on a Dellorto carbuetor

above 4,000 ft.?

A. 633017

B. 632239

C. 632648

D. 632368

47. Which specification may be effected by a potential

emission control system problem?

A. H35-456912

B. H40-55107A

C. H35-457252

D. H40-55701A

48. An O-ring is still required with the new LEV/VLV

valve stem seal.

A. True

B. False

49. What type of sealant is recommended for the 820

transaxle?

A. Loctite 515

B. Loctite 242 Blue

C. Loctite 404 Quick Set

D. Loctite Ultra Grey

50. When adjusting the shifting force on a VST205, the

transmission must be at operating temperature.

A. True

B. False

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Answer Sheet for Video Test

1.ABCD

2.ABCD

3.ABCD

4.ABCD

5.ABCD

6.ABCD

7.ABCD

8.ABCD

9. A. B C D

10. A B C D

11.ABCD

12. A B C D

13. A B C D

14. A B C D

15. A B C D

16. A B C D

17. A B C D

18. A B C D

19. A B C D

20. A B C D

21. A B C D

22. A B C D

23. A B C D

24. A B C D

25. A B C D

26. A B C D

27. A B C D

28. A B C D

29. A B C D

30. A B C D

31. A B C D

32. A B C D

33. A B C D

34. A. B C D

35. A B C D

36. A B C D

37. A B C D

38. A B C D

39. A B C D

40. A B C D

41. A B C D

42. A B C D

43. A B C D

44. A B C D

45. A B C D

46. A B C D

47. A B C D

48. A B C D

49. A B C D

50. A B C D

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

Should you need a new label for any reason such as replacing a recoil housing, please fill out a copy

and fax it to us. We will promptly mail you a new engine I.D. Tag.

When replacing the blower housing on an EPA/CARB certified engine with the serial number of 7213 or

greater (6001 or greater if in California), use this form to fax an order for a replacement engine identification

label. This label is supplied no-charge. Fill in the required information below and fax it in to the

Tecumseh Customer Service Department at (414) 377-4485. If you have any questions, feel free to

call a Service Representative at (414) 377-2700.

ENGINE INFORMATION REQUIRED:

Engine Model/Spec:

Family Number:

Displacement:

DOM (Date of Manufacture):

SHIP TO LABEL INFORMATION:

Send to:

Address:

City: State: Zip:

Phone No.:

Please allow 7-10 days for shipping & handling. Thank you.

FAX TO: (414)-377-4485

www.mymowerparts.com

For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

694327 !! TECUMSEH UPDATE SERVICE SCHOOL 1999

Preview ! TECUMSEH-UPDATE-SERVICE--SCHOOL-1999 Flymo Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

Navigation menu

Versions of this User Manual:

Views

Navigation
