EMC TEST REPORT
Report No: C51ET385
Test Report ------------------------------------------------------------------------------- 1/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Report No. C51ET385
Specifications ETSI EN 301 489-1 V1.4.1 (August, 2002)
ETSI EN 301 489-17 V1.2.1 (April, 2002)
Applicant TRENDware International Inc.
Applicant 3135 Kashiwa Street
address Torrance, CA 90505, USA
Items tested IEEE 802.11b Wireless LAN Broadband Router
Model No. TEW-231BRP
Results Compliance (As detailed within this report)
Date 11/20/2003 (month / day / year) (Sample received)
11/24/2003 (month / day / year) (Test)
Prepared by Project Engineer
______________________ (Jack Tsai)
Authorized by General Manager
(Frank Tsai)
Issue date December 10, 2003 (month / day / year)
Modifications None
Tested by Training Research Co., Ltd.
Office at No. 255, Nan Yang Street, Shijr City, Taipei Hsien 221, Taiwan
Laboratory at 1F, No. 255, Nan Yang Street, Shijr City, Taipei Hsien 221, Taiwan
Open site at No. 15, Lane 530, Balian Rd., Sec. 1, Shijr City, Taipei Hsien 221, Taiwan
Conditions of issue:
This test report shall not be reproduced except in full, without written approval of
TRC. And the test result contained within this report only relate to the sample
submitted for testing.
Ϫʳ
Aut. No. ELA 131
Test Report ------------------------------------------------------------------------------- 2/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Generally Statement:
The results appear in the following order:
Electromagnetic compatibility and radio spectrum matters (ERM); Electro Magnetic
Compatibility (EMC) standard for radio equipment and services;
Part 1: Common Technical requirements
Part 17:Specific conditions for Wideband data and HIPERLAN equipment.
The results exhibits below only apply to particular samples tested and to the specific tests
carried out, as detailed in this Test Report. The issue of this Test Report does not indicate any
measure of Approval, Certification, Supervision, Control or Surveillance by Training Research
Co., Ltd. of any product. No extract, abridgement or abstraction from a Test Report may be
published or used to advertise a product without the written consent of the Director, Training
Research Co., Ltd. who reserves the absolute right to agree or reject all or any of the details of
any item of publicity for which consent may be sought.
Test Report ------------------------------------------------------------------------------- 3/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Contents
CHAPTER 0 EMISSION AND SUSCEPTIBILITY STANDARDS........5
EMISSION STANDARDS.......................................................... 5
SUSCEPTIBILITY STANDARDS.................................................................... 5
CHAPTER 1 INTRODUCTION..............................................................6
DESCRIPTION OF EUT............................................................................... 6
TEST METHOD .......................................................................................... 6
LIST OF SUPPORT EQUIPMENT................................................................... 7
CHAPTER 2 EMISSION AND IMMUNITY REQUIREMENTS
OVERVIEW....................................................................10
EMISSION (ETSI EN 301 489-1)............................................................. 10
IMMUNITY (ETSI EN 301 489-1)............................................................ 11
CHAPTER 3 PERFORMANCE CRITERIA.........................................12
ETSI EN 301 489-17, SUBCLAUSE 6.2 ................................................... 12
CHAPTER 4 ELECTROSTATIC DISCHARGES IMMUNITY TEST 18
ESD TEST INFORMATION:....................................................................... 18
EN 61000-4-2 PHOTO OF TEST SET-UP............................................ 20
CHAPTER 5 RADIO FREQUENCY IMMUNITY TEST (RS).............21
RS TEST INFORMATION:.......................................................................... 21
EN 61000-4-3 PHOTO OF TEST SET-UP............................................ 23
CHAPTER 6 ELECTRIC FAST TRANSIENT/
BURST REQUIREMENTS TEST ..................................24
EFT TEST INFORMATION: ....................................................................... 24
EN 61000-4-4 PHOTO OF TEST SET-UP............................................ 26
CHAPTER 7 SURGE IMMUNITY TEST.............................................27
SURGE TEST INFORMATION:.................................................................... 27
EN 61000-4-5 PHOTO OF TEST SET-UP............................................ 29
Test Report ------------------------------------------------------------------------------- 4/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
CHAPTER 8 CONTINUOUS WAVE VOLTAGE IMMUNITY TEST 30
CS TEST INFORMATION:.......................................................................... 30
TEST INSTRUMENTS: ............................................................................... 32
EN 61000-4-6 PHOTO OF TEST SET-UP............................................ 33
CHAPTER 9 VOLTAGE DIP / INTERRUPTION TEST .....................34
DIP TEST INFORMATION:........................................................................ 34
EN 61000-4-11 PHOTO OF TEST SET-UP.......................................... 35
CHAPTER 10 HARMONICS TEST........................................................36
CHAPTER 11 VOLTAGE FLUCTUATION AND FLICKER TEST.....37
CHAPTER 12 CONDUCTED EMISSION TEST....................................38
TEST CONDITION AND SETUP ................................................................... 38
LIST OF TEST INSTRUMENT ..................................................................... 38
CONDUCTED TEST PLACEMENT (FRONT VIEW AND SIDE VIEW ).............. 39
TEST RESULT OF CONDUCTED EMISSIONS FOR MAINS POWER................ 40
CHAPTER 13 RADIATED EMISSION TEST........................................42
TEST CONDITION AND SETUP ................................................................... 42
LIST OF TEST INSTRUMENT ..................................................................... 42
RADIATED TEST PLACEMENT (FRONT VIEW AND SIDE VIEW )................. 43
TEST RESULT OF SPURIOUS RADIATED EMISSIONS ................................. 44
APPENDIX A .........................................................................................45
BRAND NAME AND MODEL NAME LIST ................................................... 45
Test Report ------------------------------------------------------------------------------- 5/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 0 Emission and Susceptibility Standards
Emission Standards
Emission Standard European Standard International Standard
( ) EN 61000-6-3/2001 IEC 61000-6-3/1996
( ) EN 61000-6-4/2001 IEC 61000-6-4/1997
( ) EN 50081-1/1992
( ) EN 50081-1/8.93
( ) EN 55014/4.93 CISPR 14: 1993
( ) EN 55015/12.93 CISPR 15: 1992
( ) EN 55011/91 CISPR 11: 1990
( X ) EN 55022/98 CISPR 22: 1997
( X ) EN 61000-3-2/2000 IEC 61000-3-2: 2000 (Modified)
( X ) EN 61000-3-3/1995 IEC 61000-3-3: 1994 + A1/2001
Susceptibility Standards
Susceptibility Standard European Standard International Standard
( ) EN 61000-6-1/2001 IEC 61000-6-1/1997
( ) EN 61000-6-2/2001 IEC 61000-6-2/1999
( ) EN 50082-1/1997
( ) EN 50082-2/1994
( ) EN 55024/1998 CISPR 24/1997
( ) EN 55020/2002 CISPR 20/2002
( X ) EN 61000-4-2:1995 IEC 61000-4-2:1995
( X ) EN 61000-4-3:1996 IEC 61000-4-3:1995
( X ) EN 61000-4-4:1995 IEC 61000-4-4:1995
( X ) EN 61000-4-5:1995 IEC 61000-4-5:1995
( X ) EN 61000-4-6:1996 IEC 61000-4-6:1996
( ) EN 61000-4-8:1993 IEC 61000-4-8:1993
( X ) EN 61000-4-11:1994 IEC 61000-4-11:1994
( ) EN 55014-2:1993 CISPR/F (Sec) 159
Test Report ------------------------------------------------------------------------------- 6/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 1 Introduction
Description of EUT
Product Name : IEEE 802.11b Wireless LAN Broadband Router
Model : as Appendix A
Frequency Range : 2.400GHz ~ 2.4835GHz
Operating Frequency : 2.412GHz ~ 2.472GHz
Support Channel : 13 Channels
Modulation Skill : DBPSK, DQPSK, CCK
Power Type : Power adapter
Model: 48075100-C5
I/P: 230VAC, 50Hz, 90mA
O/P: 7.5VDC, 1000mA
Power cable 184cm length, non-shielded, no ferrite core
Data Cable : RJ45*1, 30m length, non-shielded, no ferrite core
RJ45*3, 2m length, non-shielded, no ferrite core
RJ45*1, 1.2m length, non-shielded, no ferrite core
Test Method
1. Using the computer and software provided by the manufacturer to control EUT.
2. During test, making EUT to the following mode.
(a) EMI testing: Making EUT to the linking mode with support equipments
(b) EMS testing: Making EUT to the linking mode with support equipments
Test Report ------------------------------------------------------------------------------- 7/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
List of Support Equipment
In order to construct the minimum testing, following equipment were used as the support
units.
Notebook : IBM Think Pad X20
Model No. : 2662-11T
Serial No. : FX-1192200/09
FCC ID : N/A, Do C Approved (Declaration of Confirmation) Approved
ᛀ጖ : 3892B565
Adaptor : IBM
Model No. : PA2450U
Serial No. : 02K6654
FCC ID : N/A, Do C Approved
Power type : I/P: 100 ~ 240vac, 50 ~ 60 Hz, 0.5A ~ 1.2A; O/P: 16Vdc, 4.5A
Power cord : Non-shielded, 1.80m long, Plastic, with ferrite core
PC : IBM 6840; HP Pavilion
Model No. : 6840MJV; P8574A
Serial No. : 96CC 0C1; TW21920435
FCC ID : N/A, Do C
ᛀ጖ : 3892I279; 3902H097
Power type : 100 ~ 127VAC / 4A, 200 ~ 240VAC/2A, 50 ~ 60Hz, 5A, Switching
Power cord : Non-shielded, 2.33 m length, Plastic hood, No ferrite core
Printer : HP
Model No. : C6464A, C2642A
Serial No. : TH16LEB5PK, SG69A196GV
FCC ID : None (DoC Approved), B94C2642X
ᛀ጖ :3892H381, None
Power type : Switching adaptor
Power cord : Non-shielded, 173cm length, No ferrite core
(between adaptor and AC source)
Non-shielded, 180cm length, with ferrite core
(between printer and adaptor)
Data cable : Shielded, 1.70m length, No ferrite core
Test Report ------------------------------------------------------------------------------- 8/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Monitor : HP 15’ Color Monitor, HP pavilion mx70
Model No. : D2827A, P1283A
Serial No. : KR91379759, TWTBQ00397
FCC ID : C5F7NFCMC1518X
ᛀ጖ : 3872B039
Power type : 110 ~ 240 VAC / 50 ~ 60 Hz, Switching
Power cord : Shielded, 1.83m length, No ferrite core
Data cable : Shielded, 1.46m length, with two ferrite cores
Modem : ACEEX
Model No. : XDM-56V14
FCC ID : IFAXDM-56V14
Power type : Linear
Power cord : Non-shielded, 1.9m length, No ferrite cord
Data cable : RS232, Shielded, 1.2m length, No ferrite core
RJ11C x 2, 7’ length non-shielded, No ferrite core
Mouse : HP
Model No. : M-S34
Serial No. : LZB90714106, LZC84446151
FCC ID : DZL211029
ᛀ጖ : 4862A011
Power type : By PC
Power cord : Non-shielded, 1.88m length, No ferrite core
Keyboard : HP
Model No. : 5187-0343, SK-2501K
Serial No. : BE21700404, M981216213
FCC ID : DoC Approved, GYUR38SK
ᛀ጖ : 3892C981, 3862A621
Power type : By PC
Data cable : Shielded, 1.73m length, Plastic hood, No ferrite core
Test Report ------------------------------------------------------------------------------- 9/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
USB Gamepad : Rockfire
Model No. : QF-337uv
Serial No. : 10600545, KR91379759
FCC ID : None (CE approval)
ᛀ጖ : 3862A574
Power type : By computer
Data Cable : Shielded, 1.81m long, Plastic, with ferrite core
Notebook : ASUSTek Computer
Model No. : AB00F
Serial No. : 24NP016361
FCC ID : DoC Approved
BSMI : 41016012
Power type : 100 ~ 240VAC, 1A 50/60 Hz, Switching
Adaptor of PC : LITE-ON Electronics, Inc.
Model No. : PA-1530-01
Serial No. : 00151184
FCC ID : DoC Approved
ᛀ጖ : 3882B259
Power cable : Non-shielded, 1.72m length, Plastic hood, No ferrite core
(Between power adaptor and AC power source)
Power cable : Shielded, 1.48m length, Plastic hood, with ferrite core
(Between power adaptor and notebook)
WLAN Card : Gemtek Technology Co., Ltd.
Model No. : C911003
FCC ID : MXF-C911003
LAN Card : D-Link
Model No. : DFE-530TX
Serial No. : 0050BAE32FF3, 0050BAE3158B
FCC ID : N/A, DoC Approved
Power type : Powered by PC
Test Report ------------------------------------------------------------------------------- 10/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 2 Emission and Immunity Requirements Overview
Emission (ETSI EN 301 489-1)
Equipment test requirementPhenomenon Application
Radio and
ancillary
equipment for
fixed use (base
station
equipment)
Radio and
ancillary
equipment for
vehicular use
(mobile
equipment)
Radio and
ancillary
equipment for
portable use
(portable
equipment)
Reference
Subclause in
the present
document
Radiated
emission
Enclosure of
ancillary
equipment
Applicable for
stand alone
testing
Applicable for
stand alone
testing
Applicable for
stand alone
testing
8.2
Conducted
emission
DC power
input/output
port
Applicable Applicable Not applicable 8.3
Conducted
emission
AC mains
input/output
port
Applicable Not applicable Not applicable 8.4
Harmonic
current
emissions
AC mains
input port
Applicable Not applicable Not applicable 8.5
Voltage
fluctuations
and flicker
AC mains
input port
Applicable Not applicable Not applicable 8.6
Test Report ------------------------------------------------------------------------------- 11/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Immunity (ETSI EN 301 489-1)
Equipment test requirementPhenomenon Application
Radio and
ancillar y
equipment for
fixed use (base
station
equipment)
Radio and
ancillary
equipment for
vehicular use
(mobile
equipment)
Radio and
ancillary
equipment for
portable use
(portable
equipment)
Reference
Subclause in
the present
document
RF
electromagnetic
field ( 80MHz to
1GHz)
Enclosure Applicable Applicable Applicable 9.2
Electrostatic
discharge
Enclosure Applicable Applicable Applicable 9.3
Fast transients
common mode
Signal,
telecommunication
and control ports,
DC and AC power
ports
Applicable Not
applicable
Not
applicable
9.4
RF common
mode 0.15 MHz
to 80MHz
Signal,
telecommunication
and control ports,
DC and AC power
ports
Applicable Applicable Not
applicable
9.5
Transients and
surges
DC power input
ports
Not applicable Applicable Not
applicable
9.6
Voltage dips and
interruptions
AC mains power
input ports
Applicable Not
applicable
Not
applicable
9.7
Surges, line to
line and line
ground
AC mains power
input ports,
telecommunication
ports
Applicable Not
applicable
Not
applicable
9.8
Test Report ------------------------------------------------------------------------------- 12/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 3 Performance Criteria
ETSI EN 301 489-17, Subclause 6.2
Table 1 Performance criteria
Criteria During test After test
AShall operate as intended
May show degradation of
performance ( NOTE 1)
Shall be no loss of function
Shall be no unintentional
transmissions
Shall operate as intended
Shall be no degradation of performance
(NOTE 2)
Shall be no loss of function
Shall be no loss of stored data or user
programmable functions
BMay show loss of function (one or
more)
May show degradation of
performance (NOTE 1)
No unintentional transmissions
Function shall be self-recoverable
Shall operate as intended after recovering
Shall be no degradation of performance
(NOTE 2)
Shall be no loss of stored data or user
programmable functions
CMay be loss of function (one or
more)
Functions shall be recoverable by the
operator
Shall operate as intended after recovering
Shall be no degradation of performance
(NOTE 2)
Test Report ------------------------------------------------------------------------------- 13/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
NOTE 1:
Degradation of performance during the test is understood as a degradation to a level not
below a minimum performance level specified by the manufacturer for the use of the apparatus
as intended. In some cases the specified minimum performance level may be replaced by a
permissible degradation of performance.
If the minimum performance level or the permissible performance degradation in not
specified by the manufacturer then either of these may be derived from the product description
and documentation (including leaflets and advertising) and what the user may reasonably expect
form the apparatus if used as intended.
NOTE 2:
No degradation of performance after the test is understood as no degradation below a
minimum performance level specified by the manufacturer for the use of the apparatus as
intended. In some cases the specified minimum performance level may be replaced by a
permissible degradation of performance. After the test no change of actual operating data or user
retrievable data is allowed.
If the minimum performance level or the permissible performance degradation in not
specified by the manufacturer then either of these may be derived from the product description
and documentation (including leaflets and advertising) and what the user may reasonably expect
form the apparatus if used as intended.
Test Report ------------------------------------------------------------------------------- 14/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
ETSI EN 301 489-1
Performance criteria for Continuous phenomena applied Transmitters (CT)
If no further details are given in the relevant part of the present document dealing with the
particular type of radio equipment, the following general performance criteria for continuous
phenomena shall apply.
During and after the test:
The apparatus shall continue to operate as intended. No degradation of performance or loss
of function is allowed below a permissible performance level specified by the manufacturer
when the apparatus is used as intends. In some cases this permissible performance level may
be replaced by a permissible loss of performance.
During the test:
The EUT shall not unintentionally transmit or change its actual operating state and stored
data. If the minimum performance level or the permissible loss is not specified by the
manufacturer, then either of these may be deduced from the product description and
documentation and what the user may reasonably expect form the apparatus if used as
intended.
For ancillary equipment the pass/failure criteria supplied by the manufacturer (see subclause
6.4) shall apply, unless the ancillary equipment is tested in connection with a receiver or
transmitter in which case the corresponding performance criteria above shall apply.
Performance criteria for Transient phenomena applied Transmitters (TT)
If no further details are given in the relevant part of the present document dealing with the
particular type of radio equipment, the following general performance criteria for transient
phenomena shall apply.
After the test:
The apparatus shall continue to operate as intended. No degradation of performance or loss
of function is allowed below a permissible performance level specified by the manufacturer
when the apparatus is used as intends. In some cases this permissible performance level may
be replaced by a permissible loss of performance.
During the test:
The EMC exposure to an electromagnetic phenomenon, a degradation of performance is,
however, allowed. No change of the actual mode of operation (e.g. unintended transmission)
or stored data is allowed.
Test Report ------------------------------------------------------------------------------- 15/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
If the minimum performance level or the permissible loss is not specified by the
manufacturer, Then either of these may be deduced from the product description and
documentation and what the user may reasonably expect form the apparatus if used as
intended.
For ancillary equipment the pass/failure criteria supplied by the manufacturer (see subclause
6.4) shall apply, unless the ancillary equipment is tested in connection with a receiver or
transmitter in which case the corresponding performance criteria above shall apply.
Performance criteria for Continuous phenomena applied Receivers (CR)
If no further details are given in the relevant part of the present document dealing with the
particular type of radio equipment, the following general performance criteria for continuous
phenomena shall apply.
During and after the test:
The apparatus shall continue to operate as intended. No degradation of performance or loss
of function is allowed below a permissible performance level specified by the manufacturer
when the apparatus is used as intends. In some cases this permissible performance level may
be replaced by a permissible loss of performance.
During the test:
The EUT shall not unintentionally transmit or change its actual operating state and stored
data. If the minimum performance level or the permissible loss is not specified by the
manufacturer, then either of these may be deduced from the product description and
documentation and what the user may reasonably expect form the apparatus if used as
intended.
For ancillary equipment the pass/failure criteria supplied by the manufacturer (see subclause
6.4) shall apply, unless the ancillary equipment is tested in connection with a receiver or
transmitter in which case the corresponding performance criteria above shall apply.
Test Report ------------------------------------------------------------------------------- 16/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Performance criteria for Transient phenomena applied Receivers (TR)
If no further details are given in the relevant part of the present document dealing with the
particular type of radio equipment, the following general performance criteria for transient
phenomena shall apply.
After the test:
The apparatus shall continue to operate as intended. No degradation of performance or loss
of function is allowed below a permissible performance level specified by the manufacturer
when the apparatus is used as intends. In some cases this permissible performance level may
be replaced by a permissible loss of performance.
During the test:
The EMC exposure to an electromagnetic phenomenon, a degradation of performance is,
however, allowed. No change of the actual mode of operation (e.g. unintended transmission)
or stored data is allowed.
If the minimum performance level or the permissible loss is not specified by the
manufacturer, then either of these may be deduced from the product description and
documentation and what the user may reasonably expect form the apparatus if used as
intended.
For ancillary equipment the pass/failure criteria supplied by the manufacturer (see subclause
6.4) shall apply, unless the ancillary equipment is tested in connection with a receiver or
transmitter in which case the corresponding performance criteria above shall apply.
Test Report ------------------------------------------------------------------------------- 17/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
ETSI EN 301 489-17
Performance criteria for Continuous phenomena applied Transmitters (CT)
The performance criteria A shall apply.
Tests shall be repeated with the EUT in standby mode (if applicable) to ensure that
unintentional transmission does not occur. In systems using acknowledgement signals, it is
recognized that an ACKnowledgement (ACK) or Not ACKnowledgement (NACK) transmission
may occur, and steps should be taken to ensure that any transmission resulting from the
application of the test is correctly interpreted.
Performance criteria for Transient phenomena applied Transmitters (TT)
The performance criteria B shall apply, except for voltage dips of 100ms and voltage
interruptions of 5000 ms duration, for which performance criteria C shall apply.
Tests shall be repeated with the EUT in standby mode (if applicable) to ensure that unintentional
transmission does not occur. In system using acknowledgement signals, it is recognized that an
acknowledgement (ACK) or not-acknowledgement (NACK) transmission may occur, and steps
should be taken to ensure that any transmission resulting from the application of the test is
correctly interpreted.
Performance criteria for Continuous phenomena applied Receivers (CR)
The performance criteria A shall apply.
Where the EUT is a transceiver, under no circumstances, shall the transmitter operate
unintentionally during the test. In systems using acknowledgement signals, it is recognized that
an ACK or NACK transmission may occur, and steps should be taken to ensure that any
transmission resulting from the application of test is correctly interpreted.
Performance criteria for Transient phenomena applied Receivers (TR)
The performance criteria B shall apply, except for voltage dips of 100ms and voltage
interruptions of 5000 ms duration, for which performance criteria C shall apply.
Where the EUT is a transceiver, under no circumstances, shall the transmitter operate
unintentionally during the test. In systems using acknowledgement signals, it is recognized that
an ACK or NACK transmission may occur, and steps should be taken to ensure that any
transmission resulting from the application of test is correctly interpreted.
Test Report ------------------------------------------------------------------------------- 18/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 4 Electrostatic Discharges Immunity Test
ESD Test information:
Test setup: Shielded room, According to EN 61000-4-2

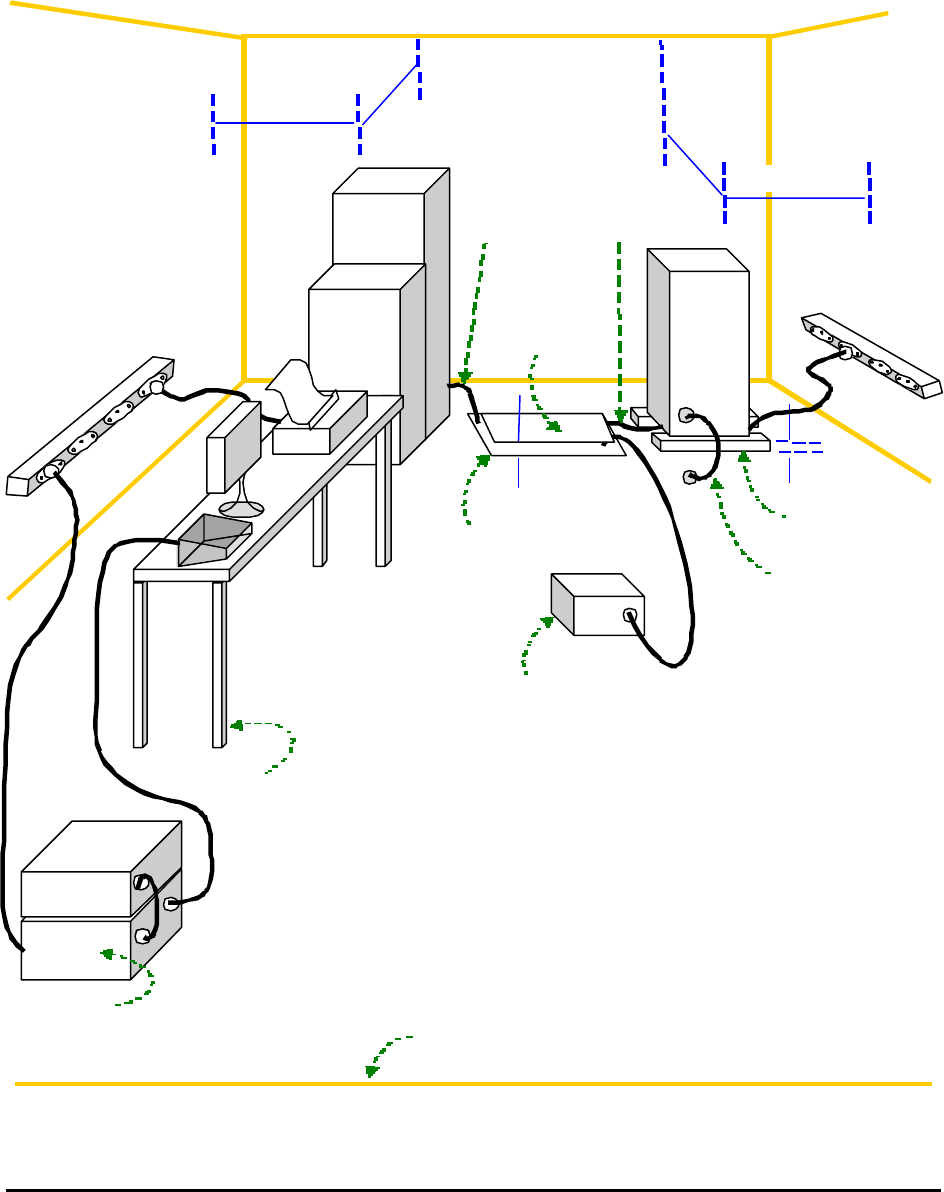

Test setup for table-top equipment at laboratory tests:
0.1 m
Ground Reference Plane
Wooden table H=0.8m
470kohm
Resistor
Insulation
Power Supply
VPC
0.5m X 0.5m
Horizontal coupling place
1.6m X 0.8m
Typical position for
indirect discharge to VCP
Typical position for
indirect discharge
Typical position for
indirect discharge to HCP
Test Report ------------------------------------------------------------------------------- 19/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test levels: (Apply Level 2 and Level 3)
1a — Contact discharge 1b — Air discharge
Level Test voltage
(kV)
Level Test voltage
(kV)
12 12
2424
36 3 8
48 415
X Special X Special
NOTE: “X” is an open level. The level has to be specified in the dedicated equipment specification. If
higher voltages than those shown are specified, special test equipment may be needed.
Test Voltage: ( X ) 4KV contact discharge ( X ) 8KV air discharge
Indirect Discharges: ( X ) HCP ( X ) VCP
Polarity: ( X ) Positive ( X ) Negative
Test mode: Ref. Test method of Chapter 1
Test points: enclosure and connectors of EUT.
Test instruments:
Name Model Number Serial Number Selected
Best Plus BURST ESD
SURGE TRANSIENTS
Best Plus V6.2 199749-019SC
BEST EMC Test
Instrument
BEST EMC V2.3
(-8, -9)
199918-006SC
KeyTek Instrument
ESD Test system
Series 2000 9204303/9204310
9209226/9301395
X
NoiseKen Electrostatic
Discharge Simulator
ESS-100L(A) 2100C03605
NoiseKen Electrostatic
Discharge Gun
TC-815P 2100C03566
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
( X ) Enclosure ( )CT ( X )TT ( ) CR ( X )TR
( X ) Signal and control ports ( )CT ( X )TT ( ) CR ( X )TR
Test Report ------------------------------------------------------------------------------- 20/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

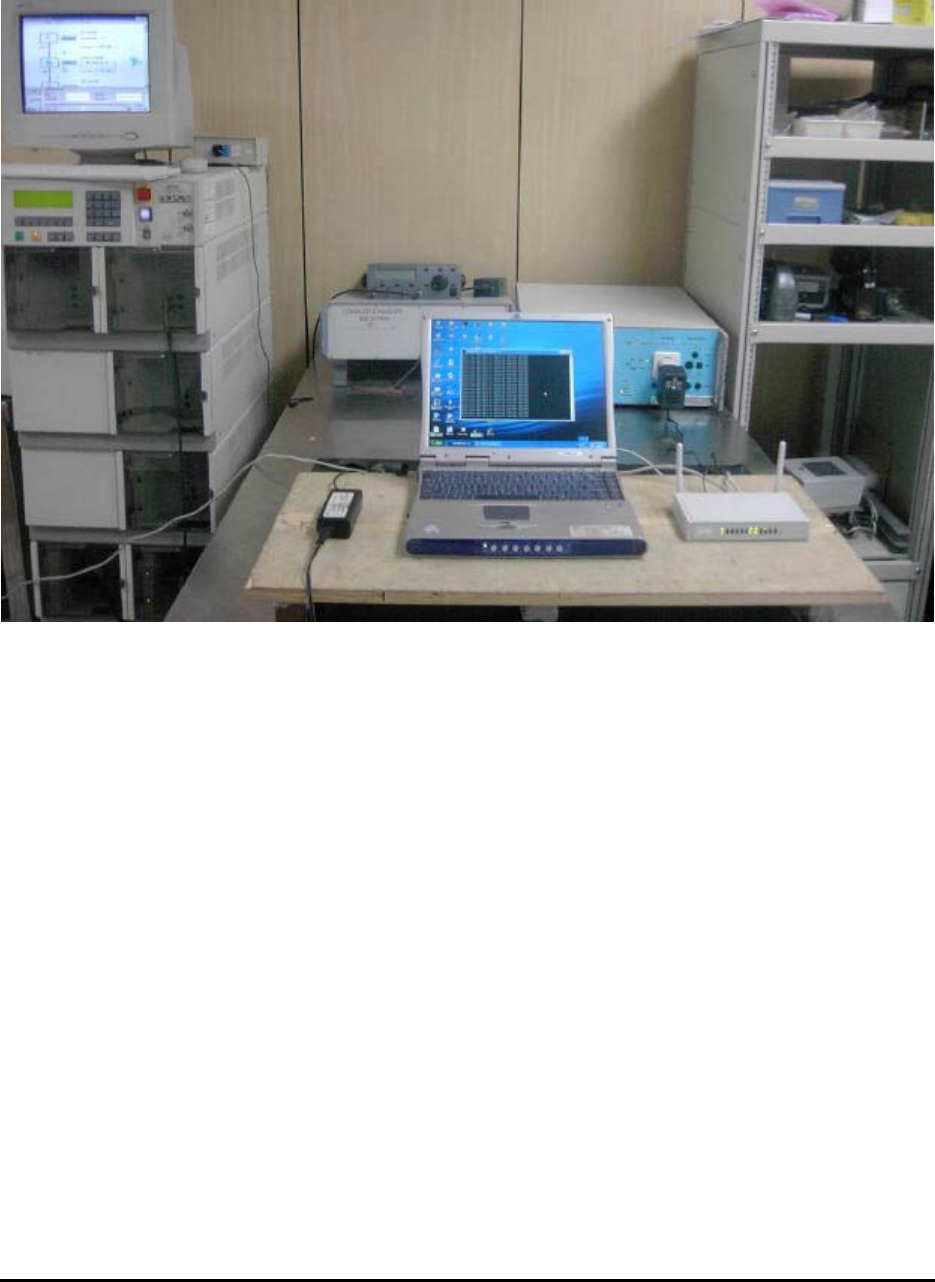

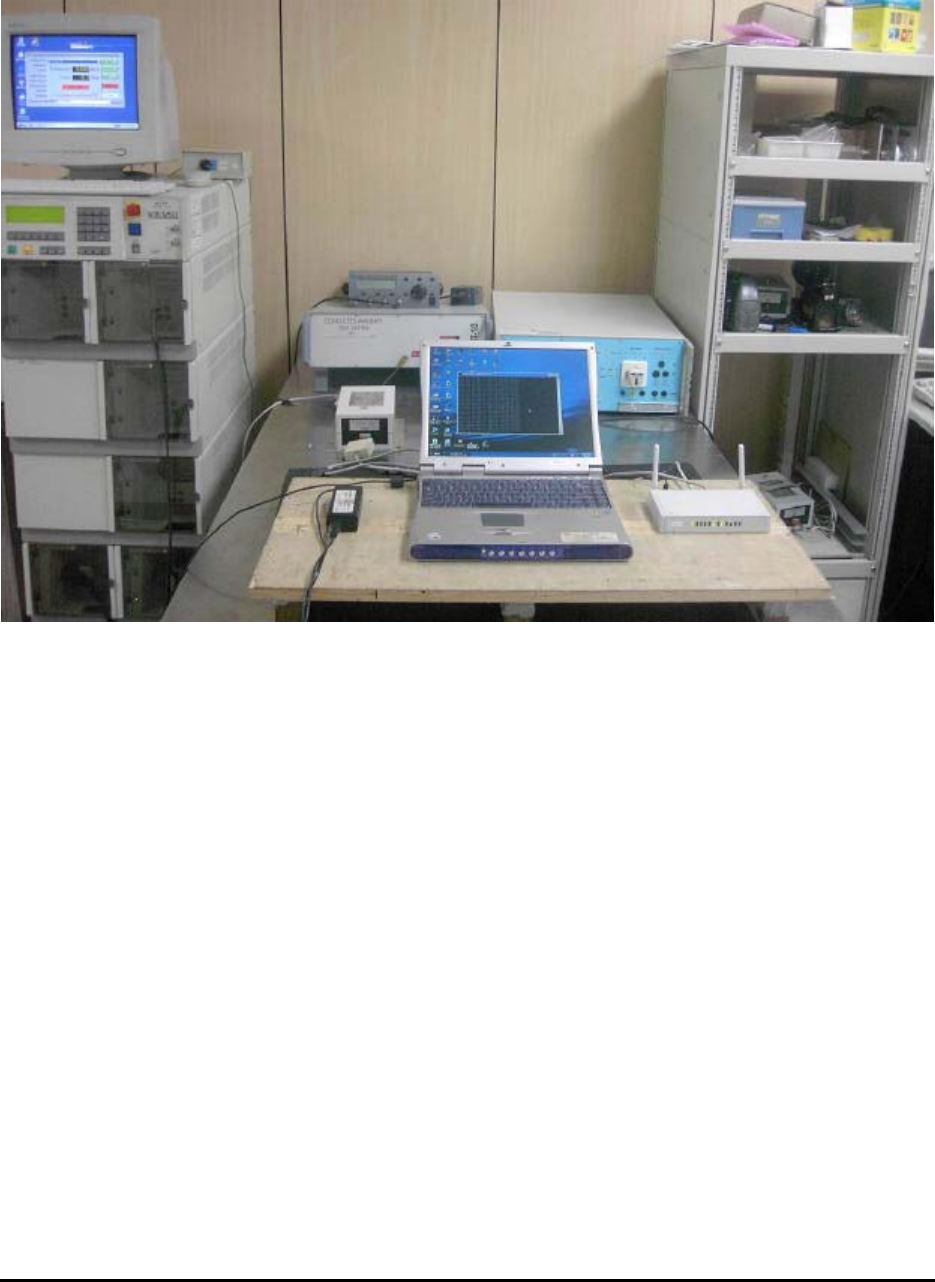

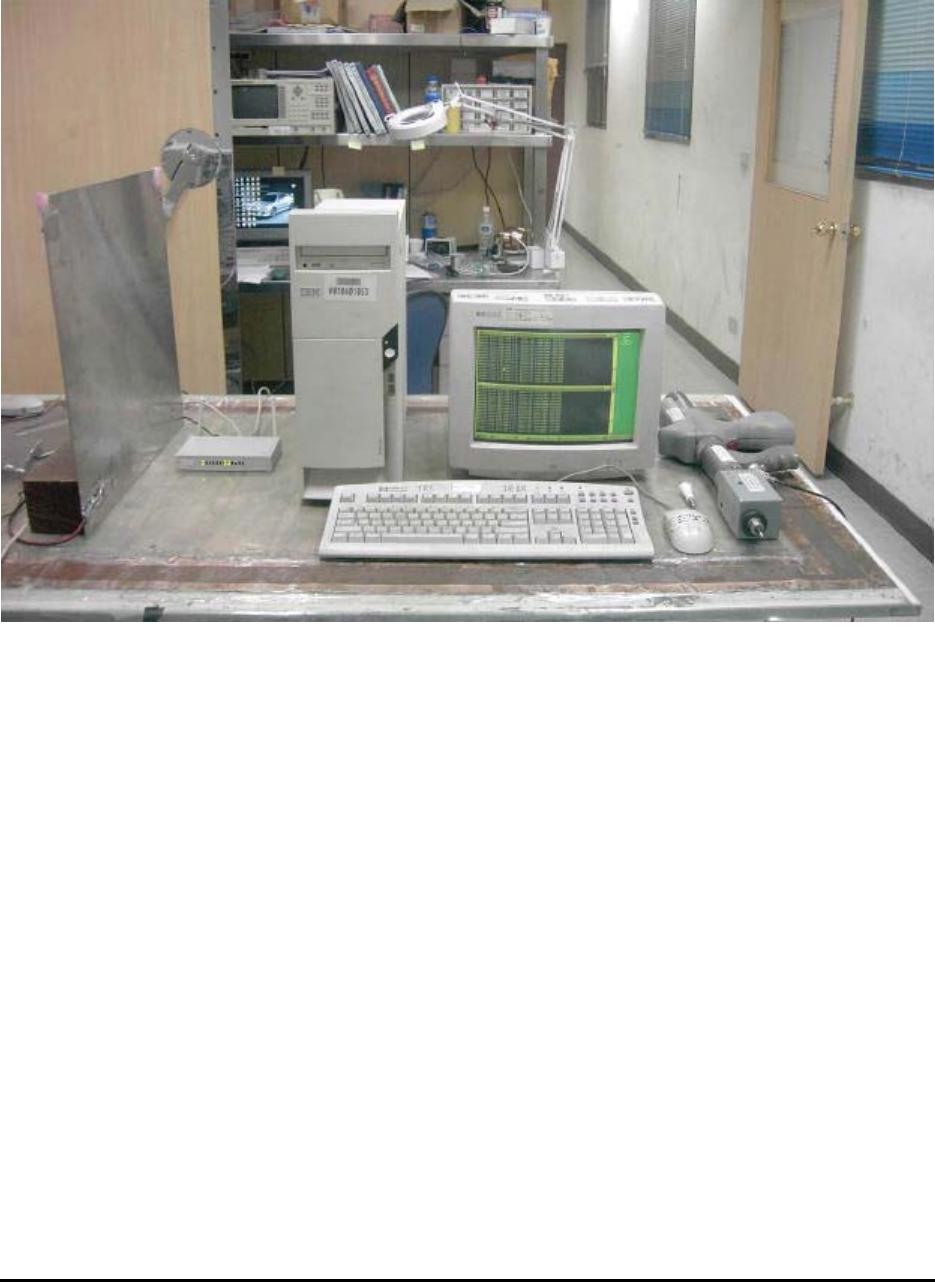

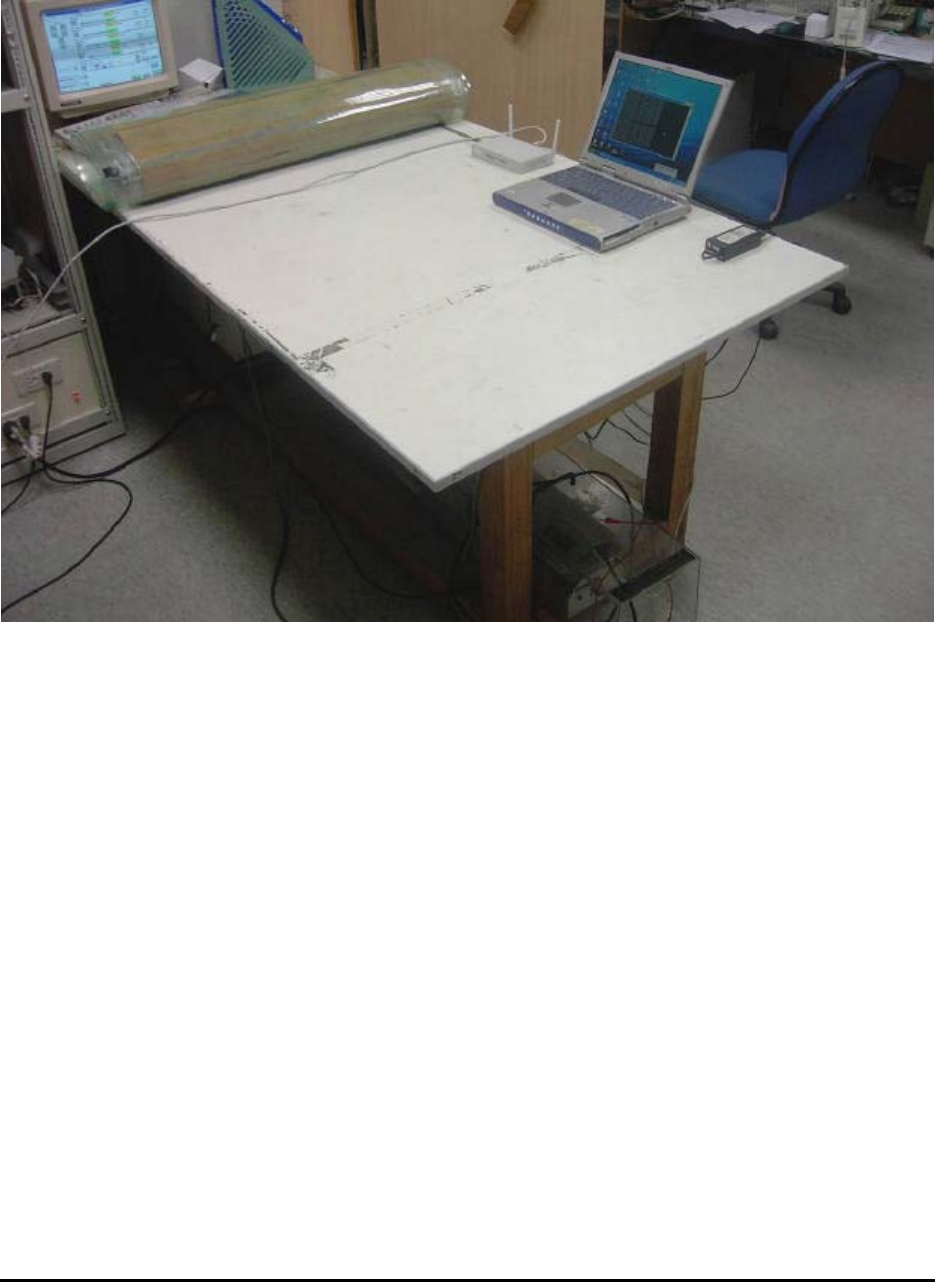

EN 61000-4-2 PHOTO OF TEST SET-UP
Test Report ------------------------------------------------------------------------------- 21/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 5 Radio Frequency Immunity Test (RS)
RS Test inform ation:
Test setup: GTEM cell

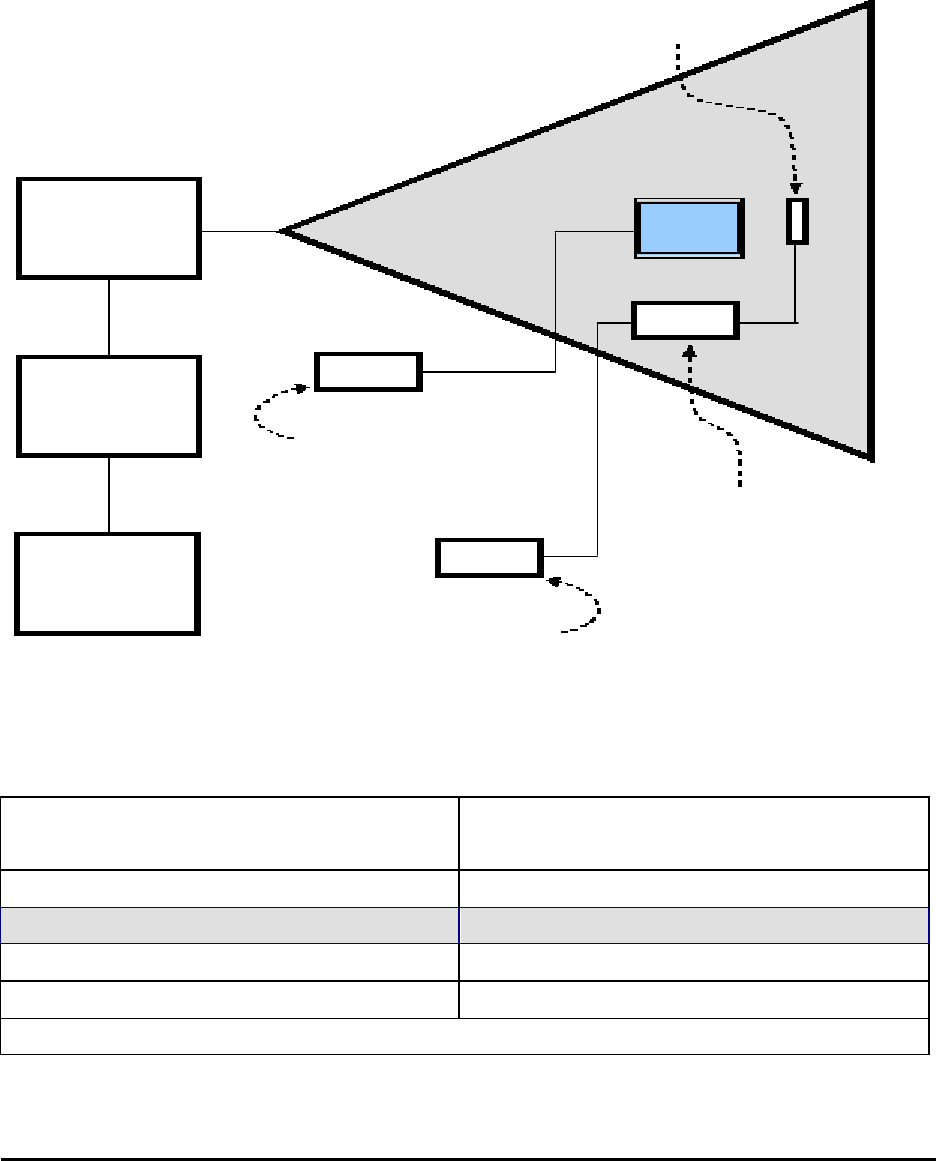

Radiated Immunity Test Setup
Test levels: (Apply Level 2)
Level Test Field Strength
(V/m)
11
2 3
310
X Special
NOTE: the “X” is an open test level. This level may be given in the product specification.
High Power
Amplifier
Signal
Generator
Modulation
Generator
EUT
GTEMI Cell
EUT Performance
Monitor
Model 7110 Data
Processing / Interface Unit
Model 7122 Companion
Metering Unit
Model 7122
Isotropic Probe
Test Report ------------------------------------------------------------------------------- 22/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Field strength: ( X ) 3V/m at 80 ~ 1000 MHz
( X ) 3 V/m at 1400 ~ 2000 MHz
Modulation: ( ) FM %
( X ) 80% AM Modulation with 1KHz
( ) 80% AM Modulation with 400Hz when signal is modulated at 1kHz
( ) 900 KHz²5 KHz with PM 200 Hz and 100% depth
Step size: ( X ) 1% step size
Sweep time: ( X ) 2.5 Second
Test mode: Ref. Test method of Chapter 1
Test instruments:
Name Model Number Serial Number Selected
EMCO GTEM 5317 9411-1123 X
EMCO Probe 7122 9406-1194 X
EMCO METERING UNIT 7122 9406-1194 X
EMCO data interface 7110 9410-1273 X
HP Personal Computer D3178A 3438S00486 X
HP Signal Generator 8657B 2928U00286 X
HP Signal Generator 83711A 3429A00434 X
IFI Wideband Amplifier SMX50 467-0795 X
Min-circuit Amplifier GFL-2500VH N/A X
WG radiation meters EMC-20 BN2244129 X
WG E-filed 2244 / 90.20 Z-0001 X
HP Transmission Test Set 4935A 3115A24046 X
B & K Precision Sound Level Meter Type 2232 1810564 X
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
( X ) Enclosure ( X )CT ( )TT ( X ) CR ( )TR
Test Report ------------------------------------------------------------------------------- 23/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

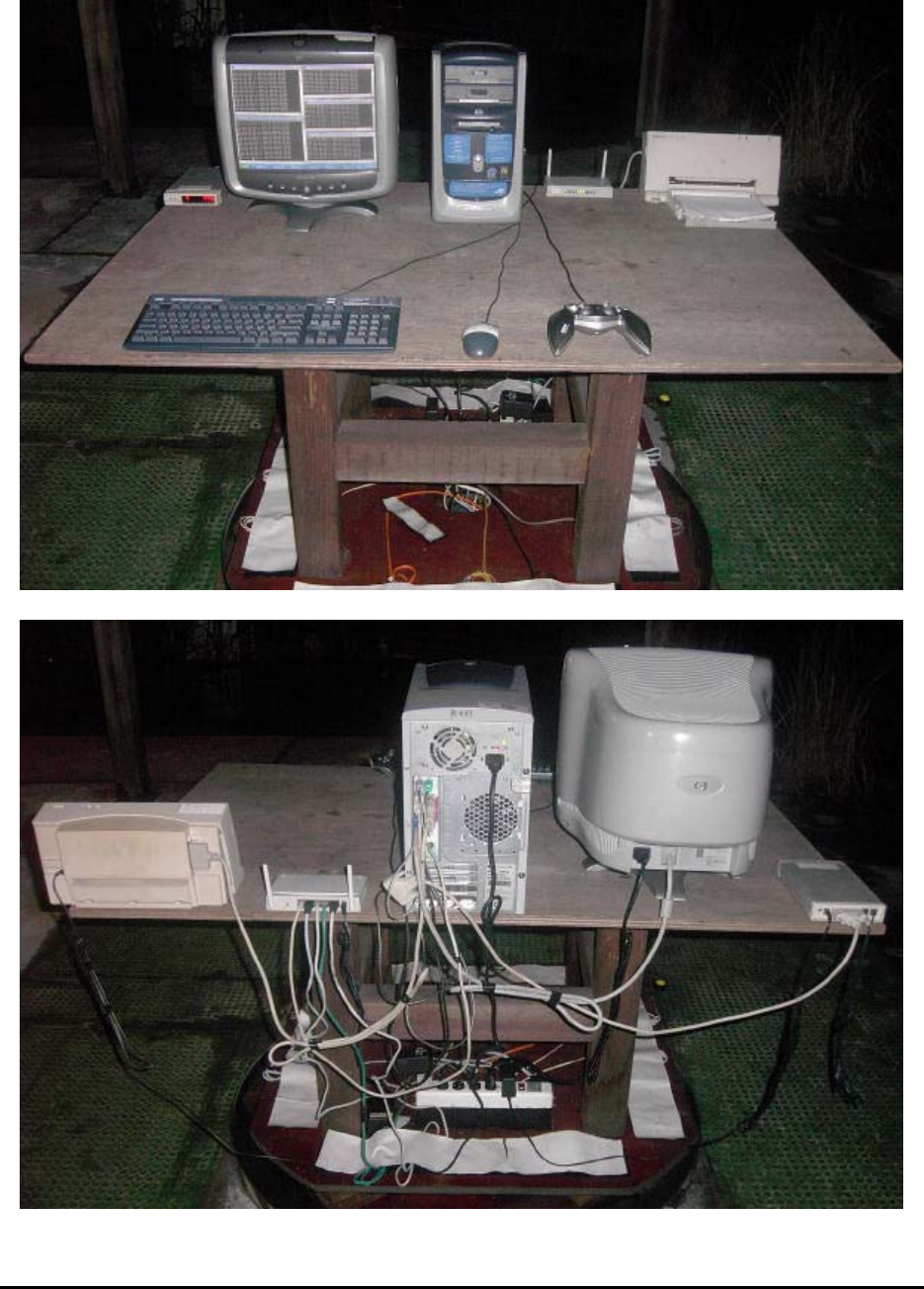

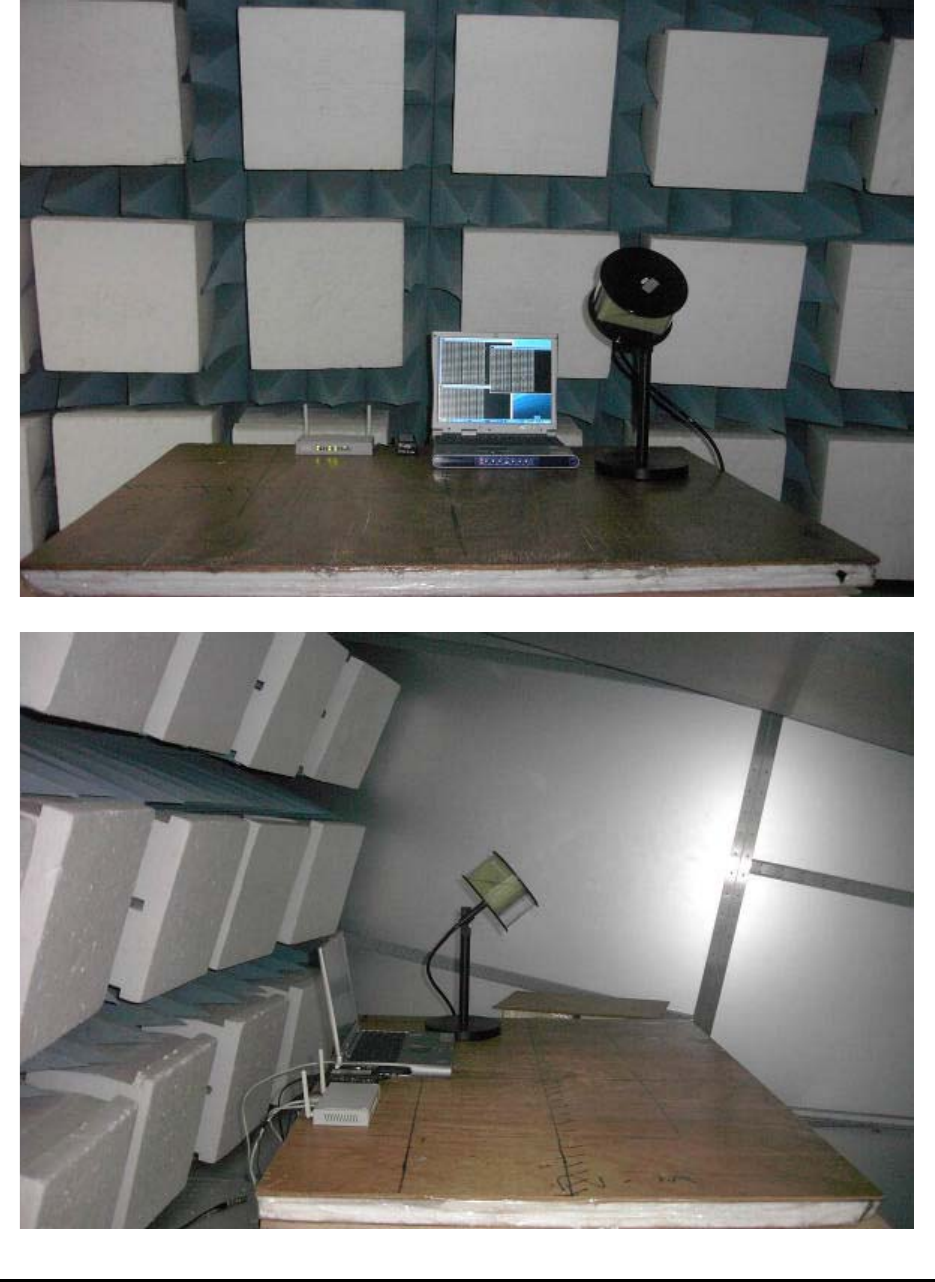

EN 61000-4-3 PHOTO OF TEST SET-UP
Test Report ------------------------------------------------------------------------------- 24/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 6 Electric Fast Transient/Burst Requirements Test
EFT Test information:

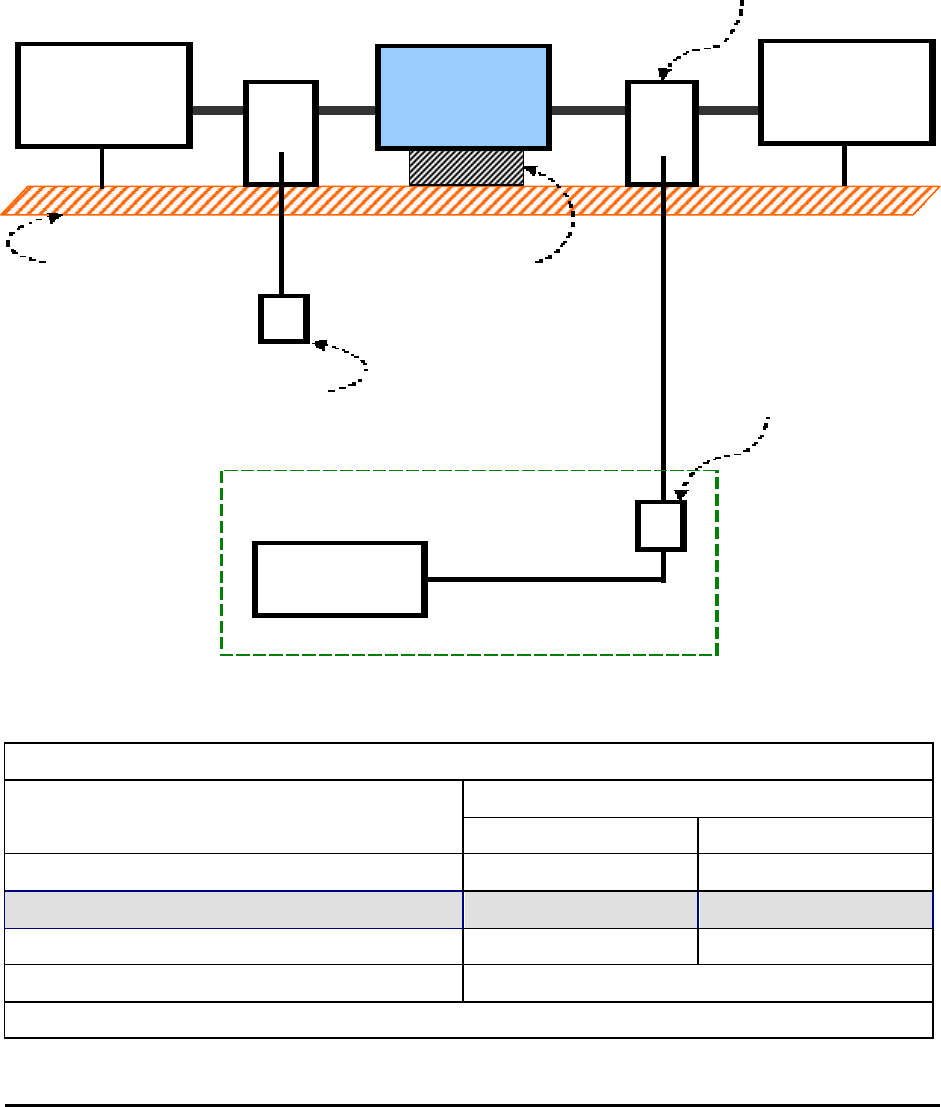

General test set-up for laboratory type tests:
> 0.25 m
> 0.25 m
EUT
EUT
AC mains
supply
EUT
EFT/B-
generator
Coupling / decoupling
network (A)
Non-metallic
table
EUT
0.1 m
Reference
plane
EFT/B-
generator (B)
0.1 m
AC mains
supply
Capacitive
coupling clamp
Grounding connection
according to the
manufacturer’ s
specification.
Length to be specified
in the test plan.
Insulating
support
Reference
plane
(L)
(L) = length between clamp and EUT to be tested, should
not be more than 1-meter
(A) = location for supply line coupling
B
= location for si
nal lines cou
lin
(L)
> 0.25 m
> 0.25 m
Test Report ------------------------------------------------------------------------------- 25/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test levels: (Apply Level 2)
Open-circuit output test voltage (±10%) and repetition rate of the impulses (±20%)
On power supply port, PE On input/output signal, data and
control ports
Level Voltage peak
kV
Repetition rate
kHz
Voltage peak
kV
Repetition rate
kHz
1 0.5 5 0.25 5
2 1 5 0.5 5
32 5 1 5
4 4 2.5 2 5
X Special Special Special Special
NOTE: the “X” is an open level. The level has to be specified in the dedicated equipment specification
Test setup: According to EN 61000-4-4
Test Voltage: DC Power line ( ) 0.5 KV, 5 KH
AC Power line ( X ) 1 KV, 5 KHz
Signal & Control line ( X ) 0.5 KV, 5 KHz; ( ) 1 KV, 5 KHz
Polarity: ( X ) Positive ( X ) Negative
Test Duration: ( X ) 1 minute ( ) 3 minutes
Connected lines: ( ) Power line shielded ( X ) Power line non-shielded
( X ) Signal & Control line non-shielded ( ) Signal & Control line shielded
Test mode: Ref. Test method of Chapter 1.
Test instrument:
Name Model Number Serial Number Selected
Best Plus BURST ESD
SURGE TRANSIENTS
Best Plus V6.2 199749-019SC
BEST EMC Test
Instrument
BEST EMC V2.3
(-8, -9)
199918-006SC
KeyTek Instrument
EFT Test system
E412 9505206/505207 X
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
( X ) Signal and control ports ( )CT ( X )TT ( ) CR ( X )TR
( ) DC power input ports ( )CT ( )TT ( ) CR ( )TR
( X ) AC mains input ports ( )CT ( X )TT ( ) CR ( X )TR
Test Report ------------------------------------------------------------------------------- 26/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

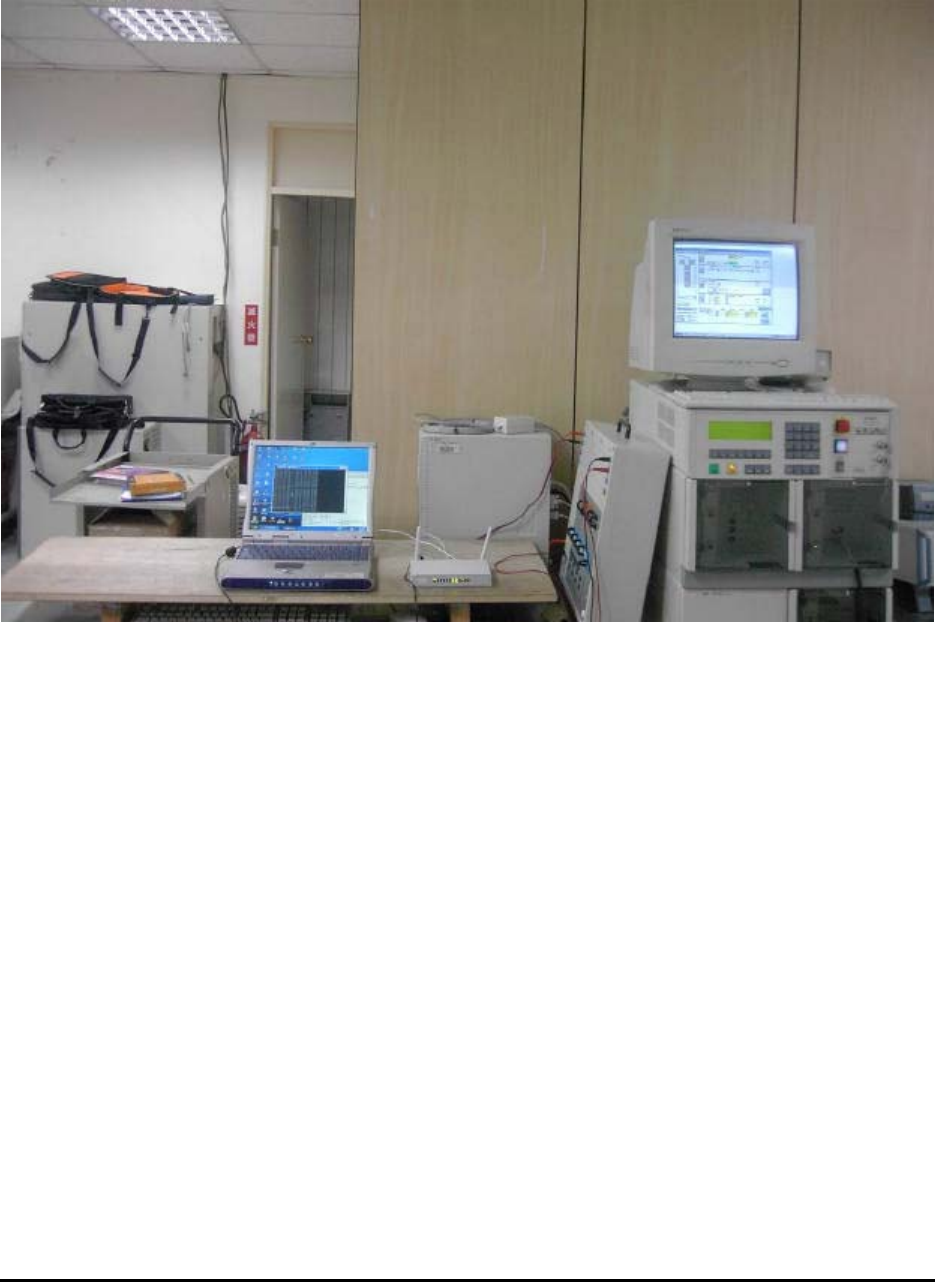

EN 61000-4-4 PHOTO OF TEST SET-UP
Test Report ------------------------------------------------------------------------------- 27/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 7 Surge Immunity Test
Surge Test information:
Test setup: According to EN 61000-4-5
Test levels: (Apply Level 2 and Level 3)
Level Test Field Strength
(kV)
10.5
21.0
3 2.0
4 4.0
X Special
NOTE: the “X” is an open class. This level may be specified in the product specification.
Test Voltage: DC Power line ( ) 0.5 KV
AC Power line ( ) Line – Line: 1KV
( ) Line – Ground: 2KV
( X ) Line – Line: 0.5KV
( X ) Line – Ground: 1KV
Control line ( ) 0.5 KV
Signal ( ) 1 KV, ( X ) 0.5KV
Time: ( X ) 1.2/50µs (8/20µs)
Polarity: ( X ) Positive ( X ) Negative
Connected lines: ( ) Power line shielded
( X ) Power line non-shielded
( X ) Signal & Control line non-shielded
( ) Signal & Control line shielded
Test mode: Ref. Test method of Chapter 1.
Test Report ------------------------------------------------------------------------------- 28/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test instrument:
Name Model Number Serial Number Selected
Best Plus BURST ESD
SURGE TRANSIENTS
Best Plus V6.2 199749-019SC
BEST EMC Test
Instrument
BEST EMC V2.3
(-8, -9)
199918-006SC
KeyTek Pulsed-EMI
Test System
E103, 501B, E502B,
E503, E505A,
E4552A
0008260 ~0008264,
0008254
X
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
( X ) AC mains input ports ( )CT ( X )TT ( ) CR ( X )TR
( X ) Signal and control ports ( )CT ( X )TT ( ) CR ( X )TR
Test Report ------------------------------------------------------------------------------- 29/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

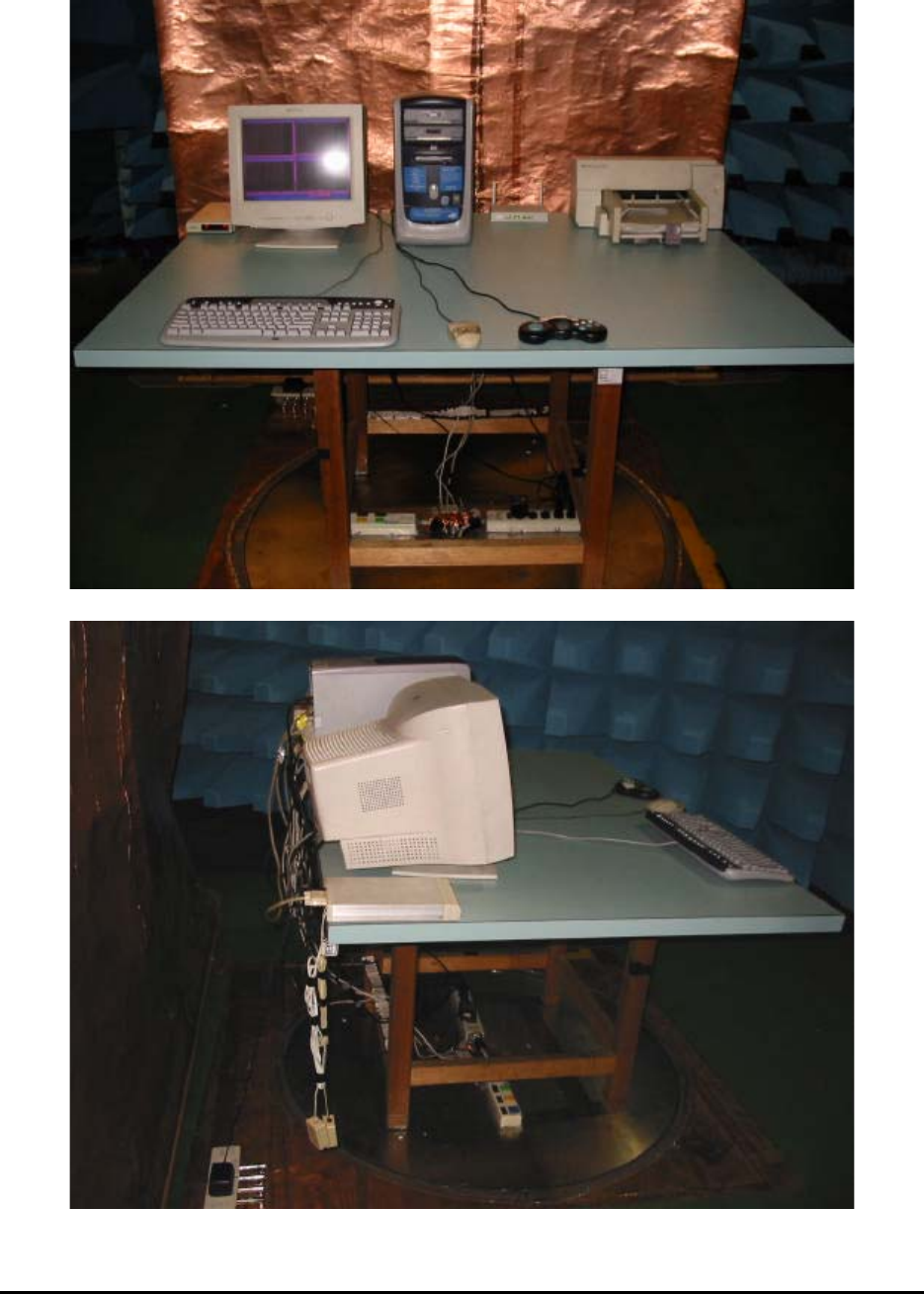

EN 61000-4-5 PHOTO OF TEST SET-UP
Test Report ------------------------------------------------------------------------------- 30/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 8 Continuous Wave Voltage Immunity Test
CS Test information:
Test setup: According to EN 61000-4-6
Immunity test to RF conducted disturbances:
Test levels: (Apply Level 2)
Frequency range 150kHz to 80MHz
Voltage level (e.m.f.)
Level Uo [dB(µv)] Uo [V]
1 120 1
2 130 3
3 140 10
X Special
NOTE: the “X” is an open test level.
CDN
Auxiliary
equipment 1
Equipment
under test CDN
Auxiliary
equipment 1
T
Ground reference plane 0.1 m
support
RF — generator
T2
Test generator
T: Termination 50ohm
T2: Power attenuator
(6dB)
CDN: Coupling and
decoupling network
Test Report ------------------------------------------------------------------------------- 31/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Frequency: ( X ) 0.15 ~ 80MHz
Modulation: ( ) FM %
( X ) 80% AM Modulation with 1kHz
( ) 80% AM Modulation with 400Hz when signal is modulated at 1kHz
( ) 900 MHz²5 MHz with PM 200 Hz and 50% duty cycle
Step size: ( ) Performed over the frequency range 150kHz to 80MHz with the
exception of an exclusion band for transmitters, and for receivers and
duplex transceivers
( X ) For receivers and transmitters the stepped frequency increments shall
be 1% frequency increment of the momentary frequency in the
frequency range 150kHz to 80MHz, unless specified otherwise in the
part of EN 301 489 dealing with the particular type of radio equipment
Field strength: ( ) 1Vrms ( X ) 3Vrms ( ) 10Vrms
Connected lines: ( ) Power line shielded
( X ) Power line non-shielded
( X ) Signal & Control line non-shielded
( ) Signal & Control line shielded
Test mode: Ref. Test method of Chapter 1
Test Report ------------------------------------------------------------------------------- 32/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test instruments:
Name Model Number Serial Number Selected
FRANKONIA EMV–Mess–
System
CIT-10 103A3113 X
FRANKONIA CDN M2+M3 A3011015 X
FRANKONIA CDN T2-801 A3010002
FRANKONIA CDN T4-801 A3015004 X
FRANKONIA CDN S1-801 A3005002
SCHAFFNER FM-Koppelzange KEMZ 801 17045
SCHAFFNER RF-SYNTHE
SIZERIAMP21FIER
NSG 2070-1 1020
SCHAFFNER CDN M325 13773
SCHAFFNER CDN M216 15604
SCHAFFNER CDN T004 15230
SCHAFFNER CDN S501 15167
SCHAFFNER FM-Koppelzange KEMZ 801 14301
HP Transmission Test Set 4935A 3115A24046
B & K Precision So und Level Meter Type 2232 1810564
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
( ) Antenna port ( )CT ( )TT ( ) CR ( )TR
( X ) Signal and control ports ( X )CT ( )TT ( X ) CR ( )TR
( ) DC power input ports ( )CT ( )TT ( ) CR ( )TR
( X ) AC mains input ports ( X )CT ( )TT ( X ) CR ( )TR
Test Report ------------------------------------------------------------------------------- 33/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
EN 61000-4-6 PHOTO OF TEST SET-UP
Test Report ------------------------------------------------------------------------------- 34/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 9 Voltage DIP / Interruption Test
DIP Test information:
Test setup: According to EN 61000-4-11
Voltage dips: ( X ) 30%, 0.01 Second
( X ) 60%, 0.1 Second
Voltage interruptions: ( X ) > 95%, 5 Seconds
Test mode: Ref. Test method of Chapter 1
Test instruments:
Name Model Number Serial Number Selected
Best Plus BURST ESD
SURGE TRANSIENTS
Best Plus V6.2 199749-019SC
BEST EMC Test
Instrument
BEST EMC V2.3
(-8, -9)
199918-006SC
Partner EMS Tester Transienter-1000 PIO X
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
Dips 30%: ( X ) CT ( ) TT ( X ) CR ( ) TR
Dips 60%: ( ) CT ( ) TT ( ) CR ( ) TR
Interruptions >95%: ( ) CT ( ) TT ( ) CR ( ) TR
No unintentional responses shall occur at the end of the test;
( )Event of loss of function(s) ( )Event of loss of user stored data
Performance Criteria: (According to ETSI EN 301 489-17)
Dips 60%, 100 ms : ( ) A ( ) B ( X ) C
Interruptions >95%, 5 000 ms: ( ) A ( ) B ( X ) C
Test Report ------------------------------------------------------------------------------- 35/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
EN 61000-4-11 PHOTO OF TEST SET-UP
Test Report ------------------------------------------------------------------------------- 36/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 10 Harmonics Test
Test information:
Test setup: According to EN 61000-3-2
Test item: Quasi – stationary & Fluctuating Current Harmonics Test.
Test mode: Ref. Test method of Chapter 1
Test instrument:
Name Model Number Serial Number Selected
Harmonic/Flicker Test
System
HP 6842A 3531A-00102 X
Test Equipment Settings: Quasi-stationary Current
Harmonics Test
Fluctuating Current
Harmonics Test
Line Voltage 230VAC 230VAC
Line Frequency 50Hz 50Hz
Device Class A A
Test Limit Overrides None None
Total Number of Failures: None None
Total Number of Errors: None None
Test Result: Pass
Test Report ------------------------------------------------------------------------------- 37/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 11 Voltage Fluctuation and Flicker Test
Test information:
Test setup: According to EN 61000-3-3
Test mode: Ref. Test method of Chapter 1
Test instrument:
Name Model Number Serial Number Selected
Harmonic/Flicker Test
System
HP 6842A 3531A-00102 X
Test Equipment Settings:
Line Voltage 230VAC
Line Frequency 50Hz
Test Limit Overrides None
Total Number of Failures: Pst: (0), Plt: (0)
Dc: (0), Dmax (0), Dt (0)
Total Number of Errors: None
Test Result: Pass
Test Report ------------------------------------------------------------------------------- 38/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 12 Conducted Emission Test
Test condition and setup
All the equipment is placed and setup according to EN 55022.
Mains power:
The EUT is assembled on a wooden table, which is 80 cm high and placed 40 cm from the
back-wall, which is a vertical conducting plane. One LISN is for EUT, the other LISN is for
support equipment. They are all placed on the conductive ground. The EUT’ s LISN connect a
line switch box for selecting L1 or L2, then connect to a preamplifier and spectrum.
The spectrum scans from 150KHz to 30MHz. Conducted emission levels are detected at
maximum peak mode. But if the maximum peak mode failed or over average limit, it will be
measured by average detection mode.
While testing the worst-emission plot printed in the peak detection mode, and there are up
to 6 highest e missions to be recorded. The plot is kept as the original data and not included in the
test report.
List of test Instrument
Calibration Date
Instrument Name Model No. Brand Serial No. Last time Next time
EMI Receiver 8546A HP 3520A00242 07/28/03 07/28/04
RF Filter Section 85460A HP 3448A00217 07/28/03 07/28/04
LISN (EUT) LISN-01 TRC 9912-03,04 07/21/03 07/21/04
LISN (Support E.) LISN-01 TRC 9912-05 06/21/03 06/21/04
Auto Switch Box ASB-01 TRC 9904-01 11/20/02 11/20/03
(< 30MHz)
The level of confidence of 95%, the uncertainty of measurement of conducted emission is +2.43dB / -2.53dB.
Test Report ------------------------------------------------------------------------------- 39/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Conducted Test Placement (Front view and Side view)
Test Report ------------------------------------------------------------------------------- 40/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Result of Conducted Emissions for Mains power
Test Conditions: Temperature : 25 °C Humidity : 73 % RH
Test Mode: Standby mode
Power Connected Emissions Class B
Conductor Frequency
(KHz)
Peak
(dB
µ
V)
QP
(dB
µ
V)
Average
(dB
µ
V)
QP-limit
(dB
µ
V)
AVG-limit
(dB
µ
V)
Margin
(dB)
159.000 48.70 --- --- 65.74 55.74 -7.04
201.000 45.90 --- --- 64.54 54.54 -8.64
257.000 43.12 --- --- 62.94 52.94 -9.82
355.000 43.26 --- --- 60.14 50.14 -6.88
Line 1 485.000 40.52 --- --- 56.43 46.43 -5.91
668.000 39.73 --- --- 56.00 46.00 -6.27
16230.000 43.39 --- --- 60.00 50.00 -6.61
17710.000 42.66 --- --- 60.00 50.00 -7.34
20200.000 41.89 --- --- 60.00 50.00 -8.11
23120.000 40.41 --- --- 60.00 50.00 -9.59
118.640 52.90 49.17 25.26 65.86 55.86 -16.69
180.000 50.79 --- --- 65.14 55.14 -4.35
229.000 48.66 --- --- 63.74 53.74 -5.08
373.710 47.06 40.17 24.80 59.91 49.91 -19.74
Line 2 401.390 45.83 39.63 23.87 57.37 47.37 -17.74
507.550 44.79 38.15 22.42 56.00 46.00 -17.85
603.500 44.50 37.43 20.44 56.00 46.00 -18.57
767.000 42.96 --- --- 56.00 46.00 -3.04
16160.000 43.00 --- --- 60.00 50.00 -7.00
17710.000 43.13 --- --- 60.00 50.00 -6.87
*The reading amplitudes are all under limit.
Test Report ------------------------------------------------------------------------------- 41/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Conditions: Temperature : 25 °C Humidity : 73 % RH
Test Mode: Linking mode
Power Connected Emissions Class B
Conductor Frequency
(KHz)
Peak
(dB
µ
V)
QP
(dB
µ
V)
Average
(dB
µ
V)
QP-limit
(dB
µ
V)
AVG-limit
(dB
µ
V)
Margin
(dB)
118.340 52.87 44.56 10.90 65.63 55.63 -21.07
212.000 49.75 --- --- 64.23 54.23 -4.48
271.000 46.99 --- --- 62.54 52.54 -5.55
365.810 47.38 38.21 24.84 60.03 50.03 -21.82
Line 1 368.790 46.53 38.33 23.92 58.11 48.11 -19.78
421.680 46.14 36.56 23.92 56.83 46.83 -20.27
617.050 44.59 33.08 23.45 56.00 46.00 -22.92
802.000 42.16 --- --- 56.00 46.00 -3.84
18240.000 35.05 --- --- 56.00 46.00 -10.95
23120.000 39.82 --- --- 60.00 50.00 -10.18
163.000 48.58 --- --- 65.63 55.63 -7.05
197.000 46.18 --- --- 64.66 54.66 -8.48
231.000 44.61 --- --- 63.69 53.69 -9.08
267.000 42.81 --- --- 62.66 52.66 -9.85
Line 2 366.000 43.83 --- --- 59.83 49.83 -6.00
426.000 41.67 --- --- 58.11 48.11 -6.44
490.000 40.93 --- --- 56.29 46.29 -5.36
731.000 39.65 --- --- 56.00 46.00 -6.35
19620.000 35.84 --- --- 60.00 50.00 -14.16
26540.000 39.35 --- --- 60.00 50.00 -10.65
*The reading amplitudes are all under limit.
Test Report ------------------------------------------------------------------------------- 42/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Chapter 13 Radiated Emission Test
Test condition and setup
Pretest: Prior to the final test (OATS test), the EUT is placed in a shielded enclosure,
and scan from 30MHz to 1GHz. This is done to ensure the radiation is exactly emitted from the
EUT. Final test: Final radiation measurements are made on a 10 – meter, open-field test
site. The EUT is placed on a nonconductive table, which is 0.8m height, the top surface is 1.0 x
1.5 meter. The entire placement is according to EN 55022.
The whole range antenna is used to measure frequency from 30 MHz to 1GHz. The final
test is used the spectrum analyzer (EMI Receiver). Measure more than six top marked
frequencies generated form pretest by computer step by step at each frequency.
The EUT is rotated 360 degrees, and antenna is raised and lowered from 1 to 4 meters to
find the maximum emission levels. The antenna is used with both horizontal and vertical
polarization. Appropriated preamplifier which is made by TRC is used for improving sensitivity
and precautions is taken to avoid overloading .The spectrum analyzer’ s 6dB bandwidth is set to
120 kHz, and the EUT is measured at quasi-peak (below 1GHz) mode.
If the emission is close to the frequency band of ambient, the tester will recheck the data
and the corrected data will be written in the test data sheet. If the emission is just within the
ambient, the data from shielded room will be taken as the final data.
List of test Instrument
Calibration Date
Instrument Name Model No. Brand Serial No. Last time Next time
Receiver SCR3102 SCHAFFNER 021 04/22/03 04/22/04
Control box TWR95-4 TRC C9001-2 None None
Antenna CBL6141A SCHAFFNER 4206 05/27/03 05/27/04
Pre-amplifier TRC-CB-2 TRC CB-002 05/29/03 05/29/04
Coixal cable (20m) RG-214/U Jyebao CL-002 05/29/03 05/29/04
Coixal cable (50cm) BNC31VB-0316 Jyebao CL-002 05/29/03 05/29/04
Coixal cable (20cm) BNC31VB-0318 Jyebao CL-007 05/29/03 05/29/04
Coixal cable (55cm) BNC31VB-0316 Jyebao CL-006 05/29/03 05/29/04
Coixal cable (55cm) BNC31VB-0316 Jyebao CL-005 05/29/03 05/29/04
Open test side (Antenna, Amplify, cable calibrated together) 05/15/03 05/15/04
The level of confidence of 95% , the uncertainty of measurement of radiated emission is +2.85dB / -2.77dB.
Test Report ------------------------------------------------------------------------------- 43/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Radiated Test Placement (Front view and Side view)
Test Report ------------------------------------------------------------------------------- 44/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Result of Spurious Radiated Emissions
Test Conditions: Temperature : 25 ° C Humidity : 73 % RH
Test Mode: Linking mode, Horizontal
Radiated
Emission
Class B
( 10 m )
Frequency
(MHz)
Amplitude
(dB
µ
V)
Ant. H.
(m)
Table
()
Correction
Factors
(dB)
Corrected
Amplitude
(dB
µ
V/m)
Limit
(dB
µ
V/m)
Margin
(dB)
205.3338 29.17 2.50 326 -3.85 25.32 30.00 -4.68
250.0163 33.50 2.50 359 -1.80 31.70 37.00 -5.30
308.0000 32.20 2.50 308 -0.99 31.21 37.00 -5.79
425.0288 28.46 2.50 218 5.10 33.56 37.00 -3.44
475.0275 24.22 2.50 18 6.20 30.42 37.00 -6.58
Test Mode: Linking mode, Vertical
Radiated
Emission
Class B
( 10 m )
Frequency
(MHz)
Amplitude
(dB
µ
V)
Ant. H.
(m)
Table
()
Correction
Factors
(dB)
Corrected
Amplitude
(dB
µ
V/m)
Limit
(dB
µ
V/m)
Margin
(dB)
30.2700 19.57 1.00 118 4.79 24.36 30.00 -5.64
124.4638 30.95 2.51 359 -4.73 26.22 30.00 -3.78
205.5685 27.62 2.51 324 -3.84 23.78 30.00 -6.22
250.0163 37.66 1.00 170 -1.80 35.86 37.00 -1.14
410.6675 28.53 2.51 105 4.81 33.34 37.00 -3.66
Note:
1. Margin = Amplitude – limit, if margin is minus means under limit.
2. Corrected Amplitude = Reading Amplitude + Correction Factors
3. Correction factor = Antenna factor + ( Cable Loss – Amplitude gain)
Test Report ------------------------------------------------------------------------------- 45/45
Report No.: C51ET385 (ETSI EN 301489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Appendix A
Brand name and Model name List
Brand Name Model Name
TRENDware TEW-231BRP

Navigation menu
