Effective: 03-24-
17
Motor and Drives
Price Book
www.tecowestinghouse.com or call 1-800-USE-TECO | 1
www.tecowestinghouse.com or call 1-800-USE-TECO | 1
QUALITY AND ENVIRONMENTAL STATEMENT
TECO-Westinghouse Motor Company (TWMC) is committed to serving the needs of our customers
BETTER THAN ANYONE ELSE. We strive to provide quality products and services while also minimizing
safety and environmental impacts. We are also committed to providing a work environment that
protects the health and safety of employees, visitors, and guests. We understand that safety, quality, and
environmental stewardship are at the core of our business.
Safety, sustainability, improved efficiency, compliance, and continuity are at the heart of the Quality and
Environmental Management Systems. Therefore, management is committed to and personally involved
in establishing objectives and periodically reviewing these objectives to ensure its continuing suitability.
The management team assures that quality and environmental requirements are clearly stated
and implemented. They also provide the necessary training and equipment, establish measurable
guidelines, and define priorities for continual improvement.
Quality and environmental objectives and targets are established within the Quality and Environmental
Management Systems and are communicated to all employees. TWMC is committed to maintaining
these systems, and this cannot be done without each employee striving for excellence in personal job
performance. We will not settle for less than exact conformance in anything we do.
POLÍTICA DE CALIDAD Y AMBIENTAL
TECO-Westinghouse Motor Company (TWMC) está comprometido a satisfacer las necesidades de
nuestros clientes MEJOR QUE CUALQUIER OTRA COMPAÑIA. Nos esforzamos por ofrecer productos
y servicios de calidad al mismo tiempo que minimizamos los impactos en la seguridad y el medio
ambiente. También estamos comprometidos a proveer un ambiente de trabajo que proteja la salud y
seguridad de empleados, visitantes e invitados. Entendemos que la administración de la seguridad, la
calidad y el medio ambiente están en el centro de nuestro negocio.
La seguridad, la sostenibilidad, la mejora de la eficiencia, el cumplimiento y la continuidad son el
corazón de los Sistemas de Gestión de Calidad y Medio Ambiente. Por lo tanto, la gerencia está
comprometida con y personalmente involucrada en el establecimiento de objetivos y revisar
periódicamente estos objetivos para asegurar su continuada adecuación. El equipo directivo se asegura
que los requisitos de calidad y medioambientales estén claramente establecidos e implementados.
También proporcionan la capacitación y el equipo necesarios, establecen pautas medibles y definen las
prioridades para la mejora continua.
Se establecen objetivos y metas de calidad y medioambientales dentro de los Sistemas de Gestión
de Calidad y Medio Ambiente y se comunican a todos los empleados. TWMC esta comprometido a
mantener estos sistemas, y esto no puede hacerse sin que cada empleado se esfuerce por la excelencia
en el desempeño de su trabajo personal. No estaremos satisfechos con menos que con la conformidad
exacta en cualquier cosa que hagamos.
Patrick M. Rogers
President
TECO-Westinghouse Motor Company 3/2/17
2 | www.tecowestinghouse.com or call 1-800-USE-TECO
All data presented in this book is for reference only and subject to change without notice. For specic applications,
certied dimensions, or additional performance data, etc., please contact your TECO-Westinghouse representative or call:
1-800-USE-TECO
GENERAL INFORMATION
ONLINE SUBMITTAL DATA INSTRUCTIONS ___________________________________________________________________ 7
CATALOG NUMBER REFERENCE GUIDE ______________________________________________________________________ 8
CONTACT US ___________________________________________________________________________________________ 10
STOCK MOTORS SELLING POLICY __________________________________________________________________________ 11
TECO-WESTINGHOUSE STOCK MOTOR AND CONTROL PRODUCTS WARRANTY POLICY _______________________________ 14
PROCEDURE FOR WRRANTY CLAIMS ON STOCK MOTORS AND CONTROL PRODUCTS ________________________________ 15
GENERAL PURPOSE MOTORS
MOTOR AND DRIVE COMBINATION PACKAGES _______________________________________________________________ 16/ 150
THREE PHASE ODP
ROLLED STEEL ODP FAMILY _______________________________________________________________________________ 17
ASGHPE, NEMA PREMIUM, F#56 (1/4 HP - 3 HP) [DSP] ______________________________________________________ 18
ASGH, NEMA PREMIUM, F#140T - 280T (1 HP - 40 HP) [DTP]* _________________________________________________ 18
ASGA, HIGH EFFICIENCY, F#56 (1/3 HP - 3 HP) [DS] ________________________________________________________ 19
ASGHJP/JM, NEMA PREMIUM, CLOSE COUPLED, (1 HP - 40 HP) [DJPP/DJMP]* ___________________________________ 20
ASGAJP/JM, HIGH EFFICIENCY, CLOSE COUPLED, (1 HP - 40 HP)[DJP/DJM] ______________________________________ 21
ROLLED STEEL ODP AEGIS® SGR _________________________________________________________________________ 22
ASGH, NEMA PREMIUM WITH AEGIS® SGR [DTP_G] ________________________________________________________ 23
CAST IRON ODP ________________________________________________________________________________________ 24
ASHH, NEMA PREMIUM [DHP]* ________________________________________________________________________ 25
CAST IRON ODP AEGIS® SGR ____________________________________________________________________________ 27
ASHH, NEMA PREMIUM WITH AEGIS® SGR [DHP_G ] ________________________________________________________ 28
THREE PHASE TEFC
3-PHASE FRACTIONAL HP TEFC ____________________________________________________________________________ 29
AEGA, FOOTED, HIGH EFFICIENCY [G] ___________________________________________________________________ 30
ROLLED STEEL TEFC FAMILY _______________________________________________________________________________ 31
AEGHPE, NEMA PREMIUM, F#56 (1/4 HP - 2 HP) [GH] _______________________________________________________ 32
AEGH, NEMA PREMIUM, F#140T - 210T (1 HP - 10 HP) [GP] __________________________________________________ 32
AEGHPE-CF, NEMA PREMIUM, FOOTED C-FACE, F#56 (1/4 HP - 2 HP) [GH_C] ____________________________________ 33
AETHPE, NEMA PREMIUM, ROUND BODY C-FACE, F#56 (1/4 HP - 2 HP) [GHV_C] _________________________________ 33
AEGHCF, NEMA PREMIUM, FOOTED C-FACE, F#140T - 210T (1 HP - 10 HP) [GP_C] ________________________________ 33
AETHCF, NEMA PREMIUM, ROUND BODY C-FACE, F#140T - 210T (1 HP - 10 HP) [GPV_C] ___________________________ 33
ROLLED STEEL TEFC AEGIS® SGR _________________________________________________________________________ 34
AEGH, FOOTED, NEMA PREMIUM WITH AEGIS® SGR [GP_G] __________________________________________________ 35
MAX-IE3™ METRIC ______________________________________________________________________________________ 36
AESV3W, IEC, IE3 EFFICIENCY [MP] _____________________________________________________________________ 37
THREE PHASE TEFC - SEVERE DUTY MOTORS
CAST IRON TEFC JP/JM __________________________________________________________________________________ 38
AEHH8NJP/JM, NEMA PREMIUM, CLOSE-COUPLED [JPP/JMP] ________________________________________________ 39
AEEAJP/JM, HIGH EFFICIENCY, CLOSE-COUPLED [JPN/JMN] __________________________________________________ 40
TABLE OF CONTENTS MOTORS
Notes:
* Fire Pump Available.
(1) Italicized letters represent the TECO Product Type (e.g. ASHH). Letters in brackets represent the Catalog Number [e.g. DHP].
Both Product Type and Catalog Number can be found on Motor Nameplate.
* NEW *
* NEW *
www.tecowestinghouse.com or call 1-800-USE-TECO | 3
TABLE OF CONTENTS MOTORS
THREE PHASE TEFC - SEVERE DUTY MOTORS continued...
MAX-PE™ FAMILY - PREMIUM SEVERE DUTY MOTOR ___________________________________________________________ 41
AEHH8P, NEMA PREMIUM [NP] ________________________________________________________________________ 42
AEHH8PCF, NEMA PREMIUM, FOOTED C-FACE [NP_C] ______________________________________________________ 44
AEUH8PDC, NEMA PREMIUM, ROUND BODY C-FACE [NPV_C] ________________________________________________ 44
MAX-PE™ AEGIS® SGR __________________________________________________________________________________ 45
AEHH8P, NEMA PREMIUM WITH AEGIS® SGR [NP_G] _______________________________________________________ 46
MAX-SE™ FAMILY - HIGH EFFICIENCY SEVERE DUTY MOTOR _____________________________________________________ 47
AEVANE, HIGH EFFICIENCY, ROUND BODY C-FACE [NV_C] ___________________________________________________ 48
MAX-E1® FAMILY - ALL CAST PREMIUM SEVERE DUTY MOTOR ___________________________________________________ 49
AEHH8N, NEMA PREMIUM (1 HP - 500 HP) [EP] ____________________________________________________________ 50
AEHE, HIGH EFFICIENCY [E] ___________________________________________________________________________ 53
AEHH8NCF, NEMA PREMIUM, FOOTED C-FACE (1 HP - 300 HP) [EP_C] _________________________________________ 54
AEUH8NDC, NEMA PREMIUM, ROUND BODY C-FACE (1 HP - 300 HP) [EPV_C] ___________________________________ 54
KEYLESS SHAFT MOTOR _________________________________________________________________________________ 55
AEHHSY, NEMA PREMIUM (200 HP - 500 HP) [EPY] _________________________________________________________ 56
AEHESY, HIGH EFFICIENCY [EY] ________________________________________________________________________ 57
MAX-E2/841® "LITE" - IEEE-841 READY MOTOR ________________________________________________________________ 58
AEHH, NEMA PREMIUM [HH] __________________________________________________________________________ 59
MAX-E2/841® FAMILY - IEEE-841 MOTOR _____________________________________________________________________ 60
AEHH8B, NEMA PREMIUM [HB] ________________________________________________________________________ 61
AEHH8BCF, NEMA PREMIUM, FOOTED C-FACE (1 HP - 100 HP) [HB_C] _________________________________________ 63
AEUH8BDC, NEMA PREMIUM, ROUND BODY C-FACE (1 HP - 100 HP) [HBV_C] ___________________________________ 63
MAX-HT™ FAMILY - HIGH TORQUE CRUSHER DUTY MOTOR ______________________________________________________
MAX-HT™ LOW VOLTAGE DESIGN C TORQUE CRUSHER DUTY MOTOR ___________________________________________ 64
AEHHGD, NEMA PREMIUM, DESIGN C (20 HP - 200 HP) [CDP] ________________________________________________ 65
AEEAGD, HIGH EFFICIENCY, DESIGN C [CD] _______________________________________________________________ 66
MAX-HT™ LOW VOLTAGE DESIGN A TORQUE CRUSHER DUTY MOTOR ___________________________________________ 68
AEHAGD, NEMA PREMIUM, DESIGN A [CDP] ______________________________________________________________ 69
MAX-HT™ MEDIUM VOLTAGE CRUSHER DUTY MOTOR ________________________________________________________ 70
AEHAGD, ENERGY EFFICIENT, HIGH TORQUE [KD] _________________________________________________________ 71
WASHDOWN MOTOR ____________________________________________________________________________________ 72
AEGP, NEMA PREMIUM, FOOTED C-FACE [WFP/WP] ________________________________________________________ 73
AEGPCW, NEMA PREMIUM, ROUND BODY C-FACE [WFPV/WPV] _____________________________________________ 73
DEFINITE PURPOSE MOTORS
SINGLE PHASE ODP
HVAC SINGLE PHASE ODP ________________________________________________________________________________ 74
BSGS39, NEMA PREMIUM [SP/SPH] _____________________________________________________________________ 75
SINGLE PHASE TEFC
HVAC SINGLE PHASE TEFC ________________________________________________________________________________ 76
BEGS39, NEMA PREMIUM (1/4 HP - 3 HP) [SPT/SPHT] _______________________________________________________ 77
BEGS19, ENERGY EFFICIENT (3 HP - 10 HP) [ST] ____________________________________________________________ 77
FARM DUTY SINGLE PHASE _______________________________________________________________________________ 78
BEGCFD, HIGH EFFICIENCY (1/3 HP - 1 HP) [S] _____________________________________________________________ 79
BECCFD, HIGH EFFICIENCY (1.5 HP) [S] ___________________________________________________________________ 79
BECSFD, HIGH EFFICIENCY (2 HP -10 HP) [S] ______________________________________________________________ 79
Notes:
(1) Italicized letters represent the TECO Product Type (e.g. ASHH). Letters in brackets represent the catalog number [e.g. DHP].
Both Product Type and Catalog Number can be found on Motor Nameplate.
(2) Medium Voltage Crusher Duty Motor (pg. 60-61) and Medium Voltage Vertical Motors offered (various - see next page for details).
* NEW *
* NEW *
* NEW *
* NEW *
* NEW *
* NEW *
* NEW *
* NEW *
4 | www.tecowestinghouse.com or call 1-800-USE-TECO
TABLE OF CONTENTS MOTORS
THREE PHASE ODP
OIL WELL PUMP MOTOR ODP _____________________________________________________________________________ 80
ASFAFP, STANDARD EFFICIENCY, DESIGN D [Q] ____________________________________________________________ 81
THREE PHASE TEFC
OIL WELL PUMP MOTOR TEFC _____________________________________________________________________________ 82
AEEAFP, STANDARD EFFICIENCY, DESIGN D [QT] __________________________________________________________ 83
2 SPEED, 1 WINDING, VARIABLE TORQUE ____________________________________________________________________ 84
AECA, HIGH EFFICIENCY [CP] __________________________________________________________________________ 85
EXPLOSION PROOF MOTORS
TEXP FAMILY ___________________________________________________________________________________________ 86
AEHHXV/AEHHXU, NEMA PREMIUM [XP] _________________________________________________________________ 87
AEHHXG/AEHHXF, NEMA PREMIUM, FOOTED C-FACE (1 HP - 100 HP)[XP_C] _____________________________________ 89
AEUHXG/AEUHXF, NEMA PREMIUM, ROUND BODY C-FACE (1 HP - 75 HP)[XPV_C] ________________________________ 89
MEDIUM VOLTAGE MOTORS - GLOBAL SERIES
GLOBAL MAX WPI _______________________________________________________________________________________ 90
AMHGTK, PREMIUM EFFICIENCY, MEDIUM VOLTAGE [PG] ____________________________________________________ 91
GLOBAL ODP __________________________________________________________________________________________ 92
ASHA, HIGH EFFICIENCY, MEDIUM VOLTAGE [P] ___________________________________________________________ 93
GLOBAL XPE ___________________________________________________________________________________________ 94
AEHGTK, TEFC, NEMA, PREMIUM EFFICIENCY, MEDIUM VOLTAGE (100 HP - 900 HP)[KG] ___________________________ 95
AEJHTK, TEFC, IEC, HIGH EFFICIENCY, MEDIUM VOLTAGE (800 HP - 2000 HP)[JH] _________________________________ 96
GLOBAL MAX TEFC ______________________________________________________________________________________ 97
AFHGTK, NEMA, PREMIUM EFFICIENCY, MEDIUM VOLTAGE [KF] _______________________________________________ 98
AFJHTK, IEC, HIGH EFFICIENCY, MEDIUM VOLTAGE (900 HP - 1750 HP)[JF] ______________________________________ 99
VERTICAL MOTORS
VERTICAL HOLLOW SHAFT MOTORS
WPI LOW VOLTAGE HIGH THRUST WITH "P" BASE ______________________________________________________________ 100
AMRCNH, (MAX-VHP™) NEMA PREMIUM [VHP]* ___________________________________________________________ 101
AMRC, (MAX-VH™) HIGH EFFICIENCY [VH]* _______________________________________________________________ 102
TEFC LOW VOLTAGE HIGH THRUST WITH "P" BASE _____________________________________________________________ 103
AEEHNH, (MAX-VHP™) NEMA PREMIUM [VHTP] ___________________________________________________________ 104
WPI MEDIUM VOLTAGE HIGH THRUST WITH "P" BASE __________________________________________________________ 105
AMRKNH, PREMIUM EFFICIENCY [VHKP] _________________________________________________________________ 106
TEFC MEDIUM VOLTAGE HIGH THRUST WITH "P" BASE __________________________________________________________ 107
AEHCNH, PREMIUM EFFICIENCY [VHKTP] ________________________________________________________________ 108
VERTICAL HOLLOW SHAFT WPI COUPLING KITS _______________________________________________________________ 109
VERTICAL HOLLOW SHAFT TEFC COUPLING KITS ______________________________________________________________ 110
VERTICAL HOLLOW SHAFT WPI STEADY BUSHING KITS _________________________________________________________ 111
VERTICAL HOLLOW SHAFT TEFC STEADY BUSHING KITS ________________________________________________________ 112
VERTICAL SOLID SHAFT MOTORS
TEFC LOW VOLTAGE NORMAL THRUST WITH "P" BASE ________________________________________________________ 113/ 115
AEUH8NDP, NEMA PREMIUM, ROUND BODY [EPV_P] _______________________________________________________ 114
AEUH8BDP, NEMA PREMIUM, ROUND BODY [HBV_P]_______________________________________________________ 116
Notes:
* Fire Pump Available.
(1) Italicized letters represent the TECO Product Type (e.g. ASHH). Letters in brackets represent the Catalog Number [e.g. DHP].
Both Product Type and Catalog Number can be found on Motor Nameplate.
www.tecowestinghouse.com or call 1-800-USE-TECO | 5
Notes:
* Fire Pump Available.
(1) Italicized letters represent the TECO Product Type (e.g. ASHH). Letters in brackets represent the Catalog Number [e.g. DHP].
Both Product Type and Catalog Number can be found on Motor Nameplate.
VERTICAL SOLID SHAFT MOTORS continued...
WPI LOW VOLTAGE HIGH THRUST WITH "P" BASE ______________________________________________________________ 117
AMRCED (MAX-VSP™) NEMA PREMIUM [VSP]* ____________________________________________________________ 118
TEFC LOW VOLTAGE HIGH THRUST WITH "P" BASE _____________________________________________________________ 119
AEEHED (MAX-VSP™) NEMA PREMIUM [VSTP] _____________________________________________________________ 120
WPI MEDIUM VOLTAGE HIGH THRUST WITH "P" BASE __________________________________________________________ 121
AMRKED, PREMIUM EFFICIENCY [VSKP] __________________________________________________________________ 122
TEFC MEDIUM VOLTAGE HIGH THRUST WITH "P" BASE __________________________________________________________ 123
AEHCED, PREMIUM EFFICIENCY [VSKTP] _________________________________________________________________ 124
KITS
C-FLANGE KITS _________________________________________________________________________________________ 125
D-FLANGE KITS _________________________________________________________________________________________ 126
DRIP COVERS AND PAINT _________________________________________________________________________________ 127
P-BASES ______________________________________________________________________________________________ 128
FACTORY MODIFICATIONS
FACTORY MODIFICATION PRICING _________________________________________________________________________ 129
FACTORY MODIFICATION DESCRIPTIONS ____________________________________________________________________ 131
MODIFICATION DRAWING REQUIREMENTS ___________________________________________________________________ 134
DIMENSIONS AC MACHINES ______________________________________________________________________________ 135
GEAR REDUCERS

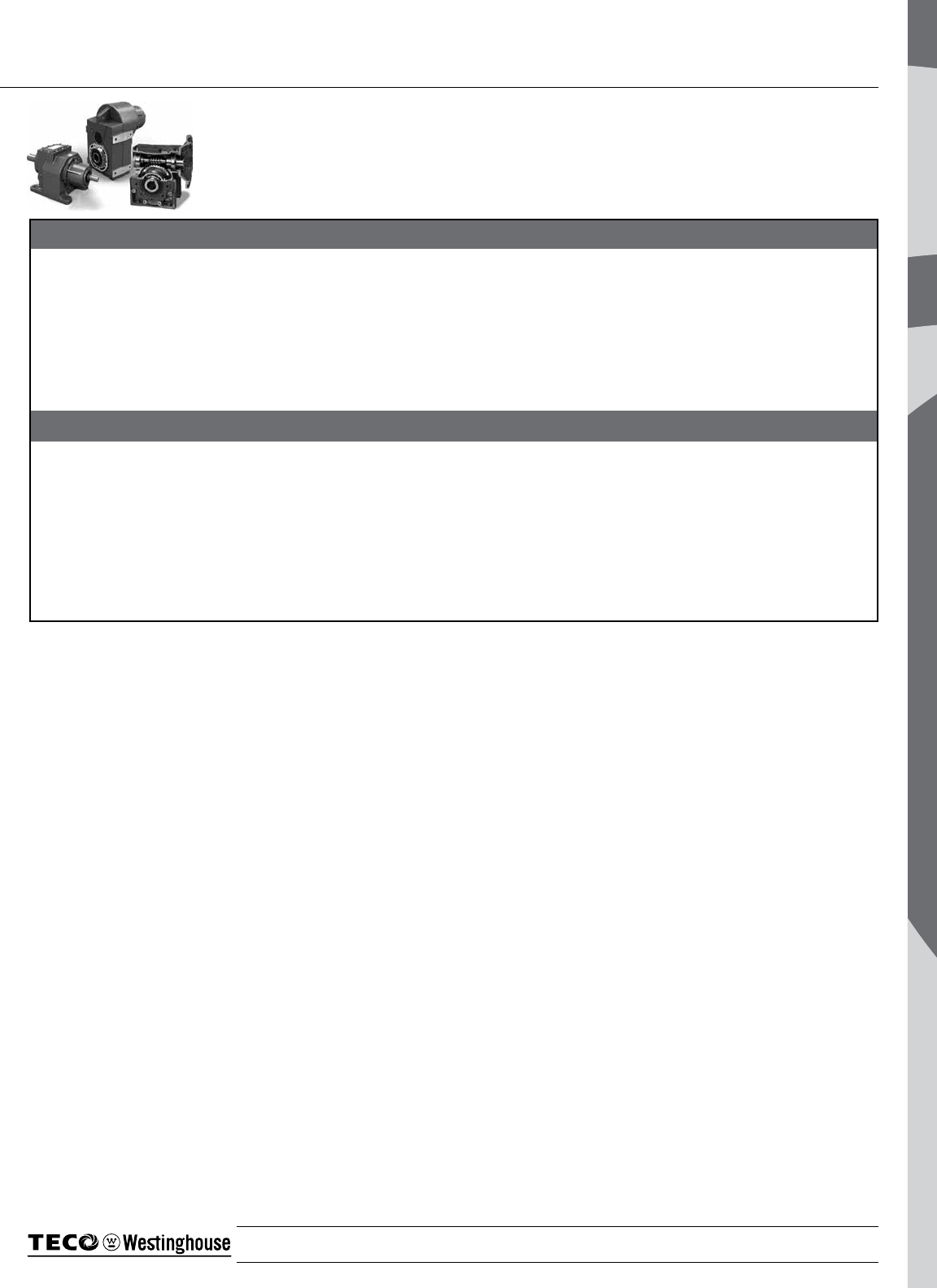

GEAR REDUCERS _______________________________________________________________________________________ 137
CUSTOM ENGINEERED LARGE MOTORS

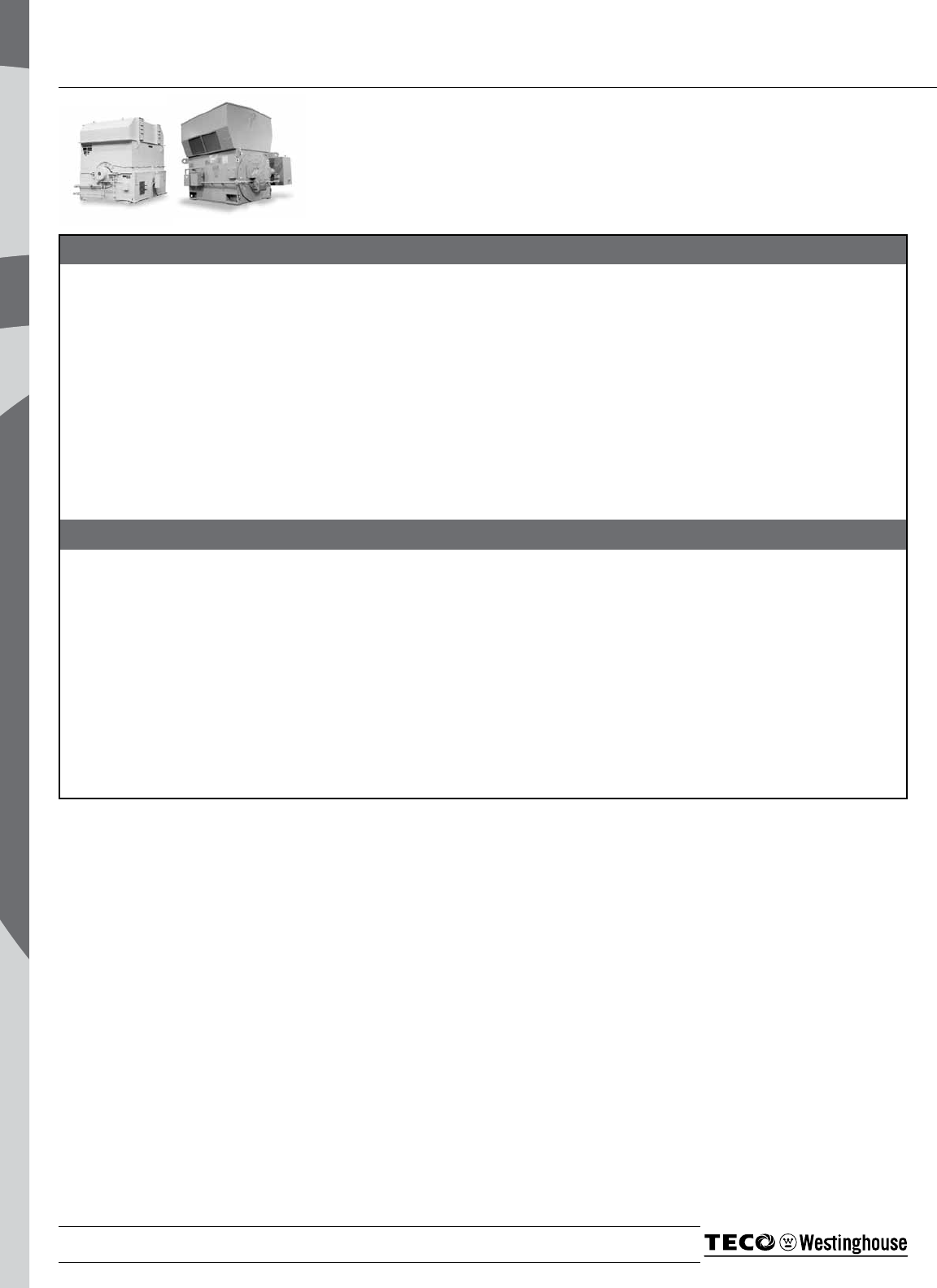

WORLD SERIES® MOTORS _________________________________________________________________________________ 138
WORLD SERIES® AIR CABINET DESIGN LIST ___________________________________________________________________ 140
SYNCHRONOUS MOTORS_________________________________________________________________________________ 142
DC MOTORS ___________________________________________________________________________________________ 143
SERVICE
LARGE MOTOR REPAIR ___________________________________________________________________________________ 144
RENEWAL PARTS AND ENGINEERED COMPONENTS ____________________________________________________________ 145
ENGINEERING SERVICES __________________________________________________________________________________ 145
SYNCHRONOUS CONTROL SYSTEMS ________________________________________________________________________ 146
REFERENCE

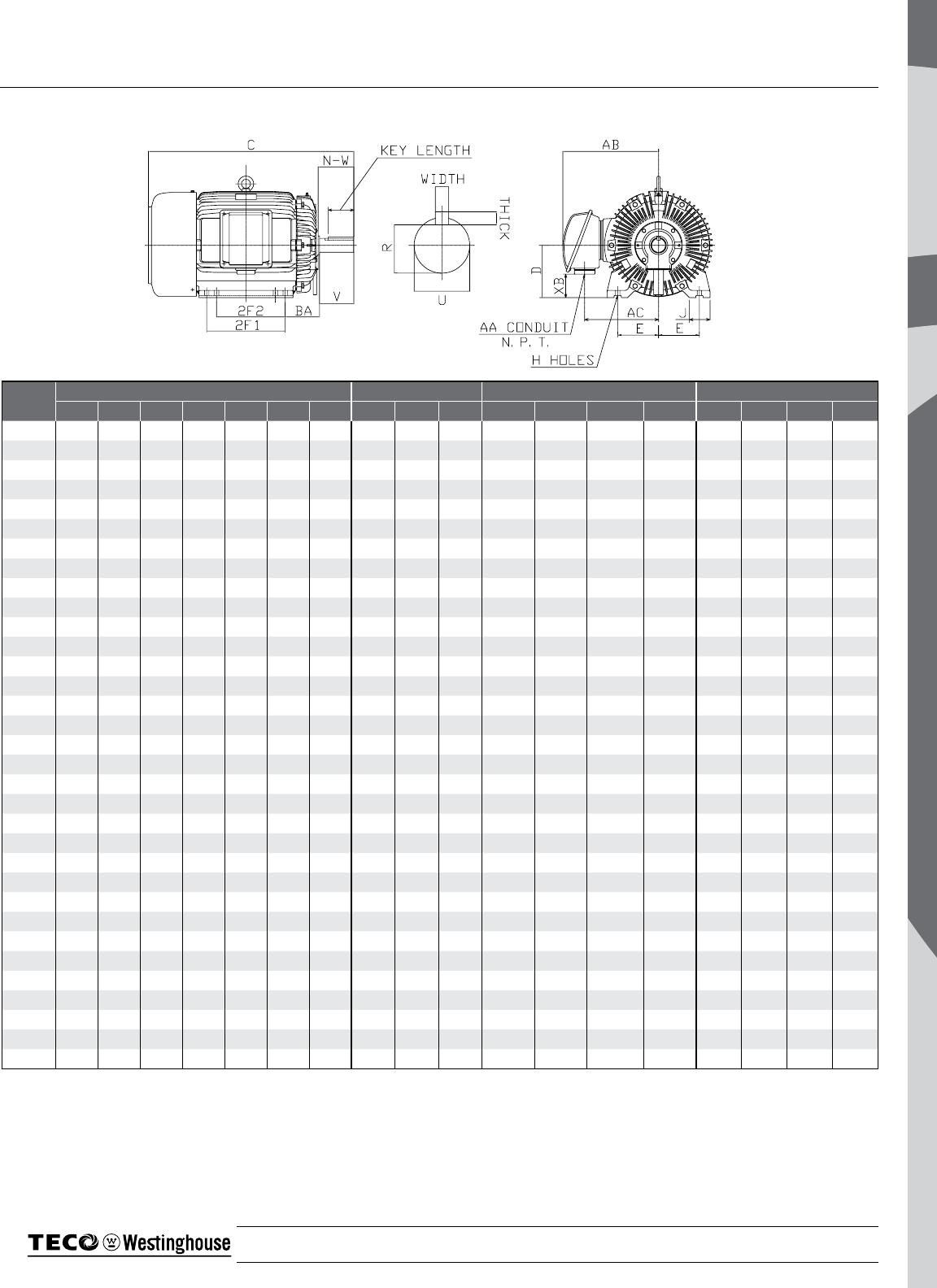

DIMENSIONS FOR AC MACHINES ___________________________________________________________________________ 135
USEFUL FORMULAS _____________________________________________________________________________________ 148
TABLE OF CONTENTS MOTORS
6 | www.tecowestinghouse.com or call 1-800-USE-TECO

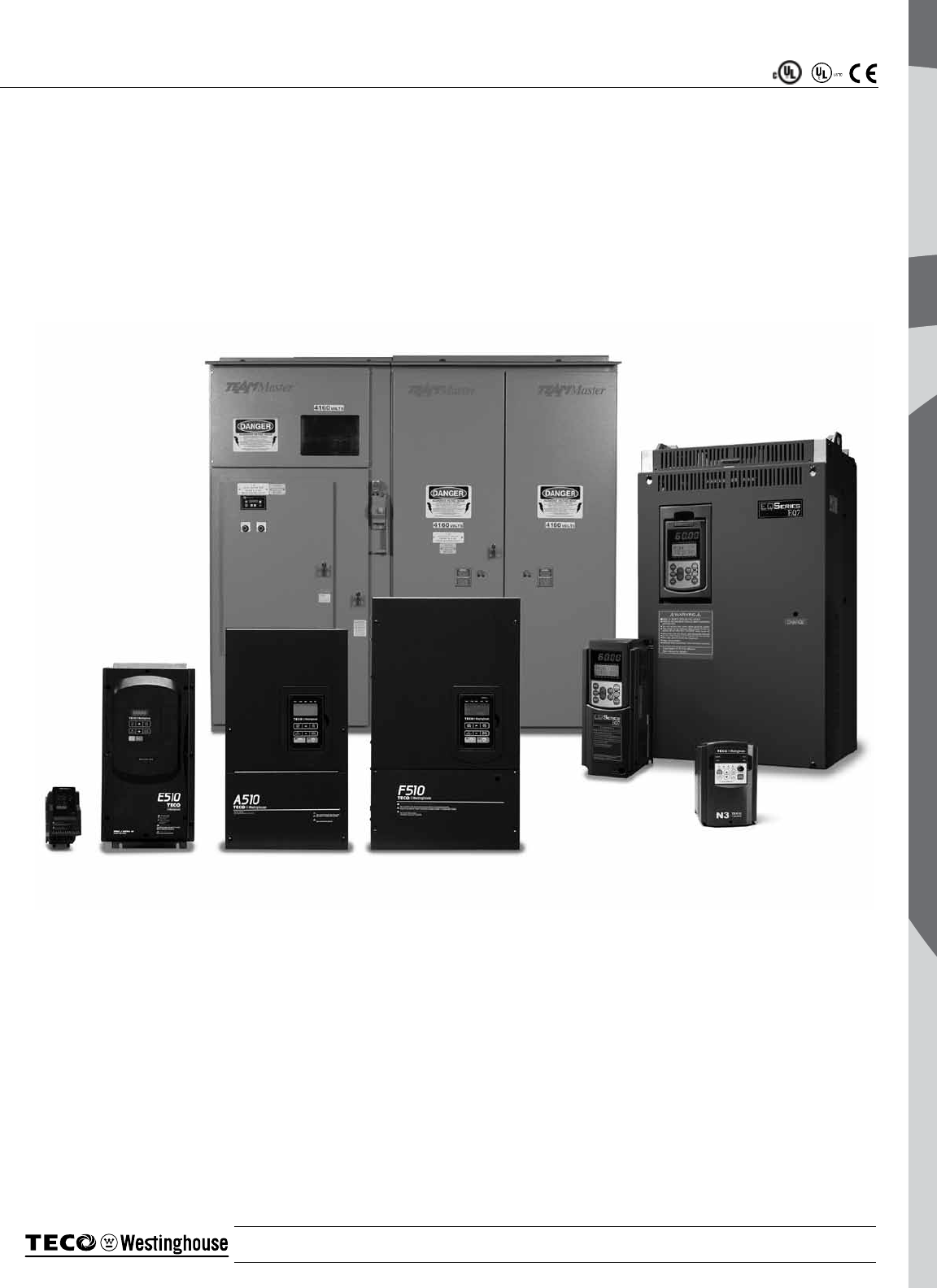

AC DRIVES
DRIVE PACKAGING CAPABILITIES __________________________________________________________________________ 150
MOTOR AND DRIVE COMBINATION PACKAGES _______________________________________________________________ 16/ 150
L510 MICRO DRIVE (0.25 HP - 3 HP) _______________________________________________________________________ 152

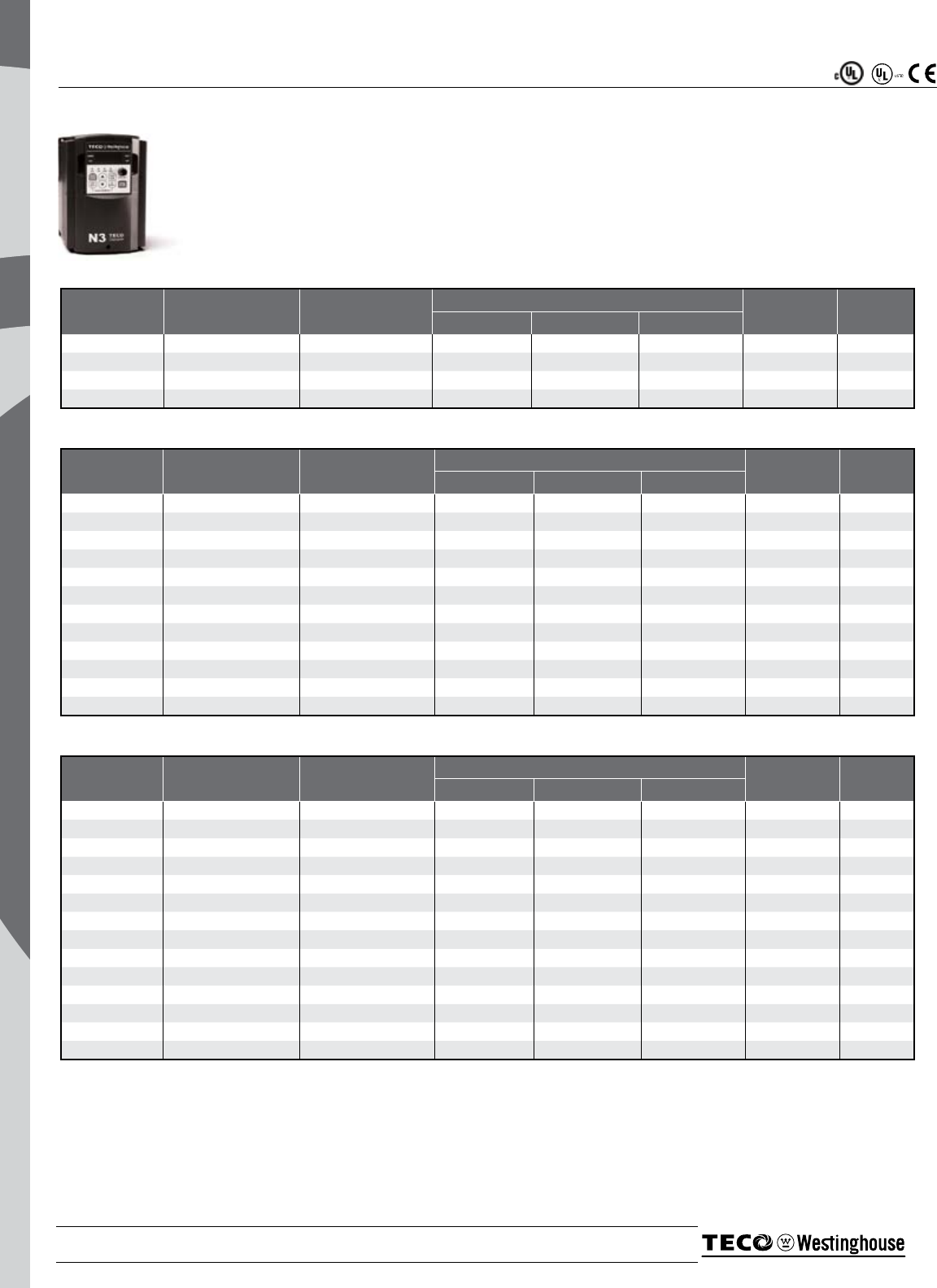

N3 COMPACT DRIVE (.5 HP - 75 HP) ________________________________________________________________________ 155
A510 HEAVY DUTY DRIVE (1 HP - 270 HP) ___________________________________________________________________ 159
E510 NEMA 4, 4X/12 (.5 HP - 25 HP) ________________________________________________________________________ 164
F510 FAN & PUMP DUTY (1 HP - 250 HP) ____________________________________________________________________ 169
EQ7 AC DRIVE (1 HP - 1000 HP) ___________________________________________________________________________ 173
BRAKE MODULES AND RESISTORS
L510_________________________________________________________________________________________________ 154
N3 __________________________________________________________________________________________________ 158
A510 ________________________________________________________________________________________________ 163
E510 ________________________________________________________________________________________________ 168
F510 ________________________________________________________________________________________________ 172
LINE REACTORS
LINE REACTORS 3% IMPEDANCE 230V (1 HP - 150 HP) _________________________________________________________ 177
LINE REACTORS 5% IMPEDANCE 230V (1 HP - 150 HP) _________________________________________________________ 177
LINE REACTORS 3% IMPEDANCE 460V (1 HP - 800 HP) _________________________________________________________ 178
LINE REACTORS 5% IMPEDANCE 460V (1 HP - 800 HP) _________________________________________________________ 179
OUTPUT REACTORS/ LOW PASS FILTER COMBINATION 460V (1 HP - 600 HP) _______________________________________ 180
SOLID STATE STARTERS

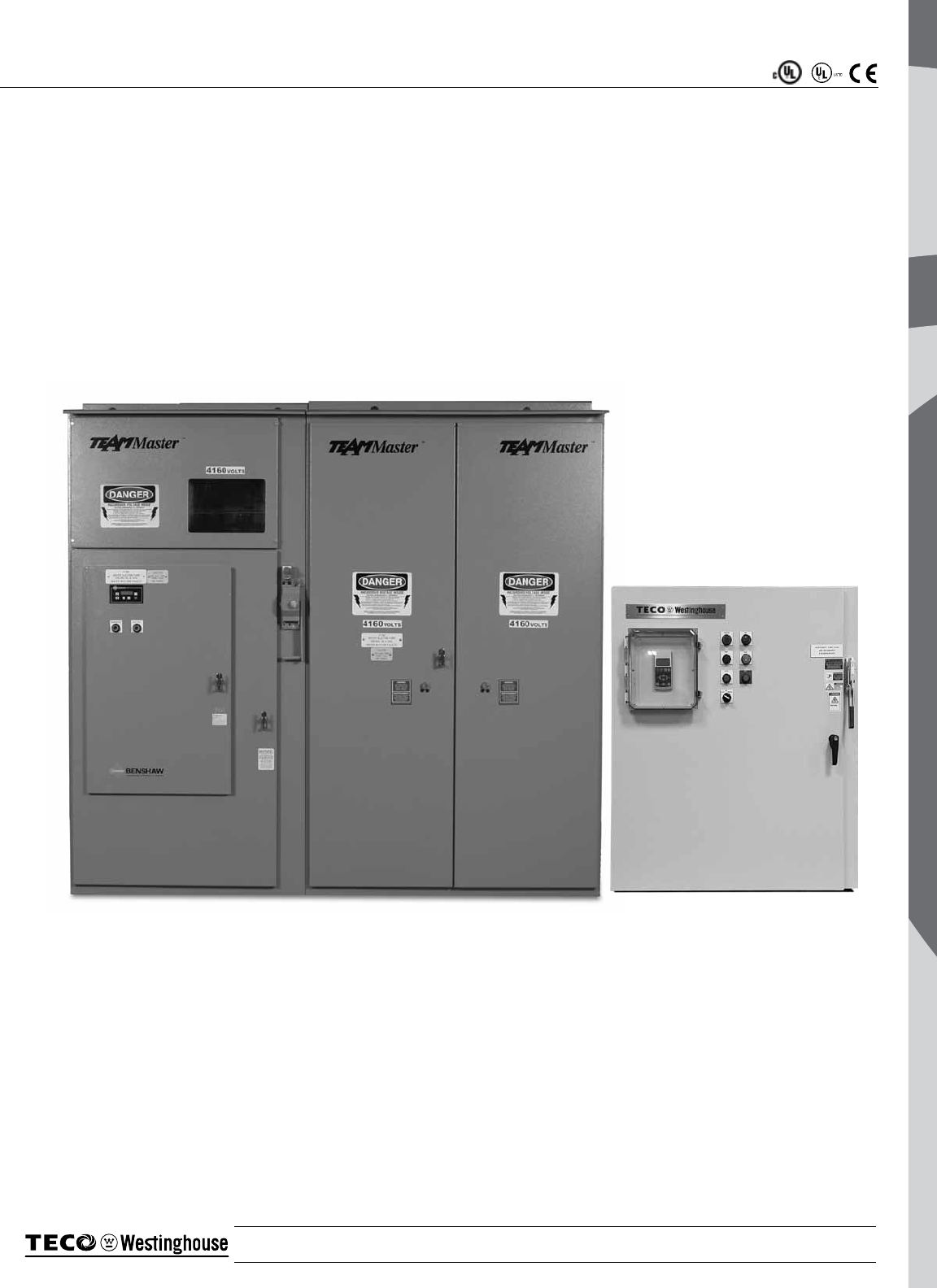

TEAMMASTER™ LOW VOLTAGE (15 HP - 1200 HP) ____________________________________________________________ 183
TEAMMASTER™ MEDIUM VOLTAGE (650 HP - 3000 HP) ________________________________________________________ 184
MEDIUM VOLTAGE DRIVES

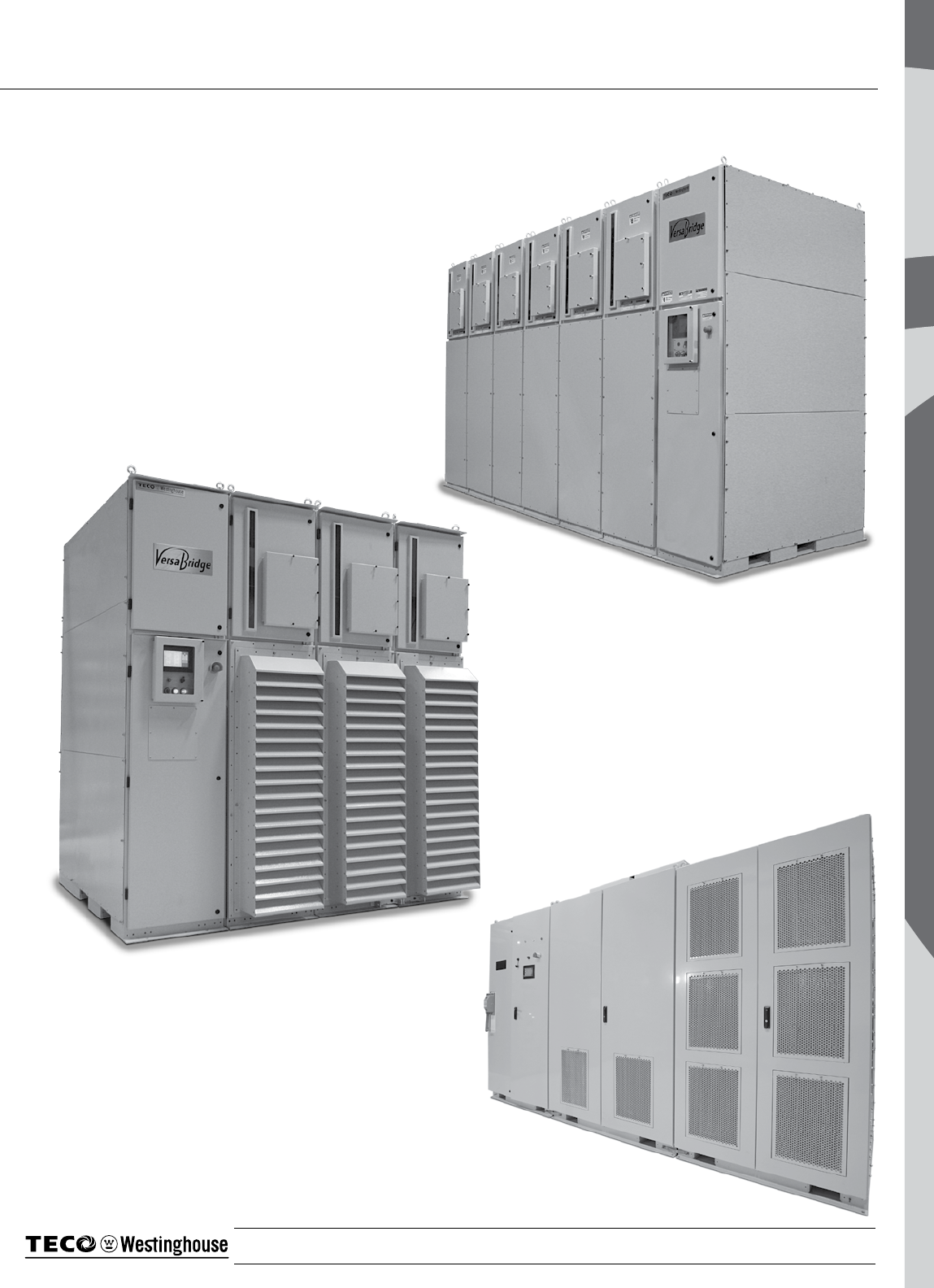

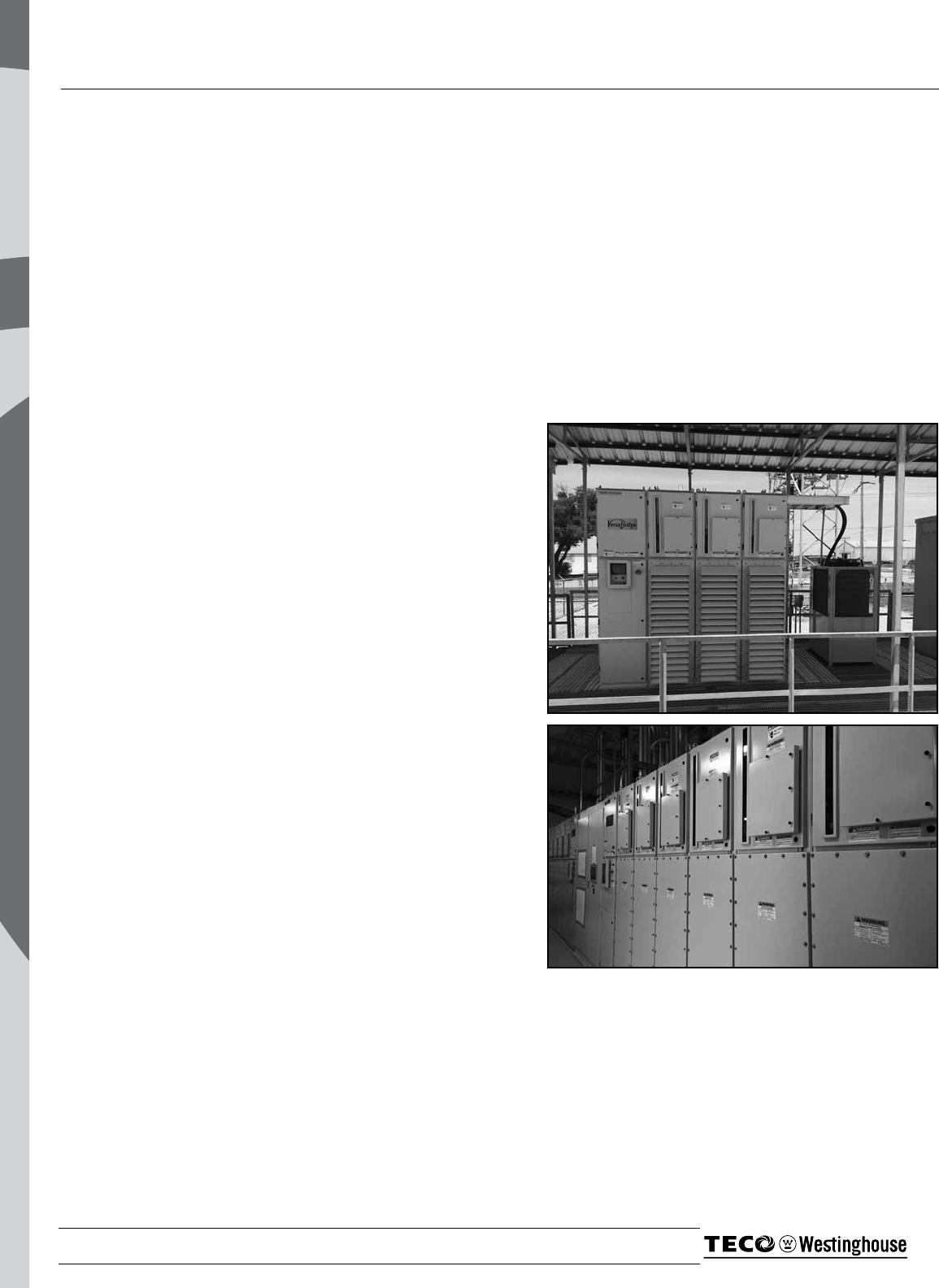

VERSABRIDGE® ________________________________________________________________________________________ 188
VERSABRIDGE® AC _____________________________________________________________________________________ 190
ADDITIONAL DRIVE INFORMATION
DRIVE RMA RETURN PROCEDURE _________________________________________________________________________ 186
ABBREVIATED APPLICATION CHECKLIST ____________________________________________________________________ 192
ENCLOSURE OPTIONS AND MODIFICATIONS ________________________________________________________________ 194
NEMA ENCLOSURE RATING DESCRIPTIONS __________________________________________________________________ 195
TABLE OF CONTENTS AC DRIVES
www.tecowestinghouse.com or call 1-800-USE-TECO | 7
ONLINE SUBMITTAL DATA INSTRUCTIONS
SUBMITTAL DATA
Submittal data consists of basic performance data, dimensional
drawings, connection diagrams, and instruction manuals. Mechanical
and electrical submittal data is available on many stock catalog motors
through our website www.tecowestinghouse.com by following the
three easy steps below. If additional submittal data is required, please
contact your TECO-Westinghouse representative.
1. From our website homepage, www.tecowestinghouse.com,
enter in the part or catalog number in the box in the middle
of the page and then click on "Go".
(Note: If you have a TECO-Westinghouse motor and are looking
for the performance data, please use the catalog number o
the nameplate for your search. Ex: EP0102.)
2. A product listing page will appear about the motor. Click on the
"Learn More" button and you will be taken to the download page.
Here you will be able to print the available performance data,
dimensional drawings, connection diagrams, and instruction
manuals in PDF format for the motor you have selected. Links
to the available information are listed at the bottom of the screen.
Click on the appropriate product link for the information
that you need.
3. Your results will look similar to the example shown to the right
for the TECO-Westinghouse MAX-E1® NEMA Premium Eciency
Severe Duty TEFC motor, catalog # EP0102.
It’s that easy!
ONLINE INSTRUCTIONS
8 | www.tecowestinghouse.com or call 1-800-USE-TECO
CATALOG NUMBER REFERENCE GUIDE
EXAMPLE:
DHP 0754R
FIRST 1-3 SPACES (LETTERS) DESIGNATE THE MOTOR PRODUCT LINE
THREE PHASE ODP
DSP= ROLLED STEEL ODP NEMA PREMIUM F#56 (1/4 HP - 3 HP)
DTP= ROLLED STEEL ODP NEMA PREMIUM F#140T - 280T (1 HP - 40 HP)
*DS= ROLLED STEEL ODP HIGH EFFICIENCY F#56 (1/3 HP - 3 HP)
DJPP/DJMP= ROLLED STEEL ODP JP/JM NEMA PREMIUM (1 HP - 40 HP)
*DJP/DJM= ROLLED STEEL ODP JP/JM HIGH EFFICIENCY (1 HP - 40 HP)
DTP_G= ROLLED STEEL ODP NEMA PREMIUM WITH AEGIS® SGR (1 HP - 40 HP)
DHP= CAST IRON ODP NEMA PREMIUM (1 HP - 800 HP)
DHP_G= CAST IRON ODP NEMA PREMIUM WITH AEGIS® SGR (1 HP - 75 HP)
THREE PHASE TEFC - GENERAL PURPOSE MOTORS
G= 3-PHASE FRACTIONAL HP TEFC HIGH EFFICIENCY (1/3 HP - 2 HP)
GH= ROLLED STEEL TEFC NEMA PREMIUM F#56 (1/4 HP - 2 HP)
GP= ROLLED STEEL TEFC NEMA PREMIUM F#140T - 210T (1 HP - 10 HP)
GH_C= ROLLED STEEL TEFC NEMA PREMIUM FOOTED C-FACE F#56 (1/4 HP - 2 HP)
GHV_C= ROLLED STEEL TEFC NEMA PREMIUM ROUND BODY C-FACE F#56 (1/4 HP - 2 HP)
GP_C= ROLLED STEEL TEFC NEMA PREMIUM FOOTED C-FACE F#140T - 210T (1 HP - 10 HP)
GPV_C= ROLLED STEEL TEFC NEMA PREMIUM ROUND BODY C-FACE F#140T - 210T (1 HP - 10 HP)
GP_G= ROLLED STEEL TEFC NEMA PREMIUM WITH AEGIS® SGR (1 HP - 10 HP)
MP= MAX-IE3 METRIC PREMIUM IE3 EFFICIENCY (0.75 Kw - 112 kW)
THREE PHASE TEFC - SEVERE DUTY MOTORS
JPP/JMP= CAST IRON TEFC JP/JM NEMA PREMIUM (1 HP - 50 HP)
*JPN/JMN= CAST IRON TEFC JP/JM HIGH EFFICIENCY (3/4 HP - 50 HP)
NP= MAX-PE™ NEMA PREMIUM (1 HP - 200 HP)
NP_C= MAX-PE™ NEMA PREMIUM FOOTED C-FACE (1 HP - 200 HP)
NPV_C= MAX-PE™ NEMA PREMIUM ROUND BODY C-FACE (1 HP - 200 HP)
NP_G= MAX-PE™ NEMA PREMIUM WITH AEGIS® SGR (1 HP - 75 HP)
*NV_C= MAX-SE™ HIGH EFFICIENCY ROUND BODY C-FACE (1 HP - 100 HP)
EP= MAX-E1® NEMA PREMIUM (1 HP - 500 HP)
E= MAX-E1® HIGH EFFICIENCY (3/4 HP - 800 HP)
EP_C= MAX-E1® NEMA PREMIUM FOOTED C-FACE (1 HP - 300 HP)
EPV_C= MAX-E1® NEMA PREMIUM ROUND BODY C-FACE (1 HP - 300 HP)
EPY= KEYLESS SHAFT NEMA PREMIUM (200 HP - 500 HP)
EY= KEYLESS SHAFT HIGH EFFICIENCY (600 HP - 800 HP)
HH= MAX-E2/841® "LITE" NEMA PREMIUM (1 HP - 300 HP)
HB= MAX-E2/841® NEMA PREMIUM (1 HP - 500 HP)
HB_C= MAX-E2/841® NEMA PREMIUM FOOTED C-FACE (1 HP - 100 HP)
HBV_C= MAX-E2/841® NEMA PREMIUM ROUND BODY C-FACE (1 HP - 100 HP)
CDP= MAX-HT™ NEMA PREMIUM DESIGN C (20 HP - 200 HP)
CDP= MAX-HT™ NEMA PREMIUM DESIGN A (250 HP - 500 HP)
*CD= MAX-HT™ HIGH EFFICIENCY DESIGN C (20 HP - 600 HP)
KD= MAX-HT™ MEDIUM VOLTAGE ENERGY EFFICIENT HIGH TORQUE (100 HP - 900 HP)
DEFINITE PURPOSE MOTORS

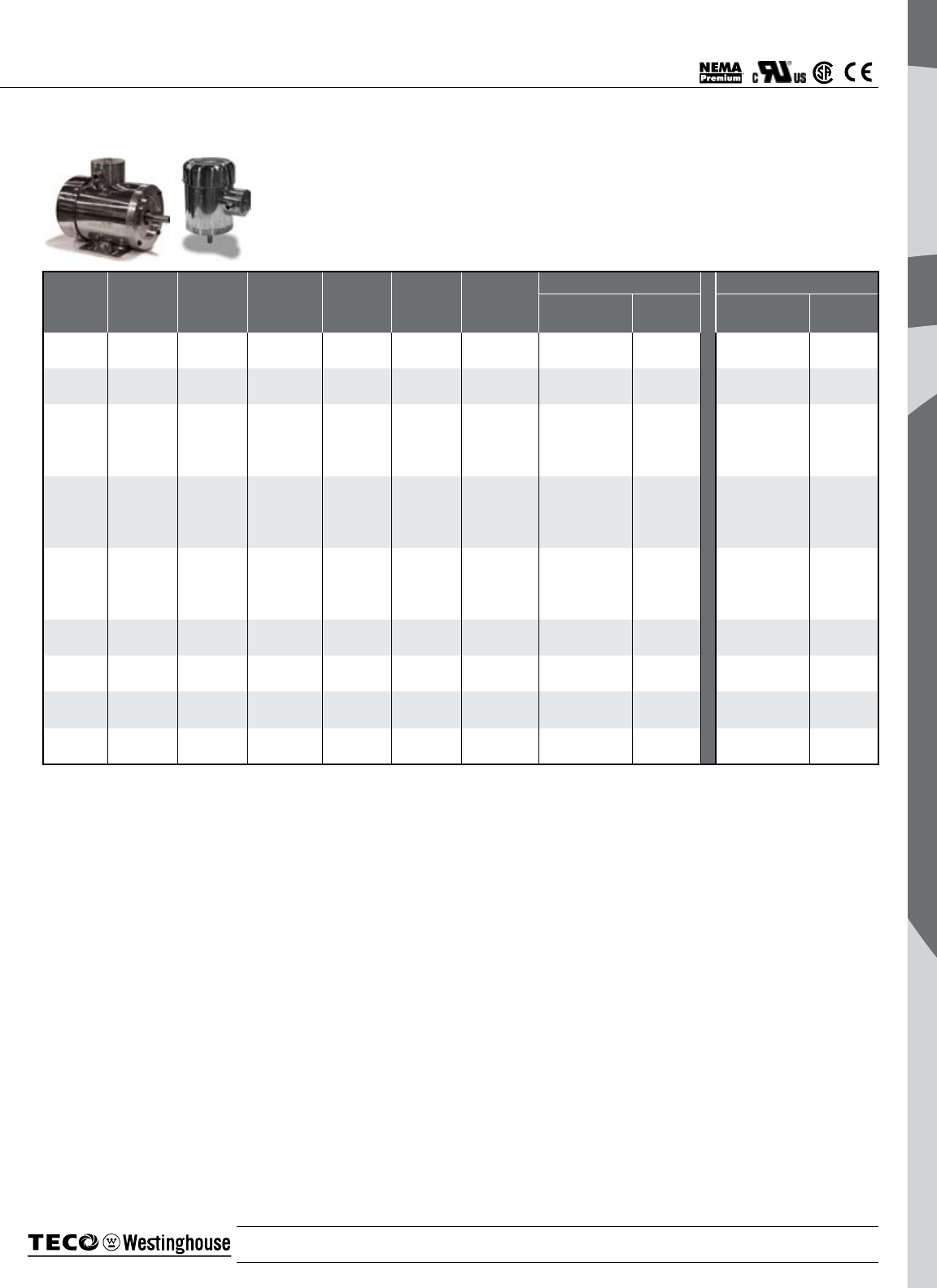

WFP/WP= STAINLESS STEEL WASHDOWN NEMA PREMIUM FOOTED C-FACE (1/2 HP - 10 HP)
WFPV/WPV= STAINLESS STEEL WASHDOWN NEMA PREMIUM ROUND BODY C-FACE (1/2 HP - 10 HP)
S= FARM DUTY SINGLE PHASE HIGH TORQUE (1/3 HP - 10 HP)
SP/SPH= HVAC SINGLE PHASE OPD (1/4 HP - 3 HP)
ST/SPT/SPHT= HVAC SINGLE PHASE TEFC (1/4 HP - 10 HP)
Q= ODP OIL WELL PUMP STANDARD EFFICIENCY (5 HP - 125 HP)
QT= TEFC OIL WELL PUMP STANDARD EFFICIENCY(5 HP - 125 HP)
CP= 2 SPEED, 1 WINDING, VARIABLE TORQUE HIGH EFFICIENCY (100/25 HP - 300/75 HP)
EXPLOSION PROOF MOTORS
XP= TEXP EXPLOSION PROOF NEMA PREMIUM (1 HP - 400 HP)
XP_C= TEXP EXPLOSION PROOF NEMA PREMIUM FOOTED C-FACE (1 HP - 100 HP)
XV_C= TEXP EXPLOSION PROOF NEMA PREMIUM ROUND BODY C-FACE (1 HP - 75 HP)
First 1-3 spaces list continued on next page>>
Notes:
* Product is obsolete.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 9
CATALOG NUMBER REFERENCE GUIDE
EXAMPLE:
DHP 0754R
FIRST 1-3 SPACES (LETTERS) DESIGNATE THE MOTOR PRODUCT LINE
MEDIUM VOLTAGE MOTORS - GLOBAL SERIES
PG= MEDIUM VOLTAGE WPI NEMA PREMIUM (100 HP - 2000 HP)
P= MEDIUM VOLTAGE ODP HIGH EFFICIENCY (100 HP - 1000 HP)
KG= MEDIUM VOLTAGE TEFC NEMA PREMIUM (100 HP - 900 HP)
*JH= MEDIUM VOLTAGE TEFC IEC HIGH EFFICIENCY (800 HP - 2000 HP)
KF= MEDIUM VOLTAGE TEFC NEMA PREMIUM (500 HP - 2000 HP)
JF= MEDIUM VOLTAGE TEFC IEC HIGH EFFICIENCY (900 HP - 1750 HP)
VERTICAL MOTORS
VHP= MAX-VHP™ LV HT VHS WPI NEMA PREMIUM (7.5 HP - 500 HP)
VH= MAX-VH™ LV HT VHS WPI HIGH EFFICIENCY (7.5 HP - 500 HP)
VHTP= MAX-VHP™ LV HT VHS TEFC NEMA PREMIUM (15 HP - 800 HP)
VHKP= MEDIUM VOLTAGE HT WPI NEMA PREMIUM (200 HP - 1000 HP)
VHKTP= MEDIUM VOLTAGE HT TEFC NEMA PREMIUM (200 HP - 700 HP)
EPV_P= MAX-E1™ LV NORMAL THRUST VSS ROUND BODY NEMA PREMIUM (7.5 HP - 100 HP)
HBV_P= MAX-E2/841™ LV NORMAL THRUST VSS ROUND BODY NEMA PREMIUM (7.5 HP - 100 HP)
VSP= MAX-VSP™ LV HT VSS WPI NEMA PREMIUM (15 HP - 800 HP)
VSTP= MAX-VSP™ LV HT VSS TEFC NEMA PREMIUM (15 HP - 800 HP)
VSKP= MEDIUM VOLTAGE HT VSS WPI PREMIUM EFFICIENCY (200 HP - 1000 HP)
VSKTP= MEDIUM VOLTAGE HT VSS TEFC PREMIUM EFFICIENCY (200 HP - 700 HP)
NEXT 3-4 SPACES (NUMBERS) DESIGNATE THE HORSEPOWER
THE FOLLOWING MOTOR LINES ARE THE ONLY ONES THAT WILL HAVE 4 SPACES: PG, P, JH, KF, JF, VHKP, VSKP
IF FOR ONE OF ABOVE, HP <1000, USE A "0" IN 1ST SPACE -- "0800" = 800 HP (i.g. JH08008)
FOR ALL OTHERS, IF HP IS <100, USE A "0" IN 1ST SPACE SPACE -- "025" = 25 HP (i.g. EP0254)
IF HP IS <100, USE A "0" IN THE 1ST SPACE - "075" = 75 HP
IF HP < 1, USE A "0" IN THE 1ST SPACE, FOLLOWED BY A "/", THEN THE NUMBER AFTER THE DECIMAL - "0/2" = 0.25 HP (i.g. DSP0/22)
IF HP HAS A DECIMAL > 1, USE THE WHOLE NUMBER 1ST FOLLOWED BY A "/", THEN THE NUMBER AFTER THE DECIMAL -
"7/5" = 7.5 HP (i.g. DTP7/54)
NEXT SPACE (NUMBER) DESIGNATES THE SPEED
2 = 2 POLE = 3600 OR 3000 RPM
4 = 4 POLE = 1800 OR 1500 RPM
6 = 6 POLE = 1200 OR 1000 RPM
8 = 8 POLE = 900 OR 750 RPM
NEXT SPACE IF OCCUPIED
S = 4 POLE MOTOR WITH SHORT SHAFT (TS)
5 = MOTOR STOCKED STANDARD AS 575 VOLT
2 = MOTOR STOCKED STANDARD AS 200 VOLT
R = MOTOR STOCKED STANDARD WITH A DRIVE-END ROLLER BEARING
C = MOTOR STOCKED STANDARD WITH A C-FACE
Notes:
* Product is obsolete.
1. Vertical motor abbreviations: "VHS" stands for "Vertical Hollow Shaft", "VSS" stands for "Vertical Solid Shaft",
"LV" stands for "Low Voltage", "HT" stands for "High Thrust".
2. "ODP" stands for "Open Drip Proof".
3. "WPI" stands for "Weather Protected Type I".
Effective 03-24-17
Supercedes 06-14-15
10 | www.tecowestinghouse.com or call 1-800-USE-TECO
CONTACT US
STOCK MOTOR GROUP
Customer Service Hours:
7:00 am to 7:00 pm CST Monday through Friday
Toll Free: 1-800-USE-TECO (873-8326)
T-Frame Documents: tframedocs@tecowestinghouse.com Drawings, Test Reports, Submittal Requests, Etc.
T-Frame Parts: tframeparts@tecowestinghouse.com Stock Parts Quotes and Availability
T-Frame Warranty: tframewarranty@tecowestinghouse.com Warranty Support
Customer Service: customerservice@tecowestinghouse.com Orders Status, Stock Checks, Quotes, Etc.
Purchase Orders Entry: orders@tecowestinghouse.com Stock Orders Only
CONTROLS GROUP Phone: 800-279-4007
Low Voltage Technical Support controlstechsupport@tecowestinghouse.com Technical Support, Submittal
Information On Build Up Packages
Low Voltage Warranty controlswarranty@tecowestinghouse.com Controls Warranty Support For VFDs, Starters
Purchase Orders Entry orders@tecowestinghouse.com Orders Only
CENTRAL PHONE NUMBERS
Stock Product Group Customer Service 800-USE-TECO (873-8326)
Controls Group Customer Service 800-279-4007
After Hours Emergency Line: 24 Hours a Day / 7 Days a Week
Sales/ Customer Service*: 512-632-7338
Motor Technical Support: 512-538-8771
Drives/ Controls Products
Technical Support: 512-633-1513
Notes:
* Additional Fees Apply for After Hours Emergency Sales.
For additional details, please contact your Customer Service
Representative or Outside Sales Representative for your area.
Customer Service Center Locations:
Spartanburg, South Carolina
Round Rock, Texas
Warehouse Distribution Center Locations:
Spartanburg, South Carolina
Allentown, Pennsylvania
Des Moines, Iowa
Round Rock, Texas
Reno/Sparks, Nevada
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 11
SELLING POLICY, STOCK MOTORS
Terms and Conditions of Sale
TECO-Westinghouse Motor Company
(TWMC) hereby gives notice of its
objection to any different or additional
terms and conditions. Unless different
or additional terms are stated in
TWMC’s proposal, in which event: 1)
such different or additional terms
shall be exclusive as to the subject
covered, 2) the terms and conditions
stated below apply, and 3) such terms
and conditions supersede any prior
or contemporaneous agreements or
correspondence between the parties.
This sale is expressly conditional on
purchaser’s assent to the terms and
conditions stated below. Purchaser’s
direction to proceed with any the
engineering, manufacture, or shipment
of any product is conclusive as to such
assent.
Dispatch of the buyers purchase
order will constitute an acceptance of
the quotation, and an assent to the
terms and conditions stated below,
if the purchase order agrees with the
quotation in respect to all material
terms.
Quotations
Each quotation is valid for sixty (60)
days from the date of the quotation
unless otherwise stated in the
quotation.
Minimum Billing
The minimum billing per order shall be
$100.00, unless otherwise agreed by
TWMC.
Taxes
With the exception of Harbor
Maintenance Tax as stated in the
following paragraph, TWMC will assume
the payment of all taxes and fees
assessed by any taxing authority in the
United States with respect to this order.
Purchaser will assume the payment of
all taxes, duties, fees and other charges
assessed by any taxing authority in
the Purchasers country or country of
ultimate destination with respect to this
order.
Under FAS lncoterms it is the buyer’s
responsibility to clear the goods for
export. Accordingly, should the buyer
appoint a freight forwarder or agent to
effect export on the buyers instruction,
the buyer’s freight forwarder is
responsible for payment of the US
Harbor Maintenance Tax on behalf of
the buyer.
Terms of Payment
A. Net 30
For contracts with a total price less than
$250,000 and with a shipment date less
than 12 months from the date of order,
an invoice will be issued when each unit
is shipped and the standard terms of
payment are net within thirty (30) days
from the date of invoice.
B. Progress Payments
For contracts with a total price greater
than $250,000 and/or with a shipment
date greater than 12 months from the
date of order, the following payment
terms shall apply.
1. 10% of the contract price shall
be invoiced when drawings for
approval are issued by TWMC. If
drawings for approval are not
specified, an invoice will be mailed
when construction drawings are
issued, but in no event later than
120 days after the date of order.
2. 30% of the price of each unit shall
be invoiced seven (7) months prior
to the first day of the scheduled
shipment month of that unit.
3. 30% of the price of each unit shall be
invoiced four (4) months prior to the
first day of the scheduled shipment
month of that unit.
4. The final 30% of the price of
each unit shall be invoiced upon
complete shipment of each unit.
In each of the above instances, the
terms of payment are net within 30
days from date of invoice.
5. A separate invoice will be issued
concurrently with sections 1,2,3 and
4 for the escalation on that portion
of the contract price. The escalation
for the portion of the contract
involved under 1, 2, 3 and 4 ceases
on the date the invoice is issued.
C. Adequate Assurances of Payment
If, in the judgment of TWMC, the
financial condition of the purchaser
does not justify the terms of payment
specified, TWMC may, at its option,
require full or partial payment in
advance.
Overdue Payments
If payments are not made in accordance
with these terms, the quoted price shall,
without prejudice to the right of TWMC
to immediate payment, be increased
by an amount equal to the lesser of 1.5
percent per month or fraction thereof
or the highest legal rate of interest on
the unpaid balance.
Delivery
Delivery of each item of equipment
shall be made FOB Point of Shipment
with freight prepaid. Purchaser shall
reimburse TWMC for freight charges
in an amount equal to the lesser of
TWMC’s NEMA Frame Freight Policy in
effect at the time of shipment or actual
freight charges. Such amounts will be
paid by purchaser upon presentation of
invoice by TWMC.
Force Majeure
TWMC shall not be liable for failure to
perform or for delay in performance
resulting from any cause beyond
TWMC’s reasonable control or due
to compliance with any regulations,
orders, acts, instructions or priority
requests of any federal, state or
municipal Government, or any
department or agency thereof, civil
or military authority, acts of God, acts
or omissions of the Purchaser, fires,
floods, weather, strikes lockouts, factory
shutdowns, faulty castings or forgings,
embargoes, wars, hostilities, riots,
delays or shortages in transportation or
inability to obtain labor, manufacturing
facilities or material from TWMCs usual
sources.
In the event of delay in performance
due to any such cause, the date of
Effective 03-24-17
Supercedes 06-14-15
12 | www.tecowestinghouse.com or call 1-800-USE-TECO
SELLING POLICY, STOCK MOTORS  CONTINUED
delivery or time for completion shall
be extended by a period of time
reasonably necessary to overcome
the effect of such delay, and TWMC
shall be reimbursed for any additional
expense(s) resulting from such delay.
The Purchasers receipt of products shall
constitute a waiver of any claims related
to the delay.
Warranty
Standard Warranty
TWMC warrants that the equipment
furnished hereunder will be of the kind
and quality described in its proposal or
contract and will be free of defects in
workmanship and material.
Should any failure to conform to this
warranty occur within one year after
the date of initial operation, or eighteen
months after the date of shipment
(with respect to custom motors, the
stock motor warranty period shall be
thirty-six months from the date of
manufacture, regardless of the date
the motor is placed in operation),
whichever is earlier, TWMC shall correct
such nonconformity by repairing or
replacing the defective part or parts,
FOB factory or its designated repair
facility at TWMCs option.
The buyer shall not be required to
deliver a defective part to the seller if:
1. The part was destroyed as a result of
its defect or of any defect in any part
covered in this warranty, and
2. The seller is reasonably satisfied that
the part was defective at the time
of sale. If both these conditions are
met the seller shall replace the part
in the same manner as if the buyer
had delivered it into the sellers
plant.
This warranty is conditioned upon
the storage, installation, operation,
and maintenance of the equipment
in accordance with any TWMC
recommendations and standard
industry practice.
In no event shall TWMC be responsible
for:
1. Providing working access to the
defect, including the removal
disassembly, replacement or
reinstallation of any equipment,
materials or structures to the extent
necessary to permit TWMC to
perform its warranty obligations,
2. Transportation costs to and from the
TWMC factory or designated repair
facility,
3. The conditions of any test shall be
mutually agreed upon, and TWMC
shall be notified of, and may be
present at all tests that may be
made,
4. Repairs performed without
authorization by TWMC.
Merger Clause
Any representation, warranty, course of
dealing, or trade usage not contained
or referenced herein shall not be
binding on TWMC. This writing, along
with any additional parol agreements
favoring TWMC, constitutes the entire
agreement of the parties on the subject
matter hereof. No modification,
amendment, recision, waiver, or other
change shall be binding on TWMC
unless expressly assented to in writing
by TWMC.
DISCLAIMER OF WARRANTIES: THE
WARRANTIES SET FORTH IN THIS
PROVISION ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES
WHETHER STATUTORY, EXPRESS
OR IMPLIED (INCLUDING ALL
WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR
PURPOSE AND ALL WARRANTIES
ARISING FROM COURSE OF DEALING
OR USAGE OF TRADE EXCEPT
OF TITLE AND AGAINST PATENT
INFRINGEMENT.
The remedies provided above are the
Purchasers sole remedies for any failure
of TWMC to comply with its obligations.
Correction of any non-conformity
in the manner and for the period of
time provided above shall constitute
complete fulfillment of all the liabilities
of TWMC whether the claims of the
Purchaser are based in contract, in tort
(including negligence or strict liability
otherwise with respect to or arising out
of the product furnished hereunder.
Limitation of Liability
TWMC, its subcontractors and suppliers
of any tier, shall not be liable in
contract, in tort (including negligence
or strict liability equipment, loss of
profits or otherwise) for damage or
loss of other property or revenue, loss
of use of equipment or power system,
cost of capital, cost of purchased or
replacement power or temporary
equipment (including additional
expenses incurred in using, claims
of customers of the existing facilities
Purchaser, or for any special, indirect,
incidental, or consequential damages
whatsoever.
The remedies of the Purchaser set
forth herein are exclusive and the
total cumulative liability of TWMC
with respect to any contract, or any
action taken in connection therewith
such as the performance or breach
thereof, or from the manufacture, sale,
delivery, resale, or use of any product
covered by or furnished under the
order, whether in contract, in tort
(including negligence or strict liability
or otherwise) shall not exceed the price
of the product or part on which such
liability is based.
The sole purpose of the exclusive
remedy stipulated herein shall be to
insure that the product furnished is
of the kind and quality described in
TWMC’s proposal or contract, and is free
of defects in workmanship and material.
This exclusive remedy shall not be
deemed to have failed of its essential
purpose:
1. as long as TWMC is willing and
able to correct defects in the
workmanship and material of the
product, or, alternatively,
2. if TWMC has expended a combined
sum equal to or greater than the
purchase price of the product in its
attempts to correct defects in the
workmanship or material of the
product.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 13
SELLING POLICY, STOCK MOTORS  CONTINUED
Patents
Subject to the following provisions,
TWMC shall, at its own expense,
defend or at its option settle any
claim, suit or preceding brought
against the Purchaser, and/or its
vendees, mediate or immediate, so
far as based on an allegation that
any goods, material, equipment,
device, or article (hereinafter referred
to as product) constitutes a direct
or contributory infringement of any
claim of any patent of the United or
any part thereof furnished hereunder
States. This obligation shall be effective
only if Purchaser shall have made all
payments then due hereunder and if
TWMC is notified promptly in writing
and given authority, information, and
assistance for the defense of said claim,
suit, or proceeding. TWMC shall pay
all damages and costs awarded in such
suit or proceeding so defended.
1. In case the product or any part
thereof furnished hereunder
becomes the subject of any
claim, suit, or proceeding for the
infringement of any United States
patent, or if the use or sale of such
product or parts is enjoined, TWMC
shall, at its option and its own
expense either:
a. procure for the purchaser the
right to continue using said
product or part thereof; or
b. replace it with a non-infringing
product; or
c. modify it so it becomes non-
infringing, or
d. as a last resort remove it and
refund the purchase price
and the transportation and
installation costs thereof.
2. The foregoing indemnity does not
apply to the following:
a. Patented processes performed
by the product, or any product
produced thereby,
b. Products supplied according to a
design other than that of TWMCs
and which is required by the
Purchaser,
c. Combinations of the product
with another product not
furnished hereunder unless
TWMC is a contributory infringer,
d. Any settlement of a suit or
proceeding made without
TWMC’s written consent.
TWMC shall not be obliged to deliver
the products until such insurance,
indemnities and waivers have been
procured and are legally operative in
TWMC’s favor, failing which TWMC may
rescind the sale without liability.
The foregoing states the entire liability
of TWMC with respect to patent
infringement by said product or any
part thereof. If a suit or proceeding
is brought against TWMC solely on
account of activities enumerated in
paragraph 2 a, b, c above, Purchaser
agrees to indemnify TWMC in the
manner and to the extent TWMC
indemnified the Purchaser in the first
paragraph of this provision insofar as
the terms thereof are appropriate.
Additional Conditions Applicable to
Nuclear Applications
1. In the event that the Purchaser or
third parties use product or any
part thereof, in connection with
any activity or process involving
nuclear fission or fusion or any use
or handling of any source, special
nuclear or byproduct material as
those materials are defined in the
US Atomic Energy Act of 1954 as
amended, Purchaser, at no expense
to TWMC shall provide or arrange
for insurance coverage, indemnities,
waivers of liability, recourse and
subrogation in such amounts and
under such terms and conditions
as may be acceptable to TWMC, to
protect TWMC (and its subsidiaries,
subcontractors or suppliers of any
tier) against any and all loss, cost,
damage or expense and claims and
demands therefore, in contract, in
tort or otherwise, including the cost
of investigating, litigating and/or
settling any such claims or demands,
on account of bodily injury, sickness,
disease or death to any person or
the loss of, loss of use of, or damage
to property whether located on or
off the site of a nuclear installation,
arising out of, or resulting from
the radioactive, toxic, explosive
or other hazardous properties of
source, special nuclear or byproduct
materials, as those materials are
defined in the US Atomic Energy Act
of 1954 as amended.
2. In the event that the Purchaser
resells, distributes or in any way
relinquishes control of the product
or services to a third party, the
Purchaser shall require from such
third party
a. compliance with all requirements
under 1 above and
b. assurance that any subsequent
Purchaser of the product or
services complies with all
requirements under 1 above.
Interpretation
All orders shall be interpreted in
accordance with the laws of the State of
Texas.
TWMC-4500T, Rev. 2, 3/02/17
Effective 03-24-17
Supercedes 06-14-15
14 | www.tecowestinghouse.com or call 1-800-USE-TECO
TECO-WESTINGHOUSE STOCK MOTOR AND CONTROL PRODUCTS WARRANTY POLICY
STANDARD WARRANTY INFORMATION
All TECO-Westinghouse brand Stock Motors and Low Voltage Control Products, such as Solid State Starters and AC
Drives, ("control products") sold by TECO-Westinghouse Motor Company ("TWMC") are warranted to be free from
defects in material and workmanship for a period of 36 months from the date of manufacture. A warranty of 36 months
from the date of sale is applicable when a TWMC Low Voltage Control Product and a TWMC Inverter Duty Motor are
purchased together. All MAX-E2/841® motors have a 5 year warranty.
This warranty is conditioned upon the installation, operation, and maintenance of the motors and control products
in accordance with TECO-Westinghouse Motor Company's recommendations or standard industry practice, and the
motors and control products have at all times been operated or used under normal operating conditions for which they
were designed. This warranty will not be applicable to products that have been altered without written permission
from TWMC.
TWMC shall, at its sole option and expense, either repair or replace, FOB warehouse or TWMC designated service center,
any such motor, motor part, or control product which is defective within the warranty period.
In the event of warranty claims, TWMC must be notified promptly following any motor or control product failure. The
motor or control product shall be sent to a TWMC authorized service center for diagnosis on the cause of failure. For
motor and control products if the failure is due to defective material and/or workmanship, TWMC will replace or repair
the defective motor, motor part, or control product at its discretion.
The repair or replacement of defective material and workmanship shall constitute complete fulfillment of TECO-
Westinghouse Motor Company's warranty liability whether the warranty claims are based on contract, tort (including
negligence and strict liability), or otherwise. THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, AND
ALL WARRANTIES ARISING FROM COURSE OF DEALING AND USAGE OF TRADE. UNDER NO CIRCUMSTANCES
SHALL TECO-WESTINGHOUSE MOTOR COMPANY BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING FREIGHT.
STOCK MOTOR AND CONTROL PRODUCTS RETURN POLICY
All returned goods are subject to prior approval and must be accompanied by a Return Material Authorization (RMA)
number. These goods must be returned within 90 days, freight prepaid, in resalable condition and in original packaging.
A 15% restocking fee will be applied. If upon receipt of the RMA, goods are deemed not to be in resalable condition or
in original packaging, then additional fees will be applied. RETURNS ON MODIFIED MOTORS OR CONTROL PRODUCTS
WILL NOT BE ALLOWED.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 15
PROCEDURE FOR WARRANTY CLAIMS ON STOCK MOTORS
WARRANTY CLAIMS
In the event of warranty claims, TECO-Westinghouse Motor Company must be notified promptly prior to any repairs
or replacement of failed motors and/or motor components. Original purchase information will be requested. The
failed motor shall be sent to a TECO-Westinghouse authorized service center for diagnosis on the cause of the
failure. EASA Certified Shops can be found at EASA.com using the "find a member" search feature. If the failure is
due to defective material and/or workmanship, TWMC shall, at its sole option, either repair on a straight time bases,
issue credit, or replace, FOB Warehouse any such motor or component that is defective within the warranty period.
Failure to notify TWMC prior to performing repairs or providing replacements will result in denial of warranty claims.
Contact the TWMC Warranty Department at (512) 218-7475.
or via email - tframewarranty@tecowestinghouse.com
AUTHORIZED SERVICE
Authorized service centers shall contact TWMC's Warranty Department for serial number verification to determine
warranty status of the motor. If the motor is within the original warranty period, the service center shall dismantle
and inspect the motor, and prepare a standard EASA Warranty Repair Report. Fax the report to TWMC's Warranty
Department at (512) 218-7378 for review of the failure and determination if the failure will be covered under terms
of the TWMC standard warranty.
WARRANTY DETERMINATION
If the motor failure is determined to be a warranty failure, a Warranty Claim Authourization (WCA) number will be
assigned to the claim. The WCA number represents the credit memo number for any motor not repaired, as well
as the purchase order number for inspection, and/or repair charges for motors to be replaced or repaired. Charges
for inspections and/or repairs to motors outside the warranty period or for failures not resulting from material or
workmanship issues are the sole responsibility of the end user.
For Warranty Repairs: The original EASA Warranty Repair Report, along with pictures documenting the failure, shall
be submitted to the TWMC's Warranty Department, along with an invoice for all repair charges. All reports and
invoices submitted require an RMA number for processing. Claims submitted without RMA numbers will be denied.
For Warranty Credit: The original EASA Warranty Repair Report, pictures, invoice and the original nameplate off
the motor must be returned to TWMC's Warranty Department prior to issuance of credit. All claims and invoices
submitted require an WCA number for processing. Claims submitted without WCA numbers will be denied. An
invoice must be received for payment of inspection charges. Invoice only for inspection charges. Credit will be
issued to the buyers account for any motor determined not repairable.
Request for warranty replacements: In special circumstances, TWMC's Warranty Department can approve
replacement orders, if an exact replacement motor/component is in stock. If a warranty replacement motor is
needed and approved, a new purchase order, with reference to the warranty claim number will need to be
emailed to orders@tecowestinghouse.com for processing and shipment. All such orders will be shipped
FOB warehouse, and the customer will receive an invoice for the replacement. Upon receipt of the nameplate
off the original failed motor, credit will be issued for the failed motor. Freight is not covered under warranty.
NOTE: If the cause of the failure is determined to not be a result of manufacturer's defect or workmanship, all
expenses associated with inspection, repair, etc., will be the responsibility of others.
See page xxx for Control Products Return Procedure.
Effective 03-24-17
Supercedes 06-14-15
16 | www.tecowestinghouse.com or call 1-800-USE-TECO

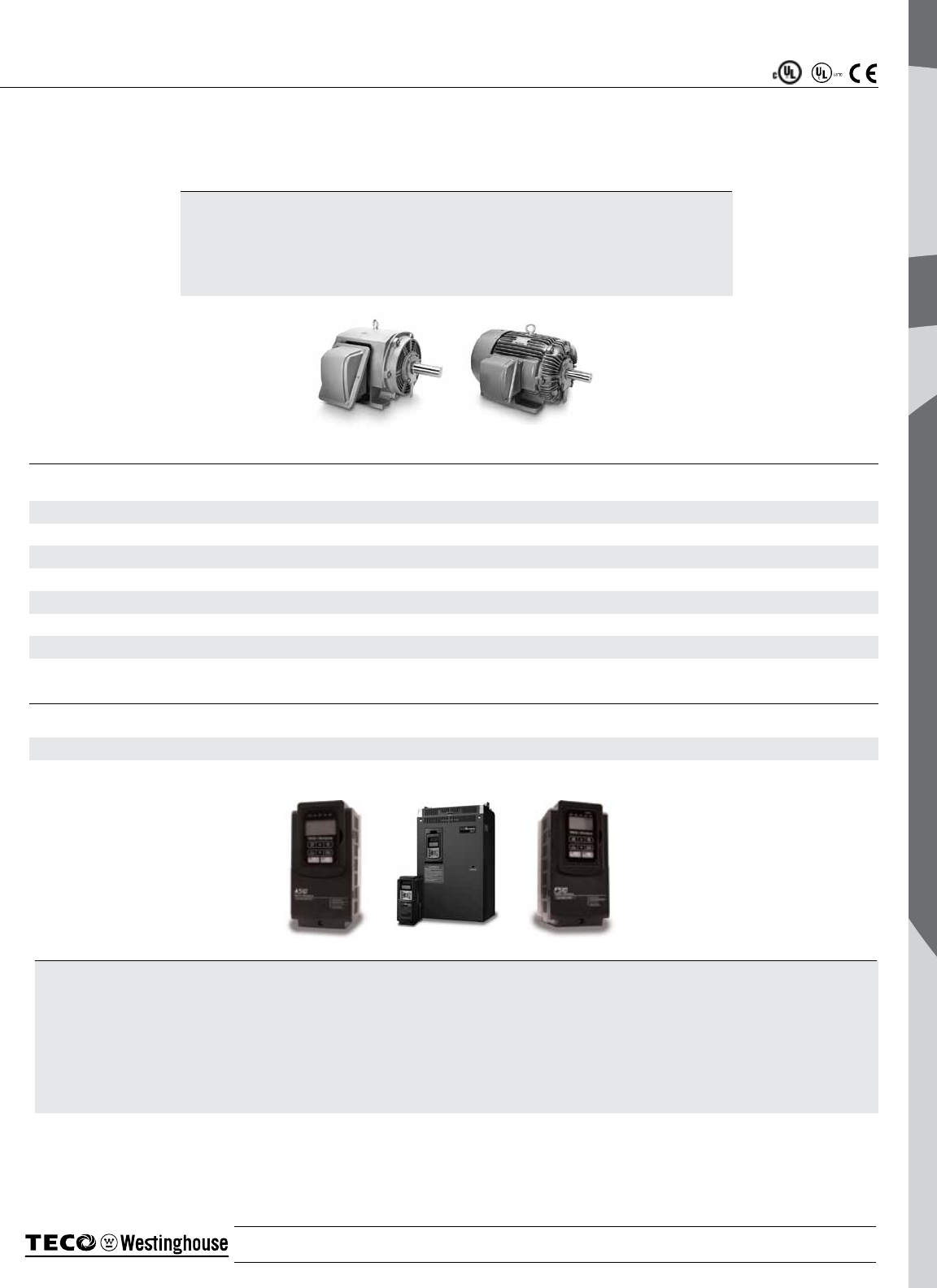

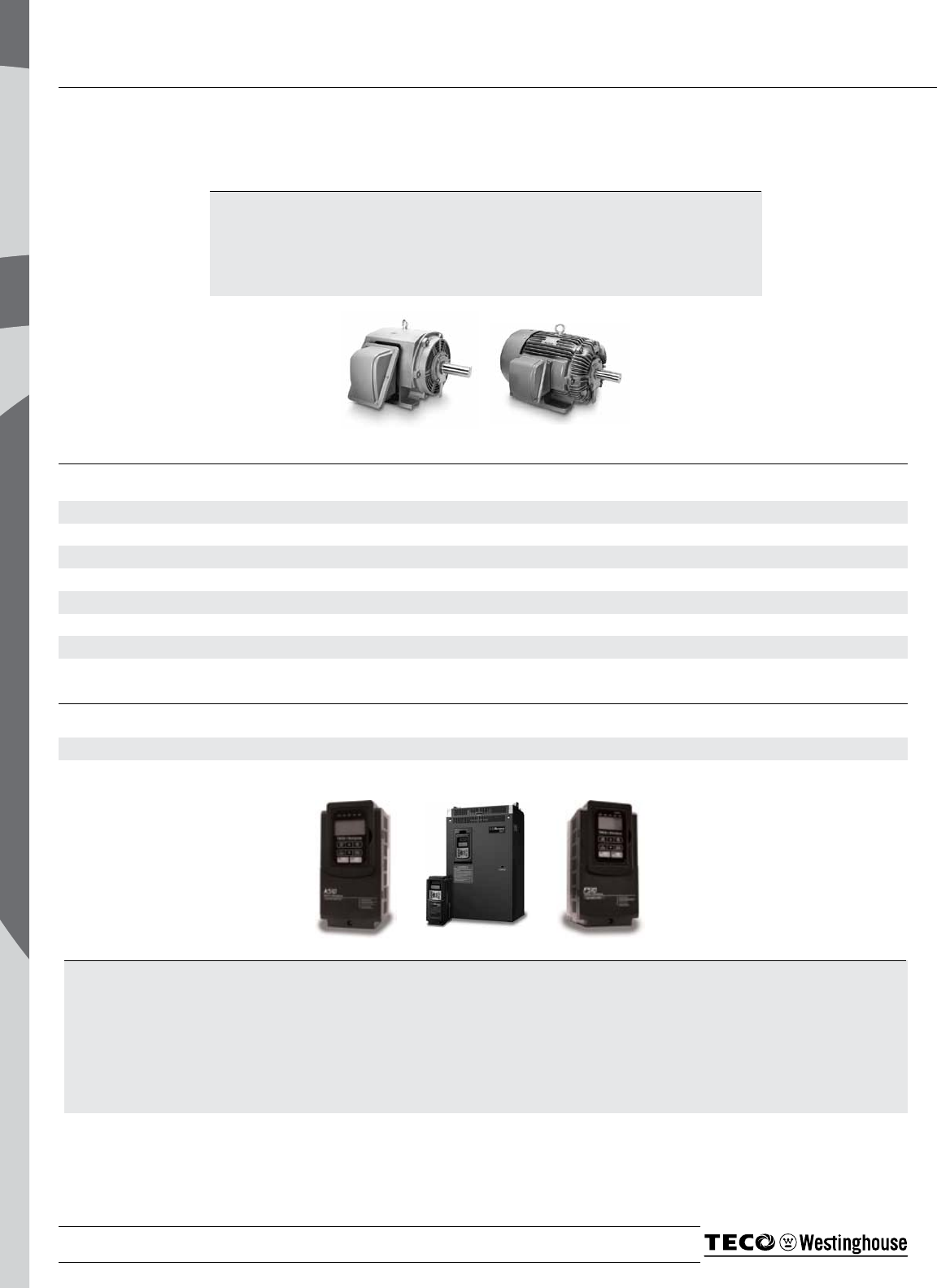

MOTOR AND DRIVE COMBINATION PACKAGES
APPLICABLE MOTORS
z Rolled Steel and Cast Iron ODP
143T through 5009B Frame
1 to 500 HP
1200, 1800, and 3600 RPM
z MAX-E1® type AEHE, AEHH8N
143T through 6808B Frame
1 to 800 HP
900, 1200, 1800, and 3600 RPM

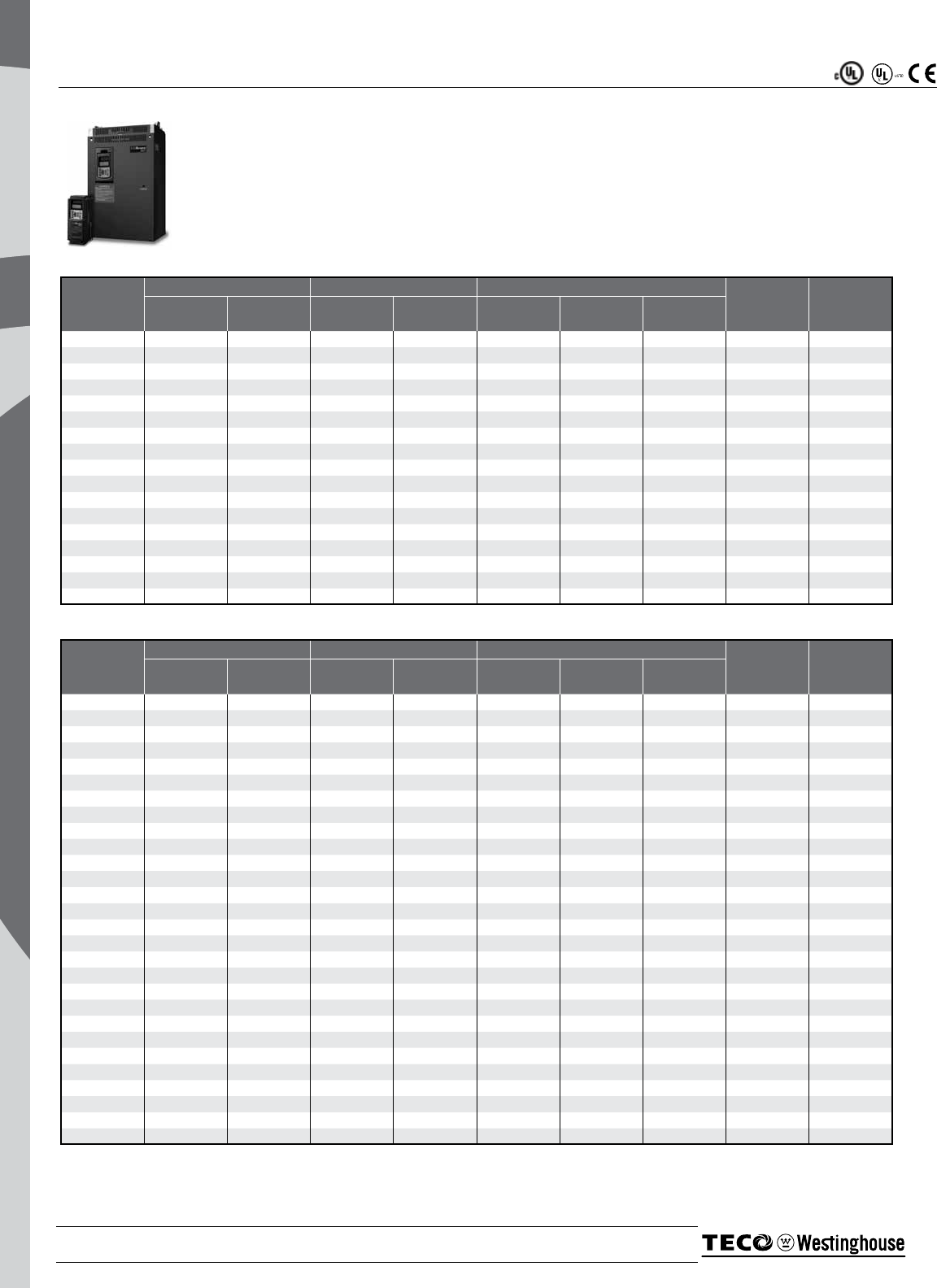

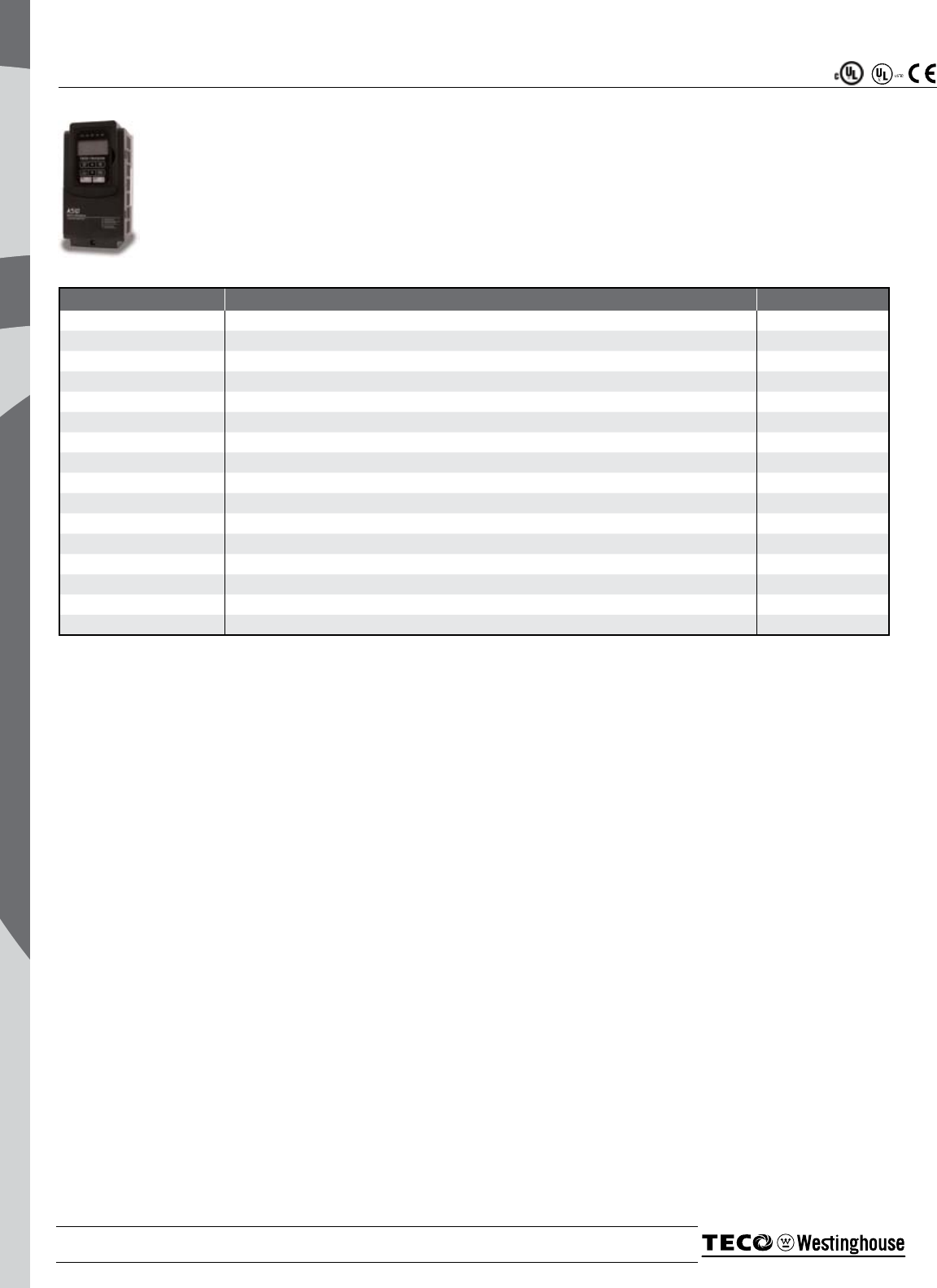

APPLICABLE VARIABLE FREQUENCY DRIVES PRODUCTS
z EQ7 or A510 Drives for Constant Torque Applications
z EQ7 or F 510 Drives for Variable Torque Applications
z 230VAC to 125 HP, 460VAC to 800 HP
** Use Promo Code "MIPKG2017" when placing motor and Drive Order **
Premium Efficient Motor and Drive Combination Packages
developed for both constant and variable torque applications
• Single Source Reliability
• Additional 5% Discount when purchasing matching motor and drive sets
• 5 Year Warranty valid on all combination packages.
• Select any combination of ODP or MAX-E1® premium Efficient Motors with any power-
matched A510, F510, or EQ7 VFD
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 17

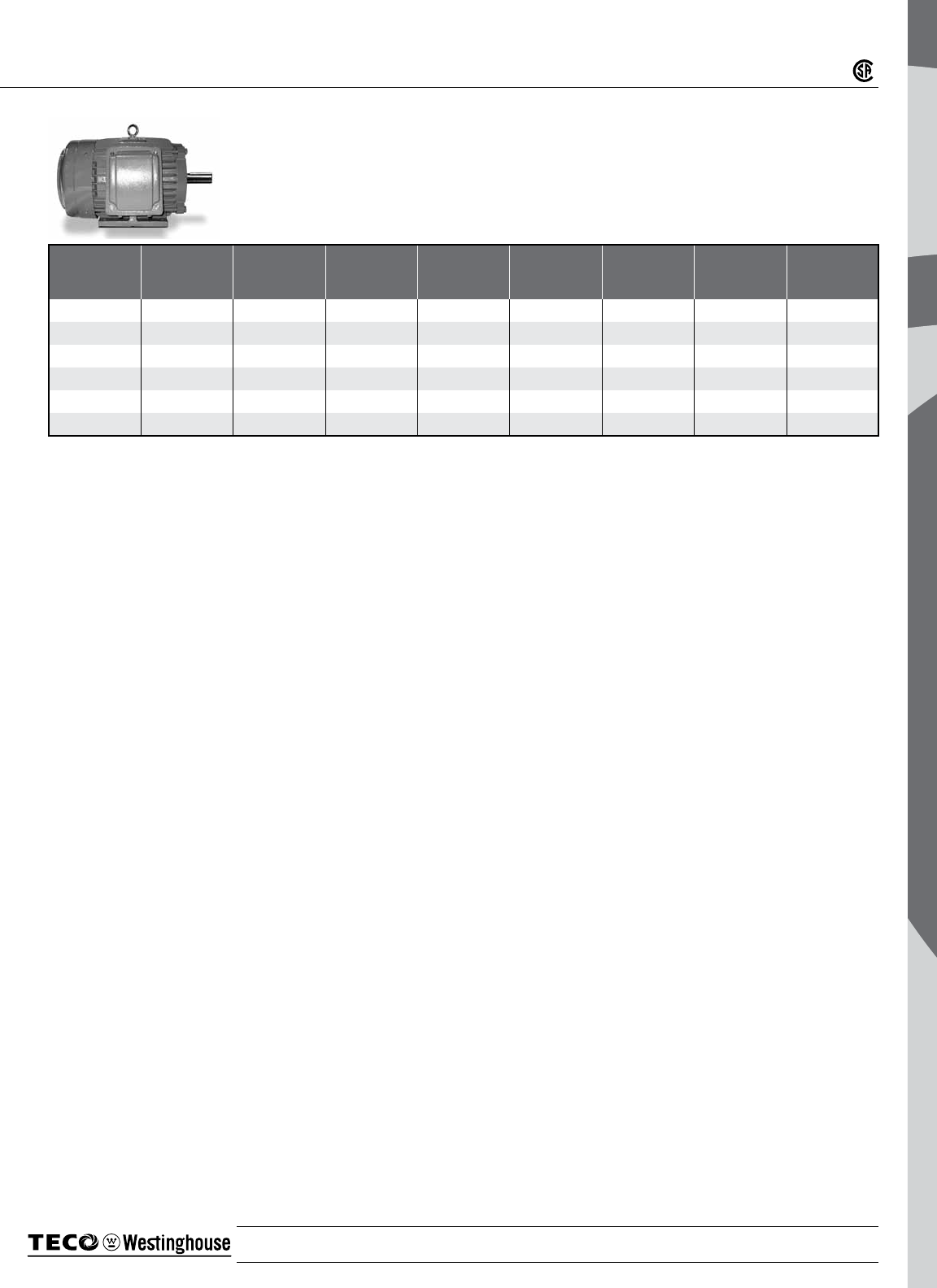

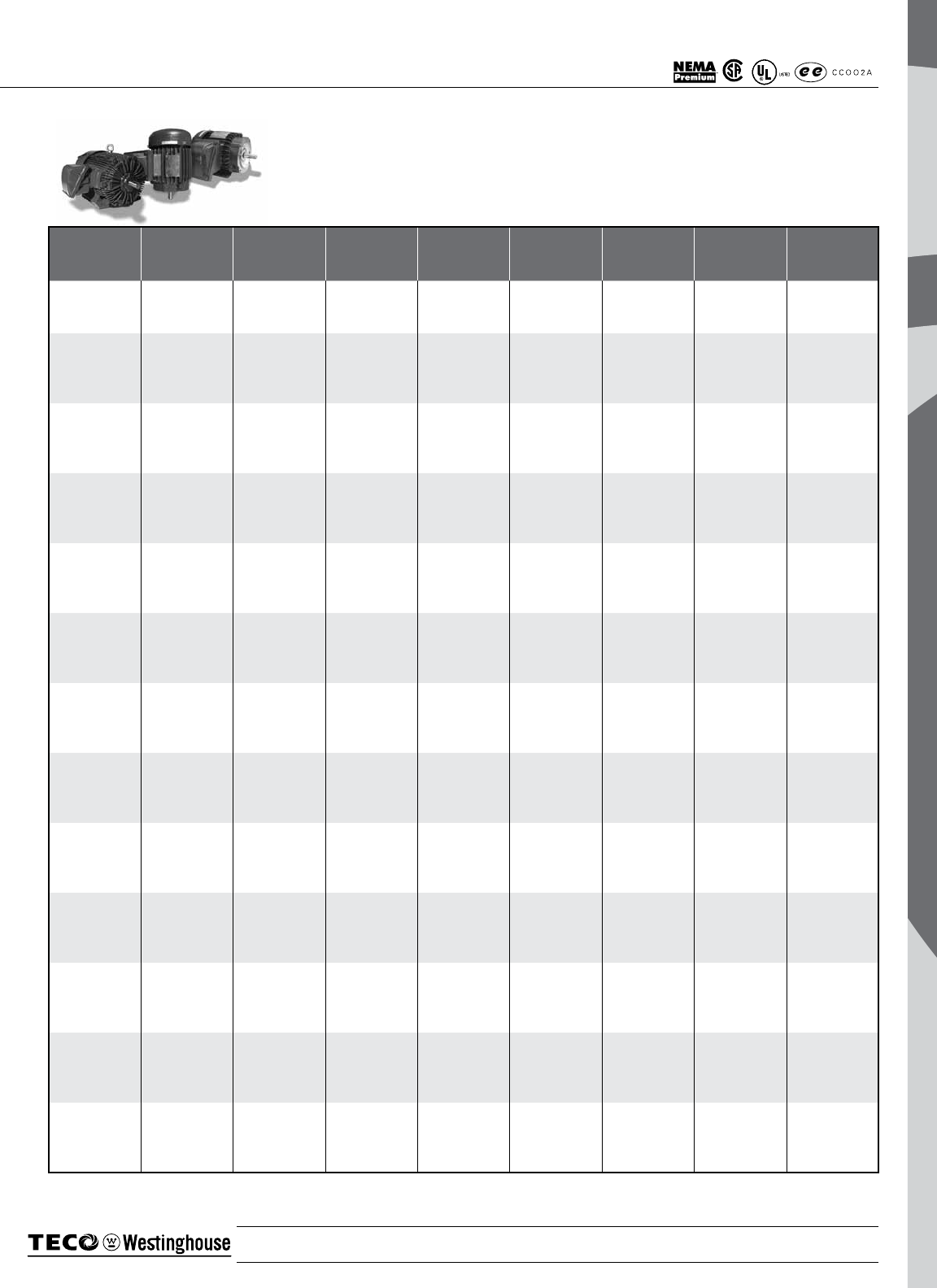

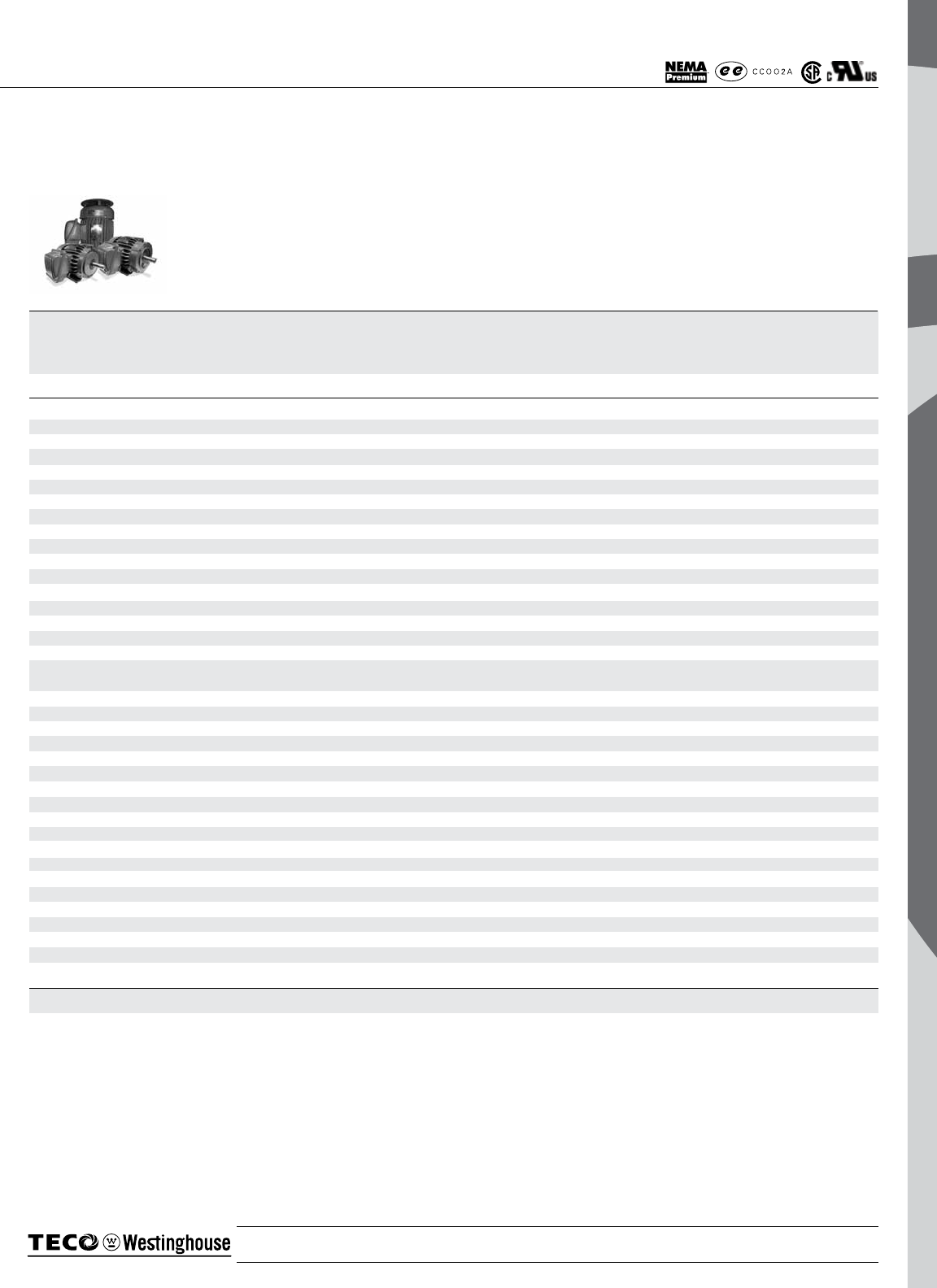

ROLLED STEEL ODP FAMILY
ASGHPE, NEMA PREMIUM, F#56 (1/4 HP - 3 HP) [DSP]
ASGH, NEMA PREMIUM, F#140T - 280T (1 HP - 40 HP) [DTP]
ASGA, HIGH EFFICIENCY, F#56 (1/3 HP - 3 HP) [DS]
ASGHJP/JM, NEMA PREMIUM, CLOSE COUPLED, (1 HP - 40 HP) [DJPP/DJMP]
ASGAJP/JM, HIGH EFFICIENCY, CLOSE COUPLED, (1 HP - 40 HP)[DJP/DJM]*
APPLICATIONS:
z Fans & Blowers z Compressors
z Pumps z Fire Pumps*
z HVAC Equipment
FEATURES:
z Output Range: 1/3 - 40 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Open Drip Proof (IP22)
z Voltage: 230/460V (Usable on 200 & 208V)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques
z Rolled Steel Frame and Main Conduit Box
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(1)
z Designed for 3300 ft. Elevation(2)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Premium - Blue - Munsell 5PB 3/8
High Efficient - Light Gray - Munsell N5.0
z Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(3,4)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP and Larger
z Motors are U.L. Recognized for United States and Canada, CSA Approved and CE Marked
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
* Fire Pump available. See product page for more details.
(1) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(2) Consult a Stock Product Application Specialist for suitability at higher elevations.
(3) Motor service factor is 1.0 when operated on a VFD.
(4) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
Effective 03-24-17
Supercedes 06-14-15
18 | www.tecowestinghouse.com or call 1-800-USE-TECO
ROLLED STEEL ODP PREMIUM
ASGHPE, NEMA PREMIUM, F#56 (1/4 HP - 3 HP) [DSP]
ASGH, NEMA PREMIUM, F#140T - 280T (1 HP - 40 HP) [DTP]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(230V)
APPROX.
SHIPPING
WT. (lbs.)
LIST PRICE ($)
DSP0/22 1/4 3600 56 72.0 82.0 0.79 19 243
DSP0/24 1/4 1800 56 72.0 73.0 0.89 20 259
DSP0/26 1/4 1200 56 70.0 61.0 1.10 24 348
DSP0/32 1/3 3600 56 71.5 80.5 1.08 21 243
DSP0/34 1/3 1800 56 75.5 74.5 1.11 22 259
DSP0/36 1/3 1200 56 72.0 61.0 1.42 22 348
DSP0/52 1/2 3600 56 73.4 81.5 1.57 22 259
DSP0/54 1/2 1800 56 78.2 81.0 1.48 22 285
DSP0/56 1/2 1200 56 75.5 63.0 1.97 23 378
DSP0/72 3/4 3600 56 76.8 80.0 2.29 35 291
DSP0/74 3/4 1800 56 81.1 77.5 2.23 23 316
DSP0/76 3/4 1200 56 81.7 67.5 2.55 26 384
DSP0012 1 3600 56 77.0 79.5 3.06 25 338
DTP0012 1 3600 143T 80.0 85.5 2.74 34 356
DSP0014 1 1800 56 83.5 72.0 3.11 25 338
DTP0014 1 1800 143T 85.5 75.5 2.90 42 356
DSP0016 1 1200 56 82.5 66.0 3.44 32 400
DTP0016 1 1200 145T 82.5 66.0 3.44 43 460
DSP1/52 1.5 3600 56 85.5 83.0 3.96 26 362
DTP1/52 1.5 3600 143T 85.5 83.0 3.96 34 380
DSP1/54 1.5 1800 56 86.5 80.5 4.03 30 362
DTP1/54 1.5 1800 145T 86.5 80.5 4.03 47 394
DTP1/56 1.5 1200 182T 86.5 54.0 6.01 94 487
DSP0022 2 3600 56 86.5 85.0 5.09 28 384
DTP0022 2 3600 145T 85.5 89.0 4.92 42 429
DSP0024 2 1800 56 86.5 79.0 5.48 35 384
DTP0024 2 1800 145T 86.5 79.0 5.48 47 418
DTP0026 2 1200 184T 87.5 57.0 7.51 94 533
DSP0032 3 3600 56 86.5 89.0 7.30 36 464
DTP0032 3 3600 145T 85.5 86.0 7.64 42 479
DSP0034 3 1800 56 86.9 80.0 8.08 53 415
DTP0034 3 1800 182T 89.5 73.0 8.60 94 460
DTP0036 3 1200 213T 88.5 69.0 9.20 158 744
DTP0052 5 3600 182T 87.5 88.0 12.2 94 543
DTP0054 5 1800 184T 89.5 77.0 13.6 94 576
DTP0056 5 1200 215T 89.5 73.0 14.3 158 898
DTP7/52 7.5 3600 184T 88.5 90.0 17.6 94 715
DTP7/54 7.5 1800 213T 91.0 81.0 19.1 158 826
DTP7/56 7.5 1200 254T 90.2 77.0 20.2 292 1,340
DTP0102 10 3600 213T 90.2 85.5 24.3 158 898
DTP0104 10 1800 215T 91.7 84.0 24.3 158 979
DTP0106 10 1200 256T 91.7 79.5 25.7 292 1,531
DTP0152 15 3600 215T 91.0 87.0 35.5 158 1,202
DTP0154 15 1800 254T 93.0 83.0 36.4 230 1,349
DTP0156 15 1200 284T 91.7 80.0 38.3 344 2,047
DTP0202 20 3600 254T 91.7 90.0 45.4 292 1,565
DTP0204 20 1800 256T 93.0 83.0 48.5 292 1,667
DTP0206 20 1200 284T 92.4 81.5 49.4 344 2,481
DTP0252 25 3600 256T 91.7 91.0 56.1 292 1,857
DTP0254 25 1800 284T 93.6 85.0 58.8 344 2,060
DTP0302 30 3600 284TS 92.4 90.0 67.6 344 2,296
DTP0304 30 1800 286T 94.1 86.0 69.4 415 2,421
DTP0402 40 3600 286TS 92.4 90.5 89.6 415 2,939
Notes:
(1) DSP0034 is not the same or equivalent (different frame) to DS0034. Shaft diameters are different.
(2) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 19

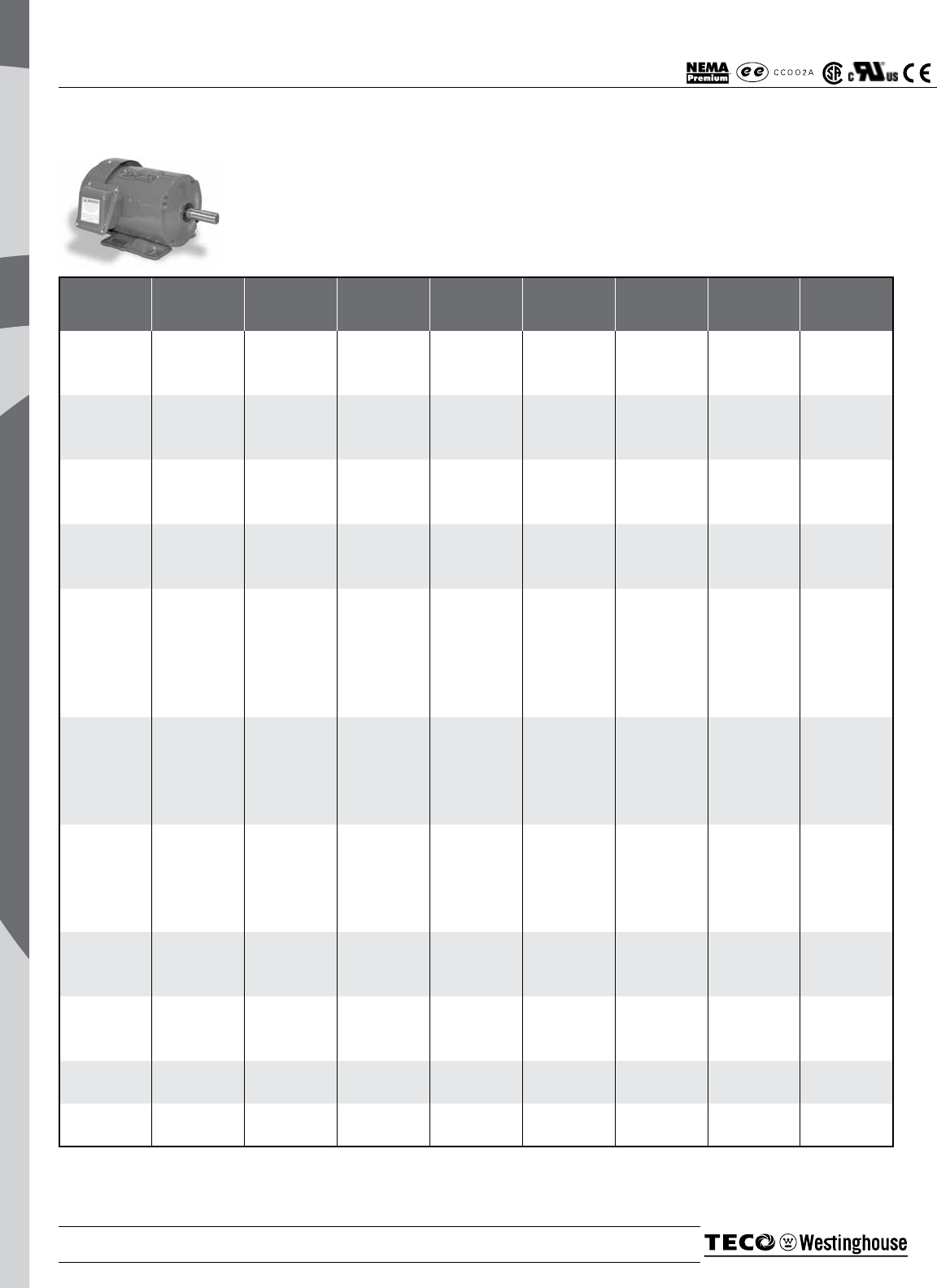

ROLLED STEEL ODP
ASGA, HIGH EFFICIENCY, F#56 (1/3 HP - 3 HP) [DS]
CATALOG
NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(230V)
APPROX.
SHIPPING
WT. (lbs.)
FIRE PUMP
LIST PRICE
($)
DS0/32 1/3 3600 A56 68.0 73.8 1.24 21 230
DS0/34 1/3 1800 A56 75.5 73.0 1.13 22 246
DS0/36 1/3 1200 A56 75.5 67.2 1.23 22 330
DS0/52 1/2 3600 A56 72.0 73.8 1.76 22 246
DS0/54 1/2 1800 A56 77.0 68.8 1.77 22 270
DS0/56 1/2 1200 A56 75.5 65.5 1.89 23 359
DS0/72 3/4 3600 A56 75.5 74.2 2.51 35 276
DS0/74 3/4 1800 A56 75.5 70.0 2.66 23 300
DS0/76 3/4 1200 A56 75.5 63.2 2.94 26 364
DS0012 1 3600 A56 74.0 74.0 3.40 25 321
DS0014 1 1800 A56 77.0 75.8 3.20 25 321
DS0016 1 1200 A56 77.0 70.8 3.40 32 380
DS1/52 1.5 3600 A56 77.0 79.2 4.60 26 344
DS1/54 1.5 1800 A56 80.0 80.0 4.40 30 344
DS0022 2 3600 A56 80.0 80.5 5.80 28 364
DS0024 2 1800 B56 81.5 82.0 5.60 35 364
DS0032 3 3600 B56 82.5 85.0 8.00 36 440
DS0034 3 1800 56HZ 86.5 80.5 8.00 53 415
Notes:
(1) Per DOE regulations, this High Efficiency motor line inventory will be available through June 2018, or until current inventory has been
depleted. Whichever occurs first.
(2) Once product listed on this page has been depleted from current stock, that model becomes obsolete and can not be re-ordered.
(3) Please see our new line of Premium Efficient 56 frame Rolled Steel ODP motors on page 16.
(4) DSP0034 is not the same or equivalent (different frame) to DS0034. Shaft diameters are different.
(5) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
20 | www.tecowestinghouse.com or call 1-800-USE-TECO

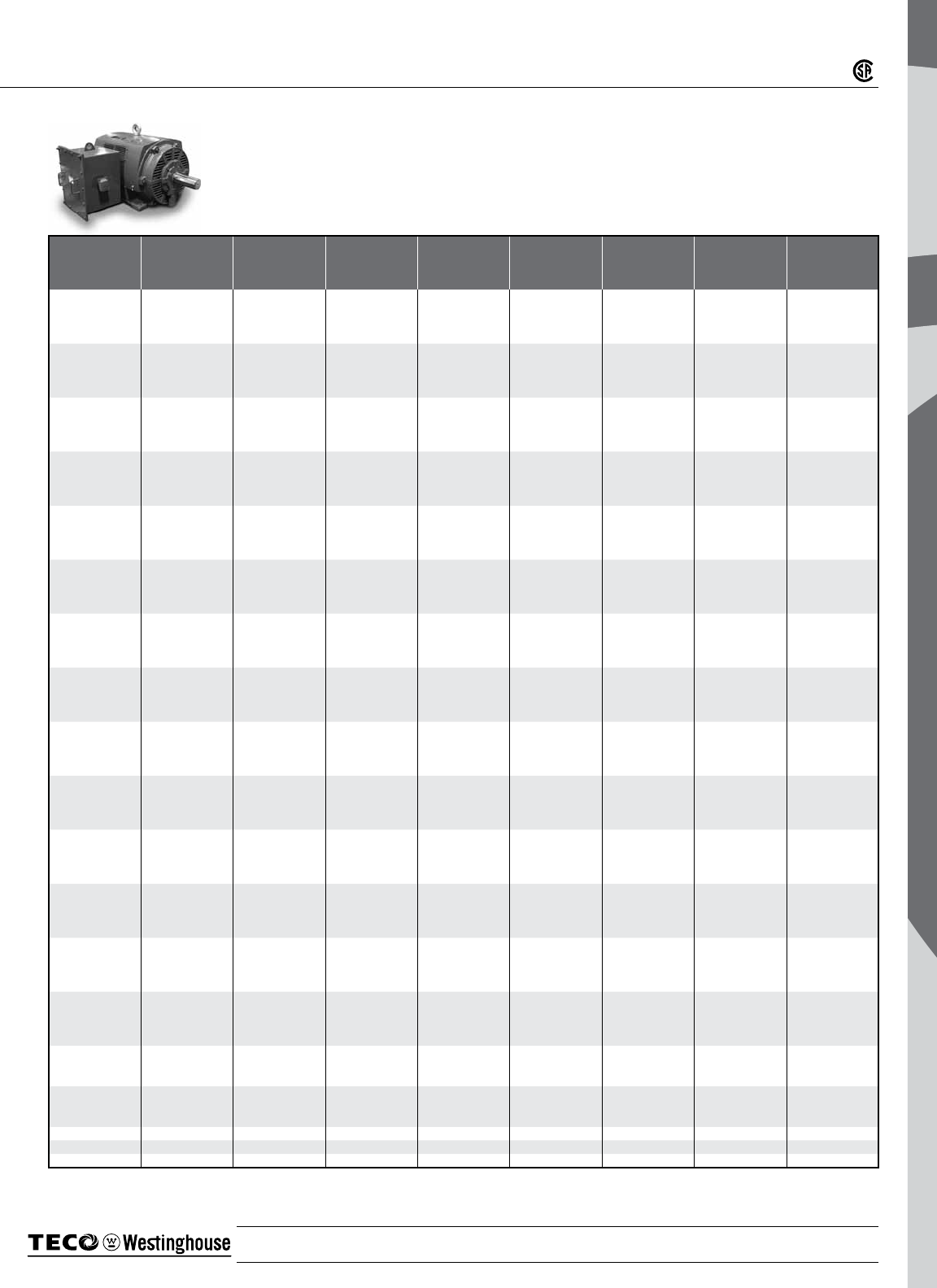

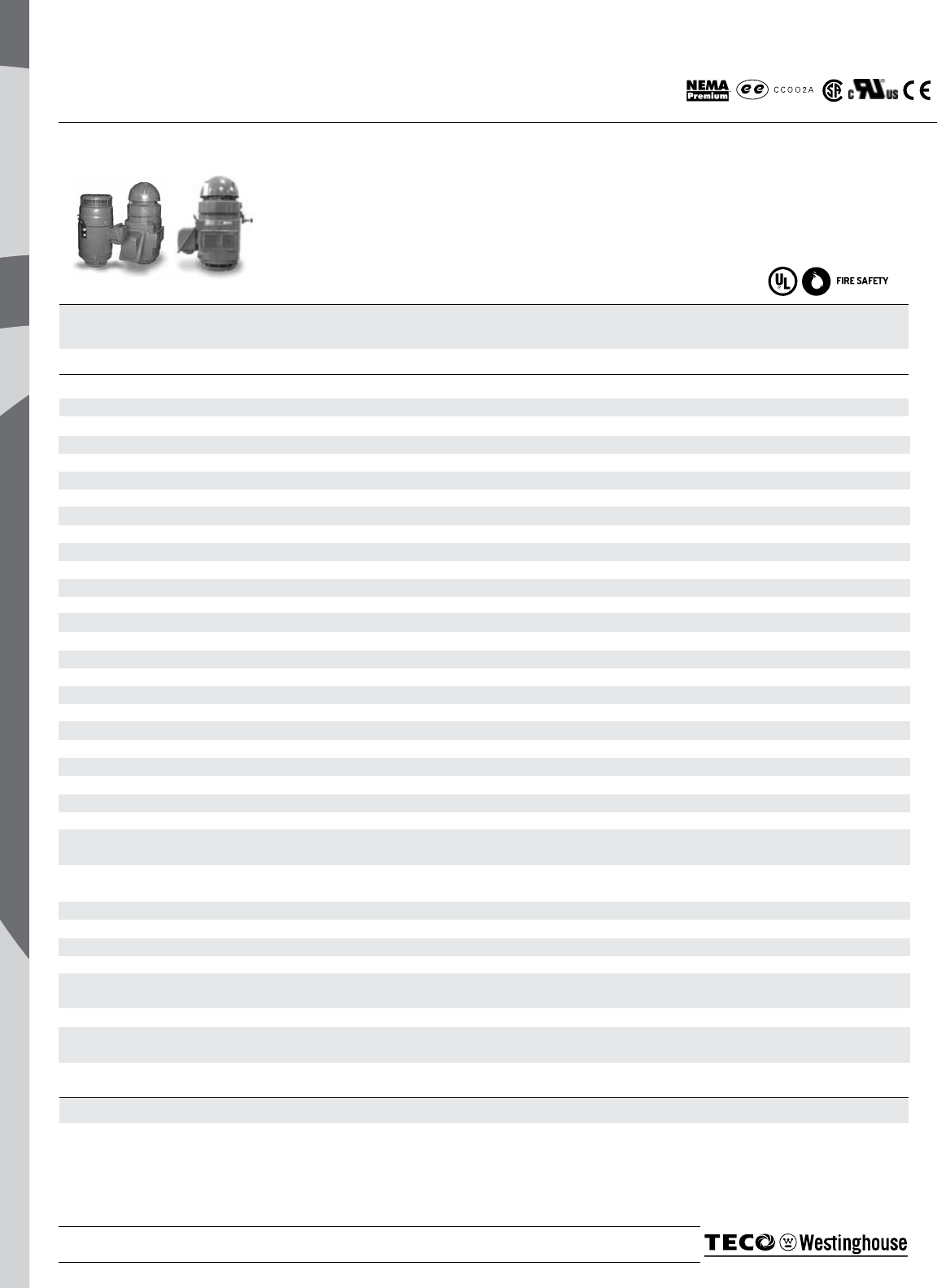

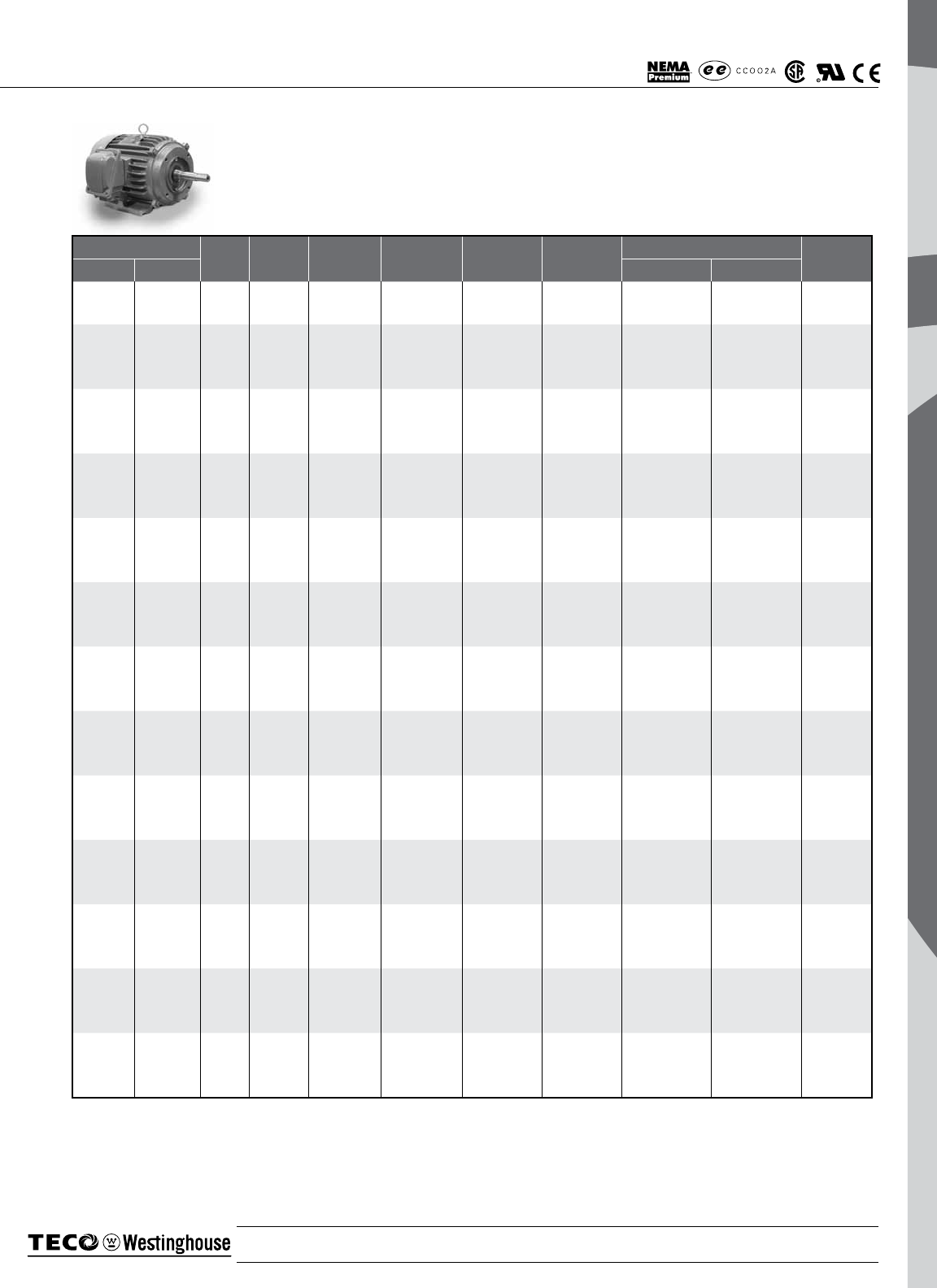

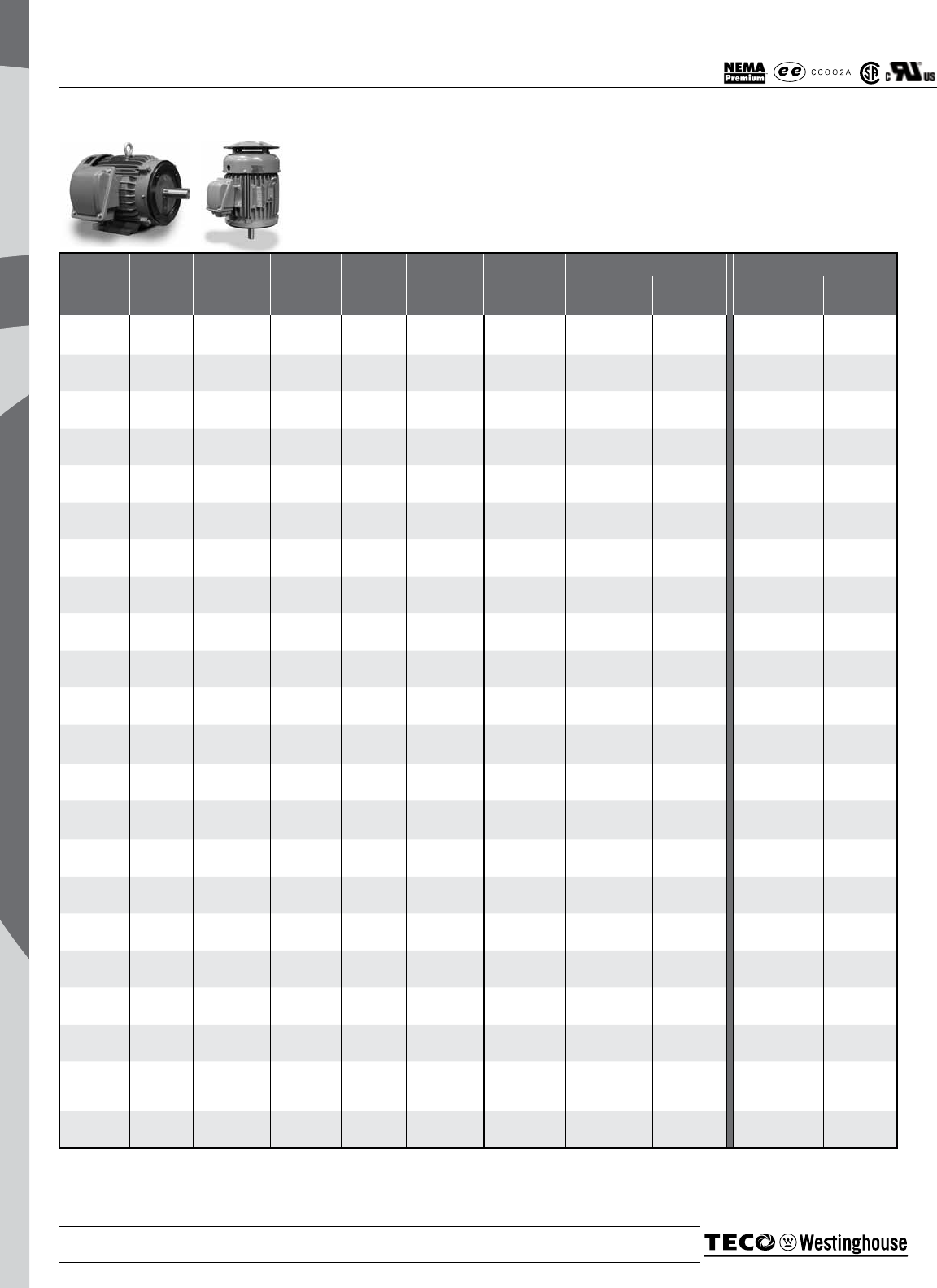

ROLLED STEEL ODP JP/JM PREMIUM
ASGHJP/JM, NEMA PREMIUM, CLOSE COUPLED, (1 HP - 40 HP) [DJPP/DJMP]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(230V)
APPROX. SHIPPING WT.
(lbs.) LIST
PRICE
($)
JP JM JP JM
DJPP0014 DJMP0014 1 1800 143JP/JM 85.5 75.5 2.90 40 40 426
DJPP0016 DJMP0016 1 1200 145JP/JM 82.5 66.0 3.44 45 45 530
DJPP1/52 DJMP1/52 1.5 3600 143JP/JM 85.5 83.0 3.96 40 40 452
DJPP1/54 DJMP1/54 1.5 1800 145JP/JM 86.5 80.5 4.03 47 47 471
DJPP1/56 DJMP1/56 1.5 1200 182JP/JM 86.5 54.0 6.01 90 83 551
DJPP0022 DJMP0022 2 3600 145JP/JM 86.5 85.0 5.09 45 45 474
DJPP0024 DJMP0024 2 1800 145JP/JM 86.5 79.0 5.48 50 49 474
DJPP0026 DJMP0026 2 1200 184JP/JM 87.5 57.0 7.51 93 89 611
DJPP0032 DJMP0032 3 3600 145JP/JM 85.5 86.0 7.64 50 50 554
DJPP0034 DJMP0034 3 1800 182JP/JM 89.5 73.0 8.60 113 95 534
DJPP0036 DJMP0036 3 1200 213JP/JM 88.5 69.0 9.20 155 146 854
DJPP0052 DJMP0052 5 3600 182JP/JM 87.5 88.0 12.2 95 78 685
DJPP0054 DJMP0054 5 1800 184JP/JM 89.5 77.0 13.6 113 108 630
DJPP0056 DJMP0056 5 1200 215JP/JM 89.5 73.0 14.3 155 146 1,183
DJPP7/52 DJMP7/52 7.5 3600 184JP/JM 88.5 90.0 17.6 100 78 840
DJPP7/54 DJMP7/54 7.5 1800 213JP/JM 91.0 81.0 19.1 155 140 904
DJPP7/56 DJMP7/56 7.5 1200 254JP/JM 90.2 77.0 20.2 265 265 1,463
DJPP0102 DJMP0102 10 3600 213JP/JM 90.2 85.5 24.3 167 165 1,060
DJPP0104 DJMP0104 10 1800 215JP/JM 91.7 84.0 24.3 180 150 1,008
DJPP0106 DJMP0106 10 1200 256JP/JM 91.7 79.5 25.7 290 275 1,706
DJPP0152 DJMP0152 15 3600 215JP/JM 91.0 87.0 35.5 167 165 1,400
DJPP0154 DJMP0154 15 1800 254JP/JM 93.0 83.0 36.4 265 257 1,492
DJPP0156 DJMP0156 15 1200 284JP/JM 91.7 80.0 38.3 375 365 2,179
DJPP0202 DJMP0202 20 3600 254JP/JM 91.7 90.0 45.4 265 250 1,782
DJPP0204 DJMP0204 20 1800 256JP/JM 93.0 83.0 48.5 275 265 1,858
DJPP0206 DJMP0206 20 1200 284JP/JM 92.4 81.5 49.7 410 405 2,769
DJPP0252 DJMP0252 25 3600 256JP/JM 91.7 91.0 56.1 300 275 2,115
DJPP0254 DJMP0254 25 1800 284JP/JM 93.6 85.0 58.8 375 365 2,190
DJPP0302 DJMP0302 30 3600 284JP/JM 92.4 90.0 67.6 370 350 2,464
DJPP0304 DJMP0304 30 1800 286JP/JM 94.1 86.0 69.4 395 370 2,567
DJPP0402 DJMP0402 40 3600 286JP/JM 92.4 90.5 89.6 395 370 3,217
Notes:
(1) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 21

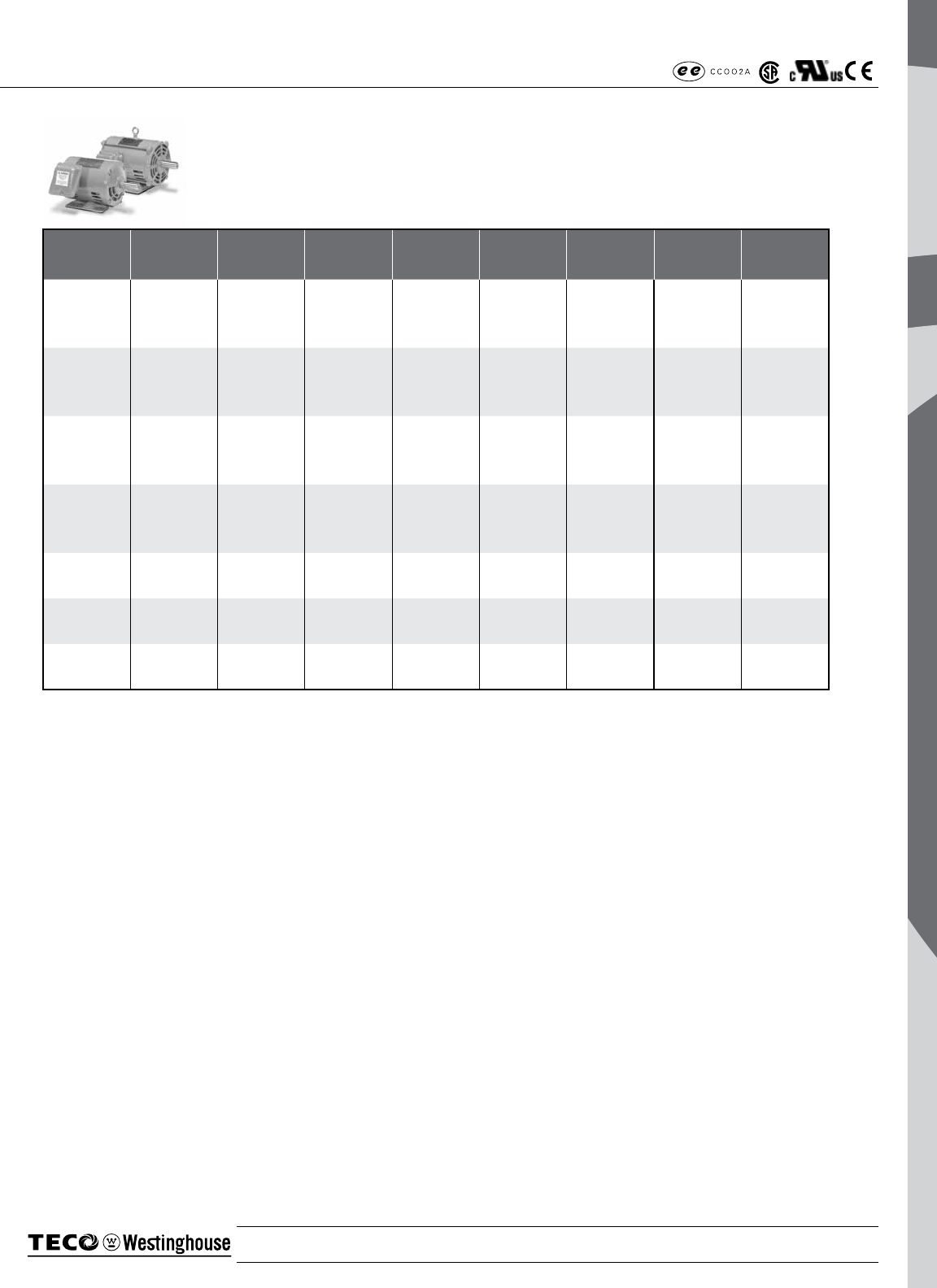

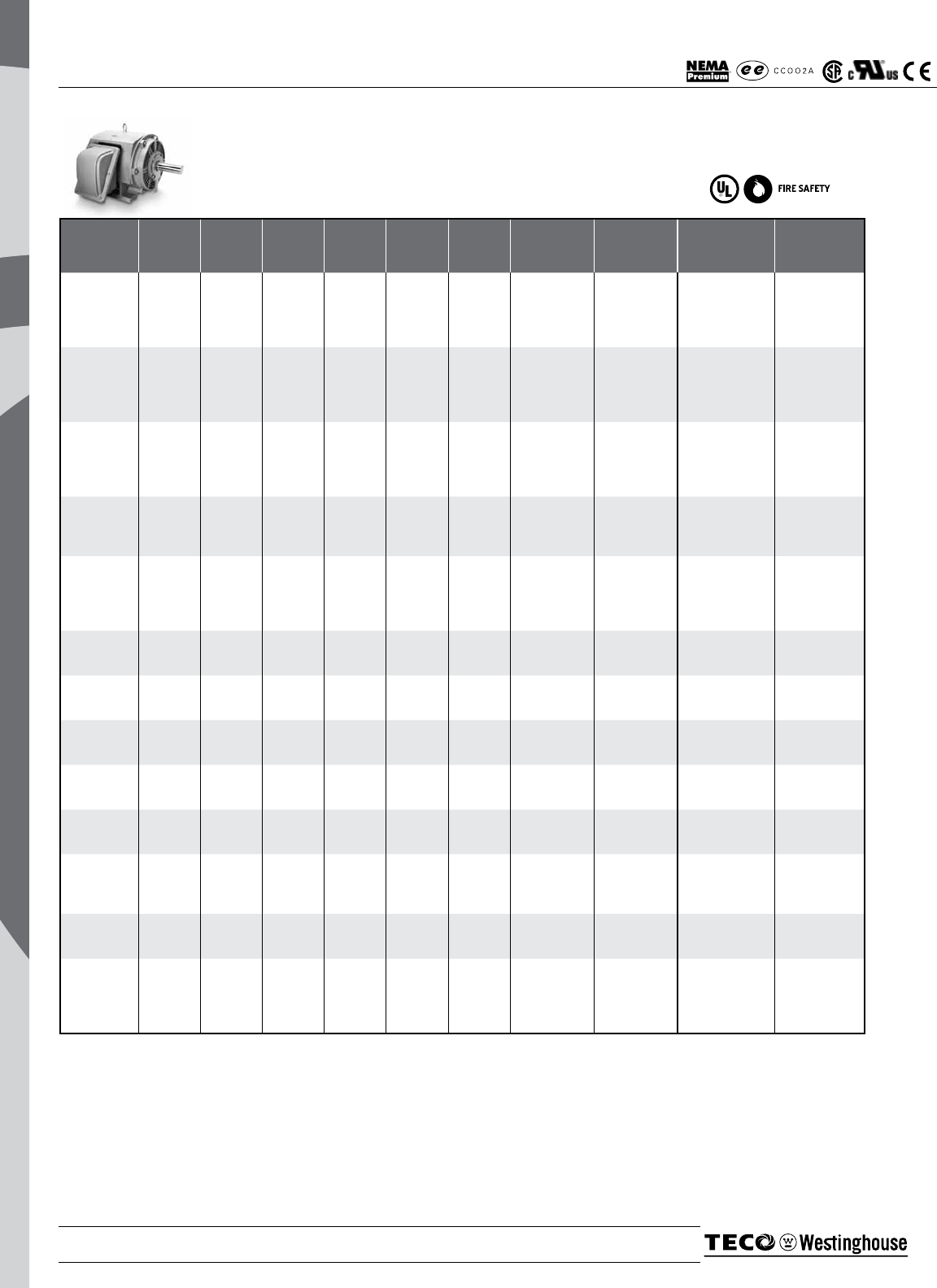

ROLLED STEEL ODP JP/JM
ASGAJP/JM, HIGH EFFICIENCY, CLOSE COUPLED, (1 HP - 40 HP)[DJP/DJM]
CATALOG NO. HP RPM FRAME FL EFF
(%)
FL PF
(%)
FL AMPS
(230V)
APPROX. SHIPPING
WT. (lbs.) LIST
PRICE
($)
FIRE PUMP
CATALOG
NO.
FIRE PUMP
LIST
PRICE ($)
JP JM JP JM
DJP0014 DJM0014 1 1800 143JP/JM 82.5 78.5 2.90 40 40 426 DJP0014FP 469
DJP0016 DJM0016 1 1200 145JP/JM 80.0 72.5 3.20 45 45 534 DJP0016FP 587
DJP1/52 DJM1/52 1.5 3600 143JP/JM 82.5 82.8 4.10 40 40 464 DJP1/52FP 510
DJP1/54 DJM1/54 1.5 1800 145JP/JM 84.0 84.0 4.00 47 47 464 DJP1/54FP 510
DJP1/56P DJM1/56 1.5 1200 182JP/JM 84.0 55.0 6.08 90 83 551 DJP1/56PFP 606
DJP0022 DJM0022 2 3600 145JP/JM 84.0 83.5 5.30 45 45 474 DJP0022FP 521
DJP0024 DJM0024 2 1800 145JP/JM 84.0 81.0 5.50 50 49 474 DJP0024FP 521
DJP0026 DJM0026 2 1200 184JP/JM 85.5 62.0 7.10 93 89 611 DJP0026FP 672
DJP0032 DJM0032 3 3600 145JP/JM 84.0 87.0 7.70 50 50 601 DJP0032FP 661
DJP0034 DJM0034 3 1800 182JP/JM 86.5 78.0 8.30 113 95 534 DJP0034FP 587
DJP0036 DJM0036 3 1200 213JP/JM 86.5 71.0 9.20 155 146 854 DJP0036FP 939
DJP0052 DJM0052 5 3600 182JP/JM 85.5 90.0 12.2 95 78 747 DJP0052FP 822
DJP0054 DJM0054 5 1800 184JP/JM 87.5 81.5 13.1 113 108 630 DJP0054FP 693
DJP0056 DJM0056 5 1200 215JP/JM 87.5 72.0 14.9 155 146 1,183 DJP0056FP 1,301
DJP7/52 DJM7/52 7.5 3600 184JP/JM 87.5 91.0 17.6 100 78 891 DJP7/52FP 980
DJP7/54 DJM7/54 7.5 1800 213JP/JM 88.5 85.0 18.7 155 140 906 DJP7/54FP 997
DJP7/56 DJM7/56 7.5 1200 254JP/JM 88.5 81.0 19.6 265 265 1,463 DJP7/56FP 1,609
DJP0102 DJM0102 10 3600 213JP/JM 88.5 88.0 24.0 167 165 1,145 DJP0102FP 1,260
DJP0104 DJM0104 10 1800 215JP/JM 89.5 86.5 24.2 180 150 1,008 DJP0104FP 1,109
DJP0106 DJM0106 10 1200 256JP/JM 90.2 81.0 25.6 290 275 1,706 DJP0106FP 1,877
DJP0152 DJM0152 15 3600 215JP/JM 89.5 87.5 35.9 167 165 1,511 DJP0152FP 1,662
DJP0154 DJM0154 15 1800 254JP/JM 91.0 88.0 35.1 265 257 1,492 DJP0154FP 1,641
DJP0156 DJM0156 15 1200 284JP/JM 90.2 83.0 37.5 375 365 2,179 DJP0156FP 2,397
DJP0202 DJM0202 20 3600 254JP/JM 90.2 91.0 45.6 265 250 1,782 DJP0202FP 1,960
DJP0204 DJM0204 20 1800 256JP/JM 91.0 88.0 46.8 275 265 1,858 DJP0204FP 2,044
DJP0206 DJM0206 20 1200 284JP/JM 91.0 84.0 49.0 410 405 2,791 DJP0206FP 3,070
DJP0252 DJM0252 25 3600 256JP/JM 91.0 91.0 56.5 300 275 2,171 DJP0252FP 2,388
DJP0254 DJM0254 25 1800 284JP/JM 91.7 86.0 59.4 375 365 2,190 DJP0254FP 2,409
DJP0302 DJM0302 30 3600 284JP/JM 91.0 89.0 69.4 370 350 2,464 DJP0302FP 2,710
DJP0304 DJM0304 30 1800 286JP/JM 92.4 86.5 70.3 395 370 2,567 DJP0304FP 2,824
DJP0402 DJM0402 40 3600 286JP/JM 91.7 88.0 92.8 395 370 3,363 DJP0402FP 3,699
Notes:
* Fire Pump available as made to order. Fire Pump Certificate complies with ANSI/UL 1004-5. Certificate# 20120717 – EX6569.
(1) Delivery for Fire Pump Duty motor (Catalog Number + FP) is standard 5 - 10 working days after receipt of order if standard motor is in stock;
Painting to Fire Safety Red requirement on Fire Pump Duty type motor can be waived in order to expedite delivery upon request.
(2) Fire Pump Duty Motor pricing includes: adding UL nameplate, restamping original nameplate to new "DHP_FP" catalog number,
and Fire Safety Red Paint.
(3) Per DOE regulations, this High Efficiency motor line inventory will be available through June 2018, or until current inventory has been depleted.
Whichever occurs first.
(4) Once product listed on this page has been depleted from current stock, that model becomes obsolete and can not be re-ordered.
(5) Please see our new line of Premium Efficient JP/JM Rolled Steel ODP motors on page 18.
(6) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
22 | www.tecowestinghouse.com or call 1-800-USE-TECO

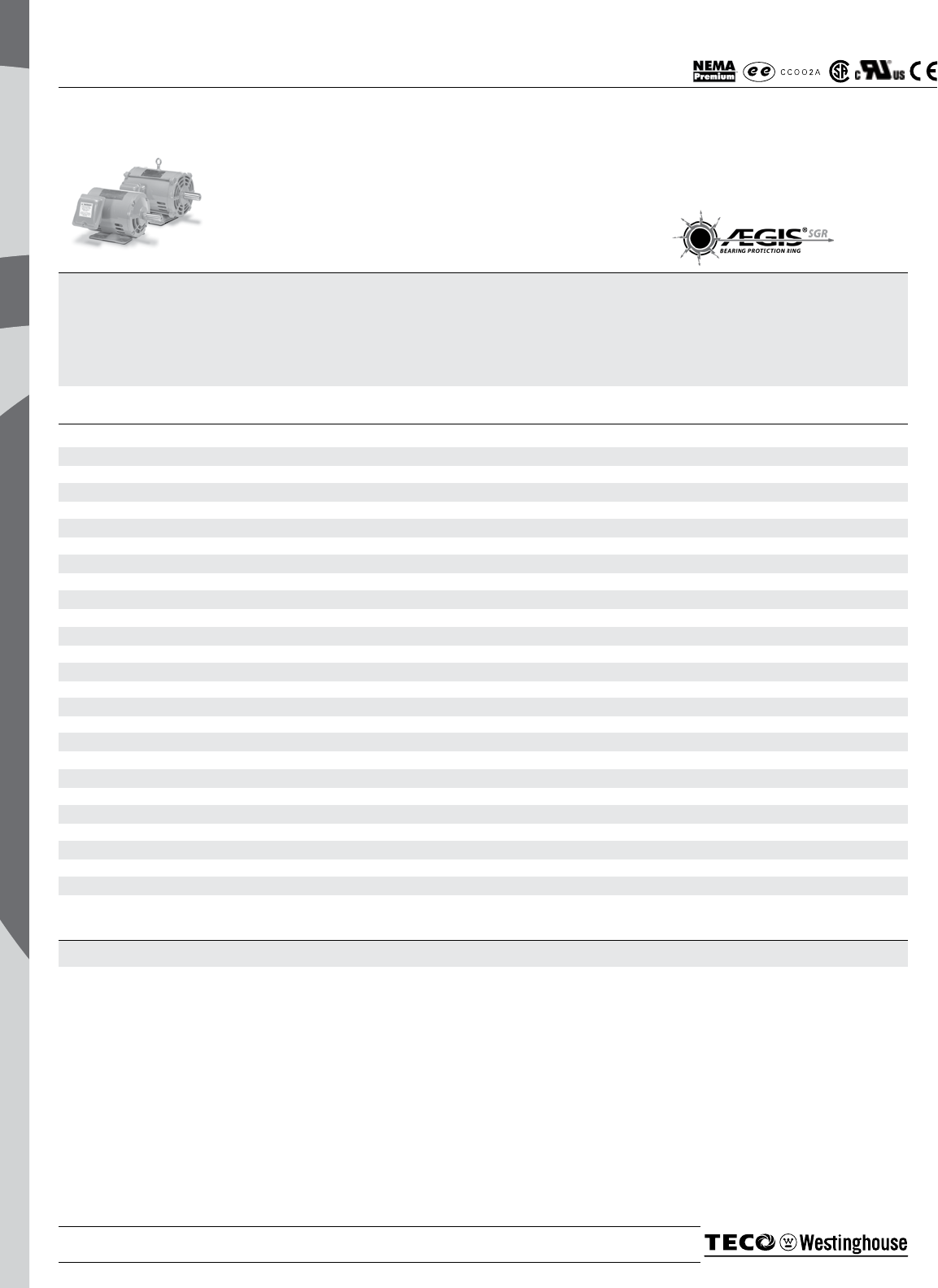

ROLLED STEEL ODP AEGIS® SGR
ASGH, NEMA PREMIUM WITH AEGIS® SGR [DTP_G]
APPLICATIONS:
z Fans & Blowers
z Pumps
z Compressors
z HVAC Equipment
FEATURES:
z Output Range: 1 - 40 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Open Drip Proof (IP22)
z Voltage: 230/460V (Usable on 200 & 208V)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z Grounding Ring Factory Installed Externally on DE Bracket
z Class F Insulation
z NEMA Design B Torques
z Rolled Steel Frame and Main Conduit Box
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(1)
z Designed for 3300 ft. Elevation(2)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Blue - Munsell 5PB 3/8
z Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(3,4)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP and Larger
z Motors are U.L. Recognized for United States and Canada, CSA Approved and CE Marked
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(2) Consult a Stock Product Application Specialist for suitability at higher elevations.
(3) Motor service factor is 1.0 when operated on a VFD.
(4) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
(5) AEGIS® SGR Bearing Protection Ring can not be used in Hazardous Locations (i.g. Class I, Div. 2, etc.)
The AEGIS® SGR Bearing Protection Ring prevents electrical bearing fluting damage
by safely diverting harmful shaft voltages and bearing currents to ground. Using
proprietary Electron Transport Technology™, the conductive microfibers inside
the AEGIS® SGR provide the most reliable current diversion technology for shaft
grounding with a "path of least resistance" to dramatically extend motor life.
AEGIS® SGR Rings have a warranty of 1 year.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 23
ROLLED STEEL ODP AEGIS® SGR
ASGH, NEMA PREMIUM WITH AEGIS® SGR [DTP_G]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(230V)
APPROX.
SHIPPING
WT. (lbs.)
LIST PRICE ($)
DTP0012G 1 3600 143T 80.0 85.5 2.74 34 453
DTP0014G 1 1800 143T 85.5 75.5 2.90 42 450
DTP0016G 1 1200 145T 82.5 66.0 3.44 43 570
DTP1/52G 1.5 3600 143T 85.5 83.0 3.96 34 479
DTP1/54G 1.5 1800 145T 86.5 80.5 4.03 47 489
DTP1/56G 1.5 1200 182T 86.5 54.0 6.01 94 629
DTP0022G 2 3600 145T 85.5 89.0 4.92 42 528
DTP0024G 2 1800 145T 86.5 79.0 5.48 47 517
DTP0026G 2 1200 184T 87.5 57.0 7.51 94 700
DTP0032G 3 3600 145T 85.5 86.0 7.64 42 587
DTP0034G 3 1800 182T 89.5 73.0 8.60 94 595
DTP0036G 3 1200 213T 88.5 69.0 9.20 158 975
DTP0052G 5 3600 182T 87.5 88.0 12.2 94 684
DTP0054G 5 1800 184T 89.5 77.0 13.6 94 714
DTP0056G 5 1200 215T 89.5 73.0 14.3 158 1,196
DTP7/52G 7.5 3600 184T 88.5 90.0 17.6 94 871
DTP7/54G 7.5 1800 213T 91.0 81.0 19.1 158 1,003
DTP7/56G 7.5 1200 254T 90.2 77.0 20.2 292 1,574
DTP0102G 10 3600 213T 90.2 85.5 24.3 158 1,085
DTP0104G 10 1800 215T 91.7 84.0 24.3 158 1,165
DTP0106G 10 1200 256T 91.7 79.5 25.7 292 1,761
DTP0152G 15 3600 215T 91.0 87.0 35.5 158 1,405
DTP0154G 15 1800 254T 93.0 83.0 36.4 230 1,584
DTP0156G 15 1200 284T 91.7 80.0 38.3 344 2,331
DTP0202G 20 3600 254T 91.7 90.0 45.4 292 1,817
DTP0204G 20 1800 256T 93.0 83.0 48.5 292 1,916
DTP0206G 20 1200 286T 92.4 81.5 49.4 344 2,797
DTP0252G 25 3600 256T 91.7 91.0 56.1 292 2,115
DTP0254G 25 1800 284T 93.6 85.0 58.8 344 2,346
DTP0302G 30 3600 284TS 92.4 90.0 67.6 344 2,572
DTP0304G 30 1800 286T 94.1 86.0 69.4 415 2,723
DTP0402G 40 3600 286TS 92.4 90.5 89.6 415 3,248
Notes:
(1) AEGIS® SGR Rings have a warranty of 1 year.
(2) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
24 | www.tecowestinghouse.com or call 1-800-USE-TECO

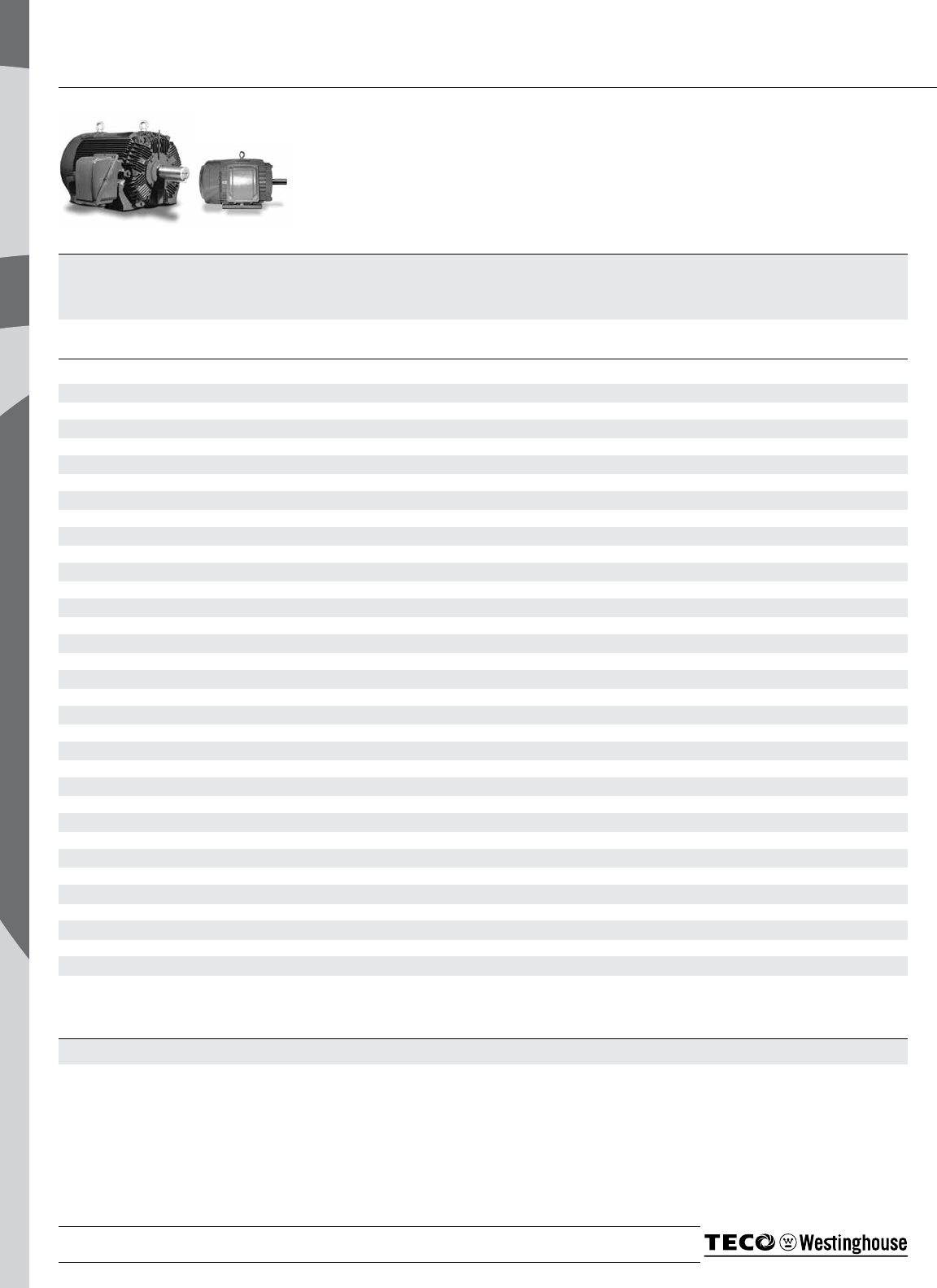

CAST IRON ODP
ASHH, NEMA PREMIUM [DHP]*
APPLICATIONS:
z Fans & Blowers z HVAC Equipment
z Pumps z Fire Pumps*
z Compressors
FEATURES:
z Output Range: 1 - 800 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Open Drip Proof (IP22)
z Voltage: 230/460V (Usable on 208V); 150HP and Larger is 460V Only(1)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques
z Cast Iron Frame and End Brackets
z Rolled Steel Main Conduit Box
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(2)
z Designed for 3300 ft. Elevation(3)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Light Gray - Munsell N5.0
z Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
z High Quality Ball (or Roller) Bearings regreasable with Mobil Polyrex™ EM Grease for F# 280TS and Larger
z Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
z Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(4,5)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP to 125 HP;
z 6 Leads for 150 HP and Larger
z Motors are U.L. Recognized, CSA Approved and CE Marked
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
* Fire Pump available. See product page for more details.
(1) Available in 575V. TWMC carries minimal 575V stock; please check availability to ensure required motors are in stock.
Ratings may be available from our Canadian warehouses and/or our factory. Pricing and leadtime may vary.
(2) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(3) Consult a Stock Product Application Specialist for suitability in higher elevations.
(4) Motor service factor is 1.0 when operated on a VFD.
(5) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 25
CAST IRON ODP
ASHH, NEMA PREMIUM [DHP]*
CATALOG
NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST PRICE
($)
FIRE PUMP
CATALOG NO.
LIST PRICE
($)
DHP0014 1 1800 143T 85.5 78.0 1.41 54 375 DHP0014FP 413
DHP0016 1 1200 145T 82.5 65.5 1.74 75 484 DHP0016FP 532
DHP1/52 1.5 3600 143T 85.5 80.0 2.06 50 400 DHP1/52FP 440
DHP1/54 1.5 1800 145T 86.5 80.5 2.02 60 415 DHP1/54FP 457
DHP1/56 1.5 1200 182T 87.5 63.0 2.55 123 513 DHP1/56FP 564
DHP0022 2 3600 145T 85.5 84.5 2.59 57 452 DHP0022FP 497
DHP0024 2 1800 145T 86.5 79.5 2.72 58 440 DHP0024FP 484
DHP0026 2 1200 184T 87.5 71.0 3.01 130 561 DHP0026FP 617
DHP0032 3 3600 145T 87.5 87.0 3.69 66 504 DHP0032FP 554
DHP0034 3 1800 182T 89.5 81.0 3.88 117 484 DHP0034FP 532
DHP0036 3 1200 213T 88.5 77.0 4.12 183 783 DHP0036FP 861
DHP0052 5 3600 182T 87.5 91.0 5.90 120 572 DHP0052FP 629
DHP0054 5 1800 184T 89.5 84.5 6.19 145 606 DHP0054FP 667
DHP0056 5 1200 215T 89.5 79.0 6.62 195 945 DHP0056FP 1,040
DHP7/52 7.5 3600 184T 88.5 91.5 8.65 134 753 DHP7/52FP 828
DHP7/54 7.5 1800 213T 91.0 86.0 8.97 187 869 DHP7/54FP 956
DHP7/56 7.5 1200 254T 90.2 79.0 9.85 260 1,410 DHP7/56FP 1,551
DHP0102 10 3600 213T 90.2 88.0 11.8 190 945 DHP0102FP 1,040
DHP0104 10 1800 215T 91.7 87.0 11.7 215 1,030 DHP0104FP 1,133
DHP0106 10 1200 256T 91.7 81.0 12.6 329 1,612 DHP0106FP 1,773
DHP0152 15 3600 215T 90.2 87.5 17.8 220 1,265 DHP0152FP 1,392
DHP0154 15 1800 254T 93.0 84.5 17.9 247 1,420 DHP0154FP 1,562
DHP0156 15 1200 284T 91.7 83.0 18.5 367 2,155 DHP0156FP 2,371
DHP0202 20 3600 254T 91.0 90.5 22.8 233 1,647 DHP0202FP 1,812
DHP0204 20 1800 256T 93.0 86.5 23.3 350 1,755 DHP0204FP 1,931
DHP0206 20 1200 286T 92.4 83.5 24.3 392 2,612 DHP0206FP 2,873
DHP0252 25 3600 256T 91.7 92.0 27.7 317 1,955 DHP0252FP 2,151
DHP0254 25 1800 284T 93.6 87.0 28.7 352 2,168 DHP0254FP 2,385
DHP0256 25 1200 324T 93.0 83.0 30.3 640 3,240 DHP0256FP 3,564
DHP0302 30 3600 284TS 92.4 90.5 33.6 405 2,417 DHP0302FP 2,659
DHP0304 30 1800 286T 94.1 87.0 34.3 429 2,548 DHP0304FP 2,803
DHP0306 30 1200 326T 93.6 83.5 35.9 568 3,641 DHP0306FP 4,005
DHP0402 40 3600 286TS 92.4 91.5 44.3 442 3,094 DHP0402FP 3,403
DHP0404 40 1800 324T 94.1 86.0 46.3 608 3,159 DHP0404FP 3,475
DHP0406 40 1200 364T 94.1 87.0 45.7 835 4,543 DHP0406FP 4,997
DHP0502 50 3600 324TS 93.0 86.0 58.5 552 3,810 DHP0502FP 4,191
DHP0504 50 1800 326T 94.5 85.0 58.3 629 3,541 DHP0504FP 3,895
DHP0506 50 1200 365T 94.1 86.0 57.8 766 5,383 DHP0506FP 5,921
DHP0602 60 3600 326TS 93.6 87.0 69.0 614 4,479 DHP0602FP 4,927
DHP0604 60 1800 364T 95.0 85.0 69.6 735 4,492 DHP0604FP 4,941
DHP0606 60 1200 404T 94.5 85.5 69.5 1,100 6,448 DHP0606FP 7,115
DHP0752 75 3600 364TS 94.1 90.5 82.5 704 5,950 DHP0752FP 6,545
DHP0754 75 1800 365T 95.0 86.0 86.0 850 5,322 DHP0754FP 5,854
DHP0754R 75 1800 365T 95.0 86.0 86.0 850 5,322 DHP0754RFP 5,854
DHP0756 75 1200 405T 94.5 86.5 86.0 1,210 7,752 DHP0756FP 8,527
DHP0756R 75 1200 405T 94.5 86.5 86.0 1,210 7,752 DHP0756RFP 8,527
Notes:
* Fire Pump available as made to order. Fire Pump Certificate complies with ANSI/UL 1004-5. Certificate# 20120717 – EX6569.
(1) Delivery for Fire Pump Duty motor (Catalog Number + FP) is standard 5 - 10 working days after receipt of order if standard motor is in stock;
Painting to Fire Safety Red requirement on Fire Pump Duty type motor can be waived in order to expedite delivery upon request.
(2) Fire Pump Duty Motor pricing includes: adding UL nameplate, restamping original nameplate to new "DHP_FP" catalog number,
and Fire Safety Red Paint.
(3) To order 575V, add "5" to the end of Catalog Number, for example: "DHP00545" for 5 HP, 1800 RPM, 575V.
(4) "R" = Motor stocked standard with a Drive-End Roller Bearing.
(5) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
26 | www.tecowestinghouse.com or call 1-800-USE-TECO

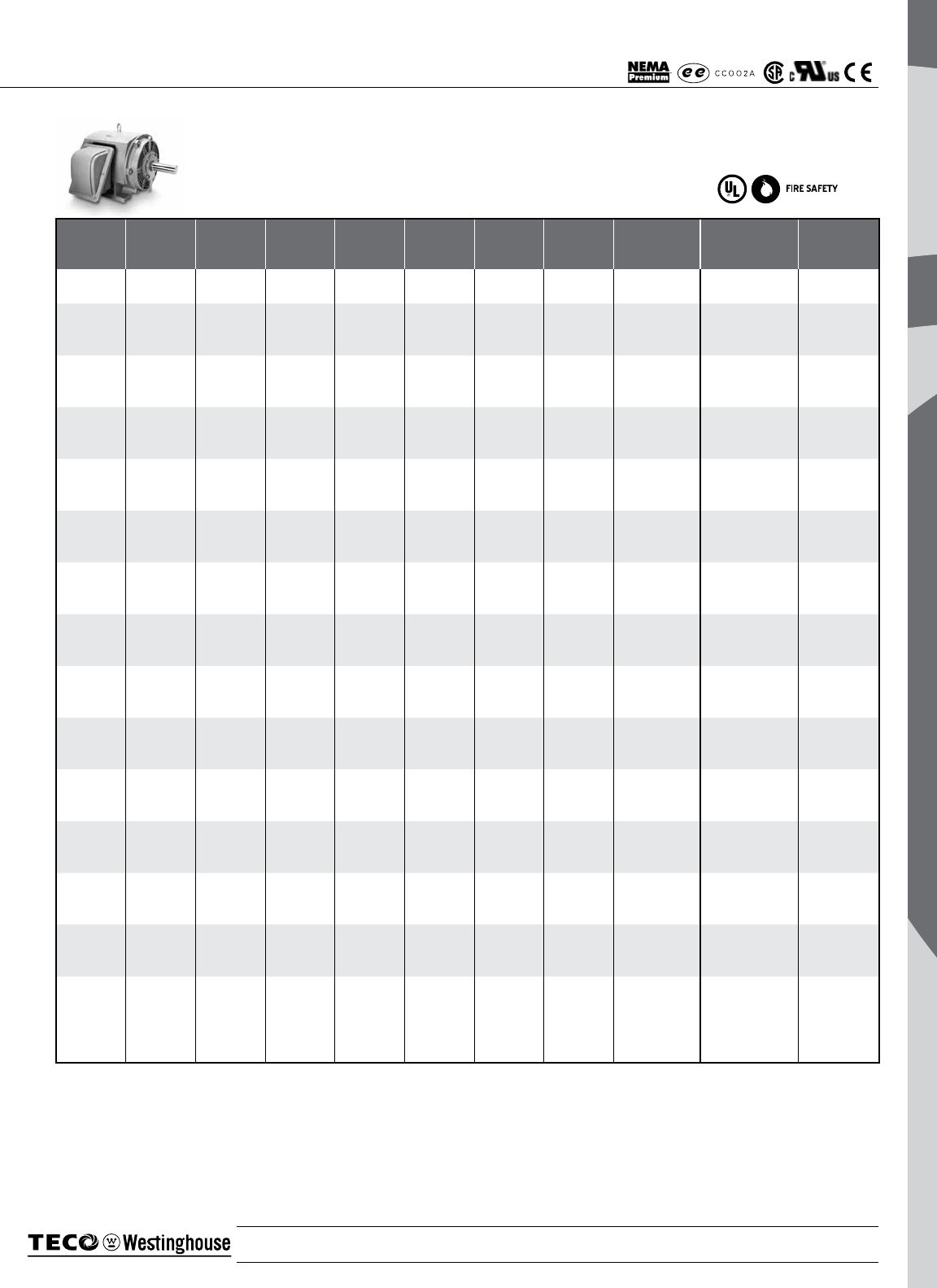

CAST IRON ODP
ASHH, NEMA PREMIUM [DHP] continued...*
CATALOG
NO. HP RPM FRAME FL EFF
(%)
FL PF
(%)
FL
AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST PRICE
($)
FIRE PUMP
CATALOG NO.
LIST PRICE
($)
DHP1002 100 3600 365TS 94.1 90.5 110 761 7,892 DHP1002FP 8,681
DHP1004 100 1800 404T 95.4 85.5 115 961 6,827 DHP1004FP 7,510
DHP1004R 100 1800 404T 95.4 85.5 115 961 6,827 DHP1004RFP 7,510
DHP1006 100 1200 444T 95.0 82.0 120 1,350 11,276 DHP1006FP 12,404
DHP1006R 100 1200 444T 95.0 82.0 120 1,350 11,276 DHP1006RFP 12,404
DHP1252 125 3600 404TS 94.1 90.5 137 907 9,996 DHP1252FP 10,996
DHP1254 125 1800 405T 95.4 84.5 145 1,109 8,554 DHP1254FP 9,409
DHP1254R 125 1800 405T 95.4 84.5 145 1,109 8,554 DHP1254RFP 9,409
DHP1256 125 1200 445T 95.0 82.0 150 1,605 13,195 DHP1256FP 14,515
DHP1256R 125 1200 445T 95.0 82.0 150 1,605 13,195 DHP1256RFP 14,515
DHP1502 150 3600 405TS 94.5 90.5 164 1,003 12,107 DHP1502FP 13,318
DHP1504 150 1800 444T 95.8 86.0 170 1,540 11,448 DHP1504FP 12,593
DHP1504R 150 1800 444T 95.8 86.0 170 1,540 11,448 DHP1504RFP 12,593
DHP1506 150 1200 445T 95.4 82.5 178 1,705 15,616 DHP1506FP 17,178
DHP1506R 150 1200 445T 95.4 82.5 178 1,705 15,616 DHP1506RFP 17,178
DHP2002 200 3600 444TS 95.0 88.5 223 1,324 15,681 DHP2002FP 17,249
DHP2004 200 1800 445T 95.8 86.5 226 1,577 14,014 DHP2004FP 15,415
DHP2006 200 1200 447T 95.4 83.0 236 2,010 20,785 DHP2006FP 22,864
DHP2006R 200 1200 447T 95.4 83.0 236 2,010 20,785 DHP2006RFP 22,864
DHP2502 250 3600 445TS 95.0 88.5 278 1,470 19,069 DHP2502FP 20,976
DHP2504 250 1800 447T 95.8 87.0 281 1,806 19,839 DHP2504FP 21,823
DHP2504R 250 1800 447T 95.8 87.0 281 1,806 19,839 DHP2504RFP 21,823
DHP2506 250 1200 449T 95.4 83.0 296 2,420 25,983 DHP2506FP 28,581
DHP2506R 250 1200 449T 95.4 83.0 296 2,420 25,983 DHP2506RFP 28,581
DHP3002 300 3600 445TS 95.4 89.0 331 1,320 24,418 DHP3002FP 26,860
DHP3004 300 1800 449T 95.8 87.5 335 2,140 24,271 DHP3004FP 26,689
DHP3006 300 1200 449T 95.4 87.0 338 2,615 31,180 DHP3006FP 34,298
DHP3502 350 3600 447TS 95.4 90.0 382 1,590 27,431 DHP3502FP 30,174
DHP3504 350 1800 449T 95.8 87.5 391 2,310 28,320 DHP3504FP 31,152
DHP3506 350 1200 5009B 95.4 85.0 404 3,715 55,300 ~ ~
DHP4002 400 3600 449TS 95.8 90.0 434 2,055 31,308 DHP4002FP 34,439
DHP4004 400 1800 449T 95.8 87.7 446 2,445 32,365 DHP4004FP 35,602
DHP4006 400 1200 5009B 95.8 84.5 463 3,835 56,850 ~ ~
DHP4502 450 3600 449TS 95.8 90.5 486 2,125 36,000 DHP4502FP 39,600
DHP4504 450 1800 5009B 96.2 88.0 498 3,620 52,350 ~ ~
DHP4506 450 1200 5009B 96.2 84.0 521 3,960 34,750 ~ ~
DHP5002 500 3600 449TS 95.8 91.2 536 2,225 39,735 DHP5002FP 43,709
DHP5004 500 1800 5009B 96.2 88.0 553 3,790 57,950 ~ ~
DHP5006 500 1200 5009B 96.2 84.0 579 4,075 67,750 ~ ~
DHP6002 600 3600 5011A 95.0 87.5 676 3,240 60,252 ~ ~
DHP6004 600 1800 5011B 96.2 87.8 665 3,650 57,884 ~ ~
DHP6006 600 1200 5011B 95.8 82.6 710 4,250 68,496 ~ ~
DHP6006R 600 1200 5011B 95.8 82.6 710 4,250 68,496 ~ ~
DHP7002 700 3600 5012A 95.0 88.3 781 3,610 68,381 ~ ~
DHP7004 700 1800 5011B 96.2 86.0 792 3,870 68,034 ~ ~
DHP7006 700 1200 5810B 95.8 82.6 828 6,450 77,391 ~ ~
DHP8002 800 3600 5012A 95.0 87.9 897 3,610 71,839 ~ ~
DHP8004 800 1800 5012B 96.2 86.2 903 4,210 72,887 ~ ~
DHP8004R 800 1800 5012B 96.2 86.2 903 4,210 72,887 ~ ~
DHP8006 800 1200 5810B 95.8 82.5 948 6,820 87,890 ~ ~
DHP8006R 800 1200 5810B 95.8 82.5 948 6,820 87,890 ~ ~
Notes:
* Fire Pump available as made to order. Fire Pump Certificate complies with ANSI/UL 1004-5. Certificate# 20120717 – EX6569.
(1) Delivery for Fire Pump Duty motor (Catalog Number + FP) is standard 5 - 10 working days after receipt of order if standard motor is in stock;
Painting to Fire Safety Red requirement on Fire Pump Duty type motor can be waived in order to expedite delivery upon request.
(2) Fire Pump Duty Motor pricing includes: adding UL nameplate, restamping original nameplate to new "DHP_FP" catalog number,
and Fire Safety Red Paint.
(3) To order 575V, add "5" to the end of Catalog Number, for example: "DHP00545" for 5 HP, 1800 RPM, 575V.
(4) "R" = Motor stocked standard with a Drive-End Roller Bearing.
(5) Ratings 150 HP and larger are 460V only.
(6) Ratings above 500 HP are new offerings and will be available as stock beginning 3rd Quarter 2017.
(7) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 27
CAST IRON ODP AEGIS® SGR
ASHH, NEMA PREMIUM WITH AEGIS® SGR [DHP_G]
APPLICATIONS:
z Fans & Blowers
z HVAC Equipment
z Pumps
z Compressors
FEATURES:
z Output Range: 1 - 75 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Open Drip Proof (IP22)
z Voltage: 230/460V (Usable on 208V); 150HP and Larger is 460V Only(1)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z Grounding Ring Factory Installed Externally on DE Bracket for F# 143T - 286T; Internally on NDE for F# 284TS - 405T
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques
z Cast Iron Frame and End Brackets
z Rolled Steel Main Conduit Box
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(2)
z Designed for 3300 ft. Elevation(3)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Light Gray - Munsell N5.0
z Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
z High Quality Ball (or Roller) Bearings regreasable with Mobil PolyrexTM EM Grease for F# 280TS and Larger
z Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
z Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(4,5)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP to 125 HP;
z 6 Leads for 150 HP and Larger
z Motors are U.L. Recognized, CSA Approved and CE Marked
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Available in 575V. TWMC carries minimal 575V stock; please check availability to ensure required motors are in stock.
Ratings may be available from our Canadian warehouses and/or our factory. Pricing and leadtime may vary.
(2) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(3) Consult a Stock Product Application Specialist for suitability at higher elevations.
(4) Motor service factor is 1.0 when operated on a VFD.
(5) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
(6) AEGIS® SGR Bearing Protection Ring can not be used in Hazardous Locations (i.g. Class I, Div. 2, etc.)
The AEGIS® SGR Bearing Protection Ring prevents electrical bearing fluting damage
by safely diverting harmful shaft voltages and bearing currents to ground. Using
proprietary Electron Transport Technology™, the conductive microfibers inside
the AEGIS® SGR provide the most reliable current diversion technology for shaft
grounding with a "path of least resistance" to dramatically extend motor life.
AEGIS® SGR Rings have a warranty of 1 year.
Effective 03-24-17
Supercedes 06-14-15
28 | www.tecowestinghouse.com or call 1-800-USE-TECO
CAST IRON ODP AEGIS® SGR
ASHH, NEMA PREMIUM WITH AEGIS® SGR [DHP_G ]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST PRICE ($)
DHP0014G 1 1800 143T 85.5 78.0 1.41 54 477
DHP0016G 1 1200 145T 82.5 65.5 1.74 75 601
DHP1/52G 1.5 3600 143T 85.5 80.0 2.06 50 507
DHP1/54G 1.5 1800 145T 86.5 80.5 2.02 60 524
DHP1/56G 1.5 1200 182T 87.5 63.0 2.55 123 668
DHP0022G 2 3600 145T 85.5 84.5 2.59 57 565
DHP0024G 2 1800 145T 86.5 79.5 2.72 58 552
DHP0026G 2 1200 184T 87.5 71.0 3.01 130 800
DHP0032G 3 3600 145T 87.5 87.0 3.69 66 620
DHP0034G 3 1800 182T 89.5 81.0 3.88 117 650
DHP0036G 3 1200 213T 88.5 77.0 4.12 183 1,075
DHP0052G 5 3600 182T 87.5 91.0 5.90 120 750
DHP0054G 5 1800 184T 89.5 84.5 6.19 145 780
DHP0056G 5 1200 215T 89.5 79.0 6.62 195 1,250
DHP7/52G 7.5 3600 184T 88.5 91.5 8.65 134 923
DHP7/54G 7.5 1800 213T 91.0 86.0 8.97 187 1,150
DHP7/56G 7.5 1200 254T 90.2 79.0 9.85 260 1,669
DHP0102G 10 3600 213T 90.2 88.0 11.8 190 1,157
DHP0104G 10 1800 215T 91.7 87.0 11.7 215 1,236
DHP0106G 10 1200 256T 91.7 81.0 12.6 329 1,878
DHP0152G 15 3600 215T 90.2 87.5 17.8 220 1,498
DHP0154G 15 1800 254T 93.0 84.5 17.9 247 1,678
DHP0156G 15 1200 284T 91.7 83.0 18.5 367 2,485
DHP0202G 20 3600 254T 91.0 90.5 22.8 233 1,934
DHP0204G 20 1800 256T 93.0 86.5 23.3 350 2,042
DHP0206G 20 1200 286T 92.4 83.5 24.3 392 2,977
DHP0252G 25 3600 256T 91.7 92.0 27.7 317 2,257
DHP0254G 25 1800 284T 93.6 87.0 28.7 352 2,500
DHP0256G 25 1200 324T 93.0 83.0 30.3 640 3,671
DHP0302G 30 3600 284TS 92.4 90.5 33.6 405 2,746
DHP0304G 30 1800 286T 94.1 87.0 34.3 429 2,903
DHP0306G 30 1200 326T 93.6 83.5 35.9 568 4,098
DHP0402G 40 3600 286TS 92.4 91.5 44.3 442 3,473
DHP0404G 40 1800 324T 94.1 86.0 46.3 608 3,581
DHP0406G 40 1200 364T 94.1 87.0 45.7 835 5,081
DHP0502G 50 3600 324TS 93.0 86.0 58.5 552 4,258
DHP0504G 50 1800 326T 94.5 85.0 58.3 629 3,989
DHP0506G 50 1200 365T 94.1 86.0 57.8 766 5,967
DHP0602G 60 3600 326TS 93.6 87.0 69.0 614 4,981
DHP0604G 60 1800 364T 95.0 85.0 69.6 735 5,024
DHP0606G 60 1200 404T 94.5 85.5 69.5 1,100 7,180
DHP0752G 75 3600 364TS 94.1 90.5 82.5 704 6,544
DHP0754G 75 1800 365T 95.0 86.0 86.0 850 5,898
DHP0756G 75 1200 405T 94.5 86.5 86.0 1,210 8,509
Notes:
(1) Ratings larger than 75 HP with SGR can be quoted and provided upon request.
(2) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 29
3-PHASE FRACTIONAL HP TEFC
AEGA, FOOTED, HIGH EFFICIENCY [G]
APPLICATIONS:
z Fans & Blowers z Compressors
z Pumps z HVAC Equipment
FEATURES:
z Output Range: 1/3 - 2 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP44)
z Voltage: 230/460V (Usable on 200 & 208V)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques
z Rolled Steel Frame and Main Conduit Box
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(1)
z Designed for 3300 ft. Elevation(2)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Dark Gray - Munsell 7.5B 3.5/0.5
z Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
z Mylar Nameplate
z Rubber Dust Flinger on Drive-End
z 9 Leads
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Please consult factory for suitability in higher ambient environments.
(2) Please consult factory for suitability in higher elevations.
(3) 1 HP and larger are CSA certified and UL recognized. Motors below 1 HP are CSA certified only.
Effective 03-24-17
Supercedes 06-14-15
30 | www.tecowestinghouse.com or call 1-800-USE-TECO
3-PHASE FRACTIONAL HP TEFC
AEGA, FOOTED, HIGH EFFICIENCY [G]
CATALOG
NUMBER HP RPM FL EFF (%) FL PF (%) FL AMPS
(230V) FRAME
APPROX.
SHIPPING
WT (lbs.)
LIST
PRICE
($)
G0/32 1/3 3600 66.0 78.0 1.2 56 24 259
G0/34 1/3 1800 71.0 70.0 1.3 56 26 305
G0/36 1/3 1200 68.0 63.0 1.5 56 26 415
G0/52 1/2 3600 70.0 80.0 1.7 56 26 292
G0/54 1/2 1800 72.0 69.0 1.9 56 26 349
G0/56 1/2 1200 70.0 60.0 2.2 56 30 452
G0/72 3/4 3600 76.0 84.0 2.2 56 26 317
G0/74 3/4 1800 73.0 66.0 2.9 56 30 376
G0/76 3/4 1200 73.0 66.0 2.9 56 32 471
G0012 1 3600 76.0 84.0 2.9 56 26 371
G0014 1 1800 77.0 71.0 3.4 56 33 394
G0016 1 1200 75.0 70.0 3.8 56 35 500
G1/52 1.5 3600 78.0 83.0 4.3 56 30 399
G1/54 1.5 1800 78.0 77.0 4.7 56 39 431
G1/56 1.5 1200 75.0 71.0 5.3 56 39 566
G0022 2 3600 81.0 86.0 5.4 56 39 487
G0024 2 1800 78.5 76.0 6.3 56 39 453
Notes:
(1) Per DOE regulations, this High Efficiency inventory will be available through June 2018, or until current inventory has been depleted.
Whichever occurs first.
(2) Once product listed above has been depleted from current stock, that model becomes obsolete and can not be reordered.
(3) Please see our new line of Premium Efficient 3-Phase Fractional Horespower Rolled Steel TEFC motors on page 31.
(4) Cast Iron C-Face kits are available. Please see page 125 for price and part number.
(5) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 31
ROLLED STEEL TEFC FAMILY
AEGHPE, NEMA PREMIUM, F#56 (1/4 HP - 2 HP) [GH]
AEGH, NEMA PREMIUM, F#140T - 210T (1 HP - 10 HP) [GP]
AEGHPE-CF, NEMA PREMIUM, FOOTED C-FACE, F#56 (1/4 HP - 2 HP) [GH_C]
AETHPE, NEMA PREMIUM, ROUND BODY C-FACE, F#56 (1/4 HP - 2 HP) [GHV_C]
AEGHCF, NEMA PREMIUM, FOOTED C-FACE, F#140T - 210T (1 HP - 10 HP) [GP_C]
AETHCF, NEMA PREMIUM, ROUND BODY C-FACE, F#140T - 210T (1 HP - 10 HP) [GPV_C]
APPLICATIONS:
z Fans & Blowers z Compressors
z Pumps z HVAC Equipment
FEATURES:
z Output Range: 1/4 - 10 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP44)
z Voltage: 230/460V (Usable on 200 & 208V)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques
z Rolled Steel Frame, Fan Cover, and Main Conduit Box
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted Only (F2 not available)
z Designed for 40˚C Ambient Temperature(1)
z Designed for 3300 ft. Elevation(2)
z Bi-Directional Rotation
z Cast Iron End Brackets
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Blue - Munsell 5PB 3/8
z Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(3,4)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP and Larger
z Motors are U.L. Recognized for United States and Canada, CSA Approved and CE Marked
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(2) Consult a Stock Product Application Specialist for suitability at higher elevations.
(3) Motor service factor is 1.0 when operated on a VFD.
(4) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
Effective 03-24-17
Supercedes 06-14-15
32 | www.tecowestinghouse.com or call 1-800-USE-TECO

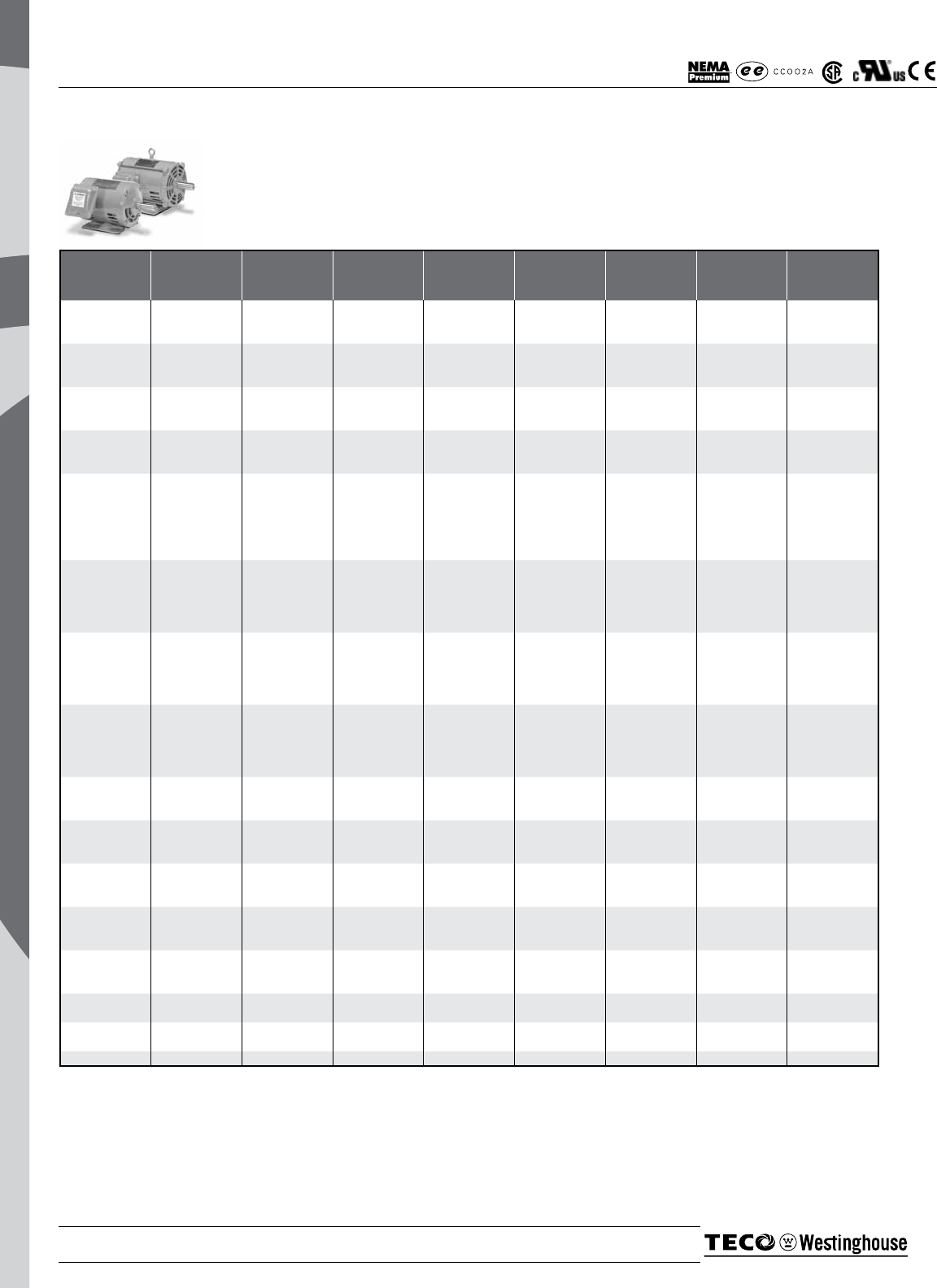

ROLLED STEEL TEFC PREMIUM
AEGHPE, NEMA PREMIUM, F#56 (1/4 HP - 2 HP) [GH]
AEGH, NEMA PREMIUM, F#140T - 210T (1 HP - 10 HP) [GP]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(230V)
APPROX.
SHIPPING
WT. (lbs.)
LIST
PRICE
($)
GH0/22 1/4 3600 56 72.0 82.0 0.79 25 275
GH0/24 1/4 1800 56 72.0 73.0 0.89 27 326
GH0/26 1/4 1200 56 72.0 71.5 0.91 31 447
GH0/32 1/3 3600 56 72.0 80.5 1.08 25 285
GH0/34 1/3 1800 56 75.5 74.5 1.11 27 336
GH0/36 1/3 1200 56 72.0 61.0 1.42 31 457
GH0/52 1/2 3600 56 74.0 85.0 1.46 26 322
GH0/54 1/2 1800 56 78.5 73.5 1.65 30 384
GH0/56 1/2 1200 56 75.5 63.0 1.97 37 498
GH0/72 3/4 3600 56 77.0 80.5 2.22 28 349
GH0/74 3/4 1800 56 81.5 75.5 2.37 30 414
GH0/76 3/4 1200 56 78.5 72.0 2.48 38 519
GH0012 1 3600 56 80.0 85.5 2.74 31 402
GP0012 1 3600 143T 80.0 85.5 2.74 33 402
GH0014 1 1800 56 85.5 75.5 2.90 41 405
GP0014 1 1800 143T 85.5 75.5 2.90 41 405
GH0016 1 1200 56 82.5 66.0 3.44 45 524
GP0016 1 1200 145T 82.5 66.0 3.44 43 524
GH1/52 1.5 3600 56 85.5 83.0 3.96 35 462
GP1/52 1.5 3600 143T 85.5 83.0 3.96 33 462
GH1/54 1.5 1800 56 86.5 80.5 4.03 44 464
GP1/54 1.5 1800 145T 86.5 80.5 4.03 46 464
GP1/56 1.5 1200 182T 87.5 55.0 5.84 75 545
GH0022 2 3600 56 86.5 85.0 5.09 42 487
GP0022 2 3600 145T 86.5 85.0 5.09 41 487
GH0024 2 1800 56 86.5 79.0 5.48 46 494
GP0024 2 1800 145T 86.5 79.0 5.48 46 494
GP0026 2 1200 184T 88.5 64.5 6.56 97 615
GP0032 3 3600 182T 87.5 87.5 7.34 84 573
GP0034 3 1800 182T 89.5 74.0 8.48 69 560
GP0036 3 1200 213T 89.5 68.0 9.23 145 807
GP0052 5 3600 184T 89.5 90.0 11.6 97 709
GP0054 5 1800 184T 89.5 80.0 13.1 94 646
GP0056 5 1200 215T 90.2 73.5 14.1 189 1156
GP7/52 7.5 3600 213T 90.2 84.5 18.4 141 958
GP7/54 7.5 1800 213T 91.7 83.0 18.5 135 961
GP0102 10 3600 215T 91.0 86.0 23.9 186 1,111
GP0104 10 1800 215T 91.7 85.0 24.0 183 1,156
Notes:
(1) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 33
ROLLED STEEL TEFC PREMIUM C-FACE
AEGHPE-CF, NEMA PREMIUM, FOOTED C-FACE, F#56 (1/4 HP - 2 HP) [GH_C]
AETHPE, NEMA PREMIUM, ROUND BODY C-FACE, F#56 (1/4 HP - 2 HP) [GHV_C]
AEGHCF, NEMA PREMIUM, FOOTED C-FACE, F#140T - 210T (1 HP - 10 HP) [GP_C]
AETHCF, NEMA PREMIUM, ROUND BODY C-FACE, F#140T - 210T (1 HP - 10 HP) [GPV_C]
HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(230V)
FOOTED C-FACE ROUND BODY C-FACE LIST
PRICE
($)
CATALOG
NO.
APPROX.
SHIPPING
WT. (lbs.)
CATALOG
NO.
APPROX.
SHIPPING
WT. (lbs.)
1/4 3600 56C 72.0 82.0 0.79 GH0/22C 25 GHV0/22C 24 378
1/4 1800 56C 72.0 73.0 0.89 GH0/24C 27 GHV0/24C 26 398
1/4 1200 56C 72.0 71.5 0.91 GH0/26C 30 GHV0/26C 29 498
1/3 3600 56C 72.0 80.5 1.08 GH0/32C 30 GHV0/32C 29 388
1/3 1800 56C 75.5 74.5 1.11 GH0/34C 32 GHV0/34C 31 401
1/3 1200 56C 72.0 61.0 1.42 GH0/36C 36 GHV0/36C 35 503
1/2 3600 56C 74.0 85.0 1.46 GH0/52C 31 GHV0/52C 30 401
1/2 1800 56C 78.5 73.5 1.65 GH0/54C 35 GHV0/54C 34 432
1/2 1200 56C 75.5 63.0 1.97 GH0/56C 42 GHV0/56C 41 523
3/4 3600 56C 77.0 80.5 2.22 GH0/72C 33 GHV0/72C 32 425
3/4 1800 56C 81.5 75.5 2.37 GH0/74C 35 GHV0/74C 34 455
3/4 1200 56C 78.5 72.0 2.48 GH0/76C 42 GHV0/76C 41 545
1 3600 56C 80.0 85.5 2.74 GH0012C 35 GHV0012C 34 462
1 3600 143TC 80.0 85.5 2.74 GP0012C 35 GPV0012C 34 462
1 1800 56C 85.5 75.5 2.90 GH0014C 45 GHV0014C 44 466
1 1800 143TC 85.5 75.5 2.90 GP0014C 45 GPV0014C 44 466
1 1200 56C 82.5 66.0 3.44 GH0016C 42 GHV0016C 41 603
1 1200 145TC 82.5 66.0 3.44 GP0016C 42 GPV0016C 41 603
1.5 3600 56C 85.5 83.0 3.96 GH1/52C 39 GHV1/52C 38 531
1.5 3600 143TC 85.5 83.0 3.96 GP1/52C 39 GPV1/52C 38 531
1.5 1800 56C 86.5 80.5 4.03 GH1/54C 48 GHV1/54C 47 534
1.5 1800 145TC 86.5 80.5 4.03 GP1/54C 48 GPV1/54C 47 534
1.5 1200 182TC 87.5 55.0 5.84 GP1/56C 75 GPV1/56C 74 627
2 3600 56C 86.5 85.0 5.09 GH0022C 46 GHV0022C 45 560
2 3600 145TC 86.5 85.0 5.09 GP0022C 46 GPV0022C 45 560
2 1800 56C 86.5 79.0 5.48 GH0024C 49 GHV0024C 48 568
2 1800 145TC 86.5 79.0 5.48 GP0024C 49 GPV0024C 48 568
2 1200 184TC 88.5 64.5 6.56 GP0026C 132 GPV0026C 97 707
3 3600 182TC 87.5 87.5 7.34 GP0032C 130 GPV0032C 84 659
3 1800 182TC 89.5 74.0 8.48 GP0034C 135 GPV0034C 69 644
3 1200 213TC 89.5 68.0 9.23 GP0036C 164 GPV0036C 145 928
5 3600 184TC 89.5 90.0 11.6 GP0052C 135 GPV0052C 97 815
5 1800 184TC 89.5 80.0 13.1 GP0054C 135 GPV0054C 94 743
5 1200 215TC 90.2 73.5 14.1 GP0056C 210 GPV0056C 189 1,329
7.5 3600 213TC 90.2 84.5 18.4 GP7/52C 180 GPV7/52C 141 1,102
7.5 1800 213TC 91.7 83.0 18.5 GP7/54C 200 GPV7/54C 135 1,105
10 3600 215TC 91.0 86.0 23.9 GP0102C 220 GPV0102C 186 1,278
10 1800 215TC 91.7 85.0 24.0 GP0104C 219 GPV0104C 183 1,329
Notes:
(1) Motors on this page do not include Drip Cover. Drip covers are available. See page 127.
(2) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
34 | www.tecowestinghouse.com or call 1-800-USE-TECO
ROLLED STEEL TEFC AEGIS® SGR
AEGH, FOOTED, NEMA PREMIUM WITH AEGIS® SGR [GP_G]
APPLICATIONS:
z Fans & Blowers
z HVAC Equipment
z Pumps
z Compressors
FEATURES:
z Output Range: 1 - 10 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP44)
z Voltage: 230/460V (Usable on 200 & 208V)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z Grounding Ring Factory Installed Externally on NDE Bracket
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques
z Rolled Steel Frame, Fan Cover, and Main Conduit Box
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted Only (F2 not available)
z Designed for 40˚C Ambient Temperature(1)
z Designed for 3300 ft. Elevation(2)
z Bi-Directional Rotation
z Cast Iron End Brackets
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Blue - Munsell 5PB 3/8
z Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(3,4)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP and Larger
z Motors are U.L. Recognized for United States and Canada, CSA Approved and CE Marked
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(2) Consult a Stock Product Application Specialist for suitability at higher elevations.
(3) Motor service factor is 1.0 when operated on a VFD.
(4) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
(5) AEGIS® SGR Bearing Protection Ring can not be used in Hazardous Locations (i.g. Class I, Div. 2, etc.)
The AEGIS® SGR Bearing Protection Ring prevents electrical bearing fluting damage
by safely diverting harmful shaft voltages and bearing currents to ground. Using
proprietary Electron Transport Technology™, the conductive microfibers inside
the AEGIS® SGR provide the most reliable current diversion technology for shaft
grounding with a "path of least resistance" to dramatically extend motor life.
AEGIS® SGR Rings have a warranty of 1 year.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 35
ROLLED STEEL TEFC AEGIS® SGR
AEGH, FOOTED, NEMA PREMIUM WITH AEGIS® SGR [GP_G]
CATALOG NO. HP RPM FL EFF (%) FL PF (%) FL AMPS
(230V) FRAME
APPROX
SHIPPING WT.
(lbs.)
LIST PRICE ($)
GP0012G 1 3600 143T 80.0 85.5 2.74 33 402
GP0014G 1 1800 143T 85.5 75.5 2.90 41 405
GP0016G 1 1200 145T 82.5 66.0 3.44 43 524
GP1/52G 1.5 3600 143T 85.5 83.0 3.96 33 462
GP1/54G 1.5 1800 145T 86.5 80.5 4.03 46 464
GP1/56G 1.5 1200 182T 87.5 55.0 5.84 75 545
GP0022G 2 3600 145T 86.5 85.0 5.09 41 487
GP0024G 2 1800 145T 86.5 79.0 5.48 46 494
GP0026G 2 1200 184T 88.5 64.5 6.56 97 615
GP0032G 3 3600 182T 87.5 87.5 7.34 84 573
GP0034G 3 1800 182T 89.5 74.0 8.48 69 560
GP0036G 3 1200 213T 89.5 68.0 9.23 145 807
GP0052G 5 3600 184T 89.5 90.0 11.6 97 709
GP0054G 5 1800 184T 89.5 80.0 13.1 94 646
GP0056G 5 1200 215T 90.2 73.5 14.1 189 1156
GP7/52G 7.5 3600 213T 90.2 84.5 18.4 141 958
GP7/54G 7.5 1800 213T 91.7 83.0 18.5 135 961
GP0102G 10 3600 215T 91.0 86.0 23.9 186 1,111
GP0104G 10 1800 215T 91.7 85.0 24.0 183 1,156
Notes:
(1) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
36 | www.tecowestinghouse.com or call 1-800-USE-TECO

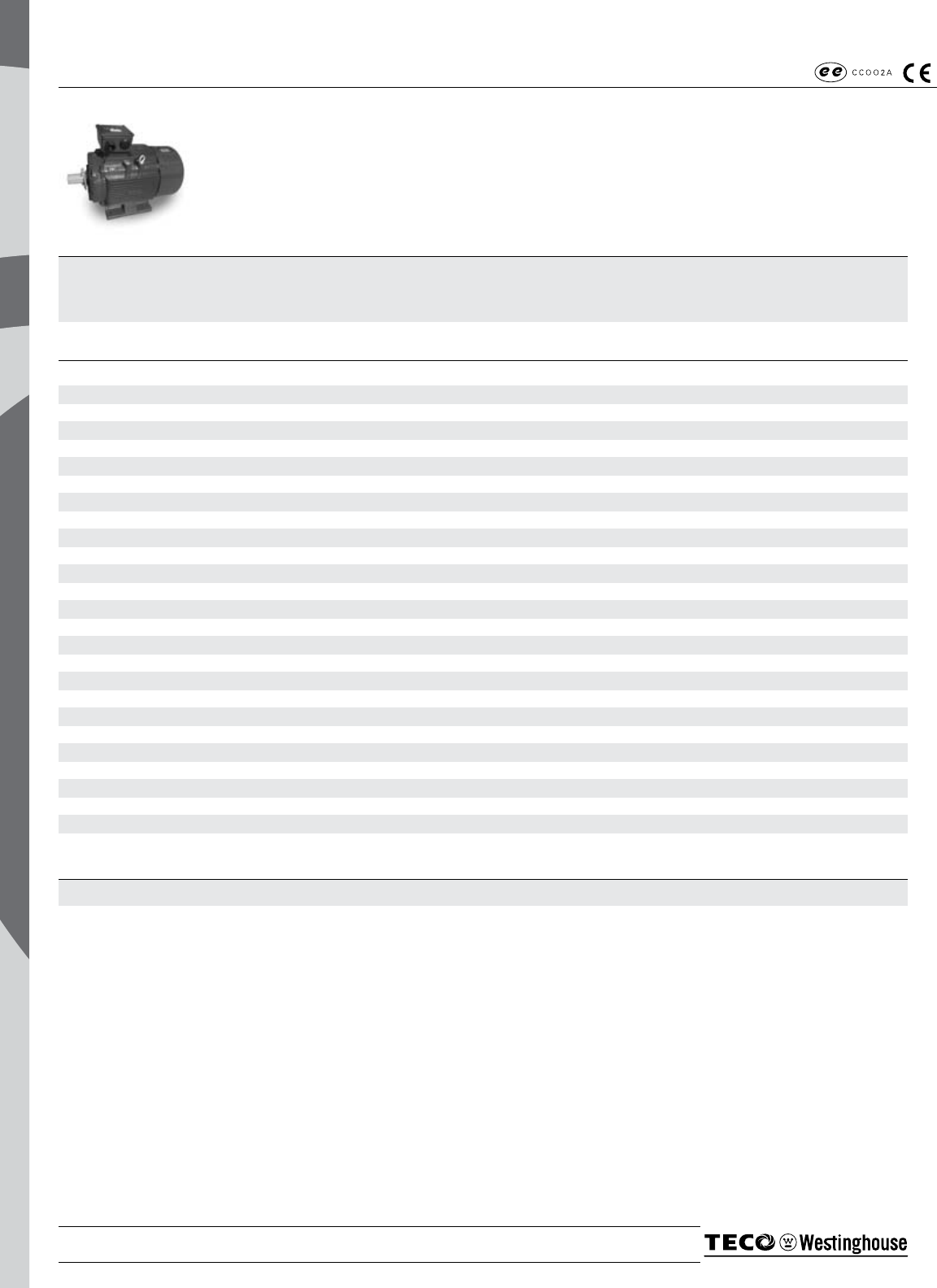

MAX-IE3™ METRIC
AESV3W, IEC, IE3 EFFICIENCY [MP]
APPLICATIONS:
z Fans & Blowers z Any Application that Requires IEC Mounting Dimensions
z Pumps
z Compressors
FEATURES:
z Output Range: 1 - 150 HP (0.75 - 112 kW)
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP55)
z Voltage: 230/460V (Usable on 208V)(1)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z Class F Insulation
z Class B Temperature Rise
z Cast Iron Frame, End Brackets and Main Conduit Box; Rolled Steel Fan Cover
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F3 Mounted (IM1001)
z Designed for 40˚C Ambient Temperature(2)
z Designed for 3300 ft. Elevation(3)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Blue - Munsell 5PB 3/8
z Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 80 - 225 (Non-regreasable)
z High Quality Ball (or Roller) Bearings Regreasable with with MULTEMP SRL for F# 250 and Larger
z Oil Seal/V-Ring on Both Ends
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation)(4,5)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
z 6 Leads
z Motors are CE Marked
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Suitable for Wye/Delta Starting.
(2) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(3) Consult a Stock Product Application Specialist for suitability at higher elevations.
(4) Motor service factor is 1.0 when operated on a VFD.
(5) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 37
MAX-IE3™ METRIC
AESV3W, IEC, IE3 EFFICIENCY [MP]
CATALOG
NO. KW HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST PRICE
($)
MP0012 0.75 1 3600 80M 77.0 84.0 1.46 18 420
MP0014 0.75 1 1800 80M 85.5 74.5 1.48 21 422
MP0016 0.75 1 1200 90S 82.5 70.0 1.63 28 504
MP1/52 1.1 1.5 3600 80M 84.0 85.0 1.93 20 471
MP1/54 1.1 1.5 1800 90S 86.5 81.0 1.97 27 471
MP1/56 1.1 1.5 1200 112M 87.5 64.0 2.47 31 597
MP0022 1.5 2 3600 90S 85.5 89.5 2.46 26 504
MP0024 1.5 2 1800 90L 86.5 75.0 2.90 29 501
MP0026 1.5 2 1200 112M 88.5 69.0 3.08 44 651
MP0032 2.2 3 3600 90L 86.5 89.0 3.59 29 606
MP0034 2.2 3 1800 100L 89.5 83.5 3.69 40 587
MP0036 2.2 3 1200 112M 89.5 67.5 4.09 54 847
MP0042 3.0 4 3600 100L 88.5 88.0 4.83 42 742
MP0044 3.0 4 1800 100L 89.5 78.5 5.36 42 686
MP0046 3.0 4 1200 132S 89.5 78.5 5.36 75 1,167
MP5/52 4.0 5.5 3600 112M 88.5 91.0 6.23 52 776
MP5/54 4.0 5.5 1800 112M 89.5 81.5 6.88 53 709
MP5/56 4.0 5.5 1200 132M 89.5 79.5 7.06 92 1,181
MP7/52 5.5 7.5 3600 132S 89.5 86.5 8.92 73 1,013
MP7/54 5.5 7.5 1800 132S 91.7 85.0 8.86 76 1,026
MP7/56 5.5 7.5 1200 132M 91.0 74.5 10.2 91 1,674
MP0102 7.5 10 3600 132S 90.2 87.5 11.9 76 1,167
MP0104 7.5 10 1800 132M 91.7 85.5 12.0 93 1,222
MP0106 7.5 10 1200 160M 91.0 81.5 12.7 135 1,993
MP0152 11 15 3600 160M 91.0 92.5 16.4 130 1,674
MP0154 11 15 1800 160M 92.4 87.0 17.2 130 1,685
MP0156 11 15 1200 160L 91.7 81.5 18.5 150 2,696
MP0202 15 20 3600 160M 91.0 92.5 22.4 130 2,076
MP0204 15 20 1800 160L 93.0 86.5 23.4 150 2,102
MP0206 15 20 1200 180L 91.7 83.0 24.7 205 3,401
MP0252 18.5 25 3600 160L 91.7 93.0 27.2 140 2,735
MP0254 18.5 25 1800 180M 93.6 82.5 30.1 195 2,557
MP0256 18.5 25 1200 200L 93.0 82.0 30.4 270 4,620
MP0302 22 30 3600 180M 91.7 90.0 32.0 180 3,171
MP0304 22 30 1800 180L 93.6 84.0 33.6 205 3,123
MP0306 22 30 1200 200L 93.0 82.0 34.6 290 4,909
MP0402 30 40 3600 200L 92.4 91.0 42.8 265 4,698
MP0404 30 40 1800 200L 94.1 89.5 42.8 285 4,578
MP0406 30 40 1200 225M 94.1 86.5 44.2 385 6,944
MP0502 37 50 3600 200L 93.0 91.0 52.5 300 5,699
MP0504 37 50 1800 225S 94.5 86.5 54.3 350 5,966
MP0506 37 50 1200 250M 94.1 88.0 53.6 460 9,753
MP0602 45 60 3600 225M 93.6 93.5 61.7 340 7,649
MP0604 45 60 1800 225M 95.0 86.5 65.7 360 7,029
MP0606 45 60 1200 280S 94.5 85.5 69.5 600 11,369
MP0752 56 75 3600 250M 93.6 93.0 75.9 465 11,096
MP0754 56 75 1800 250M 95.4 88.0 78.7 480 10,029
MP0756 56 75 1200 280M 94.5 84.5 87.9 660 10,965
MP1002 75 100 3600 280S 94.1 89.5 111 585 15,138
MP1004 75 100 1800 280S 95.4 87.5 112 620 11,953
MP1006 75 100 1200 315S 95.0 84.0 117 900 14,006
MP1252 93 125 3600 280M 95.0 89.5 138 615 15,226
MP1254 93 125 1800 280M 95.4 88.5 139 690 14,280
MP1256 93 125 1200 315M 95.0 84.5 146 960 18,418
MP1502 112 150 3600 315S 95.0 91.0 162 860 18,157
MP1504 112 150 1800 315S 95.8 88.0 167 960 16,225
MP1506 112 150 1200 315M 95.8 84.5 173 1,160 20,516
Notes:
(1) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
38 | www.tecowestinghouse.com or call 1-800-USE-TECO

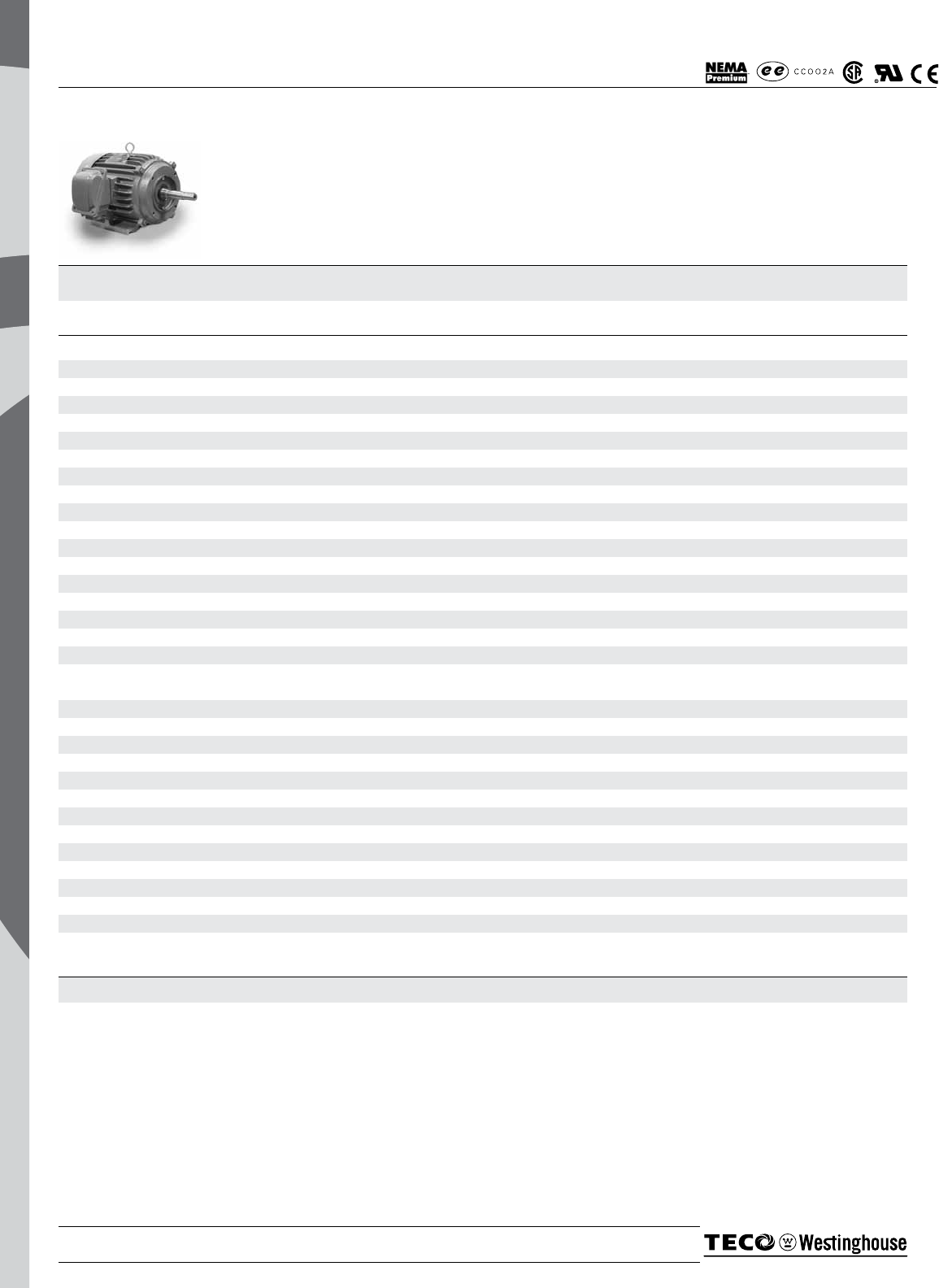

CAST IRON TEFC JP/JM
AEHH8NJP/JM, NEMA PREMIUM, CLOSE-COUPLED [JPP/JMP]
AEEAJP/JM, HIGH EFFICIENCY, CLOSE-COUPLED [JPN/JMN]
APPLICATIONS:
z Pumps
FEATURES:
z Output Range: 3/4 - 50 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP54)
z Voltage: 230/460V (Usable on 208V)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z CSA Certified for Class I, Div. 2, Groups B, C & D - Temp Code T3C Minimum(5)
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques
z Cast Iron Frame, End Brackets & Fan Cover and Main Conduit Box
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(1)
z Designed for 3300 ft. Elevation(2)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Premium - Light Gray - Munsell N5.0
High Efficient - Dark Gray - Munsell 7.5B 3.5/0.5
z Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140JP/JM - 280JP/JM (Non-regreasable)
z High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM Grease for F# 280JP/JM (2P), 320JP/JM and Larger
z Automatic Grease Discharge Fittings on Regreasable Models
z Rubber Dust Flinger on DE for F# 140JP/JM - 280JP/JM
z Labyrinth Type Metal Flinger on Both Ends for F# 280JP/JM (2P), 320JP/JM and Larger
z Cast Iron Inner and Outer Bearing Caps for F# 280JP/JM (2P), 320JP/JM and Larger
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(3,4)
z Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP to 125 HP;
z Motors are U.L. Recognized, CSA Approved and CE Marked
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(2) Consult a Stock Product Application Specialist for suitability at higher elevations.
(3) Motor service factor is 1.0 when operated on a VFD.
(4) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
(5) CSA Certification for Hazardous Location only applies to AEHH8NJP/JM, NEMA premium [JPP/JMP] product line.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 39
CAST IRON TEFC JP/JM
AEHH8NJP/JM, NEMA PREMIUM, CLOSE-COUPLED [JPP/JMP]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX. SHIPPING WT. (lbs.) LIST
PRICE ($)
JP JM JP JM
JPP0014 JMP0014 1 1800 143JP/JM 85.5 73.0 1.50 61 61 549
JPP0016 JMP0016 1 1200 145JP/JM 82.5 65.5 1.73 61 61 662
JPP1/52 JMP1/52 1.5 3600 143JP/JM 84.0 83.5 2.00 68 68 599
JPP1/54 JMP1/54 1.5 1800 145JP/JM 86.5 78.0 2.08 61 61 597
JPP1/56 JMP1/56 1.5 1200 182JP/JM 87.5 63.5 2.53 68 68 712
JPP0022 JMP0022 2 3600 145JP/JM 86.5 86.0 2.52 106 106 642
JPP0024 JMP0024 2 1800 145JP/JM 86.5 78.0 2.78 68 68 641
JPP0026 JMP0026 2 1200 184JP/JM 88.5 70.5 3.00 68 68 797
JPP0032 JMP0032 3 3600 182JP/JM 88.5 90.0 3.53 126 126 749
JPP0034 JMP0034 3 1800 182JP/JM 89.5 84.0 3.74 106 106 728
JPP0036 JMP0036 3 1200 213JP/JM 89.5 78.0 4.02 106 106 1,126
JPP0052 JMP0052 5 3600 184JP/JM 88.5 92.5 5.72 186 186 937
JPP0054 JMP0054 5 1800 184JP/JM 89.5 85.5 6.12 126 126 856
JPP0056 JMP0056 5 1200 215JP/JM 91.0 82.5 6.24 126 126 1,460
JPP7/52 JMP7/52 7.5 3600 213JP/JM 91.0 89.0 8.67 213 213 1,156
JPP7/54 JMP7/54 7.5 1800 213JP/JM 91.7 86.5 8.85 186 186 1,114
JPP7/56 JMP7/56 7.5 1200 254JP/JM 91.0 80.5 9.59 186 186 1,972
JPP0102 JMP0102 10 3600 215JP/JM 91.0 89.5 11.5 325 325 1,353
JPP0104 JMP0104 10 1800 215JP/JM 91.7 88.0 11.6 213 213 1,326
JPP0106 JMP0106 10 1200 256JP/JM 91.0 80.5 12.8 213 213 2,456
JPP0152 JMP0152 15 3600 254JP/JM 92.4 91.5 16.6 354 354 1,908
JPP0154 JMP0154 15 1800 254JP/JM 92.4 88.0 17.3 325 325 1,877
JPP0156 JMP0156 15 1200 284JP/JM 92.4 83.5 18.2 325 325 3,214
JPP0202 JMP0202 20 3600 256JP/JM 92.4 92.5 21.9 464 464 2,438
JPP0204 JMP0204 20 1800 256JP/JM 93.0 87.5 23.0 354 354 2,355
JPP0206 JMP0206 20 1200 286JP/JM 91.7 84.0 24.3 354 354 4,026
JPP0252 JMP0252 25 3600 284JP/JM 92.4 91.0 27.8 507 507 2,912
JPP0254 JMP0254 25 1800 284JP/JM 93.6 86.0 29.1 464 4647 2,770
JPP0256 JMP0256 25 1200 324JP/JM 93.0 83.0 30.3 464 464 4,927
JPP0302 JMP0302 30 3600 286JP/JM 93.0 91.0 33.2 694 694 3,386
JPP0304 JMP0304 30 1800 286JP/JM 93.6 87.5 34.3 507 507 3,356
JPP0306 JMP0306 30 1200 326JP/JM 93.0 80.5 37.5 507 507 5,284
JPP0402 JMP0402 40 3600 324JP/JM 94.1 90.0 44.2 784 784 4,463
JPP0404 JMP0404 40 1800 324JP/JM 94.1 86.0 46.3 694 694 4,389
JPP0406 ~ 40 1200 364JP/JM 94.1 86.5 46.0 694 694 6,734
JPP0502 JMP0502 50 3600 326JP/JM 94.1 91.0 54.7 926 926 5,486
JPP0504 JMP0504 50 1800 326JP/JM 94.5 87.0 56.9 784 784 5,476
JPP0506 ~ 50 1200 365JP/JM 94.1 86.0 57.8 784 784 8,670
Notes:
(1) Data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
40 | www.tecowestinghouse.com or call 1-800-USE-TECO
CAST IRON TEFC JP/JM
AEEAJP/JM, HIGH EFFICIENCY, CLOSE-COUPLED [JPN/JMN]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX. SHIPPING WT. (lbs.) LIST
PRICE ($)
JP JM JP JM
JPN0/76 JMN0/76 3/4 1200 143JP/JM 74.0 65.5 1.50 101 101 551
JPN0014 JMN0014 1 1800 143JP/JM 82.5 77.0 1.48 60 80 466
JPN0016 JMN0016 1 1200 145JP/JM 80.0 63.5 1.85 110 110 579
JPN1/52 JMN1/52 1.5 3600 143JP/JM 82.5 85.0 2.01 79 75 483
JPN1/54 JMN1/54 1.5 1800 145JP/JM 84.0 80.5 2.08 47 58 513
JPN1/56 JMN1/56 1.5 1200 182JP/JM 85.5 66.5 2.47 139 139 612
JPN0022 JMN0022 2 3600 145JP/JM 84.0 88.5 2.52 81 80 551
JPN0024 JMN0024 2 1800 145JP/JM 84.0 82.5 2.70 85 75 551
JPN0026 JMN0026 2 1200 184JP/JM 86.5 67.0 3.23 152 152 685
JPN0032 JMN0032 3 3600 182JP/JM 85.5 90.0 3.65 108 105 644
JPN0034 JMN0034 3 1800 182JP/JM 87.5 82.5 3.89 110 105 626
JPN0036 JMN0036 3 1200 213JP/JM 87.5 76.5 4.20 184 184 841
JPN0052 JMN0052 5 3600 184JP/JM 87.5 91.5 5.85 125 165 806
JPN0054 JMN0054 5 1800 184JP/JM 87.5 86.5 6.20 130 120 736
JPN0056 JMN0056 5 1200 215JP/JM 87.5 76.5 7.00 223 210 1,256
JPN7/52 JMN7/52 7.5 3600 213JP/JM 88.5 87.0 9.10 178 180 994
JPN7/54 JMN7/54 7.5 1800 213JP/JM 89.5 88.0 8.90 143 180 958
JPN7/56 JMN7/56 7.5 1200 254JP/JM 89.5 81.0 9.70 287 310 1,696
JPN0102 JMN0102 10 3600 215JP/JM 89.5 90.0 11.60 205 205 1,164
JPN0104 JMN0104 10 1800 215JP/JM 89.5 89.5 11.70 235 230 1,140
JPN0106 JMN0106 10 1200 256JP/JM 89.5 82.5 12.70 342 325 2,112
JPN0152 JMN0152 15 3600 254JP/JM 90.2 91.5 17.00 281 246 1,641
JPN0154 JMN0154 15 1800 254JP/JM 91.0 88.0 17.60 340 330 1,614
JPN0156 JMN0156 15 1200 284JP/JM 90.2 83.0 18.8 450 470 2,764
JPN0202 JMN0202 20 3600 256JP/JM 90.2 92.0 22.6 370 307 2,097
JPN0204 JMN0204 20 1800 256JP/JM 91.0 88.0 23.4 370 370 2,025
JPN0206 JMN0206 20 1200 286JP/JM 90.2 83.5 24.9 513 520 3,591
JPN0252 JMN0252 25 3600 284JP/JM 91.0 90.5 28.4 515 470 2,504
JPN0254 JMN0254 25 1800 284JP/JM 92.4 89.0 28.5 431 431 2,382
JPN0256 JMN0256 25 1200 324JP/JM 91.7 81.5 31.3 660 660 4,322
JPN0302 JMN0302 30 3600 286JP/JM 91.0 91.0 33.9 565 535 3,049
JPN0304 JMN0304 30 1800 286JP/JM 92.4 88.0 34.6 574 560 2,865
JPN0306 JMN0306 30 1200 326JP/JM 91.7 80.5 38.1 671 671 4,970
JPN0402 JMN0402 40 3600 324JP/JM 91.7 89.5 45.7 695 695 4,037
JPN0404 JMN0404 40 1800 324JP/JM 93.0 89.0 45.3 715 730 3,863
JPN0406 JMN0406 40 1200 364JP/JM 93.0 86.5 46.6 785 785 6,610
JPN0502 JMN0502 50 3600 326JP/JM 92.4 90.5 56.0 671 671 5,357
JPN0504 JMN0504 50 1800 326JP/JM 93.0 89.5 56.0 741 741 4,914
JPN0506 ~ 50 1200 365JP/JM 93.0 85.5 59.0 913 N/A 7,644
Notes:
(1) Per DOE regulations, this High Efficiency inventory will be available through June 2018, or until current inventory has been depleted.
Whichever occurs first. Please see our new line of Premium Efficient JP/JM Cast Iron TEFC motors on page 80.
(2) Data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 41

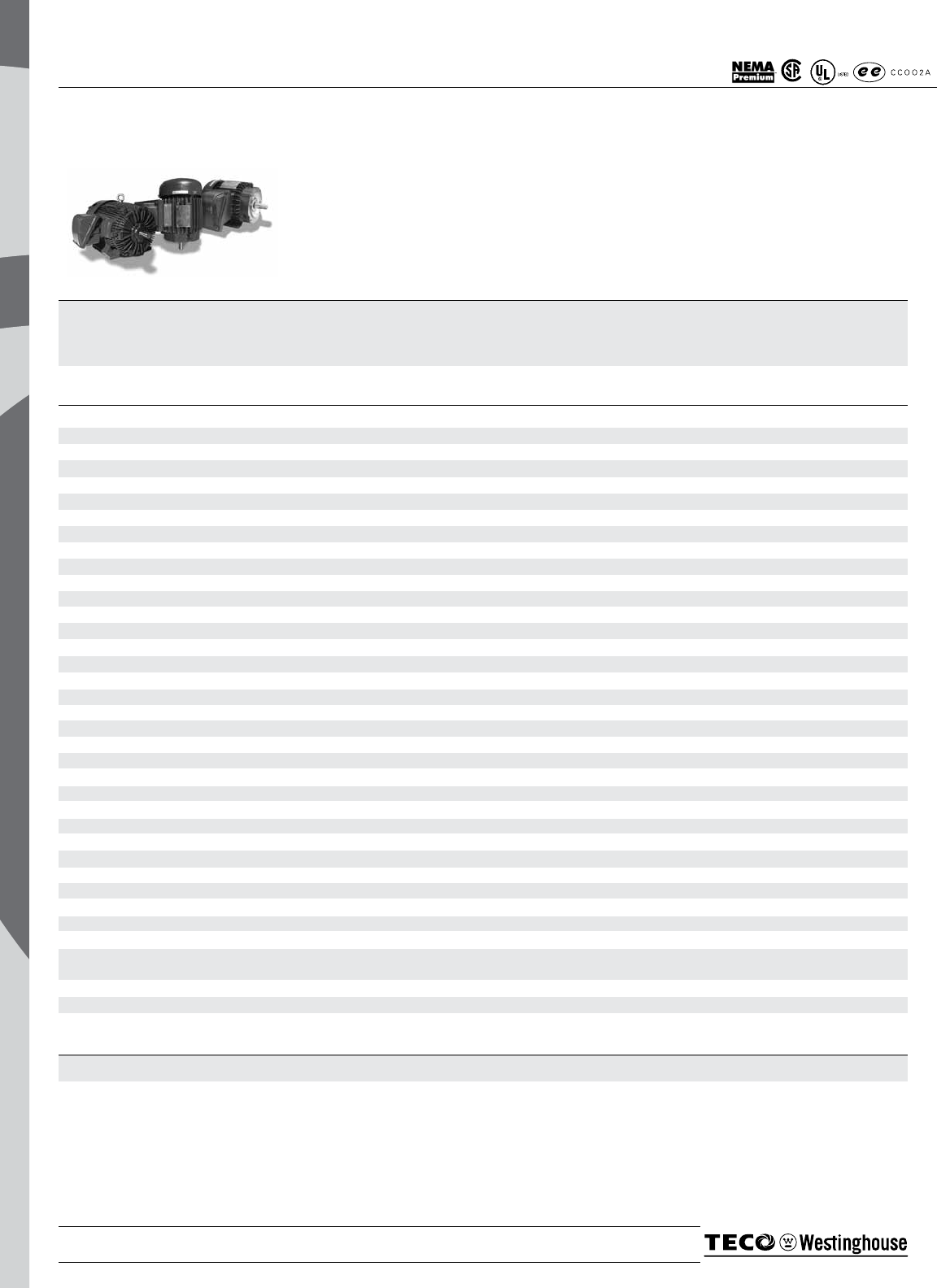

MAX-PE™ FAMILY
AEHH8P, NEMA PREMIUM [NP]
AEHH8PCF, NEMA PREMIUM, FOOTED C-FACE [NP_C]
AEUH8PDC, NEMA PREMIUM, ROUND BODY C-FACE [NPV_C]
APPLICATIONS:
z Fans & Blowers z Compressors
z Pumps z Mixers
z Crushers z Conveyors
FEATURES:
z Output Range: 1 - 200 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP54)
z Voltage: 230/460V (Usable on 208V); 150HP and Larger is 460V Only(1)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z CSA Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3C Minimum
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
z Cast Iron Frame and End Brackets; Rolled Steel Fan Cover and Main Conduit Box
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(2)
z Designed for 3300 ft. Elevation(3)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Dark Gray - Munsell 7.5B 3.5/0.5
z Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
z High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM Grease for F# 280TS and Larger
z Automatic Grease Discharge Fittings on Regreasable Models
z Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
z Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(4,5)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP to 125 HP;
z 6 Leads for 150 HP and Larger
z Motors are U.L. Recognized, CSA Approved and CE Marked
z Dual Drilled Feet Available on Most Ratings - Longer Frames (i.e. 145T Drilled also for 143T)
z Provisions for Breather Drains for Vertical Mount Down (F# 324T and Larger)
z Rubber Dust Flinger on Drive-End for F# 140T - 280T
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Motors 7.5 HP & up are Suitable for Wye/Delta Starting.
(2) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(3) Consult a Stock Product Application Specialist for suitability at higher elevations.
(4) Motor service factor is 1.0 when operated on a VFD.
(5) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
Effective 03-24-17
Supercedes 06-14-15
42 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-PE™
AEHH8P, NEMA PREMIUM [NP]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX
SHIPPING WT.
(lbs.)
LIST PRICE ($)
NP0012 1 3600 143T 82.5 85.0 1.34 83 387
NP0014(C) 1 1800 143T 85.5 73.0 1.50 48 394
NP0016 1 1200 145T 82.5 65.5 1.73 90 500
NP1/52 1.5 3600 143T 84.0 83.5 2.00 85 442
NP1/54(C) 1.5 1800 145T 86.5 78.0 2.08 78 444
NP1/56 1.5 1200 182T 87.5 63.5 2.53 120 526
NP0022 2 3600 145T 86.5 86.0 2.52 62 469
NP0024(C) 2 1800 145T 86.5 78.0 2.78 90 476
NP0026(C) 2 1200 184T 88.5 70.5 3.00 132 589
NP0032 3 3600 182T 88.5 90.0 3.53 130 552
NP0034(C) 3 1800 182T 89.5 84.0 3.74 135 537
NP0036(C) 3 1200 213T 89.5 78.0 4.02 164 773
NP0052 5 3600 184T 88.5 92.5 5.72 135 679
NP0054(C) 5 1800 184T 89.5 85.5 6.12 133 618
NP0056(C) 5 1200 215T 91.0 82.5 6.24 210 1,109
NP7/52 7.5 3600 213T 91.0 89.0 8.67 180 921
NP7/54(C) 7.5 1800 213T 91.7 86.5 8.85 200 919
NP7/56(C) 7.5 1200 254T 91.0 80.5 9.59 315 1,553
NP0102 10 3600 215T 91.0 89.5 11.5 220 1,071
NP0104(C) 10 1800 215T 91.7 88.0 11.6 219 1,107
NP0106(C) 10 1200 256T 91.0 80.5 12.8 340 1,886
NP0152 15 3600 254T 92.4 91.5 16.6 325 1,500
NP0154(C) 15 1800 254T 92.4 88.0 17.3 316 1,461
NP0156(C) 15 1200 284T 92.4 83.5 18.2 530 2,597
NP0202 20 3600 256T 92.4 92.5 21.9 380 1,911
NP0204(C) 20 1800 256T 93.0 87.5 23.0 395 1,842
NP0206(C) 20 1200 286T 91.7 84.0 24.3 520 3,259
NP0252 25 3600 284TS 92.4 91.0 27.8 460 2,436
NP0254(C) 25 1800 284T 93.6 86.0 29.1 510 2,266
NP0254S(C) 25 1800 284TS 93.6 86.0 29.1 510 2,266
NP0256(C) 25 1200 324T 93.0 83.0 30.3 745 4,074
NP0302 30 3600 286TS 93.0 91.0 33.2 508 2,875
NP0304(C) 30 1800 286T 93.6 87.5 34.3 545 2,750
NP0304S(C) 30 1800 286TS 93.6 87.5 34.3 545 2,750
NP0306(C) 30 1200 326T 93.0 80.5 37.5 775 4,558
NP0402 40 3600 324TS 94.1 90.0 44.2 650 3,808
NP0404(C) 40 1800 324T 94.1 86.0 46.3 710 3,695
NP0404S(C) 40 1800 324TS 94.1 86.0 46.3 710 3,695
NP0406(C) 40 1200 364T 94.1 86.5 46.0 945 5,994
NP0502 50 3600 326TS 94.1 91.0 54.7 775 5,104
NP0504(C) 50 1800 326T 94.5 87.0 56.9 795 4,681
NP0504S(C) 50 1800 326TS 94.5 87.0 56.9 795 4,681
NP0506(C) 50 1200 365T 94.1 86.0 57.8 1040 7,389
Notes:
(1) All data subject to change without notice.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 43
MAX-PE™
AEHH8P, NEMA PREMIUM [NP]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX
SHIPPING WT.
(lbs.)
LIST PRICE ($)
NP0602 60 3600 364TS 94.1 93.0 64.2 890 6,702
NP0604(C) 60 1800 364T 95.0 86.5 68.4 870 6,024
NP0604S(C) 60 1800 364TS 95.0 86.5 68.4 870 6,024
NP0606(C) 60 1200 404T 94.5 87.0 68.4 1,295 8,786
NP0752 75 3600 365TS 94.5 93.0 79.9 970 8,578
NP0754(C) 75 1800 365T 95.4 86.5 85.1 1,075 7,772
NP0754S(C) 75 1800 365TS 95.4 86.5 85.1 1,075 7,772
NP0754R(C) 75 1800 365T 95.4 86.5 85.1 1,075 7,772
NP0756(C) 75 1200 405T 94.5 86.5 85.9 1,317 10,443
NP0756R(C) 75 1200 405T 94.5 86.5 85.9 1,317 10,443
NP1002 100 3600 405TS 95.4 92.0 107 1,286 11,586
NP1004(C) 100 1800 405T 95.4 87.5 112 1,360 10,801
NP1004S(C) 100 1800 405TS 95.4 87.5 112 1,360 10,801
NP1004R(C) 100 1800 405T 95.4 87.5 112 1,360 10,801
NP1006 100 1200 444T 95.0 82.5 119 1,665 13,339
NP1006R 100 1200 444T 95.0 82.5 119 1,665 13,339
NP1252 125 3600 444TS 95.0 86.0 143 1,530 14,501
NP1254 125 1800 444T 95.4 84.0 146 1,705 13,600
NP1254S 125 1800 444TS 95.4 84.0 146 1,705 13,600
NP1254R 125 1800 444T 95.4 84.0 146 1,705 13,600
NP1256 125 1200 445T 95.0 83.0 148 1,860 17,541
NP1256R 125 1200 445T 95.0 83.0 148 1,860 17,541
NP1502 150 3600 445TS 95.0 87.0 170 1,710 17,292
NP1504 150 1800 445T 95.8 84.0 175 1,865 15,452
NP1504S 150 1800 445TS 95.8 84.0 175 1,865 15,452
NP1504R 150 1800 445T 95.8 84.0 175 1,865 15,452
NP1506 150 1200 447T 95.8 83.5 176 2,230 19,539
NP1506R 150 1200 447T 95.8 83.5 176 2,230 19,539
NP2002 200 3600 447TS 95.4 87.0 226 2,015 23,684
NP2004 200 1800 447T 96.2 84.5 230 2,465 20,282
NP2004S 200 1800 447TS 96.2 84.5 230 2,465 20,282
NP2004R 200 1800 447T 96.2 84.5 230 2,465 20,282
NP2006 200 1200 449T 95.8 84.0 233 2,625 25,554
NP2006R 200 1200 449T 95.8 84.0 233 2,625 25,554
Notes:
(1) All data subject to change without notice.
(2) Ratings 150 HP and Larger are 460V Only.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
44 | www.tecowestinghouse.com or call 1-800-USE-TECO

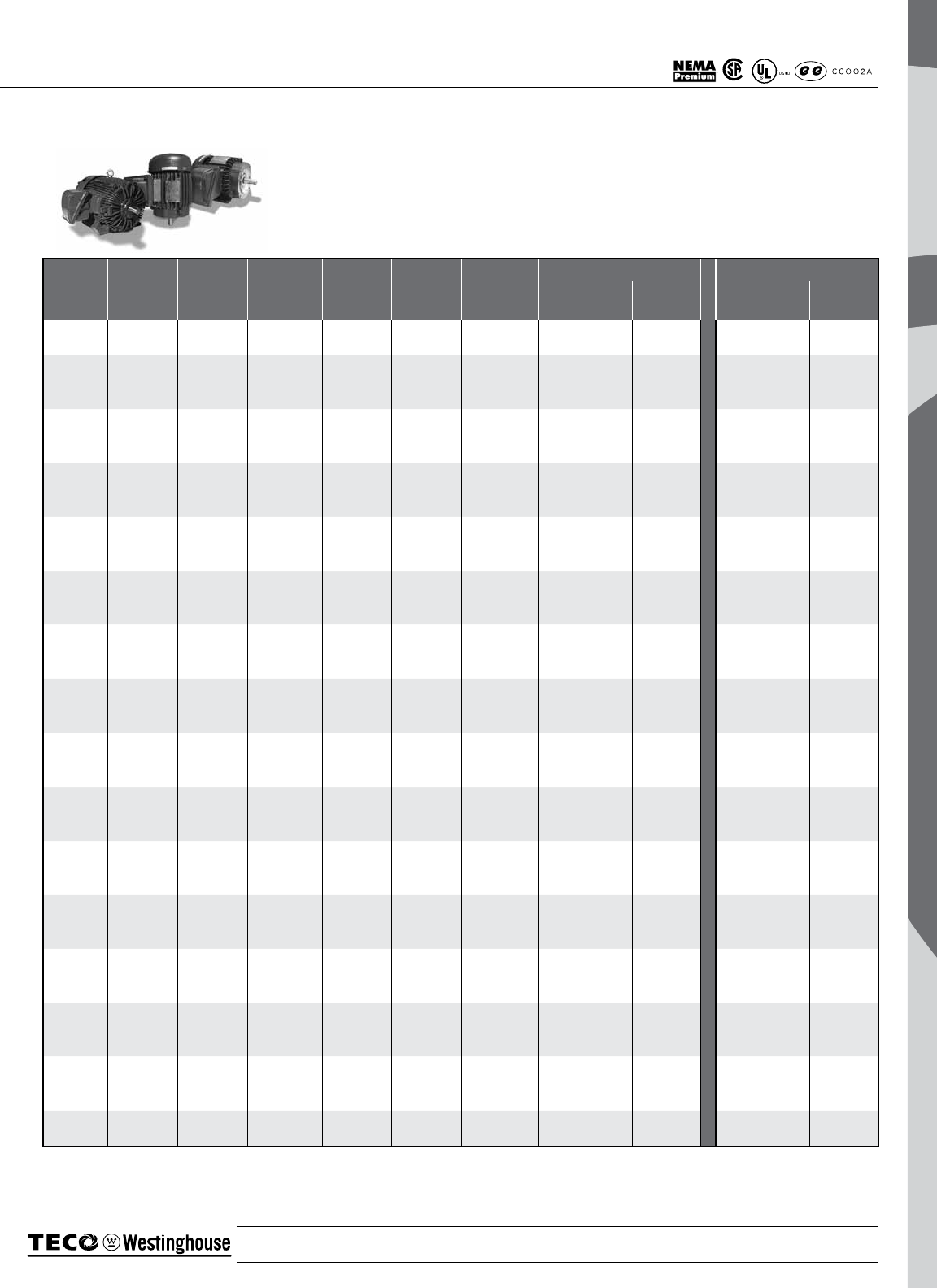

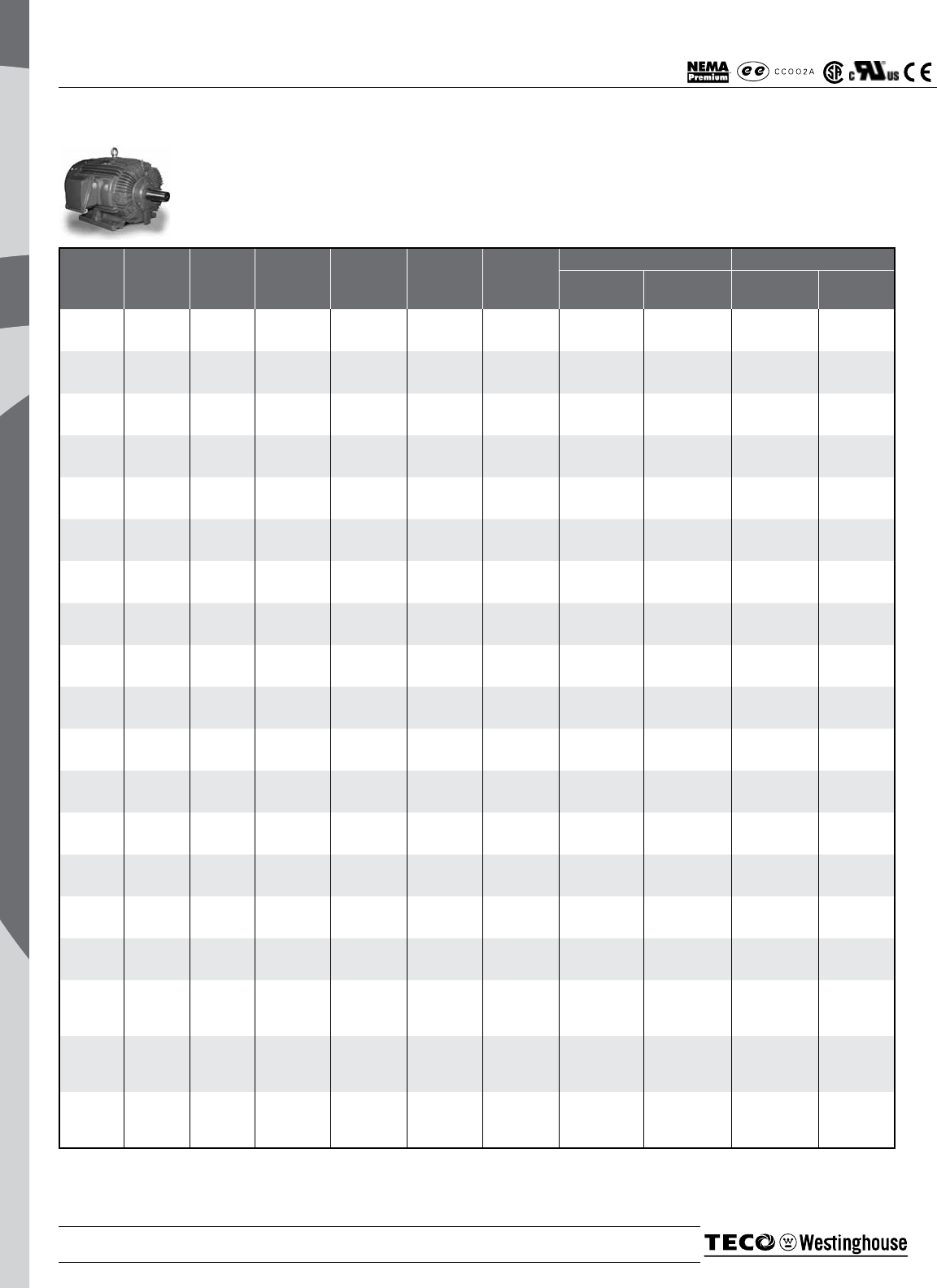

MAX-PE™
AEHH8PCF, NEMA PREMIUM, FOOTED C-FACE [NP_C]
AEUH8PDC, NEMA PREMIUM, ROUND BODY C-FACE [NPV_C]
HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
FOOTED C-FACE ROUND BODY C-FACE
CATALOG
NO.
LIST
PRICE ($)
CATALOG
NO.
LIST
PRICE ($))
1 3600 143TC 82.5 85.0 1.34 85 NP0012C 418 NPV0012C 541
1 1800 143TC 85.5 73.0 1.50 50 NP0014C(C) 449 NPV0014C(C) 531
1 1200 145TC 82.5 65.5 1.73 92 NP0016C 577 NPV0016C 655
1.5 3600 143TC 84.0 83.5 2.00 87 NP1/52C 500 NPV1/52C 559
1.5 1800 145TC 86.5 78.0 2.08 80 NP1/54C(C) 508 NPV1/54C(C) 579
1.5 1200 182TC 87.5 63.5 2.53 122 NP1/56C 600 NPV1/56C 769
2 3600 145TC 86.5 86.0 2.52 64 NP0022C 544 NPV0022C 621
2 1800 145TC 86.5 78.0 2.78 92 NP0024C(C) 553 NPV0024C(C) 648
2 1200 184TC 88.5 70.5 3.00 134 NP0026C(C) 680 NPV0026C(C) 867
3 3600 182TC 88.5 90.0 3.53 132 NP0032C 654 NPV0032C 751
3 1800 182TC 89.5 84.0 3.74 137 NP0034C(C) 624 NPV0034C(C) 789
3 1200 213TC 89.5 78.0 4.02 166 NP0036C(C) 987 NPV0036C(C) 1,171
5 3600 184TC 88.5 92.5 5.72 137 NP0052C 771 NPV0052C 886
5 1800 184TC 89.5 85.5 6.12 135 NP0054C(C) 683 NPV0054C(C) 843
5 1200 215TC 91.0 82.5 6.24 212 NP0056C(C) 1,260 NPV0056C(C) 1,404
7.5 3600 213TC 91.0 89.0 8.67 182 NP7/52C 1,066 NPV7/52C 1,197
7.5 1800 213TC 91.7 86.5 8.85 202 NP7/54C(C) 1,065 NPV7/54C(C) 1,292
7.5 1200 254TC 91.0 80.5 9.59 317 NP7/56C(C) 1,743 NPV7/56C(C) 1,910
10 3600 215TC 91.0 89.5 11.50 222 NP0102C 1,239 NPV0102C 1,388
10 1800 215TC 91.7 88.0 11.60 221 NP0104C(C) 1,295 NPV0104C(C) 1,404
10 1200 256TC 91.0 80.5 12.80 342 NP0106C(C) 2,164 NPV0106C(C) 2,414
15 3600 254TC 92.4 91.5 16.60 327 NP0152C 1,745 NPV0152C 1,887
15 1800 254TC 92.4 88.0 17.30 318 NP0154C(C) 1,682 NPV0154C(C) 1,833
15 1200 284TC 92.4 83.5 18.20 532 NP0156C(C) 3,021 NPV0156C(C) 3,146
20 3600 256TC 92.4 92.5 21.90 382 NP0202C 2,235 NPV0202C 2,562
20 1800 256TC 93.0 87.5 23.00 397 NP0204C(C) 2,135 NPV0204C(C) 2,384
20 1200 286TC 91.7 84.0 24.30 522 NP0206C(C) 3,825 NPV0206C(C) 3,434
25 3600 284TSC 92.4 91.0 27.80 462 NP0252C 2,843 NPV0252C 3,059
25 1800 284TC 93.6 86.0 29.10 512 NP0254C(C) 2,653 NPV0254C(C) 2,981
25 1200 324TC 93.0 83.0 30.30 747 NP0256C(C) 4,751 NPV0256C(C) 4,504
30 3600 286TSC 93.0 91.0 33.20 510 NP0302C 3,372 NPV0302C 3,282
30 1800 286TC 93.6 87.5 34.30 547 NP0304C(C) 3,227 NPV0304C(C) 3,158
30 1200 326TC 93.0 80.5 37.50 777 NP0306C(C) 5,372 NPV0306C(C) 5,169
40 3600 324TSC 94.1 90.0 44.20 652 NP0402C 4,278 NPV0402C 4,296
40 1800 324TC 94.1 86.0 46.30 712 NP0404C(C) 4,191 NPV0404C(C) 4,141
40 1200 364TC 94.1 86.5 46.00 947 NP0406C(C) 6,814 NPV0406C(C) 6,574
50 3600 326TSC 94.1 91.0 54.70 777 NP0502C 5,668 NPV0502C 5,590
50 1800 326TC 94.5 87.0 56.90 797 NP0504C(C) 5,264 NPV0504C(C) 5,177
50 1200 365TC 94.1 86.0 57.80 1,042 NP0506C(C) 8,241 NPV0506C(C) 8,564
60 3600 364TSC 94.1 93.0 64.20 892 NP0602C 7,429 NPV0602C 7,030
60 1800 364TC 95.0 86.5 68.40 872 NP0604C(C) 6,848 NPV0604(C) 6,959
60 1200 404TC 94.5 87.0 68.30 1,297 NP0606C(C) 9,922 NPV0606C(C) 9,540
75 3600 365TSC 94.5 93.0 79.90 972 NP0752C 9,510 NPV0752C 8,838
75 1800 365TC 95.4 86.5 85.1 1,077 NP0754C(C) 8,615 NPV0754C(C) 8,631
75 1200 405TC 94.5 86.5 85.9 1,319 NP0756C(C) 11,580 NPV0756C(C) 10,896
100 3600 405TSC 95.4 92.0 107.0 1,288 NP1002C 12,843 NPV1002C 10,951
100 1800 405TC 95.4 87.5 112.0 1,362 NP1004C(C) 12,073 NPV1004C(C) 10,978
100 1200 444TC 95.0 82.5 119.0 1,665 NP1006C 14,673 NPV1006C 13,952
125 3600 444TSC 95.0 86.0 143.0 1,515 NP1252C 15,951 NPV1252C 13,633
125 1800 444TC 95.4 84.0 146.0 1,520 NP1254C 14,960 NPV1254C 13,546
125 1800 444TSC 95.4 84.0 146.0 1,520 NP1254CS 14,960 ~ ~
125 1200 445TC 95.0 83.0 148.0 1,620 NP1256C 19,295 NPV1256C 15,270
150 3600 445TSC 95.0 87.0 170.0 1,610 NP1502C 19,021 NPV1502C 14,022
150 1800 445TC 95.8 84.0 175.0 1,700 NP1504C 16,997 NPV1504C 14,743
150 1800 445TSC 95.8 84.0 175.0 1,700 NP1504CS 19,667 ~ ~
150 1200 447TC 95.8 83.5 176.0 2,100 NP1506C 21,493 NPV1506C 17,817
200 3600 447TSC 95.4 87.0 226.0 1,830 NP2002C 26,052 NPV2002C 18,361
200 1800 447TC 96.2 84.5 230.0 2,140 NP2004C 22,310 NPV2004C 18,910
200 1800 447TSC 96.2 84.5 230.0 2,140 NP2004CS 22,310 ~ ~
200 1200 449TC 95.8 84.0 233.0 2,390 NP2006C 28,109 NPV2006C 19,815
Notes:
(1) All data subject to change without notice.
(2) Ratings 150 HP and Larger are 460V Only.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 45

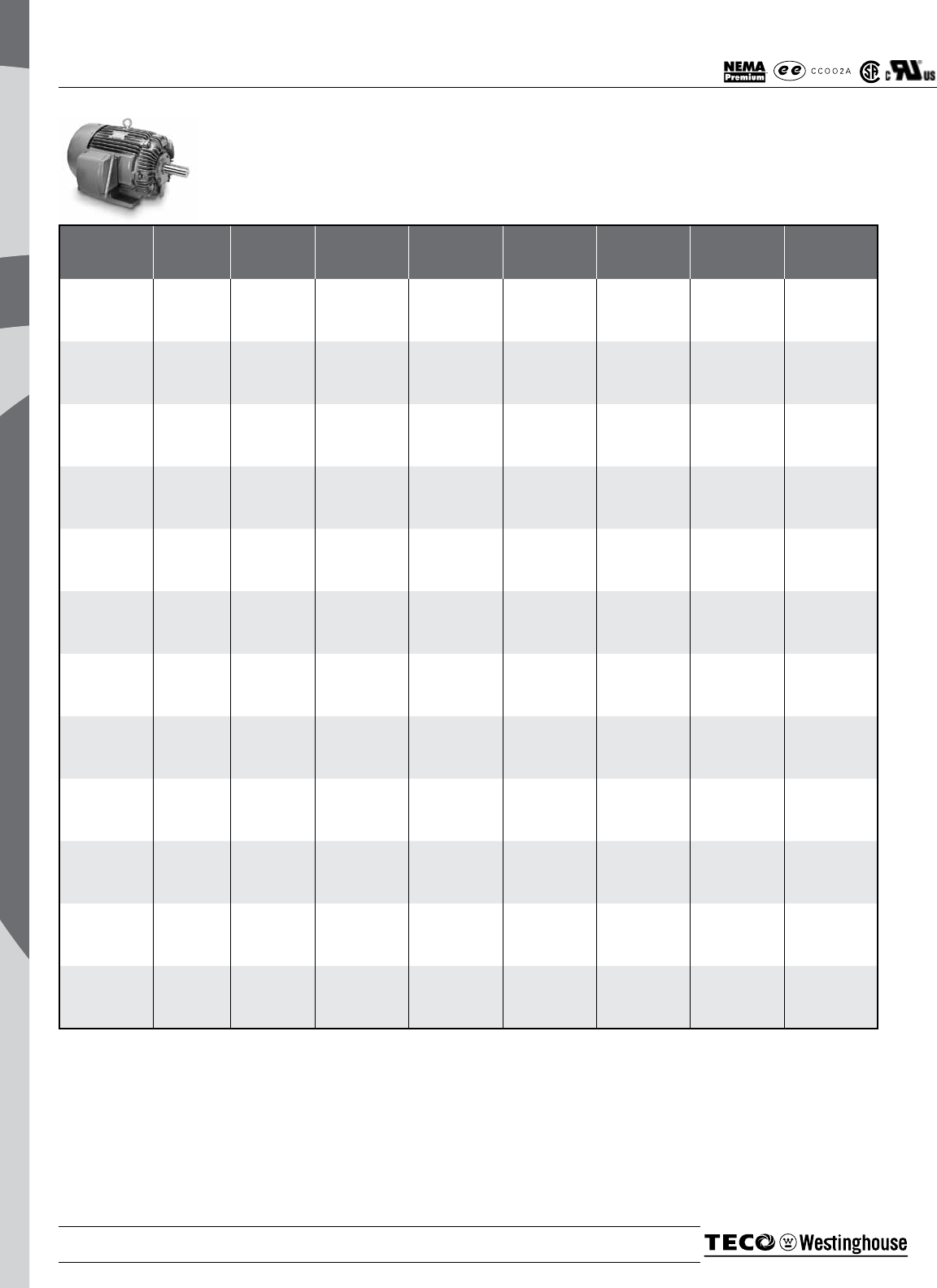

MAX-PE™ AEGIS® SGR
AEHH8P, NEMA PREMIUM [NP_G]
APPLICATIONS:
z Fans & Blowers
z Pumps
z Compressors
z HVAC Equipment
FEATURES:
z Output Range: 1 - 75 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP54)
z Voltage: 230/460V (Usable on 208V)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z Grounding Ring Factory Installed Externally on DE Bracket for F# 143T - 286T; Internally on NDE for F# 284TS - 405T
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
z Cast Iron Frame and End Brackets; Rolled Steel Fan Cover and Main Conduit Box
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(2)
z Designed for 3300 ft. Elevation(3)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Dark Gray - Munsell 7.5B 3.5/0.5
z Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
z High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM Grease for F# 280TS and Larger
z Automatic Grease Discharge Fittings on Regreasable Models
z Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
z Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(4,5)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP to 125 HP;
z 6 Leads for 150 HP and Larger
z Motors are U.L. Recognized, CSA Approved and CE Marked
z Dual Drilled Feet Available on Most Ratings - Longer Frames (i.e. 145T Drilled also for 143T)
z Provisions for Breather Drains for Vertical Mount Down (F# 324T and Larger)
z Rubber Dust Flinger on Drive-End for F# 140T - 280T
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Motors 7.5 HP & up are Suitable for Wye/Delta Starting.
(2) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(3) Consult a Stock Product Application Specialist for suitability at higher elevations.
(4) Motor service factor is 1.0 when operated on a VFD.
(5) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
(6) AEGIS® SGR Bearing Protection Ring can not be used in Hazardous Locations (i.g. Class I, Div. 2, etc.)
The AEGIS® SGR Bearing Protection Ring prevents electrical bearing fluting damage
by safely diverting harmful shaft voltages and bearing currents to ground. Using
proprietary Electron Transport Technology™, the conductive microfibers inside
the AEGIS® SGR provide the most reliable current diversion technology for shaft
grounding with a "path of least resistance" to dramatically extend motor life.
AEGIS® SGR Rings have a warranty of 1 year.
Effective 03-24-17
Supercedes 06-14-15
46 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-PE™ AEGIS® SGR
AEHH8P, NEMA PREMIUM [NP_G]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX
SHIPPING WT.
(lbs.)
LIST PRICE ($)
NP0012G 1 3600 143T 82.5 85.0 1.34 83 504
NP0014G(C) 1 1800 143T 85.5 73.0 1.50 48 522
NP0016G 1 1200 145T 82.5 65.5 1.73 90 642
NP1/52G 1.5 3600 143T 84.0 83.5 2.00 85 573
NP1/54G(C) 1.5 1800 145T 86.5 78.0 2.08 78 578
NP1/56G 1.5 1200 182T 87.5 63.5 2.53 120 703
NP0022G 2 3600 145T 86.5 86.0 2.52 62 607
NP0024G(C) 2 1800 145T 86.5 78.0 2.78 90 616
NP0026G(C) 2 1200 184T 88.5 70.5 3.00 132 772
NP0032G 3 3600 182T 88.5 90.0 3.53 130 735
NP0034G(C) 3 1800 182T 89.5 84.0 3.74 135 716
NP0036G(C) 3 1200 213T 89.5 78.0 4.02 164 991
NP0052G 5 3600 184T 88.5 92.5 5.72 135 881
NP0054G(C) 5 1800 184T 89.5 85.5 6.12 133 809
NP0056G(C) 5 1200 215T 91.0 82.5 6.24 210 1,387
NP7/52G 7.5 3600 213T 91.0 89.0 8.67 180 1,178
NP7/54G(C) 7.5 1800 213T 91.7 86.5 8.85 200 1,173
NP7/56G(C) 7.5 1200 254T 91.0 80.5 9.59 315 1,912
NP0102G 10 3600 215T 91.0 89.5 11.5 220 1,340
NP0104G(C) 10 1800 215T 91.7 88.0 11.6 219 1,380
NP0106G(C) 10 1200 256T 91.0 80.5 12.8 340 2,279
NP0152G 15 3600 254T 92.4 91.5 16.6 325 1,853
NP0154G(C) 15 1800 254T 92.4 88.0 17.3 316 1,808
NP0156G(C) 15 1200 284T 92.4 83.5 18.2 530 3,107
NP0202G 20 3600 256T 92.4 92.5 21.9 380 2,309
NP0204G(C) 20 1800 256T 93.0 87.5 23.0 395 2,226
NP0206G(C) 20 1200 286T 91.7 84.0 24.3 520 3,842
NP0252G 25 3600 284TS 92.4 91.0 27.8 460 2,891
NP0254G(C) 25 1800 284T 93.6 86.0 29.1 510 2,718
NP0256G(C) 25 1200 324T 93.0 83.0 30.3 745 4,783
NP0302G 30 3600 286TS 93.0 91.0 33.2 508 3,381
NP0304G(C) 30 1800 286T 93.6 87.5 34.3 545 3,262
NP0306G(C) 30 1200 326T 93.0 80.5 37.5 775 5,299
NP0402G 40 3600 324TS 94.1 90.0 44.2 650 4,445
NP0404G(C) 40 1800 324T 94.1 86.0 46.3 710 4,345
NP0406G(C) 40 1200 364T 94.1 86.5 46.0 945 6,929
NP0502G 50 3600 326TS 94.1 91.0 54.7 775 5,896
NP0504G(C) 50 1800 326T 94.5 87.0 56.9 795 5,440
NP0506G(C) 50 1200 365T 94.1 86.0 57.8 1040 8,477
NP0602G 60 3600 364TS 94.1 93.0 64.2 890 7,674
NP0604G(C) 60 1800 364T 95.0 86.5 68.4 870 6,967
NP0606G(C) 60 1200 404T 94.5 87.0 68.3 1,295 10,101
NP0752G 75 3600 365TS 94.5 93.0 79.9 970 9,761
NP0754G(C) 75 1800 365T 95.4 86.5 85.1 1,075 8,913
NP0756G(C) 75 1200 405T 94.5 86.5 85.9 1,317 11,941
Notes:
(1) All data subject to change without notice.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 47
MAX-SE™
AEVANE, HIGH EFFICIENCY, ROUND BODY C-FACE [NV_C]
APPLICATIONS:
z Fans & Blowers z Crushers
z Pumps z Mixers
z Compressors z Conveyors
FEATURES:
z Output Range: 1 - 100 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP54)
z Voltage: 230/460V (Usable on 208V)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z Factory Self-Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3C Minimum
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
z Cast Iron Frame, End Brackets, Main Conduit Box; Rolled Steel Fan Cover
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(2)
z Designed for 3300 ft. Elevation(3)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Dark Gray - Munsell 7.5B 3.5/0.5
z Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
z High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM Grease for F# 280TS and Larger
z Automatic Grease Discharge Fittings on Regreasable Models
z Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
z Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger
z Stainless Steel Nameplate
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(4,5)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP to 125 HP;
z Motors are U.L. Recognized, CSA Approved and CE Marked
z Rubber Dust Flinger on Drive-End for F# 140T - 280T
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(2) Consult a Stock Product Application Specialist for suitability at higher elevations.
(3) Factory Self-Certification for 440T/TS frames requires fan change. Please see modifications section; Additional charge for Division II nameplates.
(4) Motor service factor is 1.0 when operated on a VFD.
(5) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
Effective 03-24-17
Supercedes 06-14-15
48 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-SE™
AEVANE, HIGH EFFICIENCY, ROUND BODY C-FACE [NV_C]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX
SHIPPING WT.
(lbs.)
LIST PRICE ($)
NV0012C 1 3600 143TC 77.0 84.5 1.44 85 387
NV0014C(C) 1 1800 143TC 82.5 77.0 1.48 50 394
NV0016C 1 1200 145TC 80.0 63.3 3.69 56 500
NV1/52C 1.5 3600 143TC 82.5 85.0 2.01 50 442
NV1/54C(C) 1.5 1800 145TC 84.0 80.5 2.08 54 444
NV1/56C 1.5 1200 182TC 85.5 66.5 4.94 79 526
NV0022C 2 3600 145TC 84.0 88.5 2.52 53 469
NV0024C(C) 2 1800 145TC 84.0 82.5 2.70 80 476
NV0026C(C) 2 1200 184TC 86.5 67.0 6.46 104 589
NV0032C 3 3600 182TC 85.5 90.0 3.65 135 552
NV0034C(C) 3 1800 182TC 87.5 82.5 3.89 122 537
NV0036C(C) 3 1200 213TC 89.5 76.5 8.39 158 773
NV0052C 5 3600 184TC 87.5 91.5 5.85 145 679
NV0054C(C) 5 1800 184TC 87.5 86.5 6.20 150 618
NV0056C(C) 5 1200 215TC 87.5 76.5 14.0 176 1,109
NV7/52C 7.5 3600 213TC 88.5 87.0 9.10 190 921
NV7/54C(C) 7.5 1800 213TC 89.5 88.0 8.90 198 919
NV7/56C(C) 7.5 1200 254TC 89.5 81.0 19.4 274 1,553
NV0102C 10 3600 215TC 89.5 90.0 11.6 218 1,071
NV0104C(C) 10 1800 215TC 89.5 89.5 11.7 221 1,107
NV0106C(C) 10 1200 256TC 89.5 92.5 25.4 324 1,886
NV0152C 15 3600 254TC 90.2 91.5 17.0 350 1,500
NV0154C(C) 15 1800 254TC 91.0 88.0 17.6 365 1,461
NV0156C(C) 15 1200 284TC 90.2 83.0 37.0 425 2,597
NV0202C 20 3600 256TC 90.2 92.0 22.6 375 1,911
NV0204C(C) 20 1800 256TC 91.0 88.0 23.4 410 1,842
NV0206C(C) 20 1200 286TC 90.2 83.5 49.7 470 3,259
NV0252C 25 3600 284TSC 91.0 90.5 28.4 444 2,436
NV0254C(C) 25 1800 284TC 92.4 89.0 28.5 515 2,266
NV0256C(C) 25 1200 324TC 91.7 91.5 62.6 606 4,074
NV0302C 30 3600 286TSC 91.0 91.0 33.9 555 2,875
NV0304C(C) 30 1800 286TC 92.4 88.0 34.6 503 2,750
NV0306C(C) 30 1200 326TC 91.7 80.5 76.1 699 4,558
NV0402C 40 3600 324TSC 91.7 89.5 45.7 625 3,808
NV0404C(C) 40 1800 324TC 93.0 89.0 45.3 740 3,695
NV0406C(C) 40 1200 364TC 93.0 86.5 93.1 766 5,994
NV0502C 50 3600 326TSC 92.4 90.5 56.0 706 5,104
NV0504C(C) 50 1800 326TC 93.0 89.5 56.0 835 4,681
NV0506C(C) 50 1200 365TC 93.0 85.5 118.0 837 7,389
NV0602C 60 3600 364TSC 93.0 93.0 65.0 910 6,702
NV0604C(C) 60 1800 364TC 93.6 86.5 69.5 915 6,024
NV0606C(C) 60 1200 404TC 93.6 88.0 136 972 8,786
NV0752C 75 3600 365TSC 93.0 93.5 81.0 871 8,578
NV0754C(C) 75 1800 365TC 94.1 87.5 85.5 1,035 7,772
NV0756C(C) 75 1200 405TC 93.6 88.5 170 1,304 10,443
NV1002C 100 3600 405TSC 93.6 91.5 110 1,203 11,586
NV1004C(C) 100 1800 405TC 94.5 89.0 112 1,365 10,801
Notes:
(1) Motors on this page do not include Drip Cover. Drip covers are available. See page 127.
(2) Per DOE regulations, this High Efficiency inventory will be available through June 2018, or until current inventory has been depleted.
Whichever occurs first.
(3) Once product listed above has been depleted from current stock, that model becomes obsolete and can not be reordered.
(4) Please see our new line of Premium Efficient MAX-PE Round Body C-face motors on page 44.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 49
MAX-E1® FAMILY
AEHH8N, NEMA PREMIUM (1 HP - 500 HP) [EP]
AEHE, HIGH EFFICIENCY [E]
AEHH8NCF, NEMA PREMIUM, FOOTED C-FACE (1 HP - 300 HP) [EP_C]
AEUH8NDC, NEMA PREMIUM, ROUND BODY C-FACE (1 HP - 300 HP) [EPV_C]
APPLICATIONS:
z Fans & Blowers z Compressors z Any Severe Duty/ Petro-Chem/
z Pumps z Mixers Pulp & Paper Application
z Crushers z Conveyors
FEATURES:
z Output Range: 3/4 - 800 HP
z Speed: 3600, 1800, 1200 & 900 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP55)
z Voltage: 230/460V (Usable on 208V); 150HP and Larger is 460V Only(1,2)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z CSA Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3 Maximum(7,8)
z CSA Certified for Class II, Div. 2, Groups F & G - Temp Code T3 Maximum (Frame 444T and Above)(7,8)
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
z Cast Iron Frame, End Brackets & Fan Cover and Main Conduit Box(9)
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(3)
z Designed for 3300 ft. Elevation(4)
z Bi-Directional Rotation; Except 2 Pole "Hybrid" and F# 5000 and Larger Ratings are Counter-Clockwise facing the DE
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction for F# 140T - 449T
Copper/Copper Alloy Rotor Construction for F# 5000 and Larger(10)
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Light Gray - Munsell N5.0
z Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
z High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM Grease for F# 280TS and Larger
z Automatic Grease Discharge Fittings on Regreasable Models
z Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
z Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(5,6)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)
z 9 Leads for 5 HP and Smaller;
z 12 Leads for 7.5 HP to 125 HP;
z 6 Leads for 150 HP and Larger
z Motors are U.L. Recognized, CSA Approved and CE Marked
z Dual Drilled Feet Available on Most Ratings - Longer Frames (i.e. 145T Drilled also for 143T)
z Insulated Non-Drive End Bearing on 2-Pole Motors 600 HP and Larger
z Rubber Dust Flinger on Drive-End for F# 140T - 280T
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) TWMC carries minimal MAX-E1® 575V stock; please check availability to ensure required motors are available. Ratings may be available from our
Canadian warehouses at a higher price or from our factory with a longer lead time. Pricing and lead time may vary.
(2) Motors 7.5 HP & up are Suitable for Wye/Delta Starting.
(3) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(4) Consult a Stock Product Application Specialist for suitability at higher elevations.
(5) Motor service factor is 1.0 when operated on a VFD.
(6) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
(7) Catalog# EP3502 & EP3504 are "Hybrid" ratings; Not CSA Certified (Self-Certify Only) for hazardous locations, and not dual drilled.
(8) Catalog# EP3006 also not CSA Certified for Hazardous Locations (Self-Certify Only).
(9) F# 5000 and with Larger with Pressed Steel Plate Main Conduit Box.
(10) F# 5007 - 5011 8 Pole Ratings are Aluminum Die Cast Squirrel Cage Rotor Construction.
Effective 03-24-17
Supercedes 06-14-15
50 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-E1™
AEHH8N, NEMA PREMIUM (1 HP - 500 HP) [EP]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST PRICE ($)
EP0012 1 3600 143T 82.5 85.0 1.34 65 423
EP0014(C) 1 1800 143T 85.5 73.0 1.50 58 426
EP0016 1 1200 145T 82.5 65.5 1.73 83 552
EP0018 1 900 182T 77.0 58.5 2.08 105 917
EP1/52 1.5 3600 143T 84.0 83.5 2.00 56 486
EP1/54(C) 1.5 1800 145T 86.5 78.0 2.08 80 488
EP1/56 1.5 1200 182T 87.5 63.5 2.53 125 574
EP1/58 1.5 900 184T 78.5 60.5 2.96 125 1,093
EP0022 2 3600 145T 86.5 86.0 2.52 95 513
EP0024(C) 2 1800 145T 86.5 78.0 2.78 68 520
EP0026(C) 2 1200 184T 88.5 70.5 3.00 136 647
EP0028(C) 2 900 213T 85.5 68.0 3.22 173 1,272
EP0032 3 3600 182T 88.5 90.0 3.53 125 603
EP0034(C) 3 1800 182T 89.5 81.5 3.85 130 589
EP0036(C) 3 1200 213T 89.5 78.0 4.02 180 849
EP0038(C) 3 900 215T 85.5 66.0 4.98 192 1,675
EP0052 5 3600 184T 88.5 92.5 5.72 145 746
EP0054(C) 5 1800 184T 89.5 85.5 6.12 150 680
EP0056(C) 5 1200 215T 91.0 82.5 6.24 225 1,217
EP0058 5 900 254T 87.5 72.0 7.43 305 2,279
EP7/52 7.5 3600 213T 91.0 89.0 8.67 200 1,008
EP7/54(C) 7.5 1800 213T 91.7 86.5 8.85 510 1,012
EP7/56(C) 7.5 1200 254T 91.0 80.5 9.59 325 1,712
EP7/58(C) 7.5 900 256T 87.5 74.0 10.8 365 2,901
EP0102 10 3600 215T 91.0 89.5 11.5 235 1,169
EP0104(C) 10 1800 215T 91.7 88.0 11.6 265 1,217
EP0106(C) 10 1200 256T 91.0 80.5 12.8 380 2,082
EP0108(C) 10 900 284T 90.2 73.5 14.1 445 3,655
EP0152 15 3600 254T 92.4 91.5 16.6 345 1,653
EP0154(C) 15 1800 254T 92.4 88.0 17.3 360 1,609
EP0156(C) 15 1200 284T 92.4 83.5 18.2 460 2,851
EP0158 15 900 286T 90.2 78.0 20.0 510 4,794
EP0202 20 3600 256T 92.4 92.5 21.9 405 2,102
EP0204(C) 20 1800 256T 93.0 87.5 23.0 410 2,028
EP0206(C) 20 1200 286T 91.7 84.0 24.3 550 3,595
EP0208(C) 20 900 324T 91.0 81.0 25.4 585 5,780
EP0252 25 3600 284TS 92.4 91.0 27.8 498 2,694
EP0254(C) 25 1800 284T 93.6 86.0 29.1 520 2,474
EP0254S(C) 25 1800 284TS 93.6 86.0 29.1 520 2,474
EP0256(C) 25 1200 324T 93.0 83.0 30.3 725 4,456
EP0258(C) 25 900 326T 91.0 80.0 32.2 684 6,832
EP0302 30 3600 286TS 93.0 91.0 33.2 530 3,204
EP0304(C) 30 1800 286T 93.6 87.5 34.3 558 3,043
EP0304S(C) 30 1800 286TS 93.6 87.5 34.3 558 3,043
EP0306(C) 30 1200 326T 93.0 80.5 37.5 775 5,022
EP0308(C) 30 900 364T 93.0 78.0 38.7 898 7,945
EP0402 40 3600 324TS 94.1 90.0 44.2 755 4,186
EP0404(C) 40 1800 324T 94.1 86.0 46.3 750 4,039
EP0404S(C) 40 1800 324TS 94.1 86.0 46.3 750 4,039
EP0406(C) 40 1200 364T 94.1 86.5 46.0 1025 6,587
EP0408(C) 40 900 365T 93.0 78.0 51.6 1035 9,813
Notes:
(1) To check stock or order 575V motors, add "5" to the end of Catalog Number, for example: "EP00545" for 5 HP, 1800 RPM, 575V.
(2) All data subject to change without notice.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 51
MAX-E1™
AEHH8N, NEMA PREMIUM (1 HP - 500 HP) [EP] continued...
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST PRICE ($)
EP0502 50 3600 326TS 94.1 91.0 54.7 815 5,580
EP0504(C) 50 1800 326T 94.5 87.0 56.9 845 5,129
EP0504S(C) 50 1800 326TS 94.5 87.0 56.9 845 5,129
EP0506(C) 50 1200 365T 94.1 86.0 57.8 1105 8,125
EP0508(C) 50 1200 404T 93.0 81.0 62.1 1098 11,578
EP0602 60 3600 364TS 94.1 93.0 64.2 960 7,353
EP0604(C) 60 1800 364T 95.0 86.5 68.4 945 6,626
EP0604S(C) 60 1800 364TS 95.0 86.5 68.4 945 6,626
EP0606(C) 60 1200 404T 94.5 87.0 68.3 1,305 9,552
EP0608(C) 60 900 405T 93.0 81.0 74.6 1,410 13,414
EP0752 75 3600 365TS 94.5 93.0 79.9 995 9,391
EP0754(C) 75 1800 365T 95.4 86.5 85.1 1,045 8,463
EP0754S(C) 75 1800 365TS 95.4 86.5 85.1 1,045 8,463
EP0754R(C) 75 1800 365T 95.4 86.5 85.1 1,045 8,463
EP0756(C) 75 1200 405T 94.5 86.5 85.9 1,440 11,376
EP0756R(C) 75 1200 405T 94.5 86.5 85.9 1,440 11,376
EP0758 75 900 444T 93.6 79.0 95.0 1,790 16,933
EP0758R 75 900 444T 93.6 79.0 95.0 1,790 16,933
EP1002 100 3600 405TS 95.4 92.0 107 1,386 12,737
EP1004(C) 100 1800 405T 95.4 87.5 112 1,415 11,874
EP1004S(C) 100 1800 405TS 95.4 87.5 112 1,415 11,874
EP1004R(C) 100 1800 405T 95.4 87.5 112 1,415 11,874
EP1006 100 1200 444T 95.0 82.5 119 1,783 14,615
EP1006R 100 1200 445T 95.0 82.5 119 1,783 14,615
EP1008 100 900 445T 93.6 79.0 127 2,088 21,995
EP1008R 100 900 445T 93.6 79.0 127 2,088 21,995
EP1252 125 3600 444TS 95.0 86.0 143 1,656 15,835
EP1254 125 1800 444T 95.4 85.0 144 1,830 14,741
EP1254S 125 1800 444TS 95.4 85.0 144 1,830 14,741
EP1254R 125 1800 444T 95.4 85.0 144 1,830 14,741
EP1256 125 1200 445T 95.0 83.0 148 2,193 19,182
EP1256R 125 1200 445T 95.0 83.0 148 2,193 19,182
EP1258 125 900 447T 94.1 80.0 155 2,490 25,292
EP1258R 125 900 447T 94.1 80.0 155 2,490 25,292
EP1502 150 3600 445TS 95.0 87.0 170 1,783 18,964
EP1504 150 1800 445T 95.8 85.0 172 2,005 16,982
EP1504S 150 1800 445TS 95.8 85.0 172 2,005 16,982
EP1504R 150 1800 445T 95.8 85.0 172 2,005 16,982
EP1506 150 1200 447T 95.8 83.5 176 2,547 21,458
EP1506R 150 1200 447T 95.8 83.5 176 2,547 21,458
EP1508 150 900 449T 94.1 80.0 187 2,389 30,378
EP1508R 150 900 449T 94.1 80.0 187 2,389 30,378
EP2002 200 3600 447TS 95.4 89.0 221 2,444 25,973
EP2004 200 1800 447T 96.2 87.0 224 2,547 22,203
EP2004S 200 1800 447TS 96.2 87.0 224 2,547 22,203
EP2004R 200 1800 447T 96.2 87.0 224 2,547 22,203
EP2006 200 1200 449T 95.8 84.0 233 2,785 28,028
EP2006R 200 1200 449T 95.8 84.0 233 2,785 28,028
EP2008T 200 900 449T 94.5 80.0 248 2,706 35,922
EP2008TR 200 900 449T 94.5 80.0 248 2,706 35,922
EP2008 200 900 5007B 94.5 81.0 304 3,400 38,215
EP2008R 200 900 5007C 94.5 81.0 304 3,400 38,215
Notes:
(1) To check stock or order 575V motors, add "5" to the end of Catalog Number, for example: "EP00545" for 5 HP, 1800 RPM, 575V.
(2) All data subject to change without notice.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
52 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-E1™
AEHH8N, NEMA PREMIUM (1 HP - 500 HP) [EP] continued...
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST PRICE ($)
EP2502 250 3600 449TS 95.8 89.8 272 2,547 33,849
EP2504 250 1800 449T 96.2 88.0 277 2,720 28,550
EP2506 250 1200 449T 95.8 84.5 289 2,925 29,353
EP2506R 250 1200 449T 95.8 84.5 289 2,925 29,353
EP2508 250 900 5009B 95.0 81.0 304 4,200 42,984
EP2508R 250 900 5009C 95.0 81.0 304 4,200 42,984
EP3002 300 3600 449TS 95.8 90.2 325 2,647 36,455
EP3004 300 1800 449T 96.2 88.0 332 2,855 29,897
EP3004R 300 1800 449T 96.2 88.0 332 2,855 29,867
EP3006 300 1200 449T 95.8 84.5 347 3,430 30,784
EP3006R 300 1200 449T 95.8 84.5 347 3,430 30,784
EP3008 300 900 5009B 95.0 81.0 365 4,410 47,183
EP3008R 300 900 5009C 95.0 81.0 365 4,410 47,183
EP3502 350 3600 449TS 95.8 90.2 379 2,785 38,480
EP3504 350 1800 449T 96.2 88.0 387 3,280 32,346
EP3504R 350 1800 449T 96.2 88.0 387 3,280 32,346
EP3506 350 1200 5011B 95.8 87.0 393 5,565 50,932
EP3506R 350 1200 5011C 95.8 87.0 393 5,565 50,932
EP3508 350 900 5011B 95.0 81.0 426 5,040 57,973
EP3508R 350 900 5011C 95.0 81.0 426 5,040 57,973
EP4002T(2,3,4) 400 3600 449TS 95.8 92.5 423 2,950 43,545
EP4002 400 3600 5009A 95.8 91.6 427 3,623 51,490
EP4004T(2,3,4) 400 1800 449T 96.2 90.0 433 3,500 36,902
EP4004 400 1800 5009B 96.2 90.0 433 4,025 45,886
EP4004R 400 1800 5009C 96.2 90.0 433 4,025 45,886
EP4006 400 1200 5011B 95.8 87.0 449 5,803 58,597
EP4006R 400 1200 5011C 95.8 87.0 449 5,803 58,597
EP4008 400 900 5808B 95.0 82.5 478 5,355 74,687
EP4008R 400 900 5808C 95.0 82.5 478 5,355 74,687
EP4502 450 3600 5011A 95.8 91.7 480 4,410 60,575
EP4504 450 1800 5011B 96.2 90.0 487 5,040 54,819
EP4504R 450 1800 5011C 96.2 90.0 487 5,040 54,819
EP4506 450 1200 5808B 95.8 88.0 500 5,803 65,680
EP4506R 450 1200 5808C 95.8 88.0 500 5,803 65,680
EP4508 450 900 5808B 95.0 82.5 535 5,723 77,582
EP4508R 450 900 5808C 95.0 82.5 535 5,723 77,582
EP5002 500 3600 5011A 95.8 91.7 533 4,830 63,570
EP5004 500 1800 5011B 96.2 90.0 541 5,250 60,227
EP5004R 500 1800 5011C 96.2 90.0 541 5,250 60,227
EP5006 500 1200 5808B 95.8 88.0 555 6,330 71,086
EP5006R 500 1200 5808C 95.8 88.0 555 6,330 71,086
EP5008 500 900 5810B 95.0 83.0 594 6,300 83,031
EP5008R 500 900 5810C 95.0 83.0 594 6,300 83,031
Notes:
(1) To check stock or order 575V motors, add "5" to the end of Catalog Number, for example: "EP00545" for 5 HP, 1800 RPM, 575V.
(2) Not suitable for Class I, Division 2 or Class II, Division 2.
(3) No 50Hz data (380V) on nameplate.
(4) Not Suitable for VFD.
(5) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 53
MAX-E1™
AEHE, HIGH EFFICIENCY [E]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST PRICE ($)
E0/78 3/4 900 145T 70.0 53.5 1.90 85 780
E0018 1 900 182T 77.0 58.5 2.08 105 917
E1/58 1.5 900 184T 77.0 60.5 3.02 125 1,093
E0028(C) 2 900 213T 85.5 64.0 3.42 173 1,272
E0038(C) 3 900 215T 85.5 66.0 5.00 192 1,675
E0058 5 900 254T 86.5 72.0 7.50 305 2,279
E7/58(C) 7.5 900 256T 85.5 71.5 11.5 365 2,901
E0108(C) 10 900 284T 89.5 73.5 14.3 445 3,655
E0158 15 900 286T 89.5 78.0 20.1 510 4,794
E0208(C) 20 900 324T 90.2 81.0 25.7 585 5,780
E0258(C) 25 900 326T 90.2 79.5 32.7 684 6,832
E0308(C) 30 900 364T 93.0 77.5 39.0 898 7,945
E0408(C) 40 900 365T 91.7 76.5 53.5 1020 9,813
E0508(C) 50 900 404T 93.0 80.5 65.2 1,098 11,578
E0608(C) 60 900 405T 93.0 81.0 74.5 1,410 13,414
E0758 75 900 444T 93.0 79.0 95.6 1,790 16,933
E0758R 75 900 444T 93.0 79.0 95.6 1,790 16,933
E1008 100 900 445T 93.0 79.0 127.0 2,088 21,995
E1008R 100 900 445T 93.0 79.0 127.0 2,088 21,995
E1258 125 900 447T 93.6 80.0 156.0 2,490 25,292
E1258R 125 900 447T 93.6 80.0 156.0 2,490 25,292
E1508 150 900 449T 93.6 80.0 188.0 2,903 30,378
E1508R 150 900 449T 93.6 80.0 188.0 2,903 30,378
E2008 200 900 5007B 94.4 82.0 242.0 3,570 38,215
E2008R 200 900 5007C 94.4 82.0 242.0 3,570 38,215
E2508 250 900 5009B 94.5 81.0 306.0 4,200 42,984
E2508R 250 900 5009C 94.5 81.0 306.0 4,200 42,984
E3008 300 900 5009B 94.6 81.0 366.0 4,410 47,183
E3008R 300 900 5009C 94.6 81.0 366.0 4,410 47,183
E3508 350 900 5011B 94.8 81.0 426.0 5,040 57,973
E3508R 350 900 5011C 94.8 81.0 426.0 5,040 57,973
E4008 400 900 5808B 94.8 82.5 478.0 5,355 74,687
E4008R 400 900 5808C 94.8 82.5 478.0 5,355 74,687
E4508 450 900 5808B 95.0 82.5 537.0 5,723 77,582
E4508R 450 900 5808C 95.0 82.5 537.0 5,723 77,582
E5008 500 900 5810B 95.2 82.5 596 6,300 83,031
E5008R 500 900 5810C 95.2 82.5 596 6,300 83,031
E6002 600 3600 5810A 95.4 90.5 650 6,355 72,975
E6004 600 1800 5808B 95.5 90.0 654 6,360 68,099
E6004R 600 1800 5808C 95.5 90.0 654 6,360 68,099
E6006 600 1200 5810B 95.6 86.8 677 6,720 80,584
E6006R 600 1200 5810C 95.6 86.8 677 6,720 80,584
E6008 600 900 6808B 95.5 84.0 700 8,750 98,305
E6008R 600 900 6808C 95.5 84.0 700 8,750 98,305
E7002 700 3600 5810A 95.5 90.5 758 6,500 80,449
E7004 700 1800 5810B 95.6 90.0 762 7,140 80,040
E7004R 700 1800 5810C 95.6 90.0 762 7,140 80,040
E7006 700 1200 5810B 95.8 86.8 788 7,245 91,049
E7006R 700 1200 5810C 95.8 86.8 788 7,245 91,049
E7008 700 900 6808B 95.6 84.0 816 8,925 105,385
E7008R 700 900 6808C 95.6 84.0 816 8,925 105,385
E8002 800 3600 6808A 95.5 90.5 867 8,750 107,856
E8004 800 1800 5810B 95.6 90.5 866 7,613 85,750
E8004R 800 1800 5810C 95.6 90.5 866 7,613 85,750
E8006 800 1200 6808B 96.0 87.0 897 8,000 103,401
E8006R 800 1200 6808C 96.0 87.0 897 8,400 103,401
E8008 800 900 6808B 95.6 84.0 933 9,293 111,433
E8008R 800 900 6808C 95.6 84.0 933 9,293 111,433
Notes:
(1) To check stock or order 575V motors, add "5" to the end of Catalog Number, for example: "EP00545" for 5 HP, 1800 RPM, 575V.
(2) Ratings above 600 HP ("E" motors) do not have a NEMA Premium requirement and therefore will continue to be stock items.
(3) Per DOE regulations, this High Efficiency inventory (Ratings Below 600 HP) will be available through June 2018, or until current inventory
has been depleted. Whichever occurs first. Please see our new line of Premium Efficient 8 pole MAX-E1® motors on page(s) 50-52.
(4) All data subject to change without notice.
(C) Meets NEMA Design C Torque..
Effective 03-24-17
Supercedes 06-14-15
54 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-E1™
AEHH8NCF, NEMA PREMIUM, FOOTED C-FACE (1 HP - 300 HP) [EP_C]
AEUH8NDC, NEMA PREMIUM, ROUND BODY C-FACE (1 HP - 300 HP) [EPV_C]
HP RPM FRAME FL EFF
(%)
FL PF
(%)
FL AMPS
(460V)
SHIPPING
WT. (lbs.)
FOOTED C-FACE ROUND BODY C-FACE
CATALOG
NO.
LIST
PRICE ($)
CATALOG
NO.
SHIPPING
WT. (lbs.)
1 3600 143TC 82.5 85.0 1.34 59 EP0012C 503 EPV0012C 575
1 1800 143TC 85.5 73.0 1.50 59 EP0014C(C) 531 EPV0014C(C) 607
1 1200 145TC 82.5 65.5 1.73 88 EP0016C 689 EPV0016C 749
1.5 3600 143TC 84.0 83.5 2.00 59 EP1/52C 607 EPV1/52C 693
1.5 1800 145TC 86.5 78.0 2.08 65 EP1/54C(C) 609 EPV1/54C(C) 696
1.5 1200 182TC 87.5 63.5 2.53 133 EP1/56C 716 EPV1/56C 818
2 3600 145TC 86.5 86.0 2.52 65 EP0022C 641 EPV0022C 732
2 1800 145TC 86.5 78.0 2.78 65 EP0024C(C) 649 EPV0024C(C) 741
2 1200 184TC 88.5 70.5 3.00 145 EP0026C(C) 806 EPV0026C(C) 922
3 3600 182TC 88.5 90.0 3.53 100 EP0032C 751 EPV0032C 858
3 1800 182TC 89.5 81.5 3.85 100 EP0034C(C) 734 EPV0034C(C) 839
3 1200 213TC 89.5 78.0 4.02 191 EP0036C(C) 1,059 EPV0036C(C) 1,338
5 3600 184TC 88.5 92.5 5.72 120 EP0052C 886 EPV0052C 1,012
5 1800 184TC 89.5 85.5 6.12 120 EP0054C(C) 843 EPV0054C(C) 963
5 1200 215TC 91.0 82.5 6.24 239 EP0056C(C) 1,405 EPV0056C(C) 1,605
7.5 3600 213TC 91.0 89.0 8.67 175 EP7/52C 1,197 EPV7/52C 1,368
7.5 1800 213TC 91.7 86.5 8.85 175 EP7/54C(C) 1,202 EPV7/54C(C) 1,374
7.5 1200 254TC 91.0 80.5 9.59 345 EP7/56C(C) 1,910 EPV7/56C(C) 2,183
10 3600 215TC 91.0 89.5 11.5 198 EP0102C 1,387 EPV0102C 1,586
10 1800 215TC 91.7 88.0 11.6 198 EP0104C(C) 1,405 EPV0104C(C) 1,605
10 1200 256TC 91.0 80.5 12.8 403 EP0106C(C) 2,247 EPV0106C(C) 2,568
15 3600 254TC 92.4 91.5 16.6 310 EP0152C 1,888 EPV0152C 2,157
15 1800 254TC 92.4 88.0 17.3 310 EP0154C(C) 1,833 EPV0154C(C) 2,095
15 1200 284TC 92.4 83.5 18.2 488 EP0156C(C) 3,146 EPV0156C(C) 3,595
20 3600 256TC 92.4 92.5 21.9 350 EP0202C 2,292 EPV0202C 2,619
20 1800 256TC 93.0 87.5 23.0 350 EP0204C(C) 2,219 EPV0204C(C) 2,536
20 1200 286TC 91.7 84.0 24.3 583 EP0206C(C) 3,932 EPV0206C(C) 4,269
25 3600 284TSC 92.4 91.0 27.8 430 EP0252C 3,090 EPV0252C 3,254
25 1800 284TC 93.6 86.0 29.1 441 EP0254C(C) 2,910 EPV0254C(C) 3,065
25 1200 324TC 93.0 83.0 30.3 769 EP0256C(C) 4,888 EPV0256C(C) 5,147
30 3600 286TSC 93.0 91.0 33.2 469 EP0302C 3,562 EPV0302C 3,751
30 1800 286TC 93.6 87.5 34.3 490 EP0304C(C) 3,427 EPV0304C(C) 3,609
30 1200 326TC 93.0 80.5 37.5 822 EP0306C(C) 5,393 EPV0306C(C) 5,679
40 3600 324TSC 94.1 90.0 44.2 635 EP0402C 4,663 EPV0402C 4,910
40 1800 324TC 94.1 86.0 46.3 682 EP0404C(C) 4,494 EPV0404C(C) 4,733
40 1200 364TC 94.1 86.5 46.0 1,018 EP0406C(C) 7,135 EPV0406C(C) 7,513
50 3600 326TSC 94.1 91.0 54.7 710 EP0502C 6,067 EPV0502C 6,389
50 1800 326TC 94.5 87.0 56.9 744 EP0504C(C) 5,618 EPV0504C(C) 5,916
50 1200 365TC 94.1 86.0 57.8 1,172 EP0506C(C) 8,651 EPV0506C(C) 9,111
60 3600 364TSC 94.1 93.0 64.2 839 EP0602C 7,865 EPV0602C 8,034
60 1800 364TC 95.0 86.5 68.4 920 EP0604C(C) 7,247 EPV0604C(C) 7,403
60 1200 404TC 94.5 87.0 68.3 1,384 EP0606C(C) 10,449 EPV0606C(C) 10,674
75 3600 365TSC 94.5 93.0 79.9 903 EP0752C 9,887 EPV0752C 10,100
75 1800 365TC 95.4 86.5 85.1 1,050 EP0754C(C) 8,988 EPV0754C(C) 9,182
75 1200 405TC 94.5 86.5 85.9 1,527 EP0756C(C) 12,191 EPV0756C(C) 12,453
100 3600 405TSC 95.4 92.0 107 1,183 EP1002C 13,370 EPV1002C 13,658
100 1800 405TC 95.4 87.5 112 1,310 EP1004C(C) 12,583 EPV1004C(C) 12,854
100 1200 444TC 95.0 82.5 119 1,750 EP1006C 15,125 EPV1006C 15,374
125 3600 444TSC 95.0 86.0 143 1,654 EP1252C 17,350 EPV1252C 17,795
125 1800 444TC 95.4 85.0 144 1,650 EP1254C 16,650 EPV1254C 17,077
125 1800 444TSC 95.4 85.0 144 1,650 EP1254CS 16,650 ~ ~
125 1200 445TC 95.0 83.0 148 1,750 EP1256C 20,585 EPV1256C 21,113
150 3600 445TSC 95.0 87.0 170 1,740 EP1502C 20,100 EPV1502C 20,615
150 1800 445TC 95.8 85.0 172 1,830 EP1504C 18,580 EPV1504C 19,056
150 1800 445TSC 95.8 85.0 172 1,830 EP1504CS 18,580 ~ ~
150 1200 447TC 95.8 83.5 176 2,230 EP1506C 22,800 EPV1506C 23,385
200 3600 447TSC 95.4 89.0 221 1,960 EP2002C 26,810 EPV2002C 27,497
200 1800 447TC 96.2 87.0 224 2,270 EP2004C 23,640 EPV2004C 24,246
200 1800 447TSC 96.2 87.0 224 2,270 EP2004CS 23,640 ~ ~
200 1200 449TC 95.8 84.0 233 2,520 EP2006C 28,500 EPV2006C 29,231
250 3600 449TSC 95.8 89.8 272 2,400 EP2502C 33,500 EPV2502C 34,359
250 1800 449TC 96.2 88.0 277 2,550 EP2504C 29,000 EPV2504C 29,744
250 1800 449TSC 96.2 88.0 277 2,550 EP2504CS 29,000 ~ ~
250 1200 449TC 95.8 84.5 289 2,630 EP2506C 29,695 EPV2506C 30,456
300 3600 449TSC 95.8 90.2 325 2,640 EP3002C 35,750 EPV3002C 36,667
300 1800 449TC 96.2 88.0 332 2,680 EP3004C 30,200 EPV3004C 30,974
300 1800 449TSC 96.2 88.0 332 2,680 EP3004CS 30,200 ~ ~
Notes:
(1) Meets NEMA Design C Torque. All other motors are NEMA Design B Torque up to 100 HP.
(2) Ratings 150 HP and larger are 460V only.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 55
KEYLESS SHAFT MOTOR
AEHHSY, NEMA PREMIUM (200 HP - 500 HP) [EPY]
AEHESY, HIGH EFFICIENCY [EY]
APPLICATIONS:
z Fans & Blowers z Compressors z Any Severe Duty/ Petro-Chem
z Pumps z Mixers Pulp & Paper Application
FEATURES:
z Output Range: 200 - 800 HP
z Speed: 1800, 1200 & 900 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP55)
z Voltage: 460V Only(1)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z CSA Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3 Maximum(3)
z CSA Certified for Class II, Div. 2, Groups F & G - Temp Code T3 Maximum(3)
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques
z Cast Iron Frame, End Brackets & Fan Cover and Main Conduit Box(5)
z Grounding Terminal Inside Main Conduit Box
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(1)
z Designed for 3300 ft. Elevation(2)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction or
Copper/Copper Alloy Rotor Construction. See product page for more details.
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Light Gray - Munsell N5.0
z High Quality Ball (or Roller) Bearings Regreasable with Mobil PolyrexTM EM Grease
z Automatic Grease Discharge Fittings on Regreasable Models
z Labyrinth Type Metal Flinger on Both Ends
z Cast Iron Inner and Outer Bearing Caps
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(4,5)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)
z 6 Leads
z Motors are U.L. Recognized, CSA Approved and CE Marked
z Provisions for Bearing RTD's, both End Brackets Pre-Drilled and Plugged; F#5000 and Larger Only
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(2) Consult a Stock Product Application Specialist for suitability at higher elevations.
(3) CSA Certification for Hazardous Locations only applies to select ratings. See product page for select details.
(4) Motor service factor is 1.0 when operated on a VFD.
(5) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
(6) F# 5000 and Larger with Pressed Steel Plate Main Conduit Box.
Effective 03-24-17
Supercedes 06-14-15
56 | www.tecowestinghouse.com or call 1-800-USE-TECO
KEYLESS SHAFT MOTOR
AEHHSY, NEMA PREMIUM (200 HP - 500 HP) [EPY]
CATALOG
NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
SHAFT
DIAMETER
(in.)
APPROX.
SHIPPING
WT. (lbs.)
LIST
PRICE ($)
EPY2006(2) 200 1200 449TY 95.8 84.0 233 3.875 2,685 29,479
EPY2008(2) 200 900 449TY 94.5 80.0 248 3.875 3,090 41,364
EPY2504(2) 250 1800 449TY 96.2 88.0 277 3.875 2,720 30,001
EPY2506(2) 250 1200 449TY 95.8 84.5 289 3.875 2,925 30,804
EPY2508(2) 250 900 5009UZ 95.0 81.0 304 5.000 4,200 46,133
EPY3004(2) 300 1800 449TY 96.2 88.0 332 3.875 2,855 31,348
EPY3006 300 1200 449TY 95.8 84.5 347 3.875 3,100 32,235
EPY3008 300 900 5009UZ 95.0 81.0 365 5.000 4,410 50,332
EPY3504 350 1800 449TY 96.2 88.0 387 3.875 3,280 33,797
EPY3506(2) 350 1200 5011UZ 95.8 87.0 393 5.000 4,950 54,081
EPY3508 350 900 5011UZ 95.0 81.0 426 5.000 5,040 61,122
EPY4004(2) 400 1800 5009UZ 96.2 90.0 433 5.000 4,025 49,035
EPY4006 400 1200 5011UZ 95.8 87.0 449 5.000 4,950 61,746
EPY4008 400 900 5808UZ 95.0 82.5 478 5.750 5,590 82,584
EPY4504(2) 450 1800 5011UZ 96.2 90.0 487 5.000 5,040 57,968
EPY4506 450 1200 5808UZ 95.8 88.0 500 5.750 5,550 73,577
EPY4508 450 900 5808UZ 95.0 82.5 538 5.750 6,320 85,479
EPY5004(2) 500 1800 5011UZ 96.2 90.0 541 5.000 5,300 63,376
EPY5006 500 1200 5808UZ 95.8 88.0 555 5.750 5,900 78,983
EPY5008 500 900 5810UZ 95.0 83.0 594 5.750 6,950 90,928
Notes:
(1) Noted ratings CSA Certified for Hazardous Locations.
(2) Noted ratings with Copper/Copper Alloy Rotor Construction.
(3) Data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 57
KEYLESS SHAFT MOTOR
AEHESY, HIGH EFFICIENCY [EY]
CATALOG
NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
SHAFT
DIAMETER
(in.)
APPROX.
SHIPPING
WT. (lbs.)
LIST
PRICE ($)
EY2006 200 1200 449TZ 95.8 84.0 233 3.875 2,685 45,811
EY2008 200 900 449TZ 94.5 80.0 248 3.875 3,090 51,136
EY2504 250 1800 449TZ 96.2 88.0 277 3.875 2,720 46,232
EY2506 250 1200 449TZ 95.8 84.5 289 3.875 2,925 46,350
EY2508 250 900 5009UZ 94.5 81.0 304 5.000 4,200 55,048
EY3004 300 1800 449TZ 96.2 88.0 332 3.875 2,855 46,850
EY3006 300 1200 449TZ 95.8 84.5 347 3.875 3,100 47,500
EY3008(2) 300 900 5009UZ 94.6 81.0 365 5.000 4,410 59,220
EY3504 350 1800 449TZ 96.2 88.0 387 3.875 3,280 47,250
EY3506 350 1200 5011UZ 95.0 88.0 393 5.000 4,950 67,430
EY3508(2) 350 900 5011UZ 94.8 81.0 426 5.000 5,040 70,679
EY4004 400 1800 5009UZ 95.2 90.0 433 5.000 4,025 57,417
EY4006(2) 400 1200 5011UZ 95.0 88.0 449 5.000 4,950 72,943
EY4008(2,3) 400 900 5808UZ 94.8 82.0 476 5.750 5,590 97,775
EY4504 450 1800 5011UZ 95.2 90.0 487 5.000 5,040 66,240
EY4506(2,3) 450 1800 5808UZ 95.0 88.0 500 5.750 5,550 86,823
EY4508(2,3) 450 1800 5808UZ 95.0 82.5 535 5.750 6,320 100,064
EY5004 500 1800 5011UZ 95.3 90.0 541 5.750 5,300 71,029
EY5006(2,3) 500 1200 5808UZ 95.4 86.5 555 5.750 5,900 92,480
EY5008(2,3) 500 900 5810UZ 95.2 82.5 590 5.750 6,950 107,468
EY6004(2,3,4) 600 1800 5808UZ 95.5 90.0 654 5.750 6,250 89,738
EY6006(2,3,4) 600 1200 5810UZ 95.6 86.8 677 5.750 6,550 107,989
EY6008(2,3,4) 600 900 6808UZ 95.5 84.0 700 5.750 8,600 120,188
EY7004(2,3,4) 700 1800 5810UZ 95.6 90.0 762 5.750 7,350 105,051
EY7006(2,3,4) 700 1200 5810UZ 95.8 86.8 788 5.750 7,450 123,842
EY7008(2,3,4) 700 900 6808UZ 95.6 84.0 816 5.750 9,050 128,631
EY8004(2,3,4) 800 1800 5810UZ 95.6 90.5 866 5.750 7,800 112,345
EY8006(2,3,4) 800 1200 6808UZ 96.0 87.0 897 5.750 8,550 134,617
EY8008(2,3,4) 800 900 6808UZ 95.6 84.0 933 5.750 9,400 138,201
Notes:
(1) Per DOE regulations, this High Efficiency inventory will be available through June 2018, or until current inventory has been depleted.
Whichever occurs first. Please see our new line of Premium Efficient Keyless Shaft motors on page 56.
(2) Noted ratings CSA Certified for Hazardous Locations.
(3) Noted ratings with Copper/Copper Alloy Rotor Construction.
(4) Ratings do not have a DOE mandated NEMA Premium requirement and therefore will continue to be stock items.
No change to current design.
(5) Data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
58 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-E2/841® LITE
AEHH, NEMA PREMIUM [HH]
APPLICATIONS:
z Fans & Blowers z Compressors z Severe Duty/ Petro-Chem
z Pumps z Mixers z Pulp & Paper Application
z Crushers z Conveyors z Marine Duty
FEATURES:
z Output Range: 1 - 300 HP
z Speed: 3600, 1800 & 1200 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP55)
z Voltage: 460V Only
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z CSA Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3 Maximum
z IEEE 841 Ready
z Meets IEEE 45 Marine Duty
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
z Cast Iron Frame, End Brackets & Fan Cover and Main Conduit Box
z Grounding Terminal Inside Main Conduit Box with additional Foot Grounding Provision
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(1)
z Designed for 3300 ft. Elevation(2)
z Bi-Directional Rotation
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: 2 Part Epoxy
z Paint Color: Blue - Munsell 5PB 3/8
z High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM Grease
z Automatic Grease Discharge Fittings
z Rubber Dust Flinger on DE for F# 140T - 280T
z Oil Seal/V-Ring on Both Ends for F# 320T - 400T
z Labyrinth Type Metal Flinger on Both Ends for F# 440T and Larger
z Cast Iron Inner and Outer Bearing Caps for F# 400T and Larger
z Stainless Steel Nameplate and Hardware
z Stainless Steel Automatic Breather Drain
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(3,4)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)
z Motors are U.L. Recognized, CSA Approved
z 3 Leads Only
z Dual Drilled Feet Available on Most Ratings - Longer Frames (i.e. 145T Drilled also for 143T)
z Vibration Not to Exceed 0.08 Inches Per Second
z Noise Level Not to Exceed 85 dB(A) at 1 Meter Unloaded
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(2) Consult a Stock Product Application Specialist for suitability at higher elevations.
(3) Motor service factor is 1.0 when operated on a VFD.
(4) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 59
MAX-E2/841® LITE
AEHH, NEMA PREMIUM [HH]
CATALOG
NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
SHIPPING
WT. (lbs.) LIST PRICE ($)
HH0012 1 3600 143T 1.3 82.50 85.0 58 510
HH0014(C) 1 1800 143T 1.5 85.50 73.0 58 488
HH0016 1 1200 145T 1.7 82.50 65.5 97 608
HH1/52 2 3600 143T 2.0 84.00 83.5 58 528
HH1/54(C) 2 1800 145T 2.1 86.50 78.0 65 560
HH1/56 2 1200 182T 2.5 87.50 63.5 130 628
HH0022 2 3600 145T 2.5 86.50 86.0 78 572
HH0024(C) 2 1800 145T 2.8 86.50 78.0 97 597
HH0026(C) 2 1200 184T 3.0 88.50 70.5 150 721
HH0032 3 3600 182T 3.5 88.50 90.0 100 667
HH0034(C) 3 1800 182T 3.7 89.50 84.0 130 673
HH0036(C) 3 1200 213T 4.0 89.50 78.0 220 935
HH0052 5 3600 184T 5.7 88.50 92.5 140 832
HH0054(C) 5 1800 184T 6.1 89.50 85.5 150 794
HH0056(C) 5 1200 215T 6.2 91.00 82.5 235 1,359
HH7/52 7.5 3600 213T 8.7 91.00 89.0 202 1,121
HH7/54(C) 7.5 1800 213T 8.9 91.70 86.5 202 1,127
HH7/56(C) 7.5 1200 254T 9.6 91.00 80.5 323 1,885
HH0102 10 3600 215T 11.5 91.00 89.5 224 1,306
HH0104(C) 10 1800 215T 11.6 91.70 88.0 224 1,341
HH0106(C) 10 1200 256T 12.8 91.00 80.5 380 2,304
HH0152 15 3600 254T 16.6 92.40 91.5 323 1,829
HH0154(C) 15 1800 254T 17.3 92.40 88.0 345 1,780
HH0156(C) 15 1200 284T 18.2 92.40 83.5 540 3,098
HH0202 20 3600 256T 21.9 92.40 92.5 367 2,296
HH0204(C) 20 1800 256T 23.0 93.00 87.5 425 2,243
HH0206(C) 20 1200 286T 24.3 91.70 84.0 565 3,839
HH0252 25 3600 284TS 27.8 92.40 91.0 490 2,854
HH0254(C) 25 1800 284T 29.1 93.60 86.0 555 2,684
HH0256(C) 25 1200 324T 30.3 93.00 83.0 759 4,635
HH0302 30 3600 286TS 33.2 93.00 91.0 535 3,356
HH0304(C) 30 1800 286T 34.3 93.60 87.5 656 3,317
HH0306(C) 30 1200 326T 37.5 93.00 80.5 795 5,299
HH0402 40 3600 324TS 44.2 94.10 90.0 755 4,404
HH0404(C) 40 1800 324T 46.3 94.10 86.0 740 4,247
HH0406(C) 40 1200 364T 46 94.10 86.5 898 7,080
HH0502 50 3600 326TS 54.7 94.10 91.0 782 5,720
HH0504(C) 50 1800 326T 56.9 94.50 87.0 845 5,215
HH0506(C) 50 1200 365T 57.8 94.10 86.0 1,110 8,426
HH0602 60 3600 364TS 64.2 94.10 93.0 853 7,747
HH0604(C) 60 1800 364T 68.4 95.00 86.5 955 7,475
HH0606(C) 60 1200 404T 68.3 94.50 87.0 1,355 10,057
HH0752 75 3600 365TS 79.9 94.50 93.0 1,015 9,648
HH0754(C) 75 1800 365T 85.1 95.40 86.5 1,040 9,377
HH0756(C) 75 1200 405T 85.9 94.50 86.5 1,363 11,619
HH1002 100 3600 405TS 107 95.40 92.0 1,330 13,107
HH1004(C) 100 1800 405T 112 95.40 87.5 1,385 12,093
HH1006 100 1200 444T 119 95.00 82.5 1,833 16,171
HH1252 125 3600 444TS 143 95.00 86.0 1,783 17,123
HH1254 125 1800 444T 146 95.40 84.0 1,833 15,900
HH1256 125 1200 445T 148 95.00 83.0 1,961 19,949
HH1502 150 3600 445TS 170 95.00 87.0 1,808 20,521
HH1504 150 1800 445T 175 95.80 84.0 2,037 18,516
HH1506 150 1200 447T 176 95.80 83.5 2,400 22,327
HH2002 200 3600 447TS 226 95.40 87.0 2,317 26,548
HH2004 200 1800 447T 230 96.20 84.5 2,426 22,960
HH2006 200 1200 449T 233 95.80 84.0 2,801 28,796
HH2502 250 3600 449TS 278 95.80 88.0 2,725 34,416
HH2504 250 1800 449T 285 96.20 85.5 2,710 29,277
HH2506 250 1200 449T 289 95.80 84.5 3,080 37,099
HH3002 300 3600 449TS 333 95.80 88.0 2,928 41,240
HH3004 300 1800 449T 342 96.20 85.5 2,980 35,320
Notes:
(1) Meets NEMA Design C Torque. All other motors are NEMA Design B Torque.
(2) All data subject to change without notice.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
60 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-E2/841® FAMILY
AEHH8B, NEMA PREMIUM [HB]
AEHH8BCF, NEMA PREMIUM, FOOTED C-FACE (1 HP - 100 HP) [HB_C]
AEUH8BDC, NEMA PREMIUM, ROUND BODY C-FACE (1 HP - 100 HP) [HBV_C]
APPLICATIONS:
z Fans & Blowers z Compressors z Severe Duty/ Petro-Chem/
z Pumps z Mixers z Pulp & Paper Application
z Crushers z Conveyors z Marine Duty
FEATURES:
z Output Range: 1 - 500 HP
z Speed: 3600, 1800, 1200 & 900 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP56)
z Voltage: 460V Only(1)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z CSA Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3 Maximum(6,7)
z CSA Certified for Class II, Div. 2, Groups F & G - Temp Code T3 Maximum (Frame 444T and Above)(6,7)
z Meets or Exceeds IEEE 841 Standards
z Meets IEEE 45 Marine Duty and ABS Design Assessment up to 150 HP
z Extended Warranty - 60 Months from Date of Manufacture
z Class F Insulation
z Class B Temperature Rise
z NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
z Cast Iron Frame, End Brackets & Fan Cover and Main Conduit Box(8)
z Grounding Terminal Inside Main Conduit Box with additional Foot Grounding Provision
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 50˚C Ambient Temperature(2)
z Designed for 3300 ft. Elevation(3)
z Bi-Directional Rotation; Except 2 Pole "Hybrid" and F# 5000 and Larger Ratings are Counter-Clockwise facing the DE
z 1045 Carbon Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction for F# 140T - 449T
Copper/Copper Alloy Rotor Construction for F# 5000 and Larger(9)
z Paint System: 2 Part Epoxy
z Paint Color: Blue - Munsell 5PB 3/8
z High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM Grease
z Automatic Grease Discharge Fittings
z VBXX INPRO™ Seals Installed on Both Ends
z Stainless Steel Nameplate and Hardware
z Stainless Steel Automatic Breather Drain
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(4,5)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)
z Motors are U.L. Recognized, CSA Approved
z 3 Leads Only
z Dual Drilled Feet Available on Most Ratings - Longer Frames (i.e. 145T Drilled also for 143T)
z Vibration Not to Exceed 0.08 Inches Per Second
z Noise Level Not to Exceed 85 dB(A) at 1 Meter Unloaded
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) TWMC carries minimal MAX-E2® 575V stock; please check availability to ensure required motors are available. Ratings may be available
from our Canadian Warehouses at a higher price or from our factory with a longer lead time. Pricing and lead time may vary.
(2) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(3) Consult a Stock Product Application Specialist for suitability at higher elevations.
(4) Motor service factor is 1.0 when operated on a VFD.
(5) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
(6) Catalog# HB3502 & HB3504 are "Hybrid" ratings; Not CSA Certified (Self-Certify Only) for hazardous locations, and not dual drilled.
(7) Catalog# HB3006 also not CSA Certified for hazardous locations (Self-Certify Only).
(8) F# 5000 and with Larger with Pressed Steel Plate Main Conduit Box.
(9) F# 5007 - 5011 8 Pole Ratings are Aluminum Die Cast Squirrel Cage Rotor Construction.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 61
MAX-E2/841®
AEHH8B, NEMA PREMIUM [HB]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST
PRICE
($)
HB0012 1 3600 143T 82.50 85.0 1.3 58 969
HB0014(C) 1 1800 143T 85.50 73.0 1.5 58 928
HB0016 1 1200 145T 82.50 65.5 1.7 97 1,013
HB0018 1 900 182T 77.00 58.5 2.1 115 1,223
HB1/52 1.5 3600 143T 84.00 83.5 2.0 58 958
HB1/54(C) 1.5 1800 145T 86.50 78.0 2.1 65 970
HB1/56 1.5 1200 182T 87.50 63.5 2.5 130 1,120
HB1/58 1.5 900 184T 78.50 60.5 3.0 125 1,368
HB0022 2 3600 145T 86.50 86.0 2.5 78 978
HB0024(C) 2 1800 145T 86.50 78.0 2.8 97 985
HB0026(C) 2 1200 184T 88.50 70.5 3.0 150 1,233
HB0028 2 900 213T 85.50 64.0 5.0 173 1,814
HB0032 3 3600 182T 88.50 90.0 3.5 100 1,154
HB0034(C) 3 1800 182T 89.50 84.0 3.7 130 1,126
HB0036(C) 3 1200 213T 89.50 78.0 4.0 220 1,620
HB0038 3 900 215T 85.50 66.0 5.0 192 2,009
HB0052 5 3600 184T 88.50 92.5 5.7 140 1,345
HB0054(C) 5 1800 184T 89.50 85.5 6.1 150 1,259
HB0056(C) 5 1200 215T 91.00 82.5 6.2 235 1,962
HB0058 5 900 254T 86.50 72.0 7.5 305 2,659
HB7/52 7.5 3600 213T 91.00 89.0 8.7 202 1,752
HB7/54(C) 7.5 1800 213T 91.70 86.5 8.9 202 1,733
HB7/56(C) 7.5 1200 254T 91.00 80.5 9.6 323 2,754
HB7/58 7.5 900 256T 86.50 71.5 11.5 365 3,077
HB0102 10 3600 215T 91.00 89.5 11.5 224 1,874
HB0104(C) 10 1800 215T 91.70 88.0 11.6 224 1,901
HB0106(C) 10 1200 256T 91.00 80.5 12.8 380 3,182
HB0108 10 900 284T 89.50 73.5 14.2 445 4,000
HB0152 15 3600 254T 92.40 91.5 16.6 323 2,703
HB0154(C) 15 1800 254T 92.40 88.0 17.3 345 2,648
HB0156(C) 15 1200 284T 92.40 83.5 18.2 540 3,901
HB0158 15 900 286T 89.50 78.0 20.1 510 4,923
HB0202 20 3600 256T 92.40 92.5 21.9 367 3,232
HB0204(C) 20 1800 256T 93.00 87.5 23.0 425 3,120
HB0206(C) 20 1200 286T 91.70 84.0 24.3 565 4,596
HB0208 20 900 324T 90.20 81.0 25.6 585 5,759
HB0252 25 3600 284TS 92.40 91.0 27.8 490 3,816
HB0254(C) 25 1800 284T 93.60 86.0 29.1 555 3,689
HB0256(C) 25 1200 324T 93.00 83.0 30.3 759 5,758
HB0258 25 900 326T 90.20 79.5 25.6 684 6,500
HB0302 30 3600 286TS 93.00 91.0 33.2 535 4,062
HB0304(C) 30 1800 286T 93.60 87.5 34.3 656 3,963
HB0306(C) 30 1200 326T 93.00 80.5 37.5 795 6,131
HB0308 30 900 364T 93.00 77.5 39.0 898 8,814
HB0402 40 3600 324TS 94.10 90.0 44.2 755 5,547
HB0404(C) 40 1800 324T 94.10 86.0 46.3 740 5,434
HB0406(C) 40 1200 364T 94.10 86.5 46.0 898 9,137
HB0408 40 900 365T 91.70 76.5 53.4 1,035 10,818
HB0502 50 3600 326TS 94.10 91.0 54.7 835 6,590
HB0504(C) 50 1800 326T 94.50 87.0 56.9 835 6,088
HB0506(C) 50 1200 365T 94.10 86.0 57.8 963 10,292
HB0508 50 900 404T 93.00 80.5 53.4 1,098 12,314
Notes:
(1) To check stock or order 575V motors, add "5" to the end of Catalog Number, for example: "HB00545" for 5 HP, 1800 RPM, 575V.
(2) All data subject to change without notice.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
62 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-E2/841®
AEHH8B, NEMA PREMIUM [HB] continued…
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST
PRICE
($)
HB40602 60 3600 364TS 94.10 93.0 64.2 920 10,067
HB0604(C) 60 1800 364T 95.00 86.5 68.4 930 9,568
HB0606(C) 60 1200 404T 94.50 87.0 68.3 1,201 11,631
HB0608 60 900 405T 93.00 81.0 74.6 1,410 13,364
HB0752 75 3600 365TS 94.50 93.0 79.9 1,005 11,405
HB0754(C) 75 1800 365T 95.40 86.5 85.1 1,040 10,645
HB0756(C) 75 1200 405T 94.50 86.5 85.9 1,363 12,840
HB0758 75 900 444T 93.60 79.0 95.6 1,790 16,705
HB1002 100 3600 405TS 95.40 92.0 107 1,330 14,432
HB1004(C) 100 1800 405T 95.40 87.5 112 1,385 13,108
HB1006 100 1200 444T 95.00 82.5 119 1,833 17,430
HB1008 100 900 445T 93.60 79.0 127 2,088 20,259
HB1252 125 3600 444TS 95.00 86.0 143 1,783 18,290
HB1254 125 1800 444T 95.40 84.0 146 1,833 17,381
HB1256 125 1200 445T 95.00 83.0 148 1,961 21,576
HB1258 125 900 447T 94.10 80.0 156 2,490 23,436
HB1502 150 3600 445TS 95.00 87.0 170 1,808 21,197
HB1504 150 1800 445T 95.80 84.0 175 2,037 19,269
HB1506 150 1200 447T 95.80 83.5 176 2,400 22,978
HB1508 150 900 449T 94.10 80.0 242 2,903 32,107
HB2002 200 3600 447TS 95.40 87.0 226 2,160 27,075
HB2004 200 1800 447T 96.20 84.5 230 2,426 23,132
HB2006 200 1200 449T 95.80 84.0 233 2,675 29,166
HB2008 200 900 449T 94.50 80.0 242 2,670 36,273
HB2502 250 3600 449TS 95.80 88.0 278 2,595 35,116
HB2504 250 1800 449T 96.20 85.5 285 2,801 31,548
HB2506 250 1200 449T 95.80 84.5 289 2,955 37,791
HB2508 250 900 5009B 95.00 81.0 304 4,200 55,777
HB3002 300 3600 449TS 95.80 88.0 326 2,928 43,497
HB3004 300 1800 449T 96.20 85.5 342 2,930 37,085
HB3006 300 1200 449T 95.80 86.5 339 3,450 56,232
HB3008 300 900 5009B 95.00 81.0 365 4,410 58,514
HB3502 350 3600 449TS 95.80 91.6 373 3,100 55,397
HB3504 350 1800 449T 96.20 90.0 379 3,350 51,913
HB3506 350 1200 5011B 95.80 87.0 393 4,200 77,184
HB3508 350 900 5011B 95.00 81.0 426 5,040 81,043
HB4002 400 3600 5009A 95.80 91.6 427 3,450 76,400
HB4004 400 1800 5009B 96.20 90.0 433 3,700 71,099
HB4006 400 1200 5011B 95.80 87.0 449 4,900 85,011
HB4008 400 900 5808B 95.40 82.5 476 5,355 87,561
HB4502 450 3600 5011A 95.80 91.7 480 4,200 84,588
HB4504 450 1800 5011B 96.20 90.0 487 4,800 80,510
HB4506 450 1200 5808B 95.80 88.0 500 5,250 101,369
HB4508 450 900 5808B 95.40 82.5 535 5,723 105,423
HB5002 500 3600 5011A 95.80 91.7 533 4,600 93,063
HB5004 500 1800 5011B 96.20 90.0 541 5,000 85,644
HB5006 500 1200 5808B 95.80 88.0 555 5,600 103,997
HB5008 500 900 5810C 95.60 83.0 590 6,300 107,117
Notes:
(1) To check stock or order 575V motors, add "5" to the end of Catalog Number, for example: "HB00545" for 5 HP, 1800 RPM, 575V.
(2) All data subject to change without notice.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 63
MAX-E2/841®
AEHH8BCF, NEMA PREMIUM, FOOTED C-FACE (1 HP - 100 HP) [HB_C]
AEUH8BDC, NEMA PREMIUM, ROUND BODY C-FACE (1 HP - 100 HP) [HBV_C]
HP RPM FRAME FL EFF
(%)
FL PF
(%)
FL AMPS
(460V)
SHIPPING
WT. (lbs.)
FOOTED C-FACE ROUND BODY C-FACE
CATALOG
NO.
LIST
PRICE ($)
CATALOG
NO.
SHIPPING
WT. (lbs.)
1 3600 143TC 82.5 85.0 1.34 58 HB0012C 1,113 HBV0012C 1,173
1 1800 143TC 85.5 73.0 1.50 58 HB0014C(C) 1,107 HBV0014C(C) 1,168
1 1200 145TC 82.5 65.5 1.73 97 HB0016C 1,187 HBV0016C 1,248
1.5 3600 143TC 84.0 83.5 2.00 65 HB1/52C 1,125 HBV1/52C 1,186
1.5 1800 145TC 86.5 78.0 2.08 65 HB1/54C(C) 1,176 HBV1/54C(C) 1,240
1.5 1200 182TC 87.5 63.5 2.53 137 HB1/56C 1,370 HBV1/56C 1,457
2 3600 145TC 86.5 86.0 2.52 78 HB0022C 1,159 HBV0022C 1,224
2 1800 145TC 86.5 78.0 2.78 97 HB0024C(C) 1,193 HBV0024C(C) 1,256
2 1200 184TC 88.5 70.5 3.00 150 HB0026C(C) 1,547 HBV0026C(C) 1,631
3 3600 182TC 88.5 90.0 3.53 100 HB0032C 1,370 HBV0032C 1,457
3 1800 182TC 89.5 84.0 3.74 130 HB0034C(C) 1,370 HBV0034C(C) 1,457
3 1200 213TC 89.5 78.0 4.02 220 HB0036C(C) 2,164 HBV0036C(C) 2,268
5 3600 184TC 88.5 92.5 5.72 140 HB0052C 1,587 HBV0052C 1,669
5 1800 184TC 89.5 85.5 6.12 150 HB0054C(C) 1,542 HBV0054C(C) 1,626
5 1200 215TC 91.0 82.5 6.24 235 HB0056C(C) 2,324 HBV0056C(C) 2,425
7.5 3600 213TC 91.0 89.0 8.67 202 HB7/52C 2,067 HBV7/52C 2,175
7.5 1800 213TC 91.7 86.5 8.85 202 HB7/54C(C) 2,101 HBV7/54C(C) 2,208
7.5 1200 254TC 91.0 80.5 9.59 323 HB7/56C(C) 3,203 HBV7/56C(C) 3,339
10 3600 215TC 91.0 89.5 11.50 224 HB0102C 2,215 HBV0102C 2,317
10 1800 215TC 91.7 88.0 11.60 224 HB0104C(C) 2,255 HBV0104C(C) 2,360
10 1200 256TC 91.0 80.5 12.80 380 HB0106C(C) 3,706 HBV0106C(C) 3,834
15 3600 254TC 92.4 91.5 16.60 323 HB0152C 3,146 HBV0152C 3,285
15 1800 254TC 92.4 88.0 17.30 345 HB0154C(C) 3,135 HBV0154C(C) 3,274
15 1200 284TC 92.4 83.5 18.20 540 HB0156C(C) 4,539 HBV0156C(C) 4,704
20 3600 256TC 92.4 92.5 21.90 367 HB0202C 3,757 HBV0202C 3,883
20 1800 256TC 93.0 87.5 23.00 425 HB0204C(C) 3,706 HBV0204C(C) 3,834
20 1200 286TC 91.7 84.0 24.30 565 HB0206C(C) 5,476 HBV0206C(C) 5,623
25 3600 284TSC 92.4 91.0 27.80 490 HB0252C 4,287 HBV0252C 4,452
25 1800 284TC 93.6 86.0 29.10 555 HB0254C(C) 4,238 HBV0254C(C) 4,399
25 1200 324TC 93.0 83.0 30.30 759 HB0256C(C) 6,525 HBV0256C(C) 6,725
30 3600 286TSC 93.0 91.0 33.20 535 HB0302C 4,569 HBV0302C 4,725
30 1800 286TC 93.6 87.5 34.30 656 HB0304C(C) 4,569 HBV0304C(C) 4,725
30 1200 326TC 93.0 80.5 37.50 795 HB0306C(C) 6,984 HBV0306C(C) 7,177
40 3600 324TSC 94.1 90.0 44.20 755 HB0402C 6,326 HBV0402C 6,530
40 1800 324TC 94.1 86.0 46.30 740 HB0404C(C) 6,155 HBV0404C(C) 6,362
40 1200 364TC 94.1 86.5 46.00 898 HB0406C(C) 10,337 HBV0406C(C) 10,576
50 3600 326TSC 94.1 91.0 54.70 782 HB0502C 7,282 HBV0502C 7,467
50 1800 326TC 94.5 87.0 56.90 845 HB0504C(C) 7,122 HBV0504C(C) 7,309
50 1200 365TC 94.1 86.0 57.80 1,110 HB0506C(C) 12,006 HBV0506C(C) 12,213
60 3600 364TSC 94.1 93.0 64.20 853 HB0602C 11,133 HBV0602C 11,355
60 1800 364TC 95.0 86.5 68.40 955 HB0604C(C) 10,807 HBV0604(C) 11,034
60 1200 404TC 94.5 87.0 68.30 1,355 HB0606C(C) 13,459 HBV0606C(C) 13,744
75 3600 365TSC 94.5 93.0 79.90 1,015 HB0752C 12,614 HBV0752C 12,807
75 1800 365TC 95.4 86.5 85.1 1,040 HB0754C(C) 12,061 HBV0754C(C) 12,266
75 1200 405TC 94.5 86.5 85.9 1,363 HB0756C(C) 14,652 HBV0756C(C) 14,918
100 3600 405TSC 95.4 92.0 107.0 1,330 HB1002C 15,829 HBV1002C 16,070
100 1800 405TC 95.4 87.5 112.0 1,385 HB1004C(C) 14,774 HBV1004C(C) 15,033
Notes:
(1) To check stock or order 575V motors, add "5" to the end of Catalog Number, for example: "HB00545" for 5 HP, 1800 RPM, 575V.
(2) All data subject to change without notice.
(C) Meets NEMA Design C Torque.
Effective 03-24-17
Supercedes 06-14-15
64 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-HT™ LOW VOLTAGE CRUSHER DUTY
AEHHGD, NEMA PREMIUM, DESIGN C (20 HP - 200 HP) [CDP]
AEEAGD, HIGH EFFICIENCY, DESIGN C [CD]
APPLICATIONS:
z Crushers z Ball Mills/ Rolling Mills
z Impactors z Any High Torque Application
z Chippers/ Shredders
FEATURES:
z Output Range: 20 - 600 HP
z Speed: 1800, 1200 & 900 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP55)
z Voltage: 230/460V (Usable on 208V); 150HP and Larger is 460V Only(1)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z CSA Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3 Maximum(6)
z CSA Certified for Class II, Div. 2, Groups F & G - Temp Code T3 Maximum (Frame 444T - 449T Only)(6)
z Class F Insulation
z Class B Temperature Rise
z NEMA Design C Torques; Equal or Greater Than 200% Starting Torque / 250% Breakdown Torque
z Cast Iron Frame, End Brackets, Main Conduit Box; Rolled Steel Fan Cover(7)
z Grounding Terminal Inside Main Conduit Box(8)
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(2)
z Designed for 3300 ft. Elevation(3)
z Bi-Directional Rotation
z High Strength 4140 AISI Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Dark Gray - Munsell 7.5 BG 3.5/0.5
z High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM Grease
z Automatic Grease Discharge Fittings
z Gamma (Axial Face) Seal on Both Ends for F# 140T - 400T
z Labyrinth Type Metal Flinger on Both Ends for F# 440T and Larger
z Cast Iron Inner and Outer Bearing Caps for F# 320T and Larger
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(4,5)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)
z 12 Leads for 125 HP and Smaller;
z 6 Leads for 150 HP and Larger
z Standard With Thermistors (PTC 140˚C) 1 per Phase
z Locknut and Washer on NDE for Vertical Shaft Down Applications on F# 440 and Larger
z Drain Holes / Plugs on Both End Brackets for Vertical Applications
z Threaded One Way Breather Drains for Horizontal Mount Applications
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) 575V motors available on a made-to order basis. Consult a Stock Product Application Specialist for details.
(2) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(3) Consult a Stock Product Application Specialist for suitability at higher elevations.
(4) Motor service factor is 1.0 when operated on a VFD.
(5) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
(6) CSA Certification for Hazardous Locations only applies to AEHHGD, NEMA Premium Type.
(7) F# 5000 and with Larger with Pressed Steel Plate Main Conduit Box.
(8) Additional Foot Grounding Provision for F# 440 and Larger.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 65
MAX-HT™ LOW VOLTAGE CRUSHER DUTY
AEHHGD, NEMA PREMIUM, DESIGN C (20 HP - 200 HP) [CDP]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST
PRICE
($)
CDP0204 20 1800 256T 93.0 86.0 23.4 395 2,715
CDP0206 20 1200 286T 91.7 84.0 24.3 520 3,288
CDP0208 20 900 324T 91.0 81.0 25.4 557 5,309
CDP0254 25 1800 284T 93.6 86.0 29.1 510 3,027
CDP0256 25 1200 324T 93.0 83.0 30.3 745 5,089
CDP0258 25 900 326T 91.0 80.0 32.2 665 5,927
CDP0304 30 1800 286T 93.6 87.5 34.3 545 3,446
CDP0306 30 1200 326T 93.0 80.5 37.5 775 5,139
CDP0308 30 900 364T 93.0 78.0 38.7 718 6,302
CDP0308R 30 900 364T 93.0 78.0 38.7 718 6,302
CDP0404 40 1800 324T 91.4 86.0 46.3 710 4,534
CDP0406 40 1200 364T 91.4 86.5 46.0 945 6,995
CDP0406R 40 1200 364T 91.4 86.5 46.0 945 6,995
CDP0408 40 900 365T 93.0 78.0 52.0 807 9,649
CDP0408R 40 900 365T 93.0 78.0 52.0 807 9,649
CDP0504 50 1800 326T 94.5 87.0 57.0 795 5,286
CDP0506 50 1200 365T 94.1 86.0 58.0 1,040 8,261
CDP0506R 50 1200 365T 94.1 86.0 58.0 1,040 8,261
CDP0508 50 900 404T 93.0 81.0 62.0 868 11,086
CDP0508R 50 900 404T 93.0 81.0 62.0 868 11,086
CDP0604 60 1800 364T 95.0 86.5 68.0 870 7,439
CDP0604R 60 1800 364T 95.0 86.5 68.0 870 7,439
CDP0606 60 1200 404T 94.5 87.0 68.0 1,295 10,950
CDP0606R 60 1200 404T 94.5 87.0 68.0 1,295 10,950
CDP0608 60 900 405T 93.0 81.0 75.0 1,243 12,400
CDP0608R 60 900 405T 93.0 81.0 75.0 1,243 12,400
CDP0754 75 1800 365T 95.4 86.5 85.0 1,075 9,513
CDP0754R 75 1800 365T 95.4 86.5 85.0 1,075 9,513
CDP0756 75 1200 405T 94.5 86.5 86.0 1,317 11,524
CDP0756R 75 1200 405T 94.5 86.5 86.0 1,317 11,524
CDP0758 75 900 444T 93.6 73.0 103 1,600 24,730
CDP0758R 75 900 444T 93.6 73.0 103 1,600 24,730
CDP1004 100 1800 405T 95.4 87.5 112 1,360 11,870
CDP1004R 100 1800 405T 95.4 87.5 112 1,360 11,870
CDP1006 100 1200 444T 95.0 82.5 119 1,665 20,931
CDP1006R 100 1200 444T 95.0 82.5 119 1,665 20,931
CDP1008 100 900 445T 93.6 78.0 128 1,800 26,371
CDP1008R 100 900 445T 93.6 78.0 128 1,800 26,371
CDP1254 125 1800 444T 95.4 85.0 144 1,705 21,154
CDP1254R 125 1800 444T 95.4 85.0 144 1,705 21,154
CDP1256 125 1200 445T 95.0 83.0 148 1,995 25,836
CDP1256R 125 1200 445T 95.0 83.0 148 1,995 25,836
CDP1258 125 900 447T 94.1 80.0 155 2,450 29,819
CDP1258R 125 900 447TZ 94.1 80.0 155 2,450 29,819
CDP1504 150 1800 445T 95.8 85.0 172 1,865 22,163
CDP1504R 150 1800 445T 95.8 85.0 172 1,865 22,163
CDP1506 150 1200 447T 95.8 83.5 176 2,363 27,903
CDP1506R 150 1200 447TZ 95.8 83.5 176 2,363 27,903
CDP1508 150 900 449T 94.1 80.0 187 2,800 34,657
CDP1508R 150 900 449TZ 94.1 80.0 187 2,800 34,657
CDP2004 200 1800 447T 95.4 87.0 226 2,465 24,572
CDP2004R 200 1800 447TZ 95.4 87.0 226 2,465 24,572
CDP2006T 200 1200 449T 95.8 84.0 233 2,783 28,499
CDP2006TR 200 1200 449TZ 95.8 84.0 233 2,783 28,499
CDP2008T 200 900 449T 94.5 82.5 240 2,875 28,987
CDP2008TR 200 900 449TZ 94.5 82.5 240 2,875 28,987
Notes:
(1) AEHHGD "CDP" motors replace AEEAGD "CD" motor line in compliance to new DOE standards.
(2) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
66 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-HT™ LOW VOLTAGE CRUSHER DUTY
AEEAGD, HIGH EFFICIENCY, DESIGN C [CD]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST
PRICE
($)
CD0204 20 1800 256T 91.0 90.0 22.9 395 1,898
CD0206 20 1200 286T 90.2 83.5 24.9 520 2,999
CD0208 20 900 324T 90.2 81.0 25.7 557 4,938
CD0254 25 1800 284T 92.4 86.5 29.3 510 2,357
CD0256 25 1200 324T 91.7 81.5 31.3 745 3,911
CD0258 25 900 326T 90.2 79.5 32.7 665 5,709
CD0304 30 1800 286T 92.4 88.0 34.6 545 2,860
CD0306 30 1200 326T 91.7 80.5 38.1 775 4,580
CD0308 30 900 364T 91.7 77.5 39.6 718 6,996
CD0404 40 1800 324T 93.0 90.0 44.8 710 3,700
CD0406 40 1200 364T 93.0 86.5 46.6 945 6,174
CD0406R 40 1200 364T 93.0 86.5 46.6 945 6,174
CD0408 40 900 365T 92.4 76.5 53.0 807 8,668
CD0408R 40 900 365T 92.4 76.5 53.0 807 8,668
CD0504 50 1800 326T 93.0 90.0 56.0 795 4,805
CD0506 50 1200 365T 93.0 85.5 59.0 1,040 7,463
CD0506R 50 1200 365T 93.0 85.5 59.0 1,040 7,463
CD0508 50 900 404T 93.0 80.5 62.5 868 9,688
CD0508R 50 900 404T 93.0 80.5 62.5 868 9,688
CD0604 60 1800 364T 93.6 87.0 69.0 870 6,505
CD0604R 60 1800 364T 93.6 87.0 69.0 870 6,505
CD0606 60 1200 404T 93.6 88.0 68.0 1,295 9,665
CD0606R 60 1200 404T 93.6 88.0 68.0 1,295 9,665
CD0608 60 900 405T 93.0 81.0 74.5 1,243 10,837
CD0608R 60 900 405T 93.0 81.0 74.5 1,243 10,837
CD0754 75 1800 365T 94.1 88.0 85.0 1,075 8,316
CD0754R 75 1800 365T 94.1 88.0 85.0 1,075 8,316
CD0756 75 1200 405T 93.6 88.5 85.0 1,317 10,025
CD0756R 75 1200 405T 93.6 88.5 85.0 1,317 10,025
CD0758 75 900 444T 92.4 79.5 95.6 1,600 22,041
CD0758R 75 900 444T 92.4 79.5 95.6 1,600 22,041
CD1004 100 1800 405T 94.5 90.0 110 1,360 10,477
CD1004R 100 1800 405T 94.5 90.0 110 1,360 10,477
CD1006 100 1200 444T 94.1 83.5 119 1,665 18,802
CD1006R 100 1200 444T 94.1 83.5 119 1,665 18,802
CD1008 100 900 445T 92.4 80.0 127 1,800 23,252
CD1008R 100 900 445T 92.4 80.0 127 1,800 23,252
CD1254 125 1800 444T 94.5 87.5 142 1,705 19,231
CD1254R 125 1800 444T 94.5 87.5 142 1,705 19,231
CD1256 125 1200 445T 94.1 83.0 150 1,995 23,027
CD1256R 125 1200 445T 94.1 83.0 150 1,995 23,027
CD1258 125 900 447T 93.0 81.0 155 2,450 27,108
CD1258R 125 900 447TZ 93.0 81.0 155 2,450 27,108
Notes:
(1) Per DOE regulations, this High Efficiency inventory in 256T - 449T frame will be available through June 2018, or until current inventory has been
depleted. Whichever occurs first. Please see our new line of 256T - 449T frame Premium Efficient Crusher Duty (AEHHGD) motors on page 69.
(2) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 67
MAX-HT™ LOW VOLTAGE CRUSHER DUTY
AEEAGD, HIGH EFFICIENCY, DESIGN C [CD] continued...
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING
WT. (lbs.)
LIST
PRICE
($)
CD1504 150 1800 445T 95.0 88.0 168 1,865 20,148
CD1504R 150 1800 445T 95.0 88.0 168 1,865 20,148
CD1506 150 1200 447T 95.0 86.5 171 2,363 25,167
CD1506R 150 1200 447TZ 95.0 86.5 171 2,363 25,167
CD1508 150 900 449T 93.0 81.5 185 2,800 31,506
CD1508R 150 900 449TZ 93.0 81.5 185 2,800 31,506
CD2004R 200 1800 447TZ 95.0 88.5 223 2,465 21,900
CD2006R 200 1200 449TZ 95.0 86.5 228 2,783 25,400
CD2006RZ 200 1200 505UZ 95.0 85.0 231 3,500 25,386
CD2008R 200 900 5007C 94.1 80.0 249 3,728 38,080
CD2504TB 250 1800 449T 95.4 88.5 277 2,708 22,780
CD2504TR 250 1800 449TZ 95.4 88.5 277 2,708 22,780
CD2504R 250 1800 5007C 95.0 88.0 280 3,570 25,386
CD2504RZ 250 1800 505UZ 95.0 88.0 280 3,150 24,750
CD2506TR 250 1200 449TZ 95.4 88.5 277 2,800 26,917
CD2506R 250 1200 5007C 95.0 85.0 290 3,500 27,978
CD2506RZ 250 1200 586/7UZ 95.0 85.0 290 4,750 36,278
CD2508R 250 900 5009C 94.5 80.0 310 4,200 42,402
CD3004TR 300 1800 449TZ 95.4 88.5 333 2,800 26,683
CD3004R 300 1800 5007C 95.4 88.5 333 3,585 28,336
CD3004RZ 300 1800 586/7UZ 95.4 88.5 333 4,748 36,273
CD3006TR 300 1200 449TZ 95.4 88.5 333 3,100 32,582
CD3006R 300 1200 5009C 95.0 85.0 348 4,175 35,337
CD3006RZ 300 1200 586/7UZ 95.0 85.0 348 5,100 41,711
CD3008R(1) 300 900 5806C 94.5 81.0 367 5,093 52,832
CD3504TR 350 1800 449TZ 95.4 88.5 388 3,100 29,548
CD3504R 350 1800 5009C 95.4 88.5 388 3,945 31,563
CD3504RZ 350 1800 586/7UZ 95.4 88.5 388 5,093 39,012
CD3506R 350 1200 5806C 95.0 85.0 406 4,750 42,540
CD3506RZ 350 1200 586/7UZ 95.0 85.0 406 5,565 44,637
CD3508R(1) 350 900 5808C 94.5 81.0 427 5,610 55,371
CD4004R 400 1800 5806C 95.4 89.0 441 4,748 40,207
CD4004RZ 400 1800 586/7UZ 95.4 89.0 441 5,445 43,050
CD4006R(1) 400 1200 5808C 95.0 85.5 461 5,100 47,753
CD4006RZ(1) 400 1200 586/7UZ 95.0 85.5 461 6,020 47,753
CD4008R1 400 900 5808C 95.0 81.0 487 5,828 67,089
CD4504R 450 1800 5808C 95.4 89.5 493 5,093 44,765
CD4504RZ 450 1800 586/7UZ 95.4 89.5 493 6,510 44,765
CD4506R(1) 450 1200 5808C 95.4 85.5 517 5,565 51,871
CD5004R 500 1800 5808C 95.8 89.5 547 5,445 46,164
CD5006R(1) 500 1200 5808C 95.4 85.5 574 6,020 55,165
CD6004R(1) 600 1800 5808C 95.8 89.5 655 6,510 65,799
CD6006R(1) 600 1200 5810C 95.4 85.5 689 6,898 79,125
Notes:
(1) Ratings not have a DOE mandated NEMA Premium requirement and therefore will continue to be stock items. No change to current design.
(2) Per DOE regulations, the non-exempt High Efficiency inventory will be available through June 2018, or until current inventory has been
depleted. Whichever occurs first. Please see our new line of Design A Premium Efficient Crusher Duty (AEHHGD) motors on page 69.
(3) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
68 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-HT™ LOW VOLTAGE CRUSHER DUTY
AEHHGD, NEMA PREMIUM, DESIGN A [CDP]
APPLICATIONS:
z Crushers z Ball Mills/ Rolling Mills
z Impactors z Any High Torque Application
z Chippers/ Shredders
FEATURES:
z Output Range: 200 - 500 HP
z Speed: 1800, 1200 & 900 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP55)
z Voltage: 460V(1)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
z Class F Insulation
z Class B Temperature Rise
z NEMA Design C Torques; Equal or Greater Than 150% Starting Torque/ 250% Breakdown Torque
z Cast Iron Frame, End Brackets; Pressed Steel Plate Main Conduit Box and Fan Cover
z Grounding Terminal Inside Main Conduit Box with additional Foot Grounding Provision
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(2)
z Designed for 3300 ft. Elevation(3)
z Bi-Directional Rotation
z High Strength 4140 AISI Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Dark Gray - Munsell 7.5 BG 3.5/0.5
z High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM Grease
z Automatic Grease Discharge Fittings
z Labyrinth Type Metal Flinger on Both Ends
z Cast Iron Inner and Outer Bearing Caps
z Stainless Steel Nameplate
z New Dual Column Design Nameplate as Standard (60/50 Hz)
z Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1, Part 30(4,5)
z Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)
z 6 Leads
z Standard With Thermistors (PTC 140˚C) 1 per Phase
z Locknut and Washer on NDE for Vertical Shaft Down Applications
z Drain Holes / Plugs on Both End Brackets for Vertical Applications
z Threaded One Way Breather Drains for Horizontal Mount Applications
EXTRAS/ OPTIONS:
Please refer to pages 129 - 134 for common modifications that can be performed.
Notes:
(1) 575V motors available on a made-to order basis. Consult a Stock Product Application Specialist for details.
(2) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(3) Consult a Stock Product Application Specialist for suitability at higher elevations.
(4) Motor service factor is 1.0 when operated on a VFD.
(5) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
Effective 03-24-17
Supercedes 06-14-15
www.tecowestinghouse.com or call 1-800-USE-TECO | 69
MAX-HT™ LOW VOLTAGE CRUSHER DUTY
AEHHGD, NEMA PREMIUM, DESIGN A [CDP]
CATALOG NO. HP RPM FRAME FL EFF (%) FL PF (%) FL AMPS
(460V)
APPROX.
SHIPPING.
WT. (lbs.)
LIST PRICE
($)
CDP2006RZ 200 1200 505UZ 95.8 79.9 245 3,200 31,647
CDP2008R 200 900 5007C 94.5 79.1 251 2,000 43,272
CDP2008RZ 200 900 586/7UZ 94.5 76.6 259 2,370 55,130
CDP2504TB 250 1800 449T 96.2 85.0 286 2,750 25,886
CDP2504TR 250 1800 449TZ 96.2 85.0 286 2,760 25,886
CDP2504R 250 1800 5007C 96.2 82.4 295 3,620 32,852
CDP2504RZ 250 1800 505UZ 96.2 82.4 295 3,250 31,412
CDP2506TR 250 1200 449TZ 95.8 78.5 311 2,925 28,483
CDP2506R 250 1200 5007C 95.8 79.3 308 3,760 34,972
CDP2506RZ 250 1200 586/7UZ 95.8 79.5 307 4,850 51,031
CDP2508R 250 900 5009C 95.0 78.3 315 2,250 48,184
CDP2508RZ 250 900 586/7UZ 95.0 76.5 322 2,450 58,205
CDP3004TR 300 1800 449TZ 96.2 84.0 348 2,865 32,503
CDP3004R 300 1800 5007C 96.2 82.5 352 3,750 35,420
CDP3004RZ 300 1800 586/7UZ 96.2 81.4 359 4,900 55,252
CDP3006TR 300 1200 449TZ 95.8 82.5 355 3,450 37,025
CDP3006R 300 1200 5009C 95.8 82.3 356 4,350 40,156
CDP3006RZ 300 1200 586/7UZ 95.8 80.9 362 4,950 53,374
CDP3504TR 350 1800 449TZ 96.2 88.5 385 3,290 32,503
CDP3504R 350 1800 5009C 96.2 85.8 397 4,140 33,901
CDP3504RZ 350 1800 586/7UZ 96.2 82.7 412 5,050 55,786
CDP3506R 350 1200 5806C 95.8 79.5 430 5,680 56,949
CDP3506RZ 350 1200 586/7UZ 95.8 79.5 430 5,100 57,101
CDP4004R 400 1800 5806C 96.2 81.6 477 5,650 57,211
CDP4004RZ 400 1800 586/7UZ 96.2 81.6 477 5,200 59,696
CDP4504R 450 1800 5808C 96.2 82.5 531 5,650 60,419
CDP4504RZ 450 1800 586/7UZ 96.2 82.8 529 5,300 61,981
CDP5004R 500 1800 5808C 96.2 82.4 590 5,860 65,165
CDP5004RZ 500 1800 586/7UZ 96.2 82.4 590 5,450 66,069
Notes:
(1) All data subject to change without notice.
Effective 03-24-17
Supercedes 06-14-15
70 | www.tecowestinghouse.com or call 1-800-USE-TECO
MAX-HT™ MEDIUM VOLTAGE CRUSHER DUTY
AEHAGD, ENERGY EFFICIENCT, HIGH TORQUE [KD]
APPLICATIONS:
z Mills z Crushers z Shredders
z Grinders z Impacters z High Torque Applications
z Compressors z Ball Mills
FEATURES:
z Output Range: 100 - 900 HP
z Speed: 1800, 1200 & 900 RPM
z Enclosure: Totally Enclosed Fan Cooled (IP55)
z Voltage: 2300/4000V(1)
z Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
z CSA Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3 Maximum
z CSA Certified for Class II, Div. 2, Groups F & G - Temp Code T3 Maximum
z Class F Insulation
z Class B Temperature Rise
z NEMA Design C Torques; Equal or Greater Than 200% Starting Torque / 250% Breakdown Torque
z Cast Iron Frame, End Brackets; Pressed Steel Plate Main Conduit Box and Fan Cover(5)
z Grounding Terminal Inside Main Conduit Box with additional Foot Grounding Provision
z Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
z Designed for 40˚C Ambient Temperature(2)
z Designed for 3300 ft. Elevation(3)
z Bi-Directional Rotation
z High Strength 4140 AISI Steel Shaft
z Aluminum Die Cast Squirrel Cage Rotor Construction
z Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
z Paint Color: Dark Gray - Munsell 7.5 BG 3.5/0.5
z High Quality Ball (or R
