Data Sheet FX85001-0601 Issue 1
Not to be used for installation purposes. Page 1 of 2
GE
Security
Fire & Life Safety
Smoke Detection
Overview
The supervised photoelectric smoke alarms/detectors are self-
diagnostic Learn Mode wireless sensors with 319.5MHz transmitters
with a self-contained sounder, a low battery annunciator, status
LED, and integrated fixed temperature and rate-of-rise heat sensor.
Each unit will communicate an alarm condition to a GE compatible
control panel. In addition, the mounting tamper will send a trouble
condition if the detector is removed from the base.
The supervised wireless models are available in two types. The TX
Series residential supervised models can be used with all GE Secu-
rity control panels that support wireless devices and the commer-
cial 60-849 Series supervised wireless models can only be used with
Advent commercial panels. Supervised wireless models ship with
batteries and transmitters included.
All of the battery operated photoelectric smoke detectors continual-
ly monitor operational status and provide a visual trouble condition
if they drift out of the sensitivity range or fail internal diagnostics.
The series meets NFPA 72 field sensitivity testing requirements
without the need for external meters. The alarm sensitivity level can
be determined at the unit.
Another feature is built-in drift compensation that allows the alarm
to adjust sensitivity automatically as it becomes dirty over time. The
drift compensation feature dramatically increases the time between
cleaning, as well as reduces false alarms.
Supervised
Wireless
Smoke Detectors

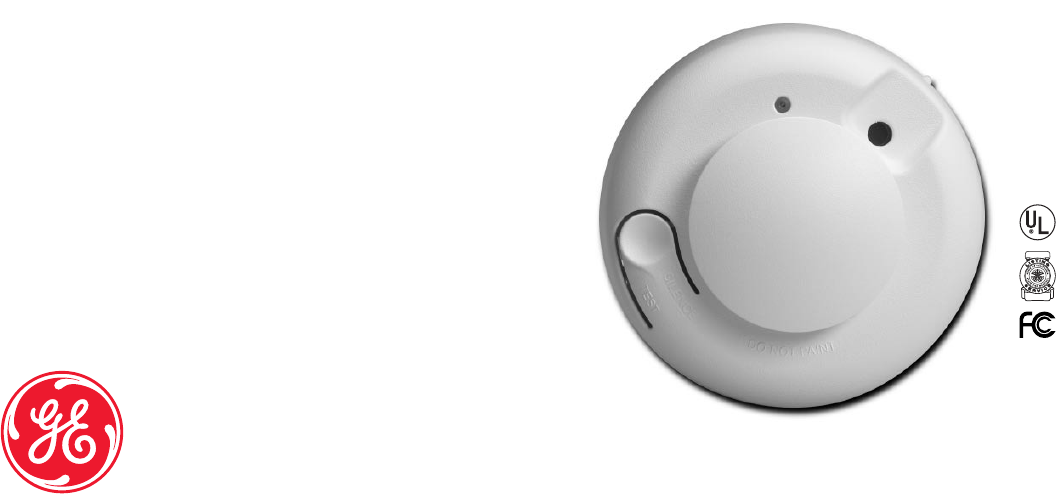

TX-6010-01-1, 60-849-02-95
Standard Features
3V Lithium battery operated
Field replaceable optical chamber
Built-in 85dB temporal sounder
Built-in drift compensation
Built-in heat detection
Learn Mode
319.5MHz crystal transmitter
Alarm signal sent to central station on test
Low battery prealarm sent to control station
•
•
•
•
•
•
•
•
•
Data Sheet FX85001-0601 Issue 1
Not to be used for installation purposes. Page 2 of 2
imagination at work
GE
Security
U.S.
T 888-GESECURity
F 503-691-7566
Canada
T 519 376 2430
F 519 376 7258
Asia
T 852 2907 8108
F 852 2142 5063
Latin America
T 305 593 4301
F 305 593 4300
www.gesecurity.com/fireworx
© 2008 General Electric Company
All Rights Reserved
Specifications
Electrical
Voltage 3 VDC
Average standby current 35 µA, typical
Test current 2 mA, typical
Alarm current 70 mA, typical
Battery type 3V lithium–Duracell® 123, Sanyo® and Panasonic® CR123A
Low battery threshold 2.7 V causes low battery signal
Features
Sounder 85dB at 10 ft., temporal pattern
Low battery beep rate 1 every 45 ±2 seconds
Sensitivity 2.3% ± 0.890%
Environmental
Operating temperature 40 to 100°F (4 to 38°C)
Operating humidity range 0 to 95% noncondensing
RF immunity 20V/minute minimum; 1 to 1000 MHz
Drift compensation adjustment 0.5%/ft. maximum
Rate of rise 15°F/minute > 105°F (8.3°C/minute > 40.6°C)
Fixed 135°F ± 5°F (57.2°C ± 2.8°C)
RF frequency 319.5 MHz
Transmitter ID Preprogrammed, 1 million codes
Modulation type AM
Signal format Pulse-width modulation
Output types Alarm, restore, tamper, low battery, trouble, 1 hour Supervisory
Physical
Color White
Alarm dimensions 5.6 x 2.4 in. (142 x 61 mm)
Base dimensions 5.4 x 0.46 in. (137 x 12 mm)
Regulatory
FCC, CSFM, TX Series UL 217, 60-849-02-95 UL 268 only with Advent Panel
Ordering Information
TX-6010-01-1 Supervised residential wireless smoke detector for use with all GE Security panels,
85dBa sounder, fixed/rate-of-rise alarm, transmitter, batteries, UL 217
60-849-02-95 Supervised commercial wireless smoke detector for use with Advent panels,
85dBa sounder, fixed/rate-of-rise alarm, transmitter, batteries, UL 268
Accessories
SM-200 Smoke! in a Can® (canned smoke) for functional testing of smoke detectors, pack
of 12
SM-EXT1 Smoke!-in-a-Can extension tube
211 Replacement optical chambers, pack of 10
60-733 3V lithium battery 6 pack
