INTEGRAL™ Self-Protected

Combination Motor Controllers

Class 8539

CONTENTS

Description Page

Product Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20

Application and General Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-27

Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-41

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-46

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47-51

INTEGRAL™ Self-Protected Combination Motor Controllers

01/00

INTEGRAL™ Self-Protected Combination Motor Controllers

Product Description

01/00

COMBINATION MOTOR CONTROL IN ONE COMPACT

PACKAGE!

The INTEGRAL™ Self-Protected Combination Motor Controller (CMC)

combines all the functions of a disconnect, circuit breaker, contactor, and

overload relay in a coordinated motor controller. A wide variety of easy-to-

install auxiliary blocks and interface modules provides powerful

communication and control capabilities.

As much as 60% less panel space is required by the INTEGRAL CMC as

compared to traditional combination motor control circuit installations. In

addition, installation and wiring time is dramatically reduced — simply snap

the INTEGRAL onto a 35 mm DIN rail and connect load and line side wires.

The entire family of INTEGRAL CMCs have proven their reliability and

effectiveness in thousands of applications worldwide. By installing the

INTEGRAL Self-Protected CMC, you are implementing the latest in motor

control and protection technology, and assuring the lowest installed cost of

any motor control scheme.

Features

• Non-reversing and reversing combination motor controllers available in

18, 32, or 63 ampere ratings.

• NEMA Type 1 and 12 enclosed combination motor controllers and open

style combination motor controllers both available.

• Current-limiting short-circuit protection provides 42 kA interrupt rating.

• UL listed as a Type E combination motor controller.

• UL veriﬁed to meet “Type 2” coordination protection per IEC 947-4.

• Meets “Total Coordination” requirements of IEC 947-6 — no damage to

contactor or overload relay, and no welding of contacts after interruption

of short-circuit faults.

• Padlockable isolation knob.

• Minimum 1.5 million operation life expectancy.

• Proven reliability — even after exposure to multiple short-circuit faults!

• Control direct from PLC or PC with optional interface modules.

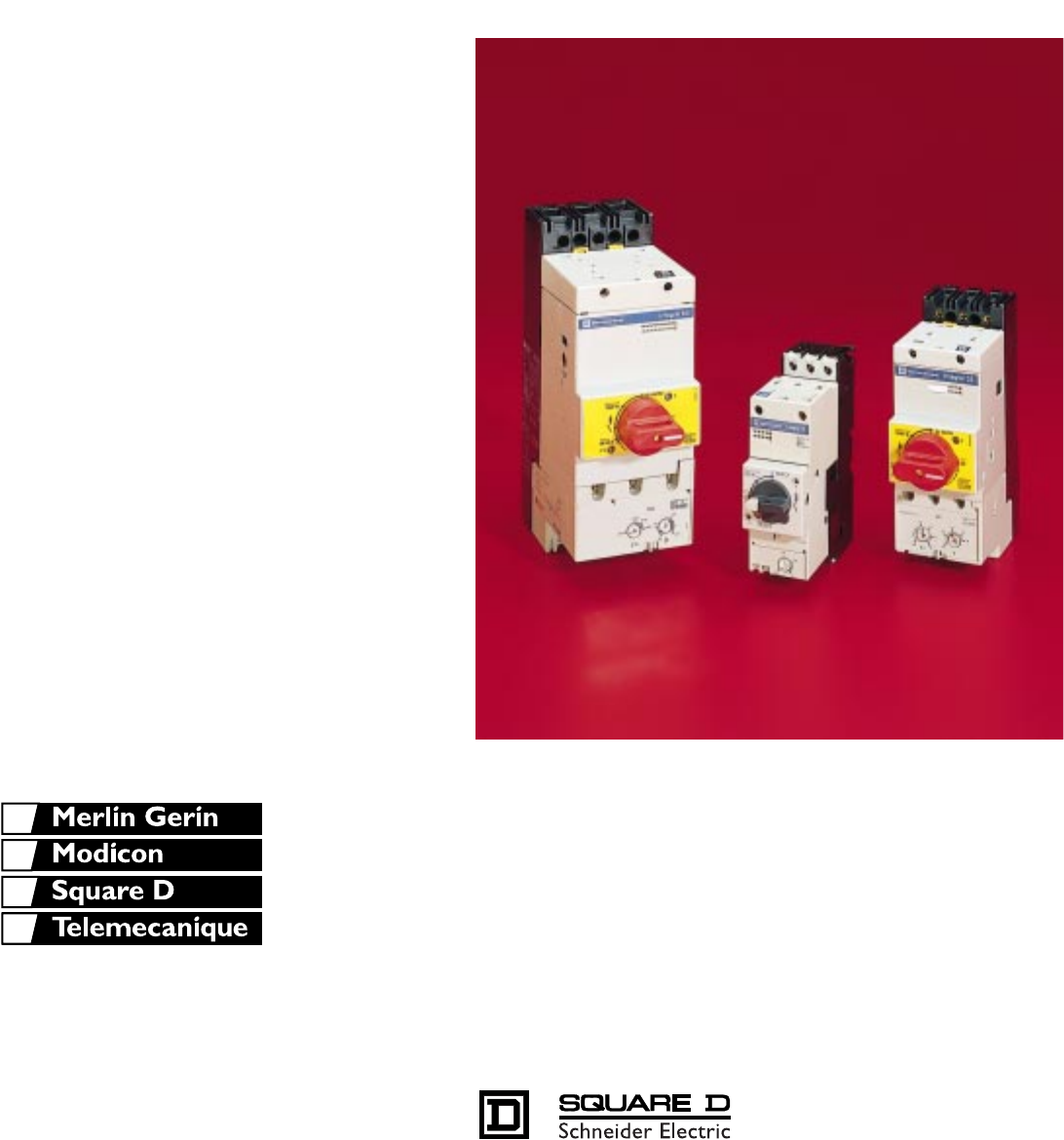

Integral 18

Integral 32

Integral 63

INTEGRAL™ Self-Protected Combination Motor Controllers

Product Description

01/00

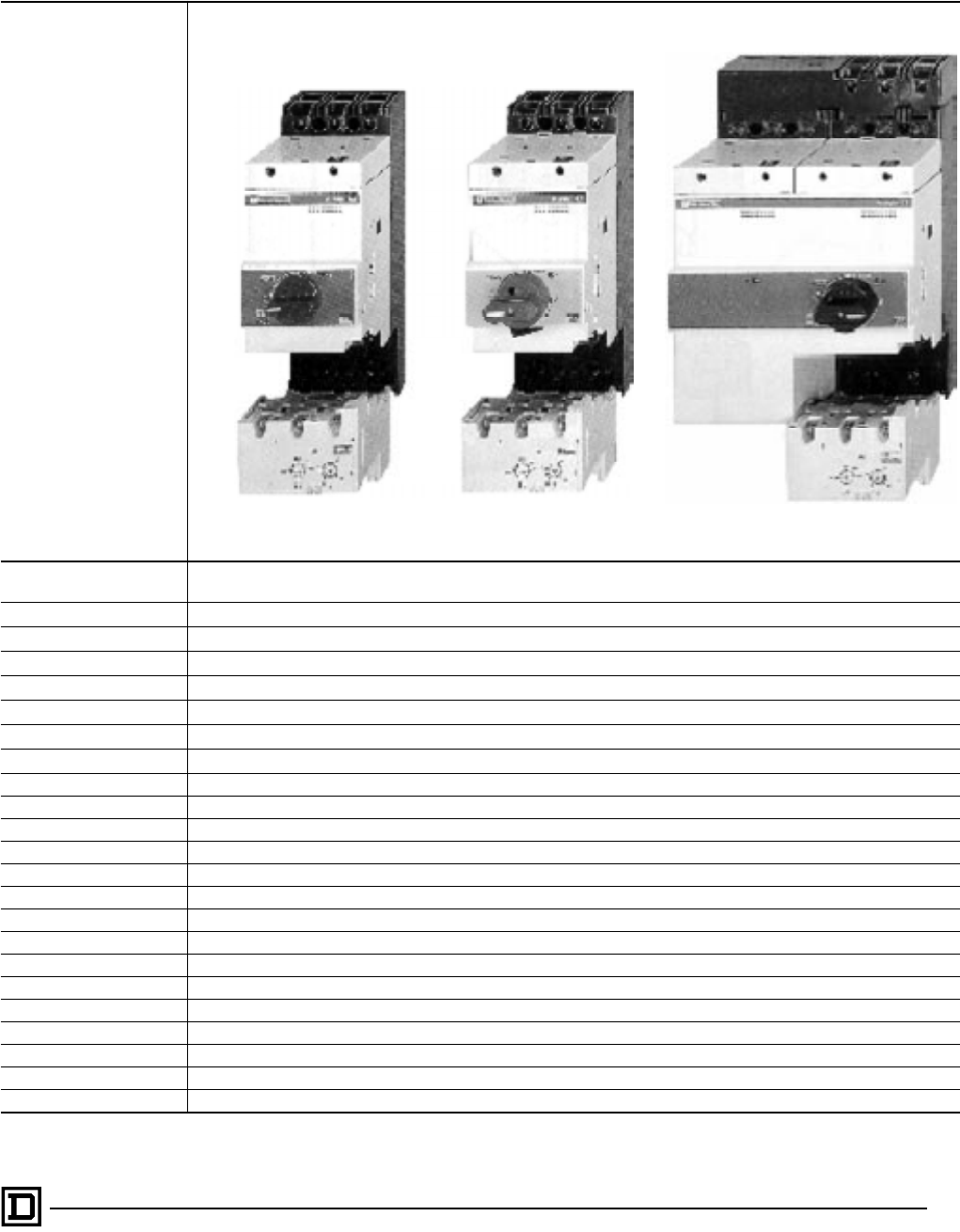

INTEGRAL 18 INTEGRAL 32

LD1LB030• LD5LB030•

+ +

LB1LB03P•• LB1LB03P••

LD1LC030• LD4LC030• LD5LC130•

+ + +

LB1LC03M•• LB1LC03M•• LB1LC03M••

Rated Operational Current

for AC-3 Duty

18 A 32 A

Rated Breaking Capacity

42 KA at 480 Vac 42 KA at 480 Vac

Approvals

ASTA, BS, CSA, DEMKO, IEC, NEMKO, SEMKO, UL, VDE ASTA, BS, CSA, DEMKO, IEC, NEMKO, SEMKO, UL, VDE

Number of Poles

Protection Module

LB1LB03P•• LB1LC03M••

Magnetic Protection

Fixed, 15 times maximum thermal current Adjustable, 6 to 12 times maximum thermal current

Overload Protection

0.1 to 0.16 A:

P01

0.16 to 0.25 A

P02

0.25 to 0.4 A

P03

0.25 to 0.4 A

M03

0.4 to 0.63 A

P04

0.4 to 0.63 A

M04

0.63 to 1.0 A

P05

0.63 to 1.0 A

M05

1.0 to 1.6 A

P06

1.0 to 1.6 A

M06

1.6 to 2.5 A

P07

1.6 to 2.5 A

M07

2.5 to 4.0 A

P08

2.5 to 4.0 A

M08

4.0 to 6.0 A

P10

4.0 to 6.3 A

M10

6.0 to 10.0 A

P13

6.3 to 10.0 A

M13

10.0 to 16.0 A

P17

10.0 to 16.0 A

P17

12.0 to 18.0 A

P21

–

– 16.0 to 25.0 A

M22

– 23.0 to 32.0 A

M23

INTEGRAL™ Self-Protected Combination Motor Controllers

Product Description

01/00

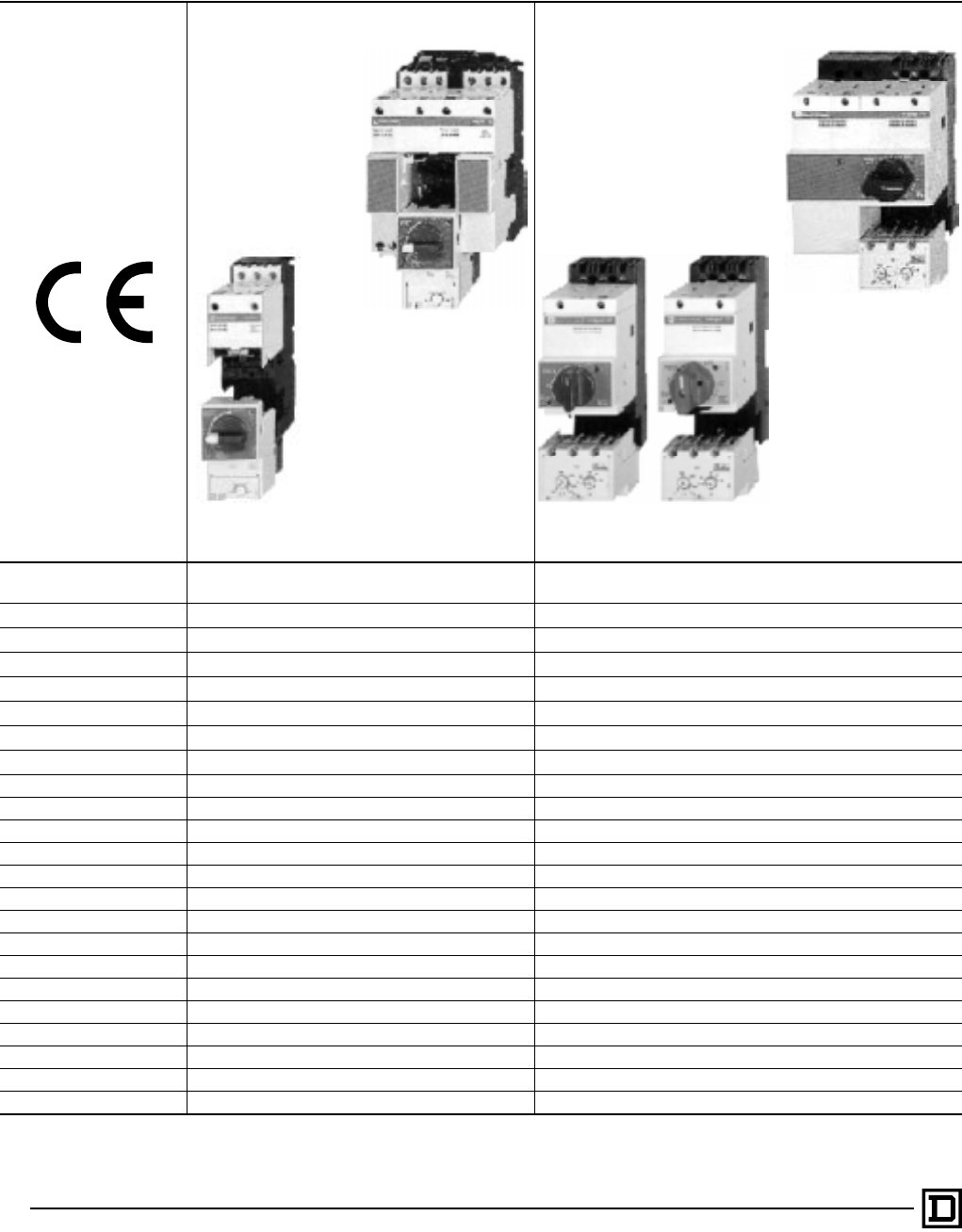

INTEGRAL 63

LD1LC030• LD4LC030• LD5LC130•

+ + +

LB1LC03M•• LB1LC03M•• LB1LC03M••

Rated Operational Current

for AC-3 Duty

63 A

Rated Breaking Capacity

42 KA at 480 Vac

Approvals

ASTA, BS, CSA, DEMKO, IEC, NEMKO, SEMKO, UL, VDE

Number of Poles

Protection Module

LB1LD03M••

Magnetic Protection

Adjustable, 6 to 12 times maximum thermal current

Overload Protection

10.0 to 13.0 A

M16

13.0 to 18.0 A

M21

18.0 to 25.0 A

M22

23.0 to 32.0 A

M53

28.0 to 40.0 A

M55

35.0 to 50.0 A

M57

45.0 to 63.0 A

M61

INTEGRAL™ Self-Protected Combination Motor Controllers

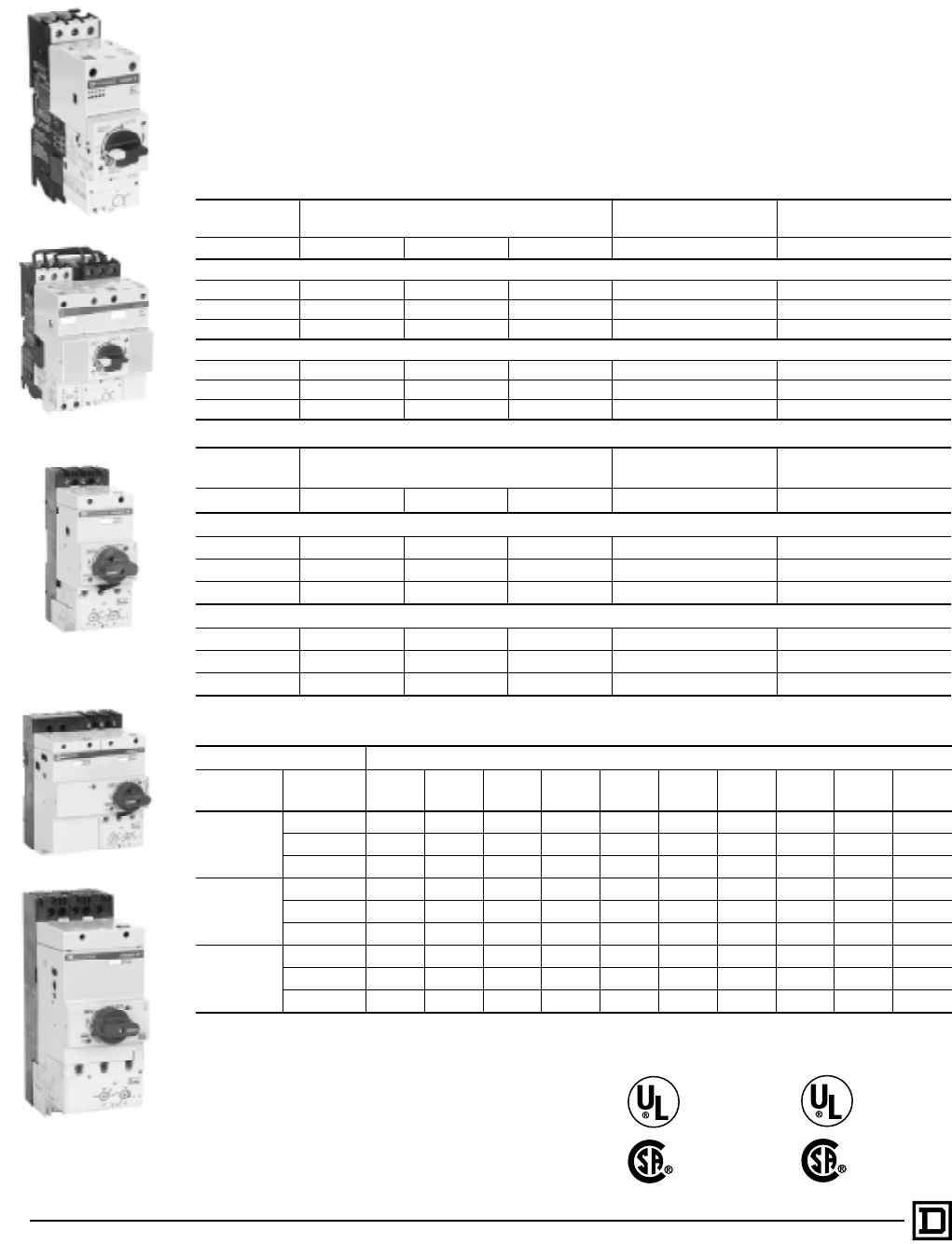

Selection

01/00

To order an INTEGRAL CMC, complete these four steps:

1. Select the correct combination motor controller from Table 1A (open) or Table 1B (enclosed).

2. Complete the catalog number by adding the coil voltage code from Table 2.

3. Choose the appropriate protection module from Table 3.

4. For enclosed combination motor controllers only, select any desired INSTA-KITS™ or factory

modiﬁcations from Table on page 20. For factory modiﬁcation, add the “form” number to the end of

the catalog number.

●

Complete the catalog number by adding the voltage code from Table 2

■

INTEGRAL Base Units ordered with DC voltage code (BD, ED or FD) are shipped with LA1L*080*D Voltage Converter Module

already installed.

Open INTEGRAL CMC Dimensions. . . . . . . . . . page 48

Enclosed INTEGRAL CMC Dimensions. . . . . . . page 51

Table 1A: Open Style INTEGRAL CMC Base Unit Selection Table

Continuous

Current Rating Maximum 3-Phase HP Rating With Isolator Without Isolator

Amperes 230 V 460 V 575 V Catalog Number Catalog Number

Non-Reversing

18 5 10 15 LD1LB030* N/A

32 10 20 30 LD4LC030* LD1LC030

●

63 20 40 60 LD4LD030* LD1LD030

●

Reversing

18 5 10 15 LD5LB130* N/A

32 10 20 30 LD5LC030* N/A

63 20 40 60 LD5LD030* N/A

Table 1B: Enclosed INTEGRAL CMC Selection Table

Continuous

Current Rating Maximum 3-Phase HP Rating Type 1 Enclosure Type 12 Enclosure

Amperes 230 V 460 V 575 V Catalog Number Catalog Number

Non-Reversing

18 5 10 15 LE1UI1846

●

LE1UI1847

●

32 10 20 20 LE1UI3246

●

LE1UI3247

●

63 20 40 60 LE1UI6346

●

LE1UI6347

●

Reversing

18 5 10 15 LE2UI1846

●

LE2UI1847

●

32 10 20 20 LE2UI3246

●

LE2UI3247

●

63 20 40 60 LE2UI6346

●

LE2UI6347

●

Table 2: Coil Voltage Codes

Control Voltage

INTEGRAL Frequency

Hz 24 48 110 120 220 240 380 415 480 600

I18

50 BE F - MUQN - -

60 BC D K FC LC MC - - N S

■

BD---------

I32

50 BE F - MUQN - -

60 BC D FC FC MC MC - - Q S

■

BDEDFD-------

I63

50 BE F - MUQN - -

60 BC CE K FC LC MC - - Q S

■

BDEDFD-------

LD1LB030•

LD5LB130•

LD4LC030•

LD5LC030•

LD4LD030•

Open Product

File E164871

CCN NKJH

NKJH7

File LR 43364

Class 3211 08

Enclosed Product

File E163364

CCN NKJH

NKJH7

File LR 105062

Class 3211 08

INTEGRAL™ Self-Protected Combination Motor Controllers

Selection

01/00

Thermal settings are based on motors with a service factor (S.F.) of 1.0.

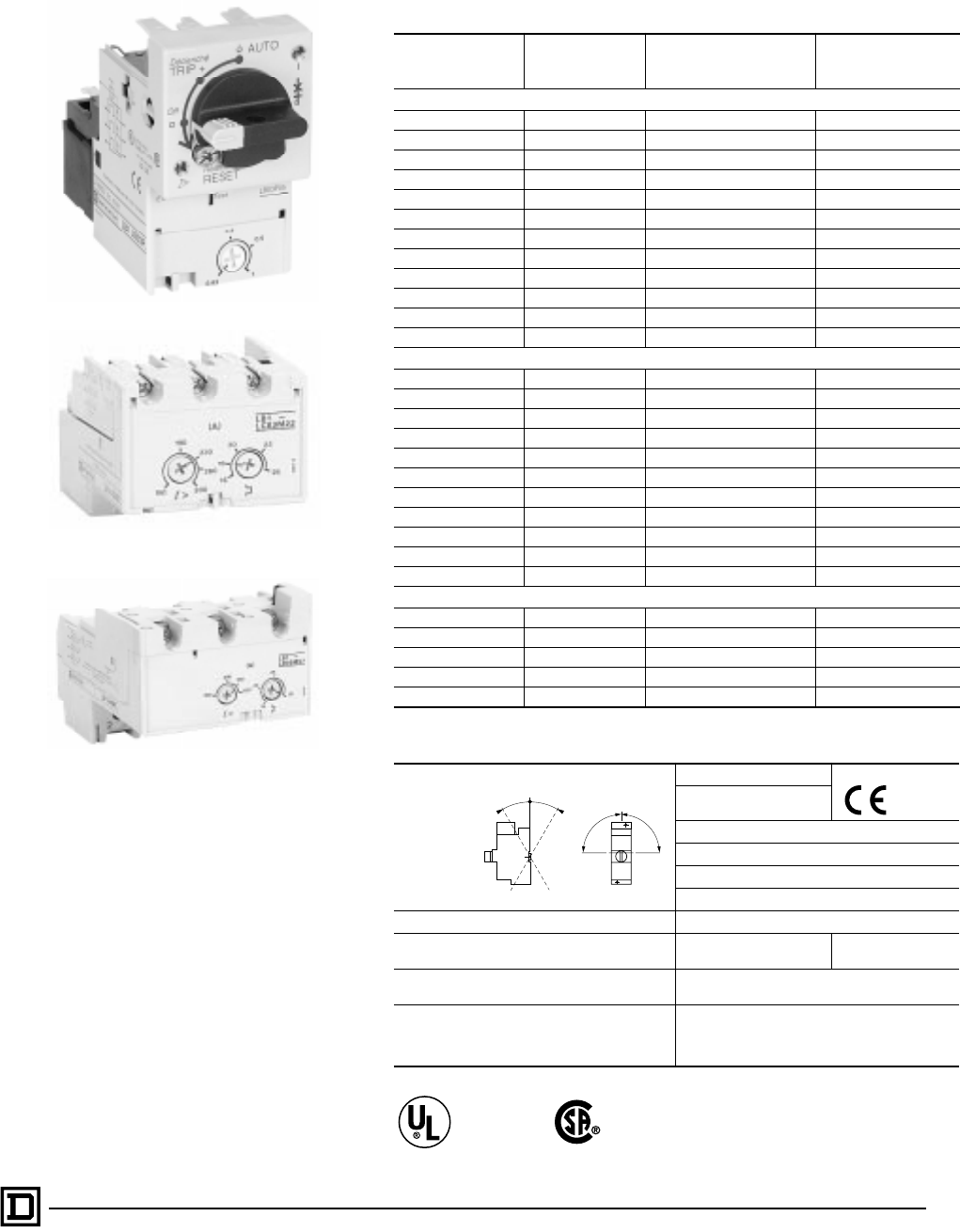

Table 3: Overload Protection Modules

(Class 10, Ambient Compensated)

Thermal Setting

Range, Amperes

Magnetic Setting

Range, Amperes

Standard Module with

Thermal & Magnetic Trip

Catalog No.

Magnetic only

Module

For 18 Ampere models

0.1 - 0.16 – LB1LB03P01 N/A

0.16 - 0.25 – LB1LB03P02 N/A

0.25 - 0.4 – LB1LB03P03 N/A

0.4 - 0.63 – LB1LB03P04 N/A

0.63 - 1 – LB1LB03P05 N/A

1 - 1.6 – LB1LB03P06 N/A

1.6 - 2.5 – LB1LB03P07 N/A

2.5 - 4 – LB1LB03P08 N/A

4 - 6 – LB1LB03P10 N/A

6 - 10 – LB1LB03P13 N/A

10 - 16 – LB1LB03P17 N/A

12 - 18 – LB1LB03P21 N/A

For 32 Ampere models

0.25 - 0.40 2.4 - 4.8 LB1LC03M03 LB6LC03M03

0.40 - 0.63 3.8 - 7.6 LB1LC03M04 LB6LC03M04

0.63 - 1.0 6.0 - 12 LB1LC03M05 LB6LC03M05

1.0 - 1.6 9.5 - 19 LB1LC03M06 LB6LC03M06

1.6 - 2.5 15 - 30 LB1LC03M07 LB6LC03M07

2.5 - 4.0 24 - 48 LB1LC03M08 LB6LC03M08

4.0 - 6.3 38 - 76 LB1LC03M10 LB6LC03M10

6.3 - 10 60 - 120 LB1LC03M13 LB6LC03M13

10 - 16 95 - 190 LB1LC03M17 LB6LC03M17

16 - 25 150 - 300 LB1LC03M22 LB6LC03M22

23 - 32 190 - 380 LB1LC03M53 LB6LC03M53

For 63 Ampere models

18 - 25 150 - 300 LB1LD03M22 LB6LD03M22

23 - 32 190 - 380 LB1LD03M53 LB6LD03M53

28 - 40 240 - 480 LB1LD03M55 LB6LD03M55

35 - 50 300 - 600 LB1LD03M57 LB6LD03M57

45 - 63 380 - 760 LB1LD03M61 LB6LD03M61

Speciﬁcations

Operating Positions: UL Listed and CSA certiﬁed

Conforms to IEC standards

Shock resistance - 8 g (Duration of impulse: 11 ms)

Vibration resistance - 3 g (5 to 150 Hz)

AC control circuit temperature limits:

Storage -40 to +176 °F/-40 to +80 °C

Rated voltage - 600 Vac Operation -13 to +104 °F/-25 to +70 °C

Rated thermal current - 18 A (INTEGRAL 18),

32 A (INTEGRAL 32), 63 A (INTEGRAL 63)

Interrupting current at 480 Vac: 42 kA ms Fixed magnetic trip is set at approximately

15 times full load current (FLC)

INTEGRAL 18

INTEGRAL 32

INTEGRAL 63

Mechanical life:

20 million operations

10 million operations

5 million operations

Operating current of magnetic trip is approximately

15 times maximum thermal trip (non-adjustable setting)

File E164871

CCN NKJH

NKJH7

File LR 43364

Class 3211 08

LB1LB03P05

LB1LC03M22

LB1LD03M57

30°

90°

INTEGRAL™ Self-Protected Combination Motor Controllers

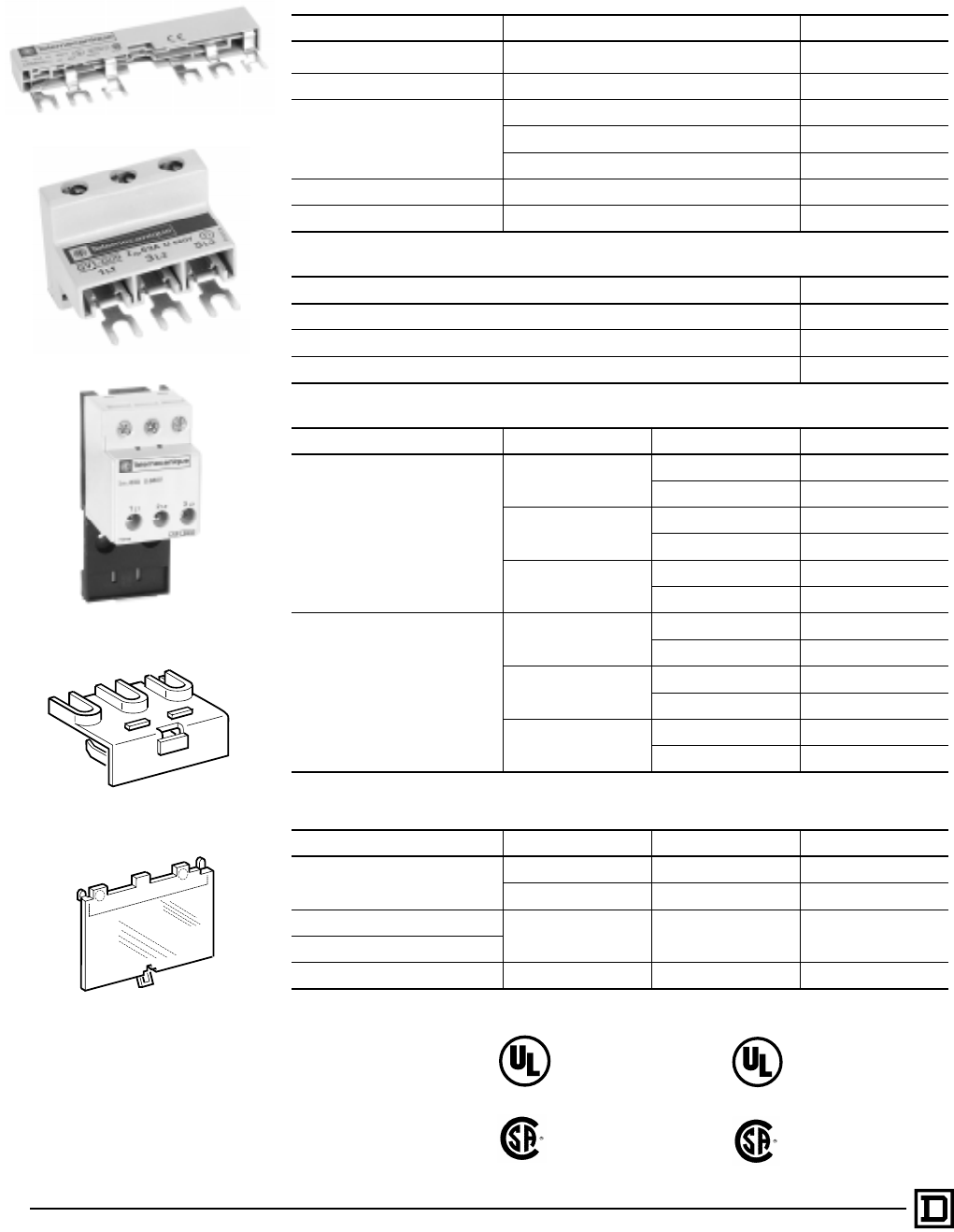

INTEGRAL 18 Accessories

01/00

LD5LB

AUTO

TRIP. +

LA1LB021

LA1LB019

LA1LB0211

LA1LB017

LA1LB015

AUTO

TRIP. +

LD1LB

AUTO

TRIP. +

LA1LB001

LA1LB0311

LA1LB034

LA1LB031

LA1LB0341

LA1LB001

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18 Accessories

01/00

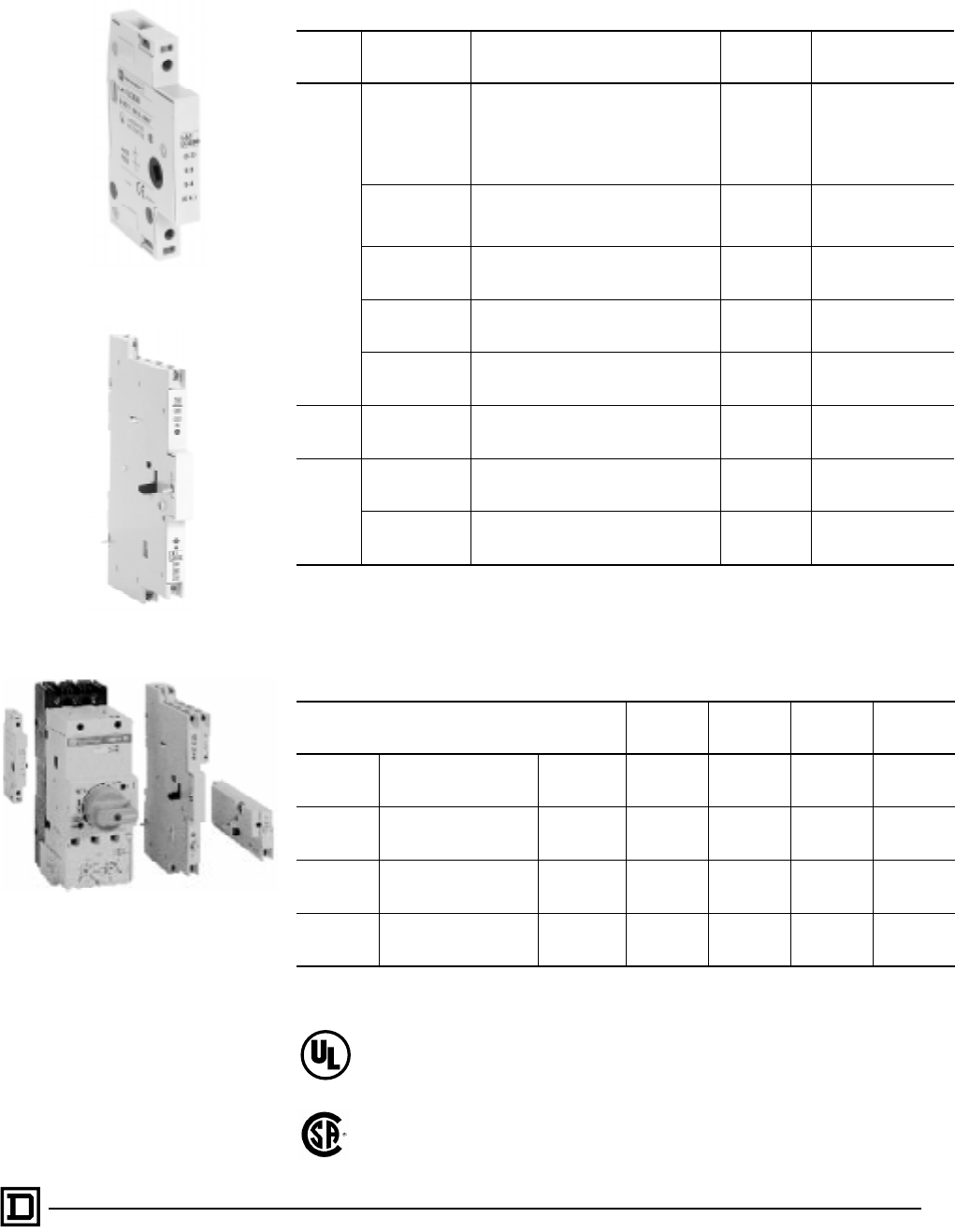

Use of auxiliary contact LA1LB001 requires combination with contact block LA1LB015, LA1LB021, LA1LB017, or LA1LB019.

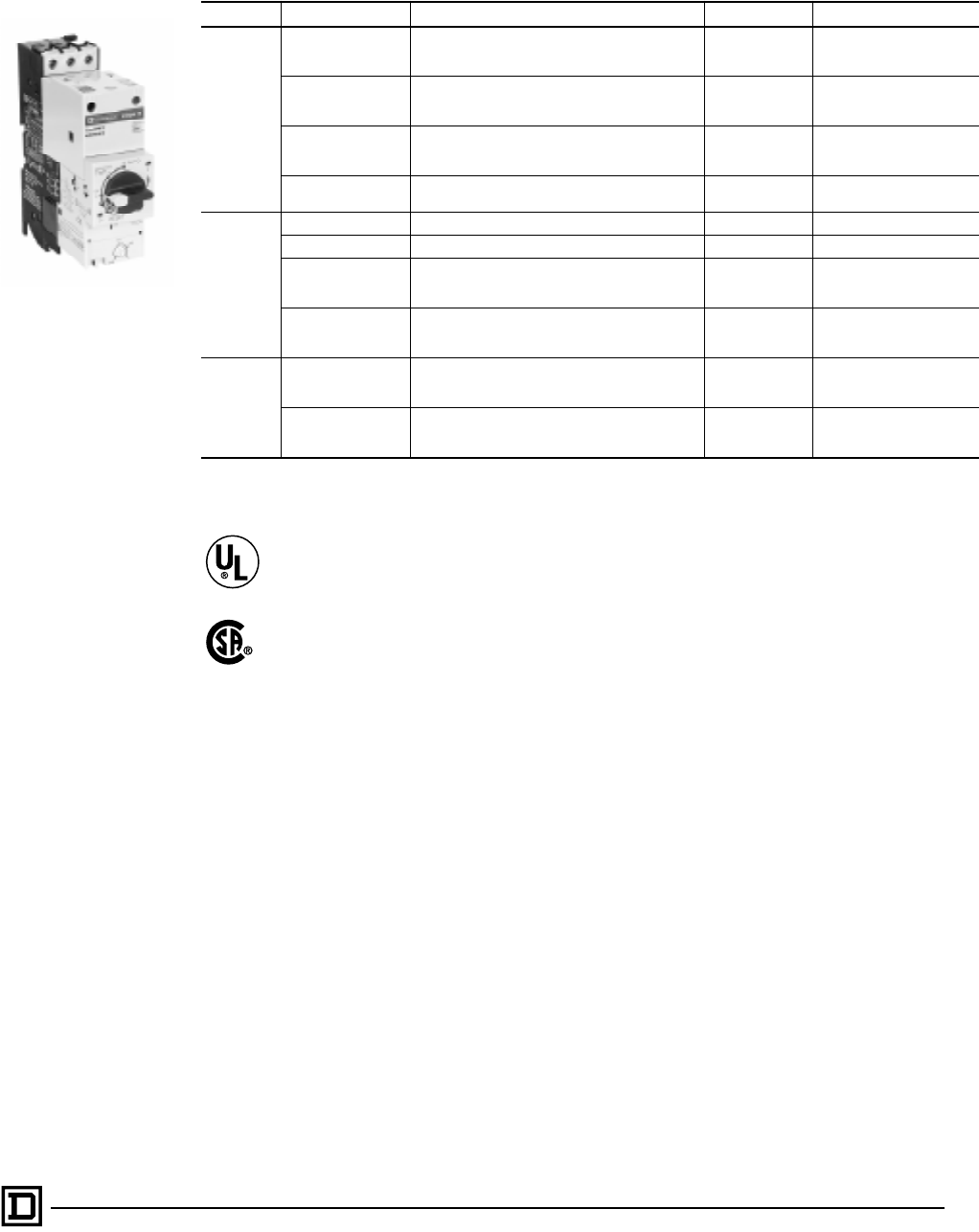

Auxiliary Contact Blocks for the INTEGRAL 18 CMC

For Use On Mounting Location Type and Number of Contacts per Block Contact Type Catalog Number

LD1 or LD5

Right Side Block of 5 instantaneous contacts

3 signal “contactor state”

2 signal “tripped” status

2 N/O + 1 N/C

1 N/O + 1 N/C LA1LB015

Right Side Block of 3 instantaneous contacts

2 signal “contactor state”

1 signal “tripped” status

1 N/O + 1 N/C

1 N/O LA1LB017

Right Side Block of 3 instantaneous contacts

2 signal “contactor state”

1 signal “tripped” status

1 N/O + 1 N/C

1 N/C LA1LB019

Left or Right Side Complementary auxiliary block

1 signal “contactor state” 1 N/C LA1LB001

LD1

Left Side 2 signal operating handle not in “Auto” position 2 N/O LA1LB031

Left Side 2 signal operating handle not in “Auto” position 1 N/O + 1 N/C LA1LB0311

Left Side Block of 3 instantaneous contacts

2 signal operating handle not in “Auto” position

2 signals “tripped on short circuit” status

2 N/O

1 N/O + 1 N/C LA1LB034

Left Side Block of 3 instantaneous contacts

2 signal operating handle not in “Auto” position

2 signals “tripped on short circuit” status

1 N/O + 1 N/C

1 N/O + 1 N/C LA1LB0341

LD5

Left Side Block of 5 instantaneous contacts

3 signal “contactor state”

2 signal operating handle not in “Auto” position

2 N/O + 1 N/C

2 N/O LA1LB021

Left Side Block of 5 instantaneous contacts

3 signal “contactor state”

2 signal operating handle not in “Auto” position

2 N/O + 1 N/C

1 N/O + 1 N/C LA1LB0211

File E164871

CCN NKJH

NKJH7

File LR 43364

Class 3211 08

LD1LB03FC + LB1LB03P01

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 32/63 Accessories

01/00

AUTO

TRIP. +

LA1LC012

AUTO

TRIP. +

RESET

LD5LC,LD

LA1LC031

LA1LC001

AUTO

TRIP. +

LA1LC025

LA1LC052 ●

LA1LC010

LA1LC020

LA1LC07 ● ●

LA1LC030

(LD4)

LD1LC,LD

LD4LC,LD

LA1LC030

(LD4)

LA1LC021

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 32/63 Accessories

01/00

See table below.

Complementary blocks LA1LC001 and LA1LC031, as well as LA1LC052** reset modules

and LA1LC07** trip modules on page 12 must be used with an additional auxiliary block.

This following table shows all allowable combinations.

Only one attachment may be added -- either LA1LC001 or LA1LC052

Only one attachment may be added -- either LA1LC001 or LA1LC031

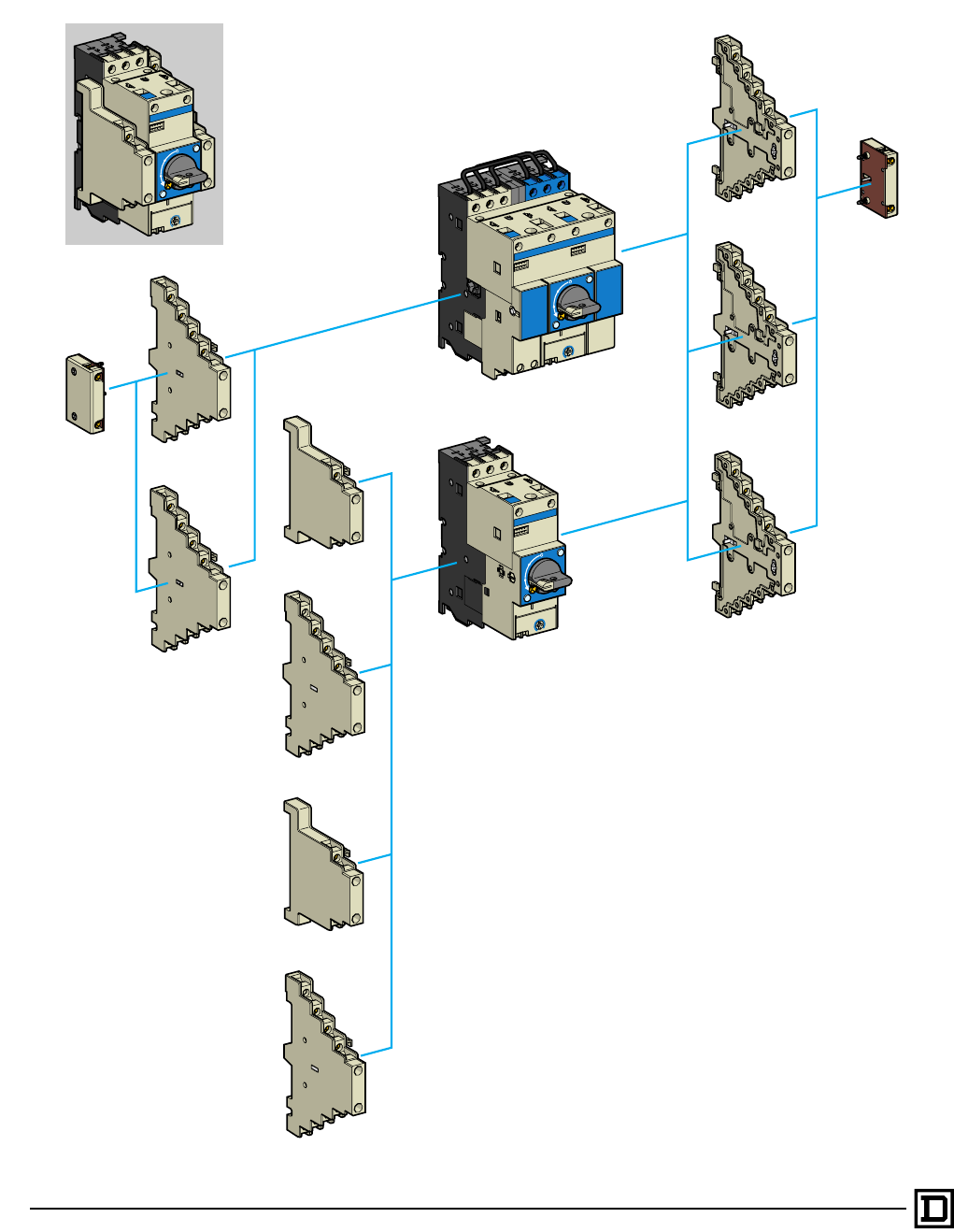

Auxiliary Contact Blocks for the INTEGRAL 32/63 CMC

For

Use On Mounting

Location Type and Number of

Contacts per Block Contact Type Catalog Number

LD1, LD4

or LD5

Right Side

Block of 6 instantaneous contacts

3 signal “contactor state”

1 signal “tripped on short circuit”

1 signal “tripped”

1 signal “not in Auto position”

2 N/O + 1 N/C

1 N/O-N/C

(form C contact)

1 N/O-N/C

(form C contact)

1 N/O-N/C

(form C contact)

LA1LC010

Right Side

Block of 5 instantaneous contacts

3 signal “contactor state”

1 signal “tripped on short circuit”

1 signal “tripped”

2 N/O + 1 N/C

1 N/O 1 N/O LA1LC012

Right Side Block of 4 instantaneous contacts

3 signal “contactor state”

1 signal “tripped”

2 N/O + 1 N/C

1 N/O or 1 N/C,

User Selectable LA1LC025

Right Side Block of 3 instantaneous contacts

3 signal “contactor state” 2 N/O + 1 N/C LA1LC020

Left or Right Side Complementary auxiliary block

1 signal “contactor state” 1 N/C LA1LC001

LD4 Left Side Block of 1 “control circuit isolation” contact 1 N/O LA1LC030

LD5

Left Side Block of 3 instantaneous contacts

3 signal “contactor state” 2 N/O + 1 N/C LA1LC021

Left Side Block of 2 “control circuit isolation” contact 2 N/O LA1LC031

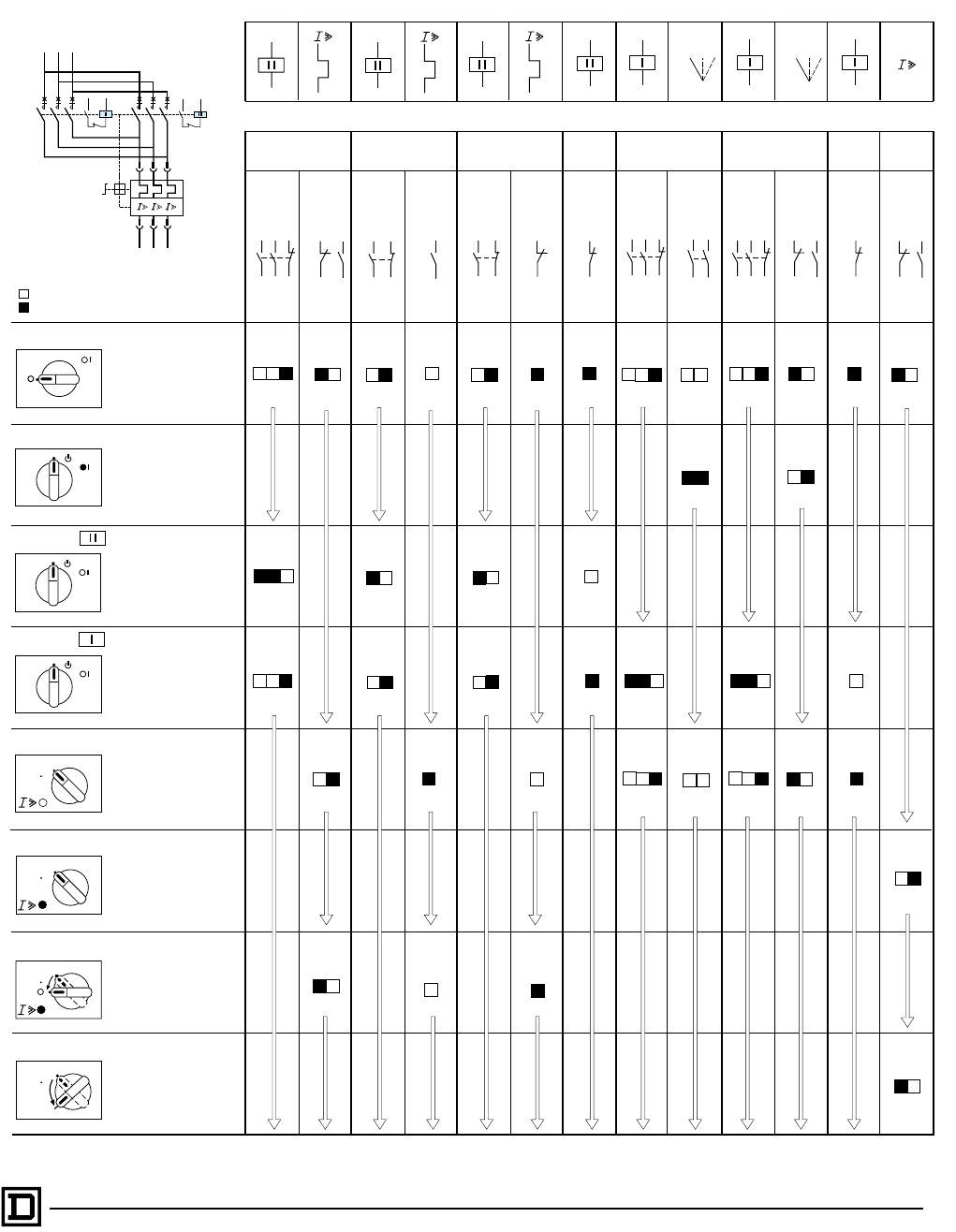

Possible Combinations of Auxiliary Contact Blocks for the INTEGRAL 32/63 CMC

LA1LC001 LA1LC07** LA1LC052* LA1LC031

LA1LC010 Block of 6 auxiliary contacts Right Side

√

LA1LC012 Block of 5 auxiliary contacts Right Side

√

LA1LC025 Block of 4 auxiliary contacts Right Side

√

LA1LC021 Block of 3 auxiliary contacts Left Side

√

File E164871

CCN NKJH

NKJH7

File LR 43364

Class 3211 08

3211 04

LA1LC030

LA1LC012

LC4LC030+

LB1LC03M22+

LA1LC030+

LA1LC010+

LA1LC070F

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 32/63 Accessories

12 01/00

AUTO

TRIP. +

LA1LC012

AUTO

TRIP. +

RESET

LD5LC,LD

LA1LC001

AUTO

TRIP. +

LA1LC025

LA1LC052

●

LA1LC010

LA1LC020

LA1LC07

● ●

LA1LC030

(LD4)

LD1LC,LD

LD4LC,LD

LA1LC030

(LD4)

LA1LC021

LA1LC031

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 32/63 Accessories

The shunt and undervoltage trip modules are for use with any 32 A or 63 A INTEGRAL

CMC ﬁtted with either an LA1LC010 or LA1LC012 add-on block.

The remote reset modules are for use with any 32 A or 63 A INTEGRAL CMC ﬁtted with

either an LA1LC010 or LA1LC012 add-on block.

■When adding a remote reset module to a LE•UI••• enclosed device (page 6), an oversized enclosure

is required.

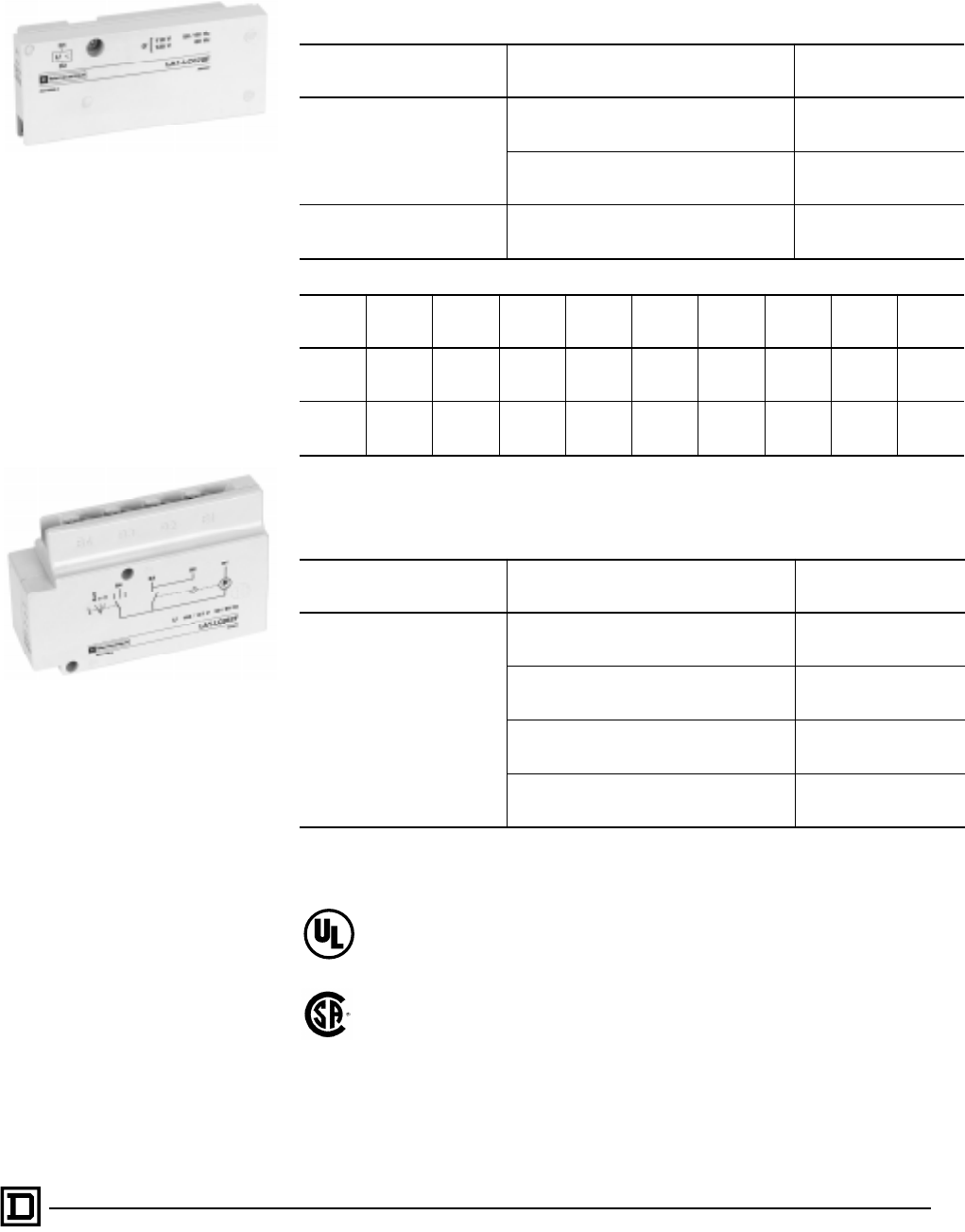

Shunt and Undervoltage Trip Modules

Description Trip Speciﬁcations Catalog Number

Undervoltage Trip Module

Time Delay (0.2 seconds) LA1LC070k

Instantaneous LA1LC072k

Shunt Trip Module Instantaneous LA1LC071k

k Complete the catalog number with the letter shown below for the required coil voltage

Volts 24 48 110 120 220 240 380 415 440

50 Hz BE F - MUQNN

60 Hz BEFFMMQ- N

Remote Reset Modules

Description Control Voltage Catalog Number

Remote Reset Module ■

24 V 50/60 Hz LA1LC052B

42 V 50 Hz

48 V 50/60 Hz LA1LC052E

100/127 V 50/60 Hz LA1LC052F

200/240 V 50/60 Hz LA1LC052M

File E164871

CCN NKJH

NKJH7

File LR 43364

Class 3211 08

LA1LC070F

LA1LC052F

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18/32/63 Accessories

14 01/00

AUTO

TRIP. +

RESET

TRIP. +

AUTO

TRIP. +

AUTO

TRIP. +

LA4DR ● U

LA9D09982

LA4DA2 ●

LA4DE2 ●

LA4DT ● U

LA4DM ●

LA4DL ●

LA4DWB

LA4DF ●

LA1LB080BD

AUTO

TRIP. +

LD1LB

AUTO

TRIP. +

LD5LB

LA9D09982

LA1L ● 080 ● D

LD5LC,LD

LD1LC,LD

LD4LC,LD

LA1L ● 180BD

LA1L ● 580 ● D

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18/32/63 Accessories

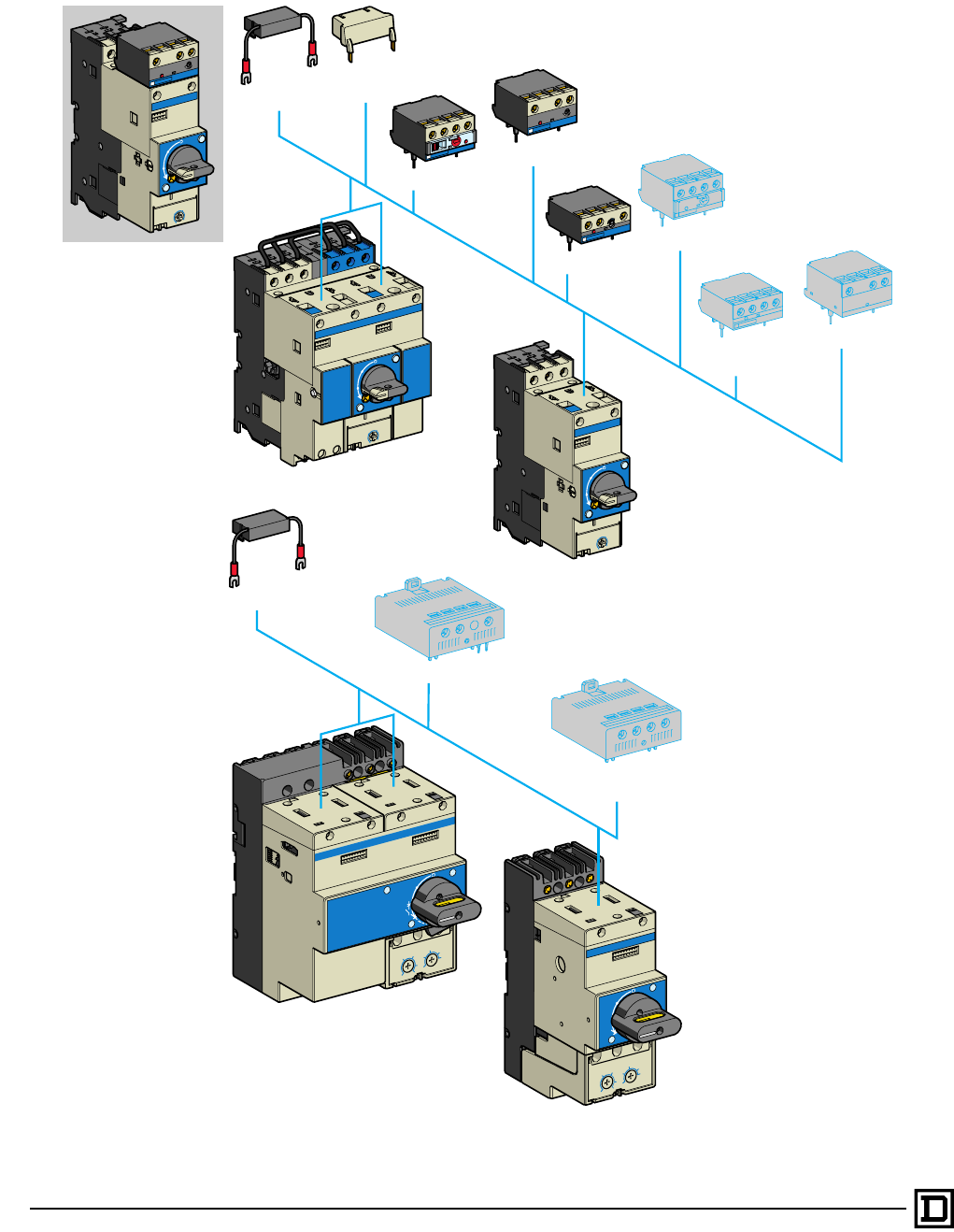

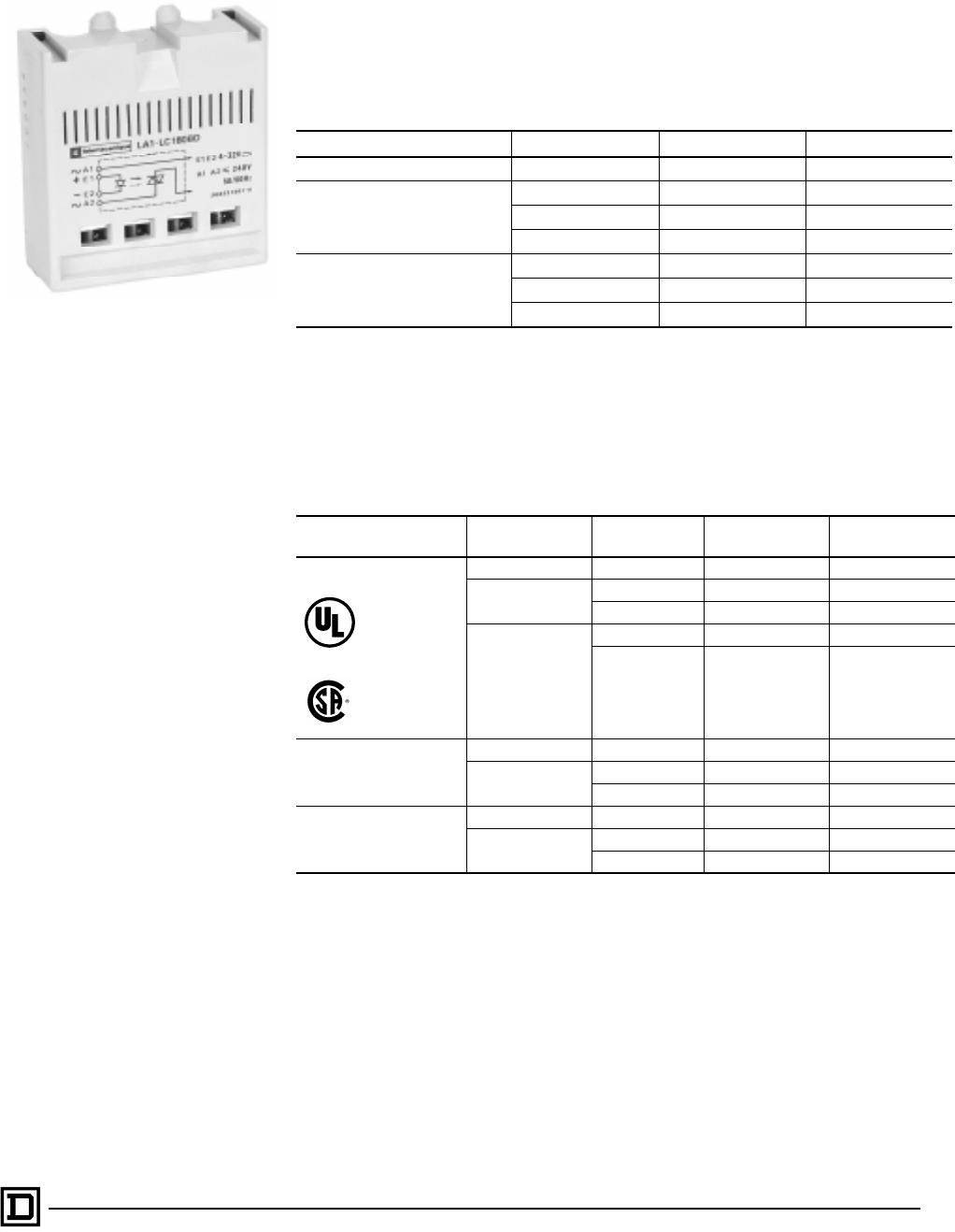

The top-mounted, add-on voltage converter modules are required to allow operation of an

INTEGRAL CMC with DC control voltage. The converters may only be used with the coils

shown in the table below.

NOTE: When INTEGRAL CMCs are factory ordered with a DC coil code (from Table 1A /

1B and Table 2, Page 6), these converter modules need not be ordered separately.

c When using a rectiﬁed AC supply, ripple must not exceed 14%.

a Reversing INTEGRAL CMCs require use of two converter modules.

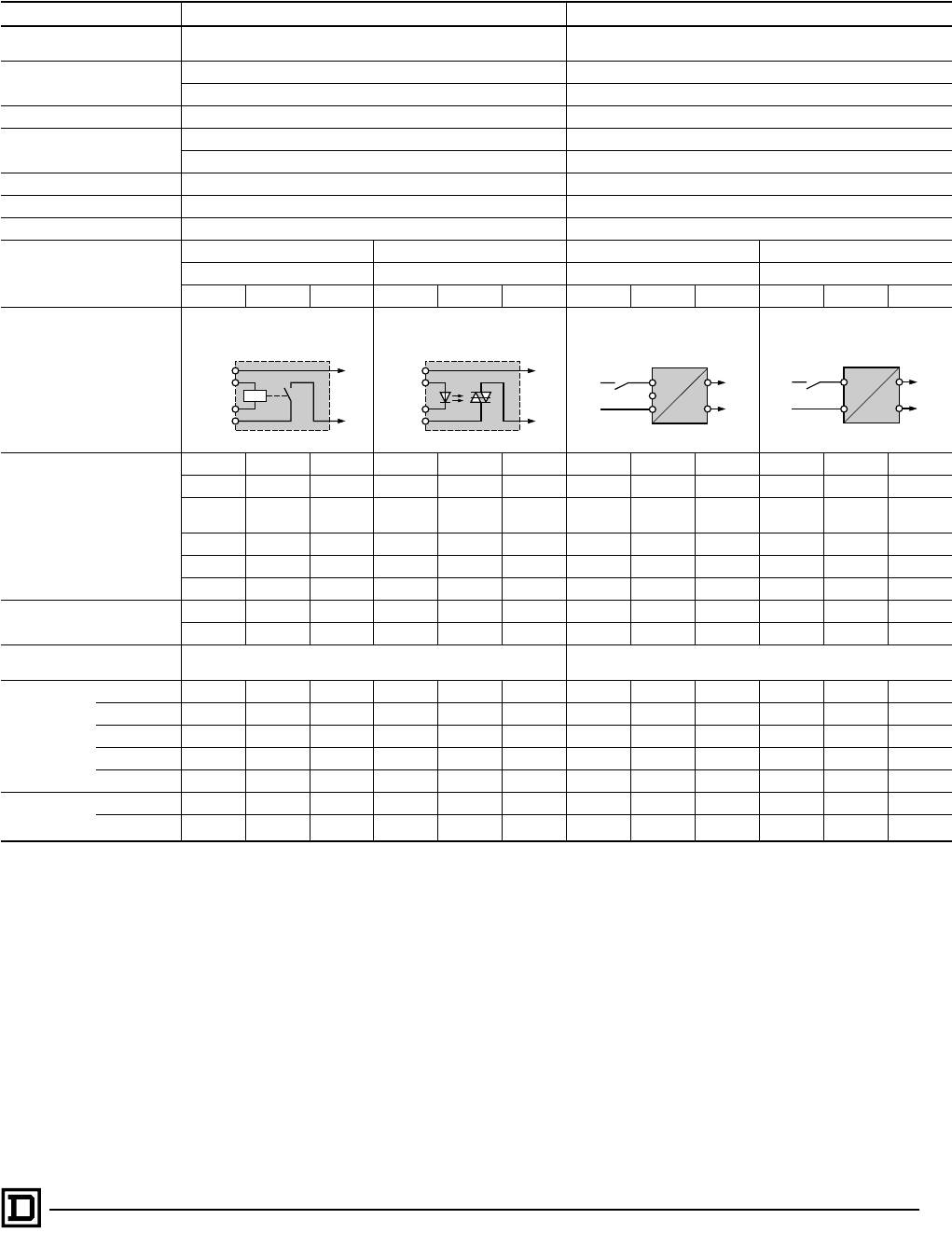

The interface modules allow INTEGRAL CMCs to be energized from low voltage and

low current signals. Solid state and mechanical relay versions are both available.

The “relay plus manual override” version includes a slide switch for manually energizing

the contactor.

q Reversing INTEGRAL CMCs require use of two interface modules.

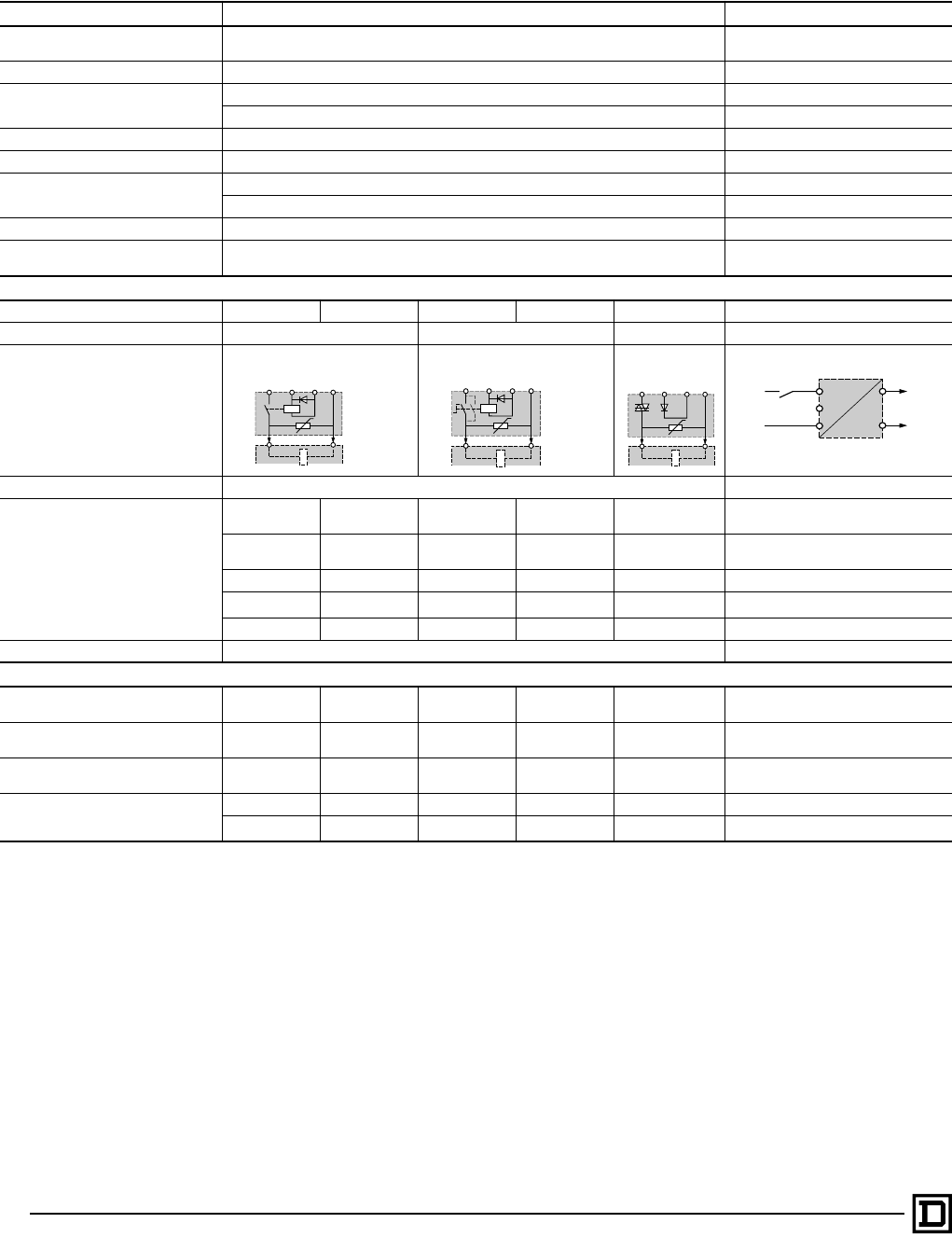

Voltage Converter Modules c a

Description Nominal Voltage For Use With Coils Catalog Number

INTEGRAL 18 Converter Module 24 Vdc LX1LB024 LA1LB080BD

INTEGRAL 32 Converter Module

24 Vdc LX1LC0249 LA1LC080BD

48 Vdc LX1LC0489 LA1LC080ED

110 Vdc LX1LC1109 LA1LC080FD

INTEGRAL 63 Converter Module

24 Vdc LX1LD0249 LA1LD080BD

48 Vdc LX1LD0489 LA1LD080ED

110 Vdc LX1LD1109 LA1LD080FD

Interface Modules

Description qType Input Voltage Operational

Voltage Catalog Number

INTEGRAL 18 Interface Module Solid State Relay 5 to 24 Vdc 24 to 250 Vac LA4DWB

Mechanical Relay 24 Vdc 24 to 250 Vac LA4DFB

48 Vdc 24 to 250 Vac LA4DFE

Mechanical Relay

plus manual override

24 Vdc 24 to 250 Vac LA4DLB

48 Vdc 24 to 250 Vac LA4DLE

INTEGRAL 32 Interface Module

Solid State Relay 5 to 24 Vdc 24 to 240 Vac LA1LC180BD

Mechanical Relay 24 Vdc 24 to 240 Vac LA1LC580BD

48 Vdc 24 to 240 Vac LA1LC580ED

INTEGRAL 63 Interface Module

Solid State Relay 5 to 24 Vdc 24 to 240 Vac LA1LD180BD

Mechanical Relay 24 Vdc 24 to 240 Vac LA1LD580BD

48 Vdc 24 to 240 Vac LA1LD580ED

File E164871

CCN NKJH

NKJH7

File LR 43364

Class 3211 08

LA1LC180BD

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18/32/63 Accessories

16 01/00

AUTO

TRIP. +

RESET

TRIP. +

AUTO

TRIP. +

AUTO

TRIP. +

LA4DR ● U

LA9D09982

LA4DA2 ●

LA4DE2 ●

LA4DT ● U

LA4DM ●

LA4DL ●

LA4DWB

LA4DF ●

LA1LB080BD

AUTO

TRIP. +

LD1LB

AUTO

TRIP. +

LD5LB

LA9D09982

LA1L ● 080 ● D

LD5LC,LD

LD1LC,LD

LD4LC,LD

LA1L ● 180BD

LA1L ● 580 ● D

INTEGRAL™ Self-Protected Combination Motor Controllers

Accessories

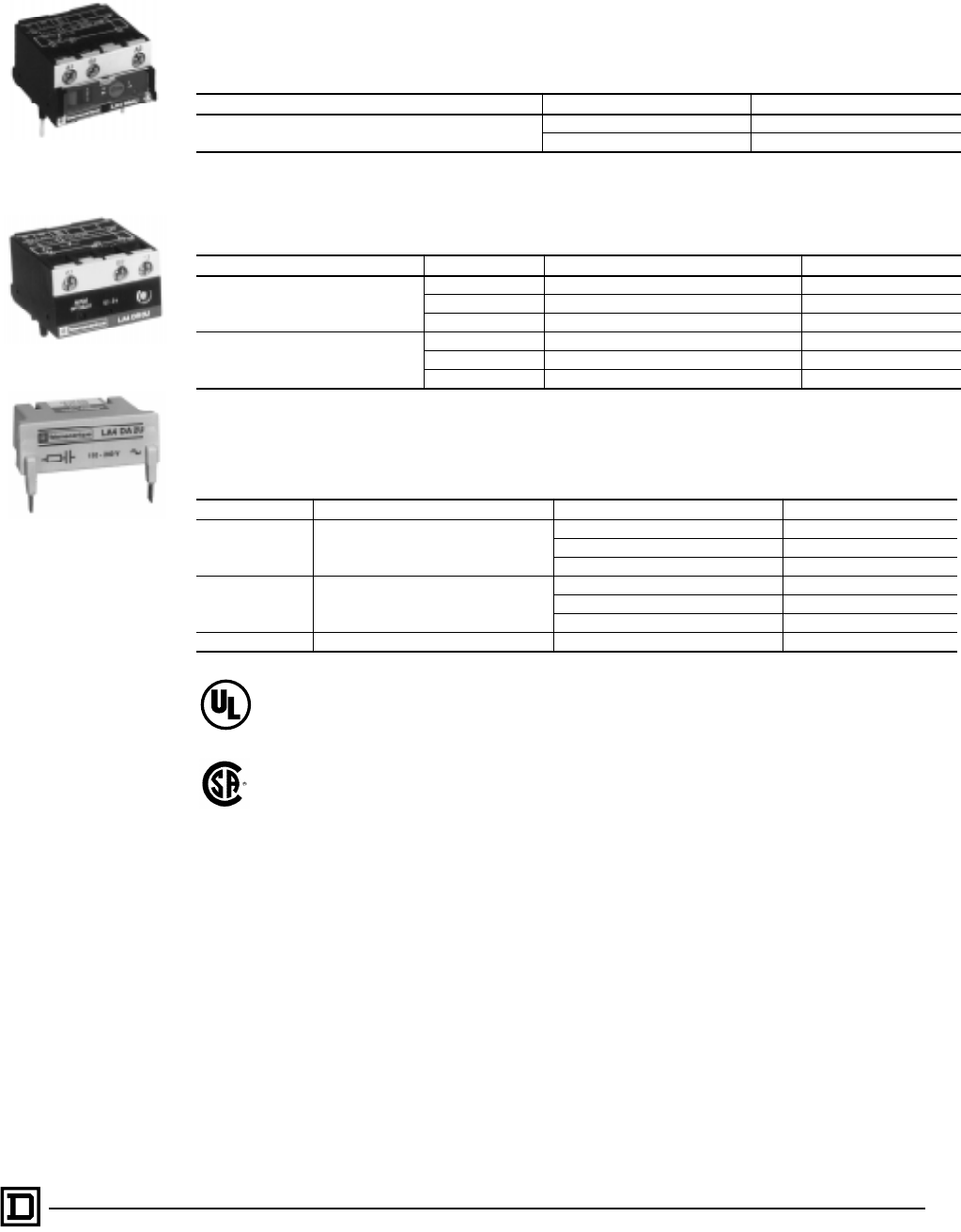

The control modules allow local or remote operation of the 18 A INTEGRAL CMC. The module includes

a slide switch to change from automatic (remote) operation to manual (local) operation. When in

manual mode, a separate dial allows the user to locally energize and de-energize the combination

motor controller.

These electronic timer modules delay the energization or de-energization of the 18 ampere

INTEGRAL CMC.

c For 24 Vac operation, INTEGRAL CMCs requires a 21 volt coil, see coil table page 19.

The coil suppressor modules reduce electrical noise generated by operation of the INTEGRAL CMC.

“Automatic - Manual - Stop” Control Module (for INTEGRAL 18 only)

Description Control Voltage Catalog Number

Auto- Manual-Stop Module 24 - 100 Vac LA4DMK

100 - 250 Vac LA4DMU

Electronic Timer Module (for INTEGRAL 18 only)

Description Time Delay Operational Voltage c 50/60 Hz AC Catalog Number

On-Delay Timer Module

0.1 to 2 sec. 24 to 240 Vac LA4DT0U

1.5 to 30 sec. 24 to 240 Vac LA4DT2U

25 to 500 sec. 24 to 240 Vac LA4DT4U

Off-Delay Timer Module

0.1 to 2 sec. 24 to 240 Vac LA4DR0U

1.5 to 30 sec. 24 to 240 Vac LA4DR2U

25 to 500 sec. 24 to 240 Vac LA4DR4U

Coil Suppressor Modules

Description For Use With Operational Voltage 50/60 Hz AC Catalog Number

RC Circuit 18A INTEGRAL

24 to 48 Vac LA4DA2E

50 to 127 Vac LA4DA2G

110 to 250 Vac LA4DA2U

Varistor 18A INTEGRAL

24 to 48 Vac LA4DE2E

50 to 127 Vac LA4DE2G

110 to 250 Vac LA4DE2E

RC Circuit 18A, 32A, 63A INTEGRAL 24 to 250 Vac LA9D09982

File E164353

CCN NKJH

File LR 43364

Class 3211 03

LA4DA2U

LA4DROU

LA4DMU

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18/32/63 Accessories

18 01/00

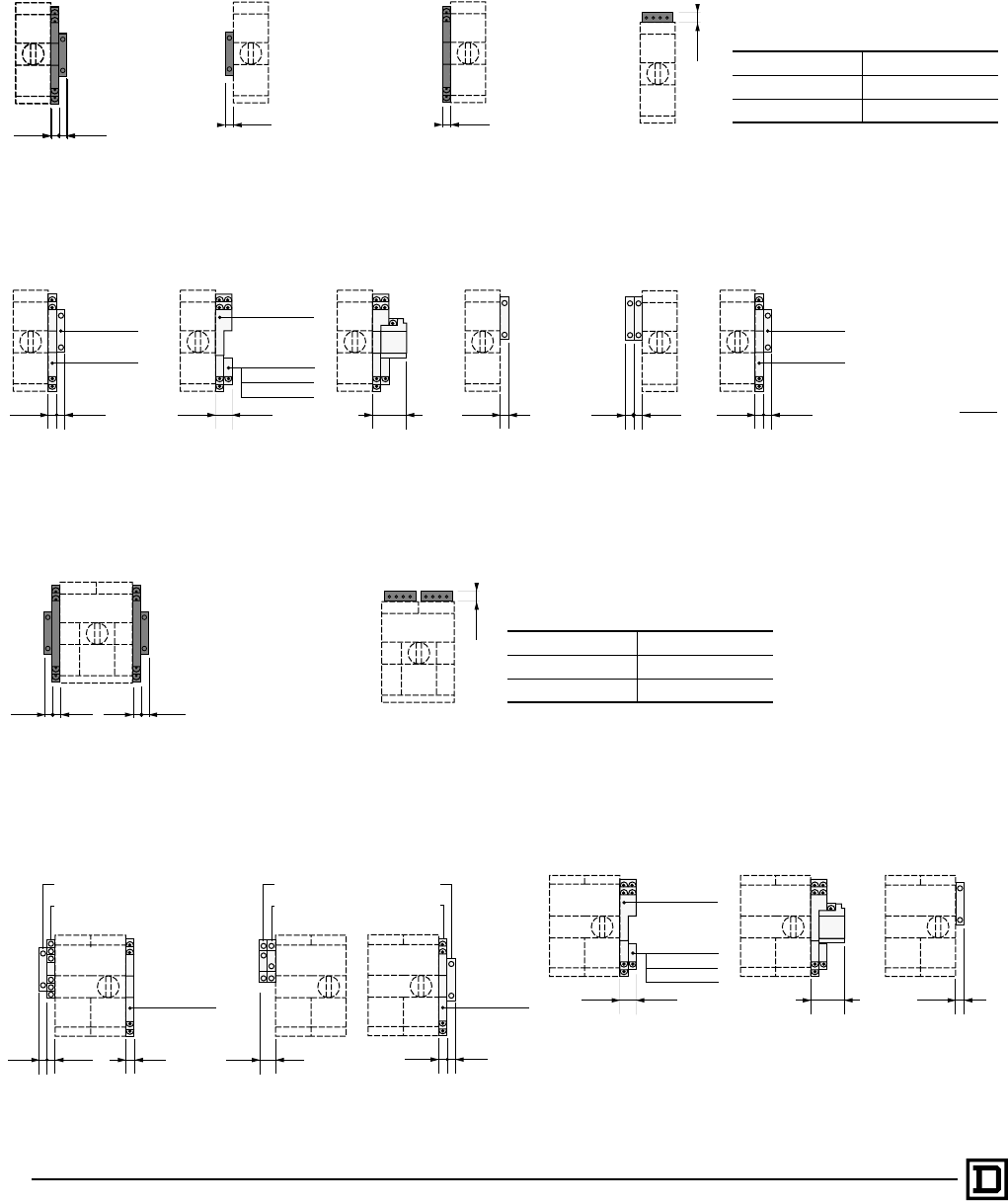

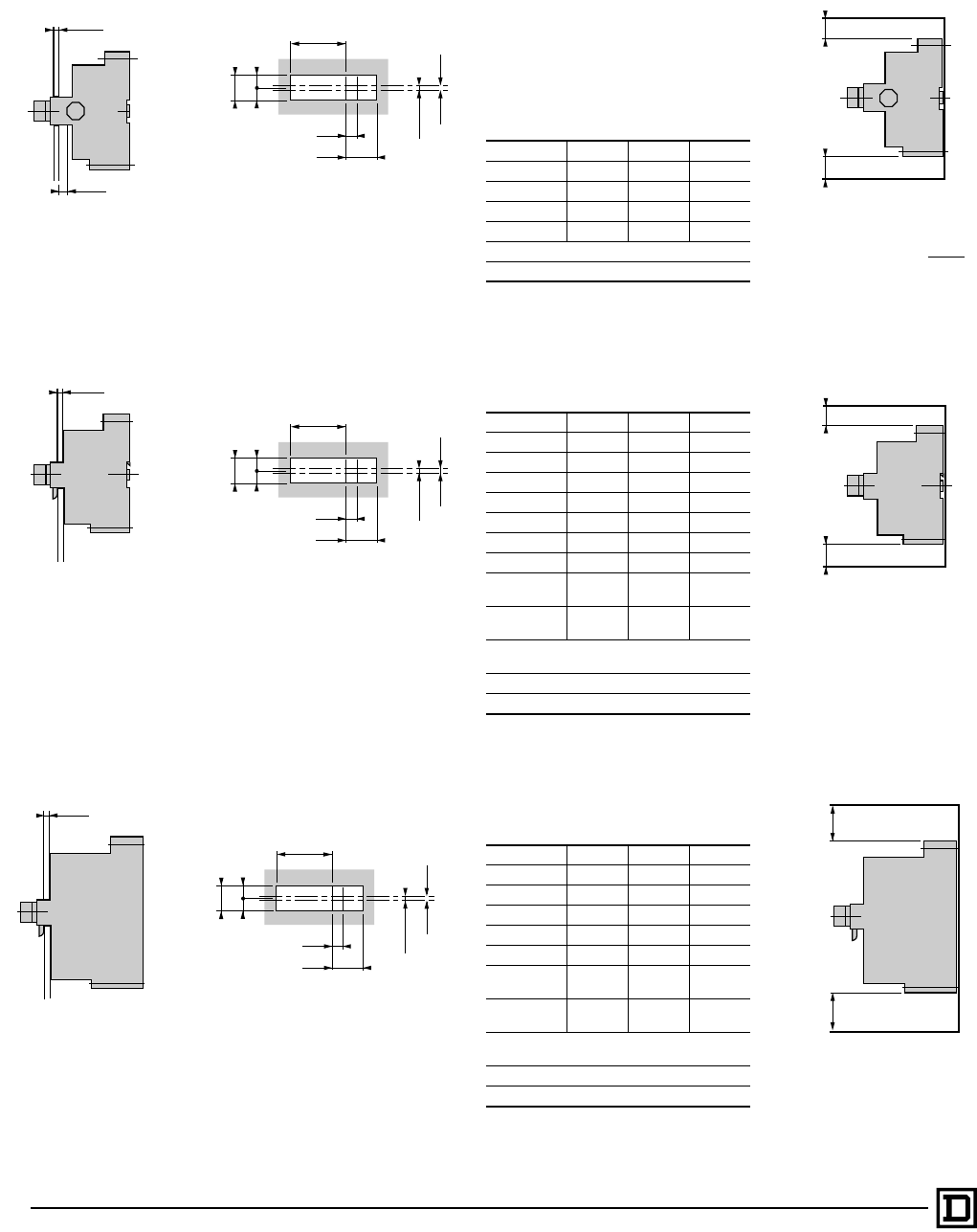

tSee page 49 for mounting dimensions.

■For use with trip modules manufactured after January 1, 1998.

Other Accessories

Description Usage Catalog Number

Control Knob Padlocking Kit Attaches to front face of INTEGRAL 18 to allow attachment

of up to 3 padlocks LA9LB390

Control Circuit Test Device Used on INTEGRAL 18 only LA9LB398

Mounting Plate

To mount I18 or I32 on two 32 mm Omega rails LA9LC010

To mount I32 on one 75mm or two 32mm Omega rails LA9LC012

To mount I63 on one 75mm Omega rail LA9LD010

DIN Rail, 35 mm AM1DE200

DIN Rail, 75 mm AM1DL201

Connection Accessories (INTEGRAL 18 Units Only)

Description Catalog Number

Set of 63 A 3-pole busbars to supply an additional INTEGRAL LA9LB930 (2)

Terminal to supply one or more LA9LB930 busbar sets; cables connected to top GV1G09 (1)

Terminal to supply one or more LA9LB930 busbar sets; cables connected to bottom LA9LB960 (2)

Through the Door Operators (IP54)

Description For Use With Knob Color Catalog Number

Adjustable Depth Operator t

(from 0 to 185mm depth)

I18 (LD1 or LD5) Red LA9LB330

Black LA9LB331

I32, I63 (LD1) Red LA9LC330

Black LA9LC331

I32, I63 (LD4 or LD5) Red LA9LC530

Black LA9LC531

Fixed Depth Operator t

I18 (LD1 or LD5) Red LA9LB320

Black LA9LB321

I32, I63 (LD1) Red LA9LC320

Black LA9LC321

I32, I63 (LD4 or LD5) Red LA9LC520

Black LA9LC521

Protection Accessories

Description For use with Sold in Lots of Catalog Number

Finger Protection Cover for power

terminals (L1, L2, L3)

INTEGRAL 32 5 LA9LC701

INTEGRAL 63 5 LA9LD701

Anti-tamper cover for: INTEGRAL 18 1 LA1LB090

protection module LB ■

protection module LC or LD INTEGRAL 32 or 63 1 LA1LC090

(1) (2)

File E164864

CCN NLRV

File LR 81630

Class 3211 05

File E164871

CCN NKJH

NKJH7

File LR 43364

Class 3211 08

LA9LC701

LA9Lk090

GV1G09

LA9LB930

LA9LB960

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18/32/63 Accessories

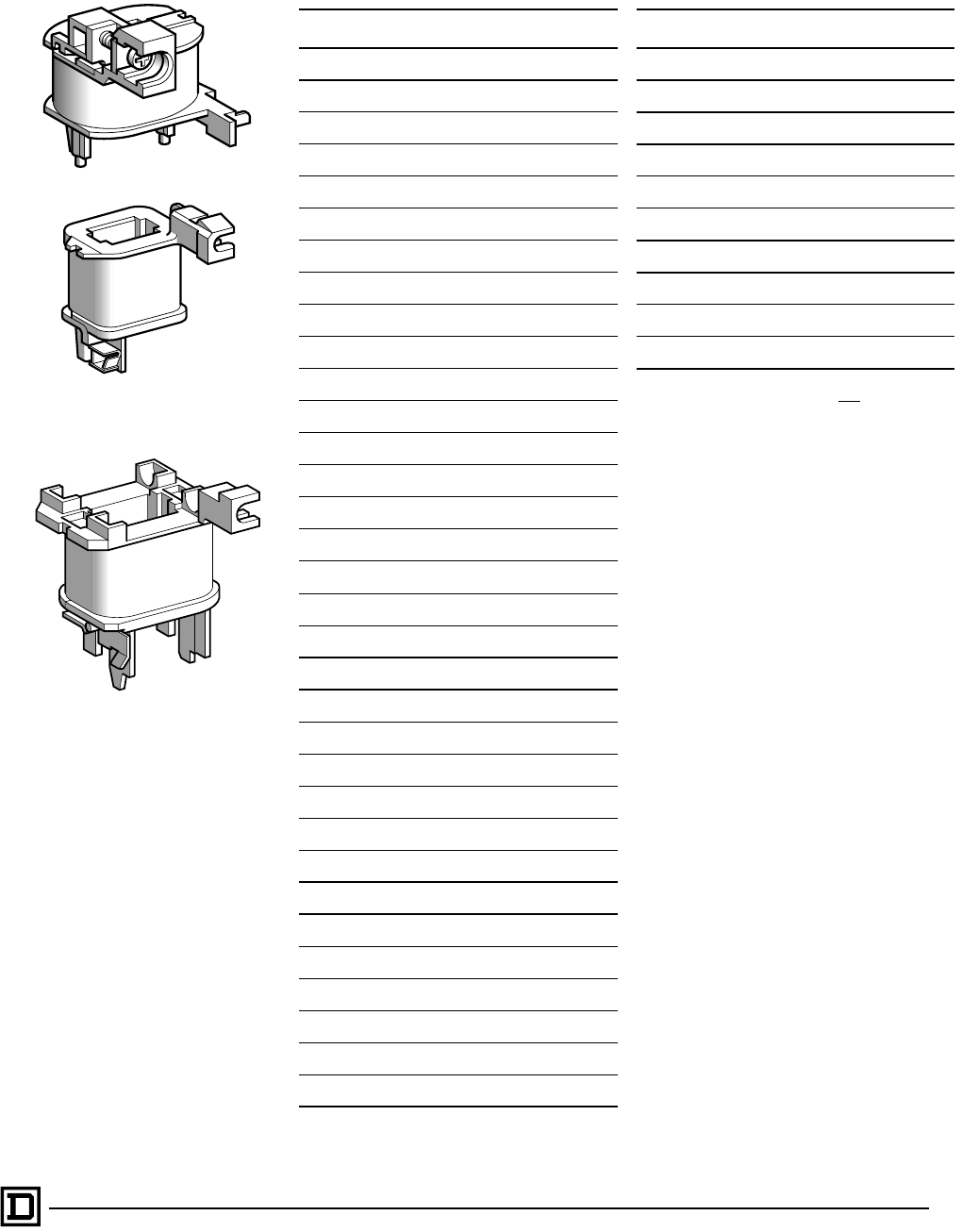

AC Coils

Nominal

Voltage 60 Hz Coil

Cat. No. 50 Hz Coil

Cat. No.

18 A Models

21 LX1LB019 LX1LB021

24 LX1LB021 LX1LB024

36 LX1LB032 –

42 – LX1LB042

48 LX1LB042 LX1LB048

110 LX1LB100 LX1LB110

115/120 LX1LB105 –

127 – LX1LB127

220 LX1LB200 LX1LB220

230/240 LX1LB210 –

240 – LX1LB240

380 – LX1LB380

415 – LX1LB415

440 LX1LB380 LX1LB440

460/480 LX1LB415 –

500 – LX1LB500

575/600 LX1 LB500 –

660 – LX1LB660

32 A models

24 LX1LC020 LX1LC024

110 - LX1LC110

120 LX1LC100 -

220 LX1LC190 LX1LC220

240 LX1LC190 LX1LC240

480 LX1LC380 -

63 A models

24 LX1LD020 LX1LD024

110 LX1LD090 LX1LD110

120 LX1LD100 -

220 LX1LD180 LX1LD220

240 LX1LD190 LX1LD240

480 LX1LD380 -

LX1LBkkk

LX1LCkkk

LX1LDkkk

c INTEGRAL CMCs can operate on D.C. control

voltage when ﬁtted with a coil and converter from

the table above.

DC Coils c

Nominal

Voltage Converter

Cat. No. DC Coil

Cat. No.

18 A model

24 LA1LB080BD LX1LB024

32 A models

24 LA1LC080BD LX1LC0249

48 LA1LC080ED LX1LC0489

110 LA1LC080FD LX1LC1109

63 A models

24 LA1LD080BD LX1LD0249

48 LA1LD080ED LX1LD0489

110 LA1LD080FD LX1LD1109

INTEGRAL™ Self-Protected Combination Motor Controllers

Accessories

20 01/00

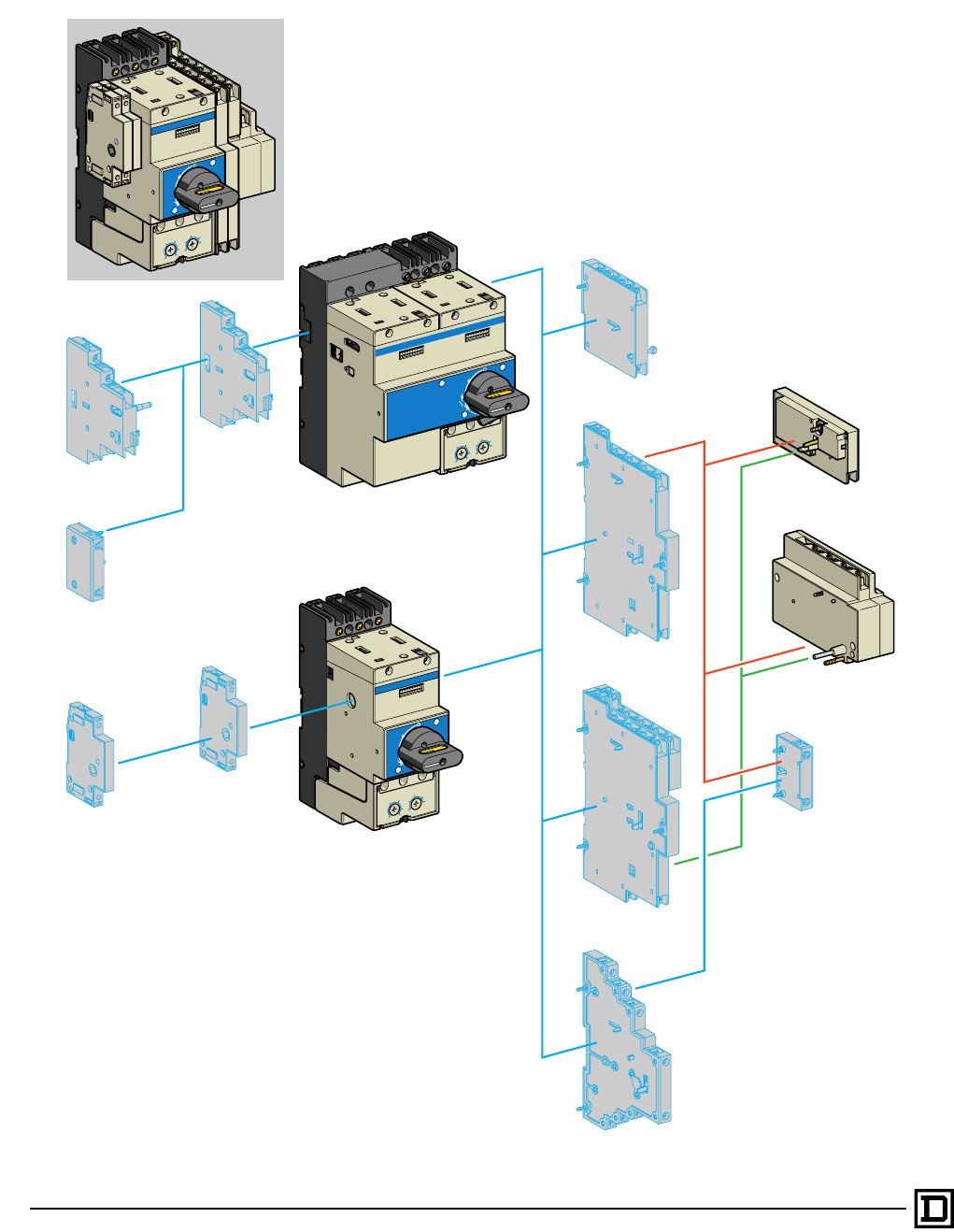

Pilot devices and control transformers for enclosed INTEGRAL CMCs can be ordered

in one of two convenient ways. Telemecanique INSTA-KITS™ may be installed at our

factory by attaching the form number sufﬁx from the table below to the end of the catalog

number selected in Table 1B on page 6. Alternatively, the INSTA-KIT may be ordered

separately by choosing the appropriate catalog number from the right-most column below.

INSTA-KITS are easily installed in the ﬁeld by removing the existing cover plate on the

enclosure, installing the INSTA-KIT plate, and plugging the pre-terminated wires into its

mating connector.

fComplete the form number or catalog number with one of the following voltage codes:

cReplace t with the sufﬁx letter corresponding to the pilot light voltage.

aFor factory modiﬁcation, add form number to the end of the catalog number.

qkLA93W required when START/STOP pushbutton remote station is used in conjunction with START/STOP

local control OR if local pilot light only is used.

kLA94W required when FOR/REV/STOP is required for both local and remote control.

kLA95W required when START/STOP pushbutton with pilot light remote station OR pilot light only remote is

used with START/STOP pushbutton local control.

kLA97W required for remote control only applications.

eRequired when local/remote adapters are used.

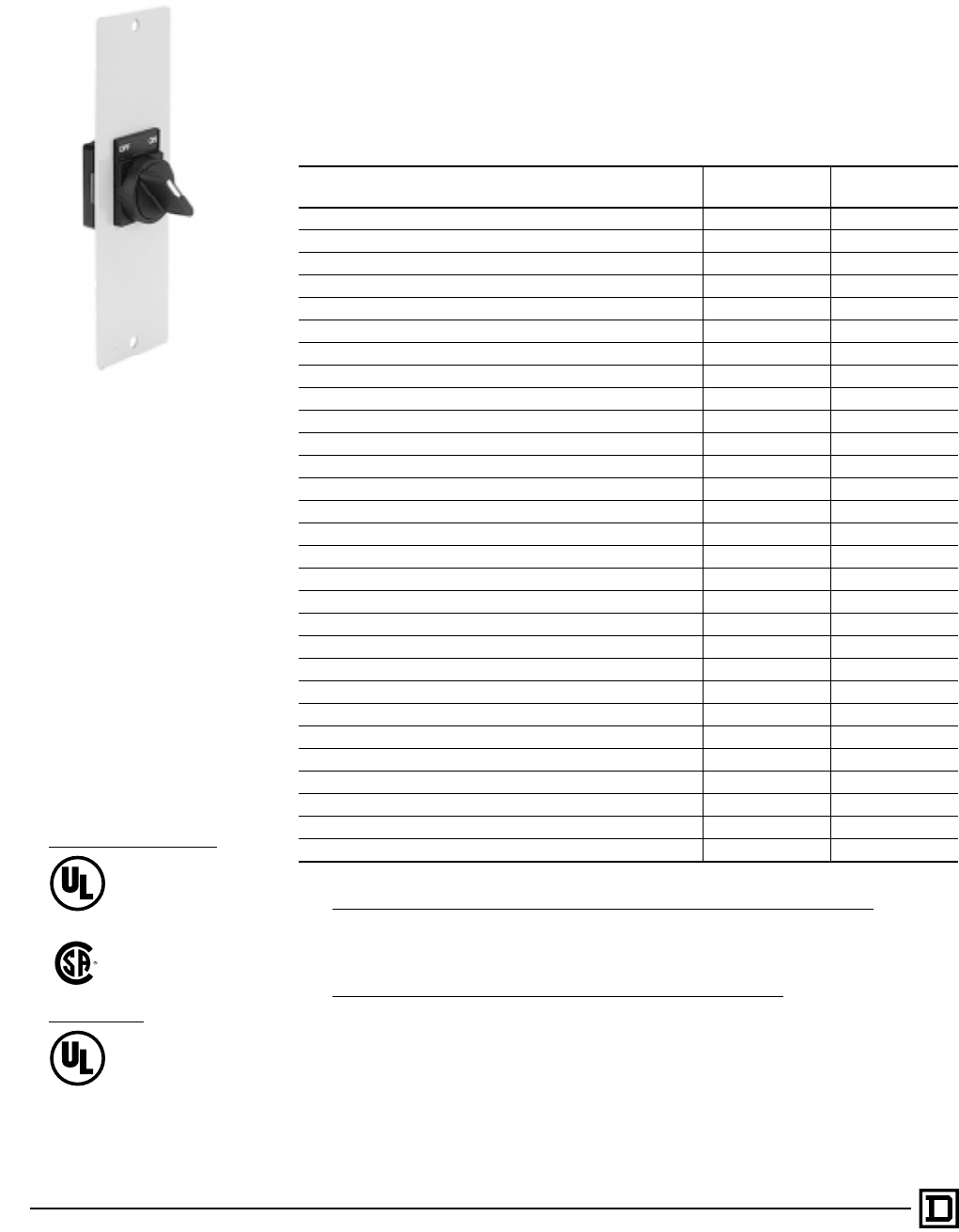

Table 4: INSTA-KITS™ Selection.

Description Factory-Installed

Form Numbera

INSTA-KIT

Catalog Number

On/Off Selector Switch C6 LA9C6

Hand-Off-Auto Selector Switch C LA9C

Green Pilot Light P2 qLA9P12 q

Red Pilot Light P1 qLA9P12 q

Green Transformer Pilot Light P52 qLA9P5152* c q

Red Transformer Pilot Light P51 qLA9P5152* c q

Start/Stop Pushbutton A LA9A

Start/Stop (Mushroom Head) Pushbuttons A22 LA9A2

I/O (Start/Stop) Pushbutton A6 —

On/Off Selector Switch with Green Pilot Light C6P2 LA9C6P12

On/Off Selector Switch with Red Pilot Light C6P1 LA9C6P12

Hand-Off-Auto Selector Switch with Green Pilot Light CP2 LA9CP12

Hand-Off-Auto Selector Switch with Red Pilot Light CP1 LA9CP12

H-O-A Selector Switch with Green Transformer Pilot Light CP52 LA9CP5152t c

H-O-A Selector Switch with Red Transformer Pilot Light CP51 LA9CP5152t c

Forward-Reverse-Stop Pushbuttons A1 LA9A1

Start/Stop Pushbutton with Green Pilot Light AP2 LA9AP12

Start/Stop Pushbutton with Red Pilot Light AP1 LA9AP12

Start/Stop Pushbutton with Green Transformer Pilot Light AP52 LA9AP5152t c

Start/Stop Pushbutton with Red Transformer Pilot Light AP51 LA9AP5152t c

Standard Control Transformer with Top Mounted Fuse Block:

50 VA Transformer (Standard size for INTEGRAL 18 and 32) FF4TKF50fLA9FF4TKF50f

100 VA Transformer (Extra capacity for I18 or I32; Std. capacity for I63) FF4TKF100fLA9FF4TKF100f

150 VA Transformer (Extra capacity for INTEGRAL 63) FF4TKF150fLA9FF4TKF150f

Local/Remote Adapter - Three Wire q— LA93W

Local/Remote Adapter - Four Wire q— LA94W

Local/Remote Adapter - Five Wire q— LA95W

Local/Remote Adapter - Seven Wire q— LA97W

Fuse Kit for Remote e— LA9FK

Voltage D1 D2 D3 D14 D33

Primary 480/240 480/240 208 208 380/400/415

Secondary 120 24 120 24 115/230

Voltage 24 V 120 V 208/240 V 480 V

Sufﬁx Letter BKPW

LA9C6P12

All except Transformers

Transformers

File E14839

CCN NKCR

NKCR7

File LR 105062

Class 3211 02

File E 61239

CCN XPTQ

XPTQ7

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18/32/63 Technical Data

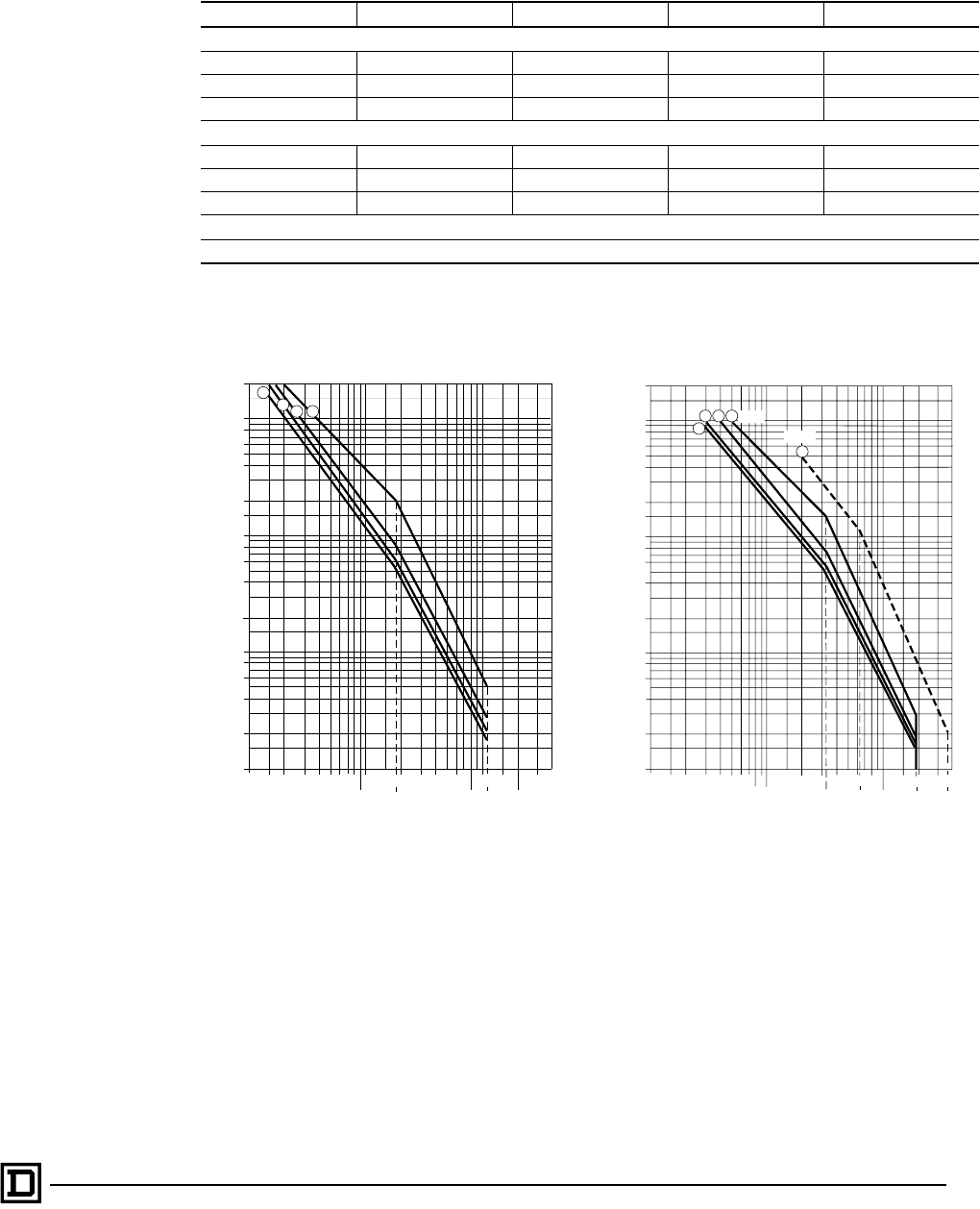

Mechanical and Electrical Life Curves Based

on Utilization Category and Number of Switching Cycles

Current Breaking Limit

INTEGRAL 18 INTEGRAL 32 and 63

①Not having previously broken a short circuit current

➁Having broken a short circuit current 10 times at 30 In a

➂Having broken a short circuit current 20 times at 30 In a

➃Having broken a short circuit current 10 times at 100 In

a Most common value of short circuit current

Alternating Current Utilization Category AC-3

Operating voltage 200 V 230 V 460 V 575 V

Operating current at q ≤ 104 °F (40 °C)

INTEGRAL 18 18 A 18 A 18 A 18 A

INTEGRAL 32 32 A 32 A 32 A 32 A

INTEGRAL 63 63 A 63 A 63 A 63 A

Rated horsepower at q ≤ 104 °F (40 °C)

INTEGRAL 18 5 hp 5 hp 10 hp 15 hp

INTEGRAL 32 10 hp 10 hp 20 hp 30 hp

INTEGRAL 63 20 hp 20 hp 40 hp 60 hp

Electrical life

Motor control and protection in utilization categories AC-2, AC-3, AC-4, at Ue ≤ 400 volts

11.5 23

45678

10 20 40 60

100 150 300

0.01

0.02

0.04

0.06

0.08

0.1

0.2

0.4

0.6

0.8

1.5

18 108

200

11.5 23

4567

10 20 40 60 80

100

150 200 300

32 63 192 360

0.01

0.02

0.04

0.06

0.08

0.1

0.2

0.4

0.6

0.8

1.5

(63A)

123 (32A)

Current broken in amperes Current broken in amperes

Millions of operating cycles Millions of operating cycles

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18/32/63 Technical Data

22 01/00

Mechanical and Electrical Life Curves Based on

Utilization Category and Number of Switching Cycles

Electrical Life

Utilization category AC-1, Ue ≤ 400 Volts

Electrical life curves

CMC size 18 32 63

Wire size (AWG) 12-10 12-8 8-3

Maximum rate of operating cycles per hour

Operating duty 85%

- operation at maximum current

- operation at 50% of maximum current

600 1200 1200

1200 2400 2400

Operating duty 25%

- operation at maximum current 900 1800 1800

Operating current (according to ambient temperature)

q ≤ 104 °F (40 °C) 18 A 32 A 63 A

q ≤ 131 °F (55 °C) 16 A 28 A 55 A

q ≤ 158 °F (70 °C) 14 A 25 A 50 A

0.01

0.02

0.04

0.06

0.08

0.1

0.2

0.4

0.6

0.8

1.5

3456

78910 18 32 63

20 40 60 80 100

(18 A) (32 A)

(63 A)

Current broken in amperes

Millions of operating cycles

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18 Technical Data

PROTECTON MODULE TRIPPING SPECIFICATIONS

Motor Protection

By thermal magnetic modules LB1LB03P

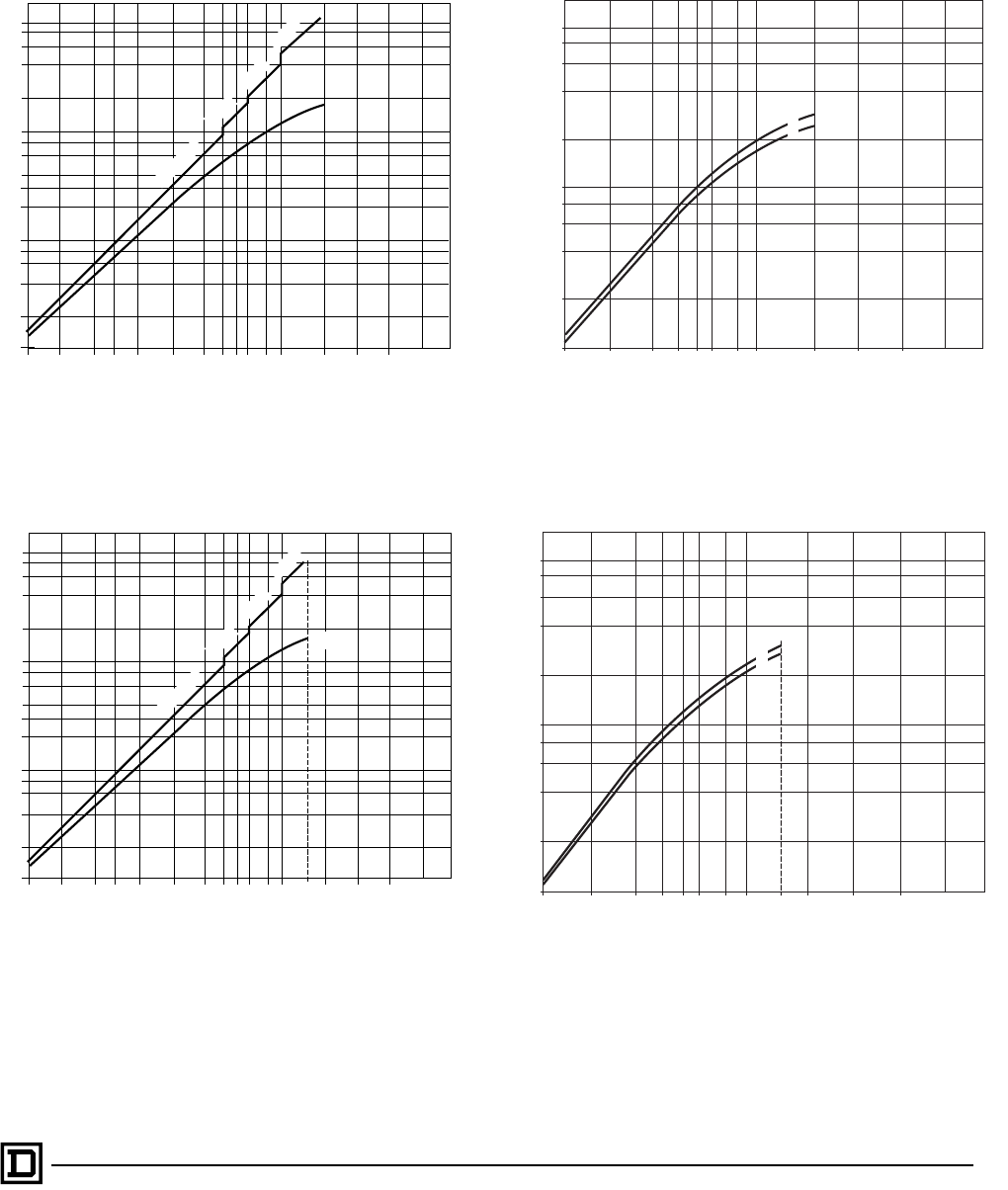

CURRENT LIMITATION AND THERMAL LIMIT ON SHORT CIRCUIT

3-Phase 380/415 V, 50 Hz

Current limit on short circuit

300

100

1mn

10s

0.1s

0.01s

0.1 0.2 0.4 0.6 1 2 4 6 10 20 40 60 100 200 400 600 1000

P01

P03 P02

P04

P05 P06

P07 P08

P10 P13

P17 P21

270

2.4 6

3.75 9.45

37.5

240

180

150

0.16 0.25 0.4

0.63 1.6 2.5 4

161012

0.1

Current in amperes

The average operating times shown are for ambient

temperature of 68 °F (20 °C), without prior current ﬂow

(cold state). The average operating time after prolonged

current ﬂow (hot state) can be calculated by applying a

coefﬁcient of 0.5.

cos =0.7 =0.5 =0.3 =0.25

0.1

0.2

0.4

0.6

0.8

100

0.1 0.2 0.4 0.6 1 2 4 6 8 10 20 50 100 200

12-18 A 10-16 A

6-10 A

4-6 A

2.5-4 A

1.6-2.5 A

1-1.6 A

0.63-1 A

100

1124681020 50 100 200

10-16 A

6-10 A

2.5-4 A

4-6 A

1.6-2.5 A

1-1.6 A

12-18 A

Prospective Isc in kA rmsProspective Isc in kA rms

Max. I peak in KA Thermal limit I2t in kA2s in short circuit protection zone

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 32 Technical Data

24 01/00

Motor Protection Motor Protection (frequent starting)

By thermal magnetic modules LB1LC03M By magnetic modules LB6LC03M

The average operating times shown are for ambient temperature of 68 °F (20 °C), without prior current ﬂow (cold state).

The average operating time after prolonged current ﬂow (hot state) can be calculated by applying a coefﬁcient of 0.5.

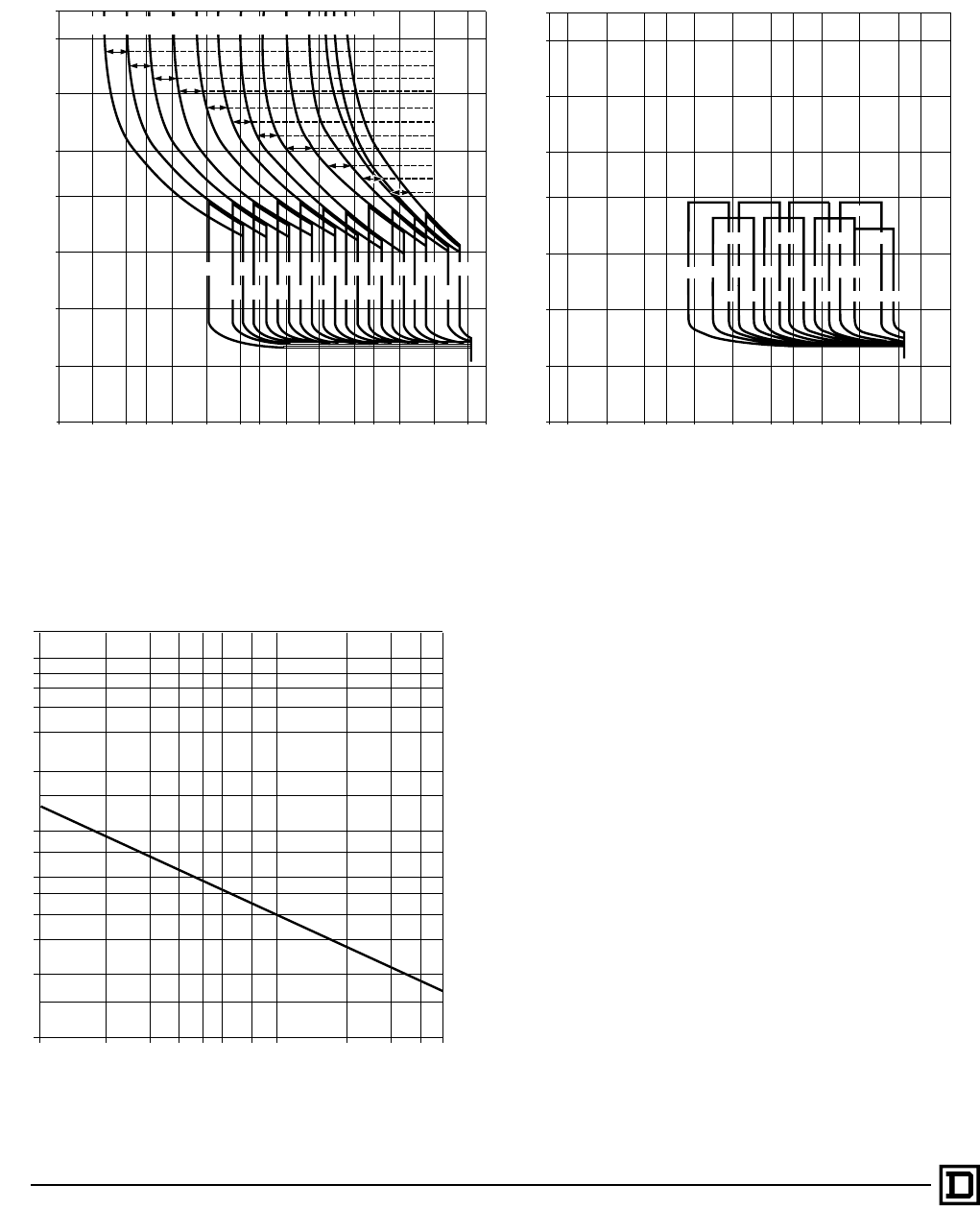

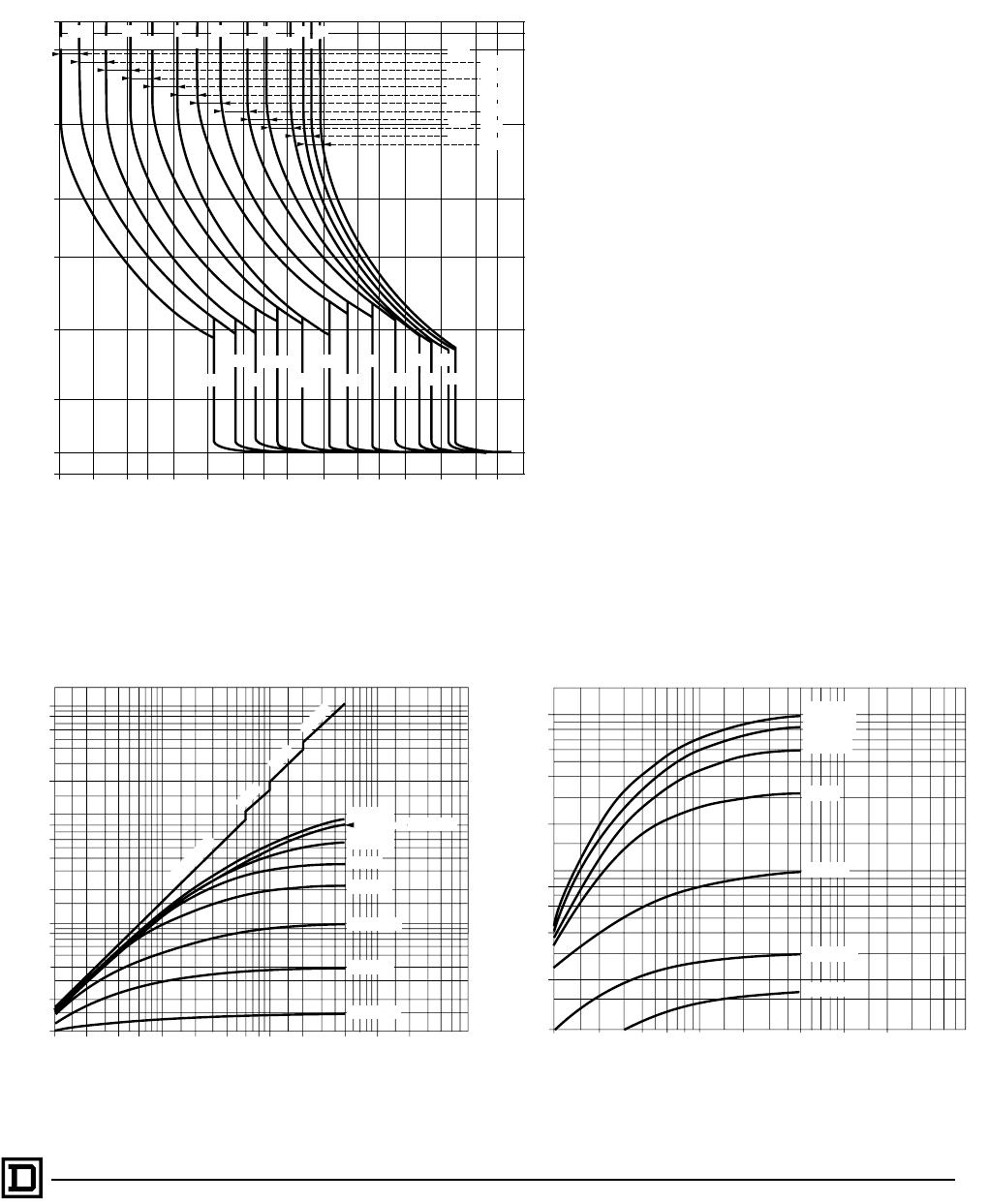

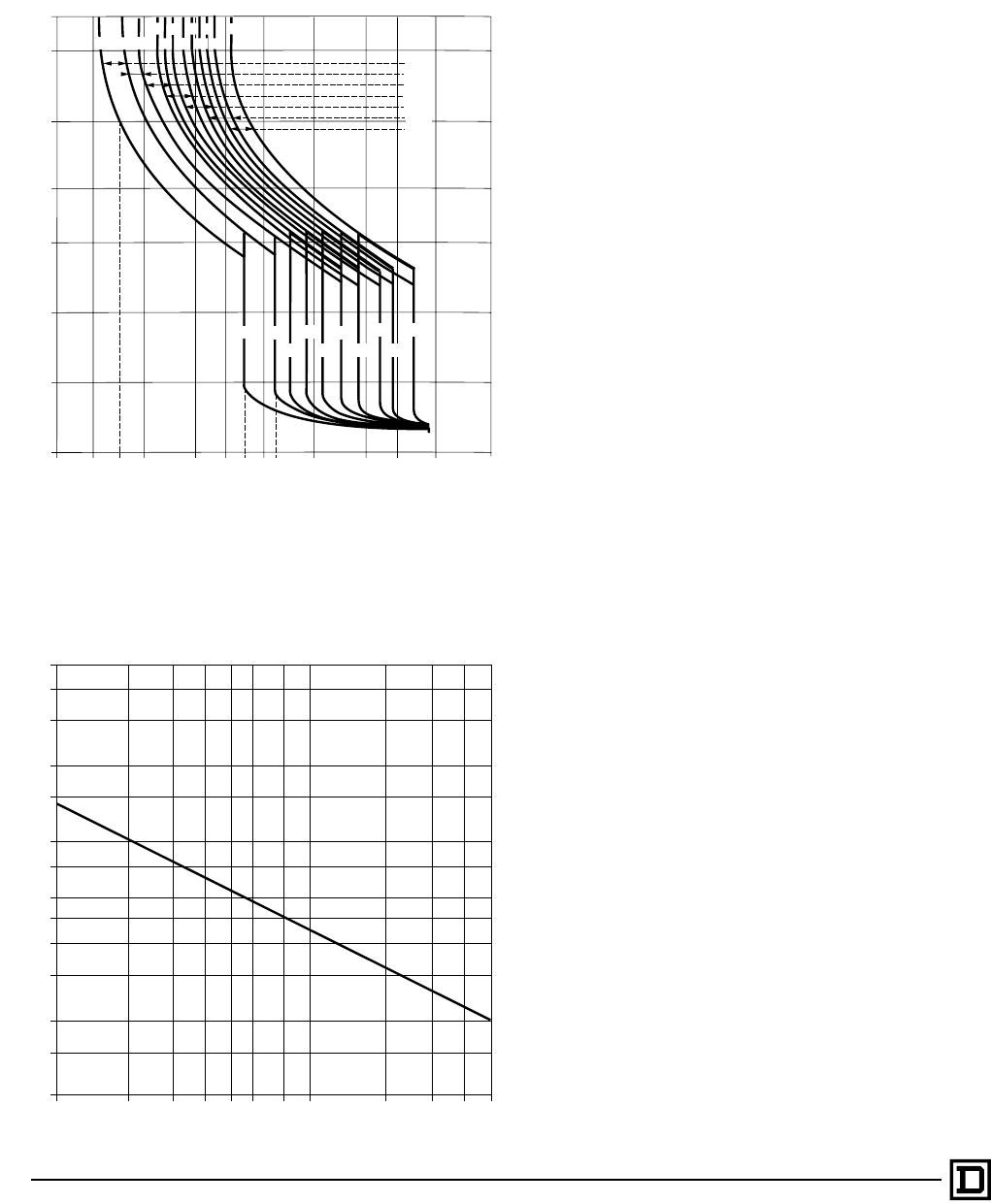

Tripping Curve on Short Circuit

300

min

100

min

1 min

10 s

1 s

0.1 s

0.01 s

0.1 0.2 0.4 0.6 1 2 4 6 10 20 40 60 100 200 400 600

M03

M04

M05

M06

M07

M08

M10

M13

M17

M22

M53

0.25

0.40 0.63 1 1.6 2.5 4 6.3 10 16 23 25 32 irth

2.4

4.8 7.6 12 19 30 48 76 120 190 380

3.8 6 9.5 15 24 38 60 95 150 300

M06 M08 M13

M22

0.8 1 2 4 6 10 20 40 60 100 200 400 600 1000

0.01 s

0.1 s

1 s

10 s

1 min

100

min

300

min

9.5 15 24 38 60 95 150190

19 30 48 76 190 300380

M07 M10 M17 M53

120

12345681020304050

415 V

Breaking time in ms

Prospective Isc in kA rms

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 32 Technical Data

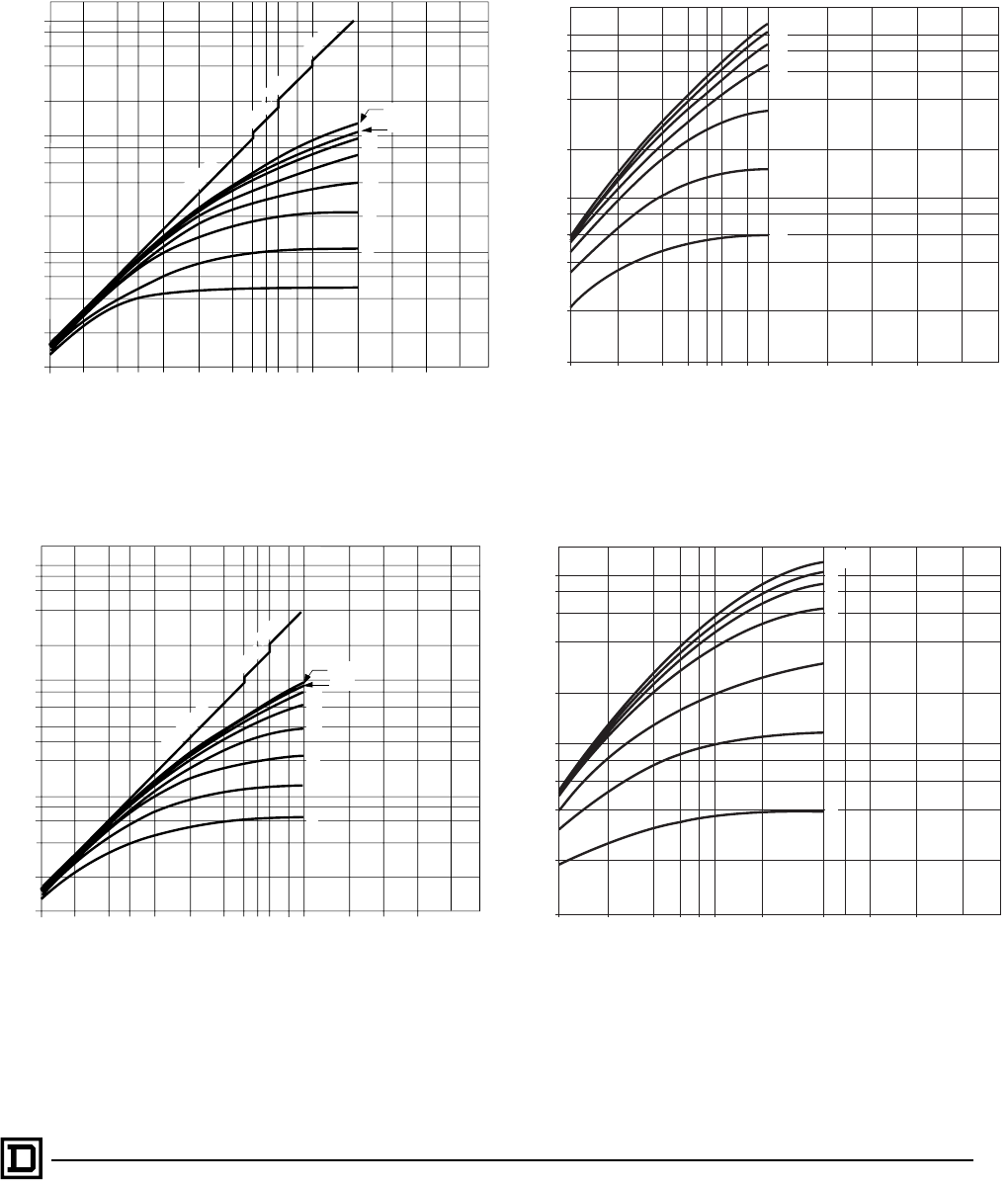

CURRENT LIMITATION AND THERMAL LIMIT ON SHORT-CIRCUIT

3-Phase 400/415 V, 50 Hz

Current limitation on short-circuit Maximum thermal limit on short-circuit

3-Phase 400/415 V, 50 Hz

Current limitation on short-circuit Maximum thermal limit on short-circuit

aAssociated thermal protection rating. For 1-1.6 A ratings, the thermal limit is less than 1x103 A2s

11-1.6 A 56.3-10 A The breaking capacity is unlimited on contactor breakers ﬁtted

with modules:

- up to a rating of 10-16 A at 220/380/415 V.

- up to a rating of 6.3-10 A at 440/500 V.

21.6-2.5 A 610-16 A

32.5-4 A 716-25 A

4 4-6.3 A 823-32 A

0.1

0.2

0.4

0.6

0.8

100

0.1 0.2 0.4 0.6 1 2 4 6 8 10 50 100 200

15 20

cosϕ=0.7 =0.5 =0.3

7 a

=0.25

100

1 2 4 6 8 10 15 20 50 100 200

Max. I peak in KA Thermal limit I2t in kA2s in short circuit protection zone

Prospective rms short-circuit current in kA Prospective rms short-circuit current in kA

100

124681020 50 100 200

Max. I peak in KA Thermal limit I2t in kA2s in short circuit protection zone

Prospective rms short-circuit current in kA Prospective rms short-circuit current in kA

0.1

0.2

0.4

0.6

0.8

100

0.1 0.2 0.4 0.6 1 2 4 6 8 10 50 100 200

cosϕ=0.7 =0.5 =0.3

8 a

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 63 Technical Data

26 01/00

PROTECTION MODULE TRIPPING SPECIFICATIONS

Motor Protection (normal starting duty)

The average operating times shown are for ambient temperature of 68 °F (20 °C), without prior current ﬂow (cold state).

The average operating time after prolonged current ﬂow (hot state) can be calculated by applying a coefﬁcient of 0.5.

Tripping Curve on Short Circuit

10 1318 25

28 35

40 irth

190

380 600

6 10 20 40 60 100 200 400 600 1000 2000

0.01s

0.1s

10 s

1mn

100

300

15 80 110

80 110

240

150

300 480 780

M16

M21

M22

M53

M55

M57

M61

By thermal magnetic modules LB1LD03M

Current in amperes

1234568

10 20 30 40 50

415V

Breaking time in ms

Prospective short-circuit current in kA rms

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 63 Technical Data

CURRENT LIMITATION AND THERMAL LIMIT ON SHORT-CIRCUIT

3-Phase 400/415 V, 50 Hz

Current limitation on short-circuit Maximum thermal limit on short-circuit

3-Phase 400/415 V, 50 Hz

Current limitation on short-circuit Maximum thermal limit on short-circuit

118-25 A up to 45-63A aLB1LD03•22 to LD03•61: rating of associated thermal overload module.

100

0.8

0.6

0.4

0.2

0.1 0.20.1 0.4 0.3 1 2 4 6 8 10 15 50 100 20020

cos ϕ = 0.7 = 0.5 = 0.3 = 0.25

1000

800

600

400

200

100

10 1 2 4 6 8 10 15 20 50 100 200

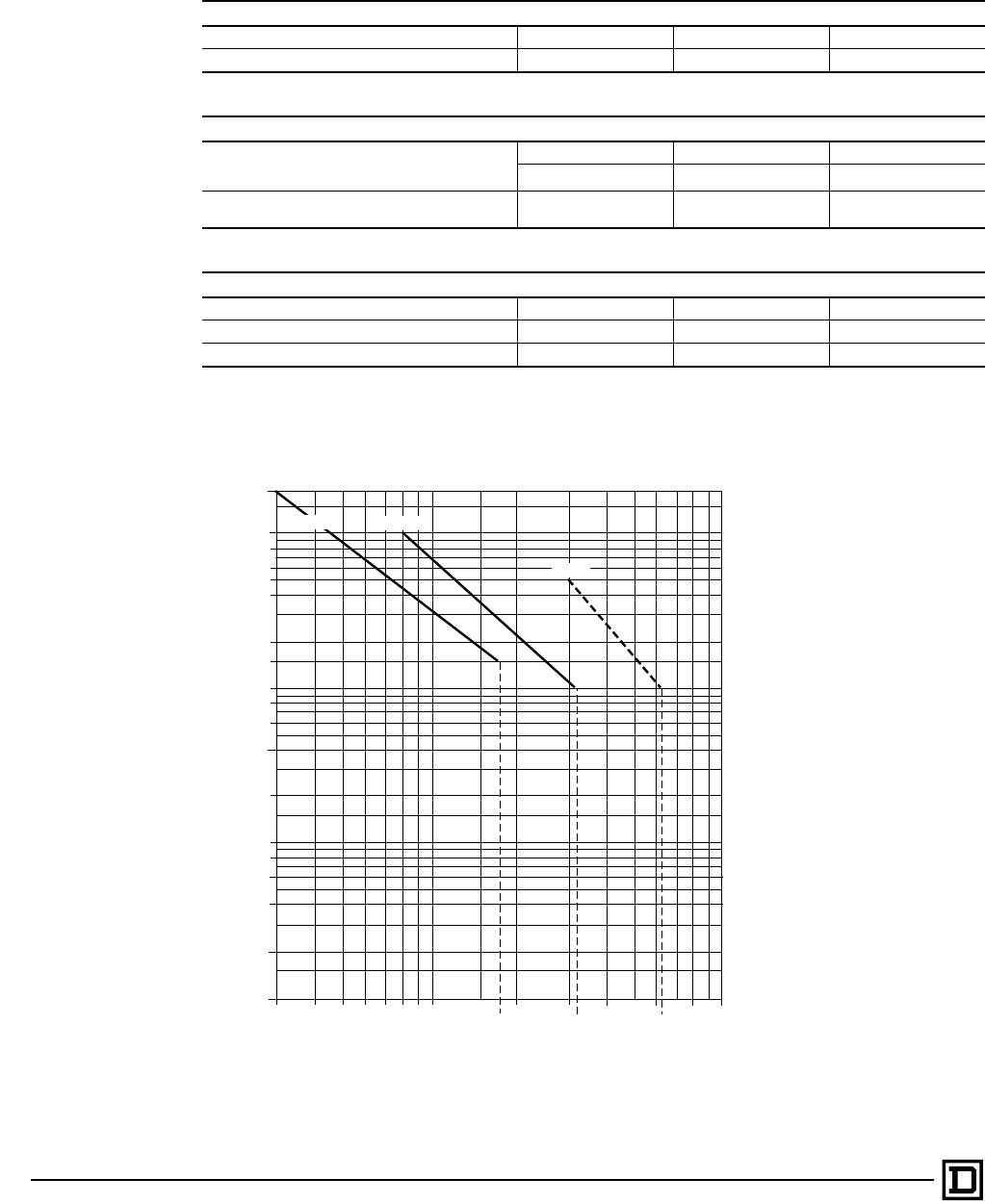

Maximum peak current in kA Thermal limit I2t in kA2s in short circuit protection zone

Prospective rms short-circuit current in kA Prospective rms short-circuit current in kA

100

0.8

0.6

0.4

0.2

0.1 0.20.1 0.4 0.3 1 2 4 6 8 10 15 50 100 20020 35

cos ϕ = 0.7 = 0.5 = 0.3 = 0.25

1000

800

600

400

200

100

10 1 2 4 6 8 10 15 20 50 100 200

Maximum peak current in kA Thermal limit I2t in kA2s in short circuit protection zone

Prospective rms short-circuit current in kA Prospective rms short-circuit current in kA

INTEGRAL™ Self-Protected Combination Motor Controllers

Specifications

28 01/00

■With converter.

●The closing time “C” is measured from the moment the coil supply is switched on to initial contact of the main poles. The opening time “O” is measure from the

moment the coil supply is switched off to the moment the main poles separate.

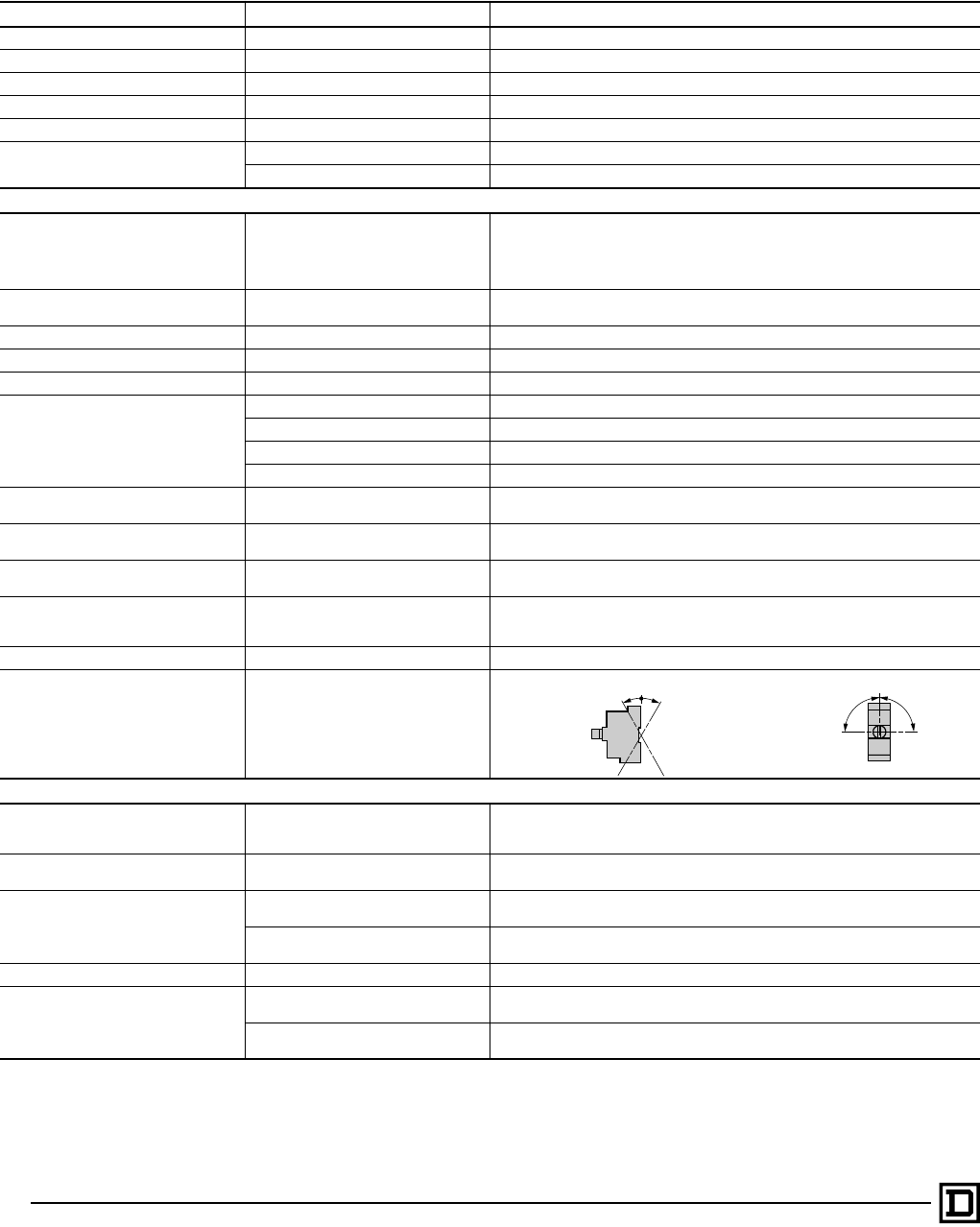

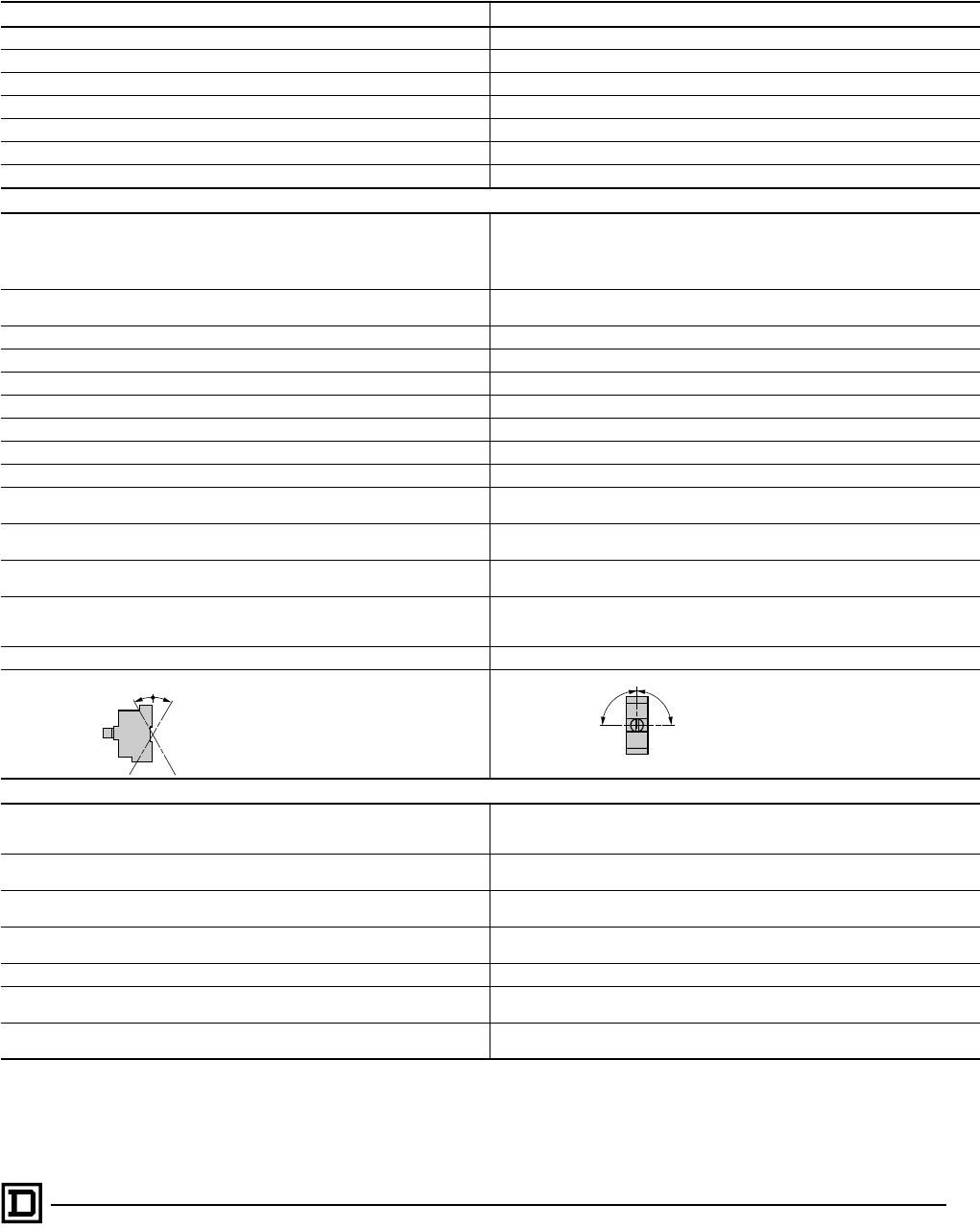

Speciﬁcations

Type INTEGRAL 18

Rated operational current (Ie) Category AC-3 18 A

Rated operational voltage (Ue) 600 Vac

Breaking capacity at 480 Vac 42 kA RMS

Electrical durability in AC-3 at 400 V 2 million operating cycles

Mechanical durability at Uc 10 million operating cycles

Maximum operating rate

at ambient temperature ≤ 131 °F (55 °C) AC control voltage 1200 operating cycles/hour

DC control voltage with converter 600 operating cycles/hour

Environment

Conforming to standards IEC: 364, 947-1, 947-2, 947-4-1, 947-6-2

UTE: NF C 63-110, C 63-120, C 63-130, C 63-650, C 79-100, C 20-040

VDE: 0100, 0110, 0113, 0170, 0171, 471, 0660

EN 60947-1, 60947-2, 60947-4-1, 60947-6-2

NEN, NBN

Product approvals ASE, ASEFA, ASTA, CSA, DEMKO, DNV

NEMKO, RINA, SEMKO, SETI, UL

UL File Number File E164871, CCN NKJH

CSA File Number File LR43364 Class 3211 08

Protective treatment “TH”

Ambient air temperature

around the device Operation -13 to +131 °F (-25 to +55 °C)

Storage -40 to +176 °F (-40 to +80 °C)

Operation ■-13 to +122 °F (-25 to +50 °C)

Storage -13 to +158 °F (-25 to +70 °C)

Vibration resistance

Permissible acceleration 5 to 100 Hz Energized state: 3 g

De-energized state: 3 g

Shock resistance

Permissible acceleration Impulse duration: 11 ms Energized state: 8 g

De-energized state: 8 g

Degree of protection To IEC 144 and 529

To VDE 0106 IP 20B

Protection against direct ﬁnger contact

Flame resistance Conforming to IEC 295-2-1, NF C 20-455, and to decree of 22-12-81

(JO 27 NC of 1st and 2/2/1982)

Conforming to UL 94 - V0 and NF T 51-072

Maximum operating altitude Without derating 9,580/3000 ft/m

Operating position

(without derating) In relation to

normal vertical

mounting plane

From ﬁxing From main

plane (fore-aft tilt) axis (left-right tilt)

Control Circuit Speciﬁcations

Rated control circuit voltage (Uc) 50 Hz

60 Hz

DC with converter

21 to 660 Vac

21 to 600 Vac

24 Vdc

Voltage limits

at θ ≤ 131 °F (55 °C) Operating

Drop out 0.85 to 1.1 Uc

0.25 to 0.7 Uc

Average consumption

at 68 °F (20 °C) and at Uc AC Inrush

Sealed 75 VA (50 Hz), 90 VA (60 Hz)

8 VA (50 Hz), 9 VA(60 Hz)

DC ■Inrush

Sealed 100 W

1.5 W

Heat dissipation 2.5 W (50 Hz), 2.8 W (60 Hz)

Operating time ●

at 68 °F (20 °C) and at Uc 50/60 Hz “C”

“O” 9 to 25 ms

7 to 25 ms

DC with converter “C”

“O” 15 to 20 ms

20 to 25 ms

30°

90°

INTEGRAL™ Self-Protected Combination Motor Controllers

Specifications

Speciﬁcations

INTEGRAL 32 INTEGRAL 63

32 A 63 A

600 Vac 600 Vac

42 kA RMS 42 kA RMS

1.5 million operating cycles 1.2 million operating cycles

10 million operating cycles 10 million operating cycles

3600 operating cycles/hour 3600 operating cycles/hour

600 operating cycles/hour 600 operating cycles/hour

Environment

IEC: 364, 947-1, 947-2, 947-4-1, 947-6-2

UTE: NF C 63-110, C 63-120, C 63-130, C 63-650, C 79-100, C 20-040

VDE: 0100, 0110, 0113, 0170, 0171, 471, 0660

EN 60947-1, 60947-2, 60947-4-1, 60947-6-2

NEN, NBN

IEC: 364, 947-1, 947-2, 947-4-1, 947-6-2

UTE: NF C 63-110, C 63-120, C 63-130, C 63-650, C 79-100, C 20-040

VDE: 0100, 0110, 0113, 0170, 0171, 471, 0660

EN 60947-1, 60947-2, 60947-4-1, 60947-6-2

NEN, NBN

ASE, ASEFA, ASTA, BV, CSA, DEMKO, DNV, GL,

NEMKO, NKK, ÖVE, PTB, RINA, SCC, SETI, UL, USSR, LROS ASE, ASEFA, ASTA, BV, CSA, DEMKO, DNV, GL,

NEMKO, NKK, ÖVE, RINA, SCC, SETI, UL, USSR, LROS pending

File E164871, CCN NKJH File E164871, CCN NKJH

File LR43364 Class 3211 08 File LR43364 Class 3211 08

“TH” “TH”

-13 to +158 °F (-25 to +70 °C) -13 to +158 °F (-25 to +70 °C)

-40 to +176 °F (-40 to +80 °C) -40 to +176 °F (-40 to +80 °C)

-13 to +122 °F (-25 to +50 °C) -13 to +122 °F (-25 to +50 °C)

-13 to +158 °F (-25 to +70 °C) -13 to +158 °F (-25 to +70 °C)

Energized state: 3 g

De-energized state: 3 g Energized state: 3 g

De-energized state: 3 g

Energized state: 8 g

De-energized state: 8 g Energized state: 8 g

De-energized state: 8 g

IP 20B

Protection against direct ﬁnger contact IP 20B

Protection against direct ﬁnger contact

Conforming to IEC 295-2-1, NF C 20-455, and to decree of 22-12-81

(JO 27 NC of 1st and 2/2/1982)

Conforming to UL 94 - V0 and NF T 51-072

Conforming to IEC 295-2-1, NF C 20-455, and to decree of 22-12-81

(JO 27 NC of 1st and 2/2/1982)

Conforming to UL 94 - V0 and NF T 51-072

9,580/3000 ft/m 9,580/3000 ft/m

From ﬁxing

plane (fore-aft tilt) From ﬁxing

plane (fore-aft tilt)

Control Circuit Speciﬁcations

24 to 660 Vac

24 to 600 Vac

24, 48, 110 Vdc

24 to 660 Vac

24 to 600 Vac

24, 48, 110 Vdc

0.85 to 1.1 Uc

0.25 to 0.7 Uc 0.85 to 1.1 Uc

0.25 to 0.7 Uc

160 VA (50 Hz), 185 VA (60 Hz)

12 VA (50 or 60 Hz) 375 VA (50 Hz), 450 VA (60 Hz)

25 VA (50 or 60 Hz)

250 W, duration 50 ms

4 W 300 W, duration 50 ms

8 W

4 W (50 Hz), 5 W (60 Hz) 8 W (50 Hz), 11 W (60 Hz)

9 to 25 ms

7 to 20 ms 12 to 35 ms

7 to 20 ms

25 to 35 ms

10 to 20 ms 25 to 40 ms

15 to 25 ms

30°

90°

INTEGRAL™ Self-Protected Combination Motor Controllers

Specifications

30 01/00

Speciﬁcations

Type INTEGRAL 18

Pole Speciﬁcations

Rated thermal current (Ith) θ ≤ 104 °F (40 °C) 18 A

Frequency limits of operational current 40-60 Hz

Rated impulse withstand voltage To IEC 947.4 6 kV in envelope

Rated insulation voltage (Ui) To IEC 947-1 and NF C 20-040 600 Vac

Heat dissipation

in the power circuits of the contactor breaker

and its protection module

Operational current 0.16 A 0.25 A 0.4 A 0.6 A 1.0 A 1.6 A 2.5 A 4.0 A 6.0 A 10.0 A 16.0 A 18.0 A

Power per pole, hot state 2.3 W 2.3 W 2.3 W 2.3 W 2.3 W 2.3 W 2.3 W 2.4 W 2.9 W 3.2 W 3.8 W 3.8 W

Rated making capacity I RMS To IEC 947-4 and NF C 63-110 15 x Ith (above this value, the breaker trips

I Peak To IEC 947-2 and NF C 63-120 105 kA

Total breaking time 2.5 ms

Electrical durability in AC-3 at Ie max,

Ue = 415 V after 1 P2 cycle (O-t-CO-t-CO)

(short-circuit test)

Prospective RMS short-circuit current at

terminals of a new device 3 kA 10 kA 25 kA 35 kA 42 kA

Millions of operating cycles 0.6 0.15 0.12 0.1 0.1

Maximum let-through energy With Isc max, at 415 V, 50 Hz 100 x 103 A2s

Wiring Maximum cross-sectional

area (c.s.a.) Minimum cross-sectional

area (c.s.a.) AWG

Flexible cable without cable end 2 x 6 mm22 x 1.5 mm22 - #16 to 2 - #10

Flexible cable with cable end 2 x 4 mm2 or 1 x 6 mm22 x 1 mm22 - #16 to 2 - #10

Solid cable 2 x 6 mm22 x 1.5 mm22 - #16 to 2 - #10

Tightening torque 12 lb-in (1.7 N•m)

Speciﬁcations of Thermal-magnetic or Magnetic Only Protection Modules

Type LB1LB03P

Protection Standard motors

Conforming to standards IEC 947-4 type 2 (Iq = 80 kA except P21) and NF C 63-650

Number of poles 3

Number of protection poles 3

Rated operational voltage 600 Vac

Maximum continuous current 0.16 to 18 A

Thermal protection Setting range (Irth min/Irth max) 0.1/0.16 to 12/18 A

Temperature compensation -4 to +131 °F (-20 to +55 °C)

Protection against phase imbalance With

Tripping class 10

Magnetic protection

To IEC 158-1 and NF C 63-650

IEC 947-1/2/4 and NF C 63-120

Instantaneous trip current setting range Fixed at 15 Irth max

Tripping tolerance ± 20%

Speciﬁcations of Versions without Isolator Function

Conforming to standards IEC 947

Rated operational voltage 600 Vac

Mechanical durability 10,000 operating cycle

Padlocking facility 1 padlock, ∅ 5 mm shank

Speciﬁcations of Versions with Isolator Function

Conforming to standards –

Rated operational voltage –

Mechanical durability –

Padlocking facility –

INTEGRAL™ Self-Protected Combination Motor Controllers

Specifications

Speciﬁcations

INTEGRAL 32 INTEGRAL 63

Pole Speciﬁcations

32 A 63 A

40-60 Hz 40-60 Hz

6 kV in envelope 6 kV in envelope

600 Vac 600 Vac

1.6 A 2.5 A 4.0 A 6.3 A 10.0 A 16.0 A 25.0 A 32.0 A 25 A 32 A 40 A 50 A 63 A

1.6 W 1.8 W 1.8 W 2.0 W 2.0 W 3.4 W 4.8 W 6.0 W 4.4 W 5.0 W 5.8 W 7.0 W 9.0 W

12 x Ith (above this value, the breaker trips 12 or 15 x Ith (above this value, the breaker trips

105 kA 105 kA

4 ms 4 ms

3 kA 10 kA 25 kA 35 kA 42 kA 3 kA 10 kA 25 kA 35 kA 42 kA

1 0.9 0.6 0.5 0.2 1 0.9 0.6 0.5 0.2

170 x 103 A2s 300 x 103 A2s

Maximum cross-sectional

area (c.s.a.) Minimum cross-sectional

area (c.s.a.) AWG Maximum cross-sectional

area (c.s.a.) Minimum cross-sectional

area (c.s.a.) AWG

1 X 10 or 2 x 6 mm21 x 1 mm2#18 to #8 1 X 50 or 2 x 35 mm21 x 6 mm2#10 to #2

1 x 6 or 2 x 4 mm21 x 1 mm2#18 to #8 2 x 25 mm21 x 6 mm2#10 to #2

1 x 10 or 2 x 6 mm21 x 1 mm2#18 to #8 1 x 50 mm21 x 6 mm2#10 to #2

14 lb-in (2.0 N•m) 42 lb-in (6.0 N•m)

Speciﬁcations of Thermal-magnetic or Magnetic Only Protection Modules

LB1LC03M LB6LC03M LB1LD03M LB6LD03M

Standard motors Frequent starting motors Standard motors Frequent starting motors

IEC 947-4 type 2 (Iq = 50 kA) and NF C 63-650 NF C 63-650 NF C 63-650 NF C 63-650

3333

600 Vac 600 Vac 600 Vac 600 Vac

0.4 to 32 A 0.4 to 32 A 13 to 63 13 to 63

0.25/0.4 to 23/32 A – 10/13 to 45/63 A –

-4 to +158 °F

(-20 to +70 °C) -4 to +158 °F

(-20 to +70 °C)

With Without With Without

10 – 20 –

6 to 12 Irth max (Usual setting 9 to 10 Irth max) 6 to 12 Irth max 6 to 12 Irth max (Usual setting 9 to 10 Irth max) 6 to 12 Irth max

± 20% ± 20% ± 20% ± 20%

Speciﬁcations of Versions without Isolator Function

IEC 947 IEC 947

600 Vac 600 Vac

10,000 operating cycles 10,000 operating cycle

1, 2, or 3 padlocks, ∅ 8 mm shank 1, 2, or 3 padlocks, ∅ 8 mm shank

Speciﬁcations of Versions with Isolator Function

IEC 947, NF C 63-130, VDE 0660, VDE 0113 IEC 947, NF C 63-130, VDE 0660, VDE 0113

600 Vac 600 Vac

10,000 operating cycles 10,000 operating cycles

1, 2, or 3 padlocks (shank ∅ 8 mm max and ∅ 5 mm min). When ﬂush mounting, interlocking

of the enclosure or cabinet door is possible. 1, 2, or 3 padlocks (shank ∅ 8 mm max and ∅ 5 mm min). When ﬂush mounting, interlocking

of the enclosure or cabinet door is possible.

INTEGRAL™ Self-Protected Combination Motor Controllers

Specifications

32 01/00

Instantaneous Auxiliary Contacts

Rated thermal current (Ith) 10 A (INTEGRAL 18), 6 A (INTEGRAL 32 and 63)

Rated insulation voltage (Ui) To IEC 947-1 and NF C 20-040 690 Vac

Switching capacity With U ≥ 17 V and I ≥ 10 mA 600 mVA

Rated

operational power

AC category AC-15 cVoltage 48 Vac 110/120 Vac 220/240 Vac 380/400 Vac 480 Vac

1 million operating cycles 300 VA 500 VA 600 VA 520 VA 500 VA

1.5 million operating cycles 160 VA 300 VA 330 VA 300 VA 280 VA

Making capacity AC category AC-15 1500 VA 3500 VA 6000 VA 7500 VA 7000 VA

Rated

operational power

DC category DC-13 qVoltage 24 Vac 48 Vac 110 Vac 220 Vac 440 Vac

1 million operating cycles 120 W 90 W 75 W 68 W 61 W

1.5 million operating cycles 70 W 50 W 38 W 33 W 28 W

Making capacity DC category DC-13 800 W 700 W 400 W 260 W 220 W

Wire size Maximum c.s.a.: 2 x 2.5 mm2. Minimum c.s.a.: 2 x 1 mm2

Maximum: 2 x 14 AWG, Minimum: 2 x 16 AWG

c Electrical durability on an inductive load such as the coil of an electromagnet: making capacity (cosϕ 0.7) = 10 times the breaking capacity (cos ϕ 0.4).

q Electrical durability on an inductive load such as the coil of an electromagnet, the time constant increasing with the power.

Signalling Contacts

Rated thermal current (Ith) 6 A (INTEGRAL 18), 3 A (INTEGRAL 32 and 63)

Rated insulation voltage (Ui) To IEC 947-1 690 Vac (INTEGRAL 18), 250 Vac (INTEGRAL 32 and 63)

Operational power

for 200 000 operating cycles AC Voltage – – 110/127 Vac 220 Vac

Resistive load – – 600 VA 750 VA

Lamp load k– – 90 VA 125 VA

Inductive load f– – 875 VA 500 VA

Motor p– – 160 VA 200 VA

DC Voltage 24 Vac 48 Vac 110/125 Vac 200 Vac

Resistive load 100 W 100 W 50 W 50 W

Lamp load k50 W 50 W 6 W 7.5 W

Inductive load f75 W 75 W 50 W 50 W

Motor p75 W 75 W 6 W 7.5 W

Wire size Maximum c.s.a.: 2 x 2.5 mm2. Minimum c.s.a.: 2 x 1 mm2

Maximum: 2 x 14 AWG, Minimum: 2 x 16 AWG

kLamp load: peak current = 10 times the rated current.

fInductive load: cos ϕ 0.4 for AC operation; time constant 7 ms for DC operation.

pMotor: peak current = 6 times the rated current.

Isolating Auxiliary Contacts for INTEGRAL 32 and 63

Rated thermal current (Ith) 6 A

Rated insulation voltage (Ui)

to IEC 947 and NF C 63-130

AC supply 690 Vac

DC supply 125 Vac

Wire size Maximum c.s.a.: 2 x 1.5 or 1 x 2.5 mm2

Maximum: 2 x 16 AWG or 1 x 14 AWG

INTEGRAL™ Self-Protected Combination Motor Controllers

Specifications

Operating diagrams

Electronic on-delay timer LA4DT Electronic off-delay timer LA4DR

Environment

Type LA4DT (On-delay) LA4DR (Off-delay)

Conforming to standards IEC 255-5 IEC 255-5

Product approvals Pending UL, CSA UL, CSA

Protective treatment “TH” “TH”

Degree of protection To VDE 0106 Against direct ﬁnger contact Against direct ﬁnger contact

Ambient air temperature

around the device

Storage -40 to +176 °F (-40 to +80 °C) -40 to +176 °F (-40 to +80 °C)

Operation -13 to +131 °F (-25 to +55 °C) -13 to +131 °F (-25 to +55 °C)

Operation at Uc -13 to +158 °F (-25 to +70 °C) -13 to +158 °F (-25 to +70 °C)

Rated insulation voltage (Ui) To IEC 947-1 and

VDE 0110 (group C) 250 Vac 250 Vac

Time Delay Speciﬁcations

Timing ranges 0.1-2/1.5-0/25-500 sec. 0.1-2/1.5-30/25-500 sec.

Repeat accuracy 32-104 °F (0-40 °C) ± 3% (10 ms minimum) ± 3% (10 ms minimum)

Reset time During the time delay 100 ms 225 ms

After the time delay 50 ms –

Immunity to micro-breaks During the time delay 10 ms 20 ms

After the time delay 2 ms –

Minimum control pulse duration – 40 ms

Time delay signalling By LED Illuminates during time delay Illuminates during time delay

Control Circuit Speciﬁcations

Built-in protection On input By varistor By varistor

Contactor breaker coil suppression By varistor By peak limiting diode

Rated control circuit

voltage (Uc) 24-250 Vac or Vdc 24-250 Vac

Voltage limits 0.8-1.1 Uc 0.8-1.1 Uc

Control type By mechanical contact only By mechanical contact only

(connecting cable < 10 m)

Wire Size Flexible or solid cable

with or without cable end

Minimum c.s.a.: 1 x 1 mm2

Maximum c.s.a.: 2 x 2.5 mm2Minimum c.s.a.: 1 x 1 mm2

Maximum c.s.a.: 2 x 2.5 mm2

Minimum: 1 x 16 AWG

Maximum: 2 x 14 AWG Minimum: 1 x 16 AWG

Maximum: 2 x 14 AWG

Switching Speciﬁcations (solid state type)

Maximum power dissipated 2 W 3.5 W

Leakage current < 5 mA < 5 mA

Residual voltage 3.3 Vac 3.3 V

Overvoltage protection 3 kV; 0.5 joule 3 kV; 0.5 joule

Electrical durability 30 million operating cycles 30 million operating cycles

≤ 40 ms

Uc supply

(A1 - A2)

Control

(A2 - B2)

Time delay output

Contactor breaker coil

Red LED

Uc supply

(A1 - A2)

Time delay output

Contactor breaker coil

Red LED

INTEGRAL™ Self-Protected Combination Motor Controllers

Specifications

34 01/00

cThe operating times depend on the type of electromagnet driving the contactor breaker and its control method. The closing time “C” is measured from the moment

the INTEGRAL coil supply is switched on to initial contact of the main poles. The opening time “O” is measured from the moment the coil supply is switched off to

the moment the main poles separate.

q Warning: for supply from rectiﬁed AC, the power supply must exceed 150 VA and the maximum ripple must be ≤ 14%.

Type Interface modules Converters

Used for direct control of the

INTEGRAL 18 By a programmable controller, with AC control of the coil By a programmable controller, with

DC control of the coil.

Protective treatment “TH” “TH”

Ambient air temperature

around the device

Storage: -104 to + 176 °F (- 40 to+ 80 °C) Storage: -104 to + 176 °F (- 40 to + 80 °C)

Operation: -13 to +131 °F (-25 to +55 °C) Operation: -13 to +122 °F (-25 to +50 °C)

Rated insulation voltage (Ui) 250 Vac to IEC 158-1 and 947-1 and VDE 0110 (group C) –

Protection against direct ﬁnger contact Conforming to VDE 0106 Conforming to VDE 0106

Cabling Max: 2 x 2.5 mm2, Min: 1 x 1 mm2Max: 2 x 2.5 mm2, Min: 1 x 1 mm2

Max: 2 x 14 AWG, Min: 1 x 16 AWG Max: 2 x 14 AWG, Min: 1 x 16 AWG

Operating limits – 0.8 to1.1 Uc q

Protection Of the input and against reverse polarity: by diode Against reverse polarity (by diode) and

against overvoltage

Control Circuit Speciﬁcations

Type LA4DFB LA4DFE LA4DLB LA4DLE LA4DWB LA1LB080BD

Technology Relay Relay + override Solid state Solid state

Wiring Schematics

Indication of input state By built-in LED

Input signals

(logic side) Voltage

(E1-E2) 24 Vdc 48 Vdc 24 Vdc 48 Vdc 5-24 Vdc 24 Vdc (E2-E3)

Current 25 mA 15 mA 25 mA 15 mA 8.5 for 5 V

15 for 24 V 10

State “0” guaranteed for U

< 2.4 Vac < 4.8 Vac < 2.4 Vac < 4.8 Vac < 2.4 Vac < 7 Vac

< 2 Vac < 1.3 Vac < 2 Vac < 1.3 Vac < 2 Vac < 5 Vac

State “1” guaranteed for U 17 < U < 30 Vac 33 < U < 60 Vac 17 < U < 30 Vac 33 < U < 60 Vac 5 < U < 30 U > 14

Supply voltage 24-250 Vac (A1-A2) 24 Vdc (E1-E2) q

Operating Speciﬁcations

Electrical durability in 10 million

operating cycles 10 million

operating cycles 3 million

operating cycles 20 million

operating cycles 2 million

operating cycles

Immunity to control

circuit interruptions 4 ms 4 ms 4 ms 4 ms 1 ms –

Average consumption

at 86 °F (30 °C) 0.6 W 0.6 W 0.6 W 0.6 W 0.4 W Inrush: 100

Sealed: 1.5

Operating time c

at 86 °F (30 °C)

and at Uc

Pull-in 15-30 ms 15-30 ms 15-30 ms 15-30 ms – 30 ms

Drop-out 20-35 ms 20-35 ms 20-35 ms 20-35 ms – 15 ms

A1 c

E2 –

A2 c

–

(0V)

INTEGRAL™ Self-Protected Combination Motor Controllers

Specifications

cFor direct control by external contact: connect E1-E3.

q Warning: for supply from rectiﬁed a.c., the power supply must exceed 250 VA (300 VA for INTEGRAL 63) and the maximum ripple must be ≤ 14%.

Type Interface modules Converters

Used for direct control of the

INTEGRAL 32 or 63 By a programmable controller, with AC control of the electromagnet By a programmable controller, with DC control of the coil

Ambient air temperature

around the device

Storage: -13 to +158 °F (- 25 to + 70 °C) Storage: -13 to +158 °F (- 25 to + 70 °C)

Operation: -13 to +122 °F (- 25 to+ 50 °C) Operation: -13 to +122 °F (- 25 to + 50 °C)

Insulation rms voltage between inputs and outputs: 2.5 kV Common negative terminals

Wiring Max: 2 x 2.5 mm2, Min: 1 x 1 mm2Max: 2 x 2.5 mm2, Min: 1 x 1 mm2

Max: 2 x 14 AWG, Min: 1 x 16 AWG Max: 2 x 14 AWG, Min: 1 x 16 AWG

Operating limits 0.85-1.1 Uc 0.8-1.1 Uc q

Protection Against reverse polarity (by diode) and against overvoltage Against reverse polarity (by diode) and against overvoltage

Indication of input state By LED –

Type

INTEGRAL 32 INTEGRAL 63 INTEGRAL 32 INTEGRAL 63

LA1LC LA1LD LA1LC LA1LD

580BD 580ED 180BD 580BD 580ED 180BD 080BD 080ED 080FD 080BD 080ED 080FD

Wiring Schematics

LA1L•580•D LA1L•180BD LA1L•080BD

LA1L•080ED LA1L•080FD

Input signals

(logic side)

24 Vdc 48 Vdc 5-24 Vdc 24 Vdc 48 Vdc 5-24 Vdc 24 Vdc c48 Vdc c24 Vdc c48 Vdc –

(E1-E2) (E1-E2) (E1- E2) (E1-E2) (E1-E2) (E1-E2) (E3-E2) (E3-E2) – (E3-E2) (E3-E2) –

30 mA 20 mA 8.5 at 5V

15 at 24V 50 mA 25 mA 8.5 at 5V

15 at 24V 20 mA 10 mA – 20 mA 10 mA –

State “0” guaranteed for U < 2.4 Vac < 4.8 Vac < 2.5 Vac < 2.4 Vac < 4.8 Vac < 2.5 Vac < 7 Vac < 14 Vac – < 7 Vac < 14 Vac –

I < 2 mA < 2 mA < 2 mA < 2 mA < 2 mA < 2 mA < 5 mA < 2.5 mA – < 5 mA < 2.5 mA –

State “1” guaranteed for U > 20.4 Vac > 40.8 Vac > 4 Vac > 20.4 Vac > 40.8 Vac > 4 Vac > 14 Vac > 28 Vac – > 14 Vac > 28 Vac –

Supply voltage 24-240 Vac 24-240 Vac 24-240 Vac 24-240 Vac 24-240 Vac 24-240 Vac 24 Vdc q48 Vdc q110 Vdc q24 Vdc q48 Vdc q110 Vdc q

(A1-A2) (A1-A2) (A1-A2) (A1-A2) (A1-A2) (A1-A2) (E1-E2) (E1-E2) (E1-E2) (E1-E2) (E1-E2) (E1-E2)

Electrical durability

in millions of operating cycles 5 1

Average

consumption

Inrush 50 Hz 160 VA 160 VA 160 VA 375 VA 375 VA 375 VA ––––––

60 Hz 185 VA 185 VA 185 VA 450 VA 450 VA 450 VA ––––––

DC––––––250 W 250 W 250 W 300 W 300 W 300 W

Sealed 50/60 Hz 12 VA 12 VA 12 VA 25 VA 25 VA 25 VA ––––––

DC––––––4 W4 W4 W8 W8 W8 W

Operating time

at 68 °F (20 °C)

and at Uc

Pull-in 15-30 ms 15-30 ms 10-35 ms 20-40 ms 20-40 ms 10-45 ms 30 ms 30 ms 30 ms 35 ms 35 ms 35 ms

Drop-out 22-35 ms 22-35 ms 8-30 ms 25-45 ms 25-45 ms 8-30 ms 15 ms 15 ms 15 ms 20 ms 20 ms 20 ms

–

(0V)

–(0V)

INTEGRAL™ Self-Protected Combination Motor Controllers

Specifications

36 01/00

Environment — Control and Suppressor Modules

Conforming to standards IEC 337-1

Protective treatment “TH”

Ambient air temperature

around the device

Storage -104 to + 176 °F (- 40 to + 80 °C)

Operation -13 to + 131 °F (- 25 to + 55 °C)

Permissible for operation at Uc -13 to + 158 °F (- 25 to + 70 °C)

Protection against direct

ﬁnger contact Conforming to VDE 0106

Control modules “Automatic-Manual-Stop” LA4DM for INTEGRAL 18

Application The “Automatic-Manual” selector switch must be operated with the “Start-Stop” switch in the “Stop” position

Indication By LED incorporated in the unit; illuminated when the contactor breaker coil is energized

Protection Against electrical shocks 2 kV

Built-in protection Contactor coil suppression By varistor

Electrical life 20,000 operating cycles

Contact block

speciﬁcations

Rated insulation voltage (Ui) 250 Vac conforming to IEC 158-1 and VDE 0110 group C

Rated operational voltage (Ue) 250 Vac

Wire Size Maximum c.s.a.: 2 x 2.5 mm2, Minimum c.s.a.: 1 x 1 mm2

Maximum: 2 x 14 AWG, Minimum: 1 x 16 AWG

Suppressor modules LA4DA, DE for INTEGRAL 18

Type LA4DA2• LA4DE2•

Type of protection RC (Resistor-capacitor) Varistor

Wiring Schematics

Rated operational voltage (Ue) 50/60 Hz 24-250 Vac 24-250 Vac

Maximum peak voltage 3 Uc 2 Uc

Natural RC frequency 24/48 Vac 50/127 Vac 110/240 Vac –

400 Hz 200 Hz 100 Hz –

Insulation voltage Conforming to IEC 158-1 and

VDE 0110 group C 250 Vac 250 Vac

Suppressor module LA9-D09982 for INTEGRAL 18, 32 and 63

Type of protection RC (Resistor-Capacitor)

Wiring Schematic

Operational voltage ≤ 250 Vac

INTEGRAL™ Self-Protected Combination Motor Controllers

Specifications

Environment — Tripping and Reset Devices

Conforming to standards

Protective treatment

Ambient air temperature

around the device

Storage -40 to +176 °F (-40 to +80 °C)

Operation -13 to +131 °F (-25 to +55 °C)

Permissible for operation at Uc -13 to +158 °F (-25 to +70 °C)

Protection against direct ﬁnger contact Conforming to VDE 0106

Tripping devices

Type LA1LC070•, LC072• LA1LC071•

Pull-in voltage 0.8-1.1 Uc 0.7-1.1 Uc

Drop-out voltage 0.35-0.7 Uc –

Average consumption Inrush 8 VA 8 VA

Sealed 4 VA 4 VA

Minimum impulse duration – 10 ms

Reset devices

Type LA1LC052•

Consumption 9 VA

Duration of a reset cycle 9 sec

Minimum impulse duration 0.5 sec

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18 Auxiliary Contact States

38 01/00

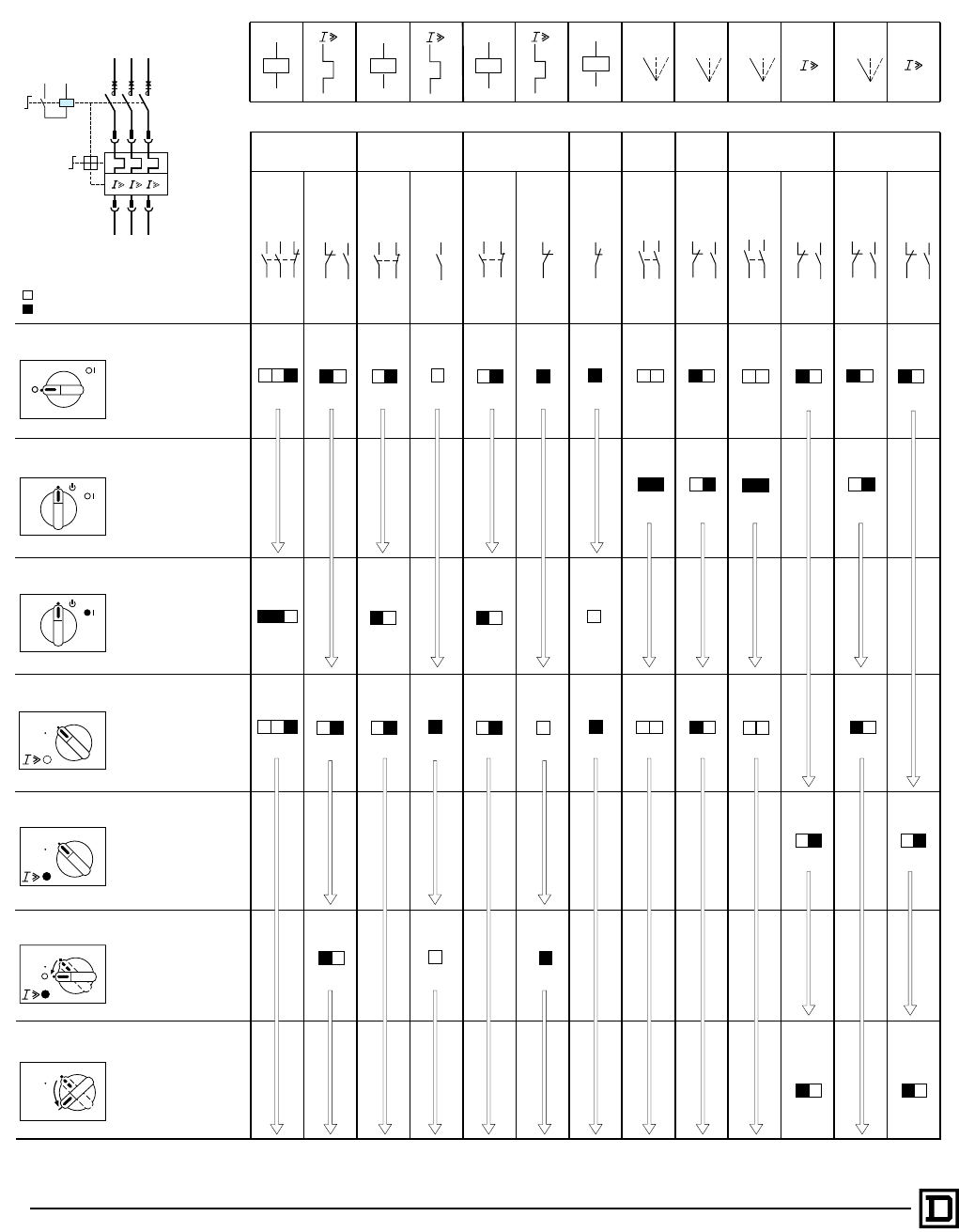

Non-Reversing INTEGRAL 18

LA1LB015 LA1LB017 LA1LB019 LA1

LB001 LA1

LB031 LA1LB034

05 07

13 23 31

14 24 32

13 31

14 32

98 97

96 98

95 97

13 31

14 32

96 95

4142

15 17

16 18

18 17

15 17

16 18

18 17

Auxiliary contact actuators

Auxiliary contacts

contact open

contact closed

AUTO

RESET

TRIP. +

AUTO

Off

On, contactor open

On, contactor closed

Tripped on overload

Tripped on short-circuit

Off after short-circuit

Manual reset

LA1

LB0311 LA1LB0341

18 17

16 08

05 07

AUTO +0AUTO +0AUTO +0AUTO +0

13 23 31

14 24 32

13 23 31

14 24 32

96 98

95 97

96 98

95 97 13 31

14 32

13 31

14 32

13 31

14 32

13 31

14 32

95 41

15 17

16 18

15 17

16 18

15 17

16 18

15 17

16 18

05 07

TRIP. +

LD1

1/L1

3/L2

5/L3

2/T1

4/T2

6/T3

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 18 Auxiliary Contact States

Reversing INTEGRAL 18

LA1LB015 LA1LB017 LA1LB019 LA1

LB001 LA1

LB001

LA1LB0211

13 23 31

14 24 32

13 31

14 32

98 97

96 98

95 97

13 31

14 32

96 95

4142

18 17

15 17

16 18

Auxiliary contact actuators

Auxiliary contacts

contact open

contact closed

AUTO

RESET

TRIP. +

AUTO

Off

On, contactors open

On, closed

Tripped on overload

Tripped on short-circuit

Off after short-circuit

Manual reset

On the

INTEGRAL

LA1LB021

18 17

16 08

05 07

AUTO +0AUTO +0

13 23 31

14 24 32

13 23 31

14 24 32

96 98

95 97

96 98

95 97

13 31

14 32

13 31

14 32

13 31

14 32

13 31

14 32

15 17

16 18

15 17

16 18

05 07

TRIP. +

4142

13 23 31

14 24 32

13 23 31

14 24 32

AUTO

On, closed

13 23 31

14 24 32

13 23 31

14 24 32

13 23 31

14 24 32

13 23 31

14 24 32

LD1

1/L1

3/L2

5/L3

6/T3

2/T1

4/T2

II I

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 32 and 63 Auxiliary Contact States

40 01/00

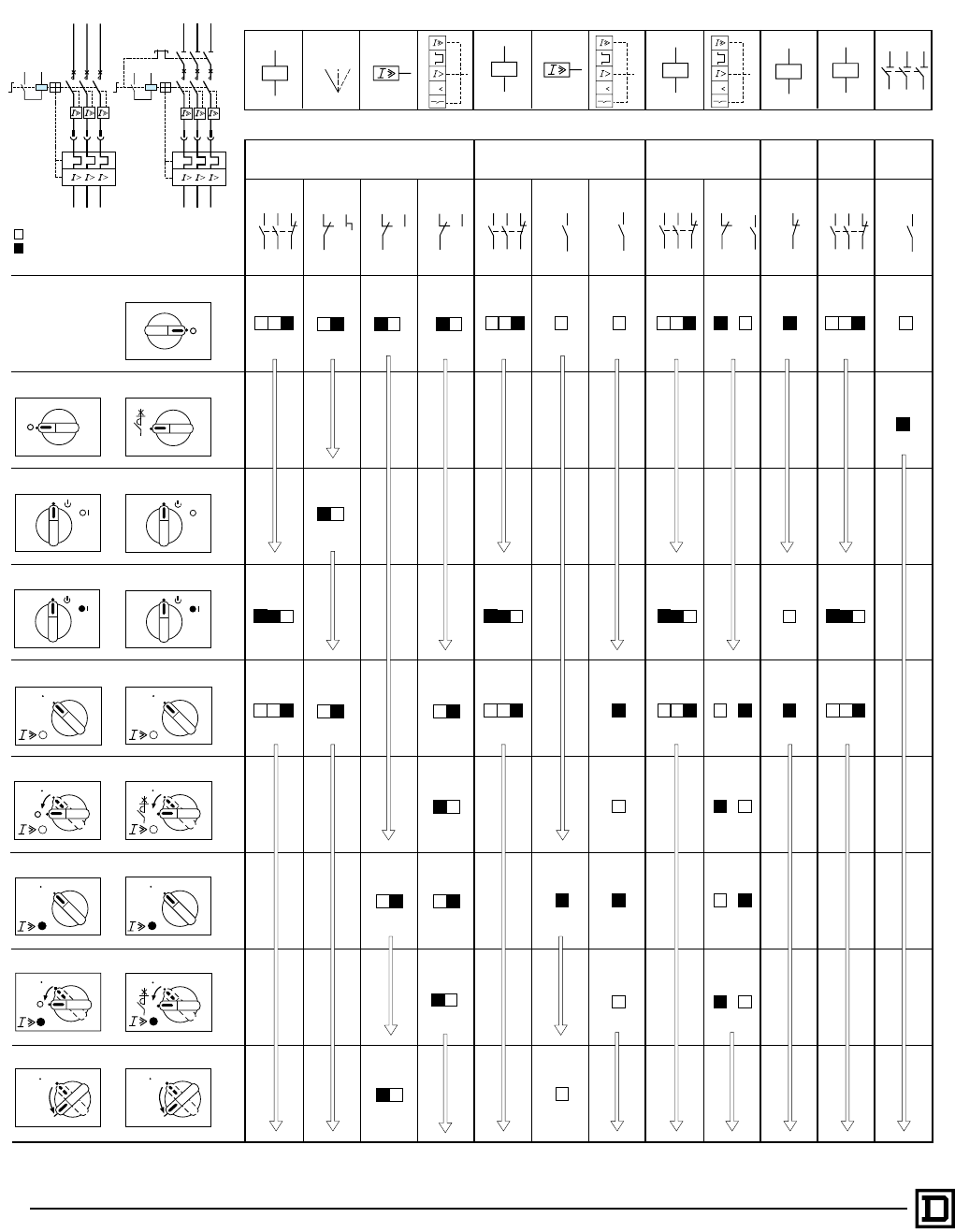

Non-Reversing INTEGRAL 32 and 63

LA1LC010 LA1LC012 LA1

LC001

13 23 31

14 24 32

05 08

Auxiliary contact actuators

Auxiliary contacts

contact open

contact closed

AUTO

RESET

TRIP. +

Off

On, contactor open

Tripped on overload

Off after overload

Tripped on short-circuit

Off after short-circuit

Manual reset

LA1LC025

AUTO +0

13 23 31

14 24 32

13 23 31

14 24 32

TRIP. +

4142

13 23 31

14 24 32

13 23 31

14 24 32

AUTO

On, contactor closed

13 23 31

14 24 32

13 23 31

14 24 32

13 23 31

14 24 32

13 23 31

14 24 32

LA1

LC030

LA1

LC020

LD1 LD4

Off + isolation

AUTO

TRIP. +TRIP. +

TRIP. +

RESET

TRIP. +

15 16

05 06

95 96

95 98

95 96

(54)

64 (53)

13 23 31

14 24 32

96 98

16 18

06 08

13 23 31

14 24 32

13 23 31

14 24 32

16 18

96 98 98

96 98

06 08

96 98

U U

LD1 LD4

2/T1

4/T2

6/T3 5/L3

3/L2

1/L1

2/T1

4/T2

6/T3

1/L1

3/L2

5/L3

INTEGRAL™ Self-Protected Combination Motor Controllers

INTEGRAL 32 and 63 Auxiliary Contact States

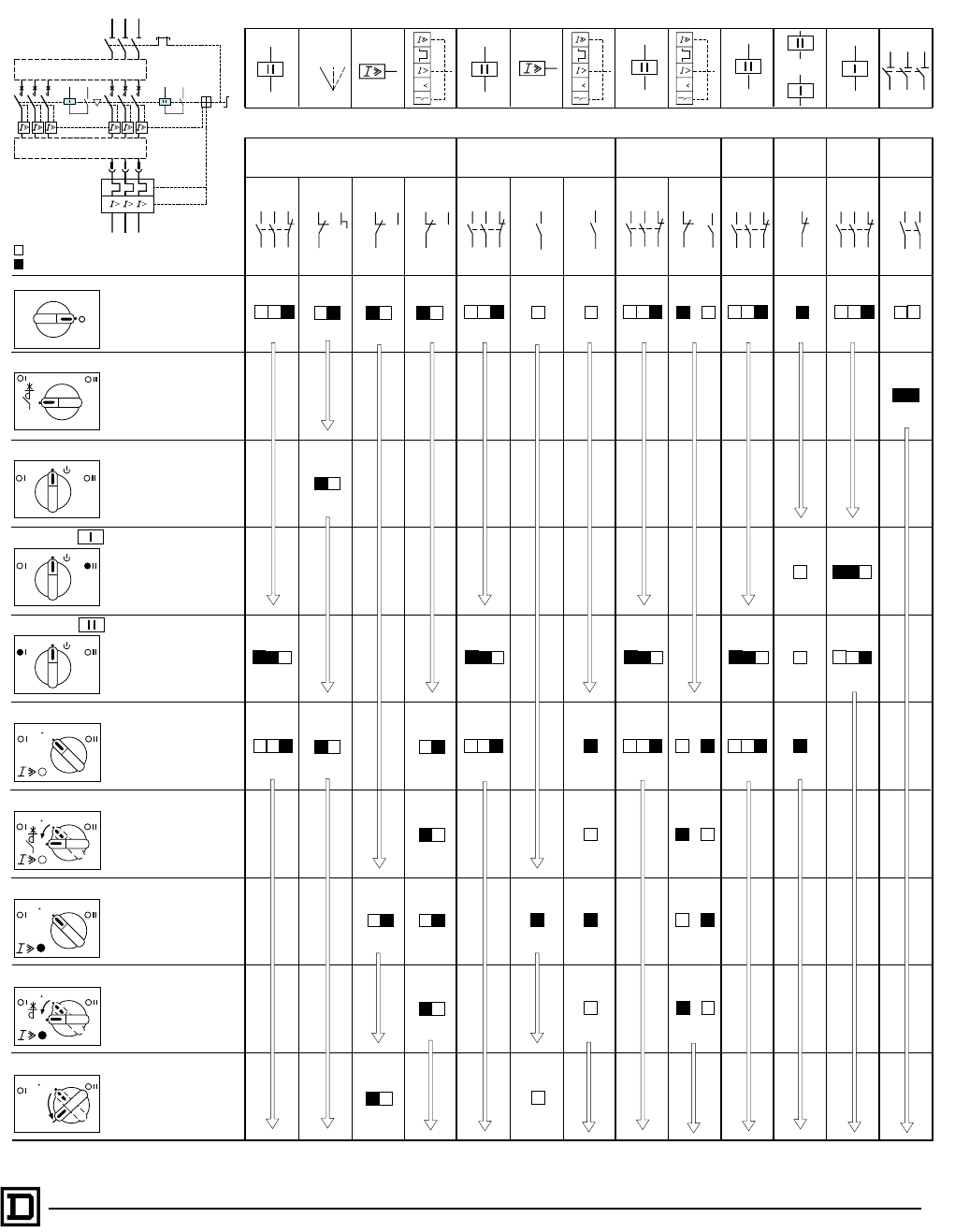

Reversing INTEGRAL 32 and 63

LA1LC010 LA1LC012 LA1

LC020

13 23 31

14 24 32

05 08

Auxiliary contact actuators

Auxiliary contacts

contact open

contact closed

Off

On, reversing contactor open

Tripped on overload

Off after overload

Tripped on short-circuit

Off after short-circuit

Manual reset

LA1LC025

AUTO +0

13 23 31

14 24 32

13 23 31

14 24 32

4142

13 23 31

14 24 32

13 23 31

14 24 32

On, closed

13 23 31

14 24 32

13 23 31

14 24 32

13 23 31

14 24 32

13 23 31

14 24 32

LA1

LC031

LA1

LC021

U U U

Off + isolation

15 16

05 06

95 96

95 98

95 96

13 23 31

14 24 32

96 98

16 18

06 08

13 23 31

14 24 32

13 23 31

14 24 32

16 18

96 98 98

96 98

06 08

On, closed

TRIP. +

RESET

TRIP. +

AUTO

LA1

LC001

64 63

13 23 31

14 24 32

13 23 31

14 24 32

13 23 31

14 24 32

96 98

LD5

2/T1

4/T2

6/T3

1/L1

3/L2

5/L3

INTEGRAL™ Self-Protected Combination Motor Controllers

Wiring Diagrams

42 01/00

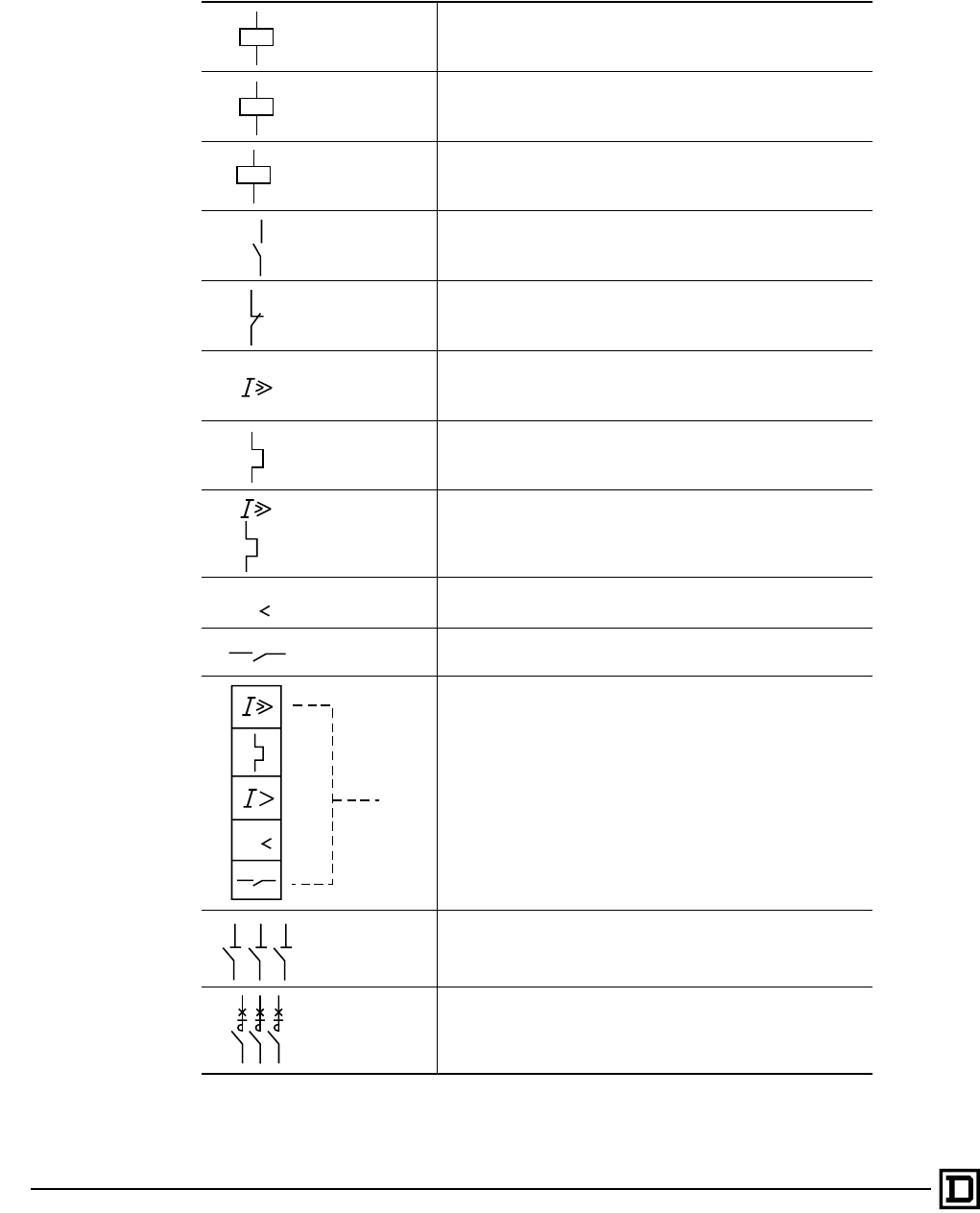

The symbols below are used to show the operation of the INTEGRAL CMC and its overload module and

auxiliary blocks. Most are taken directly from IEC Standard symbology, but since the INTEGRAL CMC

is a unique product, some of the symbols are unique to the device.

Contactor Coil

Left contactor coil on a reversing INTEGRAL CMC

Right contactor coil on a reversing INTEGRAL CMC

Normally open contact

Normally closed contact

“Magnetic-Level” trip – an occurrence of >15 times the

dial current setting

“Thermal-Level” trip – a trip caused by an overcurrent of

105% to 1500% of the dial current setting

A trip caused by either thermal or magnetic level fault

Undervoltage trip – when used with an LA1LC070 or

LA1LC072

Shunt trip – when used with an LA1LC071

Auxiliary contact that activates when device trips due to:

magnetic-level or thermal-level overcurrent,

undervoltage, or shunt trip.

Isolator contact on INTEGRAL 32 and INTEGRAL 63

INTEGRAL contactor/circuit breaker contact set

INTEGRAL™ Self-Protected Combination Motor Controllers

Wiring Diagrams

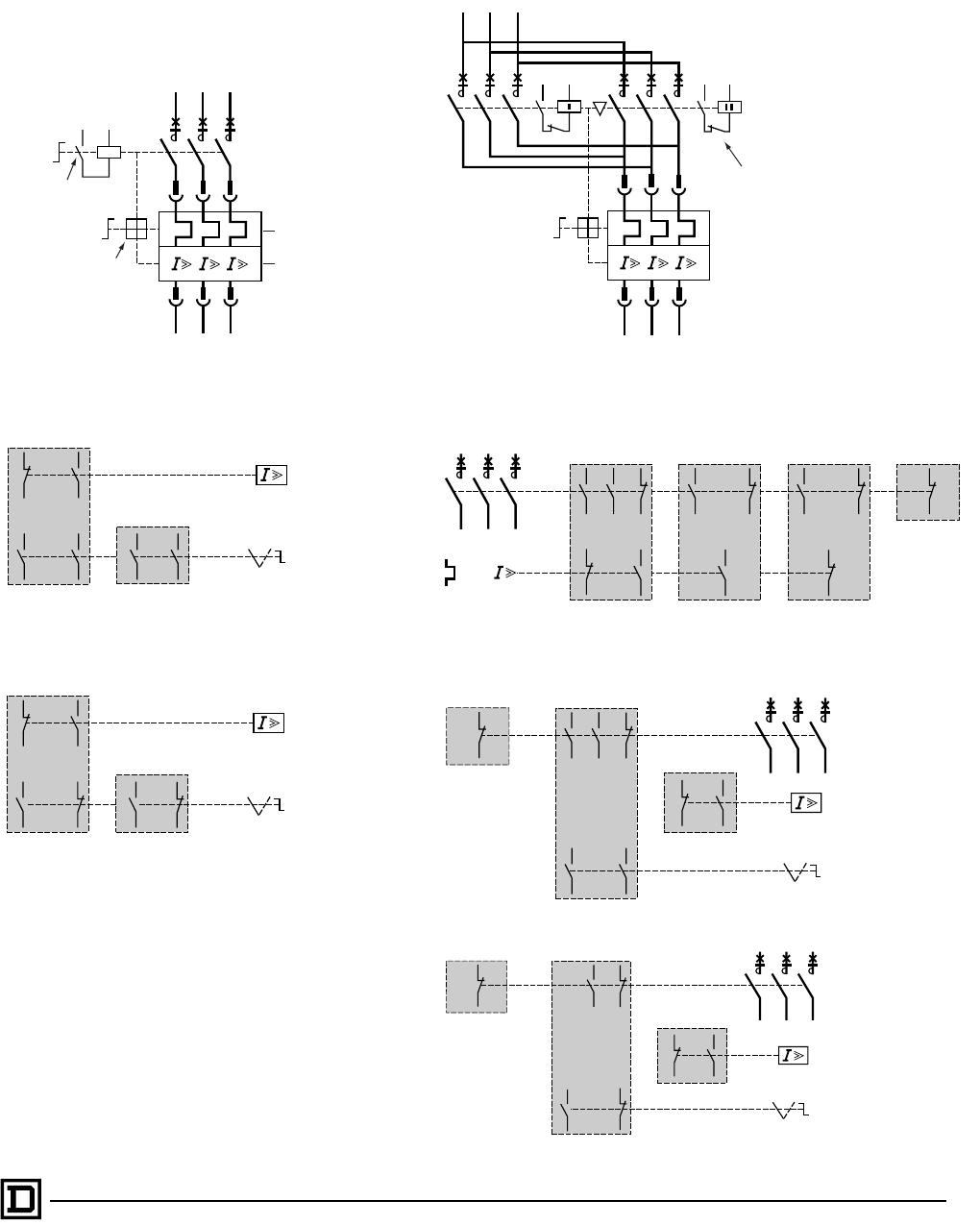

INTEGRAL 18 Non-Reversing CMC INTEGRAL 18 Reversing CMC

with protection module LB• with protection module LB•

LD1LB030 + LB1LB03P LD5LB130 + LB1LB03P

Add-on blocks

For LD1 For LD1 and LD5

Mounted on LH side Mounted on RH side

For LD5

Mounted on LH side

1/L1

3/L2

5/L3

2/T1

4/T2

6/T3

Handle

Operator

Control

Circuit

Contact

Coil

Control

Circuit

Trip

Mechanism

Protection Module

Thermal Trip

Magnetic Trip

1/L1

3/L2

5/L3

6/T3

2/T1

4/T2

II I

Electrical

Interlock

Contact

18 17

LA1LB034

0506

0708

16 15

LA1LB031

16 15

18 17

Auto

Signalling

Short-circuit

Signalling

Control knob

position

96 95

98 97

1314

3132

98 97

1314

3132

9596

4142

LA1LB015 LA1LB017 LA1LB019 LA1LB001

Breaker

Trip signalling

18 17

LA1LB0341

0506

0708

16 15

LA1LB0311

16 15

18 17

Auto 0

Short-circuit

signalling

Signalling

Control knob

position

18 17

LA1LB021

16 15

4142

LA1LB001

08 07

0506

Auto 0

Breaker

Short-circuit

signalling

Signalling

Control knob

position

Contacts

incorporated

in unit

18 17

LA1LB0211

16 15

4142

LA1LB001

08 07

0506

Auto 0

Breaker

Short-circuit

signalling

Signalling

Control knob

position

Contacts

incorporated

in unit

INTEGRAL™ Self-Protected Combination Motor Controllers

Wiring Diagrams

44 01/00

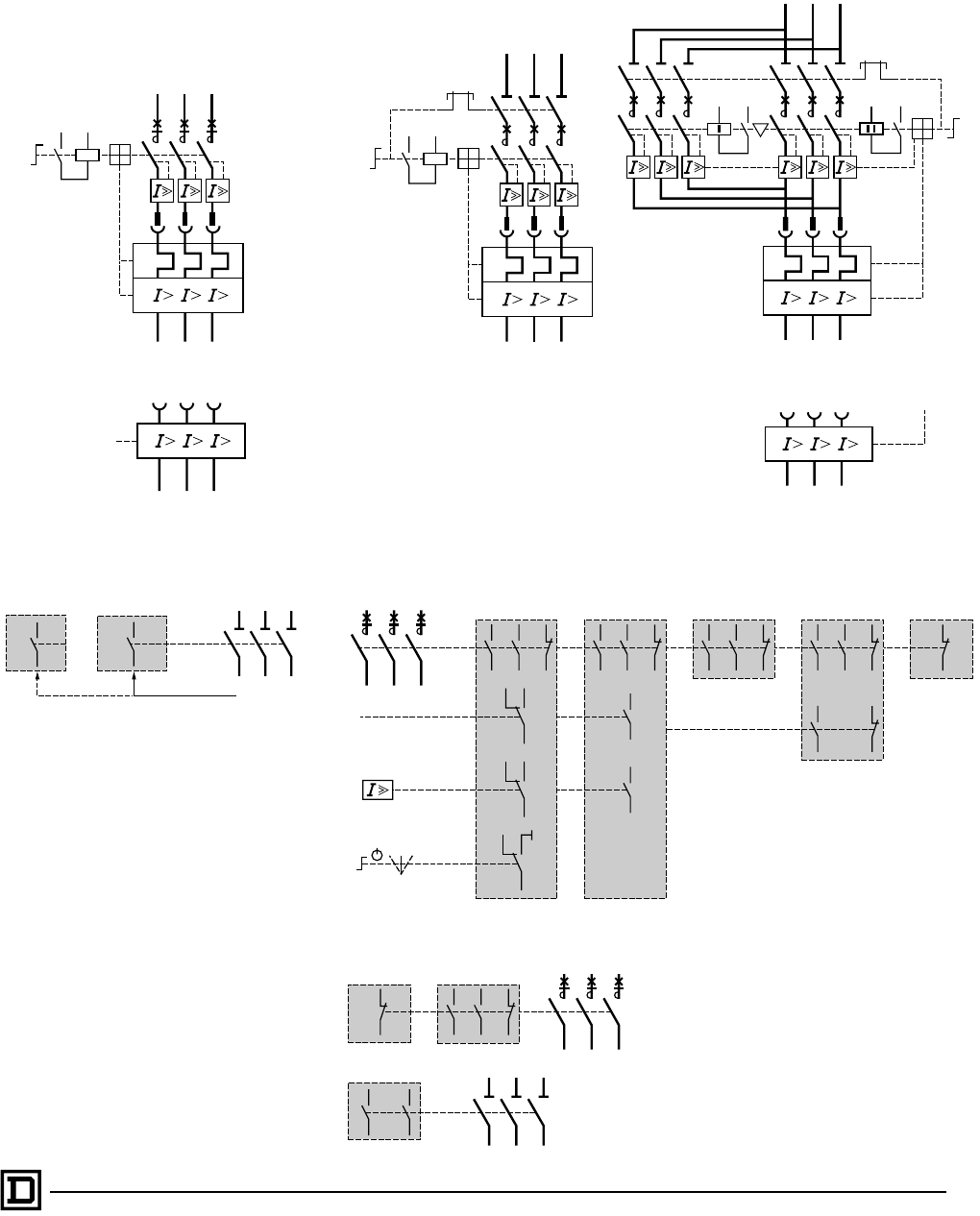

INTEGRAL 32 Non-Reversing CMC INTEGRAL 32 Reversing CMC

with protection module LB• with protection module LB•

LD1LC0•0 + LB1LC0•• LD4LC••0 + LB1LC0•• LD5LC•30 + LB1LC03M

LB6LC03M LB6LC03M

Add-on blocks

For LD4 For LD1 or LD4 and LD5

Mounted on LH side Mounted on RH side

For LD5

Mounted on LH side

2/T1

4/T2

6/T3

1/L1

3/L2

5/L3

1/L1

3/L2

5/L3

2/T1

4/T2

6/T3

2/T1

4/T2

6/T3

1/L1

3/L2

5/L3

2/T1

4/T2

6/T3

2/T1

4/T2

6/T3

54 53

(63)(64)

LA1LC030

1 or 2 LA1LC030

Isolator

1314

3132

95 98

1314

3132

4142

LA1LC010 LA1LC012 LA1LC020 LA1LC001

9895

0805

1815

0Auto

2324

05 08

2324

1314

3132

LA1LC025

2324

9895

9695

Breaker

Trip signalling

Short-circuit

signalling

Control knob

position signalling

1314

3132

4142

LA1LC021LA1LC001

2324

54 53

64 63

LA1LC031

Isolator

INTEGRAL™ Self-Protected Combination Motor Controllers

Wiring Diagrams

INTEGRAL 63 Non-Reversing CMC INTEGRAL 63 Reversing CMC

with protection module LB• with protection module LB•

LD1LD030 + LB1LD03• LD4LD•30 + LB1LD03• LD5LD•30 + LB1LD03M OR LD03P

LB6LD03M LB6LD03M

Add-on blocks

For LD4 For LD1 or LD4 and LD5

Mounted on LH side Mounted on RH side

For LD5

Mounted on LH side

2/T1

4/T2

6/T3

–Q1

1/L1

3/L2

5/L3

2/T1

4/T2

6/T3 5/L3

3/L2

1/L1

–Q1

2/T1

4/T2

6/T3

1/L1

3/L2

5/L3

2/T1

4/T2

6/T3

2/T1

4/T2

6/T3

54 53

(63)(64)

LA1LC030

1 or 2 LA1LC030

Isolator

1314

3132

95 98

1314

3132

4142

LA1LC010 LA1LC012 LA1LC020 LA1LC001

9895

0805

1815

0Auto

2324

05 08

2324

1314

3132

LA1LC025

2324

9895

9695

Breaker

Trip signalling

Short-circuit

signalling

Control knob

position signalling

1314

3132

4142

LA1LC021LA1LC001

2324

54 53

64 63

LA1LC031

Isolator

INTEGRAL™ Self-Protected Combination Motor Controllers

Wiring Diagrams

46 01/00

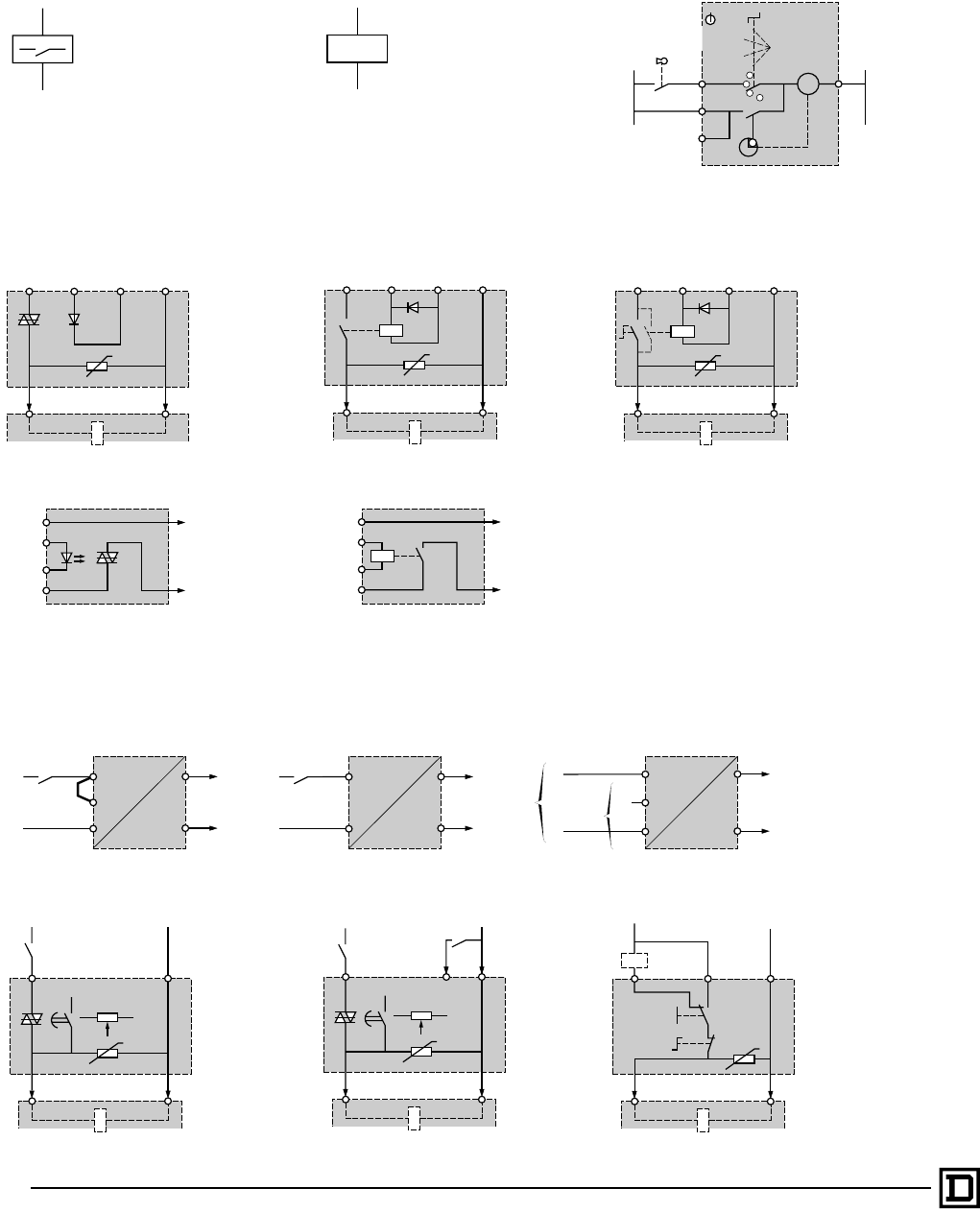

Tripping devices ■ for LD1, LD4, LD5 Remote electrical reset devices ■

for LD1, LD4, LD5

LA1LC071 LA1LC070, LC072 LA1LC052•

■For INTEGRAL self-protected CMCs already ﬁtted with an LA1LC010 or LA1LC012 instantaneous auxiliary contact block.

Interface modules

LA4DW solid state LA4DF relay output LA4DL relay output (with manual override)

Interface modules

LA1LC180, LD180 LA1LC580, LD580

Voltage converters

LA1LB080, LC080, LD080

(supplied with devices for DC operation)

Switching by control contact Switching by control contact Switching by “low level” input

24 or 48 V 110 V 24 or 48 V

Electronic serial timer modules Control modules Automatic-Manual-Stop

LA4DT On-delay LA4DR Off-delay LA4DM•

C1C2

D1D2

TRIP +

RESET

Auto The use of

instantaneous

auxiliary contact

block LA1LC020

prevents the use

of tripping

devices or

electrical reset

devices.

–

(0V)

–

(0V)

–

(0V)

–

aa a

Supply Low

level

input

A2 A2

(1)

I/O

AUTO/

MAN

INTEGRAL™ Self-Protected Combination Motor Controllers

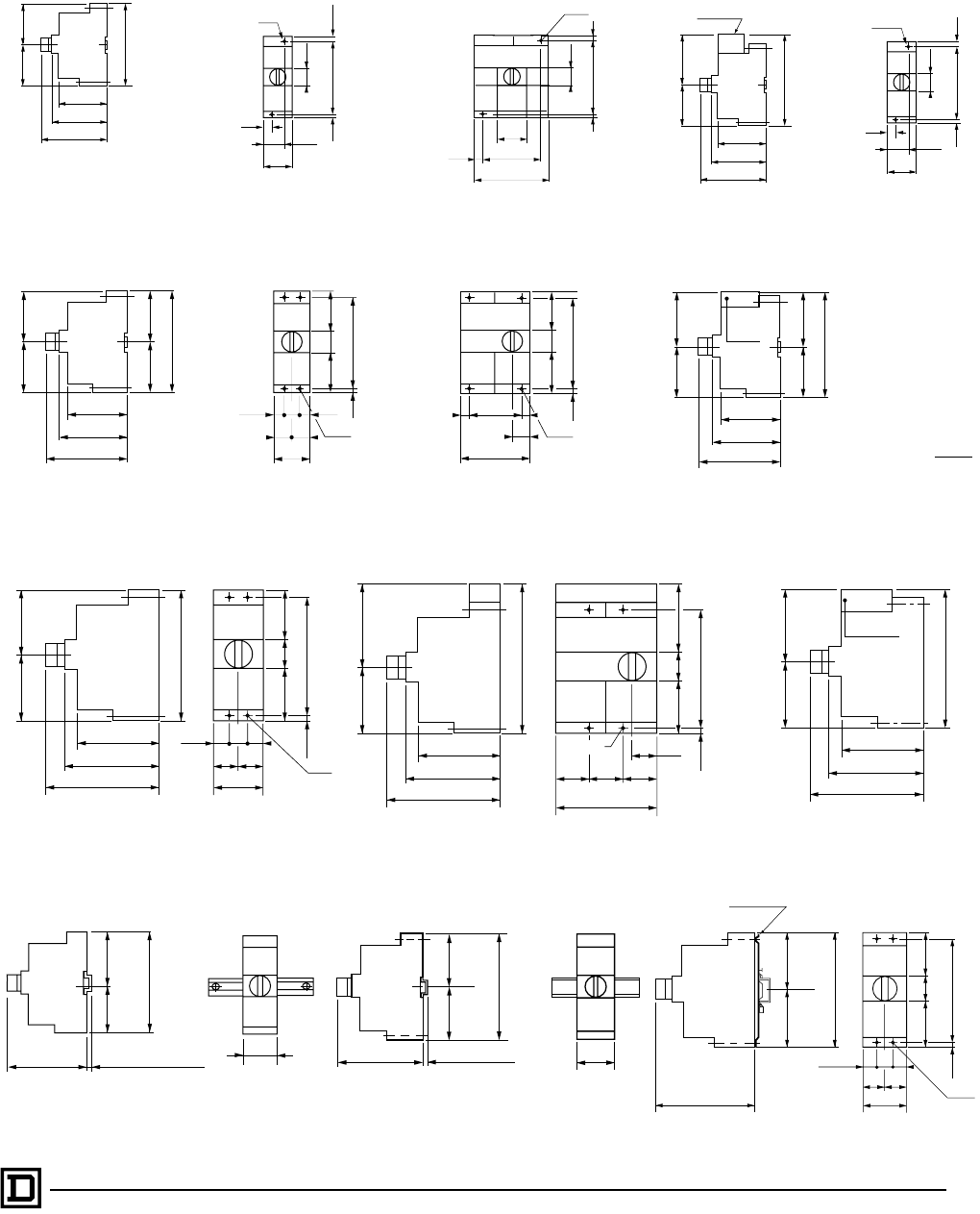

Dimensions

INTEGRAL 18 Non-Reversing and Reversing

AC control circuit LD1LB030 LD5LB130 DC control circuit

Common side view + LB1LB03P•• + LB1LB03P••.

INTEGRAL 32 Non-Reversing and Reversing

AC control circuit LD•LC030 LD5LC030 DC control circuit

Common side view + LB•LC03M•• + LB•LC03M•• LD•LC030 + LB•LC030M•• + LA1LC080

INTEGRAL 63 Non-Reversing and Reversing

AC control circuit DC control circuit

Non-reversing, LD•LD030 + LB•LD03M•• Reversing, LD5LD•30 + LB•LD03M•• LD•LD030 +

LB•LD030M•• + LA1D080

INTEGRAL 18 INTEGRAL 32 INTEGRAL 63

Mounting on 35 mm DIN rail Mounting on 35 mm DIN rail Mounting on 75 mm DIN rail

4.8

123

2.7

70 3.09

78.5

5.85

148.5

4.31

109.5

5.47

139

1.77

0.17

4.5

1.77

5.31

135

2 x ØM4

0.27

6.8

0.27

6.8

1.59

40.5

3.9

3.5

2xM4

0.17

4.5

5.31

135

1.77

4.8

123

2.7

70 3.84

97.5

6.59

167.5

4.31

109.5

LA1LB080

5.47

139

1.41

1.77

.17

4.5

1.77

5.31

135

2xøM4

1.77

0.17

4.5

1.77

5.31

135

2 x ØM4

0.27

6.8

0.27

6.8

1.59

40.5

2.60

2.69

68.5

1.77

0.74

19 4xM4

6.30

160

2.69

68.5

0.31

3.70

3.46

4.29

109

4.84

123

6.1

7.17

182

3.50

89 3.66

155 5.2

132

1.3

1.17

2.67

68.5 2.67.

68.5

3.34

85 4xM4

6.30

160

0.31

3.9

100

7.40

188

LA1-

LC080

3.50

89 3.9

3.46

4.84

123

4.29

109

6.1

155 Dual Dimensions inches

4.78

121.5

4.78

121.5

5.75

146 6.24

158.5

192

9.57

243

3.54

3.84

97.5

1.77

3.95

100.5

1.10

8.27

210

0.65

16.5

4xM5

7.56

9.8

250

LA1LD080

5.75

146 6.24

158.5

192

7.56

5.06

128.5

4.78

121.5

6.04

153.5

4.78

121.5

5.83

148 6.32

160.5

194

10.8

275

7.13

181

5.20

129.5

1.77

3.95

100.5

2.32

2.48

2.32

1.77

8.27

210

0.65

16.5

4xM5

7.64

3.07

5.47

139

0.39 (AM1 DE200)

2.76

70.5

5.85

148.5

1.77

3.5

3.66

7.17

182

6.10

155

2.60

0.39 (AM1-DE200)

5.41

137.5

5.06

128.5

10.47

266

3.54

3.84

97.5

1.17

3.95

100.5

1.10

LA9LD010

8.27

210

0.65

16.5

4xM4

7.56

192

INTEGRAL™ Self-Protected Combination Motor Controllers

Dimensions

48 01/00

Auxiliary blocks

Mounting on INTEGRAL 18 self-protected CMCs

LA1B015/017/019 LA1LB031 LA1LB034LA1LB080BD

LA1LB001 LA1LB0311 LA1LB0341LA4D

Auxiliary blocks

Mounting on INTEGRAL 32 and 63 self-protected CMCs

LA1LC012 LA1LC010 LA1LC052 LA1LC020 LA1LC030 LA1LC025

LA1LC001 LA1LC07• (1 or 2) LA1lC001

Auxiliary blocks

Mounting on INTEGRAL 18 self-protected CMCs

LA1B015/017/019 LA4D••

LA1LB021, LA1LB001

Auxiliary blocks

Mounting on INTEGRAL 32 and 63 self-protected CMCs

LA1LC021, LC025 LA1LC031 LA1LC012 LA1LC010 LA1LC052 LA1LC020

LA1LC001 LA1LC001 LA1LC07••

0.47

0.43

0.47

12 0.47

LA1LB080BD b = 0.75 in (19 mm)

LA4DA, DE, DF, DT b = 0.5 in (12 mm)

LA4DL, DM, DR, DW b = 0.75 in (19 mm)

Dual Dimensions inches

0.50

0.43

LA1LC001

LA1LC012

1.02

LA1LC010

LA1LC070

LA1LC071

LA1LC072

2.01

0.47

12 0.35

90.35

90.47

0.43

LA1LC001

LA1LC025

0.47

0.43

11 0.43

0.47

LA1LB080BD b = 0.75 in (19 mm)

LA4DA, DE, DF, DT b = 0.5 in (12 mm)

LA4DL, DM, DR, DW b = 0.75 in (19 mm)

0.47

0.43

0.51

LA1LC001

LA1LC025

LA1LC021

1.02

LA1LC031

LA1LC021

0.43

0.51

LA1LC001

LA1LC025

LA1LC012

1.02

LA1LC010

LA1LC070

LA1LC071

LA1LC072

2.01

0.47

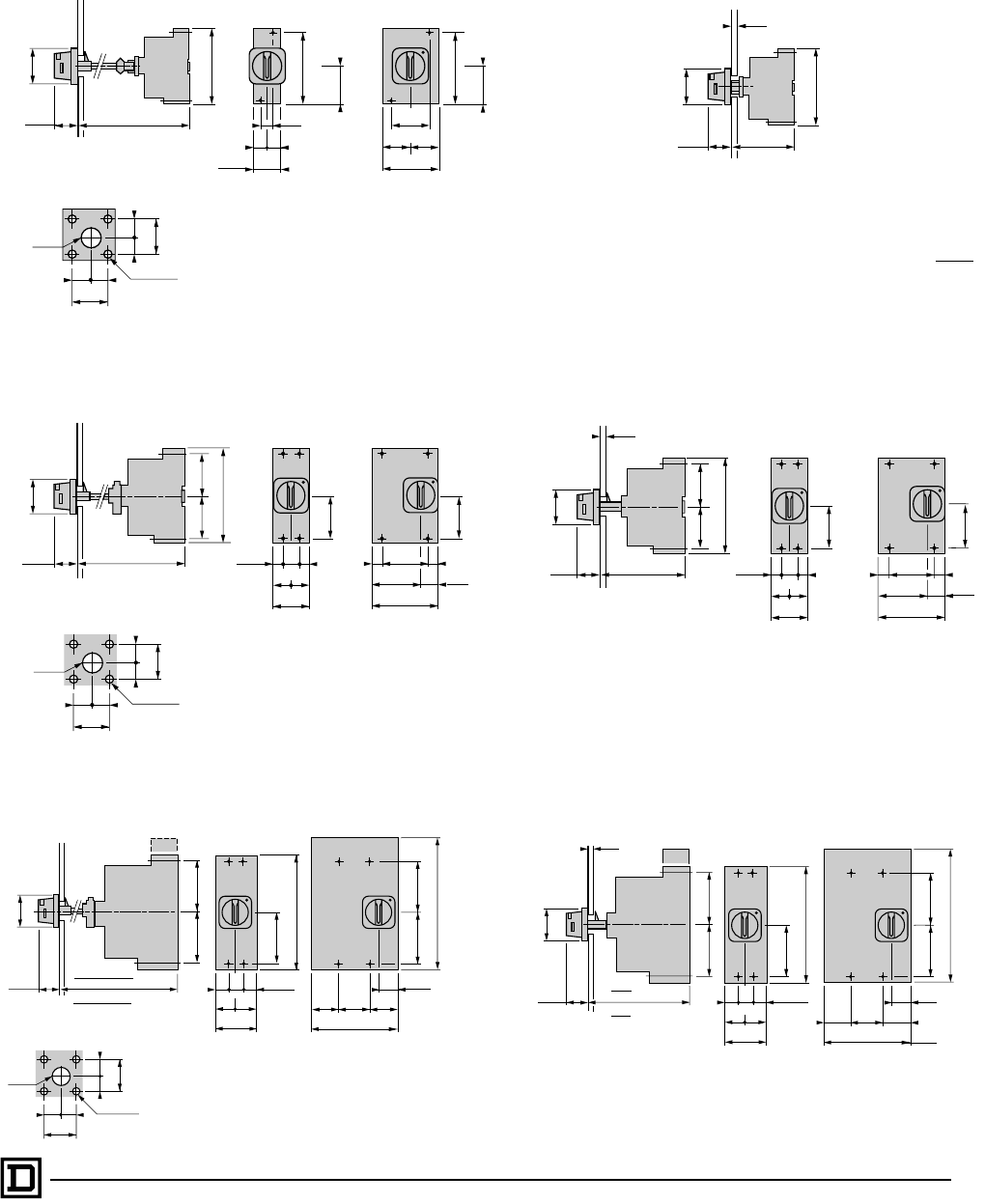

INTEGRAL™ Self-Protected Combination Motor Controllers

Dimensions

INTEGRAL 18

Adjustable door interlock mechanism LA9LB33• Non-adjustable door interlock mechanism LA9LB32•

For mounting on LD1LB030 + LB•LB03P•• For mounting on LD1LB030 + LB•LB03P••

LD5LB130 + LB•LB03P•• LD5LB130 + LB•LB03P••

INTEGRAL 32

Adjustable door interlock mechanism Non-adjustable door interlock mechanism

LA9LC33• and LA9LC53• LA9LC32• and LA9LC52•

For mounting on LD4LC•30, LD5LC•30 For mounting on LD4LC•30 + LD5LC•30

INTEGRAL 63

Adjustable door interlock mechanism Non-adjustable door interlock mechanism

LA9LC33• and LA9LC53• LA9LC32• and LA9LC52•

For mounting on LD4LD•30, LD5LD•30 For mounting on LD4LC•30 + LD5LC•30

5.85

148.5

7.09 - 13.39

180 - 340

2.13

2.56

1.42

2.49

63.25

1.77

5.31

135

2.49

63.25

3.54

3.90

5.31

135

5.85

148.5

5.28

134

2.13

2.56

(1)

Ø43

==4xØ3.5

2.13

Dual Dimensions inches

(1) Thickness: 0.2 in (5 mm) max

Door drillings

0.75

3.15

2.60

3.35

3.15

5.20

132

3.90

99 1.30

3.15

2.13

6.69 - 12.60

170 - 320

2.56

7.17

182

0.75

3.15

2.60

3.35

3.15

5.20

132

3.90

99 1.30

3.15

5.31

135

7.17

182

2.13

2.56

(1)

Ø43

4xØ3.5

2.13

(1) Thickness: 0.2 in (5 mm) max

Door drillings

1.10

4.13

105

3.54

9.57

243

2.48

2.32

4.13

105

4.13

105

7.13

181

1.77

10.83

275

4.13

105

4.13

105

8.15 - 14.06

207 - 357

8.23 - 14.13

209 - 359

2.13

2.56

(LD4)

(LD5)

1.10

4.13

105

3.54

9.57

243

2.48

2.32

4.13

105

4.13

105

7.13

181

1.77

10.83

275

(1)

6.85

174

2.13

2.56

4.13

105

4.13

105

6.77

172

(LD5)

(LD4)

2.32

Ø43

==4xØ3.5

2.13

(1) Thickness: 0.2 in (5 mm) max

Door drillings

INTEGRAL™ Self-Protected Combination Motor Controllers

Dimensions

50 01/00

INTEGRAL 18 contactor breakers and reversing contactor breakers

Flush mounting Safety clearance

INTEGRAL 32 contactor breakers and reversing contactor breakers

Flush mounting Safety clearance

INTEGRAL 18 contactor breakers and reversing contactor breakers

Flush mounting Safety clearance

Dual Dimensions inches

0.08

0.16

0.79

1.81

0.04

(1) (2)

aa1a2

LD1LB030 1.81/46 – –

LD5LB130 3.94/100 – –

LA1LB0•• – 0.53/13.5 –

2 x LA1LB0•• – – 1.06/27

(1) Center of operating knob

(2) Mounting center

0.16

0.79

1.81

0.04

(2) (3)

(1)

aa1a2

LD1LC030 2.6/66 – –

LD4LC•30 2.6/66 – –

LD1LC040 3.35/85 – –

LD4LC•40 3.35/85 – –

LD5LC•30 4.8/122 – –

LA1LC010 – 0.51/13 –

LA1LC012 – 0.51/13 –

LA1LC010 +

LA1LC052• – – 2.01/51

LA1LC012 +

LA1LC052• – – 2.01/51

(1) Maximum door thickness for interlocking by

LD4 and LD5

(2) Center of operating knob

(2) Mounting center

0.16

1.18

1.81

0.04

(2) (3)

(1)

aa1a2

LD1LD030 3.54/90 – –

LD4LD•30 3.54/90 – –

LD5LD•30 7.13/181 – –

LA1LC010 – 0.51/13 –

LA1LC012 – 0.51/13 –

LA1LC010 +

LA1LC052• – – 2.01/51

LA1LC012 +

LA1LC052• – – 2.01/51

(1) Maximum door thickness for interlocking by

LD4 and LD5

(2) Center of operating knob

(2) Mounting center

INTEGRAL™ Self-Protected Combination Motor Controllers

Dimensions

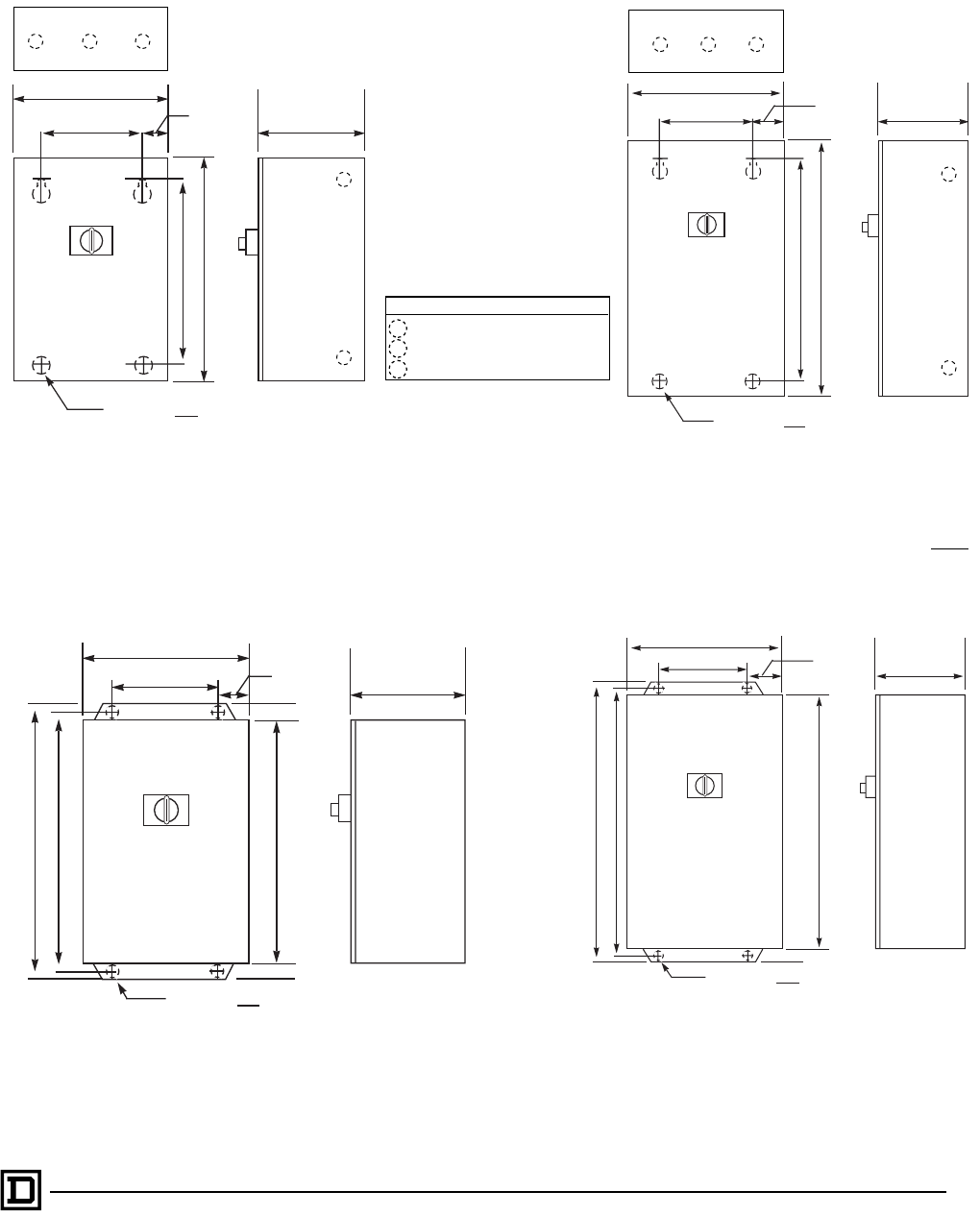

INTEGRAL Enclosures

Type 1

Type 12

Dual Dimensions inches

203 2.5

Provision for 0.25 screw

BCB

A = 0.5 in (12.7 mm) Dia.

Knockouts

C = 0.5 to 0.75 in (12.7 to 19 mm) Dia.

B = 1.0 to 1.25 in (25.4 to 31.8 mm) Dia.

356

12.5

318

6.4

7.5

191

2.5

Provision for 0.25 screw

B C B

254

7.5

191

457

16.5

419

127

6.4

INTEGRAL 18 FVNR and FVR

INTEGRAL 32 FVNR and FVR INTEGRAL 32 FVR

INTEGRAL 63 FVNR

0.44/11

0.38/9.5

2.5

Provision for 0.25 screw

15.63

397 14.88

378

356

6.4

203

7.75

197

0.44/11

0.38/9.5

2.5

Provision for 0.25 screw

19.63

498 18.88

479

457

6.4

254

7.75

197

127

INTEGRAL 18 FVNR and FVR

INTEGRAL 32 FVNR INTEGRAL 32 FVR

INTEGRAL 63 FVNR

Catalog No. 8539CT9201R11/99 January 2000. Replaces 8539CT9201R6/97 dated June 1997.

Square D Company

8001 Highway 64 East

Knightdale, NC 27545 USA

(919) 266-3671

www.squared.com

Schneider Canada Inc.

19 Waterman Avenue,

M4B 1 Y2

Toronto, Ontario

(416) 752-8020

www.schneider.ca

INTEGRAL¿ Self Protected Combination Motor Controllers Telemecanique Integral 32 Starter

Navigation menu

Versions of this User Manual:

Views

Navigation
